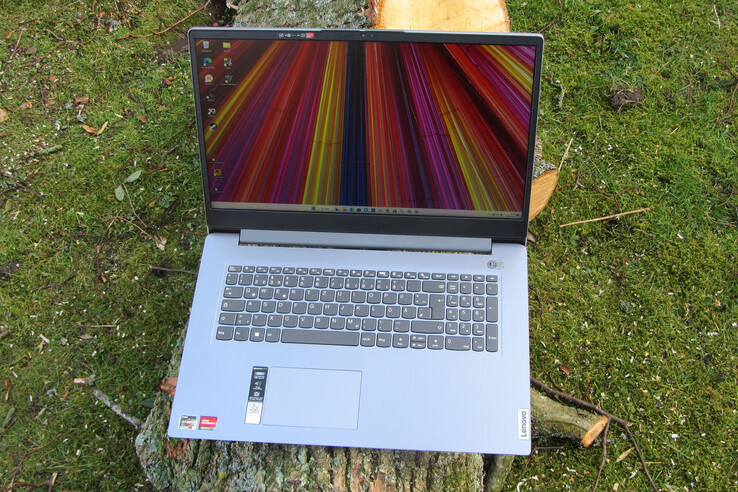

联想IdeaPad 3 17ABA7评论。办公笔记本电脑依赖于AMD Ryzen 5 Barcelo-U

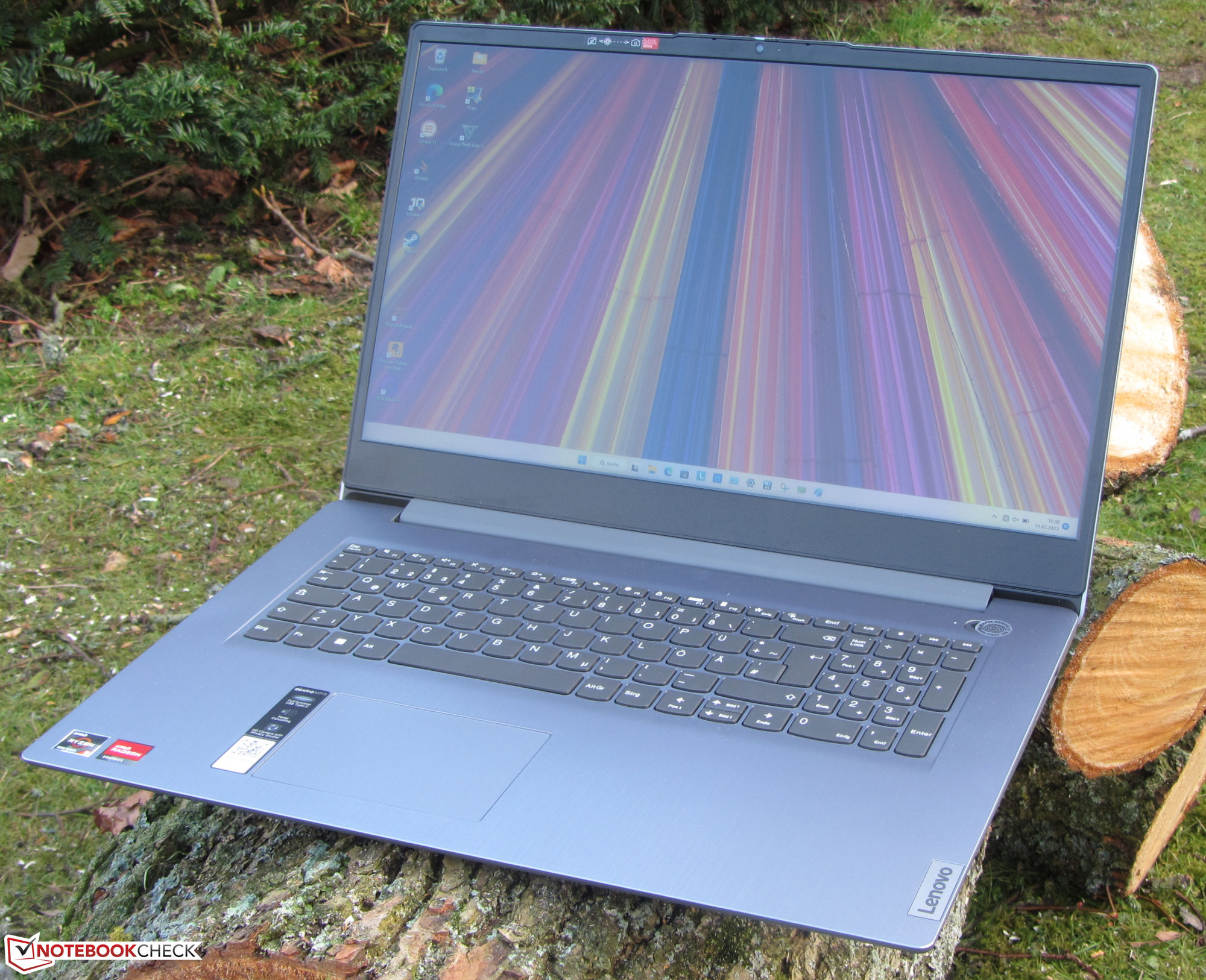

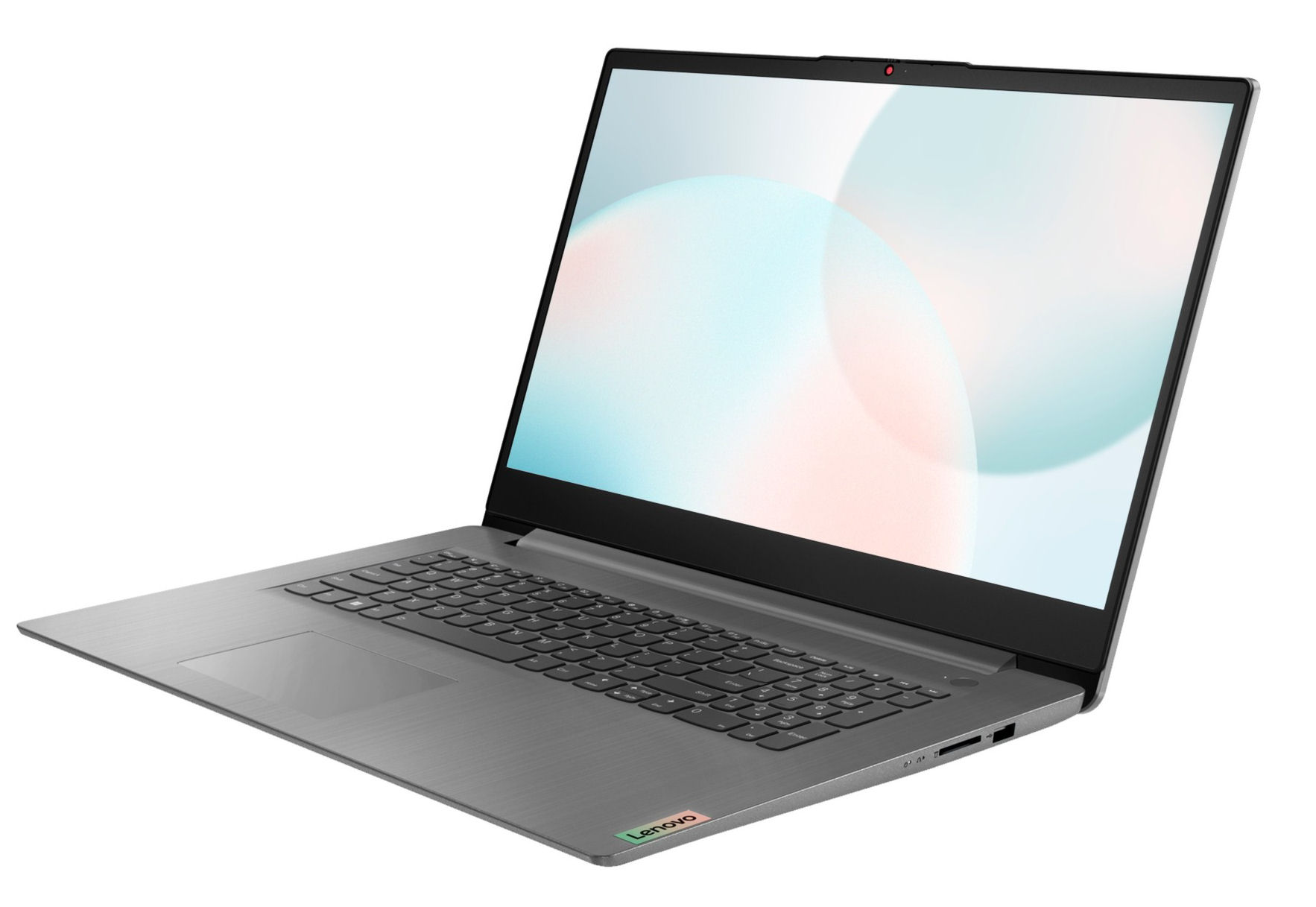

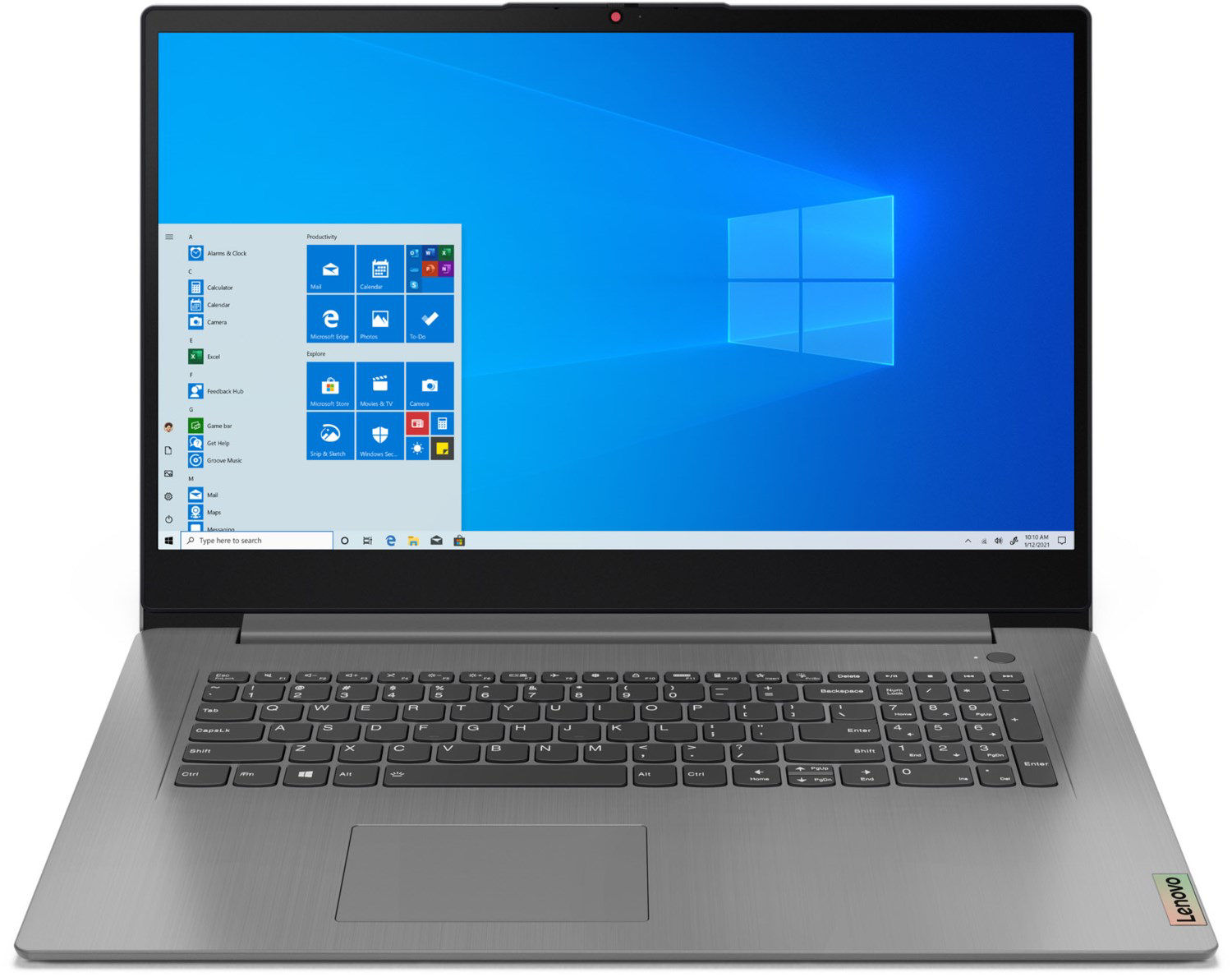

联想IdeaPad 3 17ABA7--一款17.3英寸的办公笔记本电脑--搭载了AMD Ryzen 5 5625U（巴塞洛），在测试时售价约为729欧元。我们最近审查了一个几乎相同的装备 IdeaPad 3 15ABA7.
17.3英寸IdeaPad 3的竞争主要包括诸如华硕VivoBook 17 F712JA 和宏碁Aspire 5 A517-52G 。
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 79.4 % v7 (old) | 03 / 2023 | Lenovo IdeaPad 3 17ABA7 R5 5625U, Vega 7 | 2 kg | 19.9 mm | 17.30" | 1920x1080 | |
| 76.5 % v7 (old) | 05 / 2022 | Asus VivoBook 17 F712JA-AU708W i7-1065G7, Iris Plus Graphics G7 (Ice Lake 64 EU) | 2.2 kg | 21.4 mm | 17.30" | 1920x1080 | |
| 82.7 % v7 (old) | Acer Aspire 5 A517-52G-79Z5 i7-1165G7, GeForce MX350 | 2.2 kg | 19.9 mm | 17.30" | 1920x1080 |
机箱和功能。IdeaPad 3 17提供USB-C电源传输

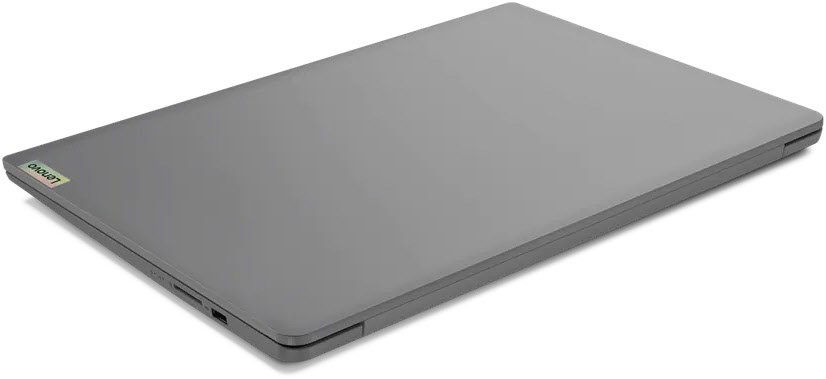

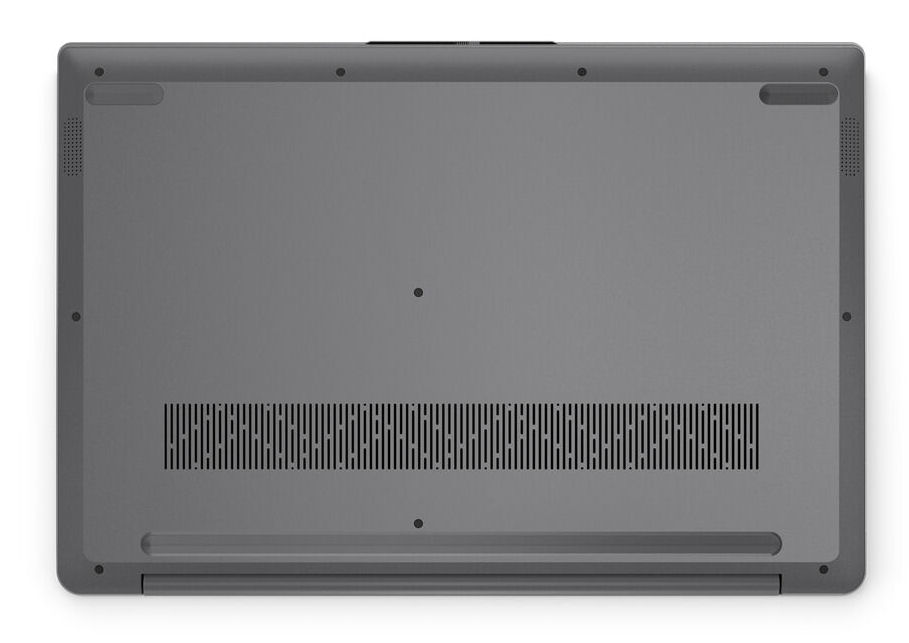

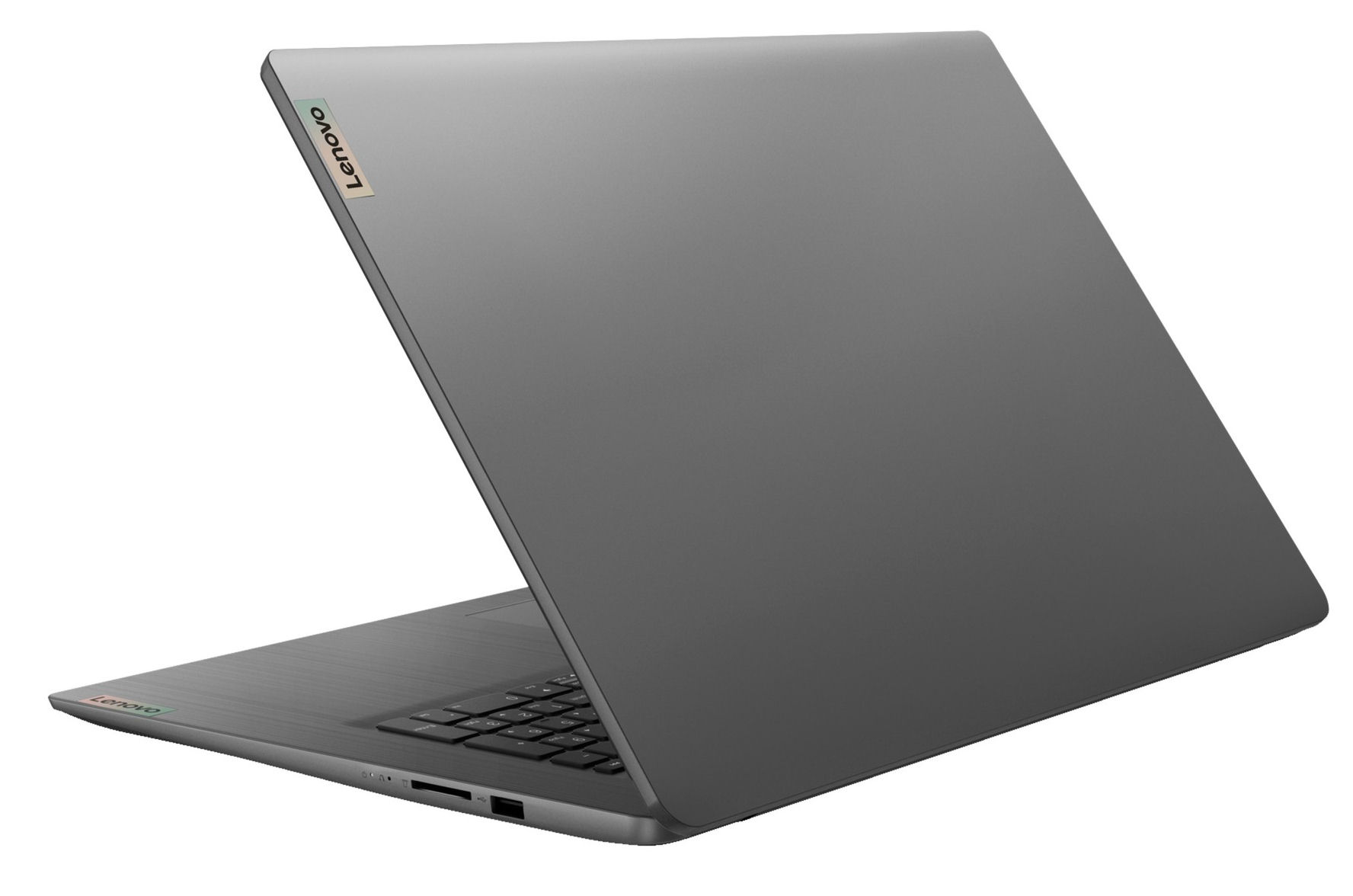

联想依靠塑料底盘，有深渊蓝和北极灰两种颜色可供选择--我们的测试机采用的是北极灰版本。该机的底座和盖子的背面模拟了拉丝的外观，给人以高级感。

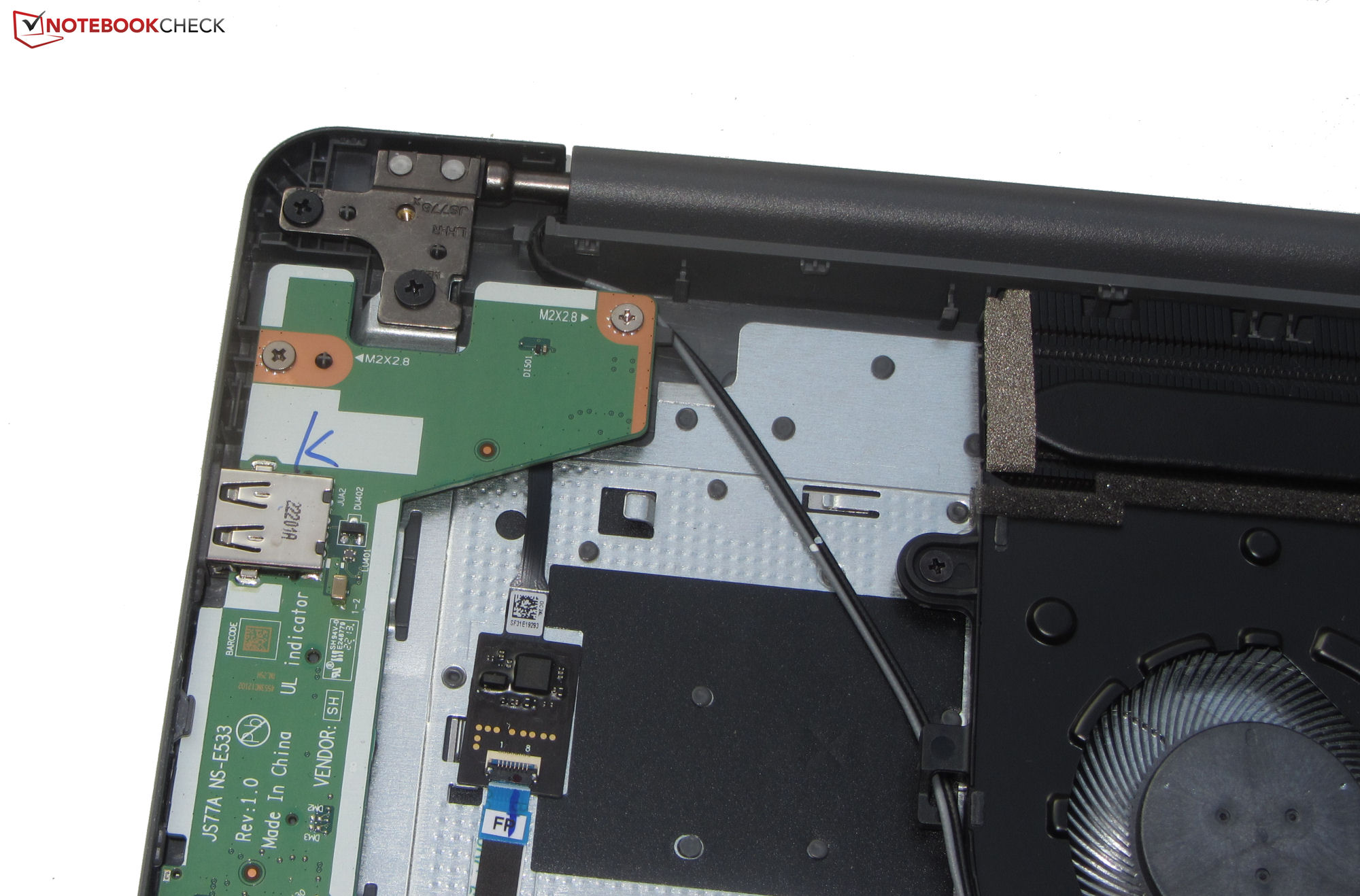

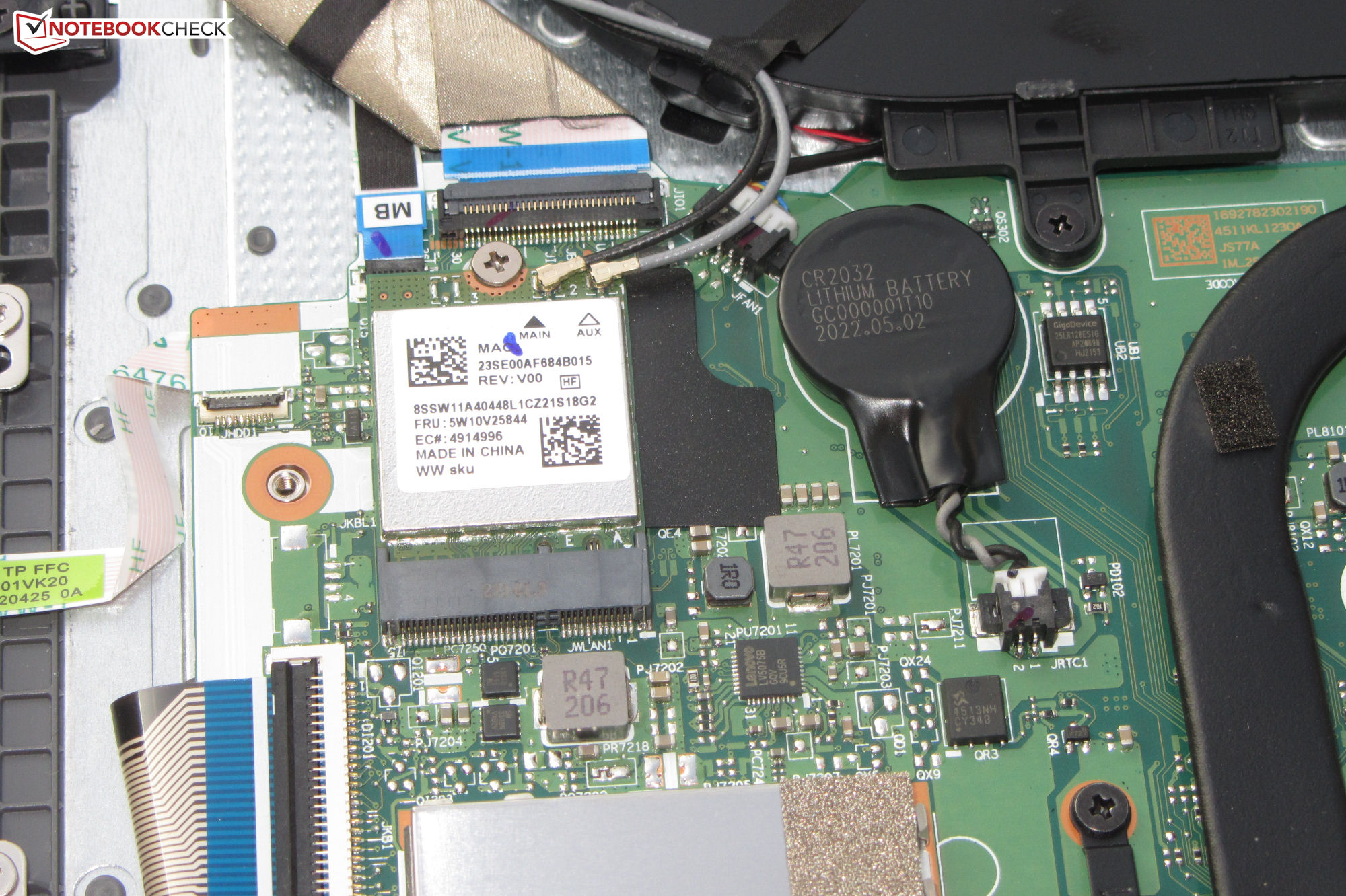

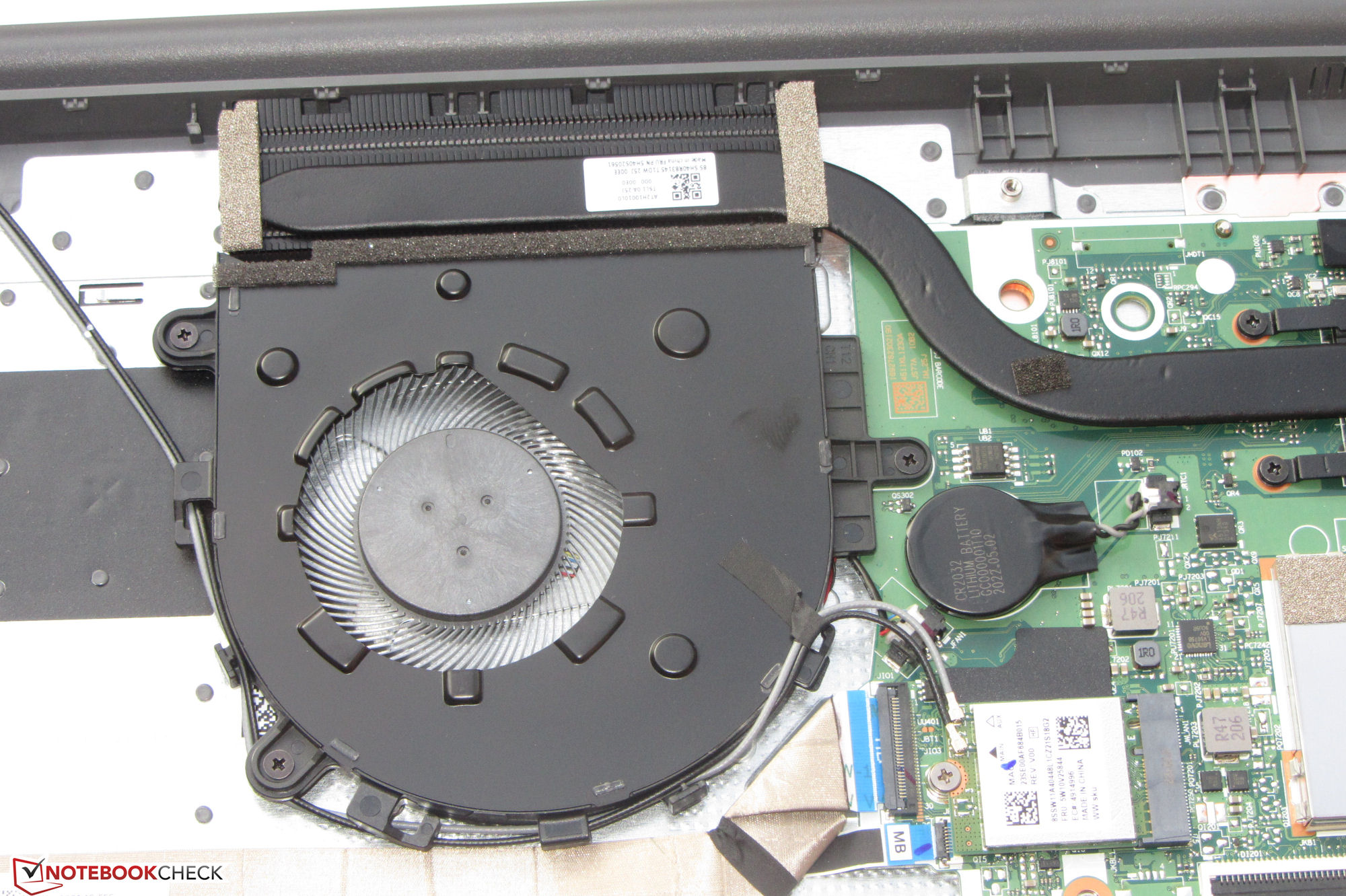

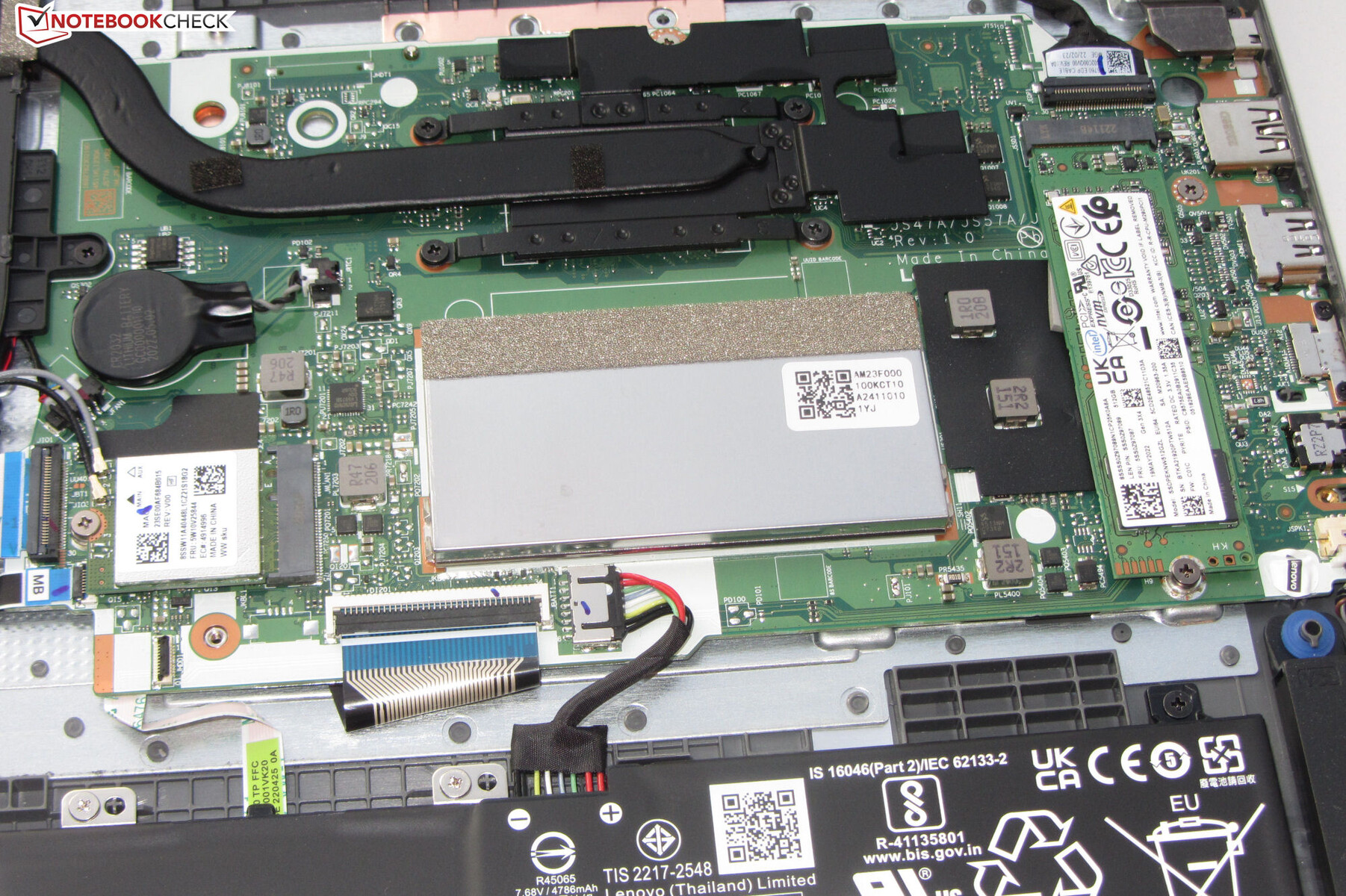

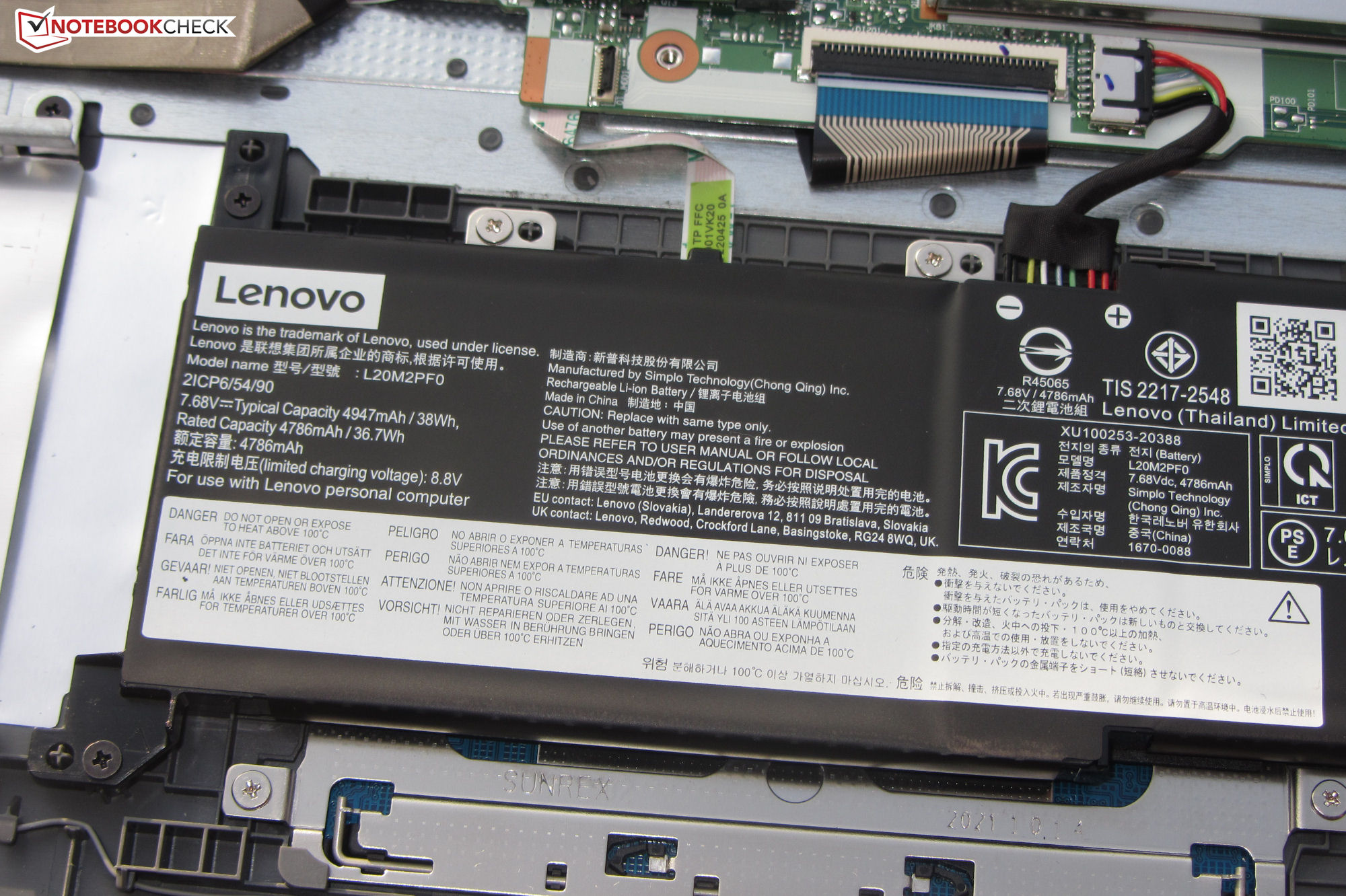

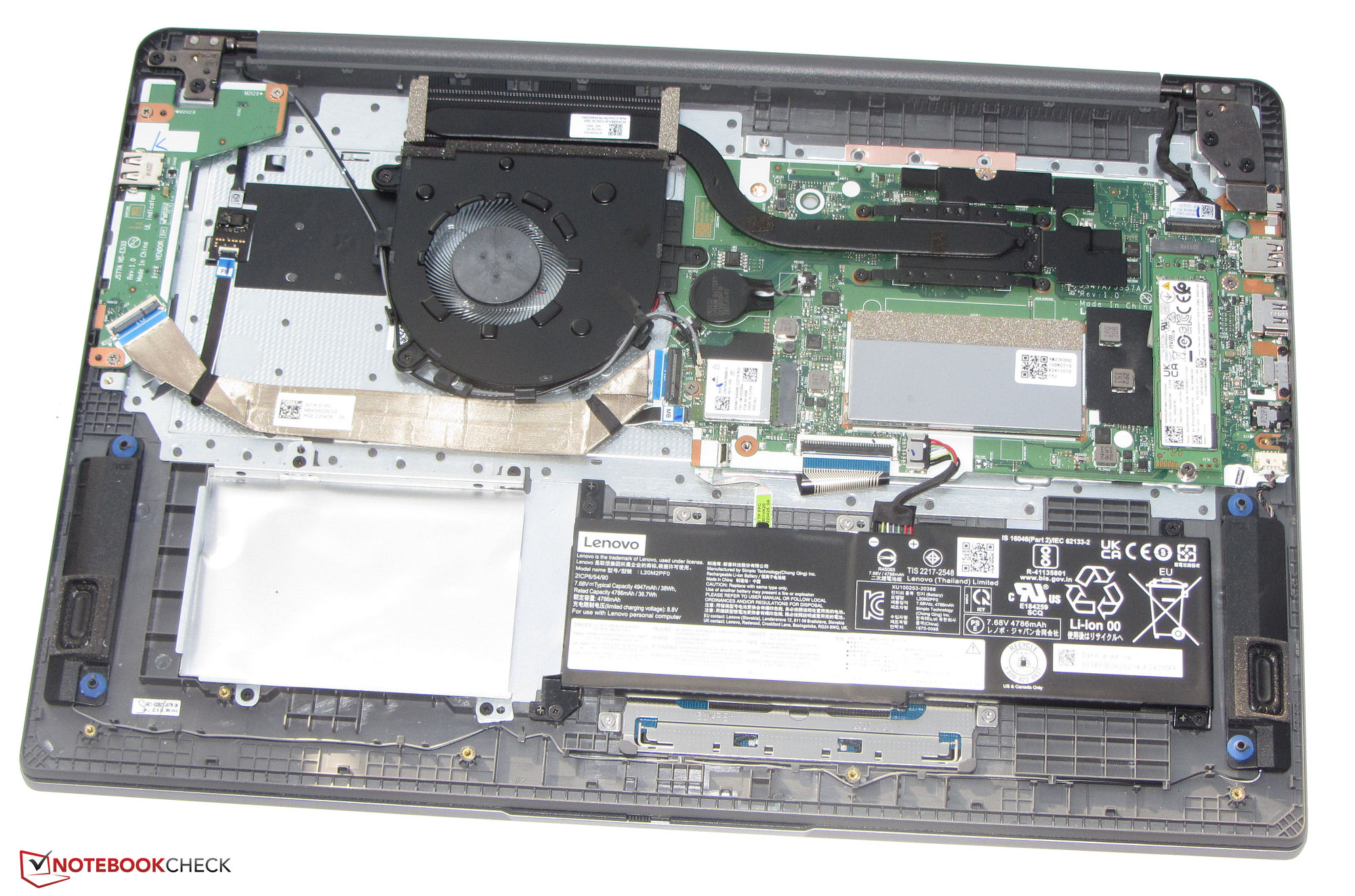

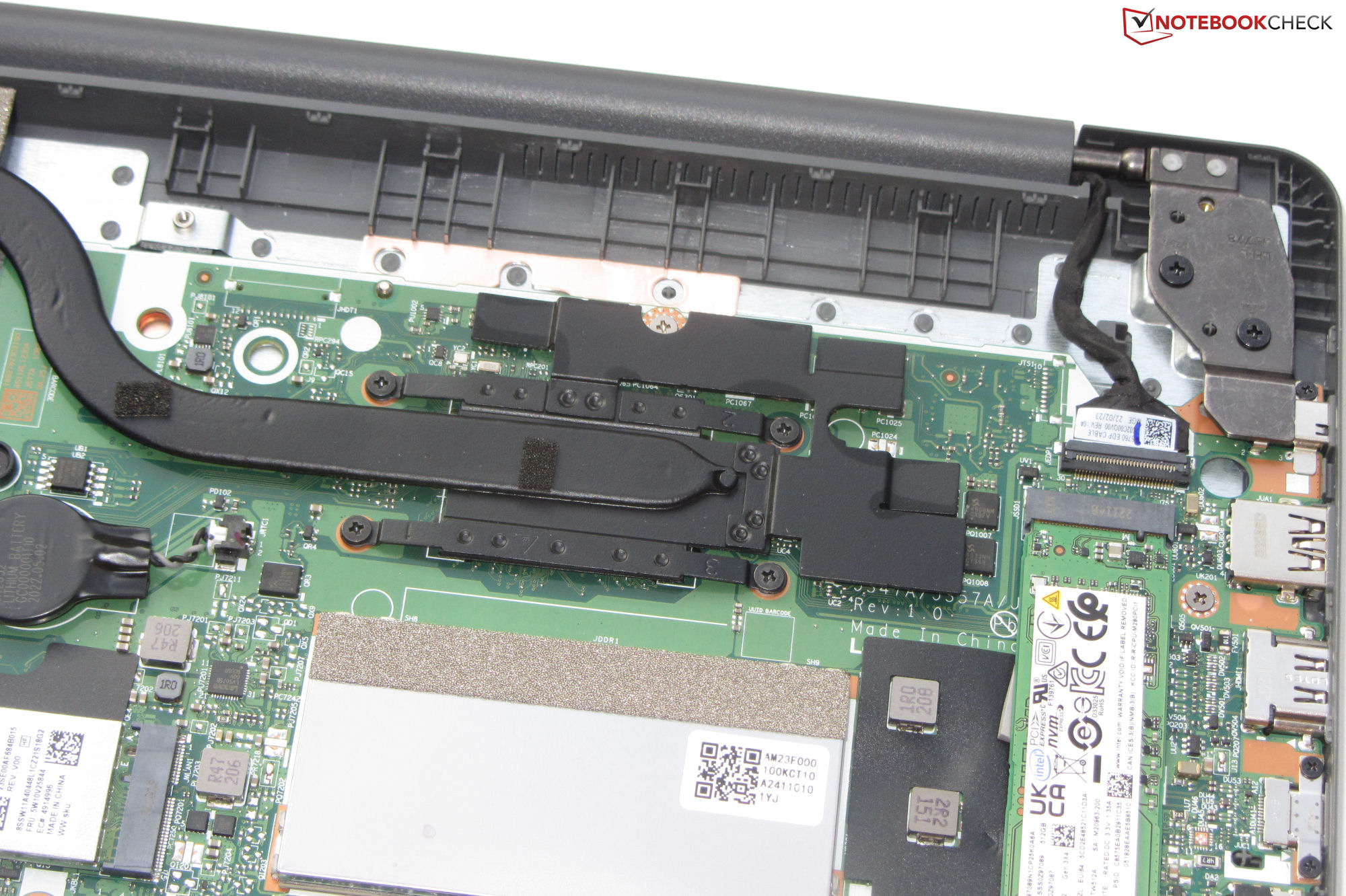

我们没有注意到任何制造缺陷，但底座和盖子很容易出现过度弯曲。拆除底部外壳后，可以接触到拧好的电池和其他内件。

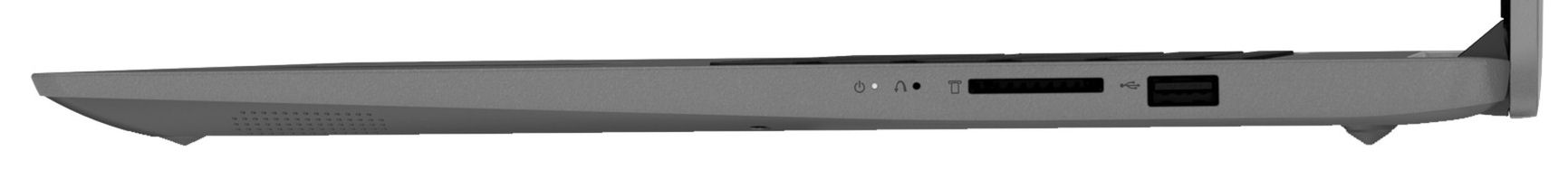

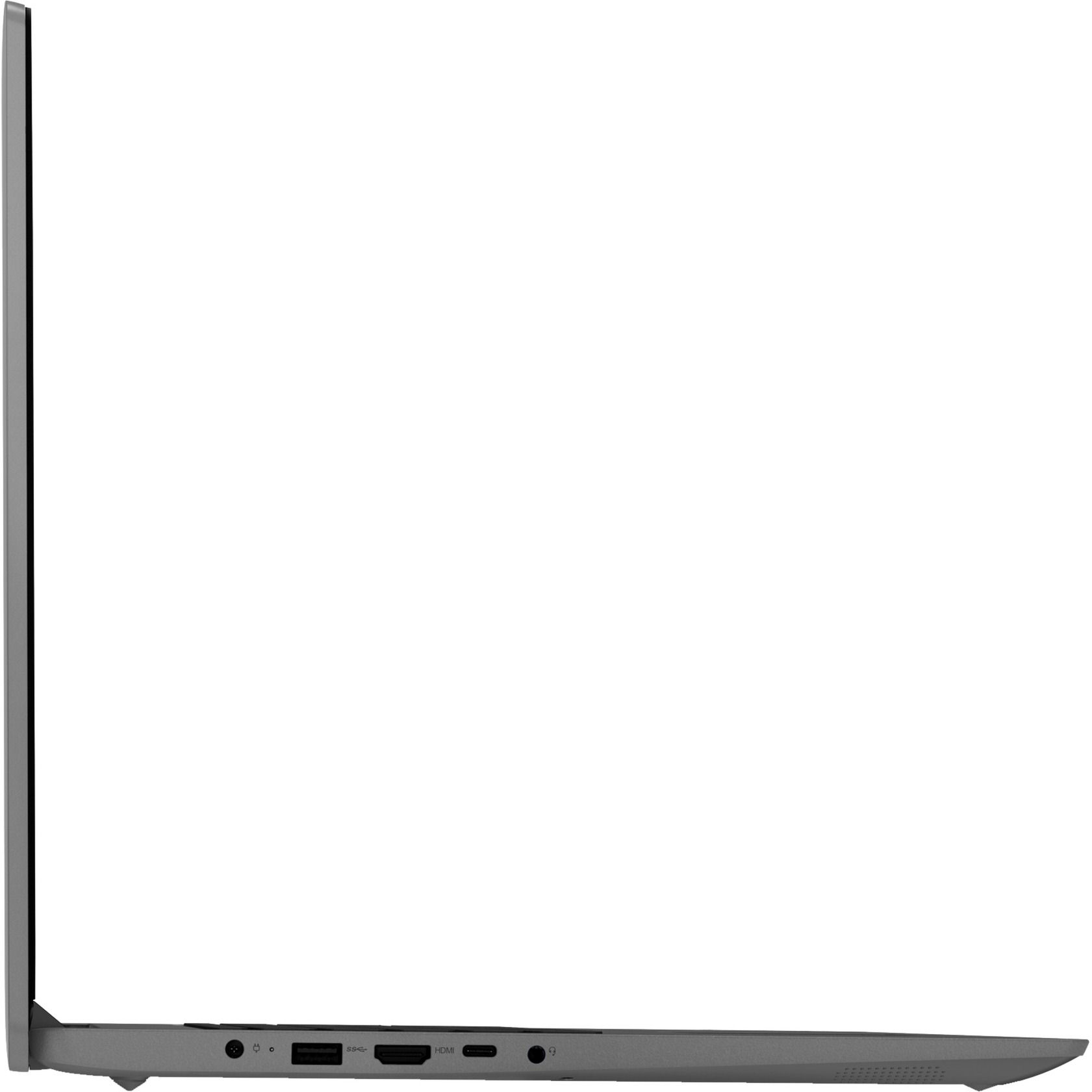

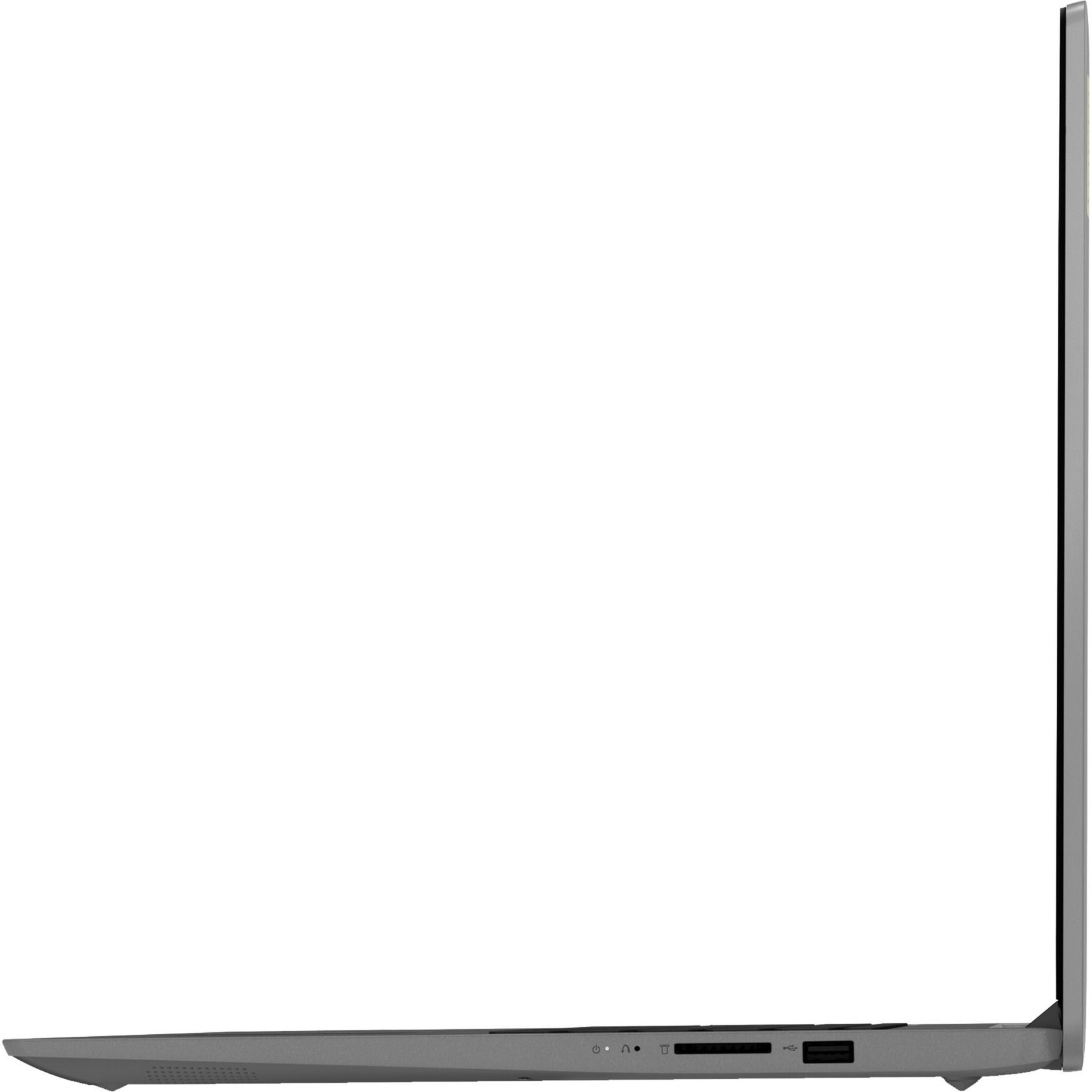

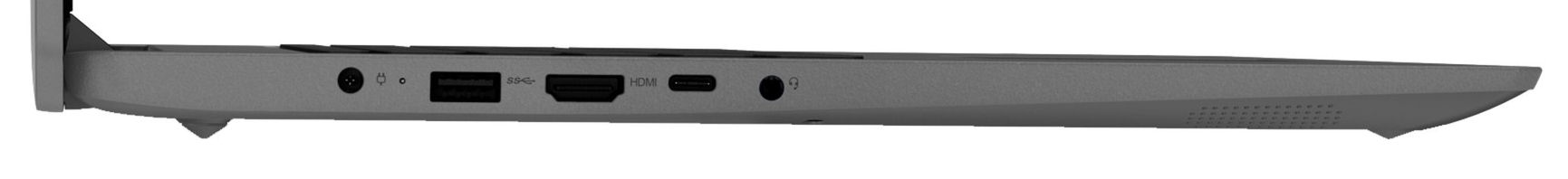

联想Lenovo IdeaPad 3 17ABA7配备了两个USB Type-A端口（一个USB 3.2 Gen1和一个USB 2.0）和一个USB 3.2 Gen1 Type-C端口，它还支持Power Delivery和DisplayPort-out。这使得与HDMI端口一起总共有两个视频输出选项。

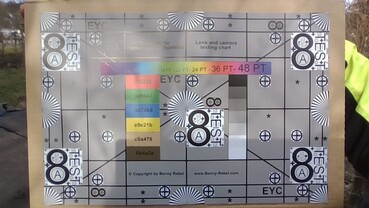

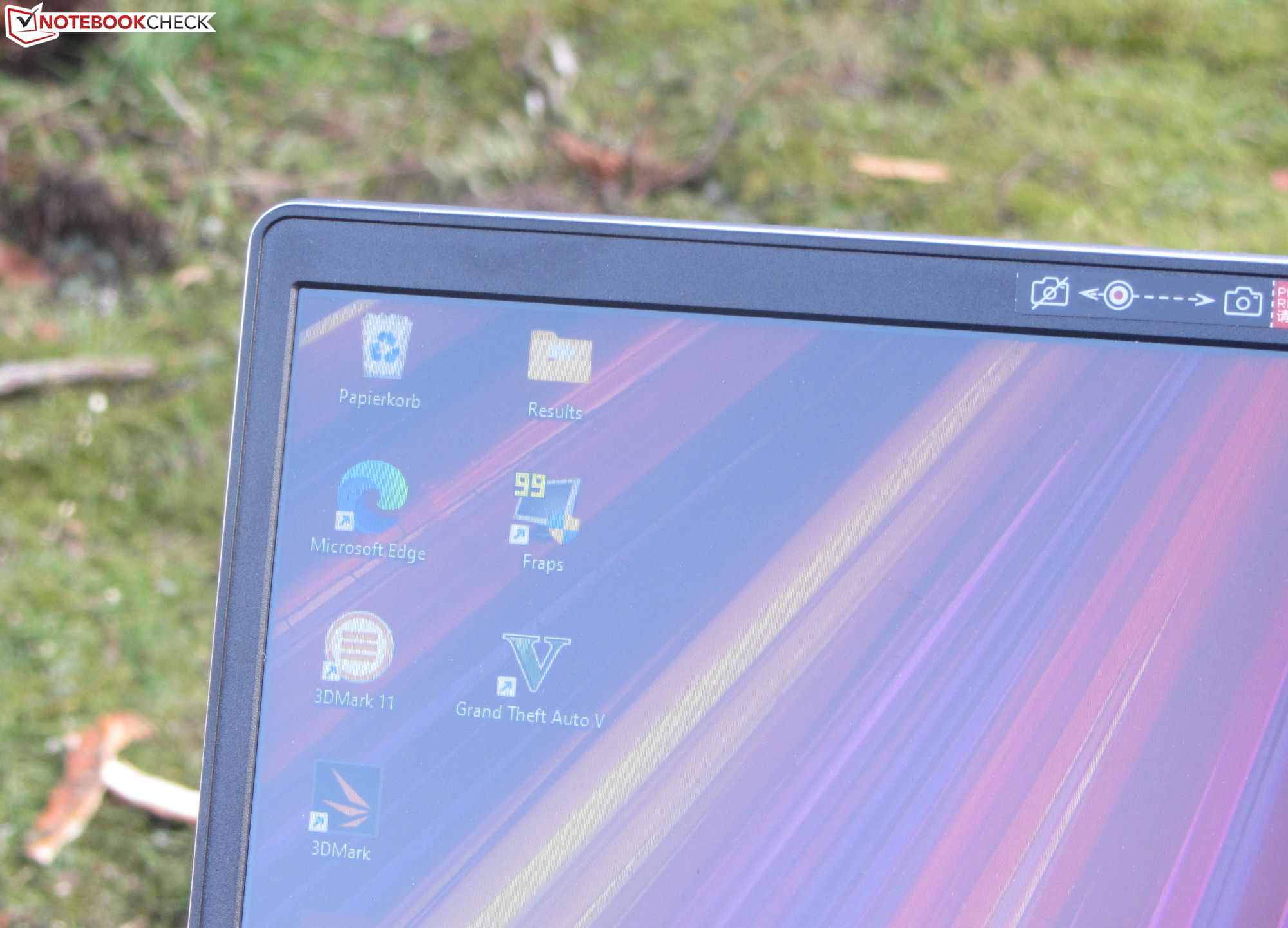

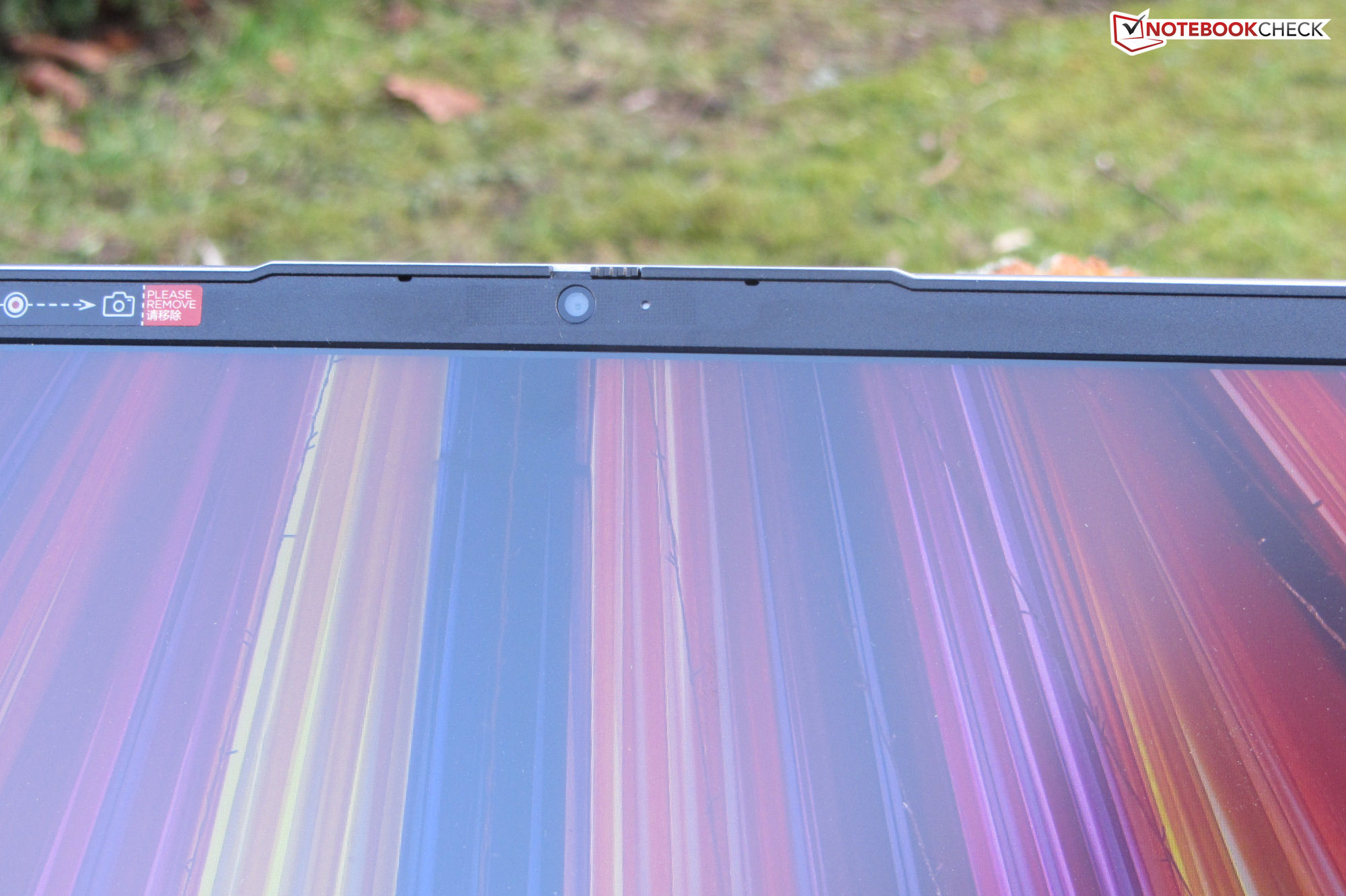

当用我们的参考AV Pro 128 GB V60 SD卡测试时，全尺寸SD读卡器的速度大约是平均水平。一个好的方面是，90万像素（1280 x 720）的网络摄像头带有一个物理快门。
在测试条件下确定的WLAN传输速度（没有干扰设备，路由器和笔记本电脑相距1米，视线清晰）是不错的，但它们仍然比Realtek RTL8852BE的能力要低一些。
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Lenovo IdeaPad 3 17ABA7 (AV Pro SD microSD 128 GB V60) | |
| Asus VivoBook 17 F712JA-AU708W (AV Pro SD microSD 128 GB V60) | |
| Average of class Office (22.7 - 198.5, n=35, last 2 years) | |
| maximum AS SSD Seq Read Test (1GB) | |
| Lenovo IdeaPad 3 17ABA7 (AV Pro SD microSD 128 GB V60) | |
| Asus VivoBook 17 F712JA-AU708W (AV Pro SD microSD 128 GB V60) | |
| Average of class Office (25 - 249, n=31, last 2 years) | |
| Networking | |
| iperf3 transmit AX12 | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Asus VivoBook 17 F712JA-AU708W | |
| iperf3 transmit AXE11000 | |
| Average of class Office (47.8 - 1793, n=90, last 2 years) | |
| Lenovo IdeaPad 3 17ABA7 | |
| Average Realtek RTL8852BE (536 - 925, n=42) | |
| iperf3 receive AX12 | |
| Asus VivoBook 17 F712JA-AU708W | |
| Acer Aspire 5 A517-52G-79Z5 | |
| iperf3 receive AXE11000 | |
| Average of class Office (104.2 - 1775, n=90, last 2 years) | |
| Lenovo IdeaPad 3 17ABA7 | |
| Average Realtek RTL8852BE (455 - 984, n=43) | |

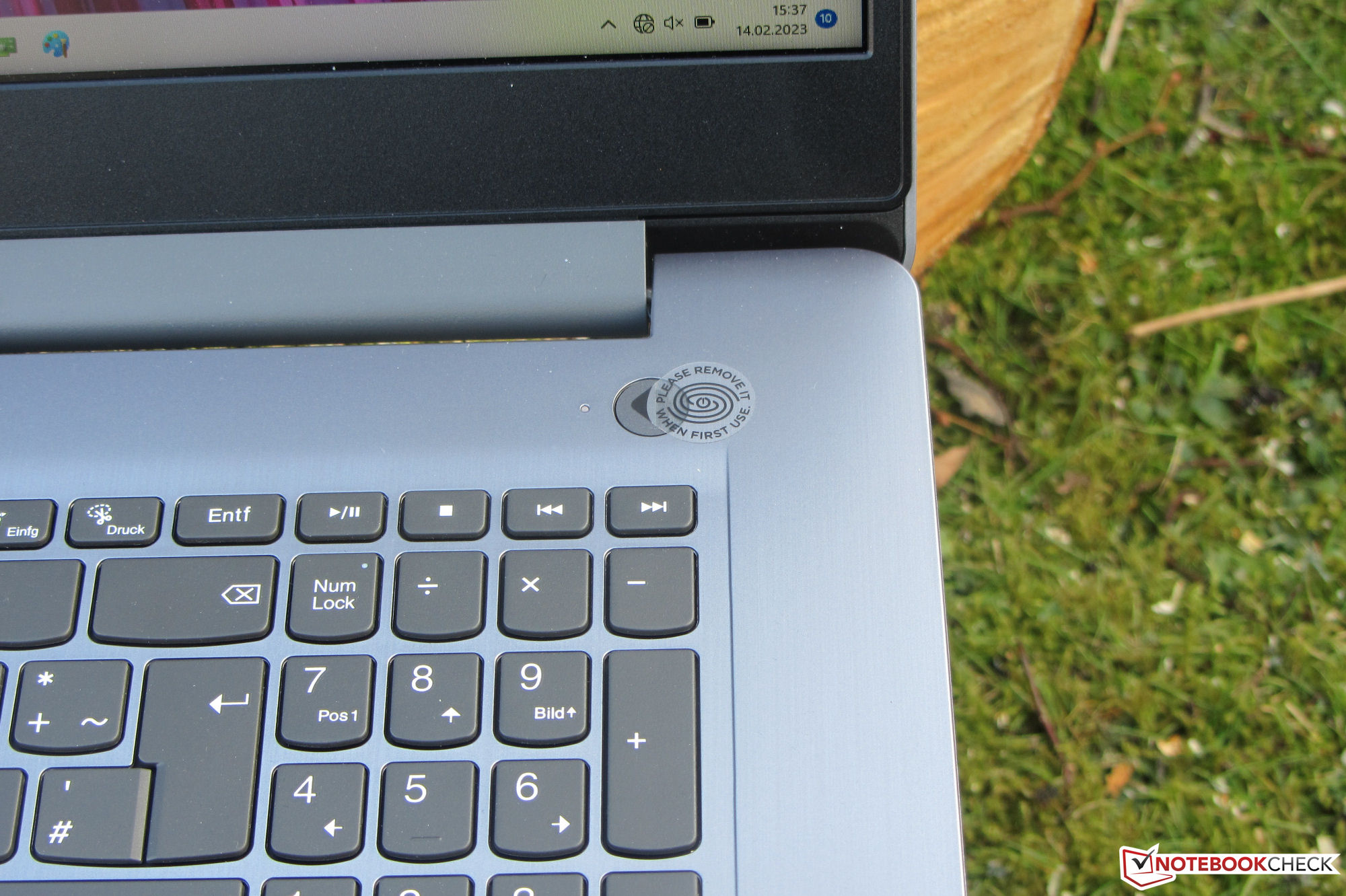

输入设备。IdeaPad 3 17ABA7上没有键盘背光灯

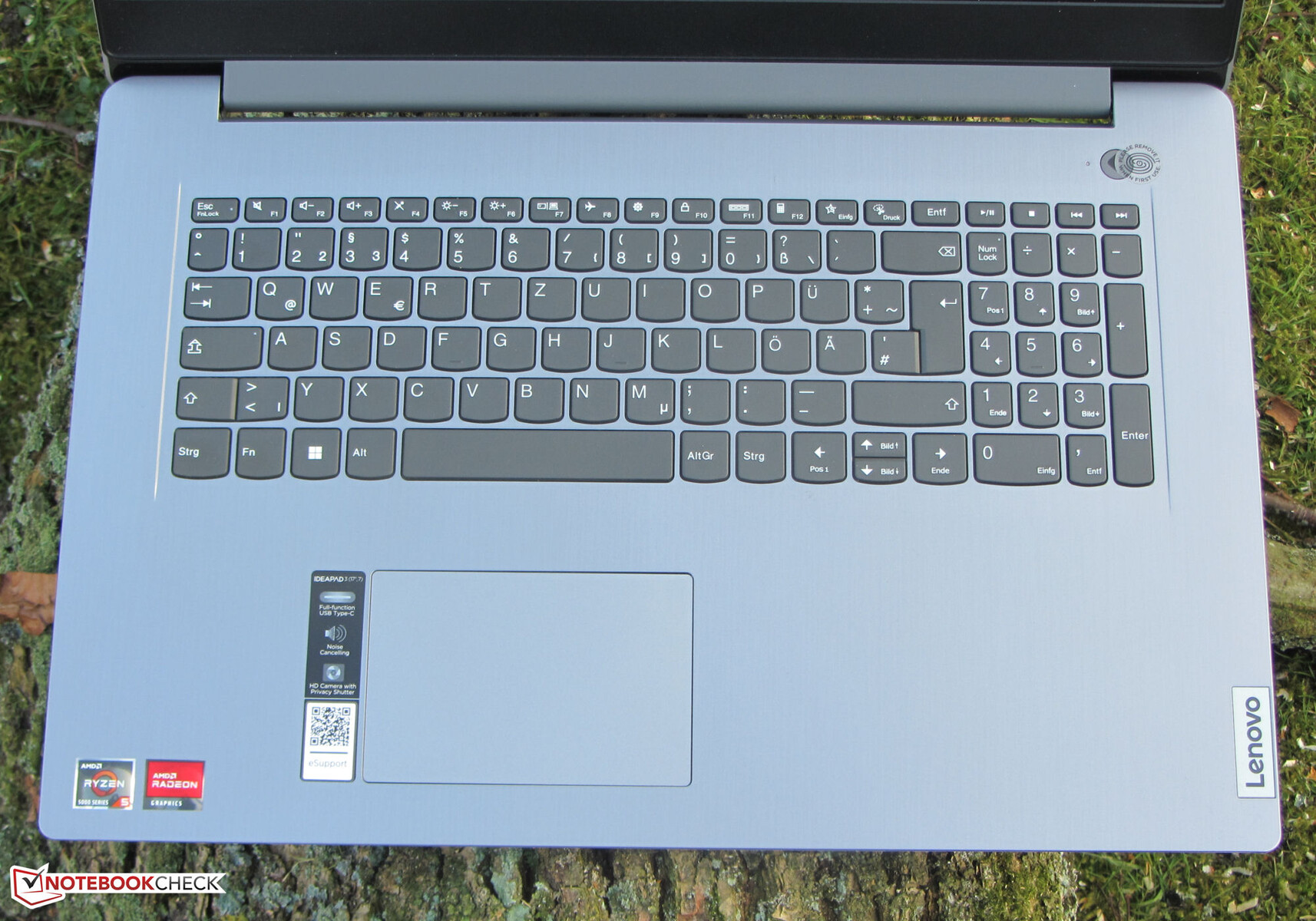

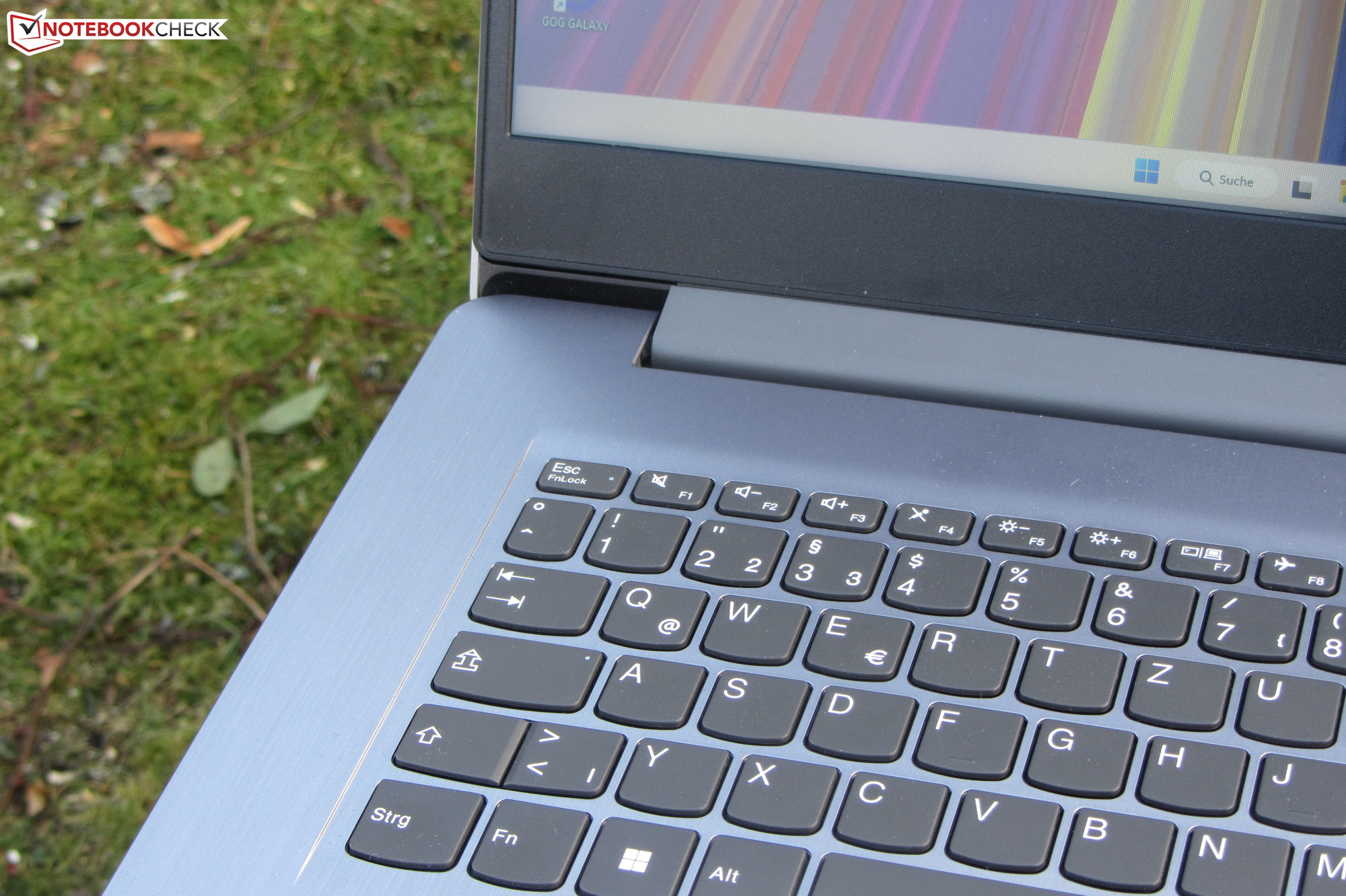

联想为IdeaPad 3配备了一个适合日常使用、没有任何形式的背光的Chiclet键盘。扁平的、略微粗糙的按键行程很短，有一个清晰的启动点，阻力也可以接受。键盘在打字过程中似乎略有弯曲，但并不觉得有什么问题。

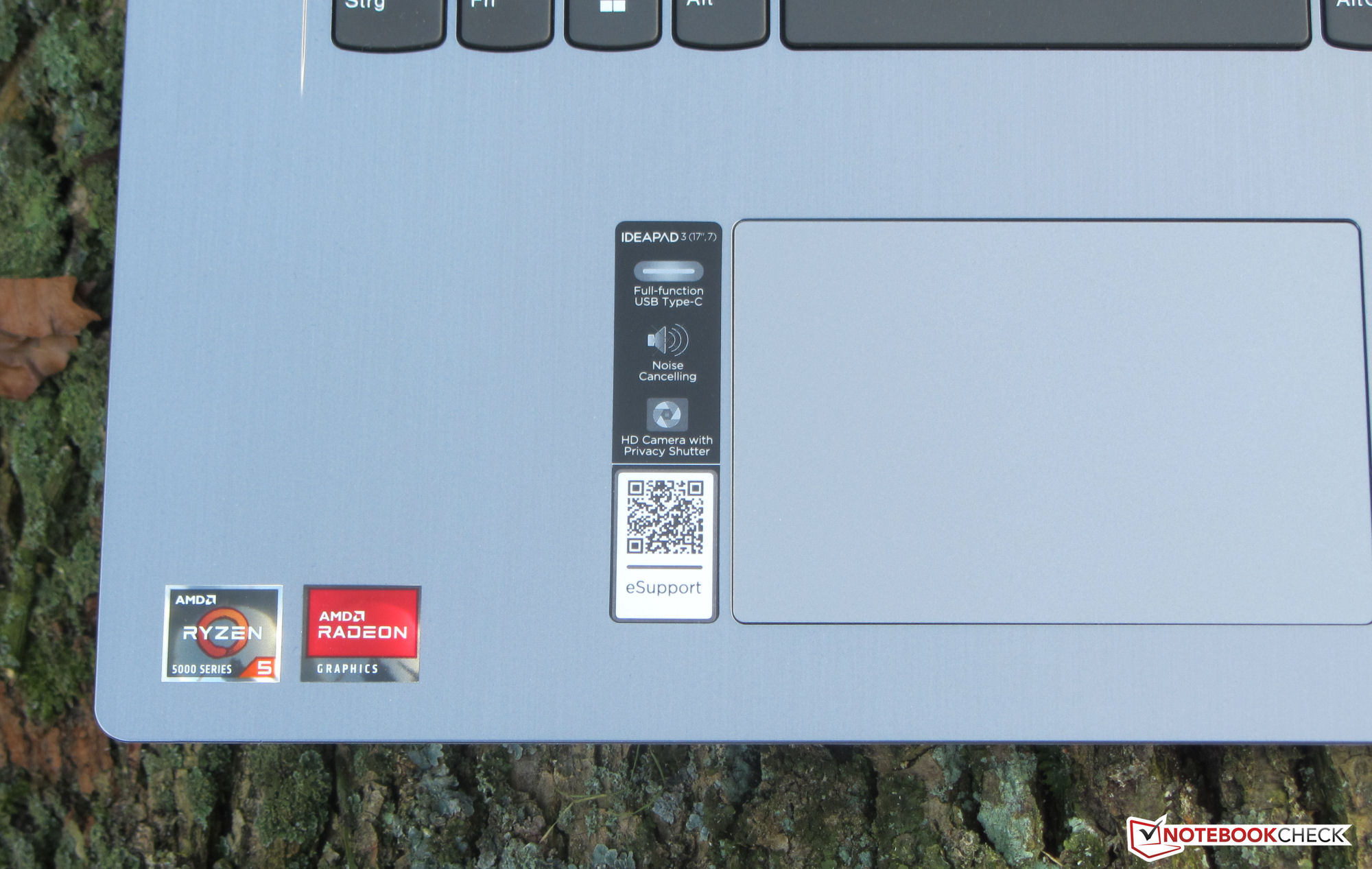

10.5 x 7厘米的触摸板支持多点触摸手势，光滑的表面使滑行变得容易。它对角落的输入有反应，行程很短，并提供一个明显的压力点。
显示屏。IdeaPad 3有一个17.3英寸的IPS屏幕
17.3英寸FHD IPS显示屏提供了一个哑光的表面，足够高的亮度，并且没有任何PWM闪烁。
然而，它没有达到理想的对比度目标（>1000：1）。竞争对手似乎在这方面提供了更好的价值，但在其他方面却落后了。
| |||||||||||||||||||||||||
Brightness Distribution: 78 %
Center on Battery: 345 cd/m²
Contrast: 455:1 (Black: 0.775 cd/m²)
ΔE Color 5.48 | 0.5-29.43 Ø4.91, calibrated: 2.44
ΔE Greyscale 5.56 | 0.5-98 Ø5.2
65% AdobeRGB 1998 (Argyll 2.2.0 3D)
88.9% sRGB (Argyll 2.2.0 3D)
67.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.43
| Lenovo IdeaPad 3 17ABA7 Lenovo LEN173FHD, IPS, 1920x1080, 17.3" | Asus VivoBook 17 F712JA-AU708W BOE NV173FHM-N49, IPS, 1920x1080, 17.3" | Acer Aspire 5 A517-52G-79Z5 BOE084E, IPS, 1920x1080, 17.3" | |
|---|---|---|---|
| Display | -38% | -37% | |
| Display P3 Coverage | 67.8 | 39.53 -42% | 39.98 -41% |
| sRGB Coverage | 88.9 | 58.85 -34% | 59.3 -33% |
| AdobeRGB 1998 Coverage | 65 | 40.84 -37% | 41.3 -36% |
| Response Times | -135% | -37% | |
| Response Time Grey 50% / Grey 80% * | 10 ? | 22 ? -120% | 14 ? -40% |
| Response Time Black / White * | 6 ? | 15 ? -150% | 8 ? -33% |
| PWM Frequency | |||
| Screen | 10% | 31% | |
| Brightness middle | 353 | 269 -24% | 321 -9% |
| Brightness | 307 | 263 -14% | 282 -8% |
| Brightness Distribution | 78 | 88 13% | 81 4% |
| Black Level * | 0.775 | 0.3 61% | 0.36 54% |
| Contrast | 455 | 897 97% | 892 96% |
| Colorchecker dE 2000 * | 5.48 | 5.8 -6% | 4.3 22% |
| Colorchecker dE 2000 max. * | 10.13 | 18.46 -82% | 7.1 30% |
| Colorchecker dE 2000 calibrated * | 2.44 | ||
| Greyscale dE 2000 * | 5.56 | 3.64 35% | 2.26 59% |
| Gamma | 2.43 91% | 2.35 94% | 2.36 93% |
| CCT | 7582 86% | 6995 93% | 6650 98% |
| Color Space (Percent of AdobeRGB 1998) | 38 | ||
| Color Space (Percent of sRGB) | 59 | ||
| Total Average (Program / Settings) | -54% /
-23% | -14% /
5% |
* ... smaller is better

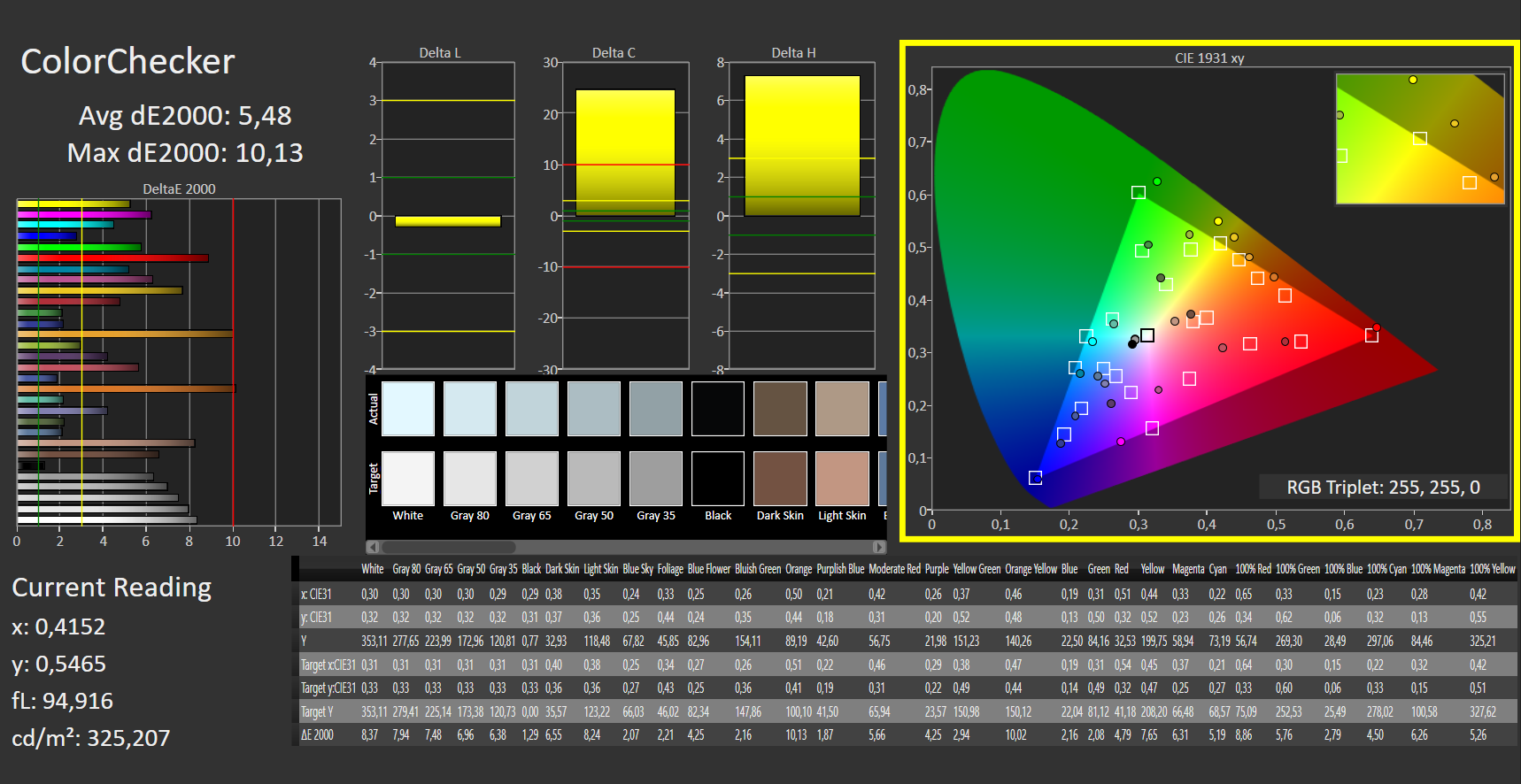

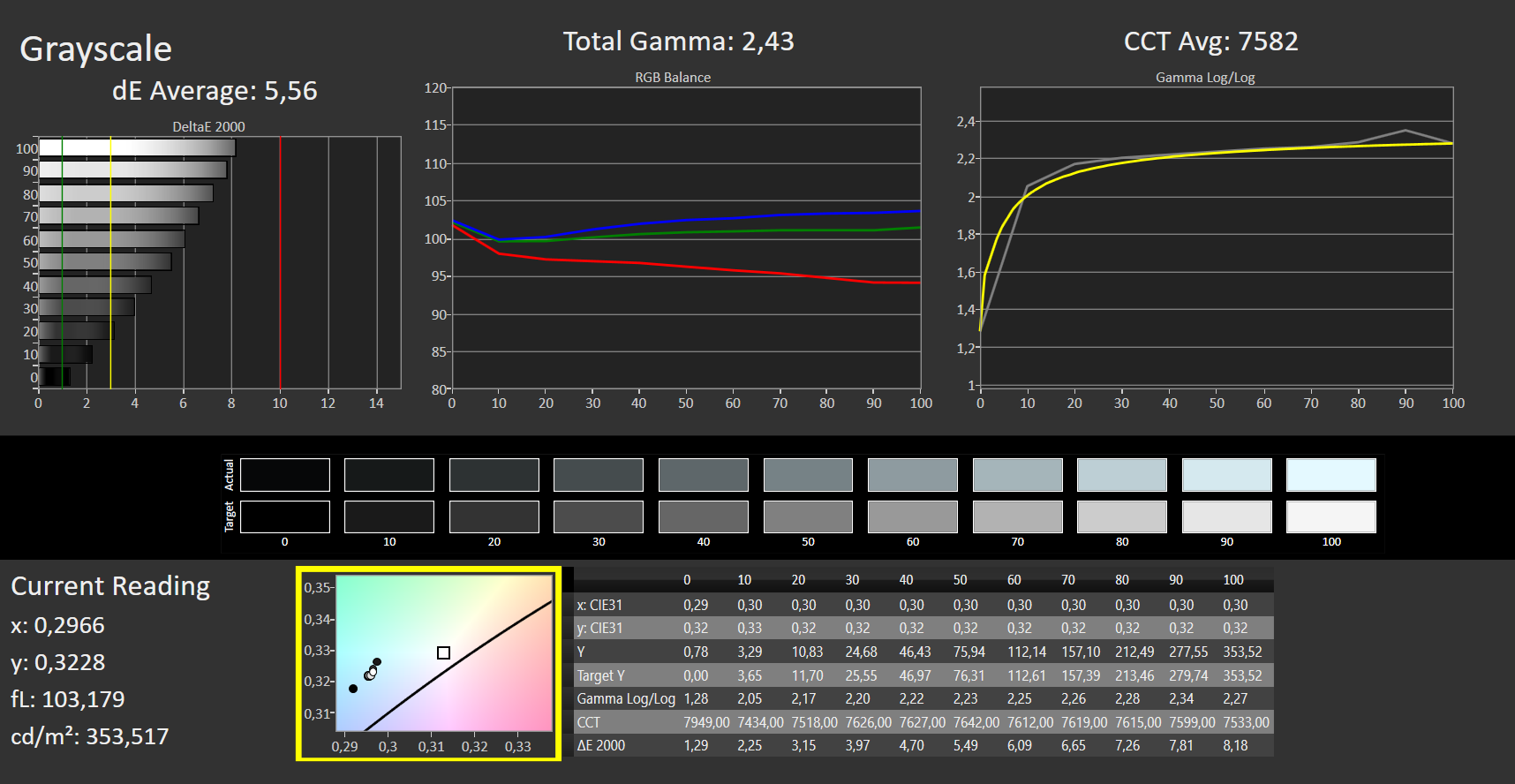

对于要价和目标人群来说，色彩准确性是足够的。由于Delta E的偏差几乎达到5.5，IdeaPad 3的显示屏没有达到理想的标准（Delta E < 3）。

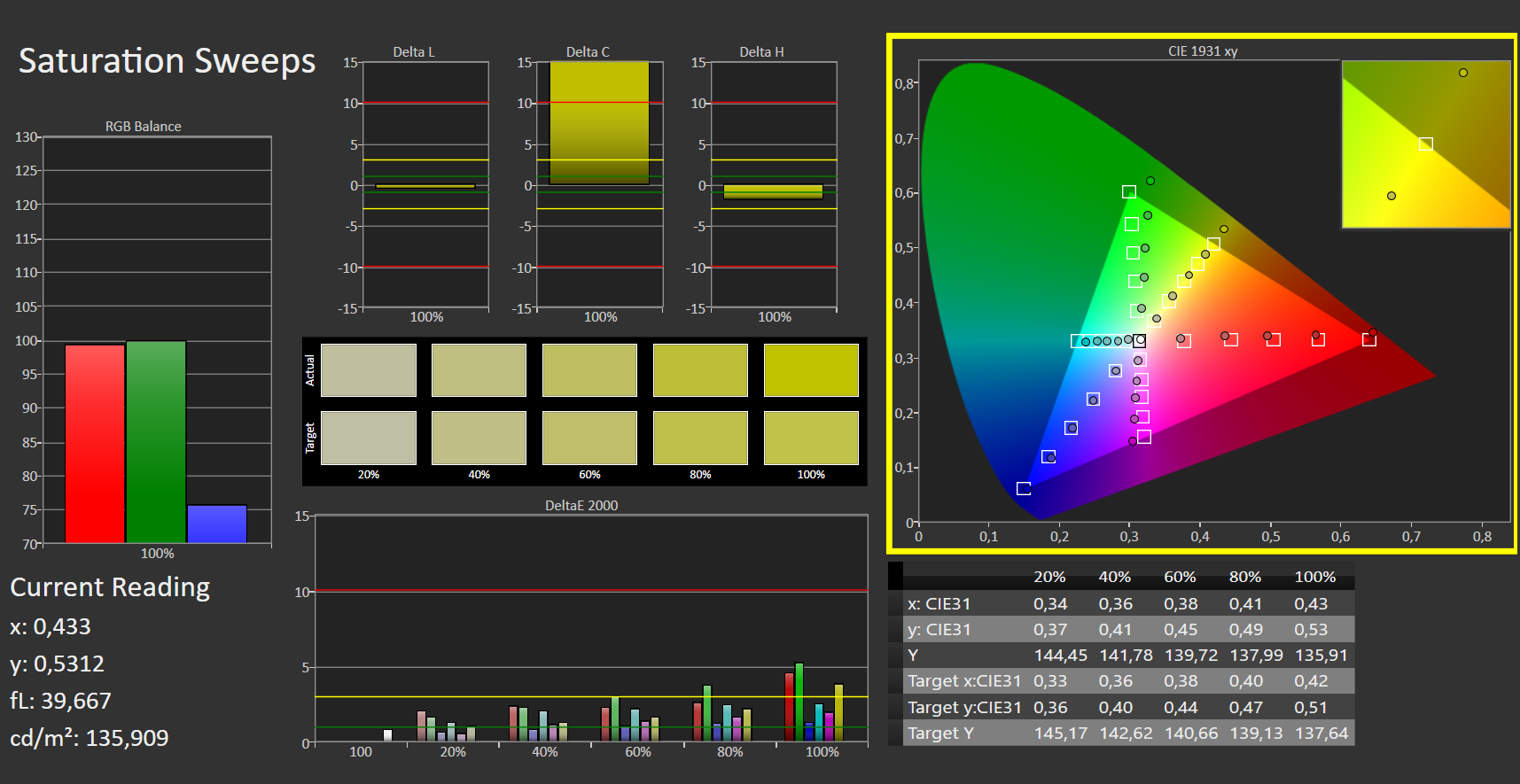

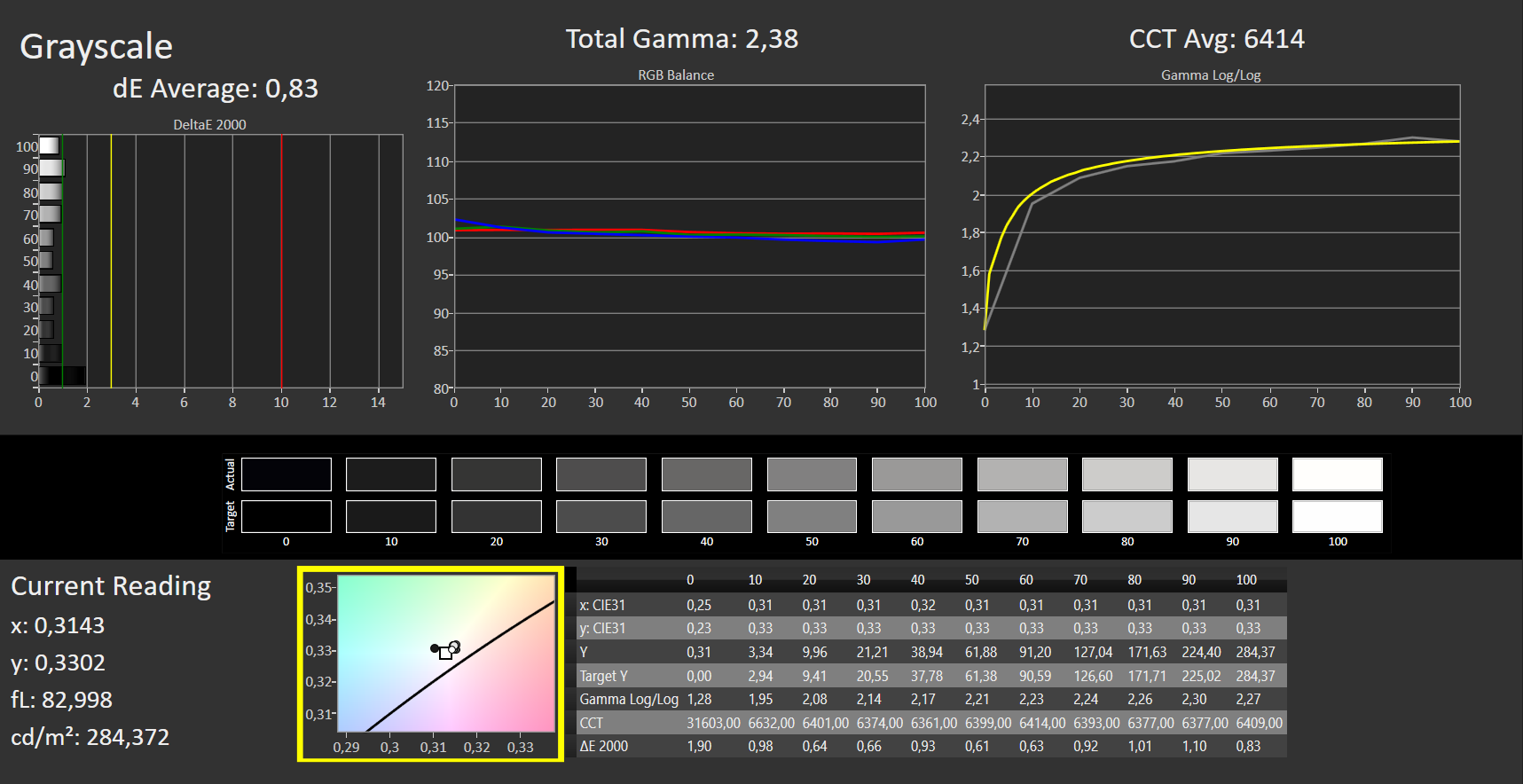

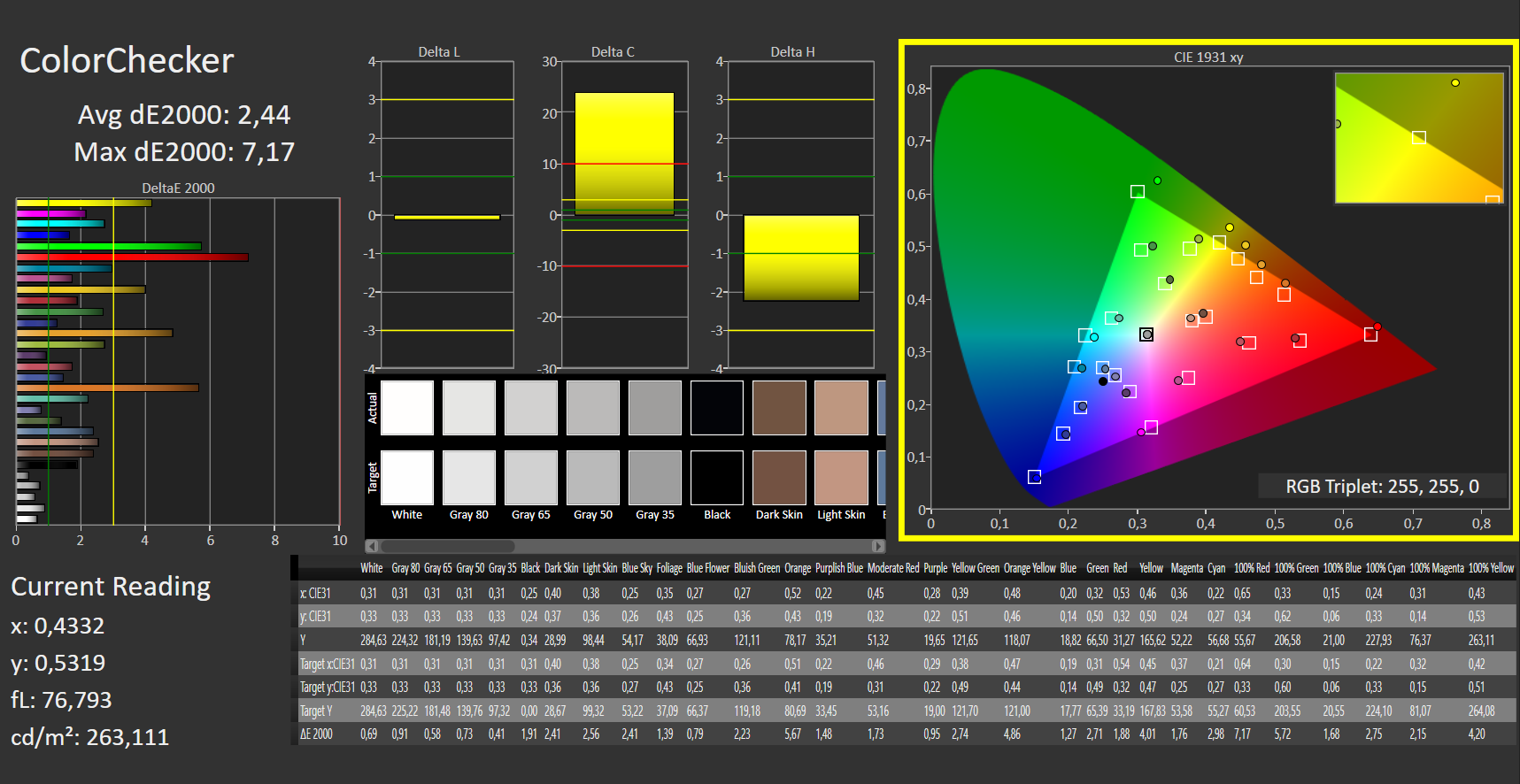

然而，我们使用Portrait Displays的CalMAN Ultimate和X-Rite i1Pro 2分光光度计进行校准，将Delta E降低到2.4，并确保灰度更加平衡。

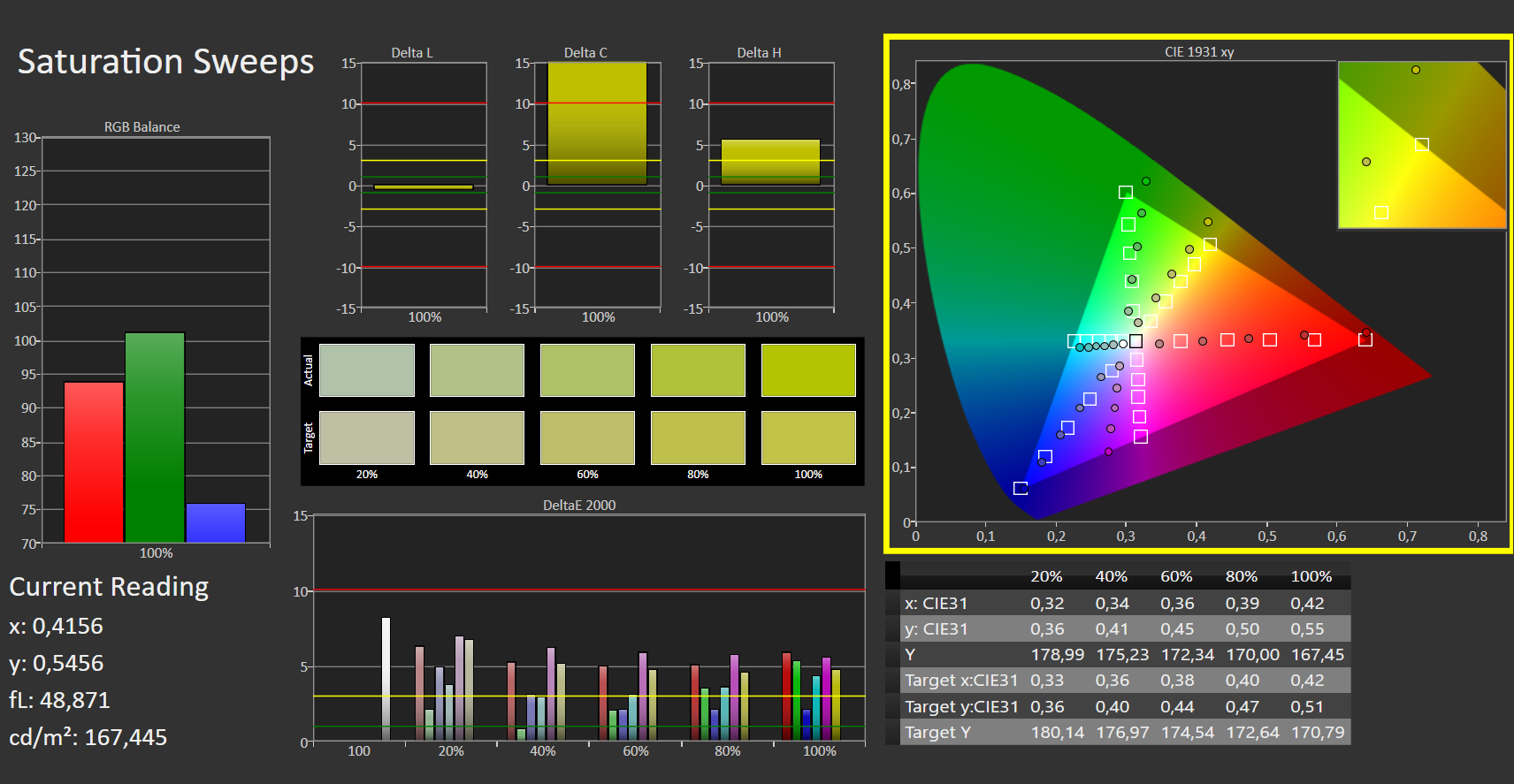

IdeaPad 3提供了一个相对较好的色域覆盖，这对于办公笔记本来说并不常见。虽然笔记本本身并不是为创造性的工作流程而制造的，但它仍然显示出丰富的、彩色的图像。Aspire 5和VivoBook 17在这方面无法跟上。

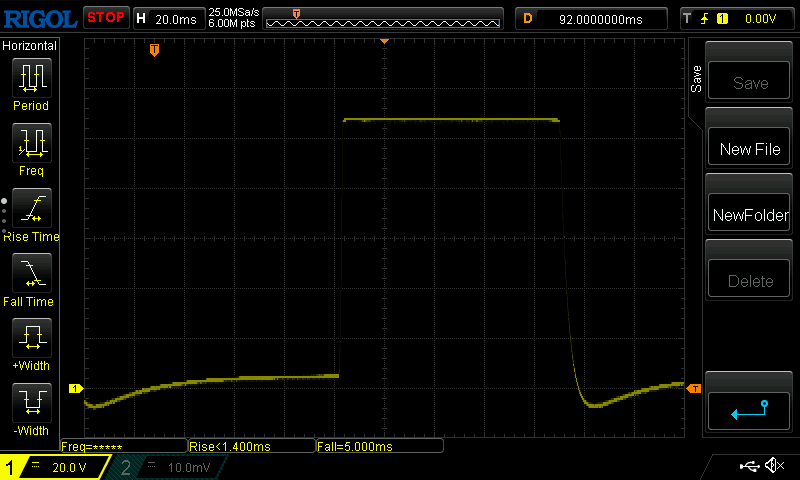

Display Response Times
| ↔ Response Time Black to White | ||
|---|---|---|
| 6 ms ... rise ↗ and fall ↘ combined | ↗ 1 ms rise |  |
| ↘ 5 ms fall | ||
| The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 15 % of all devices are better. This means that the measured response time is better than the average of all tested devices (20.9 ms). | ||

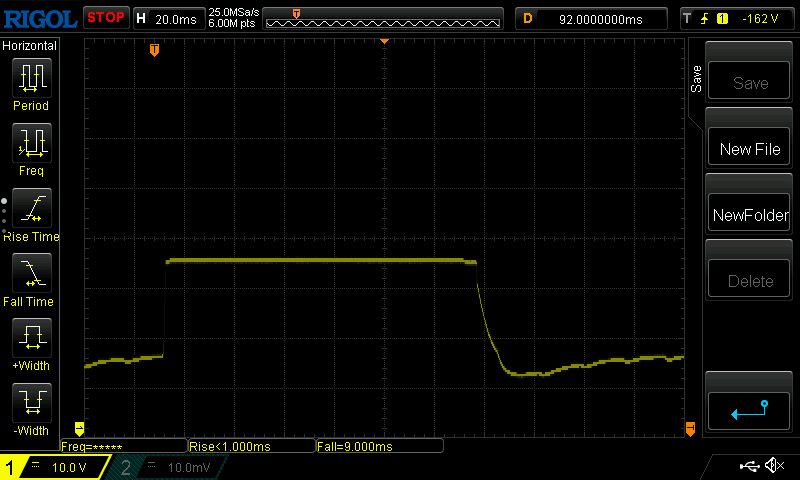

| ↔ Response Time 50% Grey to 80% Grey | ||
| 10 ms ... rise ↗ and fall ↘ combined | ↗ 1 ms rise |  |
| ↘ 9 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 20 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.8 ms). | ||

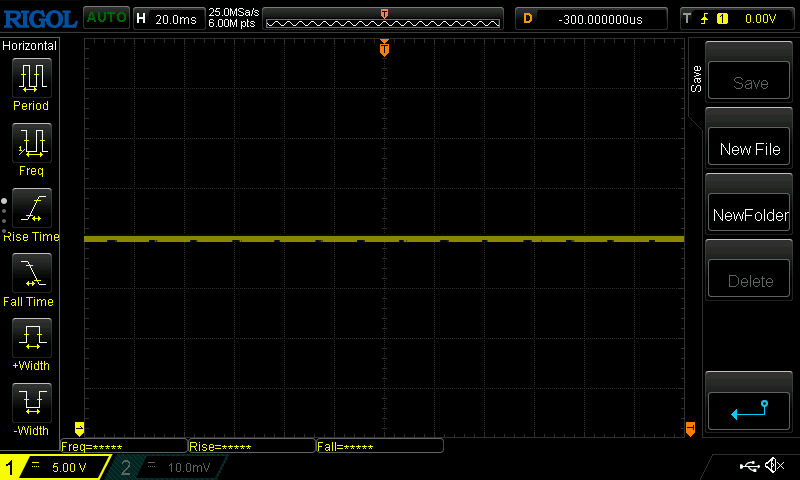

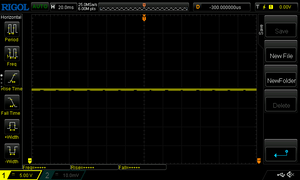

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8715 (minimum: 5 - maximum: 343500) Hz was measured. | |||

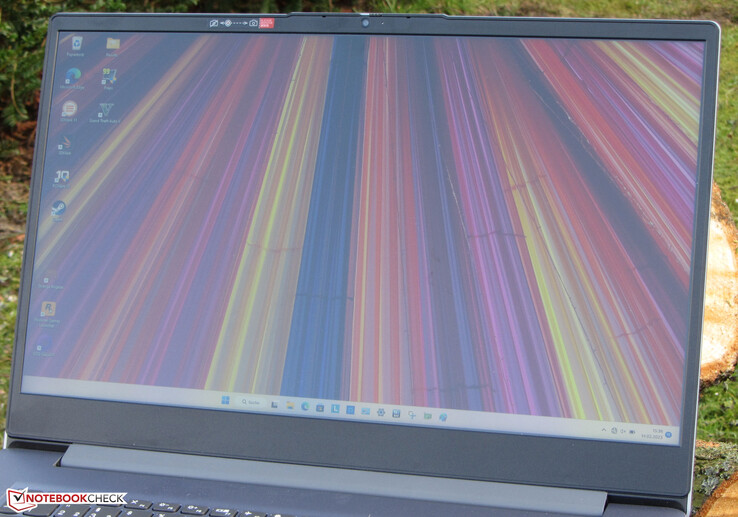

IPS面板提供了相对稳定的可视角度，可以从任何位置阅读。在阳光不太强的户外，屏幕也相当清晰。
性能。IdeaPad 3配有快速的AMD Barcelo-U APU
联想IdeaPad 3 17ABA7为办公和互联网应用以及休闲、非密集型游戏提供足够的计算能力。联想使用AMD Barcelo-U APU，从Ryzen 3到Ryzen 7选项，价格在500欧元到900欧元之间。我们目前的配置为729欧元。
测试条件

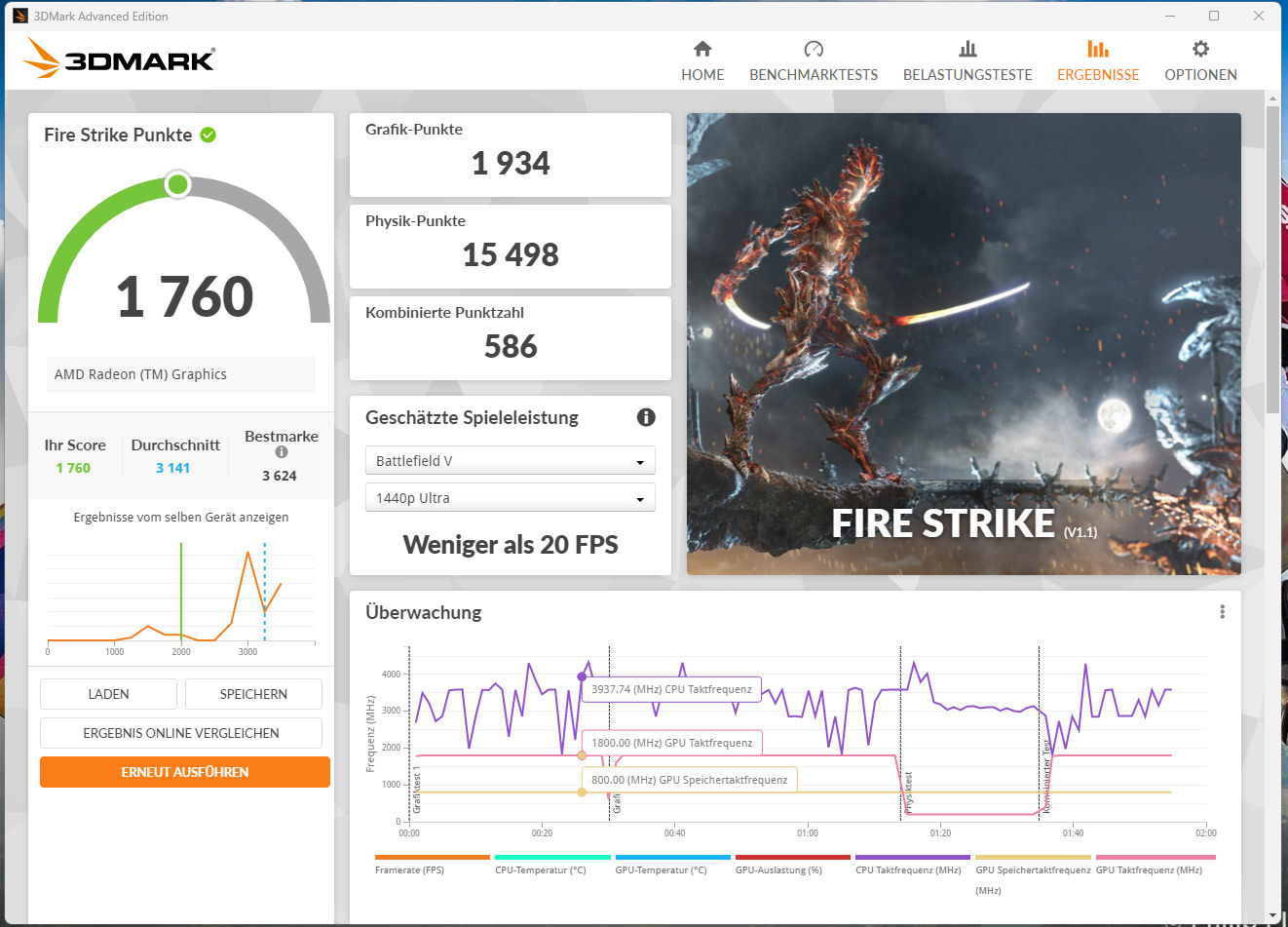

联想在IdeaPad 3上提供三种性能模式。这些可以通过Fn + Q组合键进行切换。我们使用高性能模式进行基准测试，而电池测试则使用电池保护模式进行。
| 高性能 | 智能冷却 | 电池节约器 | |
|---|---|---|---|
| 功率限制1 | 26 W | 19 W | 13 W |
| 功率限制2 | 32 W | 25 W | 18 W |

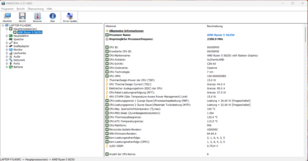

处理器

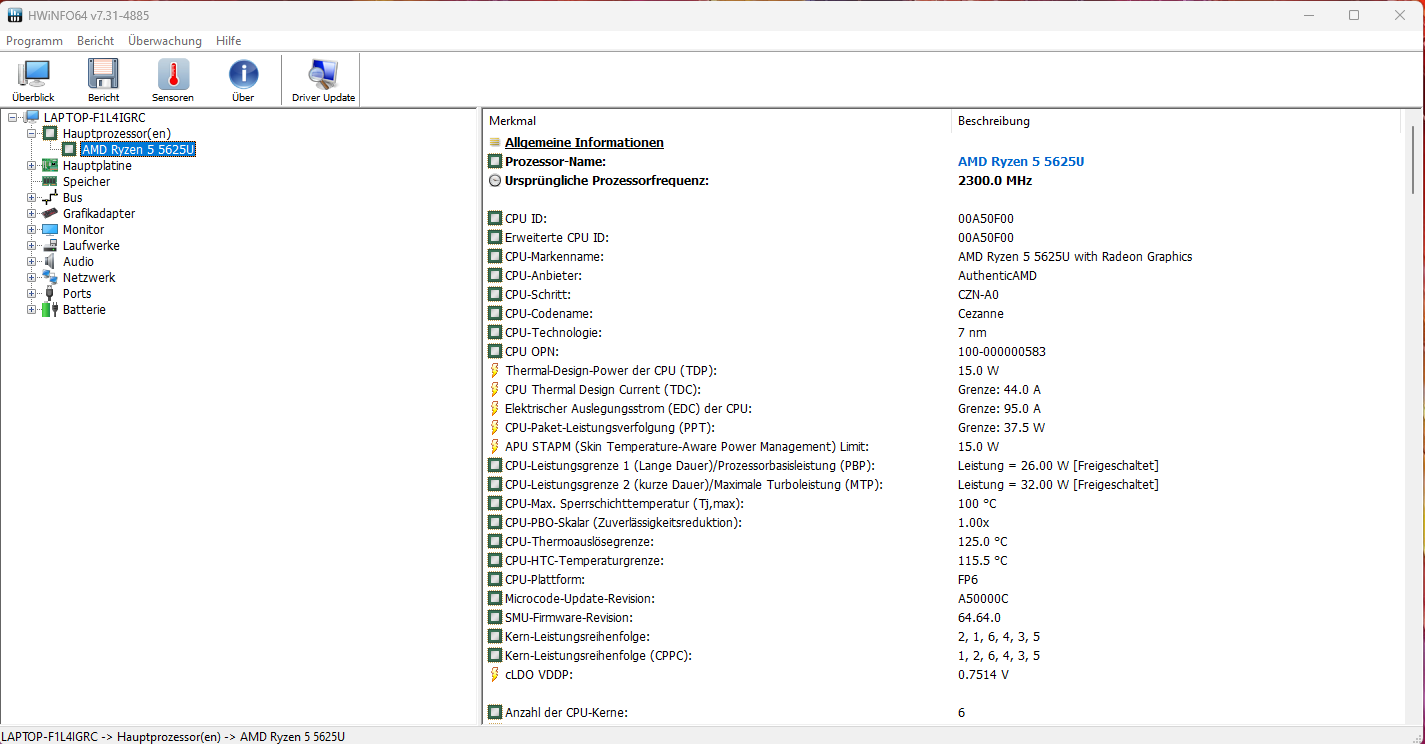

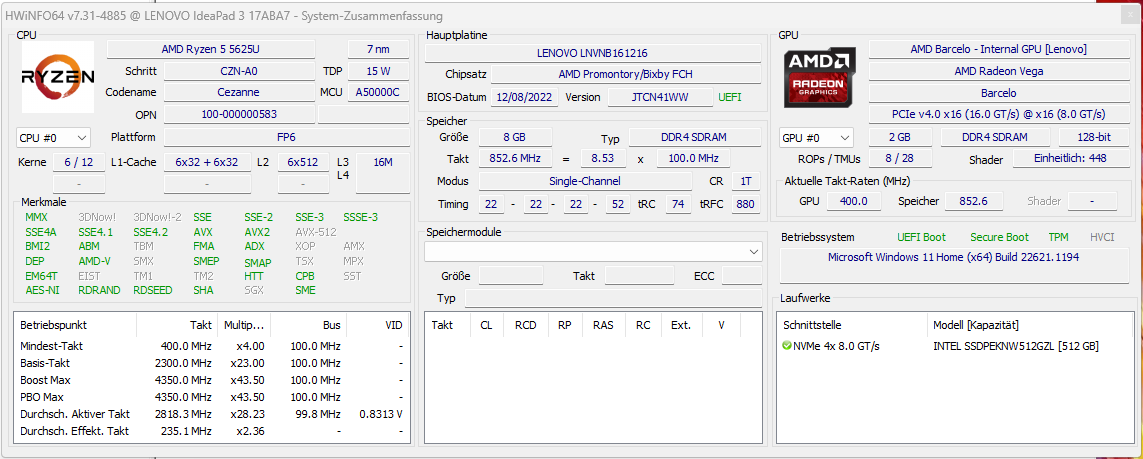

的 AMD Barcelo Ryzen 5 5625U是一个六核12线程的处理器，时钟为2.3GHz，可提升至4.35GHz。我们的测试显示，该CPU的性能达到了预期的平均数值。

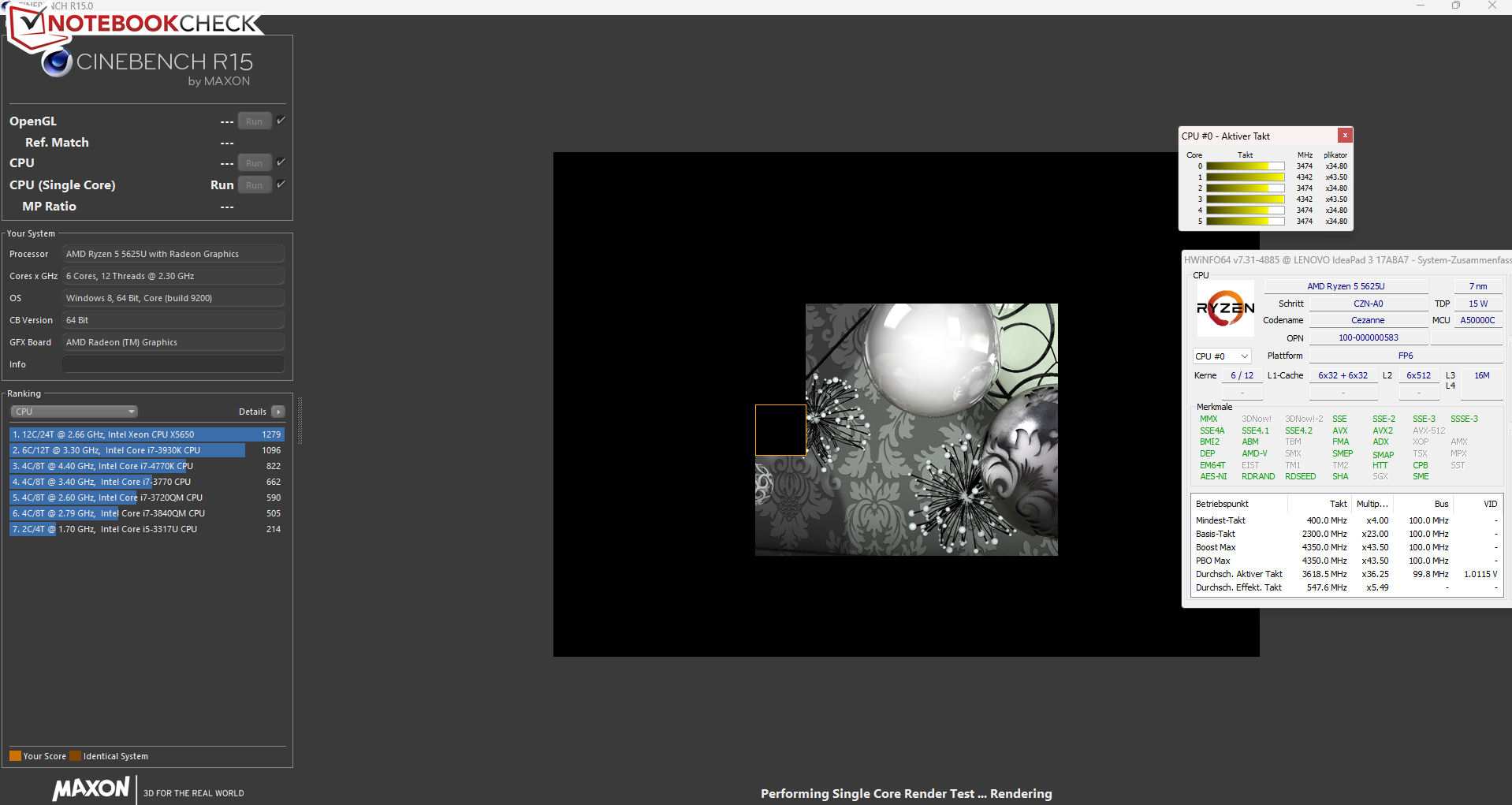

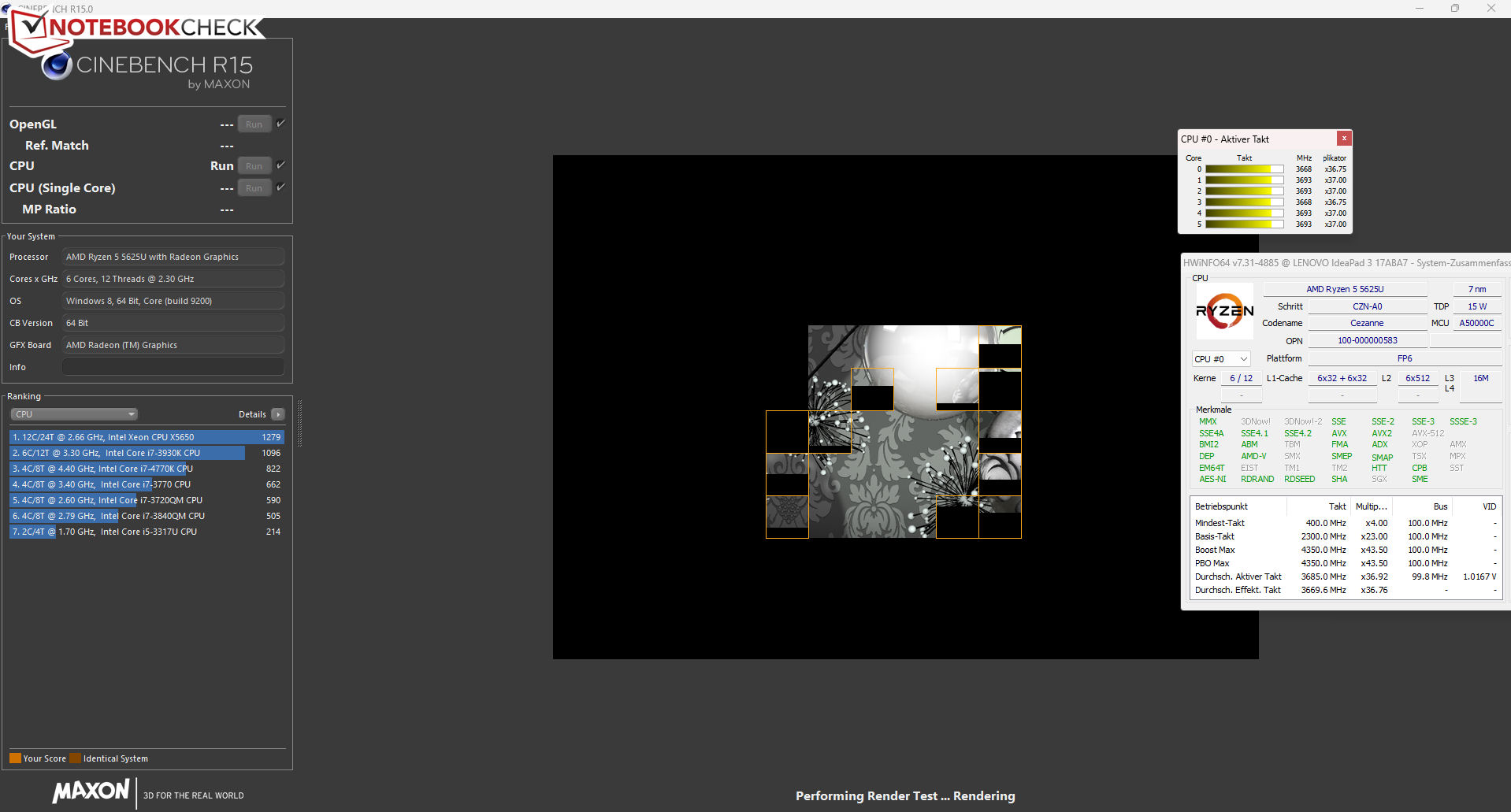

在Cinebench R15多核心中，Ryzen 5 5625U的时钟频率约为3.5至3.7 GHz，而单核心测试显示时钟频率为3.5 GHz至4.35 GHz。在使用电池供电时，这些数值会降低。

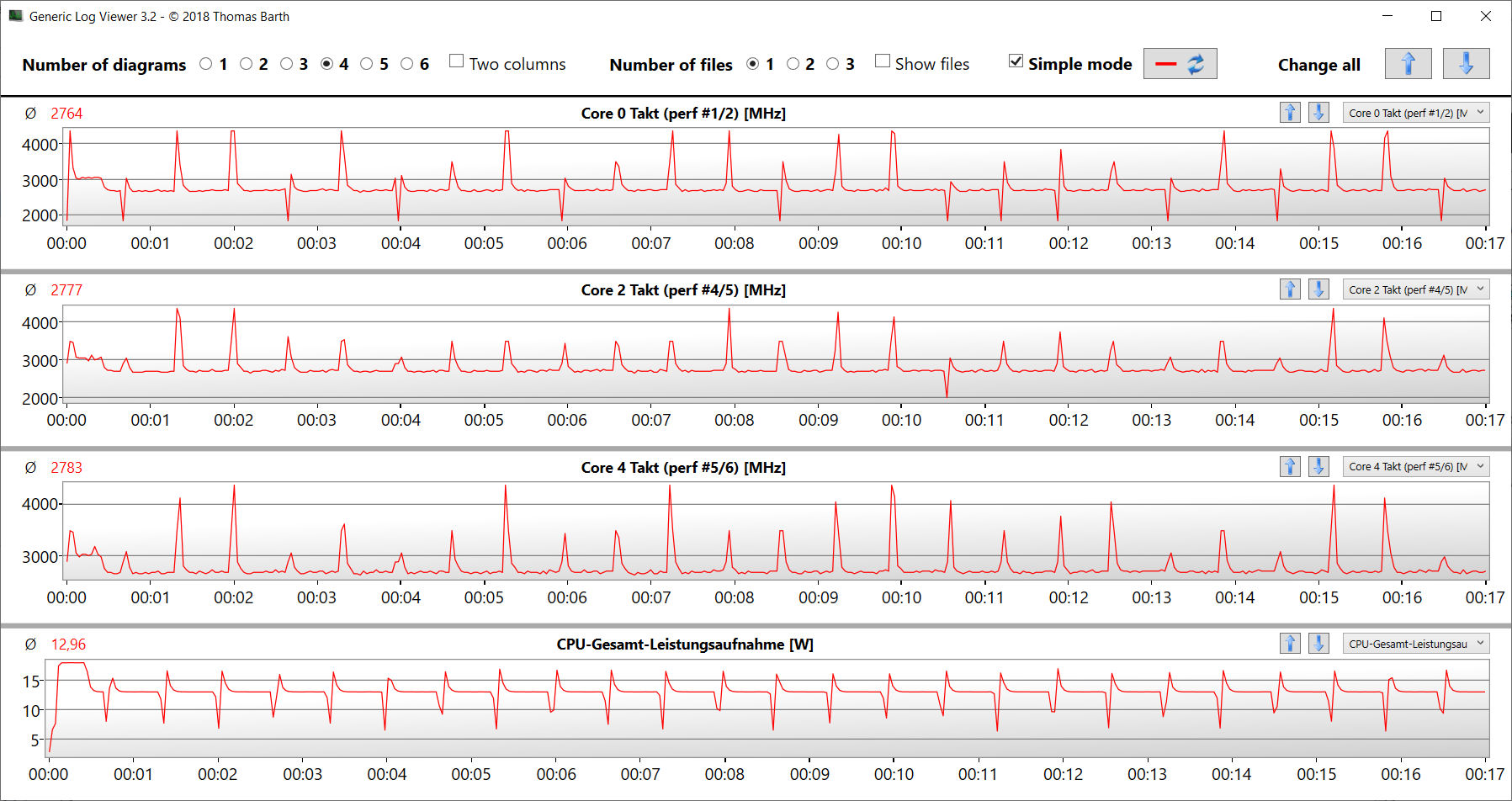

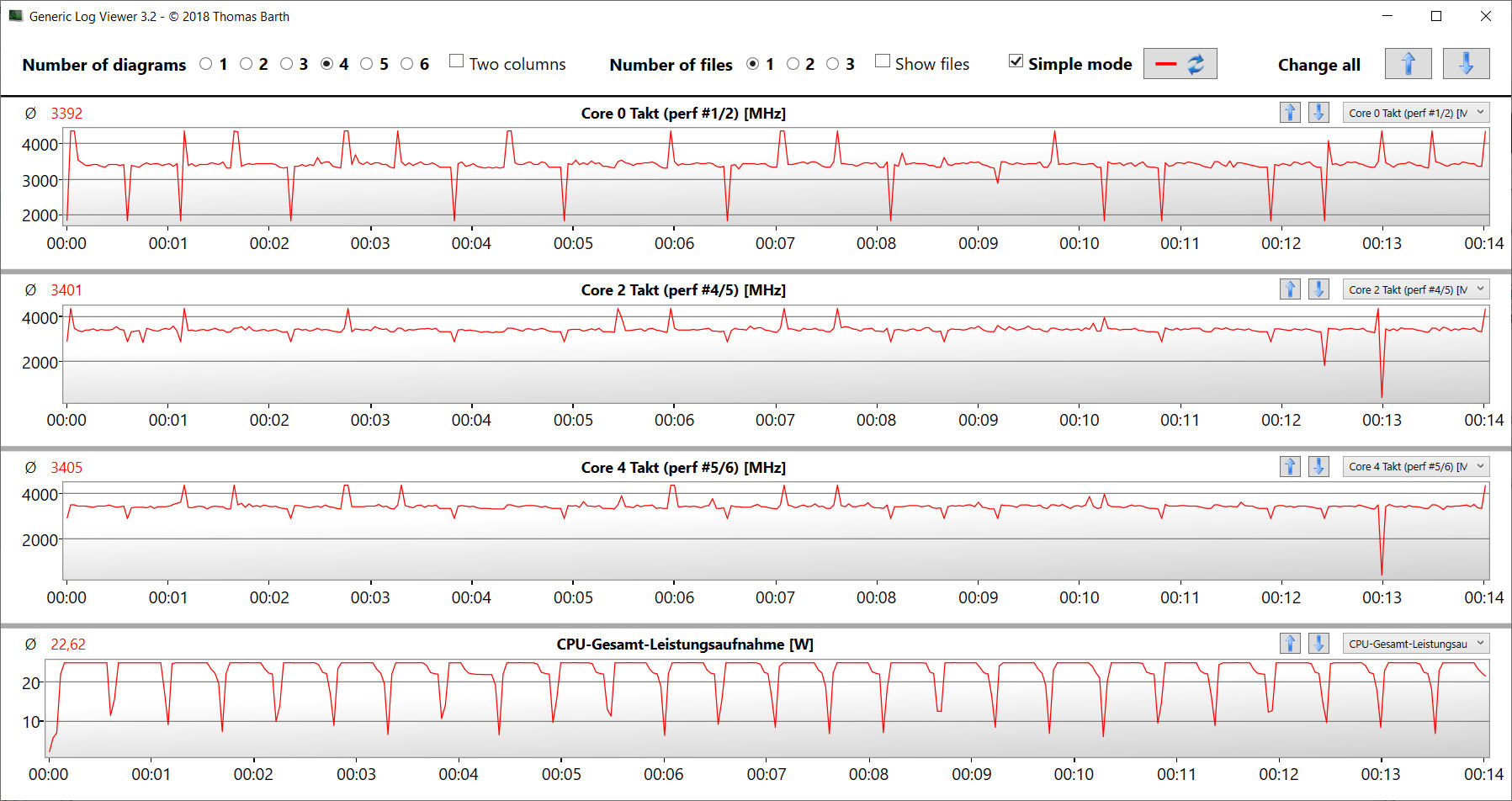

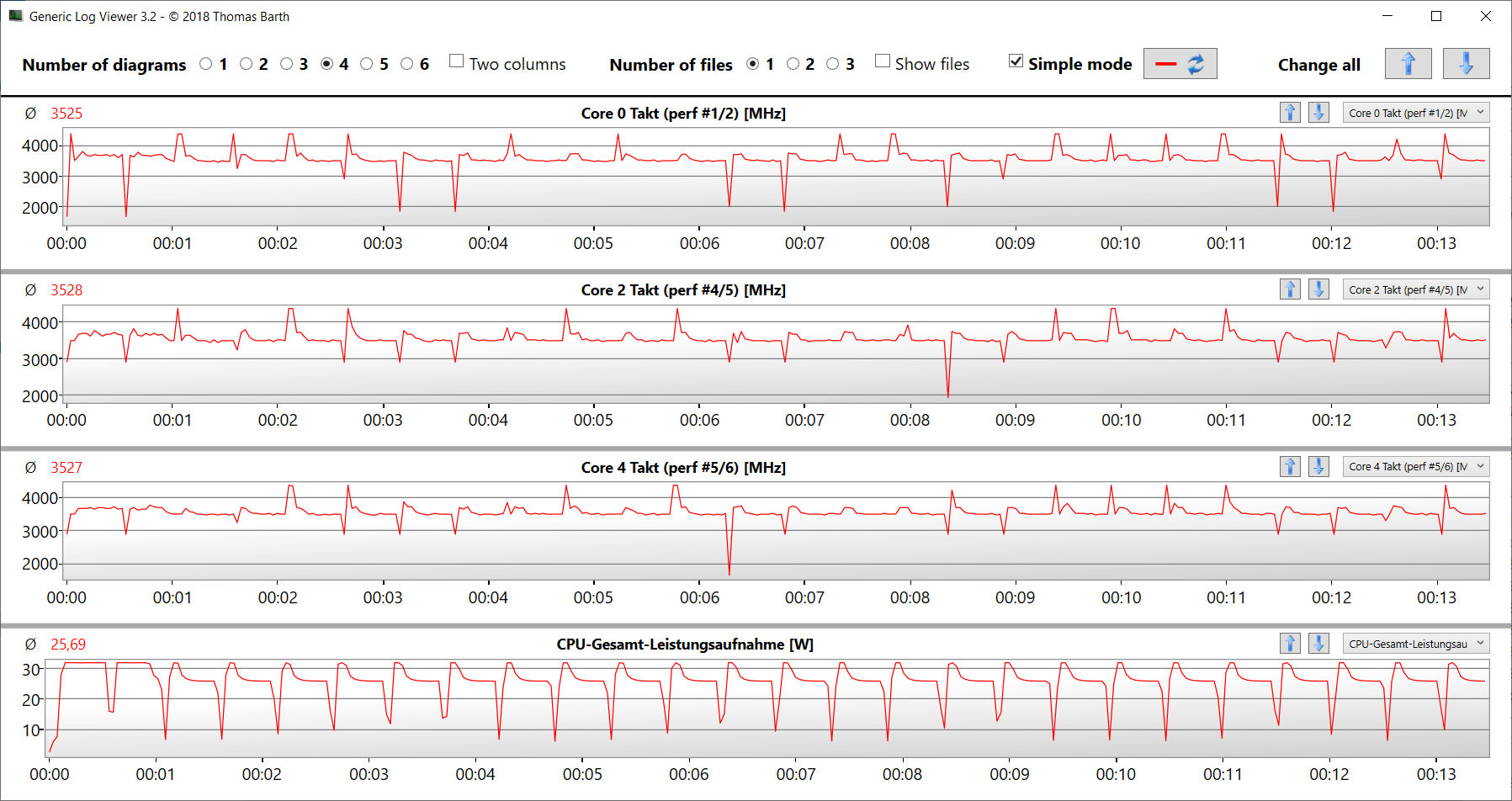

Cinebench R15多核循环测试显示了一个一致的涡轮增压时钟。在电池供电情况下，涡轮增压下降到刚刚超过基本时钟的数值。
Cinebench R15 Multi Loop
| CPU Performance Rating - Percent | |
| Average of class Office | |
| Average AMD Ryzen 5 5625U | |
| Lenovo IdeaPad 3 17ABA7 | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Asus VivoBook 17 F712JA-AU708W -1! | |
| Cinebench R23 | |
| Multi Core | |
| Average of class Office (1577 - 15743, n=93, last 2 years) | |
| Lenovo IdeaPad 3 17ABA7 | |
| Average AMD Ryzen 5 5625U (7213 - 9100, n=7) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Asus VivoBook 17 F712JA-AU708W | |
| Single Core | |
| Average of class Office (618 - 1995, n=93, last 2 years) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Lenovo IdeaPad 3 17ABA7 | |
| Average AMD Ryzen 5 5625U (1345 - 1400, n=7) | |
| Cinebench R20 | |
| CPU (Multi Core) | |
| Average of class Office (590 - 5980, n=92, last 2 years) | |
| Lenovo IdeaPad 3 17ABA7 | |
| Average AMD Ryzen 5 5625U (2820 - 3549, n=7) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Asus VivoBook 17 F712JA-AU708W | |
| CPU (Single Core) | |
| Average of class Office (229 - 766, n=92, last 2 years) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Lenovo IdeaPad 3 17ABA7 | |
| Average AMD Ryzen 5 5625U (533 - 546, n=7) | |
| Asus VivoBook 17 F712JA-AU708W | |
| Cinebench R15 | |
| CPU Multi 64Bit | |
| Average of class Office (246 - 2642, n=95, last 2 years) | |
| Lenovo IdeaPad 3 17ABA7 | |
| Average AMD Ryzen 5 5625U (1219 - 1529, n=7) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Asus VivoBook 17 F712JA-AU708W | |
| CPU Single 64Bit | |
| Average of class Office (98 - 284, n=94, last 2 years) | |
| Lenovo IdeaPad 3 17ABA7 | |
| Average AMD Ryzen 5 5625U (219 - 226, n=7) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Asus VivoBook 17 F712JA-AU708W | |
| Blender - v2.79 BMW27 CPU | |
| Asus VivoBook 17 F712JA-AU708W | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Average of class Office (208 - 1956, n=94, last 2 years) | |
| Average AMD Ryzen 5 5625U (347 - 415, n=7) | |
| Lenovo IdeaPad 3 17ABA7 | |
| 7-Zip 18.03 | |
| 7z b 4 | |
| Average of class Office (7532 - 65460, n=95, last 2 years) | |
| Average AMD Ryzen 5 5625U (35573 - 40034, n=7) | |
| Lenovo IdeaPad 3 17ABA7 | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Asus VivoBook 17 F712JA-AU708W | |
| 7z b 4 -mmt1 | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Lenovo IdeaPad 3 17ABA7 | |
| Average of class Office (2972 - 6687, n=94, last 2 years) | |
| Average AMD Ryzen 5 5625U (5070 - 5260, n=7) | |
| Asus VivoBook 17 F712JA-AU708W | |
| Geekbench 5.5 | |
| Multi-Core | |
| Average of class Office (1018 - 11980, n=94, last 2 years) | |
| Average AMD Ryzen 5 5625U (4813 - 6472, n=7) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Lenovo IdeaPad 3 17ABA7 | |
| Asus VivoBook 17 F712JA-AU708W | |
| Single-Core | |
| Average of class Office (510 - 1995, n=95, last 2 years) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Average AMD Ryzen 5 5625U (1361 - 1450, n=7) | |
| Lenovo IdeaPad 3 17ABA7 | |
| Asus VivoBook 17 F712JA-AU708W | |
| HWBOT x265 Benchmark v2.2 - 4k Preset | |
| Average of class Office (1.72 - 18.7, n=92, last 2 years) | |
| Average AMD Ryzen 5 5625U (9.28 - 11.7, n=7) | |
| Lenovo IdeaPad 3 17ABA7 | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Asus VivoBook 17 F712JA-AU708W | |
| LibreOffice - 20 Documents To PDF | |
| Asus VivoBook 17 F712JA-AU708W | |
| Average of class Office (31.3 - 129.6, n=92, last 2 years) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Average AMD Ryzen 5 5625U (46.9 - 52, n=7) | |
| Lenovo IdeaPad 3 17ABA7 | |
| R Benchmark 2.5 - Overall mean | |
| Asus VivoBook 17 F712JA-AU708W | |
| Lenovo IdeaPad 3 17ABA7 | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Average AMD Ryzen 5 5625U (0.534 - 0.572, n=7) | |
| Average of class Office (0.4244 - 1.135, n=91, last 2 years) | |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Lenovo IdeaPad 3 17ABA7 | |
| Average AMD Ryzen 5 5625U | |
| Average of class Office | |
| Asus VivoBook 17 F712JA-AU708W | |
| AIDA64 / FP32 Ray-Trace | |
| Lenovo IdeaPad 3 17ABA7 | |
| Average of class Office (763 - 24250, n=93, last 2 years) | |
| Average AMD Ryzen 5 5625U (8446 - 10645, n=7) | |
| Asus VivoBook 17 F712JA-AU708W | |
| AIDA64 / FPU Julia | |
| Lenovo IdeaPad 3 17ABA7 | |
| Average AMD Ryzen 5 5625U (54270 - 67729, n=7) | |
| Average of class Office (4113 - 102228, n=93, last 2 years) | |
| Asus VivoBook 17 F712JA-AU708W | |
| AIDA64 / CPU SHA3 | |
| Lenovo IdeaPad 3 17ABA7 | |
| Average of class Office (287 - 4551, n=93, last 2 years) | |
| Average AMD Ryzen 5 5625U (1807 - 2314, n=7) | |
| Asus VivoBook 17 F712JA-AU708W | |
| AIDA64 / CPU Queen | |
| Lenovo IdeaPad 3 17ABA7 | |
| Average AMD Ryzen 5 5625U (67115 - 77047, n=7) | |
| Average of class Office (8185 - 115197, n=93, last 2 years) | |
| Asus VivoBook 17 F712JA-AU708W | |
| AIDA64 / FPU SinJulia | |
| Lenovo IdeaPad 3 17ABA7 | |
| Average AMD Ryzen 5 5625U (8128 - 9146, n=7) | |
| Average of class Office (404 - 14288, n=93, last 2 years) | |
| Asus VivoBook 17 F712JA-AU708W | |
| AIDA64 / FPU Mandel | |
| Lenovo IdeaPad 3 17ABA7 | |
| Average AMD Ryzen 5 5625U (29835 - 37072, n=7) | |
| Average of class Office (2075 - 54365, n=93, last 2 years) | |
| Asus VivoBook 17 F712JA-AU708W | |
| AIDA64 / CPU AES | |
| Lenovo IdeaPad 3 17ABA7 | |
| Average AMD Ryzen 5 5625U (31782 - 91153, n=7) | |
| Average of class Office (7254 - 155900, n=93, last 2 years) | |
| Asus VivoBook 17 F712JA-AU708W | |
| AIDA64 / CPU ZLib | |
| Average of class Office (78 - 1018, n=93, last 2 years) | |
| Lenovo IdeaPad 3 17ABA7 | |
| Average AMD Ryzen 5 5625U (481 - 592, n=7) | |
| Asus VivoBook 17 F712JA-AU708W | |
| AIDA64 / FP64 Ray-Trace | |
| Lenovo IdeaPad 3 17ABA7 | |
| Average of class Office (432 - 12755, n=93, last 2 years) | |
| Average AMD Ryzen 5 5625U (4472 - 5653, n=7) | |
| Asus VivoBook 17 F712JA-AU708W | |
| AIDA64 / CPU PhotoWorxx | |
| Average of class Office (4814 - 54971, n=93, last 2 years) | |
| Asus VivoBook 17 F712JA-AU708W | |
| Average AMD Ryzen 5 5625U (7138 - 14839, n=7) | |
| Lenovo IdeaPad 3 17ABA7 | |
系统性能

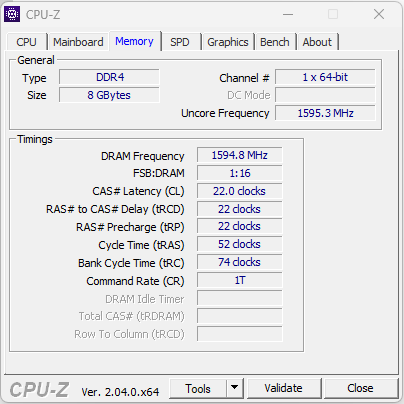

这个性能平稳的系统能够很好地应对办公和互联网应用，以及低设置下的游戏，良好的PCMark结果就是证明。然而，提供的单通道8GB DDR4-3200内存阻碍了APU的全部潜力。我们建议安装另一个内存条以启用双通道模式。
所提供的RAM模块的传输速率是在DDR4-3200内存的预期线上。然而，由于其双通道配置，竞争对手能够提供更好的价值。
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (5573 - 6025, n=5) | |
| Average of class Office (2463 - 7344, n=86, last 2 years) | |
| Lenovo IdeaPad 3 17ABA7 | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Asus VivoBook 17 F712JA-AU708W | |
| PCMark 10 / Essentials | |
| Lenovo IdeaPad 3 17ABA7 | |
| Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (10033 - 10555, n=5) | |
| Average of class Office (5575 - 20841, n=86, last 2 years) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Asus VivoBook 17 F712JA-AU708W | |
| PCMark 10 / Productivity | |
| Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (8931 - 9462, n=5) | |
| Lenovo IdeaPad 3 17ABA7 | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Average of class Office (3041 - 10415, n=86, last 2 years) | |
| Asus VivoBook 17 F712JA-AU708W | |
| PCMark 10 / Digital Content Creation | |
| Average of class Office (2049 - 9773, n=86, last 2 years) | |
| Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (4920 - 5944, n=5) | |
| Lenovo IdeaPad 3 17ABA7 | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Asus VivoBook 17 F712JA-AU708W | |
| CrossMark / Overall | |
| Average of class Office (348 - 1891, n=88, last 2 years) | |
| Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (1220 - 1330, n=5) | |
| Lenovo IdeaPad 3 17ABA7 | |
| Asus VivoBook 17 F712JA-AU708W | |
| CrossMark / Productivity | |
| Average of class Office (393 - 1870, n=88, last 2 years) | |
| Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (1305 - 1375, n=5) | |
| Lenovo IdeaPad 3 17ABA7 | |
| Asus VivoBook 17 F712JA-AU708W | |
| CrossMark / Creativity | |
| Average of class Office (340 - 1982, n=88, last 2 years) | |
| Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (1171 - 1358, n=5) | |
| Lenovo IdeaPad 3 17ABA7 | |
| Asus VivoBook 17 F712JA-AU708W | |
| CrossMark / Responsiveness | |
| Average of class Office (258 - 2017, n=88, last 2 years) | |
| Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (1103 - 1170, n=5) | |
| Lenovo IdeaPad 3 17ABA7 | |
| Asus VivoBook 17 F712JA-AU708W | |
| PCMark 10 Score | 5573 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Average of class Office (7158 - 108783, n=94, last 2 years) | |
| Average AMD Ryzen 5 5625U (19943 - 34187, n=7) | |
| Asus VivoBook 17 F712JA-AU708W | |
| Lenovo IdeaPad 3 17ABA7 | |
| AIDA64 / Memory Read | |
| Average of class Office (7325 - 127282, n=94, last 2 years) | |
| Asus VivoBook 17 F712JA-AU708W | |
| Average AMD Ryzen 5 5625U (22532 - 39612, n=7) | |
| Lenovo IdeaPad 3 17ABA7 | |
| AIDA64 / Memory Write | |
| Average of class Office (7579 - 117935, n=94, last 2 years) | |
| Asus VivoBook 17 F712JA-AU708W | |
| Average AMD Ryzen 5 5625U (21512 - 33048, n=7) | |
| Lenovo IdeaPad 3 17ABA7 | |
| AIDA64 / Memory Latency | |
| Average AMD Ryzen 5 5625U (91.7 - 103, n=7) | |
| Average of class Office (6.9 - 185.2, n=93, last 2 years) | |
| Lenovo IdeaPad 3 17ABA7 | |
| Asus VivoBook 17 F712JA-AU708W | |
* ... smaller is better

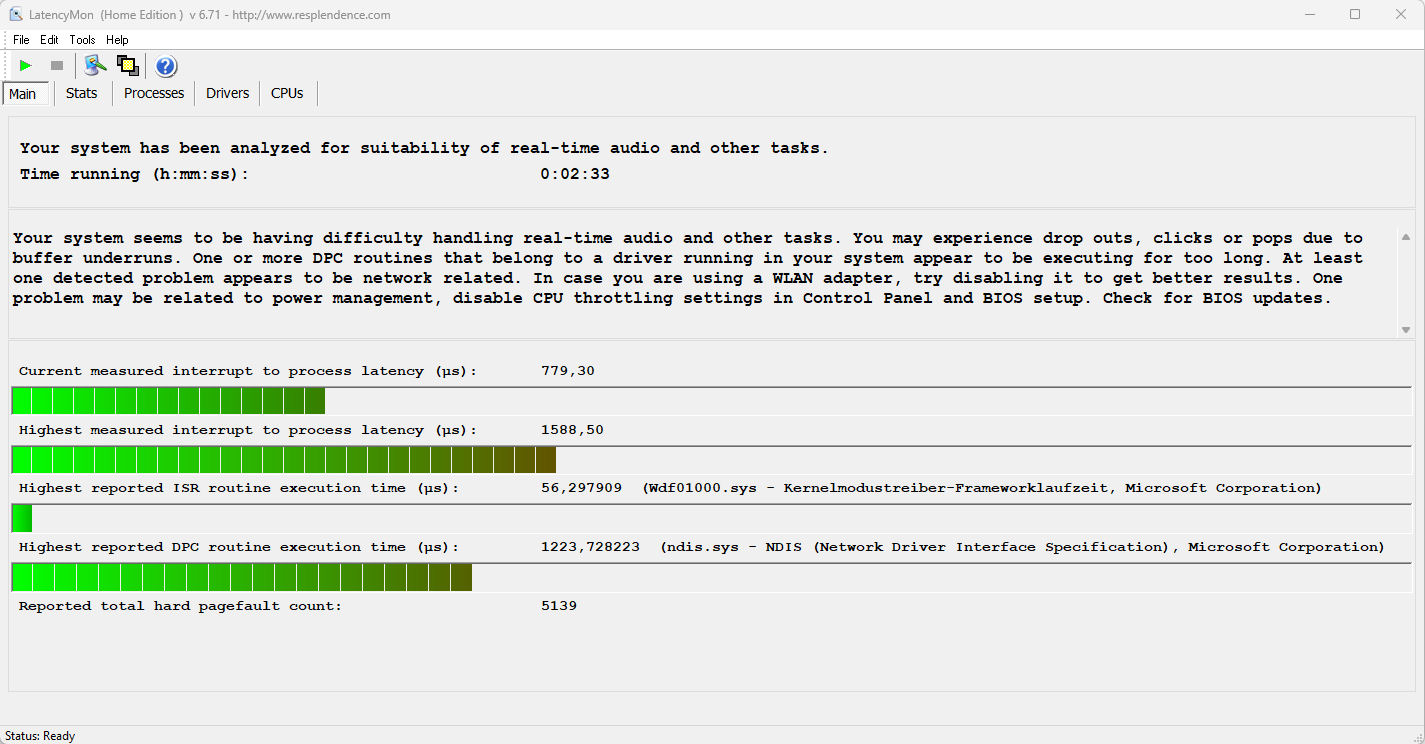

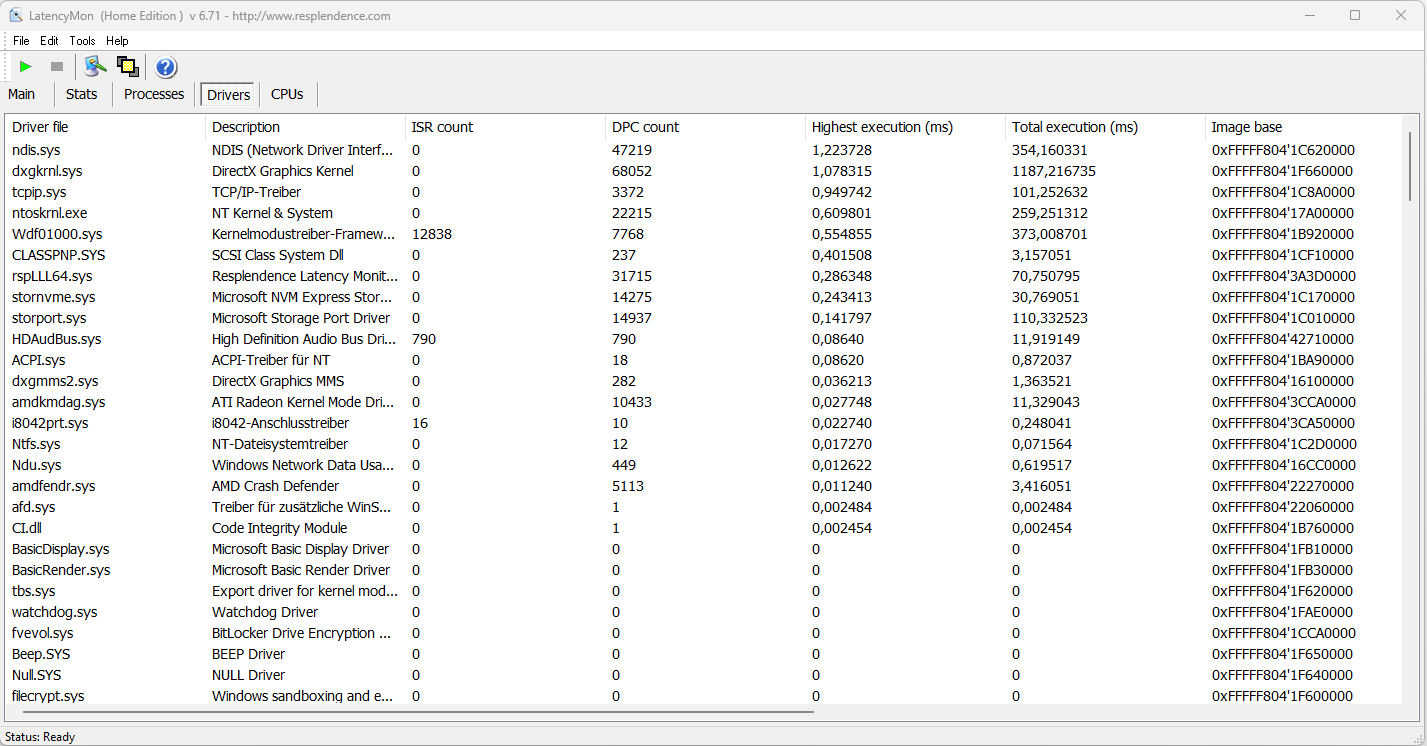

DPC延时
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Average of class Office (330 - 30050, n=84, last 2 years) | |
| Lenovo IdeaPad 3 17ABA7 | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Asus VivoBook 17 F712JA-AU708W | |
* ... smaller is better
存储设备

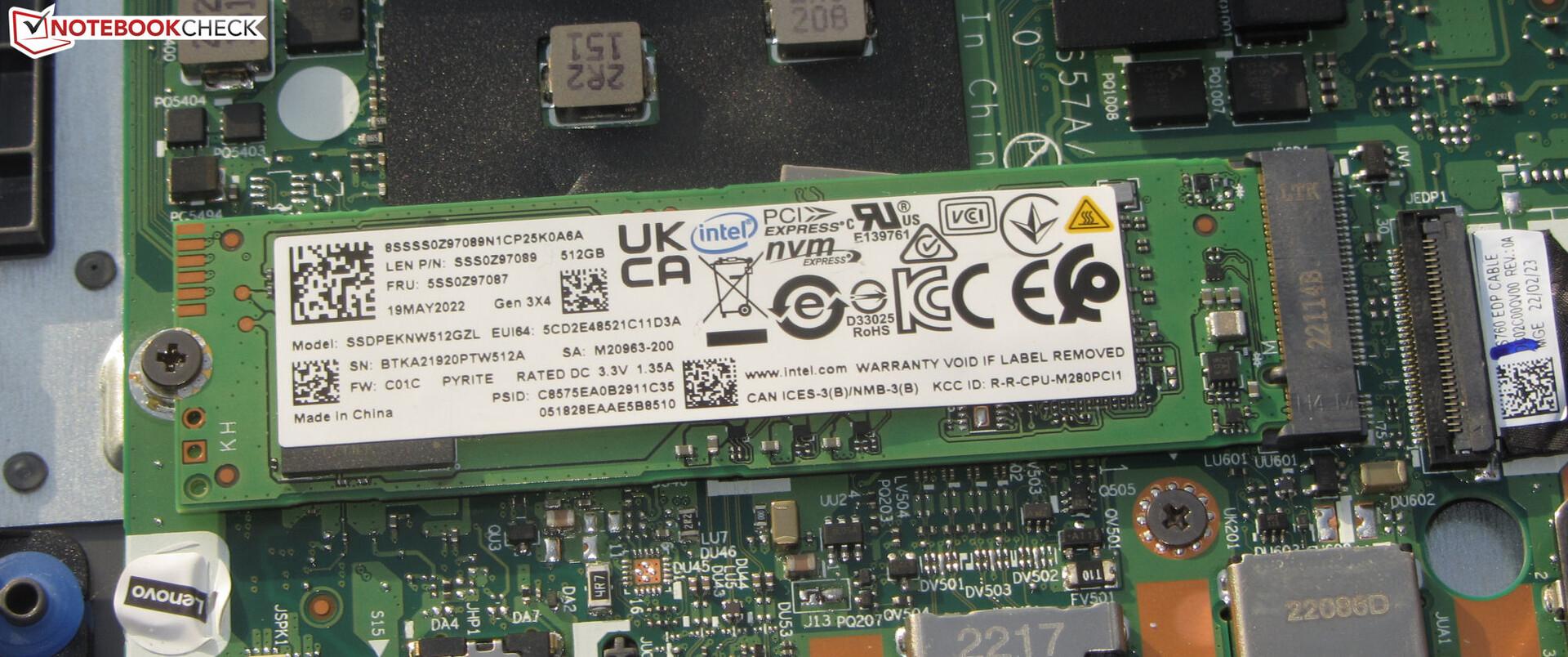

联想为IdeaPad 3 17ABA7配备了英特尔PCIe 3 M.2-2280 SSD。传输速率很好，但由于热节流，SSD显示出一些性能波动。
联想提供了添加2.5英寸SATA驱动器的空间，但没有提供必要的SATA连接器。
| Drive Performance Rating - Percent | |
| Average of class Office | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Lenovo IdeaPad 3 17ABA7 | |
| Average Intel SSDPEKNW512GZL | |
| Asus VivoBook 17 F712JA-AU708W | |
* ... smaller is better
Dauerleistung Lesen: DiskSpd Read Loop, Queue Depth 8
GPU性能

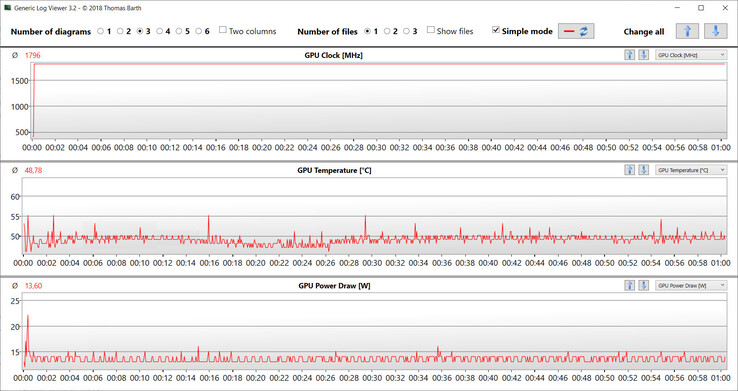

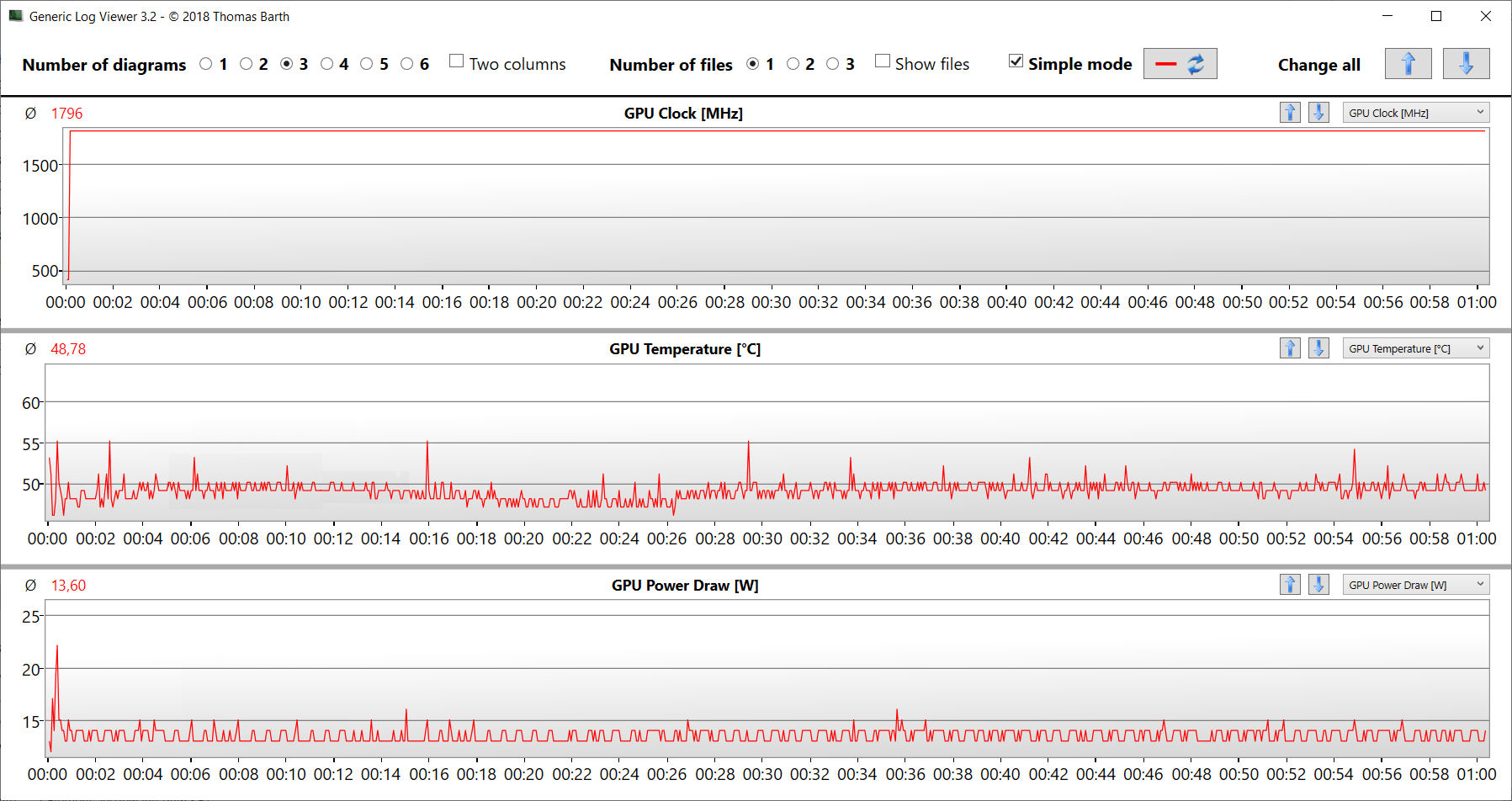

集成的Vega 7iGPU可以稳定地工作在其全部潜力（1,800 MHz），如下面的TheWitcher 3 测试所示。IdeaPad 3 17ABA7不是一款游戏笔记本，但它能够在低设置下玩简单的游戏。
低于平均水平的基准测试结果是由于单通道内存的原因。通过安装双通道内存可以获得更高的图形性能。
| 3DMark Performance Rating - Percent | |
| Average of class Office | |
| Acer Aspire 5 A517-52G-79Z5 -1! | |
| Average AMD Radeon RX Vega 7 | |
| Lenovo IdeaPad 3 17ABA7 | |
| Asus VivoBook 17 F712JA-AU708W -1! | |
| 3DMark 11 - 1280x720 Performance GPU | |
| Average of class Office (1468 - 13132, n=89, last 2 years) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Average AMD Radeon RX Vega 7 (3353 - 6249, n=58) | |
| Lenovo IdeaPad 3 17ABA7 | |
| Asus VivoBook 17 F712JA-AU708W | |
| 3DMark | |
| 1280x720 Cloud Gate Standard Graphics | |
| Average of class Office (7982 - 58068, n=63, last 2 years) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Average AMD Radeon RX Vega 7 (13713 - 31437, n=43) | |
| Lenovo IdeaPad 3 17ABA7 | |

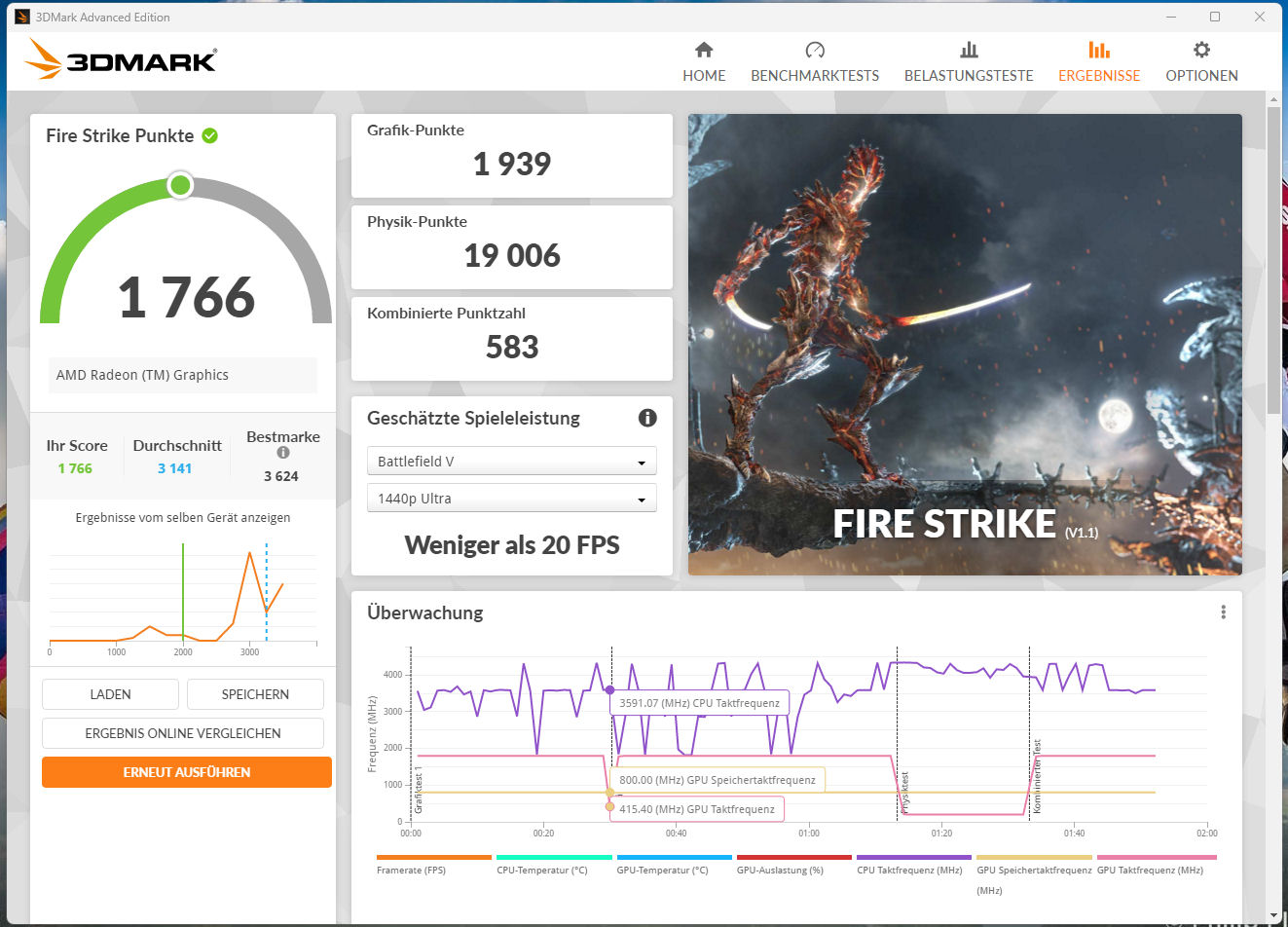

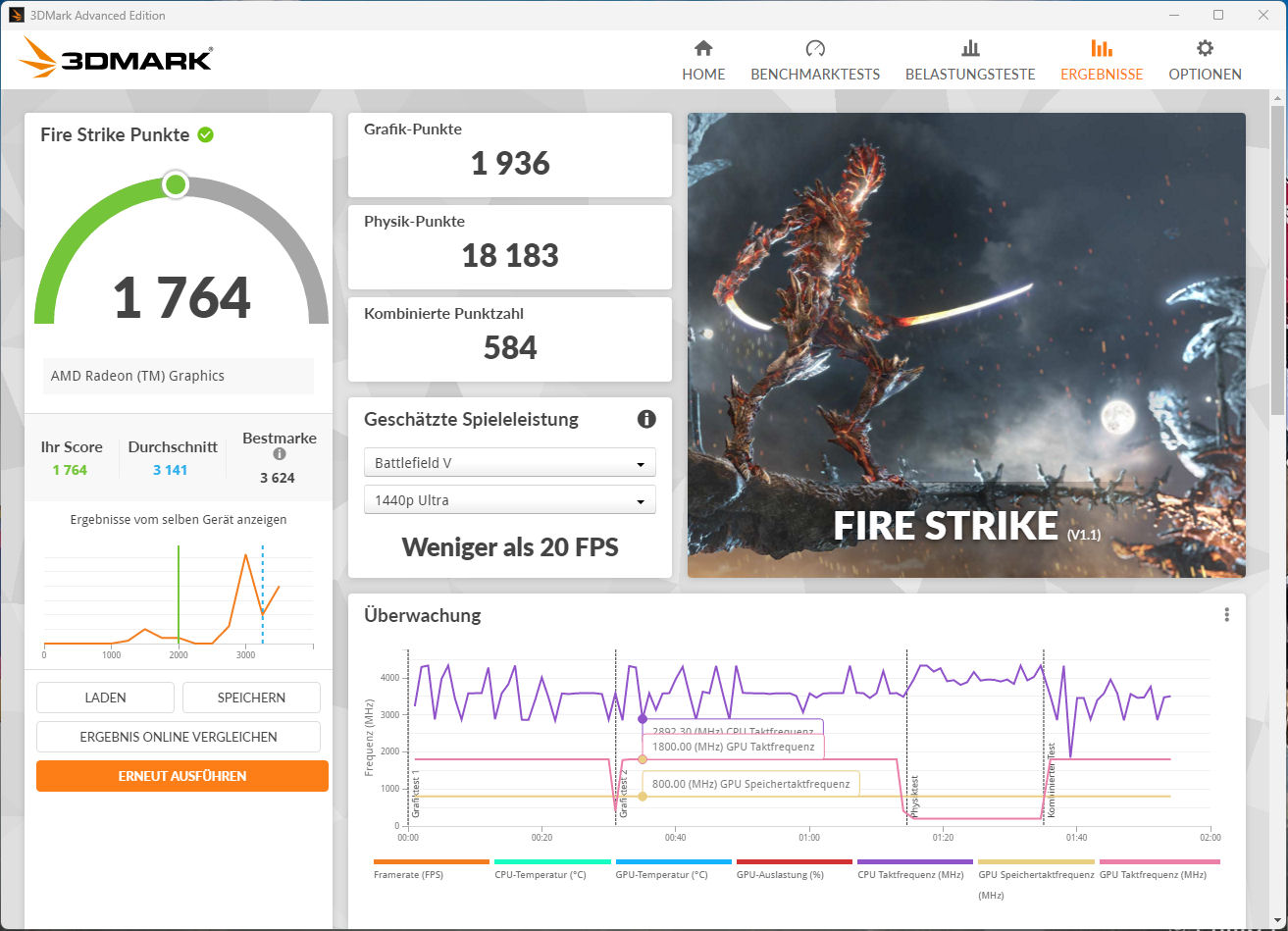

| 1920x1080 Fire Strike Graphics | |
| Average of class Office (736 - 9375, n=91, last 2 years) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Average AMD Radeon RX Vega 7 (1772 - 4037, n=62) | |
| Asus VivoBook 17 F712JA-AU708W | |
| Lenovo IdeaPad 3 17ABA7 | |
| 2560x1440 Time Spy Graphics | |
| Average of class Office (313 - 4109, n=90, last 2 years) | |
| Average AMD Radeon RX Vega 7 (496 - 1249, n=57) | |
| Asus VivoBook 17 F712JA-AU708W | |
| Lenovo IdeaPad 3 17ABA7 | |
| 3DMark 11 Performance | 3501 points | |
| 3DMark Cloud Gate Standard Score | 14104 points | |
| 3DMark Fire Strike Score | 1766 points | |
| 3DMark Time Spy Score | 751 points | |
Help | ||
| Blender | |
| v3.3 Classroom HIP/AMD | |
| Lenovo IdeaPad 3 17ABA7 | |
| Average AMD Radeon RX Vega 7 (570 - 1215, n=12) | |
| Average of class Office (298 - 1215, n=14, last 2 years) | |
| v3.3 Classroom CPU | |
| Average of class Office (343 - 3964, n=90, last 2 years) | |
| Average AMD Radeon RX Vega 7 (556 - 878, n=24) | |
| Lenovo IdeaPad 3 17ABA7 | |
* ... smaller is better
| Performance Rating - Percent | |
| Average of class Office | |
| Acer Aspire 5 A517-52G-79Z5 -3! | |
| Average AMD Radeon RX Vega 7 | |
| Asus VivoBook 17 F712JA-AU708W | |
| Lenovo IdeaPad 3 17ABA7 | |
| The Witcher 3 - 1024x768 Low Graphics & Postprocessing | |
| Average of class Office (16 - 177, n=70, last 2 years) | |
| Average AMD Radeon RX Vega 7 (25.5 - 105.8, n=50) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Asus VivoBook 17 F712JA-AU708W | |
| Lenovo IdeaPad 3 17ABA7 | |
| GTA V - 1366x768 Normal/Off AF:4x | |
| Average of class Office (32.1 - 171.4, n=81, last 2 years) | |
| Average AMD Radeon RX Vega 7 (38 - 123, n=33) | |
| Lenovo IdeaPad 3 17ABA7 | |
| Asus VivoBook 17 F712JA-AU708W | |
| Final Fantasy XV Benchmark - 1280x720 Lite Quality | |
| Average of class Office (12.1 - 103.1, n=89, last 2 years) | |
| Average AMD Radeon RX Vega 7 (17.1 - 41.1, n=40) | |
| Asus VivoBook 17 F712JA-AU708W | |
| Lenovo IdeaPad 3 17ABA7 | |
| Strange Brigade - 1280x720 lowest AF:1 | |
| Average of class Office (37.7 - 175.7, n=78, last 2 years) | |
| Average AMD Radeon RX Vega 7 (34.8 - 95.3, n=41) | |
| Asus VivoBook 17 F712JA-AU708W | |
| Lenovo IdeaPad 3 17ABA7 | |
| Dota 2 Reborn - 1366x768 med (1/3) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Average of class Office (27.6 - 146.2, n=95, last 2 years) | |
| Average AMD Radeon RX Vega 7 (32.7 - 107.8, n=58) | |
| Lenovo IdeaPad 3 17ABA7 | |
| Asus VivoBook 17 F712JA-AU708W | |
| X-Plane 11.11 - 1280x720 low (fps_test=1) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Average of class Office (13.6 - 128.2, n=94, last 2 years) | |
| Average AMD Radeon RX Vega 7 (24.7 - 53.4, n=56) | |
| Lenovo IdeaPad 3 17ABA7 | |
| Asus VivoBook 17 F712JA-AU708W | |
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 51.7 | 45.6 | 12.5 | 5.93 |
| The Witcher 3 (2015) | 30.3 | 19.9 | 10 | 7 |
| Dota 2 Reborn (2015) | 91.1 | 57.6 | 27.6 | 25.9 |
| Final Fantasy XV Benchmark (2018) | 18.7 | 9.78 | 6.21 | |
| X-Plane 11.11 (2018) | 27.5 | 21.5 | 19.4 | |
| Strange Brigade (2018) | 39 | 14.8 | 12.6 | 10.9 |
排放和能源：IdeaPad 3具有适度的热排放
系统噪音
在空转和日常操作中（办公室、互联网），单风扇通常保持沉默。在中高负荷下，风扇的声音会非常大，最高可达47.6 dB(A)（压力测试，Witcher 3 ），这对办公笔记本来说绝对是偏高的。
智能冷却和省电模式可以确保降低噪音水平，尽管要牺牲计算能力。
Noise Level
| Idle |
| 26 / 30.8 / 33.4 dB(A) |
| Load |
| 47.6 / 47.5 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 26 dB(A) | ||
| Lenovo IdeaPad 3 17ABA7 Vega 7, R5 5625U, Intel SSDPEKNW512GZL | Asus VivoBook 17 F712JA-AU708W Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Kingston OM8PCP3512F-AB | Acer Aspire 5 A517-52G-79Z5 GeForce MX350, i7-1165G7, WDC PC SN530 SDBPNPZ-1T00 | |
|---|---|---|---|
| Noise | 2% | 10% | |
| off / environment * | 26 | 29.6 -14% | 24.9 4% |
| Idle Minimum * | 26 | 31.4 -21% | 24.9 4% |
| Idle Average * | 30.8 | 31.4 -2% | 24.9 19% |
| Idle Maximum * | 33.4 | 31.4 6% | 27 19% |
| Load Average * | 47.6 | 36.1 24% | 44.1 7% |
| Load Maximum * | 47.5 | 40.1 16% | 44.8 6% |
* ... smaller is better

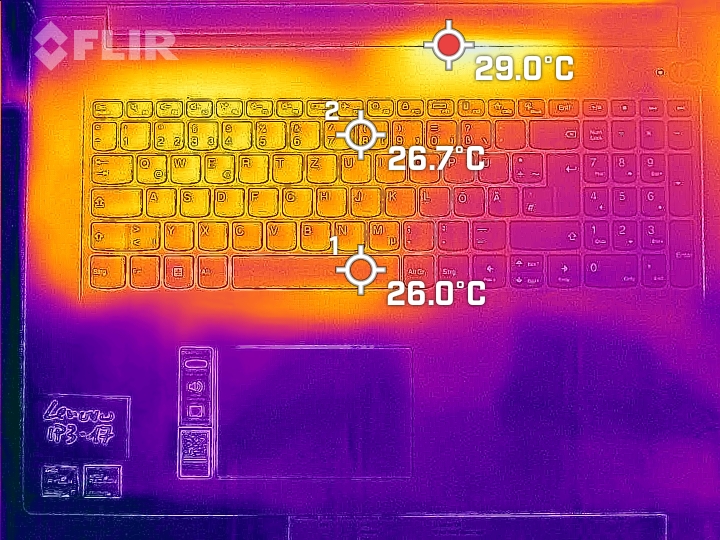

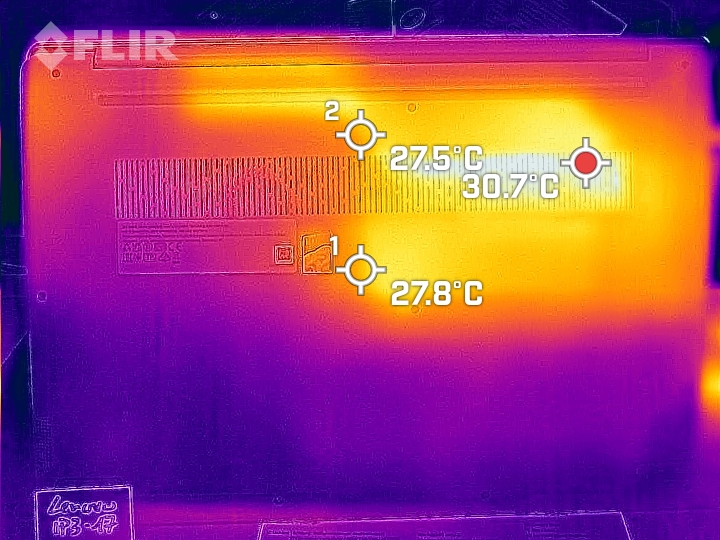

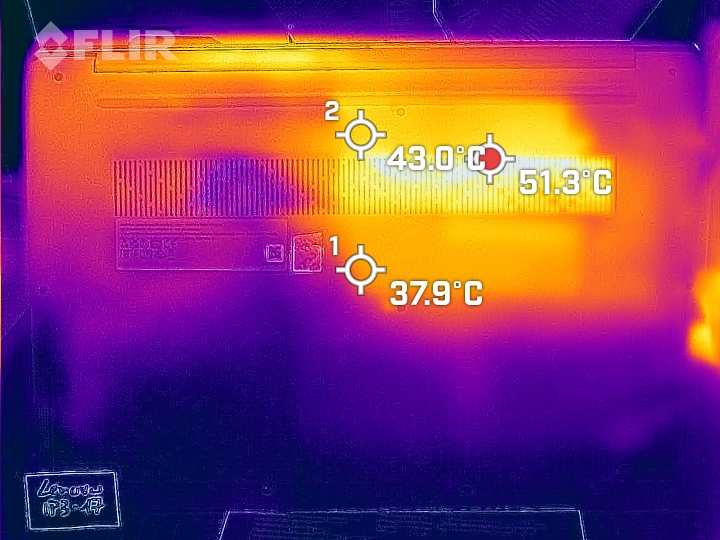

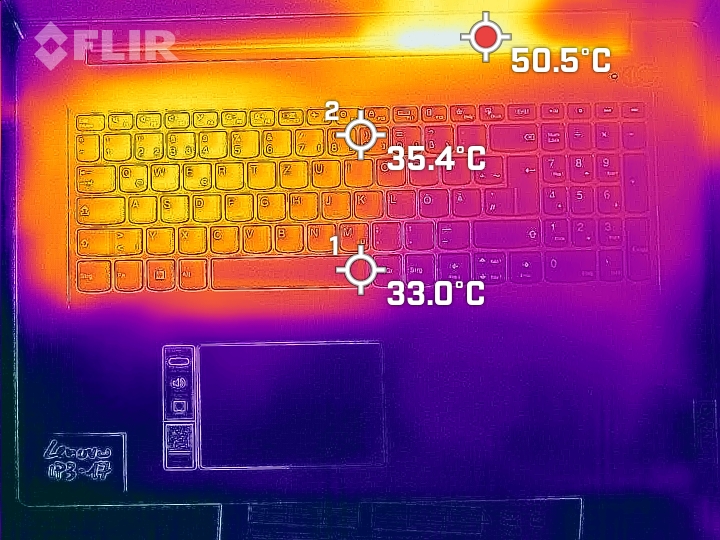

温度
IdeaPad 3的发热总体上只达到中等水平。在压力测试中，有四个测量点达到了最高温度（41 °C至44 °C）。在其他情况下，这些数值在日常操作中普遍较低。

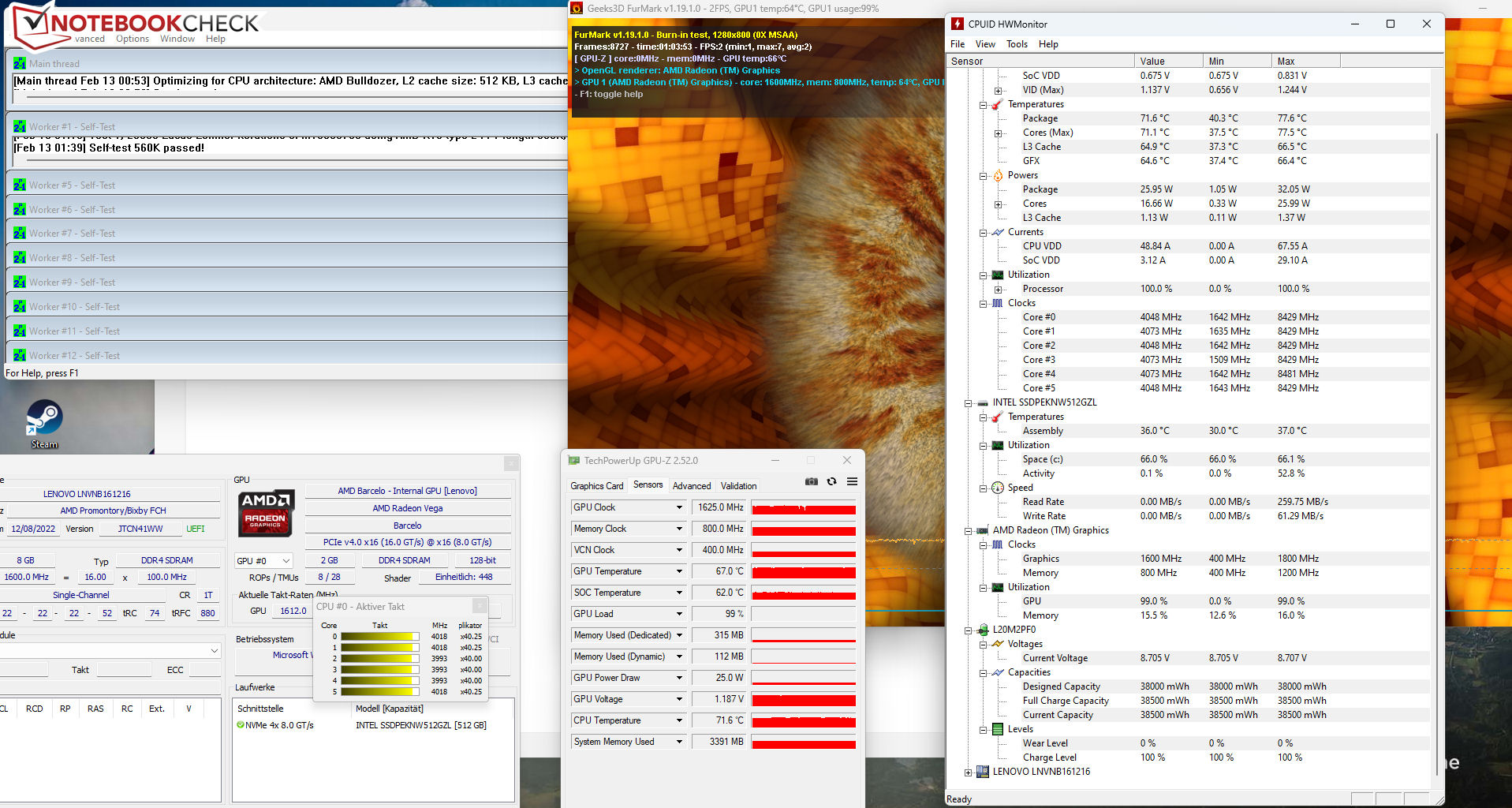

压力测试（连续的Prime95和FurMark负载）代表了检查系统在全负荷下的稳定性的一个极端情况。CPU和GPU在测试开始时的时钟频率分别为4.2GHz和1,800MHz。这些数值在测试过程中不断下降。
(±) The maximum temperature on the upper side is 43.1 °C / 110 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 43.6 °C / 110 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 23.1 °C / 74 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 24.6 °C / 76.3 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (+3 °C / 5.4 F).
| Lenovo IdeaPad 3 17ABA7 AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 | Asus VivoBook 17 F712JA-AU708W Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU) | Acer Aspire 5 A517-52G-79Z5 Intel Core i7-1165G7, NVIDIA GeForce MX350 | |
|---|---|---|---|
| Heat | -5% | 8% | |
| Maximum Upper Side * | 43.1 | 40.2 7% | 35 19% |
| Maximum Bottom * | 43.6 | 47.9 -10% | 40 8% |
| Idle Upper Side * | 25.1 | 27.3 -9% | 25.6 -2% |
| Idle Bottom * | 27 | 28.9 -7% | 25.3 6% |
* ... smaller is better
发言人
立体声扬声器听起来还不错，但它们几乎无法再现任何低音。
Lenovo IdeaPad 3 17ABA7 audio analysis
(±) | speaker loudness is average but good (72 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 26.7% lower than median
(±) | linearity of bass is average (12.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(±) | linearity of mids is average (8.1% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5% higher than median
(±) | linearity of highs is average (7.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (22.9% difference to median)
Compared to same class
» 60% of all tested devices in this class were better, 8% similar, 32% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 65% of all tested devices were better, 6% similar, 29% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Acer Aspire 5 A517-52G-79Z5 audio analysis
(-) | not very loud speakers (67.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 27.5% lower than median
(±) | linearity of bass is average (12.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.1% away from median
(±) | linearity of mids is average (10.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.7% away from median
(±) | linearity of highs is average (7.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.8% difference to median)
Compared to same class
» 51% of all tested devices in this class were better, 10% similar, 39% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 59% of all tested devices were better, 7% similar, 34% worse
» The best had a delta of 4%, average was 25%, worst was 134%
消耗功率
能源需求是在所安装硬件的预期范围内。 Witcher 3显示了相当稳定的功耗，而压力测试期间的功耗在运行过程中有所下降。
所提供的65W电源适配器似乎足以满足笔记本电脑的能源需求。
| Off / Standby | 0.36 / 0.5 Watt |
| Idle | 5.1 / 8.3 / 9.6 Watt |
| Load |
33.6 / 51.9 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
Power Consumption: The Witcher 3 / Stress test
Power Consumption: External monitor
电池寿命
IdeaPad 3在我们的标准化WLAN测试中实现了6.5小时的运行时间，该测试使用脚本加载各种网页。电池寿命没有什么可写的，但对于相对较低的38WHr电池容量来说是不错的。
| Battery Runtime - WiFi Websurfing | |
| Average of class Office (230 - 1349, n=93, last 2 years) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Lenovo IdeaPad 3 17ABA7 | |
| Asus VivoBook 17 F712JA-AU708W | |
Pros
Cons
评定。家庭办公室的升级版
随着 AMD Ryzen 5 5625U，联想不必在IdeaPad 3 17ABA7中使用旧一代处理器。该APU足以满足未来几年的预期目的。然而，该笔记本电脑需要双通道内存，以实现其全部潜力。
联想IdeaPad 3应该在家庭办公桌上找到吸引力，并为此类任务配备了良好的装备。
办公室、互联网应用和简单的游戏不会对硬件构成重大挑战。CPU和GPU可以在高时钟下稳定运行。排放物没有问题，但压力下的高风扇噪音可能会让人感到困扰。

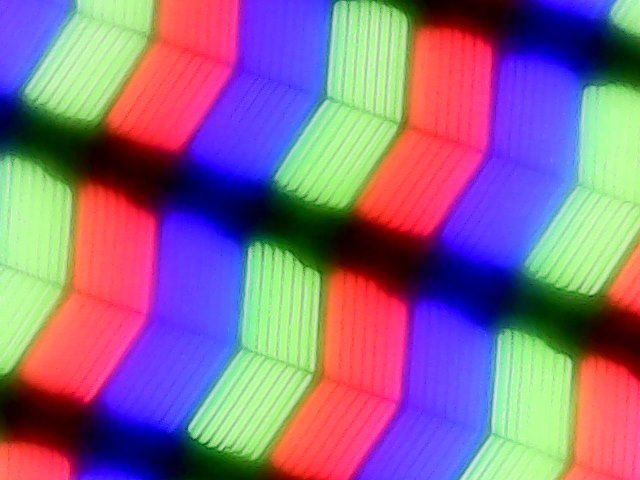

哑光的、生动的17.3英寸FHD IPS显示屏在大多数情况下留下了良好的印象，除了低对比度。此外，键盘是体面的，但不幸的是缺乏背光。IdeaPad 3的一个好方面是它的USB-C端口支持Power Delivery和DisplayPort-out。在Wi-Fi浏览中，它的电池寿命低于7小时，这也是该产品的一大亮点。
这款产品Acer Aspire 5 A517-52G作为IdeaPad 3 17的一个很好的替代品。与联想的产品不同，宏碁在键盘照明和专用的 GeForce MX350GPU（现在，一个 GeForce MX450).
如果你喜欢更紧凑的解决方案，你应该看看基本相同的IdeaPad 3 15ABA7 ，由于有更大的45WHr电池，它的运行时间也得到了显著改善。
价格和可用性
经测试，联想IdeaPad 3 17ABA7在Notebooksbilliger.de上有售。为749欧元。
Lenovo IdeaPad 3 17ABA7
- 03/09/2023 v7 (old)
Sascha Mölck
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
Price comparison
