Khadas Mind 工作站评测：这款配备电池和酷睿 i7-1360P 处理器的便携式迷你 PC 能否取代笔记本电脑？

Name: Khadas Mind
Brand: Khadas

完美的多面手

如今，迷你 PC 市场已经非常饱和。不过，卡达斯公司发布了一款非常有趣的设备：据称，Mind 将大大拓宽迷你 PC 的使用范围。与此同时，制造商还依赖于内部配件，这些配件与 Khadas Mind 配合使用，据称可以取代一系列设备。在本次评测中，我们首先对基本设备进行了评测，以便将其性能与其他迷你电脑进行比较。

Sebastian Bade (translated by DeepL / Ninh Duy), Published 08/10/2023 🇺🇸 🇩🇪 ...

Desktop Mini PC Raptor Lake Intel

您可能会在工业领域认识到 Khadas，他们提供了大量基于 ARM 的迷你 PC。随着 Khadas Mind 的推出，这家制造商又发布了一款便携式工作站。首先，这是一款以英特尔酷睿 i7-1360P 为基础的迷你电脑。此外，制造商还安装了 32 GB DDR5 内存和 1 TB SSD。Khadas 即将在 Kickstarter 上发起一项活动，为早期注册者提供各种折扣。这意味着顶级型号，也就是我们测试过的这款，将以 799 美元的价格出售，而搭载英特尔酷睿 i5-1340P将以 599 美元的价格出售。

凯达斯公司的口号是发布新一代便携式工作站，目前我们只能看到它与专有配件的组合。除了 Mind Dock（我们也在本次评测中对其进行了介绍）之外，还有 Mind xPlay（便携式显示器）和 Mind Graphics。后者是基于NvidiaGeForce RTX 4060 Laptop GPU 的外置显卡。配件的连接通过 Mind Link 实现。这种获得专利的连接方式可提供 PCI Express 5.0 的速度，因此与 Thunderbolt 相比具有相当大的优势。Mind xPlay 和 Mind Graphics 还没有进入最后阶段。我们目前正在与制造商联系，试图获得一个模型，这样我们就可以在实际使用中为您介绍 Khadas Mind 生态系统的优缺点。

评估说明：

在我们的评估以及后续结果中，我们只关注了 Khadas Mind mini PC。我们将在下文中提及可选配件，其中包括 Mind Dock。不过，这并不包括在最终评估中，因为 Khadas Mind 也可以在没有任何配件的情况下使用。

我们选择了多款功能相似的最新迷你电脑作为本次评测的对比设备。您可以在下表中找到这些设备的详细列表。

Test device courtesy of Khadas

Download your licensed rating image as PNG / SVG

Khadas Mind

Processor

Intel Core i7-1360P 12 x 1.6 - 5 GHz, 64 W PL2 / Short Burst, 28 W PL1 / Sustained, Raptor Lake-P

Graphics adapter

Intel Iris Xe Graphics G7 96EUs, 31.0.101.4338

Memory

32 GB

, DDR5-5200MT/s, soldered in

Mainboard

Intel Raptor Lake-P PCH

Storage

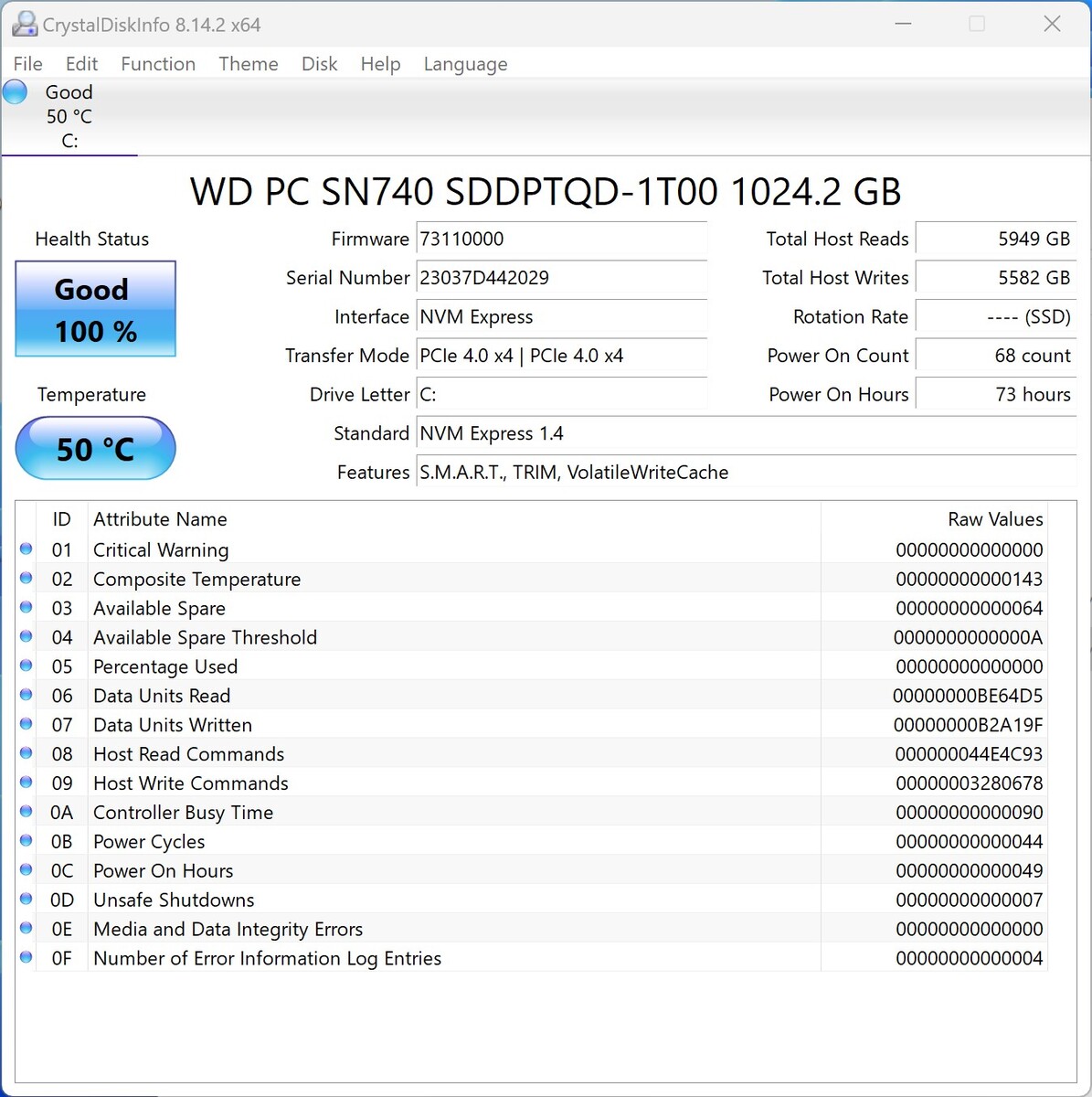

WD PC SN740 SDDPTQD-1T00, 1024 GB

, M.2-2230, NVMe, 950 GB free

Soundcard

Intel Raptor Lake-P/U/H PCH - cAVS

Connections

4 USB 3.1 Gen2, 1 HDMI, 1 Docking Station Port

Networking

Intel Wi-Fi 6E AX211 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.3

Size

height x width x depth (in mm): 20 x 146 x 105

Operating System

Microsoft Windows 11 Home

Additional features

65-watt power supply

Weight

438 g, Power Supply: 113 g

Price

799 Euro

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height
78.8 % v7 ^(old)	08 / 2023	Khadas Mind i7-1360P, Iris Xe G7 96EUs	438 g	20 mm
85.1 % v7 ^(old)	01 / 2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
83.7 % v7 ^(old)	05 / 2023	Morefine M600, 6600U R5 6600U, Radeon 660M	768 g	40.6 mm
82.3 % v7 ^(old)	05 / 2023	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	572 g	45.6 mm
81.8 % v7 ^(old)	06 / 2023	Minisforum Mercury Series EM680 R7 6800U, Radeon 680M	239 g	43 mm
80.8 % v7 ^(old)	04 / 2023	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	538 g	37 mm
80.6 % v7 ^(old)	07 / 2023	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	536 g	48 mm

卡达斯心灵与心灵码头的详细介绍

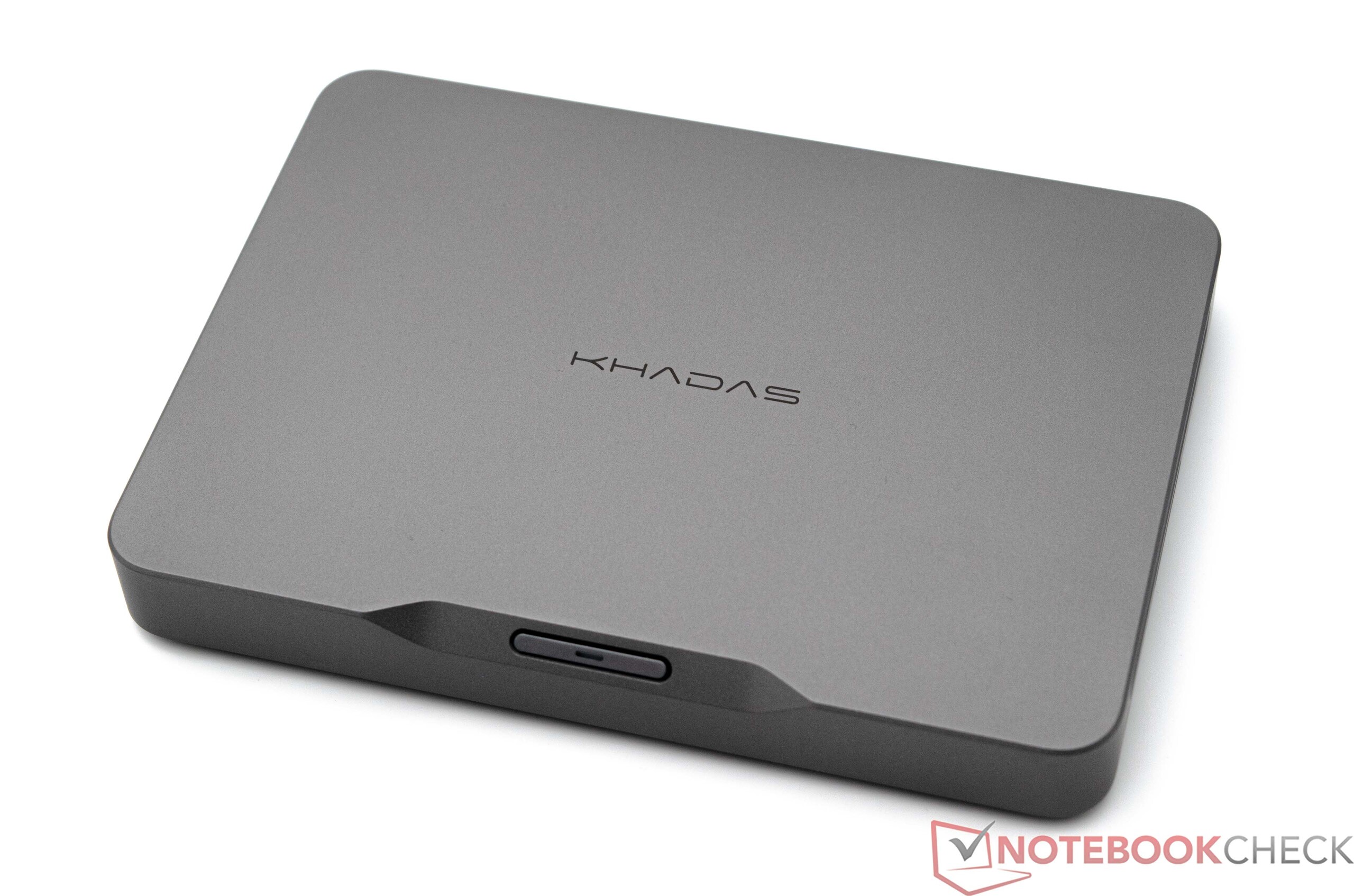

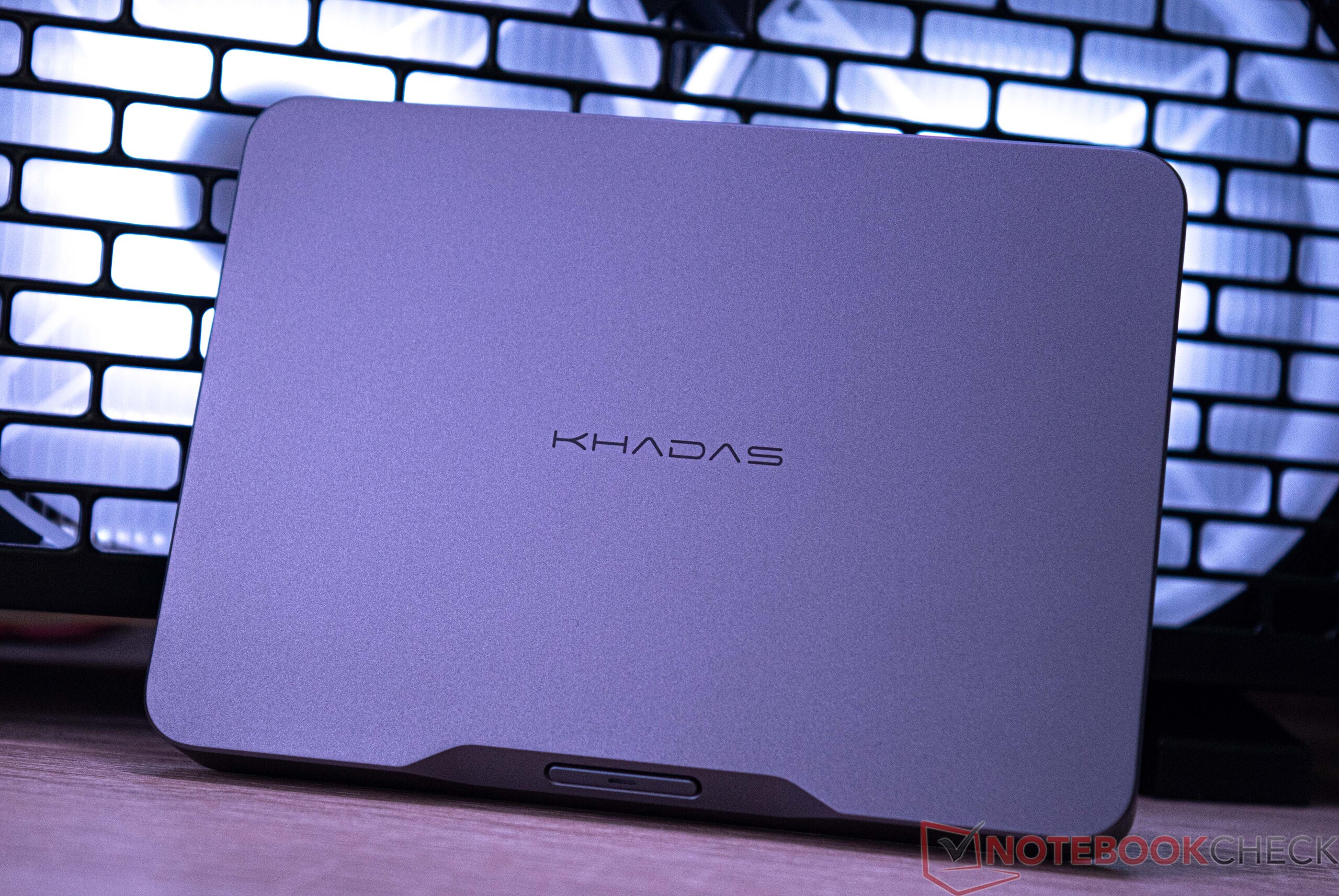

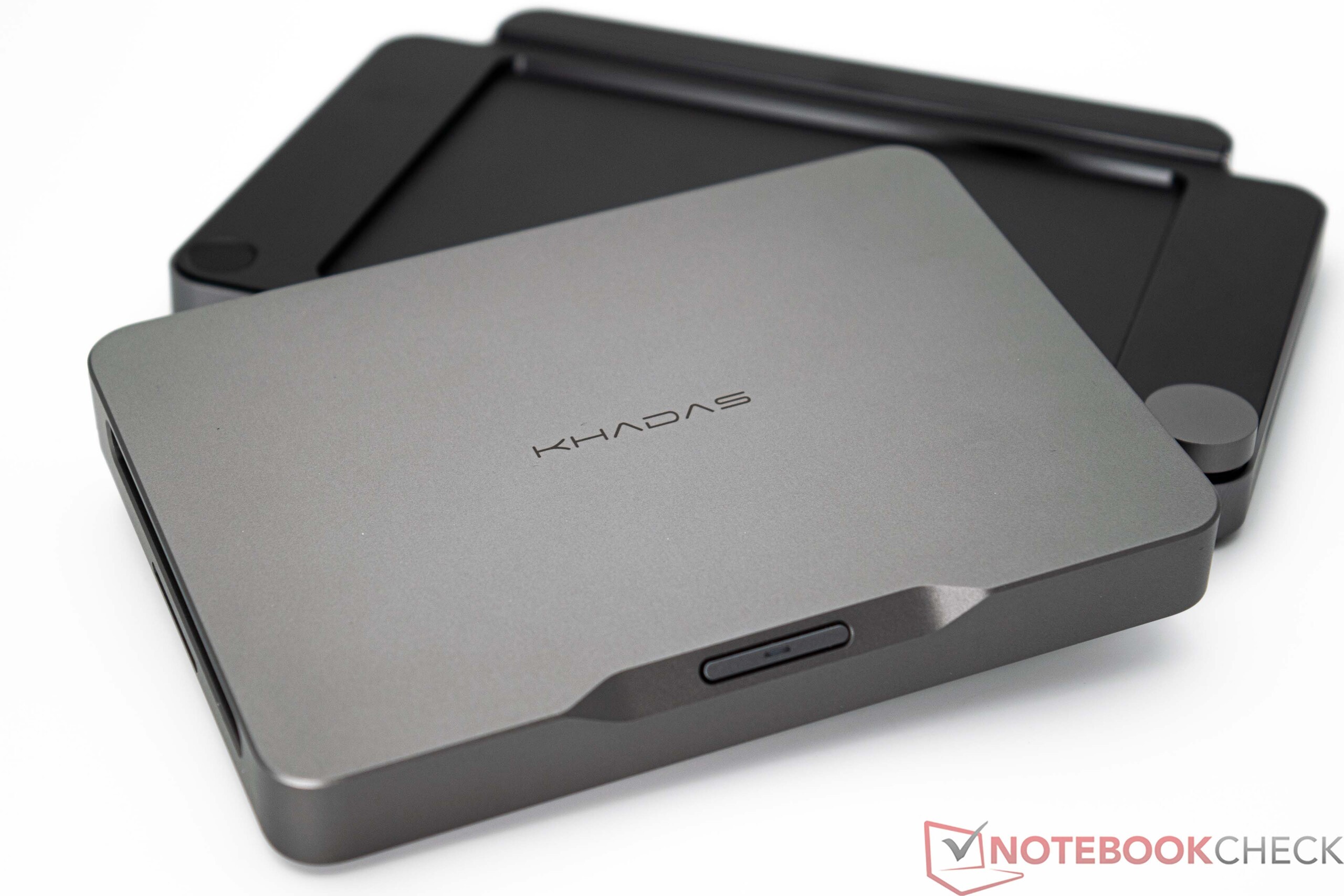

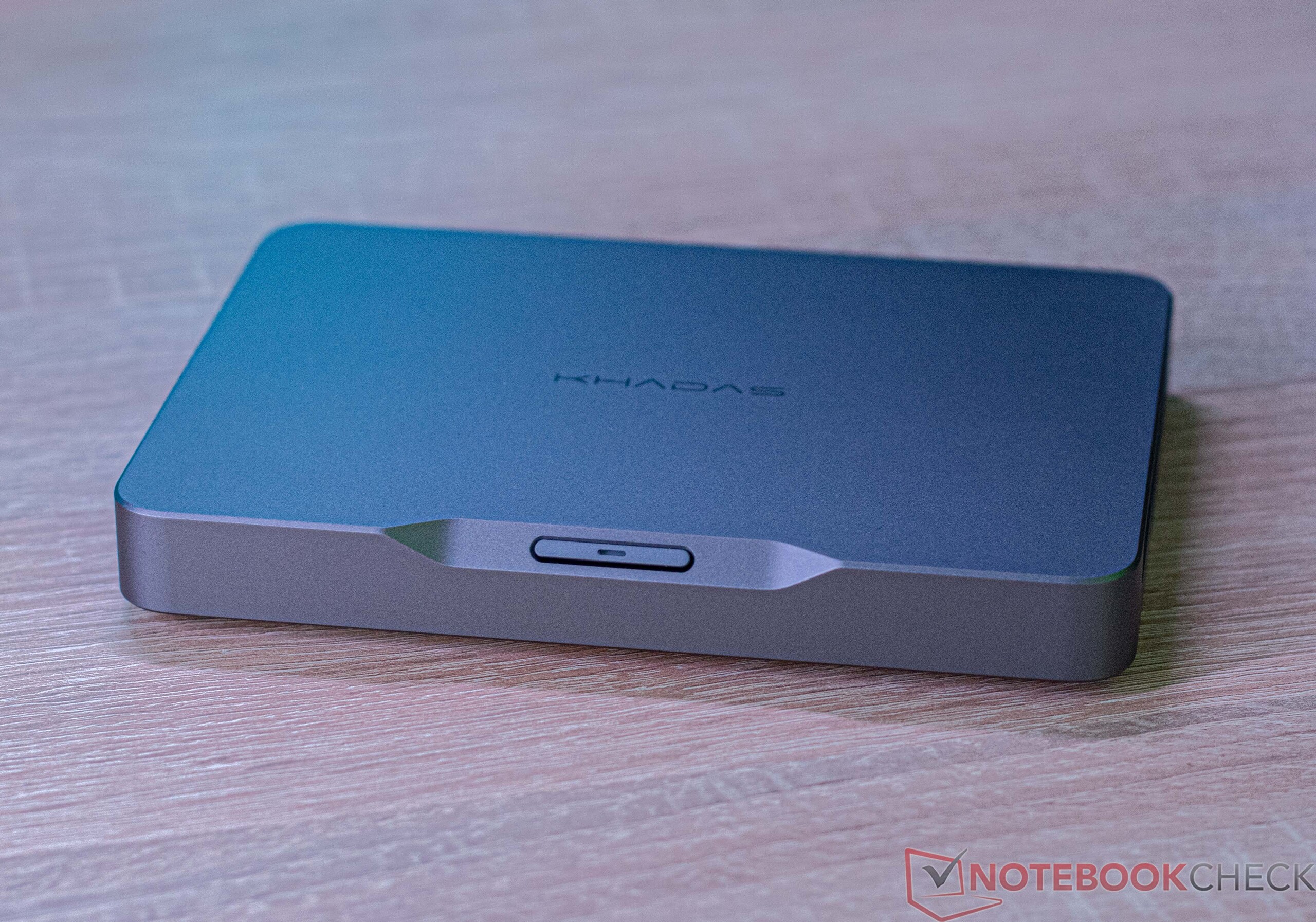

外壳 - 完美铝质

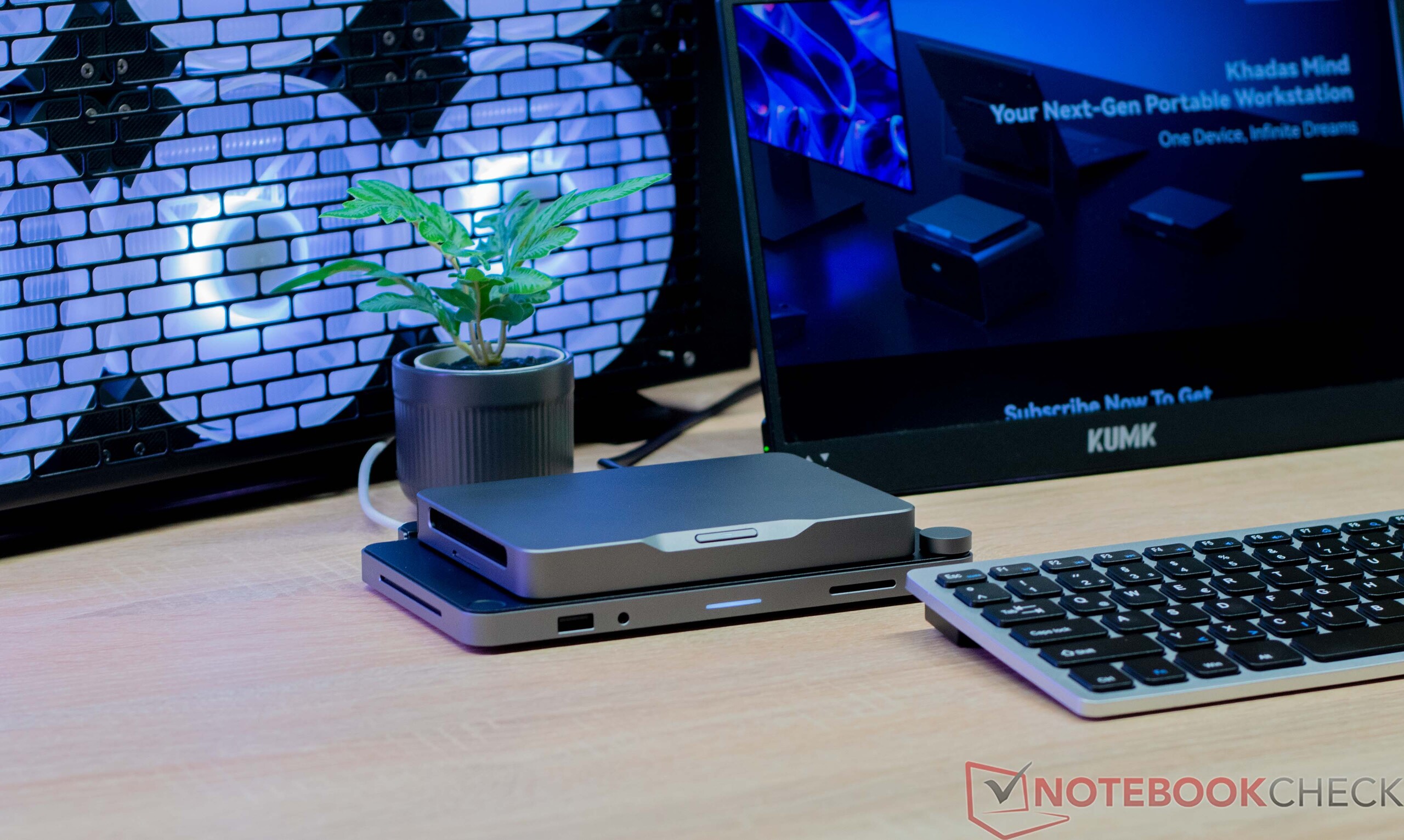

纯粹从外观上看，Khadas Mind 是一款非常时尚的迷你电脑，其制造质量令人赞叹。整个机箱由铝合金制成，只有涉及外部端口的区域使用了一些塑料。即便如此，它仍能与设计完美融合。这一良好印象告诉我们，我们的测试样品并不是什么未完成的测试版产品。我们注意到通风口非常小，只能吸入少量新鲜空气。

在尺寸方面，Khadas Mind 遥遥领先。由于采用长条形设计，它的占地面积可能比其他迷你电脑稍大，但由于高度只有 20 毫米，所以 Khadas Mind 真的非常扁平。这些数据指的是设备本身，不包括 Mind Dock。Mind 迷你电脑的重量为 438 克，仅次于 Minisforum EM680。Mind Dock 的重量增加了 489 克，电源又增加了 113 克。

尺寸比较

Minisforum Neptune Series NAD9 Morefine M600, 6600U Khadas Mind Geekom Mini IT11, i7-11390H Geekom Mini IT12 Intel NUC 13 Pro Kit NUC13ANK Minisforum Mercury Series EM680 DIN A4 ❌

连通性 - 卡达斯心灵和心灵基座

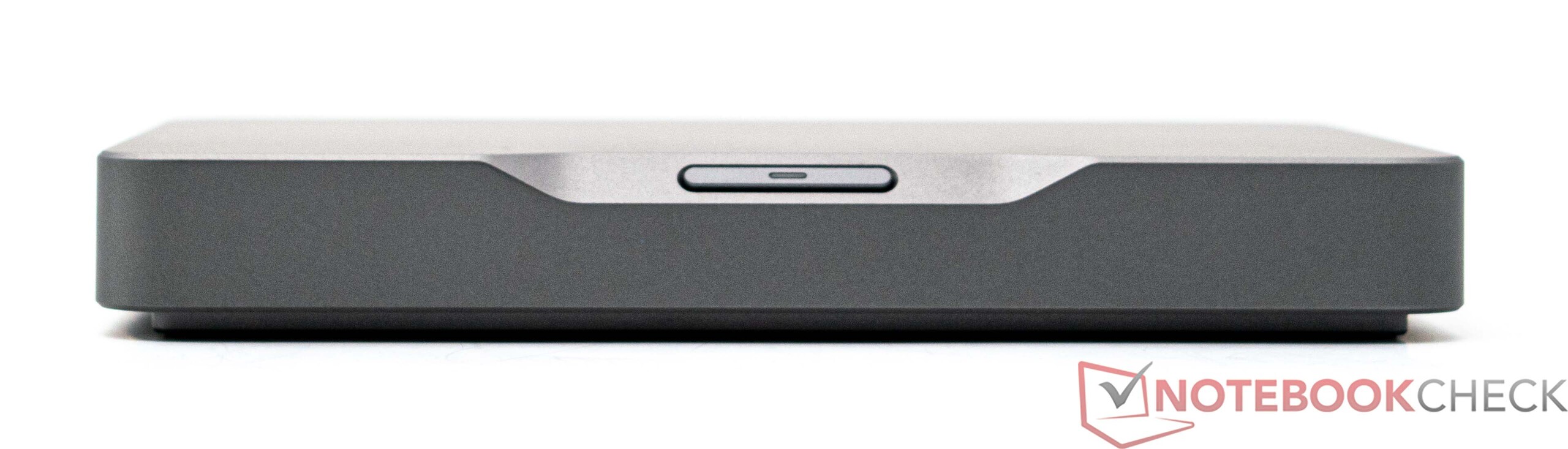

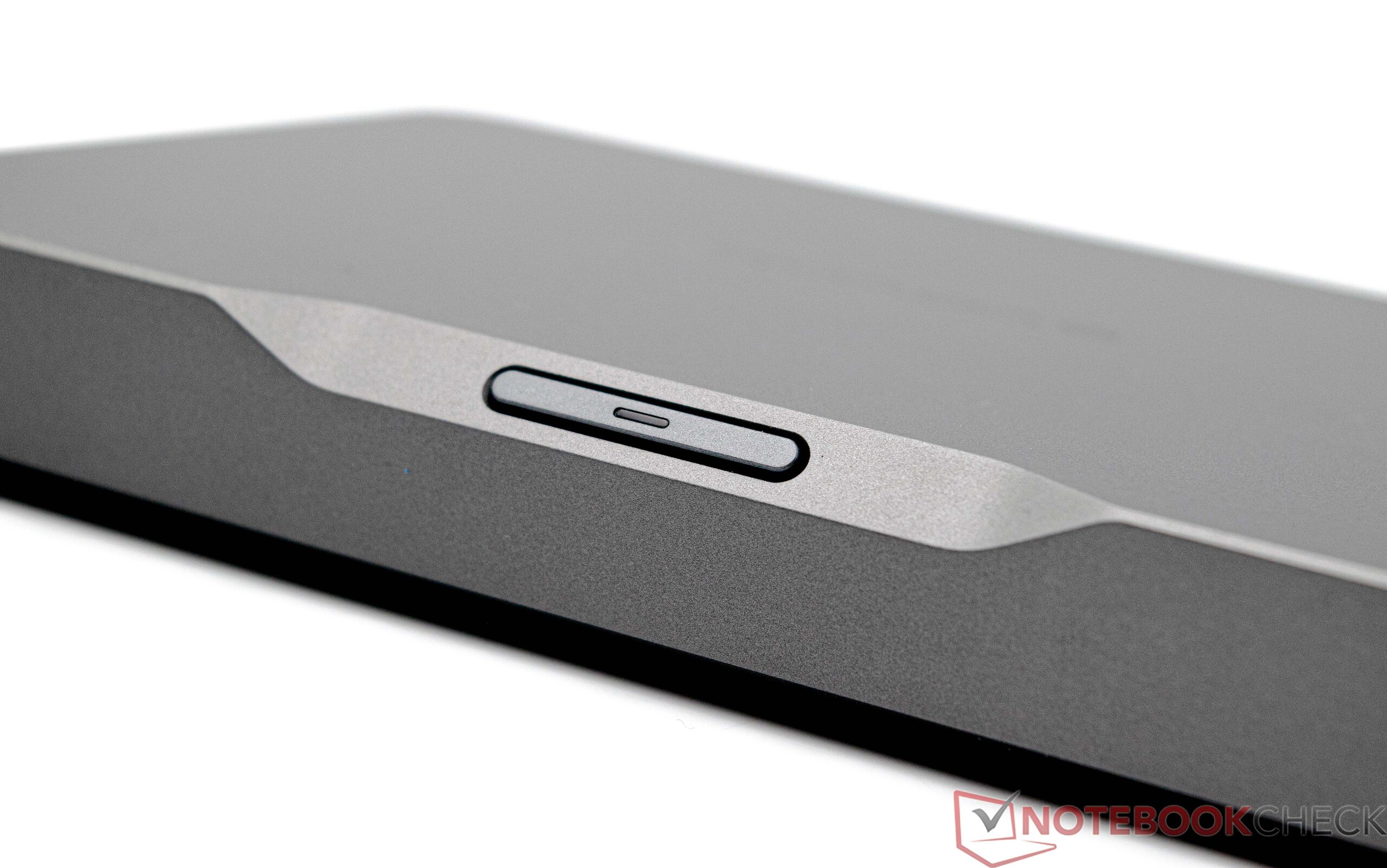

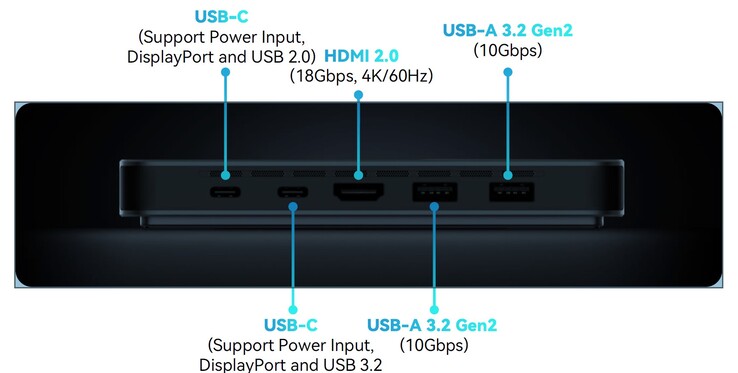

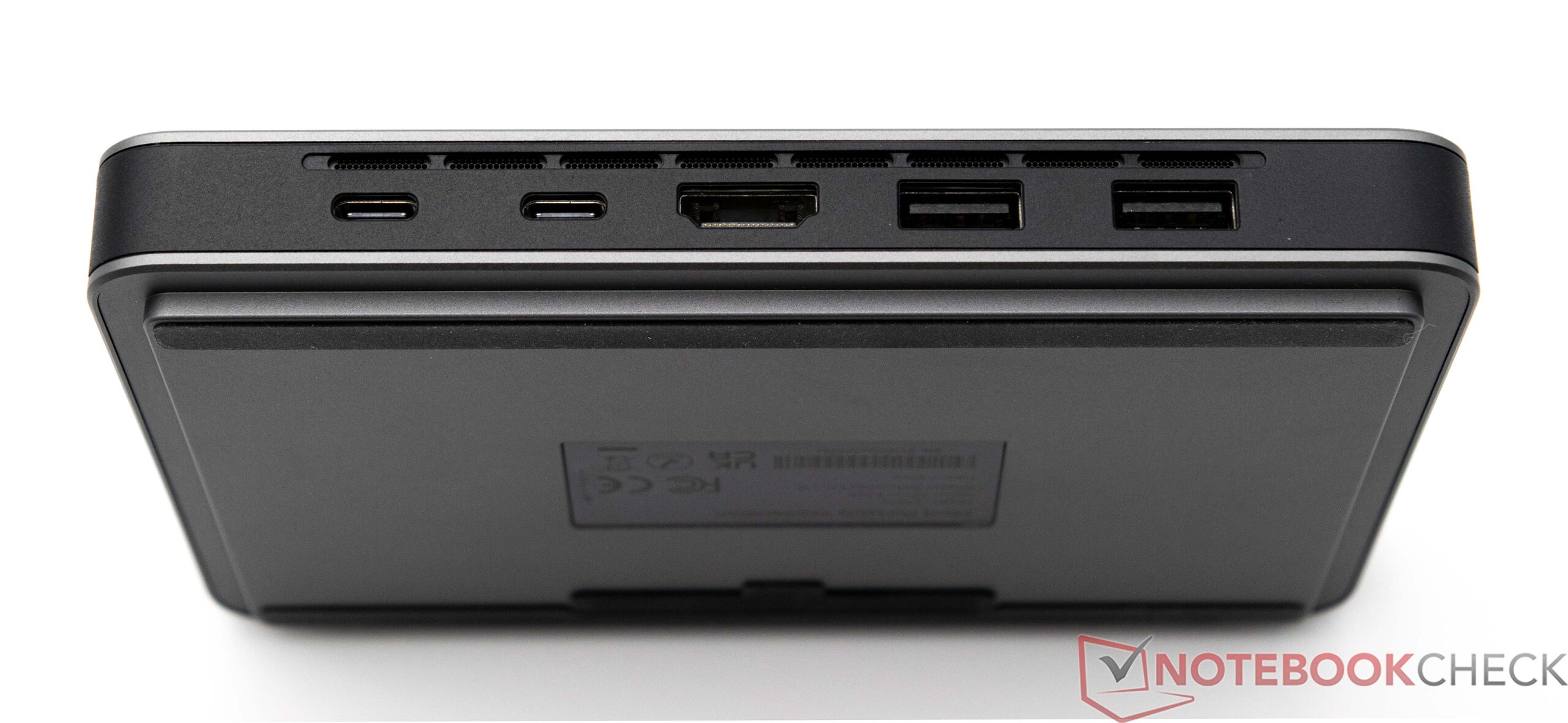

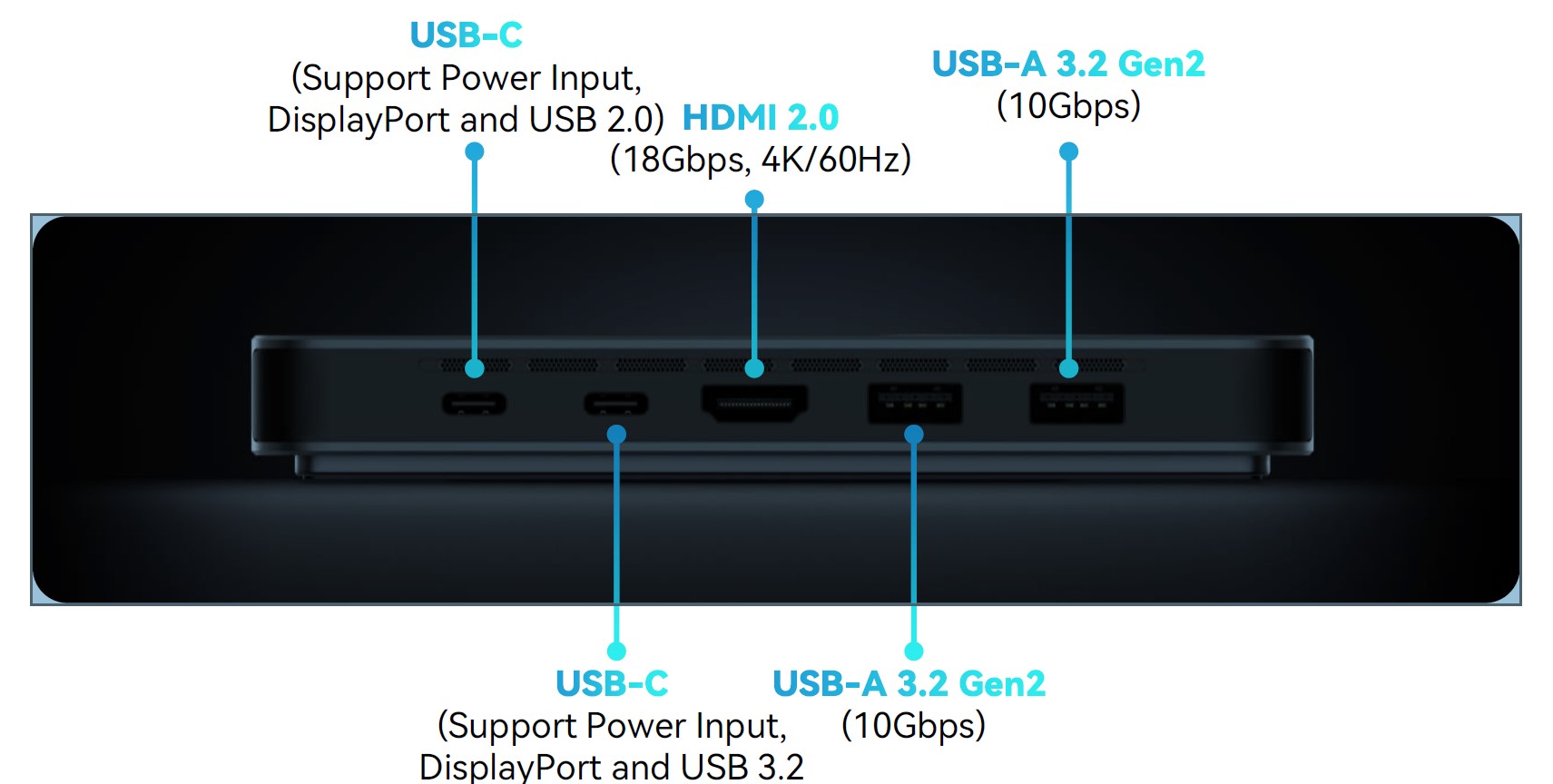

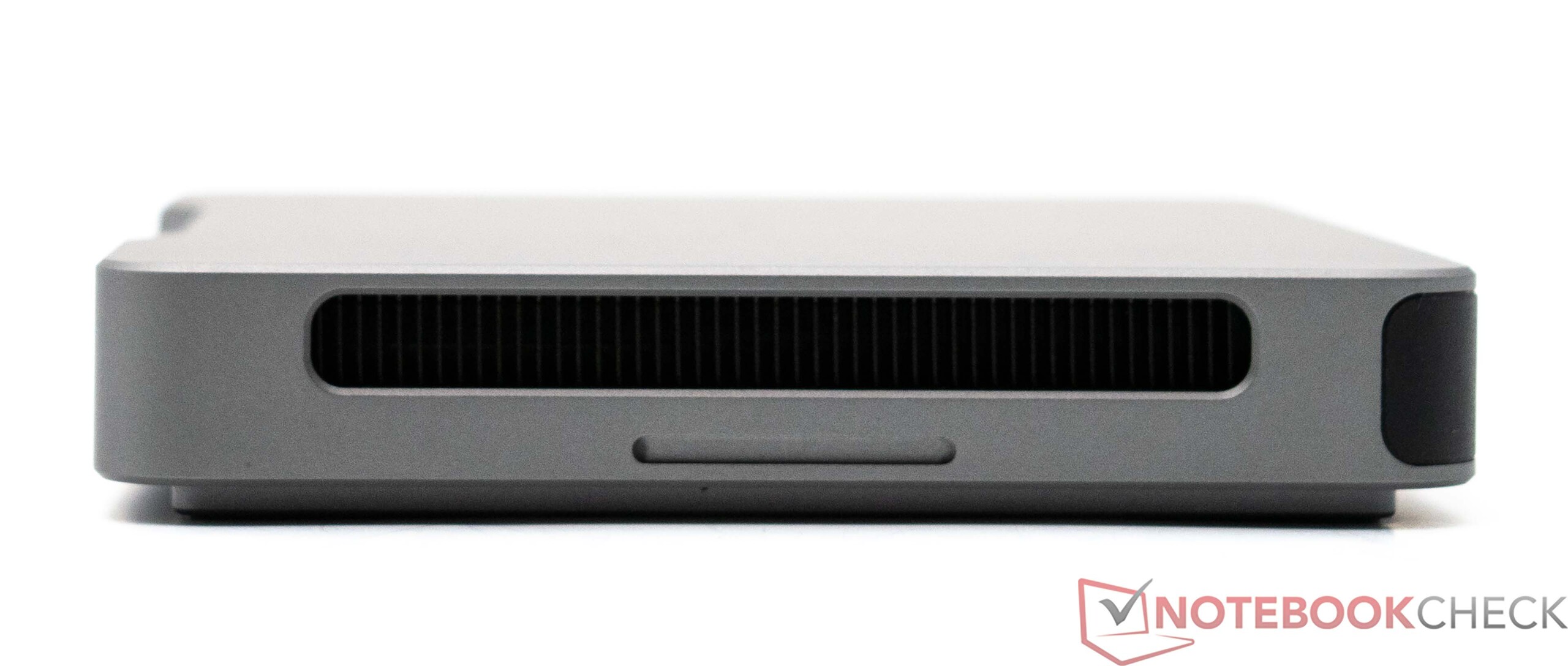

由于设计简约，Khadas Mind 只有少量外部端口。设备背面有四个 USB 端口和一个 HDMI 端口。在正面，制造商除了电源开关底部外，什么也没有安装。遗憾的是，Khadas 没有提供 Thunderbolt 接口，但这可以通过内部配件来弥补。

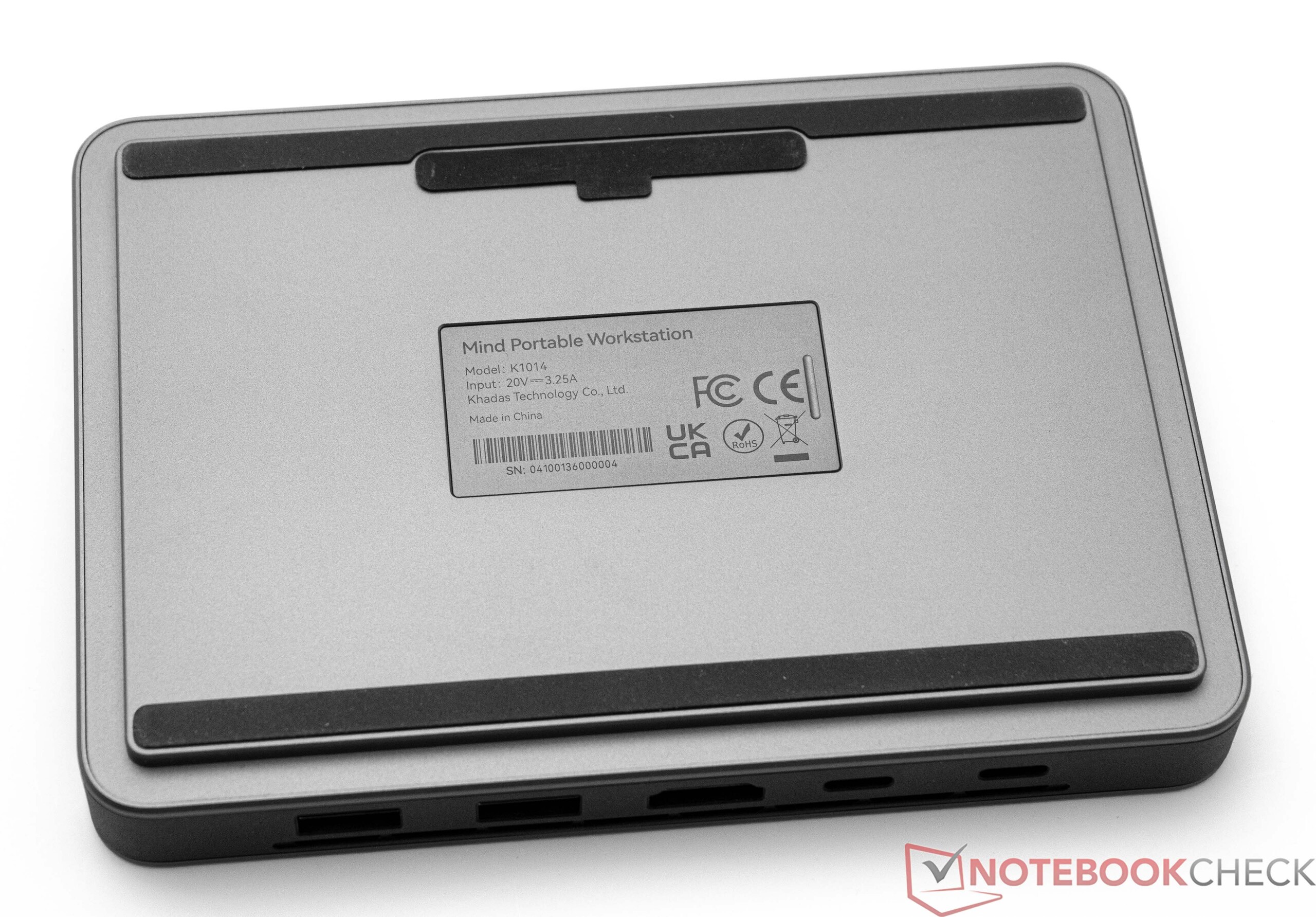

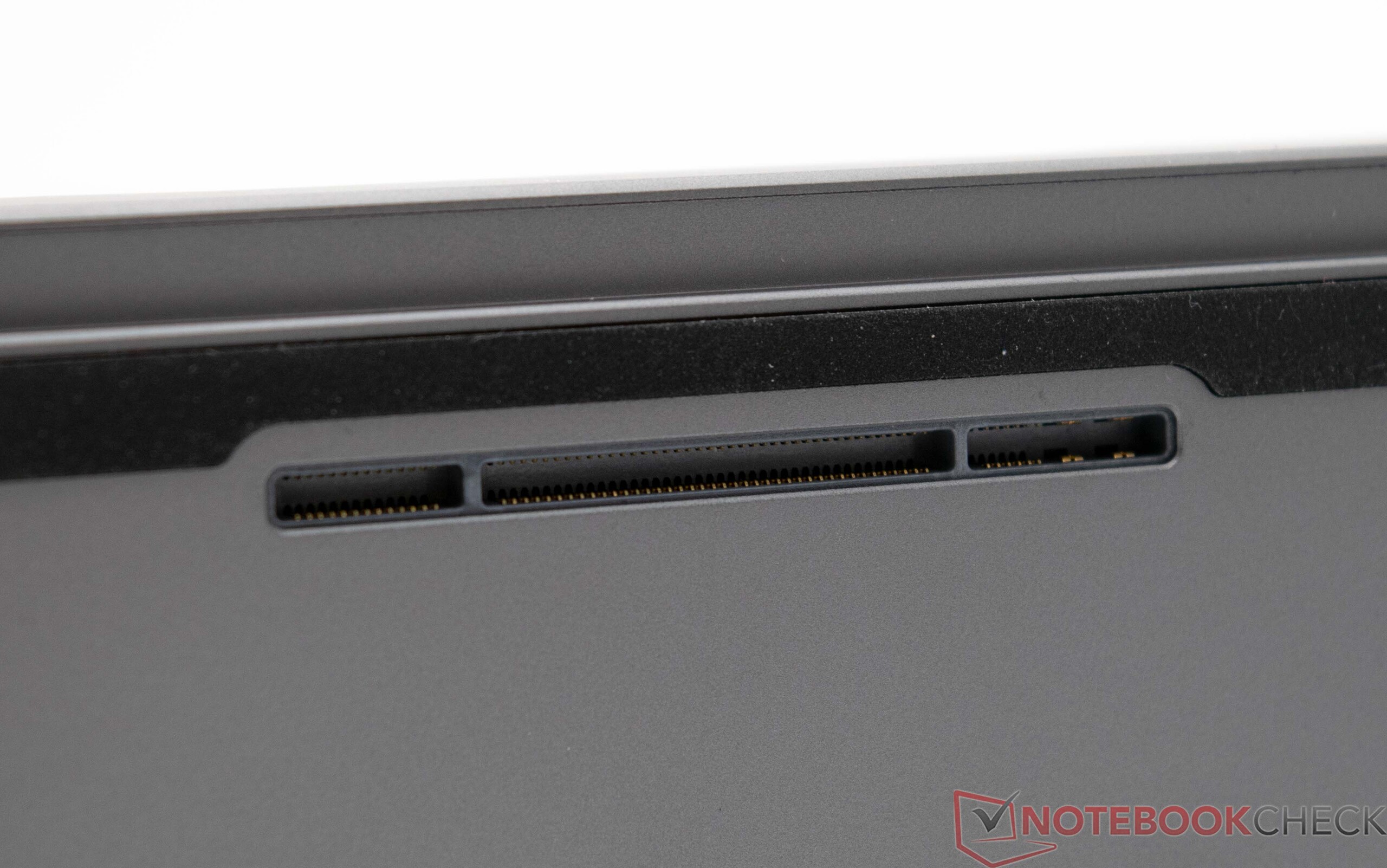

在 Khadas Mind 的底部，你可以找到专有的 Mind Link 连接，它提供 PCIe 5.0 的速度。

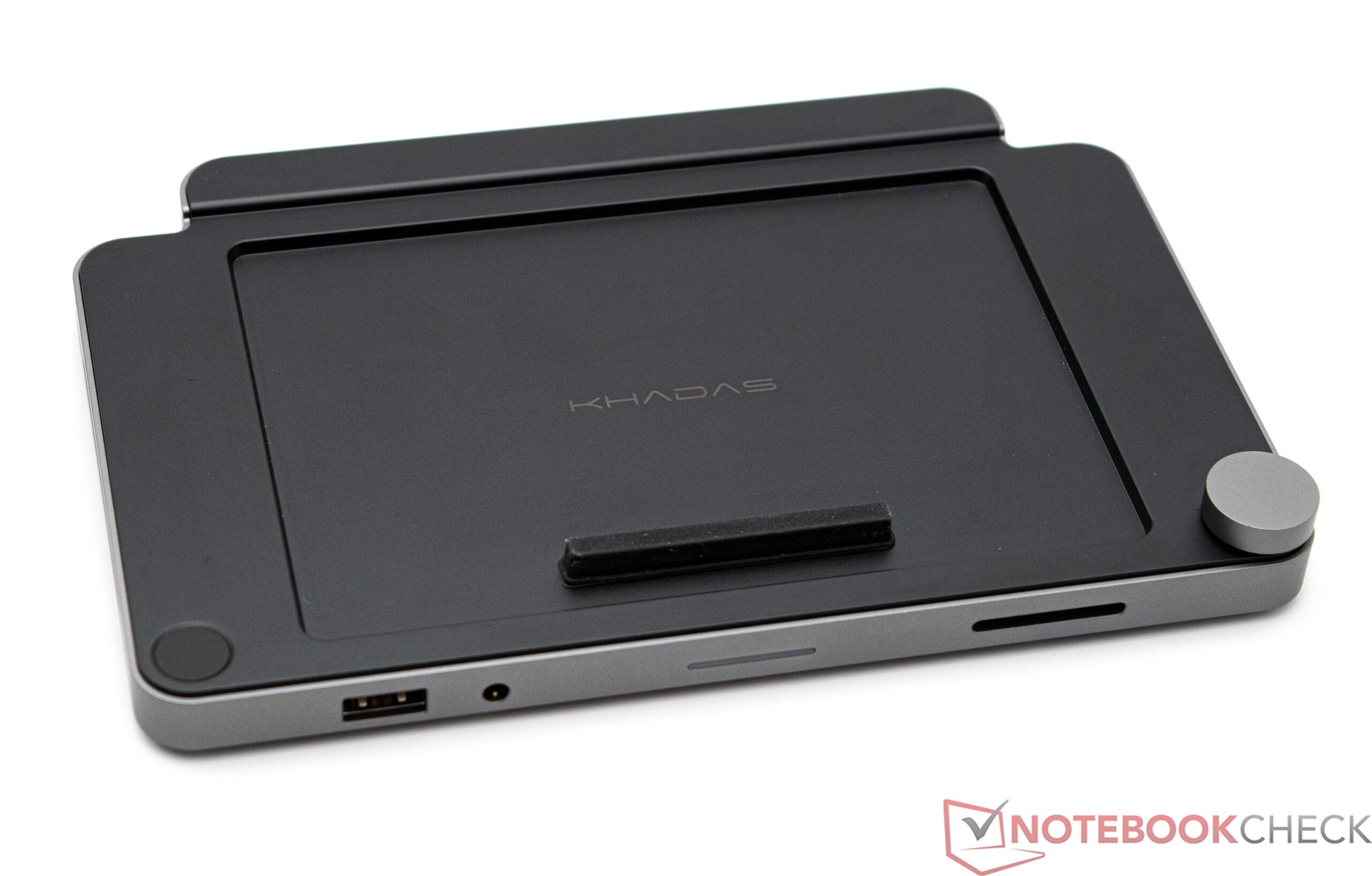

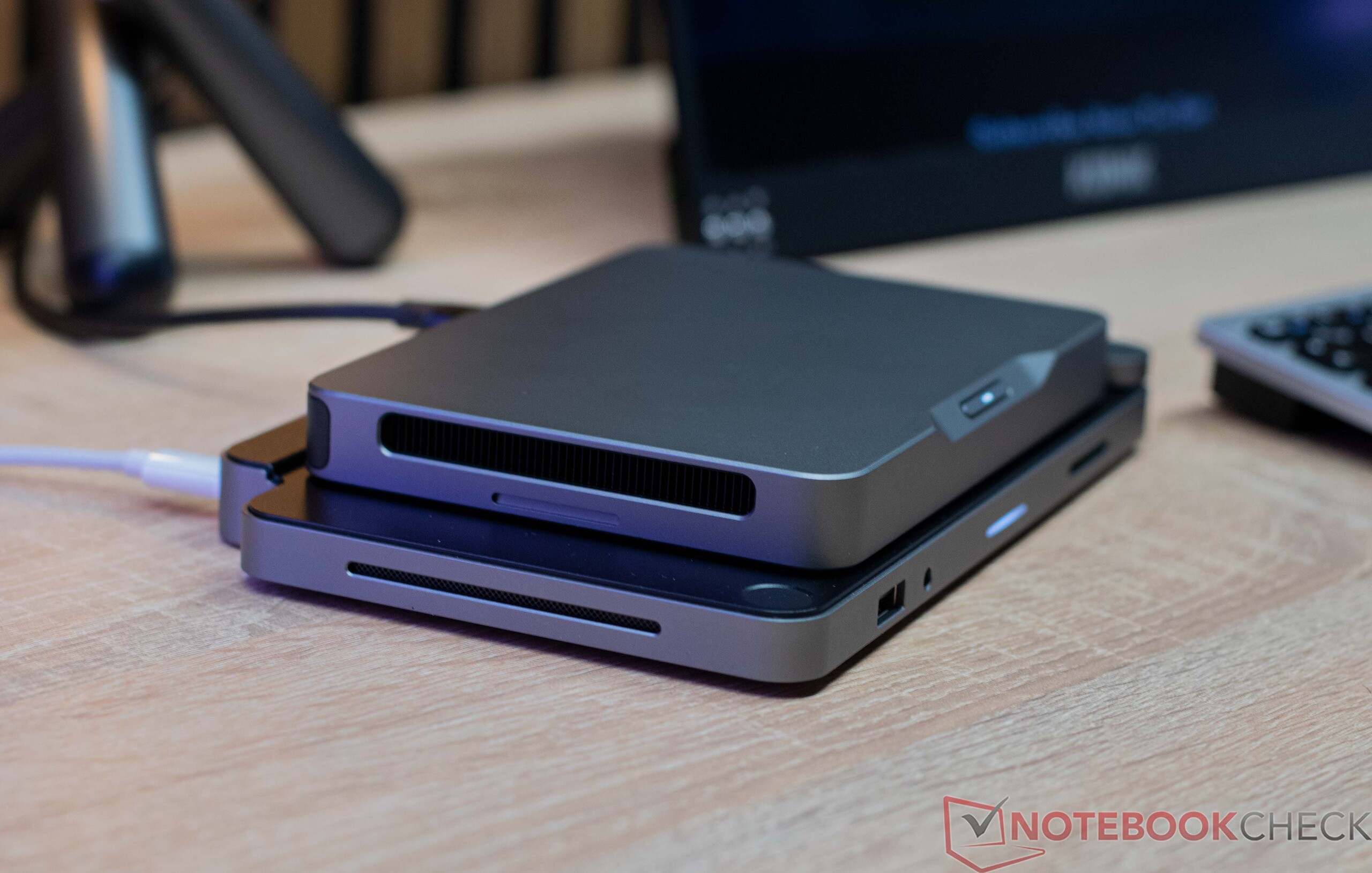

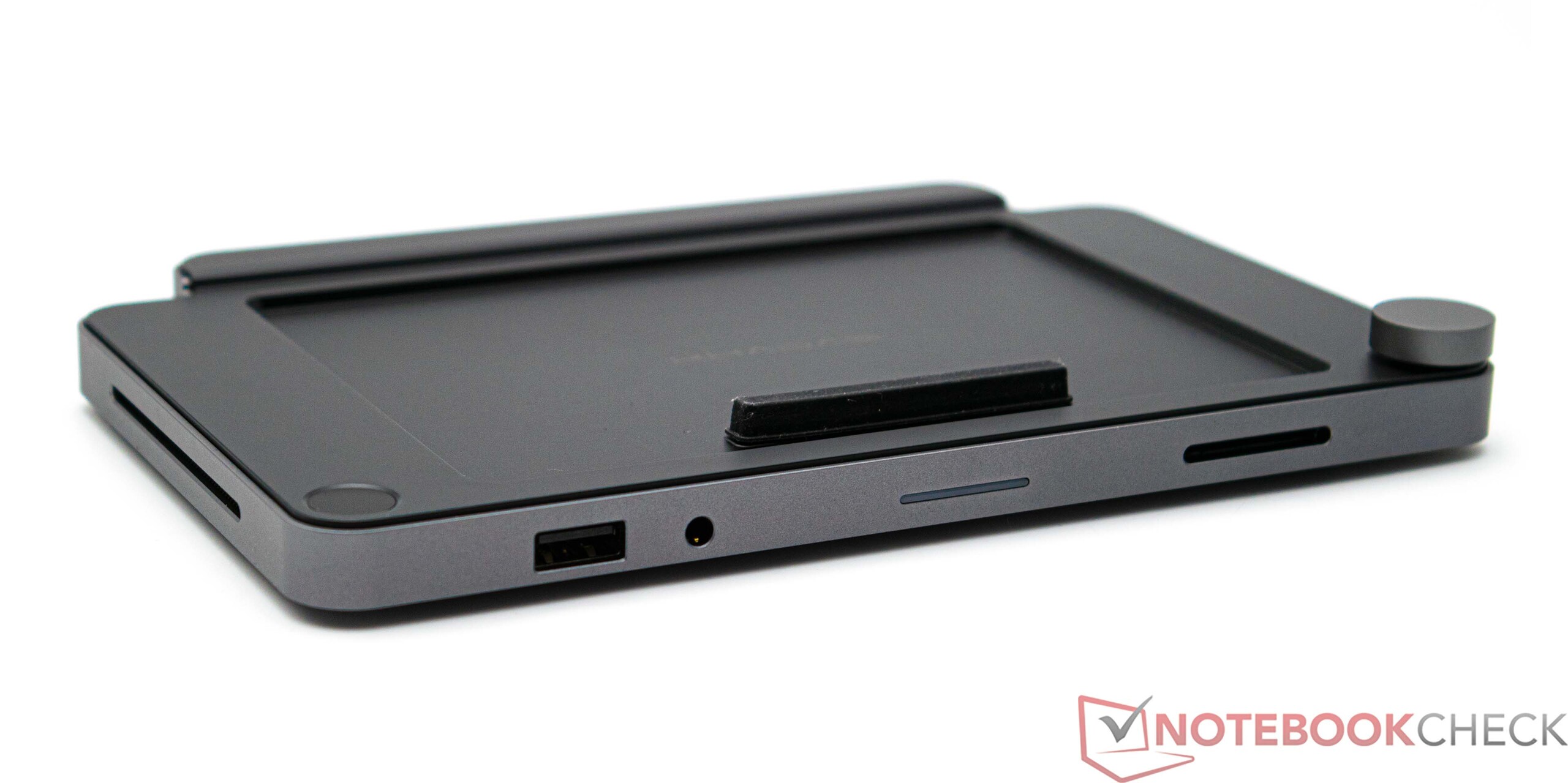

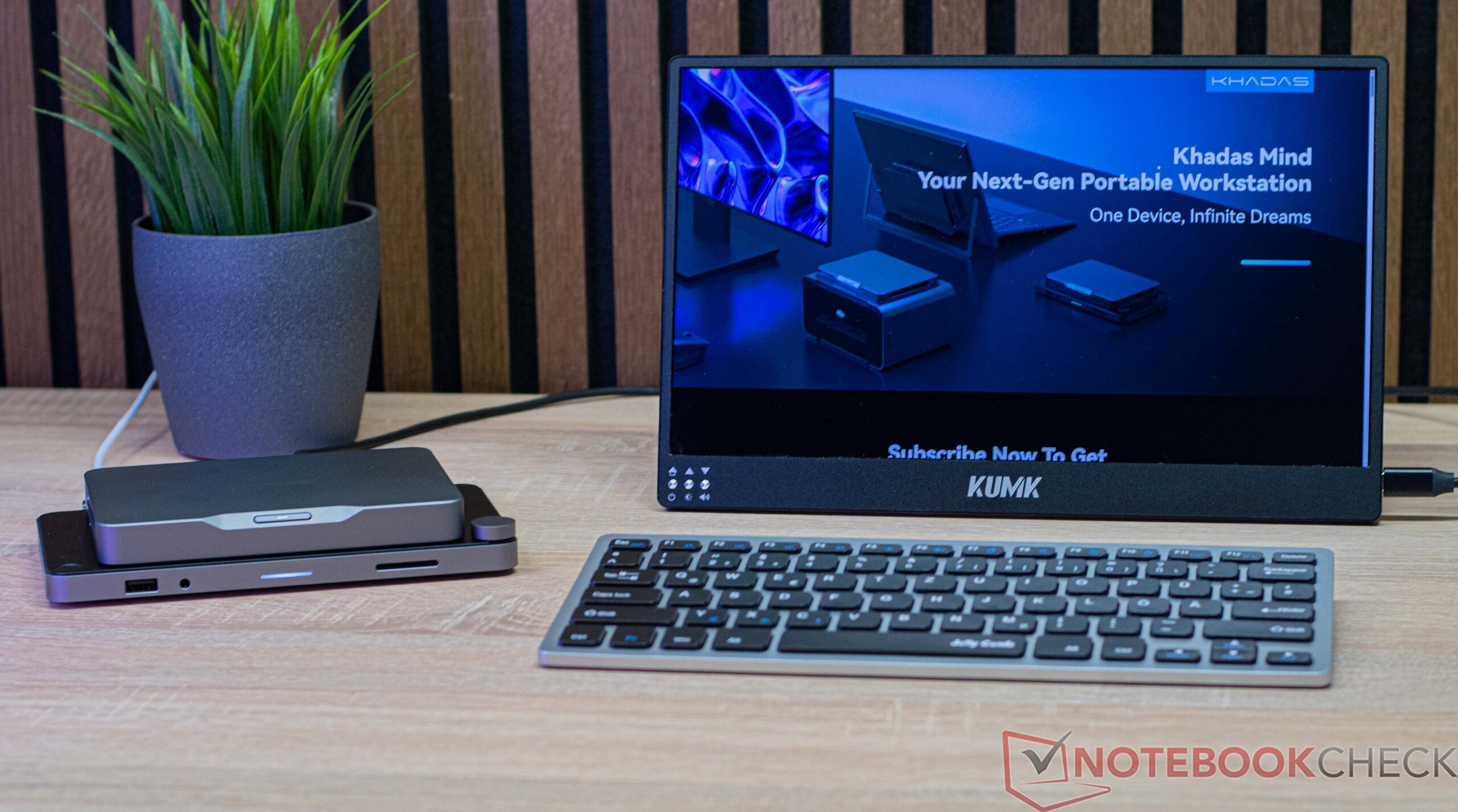

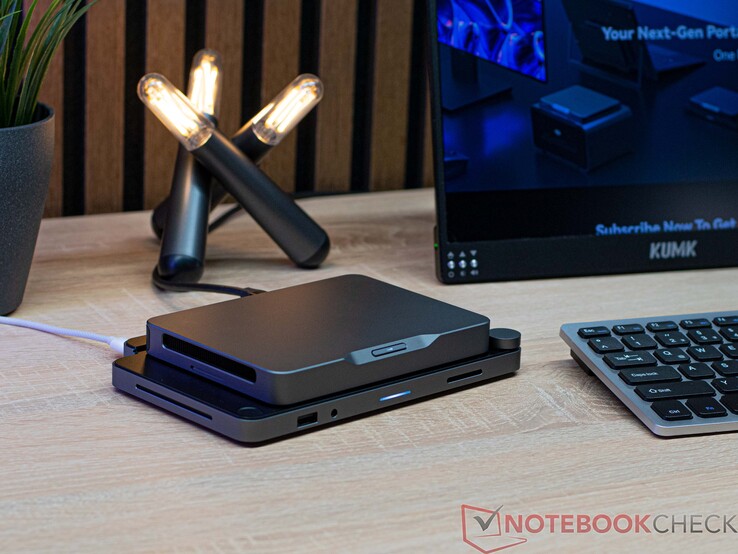

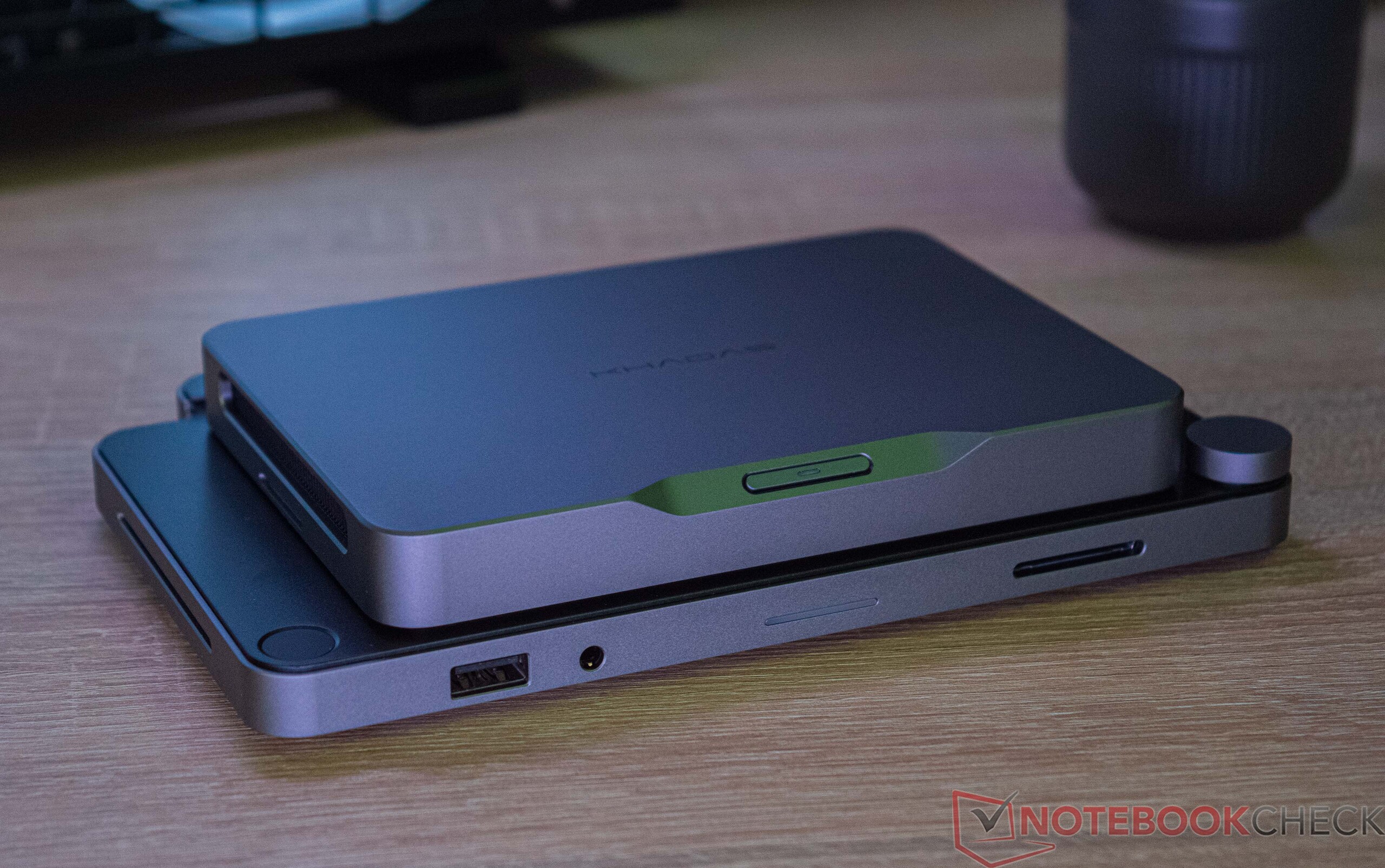

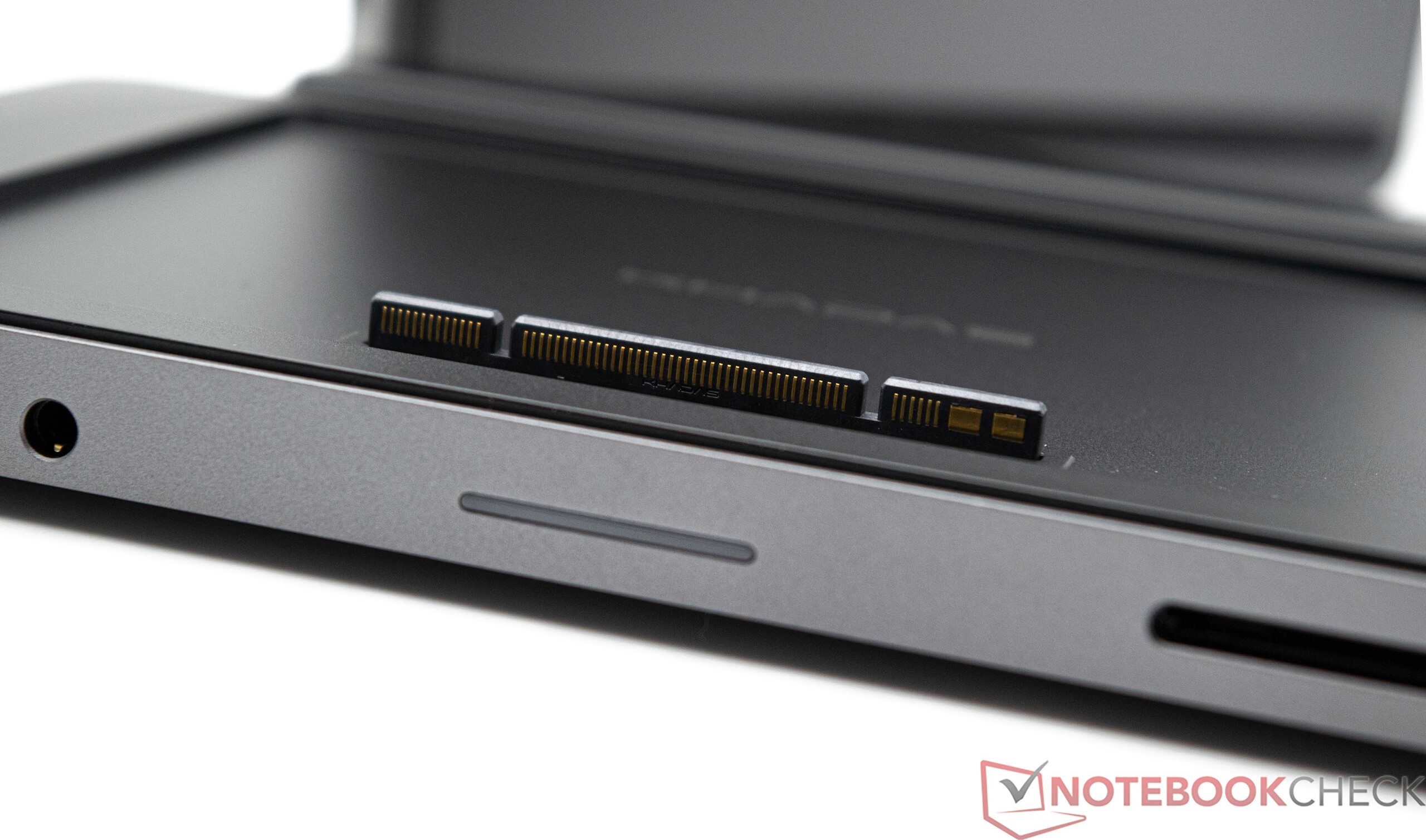

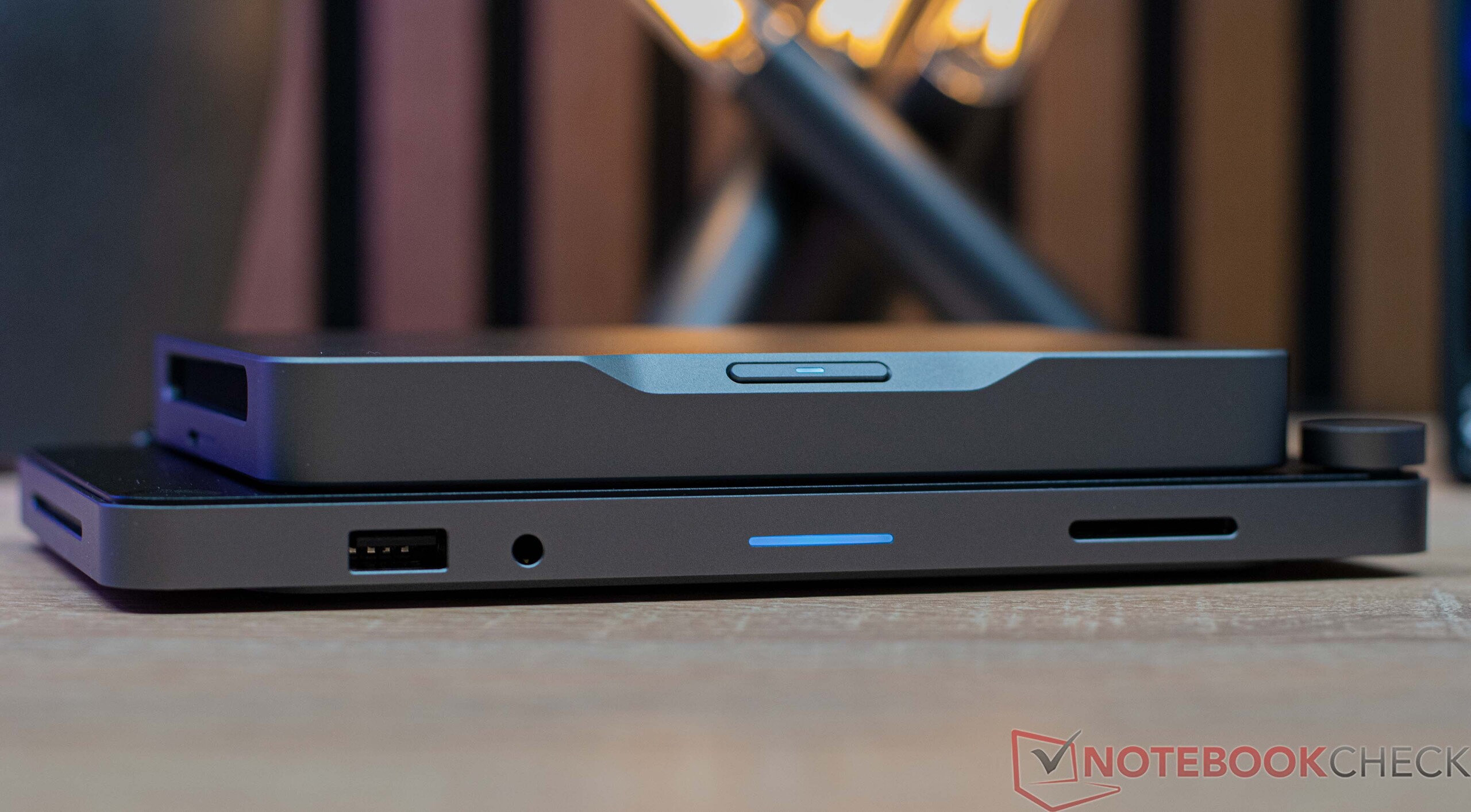

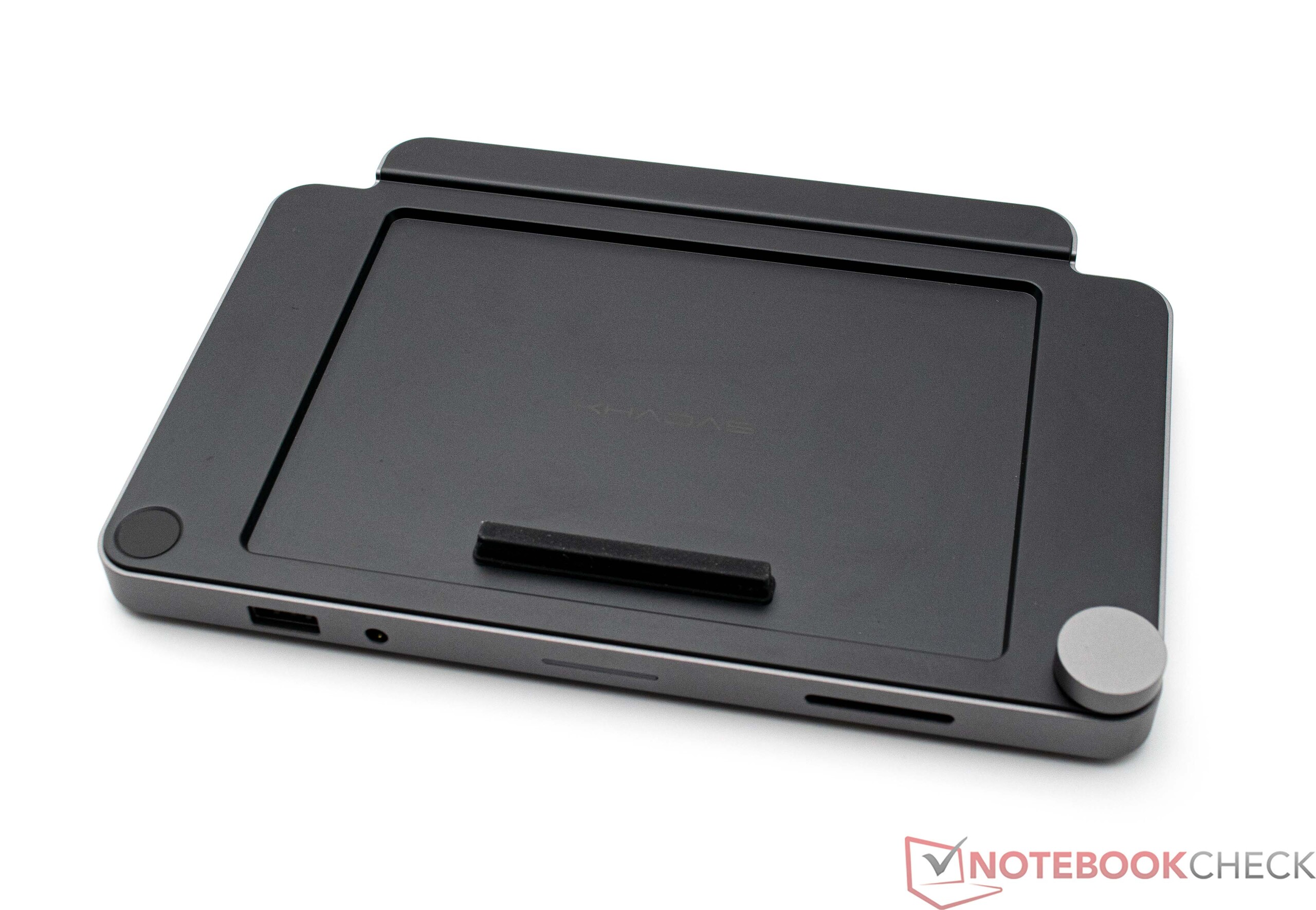

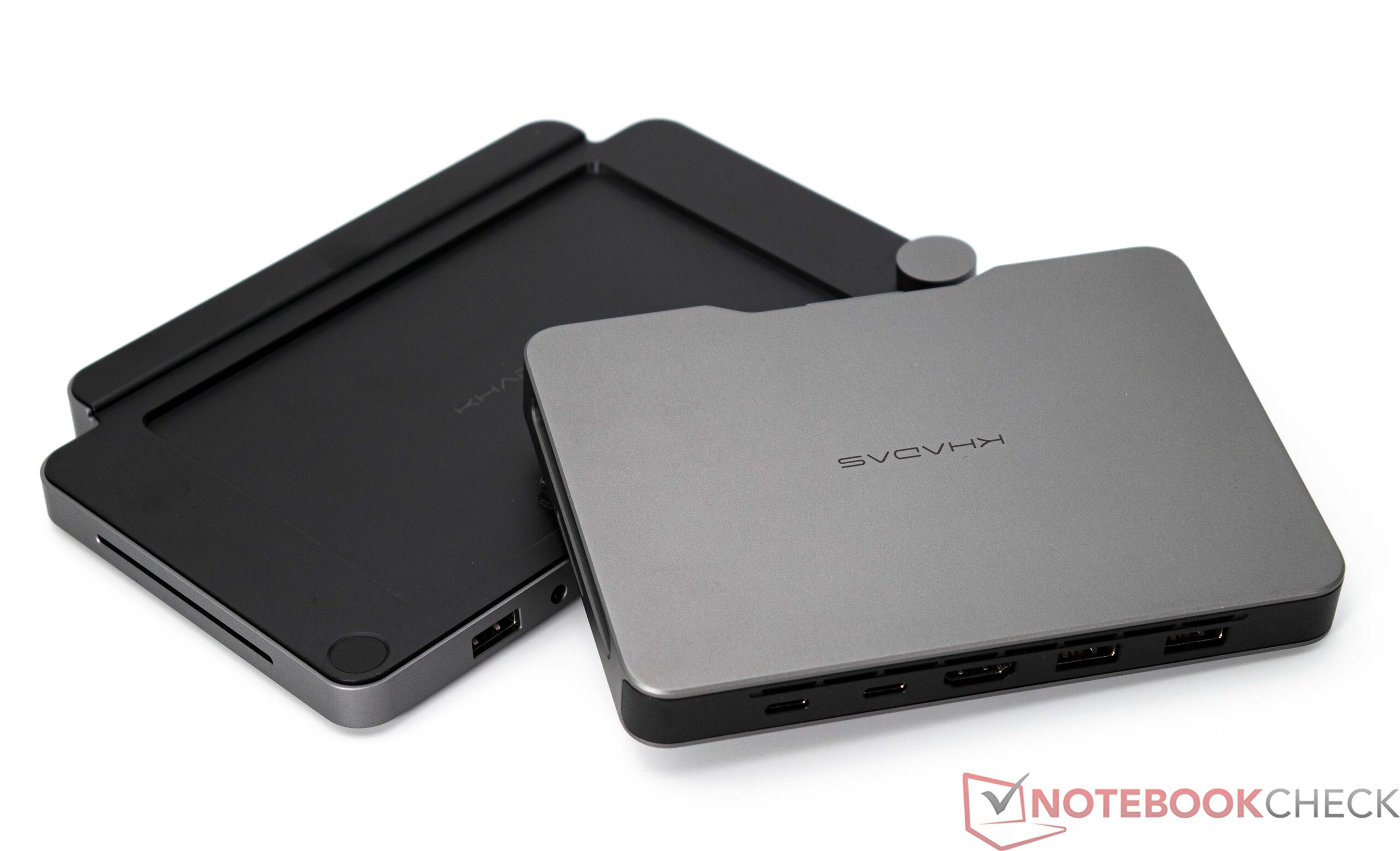

心灵码头

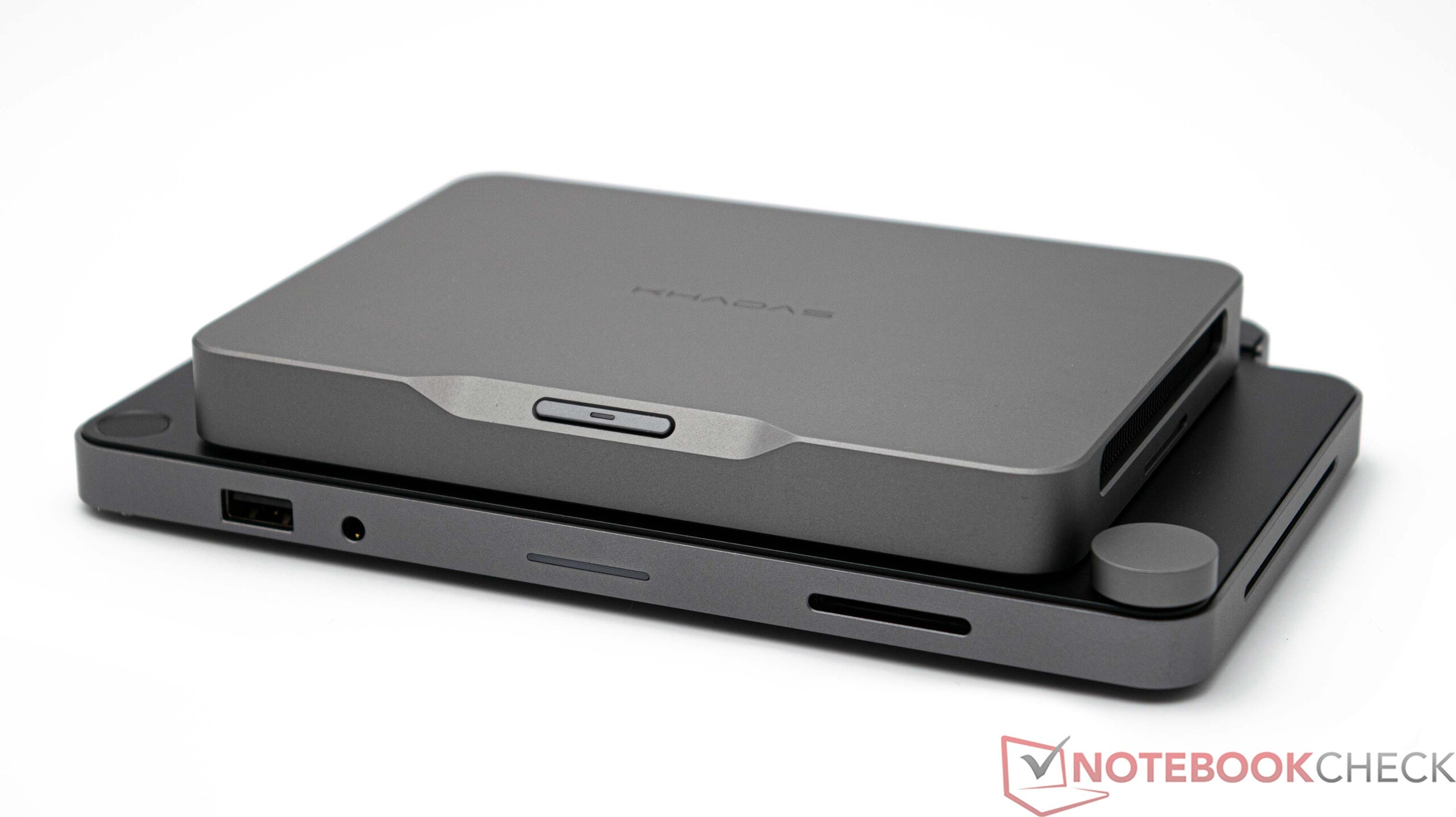

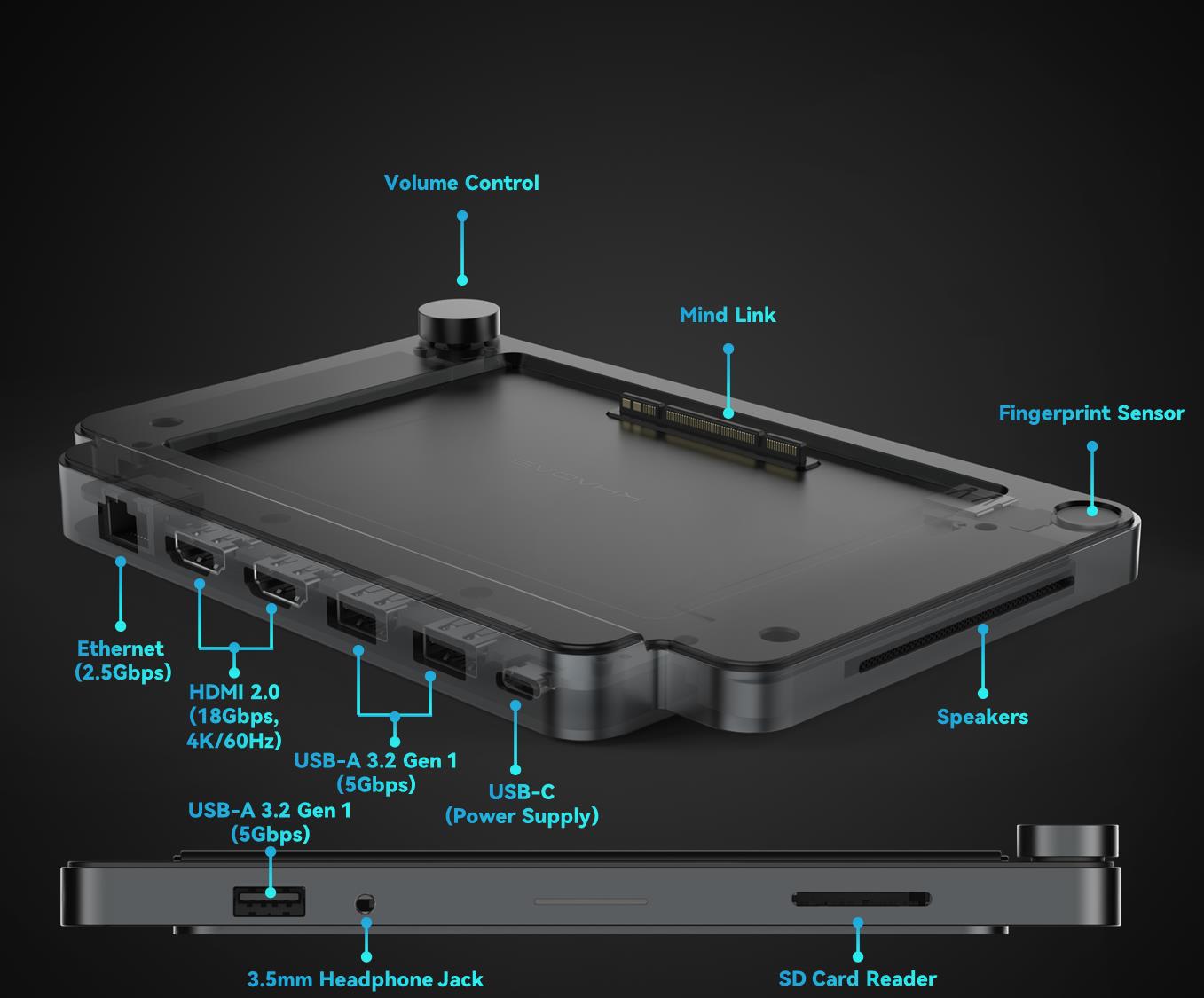

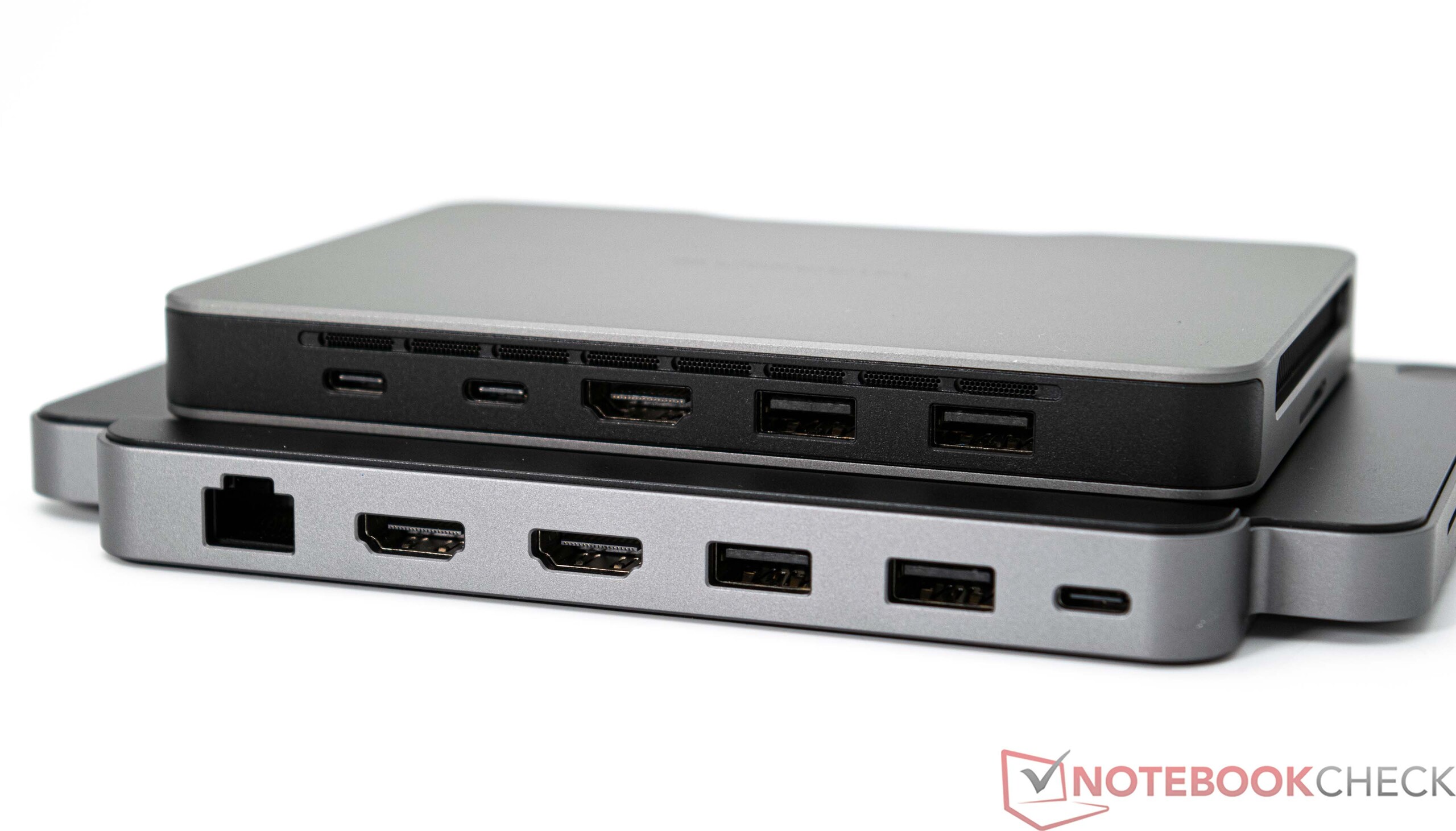

使用 Mind 底座时，您可以使用更多的外部端口。因此，如果您打算购买 Khadas Mind，基座是最重要的配件之一。向 Mind mini PC 供电也由底座负责，这意味着你不必将任何额外的线缆插入设备本身。

Mind Dock 不仅仅是一个扩展坞。顶部配备了指纹传感器，经过快速设置后，可用于系统验证。此外，基座还内置了两个扬声器，能发出美妙的声音。稍后再详述。

SD 读卡器

Khadas Mind 本身没有 SD 读卡器。不过，由于 Mind Dock 有一个读卡器，我们还是对它的性能进行了测试。从对比中可以看出，使用这个读卡器可以实现非常高的传输速率。由于支持 UHS II，我们的测试样品在使用测试 SD 卡（AV Pro SD microSD 128 GB V60）时很容易就获得了第一名。

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Khadas Mind Intel Core i7-1360P (AV Pro SD microSD 128 GB V60)	181.79 MB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H (AV Pro SD microSD 128 GB V60)	163.3 MB/s -10%
Geekom Mini IT12 Intel Core i7-1260P (AV Pro SD microSD 128 GB V60)	129.2 MB/s -29%
Average of class Mini PC (15.1 - 214, n=26, last 2 years)	91.7 MB/s -50%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U (AV Pro SD microSD 128 GB V60)	31.09 MB/s -83%
maximum AS SSD Seq Read Test (1GB)
Khadas Mind Intel Core i7-1360P (AV Pro SD microSD 128 GB V60)	200.48 MB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H (AV Pro SD microSD 128 GB V60)	178.1 MB/s -11%
Geekom Mini IT12 Intel Core i7-1260P (AV Pro SD microSD 128 GB V60)	176.8 MB/s -12%
Average of class Mini PC (18.2 - 221, n=26, last 2 years)	106.6 MB/s -47%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U (AV Pro SD microSD 128 GB V60)	34.51 MB/s -83%

交流

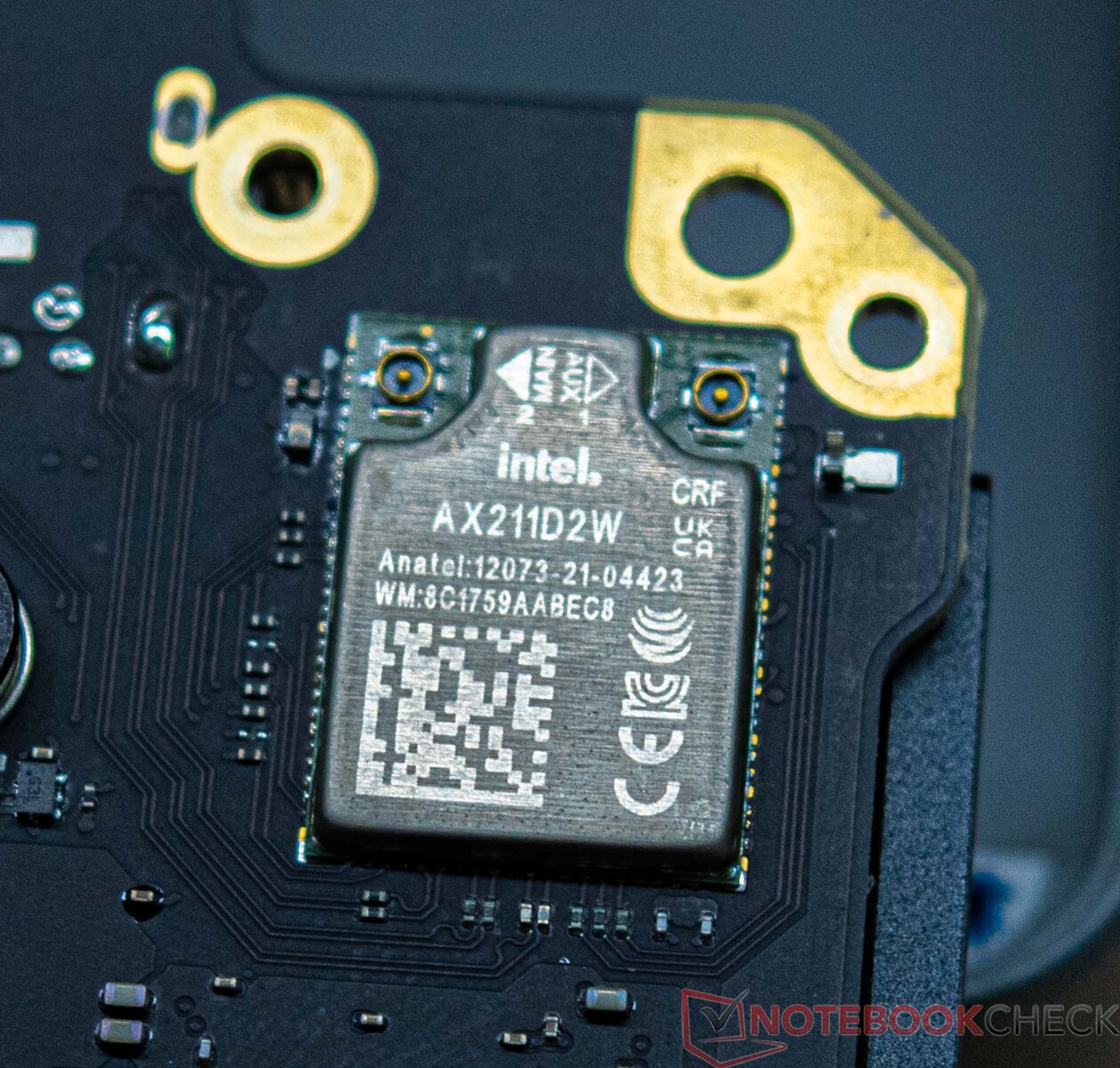

卡达斯在迷你电脑中安装了英特尔的 Wi-Fi 6E AX211 模块。这是一个不错的选择，因为使用它可以使用当前的 6 GHz 网络。在我们的测试中，这还不足以让它始终胜过竞争对手。不得不提的是它在 5 GHz 频段的表现。在这里，只有 Minisforum NAD9做得更好，而英特尔NUC 13 Pro Kit则落后很多。我们使用华硕 ROG Rapture GT-AXE11000 路由器进行测试。

Networking
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1668 (1467^min - 1725^max) MBit/s +15%
Minisforum Mercury Series EM680 MediaTek RZ616	1572 (1554^min - 1590^max) MBit/s +9%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	1519 (1392^min - 1699^max) MBit/s +5%
Average Intel Wi-Fi 6E AX211 (700 - 1857, n=210)	1493 MBit/s +3%
Khadas Mind Intel Wi-Fi 6E AX211	1445 (1342^min - 1468^max) MBit/s
Average of class Mini PC (684 - 1771, n=53, last 2 years)	1381 MBit/s -4%
Morefine M600, 6600U MediaTek RZ608	957 (943^min - 967^max) MBit/s -34%
iperf3 transmit AXE11000 6GHz
Minisforum Mercury Series EM680 MediaTek RZ616	1677 (1586^min - 1731^max) MBit/s +24%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	1622 (1561^min - 1670^max) MBit/s +20%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1445 (736^min - 1476^max) MBit/s +7%
Average Intel Wi-Fi 6E AX211 (632 - 1851, n=211)	1372 MBit/s +2%
Khadas Mind Intel Wi-Fi 6E AX211	1348 (1293^min - 1402^max) MBit/s
Average of class Mini PC (394 - 1800, n=53, last 2 years)	1328 MBit/s -1%
Morefine M600, 6600U MediaTek RZ608	765 (718^min - 814^max) MBit/s -43%
iperf3 receive AXE11000
Average Intel Wi-Fi 6E AX211 (582 - 1890, n=239)	1379 MBit/s +30%
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s +24%
Khadas Mind Intel Wi-Fi 6E AX211	1059 (937^min - 1173^max) MBit/s
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	958 (941^min - 967^max) MBit/s -10%
Morefine M600, 6600U MediaTek RZ608	948 (934^min - 957^max) MBit/s -10%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	943 (923^min - 960^max) MBit/s -11%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	939 (921^min - 952^max) MBit/s -11%
Average of class Mini PC (192.9 - 1796, n=113, last 2 years)	932 MBit/s -12%
Minisforum Mercury Series EM680 MediaTek RZ616	750 (653^min - 821^max) MBit/s -29%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s +19%
Average Intel Wi-Fi 6E AX211 (464 - 1921, n=239)	1234 MBit/s +11%
Khadas Mind Intel Wi-Fi 6E AX211	1108 (703^min - 1199^max) MBit/s
Geekom Mini IT12 Intel Wi-Fi 6E AX211	918 (892^min - 938^max) MBit/s -17%
Average of class Mini PC (184.1 - 1776, n=113, last 2 years)	864 MBit/s -22%
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	845 (818^min - 879^max) MBit/s -24%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	833 (805^min - 866^max) MBit/s -25%
Morefine M600, 6600U MediaTek RZ608	784 (381^min - 874^max) MBit/s -29%
Minisforum Mercury Series EM680 MediaTek RZ616	662 (562^min - 783^max) MBit/s -40%

Khadas Mind Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1348 (1293-1402)

Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1420 (736-1476)

Khadas Mind Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1445 (1342-1468)

Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1668 (1467-1725)

Khadas Mind Intel Wi-Fi 6E AX211; iperf3 receive AXE11000; iperf 3.1.3: Ø1059 (937-1173)

Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211; iperf3 receive AXE11000; iperf 3.1.3: Ø939 (921-952)

Khadas Mind Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000; iperf 3.1.3: Ø1108 (703-1199)

Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000; iperf 3.1.3: Ø833 (805-866)

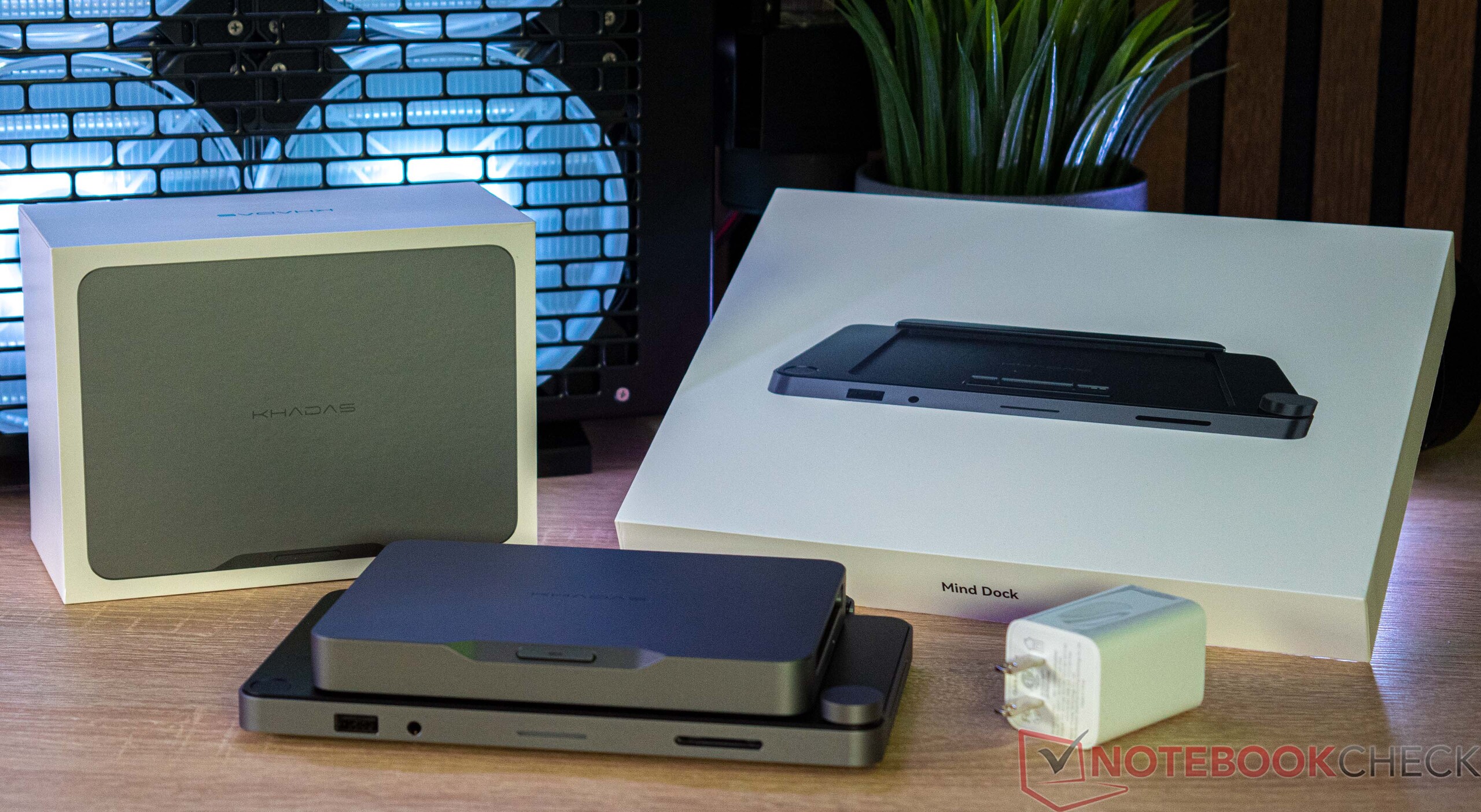

专有配件和功能

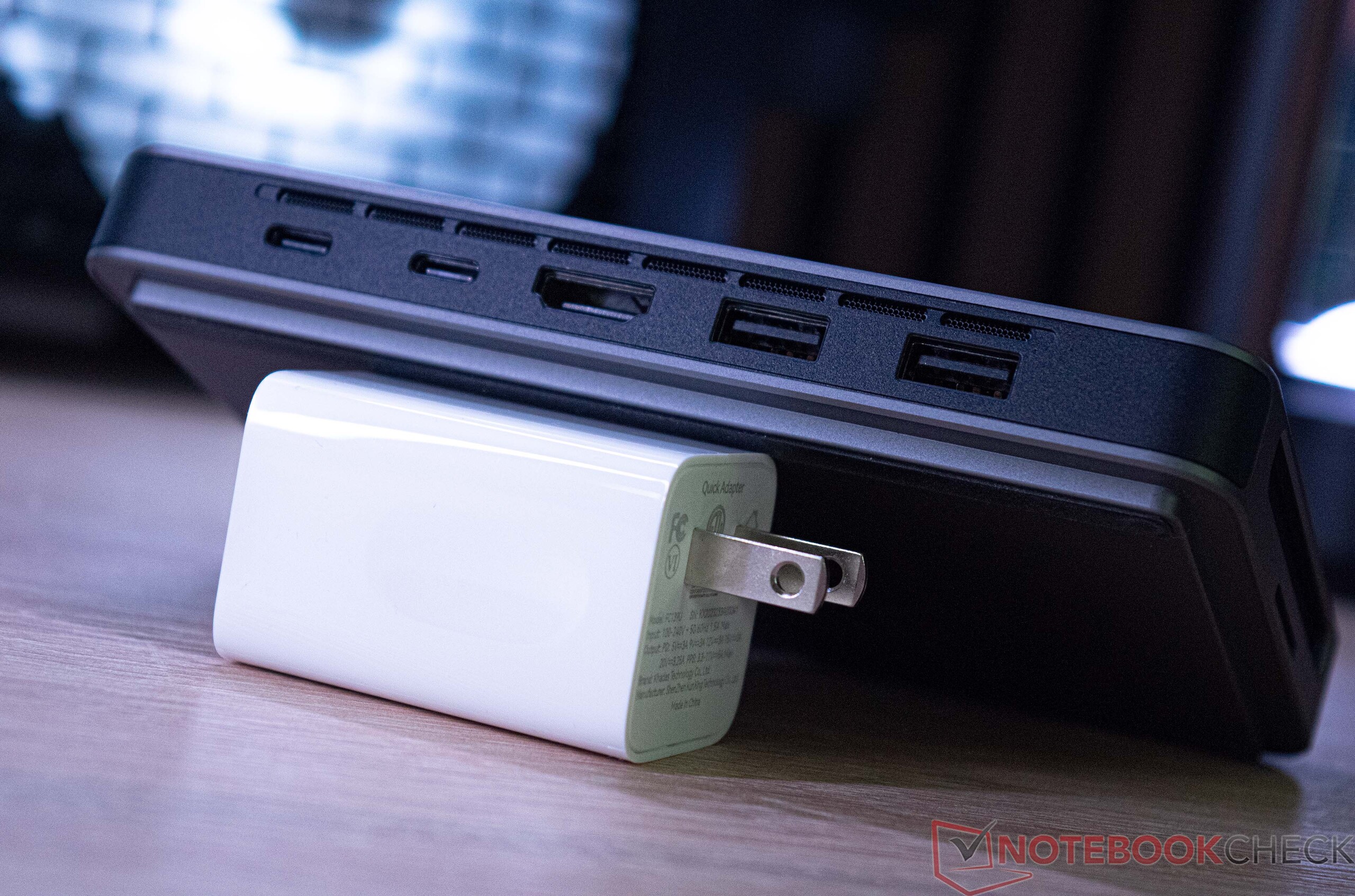

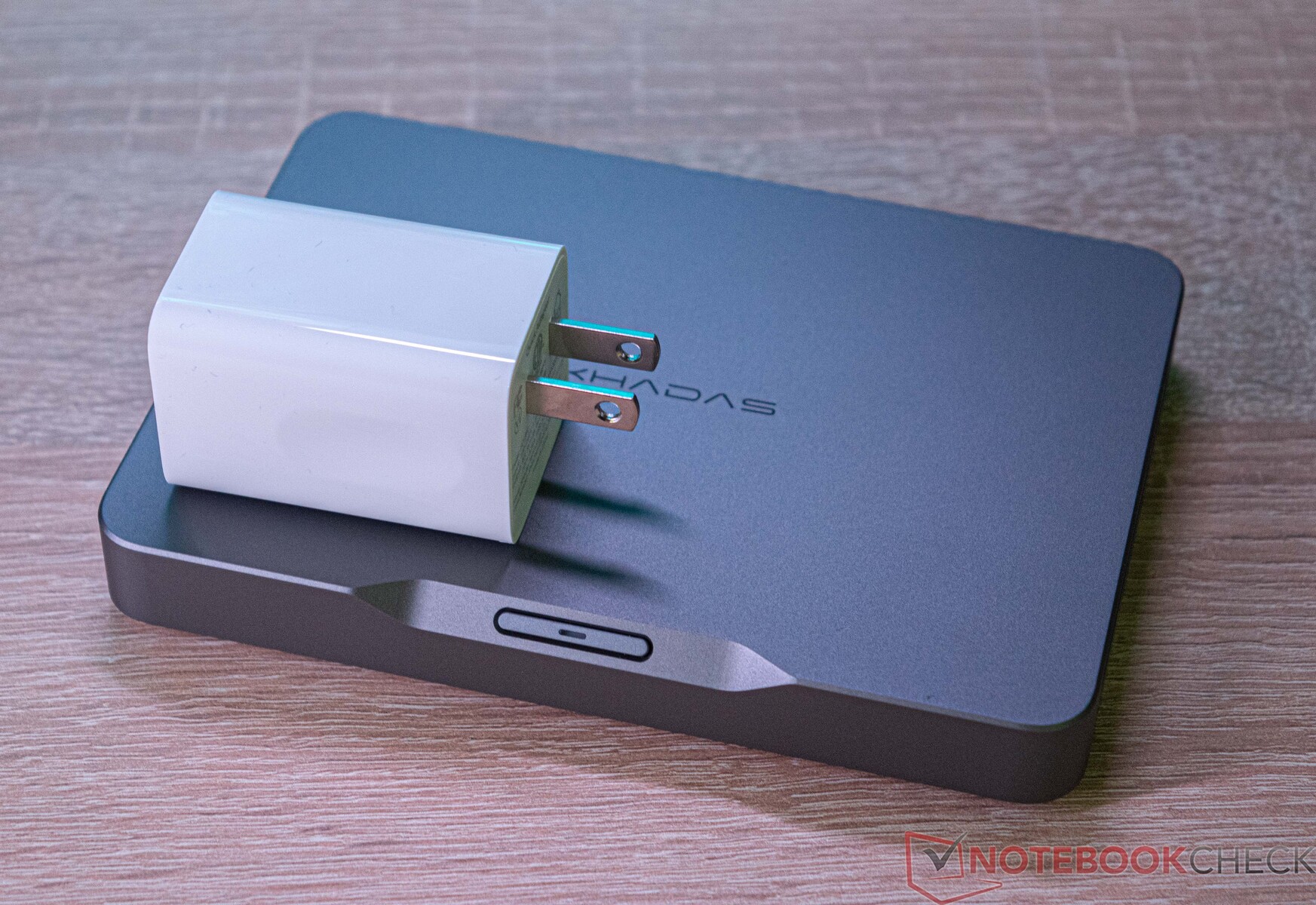

Khadas Mind 迷你电脑只配备了一个 65 瓦的电源适配器。如果能配备一个 RJ45 转 USB 适配器就更好了，因为设备本身没有插座。

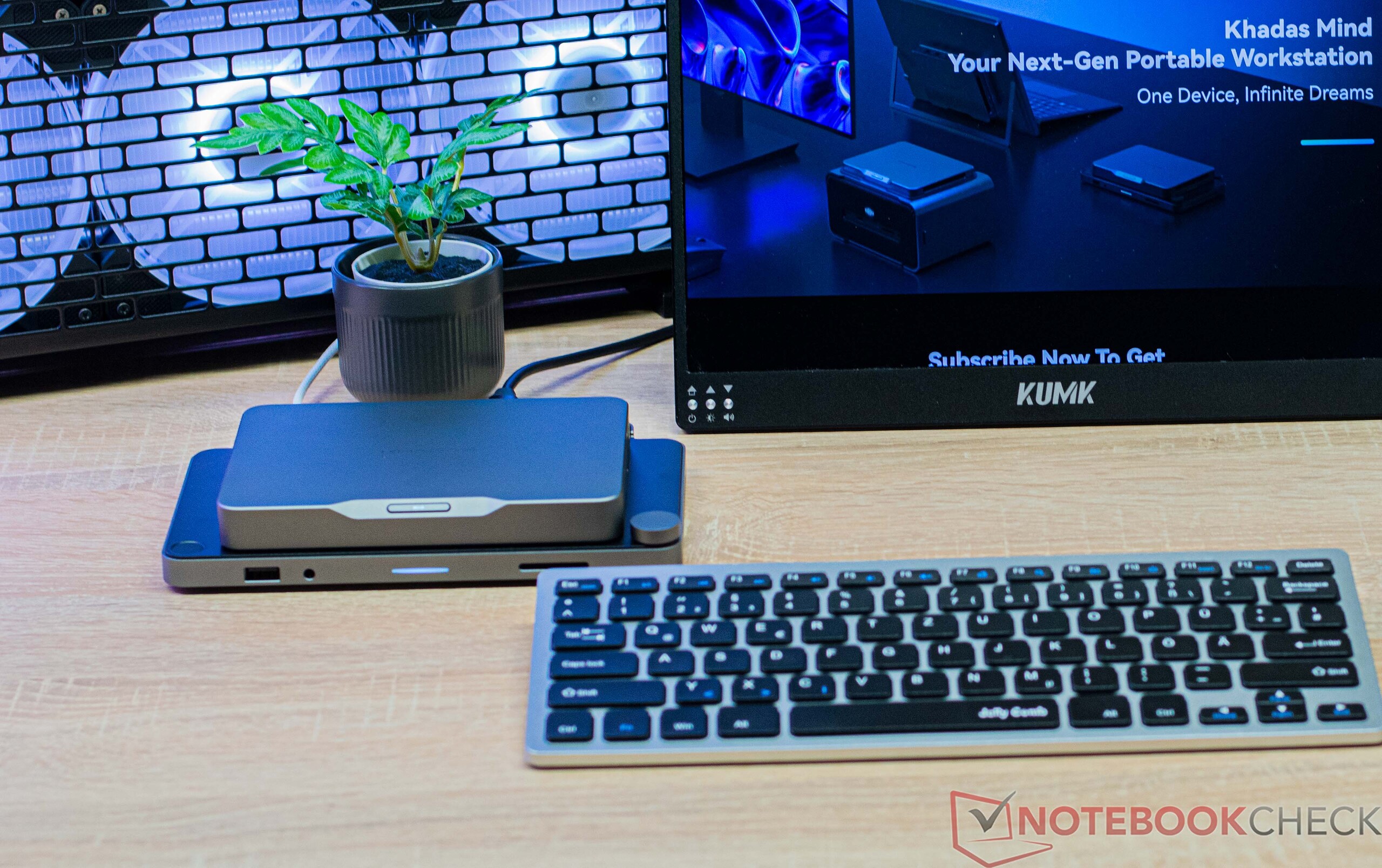

早上在办公室（或在路上或在客户那里）工作，晚上在电视上玩游戏？有了 Khadas Mind 和合适的配件，这一切都可以实现。但首先，您得有点耐心，因为目前真正可用的配件只有 Mind Dock。在不久的将来，凯达斯 Mind Studio Display、Mind xPlay 和凯达斯 Mind Graphics（外置显卡）也会陆续推出。这些配件可以通过专有的 Mind Link 进行连接，因此您可以在任何您能想象到的情况下使用该设备。与 Khadas Mind xPlay 结合使用，迷你电脑就能变身为笔记本电脑，在外置显卡的帮助下（该显卡具有英伟达GeForce RTX 4060 笔记本电脑安装了 Nvidia RTX 4060 笔记本电脑）的帮助下，你还可以在上面玩游戏。遗憾的是，在这些新产品最终成熟上市之前，我们还无法看到它们在日常使用中的表现如何。我们将对此保持密切关注，以便尽快为您提供所有必要的信息。此外，制造商尚未公布任何配件的技术细节。在此，卡达斯很可能还会在最后一刻对设计进行一些改动。

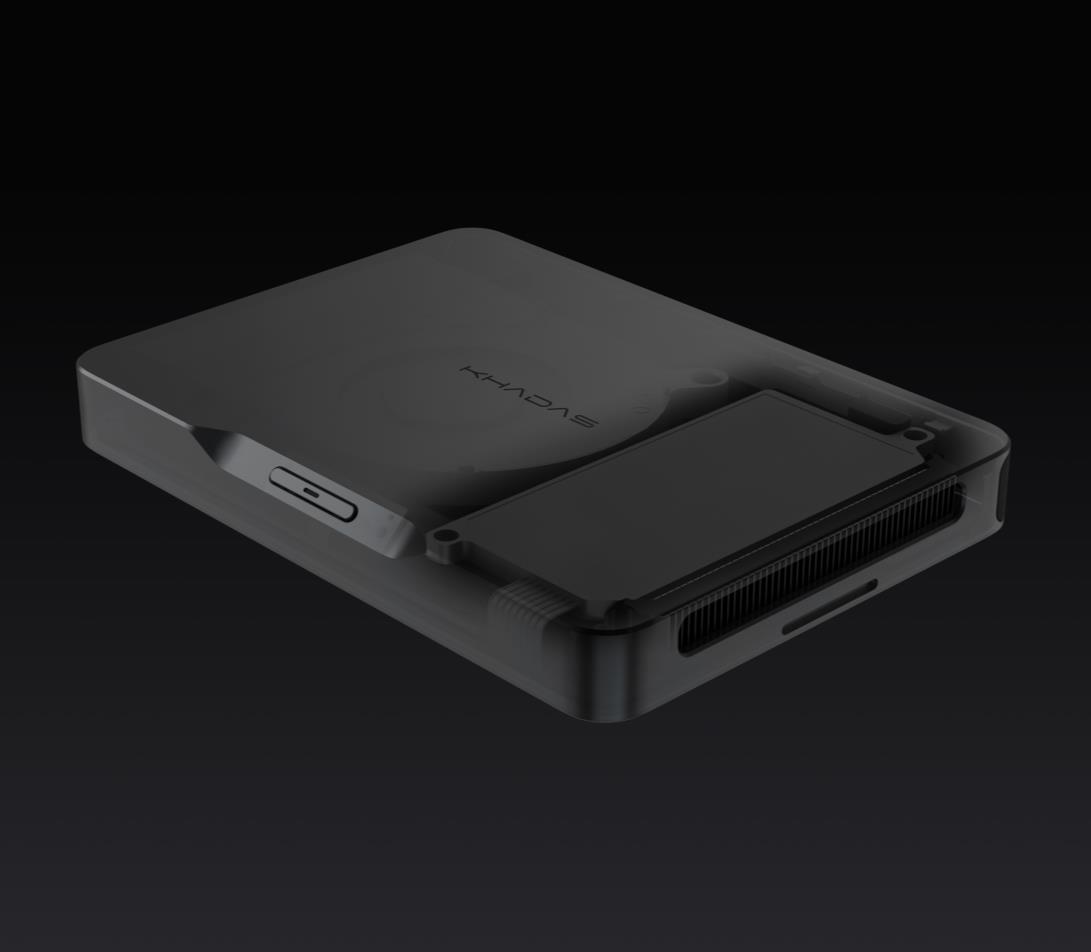

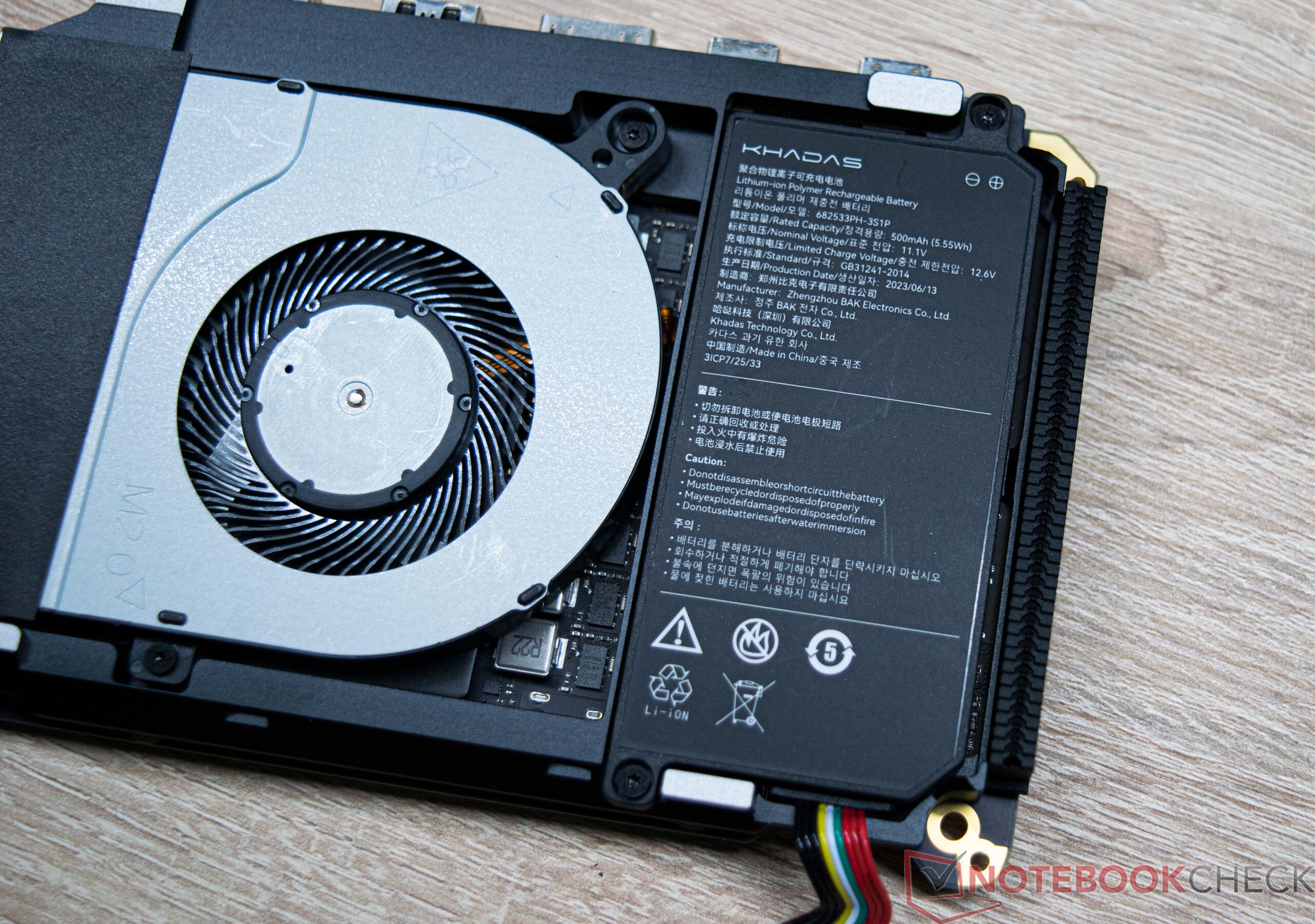

卡达斯迷你电脑的一个独特之处在于它集成了容量为 5.55 Wh 的电池。这使得该设备具有热插拔功能，也就是说，你可以在不关闭迷你电脑的情况下断开电源。这样，Khadas Mind 就会进入休眠模式，只要连接上配件，就能重新启动。内置电池足以在睡眠模式下为迷你电脑供电约五小时。

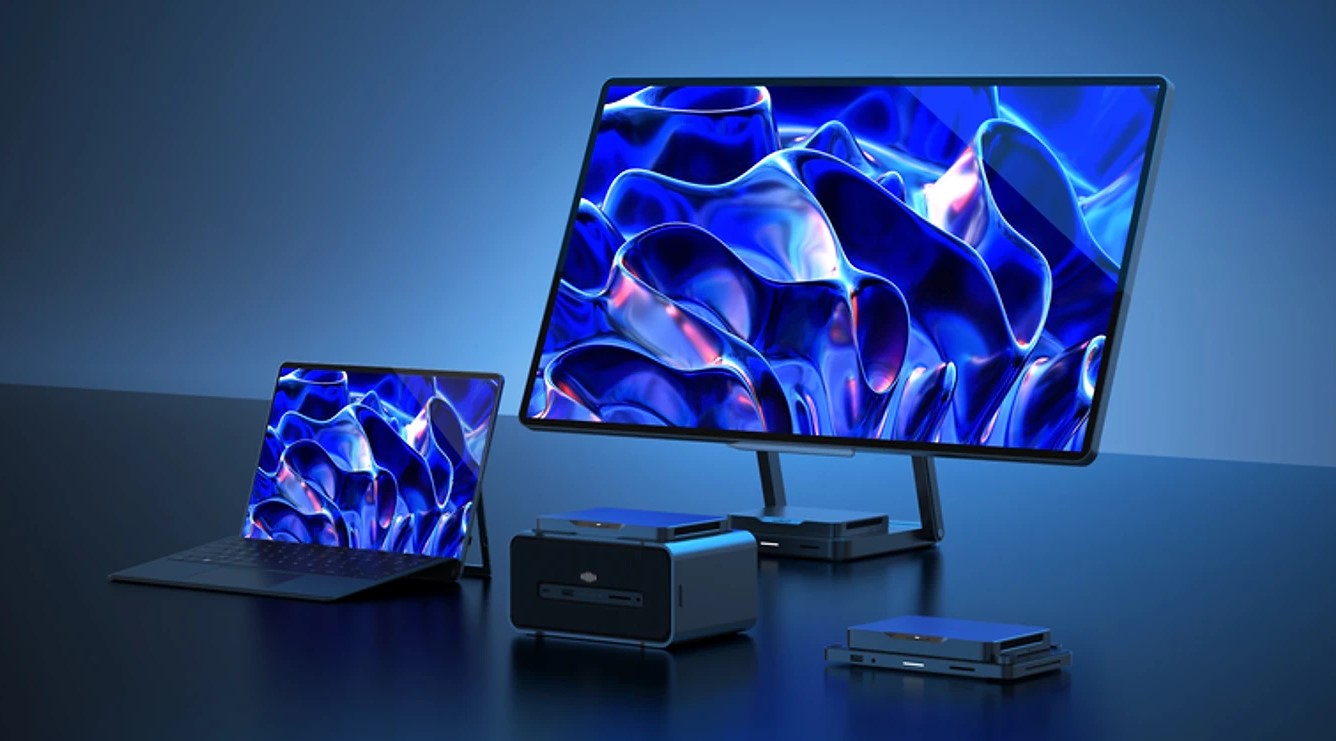

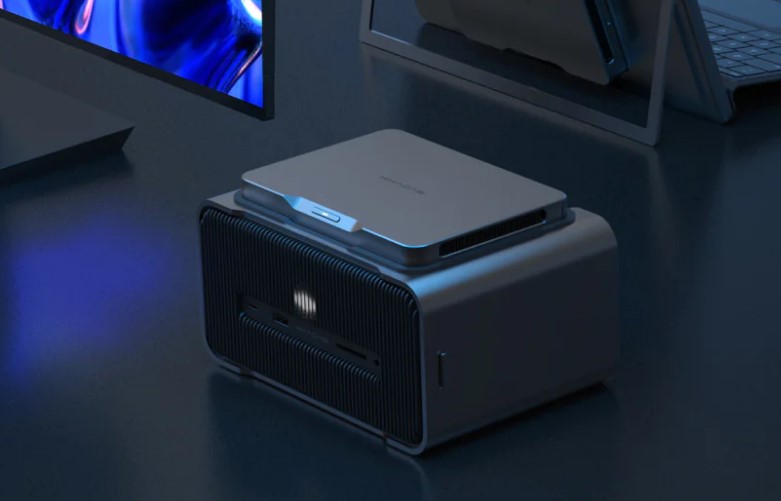

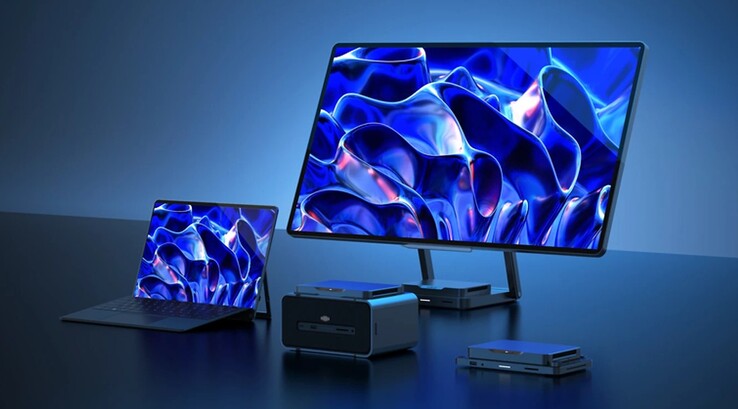

Mind Studio Display、Mind xPlay、Mind Graphic 和 Mind Dock（来源：Khadas）

维护

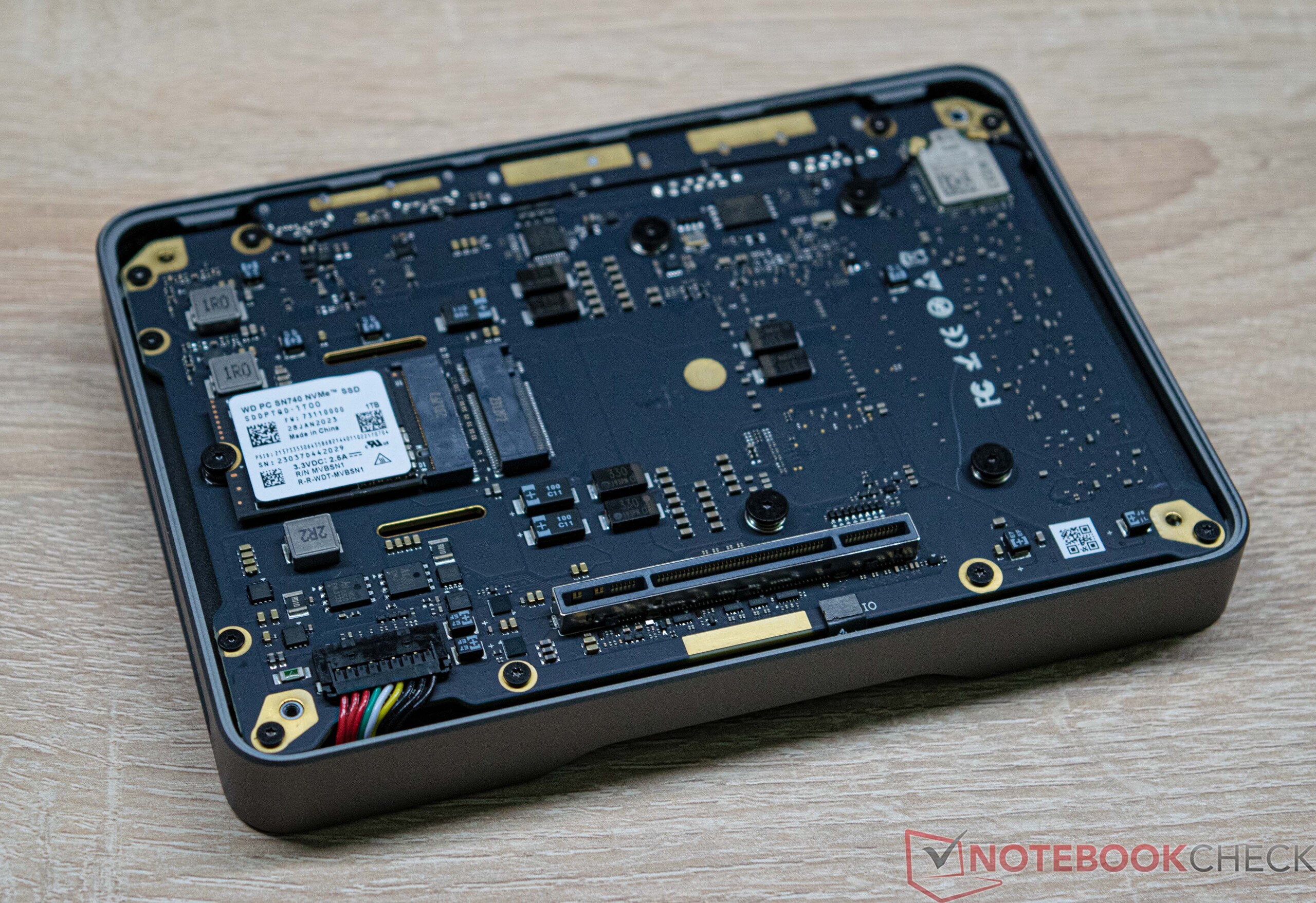

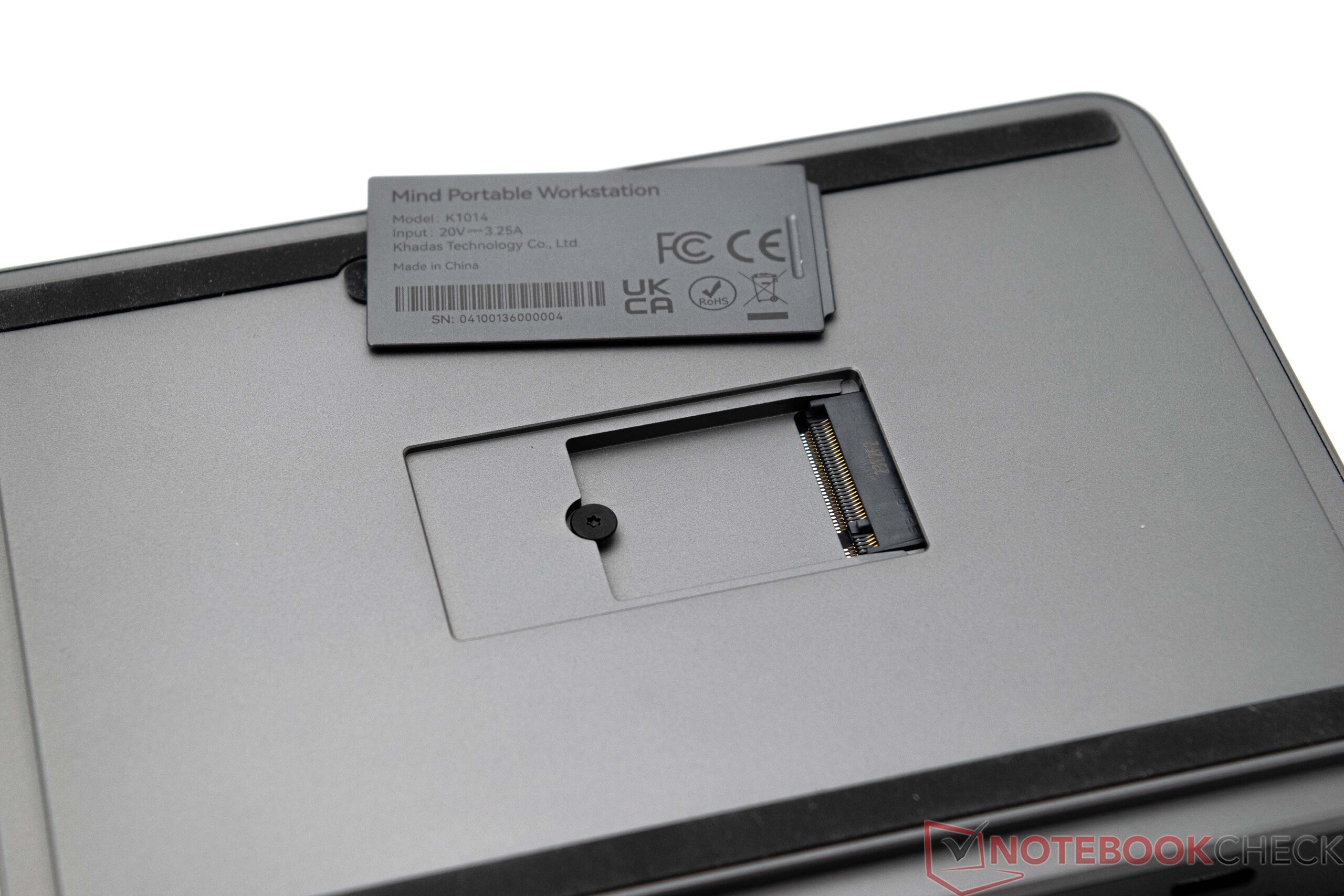

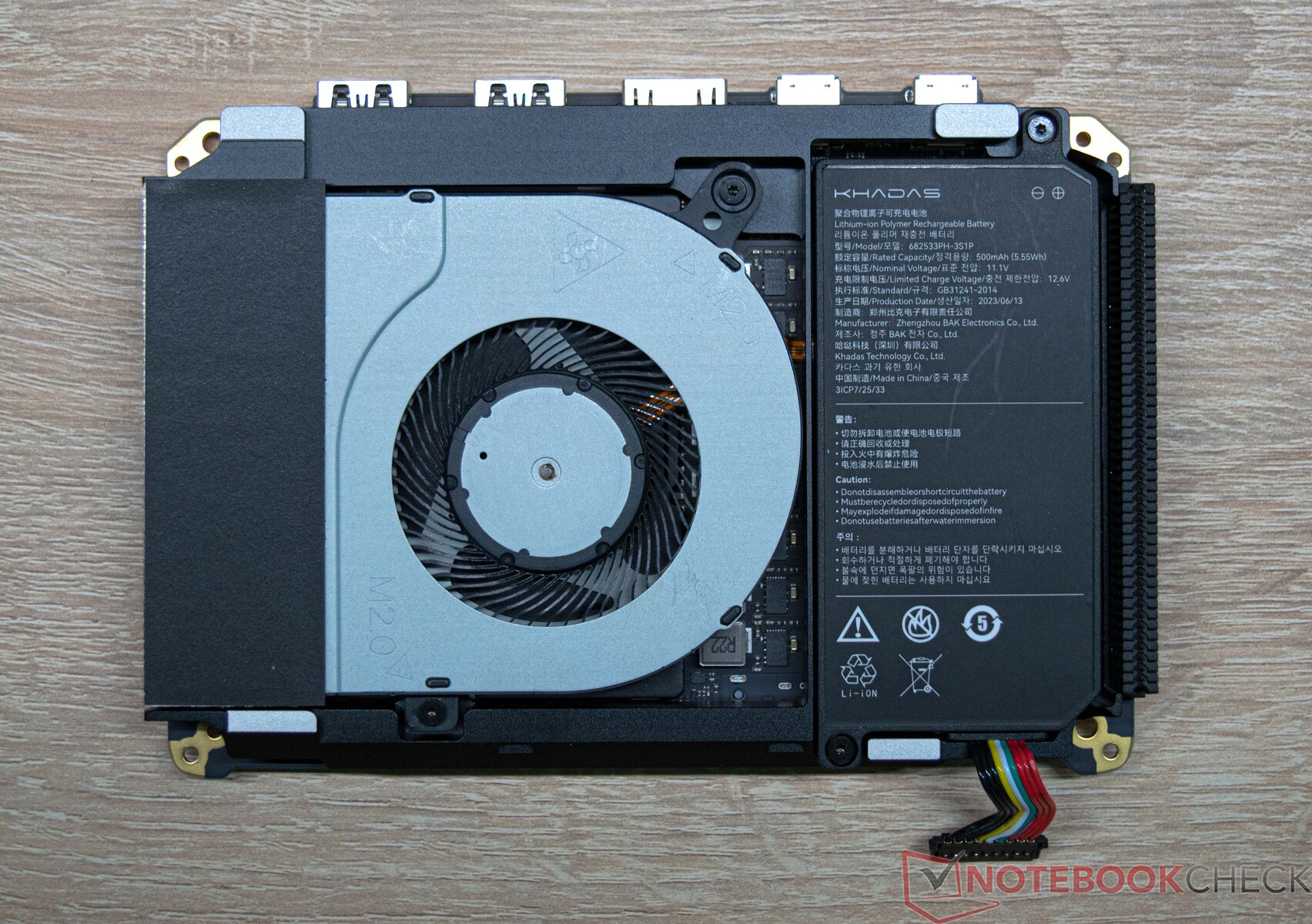

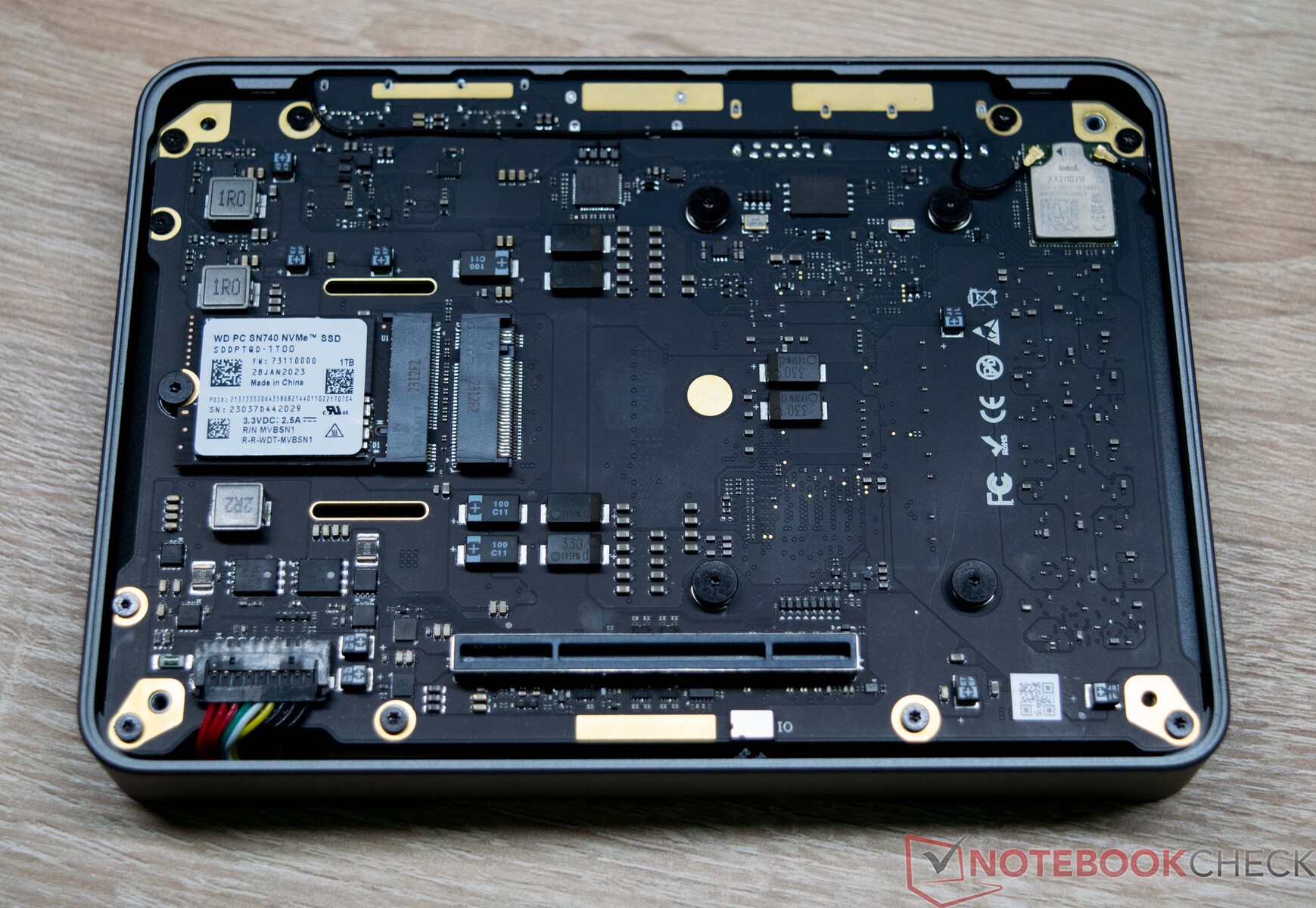

由于其结构极为紧凑，我们建议不要尝试打开设备。因为它几乎不可能进行维护。不过，底部有一个舱口，可以再安装一个 M.2 存储设备。在这里，您只能使用 M.2 2230 标准。

如果还想打开设备，则需要卸下卡在橡胶脚垫之间的四颗小螺丝。然后，你就可以更换已安装的固态硬盘了。反过来，内存和 WLAN 模块则被牢牢固定，无法更换。

性能 - 英特尔酷睿 i7 处理器，12 核 16 线程

测试条件

我们使用 "最高性能 "节能配置文件进行了所有性能测试，没有更改 SoC 的性能，而是根据 BIOS 设置将其保留在自动模式下。根据我们的测试标准，偏离的节能配置文件只在功耗测量和噪音排放测量中起作用。测试标准.

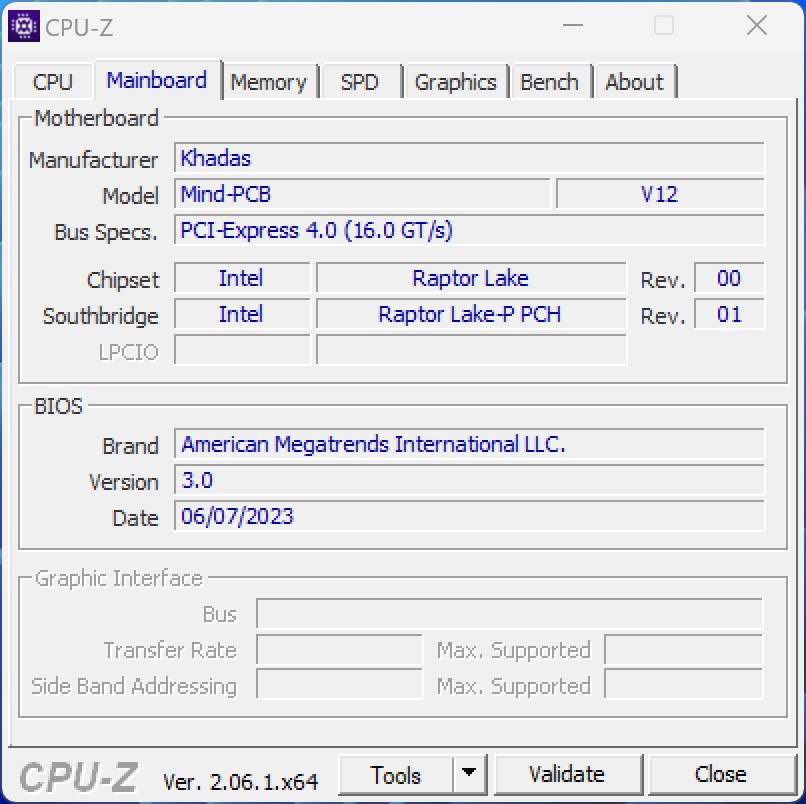

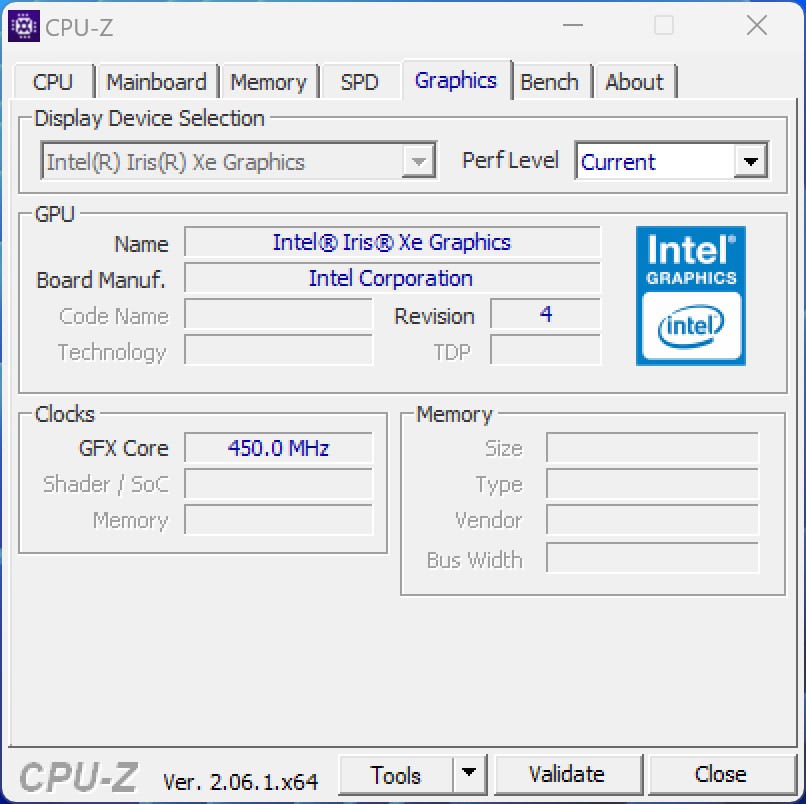

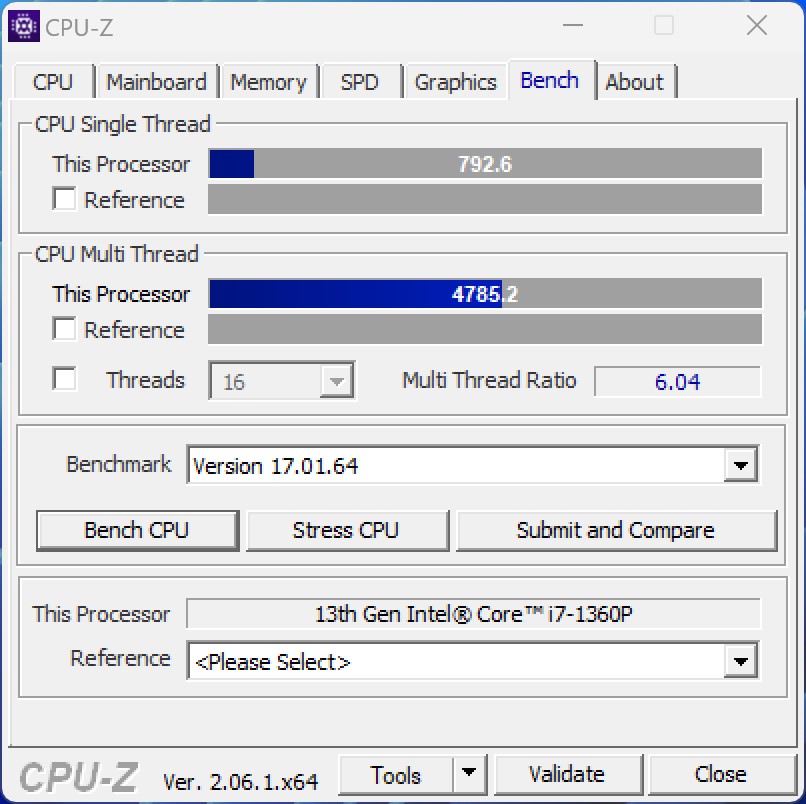

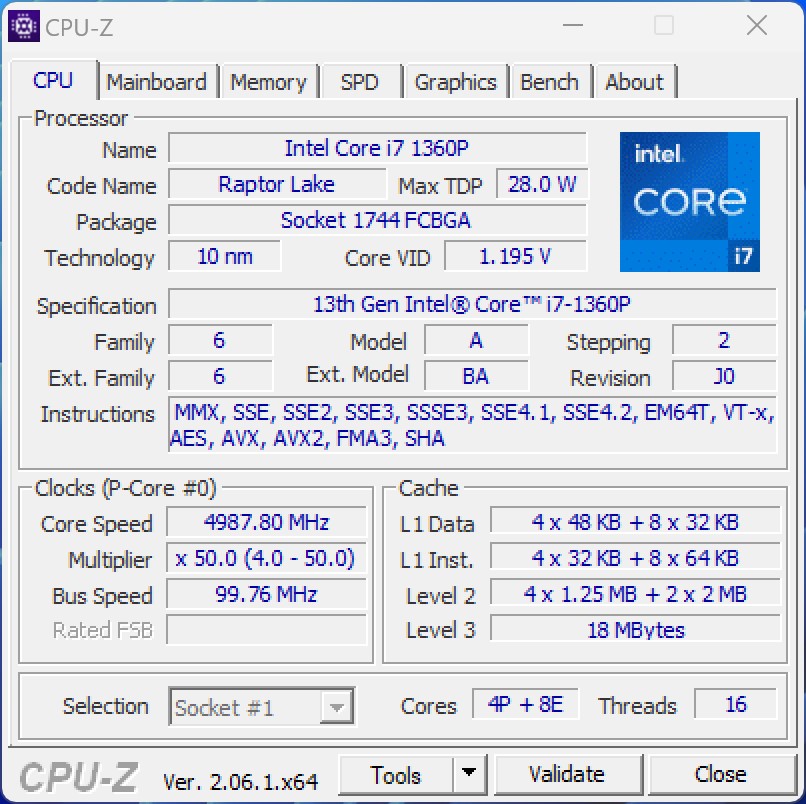

处理器

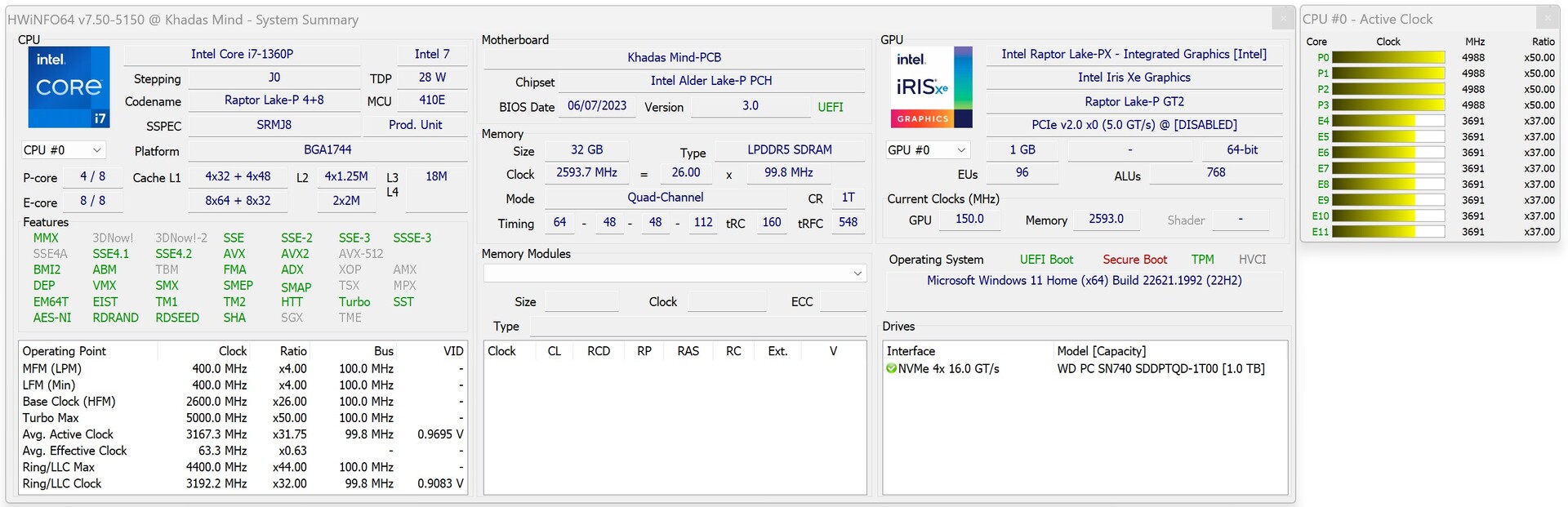

Khadas 安装了英特尔酷睿 i7-1360P在 Mind mini PC 中安装了英特尔酷睿 i7-1360P。这意味着制造商采用了英特尔当前的 Raptor Lake P 架构，该架构也可在当前的英特尔 NUC 13 Pro 套件.在查看其预定义的功率限制时，我们可以看到 SoC 完全没有受到限制。反过来，这意味着 PL2 的最大功耗为 64 瓦--在持续负载的情况下，PC 的功耗为 28 瓦。然而，我们的测试表明，P2 限制甚至都没有达到，因为卡达斯将 SoC 的温度限制在 80 °C，同时还降低了功耗值。在我们的测试中，Khadas Mind 仍然表现出色--尽管由于限制，其多核性能受到了一些限制。其单核性能与英特尔 NUC 13 Pro 套件.

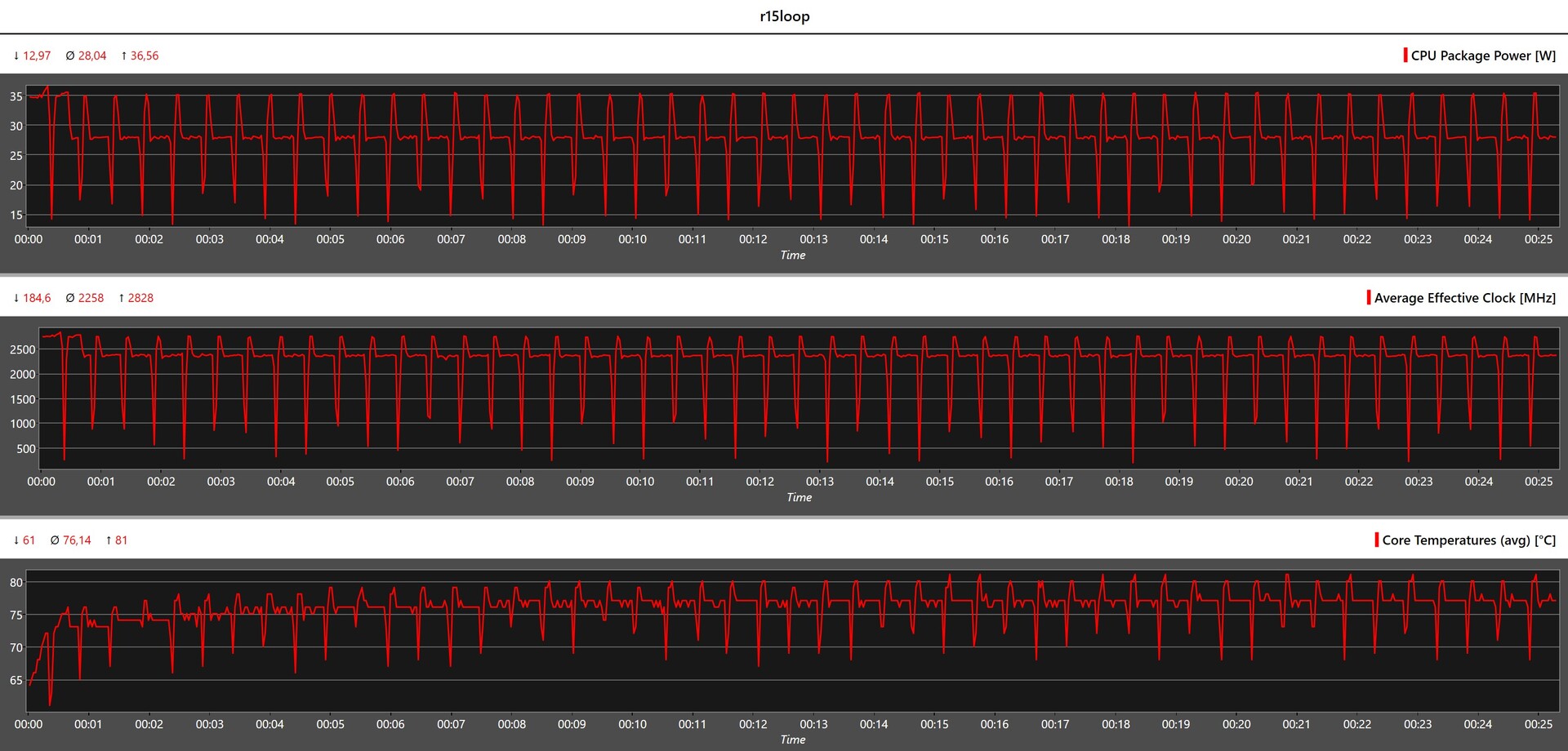

在所有 CPU 测试中（以性能评级表示），卡达斯 Mind 与最快的机型相比仅差 5 个百分点。与迷你 IT12相比，我们的测试样品领先 6 个百分点。

有关进一步的比较和基准，请参阅我们的CPU 对比表.

Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	51.1 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	50.1 pt
Khadas Mind Intel Core i7-1360P, 1600 MHz	48.3 pt
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	45.8 pt
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	44.5 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	44 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	40.5 pt

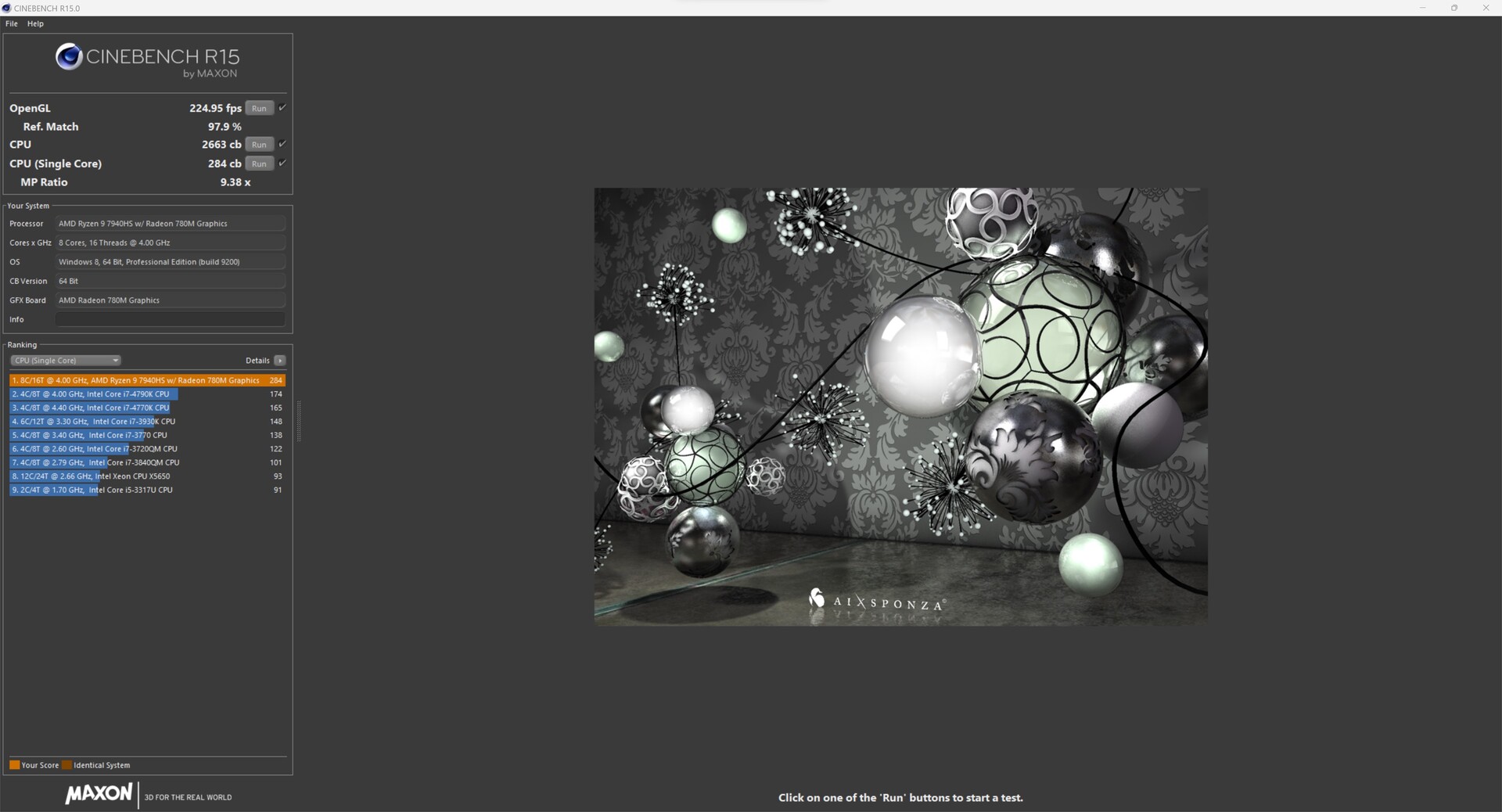

Cinebench R15
CPU Single 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	271 Points 0%
Khadas Mind Intel Core i7-1360P, 1600 MHz	270 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	247 Points -9%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	243 Points -10%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	241 Points -11%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	232 Points -14%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	227 Points -16%
CPU Multi 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2067 Points +26%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	2030 Points +24%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	1837 Points +12%
Khadas Mind Intel Core i7-1360P, 1600 MHz	1642 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1565 Points -5%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1361 Points -17%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	953 Points -42%

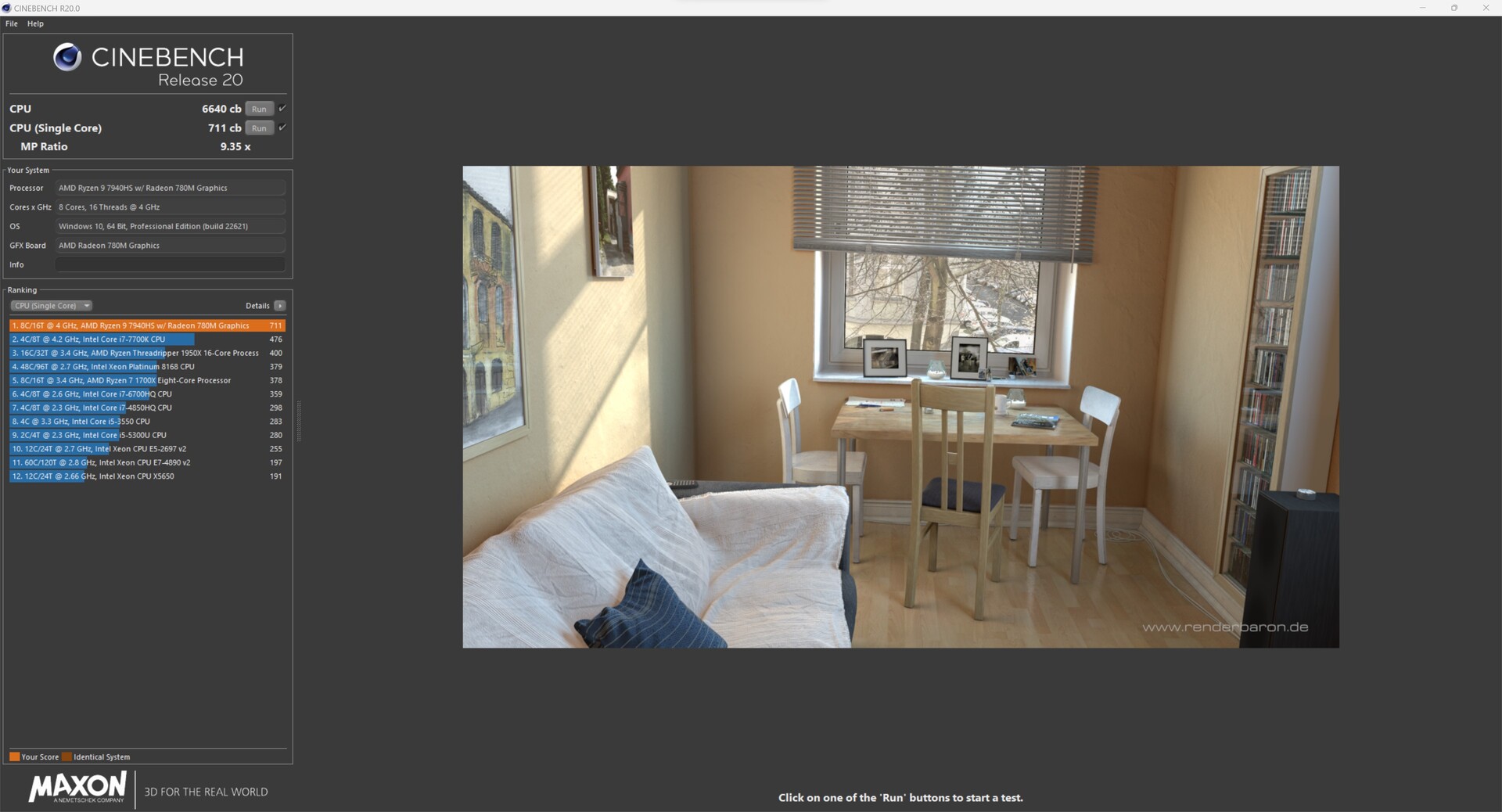

Cinebench R20
CPU (Single Core)
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	736 Points +2%
Khadas Mind Intel Core i7-1360P, 1600 MHz	724 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	682 Points -6%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	652 Points -10%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	620 Points -14%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	592 Points -18%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	558 Points -23%
CPU (Multi Core)
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	4941 Points +29%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	4887 Points +28%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	4386 Points +15%
Khadas Mind Intel Core i7-1360P, 1600 MHz	3820 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	3427 Points -10%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	3419 Points -10%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	2284 Points -40%

Cinebench R11.5
CPU Single 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	3.3 Points +1%
Khadas Mind Intel Core i7-1360P, 1600 MHz	3.27 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	2.93 Points -10%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	2.88 Points -12%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2.86 Points -13%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	2.78 Points -15%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	2.73 Points -17%
CPU Multi 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	25.96 Points +33%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	25.12 Points +29%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	21.13 Points +8%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	20.06 Points +3%
Khadas Mind Intel Core i7-1360P, 1600 MHz	19.54 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	17.15 Points -12%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	10.68 Points -45%

Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	15471 Points +2%
Khadas Mind Intel Core i7-1360P, 1600 MHz	15227 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	13568 Points -11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	12846 Points -16%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	12516 Points -18%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	12163 Points -20%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11685 Points -23%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	77409 Points +26%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	76744 Points +25%
Khadas Mind Intel Core i7-1360P, 1600 MHz	61639 Points
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	60447 Points -2%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	54792 Points -11%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	53950 Points -12%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	39426 Points -36%

Blender - v2.79 BMW27 CPU
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	513 Seconds * -58%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	415 Seconds * -28%
Khadas Mind Intel Core i7-1360P, 1600 MHz	324 Seconds *
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	282 Seconds * +13%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	279 Seconds * +14%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	275 Seconds * +15%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	273 Seconds * +16%

wPrime 2.10
32m
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	6.518 s * -31%
Khadas Mind Intel Core i7-1360P, 1600 MHz	4.957 s *
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	4.688 s * +5%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	4.537 s * +8%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	4.485 s * +10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	3.735 s * +25%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	3.421 s * +31%
1024m
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	277.01 s * -15%
Khadas Mind Intel Core i7-1360P, 1600 MHz	240.083 s *
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	237.123 s * +1%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	196.909 s * +18%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	189.07 s * +21%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	146.553 s * +39%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	113.454 s * +53%

X264 HD Benchmark 4.0
Pass 1
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	312 (305^min - 331^max) fps +14%
Khadas Mind Intel Core i7-1360P, 1600 MHz	273 (264^min - 275^max) fps
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	245 (239^min - 261^max) fps -10%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	224 (222^min - 258^max) fps -18%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	219.5 (219^min - 221^max) fps -20%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	214.5 (213^min - 216^max) fps -21%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	212 (206^min - 224^max) fps -22%
Pass 2
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	125.25 (105.2^min - 130^max) fps +32%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	116.4 (108.5^min - 128.8^max) fps +23%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	101.05 (100^min - 102.4^max) fps +7%
Khadas Mind Intel Core i7-1360P, 1600 MHz	94.7 (87.4^min - 101.7^max) fps
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	77.75 (77.6^min - 113.9^max) fps -18%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	71.45 (70.2^min - 76.6^max) fps -25%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	55.2 (54.6^min - 55.9^max) fps -42%

WinRAR - Result
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	7937 KB/s +31%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6937 KB/s +14%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6559 KB/s +8%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	6144 KB/s +1%
Khadas Mind Intel Core i7-1360P, 1600 MHz	6079 KB/s
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	5759 KB/s -5%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	4639 KB/s -24%

TrueCrypt
AES Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	12.5 GB/s +32%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	10.7 GB/s +13%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.4 GB/s +9%
Khadas Mind Intel Core i7-1360P, 1600 MHz	9.5 GB/s
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	9.3 GB/s -2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8.6 GB/s -9%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5.4 GB/s -43%
Twofish Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	2.2 GB/s +29%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2 GB/s +18%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1.8 GB/s +6%
Khadas Mind Intel Core i7-1360P, 1600 MHz	1.7 GB/s
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	1.5 GB/s -12%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1.3 GB/s -24%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	0.838 GB/s -51%
Serpent Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1.2 GB/s +28%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1 GB/s +7%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	1 GB/s +7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.974 GB/s +4%
Khadas Mind Intel Core i7-1360P, 1600 MHz	0.935 GB/s
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.857 GB/s -8%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	0.509 GB/s -46%

Geekbench 5.5
Multi-Core
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	10574 Points +15%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points +6%
Khadas Mind Intel Core i7-1360P, 1600 MHz	9159 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	8918 Points -3%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	7986 Points -13%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	7658 Points -16%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5091 Points -44%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points +2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1850 Points +1%
Khadas Mind Intel Core i7-1360P, 1600 MHz	1824 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1782 Points -2%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	1669 Points -8%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1504 Points -18%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	1499 Points -18%

Geekbench 5.0
5.0 Multi-Core
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	10249 Points +14%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10249 Points +14%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	10249 Points +14%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points +7%
Khadas Mind Intel Core i7-1360P, 1600 MHz	9000 Points
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	7865 Points -13%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5025 Points -44%
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points +1%
Khadas Mind Intel Core i7-1360P, 1600 MHz	1826 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	1655 Points -9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1557 Points -15%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1557 Points -15%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1557 Points -15%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	1459 Points -20%

Geekbench 4.4
64 Bit Single-Core Score
Khadas Mind Intel Core i7-1360P, 1600 MHz	8084 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points -1%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	7146 Points -12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	6698 Points -17%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6698 Points -17%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6698 Points -17%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	6261 Points -23%
64 Bit Multi-Core Score
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	39852 Points +21%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	39852 Points +21%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	39852 Points +21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points +11%
Khadas Mind Intel Core i7-1360P, 1600 MHz	33052 Points
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	31566 Points -4%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	20385 Points -38%

3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	18382 Points +21%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	17973 Points +18%
Khadas Mind Intel Core i7-1360P, 1600 MHz	15245 Points
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	13200 Points -13%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	13067 Points -14%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11630 Points -24%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	10536 Points -31%

7-Zip 18.03
7z b 4
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	52959 MIPS +23%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	52046 MIPS +20%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51151 MIPS +18%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	44320 MIPS +3%
Khadas Mind Intel Core i7-1360P, 1600 MHz	43201 MIPS
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	37570 MIPS -13%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	25876 MIPS -40%
7z b 4 -mmt1
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	6019 MIPS +2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	5961 MIPS +1%
Khadas Mind Intel Core i7-1360P, 1600 MHz	5904 MIPS
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5895 MIPS 0%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	5577 MIPS -6%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5486 MIPS -7%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	5433 MIPS -8%

HWBOT x265 Benchmark v2.2 - 4k Preset
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	14.2 fps +25%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	14.1 fps +24%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	13.3 fps +17%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11.7 fps +3%
Khadas Mind Intel Core i7-1360P, 1600 MHz	11.4 fps
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.1 fps -11%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	7.61 fps -33%

R Benchmark 2.5 - Overall mean
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	0.543 sec * -22%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	0.525 sec * -18%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.511 sec * -14%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	0.4718 sec * -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.4641 sec * -4%
Khadas Mind Intel Core i7-1360P, 1600 MHz	0.4463 sec *
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	0.445 sec * -0%

LibreOffice - 20 Documents To PDF
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	60.2 s * -47%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	53 s * -30%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	48.1 s * -18%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	47.2 s * -15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	43.7 s * -7%
Khadas Mind Intel Core i7-1360P, 1600 MHz	40.9 s *
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	38 s * +7%

WebXPRT 3 - Overall
Khadas Mind Intel Core i7-1360P, 1600 MHz	316 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	311 Points -2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	305 Points -3%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	287 Points -9%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	274 Points -13%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	261 Points -17%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	220 Points -30%

Mozilla Kraken 1.1 - Total
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	667 ms * -33%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	644 ms * -28%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	619 ms * -23%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	577 ms * -15%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	539 ms * -7%
Khadas Mind Intel Core i7-1360P, 1600 MHz	502 ms *
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	494 ms * +2%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	21422 Points +20%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	20158 Points +13%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	18599 Points +5%
Khadas Mind Intel Core i7-1360P, 1600 MHz	17786 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	15903 Points -11%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	12492 Points -30%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	11557 Points -35%
1920x1080 Fire Strike Physics
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	22244 Points +20%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	21523 Points +16%
Khadas Mind Intel Core i7-1360P, 1600 MHz	18564 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	16568 Points -11%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	15934 Points -14%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	15312 Points -18%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	11883 Points -36%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	10539 Points +33%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	9334 Points +18%
Khadas Mind Intel Core i7-1360P, 1600 MHz	7942 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6487 Points -18%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, 2700 MHz	6355 Points -20%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5114 Points -36%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	4598 Points -42%

* ... smaller is better

Performance Rating
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, Radeon 680M	93.9 pt
Average of class Mini PC	83.8 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	82 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	79.2 pt
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	72.5 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	69.3 pt
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	62.4 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	49.6 pt

AIDA64 / FP32 Ray-Trace
Average of class Mini PC (561 - 51004, n=119, last 2 years)	12449 KRay/s +30%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, Radeon 680M	12284 KRay/s +28%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	11040 KRay/s +15%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s +14%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	9567 KRay/s
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	9518 KRay/s -1%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	7933 KRay/s -17%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	6633 KRay/s -31%

AIDA64 / FPU Julia
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, Radeon 680M	80261 Points +68%
Average of class Mini PC (3604 - 214250, n=119, last 2 years)	62645 Points +31%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	59704 Points +25%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	55557 Points +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points +16%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	47763 Points
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	40251 Points -16%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	27788 Points -42%

AIDA64 / CPU SHA3
Average of class Mini PC (225 - 9399, n=119, last 2 years)	2760 MB/s +14%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	2728 MB/s +12%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, Radeon 680M	2707 MB/s +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s +5%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	2430 MB/s
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	2006 MB/s -17%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	1997 MB/s -18%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	1841 MB/s -24%

AIDA64 / CPU Queen
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, Radeon 680M	91739 Points +40%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	86691 Points +33%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points +30%
Average of class Mini PC (8172 - 184747, n=119, last 2 years)	77998 Points +19%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	75248 Points +15%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	73765 Points +13%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	65324 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	49399 Points -24%

AIDA64 / FPU SinJulia
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, Radeon 680M	11660 Points +103%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	8738 Points +52%
Average of class Mini PC (408 - 29064, n=119, last 2 years)	8538 Points +49%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points +32%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	7269 Points +27%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	5734 Points
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	5567 Points -3%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	4529 Points -21%

AIDA64 / FPU Mandel
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, Radeon 680M	44145 Points +93%
Average of class Mini PC (1958 - 113499, n=119, last 2 years)	32689 Points +43%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	32465 Points +42%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points +23%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	27772 Points +22%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	22832 Points
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	19857 Points -13%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	16652 Points -27%

AIDA64 / CPU AES
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, Radeon 680M	113160 MB/s +41%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s +24%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	99244 MB/s +24%
Average of class Mini PC (3691 - 325960, n=119, last 2 years)	85358 MB/s +7%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	80041 MB/s
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	74716 MB/s -7%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	57644 MB/s -28%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	39680 MB/s -50%

AIDA64 / CPU ZLib
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	807 MB/s +20%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s +9%
Average of class Mini PC (74.8 - 2039, n=119, last 2 years)	714 MB/s +6%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	671 MB/s
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, Radeon 680M	669 MB/s 0%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	575 MB/s -14%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	530 MB/s -21%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	372 MB/s -45%

AIDA64 / FP64 Ray-Trace
Average of class Mini PC (308 - 26952, n=119, last 2 years)	6658 KRay/s +34%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, Radeon 680M	6438 KRay/s +29%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	5920 KRay/s +19%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s +16%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	5058 KRay/s +2%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	4975 KRay/s
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	4156 KRay/s -16%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	3668 KRay/s -26%

AIDA64 / CPU PhotoWorxx
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	43544 MPixel/s
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	29108 MPixel/s -33%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	28118 MPixel/s -35%
Average of class Mini PC (4408 - 50500, n=119, last 2 years)	27805 MPixel/s -36%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	27456 MPixel/s -37%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, Radeon 680M	27274 MPixel/s -37%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	25453 MPixel/s -42%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s -44%

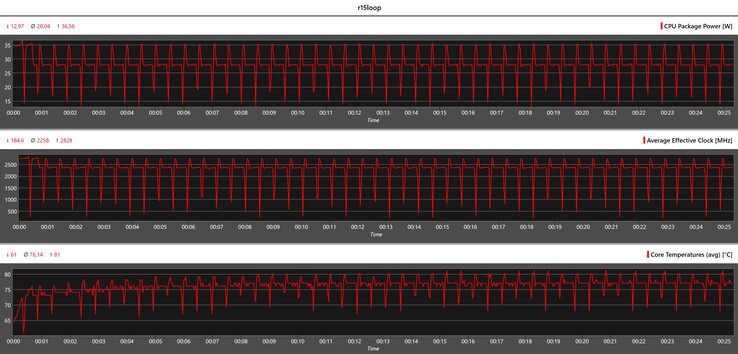

Khadas Mind 与 Cinebench R15 多循环对比

在 Cinebench R15 多循环测试中，我们可以很清楚地看到 Khadas Mind 在 80 °C 时受到的限制。因此，SoC 只能部分跟上竞争对手的步伐--我们的测试样品取得了不错的平均成绩。开始测试后，我们并没有注意到性能的极度下降。不过，我们也注意到这种情况在一定程度上有所减弱，因此，这款迷你电脑的平均成绩为 1443 分。

Khadas Mind Intel Core i7-1360P, Intel Core i7-1360P: Ø1443 (1386.82-1627.54)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)

Geekom Mini IT12 Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)

Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Ryzen 7 6800U: Ø1739 (1710.13-1808.24)

Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Core i7-1360P: Ø1825 (1794.93-2181.38)

Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Core i7-11390H: Ø946 (931.81-953.22)

系统性能

在有关系统性能的合成基准测试中，Khadas Mind 由于采用了英特尔酷睿 i7-1360P的温度限制。总的来说，我们在本次对比中测试的所有设备都能提供出色的日常性能。你可能无法察觉到任何差异，甚至在使用多个程序时也不会出现问题。在 AIDA64 内存测试中，我们的测试样品遥遥领先。它的 DDR5 内存似乎在这里得到了回报。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	6281 Points +6%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	6187 Points +4%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	5937 Points
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	5872 Points -1%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	5658 Points -5%
Minisforum Mercury Series EM680, AMD Ryzen 7 6800U AMD Radeon 680M, Kingston OM3PGP4512Q	5352 Points -10%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	4914 Points -17%

PCMark 10 / Essentials
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	11596 Points +8%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	11217 Points +4%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	10761 Points
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	10139 Points -6%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9820 Points -9%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	9649 Points -10%
Minisforum Mercury Series EM680, AMD Ryzen 7 6800U AMD Radeon 680M, Kingston OM3PGP4512Q	8143 Points -24%

PCMark 10 / Productivity
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9031 Points +11%
Minisforum Mercury Series EM680, AMD Ryzen 7 6800U AMD Radeon 680M, Kingston OM3PGP4512Q	8424 Points +3%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	8161 Points
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	7893 Points -3%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	7673 Points -6%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	7427 Points -9%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	6788 Points -17%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1894 Points +21%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1810 Points +16%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1738 Points +11%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	1564 Points
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1517 Points -3%
Minisforum Mercury Series EM680, AMD Ryzen 7 6800U AMD Radeon 680M, Kingston OM3PGP4512Q	1477 Points -6%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1438 Points -8%

CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	2116 Points +38%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1734 Points +13%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1578 Points +3%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	1528 Points
Minisforum Mercury Series EM680, AMD Ryzen 7 6800U AMD Radeon 680M, Kingston OM3PGP4512Q	1473 Points -4%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1434 Points -6%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1238 Points -19%

CrossMark / Creativity
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1970 Points +23%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1800 Points +13%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1749 Points +9%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1652 Points +3%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	1600 Points
Minisforum Mercury Series EM680, AMD Ryzen 7 6800U AMD Radeon 680M, Kingston OM3PGP4512Q	1462 Points -9%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1359 Points -15%

CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1921 Points +25%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1740 Points +13%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1729 Points +12%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	1541 Points
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1523 Points -1%
Minisforum Mercury Series EM680, AMD Ryzen 7 6800U AMD Radeon 680M, Kingston OM3PGP4512Q	1493 Points -3%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1491 Points -3%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	65299 MB/s
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, Radeon 680M	51798 MB/s -21%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	47711 MB/s -27%
Average of class Mini PC (6481 - 89287, n=119, last 2 years)	47585 MB/s -27%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	45941 MB/s -30%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	44892 MB/s -31%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	44726 MB/s -32%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	41953 MB/s -36%

AIDA64 / Memory Read
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	60668 MB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	49559 MB/s -18%
Average of class Mini PC (6914 - 99171, n=119, last 2 years)	48328 MB/s -20%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	47491 MB/s -22%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	47290 MB/s -22%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	46084 MB/s -24%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	45196 MB/s -26%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, Radeon 680M	45084 MB/s -26%

AIDA64 / Memory Write
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	74777 MB/s
Average of class Mini PC (6862 - 98583, n=119, last 2 years)	52056 MB/s -30%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, Radeon 680M	51052 MB/s -32%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	49353 MB/s -34%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	46860 MB/s -37%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	46815 MB/s -37%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	46785 MB/s -37%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	46179 MB/s -38%

AIDA64 / Memory Latency
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, Radeon 680M	108.3 ns * -20%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	100 ns * -10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	96.1 ns * -6%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	94 ns * -4%
Average of class Mini PC (44.9 - 184.8, n=119, last 2 years)	91.9 ns * -2%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	90.5 ns *
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	80.2 ns * +11%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	66.3 ns * +27%

* ... smaller is better

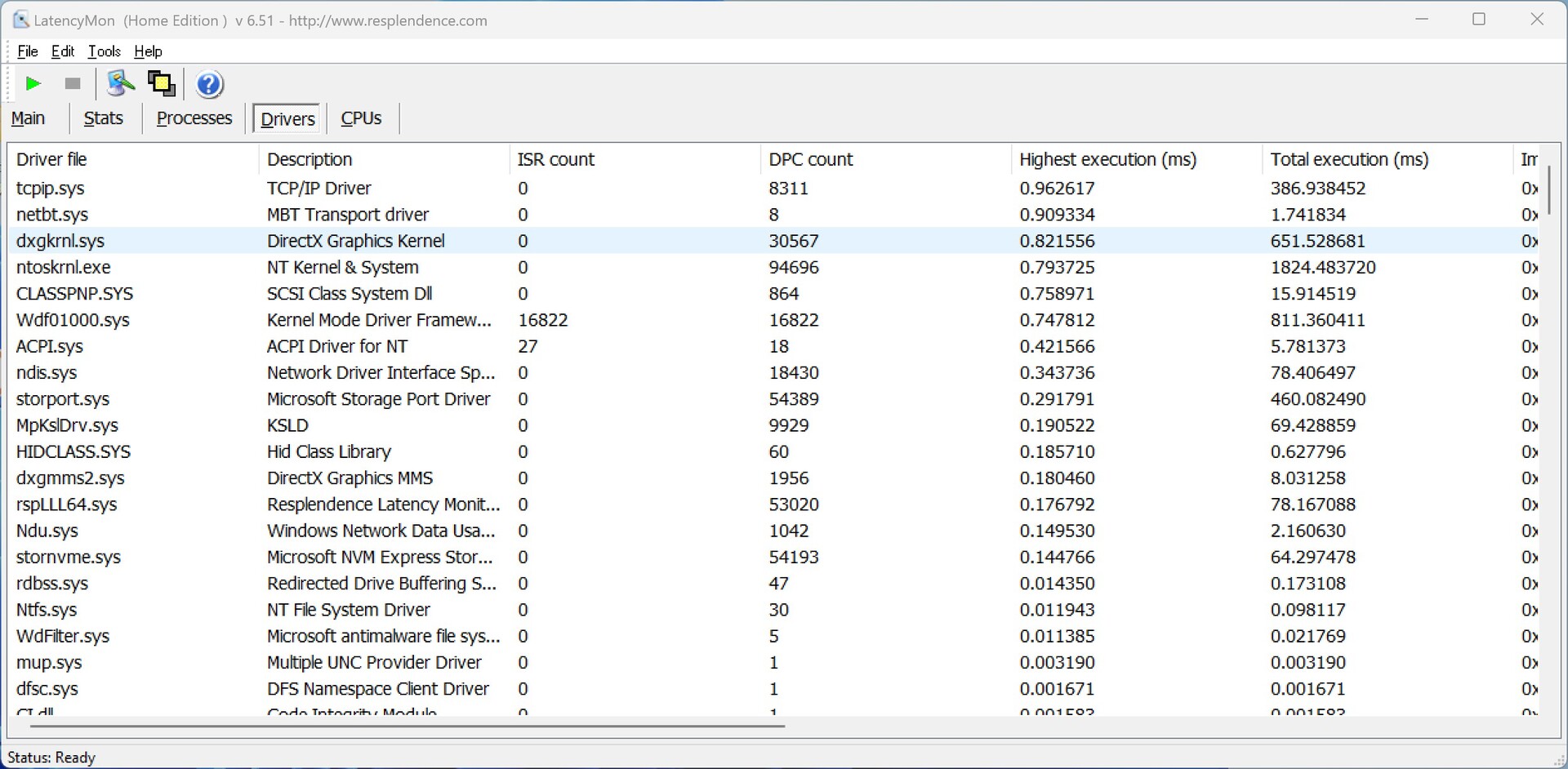

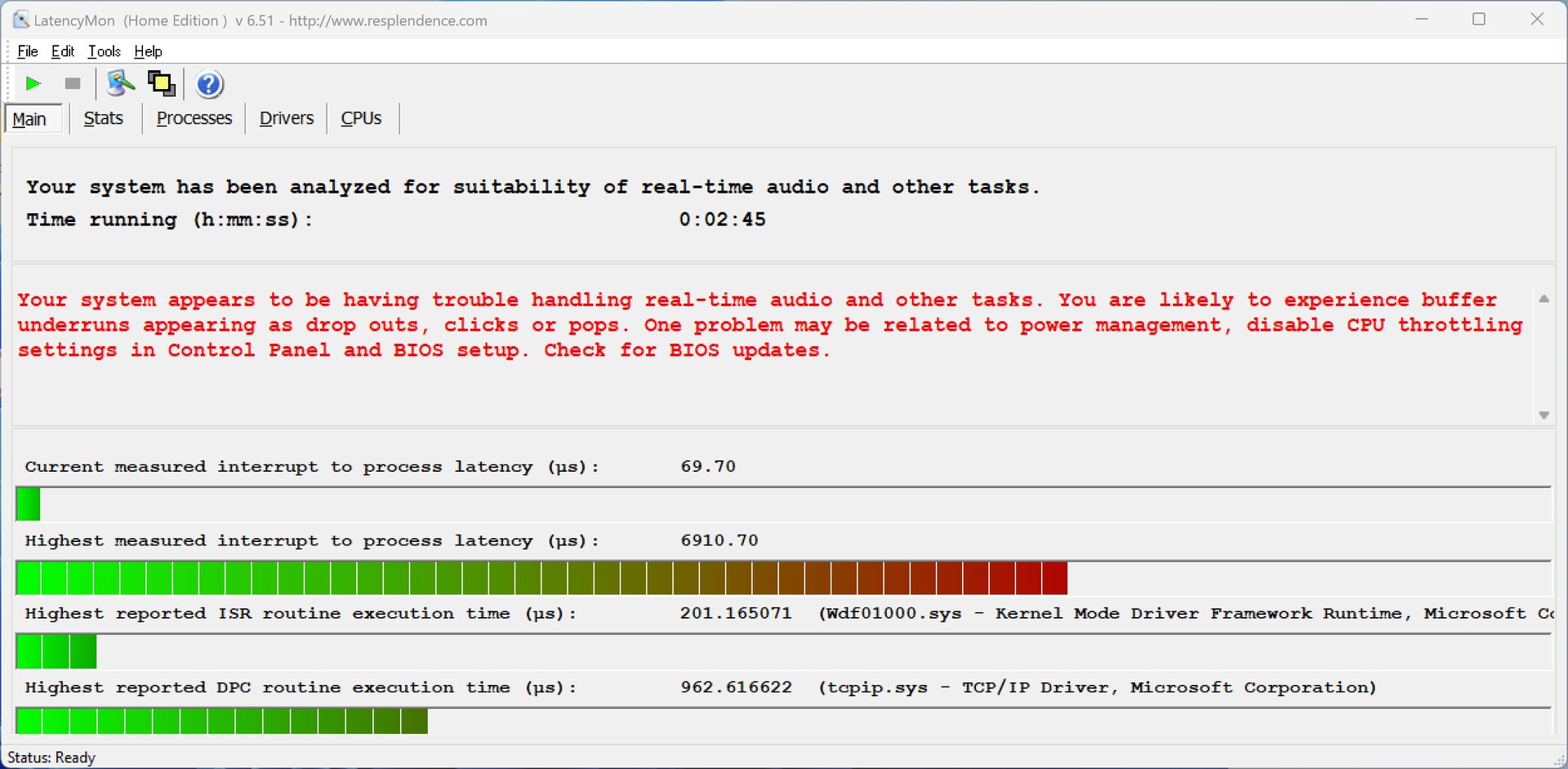

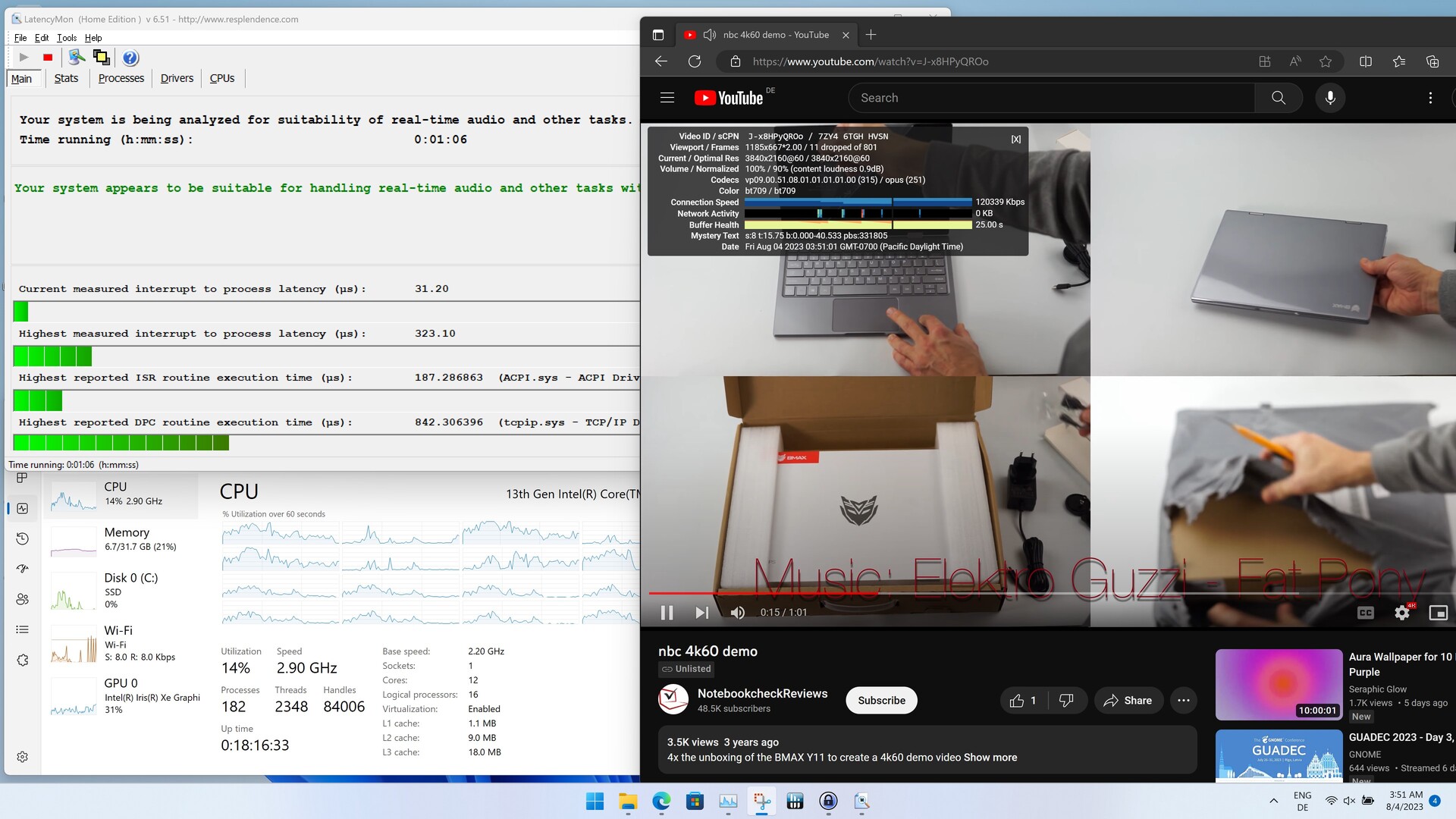

DPC 延迟

LatencyMon 记录了长时间的低延迟。在 Edge 中打开多个标签页以及播放 4K 测试视频时，从未出现任何延迟问题。只有在开始播放 Prime95 后，Khadas Mind 才开始出现一些小问题。我们仍然推荐将这款迷你电脑作为高分辨率视频的流媒体设备。在我们的综述中，这足以让这款电脑排在第二位，仅次于Geekom 迷你 IT11.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	1920.7 μs * -100%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1113.9 μs * -16%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1087 μs * -13%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	1016.7 μs * -6%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	985.8 μs * -2%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	962 μs *
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	466 μs * +52%

* ... smaller is better

存储设备

我们测试的 Khadas Mind 样品配备了西部数据的 1024GB NVMe 固态硬盘。准确地说，它是 SN740 系列中的一个型号，长度仅为 30 毫米。由于它支持 NVMe，因此传输速率非常出色--如果你看一下基准测试，就会发现这一点。我们没有注意到因散热不足而导致的任何问题，因为即使在持续负载的情况下，它的性能也能保持稳定。只有英特尔 NUC 13 Pro 套件才能达到这样的效果。

如果你不满足于 1,024 GB 的容量，还可以再安装一个相同容量的型号。为此，只需使用底部的磁性舱门即可访问这些组件。第二个连接仅限于 PCIe 3.0 速度，但这在日常使用中不会造成任何问题。

有关进一步的比较和基准测试，请访问我们的比较表。

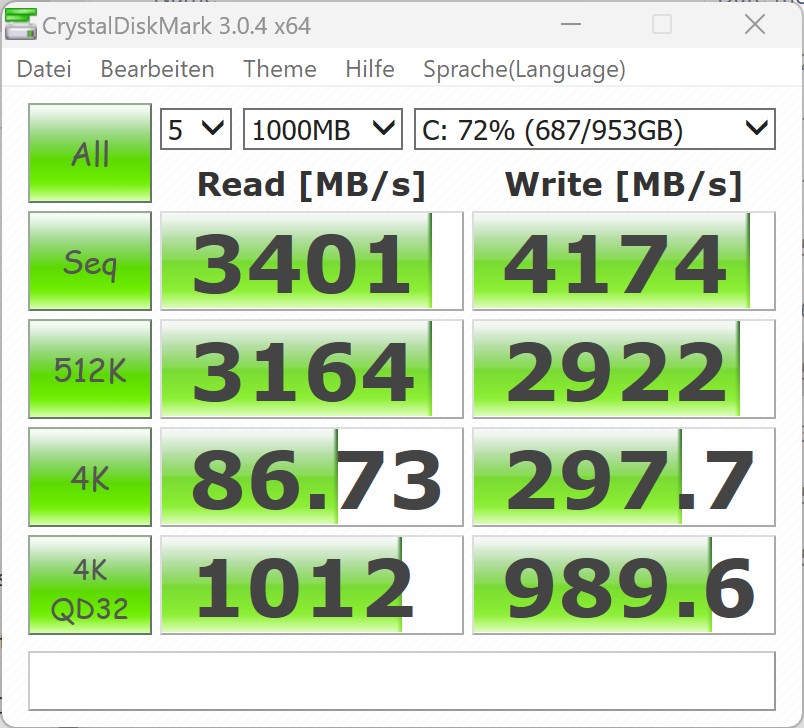

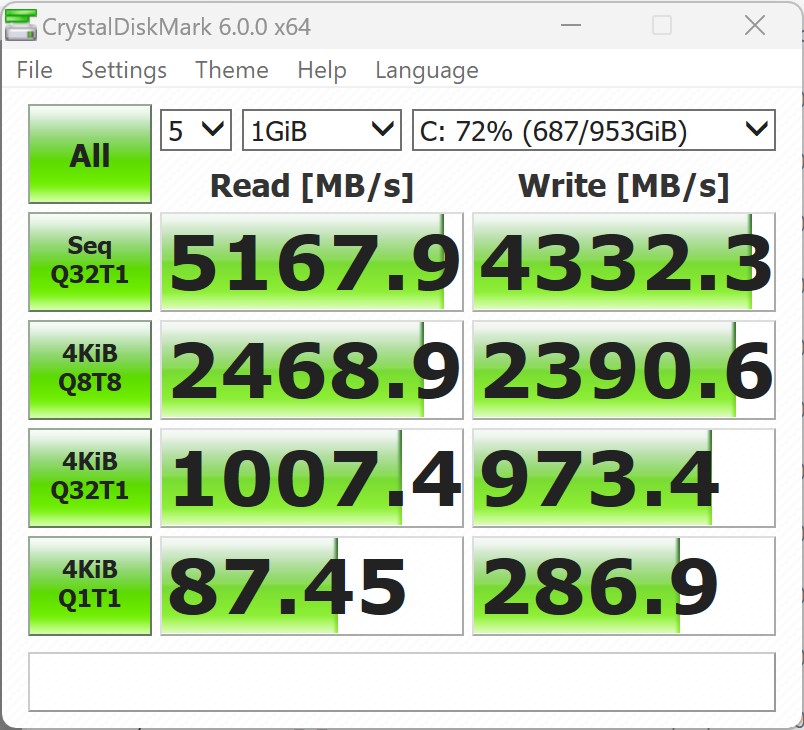

CrystalDiskMark 3.0

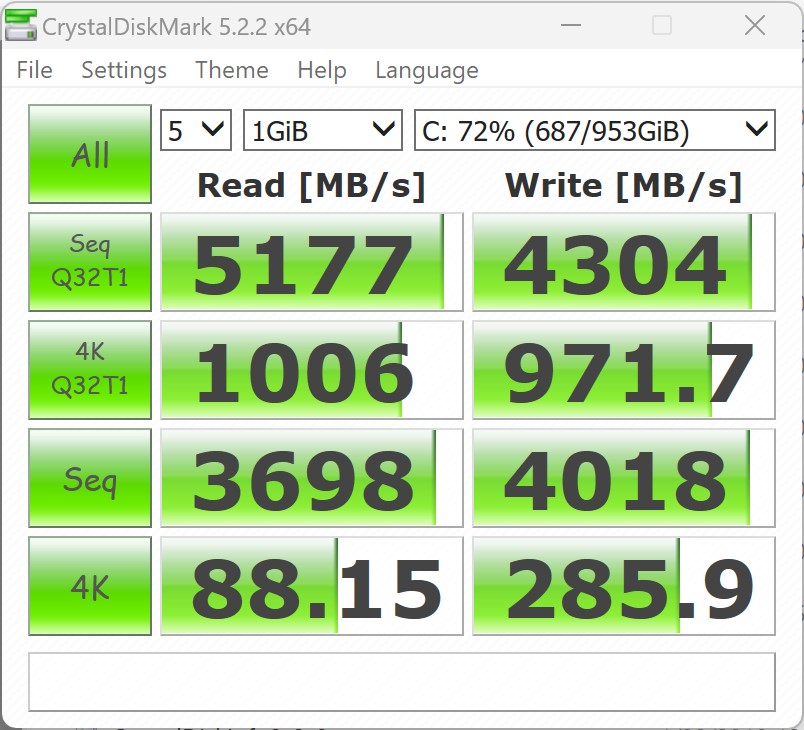

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

WD PC SN740 SDDPTQD-1T00

Sequential Read: 3401 MB/s

Sequential Write: 4174 MB/s

512K Read: 3461 MB/s

512K Write: 2922 MB/s

4K Read: 86.73 MB/s

4K Write: 279.9 MB/s

4K QD32 Read: 1012 MB/s

4K QD32 Write: 989.6 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	86.8 pt
Khadas Mind WD PC SN740 SDDPTQD-1T00	85.5 pt
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	71.9 pt
Minisforum Mercury Series EM680 Kingston OM3PGP4512Q	65.6 pt
Average of class Mini PC	52.2 pt
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	43 pt
Geekom Mini IT12 Kingston OM8SEP4512N-A0	37.3 pt
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	36.6 pt

DiskSpd
seq read
Khadas Mind WD PC SN740 SDDPTQD-1T00	3628 (3596.13^min - 3627.65^max) MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3375 (3310.44^min - 3375.33^max) MB/s -7%
Minisforum Mercury Series EM680 Kingston OM3PGP4512Q	3019 (2971.38^min - 3018.85^max) MB/s -17%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2815 (2802.79^min - 2814.97^max) MB/s -22%
Average of class Mini PC (233 - 4357, n=119, last 2 years)	2288 MB/s -37%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1720 (1344.24^min - 1720.17^max) MB/s -53%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1684 (1646.89^min - 1684.01^max) MB/s -54%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1451 (1441.37^min - 1451.23^max) MB/s -60%
seq write
Khadas Mind WD PC SN740 SDDPTQD-1T00	4121 (3696.6^min - 4120.84^max) MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3372.67^min - 3402.21^max) MB/s -17%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3360 (1416.73^min - 3360.47^max) MB/s -18%
Minisforum Mercury Series EM680 Kingston OM3PGP4512Q	3266 (1532.89^min - 3266.28^max) MB/s -21%
Average of class Mini PC (222 - 5595, n=119, last 2 years)	2448 MB/s -41%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2298 (1081.92^min - 2298.06^max) MB/s -44%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1203 (1169.58^min - 1202.51^max) MB/s -71%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1075 (545.51^min - 1075.26^max) MB/s -74%
seq q8 t1 read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6729 (6134.8^min - 6728.5^max) MB/s +30%
Khadas Mind WD PC SN740 SDDPTQD-1T00	5168 (4831.21^min - 5167.59^max) MB/s
Minisforum Mercury Series EM680 Kingston OM3PGP4512Q	4956 (4372.21^min - 4955.99^max) MB/s -4%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4801 (4506.78^min - 4800.59^max) MB/s -7%
Average of class Mini PC (236 - 8430, n=119, last 2 years)	3706 MB/s -28%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2522 (2230.32^min - 2522.44^max) MB/s -51%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2223 (1765.77^min - 2223.4^max) MB/s -57%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1694 (1415.05^min - 1693.87^max) MB/s -67%
seq q8 t1 write
Khadas Mind WD PC SN740 SDDPTQD-1T00	4212 (3767.95^min - 4212.34^max) MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3374.28^min - 3401.67^max) MB/s -19%
Minisforum Mercury Series EM680 Kingston OM3PGP4512Q	3289 (1283.62^min - 3288.54^max) MB/s -22%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2830 (1138.15^min - 2830.32^max) MB/s -33%
Average of class Mini PC (228 - 6669, n=119, last 2 years)	2743 MB/s -35%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2494 (2222.35^min - 2493.51^max) MB/s -41%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1599 (266.87^min - 1599.24^max) MB/s -62%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1213 (1155.74^min - 1212.78^max) MB/s -71%
4k q1 t1 read
Khadas Mind WD PC SN740 SDDPTQD-1T00	83.7 (81.47^min - 83.67^max) MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.1 (81.4^min - 82.09^max) MB/s -2%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	55.6 (54.87^min - 55.6^max) MB/s -34%
Average of class Mini PC (5.67 - 86.6, n=119, last 2 years)	54.7 MB/s -35%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	51.8 (51.62^min - 51.84^max) MB/s -38%
Minisforum Mercury Series EM680 Kingston OM3PGP4512Q	47.4 (45.85^min - 47.42^max) MB/s -43%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	40.3 (36.8^min - 40.3^max) MB/s -52%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	38.1 (35.61^min - 38.07^max) MB/s -54%
4k q1 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	425 (415.92^min - 425.01^max) MB/s +41%
Khadas Mind WD PC SN740 SDDPTQD-1T00	301 (296.91^min - 301.44^max) MB/s
Geekom Mini IT12 Kingston OM8SEP4512N-A0	276 (193.9^min - 275.81^max) MB/s -8%
Minisforum Mercury Series EM680 Kingston OM3PGP4512Q	246 (197.53^min - 246.23^max) MB/s -18%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	229 (165.03^min - 229.29^max) MB/s -24%
Average of class Mini PC (30.4 - 435, n=119, last 2 years)	194.7 MB/s -35%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	177.7 (176.17^min - 177.7^max) MB/s -41%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	120 (112.79^min - 120.03^max) MB/s -60%
4k q32 t16 read
Khadas Mind WD PC SN740 SDDPTQD-1T00	2300 (2238.78^min - 2299.5^max) MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1944 (1936.89^min - 1943.53^max) MB/s -15%
Minisforum Mercury Series EM680 Kingston OM3PGP4512Q	1944 (1939.68^min - 1943.5^max) MB/s -15%
Average of class Mini PC (26.1 - 4158, n=119, last 2 years)	1360 MB/s -41%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1225 (1194.7^min - 1224.8^max) MB/s -47%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	639 (421.15^min - 639.47^max) MB/s -72%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	561 (475.29^min - 560.56^max) MB/s -76%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	420 (418.45^min - 419.54^max) MB/s -82%
4k q32 t16 write
Khadas Mind WD PC SN740 SDDPTQD-1T00	2441 (2189.1^min - 2441.28^max) MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2396 (2376.28^min - 2396.46^max) MB/s -2%
Average of class Mini PC (30.2 - 4288, n=119, last 2 years)	1287 MB/s -47%
Minisforum Mercury Series EM680 Kingston OM3PGP4512Q	981 (306.52^min - 980.6^max) MB/s -60%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	942 (402.72^min - 941.71^max) MB/s -61%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	626 (605.6^min - 625.63^max) MB/s -74%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	544 (355.98^min - 544.47^max) MB/s -78%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	176.1 (168.14^min - 176.06^max) MB/s -93%

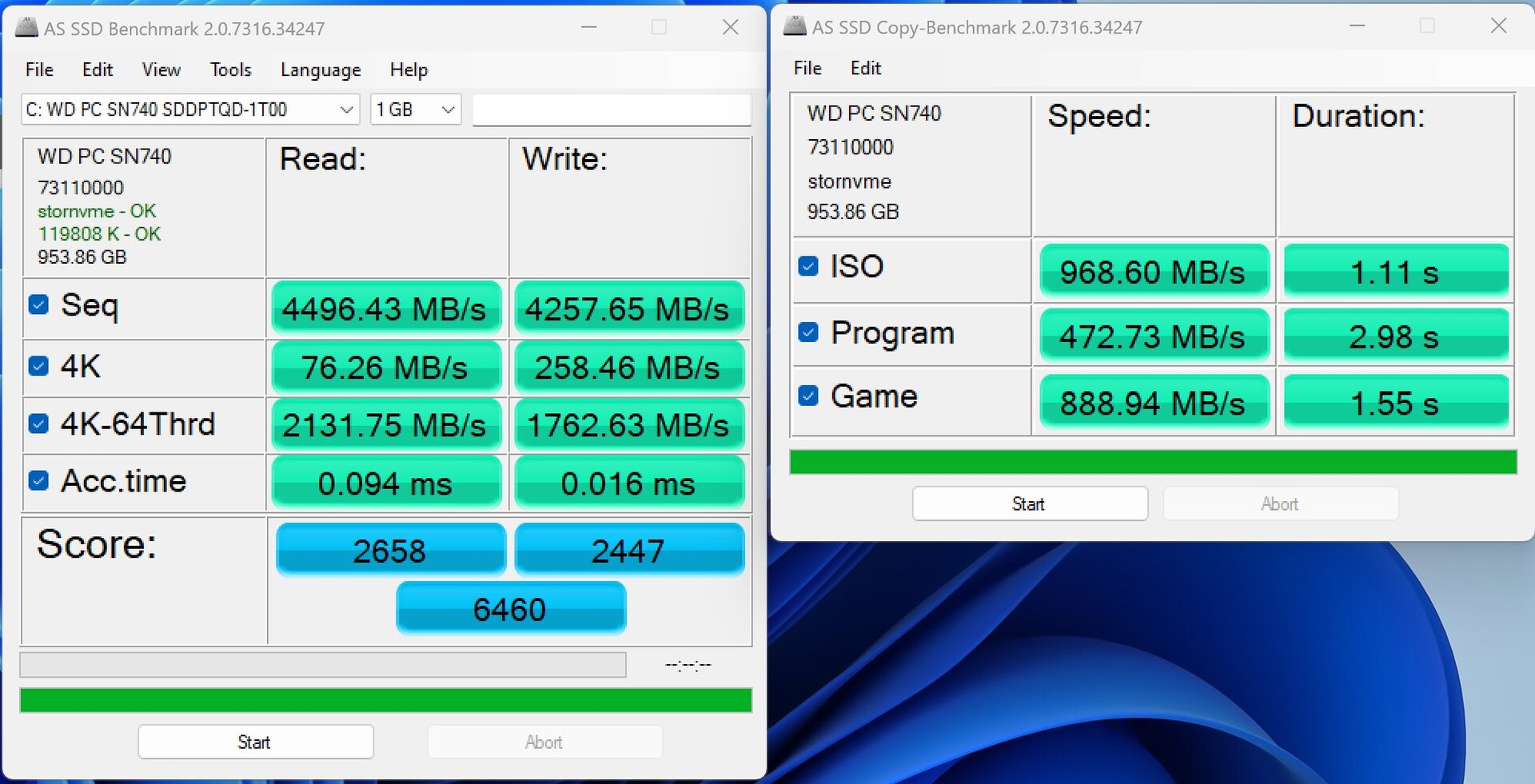

AS SSD
Score Total
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	7134 Points +10%
Khadas Mind WD PC SN740 SDDPTQD-1T00	6460 Points
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6005 Points -7%
Minisforum Mercury Series EM680 Kingston OM3PGP4512Q	5415 Points -16%
Average of class Mini PC (181.5 - 10021, n=117, last 2 years)	4121 Points -36%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	3887 Points -40%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2491 Points -61%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	748.83 Points -88%
Score Read
Khadas Mind WD PC SN740 SDDPTQD-1T00	2658 Points
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2391 Points -10%
Minisforum Mercury Series EM680 Kingston OM3PGP4512Q	2265 Points -15%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1673 Points -37%
Average of class Mini PC (61 - 3741, n=117, last 2 years)	1534 Points -42%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1513 Points -43%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	725 Points -73%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	661 Points -75%
Score Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3574 Points +46%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3538 Points +45%
Khadas Mind WD PC SN740 SDDPTQD-1T00	2447 Points
Minisforum Mercury Series EM680 Kingston OM3PGP4512Q	2037 Points -17%
Average of class Mini PC (88 - 4371, n=117, last 2 years)	1851 Points -24%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1632 Points -33%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1457 Points -40%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	700 Points -71%
Seq Read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	4767 MB/s +6%
Khadas Mind WD PC SN740 SDDPTQD-1T00	4496 MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4147 MB/s -8%
Minisforum Mercury Series EM680 Kingston OM3PGP4512Q	3979 MB/s -11%
Average of class Mini PC (291 - 6620, n=117, last 2 years)	3161 MB/s -30%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2844 MB/s -37%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2789 MB/s -38%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2268 MB/s -50%
Seq Write
Khadas Mind WD PC SN740 SDDPTQD-1T00	4258 MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3292 MB/s -23%
Minisforum Mercury Series EM680 Kingston OM3PGP4512Q	2874 MB/s -33%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2442 MB/s -43%
Average of class Mini PC (240 - 5783, n=117, last 2 years)	2212 MB/s -48%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1318 MB/s -69%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1232 MB/s -71%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	524 MB/s -88%
4K Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	103.66 MB/s +36%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	78.3 MB/s +3%
Khadas Mind WD PC SN740 SDDPTQD-1T00	76.3 MB/s
Minisforum Mercury Series EM680 Kingston OM3PGP4512Q	71.5 MB/s -6%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	63.4 MB/s -17%
Average of class Mini PC (6.08 - 104.3, n=117, last 2 years)	58.9 MB/s -23%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	53.5 MB/s -30%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	48.9 MB/s -36%
4K Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	365.87 MB/s +42%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	273 MB/s +6%
Khadas Mind WD PC SN740 SDDPTQD-1T00	258 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	225 MB/s -13%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	209 MB/s -19%
Minisforum Mercury Series EM680 Kingston OM3PGP4512Q	189.8 MB/s -26%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	185.4 MB/s -28%
Average of class Mini PC (30.9 - 366, n=117, last 2 years)	175.1 MB/s -32%
4K-64 Read
Khadas Mind WD PC SN740 SDDPTQD-1T00	2132 MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1872.82 MB/s -12%
Minisforum Mercury Series EM680 Kingston OM3PGP4512Q	1796 MB/s -16%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1223 MB/s -43%
Average of class Mini PC (23.4 - 3220, n=117, last 2 years)	1159 MB/s -46%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1118 MB/s -48%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	397 MB/s -81%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	323 MB/s -85%
4K-64 Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3120 MB/s +77%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2842.9 MB/s +61%
Khadas Mind WD PC SN740 SDDPTQD-1T00	1763 MB/s
Minisforum Mercury Series EM680 Kingston OM3PGP4512Q	1559 MB/s -12%
Average of class Mini PC (32.8 - 3731, n=117, last 2 years)	1455 MB/s -17%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1276 MB/s -28%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1060 MB/s -40%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	462 MB/s -74%
Access Time Read
Minisforum Mercury Series EM680 Kingston OM3PGP4512Q	0.146 ms * -55%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.1 ms * -6%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.098 ms * -4%
Average of class Mini PC (0.022 - 0.489, n=117, last 2 years)	0.09726 ms * -3%
Khadas Mind WD PC SN740 SDDPTQD-1T00	0.094 ms *
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.074 ms * +21%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.06 ms * +36%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.045 ms * +52%
Access Time Write
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.118 ms * -638%
Average of class Mini PC (0.014 - 0.765, n=117, last 2 years)	0.1153 ms * -621%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.087 ms * -444%
Minisforum Mercury Series EM680 Kingston OM3PGP4512Q	0.037 ms * -131%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.031 ms * -94%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.023 ms * -44%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.02 ms * -25%
Khadas Mind WD PC SN740 SDDPTQD-1T00	0.016 ms *

* ... smaller is better

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

Khadas Mind WD PC SN740 SDDPTQD-1T00: Ø5222 (4952.01-5235.75)

Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0: Ø3302 (1830.49-4799.45)

Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S: Ø1047 (95.4-2400.59)

Geekom Mini IT12 Kingston OM8SEP4512N-A0: Ø2178 (1555.46-2595.65)

Minisforum Mercury Series EM680 Kingston OM3PGP4512Q: Ø4460 (1892.67-4962.49)

Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ: Ø6536 (5743.42-6561.78)

Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG: Ø1246 (674.65-1585.03)

图形卡

这款迷你 PC 依靠的是 96 个 EU 的集成显卡单元，即众所周知的英特尔 Iris Xe 图形处理器 G7.在与英特尔 NUC 13 Pro 套件的直接比较中，我们看到了非常相似的 iGPU 性能水平。尽管英特尔酷睿 i7-1360P的功耗略低，但卡达斯迷你 PC 仍能轻松跟上。即便如此，我们也不得不承认 AMD 的Radeon 680M和最新的Radeon 780M的 3D 性能要好得多。

遗憾的是，Khadas Mind 没有采用 Thunderbolt 技术，这意味着我们无法使用 Razer Core X 和传统显卡对系统进行测试。在现阶段，我们只能参考 Khadas Mind Graphics，它将配备一个英伟达GeForce RTX 4060 笔记本电脑图形处理器.

有关进一步的比较和基准测试，请参阅我们的G PU 比较表。

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	98.7 pt
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	94.4 pt
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	91.1 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	91 pt
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	82 pt
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	81.3 pt
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	69 pt

3DMark 11 - 1280x720 Performance GPU
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	7718 Points +15%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7143 Points +6%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	7057 Points +5%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	6722 Points
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6599 Points -2%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	5634 Points -16%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	5413 Points -19%

3DMark
1280x720 Cloud Gate Standard Graphics
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	30434 Points +19%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	28433 Points +12%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	28159 Points +10%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	27511 Points +8%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	25496 Points
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	22570 Points -11%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	19240 Points -25%
1920x1080 Fire Strike Graphics
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	5660 Points +4%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5526 Points +1%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5461 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5229 Points -4%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4860 Points -11%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	4621 Points -15%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	4041 Points -26%
2560x1440 Time Spy Graphics
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	1838 Points +9%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1680 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1673 Points 0%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1658 Points -1%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1528 Points -9%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	1430 Points -15%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1300 Points -23%
Fire Strike Extreme Graphics
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	2643 Points +3%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	2560 Points
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	2455 Points -4%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	2340 Points -9%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	2150 Points -16%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	2149 Points -16%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1833 Points -28%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1 | Unigine Superposition

Performance Rating - Percent
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	94.4 pt
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	92.2 pt
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	86 pt
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	80.3 pt
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	79.3 pt
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	77.9 pt
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	64.6 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	28.8 fps +14%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	25.2 fps
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	23.6 fps -6%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	23.3 fps -8%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21 fps -17%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.4 fps -19%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	17.7 fps -30%
Extreme Preset DX11
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	27.1 fps +6%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	25.6 fps
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	24.5 fps -4%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	24 fps -6%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21.7 fps -15%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.9 fps -18%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	17.9 fps -30%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	17.2 fps
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	16.6 fps -3%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	15.1 fps -12%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	14.3 fps -17%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	13.2 fps -23%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	11.3 fps -34%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	10.9 fps -37%
1920x1080 Extreme HD Preset OpenGL AA:x8
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	20.4 fps
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	18.5 fps -9%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	17.7 fps -13%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	16.1 fps -21%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	15.2 fps -25%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	11.7 fps -43%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	11.6 fps -43%

ComputeMark v2.1
1024x600 Normal, Score
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	3735 Points +4%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	3605 Points
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	3603 Points 0%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	3439 Points -5%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	3390 Points -6%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	3308 Points -8%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	2766 Points -23%
1024x600 Normal, Fluid 3DTex
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	431 Points +12%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	385 Points
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	318 Points -17%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	284 Points -26%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points -38%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	234 Points -39%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	223 Points -42%
1024x600 Normal, Fluid 2DTexArr
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	437 Points +23%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	354 Points
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	340 Points -4%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	277 Points -22%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	249 Points -30%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points -33%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	230 Points -35%
1024x600 Normal, Mandel Vector
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	979 Points +18%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	933 Points +12%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	911 Points +10%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	851 Points +3%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	830 Points
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	827 Points 0%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	598 Points -28%
1024x600 Normal, Mandel Scalar
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	895 Points +4%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	885 Points +2%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	865 Points 0%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	864 Points
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	862 Points 0%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	834 Points -3%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	779 Points -10%
1024x600 Normal, QJuliaRayTrace
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1268 Points +8%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1191 Points +1%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	1174 Points 0%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	1174 Points
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	993 Points -15%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	963 Points -18%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	936 Points -20%

Unigine Superposition
1280x720 720p Low
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	7862 Points +25%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	6265 Points
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	5671 Points -9%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5662 Points -10%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	5141 Points -18%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	4362 Points -30%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	4088 Points -35%
1920x1080 1080p High
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	2381 Points +4%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	2279 Points
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	2095 Points -8%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	2062 Points -10%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	1923 Points -16%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	1800 Points -21%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	1522 Points -33%
1920x1080 1080p Extreme
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	1101 Points
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1076 Points -2%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1069 Points -3%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	992 Points -10%
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	984 Points -11%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	801 Points -27%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	768 Points -30%

3DMark 05 Standard		31669 points
3DMark 06 Standard Score		28276 points
3DMark Vantage P Result		26670 points
3DMark 11 Performance		7236 points
3DMark Ice Storm Standard Score		77657 points
3DMark Cloud Gate Standard Score		20670 points
3DMark Fire Strike Score		5083 points
3DMark Fire Strike Extreme Score		2557 points
3DMark Time Spy Score		1905 points
Help

... in comparison

游戏性能

安装的 iGPU 根本不适合游戏。显示的性能略逊于英特尔 NUC 13 Pro 套件。即使有，我们也只能在低分辨率和低细节的情况下达到可玩的帧率。如果你正在寻找一款可以用于游戏的系统，那么你最好选择配备专用显卡的机型。例如迷你论坛 HX99G或英特尔 NUC 12 蛇峡谷等等。

The Witcher 3
1024x768 Low Graphics & Postprocessing
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	101.7 fps +18%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	97.2 fps +13%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	86.9 fps +1%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	85.9 fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	76.8 fps -11%
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	67.4 fps -22%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	63.3 fps -26%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	32.3 fps
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	32.1 fps -1%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	32 fps -1%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	31.1 fps -4%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	28.9 fps -11%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	22.6 fps -30%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	22.2 fps -31%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	59.1 fps +17%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	55.5 fps +9%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	51.8 fps +2%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	50.7 fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	49 fps -3%
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	38.3 fps -24%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	36.6 fps -28%
1920x1080 High Overall Quality (DX11)
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	17.8 fps +16%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	16.2 fps +6%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	16.2 fps +6%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	15.3 fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	14.8 fps -3%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	13.6 fps -11%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	10.5 fps -31%

GTA V
1024x768 Lowest Settings possible
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	142.9 (1.358^min, 71.4^P1) fps +27%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	135.3 (26.7^min, 90.9^P1) fps +20%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	126.2 (50.6^min, 76.9^P1) fps +12%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	119.3 (25.1^min, 76.9^P1) fps +6%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	112.7 (9.9^min, 71.4^P1) fps
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	97.7 (25.6^min, 55.6^P1) fps -13%
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	67.7 (4.02^min, 38.5^P1) fps -40%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	34 (1.184^min, 19.2^P1) fps +44%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	33.9 (1.094^min, 20.4^P1) fps +44%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	23.6 (10.9^min, 18.2^P1) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	21 (8.15^min, 16.1^P1) fps -11%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	20.7 (9.05^min, 15.9^P1) fps -12%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	20.5 (8.17^min, 14.5^P1) fps -13%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	18.6 (8^min, 14.3^P1) fps -21%

Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	62 (49^min) fps +15%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57 (49^min) fps +6%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	54 (44^min) fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	50 (41^min) fps -7%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	46 (37^min) fps -15%
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	41 (35^min) fps -24%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	40 (35^min) fps -26%
1920x1080 High Preset AA:T
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	29 (25^min) fps +12%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	27 (24^min) fps +4%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	26 (23^min) fps
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	25 (22^min) fps -4%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (22^min) fps -4%
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	24 (21^min) fps -8%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	19 (17^min) fps -27%

Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	58 (42^min) fps +18%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	52 (31^min) fps +6%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	52 (34^min) fps +6%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	49 (32^min) fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	46 (28^min) fps -6%
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	36 (27^min) fps -27%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	36 (24^min) fps -27%
1920x1080 High Preset
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	29 (23^min) fps +7%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	28 (21^min) fps +4%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	28 (22^min) fps +4%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	27 (20^min) fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (19^min) fps -7%
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	23 (19^min) fps -15%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	18 (14^min) fps -33%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	136.9 (106.8^min) fps +31%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	135.9 (121.4^min) fps +30%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	123.8 (98^min) fps +19%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	108.1 (86.6^min) fps +4%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	104.2 (79.7^min) fps
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	95.8 (84.4^min) fps -8%
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	62.4 (51.9^min) fps -40%
1920x1080 high (2/3)
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	68 (62.7^min) fps +10%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	67.6 (59.9^min) fps +10%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	64.9 (56.8^min) fps +5%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	61.7 (51.7^min) fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	60.9 (55.7^min) fps -1%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	45.2 (38.5^min) fps -27%
Minisforum Mercury Series EM680 Radeon 680M, R7 6800U, Kingston OM3PGP4512Q	44.8 (38.3^min) fps -27%

	low	med.	high	ultra
GTA V (2015)	112.7		23.6	10.1
The Witcher 3 (2015)	85.9		32.3	16
Dota 2 Reborn (2015)	104.2	73.1	61.7	53.8
Final Fantasy XV Benchmark (2018)	42.9	24.3	17.2
X-Plane 11.11 (2018)	54.1	40.7	36.2
Far Cry 5 (2018)	54	29	26	25
Strange Brigade (2018)	83.2	40.6	31.6	25.9
Shadow of the Tomb Raider (2018)	43.7	35.6	22.5	19.5
Far Cry New Dawn (2019)	49	29	27	24
Metro Exodus (2019)	34.7	18.7	13.7	10.8
Borderlands 3 (2019)	50.7	24.3	15.3	11.5
GRID Legends (2022)	62.5	36.8	27.1	25
F1 22 (2022)	43.2	39.5	28.4	21.7
F1 23 (2023)	39.8	35	24.5	17.9

排放 - 不安静，但节俭

噪音排放

在噪音排放方面，你已经可以听到 Khadas Mind 在怠速模式下的声音。它几乎从未完全安静地运行过。在负载情况下，其噪音排放会发生巨大变化。小型风扇必须全力确保吸入足够的空气。我们注意到峰值噪音为 50.4 dB(A)，而平均负载下的噪音为 44.7 dB(A) - 仍然非常清晰可闻。

Noise Level

Idle		34.4 / 34.4 / 34.5 dB(A)
Load		44.7 / 50.4 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 25.2 dB(A)

	Khadas Mind i7-1360P, Iris Xe G7 96EUs	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Morefine M600, 6600U R5 6600U, Radeon 660M	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Minisforum Mercury Series EM680 R7 6800U, Radeon 680M	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs
Noise		14%	17%	14%	16%	7%	17%
off / environment *	25.2	30.2 -20%	29.4 -17%	29.8 -18%	29.7 -18%	29.8 -18%	29.7 -18%
Idle Minimum *	34.4	30.5 11%	29.4 15%	29.9 13%	30.8 10%	30.2 12%	30.2 12%
Idle Average *	34.4	30.5 11%	29.4 15%	30.1 12%	30.8 10%	31.1 10%	30.2 12%
Idle Maximum *	34.5	30.5 12%	29.5 14%	30.2 12%	31 10%	31.9 8%	30.2 12%
Load Average *	44.7	30.5 32%	29.6 34%	32.1 28%	31.2 30%	40 11%	30.6 32%
Witcher 3 ultra *	49				32.2 34%		30.5 38%
Load Maximum *	50.4	30.5 39%	29.6 41%	32.5 36%	33.6 33%	40.5 20%	36.4 28%

* ... smaller is better

温度

在空闲模式和负载情况下，Khadas Mind 的机箱仅有一点点发热。我们只注意到风扇出风口周围的热点温度。

在 Prime95 的压力测试中，英特尔酷睿 i7-1360P 的最高温度达到了 80 °C，这正是制造商所希望的。在进一步的测试过程中，温度趋于平稳，约为 74 °C。这意味着处理器能在其 PL1 限制（28 瓦）内工作。在短时间内，我们注意到最高温度为 45 瓦，这意味着 SoC 没有完全利用其 64 瓦的 PL2 限制。我们在 Cinebench R15 多循环测试中已经意识到了这一点。

耗电量

卡达斯为 Mind 配备了 65 瓦的电源，可通过 USB-C 端口为设备供电。在空闲模式下，我们注意到电源的消耗量为 7.8 - 11.8 瓦。我们确保集成电池已充满电，以避免出现错误结果。即便如此，我们在测试中发现其他设备在空闲模式下的功耗要低得多。电源必须提供最大 76.4 瓦的功率，这意味着短时间内会超负荷。平均而言，Khadas Mind 的耗电量为 39.2 瓦，相对节俭。

Power Consumption

Off / Standby	0.7 / 0.8 Watt
Idle	7.8 / 10.9 / 11.8 Watt
Load	39.2 / 76.4 Watt


Key: min: , med: , max: Metrahit Energy

	Khadas Mind i7-1360P, Iris Xe G7 96EUs	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Morefine M600, 6600U R5 6600U, Radeon 660M	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Minisforum Mercury Series EM680 R7 6800U, Radeon 680M	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	Average Intel Iris Xe Graphics G7 96EUs	Average Intel Core i7-1360P	Average of class Mini PC
Power Consumption		-51%	-1%	9%	33%	-4%	22%	12%	6%	-26%
Idle Minimum *	7.8	12.1 -55%	8 -3%	5 36%	7 10%	5.1 35%	7.3 6%	5.34 ?(2.2 - 46.5, n=193) 32%	5.76 ?(2.2 - 9.6, n=14) 26%	9.48 ?(1.9 - 45.7, n=119, last 2 years) -22%
Idle Average *	10.9	13 -19%	8.7 20%	7 36%	7.2 34%	5.8 47%	7.8 28%	8.55 ?(3.8 - 63, n=193) 22%	8.17 ?(4.7 - 11.5, n=14) 25%	11.5 ?(1.9 - 47.5, n=117, last 2 years) -6%
Idle Maximum *	11.8	18.2 -54%	8.8 25%	10.7 9%	7.2 39%	10.2 14%	8.4 29%	10.8 ?(5.8 - 68.9, n=193) 8%	10.8 ?(7.1 - 13.6, n=14) 8%	14.9 ?(2.6 - 57.1, n=119, last 2 years) -26%
Load Average *	39.2	70.6 -80%	54.6 -39%	50.3 -28%	20 49%	68.1 -74%	28.7 27%	45.3 ?(12.5 - 87.3, n=193) -16%	51 ?(38.7 - 68.1, n=14) -30%	57.4 ?(11.3 - 170.6, n=119, last 2 years) -46%
Load Maximum *	76.4	113 -48%	83.2 -9%	82 -7%	52.1 32%	108.3 -42%	61.1 20%	67.5 ?(30.1 - 123.3, n=193) 12%	74.8 ?(49 - 108.3, n=14) 2%	97.5 ?(18.1 - 423, n=119, last 2 years) -28%

* ... smaller is better

Power consumption with external monitor

Khadas Mind; Prime95 V2810 Stress (external Monitor): Ø53.5 (48.3-76.4)

Khadas Mind; Cinebench R15 Multi (external Monitor): Ø57.9 (57.3-59.3)

Khadas Mind; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø48.1 (46.1-52.7)

Khadas Mind; 1920x1080 The Witcher 3 ultra (external Monitor): Ø41.8 (41.1-54.5)

Khadas Mind; Idle 1min (external Monitor): Ø11 (10.5-11.8)

Khadas Mind; Cinebench R23 Single (external Monitor): Ø40.8 (39-50)

Khadas Mind; Cinebench R23 Multi (external Monitor): Ø51.4 (46.6-58.4)

发言人

Khadas Mind 本身没有扬声器，但制造商在 Mind Dock 中安装了两个扬声器，听起来还不错。为了正确分析 Mind 的配件，我们还是进行了一些测量，尽管它们并不属于这款迷你电脑最终评估的一部分。两个扬声器都能清晰地播放语音和音乐。它们的音量为 85 dB(A)，声音也足够响亮，不会失真或听起来过于尖锐。

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Khadas Mind audio analysis

(+) | speakers can play relatively loud (85.3 dB)
Analysis not possible as minimum curve is missing or too high

Pros

+ 极为紧凑

+ 完美无瑕的构造

+ 高品质铝制外壳

+ 英特尔酷睿 i7-1360P，12 核 16 线程

+ 32 GB DDR5 内存

+ 1024 GB 固态硬盘

+ 快速无线局域网

+ 高系统性能

+ 稳定的固态硬盘性能

+ 发热合理

+ 支持 PCIe 5.0 的 Mind Link 端口

+ 可安装两个 m.2 固态硬盘（总容量为 4 TB）

+ 功耗适中

+ 集成电池

Cons

- SoC 无法充分发挥其性能潜力

- 端口少，没有 Thunderbolt / USB4

- 电源有时过载

- 冷却装置噪音大

- 3D 性能低

- 专有配件导致的依赖性

评价：一款有趣的迷你 PC，潜力无穷

Khadas Mind 和 Khadas Mind Dock - 测试样本由 Khadas 提供

Khadas Mind 是一款非常小巧且质量上乘的迷你电脑。但它也付出了代价，因为散热装置最终会导致性能下降。即便如此，很高兴看到卡达斯敢于冒险，在扁平的机箱中安装了英特尔酷睿 i7-1360P。总的来说，Khadas Mind 不应该退缩，因为它与英特尔 NUC 13 Pro 套件(在我们测试的大部分时间里，它都与英特尔 NUC 13 Pro 套件（我们已经测试过采用相同 SoC 的 NUC 13 Pro 套件）平起平坐。

卡达斯的口号是 "便携式工作站"，我们只是部分同意这一说法。如果这个名字意味着它是一款功能强大的办公电脑，那么我们同意。但是，我们并不认为 Khadas Mind 是真正意义上的工作站，即用于 CAD 的工作站。在这方面，这台小型计算野兽根本不具备必要的 3D 性能。

Khadas Mind 是将多种设备合二为一的一次非常有趣的尝试。对专有配件的依赖可能会吓跑潜在用户。

但它的外壳设计确实非常出色，其时尚感绝对无与伦比。反过来，这也意味着连接选项略显简约。有了专有配件（我们测试了其中的 Mind Dock），制造商的理念就变得更有意义了。随着配件（Mind Studio Display、Mind xPlay 和 Mind Graphics）的陆续推出，Khadas 提供了一个全包式软件包，可以将各种设备连接起来。这意味着你只需要一台卡达斯 Mind 迷你电脑，它可以通过专有的 Mind Link 连接到所有配件。您甚至不必关闭电脑，因为内置的电池意味着设备可以保持长达 5 小时的睡眠模式。卡达斯成功地在这里创建了一个完整的生态系统。

你也可以用批判的眼光来看待这件事，因为专有配件确实会让你更加依赖它，而不那么灵活。目前，我们只能拭目以待，看看哪些配件将真正进入市场成熟期，以及整个系统在实践中将如何协同工作。此外，我们还缺少一个现代的 Thunderbolt 连接，这可能是由于 Mind Graphics 的缘故。

目前，还没有任何竞争对手提供相同的功能。如果仅限于性能，那么英特尔 NUC 13 Pro 套件和 Miniforum UM790 Pro 就是我们的有效竞争对手。后者采用 AMD Ryzen 9 7940HS，其 SoC 的 iGPU 功能要强大得多。此外，还有许多迷你电脑可以通过 Thunderbolt 端口与外置显卡结合使用。

价格和供应情况

Khadas Mind 尚未正式发售。制造商即将启动 Kickstarter 募捐活动，届时您可以加入。如果你注册得快，就能为自己争取到一些优惠。目前，配备英特尔酷睿 i7-1360P 和 32GB DDR5 内存的机型售价为799 美元。.配备英特尔酷睿 i5-1340P 和 16GB DDR5 内存的廉价机型售价为599 美元。.这款迷你 PC 将可以寄往世界各地，制造商显然会承担可能发生的任何相关费用。

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Khadas Mind - 08/06/2023 v7 ^(old)
Sebastian Bade

Chassis

87 / 98 → 89%

Connectivity

56 / 81 → 69%

Weight

84%

Games Performance

69%

Application Performance

95%

Workstation

59%

Noise

67%

Average

74%

79%

Mini PC - Weighted Average

潜在的竞争对手比较

卡达斯心灵与心灵码头的详细介绍

外壳 - 完美铝质

尺寸比较

连通性 - 卡达斯心灵和心灵基座

心灵码头

SD 读卡器

交流

专有配件和功能

维护

性能 - 英特尔酷睿 i7 处理器，12 核 16 线程

测试条件

处理器

Khadas Mind 与 Cinebench R15 多循环对比

系统性能

DPC 延迟

存储设备

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

图形卡

游戏性能

排放 - 不安静，但节俭

噪音排放

温度

耗电量

Power consumption with external monitor

发言人

Khadas Mind audio analysis

Pros

Cons

评价：一款有趣的迷你 PC，潜力无穷

价格和供应情况

Transparency

More articles related to this device
