MagyarMinisforum Neptune Series HX99G评测。配备AMD Ryzen 9 6900HX和AMD Radeon RX 6600M的紧凑型游戏PC还包括USB4和Thunderbolt接口
随着Minisforum Neptune系列HX99G的推出，这家中国制造商进行了一些产品维护，现在提供配备AMD的Rembrandt SoC的紧凑型游戏PC，也被称为AMD Ryzen 9 6900HX.除了CPU的升级，还有包括Thunderbolt在内的USB4。使用我们的外部图形底座，我们仔细看了一下你能用它做什么，也把这个列入了我们的审查。

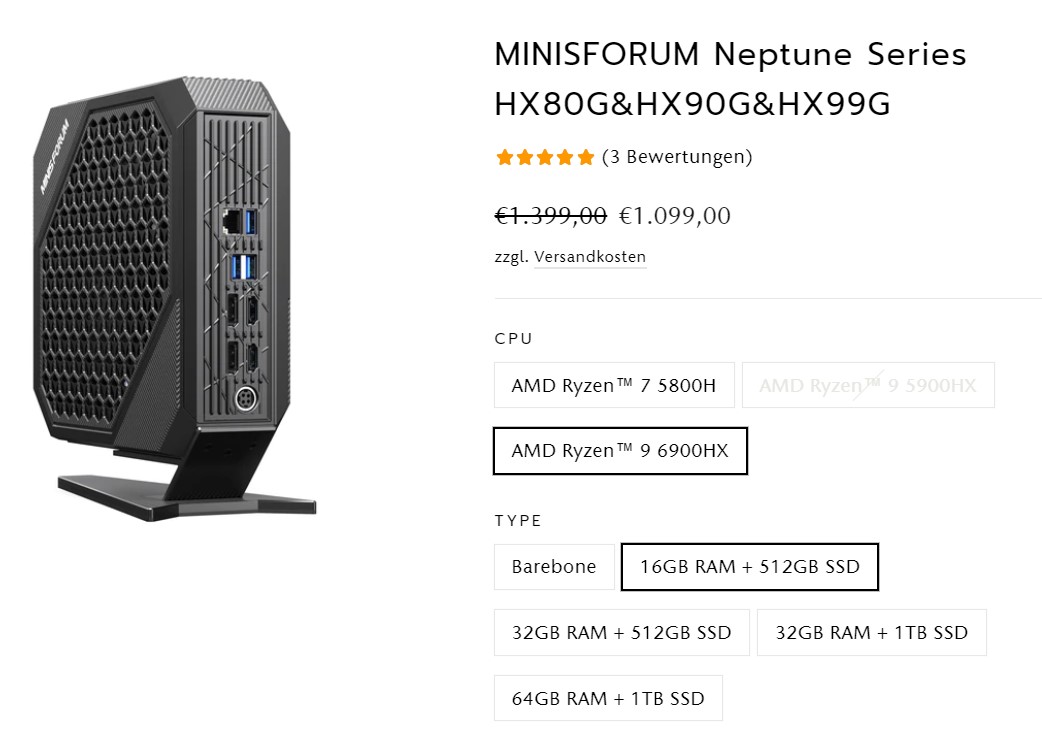

正如我们已经知道的，MINISFORUM海王星系列HX99G可以从制造商自己的网上商店订购。你还可以继续选择购买该设备的各种配置。没有内存、固态硬盘或Windows许可证的裸机版本从959欧元（约合1029美元）起，目前你必须期待我们的测试配置达到1099欧元（约合1179美元）。正如已经在 Minisforum Neptune Series HX90G中，该SoC还配备了一个AMD Radeon RX 6600M，这确保了良好的3D性能。我们已经很熟悉这个图形芯片，它也能够在HX99G中无节流地运行。
在这次审查中，我们使用其他带有专用显卡的紧凑型台式电脑作为比较设备。为了能够直接比较GPU的性能，我们的图表中也包括类似装备的游戏笔记本电脑。
Minisforum Neptune Series HX99G
Processor
AMD Ryzen 9 6900HX 8 x 3.3 - 4.9 GHz, 65 W PL2 / Short Burst, 45 W PL1 / Sustained, Rembrandt-H (Zen 3+)

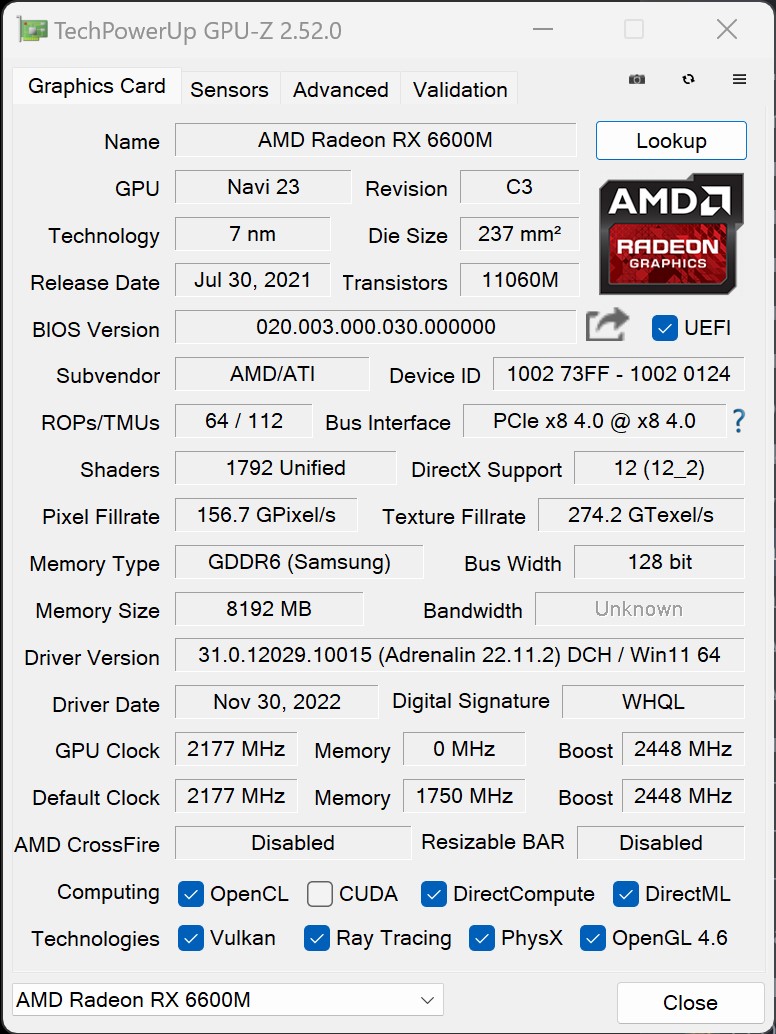

Graphics adapter
AMD Radeon RX 6600M - 8 GB VRAM, Core: 2448 MHz, RAM: 1750 MHz, 100 W TDP, GDDR6, Adrenalin 22.11.2

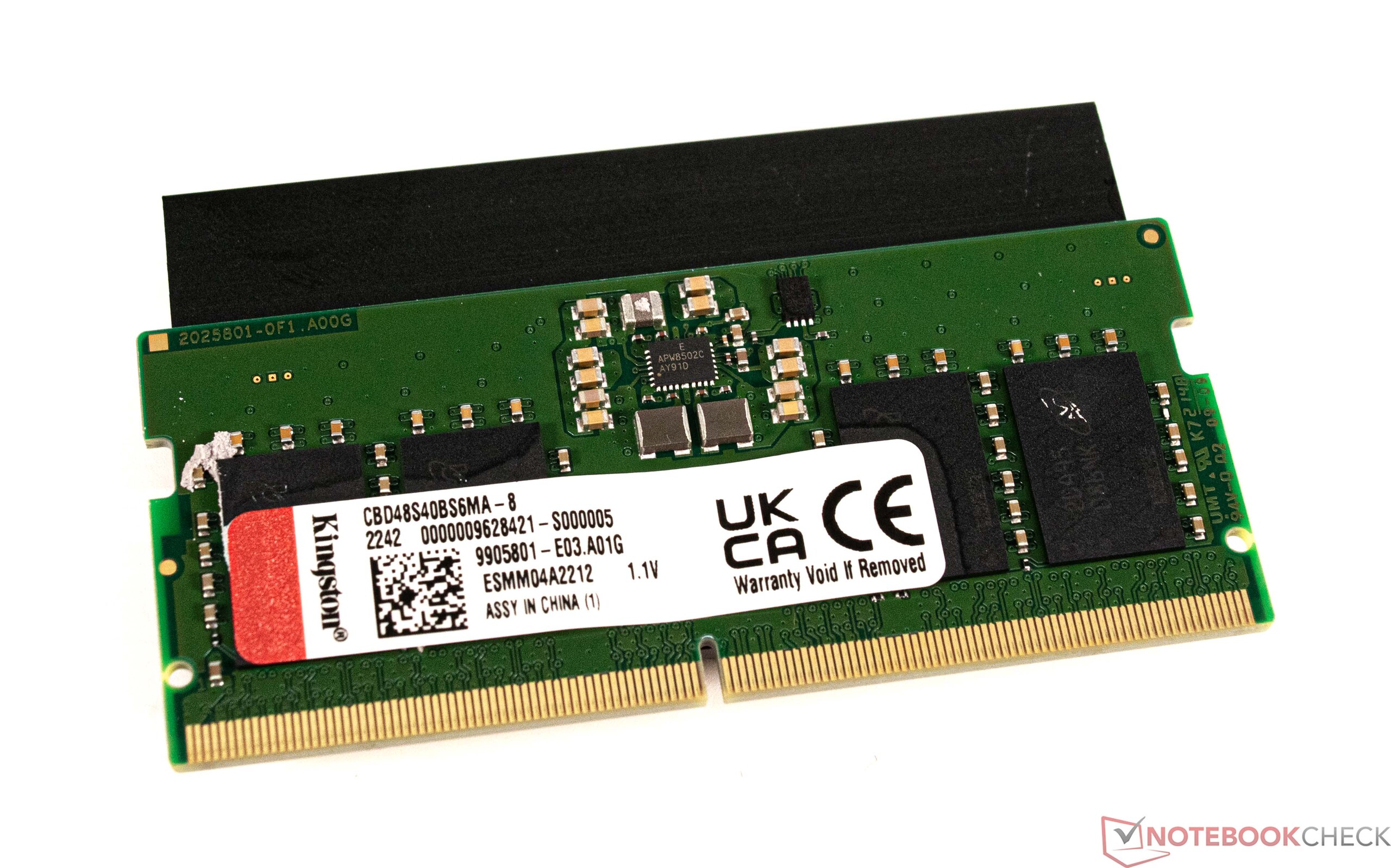

Memory
16 GB
, DDR5-4800, 2 of 2 installed, max. 64 GB

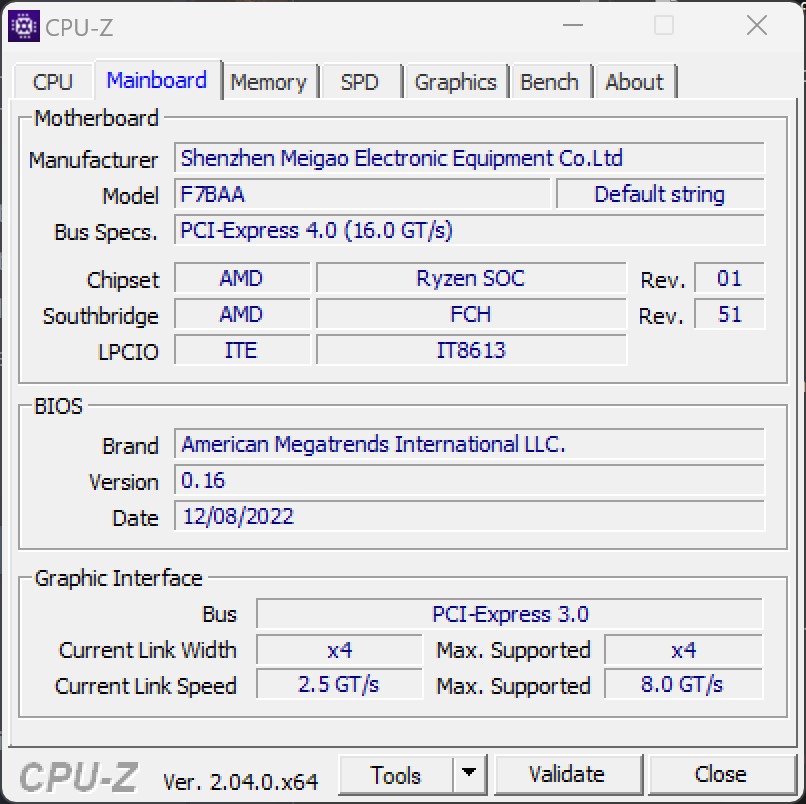

Mainboard
AMD Promontory/Bixby FCH

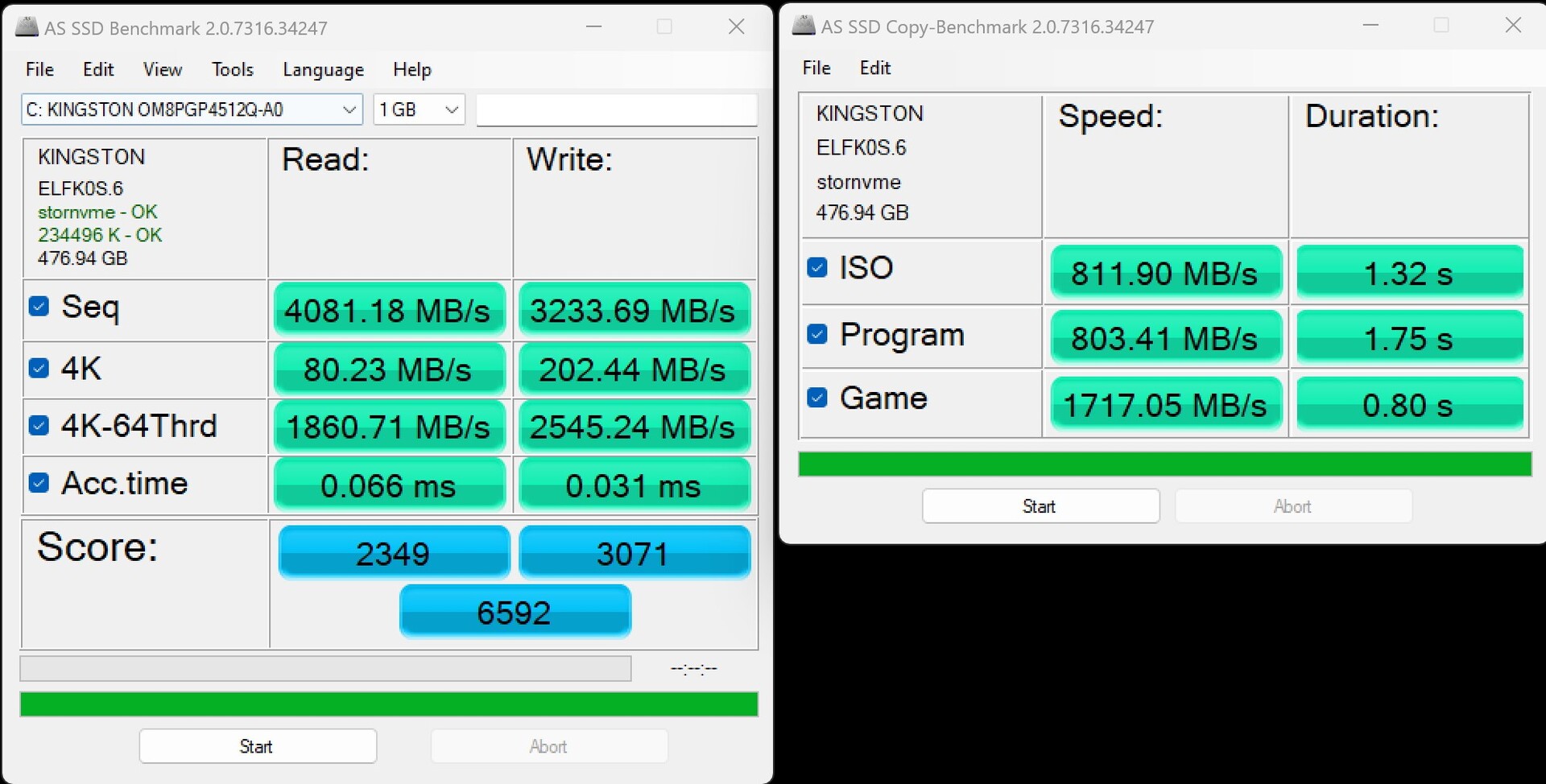

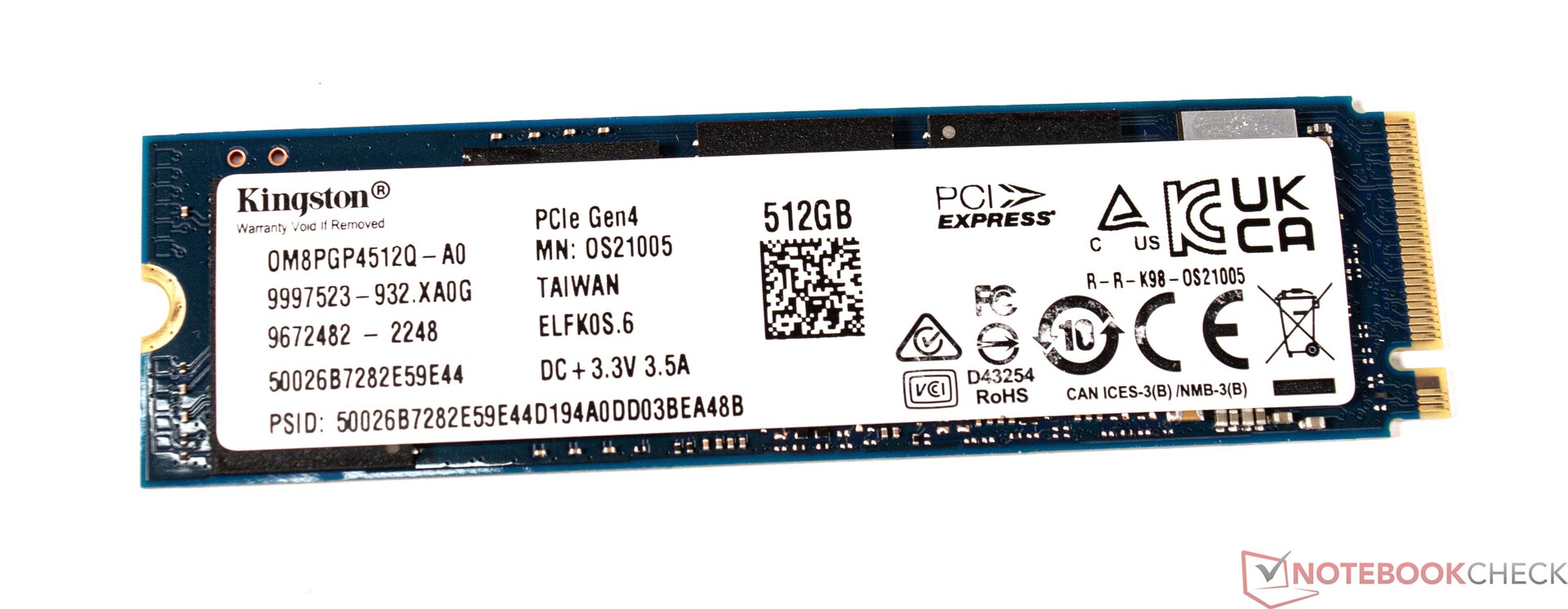

Storage

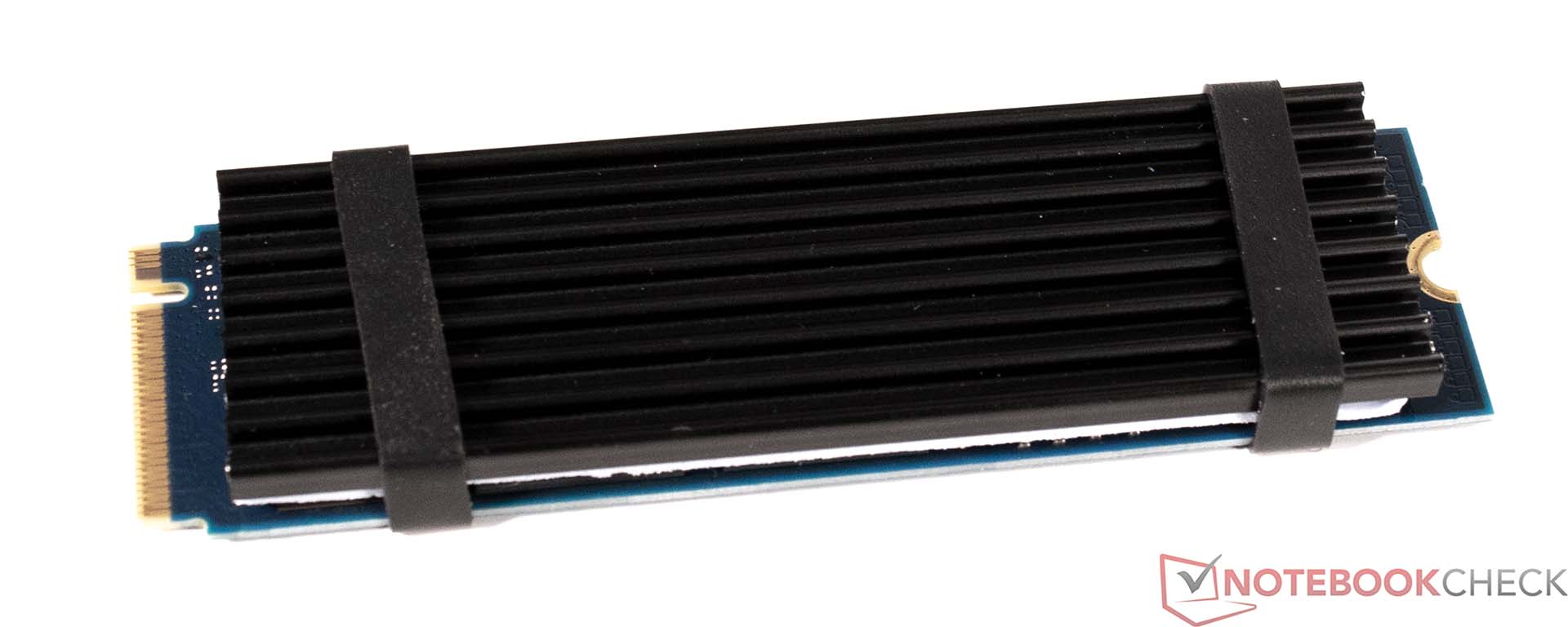

Kingston OM8PGP4512Q-A0, 512 GB
, M.2-2280 NVMe, PCIe 4.0, 450 GB free
Weight
1.609 kg, Power Supply: 644 g
Price
1099 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Price |
|---|---|---|---|---|---|
| 89.9 % v7 (old) | 02 / 2023 | Minisforum Neptune Series HX99G R9 6900HX, Radeon RX 6600M | 1.6 kg | 69.3 mm | |
v (old) | 12 / 2021 | Intel Beast Canyon NUC i9-11900KB, NVIDIA GeForce RTX 3060 | 189 mm | ||
v (old) | Zotac Magnus One (ECM73070C) i7-10700, NVIDIA GeForce RTX 3070 | ||||
v (old) | 05 / 2022 | Zotac ZBOX Magnus EN173070C i7-11800H, GeForce RTX 3070 Laptop GPU | 1.8 kg | 62.2 mm | |
v (old) | 04 / 2022 | Intel Dragon Canyon NUC - RTX 3060 i9-12900, NVIDIA GeForce RTX 3060 | 189 mm | ||
| 82.6 % v7 (old) | 05 / 2022 | Lenovo Legion 5 15ACH6A-82NW0010GE R5 5600H, Radeon RX 6600M | 2.5 kg | 25.75 mm | |
v7 (old) | 09 / 2022 | Minisforum NUCX i7 i7-11800H, GeForce RTX 3070 Laptop GPU | 2.4 kg | 393 mm | |
v7 (old) | 10 / 2022 | Minisforum Neptune Series HX90G R9 5900HX, Radeon RX 6600M | 1.4 kg | 69.3 mm |
Minisforum海王星系列HX99G的详细信息

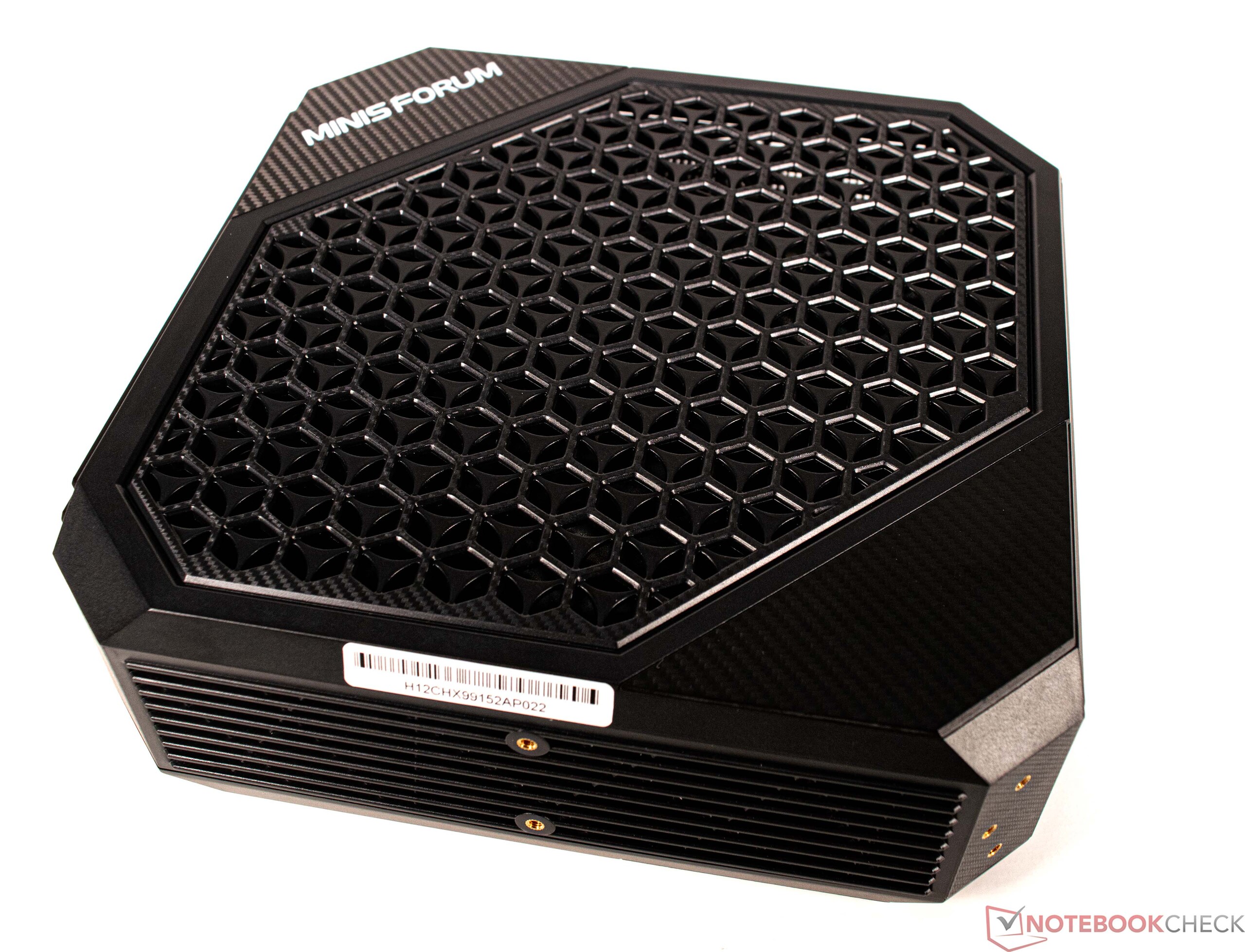

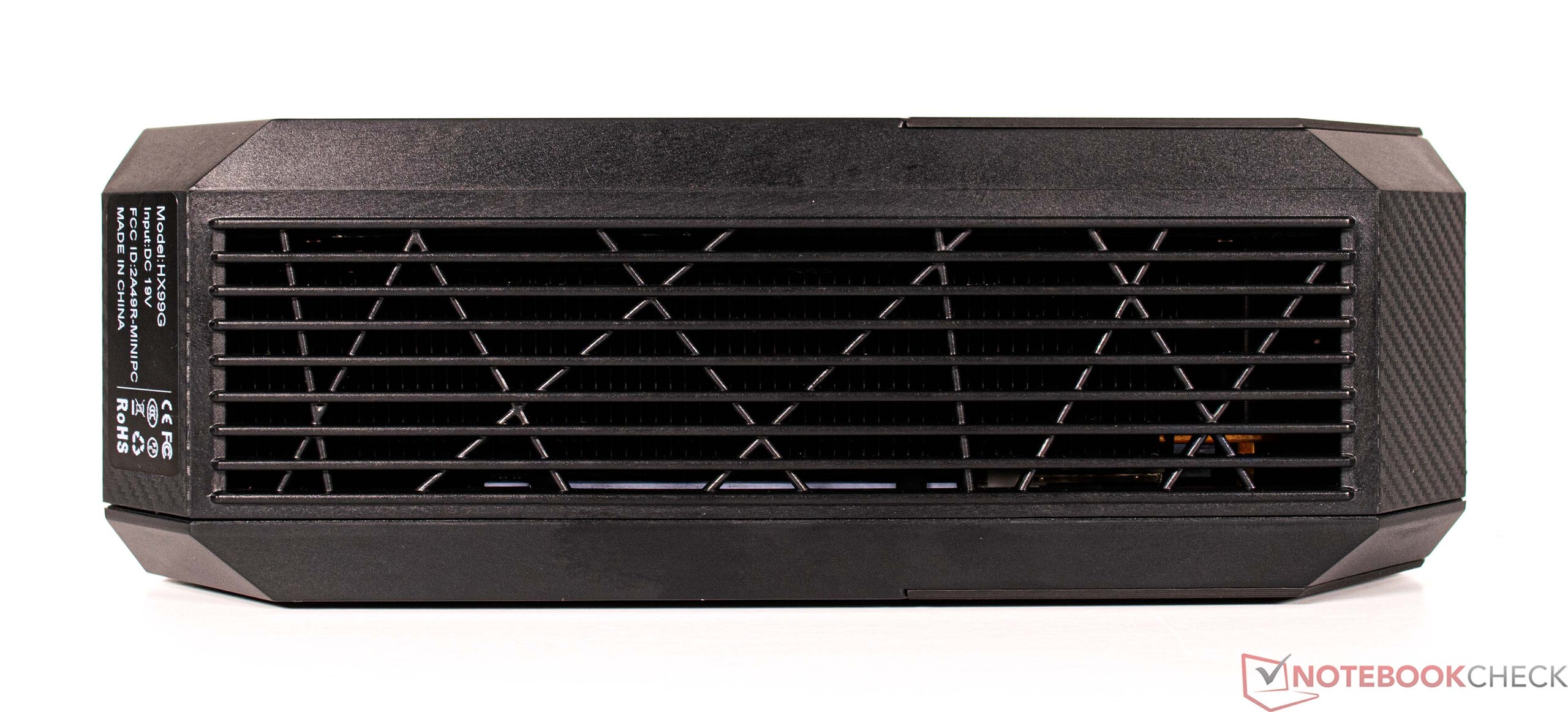

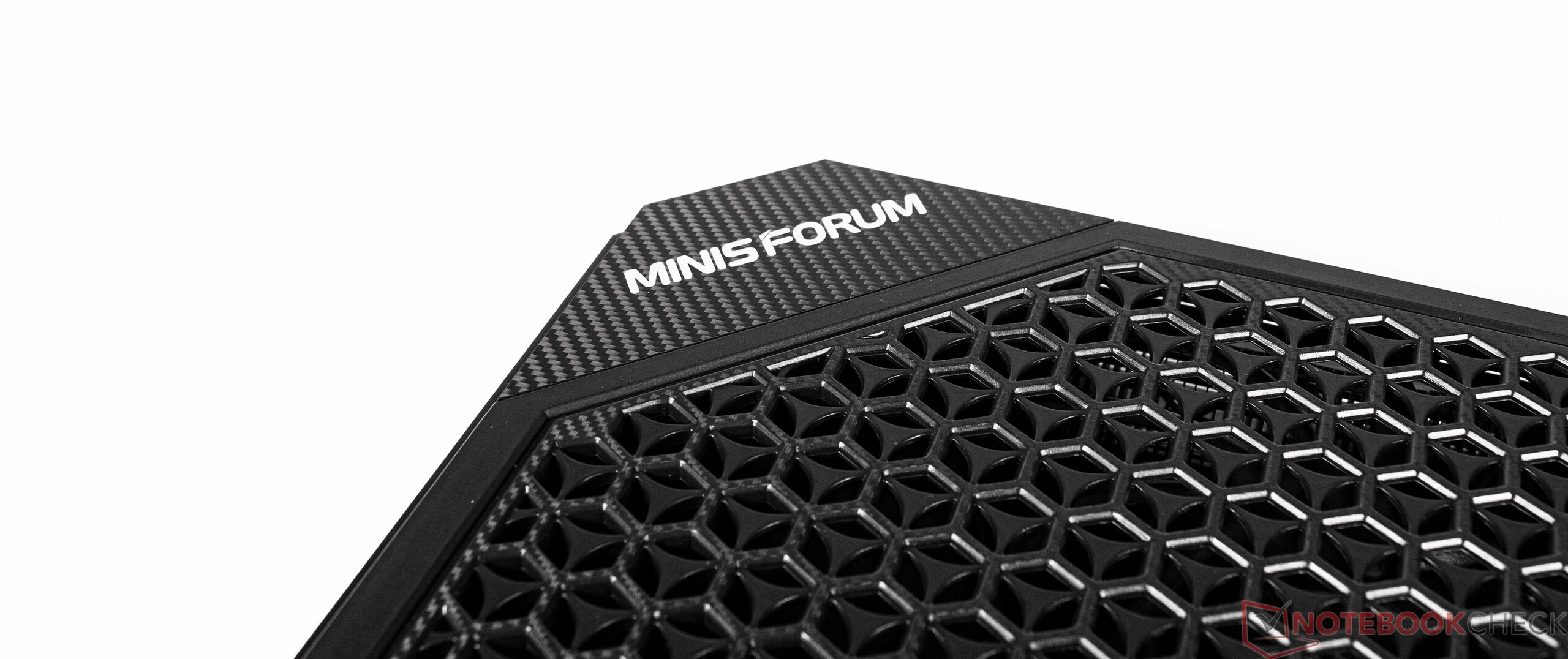

案例

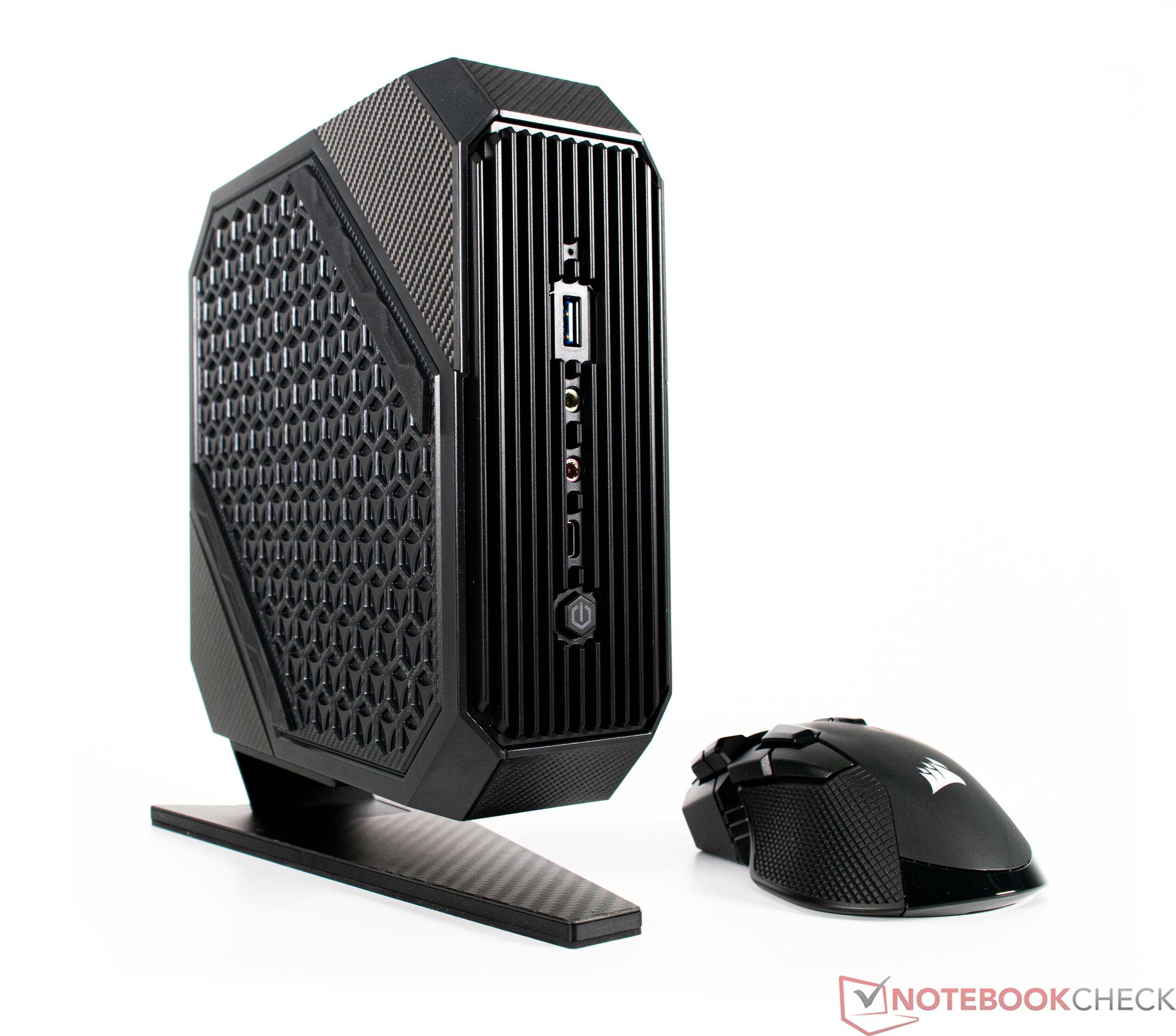

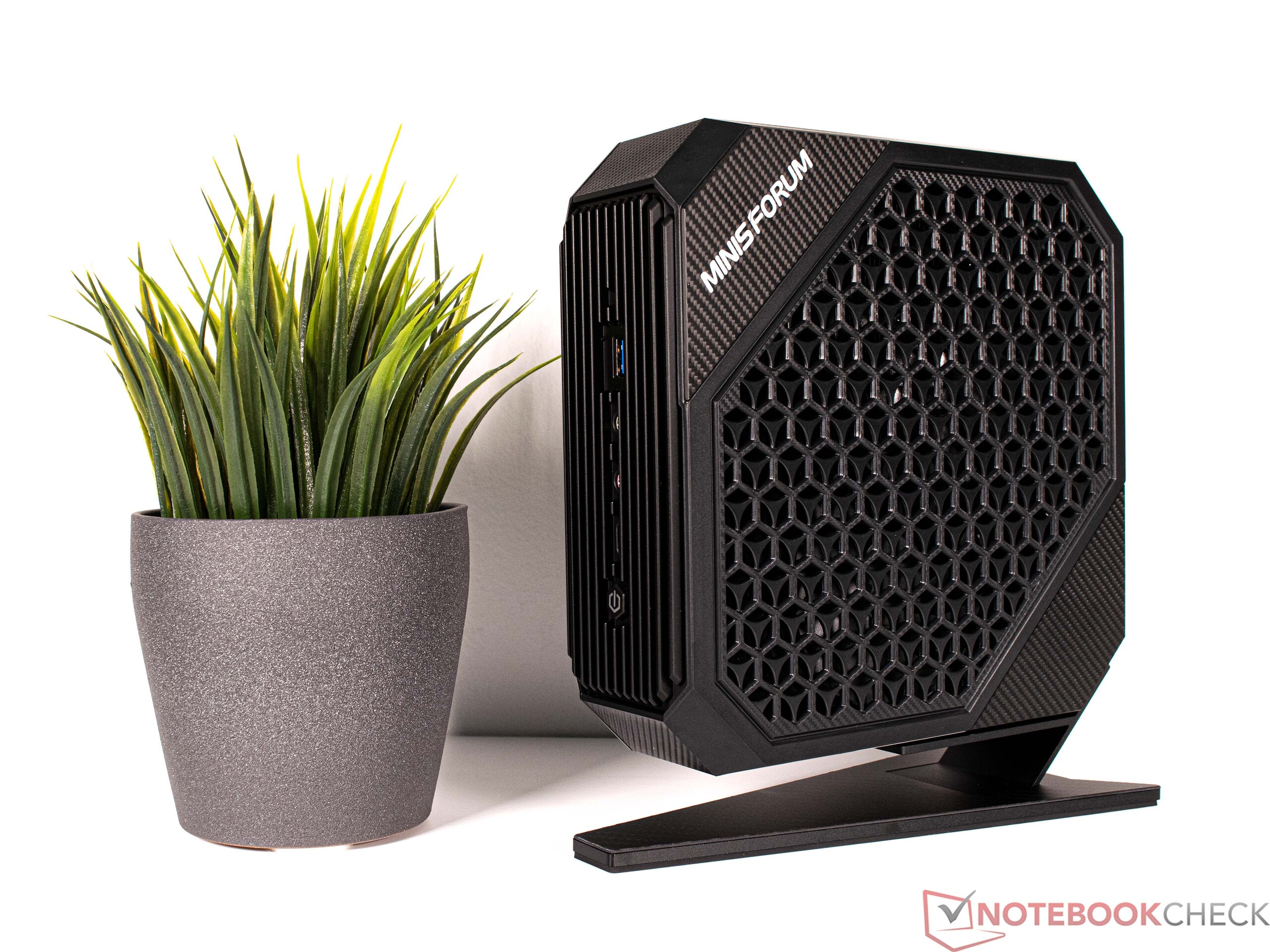

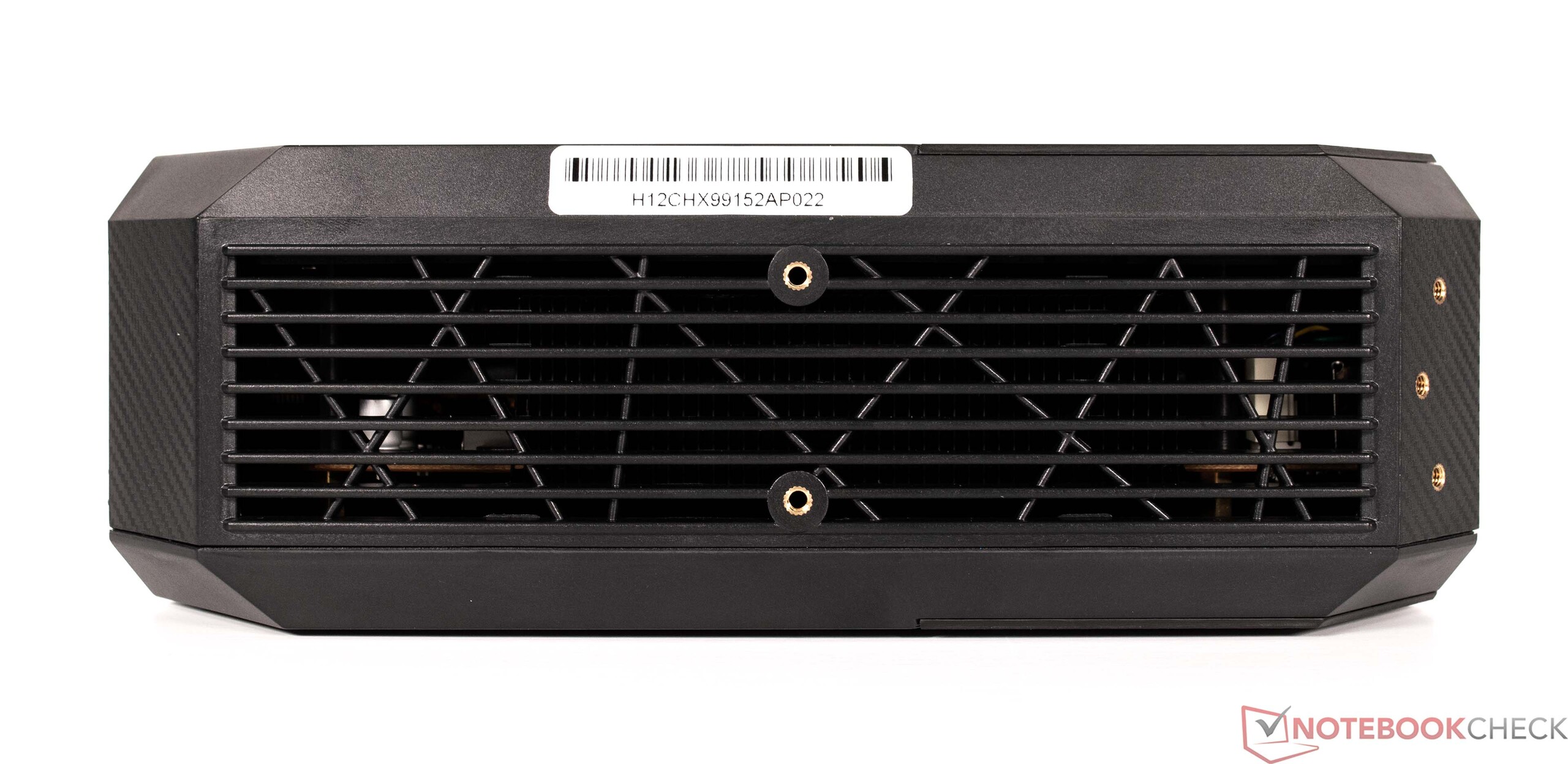

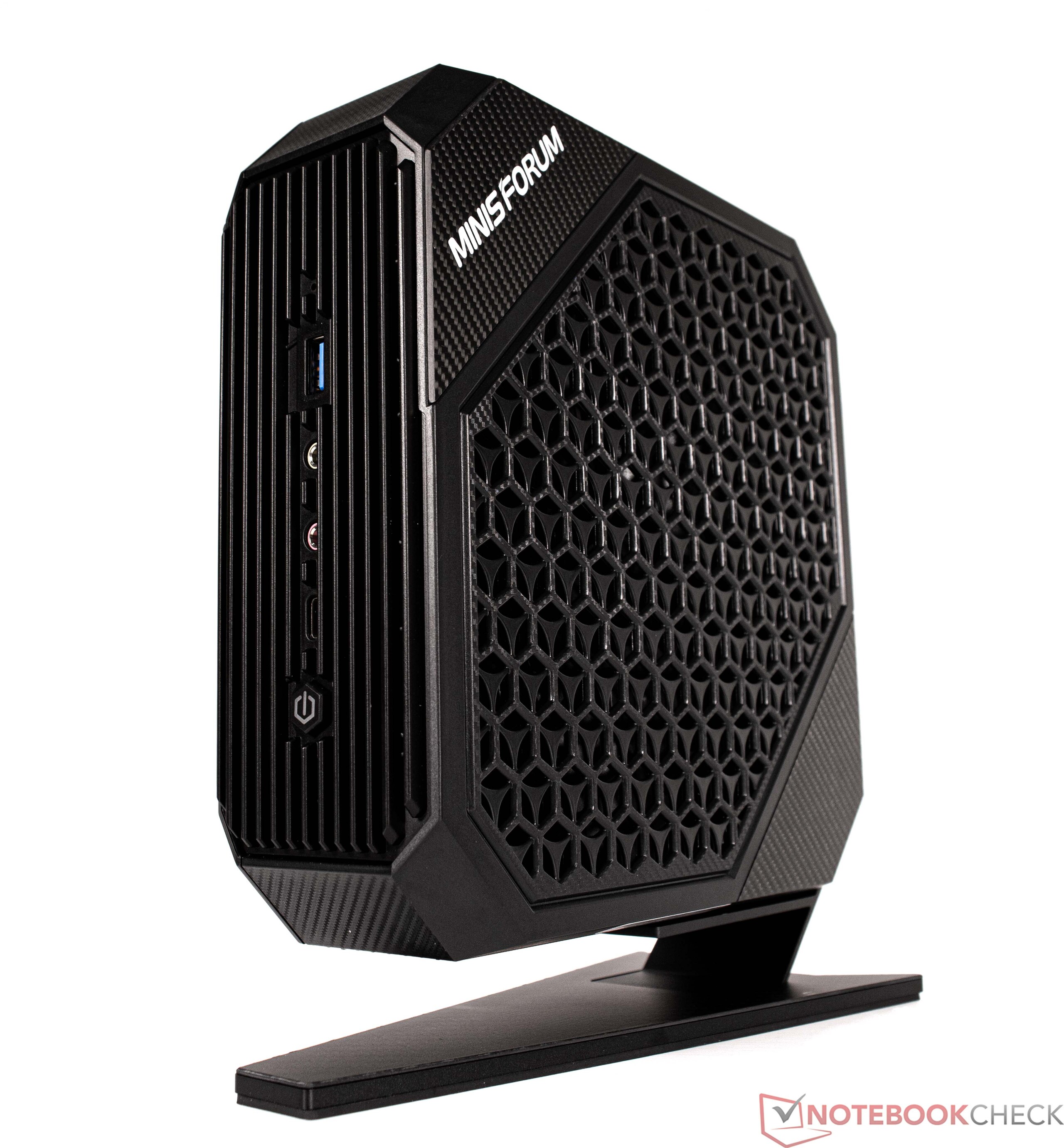

在视觉上，几乎没有任何差异。 海王星系列HX90G和MINISFORUM海王星系列HX99G之间几乎没有区别。这款机箱仍然主要由塑料构成，并增加了一些小的碳纤维视觉元素。我们的测试设备的做工很好，尽管我们也希望能在材料的选择上有更高的质量。与Minisforum Neptune系列NAD9这台电脑包括一个支架，可以让你把它垂直放在桌子上。但你不必使用它，因为你也可以在水平方向上操作该设备，没有任何问题。
与HX90G相比，尺寸相同，但在1.6公斤（约3.5磅）的重量上，我们看到了明显的差异，MINISFORUM海王星系列HX99G的重量几乎多了200克（约7盎司），这可能是由于更强大的冷却。外接电源带来了额外的650克（约1.5磅）的重量。

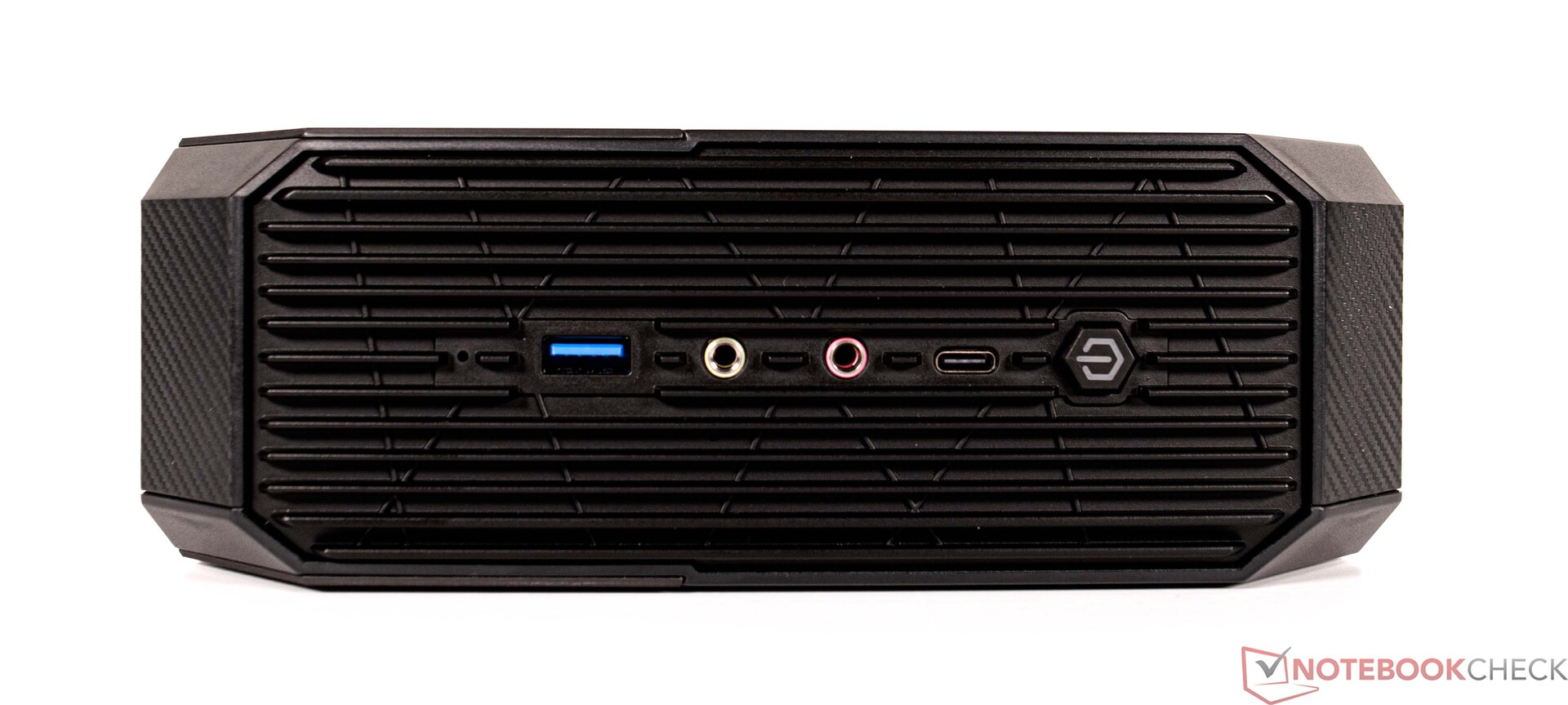

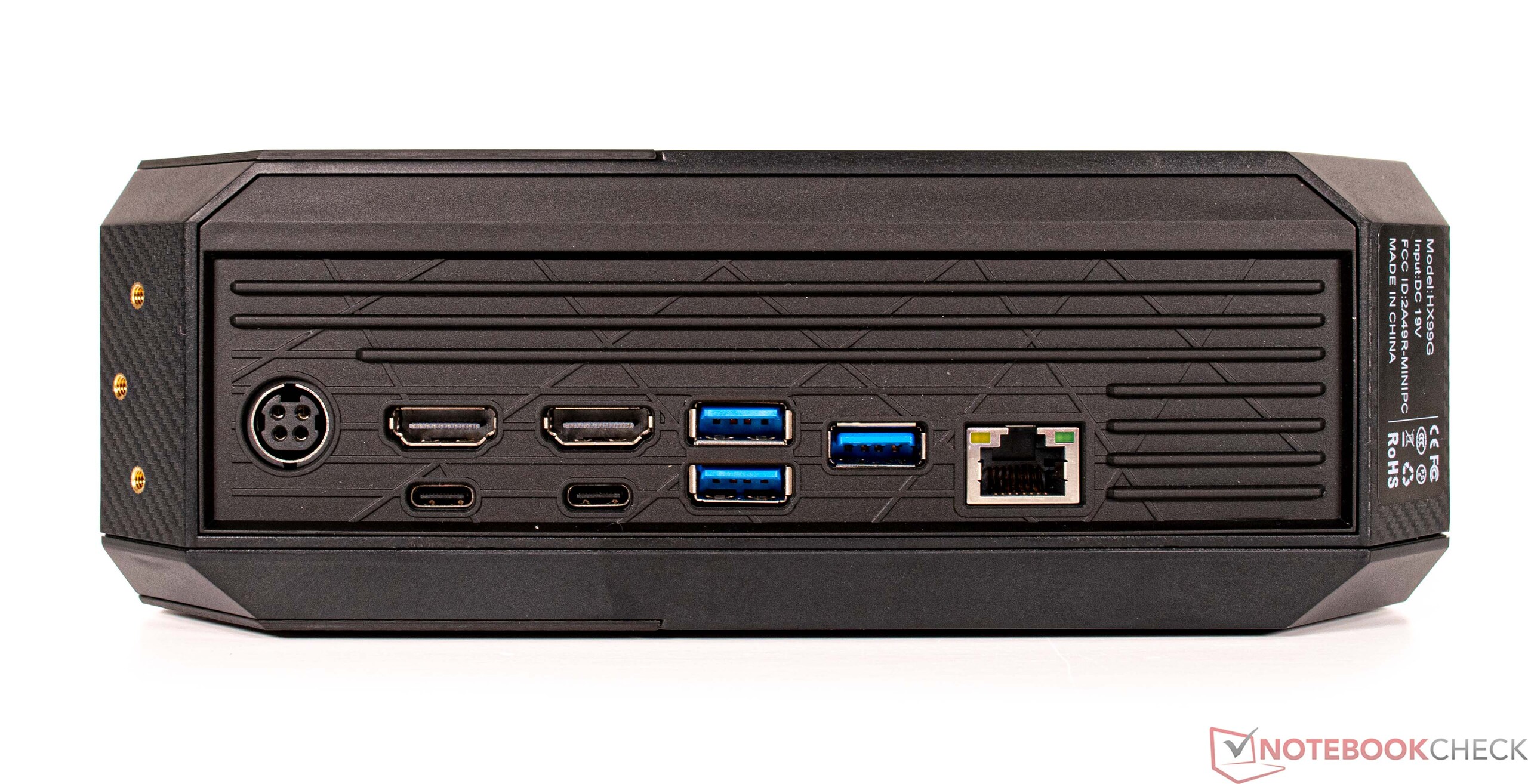

连接设备

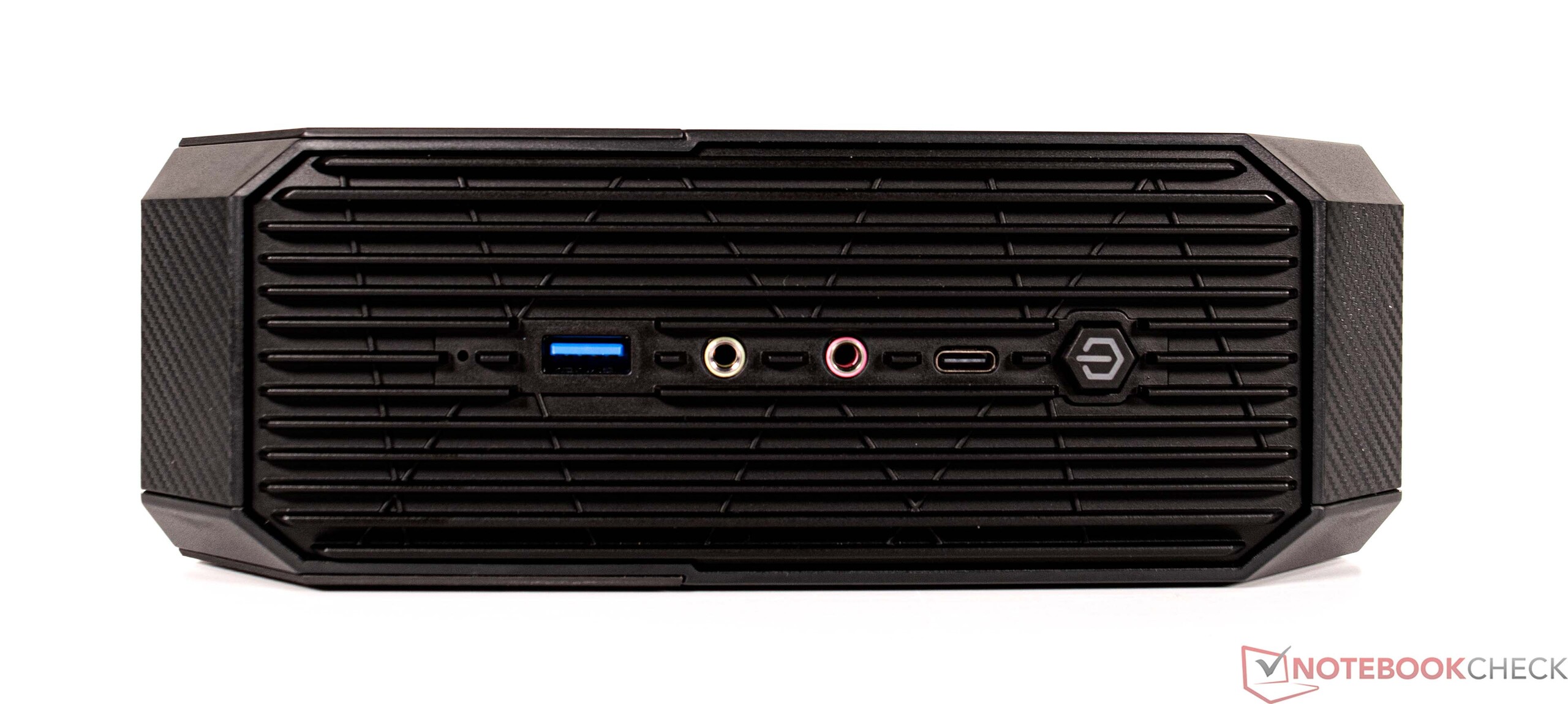

Minisforum Neptune系列HX99G的连接种类很好，提供了所有必要的连接，包括USB4和Thunderbolt。我们计算了一下，总共有七个USB端口，其中四个是Type-A。除了传统的HDMI端口外，后面的两个USB-C端口还可以连接两个额外的显示器。在我们看来，这些连接的位置是经过深思熟虑的，是合理的。无论是在垂直方向，还是在设备的水平位置，都没有与电缆使用的潜在冲突。
沟通

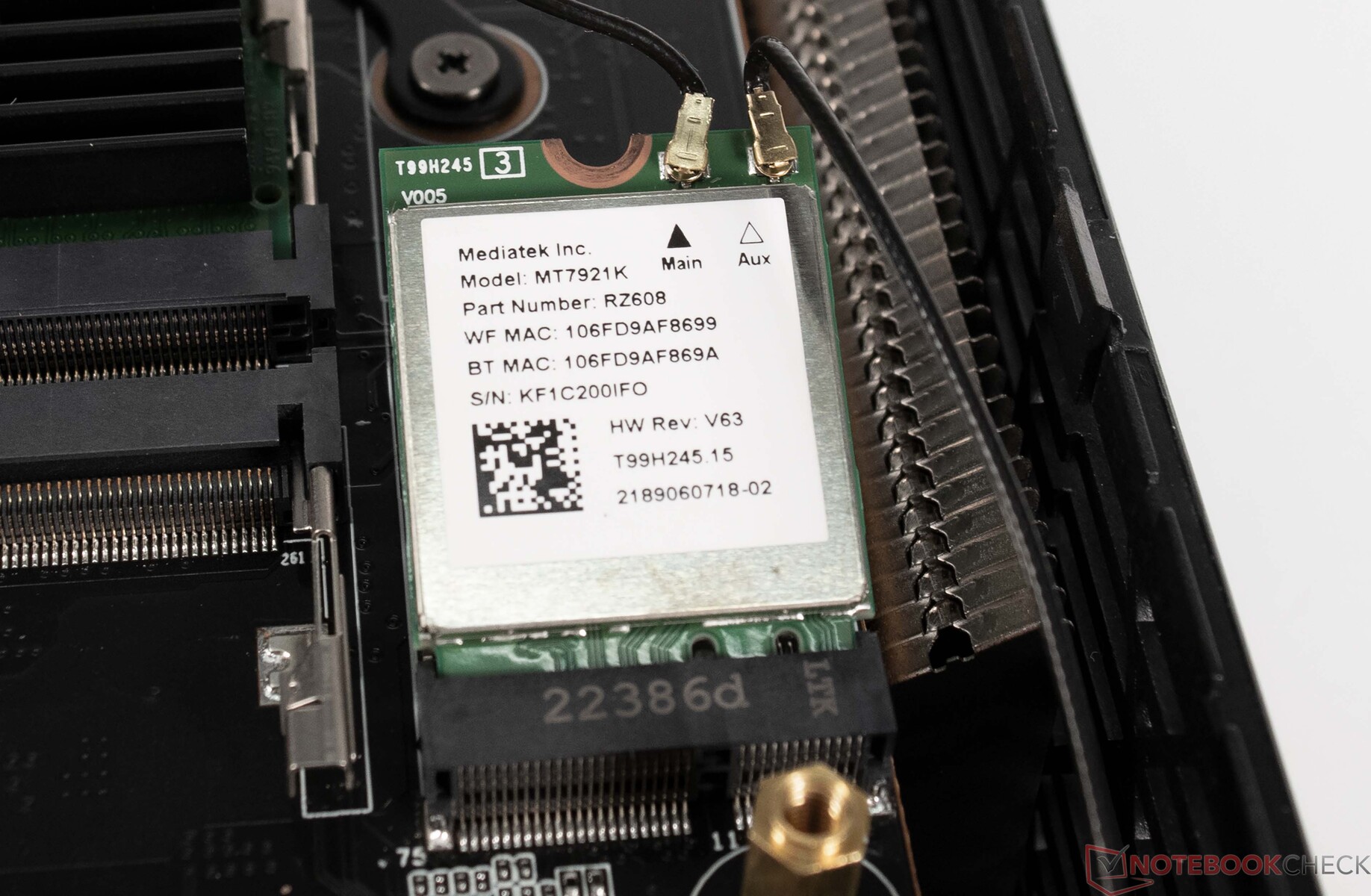

Minisforum在 Neptune系列HX99G 中 使用了联发科的Wi-Fi 6E模块 。一个相同的WLAN模块也用在了 HX90G 和最近测试的 Minisforum Venus系列UM690.在与我们的华硕ROG Rapture GT-AXE11000测试路由器的实际测试中，我们看到我们的测试装置的性能与同一制造商的竞争对手相似。然而，它无法达到英特尔Wi-Fi 6E-AX210的性能。为了获得更快的数据连接，你也可以使用LAN端口作为替代，它最大支持2.5Gbit/s。
Minisforum Neptune Series HX99G; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø757 (730-789)
Minisforum Neptune Series HX99G; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø855 (435-878)
Minisforum Neptune Series HX99G; iperf3 receive AXE11000; iperf 3.1.3: Ø940 (480-961)
Minisforum Neptune Series HX99G; iperf3 transmit AXE11000; iperf 3.1.3: Ø931 (872-1014)
辅料

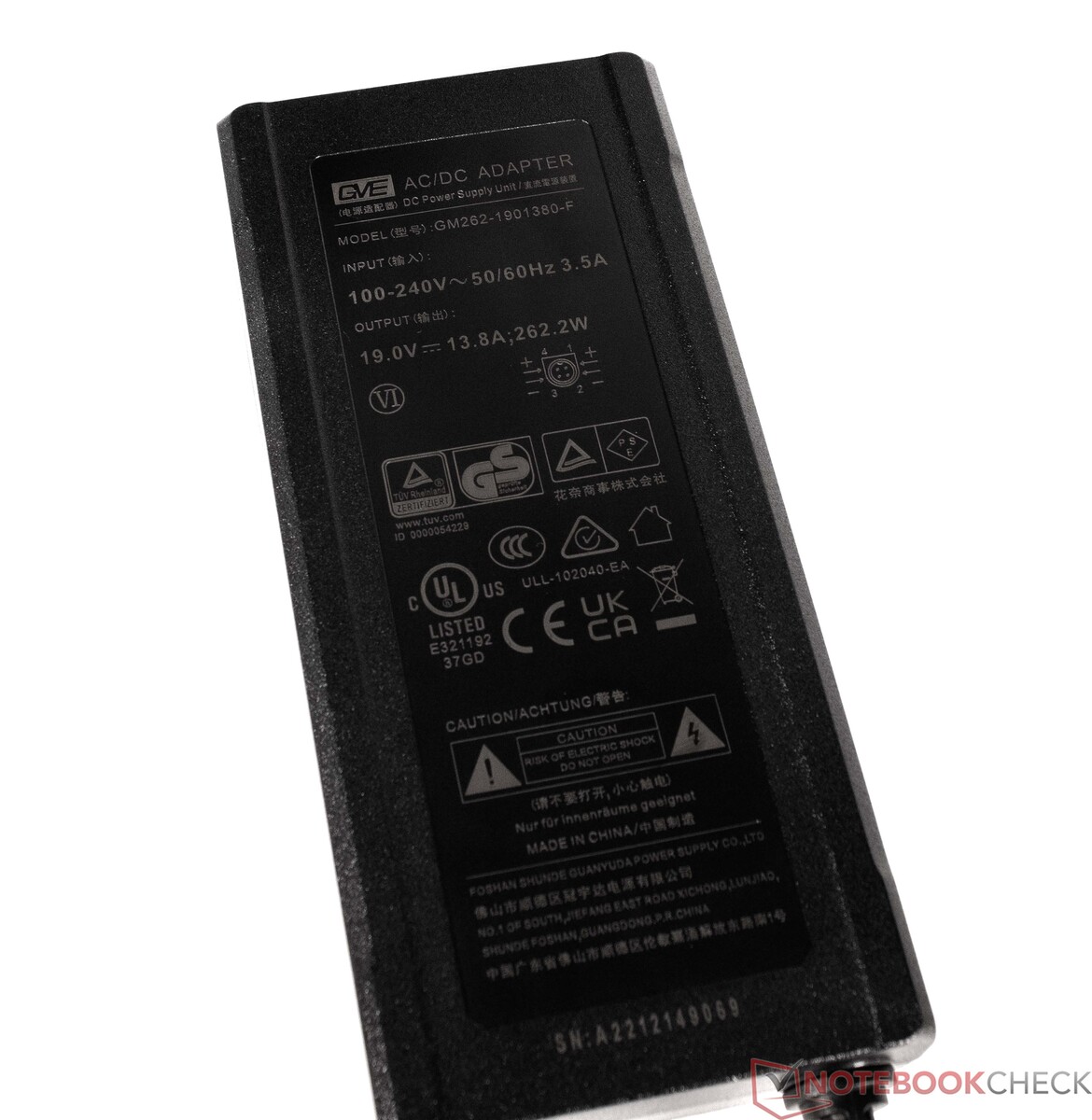

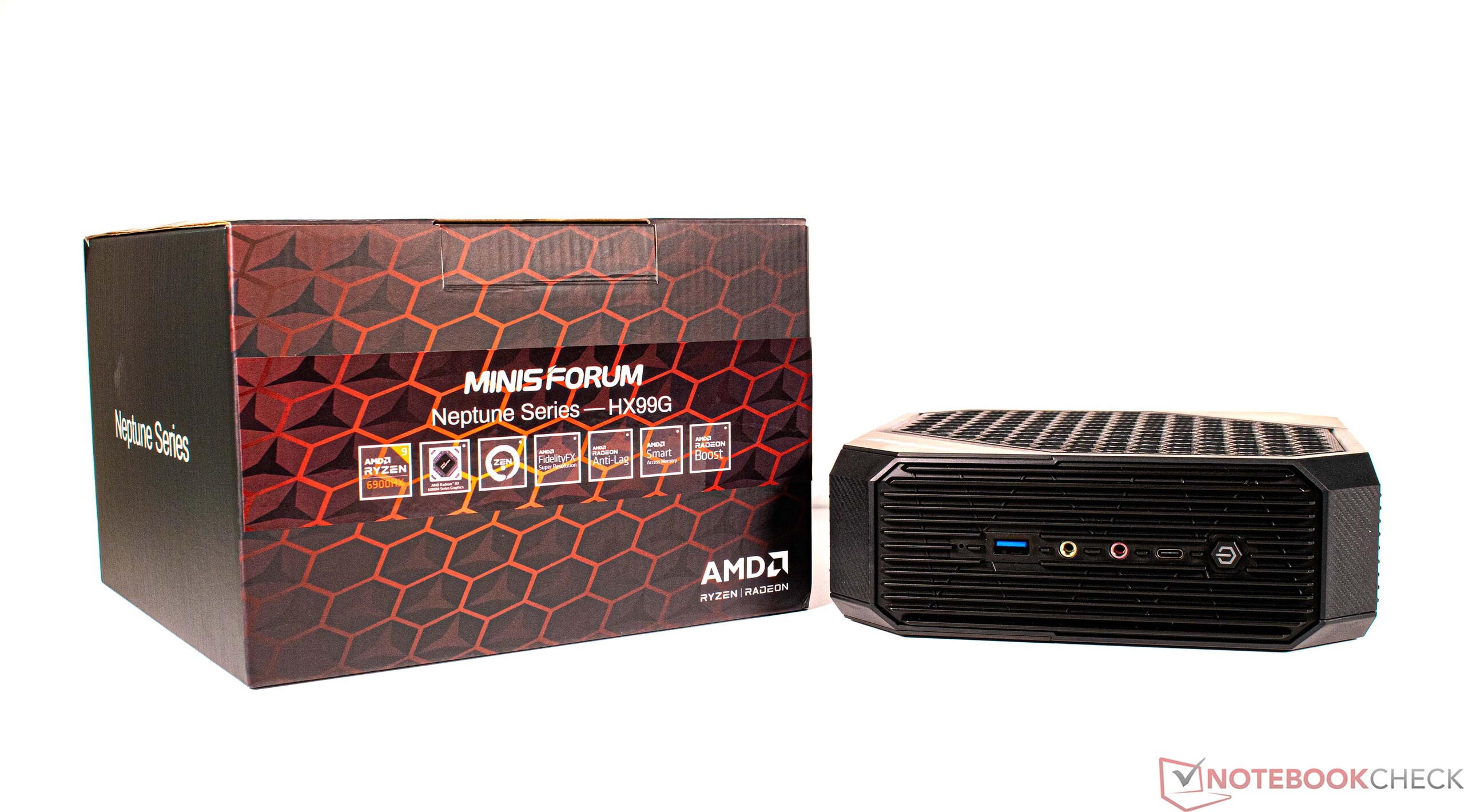

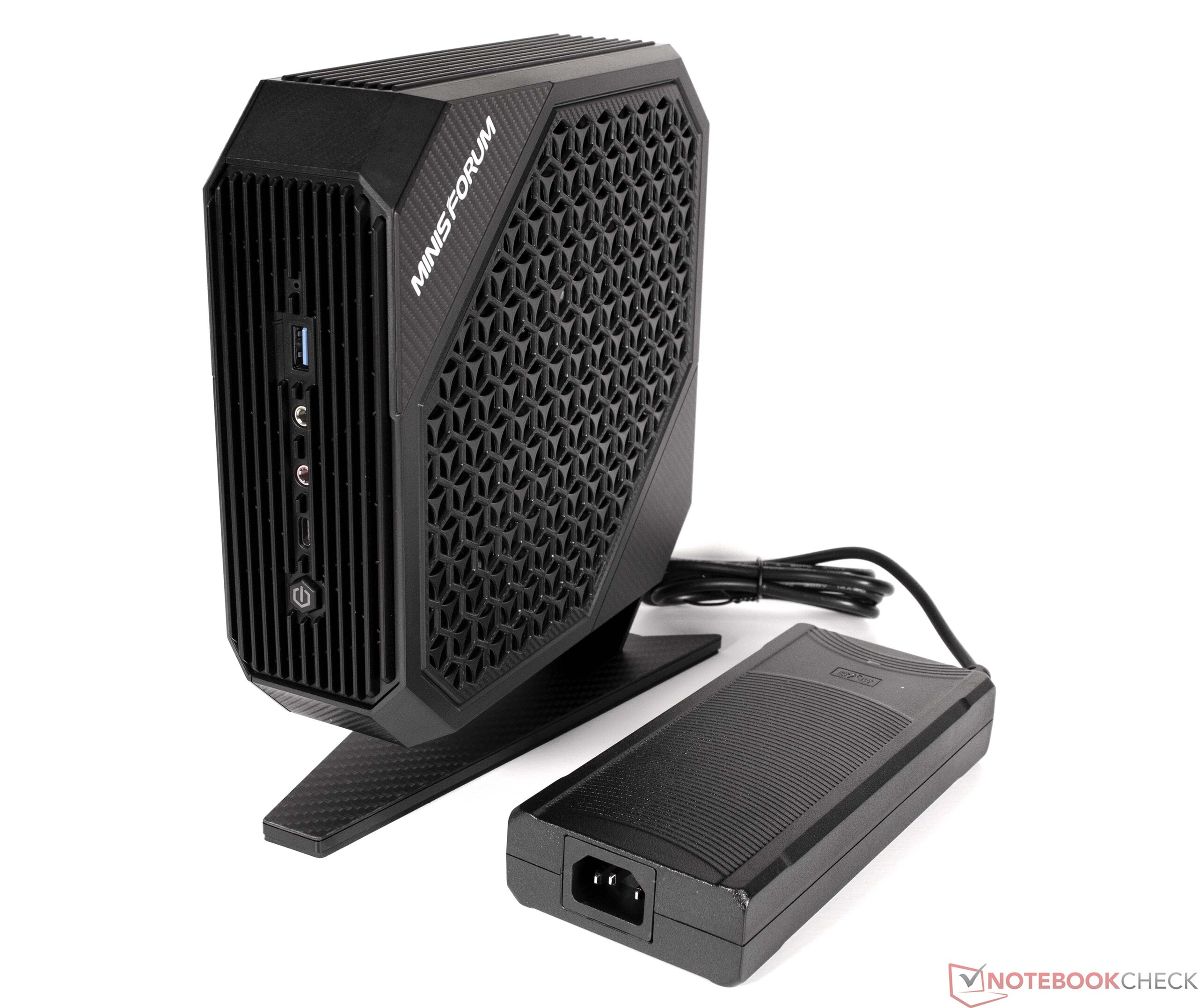

除了电脑本身，盒子里还包括262瓦的电源和允许你水平放置电脑的支架。

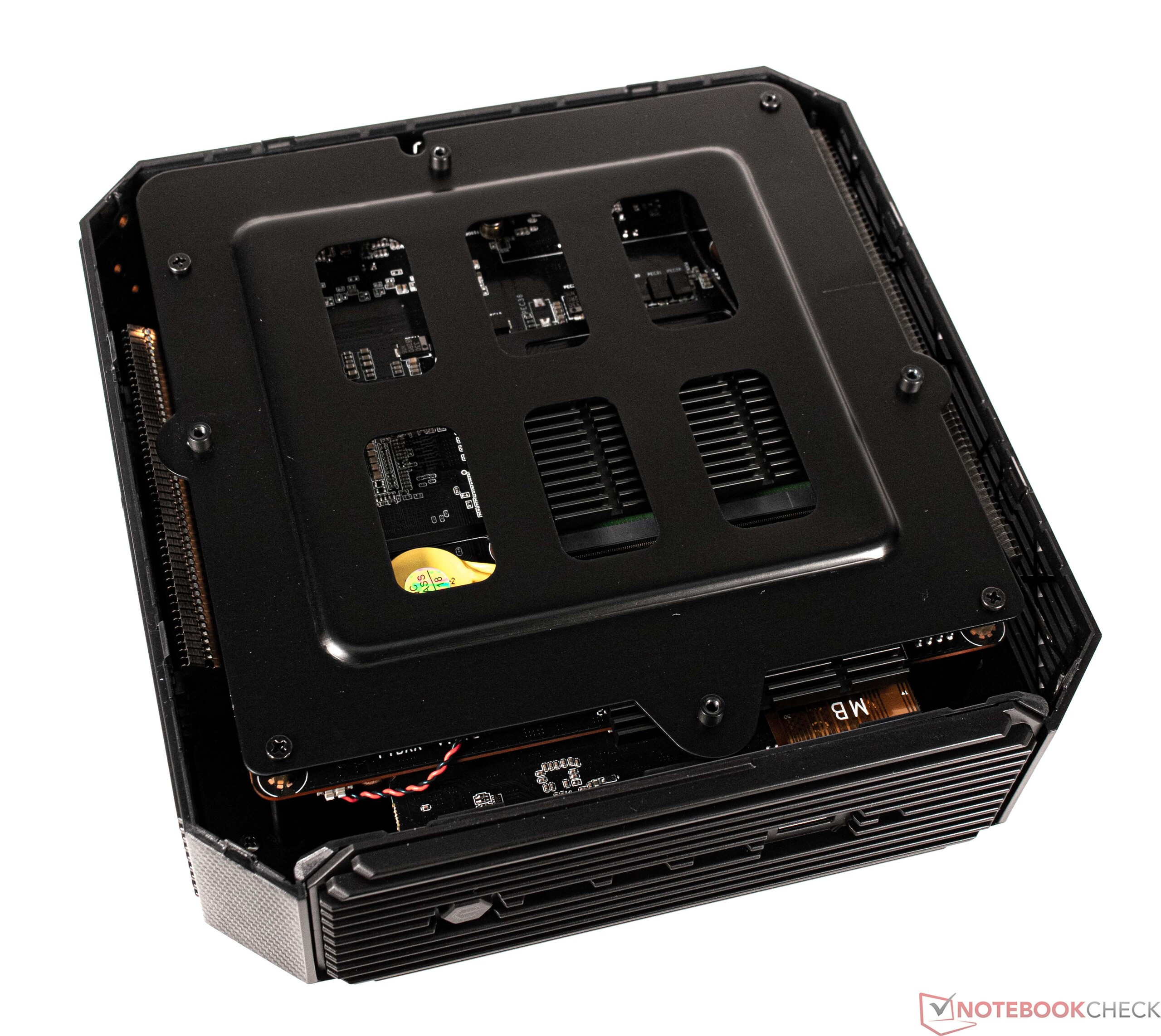

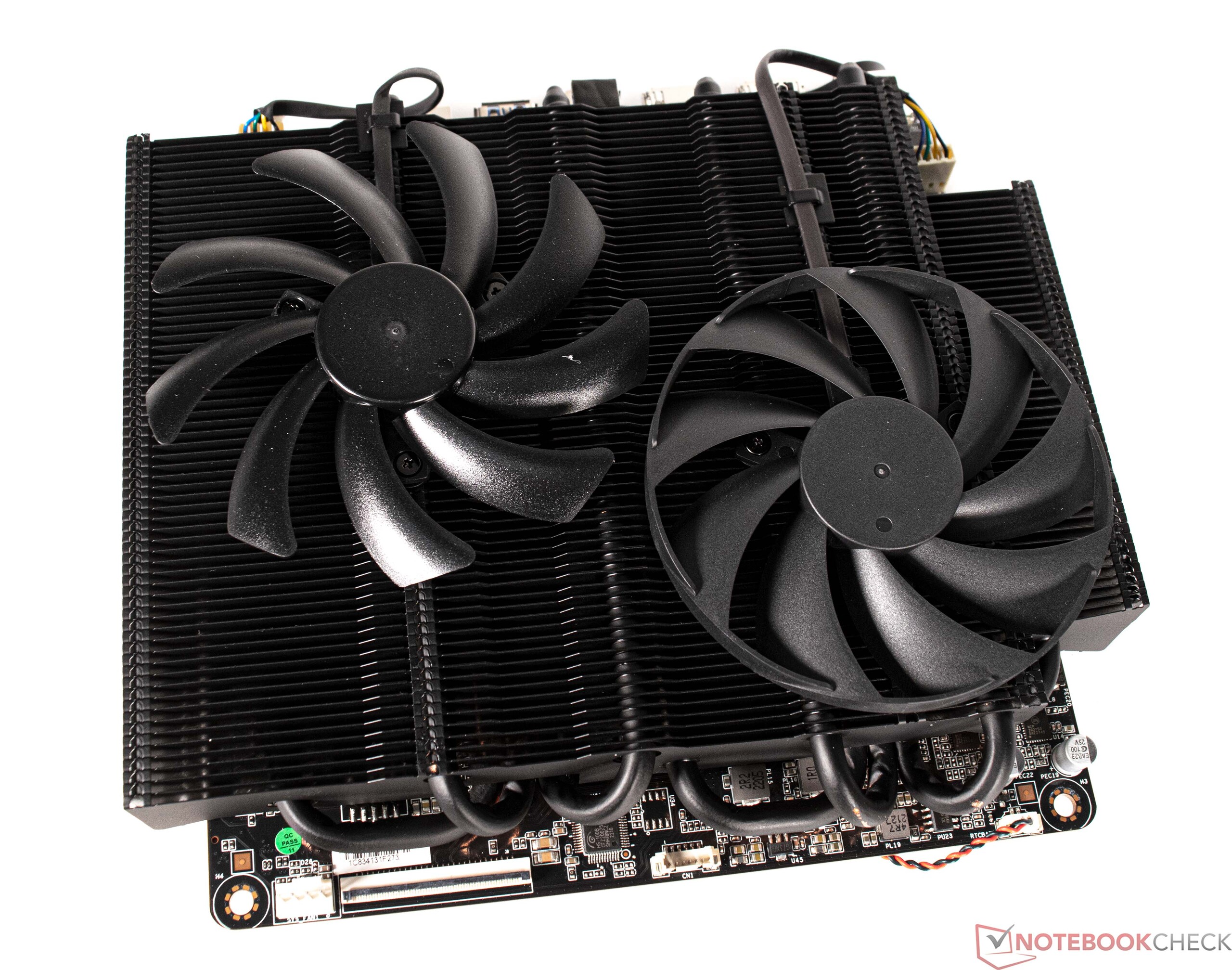

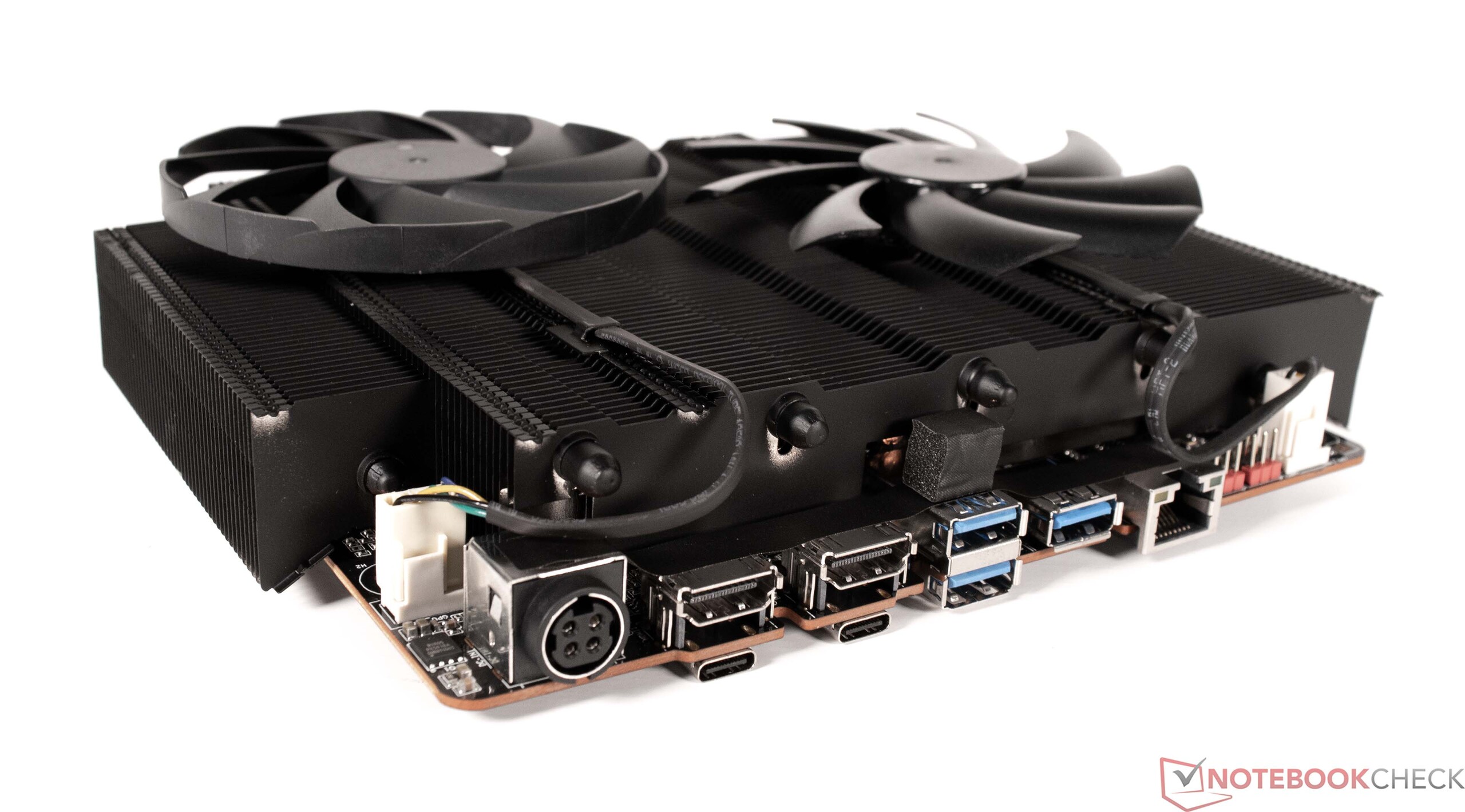

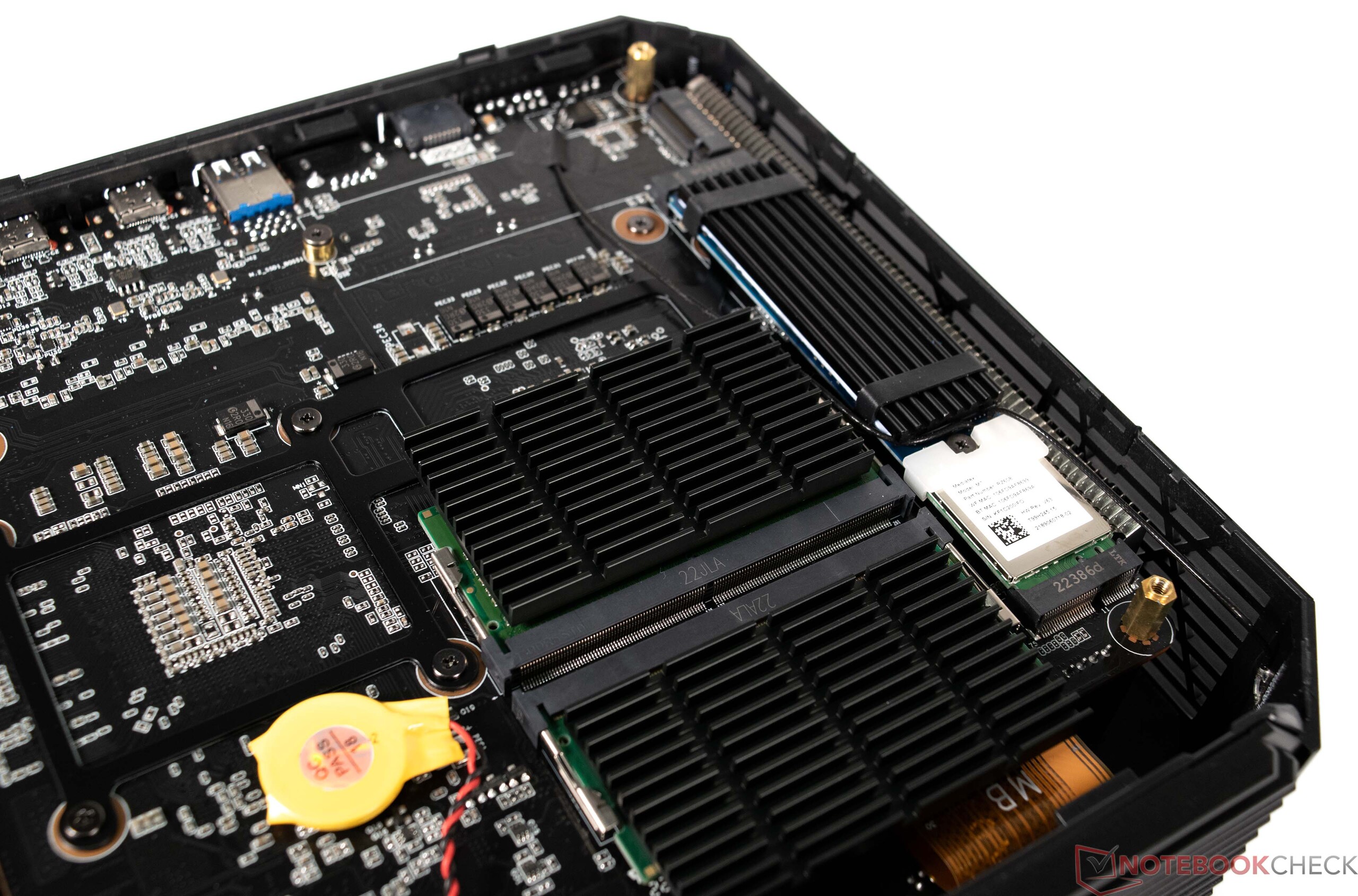

维护
基本上，你可以用MINISFORUM海王星系列HX99G执行维护任务，因为无论如何你也可以购买裸机版本的设备。 然而，我们仍然对HX99G中的同一点有不满，因为已经在 HX90G，它们的基本结构是一样的。打开机箱的螺丝隐藏在设备水平放置时的橡胶条下面，所以在卸下螺丝后，你可能会有橡胶条无法正确粘住的风险。卸下螺丝后，机箱底部可以相对容易地打开。在这下面，你会发现一个额外的金属盖，你也必须取下它，以便访问RAM、SSD或Wi-Fi模块。这个金属板的作用是固定侧盖。为了接触到两个风扇，你必须进一步拆开设备，但只要有一定的技巧就可以轻松完成。制造商明确建议不要从SoC和GPU上拆下散热片。促进散热的热熔胶已经被应用，所以在我们看来，你不应该在这里改变任何东西。
性能--AMD的Rembrandt SoC具有良好的性能
Minisforum为海王星系列HX99G配备了AMD的新的Ryzen 9 6900HX.乍一看，HX90G的升级只提供了一个小的性能提升，但有了DDR5和Thunderbolt 4，新平台的额外价值可以说是相当高。 有了AMD Radeon RX 6600M，还有一个相当强大的显卡，让我们完全可以把这个设备看作是一台游戏PC。
测试条件
我们在激活 "最高性能 "电源配置文件的情况下进行了所有的性能测试。我们没有改变CPU的电源参数，而是根据BIOS设置将其置于 "自动 "模式。

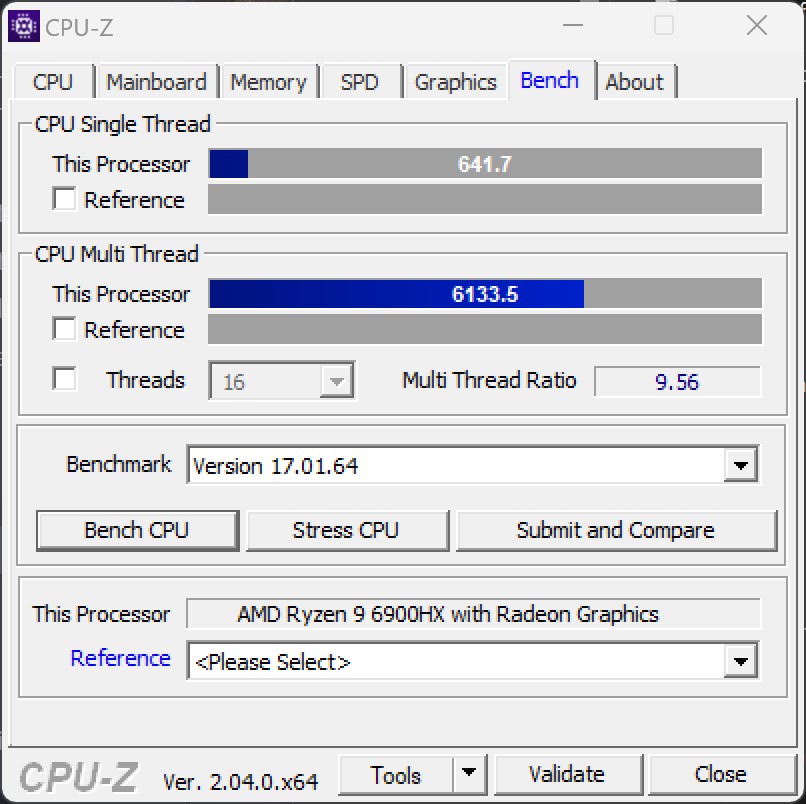

处理器

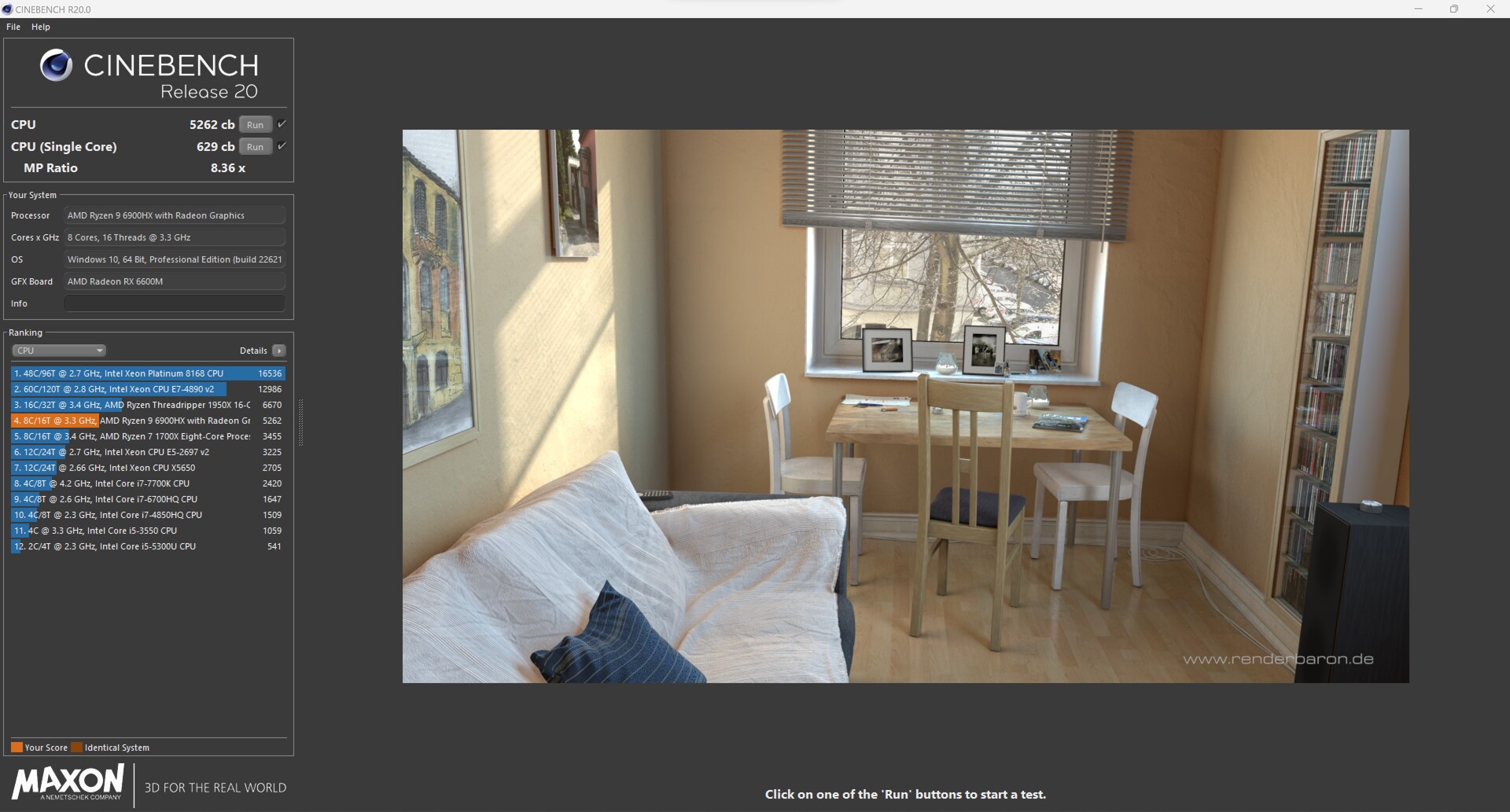

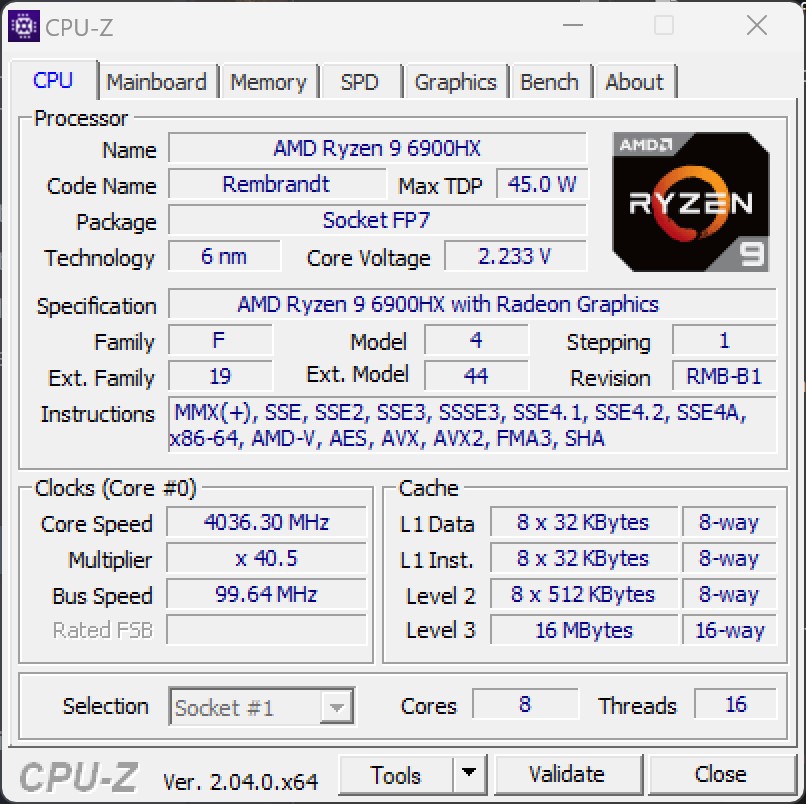

淘宝网AMD Ryzen 9 6900HX是目前Rembrandt阵容中的一个现代八核处理器，它能够在总共16个线程上并行运行。在Minisforum海王星系列HX99G中，它取代了AMD Ryzen 9 5900HX，使其整体性能略有提高。然而，这仍然远远不是一个明显的性能提高，这两个SoC在主观上提供了相同的速度。由于MINISFORUM也提供海王星系列的HX80G与AMD Ryzen 7 5800H，我们也将这一SoC列入我们的比较图表中。
你可以找到这些处理器的其他基准测试 这里.
Performance Rating | Cinebench R15 | Cinebench R20 | Cinebench R11.5 | Cinebench R10 | Blender | wPrime 2.10 | X264 HD Benchmark 4.0 | WinRAR | TrueCrypt | Geekbench 5.5 | Geekbench 5.0 | Geekbench 4.4 | 3DMark 11 | 7-Zip 18.03 | HWBOT x265 Benchmark v2.2 | R Benchmark 2.5 | LibreOffice | WebXPRT 3 | Mozilla Kraken 1.1 | 3DMark
| Performance Rating - Percent | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Minisforum Neptune Series HX99G | |
| Minisforum Neptune Series HX90G | |
| Intel Beast Canyon NUC | |
| Minisforum NUCX i7 | |
| Zotac ZBOX Magnus EN173070C | |
| Average AMD Ryzen 7 5800H | |
| Lenovo Legion 5 15ACH6A-82NW0010GE -8! | |
| Zotac Magnus One (ECM73070C) -2! | |
| Cinebench R10 | |
| Rendering Single CPUs 64Bit | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Minisforum Neptune Series HX99G | |
| Intel Beast Canyon NUC | |
| Minisforum Neptune Series HX90G | |
| Minisforum NUCX i7 | |
| Zotac ZBOX Magnus EN173070C | |
| Average AMD Ryzen 7 5800H (11378 - 11637, n=2) | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| Zotac Magnus One (ECM73070C) | |
| Rendering Multiple CPUs 64Bit | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Minisforum Neptune Series HX90G | |
| Minisforum Neptune Series HX99G | |
| Minisforum NUCX i7 | |
| Intel Beast Canyon NUC | |
| Average AMD Ryzen 7 5800H (62312 - 68452, n=2) | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| Zotac ZBOX Magnus EN173070C | |
| Zotac Magnus One (ECM73070C) | |
| X264 HD Benchmark 4.0 | |
| Pass 1 | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Minisforum Neptune Series HX90G | |
| Intel Beast Canyon NUC | |
| Minisforum Neptune Series HX99G | |
| Minisforum NUCX i7 | |
| Zotac ZBOX Magnus EN173070C | |
| Average AMD Ryzen 7 5800H () | |
| Zotac Magnus One (ECM73070C) | |
| Pass 2 | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Minisforum Neptune Series HX90G | |
| Minisforum Neptune Series HX99G | |
| Minisforum NUCX i7 | |
| Intel Beast Canyon NUC | |
| Average AMD Ryzen 7 5800H () | |
| Zotac ZBOX Magnus EN173070C | |
| Zotac Magnus One (ECM73070C) | |
| TrueCrypt | |
| AES Mean 100MB | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Minisforum Neptune Series HX99G | |
| Intel Beast Canyon NUC | |
| Minisforum NUCX i7 | |
| Minisforum Neptune Series HX90G | |
| Zotac Magnus One (ECM73070C) | |
| Average AMD Ryzen 7 5800H (8.5 - 11.5, n=2) | |
| Zotac ZBOX Magnus EN173070C | |
| Twofish Mean 100MB | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Minisforum Neptune Series HX90G | |
| Zotac Magnus One (ECM73070C) | |
| Minisforum Neptune Series HX99G | |
| Intel Beast Canyon NUC | |
| Minisforum NUCX i7 | |
| Average AMD Ryzen 7 5800H (1.6 - 1.7, n=2) | |
| Zotac ZBOX Magnus EN173070C | |
| Serpent Mean 100MB | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Minisforum Neptune Series HX90G | |
| Minisforum Neptune Series HX99G | |
| Zotac Magnus One (ECM73070C) | |
| Intel Beast Canyon NUC | |
| Minisforum NUCX i7 | |
| Average AMD Ryzen 7 5800H (1 - 1.1, n=2) | |
| Zotac ZBOX Magnus EN173070C | |
| Geekbench 4.4 | |
| 64 Bit Single-Core Score | |
| Intel Beast Canyon NUC | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Zotac ZBOX Magnus EN173070C | |
| Minisforum NUCX i7 | |
| Minisforum Neptune Series HX99G | |
| Minisforum Neptune Series HX90G | |
| Average AMD Ryzen 7 5800H (5733 - 6295, n=3) | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| Zotac Magnus One (ECM73070C) | |
| 64 Bit Multi-Core Score | |
| Minisforum Neptune Series HX99G | |
| Minisforum NUCX i7 | |
| Intel Beast Canyon NUC | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Minisforum Neptune Series HX90G | |
| Zotac ZBOX Magnus EN173070C | |
| Zotac Magnus One (ECM73070C) | |
| Average AMD Ryzen 7 5800H (29073 - 34200, n=3) | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| 3DMark 11 - 1280x720 Performance Physics | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Minisforum Neptune Series HX90G | |
| Minisforum Neptune Series HX99G | |
| Intel Beast Canyon NUC | |
| Minisforum NUCX i7 | |
| Zotac ZBOX Magnus EN173070C | |
| Zotac Magnus One (ECM73070C) | |
| Average AMD Ryzen 7 5800H (10872 - 17779, n=24) | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| HWBOT x265 Benchmark v2.2 - 4k Preset | |
| Minisforum Neptune Series HX99G | |
| Minisforum Neptune Series HX90G | |
| Minisforum NUCX i7 | |
| Average AMD Ryzen 7 5800H (11.6 - 16.1, n=29) | |
| Intel Beast Canyon NUC | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Zotac ZBOX Magnus EN173070C | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| Zotac Magnus One (ECM73070C) | |
| R Benchmark 2.5 - Overall mean | |
| Zotac Magnus One (ECM73070C) | |
| Minisforum NUCX i7 | |
| Zotac ZBOX Magnus EN173070C | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| Intel Beast Canyon NUC | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Average AMD Ryzen 7 5800H (0.511 - 0.559, n=28) | |
| Minisforum Neptune Series HX90G | |
| Minisforum Neptune Series HX99G | |
| LibreOffice - 20 Documents To PDF | |
| Average AMD Ryzen 7 5800H (47.4 - 113, n=29) | |
| Zotac Magnus One (ECM73070C) | |
| Minisforum Neptune Series HX90G | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| Minisforum Neptune Series HX99G | |
| Minisforum NUCX i7 | |
| Zotac ZBOX Magnus EN173070C | |
| Intel Beast Canyon NUC | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| 3DMark | |
| 3840x2160 Fire Strike Ultra Physics | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Minisforum Neptune Series HX90G | |
| Minisforum Neptune Series HX99G | |
| Average AMD Ryzen 7 5800H (22307 - 24673, n=11) | |
| Intel Beast Canyon NUC | |
| Minisforum NUCX i7 | |
| Zotac ZBOX Magnus EN173070C | |
| Zotac Magnus One (ECM73070C) | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| 1920x1080 Fire Strike Physics | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Minisforum Neptune Series HX90G | |
| Minisforum Neptune Series HX99G | |
| Minisforum NUCX i7 | |
| Intel Beast Canyon NUC | |
| Average AMD Ryzen 7 5800H (22433 - 25300, n=26) | |
| Zotac ZBOX Magnus EN173070C | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| Zotac Magnus One (ECM73070C) | |
| 2560x1440 Time Spy CPU | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Minisforum Neptune Series HX90G | |
| Minisforum NUCX i7 | |
| Intel Beast Canyon NUC | |
| Minisforum Neptune Series HX99G | |
| Zotac ZBOX Magnus EN173070C | |
| Average AMD Ryzen 7 5800H (7021 - 9835, n=26) | |
| Zotac Magnus One (ECM73070C) | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
* ... smaller is better
| Geekbench 4.4 | |
| 64 Bit Single-Core Score | |
| Intel Beast Canyon NUC | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Zotac ZBOX Magnus EN173070C | |
| Minisforum NUCX i7 | |
| Minisforum Neptune Series HX99G | |
| Minisforum Neptune Series HX90G | |
| Average AMD Ryzen 7 5800H (5733 - 6295, n=3) | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| Zotac Magnus One (ECM73070C) | |
| 64 Bit Multi-Core Score | |
| Minisforum Neptune Series HX99G | |
| Minisforum NUCX i7 | |
| Intel Beast Canyon NUC | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Minisforum Neptune Series HX90G | |
| Zotac ZBOX Magnus EN173070C | |
| Zotac Magnus One (ECM73070C) | |
| Average AMD Ryzen 7 5800H (29073 - 34200, n=3) | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx

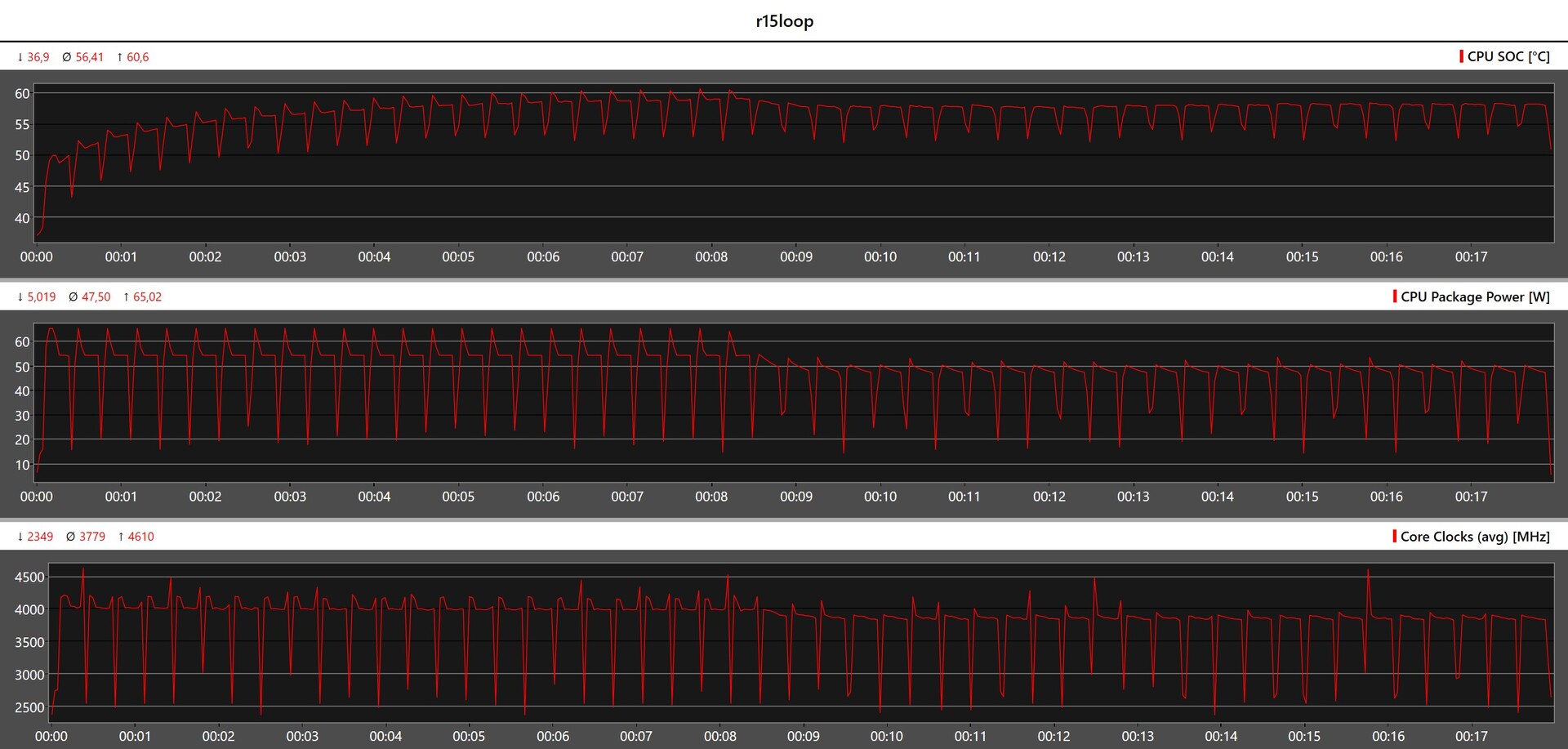

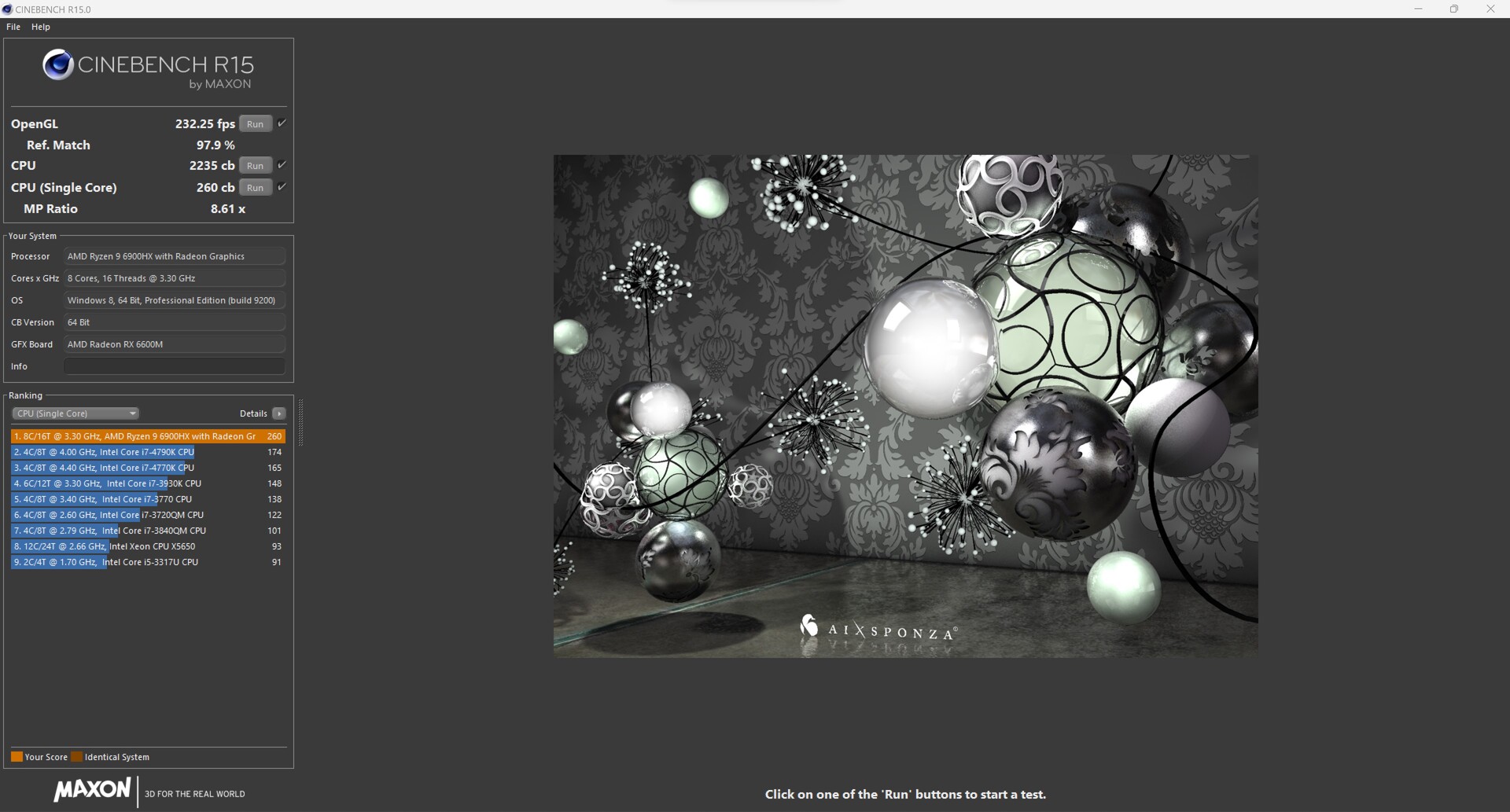

Minisforum海王星系列HX99G在Cinebench R15多重循环中的表现
在我们的Cinebench R15恒定循环中，我们的测试设备的表现与 Minisforum Neptune系列HX90G.在50次运行的一半之后，我们注意到性能略有下降，但这不是很明显。
Minisforum Neptune Series HX99G AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2161 (2097.87-2229.78)
Zotac Magnus One (ECM73070C) Intel Core i7-10700, Intel Core i7-10700: Ø1338 (1184.66-1454.54)
Intel Dragon Canyon NUC - RTX 3060 Intel Core i9-12900, Intel Core i9-12900: Ø2592 (2433.39-3346.44)
Lenovo Legion 5 15ACH6A-82NW0010GE AMD Ryzen 5 5600H, AMD Ryzen 5 5600H: Ø1622 (1447.86-1653.64)
Minisforum NUCX i7 Intel Core i7-11800H, Intel Core i7-11800H: Ø1825 (1783.96-2050.55)
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2169 (2116.63-2224.69)
系统性能

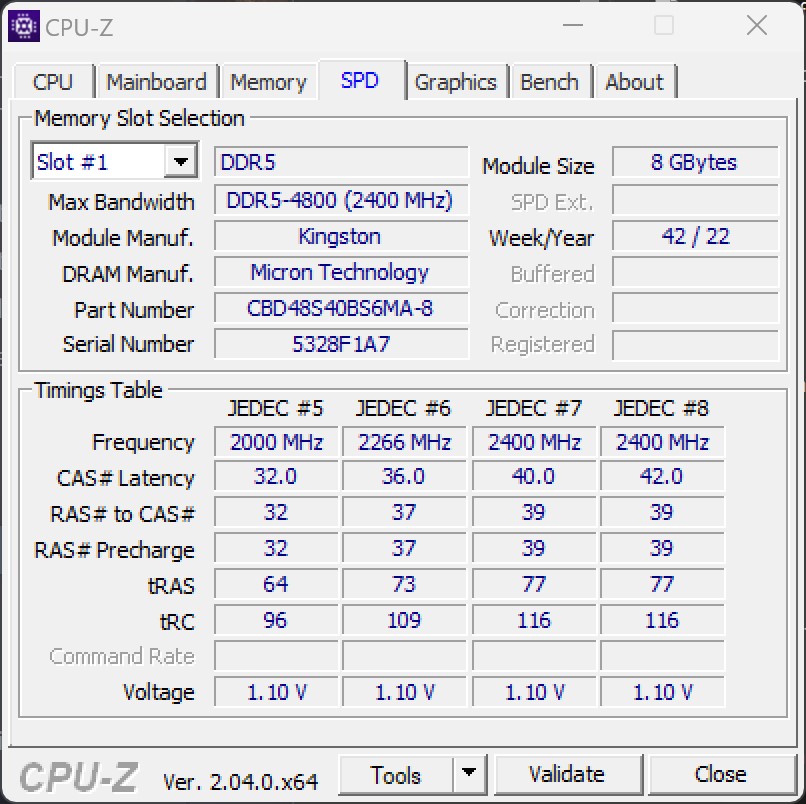

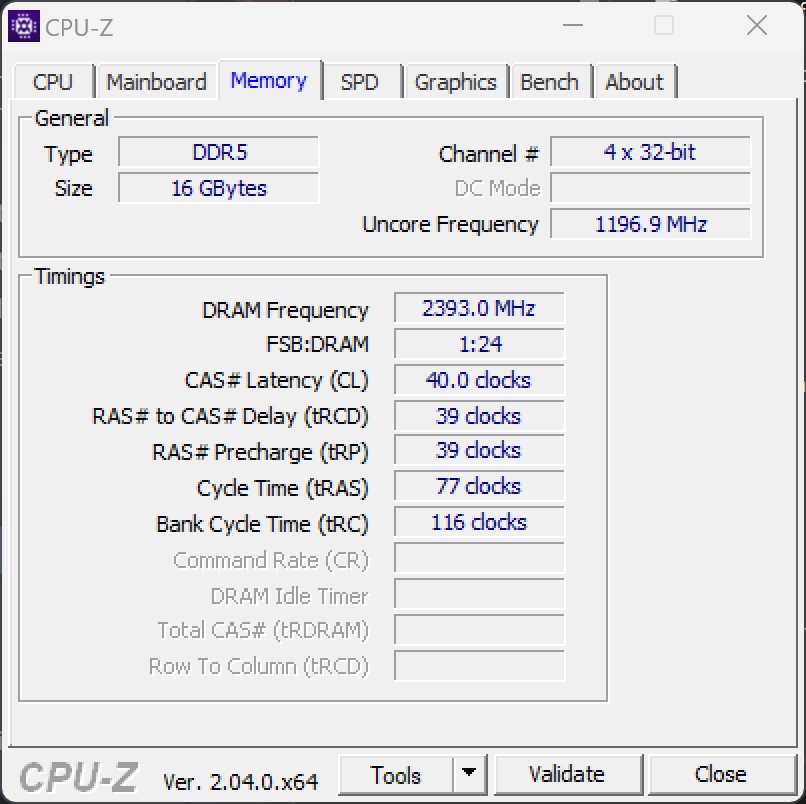

最大的区别在于的最大区别是较新的SoC与DDR5工作存储器的结合。在AIDA64测试中，工作内存的更高数据吞吐量显示得很清楚，而在PCMark 10中，所谓的性能优势则完全消失了。
| AIDA64 / Memory Copy | |
| Average AMD Ryzen 9 6900HX (47938 - 53345, n=20) | |
| Minisforum Neptune Series HX99G | |
| Average of class Mini PC (6481 - 89287, n=118, last 2 years) | |
| Intel Beast Canyon NUC | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Minisforum NUCX i7 | |
| Zotac ZBOX Magnus EN173070C | |
| Minisforum Neptune Series HX90G | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| AIDA64 / Memory Read | |
| Average AMD Ryzen 9 6900HX (43892 - 53321, n=20) | |
| Zotac ZBOX Magnus EN173070C | |
| Minisforum Neptune Series HX99G | |
| Intel Beast Canyon NUC | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Minisforum NUCX i7 | |
| Average of class Mini PC (6914 - 98398, n=118, last 2 years) | |
| Minisforum Neptune Series HX90G | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| AIDA64 / Memory Write | |
| Average AMD Ryzen 9 6900HX (51085 - 57202, n=20) | |
| Minisforum Neptune Series HX99G | |
| Average of class Mini PC (6862 - 98583, n=118, last 2 years) | |
| Zotac ZBOX Magnus EN173070C | |
| Minisforum NUCX i7 | |
| Intel Beast Canyon NUC | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Minisforum Neptune Series HX90G | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| AIDA64 / Memory Latency | |
| Minisforum NUCX i7 | |
| Average of class Mini PC (44.9 - 184.8, n=118, last 2 years) | |
| Average AMD Ryzen 9 6900HX (80.7 - 120.6, n=20) | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| Intel Beast Canyon NUC | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Minisforum Neptune Series HX99G | |
| Zotac ZBOX Magnus EN173070C | |
| Minisforum Neptune Series HX90G | |
* ... smaller is better

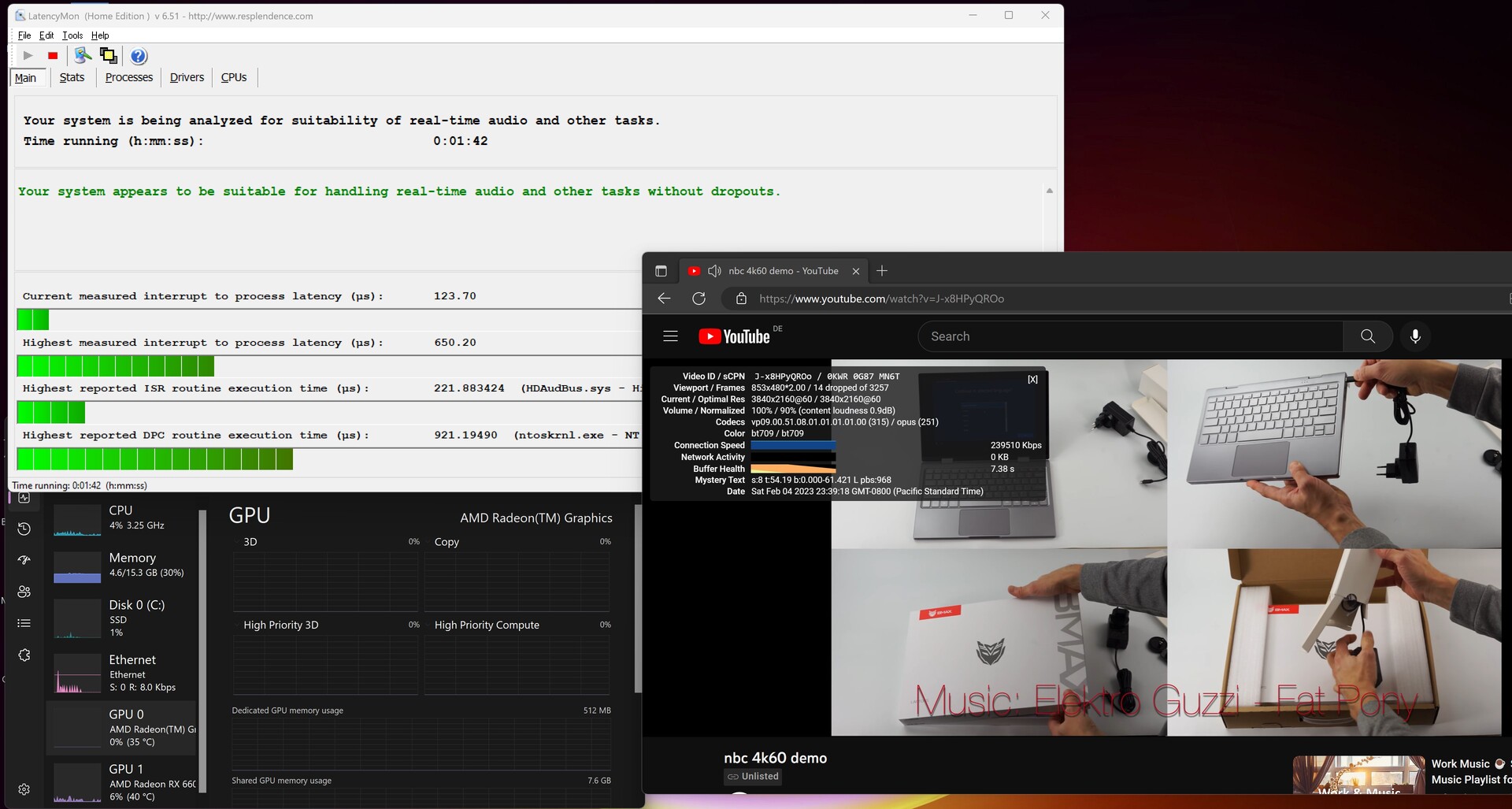

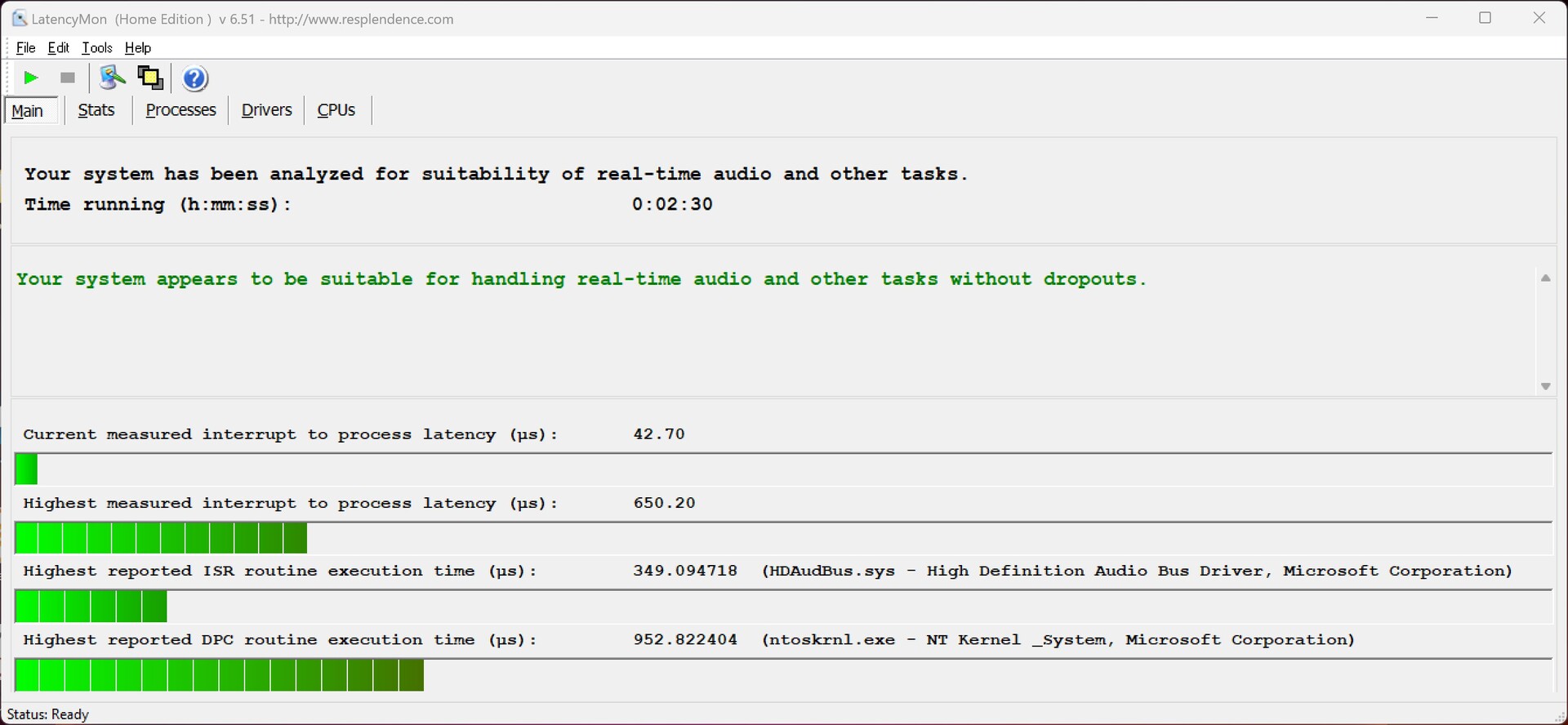

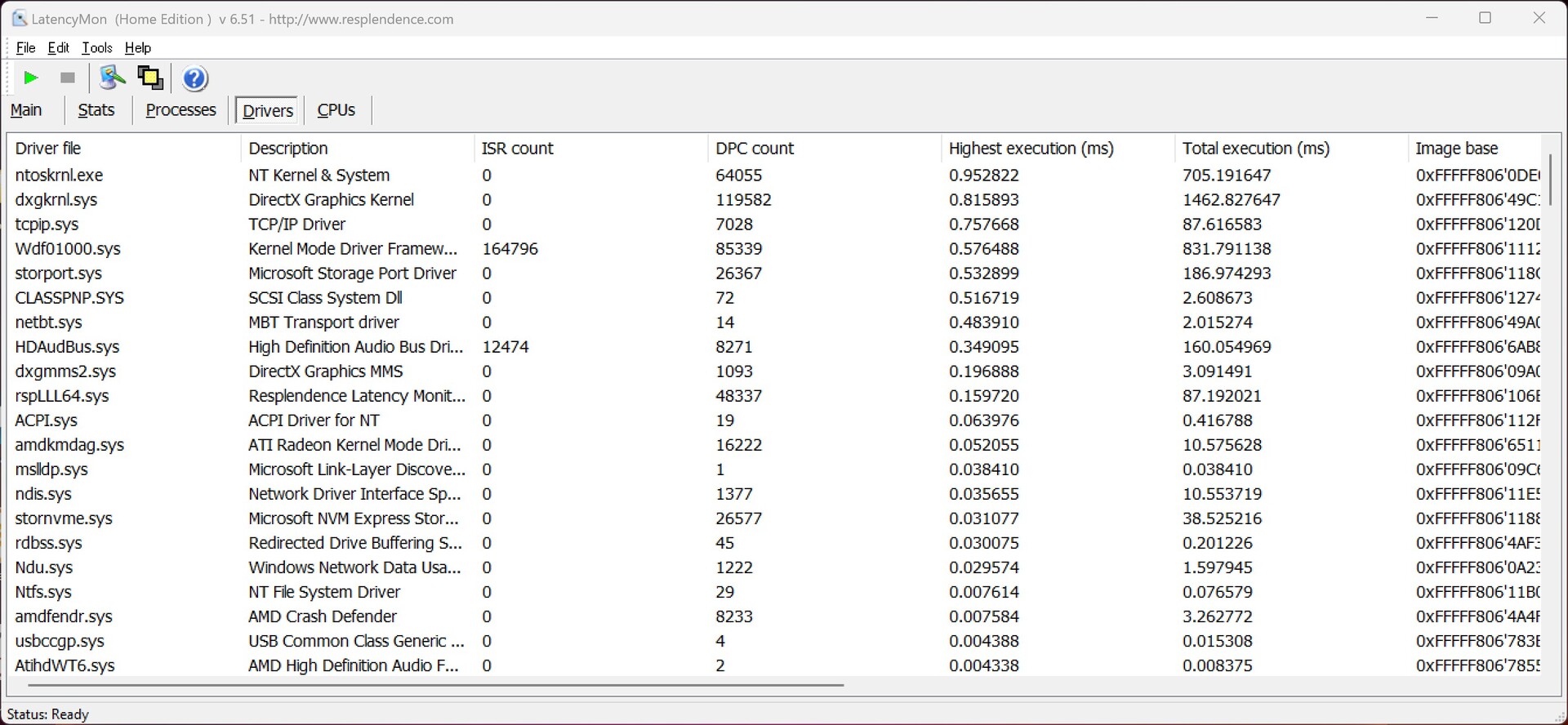

DPC延迟
Minisforum HX99G在Edge中打开几个浏览器标签并播放我们的4K YouTube视频时没有问题。LatencyMon当时没有报告任何增加的延迟。在只有大约6%的时候，AMD Radeon RX 6600M在播放测试视频时并没有受到真正的挑战。

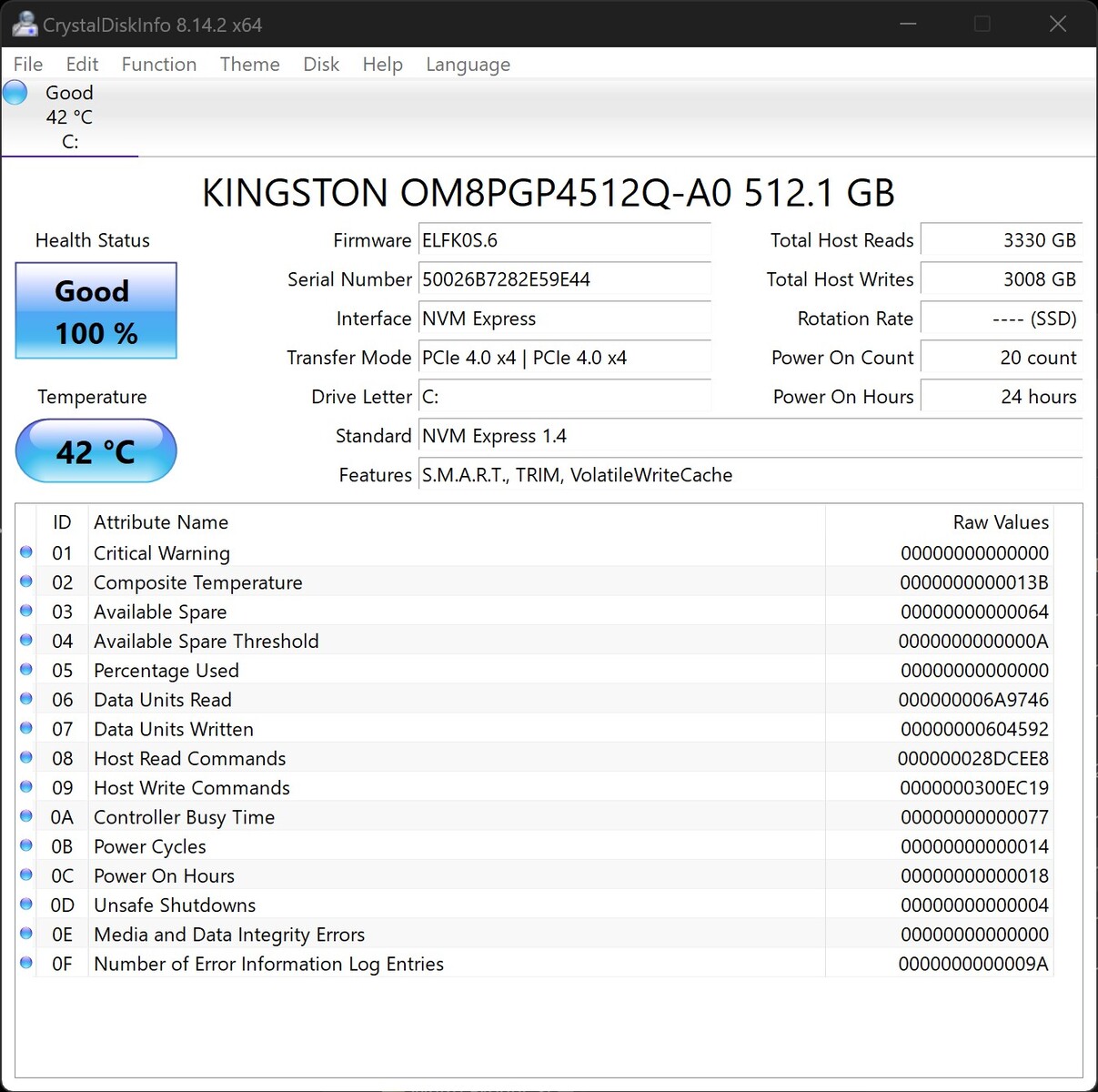

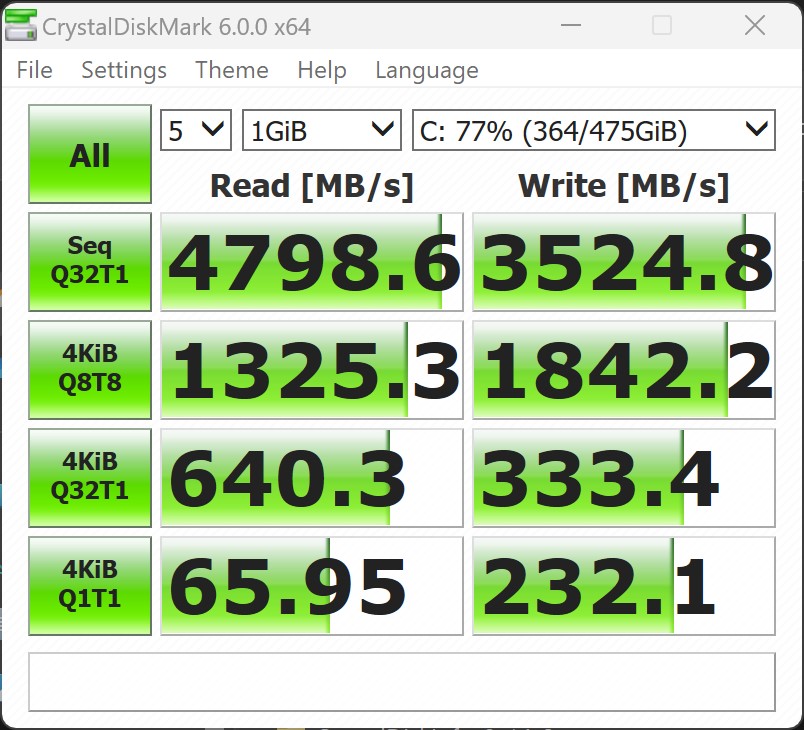

存储解决方案
目前，金士顿的固态硬盘在MINISFORUM的迷你PC中使用的比较多。Minisforum海王星系列HX99G的情况也是如此，该型号也提供了非常好的性能。这里使用的模型有512GB，并没有提供特别高的存储空间，而且它也是制造商在其预配置系统中提供的最小的模型。然而，作为一个游戏设备，至少应该有1TB的存储空间。幸运的是，你也可以在以后使用第二个M.2插槽轻松扩展存储空间。我们还想强调一下这里良好的4K读取性能，它明显改善了许多小文件的加载。
你可以在我们的 "比较图表 "中找到更多的比较和基准。比较图.

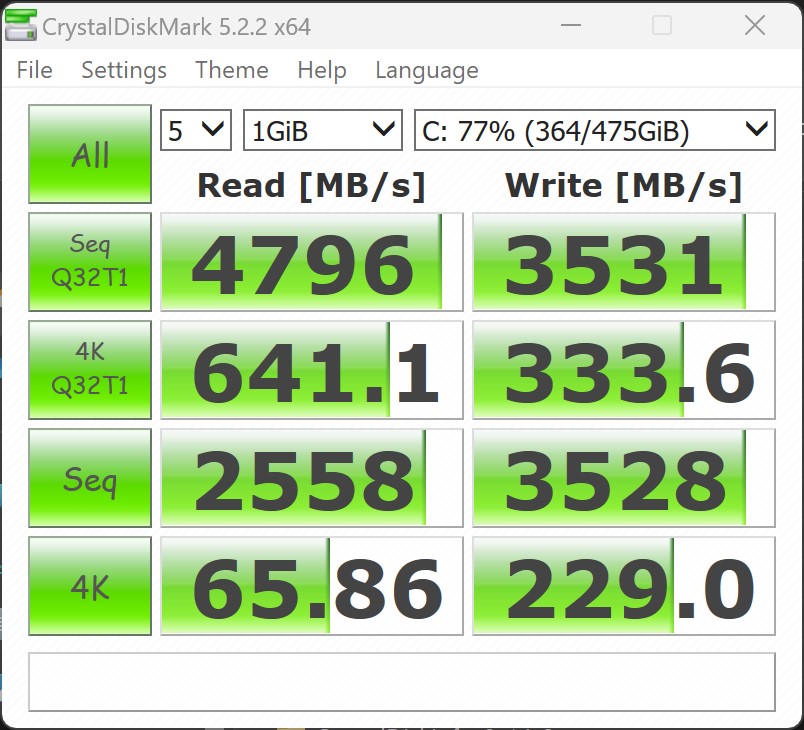

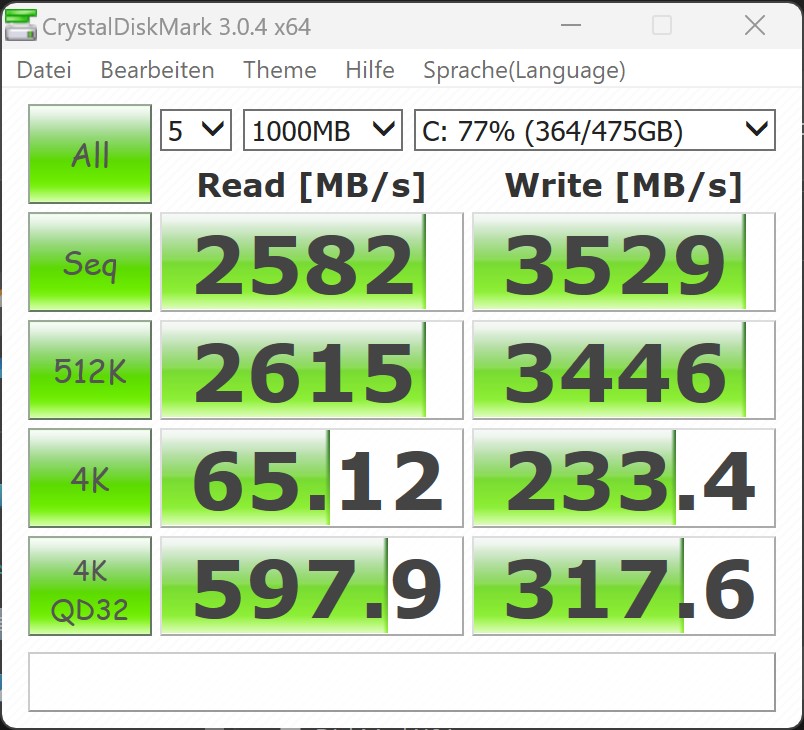

Kingston OM8PGP4512Q-A0
Sequential Read:
2582 MB/s
Sequential Write:
3529 MB/s
512K Read:
2615 MB/s
512K Write:
3446 MB/s
4K Read:
65.12 MB/s
4K Write:
233.4 MB/s
4K QD32 Read:
597.9 MB/s
4K QD32 Write:
317.6 MB/s
| Drive Performance Rating - Percent | |
| Minisforum Neptune Series HX99G | |
| Intel Beast Canyon NUC | |
| Intel Dragon Canyon NUC - RTX 3060 -11! | |
| Average of class Mini PC | |
| Zotac Magnus One (ECM73070C) | |
| Zotac ZBOX Magnus EN173070C | |
| Minisforum Neptune Series HX90G | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| Minisforum NUCX i7 | |
* ... smaller is better
Disk Throttling: DiskSpd Read Loop, Queue Depth 8
Minisforum Neptune Series HX99G Kingston OM8PGP4512Q-A0: Ø4444 (1608.24-4822.61)
Intel Beast Canyon NUC Sabrent Rocket 4.0 500GB: Ø3896 (225.06-5002.7)
Zotac ZBOX Magnus EN173070C Transcend M.2 SSD 2200S TS512GMTE220S: Ø2440 (1786.98-2501.9)
Intel Dragon Canyon NUC - RTX 3060 Transcend M.2 SSD 2200S TS512GMTE220S: Ø3896 (225.06-5002.7)
Lenovo Legion 5 15ACH6A-82NW0010GE Micron 2210 MTFDHBA512QFD: Ø2173 (1985.57-2179.99)
Minisforum NUCX i7 : Ø2309 (2137.76-2318.4)
Minisforum Neptune Series HX90G ESO512GYLCT: Ø1859 (996.67-1961.26)
图形卡

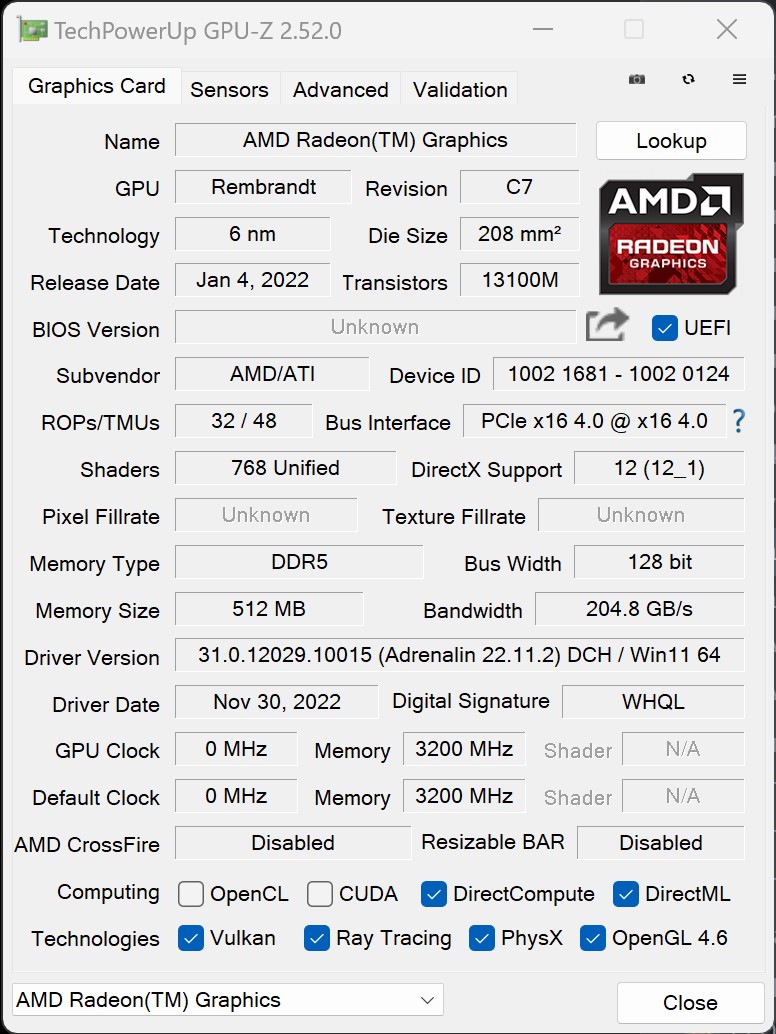

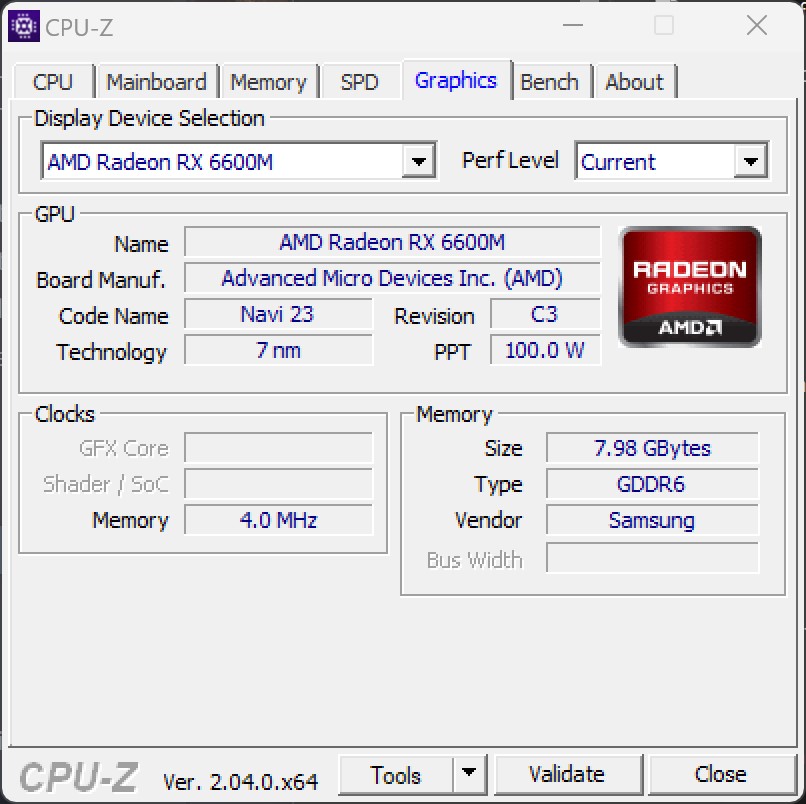

Minisforum Neptune系列HX99G的3D性能一方面是由 AMD Radeon 680M而另一方面，则是由 AMD Radeon RX 6600M作为专用图形适配器，当需要更高的性能时。除了iGPU之外，这台迷你PC还为要求苛刻的应用提供了坚实的3D性能。我们已经知道这一点，从Minisforum Neptune系列HX90G和各种笔记本电脑的评论中已经知道了。Minisforum并没有限制专用显卡的最大性能，允许3D加速器消耗高达100瓦的功率。
在合成性能比较过程中，我们的测试装置只排在比较领域的中下水平。龄的 AMD Radeon RX 6600M在这一点上是明显的，基于RDNA-3的后继者正在准备。那些仍然需要更高的3D性能的人可以使用Thunderbolt连接，目前只在该系列的HX99G中提供。我们开始工作，并记录了与Razer Core X和一台 NvidiaGeForce RTX 3060 Ti.有了它，我们在比较中取得的性能对应于 Minisforum NUCXi7与一个 NvidiaGeForce RTX 3070 Laptop.同时，你仍然必须做显著的性能限制，因为使用Thunderbolt，外部显卡只通过4个PCI Express通道连接。
关于其他细节 AMD Radeon RX 6600M的更多细节，我们建议你到我们的GPU页面。
你可以在我们的 "GPU比较表 "中找到更多的比较和基准。 GPU比较表.
| 3DMark Performance Rating - Percent | |
| Zotac Magnus One (ECM73070C) | |
| Zotac ZBOX Magnus EN173070C | |
| Minisforum Neptune Series HX99G (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum NUCX i7 | |
| Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| Minisforum Neptune Series HX90G | |
| Average AMD Radeon RX 6600M | |
| Minisforum Neptune Series HX99G | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Intel Beast Canyon NUC | |
| 3DMark 11 - 1280x720 Performance GPU | |
| Zotac Magnus One (ECM73070C) | |
| Minisforum NUCX i7 | |
| Zotac ZBOX Magnus EN173070C | |
| Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Neptune Series HX99G (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Neptune Series HX99G | |
| Minisforum Neptune Series HX90G | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| Average AMD Radeon RX 6600M (27030 - 32340, n=6) | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Intel Beast Canyon NUC | |
Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition | ComputeMark v2.1
| Performance Rating - Percent | |
| Zotac Magnus One (ECM73070C) -5! | |
| Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Neptune Series HX99G (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Zotac ZBOX Magnus EN173070C | |
| Minisforum NUCX i7 | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Intel Beast Canyon NUC | |
| Minisforum Neptune Series HX99G | |
| Minisforum Neptune Series HX90G | |
| Lenovo Legion 5 15ACH6A-82NW0010GE -5! | |
| Unigine Heaven 4.0 | |
| Extreme Preset OpenGL | |
| Zotac Magnus One (ECM73070C) | |
| Minisforum Neptune Series HX99G (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Zotac ZBOX Magnus EN173070C | |
| Minisforum NUCX i7 | |
| Minisforum Neptune Series HX99G | |
| Minisforum Neptune Series HX90G | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Intel Beast Canyon NUC | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| Extreme Preset DX11 | |
| Zotac Magnus One (ECM73070C) | |
| Zotac ZBOX Magnus EN173070C | |
| Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Neptune Series HX99G (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum NUCX i7 | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Intel Beast Canyon NUC | |
| Minisforum Neptune Series HX99G | |
| Minisforum Neptune Series HX90G | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| Unigine Valley 1.0 | |
| 1920x1080 Extreme HD DirectX AA:x8 | |
| Zotac Magnus One (ECM73070C) | |
| Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Neptune Series HX99G (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Zotac ZBOX Magnus EN173070C | |
| Minisforum NUCX i7 | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Intel Beast Canyon NUC | |
| Minisforum Neptune Series HX99G | |
| Minisforum Neptune Series HX90G | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| 1920x1080 Extreme HD Preset OpenGL AA:x8 | |
| Zotac Magnus One (ECM73070C) | |
| Minisforum Neptune Series HX99G (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Zotac ZBOX Magnus EN173070C | |
| Minisforum NUCX i7 | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Intel Beast Canyon NUC | |
| Minisforum Neptune Series HX90G | |
| Minisforum Neptune Series HX99G | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| Unigine Superposition | |
| 1920x1080 1080p High | |
| Zotac Magnus One (ECM73070C) | |
| Minisforum Neptune Series HX99G (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Zotac ZBOX Magnus EN173070C | |
| Minisforum NUCX i7 | |
| Intel Beast Canyon NUC | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Minisforum Neptune Series HX99G | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| Minisforum Neptune Series HX90G | |
| 1920x1080 1080p Extreme | |
| Zotac Magnus One (ECM73070C) | |
| Minisforum Neptune Series HX99G (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Zotac ZBOX Magnus EN173070C | |
| Minisforum NUCX i7 | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Intel Beast Canyon NUC | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| Minisforum Neptune Series HX99G | |
| Minisforum Neptune Series HX90G | |
| ComputeMark v2.1 | |
| 1024x600 Normal, Score | |
| Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Neptune Series HX99G (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Zotac ZBOX Magnus EN173070C | |
| Minisforum NUCX i7 | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Intel Beast Canyon NUC | |
| Minisforum Neptune Series HX99G | |
| Minisforum Neptune Series HX90G | |
| 1024x600 Normal, Fluid 3DTex | |
| Minisforum Neptune Series HX99G (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Zotac ZBOX Magnus EN173070C | |
| Minisforum NUCX i7 | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Intel Beast Canyon NUC | |
| Minisforum Neptune Series HX90G | |
| Minisforum Neptune Series HX99G | |
| 1024x600 Normal, Fluid 2DTexArr | |
| Minisforum Neptune Series HX99G (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Zotac ZBOX Magnus EN173070C | |
| Minisforum NUCX i7 | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Intel Beast Canyon NUC | |
| Minisforum Neptune Series HX90G | |
| Minisforum Neptune Series HX99G | |
| 1024x600 Normal, Mandel Vector | |
| Minisforum Neptune Series HX99G (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum NUCX i7 | |
| Zotac ZBOX Magnus EN173070C | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Intel Beast Canyon NUC | |
| Minisforum Neptune Series HX99G | |
| Minisforum Neptune Series HX90G | |
| 1024x600 Normal, QJuliaRayTrace | |
| Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Neptune Series HX99G (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum NUCX i7 | |
| Zotac ZBOX Magnus EN173070C | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Intel Beast Canyon NUC | |
| Minisforum Neptune Series HX99G | |
| Minisforum Neptune Series HX90G | |
| Minisforum Neptune Series HX99G, AMD Ryzen 9 6900HX, AMD Radeon RX 6600M | Minisforum Neptune Series HX99G (Nvidia GeForce RTX 3060 Ti FE TB3), AMD Ryzen 9 6900HX, | Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX, AMD Radeon RX 6600M | Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3), AMD Ryzen 9 6900HX, | Intel Beast Canyon NUC, Intel Core i9-11900KB, NVIDIA GeForce RTX 3060 | Zotac Magnus One (ECM73070C), Intel Core i7-10700, NVIDIA GeForce RTX 3070 | Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU | Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900, NVIDIA GeForce RTX 3060 | Lenovo Legion 5 15ACH6A-82NW0010GE, AMD Ryzen 5 5600H, AMD Radeon RX 6600M | Minisforum NUCX i7, Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU | |
|---|---|---|---|---|---|---|---|---|---|---|
| SPECviewperf 12 | -38% | 2% | -37% | -43% | -31% | -32% | -40% | -45% | -34% | |
| 1900x1060 Solidworks (sw-03) | 180 | 70.6 -61% | 191 6% | 69.8 -61% | 71.6 -60% | 82.3 -54% | 79.4 -56% | 73.3 -59% | 105 -42% 105 -42% | 68.6 -62% |
| 1900x1060 Siemens NX (snx-02) | 164 | 9.64 -94% | 191 16% | 9.64 -94% | 8.75 -95% | 12 -93% | 11.7 -93% | 9.83 -94% | 36.2 -78% 36.2 -78% | 11.1 -93% |
| 1900x1060 Showcase (showcase-01) | 129 | 147 14% | 122 -5% | 138 7% | 113 -12% | 165 28% | 136 5% | 117 -9% | 98.4 -24% 98.4 -24% | 138 7% |
| 1900x1060 Medical (medical-01) | 96.1 | 66.9 -30% | 96.9 1% | 68.1 -29% | 40.9 -57% | 49 -49% | 57.2 -40% | 49.2 -49% | 44.1 -54% 44.1 -54% | 55.7 -42% |
| 1900x1060 Maya (maya-04) | 159 | 193 21% | 190 19% | 203 28% | 191 20% | 200 26% | 212 33% | 196 23% | 90.1 -43% 90.1 -43% | 199 25% |
| 1900x1060 Energy (energy-01) | 31.4 | 13.3 -58% | 29.5 -6% | 13.4 -57% | 10 -68% | 13.1 -58% | 12.8 -59% | 10.6 -66% | 2.13 -93% 2.13 -93% | 12.1 -61% |
| 1900x1060 Creo (creo-01) | 107 | 57.2 -47% | 102 -5% | 57.4 -46% | 49.4 -54% | 61.5 -43% | 59 -45% | 56.9 -47% | 86 -20% 86 -20% | 55.4 -48% |
| 1900x1060 Catia (catia-04) | 207 | 110 -47% | 240 16% | 110 -47% | 77 -63% | 117 -43% | 115 -44% | 77.5 -63% | 141 -32% 141 -32% | 108 -48% |
| 1900x1060 3ds Max (3dsmax-05) | 204 | 128 -37% | 154 -25% | 129 -37% | 201 -1% | 213 4% | 233 14% | 214 5% | 172 -16% 172 -16% | 230 13% |
| SPECviewperf 13 | -25% | 3% | -26% | -38% | -15% | -21% | -35% | -39% | -23% | |
| Solidworks (sw-04) | 169 | 114 -33% | 186 10% | 112 -34% | 104 -38% | 114 -33% | 111 -34% | 107 -37% | 127 -25% | 104 -38% |
| Siemens NX (snx-03) | 299 | 17.4 -94% | 344 15% | 17.3 -94% | 15.8 -95% | 21.9 -93% | 20.9 -93% | 17.7 -94% | 64.2 -79% | 20 -93% |
| Showcase (showcase-02) | 129 | 148 15% | 122 -5% | 138 7% | 113 -12% | 165 28% | 135 5% | 117 -9% | 98.5 -24% | 138 7% |
| Medical (medical-02) | 80.3 | 71.2 -11% | 68.1 -15% | 71.5 -11% | 54.4 -32% | 78.3 -2% | 69.5 -13% | 55.7 -31% | 63 -22% | 67.2 -16% |
| Maya (maya-05) | 280 | 338 21% | 326 16% | 341 22% | 262 -6% | 367 31% | 337 20% | 281 0% | 187 -33% | 333 19% |
| Energy (energy-02) | 43.5 | 25.9 -40% | 41.5 -5% | 26 -40% | 13.7 -69% | 28.2 -35% | 25.5 -41% | 13.7 -69% | 2.05 -95% | 24.5 -44% |
| Creo (creo-02) | 221 | 221 0% | 253 14% | 222 0% | 172 -22% | 241 9% | 225 2% | 191 -14% | 166 -25% | 215 -3% |
| Catia (catia-05) | 314 | 161 -49% | 365 16% | 161 -49% | 104 -67% | 171 -46% | 163 -48% | 107 -66% | 211 -33% | 155 -51% |
| 3ds Max (3dsmax-06) | 202 | 128 -37% | 156 -23% | 129 -36% | 202 0% | 213 5% | 235 16% | 207 2% | 174 -14% | 233 15% |
| Photoshop PugetBench | -9% | -12% | -2% | 5% | ||||||
| Filter Score | 97.6 | 97.8 0% | 98.9 1% | 89.4 -8% | 97.5 0% | |||||
| General Score | 77 | 63.1 -18% | 57.1 -26% | 68.4 -11% | 73.7 -4% | |||||
| GPU Score | 68 | 60.6 -11% | 61.3 -10% | 82.3 21% | 86.4 27% | |||||
| Overall Score | 873 | 805 -8% | 780 -11% | 789 -10% | 856 -2% | |||||
| Premiere Pro PugetBench | 17% | 14% | -19% | 26% | ||||||
| GPU 0.9 | 33.9 | 45.7 35% | 44.4 31% | 30.2 -11% | 52.3 54% | |||||
| Live Playback 0.9 | 43.6 | 58.4 34% | 57.6 32% | 37 -15% | 59.2 36% | |||||
| Export 0.9 | 47.6 | 41.7 -12% | 40.3 -15% | 34.3 -28% | 46.8 -2% | |||||
| Overall Score 0.9 | 456 | 501 10% | 490 7% | 357 -22% | 530 16% | |||||
| Total Average (Program / Settings) | -14% /
-21% | 3% /
2% | -15% /
-22% | -41% /
-41% | -23% /
-23% | -27% /
-26% | -38% /
-38% | -26% /
-35% | -7% /
-15% |
| 3DMark 05 Standard | 51445 points | |
| 3DMark 06 Standard Score | 51434 points | |
| 3DMark Vantage P Result | 78096 points | |
| 3DMark 11 Performance | 26677 points | |
| 3DMark Ice Storm Standard Score | 87314 points | |
| 3DMark Cloud Gate Standard Score | 53542 points | |
| 3DMark Fire Strike Score | 21063 points | |
| 3DMark Fire Strike Extreme Score | 10348 points | |
| 3DMark Time Spy Score | 8295 points | |
Help | ||
游戏性能
由于AMD Radeon RX 6600M导致MINISFORUM海王星系列HX99G的纯游戏性能 很好，提供了与MINISFORUM海王星系列HX90G差不多的速度 。 Minisforum海王星系列HX90G.更快的SoC在这里无法确保明显的更高的性能。相较于 联想Legion 5 同样的显卡，我们的测试样本非常明显地领先。原因是专用像素加速器的功耗，在整个MINISFORUM中最大为100瓦 。
在讨论合成基准时，我们已经提到通过Thunderbolt连接外部显卡的选项。但在纯游戏测试中，使用Razer Core X的配置和 NvidiaGeForce RTX 3060 Ti无法提供令人信服的性能。不幸的是，外部PCI Express连接的有限带宽正在要求它应得的。
另一方面，AMD Radeon RX 6600M的可用性能仍足以将大多数游戏在最大细节设置的1080p下流畅地带到屏幕上。有时，你还可以在1440p下玩许多游戏而不出现卡顿，所以这块老化的移动显卡仍有一些生命力。
GTA V | The Witcher 3 | Far Cry 5 | Far Cry New Dawn | F1 2020 | Dota 2 Reborn | Strange Brigade | Borderlands 3 | Metro Exodus | F1 2021
| GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
| Minisforum NUCX i7 | |
| Zotac ZBOX Magnus EN173070C | |
| Intel Beast Canyon NUC | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Zotac Magnus One (ECM73070C) | |
| Minisforum Neptune Series HX99G (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Neptune Series HX99G | |
| Minisforum Neptune Series HX90G | |
| Average AMD Radeon RX 6600M (65.9 - 88.7, n=6) | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
| Zotac Magnus One (ECM73070C) | |
| Zotac ZBOX Magnus EN173070C | |
| Minisforum NUCX i7 | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Minisforum Neptune Series HX99G | |
| Minisforum Neptune Series HX90G | |
| Average AMD Radeon RX 6600M (75.4 - 88.2, n=6) | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| Minisforum Neptune Series HX99G (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Far Cry 5 - 1920x1080 Ultra Preset AA:T | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Intel Beast Canyon NUC | |
| Zotac ZBOX Magnus EN173070C | |
| Minisforum NUCX i7 | |
| Zotac Magnus One (ECM73070C) | |
| Minisforum Neptune Series HX99G (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Neptune Series HX90G | |
| Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Neptune Series HX99G | |
| Average AMD Radeon RX 6600M (86 - 110, n=6) | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| Far Cry New Dawn - 1920x1080 Ultra Preset | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Intel Beast Canyon NUC | |
| Zotac ZBOX Magnus EN173070C | |
| Minisforum NUCX i7 | |
| Zotac Magnus One (ECM73070C) | |
| Minisforum Neptune Series HX99G (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Neptune Series HX90G | |
| Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Neptune Series HX99G | |
| Average AMD Radeon RX 6600M (67 - 91, n=4) | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| F1 2020 - 1920x1080 Ultra High Preset AA:T AF:16x | |
| Minisforum NUCX i7 | |
| Zotac ZBOX Magnus EN173070C | |
| Intel Beast Canyon NUC | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Minisforum Neptune Series HX99G | |
| Average AMD Radeon RX 6600M (128 - 135.8, n=4) | |
| Minisforum Neptune Series HX90G | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| Minisforum Neptune Series HX99G (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
| Intel Beast Canyon NUC | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Minisforum NUCX i7 | |
| Zotac ZBOX Magnus EN173070C | |
| Zotac Magnus One (ECM73070C) | |
| Minisforum Neptune Series HX99G (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Neptune Series HX99G | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| Average AMD Radeon RX 6600M (91.4 - 110.1, n=8) | |
| Minisforum Neptune Series HX90G | |
| Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
| Zotac Magnus One (ECM73070C) | |
| Zotac ZBOX Magnus EN173070C | |
| Minisforum NUCX i7 | |
| Minisforum Neptune Series HX99G | |
| Intel Beast Canyon NUC | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Minisforum Neptune Series HX90G | |
| Average AMD Radeon RX 6600M (138 - 158, n=6) | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| Minisforum Neptune Series HX99G (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Borderlands 3 - 1920x1080 Badass Overall Quality (DX11) | |
| Intel Beast Canyon NUC | |
| Zotac Magnus One (ECM73070C) | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Minisforum NUCX i7 | |
| Zotac ZBOX Magnus EN173070C | |
| Minisforum Neptune Series HX99G (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Neptune Series HX99G | |
| Minisforum Neptune Series HX90G | |
| Average AMD Radeon RX 6600M (59.9 - 67.3, n=5) | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| Metro Exodus - 1920x1080 Ultra Quality AF:16x | |
| Zotac Magnus One (ECM73070C) | |
| Zotac ZBOX Magnus EN173070C | |
| Minisforum NUCX i7 | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| Intel Beast Canyon NUC | |
| Average AMD Radeon RX 6600M (55.6 - 62.3, n=4) | |
| Minisforum Neptune Series HX90G | |
| Minisforum Neptune Series HX99G | |
| Minisforum Neptune Series HX99G (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x | |
| Minisforum NUCX i7 | |
| Zotac ZBOX Magnus EN173070C | |
| Intel Beast Canyon NUC | |
| Intel Dragon Canyon NUC - RTX 3060 | |
| Lenovo Legion 5 15ACH6A-82NW0010GE | |
| Minisforum Neptune Series HX90G | |
| Minisforum Neptune Series HX99G | |
| Average AMD Radeon RX 6600M (80.9 - 95.9, n=5) | |
| Minisforum Neptune Series HX99G (Nvidia GeForce RTX 3060 Ti FE TB3) | |
| Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Neptune Series HX99G + AMD Radeon RX 6600M
| low | med. | high | ultra | QHD | 4K | |
|---|---|---|---|---|---|---|
| GTA V (2015) | 177.7 | 170.8 | 156.9 | 88.7 | 63.8 | 58.7 |
| The Witcher 3 (2015) | 347.7 | 262.4 | 146.1 | 88.2 | 44.1 | |
| Dota 2 Reborn (2015) | 147.6 | 132.7 | 123.2 | 109.1 | 79.2 | |
| Final Fantasy XV Benchmark (2018) | 201 | 111.4 | 82 | 58.2 | 30.6 | |
| X-Plane 11.11 (2018) | 77.4 | 59.5 | 46.4 | 30.6 | ||
| Far Cry 5 (2018) | 133 | 116 | 112 | 105 | 90 | 44 |
| Strange Brigade (2018) | 390 | 226 | 181.5 | 158 | 101.3 | 52.8 |
| Shadow of the Tomb Raider (2018) | 138 | 120 | 114.2 | 103.2 | 69.5 | 33.6 |
| Far Cry New Dawn (2019) | 115 | 100 | 96 | 87 | 83 | 49 |
| Metro Exodus (2019) | 207 | 105.6 | 77.2 | 55.6 | 47.6 | 28.7 |
| Borderlands 3 (2019) | 114.7 | 100.7 | 83.9 | 67.3 | 45.7 | 24.1 |
| F1 2020 (2020) | 298 | 235 | 204 | 135.8 | 99.7 | 54.5 |
| F1 2021 (2021) | 332 | 249 | 207 | 94.2 | 66.1 | 35.4 |
| Far Cry 6 (2021) | 125.3 | 101.2 | 92.2 | 91.7 | 68.6 | 15 |
| Guardians of the Galaxy (2021) | 119 | 117 | 116 | 115 | 100 | 58 |
| Forza Horizon 5 (2021) | 211 | 127 | 114 | 67 | 54 | 34 |
| God of War (2022) | 90.4 | 85.4 | 80.6 | 55.9 | 44.2 | 26.1 |
| GRID Legends (2022) | 186.8 | 169.8 | 138.4 | 116.3 | 89.6 | 52.5 |
| Tiny Tina's Wonderlands (2022) | 183.4 | 143.4 | 93.1 | 72 | 48.1 | 25.1 |
| F1 22 (2022) | 224 | 222 | 181.1 | 40.8 | 25.2 | 11.8 |
| The Callisto Protocol (2022) | 122.5 | 89.3 | 56.3 | 56 | 39.4 | 22 |
| Need for Speed Unbound (2022) | 110.5 | 102.7 | 81.9 | 65.6 | 50.6 | 26.8 |
| High On Life (2023) | 198.3 | 151.6 | 108 | 85 | 48.6 | 19.8 |
| The Witcher 3 v4.00 (2023) | 149.3 | 120.5 | 106.2 | 90.2 | 57.7 | 29.5 |
| Dead Space Remake (2023) | 66.5 | 62.8 | 52.6 | 51.9 | 32.6 | 13 |
| Hogwarts Legacy (2023) | 100.3 | 88.1 | 68.6 | 52.8 | 36.9 | 20.5 |
| Returnal (2023) | 86 | 84 | 75 | 62 | 44 | 23 |
| Atomic Heart (2023) | 165.5 | 117.9 | 68.7 | 53.8 | 39.5 | 23 |
| Company of Heroes 3 (2023) | 123.2 | 110.6 | 86.1 | 83.9 | 60.6 | 34.9 |
| Sons of the Forest (2023) | 78.2 | 74.2 | 70.1 | 69.7 | 50.3 | 28 |
| Resident Evil 4 Remake (2023) | 115.2 | 87.8 | 77.7 | 52 | 36.9 | 21.6 |
| The Last of Us (2023) | 83.5 | 68.5 | 61 | 49.1 | 29.2 | 12.8 |
| Dead Island 2 (2023) | 193.8 | 169.6 | 129 | 119.3 | 76.2 | 35.3 |
| Star Wars Jedi Survivor (2023) | 66.3 | 58.1 | 54.1 | 50.7 | 30.9 | 14.9 |
Minisforum Neptune Series HX99G + Nvidia GeForce RTX 3060 Ti (Razer Core X via Thunderbolt)
| low | med. | high | ultra | QHD | 4K | |
|---|---|---|---|---|---|---|
| GTA V (2015) | 177.2 | 170.3 | 155.6 | 90.6 | 84.7 | 97.4 |
| The Witcher 3 (2015) | 212.8 | 146.6 | 112.7 | 58.6 | 63.3 | |
| Dota 2 Reborn (2015) | 142.6 | 128.2 | 123.7 | 114.6 | 98 | |
| X-Plane 11.11 (2018) | 112.1 | 98.2 | 79.1 | 68.5 | ||
| Far Cry 5 (2018) | 143 | 122 | 117 | 111 | 91 | 56 |
| Strange Brigade (2018) | 171 | 135.2 | 132.1 | 129.8 | 118.5 | 80.4 |
| Shadow of the Tomb Raider (2018) | 120.2 | 93.8 | 92.5 | 89.5 | 78.5 | 50.5 |
| Far Cry New Dawn (2019) | 120 | 103 | 100 | 91 | 84 | 57 |
| Metro Exodus (2019) | 115.5 | 77.1 | 59.4 | 44.8 | 39.8 | 30.5 |
| Borderlands 3 (2019) | 122.1 | 109.2 | 91.7 | 77.3 | 61.4 | 37 |
| F1 2020 (2020) | 177.3 | 100.3 | 105 | 88.4 | 75.2 | 51.8 |
| F1 2021 (2021) | 116.9 | 89.3 | 57.1 | 43.8 | 40.7 | 34.7 |
| Far Cry 6 (2021) | 62.7 | 53.6 | 44 | 37.9 | 37.2 | |
| Guardians of the Galaxy (2021) | 115 | 112 | 108 | 107 | 99 | 72 |
| Forza Horizon 5 (2021) | 97 | 62 | 57 | 36 | 34 | 25 |
| God of War (2022) | 99.7 | 88.4 | 74.8 | 58 | 52.6 | 38.1 |
| GRID Legends (2022) | 104.5 | 83.6 | 67.1 | 58.6 | 53.5 | 41.6 |
| Tiny Tina's Wonderlands (2022) | 154.2 | 123.7 | 90 | 73.4 | 56.9 | 22.5 |
| F1 22 (2022) | 50 | 45.9 | 35.2 | 22.1 | 21 | 17 |
| The Callisto Protocol (2022) | 107.4 | 95.9 | 71 | 70.9 | 54.9 | 34.3 |
| High On Life (2023) | 143.5 | 113.8 | 89.5 | 79.3 | 53.4 | 22.1 |
| The Witcher 3 v4.00 (2023) | 110.7 | 94.2 | 85.9 | 75.4 | 65.2 | 45.8 |
| Dead Space Remake (2023) | 58.2 | 57.6 | 52.9 | 52.8 | 38.4 | 23.7 |
排放 - 良好的冷却概念，而且声音不大
噪声水平

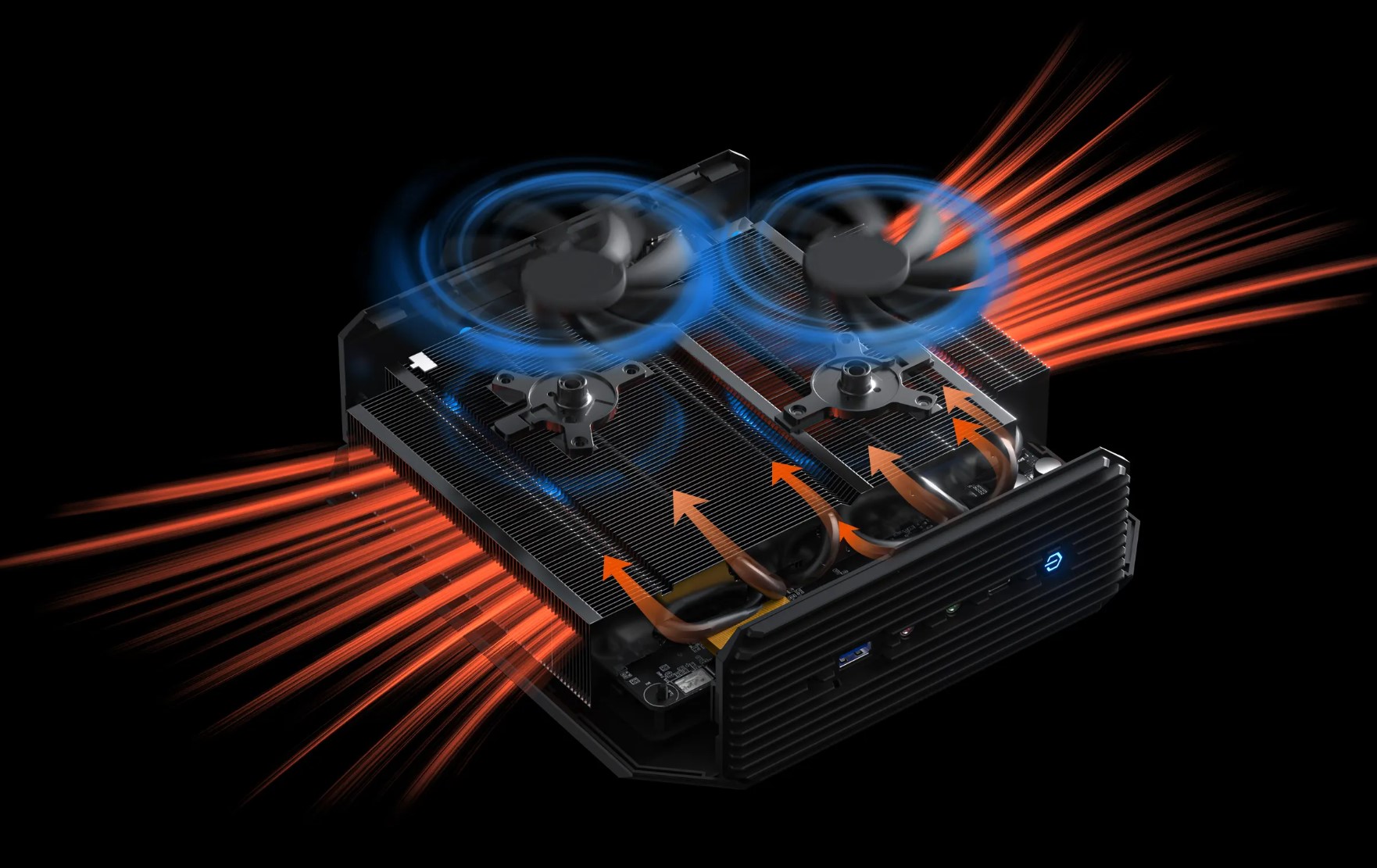

Minisforum海王星系列HX99G的散热由总共七根热管和两个大风扇组成。Minisforum在这里使用了热熔胶，以实现从SoC和GPU模具到散热器的完美热传导。在空闲运行期间，该系统几乎总是非常安静地运行，在31.7 dB(A)时，几乎是无声无息。在压力测试的负载下，我们的测量设备报告几乎不超过36 dB(A)。与类似装备的游戏笔记本电脑相比，这明显更安静，我们的测试装置远没有产生恼人的高频风扇噪音。
Noise Level
| Idle |
| 31.7 / 31.7 / 31.7 dB(A) |
| Load |
| 32 / 36.2 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 30.5 dB(A) | ||
| Minisforum Neptune Series HX99G R9 6900HX, Radeon RX 6600M | Minisforum Neptune Series HX90G R9 5900HX, Radeon RX 6600M | Minisforum NUCX i7 i7-11800H, GeForce RTX 3070 Laptop GPU | Zotac Magnus One (ECM73070C) i7-10700, NVIDIA GeForce RTX 3070 | Zotac ZBOX Magnus EN173070C i7-11800H, GeForce RTX 3070 Laptop GPU | Intel Dragon Canyon NUC - RTX 3060 i9-12900, NVIDIA GeForce RTX 3060 | Lenovo Legion 5 15ACH6A-82NW0010GE R5 5600H, Radeon RX 6600M | |
|---|---|---|---|---|---|---|---|
| Noise | 2% | 1% | -19% | -11% | -2% | -9% | |
| off / environment * | 30.5 | 30.3 1% | 29.5 3% | 30 2% | 30.7 -1% | 30.2 1% | 25 18% |
| Idle Minimum * | 31.7 | 30.4 4% | 29.5 7% | 33.58 -6% | 32.7 -3% | 30.2 5% | 25 21% |
| Idle Average * | 31.7 | 30.7 3% | 29.5 7% | 32.8 -3% | 30.4 4% | 25 21% | |
| Idle Maximum * | 31.7 | 30.7 3% | 29.5 7% | 32.8 -3% | 30.8 3% | 34.5 -9% | |
| Load Average * | 32 | 31 3% | 32.8 -3% | 44.25 -38% | 41.7 -30% | 51.1 -60% | |
| Load Maximum * | 36.2 | 36.6 -1% | 40.8 -13% | 48.72 -35% | 45.4 -25% | 45.1 -25% | 51.3 -42% |
* ... smaller is better
温度

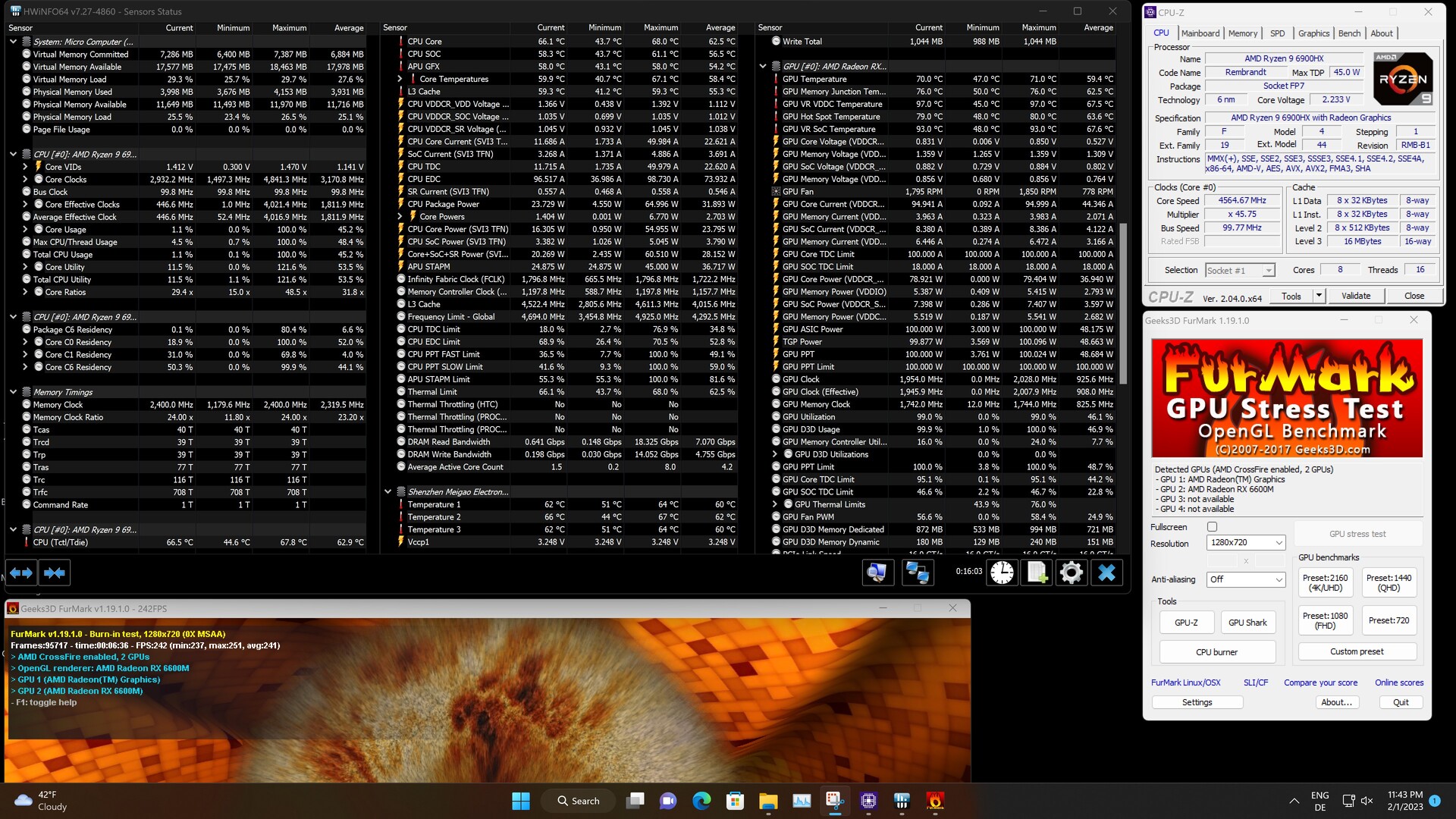

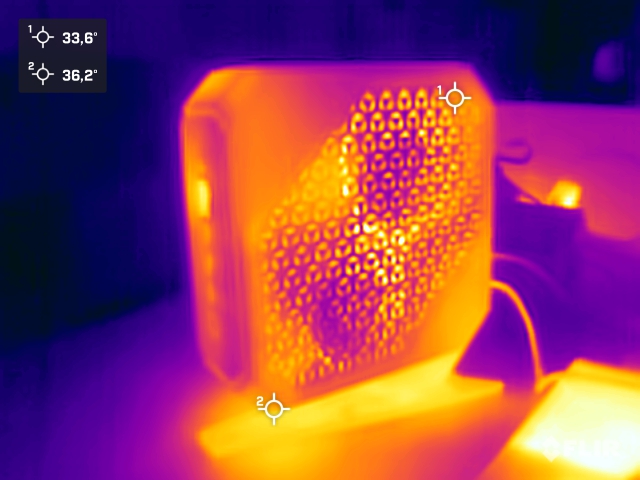

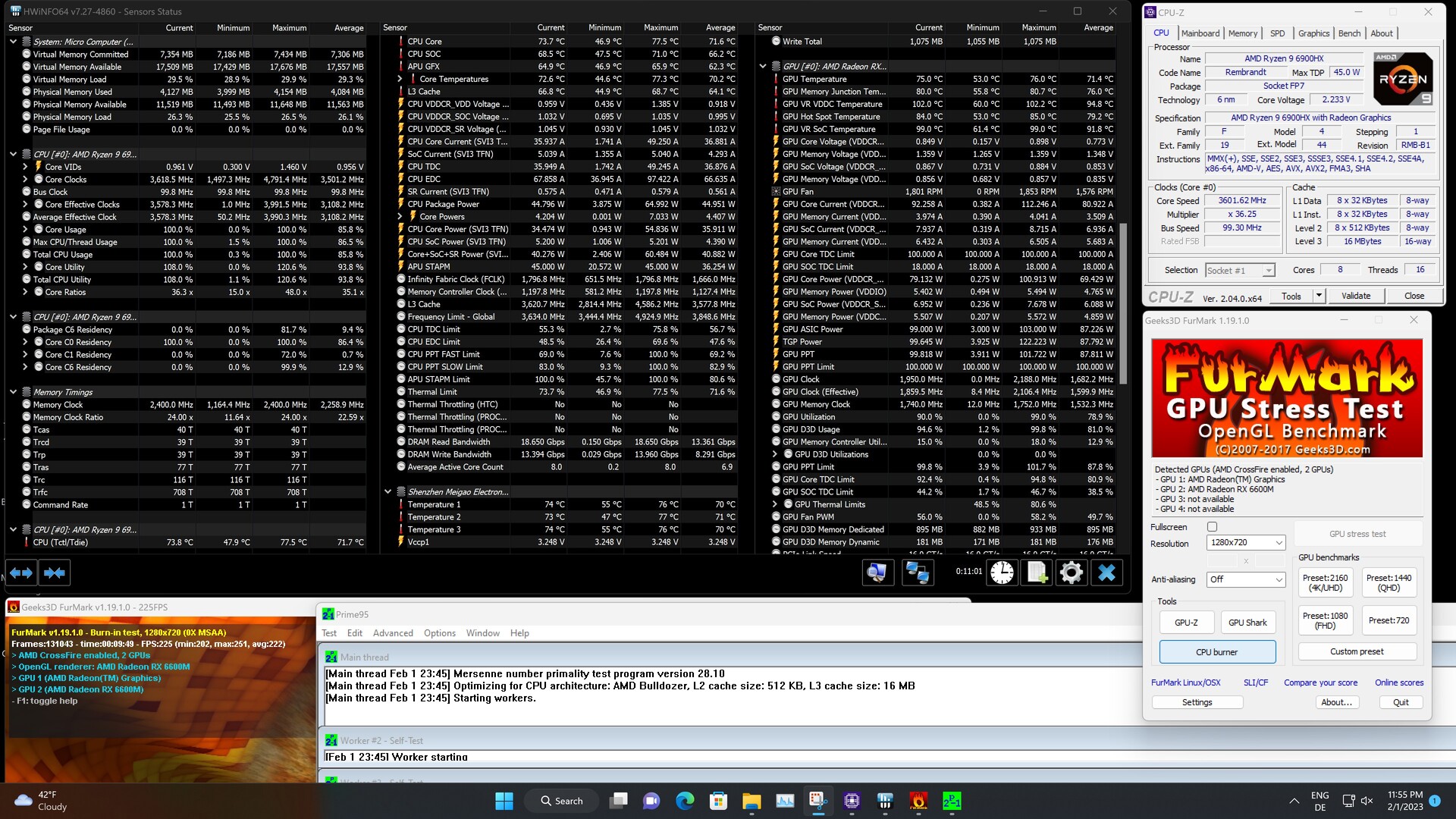

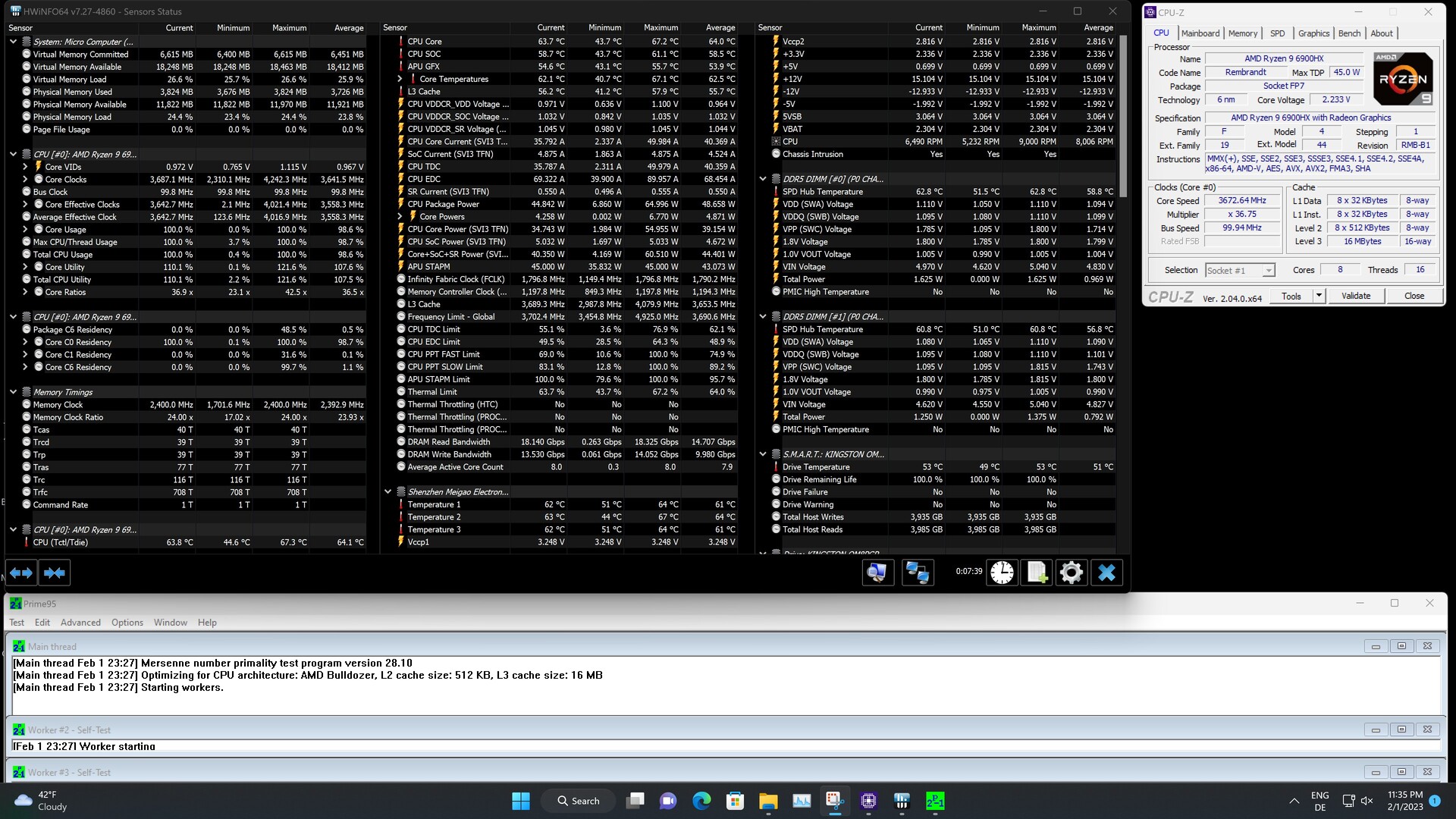

Minisforum Neptune系列HX99G的机箱温度完全没有问题。在最高77.5℃（171.5°F）时， AMD Ryzen 9 6900HX也没有变得特别热，仍然远离其热极限。然而，事情看起来与专用显卡略有不同，正如我们之前在 Minisforum Neptune Sereis HX90G.尽管在76℃（169°F）的温度下，芯片本身并不是问题，但我们看到电压转换器的温度非常高，达到102℃（216°F）。如果我们只用FurMark来折磨设备，单独的数值就会好很多。然后我们只看到97 °C (207 °F)，而它仍然是103 °C (217 °F)在HX90G.制造商似乎在这里对散热器进行了轻微的优化。在模拟极端情况的压力测试中，由于CPU和GPU上的极端负荷，温度比日常运行时要高。在我们的测试单元中，我们没有观察到任何由于温度过高而导致的性能节流现象。
消耗功率
在功耗方面，由于其高效的组件，大多数迷你PC与普通台式PC相比几乎都有优势。Minisforum Neptune系列HX99G在空闲运行时的功耗在16.8到23.1瓦之间，相当高效。在使用Prime95和FurMark进行压力测试时，在满负荷情况下，电源必须能够提供高达262瓦的功率。由于它的额定功率也是262瓦，所以它足够大，能够可靠地给设备提供足够的功率。在测试过程中，我们在电源供应方面完全没有遇到问题。
Power Consumption
| Off / Standby | 0.75 / 0.68 Watt |
| Idle | 16.8 / 19.4 / 23.1 Watt |
| Load |
81.5 / 237 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Minisforum Neptune Series HX99G R9 6900HX, Radeon RX 6600M | Minisforum Neptune Series HX90G R9 5900HX, Radeon RX 6600M | Minisforum NUCX i7 i7-11800H, GeForce RTX 3070 Laptop GPU | Zotac ZBOX Magnus EN173070C i7-11800H, GeForce RTX 3070 Laptop GPU | Lenovo Legion 5 15ACH6A-82NW0010GE R5 5600H, Radeon RX 6600M | Average AMD Radeon RX 6600M | Average of class Mini PC | |
|---|---|---|---|---|---|---|---|
| Power Consumption | 2% | -34% | -81% | 2% | 5% | 42% | |
| Idle Minimum * | 16.8 | 17.8 -6% | 28.2 -68% | 31.3 -86% | 10 40% | 13.7 ? 18% | 9.48 ? 44% |
| Idle Average * | 19.4 | 17.9 8% | 29.9 -54% | 35.1 -81% | 13.2 32% | 16.6 ? 14% | 11.5 ? 41% |
| Idle Maximum * | 23.1 | 18.1 22% | 36.2 -57% | 41.6 -80% | 15.6 32% | 19.1 ? 17% | 14.9 ? 35% |
| Load Average * | 81.5 | 82.1 -1% | 83.2 -2% | 214 -163% | 178 -118% | 114.4 ? -40% | 57.4 ? 30% |
| Load Maximum * | 237 | 262 -11% | 215.7 9% | 231 3% | 180 24% | 197.8 ? 17% | 97.5 ? 59% |
| Witcher 3 ultra * | 167 | 193.5 | 181 | ||||
| Cyberpunk 2077 ultra external monitor * | 177 |
* ... smaller is better
Power Consumption with External Monitor
Minisforum Neptune Series HX99G; Prime95 V2810 Stress (external Monitor): Ø89.9 (87.1-105.7)
Minisforum Neptune Series HX99G; Cinebench R15 Multi (external Monitor): Ø90.6 (84.1-98.7)
Minisforum Neptune Series HX99G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø174.2 (172.7-175.8)
Minisforum Neptune Series HX99G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø161.7 (149.9-168.5)
Minisforum Neptune Series HX99G; Idle 1min (external Monitor): Ø19.4 (16.9-23.1)
Pros
+ 非常好的系统性能
+ 现代AMD Ryzen 9 6900HX，具有8个核心和16个线程
+ AMD Radeon RX 6600M，有8GB的VRAM
+ USB4 + Thunderbolt
+ 坚固的外壳
+ 即使在负载下也相对安静
+ 最多可以同时使用4台显示器（2x 4K@60Hz + 2x 8K@60Hz）。
+ 低DPC延迟
Cons
- 没有SD卡读卡器
- 价格略高（不含回扣）
- 通过HDMI只有4K@60Hz
结论 - 一台现代而紧凑的游戏电脑
通过Minisforum Neptune系列HX99G，制造商对其非常紧凑的游戏PC进行了一些产品维护。随着新的 AMD Ryzen 9 6900HX，有一个快速的SoC，尽管它不能确保在性能上有明显的增加，相比于 AMD Ryzen 9 5900HX.由于结构紧凑，我们看到，正如通常情况下，笔记本电脑技术也被用于这些紧凑型PC。通常情况下，这样做效果很好，因为独立组件的性能在过去几年里有了巨大的提高。有了原生八核处理器(AMD Ryzen 9 6900HX)，有足够的性能，并结合了 AMD Radeon RX 6600M你甚至可以享受最新的游戏。根据我们的测试，在1080p和最高细节设置下，可以进行无限的游戏。

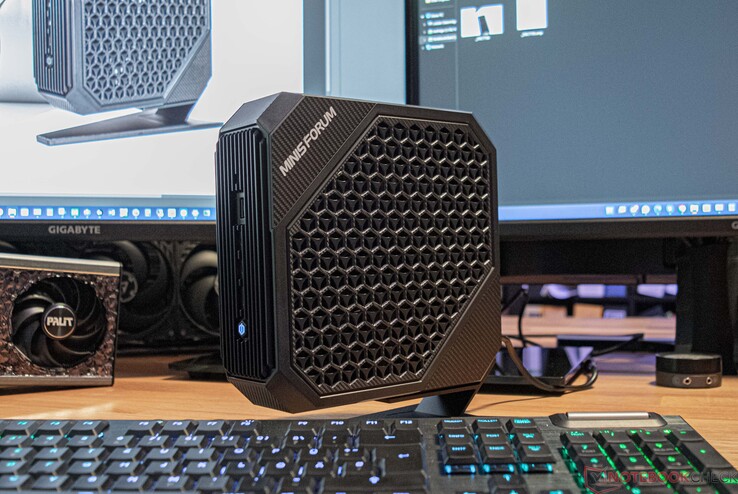

与MINISFORUM海王星系列HX90G一样，目前的HX99G模型也采用了几乎相同的外壳。从视觉上看，几乎没有任何差异。然而，如果你仔细观察，你可以看到背面的一些差异，这是由于现代的各种连接。现在有USB4，包括Thunderbolt，这只在HX99G中结合了 AMD Ryzen 9 6900HX.这使你可以大大扩展紧凑型计算机的使用场景。然而，我们在这里仍然有一个抱怨，因为HDMI只允许4K@60Hz。另一方面，你也可以使用USB4以60赫兹运行两个8K显示器，或者也可以使用这个端口进行4K@144赫兹。 由于设备类别（游戏PC），我们可以克服读卡器的缺乏。
Minisforum Neptune系列HX90G是一款时尚的紧凑型游戏电脑，适用于全高清游戏，没有任何妥协。
我们还想积极地强调Minisforum Neptune系列HX99G在负载下的低排放值。尽管有两个风扇在吹动机箱内的热量，但该设备还是比较安静。我们的测试装置能够通过我们的所有测试，性能稳定，没有任何较大的失误。就系统性能而言，它能够跟上普通的台式电脑，由于采用了AMD Radeon RX 6600M，游戏性能也很可观。
Minisforum海王星系列HX99G的竞争对手主要是其他内部设备，如Minisforum海王星系列HX90G或 Minisforum NUCXi7.但也有一些笔记本电脑能够与HX99G竞争，因为随着联想Legion 5，目前有一个具有类似设备的有吸引力的设备，价格为1380欧元（约1481美元）。
价格和可用性
Minisforum海王星系列HX99G可以在MINISFORUM的网上商店直接购买。目前预售仍有一些诱人的回扣。例如，你只需要为我们的测试装置支付$979，而没有回扣的价格是1219美元。更实惠的裸机型号目前起价为839美元。在美国，根据Minisforum的报道，HX99G将于3月初开始发货。
我们的测试装置是由制造商 免费提供 给作者用于测试的。测试结果没有受到任何影响，在发表之前，制造商没有收到任何版本的评论。没有发表的要求。
Minisforum Neptune Series HX99G
- 02/06/2023 v7 (old)
Sebastian Bade
Mini PC - Weighted Average
