Geekom Mini IT11评测：搭载酷睿i7-11390H和USB4的英特尔NUC竞争者已到极限

Name: Geekom Mini IT11, i7-11390H
Brand: Geekom

英特尔Tiger Lake 在2023年？

Geekom Mini IT11目前在纯粹的性能方面并不是最强大的设备之一。不过，Geekom已经更新了他们的Mini IT11，采用了现在略显过时的英特尔酷睿i7-11390H - 之前，该PC采用的是英特尔酷睿i7-1195G7。加上现代的连接选项，Mini IT11 目前仍然是一款不错的设备。值得庆幸的是，这款PC配备了Thunderbolt端口，因此我们还可以使用外置GPU测试其游戏性能。

Sebastian Bade (translated by DeepL / Ninh Duy), Published 07/12/2023 🇺🇸 🇩🇪 ...

Mini PC Desktop Intel Tiger Lake Thunderbolt

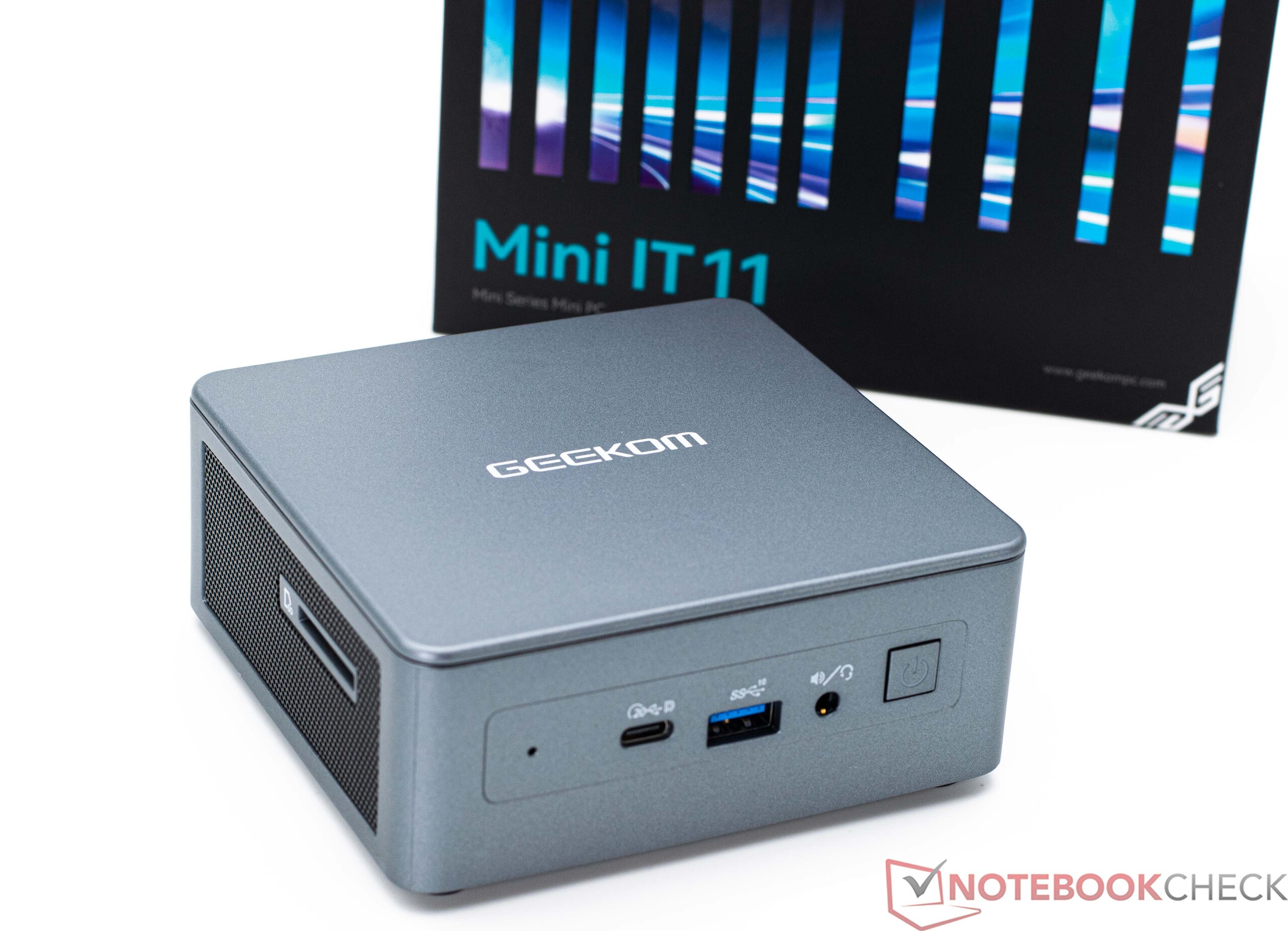

Geekom Mini IT11是一款基于知名英特尔NUC机型的高品质迷你PC。内部采用英特尔酷睿i7-11390H4核8线程，这意味着该设备比目前的型号差很多。这也难怪--该SoC于2021年发布，目前仍被归类为英特尔的Tiger Lake 系列型号。有了这颗SoC，该设备的旧型号英特尔酷睿i7-1195G7现在可以退休了。另外，您还可以从 Geekom 找到配备了英特尔酷睿i5-1155G7.

我们测试的Mini IT样品配备了32GB内存和1TB固态硬盘。这有助于这款小巧的计算野兽缩小与竞争对手的差距。但是，它现在略显过时的SoC与其更现代化的竞争对手相比又如何呢？价格方面，Geekom Mini IT11的售价为599美元。这是相当标准的价格，符合迷你 PC 市场的其他产品。

您可以在以下概述中找到本次评测的所有对比设备列表。

Test device courtesy of Geekom

Download your licensed rating image as PNG / SVG

Geekom Mini IT11, i7-11390H

Processor

Intel Core i7-11390H 4 x 3.4 - 5 GHz, 64 W PL2 / Short Burst, 35 W PL1 / Sustained, Tiger Lake-H35

Graphics adapter

Intel Iris Xe Graphics G7 96EUs, Core: 1400 MHz, RAM: 2000 MHz, 31.0.101.3959

Memory

32 GB

, DDR4-3200, max 64 GB

Mainboard

Intel Tiger Lake-UP3 PCH-LP

Storage

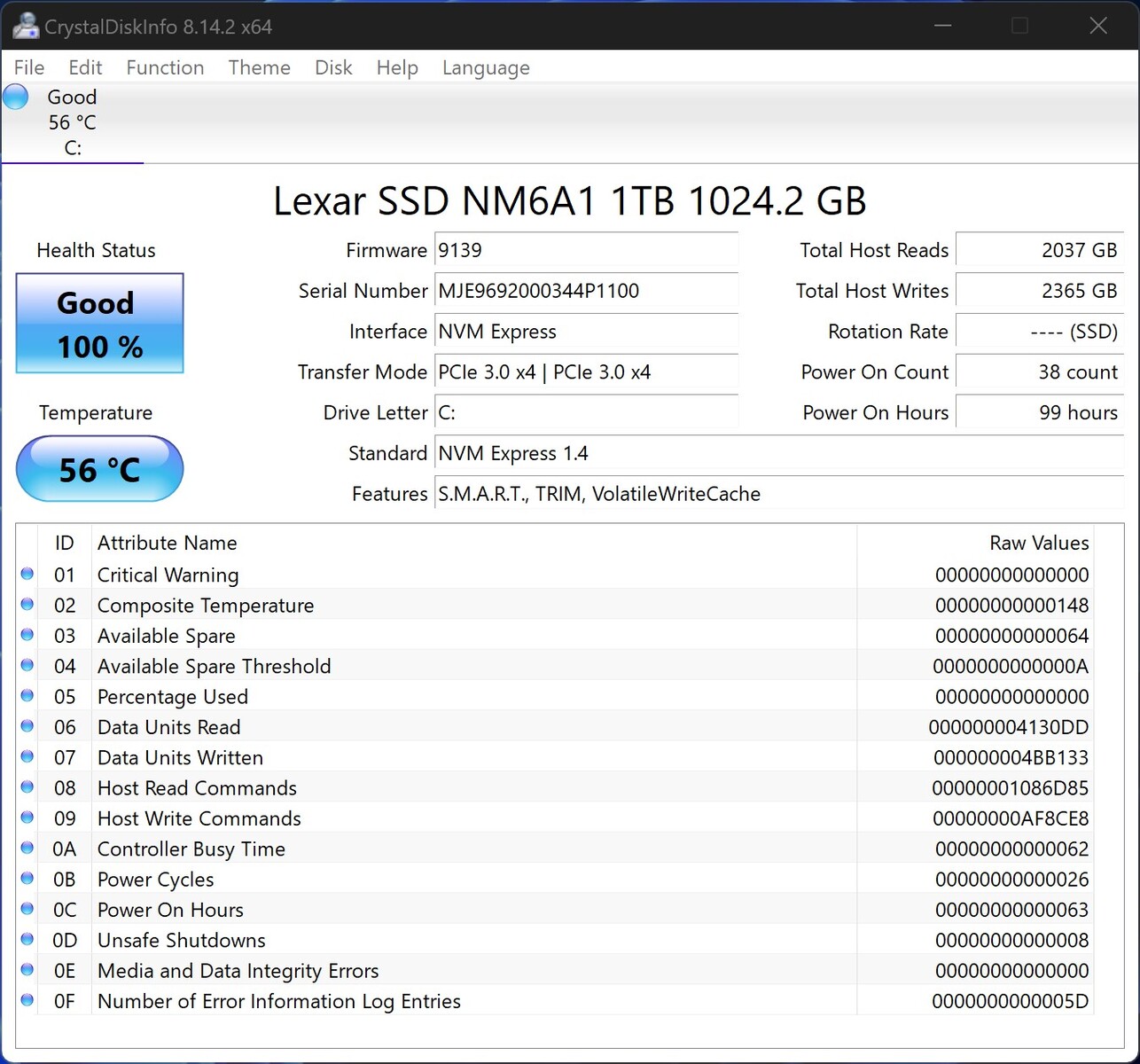

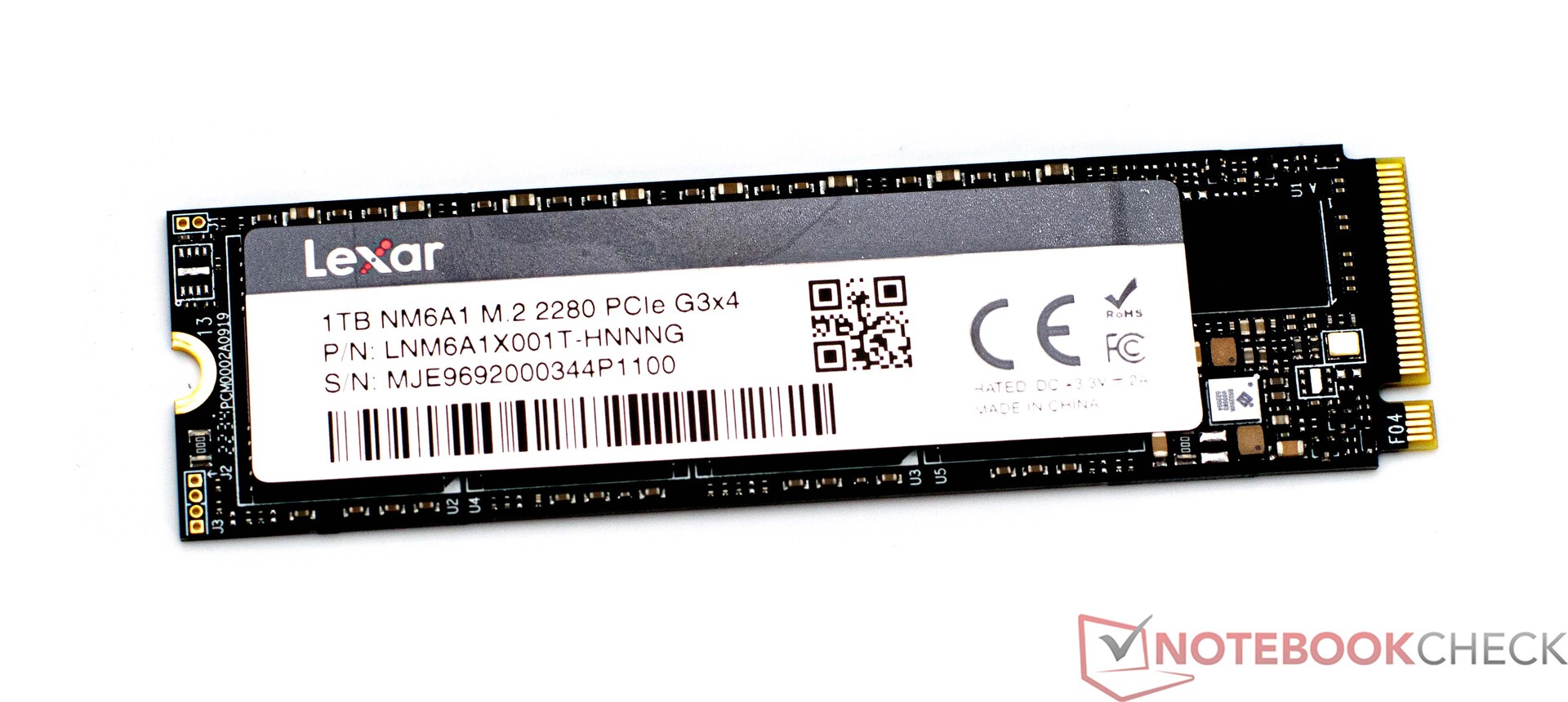

Lexar 1024GB LNM6A1X001T-HNNNG, 1024 GB

, M.2-2280, NVMe, 930 GB free

Soundcard

Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)

Connections

3 USB 3.1 Gen2, 2 USB 4.0 40 Gbps, 2 Thunderbolt, 1 HDMI, 3 DisplayPort, 1 Kensington Lock, Card Reader: Full-Size Card-Reader

Networking

Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Size

height x width x depth (in mm): 48 x 117 x 112

Operating System

Microsoft Windows 11 Pro

Additional features

24 Months Warranty

Weight

536 g, Power Supply: 236 g

Price

599 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height
80.6 % v7 ^(old)	07 / 2023	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	536 g	48 mm
83.7 % v7 ^(old)	05 / 2023	Morefine M600, 6600U R5 6600U, Radeon 660M	768 g	40.6 mm
82.3 % v7 ^(old)	05 / 2023	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	572 g	45.6 mm
81.9 % v7 ^(old)	05 / 2023	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	616 g	55 mm
81.7 % v7 ^(old)	05 / 2023	Minisforum Venus Series UM560 XT R5 5600H, Vega 7	652 g	48 mm
70.9 % v7 ^(old)	12 / 2022	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	468 g	50 mm
v ^(old)	11 / 2022	Geekom Mini IT11-GM11i7T i7-1195G7, Iris Xe G7 96EUs	565 g	45.6 mm
v7 ^(old)	09 / 2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 g	53 mm

Geekom Mini IT11, i7-11390H详细介绍

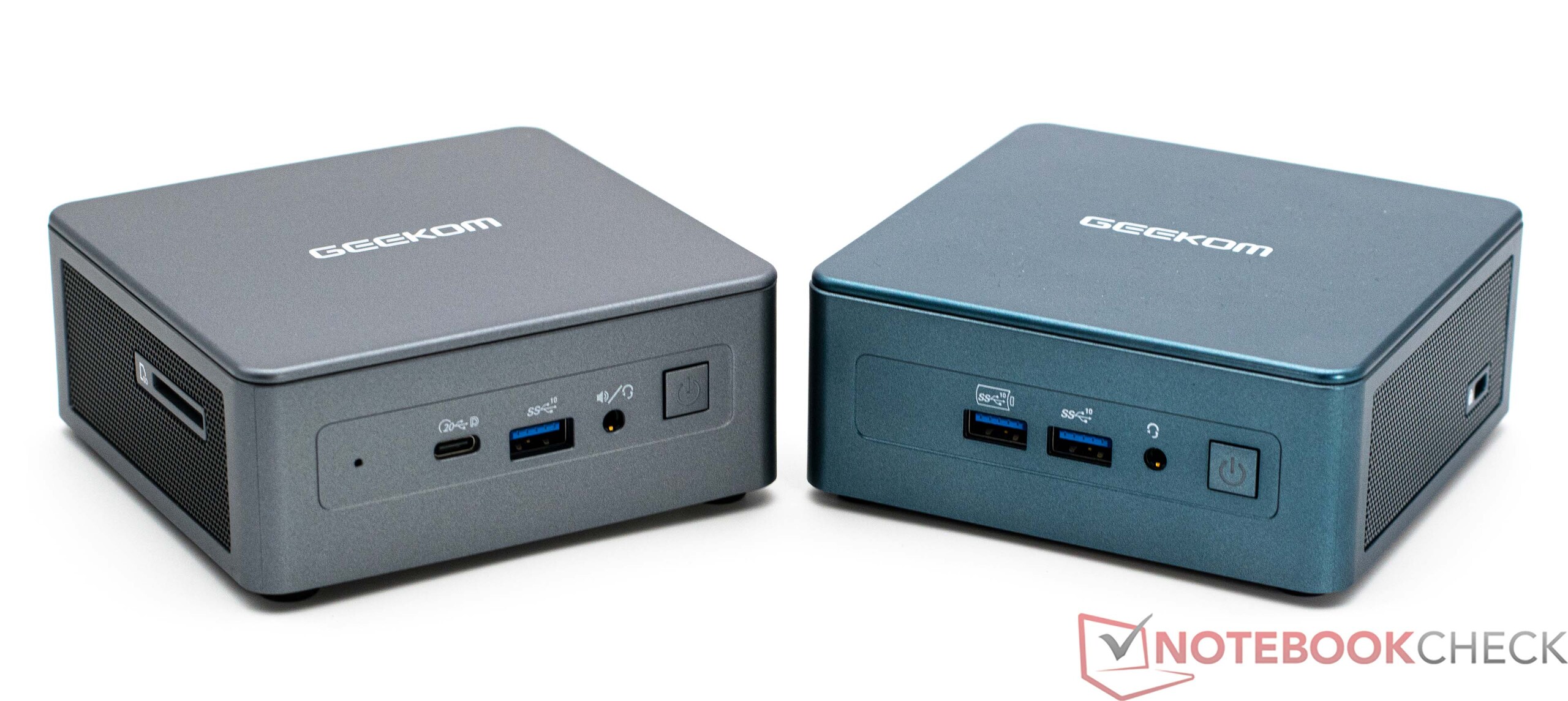

Geekom Mini IT11, i7-11390H (左), Geekom Mini IT12, i7-1260P (右)

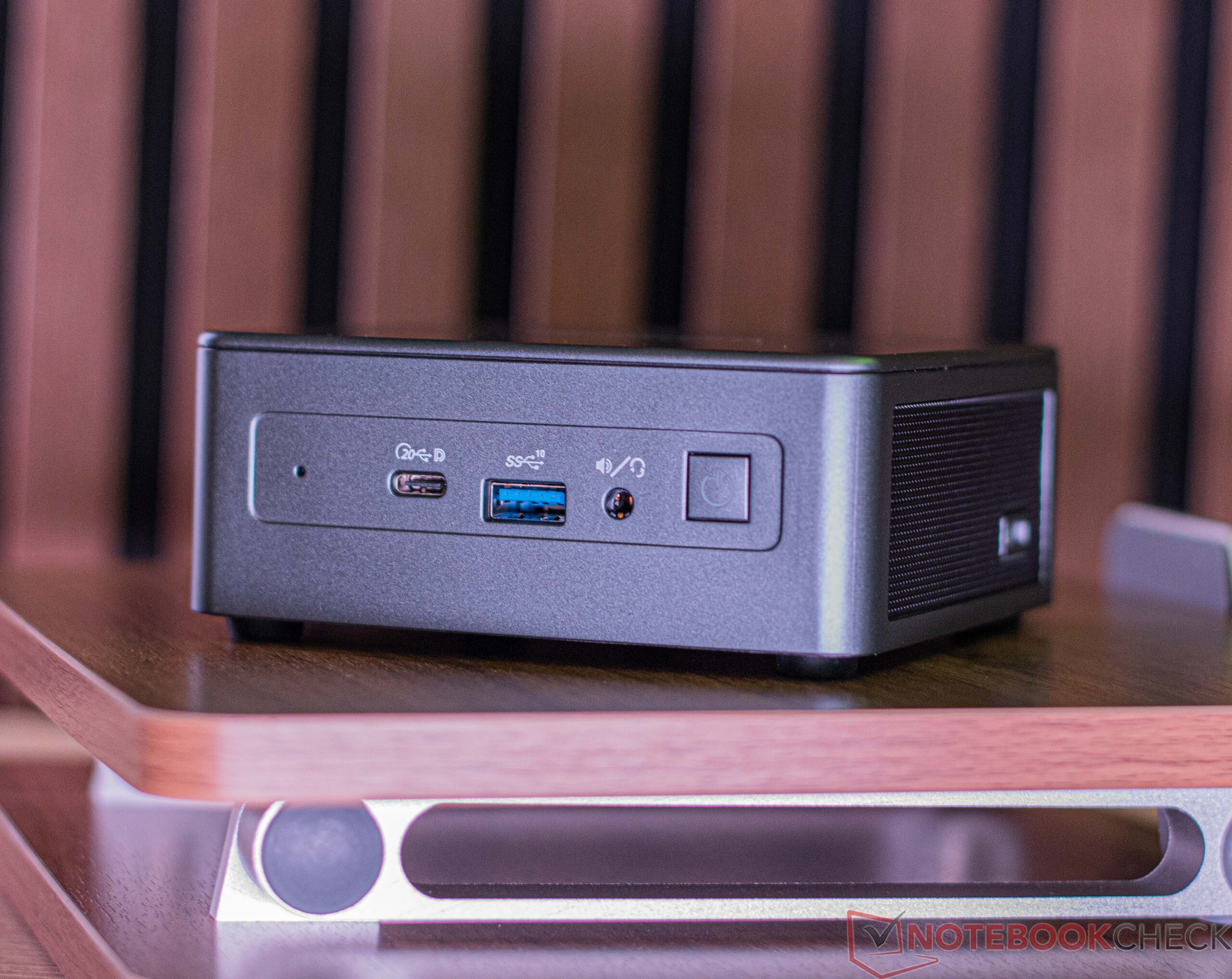

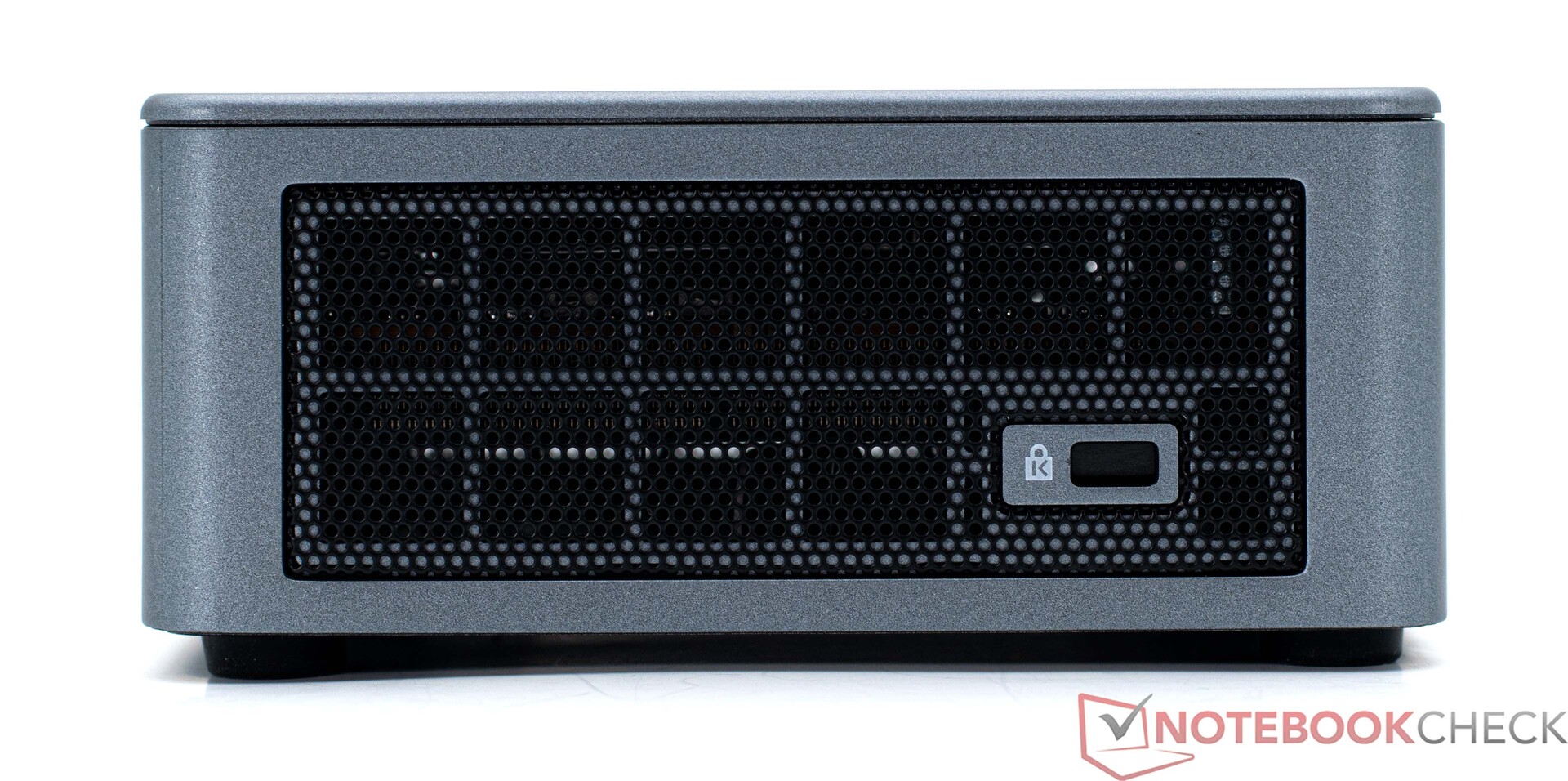

案例 - 英特尔NUC向您致意

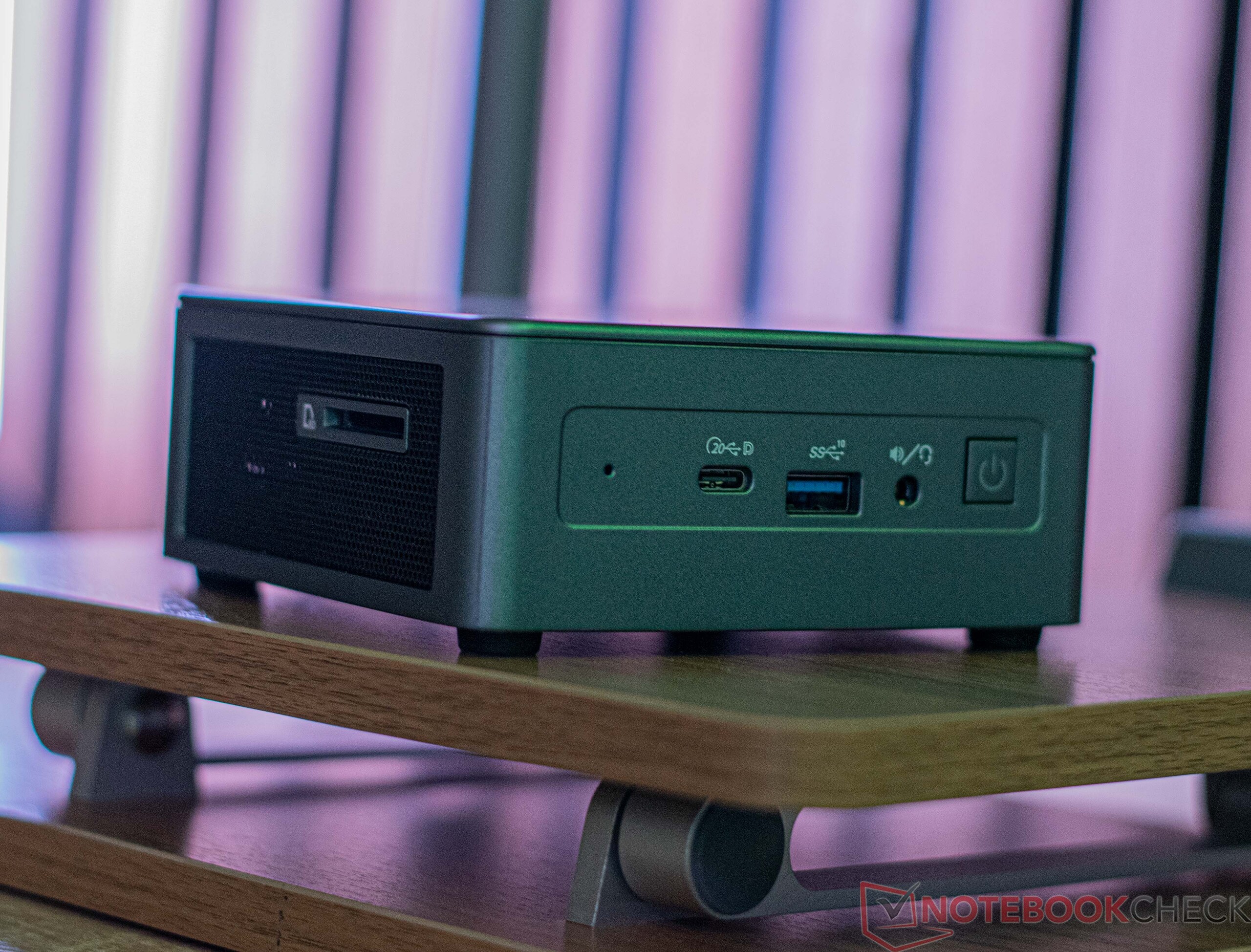

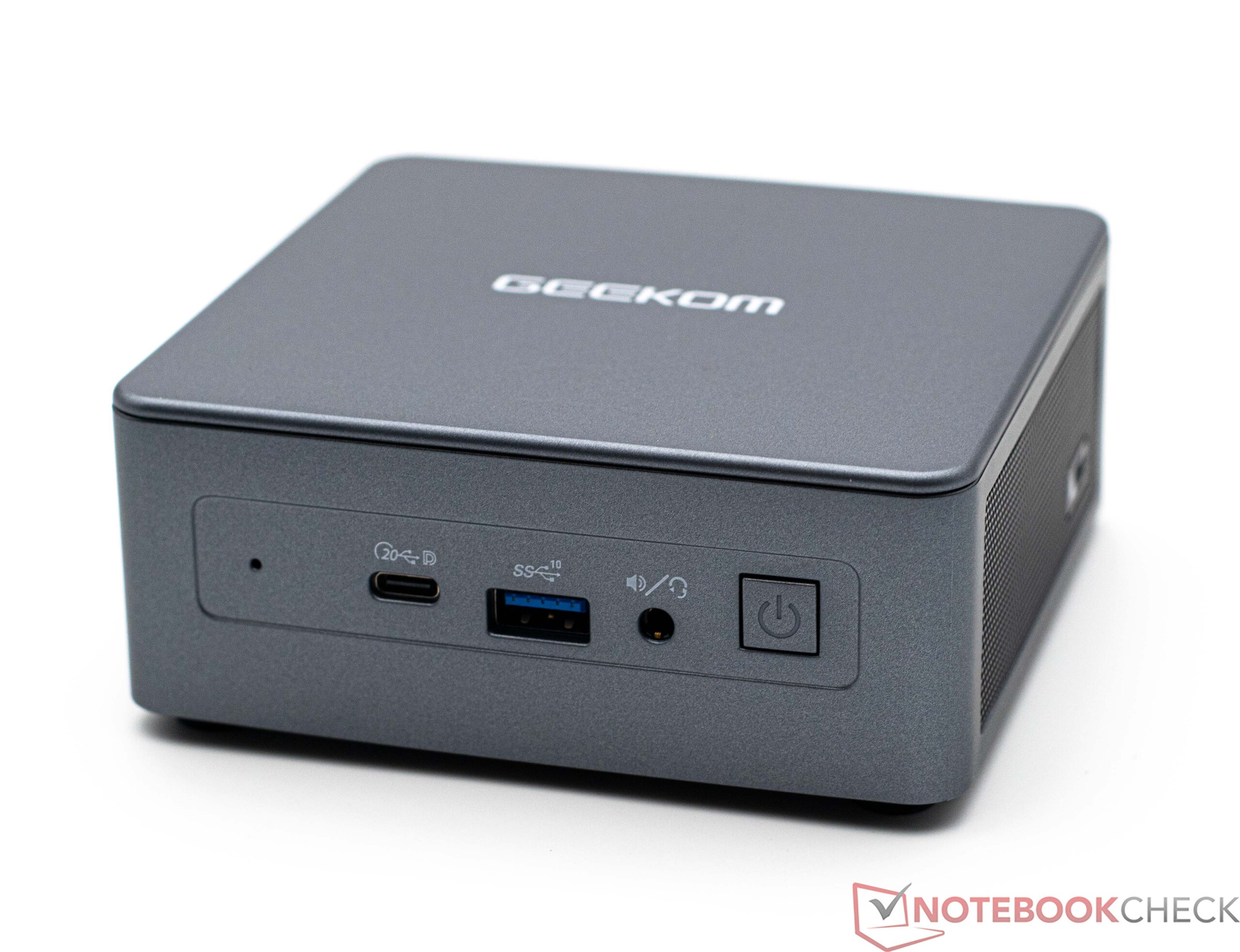

众所周知，Geekom Mini IT11与Intel NUC非常相似。它的所有尺寸--高度、宽度和深度--都完全相同。它的占地面积只有11.7 x 11.2厘米，这在我们测试过的同类产品中是绝无仅有的。与英特尔不同的是，Geekom只提供高配版的Mini IT11，这意味着您可以随时安装2.5英寸的存储设备。

Geekom Mini IT11为灰色，没有任何闪亮的表面。它的制造质量完美无瑕--尽管它的外壳只是由塑料制成。在它的下面隐藏着一个金属框架，这给设备带来了巨大的坚固性。同时，Geekom Mini IT11 仍然相当轻巧，重量仅为 536 克。单纯从外观上看，Geekom Mini IT11 与 Geekom Mini IT12 有很多相似之处。迷你 IT12但作为 Mini IT11 的继任者，这并不令人感到意外。顺便说一下，Geekom Mini IT11 可以通过提供的 VESA 支架安装到显示器上，这也是很多迷你 PC 提供的功能。

尺寸比较

Minipc Union Ace Magician TK11-A0 Morefine M600, 6600U Minipc Union NiPoGi CK10 - 10810U Minisforum Venus Series NAB6 Minisforum Venus Series UM560 XT Geekom Mini IT11, i7-11390H Geekom Mini IT12 Geekom Mini IT11-GM11i7T DIN A5 ❌

连通性 - 即使在2023年也是最新的

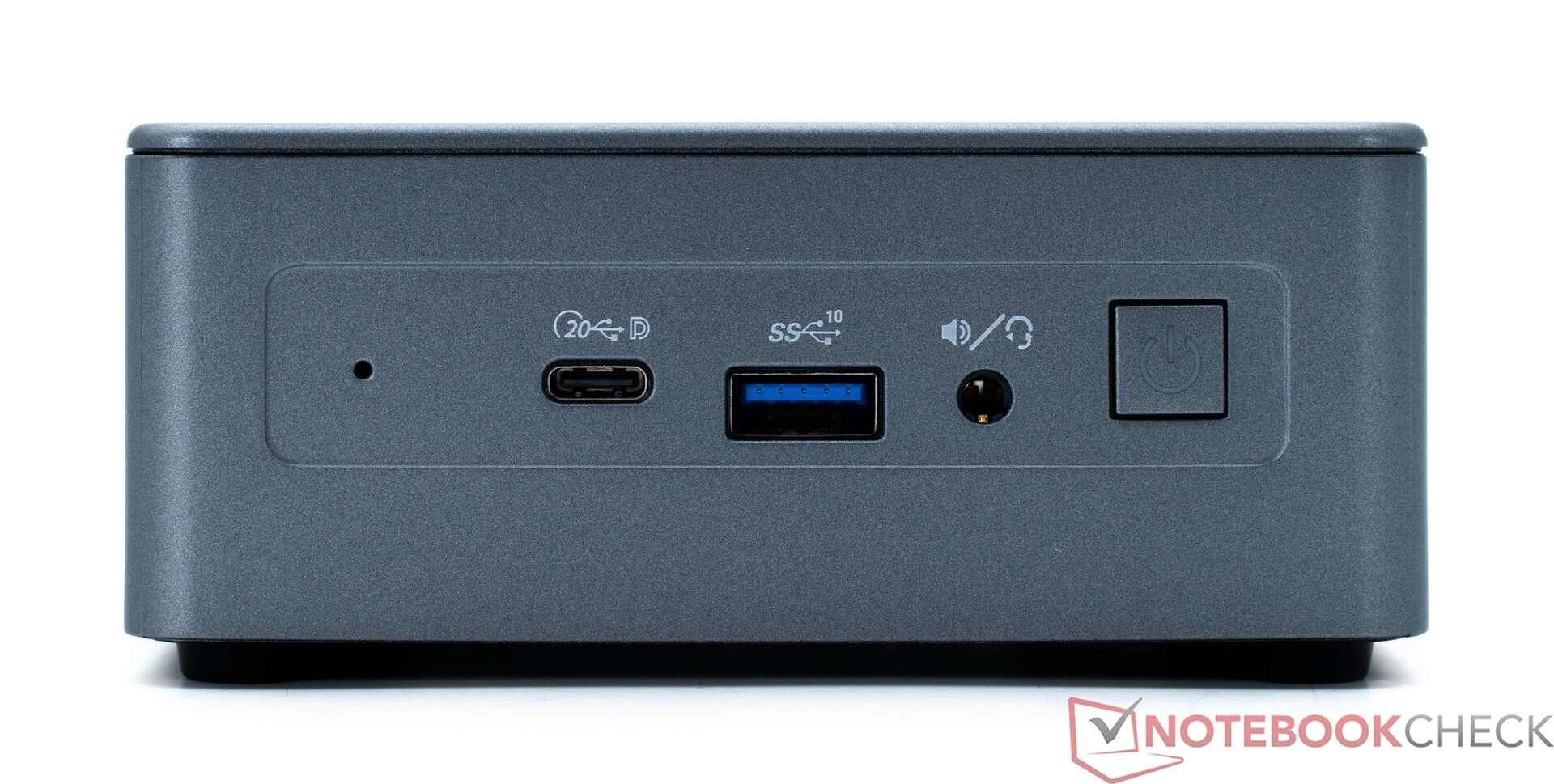

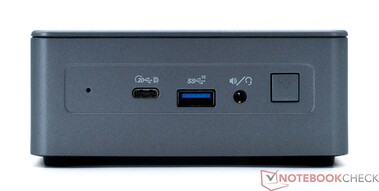

在连接选项方面，Geekom Mini IT11尽管体积小巧，但确实拥有很多功能：它有三个USB Type-A接口，这三个接口都提供USB 3.0速度，这意味着它们的使用范围很广。值得庆幸的是，Mini IT11还配备了USB 4。这使得连接众多外部设备成为可能，几乎可以无限扩展这款紧凑型计算野兽的使用范围。您甚至可以同时连接四个屏幕到 Geekom Mini IT11。我们也不想忘记提及它的2.5G网络连接以及SD读卡器，其UHS II的速度提供了出色的性能。

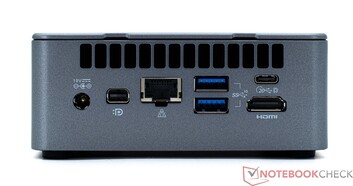

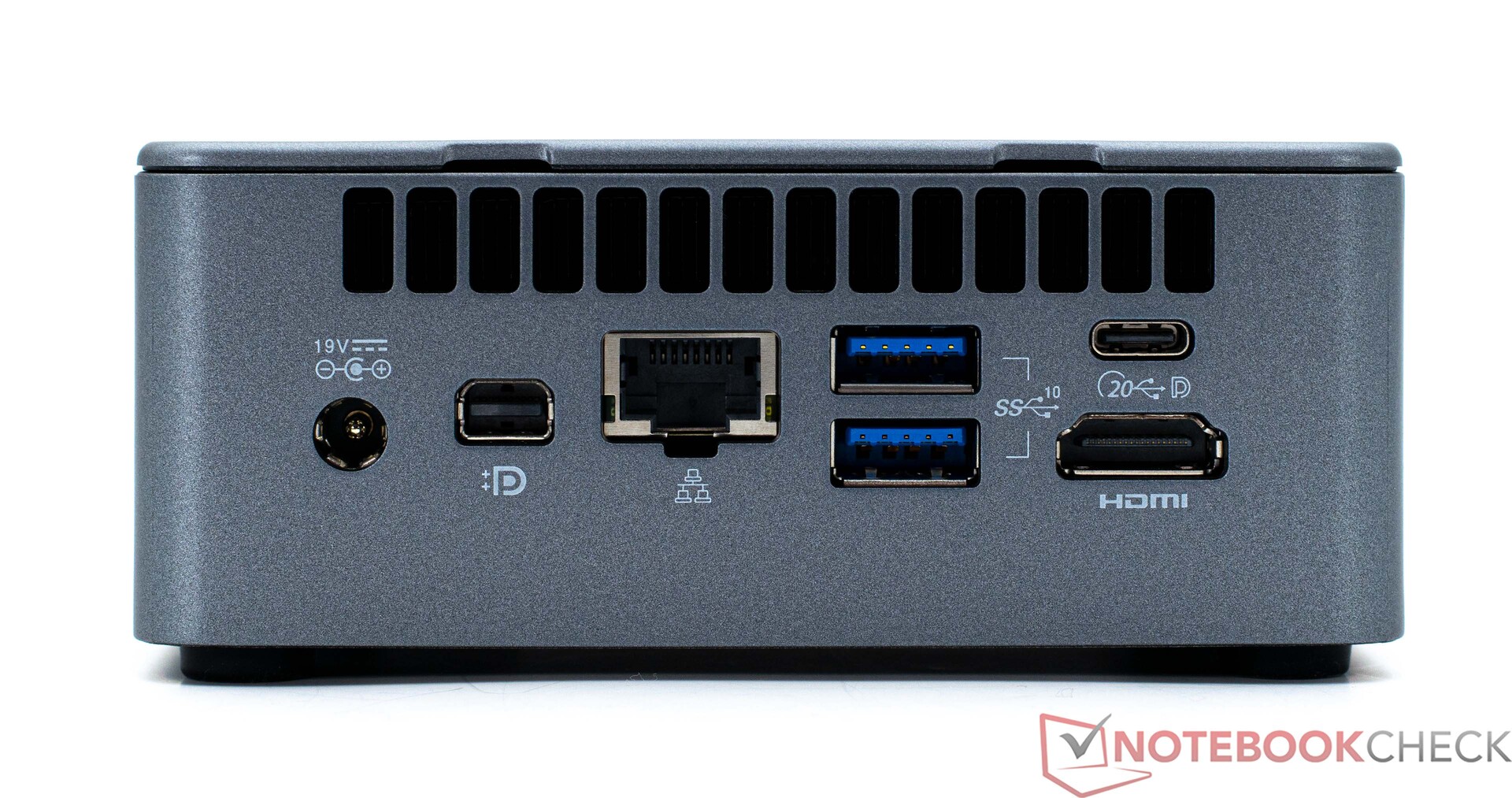

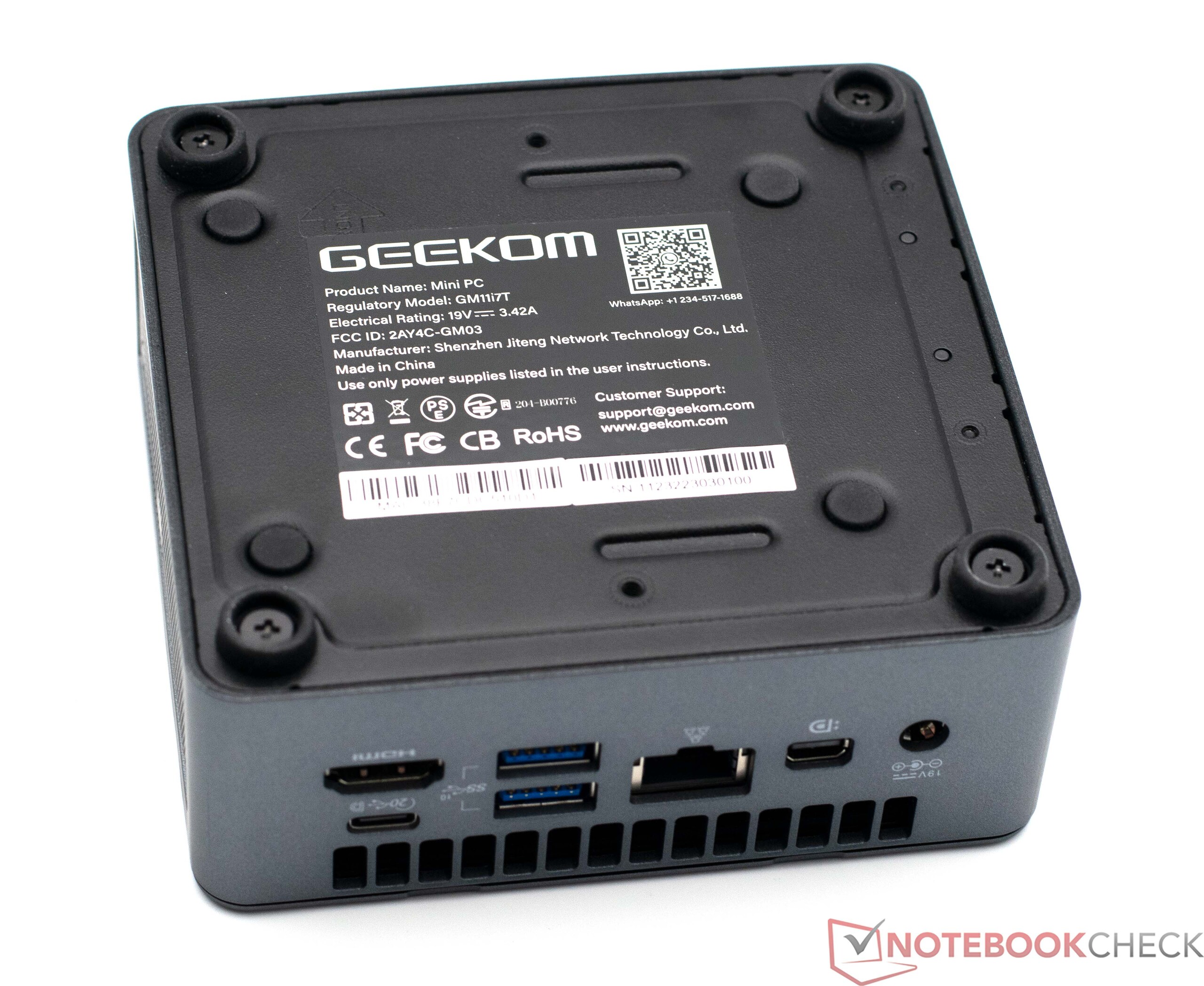

背面：电源连接、迷你显示端口、RJ45、2 个 USB 3.2 Gen 2、USB4、HDMI

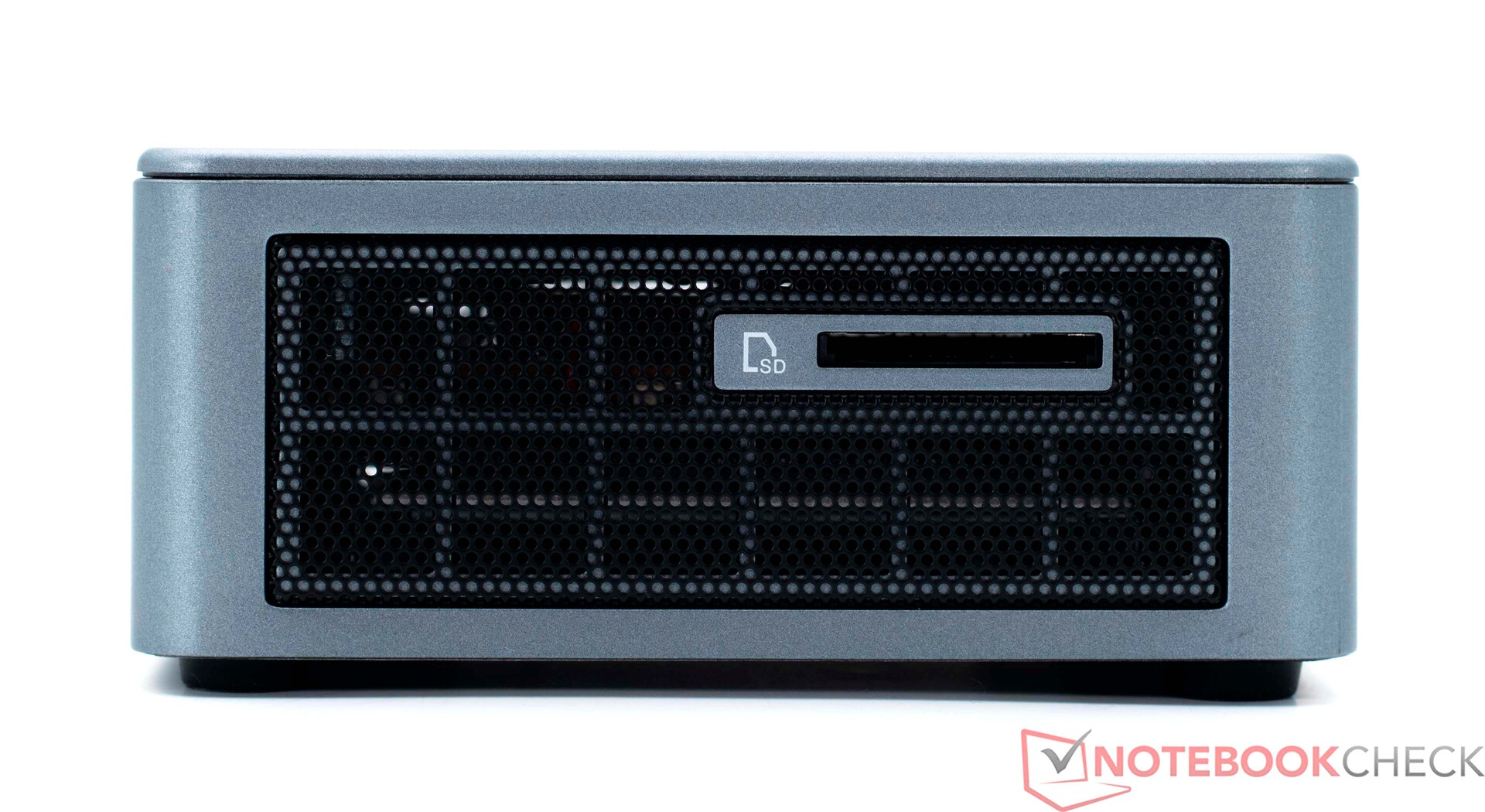

SD卡读卡器

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Geekom Mini IT11, i7-11390H Intel Core i7-11390H (AV Pro SD microSD 128 GB V60)	163.3 MB/s
Intel Beast Canyon NUC Intel Core i9-11900KB (AV Pro SD microSD 128 GB V60)	140.3 MB/s -14%
Intel Dragon Canyon NUC	140.3 MB/s -14%
Average of class Mini PC (15.1 - 214, n=26, last 2 years)	91.7 MB/s -44%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H (AV Pro SD microSD 128 GB V60)	65 MB/s -60%
Geekom MiniAir 11 Special Edition Intel Celeron N5095 (AV Pro SD microSD 128 GB V60)	16.9 MB/s -90%
maximum AS SSD Seq Read Test (1GB)
Intel Beast Canyon NUC Intel Core i9-11900KB (AV Pro SD microSD 128 GB V60)	198.7 MB/s +12%
Intel Dragon Canyon NUC	198.7 MB/s +12%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H (AV Pro SD microSD 128 GB V60)	178.1 MB/s
Average of class Mini PC (18.2 - 221, n=26, last 2 years)	106.6 MB/s -40%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H (AV Pro SD microSD 128 GB V60)	69.9 MB/s -61%
Geekom MiniAir 11 Special Edition Intel Celeron N5095 (AV Pro SD microSD 128 GB V60)	28.8 MB/s -84%

通讯

Geekom Mini IT11采用英特尔Wi-Fi 6 AX201模块。这表明它无法在新的6-GHz频段内形成网络连接。在整个测试过程中，它的收发速率仍然保持在相当高的水平，并且一直保持稳定。该模块还支持蓝牙连接（5.2），这意味着您可以轻松地无线连接耳机或鼠标。

我们使用华硕ROG Rapture GT-AXE11000作为本次测试的路由器。

Networking
iperf3 receive AXE11000
Average Intel Wi-Fi 6 AX201 (390 - 1734, n=76)	1421 MBit/s +48%
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	958 (941^min - 967^max) MBit/s
Morefine M600, 6600U MediaTek RZ608	948 (934^min - 957^max) MBit/s -1%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	943 (923^min - 960^max) MBit/s -2%
Average of class Mini PC (192.9 - 1796, n=113, last 2 years)	932 MBit/s -3%
Minisforum Venus Series UM560 XT MediaTek RZ608	890 (851^min - 908^max) MBit/s -7%
Minisforum Venus Series NAB6 MediaTek RZ608	787 (752^min - 801^max) MBit/s -18%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 MBit/s -59%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	192.9 (95^min - 196^max) MBit/s -80%
iperf3 transmit AXE11000
Average Intel Wi-Fi 6 AX201 (438 - 1715, n=71)	1287 MBit/s +52%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	918 (892^min - 938^max) MBit/s +9%
Average of class Mini PC (184.1 - 1776, n=113, last 2 years)	864 MBit/s +2%
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	845 (818^min - 879^max) MBit/s
Minisforum Venus Series UM560 XT MediaTek RZ608	829 (775^min - 889^max) MBit/s -2%
Morefine M600, 6600U MediaTek RZ608	784 (381^min - 874^max) MBit/s -7%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 MBit/s -12%
Minisforum Venus Series NAB6 MediaTek RZ608	626 (301^min - 689^max) MBit/s -26%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	343 (170^min - 362^max) MBit/s -59%

Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø733 (381-876)

Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø389 (322-478)

Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201; iperf3 receive AXE11000; iperf 3.1.3: Ø957 (941-967)

Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821; iperf3 receive AXE11000; iperf 3.1.3: Ø189.3 (95-196)

Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000; iperf 3.1.3: Ø845 (818-879)

Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821; iperf3 transmit AXE11000; iperf 3.1.3: Ø337 (170-362)

配件

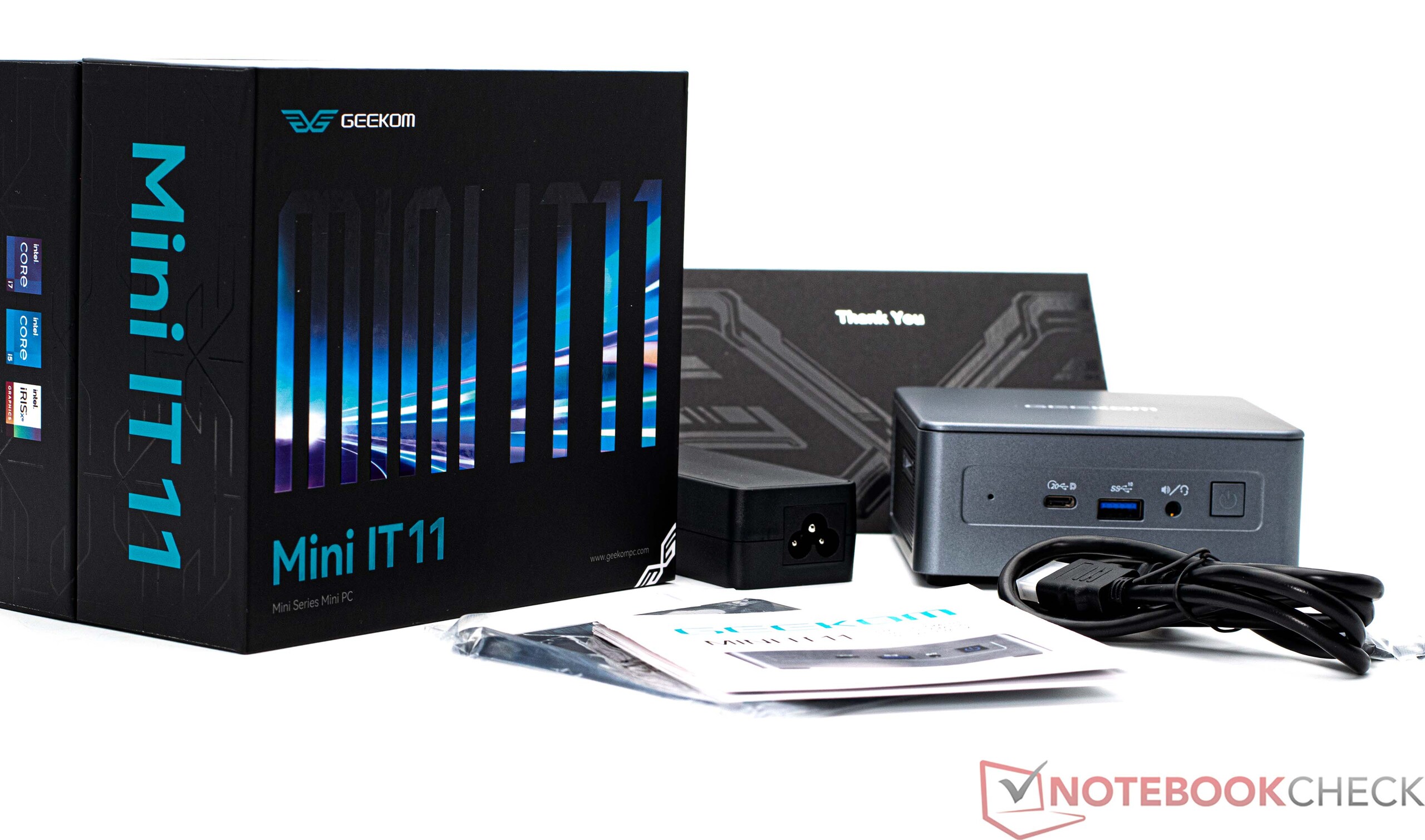

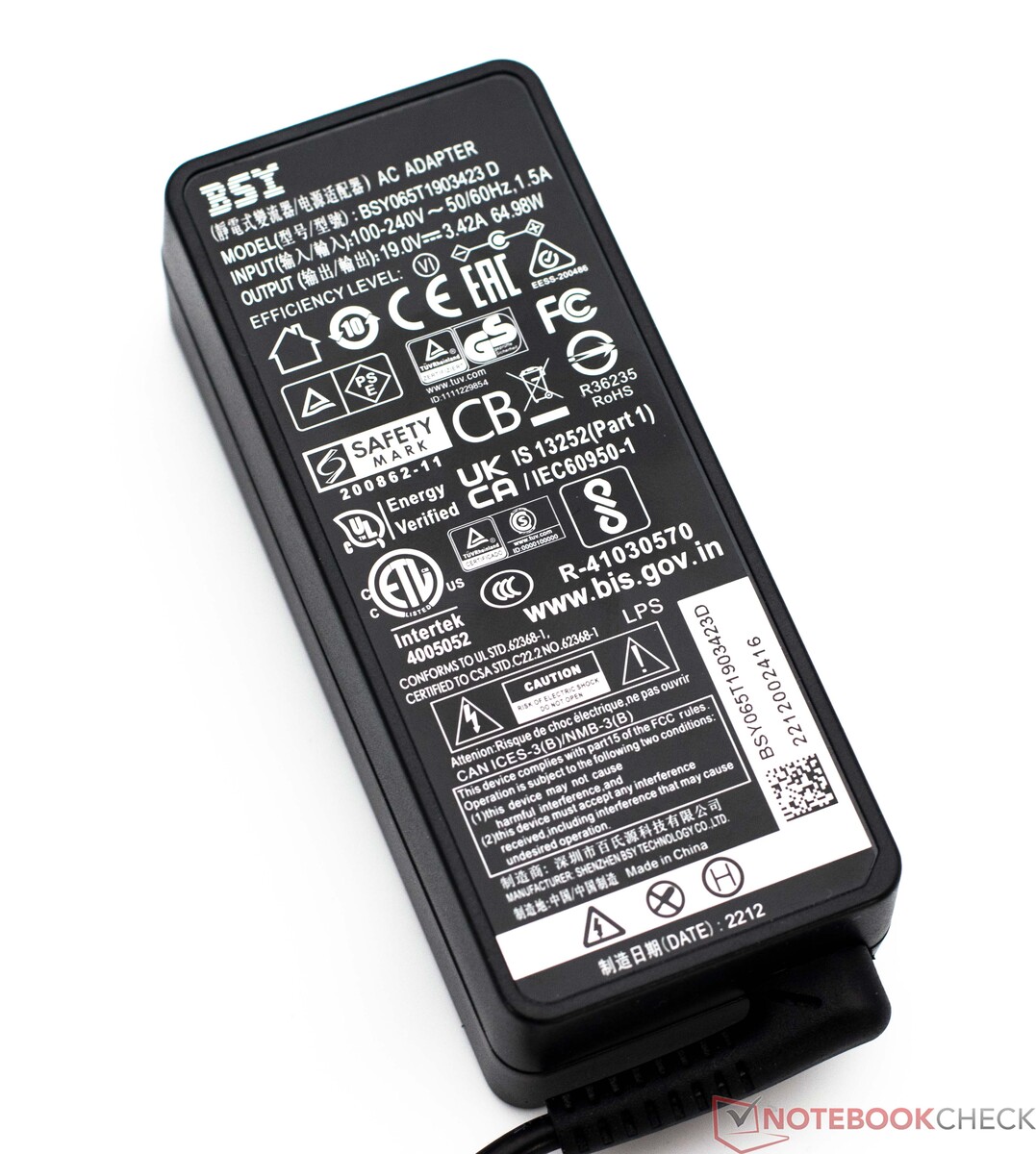

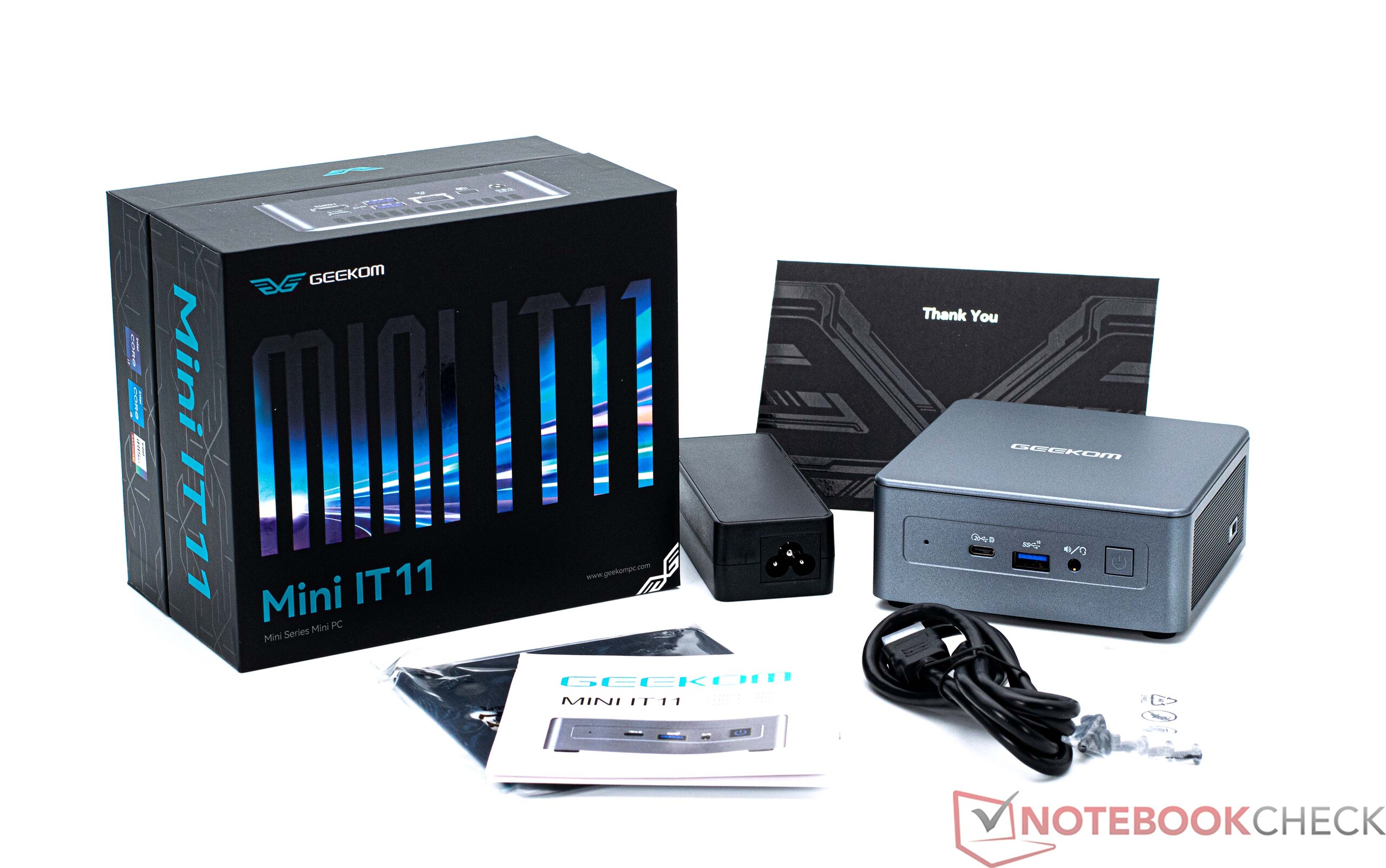

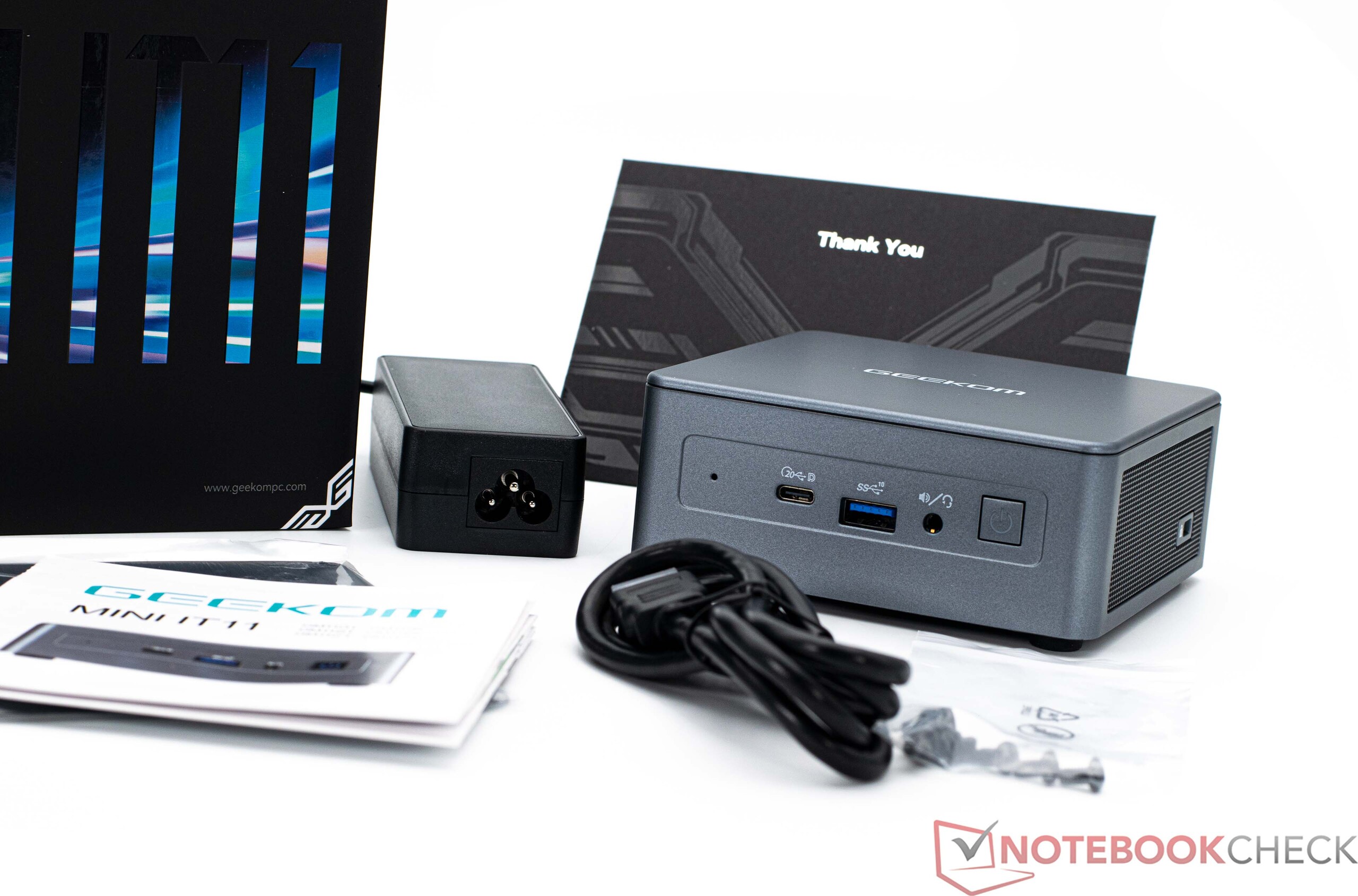

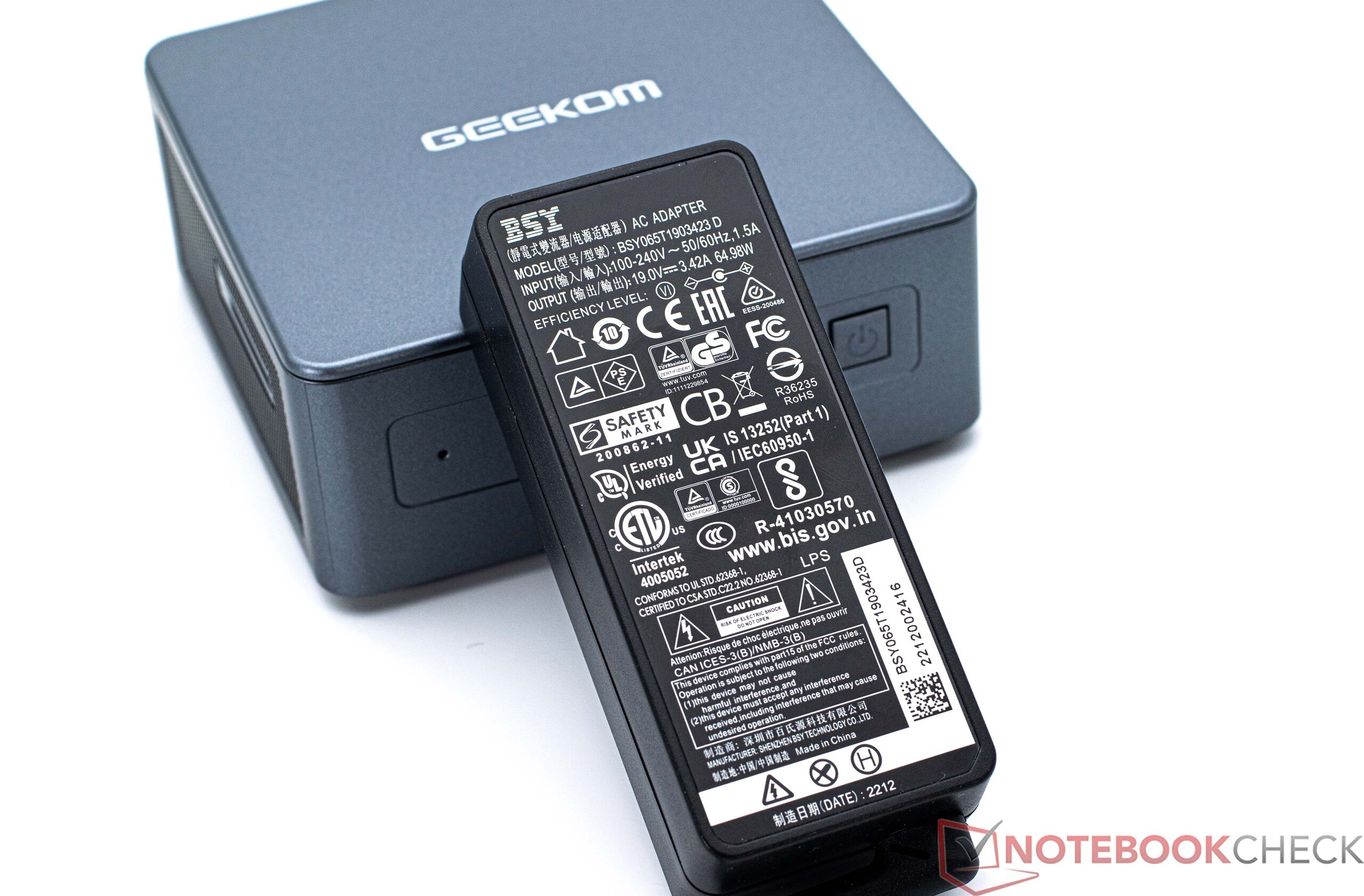

其供货范围非常广泛，包括安装和运行PC所需的一切。除了设备本身，包装中还包括一个65瓦的电源和一个VESA安装板。Geekom还提供了HDMI线和简短的使用说明书。

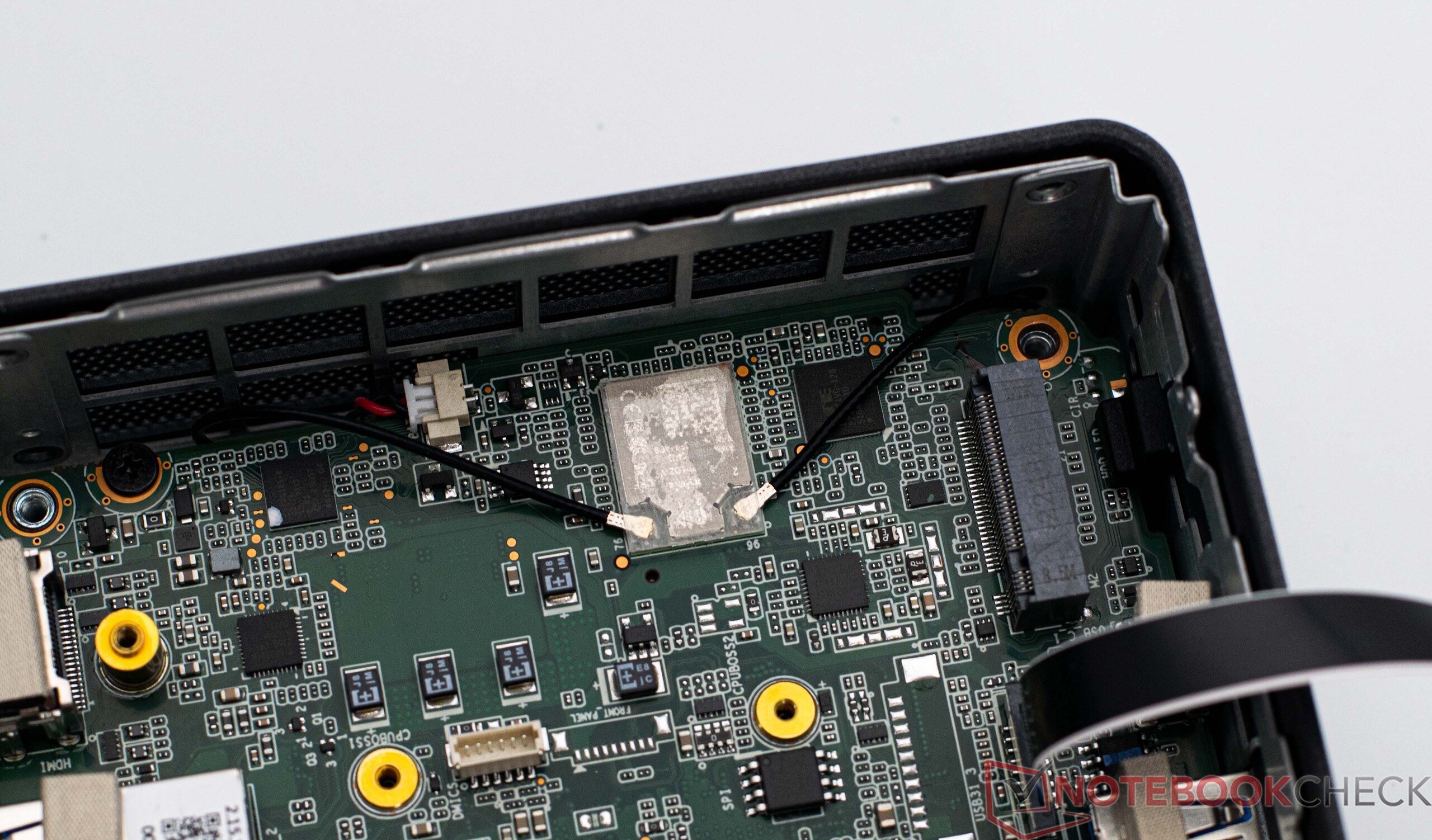

维护

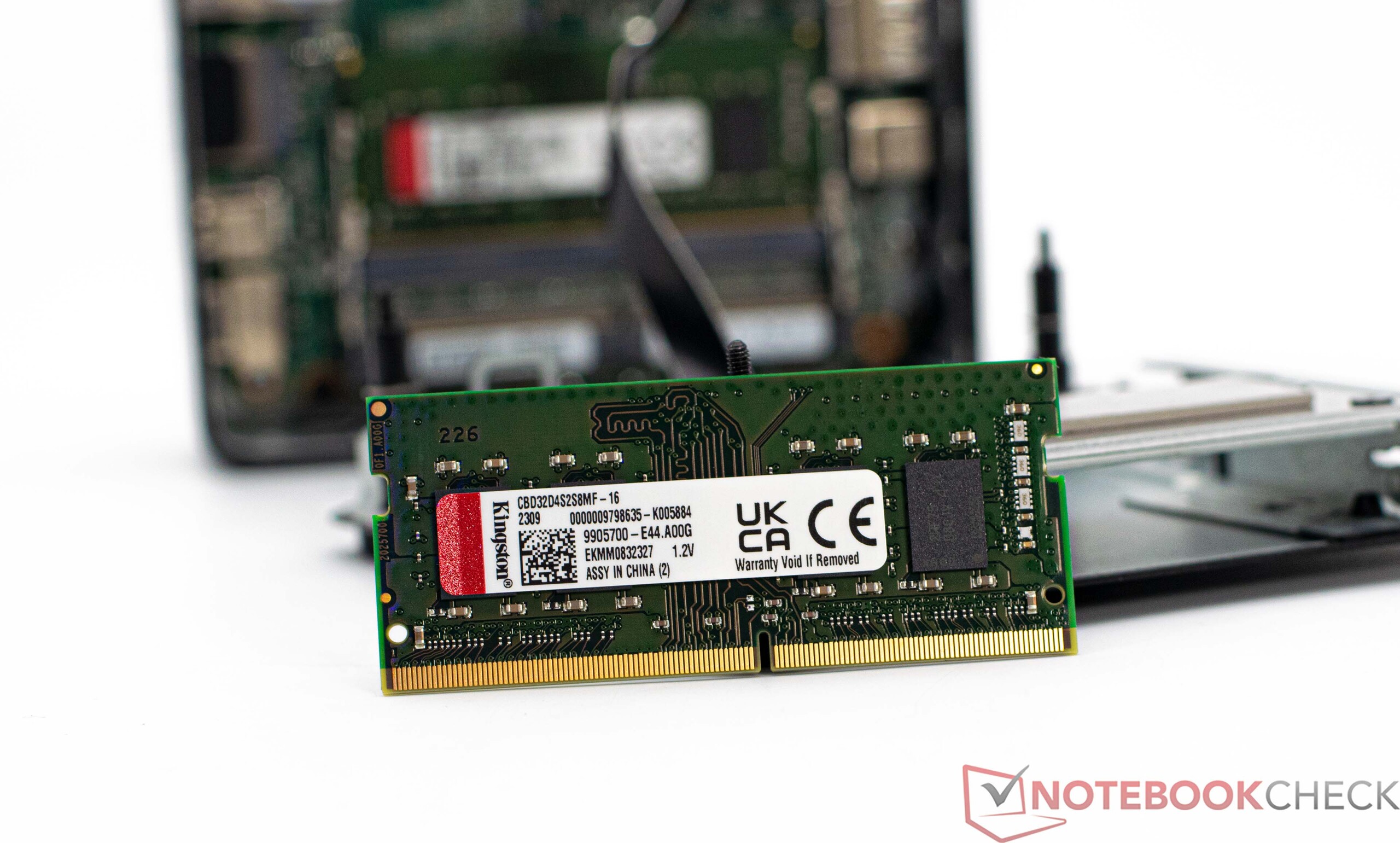

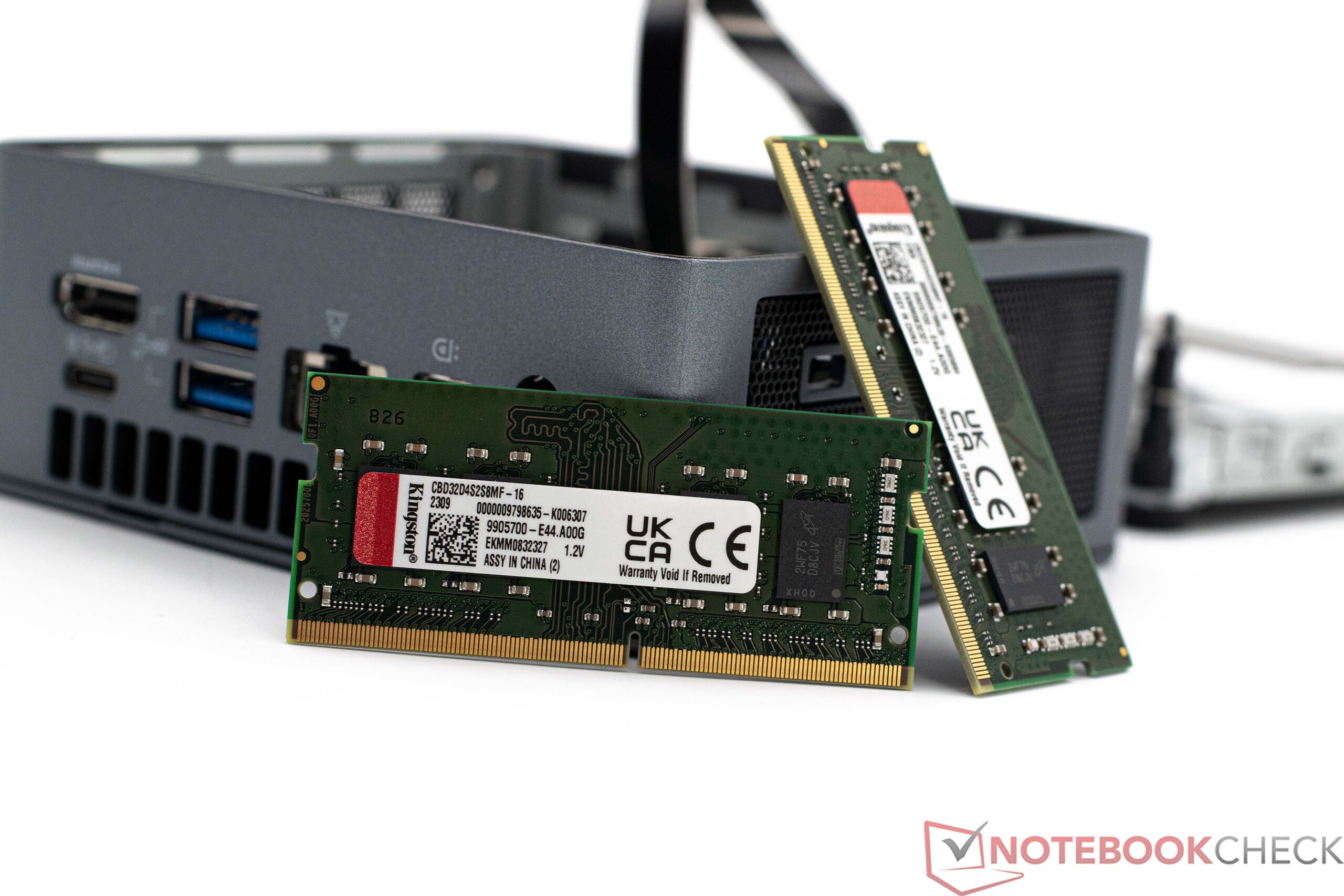

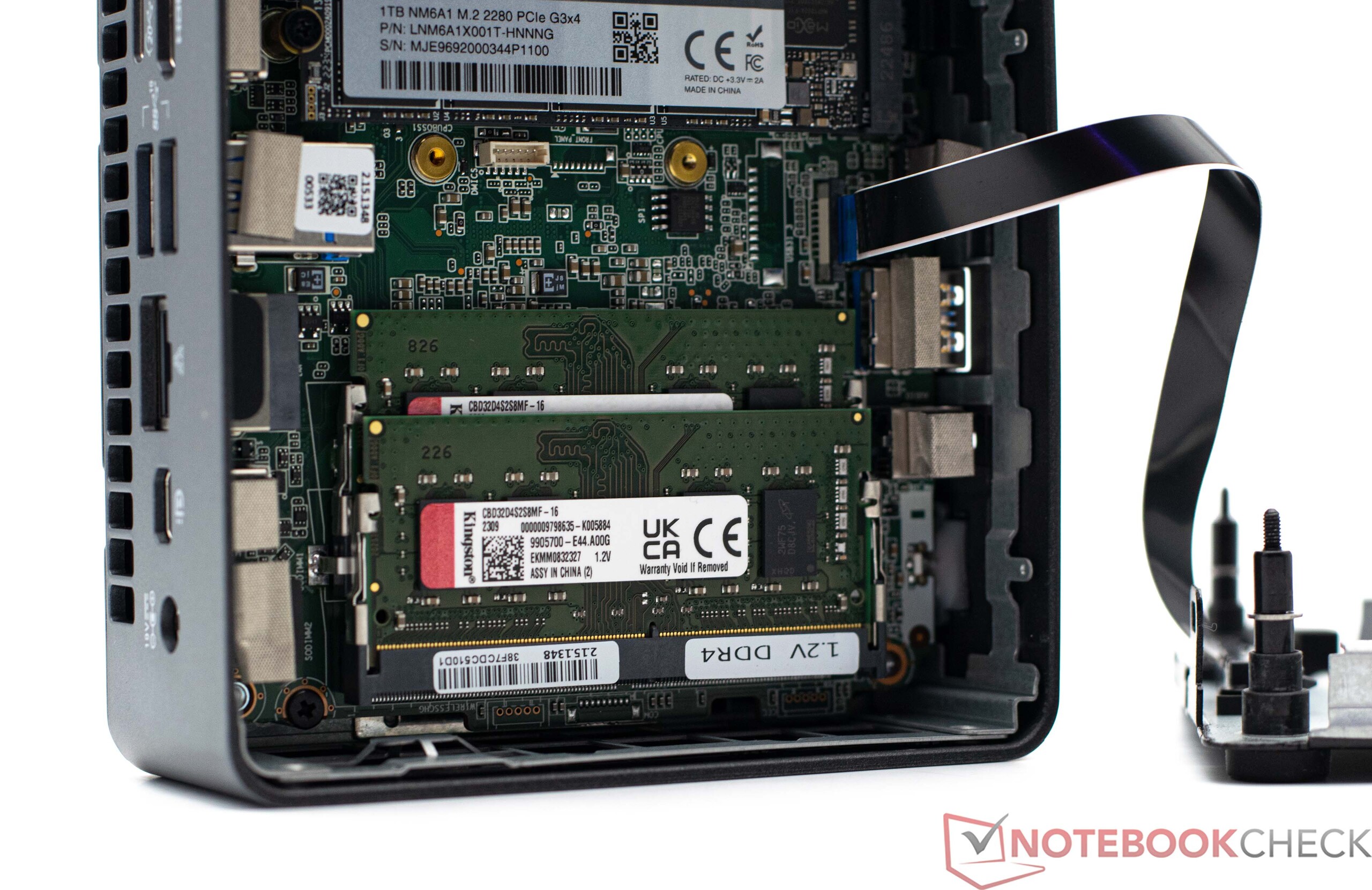

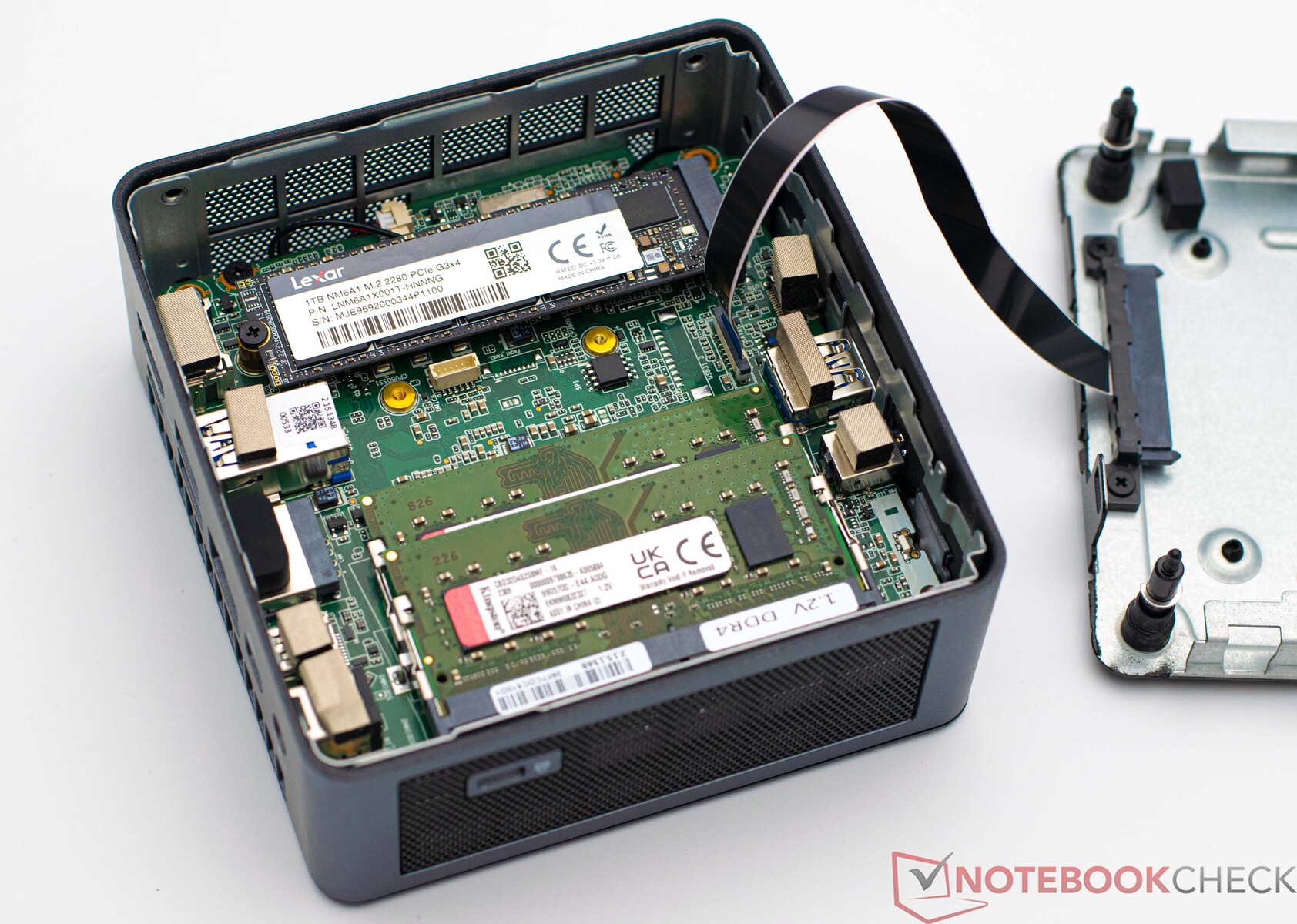

Geekom Mini IT11可以非常容易地打开。底部由四颗螺丝固定，也用于SSD散热。您可以更换SSD、内存和WLAN模块。Geekom Mini IT11最多可容纳三块SSD。要进入散热系统，您必须进一步拆开设备。

性能 - 酷睿i7-11390H仅有4核8线程

由于电脑安装了英特尔酷睿i7-11390H因此，我们并不指望Geekom Mini能够创造任何新的记录。即便如此，我们仍然期待该设备在日常使用中表现流畅。

测试条件

我们使用 "平衡 "能源配置文件进行了所有性能测试。我们没有改变SoC的性能，并根据BIOS设置使其处于交付状态。

处理器 - 仅4核8线程

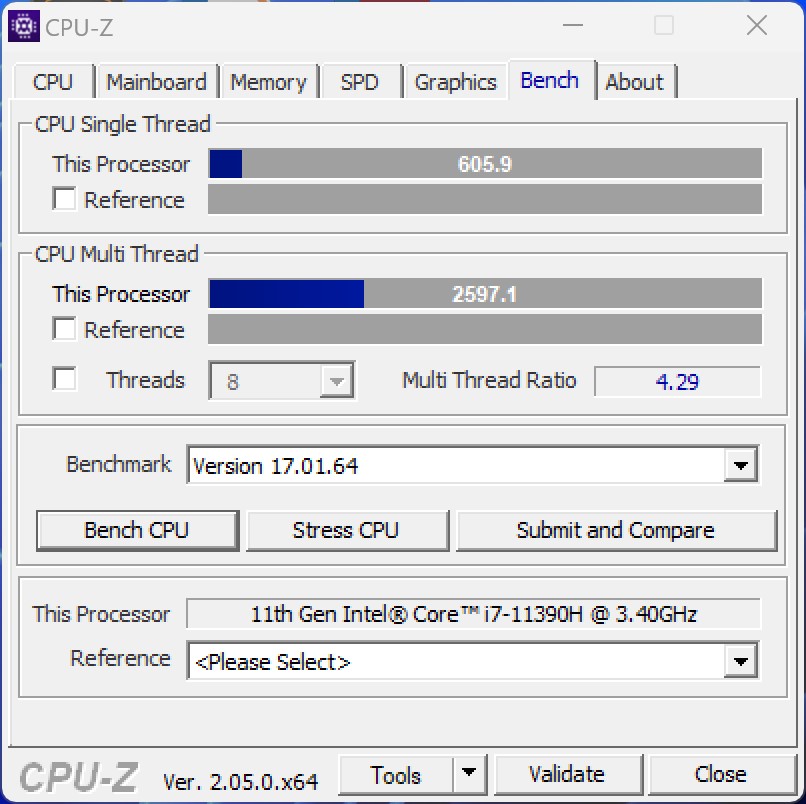

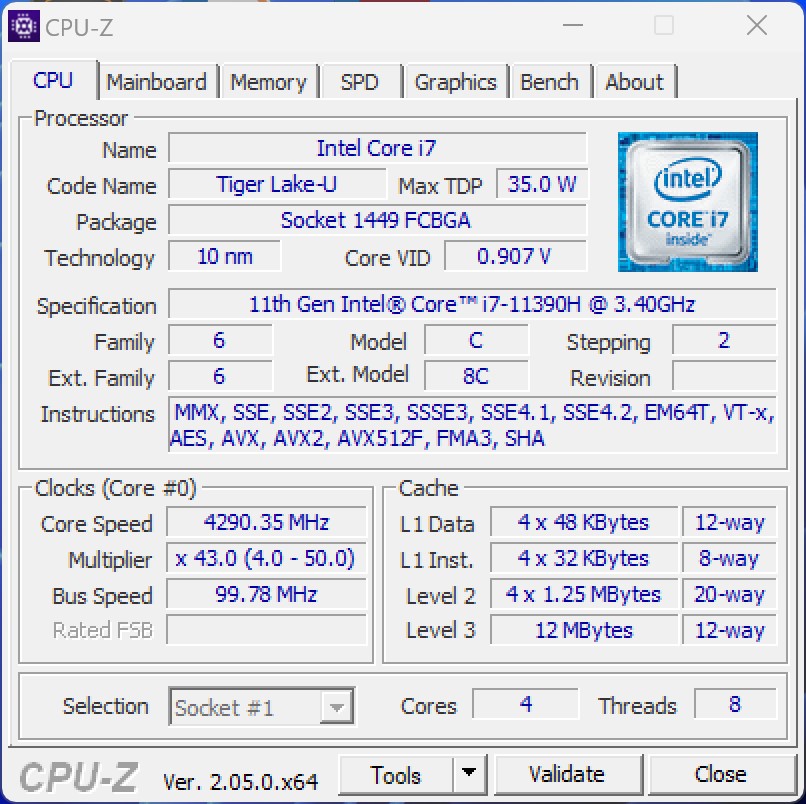

Geekom Mini IT11配备了英特尔酷睿 i7-11390H.该SoC仅有4个原生处理单元，可同时处理8个线程。由于原生处理单元数量较少，其多核性能与竞争对手相比受到了影响。英特尔的宠物项目，即单核性能，能够帮助过时的SoC实现相对较好的速率。与Morefine M600相比，Geekom Mini IT11的表现只差一点点。在性能评级中，两者之间仅有7个百分点的差距，在日常使用中应该不会太明显。较新的Geekom Mini IT12的性能比我们的测试样品高出12%。

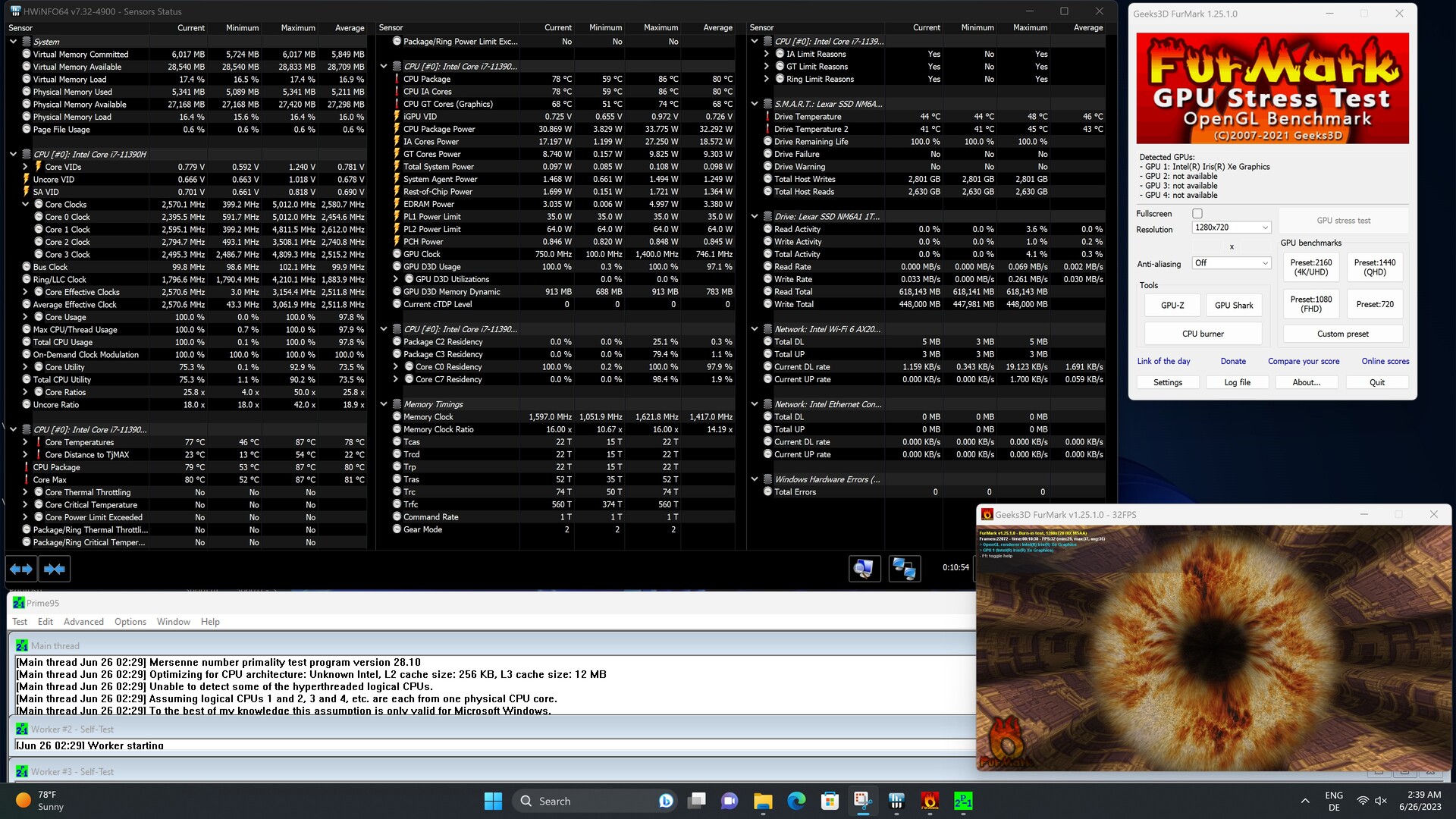

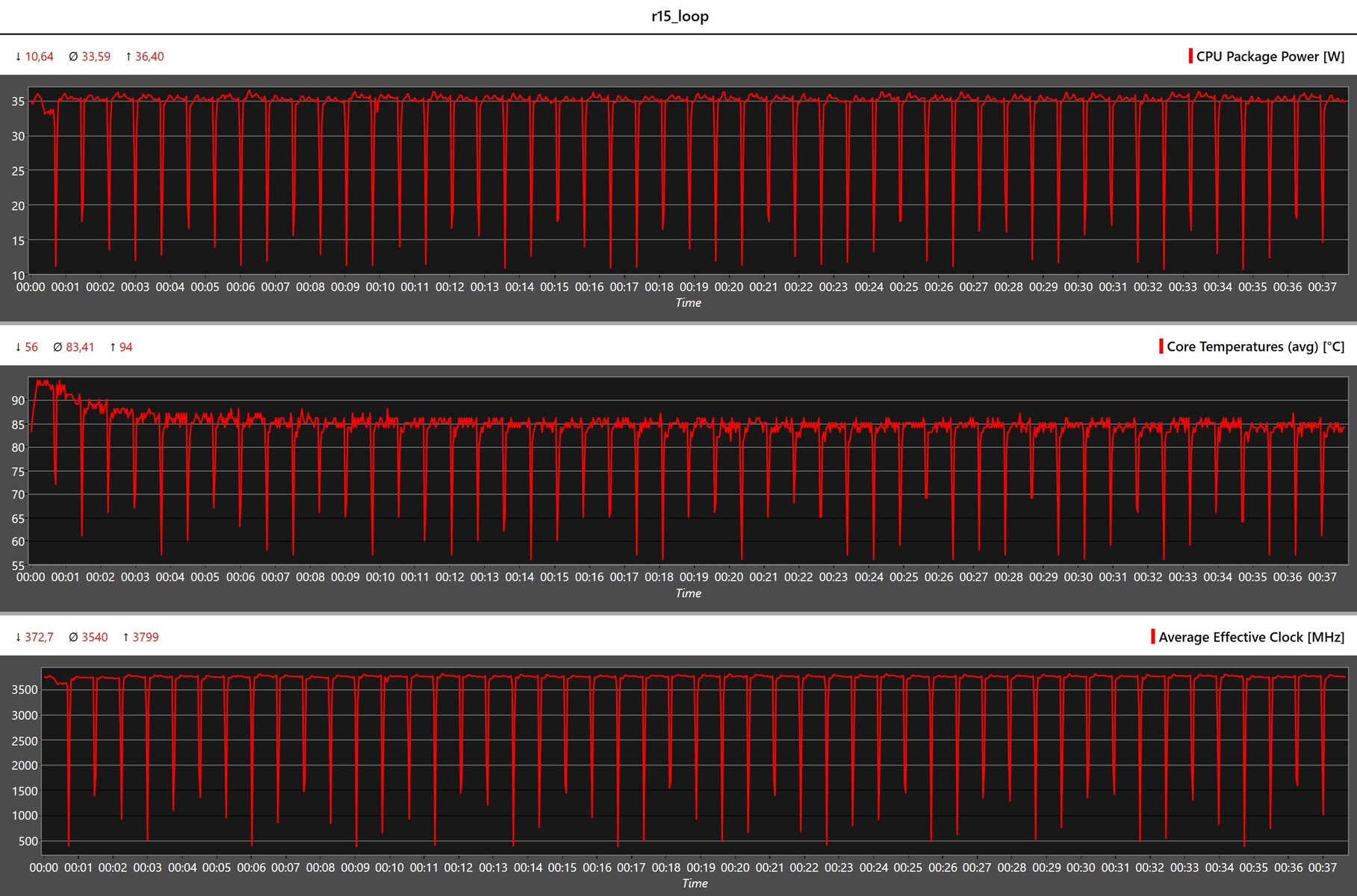

其短期功耗（PL2）为64瓦，在持续负载（PL1）下，该电脑的功耗为35瓦。然而，我们注意到该电脑甚至无法接近64瓦的极限。高温导致功耗过早降低，这意味着所安装的SoC无法充分发挥其潜力。

欲了解更多比较和基准，请访问我们的CPU 比较表。

Performance Rating - Percent
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	51.1 pt
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	46.6 pt
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	44.9 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	44.7 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	42.2 pt
Geekom Mini IT11-GM11i7T ^-2! Intel Core i7-1195G7, 2900 MHz	42.1 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	37 pt
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	34.1 pt

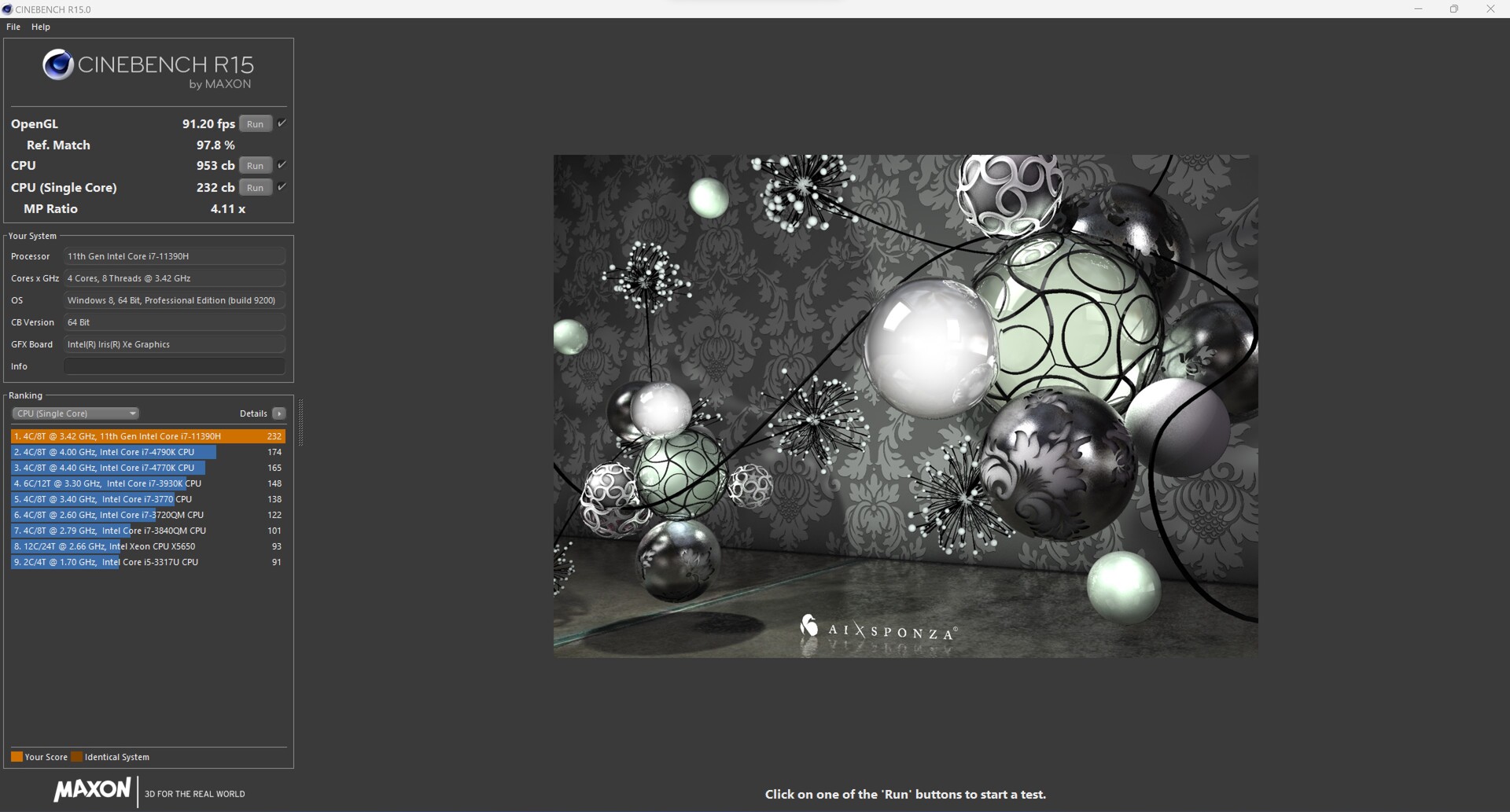

Cinebench R15
CPU Single 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	260 Points +12%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	241 Points +4%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	236 Points +2%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	232 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	227 Points -2%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	225 Points -3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points -15%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	170 Points -27%
CPU Multi 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1893 Points +99%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	1596 Points +67%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1565 Points +64%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1361 Points +43%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	953 Points
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	831 (819.47^min - 831.07^max) Points -13%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	623 Points -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points -41%

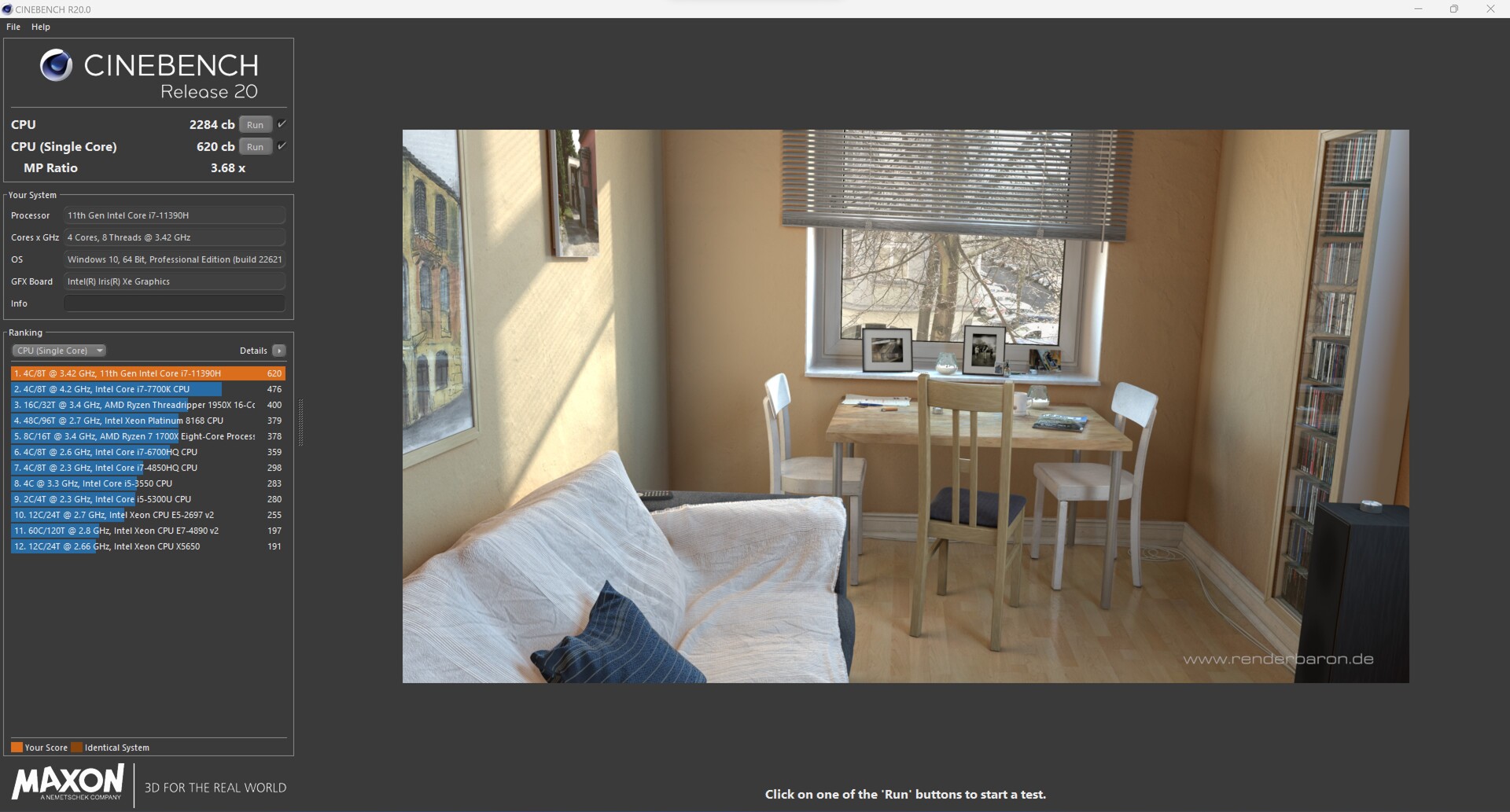

Cinebench R20
CPU (Single Core)
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	696 Points +12%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	652 Points +5%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	620 Points
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	617 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	558 Points -10%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	533 Points -14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points -17%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	415 Points -33%
CPU (Multi Core)
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	4781 Points +109%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	3768 Points +65%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	3427 Points +50%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	3419 Points +50%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	2284 Points
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	2024 Points -11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1498 Points -34%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points -37%

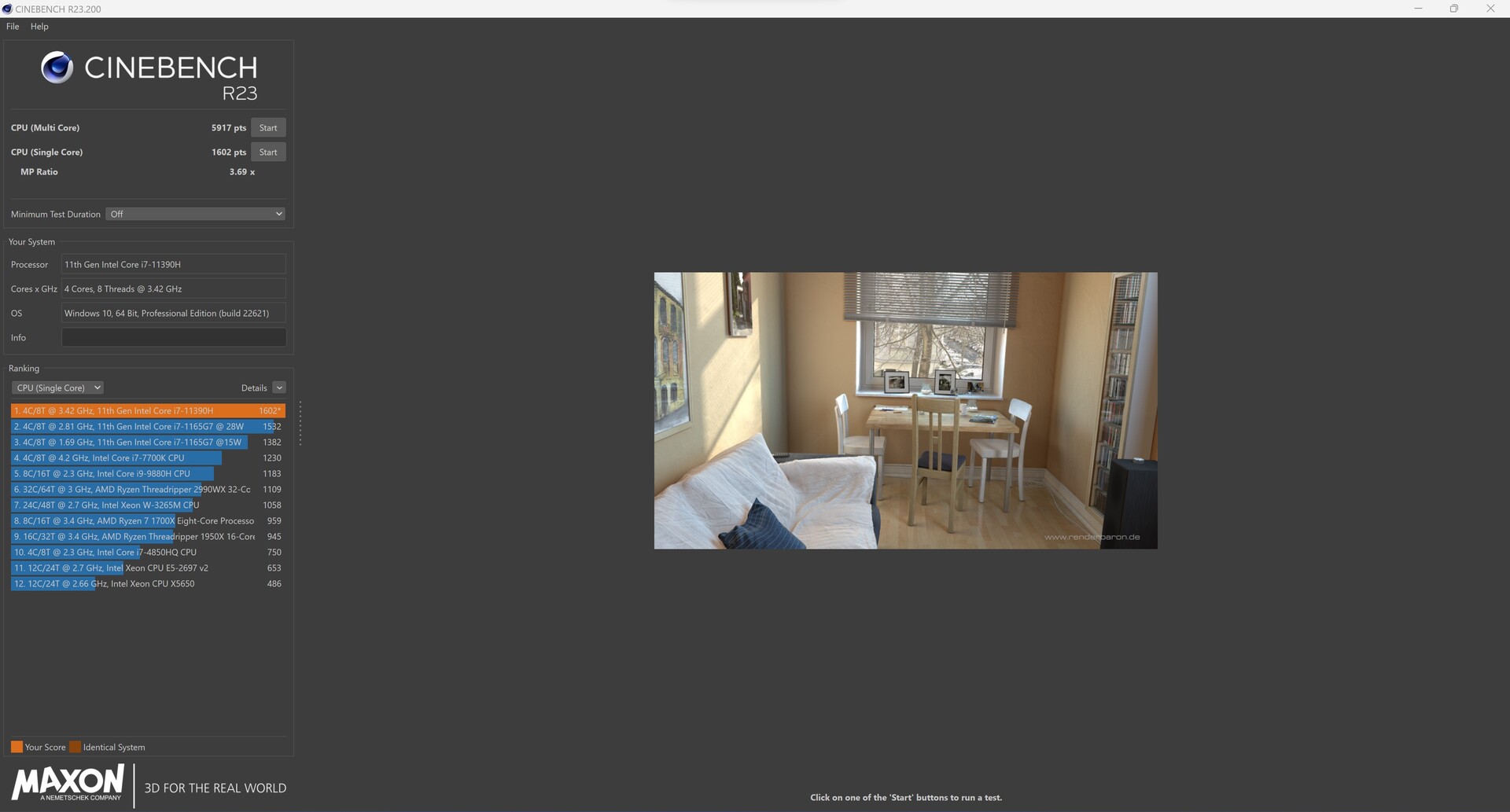

Cinebench R23
Single Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1804 Points +13%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1693 Points +6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	1602 Points
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	1595 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1420 Points -11%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	1375 Points -14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1346 Points -16%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1082 Points -32%
Multi Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	12072 Points +104%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	9564 Points +62%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	8846 Points +50%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	8491 Points +44%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5917 Points
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	5337 Points -10%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3867 Points -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	3721 Points -37%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds * -46%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	694 Seconds * -35%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	564 Seconds * -10%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	513 Seconds *
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	415 Seconds * +19%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	319 Seconds * +38%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	285 Seconds * +44%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	279 Seconds * +46%

X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	311.5 (311^min - 312^max) fps +45%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	251.21 fps +17%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	224 (222^min - 258^max) fps +4%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	214.5 (213^min - 216^max) fps
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	212 (206^min - 224^max) fps -1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps -23%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	141.6 (140.9^min - 163.1^max) fps -34%
Pass 2
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	111.1 (96.7^min - 111.7^max) fps +101%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	95.18 fps +72%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	77.75 (77.6^min - 113.9^max) fps +41%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	71.45 (70.2^min - 76.6^max) fps +29%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	55.2 (54.6^min - 55.9^max) fps
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	39.15 (39.1^min - 42.7^max) fps -29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps -34%

Geekbench 5.5
Multi-Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9363 Points +84%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	8918 Points +75%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	7658 Points +50%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	7253 Points +42%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5091 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points -4%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	4734 Points -7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3934 Points -23%
Single-Core
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1782 Points +7%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1767 Points +6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	1669 Points
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	1649 Points -1%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1504 Points -10%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	1443 Points -14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points -17%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1219 Points -27%

Geekbench 5.0
5.0 Multi-Core
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10249 Points +104%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	10249 Points +104%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9099 Points +81%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	7128 Points +42%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5025 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points -4%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	4683 Points -7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3924 Points -22%
5.0 Single-Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1736 Points +5%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	1655 Points
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	1636 Points -1%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1557 Points -6%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1557 Points -6%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	1393 Points -16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points -16%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1220 Points -26%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	7705 Points +8%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	7146 Points
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	6970 Points -2%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6698 Points -6%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6698 Points -6%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	6117 Points -14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points -17%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4762 Points -33%
64 Bit Multi-Core Score
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	39852 Points +95%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	39852 Points +95%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	34909 Points +71%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	28997 Points +42%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	20385 Points
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	19324 Points -5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points -5%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	18904 Points -7%

7-Zip 18.03
7z b 4
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	47893 MIPS +85%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	46562 MIPS +80%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	44320 MIPS +71%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	37570 MIPS +45%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	25876 MIPS
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	24351 MIPS -6%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	20163 MIPS -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS -32%
7z b 4 -mmt1
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	6116 MIPS +4%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5895 MIPS
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	5890 MIPS 0%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	5577 MIPS -5%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5486 MIPS -7%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	5369 MIPS -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS -19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4638 MIPS -21%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	13.6 fps +79%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	12.4 fps +63%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11.7 fps +54%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.1 fps +33%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	7.61 fps
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	6.92 fps -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps -31%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	5.2 fps -32%

R Benchmark 2.5 - Overall mean
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	0.7 sec * -29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec * -18%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	0.543 sec *
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	0.53 sec * +2%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	0.526 sec * +3%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.511 sec * +6%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	0.4718 sec * +13%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	0.462 sec * +15%

LibreOffice - 20 Documents To PDF
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	83.9 s * -78%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	68.2 s * -44%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	56.7 s * -20%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	53 s * -12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s * -10%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	48.1 s * -2%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	47.2 s *
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	39.6 s * +16%

WebXPRT 3 - Overall
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	309 Points +18%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	287 Points +10%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	274 Points +5%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	270 Points +3%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	261 Points 0%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	261 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points -10%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	205 Points -21%

Mozilla Kraken 1.1 - Total
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	968 ms * -50%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms * -12%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	651 ms * -1%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	644 ms *
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	619 ms * +4%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	612 ms * +5%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	539 ms * +16%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	519 ms * +19%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	21110 Points +83%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	21001 Points +82%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	18599 Points +61%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	15903 Points +38%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	11800 Points +2%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	11557 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points -17%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	8470 Points -27%
1920x1080 Fire Strike Physics
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22346 Points +88%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	21025 Points +77%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	16568 Points +39%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	15934 Points +34%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	12048 Points +1%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	11883 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points -21%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	9003 Points -24%
2560x1440 Time Spy CPU
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9168 Points +99%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	6767 Points +47%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6487 Points +41%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5114 Points +11%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	4598 Points
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	4472 Points -3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points -38%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	2728 Points -41%

* ... smaller is better

Performance Rating
Average of class Mini PC	95.1 pt
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	91.4 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	87.9 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	79.5 pt
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	71.7 pt
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	57.9 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	57.1 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	51.8 pt
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	39.9 pt

AIDA64 / FP32 Ray-Trace
Average of class Mini PC (561 - 51004, n=119, last 2 years)	12449 KRay/s +88%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	11347 KRay/s +71%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	10839 KRay/s +63%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	9518 KRay/s +43%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	7933 KRay/s +20%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	6633 KRay/s
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	6609 KRay/s 0%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s -15%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4654 KRay/s -30%

AIDA64 / FPU Julia
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	70782 Points +155%
Average of class Mini PC (3604 - 214250, n=119, last 2 years)	62645 Points +125%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	59704 Points +115%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	54435 Points +96%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	40251 Points +45%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	28579 Points +3%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	27788 Points
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	26251 Points -6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points -13%

AIDA64 / CPU SHA3
Average of class Mini PC (225 - 9399, n=119, last 2 years)	2760 MB/s +50%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	2360 MB/s +28%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	2357 MB/s +28%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	2006 MB/s +9%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	1997 MB/s +8%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	1909 MB/s +4%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	1841 MB/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s -10%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	1052 MB/s -43%

AIDA64 / CPU Queen
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	82454 Points +67%
Average of class Mini PC (8172 - 184747, n=119, last 2 years)	77998 Points +58%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	75724 Points +53%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	75248 Points +52%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	73765 Points +49%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	56561 Points +14%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	49399 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points -6%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	46554 Points -6%

AIDA64 / FPU SinJulia
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	8952 Points +98%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	8738 Points +93%
Average of class Mini PC (408 - 29064, n=119, last 2 years)	8538 Points +89%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	7444 Points +64%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	5567 Points +23%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	4656 Points +3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4648 Points +3%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	4529 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points -12%

AIDA64 / FPU Mandel
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	38989 Points +134%
Average of class Mini PC (1958 - 113499, n=119, last 2 years)	32689 Points +96%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	32465 Points +95%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	26735 Points +61%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	19857 Points +19%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	17352 Points +4%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	16652 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points -10%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	12560 Points -25%

AIDA64 / CPU AES
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	95057 MB/s +65%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	92530 MB/s +61%
Average of class Mini PC (3691 - 325960, n=119, last 2 years)	85358 MB/s +48%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	74716 MB/s +30%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	66023 MB/s +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s +2%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	57644 MB/s
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	39680 MB/s -31%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	17907 MB/s -69%

AIDA64 / CPU ZLib
Average of class Mini PC (74.8 - 2039, n=119, last 2 years)	714 MB/s +92%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	674 MB/s +81%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	614 MB/s +65%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	575 MB/s +55%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	530 MB/s +42%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	372 MB/s
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	347 MB/s -7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	292 MB/s -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s -29%

AIDA64 / FP64 Ray-Trace
Average of class Mini PC (308 - 26952, n=119, last 2 years)	6658 KRay/s +82%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	5777 KRay/s +57%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	5771 KRay/s +57%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	5058 KRay/s +38%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	4156 KRay/s +13%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	3668 KRay/s
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	3619 KRay/s -1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s -18%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	2527 KRay/s -31%

AIDA64 / CPU PhotoWorxx
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	28118 MPixel/s +10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	28010 MPixel/s +10%
Average of class Mini PC (4408 - 50500, n=119, last 2 years)	27805 MPixel/s +9%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	27456 MPixel/s +8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s +6%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	25669 MPixel/s +1%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	25453 MPixel/s
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	20410 MPixel/s -20%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	10107 MPixel/s -60%

Geekom Mini IT12与Cinebench R15多重循环对比

Cinebench R15连续循环测试让我们首次看到了所安装的散热器与SoC功耗目标的结合效率。我们看到，PC在测试开始时的表现并没有比测试其余时间的表现更好。测试期间的遥测数据显示，电脑很快就达到了最高温度。我们想提到一个积极的方面：英特尔英特尔酷睿i7-11390H表现稳定，之前提到的CPU高温并未导致任何性能下降。

Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Core i7-11390H: Ø946 (931.81-953.22)

Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Core i7-1360P: Ø1825 (1794.93-2181.38)

Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Core i7-1260P: Ø1702 (1671.26-2063.13)

Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1099 (1072.7-1239.66)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

系统性能

在合成基准测试中，Geekom Mini IT11 在系统性能方面与竞争对手的竞争并不轻松。它没有达到最大功耗水平也是导致这些结果的原因之一，我们的测试样品只能处于中间位置。在 Crossmarks 和 RAM 基准测试中，Geekom Mini IT11 的表现略好于 PCMark 10。不过，我们可以主观地说，Mini IT11 在日常使用中仍然表现良好。其四核 SoC 的速度仍然足够快，这要归功于其充足的内存和固态硬盘。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	6189 Points +26%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	6057 Points +23%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	5872 Points +19%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	5658 Points +15%
Geekom Mini IT11-GM11i7T, Intel Core i7-1195G7 Intel Iris Xe Graphics G7 96EUs, Intel SSD 660p SSDPEKNW512G8	5067 Points +3%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	4914 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points -8%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	3884 Points -21%

PCMark 10 / Essentials
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	11395 Points +18%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	10503 Points +9%
Geekom Mini IT11-GM11i7T, Intel Core i7-1195G7 Intel Iris Xe Graphics G7 96EUs, Intel SSD 660p SSDPEKNW512G8	10303 Points +7%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	10139 Points +5%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9820 Points +2%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	9649 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points -8%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	7469 Points -23%

PCMark 10 / Productivity
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	9642 Points +42%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9031 Points +33%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	8164 Points +20%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	7427 Points +9%
Geekom Mini IT11-GM11i7T, Intel Core i7-1195G7 Intel Iris Xe Graphics G7 96EUs, Intel SSD 660p SSDPEKNW512G8	7070 Points +4%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	6788 Points
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	6657 Points -2%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points -6%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1875 Points +30%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1738 Points +21%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1517 Points +5%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1438 Points
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1346 Points -6%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points -13%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1018 Points -29%

CrossMark / Responsiveness
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	2077 Points +45%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1734 Points +21%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1434 Points
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1238 Points -14%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points -15%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1197 Points -17%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	779 Points -46%

CrossMark / Creativity
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1811 Points +33%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1749 Points +29%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1652 Points +22%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1377 Points +1%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1359 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points -12%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1038 Points -24%

CrossMark / Productivity
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1876 Points +23%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1729 Points +14%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1523 Points
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1491 Points -2%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1368 Points -10%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points -14%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1092 Points -28%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	47711 MB/s +14%
Average of class Mini PC (6481 - 89287, n=119, last 2 years)	47585 MB/s +13%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	46936 MB/s +12%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	44726 MB/s +7%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	41953 MB/s
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	41937 MB/s 0%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	41732 MB/s -1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s -16%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18973 MB/s -55%

AIDA64 / Memory Read
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	50120 MB/s +6%
Average of class Mini PC (6914 - 99171, n=119, last 2 years)	48328 MB/s +2%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	47491 MB/s 0%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	47463 MB/s 0%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	47290 MB/s
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	46963 MB/s -1%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	46084 MB/s -3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s -15%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	19621 MB/s -59%

AIDA64 / Memory Write
Average of class Mini PC (6862 - 98583, n=119, last 2 years)	52056 MB/s +11%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	49353 MB/s +5%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	47383 MB/s +1%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	46975 MB/s 0%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	46860 MB/s
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	46785 MB/s 0%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	44872 MB/s -4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s -16%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18296 MB/s -61%

AIDA64 / Memory Latency
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	94 ns * -42%
Average of class Mini PC (44.9 - 184.8, n=119, last 2 years)	91.9 ns * -39%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	80.2 ns * -21%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	75.5 ns * -14%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	71.6 ns * -8%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	69.8 ns * -5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * -4%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	66.3 ns *
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	60.2 ns * +9%

* ... smaller is better

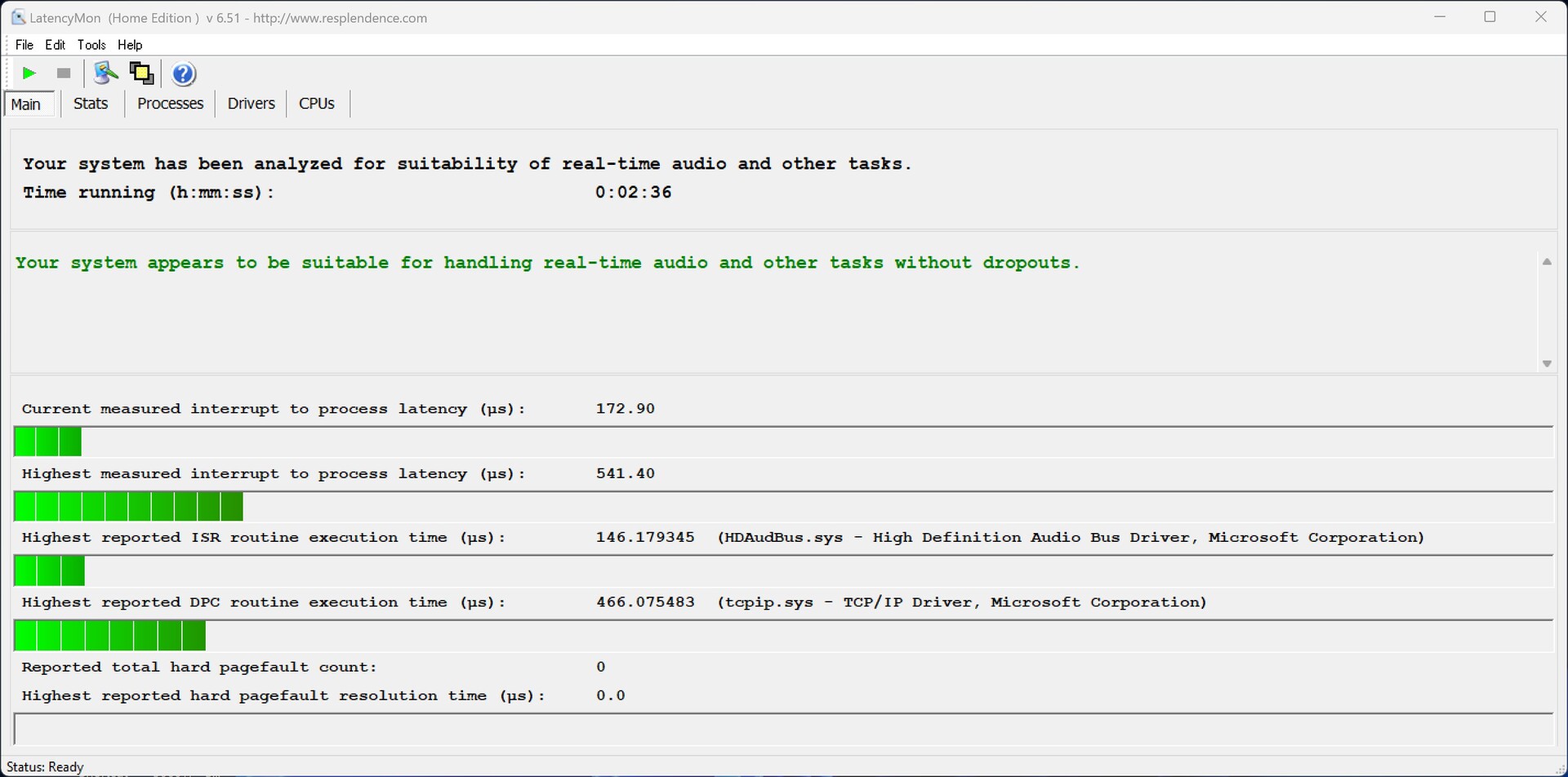

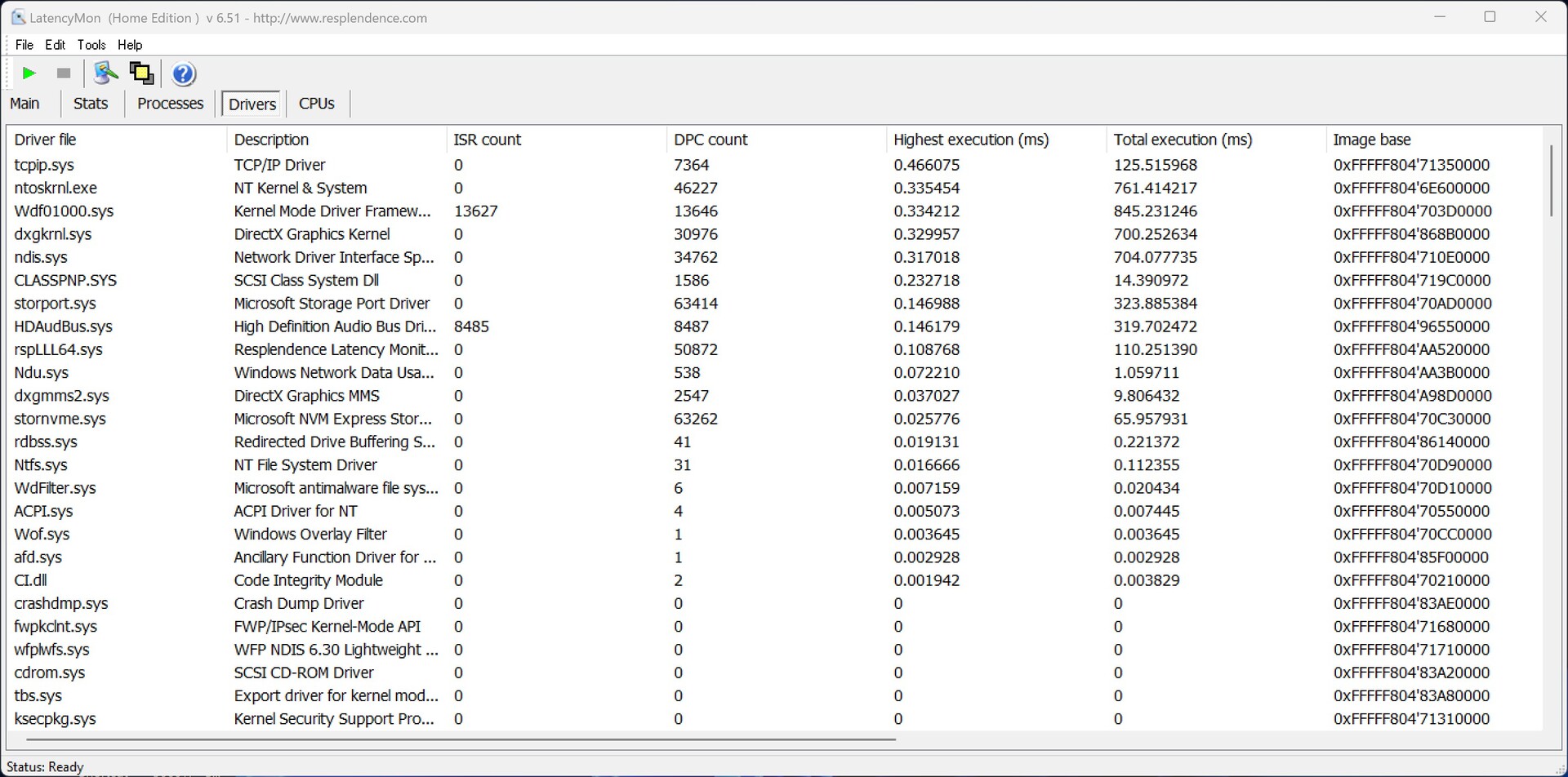

DPC延迟

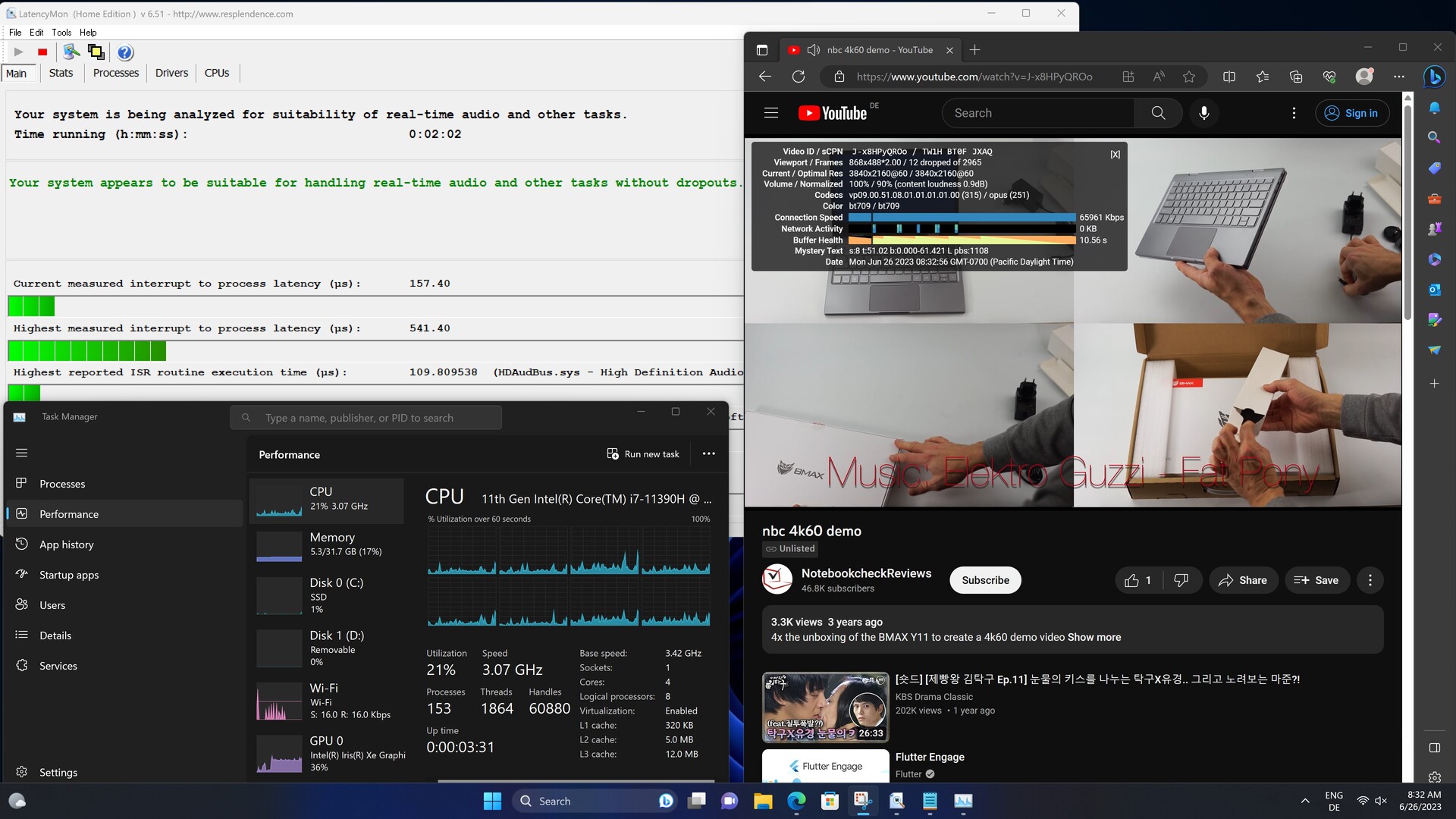

与所有对比设备相比，Geekom IT11的延迟结果最好。该系统在这方面似乎表现出色。我们在播放4K测试视频时没有发现任何问题。掉帧来自于开始时的加载时间。播放视频时，iGPU的使用率约为40%。Prime95也没有导致延迟增加。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	7414 μs * -1491%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	1016.7 μs * -118%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	985.8 μs * -112%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	940.27 μs * -102%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	795 μs * -71%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	659.1 μs * -41%
Geekom Mini IT11-GM11i7T Iris Xe G7 96EUs, i7-1195G7, Intel SSD 660p SSDPEKNW512G8	541.1 μs * -16%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	466 μs *

* ... smaller is better

存储设备

Geekom 为 Mini IT11 配备了来自 Lexar 的 512-GB NVMe SSD。安装的型号使用了NVMe连接，并提供了不错的传输速率。它无法接近Miniforum NAB6的出色固态硬盘性能，但我们的测试设备仍位居第二。它的传输速率绝对适合日常使用。在连续负载的情况下，Geekom Mini IT11的固态硬盘散热并不足以避免读取速度的下降。有时，我们注意到读取速率损失高达50%。

Geekom Mini IT11可以安装两块M.2固态硬盘。此外，该设备还有一个2.5英寸插槽，这意味着总共可以安装三个存储设备。您只需记住，最大安装高度为7毫米。

更多比较和基准，请查看我们的比较表.

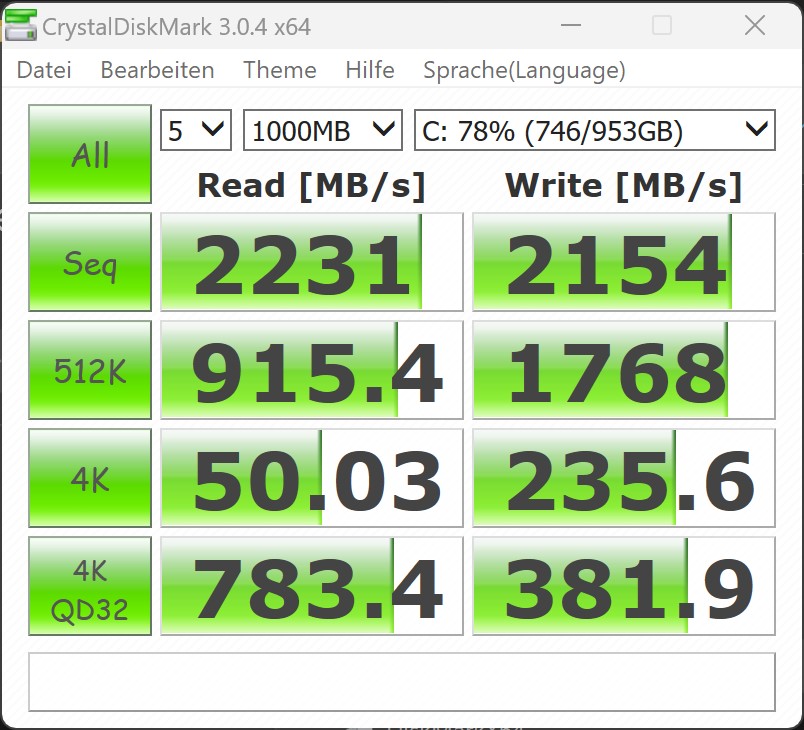

CrystalDiskMark 3.0

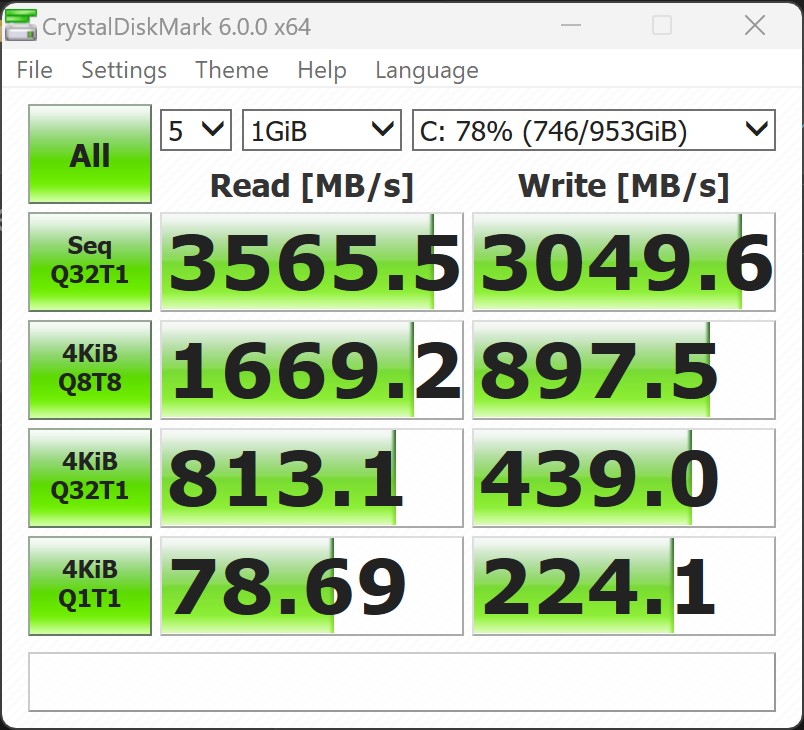

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Lexar 1024GB LNM6A1X001T-HNNNG

Sequential Read: 2231 MB/s

Sequential Write: 2154 MB/s

512K Read: 915.4 MB/s

512K Write: 1768 MB/s

4K Read: 50.03 MB/s

4K Write: 235.6 MB/s

4K QD32 Read: 783.4 MB/s

4K QD32 Write: 381.9 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	83 pt
Average of class Mini PC	65.8 pt
Minisforum Venus Series UM560 XT ESO512GYLCT	58.3 pt
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	54.1 pt
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	51 pt
Geekom Mini IT12 Kingston OM8SEP4512N-A0	45.5 pt
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	42.2 pt
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	39.3 pt
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	14.7 pt

DiskSpd
seq read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2689 (2681.42^min - 2688.76^max) MB/s +60%
Average of class Mini PC (233 - 4357, n=119, last 2 years)	2288 MB/s +36%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s +30%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1720 (1344.24^min - 1720.17^max) MB/s +2%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1684 (1646.89^min - 1684.01^max) MB/s
Minisforum Venus Series UM560 XT ESO512GYLCT	1645 (1636.91^min - 1645.01^max) MB/s -2%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	1549 (1537.7^min - 1549.42^max) MB/s -8%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1451 (1441.37^min - 1451.23^max) MB/s -14%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	311 (298.22^min - 311.01^max) MB/s -82%
seq write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3544 (3538.94^min - 3544.19^max) MB/s +54%
Average of class Mini PC (222 - 5595, n=119, last 2 years)	2448 MB/s +7%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2298 (1081.92^min - 2298.06^max) MB/s
Minisforum Venus Series UM560 XT ESO512GYLCT	1877 (1870.87^min - 1877.35^max) MB/s -18%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s -22%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1203 (1169.58^min - 1202.51^max) MB/s -48%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1075 (545.51^min - 1075.26^max) MB/s -53%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	945 (937.02^min - 945.39^max) MB/s -59%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	439 (396.15^min - 438.89^max) MB/s -81%
seq q8 t1 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4797 (4271.21^min - 4796.87^max) MB/s +116%
Average of class Mini PC (236 - 8430, n=119, last 2 years)	3706 MB/s +67%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s +14%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2522 (2230.32^min - 2522.44^max) MB/s +13%
Minisforum Venus Series UM560 XT ESO512GYLCT	2360 (2078.7^min - 2359.72^max) MB/s +6%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2223 (1765.77^min - 2223.4^max) MB/s
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	1745 (1554.41^min - 1745.32^max) MB/s -22%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1694 (1415.05^min - 1693.87^max) MB/s -24%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	444 (287.73^min - 443.55^max) MB/s -80%
seq q8 t1 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3541 (3519.65^min - 3541.04^max) MB/s +42%
Average of class Mini PC (228 - 6669, n=119, last 2 years)	2743 MB/s +10%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2494 (2222.35^min - 2493.51^max) MB/s
Minisforum Venus Series UM560 XT ESO512GYLCT	1946 (1938.09^min - 1945.74^max) MB/s -22%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s -28%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1599 (266.87^min - 1599.24^max) MB/s -36%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1213 (1155.74^min - 1212.78^max) MB/s -51%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	952 (939.95^min - 952.11^max) MB/s -62%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	461 (421.95^min - 460.95^max) MB/s -82%
4k q1 t1 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	82.8 (82.48^min - 82.75^max) MB/s +117%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	65.7 (65.2^min - 65.71^max) MB/s +72%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	55.6 (54.87^min - 55.6^max) MB/s +46%
Average of class Mini PC (5.67 - 86.6, n=119, last 2 years)	54.7 MB/s +44%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s +18%
Minisforum Venus Series UM560 XT ESO512GYLCT	44.8 (44.42^min - 44.77^max) MB/s +18%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	40.3 (36.8^min - 40.3^max) MB/s +6%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	38.8 (38.52^min - 38.82^max) MB/s +2%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	38.1 (35.61^min - 38.07^max) MB/s
4k q1 t1 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	420 (417.55^min - 420.16^max) MB/s +250%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	276 (193.9^min - 275.81^max) MB/s +130%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	229 (165.03^min - 229.29^max) MB/s +91%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	223 (217.36^min - 222.63^max) MB/s +86%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s +64%
Average of class Mini PC (30.4 - 435, n=119, last 2 years)	194.7 MB/s +62%
Minisforum Venus Series UM560 XT ESO512GYLCT	168.4 (166.77^min - 168.37^max) MB/s +40%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	120 (112.79^min - 120.03^max) MB/s
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	81.9 (80.7^min - 81.87^max) MB/s -32%
4k q32 t16 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1939 (1934.48^min - 1939.25^max) MB/s +203%
Average of class Mini PC (26.1 - 4158, n=119, last 2 years)	1360 MB/s +113%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s +57%
Minisforum Venus Series UM560 XT ESO512GYLCT	831 (807.33^min - 831.01^max) MB/s +30%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	639 (421.15^min - 639.47^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	561 (475.29^min - 560.56^max) MB/s -12%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	420 (418.45^min - 419.54^max) MB/s -34%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	345 (344.96^min - 345.39^max) MB/s -46%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	296 (283.25^min - 295.59^max) MB/s -54%
4k q32 t16 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3388 (3373.11^min - 3387.88^max) MB/s +1824%
Minisforum Venus Series UM560 XT ESO512GYLCT	1611 (1590.22^min - 1610.86^max) MB/s +815%
Average of class Mini PC (30.2 - 4288, n=119, last 2 years)	1287 MB/s +631%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	942 (402.72^min - 941.71^max) MB/s +435%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	847 (829.95^min - 846.98^max) MB/s +381%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	774 (725.33^min - 774.03^max) MB/s +340%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	544 (355.98^min - 544.47^max) MB/s +209%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	329 (317.87^min - 329.01^max) MB/s +87%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	176.1 (168.14^min - 176.06^max) MB/s

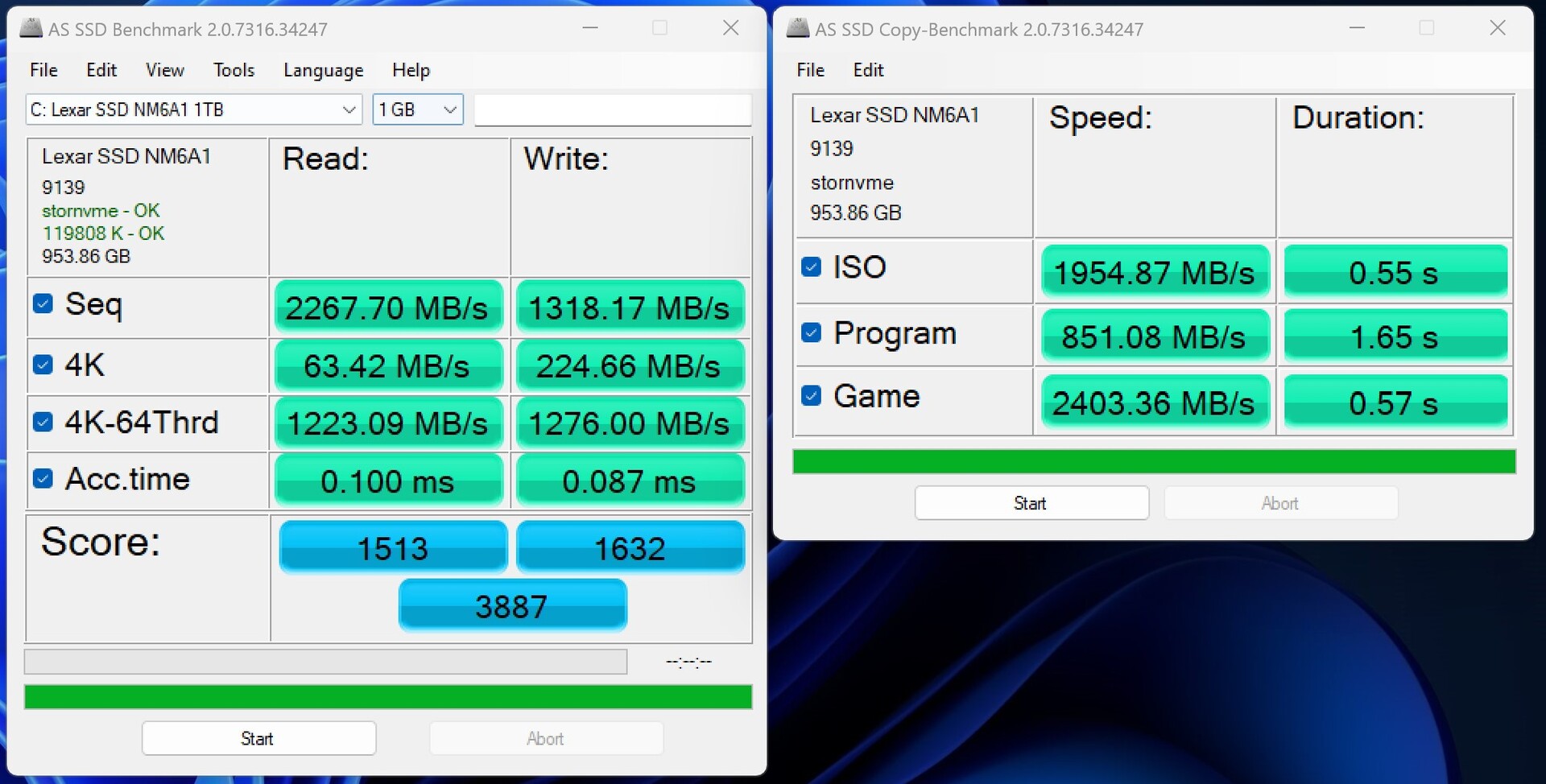

AS SSD
Score Total
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4744 Points +22%
Average of class Mini PC (181.5 - 10021, n=117, last 2 years)	4121 Points +6%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	3887 Points
Minisforum Venus Series UM560 XT ESO512GYLCT	3139 Points -19%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2887 Points -26%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2491 Points -36%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	1598 Points -59%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	748.83 Points -81%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	181.49 (344^min) Points -95%
Score Read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2356 Points +56%
Average of class Mini PC (61 - 3741, n=117, last 2 years)	1534 Points +1%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1513 Points
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1152 Points -24%
Minisforum Venus Series UM560 XT ESO512GYLCT	954 Points -37%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	725 Points -52%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	661 Points -56%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	522 Points -65%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	382 Points -75%
Score Write
Average of class Mini PC (88 - 4371, n=117, last 2 years)	1851 Points +13%
Minisforum Venus Series UM560 XT ESO512GYLCT	1702 Points +4%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1632 Points
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1457 Points -11%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1308 Points -20%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1169 Points -28%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	810 Points -50%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	700 Points -57%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	173 Points -89%
Seq Read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3874.21 MB/s +71%
Average of class Mini PC (291 - 6620, n=117, last 2 years)	3161 MB/s +39%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2844 MB/s +25%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2789 MB/s +23%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2268 MB/s
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2204 MB/s -3%
Minisforum Venus Series UM560 XT ESO512GYLCT	2193 MB/s -3%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	1356.17 MB/s -40%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	490 MB/s -78%
Seq Write
Average of class Mini PC (240 - 5783, n=117, last 2 years)	2212 MB/s +68%
Minisforum Venus Series UM560 XT ESO512GYLCT	1762 MB/s +34%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1603 MB/s +22%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1318 MB/s
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1232 MB/s -7%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	882.93 MB/s -33%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	854.29 MB/s -35%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	524 MB/s -60%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	400 MB/s -70%
4K Read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	102.97 MB/s +62%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	63.4 MB/s
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	61.08 MB/s -4%
Average of class Mini PC (6.08 - 104.3, n=117, last 2 years)	58.9 MB/s -7%
Minisforum Venus Series UM560 XT ESO512GYLCT	55.3 MB/s -13%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	53.5 MB/s -16%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	48.9 MB/s -23%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	42.04 MB/s -34%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	39.71 MB/s -37%
4K Write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	354.53 MB/s +58%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	273 MB/s +21%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	225 MB/s
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	191.79 MB/s -15%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	185.4 MB/s -18%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	185.32 MB/s -18%
Average of class Mini PC (30.9 - 366, n=117, last 2 years)	175.1 MB/s -22%
Minisforum Venus Series UM560 XT ESO512GYLCT	151.8 MB/s -33%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	39.4 MB/s -82%
4K-64 Read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1865.81 MB/s +53%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1223 MB/s
Average of class Mini PC (23.4 - 3220, n=117, last 2 years)	1159 MB/s -5%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	891.59 MB/s -27%
Minisforum Venus Series UM560 XT ESO512GYLCT	679 MB/s -44%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	397 MB/s -68%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	325.14 MB/s -73%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	323 MB/s -74%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	291.36 MB/s -76%
4K-64 Write
Average of class Mini PC (32.8 - 3731, n=117, last 2 years)	1455 MB/s +14%
Minisforum Venus Series UM560 XT ESO512GYLCT	1374 MB/s +8%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1276 MB/s
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1060 MB/s -17%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	865.27 MB/s -32%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	823.51 MB/s -35%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	532.6 MB/s -58%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	462 MB/s -64%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	93.65 MB/s -93%
Access Time Read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.117 ms * -17%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	0.112 ms * -12%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.1 ms *
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.098 ms * +2%
Average of class Mini PC (0.022 - 0.489, n=117, last 2 years)	0.09726 ms * +3%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	0.091 ms * +9%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.06 ms * +40%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.06 ms * +40%
Minisforum Venus Series UM560 XT ESO512GYLCT	0.044 ms * +56%
Access Time Write
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.118 ms * -36%
Average of class Mini PC (0.014 - 0.765, n=117, last 2 years)	0.1153 ms * -33%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	0.113 ms * -30%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.11 ms * -26%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.103 ms * -18%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.087 ms *
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	0.045 ms * +48%
Minisforum Venus Series UM560 XT ESO512GYLCT	0.024 ms * +72%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.023 ms * +74%

* ... smaller is better

SSD Throttling: DiskSpd Read Loop, Queue Depth 8

Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG: Ø1246 (674.65-1585.03)

Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S: Ø1047 (95.4-2400.59)

Geekom Mini IT12 Kingston OM8SEP4512N-A0: Ø2178 (1555.46-2595.65)

Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0: Ø4789 (4164.37-4807.96)

Minisforum Venus Series UM560 XT ESO512GYLCT: Ø2347 (2148.11-2354.15)

Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G: Ø453 (292.09-461.16)

Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8: Ø1555 (1360.64-1603.84)

Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G: Ø2219 (1791.18-2464.68)

显卡

由于其英特尔酷睿i7-11390H，配备了英特尔Iris Xe显卡G7作为 Geekom Mini IT11 的集成显卡。纯粹从性能的角度来看，这款机型只能真正用于 2D 渲染。显卡AMD Radeon 660M在M600性能更高一些。蝎极客迷你IT12's英特尔Iris Xe显卡G7的速度几乎完全相同，但由于采用了较新的 SoC，它领先于我们的测试样品。

更多比较和基准测试请参见我们的G PU对比表.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	95.1 pt
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	93.6 pt
Geekom Mini IT11-GM11i7T ^-1! Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1195G7	88 pt
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	86.5 pt
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	81 pt
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	80 pt
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	76.5 pt
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	24.3 pt

3DMark 11 - 1280x720 Performance GPU
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6599 Points +22%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	6079 Points +12%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	5634 Points +4%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points +3%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5462 Points +1%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	5413 Points
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1660 Points -69%

3DMark
1280x720 Cloud Gate Standard Graphics
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	29927 Points +56%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	28159 Points +46%
Geekom Mini IT11-GM11i7T Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1195G7	27609 Points +43%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	22570 Points +17%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	21383 Points +11%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points +6%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	19240 Points
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	8164 Points -58%
1920x1080 Fire Strike Graphics
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4860 Points +20%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	4621 Points +14%
Geekom Mini IT11-GM11i7T Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1195G7	4551 Points +13%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4098 Points +1%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	4041 Points
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	3971 Points -2%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points -8%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1078 Points -73%
2560x1440 Time Spy Graphics
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1528 Points +18%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	1430 Points +10%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1300 Points
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1247 Points -4%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1217 Points -6%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1109 Points -15%
Geekom Mini IT11-GM11i7T Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1195G7	1091 Points -16%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	365 Points -72%
Fire Strike Extreme Graphics
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	2150 Points +17%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	2149 Points +17%
Geekom Mini IT11-GM11i7T Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1195G7	2039 Points +11%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1866 Points +2%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1833 Points
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1735 Points -5%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1654 Points -10%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	491 Points -73%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1

Performance Rating - Percent
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	92.9 pt
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	92.2 pt
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	90.6 pt
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	79.2 pt
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	77.4 pt
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	76.1 pt
Minipc Union NiPoGi CK10 - 10810U ^-1! UHD Graphics 620, i7-10810U, FPT310M8SSD512G	25.6 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21 fps +19%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	20.9 fps +18%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.4 fps +15%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	19.7 fps +11%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	17.7 fps
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.3 fps -2%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	5.4 fps -69%
Extreme Preset DX11
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21.7 fps +21%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.9 fps +17%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	20.4 fps +14%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	19.8 fps +11%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	17.9 fps
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.7 fps -1%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	5.7 fps -68%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	13.2 fps +17%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	13.2 fps +17%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	12.8 fps +13%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	11.5 fps +2%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	11.3 fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	10.9 fps -4%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	3.9 fps -65%
1920x1080 Extreme HD Preset OpenGL AA:x8
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	16.1 fps +38%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	15.1 fps +29%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	13.7 fps +17%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	13.5 fps +15%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	11.7 fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	11.6 fps -1%

ComputeMark v2.1
1024x600 Normal, Score
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	3439 Points +24%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	3308 Points +20%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	3244 Points +17%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	2766 Points
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	2693 Points -3%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	2512 Points -9%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	899 Points -67%
1024x600 Normal, Fluid 3DTex
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	318 Points +43%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	272 Points +22%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points +6%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	223 Points
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	216 Points -3%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	186 Points -17%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	86 Points -61%
1024x600 Normal, Fluid 2DTexArr
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	340 Points +48%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	260 Points +13%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points +3%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	230 Points
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	220 Points -4%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	204 Points -11%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	84 Points -63%
1024x600 Normal, Mandel Vector
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	948 Points +59%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	933 Points +56%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	827 Points +38%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	598 Points
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	558 Points -7%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	483 Points -19%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	177 Points -70%
1024x600 Normal, Mandel Scalar
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	885 Points +14%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	884 Points +13%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	834 Points +7%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	779 Points
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	770 Points -1%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	751 Points -4%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	200 Points -74%
1024x600 Normal, QJuliaRayTrace
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	1174 Points +25%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	994 Points +6%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	963 Points +3%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	936 Points
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	880 Points -6%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	823 Points -12%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	352 Points -62%

3DMark 05 Standard		29075 points
3DMark 06 Standard Score		22323 points
3DMark Vantage P Result		17785 points
3DMark 11 Performance		5702 points
3DMark Ice Storm Standard Score		45086 points
3DMark Cloud Gate Standard Score		14916 points
3DMark Fire Strike Score		3723 points
3DMark Fire Strike Extreme Score		1824 points
3DMark Time Spy Score		1456 points
Help

... in comparison

游戏性能

由于 iGPU 的性能水平有限，我们不建议将其用于游戏。Geekom Mini IT11只能在最低分辨率和低细节设置下实现可玩帧率。如果您正在寻找一款游戏设备，那么您最好选择配备专用显卡的机型。在这里，我们看到Minisforum的HX99G和NUCXi7型号具有明显优势。另外，您也可以购买基于AMD Ryzen 9 6900HX- 其他具有此功能的型号有Geekom AS 6,莫菲M600和Ace Magican AM08 Pro.

The Witcher 3
1024x768 Low Graphics & Postprocessing
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	113.9 fps +80%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	101.7 fps +61%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	97.2 fps +54%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	88.1 (3.39^min, 21.4^P0.1, 52.9^P1) fps +39%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	63.6 fps 0%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	63.3 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	61.8 (16.1^min, 20.6^P0.1, 34.6^P1) fps -2%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	39.4 fps +77%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	32 fps +44%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	31.1 fps +40%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	22.2 fps
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	20.7 fps -7%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	19.6 (10.2^min, 13^P0.1, 16.4^P1) fps -12%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	15.2 (8.49^min, 8.73^P0.1, 9.27^P1) fps -32%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	90.7 fps +148%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	59.1 fps +61%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	55.5 fps +52%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	54.3 fps +48%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	53.4 fps +46%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	52.4 fps +43%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	36.6 fps
1920x1080 High Overall Quality (DX11)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	24.1 fps +130%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	16.2 fps +54%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	16.2 fps +54%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	15 fps +43%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	13.3 fps +27%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	13.2 fps +26%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	10.5 fps

GTA V
1024x768 Lowest Settings possible
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	152.1 (2.73^min, 100^P1) fps +56%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	135.3 (26.7^min, 90.9^P1) fps +38%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	126.2 (50.6^min, 76.9^P1) fps +29%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	121.3 (9.08^min, 83.3^P1) fps +24%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	114.3 (8.54^min, 76.9^P1) fps +17%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	108.6 (21.4^min, 71.4^P1) fps +11%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	97.7 (25.6^min, 55.6^P1) fps
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	53.5 (3.46^min, 38.5^P1) fps +161%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	28.5 (10.1^min, 21.3^P1) fps +39%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	27.2 (6.42^min, 20^P1) fps +33%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	21 (8.15^min, 16.1^P1) fps +2%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	20.7 (9.05^min, 15.9^P1) fps +1%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	20.5 (8.17^min, 14.5^P1) fps
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	19.4 (8.25^min, 15.2^P1) fps -5%

Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	75 (60^min) fps +88%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57 (49^min) fps +43%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	52 (45^min) fps +30%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	49 (42^min) fps +23%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	46 (37^min) fps +15%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	44 (38^min) fps +10%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	40 (35^min) fps
1920x1080 High Preset AA:T
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	34 (30^min) fps +79%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	27 (24^min) fps +42%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	25 (23^min) fps +32%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	25 (22^min) fps +32%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	20 (17^min) fps +5%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	20 (17^min) fps +5%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	19 (17^min) fps

Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	66 (50^min) fps +83%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	52 (31^min) fps +44%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	52 (34^min) fps +44%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	47 (30^min) fps +31%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	43 (33^min) fps +19%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	40 (31^min) fps +11%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	36 (24^min) fps
1920x1080 High Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	37 (29^min) fps +106%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	28 (21^min) fps +56%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	28 (22^min) fps +56%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	26 (19^min) fps +44%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	20 (12^min) fps +11%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	19 (16^min) fps +6%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	18 (14^min) fps

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	136.9 (106.8^min) fps +43%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	133.4 (119^min) fps +39%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	123.8 (98^min) fps +29%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	117.4 (100.8^min) fps +23%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	116.4 (93.7^min) fps +22%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	111 (97.1^min) fps +16%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	95.8 (84.4^min) fps
1920x1080 high (2/3)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	82.2 (71.4^min) fps +82%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	68 (62.7^min) fps +50%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	67.6 (59.9^min) fps +50%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	63.1 (57.2^min) fps +40%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	57.2 (52.1^min) fps +27%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	50.5 (43.6^min) fps +12%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	45.2 (38.5^min) fps

	low	med.	high	ultra
GTA V (2015)	97.7	84.7	20.5	7.7
The Witcher 3 (2015)	63.3		22.2	11.4
Dota 2 Reborn (2015)	95.8	66.6	45.2	42
Far Cry 5 (2018)	40	20	19	17
Strange Brigade (2018)	68.6	29	23.3	19.1
Shadow of the Tomb Raider (2018)	39.1	15.9
Far Cry New Dawn (2019)	36	20	18	17
Borderlands 3 (2019)	36.6	16.9	10.5	7.98
F1 2020 (2020)	66.7	34.2	26.4	17
F1 2021 (2021)	78.3	37.1	29.2	20.3
GRID Legends (2022)	33.6	29.8	25.7	15.5
Tiny Tina's Wonderlands (2022)	22.3	17	10.7	8.4
F1 22 (2022)	33.3	30.6	21.7	16.5

通过配备NvidiaGeForce RTX 3060 Ti的eGPU底座实现3D性能

由于 Geekom Mini IT11 配备了两个 USB 4 端口和 Thunderbolt，我们还可以看看它与 Razer Core X 和 Nvidia RTX 3060 Ti 的组合性能。NvidiaGeForce RTX 3060 Ti.在我们的测试中，这一组合表现相当出色，尽管Mini IT11仅能领先于王牌魔术师TK11-A0.在游戏测试中，四核CPU的局限性真正显现出来。即便如此，我们还是注意到其性能比缓慢的 iGPU 有了相当大的提升。你必须注意到更现代的Geekom Mini IT12在相同的组合下，性能提高了20%。

配备Razer Core X和NvidiaGeForce RTX 3060 Ti的Geekom Mini IT11

Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	97.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	95.8 pt
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	94.6 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	84 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	83.3 pt
Geekom Mini IT11 (Nvidia GeForce RTX 3060 Ti FE TB3) NVIDIA GeForce RTX 3060 Ti, Intel Core i7-11390H	78.5 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	72.7 pt

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	100.6 (9.76^min, 66.7^P1 - 197.6^max) fps +1205%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	96.6 (15^min, 66.7^P1 - 168.7^max) fps +1153%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	90.5 (15.8^min, 62.5^P1 - 187.2^max) fps +1074%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	89.5 (16.6^min, 58.8^P1 - 175.8^max) fps +1061%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	85.1 (17.4^min, 52.6^P1 - 186.7^max) fps +1004%
Geekom Mini IT11 (Nvidia GeForce RTX 3060 Ti FE TB3) NVIDIA GeForce RTX 3060 Ti, Intel Core i7-11390H	56.7 (16.3^min, 20.4^P1 - 152.8^max) fps +635%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	56.1 (15.7^min, 38.5^P1 - 119.1^max) fps +628%
	7.71 (3.66^min, 5.78^P1 - 23.7^max) fps
	7.7 (3.58^min, 5.88^P1 - 16.9^max) fps 0%

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	75.3 (40.5^min, 52.6^P0.1, 59.5^P1 - 173.3^max) fps +561%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	74.8 fps +556%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	73.8 fps +547%
Geekom Mini IT11 (Nvidia GeForce RTX 3060 Ti FE TB3) NVIDIA GeForce RTX 3060 Ti, Intel Core i7-11390H	64.6 fps +467%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	60.8 (40.3^min, 43^P0.1, 46.6^P1 - 140.7^max) fps +433%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	57.9 fps +408%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	56.3 fps +394%
	11.4 fps

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	134.5 (115.1^min) fps +220%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	127.5 (110.1^min) fps +204%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	126.2 (108.1^min) fps +200%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	113.3 (94.8^min) fps +170%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	111.7 (92.8^min) fps +166%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	92.8 (79.9^min) fps +121%
Geekom Mini IT11 (Nvidia GeForce RTX 3060 Ti FE TB3) NVIDIA GeForce RTX 3060 Ti, Intel Core i7-11390H	89.2 (74.2^min) fps +112%
	42 (37.8^min) fps

Final Fantasy XV Benchmark - 1920x1080 High Quality
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	98.5 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	97.6 fps
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	97.4 fps
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	92.2 fps
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	91.5 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	79 fps
Geekom Mini IT11 (Nvidia GeForce RTX 3060 Ti FE TB3) NVIDIA GeForce RTX 3060 Ti, Intel Core i7-11390H	58.8 fps

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	150 (76.6^min, 93.3^P1 - 295^max) fps +685%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	148.8 (78.4^min, 90.6^P1 - 285^max) fps +679%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	147 (76.9^min, 90.8^P1 - 300^max) fps +670%
Geekom Mini IT11 (Nvidia GeForce RTX 3060 Ti FE TB3) NVIDIA GeForce RTX 3060 Ti, Intel Core i7-11390H	139.7 (74^min, 89.1^P1 - 257^max) fps +631%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	131.1 (68.1^min, 78.3^P1 - 270^max) fps +586%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	127.4 (45.3^min, 77.9^P1 - 260^max) fps +567%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	114.7 (58.8^min, 72.4^P1 - 210^max) fps +501%
	19.1 (5^min, 5.1^P1 - 275^max) fps

Far Cry 5 - 1920x1080 Ultra Preset AA:T
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	120 (92^min - 158^max) fps +606%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	117 (88^min - 156^max) fps +588%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	114 (85^min - 152^max) fps +571%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	107 (72^min - 143^max) fps +529%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	104 (77^min - 138^max) fps +512%
Geekom Mini IT11 (Nvidia GeForce RTX 3060 Ti FE TB3) NVIDIA GeForce RTX 3060 Ti, Intel Core i7-11390H	95 (70^min - 128^max) fps +459%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	60 (46^min - 78^max) fps +253%
	17 (15^min - 20^max) fps

Far Cry New Dawn - 1920x1080 Ultra Preset
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	101 (74^min - 147^max) fps +494%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	99 fps +482%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	95 (69^min - 143^max) fps +459%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	88 (63^min - 132^max) fps +418%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	87 (62^min - 135^max) fps +412%
Geekom Mini IT11 (Nvidia GeForce RTX 3060 Ti FE TB3) NVIDIA GeForce RTX 3060 Ti, Intel Core i7-11390H	76 (54^min - 121^max) fps +347%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	54 (39^min - 85^max) fps +218%
	17 (11^min - 22^max) fps

F1 2020 - 1920x1080 Ultra High Preset AA:T AF:16x
Geekom Mini IT11 (Nvidia GeForce RTX 3060 Ti FE TB3) NVIDIA GeForce RTX 3060 Ti, Intel Core i7-11390H	106.5 (85^min - 130^max) fps +526%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	106.1 (59^min - 146^max) fps +524%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	102.7 (53^min - 145^max) fps +504%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	100.5 (58^min - 143^max) fps +491%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	86.7 (48^min - 122^max) fps +410%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	82.4 (39^min - 117^max) fps +385%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	81.5 (43^min - 107^max) fps +379%
	17 (12^min - 21^max) fps

F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	65.4 (47^min, 47^P1 - 73^max) fps +222%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	54.2 (36^min, 31^P1 - 61^max) fps +167%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	51.7 (34^min, 24^P1 - 59^max) fps +155%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	51.5 (31^min, 27^P1 - 60^max) fps +154%
Geekom Mini IT11 (Nvidia GeForce RTX 3060 Ti FE TB3) NVIDIA GeForce RTX 3060 Ti, Intel Core i7-11390H	49.8 (33^min, 24^P1 - 57^max) fps +145%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	44 (9^min, 20^P1 - 52^max) fps +117%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	43.5 (10^min, 19^P1 - 51^max) fps +114%
	20.3 (16^min, 16^P1 - 23^max) fps

Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	83.6 fps +948%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	83.2 fps +943%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	82.8 fps +938%
Geekom Mini IT11 (Nvidia GeForce RTX 3060 Ti FE TB3) NVIDIA GeForce RTX 3060 Ti, Intel Core i7-11390H	78.2 fps +880%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	76.4 fps +857%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	71.3 fps +793%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	69.8 fps +775%
	7.98 fps

	low	med.	high	ultra	QHD	4K
GTA V (2015)	161.7	151.4	92.1	56.7	38.9	30.5
The Witcher 3 (2015)	227.9		115	64.6		54.6
Dota 2 Reborn (2015)	115.4	107.2	95.5	89.2		33.7
Final Fantasy XV Benchmark (2018)	124.1	76.7	58.8		40.8	23.2
X-Plane 11.11 (2018)	94.3	82.2	68.4			30.3
Far Cry 5 (2018)	121	106	101	95	90	58
Strange Brigade (2018)	182.2	144.6	143.2	139.7	119.3	79.6
Shadow of the Tomb Raider (2018)	108.7	98	97.6	95	84.7	53.8
Far Cry New Dawn (2019)	101	88	84	76	73	56
Borderlands 3 (2019)	114.9	101.6	90.2	78.2	63.2	38.1
F1 2020 (2020)	183.7	152.2	139.7	106.5	92	61.9
F1 2021 (2021)	128.9	101.8	66	49.8	45.2	38.4
Far Cry 6 (2021)	67	56.9	47.6	42.7	41.8
God of War (2022)	102	93.1	78.7	51.9	58.3	39.3
GRID Legends (2022)	103	91.2	78.7	68.9	62.3	49.2
Tiny Tina's Wonderlands (2022)	162.4	136.7	97.4	79.4	60.5	35.7
F1 22 (2022)	59.2	54	41.1	26.5	25.3	19

节俭、安静的排放

噪声排放

在空闲模式下进行噪音测量时，我们发现噪音非常低。即使在平均负载下，我们测得的值为 30.6 dB(A)，这意味着电脑仍然非常安静。在满载状态下，Geekom Mini IT11 的噪音值略高于 36 dB(A)。与竞争对手相比，我们的测试样品取得了非常好的成绩。

Noise Level

Idle		30.2 / 30.2 / 30.2 dB(A)
Load		30.6 / 36.4 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Arta (15 cm distance) environment noise: 29.7 dB(A)

	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	Morefine M600, 6600U R5 6600U, Radeon 660M	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Minisforum Venus Series UM560 XT R5 5600H, Vega 7	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs
Noise		5%	1%	-1%	0%	1%	-7%
off / environment *	29.7	29.4 1%	29.8 -0%	29.4 1%	30 -1%	30.4 -2%	30.28 -2%
Idle Minimum *	30.2	29.4 3%	29.9 1%	29.4 3%	30.3 -0%	30.8 -2%	31.82 -5%
Idle Average *	30.2	29.4 3%	30.1 -0%	29.5 2%	30.5 -1%	30.9 -2%	32.27 -7%
Idle Maximum *	30.2	29.5 2%	30.2 -0%	29.7 2%	30.6 -1%	30.9 -2%	33.17 -10%
Load Average *	30.6	29.6 3%	32.1 -5%	34.6 -13%	32.5 -6%	31 -1%	35.82 -17%
Witcher 3 ultra *	30.5
Load Maximum *	36.4	29.6 19%	32.5 11%	36.1 1%	33.2 9%	31 15%	37.1 -2%

* ... smaller is better

温度

在负载情况下，Geekom Mini IT11 的机箱明显发热，但温度并未达到任何临界水平。Geekom Mini IT11 的散热理念是用最短的路径将热空气排出机箱。

我们确实注意到处理器温度相当高。它的热极限已经达到，SoC无法充分发挥其潜力。我们注意到最大功率为37瓦，短时间内功率可达64瓦。其小型散热器使其无法充分发挥潜力。

耗电量

总体而言，我们可以说 Geekom Mini IT11 是一款非常节俭的设备。在空闲模式下，它的平均耗电量仅为 7.3 至 8.4 瓦。在平均负载下，我们测得的功耗为 28.7 瓦，而在突发负载下，我们测得的功耗高达 61.1 瓦。我们测得的功耗值准确地反映了 Geekom Mini IT11 的总体性能水平。我们测得的功耗值准确地反映了Geekom Mini IT11的总体性能水平。NiPoGi CK10和王牌魔术师TK11-A0更省钱，但它们的总体性能水平较低。

由于最大功率为65瓦，所提供的电源接口尺寸足够大，为设备提供足够稳定的功率不会有任何问题。

Power Consumption

Off / Standby	0.37 / 0.71 Watt
Idle	7.3 / 7.8 / 8.4 Watt
Load	28.7 / 61.1 Watt


Key: min: , med: , max: Metrahit Energy

	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	Morefine M600, 6600U R5 6600U, Radeon 660M	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Minisforum Venus Series UM560 XT R5 5600H, Vega 7	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Average Intel Iris Xe Graphics G7 96EUs	Average of class Mini PC
Power Consumption		-31%	-19%	-74%	-8%	28%	12%	-16%	-63%
Idle Minimum *	7.3	8 -10%	5 32%	10.4 -42%	6.6 10%	4.8 34%	3.4 53%	5.34 ?(2.2 - 46.5, n=193) 27%	9.48 ?(1.9 - 45.7, n=119, last 2 years) -30%
Idle Average *	7.8	8.7 -12%	7 10%	12.3 -58%	6.8 13%	4.9 37%	5.7 27%	8.55 ?(3.8 - 63, n=193) -10%	11.5 ?(1.9 - 47.5, n=117, last 2 years) -47%
Idle Maximum *	8.4	8.8 -5%	10.7 -27%	12.4 -48%	7.2 14%	5.5 35%	7 17%	10.8 ?(5.8 - 68.9, n=193) -29%	14.9 ?(2.6 - 57.1, n=119, last 2 years) -77%
Load Average *	28.7	54.6 -90%	50.3 -75%	72.9 -154%	45.1 -57%	23 20%	36.5 -27%	45.3 ?(12.5 - 87.3, n=193) -58%	57.4 ?(11.3 - 170.6, n=119, last 2 years) -100%
Load Maximum *	61.1	83.2 -36%	82 -34%	101.2 -66%	73.4 -20%	54 12%	68 -11%	67.5 ?(30.1 - 123.3, n=193) -10%	97.5 ?(18.1 - 423, n=119, last 2 years) -60%

* ... smaller is better

Power consumption with external monitor

Geekom Mini IT11, i7-11390H; Prime95 V2810 Stress (external Monitor): Ø57.6 (47.9-61.1)

Geekom Mini IT11, i7-11390H; Cinebench R15 Multi (external Monitor): Ø50.7 (48-54.1)

Geekom Mini IT11, i7-11390H; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø34.2 (30.8-37.3)

Geekom Mini IT11, i7-11390H; 1920x1080 The Witcher 3 ultra (external Monitor): Ø30.4 (29-31.6)

Geekom Mini IT11, i7-11390H; Idle 1min (external Monitor): Ø8.39 (7.73-10.5)

Pros

+ 稳定、紧凑的机箱

+ 稳定的CPU性能

+ 32GB内存

+ 易于打开

+ 2x Thunderbolt

+ 极低的DPC延迟

+ 使用时非常安静

+ 快速SD读卡器

+ 最多可容纳三个固态硬盘

+ 低功耗

Cons

- 仅有4个内核的老旧SoC

- 负载情况下CPU温度过高

- 固态硬盘性能不稳定

结论--一款具有良好连接性的可靠工作设备

现在我们可以说，Geekom Mini IT11 总体而言是一款性能相当不错的迷你 PC。之所以说这只是相对而言，是因为它的硬件配置。硬件配置英特尔酷睿 i7-11390H仅有4个原生内核--而且是在2023年！英特尔多年来持续表现出的良好单核性能在这款略显过时的SoC中依然存在，我们的测试样品实际上成功击败了当前的一些AMD SoC。尽管如此，与竞争对手相比，我们不得不承认它在多核性能方面的局限性。即便如此，Geekom Mini IT11 还是在我们的日常使用中展现出了它的优势，英特尔酷睿 i7-11390H 的速度在当下仍然足够快。SoC 有 32 GB 内存，这也是相当不错的，您可能不必立即升级。

Geekom Mini IT11在小巧的机身内提供了稳定的性能，同时还具有一系列出色的连接选项。

我们必须对其现代化的连接选项给予应有的赞誉。Geekom Mini IT11拥有大量的连接端口，同时，它也没有放弃诸如Thunderbolt等现代端口。这为您在第三方配件的帮助下拓宽电脑的使用范围提供了极大的可能性。

如果说有什么不满意的地方，那就是它的设计和材料选择--外壳仍然由塑料制成，无法与竞争对手的铝制外壳相媲美。其竞争对手Minisforum和Morefine已经证明了这一点。价格方面，Geekom Mini IT11 的售价约为 599 美元。这既不便宜也不昂贵。它的竞争对手都在类似的价格范围内。

价格和供货情况

Geekom Mini IT11可直接从。.我们的测试样品售价为599美元。配备英特尔酷睿i5-1155G7、16GB内存和512GB固态硬盘的版本售价为399美元。最后，配备英特尔酷睿i7-11390H、32GB内存和2048GB固态硬盘的版本售价为649美元。

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Geekom Mini IT11, i7-11390H - 07/08/2023 v7 ^(old)
Sebastian Bade

Chassis

83 / 98 → 85%

Connectivity

62 / 81 → 77%

Weight

83%

Games Performance

63%

Application Performance

92%

Workstation

55%

Noise

87%

Average

75%

81%

Mini PC - Weighted Average

潜在的竞争对手比较

Geekom Mini IT11, i7-11390H详细介绍

案例 - 英特尔NUC向您致意

尺寸比较

连通性 - 即使在2023年也是最新的

SD卡读卡器

通讯

配件

维护

性能 - 酷睿i7-11390H仅有4核8线程

测试条件

处理器 - 仅4核8线程

Geekom Mini IT12与Cinebench R15多重循环对比

系统性能

DPC延迟

存储设备

SSD Throttling: DiskSpd Read Loop, Queue Depth 8

显卡

游戏性能

通过配备NvidiaGeForce RTX 3060 Ti的eGPU底座实现3D性能

节俭、安静的排放

噪声排放

温度

耗电量

Power consumption with external monitor

Pros

Cons

结论--一款具有良好连接性的可靠工作设备

价格和供货情况

Transparency

More articles related to this device
