Magyar华为 MateBook m5-6Y57 变形本简短评测
Huawei MateBook m5-6Y54 (MateBook Series)

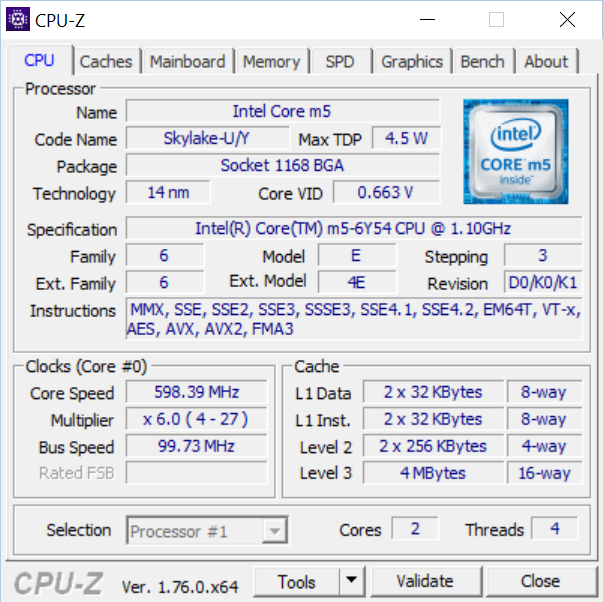

Processor
Intel Core m5-6Y54 2 x 1.1 - 2.7 GHz, Skylake
Graphics adapter
Intel HD Graphics 515

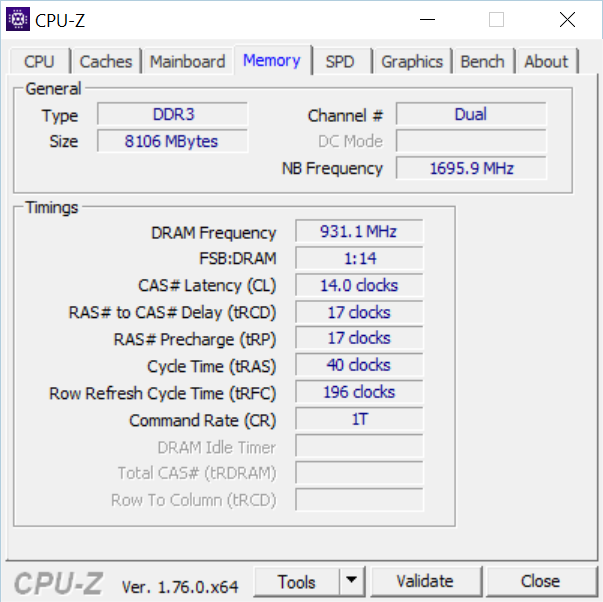

Memory
8 GB
, LPDDR3L 双通道
Display
12.00 inch 3:2, 2160 x 1440 pixel 216 PPI, 电容式多点触控, native pen support, TMA 1200 Unknown Vendor, IPS, 支持 MatePen, glossy: yes, detachable screen

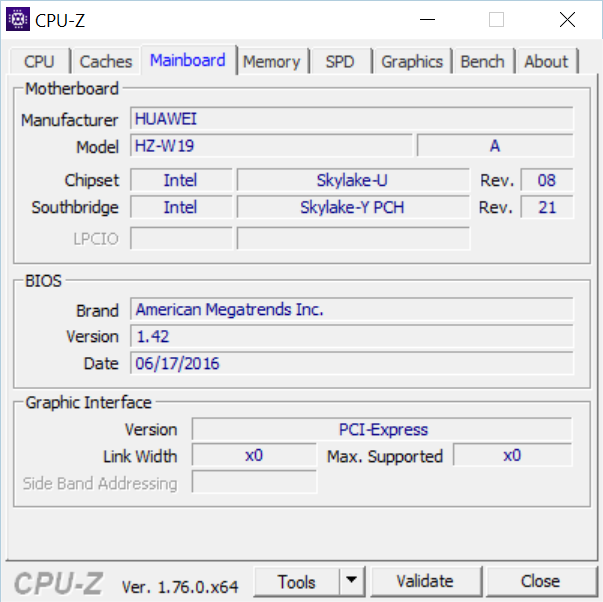

Mainboard
Intel Skylake-Y Premium PCH
Storage
SanDisk SD8SN8U256G1027, 256 GB
, 未知 - 可能为 SanDisk SD8SN8U256G1027, 194 GB free
Weight
1.167 kg, Power Supply: 114 g
Price
1200 Euro
Links
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| Networking | |
| iperf Server (receive) TCP 1 m | |
| Acer Aspire Switch Alpha 12 SA5-271-70EQ | |
| Huawei MateBook m5-6Y54 | |
| HP Spectre x2 12-a001ng | |
| iperf Client (transmit) TCP 1 m | |
| Acer Aspire Switch Alpha 12 SA5-271-70EQ | |
| Huawei MateBook m5-6Y54 | |
| HP Spectre x2 12-a001ng | |
| |||||||||||||||||||||||||
TMA 1200 Unknown Vendor tested with X-Rite i1Pro 2
Maximum: 452 cd/m² (Nits) Average: 425.1 cd/m² Minimum: 7.7 cd/m²Brightness Distribution: 80 %
Center on Battery: 372 cd/m²
Contrast: 1219:1 (Black: 0.37 cd/m²)
ΔE Color 11.04 | 0.5-29.43 Ø4.93
ΔE Greyscale 10.45 | 0.5-98 Ø5.2
100% sRGB (Argyll 1.6.3 3D)
74% AdobeRGB 1998 (Argyll 1.6.3 3D)
66.8% AdobeRGB 1998 (Argyll 2.2.0 3D)
96.2% sRGB (Argyll 2.2.0 3D)
65.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2
| Huawei MateBook m5-6Y54 TMA 1200 Unknown Vendor, , 2160x1440, 12" | HP Spectre x2 12-a003ng K3D42EA LGD04A5, , 1920x1080, 12" | Lenovo IdeaPad Miix 700 Samsung L_QLLTN120QL01L01, , 2160x1440, 12" | Acer Aspire Switch 12S SW7-272-M3A0 AU Optronics B125HAN01.0, , 1920x1080, 12.5" | Acer Aspire Switch Alpha 12 SA5-271-56HM Panasonic VVX12T041N00, , 2160x1440, 12" | Microsoft Surface Pro 4, Core m3 Samsung SDC3853, , 2736x1824, 12.3" | |
|---|---|---|---|---|---|---|
| Display | -22% | 3% | -33% | 0% | 2% | |
| Display P3 Coverage | 65.8 | 52.9 -20% | 68.1 3% | 43.2 -34% | 65.5 0% | 67.5 3% |
| sRGB Coverage | 96.2 | 71.8 -25% | 97.4 1% | 64 -33% | 96.1 0% | 96.6 0% |
| AdobeRGB 1998 Coverage | 66.8 | 52.6 -21% | 70.2 5% | 44.63 -33% | 66.9 0% | 69 3% |
| Response Times | -71% | -7% | -3% | -40% | -83% | |
| Response Time Grey 50% / Grey 80% * | 25 ? | 47 ? -88% | 30 ? -20% | 25 ? -0% | 20 ? 20% | 46 ? -84% |
| Response Time Black / White * | 17 ? | 26 ? -53% | 16 ? 6% | 18 ? -6% | 34 ? -100% | 31 ? -82% |
| PWM Frequency | 200 ? | 1000 ? | 50 ? | |||
| Screen | -7% | -1% | 8% | 3% | 17% | |
| Brightness middle | 451 | 353 -22% | 341 -24% | 383 -15% | 345 -24% | 389.2 -14% |
| Brightness | 425 | 347 -18% | 318 -25% | 378 -11% | 328 -23% | 392 -8% |
| Brightness Distribution | 80 | 91 14% | 87 9% | 92 15% | 91 14% | 92 15% |
| Black Level * | 0.37 | 0.44 -19% | 0.36 3% | 0.34 8% | 0.38 -3% | 0.27 27% |
| Contrast | 1219 | 802 -34% | 947 -22% | 1126 -8% | 908 -26% | 1441 18% |
| Colorchecker dE 2000 * | 11.04 | 6.09 45% | 6 46% | 4.8 57% | 8.4 24% | 3.61 67% |
| Colorchecker dE 2000 max. * | 14.92 | 8.77 41% | 11.9 20% | |||
| Greyscale dE 2000 * | 10.45 | 6.24 40% | 8.12 22% | 2.8 73% | 4.3 59% | 3.8 64% |
| Gamma | 2 110% | 2.41 91% | 2.23 99% | 2.25 98% | 2.63 84% | 2.16 102% |
| CCT | 8849 73% | 7238 90% | 7011 93% | 6676 97% | 7368 88% | 5969 109% |
| Color Space (Percent of AdobeRGB 1998) | 74 | 46 -38% | 63.4 -14% | 41 -45% | 62 -16% | 63 -15% |
| Color Space (Percent of sRGB) | 100 | 71 -29% | 97.4 -3% | 64 -36% | 97 -3% | |
| Total Average (Program / Settings) | -33% /
-19% | -2% /
-1% | -9% /
-2% | -12% /
-4% | -21% /
-1% |
* ... smaller is better

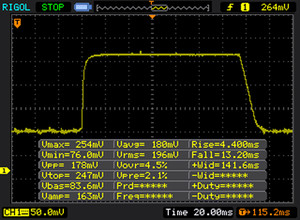

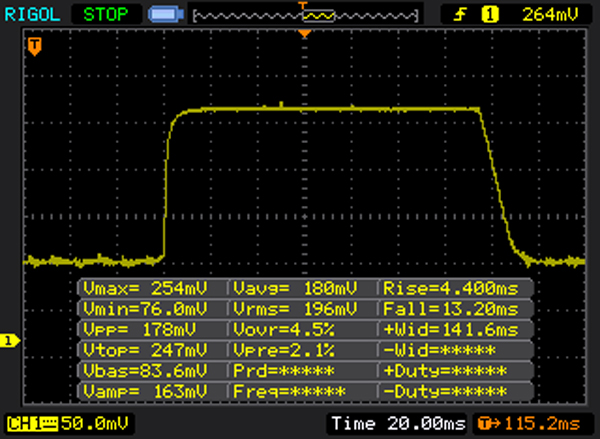

Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 17 ms ... rise ↗ and fall ↘ combined | ↗ 4 ms rise |  |
| ↘ 13 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 35 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21 ms). | ||

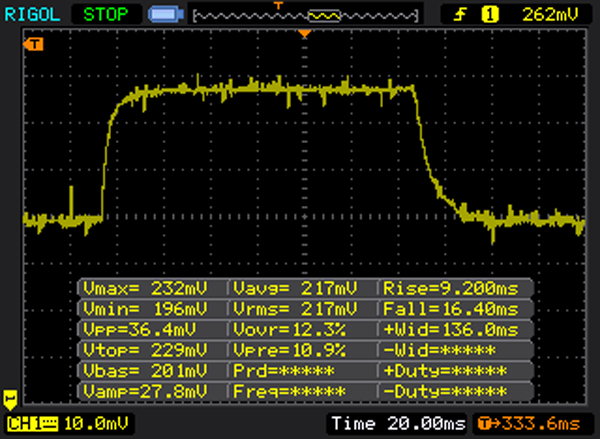

| ↔ Response Time 50% Grey to 80% Grey | ||
| 25 ms ... rise ↗ and fall ↘ combined | ↗ 9 ms rise |  |
| ↘ 16 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 31 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.9 ms). | ||
Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM not detected | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured. | ||
| PCMark 8 Home Score Accelerated v2 | 2717 points | |
| PCMark 8 Work Score Accelerated v2 | 2721 points | |
Help | ||
| Huawei MateBook m5-6Y54 SanDisk SD8SN8U256G1027 | HP Spectre x2 12-a003ng K3D42EA Sandisk X300 SD7SN6S-256G-1006 | Lenovo IdeaPad Miix 700 Samsung MZNLN128HCGR-000L2 | Acer Aspire Switch 12S SW7-272-M3A0 Lite-On CV1-8B128 | Acer Aspire Switch Alpha 12 SA5-271-56HM Kingston RBU-SNS8152S3256GG2 | Microsoft Surface Pro 4, Core m3 Samsung MZFLV128 NVMe | |
|---|---|---|---|---|---|---|
| CrystalDiskMark 3.0 | -22% | -2% | -43% | -8% | -16% | |
| Read Seq | 512 | 410.1 -20% | 497.9 -3% | 445.2 -13% | 518 1% | 663 29% |
| Write Seq | 462.1 | 316 -32% | 153.5 -67% | 179.9 -61% | 199.9 -57% | 158.2 -66% |
| Read 512 | 376 | 260.8 -31% | 401.2 7% | 330.6 -12% | 374.9 0% | 313.1 -17% |
| Write 512 | 295.2 | 241.6 -18% | 154.5 -48% | 181.6 -38% | 201 -32% | 158.2 -46% |
| Read 4k | 31.83 | 27.4 -14% | 36.2 14% | 12.17 -62% | 29.3 -8% | 30.14 -5% |
| Write 4k | 64.5 | 53.5 -17% | 95.5 48% | 19.09 -70% | 76.8 19% | 68 5% |
| Read 4k QD32 | 269.6 | 196 -27% | 389.5 44% | 137.9 -49% | 272 1% | 243.7 -10% |
| Write 4k QD32 | 178.2 | 147.8 -17% | 154 -14% | 106.5 -40% | 197.1 11% | 149.2 -16% |
SanDisk SD8SN8U256G1027
Sequential Read:
512 MB/s
Sequential Write:
462.1 MB/s
512K Read:
376 MB/s
512K Write:
295.2 MB/s
4K Read:
31.83 MB/s
4K Write:
64.5 MB/s
4K QD32 Read:
269.6 MB/s
4K QD32 Write:
178.2 MB/s
| 3DMark 11 Performance | 851 points | |
| 3DMark Cloud Gate Standard Score | 3384 points | |
Help | ||
| Rise of the Tomb Raider | |
| 1024x768 Lowest Preset | |
| Acer Aspire Switch Alpha 12 SA5-271-56HM | |
| Acer Aspire Switch Alpha 12 SA5-271-70EQ | |
| Huawei MateBook m5-6Y54 | |
| 1366x768 Medium Preset AF:2x | |
| Acer Aspire Switch Alpha 12 SA5-271-56HM | |
| Acer Aspire Switch Alpha 12 SA5-271-70EQ | |
| Thief | |
| 1024x768 Very Low Preset | |
| Acer Aspire Switch Alpha 12 SA5-271-70EQ | |
| Acer Aspire Switch Alpha 12 SA5-271-70EQ | |
| Huawei MateBook m5-6Y54 | |
| 1366x768 Normal Preset AA:FX | |
| Acer Aspire Switch Alpha 12 SA5-271-70EQ | |
| Acer Aspire Switch Alpha 12 SA5-271-70EQ | |
| Huawei MateBook m5-6Y54 | |
| Battlefield 4 | |
| 1024x768 Low Preset | |
| Acer Aspire Switch Alpha 12 SA5-271-56HM | |
| Acer Aspire Switch 12S SW7-272-M3A0 | |
| 1366x768 Medium Preset | |
| Acer Aspire Switch Alpha 12 SA5-271-56HM | |
| Acer Aspire Switch 12S SW7-272-M3A0 | |
| low | med. | high | ultra | |
|---|---|---|---|---|
| BioShock Infinite (2013) | 26.5 | 21.7 | 12.3 | |
| Thief (2014) | 13.9 | 6.7 | ||
| Rise of the Tomb Raider (2016) | 7.3 |
(±) The average temperature for the upper side under maximal load is 35.7 °C / 96 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(-) The maximum temperature on the upper side is 45.7 °C / 114 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 40.6 °C / 105 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 28.5 °C / 83 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (35 °C / 95 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-6.9 °C / -12.4 F).
(-) The maximum temperature on the upper side is 45.7 °C / 114 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 40.6 °C / 105 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 28.5 °C / 83 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (35 °C / 95 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-6.9 °C / -12.4 F).
Power Consumption
| Off / Standby |   0.46 / 0.75 Watt |
| Idle |  7.4 / 11.6 / 11.6 Watt |
| Load |
16.8 / 19.1 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Huawei MateBook m5-6Y54 6Y54, HD Graphics 515, SanDisk SD8SN8U256G1027, IPS, 2160x1440, 12" | HP Spectre x2 12-a003ng K3D42EA 6Y75, HD Graphics 515, Sandisk X300 SD7SN6S-256G-1006, IPS, 1920x1080, 12" | Lenovo IdeaPad Miix 700 6Y54, HD Graphics 515, Samsung MZNLN128HCGR-000L2, IPS, 2160x1440, 12" | Acer Aspire Switch 12S SW7-272-M3A0 6Y30, HD Graphics 515, Lite-On CV1-8B128, IPS, 1920x1080, 12.5" | Acer Aspire Switch Alpha 12 SA5-271-56HM 6200U, HD Graphics 520, Kingston RBU-SNS8152S3256GG2, IPS, 2160x1440, 12" | |
|---|---|---|---|---|---|
| Power Consumption | 15% | -2% | 4% | -15% | |
| Idle Minimum * | 7.4 | 4.5 39% | 4 46% | 6.3 15% | 7.3 1% |
| Idle Average * | 11.6 | 7.7 34% | 8.6 26% | 9.4 19% | 10 14% |
| Idle Maximum * | 11.6 | 8.3 28% | 9.3 20% | 12.3 -6% | 10.15 12% |
| Load Average * | 16.8 | 19.8 -18% | 18.6 -11% | 18.6 -11% | 25.2 -50% |
| Load Maximum * | 19.1 | 20.6 -8% | 36.3 -90% | 19 1% | 29.3 -53% |
* ... smaller is better
| Huawei MateBook m5-6Y54 6Y54, HD Graphics 515, 33 Wh | HP Spectre x2 12-a003ng K3D42EA 6Y75, HD Graphics 515, 42 Wh | Lenovo IdeaPad Miix 700 6Y54, HD Graphics 515, 41 Wh | Acer Aspire Switch 12S SW7-272-M3A0 6Y30, HD Graphics 515, 34 Wh | Acer Aspire Switch Alpha 12 SA5-271-56HM 6200U, HD Graphics 520, 37 Wh | Microsoft Surface Pro 4, Core m3 6Y30, HD Graphics 515, 38 Wh | |
|---|---|---|---|---|---|---|
| Battery Runtime | 65% | 65% | 26% | 21% | 60% | |
| Reader / Idle | 478 | 954 100% | 861 80% | 530 11% | 640 34% | 791 65% |
| WiFi v1.3 | 263 | 361 37% | 440 67% | 343 30% | 321 22% | 488 86% |
| Load | 106 | 166 57% | 157 48% | 145 37% | 112 6% | 138 30% |
| H.264 | 450 | 337 | 468 |
Pros
+ 明亮多彩的屏幕
+ sRGB色域覆盖100%
+ 纤薄坚固
+ 设计合理的C型接口底座
+ 底座支持以太网口和HDMI/VGA
+ 优秀的相机
+ 键盘反馈准确
+ 大容量存储空间
+ 使用感受流畅
Cons
- 电池续航短
- 无后置相机
- 屏幕需要校对
- 底座／手写笔需要单独购买
MateBook得到了最薄设计和最轻重量的桂冠。没有任何一款其它Windows平板可以在这个不需妥协的性能水平上实现如此轻的重量。
它的屏幕提供了同类产品中数一数二的高对比度和sRGB色域覆盖，让人过目不忘。同时归功于高亮度它也能够满足户外使用的需要。尽管它的键盘有些不够坚固，触控输入却十分易用，同时摄像头品质毫不逊色。它的性能领先于目前领先的Aspire Switch 12 Alpha (i5 6200U)约25%到35%。结合USB 3.0接口，它可以适合办公用途，可惜的是缺少DisplayPort接口。不过至少它还支持千兆以太网口，VGA和两个USB A型接口。
遗憾的是，用户无法“走的太远”，而且一旦开始充电，就需要整整四个小时。我们认为这是它最大的弱点。酷睿m3-6Y30版售价880欧元（约6526人民币），似乎是个最值得考虑的选择。如果m3处理器能够完全利用加速潜能的话，距离m5处理器的差距也不会很大。它的电池续航也不会有太大的区别——这一点可以参考我们的惠普 Spectre x2 12m3测试（m7/m3对比）。需要极致性能、又希望节约一些预算的用户，可以考虑Aspire Switch Alpha 12 SA5-271-56HM。归功于i5 6200U处理器，这台变形本在性能上领先于同类机型，不过它支持的USB 3.0键盘底座和手写笔也需另行选购。
如果只是考虑便携性的话，微软 Surface Pro 4, 酷睿 m3和联想 IdeaPad Miix 700都首屈一指，分别提供8小时和7.5小时的续航时间。联想这款设备的输入设备稍差，在这方面Surface Pro 4几乎可以与MateBook一较高下。
如果键盘并不是主要的方面，目前入门m3/LTE版本的Spectre x2 12售价900欧元（约6674人民币）也是一个值得考虑的选择。这台惠普设备搭配了两个不错的相机（RealSense R200）和出色的麦克风。Spectre可以实现6小时的续航时间（m3和m7版）。喜欢变形本的用户可以考虑一下这款惠普的产品。我们无法全力推荐MateBook。它的m5版本（1180欧元，约8750人民币）售价过高，尽管它的m3版本售价仅880欧（约6526人民币），但较短的续航是它的一个很大的问题。
注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。
Huawei MateBook m5-6Y54
-
07/21/2016 v5.1 (old)
Sebastian Jentsch
