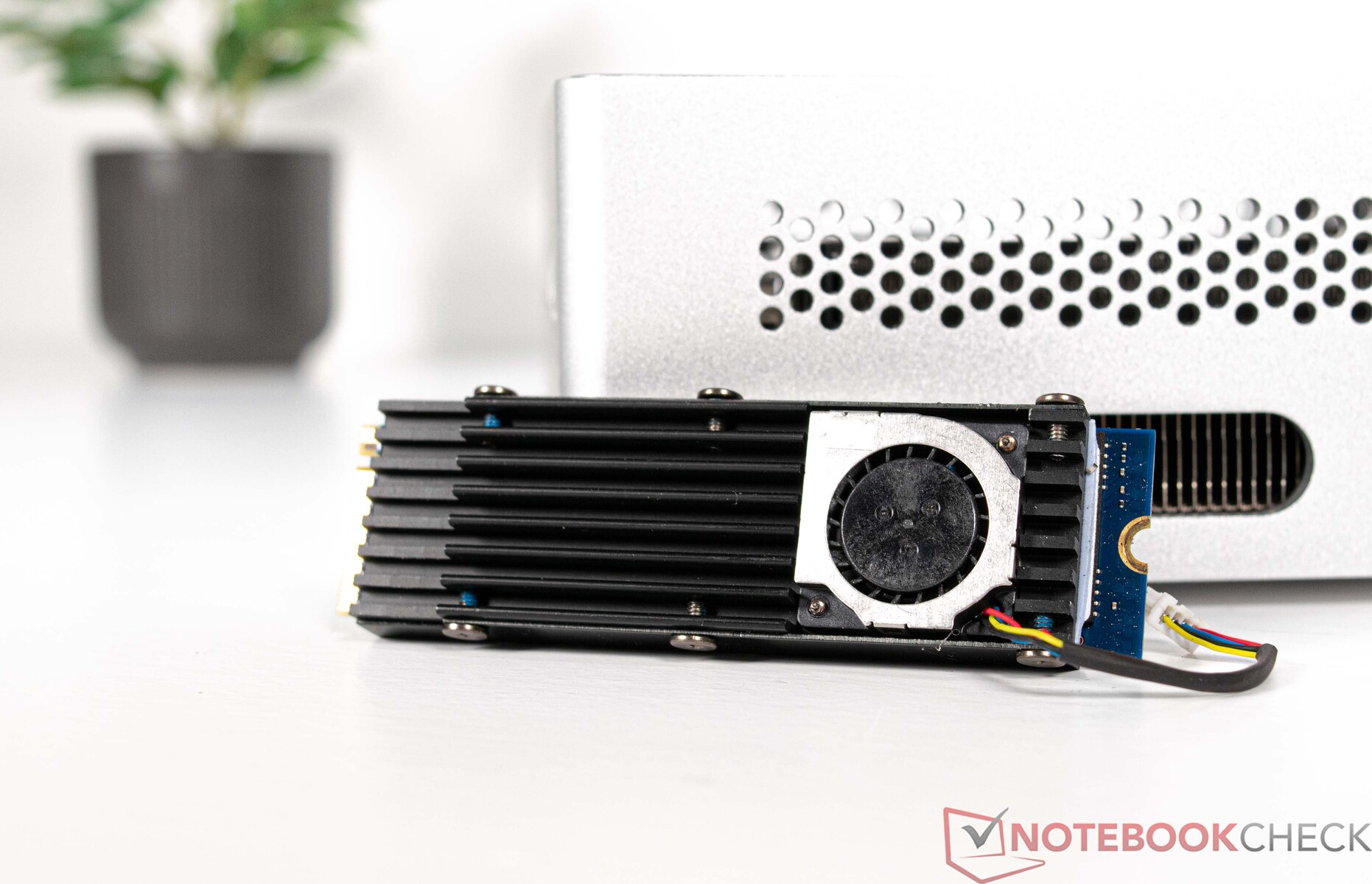

Minisforum Venus系列NAB6回顾：拥有快速的英特尔酷睿i7-12650H和主动式固态硬盘冷却的时尚迷你PC!

Name: Minisforum Venus Series NAB6
Brand: Minisforum

凉了一半了!

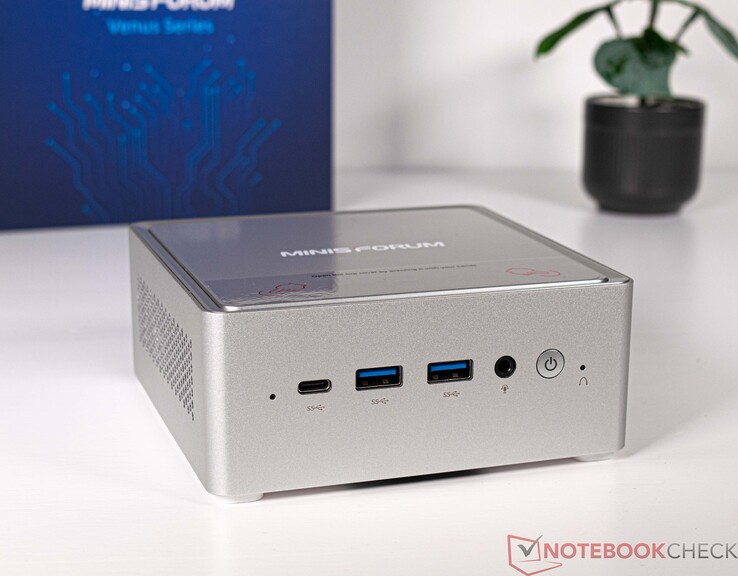

Minisforum扩展了他们的Venus系列组合，发布了光滑的迷你PC NAB6。基于英特尔酷睿i7-12650H，NAB6为许多不同用途做好了准备。它的价格还可以，但可能必须做出一些妥协。这些妥协到底是什么，我们将在详细的评论中讨论。

Sebastian Bade (translated by DeepL / Ninh Duy), Published 05/07/2023 🇺🇸 🇩🇪 ...

Intel Mini PC Desktop Alder Lake

Minisforum Venus系列NAB6是由中国系统制造商制造的另一个紧凑而强大的迷你PC。在这个测试中，我们将看看这个系统基于英特尔酷睿i7-12650H配有16GB内存和512GB SSD。我们将使用Windows 11专业版作为操作系统，这种配置目前可以以449美元的价格购买。没有内存和固态硬盘的裸机版本目前可以找到，价格为359美元。这些价格对于这些类型的迷你电脑来说是很典型的，因为它的竞争对手一般都能以类似的价格买到。

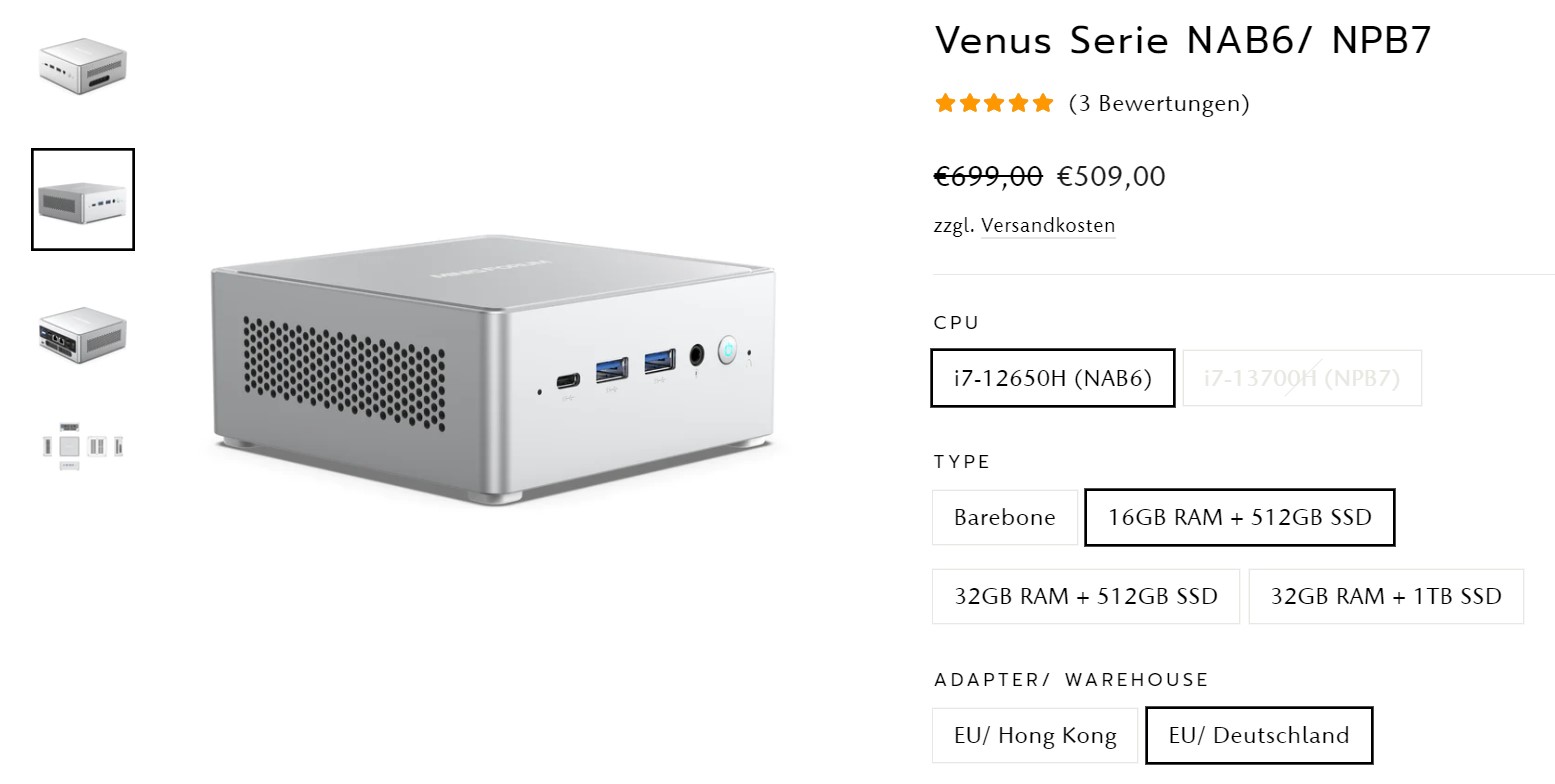

Minisforum目前只提供基于英特尔酷睿i7-12650H的维纳斯系列NAB6。在维纳斯系列NPB7的标签下，制造商提供了一个模型，其结构相同，但却基于英特尔酷睿i7-13700H.这款机型据说从5月中旬开始发售。目前，在制造商的网站上找不到这个型号的价格。

我们选择了一系列类似的紧凑型台式电脑作为本次审查的比较设备。你可以在下表中看到这些设备的概况。

Test device courtesy of Minisforum

Download your licensed rating image as PNG / SVG

Minisforum Venus Series NAB6

Processor

Intel Core i7-12650H 10 x 1.7 - 4.7 GHz, 64 W PL2 / Short Burst, 45 W PL1 / Sustained, Alder Lake-H

Graphics adapter

Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Core: 1400 MHz, RAM: 2660 MHz, 31.0.101.4146 DCH

Memory

16 GB

, DDR4-2666, 2 of 2 installed, max. 64 GB

Mainboard

Intel Alder Lake-P PCH

Storage

Kingston OM8PGP4512Q-A0, 512 GB

, M.2-2280, NVMe, 450 GB free

Soundcard

Intel Alder Lake-P PCH - cAVS (Audio, Voice, Speech)

Connections

7 USB 3.1 Gen2, USB-C Power Delivery (PD), 2 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5mm Kombibuchse, Intel Ethernet Controller I225-V

Networking

Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Size

height x width x depth (in mm): 55 x 127 x 127

Operating System

Microsoft Windows 11 Pro

Additional features

Power adapter with cable, HDMI cable, Vesa mount montage kit, handbook, 24 Months Warranty

Weight

616 g, Power Supply: 456 g

Price

699 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height
81.9 % v7 ^(old)	05 / 2023	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	616 g	55 mm
85.5 % v7 ^(old)	03 / 2023	Morefine M600, 6900HX R9 6900HX, Radeon 680M	779 g	40.6 mm
86.1 % v7 ^(old)	02 / 2023	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	621 g	48 mm
80.8 % v7 ^(old)	04 / 2023	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	538 g	37 mm
82.3 % v7 ^(old)	05 / 2023	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	572 g	45.6 mm
85.1 % v7 ^(old)	01 / 2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
v ^(old)	09 / 2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm

Minisforum维纳斯系列NAB6的详细介绍

案例

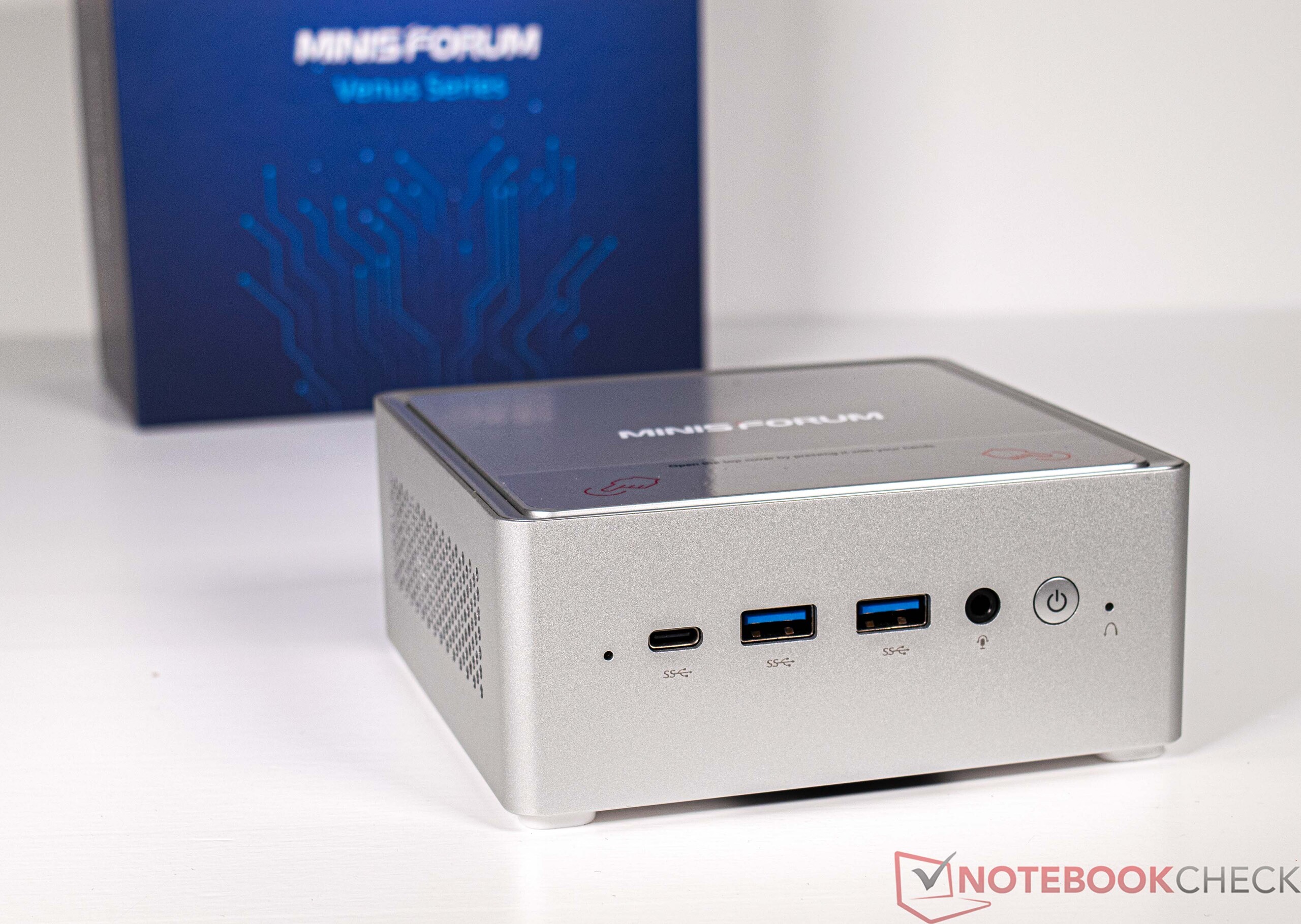

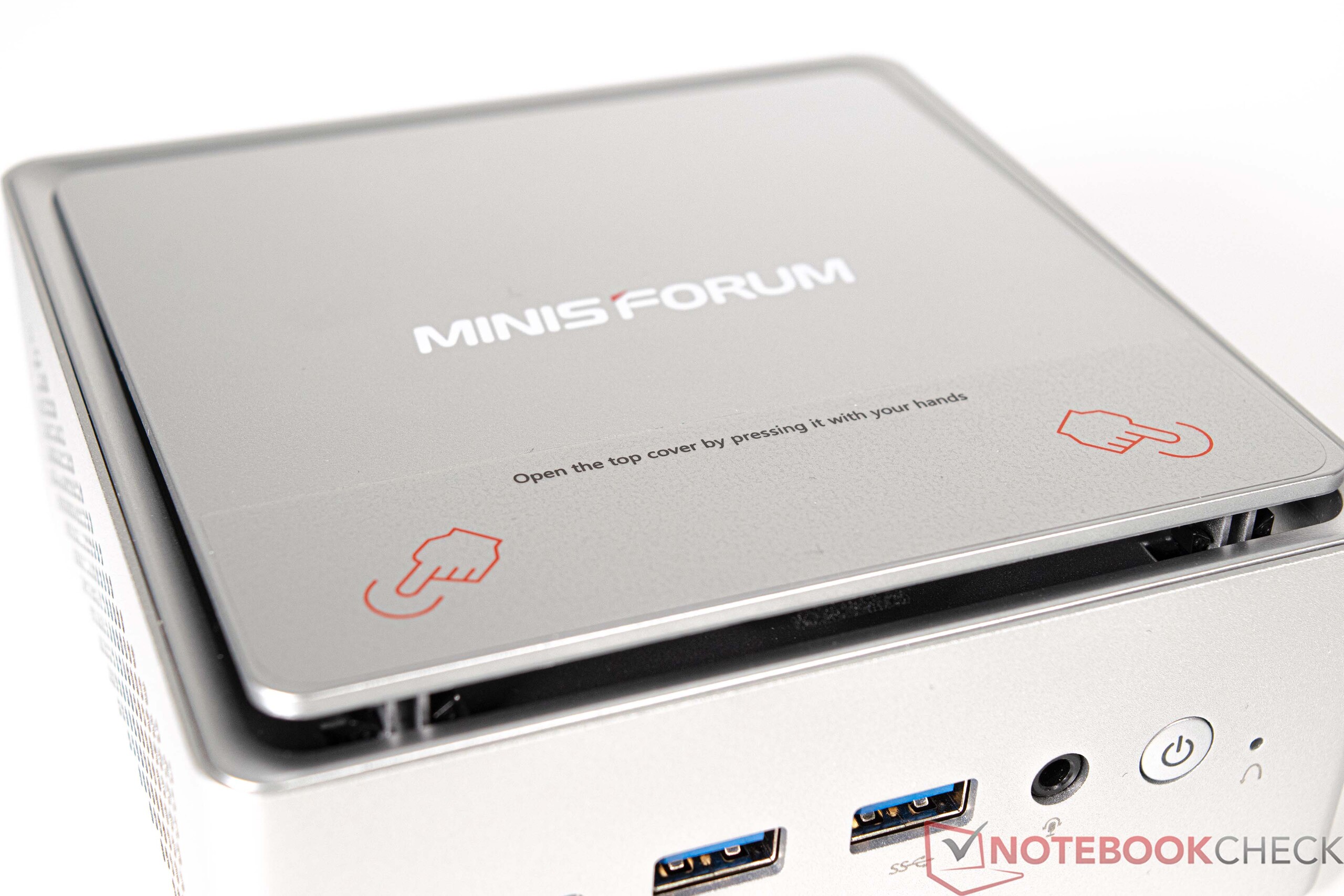

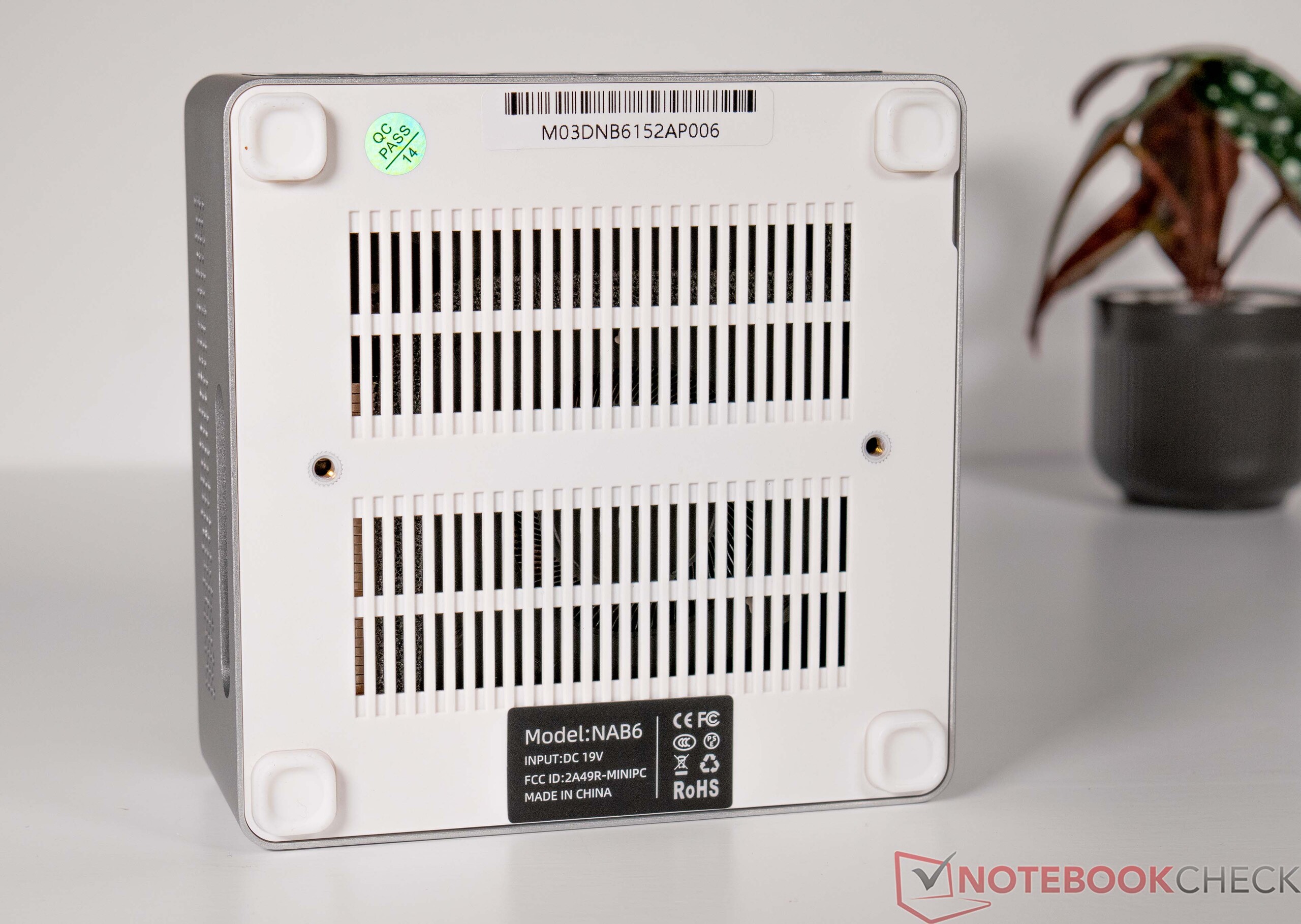

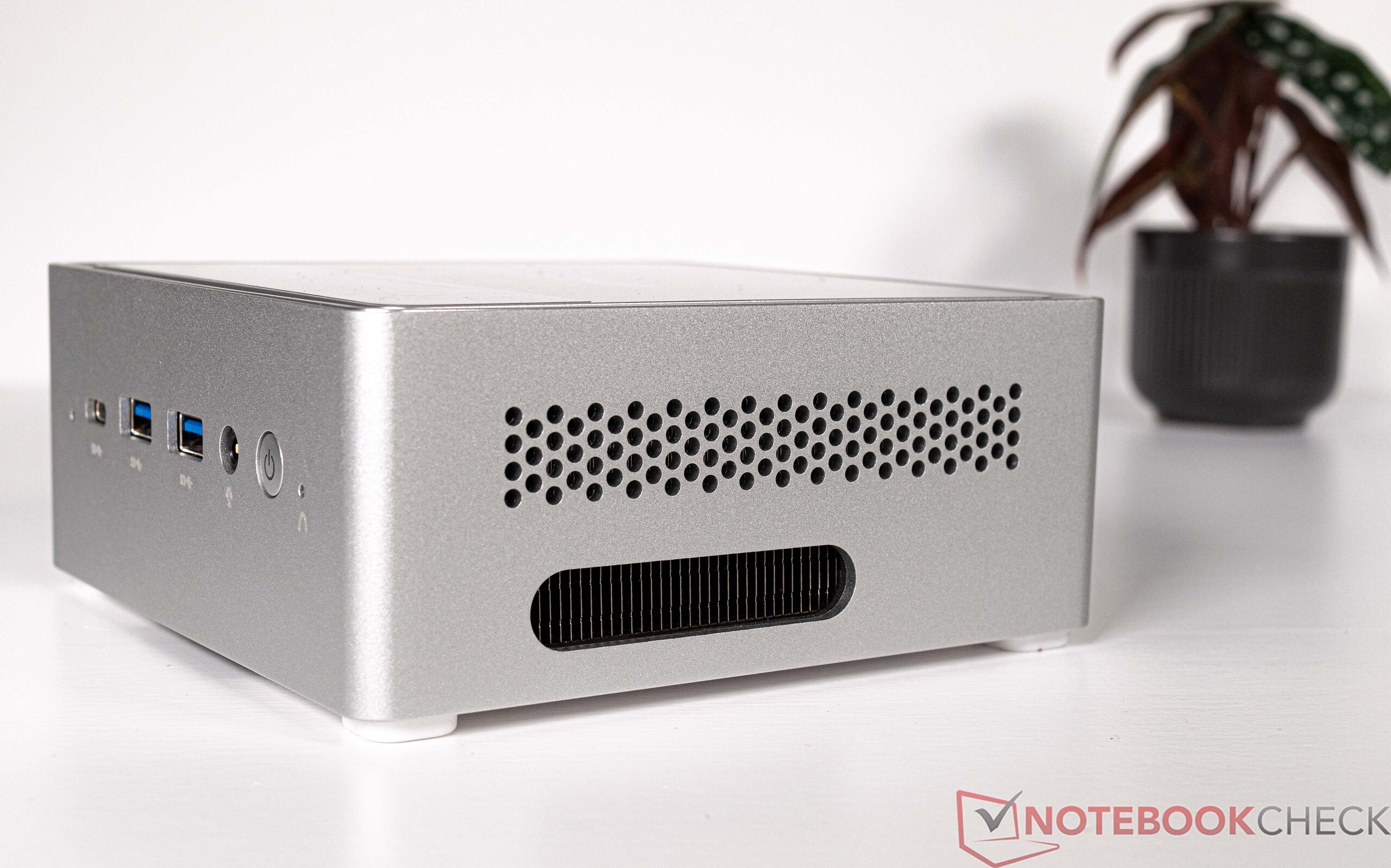

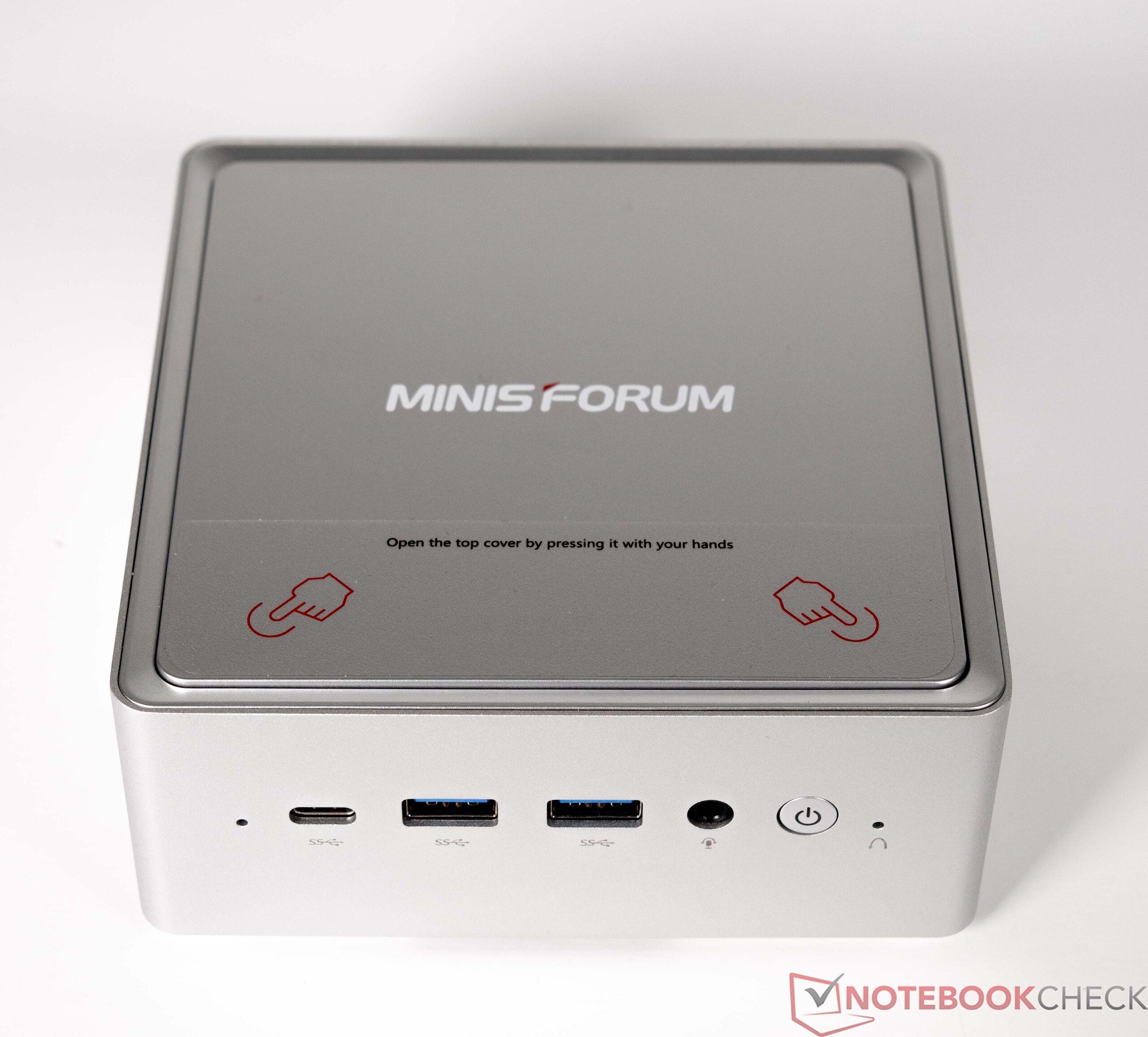

虽然NAB6属于Venus系列，但在构造方面与UM690没有真正的相似之处。在这里，制造商对该设备的材料选择采取了完全不同的方法。NAB6主要是铝和塑料，这给了该设备极大的稳定性。它的盖子、内部以及设备的底部都是由塑料制成的。盖子与箱子的其他颜色相匹配是一个可爱的细节。当你处理多种不同的材料（铝和塑料）时，要实现统一的颜色并不总是容易。我们的测试样品完美地做到了这一点。由于其白色，该设备的底部看起来有点廉价。

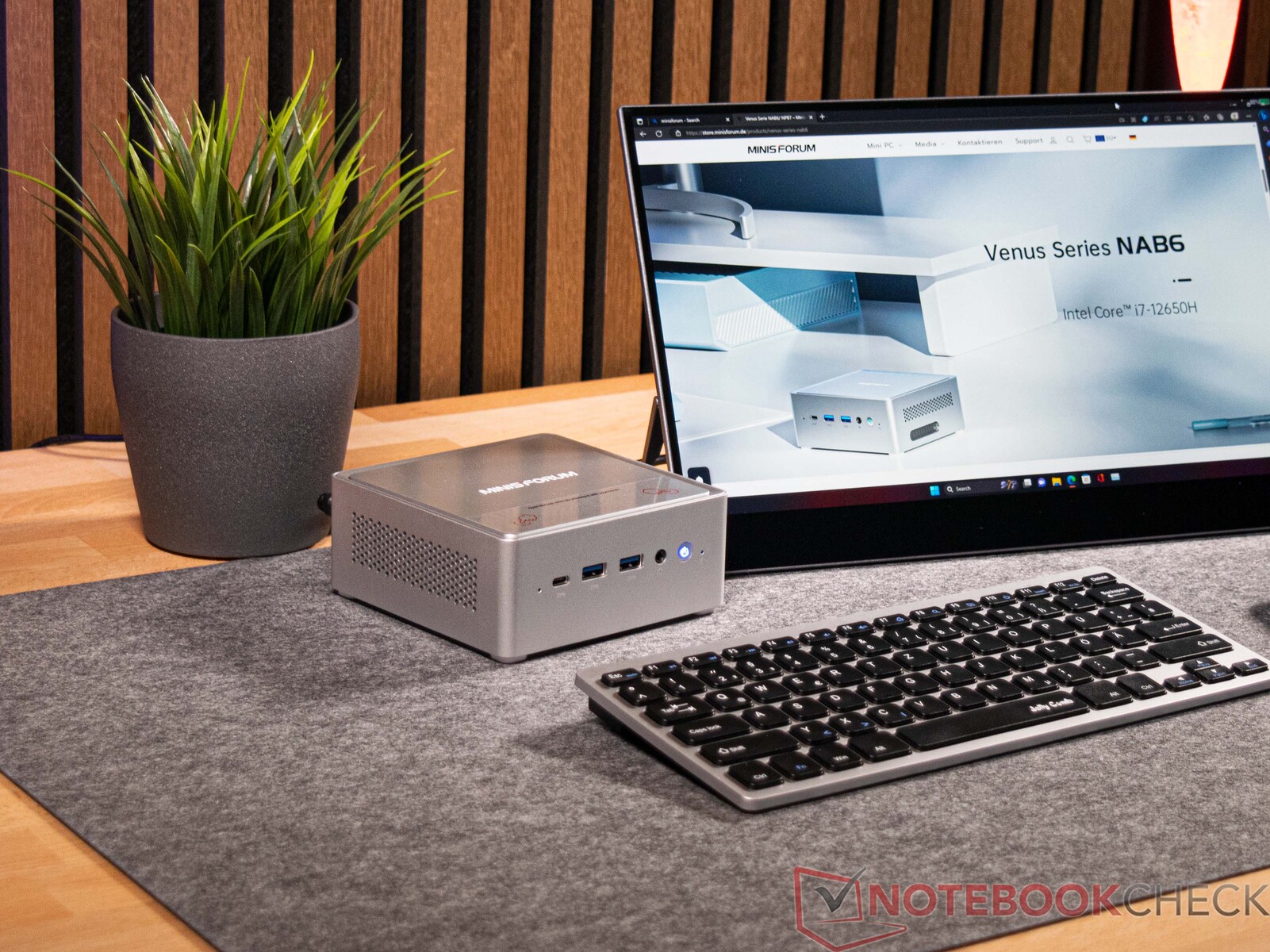

其紧凑的尺寸意味着MINISFORUM Venus系列NAB6不会在你的桌子上占用太多的空间。该设备的占地面积为12.7 x 12.7厘米，你可以使用提供的安装板（VESA安装）将其固定在显示器的背面。该设备也很轻，重量只有616克。它的电源适配器重456克，与它的竞争对手差不多。

尺寸比较

Minisforum Neptune Series NAD9 Minipc Union Ace Magician AMR5 Morefine M600, 6900HX Minisforum Venus Series NAB6 Minisforum Mars Series MC560 Intel NUC 13 Pro Kit NUC13ANK Intel NUC 12 Pro Kit NUC12WSKi7 DIN A4 ❌

连接性

紧凑并不一定意味着更少的连接选项--这一点，我们已经从相当多的迷你电脑中知道了。Minisforum Venus系列NAB6也是如此，它总共有七个USB端口。这比其竞争对手更多，尽管用户可能会因为其缺少Thunderbolt选项而转向其他型号。总的来说，Minisforum Venus系列NAB6仍然有足够的连接选项--你甚至可以同时连接四个屏幕。在我们看来，端口被限制在设备的正面和背面是一个很好的设计选择。

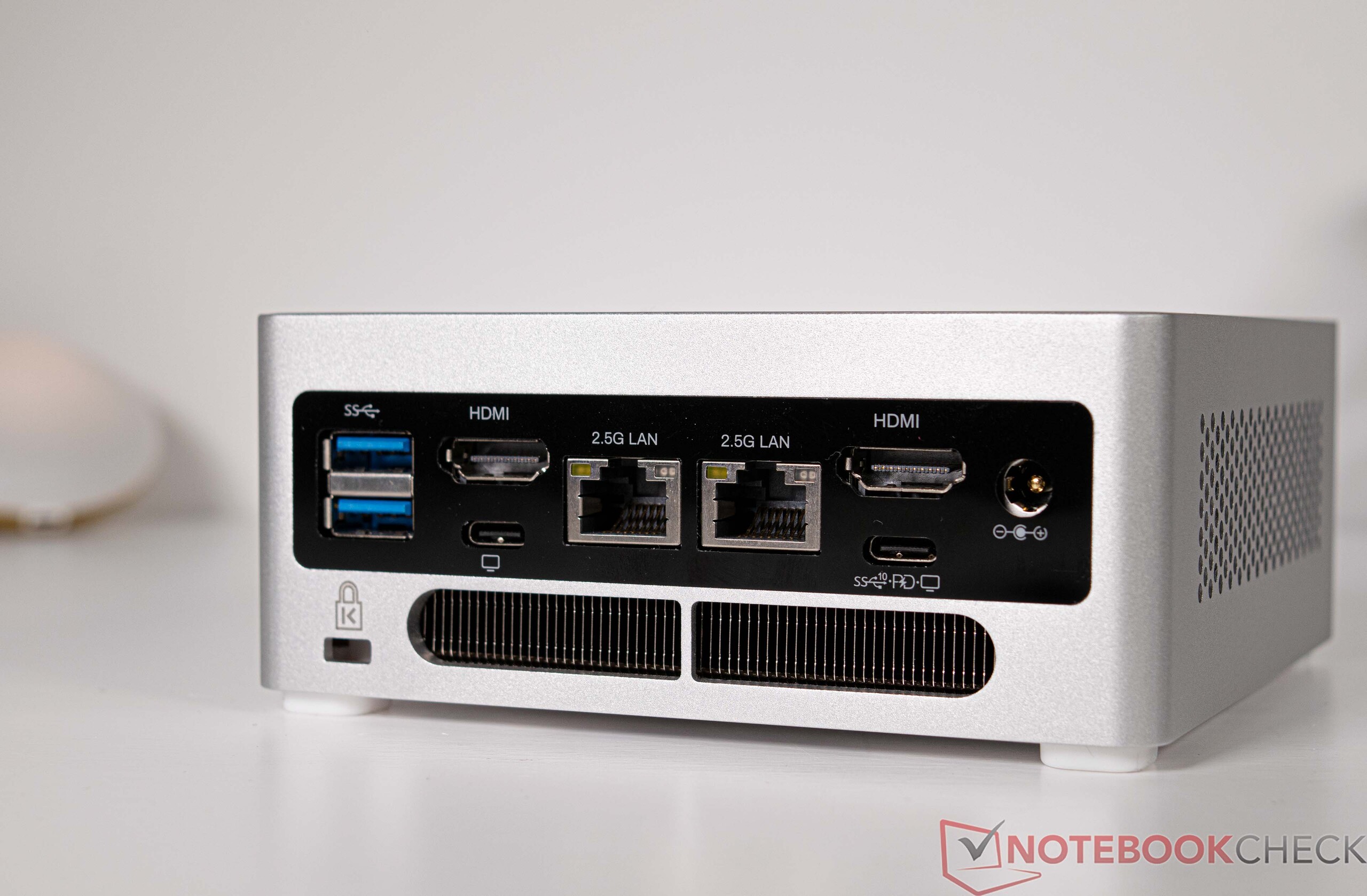

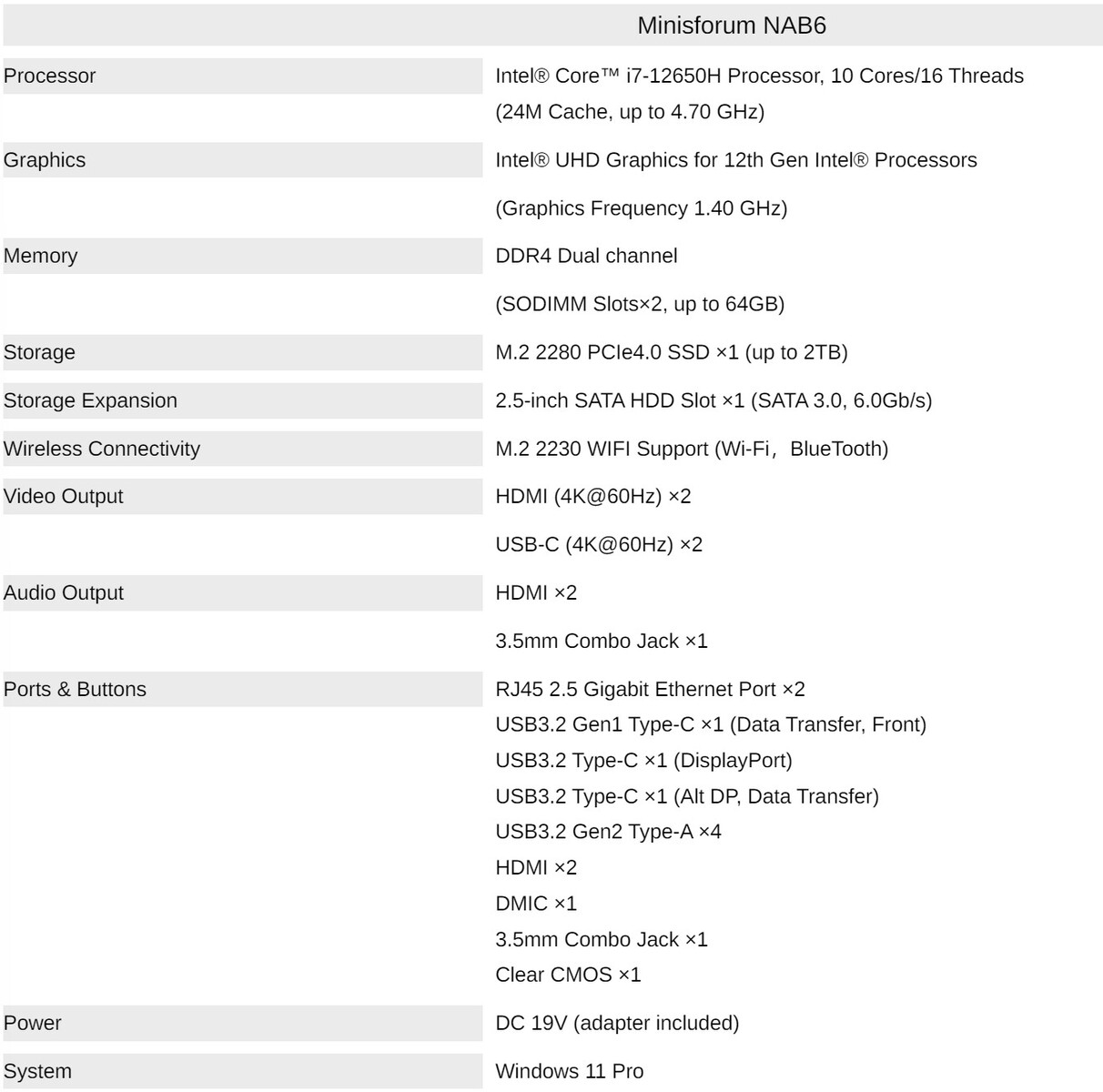

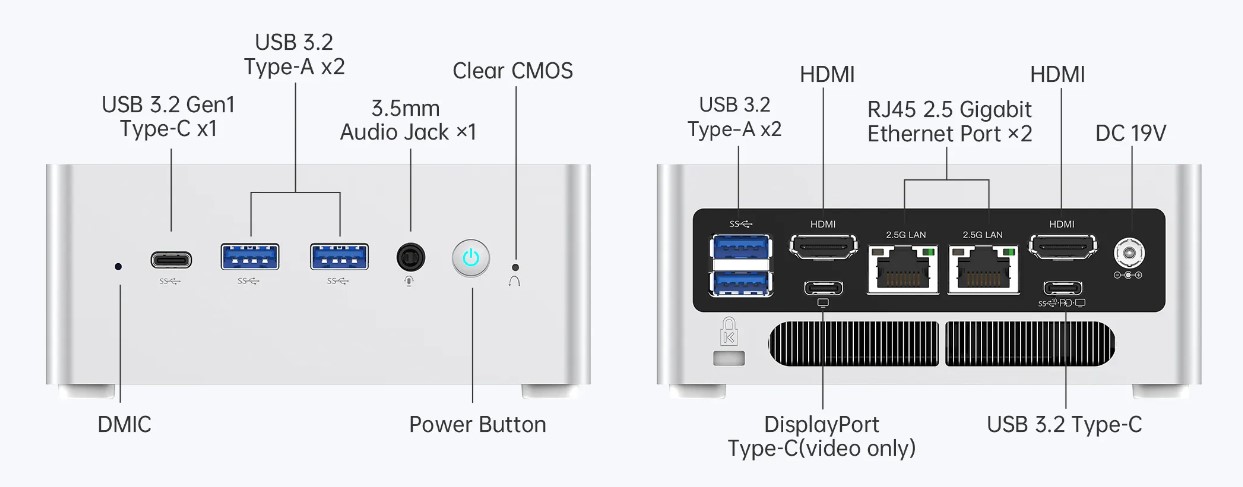

Minisforum Venus系列NAB6的外部端口（来源：MINISFORUM）。

沟通

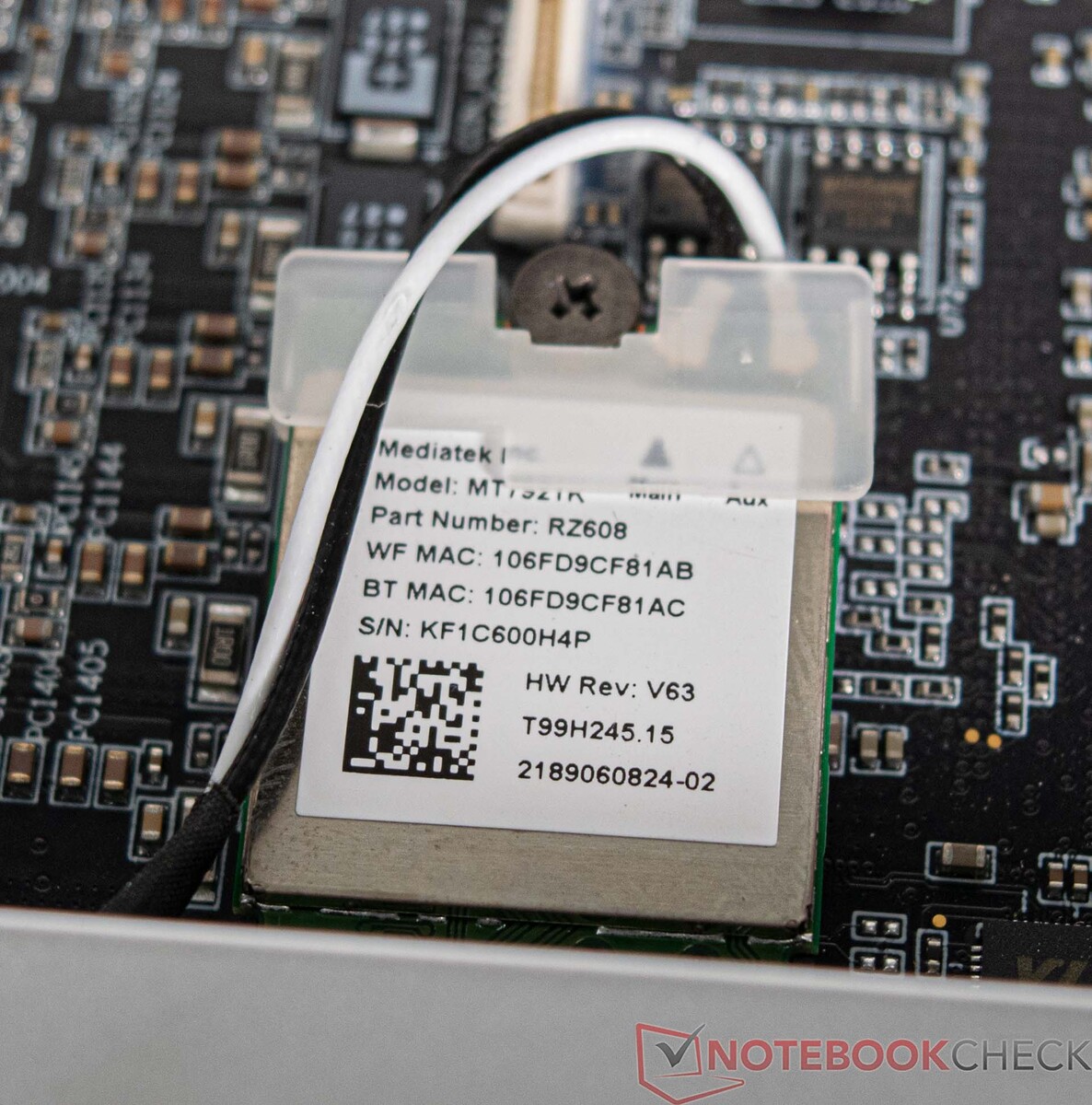

Minisforum NAB6采用了联发科的Wi-Fi 6E模块。同样的模块可以在Miniforum Venus Series UM690中可以看到相同的模块，其性能比我们测试样品中的模块更好。我们使用华硕ROG Rapture GT-AXE11000作为测试路由器进行测试。传输速率并不可怕，但相比之下，我们的样品在这一点上做得不是太好。作为替代方案，MINISFORUM Venus系列NAB6也有一个快速的有线连接，这使得高达2.5GBit/s的速度成为可能。它实际上甚至有两个这样的连接，这并不总是这个设备级别的标准。

Networking
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1668 (1467^min - 1725^max) MBit/s +111%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	1519 (1392^min - 1699^max) MBit/s +92%
Average of class Mini PC (684 - 1771, n=53, last 2 years)	1381 MBit/s +75%
Minisforum Venus Series UM690 MediaTek RZ608	961 (954^min - 967^max) MBit/s +21%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 (450^min - 913^max) MBit/s +14%
Average MediaTek RZ608 (430 - 961, n=16)	826 MBit/s +4%
Minisforum Venus Series NAB6 MediaTek RZ608	791 (776^min - 799^max) MBit/s
iperf3 transmit AXE11000 6GHz
Geekom Mini IT12 Intel Wi-Fi 6E AX211	1622 (1561^min - 1670^max) MBit/s +76%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1445 (736^min - 1476^max) MBit/s +57%
Average of class Mini PC (394 - 1800, n=53, last 2 years)	1328 MBit/s +45%
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 (486^min - 993^max) MBit/s +5%
Minisforum Venus Series NAB6 MediaTek RZ608	919 (853^min - 980^max) MBit/s
Average MediaTek RZ608 (572 - 980, n=16)	825 MBit/s -10%
Minisforum Venus Series UM690 MediaTek RZ608	787 (638^min - 865^max) MBit/s -14%
iperf3 receive AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s +67%
Minisforum Venus Series UM690 MediaTek RZ608	956 (944^min - 963^max) MBit/s +21%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	943 (923^min - 960^max) MBit/s +20%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	939 (921^min - 952^max) MBit/s +19%
Average of class Mini PC (192.9 - 1796, n=113, last 2 years)	932 MBit/s +18%
Morefine M600, 6900HX MediaTek RZ608	929 (874^min - 946^max) MBit/s +18%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 MBit/s +15%
Average MediaTek RZ608 (430 - 975, n=20)	886 MBit/s +13%
Minisforum Venus Series NAB6 MediaTek RZ608	787 (752^min - 801^max) MBit/s
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s +111%
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 MBit/s +54%
Morefine M600, 6900HX MediaTek RZ608	964 (924^min - 990^max) MBit/s +54%
Minisforum Venus Series UM690 MediaTek RZ608	943 (477^min - 981^max) MBit/s +51%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	918 (892^min - 938^max) MBit/s +47%
Average of class Mini PC (184.1 - 1776, n=113, last 2 years)	864 MBit/s +38%
Average MediaTek RZ608 (572 - 979, n=20)	860 MBit/s +37%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	833 (805^min - 866^max) MBit/s +33%
Minisforum Venus Series NAB6 MediaTek RZ608	626 (301^min - 689^max) MBit/s

Minisforum Venus Series NAB6; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø919 (853-980)

Minisforum Venus Series NAB6; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø791 (776-799)

Minisforum Venus Series NAB6; iperf3 receive AXE11000; iperf 3.1.3: Ø786 (752-801)

Minisforum Venus Series NAB6; iperf3 transmit AXE11000; iperf 3.1.3: Ø616 (301-689)

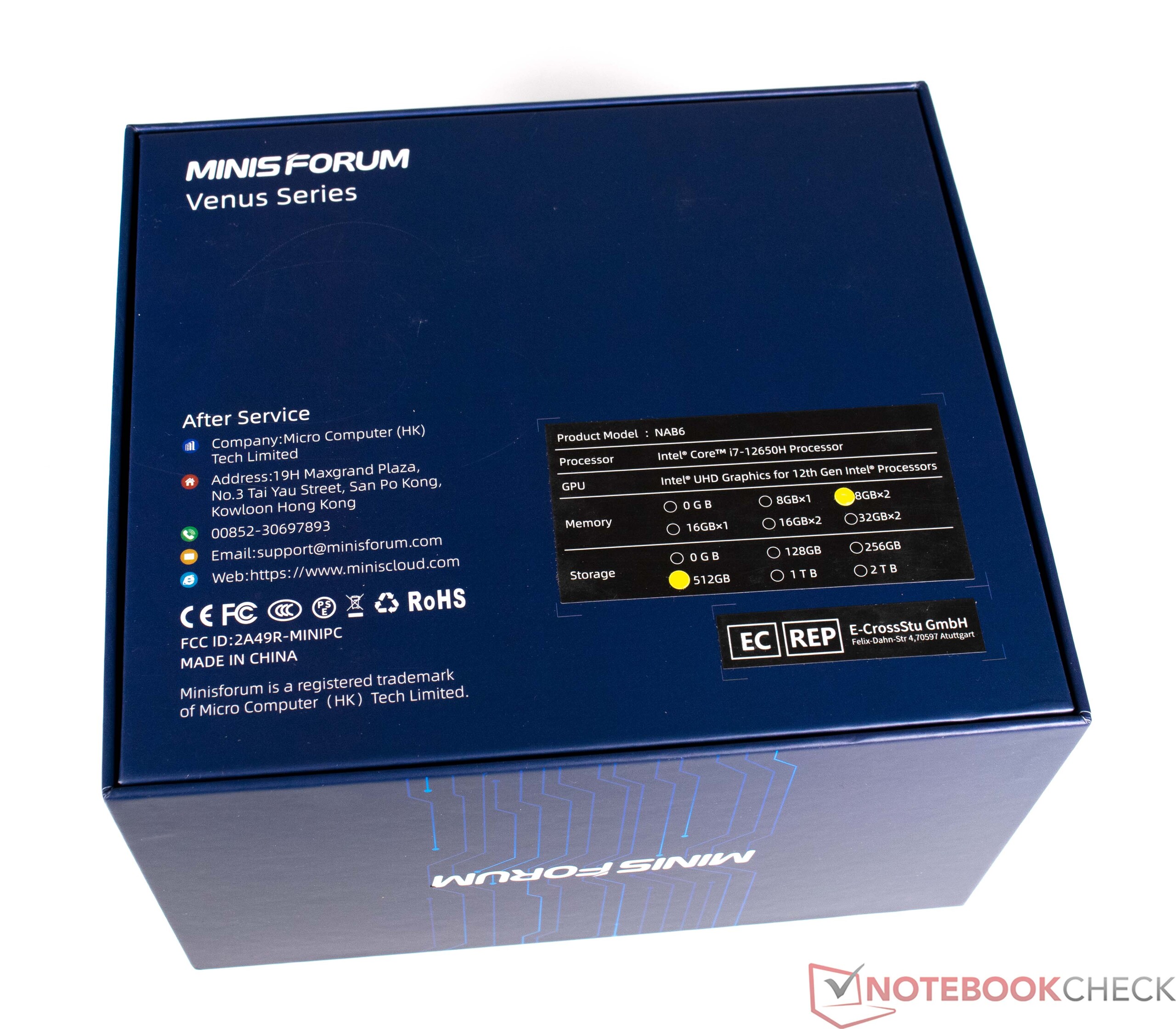

辅料

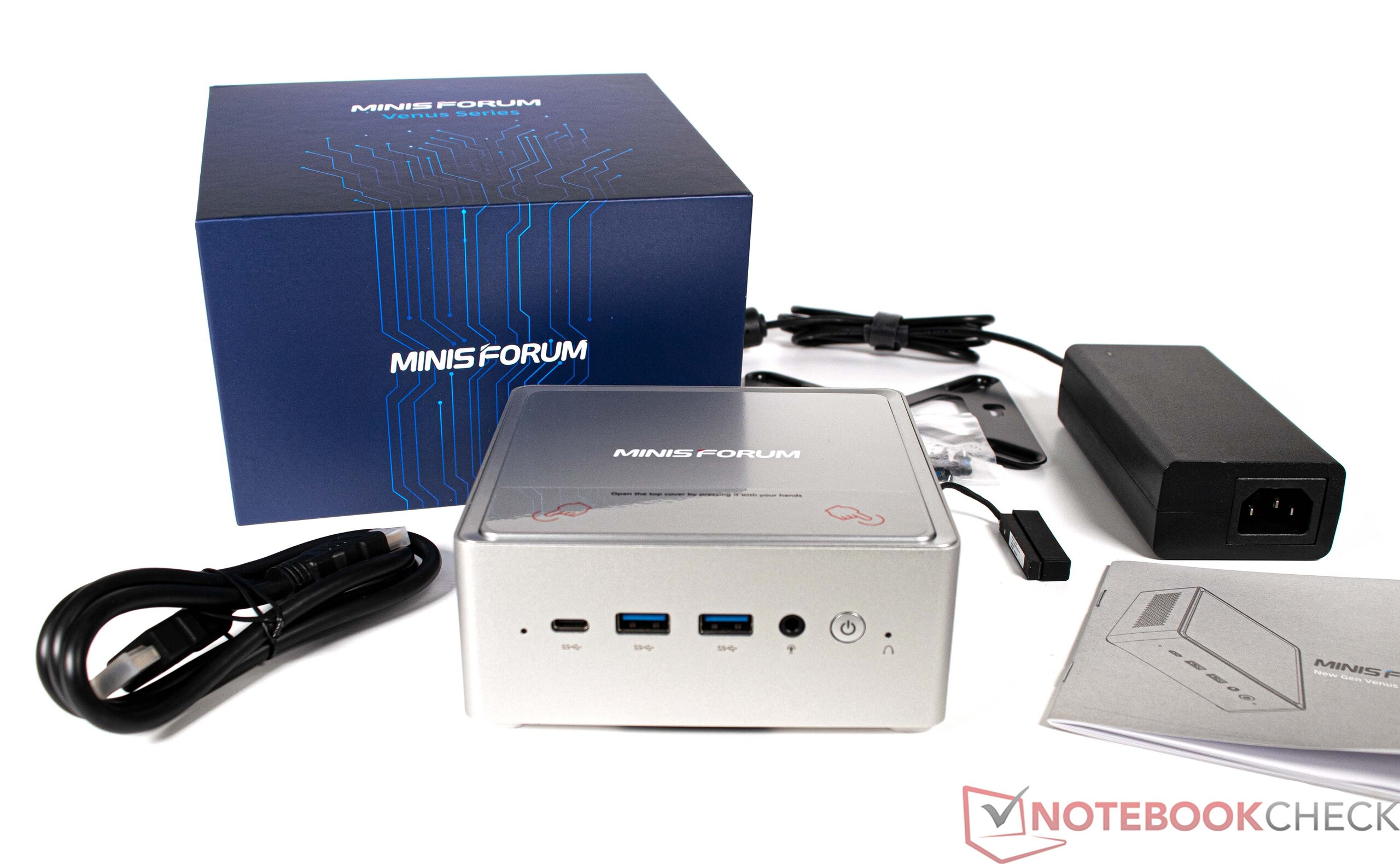

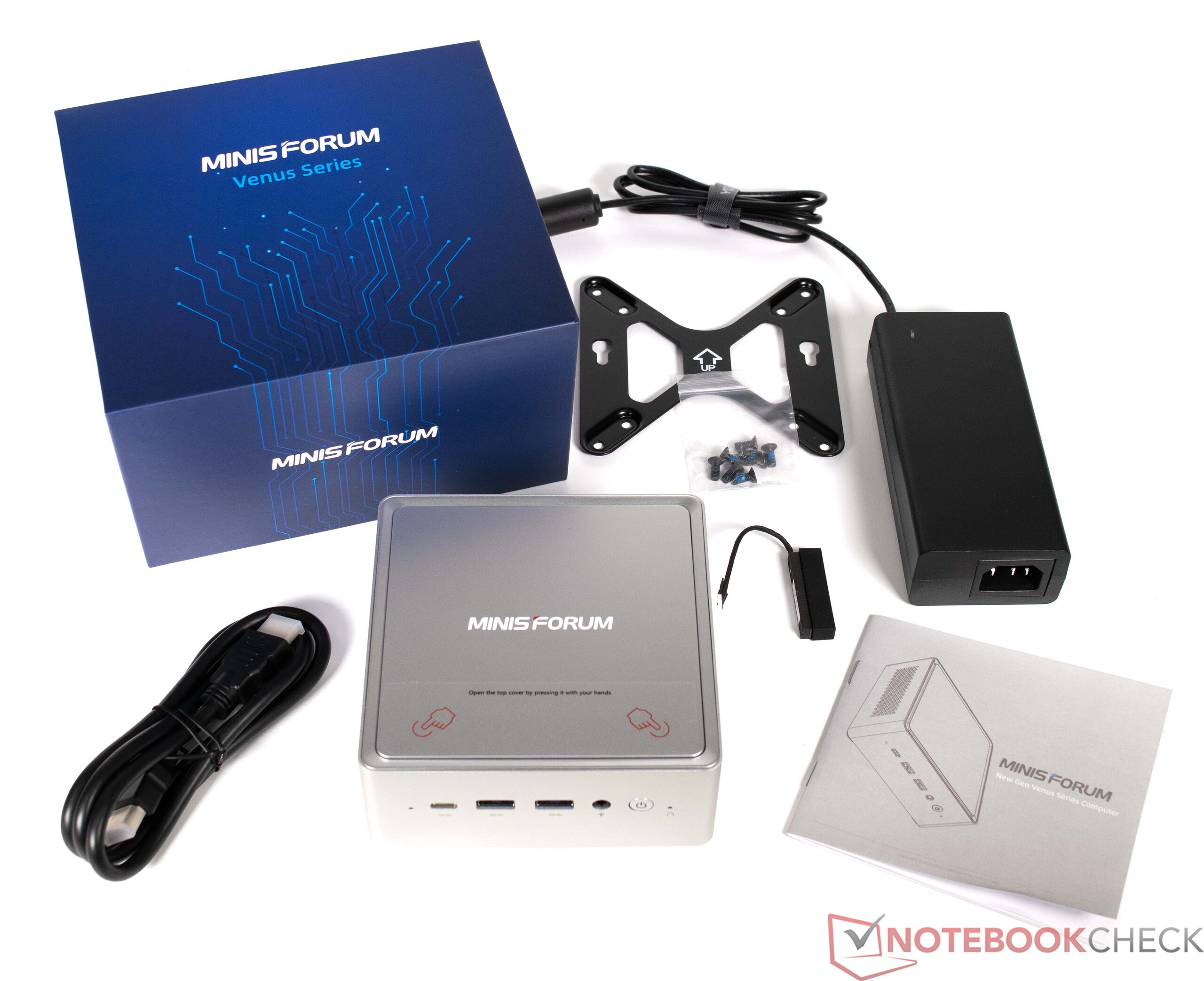

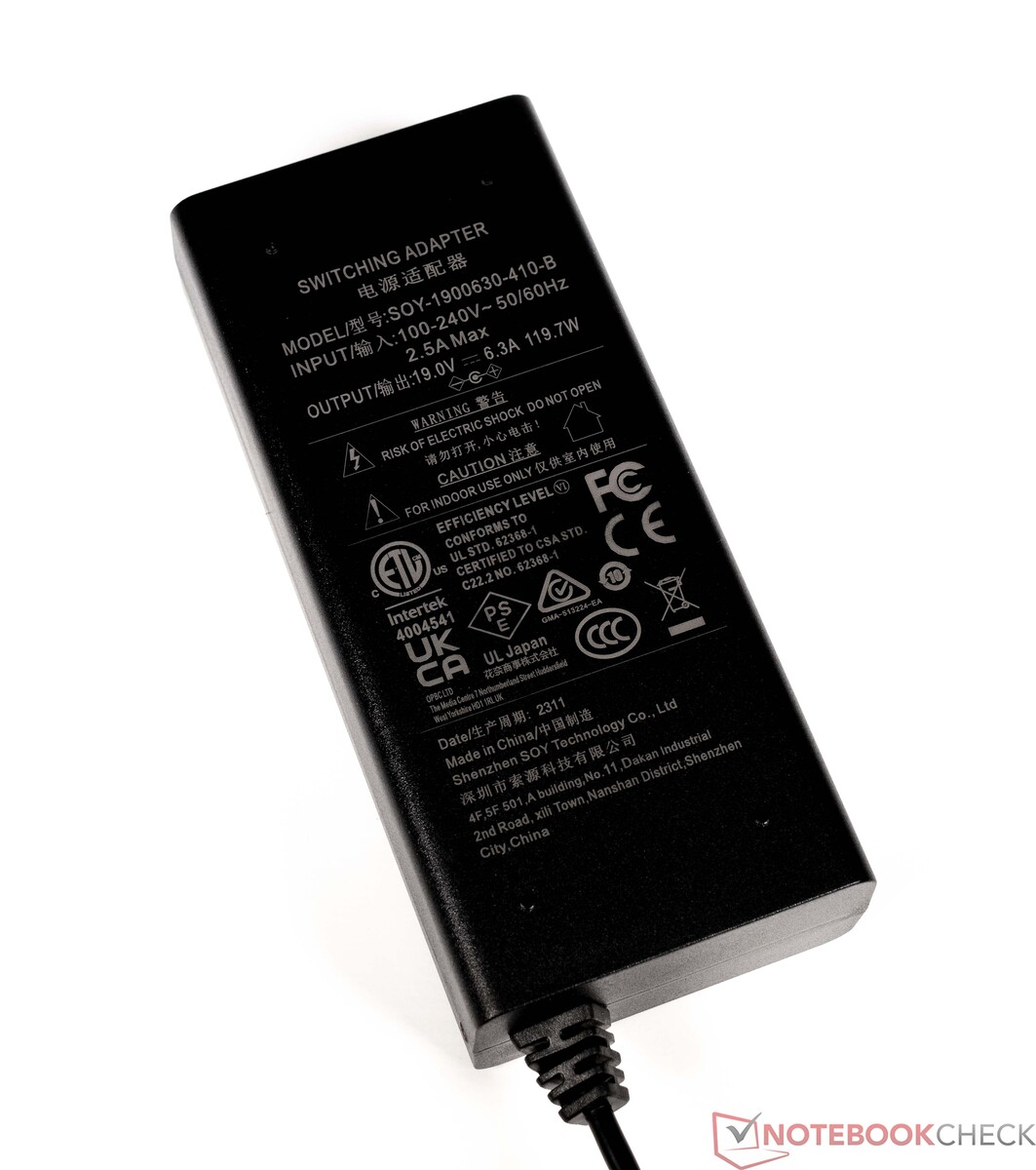

该迷你电脑配有一个120瓦的电源适配器和VESA支架，以便将该设备连接到显示器上。还包括一条HDMI线和简短的使用手册。

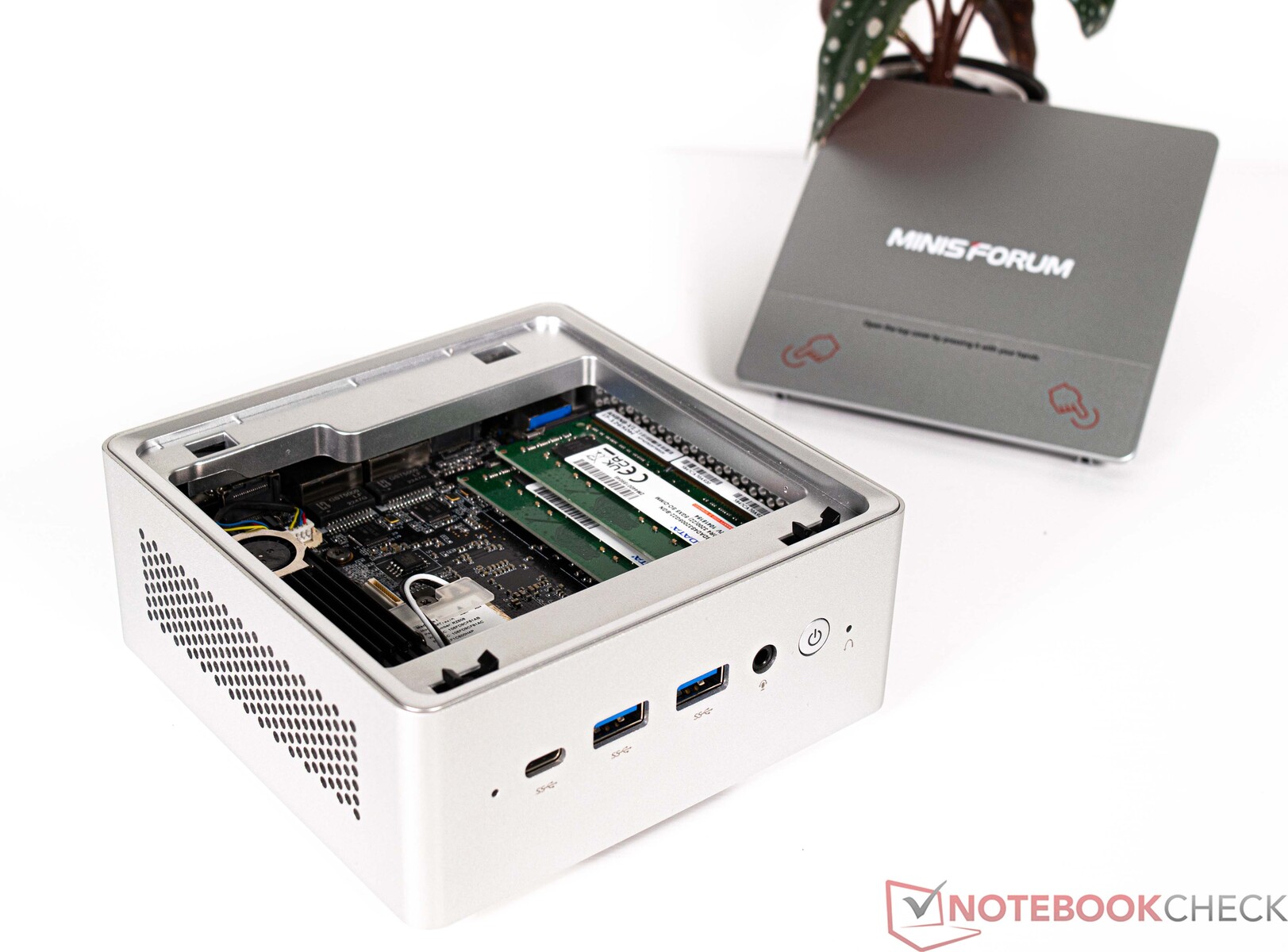

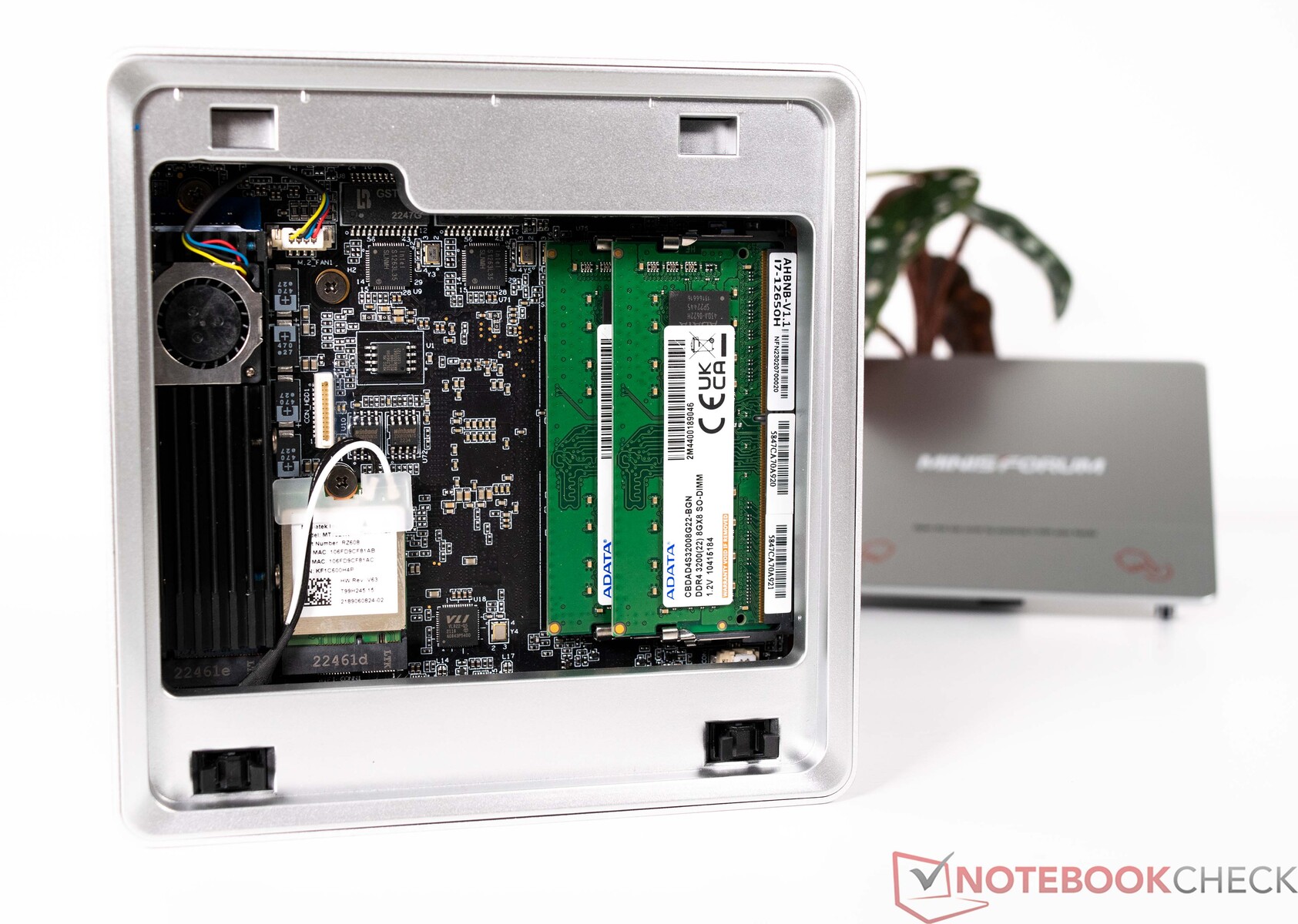

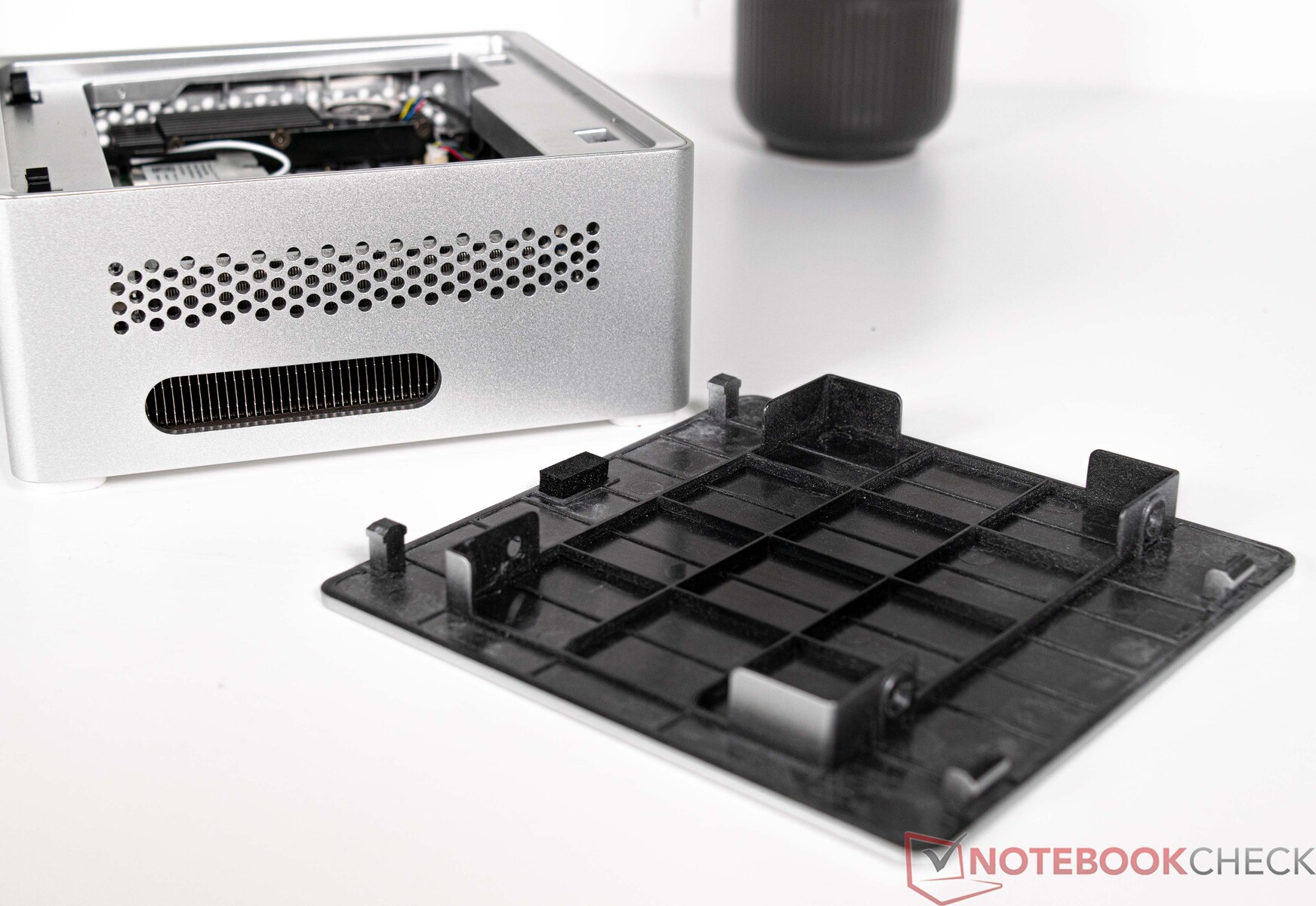

维护

性能--拥有十个核心的英特尔Alder Lake-P

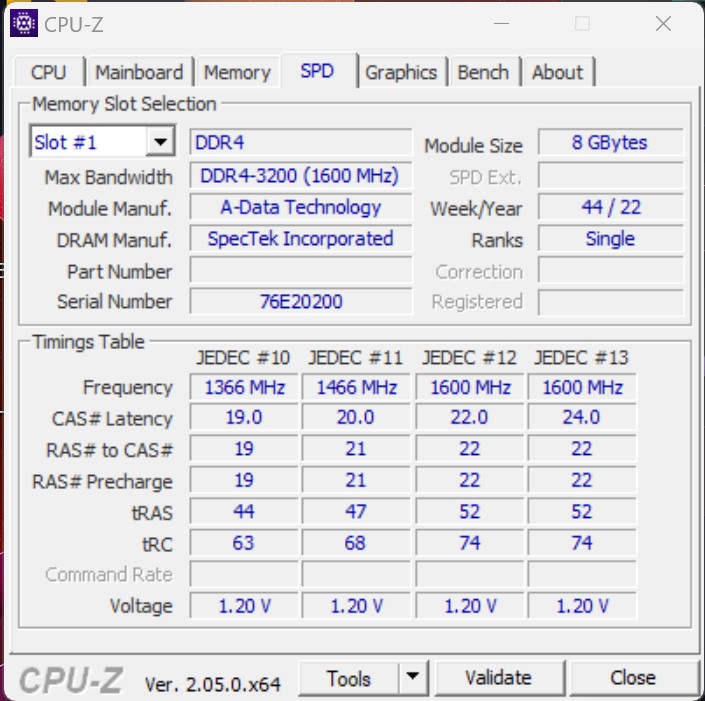

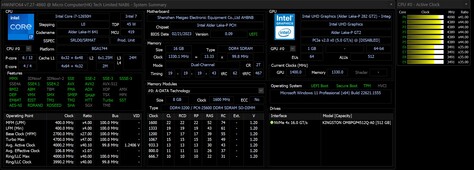

Minisforum Venus系列NAB6的英特尔酷睿i7-12650H是一个可用的SoC，在日常使用中会表现良好。开箱即用，你将配备16GB内存和512GB固态硬盘。内存和固态硬盘都可以在以后的日子里更换和升级，而SoC却不是这种情况。如果你对英特尔酷睿i7-12650H的性能不满意，你可能想看看MINISFORUM Venus系列NPB7，而不是。它有一个英特尔酷睿i7-13700H并将在不久的将来可以购买。

测试条件

我们使用能量曲线 "平衡 "进行了所有的测试。SoC的性能在BIOS中没有改变，并且按照制造商的设置，一直保持在我们收到的状态。

处理器

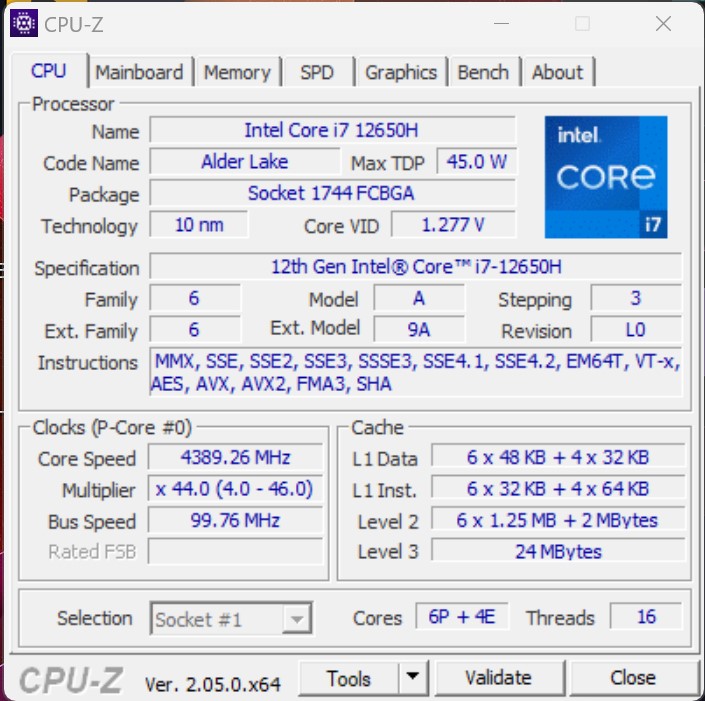

Minisforum Venus系列NAB6的英特尔酷睿i7-12650H是一个坚实的SoC，它有十个原生核心，可以同时处理总共16个线程。在我们的测试中，该设备排名居中，令人惊讶的是只比英特尔NUC 13落后2%（所有CPU基准比较）。英特尔酷睿i7-12650H的功率限制为64瓦，在连续负载时，它可以获得45瓦的功率。这些数字已经实现--这一点我们已经可以调侃了。这意味着不存在由于冷却不足造成的性能限制。

关于进一步的比较和基准，请看我们的CPU比较表。

Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	50.8 pt
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	50.1 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	49.7 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	49.6 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	47.9 pt
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	45.5 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	41.3 pt

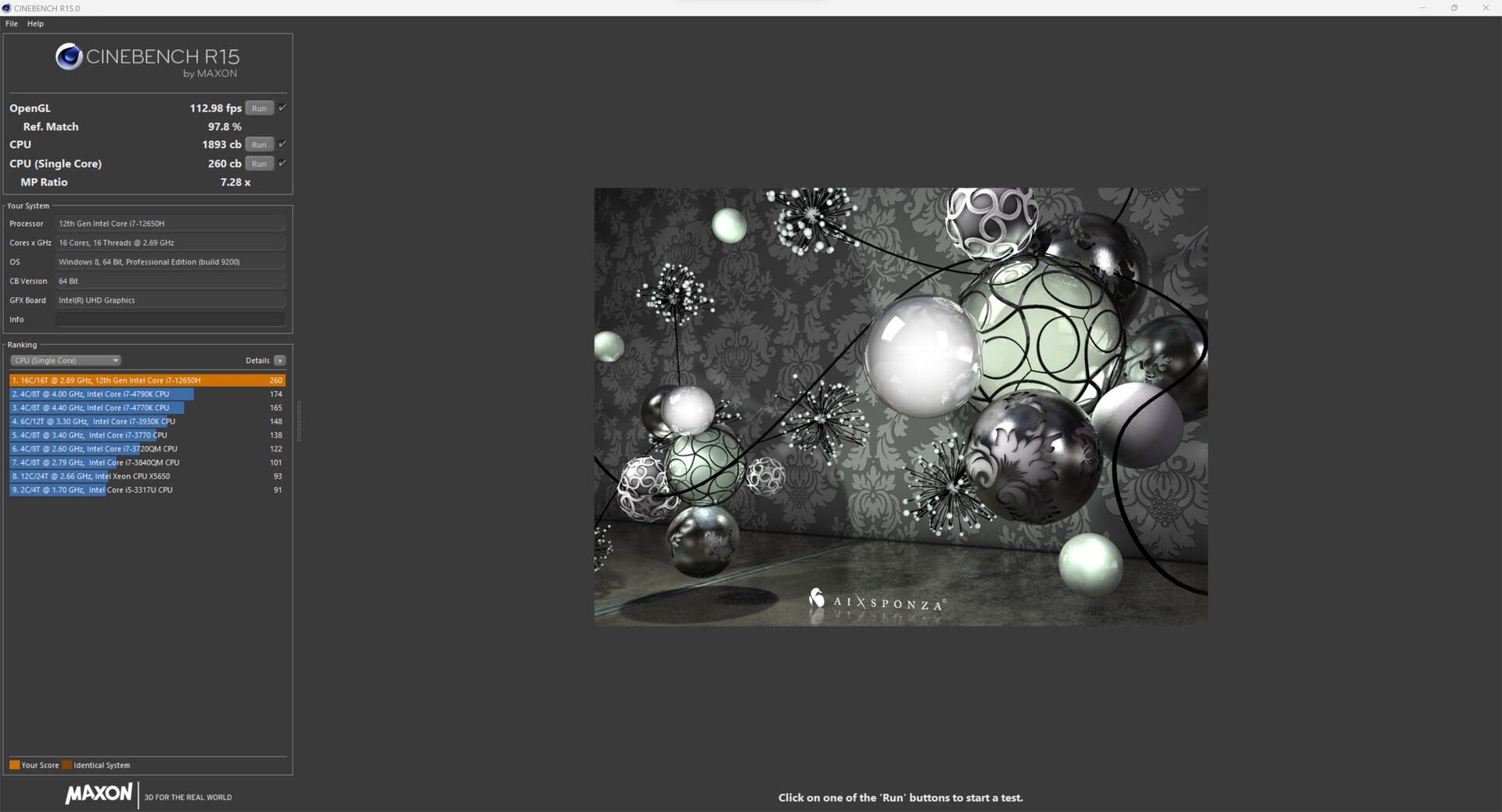

Cinebench R15
CPU Single 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	271 Points +4%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	261 Points 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	260 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	247 Points -5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	244 Points -6%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	241 Points -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points -14%
CPU Multi 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	2231 Points +18%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2067 Points +9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	2030 Points +7%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1920 Points +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1893 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1565 Points -17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points -33%

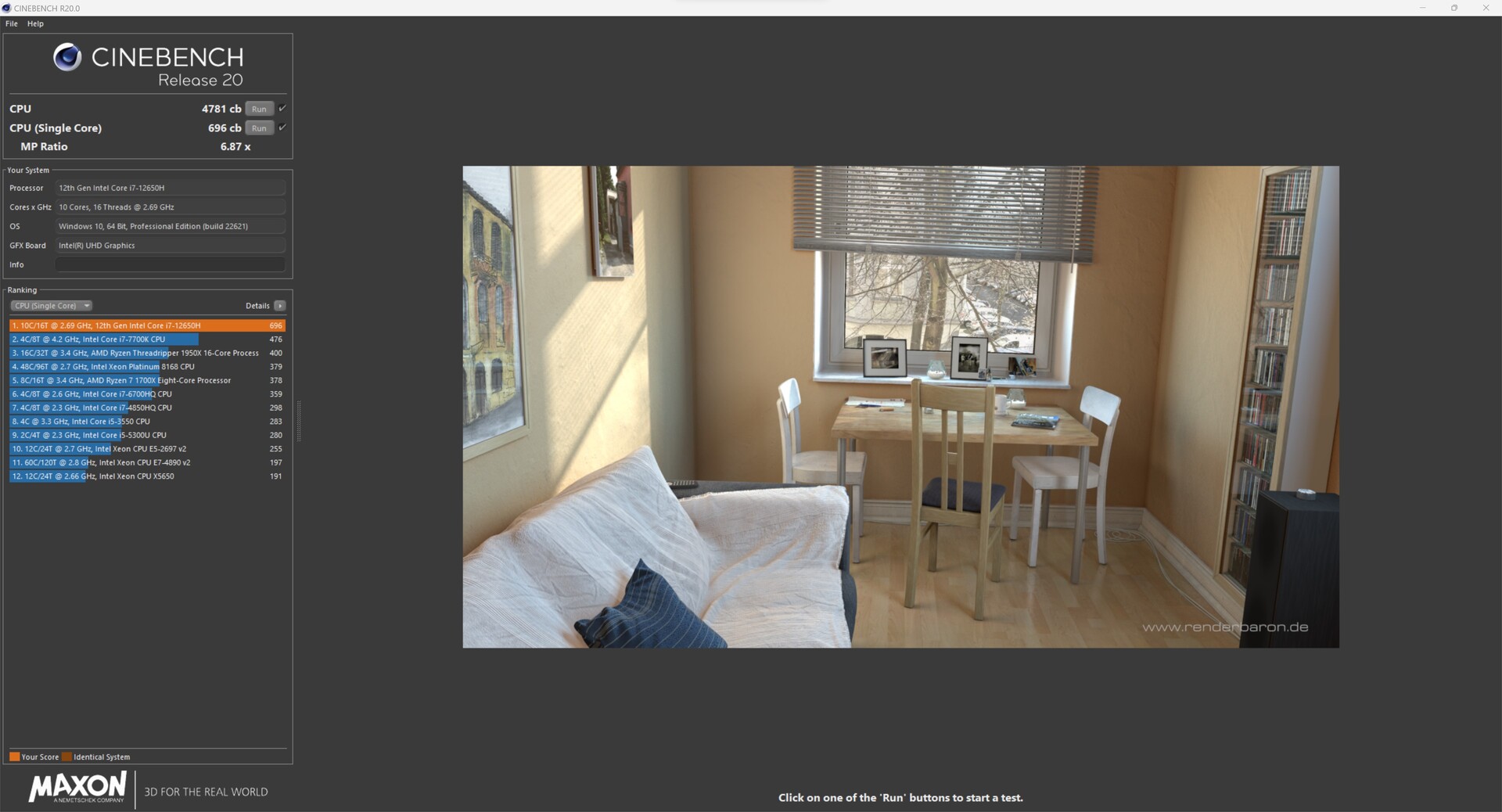

Cinebench R20
CPU (Single Core)
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	736 Points +6%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	696 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	682 Points -2%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	652 Points -6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	629 Points -10%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	600 Points -14%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points -23%
CPU (Multi Core)
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	5328 Points +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	4941 Points +3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	4887 Points +2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	4788 Points 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	4781 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	3427 Points -28%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points -38%

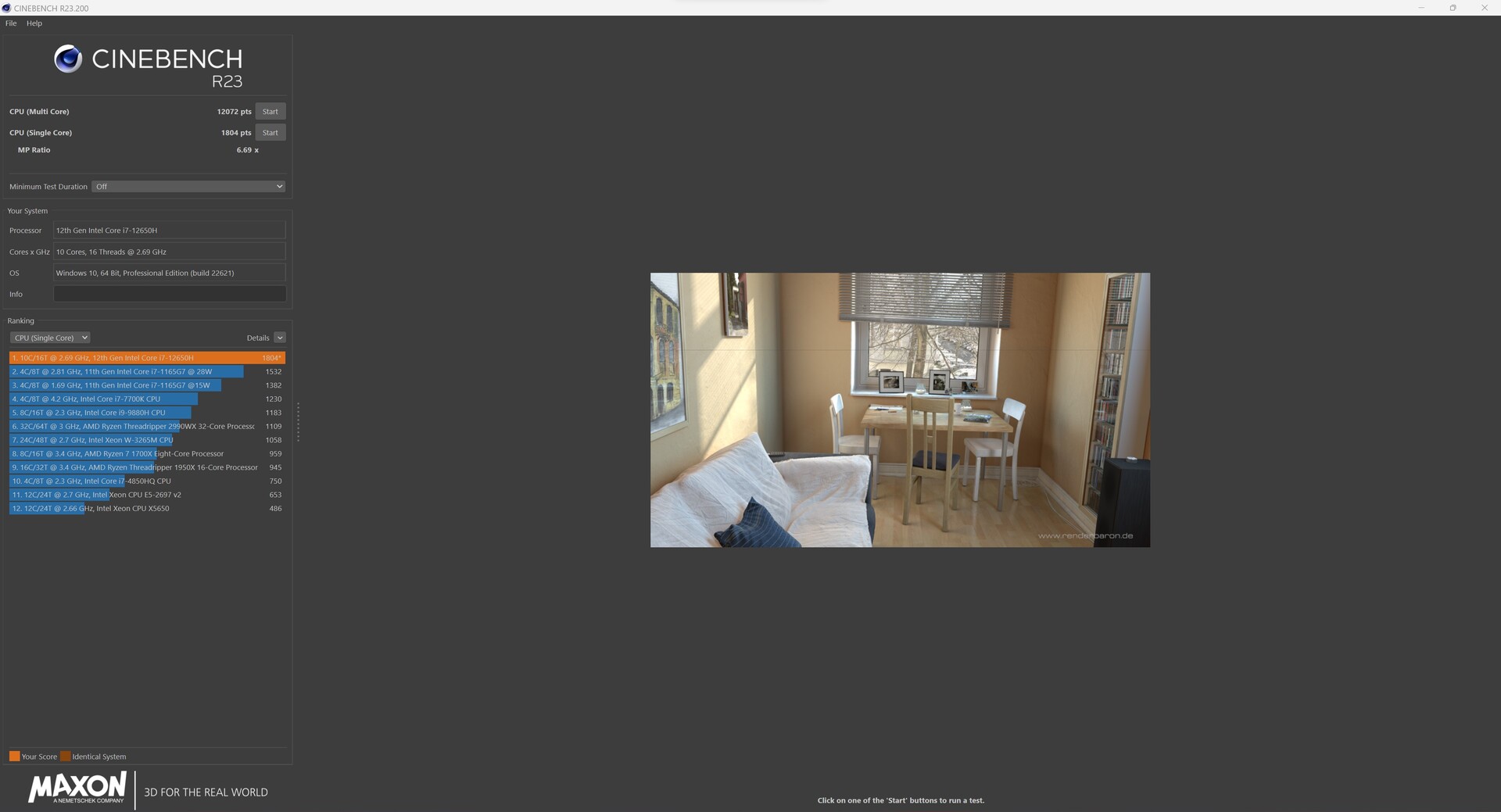

Cinebench R23
Single Core
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1909 Points +6%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1804 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1743 Points -3%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1693 Points -6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1616 Points -10%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1533 Points -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1376 Points -24%
Multi Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	13320 Points +10%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	13222 Points +10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	12637 Points +5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12375 Points +3%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	12072 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	8846 Points -27%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7615 Points -37%

Cinebench R11.5
CPU Single 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	3.3 Points +5%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.14 Points
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	3.07 Points -2%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	2.93 Points -7%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2.88 Points -8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2.86 Points -9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points -16%
CPU Multi 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	26.35 Points +19%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	25.96 Points +18%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	25.12 Points +14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	23.66 Points +7%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22.08 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	20.06 Points -9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points -33%

Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	15471 Points +6%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	14533 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	13568 Points -7%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	12943 Points -11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	12846 Points -12%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12185 Points -16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points -24%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	77409 Points +13%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	76758 Points +12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	76744 Points +12%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	69797 Points +2%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	68516 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	53950 Points -21%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points -34%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds * -40%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	285 Seconds *
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	279 Seconds * +2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	275 Seconds * +4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	273 Seconds * +4%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	234 Seconds * +18%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	231 Seconds * +19%

wPrime 2.10
32m
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s * -45%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	4.485 s * -21%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	3.735 s * -1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.705 s *
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	3.642 s * +2%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	3.461 s * +7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	3.421 s * +8%
1024m
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	410.289 s *
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	277.01 s * +32%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	237.123 s * +42%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	189.07 s * +54%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s * +62%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	103.226 s * +75%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	93.19 s * +77%

X264 HD Benchmark 4.0
Pass 1
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	312 (305^min - 331^max) fps 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	311.5 (311^min - 312^max) fps
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	262.5 (262^min - 266^max) fps -16%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	258.5 (256^min - 268^max) fps -17%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	245 (239^min - 261^max) fps -21%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps -25%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	224 (222^min - 258^max) fps -28%
Pass 2
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	127.8 (127.3^min - 129.1^max) fps +15%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	125.25 (105.2^min - 130^max) fps +13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	116.4 (108.5^min - 128.8^max) fps +5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	114 (111.2^min - 119.4^max) fps +3%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	111.1 (96.7^min - 111.7^max) fps
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	77.75 (77.6^min - 113.9^max) fps -30%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps -32%

WinRAR - Result
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9090 KB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	7937 KB/s -13%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6882 KB/s -24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s -24%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6795 KB/s -25%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6559 KB/s -28%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	5759 KB/s -37%

TrueCrypt
AES Mean 100MB
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	13.4 GB/s +33%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	12.5 GB/s +24%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12.1 GB/s +20%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.4 GB/s +3%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	10.1 GB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8.6 GB/s -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s -24%
Twofish Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	2.2 GB/s +22%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2 GB/s +11%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1.8 GB/s 0%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1.8 GB/s 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.8 GB/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.6 GB/s -11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s -39%
Serpent Mean 100MB
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1.2 GB/s +9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1.2 GB/s +9%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.1 GB/s
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1 GB/s -9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.974 GB/s -11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s -36%

Geekbench 5.5
Multi-Core
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	10574 Points +13%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9706 Points +4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points +4%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9363 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9151 Points -2%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	8918 Points -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points -34%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points +5%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1850 Points +5%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1782 Points +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1767 Points
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1634 Points -8%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1547 Points -12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points -19%

Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	10249 Points +13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	10249 Points +13%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10249 Points +13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points +6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9638 Points +6%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9099 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points -33%
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points +6%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1736 Points
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1593 Points -8%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1557 Points -10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1557 Points -10%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1557 Points -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points -20%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points +4%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	7705 Points
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6804 Points -12%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6698 Points -13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	6698 Points -13%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6698 Points -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points -24%
64 Bit Multi-Core Score
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	39852 Points +14%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	39852 Points +14%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	39852 Points +14%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	38566 Points +10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points +5%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	34909 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points -30%

3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	18382 Points 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	18363 Points
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	18277 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	17973 Points -2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15855 Points -14%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	13067 Points -29%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points -31%

7-Zip 18.03
7z b 4
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	61401 MIPS +28%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	56923 MIPS +19%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	52959 MIPS +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51151 MIPS +7%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	47893 MIPS
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS -18%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	37570 MIPS -22%
7z b 4 -mmt1
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	6116 MIPS
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6067 MIPS -1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	6019 MIPS -2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	5961 MIPS -3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	5591 MIPS -9%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	5577 MIPS -9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS -14%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	17.1 fps +26%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15.4 fps +13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	14.2 fps +4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	14.1 fps +4%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	13.6 fps
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps -26%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.1 fps -26%

R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec * -16%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	0.4881 sec * -6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	0.4757 sec * -3%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	0.4718 sec * -2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.4641 sec * -0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	0.462 sec *
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	0.445 sec * +4%

LibreOffice - 20 Documents To PDF
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	53.4 s * -35%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s * -29%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	48.8 s * -23%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	48.1 s * -21%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	43.7 s * -10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	39.6 s *
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	38 s * +4%

WebXPRT 3 - Overall
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	311 Points +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	309 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	305 Points -1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	292 Points -6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	287 Points -7%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	287 Points -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points -17%

Mozilla Kraken 1.1 - Total
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms * -24%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	605 ms * -17%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	577 ms * -11%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	571 ms * -10%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	539 ms * -4%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	519 ms *
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	494 ms * +5%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	25456 Points +21%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22441 Points +7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	21422 Points +2%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	21001 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	20158 Points -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points -16%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	15903 Points -24%
1920x1080 Fire Strike Physics
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	25915 Points +16%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22426 Points 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22346 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	22244 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	21523 Points -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points -19%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	16568 Points -26%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	10539 Points +15%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9354 Points +2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	9334 Points +2%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9168 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	8622 Points -6%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6487 Points -29%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points -41%

* ... smaller is better

Performance Rating
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	99.3 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	85.9 pt
Average of class Mini PC	75 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	73.8 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	70.7 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	69.4 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	60.2 pt
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	57 pt

AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	15102 KRay/s +39%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	13757 KRay/s +27%
Average of class Mini PC (561 - 51004, n=119, last 2 years)	12449 KRay/s +15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	11040 KRay/s +2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	10839 KRay/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s -16%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	7933 KRay/s -27%

AIDA64 / FPU Julia
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	98980 Points +82%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	87663 Points +61%
Average of class Mini PC (3604 - 214250, n=119, last 2 years)	62645 Points +15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points +5%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	55557 Points +2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	54435 Points
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	40251 Points -26%

AIDA64 / CPU SHA3
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	3452 MB/s +46%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	2931 MB/s +24%
Average of class Mini PC (225 - 9399, n=119, last 2 years)	2760 MB/s +17%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	2728 MB/s +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s +9%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	2357 MB/s
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	2006 MB/s -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s -16%

AIDA64 / CPU Queen
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	103686 Points +26%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	100293 Points +22%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	86691 Points +5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points +3%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	82454 Points
Average of class Mini PC (8172 - 184747, n=119, last 2 years)	77998 Points -5%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	73765 Points -11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points -18%

AIDA64 / FPU SinJulia
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	13101 Points +76%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	12396 Points +67%
Average of class Mini PC (408 - 29064, n=119, last 2 years)	8538 Points +15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	7444 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	7269 Points -2%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	5567 Points -25%

AIDA64 / FPU Mandel
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	52710 Points +97%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	44629 Points +67%
Average of class Mini PC (1958 - 113499, n=119, last 2 years)	32689 Points +22%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points +17%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points +5%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	27772 Points +4%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	26735 Points
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	19857 Points -26%

AIDA64 / CPU AES
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	136723 MB/s +48%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s +8%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	99244 MB/s +7%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	92530 MB/s
Average of class Mini PC (3691 - 325960, n=119, last 2 years)	85358 MB/s -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s -15%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	74716 MB/s -19%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	56199 MB/s -39%

AIDA64 / CPU ZLib
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	863 MB/s +28%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	807 MB/s +20%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	745 MB/s +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s +9%
Average of class Mini PC (74.8 - 2039, n=119, last 2 years)	714 MB/s +6%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	674 MB/s
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	575 MB/s -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s -25%

AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	7973 KRay/s +38%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7288 KRay/s +26%
Average of class Mini PC (308 - 26952, n=119, last 2 years)	6658 KRay/s +15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	5920 KRay/s +3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	5771 KRay/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s -20%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	4156 KRay/s -28%

AIDA64 / CPU PhotoWorxx
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	29765 MPixel/s +6%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	29108 MPixel/s +4%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	28118 MPixel/s 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	28010 MPixel/s
Average of class Mini PC (4408 - 50500, n=119, last 2 years)	27805 MPixel/s -1%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	27720 MPixel/s -1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s -31%

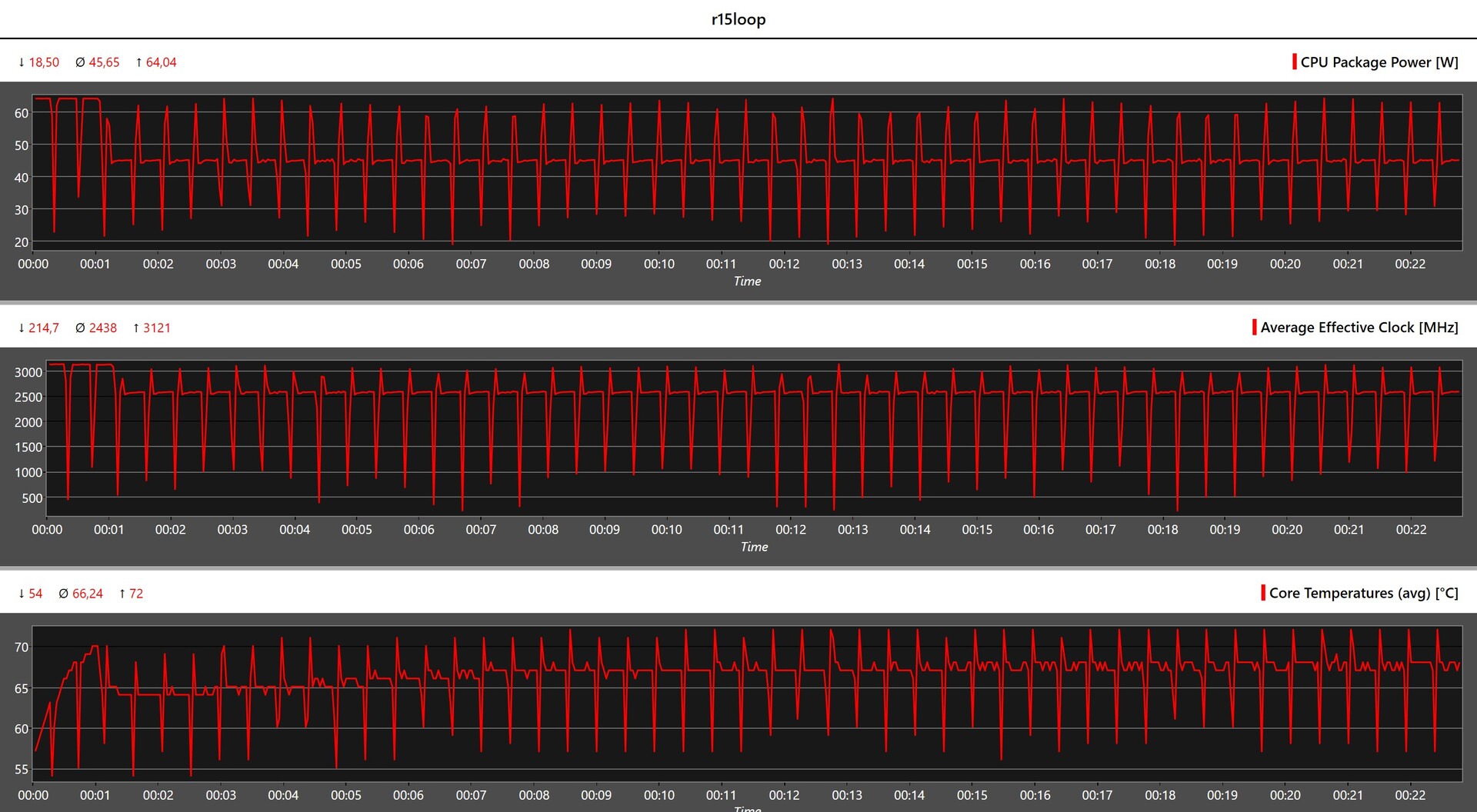

Minisforum Venus系列NAB6与Cinebench R15多循环的对比

Cinebench R15的连续循环让我们了解到SoC在较长时间内的表现。Minisforum Venus系列NAB6在50次运行中表现良好，即使在第三次运行后可以看到轻微的性能下降。这款英特尔酷睿i7-12650H只在第四次运行后短时间内达到64瓦的最大功率限制。该SoC的平均温度不是很高，为66℃。

Minisforum Venus Series NAB6 Intel Core i7-12650H, Intel Core i7-12650H: Ø1627 (1590.71-1899.25)

Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)

Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2111 (2087.36-2211.78)

Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Core i7-1360P: Ø1825 (1794.93-2181.38)

Geekom Mini IT12 Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

系统性能

同样，Minisforum Venus系列NAB6在合成基准测试中的系统性能处于中间位置。其配备AMD Ryzen 9 6900HX的竞争对手表现更好，平均领先10-16%。在Crossmark测试中，英特尔迷你PC表现最好。在这里，我们的测试样本取得了第二名，在AIDA64内存测试中它排在第三位。笔记本摩尔芬M600和Minisforum Venus Series UM690由于它们的DDR5内存，表现更好。主观上，Minisforum Venus系列NAB6的系统性能很好。我们在日常使用中没有测出任何明显的延迟。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	7045 Points +16%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	6654 Points +10%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	6281 Points +4%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	6187 Points +2%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	6057 Points
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points -5%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	5658 Points -7%

PCMark 10 / Essentials
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	11596 Points +2%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	11395 Points
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	11217 Points -2%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	10838 Points -5%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	10390 Points -9%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points -9%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	10139 Points -11%

PCMark 10 / Productivity
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	10060 Points +23%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	9817 Points +20%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points +17%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	8164 Points
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	7893 Points -3%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	7673 Points -6%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	7427 Points -9%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1894 Points +1%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1875 Points
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1810 Points -3%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1738 Points -7%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1731 Points -8%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1517 Points -19%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points -27%

CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	2116 Points +2%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	2077 Points
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1734 Points -17%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1671 Points -20%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1578 Points -24%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points -39%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1238 Points -40%

CrossMark / Creativity
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1970 Points +9%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1811 Points
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1800 Points -1%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1749 Points -3%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1745 Points -4%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1652 Points -9%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points -24%

CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1921 Points +2%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1876 Points
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1740 Points -7%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1738 Points -7%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1729 Points -8%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1491 Points -21%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points -25%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	50228 MB/s +7%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	47938 MB/s +2%
Average of class Mini PC (6481 - 89287, n=119, last 2 years)	47585 MB/s +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	46936 MB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	45941 MB/s -2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	44892 MB/s -4%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	44726 MB/s -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s -25%

AIDA64 / Memory Read
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	51077 MB/s +2%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	50120 MB/s
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	49936 MB/s 0%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	49559 MB/s -1%
Average of class Mini PC (6914 - 99171, n=119, last 2 years)	48328 MB/s -4%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	47491 MB/s -5%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	45196 MB/s -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s -23%

AIDA64 / Memory Write
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	55194 MB/s +16%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	54750 MB/s +16%
Average of class Mini PC (6862 - 98583, n=119, last 2 years)	52056 MB/s +10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	47383 MB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	46815 MB/s -1%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	46785 MB/s -1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	46179 MB/s -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s -21%

AIDA64 / Memory Latency
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	100 ns * -40%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	96.1 ns * -34%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	92.4 ns * -29%
Average of class Mini PC (44.9 - 184.8, n=119, last 2 years)	91.9 ns * -28%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * -28%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	83 ns * -16%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	80.2 ns * -12%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	71.6 ns *

* ... smaller is better

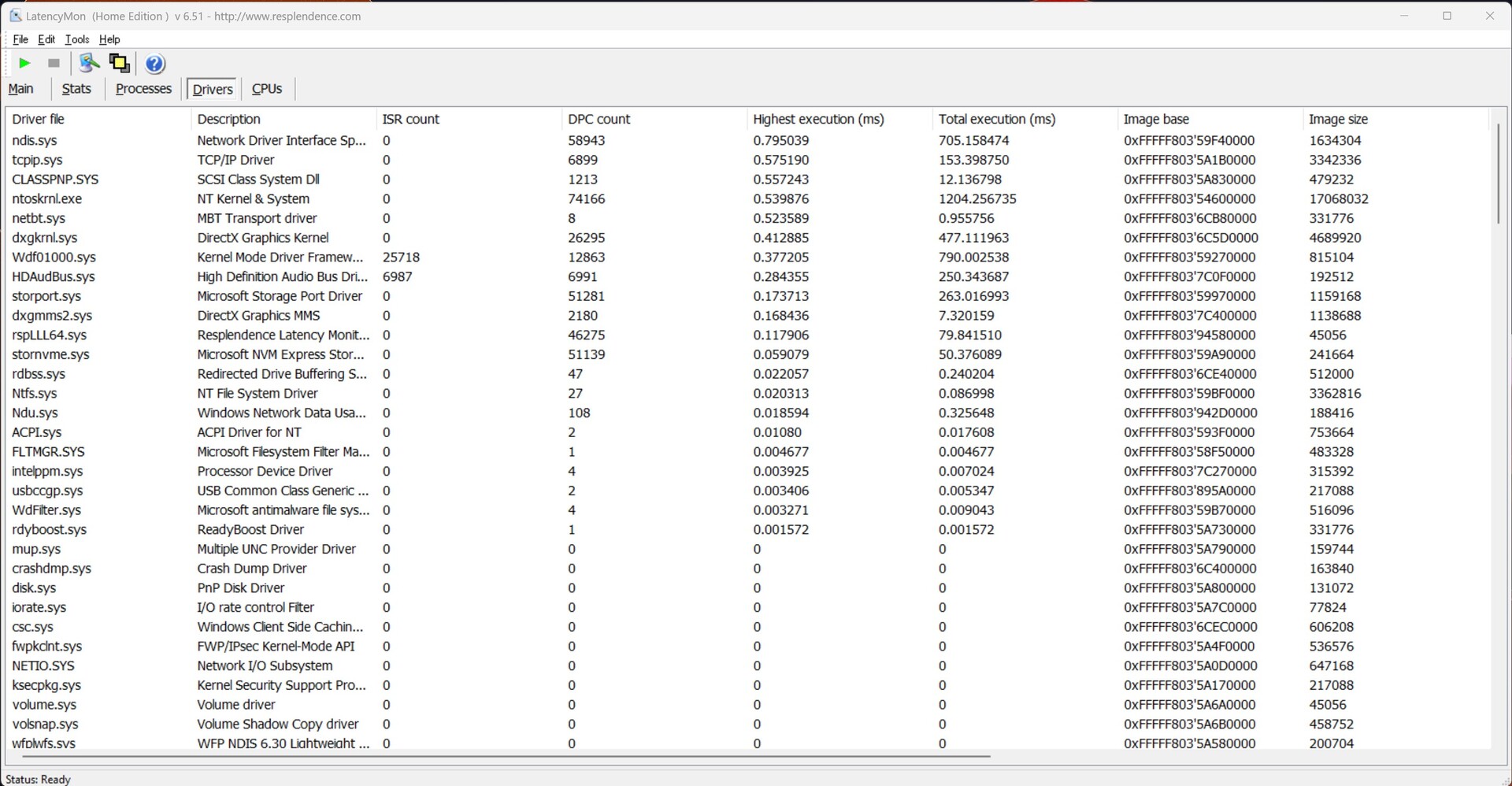

DPC延时

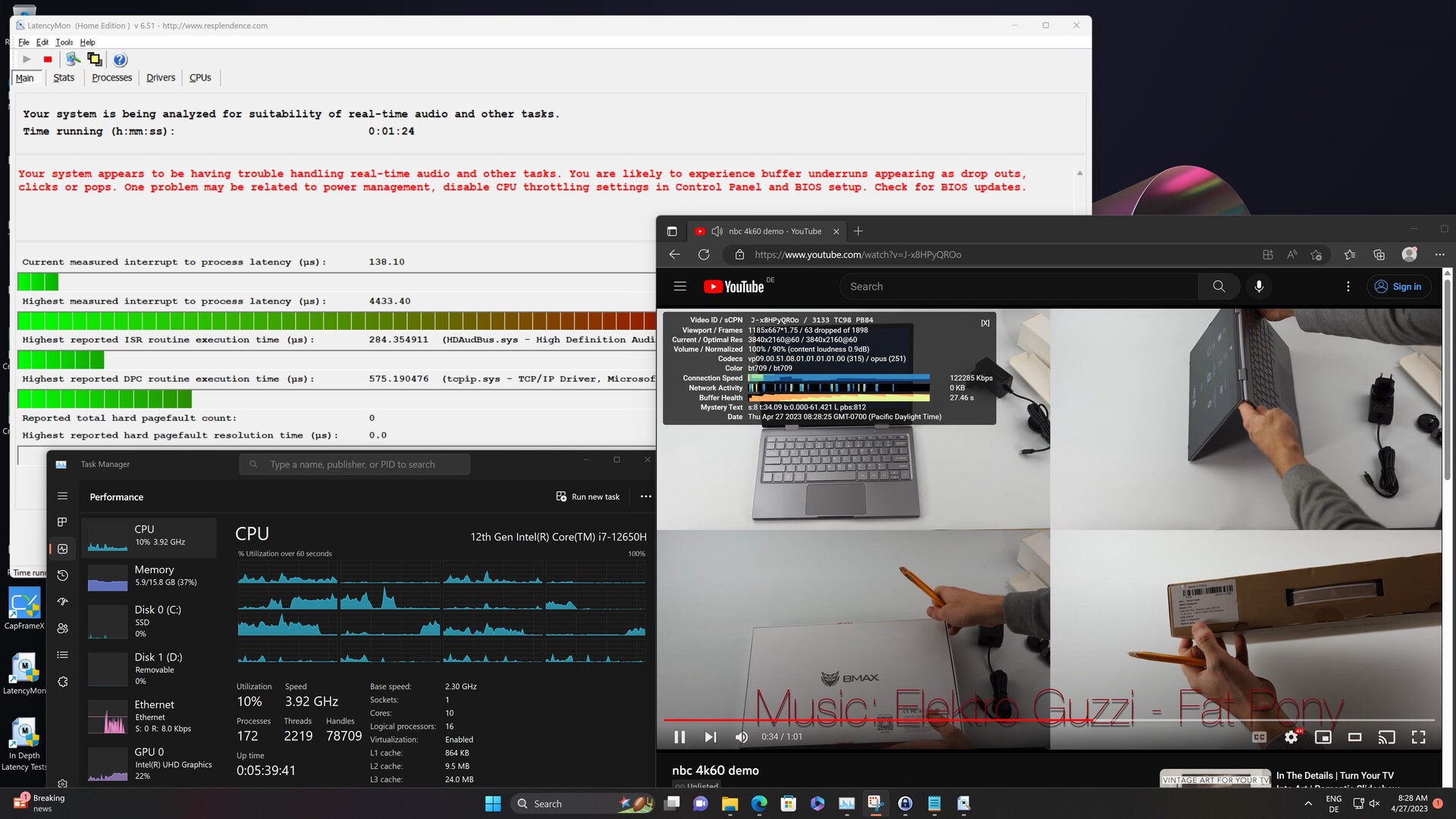

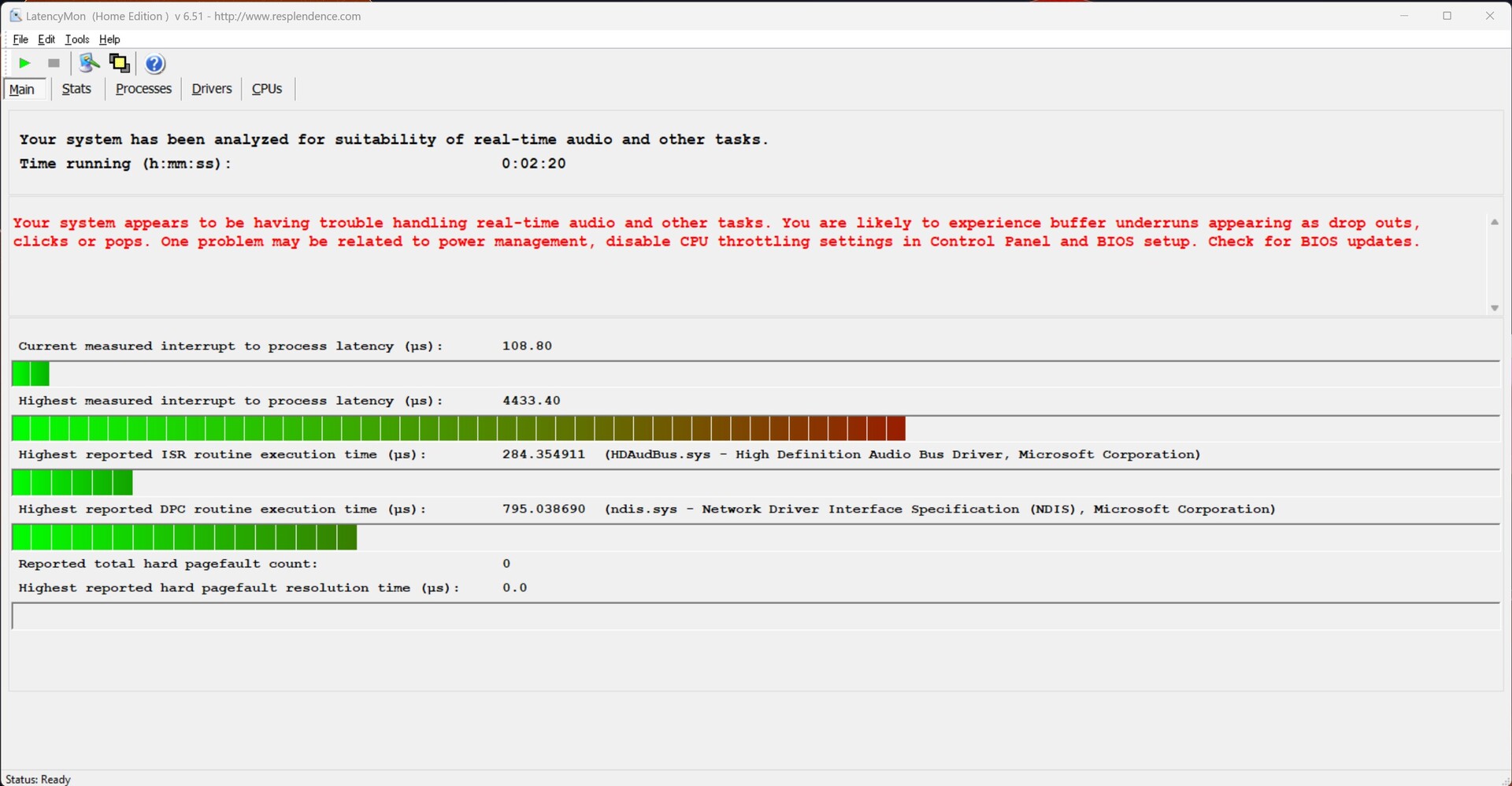

LatencyMon工具在使用Edge打开多个标签时测得的延迟略有上升，在开始我们的4K测试视频后变得更高。Prime95并没有导致任何更高的数值。相比之下，MINISFORUM Venus Series NAB6仍然做得很好，在Ace Magician AMR5之后获得第二名。王牌魔术师AMR5.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	1488 μs * -87%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1317 μs * -66%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1113.9 μs * -40%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1087 μs * -37%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	985.8 μs * -24%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	795 μs *
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	765 μs * +4%

* ... smaller is better

存储设备

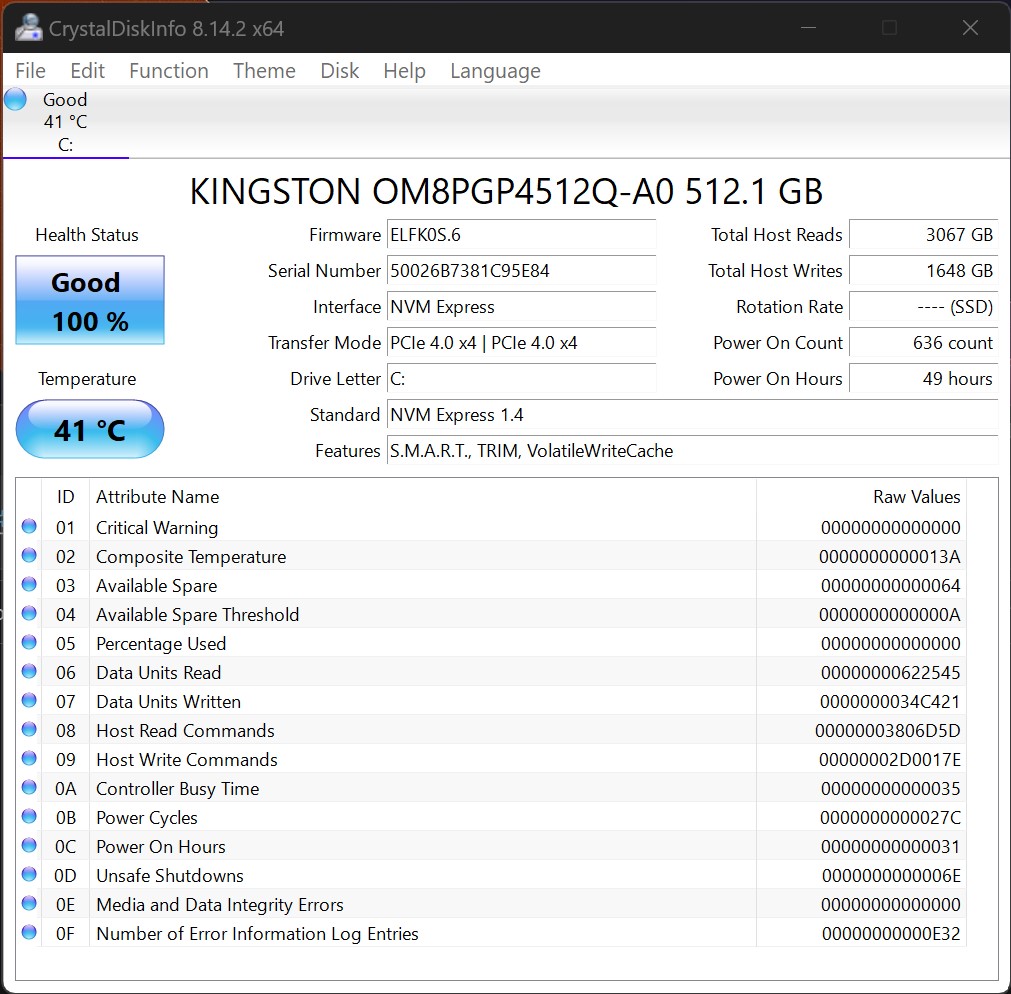

Minisforum为Venus系列NAB6配备了金士顿的512GB NVMe SSD。类似的设备可以在Minisforum Neptune Series NAD9以及Minisforum Venus系列UM690.与同一制造商的竞争对手相比，我们测试设备中的金士顿SSD根本无法跟上。然而，我们的测试设备不需要躲起来，它的读取率很好--特别是它的4K读取率超过100MB/s。

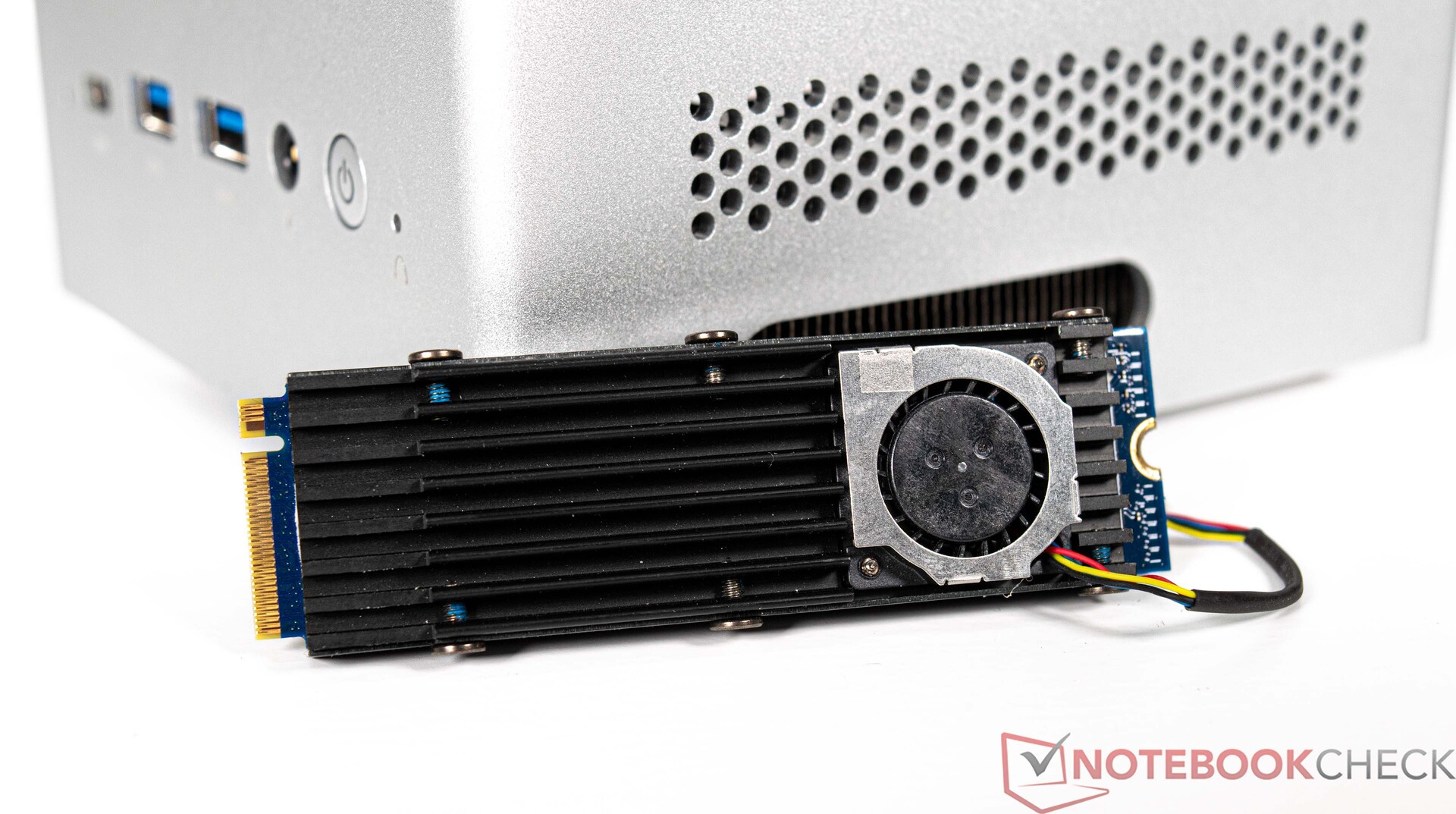

说到冷却，NAB6采取了一个略微不同的方法，它安装了一个带有小风扇的冷却系统。这款固态硬盘在连续测试中获得了成功--而且没有任何性能崩溃。然而，我们在停用风扇的情况下重复同样的测试，结果基本相同。这就引出了一个问题，为什么制造商选择安装主动式SSD冷却装置。虽然，至少它工作起来足够安静，在日常使用中应该不会困扰你。

Minisforum Venus系列NAB6总共可以安装三块SSD。在NVMe固态硬盘旁边，你还可以安装一个M.2 2242格式的固态硬盘--但只能用SATA速度。此外，一个2.5英寸的存储设备也可以安装到该设备中。你只需要确保它的高度不超过7毫米。

关于进一步的比较和基准，请看我们的比较表。

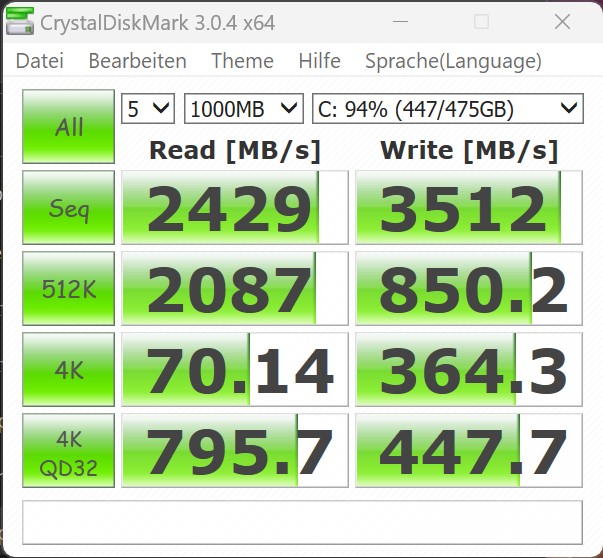

CrystalDiskMark 3.0

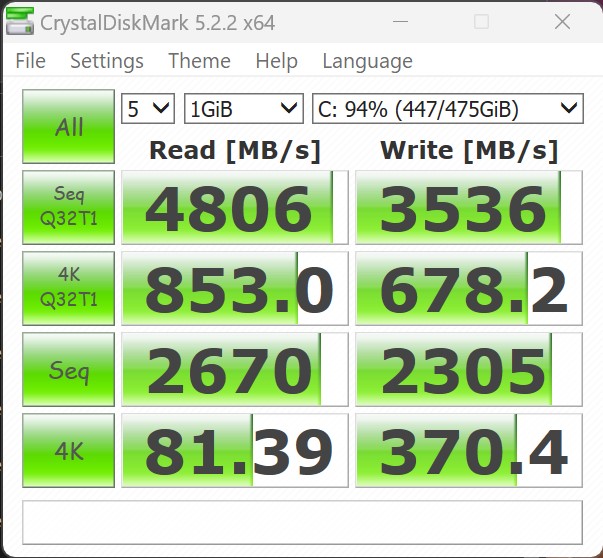

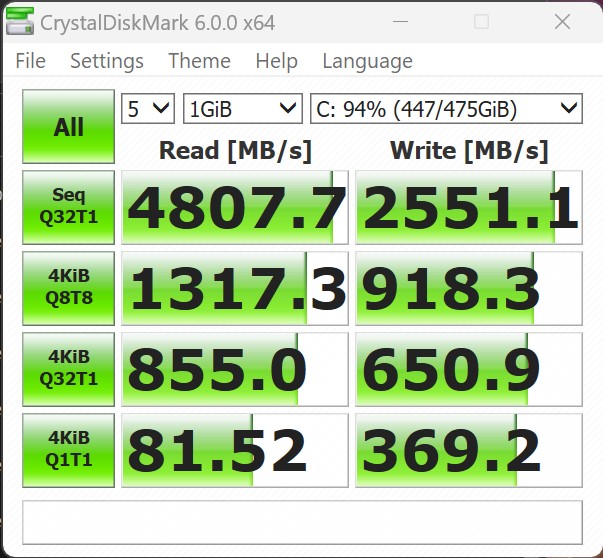

CrystalDiskMark 5.2 / 6

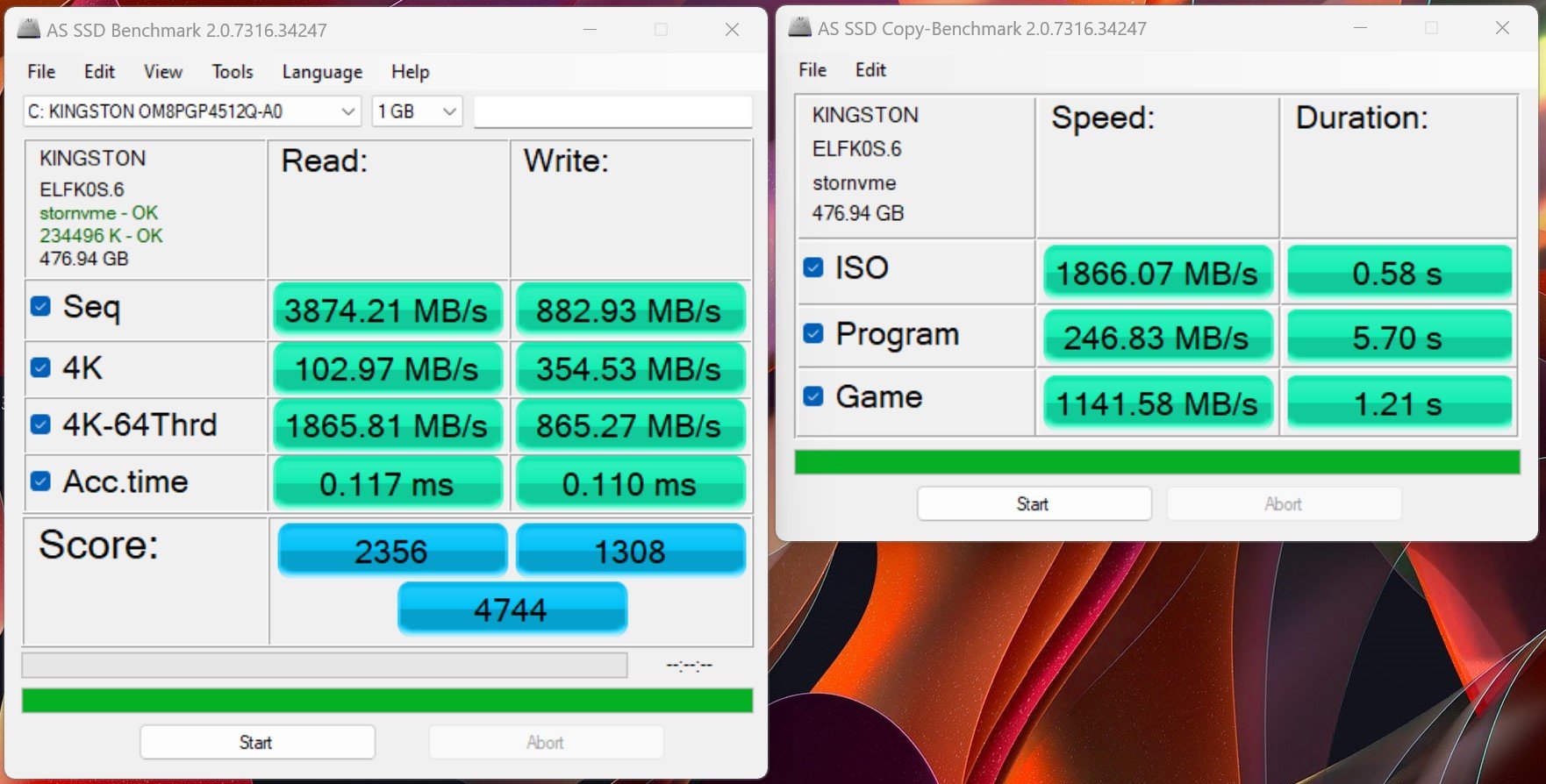

AS SSD

DiskSpd

Kingston OM8PGP4512Q-A0

Sequential Read: 2429 MB/s

Sequential Write: 3512 MB/s

512K Read: 2087 MB/s

512K Write: 850.2 MB/s

4K Read: 70.14 MB/s

4K Write: 364.3 MB/s

4K QD32 Read: 795.7 MB/s

4K QD32 Write: 447.7 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	83.4 pt
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	79.3 pt
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	70.4 pt
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	67.9 pt
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	65.2 pt
Average of class Mini PC	50.1 pt
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	39.2 pt
Geekom Mini IT12 Kingston OM8SEP4512N-A0	35.5 pt

DiskSpd
seq read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3375 (3310.44^min - 3375.33^max) MB/s +26%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3195 (3147.62^min - 3194.91^max) MB/s +19%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2815 (2802.79^min - 2814.97^max) MB/s +5%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2689 (2681.42^min - 2688.76^max) MB/s
Average of class Mini PC (233 - 4357, n=119, last 2 years)	2288 MB/s -15%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s -23%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1451 (1441.37^min - 1451.23^max) MB/s -46%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1176 (1169.13^min - 1175.87^max) MB/s -56%
seq write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3544 (3538.94^min - 3544.19^max) MB/s
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3539 (3516.6^min - 3538.94^max) MB/s 0%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3372.67^min - 3402.21^max) MB/s -4%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3360 (1416.73^min - 3360.47^max) MB/s -5%
Average of class Mini PC (222 - 5595, n=119, last 2 years)	2448 MB/s -31%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s -49%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1530 (603.77^min - 1530.08^max) MB/s -57%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1203 (1169.58^min - 1202.51^max) MB/s -66%
seq q8 t1 read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6729 (6134.8^min - 6728.5^max) MB/s +40%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	4820 (3819.87^min - 4820.3^max) MB/s 0%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4801 (4506.78^min - 4800.59^max) MB/s 0%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4797 (4271.21^min - 4796.87^max) MB/s
Average of class Mini PC (236 - 8430, n=119, last 2 years)	3706 MB/s -23%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s -49%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1987 (1409.4^min - 1987.27^max) MB/s -59%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1694 (1415.05^min - 1693.87^max) MB/s -65%
seq q8 t1 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3541 (3519.65^min - 3541.04^max) MB/s
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3536 (3475.82^min - 3536.01^max) MB/s 0%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3374.28^min - 3401.67^max) MB/s -4%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2830 (1138.15^min - 2830.32^max) MB/s -20%
Average of class Mini PC (228 - 6669, n=119, last 2 years)	2743 MB/s -23%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s -50%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1213 (1155.74^min - 1212.78^max) MB/s -66%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1084 (553.02^min - 1084.16^max) MB/s -69%
4k q1 t1 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	82.8 (82.48^min - 82.75^max) MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.1 (81.4^min - 82.09^max) MB/s -1%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	70.8 (63.28^min - 70.81^max) MB/s -14%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	55.6 (54.87^min - 55.6^max) MB/s -33%
Average of class Mini PC (5.67 - 86.6, n=119, last 2 years)	54.7 MB/s -34%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	51.8 (51.62^min - 51.84^max) MB/s -37%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	48.5 (48.27^min - 48.47^max) MB/s -41%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s -42%
4k q1 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	425 (415.92^min - 425.01^max) MB/s +1%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	420 (417.55^min - 420.16^max) MB/s
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	288 (287.39^min - 288.47^max) MB/s -31%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	276 (193.9^min - 275.81^max) MB/s -34%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	220 (212.2^min - 220.15^max) MB/s -48%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s -50%
Average of class Mini PC (30.4 - 435, n=119, last 2 years)	194.7 MB/s -54%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	177.7 (176.17^min - 177.7^max) MB/s -58%
4k q32 t16 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1944 (1936.89^min - 1943.53^max) MB/s 0%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1939 (1934.48^min - 1939.25^max) MB/s
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	1933 (1926.8^min - 1932.75^max) MB/s 0%
Average of class Mini PC (26.1 - 4158, n=119, last 2 years)	1360 MB/s -30%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1225 (1194.7^min - 1224.8^max) MB/s -37%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s -49%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	420 (418.45^min - 419.54^max) MB/s -78%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	354 (11.43^min - 353.56^max) MB/s -82%
4k q32 t16 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3388 (3373.11^min - 3387.88^max) MB/s
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3331 (2068.43^min - 3331.41^max) MB/s -2%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2396 (2376.28^min - 2396.46^max) MB/s -29%
Average of class Mini PC (30.2 - 4288, n=119, last 2 years)	1287 MB/s -62%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	942 (402.72^min - 941.71^max) MB/s -72%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	893 (601.78^min - 892.97^max) MB/s -74%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	659 (650.84^min - 659.33^max) MB/s -81%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	626 (605.6^min - 625.63^max) MB/s -82%

AS SSD
Score Total
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	9030 Points +90%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	7134 Points +50%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	6665 Points +40%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6005 Points +27%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4744 Points
Average of class Mini PC (181.5 - 10021, n=117, last 2 years)	4121 Points -13%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2797 Points -41%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2491 Points -47%
Score Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3635 Points +54%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2391 Points +1%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2356 Points
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	2352 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1673 Points -29%
Average of class Mini PC (61 - 3741, n=117, last 2 years)	1534 Points -35%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1162 Points -51%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	725 Points -69%
Score Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3615 Points +176%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3574 Points +173%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3538 Points +170%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3145 Points +140%
Average of class Mini PC (88 - 4371, n=117, last 2 years)	1851 Points +42%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1457 Points +11%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1308 Points
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1059 Points -19%
Seq Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	5338 MB/s +38%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	4767 MB/s +23%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4147 MB/s +7%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	4050 MB/s +5%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3874.21 MB/s
Average of class Mini PC (291 - 6620, n=117, last 2 years)	3161 MB/s -18%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2789 MB/s -28%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2260 MB/s -42%
Seq Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3927 MB/s +345%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3292 MB/s +273%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3025 MB/s +243%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2442 MB/s +177%
Average of class Mini PC (240 - 5783, n=117, last 2 years)	2212 MB/s +151%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1644 MB/s +86%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1232 MB/s +40%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	882.93 MB/s
4K Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	103.66 MB/s +1%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	102.97 MB/s
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	86.05 MB/s -16%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	78.3 MB/s -24%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	66.6 MB/s -35%
Average of class Mini PC (6.08 - 104.3, n=117, last 2 years)	58.9 MB/s -43%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	52.54 MB/s -49%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	48.9 MB/s -53%
4K Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	365.87 MB/s +3%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	354.53 MB/s
Geekom Mini IT12 Kingston OM8SEP4512N-A0	273 MB/s -23%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	240.66 MB/s -32%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	209 MB/s -41%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	209 MB/s -41%
Average of class Mini PC (30.9 - 366, n=117, last 2 years)	175.1 MB/s -51%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	144.1 MB/s -59%
4K-64 Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3035 MB/s +63%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1872.82 MB/s 0%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1865.81 MB/s
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	1860.96 MB/s 0%
Average of class Mini PC (23.4 - 3220, n=117, last 2 years)	1159 MB/s -38%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1118 MB/s -40%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	883.24 MB/s -53%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	397 MB/s -79%
4K-64 Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3120 MB/s +261%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3013 MB/s +248%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2842.9 MB/s +229%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	2602.12 MB/s +201%
Average of class Mini PC (32.8 - 3731, n=117, last 2 years)	1455 MB/s +68%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1060 MB/s +23%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	865.27 MB/s
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	750.4 MB/s -13%
Access Time Read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.117 ms *
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.098 ms * +16%
Average of class Mini PC (0.022 - 0.489, n=117, last 2 years)	0.09726 ms * +17%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.075 ms * +36%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.074 ms * +37%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.066 ms * +44%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	0.065 ms * +44%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.045 ms * +62%
Access Time Write
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.118 ms * -7%
Average of class Mini PC (0.014 - 0.765, n=117, last 2 years)	0.1153 ms * -5%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.11 ms *
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.102 ms * +7%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.031 ms * +72%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	0.031 ms * +72%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.02 ms * +82%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.018 ms * +84%

* ... smaller is better

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

Minisforum Venus Series NAB6: Ø4789 (4164.37-4807.96)

图形卡

该设备有一个集成的英特尔UHD Graphics图形卡，有64个EUs。只看它的性能，这个模型只能真正用于2D显示。iGPU简直太弱了，无法用于复杂的3D渲染显示。较新的Intel Iris Xe Graphics G7型号在某种程度上更强大，但与目前iGPU中的AMD相比，如 AMD Radeon 680M相比，它们仍然落后。

如需更多的比较和基准，请看我们的G PU比较表。

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	99.1 pt
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	98 pt
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	72.5 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	69.8 pt
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	63 pt
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	53.8 pt
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	51.4 pt

3DMark 11 - 1280x720 Performance GPU
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	11055 Points +102%
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	10845 Points +99%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7143 Points +31%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	7057 Points +29%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6599 Points +21%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points +3%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5462 Points

3DMark
1280x720 Cloud Gate Standard Graphics
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	43275 Points +102%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	41124 Points +92%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	30434 Points +42%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	27511 Points +29%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points +23%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	22570 Points +6%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	21383 Points
1920x1080 Fire Strike Graphics
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	6679 Points +63%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6644 Points +62%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5526 Points +35%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5229 Points +28%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4860 Points +19%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4098 Points
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points -12%
2560x1440 Time Spy Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2408 Points +98%
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	2351 Points +93%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1673 Points +37%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1658 Points +36%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1528 Points +26%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1217 Points
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1102 Points -9%
Fire Strike Extreme Graphics
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	3206 Points +72%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	3066 Points +64%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	2455 Points +32%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	2340 Points +25%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	2150 Points +15%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1866 Points
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1472 Points -21%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1

Performance Rating - Percent
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	98.3 pt
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	90 pt
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	62.5 pt
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57.9 pt
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	55.8 pt
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	49.4 pt
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	48.8 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	34.6 fps +76%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	33.6 fps +71%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	23.6 fps +20%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	23.3 fps +18%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21 fps +7%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	19.7 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.7 fps -10%
Extreme Preset DX11
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	33.4 fps +64%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	32.2 fps +58%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	24.5 fps +20%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	24 fps +18%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21.7 fps +6%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	20.4 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.1 fps -16%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	21 fps +64%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	18.8 fps +47%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	15.1 fps +18%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	14.3 fps +12%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	13.2 fps +3%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	12.8 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.3 fps -12%
1920x1080 Extreme HD Preset OpenGL AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	22.8 fps +51%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	21.3 fps +41%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	17.7 fps +17%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	16.1 fps +7%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	15.2 fps +1%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	15.1 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.5 fps -24%

ComputeMark v2.1
1024x600 Normal, Score
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	7111 Points +183%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	5813 Points +131%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	3603 Points +43%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	3390 Points +35%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	3308 Points +32%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	3225 Points +28%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	2512 Points
1024x600 Normal, Fluid 3DTex
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	400 Points +85%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	371 Points +72%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	284 Points +31%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points +10%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	234 Points +8%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	224 Points +4%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	216 Points
1024x600 Normal, Fluid 2DTexArr
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	404 Points +84%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	367 Points +67%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	277 Points +26%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	249 Points +13%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points +8%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	220 Points
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	212 Points -4%
1024x600 Normal, Mandel Vector
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	2030 Points +320%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1677 Points +247%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	982 Points +103%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	911 Points +89%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	851 Points +76%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	827 Points +71%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	483 Points
1024x600 Normal, Mandel Scalar
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	1945 Points +153%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1473 Points +91%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	906 Points +18%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	865 Points +12%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	862 Points +12%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	834 Points +8%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	770 Points
1024x600 Normal, QJuliaRayTrace
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	2332 Points +183%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1924 Points +134%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1268 Points +54%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1191 Points +45%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	1174 Points +43%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	900 Points +9%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	823 Points

3DMark 05 Standard		40841 points
3DMark 06 Standard Score		31196 points
3DMark Vantage P Result		21147 points
3DMark 11 Performance		6122 points
3DMark Ice Storm Standard Score		63449 points
3DMark Cloud Gate Standard Score		19838 points
3DMark Fire Strike Score		3858 points
3DMark Fire Strike Extreme Score		1851 points
3DMark Time Spy Score		1398 points
Help

... in comparison

游戏性能

由于iGPU的3D性能有限，Minisforum Venus系列NAB6不是最适合游戏的。我们只在玩老游戏时看到可玩的帧率。的英特尔UHD Graphics只有在720p和低细节的情况下才能掌握当前的游戏。如果你更看重3D性能，你最好看一下Miniforum Venus Series UM690.它的iGPU表现得更好。另外，你也可以看一下HX99G和NUCXi7- 同样来自MINISFORUM。这两款产品因其专用显卡而具有良好的游戏性能。

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	131.8 fps +63%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	113.9 fps +41%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	101.7 fps +26%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	97.2 fps +20%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	86.9 fps +8%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	80.8 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	61.8 (16.1^min, 20.6^P0.1, 34.6^P1) fps -24%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	41.3 fps +58%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	39.4 fps +50%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	32 fps +22%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	31.1 fps +19%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	28.9 fps +10%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	26.2 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	19.6 (10.2^min, 13^P0.1, 16.4^P1) fps -25%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	90.7 fps +97%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	82.1 fps +78%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	59.1 fps +28%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	55.5 fps +21%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	53.4 fps +16%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	51.8 fps +13%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	46 fps
1920x1080 High Overall Quality (DX11)
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	26.5 fps +119%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	24.1 fps +99%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	16.2 fps +34%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	16.2 fps +34%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	14.8 fps +22%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	13.3 fps +10%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	12.1 fps

GTA V
1024x768 Lowest Settings possible
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	152.1 (2.73^min, 100^P1) fps +17%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	149.3 (5.43^min, 100^P1) fps +15%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	135.3 (26.7^min, 90.9^P1) fps +4%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	129.9 (16.1^min, 83.3^P1) fps
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	126.2 (50.6^min, 76.9^P1) fps -3%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	119.3 (25.1^min, 76.9^P1) fps -8%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	114.3 (8.54^min, 76.9^P1) fps -12%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	53.5 (3.46^min, 38.5^P1) fps +189%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	49.3 (7.78^min, 34.5^P1) fps +166%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	27.2 (6.42^min, 20^P1) fps +47%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	21 (8.15^min, 16.1^P1) fps +14%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	20.7 (9.05^min, 15.9^P1) fps +12%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	18.6 (8^min, 14.3^P1) fps +1%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	18.5 (6.9^min, 14.3^P1) fps

Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	75 (60^min) fps +50%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	71 (39^min) fps +42%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57 (49^min) fps +14%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	50 (41^min) fps 0%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	50 (44^min) fps
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	46 (37^min) fps -8%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	44 (38^min) fps -12%
1920x1080 High Preset AA:T
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	39 (34^min) fps +77%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	34 (30^min) fps +55%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	27 (24^min) fps +23%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	25 (22^min) fps +14%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (22^min) fps +14%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	22 (19^min) fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	20 (17^min) fps -9%

Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	66 (50^min) fps +38%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	65 (50^min) fps +35%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	52 (31^min) fps +8%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	52 (34^min) fps +8%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	48 (32^min) fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	46 (28^min) fps -4%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	40 (31^min) fps -17%
1920x1080 High Preset
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	37 (17^min) fps +61%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	37 (29^min) fps +61%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	28 (21^min) fps +22%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	28 (22^min) fps +22%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (19^min) fps +9%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	23 (17^min) fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	19 (16^min) fps -17%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	143 (124.5^min) fps +6%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	136.9 (106.8^min) fps +2%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	134.7 (102.1^min) fps
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	133.4 (119^min) fps -1%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	123.8 (98^min) fps -8%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	111 (97.1^min) fps -18%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	108.1 (86.6^min) fps -20%
1920x1080 high (2/3)
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	84.3 (74.6^min) fps +46%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	82.2 (71.4^min) fps +42%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	68 (62.7^min) fps +18%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	67.6 (59.9^min) fps +17%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	60.9 (55.7^min) fps +5%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	57.8 (54.5^min) fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	50.5 (43.6^min) fps -13%

	low	med.	high	ultra
GTA V (2015)	129.9	113.4	18.5	8.01
The Witcher 3 (2015)	80.8		26.2	11.9
Dota 2 Reborn (2015)	134.7	99.6	57.8	53.3
Final Fantasy XV Benchmark (2018)	38.2	20.1	14.5
X-Plane 11.11 (2018)	52.6	39.7	35.4
Far Cry 5 (2018)	50	24	22	21
Strange Brigade (2018)	84.5	34.5	27.2	22.1
Shadow of the Tomb Raider (2018)	41.2	19.9	18.8	15.7
Far Cry New Dawn (2019)	48	24	23	21
Metro Exodus (2019)	37.6	17	12.5	10.2
Borderlands 3 (2019)	46	20.1	12.1	9.01
F1 2020 (2020)	78.4	38.2	29	18.3
F1 2021 (2021)	92.1	42.6	33.2	22.5
Tiny Tina's Wonderlands (2022)	25.1	19.6	12.1	9.33
F1 22 (2022)	37.6	34	24.7	18.8

排放--良好的平均水平

噪声排放

该设备在我们的噪声排放测量中提供了平均结果。Minisforum Venus系列NAB6在空闲模式和低负载时是安静的。在平均负荷下，我们测得34.6 dB(A)，在最大负荷下，我们在短时间内测得36 dB(A)--使该设备比其竞争对手更响。总的来说，我们的测试样本仍然发现自己处于良好的中间位置。虽然，我们习惯于MINISFORUM提供相当好的结果--特别是将其直接与Minisforum Neptune系列NAD9相比，后者在我们所有的性能测试中几乎完全无声。

Noise Level

Idle		29.4 / 29.5 / 29.7 dB(A)
Load		34.6 / 36.1 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 29.4 dB(A)

	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7
Noise		-4%	-3%	-7%	2%	3%	-20%
off / environment *	29.4	30.4 -3%	30.5 -4%	29.8 -1%	29.8 -1%	30.2 -3%	30.5 -4%
Idle Minimum *	29.4	30.9 -5%	31.6 -7%	30.2 -3%	29.9 -2%	30.5 -4%	31.5 -7%
Idle Average *	29.5	31.5 -7%	31.6 -7%	31.1 -5%	30.1 -2%	30.5 -3%	32.6 -11%
Idle Maximum *	29.7	31.5 -6%	31.6 -6%	31.9 -7%	30.2 -2%	30.5 -3%	33.8 -14%
Load Average *	34.6	37.5 -8%	33.9 2%	40 -16%	32.1 7%	30.5 12%	49.3 -42%
Load Maximum *	36.1	34.1 6%	34.4 5%	40.5 -12%	32.5 10%	30.5 16%	50.9 -41%

* ... smaller is better

温度

Minisforum Venus系列NAB6的机箱在怠速模式下只发热了一点。在负载时，机箱温度上升--但金属表面的温度被控制在限制范围内。只有在迷你电脑的侧面和背面的风扇开口周围可以看到热斑。

使用Prime95压力测试，英特尔酷睿i7-12650H最高达到76℃，与其他测试相比仍然很低。它的平均封装功率为45瓦--这意味着该SoC在最大负荷下仍在限制范围内运行。这45瓦正好代表了PL1的值。PL2值为64瓦，是在启动测试程序后不久达到的。在这里，SoC达到了它的最高温度--之后，它的平均温度为69℃。使用FurMark，我们注意到高达82℃--相当高，但根据PC的规格，这仍然不应该导致任何问题。

能源消耗

Minisforum Venus系列NAB6并不是最节俭的设备。即便如此，与传统的台式电脑相比，大多数迷你电脑在排放方面表现得相当好。我们测量了10.4-12.4瓦的功率--通常情况下，其竞争对手提供了更好的结果。在平均负荷下，我们的测试设备和其竞争对手的表现差不多。在刚刚超过101瓦的时候，MINISFORUM Venus系列NAB6在压力测试（Prime95 + FurMark）中达到了峰值。电源适配器可以提供高达120瓦的功率，在我们的测试中没有任何一点过载。这为两个额外的存储设备留下了一点额外的空间。

Power Consumption

Off / Standby	1.8 / 1.9 Watt
Idle	10.4 / 12.3 / 12.4 Watt
Load	72.9 / 101.2 Watt


Key: min: , med: , max: Metrahit Energy

	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	Average of class Mini PC
Power Consumption		4%	14%	24%	32%	-16%	32%	9%	4%
Idle Minimum *	10.4	9.9 5%	8.7 16%	5.1 51%	5 52%	12.1 -16%	8.4 19%	9.53 ?(3.6 - 14.3, n=11) 8%	9.48 ?(1.9 - 45.7, n=119, last 2 years) 9%
Idle Average *	12.3	11 11%	9.6 22%	5.8 53%	7 43%	13 -6%	8.7 29%	11.4 ?(5.3 - 16.8, n=11) 7%	11.5 ?(1.9 - 47.5, n=117, last 2 years) 7%
Idle Maximum *	12.4	11.2 10%	10.5 15%	10.2 18%	10.7 14%	18.2 -47%	9.3 25%	15.9 ?(7 - 28.7, n=11) -28%	14.9 ?(2.6 - 57.1, n=119, last 2 years) -20%
Load Average *	72.9	74.2 -2%	65.8 10%	68.1 7%	50.3 31%	70.6 3%	46.4 36%	52.6 ?(34.7 - 76.9, n=10) 28%	57.4 ?(11.3 - 170.6, n=119, last 2 years) 21%
Load Maximum *	101.2	103.2 -2%	94.5 7%	108.3 -7%	82 19%	113 -12%	52 49%	71.9 ?(44.6 - 101.2, n=11) 29%	97.5 ?(18.1 - 423, n=119, last 2 years) 4%

* ... smaller is better

Energy consumption with external monitor

Minisforum Venus Series NAB6; Prime95 V2810 Stress (external Monitor): Ø75.3 (64.6-96.2)

Minisforum Venus Series NAB6; Cinebench R15 Multi (external Monitor): Ø91.5 (85.9-92.1)

Minisforum Venus Series NAB6; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø62.1 (57.7-94.5)

Minisforum Venus Series NAB6; 1920x1080 The Witcher 3 ultra (external Monitor): Ø66.5 (64.3-97)

Minisforum Venus Series NAB6; Idle 1min (external Monitor): Ø12.4 (11.2-16.8)

Pros

+ 时髦、圆滑的设计

+ 非常稳定的外壳

+ SoC上的全功率传输

+ 最多可以同时使用四个屏幕

+ 许多USB端口

+ 可容纳三个固态硬盘的空间

+ VESA安装选项

Cons

- 没有SD卡读卡器

- 负载时有声音的冷却

- 没有Thunderbolt

- 有问题的主动式SSD冷却系统

结论 - 坚实的日常设备

Minisforum Venus系列NAB6评测--测试设备由MINISFORUM提供

Minisforum Venus系列NAB6是一款相对不引人注目的迷你PC，适合日常办公使用。基于英特尔酷睿i7-12650H，这款计算兽提供了持续稳定的性能水平。该SoC的全部性能在任何时候都可以访问。即使在永久性负载下，你也不需要对其性能进行节流。此外，MINISFORUM Venus系列NAB6肯定会因其良好的外壳而给人留下深刻印象，由于巧妙的材料选择，它非常稳定。它的表面处理无懈可击，能够在没有任何工具的情况下打开外壳的顶部是一个额外的好处。该设备的其他组件，如内存和固态硬盘，在我们的测试设备中得到了完美的选择，应该是避免很快需要升级的最低限度。

Minisforum Venus系列NAB6是一个良好的工作设备，拥有足够多的储备。即便如此，这台迷你PC还是很难从人群中脱颖而出。

当涉及到它的连接选项时，我们需要更快一点，因为它的竞争对手倾向于包括未来的Thunderbolt端口--如果有合适的配件，这确实扩大了设备的使用范围。Minisforum Venus系列NAB6被剥夺了这个机会。如果你不能或不准备没有这个功能，你应该看看Miniforum Venus Series UM690 。即便如此，NAB6仍然拥有一般来说很好的外部端口数量。你甚至可以原谅没有SD卡读卡器，转而使用适配器解决方案。此外，该设备有两个2.5Gbit的LAN连接器，这不一定是迷你PC的标准。

制造商决定对SSD采用主动冷却系统的原因是什么--这一点我们并不完全确定。在永久负载下，我们没有注意到性能的下降--即使没有启动风扇。它的WLAN传输率速度也有点令人失望。在5和6GHz时，它的竞争对手普遍做得更好。

价格和可用性

Minisforum Venus Series NAB6可以直接从他们的网站购买.目前，你可以以489美元的价格获得裸机模型。你也可以在亚马逊上找到该设备，价格约为487.92美元。

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Minisforum Venus Series NAB6 - 05/03/2023 v7 ^(old)
Sebastian Bade

Chassis

82 / 98 → 84%

Connectivity

60 / 81 → 74%

Weight

81%

Games Performance

66%

Application Performance

94%

Workstation

56%

Noise

90%

Average

76%

82%

Mini PC - Weighted Average

潜在的竞争对手比较

Minisforum维纳斯系列NAB6的详细介绍

案例

尺寸比较

连接性

沟通

辅料

维护

性能--拥有十个核心的英特尔Alder Lake-P

测试条件

处理器

Minisforum Venus系列NAB6与Cinebench R15多循环的对比

系统性能

DPC延时

存储设备

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

图形卡

游戏性能

排放--良好的平均水平

噪声排放

温度

能源消耗

Energy consumption with external monitor

Pros

Cons

结论 - 坚实的日常设备

价格和可用性

Transparency

More articles related to this device
