Minisforum Venus 系列 UM790 Pro 评测：AMD Ryzen 9 7940HS 和 Radeon 780M 使其优于竞争对手

Name: Minisforum Venus Series UM790 Pro
Brand: Minisforum

完美的迷你 PC？

Minisforum 的维纳斯系列又添新成员：UM790 Pro。这款设备采用了 AMD 最新一代 CPU（AMD Ryzen 9 7940HS）。它的 iGPU（AMD Radeon 780M）也是超级最新的。在这篇评测中，您可以了解到这一组合所能提供的一切--包括各种测量和基准测试。

Sebastian Bade (translated by DeepL / Ninh Duy), Published 07/22/2023 🇺🇸 🇩🇪 ...

Mini PC Desktop AMD Radeon Ryzen (Zen) Zen 4

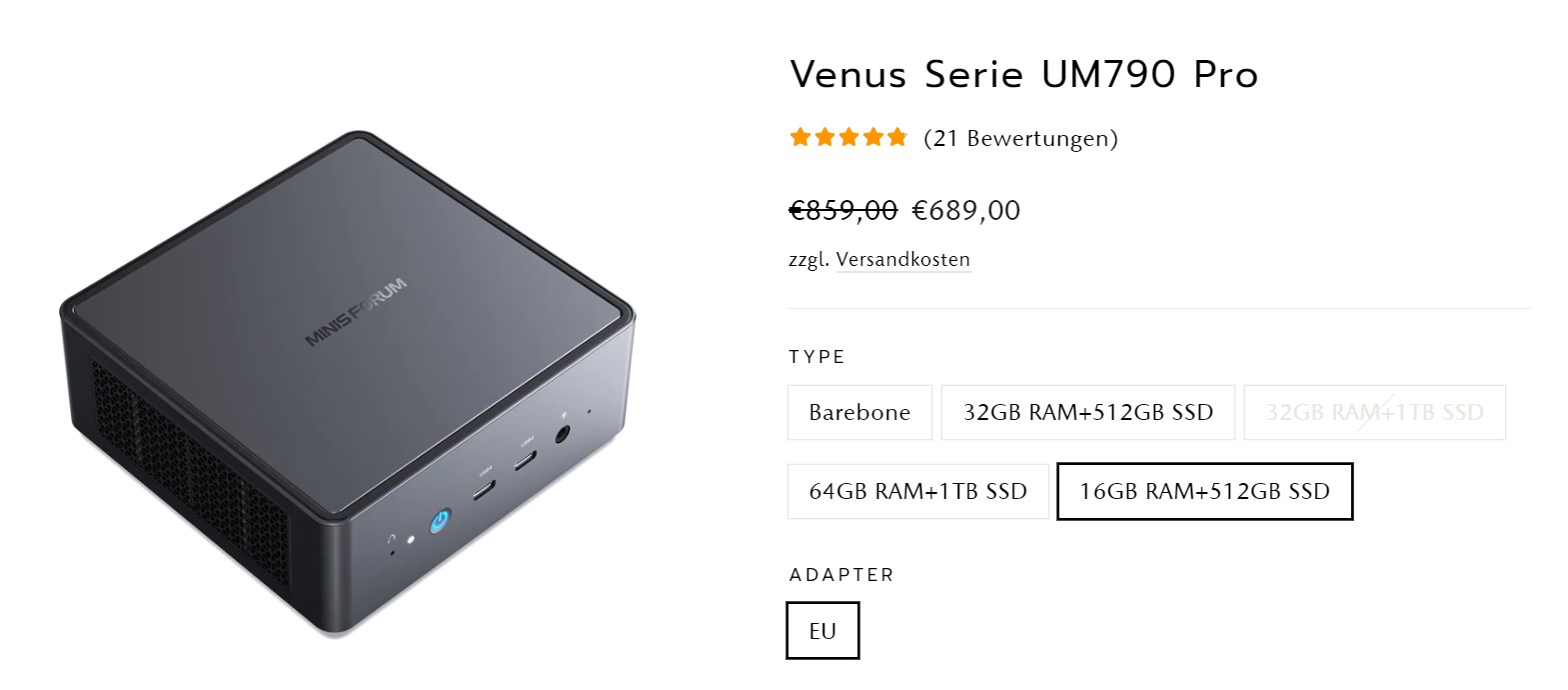

Minisforum Venus 系列 UM790 Pro，配置（来源：Minisforum）

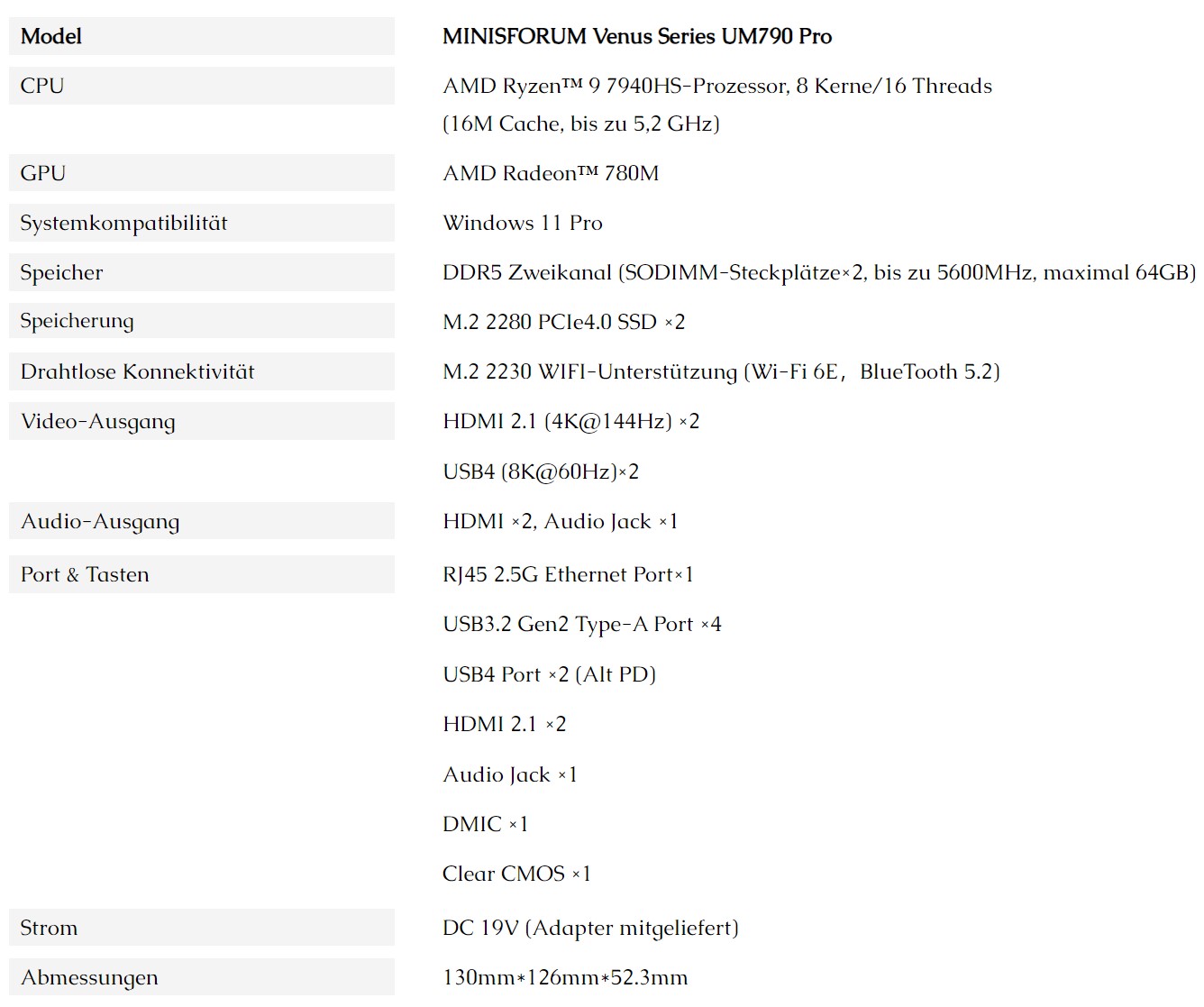

Minisforum Venus 系列 UM790 Pro，规格（来源：Minisforum）

Minisforum Venus 系列 UM790 Pro 是一款相对小巧的迷你 PC，配备 AMD 最新 APU。它的AMD Ryzen 9 7940HS是一款属于凤凰系列的 8 核处理器。这款电脑没有配备专用显卡，但有了 iGPU（即 AMD Radeon 780M的 iGPU，其性能同样强大。有了这款机型，玩一两款零星的游戏应该不成问题。不过，我们将在稍后的评测中进一步讨论该系统在玩当前游戏时的表现。

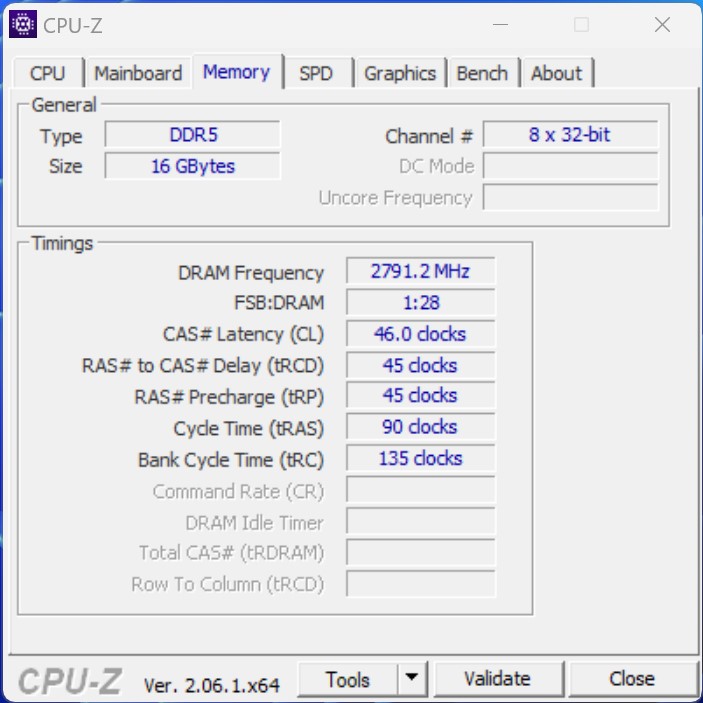

除了全新的 APU，Minisforum 还为这款测试设备配备了 16GB DDR5 内存和总计 512GB 的存储空间。Minisforum 对这款设备的存储设备采用了略有不同的方法，即在 RAID 0 阵列（独立磁盘冗余阵列）中安装了两个 256 GB SSD。该配置始终附带 Windows 11 专业版许可证，目前售价约为 670 美元。如果你想自己安装内存和固态硬盘，也可以购买 Minisforum Venus 系列 UM790 Pro 裸机，价格为 519 美元。目前还没有 UM790 Pro 的 APU 替代版本。

本次评测中的所有对比设备都是价格相近的紧凑型台式电脑。您可以在下表中找到这些设备的概览。

Test device courtesy of Minisforum

Download your licensed rating image as PNG / SVG

Minisforum Venus Series UM790 Pro

Processor

AMD Ryzen 9 7940HS 8 x 4 - 5.2 GHz, 65 W PL2 / Short Burst, Phoenix-HS (Zen 4)

Graphics adapter

AMD Radeon 780M, Adrenalin 22.40.03.38

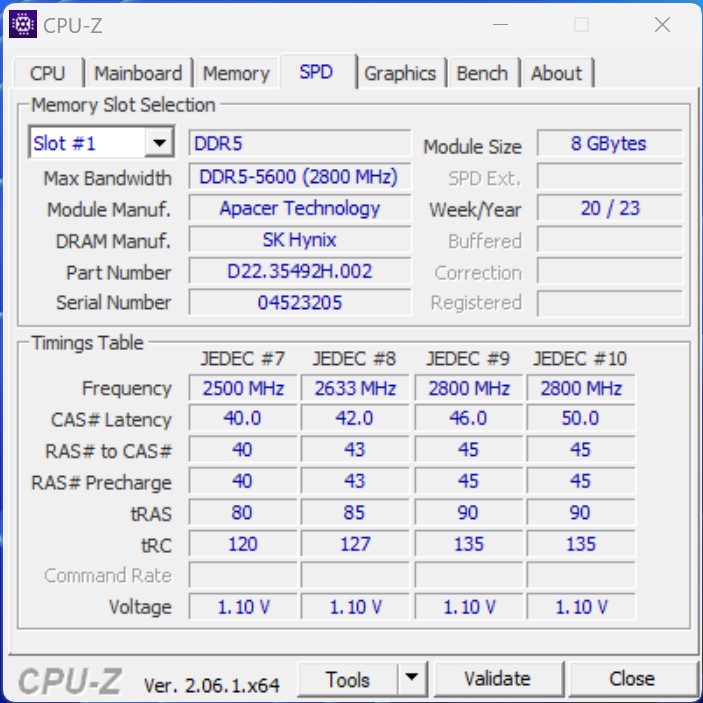

Memory

16 GB

, DDR5-5600, 2 of 2 installed, max. 64 GB

Mainboard

AMD Promontory/Bixby FCH

Storage

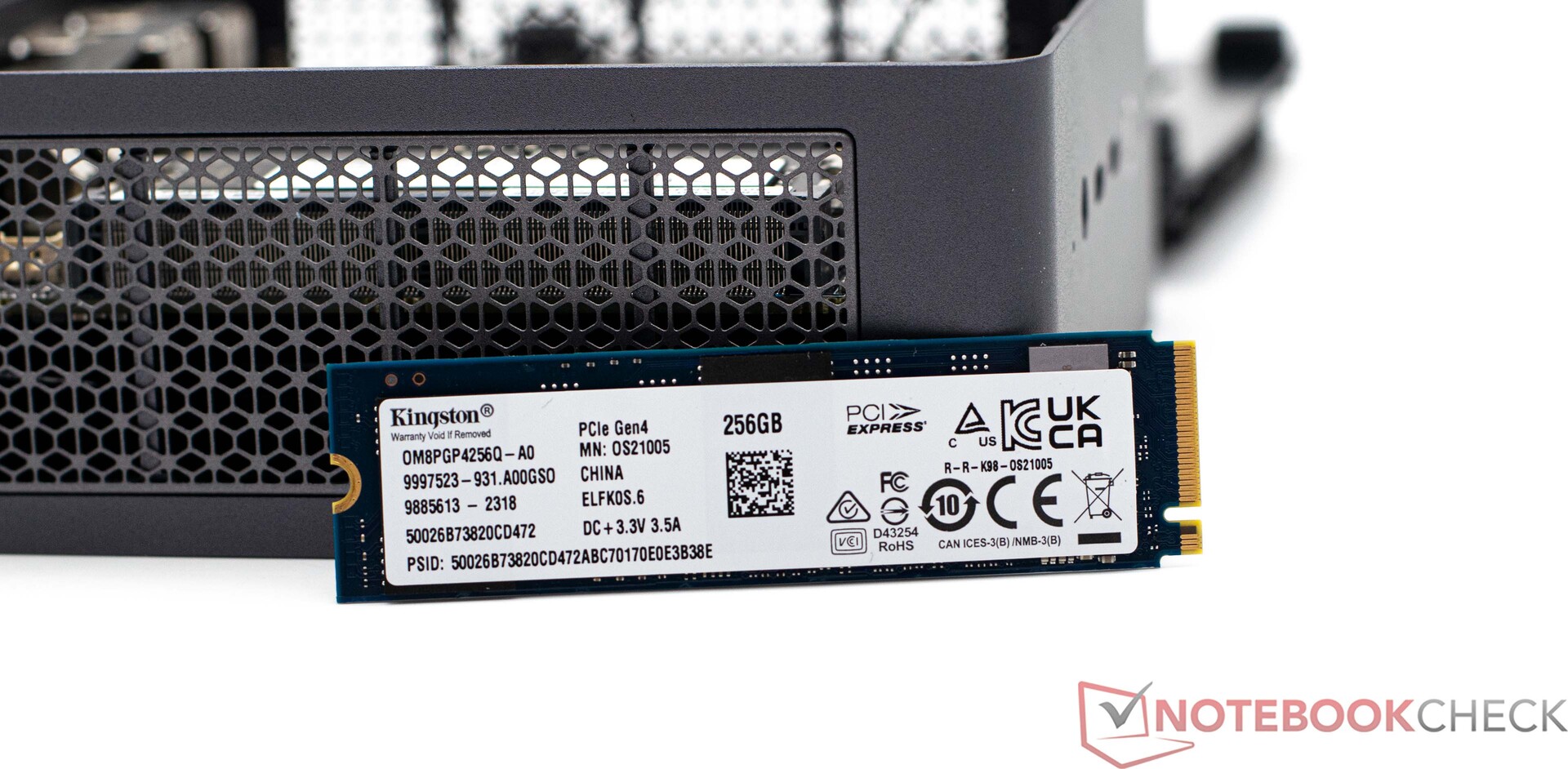

2x Kingston OM8PGP4256Q-A0 (RAID 0), 256 GB

, 2x 256-GB-NVMe, 425 GB free

Soundcard

AMD Zen - Audio Processor - HD Audio Controller

Connections

4 USB 3.1 Gen2, 2 USB 4.0 40 Gbps, 2 Thunderbolt, 2 HDMI, 2 DisplayPort, Audio Connections: 3,5mm Klinke

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), Intel Killer Wi-Fi 6E AX1675x (210NGW) (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Size

height x width x depth (in mm): 52.3 x 130 x 126

Operating System

Microsoft Windows 11 Pro

Additional features

120-watt power adapter, VESA mount bracket

Weight

666 g, Power Supply: 451 g

Price

689 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height
82.8 % v7 ^(old)	07 / 2023	Minisforum Venus Series UM790 Pro R9 7940HS, Radeon 780M	666 g	52.3 mm
85.1 % v7 ^(old)	01 / 2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
86.3 % v7 ^(old)	07 / 2023	Beelink GTR7 7840HS R7 7840HS, Radeon 780M	890 g	48.8 mm
86.1 % v7 ^(old)	02 / 2023	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	621 g	48 mm
85.5 % v7 ^(old)	03 / 2023	Morefine M600, 6900HX R9 6900HX, Radeon 680M	779 g	40.6 mm
82.8 % v7 ^(old)	07 / 2023	Geekom AS 6, R9 6900HX R9 6900HX, Radeon 680M	753 g	58 mm
82 % v7 ^(old)	06 / 2023	ACEMagician Ace Magician AM08 Pro R9 6900HX, Radeon 680M	874 g	188.5 mm
80.8 % v7 ^(old)	04 / 2023	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	538 g	37 mm

Minisforum Venus 系列 UM790 Pro 的详细介绍

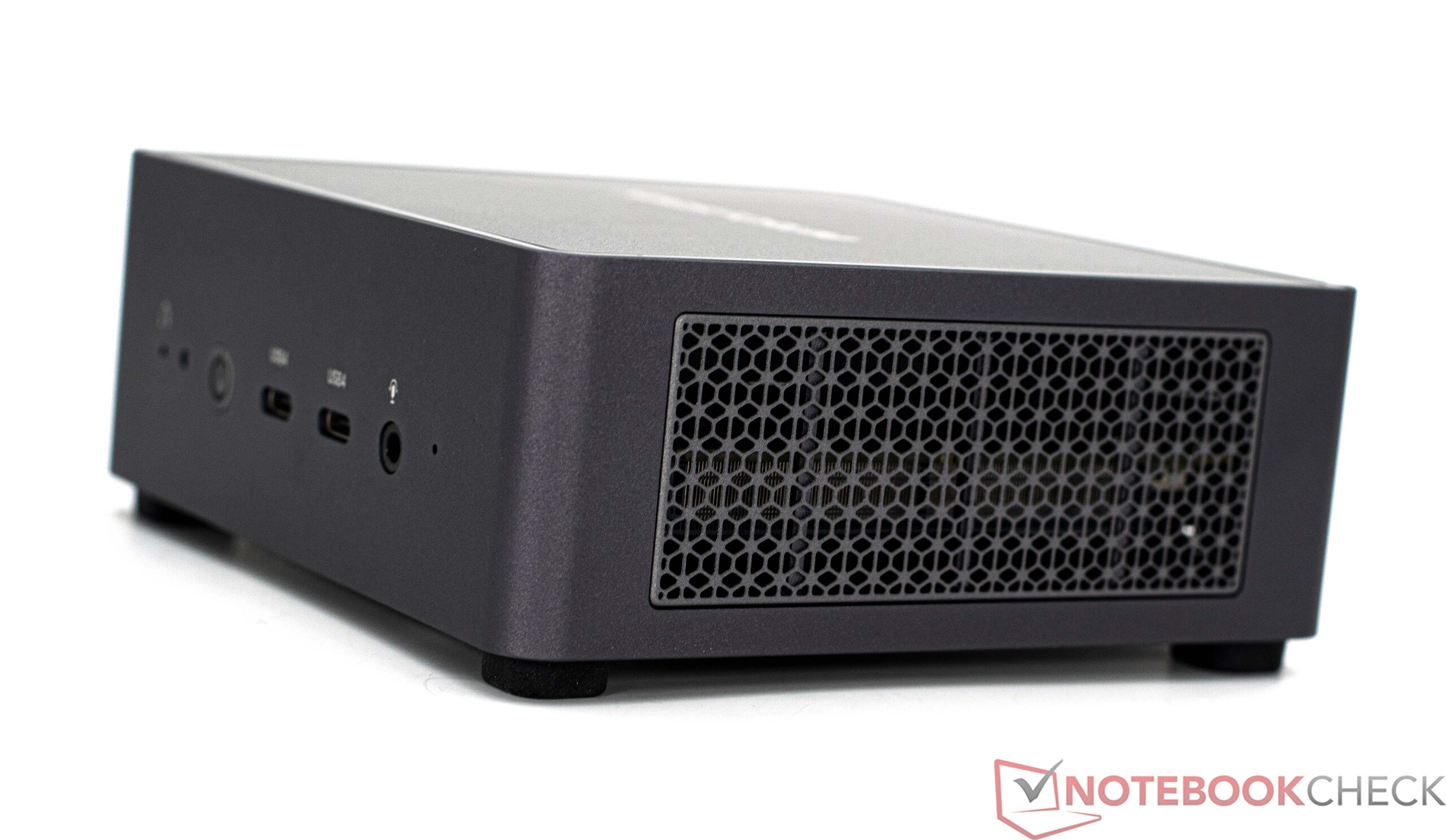

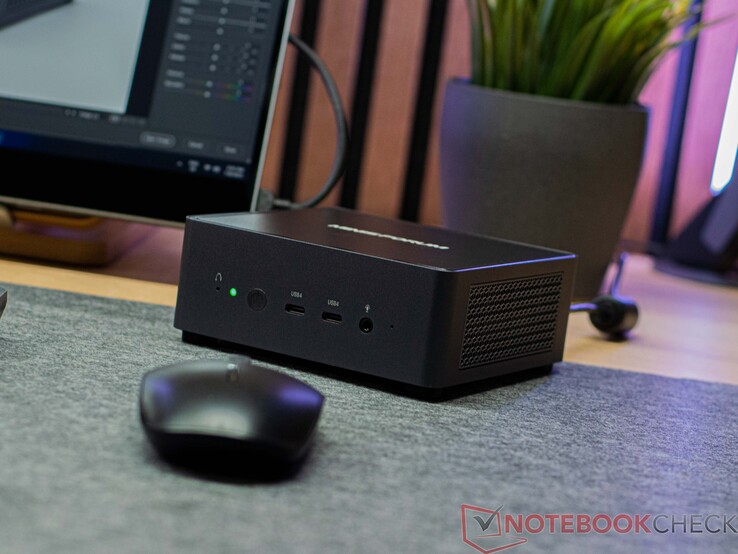

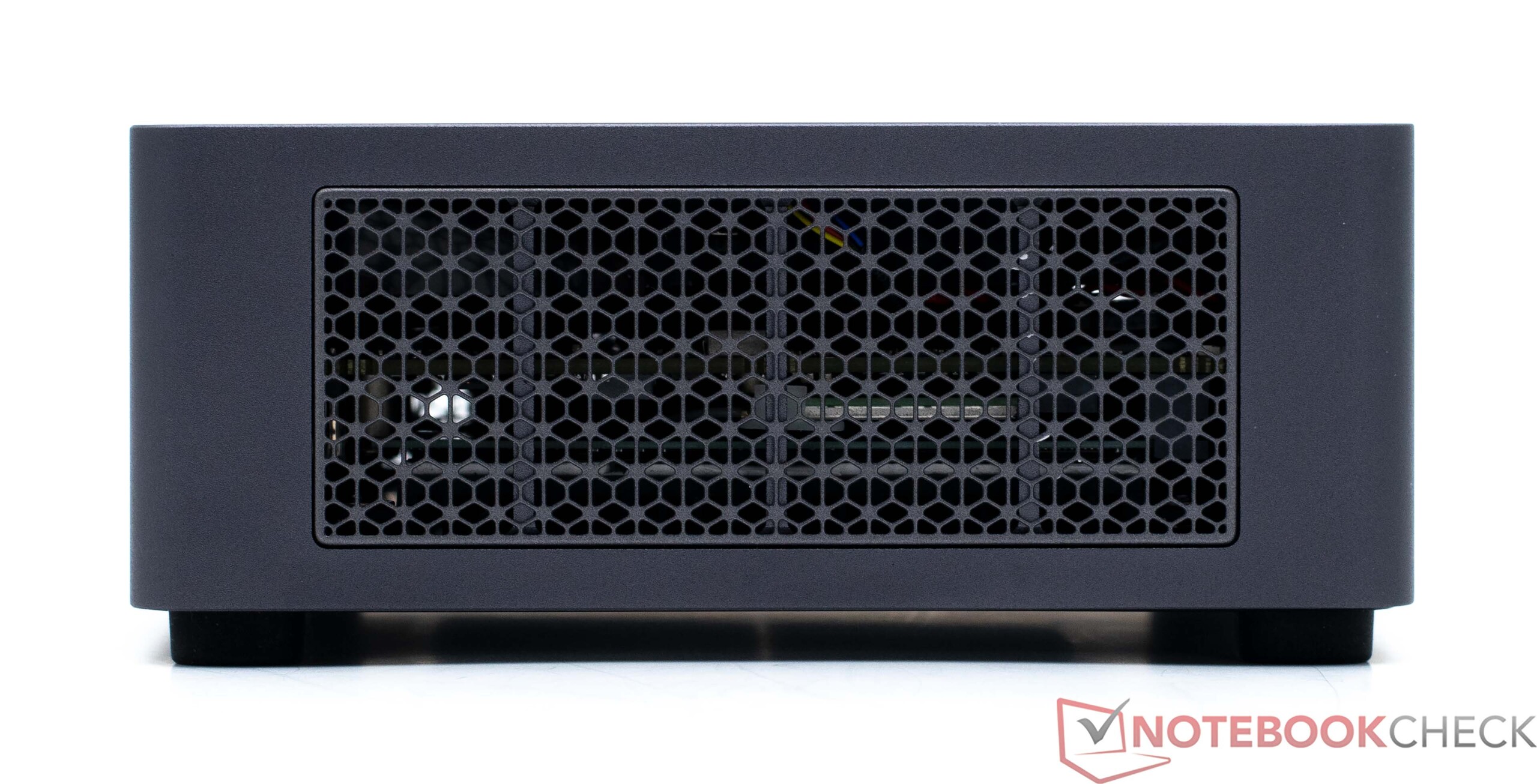

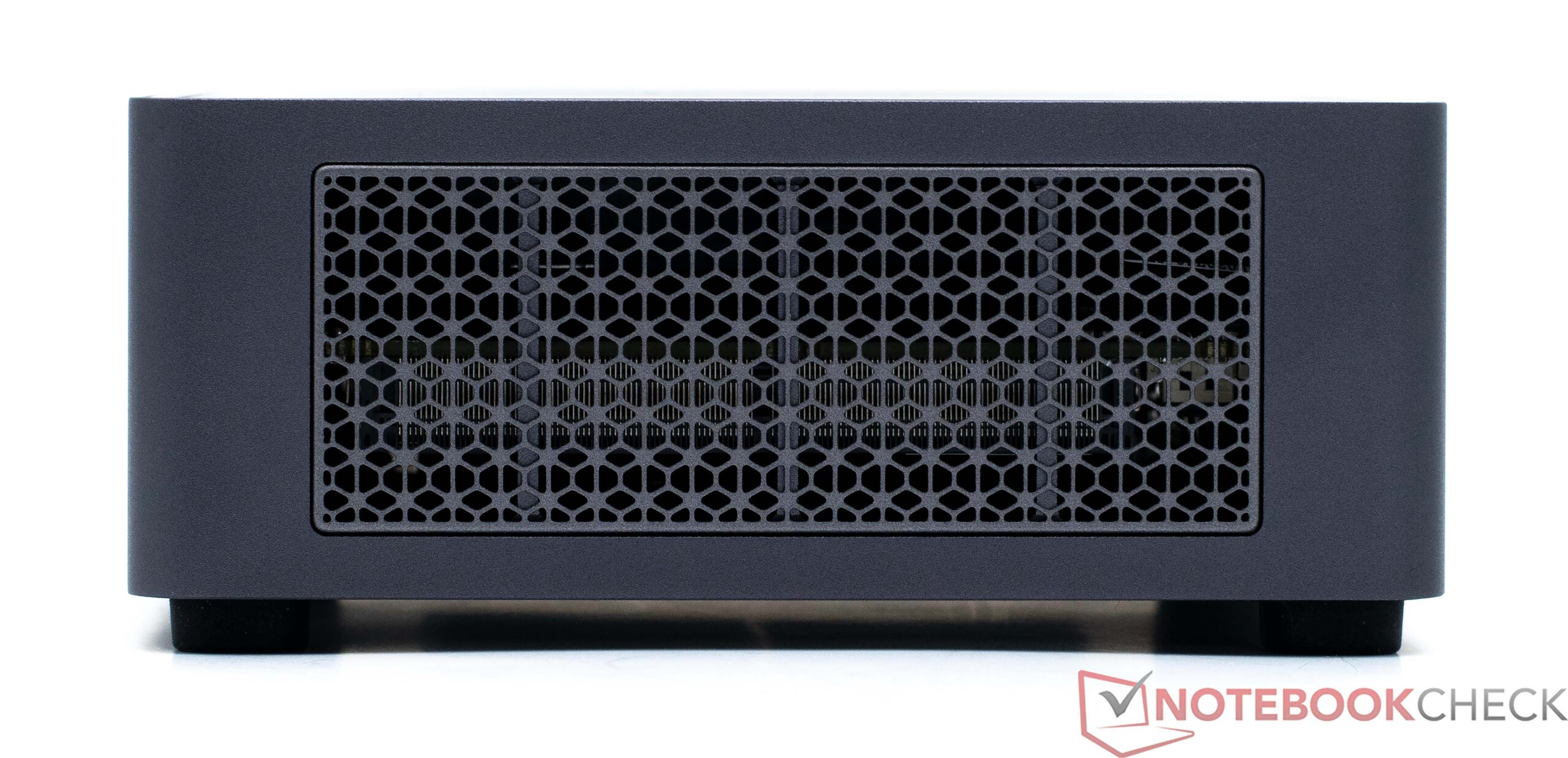

外壳 - 高品质金属，完美无瑕

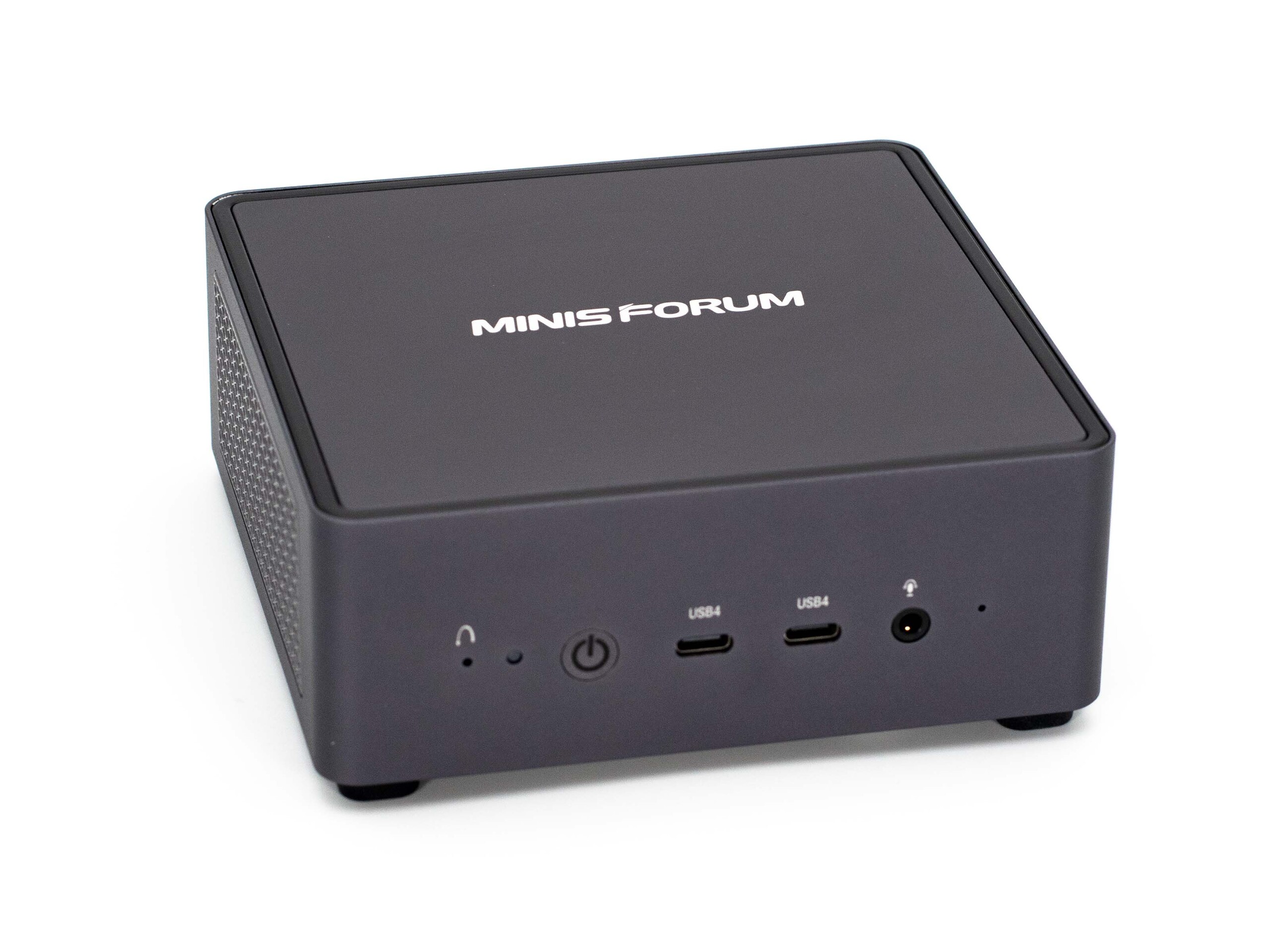

从外观上看，Minisforum Venus 系列 UM790 Pro 与该系列的其他产品非常相称，但与 Minisforum Venus 系列 NAB6 相比还是有一些不同之处。它是一种略深的灰色，带有相当强烈的蓝色调。这很适合 UM790 Pro，给人一种高品质的感觉。得益于其金属表面，我们只能称赞这款电脑的触感非常好。除了迷你电脑的底部，其他部分均由金属制成，这为 UM790 Pro 提供了很好的稳定性。

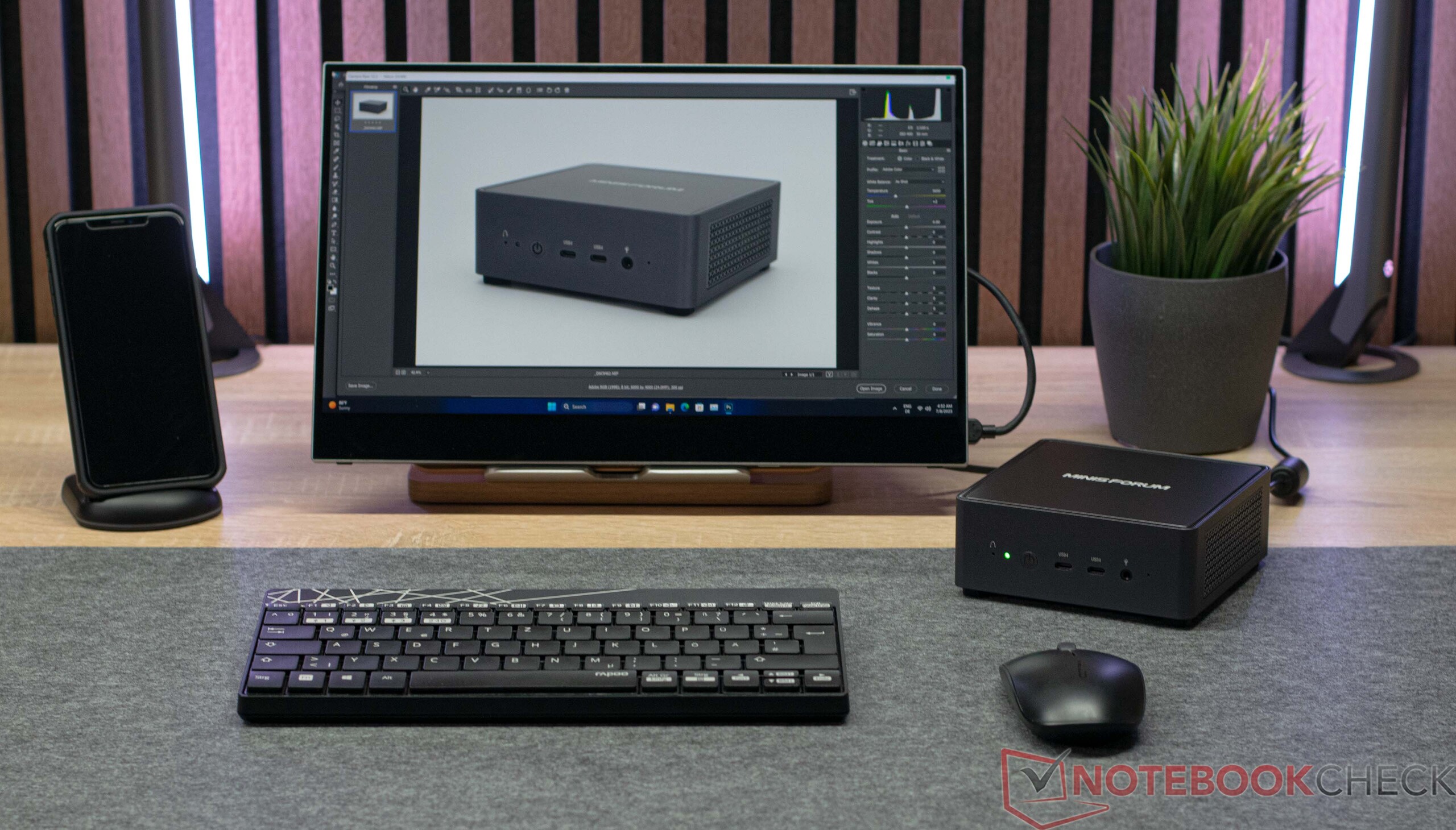

由于体积小巧，Minisforum Venus 系列 UM790 Pro 不会占用桌面太多空间。它的占地面积仅为 13 x 12.6 厘米。相比之下，只有英特尔 NUC 13 更小。如果您希望将 UM790 Pro 连接到显示器背面，那么您完全可以这样做。包装中包含使用 VESA 支架将这台重达 666 克的迷你电脑连接到显示器上所需的一切。

尺寸比较

Minisforum Neptune Series NAD9 ACEMagician Ace Magician AM08 Pro Beelink GTR7 7840HS Geekom AS 6, R9 6900HX Morefine M600, 6900HX Minisforum Venus Series UM790 Pro Minisforum Venus Series UM690 Intel NUC 13 Pro Kit NUC13ANK DIN A4 ❌

连接性

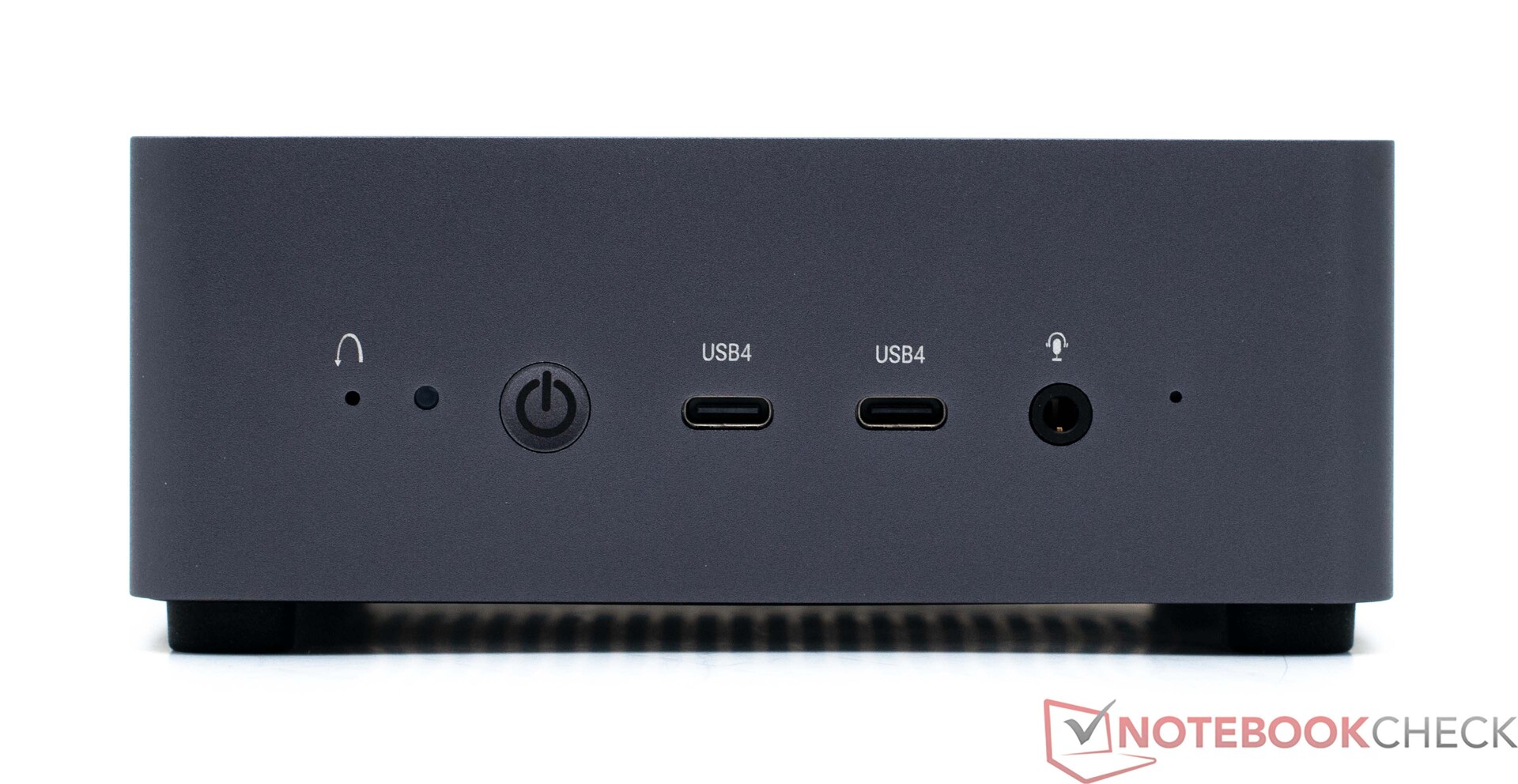

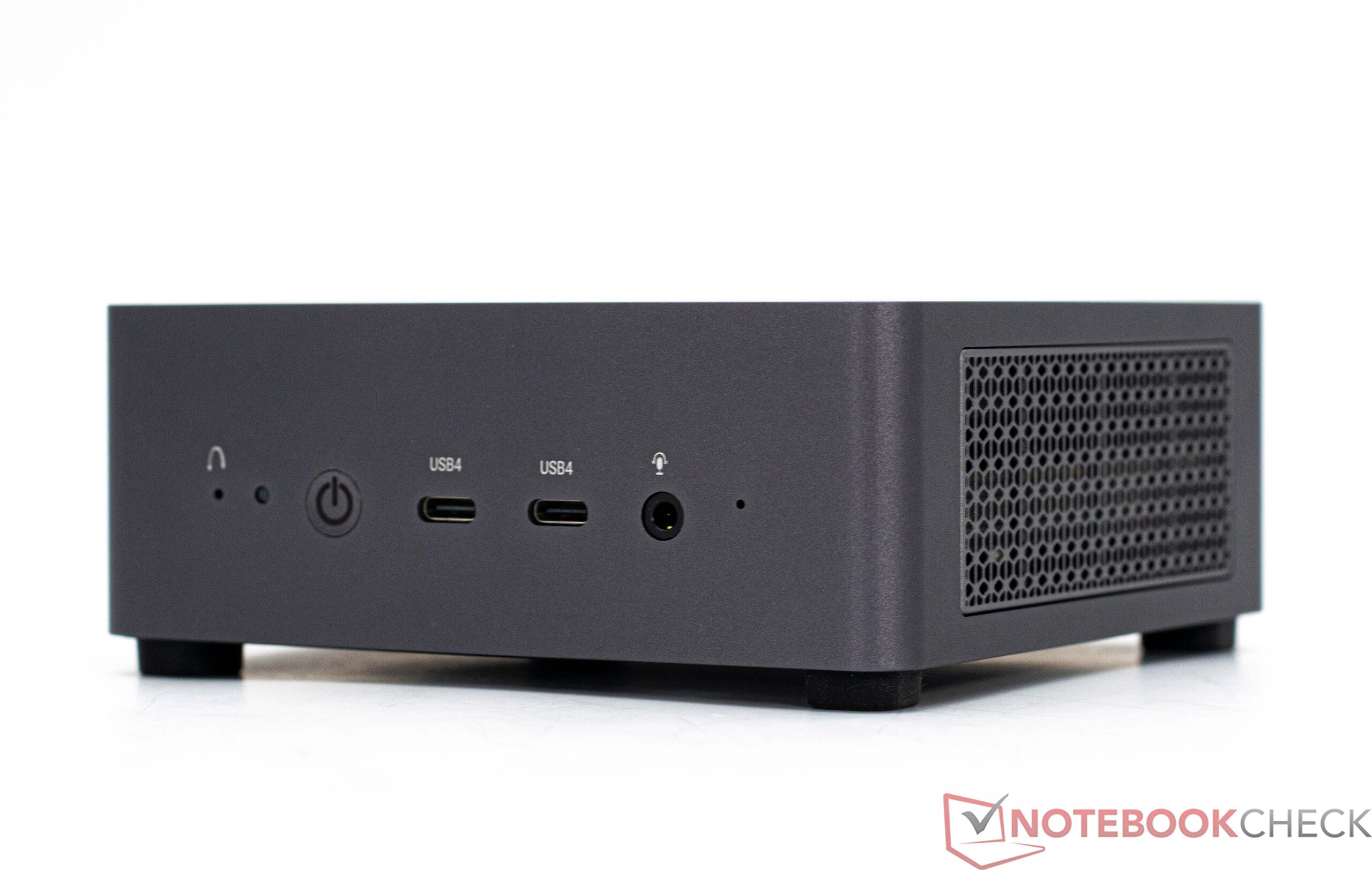

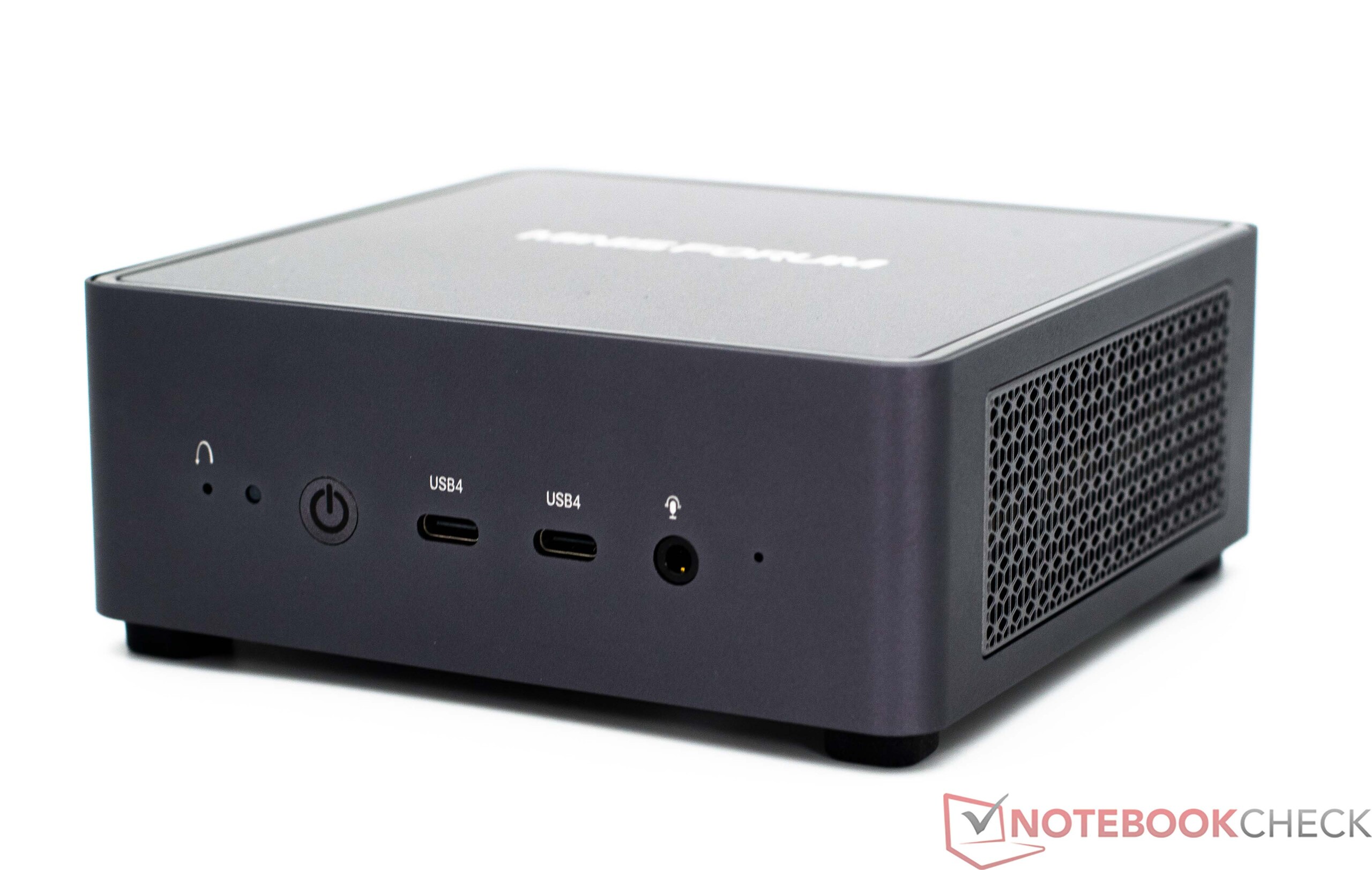

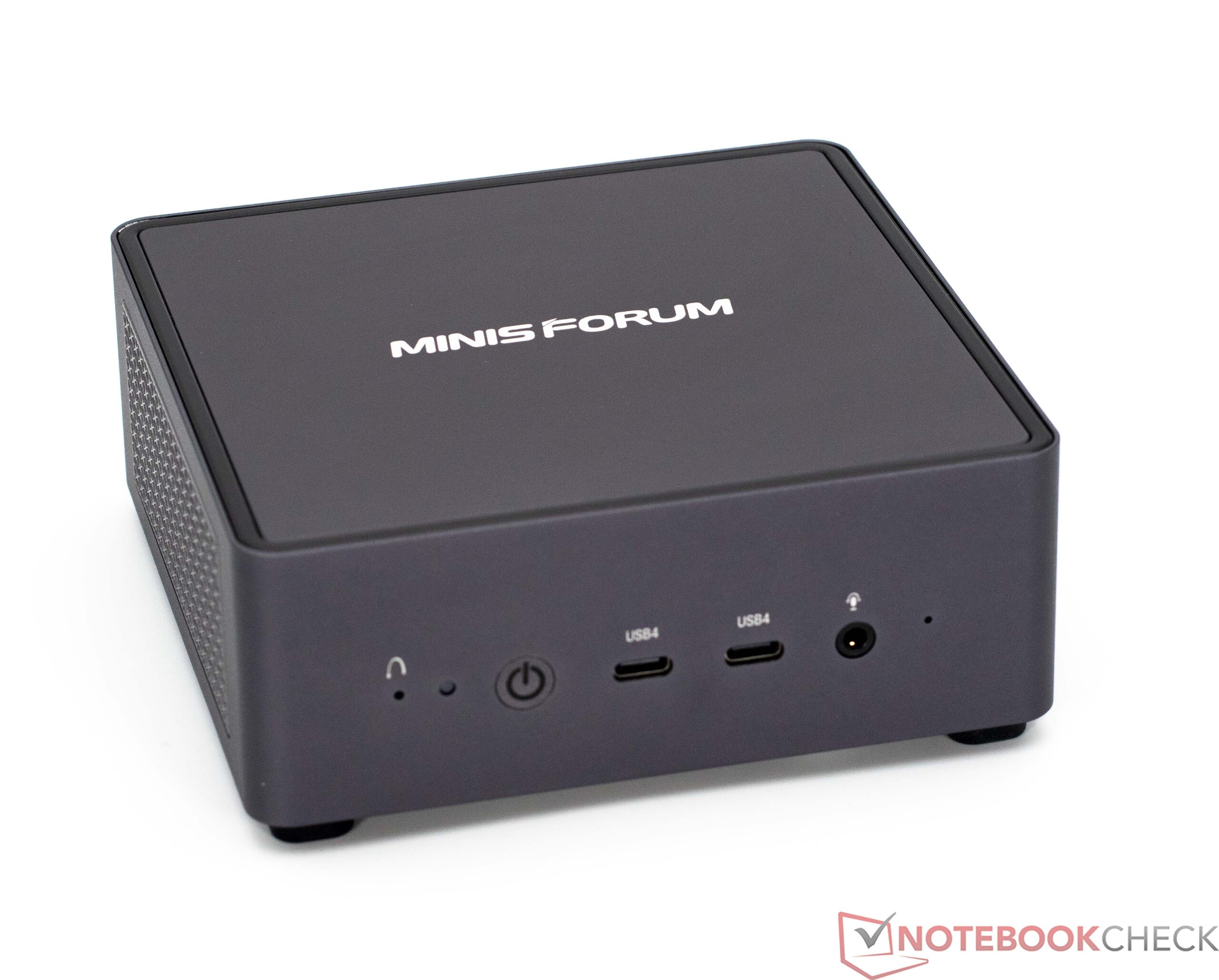

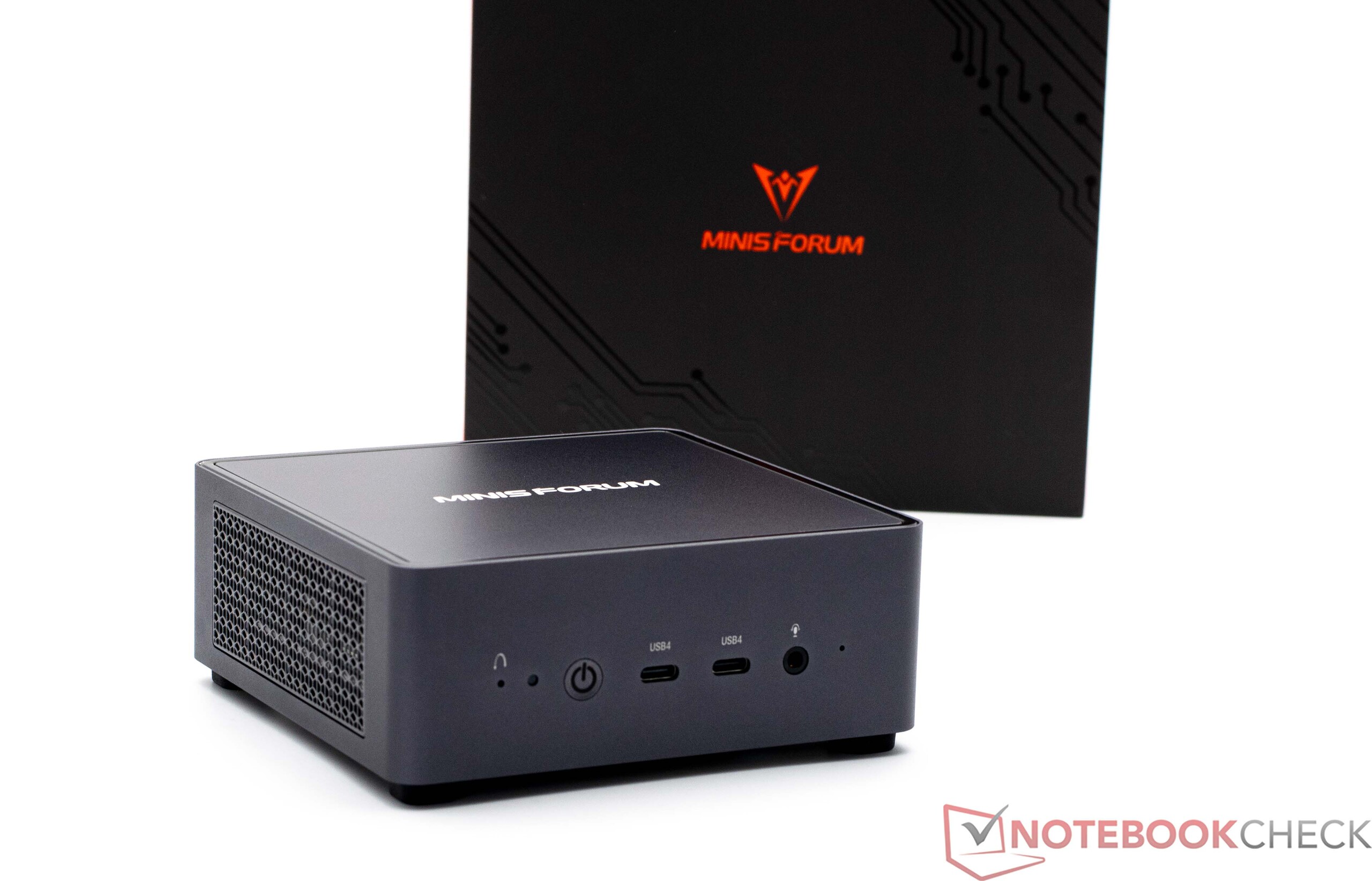

Minisforum Venus 系列 UM790 Pro 配备了大量现代连接选项，分布在设备的正面和背面。这款电脑总共有六个 USB 端口。不过，我们注意到，背面只有 Type-A 端口，而正面只有两个 USB-4 端口，还支持 Thunderbolt。Minisforum Venus Series UM790 Pro 的背面有两个 HDMI 端口，因此连接一个以上的显示器不成问题。此外，您还可以通过 Thunderbolt 连接更多显示器，这意味着总共可以同时连接 4 个屏幕。

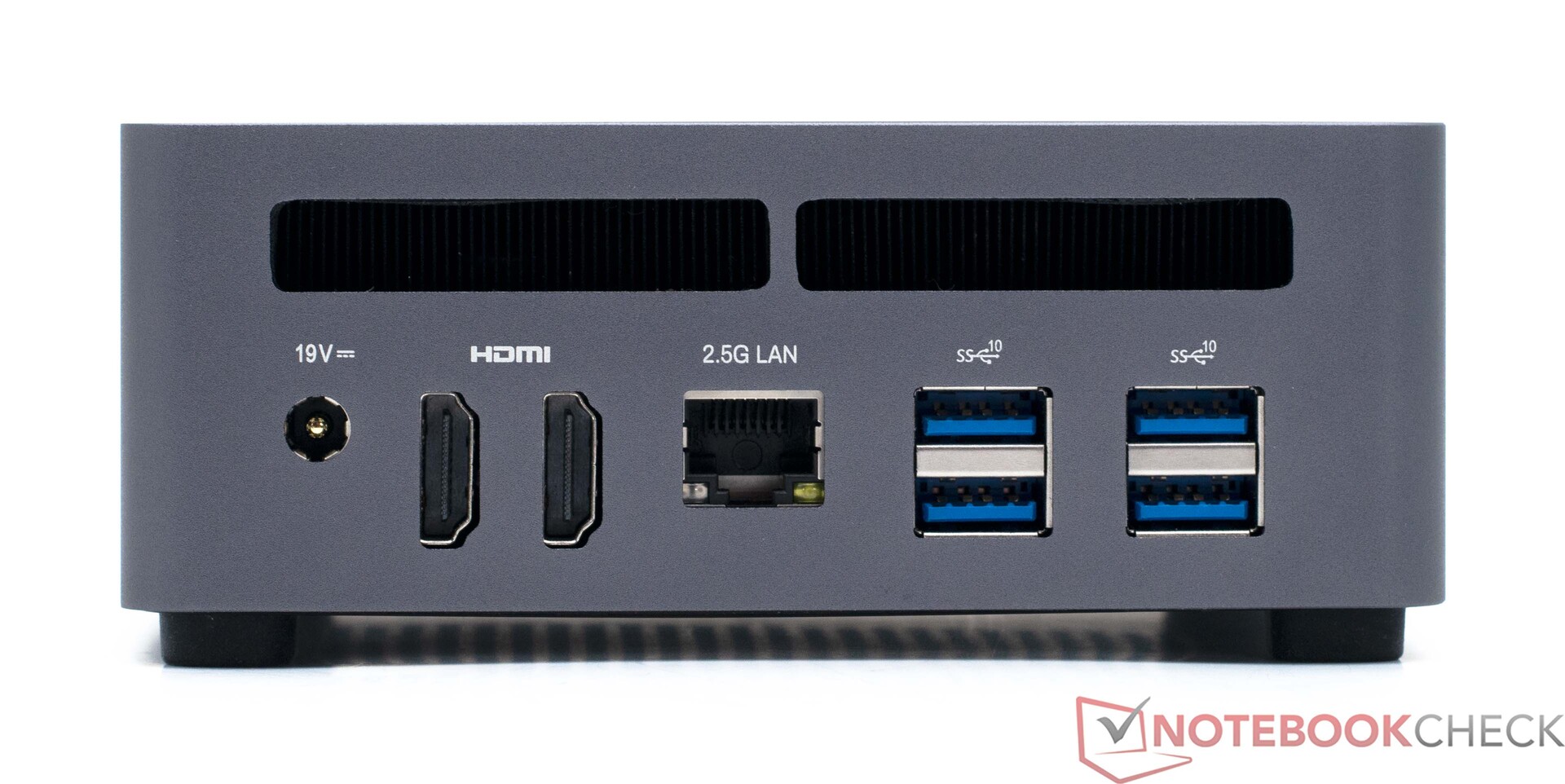

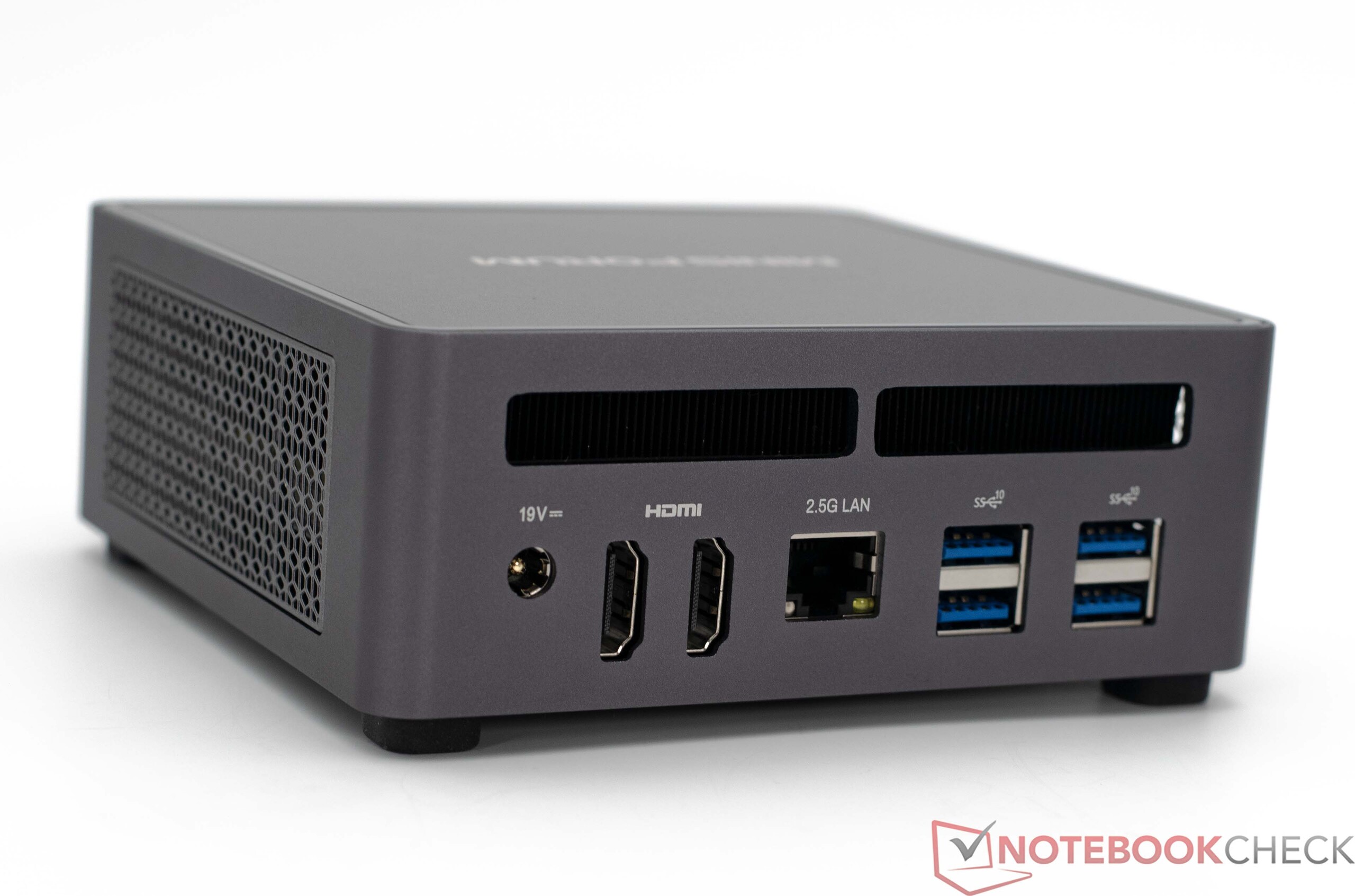

背面DC 19V、2x HDMI 2.1、RJ45 2.5G、4x USB3.2 Gen2 Type-A

交流

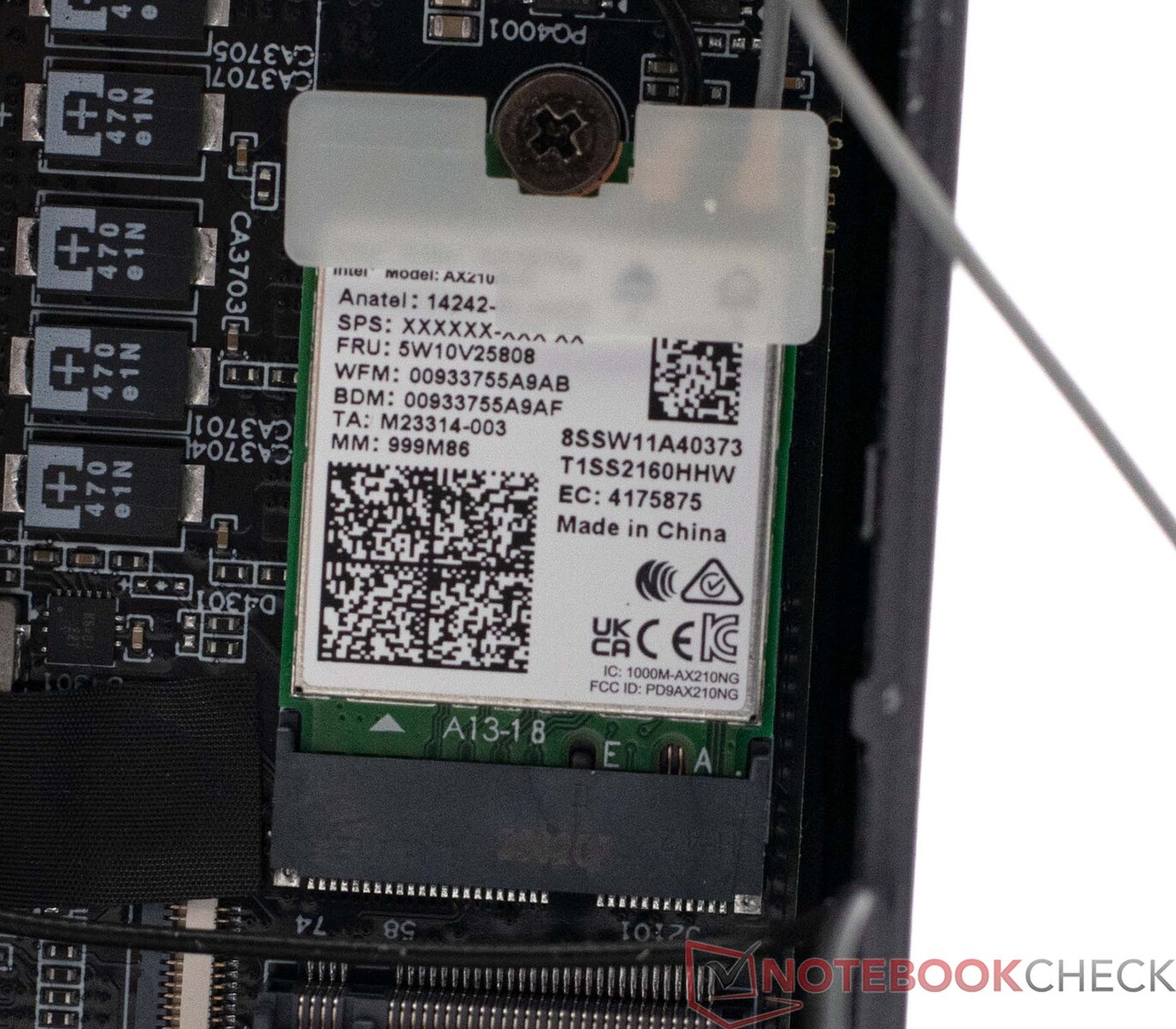

Minisforum 为 UM790 Pro 安装了英特尔的 Wi-Fi 6E 模块。准确地说，这是一个英特尔杀手 Wi-Fi AX1675x 模块，在我们的测试中（6 GHz）仅取得了一般成绩。在 5 GHz 频率范围内，它的表现更差，排在最后一位。一如既往，我们使用华硕 ROG Rapture GT-AXE11000 作为测试路由器。另外，Minisforum Venus Series UM790 Pro 还具有快速的有线连接，速度可达 2.5 Gbit/s。

Networking
iperf3 receive AXE11000 6GHz
Geekom AS 6, R9 6900HX MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1719 (1695^min - 1733^max) MBit/s +70%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1668 (1467^min - 1725^max) MBit/s +65%
Average Intel Killer Wi-Fi 6E AX1675x (210NGW) (1013 - 1751, n=2)	1382 MBit/s +36%
Average of class Mini PC (684 - 1771, n=54, last 2 years)	1378 MBit/s +36%
Minisforum Venus Series UM790 Pro Intel Killer Wi-Fi 6E AX1675x (210NGW)	1013 (571^min - 1177^max) MBit/s
Minisforum Venus Series UM690 MediaTek RZ608	961 (954^min - 967^max) MBit/s -5%
iperf3 transmit AXE11000 6GHz
Geekom AS 6, R9 6900HX MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1611 (1514^min - 1705^max) MBit/s +43%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1445 (736^min - 1476^max) MBit/s +28%
Average Intel Killer Wi-Fi 6E AX1675x (210NGW) (1127 - 1601, n=2)	1364 MBit/s +21%
Average of class Mini PC (394 - 1800, n=54, last 2 years)	1322 MBit/s +17%
Minisforum Venus Series UM790 Pro Intel Killer Wi-Fi 6E AX1675x (210NGW)	1127 (177^min - 1337^max) MBit/s
Minisforum Venus Series UM690 MediaTek RZ608	787 (638^min - 865^max) MBit/s -30%
iperf3 receive AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s +70%
Beelink GTR7 7840HS Intel Wi-Fi 6 AX200	1211 (1112^min - 1284^max) MBit/s +56%
Geekom AS 6, R9 6900HX MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	959 (947^min - 969^max) MBit/s +24%
Minisforum Venus Series UM690 MediaTek RZ608	956 (944^min - 963^max) MBit/s +24%
ACEMagician Ace Magician AM08 Pro Realtek RTL8852BE	947 (787^min - 981^max) MBit/s +22%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	939 (921^min - 952^max) MBit/s +21%
Morefine M600, 6900HX MediaTek RZ608	929 (874^min - 946^max) MBit/s +20%
Average of class Mini PC (192.9 - 1796, n=112, last 2 years)	925 MBit/s +20%
Average Intel Killer Wi-Fi 6E AX1675x (210NGW) (774 - 934, n=3)	836 MBit/s +8%
Minisforum Venus Series UM790 Pro Intel Killer Wi-Fi 6E AX1675x (210NGW)	774 (347^min - 841^max) MBit/s
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s +72%
Beelink GTR7 7840HS Intel Wi-Fi 6 AX200	1031 (961^min - 1109^max) MBit/s +34%
Morefine M600, 6900HX MediaTek RZ608	964 (924^min - 990^max) MBit/s +26%
Minisforum Venus Series UM690 MediaTek RZ608	943 (477^min - 981^max) MBit/s +23%
Average of class Mini PC (184.1 - 1776, n=112, last 2 years)	859 MBit/s +12%
Geekom AS 6, R9 6900HX MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	834 (769^min - 893^max) MBit/s +9%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	833 (805^min - 866^max) MBit/s +8%
Average Intel Killer Wi-Fi 6E AX1675x (210NGW) (729 - 835, n=3)	777 MBit/s +1%
Minisforum Venus Series UM790 Pro Intel Killer Wi-Fi 6E AX1675x (210NGW)	768 (738^min - 792^max) MBit/s
ACEMagician Ace Magician AM08 Pro Realtek RTL8852BE	737 (369^min - 758^max) MBit/s -4%

Minisforum Venus Series UM790 Pro Intel Killer Wi-Fi 6E AX1675x (210NGW); iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1106 (177-1337)

Minisforum Venus Series UM790 Pro Intel Killer Wi-Fi 6E AX1675x (210NGW); iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1012 (571-1177)

Minisforum Venus Series UM790 Pro Intel Killer Wi-Fi 6E AX1675x (210NGW); iperf3 receive AXE11000; iperf 3.1.3: Ø762 (347-841)

Beelink GTR7 7840HS Intel Wi-Fi 6 AX200; iperf3 receive AXE11000; iperf 3.1.3: Ø1210 (1112-1284)

Minisforum Venus Series UM790 Pro Intel Killer Wi-Fi 6E AX1675x (210NGW); iperf3 transmit AXE11000; iperf 3.1.3: Ø768 (738-792)

Beelink GTR7 7840HS Intel Wi-Fi 6 AX200; iperf3 transmit AXE11000; iperf 3.1.3: Ø1031 (961-1109)

配件

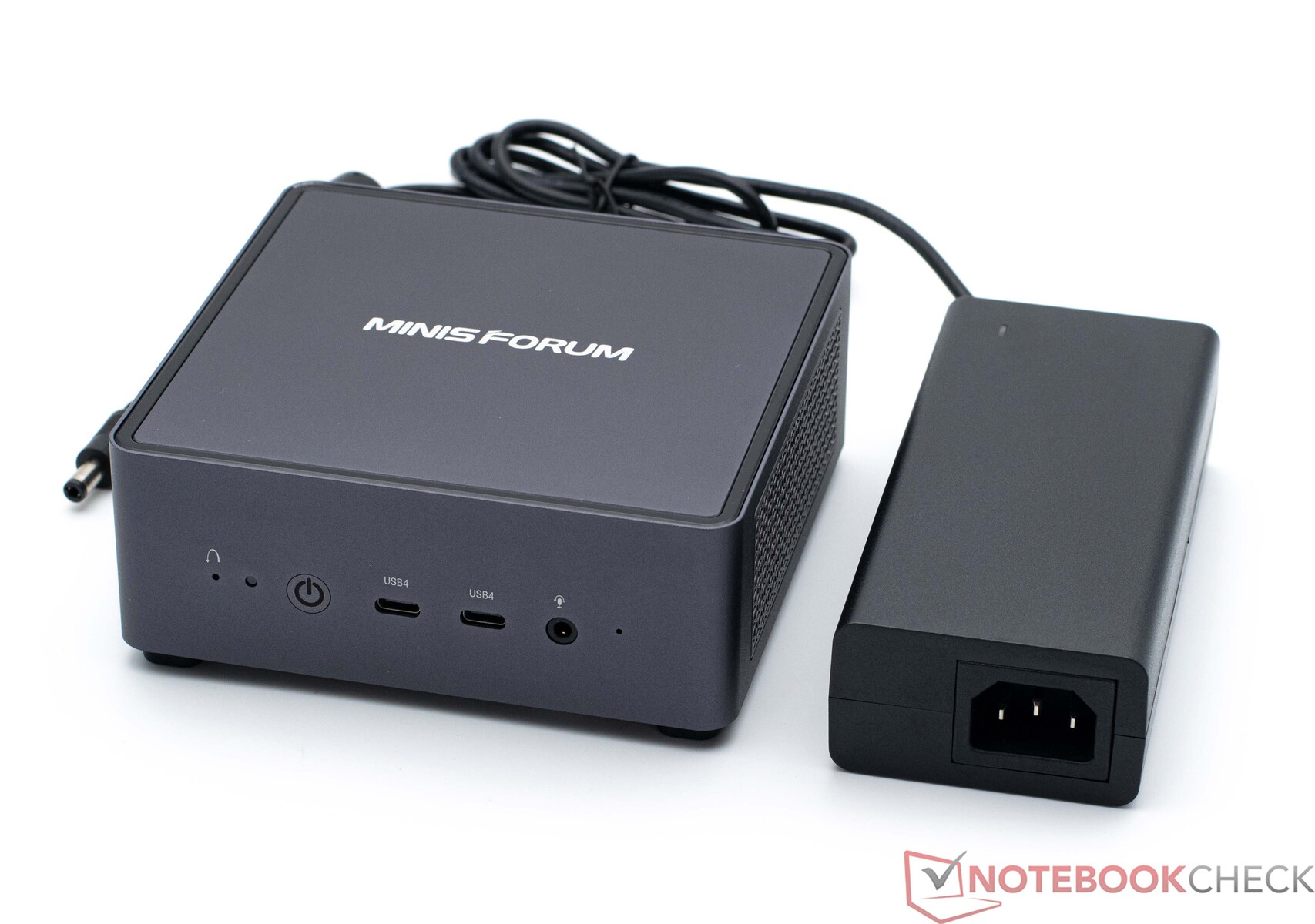

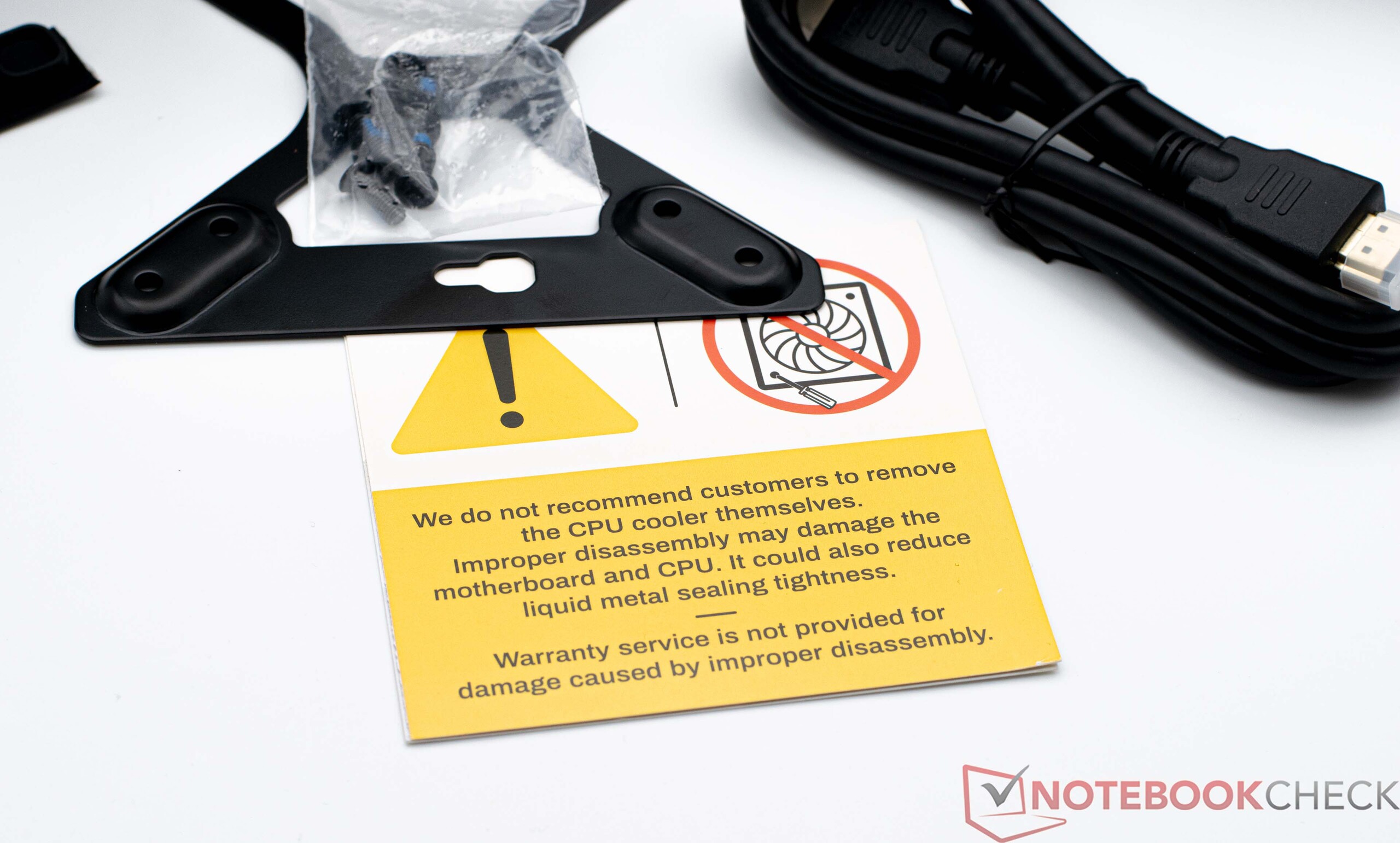

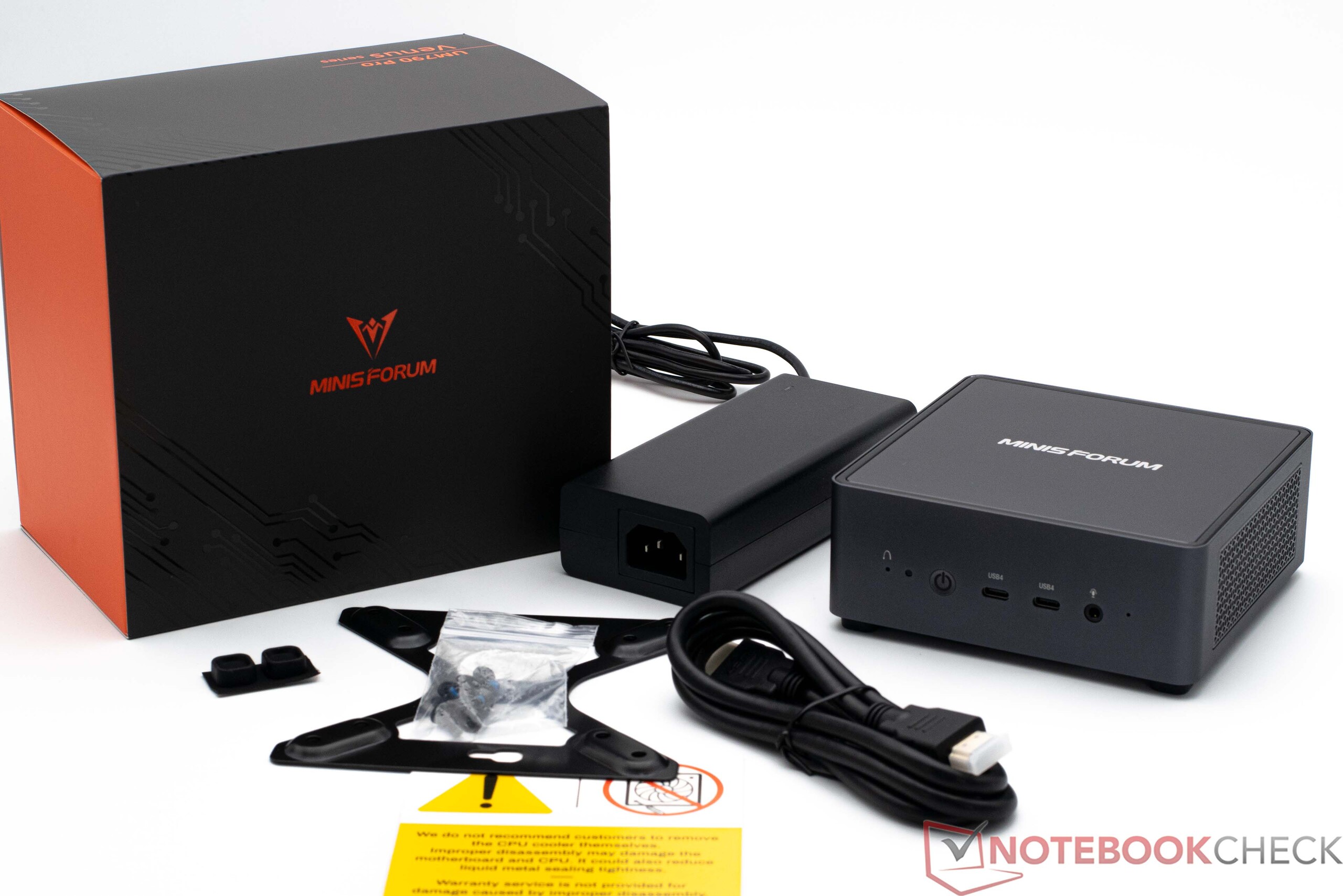

除了设备本身，供货范围还包括一个 120 瓦的电源和一个 VESA 支架，以便将电脑连接到显示器上。此外，电脑还附带一条 HDMI 线、一本简短的使用手册和备用橡胶脚垫。

维护

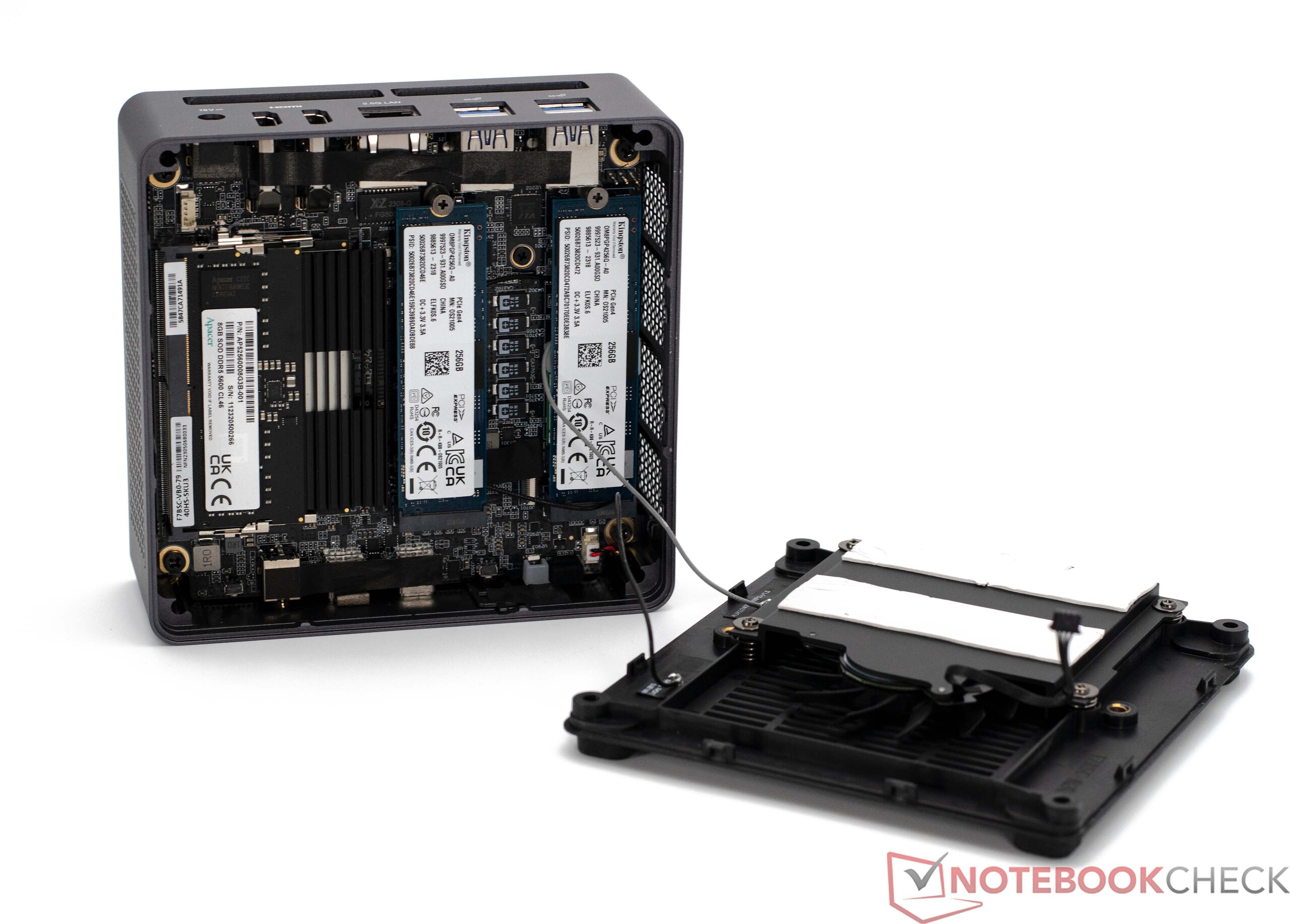

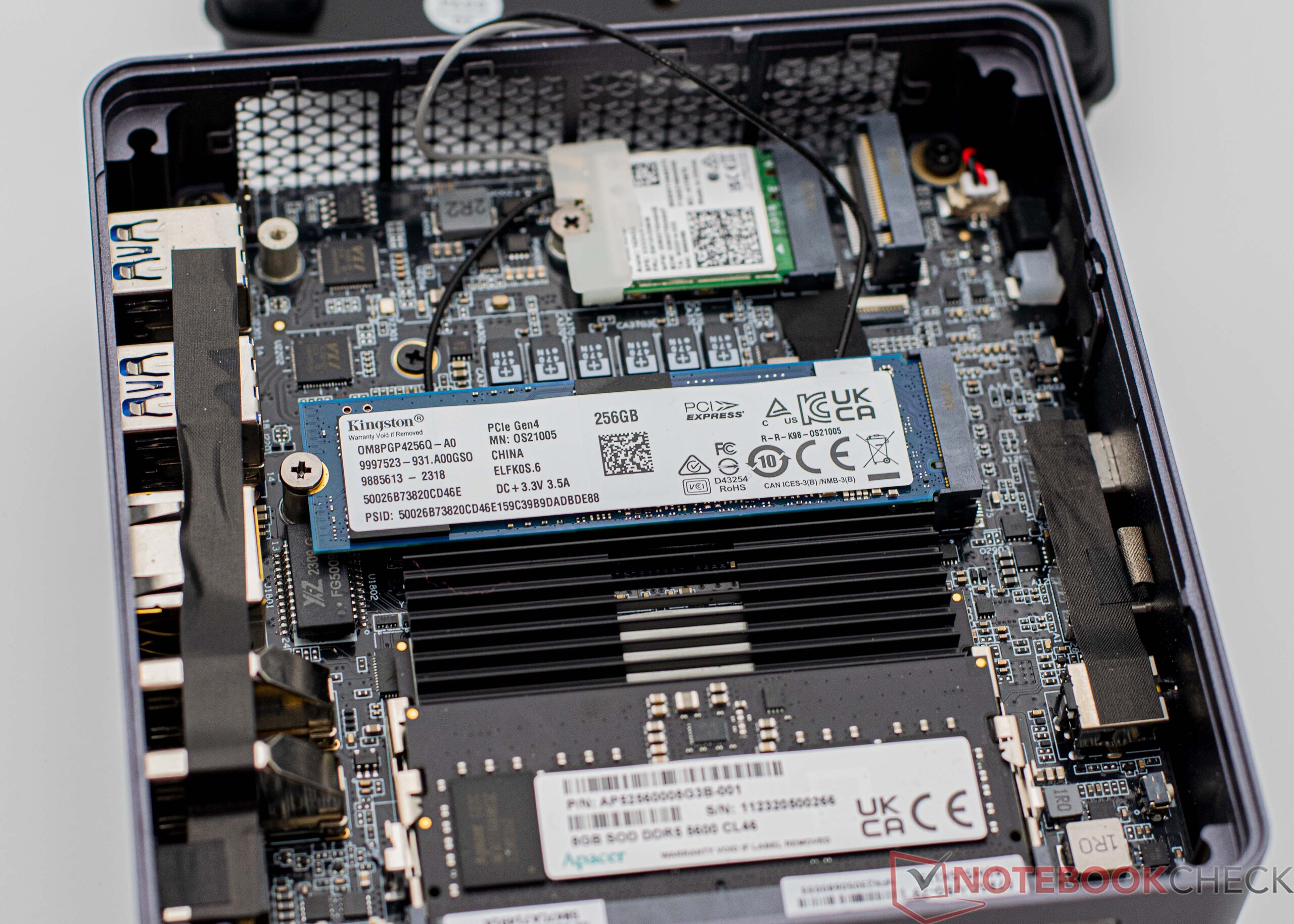

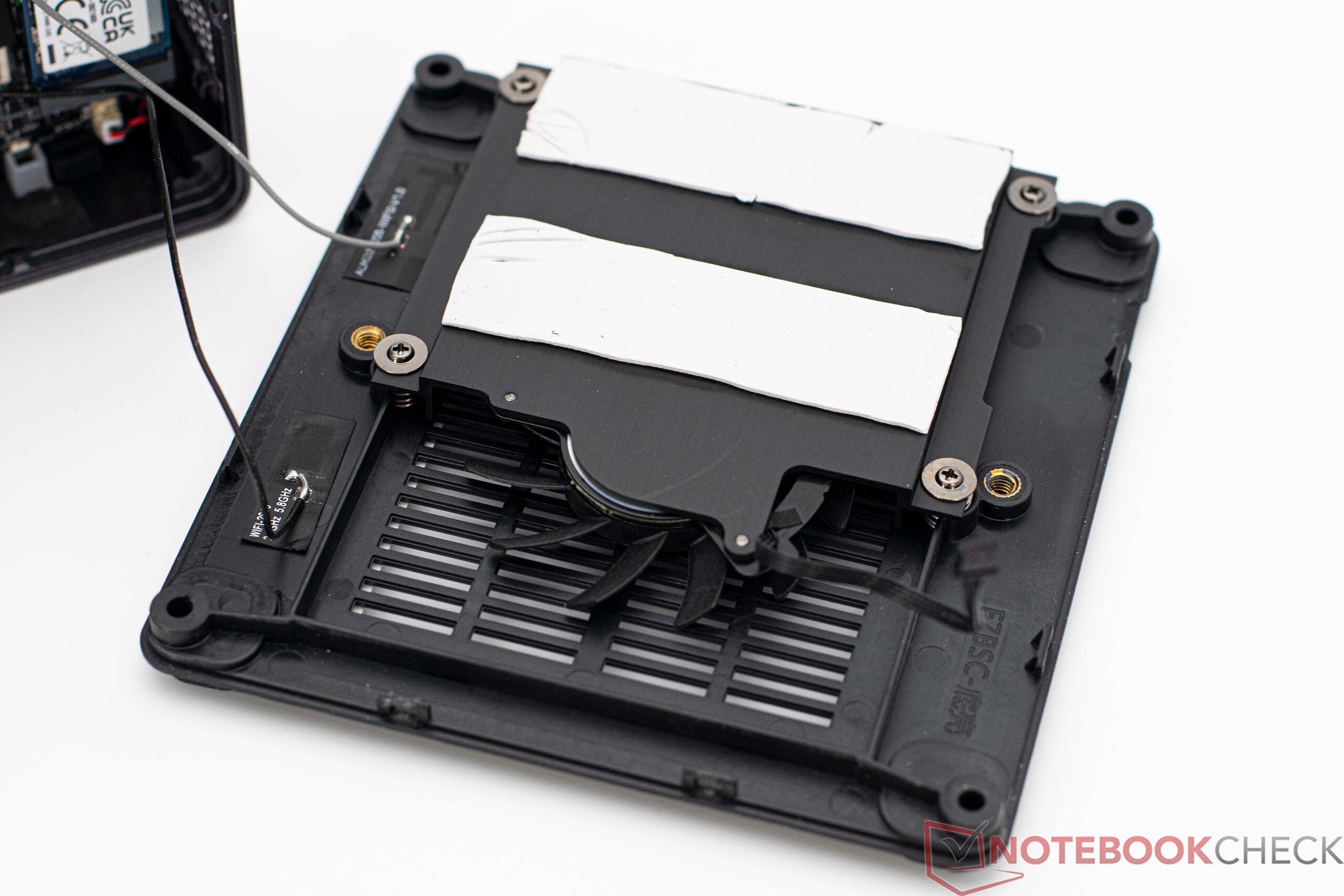

Minisforum Venus 系列 UM790 Pro 的底部可以打开。机箱底部由许多细小的螺丝固定，这些螺丝位于橡胶脚垫下方。基本上，你必须扯掉这些脚垫才能接触到螺丝，这并不是一个非常好的解决方案。例如，Geekom 公司就提出了一个更好的解决方案，即把螺丝作为脚垫的一部分。至少，这款电脑还附带了两个橡胶脚垫，但在我们看来，这只是一种应急解决方案。我们的测试样品没有任何可用的扩展空间。两个 M.2 存储设备都可以更换，内存和 Wi-Fi 模块也可以更换，后者位于其中一个固态硬盘的下方。

性能 - 8 核 16 线程的 Ryzen 9 7940HS

Minisforum Venus 系列 UM790 Pro 采用了 AMD 的全新 SoC，即 AMD Ryzen 9 7940HS.它拥有 16 GB 内存和 512 GB 存储空间，可以为您提供良好的配置。UM790 Pro 目前还没有 SoC 替代品。

测试条件

我们使用 "平衡 "能源配置文件进行了所有测试。BIOS 中没有更改 SoC 的性能以及 iGPU 的 RAM 分配（2 GB），而是按照电脑出厂时制造商的设置进行。

处理器

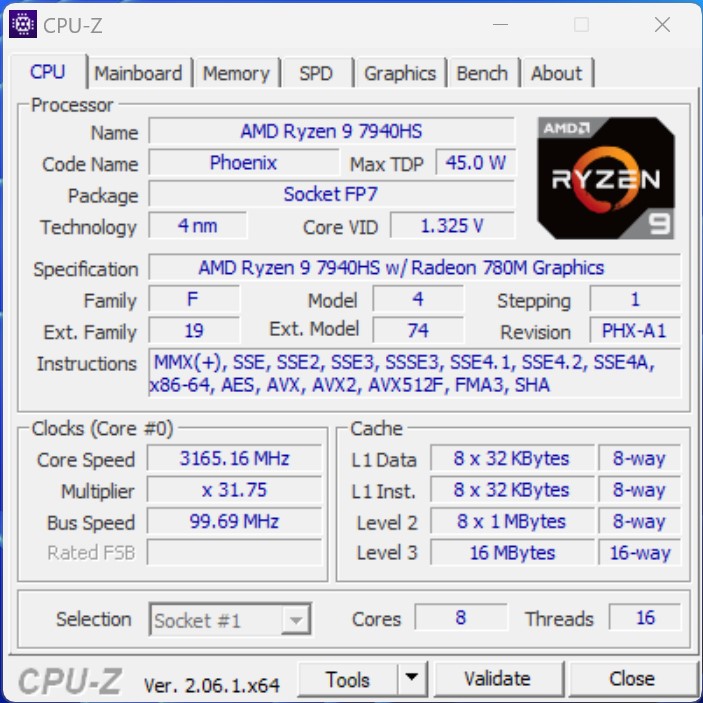

餈AMD Ryzen 9 7940HS是 Minisforum Venus 系列 UM790 Pro 的动力之源。它拥有 8 个内核和 16 个线程，并无太多新意。即便如此，AMD 还是通过 Phoenix 系列大大提高了 IPC。与 AMD Ryzen 9 6900HX 相比，我们注意到其性能提高了 10%至 15%。同时，其多核性能也从中受益。不过，它的性能极限通常是由电脑安装的散热器设定的。在过去，Minisforum 总是能够凭借其坚固且非常安静的组件而得分。对于 UM790 Pro，制造商依赖于使用液态金属，这意味着它强烈建议不要拆开冷却装置。在测试中，我们注意到我们的测试样品落后于Beelink GTR7.这意味着其（理论上）较差的 SoC 实际上能够提供更好的性能水平。

与基于英特尔（Intel英特尔 NUC 13 Pro 套件)相比，我们的测试设备在性能评级方面领先 10%。英特尔英特尔酷睿 i7-1360P只比AMD Ryzen 9 7940HS在个别测试中击败了 AMD Ryzen 9 7940HS。

有关进一步的比较和基准测试，请查看我们的CPU 对比表.

Performance Rating - Percent
Beelink GTR7 7840HS ^-5! AMD Ryzen 7 7840HS, 3800 MHz	54.8 pt
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	52.6 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	48.5 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	47.9 pt
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	47.9 pt
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	46.6 pt
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	45.9 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	45.5 pt

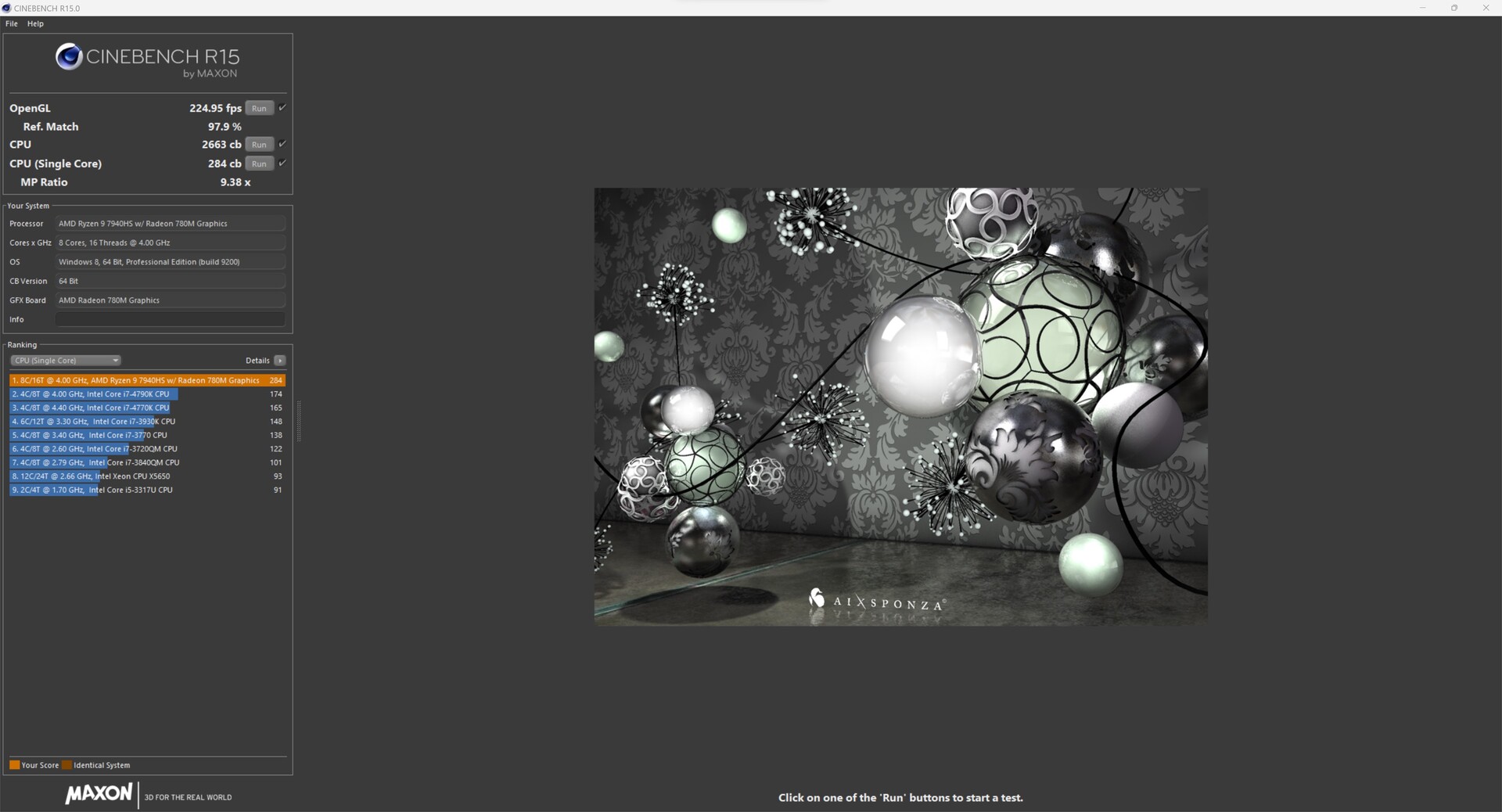

Cinebench R15
CPU Single 64Bit
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	286 Points +1%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	284 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	271 Points -5%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	261 Points -8%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	250 Points -12%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	249 Points -12%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	247 Points -13%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	244 Points -14%
CPU Multi 64Bit
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	2689 (2587.99^min - 2689.08^max) Points +1%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	2663 Points
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	2231 Points -16%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	2071 Points -22%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2067 Points -22%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	2030 Points -24%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2028 Points -24%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1920 Points -28%

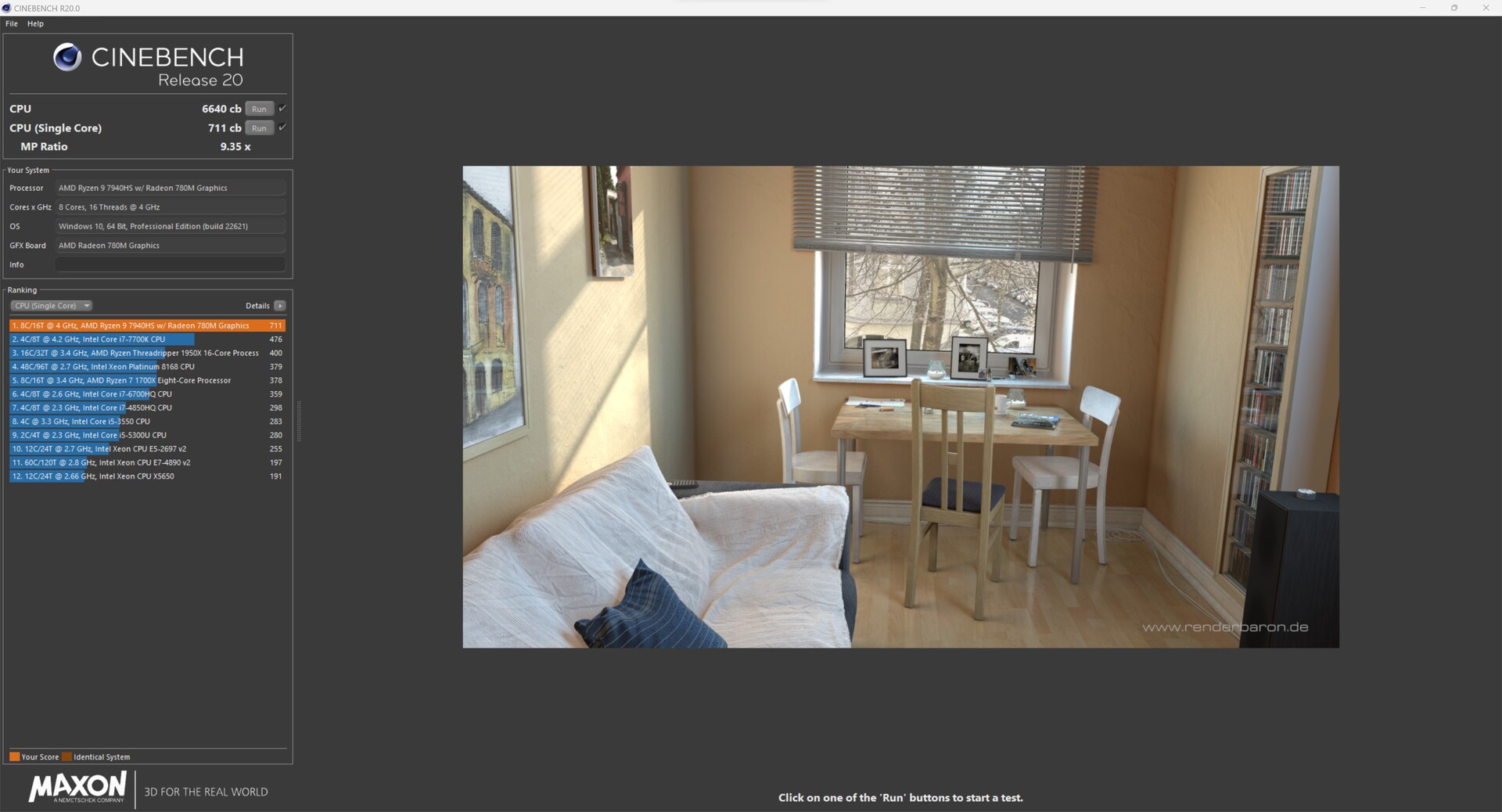

Cinebench R20
CPU (Single Core)
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	736 Points +4%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	711 Points
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	705 Points -1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	682 Points -4%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	629 Points -12%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	610 Points -14%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	607 Points -15%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	600 Points -16%
CPU (Multi Core)
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	6744 Points +2%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	6640 Points
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	5328 Points -20%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	4941 Points -26%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	4938 Points -26%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	4887 Points -26%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	4788 Points -28%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	4776 Points -28%

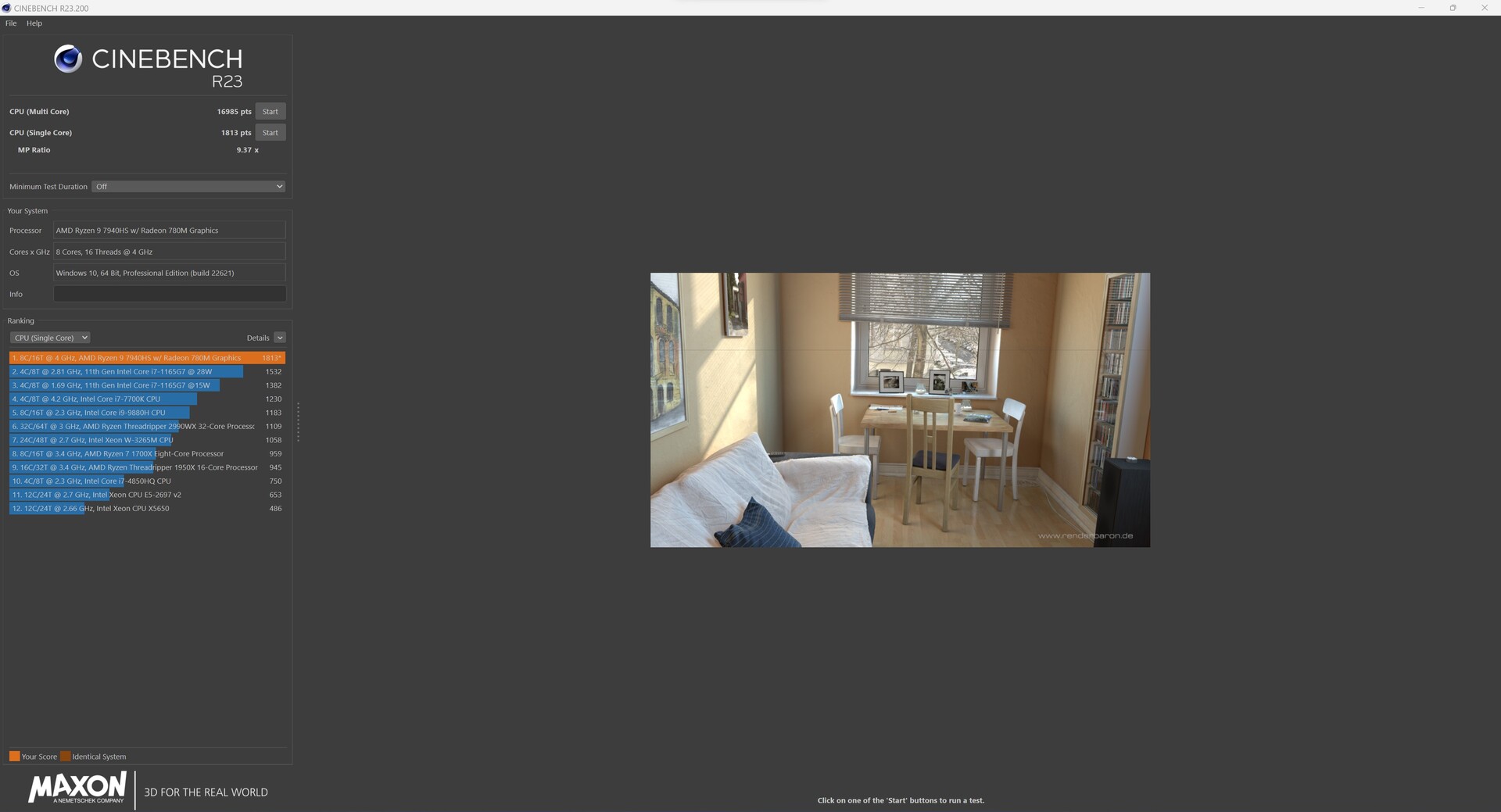

Cinebench R23
Single Core
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1909 Points +5%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	1813 Points
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	1812 Points 0%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1743 Points -4%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1616 Points -11%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	1558 Points -14%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1550 Points -15%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1533 Points -15%
Multi Core
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	17214 (17017.5^min - 17213.9^max) Points +1%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	16985 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	13320 Points -22%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	13222 Points -22%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	12665 Points -25%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	12637 Points -26%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12486 Points -26%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12375 Points -27%

Cinebench R11.5
CPU Single 64Bit
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	3.46 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	3.3 Points -5%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	3.07 Points -11%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2.94 Points -15%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	2.92 Points -16%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2.88 Points -17%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2.86 Points -17%
CPU Multi 64Bit
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	30.88 Points
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	26.35 Points -15%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	25.96 Points -16%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	25.12 Points -19%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	24.09 Points -22%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	23.66 Points -23%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	23.48 Points -24%

Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	15471 Points +5%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	14731 Points
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	12943 Points -12%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	12846 Points -13%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	12320 Points -16%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12185 Points -17%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12133 Points -18%
Rendering Multiple CPUs 64Bit
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	88529 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	77409 Points -13%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	76758 Points -13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	76744 Points -13%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	70291 Points -21%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	69797 Points -21%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	68188 Points -23%

Blender - v2.79 BMW27 CPU
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	275 Seconds * -46%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	273 Seconds * -45%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	260 Seconds * -38%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	245 Seconds * -30%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	234 Seconds * -24%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	231 Seconds * -23%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	229 Seconds * -22%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	188 Seconds *

WinRAR - Result
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	7937 KB/s +7%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	7439 KB/s
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6980 KB/s -6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6882 KB/s -7%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	6860 KB/s -8%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6795 KB/s -9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	5759 KB/s -23%

Geekbench 5.5
Multi-Core
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	11564 Points
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	10752 Points -7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	10574 Points -9%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9706 Points -16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points -16%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	9399 Points -19%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9278 Points -20%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9151 Points -21%
Single-Core
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	2010 Points +2%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	1975 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points -6%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1850 Points -6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1634 Points -17%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1586 Points -20%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	1581 Points -20%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1547 Points -22%

Geekbench 5.0
5.0 Multi-Core
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	11232 Points
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	10820 Points -4%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	10249 Points -9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	10249 Points -9%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	10249 Points -9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points -14%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9638 Points -14%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9351 Points -17%
5.0 Single-Core
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	1936 Points +2%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	1898 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points -3%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1593 Points -16%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1557 Points -18%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1557 Points -18%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	1557 Points -18%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1538 Points -19%

3DMark 11 - 1280x720 Performance Physics
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	21848 Points
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	21067 Points -4%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	18393 Points -16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	18382 Points -16%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	18277 Points -16%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	17973 Points -18%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	17810 Points -18%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15855 Points -27%

7-Zip 18.03
7z b 4
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	70019 MIPS
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	65706 MIPS -6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	61401 MIPS -12%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	58963 MIPS -16%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	56930 MIPS -19%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	56923 MIPS -19%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	52959 MIPS -24%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51151 MIPS -27%
7z b 4 -mmt1
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	6749 MIPS +1%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	6683 MIPS
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6067 MIPS -9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	6019 MIPS -10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	5961 MIPS -11%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	5790 MIPS -13%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	5721 MIPS -14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	5591 MIPS -16%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	20.7 fps
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	17.1 fps -17%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	15.8 fps -24%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15.8 fps -24%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15.4 fps -26%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	14.2 fps -31%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	14.1 fps -32%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	11.7 fps -43%

R Benchmark 2.5 - Overall mean
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	0.4887 sec * -17%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	0.4881 sec * -16%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	0.4849 sec * -16%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	0.4757 sec * -13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.4641 sec * -11%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	0.445 sec * -6%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	0.4192 sec *
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	0.4184 sec * -0%

LibreOffice - 20 Documents To PDF
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	53.4 s * -15%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	50.2 s * -8%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	48.8 s * -5%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	47.1 s * -2%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	46.3 s *
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	43.7 s * +6%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	39 s * +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	38 s * +18%

WebXPRT 3 - Overall
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	339 Points +12%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	311 Points +3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	305 Points +1%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	302 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	292 Points -3%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	287 Points -5%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	287 Points -5%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	268 Points -11%

Mozilla Kraken 1.1 - Total
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	605 ms * -24%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	600 ms * -23%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	600 ms * -23%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	577 ms * -18%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	571 ms * -17%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	494 ms * -1%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	487 ms *
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	485 ms * -0%

3DMark
3840x2160 Fire Strike Ultra Physics
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	28144 Points +2%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	27579 Points
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	25456 Points -8%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	24167 Points -12%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22441 Points -19%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22237 Points -19%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	21422 Points -22%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	20158 Points -27%
1920x1080 Fire Strike Physics
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	28602 Points +1%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	28247 Points
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	25915 Points -8%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	24175 Points -14%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22740 Points -19%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22426 Points -21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	22244 Points -21%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	21523 Points -24%
2560x1440 Time Spy CPU
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	11291 Points +7%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	10563 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	10539 Points 0%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9354 Points -11%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	9334 Points -12%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	9324 Points -12%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9004 Points -15%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	8622 Points -18%

* ... smaller is better

wPrime 2.10 | X264 HD Benchmark 4.0 | TrueCrypt | Geekbench 4.4

wPrime 2.10
32m
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	3.765 s * -40%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	3.762 s * -39%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	3.735 s * -38%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	3.642 s * -35%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	3.461 s * -28%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	3.421 s * -27%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	2.698 s *
1024m
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	277.01 s * -315%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	189.07 s * -183%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	104.788 s * -57%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	103.226 s * -55%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	98.696 s * -48%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	93.19 s * -40%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	66.801 s *

X264 HD Benchmark 4.0
Pass 1
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	312 (305^min - 331^max) fps +2%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	304.5 (304^min - 306^max) fps
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	262.5 (262^min - 266^max) fps -14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	258.5 (256^min - 268^max) fps -15%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	255.5 (254^min - 259^max) fps -16%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	249 (246^min - 255^max) fps -18%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	245 (239^min - 261^max) fps -20%
Pass 2
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	150.8 (150.7^min - 152.5^max) fps
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	127.8 (127.3^min - 129.1^max) fps -15%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	125.25 (105.2^min - 130^max) fps -17%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	120.2 (119.9^min - 121.3^max) fps -20%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	116.4 (108.5^min - 128.8^max) fps -23%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	114.45 (113.9^min - 116.5^max) fps -24%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	114 (111.2^min - 119.4^max) fps -24%

TrueCrypt
AES Mean 100MB
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	14.8 GB/s
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	13.4 GB/s -9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	12.5 GB/s -16%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12.1 GB/s -18%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	11.9 GB/s -20%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	11.8 GB/s -20%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8.6 GB/s -42%
Twofish Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	2.2 GB/s +5%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	2.1 GB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2 GB/s -5%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1.8 GB/s -14%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	1.7 GB/s -19%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.7 GB/s -19%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.6 GB/s -24%
Serpent Mean 100MB
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	1.4 GB/s
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1.2 GB/s -14%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1.2 GB/s -14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s -21%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s -21%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s -21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.974 GB/s -30%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points +1%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	7904 Points
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6804 Points -14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6698 Points -15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	6698 Points -15%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	6698 Points -15%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6648 Points -16%
64 Bit Multi-Core Score
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	46270 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	39852 Points -14%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	39852 Points -14%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	39852 Points -14%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	38566 Points -17%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	36780 Points -21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points -21%

* ... smaller is better

Performance Rating
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	99.8 pt
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	91.6 pt
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	74 pt
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	68.4 pt
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	68.3 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	63.9 pt
Average of class Mini PC	54.8 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	54.5 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	52.3 pt

AIDA64 / FP32 Ray-Trace
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	27538 KRay/s +5%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	26146 KRay/s
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	15102 KRay/s -42%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	14418 KRay/s -45%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	14406 KRay/s -45%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	13757 KRay/s -47%
Average of class Mini PC (561 - 51004, n=120, last 2 years)	12271 KRay/s -53%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	11040 KRay/s -58%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s -58%

AIDA64 / FPU Julia
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	116903 Points +1%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	116269 Points
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	98980 Points -15%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	91475 Points -21%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	89540 Points -23%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	87663 Points -25%
Average of class Mini PC (3604 - 214250, n=120, last 2 years)	62244 Points -46%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	55557 Points -52%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points -53%

AIDA64 / CPU SHA3
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	5096 MB/s +4%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	4890 MB/s
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	3452 MB/s -29%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	3117 MB/s -36%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	3065 MB/s -37%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	2931 MB/s -40%
Average of class Mini PC (225 - 9399, n=120, last 2 years)	2739 MB/s -44%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	2728 MB/s -44%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s -48%

AIDA64 / CPU Queen
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	119569 Points
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	117764 Points -2%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	103686 Points -13%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	100293 Points -16%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	99180 Points -17%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	93870 Points -21%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	86691 Points -27%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points -29%
Average of class Mini PC (8172 - 184747, n=120, last 2 years)	77996 Points -35%

AIDA64 / FPU SinJulia
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	15525 Points +1%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	15312 Points
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	13101 Points -14%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	12642 Points -17%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	12396 Points -19%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	11771 Points -23%
Average of class Mini PC (408 - 29064, n=120, last 2 years)	8472 Points -45%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points -51%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	7269 Points -53%

AIDA64 / FPU Mandel
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	62378 Points 0%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	62219 Points
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	52710 Points -15%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	50025 Points -20%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	49558 Points -20%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	44629 Points -28%
Average of class Mini PC (1958 - 113499, n=120, last 2 years)	32479 Points -48%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points -55%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	27772 Points -55%

AIDA64 / CPU AES
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	177158 MB/s +105%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	136723 MB/s +58%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	124515 MB/s +44%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	119363 MB/s +38%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s +15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	99244 MB/s +15%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	86346 MB/s
Average of class Mini PC (3691 - 325960, n=120, last 2 years)	85778 MB/s -1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	56199 MB/s -35%

AIDA64 / CPU ZLib
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	1114 MB/s
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	1103 MB/s -1%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	863 MB/s -23%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	807 MB/s -28%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	754 MB/s -32%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	745 MB/s -33%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s -34%
Average of class Mini PC (74.8 - 2039, n=120, last 2 years)	709 MB/s -36%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	578 MB/s -48%

AIDA64 / FP64 Ray-Trace
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	14722 KRay/s +2%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	14472 KRay/s
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	7973 KRay/s -45%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	7680 KRay/s -47%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7551 KRay/s -48%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7288 KRay/s -50%
Average of class Mini PC (308 - 26952, n=120, last 2 years)	6561 KRay/s -55%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	5920 KRay/s -59%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s -60%

AIDA64 / CPU PhotoWorxx
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	40726 MPixel/s +25%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	32647 MPixel/s
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	30049 MPixel/s -8%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	30038 MPixel/s -8%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	29765 MPixel/s -9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	29108 MPixel/s -11%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	27720 MPixel/s -15%
Average of class Mini PC (4408 - 50500, n=120, last 2 years)	27655 MPixel/s -15%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s -25%

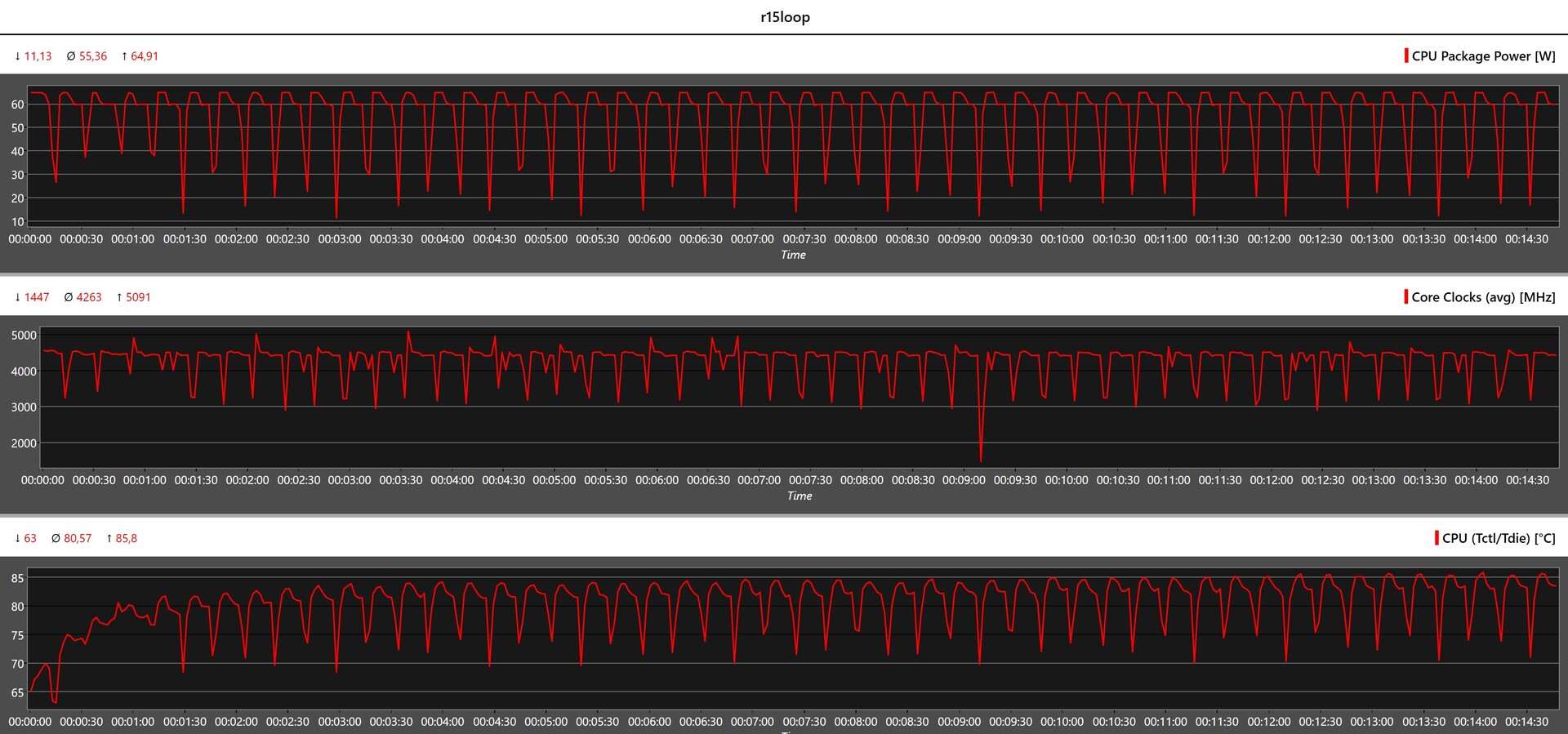

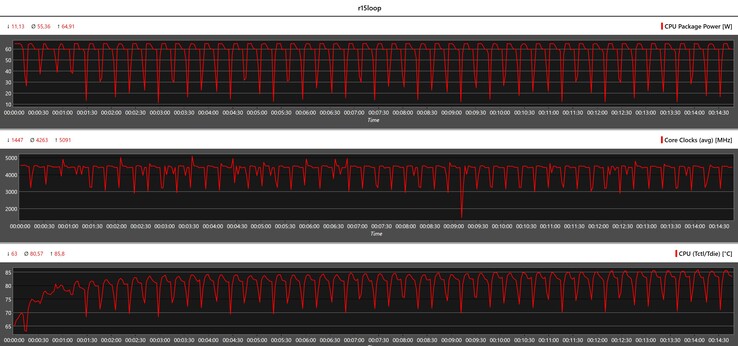

Minisforum Venus Series UM790 Pro 与 Cinebench R15 多环路比较

Cinebench R15 连续循环测试向我们展示了AMD Ryzen 9 7940HS在较长时间内的表现。Minisforum Venus 系列 UM790 Pro 非常稳定地完成了全部 50 次运行。与Beelink GTR7一起，我们的测试样品进行了一场并驾齐驱的竞赛。我们没有注意到 Minisforum NAD9 的任何性能损失，SoC 的平均功耗为 55 瓦。当功耗达到 65 瓦时，其最高性能极限完全发挥出来。

Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Ryzen 9 7940HS: Ø2646 (2612.16-2667.2)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Ryzen 7 7840HS: Ø2669 (2587.99-2689.08)

Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2111 (2087.36-2211.78)

Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)

Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1878 (1825.15-2068.58)

ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2050 (2014.91-2082.68)

Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Core i7-1360P: Ø1825 (1794.93-2181.38)

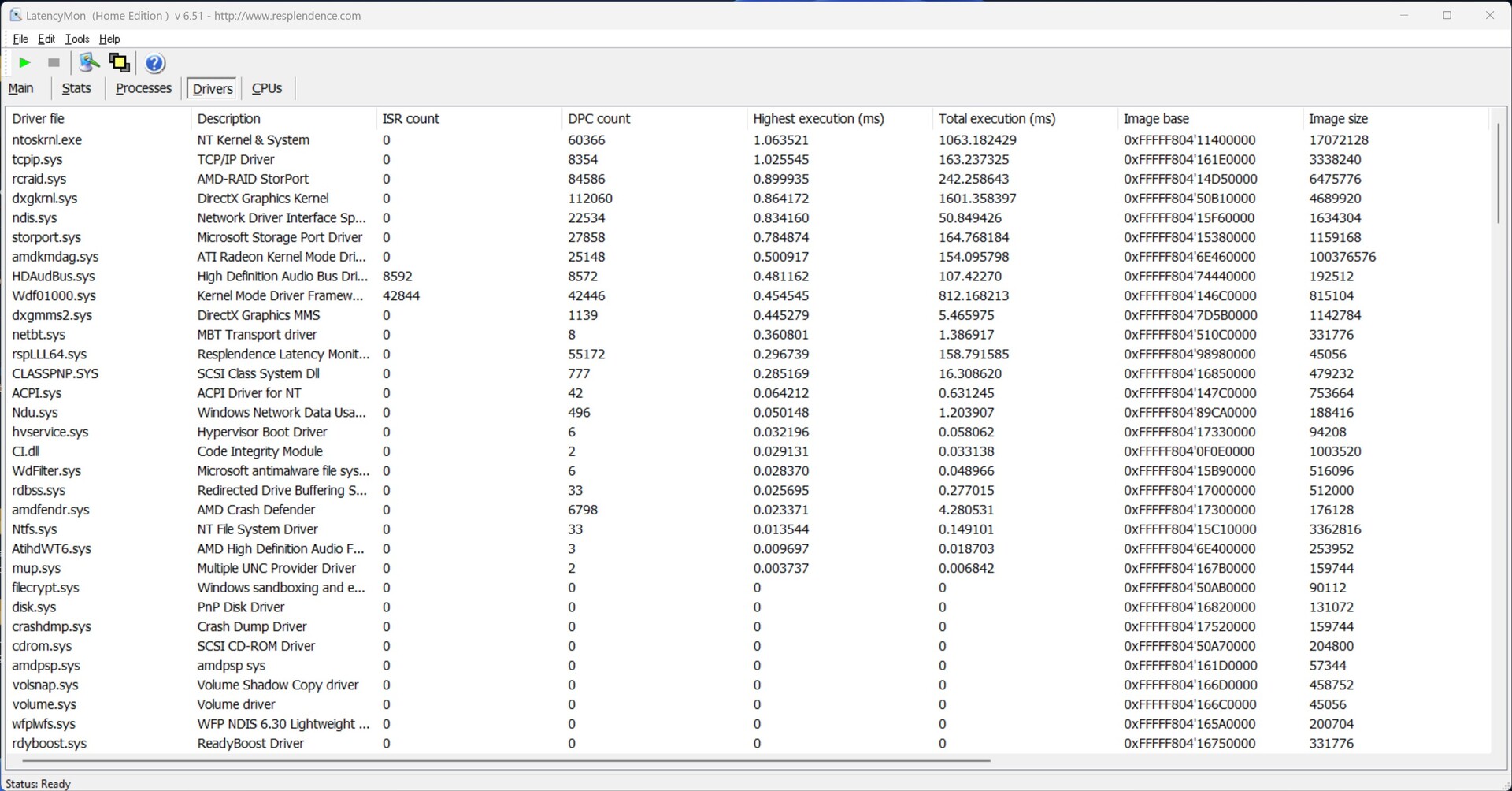

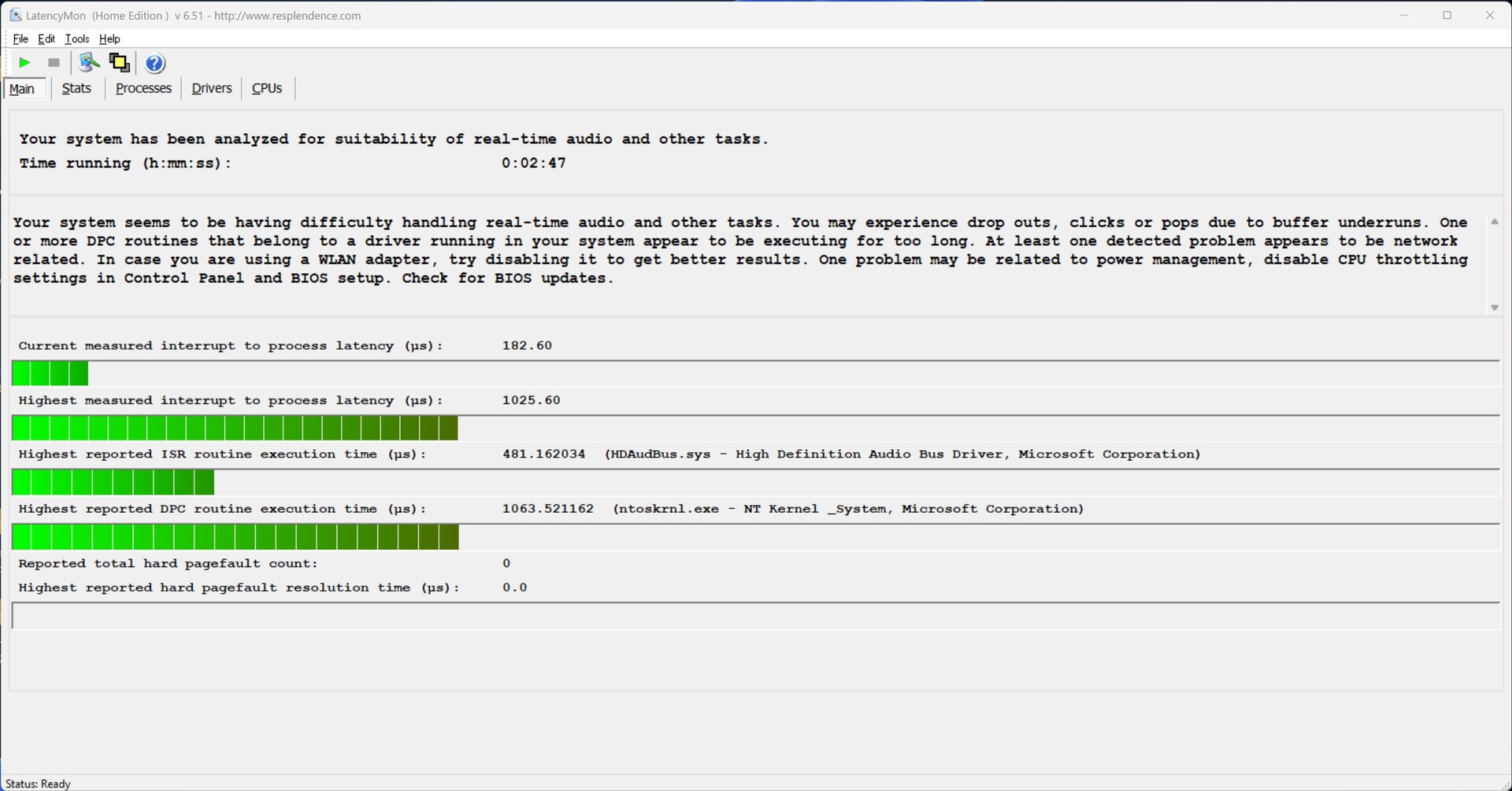

DPC 延迟

Minisforum Venus 系列 UM790 Pro 在我们测得的延迟值中排名第二，仅次于Beelink GTR7.在 Edge 中打开多个标签页和播放 4K 测试视频时，我们没有测得任何高延迟。这意味着 UM790 Pro 非常适合在流媒体环境中使用。我们只注意到使用 Prime95 时延迟略有增加。不过，这些延迟从未达到临界水平。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1588.3 μs * -49%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	1488 μs * -40%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	1371.2 μs * -29%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1317 μs * -24%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1113.9 μs * -5%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1087 μs * -2%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1063 μs *
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	718.7 μs * +32%

* ... smaller is better

存储设备

Minisforum 为金星系列 UM790 Pro 配备了总容量为 512 GB 的存储组合。使用的组合包括两块来自金士顿的 NVMe SSD，每块都有 256 GB 的存储空间，并在 RAID-0 阵列中协同工作。我们并不完全清楚制造商为什么给我们提供这种组合。与他们联系后，他们告诉我们，512GB 版本将只配备一个固态硬盘。

得益于 RAID 阵列，固态硬盘的读写速度都不错。即便如此，对比设备上的存储设备大多速度更快。在日常使用中，你可能不会注意到这一点。

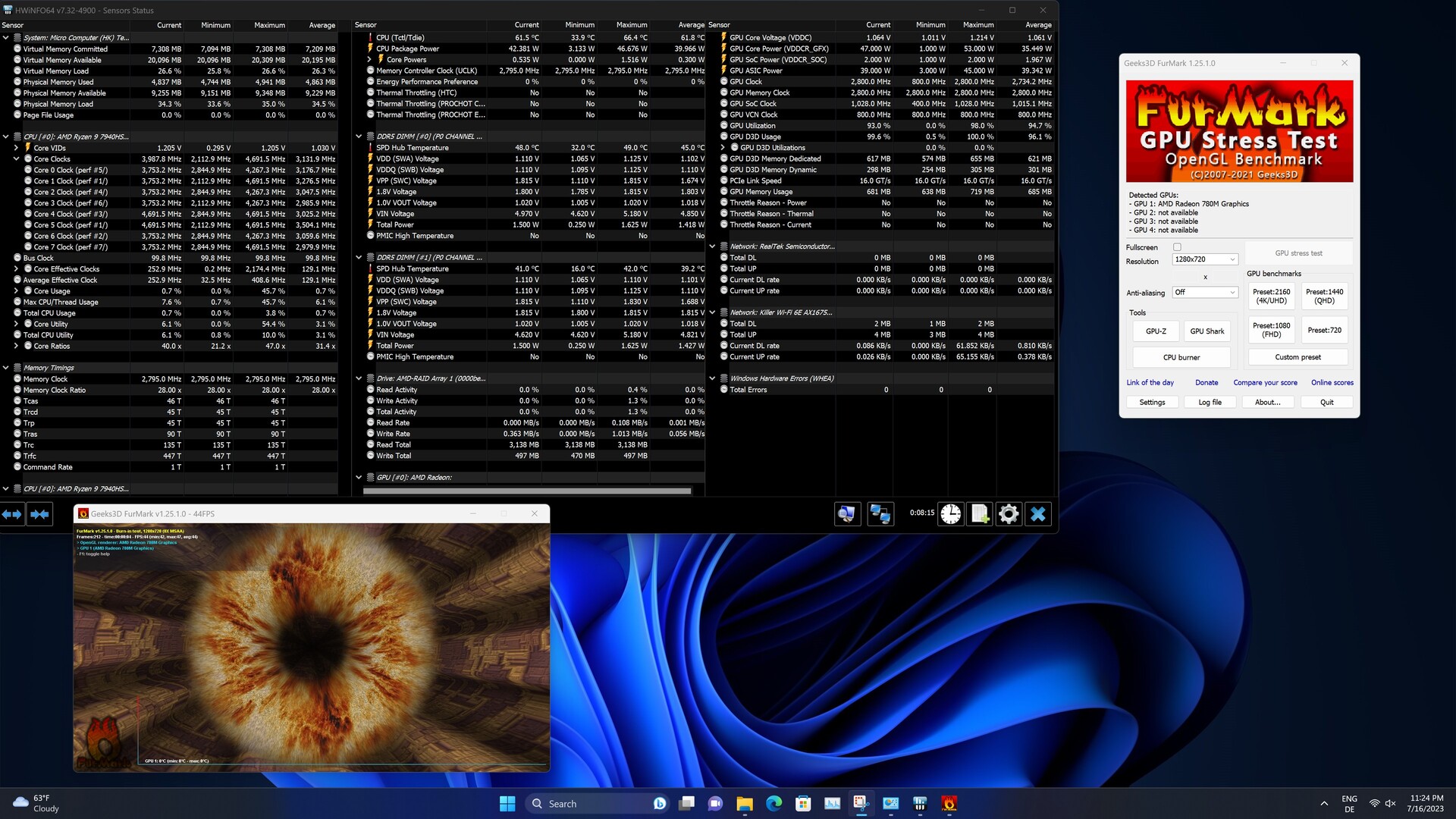

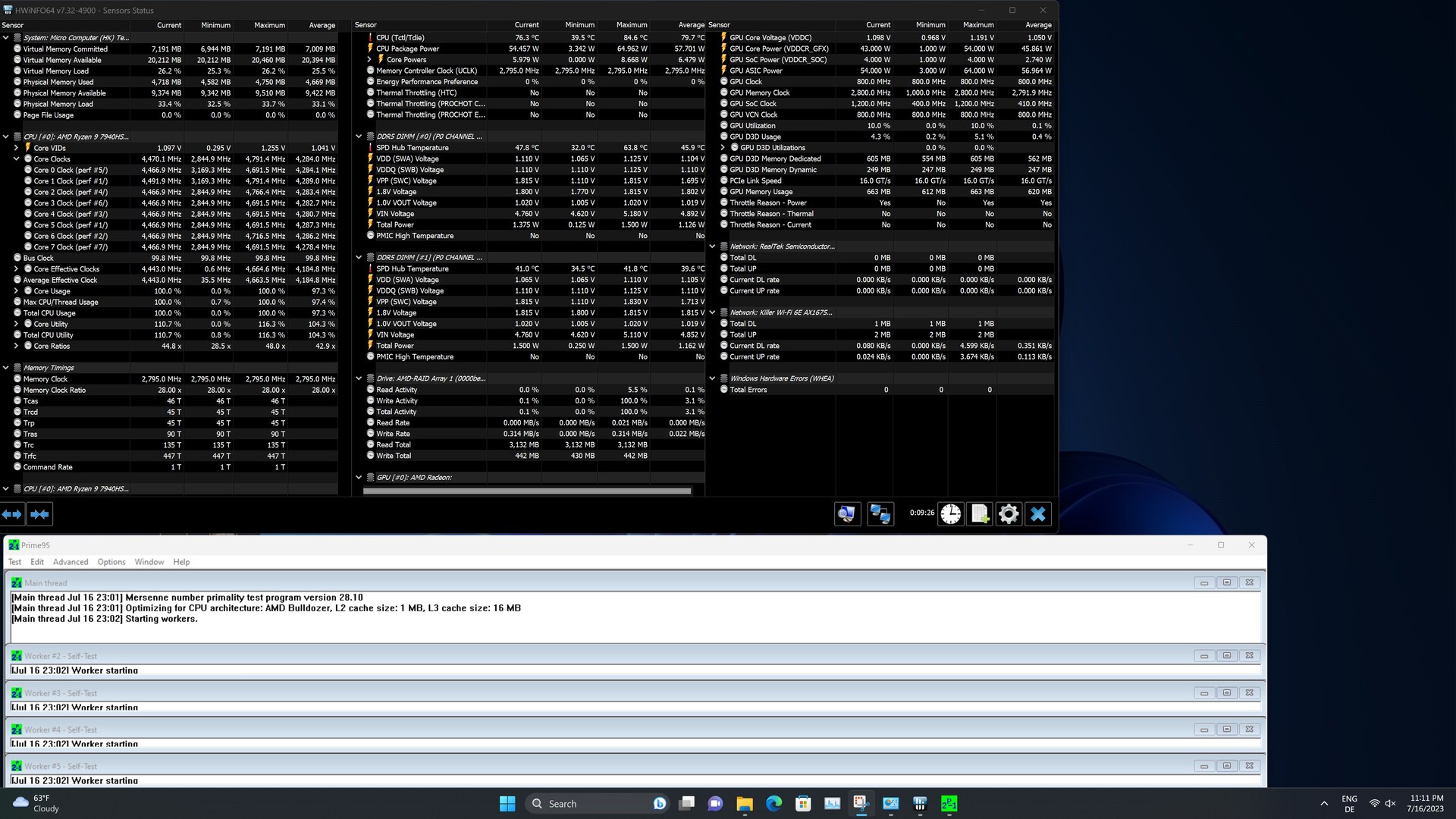

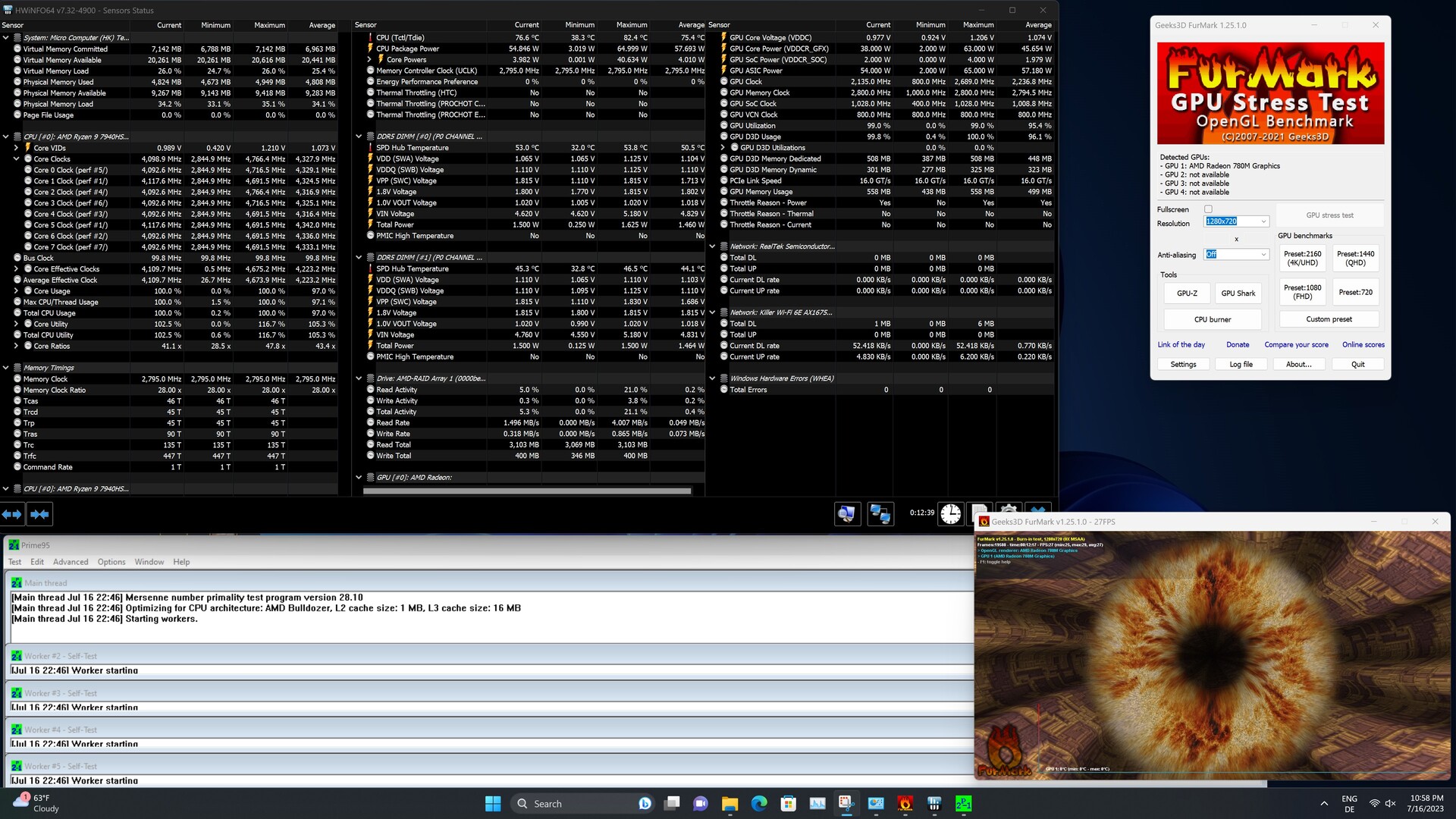

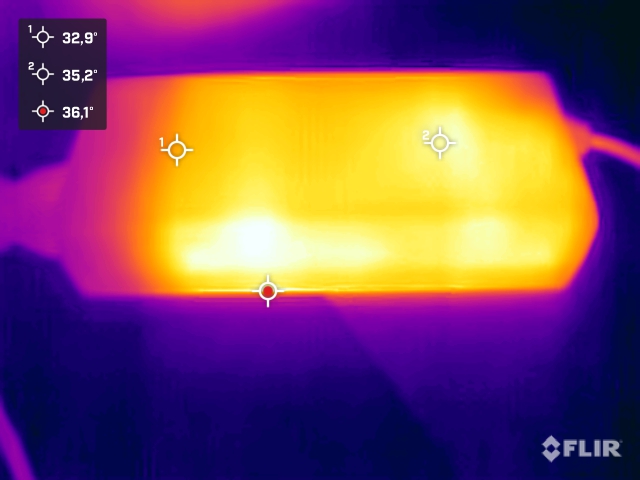

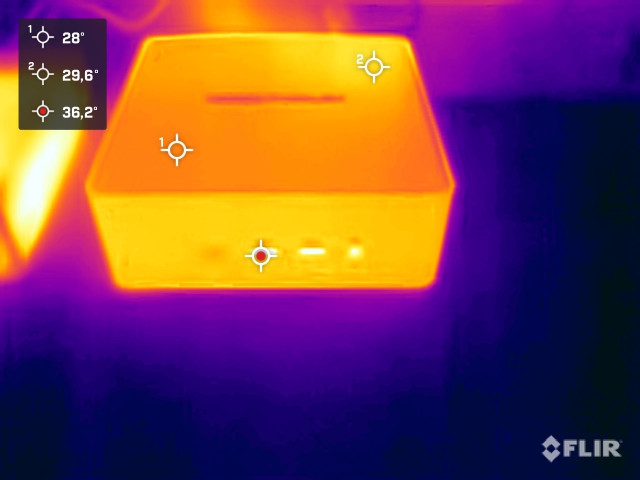

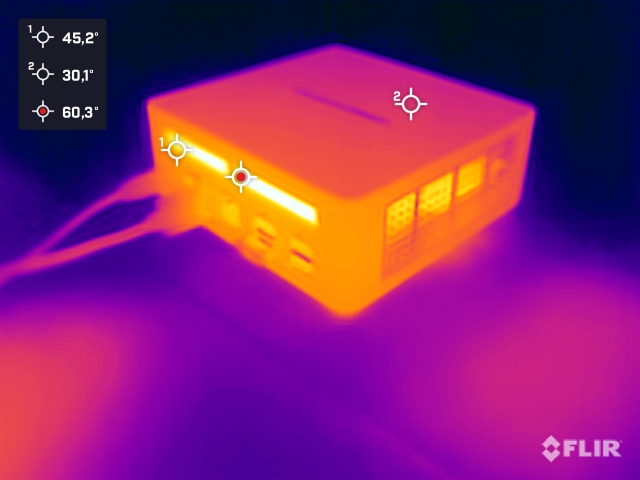

在散热方面，Minisforum 的 UM790 Pro 做得很好。虽然它的持续性能不如英特尔 NUC 13 Pro那样稳定，但它仍然提供了出色的性能水平。这要归功于设备底部使用主动风扇的直接冷却系统。总共可以安装两个固态硬盘。 2.UM790 Pro 无法安装 5 英寸存储设备。

有关进一步的比较和基准测试，请访问我们的比较表。

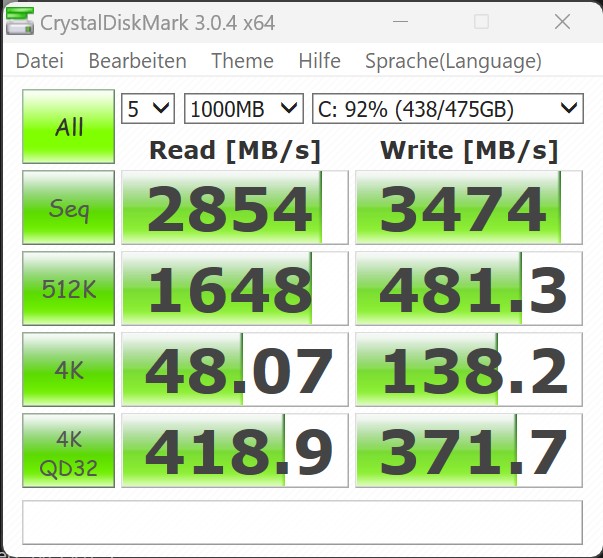

CrystalDiskMark 3.0

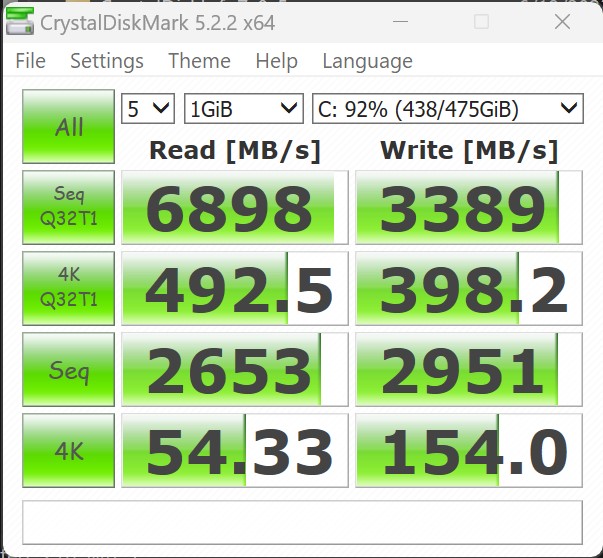

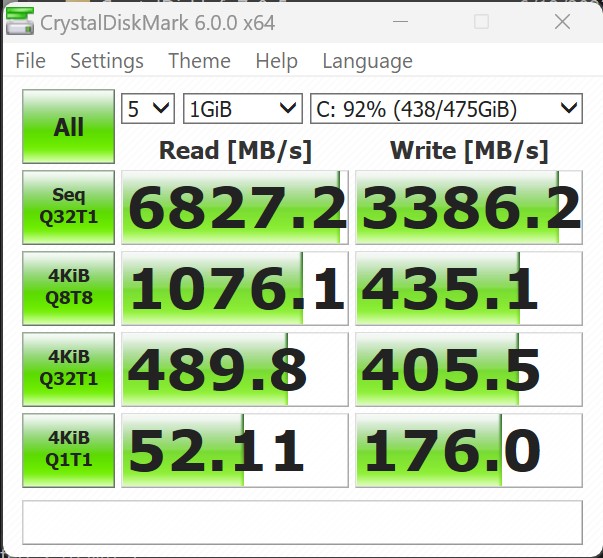

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

2x Kingston OM8PGP4256Q-A0 (RAID 0)

Sequential Read: 2854 MB/s

Sequential Write: 3474 MB/s

512K Read: 1648 MB/s

512K Write: 481.3 MB/s

4K Read: 48.07 MB/s

4K Write: 138.2 MB/s

4K QD32 Read: 418.9 MB/s

4K QD32 Write: 371.7 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.9 pt
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	78.7 pt
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	73 pt
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	69.7 pt
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	65.9 pt
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	53.3 pt
Average of class Mini PC	52.5 pt
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	28.5 pt
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	19.5 pt

DiskSpd
seq read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3375 (3310.44^min - 3375.33^max) MB/s +4%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3248 (3141.12^min - 3248.07^max) MB/s
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3195 (3147.62^min - 3194.91^max) MB/s -2%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3033 (3026.64^min - 3032.69^max) MB/s -7%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2815 (2802.79^min - 2814.97^max) MB/s -13%
Average of class Mini PC (233 - 4357, n=120, last 2 years)	2296 MB/s -29%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	1414 (1406.14^min - 1414.43^max) MB/s -56%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	1290 (1269.59^min - 1290.1^max) MB/s -60%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1176 (1169.13^min - 1175.87^max) MB/s -64%
seq write
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3591 (3535.23^min - 3591.16^max) MB/s +14%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3539 (3516.6^min - 3538.94^max) MB/s +12%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3372.67^min - 3402.21^max) MB/s +8%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3360 (1416.73^min - 3360.47^max) MB/s +7%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3148 (613.87^min - 3148.03^max) MB/s
Average of class Mini PC (222 - 5595, n=120, last 2 years)	2438 MB/s -23%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1530 (603.77^min - 1530.08^max) MB/s -51%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	676 (608.43^min - 676.24^max) MB/s -79%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	259 (255.55^min - 258.69^max) MB/s -92%
seq q8 t1 read
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	7654 (6491.54^min - 7653.98^max) MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6729 (6134.8^min - 6728.5^max) MB/s -12%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	5174 (4541.87^min - 5174.3^max) MB/s -32%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	4820 (3819.87^min - 4820.3^max) MB/s -37%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4801 (4506.78^min - 4800.59^max) MB/s -37%
Average of class Mini PC (236 - 8430, n=120, last 2 years)	3710 MB/s -52%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	2557 (2087.92^min - 2556.98^max) MB/s -67%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1987 (1409.4^min - 1987.27^max) MB/s -74%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	1976 (1110.86^min - 1975.52^max) MB/s -74%
seq q8 t1 write
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3570 (3522.17^min - 3569.77^max) MB/s +8%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3536 (3475.82^min - 3536.01^max) MB/s +7%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3374.28^min - 3401.67^max) MB/s +3%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3301 (1115.06^min - 3301.44^max) MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2830 (1138.15^min - 2830.32^max) MB/s -14%
Average of class Mini PC (228 - 6669, n=120, last 2 years)	2738 MB/s -17%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1084 (553.02^min - 1084.16^max) MB/s -67%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	670 (614.49^min - 669.54^max) MB/s -80%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	271 (261.51^min - 270.62^max) MB/s -92%
4k q1 t1 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.1 (81.4^min - 82.09^max) MB/s +70%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	70.8 (63.28^min - 70.81^max) MB/s +47%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	62.6 (62.13^min - 62.62^max) MB/s +30%
Average of class Mini PC (5.67 - 86.6, n=120, last 2 years)	55.4 MB/s +15%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	51.8 (51.62^min - 51.84^max) MB/s +7%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	48.9 (31.16^min - 48.85^max) MB/s +1%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	48.5 (48.27^min - 48.47^max) MB/s +1%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	48.2 (46.14^min - 48.16^max) MB/s
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	27.7 (27.3^min - 27.66^max) MB/s -43%
4k q1 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	425 (415.92^min - 425.01^max) MB/s +237%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	288 (287.39^min - 288.47^max) MB/s +129%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	269 (266.85^min - 269.05^max) MB/s +113%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	220 (212.2^min - 220.15^max) MB/s +75%
Average of class Mini PC (30.4 - 435, n=120, last 2 years)	196.3 MB/s +56%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	183.3 (149.75^min - 183.3^max) MB/s +45%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	177.7 (176.17^min - 177.7^max) MB/s +41%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	126 (96.77^min - 125.97^max) MB/s
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	88 (84.11^min - 87.99^max) MB/s -30%
4k q32 t16 read
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2765 (2513.4^min - 2765.45^max) MB/s +295%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1944 (1936.89^min - 1943.53^max) MB/s +178%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	1933 (1926.8^min - 1932.75^max) MB/s +176%
Average of class Mini PC (26.1 - 4158, n=120, last 2 years)	1345 MB/s +92%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1225 (1194.7^min - 1224.8^max) MB/s +75%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	760 (325.52^min - 759.71^max) MB/s +9%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	740 (734.91^min - 739.88^max) MB/s +6%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	700 (683.05^min - 700^max) MB/s
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	354 (11.43^min - 353.56^max) MB/s -49%
4k q32 t16 write
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3331 (2068.43^min - 3331.41^max) MB/s +684%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3254 (3139.57^min - 3253.57^max) MB/s +666%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2396 (2376.28^min - 2396.46^max) MB/s +464%
Average of class Mini PC (30.2 - 4288, n=120, last 2 years)	1296 MB/s +205%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	893 (601.78^min - 892.97^max) MB/s +110%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	635 (272.57^min - 635.12^max) MB/s +49%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	626 (605.6^min - 625.63^max) MB/s +47%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	425 (345.14^min - 425.25^max) MB/s
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	210 (203.49^min - 210.22^max) MB/s -51%

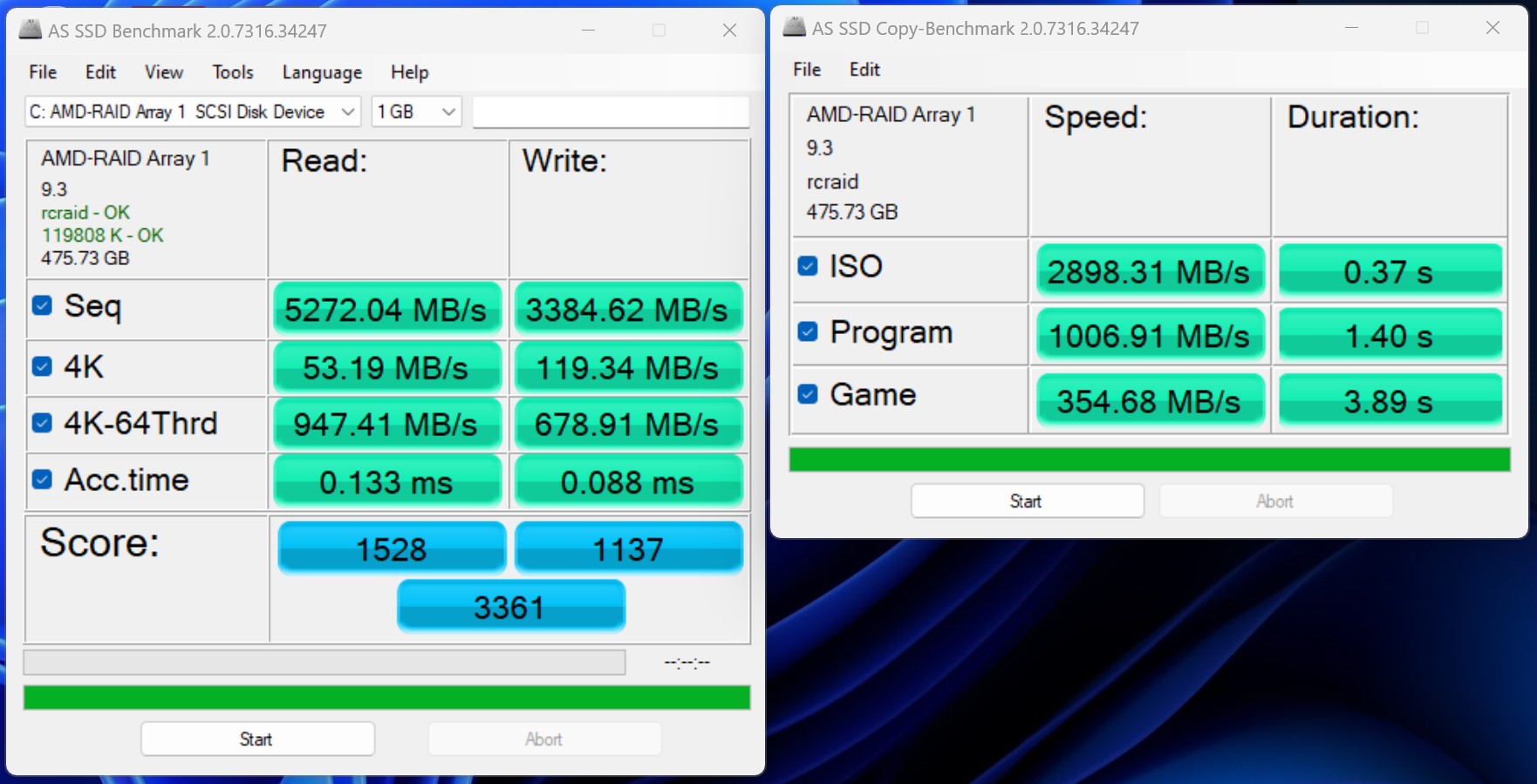

AS SSD
Score Total
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	9030 Points +169%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	7134 Points +112%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	6665 Points +98%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6005 Points +79%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	5182 Points +54%
Average of class Mini PC (181.5 - 10021, n=118, last 2 years)	4100 Points +22%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3361 Points
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	2075 Points -38%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	1602 Points -52%
Score Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3635 Points +138%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2391 Points +56%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	2352 Points +54%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	1796 Points +18%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1673 Points +9%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1528 Points
Average of class Mini PC (61 - 3741, n=118, last 2 years)	1526 Points 0%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	910 Points -40%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	899 Points -41%
Score Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3615 Points +218%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3574 Points +214%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3538 Points +211%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3145 Points +177%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2508 Points +121%
Average of class Mini PC (88 - 4371, n=118, last 2 years)	1842 Points +62%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1137 Points
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	785 Points -31%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	325 Points -71%
Seq Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	5338 MB/s +1%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	5272 MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	4767 MB/s -10%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4147 MB/s -21%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	4050 MB/s -23%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3786.44 MB/s -28%
Average of class Mini PC (291 - 6620, n=118, last 2 years)	3176 MB/s -40%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	2302 MB/s -56%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	2229 MB/s -58%
Seq Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3927 MB/s +16%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3385 MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3292 MB/s -3%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3025 MB/s -11%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2799.85 MB/s -17%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2442 MB/s -28%
Average of class Mini PC (240 - 5783, n=118, last 2 years)	2208 MB/s -35%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	609 MB/s -82%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	277 MB/s -92%
4K Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	103.66 MB/s +95%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	86.05 MB/s +62%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	78.3 MB/s +47%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	66.6 MB/s +25%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	59.79 MB/s +12%
Average of class Mini PC (6.08 - 104.3, n=118, last 2 years)	58.8 MB/s +11%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	53.2 MB/s
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	45 MB/s -15%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	27 MB/s -49%
4K Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	365.87 MB/s +207%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	240.66 MB/s +102%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	210.95 MB/s +77%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	209 MB/s +75%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	209 MB/s +75%
Average of class Mini PC (30.9 - 366, n=118, last 2 years)	175.8 MB/s +47%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	157 MB/s +32%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	150.4 MB/s +26%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	119.3 MB/s
4K-64 Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3035 MB/s +220%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1872.82 MB/s +98%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	1860.96 MB/s +97%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	1357.17 MB/s +43%
Average of class Mini PC (23.4 - 3220, n=118, last 2 years)	1149 MB/s +21%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1118 MB/s +18%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	947 MB/s
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	653 MB/s -31%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	631 MB/s -33%
4K-64 Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3120 MB/s +359%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3013 MB/s +344%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2842.9 MB/s +319%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	2602.12 MB/s +283%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2017.38 MB/s +197%
Average of class Mini PC (32.8 - 3731, n=118, last 2 years)	1446 MB/s +113%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	679 MB/s
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	567 MB/s -16%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	146.7 MB/s -78%
Access Time Read
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	0.15 ms * -13%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	0.141 ms * -6%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	0.133 ms *
Average of class Mini PC (0.022 - 0.489, n=118, last 2 years)	0.09706 ms * +27%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.074 ms * +44%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.066 ms * +50%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	0.065 ms * +51%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	0.047 ms * +65%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.045 ms * +66%
Access Time Write
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	0.263 ms * -199%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	0.183 ms * -108%
Average of class Mini PC (0.014 - 0.765, n=118, last 2 years)	0.1148 ms * -30%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	0.088 ms *
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	0.049 ms * +44%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.031 ms * +65%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	0.031 ms * +65%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.02 ms * +77%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.018 ms * +80%

* ... smaller is better

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0): Ø6430 (5686.85-6828.93)

Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0: Ø3302 (1830.49-4799.45)

Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8: Ø5127 (4403.6-5148.3)

Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0: Ø2987 (1605.58-4819.04)

Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G: Ø1770 (1505.89-1954.62)

Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G: Ø1820 (713.49-2039.48)

ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G: Ø2845 (145.88-3195.22)

Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ: Ø6536 (5743.42-6561.78)

图形卡 - iGPU，现在带有 RDNA3 基因

迚ケ谿オ譎る俣AMD Radeon 780M这是 UM790 Pro 最大的变化--与其安装的 SoC 相结合。该 iGPU 继承了AMD Radeon 680M，它已经将其竞争对手（Iris Xe 96 EU）压制住了。AMD 当前的 iGPU 可以很好地运行 SX12 游戏。遗憾的是，在本次比较中，我们注意到我们的测试样品无法完全跟上Beelink GTR7.尽管采用了相同的 iGPU，它还是落后了约 10%。Beelink 的 CPU 和 iGPU 之间的电源管理以及冷却系统似乎控制得更好一些。此外，Beelink GTR7 的 iGPU 最多可使用 8GB 内存，而我们的测试样品只能使用 2GB 内存。你可以在 BIOS 中进行调整，不过要让 iGPU 拥有 8GB 内存，至少需要 32GB 内存。我们只能给AMD Radeon 780M在电脑安装了 16GB 内存的情况下，我们最多只能让 AMD Radeon 780M 使用 4GB 内存。

Ace Magicician AM08 Pro 显示了AMD Radeon 680M 的性能。它仅落后 5%，几乎可以完全忽略不计。在较早的 DX11 基准测试中，我们没有发现基于 RDNA3 的新型 iGPU 有任何直接优势。同时，新型 iGPU 在 Computemark 测试中表现出色，遥遥领先。AMD 在与英特尔竞争对手的竞争中仍然很轻松。

有关进一步的比较和基准测试，请访问G PU 比较表。

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	100 pt
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	91.9 pt
ACEMagician Ace Magician AM08 Pro AMD Radeon 680M, AMD Ryzen 9 6900HX	87.3 pt
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	82 pt
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	81.3 pt
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	78.7 pt
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	59.3 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	58.5 pt

3DMark 11 - 1280x720 Performance GPU
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	12978 Points +5%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	12384 Points
ACEMagician Ace Magician AM08 Pro AMD Radeon 680M, AMD Ryzen 9 6900HX	11478 Points -7%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	11055 Points -11%
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	10845 Points -12%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	10399 Points -16%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7143 Points -42%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	7057 Points -43%

3DMark
2560x1440 Time Spy Graphics
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	2910 Points +11%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	2632 Points
ACEMagician Ace Magician AM08 Pro AMD Radeon 680M, AMD Ryzen 9 6900HX	2437 Points -7%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2408 Points -9%
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	2351 Points -11%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2210 Points -16%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1673 Points -36%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1658 Points -37%
1920x1080 Fire Strike Graphics
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	7980 Points +10%
ACEMagician Ace Magician AM08 Pro AMD Radeon 680M, AMD Ryzen 9 6900HX	7303 Points 0%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	7284 Points
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	6679 Points -8%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6644 Points -9%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6501 Points -11%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5526 Points -24%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5229 Points -28%
3840x2160 Fire Strike Ultra Graphics
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	2116 Points +11%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	1911 Points
ACEMagician Ace Magician AM08 Pro AMD Radeon 680M, AMD Ryzen 9 6900HX	1809 Points -5%
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	1691 Points -12%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	1634 Points -14%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	1563 Points -18%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1195 Points -37%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1184 Points -38%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1 | Affinity Photo 2

Performance Rating - Percent
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	89.3 pt
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	77.4 pt
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	74.4 pt
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	72.7 pt
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	72.4 pt
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	59.1 pt
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	54.6 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	34.6 fps +16%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	34.2 fps +15%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	33.6 fps +13%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	29.7 fps
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	28.9 fps -3%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	23.6 fps -21%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	23.3 fps -22%
Extreme Preset DX11
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	33.4 fps +7%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	32.6 fps +5%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	32.2 fps +4%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	32 fps +3%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	31.1 fps
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	24.5 fps -21%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	24 fps -23%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	21 fps +3%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	21 fps +3%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	20.4 fps
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	18.8 fps -8%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	15.3 fps -25%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	15.1 fps -26%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	14.3 fps -30%
1920x1080 Extreme HD Preset OpenGL AA:x8
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	22.9 fps +29%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	22.8 fps +29%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	21.3 fps +20%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	17.7 fps 0%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	17.7 fps
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	17 fps -4%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	15.2 fps -14%

ComputeMark v2.1
1024x600 Normal, Score
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	10495 Points
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	7111 Points -32%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	6834 Points -35%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	5813 Points -45%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	5602 Points -47%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	3603 Points -66%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	3390 Points -68%
1024x600 Normal, Fluid 3DTex
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	427 Points
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	413 Points -3%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	400 Points -6%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	393 Points -8%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	371 Points -13%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	284 Points -33%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	234 Points -45%
1024x600 Normal, Fluid 2DTexArr
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	427 Points
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	424 Points -1%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	404 Points -5%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	400 Points -6%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	367 Points -14%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	277 Points -35%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	249 Points -42%
1024x600 Normal, Mandel Vector
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	2984 Points
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	2030 Points -32%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	1914 Points -36%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1677 Points -44%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1582 Points -47%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	911 Points -69%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	851 Points -71%
1024x600 Normal, Mandel Scalar
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	2808 Points
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	1945 Points -31%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	1803 Points -36%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1473 Points -48%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1451 Points -48%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	865 Points -69%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	862 Points -69%
1024x600 Normal, QJuliaRayTrace
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3849 Points
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	2332 Points -39%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	2279 Points -41%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1924 Points -50%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1776 Points -54%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1268 Points -67%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1191 Points -69%

Affinity Photo 2 - Combined (Single / Multi GPU)
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	4590 Points +245%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	4176 Points +214%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	1909 Points +43%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1331 Points
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	748 Points -44%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	697 Points -48%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	697 Points -48%

3DMark 05 Standard		61534 points
3DMark 06 Standard Score		42265 points
3DMark Vantage P Result		40817 points
3DMark 11 Performance		12144 points
3DMark Ice Storm Standard Score		181195 points
3DMark Cloud Gate Standard Score		37479 points
3DMark Fire Strike Score		6827 points
3DMark Fire Strike Extreme Score		3506 points
3DMark Time Spy Score		2966 points
Help

... in comparison

游戏性能 - AMD Radeon 780M

虽然AMD Radeon 780M只是AMD Ryzen 9 7940HS的 iGPU，但它仍能在 Minisforum Venus 系列 UM790 Pro 中提供出色的性能。AMD Radeon 680M已经能够在中高细节级别下流畅地进行游戏。不过，我们的测试样本很快就达到了指定的 RAM 限制，这也是它与AMD Radeon 680M 相比仅有轻微提升的原因。.如果你想用 Minisforum Venus Series UM790 Pro 偶尔玩玩游戏，那么我们建议你选择 32 GB 的型号，这意味着你可以让 iGPU 使用 8 GB 的内存。我们建议您看看Beelink GTR7作为参考。

要了解 iGPU 与其他显卡相比的性能，请查看我们的GPU 游戏列表

The Witcher 3
1024x768 Low Graphics & Postprocessing
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	148.9 (122^min) fps +10%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	135.1 fps
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	131.8 fps -2%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	130.7 fps -3%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	113.9 fps -16%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	107.7 fps -20%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	101.7 fps -25%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	97.2 fps -28%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	50.2 (45^min) fps +16%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	43.3 fps
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	42.6 fps -2%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	41.3 fps -5%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	39.4 fps -9%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	39.3 fps -9%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	32 fps -26%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	31.1 fps -28%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	90.7 fps 0%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	90.4 fps
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	86.6 fps -4%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	82.1 fps -9%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	66.4 fps -27%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	59.1 fps -35%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	55.5 fps -39%
1920x1080 High Overall Quality (DX11)
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	29 fps
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	26.5 fps -9%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	26.2 fps -10%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	24.1 fps -17%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	17.7 fps -39%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	16.2 fps -44%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	16.2 fps -44%

GTA V
1024x768 Lowest Settings possible
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	164.7 (4.69^min, 111.1^P1) fps +4%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	157.8 (4.54^min, 111.1^P1) fps
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	155.4 (6.68^min, 111.1^P1) fps -2%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	152.1 (2.73^min, 100^P1) fps -4%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	149.3 (5.43^min, 100^P1) fps -5%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	135.3 (26.7^min, 90.9^P1) fps -14%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	126.2 (50.6^min, 76.9^P1) fps -20%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	125.5 (11.9^min, 83.3^P1) fps -20%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	68.6 (4.91^min, 45.5^P1) fps +15%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	59.7 (4.52^min, 40^P1) fps
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	53.5 (3.46^min, 38.5^P1) fps -10%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	52.2 (11.6^min, 26.3^P1) fps -13%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	49.3 (7.78^min, 34.5^P1) fps -17%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	49.2 (13.3^min, 33.3^P1) fps -18%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	21 (8.15^min, 16.1^P1) fps -65%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	20.7 (9.05^min, 15.9^P1) fps -65%

Far Cry 5
1280x720 Low Preset AA:T
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	80 (69^min) fps
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	75 (60^min) fps -6%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	73 (65^min) fps -9%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	71 (39^min) fps -11%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	68 (58^min) fps -15%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57 (49^min) fps -29%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	46 (37^min) fps -42%
1920x1080 High Preset AA:T
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	41 (36^min) fps
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	40 (35^min) fps -2%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	39 (34^min) fps -5%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	38 (32^min) fps -7%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	34 (30^min) fps -17%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	27 (24^min) fps -34%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	25 (22^min) fps -39%

Far Cry New Dawn
1280x720 Low Preset
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	70 (50^min) fps
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	66 (50^min) fps -6%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	65 (50^min) fps -7%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	64 (49^min) fps -9%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	58 (46^min) fps -17%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	52 (31^min) fps -26%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	52 (34^min) fps -26%
1920x1080 High Preset
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	40 (32^min) fps
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	39 (31^min) fps -2%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	37 (17^min) fps -7%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	37 (29^min) fps -7%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	36 (29^min) fps -10%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	28 (21^min) fps -30%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	28 (22^min) fps -30%

Dota 2 Reborn
1280x720 min (0/3) fastest
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	160.6 (139.7^min) fps +7%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	150.2 (132.8^min) fps
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	143 (124.5^min) fps -5%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	136.9 (106.8^min) fps -9%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	136.8 (122.1^min) fps -9%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	133.4 (119^min) fps -11%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	123.8 (98^min) fps -18%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	110.5 (93.1^min) fps -26%
1920x1080 high (2/3)
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	95.1 (84.3^min) fps +6%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	89.9 (78.3^min) fps
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	85.3 (74.5^min) fps -5%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	84.3 (74.6^min) fps -6%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	82.2 (71.4^min) fps -9%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	69.6 (59.3^min) fps -23%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	68 (62.7^min) fps -24%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	67.6 (59.9^min) fps -25%

Witcher 3 FPS diagram

Minisforum Venus Series UM790 Pro R9 7940HS, Radeon 780M: Ø28.1 (24-32)

	low	med.	high	ultra	QHD	4K
GTA V (2015)	157.8	146	59.7	23.6
The Witcher 3 (2015)	135.1	85.2	43.3	28.1	20.8	15.2
Dota 2 Reborn (2015)	150.2	116.1	89.9	80.3
Final Fantasy XV Benchmark (2018)	69.7	35.2	26
X-Plane 11.11 (2018)	60.3	43	36.5
Far Cry 5 (2018)	80	45	41	39
Strange Brigade (2018)	148.8	59.8	50.7	43.3	32.7	16.9
Shadow of the Tomb Raider (2018)	94.1	39.8	36.3	31.2
Far Cry New Dawn (2019)	70	42	40	37
Metro Exodus (2019)	81.1	32.2	25	20.9
Control (2019)	106.1	35.9	27.9		17.4	8.11
Borderlands 3 (2019)	90.4	45.2	29	23.4
Far Cry 6 (2021)	84.1	45.1	37.9
God of War (2022)	34.8	29	22.8	17.4
GRID Legends (2022)	106.1	81	61	46.7
Cyberpunk 2077 1.6 (2022)	44.6	36.3	28.6	26	15.8	6.42
Tiny Tina's Wonderlands (2022)	62.6	46.8	33.3	27.1
F1 22 (2022)	82.6	72.9	55.2
The Witcher 3 v4.00 (2023)	52.6	42.1	36.8	32	21.3	10.5
Diablo 4 (2023)	50.5	43.9	38.6	38
F1 23 (2023)	79.4	70.6	51.6
Starfield (2023)	30.7	26.3	21.3	19.1
Lies of P (2023)	51	45.2	40	37.6	24.2	11.9
Cyberpunk 2077 2.1 Phantom Liberty (2023)	44.6	35.6	28.2	26.3	16.3	7.16
Counter-Strike 2 (2023)	134.8	96.2	61.7	38.1	27	11.5
EA Sports FC 24 (2023)	107.8	98.4	78.2	71.9	51.7	26.8
Assassin's Creed Mirage (2023)	44	39	36	28	20	11
Total War Pharaoh (2023)	87.9	68.6	43.8	34.7	22.1	10.6
Lords of the Fallen (2023)	33.6	26.5	17.2	11.7	7.28	3.4
Alan Wake 2 (2023)	24.3	21.5	20.1		13	5.98
EA Sports WRC (2023)	42.4	29	25.5	23.9	16
Call of Duty Modern Warfare 3 2023 (2023)	68	61	45	41	28	15
Avatar Frontiers of Pandora (2023)	25	22	19	16
The Finals (2023)	76.2	58.5	52.3	37	22.1	9.7
Ready or Not (2023)	57.1	53.7	51.5	34.1	20.5	9.2
Prince of Persia The Lost Crown (2024)		158.4	127.7	120.2	75.9	39.8
Palworld (2024)	46.9	39.9	29.4	26	17.7	8.9
Enshrouded (2024)	24.5	20.8	17.8	14.2
Helldivers 2 (2024)	30.1	23	20.9	20	13.2
Skull & Bones (2024)	39	35	29
Last Epoch (2024)	46.9	36.7	32.8	26.9	16.5
Alone in the Dark (2024)	65.5	51.3	41.7	19.5	11.3
Horizon Forbidden West (2024)	27.7	23.6	17.5
Ghost of Tsushima (2024)	32.5	26.5	23	14.9
Senua's Saga Hellblade 2 (2024)	17.5	13.4	9.8
F1 24 (2024)	76.8	64.4	47.3

通过 eGPU 底座和 NvidiaGeForce RTX 3060 Ti 实现 3D 性能

由于 Minisforum Venus 系列 UM790 Pro 配备了两个 USB-4 端口，我们将其与 Razer Core X 和 Nvidia RTX 3060 Ti 结合使用，对其性能进行了测试。英伟达GeForce RTX 3060 Ti.在测试中，我们记录了使用这种组合后 3D 性能的显著提升。在使用相同配件的对比设备中，我们也发现了类似的性能提升。在直接对比中，Minisforum Venus Series UM790 Pro 取得了中等偏上的成绩。几乎没有其他设备能接近英特尔 NUC 13 Pro 套件。不过，它的领先优势有限。

配备 Razer Core X 和 NvidiaGeForce RTX 3060 Ti 的 Minisforum Venus Series UM790 Pro

配备 Razer Core X 和 NvidiaGeForce RTX 3060 Ti 的 Minisforum Venus 系列 UM790 Pro

Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	99.5 pt
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	98.9 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	97.3 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	97.1 pt
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	96.9 pt
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	96.3 pt

3DMark 11 - 1280x720 Performance GPU
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	33577 Points +171%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	33282 Points +169%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	33147 Points +168%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32915 Points +166%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32835 Points +165%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32726 Points +164%
	12384 Points

3DMark
2560x1440 Time Spy Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	11031 Points +319%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	11012 Points +318%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10777 Points +309%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	10764 Points +309%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10743 Points +308%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10717 Points +307%
	2632 Points
1920x1080 Fire Strike Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	25669 Points +252%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	25163 Points +245%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24905 Points +242%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24657 Points +239%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	24452 Points +236%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24360 Points +234%
	7284 Points
3840x2160 Fire Strike Ultra Graphics
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	7114 Points +272%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	7076 Points +270%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	7036 Points +268%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	6996 Points +266%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6977 Points +265%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6967 Points +265%
	1911 Points

Unigine Superposition
1280x720 720p Low
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	33051 Points +202%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	31403 Points +187%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	28935 Points +164%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	28235 Points +158%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	27744 Points +154%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	27313 Points +150%
	10940 Points
1920x1080 1080p High
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	15114 Points +355%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	14936 Points +349%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	14751 Points +344%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	14698 Points +342%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	14660 Points +341%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	14362 Points +332%
	3324 Points
1920x1080 1080p Extreme
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	7146 Points +334%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	7129 Points +333%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	7036 Points +327%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	7035 Points +327%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6971 Points +324%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	6894 Points +319%
	1646 Points
3840x2160 4k Optimized
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	9335 Points
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	9308 Points
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	9193 Points
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	9152 Points
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	9039 Points
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	8782 Points
7680x4320 8k Optimized
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	4061 Points
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	4050 Points
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	4036 Points
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	3989 Points
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	3966 Points
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	3910 Points

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	143.1 fps +601%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	139.8 fps +585%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	134.2 fps +558%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	133 fps +552%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	131.7 fps +546%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	131.4 fps +544%
	20.4 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	125.8 fps +611%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	125.7 fps +610%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	122.7 fps +593%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	122.2 fps +590%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	121.1 fps +584%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	119.2 fps +573%
	17.7 fps

Unigine Heaven 4.0
Extreme Preset OpenGL
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	169.6 fps +471%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	169 fps +469%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	167.3 fps +463%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	167.3 fps +463%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	163.2 fps +449%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	160.7 fps +441%
	29.7 fps
Extreme Preset DX11
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	164.8 fps +430%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	161.9 fps +421%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	154.5 fps +397%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	154.3 fps +396%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	152.4 fps +390%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	147.7 fps +375%
	31.1 fps

ComputeMark v2.1
1024x600 Normal, Score
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	27929 Points +166%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	27847 Points +165%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	27842 Points +165%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	27811 Points +165%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	27740 Points +164%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	27460 Points +162%
	10495 Points
1024x600 Normal, Fluid 3DTex
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2691 Points +530%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	2689 Points +530%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	2689 Points +530%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	2681 Points +528%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2679 Points +527%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2667 Points +525%
	427 Points
1024x600 Normal, Fluid 2DTexArr
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2622 Points +514%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	2621 Points +514%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2619 Points +513%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	2619 Points +513%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	2614 Points +512%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2598 Points +508%
	427 Points
1024x600 Normal, Mandel Vector
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	5738 Points +92%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	5726 Points +92%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	5694 Points +91%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	5689 Points +91%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	5655 Points +90%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	5606 Points +88%
	2984 Points
1024x600 Normal, Mandel Scalar
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	6317 Points +125%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6306 Points +125%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	6275 Points +123%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	6253 Points +123%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6251 Points +123%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6202 Points +121%
	2808 Points
1024x600 Normal, QJuliaRayTrace
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	10564 Points +174%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	10555 Points +174%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	10548 Points +174%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10539 Points +174%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10536 Points +174%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10388 Points +170%
	3849 Points

Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	98.3 pt
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	96.6 pt
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	95.9 pt
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	91.2 pt
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	88.6 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	86.4 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	84.6 pt

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	100.6 (9.76^min, 66.7^P1 - 197.6^max) fps +326%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	96.6 (15^min, 66.7^P1 - 168.7^max) fps +309%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	93.6 (18.1^min, 66.7^P1 - 185.1^max) fps +297%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	93.3 (11.5^min, 58.8^P1 - 195.1^max) fps +295%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	90.5 (15.8^min, 62.5^P1 - 187.2^max) fps +283%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	89.5 (16.6^min, 58.8^P1 - 175.8^max) fps +279%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	88.7 (13.3^min, 22.2^P1 - 196.2^max) fps +276%
	23.6 (2.03^min, 16.1^P1 - 246^max) fps

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	74.8 fps +166%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	73.8 fps +163%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	64.8 fps +131%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	58.4 fps +108%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	57.9 fps +106%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	56.4 fps +101%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	56.3 fps +100%
	28.1 fps

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	128.3 (106.8^min) fps +60%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	127.5 (110.1^min) fps +59%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	126.2 (108.1^min) fps +57%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	121.2 (104.6^min) fps +51%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	113.8 (93.5^min) fps +42%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	113.3 (94.8^min) fps +41%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	111.7 (92.8^min) fps +39%
	80.3 (71.5^min) fps

Final Fantasy XV Benchmark - 1920x1080 High Quality
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	98.7 fps +280%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	98.5 fps +279%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	97.4 fps +275%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	93.5 fps +260%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	92.2 fps +255%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	91.8 fps +253%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	91.5 fps +252%
	26 fps

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	157.9 (77.9^min, 97.3^P1 - 300^max) fps +265%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	150 (76.6^min, 93.3^P1 - 295^max) fps +246%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	147 (76.9^min, 90.8^P1 - 300^max) fps +239%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	138.4 (68^min, 84.1^P1 - 279^max) fps +220%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	135 (67.5^min, 82.2^P1 - 274^max) fps +212%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	131.1 (68.1^min, 78.3^P1 - 270^max) fps +203%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	127.4 (45.3^min, 77.9^P1 - 260^max) fps +194%
	43.3 (11.1^min, 16.3^P1 - 253^max) fps

Far Cry 5 - 1920x1080 Ultra Preset AA:T
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	117 (88^min - 156^max) fps +200%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	116 (88^min - 153^max) fps +197%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	114 (85^min - 152^max) fps +192%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	111 (90^min - 149^max) fps +185%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	111 (86^min - 148^max) fps +185%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	107 (72^min - 143^max) fps +174%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	104 (77^min - 138^max) fps +167%
	39 (35^min - 46^max) fps

Far Cry New Dawn - 1920x1080 Ultra Preset
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	99 fps +168%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	97 (69^min - 141^max) fps +162%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	95 (69^min - 143^max) fps +157%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	93 (68^min - 140^max) fps +151%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	92 (65^min - 143^max) fps +149%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	88 (63^min - 132^max) fps +138%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	87 (62^min - 135^max) fps +135%
	37 (28^min - 46^max) fps

Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	83.2 fps +256%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	82.8 fps +254%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	80.8 fps +245%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	79.5 fps +240%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	77.9 fps +233%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	76.4 fps +226%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	69.8 fps +198%
	23.4 fps

F1 22 - 1920x1080 Ultra High Preset AA:T AF:16x
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	31.2 (18^min, 9^P1 - 46^max) fps
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	28.5 (16^min, 8^P1 - 46^max) fps
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	27.8 (18^min, 7^P1 - 38^max) fps
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	24.1 (13^min, 7^P1 - 40^max) fps
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	23.6 (12^min, 6^P1 - 38^max) fps
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	22.6 (13^min, 6^P1 - 36^max) fps
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	20.5 (12^min, 6^P1 - 29^max) fps

Tiny Tina's Wonderlands - 1920x1080 Badass Preset (DX12)
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	81.7 fps +201%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	80.7 fps +198%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	80.4 fps +197%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	76 fps +180%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	75.3 fps +178%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	74.8 fps +176%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	74.1 fps +173%
	27.1 fps

	low	med.	high	ultra	QHD	4K DLSS	4K
GTA V (2015)	183.4	177.2	145.7	88.7	72.2		84.1
The Witcher 3 (2015)	213.1	147.7	112.2	58.4			62.6
Dota 2 Reborn (2015)	161.6	146.2	143.9	128.3			100.2
Final Fantasy XV Benchmark (2018)	198.9	137	93.5		75.1		47.1
X-Plane 11.11 (2018)	133.9	118.2	92				78.7
Far Cry 5 (2018)	152	129	123	116	94		56
Strange Brigade (2018)	186.2	146.7	143.2	138.4	121		80.3
Shadow of the Tomb Raider (2018)	123.3	95.5	94.4	91.2	79.4		52.4
Far Cry New Dawn (2019)	128	111	108	97	89		58
Metro Exodus (2019)	119.2	79.9	60.9	45.8	40.9		31.2
Borderlands 3 (2019)	136.7	119.4	96.2	79.5	62.2		37.7
Far Cry 6 (2021)	64.9	55.8	46.4	39.1	38.9
God of War (2022)	102.6	91.2	78.9	60.4	54.9		39.3
GRID Legends (2022)	109.2	85.3	69.4	60.2	54.4		44
Tiny Tina's Wonderlands (2022)	162.2	127.9	93	76	59		35
F1 22 (2022)	51	46.1	36.1	24.1	22.3		17.5
F1 23 (2023)	58.9	55.2	44.5	29	27.3	26.7	15.5

排放 - 安静且出奇地节俭

噪音排放

在噪音测量中，Minisforum Venus Series UM790 Pro 的表现相对不明显。在空闲模式下，我们注意到 31.7 dB(A) 的较低值，而在平均负载情况下，该值约为 32.8 dB(A)。在压力测试中，我们注意到最大值为 35.2 dB(A)，这意味着微型电脑可以安静地工作。我们没有注意到任何高音调的呜呜声，这可能会导致噪音水平主观上看起来更大。相比之下，Minisforum Venus Series UM790 Pro 的噪音值处于平均值的中上水平。只有NAD9在我们的测试中安静得多。

Noise Level

Idle		31.7 / 31.7 / 31.7 dB(A)
Load		32.8 / 35.2 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Audix TM-1 (15 cm distance) environment noise: 29.7 dB(A)

	Minisforum Venus Series UM790 Pro R9 7940HS, Radeon 780M	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Beelink GTR7 7840HS R7 7840HS, Radeon 780M	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Geekom AS 6, R9 6900HX R9 6900HX, Radeon 680M	ACEMagician Ace Magician AM08 Pro R9 6900HX, Radeon 680M	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs
Noise		5%	1%	-1%	-1%	-7%	-13%	-5%
off / environment *	29.7	30.2 -2%	25.6 14%	30.5 -3%	30.4 -2%	30 -1%	30 -1%	29.8 -0%
Idle Minimum *	31.7	30.5 4%	28.1 11%	31.6 -0%	30.9 3%	33.2 -5%	31.3 1%	30.2 5%
Idle Average *	31.7	30.5 4%	28.1 11%	31.6 -0%	31.5 1%	33.6 -6%	31.3 1%	31.1 2%
Idle Maximum *	31.7	30.5 4%	28.1 11%	31.6 -0%	31.5 1%	33.6 -6%	31.4 1%	31.9 -1%
Load Average *	32.8	30.5 7%	34.9 -6%	33.9 -3%	37.5 -14%	36.8 -12%	47.6 -45%	40 -22%
Witcher 3 ultra *	32.8		36.4 -11%
Load Maximum *	35.2	30.5 13%	42.4 -20%	34.4 2%	34.1 3%	39.8 -13%	47.8 -36%	40.5 -15%

* ... smaller is better

温度

在我们的测试中，Minisforum Venus Series UM790 Pro 的机箱仅有一点点发热。在负载情况下，共有两个风扇负责提供低温。一个风扇通过设备底部冷却内存和固态硬盘，另一个风扇通过顶部冷却 SoC。在实际使用中，我们已经注意到两块固态硬盘的散热效果都很好，没有因为温度过高而出现任何节流现象。AMD Ryzen 9 7940HS 的散热也很可靠，在 Prime95 压力测试中，它的最高温度达到了 84.6 °C。SoC 的最大功率为 65 瓦，也得到了充分利用。SoC 的总功耗平均为 57 瓦。

Minisforum Venus Series UM790 Pro 与压力测试（正面）

Minisforum Venus Series UM790 Pro 与压力测试（背面）

耗电量

120 瓦电源与 Minisforum Venus 系列 UM790 Pro 的对比

我们在评测其他微型电脑时经常遇到这种情况，即使用众所周知的 120 瓦电源为电脑供电。相比之下，Minisforum Venus Series UM790 Pro 在功耗方面非常节俭。在空闲模式下，我们的测量设备显示的值为 4.6 至 10.6 瓦，这意味着我们的测试设备取得了良好的平均成绩。在平均负载下，我们注意到与 Beelink GTR 类似的数值，即 72.5 瓦。不过，两者的最大值还是有相当大的差距。Minisforum 维纳斯系列 UM790 Pro 的最大功率为 95 瓦，是一款相当节俭的设备，它与UM690和Geekom AS 6.

这意味着它的电源为 Minisforum Venus Series UM790 Pro 提供了足够的能量。

Power Consumption

Off / Standby	0.6 / 3.4 Watt
Idle	4.6 / 6 / 10.6 Watt
Load	72.5 / 94.6 Watt


Key: min: , med: , max: Metrahit Energy

	Minisforum Venus Series UM790 Pro R9 7940HS, Radeon 780M	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Beelink GTR7 7840HS R7 7840HS, Radeon 780M	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Geekom AS 6, R9 6900HX R9 6900HX, Radeon 680M	ACEMagician Ace Magician AM08 Pro R9 6900HX, Radeon 680M	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	Average AMD Radeon 780M	Average of class Mini PC
Power Consumption		-74%	-1%	-28%	-43%	-19%	-37%	-2%	-8%	-45%
Idle Minimum *	4.6	12.1 -163%	5.5 -20%	8.7 -89%	9.9 -115%	6.8 -48%	9.6 -109%	5.1 -11%	6.29 ?(2.7 - 14, n=47) -37%	9.59 ?(1.9 - 45.7, n=119, last 2 years) -108%
Idle Average *	6	13 -117%	5.8 3%	9.6 -60%	11 -83%	9.4 -57%	9.9 -65%	5.8 3%	8.47 ?(4.7 - 17.6, n=47) -41%	11.5 ?(1.9 - 47.5, n=118, last 2 years) -92%
Idle Maximum *	10.6	18.2 -72%	7.7 27%	10.5 1%	11.2 -6%	13.7 -29%	11.8 -11%	10.2 4%	10.9 ?(5.4 - 27, n=47) -3%	14.9 ?(2.6 - 57.1, n=119, last 2 years) -41%
Load Average *	72.5	70.6 3%	70.6 3%	65.8 9%	74.2 -2%	45.3 38%	77.5 -7%	68.1 6%	56.4 ?(19.7 - 93.2, n=46) 22%	57.6 ?(11.3 - 170.6, n=119, last 2 years) 21%
Cyberpunk 2077 ultra external monitor *	95.7
Load Maximum *	94.6	113 -19%	111.8 -18%	94.5 -0%	103.2 -9%	94.8 -0%	89.8 5%	108.3 -14%	75.7 ?(34.9 - 111.8, n=47) 20%	97.3 ?(18.1 - 423, n=119, last 2 years) -3%
Witcher 3 ultra *			79.8

* ... smaller is better

Power consumption with external monitor

Minisforum Venus Series UM790 Pro; Prime95 V2810 Stress (external Monitor): Ø89 (87.1-94.5)

Minisforum Venus Series UM790 Pro; Cinebench R15 Multi (external Monitor): Ø89 (83.2-91.1)

Minisforum Venus Series UM790 Pro; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø64.8 (58.9-89.8)

Minisforum Venus Series UM790 Pro; 1920x1080 The Witcher 3 ultra (external Monitor): Ø73.9 (70.9-87.7)

Minisforum Venus Series UM790 Pro; Idle 1min (external Monitor): Ø6.05 (5.54-10.6)

Pros

+ 采用优质材料制成的坚固紧凑的机箱

+ AMD Ryzen 9 7940HS，8 核 16 线程

+ 采用 RDNA3 架构的现代 iGPU

+ 高速内存（DDR5-5600）

+ 稳定的 CPU 性能

+ 美观的设计

+ 良好的 iGPU 性能

+ 大量 USB 端口，包括 USB4 和 Thunderbolt

+ 可同时连接多达四台显示器

+ 强大的冷却功能

+ 功耗相对较低

Cons

- 无 SD 读卡器

- 5 GHz 频率下的无线局域网性能

- 螺丝不易触及

结论 - 功能强大的全能型产品，胜过英特尔 NUC 13 Pro

Minisforum Venus 系列 UM790 Pro 评测：Minisforum 提供的测试样品

Minisforum Venus 系列 UM790 Pro 是一款基于最新组件的功能非常强大的迷你 PC。其 AMD Ryzen 9 7940HS 既快又省钱。此外，它的 AMD Radeon 780M iGPU 性能非常强大，能够胜任一两款游戏。不过，这台计算小野兽还缺少一点额外的性能，使其成为一台真正的游戏电脑。Minisforum Venus 系列 UM790 Pro 完全适合日常办公使用。这款迷你电脑可以毫不费力地胜任这些工作，甚至不会在要求最苛刻的任务中挣扎。这台 8 核电脑始终能提供出色的性能，并配有出色的冷却系统，这意味着它始终能充分发挥其性能潜力。事实证明，即使是永久性负载对这款设备来说也不成问题。这是微型电脑的典型特征，在Minisforum NAD 9.

Minisforum Venus 系列 UM790 Pro 是一款拥有强大 iGPU 的出色迷你 PC。不过，与 Minisforum Venus Series UM690 相比，我们并没有注意到它的性能有多大提升。

我们尤其喜欢这款电脑的构造、设计和材料选择，无论是外观还是触感都给人一种高品质的感觉。它的连接选项也非常出色，这意味着大多数用户都会满意。两个 USB4 端口很不错，不过，我们认为到 2023 年，这个端口应该成为标准配置，以便让设备尽可能面向未来。

就价格而言，Minisforum Venus Series UM790 Pro 的定位符合预期--大多数提供相同性能的竞争对手的电脑价格都差不多。它的主要竞争对手是Beelink GTR7价格与 UM790 Pro 相同，功能也相同。如果您决定购买 Minisforum UM690，您现在可以节省大约 100 美元，但您必须自己决定您可能面临的优势和劣势。

价格和供应情况

Minisforum Venus 系列 UM790 Pro 目前可直接从上预订。.目前有大量预购优惠。配备 32 GB 内存和 512 GB 固态硬盘的版本售价为 669 美元。裸机版本售价 519 美元。

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Minisforum Venus Series UM790 Pro - 02/26/2024 v7 ^(old)
Sebastian Bade

Chassis

84 / 98 → 86%

Connectivity

59 / 81 → 73%

Weight

80%

Games Performance

70%

Application Performance

97%

Workstation

77%

Noise

85%

Average

79%

83%

Mini PC - Weighted Average

潜在的竞争对手比较

Minisforum Venus 系列 UM790 Pro 的详细介绍

外壳 - 高品质金属，完美无瑕

尺寸比较

连接性

交流

配件

维护

性能 - 8 核 16 线程的 Ryzen 9 7940HS

测试条件

处理器

Minisforum Venus Series UM790 Pro 与 Cinebench R15 多环路比较

DPC 延迟

存储设备

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

图形卡 - iGPU，现在带有 RDNA3 基因

游戏性能 - AMD Radeon 780M

Witcher 3 FPS diagram

通过 eGPU 底座和 NvidiaGeForce RTX 3060 Ti 实现 3D 性能

排放 - 安静且出奇地节俭

噪音排放

温度

耗电量

Power consumption with external monitor

Pros

Cons

结论 - 功能强大的全能型产品，胜过英特尔 NUC 13 Pro

价格和供应情况

Transparency

More articles related to this device
