Morefine M600 6600U台式电脑评论：配备AMD Ryzen 5 6600U、32GB内存和USB4的实惠迷你电脑

Name: Morefine M600, 6600U
Brand: Morefine

全程安静!

我们已经能够看看配备AMD Ryzen 9 6900HX的顶级Morefine M600--现在，是时候看看配备AMD Ryzen 5 6600U的M600，这也是AMD Rembrandt系列的一部分。在这篇评论中，你可以看看这个中端SoC在我们的测试中表现如何，以及这个模型是否值得购买。

Sebastian Bade (translated by DeepL / Ninh Duy), Published 05/16/2023 🇺🇸 🇩🇪 ...

AMD Desktop Mini PC Ryzen (Zen)

我们最近分析了顶级的莫里芬M600 6900HX的性能--至少可以说是令人印象深刻。现在，是时候让我们看看Morefine M600 6600U了，它拥有AMD Ryzen 5 6600U，CPU性能略低--尽管其其他功能是相同的。反过来，这意味着我们也可以对其现代端口（如USB4）感到兴奋。我们设法得到了Morefine M600 6600U的裸机版本。目前，它的MRSP为388美元。在我们的测试中，我们利用了Morefine M600 6900HX的可用组件，这意味着我们的测试设备还配备了32GB DDR5内存和创见的512GB SSD。

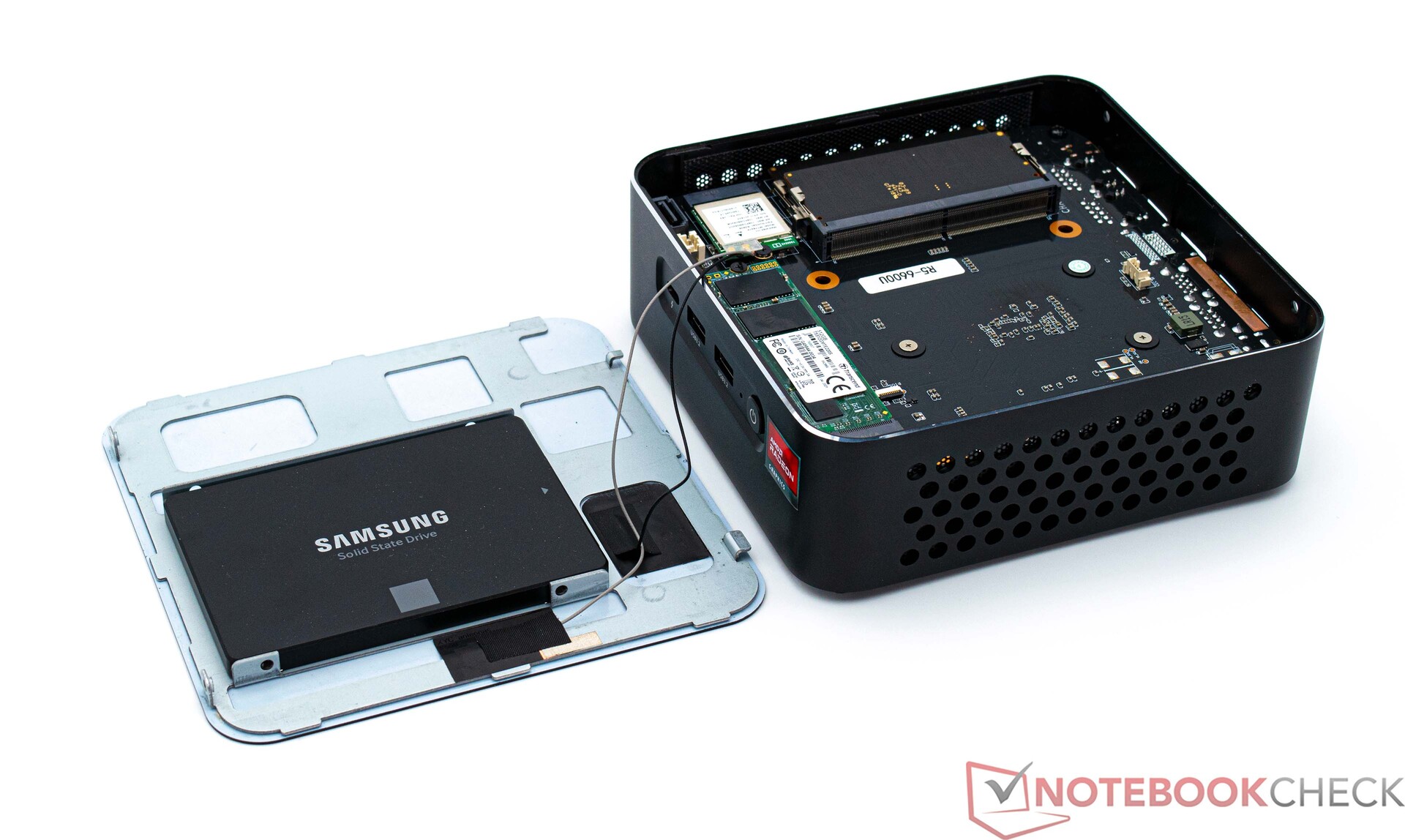

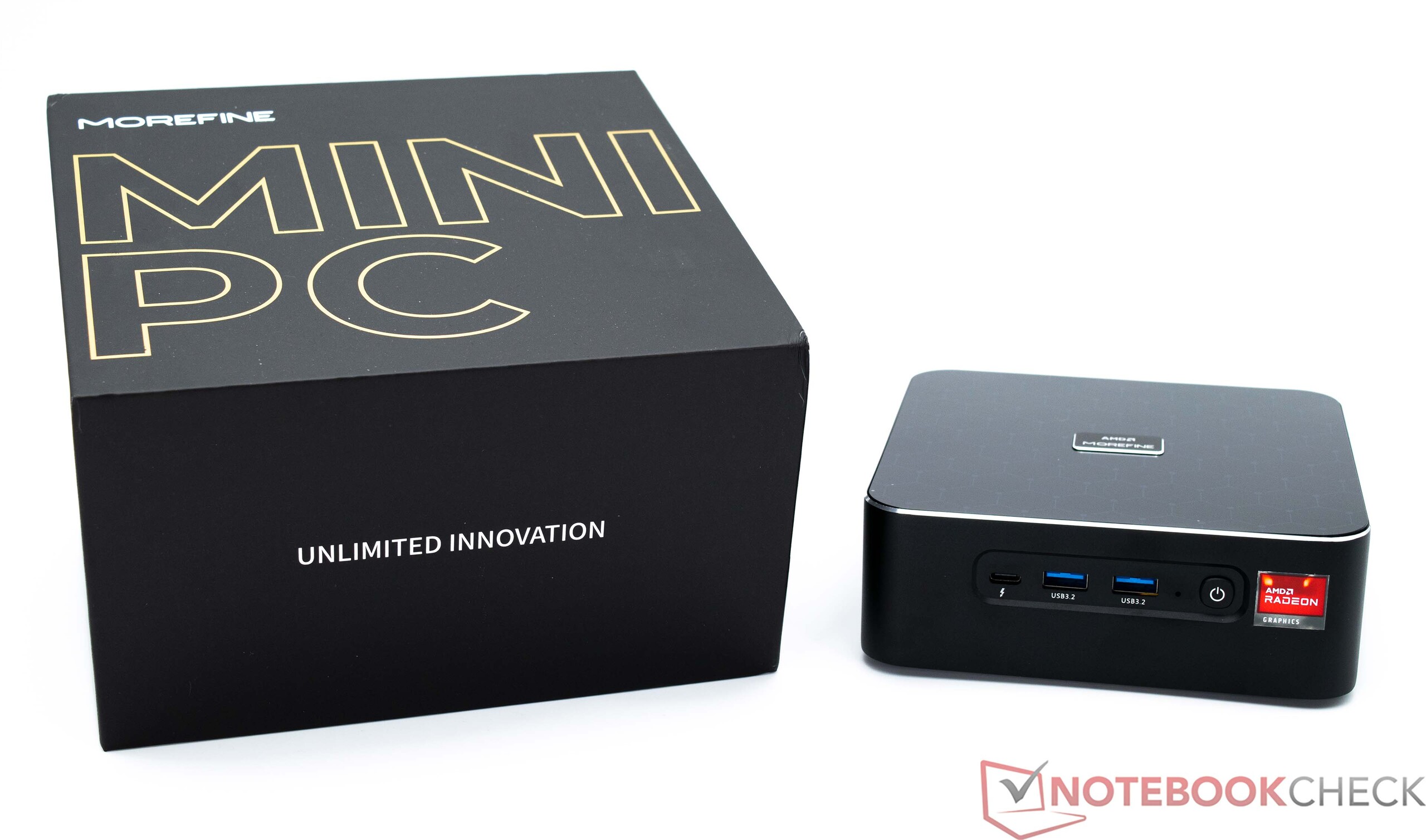

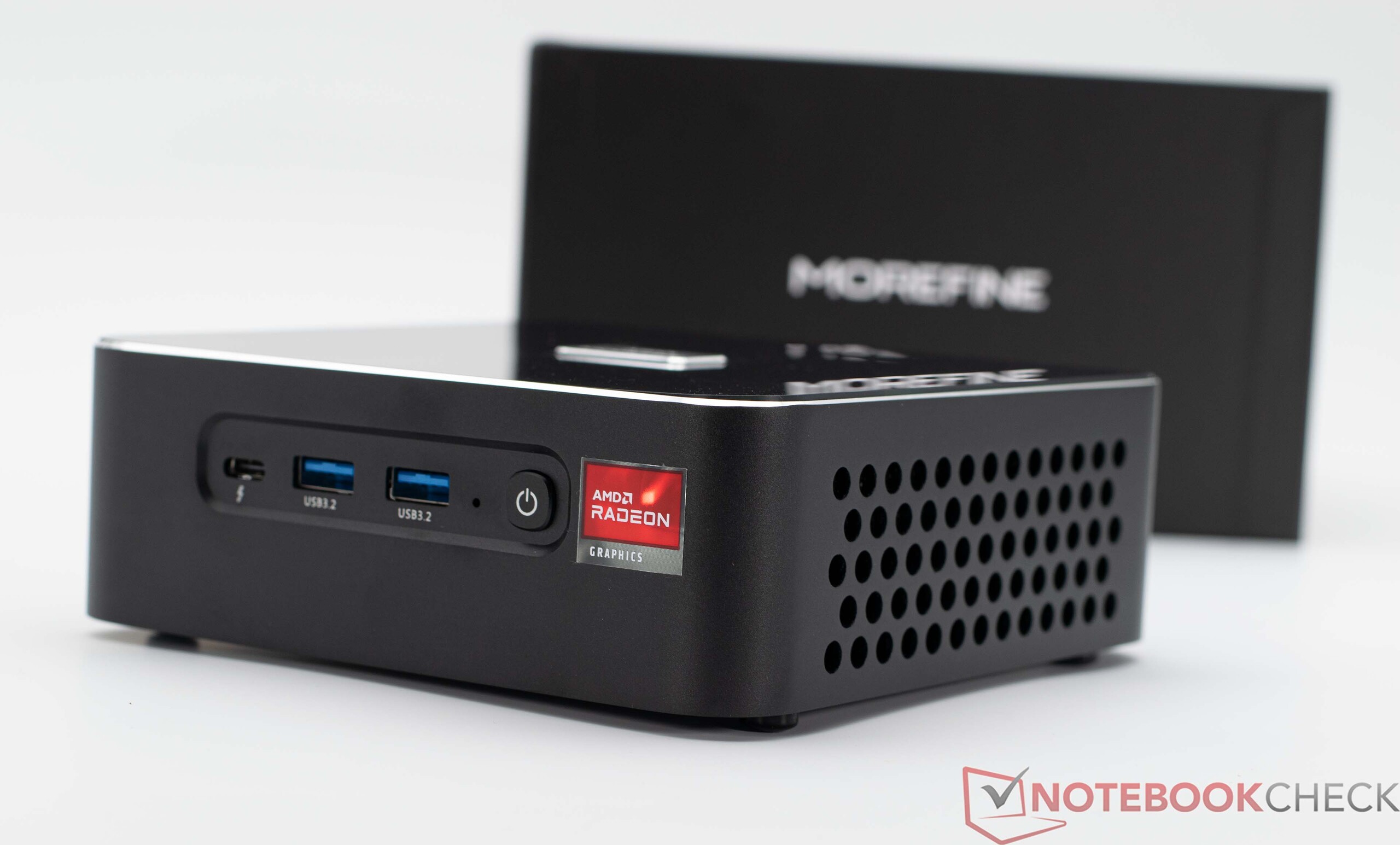

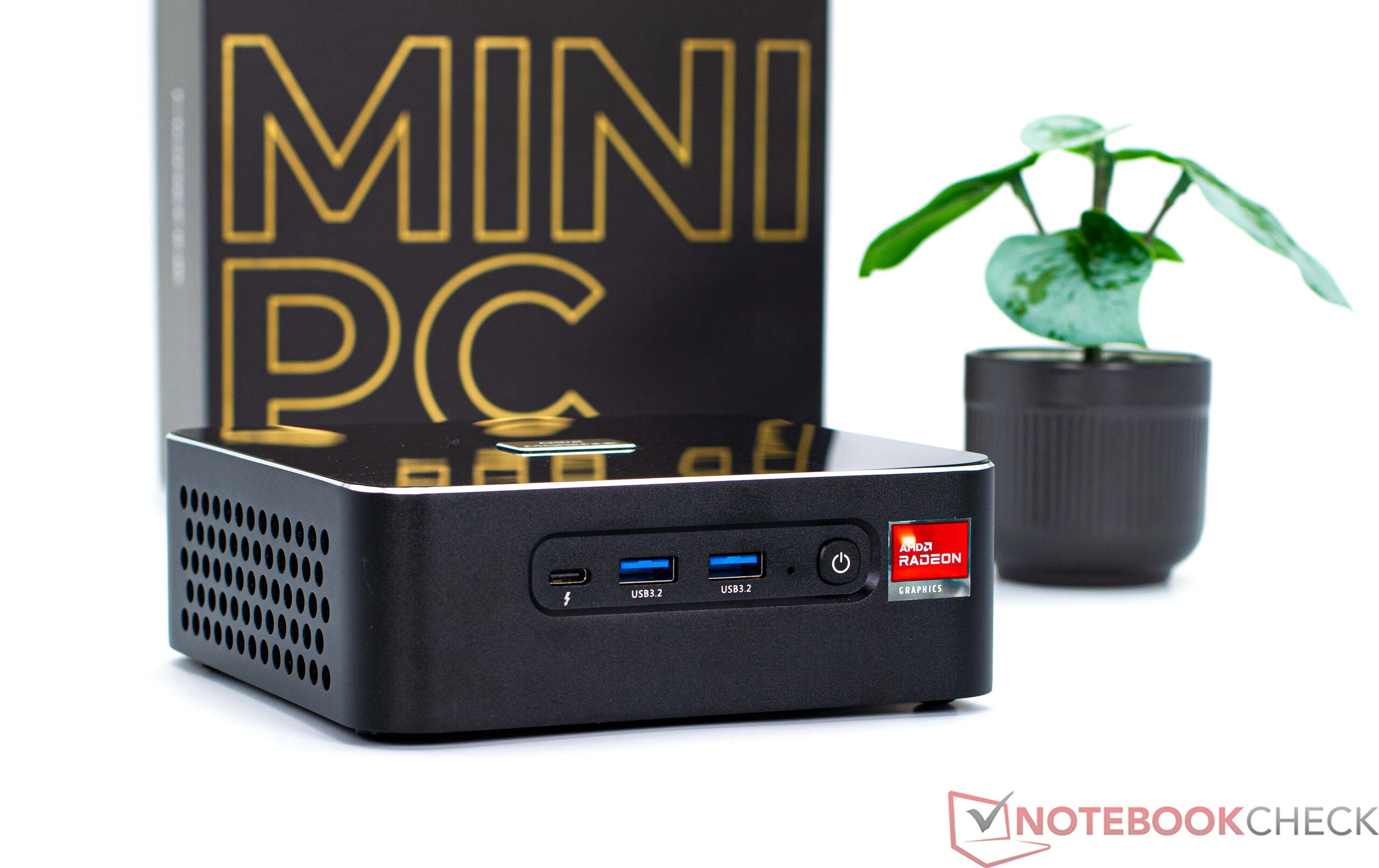

Morefine M600 6600U采用了视觉上吸引人的包装，并贴有金色标签。交付的范围包括所有必要的部件。这台电脑甚至还配有一个安装板，以便将其连接到显示器（VESA安装）。该设备最多可以安装三块固态硬盘--在这里，所有必要的电缆也都包括在内。在这次审查中，我们将仔细看看它与顶级型号相比的性能，后者的基本配置要多出200美元左右。这个较高的价格是合理的，还是选择入门机型有意义？我们还选择了MinisForum、Geekom和英特尔的设备作为直接竞争对手，与我们的设备进行比较。你可以在下面的表格中找到这些设备的清单。

Test device courtesy of Morefine

Download your licensed rating image as PNG / SVG

Morefine M600, 6600U

Processor

AMD Ryzen 5 6600U 6 x 2.9 - 4.5 GHz, 28 W PL2 / Short Burst, 28 W PL1 / Sustained, Rembrandt-U (Zen 3+)

Graphics adapter

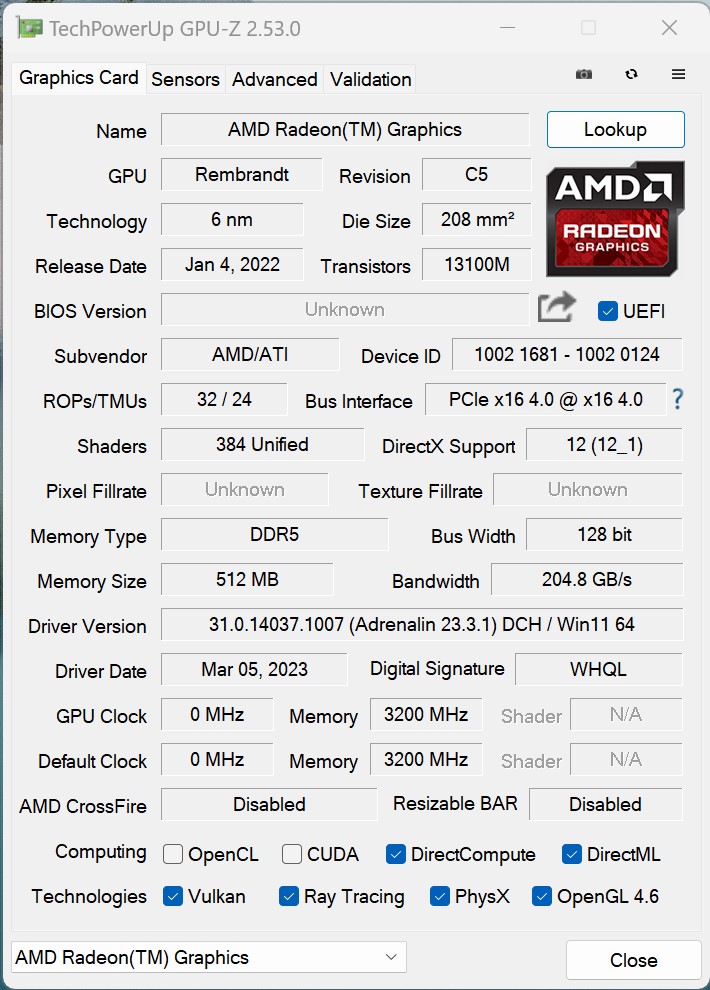

AMD Radeon 660M, Adrenalin 23.3.1

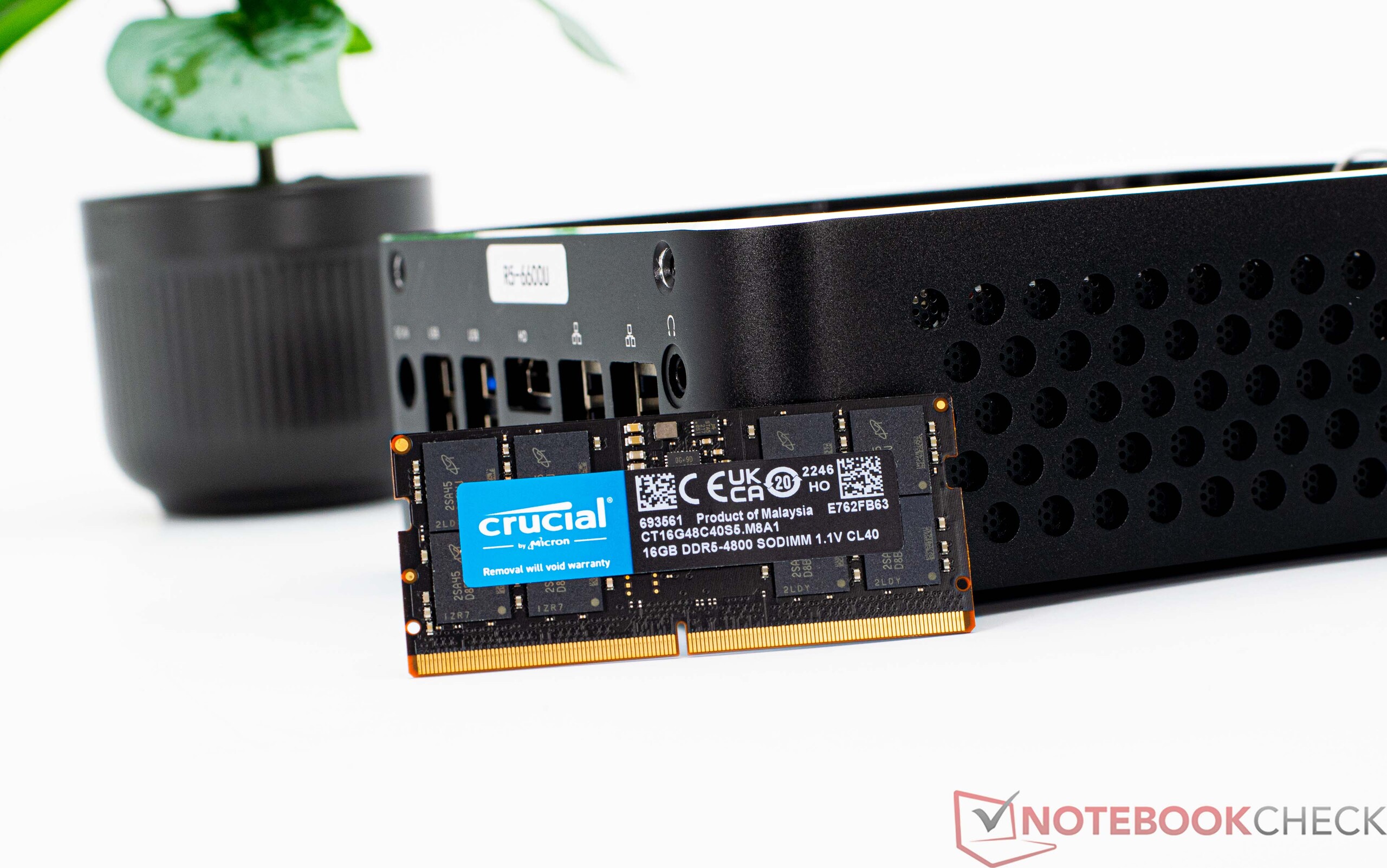

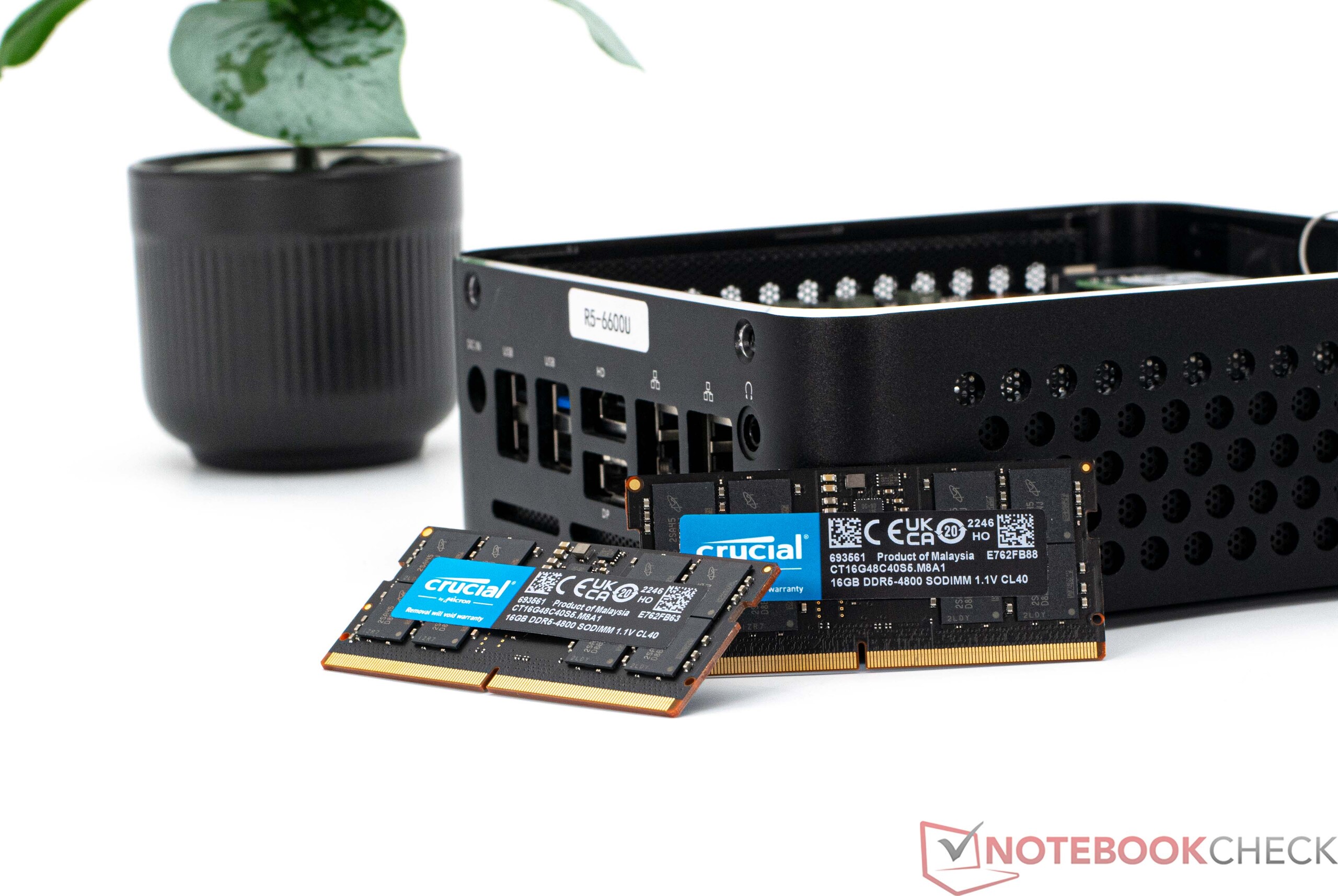

Memory

32 GB

, DDR5-4800 MT/s, 2 von 2 installiert, max. 64 GB

Mainboard

AMD Promontory/Bixby FCH

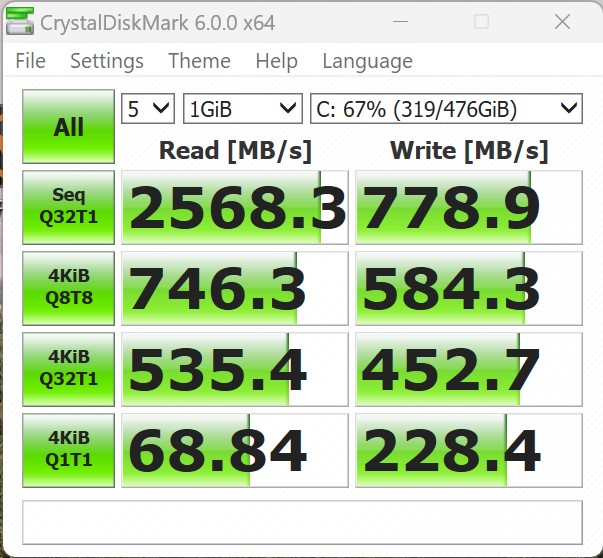

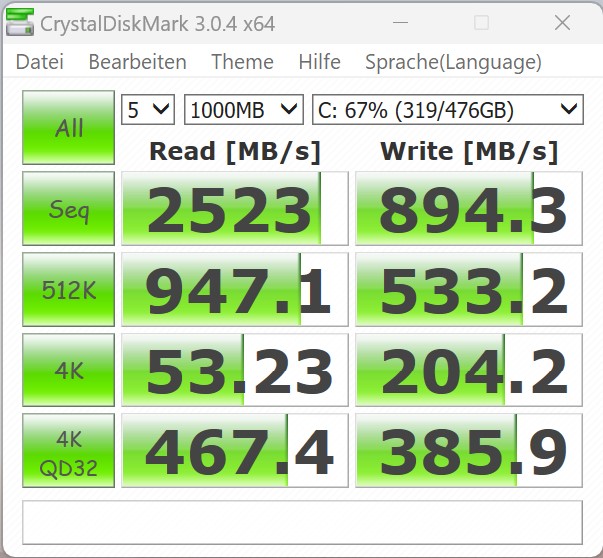

Storage

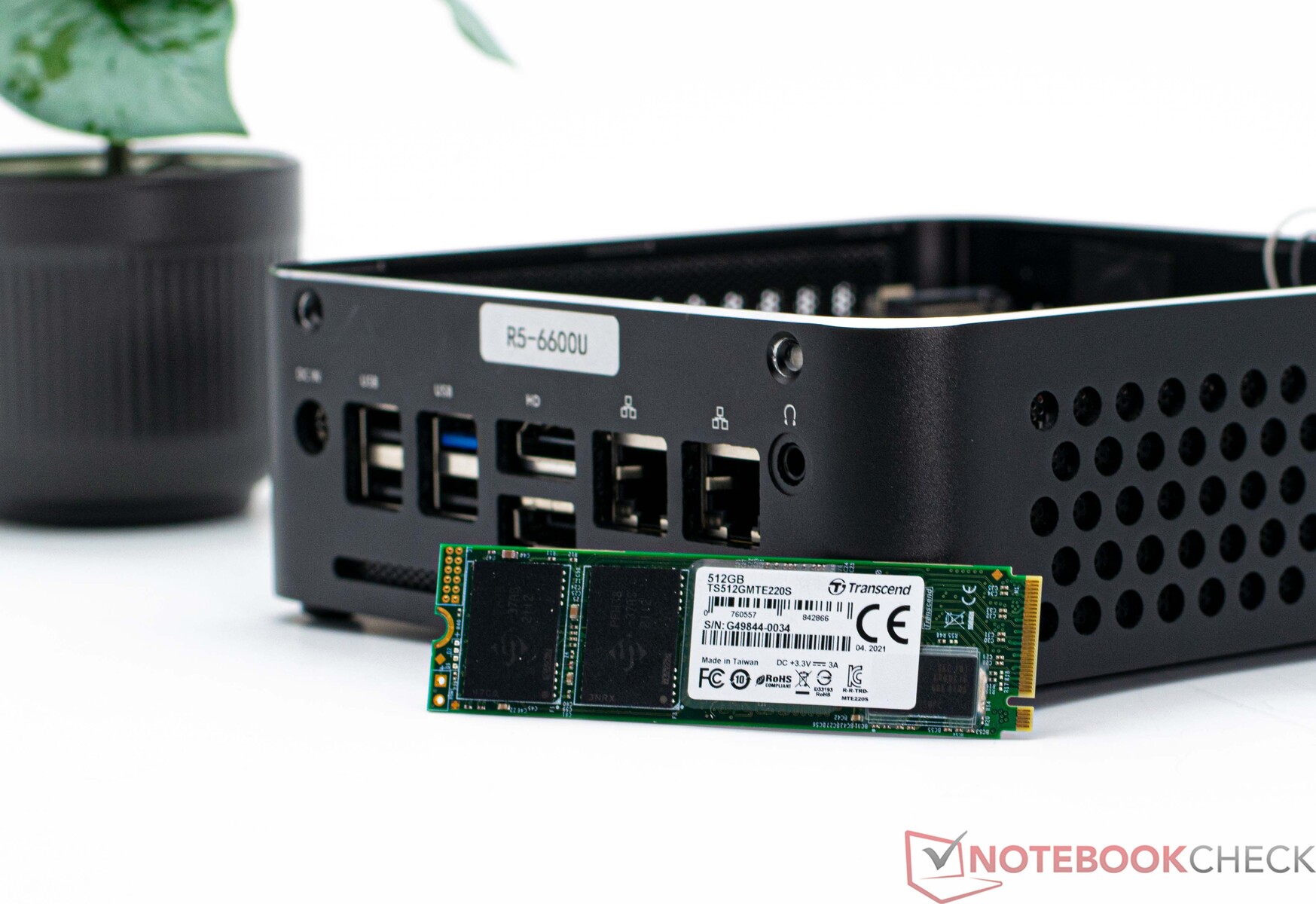

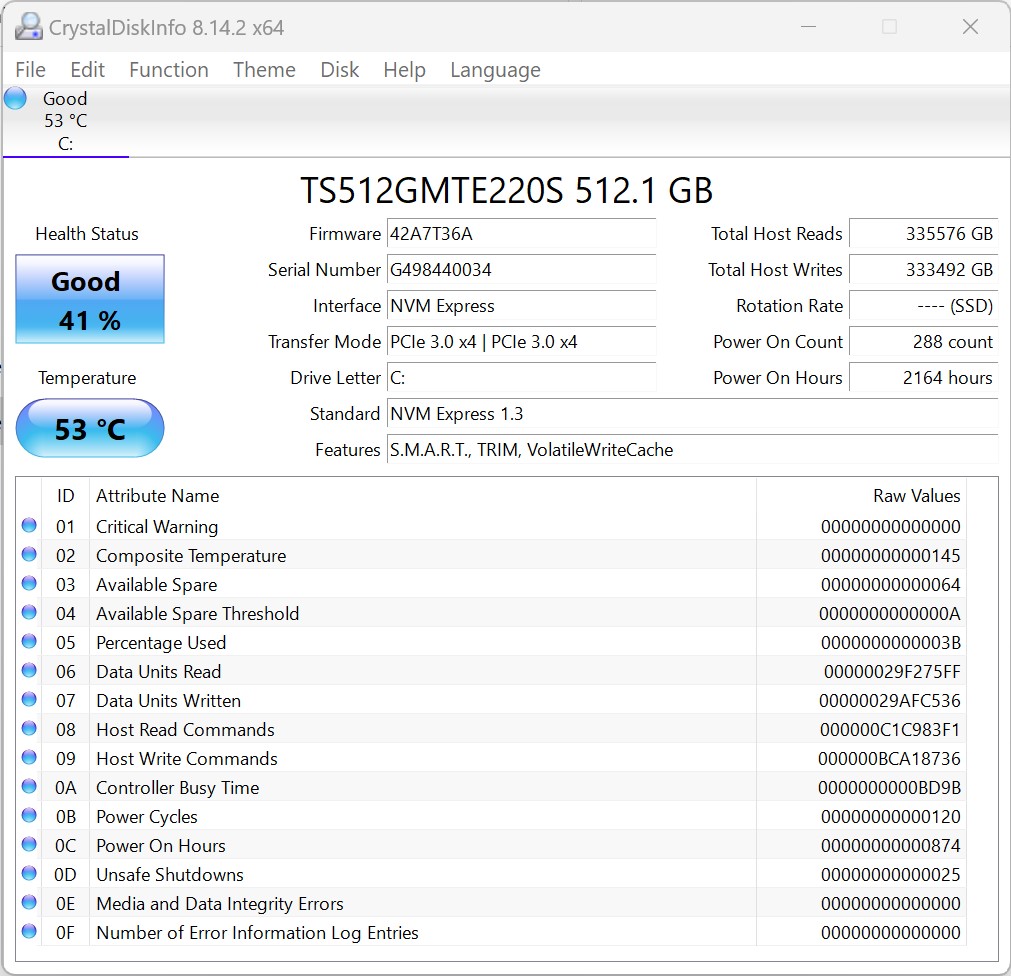

Transcend M.2 SSD 2200S TS512GMTE220S, 512 GB

, M.2 2280, NVMe

Soundcard

AMD Zen - Audio Processor - HD Audio Controller

Connections

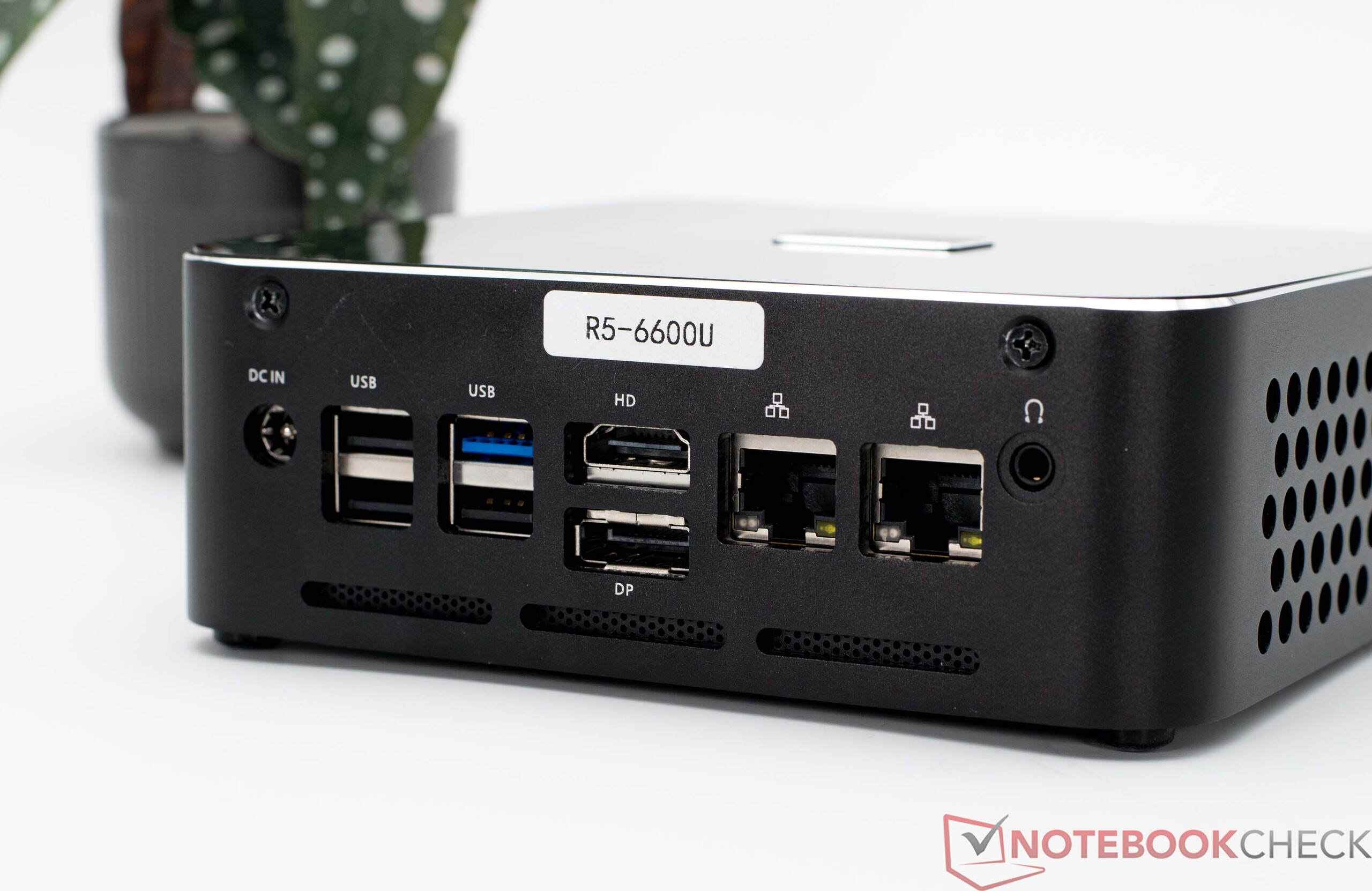

2 USB 2.0, 2 USB 3.1 Gen2, 1 USB 4.0 40 Gbps, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, Audio Connections: 3,5mm Klinke, Realtek RTL8125 2.5 GBe Family Ethernet Controller

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Size

height x width x depth (in mm): 40.6 x 147.3 x 144.7

Operating System

Microsoft Windows 11 Pro

Additional features

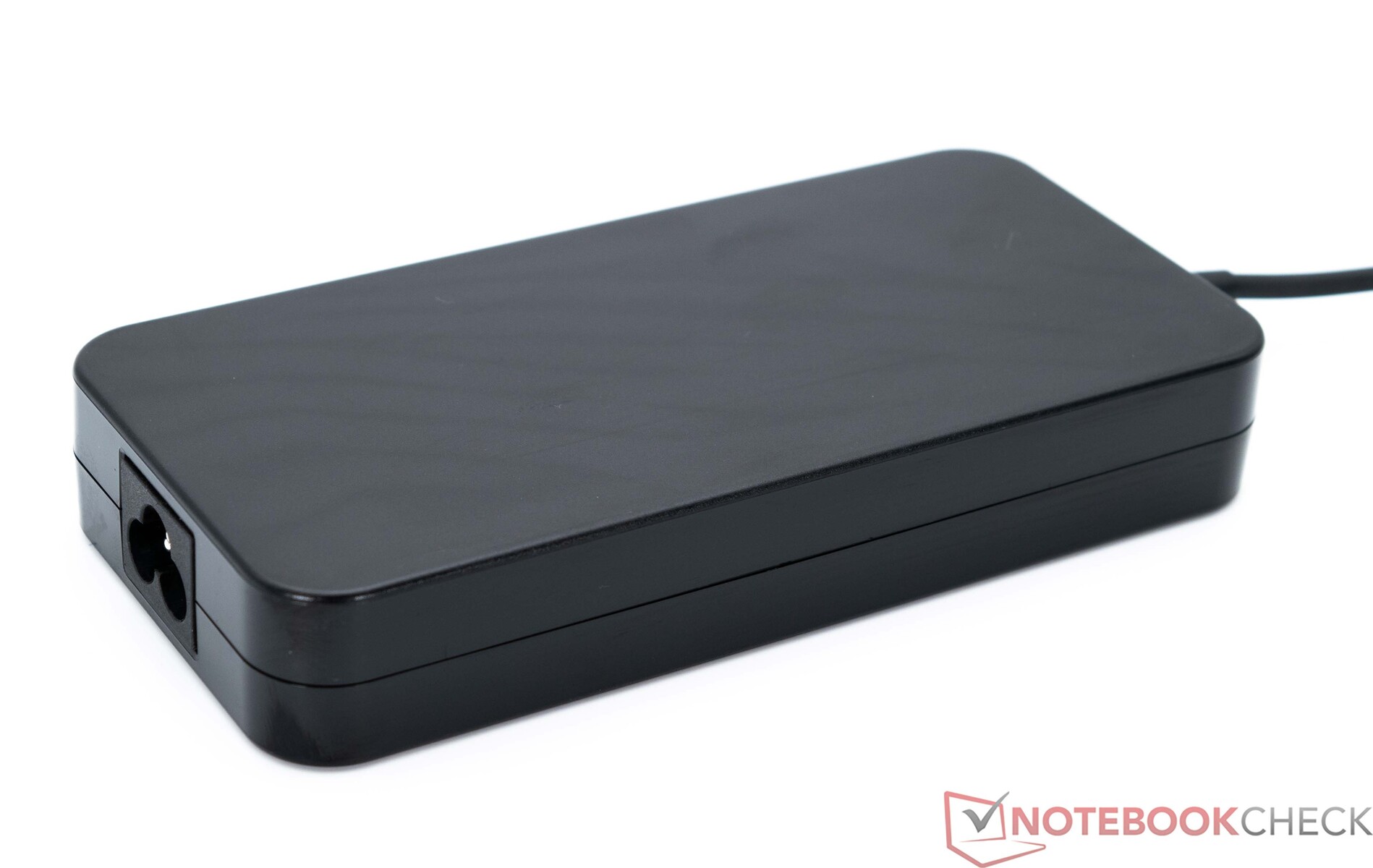

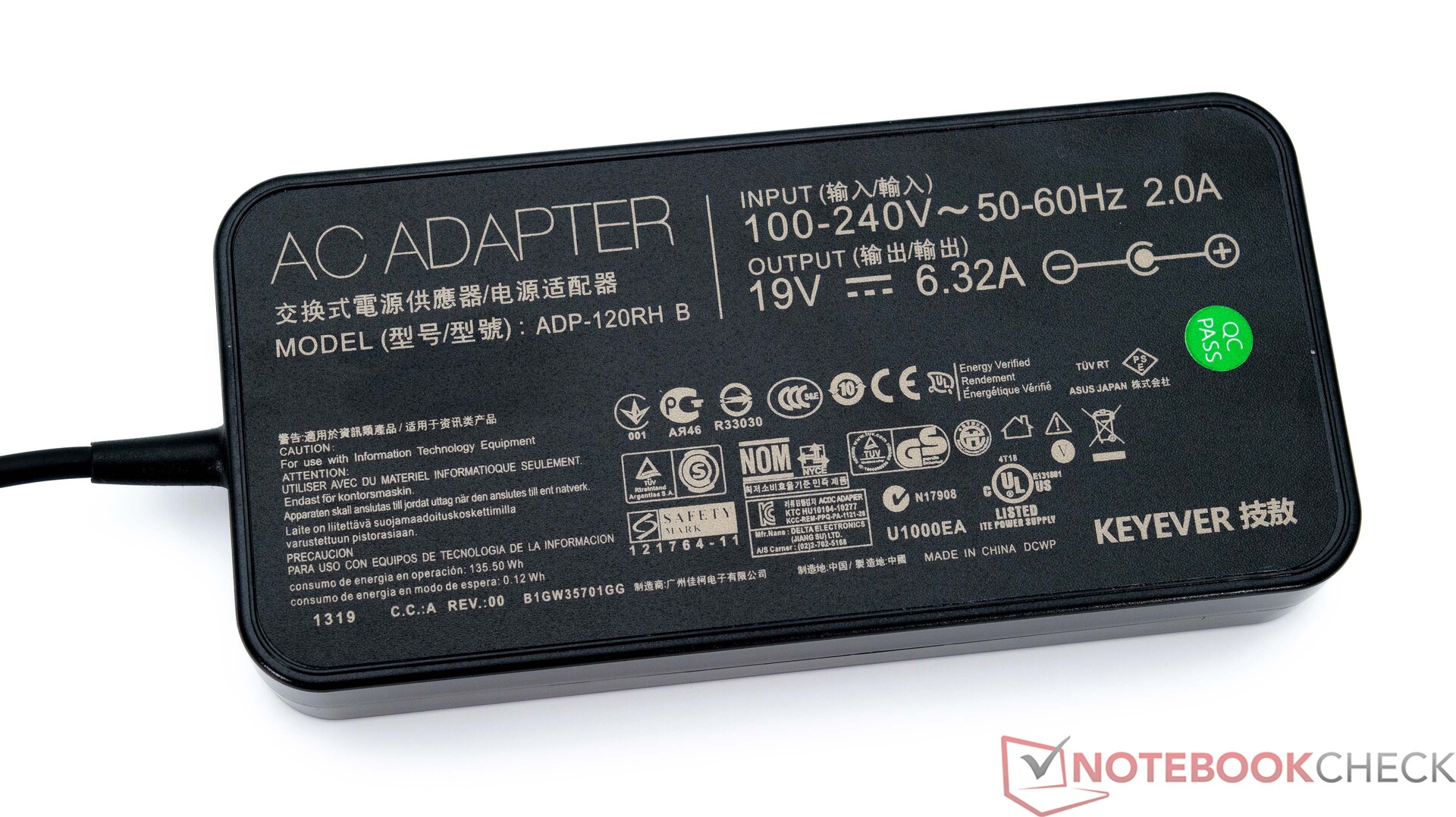

120-Watt-Netzteil, 24 Months Warranty

Weight

768 g, Power Supply: 372 g

Price

552 USD

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height
83.7 % v7 ^(old)	05 / 2023	Morefine M600, 6600U R5 6600U, Radeon 660M	768 g	40.6 mm
85.5 % v7 ^(old)	03 / 2023	Morefine M600, 6900HX R9 6900HX, Radeon 680M	779 g	40.6 mm
86.1 % v7 ^(old)	02 / 2023	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	621 g	48 mm
78.9 % v7 ^(old)	11 / 2022	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	511 g	37 mm
85.1 % v7 ^(old)	01 / 2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
v ^(old)	01 / 2022	Morefine S500+ R9 5900HX, Vega 8	697 g	40 mm
v7 ^(old)	09 / 2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 g	53 mm
v ^(old)	06 / 2022	Minisforum EliteMini B550 R7 5700G, Vega 8	1.1 kg	67 mm

配备AMD Ryzen 5 6600U的Morefine M600的详细信息

案例

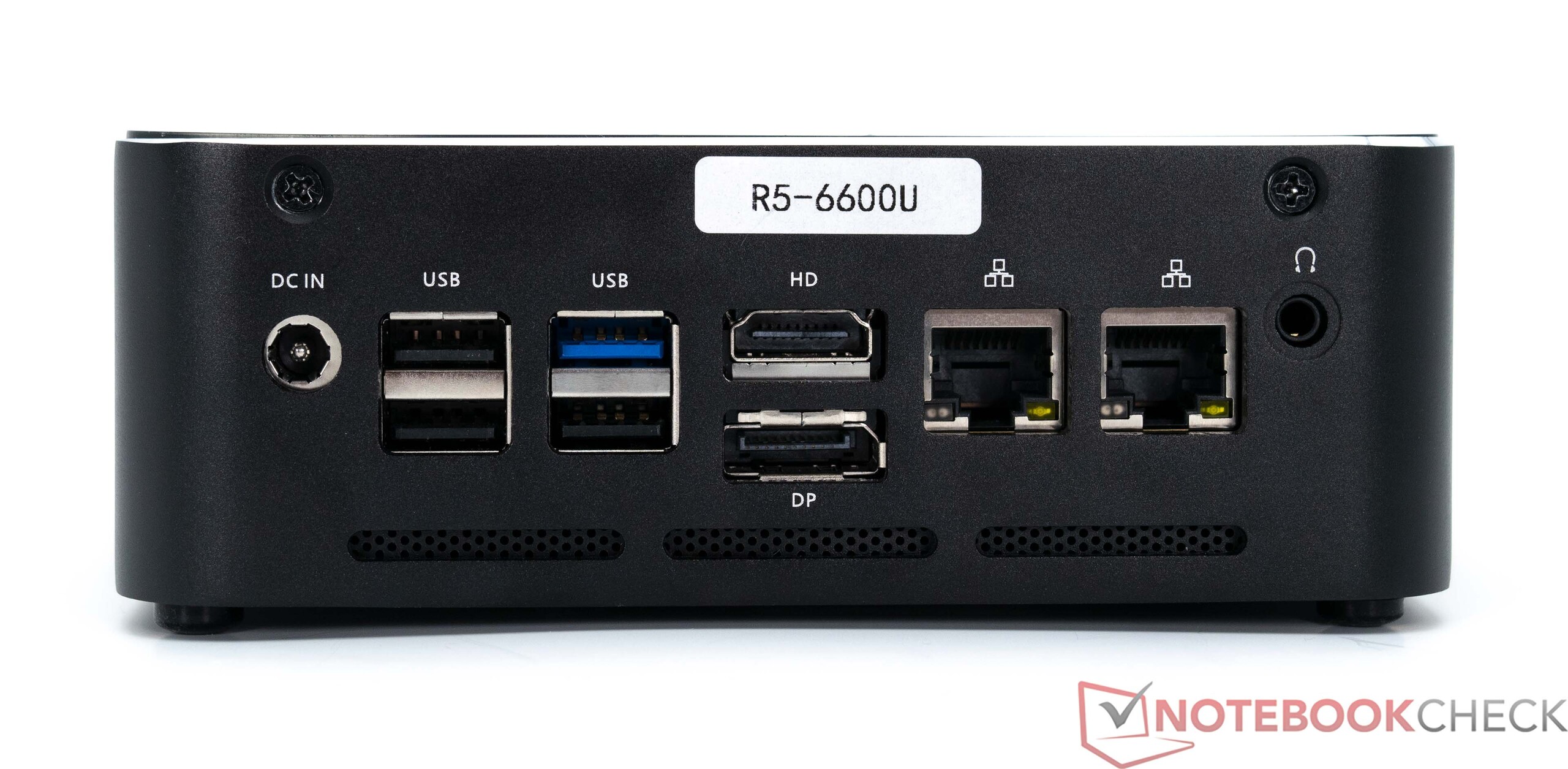

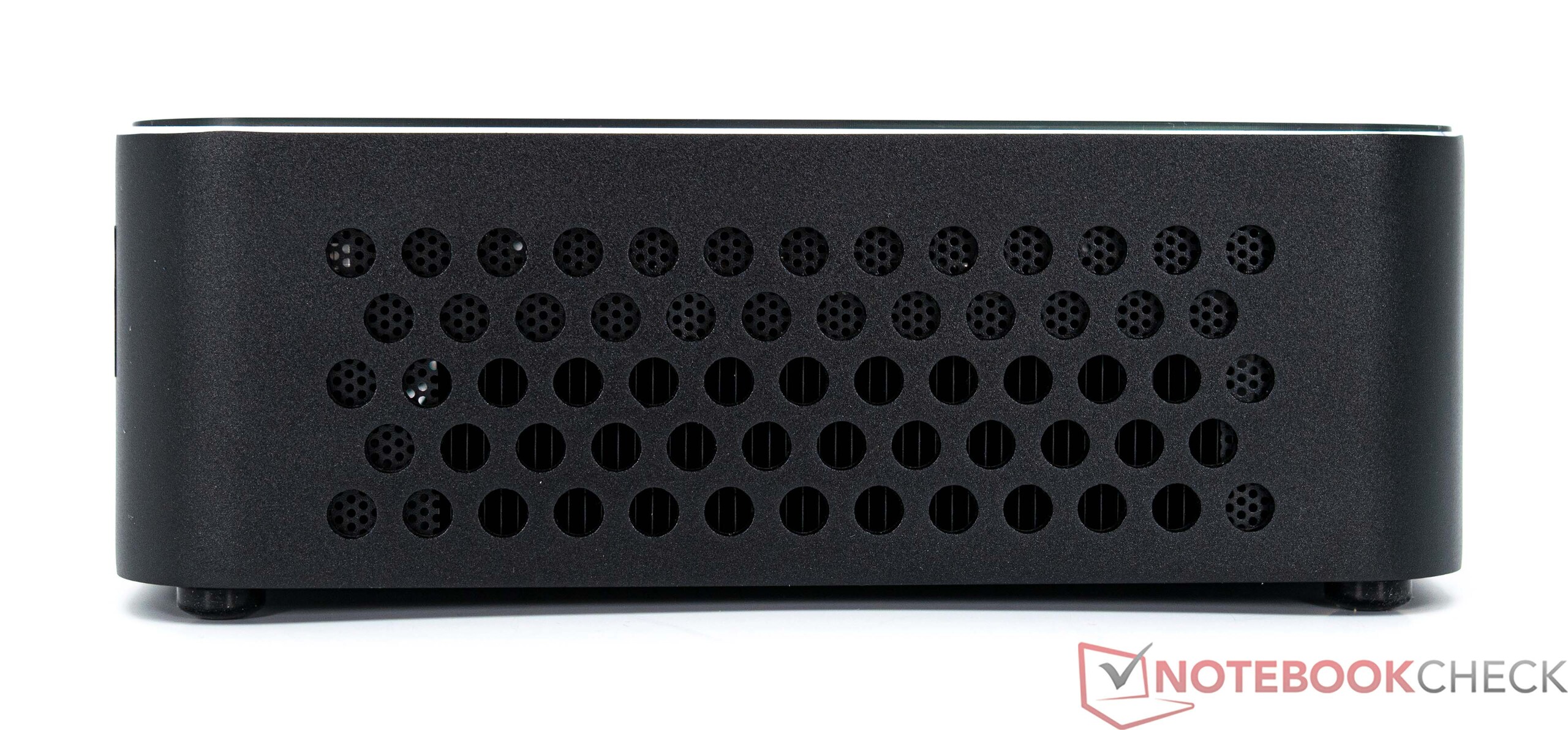

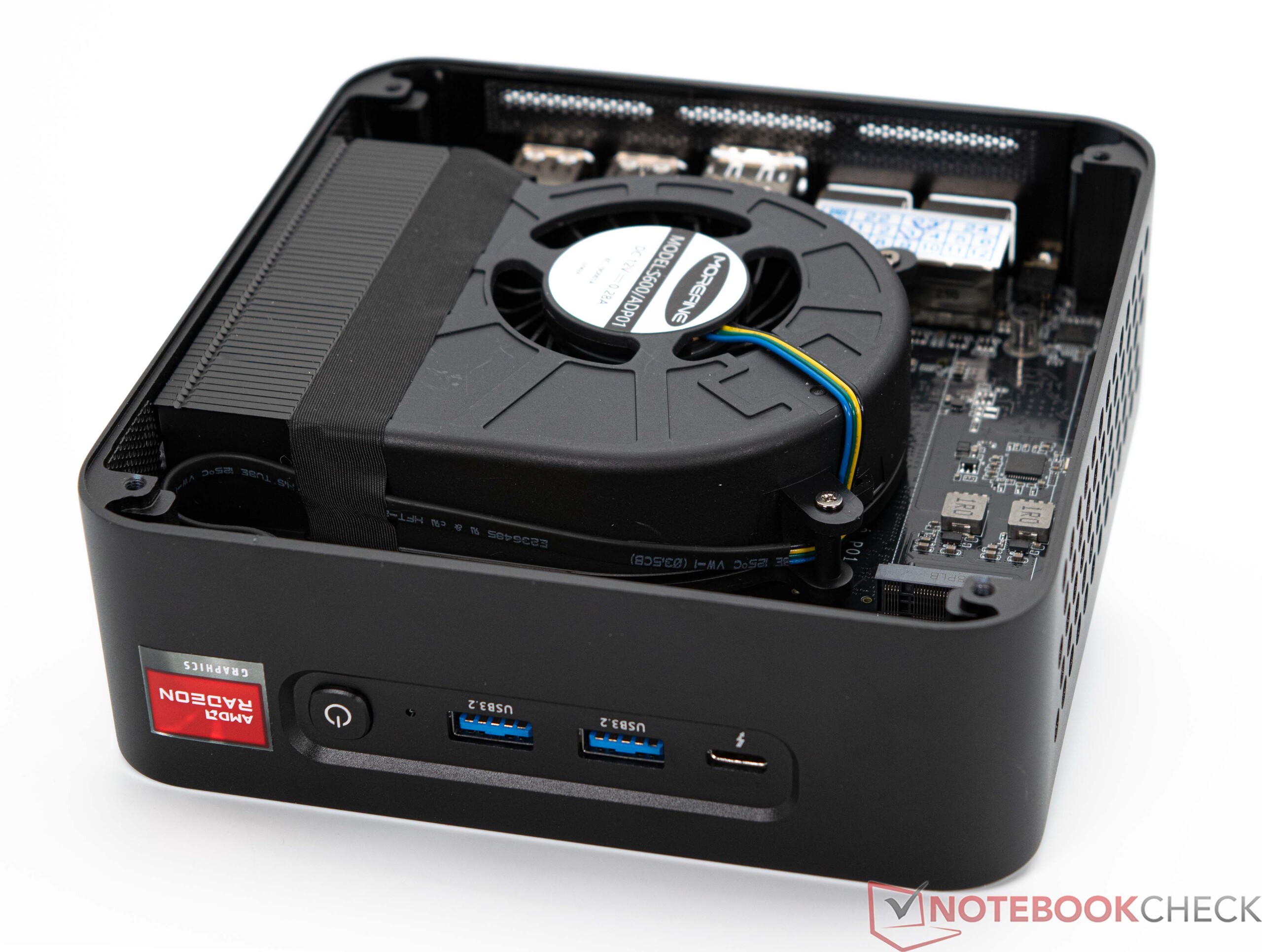

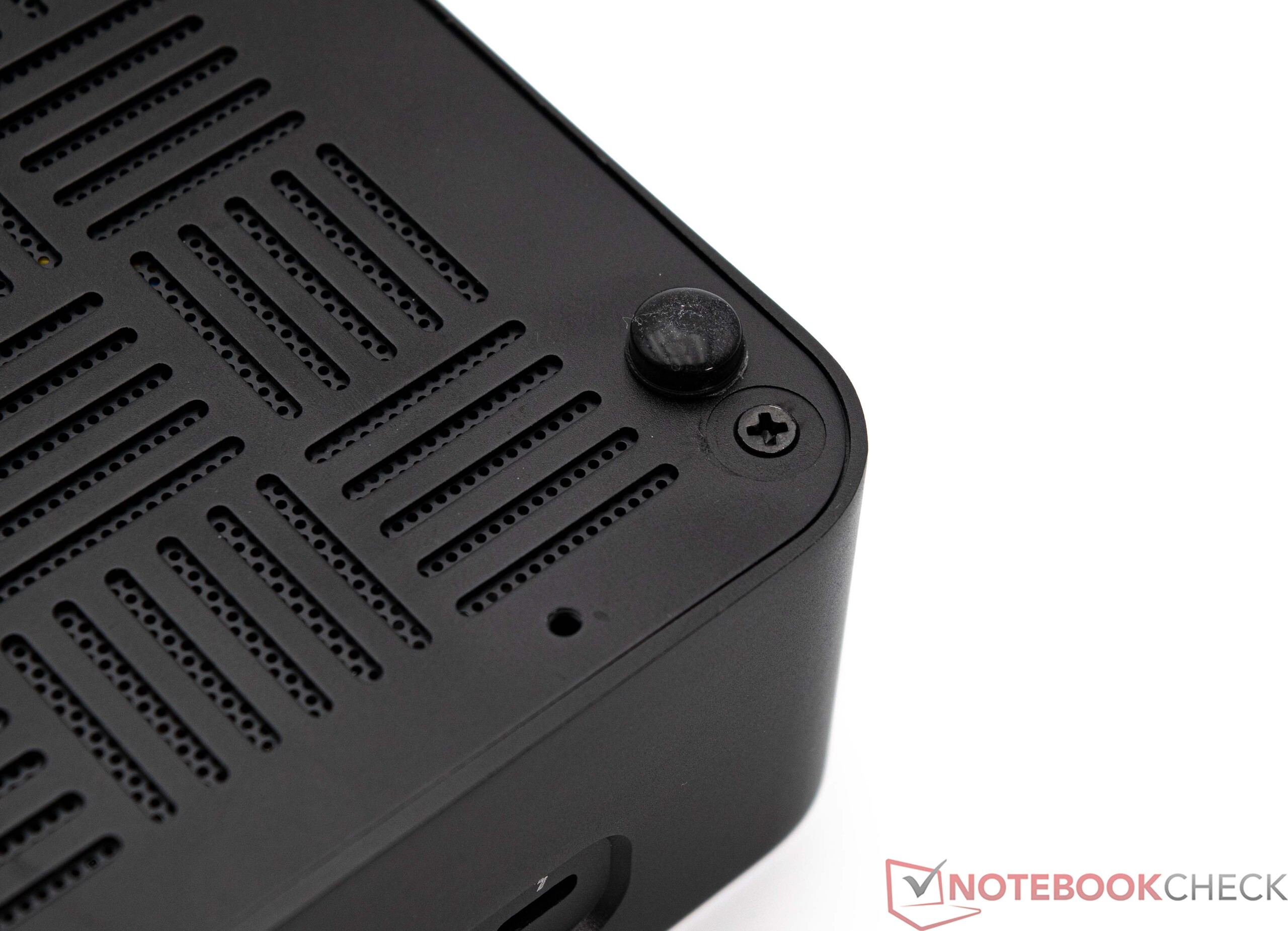

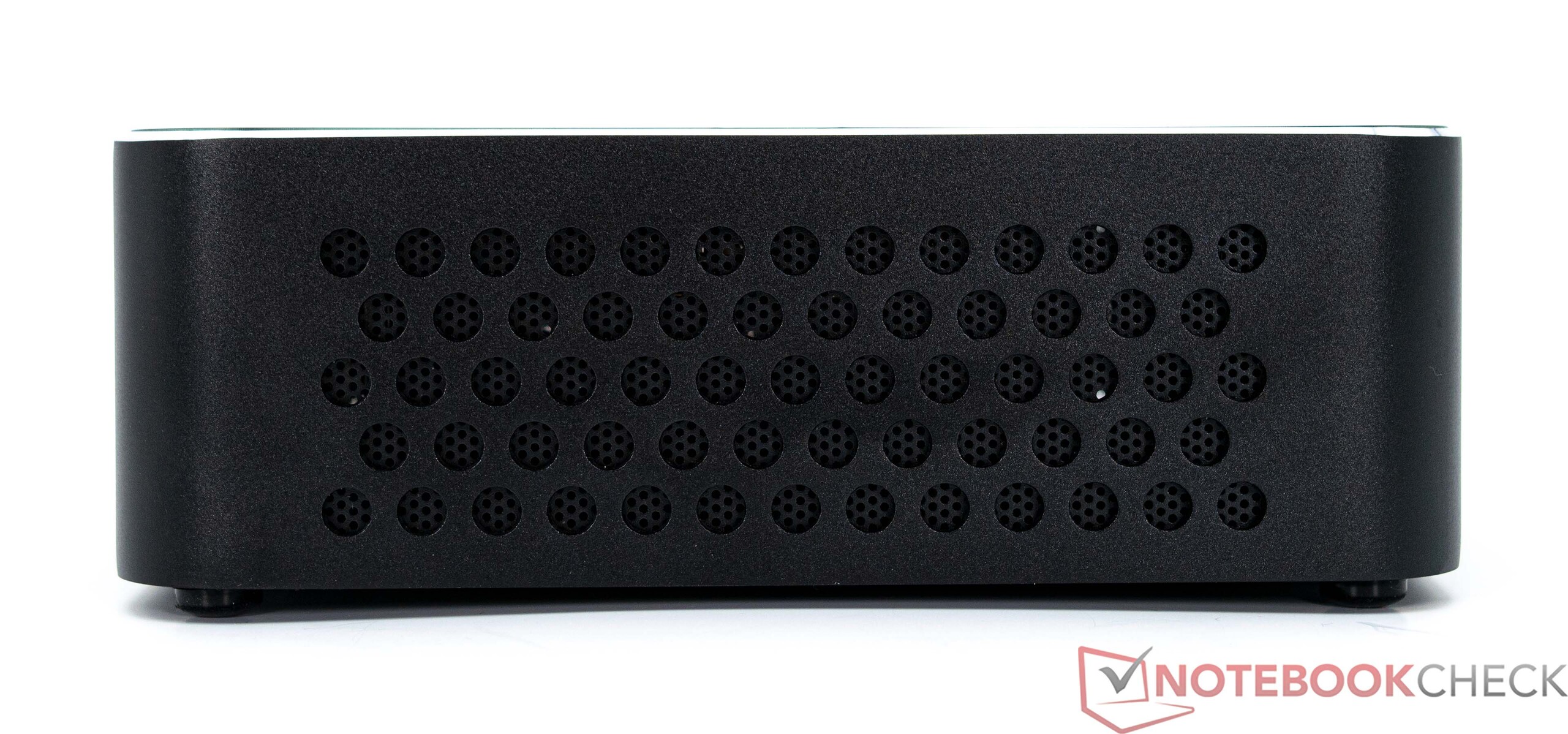

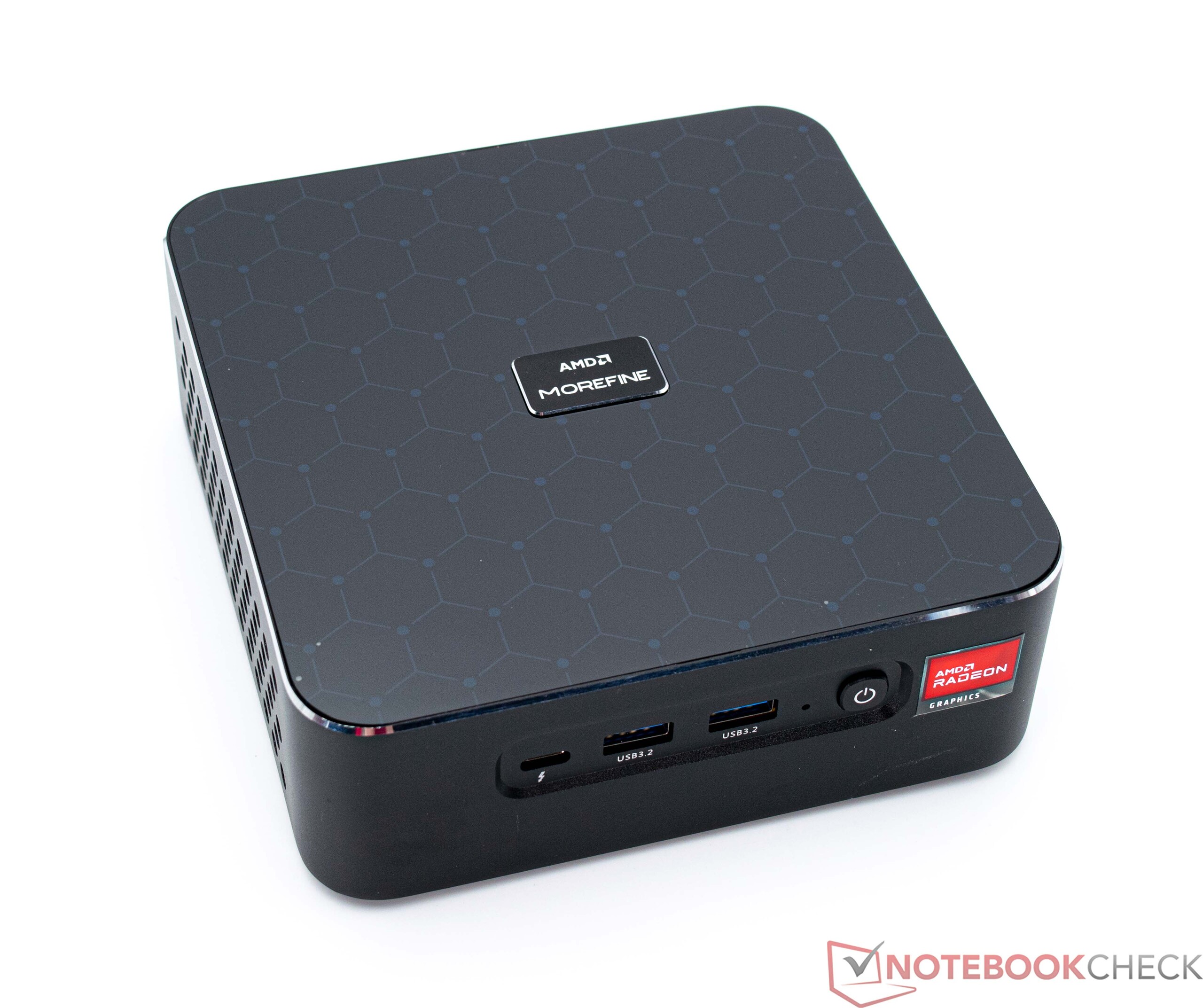

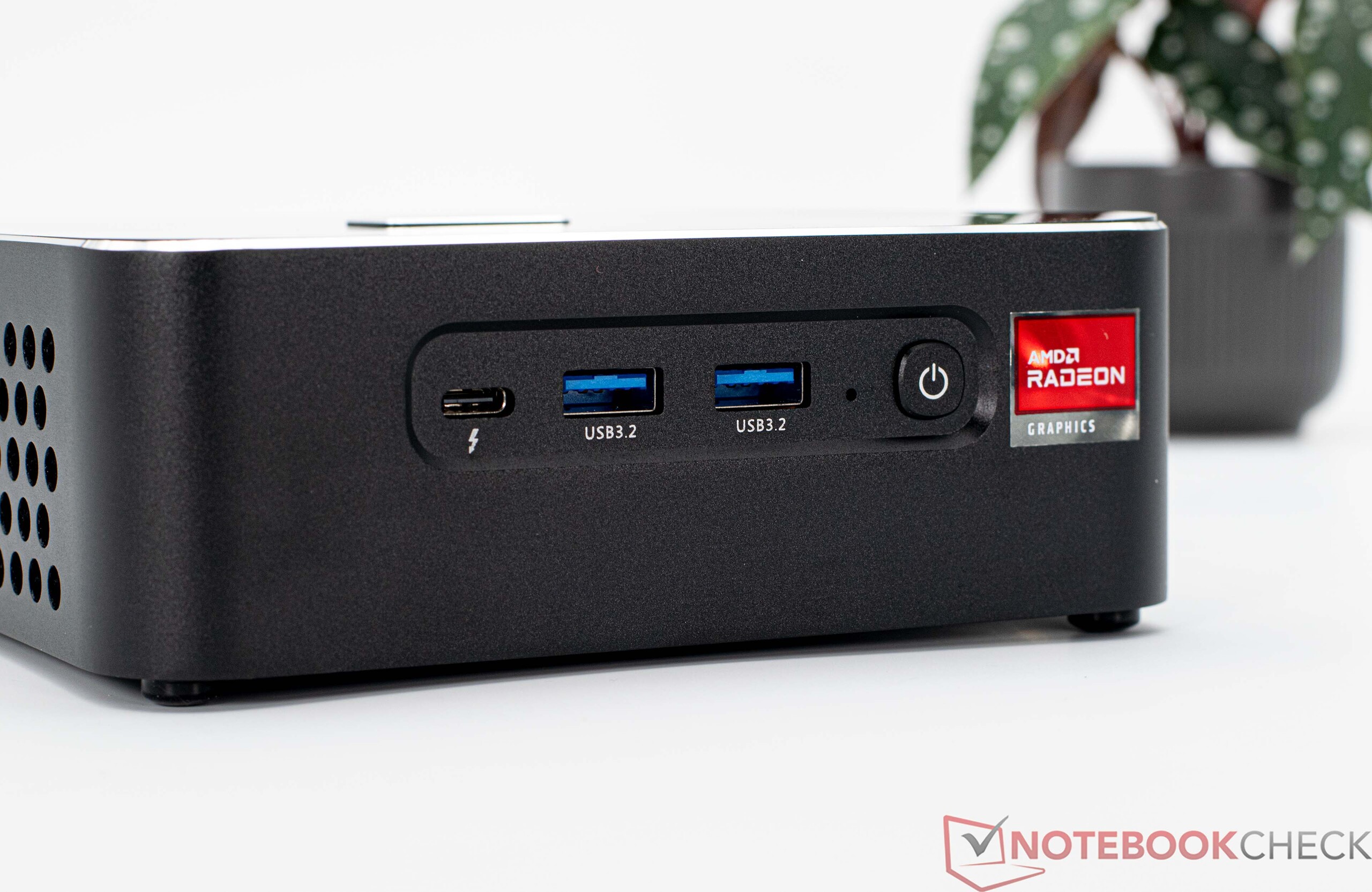

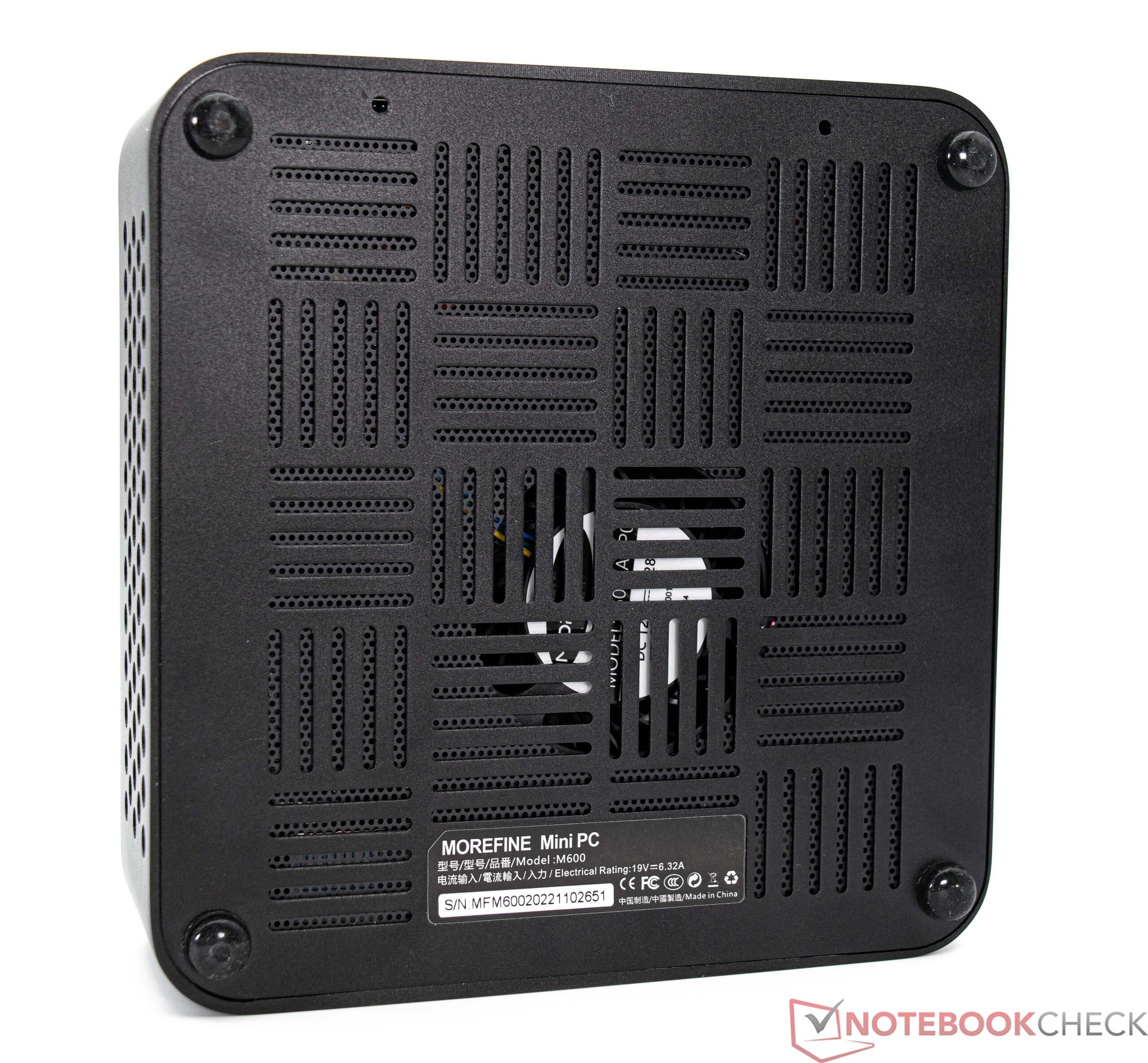

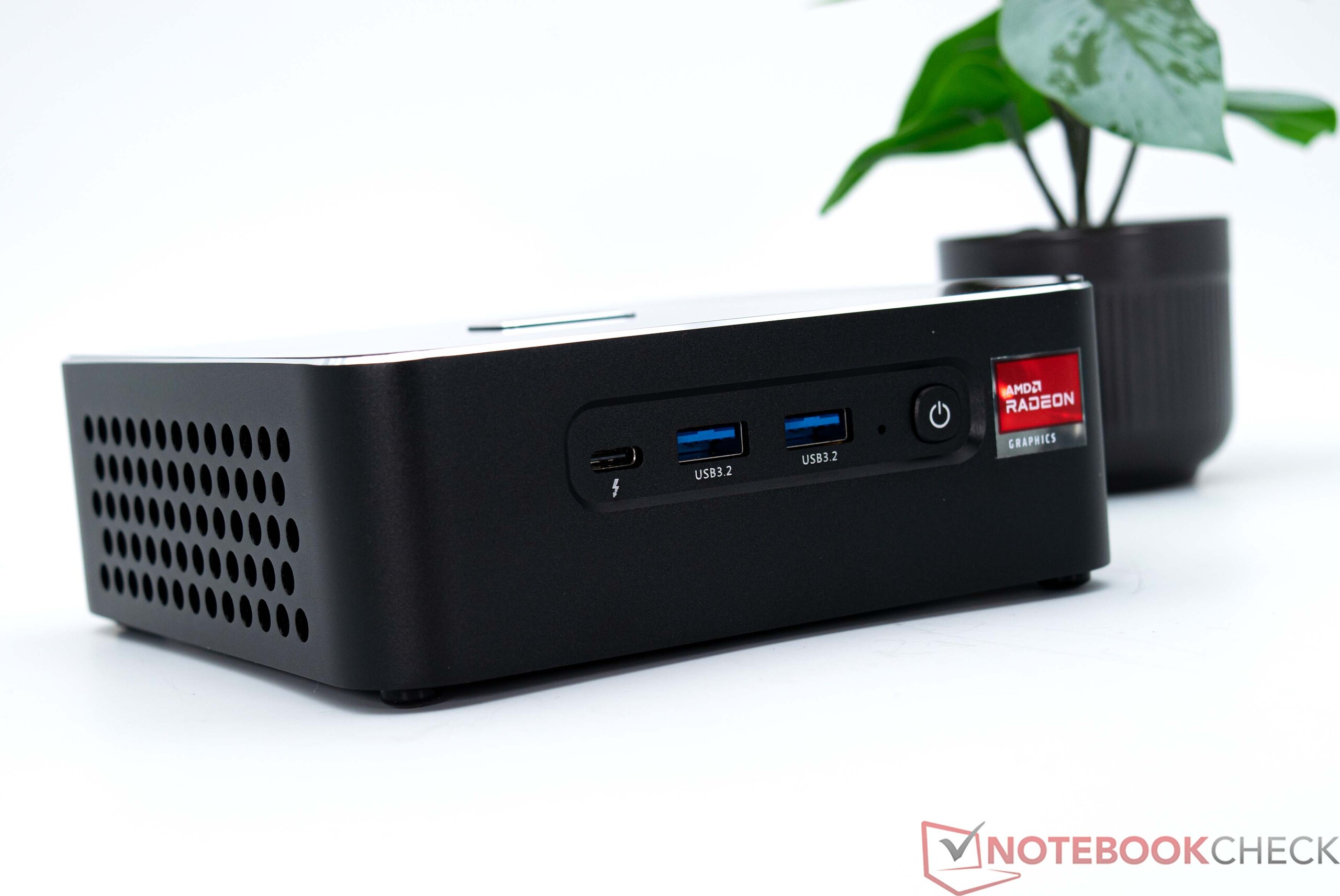

我们的测试样本的构建与Morefine M600完全相同，配备了AMD Ryzen 9 6900HX。关于其机箱的进一步细节，请看我们的对顶级型号的评论.它的连接选项也是如此，在较小的模型上也是如此。

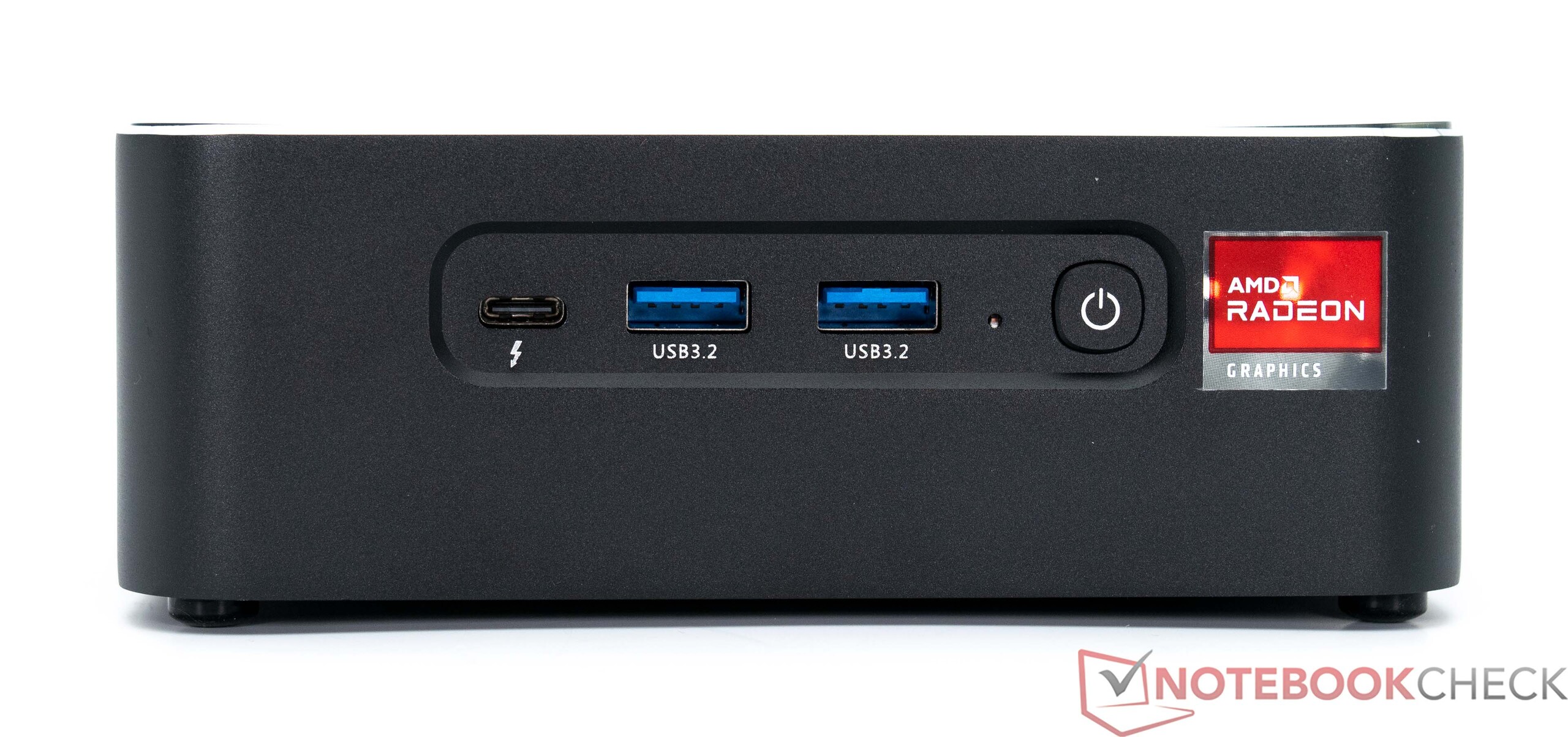

在这一点上，我们仍然想提到围绕这个测试的一个问题：配备Ryzen 5 6600U的型号也有一个Thunderbolt端口，这可以极大地拓宽设备的使用范围。然而，在我们第一次测试之后，我们无法将我们的外部GPU底座连接到设备上。与制造商交谈后，我们被告知要检查一些BIOS设置。在激活了一些与USB4有关的功能后，我们就能够连接底座了。

激活Thunderbolt端口的BIOS设置：

USB4 启用路径：BIOS--Advanced--AMD CBS--FCH Common Options--USB4 Configuration Options--USB4 pre-CM Enable [Disabled] to [Enabled].
USB4 RT0--RT0 Router Enable [Disabled] to [Enabled]。

尺寸比较

Minisforum Neptune Series NAD9 Minisforum EliteMini B550 Morefine S600-Apex Engineer Minipc Union Ace Magician TK11-A0 Morefine M600, 6600U Morefine S500+ Minisforum Venus Series UM690 Intel NUC 12 Pro Kit NUC12WSKi7 DIN A4 ❌

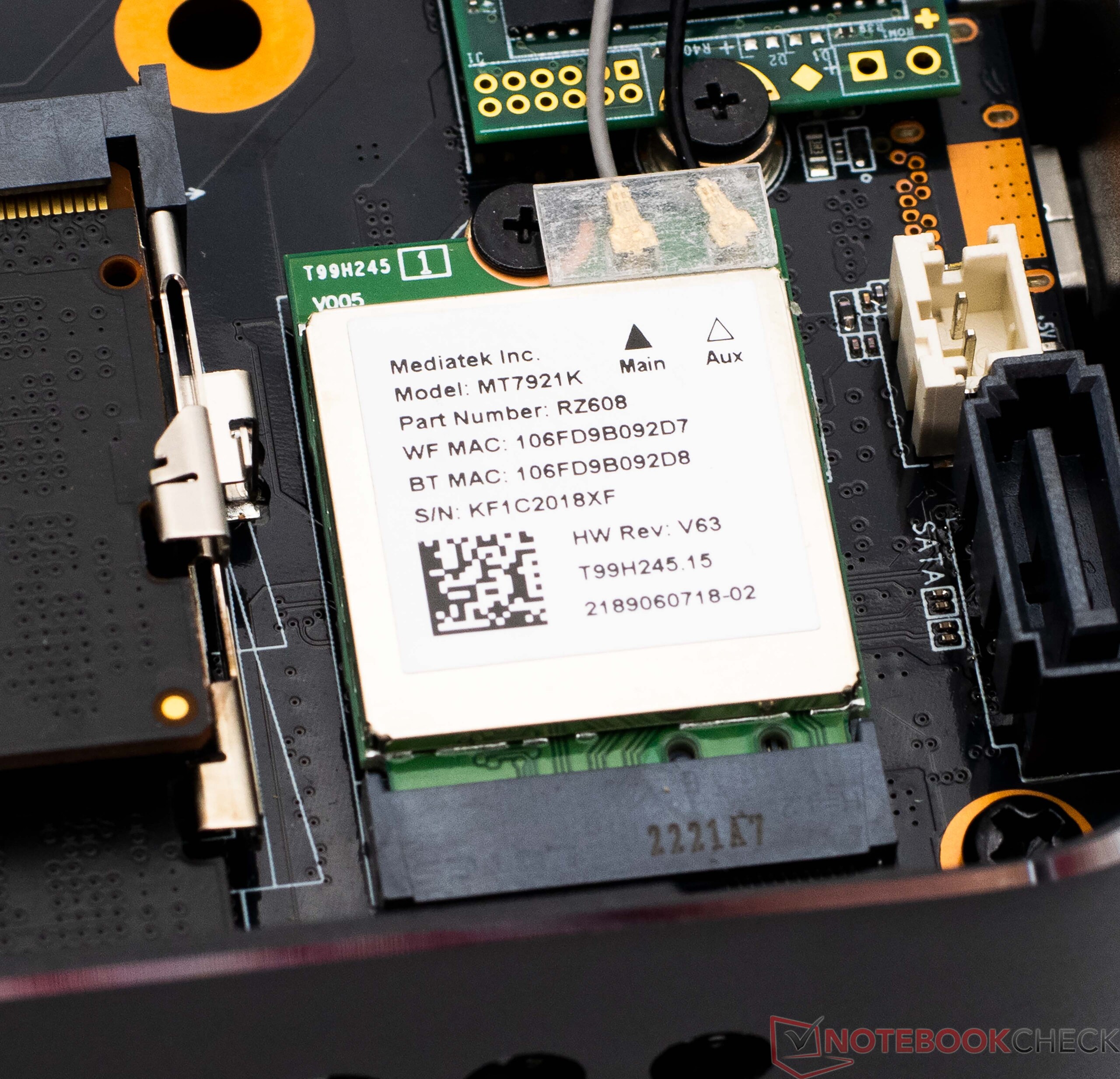

Networking
iperf3 receive AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s +39%
Minisforum Venus Series UM690 MediaTek RZ608	956 (944^min - 963^max) MBit/s +1%
Morefine M600, 6600U MediaTek RZ608	948 (934^min - 957^max) MBit/s
Average of class Mini PC (192.9 - 1796, n=113, last 2 years)	932 MBit/s -2%
Morefine M600, 6900HX MediaTek RZ608	929 (874^min - 946^max) MBit/s -2%
Average MediaTek RZ608 (430 - 975, n=20)	886 MBit/s -7%
Minisforum EliteMini B550 MediaTek RZ608	430 MBit/s -55%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 MBit/s -59%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s +68%
Morefine M600, 6900HX MediaTek RZ608	964 (924^min - 990^max) MBit/s +23%
Minisforum Venus Series UM690 MediaTek RZ608	943 (477^min - 981^max) MBit/s +20%
Average of class Mini PC (184.1 - 1776, n=113, last 2 years)	864 MBit/s +10%
Average MediaTek RZ608 (572 - 979, n=20)	860 MBit/s +10%
Morefine M600, 6600U MediaTek RZ608	784 (381^min - 874^max) MBit/s
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 MBit/s -5%
Minisforum EliteMini B550 MediaTek RZ608	572 MBit/s -27%
iperf3 receive AXE11000 6GHz
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Wi-Fi 6E AX211	1530 (1509^min - 1551^max) MBit/s +60%
Average of class Mini PC (684 - 1771, n=53, last 2 years)	1381 MBit/s +44%
Minisforum Venus Series UM690 MediaTek RZ608	961 (954^min - 967^max) MBit/s 0%
Morefine M600, 6600U MediaTek RZ608	957 (943^min - 967^max) MBit/s
Average MediaTek RZ608 (430 - 961, n=16)	826 MBit/s -14%
Minisforum EliteMini B550 MediaTek RZ608	430 (379^min - 451^max) MBit/s -55%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 (322^min - 478^max) MBit/s -59%
iperf3 transmit AXE11000 6GHz
Average of class Mini PC (394 - 1800, n=53, last 2 years)	1328 MBit/s +74%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Wi-Fi 6E AX211	919 (458^min - 982^max) MBit/s +20%
Average MediaTek RZ608 (572 - 980, n=16)	825 MBit/s +8%
Minisforum Venus Series UM690 MediaTek RZ608	787 (638^min - 865^max) MBit/s +3%
Morefine M600, 6600U MediaTek RZ608	765 (718^min - 814^max) MBit/s
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 (381^min - 876^max) MBit/s -3%
Minisforum EliteMini B550 MediaTek RZ608	572 (532^min - 680^max) MBit/s -25%

Morefine M600, 6600U; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø765 (718-814)

Morefine M600, 6600U; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø957 (943-967)

Morefine M600, 6600U; iperf3 receive AXE11000; iperf 3.1.3: Ø948 (934-957)

Morefine M600, 6600U; iperf3 transmit AXE11000; iperf 3.1.3: Ø771 (381-874)

性能--AMD的Rembrandt SoC有6个核心，速度很快

莫里芬M600有一个AMD Ryzen 5 6600U在其最小的配置中具有6个核心和12个线程。这对于日常使用来说性能绰绰有余--还有一些额外的储备。该SoC的AMD Radeon 660M是一个小型iGPU，在性能方面与AMD Radeon RX Vega 8类似。

测试条件

我们为所有的性能测试选择了最大的功率能量曲线。根据我们的测试标准，只在功率和噪音排放测量中出现了偏差。在BIOS中没有改变CPU的性能，在冷却方面我们没有对风扇曲线进行任何调整。

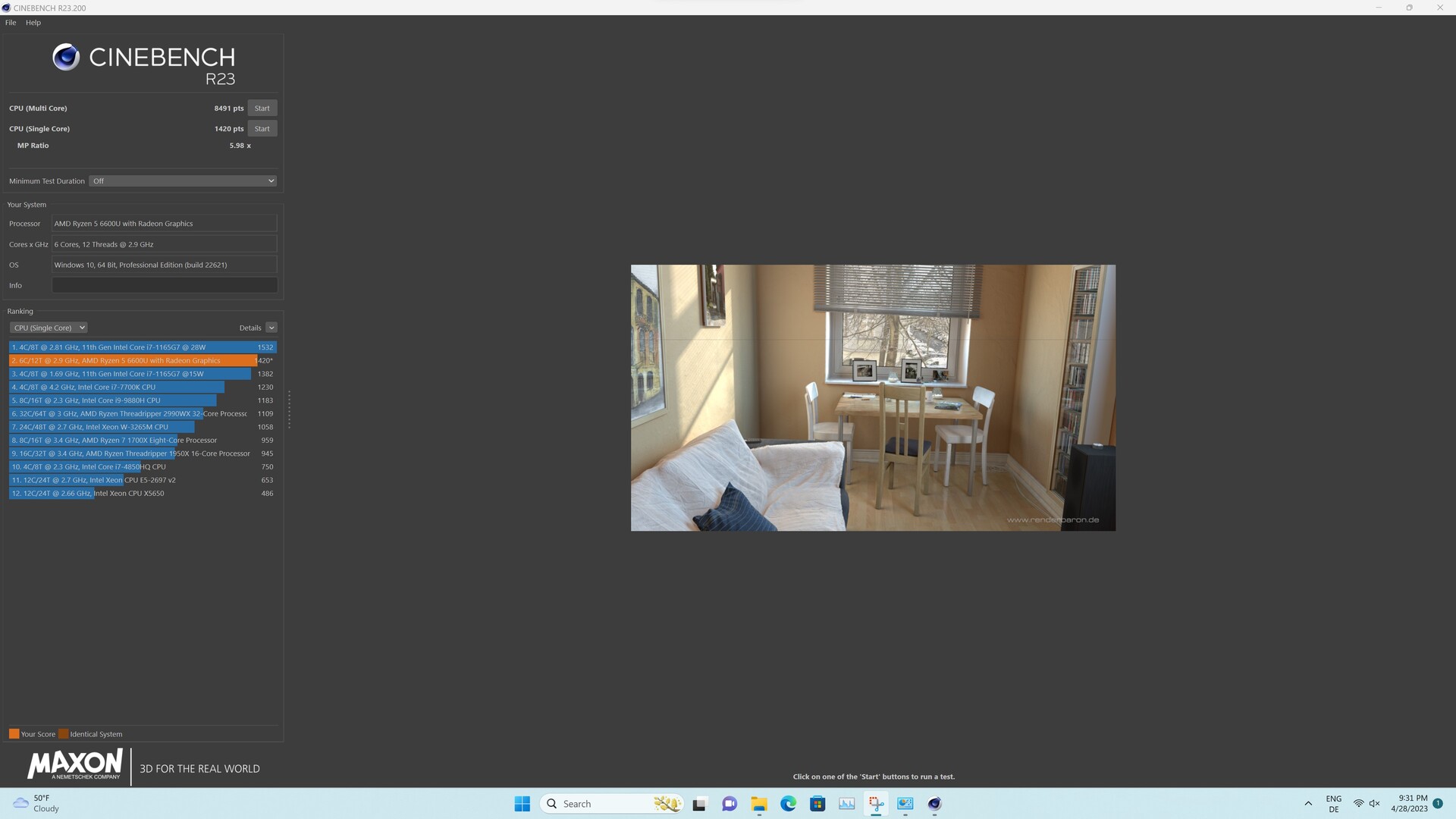

处理器

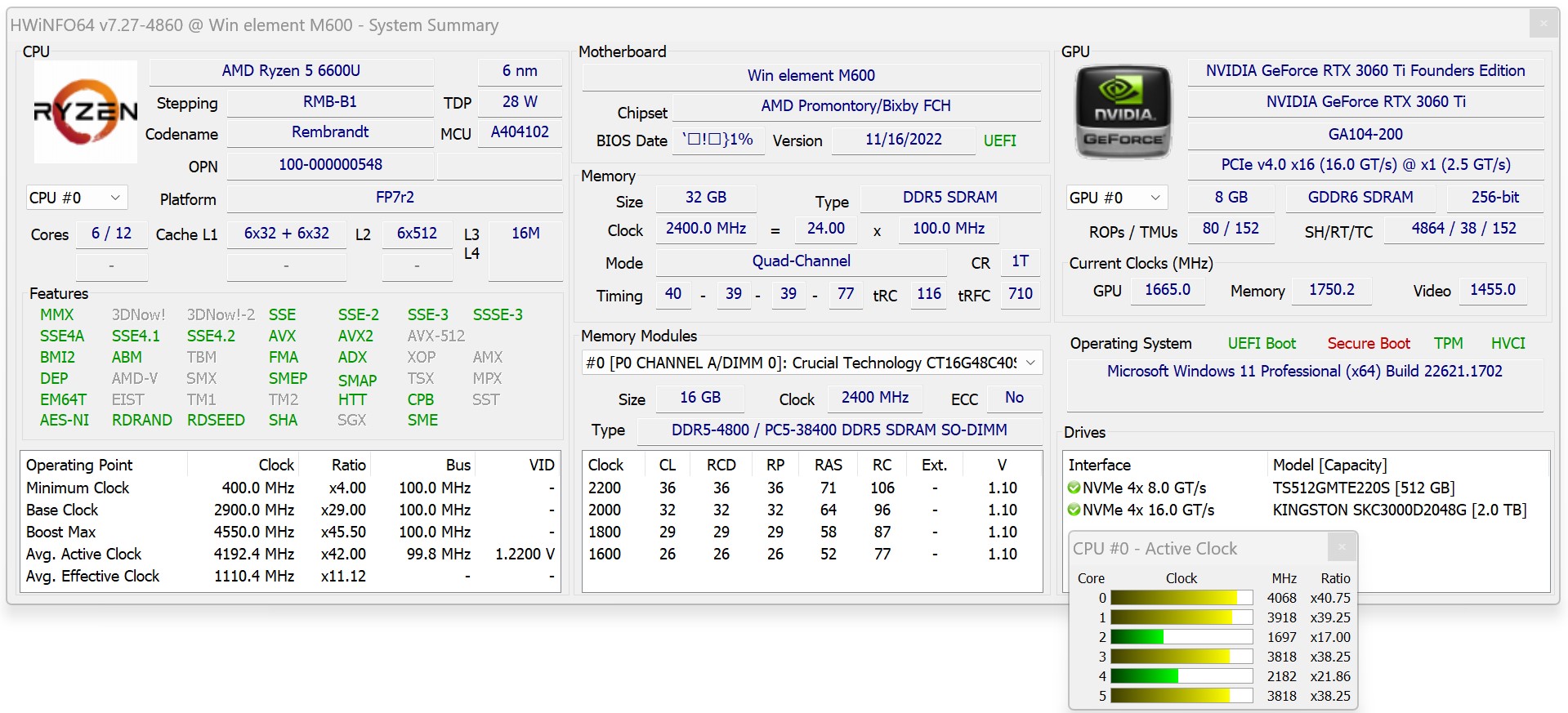

淘宝网AMD Ryzen 5 6600U是AMD的Rembrandt系列的一部分，有6个核心，共有12个线程。Morefine M600 6600U的性能评级损失了大约10%，这代表了所有CPU基准测试的平均值，与顶级型号相比，其性能评级为AMD Ryzen 9 6900HX.我们的测试样本排在倒数第二位--尽管与竞争对手的距离很小。我们看到Morefine M600 6600U和Ace Magician TK11-A0在性能上有相当大的差异。Ace Magician TK11-A0.

你可以在这里找到更多的处理器基准测试Mobile Processors - Benchmark List 。

Performance Rating - Percent
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	50.6 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	50.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	49.4 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	48.4 pt
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	47.6 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	47.3 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	44 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	35.8 pt

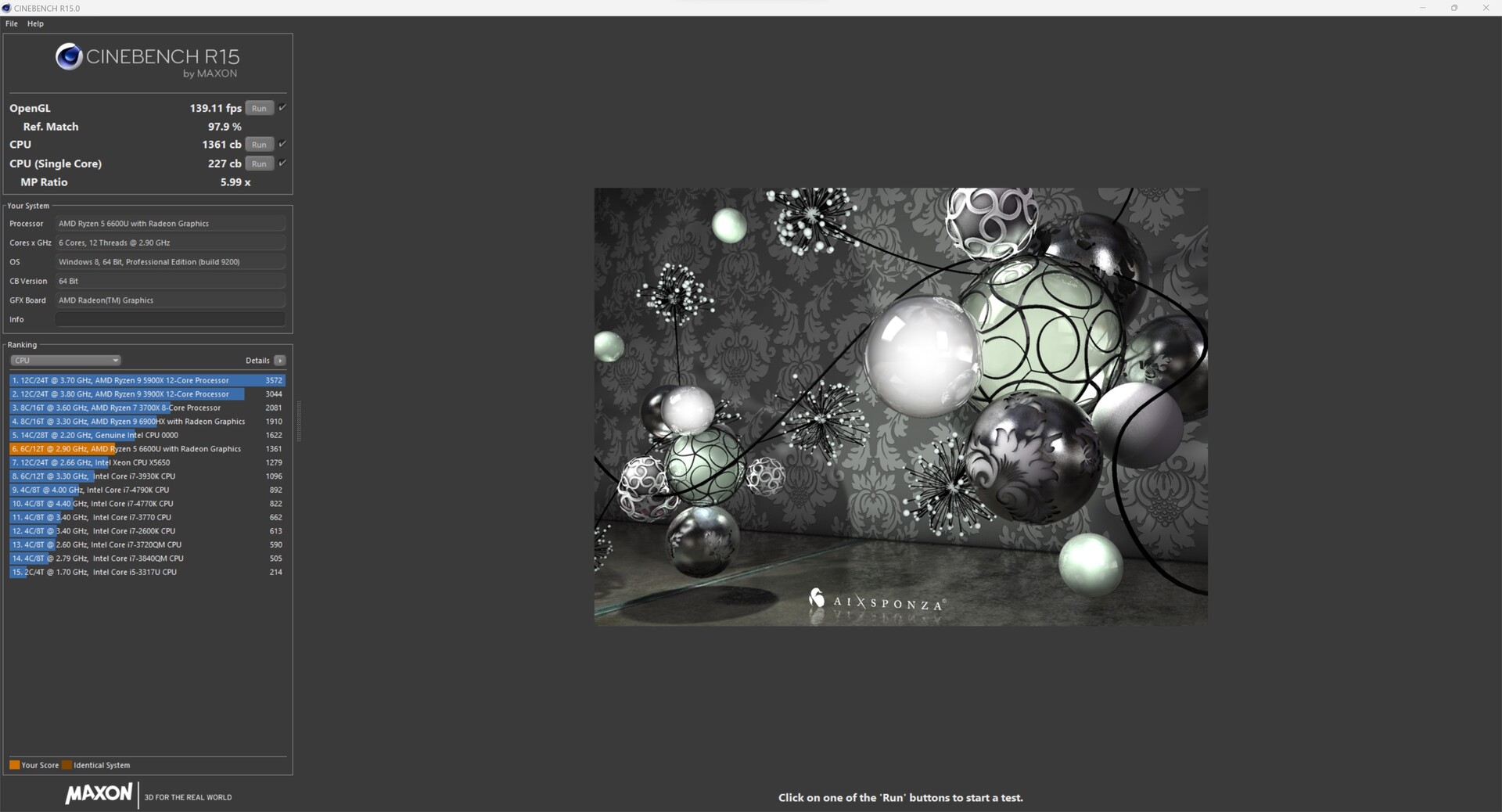

Cinebench R15
CPU Single 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	261 Points +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	260 Points +15%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	247 Points +9%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	244 Points +7%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	243 Points +7%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	240 Points +6%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	227 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points -13%
CPU Multi 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	2231 Points +64%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2067 Points +52%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1980 Points +45%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1920 Points +41%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points +41%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1879 Points +38%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1361 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points -59%

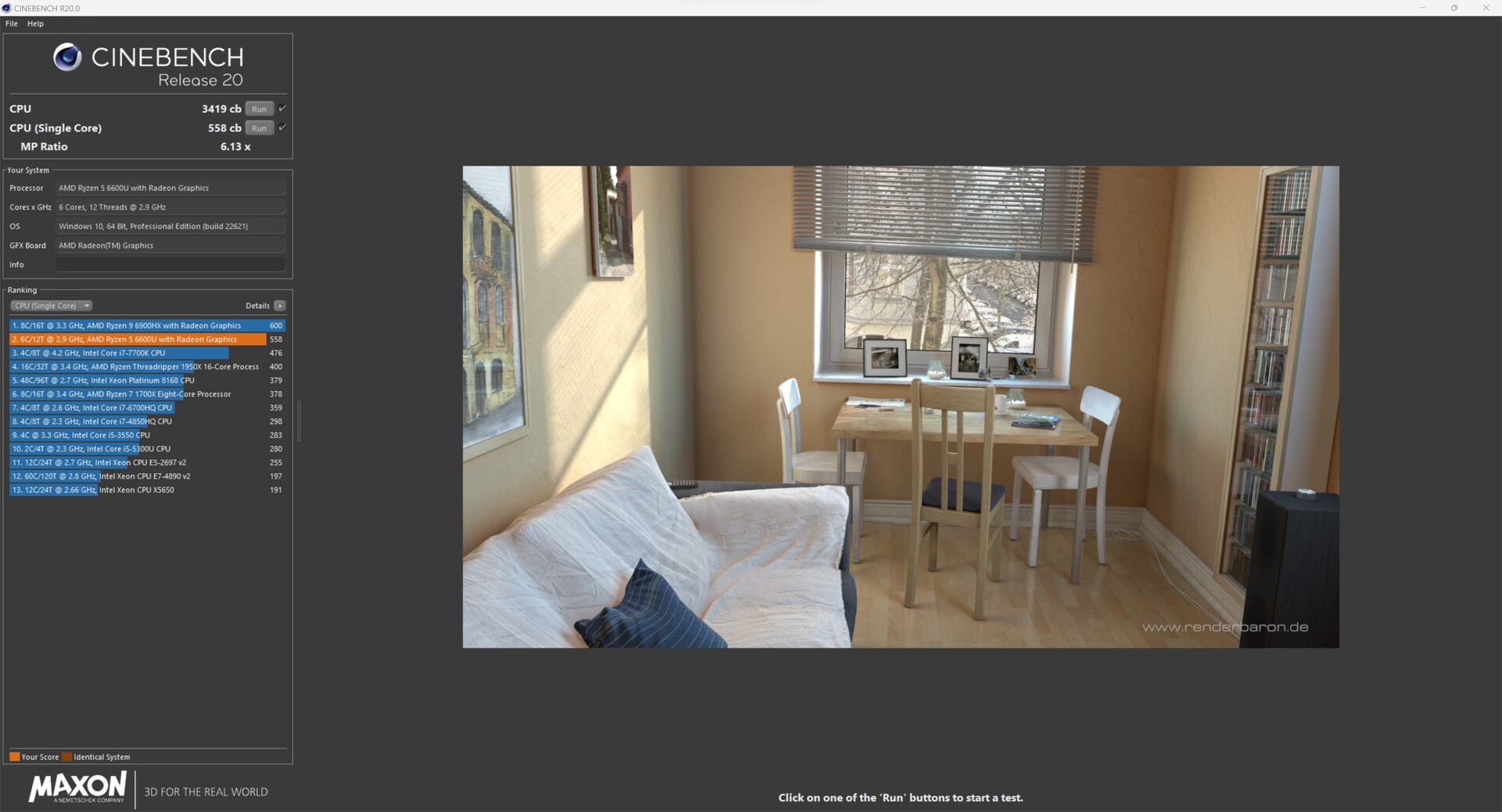

Cinebench R20
CPU (Single Core)
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	698 Points +25%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	682 Points +22%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	629 Points +13%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	600 Points +8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	585 Points +5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	567 Points +2%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	558 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points -7%
CPU (Multi Core)
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	5328 Points +56%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	4941 Points +45%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	4788 Points +40%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	4660 Points +36%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	4578 Points +34%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4495 Points +31%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	3419 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points -58%

Cinebench R11.5
CPU Single 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.15 Points +15%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	3.07 Points +12%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2.88 Points +5%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	2.87 Points +5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2.86 Points +5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	2.8 Points +3%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	2.73 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2.31 Points -15%
CPU Multi 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	26.35 Points +54%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	25.96 Points +51%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	23.66 Points +38%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	23.6 Points +38%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	22.79 Points +33%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	22 Points +28%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	17.15 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.37 Points -63%

Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	14504 Points +24%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	12943 Points +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	12846 Points +10%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12185 Points +4%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	12113 Points +4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	11811 Points +1%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11685 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	10395 Points -11%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	77409 Points +41%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	76758 Points +40%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	73492 Points +34%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	69797 Points +27%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	66237 Points +21%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	64320 Points +17%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	54792 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	24499 Points -55%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds * -81%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	415 Seconds *
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	280 Seconds * +33%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	273 Seconds * +34%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	265 Seconds * +36%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	252.1 Seconds * +39%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	234 Seconds * +44%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	231 Seconds * +44%

wPrime 2.10
32m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.799 s * -45%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	4.688 s *
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4.4 s * +6%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	3.642 s * +22%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.641 s * +22%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	3.595 s * +23%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	3.461 s * +26%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	3.421 s * +27%
1024m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	286.835 s * -96%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	235.874 s * -61%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	189.07 s * -29%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	146.553 s *
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	106.7 s * +27%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	103.226 s * +30%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	98.635 s * +33%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	93.19 s * +36%

X264 HD Benchmark 4.0
Pass 1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps +30%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	266 (264^min - 271^max) fps +25%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	263.5 (262^min - 266^max) fps +24%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	262.5 (262^min - 266^max) fps +24%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	258.5 (256^min - 268^max) fps +22%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	245 (239^min - 261^max) fps +16%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	212 (206^min - 224^max) fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps -22%
Pass 2
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	127.8 (127.3^min - 129.1^max) fps +79%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	125.25 (105.2^min - 130^max) fps +75%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	116.8 (116.8^min - 117.3^max) fps +63%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	114 (111.2^min - 119.4^max) fps +60%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	112 (112^min - 112^max) fps +57%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	110.5 (101.7^min - 125.3^max) fps +55%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	71.45 (70.2^min - 76.6^max) fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps -49%

WinRAR - Result
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	7937 KB/s +14%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7722 KB/s +11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7200 KB/s +4%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6960 KB/s 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6937 KB/s
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6882 KB/s -1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6795 KB/s -2%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4185 KB/s -40%

TrueCrypt
AES Mean 100MB
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	13.4 GB/s +44%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12.1 GB/s +30%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	11.6 GB/s +25%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	10.8 GB/s +16%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	9.3 GB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8.6 GB/s -8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7.6 GB/s -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.3 GB/s -43%
Twofish Mean 100MB
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2 GB/s +54%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.9 GB/s +46%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1.8 GB/s +38%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s +23%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.6 GB/s +23%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.5 GB/s +15%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1.3 GB/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.755 GB/s -42%
Serpent Mean 100MB
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1.2 GB/s +40%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s +28%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.1 GB/s +28%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.1 GB/s +28%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s +28%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.974 GB/s +14%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.857 GB/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.448 GB/s -48%

Geekbench 5.5
Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9935 Points +30%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9706 Points +27%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points +27%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9151 Points +19%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points +3%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points +2%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	7658 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points -36%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points +24%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1715 Points +14%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1634 Points +9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points +4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points +3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1547 Points +3%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1504 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points -8%

Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	10249 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	10249 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9817 Points -4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points -6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9638 Points -6%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points -23%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points -24%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points -53%
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1694 Points +9%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1593 Points +2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1557 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1557 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points -3%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points -3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points -11%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points +20%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7554 Points +13%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6804 Points +2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6698 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6698 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points -3%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points -4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points -12%
64 Bit Multi-Core Score
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	39852 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	39852 Points
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	38566 Points -3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	36974 Points -7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points -8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points -20%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points -20%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points -52%

3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	18382 Points +58%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	18277 Points +57%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	18044 Points +55%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	16783 Points +44%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15855 Points +36%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14277 Points +23%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11630 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	7792 Points -33%

7-Zip 18.03
7z b 4
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	61401 MIPS +39%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	56923 MIPS +28%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	55046 MIPS +24%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	54998 MIPS +24%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51151 MIPS +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	47064 MIPS +6%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	44320 MIPS
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS -60%
7z b 4 -mmt1
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6067 MIPS +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	6019 MIPS +10%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	5905 MIPS +8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	5809 MIPS +6%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	5738 MIPS +5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	5591 MIPS +2%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5486 MIPS
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS -13%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	17.1 fps +46%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15.4 fps +32%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14.8 fps +26%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	14.5 fps +24%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	14.1 fps +21%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	13.2 fps +13%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11.7 fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps -55%

R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec * -25%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.511 sec *
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	0.4975 sec * +3%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	0.493 sec * +4%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	0.4881 sec * +4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	0.4787 sec * +6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	0.4757 sec * +7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.4641 sec * +9%

LibreOffice - 20 Documents To PDF
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	53.4 s * -1%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	53 s *
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s * +2%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	50.7 s * +4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.4 s * +5%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	48.8 s * +8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	45 s * +15%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	38 s * +28%

WebXPRT 3 - Overall
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	311 Points +14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	292 Points +7%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	287 Points +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	285 Points +4%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	284 Points +4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	274 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	274 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points -14%

Mozilla Kraken 1.1 - Total
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms * -17%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	619 ms *
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	605 ms * +2%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	604 ms * +2%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	602 ms * +3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	577 ms * +7%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	571 ms * +8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	534 ms * +14%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	25456 Points +37%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	23939 Points +29%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23269 Points +25%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22441 Points +21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	21422 Points +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	19357 Points +4%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	18599 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points -49%
1920x1080 Fire Strike Physics
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	25915 Points +63%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	25160 Points +58%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23903 Points +50%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22426 Points +41%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	22244 Points +40%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	20684 Points +30%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	15934 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points -41%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	10539 Points +106%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9354 Points +83%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	8622 Points +69%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	8393 Points +64%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	8191 Points +60%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7087 Points +39%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5114 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points -44%

* ... smaller is better

Performance Rating
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	99.3 pt
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	86 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	85.9 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	85.8 pt
Average of class Mini PC	75 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	70.7 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	69.3 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	62.8 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	41.5 pt

AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	15102 KRay/s +59%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	13757 KRay/s +45%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	13631 KRay/s +43%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s +41%
Average of class Mini PC (561 - 51004, n=119, last 2 years)	12449 KRay/s +31%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	10351 KRay/s +9%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	9518 KRay/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s -41%

AIDA64 / FPU Julia
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	98980 Points +66%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	87663 Points +47%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	86825 Points +45%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points +43%
Average of class Mini PC (3604 - 214250, n=119, last 2 years)	62645 Points +5%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	59704 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points -8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	52136 Points -13%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points -60%

AIDA64 / CPU SHA3
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	3452 MB/s +73%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	2953 MB/s +48%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	2931 MB/s +47%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s +46%
Average of class Mini PC (225 - 9399, n=119, last 2 years)	2760 MB/s +38%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	2590 MB/s +30%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s +28%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	1997 MB/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s -17%

AIDA64 / CPU Queen
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	103686 Points +38%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	100293 Points +33%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	97720 Points +30%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points +26%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	82493 Points +10%
Average of class Mini PC (8172 - 184747, n=119, last 2 years)	77998 Points +4%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	75248 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points -38%

AIDA64 / FPU SinJulia
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	13101 Points +50%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	12396 Points +42%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	12202 Points +40%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points +37%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	8738 Points
Average of class Mini PC (408 - 29064, n=119, last 2 years)	8538 Points -2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points -14%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	6728 Points -23%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points -55%

AIDA64 / FPU Mandel
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	52710 Points +62%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	47597 Points +47%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points +45%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	44629 Points +37%
Average of class Mini PC (1958 - 113499, n=119, last 2 years)	32689 Points +1%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	32465 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points -13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	25996 Points -20%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points -54%

AIDA64 / CPU AES
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	136723 MB/s +245%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	119844 MB/s +202%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s +191%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s +151%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92356 MB/s +133%
Average of class Mini PC (3691 - 325960, n=119, last 2 years)	85358 MB/s +115%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s +48%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	56199 MB/s +42%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	39680 MB/s

AIDA64 / CPU ZLib
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	863 MB/s +63%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	774 MB/s +46%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s +41%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	745 MB/s +41%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s +38%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	722 MB/s +36%
Average of class Mini PC (74.8 - 2039, n=119, last 2 years)	714 MB/s +35%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	530 MB/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s -50%

AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	7973 KRay/s +58%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7288 KRay/s +44%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s +42%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	7184 KRay/s +42%
Average of class Mini PC (308 - 26952, n=119, last 2 years)	6658 KRay/s +32%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s +14%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	5613 KRay/s +11%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	5058 KRay/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s -41%

AIDA64 / CPU PhotoWorxx
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	29765 MPixel/s +8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	28377 MPixel/s +3%
Average of class Mini PC (4408 - 50500, n=119, last 2 years)	27805 MPixel/s +1%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	27720 MPixel/s +1%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	27456 MPixel/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s -2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s -11%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s -28%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	14810 MPixel/s -46%

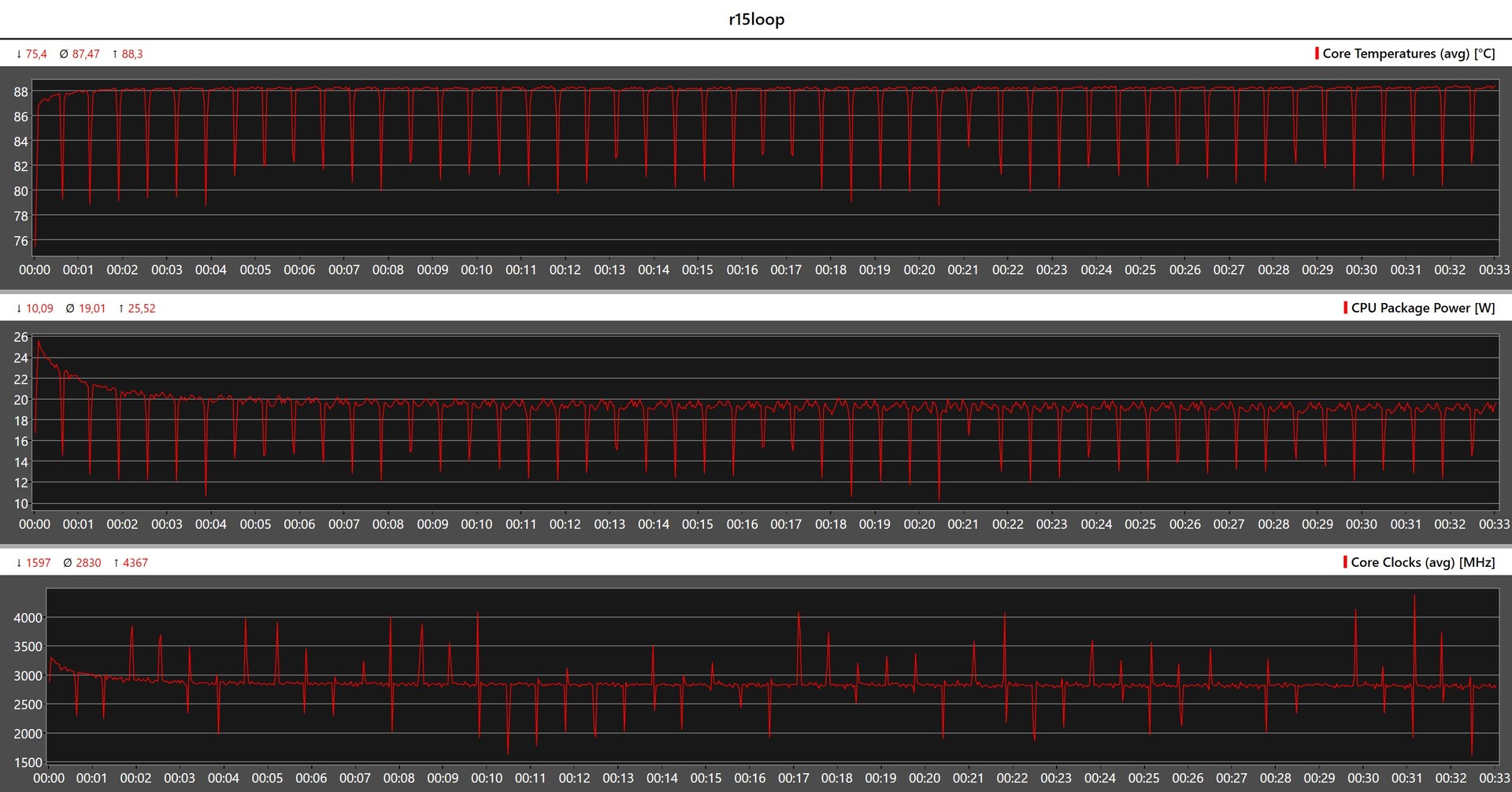

在Cinebench R15多重循环中的Morefine M600

Cinebench R15的连续循环显示了系统在连续负载下的表现。该系统根本无法维持SoC的起始性能水平。然而，只有极少数设备能够做到这一点，这意味着我们的Morefine M600 6600U并不孤单。在前十次运行中，SoC的性能不断下沉，平均为1105分。这意味着它的连续性能与单次运行相比下沉了约20%。

Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø1980 (1960.21-1996.81)

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Core i7-1260P: Ø1702 (1671.26-2063.13)

Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2111 (2087.36-2211.78)

Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)

系统性能

我们的系统基准测试反映了CPU基准测试的性能。Morefine M600 6600U成功地保持了王牌魔术师TK11-A0控制住了--它落后于其他竞争者的差距并不是很大。由于其DDR5，内存测试显示了相对较好的结果。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	7045 Points +20%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	6654 Points +13%
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points +7%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	6214 Points +6%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	6187 Points +5%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	5915 Points +1%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	5872 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points -23%

PCMark 10 / Essentials
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	11217 Points +14%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	10838 Points +10%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	10661 Points +9%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	10390 Points +6%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	10148 Points +3%
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	10087 Points +3%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9820 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points -9%

PCMark 10 / Productivity
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	10060 Points +11%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	9941 Points +10%
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	9856 Points +9%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	9817 Points +9%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9031 Points
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	7673 Points -15%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	7626 Points -16%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points -30%

CrossMark: Overall | Productivity | Creativity | Responsiveness

CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1894 Points +25%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1731 Points +14%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1679 Points +11%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1517 Points 0%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1517 Points
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points -6%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points -18%

CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1921 Points +29%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1738 Points +17%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1649 Points +11%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1491 Points 0%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1491 Points
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points -3%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points -12%

CrossMark / Creativity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1800 Points +9%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1785 Points +8%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1745 Points +6%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1652 Points 0%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1652 Points
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points -12%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points -28%

CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	2116 Points +71%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1671 Points +35%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1476 Points +19%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points +3%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1238 Points 0%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1238 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points -1%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	50228 MB/s +5%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	47938 MB/s 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	47711 MB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	45941 MB/s -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	44661 MB/s -6%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41969 MB/s -12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	37840 MB/s -21%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s -26%

AIDA64 / Memory Read
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	51077 MB/s +11%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	49936 MB/s +8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	49559 MB/s +8%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	46906 MB/s +2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46644 MB/s +1%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	46084 MB/s
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	42996 MB/s -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s -12%

AIDA64 / Memory Write
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	55194 MB/s +12%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	54750 MB/s +11%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	49353 MB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	46815 MB/s -5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46223 MB/s -6%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41806 MB/s -15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s -21%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	35371 MB/s -28%

AIDA64 / Memory Latency
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	100 ns * -6%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	94 ns *
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92.7 ns * +1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	92.4 ns * +2%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	83 ns * +12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	74.2 ns * +21%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	73.5 ns * +22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * +27%

* ... smaller is better

DPC延时

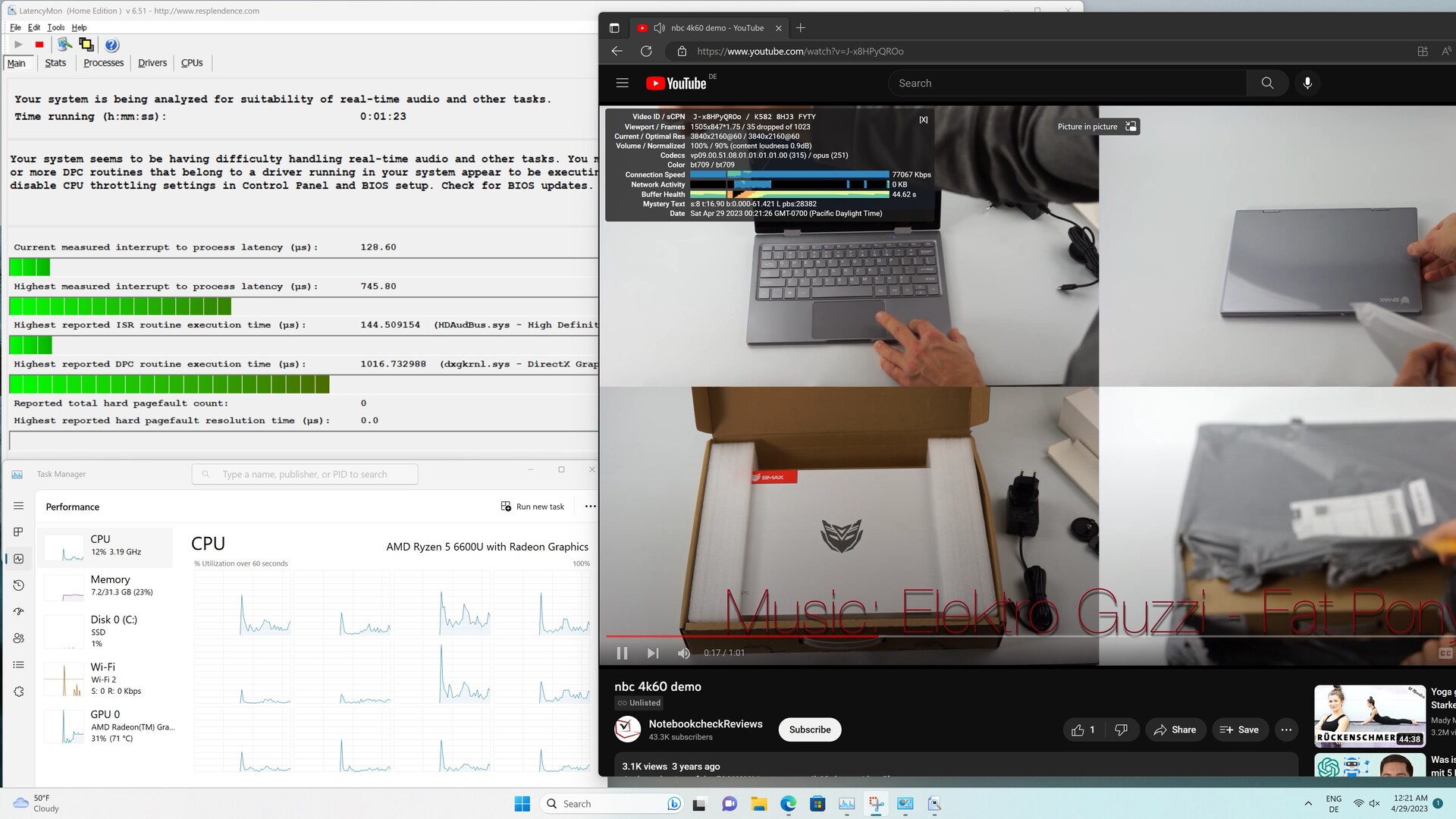

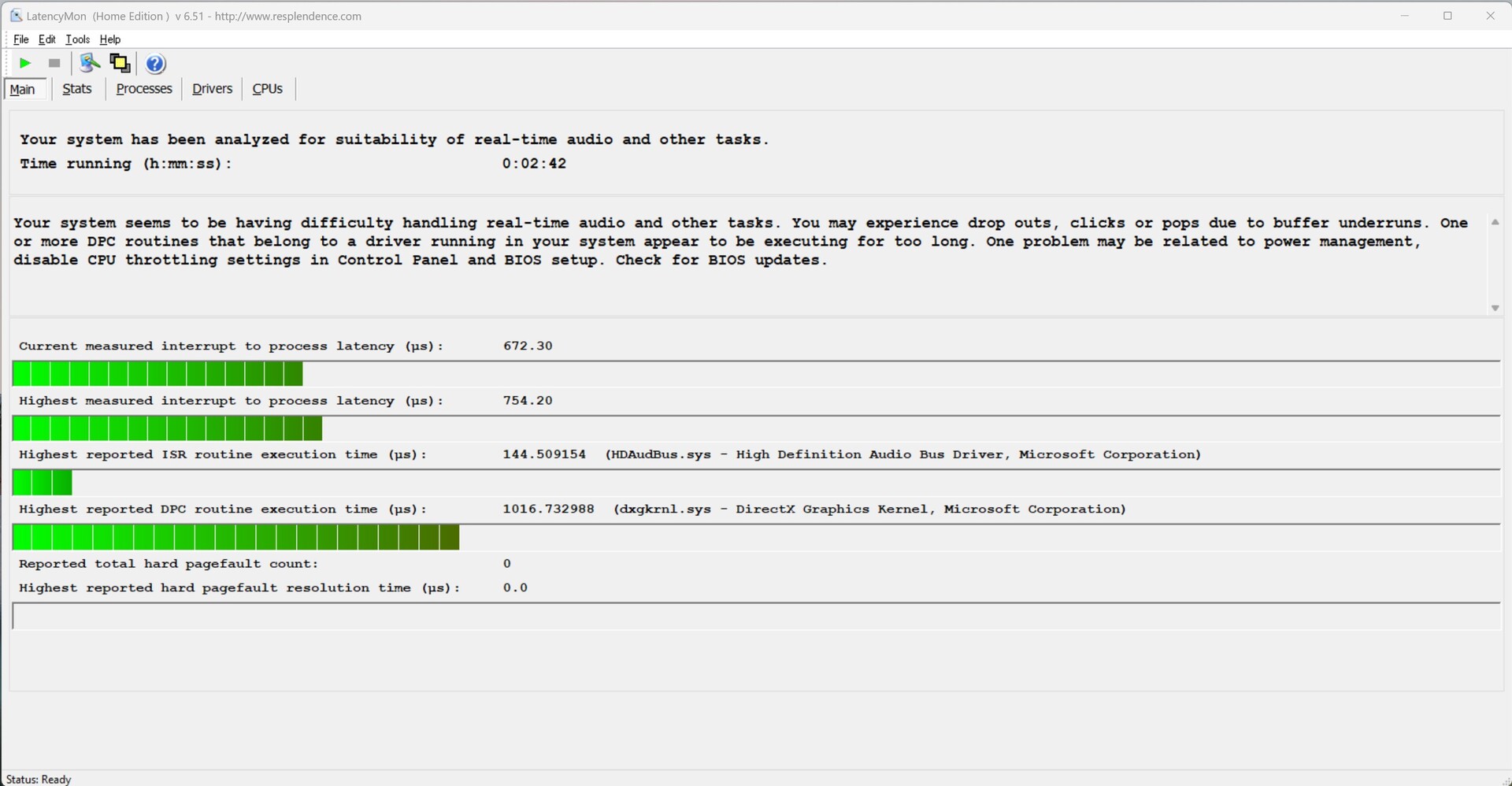

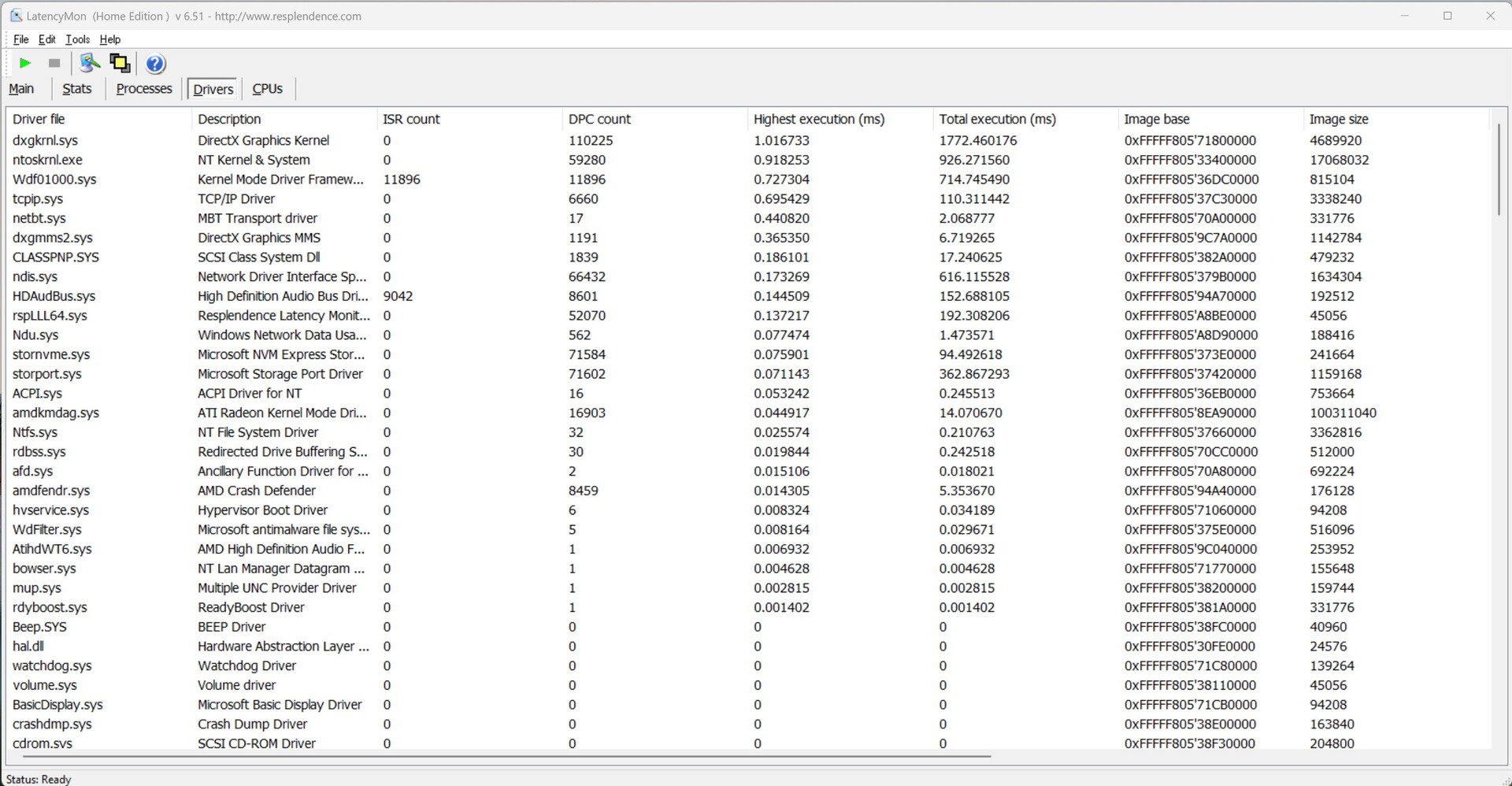

LatencyMon也没有显示Morefine M600 6600U的任何关键延迟。在Edge中打开多个标签时，我们看到了稍高的延迟，在播放4K测试视频时，延迟没有进一步增加。我们在Prime95中也没有看到更高的延迟。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1867 μs * -84%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1625 μs * -60%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1488 μs * -46%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1317 μs * -30%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1113.9 μs * -10%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1016.7 μs *
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	779 μs * +23%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	659.1 μs * +35%

* ... smaller is better

存储设备

我们收到了本测试样本的裸机版本，并使用512-GB的创见SSD进行了测试。英特尔NUC 12 Pro套件中也使用了相同的型号。然而，同样的固态硬盘在Morefine M600 6600U中提供了稍好的速率。尽管如此，你可以通过使用利用PCIe 4.0的全部带宽的固态硬盘来实现更好的结果。在这方面，你可以看一下摩尔芬M600 6900HX，它的传输率明显高于金士顿KC3000。然而，Morefine M600在永久性负载下保持固态硬盘性能方面存在问题。有时，建议安装带有冷却装置的固态硬盘，因为该设备的空气循环非常有限。

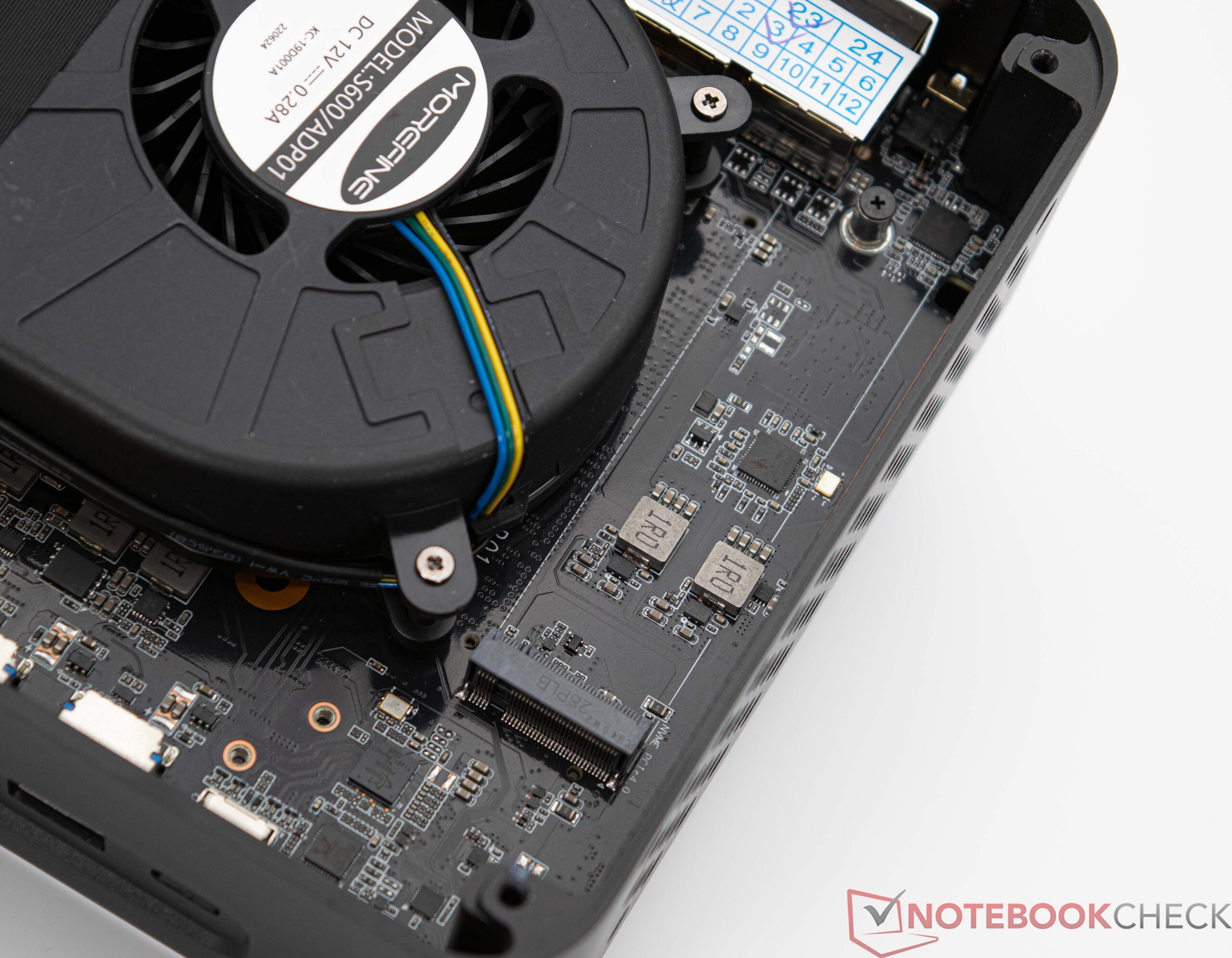

Morefine M600可以配备三个大容量存储设备--无论SoC的配置如何。该设备有两个M.2插槽，机箱盖上还可以容纳一个2.5英寸数据载体（见图）。然而，它的高度不能超过9毫米。适当的连接线包括在交货范围内。

关于更多的比较和基准，请看我们的比较表.

CrystalDiskMark 3.0

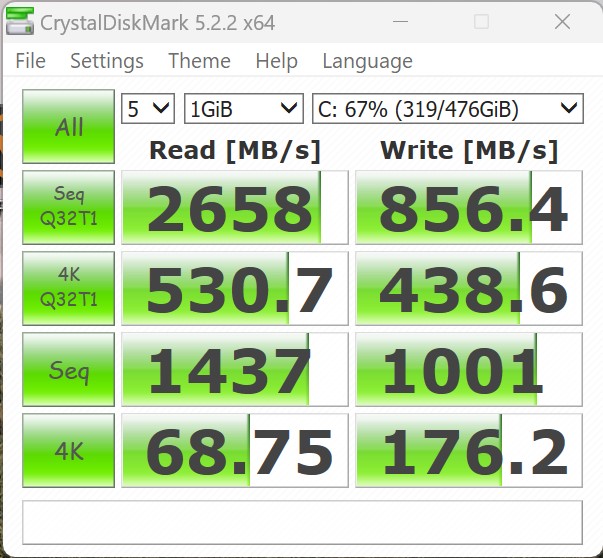

CrystalDiskMark 5.2 / 6

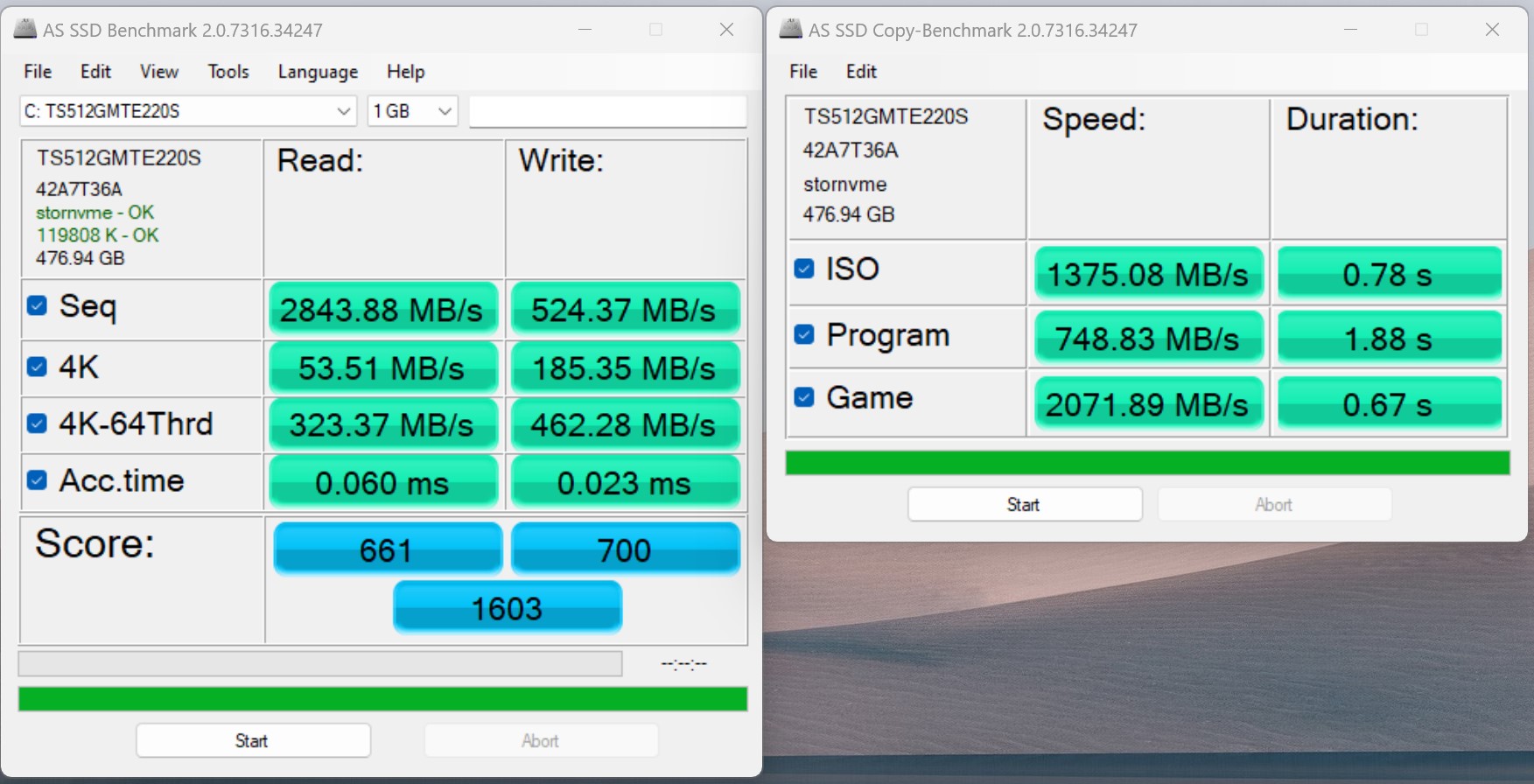

AS SSD

DiskSpd

Transcend M.2 SSD 2200S TS512GMTE220S

Sequential Read: 2523 MB/s

Sequential Write: 894.3 MB/s

512K Read: 947.1 MB/s

512K Write: 533.2 MB/s

4K Read: 53.23 MB/s

4K Write: 204.2 MB/s

4K QD32 Read: 467.4 MB/s

4K QD32 Write: 385.9 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	86.2 pt
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	82.1 pt
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	66.9 pt
Average of class Mini PC	52.6 pt
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	41.8 pt
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	40 pt
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	37.5 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	34.9 pt
Morefine S500+ ADATA XPG Gammix S11L 1024GB	31.2 pt

DiskSpd
seq read
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3195 (3147.62^min - 3194.91^max) MB/s +86%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2815 (2802.79^min - 2814.97^max) MB/s +64%
Average of class Mini PC (233 - 4357, n=119, last 2 years)	2288 MB/s +33%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s +27%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2034 (2023.33^min - 2033.61^max) MB/s +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1790 (1744.2^min - 1789.7^max) MB/s +4%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1720 (1344.24^min - 1720.17^max) MB/s
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1713 (1703.57^min - 1712.81^max) MB/s 0%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1176 (1169.13^min - 1175.87^max) MB/s -32%
seq write
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3539 (3516.6^min - 3538.94^max) MB/s +229%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3372.67^min - 3402.21^max) MB/s +216%
Average of class Mini PC (222 - 5595, n=119, last 2 years)	2448 MB/s +128%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s +67%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1530 (603.77^min - 1530.08^max) MB/s +42%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1277 (1270.04^min - 1277.38^max) MB/s +19%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1185 (1181.38^min - 1184.95^max) MB/s +10%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1075 (545.51^min - 1075.26^max) MB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	984 (154.77^min - 984.48^max) MB/s -8%
seq q8 t1 read
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	4820 (3819.87^min - 4820.3^max) MB/s +91%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4801 (4506.78^min - 4800.59^max) MB/s +90%
Average of class Mini PC (236 - 8430, n=119, last 2 years)	3706 MB/s +47%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s 0%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2522 (2230.32^min - 2522.44^max) MB/s
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2378 (2126.78^min - 2378.31^max) MB/s -6%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2273 (1501.91^min - 2273.31^max) MB/s -10%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2167 (2086.44^min - 2166.57^max) MB/s -14%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1987 (1409.4^min - 1987.27^max) MB/s -21%
seq q8 t1 write
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3536 (3475.82^min - 3536.01^max) MB/s +121%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3374.28^min - 3401.67^max) MB/s +113%
Average of class Mini PC (228 - 6669, n=119, last 2 years)	2743 MB/s +72%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s +12%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1758 (161.06^min - 1758.04^max) MB/s +10%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1599 (266.87^min - 1599.24^max) MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1316 (1309.25^min - 1315.54^max) MB/s -18%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1200 (1191.05^min - 1200.08^max) MB/s -25%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1084 (553.02^min - 1084.16^max) MB/s -32%
4k q1 t1 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.1 (81.4^min - 82.09^max) MB/s +104%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	70.8 (63.28^min - 70.81^max) MB/s +76%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	63 (57.2^min - 63.02^max) MB/s +56%
Average of class Mini PC (5.67 - 86.6, n=119, last 2 years)	54.7 MB/s +36%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	48.5 (48.27^min - 48.47^max) MB/s +20%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s +12%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	44.4 (44.23^min - 44.37^max) MB/s +10%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	40.3 (36.8^min - 40.3^max) MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	29.5 (29.27^min - 29.48^max) MB/s -27%
4k q1 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	425 (415.92^min - 425.01^max) MB/s +86%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	288 (287.39^min - 288.47^max) MB/s +26%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	229 (165.03^min - 229.29^max) MB/s
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	220 (212.2^min - 220.15^max) MB/s -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	199.5 (150.75^min - 199.48^max) MB/s -13%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s -14%
Average of class Mini PC (30.4 - 435, n=119, last 2 years)	194.7 MB/s -15%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	160 (158.59^min - 159.95^max) MB/s -30%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	138 (136.12^min - 137.6^max) MB/s -40%
4k q32 t16 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1944 (1936.89^min - 1943.53^max) MB/s +247%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	1933 (1926.8^min - 1932.75^max) MB/s +245%
Average of class Mini PC (26.1 - 4158, n=119, last 2 years)	1360 MB/s +142%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1063 (1053.81^min - 1062.87^max) MB/s +89%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s +79%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	803 (785.8^min - 802.75^max) MB/s +43%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	561 (475.29^min - 560.56^max) MB/s
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	354 (11.43^min - 353.56^max) MB/s -37%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	350 (213.46^min - 349.65^max) MB/s -38%
4k q32 t16 write
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3331 (2068.43^min - 3331.41^max) MB/s +512%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2396 (2376.28^min - 2396.46^max) MB/s +340%
Average of class Mini PC (30.2 - 4288, n=119, last 2 years)	1287 MB/s +137%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1032 (1014.5^min - 1032.27^max) MB/s +90%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	893 (601.78^min - 892.97^max) MB/s +64%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	890 (860.72^min - 889.72^max) MB/s +64%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	774 (725.33^min - 774.03^max) MB/s +42%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	561 (408.83^min - 561.15^max) MB/s +3%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	544 (355.98^min - 544.47^max) MB/s

AS SSD
Score Total
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	9030 Points +1106%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	7134 Points +853%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	6665 Points +790%
Average of class Mini PC (181.5 - 10021, n=117, last 2 years)	4121 Points +450%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2887 Points +286%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2722 Points +264%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2248 Points +200%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1340 Points +79%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	748.83 Points
Score Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3635 Points +450%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2391 Points +262%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	2352 Points +256%
Average of class Mini PC (61 - 3741, n=117, last 2 years)	1534 Points +132%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1152 Points +74%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1000 Points +51%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	855 Points +29%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	661 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	655 Points -1%
Score Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3615 Points +416%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3538 Points +405%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3145 Points +349%
Average of class Mini PC (88 - 4371, n=117, last 2 years)	1851 Points +164%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1251 Points +79%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1169 Points +67%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	992 Points +42%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	700 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	406 Points -42%
Seq Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	5338 MB/s +88%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4147 MB/s +46%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	4050 MB/s +42%
Average of class Mini PC (291 - 6620, n=117, last 2 years)	3161 MB/s +11%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2844 MB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2723 MB/s -4%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2303.9 MB/s -19%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2204 MB/s -23%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2048 MB/s -28%
Seq Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3927 MB/s +649%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3292 MB/s +528%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3025 MB/s +477%
Average of class Mini PC (240 - 5783, n=117, last 2 years)	2212 MB/s +322%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1603 MB/s +206%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1405 MB/s +168%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1254 MB/s +139%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1145 MB/s +119%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	524 MB/s
4K Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	103.66 MB/s +94%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	86.05 MB/s +61%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	66.6 MB/s +24%
Average of class Mini PC (6.08 - 104.3, n=117, last 2 years)	58.9 MB/s +10%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	57.87 MB/s +8%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	53.5 MB/s
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	39.71 MB/s -26%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	34.41 MB/s -36%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	27.6 MB/s -48%
4K Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	365.87 MB/s +97%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	240.66 MB/s +30%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	209 MB/s +13%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	185.4 MB/s
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	185.32 MB/s 0%
Average of class Mini PC (30.9 - 366, n=117, last 2 years)	175.1 MB/s -6%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	152.35 MB/s -18%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	121.3 MB/s -35%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	100.35 MB/s -46%
4K-64 Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3035 MB/s +840%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1872.82 MB/s +480%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	1860.96 MB/s +476%
Average of class Mini PC (23.4 - 3220, n=117, last 2 years)	1159 MB/s +259%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	891.59 MB/s +176%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	711.88 MB/s +120%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	622 MB/s +93%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	348.68 MB/s +8%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	323 MB/s
4K-64 Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3013 MB/s +552%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2842.9 MB/s +515%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	2602.12 MB/s +463%
Average of class Mini PC (32.8 - 3731, n=117, last 2 years)	1455 MB/s +215%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	984.11 MB/s +113%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	823.51 MB/s +78%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	745 MB/s +61%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	462 MB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	164.61 MB/s -64%
Access Time Read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.154 ms * -157%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.105 ms * -75%
Average of class Mini PC (0.022 - 0.489, n=117, last 2 years)	0.09726 ms * -62%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	0.084 ms * -40%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.074 ms * -23%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.066 ms * -10%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	0.065 ms * -8%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.06 ms * -0%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.06 ms *
Access Time Write
Average of class Mini PC (0.014 - 0.765, n=117, last 2 years)	0.1153 ms * -401%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.103 ms * -348%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.103 ms * -348%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	0.035 ms * -52%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.031 ms * -35%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	0.031 ms * -35%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.029 ms * -26%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.023 ms *
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.018 ms * +22%

* ... smaller is better

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S: Ø1047 (95.4-2400.59)

Morefine S500+ ADATA XPG Gammix S11L 1024GB: Ø2165 (2034.95-2173.28)

Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1: Ø2353 (2170.7-2362.34)

Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G: Ø2219 (1791.18-2464.68)

Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0: Ø3302 (1830.49-4799.45)

Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S: Ø2242 (1995.64-2278.98)

Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0: Ø2987 (1605.58-4819.04)

Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G: Ø1770 (1505.89-1954.62)

图形卡

Morefine M600 6600U有一个集成的AMD Radeon 660M显卡。与之相比AMD Radeon 680M，这是一个在AMD Ryzen 9 6900HX中发现的iGPU，你必须满足于AMD Radeon 660M的性能要低很多。两种型号之间有50%的差距，这意味着AMD Radeon 660M与AMD Radeon RX Vega 8和Intel Iris Xe Graphics竞争。

由于Morefine M600 6600U有一个Thunderbolt 3端口，我们已经看了它与Razer Core X和Iris Xe相结合的性能。NvidiaGeForce RTX 3060 Ti.虽然，由于其较低的PCI Express连接，桌面显卡的性能有些受限。然而，与iGPU相比，其3D性能在这种组合中可以得到大幅提高。在合成测试中，与它的竞争对手相比，我们看到了类似的性能，我们还结合了Razer Core X和NvidiaGeForce RTX 3060 Ti。只有王牌魔术师TK11-A0由于其较弱的CPU，不能完全跟上这里。

你可以在这里找到进一步的AMD Radeon 660M基准测试移动显示芯片——基准测试成绩列表。

AMD Radeon 660M

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	99.1 pt
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	98 pt
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	72.5 pt
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	64.3 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	63.8 pt
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	62.3 pt
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	51.6 pt
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	50.7 pt

3DMark 11 - 1280x720 Performance GPU
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	11055 Points +96%
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	10845 Points +92%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7122 Points +26%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	7057 Points +25%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6840 Points +21%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	5777 Points +3%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	5634 Points
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points -1%

3DMark
1280x720 Cloud Gate Standard Graphics
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	43275 Points +54%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	41124 Points +46%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	32899 Points +17%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	30434 Points +8%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	28159 Points
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	26183 Points -7%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	21114 Points -25%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points -27%
1920x1080 Fire Strike Graphics
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	6679 Points +45%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6644 Points +44%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5526 Points +20%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4883 Points +6%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	4621 Points
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4369 Points -5%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points -19%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	3379 Points -27%
2560x1440 Time Spy Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2408 Points +68%
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	2351 Points +64%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1658 Points +16%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1630 Points +14%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	1430 Points
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1412 Points -1%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	1150 Points -20%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1109 Points -22%
Fire Strike Extreme Graphics
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	3206 Points +49%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	3066 Points +43%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	2455 Points +14%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	2161 Points +1%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	2149 Points
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1823 Points -15%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1735 Points -19%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	1509 Points -30%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition | ComputeMark v2.1

Performance Rating - Percent
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	98.4 pt
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	91.6 pt
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	61.2 pt
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	61.2 pt
Intel NUC 12 Pro Kit NUC12WSKi7 ^-2! Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	59.2 pt
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	57.7 pt
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	50.8 pt
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	47.6 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	34.6 fps +70%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	33.6 fps +65%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	23.3 fps +14%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	22.2 fps +9%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.4 fps
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	19.6 fps -4%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.3 fps -15%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	14.9 fps -27%
Extreme Preset DX11
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	33.4 fps +60%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	32.2 fps +54%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	24 fps +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	22.5 fps +8%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	21.4 fps +2%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.9 fps
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.7 fps -15%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	16.8 fps -20%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	21 fps +93%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	18.8 fps +72%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	14.3 fps +31%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	14.2 fps +30%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	13.6 fps +25%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	11.5 fps +6%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	10.9 fps
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	10.6 fps -3%
1920x1080 Extreme HD Preset OpenGL AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	22.8 fps +97%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	21.3 fps +84%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	16.2 fps +40%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	15.2 fps +31%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	13.7 fps +18%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	12.8 fps +10%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	11.6 fps
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	9.2 fps -21%

Unigine Superposition
1920x1080 1080p High
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	3187 Points +77%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	2916 Points +62%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	2095 Points +16%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1926 Points +7%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	1800 Points
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1579 Points -12%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	1530 Points -15%
1920x1080 1080p Extreme
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	1481 Points +85%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1358 Points +70%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1076 Points +34%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	868 Points +8%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	801 Points
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	776 Points -3%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	736 Points -8%

ComputeMark v2.1
1024x600 Normal, Score
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	7111 Points +107%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	5813 Points +69%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	4148 Points +21%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	3843 Points +12%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	3535 Points +3%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	3439 Points
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	3390 Points -1%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	2693 Points -22%
1024x600 Normal, Fluid 3DTex
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	400 Points +26%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	371 Points +17%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	318 Points
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	276 Points -13%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	235 Points -26%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	234 Points -26%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	224 Points -30%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	186 Points -42%
1024x600 Normal, Fluid 2DTexArr
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	404 Points +19%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	367 Points +8%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	340 Points
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	272 Points -20%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	249 Points -27%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	242 Points -29%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	220 Points -35%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	204 Points -40%
1024x600 Normal, Mandel Vector
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	2030 Points +118%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1677 Points +80%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1280 Points +37%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1217 Points +30%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	933 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	891 Points -5%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	851 Points -9%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	558 Points -40%
1024x600 Normal, QJuliaRayTrace
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	2332 Points +142%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1924 Points +100%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	1303 Points +35%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1205 Points +25%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1191 Points +24%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1123 Points +17%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	994 Points +3%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	963 Points

NvidiaGeForce RTX 3060 Ti，通过Thunderbolt 3。

Performance Rating | 3DMark 11 | 3DMark

Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	100 pt
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	98.8 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	97.4 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	96.3 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	96 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	94.7 pt

3DMark 11 - 1280x720 Performance GPU
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	33577 Points +496%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	33425 Points +493%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32915 Points +484%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32726 Points +481%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	32630 Points +479%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	32467 Points +476%
	5634 Points

3DMark
1280x720 Cloud Gate Standard Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	123559 Points +339%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	121918 Points +333%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	118686 Points +321%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	116516 Points +314%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	115545 Points +310%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	112625 Points +300%
	28159 Points
1920x1080 Fire Strike Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	25669 Points +455%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	25071 Points +443%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24905 Points +439%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	24738 Points +435%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24360 Points +427%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	24193 Points +424%
	4621 Points
2560x1440 Time Spy Graphics
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	11032 Points +671%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	11031 Points +671%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10777 Points +654%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	10768 Points +653%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10717 Points +649%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	10530 Points +636%
	1430 Points
Fire Strike Extreme Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	13552 Points +531%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	13299 Points +519%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	13264 Points +517%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	13186 Points +514%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	13007 Points +505%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	12943 Points +502%
	2149 Points

Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition | ComputeMark v2.1

Unigine Heaven 4.0
Extreme Preset OpenGL
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	169.6 fps +731%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	169.6 fps +731%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	167.3 fps +720%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	167.3 fps +720%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	166.1 fps +714%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	142.1 fps +597%
	20.4 fps
Extreme Preset DX11
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	164.8 fps +689%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	164.4 fps +687%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	154.5 fps +639%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	154.3 fps +638%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	153.4 fps +634%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	135.3 fps +547%
	20.9 fps

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	143.1 fps +1213%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	141.6 fps +1199%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	134.2 fps +1131%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	131.7 fps +1108%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	127.9 fps +1073%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	93.6 fps +759%
	10.9 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	127.2 fps +997%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	125.8 fps +984%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	122.7 fps +958%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	122.2 fps +953%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	120.1 fps +935%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	91.6 fps +690%
	11.6 fps

Unigine Superposition
1920x1080 1080p High
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	15114 Points +740%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	14836 Points +724%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	14751 Points +720%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	14698 Points +717%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	8142 Points +352%
	1800 Points
1920x1080 1080p Extreme
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7129 Points +790%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	7036 Points +778%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	7035 Points +778%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	7012 Points +775%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	4171 Points +421%
	801 Points

ComputeMark v2.1
1024x600 Normal, Score
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	27847 Points +710%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	27847 Points +710%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	27811 Points +709%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	27740 Points +707%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	27566 Points +702%
	3439 Points
1024x600 Normal, Fluid 3DTex
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	2698 Points +748%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	2691 Points +746%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	2689 Points +746%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	2679 Points +742%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	2675 Points +741%
	318 Points
1024x600 Normal, Fluid 2DTexArr
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	2629 Points +673%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	2622 Points +671%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	2619 Points +670%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	2619 Points +670%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	2606 Points +666%
	340 Points
1024x600 Normal, Mandel Vector
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	5711 Points +512%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5694 Points +510%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	5689 Points +510%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	5655 Points +506%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	5603 Points +501%
	933 Points
1024x600 Normal, QJuliaRayTrace
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	10555 Points +996%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	10539 Points +994%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	10536 Points +994%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	10532 Points +994%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	10462 Points +986%
	963 Points

游戏性能

的AMD Radeon 660M是一个iGPU，只能在有限的范围内处理当前游戏的要求。例如，在运行《战神》时，我们只能在720p的情况下达到无法播放的帧率。相比之下，这意味着它与AMD Radeon RX Vega 8和Intel Iris Xe Graphics之间的交锋，它们也只能有限地适用于游戏。

像以前的合成测试一样，我们也看了一下这台电脑与Razer Core X和Nvidia RTX的预期性能组合。NvidiaGeForce RTX 3060 Ti在我们的游戏测试中。通过Thunderbolt和相应的配件，3D性能可以显著提高。与Morefine M600 6900HX相比，我们基于Ryzen 5 6600U的测试样本总是以很小的差距排在后面。

关于进一步的比较和基准，请看我们的 GPU游戏列表.

AMD Radeon 660M

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	131.8 fps +72%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	113.9 fps +48%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	97.2 fps +27%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	88.1 (3.39^min, 21.4^P0.1, 52.9^P1) fps +15%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	84.5 (18.4^min, 24^P0.1, 61.8^P1) fps +10%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	76.8 fps
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	69 (13.2^min, 36.3^P0.1, 41.6^P1) fps -10%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	65.9 (1.678^min, 12.6^P0.1, 39.7^P1) fps -14%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	41.3 fps +83%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	39.4 fps +74%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	32 fps +42%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	25.6 (19.1^min, 20^P0.1, 22.1^P1) fps +13%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	23.7 (1.923^min, 13.5^P0.1, 19.7^P1) fps +5%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	22.6 fps
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	19.3 (2.25^min, 2.26^P0.1, 2.92^P1) fps -15%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	15.2 (8.49^min, 8.73^P0.1, 9.27^P1) fps -33%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	90.7 fps +85%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	82.1 fps +68%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	72.7 fps +48%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	61 fps +24%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	59.1 fps +21%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	52.4 fps +7%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	49 fps
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	33.9 fps -31%
1920x1080 High Overall Quality (DX11)
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	26.5 fps +95%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	24.1 fps +77%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	17.7 fps +30%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	16.2 fps +19%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	15 fps +10%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	14.8 fps +9%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	13.6 fps
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	10.5 fps -23%

GTA V
1024x768 Lowest Settings possible
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	152.1 (2.73^min, 100^P1) fps +6%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	149.3 (5.43^min, 100^P1) fps +4%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	142.9 (1.358^min, 71.4^P1) fps
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	136 (6.37^min, 90.9^P1) fps -5%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	135.3 (26.7^min, 90.9^P1) fps -5%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	113.4 (25.6^min, 76.9^P1) fps -21%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	108.6 (21.4^min, 71.4^P1) fps -24%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	68.3 (18.7^min, 45.5^P1) fps -52%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	53.5 (3.46^min, 38.5^P1) fps +58%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	49.3 (7.78^min, 34.5^P1) fps +45%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	33.9 (11^min, 24.4^P1) fps 0%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	33.9 (1.094^min, 20.4^P1) fps
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	26.5 (10.4^min, 18.9^P1) fps -22%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	21 (8.15^min, 16.1^P1) fps -38%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	19.4 (8.25^min, 15.2^P1) fps -43%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	16.4 (5.82^min, 11.9^P1) fps -52%

Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	75 (60^min) fps +21%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	71 (39^min) fps +15%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	62 (57^min) fps 0%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	62 (49^min) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57 (49^min) fps -8%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	52 (45^min) fps -16%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	44 (19^min) fps -29%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	25 (19^min) fps -60%
1920x1080 High Preset AA:T
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	39 (34^min) fps +34%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	34 (30^min) fps +17%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	29 (25^min) fps
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	27 (24^min) fps -7%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	27 (24^min) fps -7%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	25 (23^min) fps -14%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	20 (10^min) fps -31%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	16 (13^min) fps -45%

Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	66 (50^min) fps +14%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	65 (50^min) fps +12%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	58 (42^min) fps
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	56 (43^min) fps -3%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	52 (31^min) fps -10%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	47 (30^min) fps -19%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	42 (33^min) fps -28%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	29 (19^min) fps -50%
1920x1080 High Preset
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	37 (17^min) fps +28%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	37 (29^min) fps +28%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	29 (23^min) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	28 (21^min) fps -3%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	26 (21^min) fps -10%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	26 (19^min) fps -10%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	19 (6^min) fps -34%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	15 (12^min) fps -48%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	143 (124.5^min) fps +5%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	137.4 (117.3^min) fps +1%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	136.9 (106.8^min) fps +1%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	135.9 (121.4^min) fps
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	133.4 (119^min) fps -2%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	124.2 (110.5^min) fps -9%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	116.4 (93.7^min) fps -14%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	79.1 (53.9^min) fps -42%
1920x1080 high (2/3)
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	84.3 (74.6^min) fps +30%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	82.2 (71.4^min) fps +27%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	68 (62.7^min) fps +5%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	66.7 (61^min) fps +3%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	64.9 (56.8^min) fps
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	63.1 (57.2^min) fps -3%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	51.7 (47.2^min) fps -20%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	43.4 (31.3^min) fps -33%

	low	med.	high	ultra
GTA V (2015)	142.9	124.9	33.9	14.5
The Witcher 3 (2015)	76.8	46.8	22.6	14.4
Dota 2 Reborn (2015)	135.9	107.7	64.9	55.7
Final Fantasy XV Benchmark (2018)	40.9	19.8	14.5
X-Plane 11.11 (2018)	50.6	36.7	30.8
Far Cry 5 (2018)	62	29	29	26
Strange Brigade (2018)	99.9	37.8	29.5	24.3
Shadow of the Tomb Raider (2018)	69.3	22.2	17.3	13.4
Far Cry New Dawn (2019)	58	32	29	27
Metro Exodus (2019)	48	18.8	14.4	11.2
Borderlands 3 (2019)	49	20.5	13.6	10.7
F1 2020 (2020)	102.1	44.6	32.3	22.2
F1 2021 (2021)	109.5	44.4	35.2	14.7
Far Cry 6 (2021)	58.5	25.6	21.8	18.3
God of War (2022)	16	12.6	9.95
GRID Legends (2022)	49.6	36.5	27.4	19.5
Tiny Tina's Wonderlands (2022)	26.9	19.7	12.6	9.57
F1 22 (2022)	44.7	40.2	27.2	5.91

NvidiaGeForce RTX 3060 Ti，通过Thunderbolt 3。

Performance Rating - Percent
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	97.3 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	85.5 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	84.7 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	79.7 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	73.8 pt
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	21.3 pt

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	90.5 (15.8^min, 62.5^P1 - 187.2^max) fps +524%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	89.5 (16.6^min, 58.8^P1 - 175.8^max) fps +517%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	85.1 (17.4^min, 52.6^P1 - 186.7^max) fps +487%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	76.1 (11.9^min, 50^P1 - 151.7^max) fps +425%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	56.1 (15.7^min, 38.5^P1 - 119.1^max) fps +287%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	14.5 (2.64^min, 10.4^P1 - 72.3^max) fps

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	75.3 (40.5^min, 52.6^P0.1, 59.5^P1 - 173.3^max) fps +423%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	60.8 (40.3^min, 43^P0.1, 46.6^P1 - 140.7^max) fps +322%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	57.9 fps +302%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	56.6 fps +293%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	56.3 fps +291%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	14.4 fps

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	134.5 (115.1^min) fps +141%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	113.3 (94.8^min) fps +103%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	111.7 (92.8^min) fps +101%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	105 (89.2^min) fps +89%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	92.8 (79.9^min) fps +67%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	55.7 (49.1^min) fps

Final Fantasy XV Benchmark - 1920x1080 High Quality
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	97.6 fps +573%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	92.2 fps +536%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	91.5 fps +531%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	91.2 fps +529%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	79 fps +445%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	14.5 fps

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	148.8 (78.4^min, 90.6^P1 - 285^max) fps +512%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	131.1 (68.1^min, 78.3^P1 - 270^max) fps +440%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	128.7 (36^min, 76.1^P1 - 249^max) fps +430%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	127.4 (45.3^min, 77.9^P1 - 260^max) fps +424%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	114.7 (58.8^min, 72.4^P1 - 210^max) fps +372%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	24.3 (10.4^min, 12^P1 - 274^max) fps

Far Cry 5 - 1920x1080 Ultra Preset AA:T
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	120 (92^min - 158^max) fps +362%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	107 (72^min - 143^max) fps +312%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	104 (77^min - 138^max) fps +300%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	88 (68^min - 117^max) fps +238%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	60 (46^min - 78^max) fps +131%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	26 (23^min - 34^max) fps

Far Cry New Dawn - 1920x1080 Ultra Preset
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	101 (74^min - 147^max) fps +274%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	88 (63^min - 132^max) fps +226%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	87 (62^min - 135^max) fps +222%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	77 (54^min - 122^max) fps +185%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	54 (39^min - 85^max) fps +100%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	27 (20^min - 33^max) fps

F1 2020 - 1920x1080 Ultra High Preset AA:T AF:16x
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	102.7 (53^min - 145^max) fps +363%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	86.7 (48^min - 122^max) fps +291%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	84.5 (42^min - 120^max) fps +281%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	82.4 (39^min - 117^max) fps +271%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	81.5 (43^min - 107^max) fps +267%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	22.2 (17^min - 27^max) fps

F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	65.4 (47^min, 47^P1 - 73^max) fps +345%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	51.7 (34^min, 24^P1 - 59^max) fps +252%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	44 (9^min, 20^P1 - 52^max) fps +199%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	43.5 (10^min, 19^P1 - 51^max) fps +196%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	42.8 (11^min, 19^P1 - 50^max) fps +191%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	14.7 (12^min, 12^P1 - 17^max) fps

Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	83.6 fps +681%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	76.4 fps +614%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	71.3 fps +566%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	69.8 fps +552%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	68.7 fps +542%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	10.7 fps

	low	med.	high	ultra	QHD	4K
GTA V (2015)	164.9	158.4	130.7	76.1	73.8	94
The Witcher 3 (2015)	207.5	142.8	108.4	56.6		61.1
Dota 2 Reborn (2015)	131.8	116.9	108.6	105		90.8
Final Fantasy XV Benchmark (2018)	149.2	124.4	91.2		73.4	46.9
X-Plane 11.11 (2018)	90.8	79.2	64.9			56.7
Far Cry 5 (2018)	113	98	94	88	82	55
Strange Brigade (2018)	169.8	131.1	128.3	128.7	119.6	79.4
Shadow of the Tomb Raider (2018)	108.4	89.6	87.4	84.7	78	52.1
Far Cry New Dawn (2019)	100	89	85	77	72	56
Metro Exodus (2019)	110.4	77.7	59.3	44.7	40	30.8
Borderlands 3 (2019)	83.3	88.2	84.2	68.7	56.9	33.5
F1 2020 (2020)	163.9	95.8	97.6	84.5	72.5	51.7
F1 2021 (2021)	113.7	87.6	54.5	42.8	38.8	32.8
Far Cry 6 (2021)	60.1	51.5	42.3	36.6	35.8
God of War (2022)	98.1	87.8	73.8	56	49.2	37.7
GRID Legends (2022)	91.6	81	70.1	57.7	52.6	44.1
Tiny Tina's Wonderlands (2022)	151.4	126.8	91.9	75.3	58.1	35.1
F1 22 (2022)	49.1	44.3	34.8	22.6	21.7	17.3

排放 - 节约且极其安静

噪声排放

在噪音排放方面，Morefine M600 6600U是无可厚非的。与环境噪音相比，我们只看到了噪音水平的最小增长--即使是在满负荷的情况下。因此，我们可以说，尽管有主动的空气冷却，但该设备几乎无声地工作。只有Minisforum NAD9表现得同样好。

	Morefine M600, 6600U R5 6600U, Radeon 660M	Morefine S500+ R9 5900HX, Vega 8	Minisforum EliteMini B550 R7 5700G, Vega 8	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	Morefine M600, 6900HX R9 6900HX, Radeon 680M
Noise		-19%	-6%	-13%	-3%	-20%	-9%	-11%
off / environment *	29.4	30.1 -2%	30.2 -3%	30.28 -3%	30.2 -3%	30.4 -3%	30.5 -4%	30.4 -3%
Idle Minimum *	29.4		30.5 -4%	31.82 -8%	30.5 -4%	33.1 -13%	31.6 -7%	30.9 -5%
Idle Average *	29.4	33.15 -13%	30.5 -4%	32.27 -10%	30.5 -4%	33.1 -13%	31.6 -7%	31.5 -7%
Idle Maximum *	29.5		30.5 -3%	33.17 -12%	30.5 -3%	33.1 -12%	31.6 -7%	31.5 -7%
Load Average *	29.6		31.2 -5%	35.82 -21%	30.5 -3%	38.1 -29%	33.9 -15%	37.5 -27%
Load Maximum *	29.6	41.63 -41%	35.1 -19%	37.1 -25%	30.5 -3%	43.6 -47%	34.4 -16%	34.1 -15%

* ... smaller is better

Noise Level

Idle		29.4 / 29.4 / 29.5 dB(A)
Load		29.6 / 29.6 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 29.4 dB(A)

温度

Morefine M600 6600U的机箱只是轻微发热，尽管风扇工作得非常保守。我们记录的最高温度为90.8°C，为AMD Ryzen 5 6600U在我们的压力测试中，模拟了一个极端情况。制造商将BIOS中的最高温度限制在90℃--这是因为根据制造商的规格，AMD Ryzen 5 6600U的热限制是95℃。

消耗功率

看一下比较表就会发现，Morefine M600 6600U的得分很高。节俭的SoC最终确保了所有测量中的低耗电量。我们注意到空闲时只有8到8.8瓦，尽管在平均负载时只需要大约55瓦。然而，120瓦的电源也不得不在短时间内提供高达83瓦的功率--但这并没有在我们的测试中导致任何问题。

Power Consumption

Off / Standby	1.6 / 1.9 Watt
Idle	8 / 8.7 / 8.8 Watt
Load	54.6 / 83.2 Watt


Key: min: , med: , max: Metrahit Energy

	Morefine M600, 6600U R5 6600U, Radeon 660M	Morefine S500+ R9 5900HX, Vega 8	Minisforum EliteMini B550 R7 5700G, Vega 8	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Average AMD Radeon 660M	Average of class Mini PC
Power Consumption		-1%	-32%	32%	-54%	-33%	-15%	-27%	22%	-28%
Idle Minimum *	8	8.1 -1%	8.9 -11%	3.4 57%	12.1 -51%	12.1 -51%	8.7 -9%	9.9 -24%	4.41 ?(2.4 - 8, n=9) 45%	9.48 ?(1.9 - 45.7, n=119, last 2 years) -19%
Idle Average *	8.7	8.4 3%	9.6 -10%	5.7 34%	13 -49%	12.2 -40%	9.6 -10%	11 -26%	6.74 ?(4.6 - 8.7, n=9) 23%	11.5 ?(1.9 - 47.5, n=117, last 2 years) -32%
Idle Maximum *	8.8	11.9 -35%	11.8 -34%	7 20%	18.2 -107%	12.3 -40%	10.5 -19%	11.2 -27%	8.29 ?(5.1 - 13, n=9) 6%	14.9 ?(2.6 - 57.1, n=119, last 2 years) -69%
Load Average *	54.6	47.1 14%	98.9 -81%	36.5 33%	70.6 -29%	64 -17%	65.8 -21%	74.2 -36%	46 ?(24.4 - 61.5, n=9) 16%	57.4 ?(11.3 - 170.6, n=119, last 2 years) -5%
Load Maximum *	83.2	72.9 12%	101.8 -22%	68 18%	113 -36%	98.8 -19%	94.5 -14%	103.2 -24%	65.7 ?(47.5 - 88, n=9) 21%	97.5 ?(18.1 - 423, n=119, last 2 years) -17%

* ... smaller is better

Power consumption with external monitor

Morefine M600, 6600U; Prime95 V2810 Stress (external Monitor): Ø44.6 (37.4-67.8)

Morefine M600, 6600U; Cinebench R15 Multi (external Monitor): Ø41.9 (39.5-46.1)

Morefine M600, 6600U; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø46.4 (41.3-64.1)

Morefine M600, 6600U; 1920x1080 The Witcher 3 ultra (external Monitor): Ø45.6 (42.7-54.8)

Morefine M600, 6600U; Idle 1min (external Monitor): Ø8.82 (8.4-12.2)

Pros

+ 由高质量材料制成的坚固而紧凑的外壳

+ 有吸引力的设计

+ 大量的USB端口，包括Thunderbolt

+ 最多可以安装三个固态硬盘

+ 整体非常安静

+ 低耗电

+ 可以选择同时使用三个显示器

+ 双局域网2.5G

+ 价格合理

Cons

- 没有SD卡读卡器

- SSD温度高

评语 - 良好的性能和低排放

Morefine M600 6600U的性能可以接受，是顶级型号的一个很好的替代品。这款AMD Ryzen 5 6600U基于最新的Rembrandt架构，拥有6个核心和12个线程，是一款不错的全能型CPU。从视觉上看，这两款M600型号之间几乎没有区别--它们的结构很好，所使用的各种材料都是高质量的。与iGPU相比，AMD Ryzen 5 6600U不得不放弃一点性能。在这里，AMD Ryzen 9 6900HX与它的AMD Radeon 680M表现明显更好。因此，Morefine M600不能被推荐为纯粹用于游戏的PC--尽管由于其现代连接选项，包括Thunderbolt 4，该系统绝对可以通过合适的配件来加强。

Morefine M600 6600U是一款现代和节俭的迷你PC，有很多外部端口。幸运的是，Ryzen 5型号不必错过现代Thunderbolt 4端口。

它的内置冷却装置很好，尽管同时也值得批评一下。风扇工作起来很安静--即使是在最大负荷下。即便如此，制造商本可以优化风扇速度，以确保SoC在永久负载下表现得更好。

价格和可用性

目前你可以直接从，购买Morefine M600 6600U。.配备AMD Ryzen 5 6600U的裸机版价格为388美元起。

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was freely purchased by the author at his/her own expense. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Morefine M600, 6600U - 05/11/2023 v7 ^(old)
Sebastian Bade

Chassis

87 / 98 → 89%

Connectivity

63 / 81 → 78%

Weight

79%

Games Performance

68%

Application Performance

90%

Workstation

67%

Noise

95%

Average

78%

84%

Mini PC - Weighted Average

潜在的竞争对手比较

配备AMD Ryzen 5 6600U的Morefine M600的详细信息

案例

尺寸比较

性能--AMD的Rembrandt SoC有6个核心，速度很快

测试条件

处理器

在Cinebench R15多重循环中的Morefine M600

系统性能

DPC延时

存储设备

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

图形卡

AMD Radeon 660M

NvidiaGeForce RTX 3060 Ti，通过Thunderbolt 3。

游戏性能

AMD Radeon 660M

NvidiaGeForce RTX 3060 Ti，通过Thunderbolt 3。

排放 - 节约且极其安静

噪声排放

温度

消耗功率

Power consumption with external monitor

Pros

Cons

评语 - 良好的性能和低排放

价格和可用性

Transparency

More articles related to this device
