NiPoGi CK10 评测--配备英特尔酷睿 i5-12450H 和 16GB 内存的迷你 PC 未达预期效果

Name: NiPoGi CK10
Brand: NiPoGi

现代 SoC 和大量塑料！

NiPoGi CK10 以英特尔酷睿 i5-12450H 为基础，旨在吸引买家。乍一看，它似乎很有前途，毕竟 Alder Lake SoC 提供 8 个内核。然而，在有限的功率目标下，这款处理器并没有展现出它所能做到的一切。在这篇以各种基准测试为特色的评测中，你可以了解到这种限制会产生什么影响。

Sebastian Bade (translated by DeepL / Ninh Duy), Published 10/20/2023 🇺🇸 🇩🇪 ...

Mini PC Intel Alder Lake Desktop

NiPoGi 是一家专门生产微型 PC 的中国系统制造商。CK10 是一款相对较小的设备，配备了英特尔酷睿 i5-12450H.它还配备了 16GB DDR4 内存和 512GB SSD 固态硬盘，这意味着该设备只需稍加设置即可使用。制造商对该设备的收费约为 530 美元，不过，随时都有折扣，使价格进一步下降。这使它更具吸引力，很可能成为购买电脑的决定性因素。

在本次评测中，类似的小巧廉价迷你 PC 也是本次评测的对比设备。您可以在下表中查看。

Download your licensed rating image as PNG / SVG

NiPoGi CK10

Processor

Intel Core i5-12450H 8 x 1.5 - 4.4 GHz, 35 W PL2 / Short Burst, 45 W PL1 / Sustained, Alder Lake-H

Graphics adapter

Intel UHD Graphics 64EUs (Alder Lake 12th Gen)

Memory

16 GB

, DDR4-3200

Mainboard

Intel Alder Lake-P PCH

Storage

Future Path FPE220M8SSD512G, 512 GB

, M.2 2280, NVMe, 512 GB , 440 GB free

Soundcard

Intel Alder Lake-P PCH - cAVS (Audio, Voice, Speech)

Connections

5 USB 3.0 / 3.1 Gen1, 1 VGA, 2 HDMI

Networking

Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Realtek RTL8852BE (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Size

height x width x depth (in mm): 50 x 137.5 x 125

Operating System

Microsoft Windows 11 Pro

Additional features

65-Watt-Netzteil, 12 Months Warranty

Weight

481 g, Power Supply: 233 g

Price

499 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height
77.2 % v7 ^(old)	10 / 2023	NiPoGi CK10 i5-12450H, UHD Graphics 64EUs	481 g	50 mm
83.7 % v7 ^(old)	05 / 2023	Morefine M600, 6600U R5 6600U, Radeon 660M	768 g	40.6 mm
81.9 % v7 ^(old)	05 / 2023	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	616 g	55 mm
80.6 % v7 ^(old)	07 / 2023	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	536 g	48 mm
78 % v7 ^(old)	10 / 2023	Minisforum Venus Series UN1245 i5-12450H, UHD Graphics 64EUs	545 g	54.3 mm
77.8 % v7 ^(old)	09 / 2023	Acemagic AD15 i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	765 g	76 mm
73.8 % v7 ^(old)	08 / 2023	Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	678 g	75.5 mm

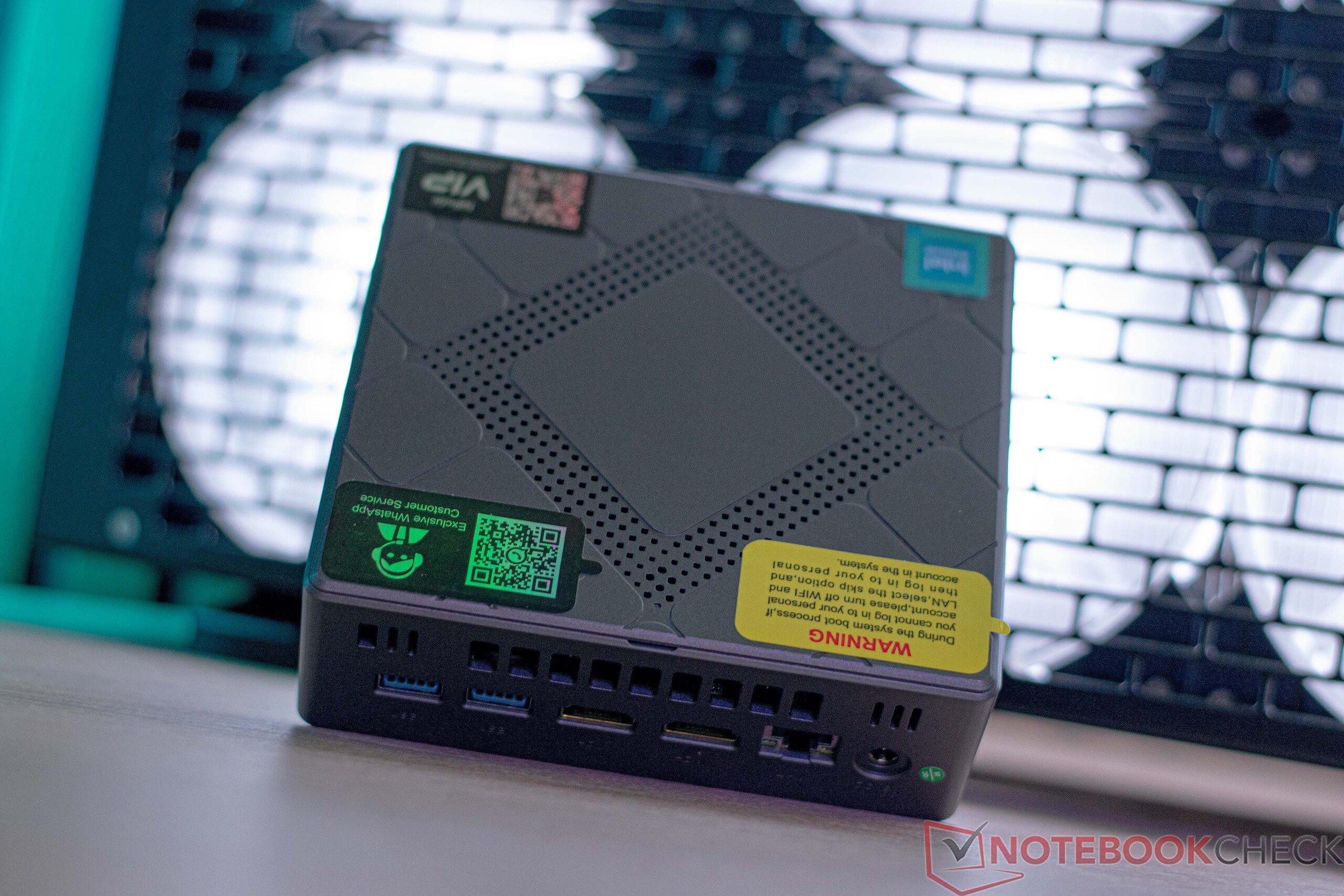

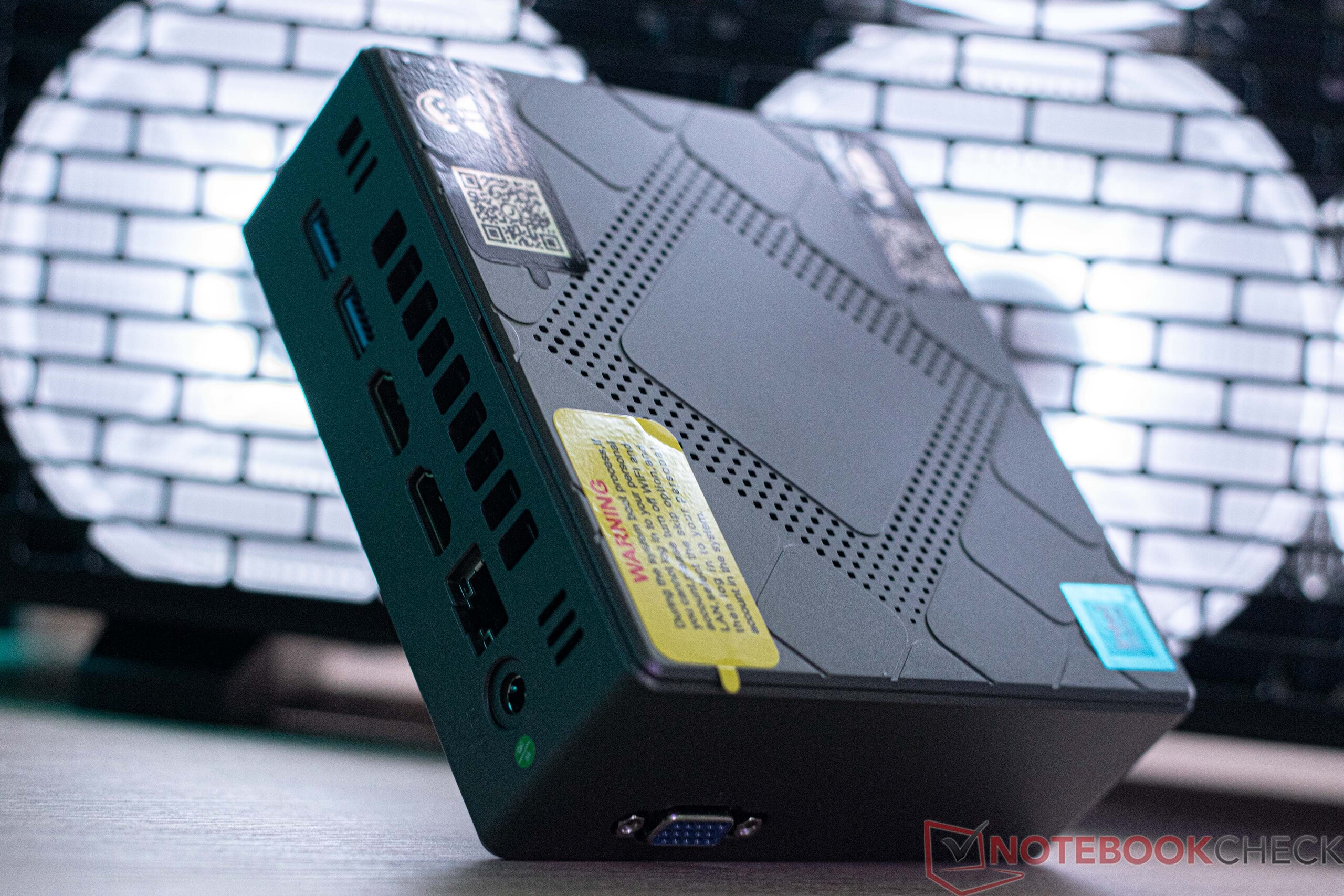

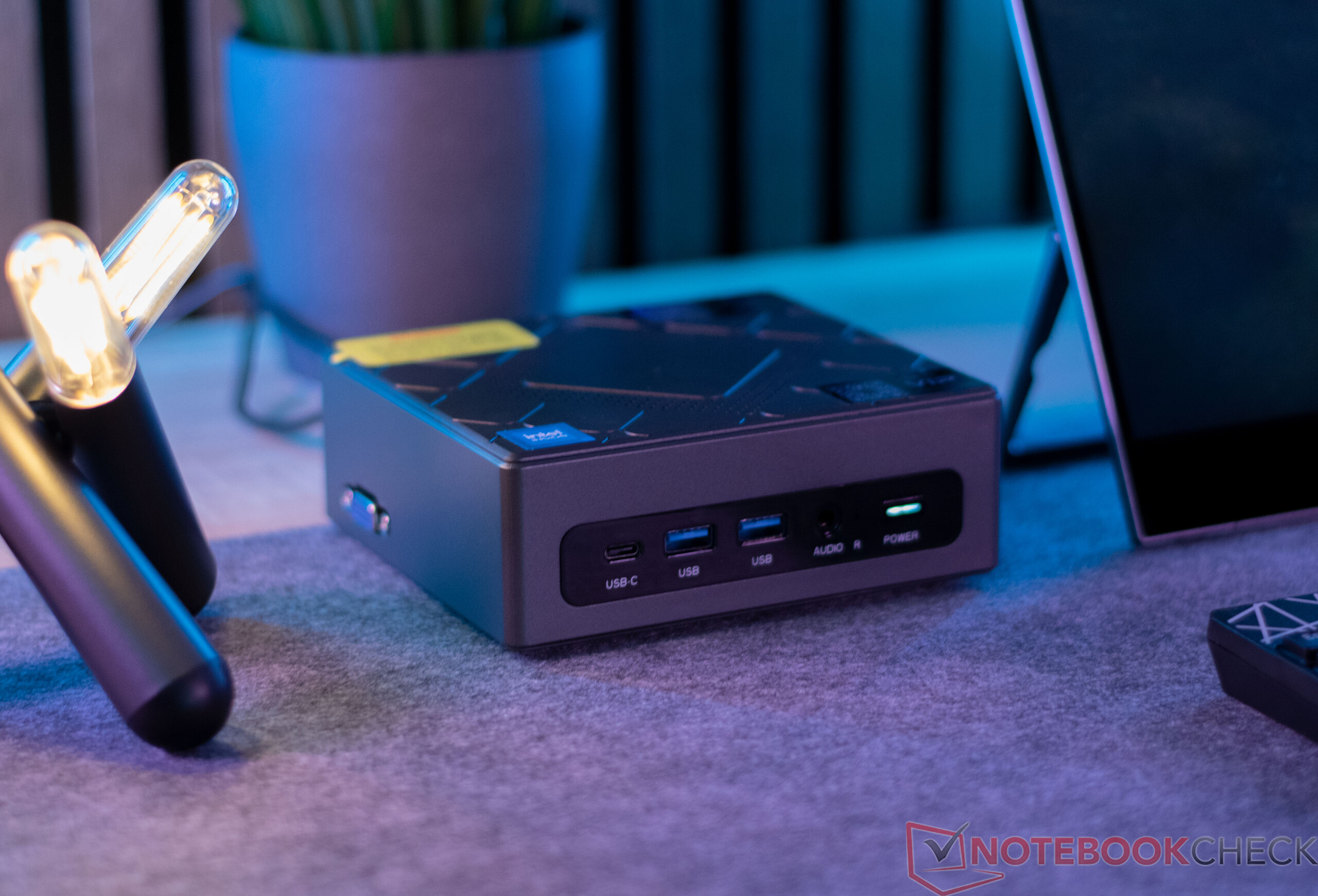

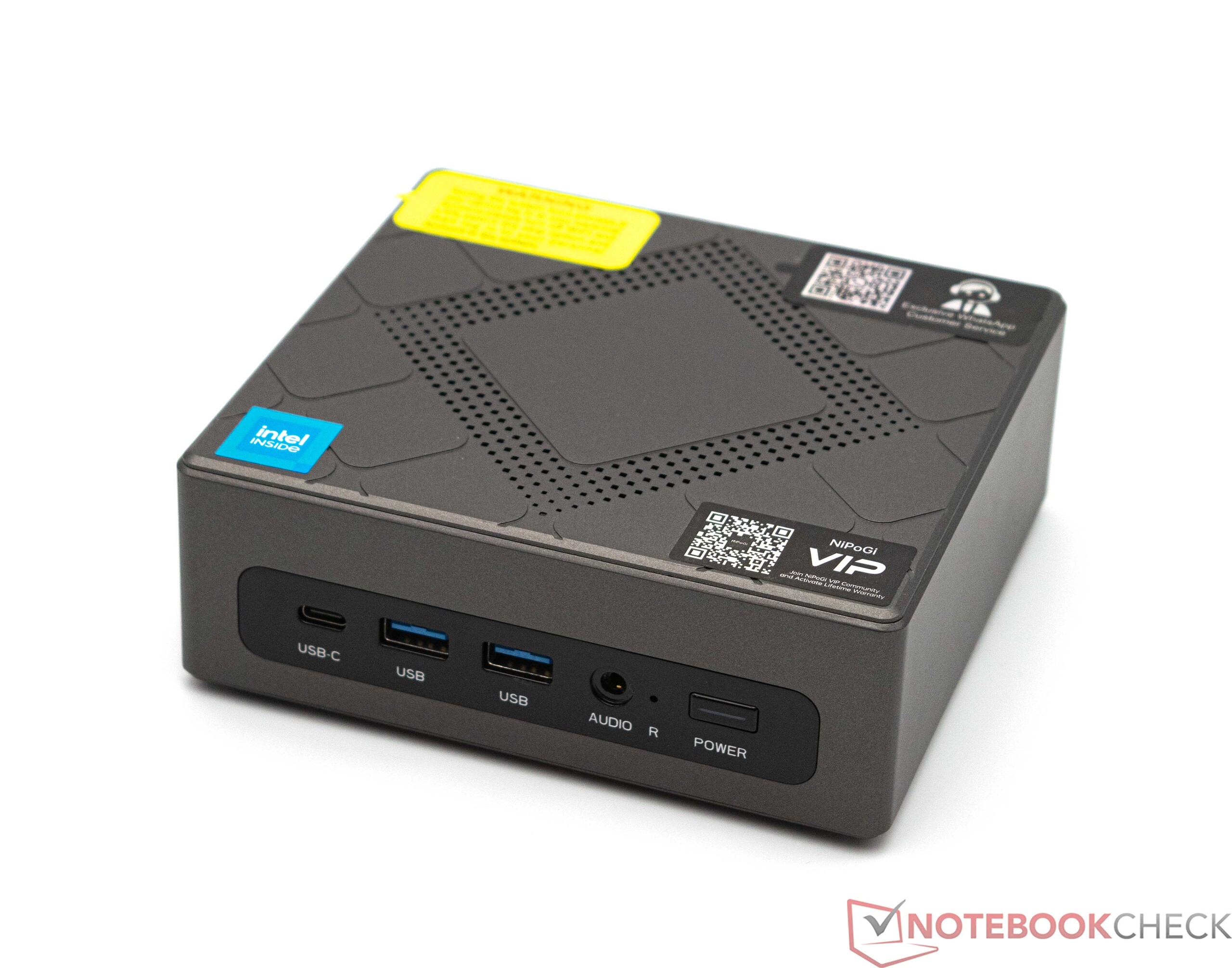

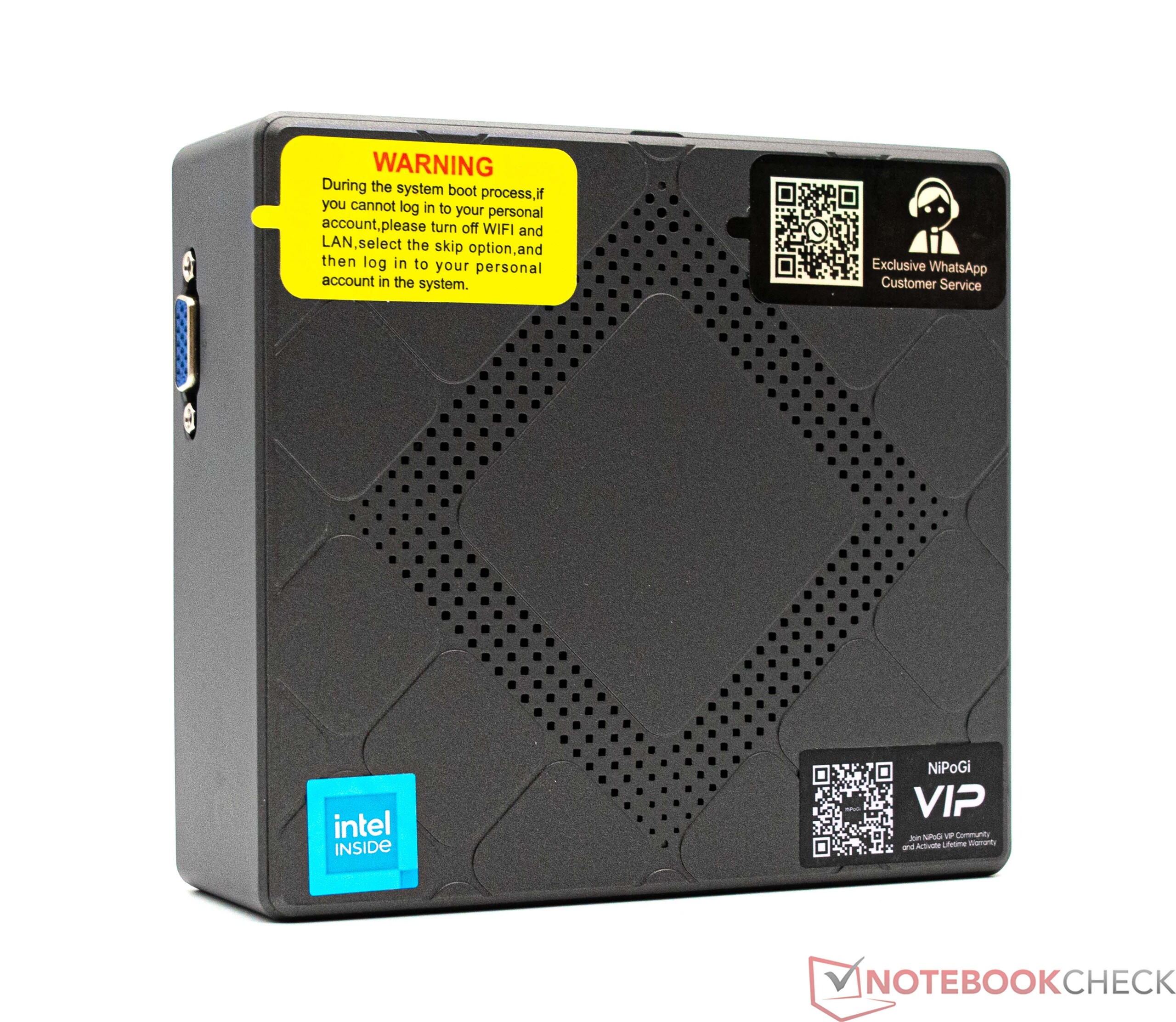

外壳 - 一眼望不到边的塑料

NiPoGi CK10 没有值得一提的亮点，但这对于一台用于办公的简单迷你电脑来说并非完全必要。NiPoGi CK10 的占地面积为 13.7 x 12.5 厘米，这意味着它的占地面积与迷你电脑相当。

它的外壳完全由塑料制成，但结构良好，我们没有发现缝隙。尽管如此，我们还是希望它的外壳能更现代、更稳定，因为它给人的感觉有点廉价。Blackview MP200 展示了如何以不同的方式来实现这一目标，尽管它也依赖于塑料。

在我们的比较范围内，其 3.7 x 12.5 厘米的占地面积实际上偏小。这款小型 PC 的高度正好为 5 厘米。在材料方面，它几乎完全依赖于塑料的使用。不过，上侧隐含的指纹扫描仪却没有任何功能。看来，制造商还将此外壳用于其他配置选项。

尺寸比较

Acemagic AD15 Blackview MP200 Morefine M600, 6600U NiPoGi CK10 Minisforum Venus Series UN1245 Minisforum Venus Series NAB6 Geekom Mini IT11, i7-11390H DIN A4 ❌

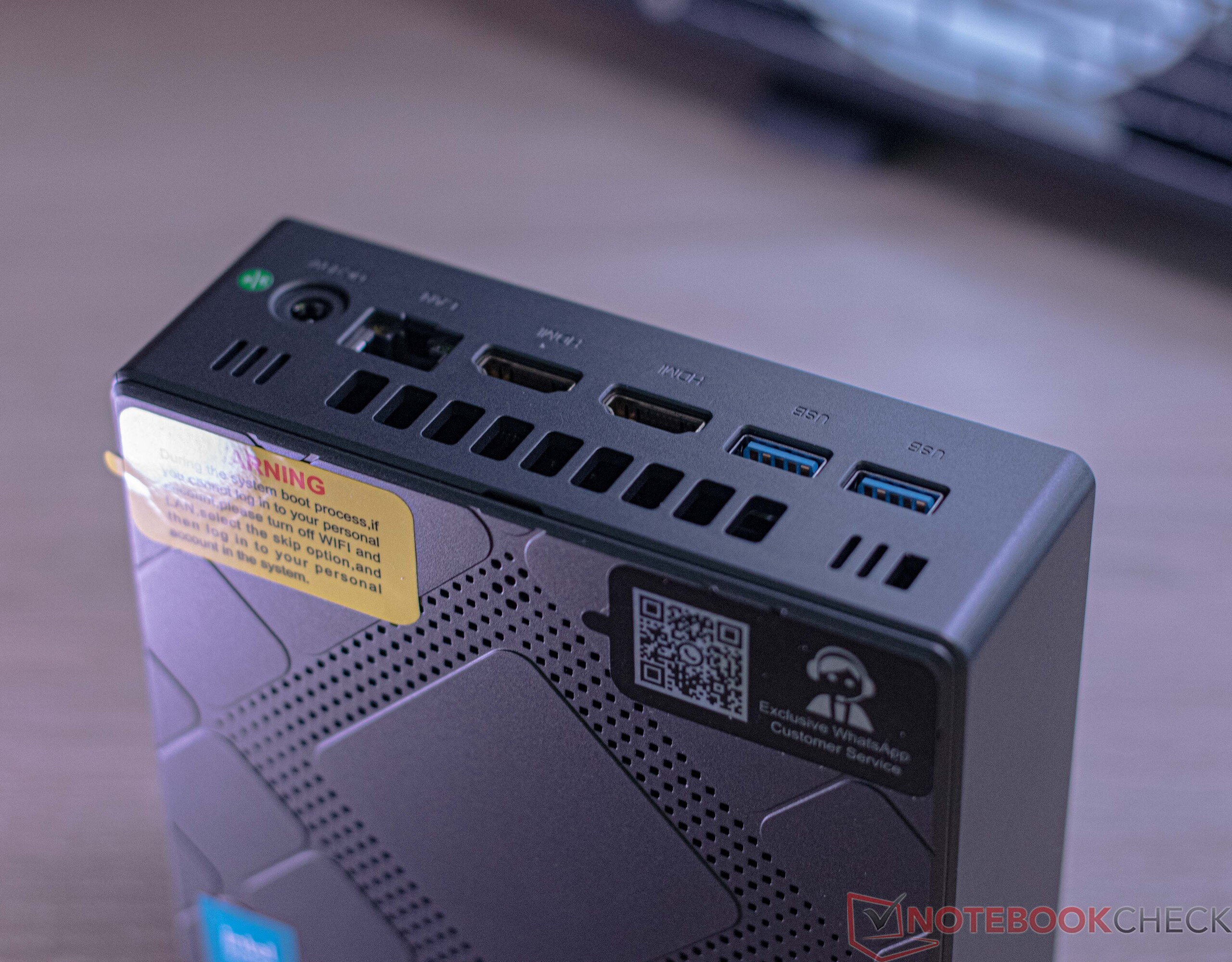

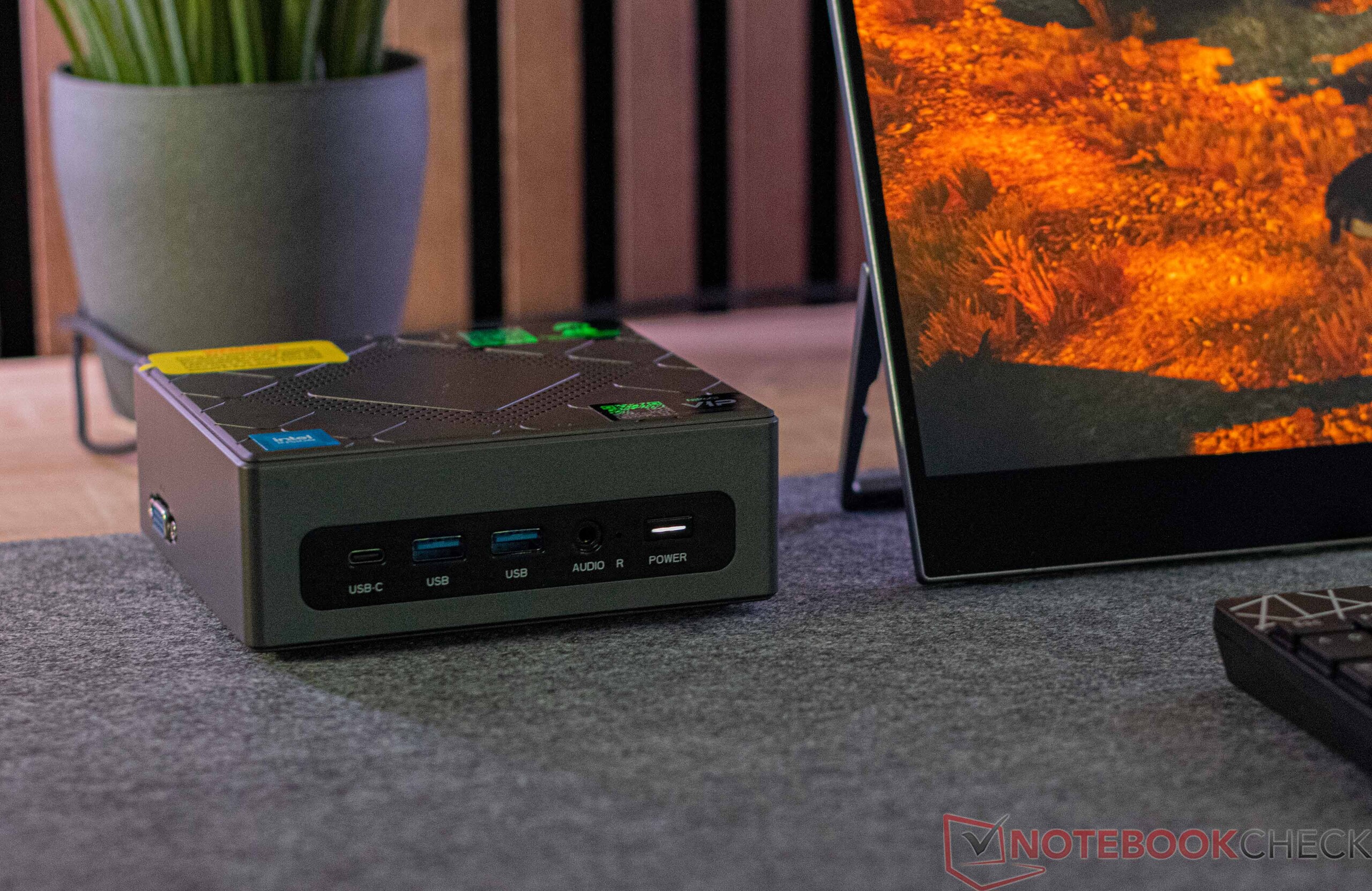

连接性 - 标准配置，但有一个例外

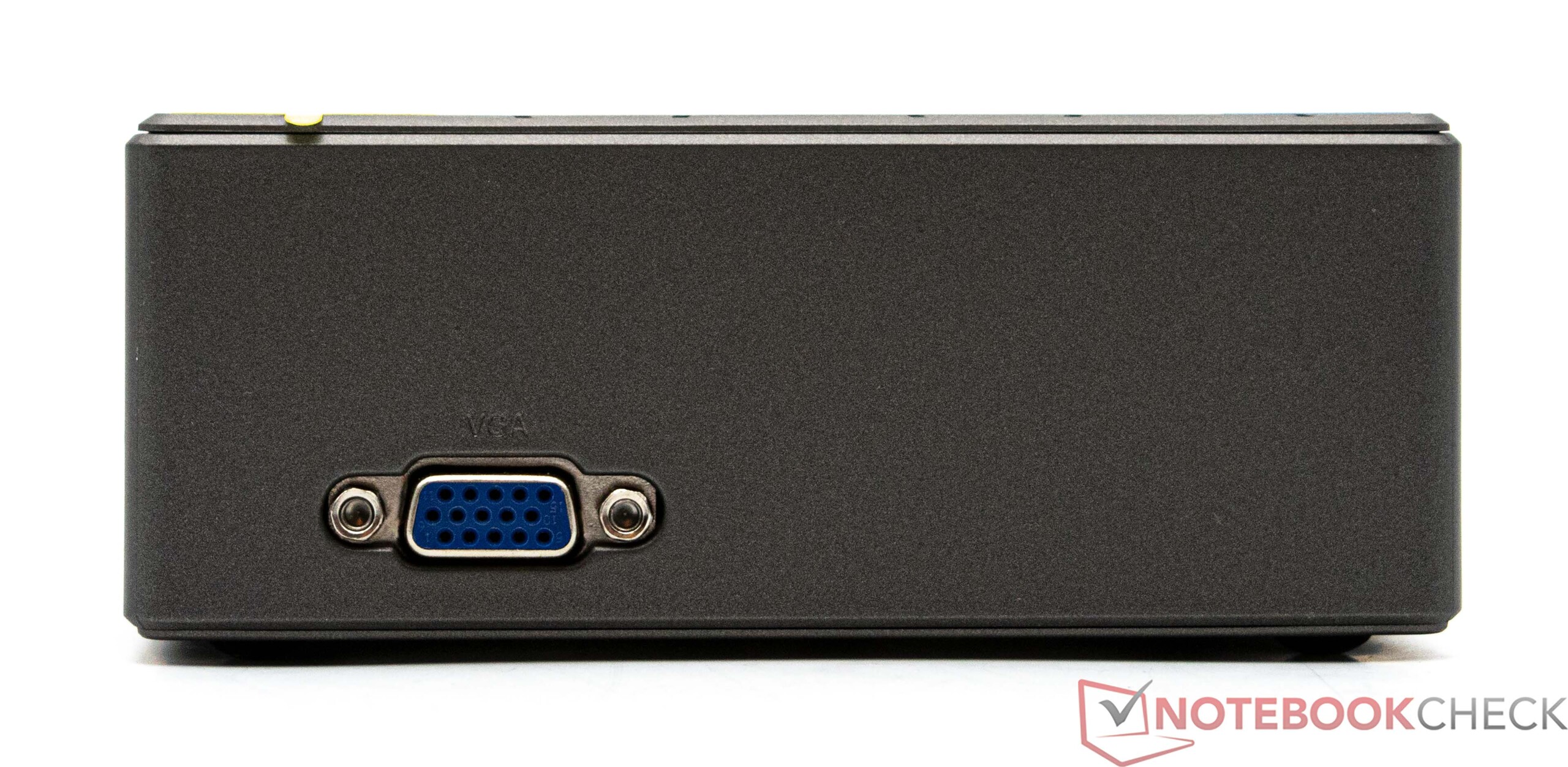

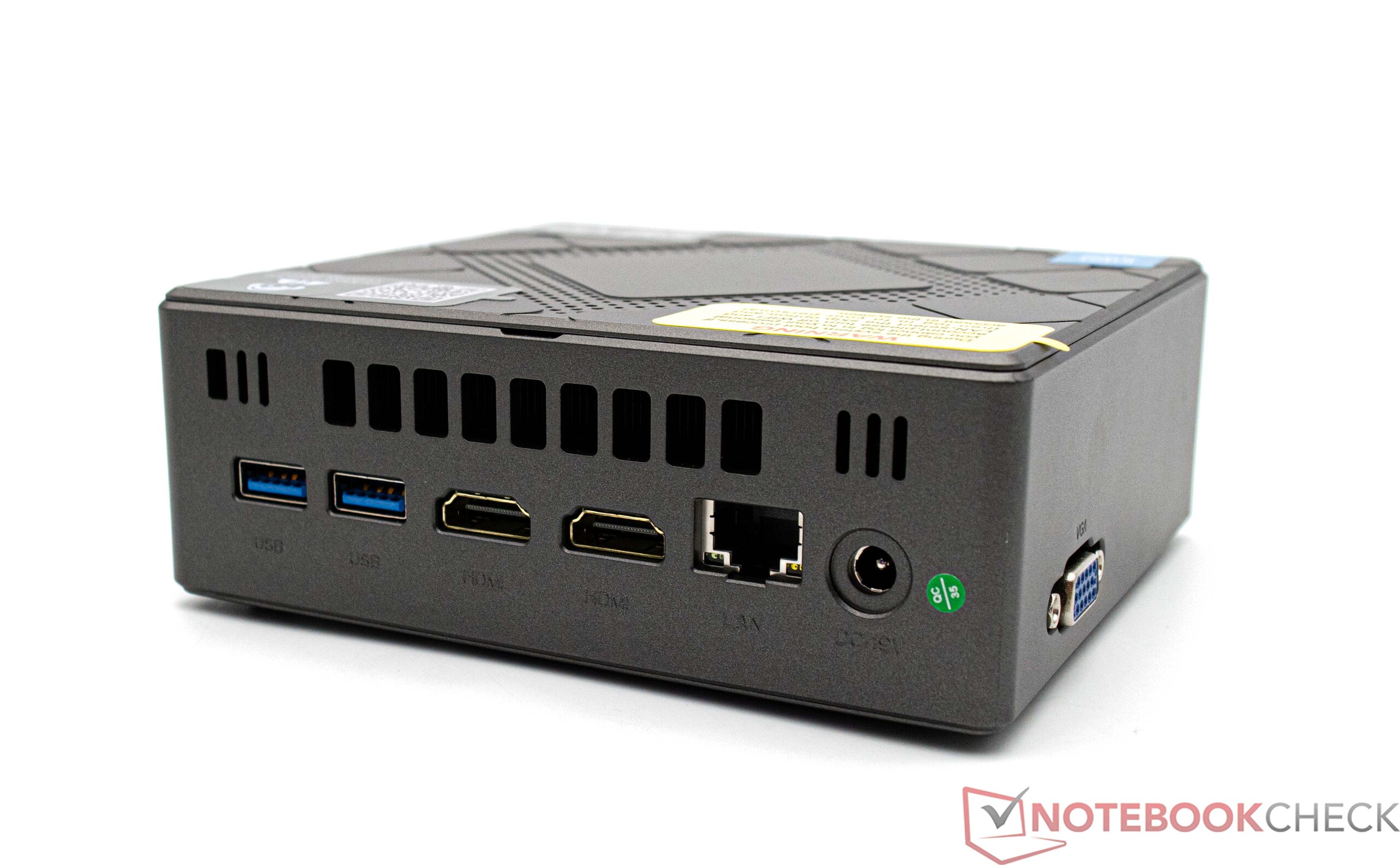

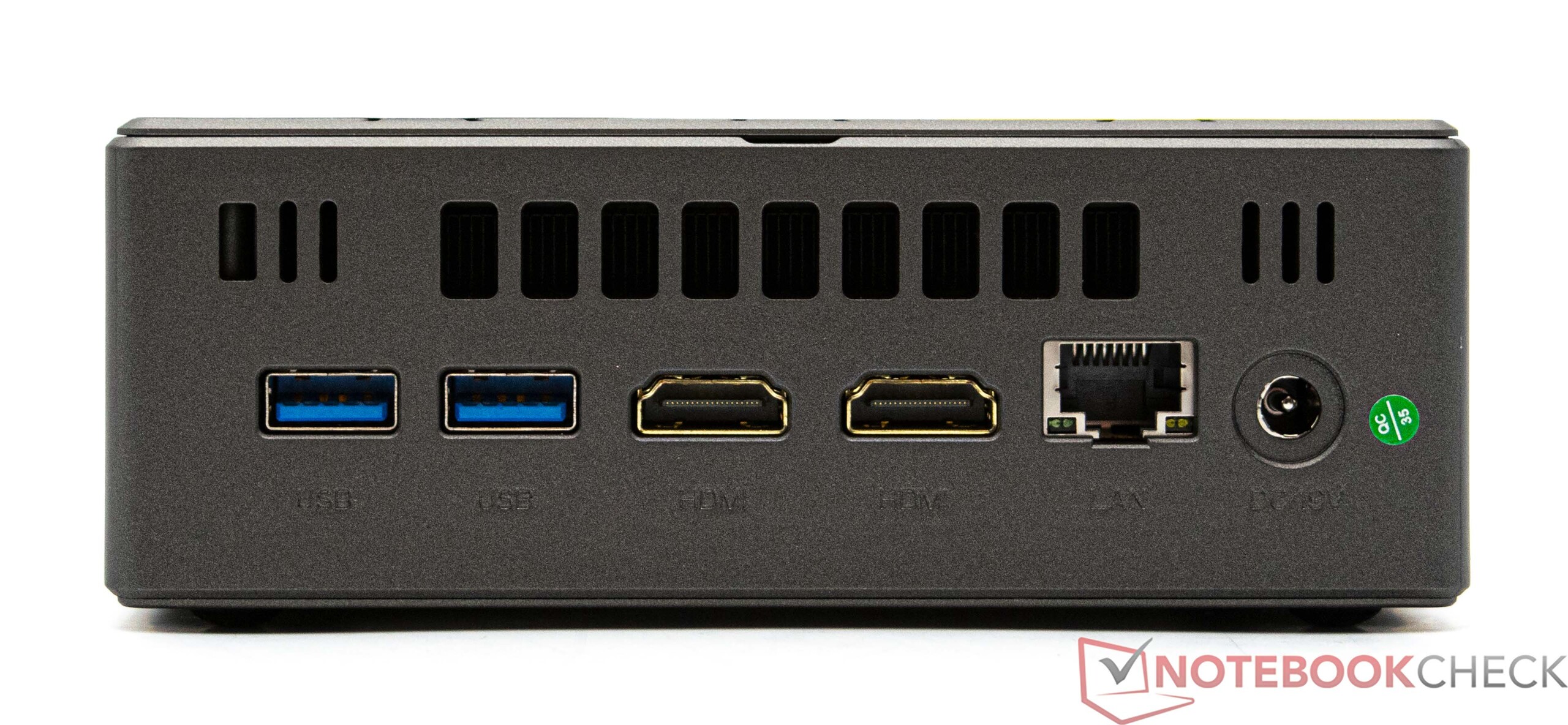

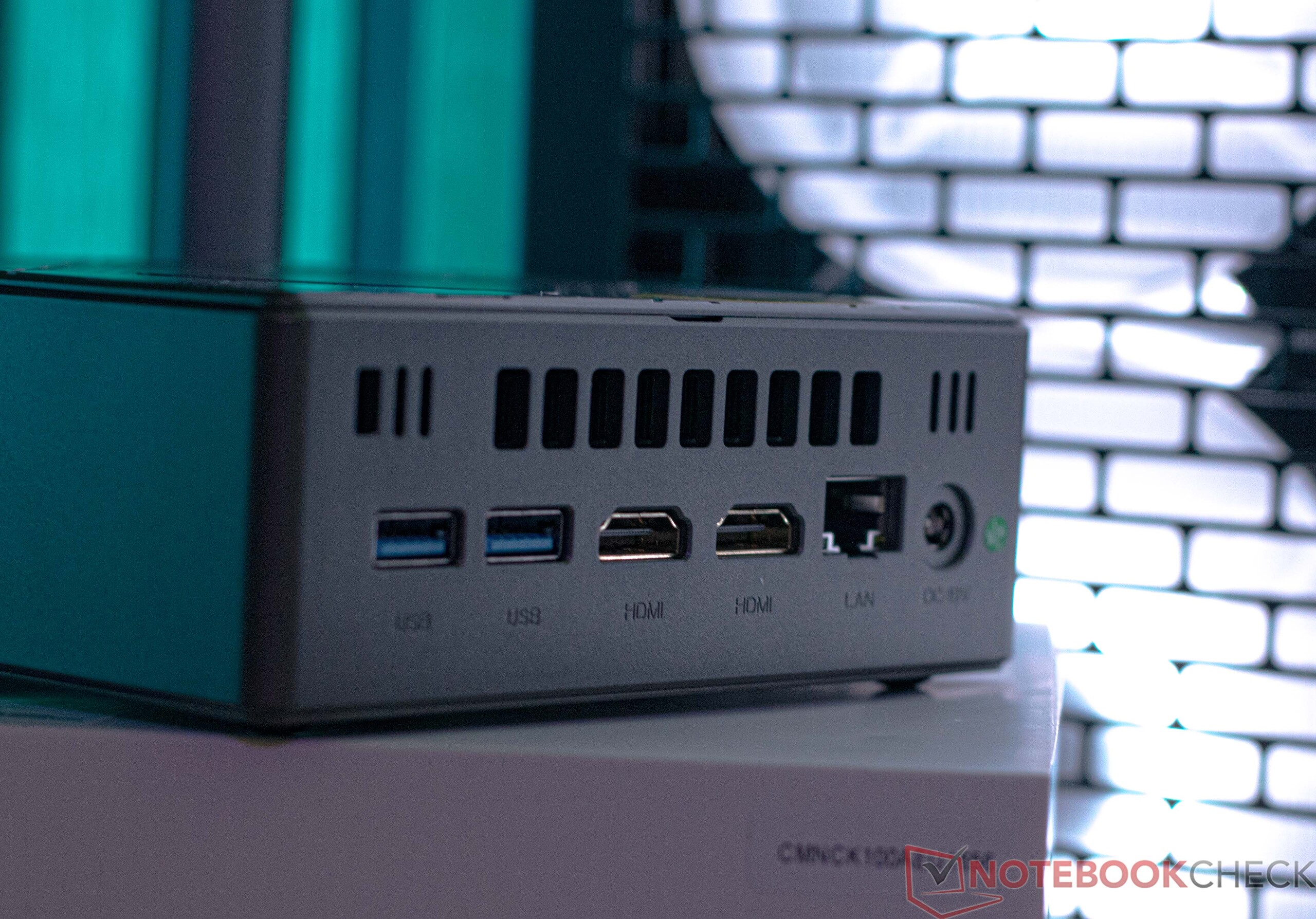

NiPoGi CK10 有多种外部端口可供选择：五个 USB 端口和两个 HDMI 端口完全足够。如果你需要 VGA 连接，那你就走运了，NiPoGi CK10 有一个。模拟音频输出位于电脑左侧。这种连接方式如今已很少使用。

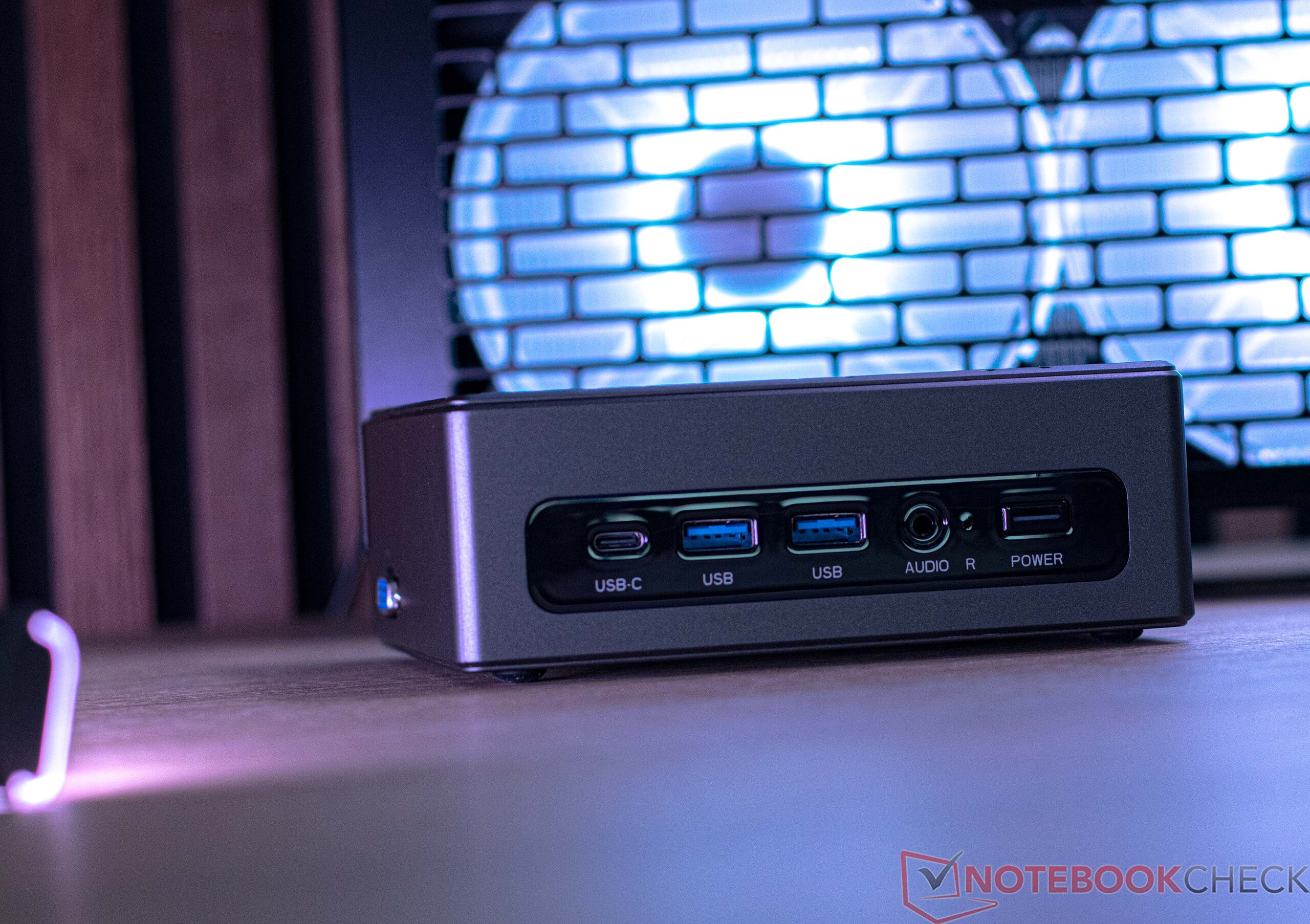

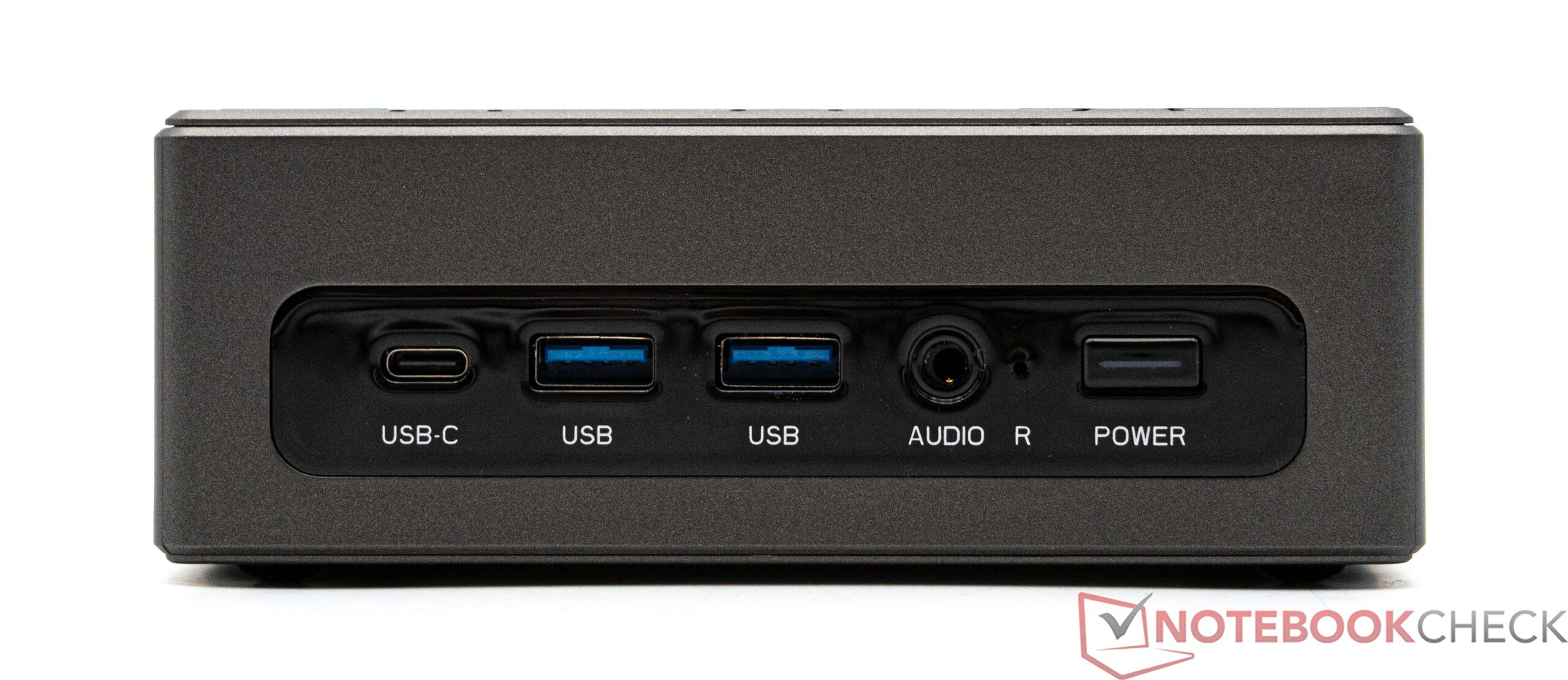

前置：USB Type-C（数据）、2 个 USB 3.0、3.5 毫米插孔、电源接通

交流

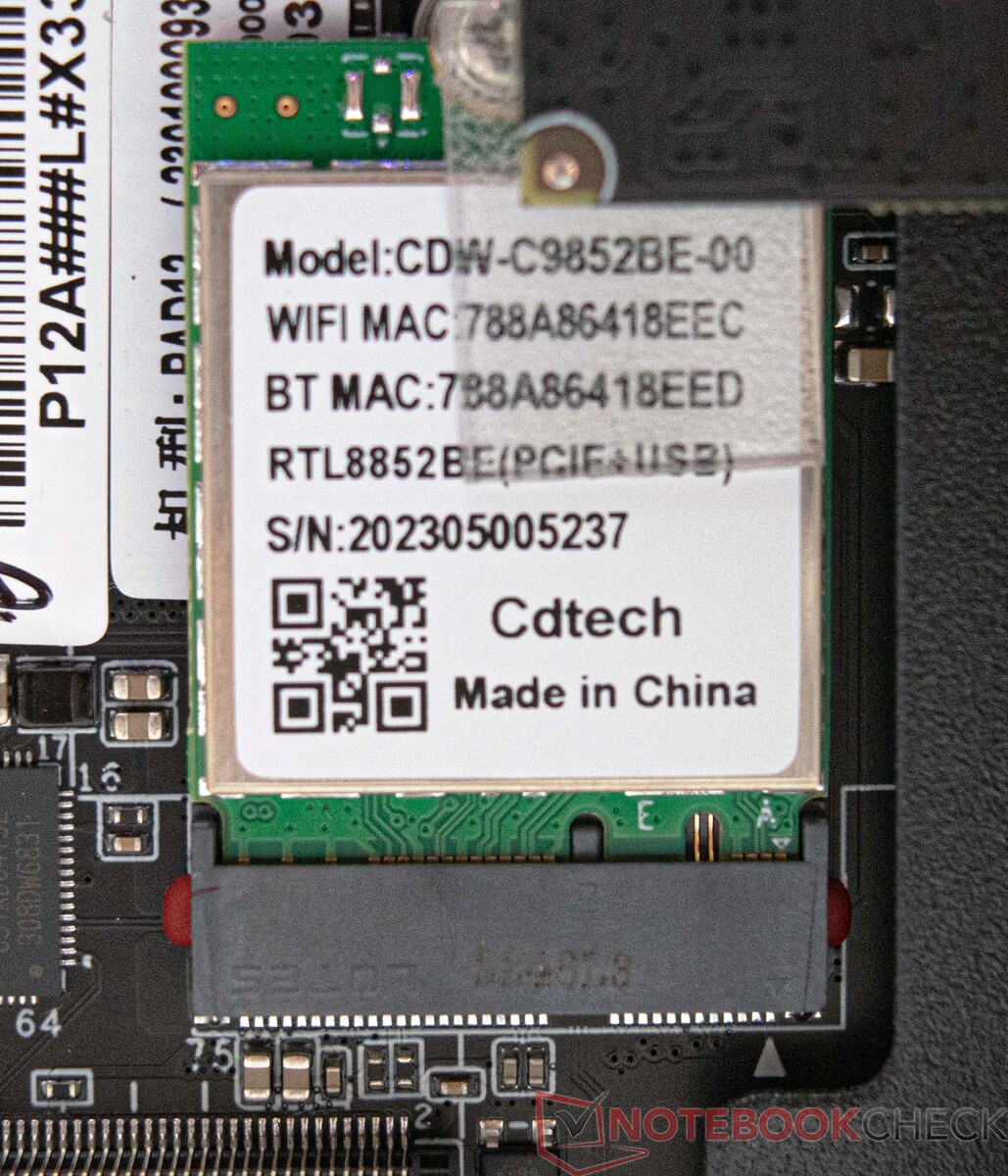

NiPoGi CK10 采用了 Realtek WiFi 模块，在我们的测试中表现出色。它只比最好的设备落后几个百分点。在这次测试中，我们使用华硕 ROG Rapture GT-AXE11000 作为测试路由器。记录的传输速率很稳定，比Minisforum 维纳斯系列 UN1245.此外，NiPoGi CK10 还具有以太网连接功能。它的速度可达 1 GBit/s。

Networking
iperf3 receive AXE11000
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	958 (941^min - 967^max) MBit/s +2%
Blackview MP200 Intel Wi-Fi 6 AX201	953 (859^min - 970^max) MBit/s +1%
Morefine M600, 6600U MediaTek RZ608	948 (934^min - 957^max) MBit/s +1%
Average of class Mini PC (320 - 1796, n=111, last 2 years)	941 MBit/s 0%
NiPoGi CK10 Realtek RTL8852BE	940 (924^min - 961^max) MBit/s
Average Realtek RTL8852BE (455 - 984, n=43)	847 MBit/s -10%
Minisforum Venus Series UN1245 MediaTek RZ608	795 (753^min - 805^max) MBit/s -15%
Minisforum Venus Series NAB6 MediaTek RZ608	787 (752^min - 801^max) MBit/s -16%
Acemagic AD15 Realtek RTL8852BE	721 (696^min - 743^max) MBit/s -23%
iperf3 transmit AXE11000
Average of class Mini PC (184.1 - 1776, n=111, last 2 years)	868 MBit/s +8%
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	845 (818^min - 879^max) MBit/s +5%
Blackview MP200 Intel Wi-Fi 6 AX201	825 (426^min - 867^max) MBit/s +3%
NiPoGi CK10 Realtek RTL8852BE	801 (770^min - 825^max) MBit/s
Average Realtek RTL8852BE (536 - 925, n=42)	792 MBit/s -1%
Morefine M600, 6600U MediaTek RZ608	784 (381^min - 874^max) MBit/s -2%
Acemagic AD15 Realtek RTL8852BE	730 (707^min - 753^max) MBit/s -9%
Minisforum Venus Series UN1245 MediaTek RZ608	724 (606^min - 852^max) MBit/s -10%
Minisforum Venus Series NAB6 MediaTek RZ608	626 (301^min - 689^max) MBit/s -22%

Minisforum Venus Series UN1245 MediaTek RZ608; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø752 (710-810)

Minisforum Venus Series UN1245 MediaTek RZ608; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø712 (691-721)

NiPoGi CK10 Realtek RTL8852BE; iperf3 receive AXE11000; iperf 3.1.3: Ø940 (924-961)

Minisforum Venus Series UN1245 MediaTek RZ608; iperf3 receive AXE11000; iperf 3.1.3: Ø794 (753-805)

NiPoGi CK10 Realtek RTL8852BE; iperf3 transmit AXE11000; iperf 3.1.3: Ø801 (770-825)

Minisforum Venus Series UN1245 MediaTek RZ608; iperf3 transmit AXE11000; iperf 3.1.3: Ø724 (606-852)

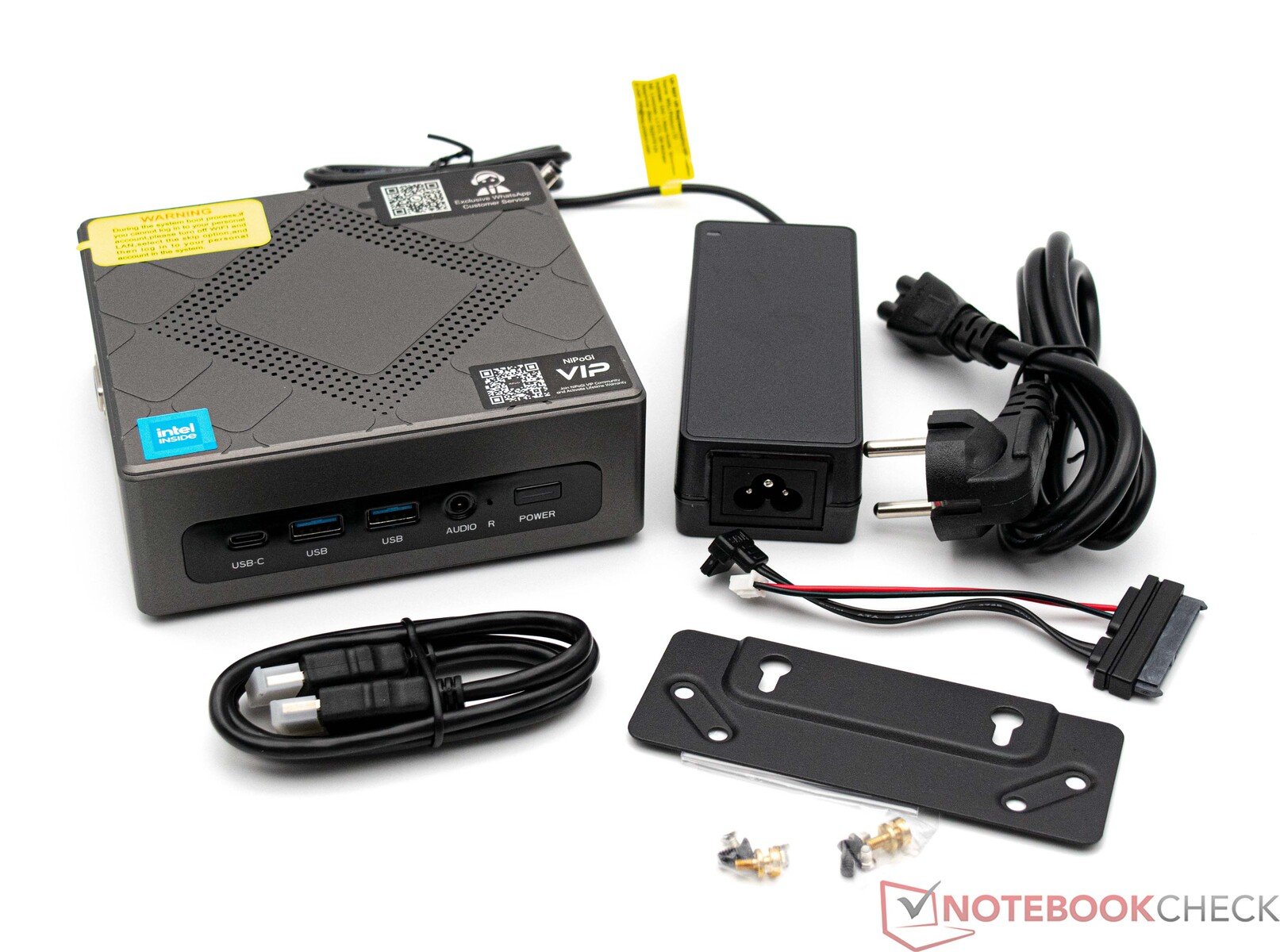

交付范围

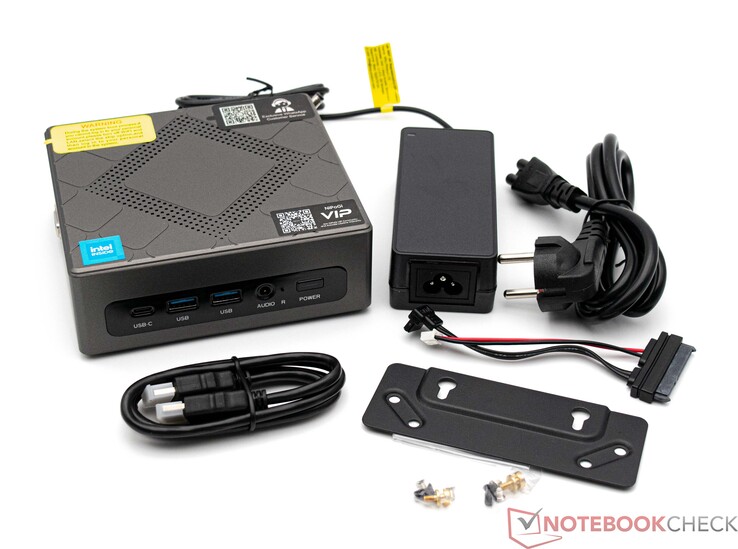

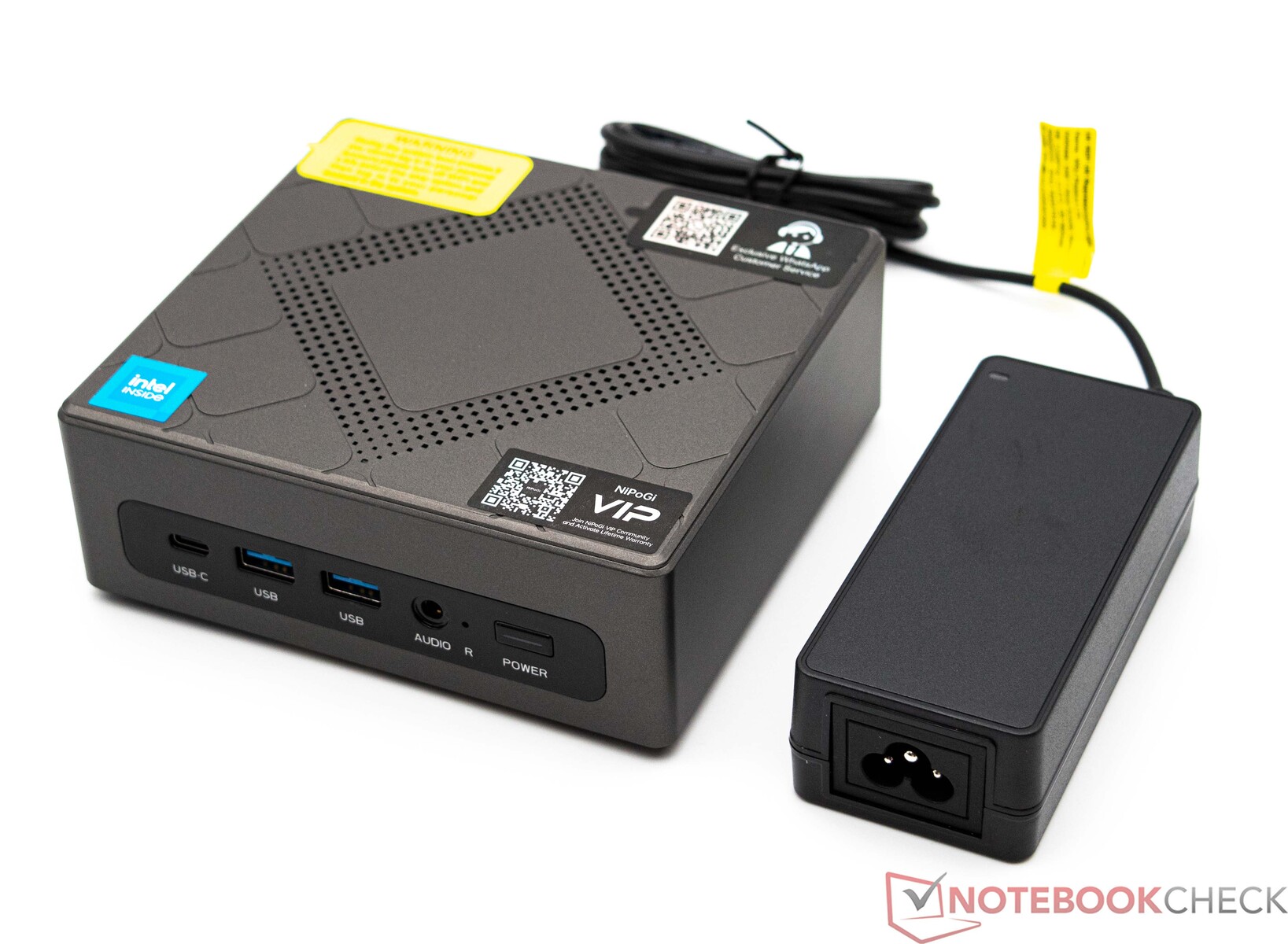

除了电脑本身，您还将获得一个 65 瓦的电源和一个 VESA 支架，可将设备安装到显示器上。此外，还包括一条 HDMI 电缆和一条用于额外存储设备的连接电缆。

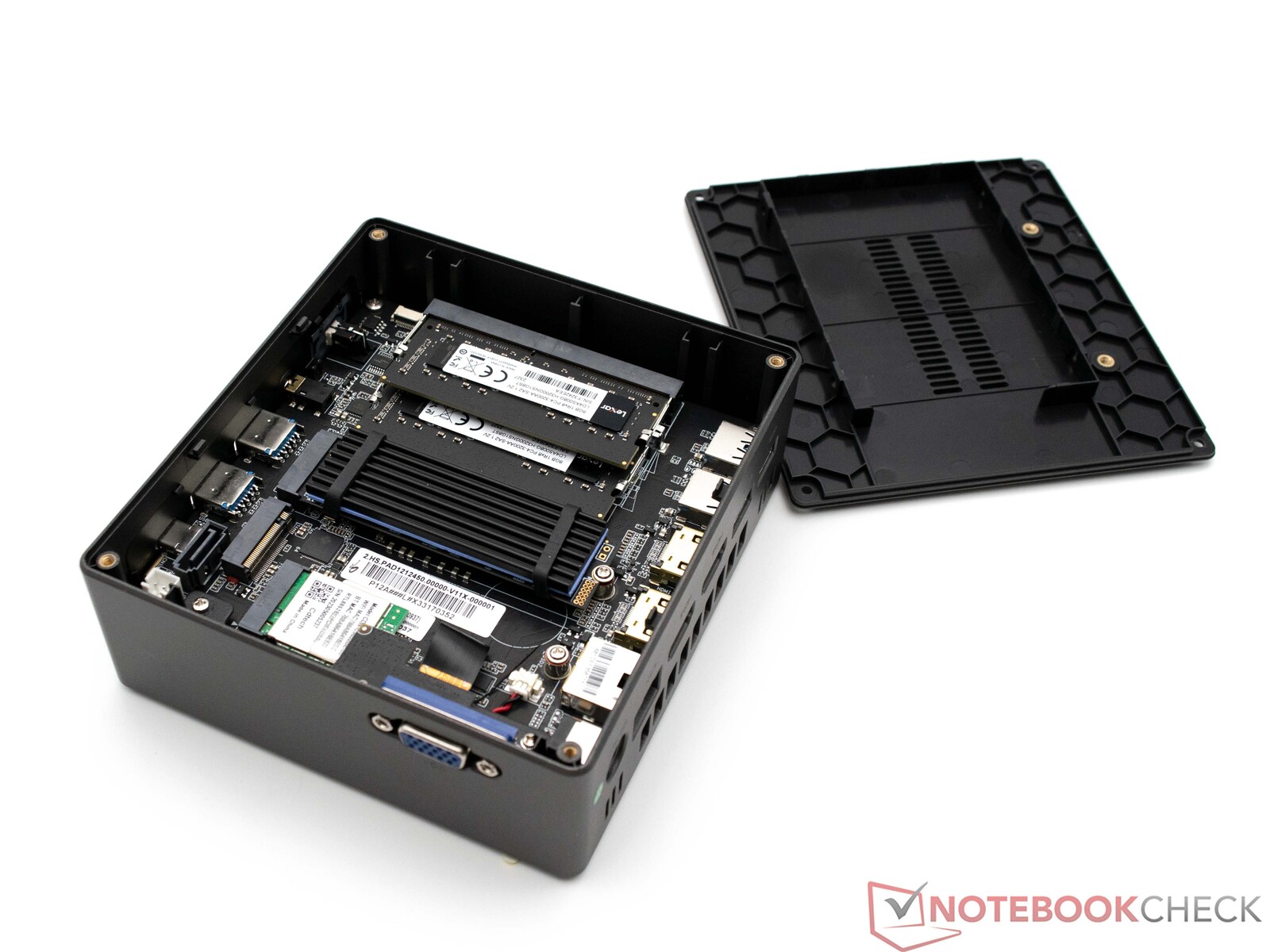

维护

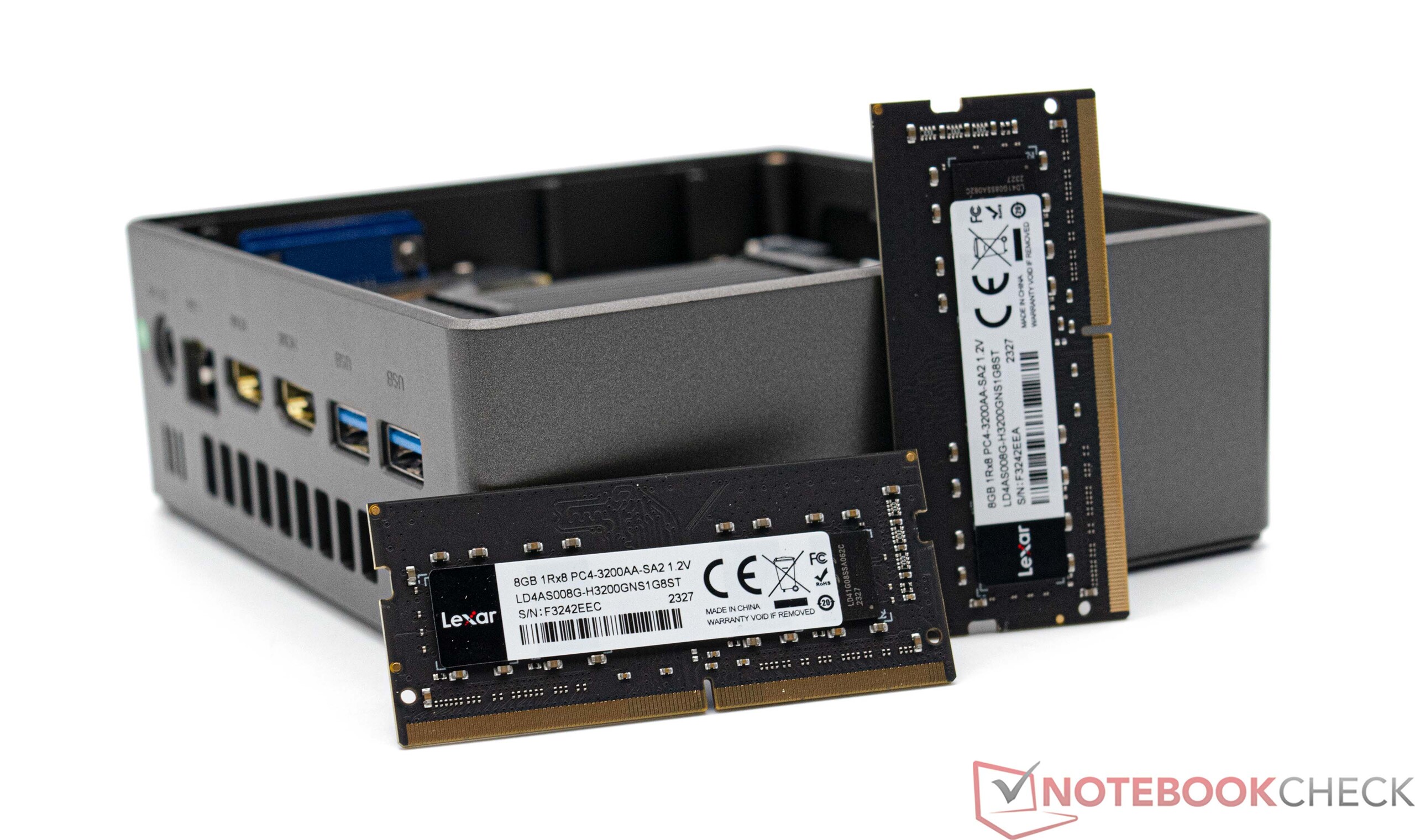

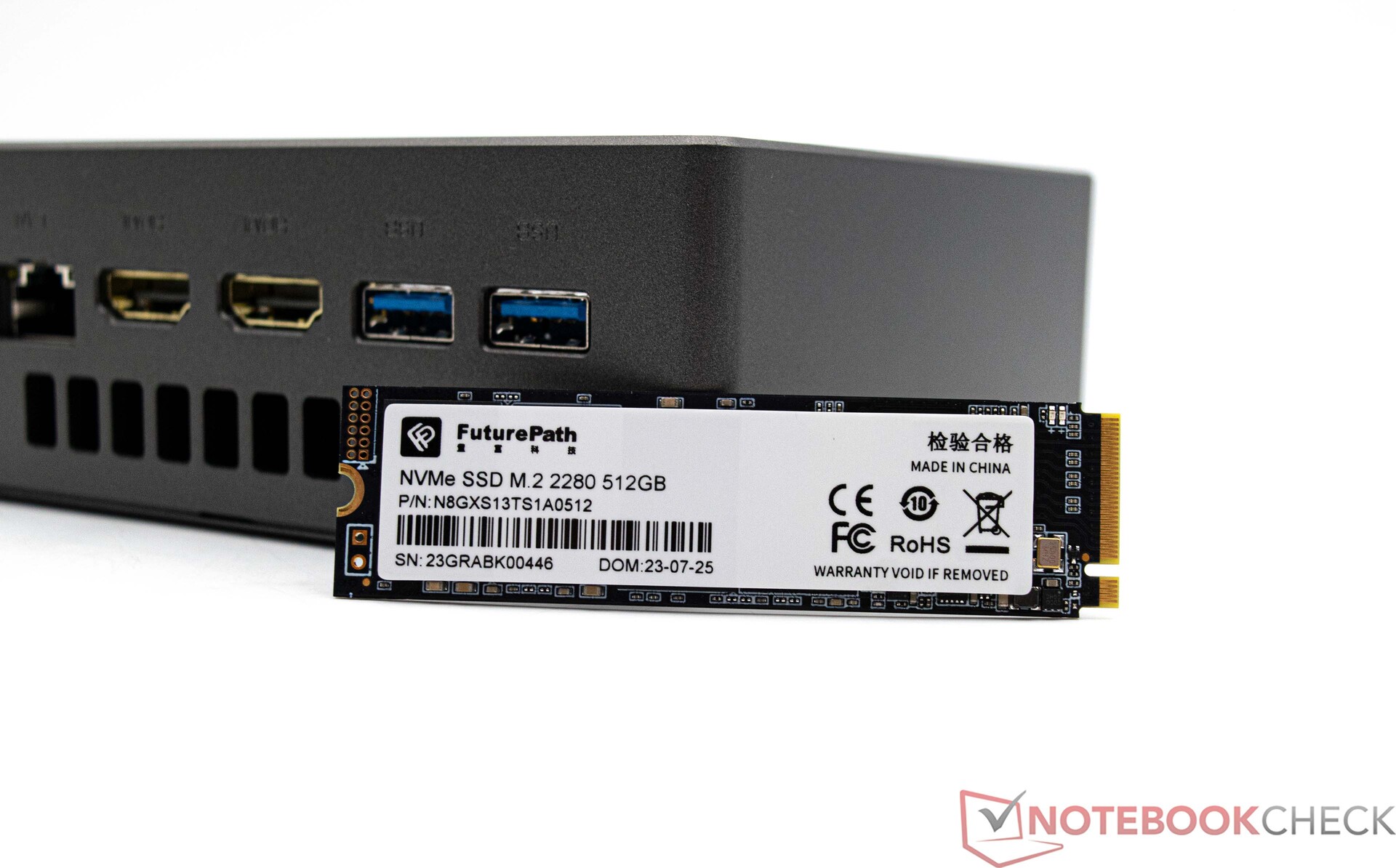

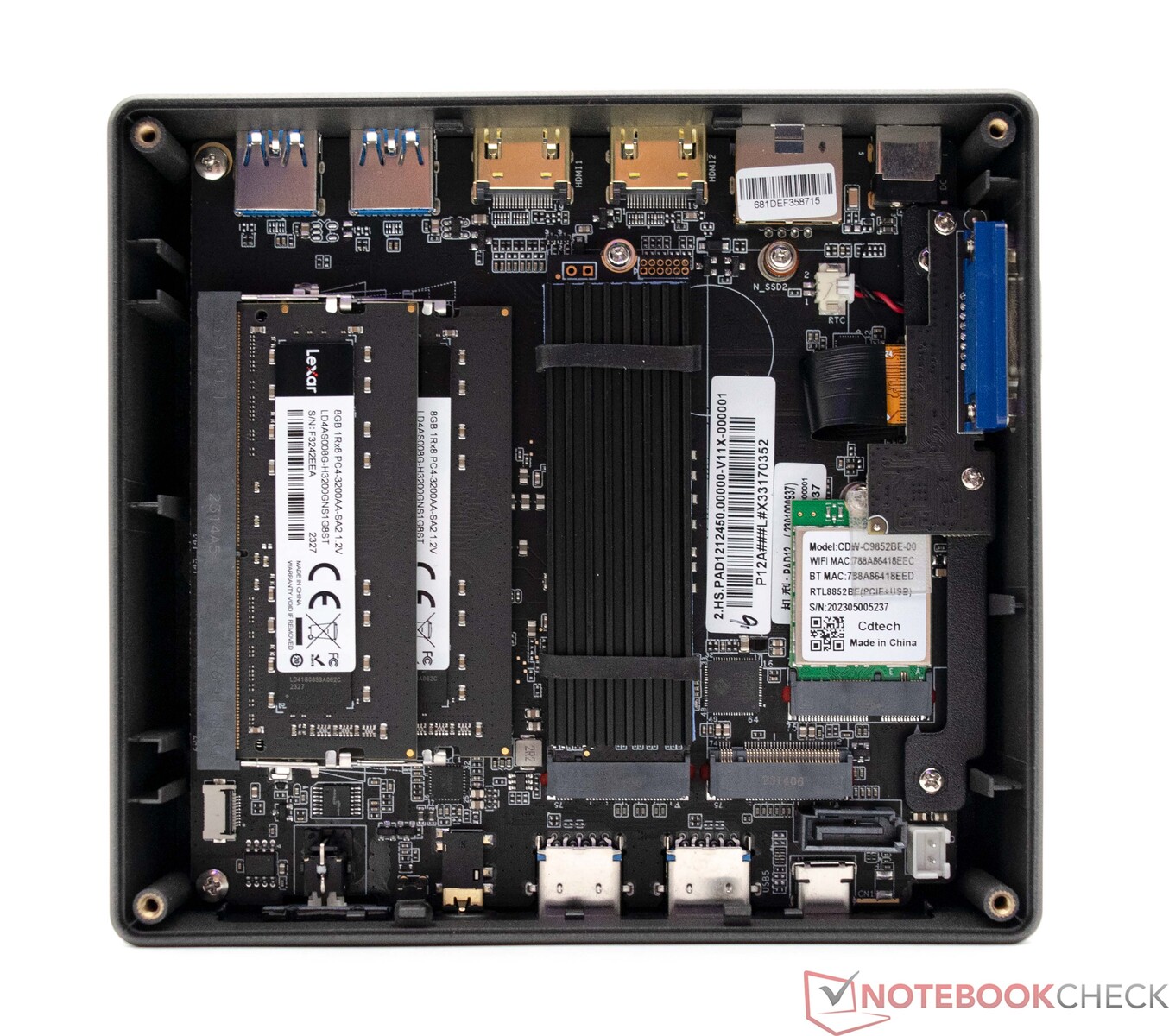

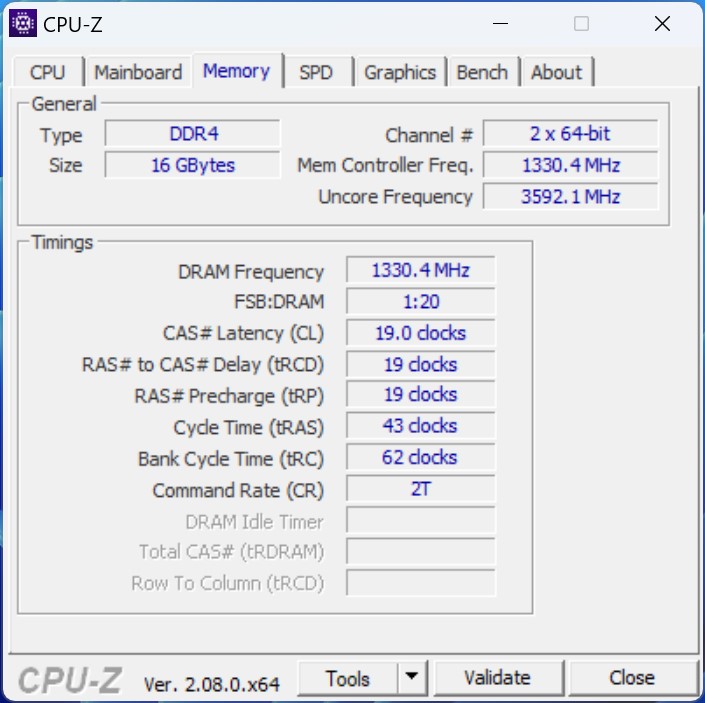

NiPoGi CK10 的内存和固态硬盘可以扩展。前者需要更换模块，因为两个 SO DIMM 插槽都已被占用。但说到存储设备，情况就不同了。迷你 PC 一次最多可容纳三个存储设备。只有进一步拆开设备，才能接触到 CPU 风扇。

性能 - Alder Lake H，8 核 12 线程

NiPoGi CK10 的英特尔酷睿 i5-12450H是一款出色的 SoC，配备 P 核和 E 核，可同时处理多达 12 个线程。因此，该 SoC 可提供足够的性能，非常适合日常使用。由于功耗有限，因此无法充分发挥 SoC 的性能。

测试条件

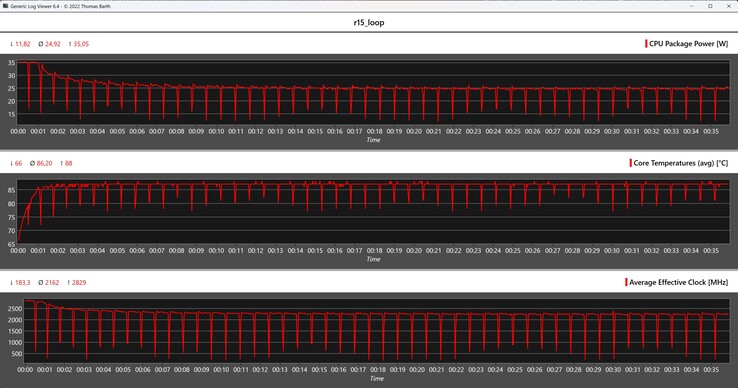

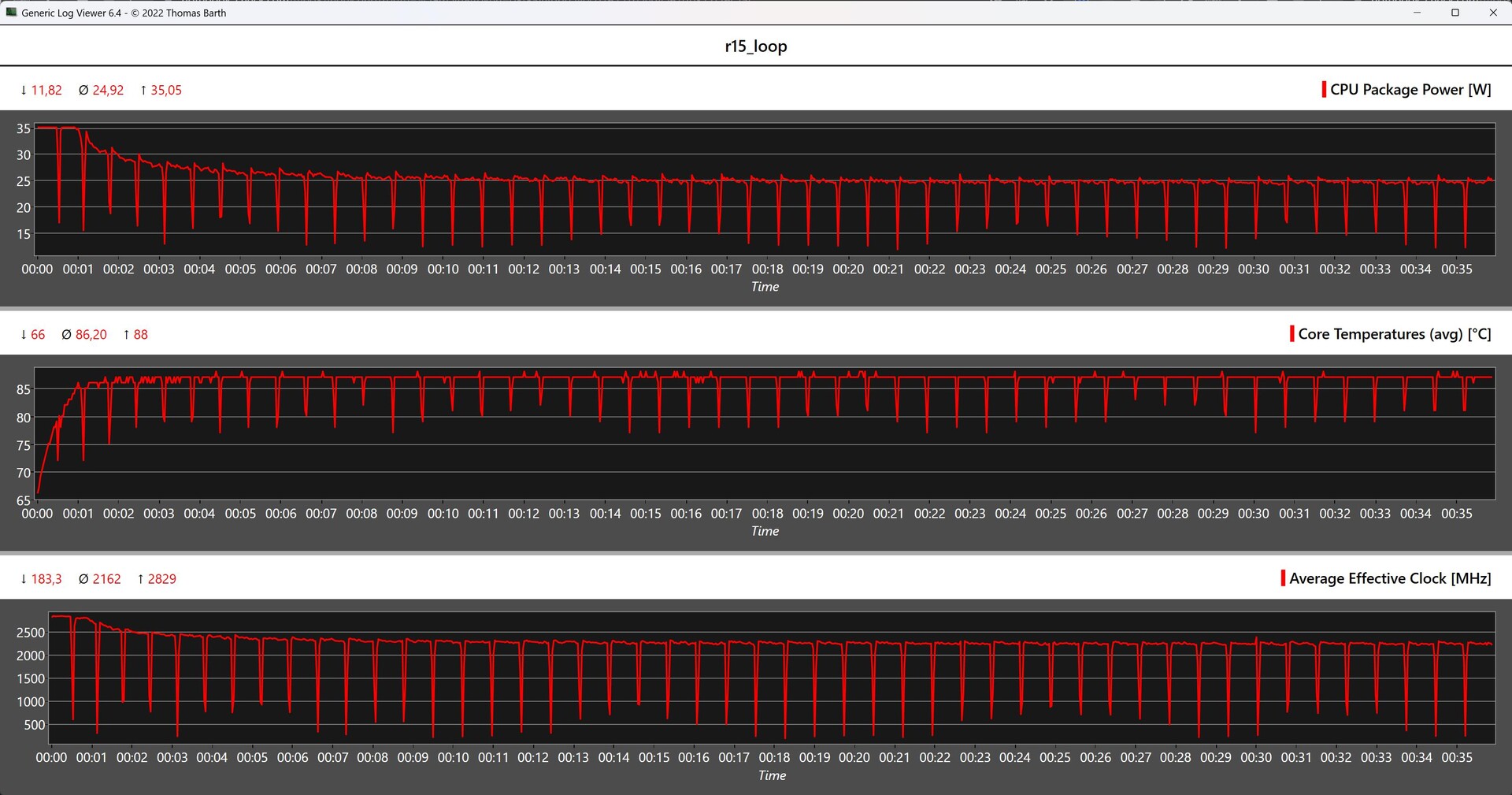

所有性能测试均使用 "最高性能 "能耗配置文件进行。在 BIOS 中没有更改 SoC 的性能，而是根据制造商的设置保持其交付状态。根据我们的测试标准.

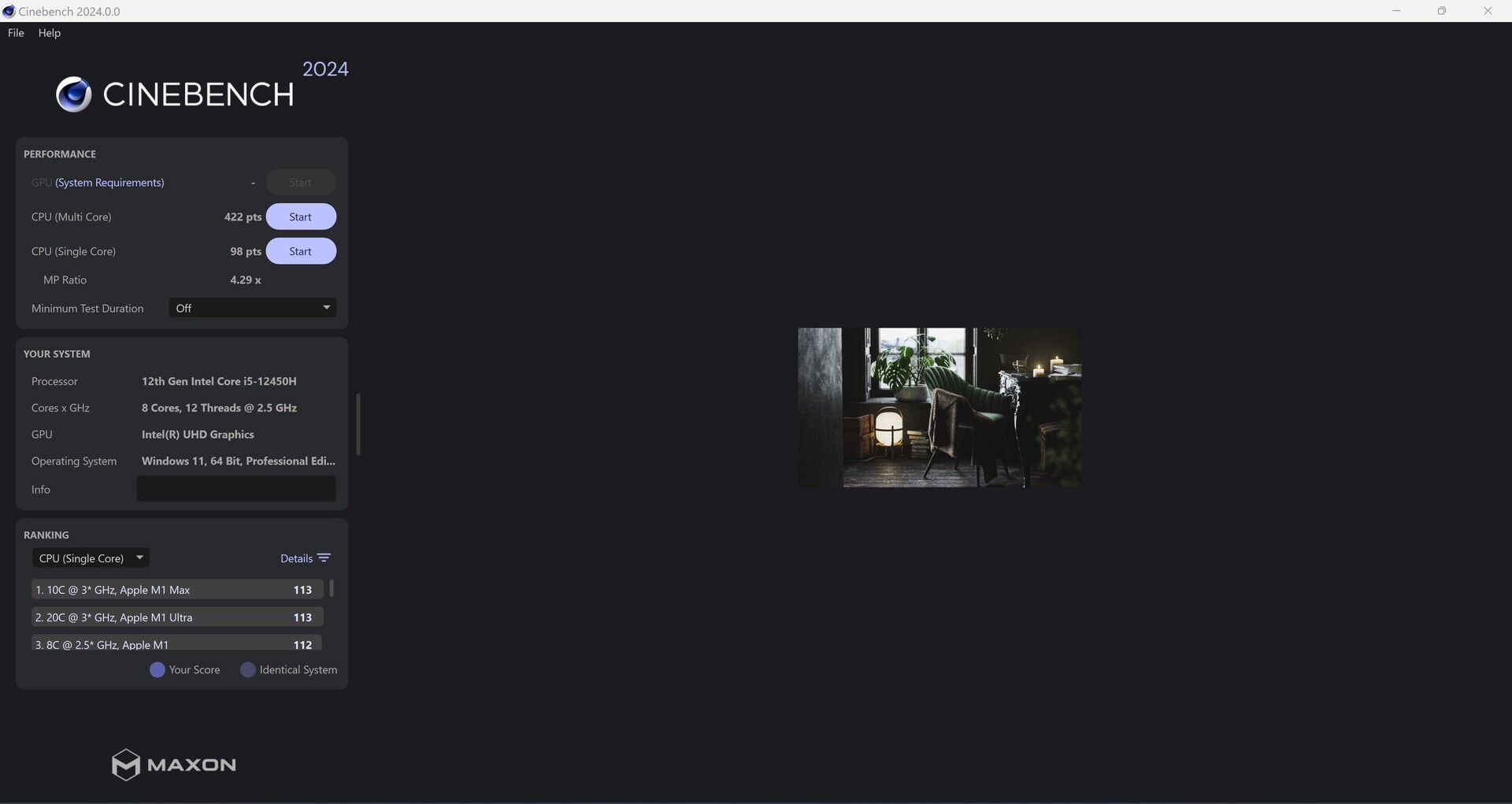

处理器

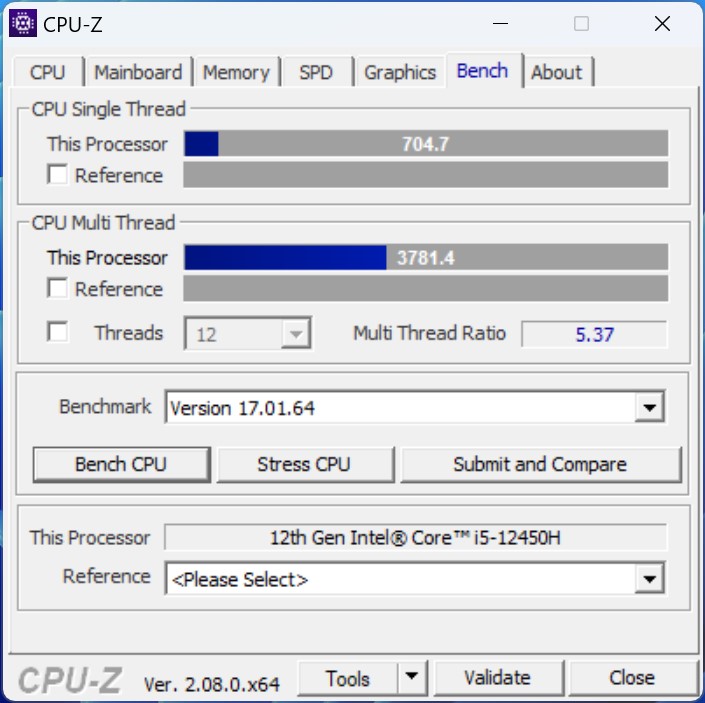

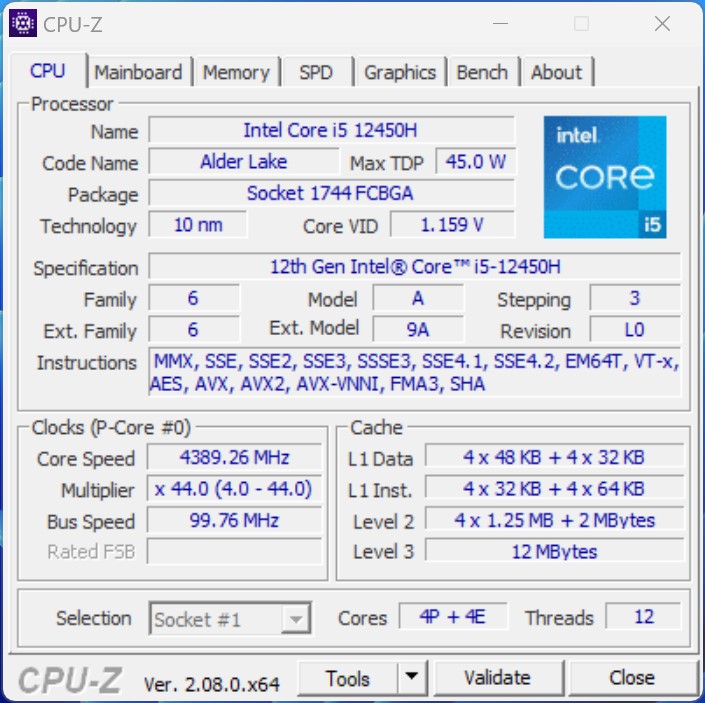

NiPoGi CK10 配备了英特尔酷睿 i5-12450H处理器。该 SoC 有 8 个原生计算内核，最多可同时处理 12 个线程。制造商将 SoC 的功耗限制在 35 瓦，因此在我们的测试中，多线程性能略有下降。与Minisforum Venus 系列 UN1245不过，在平均性能比较中，您可以看到这一限制实际上只产生了很小的影响，因为尽管有功耗限制，NiPoGi CK10 仍能实现良好的单核性能。

有关进一步的比较和基准测试，请参阅我们的CPU 对比表.

Performance Rating - Percent
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	49.6 pt
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	45.2 pt
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	44.6 pt
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	43.4 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	43.4 pt
Blackview MP200 Intel Core i5-11400H, 2700 MHz	41.6 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	40.3 pt

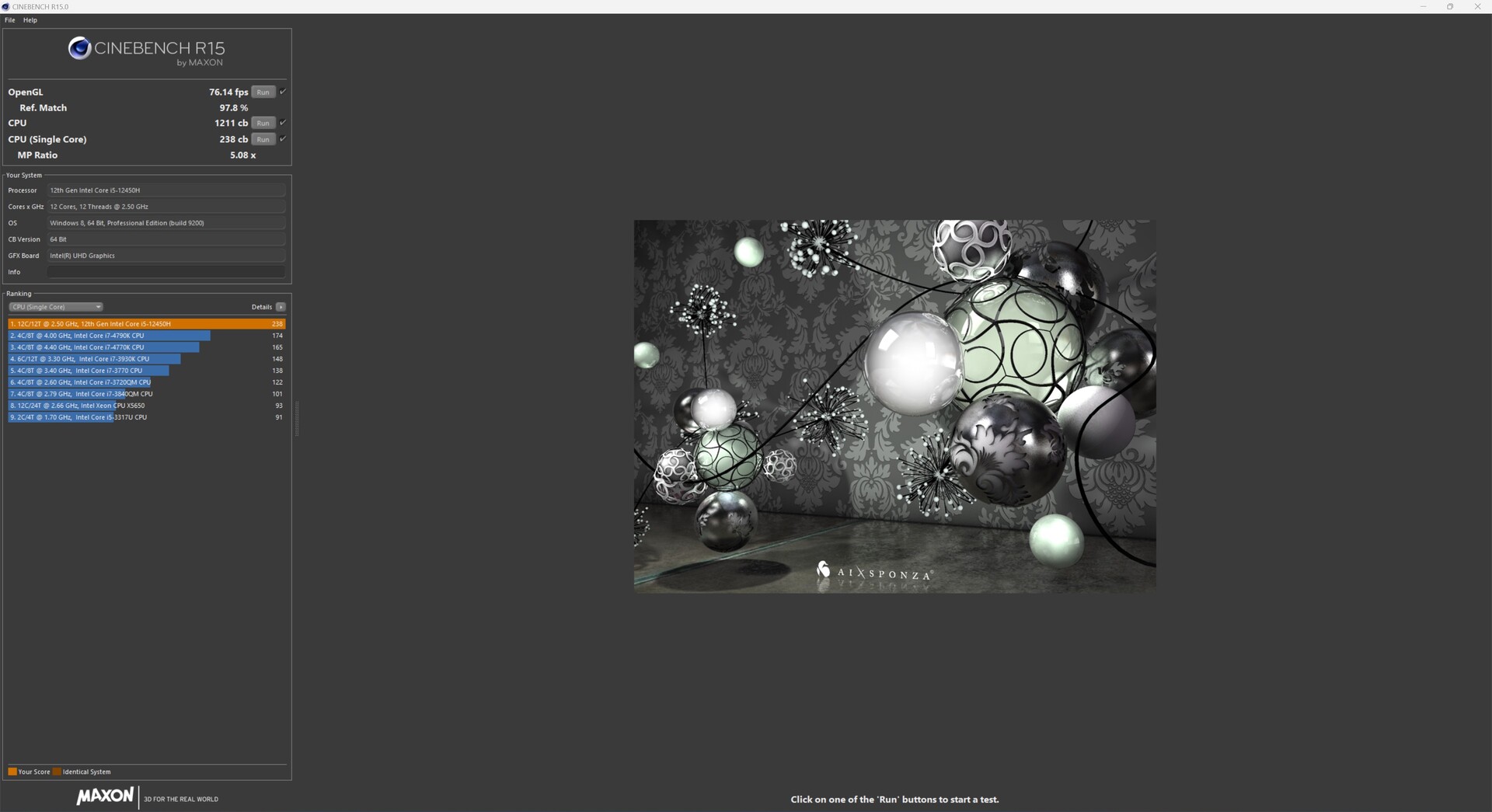

Cinebench R15
CPU Single 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	260 Points +9%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	238 Points 0%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	238 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	232 Points -3%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	227 Points -5%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	226 Points -5%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	218 Points -8%
CPU Multi 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1893 Points +56%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	1591 Points +31%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	1379 Points +14%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	1378 Points +14%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1361 Points +12%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	1211 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	953 Points -21%

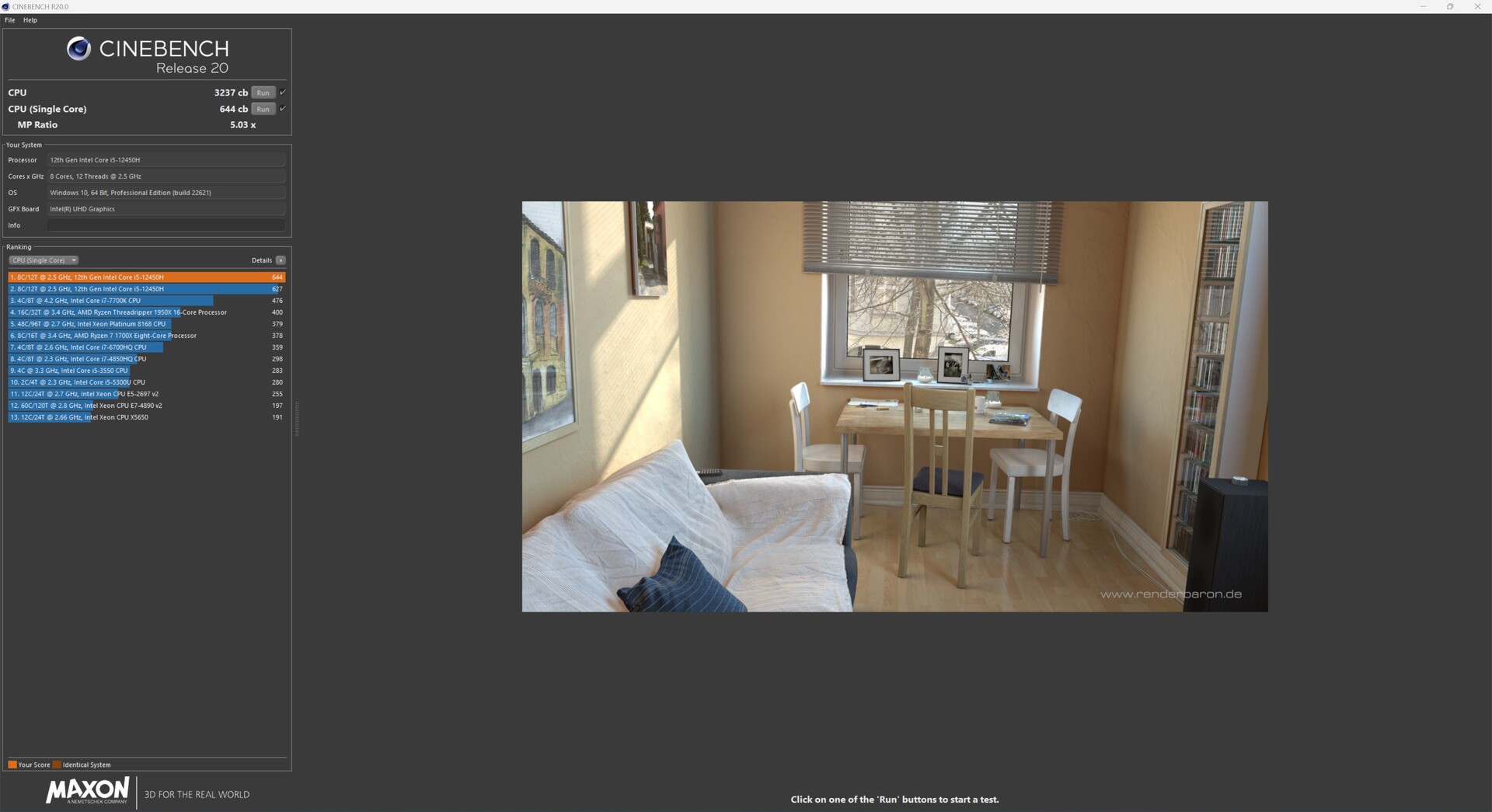

Cinebench R20
CPU (Single Core)
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	696 Points +8%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	644 Points
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	640 Points -1%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	620 Points -4%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	574 Points -11%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	560 Points -13%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	558 Points -13%
CPU (Multi Core)
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	4781 Points +48%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	3779 Points +17%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	3510 Points +8%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	3419 Points +6%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	3283 Points +1%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	3237 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	2284 Points -29%

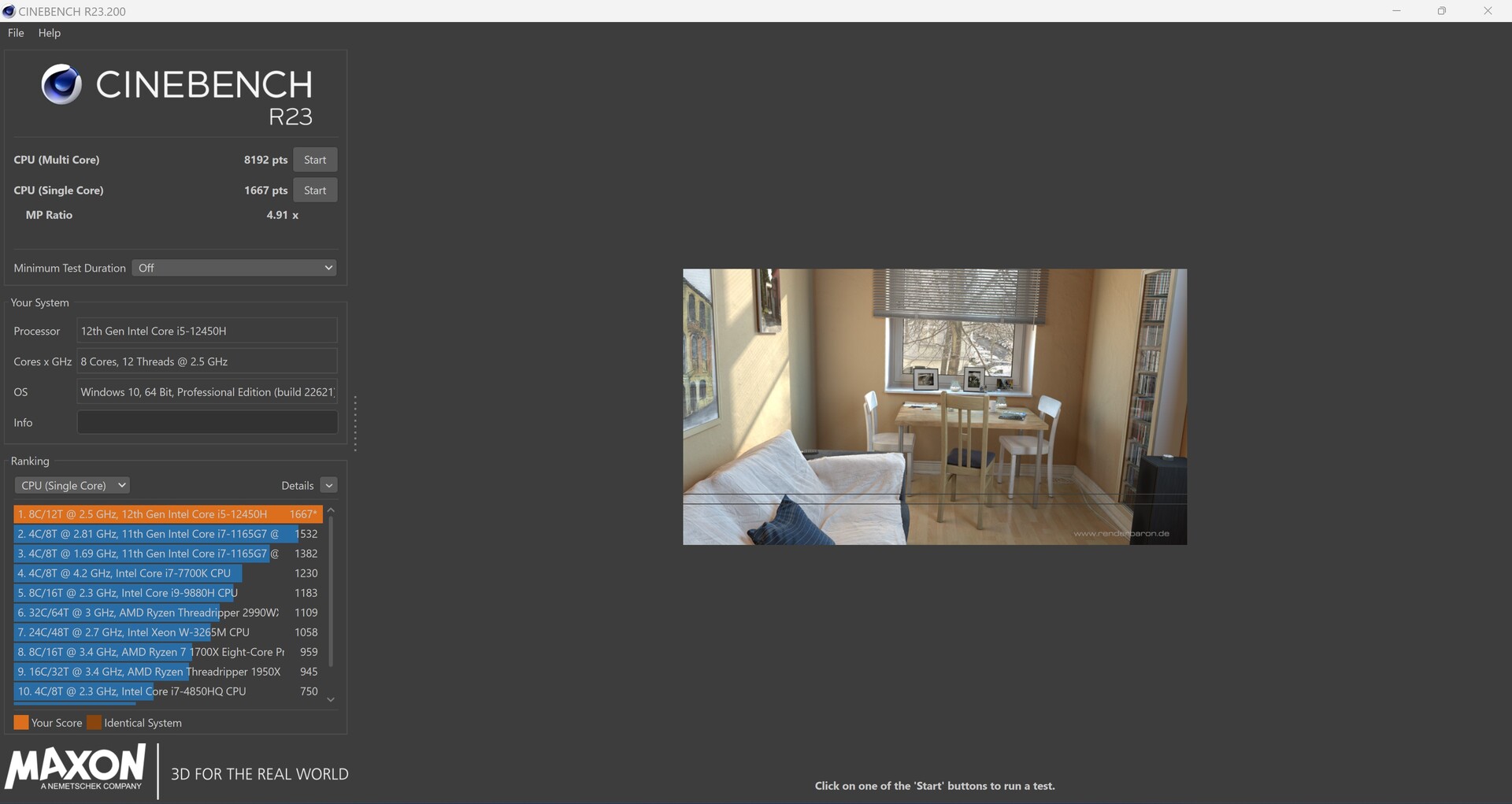

Cinebench R23
Single Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1804 Points +8%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	1667 Points
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	1659 Points 0%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	1602 Points -4%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	1496 Points -10%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	1462 Points -12%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1420 Points -15%
Multi Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	12072 Points +49%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	9503 Points +17%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	9134 Points +12%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	8491 Points +4%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	8451 Points +4%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	8129 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5917 Points -27%

Cinebench R11.5
CPU Single 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.14 Points +11%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	2.88 Points +2%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	2.83 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	2.78 Points -2%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	2.73 Points -4%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	2.62 Points -7%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	2.55 Points -10%
CPU Multi 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22.08 Points +51%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	17.87 Points +22%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	17.15 Points +17%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	16.55 Points +13%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	15.97 Points +9%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	14.61 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	10.68 Points -27%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	14533 Points +9%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	13352 Points
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	13344 Points 0%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	12516 Points -6%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	11860 Points -11%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11685 Points -12%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	11530 Points -14%
Rendering Multiple CPUs 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	68516 Points +36%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	58173 Points +16%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	55999 Points +12%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	54792 Points +9%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	54687 Points +9%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	50207 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	39426 Points -21%

Blender - v2.79 BMW27 CPU
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	513 Seconds * -22%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	422 Seconds *
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	415 Seconds * +2%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	373 Seconds * +12%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	349 Seconds * +17%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	319 Seconds * +24%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	285 Seconds * +32%

wPrime 2.10
32m
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	8.23 s *
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	7.234 s * +12%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	6.518 s * +21%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	4.688 s * +43%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	4.498 s * +45%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	3.969 s * +52%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.705 s * +55%
1024m
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	452.626 s * -5%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	431.842 s *
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	410.289 s * +5%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	196.909 s * +54%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	146.553 s * +66%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	140.674 s * +67%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	121.132 s * +72%

X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	311.5 (311^min - 312^max) fps +21%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	277 (260^min - 288^max) fps +8%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	257.5 (251^min - 259^max) fps
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	242 (239^min - 245^max) fps -6%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	226.5 (210^min - 228^max) fps -12%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	214.5 (213^min - 216^max) fps -17%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	212 (206^min - 224^max) fps -18%
Pass 2
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	111.1 (96.7^min - 111.7^max) fps +46%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	86.25 (83.2^min - 94.6^max) fps +14%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	85.35 (83^min - 87.2^max) fps +12%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	77.85 (69.8^min - 82.6^max) fps +3%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	75.9 (75^min - 75.9^max) fps
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	71.45 (70.2^min - 76.6^max) fps -6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	55.2 (54.6^min - 55.9^max) fps -27%

WinRAR - Result
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9090 KB/s +61%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	8569 KB/s +51%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6937 KB/s +23%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	6195 KB/s +9%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	6144 KB/s +9%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	5658 KB/s
Blackview MP200 Intel Core i5-11400H, 2700 MHz	5477 KB/s -3%

TrueCrypt
AES Mean 100MB
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	10.1 GB/s +44%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	9.7 GB/s +39%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	9.3 GB/s +33%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	8.4 GB/s +20%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	8 GB/s +14%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	7 GB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5.4 GB/s -23%
Twofish Mean 100MB
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.8 GB/s +50%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	1.5 GB/s +25%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1.3 GB/s +8%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	1.3 GB/s +8%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	1.3 GB/s +8%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	1.2 GB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	0.838 GB/s -30%
Serpent Mean 100MB
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.1 GB/s +56%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	1 GB/s +42%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.857 GB/s +22%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	0.815 GB/s +16%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	0.79 GB/s +12%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	0.703 GB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	0.509 GB/s -28%

Geekbench 5.5
Multi-Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9363 Points +38%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	7976 Points +17%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	7658 Points +13%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	7200 Points +6%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	6804 Points
Blackview MP200 Intel Core i5-11400H, 2700 MHz	6006 Points -12%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5091 Points -25%
Single-Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1767 Points +6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	1669 Points 0%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	1665 Points
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	1655 Points -1%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	1603 Points -4%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1504 Points -10%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	1465 Points -12%

Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	10249 Points +54%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9099 Points +36%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	7879 Points +18%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	7116 Points +7%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	6675 Points
Blackview MP200 Intel Core i5-11400H, 2700 MHz	5961 Points -11%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5025 Points -25%
5.0 Single-Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1736 Points +10%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	1655 Points +5%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	1581 Points
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	1570 Points -1%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	1569 Points -1%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1557 Points -2%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	1461 Points -8%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	7705 Points +7%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	7186 Points
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	7153 Points 0%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	7146 Points -1%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	6747 Points -6%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6698 Points -7%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	6110 Points -15%
64 Bit Multi-Core Score
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	39852 Points +53%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	34909 Points +34%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	32181 Points +24%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	27953 Points +7%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	26009 Points
Blackview MP200 Intel Core i5-11400H, 2700 MHz	24947 Points -4%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	20385 Points -22%

3DMark 11 - 1280x720 Performance Physics
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	18363 Points +36%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	15082 Points +12%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	14645 Points +8%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	13514 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11630 Points -14%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	10999 Points -19%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	10536 Points -22%

7-Zip 18.03
7z b 4
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	47893 MIPS +43%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	44320 MIPS +32%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	43146 MIPS +29%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	34660 MIPS +3%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	33619 MIPS 0%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	33549 MIPS
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	25876 MIPS -23%
7z b 4 -mmt1
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	6116 MIPS +16%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5895 MIPS +12%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	5732 MIPS +9%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5486 MIPS +4%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	5343 MIPS +1%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	5278 MIPS
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	4994 MIPS -5%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	13.6 fps +44%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	12 fps +27%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11.7 fps +24%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	10.8 fps +14%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	10.2 fps +8%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	9.47 fps
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	7.61 fps -20%

R Benchmark 2.5 - Overall mean
Blackview MP200 Intel Core i5-11400H, 2700 MHz	0.581 sec * -12%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	0.559 sec * -8%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	0.543 sec * -5%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	0.517 sec *
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	0.515 sec * -0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.511 sec * +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	0.462 sec * +11%

LibreOffice - 20 Documents To PDF
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	53 s * -24%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	53 s * -24%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	47.2 s * -10%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	46.6 s * -9%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	46.3 s * -8%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	42.8 s *
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	39.6 s * +7%

WebXPRT 3 - Overall
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	309 Points +12%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	285 Points +3%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	277 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	274 Points -1%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	270 Points -3%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	261 Points -6%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	247 Points -11%

Mozilla Kraken 1.1 - Total
Blackview MP200 Intel Core i5-11400H, 2700 MHz	660 ms * -17%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	644 ms * -14%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	641 ms * -14%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	619 ms * -10%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	566 ms * -1%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	563 ms *
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	519 ms * +8%

3DMark
3840x2160 Fire Strike Ultra Physics
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	21176 Points +23%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	21001 Points +22%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	19341 Points +12%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	18599 Points +8%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	17250 Points
Blackview MP200 Intel Core i5-11400H, 2700 MHz	16258 Points -6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	11557 Points -33%
1920x1080 Fire Strike Physics
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22346 Points +25%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	21928 Points +23%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	19994 Points +12%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	17852 Points
Blackview MP200 Intel Core i5-11400H, 2700 MHz	16949 Points -5%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	15934 Points -11%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	11883 Points -33%
2560x1440 Time Spy CPU
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9168 Points +49%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	8744 Points +42%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	6901 Points +12%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	6151 Points
Blackview MP200 Intel Core i5-11400H, 2700 MHz	5160 Points -16%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5114 Points -17%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	4598 Points -25%

* ... smaller is better

Performance Rating
Average of class Mini PC	94.4 pt
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	93.3 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	84.9 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	78.5 pt
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	77.4 pt
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	73.3 pt
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	64.3 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	54.8 pt

AIDA64 / FP32 Ray-Trace
Average of class Mini PC (646 - 51004, n=117, last 2 years)	12754 KRay/s +76%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	12240 KRay/s +69%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	10839 KRay/s +50%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	10552 KRay/s +46%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	9518 KRay/s +32%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	9129 KRay/s +26%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	7229 KRay/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	6633 KRay/s -8%

AIDA64 / FPU Julia
Average of class Mini PC (3857 - 214250, n=117, last 2 years)	64155 Points +61%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	59704 Points +49%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	54435 Points +36%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	52677 Points +32%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	46204 Points +16%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	44789 Points +12%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	39966 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	27788 Points -30%

AIDA64 / CPU SHA3
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	3501 MB/s +88%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	3103 MB/s +67%
Average of class Mini PC (260 - 9399, n=117, last 2 years)	2829 MB/s +52%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	2357 MB/s +27%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	2071 MB/s +11%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	1997 MB/s +7%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	1862 MB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	1841 MB/s -1%

AIDA64 / CPU Queen
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	85233 Points +43%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	82454 Points +38%
Average of class Mini PC (8172 - 184747, n=117, last 2 years)	79428 Points +33%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	75248 Points +26%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	69756 Points +17%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	64750 Points +9%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	59539 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	49399 Points -17%

AIDA64 / FPU SinJulia
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	8738 Points +70%
Average of class Mini PC (408 - 29064, n=117, last 2 years)	8724 Points +70%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	8510 Points +66%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	7444 Points +45%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	7186 Points +40%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	5985 Points +17%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	5133 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	4529 Points -12%

AIDA64 / FPU Mandel
Average of class Mini PC (1987 - 113499, n=117, last 2 years)	33471 Points +81%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	32465 Points +75%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	31628 Points +71%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	26798 Points +45%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	26735 Points +44%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	22917 Points +24%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	18516 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	16652 Points -10%

AIDA64 / CPU AES
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	122812 MB/s +74%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	99449 MB/s +41%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	92530 MB/s +31%
Average of class Mini PC (3691 - 325960, n=117, last 2 years)	87791 MB/s +24%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	78537 MB/s +11%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	70617 MB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	57644 MB/s -18%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	39680 MB/s -44%

AIDA64 / CPU ZLib
Average of class Mini PC (74.9 - 2039, n=117, last 2 years)	732 MB/s +38%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	687 MB/s +29%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	674 MB/s +27%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	592 MB/s +11%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	591 MB/s +11%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	531 MB/s
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	530 MB/s 0%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	372 MB/s -30%

AIDA64 / FP64 Ray-Trace
Average of class Mini PC (350 - 26952, n=117, last 2 years)	6821 KRay/s +67%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	6651 KRay/s +63%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	5771 KRay/s +41%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	5743 KRay/s +41%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	5058 KRay/s +24%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	4977 KRay/s +22%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	4082 KRay/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	3668 KRay/s -10%

AIDA64 / CPU PhotoWorxx
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	28682 MPixel/s +3%
Average of class Mini PC (4408 - 50500, n=117, last 2 years)	28317 MPixel/s +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	28010 MPixel/s 0%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	27940 MPixel/s
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	27456 MPixel/s -2%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	25453 MPixel/s -9%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	20652 MPixel/s -26%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	12248 MPixel/s -56%

NiPoGi CK10 与 Cinebench R15 多回路对比

通过 Cinebench R15 连续循环测试，我们可以了解 SoC 在较长时间内的表现。虽然制造商限制了 SoC 的性能，但散热装置在长期负载下很快就会不堪重负。在查看遥测数据时，我们可以看到它在完成第一次运行时性能完好无损。但在第二次运行时，其性能已经下降，效果显而易见。与竞争对手相比，NiPoGi CK10 排名倒数第二。

NiPoGi CK10 Intel Core i5-12450H, Intel Core i5-12450H: Ø1004 (968.01-1261.83)

Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)

Minisforum Venus Series NAB6 Intel Core i7-12650H, Intel Core i7-12650H: Ø1627 (1590.71-1899.25)

Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Core i7-11390H: Ø946 (931.81-953.22)

Minisforum Venus Series UN1245 Intel Core i5-12450H, Intel Core i5-12450H: Ø1370 (1352.4-1379.41)

Acemagic AD15 Intel Core i7-11800H, Intel Core i7-11800H: Ø1470 (1424.65-1647.85)

Blackview MP200 Intel Core i5-11400H, Intel Core i5-11400H: Ø1208 (1178.24-1384.8)

系统性能

从主观上看，NiPoGi CK10 的系统性能足够出色。在同类产品中，我们的测试设备只能达到平均水平。NiPoGi CK10 落后于Minisforum 维纳斯系列 UN1245，这表明其散热装置在这一领域也可能很快被压倒。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	6057 Points +15%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	5872 Points +12%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	5319 Points +1%
NiPoGi CK10, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Future Path FPE220M8SSD512G	5262 Points
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	5036 Points -4%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	4914 Points -7%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	4525 Points -14%

PCMark 10 / Essentials
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	11395 Points +11%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	10306 Points 0%
NiPoGi CK10, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Future Path FPE220M8SSD512G	10280 Points
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9820 Points -4%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	9694 Points -6%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	9649 Points -6%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	9513 Points -7%

PCMark 10 / Productivity
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9031 Points +23%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	8164 Points +11%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	7527 Points +2%
NiPoGi CK10, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Future Path FPE220M8SSD512G	7368 Points
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	6788 Points -8%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	6723 Points -9%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	6495 Points -12%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1875 Points +25%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1637 Points +9%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1517 Points +1%
NiPoGi CK10, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Future Path FPE220M8SSD512G	1504 Points
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1438 Points -4%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	1423 Points -5%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1285 Points -15%

CrossMark / Responsiveness
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	2077 Points +48%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1888 Points +35%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1434 Points +2%
NiPoGi CK10, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Future Path FPE220M8SSD512G	1403 Points
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1238 Points -12%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1079 Points -23%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	1038 Points -26%

CrossMark / Creativity
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1811 Points +18%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1652 Points +8%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	1598 Points +4%
NiPoGi CK10, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Future Path FPE220M8SSD512G	1530 Points
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1525 Points 0%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1359 Points -11%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1309 Points -14%

CrossMark / Productivity
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1876 Points +24%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1677 Points +11%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1523 Points +1%
NiPoGi CK10, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Future Path FPE220M8SSD512G	1513 Points
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1491 Points -1%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	1408 Points -7%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1336 Points -12%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average of class Mini PC (6481 - 89287, n=117, last 2 years)	48397 MB/s +11%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	47711 MB/s +9%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	46936 MB/s +7%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	43790 MB/s
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	43746 MB/s 0%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	41953 MB/s -4%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	37807 MB/s -14%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	22181 MB/s -49%

AIDA64 / Memory Read
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	50120 MB/s +6%
Average of class Mini PC (6914 - 99171, n=117, last 2 years)	49208 MB/s +4%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	47290 MB/s 0%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	47170 MB/s
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	47042 MB/s 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	46084 MB/s -2%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	42236 MB/s -10%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	25003 MB/s -47%

AIDA64 / Memory Write
Average of class Mini PC (6862 - 98583, n=117, last 2 years)	52965 MB/s +13%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	49353 MB/s +5%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	47383 MB/s +1%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	46882 MB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	46860 MB/s 0%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	46529 MB/s -1%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	38930 MB/s -17%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	22892 MB/s -51%

AIDA64 / Memory Latency
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	94 ns * -22%
Average of class Mini PC (44.9 - 184.8, n=117, last 2 years)	92.3 ns * -20%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	78.7 ns * -2%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	77.5 ns * -1%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	76.9 ns *
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	73.3 ns * +5%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	71.6 ns * +7%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	66.3 ns * +14%

* ... smaller is better

	NiPoGi CK10, Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen) UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	Minisforum Venus Series UN1245, Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen) UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	Minisforum Venus Series NAB6, Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen) UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	Geekom Mini IT11, i7-11390H, Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	Morefine M600, 6600U, AMD Ryzen 5 6600U, AMD Radeon 660M Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	Acemagic AD15, Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H) UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	Blackview MP200, Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H) UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
SPECviewperf 12		-6%	17%	14%	1243%	-12%	-43%
1900x1060 3ds Max (3dsmax-05)	29.8	29.5 -1%	36.2 21%	30.1 1%	55.8 87%	26.8 -10%	16.8 -44%
1900x1060 Catia (catia-04)	22.9	22.8 0%	34.5 51%	29.2 28%	45 97%	22.2 -3%	14.6 -36%
1900x1060 Creo (creo-01)	17.7	18.4 4%	6.44 -64%	7.28 -59%	39.3 122%	15.5 -12%	4.03 -77%
1900x1060 Energy (energy-01)	0.56	0.24 -57%	0.35 -37%	0.92 64%	51.1 9025%	0.23 -59%	0.16 -71%
1900x1060 Maya (maya-04)	23.3	22.9 -2%	33.4 43%	30.4 30%	44.4 91%	23.9 3%	12.8 -45%
1900x1060 Medical (medical-01)	4.98	5 0%	9.12 83%	8.13 63%	25.8 418%	4.96 0%	2.83 -43%
1900x1060 Showcase (showcase-01)	13.1	13.1 0%	15.9 21%	15 15%	22.8 74%	11.2 -15%	6.62 -49%
1900x1060 Siemens NX (snx-02)	3.31	3.48 5%	3.89 18%	2.85 -14%	42.4 1181%	3.03 -8%	3.58 8%
1900x1060 Solidworks (sw-03)	38.3	38.5 1%	44.5 16%	37.4 -2%	74.6 95%	37.8 -1%	25.7 -33%
SPECviewperf 13		1%	38%	24%	256%	-5%	-35%
3ds Max (3dsmax-06)	29.6	29.3 -1%	36 22%	30 1%	51.7 75%	27.2 -8%	16.7 -44%
Catia (catia-05)	32.8	32.9 0%	49.6 51%	42.5 30%	56.9 73%	31.9 -3%	21.5 -34%
Creo (creo-02)	26.7	27.7 4%	33 24%	30.3 13%	53.8 101%	22.5 -16%	12.8 -52%
Maya (maya-05)	32.4	32.1 -1%	38.2 18%	34.3 6%	62.6 93%	32 -1%	18.8 -42%
Medical (medical-02)	4.51	4.48 -1%	10.9 142%	10.9 142%	24.9 452%	4.96 10%	2.58 -43%
Showcase (showcase-02)	13.1	13.1 0%	15.7 20%	14.8 13%	23.9 82%	11.3 -14%	6.63 -49%
Siemens NX (snx-03)	5.91	6.24 6%	6.68 13%	5.16 -13%	72.7 1130%	5.45 -8%	6.46 9%
Solidworks (sw-04)	46.8	47 0%	53.9 15%	47.6 2%	66.6 42%	45.5 -3%	34.1 -27%
Total Average (Program / Settings)		-3% / -3%	28% / 27%	19% / 19%	750% / 779%	-9% / -9%	-39% / -40%

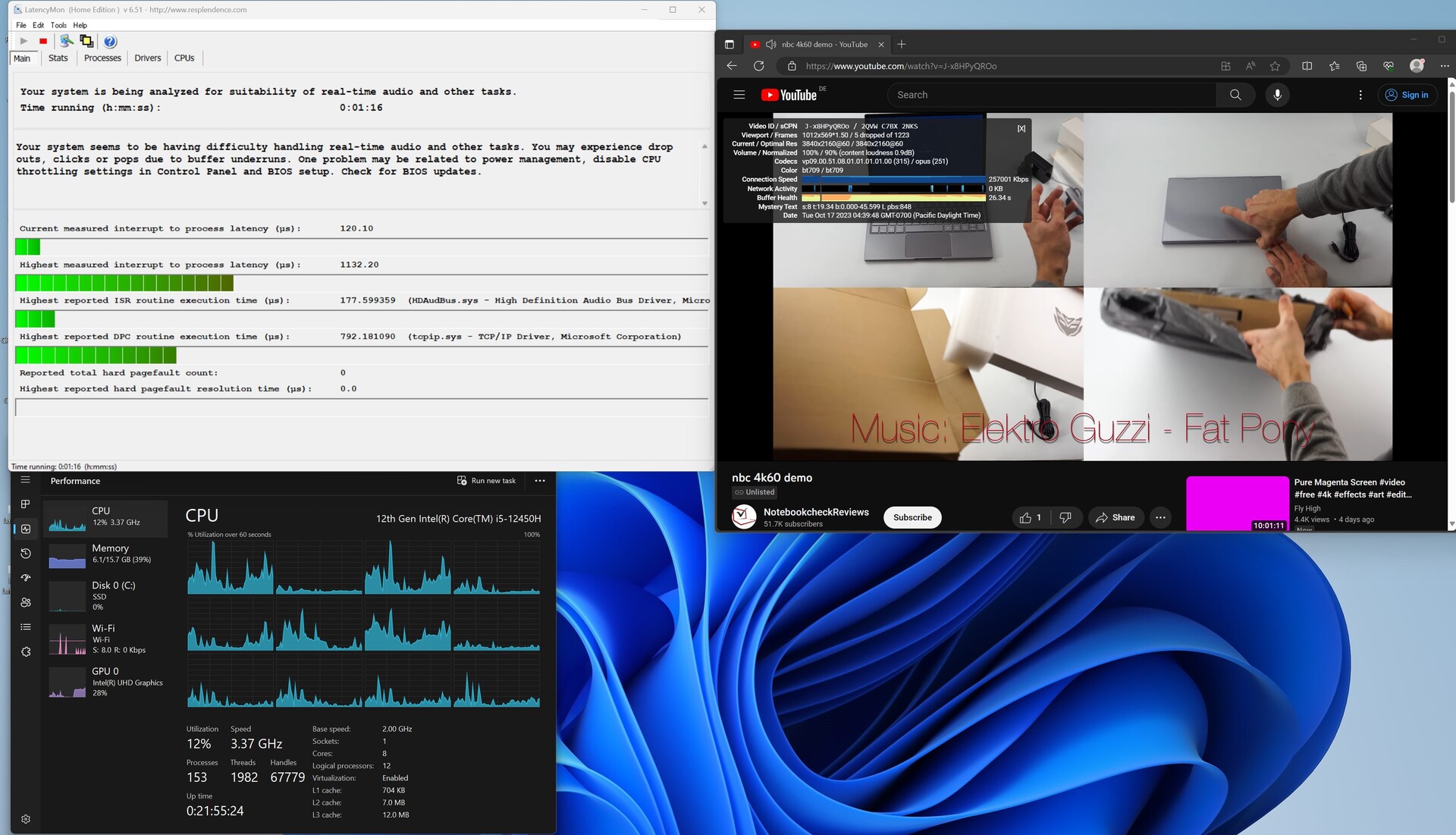

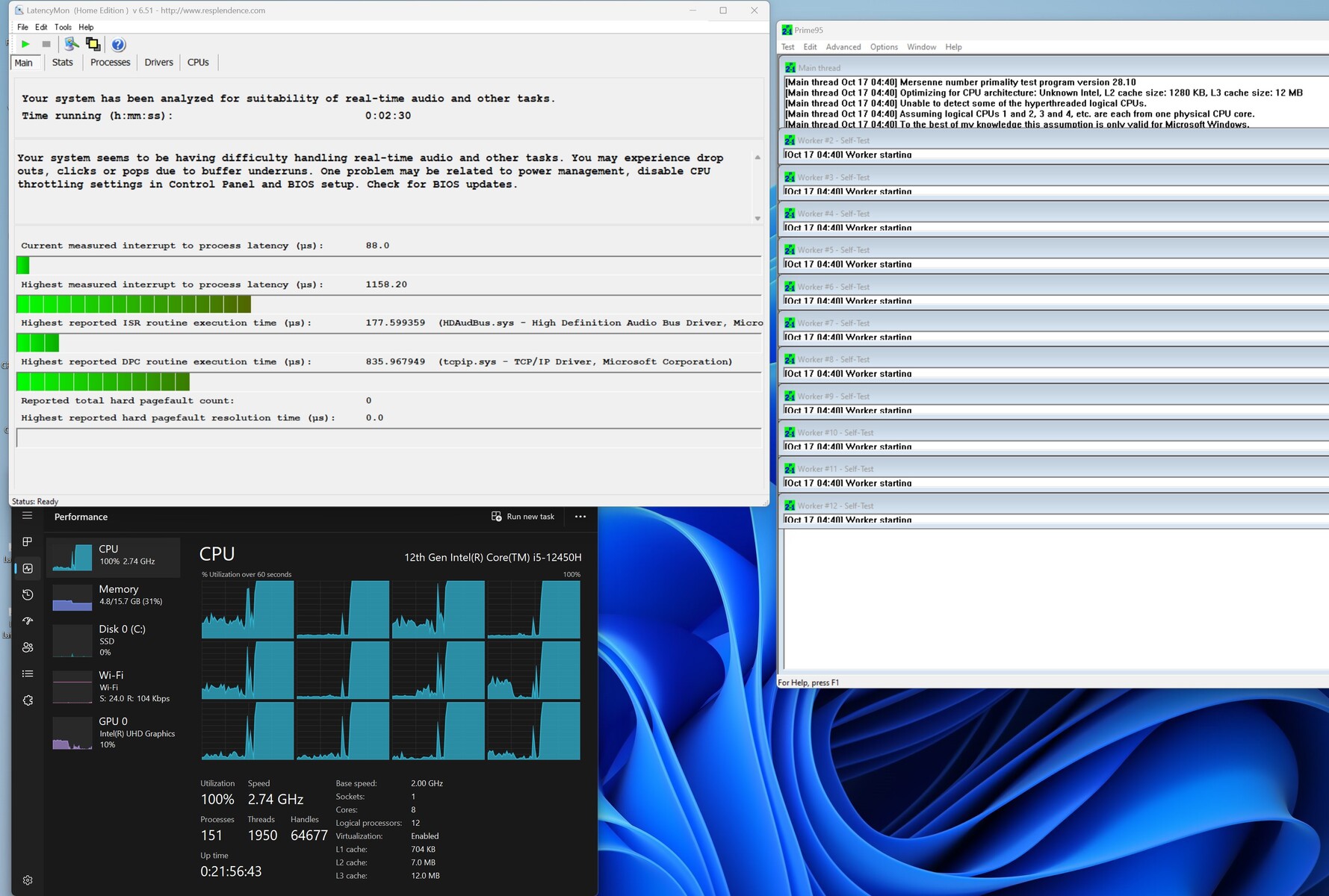

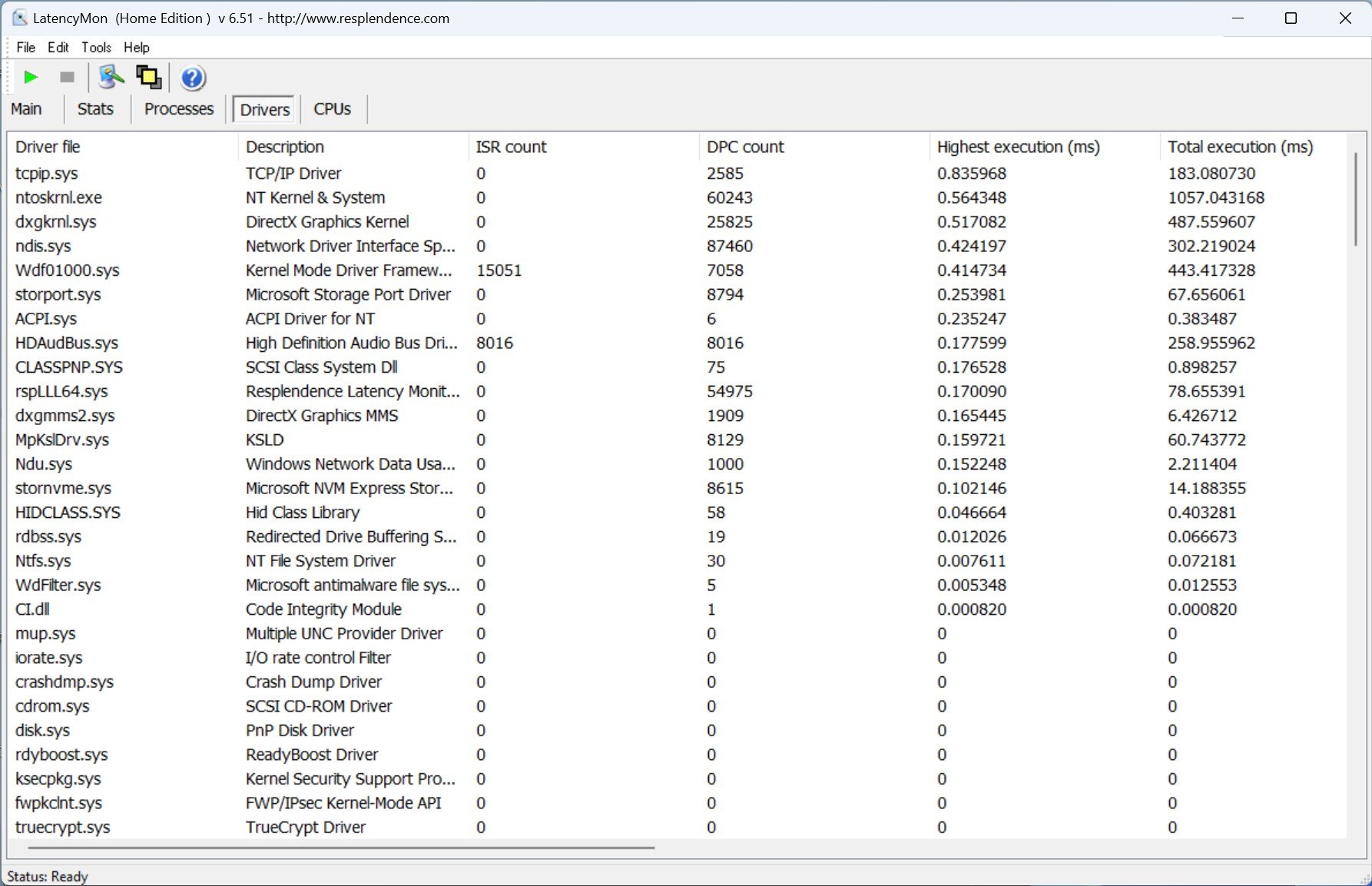

DPC 延迟

我们只注意到在播放 4K 测试视频时，NiPoGi CK10 的延迟略有增加。在 Edge 浏览器中打开多个标签页时也没有问题。我们没有记录任何临界速率，我们的测试设备在比较中再次获得了平均名次。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	1411 μs * -69%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	1016.7 μs * -22%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	844.9 μs * -1%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	835.9 μs *
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	795 μs * +5%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	466 μs * +44%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	447.9 μs * +46%

* ... smaller is better

存储设备

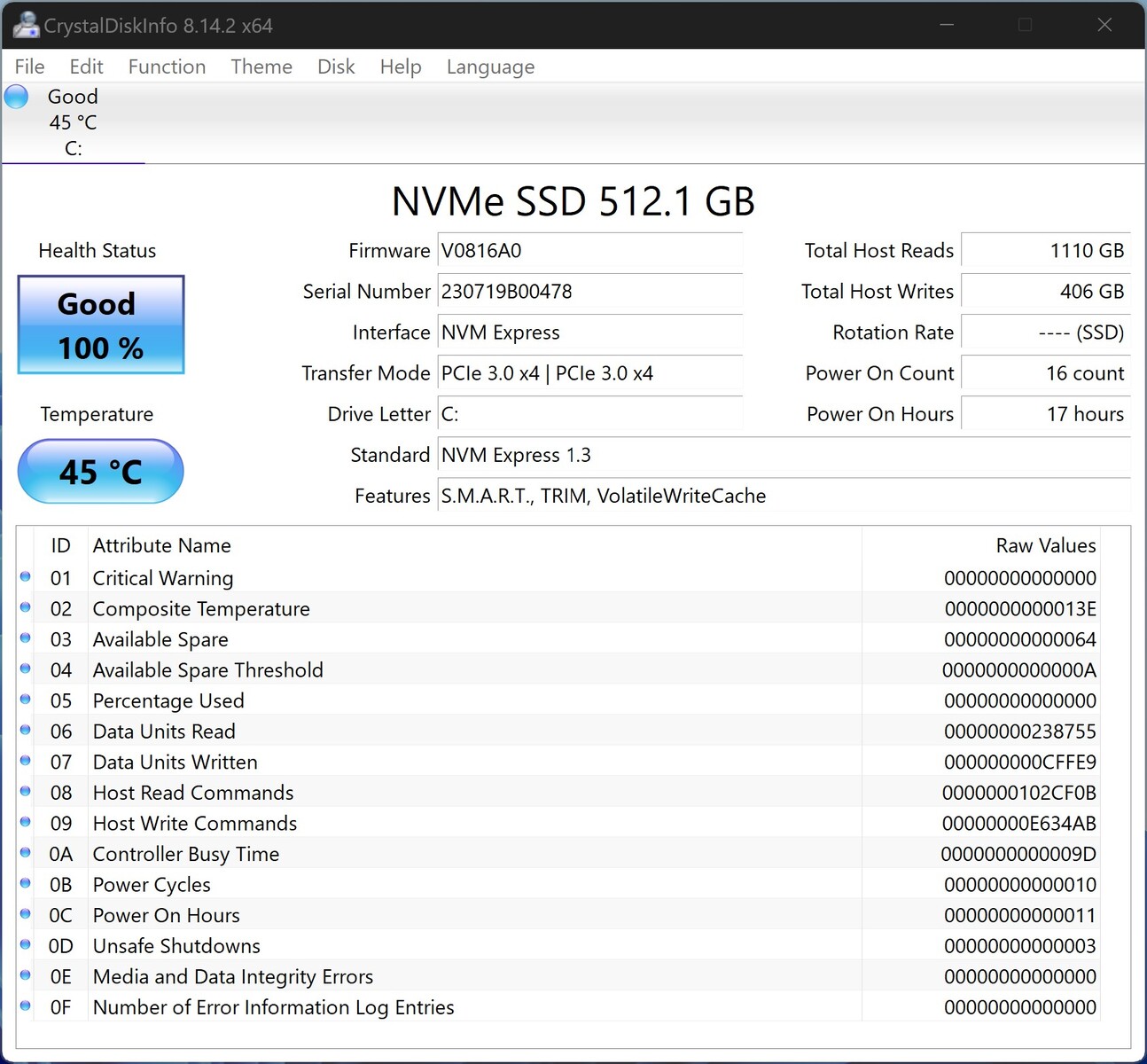

NiPoGi 在测试样品中安装了 Neatac 的 512GB NVMe 固态硬盘。其测量值显示性能不错，但并不突出。固态硬盘的日常性能良好，安装我们的测试程序也没有任何问题。它的连续负载性能水平非常出色。在这里，我们注意到它的性能保持稳定，没有任何下降。NiPoGi CK10 总共可以安装三个存储设备。除了预装的 NVMe 固态硬盘外，还可以再安装一个 M.2 固态硬盘和一个 2.5 英寸存储设备。只需确保 2.5 英寸硬盘的高度不超过 7 毫米即可。

有关进一步的比较和基准测试，请访问我们的比较表。

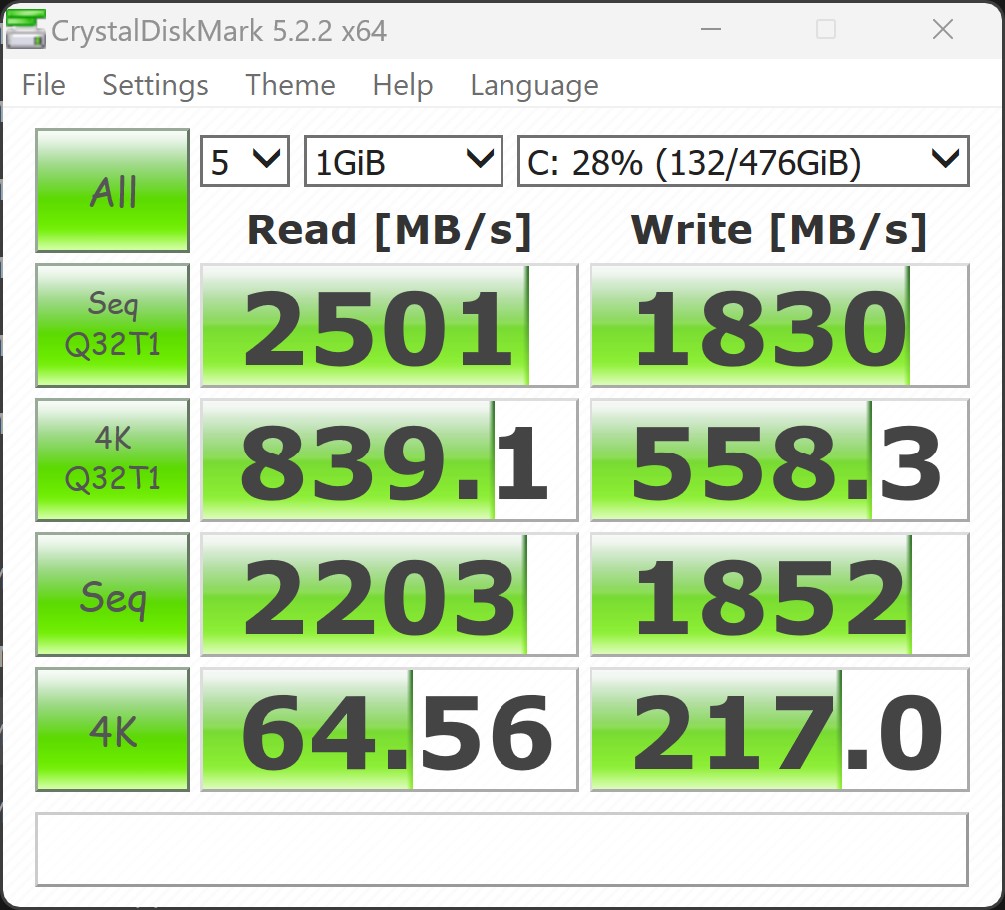

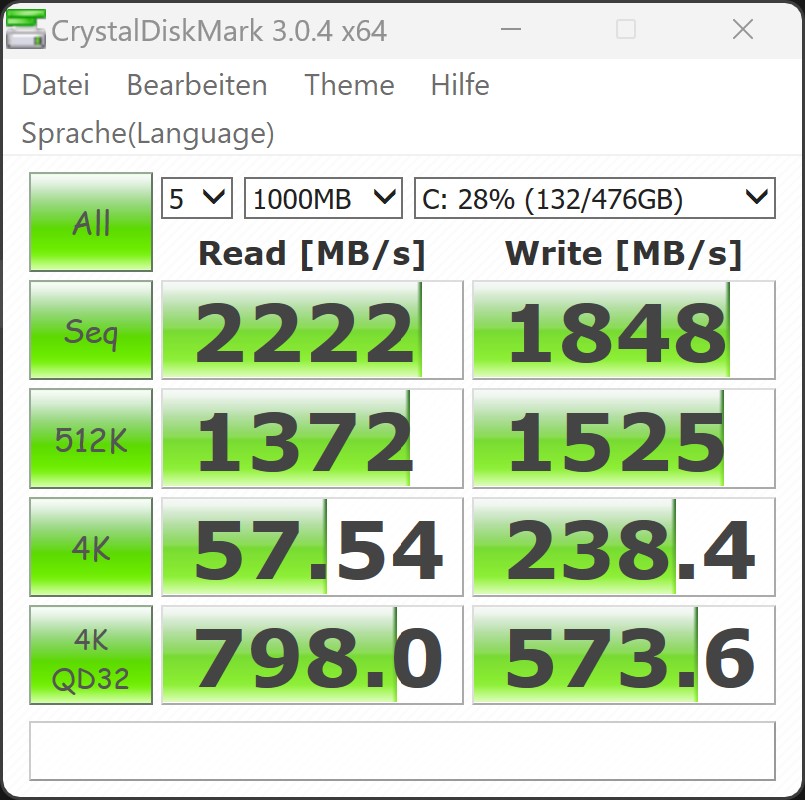

CrystalDiskMark 3.0

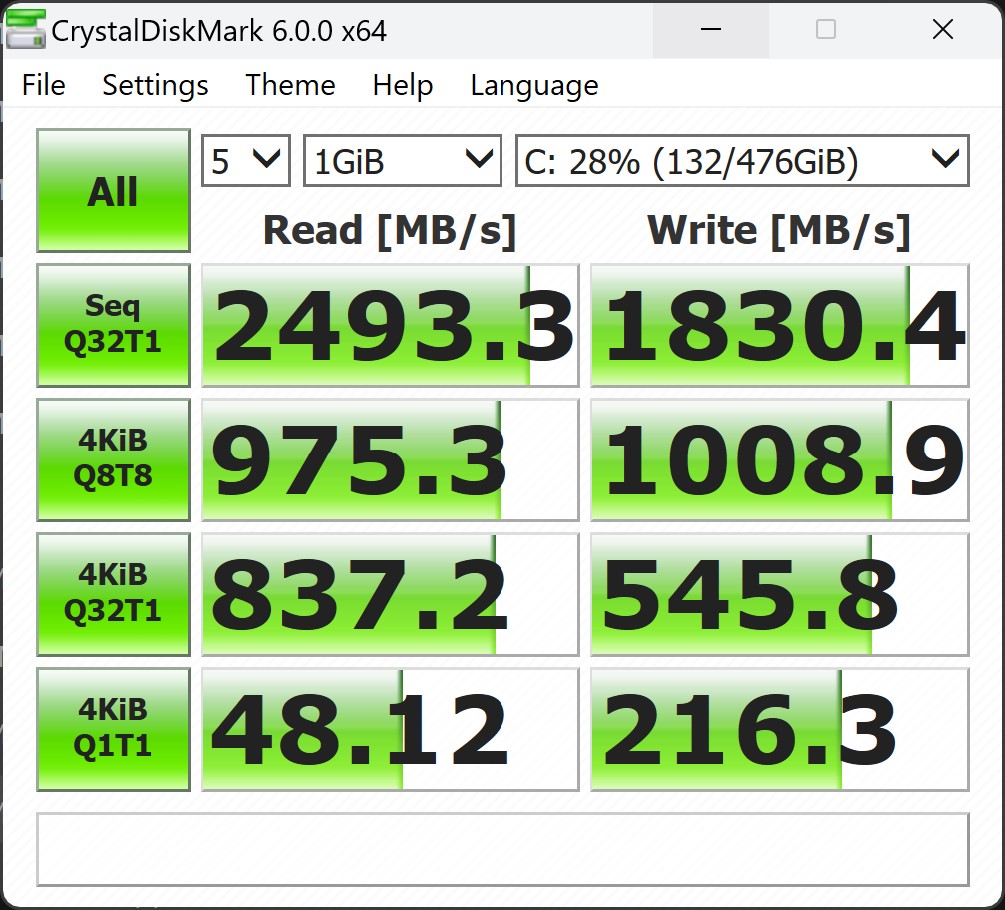

CrystalDiskMark 5.2 / 6

DiskSpd

Future Path FPE220M8SSD512G

Sequential Read: 2222 MB/s

Sequential Write: 1848 MB/s

512K Read: 1372 MB/s

512K Write: 1525 MB/s

4K Read: 57.54 MB/s

4K Write: 238.4 MB/s

4K QD32 Read: 798 MB/s

4K QD32 Write: 573.6 MB/s

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

NiPoGi CK10 Future Path FPE220M8SSD512G: Ø2378 (2112.25-2402.9)

Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S: Ø1047 (95.4-2400.59)

Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0: Ø4789 (4164.37-4807.96)

Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG: Ø1246 (674.65-1585.03)

Acemagic AD15 Netac NS512GSSD340: Ø540 (386.44-542.74)

Blackview MP200 Foresee XP1000F512G: Ø3033 (2552.65-3092.67)

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	93.9 pt
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	81.3 pt
Average of class Mini PC	63.4 pt
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	51.3 pt
NiPoGi CK10 ^-11! Future Path FPE220M8SSD512G	49.2 pt
Blackview MP200 Foresee XP1000F512G	47.3 pt
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	41.2 pt
Acemagic AD15 Netac NS512GSSD340	18.4 pt

DiskSpd
seq read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2689 (2681.42^min - 2688.76^max) MB/s +34%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	2655 (2644.09^min - 2654.58^max) MB/s +32%
Average of class Mini PC (277 - 4357, n=117, last 2 years)	2326 MB/s +15%
Blackview MP200 Foresee XP1000F512G	2089 (1961.74^min - 2088.97^max) MB/s +4%
NiPoGi CK10 Future Path FPE220M8SSD512G	2014 (1987.04^min - 2014.36^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1720 (1344.24^min - 1720.17^max) MB/s -15%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1684 (1646.89^min - 1684.01^max) MB/s -16%
Acemagic AD15 Netac NS512GSSD340	526 (524.71^min - 525.97^max) MB/s -74%
seq write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3544 (3538.94^min - 3544.19^max) MB/s +122%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	3523 (3505.18^min - 3522.8^max) MB/s +120%
Average of class Mini PC (229 - 5595, n=117, last 2 years)	2492 MB/s +56%
Blackview MP200 Foresee XP1000F512G	2395 (2371.88^min - 2394.91^max) MB/s +50%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2298 (1081.92^min - 2298.06^max) MB/s +44%
NiPoGi CK10 Future Path FPE220M8SSD512G	1598 (1557.1^min - 1598.24^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1075 (545.51^min - 1075.26^max) MB/s -33%
Acemagic AD15 Netac NS512GSSD340	464 (461.79^min - 463.68^max) MB/s -71%
seq q8 t1 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4797 (4271.21^min - 4796.87^max) MB/s +100%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	4788 (4242.12^min - 4787.8^max) MB/s +100%
Average of class Mini PC (236 - 8430, n=117, last 2 years)	3772 MB/s +57%
Blackview MP200 Foresee XP1000F512G	3034 (2493.77^min - 3034.37^max) MB/s +26%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2522 (2230.32^min - 2522.44^max) MB/s +5%
NiPoGi CK10 Future Path FPE220M8SSD512G	2399 (2078.28^min - 2398.91^max) MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2223 (1765.77^min - 2223.4^max) MB/s -7%
Acemagic AD15 Netac NS512GSSD340	545 (387.49^min - 544.63^max) MB/s -77%
seq q8 t1 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3541 (3519.65^min - 3541.04^max) MB/s +121%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	3533 (3500.99^min - 3532.65^max) MB/s +121%
Average of class Mini PC (239 - 6669, n=117, last 2 years)	2793 MB/s +74%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2494 (2222.35^min - 2493.51^max) MB/s +56%
Blackview MP200 Foresee XP1000F512G	2412 (2365.59^min - 2411.72^max) MB/s +51%
NiPoGi CK10 Future Path FPE220M8SSD512G	1602 (1566.78^min - 1601.65^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1599 (266.87^min - 1599.24^max) MB/s 0%
Acemagic AD15 Netac NS512GSSD340	483 (480.04^min - 483.18^max) MB/s -70%
4k q1 t1 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	82.8 (82.48^min - 82.75^max) MB/s +51%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	80.2 (79.47^min - 80.17^max) MB/s +46%
NiPoGi CK10 Future Path FPE220M8SSD512G	55 (53.87^min - 55.03^max) MB/s
Average of class Mini PC (6.85 - 86.6, n=117, last 2 years)	55 MB/s 0%
Blackview MP200 Foresee XP1000F512G	53.7 (53.3^min - 53.65^max) MB/s -2%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	40.3 (36.8^min - 40.3^max) MB/s -27%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	38.1 (35.61^min - 38.07^max) MB/s -31%
Acemagic AD15 Netac NS512GSSD340	34.4 (34.22^min - 34.41^max) MB/s -37%
4k q1 t1 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	420 (417.55^min - 420.16^max) MB/s +116%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	386 (379.05^min - 385.59^max) MB/s +98%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	229 (165.03^min - 229.29^max) MB/s +18%
Average of class Mini PC (30.4 - 435, n=117, last 2 years)	196.5 MB/s +1%
NiPoGi CK10 Future Path FPE220M8SSD512G	194.7 (191^min - 194.69^max) MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	120 (112.79^min - 120.03^max) MB/s -38%
Blackview MP200 Foresee XP1000F512G	105.3 (104.05^min - 105.3^max) MB/s -46%
Acemagic AD15 Netac NS512GSSD340	93.3 (91.37^min - 93.31^max) MB/s -52%
4k q32 t16 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1939 (1934.48^min - 1939.25^max) MB/s +97%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	1936 (1933.07^min - 1936.22^max) MB/s +97%
Average of class Mini PC (26.1 - 4158, n=117, last 2 years)	1389 MB/s +41%
NiPoGi CK10 Future Path FPE220M8SSD512G	985 (816.79^min - 984.52^max) MB/s
Blackview MP200 Foresee XP1000F512G	731 (727.82^min - 730.52^max) MB/s -26%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	639 (421.15^min - 639.47^max) MB/s -35%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	561 (475.29^min - 560.56^max) MB/s -43%
Acemagic AD15 Netac NS512GSSD340	189.2 (184.89^min - 189.2^max) MB/s -81%
4k q32 t16 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3388 (3373.11^min - 3387.88^max) MB/s +579%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	2578 (1137.7^min - 2578.06^max) MB/s +417%
Average of class Mini PC (32.6 - 4288, n=117, last 2 years)	1319 MB/s +164%
Blackview MP200 Foresee XP1000F512G	754 (743.45^min - 754.38^max) MB/s +51%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	544 (355.98^min - 544.47^max) MB/s +9%
NiPoGi CK10 Future Path FPE220M8SSD512G	499 (331.35^min - 498.71^max) MB/s
Acemagic AD15 Netac NS512GSSD340	229 (222.72^min - 229.28^max) MB/s -54%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	176.1 (168.14^min - 176.06^max) MB/s -65%

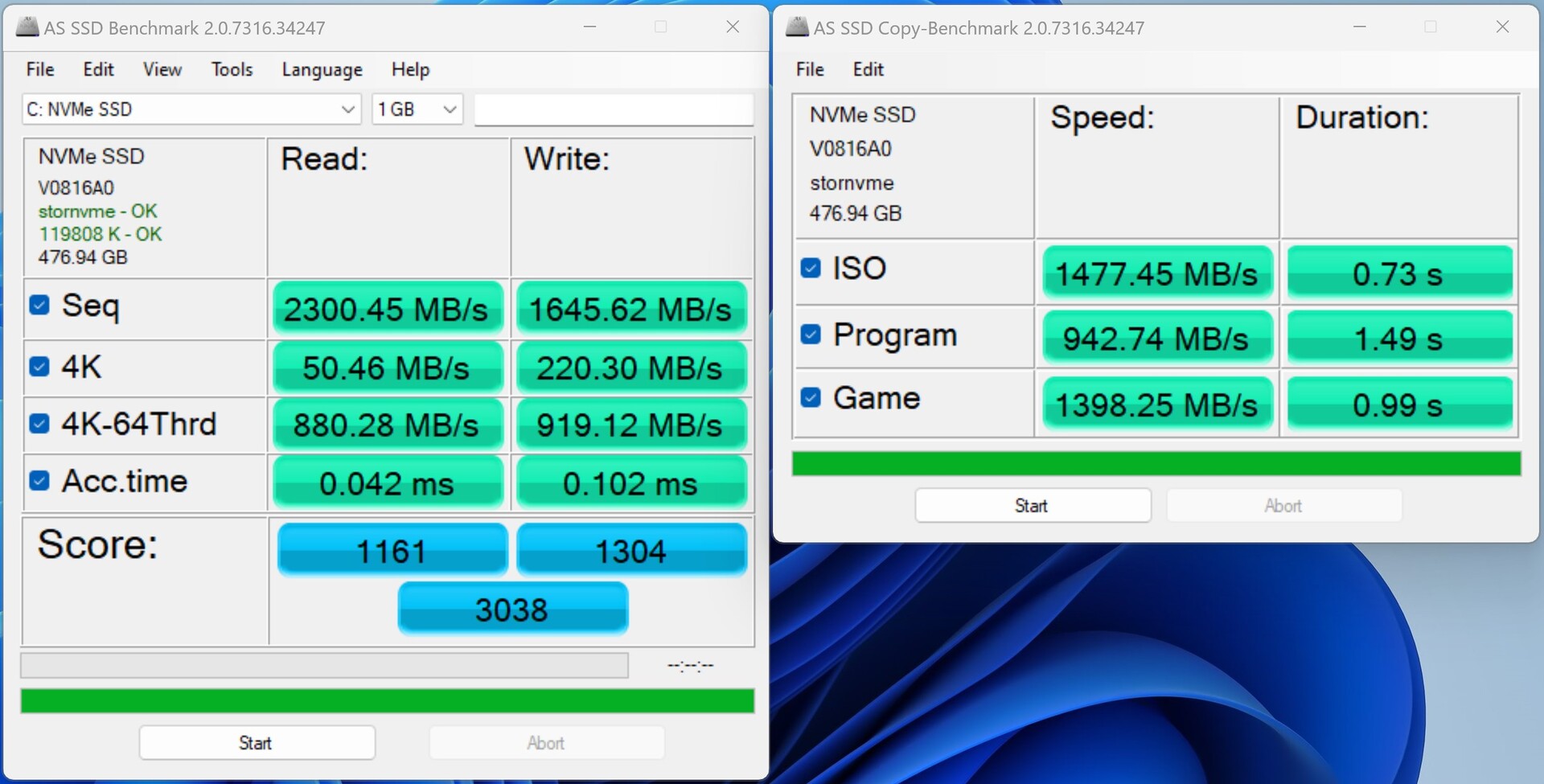

AS SSD
Score Total
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	6225 Points
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4744 Points
Average of class Mini PC (211 - 10021, n=115, last 2 years)	4218 Points
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	3887 Points
Blackview MP200 Foresee XP1000F512G	3153 Points
Acemagic AD15 Netac NS512GSSD340	753 Points
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	748.83 Points
Score Read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2356 Points
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	2327 Points
Average of class Mini PC (76 - 3741, n=115, last 2 years)	1567 Points
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1513 Points
Blackview MP200 Foresee XP1000F512G	1276 Points
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	661 Points
Acemagic AD15 Netac NS512GSSD340	266 Points
Score Write
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	2732 Points
Average of class Mini PC (88 - 4371, n=115, last 2 years)	1893 Points
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1632 Points
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1308 Points
Blackview MP200 Foresee XP1000F512G	1235 Points
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	700 Points
Acemagic AD15 Netac NS512GSSD340	345 Points
Seq Read
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	4095 MB/s
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3874.21 MB/s
Average of class Mini PC (291 - 6620, n=115, last 2 years)	3216 MB/s
Blackview MP200 Foresee XP1000F512G	2930 MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2844 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2268 MB/s
Acemagic AD15 Netac NS512GSSD340	529 MB/s
Seq Write
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	3118 MB/s
Blackview MP200 Foresee XP1000F512G	2478 MB/s
Average of class Mini PC (242 - 5783, n=115, last 2 years)	2271 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1318 MB/s
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	882.93 MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	524 MB/s
Acemagic AD15 Netac NS512GSSD340	425 MB/s
4K Read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	102.97 MB/s
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	100.9 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	63.4 MB/s
Average of class Mini PC (21.4 - 104.3, n=115, last 2 years)	59.6 MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	53.5 MB/s
Blackview MP200 Foresee XP1000F512G	52.2 MB/s
Acemagic AD15 Netac NS512GSSD340	30.6 MB/s
4K Write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	354.53 MB/s
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	332 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	225 MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	185.4 MB/s
Average of class Mini PC (30.9 - 366, n=115, last 2 years)	177.2 MB/s
Blackview MP200 Foresee XP1000F512G	103.1 MB/s
Acemagic AD15 Netac NS512GSSD340	89.4 MB/s
4K-64 Read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1865.81 MB/s
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	1817 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1223 MB/s
Average of class Mini PC (23.4 - 3220, n=115, last 2 years)	1185 MB/s
Blackview MP200 Foresee XP1000F512G	931 MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	323 MB/s
Acemagic AD15 Netac NS512GSSD340	182.1 MB/s
4K-64 Write
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	2089 MB/s
Average of class Mini PC (32.8 - 3731, n=115, last 2 years)	1489 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1276 MB/s
Blackview MP200 Foresee XP1000F512G	884 MB/s
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	865.27 MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	462 MB/s
Acemagic AD15 Netac NS512GSSD340	213 MB/s
Access Time Read
Blackview MP200 Foresee XP1000F512G	0.158 ms *
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.117 ms *
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.1 ms *
Average of class Mini PC (0.022 - 0.489, n=115, last 2 years)	0.09625 ms *
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	0.073 ms *
Acemagic AD15 Netac NS512GSSD340	0.063 ms *
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.06 ms *
Access Time Write
Blackview MP200 Foresee XP1000F512G	0.16 ms *
Acemagic AD15 Netac NS512GSSD340	0.137 ms *
Average of class Mini PC (0.014 - 0.765, n=115, last 2 years)	0.111 ms *
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.11 ms *
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.087 ms *
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	0.031 ms *
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.023 ms *

* ... smaller is better

图形卡

NiPoGi CK10 的集成图形处理器是英特尔UHD Graphics与Minisforum Venus 系列 UN1245.集成显卡英特尔酷睿 i5-12450H's英特尔UHD GraphicsiGPU 具有 64 个 EU。这意味着在实际使用中，两款设备的速度一样快（性能会有一些波动）。通常情况下，英特尔的 iGPU 无法跟上 AMD 的步伐，这导致我们的测试样本表现不尽如人意。目前的 iGPU 如 AMD Radeon 680M或AMD Radeon 780M等 iGPU 的 3D 性能明显更好。

有关进一步的比较和基准测试，请参阅我们的G PU 对比表.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	100 pt
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	86.7 pt
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	85.6 pt
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	65.9 pt
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	65.5 pt
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	52.6 pt
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	26.5 pt

3DMark 11 - 1280x720 Performance GPU
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	5634 Points +45%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5462 Points +41%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	5413 Points +39%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	3912 Points +1%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	3886 Points
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	3168 Points -18%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	1654 Points -57%

3DMark
1280x720 Cloud Gate Standard Graphics
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	28159 Points +41%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	21383 Points +7%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	20098 Points +1%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	19949 Points
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	19240 Points -4%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	15662 Points -21%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	7779 Points -61%
1920x1080 Fire Strike Graphics
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	4621 Points +53%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4098 Points +35%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	4041 Points +34%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	3055 Points +1%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	3026 Points
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	2495 Points -18%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	1203 Points -60%
2560x1440 Time Spy Graphics
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	1430 Points +67%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1300 Points +52%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1217 Points +42%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	855 Points 0%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	855 Points
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	658 Points -23%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	348 Points -59%
Fire Strike Extreme Graphics
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	2149 Points +60%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1866 Points +39%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1833 Points +36%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	1349 Points 0%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	1346 Points
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	1101 Points -18%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	544 Points -60%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1

Performance Rating - Percent
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	95.1 pt
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	80.9 pt
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	79.4 pt
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	61.9 pt
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	58.4 pt
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	52.4 pt
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	29 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.4 fps +58%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	19.7 fps +53%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	17.7 fps +37%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	13.3 fps +3%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	12.9 fps
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	9.8 fps -24%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	7.5 fps -42%
Extreme Preset DX11
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.9 fps +34%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	20.4 fps +31%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	17.9 fps +15%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	15.9 fps +2%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	15.6 fps
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	14 fps -10%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	7.7 fps -51%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	12.8 fps +28%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	11.3 fps +13%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	10.9 fps +9%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	10 fps 0%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	10 fps
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	8.8 fps -12%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	5.1 fps -49%
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	17.7 fps +82%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	15.1 fps +56%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	11.7 fps +21%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	11.6 fps +20%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	10.1 fps +4%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	9.7 fps
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	5.4 fps -44%

ComputeMark v2.1
1024x600 Normal, Score
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	3439 Points +99%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	2766 Points +60%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	2512 Points +46%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	1735 Points +1%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	1724 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	1422 Points -18%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	745 Points -57%
1024x600 Normal, Fluid 3DTex
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	318 Points +57%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	223 Points +10%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	216 Points +6%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	203 Points 0%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	203 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	182 Points -10%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	118 Points -42%
1024x600 Normal, Fluid 2DTexArr
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	340 Points +80%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	230 Points +22%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	220 Points +16%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	197 Points +4%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	189 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	170 Points -10%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	109 Points -42%
1024x600 Normal, Mandel Vector
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	933 Points +209%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	598 Points +98%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	483 Points +60%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	306 Points +1%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	302 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	254 Points -16%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	144 Points -52%
1024x600 Normal, Mandel Scalar
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	885 Points +86%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	779 Points +64%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	770 Points +62%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	483 Points +1%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	476 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	378 Points -21%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	141 Points -70%
1024x600 Normal, QJuliaRayTrace
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	963 Points +74%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	936 Points +69%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	823 Points +48%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	555 Points
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	547 Points -1%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	457 Points -18%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	233 Points -58%

3DMark 05 Standard		32570 points
3DMark 06 Standard Score		22825 points
3DMark Vantage P Result		15454 points
3DMark 11 Performance		4406 points
3DMark Ice Storm Standard Score		108684 points
3DMark Cloud Gate Standard Score		17386 points
3DMark Fire Strike Score		2850 points
3DMark Fire Strike Extreme Score		1346 points
3DMark Time Spy Score		981 points
Help

... in comparison

游戏性能

英特尔英特尔UHD Graphics低 3D 性能也导致游戏性能降低。NiPoGi CK10 的 iGPU 无法流畅运行现代游戏。个别较老的游戏可以通过图形处理器运行，但通常只能使用最低的图形预设值。如果你不想放弃小巧的机身，但又需要不错的游戏性能，那么你应该看看Minisforum HX99G和Minisforum NUCXi7.你必须记住，这两款配备专用 GPU 的机型的价格范围完全不同。

Performance Rating - Percent
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	99 pt
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	85.2 pt
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	70.8 pt
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	65.2 pt
NiPoGi CK10 ^-1! Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	63.2 pt
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	52.7 pt
Blackview MP200 ^-6! Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	31.6 pt

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	80.8 fps +36%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	76.8 fps +29%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	63.3 fps +6%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	62.4 (20.6^min, 26.1^P0.1, 35.1^P1) fps +5%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	59.5 (19.9^min, 24.7^P0.1, 33.7^P1) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	47.3 (4.78^min, 19.9^P0.1, 25.3^P1) fps -21%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	24.5 fps -59%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	26.2 fps +36%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	22.6 fps +18%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	22.2 fps +16%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	20.2 (10.1^min, 10.8^P0.1, 11.1^P1) fps +5%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	19.2 (9.37^min, 9.7^P0.1, 10.7^P1) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	16.1 (8.34^min, 8.6^P0.1, 8.83^P1) fps -16%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	8.3 fps -57%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	49 fps +56%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	46 fps +46%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	36.6 fps +17%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	32.9 fps +5%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	31.4 fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	24.5 fps -22%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	13.4 fps -57%
1920x1080 High Overall Quality (DX11)
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	13.6 fps +64%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	12.1 fps +46%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	10.5 fps +27%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	8.52 fps +3%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	8.29 fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	6.23 fps -25%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	3.3 fps -60%

GTA V
1024x768 Lowest Settings possible
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	142.9 (1.358^min, 71.4^P1) fps +31%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	129.9 (16.1^min, 83.3^P1) fps +19%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	116.1 (16^min, 83.3^P1) fps +7%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	108.8 (14.4^min, 71.4^P1) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	100.8 (23.7^min, 71.4^P1) fps -7%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	97.7 (25.6^min, 55.6^P1) fps -10%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	59.3 (9.5^min, 33.3^P1) fps -45%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	33.9 (1.094^min, 20.4^P1) fps
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	20.5 (8.17^min, 14.5^P1) fps
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	18.5 (6.9^min, 14.3^P1) fps
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	14.6 (9.64^min, 11^P1) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	13.7 (7.54^min, 9.71^P1) fps
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	8.59 (3.34^min, 6.21^P1) fps

Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	62 (49^min) fps +72%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	50 (44^min) fps +39%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	40 (35^min) fps +11%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	36 (32^min) fps 0%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	36 (32^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	30 (26^min) fps -17%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	16 (14^min) fps -56%
1920x1080 High Preset AA:T
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	29 (25^min) fps +81%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	22 (19^min) fps +38%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	19 (17^min) fps +19%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	16 (13^min) fps 0%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	16 (13^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	12 (10^min) fps -25%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	7 (6^min) fps -56%

Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	58 (42^min) fps +76%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	48 (32^min) fps +45%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	36 (24^min) fps +9%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	34 (21^min) fps +3%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	33 (21^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	27 (17^min) fps -18%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	15 (11^min) fps -55%
1920x1080 High Preset
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	29 (23^min) fps +81%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	23 (17^min) fps +44%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	18 (14^min) fps +13%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	16 (12^min) fps 0%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	16 (12^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	13 (9^min) fps -19%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	7 (5^min) fps -56%

Dota 2 Reborn
1280x720 min (0/3) fastest
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	135.9 (121.4^min) fps +28%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	134.7 (102.1^min) fps +27%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	133.3 (93.2^min) fps +26%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	116 (101.7^min) fps +9%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	106.2 (84.2^min) fps
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	98.7 (85.5^min) fps -7%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	95.8 (84.4^min) fps -10%
1920x1080 high (2/3)
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	64.9 (56.8^min) fps +50%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	57.8 (54.5^min) fps +33%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	45.2 (38.5^min) fps +4%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	44.7 (41.8^min) fps +3%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	43.3 (40.5^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	37.1 (33.3^min) fps -14%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	22.6 (20.6^min) fps -48%

Shadow of the Tomb Raider - 1280x720 Lowest Preset
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	69.3 fps +107%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	41.2 fps +23%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	39.1 fps +17%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	34.9 fps +4%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	33.4 fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	33.2 fps -1%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	15.8 fps -53%

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	56.3 fps +91%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	46.8 fps +59%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	35.9 fps +22%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	32.3 fps +10%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	29.4 fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	25.7 fps -13%
1920x1080 High Preset (DX12)
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	12.6 fps +51%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	12.1 fps +45%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	10.7 fps +28%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	8.66 fps +4%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	8.33 fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	6.35 fps -24%

F1 2020
1280x720 Ultra Low Preset
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	102.1 (87^min) fps +75%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	78.4 (70^min) fps +35%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	66.7 (54^min) fps +15%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	60.2 (53^min) fps +3%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	58.2 (52^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	48.5 (43^min) fps -17%
1920x1080 High Preset AA:T AF:16x
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	32.3 (27^min) fps +58%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	29 (23^min) fps +41%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	26.4 (22^min) fps +29%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	21 (16^min) fps +2%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	20.5 (16^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	16.5 (13^min) fps -20%

F1 2021
1280x720 Ultra Low Preset
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	109.5 (93^min, 91^P1) fps +60%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	92.1 (71^min, 71^P1) fps +35%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	78.3 (58^min, 55^P1) fps +14%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	71.5 (56^min, 55^P1) fps +5%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	68.4 (49^min, 49^P1) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	56.8 (45^min, 44^P1) fps -17%
1920x1080 High Preset AA:T AF:16x
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	35.2 (29^min, 28^P1) fps +44%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	33.2 (28^min, 26^P1) fps +36%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	29.2 (25^min, 23^P1) fps +20%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	25.2 (21^min, 20^P1) fps +3%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	24.4 (20^min, 20^P1) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	20.1 (16^min, 16^P1) fps -18%

	low	med.	high	ultra
GTA V (2015)	108.8	91.9
The Witcher 3 (2015)	59.5	36.4	19.2	9.57
Dota 2 Reborn (2015)	106.2	79.2	43.3	40.4
Final Fantasy XV Benchmark (2018)	28.1	14.5	10.4
X-Plane 11.11 (2018)	36.2	24.2	21.5
Far Cry 5 (2018)	36	17	16	15
Strange Brigade (2018)	61.7	25.1	19.8	16.8
Shadow of the Tomb Raider (2018)	33.4	15
Far Cry New Dawn (2019)	33	17	16	15
Metro Exodus (2019)	27.3	12.3	9.54	7.65
Borderlands 3 (2019)	31.4	13.9	8.29	6.02
F1 2020 (2020)	58.2	27.5	20.5	12.9
F1 2021 (2021)	68.4	30.4	24.4	16
God of War (2022)	13.1	11.3	8.94	6.64
Tiny Tina's Wonderlands (2022)	16.7	12.7	8.33	6.44
F1 22 (2022)	27.1	24.3	17.2	13.4
F1 23 (2023)	24.2	21.6	14.8

排放--节俭而不吵闹

噪音排放

NiPoGi CK10 的噪音值既不好也不坏。它们更能代表平均结果。在空闲模式下，风扇运行时非常安静，不会影响您的使用。在负载状态下，我们注意到的噪音值略高于 36 dB(A)，这意味着我们的测试样品达到了与 Minisforum Venus 系列 NK10 相同的结果。Minisforum 维纳斯系列 NAB6.与Minisforum 维纳斯系列 UN1245相比，NiPoGi 的表现要好得多，因为它在负载情况下发出的 36 分贝（A）噪音并不令人讨厌。

Noise Level

Idle		30.6 / 31.1 / 31.7 dB(A)
Load		32.9 / 36.1 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 25 dB(A)

	NiPoGi CK10 i5-12450H, UHD Graphics 64EUs	Morefine M600, 6600U R5 6600U, Radeon 660M	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	Minisforum Venus Series UN1245 i5-12450H, UHD Graphics 64EUs	Acemagic AD15 i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
Noise		4%	-1%	2%	-9%	8%	-5%
off / environment *	25	29.4 -18%	29.4 -18%	29.7 -19%	25.2 -1%	25.4 -2%	25.1 -0%
Idle Minimum *	30.6	29.4 4%	29.4 4%	30.2 1%	32 -5%	26.2 14%	25.3 17%
Idle Average *	31.1	29.4 5%	29.5 5%	30.2 3%	32.1 -3%	26.5 15%	25.3 19%
Idle Maximum *	31.7	29.5 7%	29.7 6%	30.2 5%	32.2 -2%	27.3 14%	25.3 20%
Load Average *	32.9	29.6 10%	34.6 -5%	30.6 7%	39.8 -21%	30.8 6%	46 -40%
Witcher 3 ultra *	36.2			30.5 16%		32.6 10%
Load Maximum *	36.1	29.6 18%	36.1 -0%	36.4 -1%	43.3 -20%	37.5 -4%	51.8 -43%

* ... smaller is better

温度

在空闲模式下，机箱温度远低于 30 °C。同时，在压力测试中，机箱温度上升了不少。不过，超过 40 °C 的温度值仍然无需担心。我们注意到处理器的最高温度为 91 °C，这是散热极限造成的。此外，我们注意到处理器在长期负载情况下的功耗仅为 26 瓦，而最高功耗应可达到 35 瓦。安装的散热装置太小，无法将所有热量散发出去。

Max. Load

Idle


41.4 °C	39.6 °C	41.9 °C
37.3 °C	35.1 °C	36.7 °C
36.7 °C	33.4 °C	38.6 °C

Maximum: 41.9 °C
Average: 37.9 °C


35.2 °C	39.9 °C	39.9 °C
35.8 °C	32.4 °C	36.8 °C
36.5 °C	34.5 °C	36.2 °C

Maximum: 39.9 °C
Average: 36.4 °C

Power Supply (max.) 39.9 °C | Room Temperature 22.6 °C | Fluke t3000FC (calibrated)

(±) The average temperature for the upper side under maximal load is 37.9 °C / 100 F, compared to the average of 32.3 °C / 90 F for the devices in the class Mini PC.
(±) The maximum temperature on the upper side is 41.9 °C / 107 F, compared to the average of 35.8 °C / 96 F, ranging from 24 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 39.9 °C / 104 F, compared to the average of 36.1 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 27.8 °C / 82 F, compared to the device average of 32.3 °C / 90 F.

耗电量

由于英特尔酷睿 i5-12450H 的功耗较低，我们注意到其在负载情况下的系统消耗值也不错。电源的最大功率仅为 62.3 瓦。这比 Minisforum Venus 系列 UN1245相比要低得多。反过来，NiPoGi CK10 对 65 瓦的电源也很满意--我们在使用时没有遇到任何问题。唯一值得一提的是，它的空闲值有点高。在 Minisforum 的设备上，这个问题得到了很好的解决。

Power Consumption

Off / Standby	1 / 0.74 Watt
Idle	9.1 / 11.3 / 13.7 Watt
Load	49.5 / 62.3 Watt


Key: min: , med: , max: Metrahit Energy

	NiPoGi CK10 i5-12450H, UHD Graphics 64EUs	Morefine M600, 6600U R5 6600U, Radeon 660M	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	Minisforum Venus Series UN1245 i5-12450H, UHD Graphics 64EUs	Acemagic AD15 i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	Average of class Mini PC
Power Consumption		5%	-25%	27%	8%	-25%	-11%	-9%	-19%
Idle Minimum *	9.1	8 12%	10.4 -14%	7.3 20%	8.2 10%	8.7 4%	9 1%	9.53 ?(3.6 - 14.3, n=11) -5%	9.51 ?(1.9 - 45.7, n=119, last 2 years) -5%
Idle Average *	11.3	8.7 23%	12.3 -9%	7.8 31%	8.6 24%	14.9 -32%	10.6 6%	11.4 ?(5.3 - 16.8, n=11) -1%	11.7 ?(1.9 - 47.5, n=117, last 2 years) -4%
Idle Maximum *	13.7	8.8 36%	12.4 9%	8.4 39%	9.6 30%	18.9 -38%	19.9 -45%	15.9 ?(7 - 28.7, n=11) -16%	15.1 ?(2.6 - 57.1, n=119, last 2 years) -10%
Load Average *	49.5	54.6 -10%	72.9 -47%	28.7 42%	52.1 -5%	49.6 -0%	30.9 38%	52.6 ?(34.7 - 76.9, n=10) -6%	58.2 ?(11.3 - 170.6, n=119, last 2 years) -18%
Load Maximum *	62.3	83.2 -34%	101.2 -62%	61.1 2%	73.6 -18%	97.7 -57%	97.8 -57%	71.9 ?(44.6 - 101.2, n=11) -15%	98.9 ?(18.1 - 423, n=119, last 2 years) -59%
Witcher 3 ultra *							44.8

* ... smaller is better

Power consumption with external monitor

NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G; Prime95 V2810 Stress (external Monitor): Ø52.5 (44.6-64.7)

Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0; Prime95 V2810 Stress (external Monitor): Ø72.5 (71.3-73.6)

NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G; Cinebench R15 Multi (external Monitor): Ø58.1 (56.2-59.4)

Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0; Cinebench R15 Multi (external Monitor): Ø65.9 (65.6-66.2)

NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø33.1 (28.9-45.5)

Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø35.8 (33.7-40.6)

NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø47.3 (43.7-50.8)

Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0; 1920x1080 The Witcher 3 ultra (external Monitor): Ø49.1 (47.6-71.6)

NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G; Idle 1min (external Monitor): Ø11.3 (10.6-13.7)

Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0; Idle 1min (external Monitor): Ø9.17 (8.95-9.66)

NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G; Cinebench R23 Single (external Monitor): Ø35.5 (32.8-59)

Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0; Cinebench R23 Single (external Monitor): Ø34.8 (33.3-60.8)

NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G; Cinebench R23 Multi (external Monitor): Ø57.9 (53.5-61.4)

Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0; Cinebench R23 Multi (external Monitor): Ø66 (63.9-67.4)

Pros

+ 机箱轻便

+ 占用空间小

+ 大量 USB 端口

+ VESA 安装选项

+ 低功耗

+ 强大的固态硬盘

+ 稳定的固态硬盘性能

+ 易于打开

+ 可安装三个存储设备

Cons

- 无 SD 读卡器

- 无 Thunderbolt

- 英特尔酷睿 i5-12450H，TDP 限制较低

- 冷却系统薄弱

结论 - 出色的 SoC，但冷却能力不足

NiPoGi CK10 是一款超小型的简易办公电脑，无法在众多产品中脱颖而出。总的来说，我们欢迎使用 Alder Lake 处理器，因为通过使用混合设计，既能达到不错的性能水平，又能节约能源。不过，冷却系统必须合适，以防止人为限制性能，就像我们在 CK10 上看到的那样。总而言之，我们测得的性能是足够的，但遗憾的是，当所有内核都加载时，性能就会受到影响。NiPoGi CK10 仍然非常适合日常办公使用。我们在 16GB 内存和 512GB SSD 的测试配置中没有测到任何明显的延迟。

NiPoGi CK10 是一款基于英特尔酷睿 i5-12450H 的简单迷你 PC。遗憾的是，由于其功耗限制，该系统芯片仍未达到我们的预期。

此外，良好的连接性在日常使用中也很重要。在这方面，NiPoGi CK10 提供了坚实的基本连接选项。遗憾的是，它不包括 Thunderbolt 或 SD 读卡器。不过，它的直接竞争对手 Minisforum Venus Series UN1245 也不具备这些功能。

如果我们看一下 NiPoGi CK10 的价格，乍一看并不高。目前它的售价约为 530 美元。配置类似的 Minisforum Venus 系列 UN1245 的价格要低 100 美元左右。有时，你还能在电脑上找到一些大折扣，这可能会使价格更具吸引力。

价格和供应情况

NiPoGi CK10 的售价约为 530 美元。在撰写本文时，美国的任何在线商店都找不到这款产品，但您可以在Amazon.co.uk 上找到它。.

NiPoGi CK10 - 10/18/2023 v7 ^(old)
Sebastian Bade

Chassis

81 / 98 → 82%

Connectivity

50 / 81 → 62%

Weight

83%

Games Performance

61%

Application Performance

87%

Workstation

53%

Temperature

90%

Noise

85%

Average

74%

77%

Mini PC - Weighted Average

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Editor of the original article: Daisy Dickson - Translator - 343 articles published on Notebookcheck since 2023

Translator: Ninh Ngoc Duy - Editorial Assistant - 463597 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > NiPoGi CK10 评测--配备英特尔酷睿 i5-12450H 和 16GB 内存的迷你 PC 未达预期效果

Sebastian Bade, 2023-10-20 (Update: 2023-10-20)
