Minisforum Venus 系列 UN1245 评测：配备英特尔酷睿 i5-12450H 的强大迷你 PC，310 美元起售

Name: Minisforum Venus Series UN1245
Brand: Minisforum

物美价廉！

Minisforum Venus 系列 UN1245 配备了英特尔酷睿 i5-12450H，拥有强大的 SoC 处理能力，但价格却并不昂贵。不过，您得忍受没有高级金属外壳的烦恼。请继续阅读我们的评测报告，了解这款设备的性能如何。

Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy), Published 10/12/2023 🇺🇸 🇩🇪 ...

Mini PC Desktop Intel Alder Lake

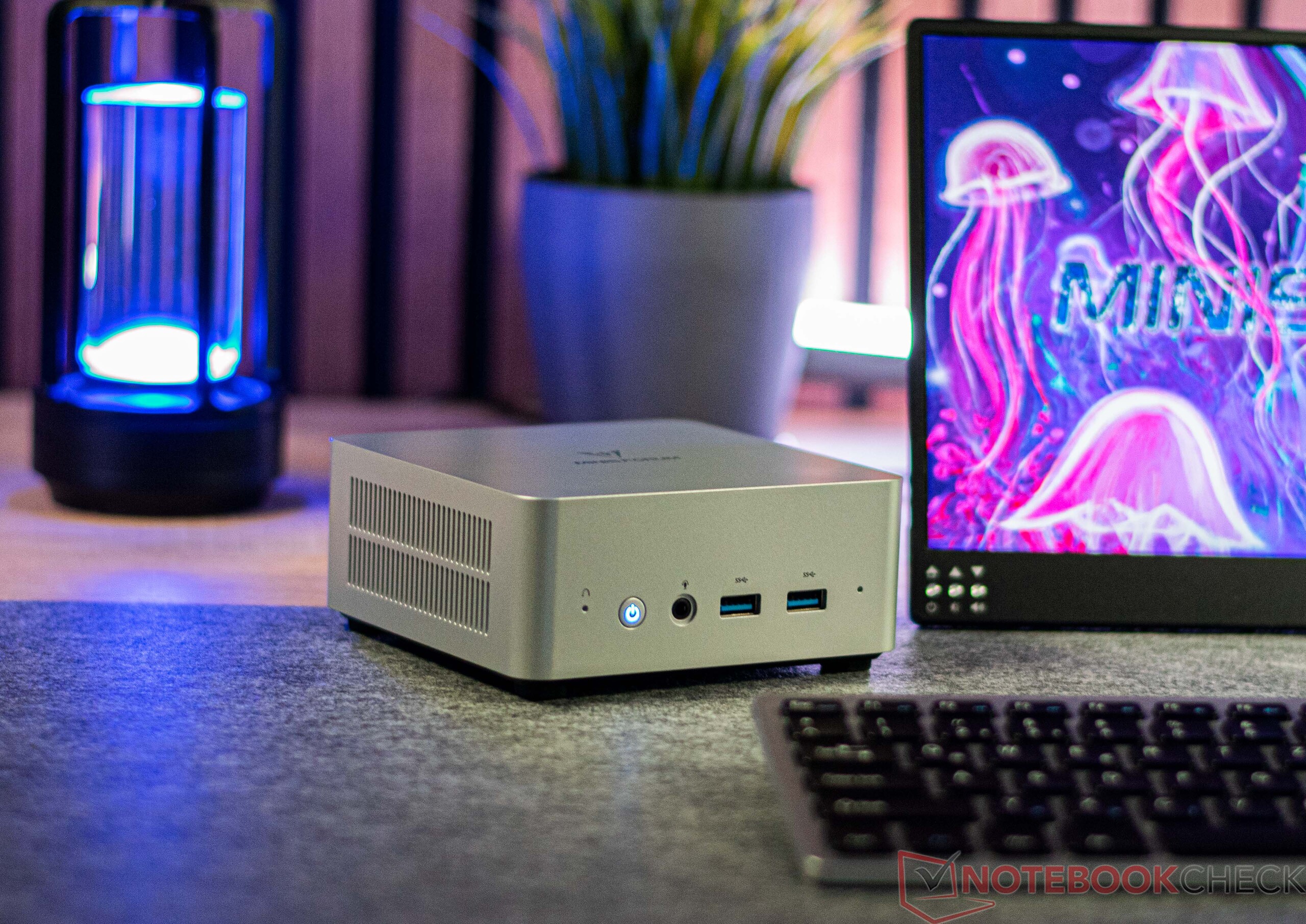

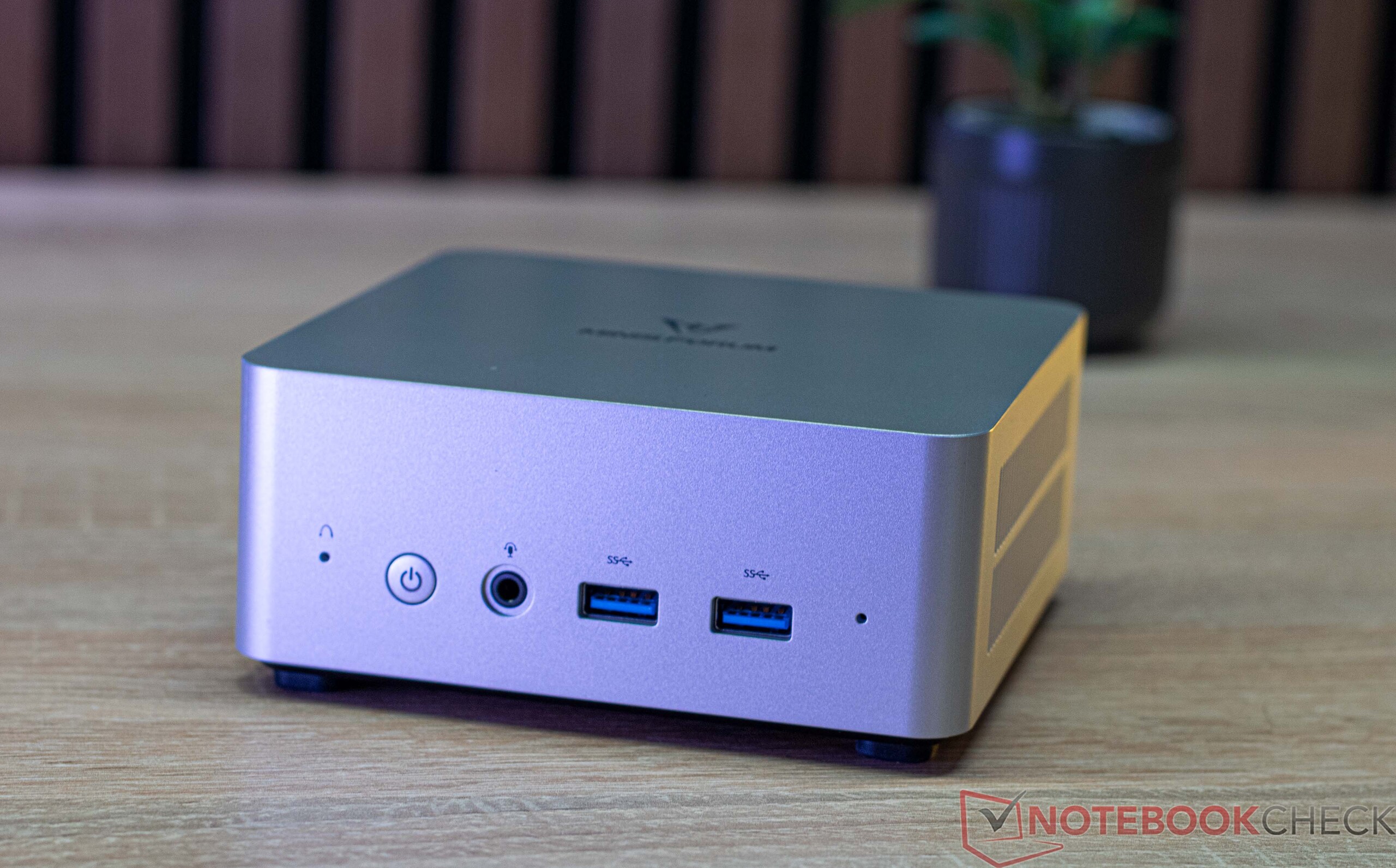

Minisforum 维纳斯系列 UN1245，配置（来源：Minisforum）

Minisforum 将 Venus 系列作为适合日常办公使用的紧凑型迷你 PC 推向市场。然而，这些小巧的计算伴侣不断配备强大的处理器。此外，在过去，Minisforum 在高级机箱和良好的冷却系统方面表现出色。同样，我们这次评测的 Minisforum Venus 系列 UN1245 在价格方面也更具吸引力。对任何人来说金星系列 NAB6太贵的人来说，Minisforum Venus Series UN1245 是一个不错的选择。不过，你必须接受制造商的妥协，不采用金属外壳和 Thunderbolt 技术。

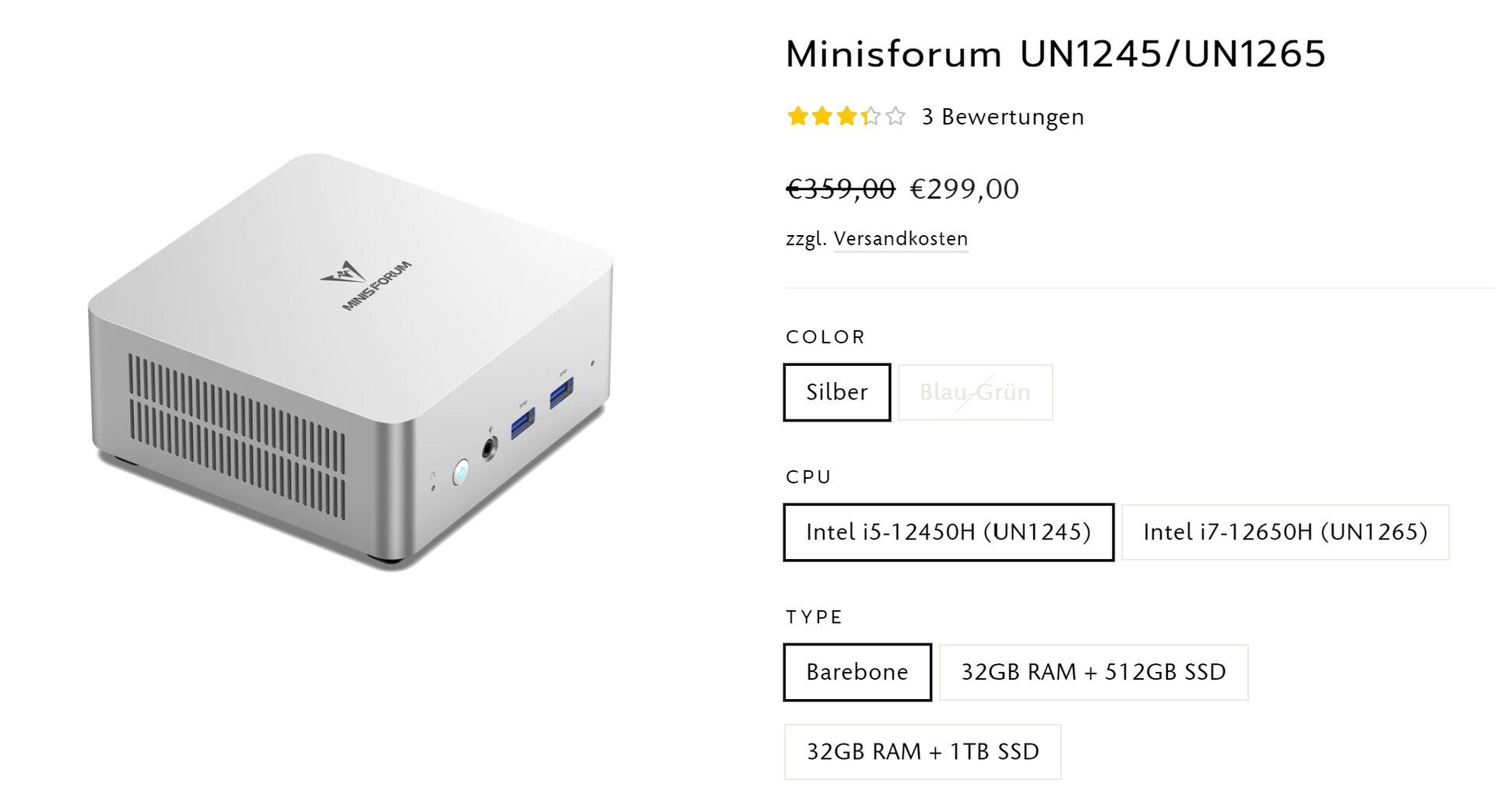

与许多 Minisforum 设备一样，Venus Series UN1245 也有不带内存和固态硬盘的裸机可供选择。顾名思义，它配备了英特尔酷睿 i5-12450H处理器。不带内存和固态硬盘的版本目前售价为 310 美元。希望获得英特尔酷睿 i7-12650H的用户需要额外支付 70 美元。我们的评测样品配备了 16 GB DDR4 内存和 512 GB 固态硬盘。但在商店里，没有这些配置的选择。目前，配备 32 GB 内存和 512 GB 固态硬盘的 Minisforum Venus 系列 UN1245 售价约为 429 美元，这意味着我们的评测设备的价格应略低于此价格。

在本次评测中，紧凑型和廉价的迷你 PC 构成了本次评测的对比设备。请参见下表。

Test device courtesy of Minisforum

Download your licensed rating image as PNG / SVG

Minisforum Venus Series UN1245

Processor

Intel Core i5-12450H 8 x 1.5 - 4.4 GHz, 45 W PL2 / Short Burst, 45 W PL1 / Sustained, Alder Lake-H

Graphics adapter

Intel UHD Graphics 64EUs (Alder Lake 12th Gen), 31.0.101.4577

Memory

16 GB

, DDR4 3200

Mainboard

Intel Alder Lake-P PCH

Storage

Kingston OM8PGP4512Q-A0, 512 GB

, M.2 2280, NVMe, 420 GB free

Soundcard

Intel Alder Lake-P PCH - cAVS (Audio, Voice, Speech)

Connections

2 USB 2.0, 3 USB 3.1 Gen2, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3,5mm Klinke

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Size

height x width x depth (in mm): 54.3 x 127.8 x 129.6

Operating System

Microsoft Windows 11 Pro

Additional features

90-watt PSU, 24 Months Warranty

Weight

545 g, Power Supply: 374 g

Price

299 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height
78 % v7 ^(old)	10 / 2023	Minisforum Venus Series UN1245 i5-12450H, UHD Graphics 64EUs	545 g	54.3 mm
83.7 % v7 ^(old)	05 / 2023	Morefine M600, 6600U R5 6600U, Radeon 660M	768 g	40.6 mm
81.9 % v7 ^(old)	05 / 2023	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	616 g	55 mm
80.6 % v7 ^(old)	07 / 2023	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	536 g	48 mm
77.8 % v7 ^(old)	09 / 2023	Acemagic AD15 i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	765 g	76 mm
73.8 % v7 ^(old)	08 / 2023	Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	678 g	75.5 mm

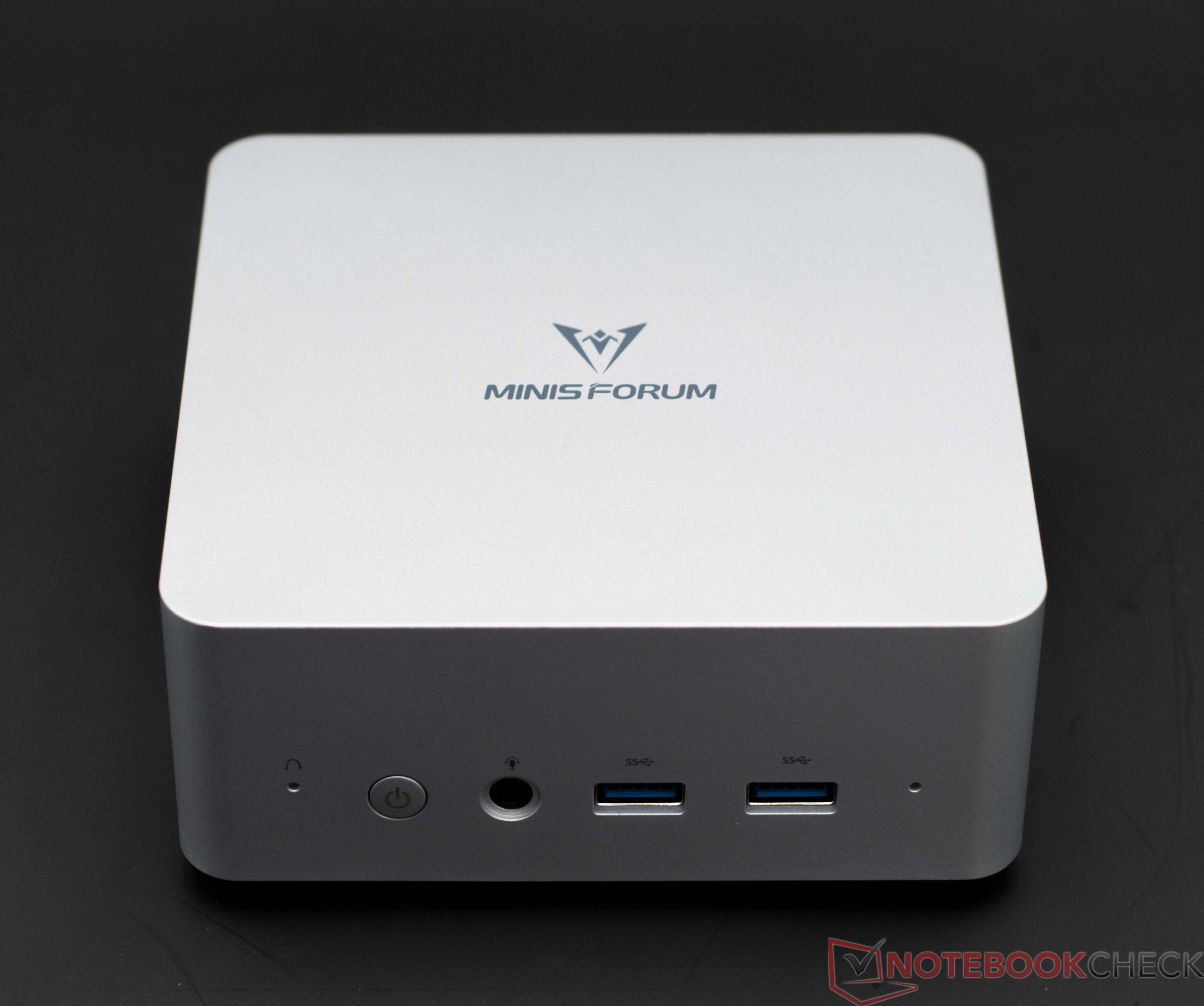

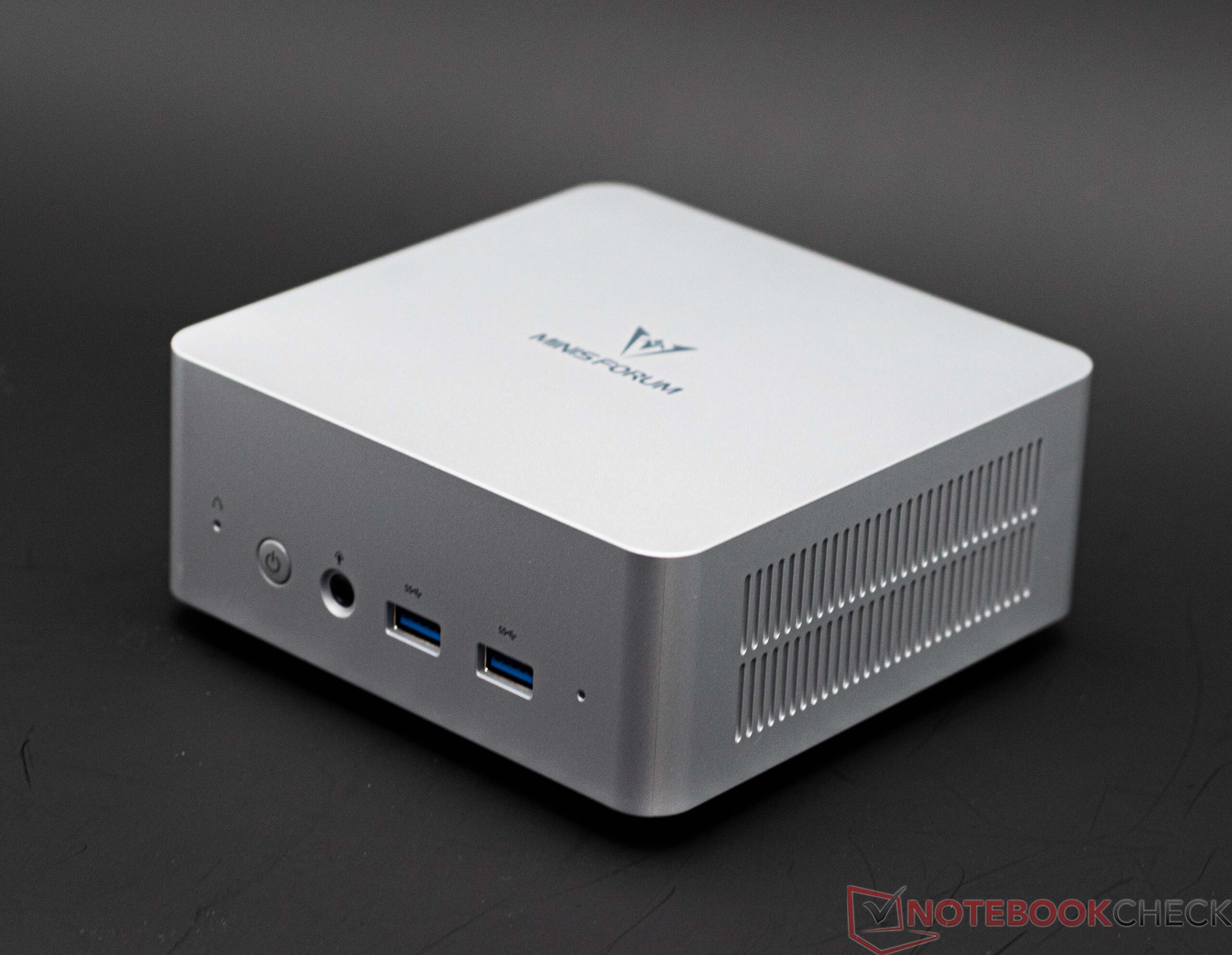

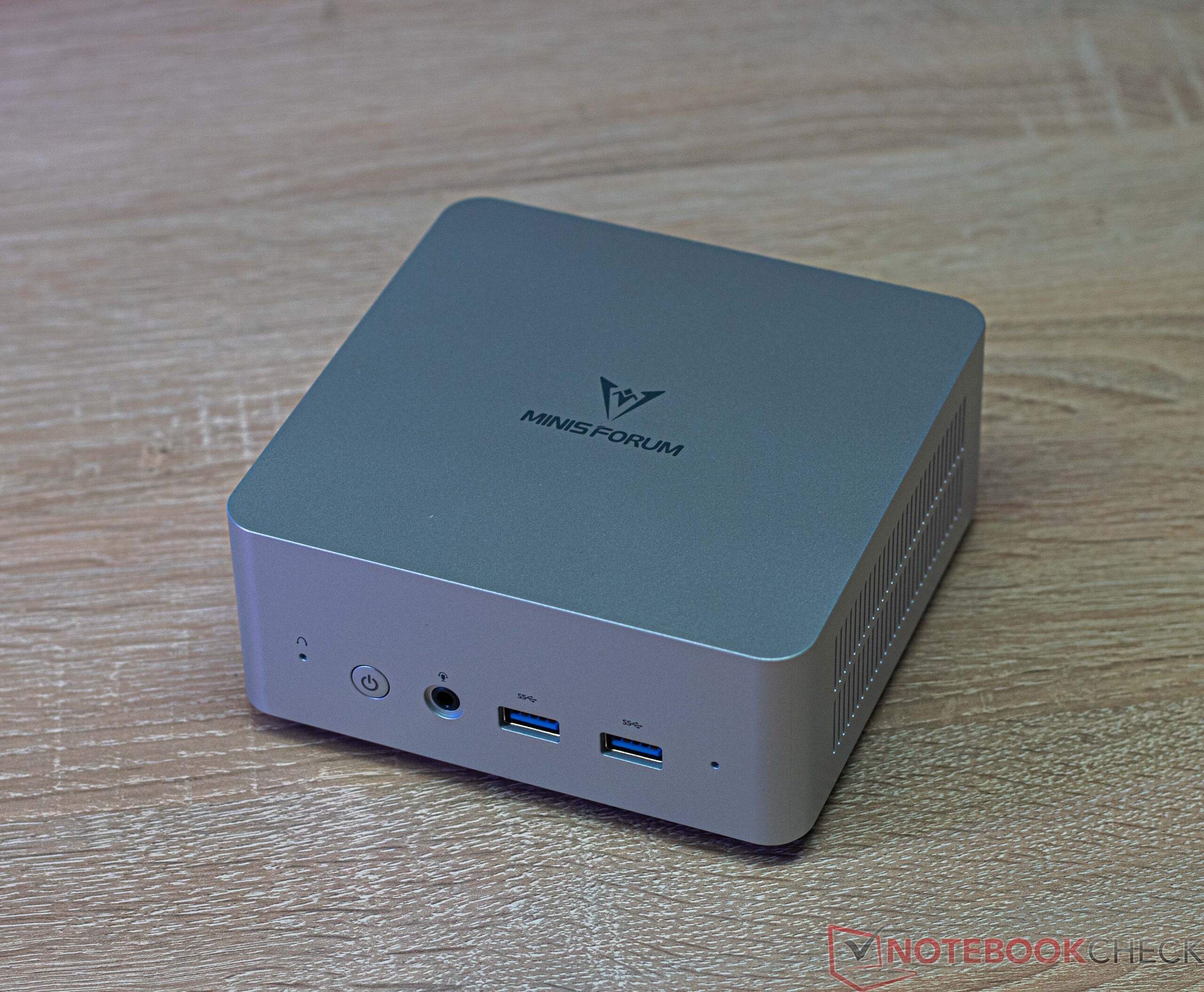

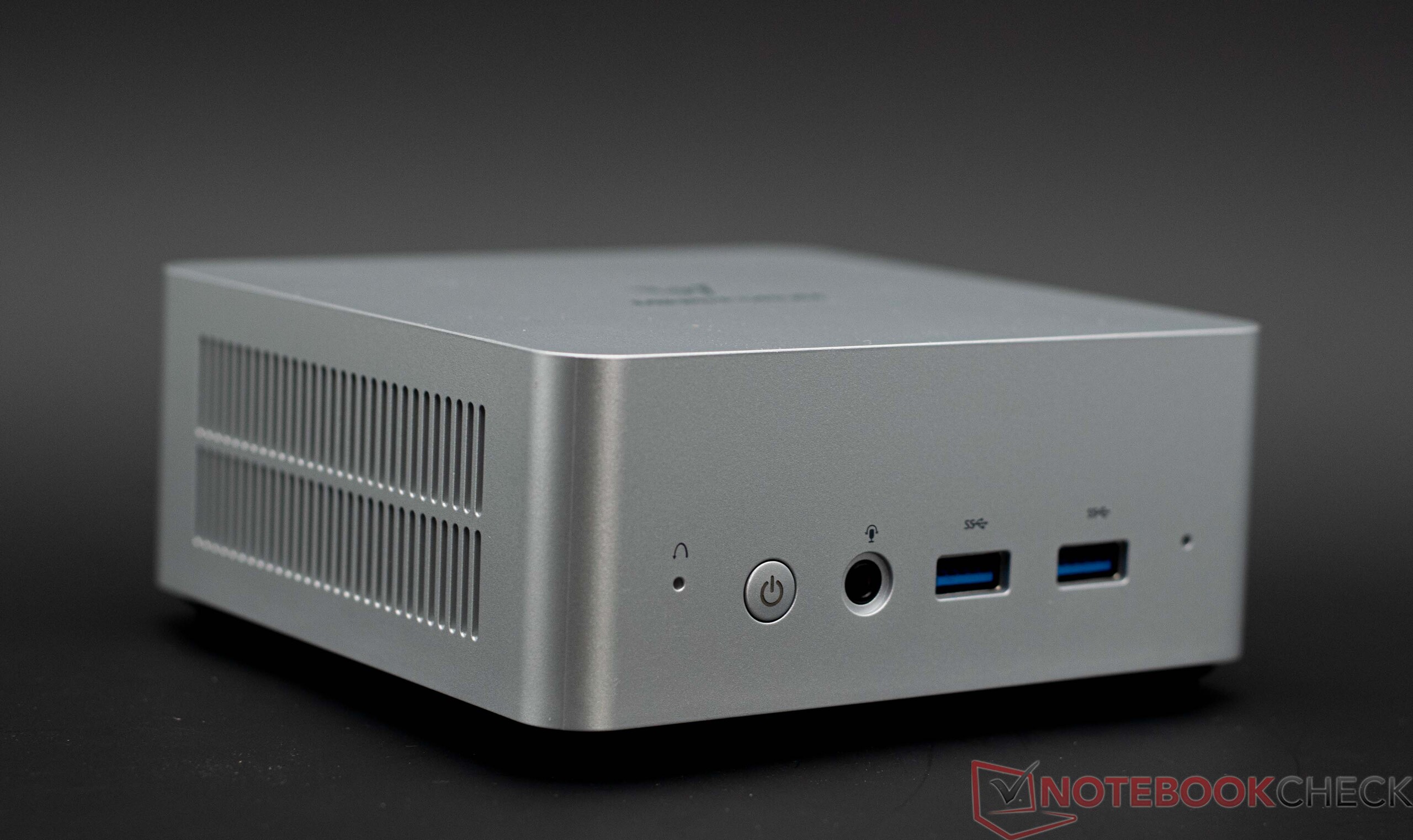

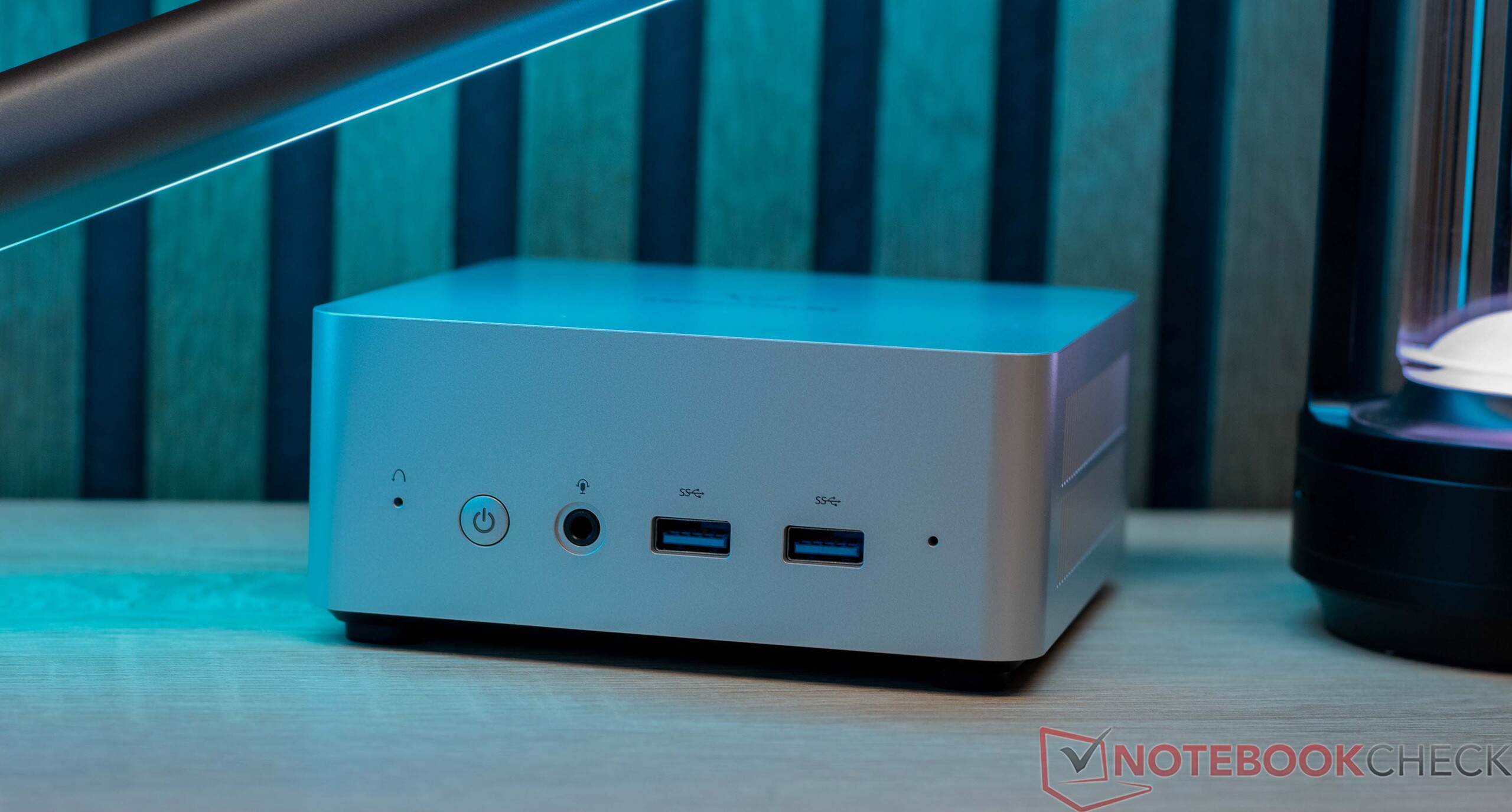

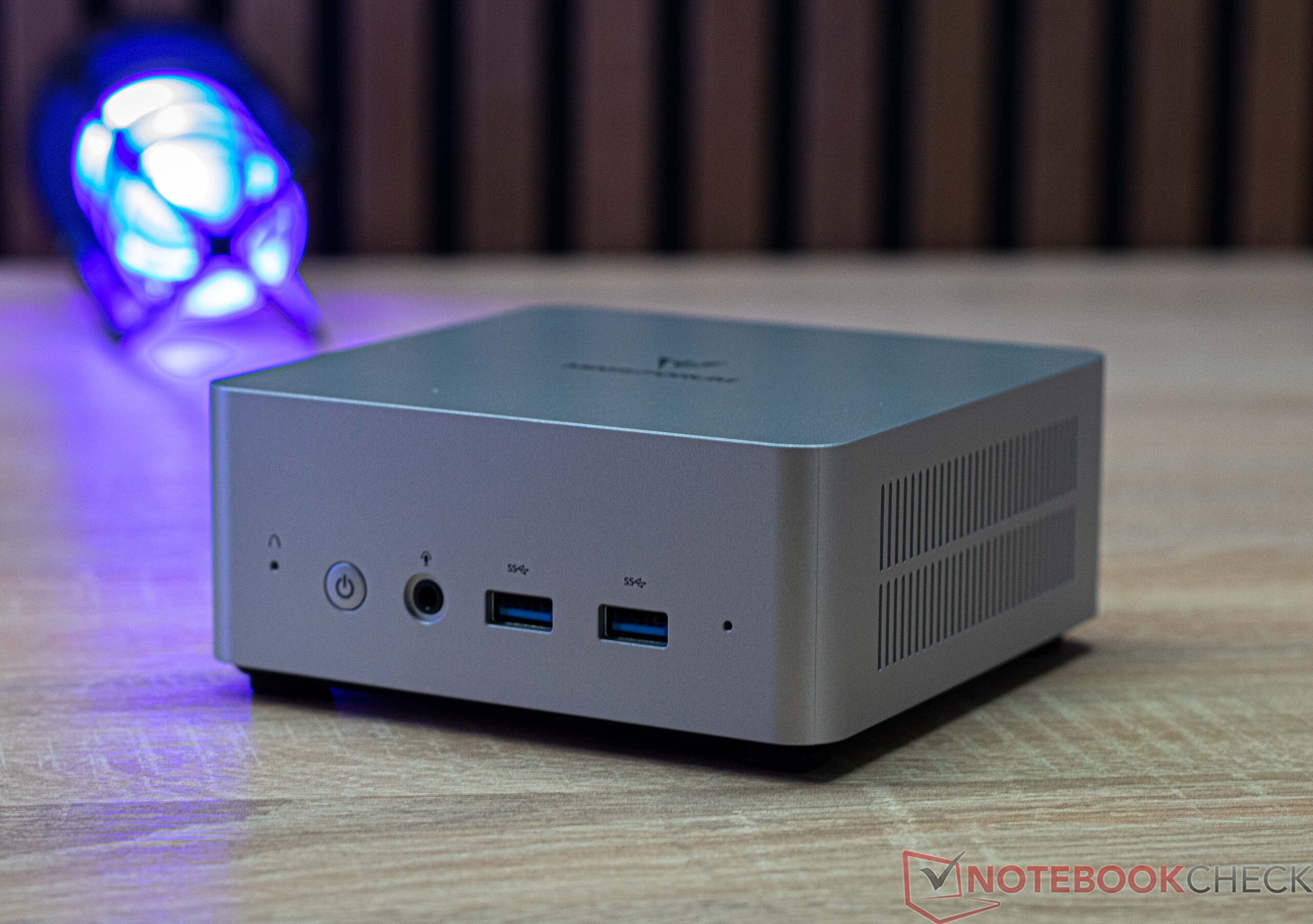

外壳 - 用塑料代替铝

为了降低制造成本，保证低廉的购买价格，Minisforum Venus Series UN1245 的外壳由塑料制成。从颜色上看，Minisforum Venus Series UN1245 以银色为主，机身背面采用黑色元素。底座也是全黑的。在稳定性方面，我们无法发现任何严重的缺陷。从外观上看，该设备制造精良，尽管与 Minisforum 维纳斯系列 NAB6相比，触觉体验略有欠缺。Minisforum Venus 系列 UN1245 的尺寸为 12.9 × 12.8 厘米，在空间方面，这两款机器没有丝毫妥协，仍然是一款小巧的设备。与迷你 IT11，Geekom 展示了更小的可能性。

在重量方面，我们的评测样品重量为 545 克，属于同类产品中最轻的。如果希望将 Minisforum Venus 系列 UN1245 固定到显示器上，可以借助安装板（VESA 安装）。必要的配件可在包装盒中找到。

尺寸比较

Acemagic AD15 Blackview MP200 Morefine M600, 6600U Minisforum Venus Series UN1245 Minisforum Venus Series NPB5 Geekom Mini IT11, i7-11390H DIN A4 ❌

功能 - 不错的选择，但没有 Thunderbolt

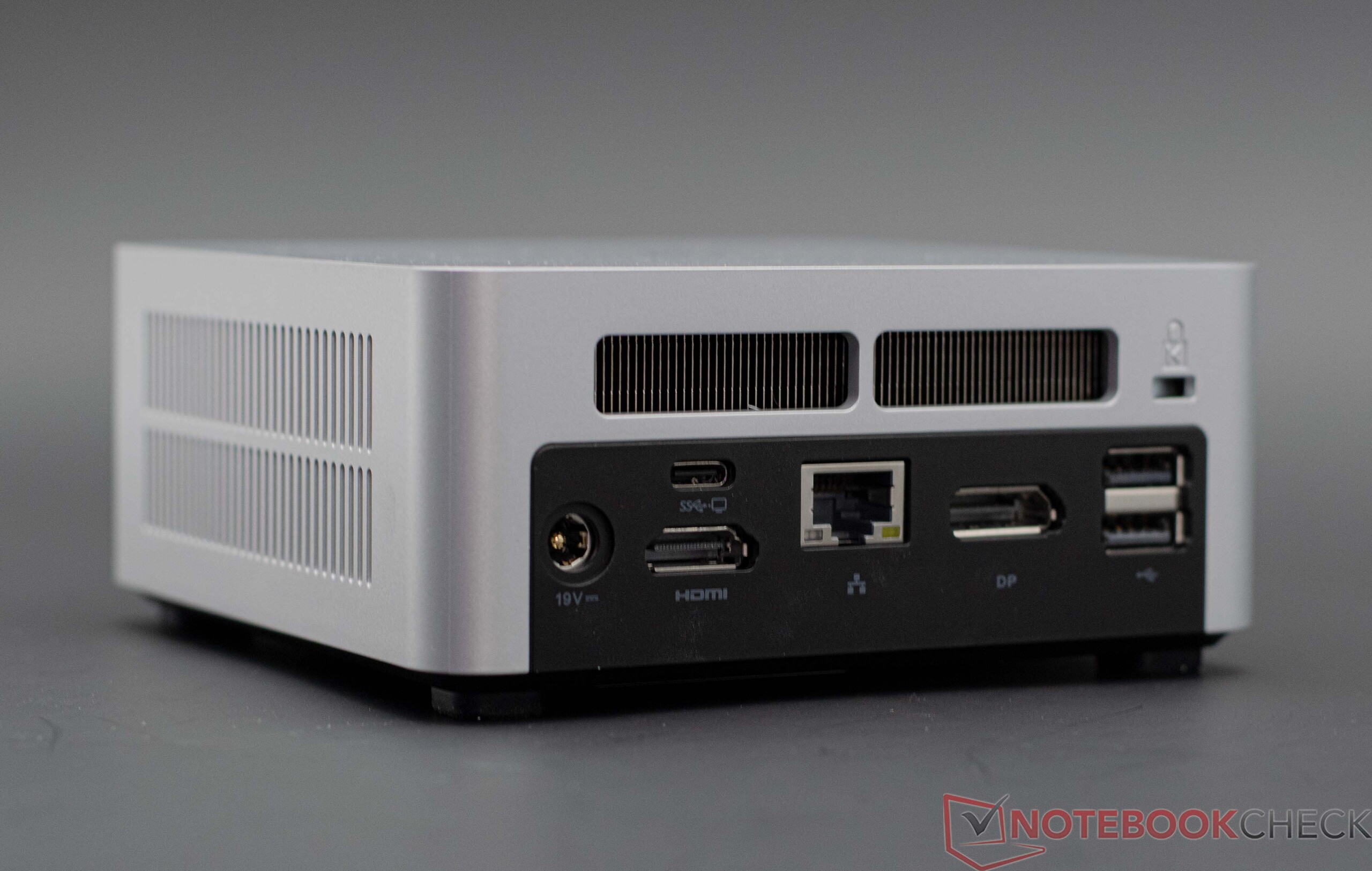

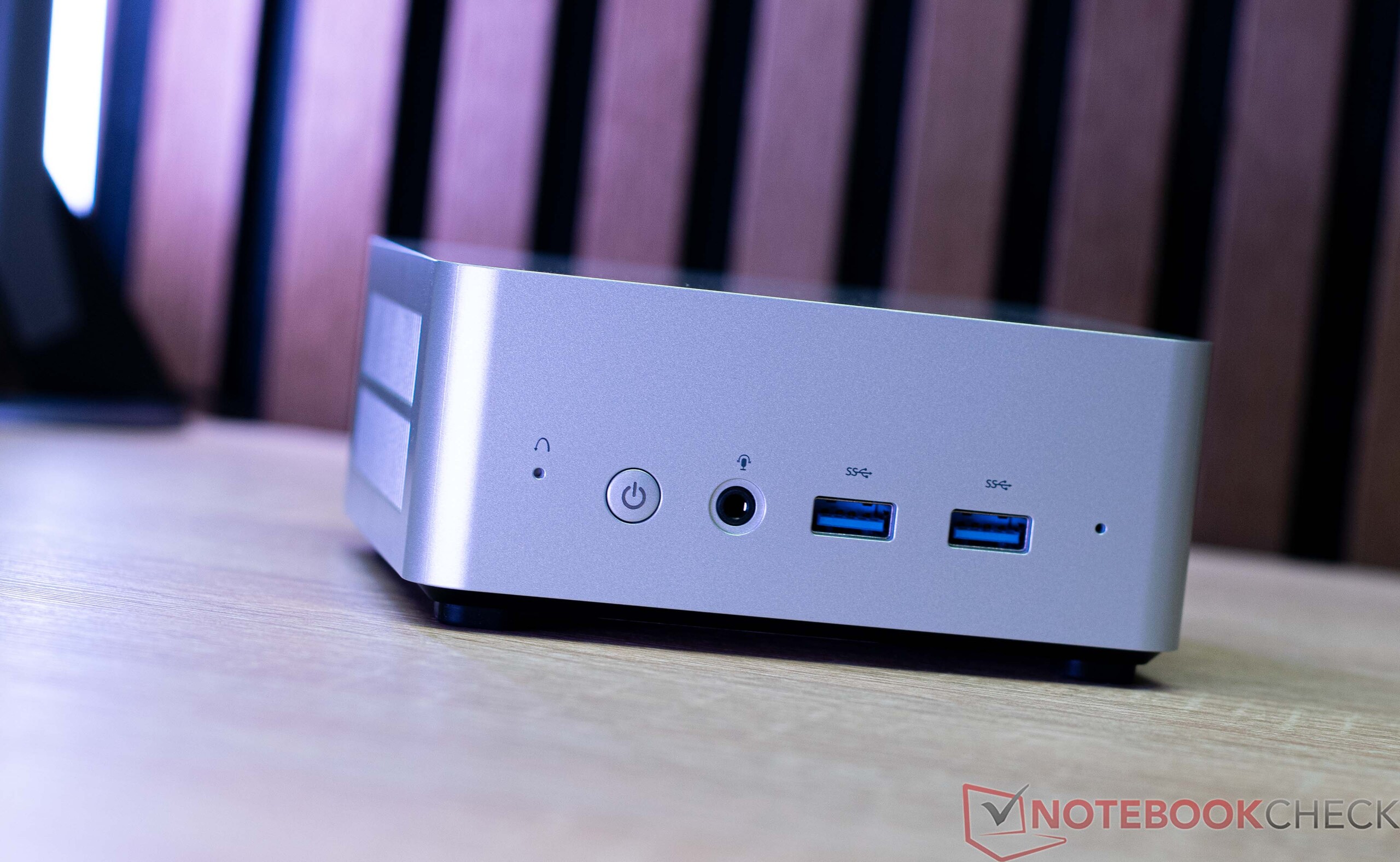

说到外部接口，基本上没有什么可抱怨的。Minisforum Venus 系列 UN1245 提供了一个可靠的选择，在正面和背面都有许多 USB 端口。显示器可通过 HDMI、DisplayPort 或 USB-C 接口连接。后者还可用于为设备供电。任何拥有具有 Power Delivery 功能的显示器的用户都可以省去一条额外的线缆。

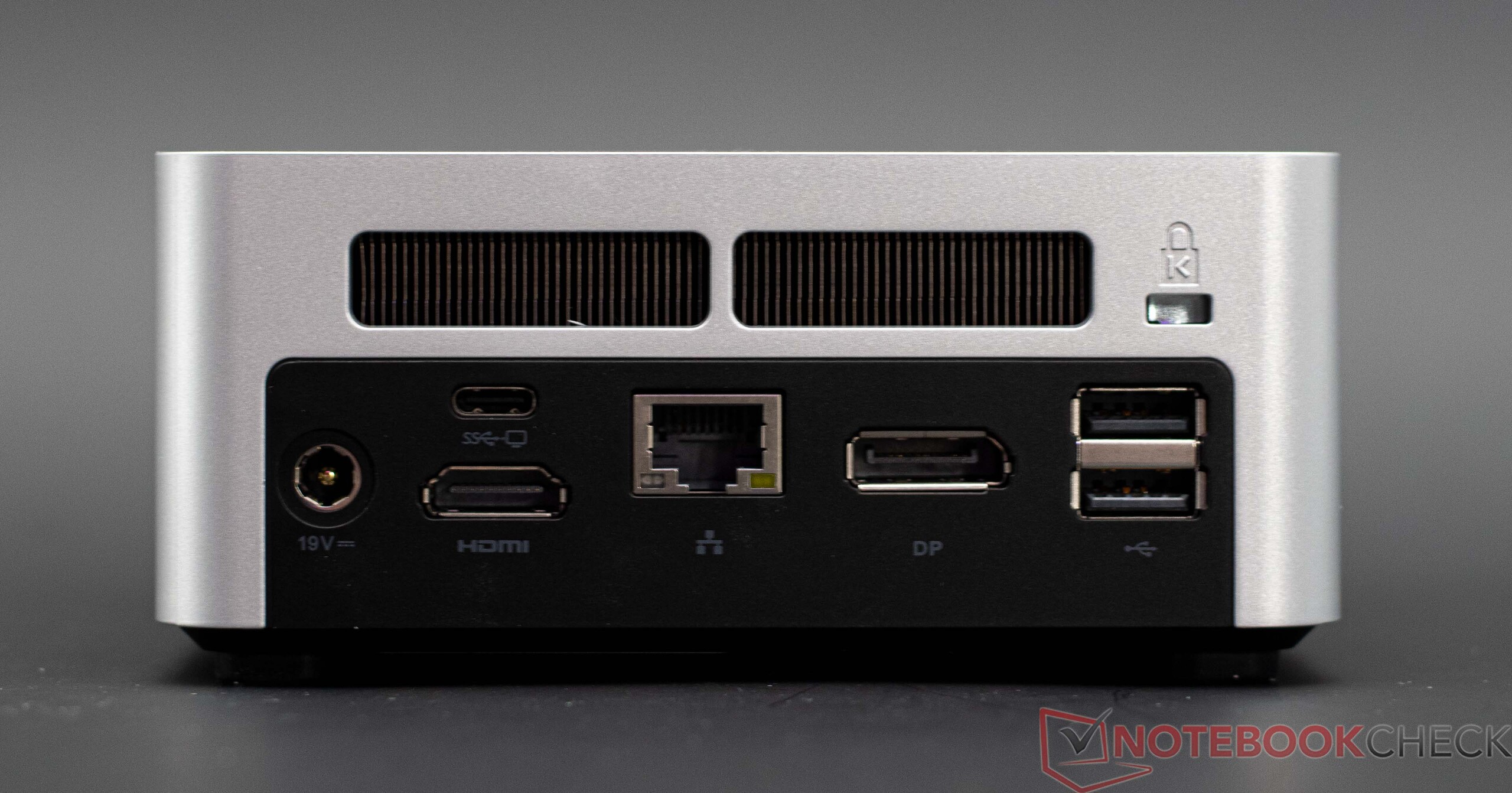

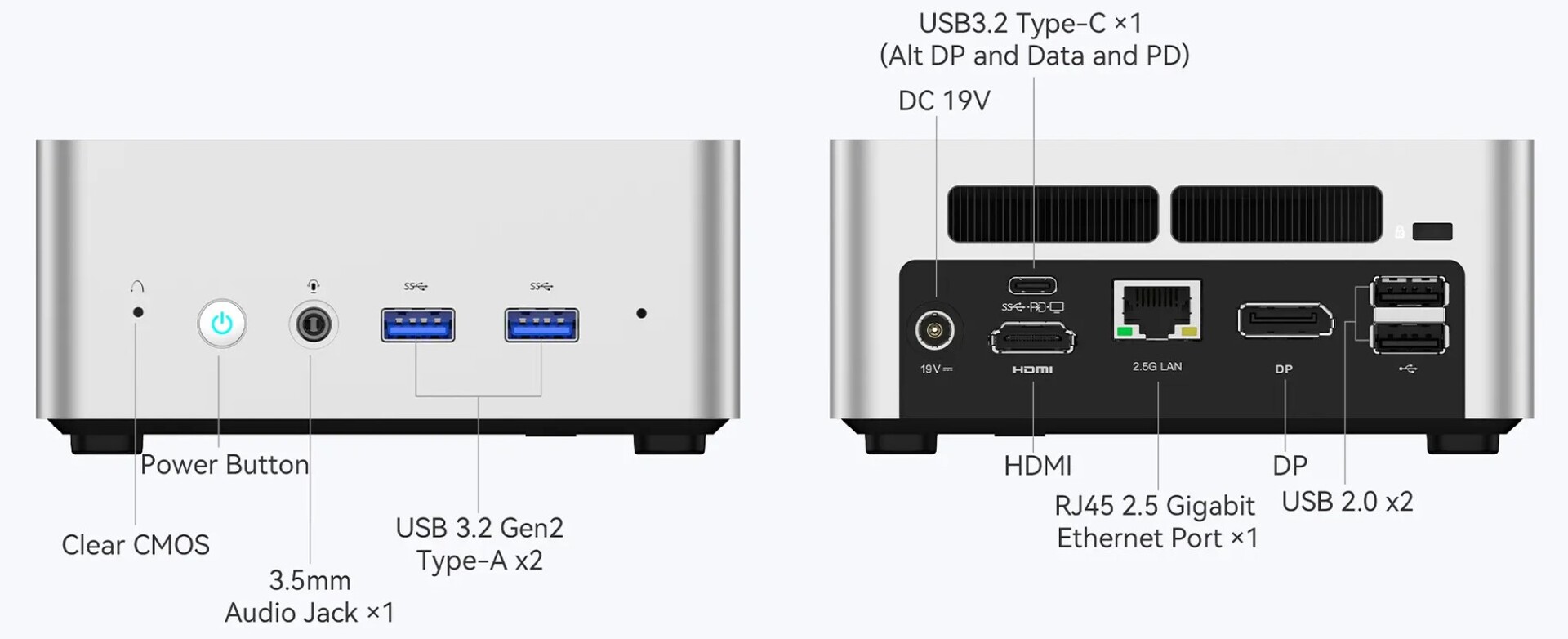

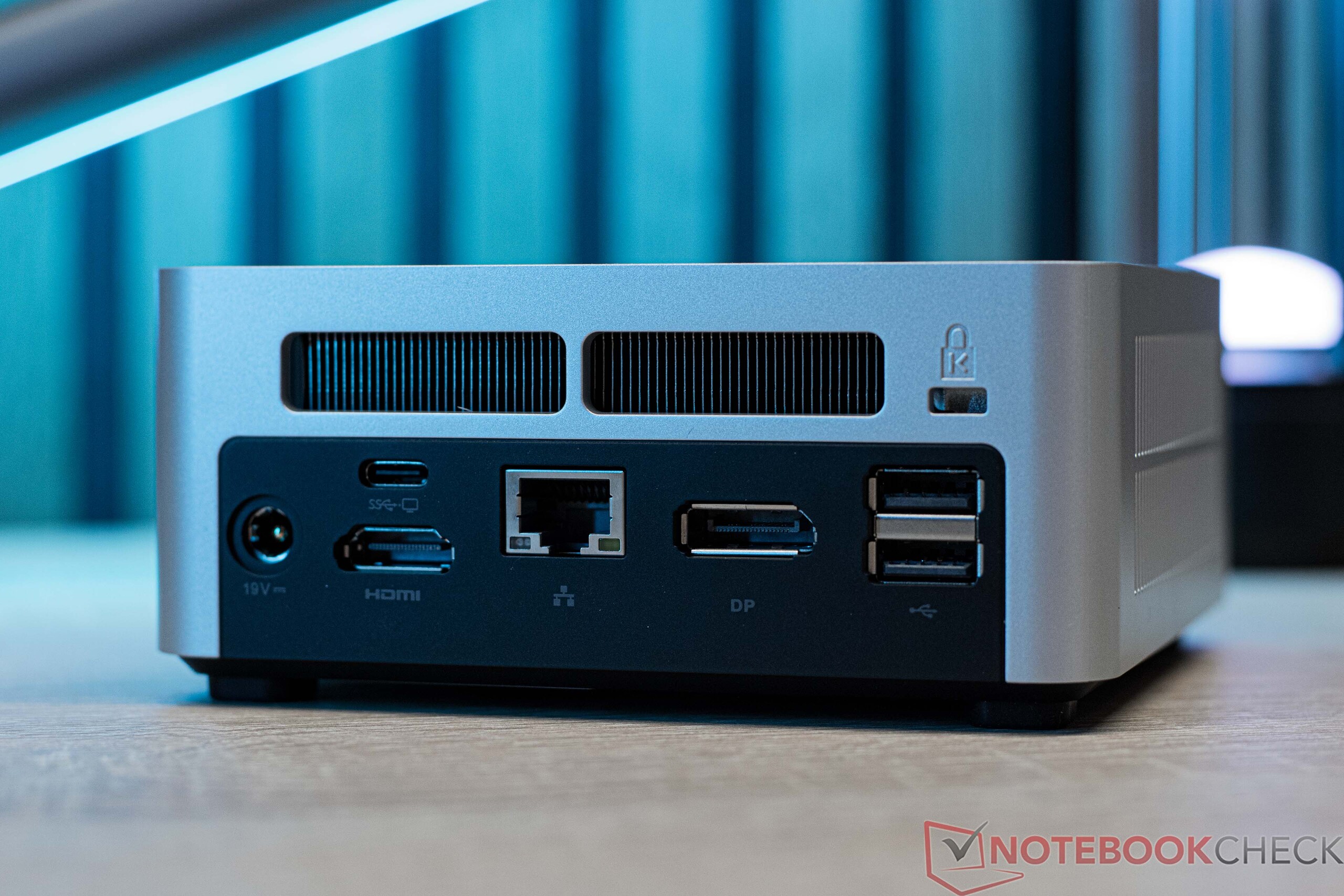

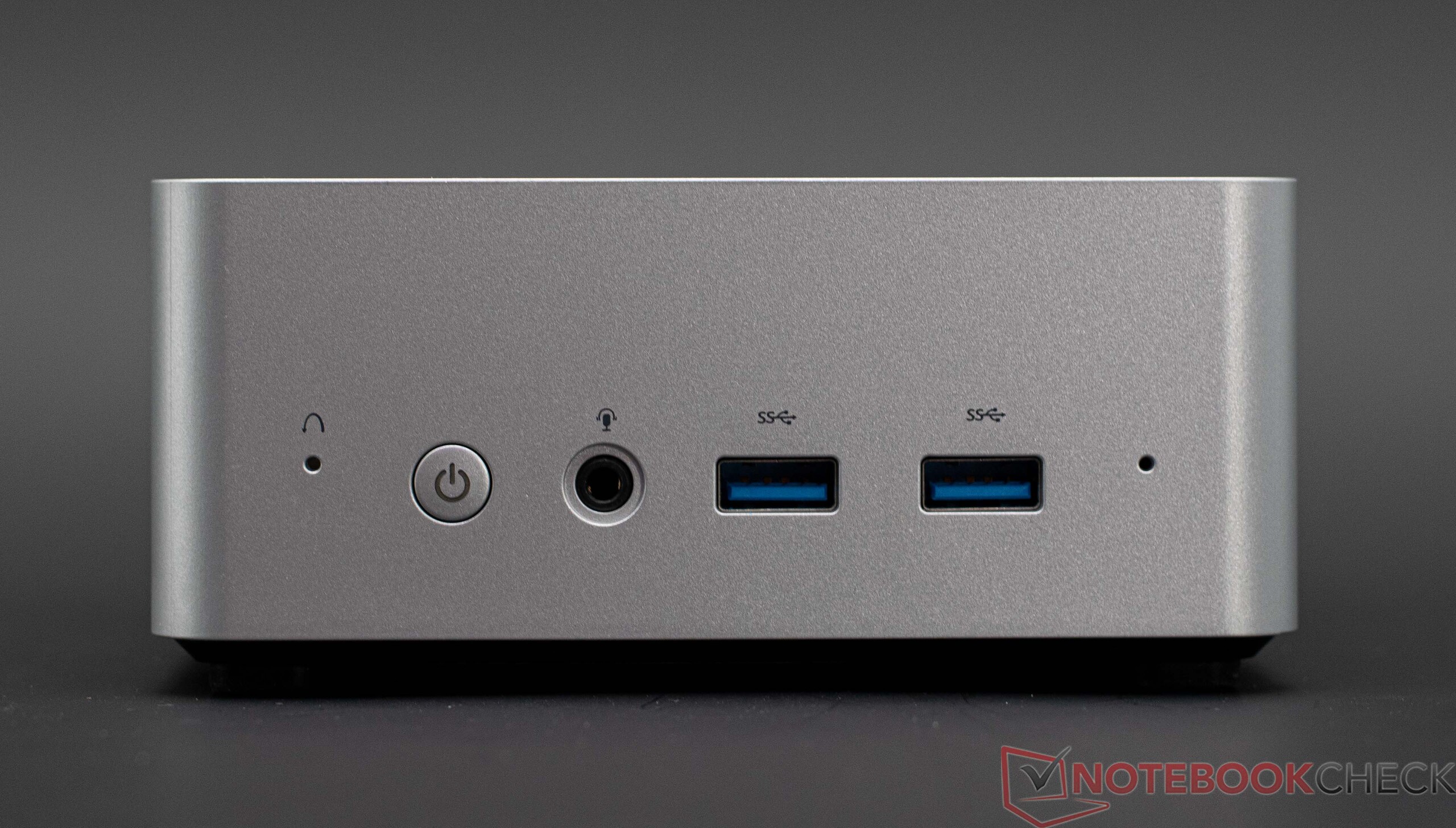

Minisforum Venus 系列 UN1245 的外部端口（来源：Minisforum）

交流

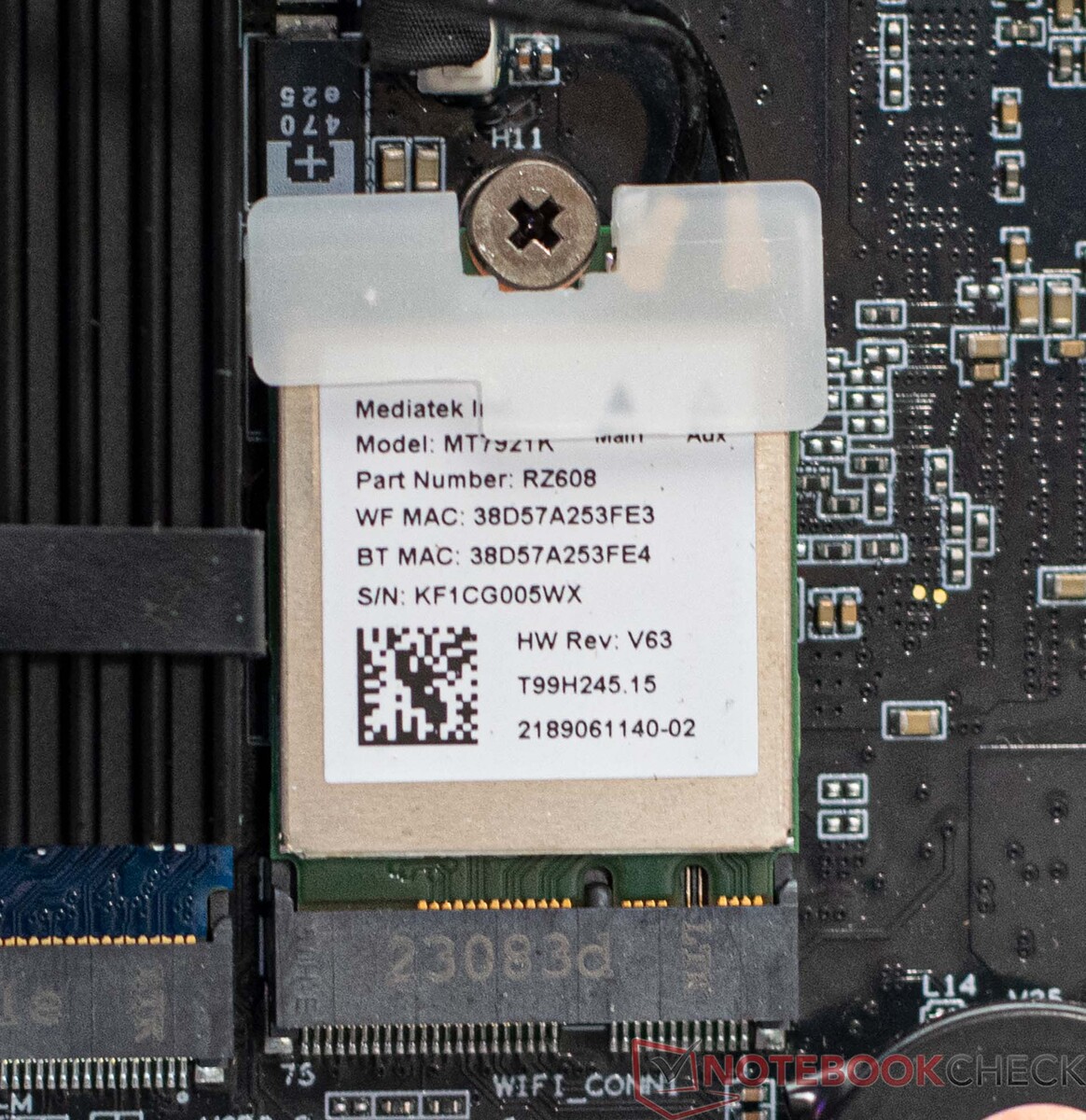

我们对已安装的 Mediathek RZ608 Wi-Fi 模块并不陌生，因为在 Minisforum 的许多迷你 PC 中都能找到它的身影。原则上，该无线电模块的性能是足够的，但相比之下，同类产品的性能往往要好一些，尽管程度并不严重。但值得指出的是，使用 6 GHz 频段并不会带来更好的传输速度。反过来，在我们的测试中，我们记录到了相对稳定的传输速度，性能没有任何下降。在测试中，我们使用了华硕 ROG Rapture GT-AXE11000 测试路由器。作为替代方案，Minisforum Venus Series UN1245 提供了两个快速有线连接，速度高达 2.5 GBit/s。

Networking
iperf3 receive AXE11000 6GHz
Average of class Mini PC (684 - 1771, n=54, last 2 years)	1393 MBit/s +96%
Morefine M600, 6600U MediaTek RZ608	957 (943^min - 967^max) MBit/s +34%
Average MediaTek RZ608 (430 - 961, n=16)	826 MBit/s +16%
Minisforum Venus Series NAB6 MediaTek RZ608	791 (776^min - 799^max) MBit/s +11%
Minisforum Venus Series UN1245 MediaTek RZ608	712 (691^min - 721^max) MBit/s
iperf3 transmit AXE11000 6GHz
Average of class Mini PC (394 - 1800, n=55, last 2 years)	1311 MBit/s +74%
Minisforum Venus Series NAB6 MediaTek RZ608	919 (853^min - 980^max) MBit/s +22%
Average MediaTek RZ608 (572 - 980, n=16)	825 MBit/s +10%
Morefine M600, 6600U MediaTek RZ608	765 (718^min - 814^max) MBit/s +2%
Minisforum Venus Series UN1245 MediaTek RZ608	752 (710^min - 810^max) MBit/s
iperf3 receive AXE11000
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	958 (941^min - 967^max) MBit/s +21%
Blackview MP200 Intel Wi-Fi 6 AX201	953 (859^min - 970^max) MBit/s +20%
Morefine M600, 6600U MediaTek RZ608	948 (934^min - 957^max) MBit/s +19%
Average of class Mini PC (192.9 - 1796, n=112, last 2 years)	938 MBit/s +18%
Average MediaTek RZ608 (430 - 975, n=20)	886 MBit/s +11%
Minisforum Venus Series UN1245 MediaTek RZ608	795 (753^min - 805^max) MBit/s
Minisforum Venus Series NAB6 MediaTek RZ608	787 (752^min - 801^max) MBit/s -1%
Acemagic AD15 Realtek RTL8852BE	721 (696^min - 743^max) MBit/s -9%
iperf3 transmit AXE11000
Average of class Mini PC (184.1 - 1776, n=112, last 2 years)	864 MBit/s +19%
Average MediaTek RZ608 (572 - 979, n=20)	860 MBit/s +19%
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	845 (818^min - 879^max) MBit/s +17%
Blackview MP200 Intel Wi-Fi 6 AX201	825 (426^min - 867^max) MBit/s +14%
Morefine M600, 6600U MediaTek RZ608	784 (381^min - 874^max) MBit/s +8%
Acemagic AD15 Realtek RTL8852BE	730 (707^min - 753^max) MBit/s +1%
Minisforum Venus Series UN1245 MediaTek RZ608	724 (606^min - 852^max) MBit/s
Minisforum Venus Series NAB6 MediaTek RZ608	626 (301^min - 689^max) MBit/s -14%

Minisforum Venus Series UN1245 MediaTek RZ608; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø752 (710-810)

Minisforum Venus Series NAB6 MediaTek RZ608; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø919 (853-980)

Minisforum Venus Series UN1245 MediaTek RZ608; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø712 (691-721)

Minisforum Venus Series NAB6 MediaTek RZ608; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø791 (776-799)

Minisforum Venus Series UN1245 MediaTek RZ608; iperf3 receive AXE11000; iperf 3.1.3: Ø794 (753-805)

Minisforum Venus Series NAB6 MediaTek RZ608; iperf3 receive AXE11000; iperf 3.1.3: Ø786 (752-801)

Minisforum Venus Series UN1245 MediaTek RZ608; iperf3 transmit AXE11000; iperf 3.1.3: Ø724 (606-852)

Minisforum Venus Series NAB6 MediaTek RZ608; iperf3 transmit AXE11000; iperf 3.1.3: Ø616 (301-689)

配件

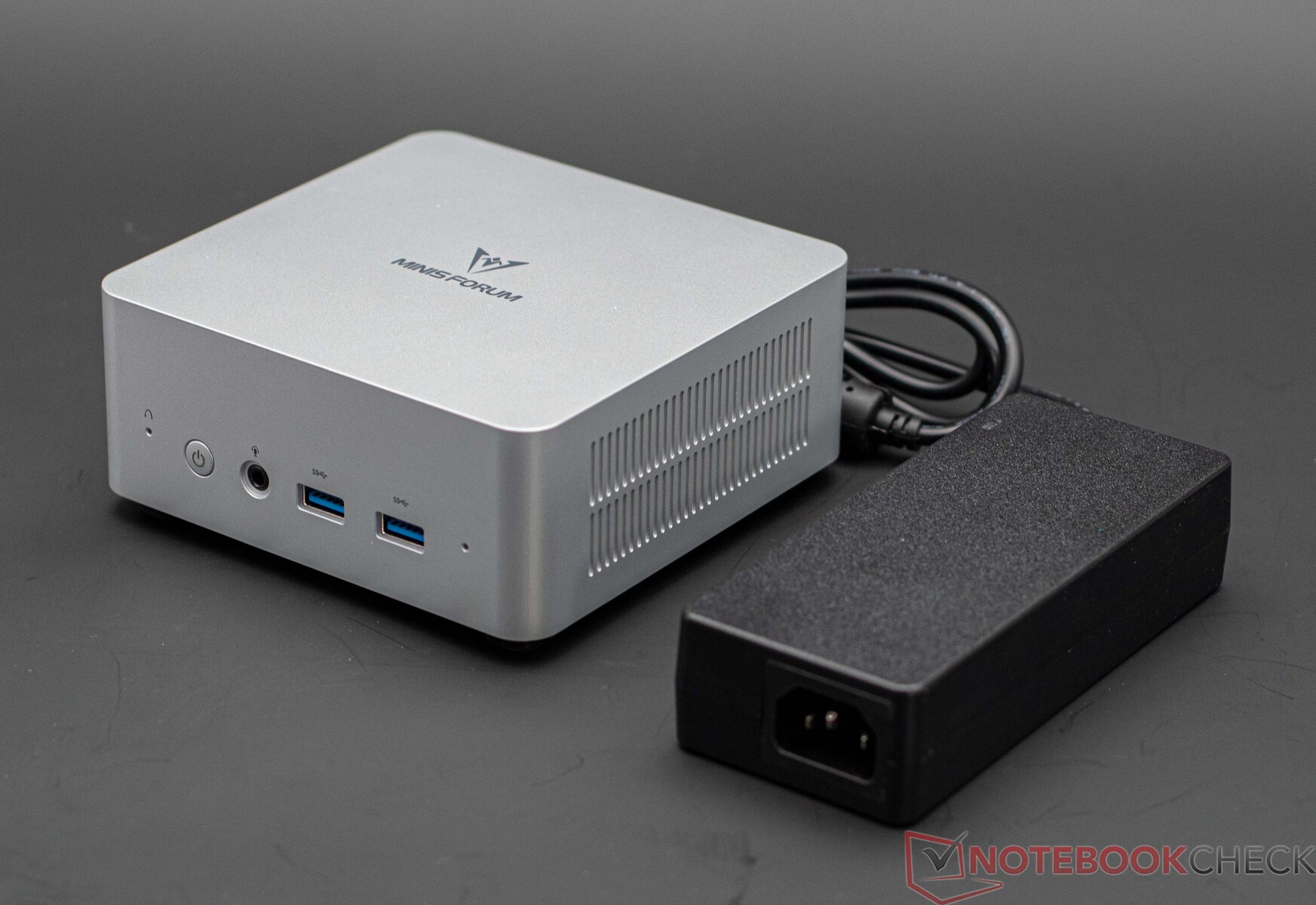

除设备外，包装盒内还包括一个 90 瓦的 PSU 以及一个用于将电脑安装到显示器上的安装板（VESA 安装）。此外，还包括一根 HDMI 电缆和一份快速指南。

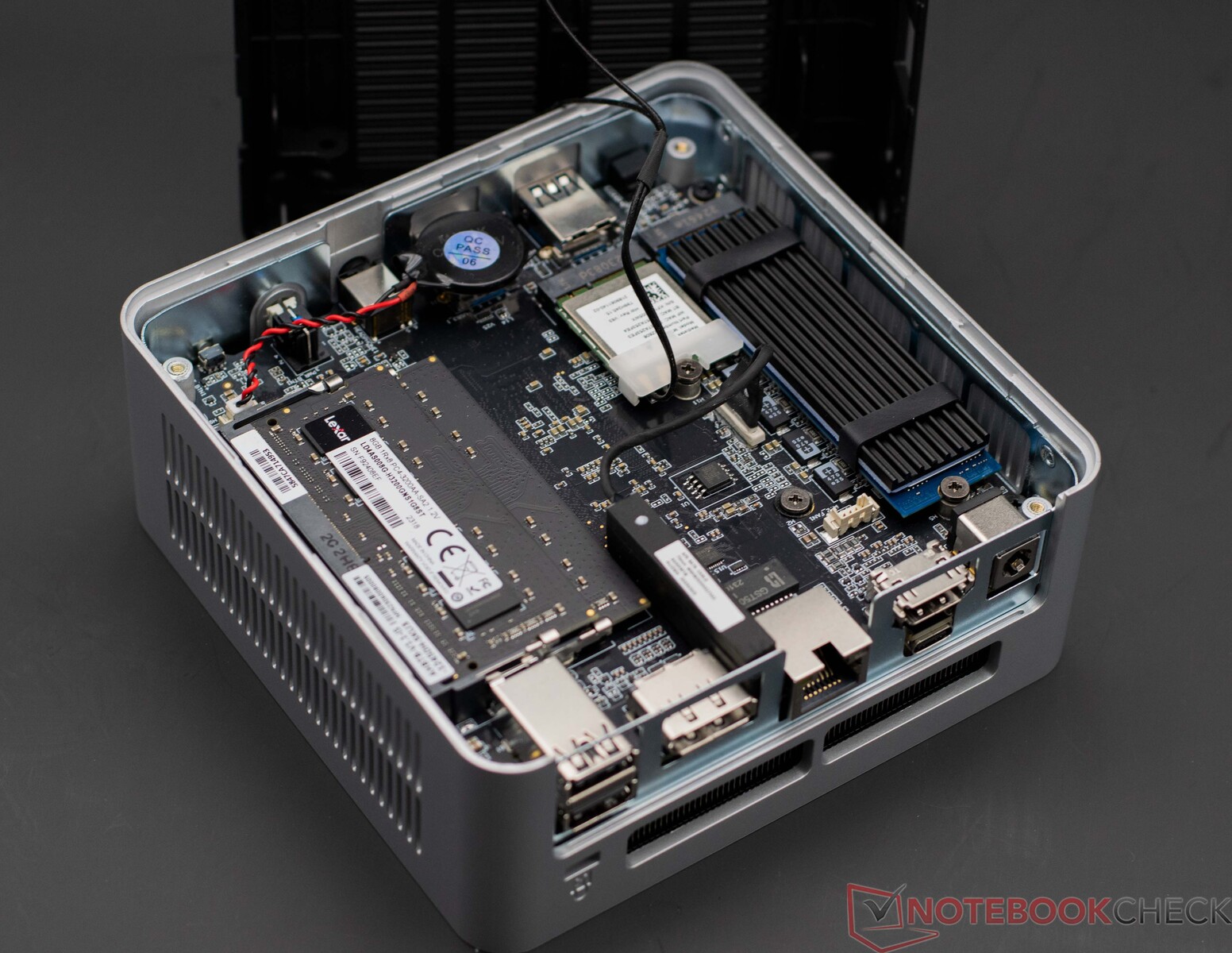

维护

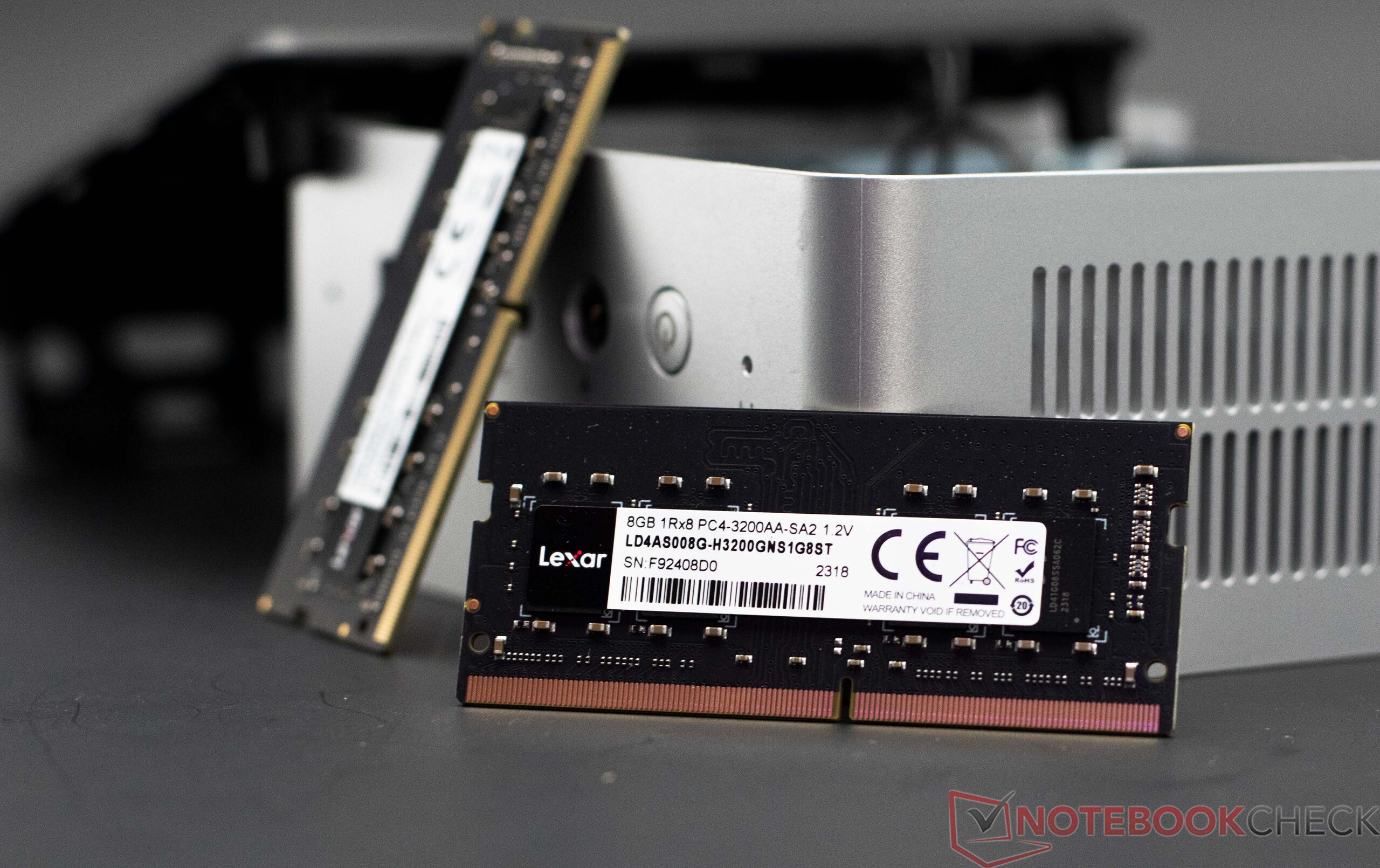

由于 Minisforum 也将 Venus Series UN1245 作为裸机销售，因此不言而喻，要安装内存或固态硬盘，就必须进入内部。为此，必须卸下底座。卸下橡胶脚垫下面的螺丝即可。如果要清洁 CPU 风扇，则需要再拆开一些。不过，我们建议不要拆卸散热系统，因为 Minisforum 使用液态金属以保证最佳散热效果。Minisforum Venus 系列 UN1245 内部可容纳两个 SO DIMM 模块和两个大容量存储设备。

性能 - Alder Lake-H，8 核 12 线程

配备英特尔酷睿 i5-12450HMinisforum Venus 系列 UN1245 的 SoC 性能不错，但并不属于最新机型。在日常使用中，我们认为不会有任何问题，因为 8 个内核和 12 个线程意味着该 SoC 也能处理要求苛刻的任务。Minisforum 推出的同款机型金星系列 UN1265 配备了英特尔酷睿 i7-12650H，性能更强。

测试条件

所有性能测试均使用最高性能能耗配置文件进行。SoC 的性能在 BIOS 中未作任何更改，而是按照制造商的出厂设置进行。在噪声发射和能量测量中使用了不同的能量曲线，如我们的测试标准.

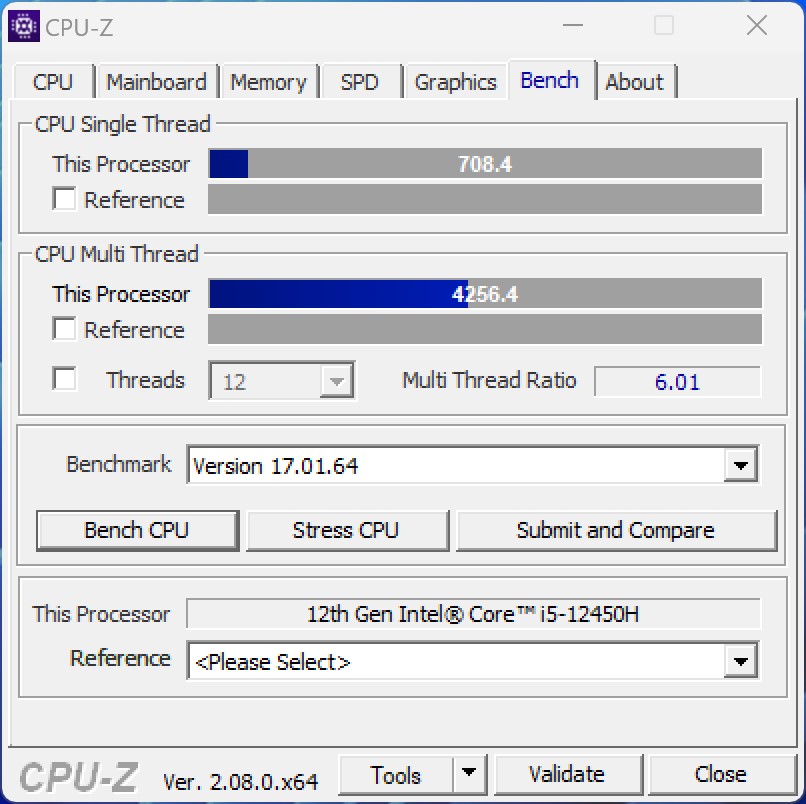

处理器

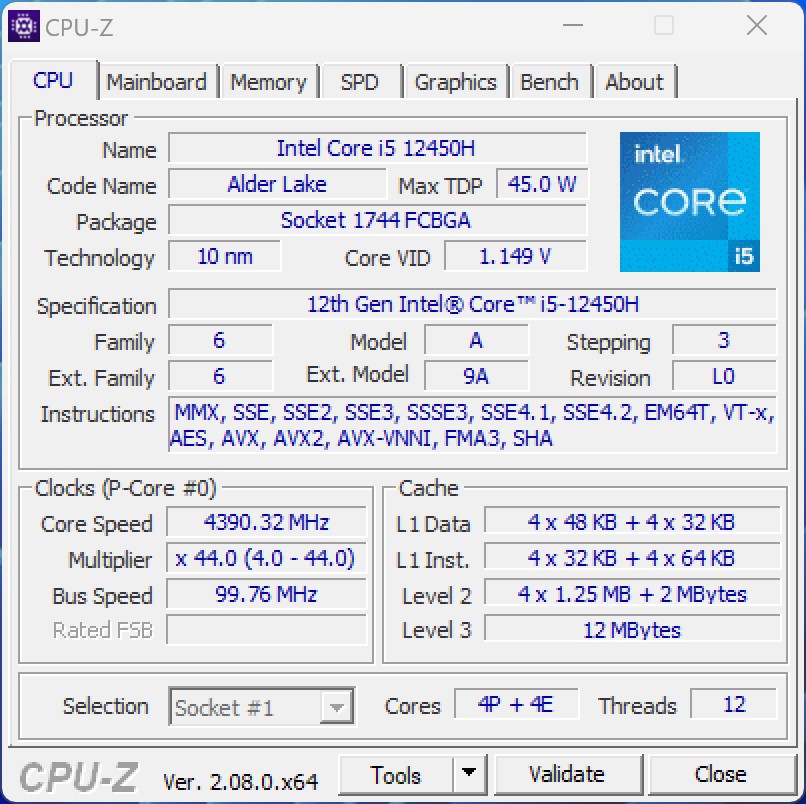

使用英特尔酷睿 i5-12450HMinisforum Venus 系列 UN1245 配备了速度极快的 SoC，拥有 8 个原生计算核心，可同时处理 12 个线程。不过，在测试中，我们发现我们的评测样品落后于Acemagic AD15.原因很快就显现出来了，因为 Minisforum 将英特尔酷睿 i5-12450H 的功耗限制在 45 瓦。尽管如此，Minisforum Venus 系列 UN1245 也没有必要遮遮掩掩，因为该处理器的性能在日常情况下绰绰有余。良好的单核性能并没有受到这一限制的影响。如果您对结构相同的 Minisforum Venus Series UN1265 感兴趣，请参考Minisforum Venus 系列 NAB6进行定位。

更多比较和基准可参见我们的 CPU 对照表.

Performance Rating - Percent
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	49.9 pt
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	45.4 pt
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	44.8 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	43.6 pt
Blackview MP200 Intel Core i5-11400H, 2700 MHz	41.8 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	40.5 pt

Cinebench R15
CPU Single 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	260 Points +9%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	238 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	232 Points -3%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	227 Points -5%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	226 Points -5%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	218 Points -8%
CPU Multi 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1893 Points +37%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	1591 Points +15%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	1379 Points
Blackview MP200 Intel Core i5-11400H, 2700 MHz	1378 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1361 Points -1%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	953 Points -31%

Cinebench R20
CPU (Single Core)
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	696 Points +9%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	640 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	620 Points -3%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	574 Points -10%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	560 Points -12%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	558 Points -13%
CPU (Multi Core)
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	4781 Points +36%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	3779 Points +8%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	3510 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	3419 Points -3%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	3283 Points -6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	2284 Points -35%

Cinebench R23
Single Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1804 Points +9%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	1659 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	1602 Points -3%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	1496 Points -10%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	1462 Points -12%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1420 Points -14%
Multi Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	12072 Points +32%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	9503 Points +4%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	9134 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	8491 Points -7%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	8451 Points -7%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5917 Points -35%

Cinebench R11.5
CPU Single 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.14 Points +9%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	2.88 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	2.78 Points -3%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	2.73 Points -5%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	2.62 Points -9%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	2.55 Points -11%
CPU Multi 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22.08 Points +33%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	17.87 Points +8%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	17.15 Points +4%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	16.55 Points
Blackview MP200 Intel Core i5-11400H, 2700 MHz	15.97 Points -4%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	10.68 Points -35%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	14533 Points +9%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	13344 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	12516 Points -6%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	11860 Points -11%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11685 Points -12%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	11530 Points -14%
Rendering Multiple CPUs 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	68516 Points +22%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	58173 Points +4%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	55999 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	54792 Points -2%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	54687 Points -2%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	39426 Points -30%

Blender - v2.79 BMW27 CPU
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	513 Seconds * -47%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	415 Seconds * -19%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	373 Seconds * -7%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	349 Seconds *
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	319 Seconds * +9%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	285 Seconds * +18%

wPrime 2.10
32m
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	7.234 s *
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	6.518 s * +10%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	4.688 s * +35%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	4.498 s * +38%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	3.969 s * +45%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.705 s * +49%
1024m
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	452.626 s *
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	410.289 s * +9%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	196.909 s * +56%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	146.553 s * +68%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	140.674 s * +69%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	121.132 s * +73%

X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	311.5 (311^min - 312^max) fps +12%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	277 (260^min - 288^max) fps
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	242 (239^min - 245^max) fps -13%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	226.5 (210^min - 228^max) fps -18%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	214.5 (213^min - 216^max) fps -23%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	212 (206^min - 224^max) fps -23%
Pass 2
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	111.1 (96.7^min - 111.7^max) fps +30%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	86.25 (83.2^min - 94.6^max) fps +1%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	85.35 (83^min - 87.2^max) fps
Blackview MP200 Intel Core i5-11400H, 2700 MHz	77.85 (69.8^min - 82.6^max) fps -9%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	71.45 (70.2^min - 76.6^max) fps -16%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	55.2 (54.6^min - 55.9^max) fps -35%

WinRAR - Result
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9090 KB/s +47%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	8569 KB/s +38%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6937 KB/s +12%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	6195 KB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	6144 KB/s -1%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	5477 KB/s -12%

TrueCrypt
AES Mean 100MB
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	10.1 GB/s +26%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	9.7 GB/s +21%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	9.3 GB/s +16%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	8.4 GB/s +5%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	8 GB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5.4 GB/s -32%
Twofish Mean 100MB
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.8 GB/s +38%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	1.5 GB/s +15%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1.3 GB/s 0%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	1.3 GB/s 0%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	1.3 GB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	0.838 GB/s -36%
Serpent Mean 100MB
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.1 GB/s +39%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	1 GB/s +27%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.857 GB/s +8%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	0.815 GB/s +3%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	0.79 GB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	0.509 GB/s -36%

Geekbench 5.5
Multi-Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9363 Points +30%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	7976 Points +11%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	7658 Points +6%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	7200 Points
Blackview MP200 Intel Core i5-11400H, 2700 MHz	6006 Points -17%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5091 Points -29%
Single-Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1767 Points +7%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	1669 Points +1%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	1655 Points
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	1603 Points -3%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1504 Points -9%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	1465 Points -11%

Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	10249 Points +44%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9099 Points +28%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	7879 Points +11%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	7116 Points
Blackview MP200 Intel Core i5-11400H, 2700 MHz	5961 Points -16%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5025 Points -29%
5.0 Single-Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1736 Points +11%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	1655 Points +5%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	1570 Points 0%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	1569 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1557 Points -1%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	1461 Points -7%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	7705 Points +8%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	7153 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	7146 Points 0%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	6747 Points -6%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6698 Points -6%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	6110 Points -15%
64 Bit Multi-Core Score
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	39852 Points +43%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	34909 Points +25%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	32181 Points +15%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	27953 Points
Blackview MP200 Intel Core i5-11400H, 2700 MHz	24947 Points -11%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	20385 Points -27%

3DMark 11 - 1280x720 Performance Physics
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	18363 Points +22%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	15082 Points
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	14645 Points -3%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11630 Points -23%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	10999 Points -27%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	10536 Points -30%

7-Zip 18.03
7z b 4
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	47893 MIPS +42%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	44320 MIPS +32%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	43146 MIPS +28%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	34660 MIPS +3%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	33619 MIPS
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	25876 MIPS -23%
7z b 4 -mmt1
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	6116 MIPS +22%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5895 MIPS +18%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	5732 MIPS +15%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5486 MIPS +10%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	5343 MIPS +7%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	4994 MIPS

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	13.6 fps +26%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	12 fps +11%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11.7 fps +8%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	10.8 fps
Blackview MP200 Intel Core i5-11400H, 2700 MHz	10.2 fps -6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	7.61 fps -30%

R Benchmark 2.5 - Overall mean
Blackview MP200 Intel Core i5-11400H, 2700 MHz	0.581 sec * -13%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	0.559 sec * -9%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	0.543 sec * -5%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	0.515 sec *
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.511 sec * +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	0.462 sec * +10%

LibreOffice - 20 Documents To PDF
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	53 s * -14%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	53 s * -14%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	47.2 s * -1%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	46.6 s *
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	46.3 s * +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	39.6 s * +15%

WebXPRT 3 - Overall
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	309 Points +8%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	285 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	274 Points -4%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	270 Points -5%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	261 Points -8%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	247 Points -13%

Mozilla Kraken 1.1 - Total
Blackview MP200 Intel Core i5-11400H, 2700 MHz	660 ms * -17%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	644 ms * -14%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	641 ms * -13%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	619 ms * -9%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	566 ms *
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	519 ms * +8%

3DMark
3840x2160 Fire Strike Ultra Physics
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	21176 Points +9%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	21001 Points +9%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	19341 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	18599 Points -4%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	16258 Points -16%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	11557 Points -40%
1920x1080 Fire Strike Physics
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22346 Points +12%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	21928 Points +10%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	19994 Points
Blackview MP200 Intel Core i5-11400H, 2700 MHz	16949 Points -15%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	15934 Points -20%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	11883 Points -41%
2560x1440 Time Spy CPU
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9168 Points +33%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	8744 Points +27%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	6901 Points
Blackview MP200 Intel Core i5-11400H, 2700 MHz	5160 Points -25%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5114 Points -26%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	4598 Points -33%

* ... smaller is better

Performance Rating
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	95.4 pt
Average of class Mini PC	91.2 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	86.9 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	80.4 pt
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	79.2 pt
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	75.1 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	55.9 pt

AIDA64 / FP32 Ray-Trace
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	12240 KRay/s +34%
Average of class Mini PC (561 - 51004, n=122, last 2 years)	11798 KRay/s +29%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	10839 KRay/s +19%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	10552 KRay/s +16%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	9518 KRay/s +4%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	9129 KRay/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	6633 KRay/s -27%

AIDA64 / FPU Julia
Average of class Mini PC (3604 - 214250, n=122, last 2 years)	60105 Points +30%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	59704 Points +29%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	54435 Points +18%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	52677 Points +14%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	46204 Points
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	44789 Points -3%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	27788 Points -40%

AIDA64 / CPU SHA3
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	3501 MB/s +69%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	3103 MB/s +50%
Average of class Mini PC (225 - 9399, n=122, last 2 years)	2657 MB/s +28%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	2357 MB/s +14%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	2071 MB/s
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	1997 MB/s -4%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	1841 MB/s -11%

AIDA64 / CPU Queen
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	85233 Points +32%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	82454 Points +27%
Average of class Mini PC (8172 - 184747, n=122, last 2 years)	76655 Points +18%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	75248 Points +16%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	69756 Points +8%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	64750 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	49399 Points -24%

AIDA64 / FPU SinJulia
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	8738 Points +46%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	8510 Points +42%
Average of class Mini PC (408 - 29064, n=122, last 2 years)	8194 Points +37%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	7444 Points +24%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	7186 Points +20%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	5985 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	4529 Points -24%

AIDA64 / FPU Mandel
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	32465 Points +42%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	31628 Points +38%
Average of class Mini PC (1958 - 113499, n=122, last 2 years)	31406 Points +37%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	26798 Points +17%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	26735 Points +17%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	22917 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	16652 Points -27%

AIDA64 / CPU AES
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	122812 MB/s +56%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	99449 MB/s +27%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	92530 MB/s +18%
Average of class Mini PC (3691 - 325960, n=122, last 2 years)	84062 MB/s +7%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	78537 MB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	57644 MB/s -27%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	39680 MB/s -49%

AIDA64 / CPU ZLib
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	687 MB/s +16%
Average of class Mini PC (74.8 - 2039, n=122, last 2 years)	684 MB/s +16%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	674 MB/s +14%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	592 MB/s
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	591 MB/s 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	530 MB/s -10%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	372 MB/s -37%

AIDA64 / FP64 Ray-Trace
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	6651 KRay/s +34%
Average of class Mini PC (308 - 26952, n=122, last 2 years)	6312 KRay/s +27%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	5771 KRay/s +16%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	5743 KRay/s +15%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	5058 KRay/s +2%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	4977 KRay/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	3668 KRay/s -26%

AIDA64 / CPU PhotoWorxx
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	28682 MPixel/s
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	28010 MPixel/s -2%
Average of class Mini PC (4408 - 50500, n=122, last 2 years)	27557 MPixel/s -4%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	27456 MPixel/s -4%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	25453 MPixel/s -11%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	20652 MPixel/s -28%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	12248 MPixel/s -57%

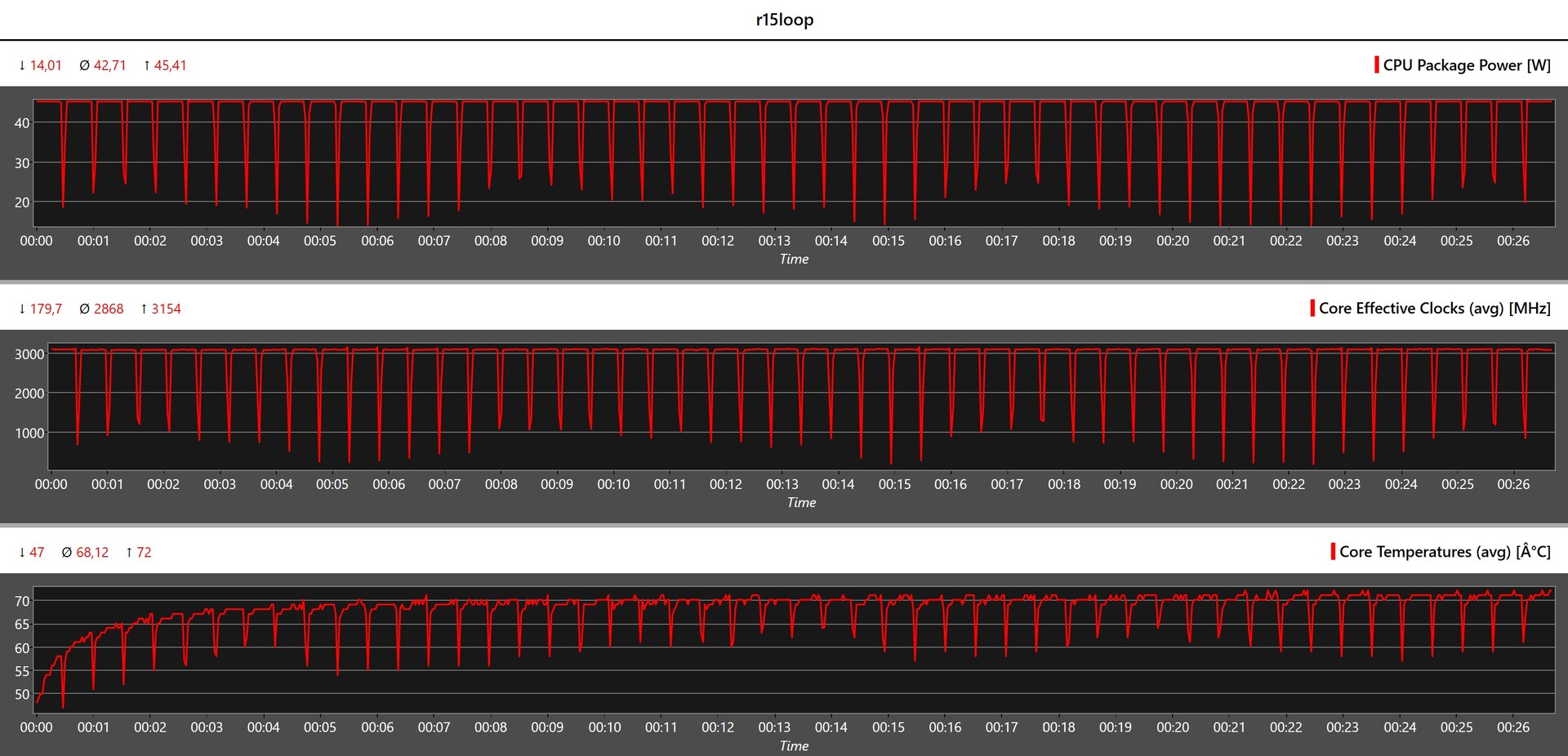

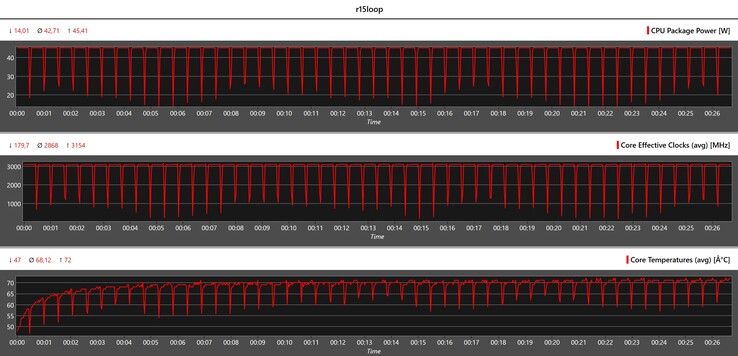

Minisforum Venus Series UN1245 与 Cinebench R15 多环路比较

在 Cinebench R15 连续循环测试中，我们考察了 SoC 在较长时间内的表现。Minisforum Venus 系列 UN1245 完成了全部 50 次运行，性能没有下降。在这里你可以清楚地看到，Minisforum 并没有让英特尔酷睿 i5-12450H超过 45 瓦。此外，在温度方面，您可以看到 SoC 只是逐渐升温，最高温度仅为 72 °C。

Minisforum Venus Series UN1245 Intel Core i5-12450H, Intel Core i5-12450H: Ø1370 (1352.4-1379.41)

Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)

Minisforum Venus Series NAB6 Intel Core i7-12650H, Intel Core i7-12650H: Ø1627 (1590.71-1899.25)

Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Core i7-11390H: Ø946 (931.81-953.22)

Acemagic AD15 Intel Core i7-11800H, Intel Core i7-11800H: Ø1470 (1424.65-1647.85)

Blackview MP200 Intel Core i5-11400H, Intel Core i5-11400H: Ø1208 (1178.24-1384.8)

系统性能

Minisforum Venus Series UN1245 在与系统性能相关的合成基准测试中表现出色。然而，由于 Minisforum Venus Series NAB6 几乎一直表现出更好的性能，因此它不足以夺得第一名。拥有 M600 660U 的 Morefine 也是强有力的竞争对手。此外，根据 AIDA64 测试，Morefine M600 6600U 配备了更快的内存（DDR5）。从纯粹主观的角度来看，Minisforum Venus 系列 UN1245 的系统性能不错，与竞争设备相比没有明显的劣势。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	6057 Points +14%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	5872 Points +10%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	5319 Points
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	5036 Points -5%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	4914 Points -8%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	4525 Points -15%

PCMark 10 / Essentials
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	11395 Points +11%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	10306 Points
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9820 Points -5%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	9694 Points -6%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	9649 Points -6%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	9513 Points -8%

PCMark 10 / Productivity
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9031 Points +20%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	8164 Points +8%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	7527 Points
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	6788 Points -10%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	6723 Points -11%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	6495 Points -14%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1875 Points +15%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1637 Points
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1517 Points -7%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1438 Points -12%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	1423 Points -13%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1285 Points -22%

CrossMark / Responsiveness
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	2077 Points +10%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1888 Points
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1434 Points -24%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1238 Points -34%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1079 Points -43%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	1038 Points -45%

CrossMark / Creativity
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1811 Points +19%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1652 Points +8%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	1598 Points +5%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1525 Points
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1359 Points -11%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1309 Points -14%

CrossMark / Productivity
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1876 Points +12%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1677 Points
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1523 Points -9%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1491 Points -11%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	1408 Points -16%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1336 Points -20%

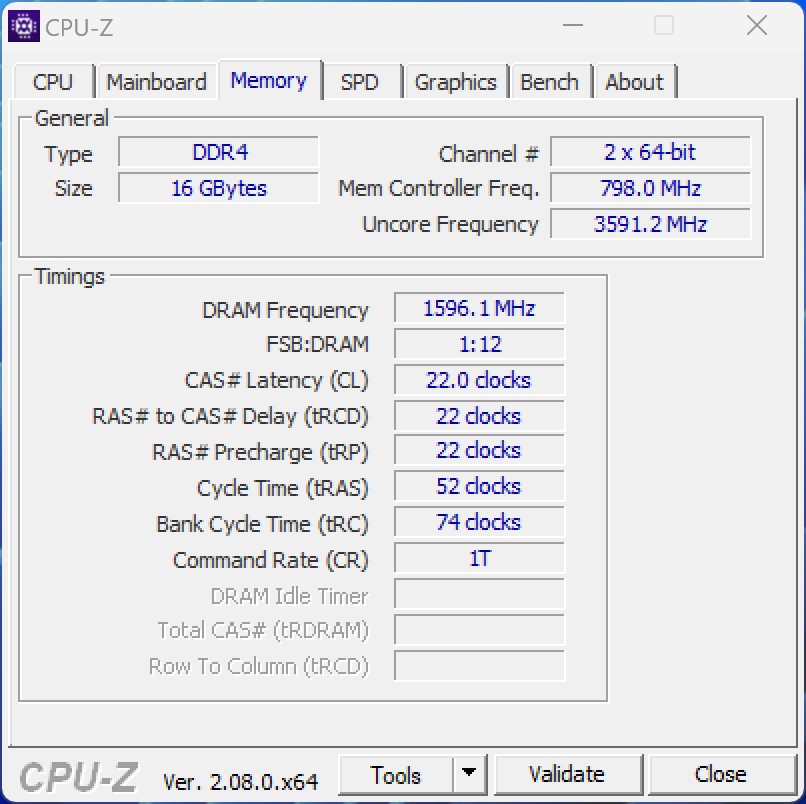

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	47711 MB/s +9%
Average of class Mini PC (6481 - 76462, n=122, last 2 years)	46953 MB/s +7%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	46936 MB/s +7%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	43746 MB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	41953 MB/s -4%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	37807 MB/s -14%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	22181 MB/s -49%

AIDA64 / Memory Read
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	50120 MB/s +7%
Average of class Mini PC (6914 - 83287, n=122, last 2 years)	47375 MB/s +1%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	47290 MB/s +1%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	47042 MB/s
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	46084 MB/s -2%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	42236 MB/s -10%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	25003 MB/s -47%

AIDA64 / Memory Write
Average of class Mini PC (6862 - 89318, n=122, last 2 years)	51193 MB/s +10%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	49353 MB/s +6%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	47383 MB/s +2%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	46860 MB/s +1%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	46529 MB/s
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	38930 MB/s -16%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	22892 MB/s -51%

AIDA64 / Memory Latency
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	94 ns * -21%
Average of class Mini PC (44.9 - 184.8, n=122, last 2 years)	91.1 ns * -18%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	78.7 ns * -2%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	77.5 ns *
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	73.3 ns * +5%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	71.6 ns * +8%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	66.3 ns * +14%

* ... smaller is better

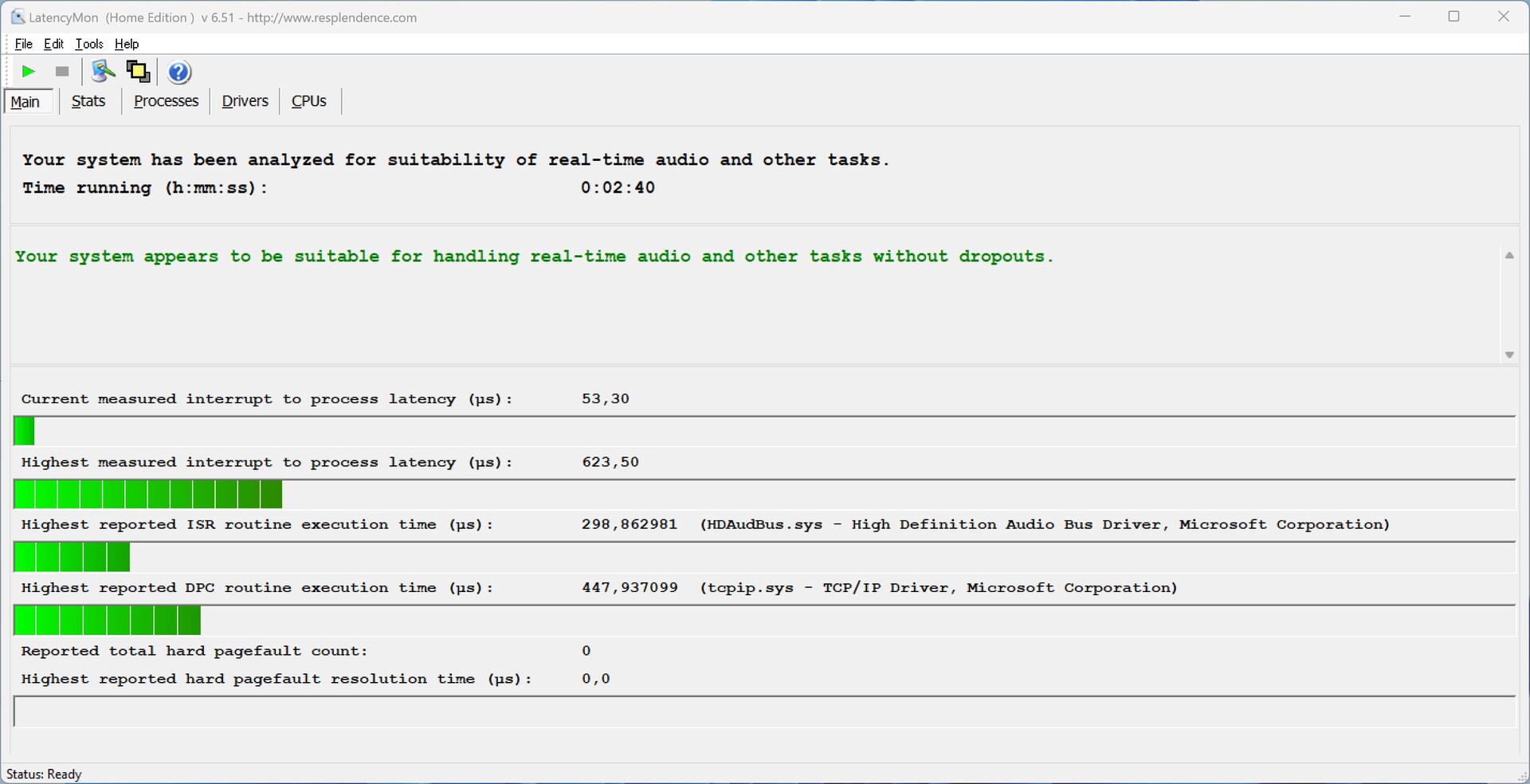

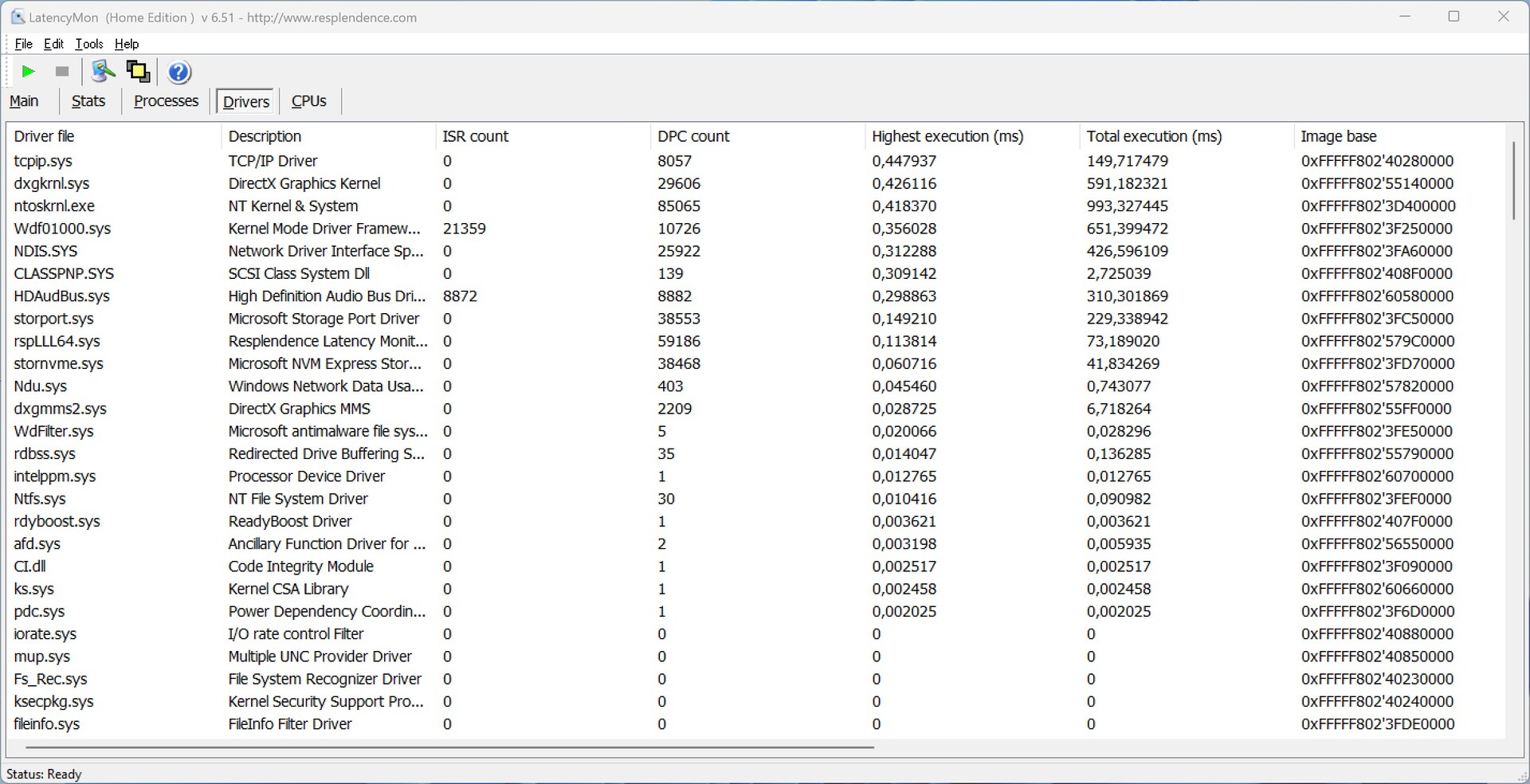

DPC 延迟

我们没有发现 Minisforum Venus Series UN1245 的延迟增加。无论是在 Edge 中打开多个标签页，还是在播放 4K 测试视频时，我们的评测设备都能轻松应对。这使得 UN1245 完全适合作为高分辨率视频的流媒体客户端。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	1411 μs * -215%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	1016.7 μs * -127%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	844.9 μs * -89%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	795 μs * -77%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	466 μs * -4%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	447.9 μs *

* ... smaller is better

大容量存储器

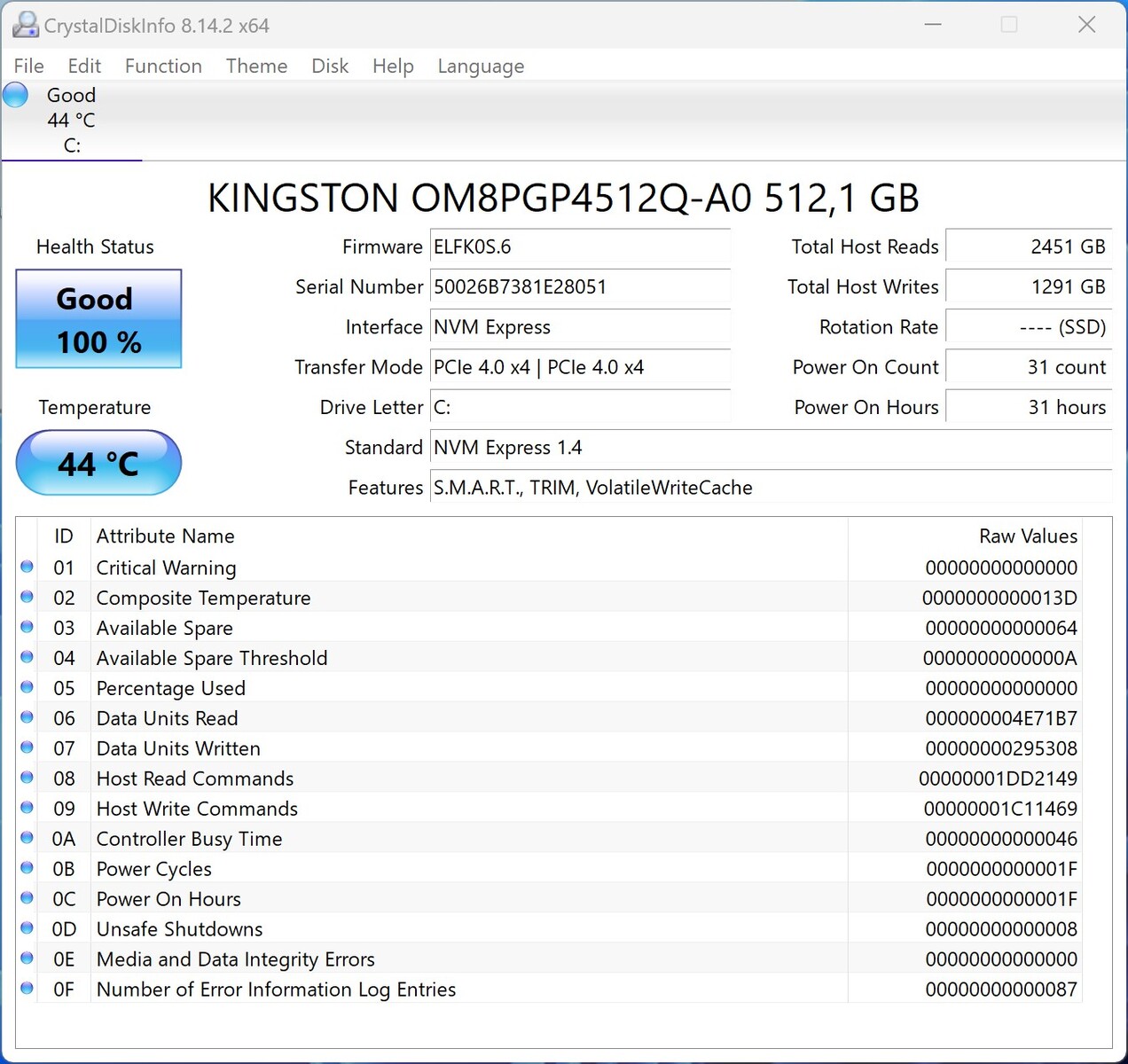

Minisforum 在金星系列 UN1245 中安装了金士顿 512 GB NVMe 固态硬盘。Minisforum 的其他一些迷你 PC 也配备了这种型号，它在 Minisforum Venus Series NAB6 中的表现已经给我们留下了深刻印象。在我们的评测样本中，我们观察到了更好的性能，这意味着 UN1245 在基准测试中几乎肯定更胜一筹。然而，在日常使用中，这款固态硬盘的性能只能算是二流，不过我们还是对制造商选择性能出色的固态硬盘表示欢迎。在散热方面，Minisforum 的新产品 NAB6的散热器安装了一个小风扇。然而，在我们的 Minisforum Venus 系列 UN1245 上，我们再次面对的是传统的被动散热器。这对于在连续负载下保持固态硬盘的性能稳定是不够的。

Minisforum Venus 系列 UN1245 总共可以配备两个大容量存储设备，除了 NVMe 固态硬盘之外，还可以容纳一个 2.5 英寸的大容量存储设备。但是，必须注意最大高度为 7 毫米。

有关其他比较和基准，请参阅我们的

比较表.

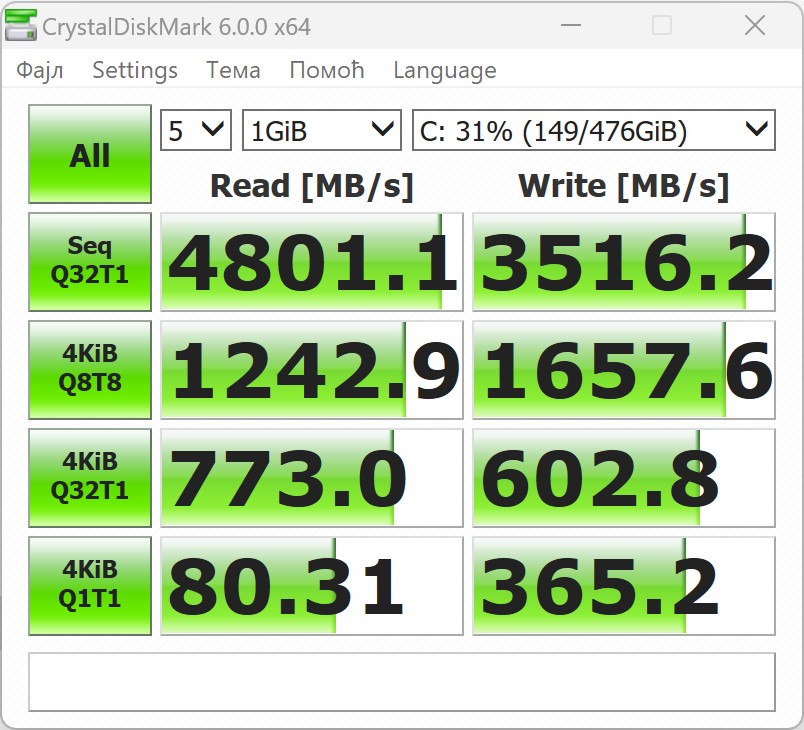

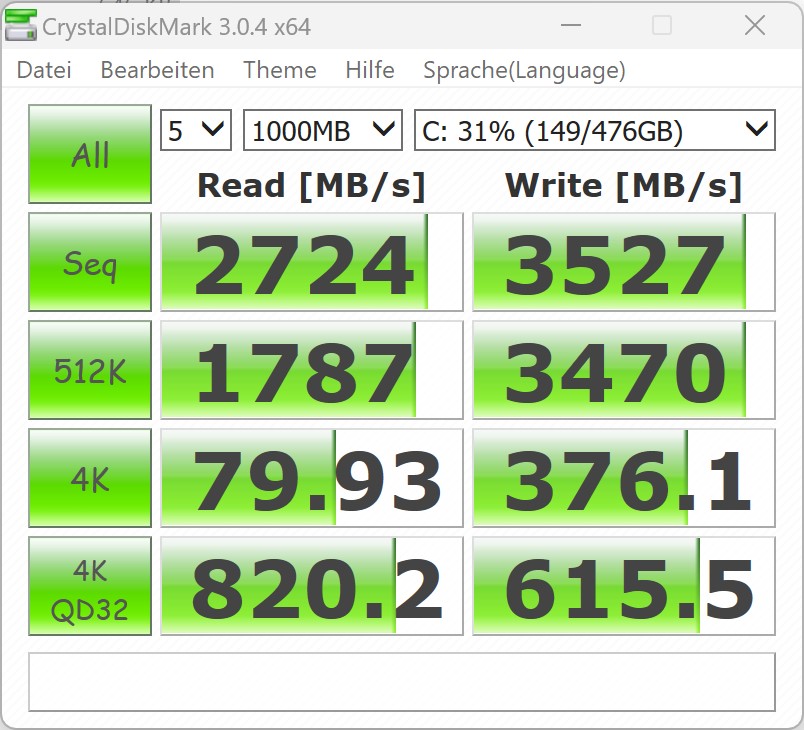

CrystalDiskMark 3.0

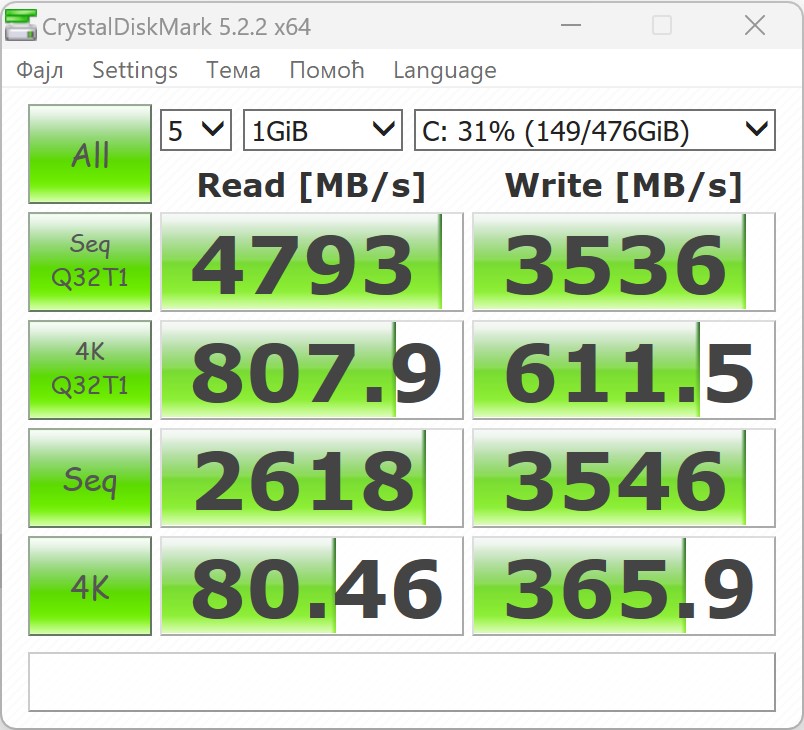

CrystalDiskMark 5.2 / 6

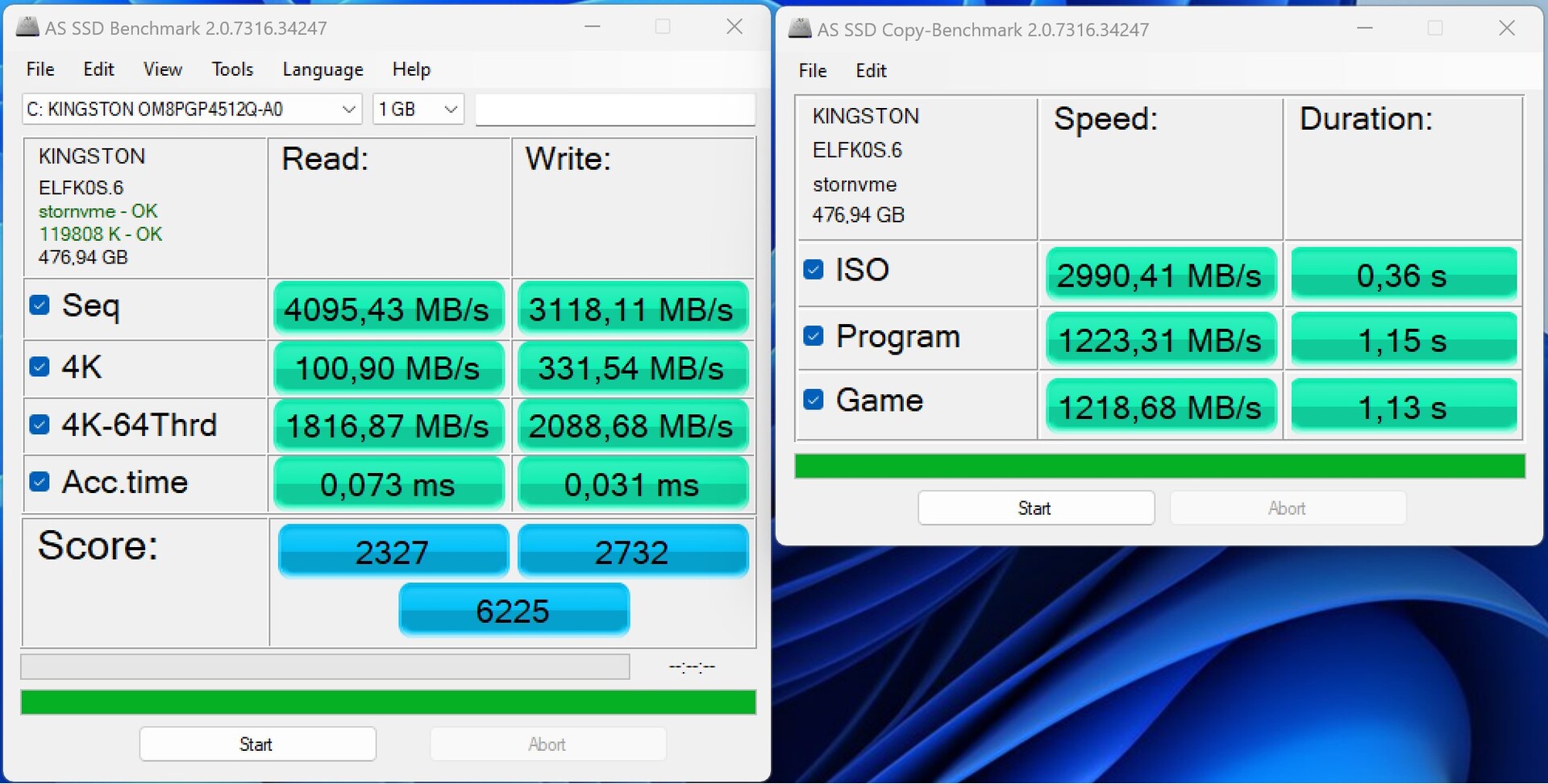

AS SSD

DiskSpd

Kingston OM8PGP4512Q-A0

Sequential Read: 2724 MB/s

Sequential Write: 3527 MB/s

512K Read: 1787 MB/s

512K Write: 3470 MB/s

4K Read: 79.93 MB/s

4K Write: 376.1 MB/s

4K QD32 Read: 820.2 MB/s

4K QD32 Write: 615.5 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	93.9 pt
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	81.3 pt
Average of class Mini PC	61.2 pt
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	51.3 pt
Blackview MP200 Foresee XP1000F512G	47.3 pt
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	41.2 pt
Acemagic AD15 Netac NS512GSSD340	18.4 pt

DiskSpd
seq read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2689 (2681.42^min - 2688.76^max) MB/s +1%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	2655 (2644.09^min - 2654.58^max) MB/s
Average of class Mini PC (233 - 4357, n=122, last 2 years)	2272 MB/s -14%
Blackview MP200 Foresee XP1000F512G	2089 (1961.74^min - 2088.97^max) MB/s -21%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1720 (1344.24^min - 1720.17^max) MB/s -35%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1684 (1646.89^min - 1684.01^max) MB/s -37%
Acemagic AD15 Netac NS512GSSD340	526 (524.71^min - 525.97^max) MB/s -80%
seq write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3544 (3538.94^min - 3544.19^max) MB/s +1%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	3523 (3505.18^min - 3522.8^max) MB/s
Average of class Mini PC (222 - 5595, n=122, last 2 years)	2406 MB/s -32%
Blackview MP200 Foresee XP1000F512G	2395 (2371.88^min - 2394.91^max) MB/s -32%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2298 (1081.92^min - 2298.06^max) MB/s -35%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1075 (545.51^min - 1075.26^max) MB/s -69%
Acemagic AD15 Netac NS512GSSD340	464 (461.79^min - 463.68^max) MB/s -87%
seq q8 t1 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4797 (4271.21^min - 4796.87^max) MB/s 0%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	4788 (4242.12^min - 4787.8^max) MB/s
Average of class Mini PC (236 - 8430, n=122, last 2 years)	3647 MB/s -24%
Blackview MP200 Foresee XP1000F512G	3034 (2493.77^min - 3034.37^max) MB/s -37%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2522 (2230.32^min - 2522.44^max) MB/s -47%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2223 (1765.77^min - 2223.4^max) MB/s -54%
Acemagic AD15 Netac NS512GSSD340	545 (387.49^min - 544.63^max) MB/s -89%
seq q8 t1 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3541 (3519.65^min - 3541.04^max) MB/s 0%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	3533 (3500.99^min - 3532.65^max) MB/s
Average of class Mini PC (228 - 6669, n=122, last 2 years)	2703 MB/s -23%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2494 (2222.35^min - 2493.51^max) MB/s -29%
Blackview MP200 Foresee XP1000F512G	2412 (2365.59^min - 2411.72^max) MB/s -32%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1599 (266.87^min - 1599.24^max) MB/s -55%
Acemagic AD15 Netac NS512GSSD340	483 (480.04^min - 483.18^max) MB/s -86%
4k q1 t1 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	82.8 (82.48^min - 82.75^max) MB/s +3%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	80.2 (79.47^min - 80.17^max) MB/s
Average of class Mini PC (5.67 - 86.6, n=122, last 2 years)	54.9 MB/s -32%
Blackview MP200 Foresee XP1000F512G	53.7 (53.3^min - 53.65^max) MB/s -33%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	40.3 (36.8^min - 40.3^max) MB/s -50%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	38.1 (35.61^min - 38.07^max) MB/s -52%
Acemagic AD15 Netac NS512GSSD340	34.4 (34.22^min - 34.41^max) MB/s -57%
4k q1 t1 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	420 (417.55^min - 420.16^max) MB/s +9%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	386 (379.05^min - 385.59^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	229 (165.03^min - 229.29^max) MB/s -41%
Average of class Mini PC (30.4 - 435, n=122, last 2 years)	193.8 MB/s -50%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	120 (112.79^min - 120.03^max) MB/s -69%
Blackview MP200 Foresee XP1000F512G	105.3 (104.05^min - 105.3^max) MB/s -73%
Acemagic AD15 Netac NS512GSSD340	93.3 (91.37^min - 93.31^max) MB/s -76%
4k q32 t16 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1939 (1934.48^min - 1939.25^max) MB/s 0%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	1936 (1933.07^min - 1936.22^max) MB/s
Average of class Mini PC (26.1 - 4158, n=122, last 2 years)	1312 MB/s -32%
Blackview MP200 Foresee XP1000F512G	731 (727.82^min - 730.52^max) MB/s -62%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	639 (421.15^min - 639.47^max) MB/s -67%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	561 (475.29^min - 560.56^max) MB/s -71%
Acemagic AD15 Netac NS512GSSD340	189.2 (184.89^min - 189.2^max) MB/s -90%
4k q32 t16 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3388 (3373.11^min - 3387.88^max) MB/s +31%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	2578 (1137.7^min - 2578.06^max) MB/s
Average of class Mini PC (30.2 - 4288, n=122, last 2 years)	1263 MB/s -51%
Blackview MP200 Foresee XP1000F512G	754 (743.45^min - 754.38^max) MB/s -71%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	544 (355.98^min - 544.47^max) MB/s -79%
Acemagic AD15 Netac NS512GSSD340	229 (222.72^min - 229.28^max) MB/s -91%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	176.1 (168.14^min - 176.06^max) MB/s -93%

AS SSD
Score Total
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	6225 Points
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4744 Points -24%
Average of class Mini PC (181.5 - 10021, n=120, last 2 years)	4029 Points -35%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	3887 Points -38%
Blackview MP200 Foresee XP1000F512G	3153 Points -49%
Acemagic AD15 Netac NS512GSSD340	753 Points -88%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	748.83 Points -88%
Score Read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2356 Points +1%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	2327 Points
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1513 Points -35%
Average of class Mini PC (61 - 3741, n=120, last 2 years)	1507 Points -35%
Blackview MP200 Foresee XP1000F512G	1276 Points -45%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	661 Points -72%
Acemagic AD15 Netac NS512GSSD340	266 Points -89%
Score Write
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	2732 Points
Average of class Mini PC (88 - 4371, n=120, last 2 years)	1799 Points -34%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1632 Points -40%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1308 Points -52%
Blackview MP200 Foresee XP1000F512G	1235 Points -55%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	700 Points -74%
Acemagic AD15 Netac NS512GSSD340	345 Points -87%
Seq Read
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	4095 MB/s
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3874.21 MB/s -5%
Average of class Mini PC (291 - 6620, n=120, last 2 years)	3135 MB/s -23%
Blackview MP200 Foresee XP1000F512G	2930 MB/s -28%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2844 MB/s -31%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2268 MB/s -45%
Acemagic AD15 Netac NS512GSSD340	529 MB/s -87%
Seq Write
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	3118 MB/s
Blackview MP200 Foresee XP1000F512G	2478 MB/s -21%
Average of class Mini PC (240 - 5783, n=120, last 2 years)	2186 MB/s -30%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1318 MB/s -58%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	882.93 MB/s -72%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	524 MB/s -83%
Acemagic AD15 Netac NS512GSSD340	425 MB/s -86%
4K Read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	102.97 MB/s +2%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	100.9 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	63.4 MB/s -37%
Average of class Mini PC (6.08 - 104.3, n=120, last 2 years)	58.1 MB/s -42%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	53.5 MB/s -47%
Blackview MP200 Foresee XP1000F512G	52.2 MB/s -48%
Acemagic AD15 Netac NS512GSSD340	30.6 MB/s -70%
4K Write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	354.53 MB/s +7%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	332 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	225 MB/s -32%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	185.4 MB/s -44%
Average of class Mini PC (30.9 - 366, n=120, last 2 years)	174.8 MB/s -47%
Blackview MP200 Foresee XP1000F512G	103.1 MB/s -69%
Acemagic AD15 Netac NS512GSSD340	89.4 MB/s -73%
4K-64 Read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1865.81 MB/s +3%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	1817 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1223 MB/s -33%
Average of class Mini PC (23.4 - 3220, n=120, last 2 years)	1135 MB/s -38%
Blackview MP200 Foresee XP1000F512G	931 MB/s -49%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	323 MB/s -82%
Acemagic AD15 Netac NS512GSSD340	182.1 MB/s -90%
4K-64 Write
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	2089 MB/s
Average of class Mini PC (32.8 - 3731, n=120, last 2 years)	1406 MB/s -33%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1276 MB/s -39%
Blackview MP200 Foresee XP1000F512G	884 MB/s -58%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	865.27 MB/s -59%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	462 MB/s -78%
Acemagic AD15 Netac NS512GSSD340	213 MB/s -90%
Access Time Read
Blackview MP200 Foresee XP1000F512G	0.158 ms * -116%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.117 ms * -60%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.1 ms * -37%
Average of class Mini PC (0.022 - 0.489, n=120, last 2 years)	0.09934 ms * -36%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	0.073 ms *
Acemagic AD15 Netac NS512GSSD340	0.063 ms * +14%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.06 ms * +18%
Access Time Write
Blackview MP200 Foresee XP1000F512G	0.16 ms * -416%
Acemagic AD15 Netac NS512GSSD340	0.137 ms * -342%
Average of class Mini PC (0.016 - 0.765, n=120, last 2 years)	0.1137 ms * -267%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.11 ms * -255%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.087 ms * -181%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	0.031 ms *
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.023 ms * +26%

* ... smaller is better

Continuous Performance Read: DiskSpd Read Loop, Queue Depth 8

Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0: Ø4040 (1626.34-4798.7)

Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S: Ø1047 (95.4-2400.59)

Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0: Ø4789 (4164.37-4807.96)

Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG: Ø1246 (674.65-1585.03)

Acemagic AD15 Netac NS512GSSD340: Ø540 (386.44-542.74)

Blackview MP200 Foresee XP1000F512G: Ø3033 (2552.65-3092.67)

图形卡

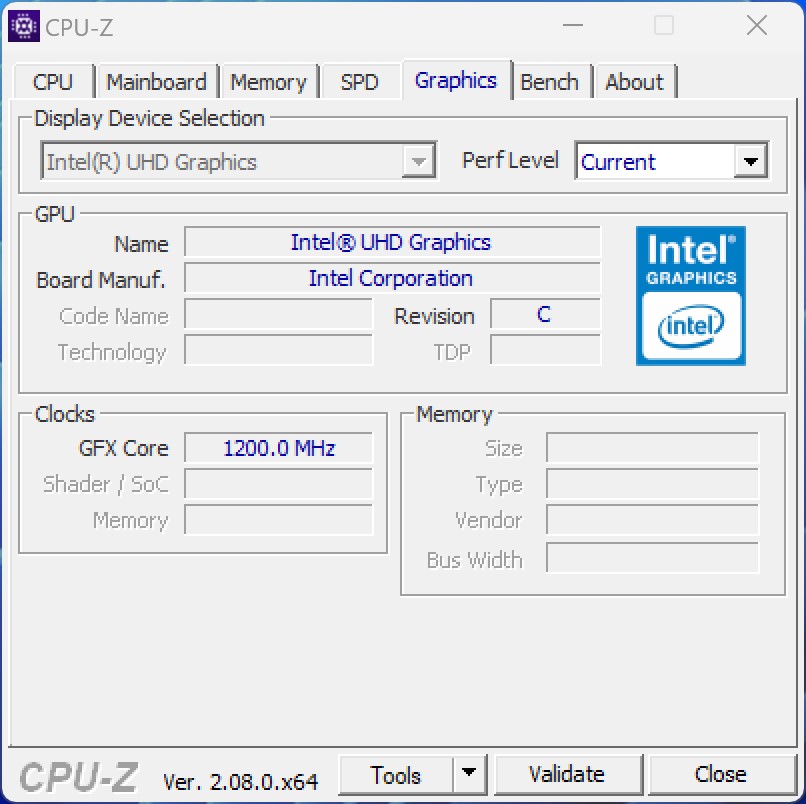

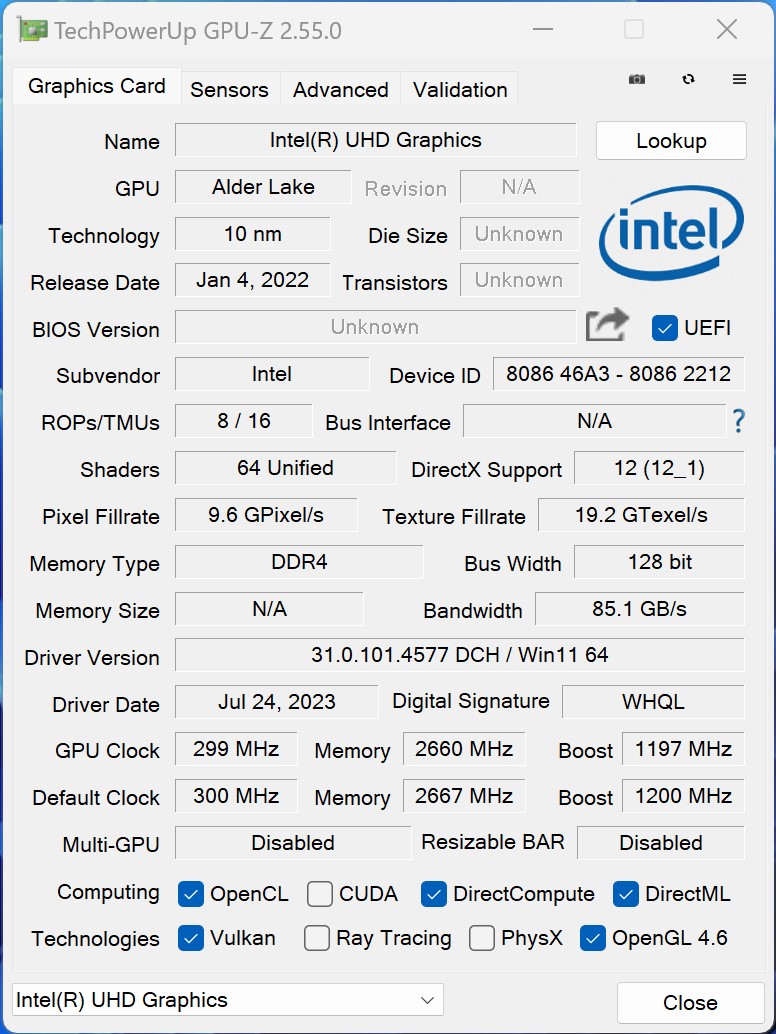

集成显卡单元采用IntelUHD Graphics ，有 64 个 EU。由于 SoC 的性能有限，我们观察到它的性能比 Minisforum Venus Series NAB6 差。基本上，iGPU 性能只能用于简单的 2D 图形。对于要求苛刻的 3D 图形来说，iGPU 的性能实在太弱了。较新的Intel Iris Xe Graphics G7 型号的 iGPU 性能要强一些，但与 AMD 当前的 iGPU（如AMD Radeon 680M 或AMD Radeon 780M ）相比，这些 iGPU 要逊色得多。

有关更多比较和基准，请查看我们的 G PU 对照表.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	100 pt
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	86.7 pt
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	85.6 pt
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	65.9 pt
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	52.6 pt
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	26.5 pt

3DMark 11 - 1280x720 Performance GPU
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	5634 Points +44%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5462 Points +40%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	5413 Points +38%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	3912 Points
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	3168 Points -19%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	1654 Points -58%

3DMark
1280x720 Cloud Gate Standard Graphics
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	28159 Points +40%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	21383 Points +6%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	20098 Points
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	19240 Points -4%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	15662 Points -22%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	7779 Points -61%
1920x1080 Fire Strike Graphics
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	4621 Points +51%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4098 Points +34%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	4041 Points +32%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	3055 Points
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	2495 Points -18%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	1203 Points -61%
2560x1440 Time Spy Graphics
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	1430 Points +67%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1300 Points +52%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1217 Points +42%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	855 Points
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	658 Points -23%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	348 Points -59%
Fire Strike Extreme Graphics
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	2149 Points +59%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1866 Points +38%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1833 Points +36%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	1349 Points
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	1101 Points -18%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	544 Points -60%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1

Performance Rating - Percent
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	95.1 pt
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	80.9 pt
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	79.4 pt
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	61.9 pt
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	52.4 pt
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	29 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.4 fps +108%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	19.7 fps +101%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	17.7 fps +81%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	13.3 fps +36%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	9.8 fps
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	7.5 fps -23%
Extreme Preset DX11
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.9 fps +31%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	20.4 fps +28%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	17.9 fps +13%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	15.9 fps
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	14 fps -12%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	7.7 fps -52%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	12.8 fps +28%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	11.3 fps +13%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	10.9 fps +9%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	10 fps
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	8.8 fps -12%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	5.1 fps -49%
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	17.7 fps
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	15.1 fps -15%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	11.7 fps -34%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	11.6 fps -34%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	10.1 fps -43%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	5.4 fps -69%

ComputeMark v2.1
1024x600 Normal, Score
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	3439 Points +98%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	2766 Points +59%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	2512 Points +45%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	1735 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	1422 Points -18%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	745 Points -57%
1024x600 Normal, Fluid 3DTex
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	318 Points +57%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	223 Points +10%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	216 Points +6%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	203 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	182 Points -10%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	118 Points -42%
1024x600 Normal, Fluid 2DTexArr
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	340 Points +73%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	230 Points +17%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	220 Points +12%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	197 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	170 Points -14%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	109 Points -45%
1024x600 Normal, Mandel Vector
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	933 Points +205%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	598 Points +95%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	483 Points +58%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	306 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	254 Points -17%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	144 Points -53%
1024x600 Normal, Mandel Scalar
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	885 Points +83%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	779 Points +61%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	770 Points +59%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	483 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	378 Points -22%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	141 Points -71%
1024x600 Normal, QJuliaRayTrace
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	963 Points +76%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	936 Points +71%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	823 Points +50%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	547 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	457 Points -16%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	233 Points -57%

游戏性能

英特尔英特尔UHD Graphics有限的 3D 性能在一定程度上影响了游戏的乐趣。不过，这并不是 Minisforum 的维纳斯系列 UN1245 的目标，只有在较老的游戏中才能达到可玩的帧率。英特尔英特尔UHD Graphics只能在最低细节设置下以 720p 处理较新的游戏。使用Minisforum UM790 Pro及其AMD Radeon 780M.您可以使用 HX99G以及 NUCXi7同样来自 Minisforum。由于采用了专用显卡，它们都能提供出色的游戏性能。

Performance Rating - Percent
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	98.4 pt
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	86.3 pt
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	69.8 pt
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	66.9 pt
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	54.2 pt
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	32.3 pt

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	80.8 fps +29%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	76.8 fps +23%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	63.3 fps +1%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	62.4 (20.6^min, 26.1^P0.1, 35.1^P1) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	47.3 (4.78^min, 19.9^P0.1, 25.3^P1) fps -24%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	24.5 fps -61%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	26.2 fps +30%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	22.6 fps +12%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	22.2 fps +10%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	20.2 (10.1^min, 10.8^P0.1, 11.1^P1) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	16.1 (8.34^min, 8.6^P0.1, 8.83^P1) fps -20%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	8.3 fps -59%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	49 fps +49%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	46 fps +40%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	36.6 fps +11%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	32.9 fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	24.5 fps -26%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	13.4 fps -59%
1920x1080 High Overall Quality (DX11)
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	13.6 fps +60%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	12.1 fps +42%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	10.5 fps +23%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	8.52 fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	6.23 fps -27%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	3.3 fps -61%

GTA V
1024x768 Lowest Settings possible
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	142.9 (1.358^min, 71.4^P1) fps +23%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	129.9 (16.1^min, 83.3^P1) fps +12%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	116.1 (16^min, 83.3^P1) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	100.8 (23.7^min, 71.4^P1) fps -13%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	97.7 (25.6^min, 55.6^P1) fps -16%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	59.3 (9.5^min, 33.3^P1) fps -49%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	33.9 (1.094^min, 20.4^P1) fps +132%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	20.5 (8.17^min, 14.5^P1) fps +40%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	18.5 (6.9^min, 14.3^P1) fps +27%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	14.6 (9.64^min, 11^P1) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	13.7 (7.54^min, 9.71^P1) fps -6%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	8.59 (3.34^min, 6.21^P1) fps -41%

Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	62 (49^min) fps +72%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	50 (44^min) fps +39%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	40 (35^min) fps +11%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	36 (32^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	30 (26^min) fps -17%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	16 (14^min) fps -56%
1920x1080 High Preset AA:T
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	29 (25^min) fps +81%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	22 (19^min) fps +38%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	19 (17^min) fps +19%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	16 (13^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	12 (10^min) fps -25%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	7 (6^min) fps -56%

Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	58 (42^min) fps +71%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	48 (32^min) fps +41%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	36 (24^min) fps +6%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	34 (21^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	27 (17^min) fps -21%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	15 (11^min) fps -56%
1920x1080 High Preset
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	29 (23^min) fps +81%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	23 (17^min) fps +44%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	18 (14^min) fps +13%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	16 (12^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	13 (9^min) fps -19%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	7 (5^min) fps -56%

Dota 2 Reborn
1280x720 min (0/3) fastest
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	135.9 (121.4^min) fps +2%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	134.7 (102.1^min) fps +1%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	133.3 (93.2^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	116 (101.7^min) fps -13%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	98.7 (85.5^min) fps -26%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	95.8 (84.4^min) fps -28%
1920x1080 high (2/3)
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	64.9 (56.8^min) fps +45%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	57.8 (54.5^min) fps +29%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	45.2 (38.5^min) fps +1%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	44.7 (41.8^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	37.1 (33.3^min) fps -17%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	22.6 (20.6^min) fps -49%

	low	med.	high	ultra
GTA V (2015)	116.1	97.4	14.6	6.27
The Witcher 3 (2015)	62.4	39	20.2	10.2
Dota 2 Reborn (2015)	133.3	88.9	44.7	41.6
Final Fantasy XV Benchmark (2018)	29.3	15.3	11
Far Cry 5 (2018)	36	17	16	14
Shadow of the Tomb Raider (2018)	34.9	15.5	14.3	11.9
Far Cry New Dawn (2019)	34	17	16	15
Borderlands 3 (2019)	32.9	14.4	8.52	6.21
F1 2020 (2020)	60.2	28.3	21	13
F1 2021 (2021)	71.5	31.4	25.2	16.2
Tiny Tina's Wonderlands (2022)	17.6	13.8	8.66	6.68
F1 22 (2022)	27.9	24.9	17.7	13.6

排放 - 负载时经济，但仍可听到。

噪音排放

在我们的音量测量中，Minisforum Venus 系列 UN1245 并没有达到我们所习惯的 Minisforum 标准。该系统的音量略高于 32 dB(A)，虽然很安静，但仍可听到。如果推动设备，声音会迅速变大，达到 39.8 dB(A)时，声音会明显变大。不过，在压力测试中，声音又略有增大，噪音峰值超过 43 dB(A)。在目前的对比中，我们的评测样品仅在负载情况下优于 Blackview MP200。

Noise Level

Idle		32 / 32.1 / 32.2 dB(A)
Load		39.8 / 43.3 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 25.2 dB(A)

	Minisforum Venus Series UN1245 i5-12450H, UHD Graphics 64EUs	Morefine M600, 6600U R5 6600U, Radeon 660M	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	Acemagic AD15 i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
Noise		11%	6%	7%	14%	5%
off / environment *	25.2	29.4 -17%	29.4 -17%	29.7 -18%	25.4 -1%	25.1 -0%
Idle Minimum *	32	29.4 8%	29.4 8%	30.2 6%	26.2 18%	25.3 21%
Idle Average *	32.1	29.4 8%	29.5 8%	30.2 6%	26.5 17%	25.3 21%
Idle Maximum *	32.2	29.5 8%	29.7 8%	30.2 6%	27.3 15%	25.3 21%
Load Average *	39.8	29.6 26%	34.6 13%	30.6 23%	30.8 23%	46 -16%
Load Maximum *	43.3	29.6 32%	36.1 17%	36.4 16%	37.5 13%	51.8 -20%
Witcher 3 ultra *				30.5	32.6

* ... smaller is better

温度

Minisforum Venus 系列 UN1245 的机箱在空载和负载运行时仅有轻微发热。热热点仅出现在设备后部的出风口区域。

由于 Minisforum 只为英特尔酷睿 i5-12450H 提供 45 瓦的功率，我们在压力测试中没有注意到任何临界值。在 Prime95 压力测试中，我们记录的最高温度为 80 °C。当 CPU 和 iGPU 同时承受压力时，最高温度会略有下降，因为功耗必须共享。这也是我们在这款评测设备上记录到 3D 性能较低的原因，因为更有效的冷却意味着 SoC 可以在 95 瓦的功率下运行。

Minisforum Venus 系列 UN1245 与不带箱盖的压力测试对比)

Max. Load

Idle


32.1 °C	36.6 °C	32.4 °C
28.2 °C	30.5 °C	28.7 °C
28 °C	30.2 °C	28.6 °C

Maximum: 36.6 °C
Average: 30.6 °C


28.2 °C	28.7 °C	29.4 °C
28.8 °C	31.8 °C	29.2 °C
28.7 °C	27.8 °C	28.6 °C

Maximum: 31.8 °C
Average: 29 °C

Power Supply (max.) 47 °C | Room Temperature 22 °C | Fluke t3000FC (calibrated)

(+) The average temperature for the upper side under maximal load is 30.6 °C / 87 F, compared to the average of 32.1 °C / 90 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 36.6 °C / 98 F, compared to the average of 35.8 °C / 96 F, ranging from 24 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 31.8 °C / 89 F, compared to the average of 36.3 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 27.5 °C / 82 F, compared to the device average of 32.1 °C / 90 F.

耗电量

配备 90 瓦 PSU 的 Minisforum Venus 系列 UN1245

由于 Minisforum 没有赋予英特尔酷睿 i5-12450H 最大性能，因此功耗相当经济。运行 Fidel 时，Minisforum Venus 系列 UN1245 只需要 8.2 至 9.6 瓦。在压力测试中，我们观察到 73.6 瓦的相对较低值，尽管竞争产品经常超过或超过 100 瓦大关。Minisforum 维纳斯系列 NAB6).这使得所提供的 90 瓦 PSU 足够大，能够为第二个大容量存储设备提供足够的容量。

Power Consumption

Off / Standby	1.6 / 1.1 Watt
Idle	8.2 / 8.6 / 9.6 Watt
Load	52.1 / 73.6 Watt


Key: min: , med: , max: Metrahit Energy

	Minisforum Venus Series UN1245 i5-12450H, UHD Graphics 64EUs	Morefine M600, 6600U R5 6600U, Radeon 660M	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	Acemagic AD15 i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	Average of class Mini PC
Power Consumption		-2%	-35%	19%	-41%	-26%	-23%	-30%
Idle Minimum *	8.2	8 2%	10.4 -27%	7.3 11%	8.7 -6%	9 -10%	9.53 ?(3.6 - 14.3, n=11) -16%	9.64 ?(1.9 - 45.7, n=118, last 2 years) -18%
Idle Average *	8.6	8.7 -1%	12.3 -43%	7.8 9%	14.9 -73%	10.6 -23%	11.4 ?(5.3 - 16.8, n=11) -33%	11.6 ?(1.9 - 47.5, n=117, last 2 years) -35%
Idle Maximum *	9.6	8.8 8%	12.4 -29%	8.4 12%	18.9 -97%	19.9 -107%	15.9 ?(7 - 28.7, n=11) -66%	15 ?(2.6 - 57.1, n=118, last 2 years) -56%
Load Average *	52.1	54.6 -5%	72.9 -40%	28.7 45%	49.6 5%	30.9 41%	52.6 ?(34.7 - 76.9, n=10) -1%	57.4 ?(11.3 - 170.6, n=118, last 2 years) -10%
Load Maximum *	73.6	83.2 -13%	101.2 -38%	61.1 17%	97.7 -33%	97.8 -33%	71.9 ?(44.6 - 101.2, n=11) 2%	97 ?(18.1 - 423, n=118, last 2 years) -32%
Witcher 3 ultra *						44.8

* ... smaller is better

Power consumption with an external monitor

Minisforum Venus Series UN1245; Prime95 V2810 Stress (external Monitor): Ø72.5 (71.3-73.6)

Minisforum Venus Series UN1245; Cinebench R15 Multi (external Monitor): Ø65.9 (65.6-66.2)

Minisforum Venus Series UN1245; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø35.8 (33.7-40.6)

Minisforum Venus Series UN1245; 1920x1080 The Witcher 3 ultra (external Monitor): Ø49.1 (47.6-71.6)

Minisforum Venus Series UN1245; Idle 1min (external Monitor): Ø9.17 (8.95-9.66)

Pros

+ 轻巧而坚固的机箱

+ 占用空间小

+ 多个 USB 端口

+ 日常可用的性能

+ VESA 安装选项

+ 低能耗

+ 稳定的 CPU 性能

+ 价格低廉

Cons

- 没有 SD 读卡器

- 负载情况下冷却装置声音清晰

- 无 Thunderbolt

- Wi-Fi 性能低于平均水平

评语 - 日常使用的经济型迷你 PC

Minisforum Venus Series UN1245 评论 - 由 Minisforum 提供

Minisforum Venus 系列 UN1245 是一款不起眼的迷你 PC，非常适合日常办公。配备了英特尔酷睿 i5-12450H，您将获得一个既经济又能处理所有问题的优秀 SoC。遗憾的是，由于功耗限制，该系统芯片的多核性能未能达到预期。诚然，从主观角度来看，这种限制并不特别明显。由于与金星系列中质量更高的设备存在价格差异，你不得不满足于塑料外壳。不过，Minisforum 为金星系列 UN1245 配备了一个非常小的散热装置，这一点并不重要。它始终存在，在负载情况下甚至可以清晰地听到。在这方面，我们已经习惯了 Minisforum 的其他/更好的选择。

Minisforum Venus 系列 UN1245 是一款性价比极高的可靠工作工具。

Minisforum Venus 系列 UN1245 的价格仅为 310 美元，非常实惠，这可能会带来很大的不同。当然，不能忘记的是，310 美元只是裸机系统的价格，而我们的评测样品售价约为 429 美元。不过，考虑到功率，即使这样的价格也是非常便宜的。

在连接选项方面，只有再看一眼才会发现我们面对的是维纳斯系列的廉价版。虽然 Minisforum Venus Series NAB6 仍然安装了双网卡，但这里只有一个网络插口。此外，Minisforum Venus Series NPB5 也没有配备 Thunderbolt。

价格和供应情况

Minisforum Venus Series UN1245 目前在 Minisforum 美国商店无货。不过，Minisforum UN1245 在亚马逊上有售。目前的售价为 310 美元。

Minisforum Venus Series UN1245 - 2023-10-06 10/06/2023 v7 ^(old)
Sebastian Bade

Chassis

71 / 98 → 72%

Connectivity

55 / 81 → 68%

Weight

82%

Games Performance

62%

Application Performance

95%

Workstation

53%

Temperature

94%

Noise

78%

Average

74%

78%

Mini PC - Weighted Average

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

潜在的竞争对手比较

外壳 - 用塑料代替铝

尺寸比较

功能 - 不错的选择，但没有 Thunderbolt

交流

配件

维护

性能 - Alder Lake-H，8 核 12 线程

测试条件

处理器

Minisforum Venus Series UN1245 与 Cinebench R15 多环路比较

系统性能

DPC 延迟

大容量存储器

Continuous Performance Read: DiskSpd Read Loop, Queue Depth 8

图形卡

游戏性能

排放 - 负载时经济，但仍可听到。

噪音排放

温度

耗电量

Power consumption with an external monitor

Pros

Cons

评语 - 日常使用的经济型迷你 PC

价格和供应情况

Transparency

More articles related to this device
