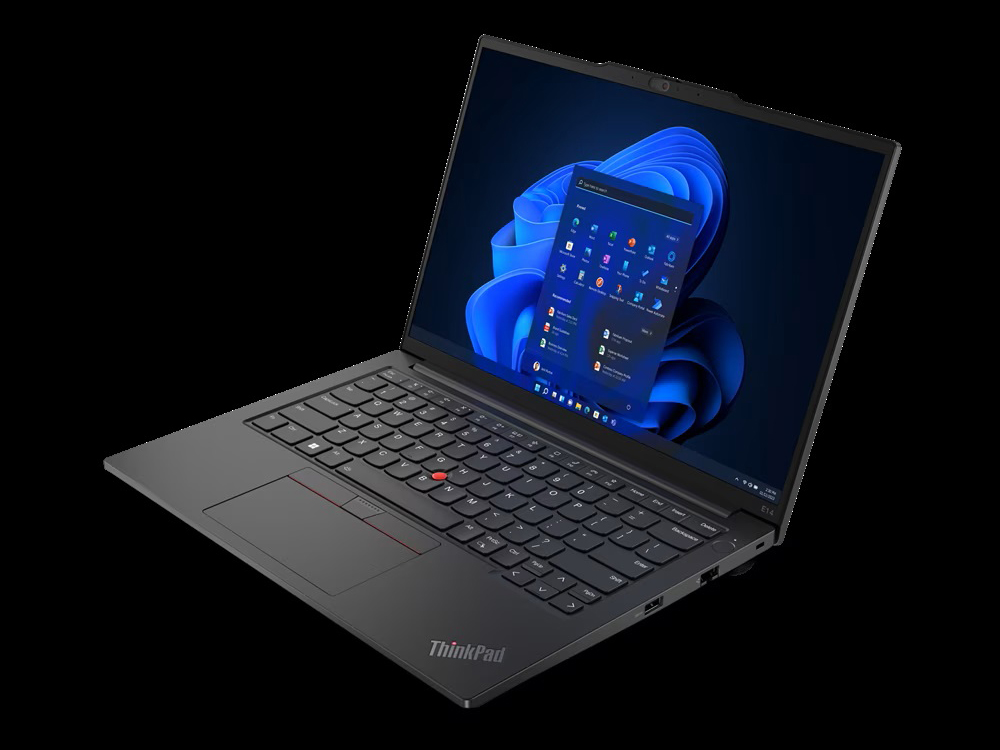

联想 ThinkPad E14 G5 英特尔笔记本电脑评测:酷睿 i7-1355U 对 Ryzen 7 7730U
在最近评测了 ThinkPad E14 G5 AMD 版之后,我们现在准备评测 ThinkPad E14 G5 Intel 版。这两个版本的机箱设计相同,因此我们建议查看 我们对 AMD 版的评测了解该机型的更多物理特性。不过,两者之间还是存在一些内部差异,我们将在下面的评测中提及。
我们的测试机是英特尔的中间配置,配备第 13 代 Raptor Lake 酷睿 i7-1355U CPU 和 1200p FHD+ 显示屏,售价约为 915 美元。其他 SKU 从酷睿 i3-1315U 到酷睿 i7-13700H,可选GeForce MX550 显卡和分辨率更高的 2240 x 1400 IPS 显示屏。可配置的范围比预期的要宽,尤其是对于 14 英寸的子笔记本而言。
ThinkPad E14 G5 的替代产品包括其他中高端商务子笔记本,如HP EliteBook 845 或戴尔Latitude 7440 。
更多联想评论:
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
---|---|---|---|---|---|---|---|
86 % v7 (old) | 10 / 2023 | Lenovo ThinkPad E14 G5 i7-1355U i7-1355U, Iris Xe G7 96EUs | 1.5 kg | 17.99 mm | 14.00" | 1920x1200 | |
88.3 % v7 (old) | 08 / 2023 | Lenovo ThinkPad E14 G5-21JSS05C00 R7 7730U, Vega 8 | 1.4 kg | 18 mm | 14.00" | 2240x1400 | |
90.1 % v7 (old) | 08 / 2023 | HP EliteBook 845 G10 818N0EA R9 PRO 7940HS, Radeon 780M | 1.5 kg | 17.9 mm | 14.00" | 2560x1600 | |
85.3 % v7 (old) | 06 / 2023 | Asus ZenBook 14 UM3402Y R7 7730U, Vega 8 | 1.4 kg | 16.9 mm | 14.00" | 2880x1800 | |
86.6 % v7 (old) | 10 / 2022 | LG Gram 14Z90Q i5-1240P, Iris Xe G7 80EUs | 980 g | 16.8 mm | 14.00" | 1920x1200 | |
90.3 % v7 (old) | 07 / 2023 | Dell Latitude 7440 i5-1345U, Iris Xe G7 80EUs | 1.2 kg | 17.95 mm | 14.00" | 2560x1600 |
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名
案例
要区分 ThinkPad E14 G5 英特尔版和 AMD 版,最简单的方法也许就是寻找左侧边缘的 Thunderbolt 徽标。AMD 版本不支持 Thunderbolt 和 USB4,因此英特尔版本在扩展坞功能方面更胜一筹。
交流

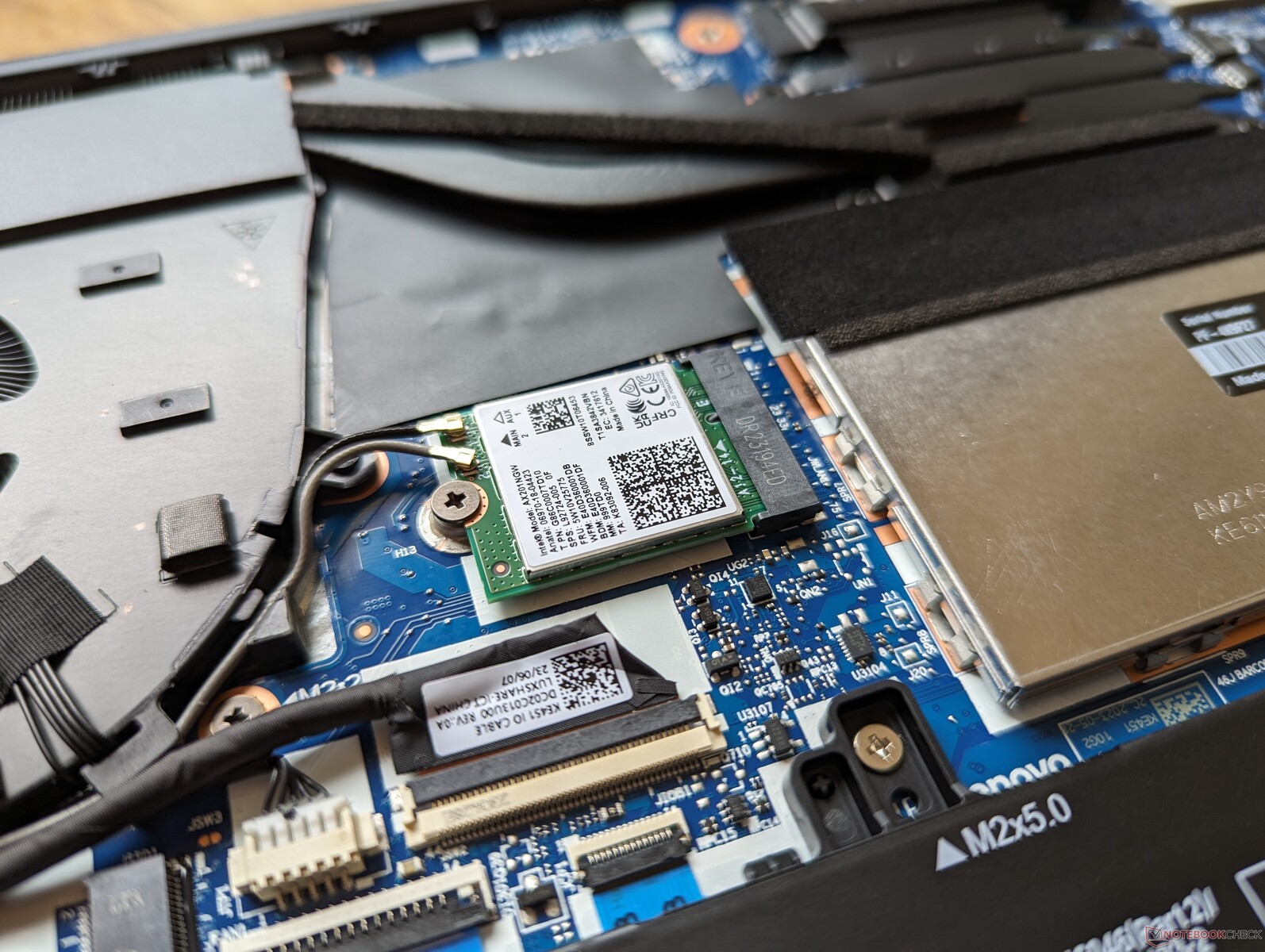

英特尔 AX201 支持 Wi-Fi 6 和蓝牙 5.1。需要 Wi-Fi 6E 连接的用户可选配价格更高的 AX211。
Networking | |
iperf3 transmit AXE11000 | |
Lenovo ThinkPad E14 G5-21JSS05C00 | |
Lenovo ThinkPad E14 G5 i7-1355U | |
Dell Latitude 7440 | |
Asus ZenBook 14 UM3402Y | |
iperf3 receive AXE11000 | |
Lenovo ThinkPad E14 G5-21JSS05C00 | |
Lenovo ThinkPad E14 G5 i7-1355U | |
Asus ZenBook 14 UM3402Y | |
Dell Latitude 7440 | |
iperf3 transmit AXE11000 6GHz | |
HP EliteBook 845 G10 818N0EA | |
Asus ZenBook 14 UM3402Y | |
Dell Latitude 7440 | |
iperf3 receive AXE11000 6GHz | |
HP EliteBook 845 G10 818N0EA | |
LG Gram 14Z90Q | |
Asus ZenBook 14 UM3402Y | |
Dell Latitude 7440 |
网络摄像头
虽然隐私快门是所有型号的标准配置,但 1080p 分辨率和红外传感器是可选配置。低端型号可能配备 720p 传感器。

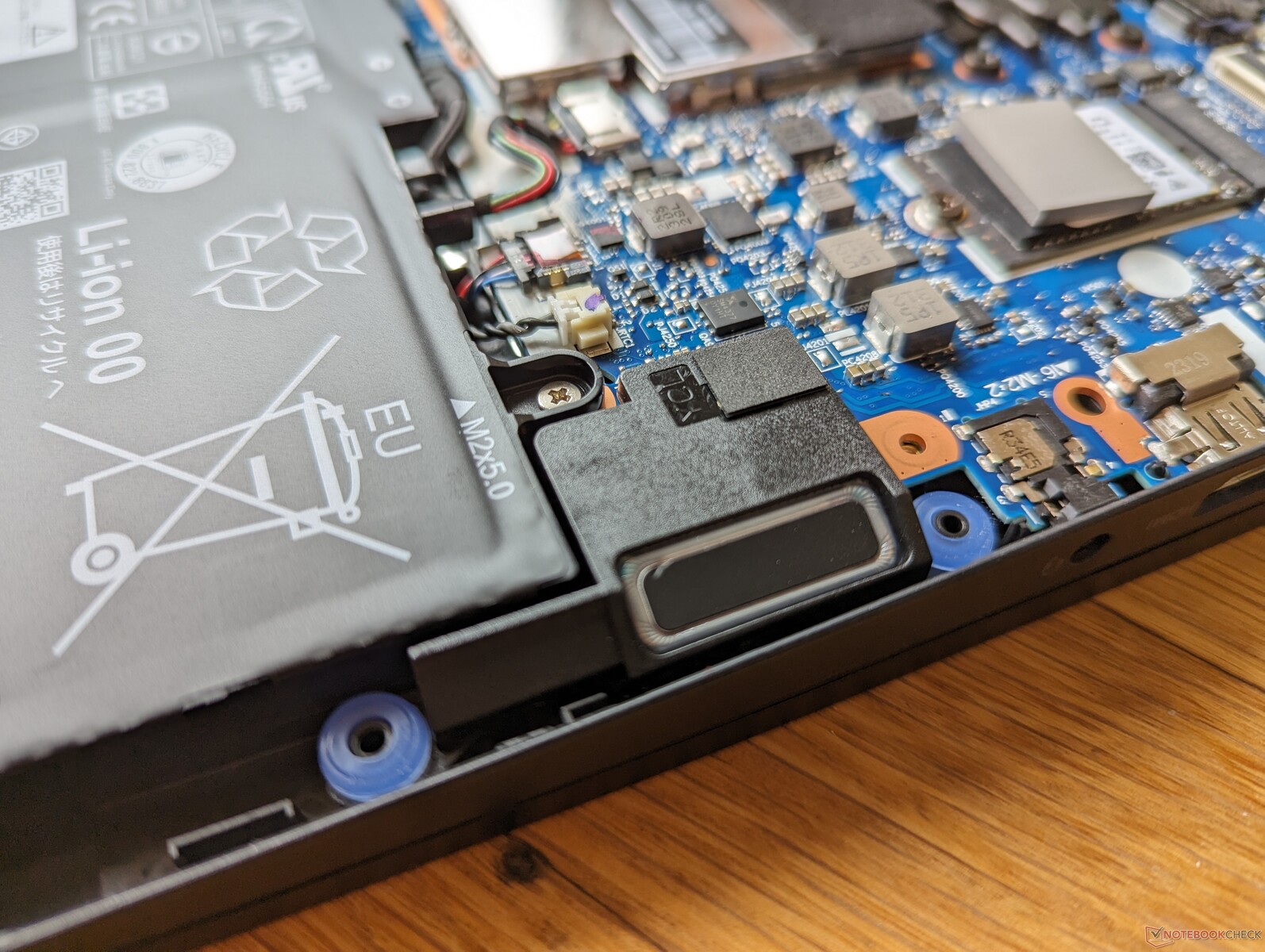

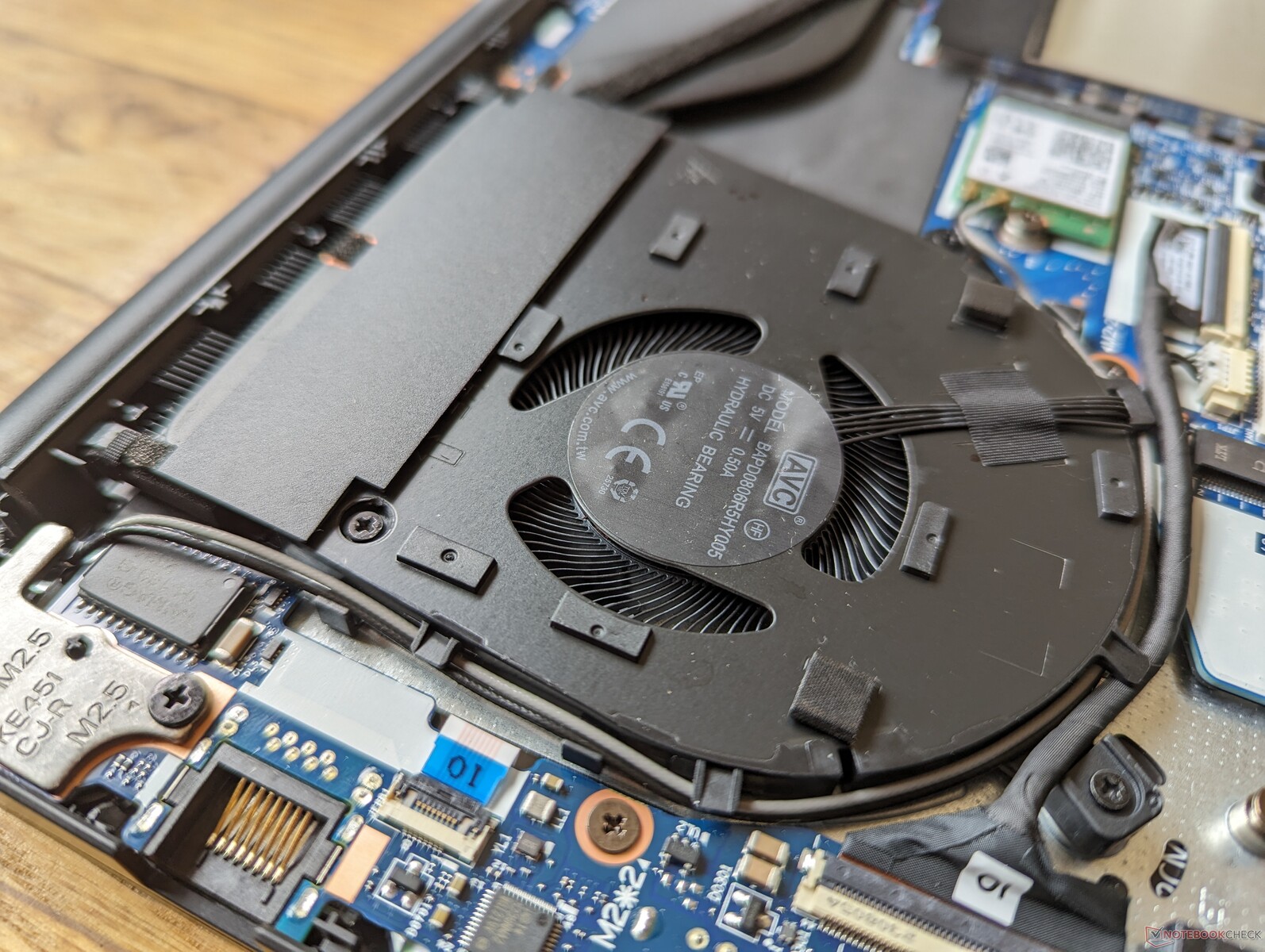

维护

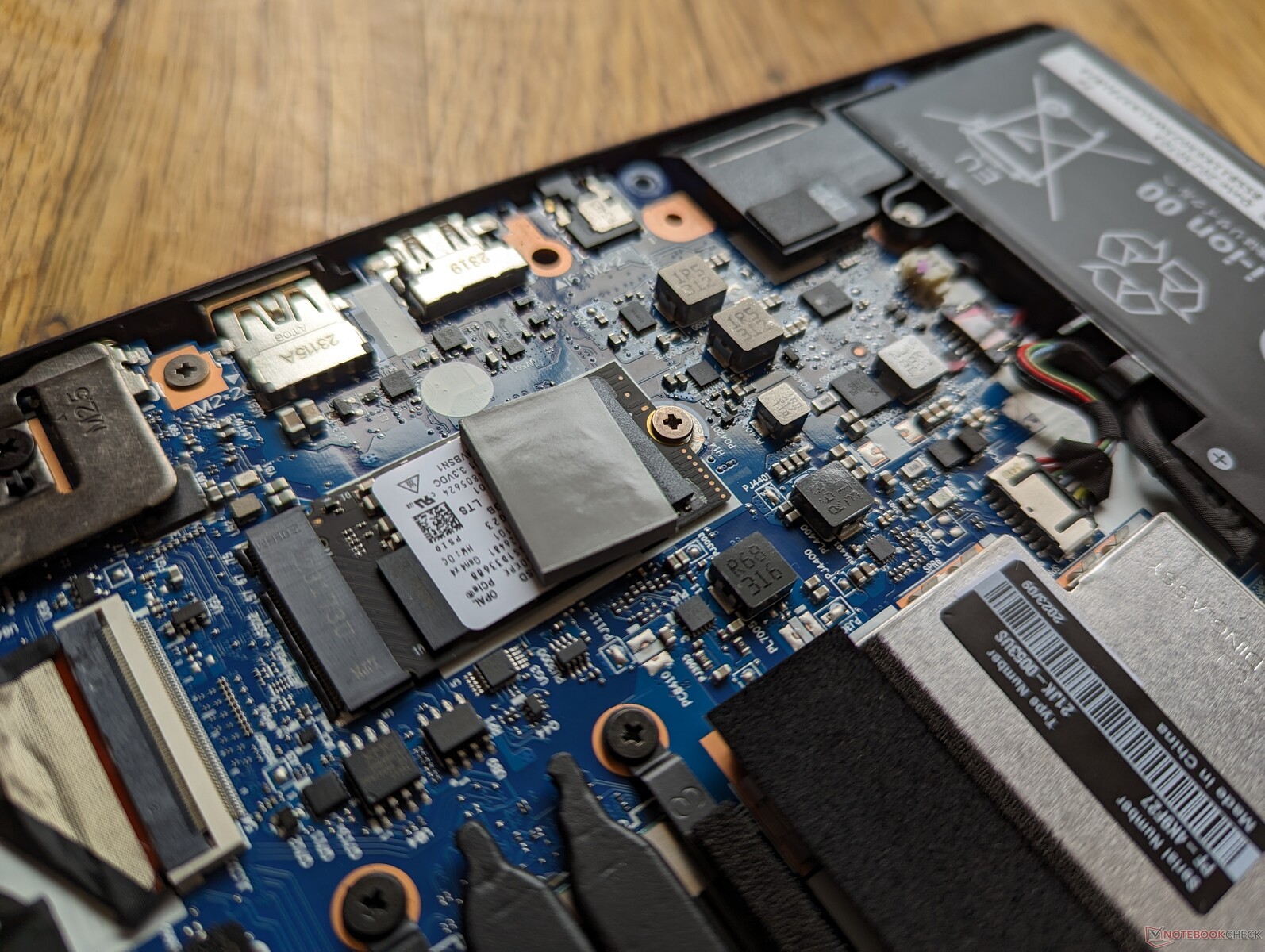

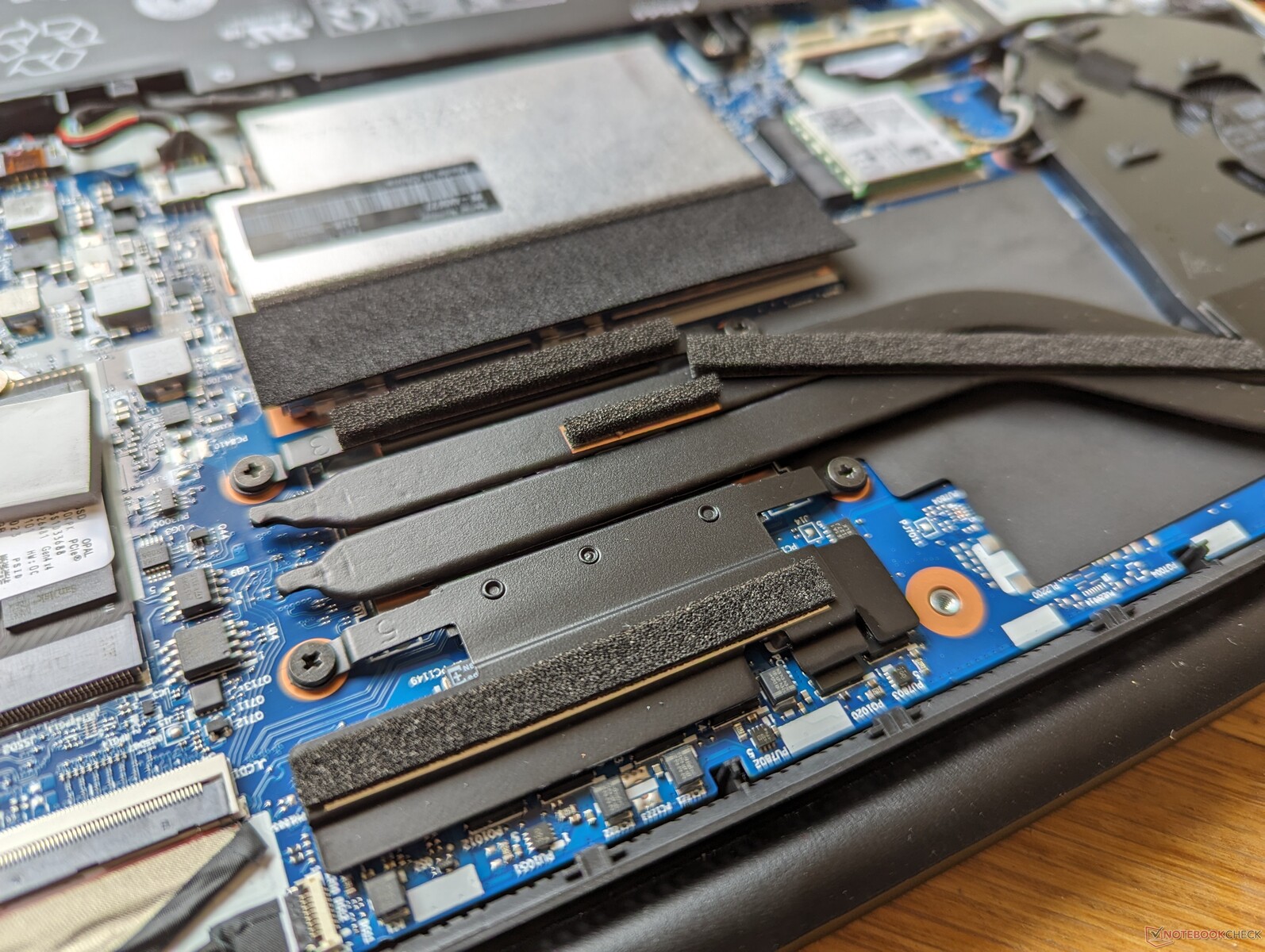

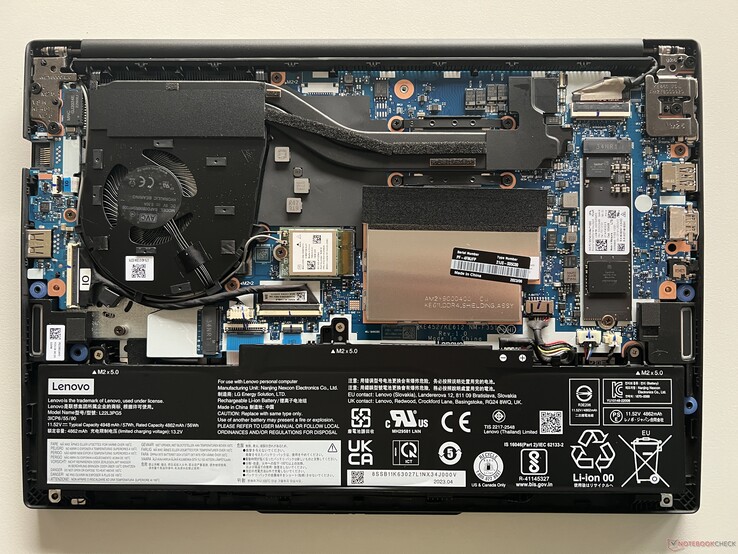

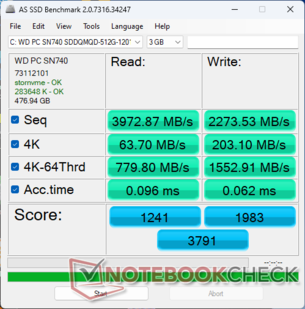

英特尔和 AMD 版本的一个有趣区别是,英特尔版本不支持全长的 M.2 2280 固态硬盘,如下图所示。最多仍可安装两个驱动器(PCIe4 x4 + PCIe3 x4),但每个驱动器的长度必须不超过 42 毫米(2242)。
配件和保修
包装盒内除了交流适配器和文件外没有其他附件。如果在美国购买,制造商提供一年有限保修。

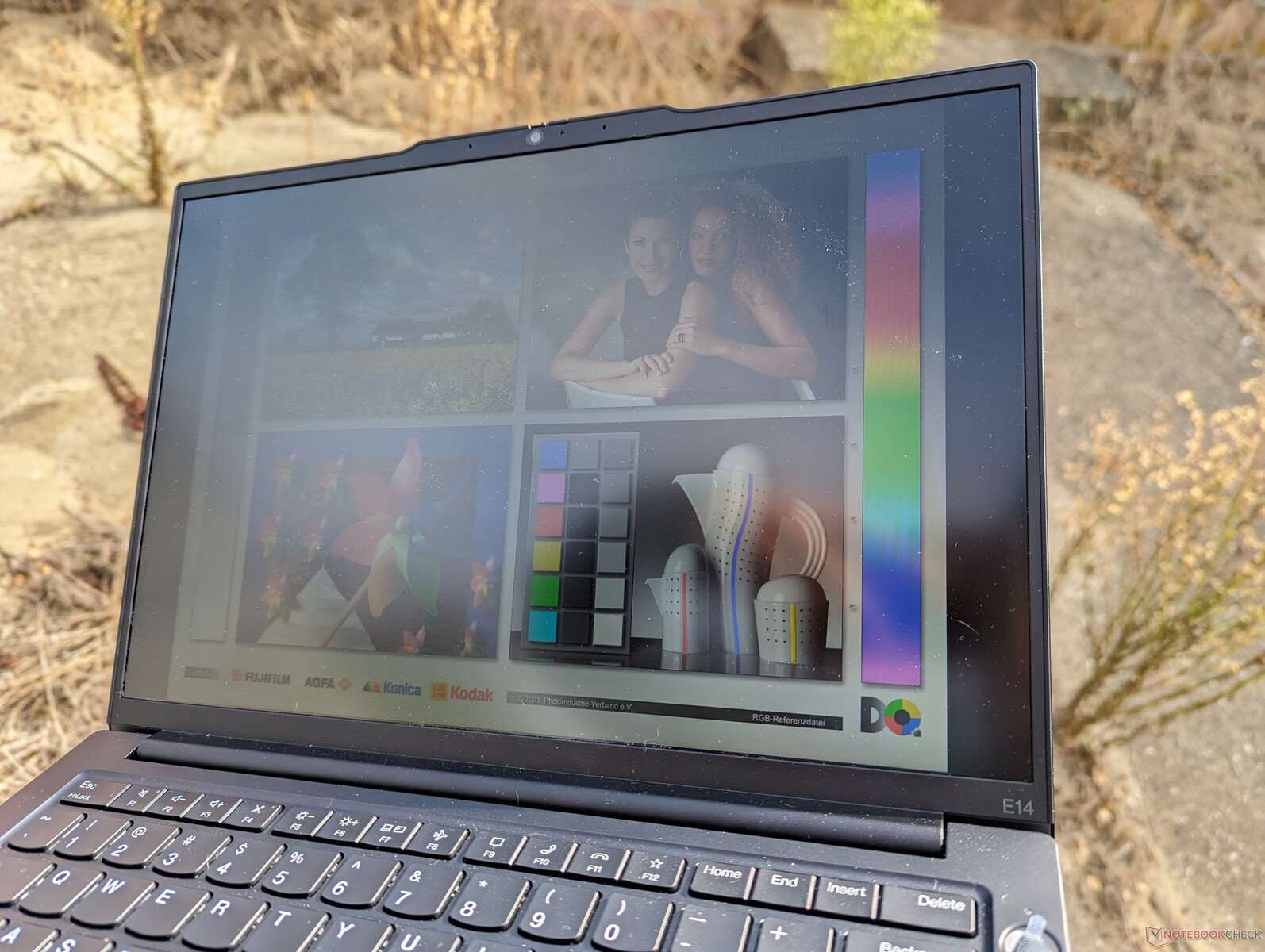

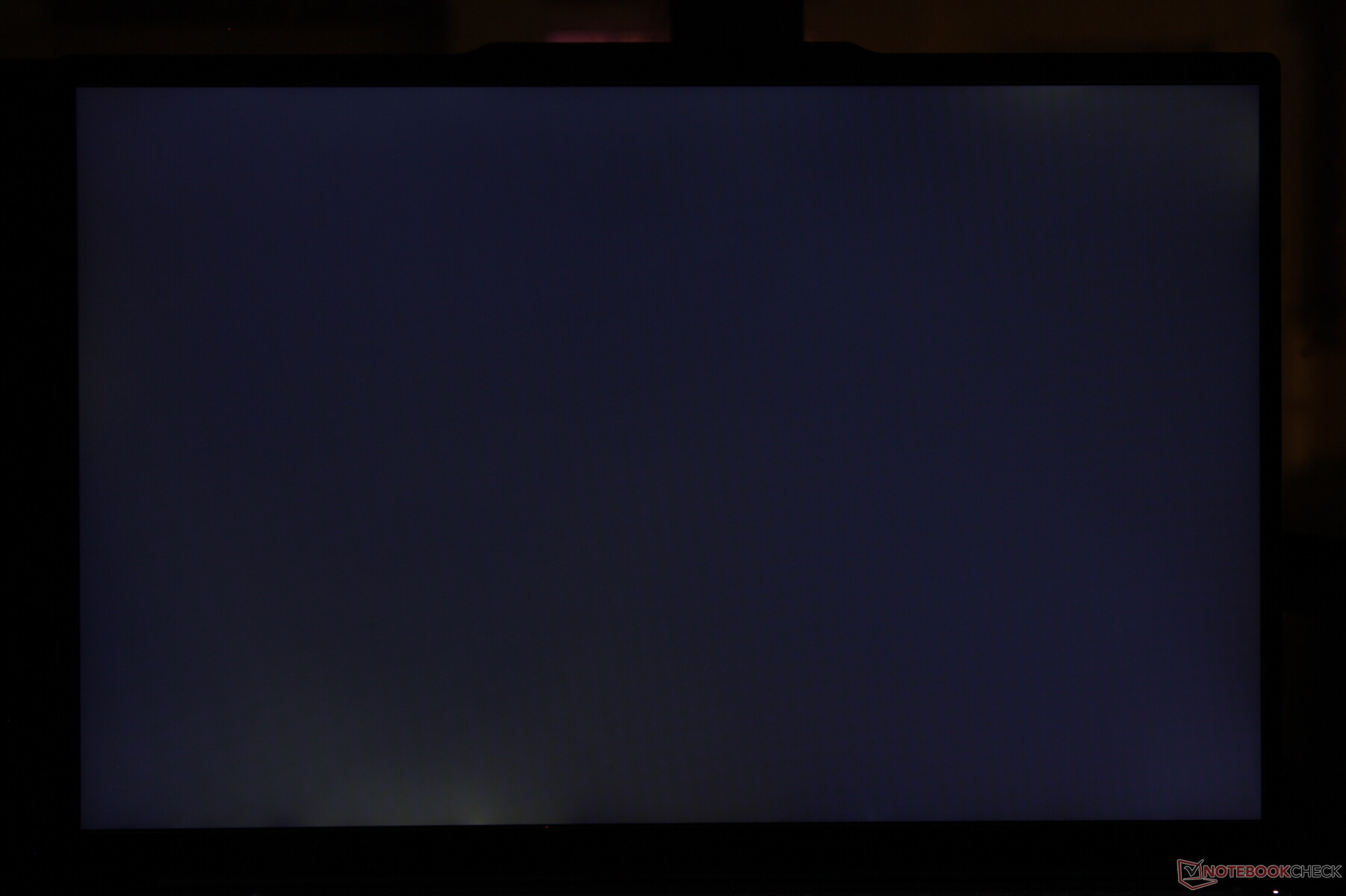

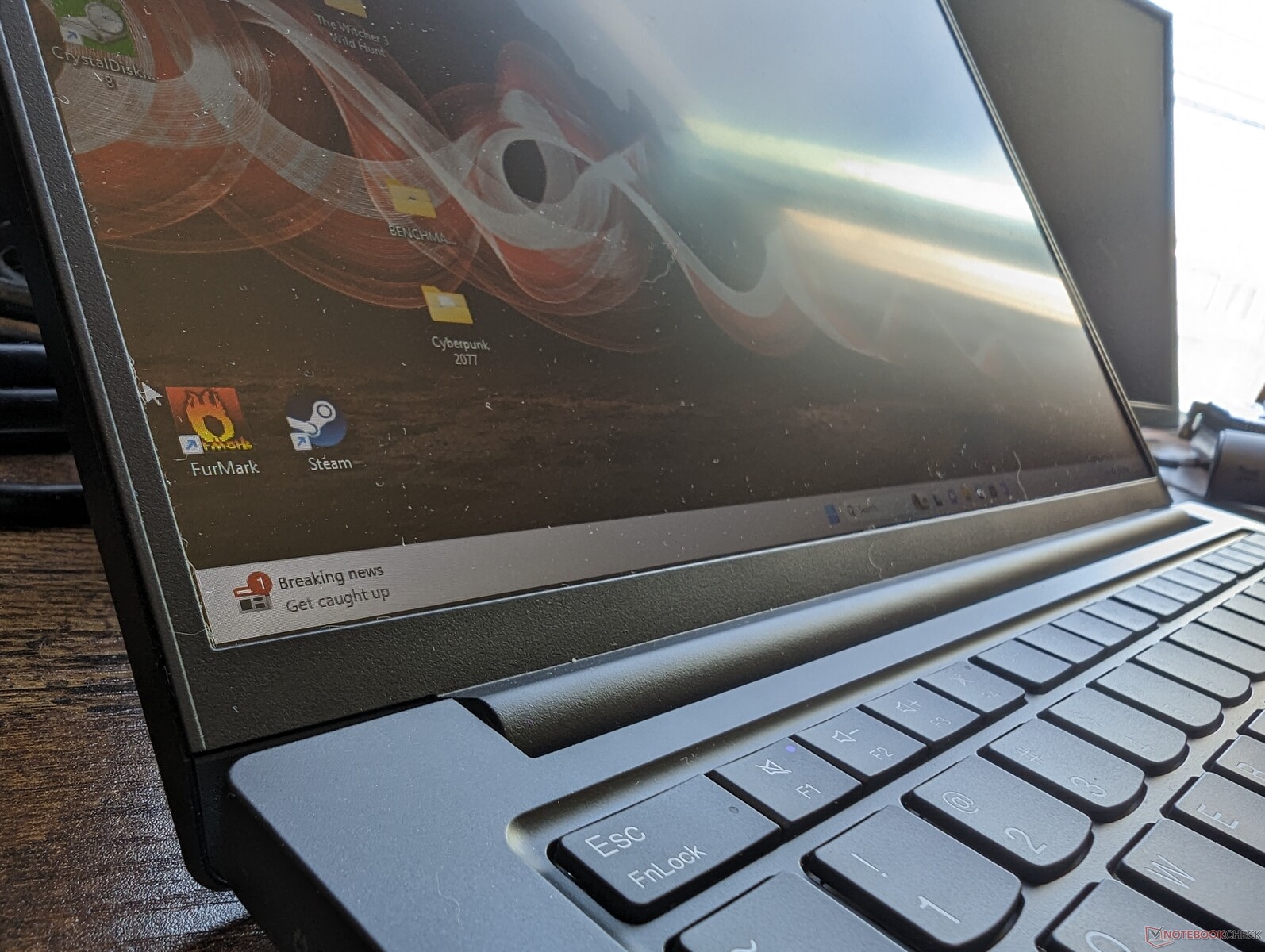

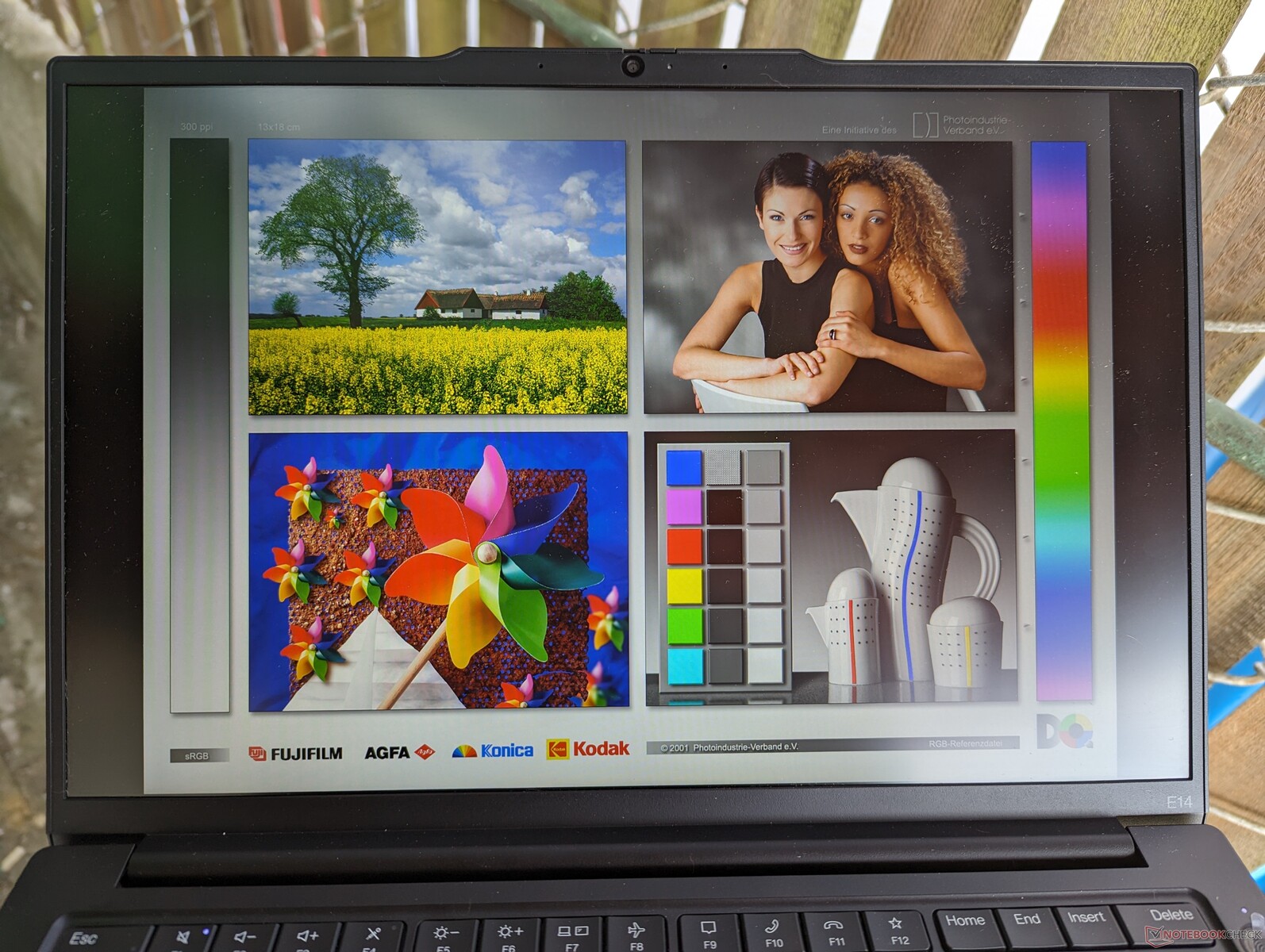

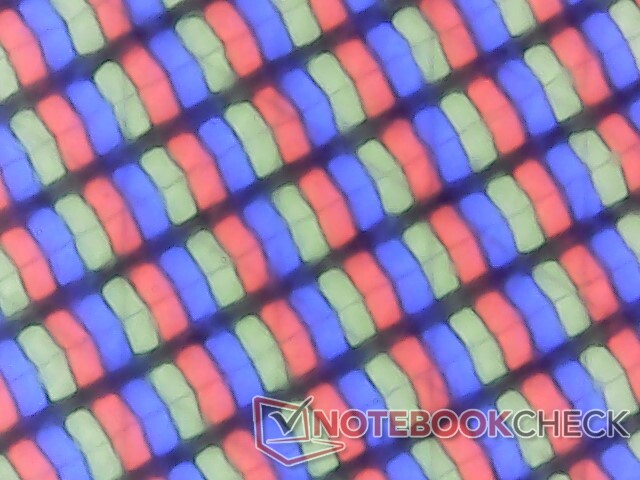

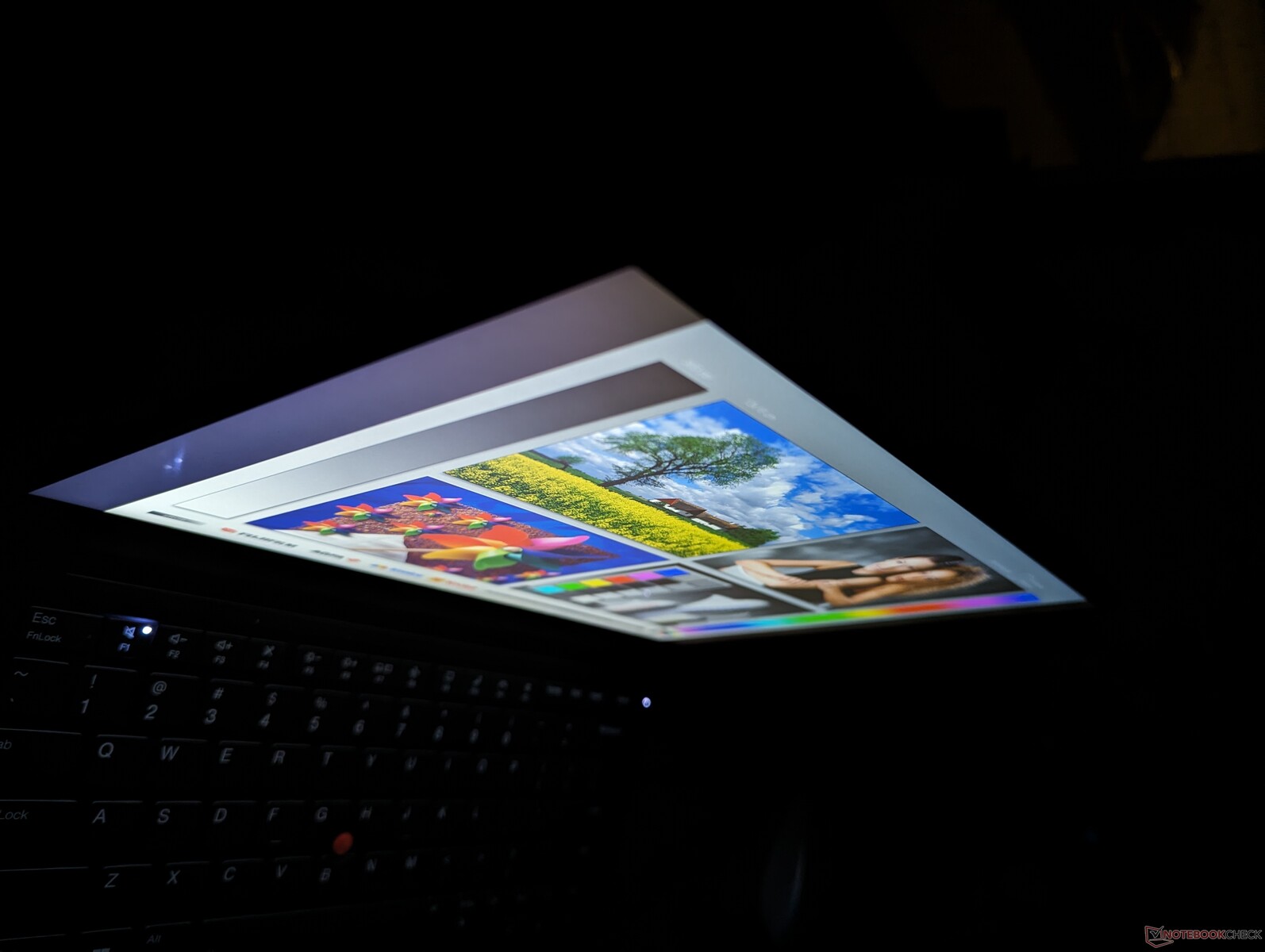

显示屏
有以下三种显示选项:
- 1920 x 1200、IPS、60% sRGB、60 赫兹、300 尼特、非触摸、哑光
- 1920 x 1200,IPS,60% sRGB,60 赫兹,300 尼特,触摸,哑光
- 2240 x 1400、IPS、100% sRGB、60 赫兹、300 尼特、非触摸、哑光

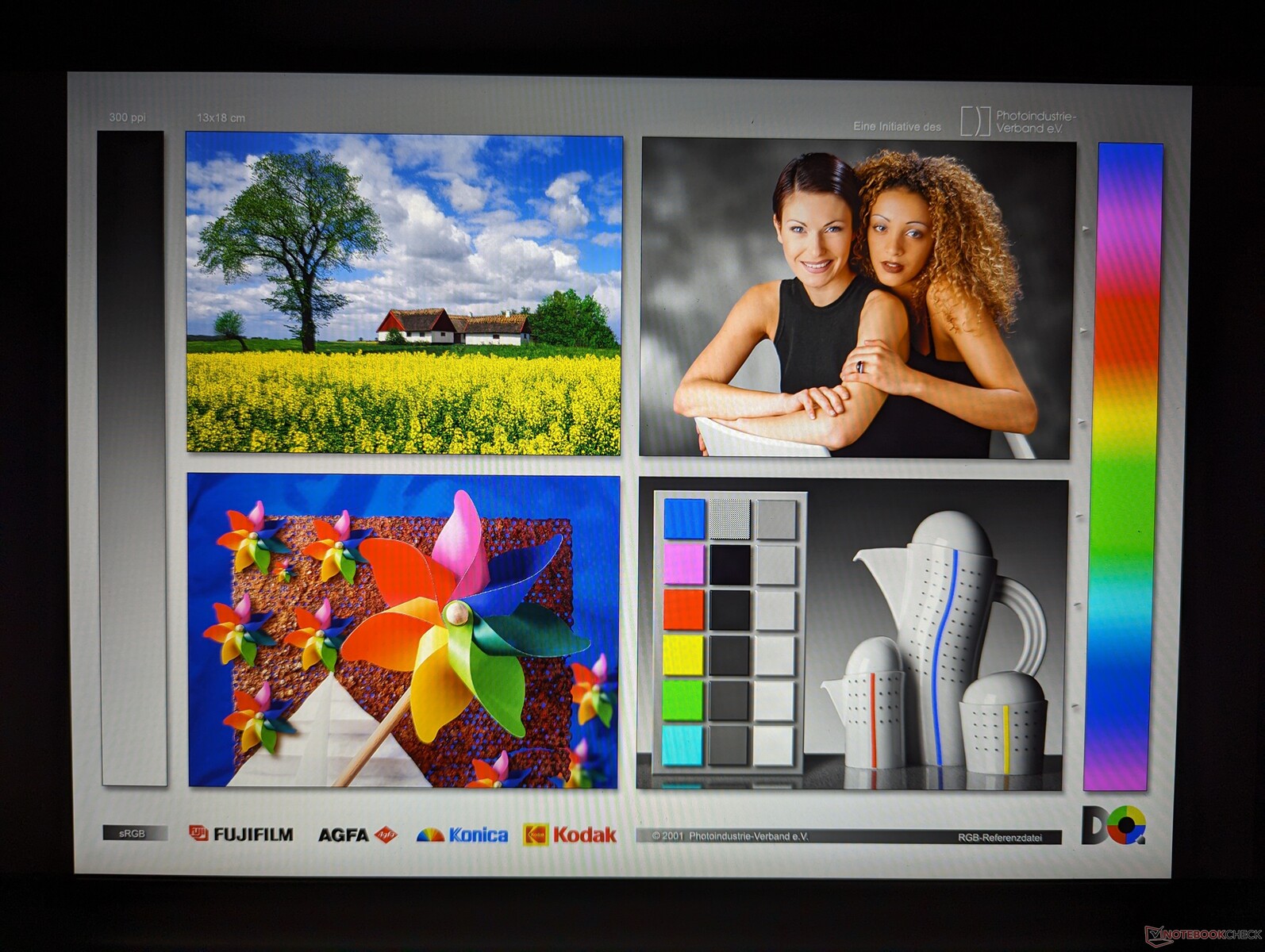

我们的 AMD 设备配置的是 1400p 面板,而我们的英特尔设备配置的是粗体选项。如果您的工作负载需要更准确的色彩和更高的对比度,我们建议您使用 1400p 面板。除此之外,亮度和黑白响应时间等其他属性在所有选项中似乎都是一致的。
|
Brightness Distribution: 86 %
Center on Battery: 352.3 cd/m²
Contrast: 1305:1 (Black: 0.27 cd/m²)
ΔE Color 4.99 | 0.5-29.43 Ø4.91, calibrated: 1.87
ΔE Greyscale 5.3 | 0.5-98 Ø5.2

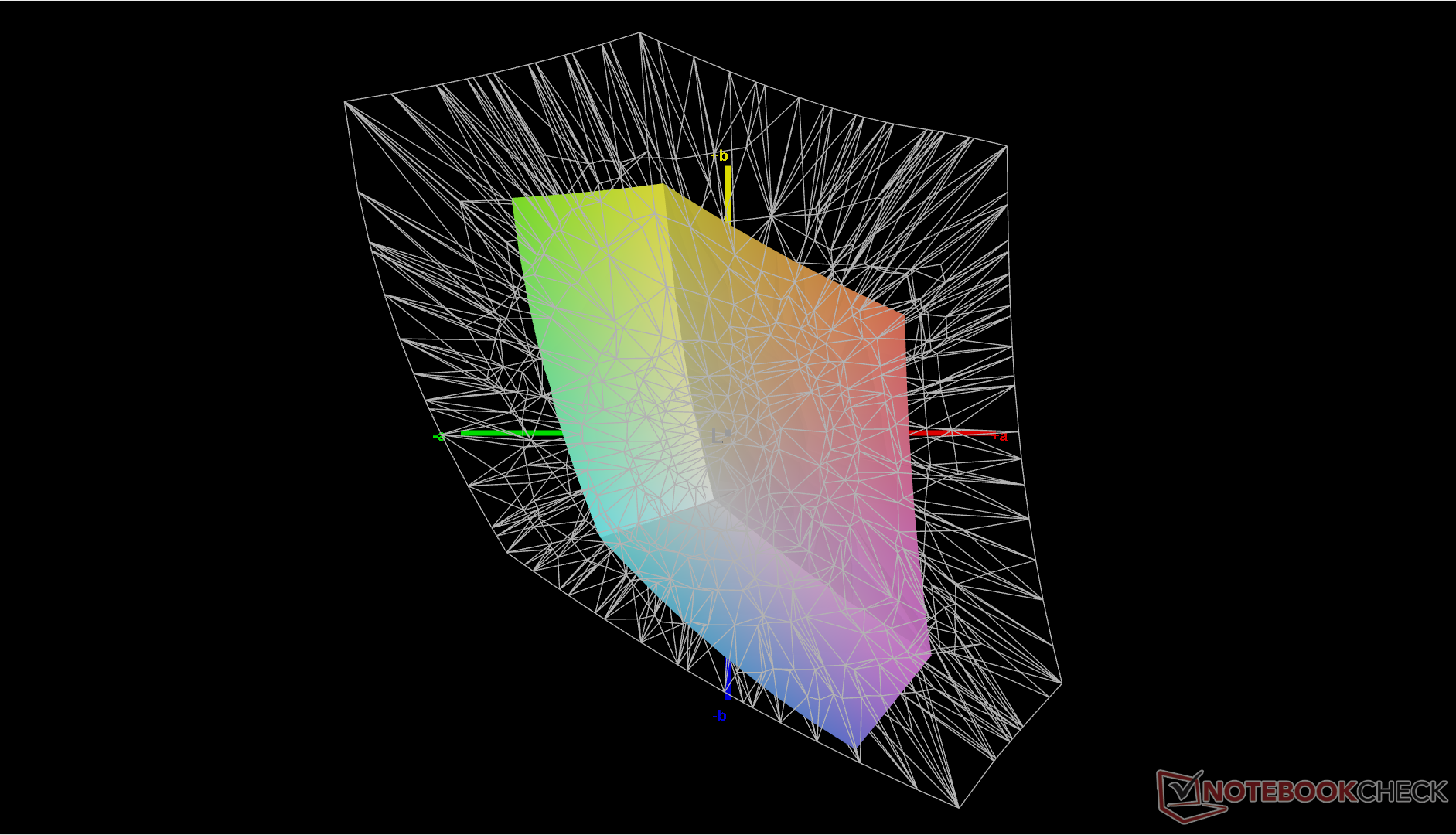

43.3% AdobeRGB 1998 (Argyll 2.2.0 3D)

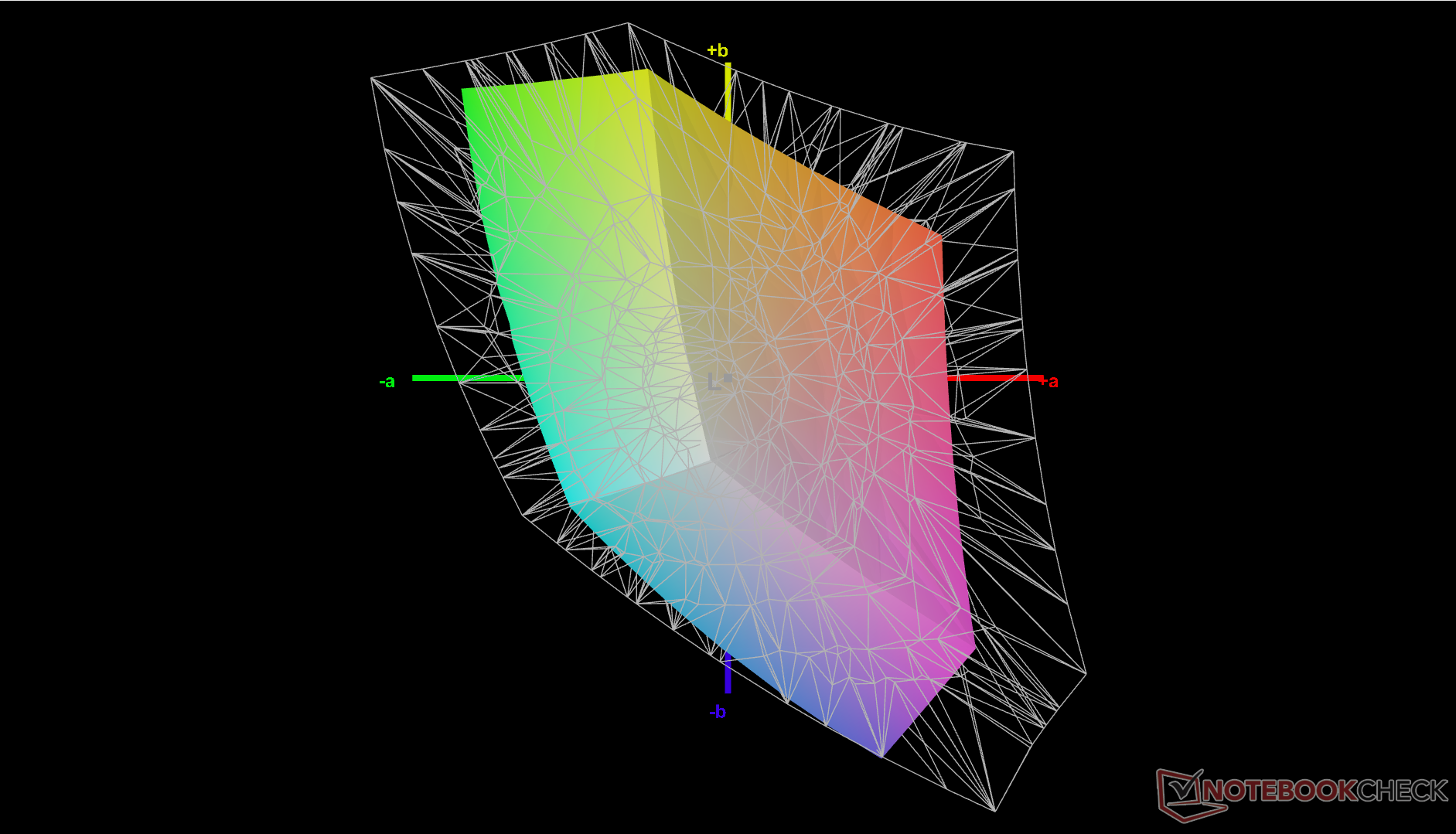

63% sRGB (Argyll 2.2.0 3D)
41.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.2
Lenovo ThinkPad E14 G5 i7-1355U R140NW4D R5, IPS, 1920x1200, 14" | Lenovo ThinkPad E14 G5-21JSS05C00 M140NWHE R1, IPS, 2240x1400, 14" | HP EliteBook 845 G10 818N0EA AUO6DA8, IPS, 2560x1600, 14" | Asus ZenBook 14 UM3402Y Samsung ATNA40YK07-1, OLED, 2880x1800, 14" | LG Gram 14Z90Q LG LP140WU1-SPF1, IPS, 1920x1200, 14" | Dell Latitude 7440 AU Optronics B140QAX, IPS, 2560x1600, 14" | |
---|---|---|---|---|---|---|
Display | 61% | 97% | 108% | 97% | 72% | |
Display P3 Coverage | 41.9 | 69.3 65% | 98.3 135% | 99.9 138% | 98.4 135% | 75.4 80% |
sRGB Coverage | 63 | 97.6 55% | 99.8 58% | 100 59% | 99.9 59% | 99.9 59% |
AdobeRGB 1998 Coverage | 43.3 | 70.4 63% | 86.2 99% | 98.3 127% | 85.9 98% | 76.2 76% |
Response Times | -9% | 60% | 94% | -40% | -70% | |
Response Time Grey 50% / Grey 80% * | 30.7 ? | 36.3 ? -18% | 12.7 ? 59% | 1.19 ? 96% | 47.5 ? -55% | 56 ? -82% |
Response Time Black / White * | 19.6 ? | 19.5 ? 1% | 7.9 ? 60% | 1.62 ? 92% | 24.5 ? -25% | 30.8 ? -57% |
PWM Frequency | 362.3 ? | |||||
Screen | 33% | 38% | 41% | 14% | 22% | |
Brightness middle | 352.3 | 362 3% | 546 55% | 336.6 -4% | 341 -3% | 517.3 47% |
Brightness | 344 | 354 3% | 564 64% | 339 -1% | 305 -11% | 488 42% |
Brightness Distribution | 86 | 91 6% | 86 0% | 98 14% | 87 1% | 88 2% |
Black Level * | 0.27 | 0.18 33% | 0.38 -41% | 0.26 4% | 0.34 -26% | |
Contrast | 1305 | 2011 54% | 1437 10% | 1312 1% | 1521 17% | |
Colorchecker dE 2000 * | 4.99 | 2.6 48% | 1.3 74% | 0.84 83% | 3.11 38% | 3.3 34% |
Colorchecker dE 2000 max. * | 14.84 | 3.7 75% | 5.3 64% | 3.1 79% | 8.29 44% | 7.81 47% |
Colorchecker dE 2000 calibrated * | 1.87 | 1.1 41% | 1.2 36% | 0.83 56% | 1.02 45% | |
Greyscale dE 2000 * | 5.3 | 3.3 38% | 1.1 79% | 1.4 74% | 5.3 -0% | 5.6 -6% |
Gamma | 2.2 100% | 2.28 96% | 2.27 97% | 2.24 98% | 2.037 108% | 2.37 93% |
CCT | 7682 85% | 6761 96% | 6463 101% | 6439 101% | 7571 86% | 6804 96% |
Total Average (Program / Settings) | 28% /
33% | 65% /
54% | 81% /
69% | 24% /
24% | 8% /
20% |
* ... smaller is better

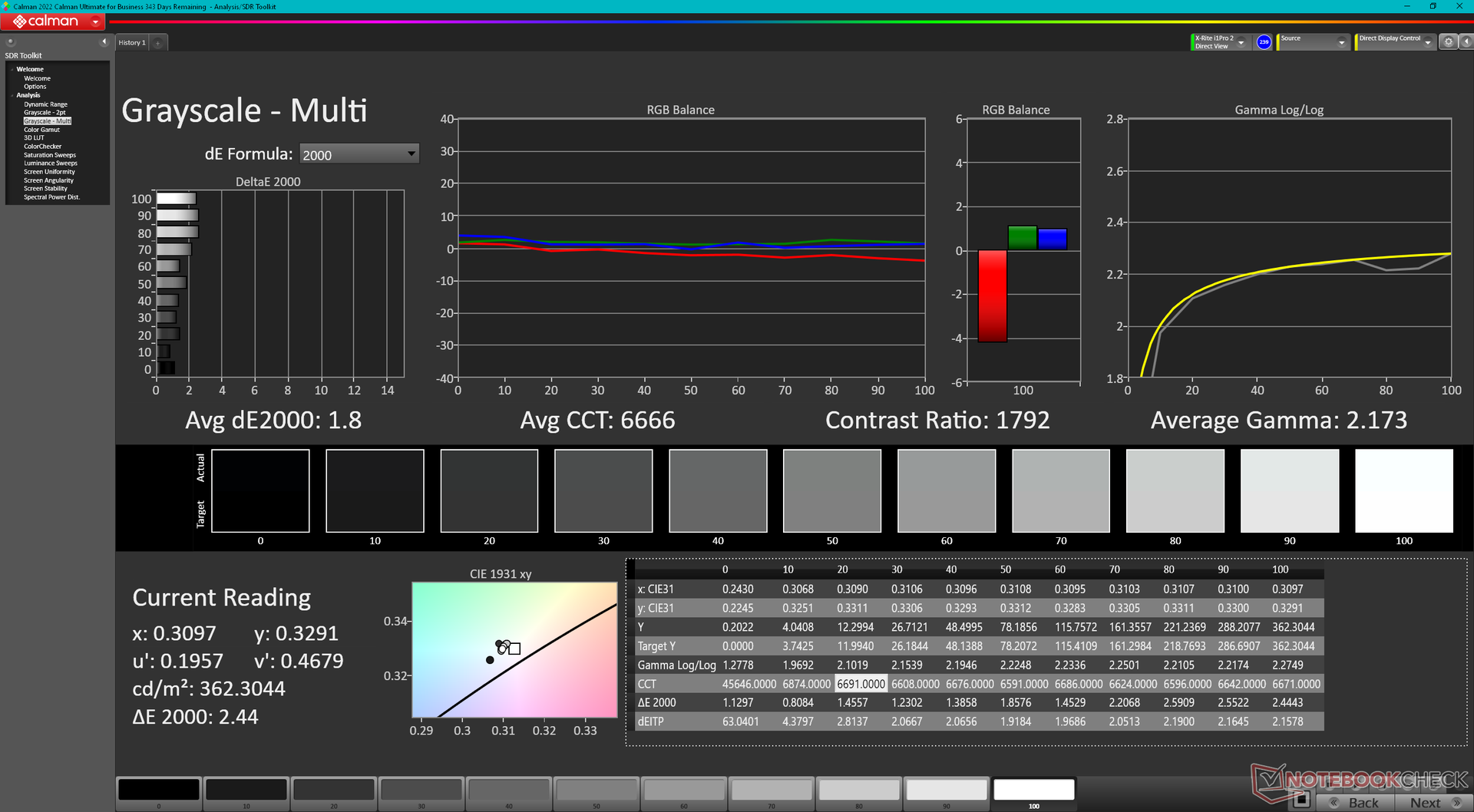

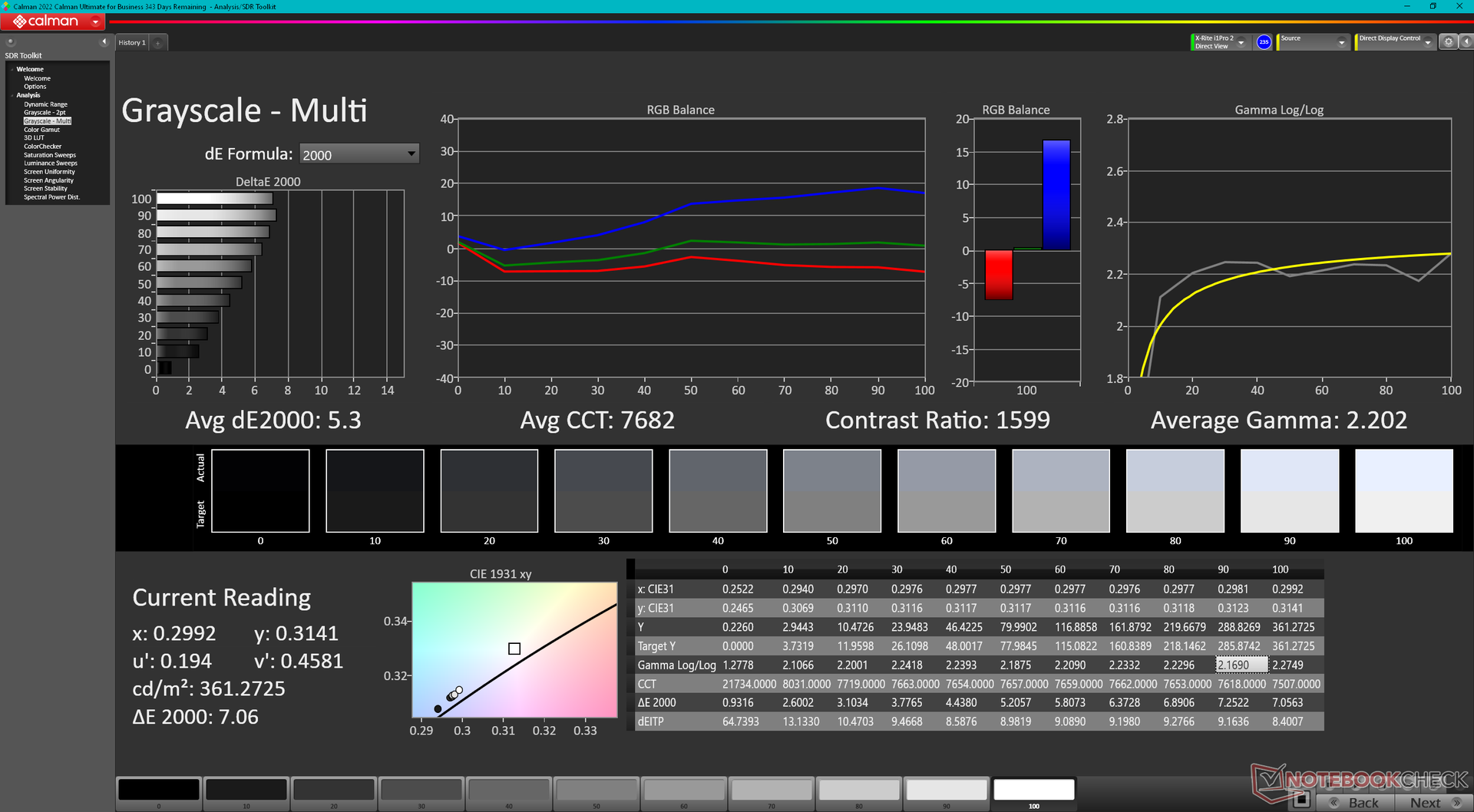

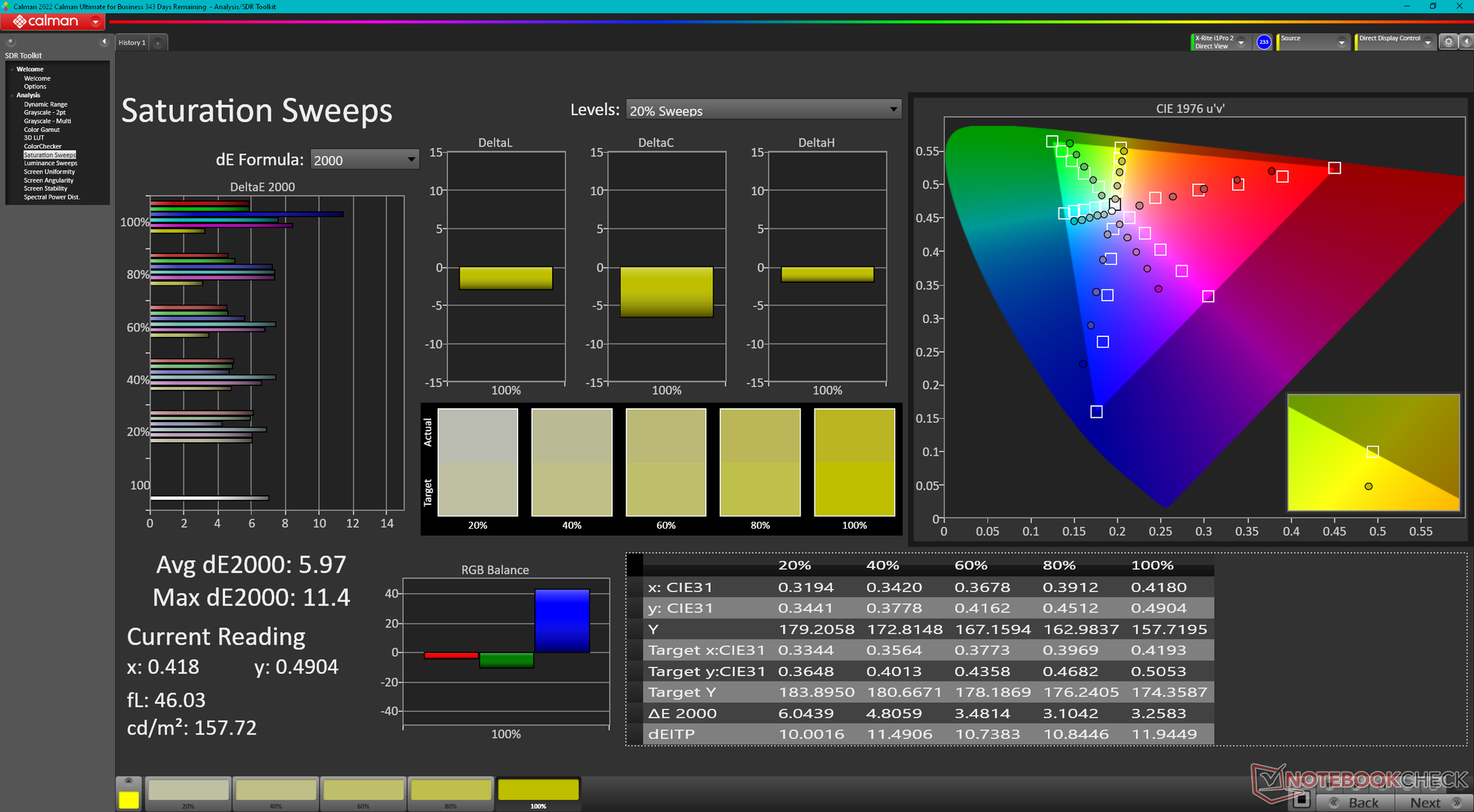

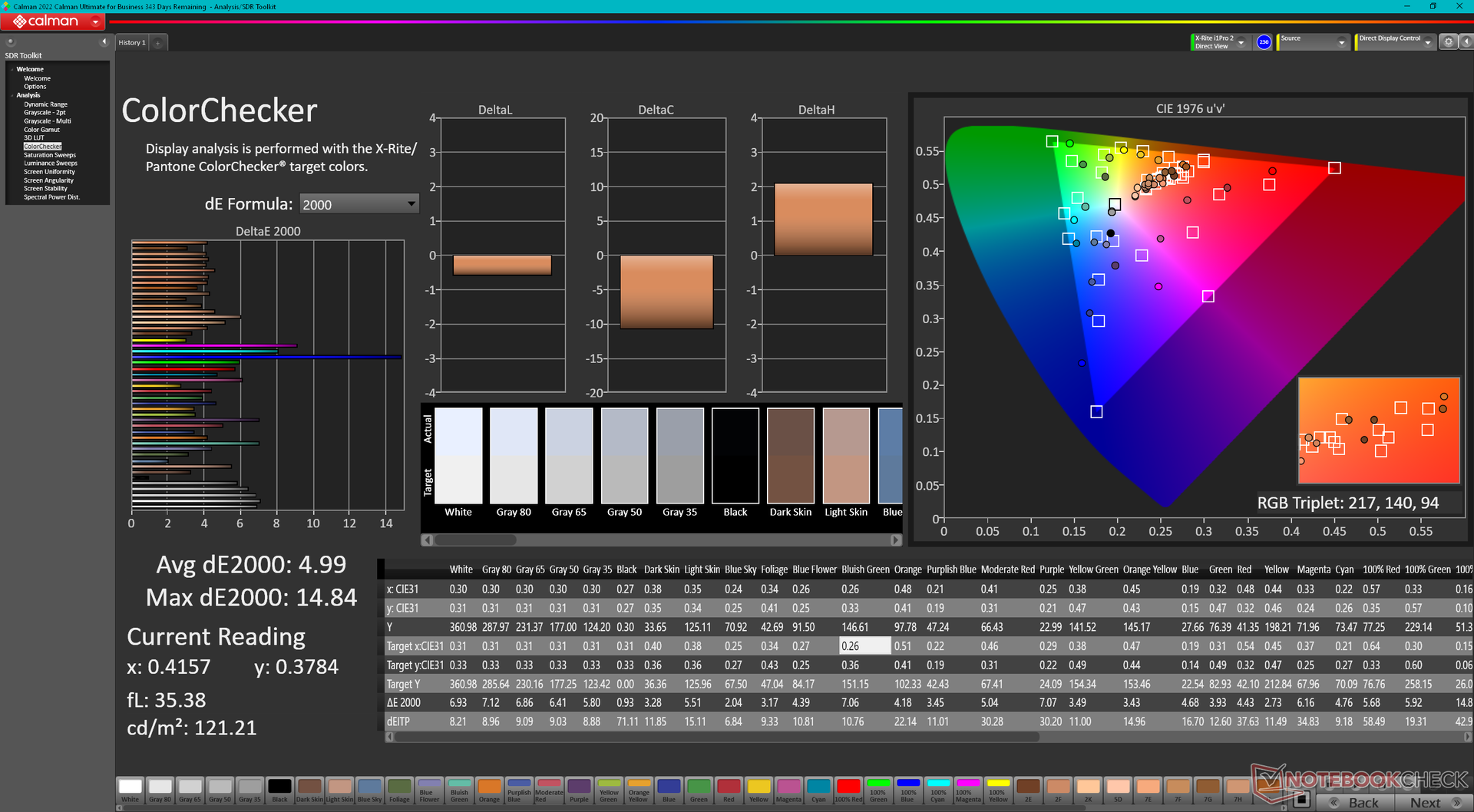

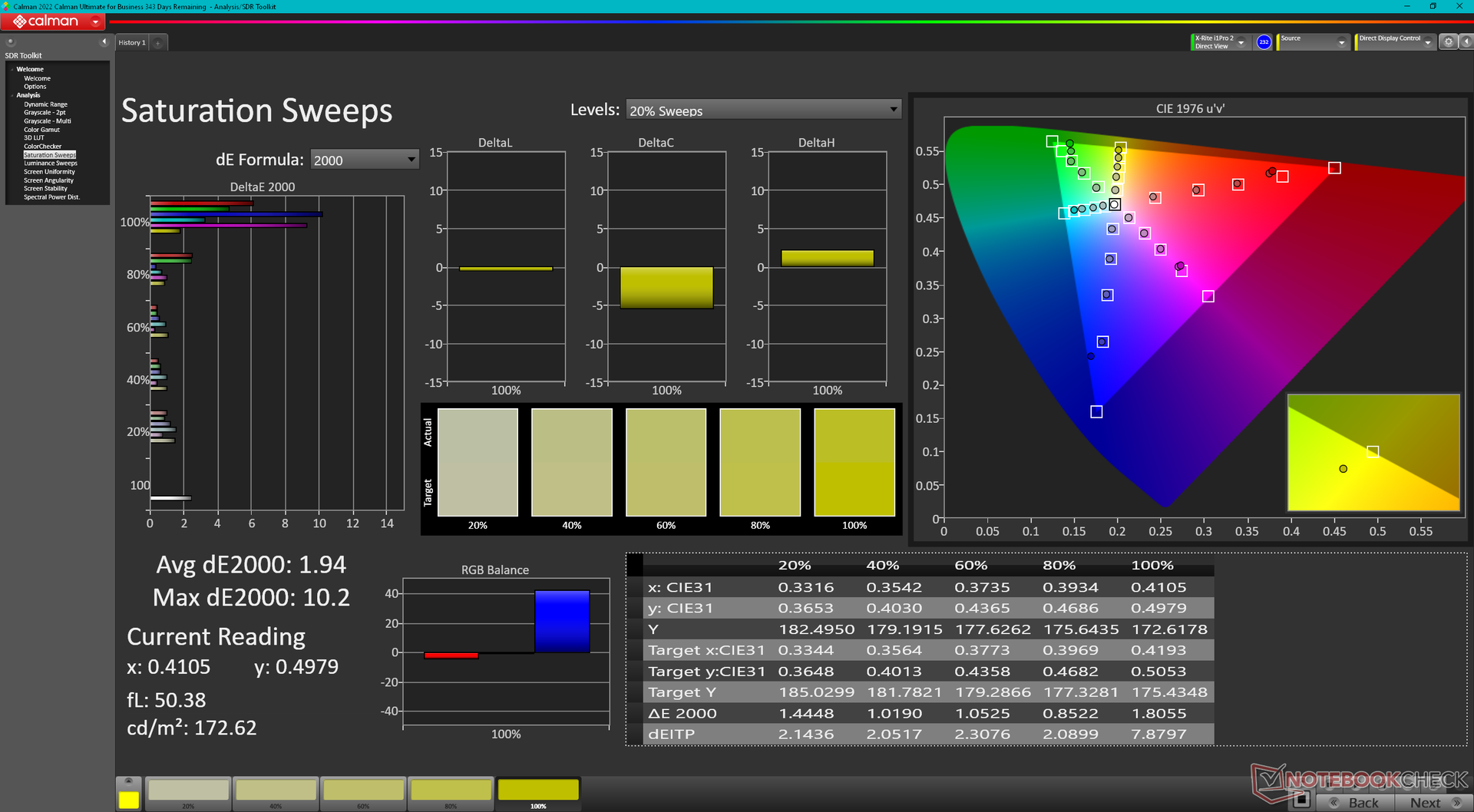

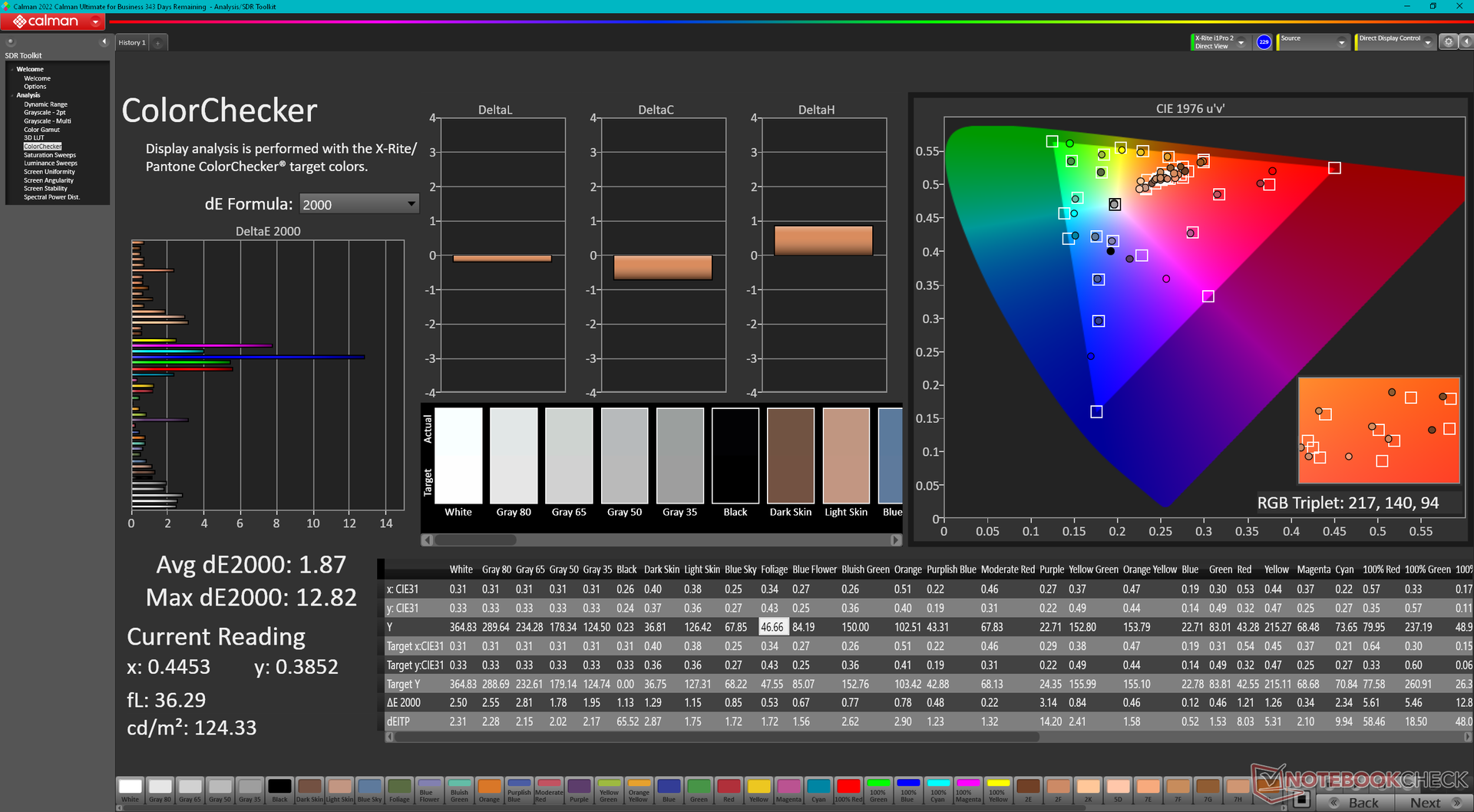

显示屏没有经过预校准。使用 X-Rite 色差计自行校准面板可将平均灰度和色彩 deltaE 值分别从 5.3 和 4.99 提高到 1.8 和 1.87。我们的 ICM 配置文件可在上面免费下载。

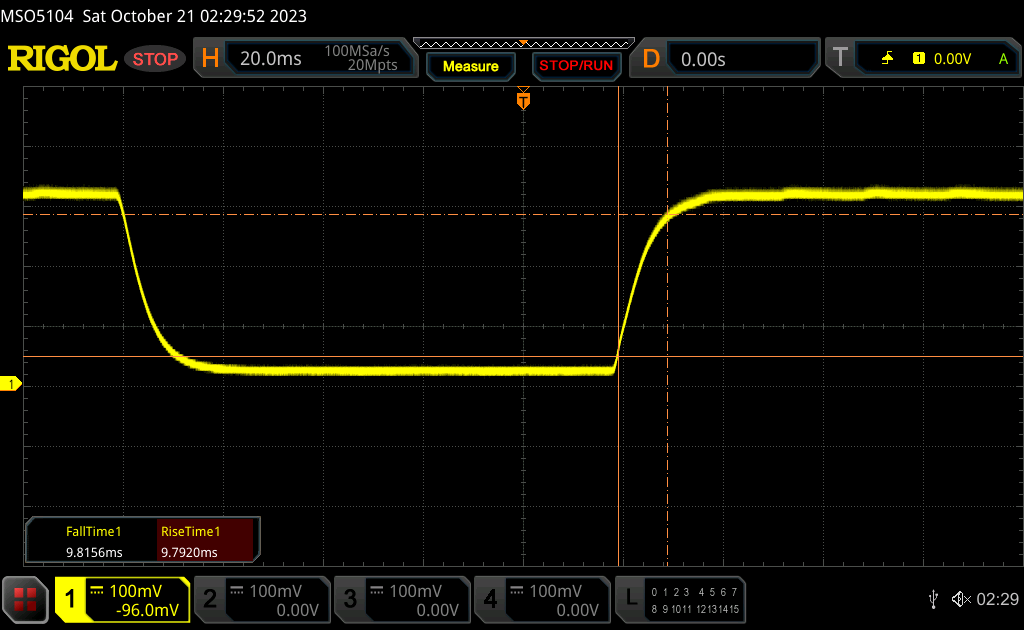

Display Response Times
↔ Response Time Black to White | ||
---|---|---|
19.6 ms ... rise ↗ and fall ↘ combined | ↗ 9.8 ms rise | |
↘ 9.8 ms fall | ||
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 39 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (20.9 ms). | ||

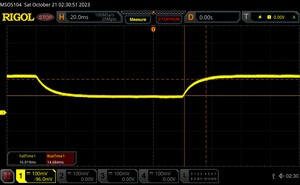

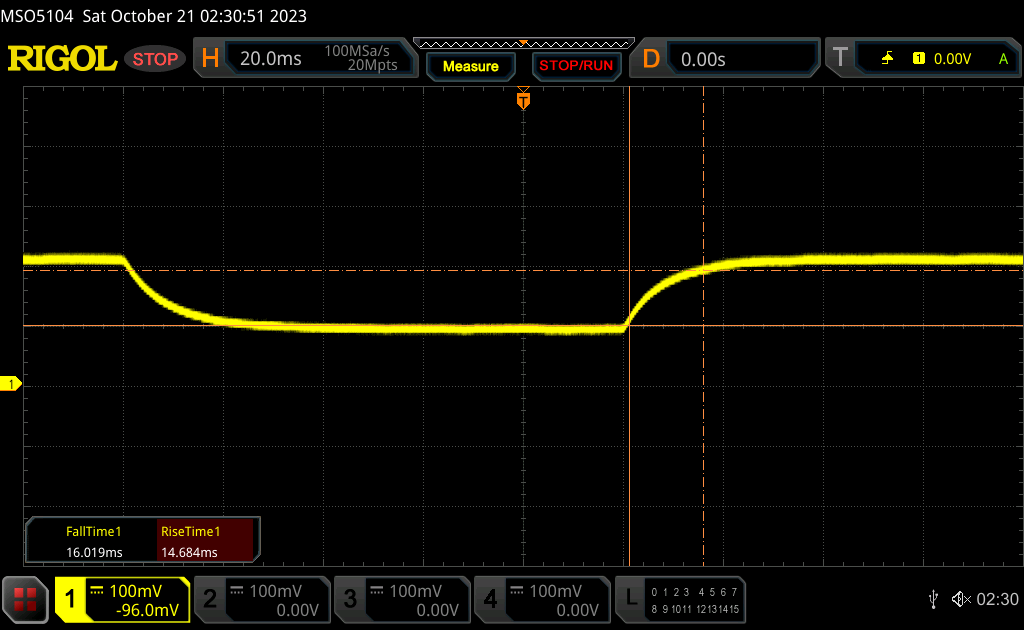

↔ Response Time 50% Grey to 80% Grey | ||
30.7 ms ... rise ↗ and fall ↘ combined | ↗ 14.7 ms rise | |
↘ 16 ms fall | ||
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 37 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (32.8 ms). |

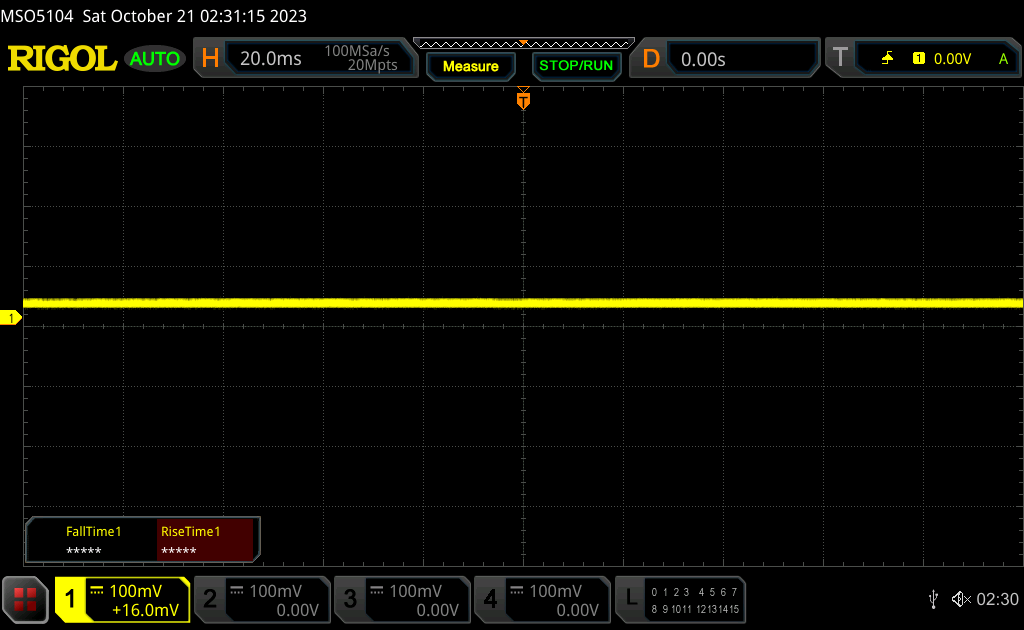

Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM not detected | |||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured. |
性能
测试条件

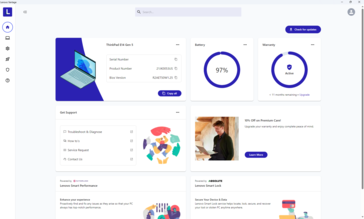

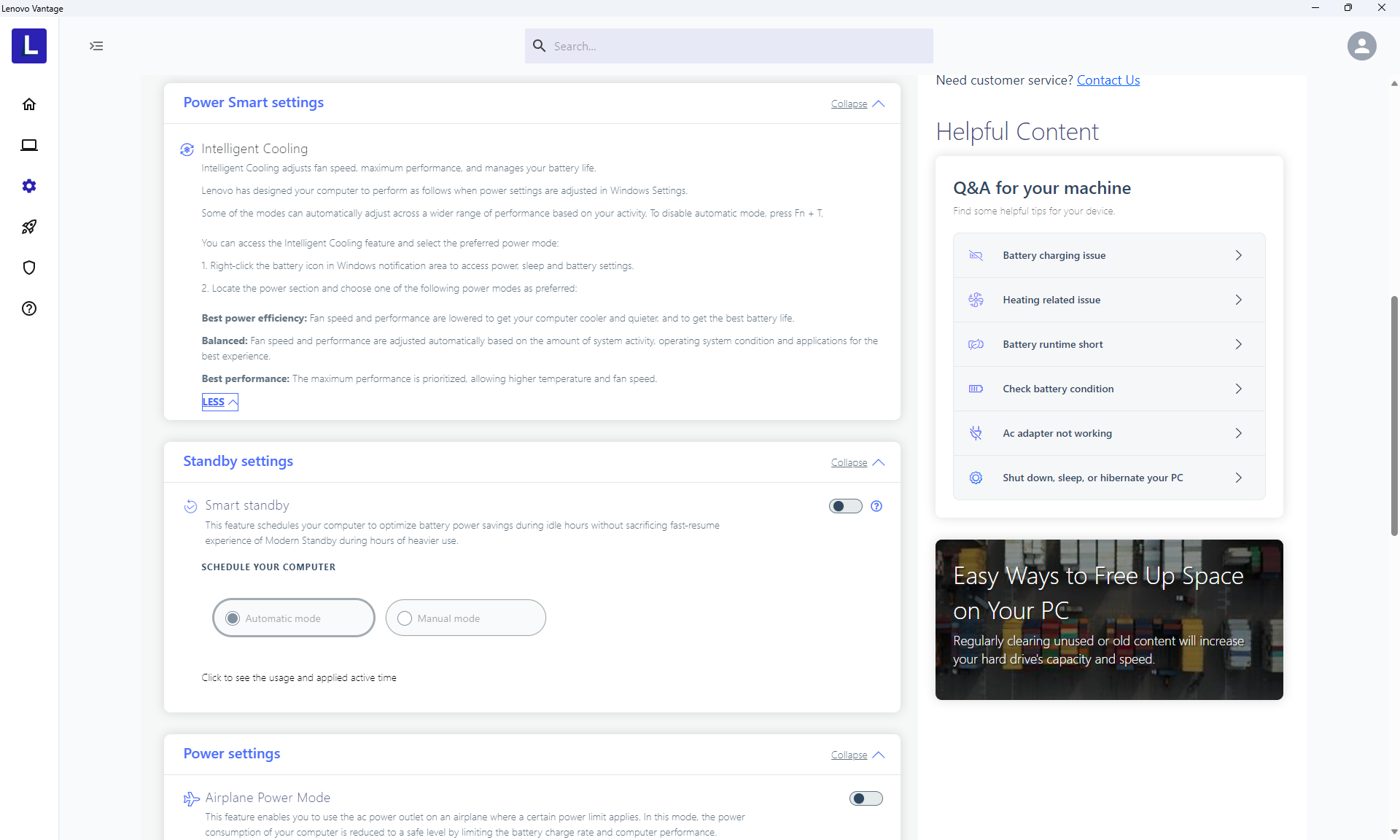

测试前,我们将 Windows 设置为性能模式。联想没有提供任何专门的电源配置文件,而是依靠 Windows 的电源配置文件来减少混乱。

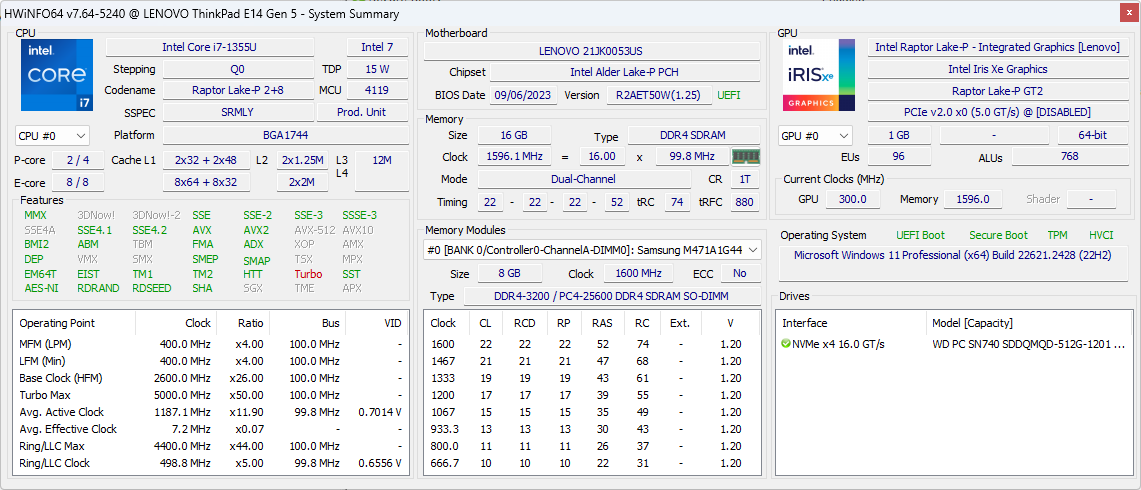

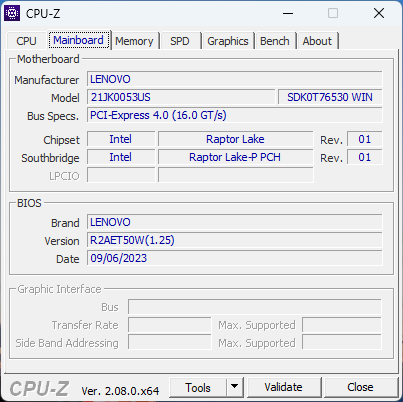

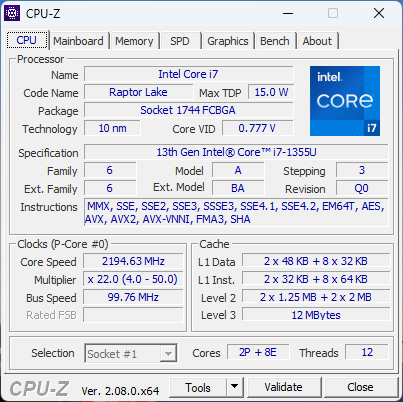

处理器

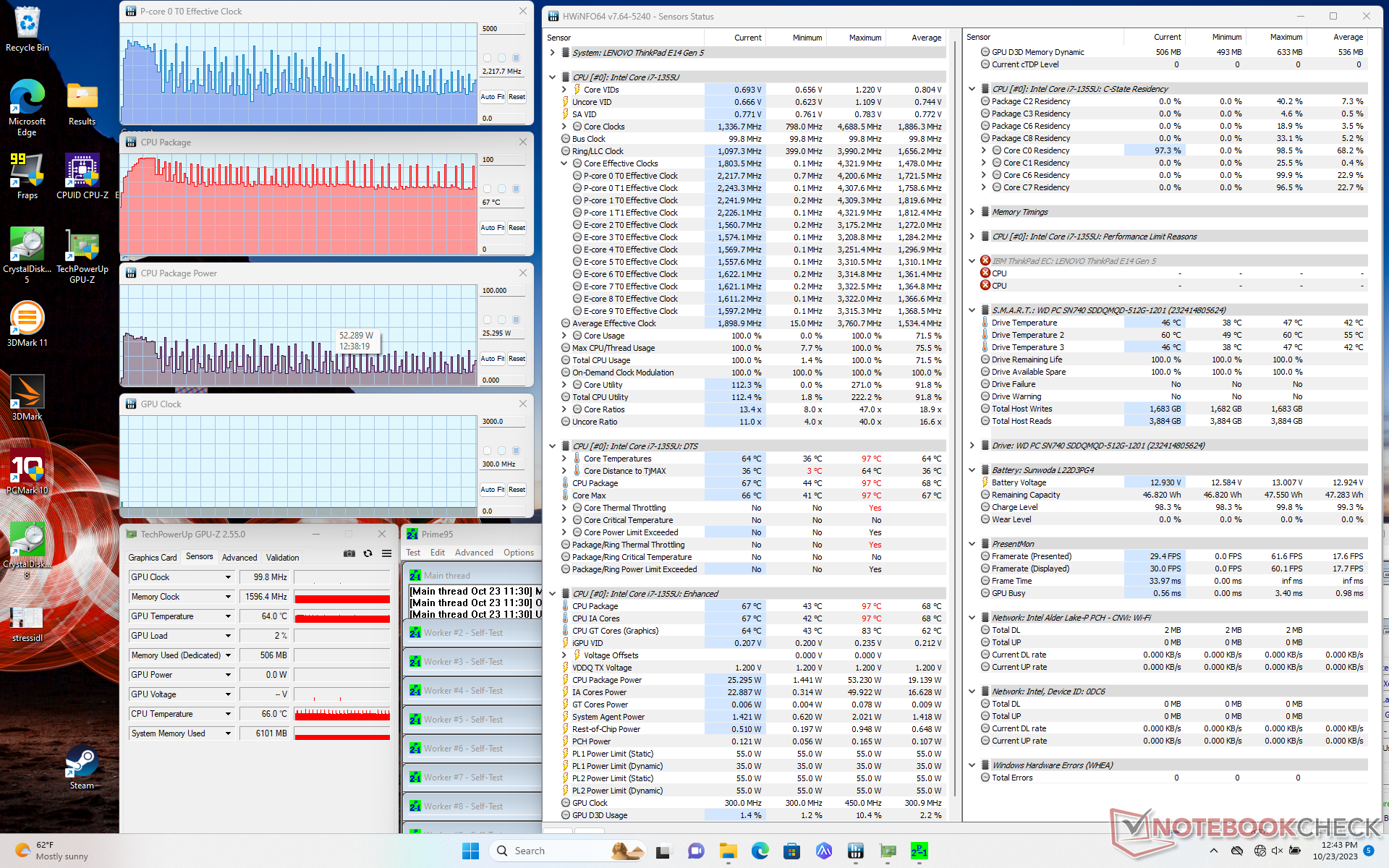

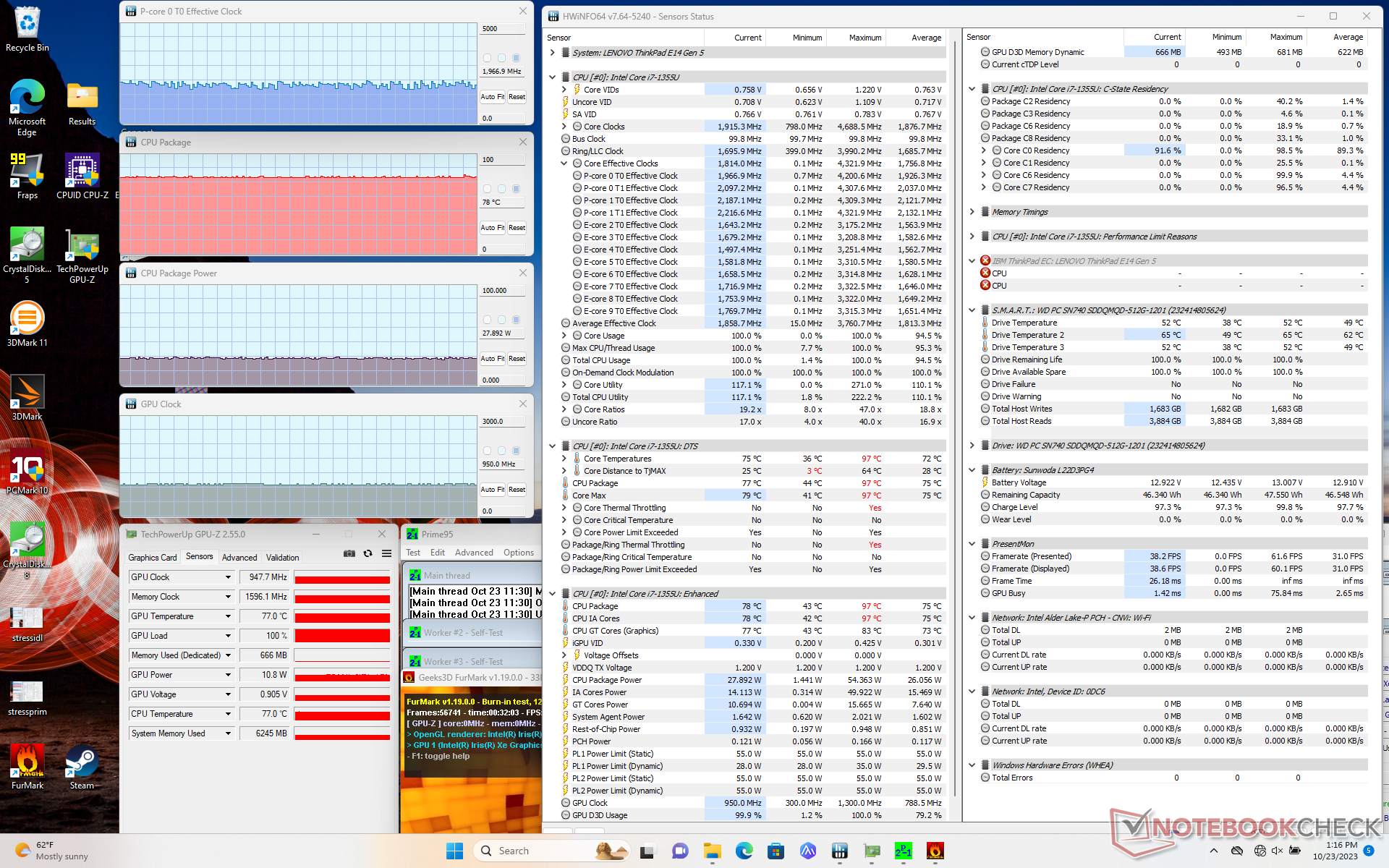

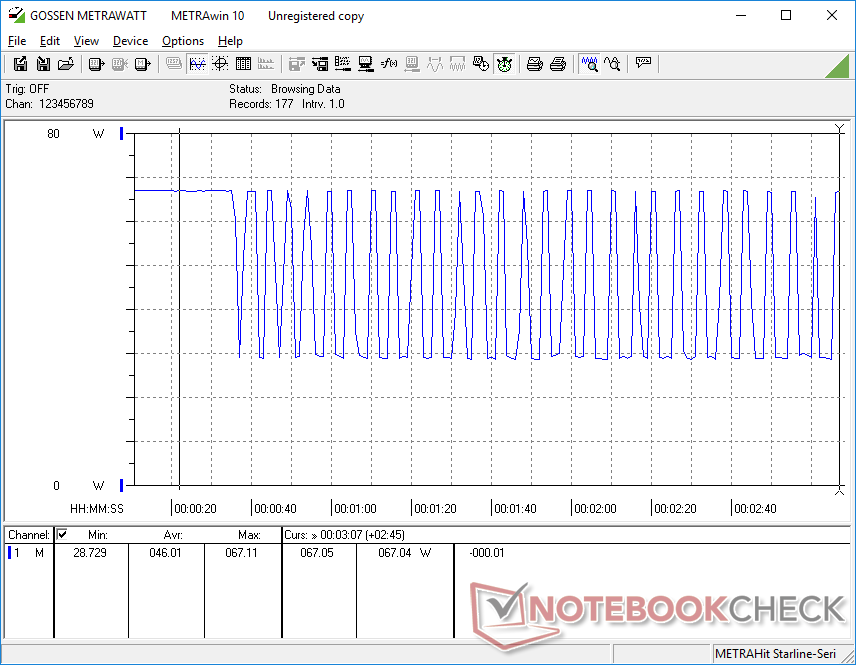

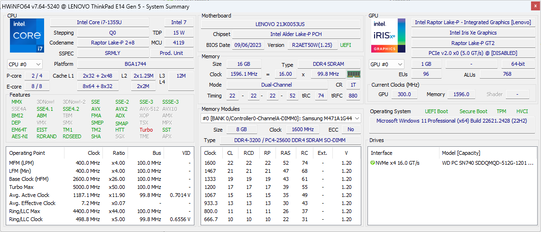

处理器性能低于预期,比我们数据库中配备相同的 酷睿 i7-1355U.这一不足可归因于系统较弱的 Turbo Boost 可持续性。例如,当循环运行 CineBench R15 xT 时,如下图所示,最初的 1539 分将在第二次循环时下降 35% 至 40%。
与 Ryzen 7 7730U相比,我们的酷睿 i7-1355U 的单线程性能提高了 25% 至 30%,但在考虑节流因素后,多线程性能降低了 25% 至 30%。
Cinebench R15 Multi Loop
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
HP EliteBook 845 G10 818N0EA | |
Asus ZenBook 14 UM3402Y | |
Lenovo ThinkPad E14 G5-21JSS05C00 | |
Dell Latitude 7440 | |
Average Intel Core i7-1355U | |
Lenovo ThinkPad E14 G5 i7-1355U | |
LG Gram 14Z90Q |
AIDA64 / FP32 Ray-Trace | |
HP EliteBook 845 G10 818N0EA | |
Asus ZenBook 14 UM3402Y | |
Lenovo ThinkPad E14 G5-21JSS05C00 | |
Dell Latitude 7440 | |
Average Intel Core i7-1355U (5673 - 8424, n=18) | |
Lenovo ThinkPad E14 G5 i7-1355U | |
LG Gram 14Z90Q |
AIDA64 / FPU Julia | |
HP EliteBook 845 G10 818N0EA | |
Asus ZenBook 14 UM3402Y | |
Lenovo ThinkPad E14 G5-21JSS05C00 | |
Dell Latitude 7440 | |
Average Intel Core i7-1355U (29580 - 42706, n=18) | |
Lenovo ThinkPad E14 G5 i7-1355U | |
LG Gram 14Z90Q |
AIDA64 / CPU SHA3 | |
HP EliteBook 845 G10 818N0EA | |
Asus ZenBook 14 UM3402Y | |
Lenovo ThinkPad E14 G5-21JSS05C00 | |
Dell Latitude 7440 | |
Average Intel Core i7-1355U (1529 - 2200, n=18) | |
Lenovo ThinkPad E14 G5 i7-1355U | |
LG Gram 14Z90Q |
AIDA64 / CPU Queen | |
HP EliteBook 845 G10 818N0EA | |
Asus ZenBook 14 UM3402Y | |
Lenovo ThinkPad E14 G5-21JSS05C00 | |
LG Gram 14Z90Q | |
Lenovo ThinkPad E14 G5 i7-1355U | |
Dell Latitude 7440 | |
Average Intel Core i7-1355U (21547 - 66907, n=18) |
AIDA64 / FPU SinJulia | |
HP EliteBook 845 G10 818N0EA | |
Asus ZenBook 14 UM3402Y | |
Lenovo ThinkPad E14 G5-21JSS05C00 | |
Dell Latitude 7440 | |
Lenovo ThinkPad E14 G5 i7-1355U | |
Average Intel Core i7-1355U (4045 - 5426, n=18) | |
LG Gram 14Z90Q |
AIDA64 / FPU Mandel | |
HP EliteBook 845 G10 818N0EA | |
Asus ZenBook 14 UM3402Y | |
Lenovo ThinkPad E14 G5-21JSS05C00 | |
Dell Latitude 7440 | |
Average Intel Core i7-1355U (14596 - 21627, n=18) | |
Lenovo ThinkPad E14 G5 i7-1355U | |
LG Gram 14Z90Q |
AIDA64 / CPU AES | |
HP EliteBook 845 G10 818N0EA | |
Asus ZenBook 14 UM3402Y | |
Lenovo ThinkPad E14 G5-21JSS05C00 | |
Dell Latitude 7440 | |
Average Intel Core i7-1355U (31432 - 75408, n=18) | |
Lenovo ThinkPad E14 G5 i7-1355U | |
LG Gram 14Z90Q |
AIDA64 / CPU ZLib | |
HP EliteBook 845 G10 818N0EA | |
Asus ZenBook 14 UM3402Y | |
Lenovo ThinkPad E14 G5-21JSS05C00 | |
Dell Latitude 7440 | |
Average Intel Core i7-1355U (454 - 684, n=18) | |
Lenovo ThinkPad E14 G5 i7-1355U | |
LG Gram 14Z90Q |
AIDA64 / FP64 Ray-Trace | |
HP EliteBook 845 G10 818N0EA | |
Asus ZenBook 14 UM3402Y | |
Lenovo ThinkPad E14 G5-21JSS05C00 | |
Dell Latitude 7440 | |
Average Intel Core i7-1355U (2991 - 4453, n=18) | |
LG Gram 14Z90Q | |
Lenovo ThinkPad E14 G5 i7-1355U |
AIDA64 / CPU PhotoWorxx | |
Dell Latitude 7440 | |
Average Intel Core i7-1355U (21800 - 46154, n=18) | |
HP EliteBook 845 G10 818N0EA | |
LG Gram 14Z90Q | |
Lenovo ThinkPad E14 G5 i7-1355U | |
Asus ZenBook 14 UM3402Y | |
Lenovo ThinkPad E14 G5-21JSS05C00 |
系统性能
PCMark 分数普遍低于 AMD 配置,尤其是在多线程性能最为重要的生产力子测试中。
CrossMark: Overall | Productivity | Creativity | Responsiveness
PCMark 10 / Score | |
HP EliteBook 845 G10 818N0EA | |
Lenovo ThinkPad E14 G5-21JSS05C00 | |
Asus ZenBook 14 UM3402Y | |
Lenovo ThinkPad E14 G5 i7-1355U | |
Average Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs (5455 - 5933, n=15) | |
Dell Latitude 7440 | |
LG Gram 14Z90Q |
PCMark 10 / Essentials | |
Average Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs (10203 - 11822, n=15) | |
Lenovo ThinkPad E14 G5 i7-1355U | |
Dell Latitude 7440 | |
Lenovo ThinkPad E14 G5-21JSS05C00 | |
Asus ZenBook 14 UM3402Y | |
HP EliteBook 845 G10 818N0EA | |
LG Gram 14Z90Q |
PCMark 10 / Productivity | |
Asus ZenBook 14 UM3402Y | |
Lenovo ThinkPad E14 G5-21JSS05C00 | |
HP EliteBook 845 G10 818N0EA | |
Lenovo ThinkPad E14 G5 i7-1355U | |
Average Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs (6763 - 7536, n=15) | |
Dell Latitude 7440 | |
LG Gram 14Z90Q |
PCMark 10 / Digital Content Creation | |
HP EliteBook 845 G10 818N0EA | |
Lenovo ThinkPad E14 G5 i7-1355U | |
Average Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs (5723 - 6712, n=15) | |
Lenovo ThinkPad E14 G5-21JSS05C00 | |
Asus ZenBook 14 UM3402Y | |
Dell Latitude 7440 | |
LG Gram 14Z90Q |
CrossMark / Overall | |
Average Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs (1478 - 1643, n=15) | |
Lenovo ThinkPad E14 G5 i7-1355U | |
HP EliteBook 845 G10 818N0EA | |
Asus ZenBook 14 UM3402Y | |
Lenovo ThinkPad E14 G5-21JSS05C00 |
CrossMark / Productivity | |
Average Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs (1444 - 1665, n=15) | |
Lenovo ThinkPad E14 G5 i7-1355U | |
HP EliteBook 845 G10 818N0EA | |
Asus ZenBook 14 UM3402Y | |
Lenovo ThinkPad E14 G5-21JSS05C00 |
CrossMark / Creativity | |
Average Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs (1563 - 1732, n=15) | |
Lenovo ThinkPad E14 G5 i7-1355U | |
HP EliteBook 845 G10 818N0EA | |
Asus ZenBook 14 UM3402Y | |
Lenovo ThinkPad E14 G5-21JSS05C00 |
CrossMark / Responsiveness | |
Average Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs (1217 - 1681, n=15) | |
Lenovo ThinkPad E14 G5 i7-1355U | |
HP EliteBook 845 G10 818N0EA | |
Asus ZenBook 14 UM3402Y | |
Lenovo ThinkPad E14 G5-21JSS05C00 |

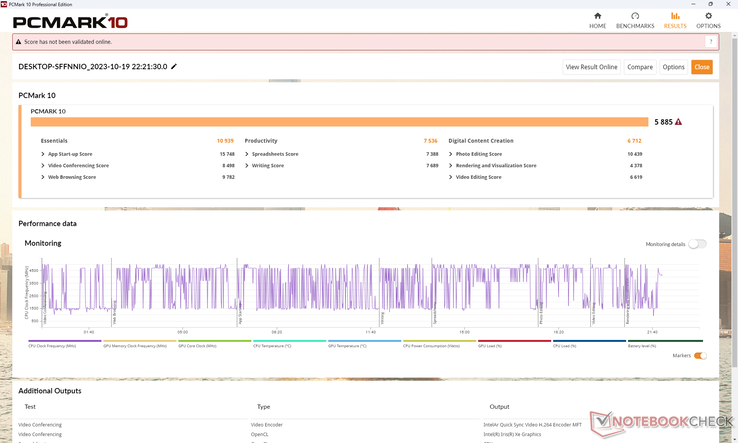

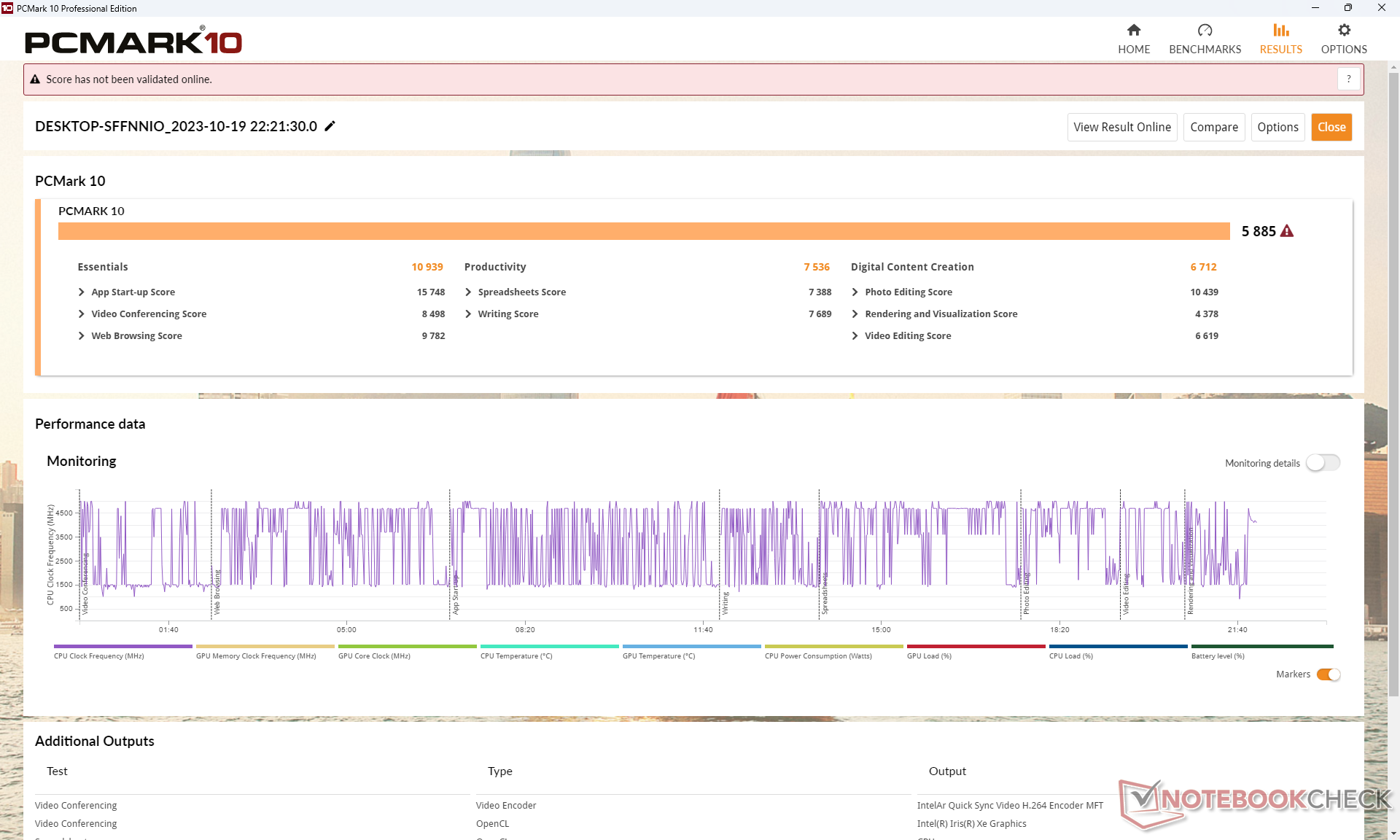

PCMark 10 Score | 5885 points | |
Help |
AIDA64 / Memory Copy | |
Dell Latitude 7440 | |
Average Intel Core i7-1355U (35017 - 71600, n=18) | |
LG Gram 14Z90Q | |
Asus ZenBook 14 UM3402Y | |
Lenovo ThinkPad E14 G5 i7-1355U | |
HP EliteBook 845 G10 818N0EA | |
Lenovo ThinkPad E14 G5-21JSS05C00 |
AIDA64 / Memory Read | |
LG Gram 14Z90Q | |
Average Intel Core i7-1355U (38551 - 73377, n=18) | |
Dell Latitude 7440 | |
Asus ZenBook 14 UM3402Y | |
Lenovo ThinkPad E14 G5-21JSS05C00 | |
Lenovo ThinkPad E14 G5 i7-1355U | |
HP EliteBook 845 G10 818N0EA |
AIDA64 / Memory Write | |
Dell Latitude 7440 | |
Average Intel Core i7-1355U (35910 - 93342, n=18) | |
LG Gram 14Z90Q | |
Lenovo ThinkPad E14 G5 i7-1355U | |
Asus ZenBook 14 UM3402Y | |
HP EliteBook 845 G10 818N0EA | |
Lenovo ThinkPad E14 G5-21JSS05C00 |
AIDA64 / Memory Latency | |
LG Gram 14Z90Q | |
Average Intel Core i7-1355U (72.2 - 346, n=18) | |
Asus ZenBook 14 UM3402Y | |
HP EliteBook 845 G10 818N0EA | |
Dell Latitude 7440 | |
Lenovo ThinkPad E14 G5-21JSS05C00 | |
Lenovo ThinkPad E14 G5 i7-1355U |
* ... smaller is better
DPC 延迟

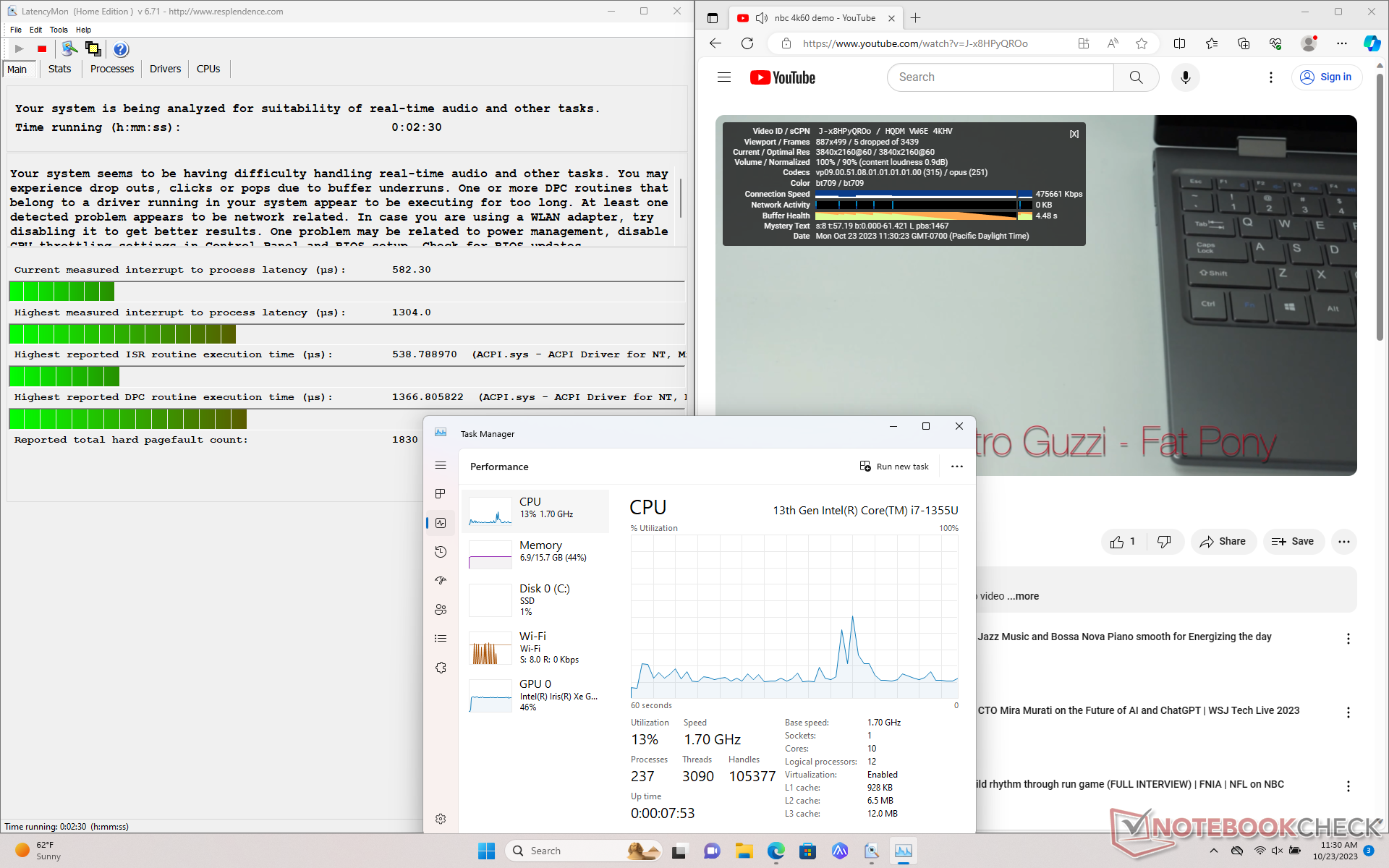

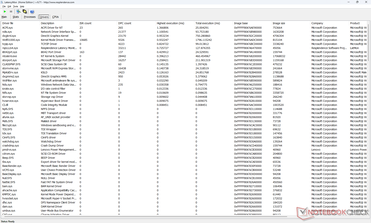

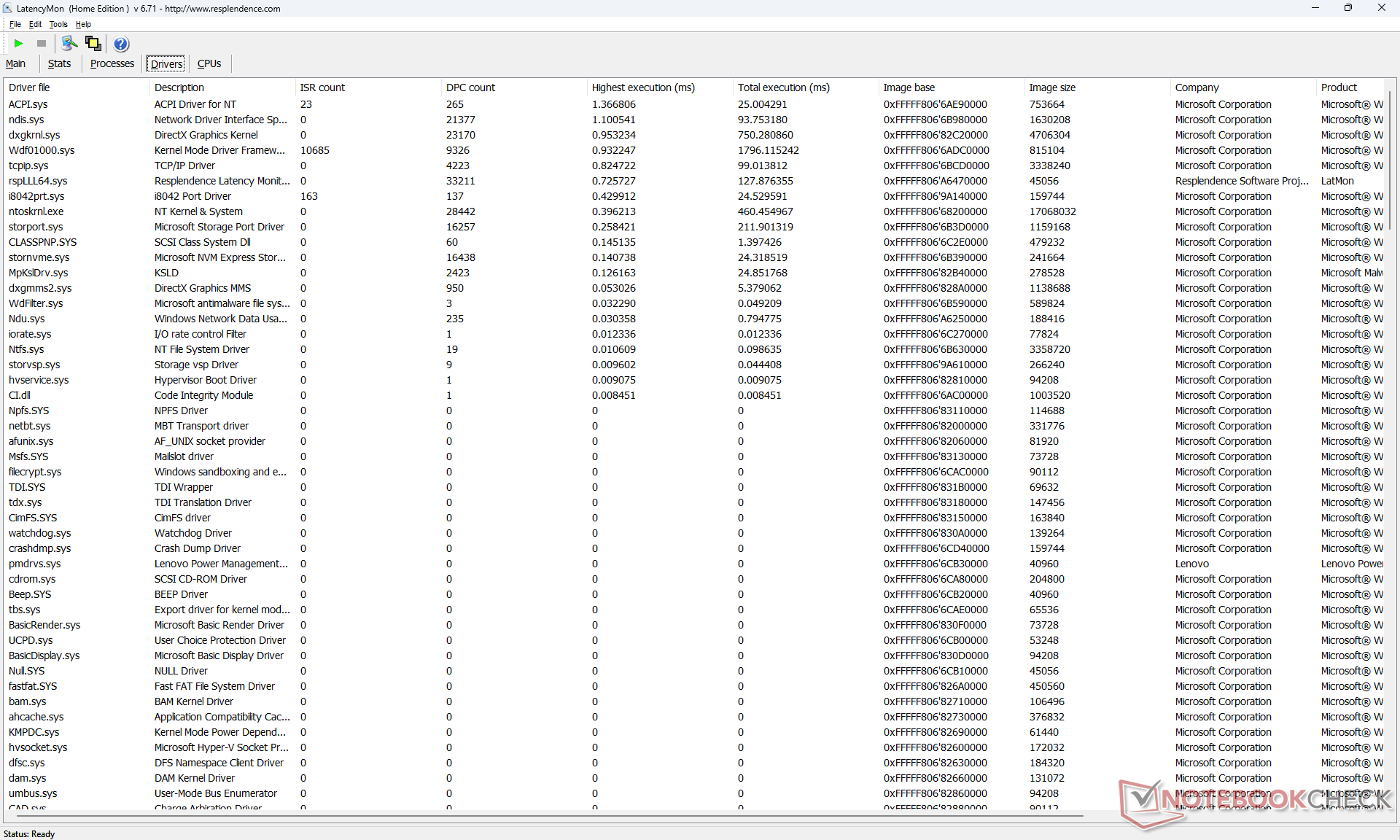

在打开我们主页的多个浏览器标签时,LatencyMon 显示了 DPC 问题。60 FPS 的 4K 视频回放也不完美,在 60 秒的时间内记录到 5 次丢帧。
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Asus ZenBook 14 UM3402Y | |
Lenovo ThinkPad E14 G5-21JSS05C00 | |
Lenovo ThinkPad E14 G5 i7-1355U | |
Dell Latitude 7440 | |
LG Gram 14Z90Q | |
HP EliteBook 845 G10 818N0EA |
* ... smaller is better
存储设备

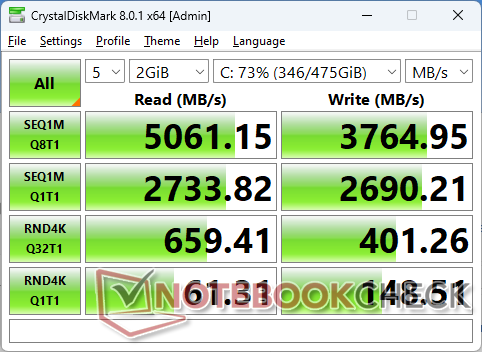

我们的设备配备了 42 毫米版本的WD PC SN740而 AMD 配置的是 80 毫米的 WD PC SN740。这款中端 PCIe4 x4 NVMe 固态硬盘的读取速度高达 5000 MB/s,但如下图所示,仅在几分钟内出现节流。
Drive Performance Rating - Percent | |
LG Gram 14Z90Q | |
HP EliteBook 845 G10 818N0EA | |
Lenovo ThinkPad E14 G5 i7-1355U | |
Dell Latitude 7440 | |
Lenovo ThinkPad E14 G5-21JSS05C00 | |
Asus ZenBook 14 UM3402Y |
* ... smaller is better
Disk Throttling: DiskSpd Read Loop, Queue Depth 8

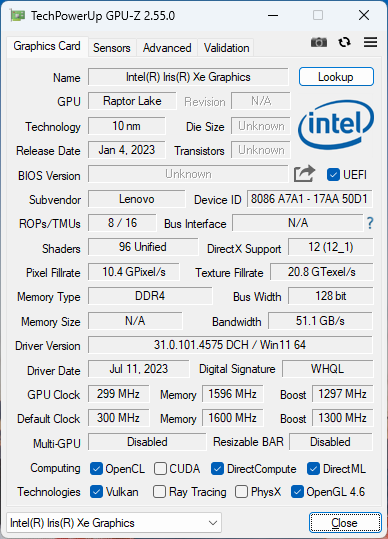

图形处理器性能

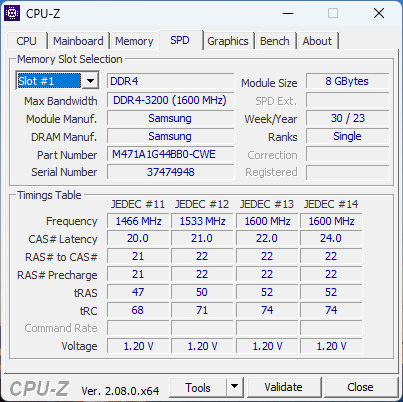

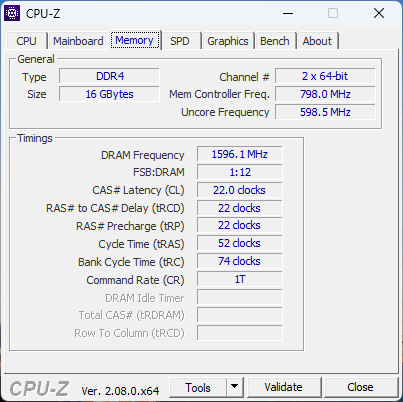

内存仅为 DDR4-3200,速度低于平均水平,这对集成显卡性能产生了负面影响。我们的 Iris Xe 96 EUs与我们数据库中采用相同 GPU 的普通笔记本电脑相比,速度要慢 10% 到 15%,原因是 CPU 和内存速度太慢。整体性能与 RX Vega 8的性能差不多。

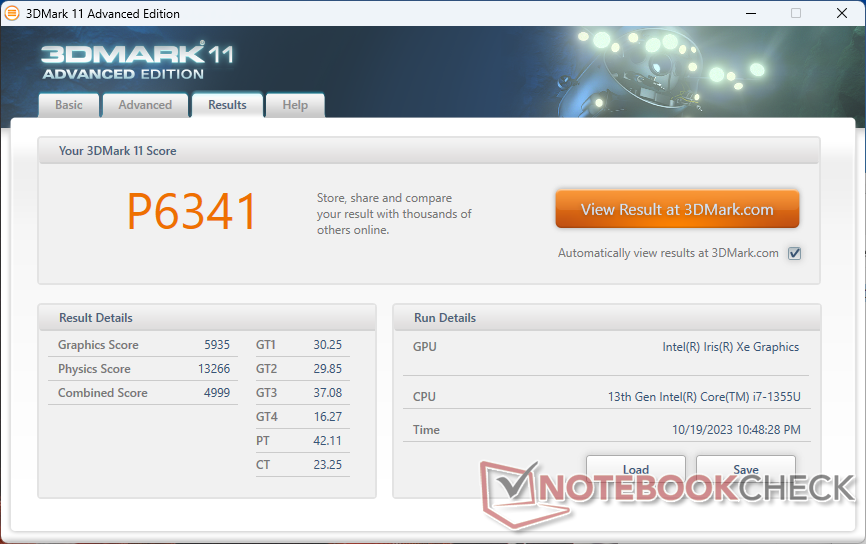

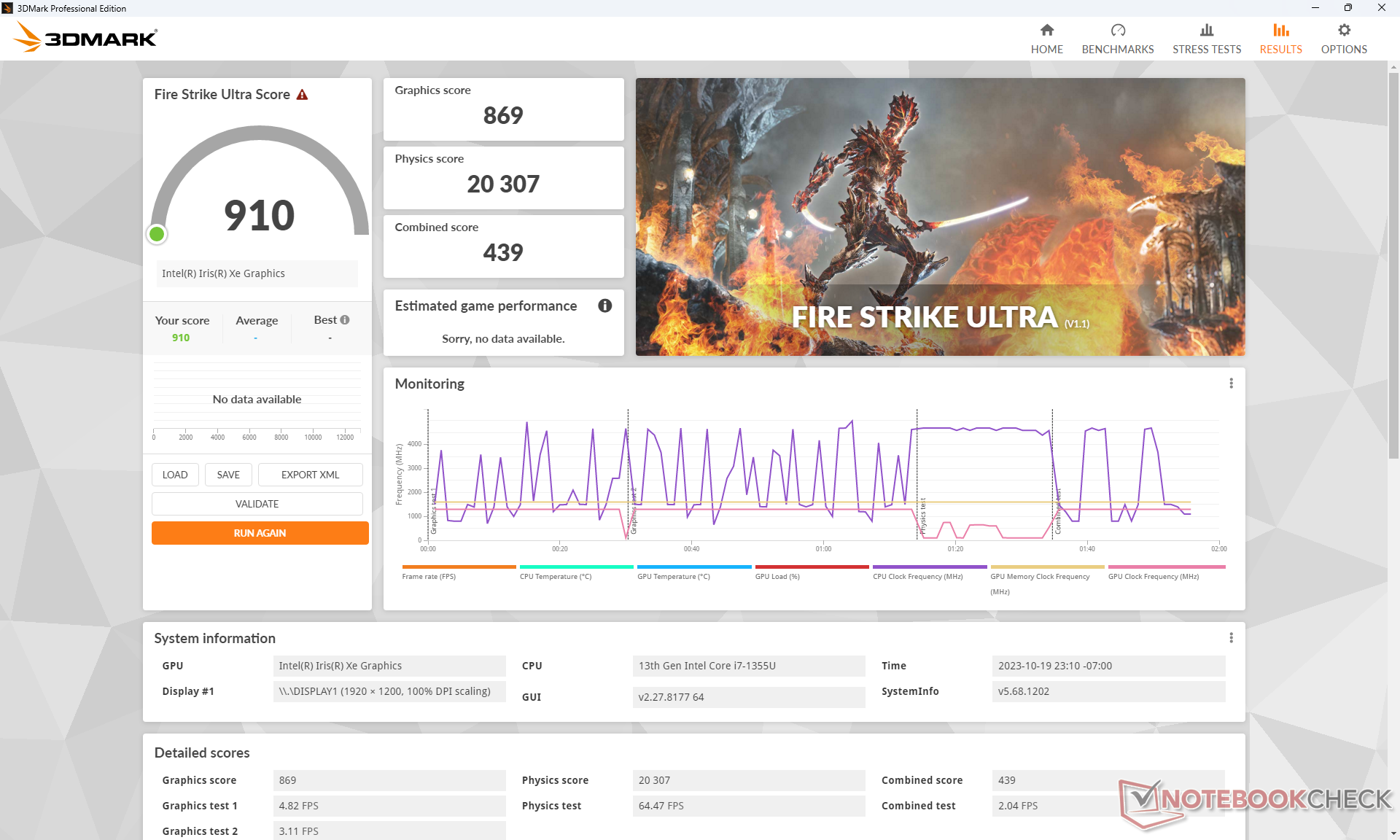

3DMark 11 Performance | 6341 points | |

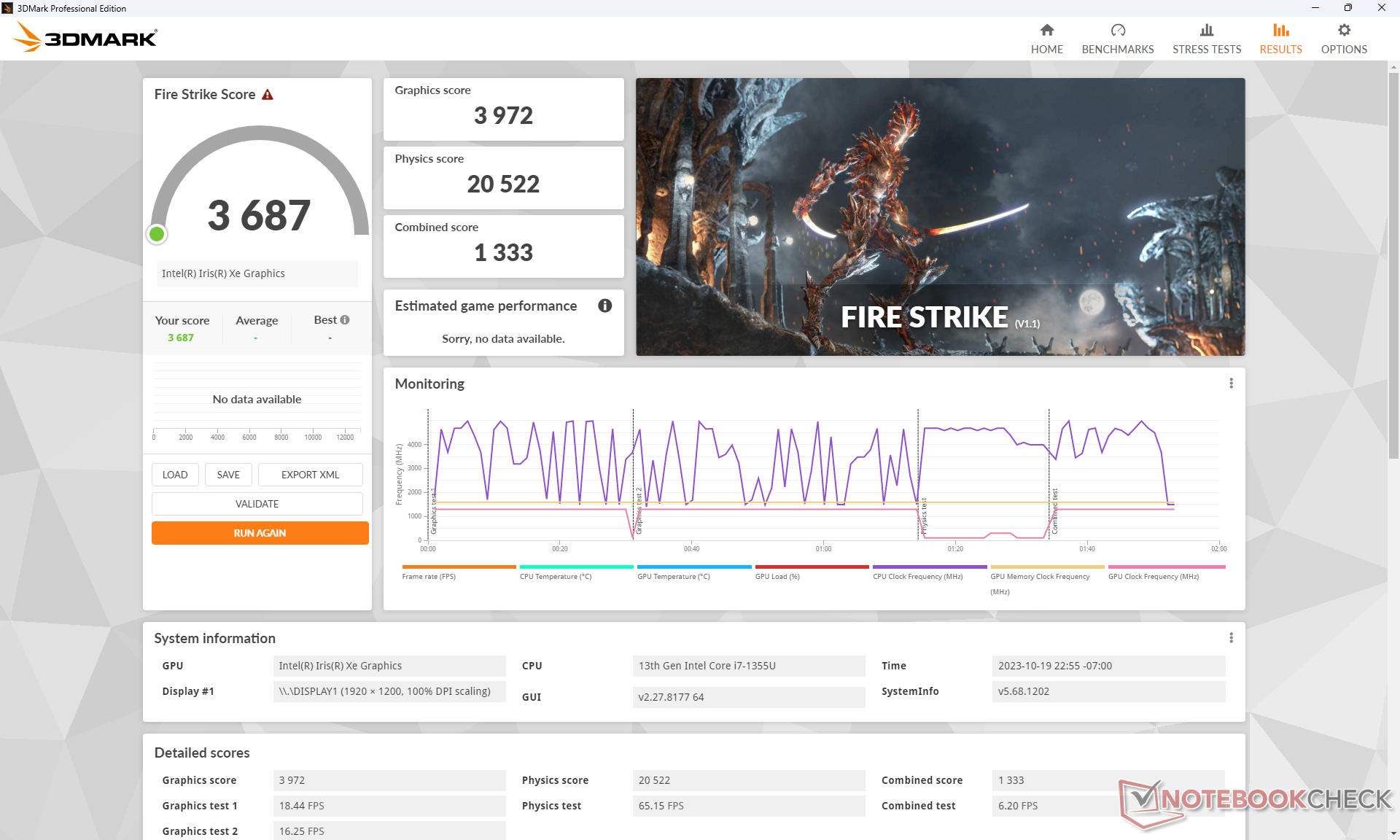

3DMark Fire Strike Score | 3687 points | |

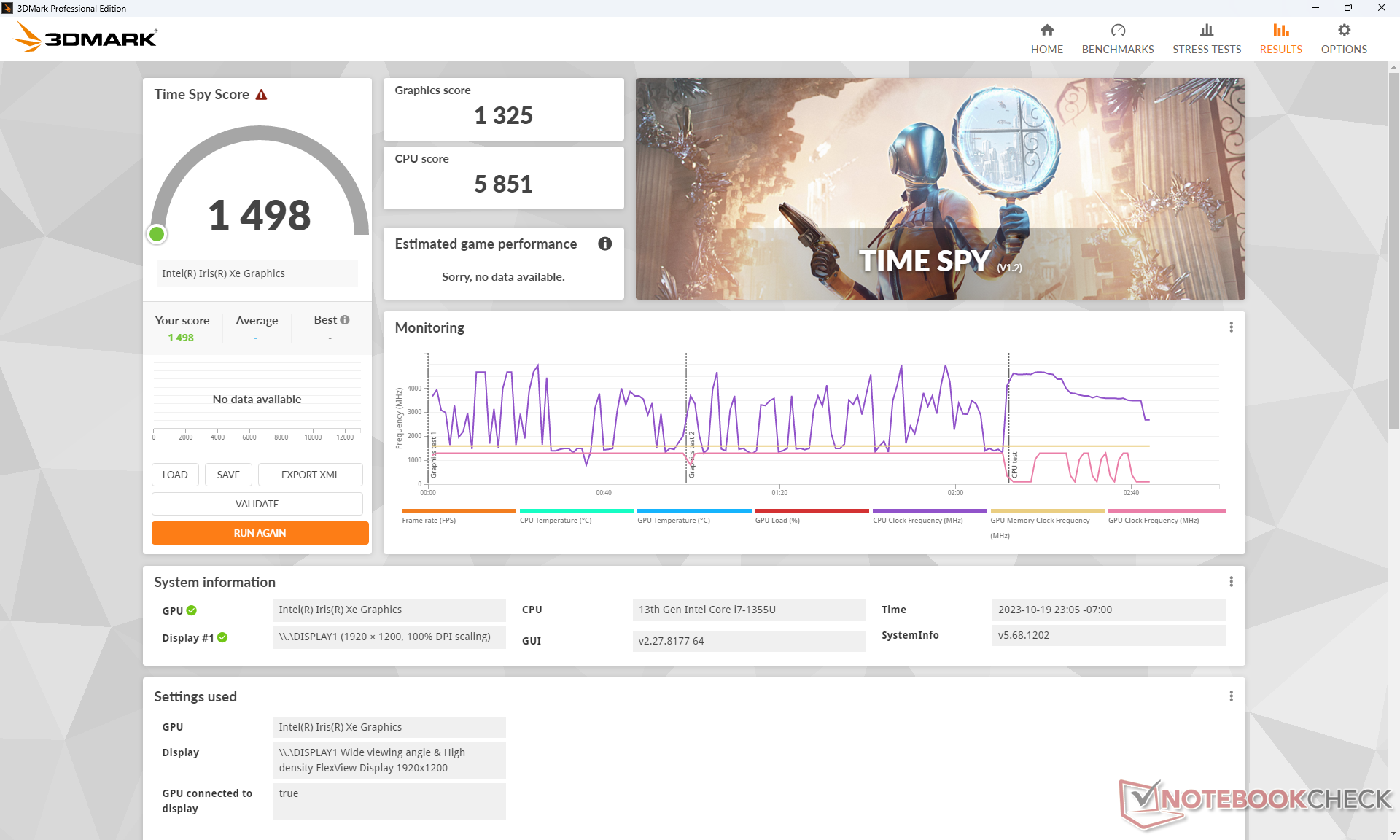

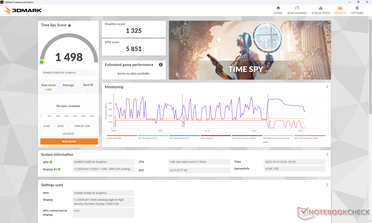

3DMark Time Spy Score | 1498 points | |
Help |
* ... smaller is better
Tiny Tina's Wonderlands | |
1280x720 Lowest Preset (DX12) | |
Dell Inspiron 14 7435 2-in-1 | |
Average Intel Iris Xe Graphics G7 96EUs (25.9 - 67.3, n=31) | |
Lenovo ThinkPad E14 G5 i7-1355U | |
1920x1080 Low Preset (DX12) | |
Average Intel Iris Xe Graphics G7 96EUs (22.3 - 53, n=31) | |
Dell Inspiron 14 7435 2-in-1 | |
Dell Latitude 7440 | |
Lenovo ThinkPad E14 G5 i7-1355U | |
HP Envy 14-eb0252ng | |
1920x1080 Medium Preset (DX12) | |
Average Intel Iris Xe Graphics G7 96EUs (17 - 40.1, n=29) | |
Dell Latitude 7440 | |
Lenovo ThinkPad E14 G5 i7-1355U | |
HP Envy 14-eb0252ng | |
1920x1080 High Preset (DX12) | |
Average Intel Iris Xe Graphics G7 96EUs (10.6 - 24.1, n=28) | |
Dell Latitude 7440 | |
Lenovo ThinkPad E14 G5 i7-1355U | |
HP Envy 14-eb0252ng | |
1920x1080 Badass Preset (DX12) | |
Average Intel Iris Xe Graphics G7 96EUs (8.4 - 18.4, n=25) | |
Dell Latitude 7440 | |
Lenovo ThinkPad E14 G5 i7-1355U |
Witcher 3 FPS Chart
low | med. | high | ultra | |
---|---|---|---|---|
GTA V (2015) | 85.2 | 67 | 13.7 | 5.57 |
The Witcher 3 (2015) | 74.9 | 48.9 | 24.1 | 12.1 |
Dota 2 Reborn (2015) | 104.5 | 77.3 | 51.5 | 47.3 |
Final Fantasy XV Benchmark (2018) | 34.3 | 18.1 | 13.1 | |
X-Plane 11.11 (2018) | 34.2 | 28.2 | 25.6 | |
Far Cry 5 (2018) | 40 | 20 | 19 | 18 |
Strange Brigade (2018) | 74.5 | 28.4 | 24.2 | 19.3 |
Cyberpunk 2077 1.6 (2022) | 13 | |||
Tiny Tina's Wonderlands (2022) | 23.8 | 17 | 10.6 | 9.1 |
F1 22 (2022) | 35.3 | 32.3 | 23.6 | 18.3 |
排放量
系统噪音

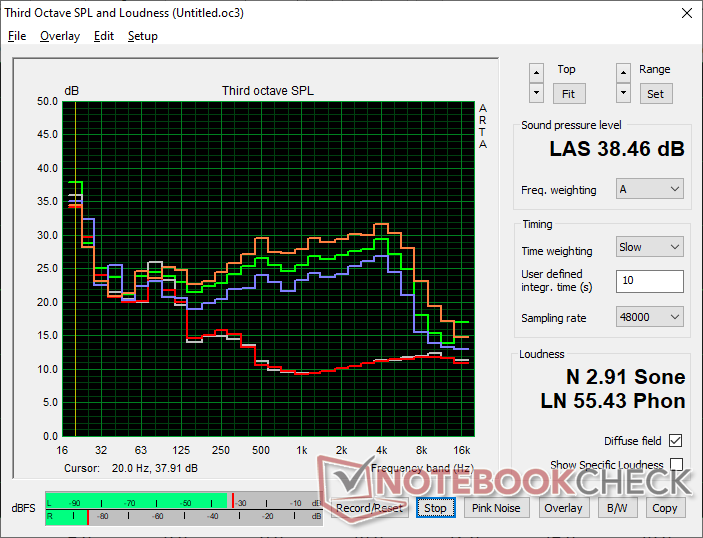

AMD 和英特尔版本的风扇噪音差别不大。在游戏等高负载情况下,每个版本的风扇噪音最大值相近,都略高于 40 dB(A),而在浏览或流媒体等低负载情况下,仍会出现轻微的风扇脉动。在运行中低负荷时,风扇很容易被忽略。
Noise Level
Idle |
| 23.2 / 23.2 / 23.2 dB(A) |
Load |
| 36 / 41 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 23.2 dB(A) |
Lenovo ThinkPad E14 G5 i7-1355U Iris Xe G7 96EUs, i7-1355U, WD PC SN740 512GB SDDQMQD-512G | Lenovo ThinkPad E14 G5-21JSS05C00 Vega 8, R7 7730U, WD PC SN740 SDDPNQD-1T00 | HP EliteBook 845 G10 818N0EA Radeon 780M, R9 PRO 7940HS, SK hynix PC801 HFS001TEJ9X101N | Asus ZenBook 14 UM3402Y Vega 8, R7 7730U, Micron 2400 MTFDKBA512QFM | LG Gram 14Z90Q Iris Xe G7 80EUs, i5-1240P, Samsung PM9A1 MZVL2512HCJQ | Dell Latitude 7440 Iris Xe G7 80EUs, i5-1345U, Samsung MZ9L4512HBLU-00BMV | |
---|---|---|---|---|---|---|
Noise | -1% | -7% | -7% | -5% | 9% | |
off / environment * | 23.2 | 24.4 -5% | 25.3 -9% | 22.6 3% | 25 -8% | 22.8 2% |
Idle Minimum * | 23.2 | 24.4 -5% | 25.3 -9% | 22.6 3% | 26 -12% | 22.8 2% |
Idle Average * | 23.2 | 24.4 -5% | 25.3 -9% | 22.6 3% | 27 -16% | 22.8 2% |
Idle Maximum * | 23.2 | 25.7 -11% | 25.3 -9% | 22.6 3% | 28 -21% | 22.8 2% |
Load Average * | 36 | 31.8 12% | 34.4 4% | 40.7 -13% | 35 3% | 26.3 27% |
Witcher 3 ultra * | 38.5 | 36.7 5% | 43.4 -13% | 46.6 -21% | 36 6% | 30 22% |
Load Maximum * | 41 | 41.2 -0% | 43.4 -6% | 52.5 -28% | 36 12% | 38.3 7% |
* ... smaller is better
温度

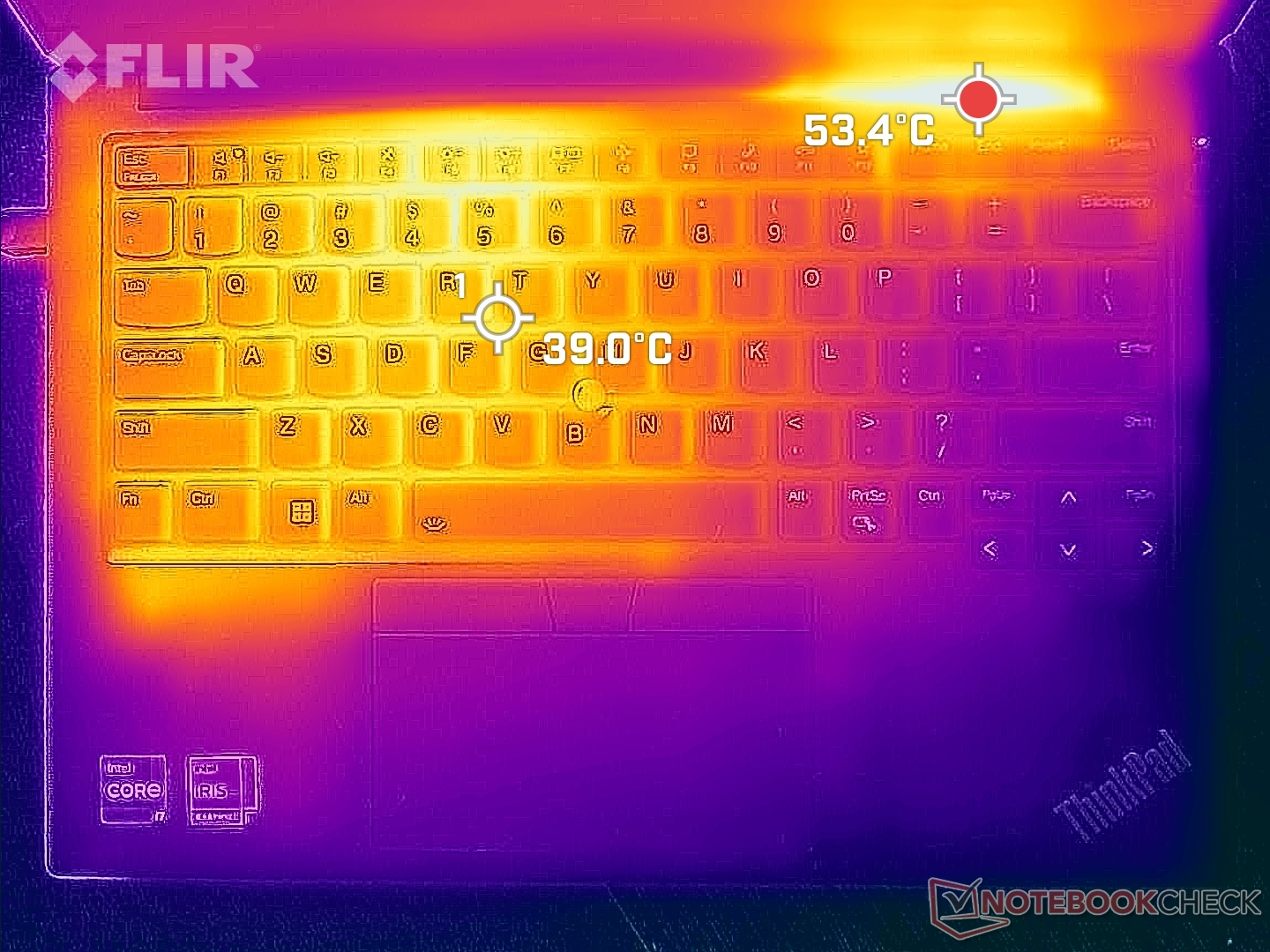

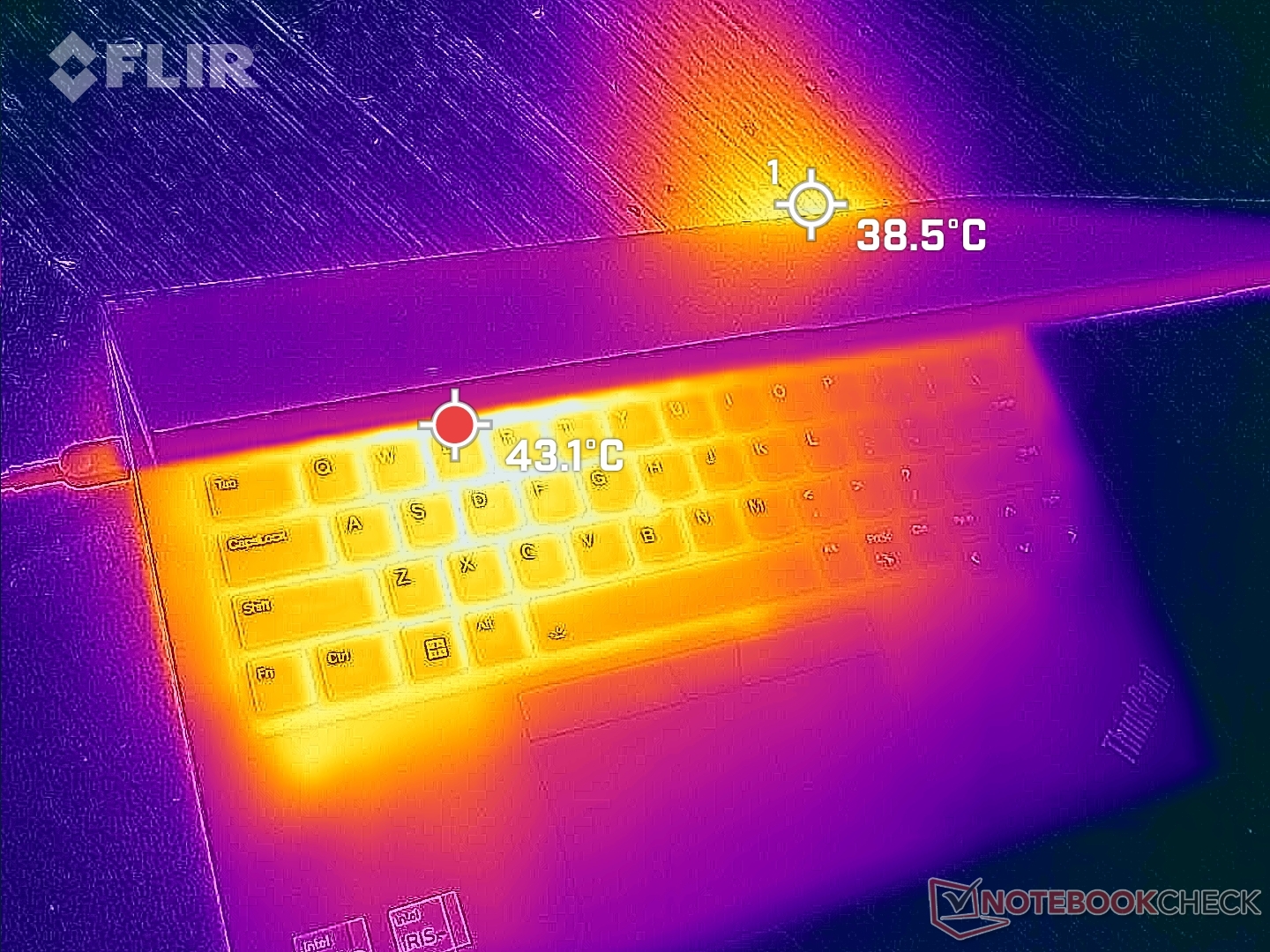

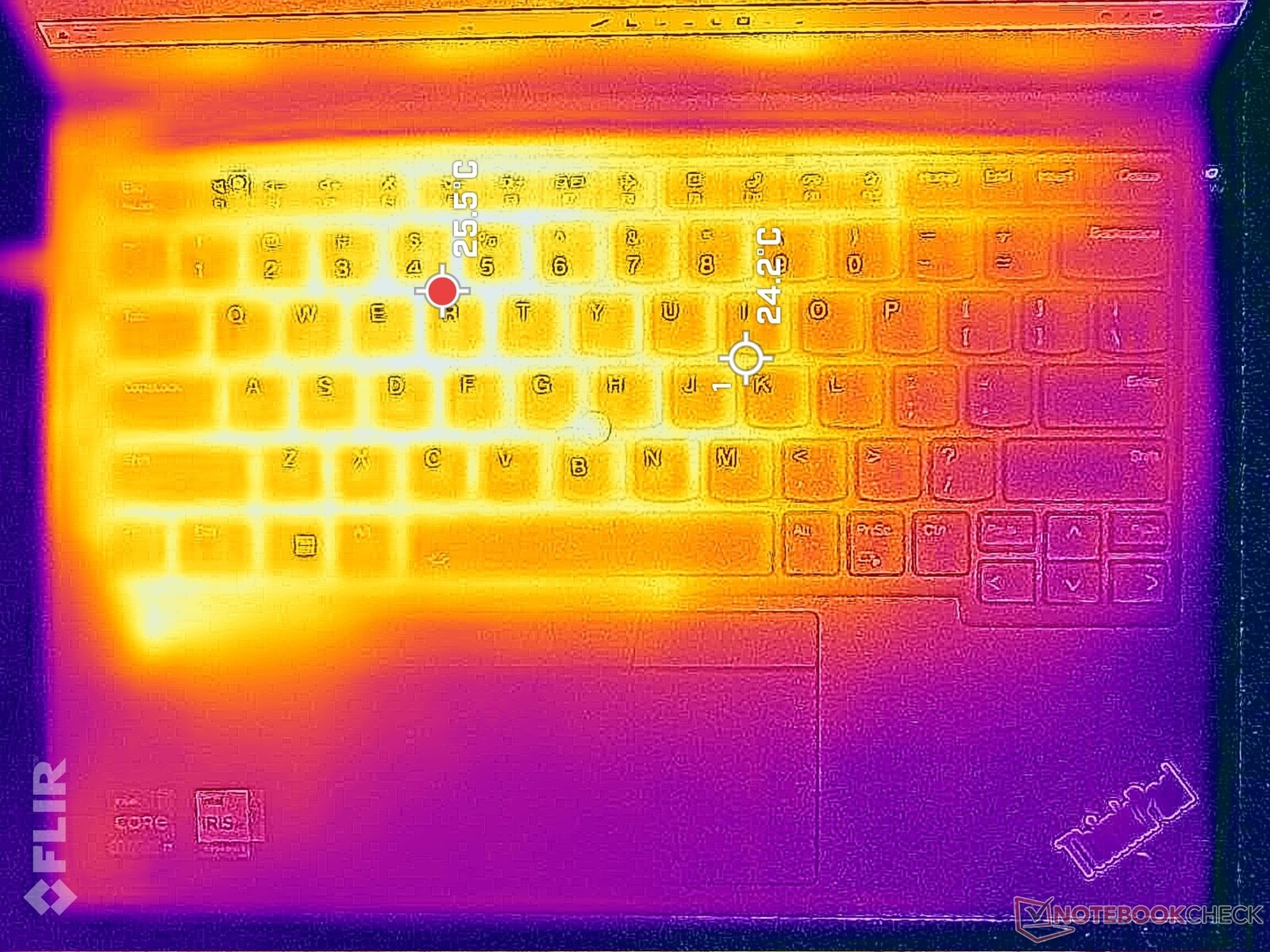

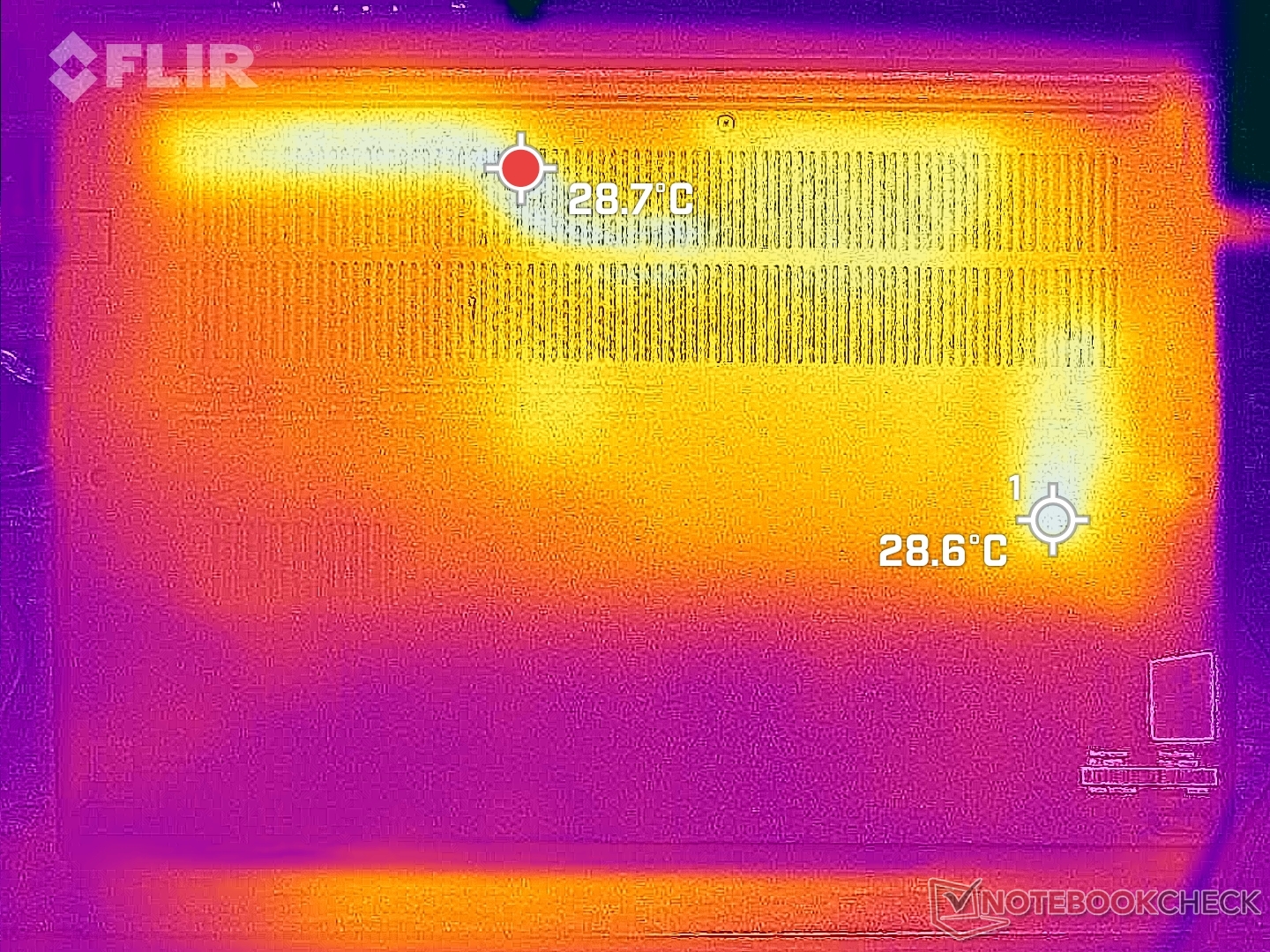

机箱左半部分和后通风栅附近的表面温度最高。键盘和底部表面的热点温度分别高达 41 摄氏度和 54 摄氏度,与我们在 AMD 配置上记录到的情况类似。
(-) The maximum temperature on the upper side is 45.4 °C / 114 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 50.8 °C / 123 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 28.8 °C / 84 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.8 °C / 85.6 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-2.2 °C / -3.9 F).
Lenovo ThinkPad E14 G5 i7-1355U Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs | Lenovo ThinkPad E14 G5-21JSS05C00 AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) | HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS, AMD Radeon 780M | Asus ZenBook 14 UM3402Y AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) | LG Gram 14Z90Q Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs | Dell Latitude 7440 Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs | |
---|---|---|---|---|---|---|
Heat | 8% | 7% | 10% | 11% | 14% | |
Maximum Upper Side * | 45.4 | 42.6 6% | 45.6 -0% | 39.4 13% | 43 5% | 39 14% |
Maximum Bottom * | 50.8 | 55.3 -9% | 51.9 -2% | 43.2 15% | 45 11% | 40.6 20% |
Idle Upper Side * | 30.2 | 25.8 15% | 26.5 12% | 28.6 5% | 27 11% | 28 7% |
Idle Bottom * | 33.4 | 27.4 18% | 27 19% | 30.6 8% | 28 16% | 28.8 14% |
* ... smaller is better

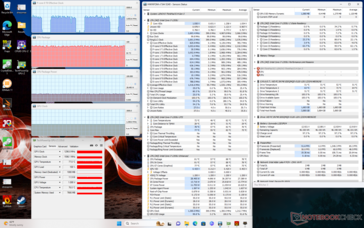

压力测试
启动 Prime95 压力时,CPU 时钟频率和主板功耗将分别飙升至 4 GHz 和 52 W,持续约 30 秒,核心温度为 97 C,然后处理器将在 1.6 GHz 至 3.9 GHz 和 14 W 至 43 W 之间循环,以保持较低的核心温度,如下图所示。时钟频率节流范围非常大,这也是上文提到的 CineBench 结果慢于预期以及下一节中功耗数据范围较大的原因。
当运行压力较大的负载时,核心温度会徘徊在 80 摄氏度左右,而戴尔 7440 的核心温度则略低于 70 摄氏度。 戴尔Latitude 7440.
CPU 时钟 (GHz) | GPU 时钟 (MHz) | CPU 平均温度 (°C) | |

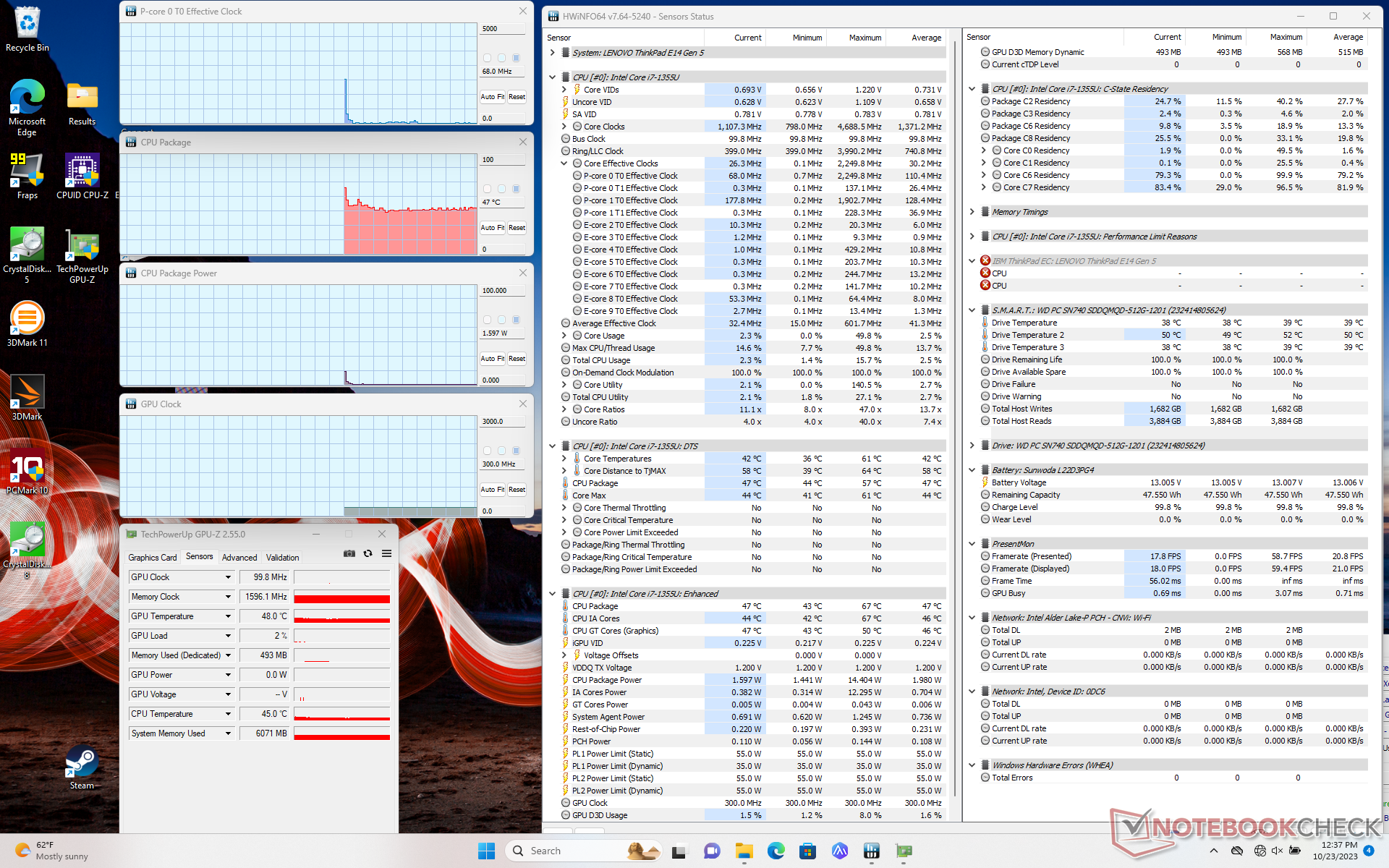

系统闲置 | -- | -- | 47 |
Prime95 压力 | 1.6 - 3.9 | -- | 70 - 90 |
Prime95 + FurMark 压力 | ~2.0 | 950 | 78 |
Witcher 3 压力 | ~3.0 | 1300 | 81 |
发言人

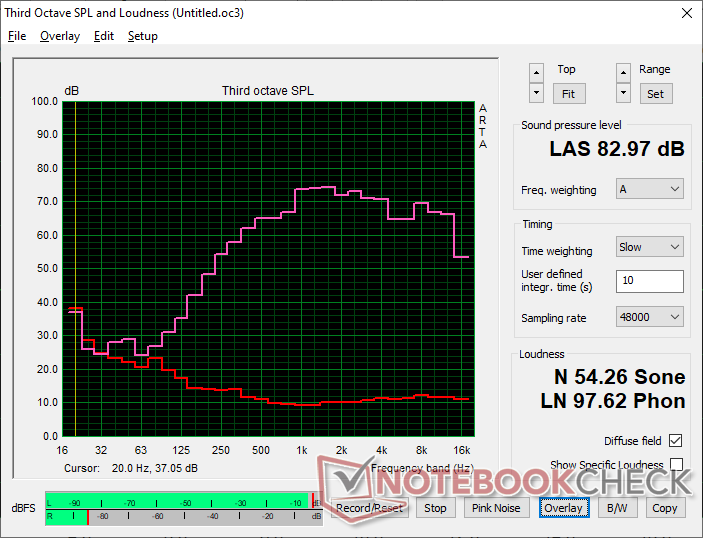

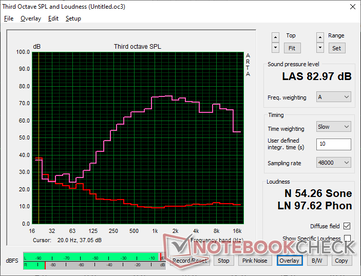

Lenovo ThinkPad E14 G5 i7-1355U audio analysis
(+) | speakers can play relatively loud (83 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 20.3% lower than median
(±) | linearity of bass is average (9.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.8% away from median
(+) | mids are linear (4.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.7% away from median
(+) | highs are linear (4.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.9% difference to median)
Compared to same class
» 20% of all tested devices in this class were better, 6% similar, 74% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 27% of all tested devices were better, 7% similar, 66% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Apple MacBook Pro 16 2021 M1 Pro audio analysis
(+) | speakers can play relatively loud (84.7 dB)
Bass 100 - 315 Hz
(+) | good bass - only 3.8% away from median
(+) | bass is linear (5.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (2.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (4.6% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 100% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 4%, average was 25%, worst was 134%
能源管理
耗电量

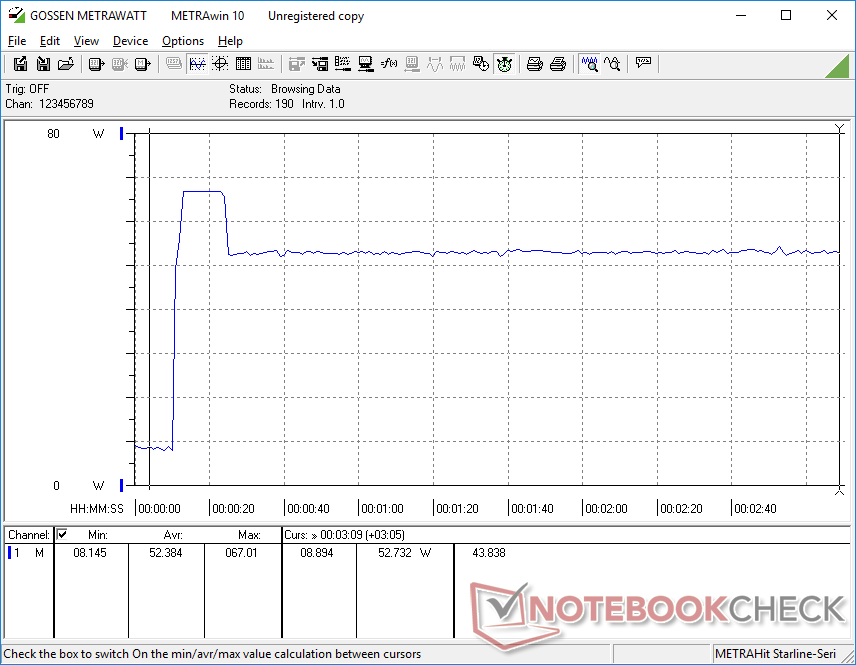

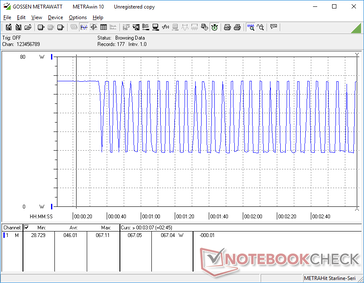

功耗行为反映了上文提到的急剧的 CPU 节流行为。例如,在运行 Prime95 时,功耗会在 29 W 和 67 W 之间循环,而在 AMD ThinkPad E14 G5 上进行完全相同的测试时,功耗会稳定在 47 W。

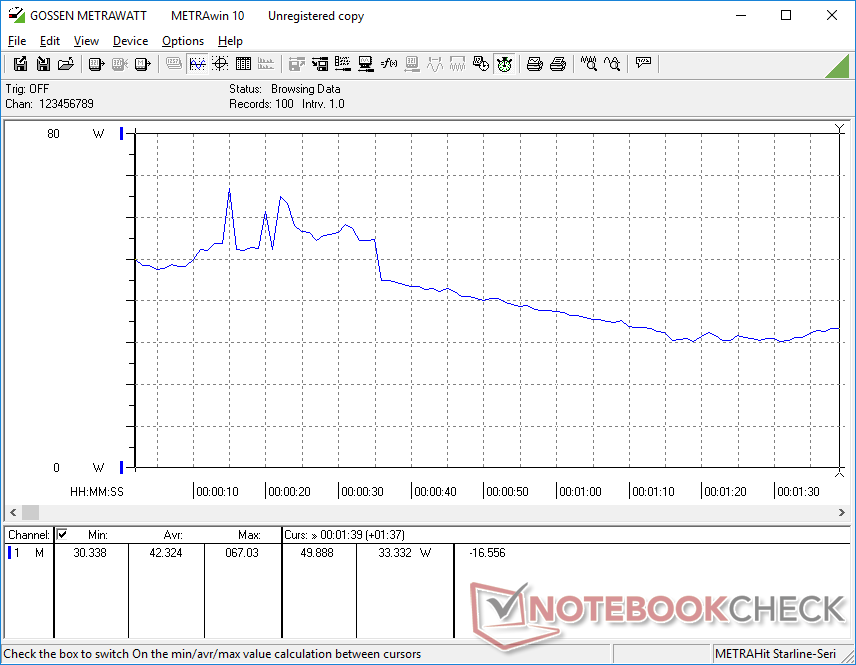

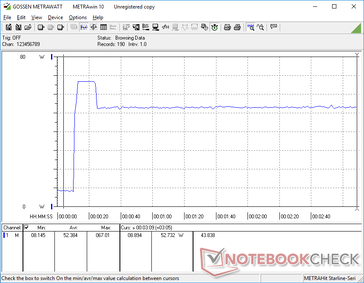

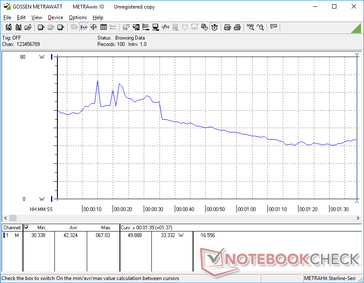

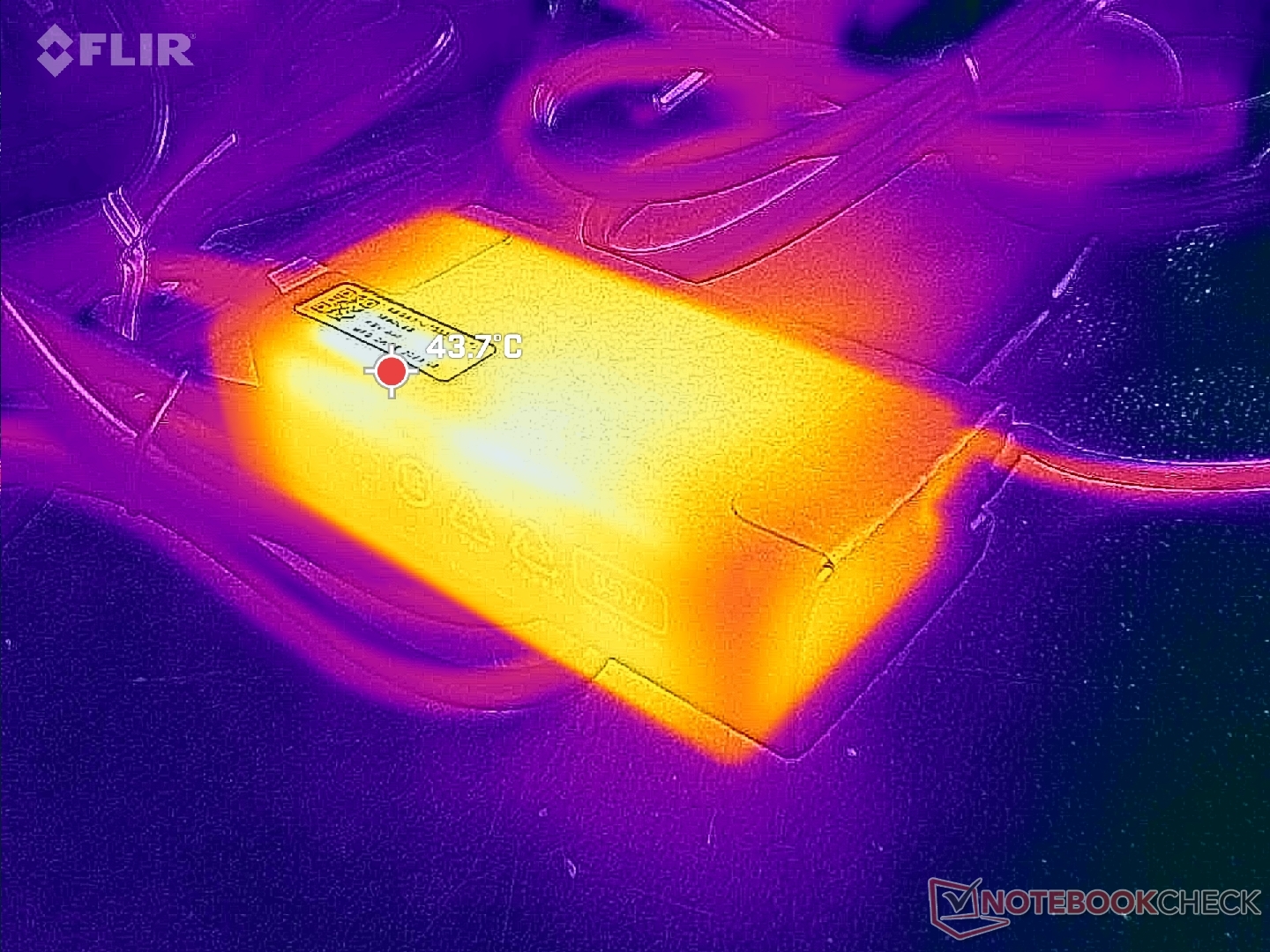

当 CPU 的利用率达到 100% 时,小巧(9 x 4.7 x 2.7 厘米)的 65 W USB-C 交流适配器的功耗可高达 67 W。因此,当 Turbo Boost 达到最快时(如多任务或启动应用程序时),英特尔系统比 AMD 系统更耗电。如下图所示,在启动 CineBench R15 xT 基准测试时,也可以观察到这一点。此外,在桌面空闲或运行要求不高的负载时,两个版本的耗电量基本相同。
Off / Standby | 0.35 / 0.56 Watt |
Idle | 3.6 / 6.9 / 7 Watt |
Load |
42.3 / 67 Watt |
Key:
min: ,
med: ,
max: Metrahit Energy |
Lenovo ThinkPad E14 G5 i7-1355U i7-1355U, Iris Xe G7 96EUs, WD PC SN740 512GB SDDQMQD-512G, IPS, 1920x1200, 14" | Lenovo ThinkPad E14 G5-21JSS05C00 R7 7730U, Vega 8, WD PC SN740 SDDPNQD-1T00, IPS, 2240x1400, 14" | HP EliteBook 845 G10 818N0EA R9 PRO 7940HS, Radeon 780M, SK hynix PC801 HFS001TEJ9X101N, IPS, 2560x1600, 14" | Asus ZenBook 14 UM3402Y R7 7730U, Vega 8, Micron 2400 MTFDKBA512QFM, OLED, 2880x1800, 14" | LG Gram 14Z90Q i5-1240P, Iris Xe G7 80EUs, Samsung PM9A1 MZVL2512HCJQ, IPS, 1920x1200, 14" | Dell Latitude 7440 i5-1345U, Iris Xe G7 80EUs, Samsung MZ9L4512HBLU-00BMV, IPS, 2560x1600, 14" | |
---|---|---|---|---|---|---|
Power Consumption | -3% | -33% | -42% | -0% | -5% | |
Idle Minimum * | 3.6 | 3.3 8% | 4.3 -19% | 7.9 -119% | 3 17% | 4.5 -25% |
Idle Average * | 6.9 | 7.6 -10% | 10.1 -46% | 8.8 -28% | 6 13% | 6.5 6% |
Idle Maximum * | 7 | 8.9 -27% | 11.2 -60% | 14.7 -110% | 12 -71% | 7.3 -4% |
Load Average * | 42.3 | 47.3 -12% | 64.4 -52% | 46.9 -11% | 40 5% | 52.5 -24% |
Witcher 3 ultra * | 50.5 | 45.1 11% | 59.4 -18% | 44.9 11% | 36.5 28% | 46.2 9% |
Load Maximum * | 67 | 57.8 14% | 66.7 -0% | 65.2 3% | 63 6% | 63 6% |
* ... smaller is better

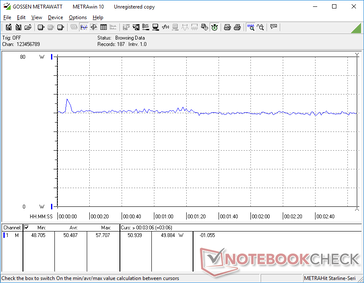

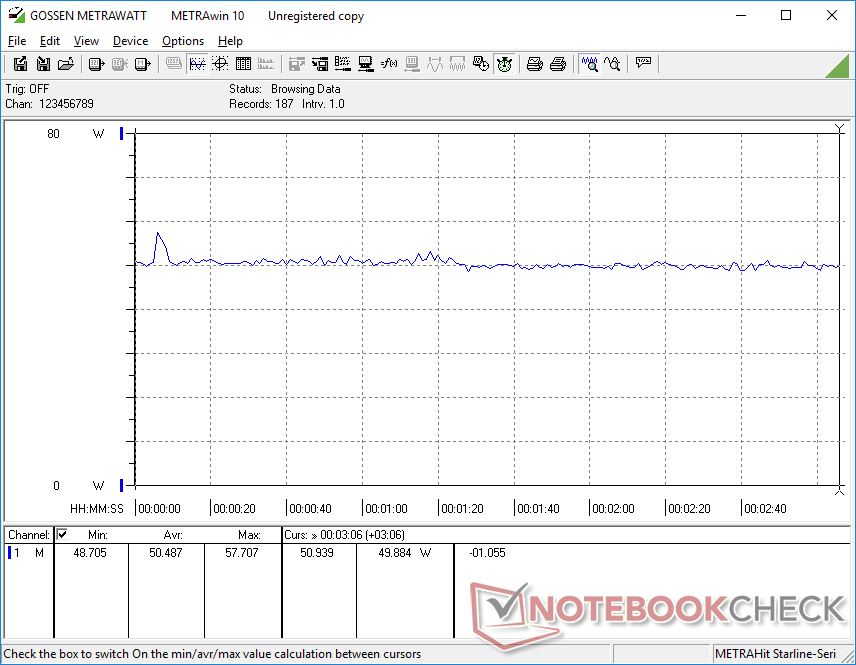

Power Consumption Witcher 3 / Stresstest
Power Consumption external Monitor
电池寿命
与我们的 AMD 配置相比,某些英特尔配置的电池容量较小(47 Wh 对 57 Wh),因此如果用户配置较小的电池,运行时间可能会缩短。在自动关机前,我们可以浏览约 5.5 个小时的网页,而 AMD 版本则需要近 10 个小时。
此外,使用随附的交流适配器从空闲状态充电到满载状态也非常快,只需一个多小时。快速充电功能默认已启用。
Lenovo ThinkPad E14 G5 i7-1355U i7-1355U, Iris Xe G7 96EUs, 47 Wh | Lenovo ThinkPad E14 G5-21JSS05C00 R7 7730U, Vega 8, 57 Wh | HP EliteBook 845 G10 818N0EA R9 PRO 7940HS, Radeon 780M, 51 Wh | Asus ZenBook 14 UM3402Y R7 7730U, Vega 8, 75 Wh | LG Gram 14Z90Q i5-1240P, Iris Xe G7 80EUs, 72 Wh | Dell Latitude 7440 i5-1345U, Iris Xe G7 80EUs, 57 Wh | |
---|---|---|---|---|---|---|
Battery Runtime | 82% | 44% | 122% | 118% | 139% | |
WiFi v1.3 | 327 | 594 82% | 471 44% | 725 122% | 712 118% | 781 139% |
H.264 | 645 | 557 | ||||
Load | 71 | 56 | 203 | 169 | 164 | |
Reader / Idle | 1107 | 1736 | 1427 |
Pros
Cons
评语:不错,但与 AMD Ryzen 7 版本相比更难推荐
我们的英特尔产品配置了酷睿 i7 处理器、16 GB 内存、1200p 触摸屏和 512 GB 固态硬盘,售价约为 915 美元,而配置相同内存、触摸屏和固态硬盘的 Ryzen 7 版本售价为 865 美元。选择 AMD 版本将获得更快的多线程性能、更长的电池续航时间和适当的 M.2 2280 SSD 支持,而英特尔版本将获得更快的单线程性能和 Thunderbolt 支持。在图形性能、表面温度和风扇噪音等其他方面,两个版本也非常相似。因此,除非你真的很看重单线程性能和 Thunderbolt,否则对于大多数感兴趣的买家来说,AMD 版比英特尔版更容易推荐。
与价格较低的 Ryzen 7 相比,基于英特尔的 ThinkPad E14 G5 表现出更陡峭的节流行为。
ThinkPad E 系列缺少了一些以商务为中心的辅助功能,如广域网和智能卡,但这也是设计的初衷,因为 ThinkPad E 系列应该是更高端、更昂贵的 ThinkPad T 系列的经济实惠的替代品。 ThinkPad T 系列或 X 系列.
Lenovo ThinkPad E14 G5 i7-1355U
- 10/26/2023 v7 (old)
Allen Ngo
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
