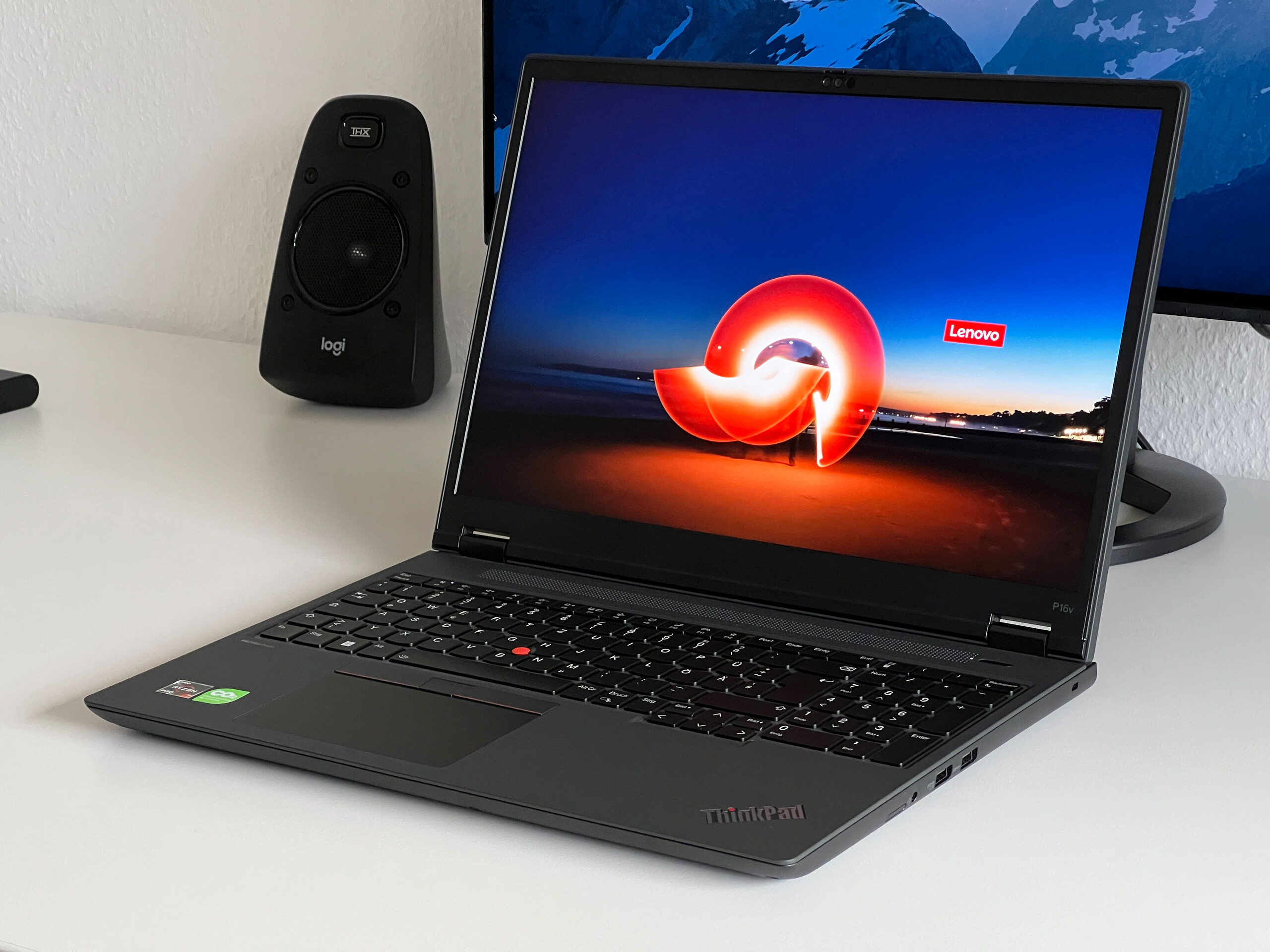

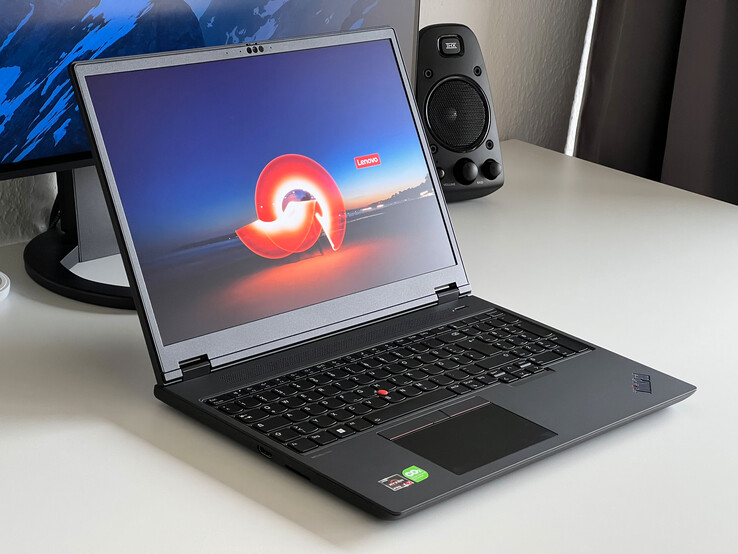

联想 ThinkPad P16v G1 AMD 评测--配备 Zen4 的入门级工作站
联想在其移动工作站阵容中新增了一款入门级机型 ThinkPad P16v G1。这款笔记本电脑可选 AMD 或英特尔处理器,并可在集成显卡和 Nvidia 专业图形处理器 RTX A500、RTX 1000 和 RTX 2000 Ada.
最便宜的 AMD 机型起价约为 1,400 欧元(1,533 美元),配备 Ryzen 5 PRO 7560HS,集成 Radeon 760M、8 GB 内存、256 GB SSD 和 1080p 面板。最高规格的 AMD 机型最高售价为 3,200 欧元(3,503 美元),配备了 Ryzen 9 PRO 7940HSRTX 2000 Ada、64 GB 内存、4 TB SSD 存储和 4K 显示屏。
我们的评测机(型号 21FE0004GE)售价 2,099 欧元(2,298 美元),配备了 Ryzen 7 PRO 7840HS和 Nvidia RTX A100032 GB 内存、1 TB 固态硬盘和完全覆盖 sRGB 的全高清面板。
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
---|---|---|---|---|---|---|---|
86.2 % v7 (old) | 01 / 2024 | Lenovo ThinkPad P16v G1 AMD R7 PRO 7840HS, RTX A1000 Laptop GPU | 2.3 kg | 24.7 mm | 16.00" | 1920x1200 | |
88.9 % v7 (old) | 12 / 2023 | HP ZBook Power 15 G10 R7 PRO 7840HS, NVIDIA RTX 2000 Ada Generation Laptop GPU | 2 kg | 22.9 mm | 15.60" | 2560x1440 | |
87.8 % v7 (old) | 04 / 2023 | Lenovo ThinkPad P15v G3 21EM001AGE R7 PRO 6850H, RTX A2000 Laptop GPU | 2.2 kg | 22.7 mm | 15.60" | 3840x2160 | |
88.4 % v7 (old) | 10 / 2022 | Dell Precision 7670 i7-12850HX, RTX A2000 Laptop GPU | 2.7 kg | 24.7 mm | 16.00" | 3840x2400 | |
91.7 % v7 (old) | 10 / 2023 | Lenovo ThinkPad P1 G6-21FV000DGE i9-13900H, NVIDIA RTX 2000 Ada Generation Laptop GPU | 1.9 kg | 17.5 mm | 16.00" | 2560x1600 | |
88.2 % v7 (old) | 02 / 2023 | Lenovo ThinkPad P16 G1 21D6001DMB i7-12850HX, RTX A2000 Laptop GPU | 3 kg | 30.23 mm | 16.00" | 2560x1600 |
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名

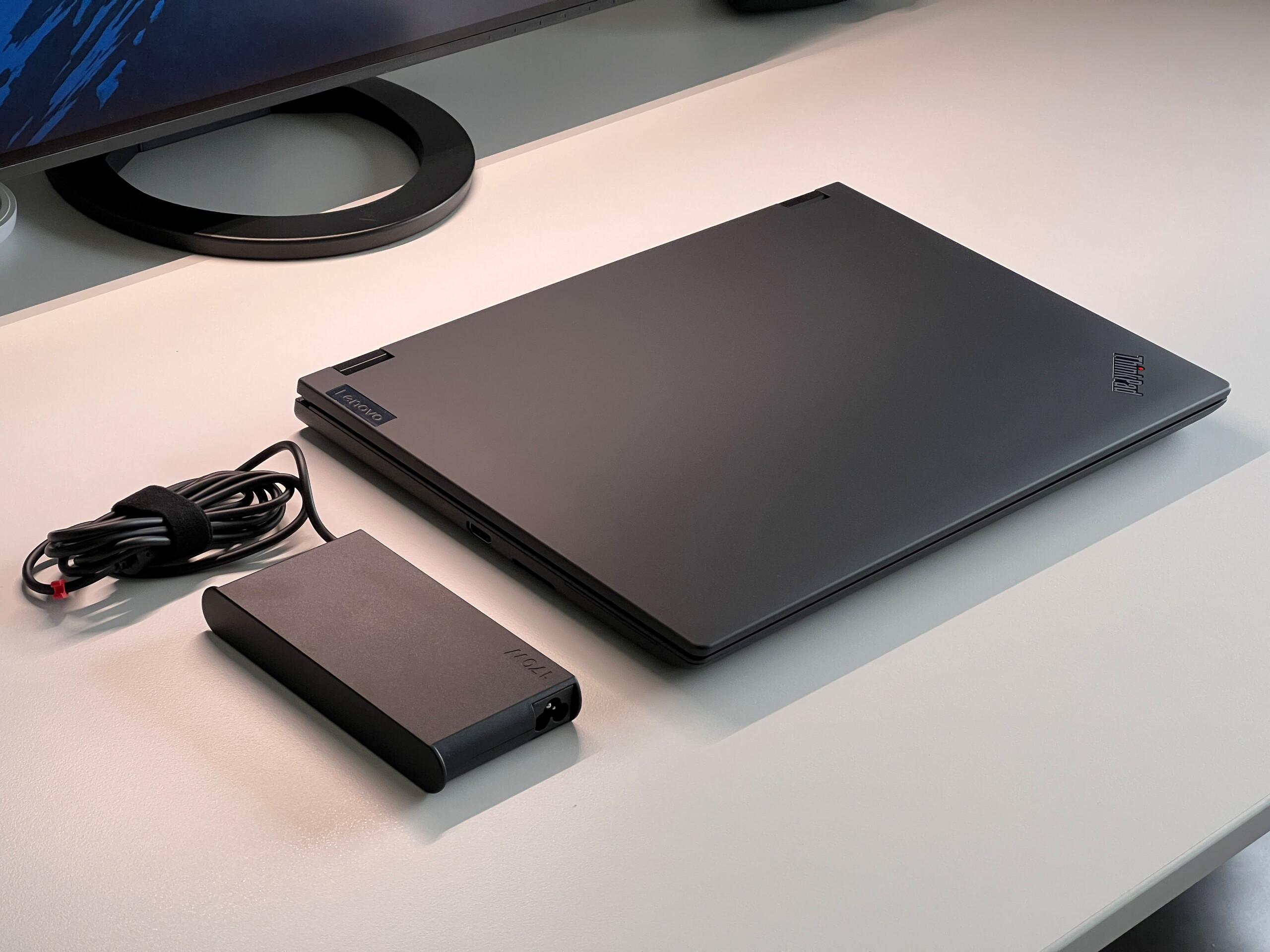

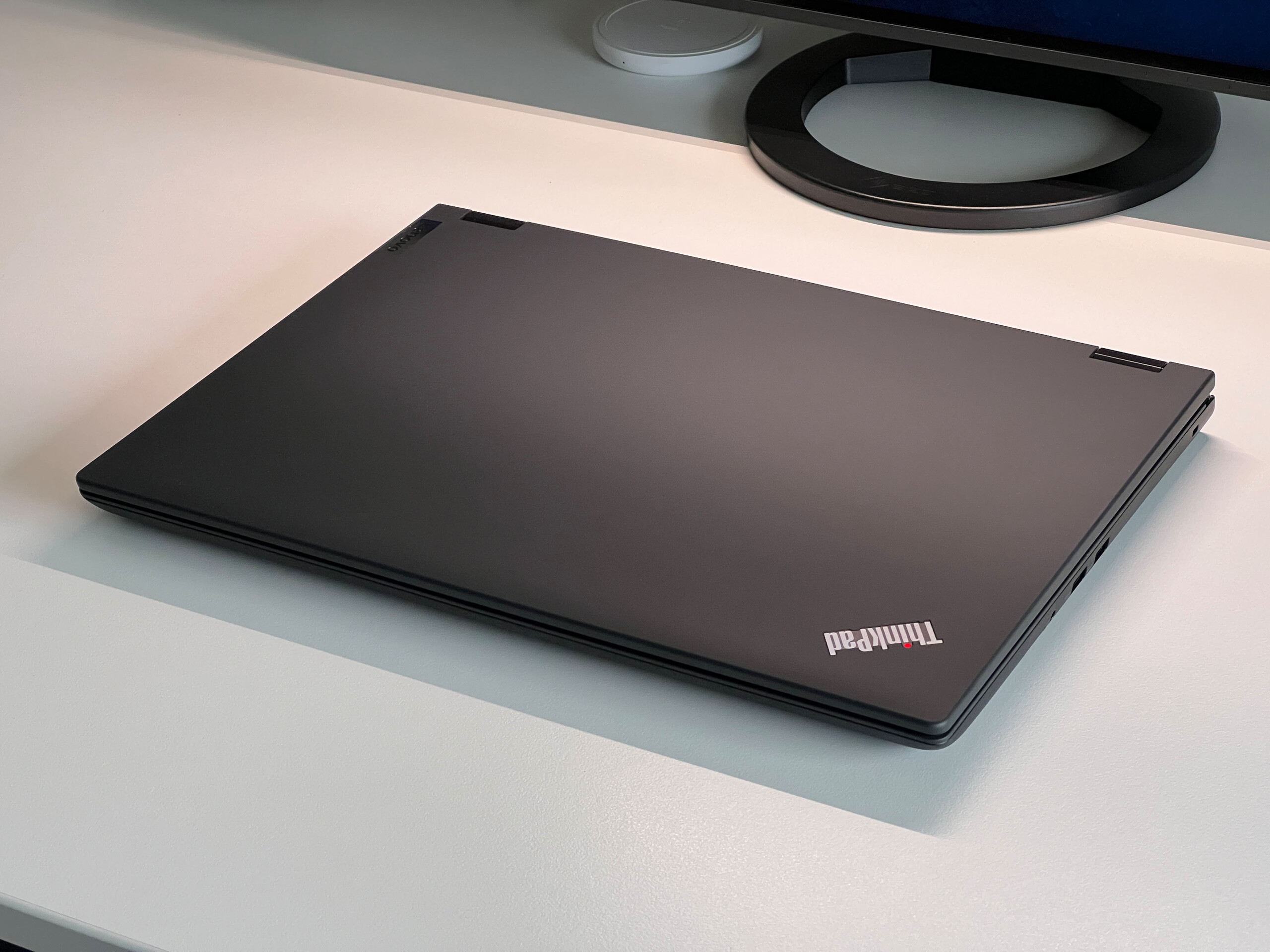

外壳 - 带有红色装饰的塑料 ThinkPad
这款笔记本电脑的入门级特性明显体现在材料的选择上。联想为 ThinkPad P16v G1 配备了完全塑料材质的机身。不过,机盖和底座顶部的手感都不错,而且不容易沾染指纹。另一方面,机身底部和屏幕边框比较粗糙,感觉也比较廉价。在外观和做工方面,竞争对手 惠普 ZBook Power的金属机身无疑更具优势。

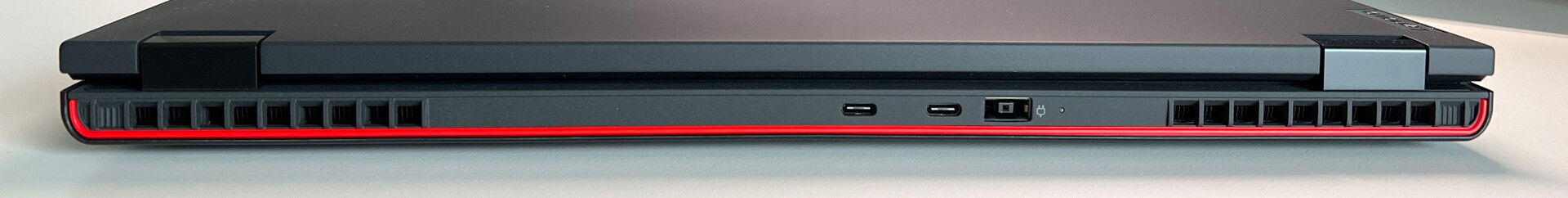

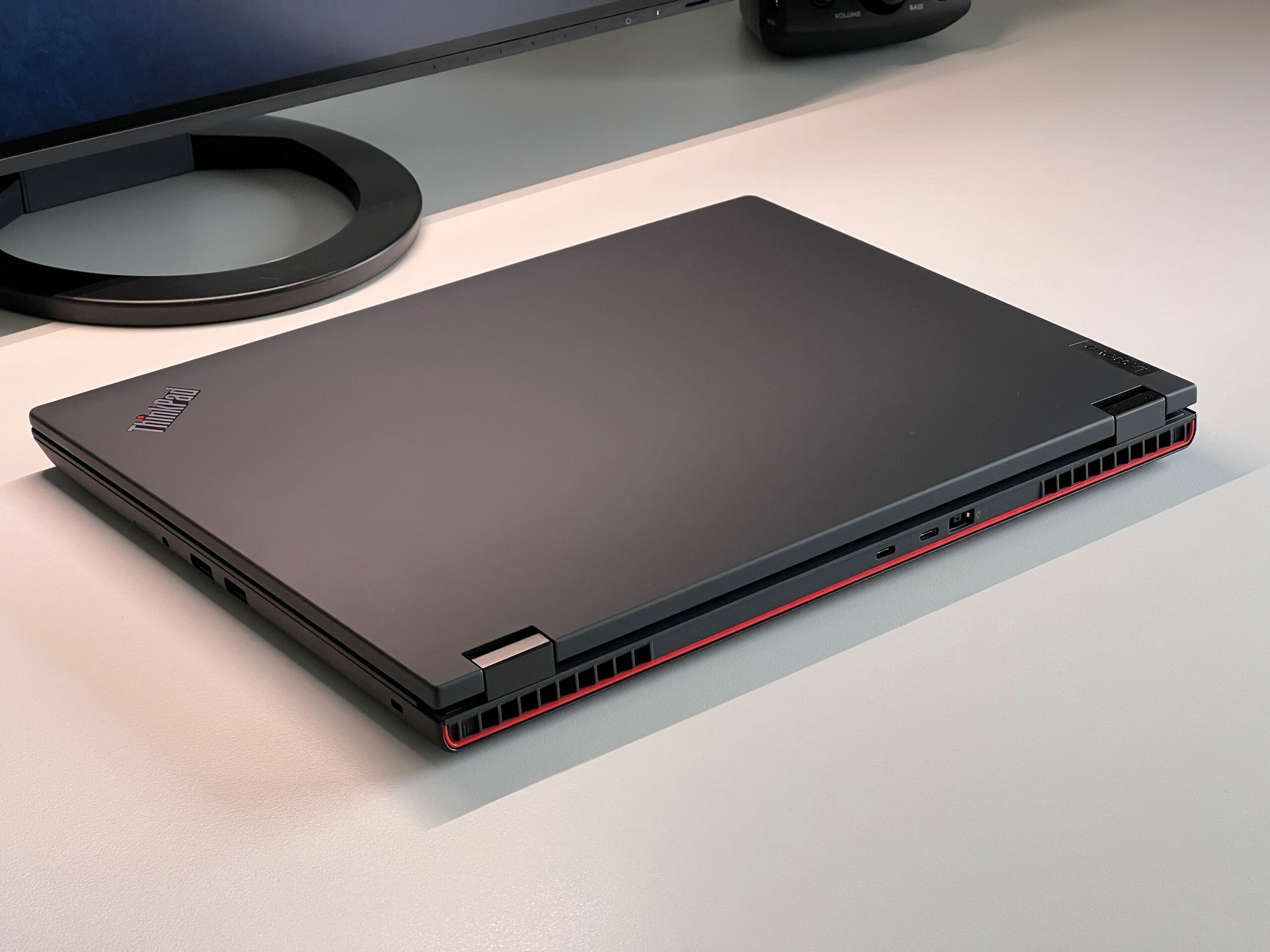

除了常见的红色元素,如 TrackPoint 和专用鼠标按键上的红色装饰线,联想在 P16v G1 上更进一步,在设备背面增加了另一条红色装饰线。当然,个人喜好总是主观的,但我们不太确定这是否适合移动工作站。
这款笔记本电脑从根本上说是坚固的,但与更昂贵的 ThinkPad 机型相比,缺点也是不可避免的。底座的中间部分可能会被稍微推入,盖子也有相当大的弯曲度。尽管如此,这并没有导致任何吱吱嘎嘎的噪音或图像失真。铰链的调校相当不错,但在调整显示屏角度时会有明显的晃动。屏幕也无法完全折回 180 度。
就尺寸和重量而言,新款 P16v G1 几乎完全介于轻薄的 ThinkPad P1 G6工作站和强大的 ThinkPad P16.170 瓦充电器连同电源线重 554 克(1.22 磅)。
规格 - AMD 版本,带 USB4

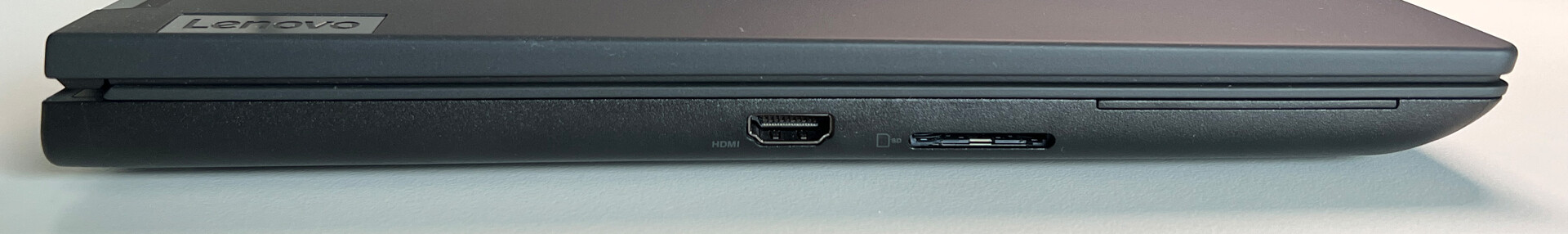

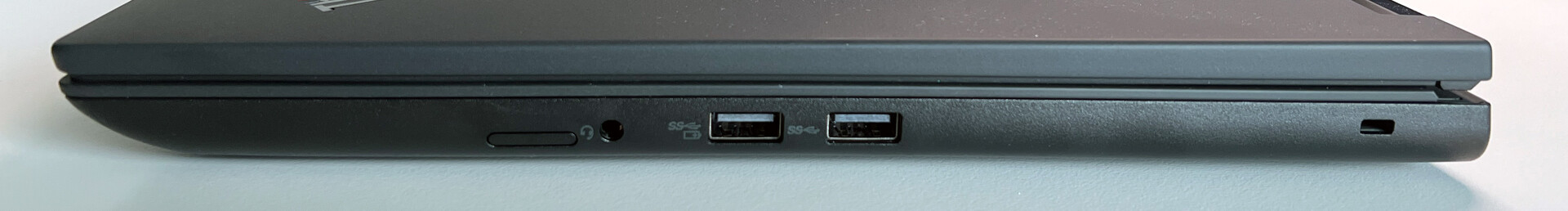

这款基于 AMD 的工作站有两个支持 USB4 的现代 USB-C 端口,都位于笔记本电脑的背面。接口分布在三面,但这种安排并不理想。我们更希望 HDMI 输出能在背面;如果能在左侧至少有一个 USB 端口,那就更好了。ThinkPad P16v G1 可以选配智能卡读卡器。不过,用户将无法使用专用的以太网端口,只能使用 USB-C 适配器添加。
SD 读卡器
左边的 SD 读卡器有一个弹簧装置。插入 SD 卡时,SD 卡会微微突出。使用我们的参考卡(Angelbird AV Pro V60),我们的平均传输速度达到了 70-90 MB/s。
SD Card Reader | |
average JPG Copy Test (av. of 3 runs) | |
Dell Precision 7670 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
Average of class Workstation (49.6 - 200, n=15, last 2 years) | |
Lenovo ThinkPad P15v G3 21EM001AGE (AV Pro V60) | |
Lenovo ThinkPad P1 G6-21FV000DGE (Angelbird AV Pro V60) | |
Lenovo ThinkPad P16v G1 AMD (Angelbird AV Pro V60) | |
Lenovo ThinkPad P16 G1 21D6001DMB (AV Pro V60) | |
maximum AS SSD Seq Read Test (1GB) | |
Lenovo ThinkPad P15v G3 21EM001AGE (AV Pro V60) | |
Dell Precision 7670 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
Average of class Workstation (81.2 - 227, n=15, last 2 years) | |
Lenovo ThinkPad P16v G1 AMD (Angelbird AV Pro V60) | |
Lenovo ThinkPad P1 G6-21FV000DGE (Angelbird AV Pro V60) | |
Lenovo ThinkPad P16 G1 21D6001DMB (AV Pro V60) |
连接性
AMD ThinkPad 配备了高通 Wi-Fi 6E 模块(WCN685x),支持当前的 Wi-Fi 6 标准和蓝牙 5.2。当与华硕参考路由器连接时,它能提供非常高且稳定的传输速度。
ThinkPad P16v G1 还可在订购前配置 WWAN 模块(4G LTE),但由于标配的 SIM 卡读卡器和所需的天线均未安装,因此无法在稍后添加。
Networking | |
Lenovo ThinkPad P16v G1 AMD | |
iperf3 transmit AXE11000 | |
iperf3 receive AXE11000 | |
HP ZBook Power 15 G10 | |
iperf3 transmit AXE11000 | |
iperf3 receive AXE11000 | |
iperf3 transmit AXE11000 6GHz | |
iperf3 receive AXE11000 6GHz | |
Lenovo ThinkPad P15v G3 21EM001AGE | |
iperf3 transmit AXE11000 | |
iperf3 receive AXE11000 | |
iperf3 transmit AXE11000 6GHz | |
iperf3 receive AXE11000 6GHz | |
Dell Precision 7670 | |
iperf3 transmit AXE11000 6GHz | |
iperf3 receive AXE11000 6GHz | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
iperf3 transmit AXE11000 | |
iperf3 receive AXE11000 | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
iperf3 transmit AXE11000 | |
iperf3 receive AXE11000 | |
网络摄像头

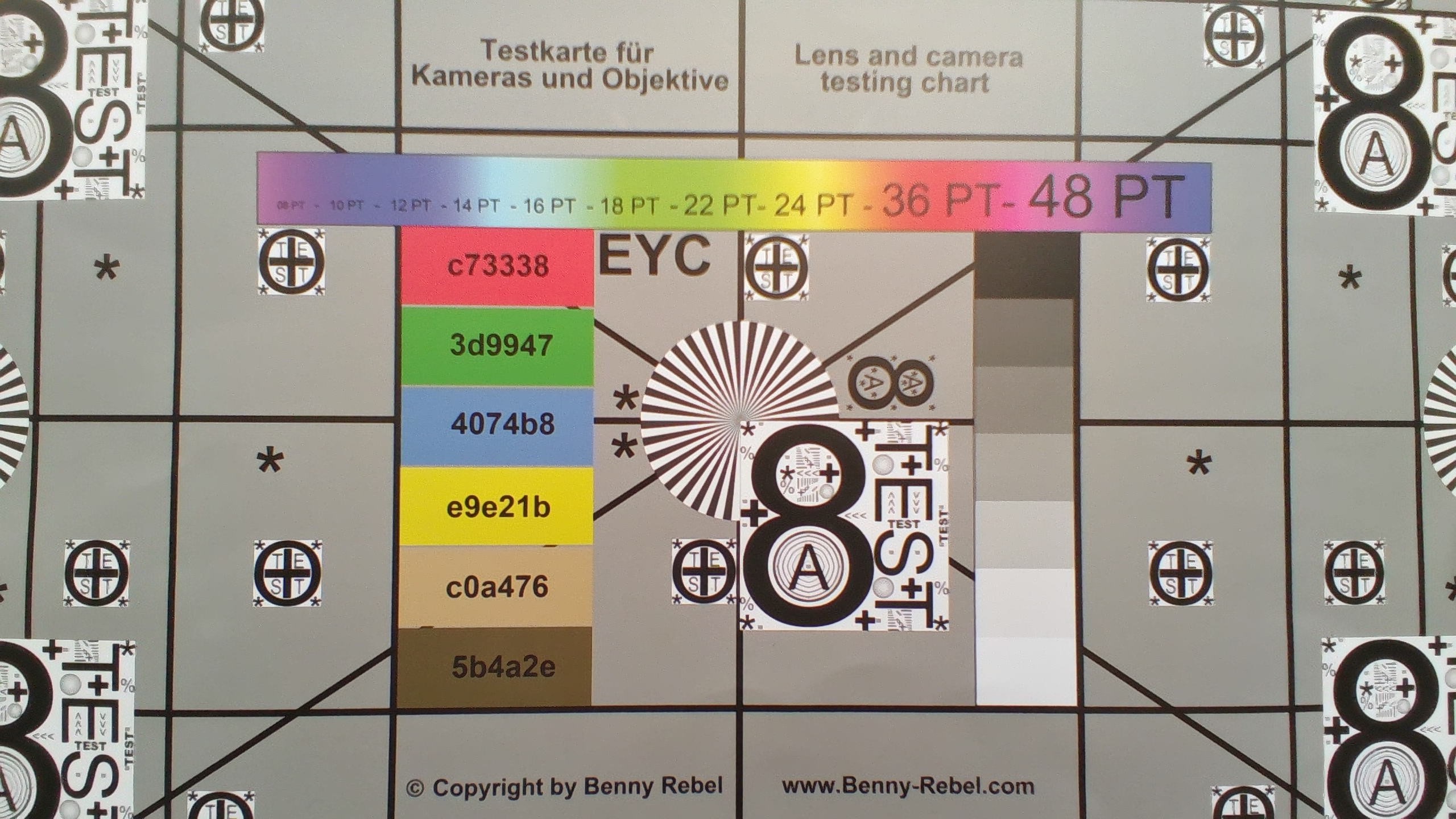

虽然联想安装了一个 500 万像素的网络摄像头,但图像质量并不是特别好。即使在光线条件良好的情况下,图像也很难比 1080p 网络摄像头拍摄的图像更好看。此外,它还配备了一个红外摄像头,用于 Windows Hello 面部识别。
维护

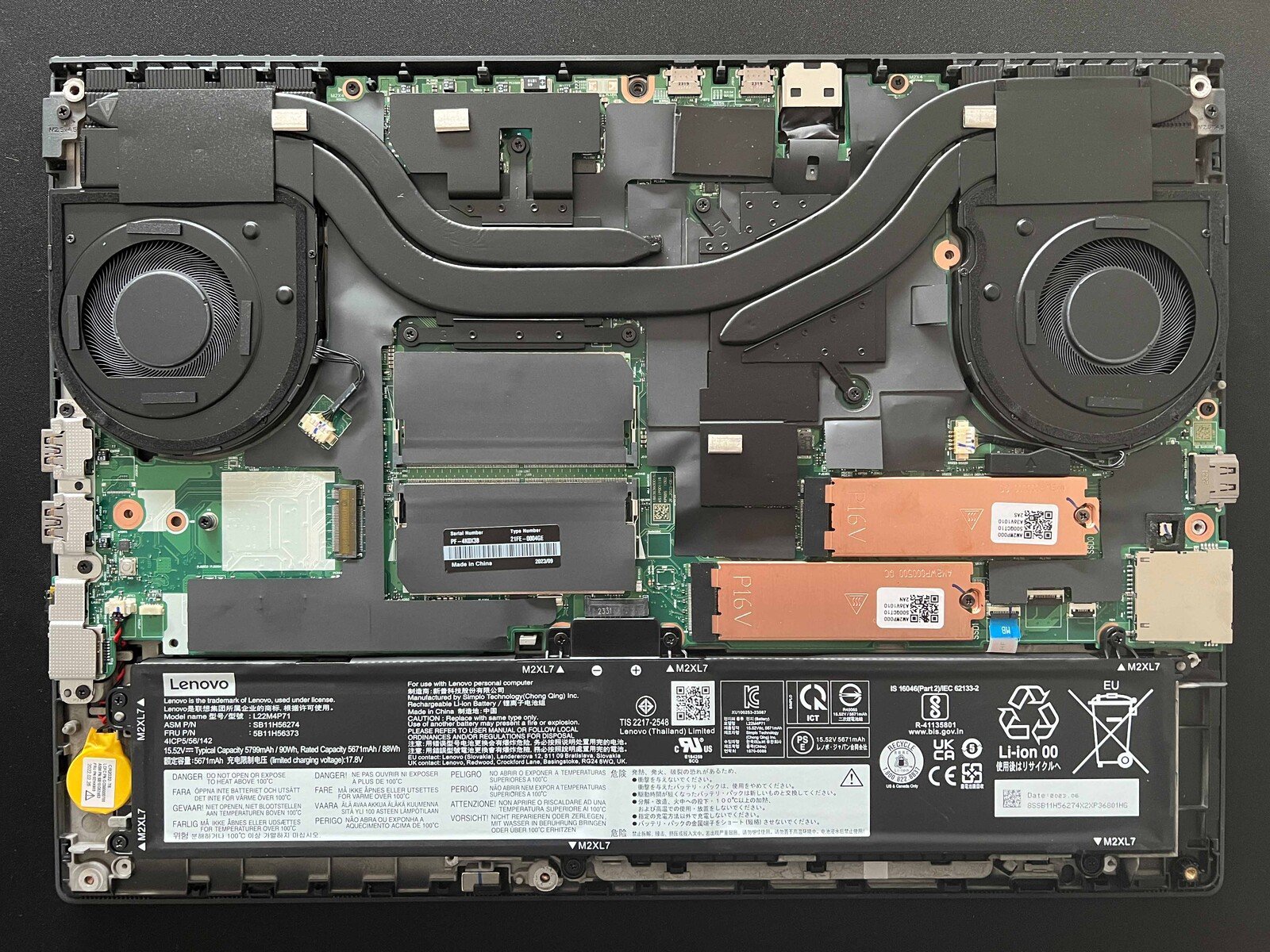

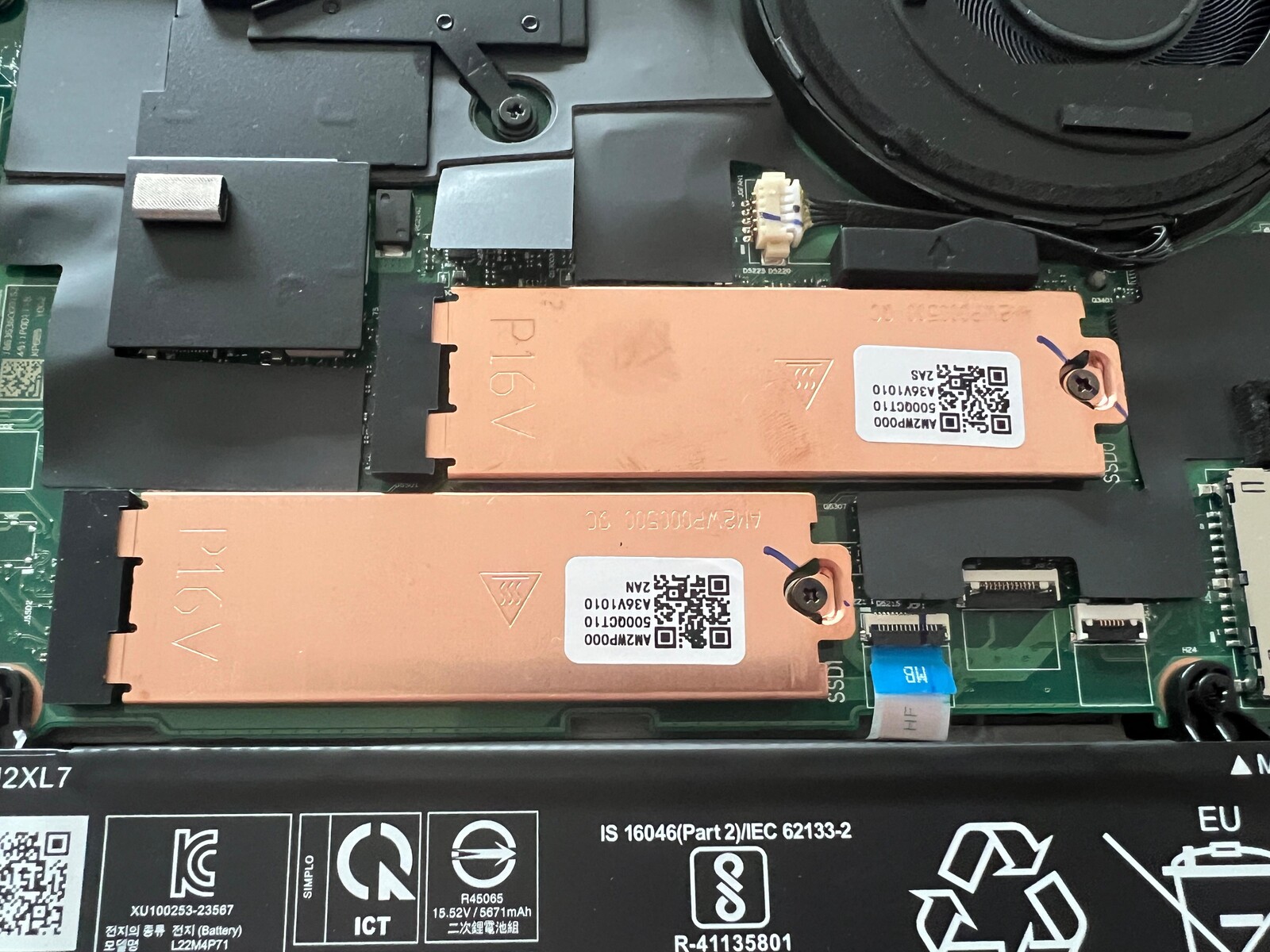

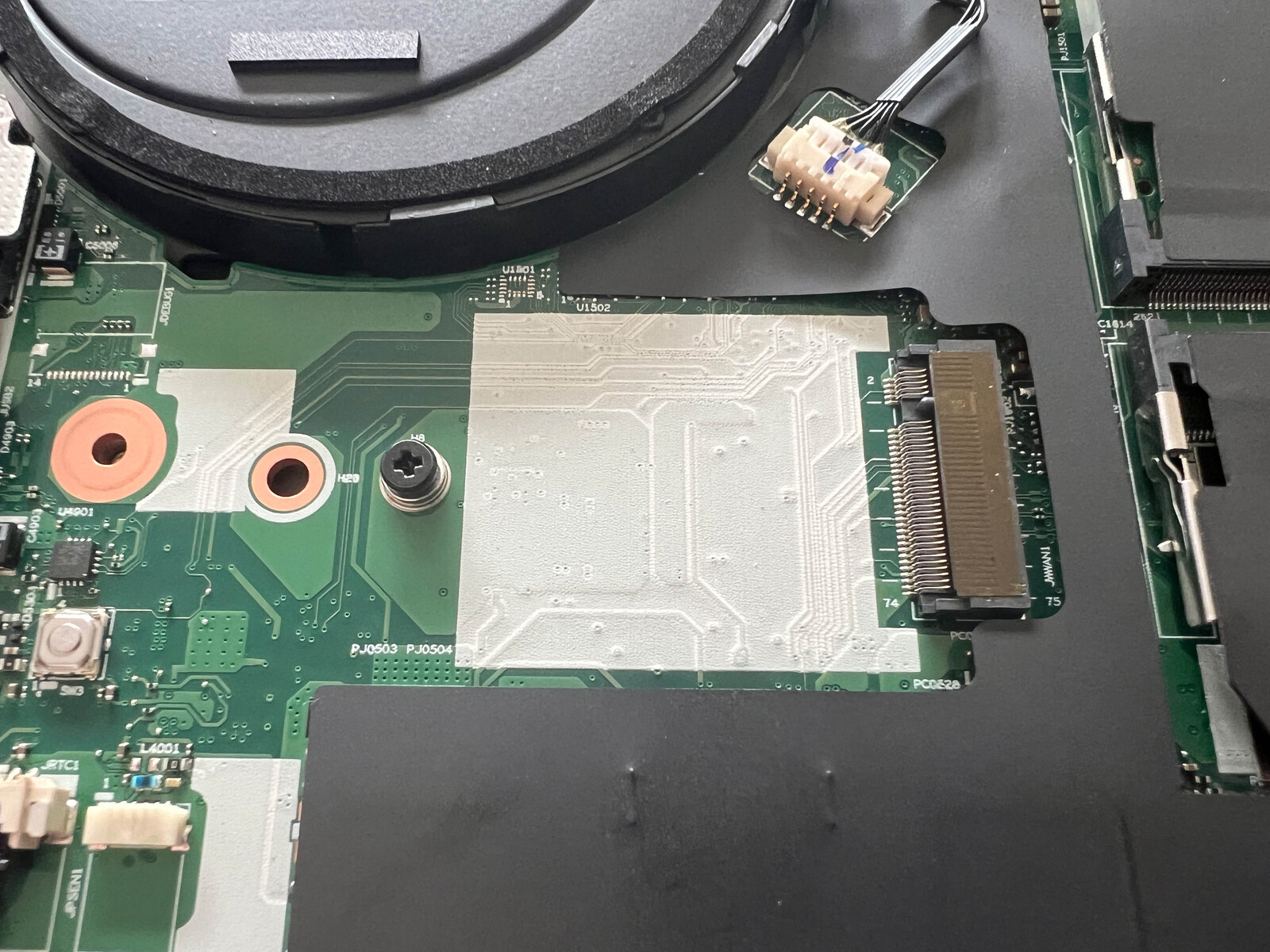

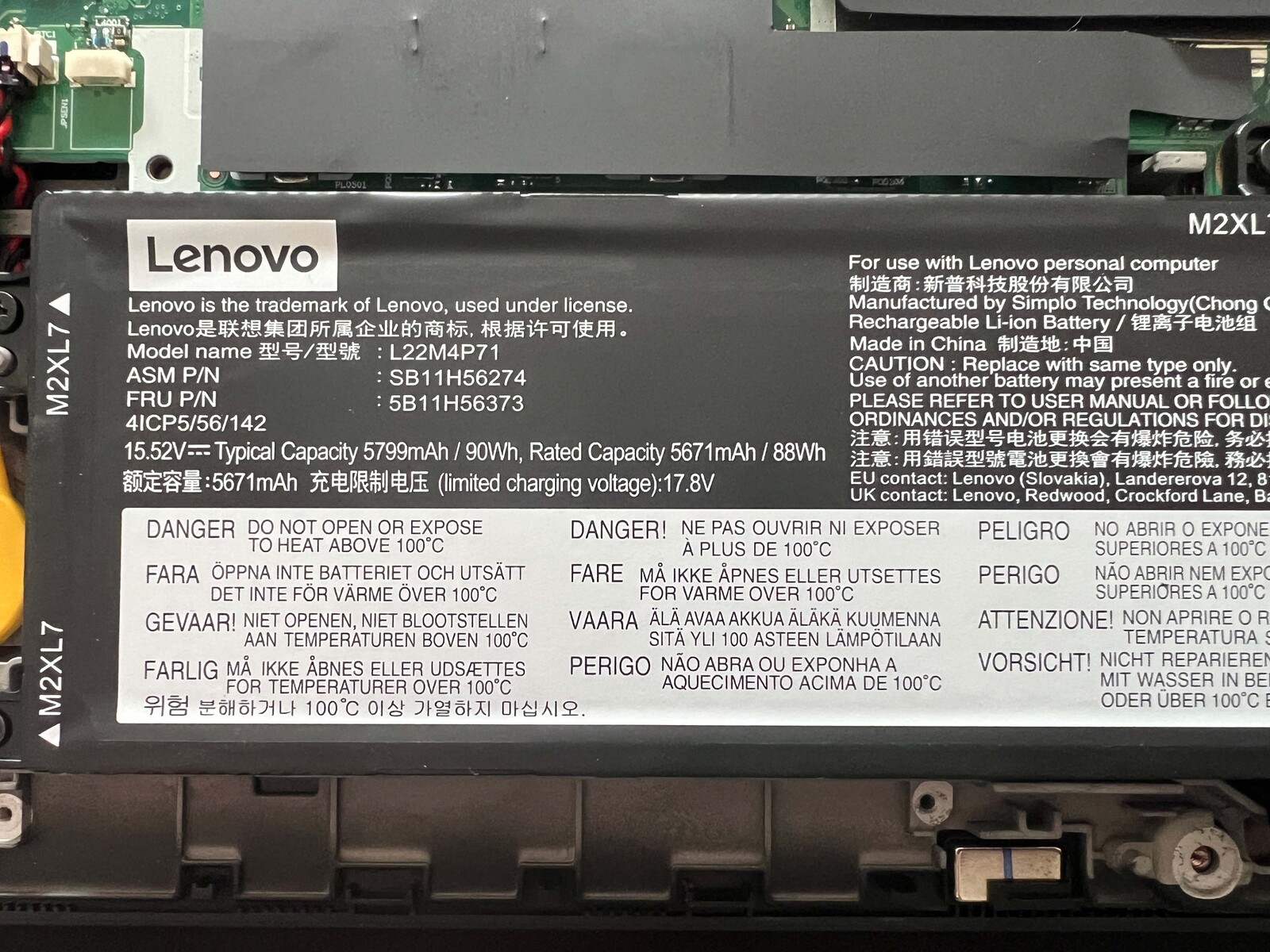

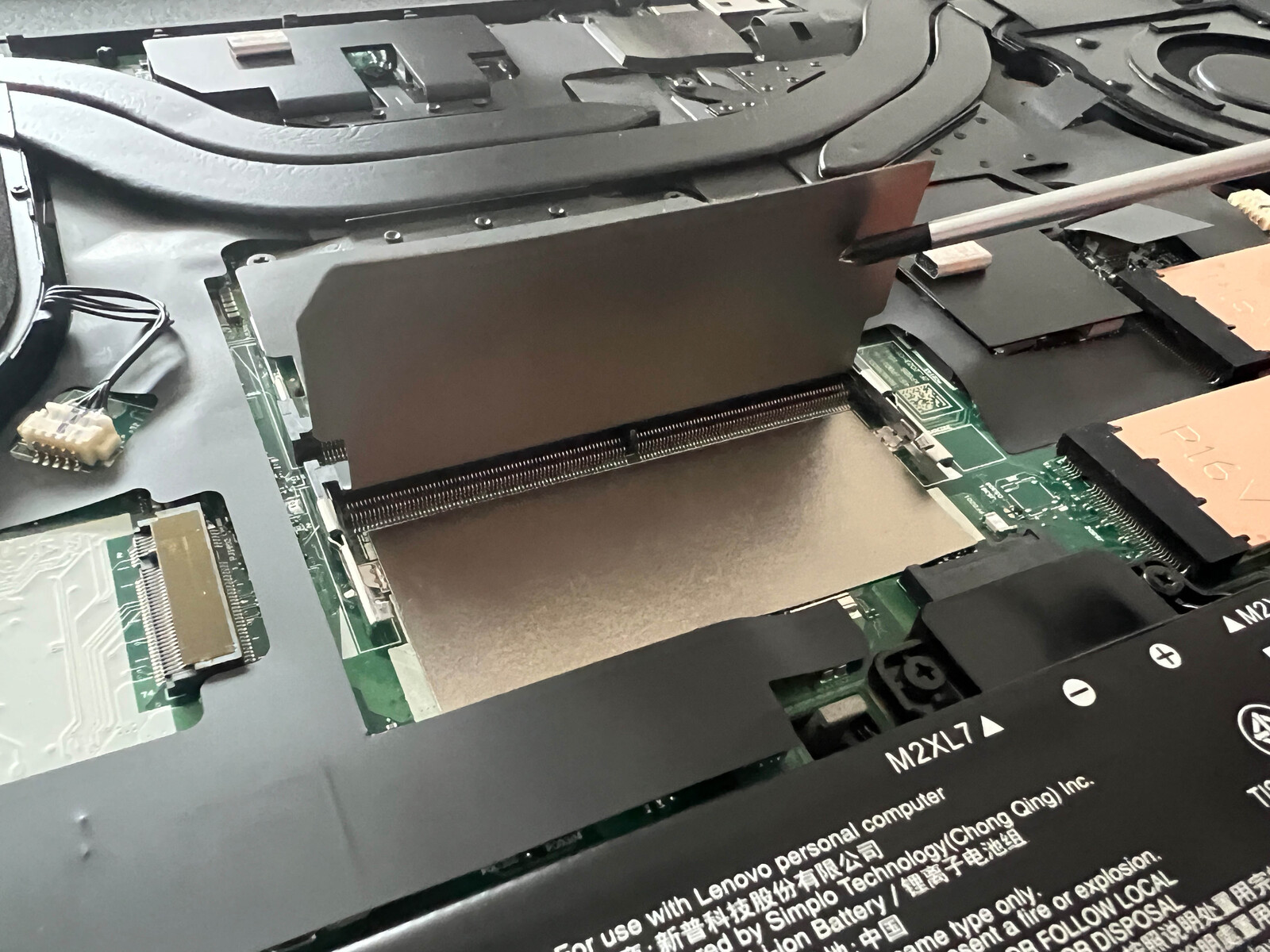

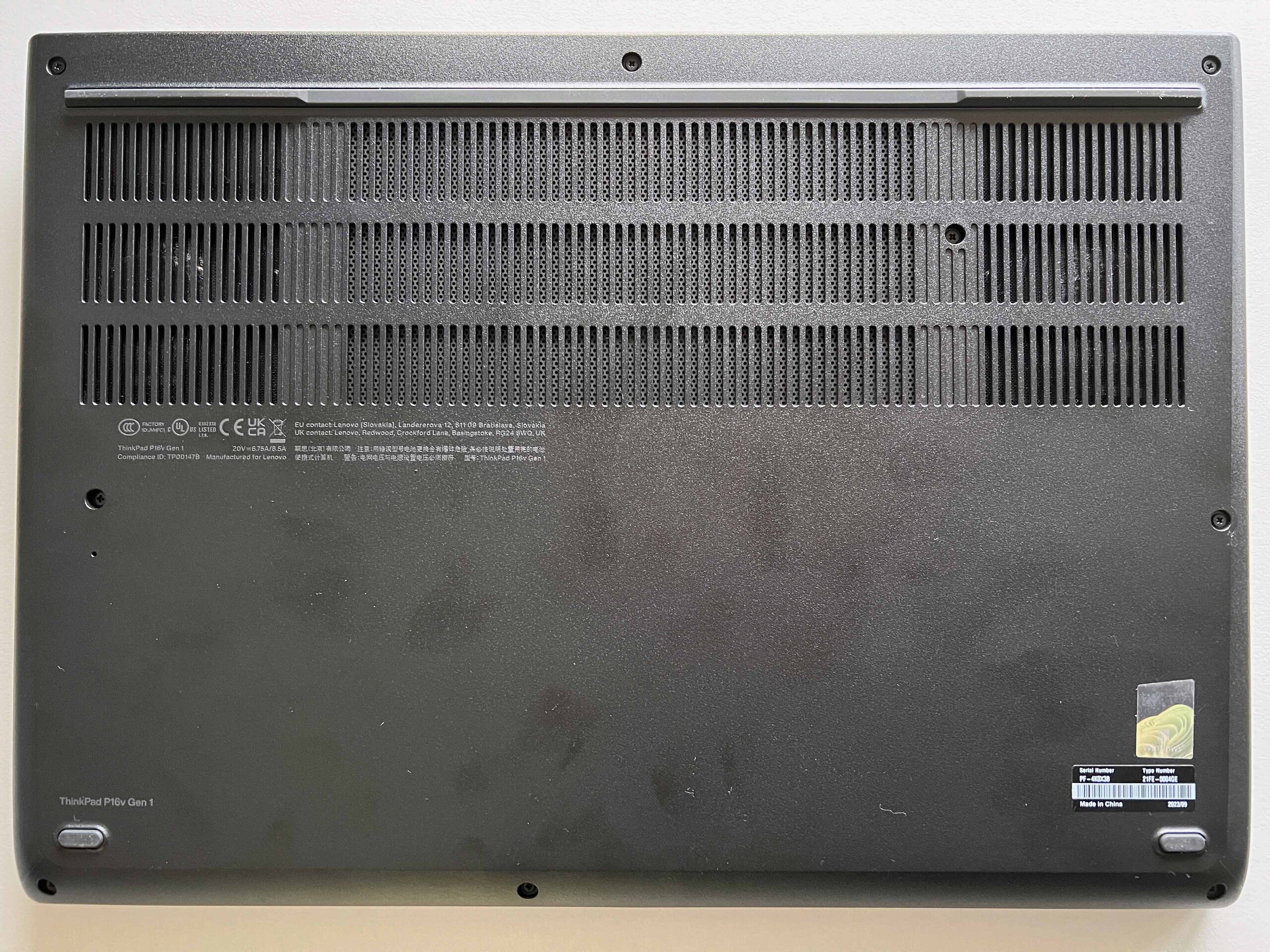

底壳用几颗十字螺丝固定,可以完全拆卸下来。整体可维护性良好。除了两个用于内存的 SO-DIMM 插槽外,还有两个用于 M.2 2280 SSD 的插槽。风扇很容易清洁,电池也只用螺丝固定。不过,无线模块是焊接上去的,无法更换。

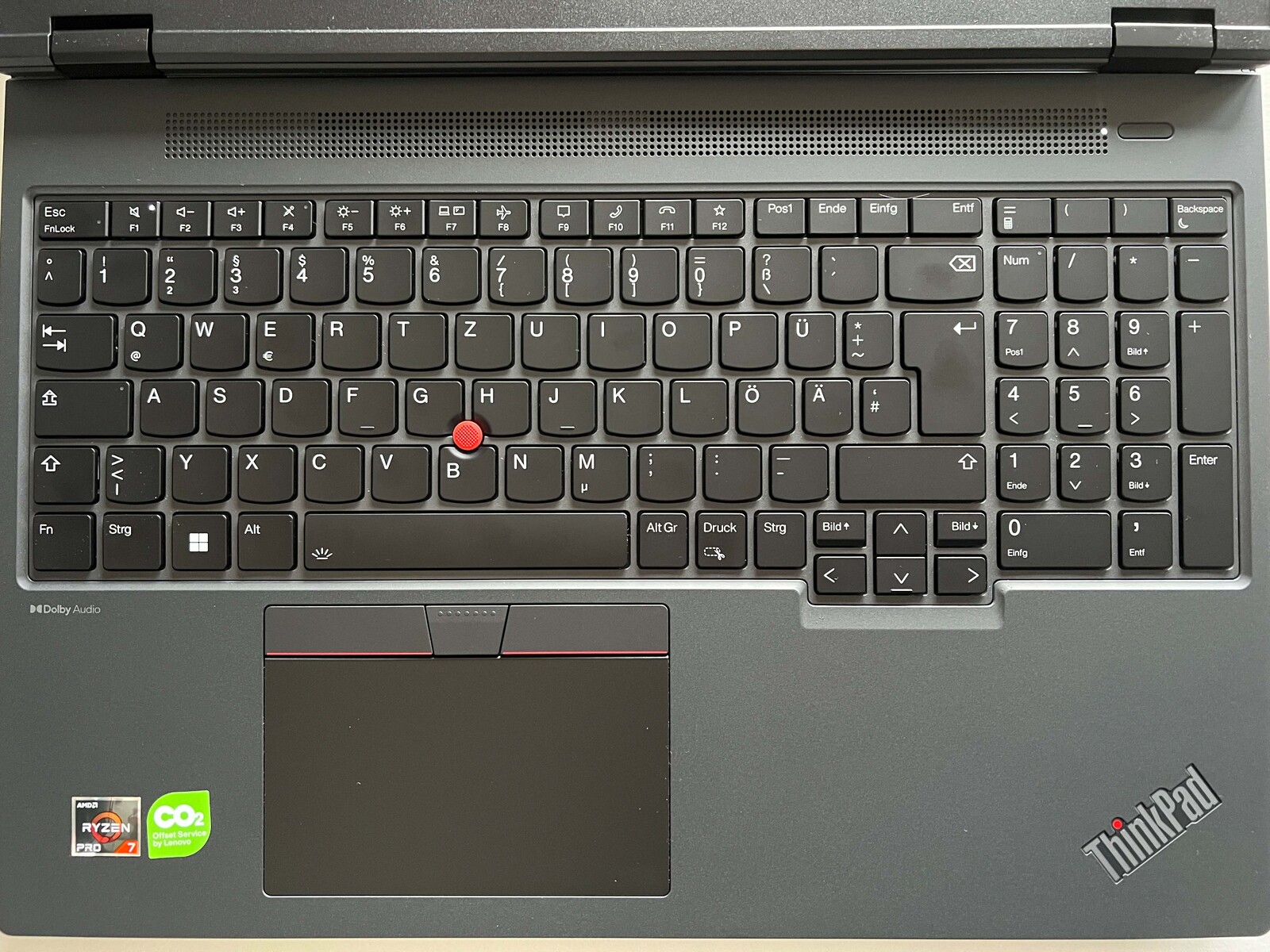

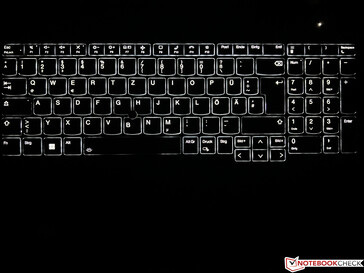

输入设备 - 1.5 毫米行程和数字键盘

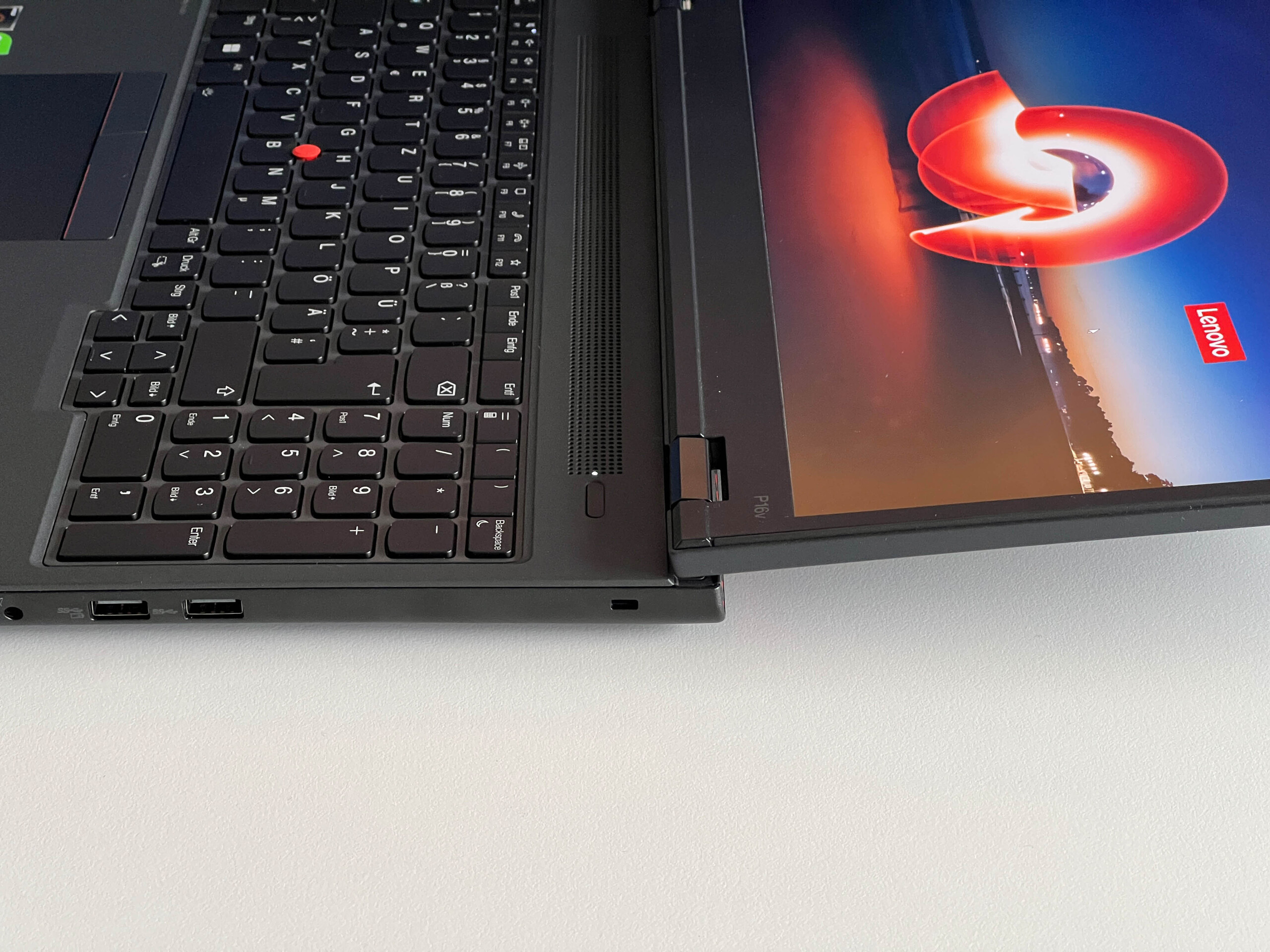

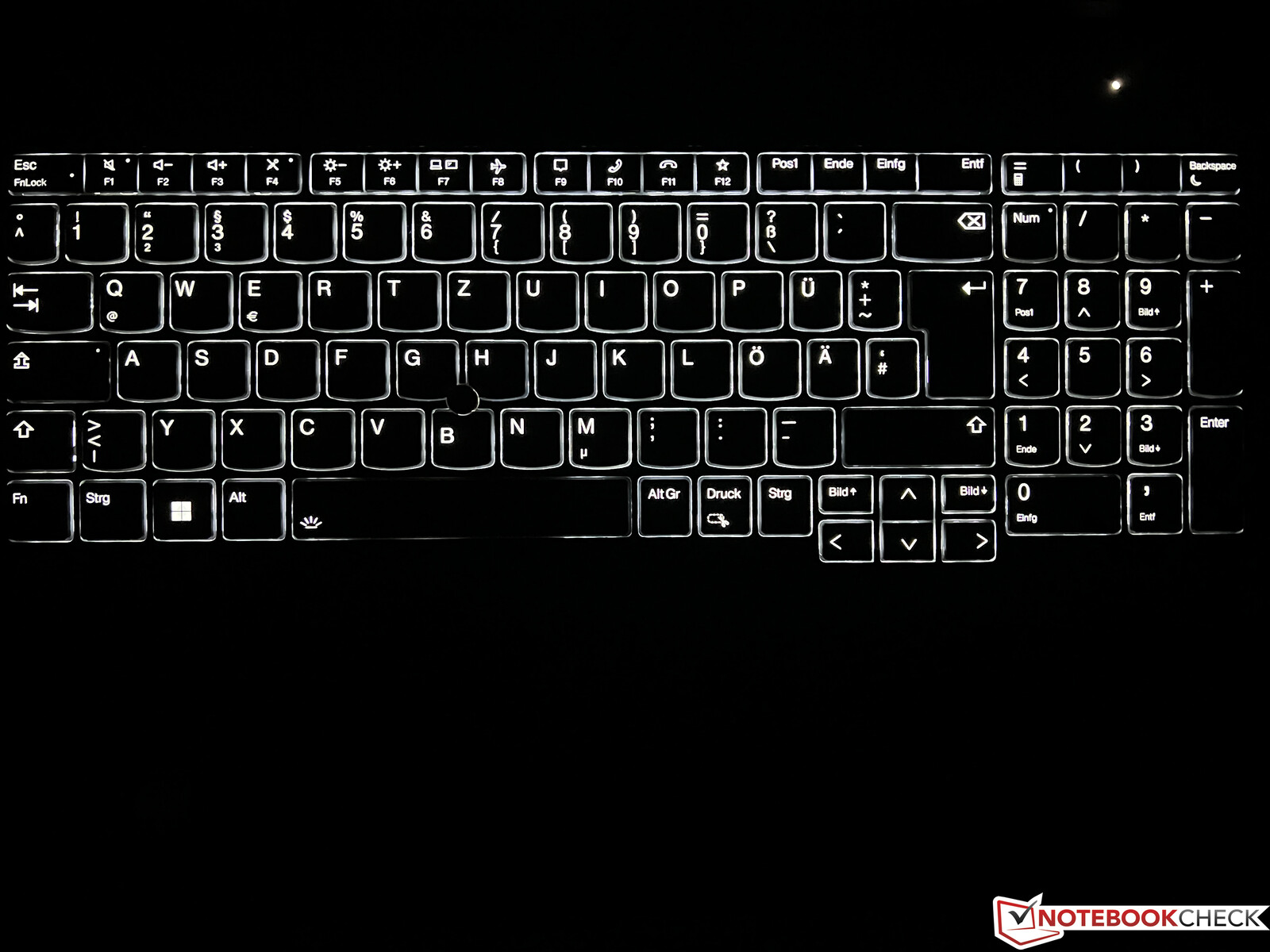

P16v G1 的输入设备在布局和机制方面与普通 P16 相似,只是 P16v 的键盘是黑色而不是深灰色。键程大约为 1.5 毫米,因此符合当前的 ThinkPad 标准。不过,令人遗憾的是,即使在大型工作站上,联想也不再使用键程为 1.8 毫米的优质键盘。总的来说,P16v G1 的键盘并不糟糕,但与惠普 ZBook Power G10 等竞争设备相比,P16v G1 在这方面终究不再有任何优势。ThinkPad 的键盘有两个亮度级别的白色背光;电源按钮(右上角)还可用作指纹扫描仪。
用户可以使用 ClickPad 或 TrackPoint 移动鼠标指针。ClickPad 稍微偏左,为输入提供了足够的空间(11.5 x 6.8 厘米,或 4.5 x 2.7 英寸),但也为 TrackPoint 专用按钮预留了一些空间。触摸板本身运行良好,没有给我们带来任何问题,不过点击的声音有点大。前面提到的 TrackPoint 按钮也是如此,显得非常廉价。但一旦你习惯了,TrackPoint 本身就能很好地工作。
显示屏 - 哑光 IPS 面板
联想共为 ThinkPad P16v G1 提供了四种显示屏选择。默认情况下,笔记本电脑配备的是哑光 IPS 面板,分辨率为 1,920 x 1,200,峰值亮度为 300 尼特,NTSC 覆盖率为 45%。你还可以选择配备触摸屏。我们的评测机配备了可选的全高清型号,覆盖率为 100% sRGB。此外,还有一款 4K 面板可供选择,峰值亮度为 800 尼特,覆盖全 DCI-P3,支持出厂校准和 HDR。

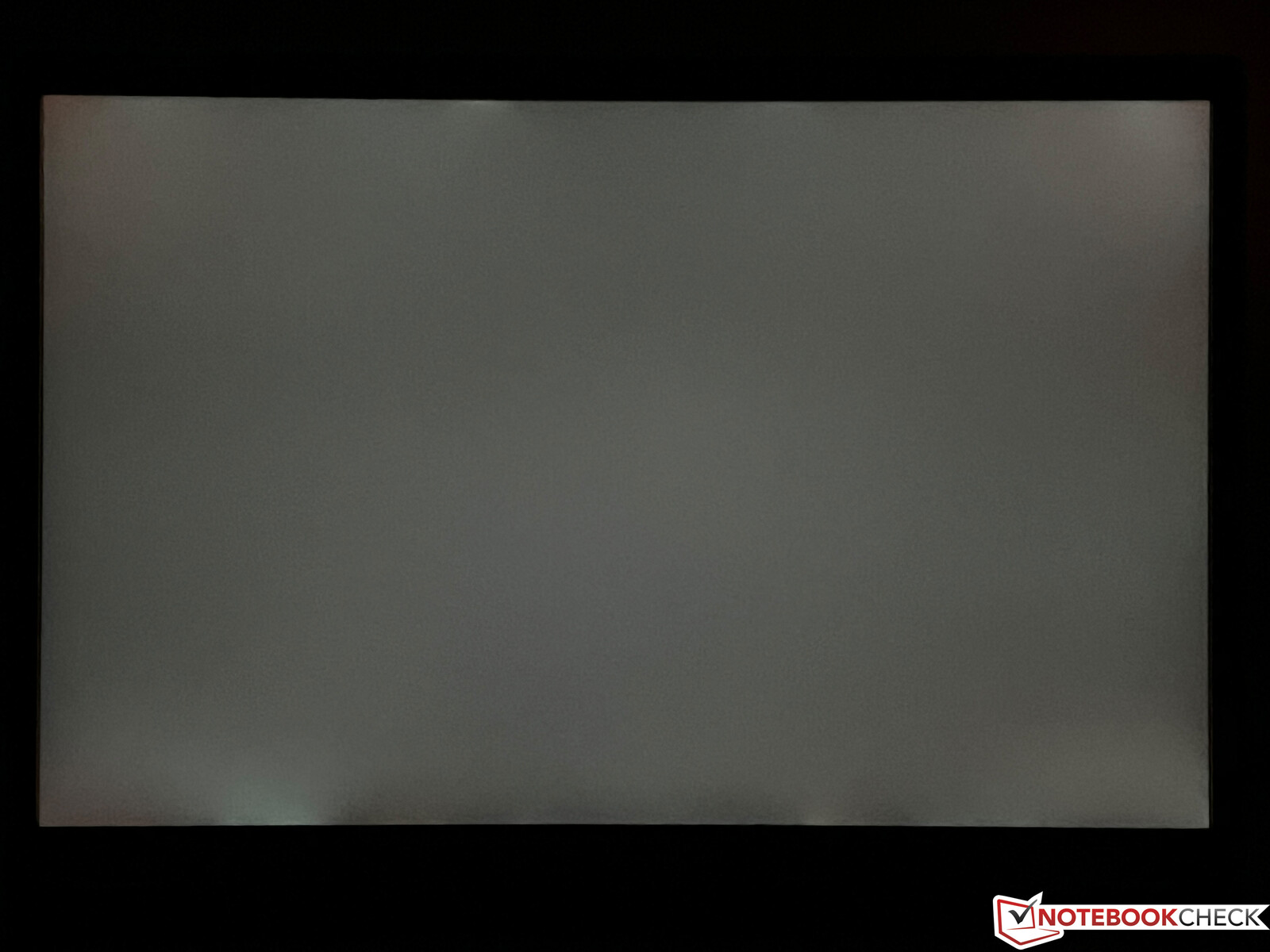

我们评测机上的 60Hz 面板由京东方制造,图像质量值得称赞。在 16 英寸的屏幕上,色彩足够鲜艳,内容足够锐利。明亮的区域也不会出现颗粒感。不过,响应时间有些慢,在日常使用中,例如移动鼠标光标时,你还会发现显示器有轻微的重影现象。该面板不使用 PWM,在全亮度和深色背景下仅表现出极小的背光漂移。
我们的评测设备的平均峰值亮度略高于 340 cd/m²,因此超过了宣传的 300 cd/m²。再加上较低的黑阶,使得最大对比度高达 2,000:1 以上。
|
Brightness Distribution: 92 %
Center on Battery: 354 cd/m²
Contrast: 2088:1 (Black: 0.17 cd/m²)
ΔE Color 2.9 | 0.5-29.43 Ø4.92, calibrated: 1
ΔE Greyscale 4.7 | 0.5-98 Ø5.2

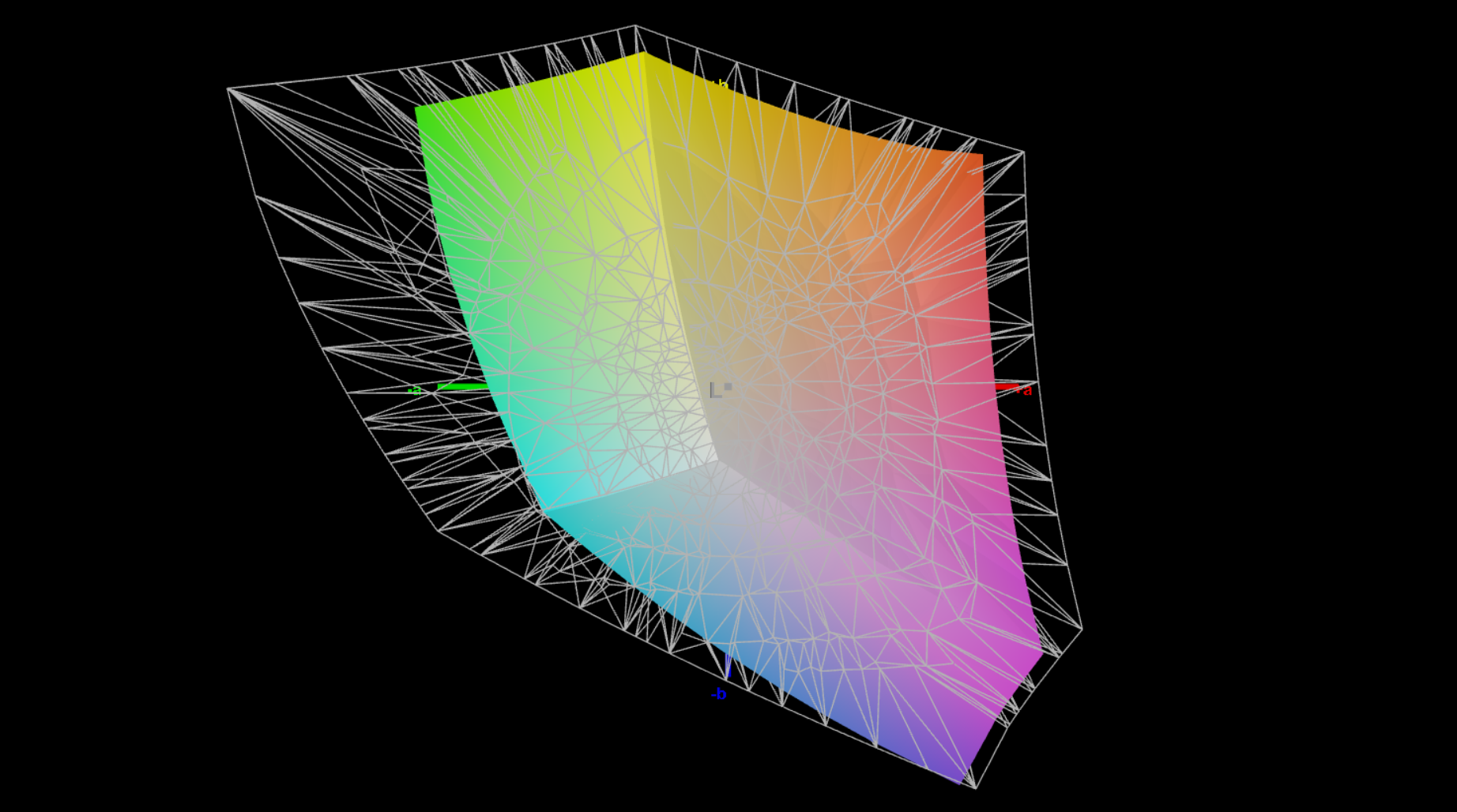

69.8% AdobeRGB 1998 (Argyll 2.2.0 3D)

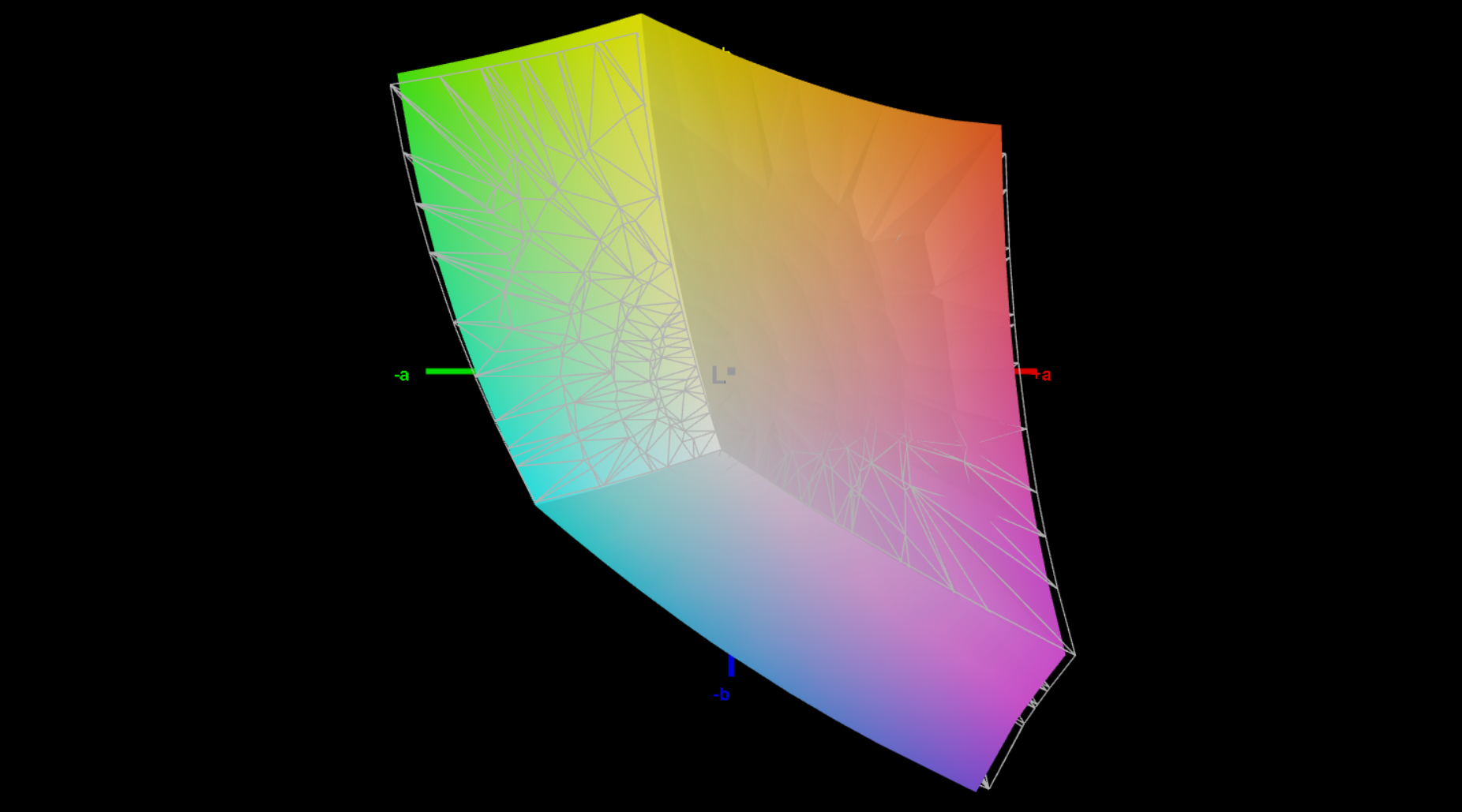

97.7% sRGB (Argyll 2.2.0 3D)

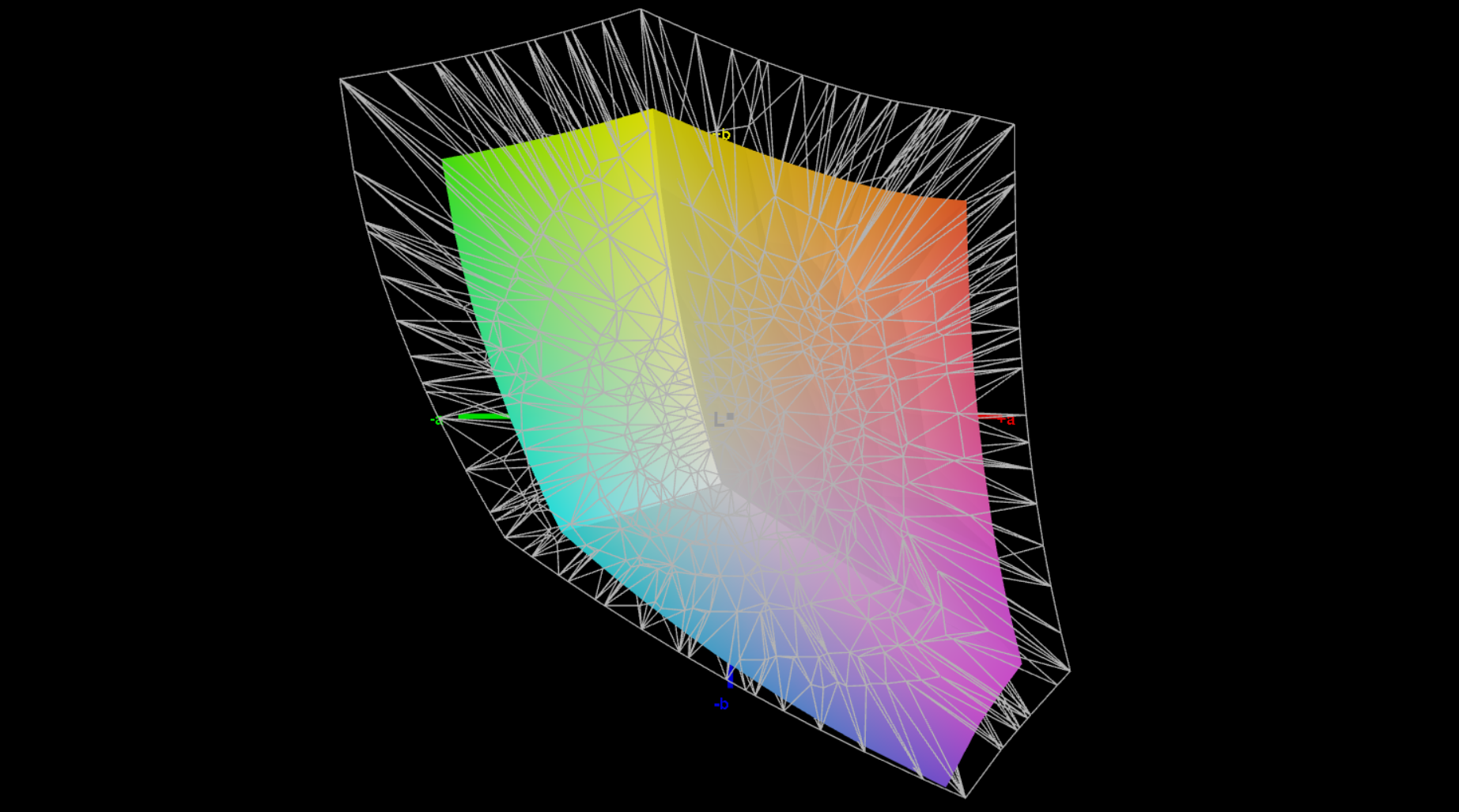

67.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.12
Lenovo ThinkPad P16v G1 AMD NE160WUM-N64, IPS, 1920x1200, 16" | HP ZBook Power 15 G10 BOE0B6A, IPS, 2560x1440, 15.6" | Lenovo ThinkPad P15v G3 21EM001AGE NE156QUM-N6C, IPS LED, 3840x2160, 15.6" | Dell Precision 7670 Samsung 160YV03, OLED, 3840x2400, 16" | Lenovo ThinkPad P1 G6-21FV000DGE NE160QDM-NY1, IPS, 2560x1600, 16" | Lenovo ThinkPad P16 G1 21D6001DMB NE160QDM-N63 , IPS LED, 2560x1600, 16" | |
---|---|---|---|---|---|---|
Display | 0% | 26% | 30% | 0% | 4% | |
Display P3 Coverage | 67.8 | 68.2 1% | 89.9 33% | 99.9 47% | 68.1 0% | 71.5 5% |
sRGB Coverage | 97.7 | 95.6 -2% | 100 2% | 100 2% | 97.5 0% | 100 2% |
AdobeRGB 1998 Coverage | 69.8 | 70.5 1% | 99.9 43% | 97.5 40% | 70.2 1% | 73.3 5% |
Response Times | 67% | 2% | 94% | 68% | 12% | |
Response Time Grey 50% / Grey 80% * | 50.6 ? | 13 ? 74% | 46.7 ? 8% | 1.9 ? 96% | 13.7 ? 73% | 37.7 ? 25% |
Response Time Black / White * | 26 ? | 10.4 ? 60% | 27.3 ? -5% | 2 ? 92% | 9.6 ? 63% | 26.3 ? -1% |
PWM Frequency | 59.5 ? | |||||
Screen | -21% | -20% | -1% | 14% | 4% | |
Brightness middle | 355 | 313.8 -12% | 588 66% | 340.1 -4% | 521 47% | 424 19% |
Brightness | 344 | 302 -12% | 536 56% | 342 -1% | 484 41% | 398 16% |
Brightness Distribution | 92 | 83 -10% | 83 -10% | 98 7% | 89 -3% | 90 -2% |
Black Level * | 0.17 | 0.29 -71% | 0.38 -124% | 0.36 -112% | 0.24 -41% | |
Contrast | 2088 | 1082 -48% | 1547 -26% | 1447 -31% | 1767 -15% | |
Colorchecker dE 2000 * | 2.9 | 3.27 -13% | 3.9 -34% | 2.5 14% | 1.2 59% | 2.6 10% |
Colorchecker dE 2000 max. * | 5.6 | 7.81 -39% | 8.8 -57% | 8.19 -46% | 2.5 55% | 4.9 12% |
Colorchecker dE 2000 calibrated * | 1 | 0.56 44% | 1 -0% | 1 -0% | 0.8 20% | |
Greyscale dE 2000 * | 4.7 | 5.9 -26% | 7.1 -51% | 3.5 26% | 1.4 70% | 4.1 13% |
Gamma | 2.12 104% | 2.18 101% | 2.12 104% | 2.12 104% | 2.25 98% | 2.13 103% |
CCT | 6356 102% | 6323 103% | 7268 89% | 6704 97% | 6682 97% | 7252 90% |
Total Average (Program / Settings) | 15% /
-4% | 3% /
-7% | 41% /
25% | 27% /
19% | 7% /
5% |
* ... smaller is better

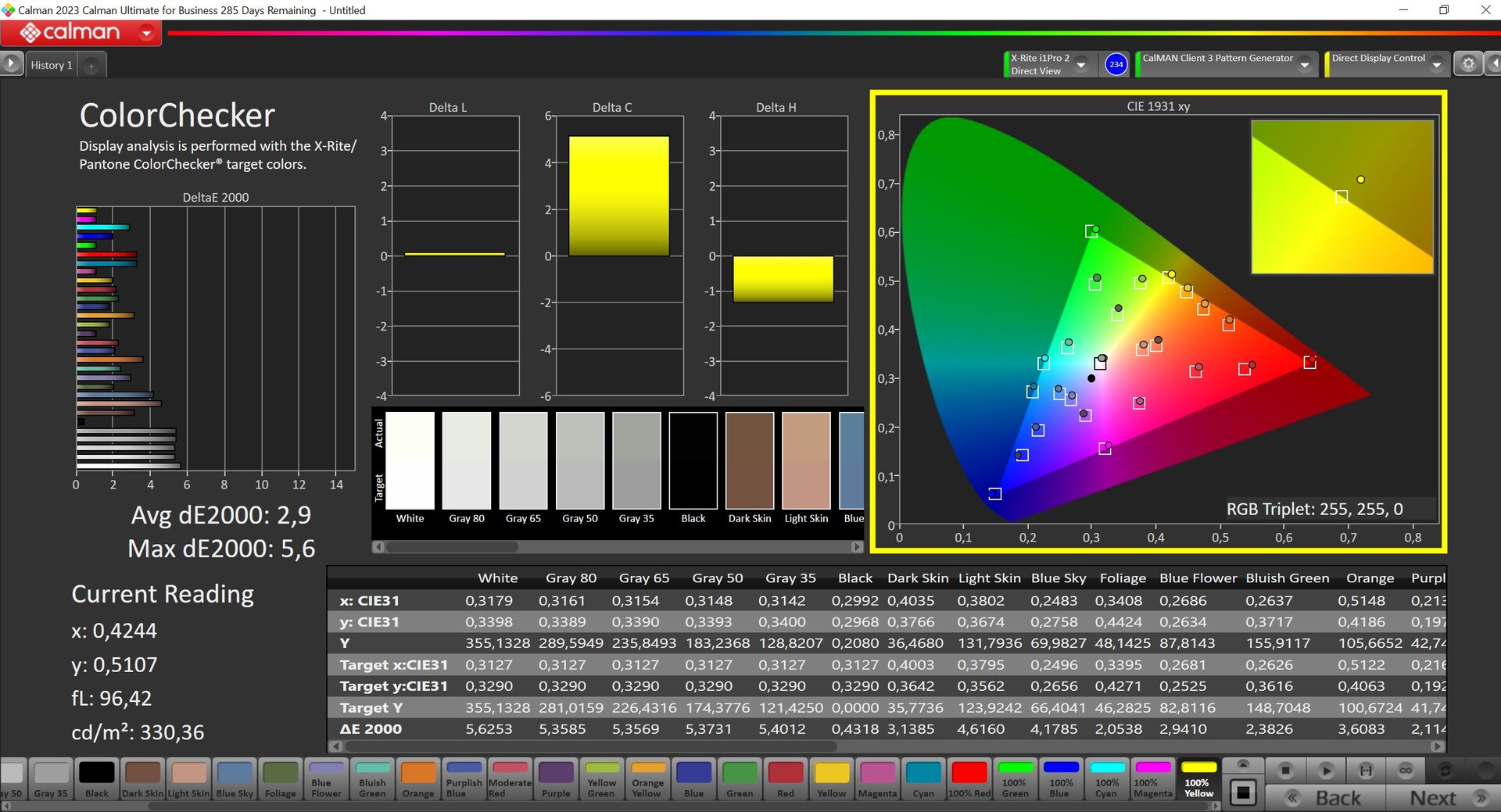

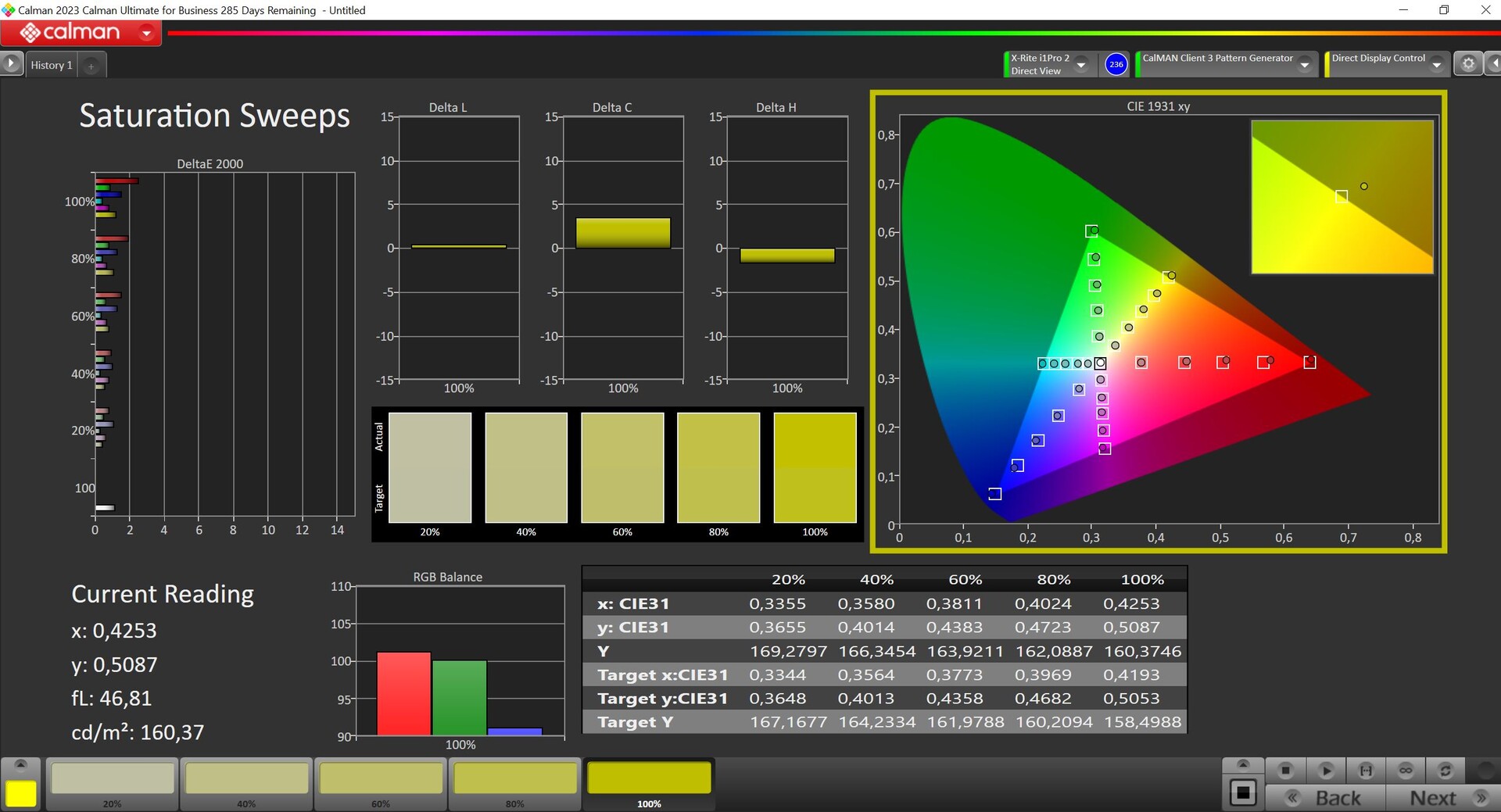

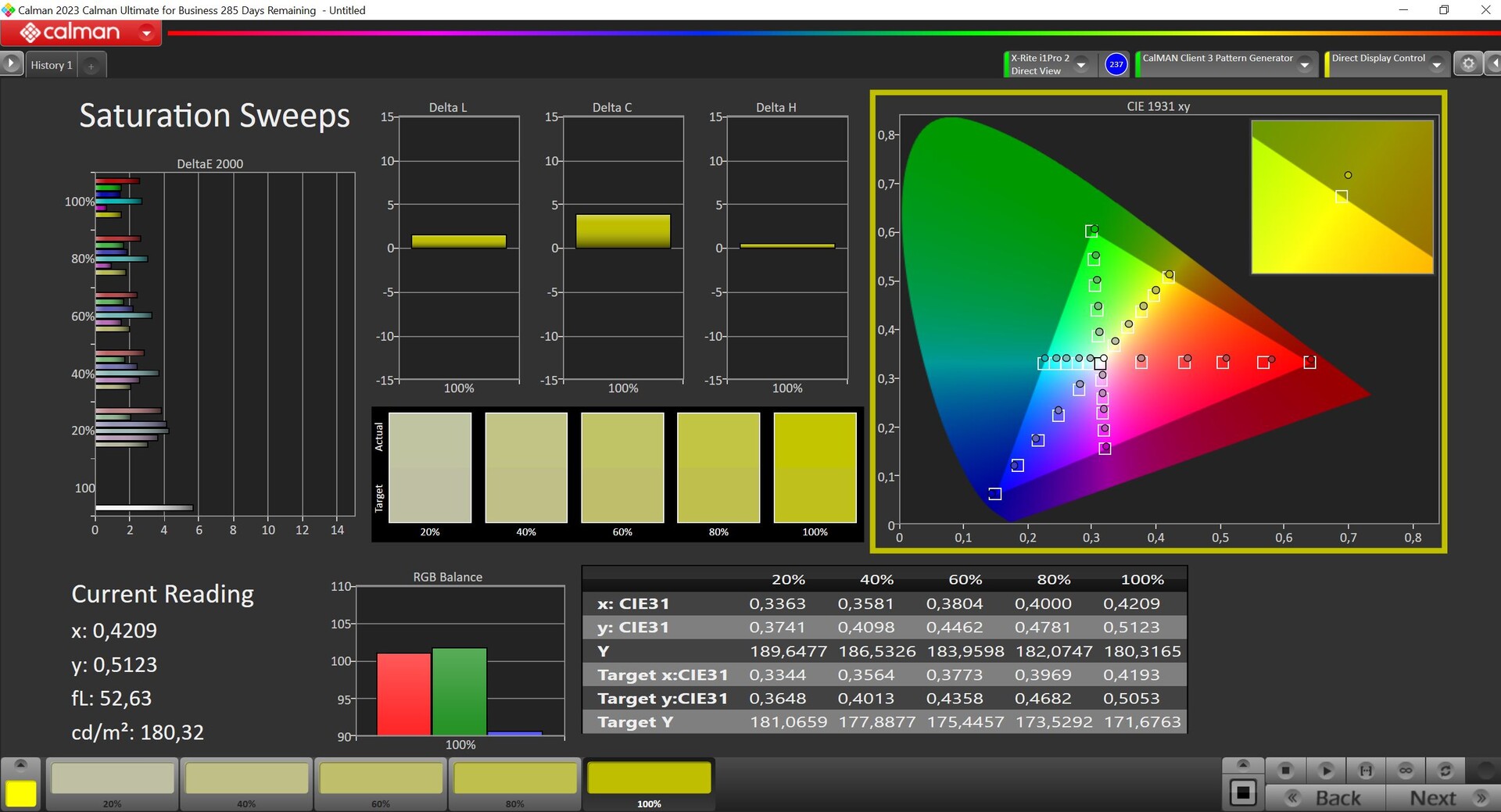

我们使用专业的 CalMAN 软件(X-Rite i1 Pro2)对面板进行了测量,发现开箱后仍有改进的余地。我们发现有轻微的绿色偏差,灰度偏差超过了我们的目标值 3。在进行校准后(相应的配置文件可在上面免费下载),我们成功地大大改善了显示器的色彩再现能力。只有 100% 红色略高于目标值,DeltaE 2000 为 3.2。尽管如此,结合几乎完整的 sRGB 覆盖范围,我们仍然可以在显示器上编辑照片和视频。

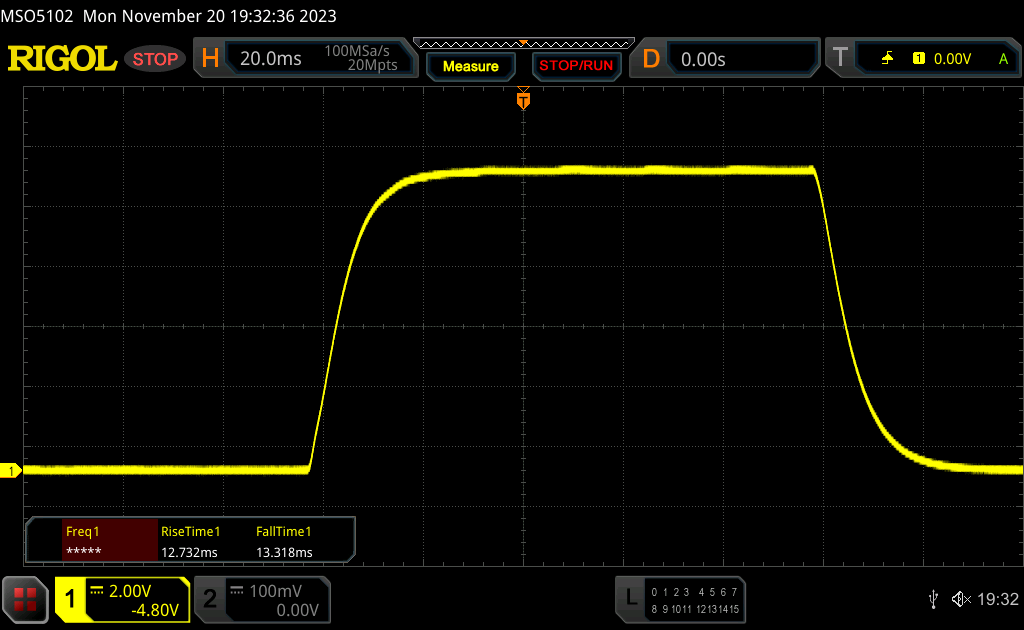

Display Response Times
↔ Response Time Black to White | ||
---|---|---|
26 ms ... rise ↗ and fall ↘ combined | ↗ 12.7 ms rise | |
↘ 13.3 ms fall | ||
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 59 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms). | ||

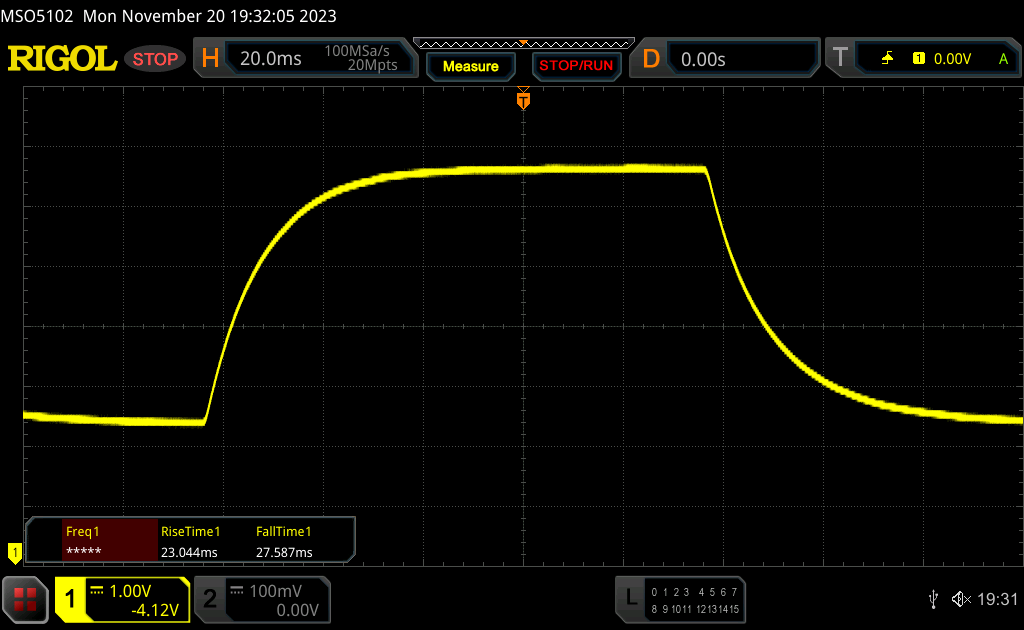

↔ Response Time 50% Grey to 80% Grey | ||
50.6 ms ... rise ↗ and fall ↘ combined | ↗ 23 ms rise | |
↘ 27.6 ms fall | ||
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 86 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms). |

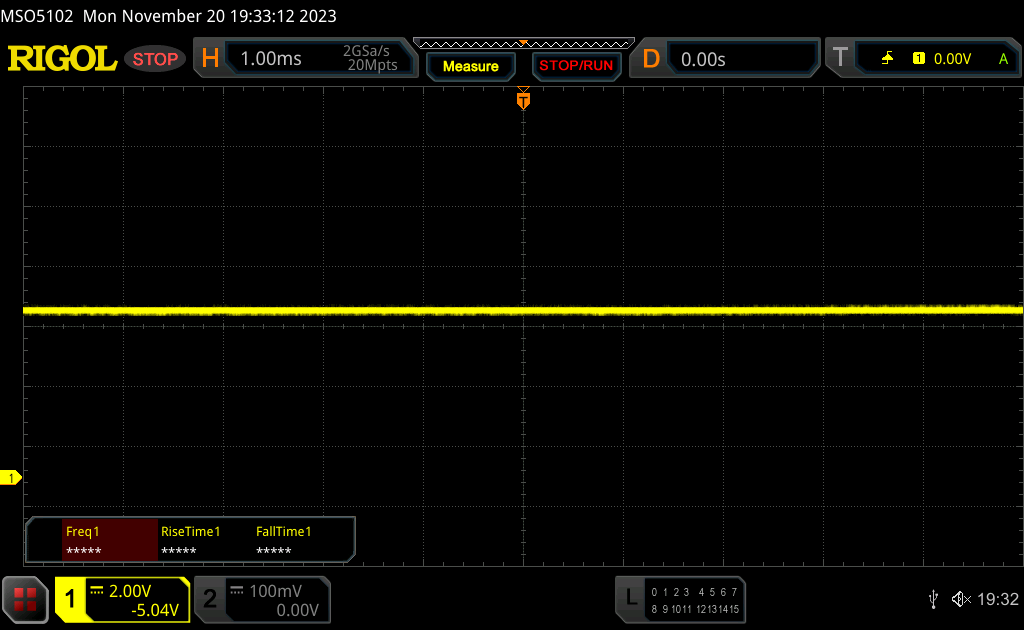

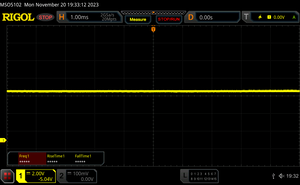

Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM not detected | |||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8743 (minimum: 5 - maximum: 343500) Hz was measured. |

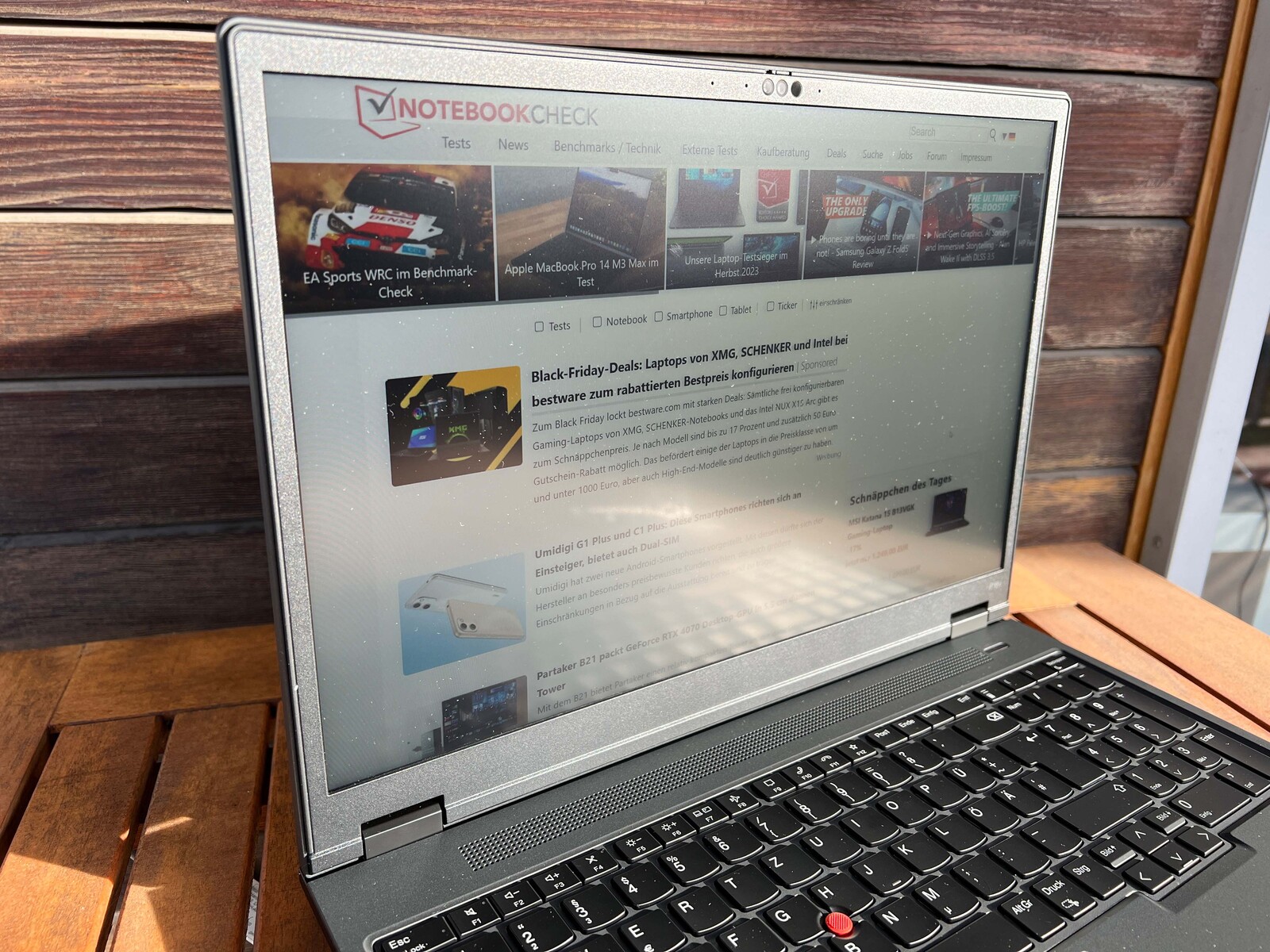

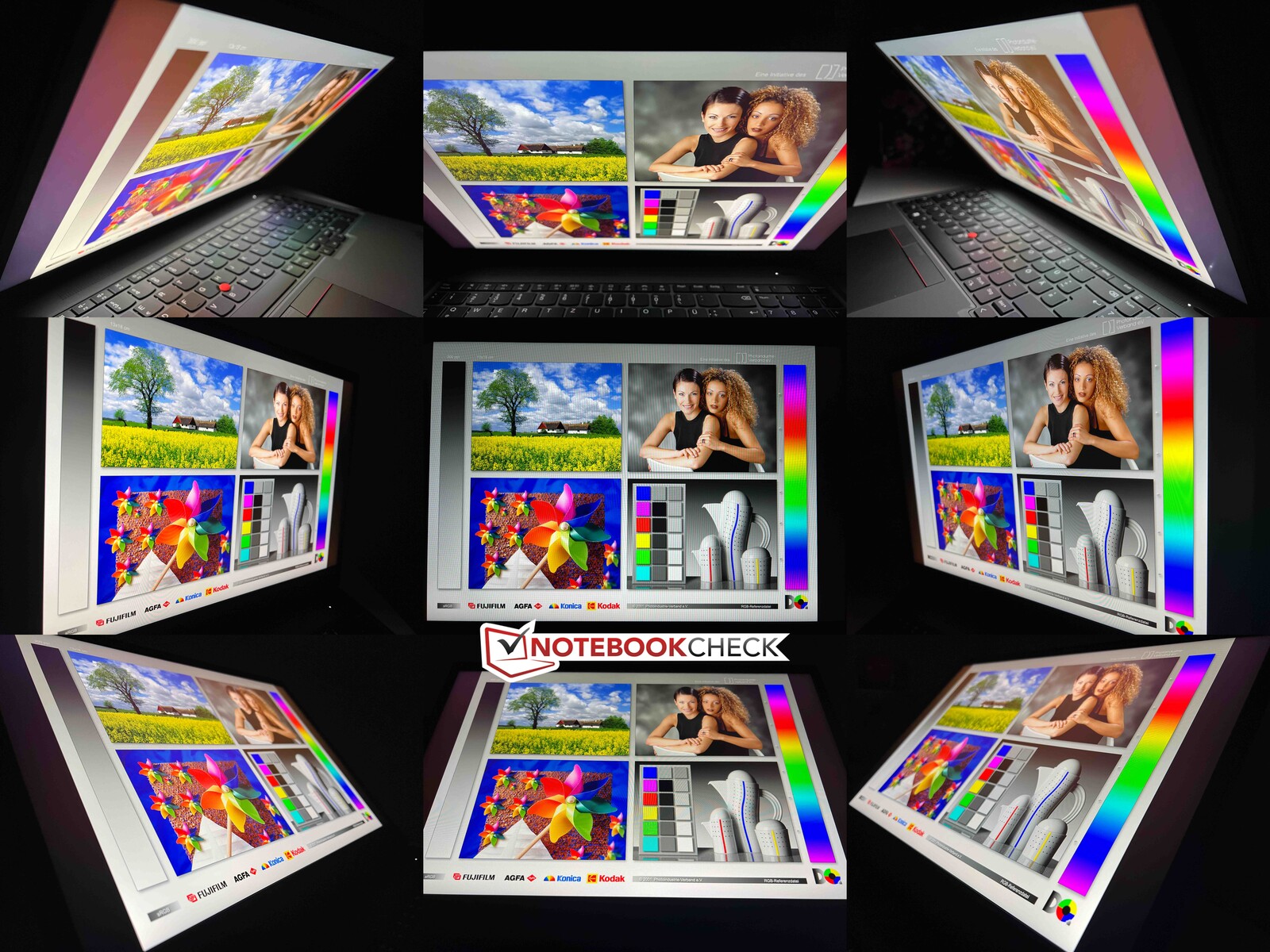

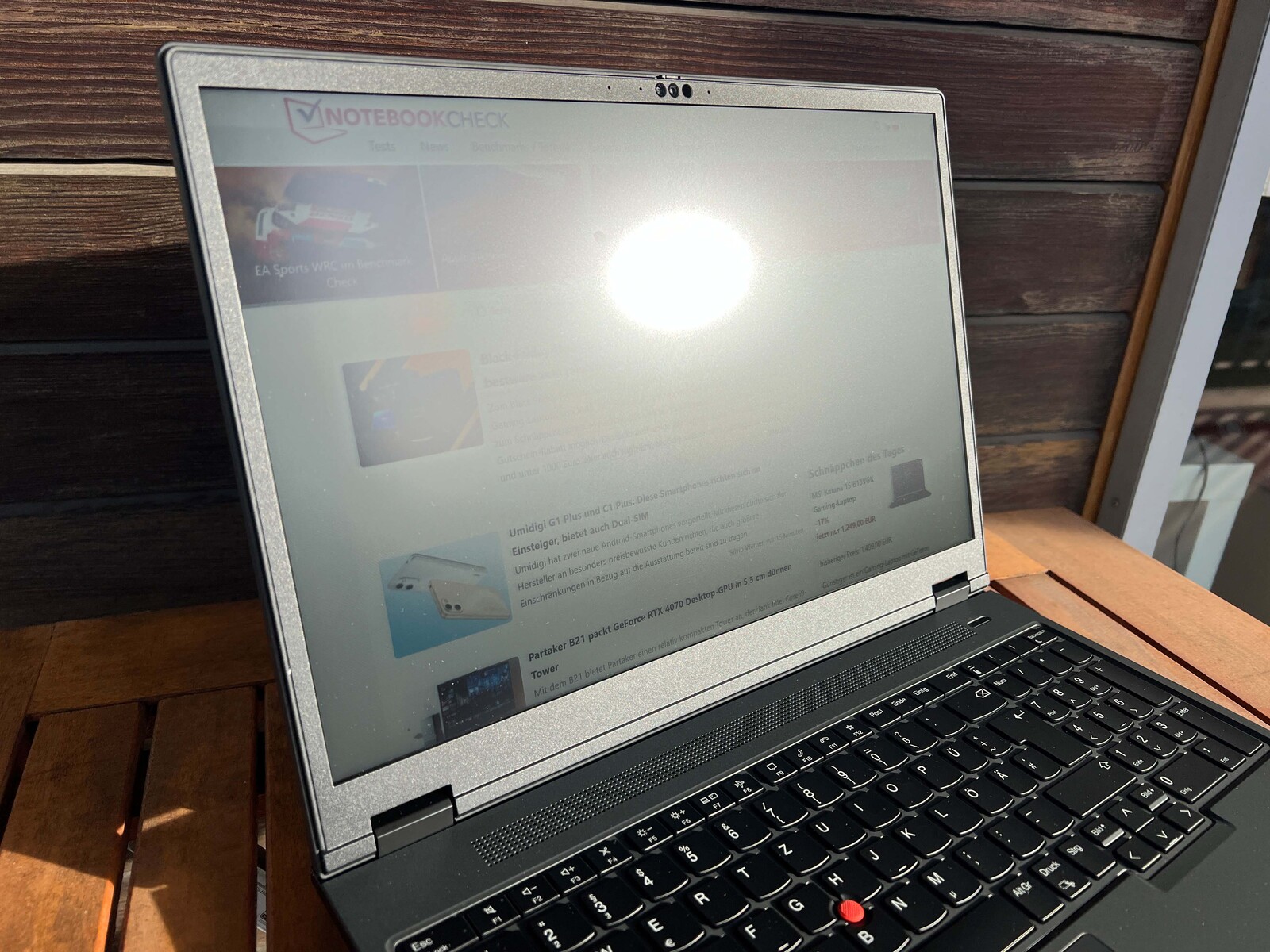

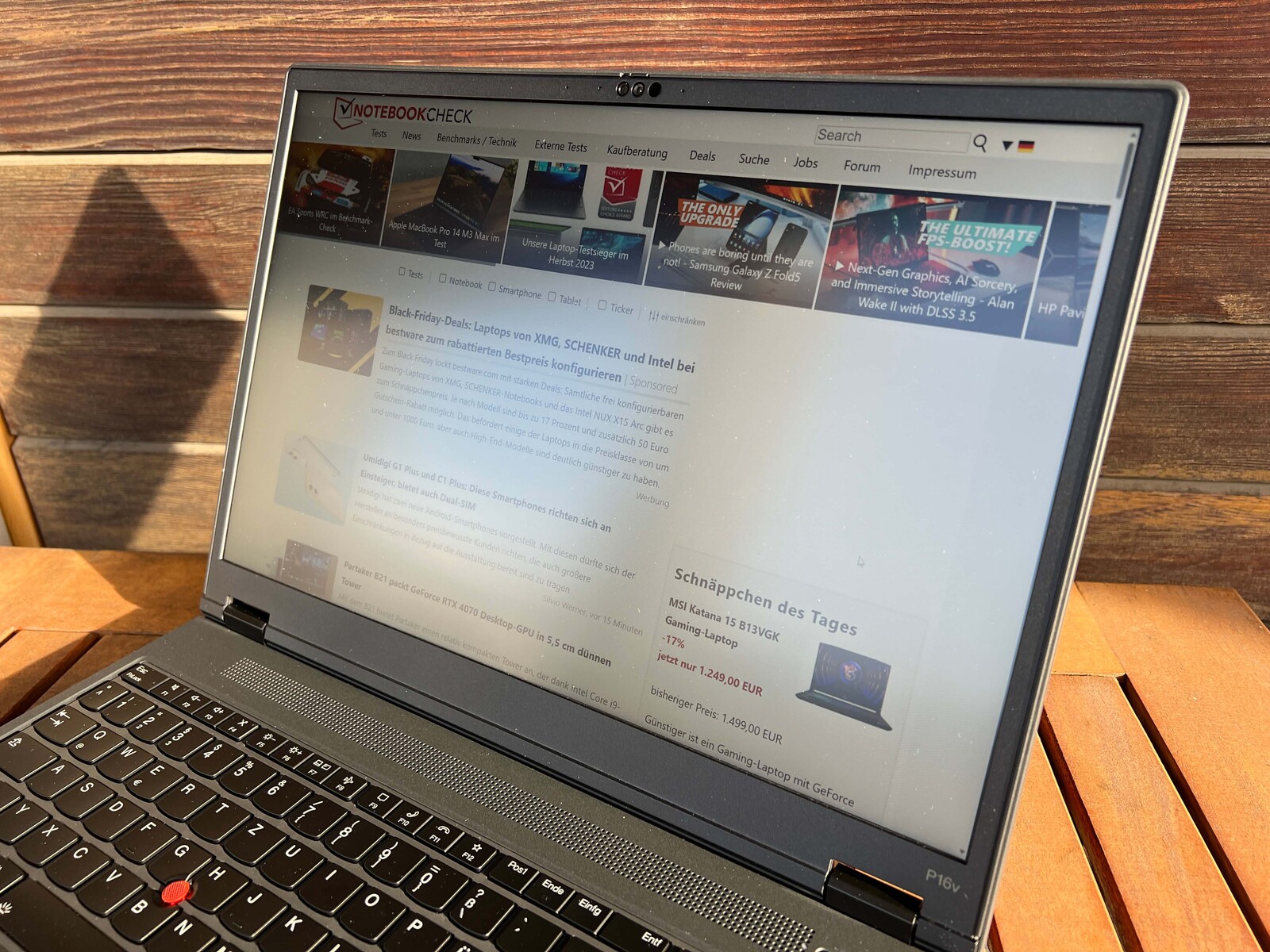

在室外使用哑光显示屏一般不成问题。只有在非常明亮的环境或阳光直射的情况下,屏幕亮度才会达到极限。IPS 面板具有不错的可视角度。

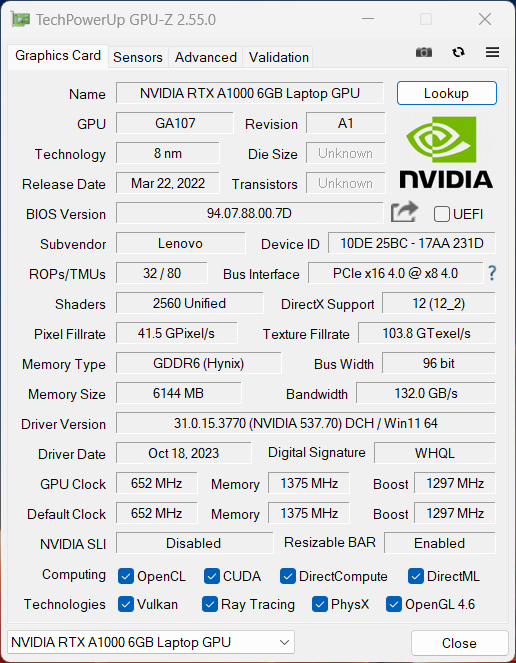

性能 - Ryzen Pro 和 RTX A1000
测试条件
联想已经很久没有在 ThinkPad 上提供额外的性能模式了,而是选择将自己的设置直接集成到 Windows 的电源模式中,这对用户来说非常方便。我们在最佳性能模式下对笔记本电脑进行了以下测量和基准测试。

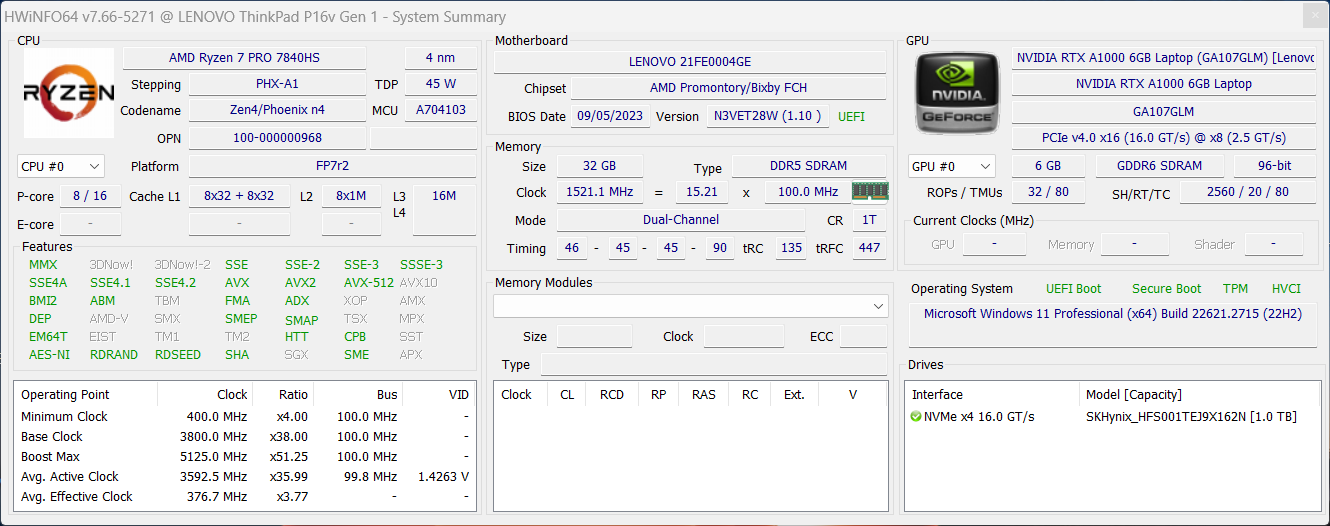

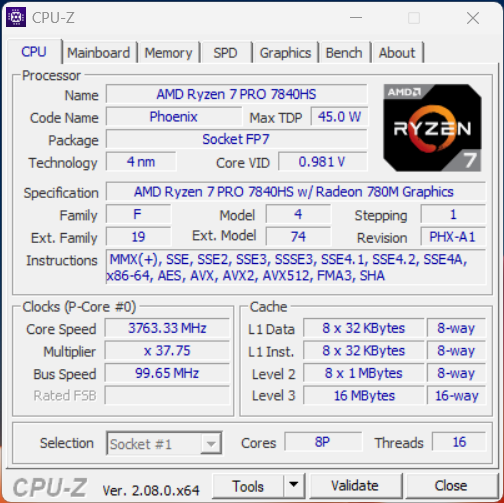

处理器 - Ryzen 7 PRO 7840HS
......(英文 Ryzen 7 PRO 7840HS提供增强的安全功能(与 Intel vPro 相当),但在其他方面与普通 Ryzen 7 7840HS 类似。这意味着该 CPU 具有 8 个 Zen4 内核(最多 16 个线程),最高频率为 5.1 GHz。其功率限制为 64/54 瓦,与 ZBook Power 15 G10(同样是 Ryzen 7 PRO 7840HS)的处理器一样。与之竞争的英特尔处理器需要更高的功率。总体而言,AMD 处理器性能卓越,甚至略微领先于 酷睿 i7-12850HX在 戴尔Precision 7670.在我们的对比中,其他设备的 CPU 整体性能更高。尽管如此,P16v G1 的性能比 ThinkPad P15v G3的 Ryzen 7 PRO 6850H.

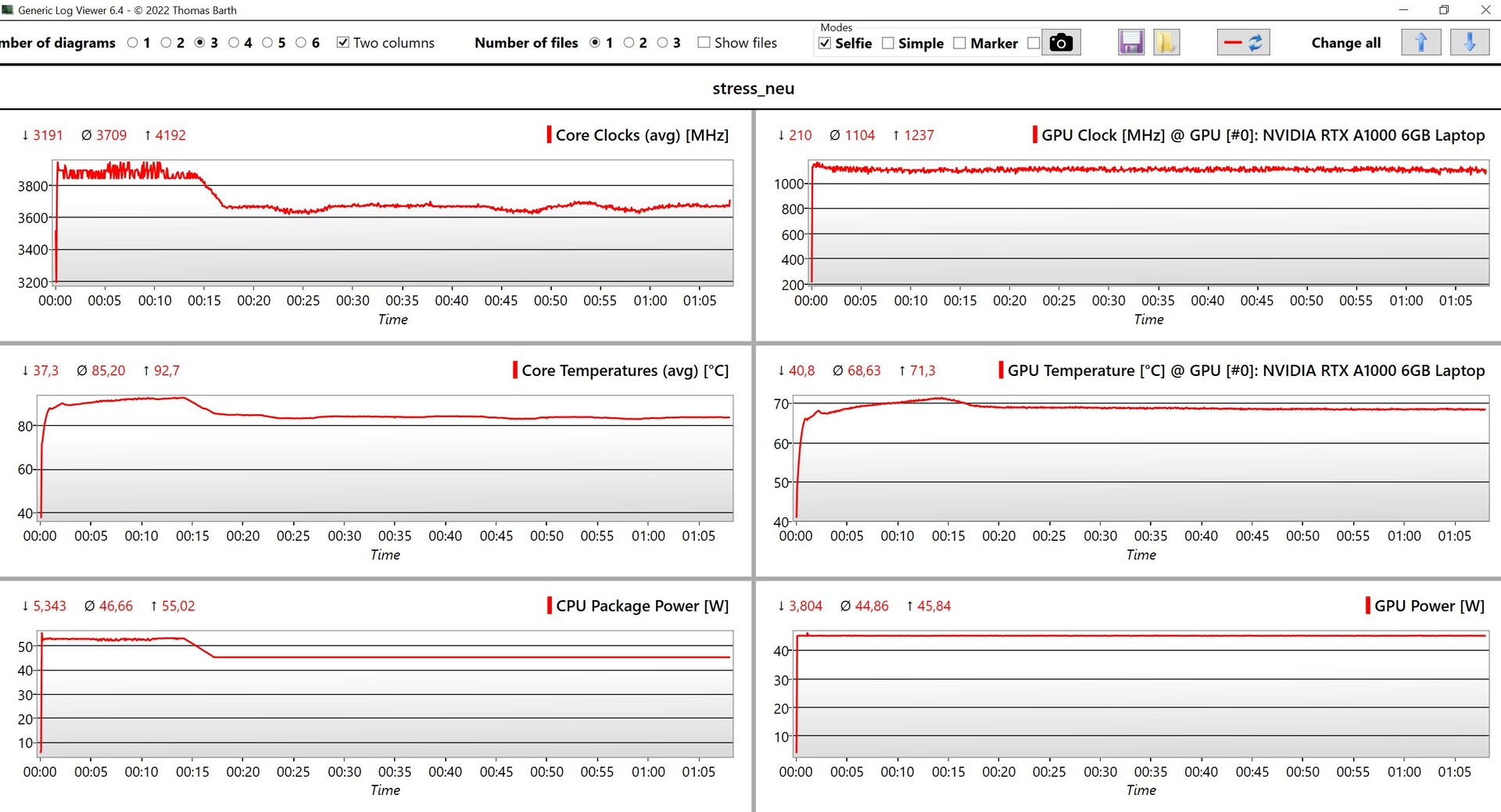

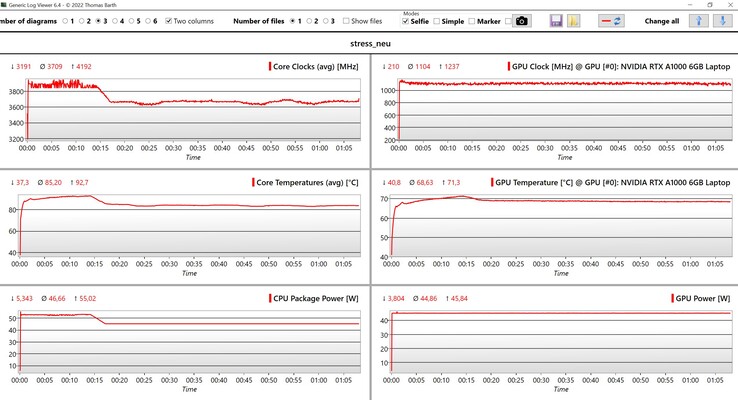

在负载情况下,性能保持稳定,但在使用电池供电时,处理器的功率仅为 18 瓦。因此,在多核测试中性能明显受限(在 CB R23 Multi 中下降了 40%)。更多 CPU 基准测试结果请访问https://www.notebookcheck.net/Mobile-Processors-Benchmark-List.2436.0.html.
Cinebench R15 Multi sustained load
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Average of class Workstation | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
HP ZBook Power 15 G10 | |
Average AMD Ryzen 7 PRO 7840HS | |
Lenovo ThinkPad P16v G1 AMD | |
Dell Precision 7670 | |
Lenovo ThinkPad P15v G3 21EM001AGE |
Cinebench R23 / Multi Core | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Average of class Workstation (11026 - 27338, n=28, last 2 years) | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
HP ZBook Power 15 G10 | |
Dell Precision 7670 | |
Average AMD Ryzen 7 PRO 7840HS (14240 - 15863, n=2) | |
Lenovo ThinkPad P16v G1 AMD | |
Lenovo ThinkPad P15v G3 21EM001AGE |
Cinebench R23 / Single Core | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Average of class Workstation (1465 - 2178, n=28, last 2 years) | |
HP ZBook Power 15 G10 | |
Average AMD Ryzen 7 PRO 7840HS (1691 - 1774, n=2) | |
Lenovo ThinkPad P16v G1 AMD | |
Dell Precision 7670 | |
Lenovo ThinkPad P15v G3 21EM001AGE |
Cinebench R20 / CPU (Multi Core) | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Average of class Workstation (2990 - 10276, n=29, last 2 years) | |
HP ZBook Power 15 G10 | |
Dell Precision 7670 | |
Average AMD Ryzen 7 PRO 7840HS (5327 - 6235, n=2) | |
Lenovo ThinkPad P16v G1 AMD | |
Lenovo ThinkPad P15v G3 21EM001AGE | |
Lenovo ThinkPad P15v G3 21EM001AGE |
Cinebench R20 / CPU (Single Core) | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Average of class Workstation (564 - 827, n=29, last 2 years) | |
HP ZBook Power 15 G10 | |
Dell Precision 7670 | |
Average AMD Ryzen 7 PRO 7840HS (651 - 693, n=2) | |
Lenovo ThinkPad P16v G1 AMD | |
Lenovo ThinkPad P15v G3 21EM001AGE | |
Lenovo ThinkPad P15v G3 21EM001AGE |
Cinebench R15 / CPU Multi 64Bit | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Average of class Workstation (1863 - 4363, n=28, last 2 years) | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
HP ZBook Power 15 G10 | |
Average AMD Ryzen 7 PRO 7840HS (2361 - 2519, n=2) | |
Dell Precision 7670 | |
Lenovo ThinkPad P16v G1 AMD | |
Lenovo ThinkPad P15v G3 21EM001AGE |
Cinebench R15 / CPU Single 64Bit | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
HP ZBook Power 15 G10 | |
Average AMD Ryzen 7 PRO 7840HS (262 - 276, n=2) | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Average of class Workstation (166.2 - 301, n=28, last 2 years) | |
Lenovo ThinkPad P16v G1 AMD | |
Dell Precision 7670 | |
Lenovo ThinkPad P15v G3 21EM001AGE |
Blender / v2.79 BMW27 CPU | |
Lenovo ThinkPad P15v G3 21EM001AGE | |
Dell Precision 7670 | |
Lenovo ThinkPad P16v G1 AMD | |
Average AMD Ryzen 7 PRO 7840HS (201 - 205, n=2) | |
HP ZBook Power 15 G10 | |
Average of class Workstation (121 - 295, n=28, last 2 years) | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Lenovo ThinkPad P16 G1 21D6001DMB |
7-Zip 18.03 / 7z b 4 | |
Average of class Workstation (47244 - 109204, n=28, last 2 years) | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
HP ZBook Power 15 G10 | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Average AMD Ryzen 7 PRO 7840HS (62497 - 70387, n=2) | |
Lenovo ThinkPad P16v G1 AMD | |
Dell Precision 7670 | |
Lenovo ThinkPad P15v G3 21EM001AGE |
7-Zip 18.03 / 7z b 4 -mmt1 | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Lenovo ThinkPad P16v G1 AMD | |
Average AMD Ryzen 7 PRO 7840HS (6493 - 6498, n=2) | |
HP ZBook Power 15 G10 | |
Average of class Workstation (4981 - 6960, n=28, last 2 years) | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Dell Precision 7670 | |
Lenovo ThinkPad P15v G3 21EM001AGE |
Geekbench 5.5 / Multi-Core | |
Average of class Workstation (8050 - 19316, n=28, last 2 years) | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
HP ZBook Power 15 G10 | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Dell Precision 7670 | |
Average AMD Ryzen 7 PRO 7840HS (10034 - 12039, n=2) | |
Lenovo ThinkPad P16v G1 AMD | |
Lenovo ThinkPad P15v G3 21EM001AGE |
Geekbench 5.5 / Single-Core | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
HP ZBook Power 15 G10 | |
Average AMD Ryzen 7 PRO 7840HS (1822 - 1953, n=2) | |
Average of class Workstation (1474 - 2095, n=28, last 2 years) | |
Lenovo ThinkPad P16v G1 AMD | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Dell Precision 7670 | |
Lenovo ThinkPad P15v G3 21EM001AGE |
HWBOT x265 Benchmark v2.2 / 4k Preset | |
HP ZBook Power 15 G10 | |
Average of class Workstation (12.7 - 27.1, n=28, last 2 years) | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Average AMD Ryzen 7 PRO 7840HS (18.1 - 19.9, n=2) | |
Lenovo ThinkPad P16v G1 AMD | |
Dell Precision 7670 | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Lenovo ThinkPad P15v G3 21EM001AGE |
LibreOffice / 20 Documents To PDF | |
Lenovo ThinkPad P15v G3 21EM001AGE | |
HP ZBook Power 15 G10 | |
Average AMD Ryzen 7 PRO 7840HS (45.9 - 54.7, n=2) | |
Dell Precision 7670 | |
Average of class Workstation (36.5 - 95.2, n=28, last 2 years) | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Lenovo ThinkPad P16v G1 AMD |
R Benchmark 2.5 / Overall mean | |
Lenovo ThinkPad P15v G3 21EM001AGE | |
Dell Precision 7670 | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
HP ZBook Power 15 G10 | |
Average of class Workstation (0.3825 - 0.54, n=28, last 2 years) | |
Average AMD Ryzen 7 PRO 7840HS (0.44 - 0.4487, n=2) | |
Lenovo ThinkPad P16v G1 AMD | |
Lenovo ThinkPad P1 G6-21FV000DGE |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
HP ZBook Power 15 G10 | |
Average AMD Ryzen 7 PRO 7840HS | |
Lenovo ThinkPad P16v G1 AMD | |
Average of class Workstation | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Lenovo ThinkPad P15v G3 21EM001AGE | |
Dell Precision 7670 |
AIDA64 / FP32 Ray-Trace | |
HP ZBook Power 15 G10 | |
Average AMD Ryzen 7 PRO 7840HS (25606 - 25776, n=2) | |
Lenovo ThinkPad P16v G1 AMD | |
Average of class Workstation (10658 - 25776, n=28, last 2 years) | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Lenovo ThinkPad P15v G3 21EM001AGE | |
Dell Precision 7670 |
AIDA64 / FPU Julia | |
HP ZBook Power 15 G10 | |
Average AMD Ryzen 7 PRO 7840HS (107907 - 109059, n=2) | |
Lenovo ThinkPad P16v G1 AMD | |
Lenovo ThinkPad P15v G3 21EM001AGE | |
Average of class Workstation (56664 - 113270, n=28, last 2 years) | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Dell Precision 7670 |
AIDA64 / CPU SHA3 | |
HP ZBook Power 15 G10 | |
Average AMD Ryzen 7 PRO 7840HS (4631 - 4656, n=2) | |
Lenovo ThinkPad P16v G1 AMD | |
Average of class Workstation (2598 - 5598, n=28, last 2 years) | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Lenovo ThinkPad P15v G3 21EM001AGE | |
Dell Precision 7670 |
AIDA64 / CPU Queen | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
HP ZBook Power 15 G10 | |
Average of class Workstation (84022 - 144411, n=28, last 2 years) | |
Average AMD Ryzen 7 PRO 7840HS (97729 - 115640, n=2) | |
Lenovo ThinkPad P15v G3 21EM001AGE | |
Lenovo ThinkPad P16v G1 AMD | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Dell Precision 7670 |
AIDA64 / FPU SinJulia | |
HP ZBook Power 15 G10 | |
Average AMD Ryzen 7 PRO 7840HS (14693 - 14742, n=2) | |
Lenovo ThinkPad P16v G1 AMD | |
Lenovo ThinkPad P15v G3 21EM001AGE | |
Average of class Workstation (7906 - 14742, n=28, last 2 years) | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Dell Precision 7670 |
AIDA64 / FPU Mandel | |
HP ZBook Power 15 G10 | |
Average AMD Ryzen 7 PRO 7840HS (57502 - 58181, n=2) | |
Lenovo ThinkPad P16v G1 AMD | |
Lenovo ThinkPad P15v G3 21EM001AGE | |
Average of class Workstation (27301 - 58181, n=28, last 2 years) | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Dell Precision 7670 |
AIDA64 / CPU AES | |
Lenovo ThinkPad P15v G3 21EM001AGE | |
HP ZBook Power 15 G10 | |
Average AMD Ryzen 7 PRO 7840HS (84454 - 85341, n=2) | |
Lenovo ThinkPad P16v G1 AMD | |
Average of class Workstation (45568 - 128243, n=28, last 2 years) | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Dell Precision 7670 |
AIDA64 / CPU ZLib | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Average of class Workstation (713 - 1691, n=28, last 2 years) | |
HP ZBook Power 15 G10 | |
Average AMD Ryzen 7 PRO 7840HS (1032 - 1043, n=2) | |
Lenovo ThinkPad P16v G1 AMD | |
Dell Precision 7670 | |
Lenovo ThinkPad P15v G3 21EM001AGE |
AIDA64 / FP64 Ray-Trace | |
HP ZBook Power 15 G10 | |
Average AMD Ryzen 7 PRO 7840HS (13545 - 13800, n=2) | |
Lenovo ThinkPad P16v G1 AMD | |
Average of class Workstation (5580 - 13800, n=28, last 2 years) | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Lenovo ThinkPad P15v G3 21EM001AGE | |
Dell Precision 7670 |
AIDA64 / CPU PhotoWorxx | |
HP ZBook Power 15 G10 | |
Dell Precision 7670 | |
Average of class Workstation (18157 - 51647, n=28, last 2 years) | |
Average AMD Ryzen 7 PRO 7840HS (24325 - 42810, n=2) | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Lenovo ThinkPad P16v G1 AMD | |
Lenovo ThinkPad P15v G3 21EM001AGE |
系统性能
在我们的印象中,ThinkPad P16v G1 一如预期拥有出色的性能,对各种输入的反应都非常灵敏。基准测试结果整体良好,我们在测试过程中没有遇到任何系统稳定性问题。
由于我们的评测机只配备了一个内存模块,系统内存只能以单通道配置运行。因此,这款笔记本电脑在内存基准测试中的成绩并不理想。
CrossMark: Overall | Productivity | Creativity | Responsiveness
WebXPRT 3: Overall
WebXPRT 4: Overall
Mozilla Kraken 1.1: Total
PCMark 10 / Score | |
HP ZBook Power 15 G10 | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Average of class Workstation (5953 - 8587, n=28, last 2 years) | |
Lenovo ThinkPad P16v G1 AMD | |
Average AMD Ryzen 7 PRO 7840HS, NVIDIA RTX A1000 Laptop GPU () | |
Dell Precision 7670 | |
Lenovo ThinkPad P15v G3 21EM001AGE | |
Lenovo ThinkPad P16 G1 21D6001DMB |
PCMark 10 / Essentials | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
HP ZBook Power 15 G10 | |
Average of class Workstation (9151 - 12197, n=28, last 2 years) | |
Dell Precision 7670 | |
Lenovo ThinkPad P16v G1 AMD | |
Average AMD Ryzen 7 PRO 7840HS, NVIDIA RTX A1000 Laptop GPU () | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Lenovo ThinkPad P15v G3 21EM001AGE |
PCMark 10 / Productivity | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Lenovo ThinkPad P16v G1 AMD | |
Average AMD Ryzen 7 PRO 7840HS, NVIDIA RTX A1000 Laptop GPU () | |
HP ZBook Power 15 G10 | |
Average of class Workstation (7846 - 10820, n=28, last 2 years) | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Dell Precision 7670 | |
Lenovo ThinkPad P15v G3 21EM001AGE |
PCMark 10 / Digital Content Creation | |
HP ZBook Power 15 G10 | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Average of class Workstation (7417 - 15093, n=28, last 2 years) | |
Lenovo ThinkPad P16v G1 AMD | |
Average AMD Ryzen 7 PRO 7840HS, NVIDIA RTX A1000 Laptop GPU () | |
Lenovo ThinkPad P15v G3 21EM001AGE | |
Dell Precision 7670 | |
Lenovo ThinkPad P16 G1 21D6001DMB |
CrossMark / Overall | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Average of class Workstation (1154 - 2037, n=26, last 2 years) | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
HP ZBook Power 15 G10 | |
Lenovo ThinkPad P16v G1 AMD | |
Average AMD Ryzen 7 PRO 7840HS, NVIDIA RTX A1000 Laptop GPU () | |
Dell Precision 7670 | |
Lenovo ThinkPad P15v G3 21EM001AGE |
CrossMark / Productivity | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Average of class Workstation (1188 - 1902, n=26, last 2 years) | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
HP ZBook Power 15 G10 | |
Lenovo ThinkPad P16v G1 AMD | |
Average AMD Ryzen 7 PRO 7840HS, NVIDIA RTX A1000 Laptop GPU () | |
Dell Precision 7670 | |
Lenovo ThinkPad P15v G3 21EM001AGE |
CrossMark / Creativity | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Average of class Workstation (1180 - 2311, n=26, last 2 years) | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
HP ZBook Power 15 G10 | |
Dell Precision 7670 | |
Lenovo ThinkPad P16v G1 AMD | |
Average AMD Ryzen 7 PRO 7840HS, NVIDIA RTX A1000 Laptop GPU () | |
Lenovo ThinkPad P15v G3 21EM001AGE |
CrossMark / Responsiveness | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Average of class Workstation (990 - 1805, n=26, last 2 years) | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Lenovo ThinkPad P16v G1 AMD | |
Average AMD Ryzen 7 PRO 7840HS, NVIDIA RTX A1000 Laptop GPU () | |
HP ZBook Power 15 G10 | |
Lenovo ThinkPad P15v G3 21EM001AGE | |
Dell Precision 7670 |
WebXPRT 3 / Overall | |
Lenovo ThinkPad P16v G1 AMD | |
Average AMD Ryzen 7 PRO 7840HS, NVIDIA RTX A1000 Laptop GPU () | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
HP ZBook Power 15 G10 | |
Dell Precision 7670 | |
Average of class Workstation (218 - 415, n=29, last 2 years) | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Lenovo ThinkPad P15v G3 21EM001AGE |
WebXPRT 4 / Overall | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Average of class Workstation (166.7 - 338, n=25, last 2 years) | |
Lenovo ThinkPad P16v G1 AMD | |
Average AMD Ryzen 7 PRO 7840HS, NVIDIA RTX A1000 Laptop GPU () | |
Dell Precision 7670 | |
HP ZBook Power 15 G10 | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Lenovo ThinkPad P15v G3 21EM001AGE |
Mozilla Kraken 1.1 / Total | |
Lenovo ThinkPad P15v G3 21EM001AGE | |
HP ZBook Power 15 G10 | |
Lenovo ThinkPad P16v G1 AMD | |
Average AMD Ryzen 7 PRO 7840HS, NVIDIA RTX A1000 Laptop GPU () | |
Dell Precision 7670 | |
Average of class Workstation (447 - 612, n=29, last 2 years) | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Lenovo ThinkPad P1 G6-21FV000DGE |
* ... smaller is better
PCMark 10 Score | 6999 points | |
Help |
AIDA64 / Memory Copy | |
HP ZBook Power 15 G10 | |
Average of class Workstation (30324 - 95718, n=28, last 2 years) | |
Dell Precision 7670 | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Average AMD Ryzen 7 PRO 7840HS (34323 - 67943, n=2) | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Lenovo ThinkPad P16v G1 AMD | |
Lenovo ThinkPad P15v G3 21EM001AGE |
AIDA64 / Memory Read | |
Dell Precision 7670 | |
HP ZBook Power 15 G10 | |
Average of class Workstation (30787 - 86584, n=28, last 2 years) | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Average AMD Ryzen 7 PRO 7840HS (30787 - 61660, n=2) | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Lenovo ThinkPad P15v G3 21EM001AGE | |
Lenovo ThinkPad P16v G1 AMD |
AIDA64 / Memory Write | |
HP ZBook Power 15 G10 | |
Average of class Workstation (32728 - 93871, n=28, last 2 years) | |
Dell Precision 7670 | |
Average AMD Ryzen 7 PRO 7840HS (39362 - 83167, n=2) | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Lenovo ThinkPad P16v G1 AMD | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Lenovo ThinkPad P15v G3 21EM001AGE |
AIDA64 / Memory Latency | |
Average of class Workstation (83.4 - 140.8, n=28, last 2 years) | |
Lenovo ThinkPad P16v G1 AMD | |
Average AMD Ryzen 7 PRO 7840HS (99.6 - 101.2, n=2) | |
HP ZBook Power 15 G10 | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Lenovo ThinkPad P15v G3 21EM001AGE | |
Dell Precision 7670 | |
Lenovo ThinkPad P1 G6-21FV000DGE |
* ... smaller is better

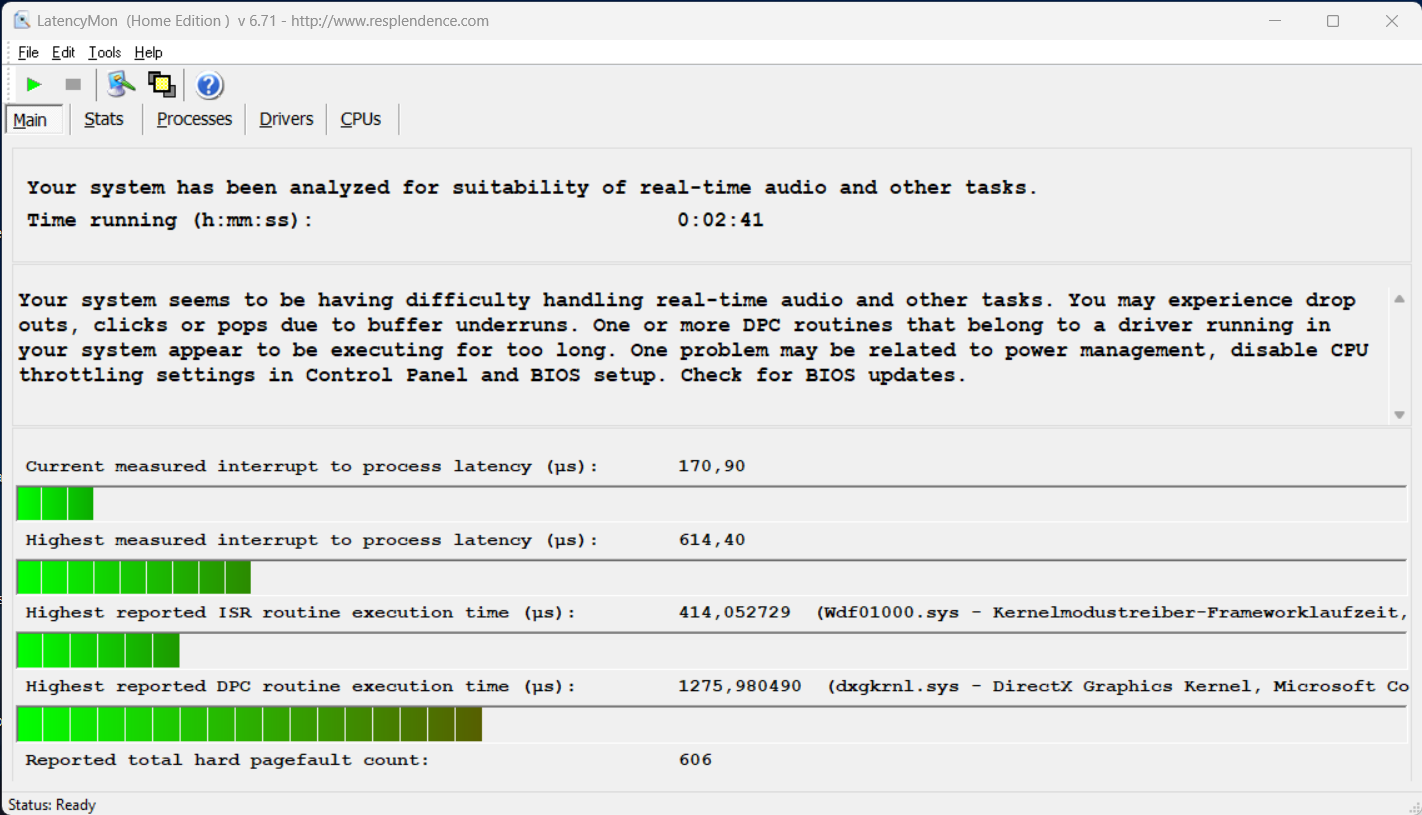

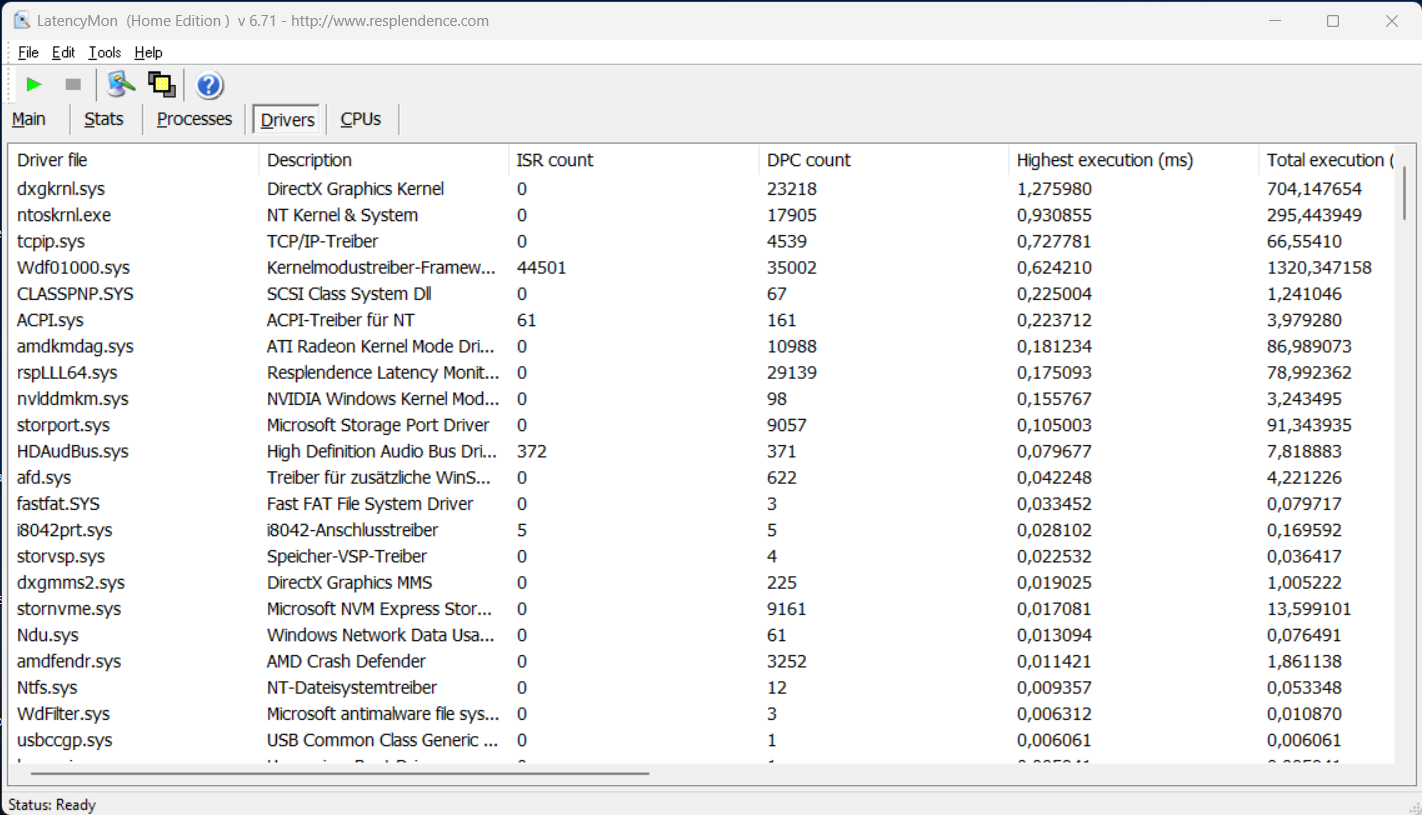

DPC 延迟
在我们的标准延迟测试(网页浏览、4K YouTube 播放、CPU 负载)中,评测设备在现有 BIOS 版本下运行时没有出现任何问题。只有一个驱动程序出现了轻微偏差,但在使用实时音频应用程序时,这应该不是问题。
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
HP ZBook Power 15 G10 | |
Dell Precision 7670 | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Lenovo ThinkPad P16v G1 AMD | |
Lenovo ThinkPad P15v G3 21EM001AGE |
* ... smaller is better
大容量存储器
ThinkPad P16v G1 为 M.2 2280 固态硬盘提供了两个高速 PCIe 4.0 插槽。我们的评测机配备的是 1 TB 版本的 SK Hynix PC801。初始设置后,可用空间约为 899 GB。最大传输速度超过 7 GB/s,堪称一流。由于采用了额外的散热片,即使在长时间负载的情况下,硬盘的性能也能保持完全稳定。更多固态硬盘基准测试结果请点击。.
* ... smaller is better
Sustained load read: DiskSpd Read Loop, Queue Depth 8
图形卡
集成的 Radeon 780MAMD 芯片上的集成 Radeon 780M 可在执行简单任务时处理图形。对于要求较高的工作,系统会自动切换到专用的 RTX A1000 笔记本电脑.该显卡是 Nvidia 的专业图形处理器,但遗憾的是,它仍未采用当前的 Ada Lovelace 架构。相反,它使用的是与消费级 GPU 相同的 GA107 芯片 GeForce RTX 3050.
笔记本电脑中的 RTX A1000 有 6 GB 的 VRAM 和 45 瓦的 TGP,这意味着它是一个相对较慢的变体(A1000 的 TGP 可能在 35-95 瓦之间)。它的性能与之前的 RTX A2000的性能差不多(见 P15v G340 瓦),但比新的 RTX 2000 Ada(与 GeForce RTX 4060 笔记本电脑).
图形处理器性能在持续负载下保持绝对稳定,但当笔记本电脑使用电池运行时,显卡必须使用 40 瓦的电源。这导致图形性能下降约 7%。更多 GPU 基准测试结果,请访问技术版块。.
3DMark 06 Standard Score | 48018 points | |
3DMark Vantage P Result | 58312 points | |
3DMark 11 Performance | 15795 points | |
3DMark Fire Strike Score | 10679 points | |
3DMark Time Spy Score | 4835 points | |
Help |
Blender / v3.3 Classroom HIP/AMD | |
Lenovo ThinkPad P15v G3 21EM001AGE | |
Average of class Workstation (330 - 474, n=3, last 2 years) |
Blender / v3.3 Classroom OPTIX/RTX | |
Lenovo ThinkPad P16v G1 AMD | |
Average NVIDIA RTX A1000 Laptop GPU (61 - 65, n=2) | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Lenovo ThinkPad P15v G3 21EM001AGE | |
Lenovo ThinkPad P16 21D6001DMB A2000 Retest | |
Dell Precision 7670 | |
Average of class Workstation (13 - 95, n=25, last 2 years) | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
HP ZBook Power 15 G10 |
Blender / v3.3 Classroom CUDA | |
Average NVIDIA RTX A1000 Laptop GPU (108 - 112, n=2) | |
Lenovo ThinkPad P16v G1 AMD | |
Lenovo ThinkPad P15v G3 21EM001AGE | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Dell Precision 7670 | |
Lenovo ThinkPad P16 21D6001DMB A2000 Retest | |
Average of class Workstation (18 - 155, n=25, last 2 years) | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
HP ZBook Power 15 G10 |
Blender / v3.3 Classroom CPU | |
Lenovo ThinkPad P15v G3 21EM001AGE | |
Average NVIDIA RTX A1000 Laptop GPU (329 - 448, n=2) | |
Dell Precision 7670 | |
Average of class Workstation (218 - 483, n=29, last 2 years) | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Lenovo ThinkPad P16v G1 AMD | |
HP ZBook Power 15 G10 | |
Lenovo ThinkPad P16 21D6001DMB A2000 Retest | |
Lenovo ThinkPad P16 G1 21D6001DMB |
* ... smaller is better
游戏性能
同样,使用 Nvidia 的专业驱动程序进行游戏也不会有任何问题;我们在测试过程中没有遇到任何问题。RTX A1000 的游戏性能与配备 6GB VRAM 的 RTX 3050 或 RTX 3050 Ti 大致相当。因此,许多老游戏都能在 1080p 和高至最高设置下流畅运行。不过,那些还想玩要求更高的游戏的人应该选择 RTX 2000 Ada。
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Average of class Workstation (23.3 - 156.5, n=24, last 2 years) | |
HP ZBook Power 15 G10 | |
Lenovo ThinkPad P16 21D6001DMB A2000 Retest | |
Dell Precision 7670 | |
Lenovo ThinkPad P15v G3 21EM001AGE | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Lenovo ThinkPad P16v G1 AMD |
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
HP ZBook Power 15 G10 | |
Average of class Workstation (18.3 - 126.7, n=25, last 2 years) | |
Lenovo ThinkPad P16 21D6001DMB A2000 Retest | |
Dell Precision 7670 | |
Lenovo ThinkPad P16v G1 AMD | |
Lenovo ThinkPad P15v G3 21EM001AGE |
Far Cry 5 - 1920x1080 Ultra Preset AA:T | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
HP ZBook Power 15 G10 | |
Average of class Workstation (33 - 149, n=20, last 2 years) | |
Lenovo ThinkPad P16v G1 AMD | |
Average NVIDIA RTX A1000 Laptop GPU () |
F1 23 - 1920x1080 Ultra High Preset AA:T AF:16x | |
Lenovo ThinkPad P1 G6-21FV000DGE | |
Lenovo ThinkPad P16v G1 AMD | |
Average NVIDIA RTX A1000 Laptop GPU () | |
Average of class Workstation (10.9 - 49.2, n=7, last 2 years) |
Witcher 3 FPS chart
low | med. | high | ultra | |
---|---|---|---|---|
GTA V (2015) | 168.2 | 129.4 | 62.7 | |
The Witcher 3 (2015) | 257 | 165 | 87 | 43.2 |
Dota 2 Reborn (2015) | 139.4 | 128.7 | 125 | 118.2 |
Final Fantasy XV Benchmark (2018) | 129.2 | 67.9 | 48.3 | |
X-Plane 11.11 (2018) | 99.8 | 88.6 | 71.9 | |
Far Cry 5 (2018) | 132 | 85 | 79 | 73 |
Strange Brigade (2018) | 261 | 111.4 | 90.2 | 78.4 |
F1 2021 (2021) | 288 | 163.1 | 128.9 | 62.1 |
F1 22 (2022) | 160.7 | 145.8 | 104.3 | 30.6 |
F1 23 (2023) | 154.7 | 139.3 | 93.8 | 27 |
Cyberpunk 2077 2.1 Phantom Liberty (2023) | 66.4 | 49.8 | 41.6 | 34.7 |
排放物 - 扬声器不佳的工作站
噪音排放
在执行基本任务时,ThinkPad P16v G1 的两个风扇通常处于空转状态。如果只让处理器或显卡处于负载状态,风扇噪音甚至会保持在令人愉悦的安静状态(根据我们的测量,噪音为 36 dB(A))。在游戏过程中,我们测得的噪音约为 44 dB(A),但在 40 dB(A) 或以上时,风扇就会开始发出轻微的响声。在压力测试中,移动工作站的噪音非常大,达到 50 分贝(A)左右。我们的评测设备没有产生任何其他电子噪音。
Noise Level
Idle |
| 24.3 / 24.3 / 24.3 dB(A) |
Load |
| 35.7 / 50.2 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 24.3 dB(A) |
Lenovo ThinkPad P16v G1 AMD RTX A1000 Laptop GPU, R7 PRO 7840HS, SK hynix PC801 HFS001TEJ9X101N | HP ZBook Power 15 G10 NVIDIA RTX 2000 Ada Generation Laptop GPU, R7 PRO 7840HS, WDC PC SN810 2TB | Lenovo ThinkPad P15v G3 21EM001AGE RTX A2000 Laptop GPU, R7 PRO 6850H, SK Hynix PC711 1TB HFS001TDE9X081N | Dell Precision 7670 RTX A2000 Laptop GPU, i7-12850HX, SK Hynix HFS001TEJ9X115N | Lenovo ThinkPad P1 G6-21FV000DGE NVIDIA RTX 2000 Ada Generation Laptop GPU, i9-13900H, SK Hynix PC711 1TB HFS001TDE9X084N | Lenovo ThinkPad P16 21D6001DMB A2000 Retest RTX A2000 Laptop GPU, i7-12850HX, Micron 3400 1TB MTFDKBA1T0TFH | |
---|---|---|---|---|---|---|
Noise | 4% | 9% | -4% | -4% | -14% | |
off / environment * | 24.3 | 24.2 -0% | 23.2 5% | 22.7 7% | 24.5 -1% | 24.7 -2% |
Idle Minimum * | 24.3 | 24.4 -0% | 23.2 5% | 22.9 6% | 24.5 -1% | 24.7 -2% |
Idle Average * | 24.3 | 24.4 -0% | 23.2 5% | 22.9 6% | 24.5 -1% | 26.2 -8% |
Idle Maximum * | 24.3 | 24.4 -0% | 23.2 5% | 24.5 -1% | 24.5 -1% | 31.2 -28% |
Load Average * | 35.7 | 27.4 23% | 35 2% | 48.7 -36% | 48 -34% | 48.3 -35% |
Witcher 3 ultra * | 43.7 | 43.3 1% | 37.9 13% | 45.2 -3% | 40.7 7% | 52.7 -21% |
Load Maximum * | 50.2 | 46.8 7% | 37.5 25% | 52.1 -4% | 48 4% | 52.7 -5% |
* ... smaller is better
温度

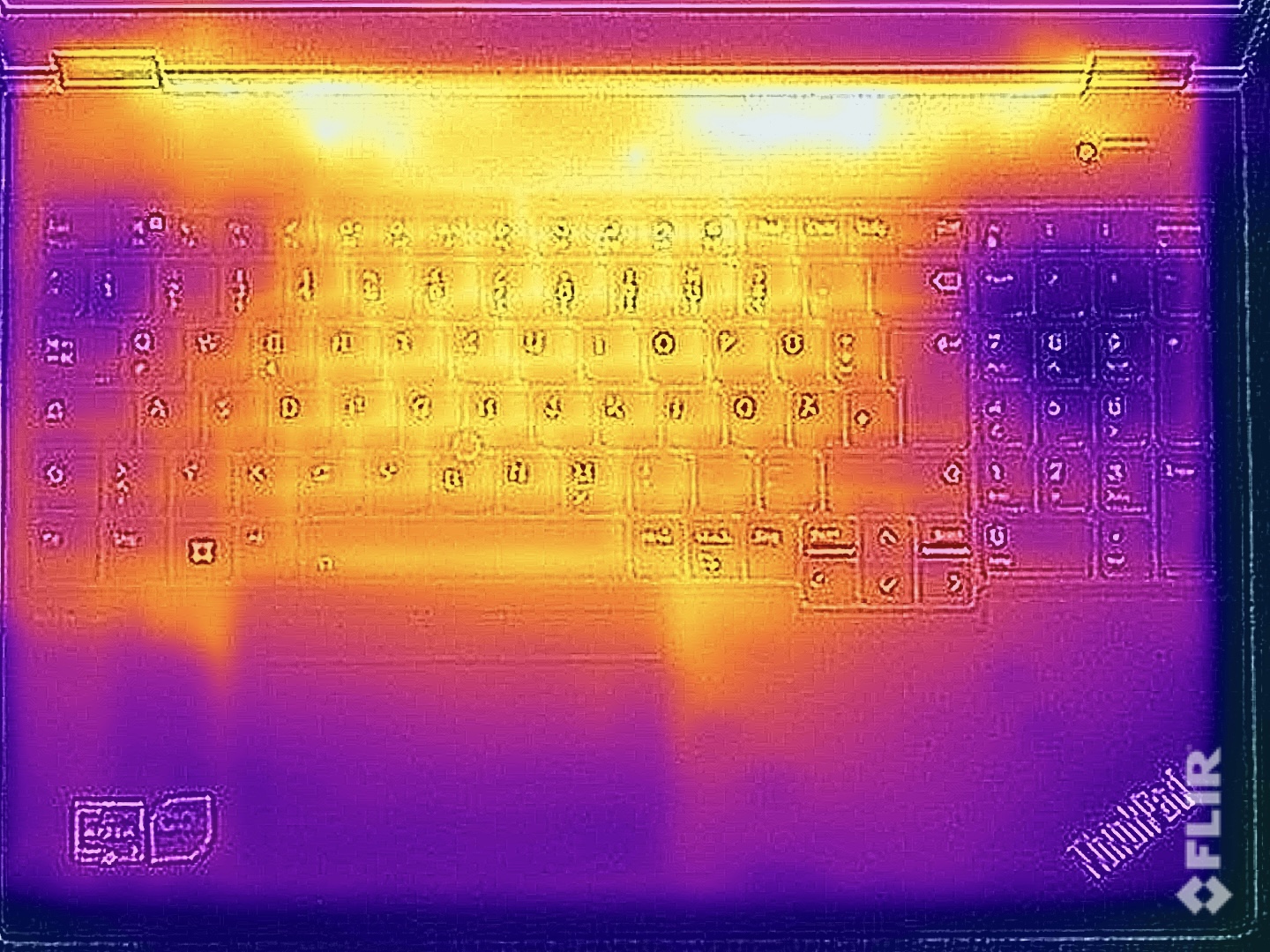

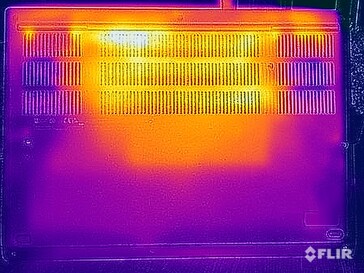

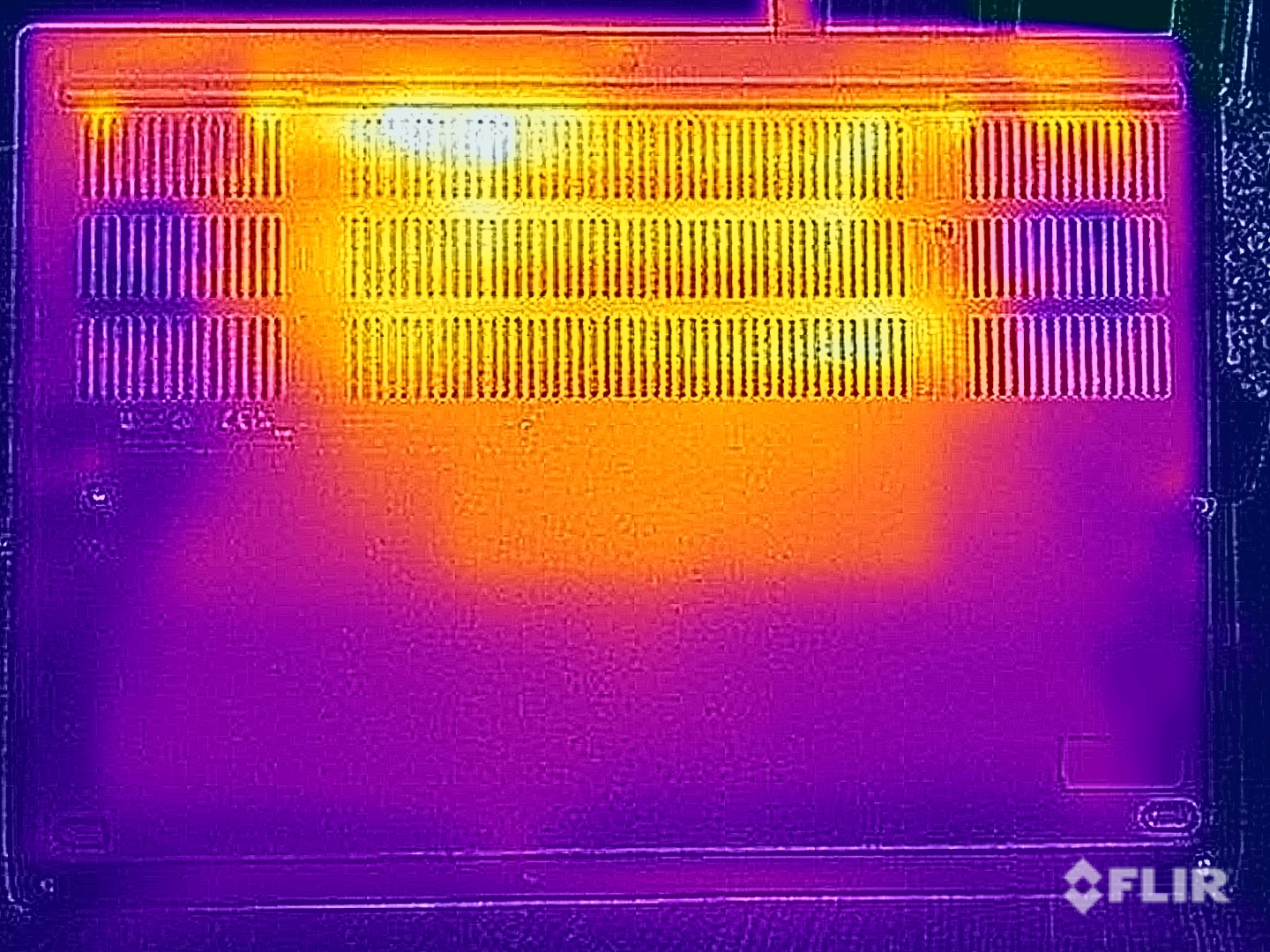

低负载时表面温度没有问题。但是,一旦对 CPU 和 GPU 施加负载,情况就会发生变化。特别是在设备的底部,我们测得某些位置的温度超过了 55°C(131°F),这意味着你一定要避免皮肤直接接触这些区域。尽管如此,底座部分的顶部温度仍然较低,键盘上几乎所有地方的温度都保持在 40°C (104°F)以下。因此,即使在满负荷的情况下,也可以在键盘上正常打字。
在压力测试期间,图形处理器的功率稳定在 45 瓦,而处理器在大约 12 分钟的时间里以 54 瓦的功率运行,然后稳定在 45 瓦。在电池供电的情况下,图形处理器的功耗仍为 40 瓦,但处理器的功耗进一步降至 18 瓦。
(±) The maximum temperature on the upper side is 40.9 °C / 106 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 57.9 °C / 136 F, compared to the average of 41.2 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 23.9 °C / 75 F, compared to the device average of 32 °C / 90 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 32.7 °C / 91 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (34.3 °C / 93.7 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 27.9 °C / 82.2 F (-6.4 °C / -11.5 F).
Lenovo ThinkPad P16v G1 AMD AMD Ryzen 7 PRO 7840HS, NVIDIA RTX A1000 Laptop GPU | HP ZBook Power 15 G10 AMD Ryzen 7 PRO 7840HS, NVIDIA RTX 2000 Ada Generation Laptop GPU | Lenovo ThinkPad P15v G3 21EM001AGE AMD Ryzen 7 PRO 6850H, NVIDIA RTX A2000 Laptop GPU | Dell Precision 7670 Intel Core i7-12850HX, NVIDIA RTX A2000 Laptop GPU | Lenovo ThinkPad P1 G6-21FV000DGE Intel Core i9-13900H, NVIDIA RTX 2000 Ada Generation Laptop GPU | Lenovo ThinkPad P16 21D6001DMB A2000 Retest Intel Core i7-12850HX, NVIDIA RTX A2000 Laptop GPU | |
---|---|---|---|---|---|---|
Heat | -1% | -2% | -16% | -9% | -13% | |
Maximum Upper Side * | 40.9 | 42.4 -4% | 48.7 -19% | 51 -25% | 47.1 -15% | 44 -8% |
Maximum Bottom * | 57.9 | 47.8 17% | 50.5 13% | 45.8 21% | 56.5 2% | 46.8 19% |
Idle Upper Side * | 24.5 | 26.8 -9% | 25 -2% | 31.8 -30% | 28.1 -15% | 31.8 -30% |
Idle Bottom * | 25.5 | 27.2 -7% | 25.4 -0% | 32.6 -28% | 27.6 -8% | 33.5 -31% |
* ... smaller is better
发言人
两个立体声扬声器的整体效果非常糟糕。虽然中音和高音听起来很纯净,对播放声音很有用,但扬声器模块根本没有功率和动态。此外,低音几乎不存在。
Lenovo ThinkPad P16v G1 AMD audio analysis
(±) | speaker loudness is average but good (74.9 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19.8% lower than median
(±) | linearity of bass is average (8.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.8% away from median
(+) | mids are linear (5.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.3% away from median
(+) | highs are linear (5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.6% difference to median)
Compared to same class
» 59% of all tested devices in this class were better, 8% similar, 33% worse
» The best had a delta of 7%, average was 18%, worst was 35%
Compared to all devices tested
» 38% of all tested devices were better, 8% similar, 54% worse
» The best had a delta of 4%, average was 25%, worst was 134%
HP ZBook Power 15 G10 audio analysis
(±) | speaker loudness is average but good (74.4 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.9% lower than median
(±) | linearity of bass is average (11.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.8% away from median
(+) | mids are linear (4.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.9% away from median
(+) | highs are linear (4.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.6% difference to median)
Compared to same class
» 66% of all tested devices in this class were better, 6% similar, 28% worse
» The best had a delta of 7%, average was 18%, worst was 35%
Compared to all devices tested
» 45% of all tested devices were better, 7% similar, 47% worse
» The best had a delta of 4%, average was 25%, worst was 134%
电源管理 - 电池寿命长
耗电量
空闲时的耗电量不超过 6.7 瓦,这对于 16 英寸设备来说是非常低的。相比之下,ThinkPad 在压力测试中的耗电量约为 150 瓦,不过很快就降到了 135 瓦左右,这一点也不足为奇。因此,附带的 170 瓦适配器对于这款笔记本电脑来说已经足够强大。
Off / Standby | 0.3 / 0.9 Watt |
Idle | 4.1 / 6.5 / 6.7 Watt |
Load |
65.2 / 147 Watt |
Key:
min: ,
med: ,
max: Metrahit Energy |
Lenovo ThinkPad P16v G1 AMD R7 PRO 7840HS, RTX A1000 Laptop GPU, SK hynix PC801 HFS001TEJ9X101N, IPS, 1920x1200, 16" | HP ZBook Power 15 G10 R7 PRO 7840HS, NVIDIA RTX 2000 Ada Generation Laptop GPU, WDC PC SN810 2TB, IPS, 2560x1440, 15.6" | Lenovo ThinkPad P15v G3 21EM001AGE R7 PRO 6850H, RTX A2000 Laptop GPU, SK Hynix PC711 1TB HFS001TDE9X081N, IPS LED, 3840x2160, 15.6" | Dell Precision 7670 i7-12850HX, RTX A2000 Laptop GPU, SK Hynix HFS001TEJ9X115N, OLED, 3840x2400, 16" | Lenovo ThinkPad P1 G6-21FV000DGE i9-13900H, NVIDIA RTX 2000 Ada Generation Laptop GPU, SK Hynix PC711 1TB HFS001TDE9X084N, IPS, 2560x1600, 16" | Lenovo ThinkPad P16 G1 21D6001DMB i7-12850HX, RTX A2000 Laptop GPU, Micron 3400 1TB MTFDKBA1T0TFH, IPS LED, 2560x1600, 16" | Average NVIDIA RTX A1000 Laptop GPU | Average of class Workstation | |
---|---|---|---|---|---|---|---|---|
Power Consumption | -40% | -52% | -115% | -74% | -39% | -26% | -98% | |
Idle Minimum * | 4.1 | 5.3 -29% | 6.3 -54% | 7.5 -83% | 8.3 -102% | 5.1 -24% | 4.2 ? -2% | 9.05 ? -121% |
Idle Average * | 6.5 | 9.9 -52% | 13.9 -114% | 9.5 -46% | 14.5 -123% | 9.2 -42% | 7.7 ? -18% | 14 ? -115% |
Idle Maximum * | 6.7 | 16.7 -149% | 14.5 -116% | 28.4 -324% | 15.3 -128% | 9.9 -48% | 12.8 ? -91% | 19.9 ? -197% |
Load Average * | 65.2 | 61.3 6% | 82.8 -27% | 139.1 -113% | 91.8 -41% | 124.1 -90% | 79.6 ? -22% | 95.2 ? -46% |
Witcher 3 ultra * | 77.2 | 87.9 -14% | 88.8 -15% | 134 -74% | 104.7 -36% | 87.7 -14% | ||
Load Maximum * | 147 | 145.3 1% | 124.8 15% | 220.8 -50% | 164.5 -12% | 168.9 -15% | 142.3 ? 3% | 166.7 ? -13% |
* ... smaller is better
Power consumption Witcher 3 / Stresstest
Power consumption with external monitor
电池寿命
在我们的测试中,低功耗和 90 Wh 电池的组合使电池续航时间非常长。在 150 cd/m²(相当于评测机最大亮度的 71%)的视频测试中,ThinkPad 的续航时间接近 18 小时;在 Wi-Fi 测试中,ThinkPad 的续航时间接近 15 小时。即使将屏幕亮度调到最高,我们仍能使用 12 个小时。这些优异的成绩是同类产品无法企及的。在最大负载情况下,电池在一个多小时后就完全耗尽。当笔记本电脑运行时,大约需要 2 个小时才能完全充满电,65 分钟后电池恢复了 80% 的电量。
Lenovo ThinkPad P16v G1 AMD R7 PRO 7840HS, RTX A1000 Laptop GPU, 90 Wh | HP ZBook Power 15 G10 R7 PRO 7840HS, NVIDIA RTX 2000 Ada Generation Laptop GPU, 83 Wh | Lenovo ThinkPad P15v G3 21EM001AGE R7 PRO 6850H, RTX A2000 Laptop GPU, 68 Wh | Dell Precision 7670 i7-12850HX, RTX A2000 Laptop GPU, 83 Wh | Lenovo ThinkPad P1 G6-21FV000DGE i9-13900H, NVIDIA RTX 2000 Ada Generation Laptop GPU, 90 Wh | Lenovo ThinkPad P16 G1 21D6001DMB i7-12850HX, RTX A2000 Laptop GPU, 94 Wh | Average of class Workstation | |
---|---|---|---|---|---|---|---|
Battery Runtime | -33% | -11% | -25% | -25% | 10% | -20% | |
H.264 | 1067 | 641 -40% | 674 -37% | 671 ? -37% | |||
WiFi v1.3 | 897 | 601 -33% | 416 -54% | 355 -60% | 567 -37% | 564 -37% | 513 ? -43% |
Load | 68 | 110 62% | 75 10% | 67 -1% | 106 56% | 80.9 ? 19% |
Pros
Cons
结论:ThinkPad P16v G1 是一款出色的工作站
联想推出了 ThinkPad P16v G1,以尺寸稍大的 16 英寸机型取代旧款 ThinkPad P15v。这款入门级工作站背后的基本理念保持不变:它旨在成为进入专业工作领域的一个相对实惠的入口。必要的 CPU 性能由当前的 AMD Zen4 芯片提供,尽管最大 64 瓦的功耗限制有点低,但仍能提供出色的性能。不过,ThinkPad P16 等配备英特尔 HX CPU 的高端工作站可提供更强的处理能力。另一个值得批评的问题是,当笔记本电脑使用电池供电时,CPU 的性能会大幅降低。
同样,可供选择的显卡也只有 Nvidia 的低端型号(RTX A500、RTX A1000 或 RTX 2000 Ada)。但你也可以完全放弃专用 GPU。配备 6GB RAM 的 RTX A1000 的性能总体还算不错,不过其 TGP 为 45 瓦,速度相对较慢。考虑到这款笔记本电脑的外形尺寸为 16 英寸,它肯定能发挥出更大的性能。
ThinkPad P16v G1 是联想在工作站领域新推出的入门级机型。与价格更高的 ThinkPad P16 相比,它在某些方面(如机箱质量、散热性能)不得不做出妥协。
由于机身完全由塑料制成,P16v G1 很明显是一款入门级设备。该设备具有良好的用户可维护性,有两个 SO-DIMM 插槽和两个 M.2 2280 SSD 空间。不过,由于联想没有预装必要的天线或 SIM 卡读卡器,因此无法添加 WWAN 模块。键盘具有现代 ThinkPad 的品质,全高清显示屏具有完整的 sRGB 覆盖范围,是完成普通任务的不错选择。如果你想要更好的显示效果,还可以选择 4K 面板(800 cd/m²、P3 和 HDR)。
ThinkPad P16v G1 最大的竞争对手无疑是 惠普 ZBook Power G10由于采用了金属机身,它给人的感觉更为高端。这两款笔记本电脑都配备了类似的规格,但在其他方面并无太大区别。不过,惠普仍然使用 16:9 显示屏,而且电池续航时间也赶不上 ThinkPad。戴尔在这个价格区间提供了Precision 3581,但我们还没有机会试用这款设备。
价格和供应情况
在德国,ThinkPad P16v G1 在Campuspoint 有售。售价 2,099 欧元(2,298 美元)。您也可以登录Lenovo Germany 或联想美国配置您自己的ThinkPad P16v G1。这款笔记本电脑还提供学生和教师折扣。
Lenovo ThinkPad P16v G1 AMD
- 01/03/2024 v7 (old)
Andreas Osthoff
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
