联想 ThinkPad T14 G4 英特尔笔记本电脑评测：T 系列的 Raptor Lake 升级

Name: Lenovo ThinkPad T14 G4 21HD0043GE
Brand: Lenovo

猛禽

联想ThinkPad T14的2023版本采用了英特尔猛禽湖系列CPU。与前代产品相比，新 CPU 的功耗似乎有所降低，但除此之外，联想 ThinkPad T14 4 代英特尔版的升级似乎并不大。

Benjamin Herzig, 👁 Benjamin Herzig (translated by DeepL / Ninh Duy), Published 09/10/2023 🇺🇸 🇩🇪 ...

Business Intel Windows ThinkPad Thunderbolt

如果你想搜索 "典型的 ThinkPad"，ThinkPad T 系列一定是热门竞争产品。经典的设计，历经多代的缓慢更迭，联想并没有轻言尝试。像联想ThinkPad T14 Gen 4这样的笔记本电脑，都有一种务实、认真的气质。今天，我们测试的就是这款为办公环境而生的英特尔版 ThinkPad。

由于联想并没有对 ThinkPad T14 G4 的设计进行任何改动，因此我们跳过机身、连接和输入设备部分，直接从屏幕开始。关于笔记本电脑这些方面的全面介绍，请参阅我们对联想 ThinkPad T14 G3 的评测。

Test device courtesy of campuspoint.de

Download your licensed rating image as PNG / SVG

Lenovo ThinkPad T14 G4 21HD0043GE (ThinkPad T14 G4 Series)

Processor

Intel Core i5-1335U 10 x 0.9 - 4.6 GHz, 50 W PL2 / Short Burst, 22.5 W PL1 / Sustained, Raptor Lake-U

Graphics adapter

Intel Iris Xe Graphics G7 80EUs

Memory

16 GB

, DDR5-4800, on board, 1x SO-DIMM free, max. 48 GB, single channel

Display

14.00 inch 16:10, 1920 x 1200 pixel 162 PPI, B140UAN02.1, IPS-AHVA LTPS wLED, glossy: no

Mainboard

Intel Alder Lake-P PCH

Storage

Kioxia BG5 KBG5AZNV512G, 512 GB

, M.2 2280, NVMe PCIe 4.0, 420 GB free

Soundcard

Realtek ALC3287

Connections

2 USB 3.0 / 3.1 Gen1, 2 USB 4.0 40 Gbps, 2 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5mm Audio, 1 SmartCard, 1 Fingerprint Reader

Networking

Intel Wi-Fi 6E AX211 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2, WWAN-ready

Size

height x width x depth (in mm): 17.9 x 317.7 x 226.9

Battery

52.5 Wh Lithium-Polymer

Operating System

Microsoft Windows 11 Pro

Camera

Webcam: 5 Megapixel w/ThinkShutter & IR

Additional features

Speakers: 2 Watt Stereo, Keyboard: 6 row Chiclet, 1.5mm travel, full-size, Keyboard Light: yes, 65 W USB C charger, Lenovo Commercial Vantage, Lenovo View, 36 Months Warranty

Weight

1.428 kg, Power Supply: 341 g

Price

1640 Euro

Links

Lenovo homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height	Size	Resolution
88.5 % v7 ^(old)	09 / 2023	Lenovo ThinkPad T14 G4 21HD0043GE i5-1335U, Iris Xe G7 80EUs	1.4 kg	17.9 mm	14.00"	1920x1200
86.4 % v7 ^(old)	03 / 2023	Lenovo ThinkPad T14 G3-21AJS00400 i7-1260P, GeForce MX550	1.5 kg	17.9 mm	14.00"	1920x1200
90.1 % v7 ^(old)	08 / 2023	HP EliteBook 845 G10 818N0EA R9 PRO 7940HS, Radeon 780M	1.5 kg	17.9 mm	14.00"	2560x1600
90.3 % v7 ^(old)	07 / 2023	Dell Latitude 7440 i5-1345U, Iris Xe G7 80EUs	1.2 kg	17.95 mm	14.00"	2560x1600
88.8 % v7 ^(old)	09 / 2022	Lenovo ThinkPad T14 G3-21CF004NGE R7 PRO 6850U, Radeon 680M	1.4 kg	17.9 mm	14.00"	1920x1200

尺寸比较

HP EliteBook 845 G10 818N0EA Lenovo ThinkPad T14 G4 21HD0043GE Lenovo ThinkPad X1 Carbon G11-21HNS00000 Dell Latitude 7440 DIN A4 ❌

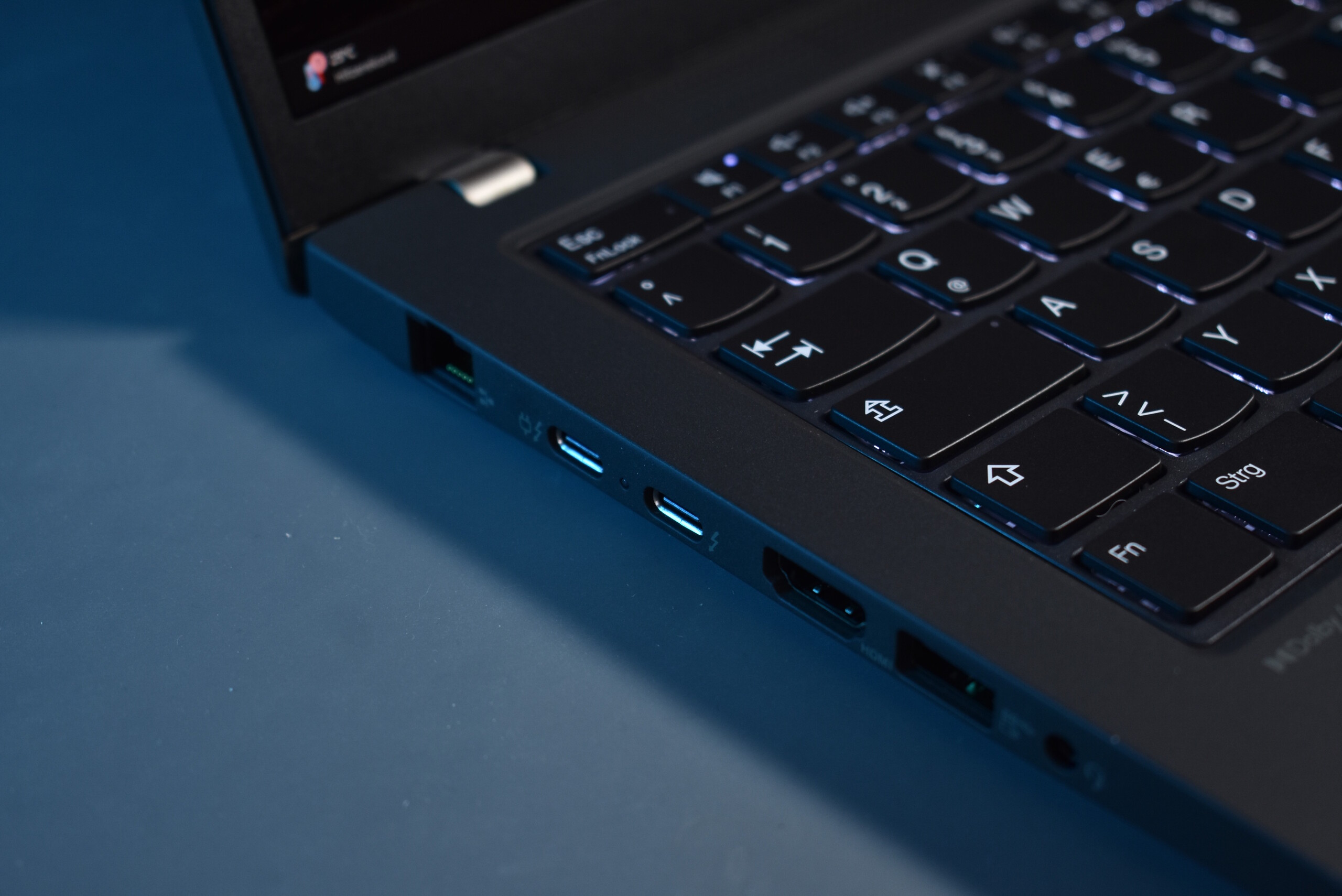

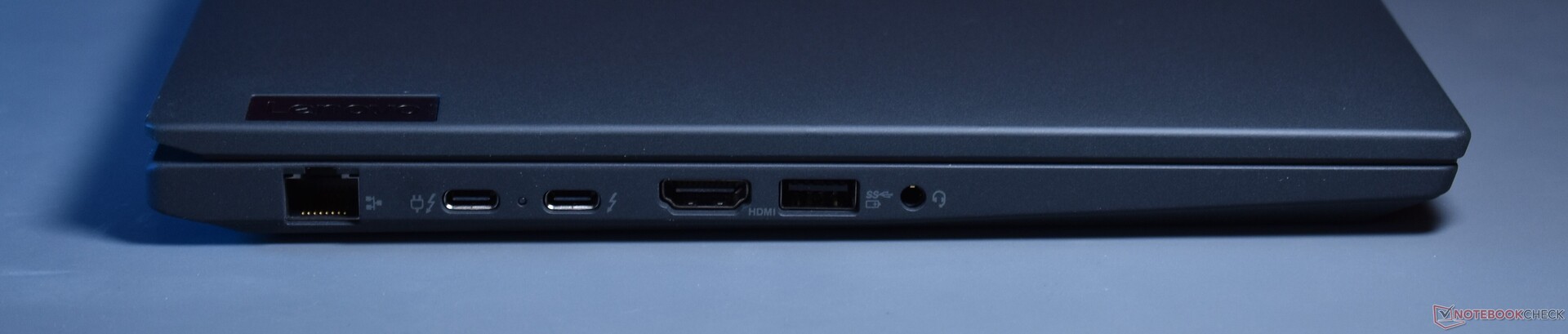

左侧RJ45 以太网、2x Thunderbolt 4、HDMI、USB A 3.2 Gen 1、3.5mm 音频

Networking
iperf3 transmit AXE11000
Lenovo ThinkPad T14 G3-21AJS00400 Intel Wi-Fi 6E AX211	1529 (1399^min - 1585^max) MBit/s +105%
Average Intel Wi-Fi 6E AX211 (464 - 1921, n=239)	1234 MBit/s +66%
Average of class Office (47.8 - 1793, n=89, last 2 years)	1130 MBit/s +52%
Dell Latitude 7440 Intel Wi-Fi 6E AX211	767 (626^min - 867^max) MBit/s +3%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Wi-Fi 6E AX211	745 (400^min - 913^max) MBit/s
iperf3 receive AXE11000
Lenovo ThinkPad T14 G3-21AJS00400 Intel Wi-Fi 6E AX211	1587 (1559^min - 1610^max) MBit/s +1%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Wi-Fi 6E AX211	1565 (1208^min - 1671^max) MBit/s
Average Intel Wi-Fi 6E AX211 (582 - 1890, n=239)	1379 MBit/s -12%
Average of class Office (104.2 - 1775, n=89, last 2 years)	1271 MBit/s -19%
Dell Latitude 7440 Intel Wi-Fi 6E AX211	1239 (1088^min - 1309^max) MBit/s -21%
iperf3 transmit AXE11000 6GHz
Lenovo ThinkPad T14 G3-21CF004NGE Qualcomm WCN685x	1892 (1820^min - 1965^max) MBit/s +138%
HP EliteBook 845 G10 818N0EA Realtek 8852CE	1820 (1772^min - 1868^max) MBit/s +129%
Average of class Office (713 - 1961, n=48, last 2 years)	1404 MBit/s +77%
Average Intel Wi-Fi 6E AX211 (632 - 1851, n=211)	1372 MBit/s +73%
Dell Latitude 7440 Intel Wi-Fi 6E AX211	1009 (740^min - 1193^max) MBit/s +27%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Wi-Fi 6E AX211	795 (406^min - 1047^max) MBit/s
iperf3 receive AXE11000 6GHz
HP EliteBook 845 G10 818N0EA Realtek 8852CE	1749 (1715^min - 1761^max) MBit/s +7%
Lenovo ThinkPad T14 G3-21CF004NGE Qualcomm WCN685x	1724 (1705^min - 1736^max) MBit/s +6%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Wi-Fi 6E AX211	1629 (1561^min - 1648^max) MBit/s
Average of class Office (1065 - 1790, n=48, last 2 years)	1542 MBit/s -5%
Average Intel Wi-Fi 6E AX211 (700 - 1857, n=210)	1493 MBit/s -8%
Dell Latitude 7440 Intel Wi-Fi 6E AX211	1223 (1075^min - 1257^max) MBit/s -25%

Lenovo ThinkPad T14 G4 21HD0043GE Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø781 (406-1047)

HP EliteBook 845 G10 818N0EA Realtek 8852CE; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1820 (1772-1868)

Dell Latitude 7440 Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1009 (740-1193)

Lenovo ThinkPad T14 G3-21CF004NGE Qualcomm WCN685x; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1892 (1820-1965)

Lenovo ThinkPad T14 G4 21HD0043GE Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1629 (1561-1648)

HP EliteBook 845 G10 818N0EA Realtek 8852CE; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1748 (1715-1761)

Dell Latitude 7440 Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1222 (1075-1257)

Lenovo ThinkPad T14 G3-21CF004NGE Qualcomm WCN685x; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1723 (1705-1736)

Lenovo ThinkPad T14 G4 21HD0043GE Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000; iperf 3.1.3: Ø731 (400-913)

Lenovo ThinkPad T14 G3-21AJS00400 Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000; iperf 3.1.3: Ø1529 (1399-1585)

Dell Latitude 7440 Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000; iperf 3.1.3: Ø767 (626-867)

Lenovo ThinkPad T14 G4 21HD0043GE Intel Wi-Fi 6E AX211; iperf3 receive AXE11000; iperf 3.1.3: Ø1565 (1208-1671)

Lenovo ThinkPad T14 G3-21AJS00400 Intel Wi-Fi 6E AX211; iperf3 receive AXE11000; iperf 3.1.3: Ø1586 (1559-1610)

Dell Latitude 7440 Intel Wi-Fi 6E AX211; iperf3 receive AXE11000; iperf 3.1.3: Ø1239 (1088-1309)

网络摄像头

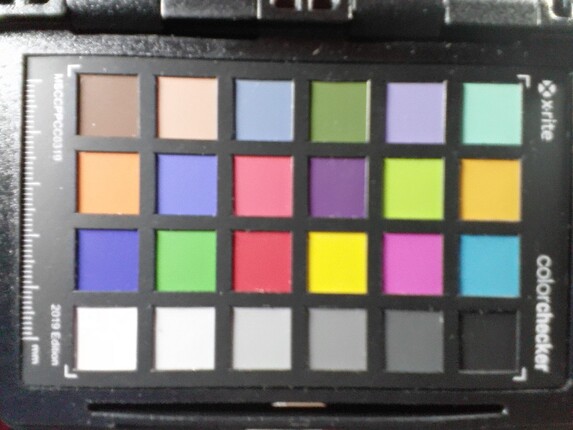

联想 ThinkPad T14 Gen 4 的新功能是更高分辨率的网络摄像头，联想将这一规格提高到了 500 万像素。这使得图像更加清晰，但与前代产品的 1080p 网络摄像头相比，并无太大改进。

ColorChecker Lenovo ThinkPad T14 G4 21HD0043GE: 16.91 ∆E min: 1.73 - max: 33.77 ∆E

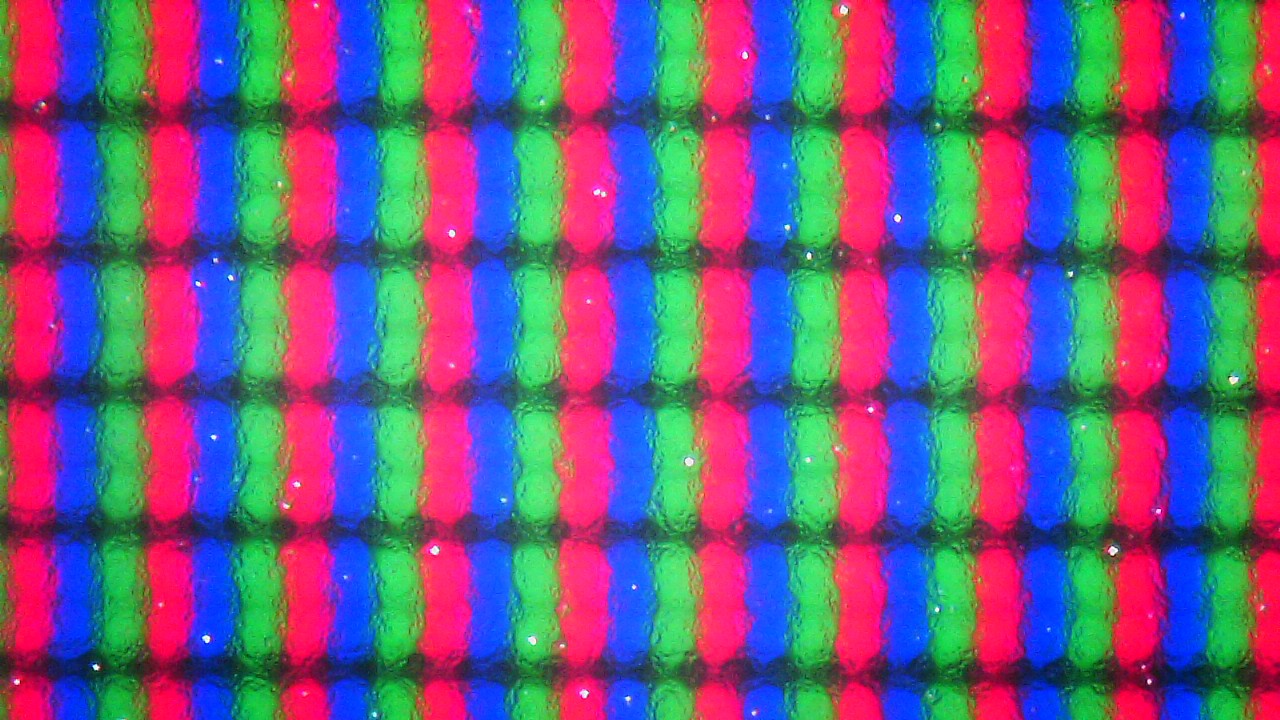

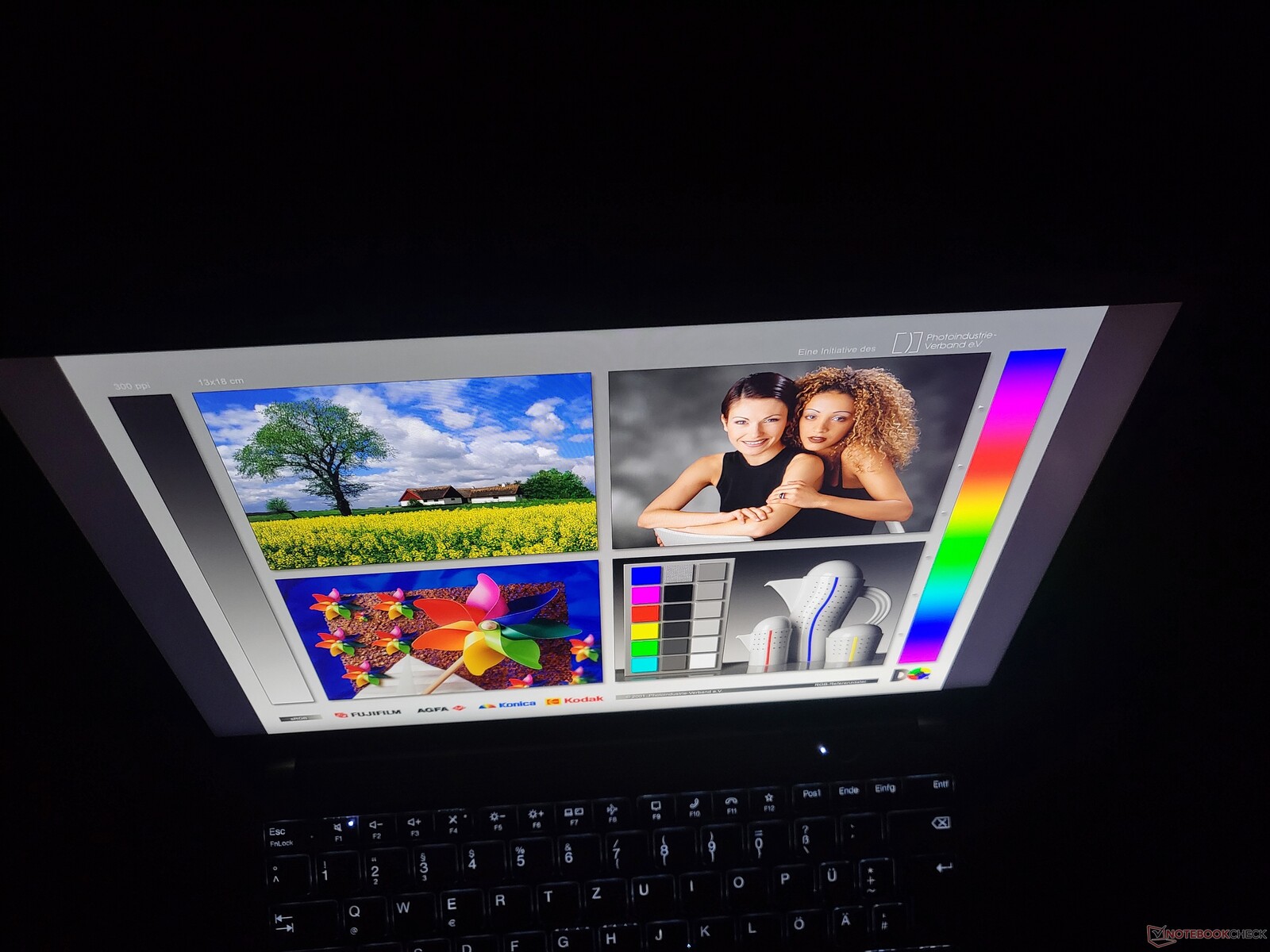

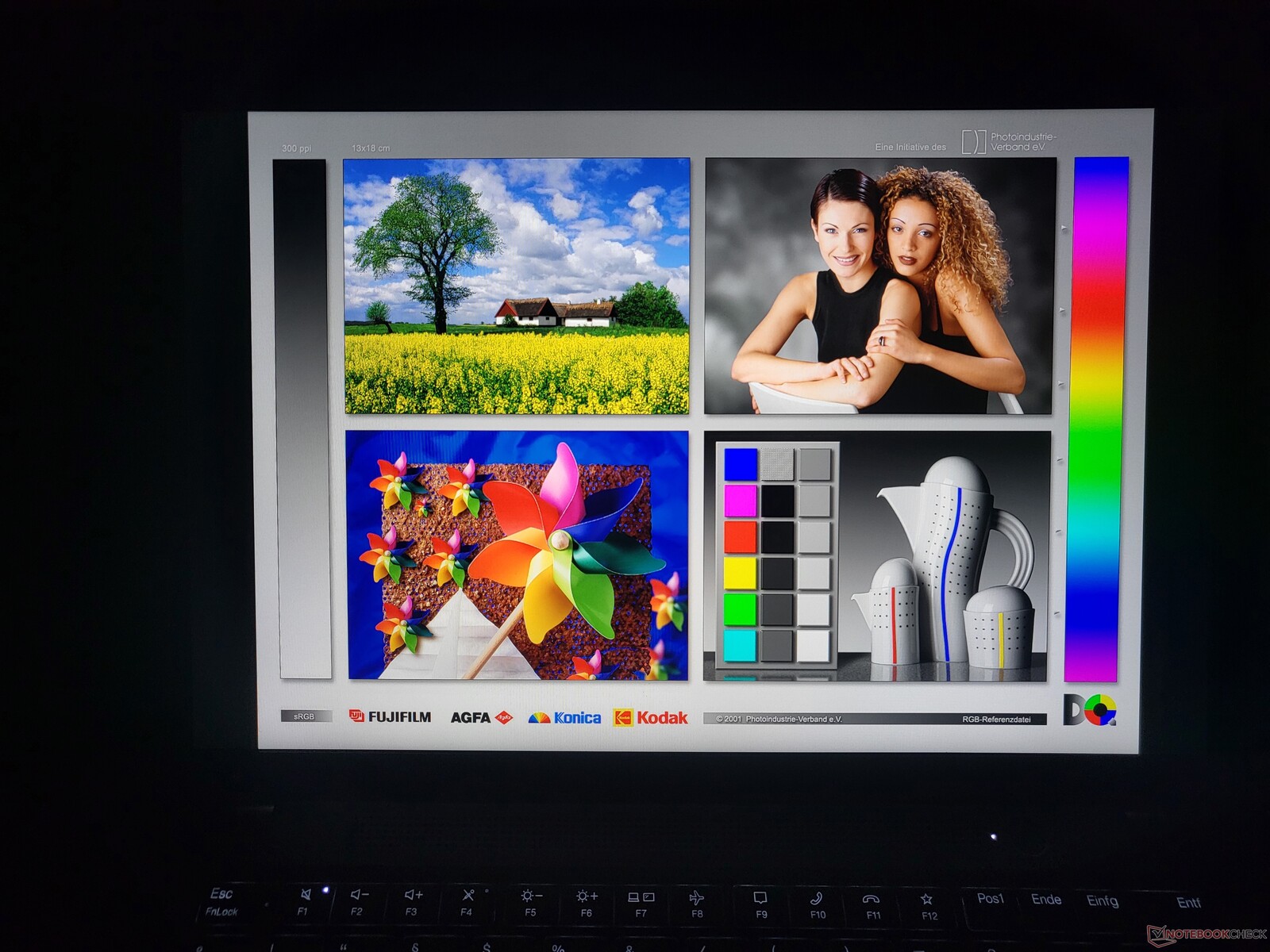

显示屏：哑光低功耗屏幕，反应时间慢

联想没有改变格式（16:10）或屏幕尺寸（对角线 14 英寸）。可用的屏幕选项（ThinkPad 的屏幕选项通常很多）也基本保持不变。与联想 ThinkPad T14 第 3 代联想取消了 WQUXGA（3,840 x 2,160）IPS 产品。取而代之的是，用户现在可以购买配备 2.8K (2,880 x 1,800) OLED 面板的联想 ThinkPad T14 4 代英特尔版。

我们的评测样本使用的可能是最受欢迎的一种，即 WUXGA 分辨率（1,920 x 1,200）的低功耗屏幕。联想销售的这款显示屏亮度值为 400 cd/m²。我们的测量结果显示，平均亮度为 369 cd/m²，低于承诺值。这意味着，在我们的比较中，T14 G4 英特尔显示屏落后于竞争对手--这并不一定完全正确，因为在屏幕质量方面存在一些差异。而联想总是使用几家不同的供应商；总是流行屏幕抽奖。

同样明显的是，屏幕的反应时间并不好。遗憾的是，这种低功耗液晶屏经常出现这种情况。EliteBook 845 G10 的 WQXGA 屏幕在这方面的表现要好得多。


380 cd/m²	389 cd/m²	399 cd/m²
357 cd/m²	376 cd/m²	358 cd/m²
344 cd/m²	360 cd/m²	356 cd/m²

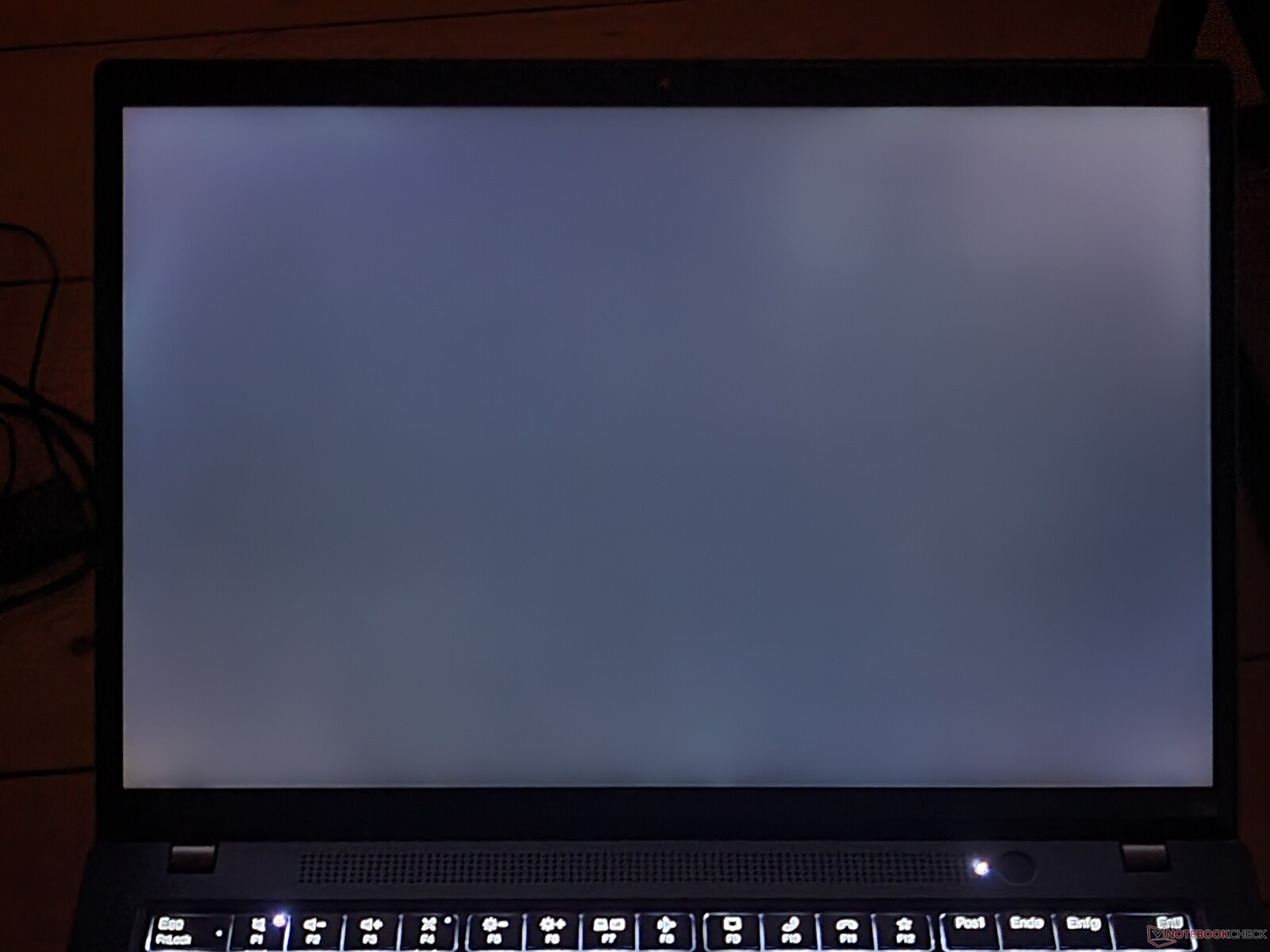

Distribution of brightness

B140UAN02.1 tested with X-Rite i1Pro 2

Maximum: 399 cd/m² (Nits) Average: 368.8 cd/m² Minimum: 3.5 cd/m²
Brightness Distribution: 86 %
Center on Battery: 376 cd/m²
Contrast: 1635:1 (Black: 0.23 cd/m²)
ΔE Color 4.3 | 0.5-29.43 Ø4.92, calibrated: 1.6
ΔE Greyscale 6.4 | 0.5-98 Ø5.2

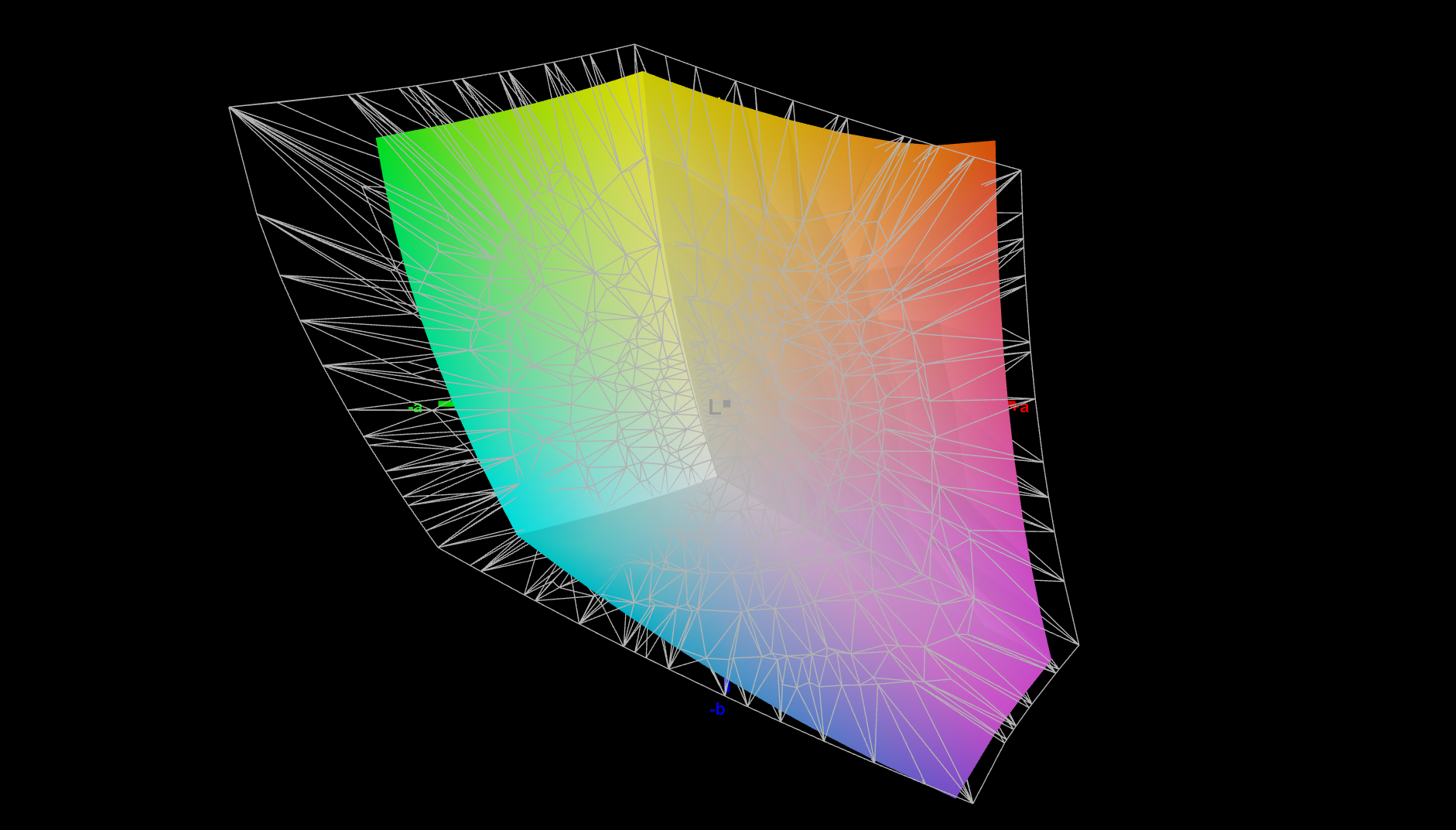

76.7% AdobeRGB 1998 (Argyll 2.2.0 3D)
98.9% sRGB (Argyll 2.2.0 3D)

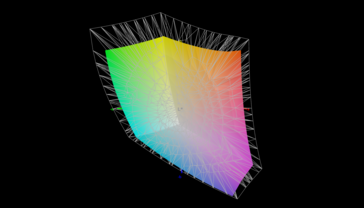

74.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.24

Download ICC File (X-Rite i1Pro 2)

	Lenovo ThinkPad T14 G4 21HD0043GE B140UAN02.1, IPS-AHVA LTPS wLED, 1920x1200, 14"	Lenovo ThinkPad T14 G3-21AJS00400 B140UAN02.1, IPS, 1920x1200, 14"	HP EliteBook 845 G10 818N0EA AUO6DA8, IPS, 2560x1600, 14"	Dell Latitude 7440 AU Optronics B140QAX, IPS, 2560x1600, 14"	Lenovo ThinkPad T14 G3-21CF004NGE LP140WU1-SPB2, IPS, 1920x1200, 14"
Display		2%	15%	0%	-5%
Display P3 Coverage	74.8	76.3 2%	98.3 31%	75.4 1%	69.2 -7%
sRGB Coverage	98.9	100 1%	99.8 1%	99.9 1%	97.4 -2%
AdobeRGB 1998 Coverage	76.7	77.9 2%	86.2 12%	76.2 -1%	71.5 -7%
Response Times		-19%	75%	-5%	28%
Response Time Grey 50% / Grey 80% *	48.3 ?(20.7, 27.6)	62.6 ?(28.2, 34.4) -30%	12.7 ?(5.8, 7) 74%	56 ?(26.1, 29.9) -16%	41.4 ?(18.8, 22.6) 14%
Response Time Black / White *	32.6 ?(19.1, 13.5)	34.9 ?(16.5, 18.4) -7%	7.9 ?(4.1, 3.8) 76%	30.8 ?(14, 16.8) 6%	19.2 ?(6.8, 12.4) 41%
PWM Frequency
Screen		15%	27%	12%	29%
Brightness middle	376	400 6%	546 45%	517.3 38%	451 20%
Brightness	369	395 7%	564 53%	488 32%	435 18%
Brightness Distribution	86	91 6%	86 0%	88 2%	94 9%
Black Level *	0.23	0.19 17%	0.38 -65%	0.34 -48%	0.21 9%
Contrast	1635	2105 29%	1437 -12%	1521 -7%	2148 31%
Colorchecker dE 2000 *	4.3	3.5 19%	1.3 70%	3.3 23%	2.4 44%
Colorchecker dE 2000 max. *	9.9	7.2 27%	5.3 46%	7.81 21%	4.1 59%
Colorchecker dE 2000 calibrated *	1.6	1.6 -0%	1.2 25%	1.02 36%	1.3 19%
Greyscale dE 2000 *	6.4	4.8 25%	1.1 83%	5.6 12%	3.3 48%
Gamma	2.24 ^98%	2.11 ^104%	2.27 ^97%	2.37 ^93%	2.13 ^103%
CCT	6019 ^108%	6662 ^98%	6463 ^101%	6804 ^96%	6848 ^95%
Total Average (Program / Settings)		-1% / 7%	39% / 31%	2% / 7%	17% / 21%

* ... smaller is better

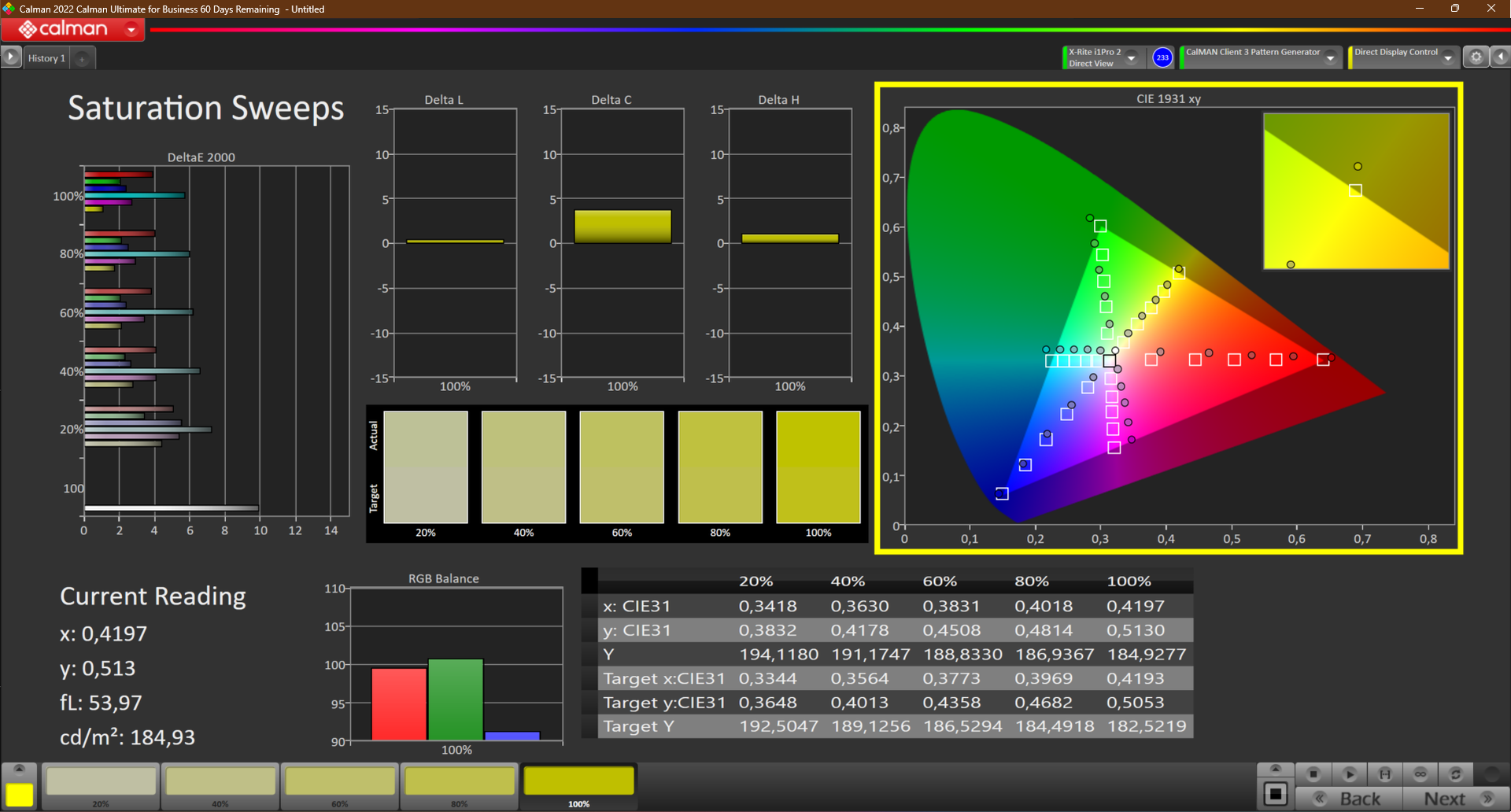

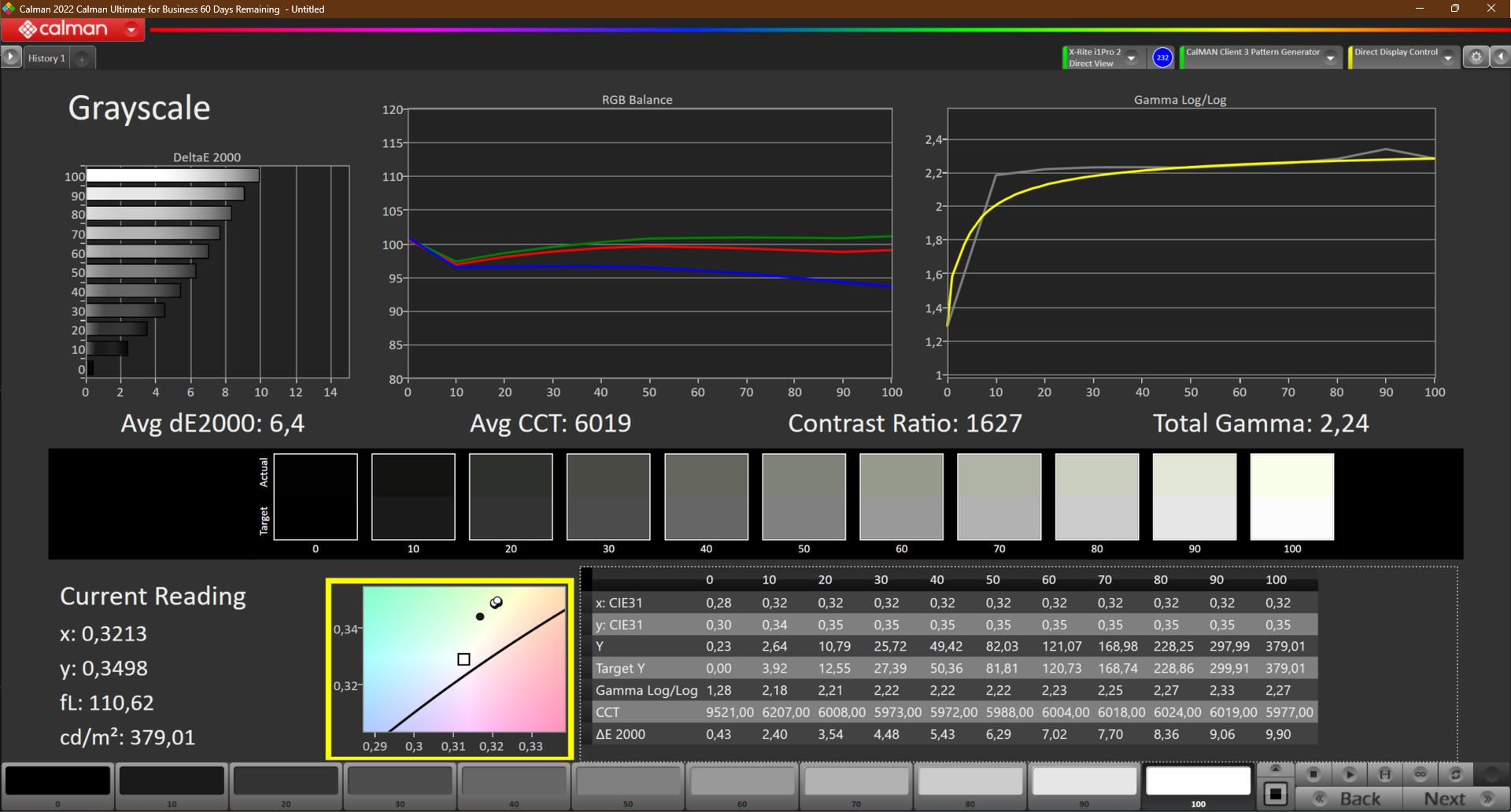

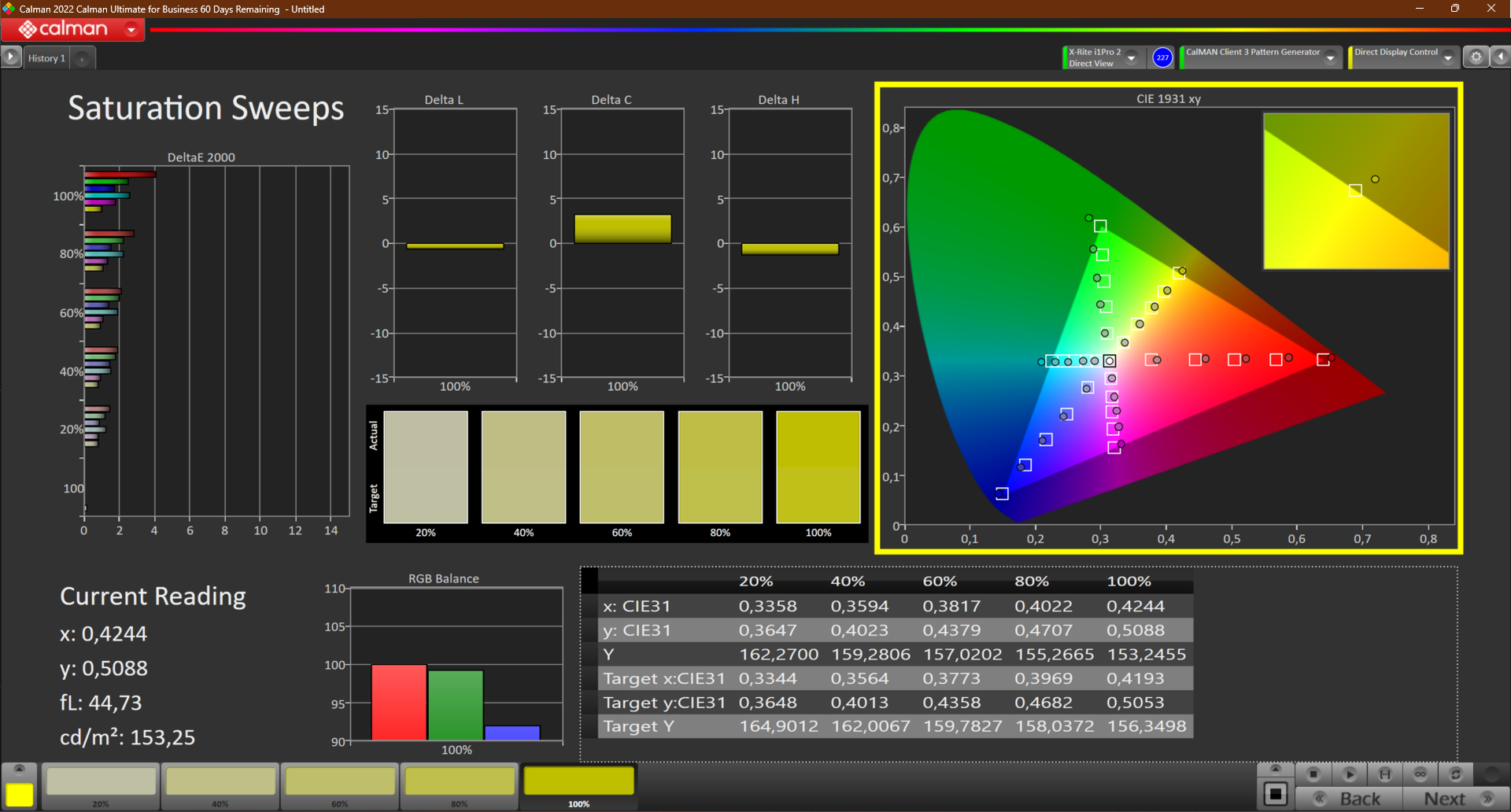

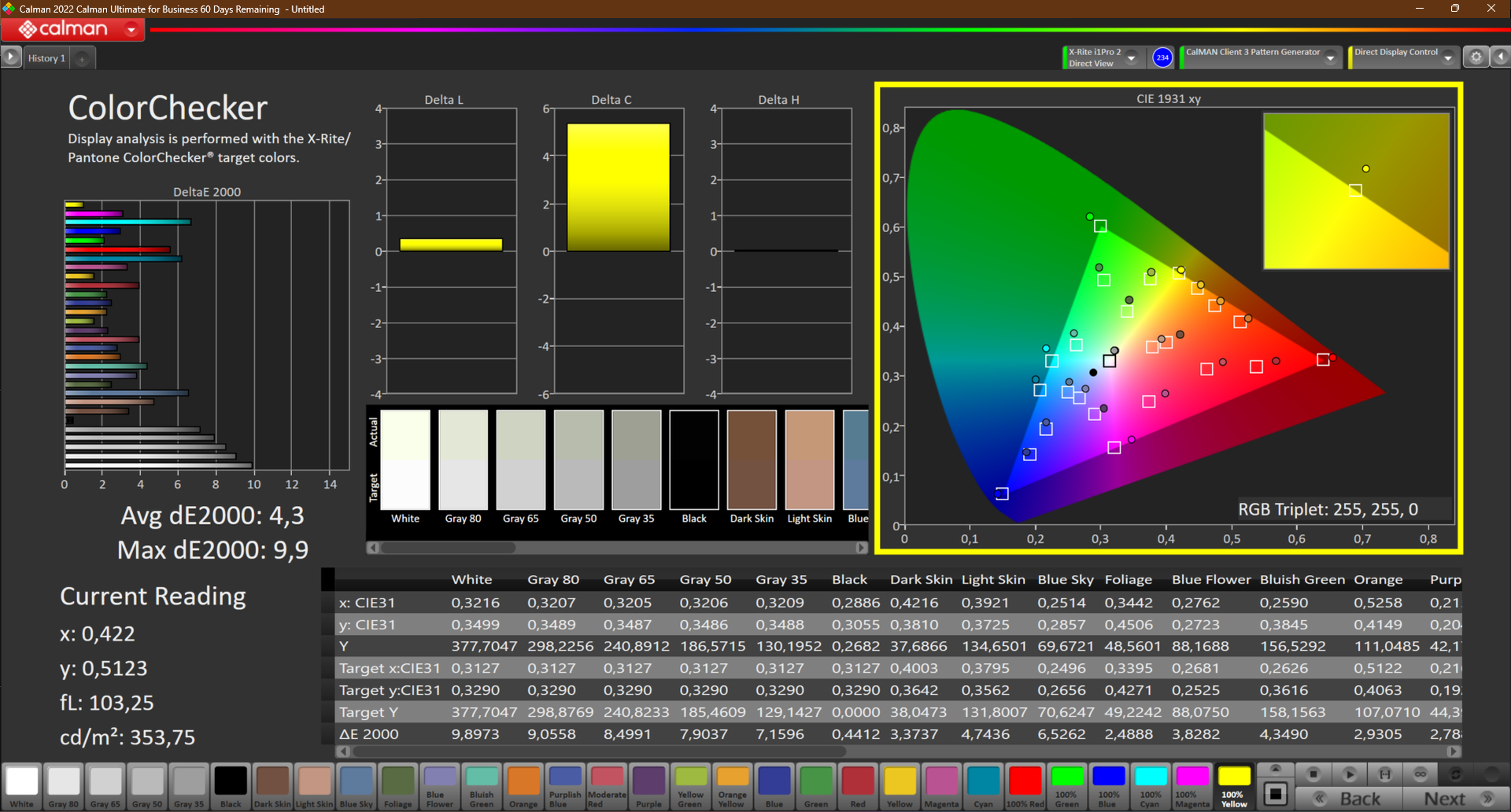

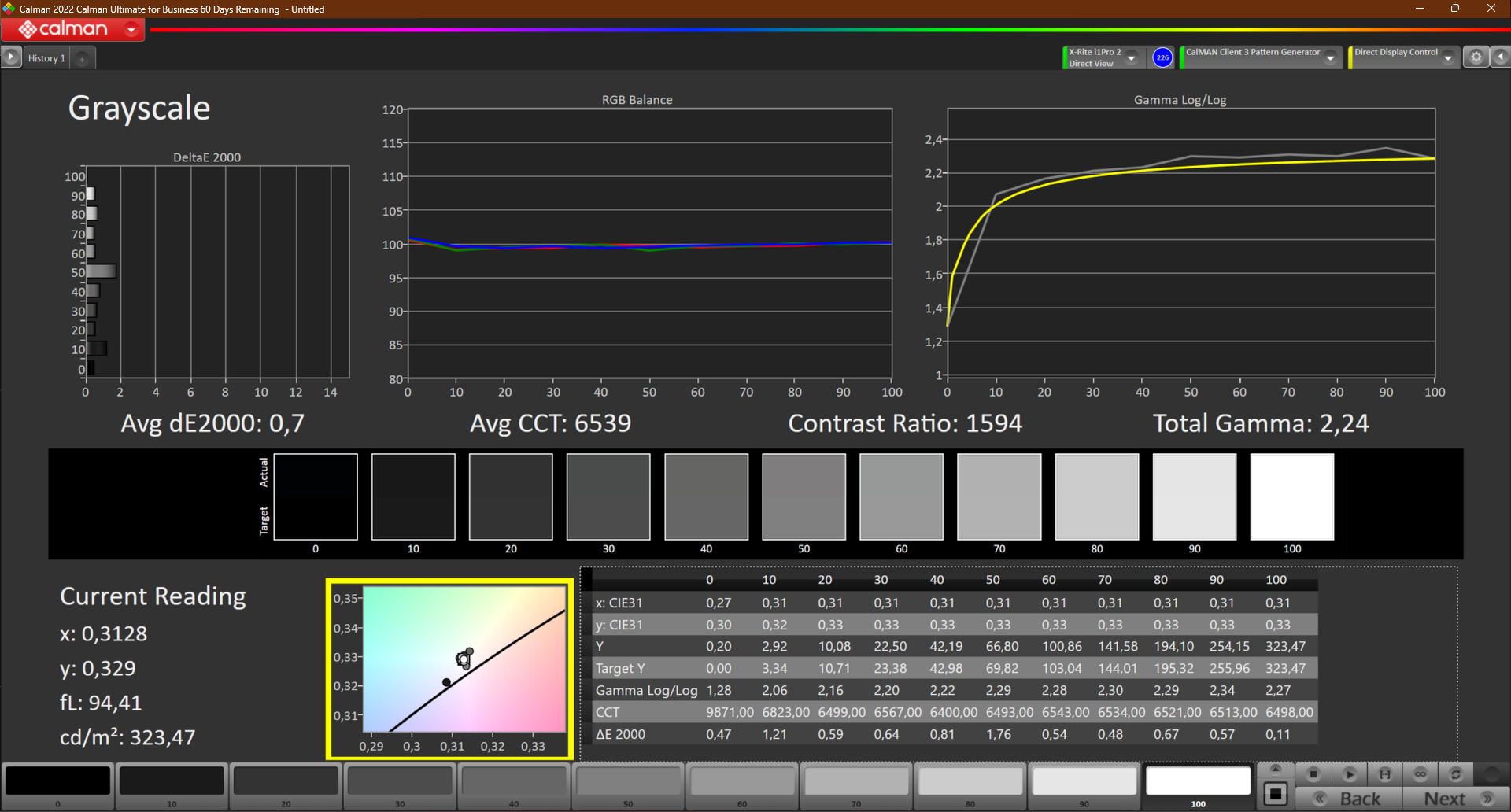

根据卡尔曼的测量，出厂时屏幕的色调略微偏绿，我们使用 X-Rite i1Pro 2 色度计和 i1Profiler 进行校准后，色调得以纠正。校准后，Colorchecker deltaE 的平均值从 4.3 降至 1.6，差异非常明显。我们创建的色彩配置文件可随时免费下载。

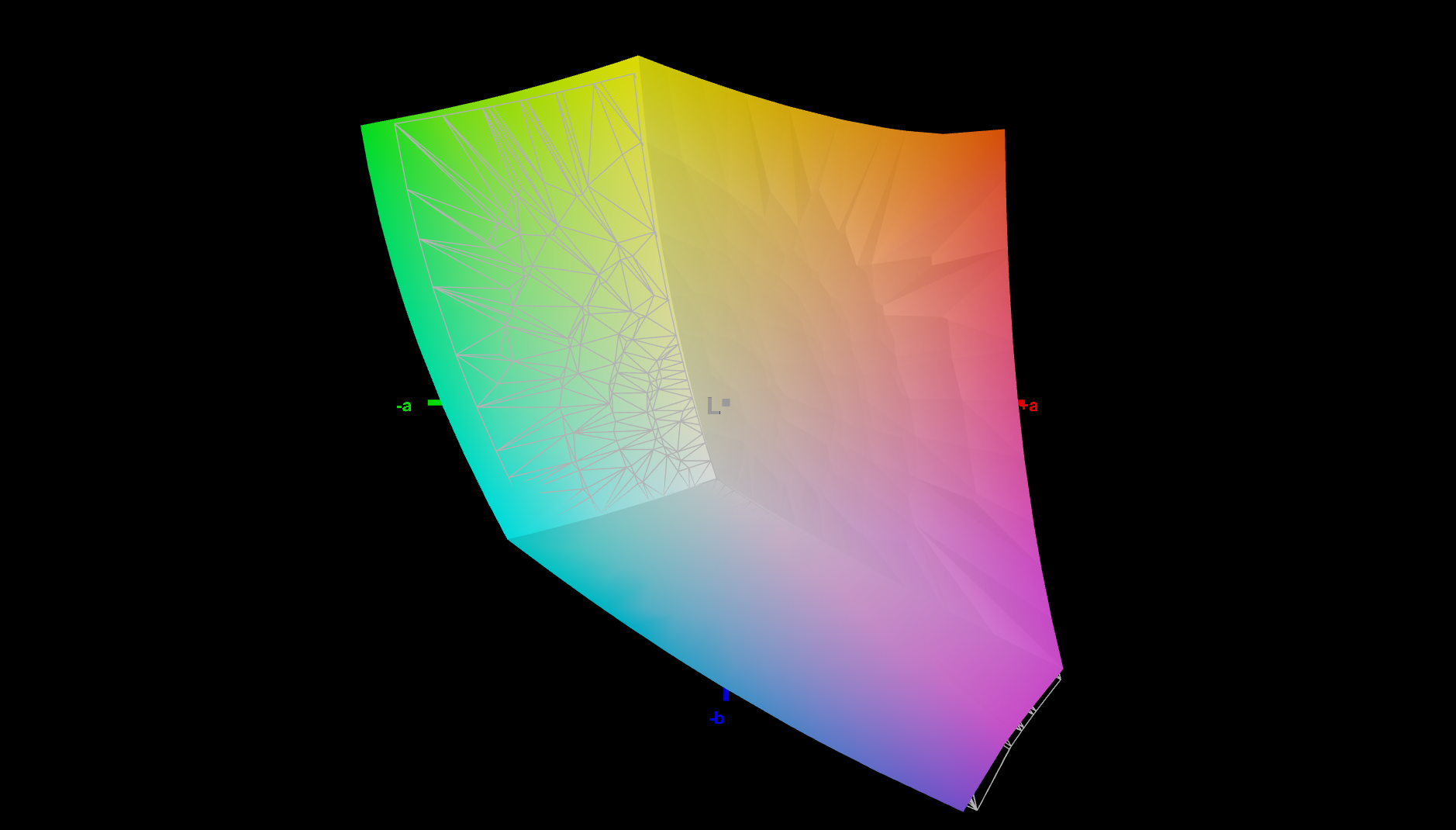

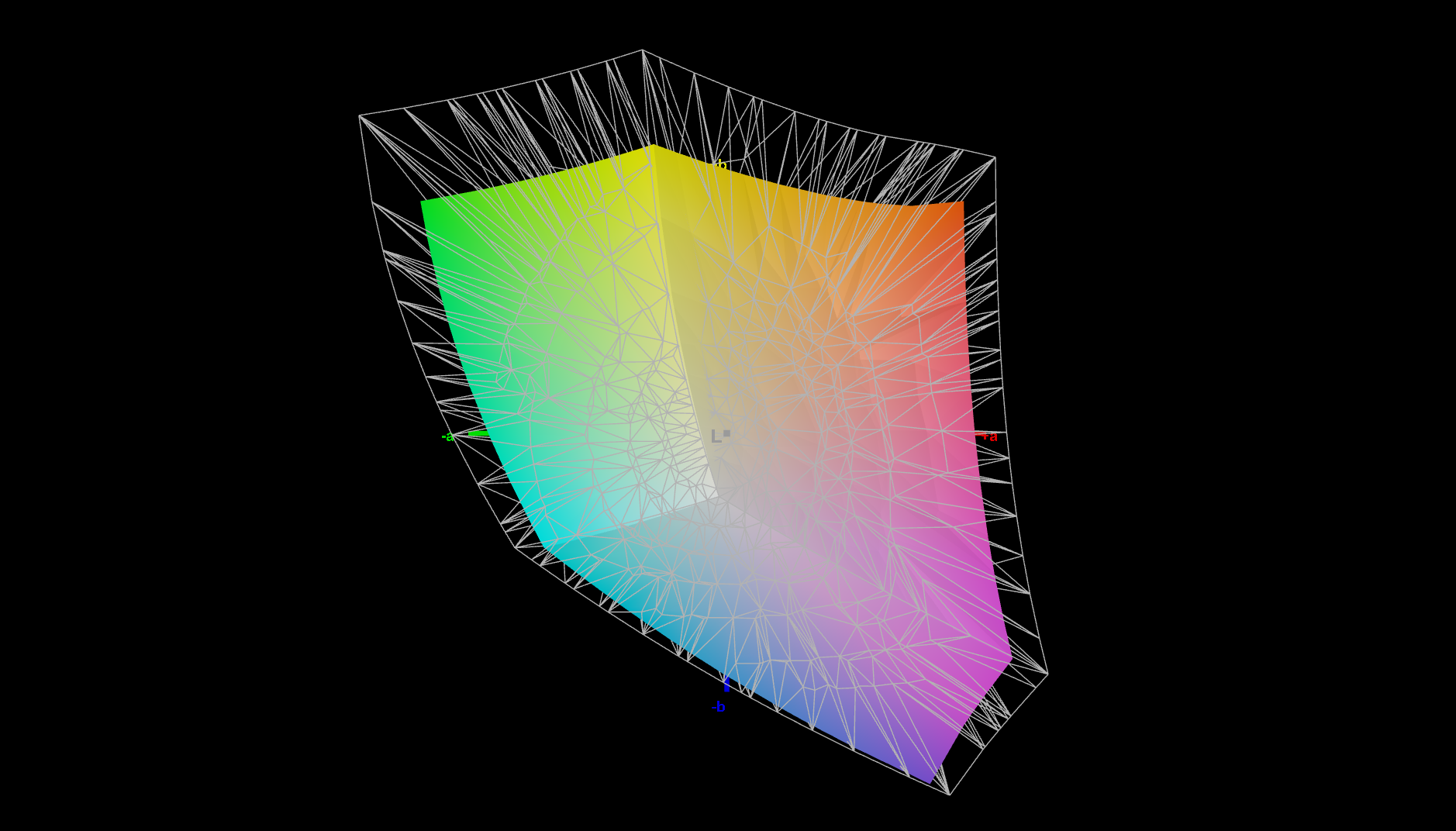

屏幕几乎完全覆盖了小范围的 sRGB 色域，用户可以使用联想 ThinkPad T14 Gen 4 进行轻度照片编辑。

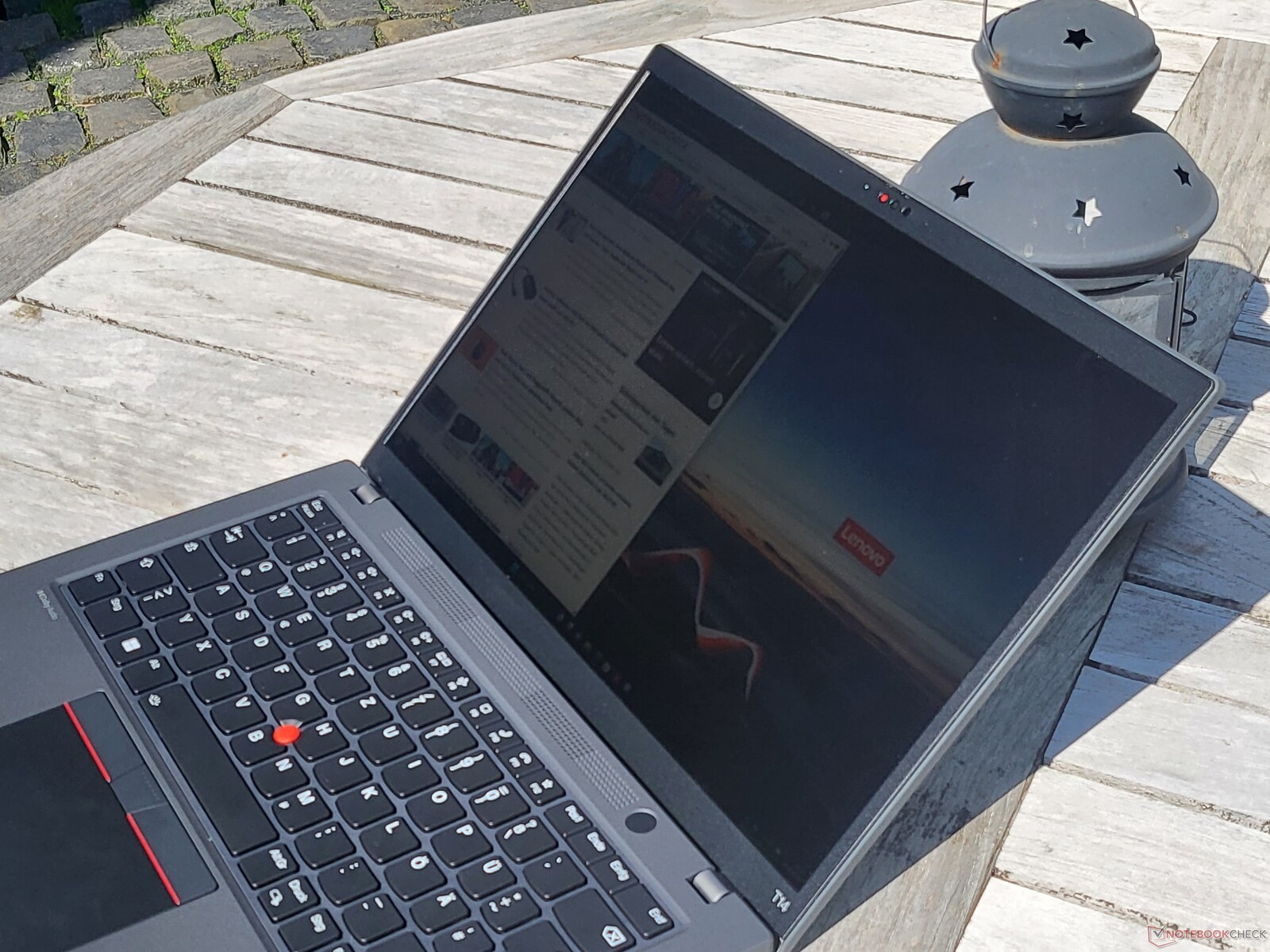

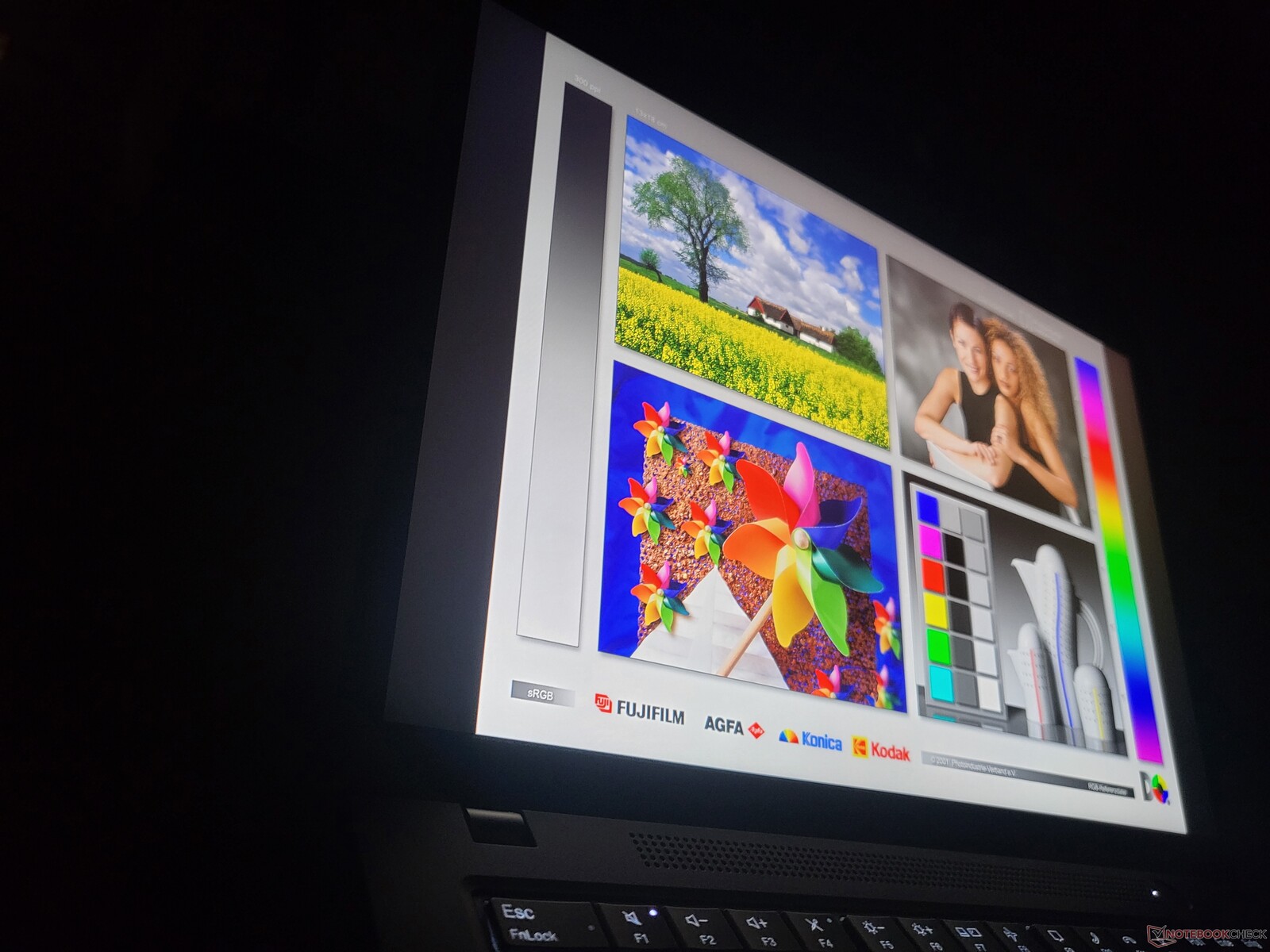

在室外使用时，联想 ThinkPad T14 Gen 4 由于采用了雾面屏幕，亮度值超过 300 cd/m²，因此足够实用。不过，ThinkPad 用户应避免阳光直射。

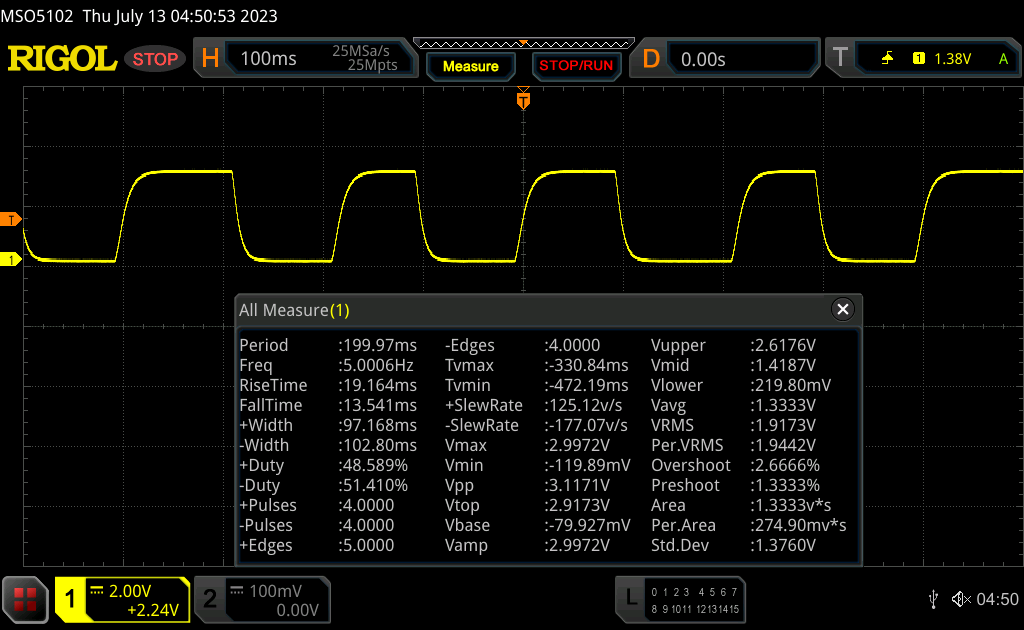

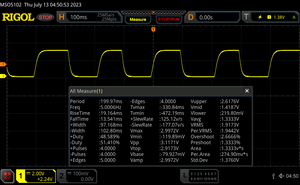

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

↔ Response Time Black to White
32.6 ms ... rise ↗ and fall ↘ combined	↗ 19.1 ms rise
32.6 ms ... rise ↗ and fall ↘ combined	↘ 13.5 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 87 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms).

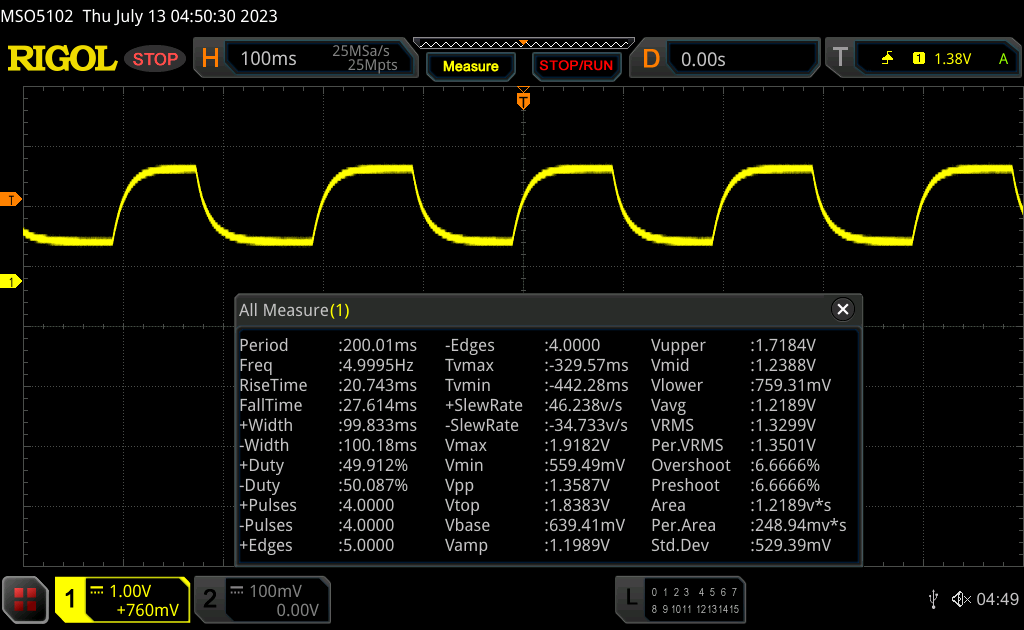

↔ Response Time 50% Grey to 80% Grey
48.3 ms ... rise ↗ and fall ↘ combined	↗ 20.7 ms rise
48.3 ms ... rise ↗ and fall ↘ combined	↘ 27.6 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 82 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms).

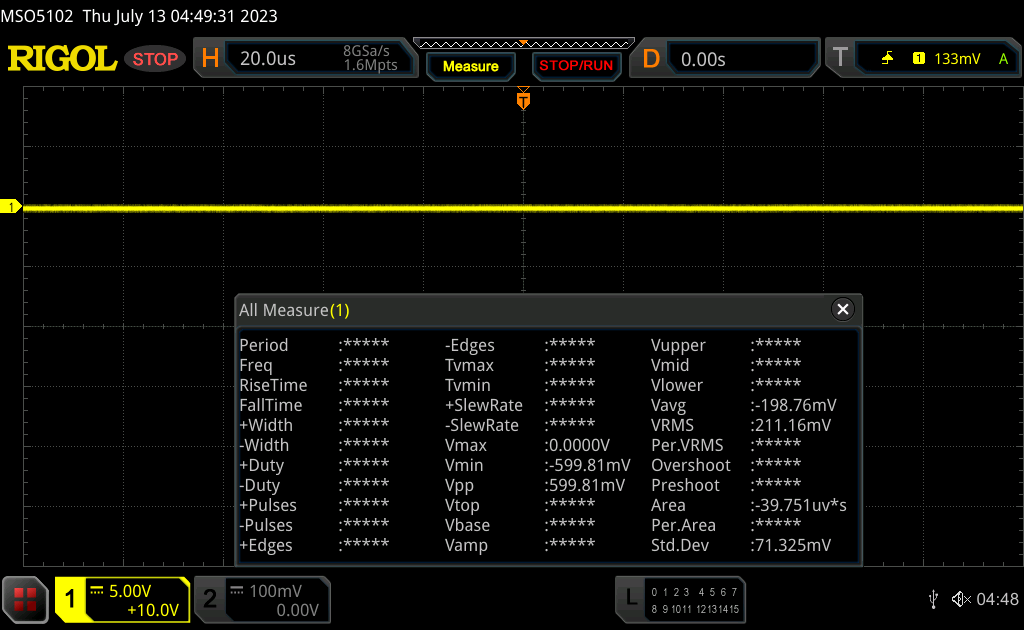

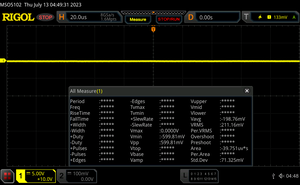

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8743 (minimum: 5 - maximum: 343500) Hz was measured.

性能：英特尔猛禽湖 U15 相当令人失望

联想 ThinkPad 以配置多样而著称。在 ThinkPad T14 Gen 4 Intel 上，联想让买家难以选择，因为有八种（！）CPU 可供选择：英特尔酷睿 i5-1335U, i5-1345U, i5-1340P, i5-1350P, i7-1355U, i7-1365U, i7-1360P和 i7-1370P.最大的区别是什么？后缀为 "P "的 CPU 拥有更多的性能内核和更高的功耗，其中 i7-1370P 是唯一拥有六个性能内核的 CPU。此外，还有 vPro 和非 vPro 之间的差异。

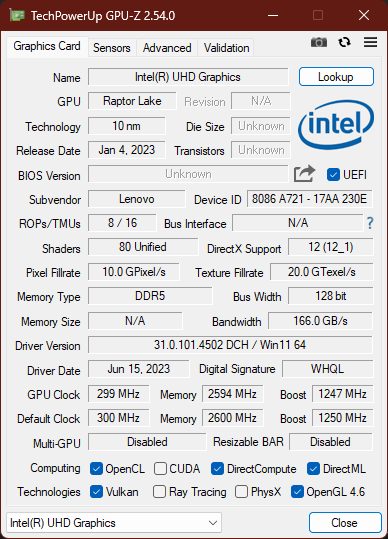

另一个区别：i7 型号包含 96 EU 的 Iris Xe，而 i5 型号则包含 80 EU 的 iGPU。此外，ThinkPad T14 Gen 4 英特尔版本还配备了英伟达GeForce MX550.

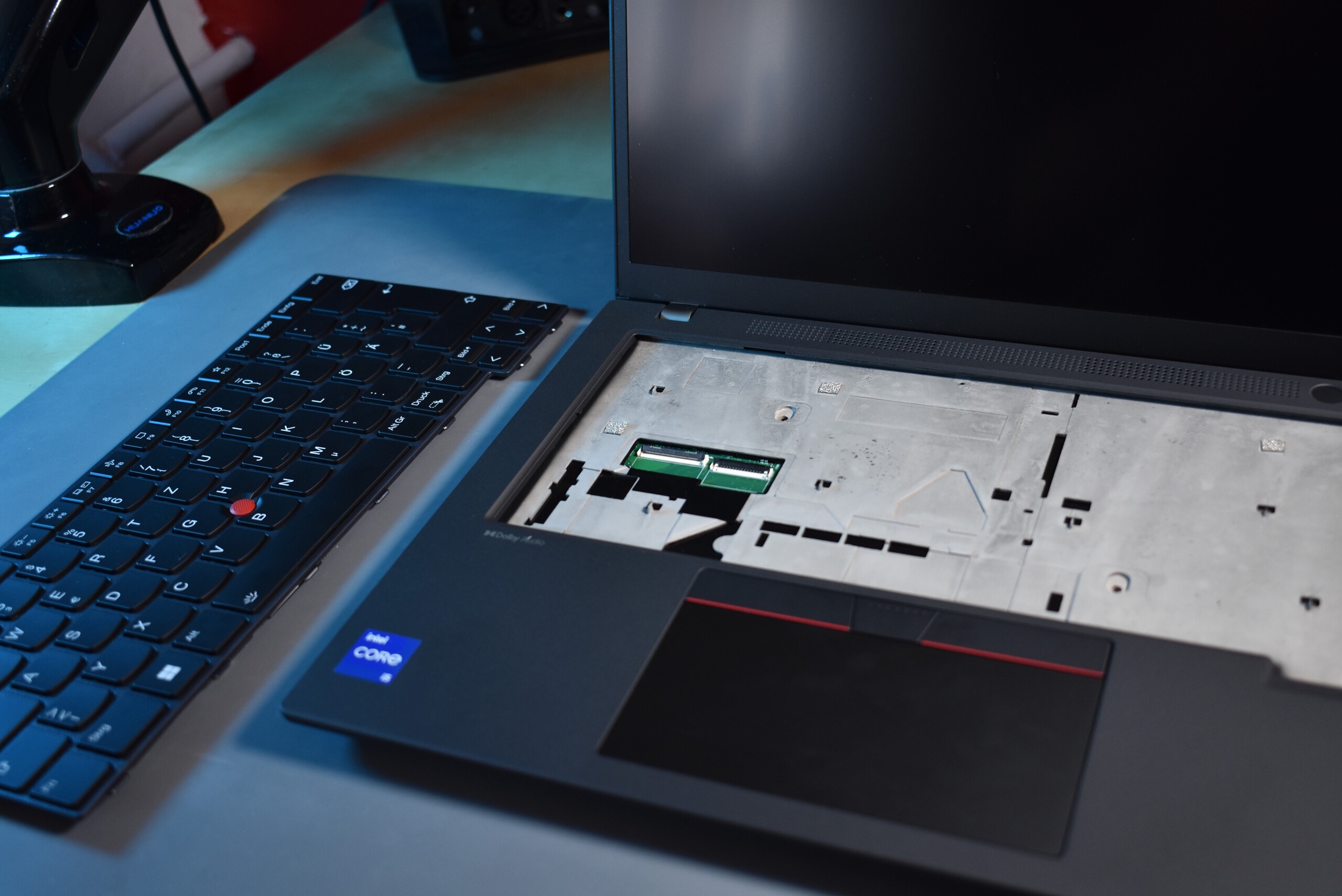

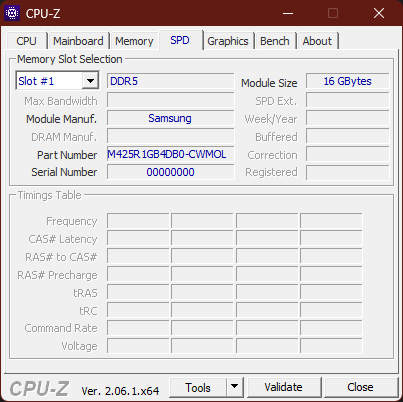

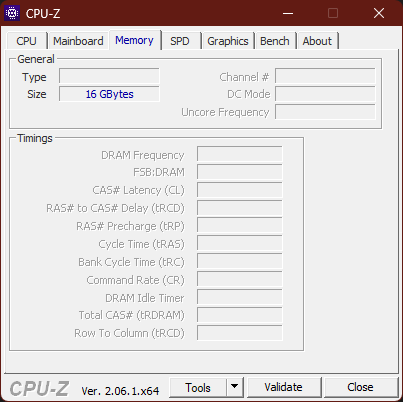

与 CPU 选择一样复杂的是内存的选择。ThinkPad T14 G4 有 DDR4-3200 和 DDR5-5200 两个版本。两者都有一些焊接内存，DDR4 型号为 8 GB，DDR5 配置为 16 GB。两种配置都有一个 SO-DIMM 插槽，因此内存最大容量分别为 40（DDR4）GB 和 48（DDR5）GB。但这只适用于 iGPU 机型，dGPU 机型有 16 或 32 GB 焊接式 LPDDR5X-6400 内存。

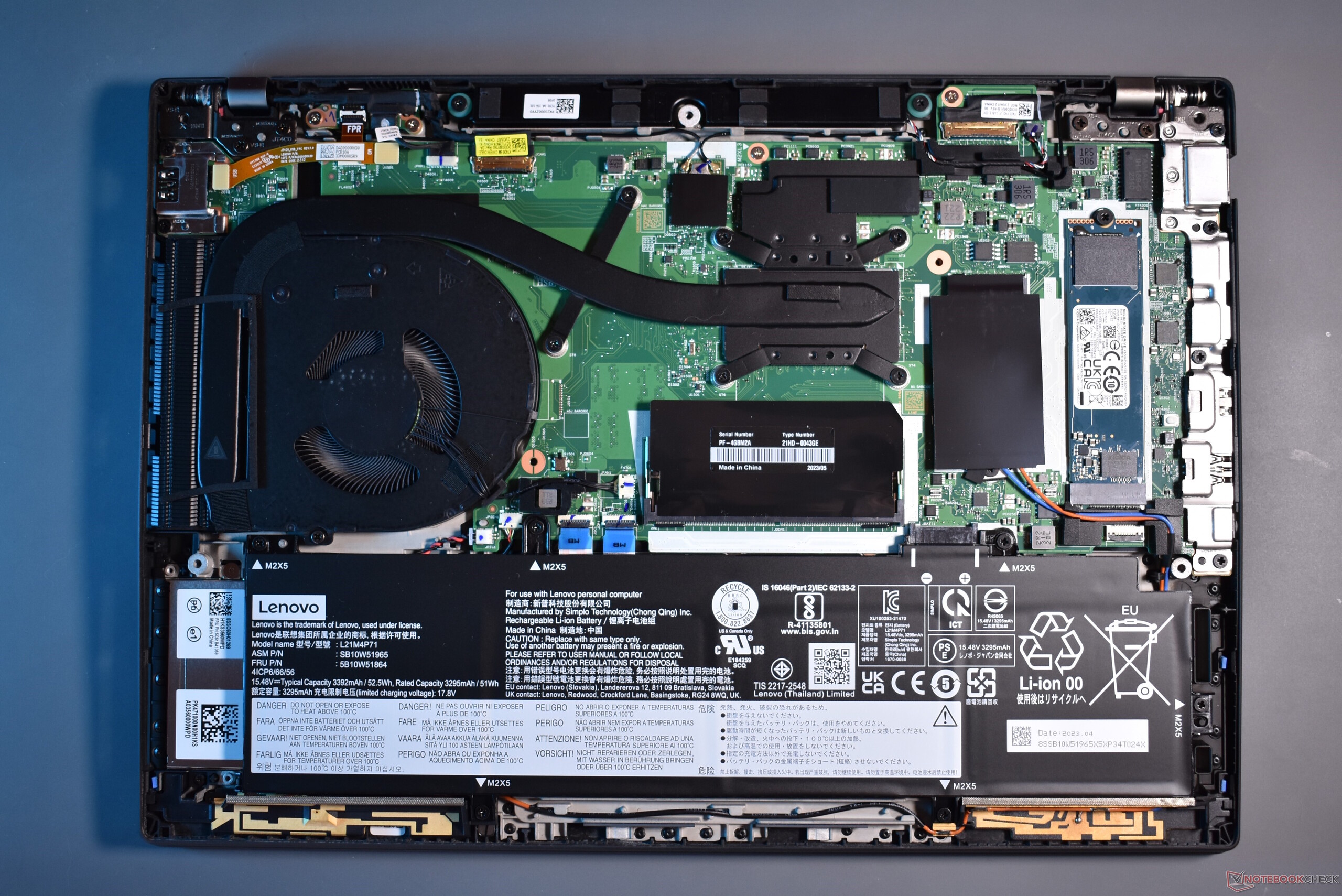

固态硬盘很好，很容易解释：只有一个 M.2 2280 插槽，通过 PCIe 4.0 连接。

测试条件

联想使用 Windows 设置来控制能耗配置文件和 CPU 速度。有三种配置文件可以调节处理器的功率限制，从而调节其功耗和速度。功耗限制 1 可以长期使用，而功耗限制 2 则适用于短期性能任务：

最佳电池寿命：PL1 11 瓦/PL2 11 瓦
平衡：PL1 14 瓦 / PL2 20 瓦
最佳性能：PL1 22.5 瓦 / PL2 50 瓦

处理器

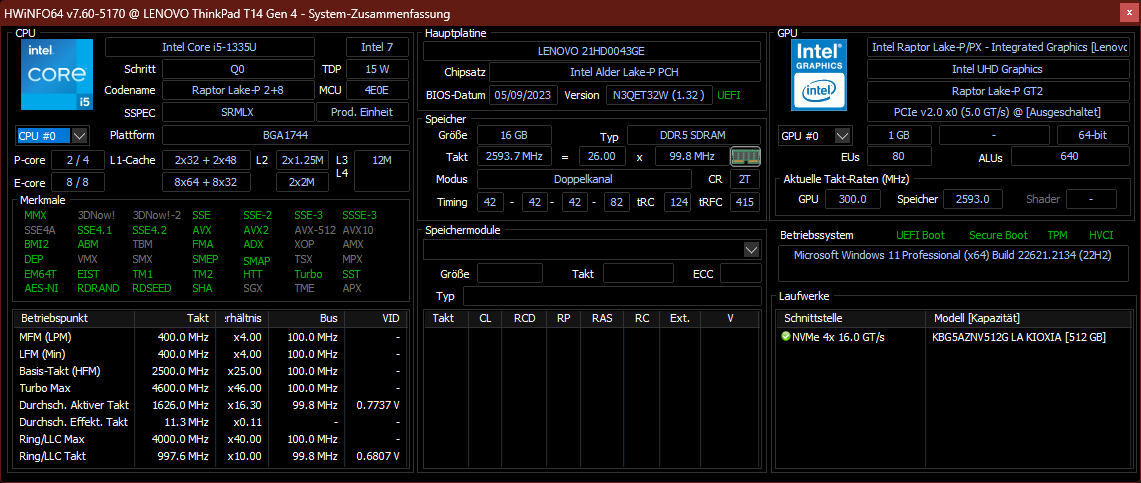

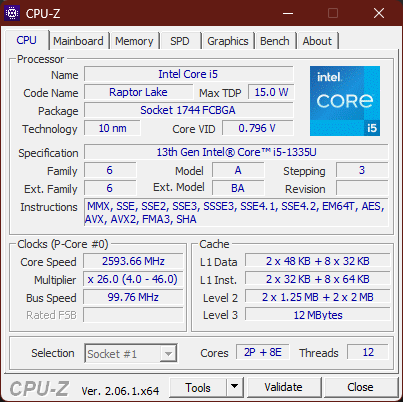

使用英特尔酷睿 i5-1335U，我们对联想 ThinkPad T14 Gen 4 的基本型号进行了评测。这颗 Raptor Lake i5 芯片属于 U15 系列，由 2 个性能核心和 8 个效率核心组成，设计 TDP 为 15 W。在上一代英特尔 CPU 中，CPU 的功耗远高于标称 TDP。最高时钟频率达到 4.6（P 核心）和 3.4 GHz（E 核心）。通过超线程技术，CPU 拥有 12 个线程。如需更详细的比较，请参阅我们的 CPU 比较列表。

联想 ThinkPad T14 Gen 4 英特尔版的 CPU 性能总体上令人失望。所有竞争对手都有更好的表现。诚然，与 AMD 相比，英特尔处理器在单核性能方面具有优势，但当使用所有内核时，英特尔 ThinkPad 就被甩在了后面，英特尔 ThinkPad T14 Gen 3 处理器的单核性能仅次于 AMD。ThinkPad T14 Gen 3 英特尔也更快。值得一提的是，旧型号使用的是 P28 CPU，它多了两个 CPU 内核。此外，我们主要将性能低于平均水平的原因归咎于英特尔，因为 T14 Gen 4 的 PL2 为 22.5 W，其功耗仍高于该 CPU 标称的 15 W TDP - 近期的英特尔 CPU 非常耗电，在超极本设计中没有太大意义。

在电池模式下，我们没有发现 CPU 性能有任何限制。

Cinebench R15 Multi sustained load

Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U: Ø1062 (993.99-1540.3)

Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P: Ø1646 (1308.17-1883.24)

HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS: Ø2330 (2299.38-2359.74)

Dell Latitude 7440 Intel Core i5-1345U: Ø1310 (929.37-1541.9)

Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U: Ø1673 (1654.33-1766.16)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS	81.8 pt
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P	72.7 pt
Dell Latitude 7440 Intel Core i5-1345U	67 pt
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	67 pt
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U	63.2 pt
Average of class Office	60.6 pt
Average Intel Core i5-1335U	59.2 pt

Cinebench R23 / Multi Core
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS	14919 Points +66%
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P	11994 Points +33%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	10032 Points +12%
Dell Latitude 7440 Intel Core i5-1345U	9795 (7630.48^min - 9794.71^max) Points +9%
Average of class Office (1577 - 15743, n=92, last 2 years)	9250 Points +3%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U	8993 Points
Average Intel Core i5-1335U (6957 - 9438, n=12)	8383 Points -7%

Cinebench R23 / Single Core
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P	1774 Points +2%
Dell Latitude 7440 Intel Core i5-1345U	1757 Points +1%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U	1733 Points
Average Intel Core i5-1335U (1532 - 1733, n=12)	1669 Points -4%
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS	1568 Points -10%
Average of class Office (618 - 1995, n=92, last 2 years)	1563 Points -10%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	1493 Points -14%

Cinebench R20 / CPU (Multi Core)
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS	5790 Points +58%
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P	4638 Points +26%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	4203 Points +15%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U	3669 Points
Dell Latitude 7440 Intel Core i5-1345U	3610 Points -2%
Average of class Office (590 - 5980, n=92, last 2 years)	3556 Points -3%
Average Intel Core i5-1335U (2602 - 3849, n=11)	3257 Points -11%

Cinebench R20 / CPU (Single Core)
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P	694 Points +5%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U	660 Points
Dell Latitude 7440 Intel Core i5-1345U	656 Points -1%
Average Intel Core i5-1335U (593 - 663, n=11)	636 Points -4%
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS	611 Points -7%
Average of class Office (229 - 764, n=92, last 2 years)	602 Points -9%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	587 Points -11%

Cinebench R15 / CPU Multi 64Bit
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS	2360 (2299.38^min - 2359.74^max) Points +53%
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P	1883 (1388.31^min - 1883.24^max) Points +22%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	1766 (1654.33^min - 1766.16^max) Points +15%
Average of class Office (246 - 2642, n=93, last 2 years)	1561 Points +1%
Dell Latitude 7440 Intel Core i5-1345U	1542 (929.37^min - 1541.9^max) Points 0%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U	1540 (993.99^min - 1540.3^max) Points
Average Intel Core i5-1335U (1109 - 1547, n=11)	1411 Points -8%

Cinebench R15 / CPU Single 64Bit
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS	247 Points +2%
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P	244 Points 0%
Dell Latitude 7440 Intel Core i5-1345U	244 Points 0%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U	243 Points
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	237 Points -2%
Average Intel Core i5-1335U (222 - 248, n=11)	237 Points -2%
Average of class Office (98 - 284, n=92, last 2 years)	230 Points -5%

Blender / v2.79 BMW27 CPU
Average Intel Core i5-1335U (340 - 786, n=12)	460 Seconds * -11%
Average of class Office (208 - 1956, n=93, last 2 years)	419 Seconds * -1%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U	414 Seconds *
Dell Latitude 7440 Intel Core i5-1345U	332 Seconds * +20%
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P	318 Seconds * +23%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	297 Seconds * +28%
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS	215 Seconds * +48%

7-Zip 18.03 / 7z b 4
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS	61303 MIPS +73%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	49615 MIPS +40%
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P	41224 MIPS +16%
Dell Latitude 7440 Intel Core i5-1345U	40563 MIPS +14%
Average of class Office (7532 - 65460, n=93, last 2 years)	38934 MIPS +10%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U	35535 MIPS
Average Intel Core i5-1335U (25012 - 38513, n=11)	33576 MIPS -6%

7-Zip 18.03 / 7z b 4 -mmt1
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS	5844 MIPS +7%
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P	5635 MIPS +3%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U	5458 MIPS
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	5314 MIPS -3%
Dell Latitude 7440 Intel Core i5-1345U	5296 MIPS -3%
Average of class Office (2972 - 6687, n=93, last 2 years)	5276 MIPS -3%
Average Intel Core i5-1335U (4872 - 5545, n=11)	5202 MIPS -5%

Geekbench 5.5 / Multi-Core
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS	9897 Points +26%
Dell Latitude 7440 Intel Core i5-1345U	8263 Points +5%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	7967 Points +1%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U	7865 Points
Average of class Office (1018 - 11980, n=92, last 2 years)	7612 Points -3%
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P	7522 Points -4%
Average Intel Core i5-1335U (5459 - 8618, n=11)	7429 Points -6%

Geekbench 5.5 / Single-Core
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS	1758 Points +4%
Dell Latitude 7440 Intel Core i5-1345U	1710 Points +1%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U	1691 Points
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P	1690 Points 0%
Average Intel Core i5-1335U (1506 - 1700, n=11)	1639 Points -3%
Average of class Office (510 - 1989, n=93, last 2 years)	1585 Points -6%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	1514 Points -10%

HWBOT x265 Benchmark v2.2 / 4k Preset
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS	17 fps +80%
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P	13.6 fps +44%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	13.3 fps +41%
Dell Latitude 7440 Intel Core i5-1345U	10.8 fps +14%
Average of class Office (1.72 - 18.7, n=91, last 2 years)	10.4 fps +10%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U	9.44 fps
Average Intel Core i5-1335U (6.55 - 10.7, n=11)	9.03 fps -4%

LibreOffice / 20 Documents To PDF
Average of class Office (31.3 - 129.6, n=91, last 2 years)	53.2 s * -4%
Average Intel Core i5-1335U (45 - 58.7, n=11)	51.6 s * -1%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	51.4 s * -0%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U	51.3 s *
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS	50.5 s * +2%
Dell Latitude 7440 Intel Core i5-1345U	45.5 s * +11%
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P	42.7 s * +17%

R Benchmark 2.5 / Overall mean
Average of class Office (0.4244 - 1.135, n=90, last 2 years)	0.543 sec * -10%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	0.523 sec * -6%
Average Intel Core i5-1335U (0.4892 - 0.524, n=10)	0.51 sec * -4%
Dell Latitude 7440 Intel Core i5-1345U	0.4948 sec * -0%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U	0.4925 sec *
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS	0.4835 sec * +2%
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P	0.4767 sec * +3%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

1540 Points

Cinebench R15 OpenGL 64Bit

100.6 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

243 Points

Cinebench R20 CPU (Multi Core)

3669 Points

Cinebench R20 CPU (Single Core)

660 Points

Cinebench R23 Single Core

1733 Points

Cinebench R23 Multi Core

8993 Points

Help

... in comparison

Performance Rating
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS, Radeon 780M	96.1 pt
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	66.4 pt
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P, GeForce MX550	55.7 pt
Average of class Office	53.3 pt
Dell Latitude 7440 Intel Core i5-1345U, Iris Xe G7 80EUs	51.9 pt
Average Intel Core i5-1335U	43.4 pt
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U, Iris Xe G7 80EUs	40 pt

AIDA64 / FP32 Ray-Trace
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS, Radeon 780M	24250 KRay/s +300%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	12021 KRay/s +98%
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P, GeForce MX550	10898 KRay/s +80%
Average of class Office (763 - 24250, n=92, last 2 years)	9320 KRay/s +54%
Dell Latitude 7440 Intel Core i5-1345U, Iris Xe G7 80EUs	8830 KRay/s +46%
Average Intel Core i5-1335U (5661 - 7809, n=11)	6806 KRay/s +12%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U, Iris Xe G7 80EUs	6059 KRay/s

AIDA64 / FPU Julia
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS, Radeon 780M	101262 Points +207%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	76396 Points +132%
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P, GeForce MX550	56906 Points +72%
Average of class Office (4113 - 102228, n=92, last 2 years)	47898 Points +45%
Dell Latitude 7440 Intel Core i5-1345U, Iris Xe G7 80EUs	43149 Points +31%
Average Intel Core i5-1335U (29483 - 43636, n=11)	35448 Points +7%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U, Iris Xe G7 80EUs	32996 Points

AIDA64 / CPU SHA3
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS, Radeon 780M	4418 MB/s +153%
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P, GeForce MX550	2709 MB/s +55%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	2571 MB/s +47%
Dell Latitude 7440 Intel Core i5-1345U, Iris Xe G7 80EUs	2265 MB/s +30%
Average of class Office (287 - 4551, n=92, last 2 years)	2212 MB/s +27%
Average Intel Core i5-1335U (1515 - 2278, n=11)	1840 MB/s +5%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U, Iris Xe G7 80EUs	1745 MB/s

AIDA64 / CPU Queen
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS, Radeon 780M	113016 Points +88%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	87263 Points +45%
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P, GeForce MX550	77054 Points +28%
Average of class Office (8185 - 115197, n=92, last 2 years)	70379 Points +17%
Dell Latitude 7440 Intel Core i5-1345U, Iris Xe G7 80EUs	62953 Points +5%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U, Iris Xe G7 80EUs	60211 Points
Average Intel Core i5-1335U (53839 - 60992, n=11)	59437 Points -1%

AIDA64 / FPU SinJulia
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS, Radeon 780M	14147 Points +228%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	11321 Points +162%
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P, GeForce MX550	6914 Points +60%
Average of class Office (404 - 14288, n=92, last 2 years)	6714 Points +56%
Dell Latitude 7440 Intel Core i5-1345U, Iris Xe G7 80EUs	5206 Points +21%
Average Intel Core i5-1335U (3873 - 5008, n=11)	4524 Points +5%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U, Iris Xe G7 80EUs	4316 Points

AIDA64 / FPU Mandel
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS, Radeon 780M	54003 Points +242%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	39609 Points +151%
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P, GeForce MX550	26376 Points +67%
Average of class Office (2075 - 54365, n=92, last 2 years)	24965 Points +58%
Dell Latitude 7440 Intel Core i5-1345U, Iris Xe G7 80EUs	21556 Points +37%
Average Intel Core i5-1335U (14376 - 20553, n=11)	17214 Points +9%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U, Iris Xe G7 80EUs	15780 Points

AIDA64 / CPU AES
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS, Radeon 780M	76133 MB/s +110%
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P, GeForce MX550	53300 MB/s +47%
Average of class Office (7860 - 155900, n=92, last 2 years)	51340 MB/s +42%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	50859 MB/s +40%
Dell Latitude 7440 Intel Core i5-1345U, Iris Xe G7 80EUs	41994 MB/s +16%
Average Intel Core i5-1335U (31154 - 65997, n=11)	39412 MB/s +9%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U, Iris Xe G7 80EUs	36220 MB/s

AIDA64 / CPU ZLib
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS, Radeon 780M	987 MB/s +82%
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P, GeForce MX550	771 MB/s +43%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	688 MB/s +27%
Dell Latitude 7440 Intel Core i5-1345U, Iris Xe G7 80EUs	640 MB/s +18%
Average of class Office (78 - 1018, n=92, last 2 years)	600 MB/s +11%
Average Intel Core i5-1335U (378 - 676, n=11)	552 MB/s +2%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U, Iris Xe G7 80EUs	541 MB/s

AIDA64 / FP64 Ray-Trace
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS, Radeon 780M	12755 KRay/s +295%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	6259 KRay/s +94%
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P, GeForce MX550	5858 KRay/s +81%
Average of class Office (432 - 12755, n=92, last 2 years)	4939 KRay/s +53%
Dell Latitude 7440 Intel Core i5-1345U, Iris Xe G7 80EUs	4640 KRay/s +44%
Average Intel Core i5-1335U (2878 - 4214, n=11)	3589 KRay/s +11%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U, Iris Xe G7 80EUs	3229 KRay/s

AIDA64 / CPU PhotoWorxx
Dell Latitude 7440 Intel Core i5-1345U, Iris Xe G7 80EUs	39231 MPixel/s +61%
Average Intel Core i5-1335U (13584 - 41123, n=11)	30316 MPixel/s +24%
Average of class Office (4814 - 54971, n=92, last 2 years)	29077 MPixel/s +19%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	25448 MPixel/s +4%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U, Iris Xe G7 80EUs	24428 MPixel/s
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS, Radeon 780M	24030 MPixel/s -2%
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P, GeForce MX550	13700 MPixel/s -44%

系统性能

在某种程度上，合成系统性能基准与处理器测试如出一辙。在 PCMark 10 中，联想笔记本电脑落后于竞争对手。在 Crossmark 中，它与 AMD 机型相比具有竞争力。在日常使用中，我们没有发现任何速度减慢的现象。

PCMark 10 / Score
HP EliteBook 845 G10 818N0EA Radeon 780M, R9 PRO 7940HS, SK hynix PC801 HFS001TEJ9X101N	6523 Points +19%
Lenovo ThinkPad T14 G3-21CF004NGE Radeon 680M, R7 PRO 6850U, Kioxia BG5 KBG5AZNV512G	6060 Points +11%
Lenovo ThinkPad T14 G3-21AJS00400 GeForce MX550, i7-1260P, Samsung PM9A1 MZVL21T0HCLR	5870 Points +7%
Average of class Office (2463 - 7344, n=86, last 2 years)	5618 Points +3%
Dell Latitude 7440 Iris Xe G7 80EUs, i5-1345U, Samsung MZ9L4512HBLU-00BMV	5554 Points +1%
Lenovo ThinkPad T14 G4 21HD0043GE Iris Xe G7 80EUs, i5-1335U, Kioxia BG5 KBG5AZNV512G	5480 Points
Average Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs (5068 - 5600, n=11)	5315 Points -3%

PCMark 10 / Essentials
Dell Latitude 7440 Iris Xe G7 80EUs, i5-1345U, Samsung MZ9L4512HBLU-00BMV	10758 Points +2%
Lenovo ThinkPad T14 G4 21HD0043GE Iris Xe G7 80EUs, i5-1335U, Kioxia BG5 KBG5AZNV512G	10531 Points
Average Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs (9828 - 11912, n=11)	10439 Points -1%
Average of class Office (5575 - 20841, n=86, last 2 years)	10136 Points -4%
HP EliteBook 845 G10 818N0EA Radeon 780M, R9 PRO 7940HS, SK hynix PC801 HFS001TEJ9X101N	9873 Points -6%
Lenovo ThinkPad T14 G3-21CF004NGE Radeon 680M, R7 PRO 6850U, Kioxia BG5 KBG5AZNV512G	9772 Points -7%
Lenovo ThinkPad T14 G3-21AJS00400 GeForce MX550, i7-1260P, Samsung PM9A1 MZVL21T0HCLR	9729 Points -8%

PCMark 10 / Productivity
HP EliteBook 845 G10 818N0EA Radeon 780M, R9 PRO 7940HS, SK hynix PC801 HFS001TEJ9X101N	9192 Points +28%
Lenovo ThinkPad T14 G3-21CF004NGE Radeon 680M, R7 PRO 6850U, Kioxia BG5 KBG5AZNV512G	8523 Points +19%
Lenovo ThinkPad T14 G3-21AJS00400 GeForce MX550, i7-1260P, Samsung PM9A1 MZVL21T0HCLR	8189 Points +14%
Average of class Office (3041 - 10415, n=86, last 2 years)	7689 Points +7%
Lenovo ThinkPad T14 G4 21HD0043GE Iris Xe G7 80EUs, i5-1335U, Kioxia BG5 KBG5AZNV512G	7191 Points
Dell Latitude 7440 Iris Xe G7 80EUs, i5-1345U, Samsung MZ9L4512HBLU-00BMV	7189 Points 0%
Average Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs (6196 - 7261, n=11)	6847 Points -5%

PCMark 10 / Digital Content Creation
HP EliteBook 845 G10 818N0EA Radeon 780M, R9 PRO 7940HS, SK hynix PC801 HFS001TEJ9X101N	8299 Points +41%
Lenovo ThinkPad T14 G3-21CF004NGE Radeon 680M, R7 PRO 6850U, Kioxia BG5 KBG5AZNV512G	7252 Points +23%
Lenovo ThinkPad T14 G3-21AJS00400 GeForce MX550, i7-1260P, Samsung PM9A1 MZVL21T0HCLR	6891 Points +17%
Average of class Office (2126 - 9773, n=86, last 2 years)	6335 Points +7%
Dell Latitude 7440 Iris Xe G7 80EUs, i5-1345U, Samsung MZ9L4512HBLU-00BMV	6012 Points +2%
Lenovo ThinkPad T14 G4 21HD0043GE Iris Xe G7 80EUs, i5-1335U, Kioxia BG5 KBG5AZNV512G	5899 Points
Average Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs (5361 - 6164, n=11)	5747 Points -3%

CrossMark / Overall
Lenovo ThinkPad T14 G3-21AJS00400 GeForce MX550, i7-1260P, Samsung PM9A1 MZVL21T0HCLR	1498 Points +3%
Lenovo ThinkPad T14 G4 21HD0043GE Iris Xe G7 80EUs, i5-1335U, Kioxia BG5 KBG5AZNV512G	1449 Points
Average Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs (1339 - 1599, n=11)	1442 Points 0%
HP EliteBook 845 G10 818N0EA Radeon 780M, R9 PRO 7940HS, SK hynix PC801 HFS001TEJ9X101N	1423 Points -2%
Average of class Office (348 - 1891, n=86, last 2 years)	1410 Points -3%
Lenovo ThinkPad T14 G3-21CF004NGE Radeon 680M, R7 PRO 6850U, Kioxia BG5 KBG5AZNV512G	1401 Points -3%

CrossMark / Productivity
Lenovo ThinkPad T14 G3-21AJS00400 GeForce MX550, i7-1260P, Samsung PM9A1 MZVL21T0HCLR	1494 Points +4%
Average Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs (1337 - 1638, n=11)	1444 Points 0%
Lenovo ThinkPad T14 G4 21HD0043GE Iris Xe G7 80EUs, i5-1335U, Kioxia BG5 KBG5AZNV512G	1443 Points
Average of class Office (393 - 1870, n=86, last 2 years)	1409 Points -2%
HP EliteBook 845 G10 818N0EA Radeon 780M, R9 PRO 7940HS, SK hynix PC801 HFS001TEJ9X101N	1400 Points -3%
Lenovo ThinkPad T14 G3-21CF004NGE Radeon 680M, R7 PRO 6850U, Kioxia BG5 KBG5AZNV512G	1399 Points -3%

CrossMark / Creativity
Lenovo ThinkPad T14 G3-21AJS00400 GeForce MX550, i7-1260P, Samsung PM9A1 MZVL21T0HCLR	1577 Points +3%
HP EliteBook 845 G10 818N0EA Radeon 780M, R9 PRO 7940HS, SK hynix PC801 HFS001TEJ9X101N	1549 Points +1%
Lenovo ThinkPad T14 G4 21HD0043GE Iris Xe G7 80EUs, i5-1335U, Kioxia BG5 KBG5AZNV512G	1535 Points
Average Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs (1315 - 1620, n=11)	1493 Points -3%
Lenovo ThinkPad T14 G3-21CF004NGE Radeon 680M, R7 PRO 6850U, Kioxia BG5 KBG5AZNV512G	1488 Points -3%
Average of class Office (340 - 1982, n=86, last 2 years)	1466 Points -4%

CrossMark / Responsiveness
Average Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs (1023 - 1868, n=11)	1310 Points +6%
Lenovo ThinkPad T14 G3-21AJS00400 GeForce MX550, i7-1260P, Samsung PM9A1 MZVL21T0HCLR	1293 Points +5%
Average of class Office (258 - 2017, n=86, last 2 years)	1269 Points +3%
Lenovo ThinkPad T14 G4 21HD0043GE Iris Xe G7 80EUs, i5-1335U, Kioxia BG5 KBG5AZNV512G	1234 Points
Lenovo ThinkPad T14 G3-21CF004NGE Radeon 680M, R7 PRO 6850U, Kioxia BG5 KBG5AZNV512G	1174 Points -5%
HP EliteBook 845 G10 818N0EA Radeon 780M, R9 PRO 7940HS, SK hynix PC801 HFS001TEJ9X101N	1161 Points -6%

PCMark 10 Score		5480 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Dell Latitude 7440 Intel Core i5-1345U, Iris Xe G7 80EUs	57716 MB/s +63%
Average of class Office (7158 - 108783, n=93, last 2 years)	49017 MB/s +39%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	48605 MB/s +38%
Average Intel Core i5-1335U (22417 - 60884, n=11)	47107 MB/s +33%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U, Iris Xe G7 80EUs	35322 MB/s
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS, Radeon 780M	34938 MB/s -1%
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P, GeForce MX550	25618 MB/s -27%

AIDA64 / Memory Read
Dell Latitude 7440 Intel Core i5-1345U, Iris Xe G7 80EUs	50185 MB/s +30%
Average of class Office (7325 - 112436, n=93, last 2 years)	48863 MB/s +26%
Average Intel Core i5-1335U (23104 - 61555, n=11)	43904 MB/s +13%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	39883 MB/s +3%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U, Iris Xe G7 80EUs	38714 MB/s
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS, Radeon 780M	30289 MB/s -22%
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P, GeForce MX550	24983 MB/s -35%

AIDA64 / Memory Write
Dell Latitude 7440 Intel Core i5-1345U, Iris Xe G7 80EUs	72373 MB/s +100%
Average Intel Core i5-1335U (22936 - 72584, n=11)	53408 MB/s +47%
Average of class Office (7579 - 117935, n=93, last 2 years)	53233 MB/s +47%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	50910 MB/s +40%
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS, Radeon 780M	40169 MB/s +11%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U, Iris Xe G7 80EUs	36263 MB/s
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P, GeForce MX550	23639 MB/s -35%

AIDA64 / Memory Latency
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	116.7 ns * -43%
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS, Radeon 780M	102.6 ns * -26%
Dell Latitude 7440 Intel Core i5-1345U, Iris Xe G7 80EUs	102.1 ns * -25%
Average of class Office (8.3 - 185.2, n=93, last 2 years)	97.1 ns * -19%
Average Intel Core i5-1335U (78.6 - 112.8, n=11)	96.1 ns * -18%
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P, GeForce MX550	92.8 ns * -14%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U, Iris Xe G7 80EUs	81.5 ns *

* ... smaller is better

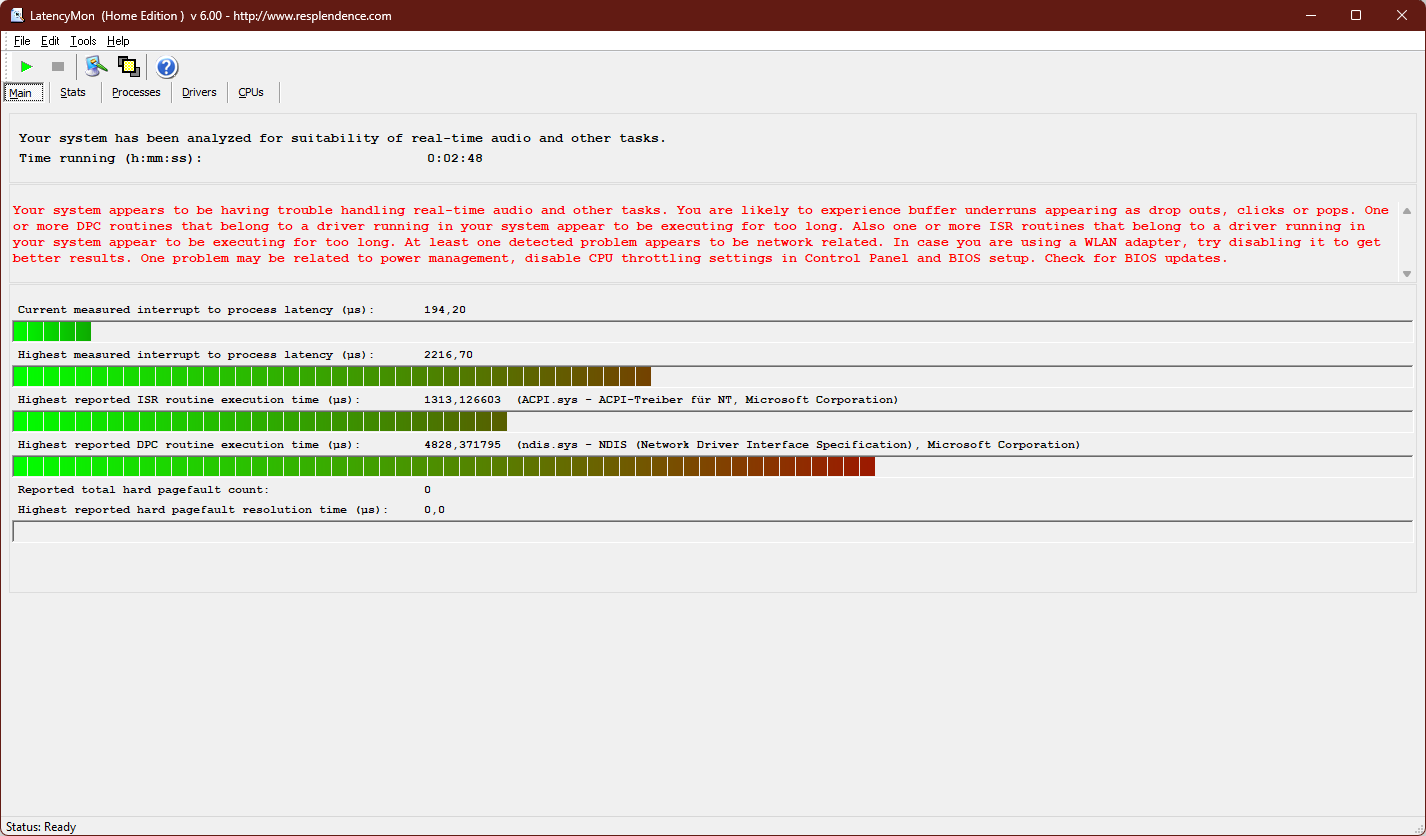

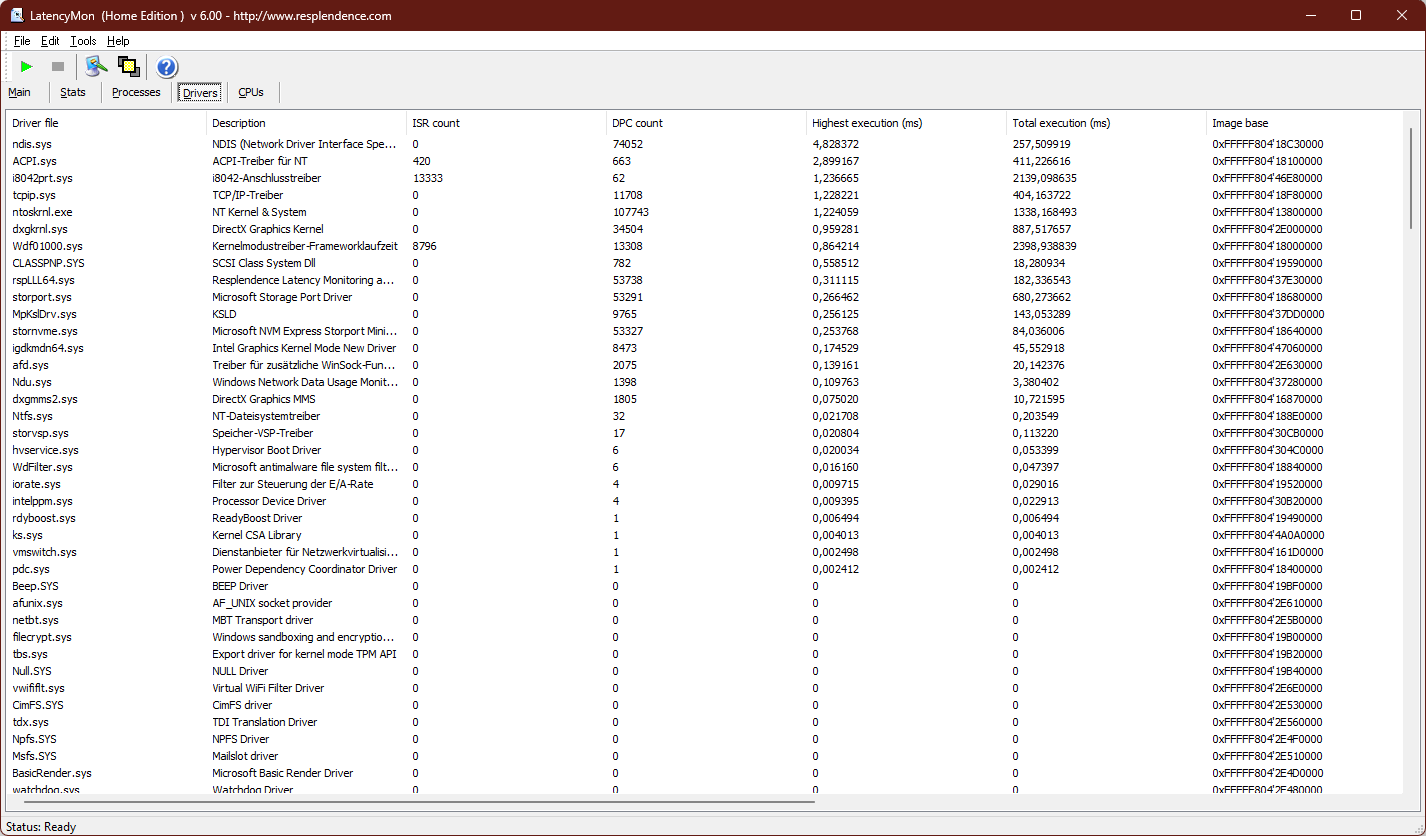

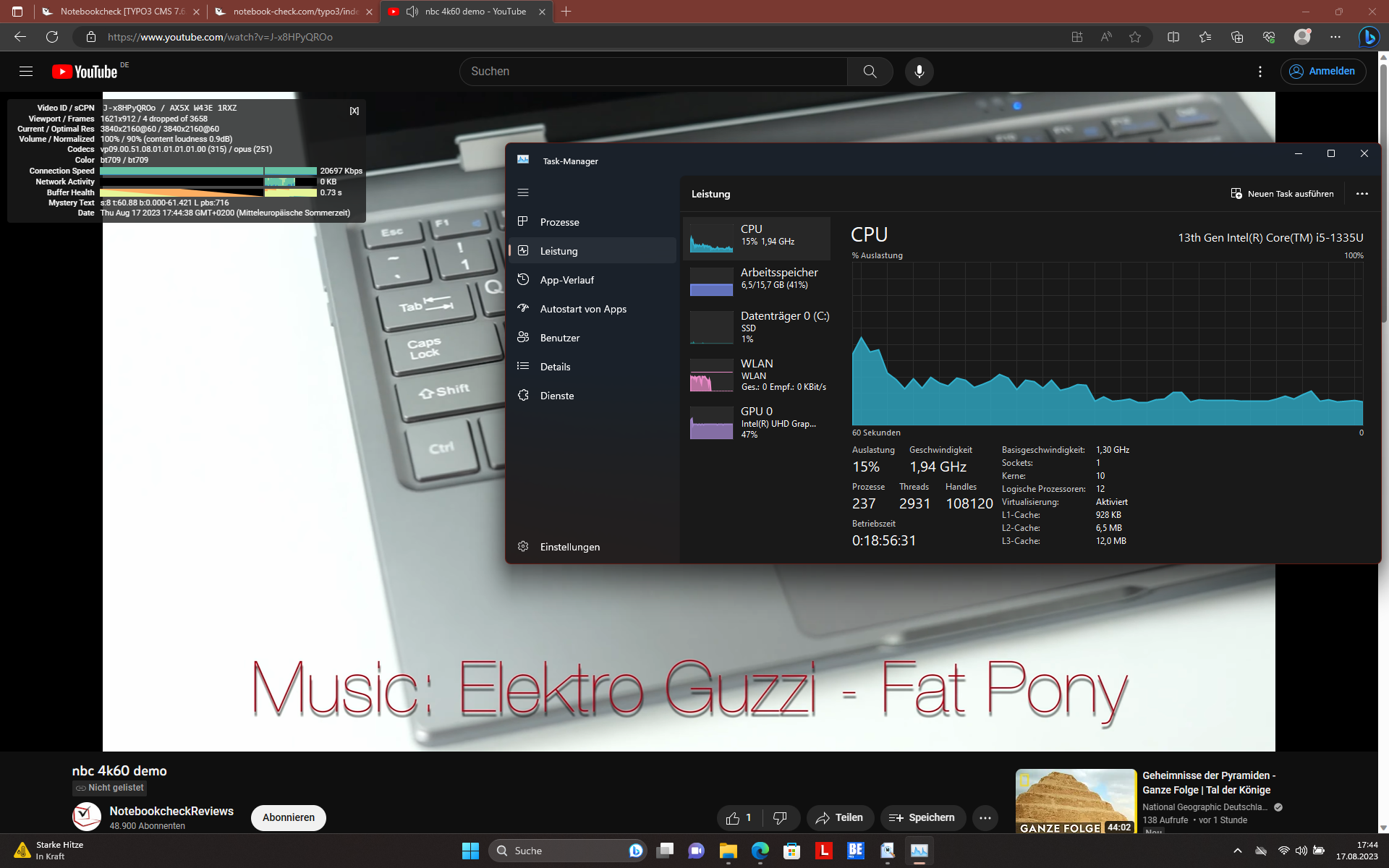

DPC 延迟

由于 DPC 延迟问题，评测设备在实时音频/视频中存在掉线问题。罪魁祸首之一可能是 WiFi 驱动程序。制造商可以通过软件更新来解决这个问题。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo ThinkPad T14 G3-21AJS00400 GeForce MX550, i7-1260P, Samsung PM9A1 MZVL21T0HCLR	3009.7 μs * -36%
Lenovo ThinkPad T14 G4 21HD0043GE Iris Xe G7 80EUs, i5-1335U, Kioxia BG5 KBG5AZNV512G	2216.7 μs *
Dell Latitude 7440 Iris Xe G7 80EUs, i5-1345U, Samsung MZ9L4512HBLU-00BMV	1203.08 μs * +46%
Lenovo ThinkPad T14 G3-21CF004NGE Radeon 680M, R7 PRO 6850U, Kioxia BG5 KBG5AZNV512G	731.7 μs * +67%
HP EliteBook 845 G10 818N0EA Radeon 780M, R9 PRO 7940HS, SK hynix PC801 HFS001TEJ9X101N	697.4 μs * +69%

* ... smaller is better

大容量存储器

联想 ThinkPad T14 G4 使用了与 2022 版 ThinkPad T14 相同的固态硬盘，即容量为 512 GB 的 Kioxia BG5。该固态硬盘通过 NVMe PCIe 4.0 标准连接，格式为 M.2 2280。固态硬盘的速度不错，在重要的 4K 类别中完全没有问题。最大传输速率较低，但这在日常使用中并不重要。

AS SSD

DiskSpd

Kioxia BG5 KBG5AZNV512G

Sequential Read: 2688MB/s

Sequential Write: 1571MB/s

4K Read: 27.6MB/s

4K Write: 167.2MB/s

4K-64 Read: 696MB/s

4K-64 Write: 411MB/s

Access Time Read: 0.295ms

Access Time Write: 0.036ms

Copy ISO: 414.19MB/s

Copy Program: 376.67MB/s

Copy Game: 440.79MB/s

Score Read: 992Points

Score Write: 735Points

Score Total: 2181Points

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
HP EliteBook 845 G10 818N0EA SK hynix PC801 HFS001TEJ9X101N	87.9 pt
Lenovo ThinkPad T14 G3-21AJS00400 Samsung PM9A1 MZVL21T0HCLR	81.8 pt
Average of class Office	75.7 pt
Dell Latitude 7440 Samsung MZ9L4512HBLU-00BMV	60.3 pt
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	52.9 pt
Average Kioxia BG5 KBG5AZNV512G	52.1 pt
Lenovo ThinkPad T14 G4 21HD0043GE Kioxia BG5 KBG5AZNV512G	51.3 pt

DiskSpd
seq read
Lenovo ThinkPad T14 G3-21AJS00400 Samsung PM9A1 MZVL21T0HCLR	3531 (3435.76^min - 3531.46^max) MB/s +34%
HP EliteBook 845 G10 818N0EA SK hynix PC801 HFS001TEJ9X101N	2989 (2968.66^min - 2989.28^max) MB/s +13%
Average of class Office (121 - 4554, n=89, last 2 years)	2657 MB/s +1%
Lenovo ThinkPad T14 G4 21HD0043GE Kioxia BG5 KBG5AZNV512G	2642 (2605.92^min - 2641.74^max) MB/s
Average Kioxia BG5 KBG5AZNV512G (2449 - 2642, n=2)	2546 MB/s -4%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	2449 (2378.72^min - 2448.56^max) MB/s -7%
Dell Latitude 7440 Samsung MZ9L4512HBLU-00BMV	2443 (2427.84^min - 2443.39^max) MB/s -8%
seq write
HP EliteBook 845 G10 818N0EA SK hynix PC801 HFS001TEJ9X101N	3566 (3496.37^min - 3566.41^max) MB/s +66%
Lenovo ThinkPad T14 G3-21AJS00400 Samsung PM9A1 MZVL21T0HCLR	3073 (2984.97^min - 3073.31^max) MB/s +43%
Average of class Office (43 - 5842, n=89, last 2 years)	2567 MB/s +20%
Lenovo ThinkPad T14 G4 21HD0043GE Kioxia BG5 KBG5AZNV512G	2145 (1903.76^min - 2144.76^max) MB/s
Average Kioxia BG5 KBG5AZNV512G (2052 - 2145, n=2)	2099 MB/s -2%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	2052 (1973.84^min - 2051.94^max) MB/s -4%
Dell Latitude 7440 Samsung MZ9L4512HBLU-00BMV	1776 (1737.28^min - 1776.3^max) MB/s -17%
seq q8 t1 read
HP EliteBook 845 G10 818N0EA SK hynix PC801 HFS001TEJ9X101N	6683 (6134.38^min - 6682.57^max) MB/s +102%
Lenovo ThinkPad T14 G3-21AJS00400 Samsung PM9A1 MZVL21T0HCLR	6548 (5454.9^min - 6547.94^max) MB/s +97%
Average of class Office (124.2 - 7120, n=89, last 2 years)	4362 MB/s +32%
Dell Latitude 7440 Samsung MZ9L4512HBLU-00BMV	3519 (2577.61^min - 3518.81^max) MB/s +6%
Lenovo ThinkPad T14 G4 21HD0043GE Kioxia BG5 KBG5AZNV512G	3316 (2432.24^min - 3316.15^max) MB/s
Average Kioxia BG5 KBG5AZNV512G (2836 - 3316, n=2)	3076 MB/s -7%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	2836 (2244.5^min - 2835.56^max) MB/s -14%
seq q8 t1 write
HP EliteBook 845 G10 818N0EA SK hynix PC801 HFS001TEJ9X101N	6037 (6002.26^min - 6037.19^max) MB/s +120%
Lenovo ThinkPad T14 G3-21AJS00400 Samsung PM9A1 MZVL21T0HCLR	4915 (4827.01^min - 4914.68^max) MB/s +80%
Average of class Office (46.7 - 6791, n=89, last 2 years)	3371 MB/s +23%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	2752 (2377.82^min - 2752.46^max) MB/s +1%
Average Kioxia BG5 KBG5AZNV512G (2738 - 2752, n=2)	2745 MB/s 0%
Lenovo ThinkPad T14 G4 21HD0043GE Kioxia BG5 KBG5AZNV512G	2738 (2195.73^min - 2738.04^max) MB/s
Dell Latitude 7440 Samsung MZ9L4512HBLU-00BMV	2210 (2175.38^min - 2210.17^max) MB/s -19%
4k q1 t1 read
Dell Latitude 7440 Samsung MZ9L4512HBLU-00BMV	78.8 (76.59^min - 78.83^max) MB/s +22%
Lenovo ThinkPad T14 G3-21AJS00400 Samsung PM9A1 MZVL21T0HCLR	71.6 (70.97^min - 71.59^max) MB/s +11%
Lenovo ThinkPad T14 G4 21HD0043GE Kioxia BG5 KBG5AZNV512G	64.7 (61.8^min - 64.69^max) MB/s
HP EliteBook 845 G10 818N0EA SK hynix PC801 HFS001TEJ9X101N	60.7 (60^min - 60.68^max) MB/s -6%
Average Kioxia BG5 KBG5AZNV512G (54.1 - 64.7, n=2)	59.4 MB/s -8%
Average of class Office (5.55 - 89.9, n=89, last 2 years)	58.3 MB/s -10%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	54.1 (53.19^min - 54.12^max) MB/s -16%
4k q1 t1 write
Average of class Office (1.23 - 429, n=89, last 2 years)	165.2 MB/s +27%
Lenovo ThinkPad T14 G3-21AJS00400 Samsung PM9A1 MZVL21T0HCLR	146.4 (140.41^min - 146.35^max) MB/s +13%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	134.4 (132.52^min - 134.39^max) MB/s +4%
HP EliteBook 845 G10 818N0EA SK hynix PC801 HFS001TEJ9X101N	132.4 (130.43^min - 132.37^max) MB/s +2%
Average Kioxia BG5 KBG5AZNV512G (129.6 - 134.4, n=2)	132 MB/s +2%
Dell Latitude 7440 Samsung MZ9L4512HBLU-00BMV	131.4 (129.27^min - 131.42^max) MB/s +1%
Lenovo ThinkPad T14 G4 21HD0043GE Kioxia BG5 KBG5AZNV512G	129.6 (114.97^min - 129.58^max) MB/s
4k q32 t16 read
Average of class Office (7.49 - 4425, n=89, last 2 years)	1254 MB/s +102%
HP EliteBook 845 G10 818N0EA SK hynix PC801 HFS001TEJ9X101N	981 (956.75^min - 980.97^max) MB/s +58%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	839 (823.21^min - 838.99^max) MB/s +35%
Lenovo ThinkPad T14 G3-21AJS00400 Samsung PM9A1 MZVL21T0HCLR	736 (724.66^min - 735.56^max) MB/s +19%
Average Kioxia BG5 KBG5AZNV512G (621 - 839, n=2)	730 MB/s +18%
Lenovo ThinkPad T14 G4 21HD0043GE Kioxia BG5 KBG5AZNV512G	621 (617.39^min - 621.38^max) MB/s
Dell Latitude 7440 Samsung MZ9L4512HBLU-00BMV	476 (466.05^min - 475.52^max) MB/s -23%
4k q32 t16 write
Average of class Office (1.5 - 3254, n=89, last 2 years)	943 MB/s +188%
HP EliteBook 845 G10 818N0EA SK hynix PC801 HFS001TEJ9X101N	456 (447.45^min - 455.69^max) MB/s +39%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	377 (357.55^min - 377.29^max) MB/s +15%
Dell Latitude 7440 Samsung MZ9L4512HBLU-00BMV	360 (355.44^min - 360.36^max) MB/s +10%
Average Kioxia BG5 KBG5AZNV512G (327 - 377, n=2)	352 MB/s +8%
Lenovo ThinkPad T14 G4 21HD0043GE Kioxia BG5 KBG5AZNV512G	327 (297.86^min - 327.14^max) MB/s
Lenovo ThinkPad T14 G3-21AJS00400 Samsung PM9A1 MZVL21T0HCLR	318 (304.64^min - 317.98^max) MB/s -3%

AS SSD
Score Total
HP EliteBook 845 G10 818N0EA SK hynix PC801 HFS001TEJ9X101N	5918 Points +171%
Lenovo ThinkPad T14 G3-21AJS00400 Samsung PM9A1 MZVL21T0HCLR	4786 Points +119%
Average of class Office (704 - 9204, n=87, last 2 years)	4202 Points +93%
Dell Latitude 7440 Samsung MZ9L4512HBLU-00BMV	3533 Points +62%
Lenovo ThinkPad T14 G4 21HD0043GE Kioxia BG5 KBG5AZNV512G	2181 Points
Average Kioxia BG5 KBG5AZNV512G (1919 - 2181, n=2)	2050 Points -6%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	1919 Points -12%
Score Read
Average of class Office (252 - 3364, n=87, last 2 years)	1476 Points +49%
HP EliteBook 845 G10 818N0EA SK hynix PC801 HFS001TEJ9X101N	1419 Points +43%
Lenovo ThinkPad T14 G3-21AJS00400 Samsung PM9A1 MZVL21T0HCLR	1184 Points +19%
Dell Latitude 7440 Samsung MZ9L4512HBLU-00BMV	1028 Points +4%
Lenovo ThinkPad T14 G4 21HD0043GE Kioxia BG5 KBG5AZNV512G	992 Points
Average Kioxia BG5 KBG5AZNV512G (932 - 992, n=2)	962 Points -3%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	932 Points -6%
Score Write
HP EliteBook 845 G10 818N0EA SK hynix PC801 HFS001TEJ9X101N	3831 Points +421%
Lenovo ThinkPad T14 G3-21AJS00400 Samsung PM9A1 MZVL21T0HCLR	3021 Points +311%
Dell Latitude 7440 Samsung MZ9L4512HBLU-00BMV	2029 Points +176%
Average of class Office (247 - 4111, n=87, last 2 years)	2014 Points +174%
Lenovo ThinkPad T14 G4 21HD0043GE Kioxia BG5 KBG5AZNV512G	735 Points
Average Kioxia BG5 KBG5AZNV512G (549 - 735, n=2)	642 Points -13%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	549 Points -25%
Seq Read
HP EliteBook 845 G10 818N0EA SK hynix PC801 HFS001TEJ9X101N	4270 MB/s +59%
Lenovo ThinkPad T14 G3-21AJS00400 Samsung PM9A1 MZVL21T0HCLR	3473 MB/s +29%
Average of class Office (508 - 5796, n=87, last 2 years)	3452 MB/s +28%
Dell Latitude 7440 Samsung MZ9L4512HBLU-00BMV	3017.95 MB/s +12%
Lenovo ThinkPad T14 G4 21HD0043GE Kioxia BG5 KBG5AZNV512G	2688 MB/s
Average Kioxia BG5 KBG5AZNV512G (2117 - 2688, n=2)	2403 MB/s -11%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	2117 MB/s -21%
Seq Write
HP EliteBook 845 G10 818N0EA SK hynix PC801 HFS001TEJ9X101N	2853 MB/s +82%
Lenovo ThinkPad T14 G3-21AJS00400 Samsung PM9A1 MZVL21T0HCLR	2527 MB/s +61%
Average of class Office (294 - 5880, n=87, last 2 years)	2350 MB/s +50%
Lenovo ThinkPad T14 G4 21HD0043GE Kioxia BG5 KBG5AZNV512G	1571 MB/s
Dell Latitude 7440 Samsung MZ9L4512HBLU-00BMV	1520.78 MB/s -3%
Average Kioxia BG5 KBG5AZNV512G (1059 - 1571, n=2)	1315 MB/s -16%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	1059 MB/s -33%
4K Read
Lenovo ThinkPad T14 G3-21AJS00400 Samsung PM9A1 MZVL21T0HCLR	74.1 MB/s +168%
Dell Latitude 7440 Samsung MZ9L4512HBLU-00BMV	72.35 MB/s +162%
HP EliteBook 845 G10 818N0EA SK hynix PC801 HFS001TEJ9X101N	59 MB/s +114%
Average of class Office (18 - 91.1, n=87, last 2 years)	58.3 MB/s +111%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	51.29 MB/s +86%
Average Kioxia BG5 KBG5AZNV512G (27.6 - 51.3, n=2)	39.4 MB/s +43%
Lenovo ThinkPad T14 G4 21HD0043GE Kioxia BG5 KBG5AZNV512G	27.6 MB/s
4K Write
Dell Latitude 7440 Samsung MZ9L4512HBLU-00BMV	197.6 MB/s +18%
Lenovo ThinkPad T14 G3-21AJS00400 Samsung PM9A1 MZVL21T0HCLR	181.8 MB/s +9%
Lenovo ThinkPad T14 G4 21HD0043GE Kioxia BG5 KBG5AZNV512G	167.2 MB/s
Average of class Office (28.2 - 350, n=87, last 2 years)	167.1 MB/s 0%
HP EliteBook 845 G10 818N0EA SK hynix PC801 HFS001TEJ9X101N	152 MB/s -9%
Average Kioxia BG5 KBG5AZNV512G (110.2 - 167.2, n=2)	138.7 MB/s -17%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	110.24 MB/s -34%
4K-64 Read
Average of class Office (182.3 - 2713, n=87, last 2 years)	1073 MB/s +54%
HP EliteBook 845 G10 818N0EA SK hynix PC801 HFS001TEJ9X101N	933 MB/s +34%
Lenovo ThinkPad T14 G3-21AJS00400 Samsung PM9A1 MZVL21T0HCLR	762 MB/s +9%
Lenovo ThinkPad T14 G4 21HD0043GE Kioxia BG5 KBG5AZNV512G	696 MB/s
Average Kioxia BG5 KBG5AZNV512G (669 - 696, n=2)	682 MB/s -2%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	668.7 MB/s -4%
Dell Latitude 7440 Samsung MZ9L4512HBLU-00BMV	654.24 MB/s -6%
4K-64 Write
HP EliteBook 845 G10 818N0EA SK hynix PC801 HFS001TEJ9X101N	3394 MB/s +726%
Lenovo ThinkPad T14 G3-21AJS00400 Samsung PM9A1 MZVL21T0HCLR	2586 MB/s +529%
Dell Latitude 7440 Samsung MZ9L4512HBLU-00BMV	1678.93 MB/s +308%
Average of class Office (183.4 - 3394, n=87, last 2 years)	1612 MB/s +292%
Lenovo ThinkPad T14 G4 21HD0043GE Kioxia BG5 KBG5AZNV512G	411 MB/s
Average Kioxia BG5 KBG5AZNV512G (333 - 411, n=2)	372 MB/s -9%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	332.54 MB/s -19%
Access Time Read
Lenovo ThinkPad T14 G4 21HD0043GE Kioxia BG5 KBG5AZNV512G	0.295 ms *
Average Kioxia BG5 KBG5AZNV512G (0.067 - 0.295, n=2)	0.181 ms * +39%
Dell Latitude 7440 Samsung MZ9L4512HBLU-00BMV	0.098 ms * +67%
Average of class Office (0.022 - 0.302, n=87, last 2 years)	0.07797 ms * +74%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	0.067 ms * +77%
HP EliteBook 845 G10 818N0EA SK hynix PC801 HFS001TEJ9X101N	0.031 ms * +89%
Lenovo ThinkPad T14 G3-21AJS00400 Samsung PM9A1 MZVL21T0HCLR	0.022 ms * +93%
Access Time Write
Dell Latitude 7440 Samsung MZ9L4512HBLU-00BMV	0.091 ms * -153%
Average of class Office (0.017 - 0.625, n=87, last 2 years)	0.06914 ms * -92%
Lenovo ThinkPad T14 G4 21HD0043GE Kioxia BG5 KBG5AZNV512G	0.036 ms *
Average Kioxia BG5 KBG5AZNV512G (0.035 - 0.036, n=2)	0.0355 ms * +1%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	0.035 ms * +3%
HP EliteBook 845 G10 818N0EA SK hynix PC801 HFS001TEJ9X101N	0.025 ms * +31%
Lenovo ThinkPad T14 G3-21AJS00400 Samsung PM9A1 MZVL21T0HCLR	0.023 ms * +36%

* ... smaller is better

Sustained load read: DiskSpd Read Loop, Queue Depth 8

Lenovo ThinkPad T14 G4 21HD0043GE: Ø3240 (2818.99-3346.02)

GPU

对于英特尔来说，自 2021 年以来在 iGPU 领域一直没有太大的动静，Tiger Lake 。联想 ThinkPad T14 G4 英特尔版配备了相同的Iris Xe w/80 EUs我们已在许多其他Tiger Lake 、Alder Lake 和 Raptor Lake 笔记本电脑上测试过这款 i5 处理器。

作为一个集成的 GPU，它没有自己的内存，而是依赖于主系统内存--因为它始终在双通道模式下运行，所以尽管有空闲的 SO DIMM 插槽，性能也不会受到限制。GPU 仍无法胜任最简单的任务，游戏性能也几乎不值一提。不过，对于一款面向商务用户的笔记本电脑来说，这一点并不重要。

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Lenovo ThinkPad T14 G3-21CF004NGE AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	98.7 pt
Lenovo ThinkPad T14 G3-21AJS00400 ^-1! NVIDIA GeForce MX550, Intel Core i7-1260P	92.9 pt
HP EliteBook 845 G10 818N0EA AMD Radeon 780M, AMD Ryzen 9 PRO 7940HS	65.6 pt
Average of class Office	64.3 pt
Dell Latitude 7440 ^-1! Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1345U	56.8 pt
Average Intel Iris Xe Graphics G7 80EUs	49.9 pt
Lenovo ThinkPad T14 G4 21HD0043GE Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U	48.7 pt

3DMark 11 - 1280x720 Performance GPU
Lenovo ThinkPad T14 G3-21CF004NGE AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	10343 Points +88%
Lenovo ThinkPad T14 G3-21AJS00400 NVIDIA GeForce MX550, Intel Core i7-1260P	9679 Points +76%
HP EliteBook 845 G10 818N0EA AMD Radeon 780M, AMD Ryzen 9 PRO 7940HS	7868 Points +43%
Average of class Office (1468 - 13132, n=88, last 2 years)	6704 Points +22%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U	5490 Points
Dell Latitude 7440 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1345U	5485 Points 0%
Average Intel Iris Xe Graphics G7 80EUs (2246 - 6477, n=109)	5179 Points -6%

3DMark
1280x720 Cloud Gate Standard Graphics
Lenovo ThinkPad T14 G3-21CF004NGE AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	46247 Points +157%
HP EliteBook 845 G10 818N0EA AMD Radeon 780M, AMD Ryzen 9 PRO 7940HS	27771 Points +54%
Average of class Office (7982 - 58068, n=65, last 2 years)	26787 Points +49%
Average Intel Iris Xe Graphics G7 80EUs (6361 - 30894, n=95)	21885 Points +22%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U	17985 Points
1920x1080 Fire Strike Graphics
Lenovo ThinkPad T14 G3-21CF004NGE AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	7050 Points +85%
Lenovo ThinkPad T14 G3-21AJS00400 NVIDIA GeForce MX550, Intel Core i7-1260P	5994 Points +57%
Average of class Office (1089 - 9375, n=89, last 2 years)	4861 Points +28%
HP EliteBook 845 G10 818N0EA AMD Radeon 780M, AMD Ryzen 9 PRO 7940HS	4550 Points +19%
Dell Latitude 7440 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1345U	4442 Points +17%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U	3812 Points
Average Intel Iris Xe Graphics G7 80EUs (1560 - 5305, n=111)	3794 Points 0%
2560x1440 Time Spy Graphics
Lenovo ThinkPad T14 G3-21AJS00400 NVIDIA GeForce MX550, Intel Core i7-1260P	2419 Points +105%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	2289 Points +94%
Average of class Office (313 - 4109, n=89, last 2 years)	1585 Points +34%
HP EliteBook 845 G10 818N0EA AMD Radeon 780M, AMD Ryzen 9 PRO 7940HS	1496 Points +27%
Dell Latitude 7440 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1345U	1318 Points +12%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U	1179 Points
Average Intel Iris Xe Graphics G7 80EUs (561 - 1511, n=108)	1172 Points -1%

3DMark 11 Performance		5912 points
3DMark Cloud Gate Standard Score		14900 points
3DMark Fire Strike Score		3463 points
3DMark Time Spy Score		1334 points
Help

... in comparison

Blender
v3.3 Classroom HIP/AMD
Average of class Office (298 - 1215, n=15, last 2 years)	727 Seconds *
Lenovo ThinkPad T14 G3-21CF004NGE AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	335 Seconds *
v3.3 Classroom OPTIX/RTX
Lenovo ThinkPad T14 G3-21AJS00400 NVIDIA GeForce MX550, Intel Core i7-1260P	236 Seconds *
Average of class Office (94 - 236, n=4, last 2 years)	135.5 Seconds *
v3.3 Classroom CUDA
Average of class Office (155 - 675, n=5, last 2 years)	286 Seconds *
Lenovo ThinkPad T14 G3-21AJS00400 NVIDIA GeForce MX550, Intel Core i7-1260P	262 Seconds *
v3.3 Classroom CPU
Average Intel Iris Xe Graphics G7 80EUs (463 - 3047, n=50)	932 Seconds * -15%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U	808 Seconds *
Average of class Office (343 - 3964, n=89, last 2 years)	773 Seconds * +4%
Dell Latitude 7440 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1345U	632 Seconds * +22%
Lenovo ThinkPad T14 G3-21AJS00400 NVIDIA GeForce MX550, Intel Core i7-1260P	629 Seconds * +22%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	525 Seconds * +35%
HP EliteBook 845 G10 818N0EA AMD Radeon 780M, AMD Ryzen 9 PRO 7940HS	345 Seconds * +57%

* ... smaller is better

Performance Rating - Percent
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P, NVIDIA GeForce MX550	98.4 pt
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	77.4 pt
Average of class Office	53.5 pt
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS, AMD Radeon 780M	51.6 pt
Dell Latitude 7440 Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs	48.1 pt
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs	42.4 pt

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P, NVIDIA GeForce MX550	24 (22^min, 22^P1) fps +107%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	23.9 (21^min, 22^P1) fps +106%
Average of class Office (3.8 - 34, n=79, last 2 years)	14.8 fps +28%
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS, AMD Radeon 780M	14.3 (12^min, 13^P1) fps +23%
Dell Latitude 7440 Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs	13.4 (12^min) fps +16%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs	11.6 (9^min) fps

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P, NVIDIA GeForce MX550	33.7 (2.89^min, 5.52^P1) fps +366%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	22.2 (1.572^min, 15.4^P1) fps +207%
Average of class Office (3.35 - 47.8, n=78, last 2 years)	12.7 fps +76%
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS, AMD Radeon 780M	12.2 (4.27^min, 8.4^P1) fps +69%
Dell Latitude 7440 Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs	8.81 (4.42^min, 5.46^P1) fps +22%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs	7.23 (3.67^min, 4.13^P1) fps

Final Fantasy XV Benchmark - 1920x1080 High Quality
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	23 fps +62%
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P, NVIDIA GeForce MX550	20.8 fps +46%
Dell Latitude 7440 Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs	16.8 fps +18%
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS, AMD Radeon 780M	15.9 fps +12%
Average of class Office (3.86 - 35.7, n=87, last 2 years)	15.9 fps +12%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs	14.2 fps

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P, NVIDIA GeForce MX550	45 fps +126%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	41 fps +106%
Average of class Office (9.6 - 56.5, n=73, last 2 years)	27.1 fps +36%
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS, AMD Radeon 780M	25 (17.4^min, 19.8^P1) fps +26%
Dell Latitude 7440 Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs	21.9 (5^min, 6.24^P1) fps +10%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs	19.9 (5^min, 5^P1) fps

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P, NVIDIA GeForce MX550	101.1 (86.8^min) fps +105%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	63.1 (53.8^min) fps +28%
Dell Latitude 7440 Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs	56.3 (41.5^min) fps +14%
Average of class Office (13.4 - 121.2, n=94, last 2 years)	51.6 fps +4%
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS, AMD Radeon 780M	51.5 (43.1^min) fps +4%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs	49.4 (42^min) fps

X-Plane 11.11 - 1920x1080 high (fps_test=3)
Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P, NVIDIA GeForce MX550	73.4 fps +238%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	33.5 fps +54%
Average of class Office (8.88 - 92.6, n=92, last 2 years)	30.1 fps +39%
HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS, AMD Radeon 780M	28.2 fps +30%
Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs	21.7 fps
Dell Latitude 7440 Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs	21.3 fps -2%

Witcher 3 FPS diagramm

Lenovo ThinkPad T14 G4 21HD0043GE i5-1335U, Iris Xe G7 80EUs: Ø10.4 (9-12)

	low	med.	high	ultra
GTA V (2015)	108.2	85.4	16.4	7.23
The Witcher 3 (2015)	76.2	48.1	25.1	11.6
Dota 2 Reborn (2015)	107.3	74.6	53.6	49.4
Final Fantasy XV Benchmark (2018)	36.5	20	14.2
X-Plane 11.11 (2018)	34	24.1	21.7
Strange Brigade (2018)	76.1	30	24.6	19.9
F1 22 (2022)	39	34.5	24.9	18.8

排放：ThinkPad 笔记本电脑运行凉爽、安静

噪音

噪音方面的情况好坏参半，但总体上是积极的。与前代产品相比，联想 ThinkPad T14 G4 英特尔版的风扇启动速度略快 ThinkPad T14 G3相比，联想 ThinkPad T14 G4 Intel 的风扇启动速度稍快，但整体噪音水平保持在较低水平。与惠普 EliteBook 845 G10相比，ThinkPad 笔记本电脑的噪音也更小。

我们没有发现该机型有任何线圈啸叫。

Noise Level

Idle		23 / 23 / 24.9 dB(A)
Load		26.1 / 38.5 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 23 dB(A)

	Lenovo ThinkPad T14 G4 21HD0043GE Iris Xe G7 80EUs, i5-1335U, Kioxia BG5 KBG5AZNV512G	Lenovo ThinkPad T14 G3-21AJS00400 GeForce MX550, i7-1260P, Samsung PM9A1 MZVL21T0HCLR	HP EliteBook 845 G10 818N0EA Radeon 780M, R9 PRO 7940HS, SK hynix PC801 HFS001TEJ9X101N	Dell Latitude 7440 Iris Xe G7 80EUs, i5-1345U, Samsung MZ9L4512HBLU-00BMV	Lenovo ThinkPad T14 G3-21CF004NGE Radeon 680M, R7 PRO 6850U, Kioxia BG5 KBG5AZNV512G
Noise		-6%	-13%	5%	-5%
off / environment *	23	23.6 -3%	25.3 -10%	22.8 1%	24.2 -5%
Idle Minimum *	23	23.6 -3%	25.3 -10%	22.8 1%	24.2 -5%
Idle Average *	23	23.6 -3%	25.3 -10%	22.8 1%	24.2 -5%
Idle Maximum *	24.9	23.6 5%	25.3 -2%	22.8 8%	25.8 -4%
Load Average *	26.1	35.1 -34%	34.4 -32%	26.3 -1%	32.2 -23%
Witcher 3 ultra *	38.4	39.6 -3%	43.4 -13%	30 22%	34.1 11%
Load Maximum *	38.5	39.6 -3%	43.4 -13%	38.3 1%	38.8 -1%

* ... smaller is better

热量

机箱外部的温度相对较低。我们在Witcher 3 测试中测得的最高温度为 44.1 摄氏度，而压力测试中的最高温度则升至 43 摄氏度。掌托的温度仅为 28.5 摄氏度。

在压力测试中，我们没有发现节流现象。

Max. Load

Idle

Witcher 3


29.5 °C	38.1 °C	30.2 °C
30.4 °C	36.7 °C	41.5 °C
28.5 °C	24.6 °C	26.3 °C

Maximum: 41.5 °C
Average: 31.8 °C


28.3 °C	34 °C	30.2 °C
35.7 °C	43 °C	29.1 °C
24.1 °C	24.3 °C	25.5 °C

Maximum: 43 °C
Average: 30.5 °C

Power Supply (max.) 34.8 °C | Room Temperature 22.5 °C | Fluke 62 Max+

Max. Load

Idle

Witcher 3


25.2 °C	27.8 °C	25.6 °C
25.6 °C	27.4 °C	27.5 °C
25.8 °C	24.7 °C	24.6 °C

Maximum: 27.8 °C
Average: 26 °C


25.4 °C	27 °C	25 °C
27.7 °C	27.8 °C	26 °C
24 °C	24.3 °C	25 °C

Maximum: 27.8 °C
Average: 25.8 °C

Power Supply (max.) 25.7 °C | Room Temperature 22.6 °C | Fluke 62 Max+

Max. Load

Idle

Witcher 3


28 °C	38 °C	29.8 °C
29.4 °C	37.2 °C	40.2 °C
26.4 °C	24 °C	26.3 °C

Maximum: 40.2 °C
Average: 31 °C


29.4 °C	44.1 °C	28.7 °C
29.6 °C	36.8 °C	28.7 °C
28.2 °C	24.3 °C	24.6 °C

Maximum: 44.1 °C
Average: 30.5 °C

Power Supply (max.) 34.2 °C | Room Temperature 22.1 °C | Fluke 62 Max+

(+) The average temperature for the upper side under maximal load is 31.8 °C / 89 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 41.5 °C / 107 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 43 °C / 109 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26 °C / 79 F, compared to the device average of 29.5 °C / 85 F.
(+) Playing The Witcher 3, the average temperature for the upper side is 31 °C / 88 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.5 °C / 83.3 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-0.8 °C / -1.4 F).

	Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs	Lenovo ThinkPad T14 G3-21AJS00400 Intel Core i7-1260P, NVIDIA GeForce MX550	HP EliteBook 845 G10 818N0EA AMD Ryzen 9 PRO 7940HS, AMD Radeon 780M	Dell Latitude 7440 Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs	Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, AMD Radeon 680M
Heat		-12%	-6%	2%	-4%
Maximum Upper Side *	41.5	46.4 -12%	45.6 -10%	39 6%	48.2 -16%
Maximum Bottom *	43	43.1 -0%	51.9 -21%	40.6 6%	52.8 -23%
Idle Upper Side *	27.8	33.9 -22%	26.5 5%	28 -1%	24.4 12%
Idle Bottom *	27.8	31.4 -13%	27 3%	28.8 -4%	24.5 12%

* ... smaller is better

发言人

向上发射的立体声扬声器发出的声音响度一般，落后于 HP EliteBook 845 G10。 HP EliteBook 845 G10和 ThinkPad X1 Carbon G11.底座也不见了，使视频和音频的听觉享受大打折扣。

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Lenovo ThinkPad T14 G4 21HD0043GE audio analysis

(±) | speaker loudness is average but good (78.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.6% lower than median
(±) | linearity of bass is average (12.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.1% higher than median
(+) | mids are linear (5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4% away from median
(+) | highs are linear (3.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.3% difference to median)
Compared to same class
» 48% of all tested devices in this class were better, 10% similar, 43% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 56% of all tested devices were better, 7% similar, 37% worse
» The best had a delta of 4%, average was 25%, worst was 134%

HP EliteBook 845 G10 818N0EA audio analysis

(+) | speakers can play relatively loud (83.2 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19.5% lower than median
(±) | linearity of bass is average (13.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.4% away from median
(+) | mids are linear (2.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.2% away from median
(+) | highs are linear (3.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14.2% difference to median)
Compared to same class
» 7% of all tested devices in this class were better, 3% similar, 89% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 15% of all tested devices were better, 4% similar, 82% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Lenovo ThinkPad X1 Carbon G11-21HNS00000 audio analysis

(+) | speakers can play relatively loud (84.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 16% lower than median
(±) | linearity of bass is average (12.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2% away from median
(+) | mids are linear (4.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.7% away from median
(+) | highs are linear (6.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.9% difference to median)
Compared to same class
» 1% of all tested devices in this class were better, 1% similar, 98% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 5% of all tested devices were better, 1% similar, 94% worse
» The best had a delta of 4%, average was 25%, worst was 134%

能源管理：ThinkPad T14 G4 的电池续航能力不错

耗电量

联想ThinkPad T14 G4的功耗出乎我们的意料--出乎意料的低，因为与ThinkPad T14 G3 AMD版相比，它的功耗更低。就 2022 年的 ThinkPad 而言，AMD 版本的效率更高。另一方面，惠普笔记本电脑和戴尔笔记本电脑的功耗较高也不足为奇，因为两者的屏幕分辨率都较高。

67.2 W 是负载下的最大功耗，高于 65 W 充电器的容量。由于负载下的功耗会迅速降低，电池应该不会因此而放电。

Power Consumption

Off / Standby	0.3 / 0.7 Watt
Idle	2.4 / 4.5 / 5.6 Watt
Load	29.5 / 67.2 Watt


Key: min: , med: , max: Metrahit Energy

	Lenovo ThinkPad T14 G4 21HD0043GE i5-1335U, Iris Xe G7 80EUs, Kioxia BG5 KBG5AZNV512G, IPS-AHVA LTPS wLED, 1920x1200, 14"	Lenovo ThinkPad T14 G3-21AJS00400 i7-1260P, GeForce MX550, Samsung PM9A1 MZVL21T0HCLR, IPS, 1920x1200, 14"	HP EliteBook 845 G10 818N0EA R9 PRO 7940HS, Radeon 780M, SK hynix PC801 HFS001TEJ9X101N, IPS, 2560x1600, 14"	Dell Latitude 7440 i5-1345U, Iris Xe G7 80EUs, Samsung MZ9L4512HBLU-00BMV, IPS, 2560x1600, 14"	Lenovo ThinkPad T14 G3-21CF004NGE R7 PRO 6850U, Radeon 680M, Kioxia BG5 KBG5AZNV512G, IPS, 1920x1200, 14"	Average Intel Iris Xe Graphics G7 80EUs	Average of class Office
Power Consumption		-47%	-78%	-41%	-6%	-46%	-51%
Idle Minimum *	2.4	4.3 -79%	4.3 -79%	4.5 -88%	2.4 -0%	4.48 ?(2.3 - 15.8, n=105) -87%	4.54 ?(2.2 - 13.8, n=90, last 2 years) -89%
Idle Average *	4.5	6.2 -38%	10.1 -124%	6.5 -44%	5.3 -18%	7.37 ?(3.5 - 16.8, n=105) -64%	7.49 ?(3.8 - 14.9, n=90, last 2 years) -66%
Idle Maximum *	5.6	7 -25%	11.2 -100%	7.3 -30%	5.6 -0%	9.24 ?(4.5 - 17, n=105) -65%	9.14 ?(4.89 - 18.6, n=90, last 2 years) -63%
Load Average *	29.5	63.5 -115%	64.4 -118%	52.5 -78%	39.7 -35%	36.4 ?(14.3 - 70, n=103) -23%	42.8 ?(8.7 - 77.9, n=87, last 2 years) -45%
Witcher 3 ultra *	40.8	52.5 -29%	59.4 -46%	46.2 -13%	42.8 -5%
Load Maximum *	67.2	66.1 2%	66.7 1%	63 6%	50.6 25%	61.7 ?(24.2 - 149, n=105) 8%	61.3 ?(11.1 - 107, n=90, last 2 years) 9%

* ... smaller is better

Power consumption Witcher 3 / stress test

Lenovo ThinkPad T14 G4 21HD0043GE; Witcher 3 ultra: Ø40.8 (35.2-49.3)

Lenovo ThinkPad T14 G4 21HD0043GE; 1280x720 Prime95 28.10 and Furmark 1.25: Ø48.8 (37.6-67.3)

Lenovo ThinkPad T14 G4 21HD0043GE; Idle 150cd/m2: Ø5.29 (4.6-7.83)

Power consumption with external monitor

Lenovo ThinkPad T14 G4 21HD0043GE; Prime95 V2810 Stress (external Monitor): Ø36 (33.8-67.3)

Lenovo ThinkPad T14 G4 21HD0043GE; Cinebench R23 Multi (external Monitor): Ø34.8 (26.1-67.2)

Lenovo ThinkPad T14 G4 21HD0043GE; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø34.5 (32-36.7)

Lenovo ThinkPad T14 G4 21HD0043GE; 1920x1080 The Witcher 3 ultra (external Monitor): Ø40.6 (27.9-43.2)

Lenovo ThinkPad T14 G4 21HD0043GE; Idle 1min (external Monitor): Ø7.9 (7.23-12)

电池寿命

内置 52.5 Wh 电池的容量没有变化，但与去年的英特尔/Nvidia 版本相比，电池续航时间大大缩短。ThinkPad T14 第 3 代.与联想 ThinkPad T14 第 3 代 AMD相比，AMD 版完全胜出。在 WiFi 测试的低负载情况下，AMD 平台显然仍然更省电。尽管如此：英特尔版 ThinkPad T14 G4 大约 11 个小时的测试结果并不值得大惊小怪。它的配置应该足以支撑普通一天的工作。

Battery Runtime

WiFi Websurfing (Edge 115)		11h 06min
WiFi Websurfing max. Brightness (Edge 115)		8h 37min
Load (maximum brightness)		1h 34min

	Lenovo ThinkPad T14 G4 21HD0043GE i5-1335U, Iris Xe G7 80EUs, 52.5 Wh	Lenovo ThinkPad T14 G3-21AJS00400 i7-1260P, GeForce MX550, 52.5 Wh	HP EliteBook 845 G10 818N0EA R9 PRO 7940HS, Radeon 780M, 51 Wh	Dell Latitude 7440 i5-1345U, Iris Xe G7 80EUs, 57 Wh	Lenovo ThinkPad T14 G3-21CF004NGE R7 PRO 6850U, Radeon 680M, 52.5 Wh	Average of class Office
Battery Runtime		-27%	-35%	46%	-2%	8%
WiFi v1.3	666	487 -27%	471 -29%	781 17%	772 16%	600 ?(300 - 1349, n=90, last 2 years) -10%
Load	94		56 -40%	164 74%	76 -19%	118.1 ?(56 - 218, n=53, last 2 years) 26%

Pros

+ 非常好的输入设备

+ 凉爽安静

+ 电池寿命超过 10 小时

+ 哑光低功耗 LCD

+ 端口选择包括 RJ45

+ 用户可更换键盘

+ 可升级 WWAN

Cons

- CPU 性能低于平均水平

- 部分焊接的内存

- 屏幕反应时间慢

结论：ThinkPad T14 Gen 4 英特尔版是一款非常适合商务用户的设备

当该机型最大的新闻是令人困惑的内存选择时，情况就很清楚了：从 ThinkPad T14 G3 Intel 到 ThinkPad T14 G4 Intel 的更新并没有达到震惊世界的程度。在 "新功能 "列表中，我们可以看到英特尔 Raptor Lake 的预期更新，以及新的内存选项（Nvidia 型号为 DDR5 或 LPDDR5X）和新的 500 万像素网络摄像头。此外，还有一个新的可选 OLED 屏幕，但我们没有在此进行测试。

总而言之，联想 ThinkPad T14 Gen 4 英特尔版的配置与前代相同。由于前代产品已经是一款非常出色的商务笔记本电脑，因此这并不意味着消极的含义。低功耗的雾面显示屏、丰富的端口选择、出色的输入设备、超长的电池续航时间、低温和噪音排放，所有这些都集成在一个坚固耐用且移动性良好的机箱中，使 ThinkPad 笔记本电脑成为一款出色的商务笔记本电脑。用户可更换键盘也是笔记本电脑中不多见的功能，可升级的 WWAN 插槽也值得赞赏。

比较遗憾的是性能，但这只是联想的部分原因，更多的是英特尔当前 CPU 的问题。不过，如果联想能像惠普目前的许多 EliteBook 笔记本电脑一样，在 ThinkPads 上少焊一些元件并安装两个内存插槽，那就更好了。这款笔记本电脑的另一个问题是屏幕速度太慢。

可靠：如果需要一款可靠的办公笔记本电脑，联想 ThinkPad T14 Gen 4 Intel 是一个不错的选择。不过，性能并不是这款机型的强项。

与惠普 EliteBook 845 G10，联想ThinkPad T14 Gen 4有了一个强劲的竞争对手，其CPU性能完全不在一个水平线上--尽管测试的版本为此牺牲了电池续航时间。英特尔的 T14 G4 也受到了 AMD 自身机型 T14 G4 AMD with Ryzen 7040U 的内部竞争。该机型现在还配备了 USB4 接口，抢走了英特尔机型的优势。我们非常期待测试 AMD 型号。

Download your licensed rating image as SVG / PNG

定价和可用性

联想ThinkPad T14 G4英特尔版在德国的售价至少为1515欧元。联想美国的售价约为 900 美元（2023 年 9 月 9 日）。

Lenovo ThinkPad T14 G4 21HD0043GE - 09/08/2023 v7 ^(old)
Benjamin Herzig

Chassis

83 / 98 → 85%

Keyboard

91%

Pointing Device

93%

Connectivity

69 / 80 → 87%

Weight

70 / 20-75 → 91%

Battery

89%

Display

87%

Games Performance

63 / 78 → 81%

Application Performance

84 / 95 → 88%

Temperature

91%

Noise

97%

Audio

70%

Camera

45 / 85 → 53%

Average

79%

89%

Office - Weighted Average

Price comparison

Editor of the original article: Benjamin Herzig - Managing Editor - 1220 articles published on Notebookcheck since 2016

contact me via: LinkedIn

Translator: Ninh Ngoc Duy - Editorial Assistant - 460014 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 联想 ThinkPad T14 G4 英特尔笔记本电脑评测：T 系列的 Raptor Lake 升级

Benjamin Herzig, 2023-09-10 (Update: 2023-09-10)

联想 ThinkPad T14 G4 英特尔笔记本电脑评测：T 系列的 Raptor Lake 升级

猛禽

潜在的竞争对手比较

尺寸比较

网络摄像头

显示屏：哑光低功耗屏幕，反应时间慢

Display Response Times

Screen Flickering / PWM (Pulse-Width Modulation)

性能：英特尔猛禽湖 U15 相当令人失望

测试条件

处理器

Cinebench R15 Multi sustained load

系统性能

DPC 延迟

大容量存储器

Sustained load read: DiskSpd Read Loop, Queue Depth 8

GPU

Witcher 3 FPS diagramm

排放：ThinkPad 笔记本电脑运行凉爽、安静

噪音

热量

发言人

Lenovo ThinkPad T14 G4 21HD0043GE audio analysis

HP EliteBook 845 G10 818N0EA audio analysis

Lenovo ThinkPad X1 Carbon G11-21HNS00000 audio analysis

能源管理：ThinkPad T14 G4 的电池续航能力不错

耗电量

Power consumption Witcher 3 / stress test

Power consumption with external monitor

电池寿命

Pros

Cons

结论：ThinkPad T14 Gen 4 英特尔版是一款非常适合商务用户的设备

定价和可用性

More articles related to this device

Transparency

Price comparison
