联想ThinkPad T14s G4评测:采用 AMD Zen4 的商务笔记本电脑更出色

AMD 和 IPS 战胜英特尔和 OLED。

我们已经评测过目前配备英特尔处理器和高分辨率 OLED 面板的 ThinkPad T14s G4,现在我们又迎来了配备 Ryzen 7 7840U 和低功耗 IPS 显示屏的 AMD 机型。除了性能大幅提升外,良好的电池续航能力也尤其令人印象深刻。
AMD Business Laptop / Notebook ThinkPad Ultrabook Windows

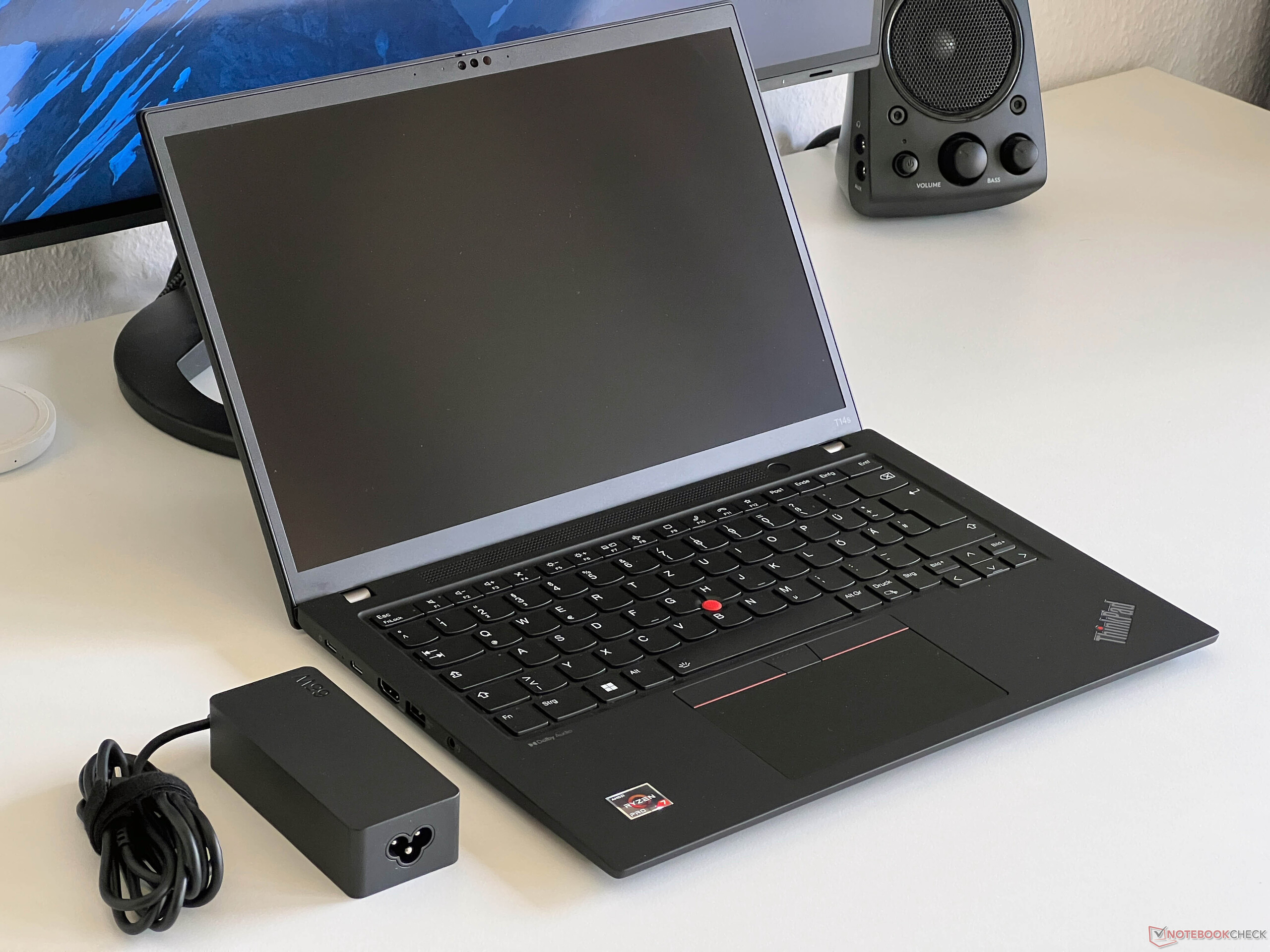

ThinkPad T14s G4 是一款高端商务笔记本,仅次于ThinkPad X1 Carbon超越。与 X1 Carbon 不同的是,联想为 T14s G4 提供了英特尔和 AMD 两种处理器。我们 已经评测过英特尔但该设备在多核性能和电池续航时间方面未能赢得我们的青睐。现在我们来看看 T14s G4 AMD 版,它配备了 Ryzen 7 7840U和 400 cd/m² 的哑光低功耗全高清面板的 AMD T14s G4。

我们的测试设备是 ThinkPad T14s G4 21F8002TGE,它的配置非常出色,因为除了上述 Ryzen 7 处理器外,它还配备了Radeon 780M iGPU32 GB LPDDR5 6400 内存、1 TB SSD、LTE 调制解调器和 400 cd/m² 的低功耗显示屏。

我们对 HP EliteBook 845 G10(同样采用 Ryzen 7 7840U 和低功耗全高清面板)也给我们留下了非常好的印象--它是 T14s G4 最大的竞争对手,因此我们很想看看 AMD ThinkPad 在直接对比中的表现如何。

Lenovo ThinkPad T14s G4-21F8002TGE (ThinkPad T14s G4 Series)
Processor
AMD Ryzen 7 7840U 8 x 3.3 - 5.1 GHz, 30 W PL2 / Short Burst, 24 W PL1 / Sustained, Phoenix-U (Zen 4)
Graphics adapter
AMD Radeon 780M, Core: 800 MHz, 22.40.05.08
Memory
32 GB
, LPDDR5x-6400, Dual-Channel, onboard
Display
14.00 inch 16:10, 1920 x 1200 pixel 162 PPI, LP140WU1-SPB2, IPS, glossy: no, 60 Hz
Mainboard
AMD Promontory/Bixby FCH
Storage
Samsung PM9A1a MZVL21T0HDLU, 1024 GB
, 899 GB free
Soundcard
AMD Zen - Audio Processor - HD Audio Controller
Connections
2 USB 3.0 / 3.1 Gen1, 2 USB 4.0 40 Gbps, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5 mm Stereo, 1 SmartCard, 1 Fingerprint Reader
Networking
Qualcomm WCN685x (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2, LTE
Size
height x width x depth (in mm): 16.9 x 317.5 x 226.9
Battery
57 Wh Lithium-Polymer
Operating System
Microsoft Windows 11 Pro
Camera
Webcam: 5 MP + IR
Primary Camera: 5 MPix
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, 36 Months Warranty
Weight
1.353 kg, Power Supply: 356 g
Price
1990 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



潜在的竞争对手比较

Rating
Date
Model
Weight
Height
Size
Resolution
Price
90.4 %
v7 (old)
11 / 2023
Lenovo ThinkPad T14s G4-21F8002TGE
R7 7840U, Radeon 780M
1.4 kg16.9 mm14.00"1920x1200
89.1 %
v7 (old)
10 / 2023
Lenovo ThinkPad T14s G4 21F6005GGE
i7-1355U, Iris Xe G7 96EUs
1.3 kg16.9 mm14.00"2880x1800
90.5 %
v7 (old)
09 / 2023
HP EliteBook 845 G10 5Z4X0ES
R7 7840U, Radeon 780M
1.5 kg17.9 mm14.00"1920x1200
90.3 %
v7 (old)
07 / 2023
Dell Latitude 7440
i5-1345U, Iris Xe G7 80EUs
1.2 kg17.95 mm14.00"2560x1600
85.6 %
v7 (old)
05 / 2023
Samsung Galaxy Book3 Pro 14
i7-1360P, Iris Xe G7 96EUs
1.2 kg11.3 mm14.00"2880x1800

案例与设备

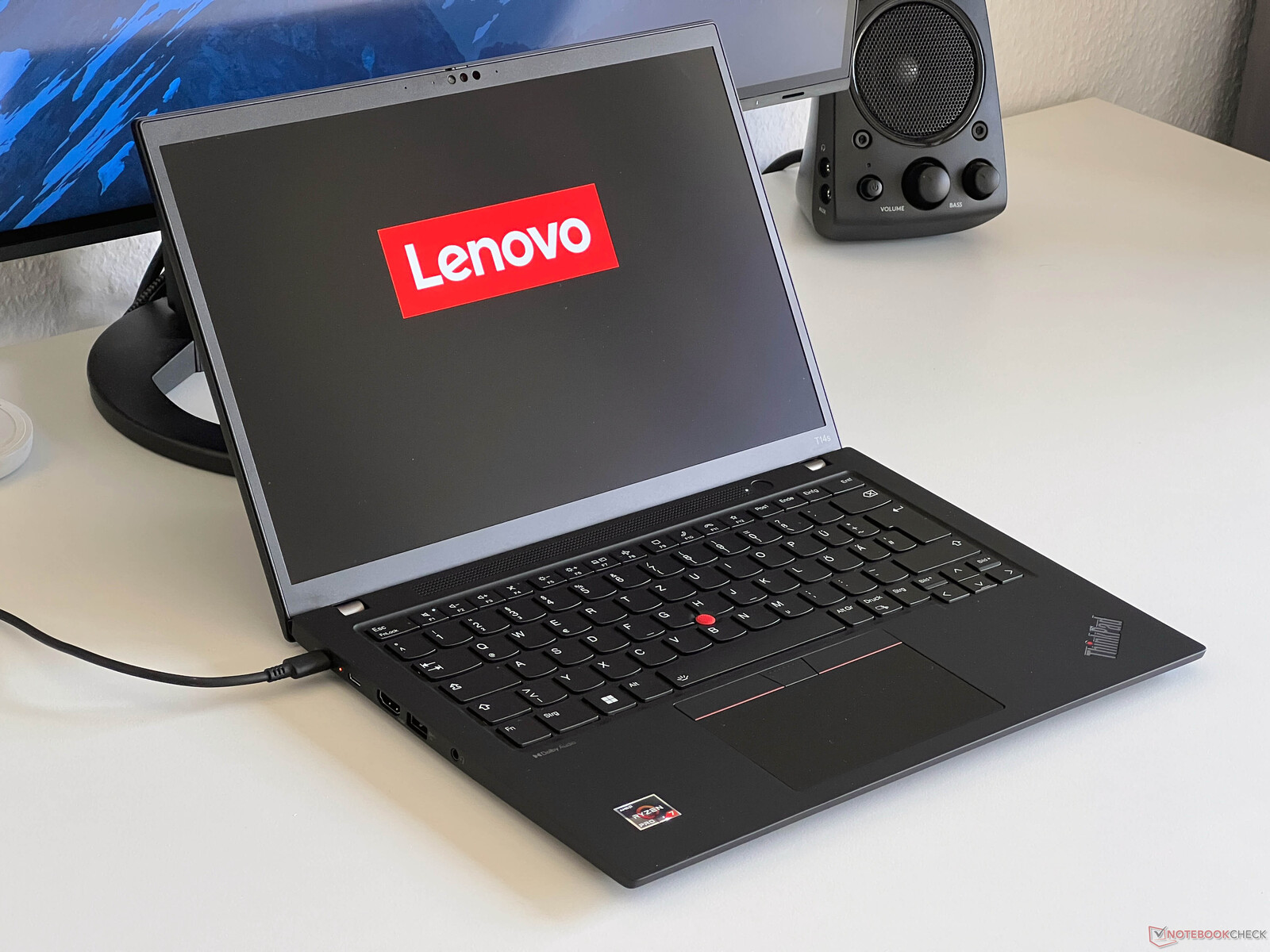

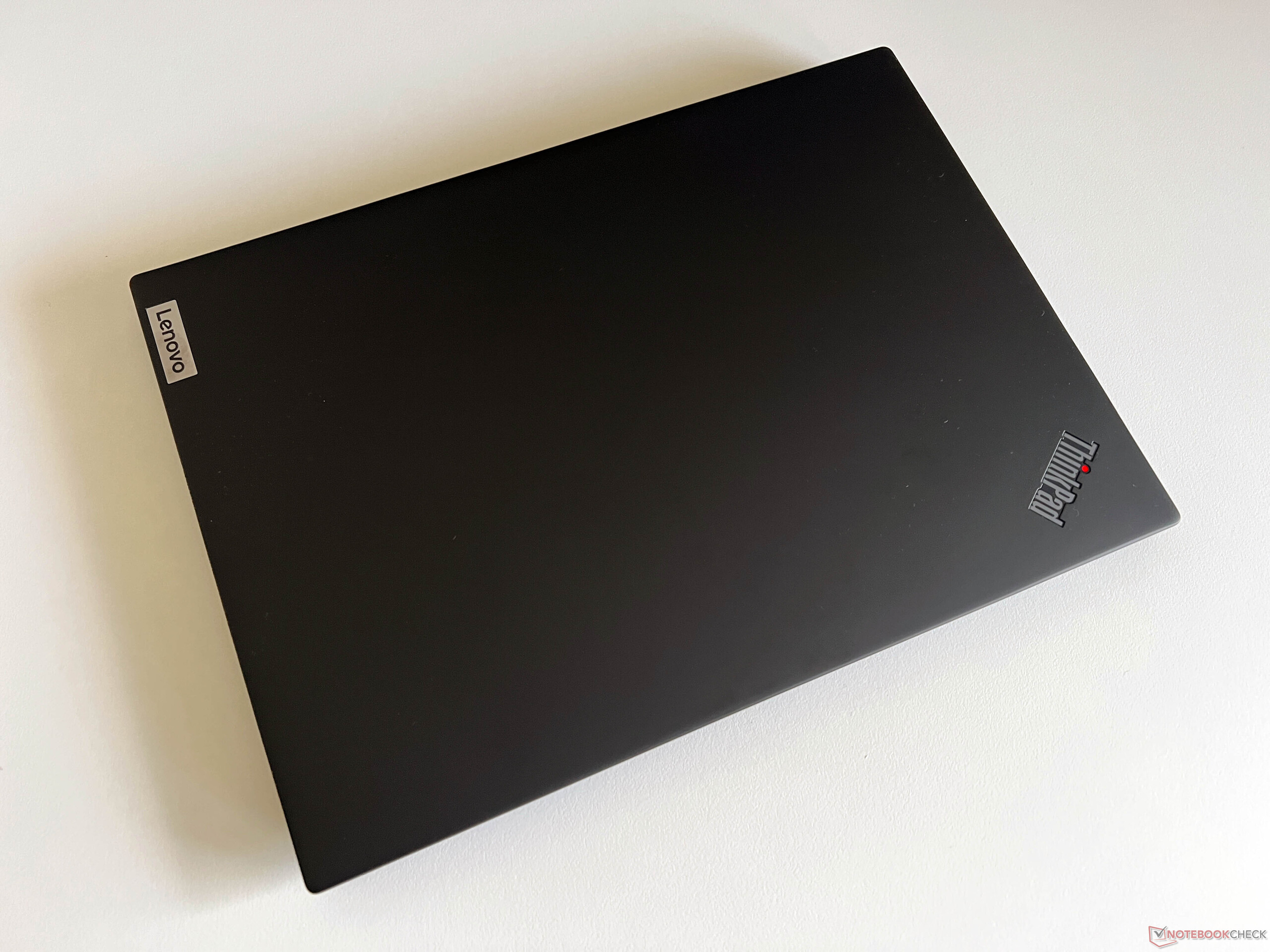

从外观上看,ThinkPad T14s G4 的 AMD 版可以通过掌托上不同的贴纸辨认出来,除此之外与英特尔版没有任何区别。碳纤维和镁铝合金材质的机身非常稳定,但黑色表面对灰尘也很敏感。另一方面,ThinkPad T14s G4 可选配风暴灰,在这方面的敏感度较低。惠普的 EliteBook 845 G10 采用银色机身,在这方面更具优势,但两款机型在质量方面差别不大。

端口方面存在一些差异,因为只有英特尔机型提供 Thunderbolt 支持。但 AMD 机型则完全不用担心,它有两个快速 USB-C 4.0 端口,而且与英特尔机型一样,还安装了 500 万像素摄像头。

尺寸比较

323.6 mm 214.7 mm 17.9 mm 1.5 kg317.5 mm 226.9 mm 16.9 mm 1.4 kg317.5 mm 226.9 mm 16.9 mm 1.3 kg313 mm 220.2 mm 17.95 mm 1.2 kg312.3 mm 223.8 mm 11.3 mm 1.2 kg297 mm 210 mm 1 mm 5.7 g

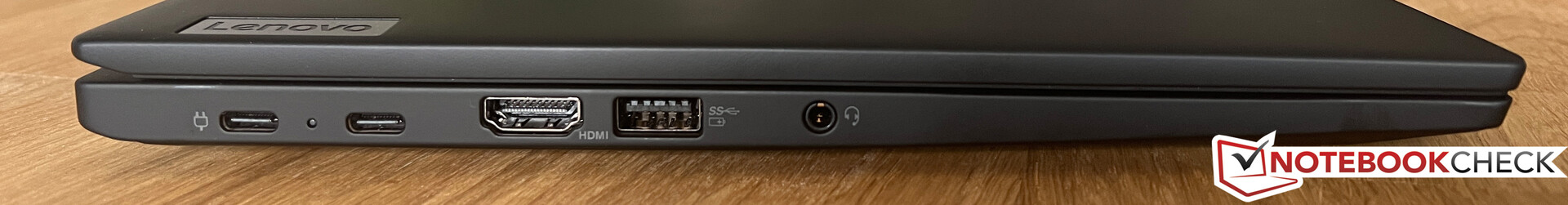

左:2x USB-C 4.0(40 GBit/s、Power Delivery 3.0、DisplayPort Alt Mode 1.4)、HDMI 2.1、USB-A 3.2 Gen.1(5 GBit/s、供电)、3.5 mm 音频
左:2x USB-C 4.0(40 GBit/s、Power Delivery 3.0、DisplayPort Alt Mode 1.4)、HDMI 2.1、USB-A 3.2 Gen.1(5 GBit/s、供电)、3.5 mm 音频

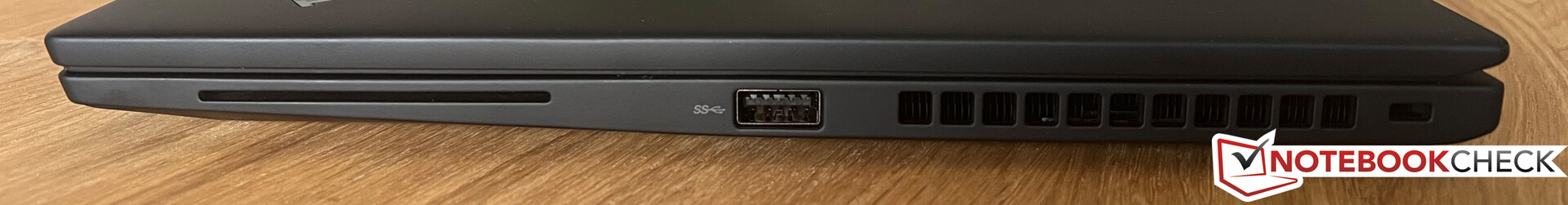

右侧智能卡读卡器、USB-A 3.2 Gen.1、Kensington Nano 安全插槽
右侧智能卡读卡器、USB-A 3.2 Gen.1、Kensington Nano 安全插槽

交流

4G/LTE 模块
4G/LTE 模块

联想为 AMD ThinkPad 配备了高通 WCN685x WLAN 模块,除支持蓝牙 5.2 外,还支持现代 WiFi 6E 标准。我们在连接华硕参考路由器的相应 6 GHz 网络时没有遇到任何问题,1.7-1.9 GBit/s 的传输速率非常高且稳定。测试过程中没有出现任何问题(5 GHz 网络也是如此)。此外,测试设备还配备了 Quectel 的 4G/LTE 调制解调器,可与 eSIM 卡或 nano-SIM 卡(后部插槽)一起使用。

Networking
Lenovo ThinkPad T14s G4-21F8002TGE
Qualcomm WCN685x
iperf3 transmit AXE11000 6GHz
1961 (min: 1768) MBit/s ∼100%
iperf3 receive AXE11000 6GHz
1782 (min: 1770) MBit/s ∼100%
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Wi-Fi 6E AX211
iperf3 transmit AXE11000
1397 (min: 1183) MBit/s ∼78%
iperf3 receive AXE11000
1393 (min: 1256) MBit/s ∼80%
iperf3 transmit AXE11000 6GHz
1414 (min: 768) MBit/s ∼72%
iperf3 receive AXE11000 6GHz
1438 (min: 1353) MBit/s ∼81%
HP EliteBook 845 G10 5Z4X0ES
MediaTek RZ616
iperf3 transmit AXE11000
1793 (min: 1672) MBit/s ∼100%
iperf3 receive AXE11000
1752 (min: 1737) MBit/s ∼100%
Dell Latitude 7440
Intel Wi-Fi 6E AX211
iperf3 transmit AXE11000
767 (min: 626) MBit/s ∼43%
iperf3 receive AXE11000
1239 (min: 1088) MBit/s ∼71%
iperf3 transmit AXE11000 6GHz
1009 (min: 740) MBit/s ∼51%
iperf3 receive AXE11000 6GHz
1223 (min: 1075) MBit/s ∼69%
Samsung Galaxy Book3 Pro 14
Intel Wi-Fi 6E AX211
iperf3 transmit AXE11000
1626 (min: 1558) MBit/s ∼91%
iperf3 receive AXE11000
1579 (min: 1502) MBit/s ∼90%
iperf3 transmit AXE11000 6GHz
1640 (min: 1599) MBit/s ∼84%
iperf3 receive AXE11000 6GHz
1511 (min: 1483) MBit/s ∼85%
05010015020025030035040045050055060065070075080085090095010001050110011501200125013001350140014501500155016001650170017501800185019001950200020502100Tooltip
Lenovo ThinkPad T14s G4-21F8002TGE Qualcomm WCN685x; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1961 (1768-2103)
Lenovo ThinkPad T14s G4-21F8002TGE Qualcomm WCN685x; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1782 (1770-1795)
HP EliteBook 845 G10 5Z4X0ES MediaTek RZ616; iperf3 transmit AXE11000; iperf 3.1.3: Ø1793 (1672-1917)
HP EliteBook 845 G10 5Z4X0ES MediaTek RZ616; iperf3 receive AXE11000; iperf 3.1.3: Ø1751 (1737-1764)
ColorChecker
7.1 ∆E
10.4 ∆E
12.4 ∆E
9.1 ∆E
11.7 ∆E
11.1 ∆E
6.7 ∆E
11.2 ∆E
9.2 ∆E
3.9 ∆E
11.1 ∆E
9.3 ∆E
4.6 ∆E
11.4 ∆E
8.7 ∆E
9.7 ∆E
9.7 ∆E
14.2 ∆E
2.5 ∆E
10.9 ∆E
12.6 ∆E
11.2 ∆E
6.7 ∆E
8.3 ∆E
ColorChecker Lenovo ThinkPad T14s G4-21F8002TGE: 9.32 ∆E min: 2.53 - max: 14.18 ∆E

维护

ThinkPad T14s G4 AMD 的内部结构与英特尔版本相同,M.2 固态硬盘和 WWAN 模块都可以更换。电池和单风扇也可拆卸,而所有其他组件(包括内存)都是焊接的。底部底板由几颗十字螺丝固定,拆卸非常方便。

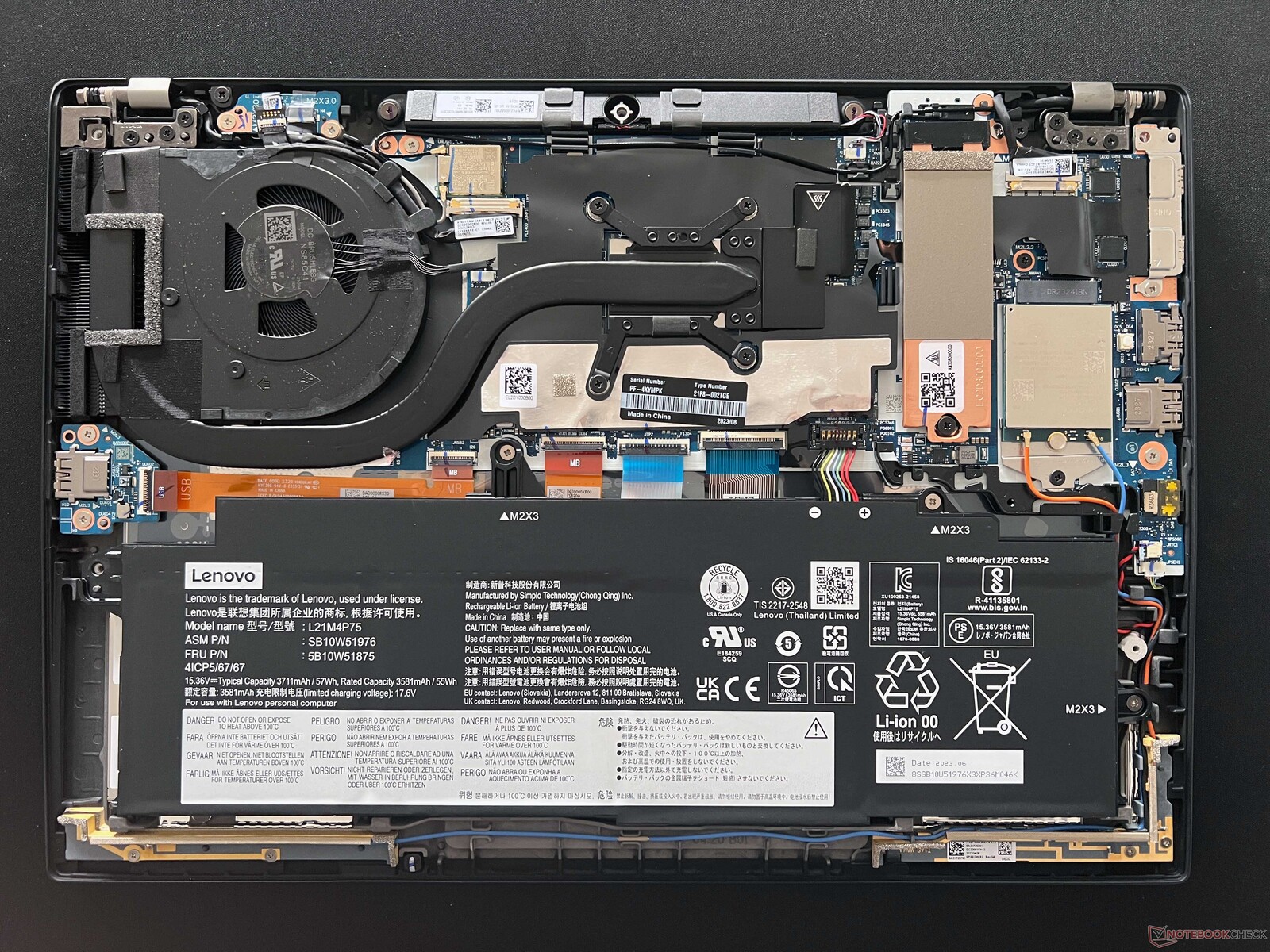

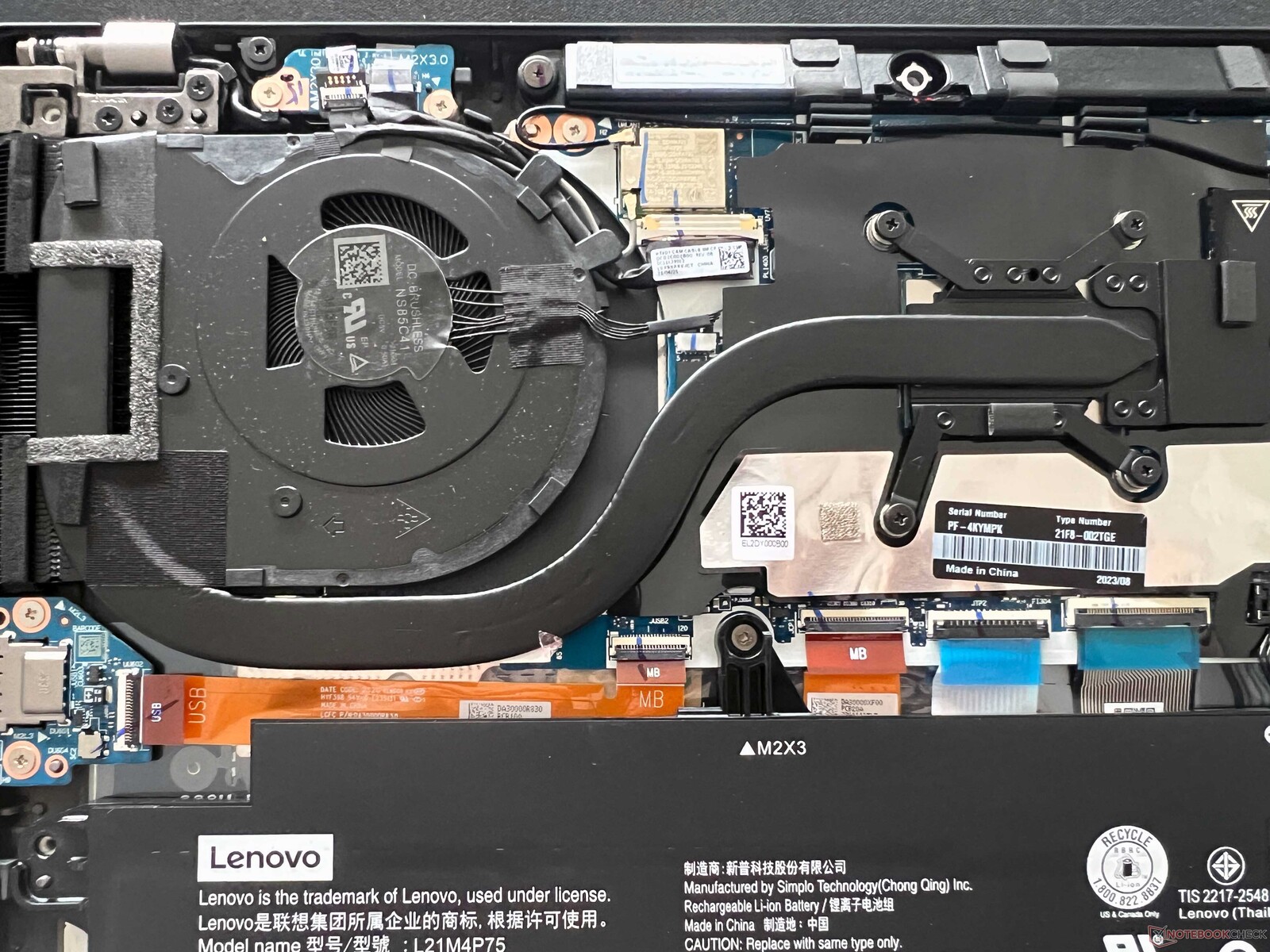

内部结构
内部结构

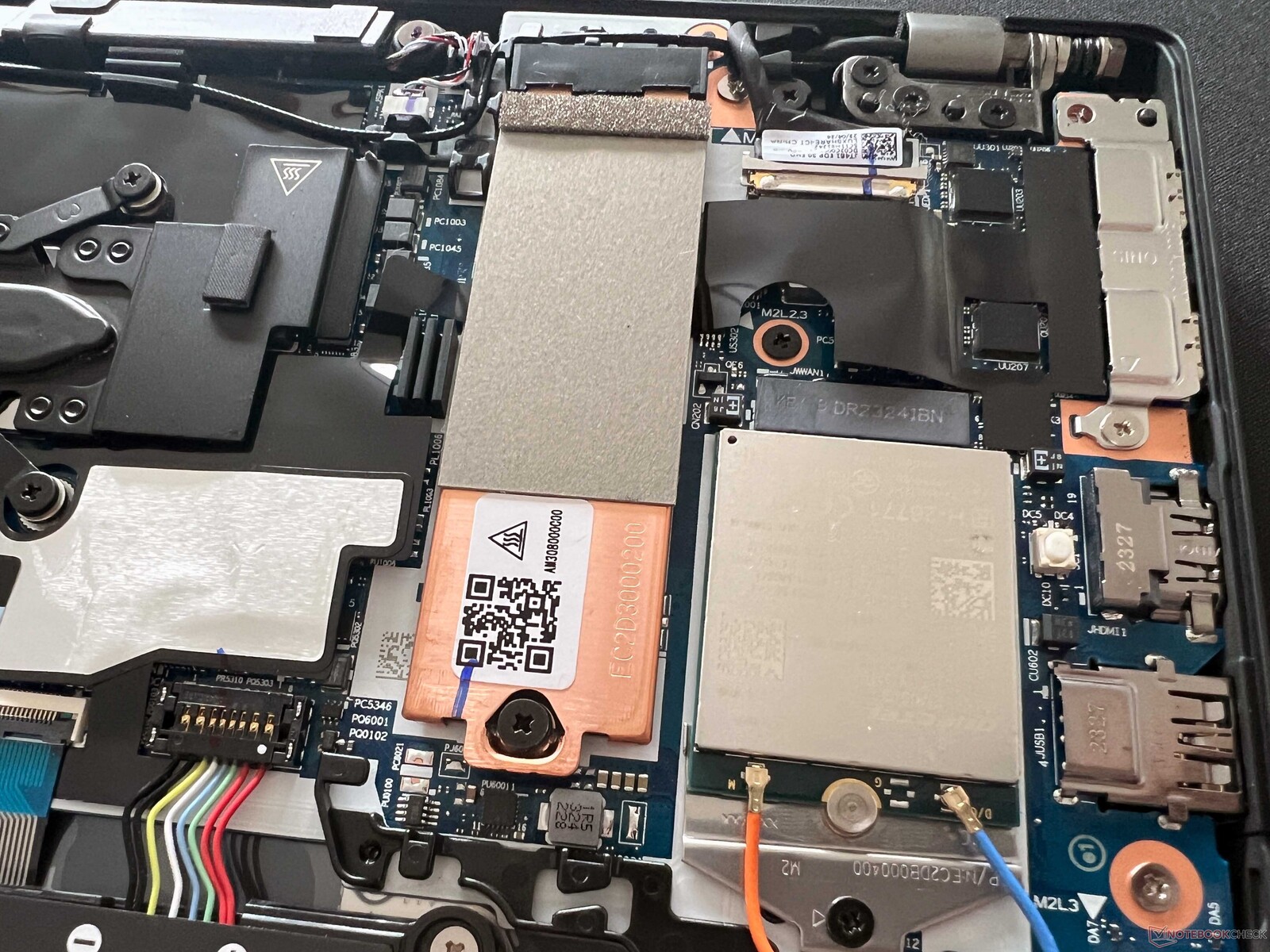

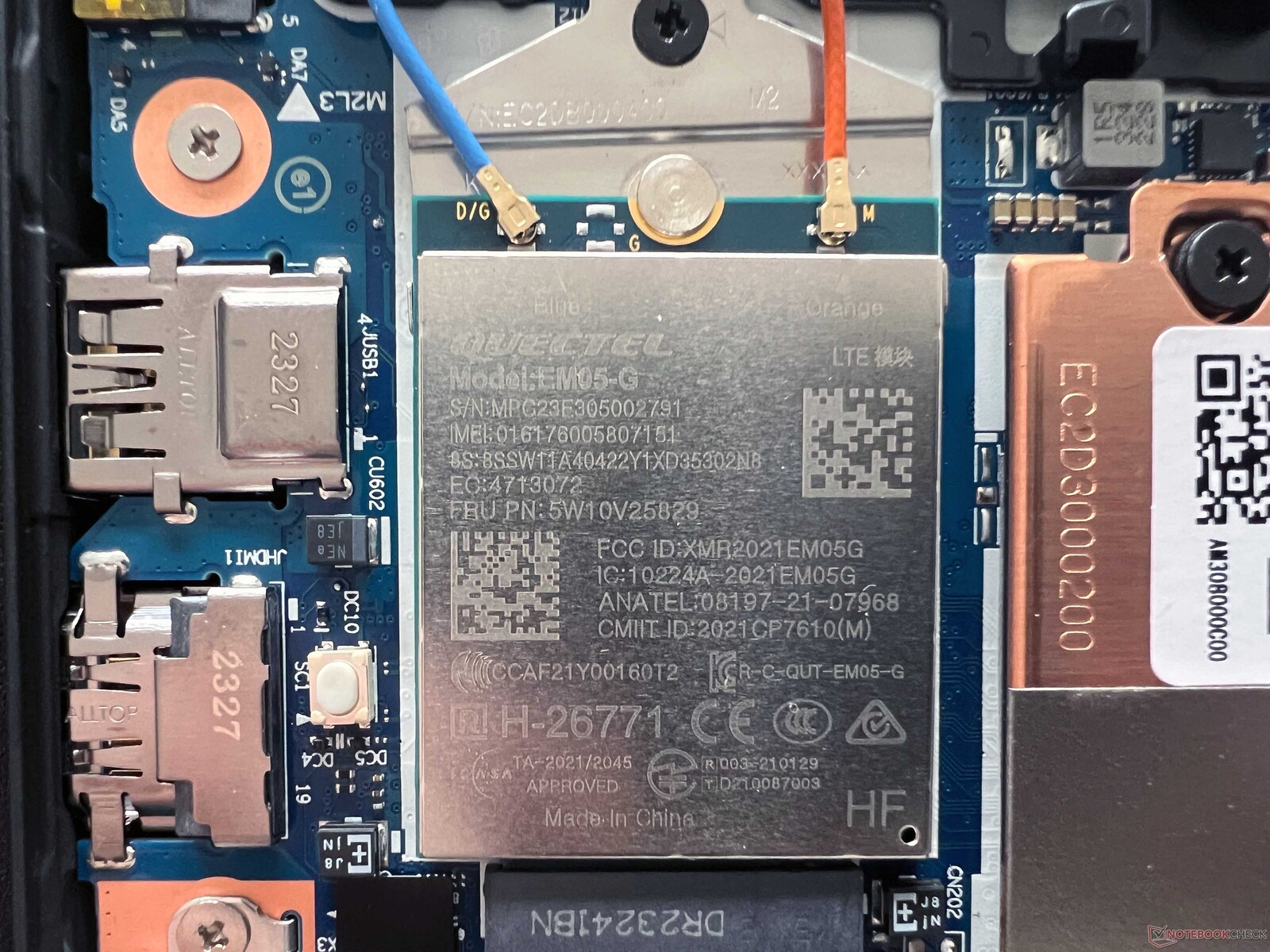

M.2 2280 固态硬盘和 WWAN 模块
M.2 2280 固态硬盘和 WWAN 模块

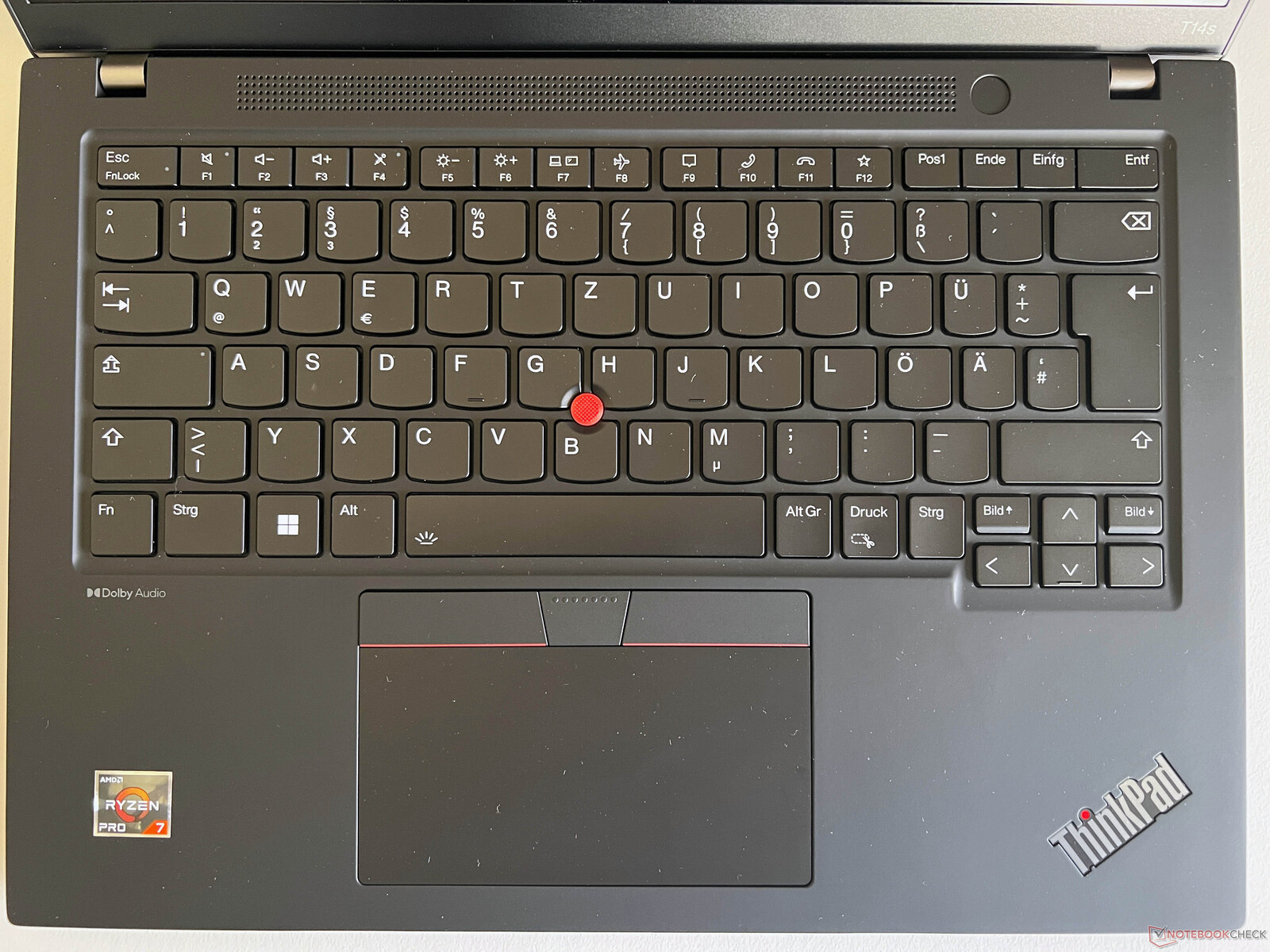

输入设备 - 1.5 毫米行程

我们已经多次报道过当前的 ThinkPad 键盘,目前仍在使用行程为 1.5 毫米的型号。T14s G4 仍是 ThinkPad 系列中打字体验最好的产品之一,手感也比最近评测的ThinkPad P1 G6进行直接比较。与主要竞争对手相比 惠普 EliteBook 845 G10相比,二者在质量上并无太大差别。ThinkPad 键盘以前的优势已不复存在,用户可以在这两款笔记本上顺利输入长文本。白色背光(两个亮度级别)不能通过传感器激活,不过联想已经在(更便宜的)消费者机型上提供了这种功能,如 Yoga Slim 7 14 G8.ClickPad 和 TrackPoint 功能正常,指针控制也没有问题。

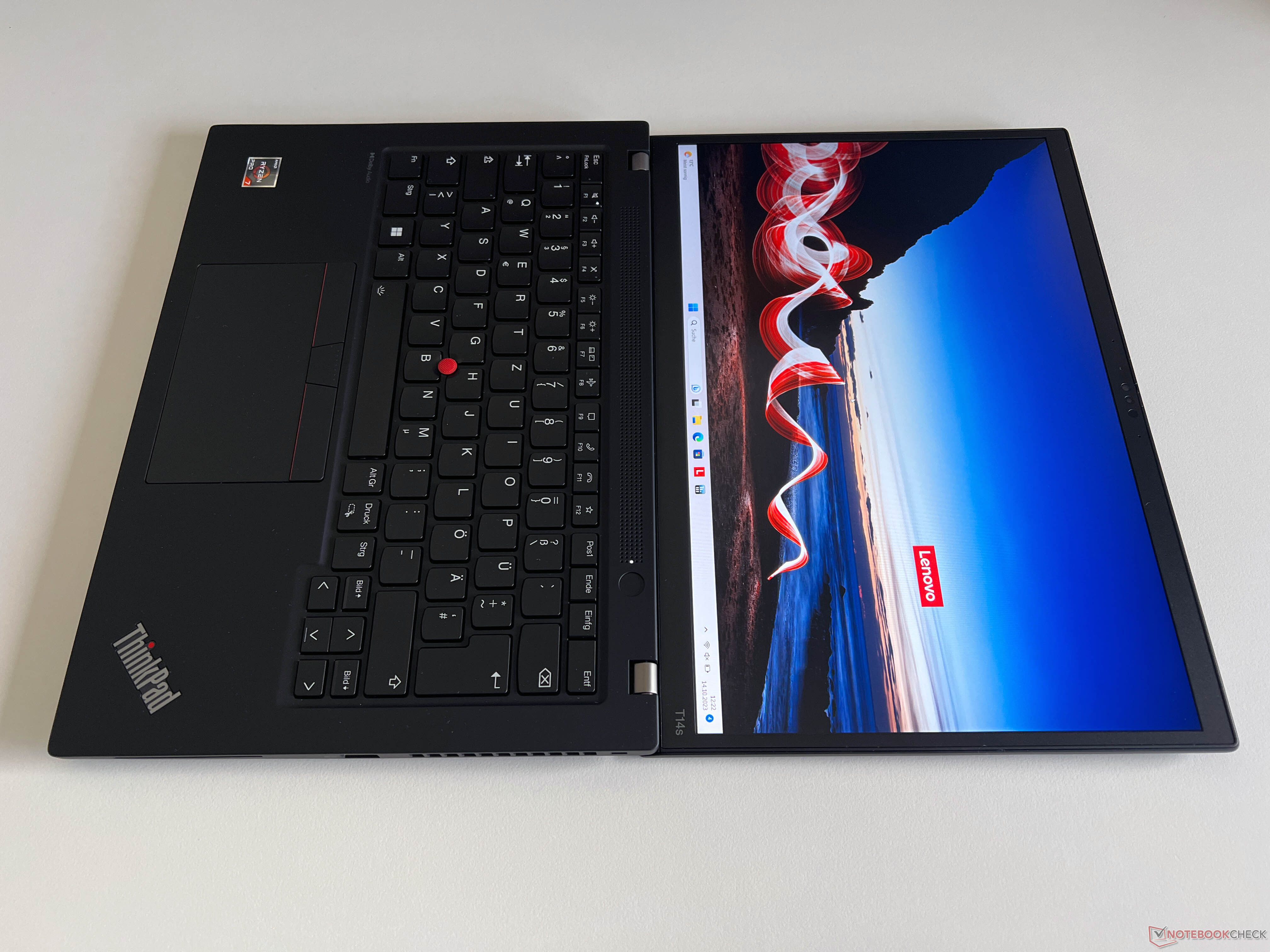

输入设备
输入设备

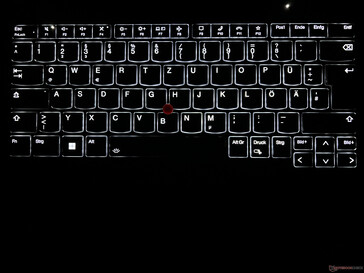

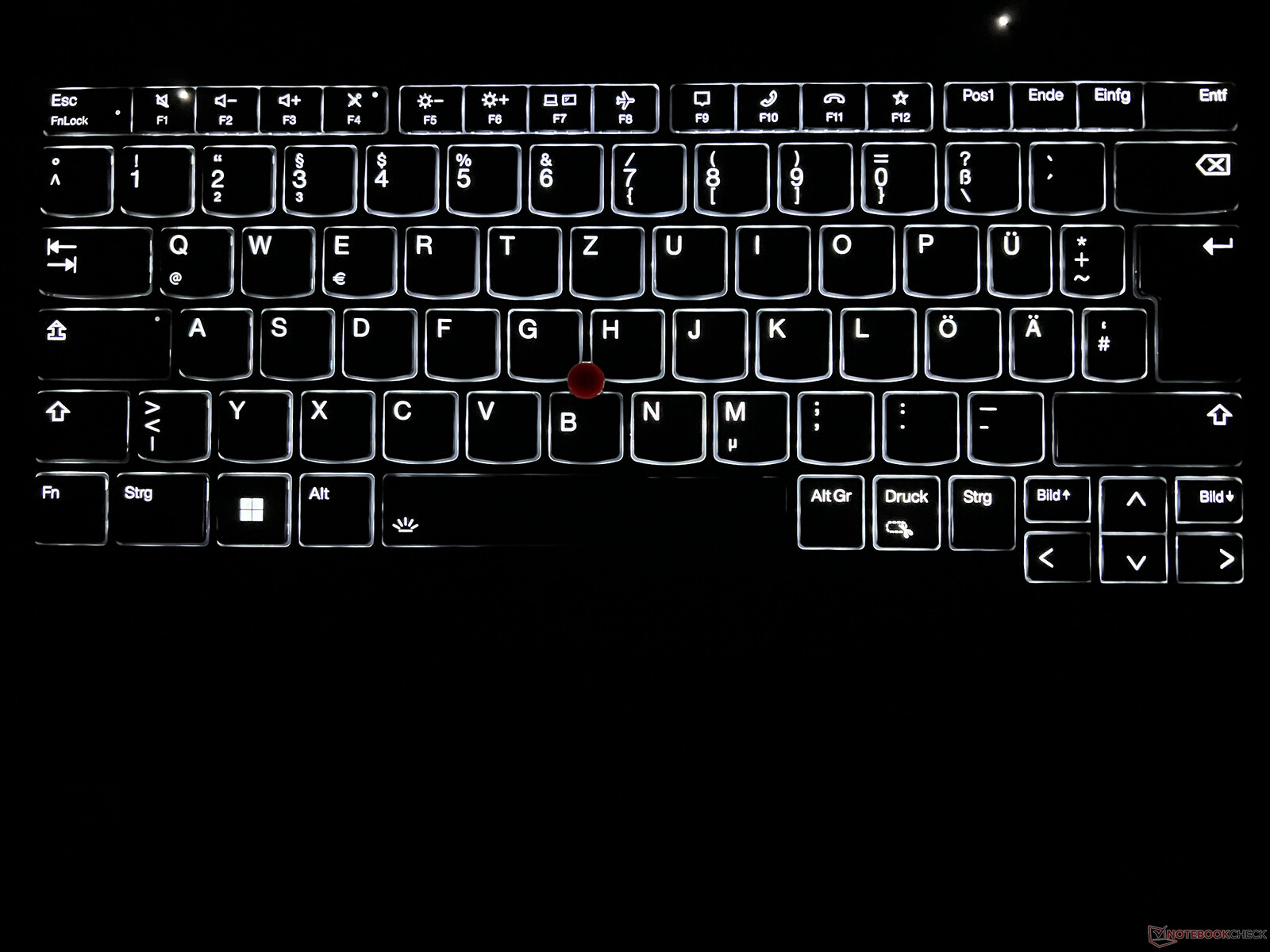

键盘背光
键盘背光

显示屏 - 低功耗 IPS

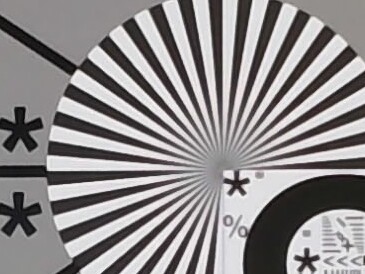

子像素网格
子像素网格

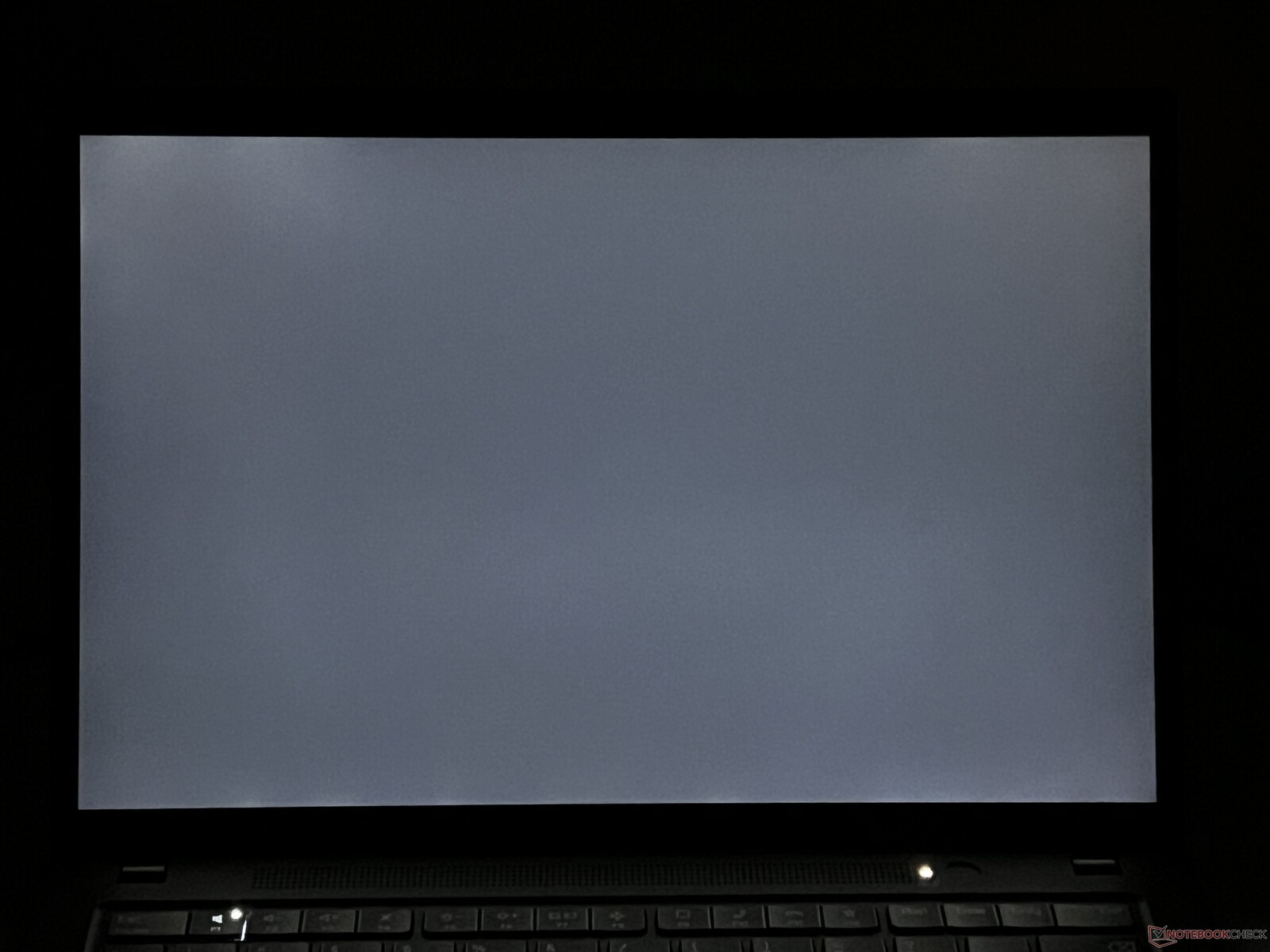

只有极小的光晕(此处显示的是强化后的光晕)
只有极小的光晕(此处显示的是强化后的光晕)

我们的 ThinkPad T14s G4 测试设备配备了著名的低功耗 IPS 显示屏,联想的 14 英寸商用笔记本电脑使用这种显示屏已有相当长的时间。我们过去曾多次看到联想使用不同的面板供应商,因此数值会有所不同,但所有型号都应达到指定的 400 cd/m²。我们的面板来自 LG 飞利浦,主观画质不错,虽然无法与高分辨率的 OLED 屏幕媲美,但对于商务设备来说绝对是个不错的选择。所有内容都很清晰,色彩浓郁,尽管表面是磨砂的,但即使是明亮的内容也不会显得有颗粒感。

我们的设备在亮度方面表现非常出色,平均亮度超过 450 cd/m²。同时,0.24 cd/m² 的黑色值对于 IPS 面板来说非常低,因此最大对比度超过 1,800:1。响应时间不是最快的,但也不令人讨厌,全亮度下几乎看不到光晕。在测量值方面,ThinkPad 的得分略高于配备低功耗显示屏的惠普 EliteBook 845 G10。

461
cd/m²
468
cd/m²
448
cd/m²
426
cd/m²
455
cd/m²
438
cd/m²
448
cd/m²
472
cd/m²
464
cd/m²
Distribution of brightness
LP140WU1-SPB2 tested with X-Rite i1Pro 2
Maximum: 472 cd/m² (Nits) Average: 453.3 cd/m² Minimum: 4.5 cd/m²
Brightness Distribution: 90 %
Center on Battery: 459 cd/m²
Contrast: 1896:1 (Black: 0.24 cd/m²)
ΔE Color 2.8 | 0.5-29.43 Ø4.92, calibrated: 1.2
ΔE Greyscale 4.3 | 0.5-98 Ø5.2
70.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
96.5% sRGB (Argyll 2.2.0 3D)
68.3% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.11
Lenovo ThinkPad T14s G4-21F8002TGE
LP140WU1-SPB2, IPS, 1920x1200, 14"
Lenovo ThinkPad T14s G4 21F6005GGE
ATNA40YK15-0, OLED, 2880x1800, 14"
HP EliteBook 845 G10 5Z4X0ES
CMN1435, IPS, 1920x1200, 14"
Dell Latitude 7440
AU Optronics B140QAX, IPS, 2560x1600, 14"
Samsung Galaxy Book3 Pro 14
Samsung ATNA40CU02-0, AMOLED, 2880x1800, 14"
Lenovo ThinkPad T14s G3 21CQ002LGE
MNE007JA1-1, LTPS IPS LED, 1920x1200, 14"
Display
29%
3%
7%
29%
2%
Display P3 Coverage
68.3
99.9
46%
70.6
3%
75.4
10%
99.7
46%
69.4
2%
sRGB Coverage
96.5
100
4%
100
4%
99.9
4%
100
4%
99.8
3%
AdobeRGB 1998 Coverage
70.6
97.6
38%
72.4
3%
76.2
8%
95.7
36%
71.4
1%
Response Times
96%
-23%
-29%
100%
11%
Response Time Grey 50% / Grey 80% *
41.6 ?(18.7, 22.9)
1.2 ?(0.6, 0.6)
97%
59.7 ?(26.9, 32.8)
-44%
56 ?(26.1, 29.9)
-35%
0.5 ?(290, 280)
99%
36.3 ?(16.4, 19.8)
13%
Response Time Black / White *
25.1 ?(12, 13.1)
1.6 ?(0.9, 0.7)
94%
25.5 ?(10.5, 15)
-2%
30.8 ?(14, 16.8)
-23%
0.1 ?(80, 80)
100%
23.1 ?(10.4, 12.7)
8%
PWM Frequency
364 ?(100)
240 ?(100)
Screen
-75%
3%
-18%
225%
16%
Brightness middle
455
317
-30%
409
-10%
517.3
14%
409
-10%
396
-13%
Brightness
453
320
-29%
391
-14%
488
8%
410
-9%
379
-16%
Brightness Distribution
90
96
7%
92
2%
88
-2%
99
10%
92
2%
Black Level *
0.24
0.27
-13%
0.34
-42%
0.01
96%
0.26
-8%
Contrast
1896
1515
-20%
1521
-20%
40900
2057%
1523
-20%
Colorchecker dE 2000 *
2.8
4.9
-75%
2.3
18%
3.3
-18%
2.36
16%
1.3
54%
Colorchecker dE 2000 max. *
4.2
10.4
-148%
4.4
-5%
7.81
-86%
4.07
3%
2.7
36%
Colorchecker dE 2000 calibrated *
1.2
5
-317%
0.9
25%
1.02
15%
3.16
-163%
0.7
42%
Greyscale dE 2000 *
4.3
1.5
65%
2.4
44%
5.6
-30%
3.06
29%
1.6
63%
Gamma
2.11 104%
2.19 100%
2.06 107%
2.37 93%
2.49 88%
2.14 103%
CCT
7268 89%
6364 102%
6293 103%
6804 96%
6882 94%
6554 99%
Total Average (Program / Settings)
17% / -21%
-6% / -1%
-13% / -14%
118% / 165%
10% / 12%

* ... smaller is better

卡尔曼灰度
卡尔曼灰度

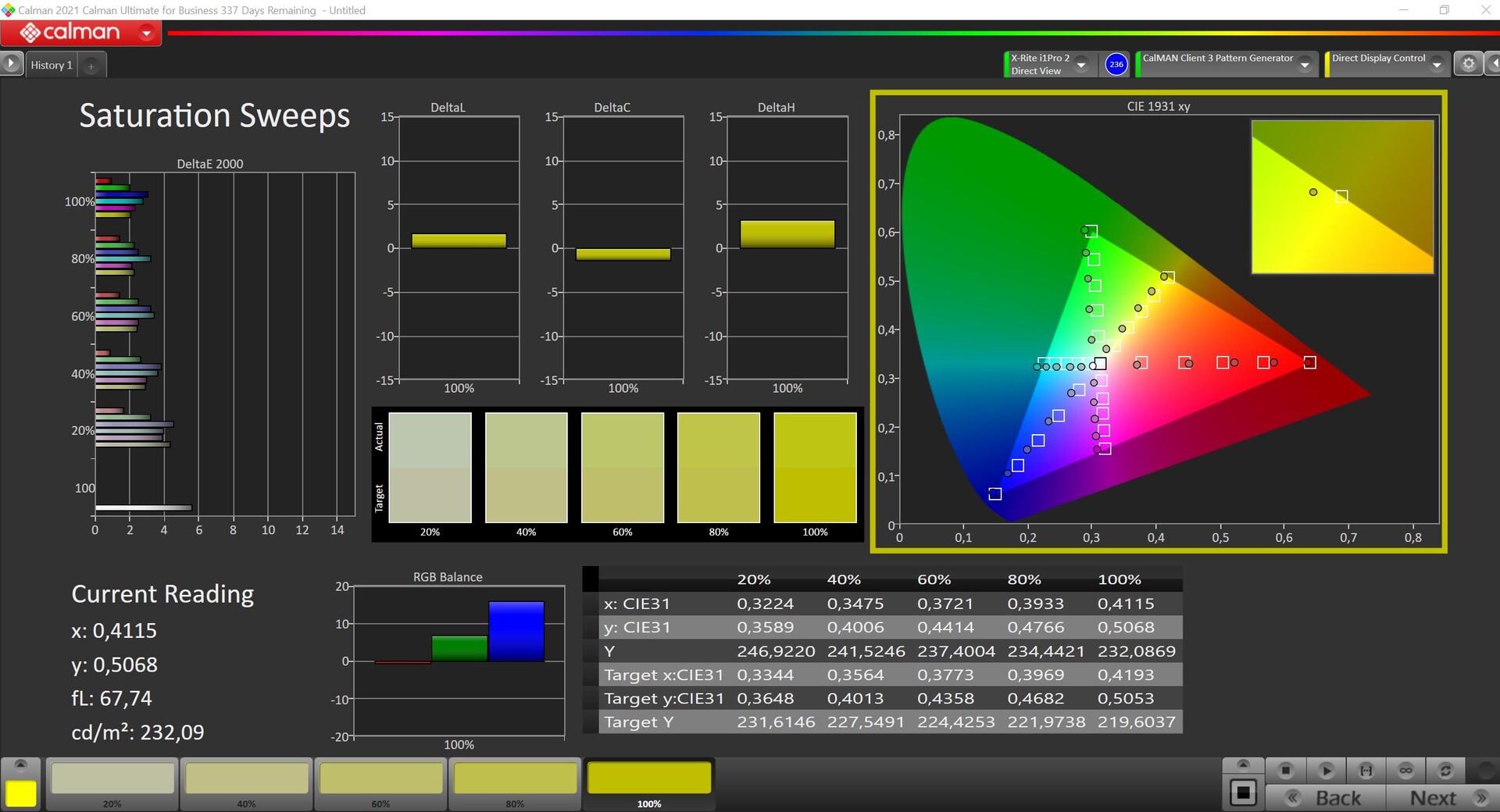

CalMAN 饱和度
CalMAN 饱和度

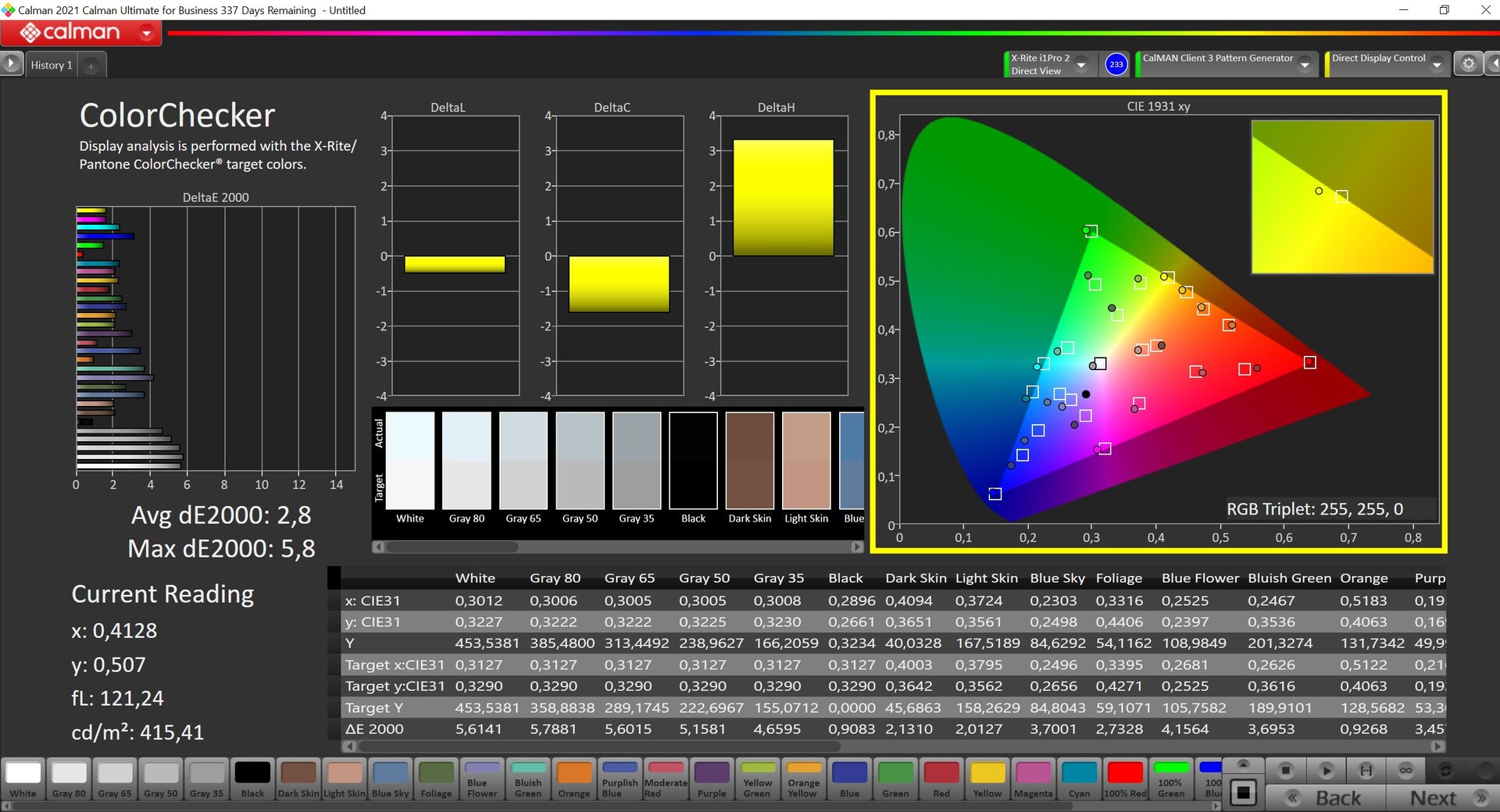

CalMAN 色彩检查器
CalMAN 色彩检查器
CalMAN 灰度校准
CalMAN 灰度校准

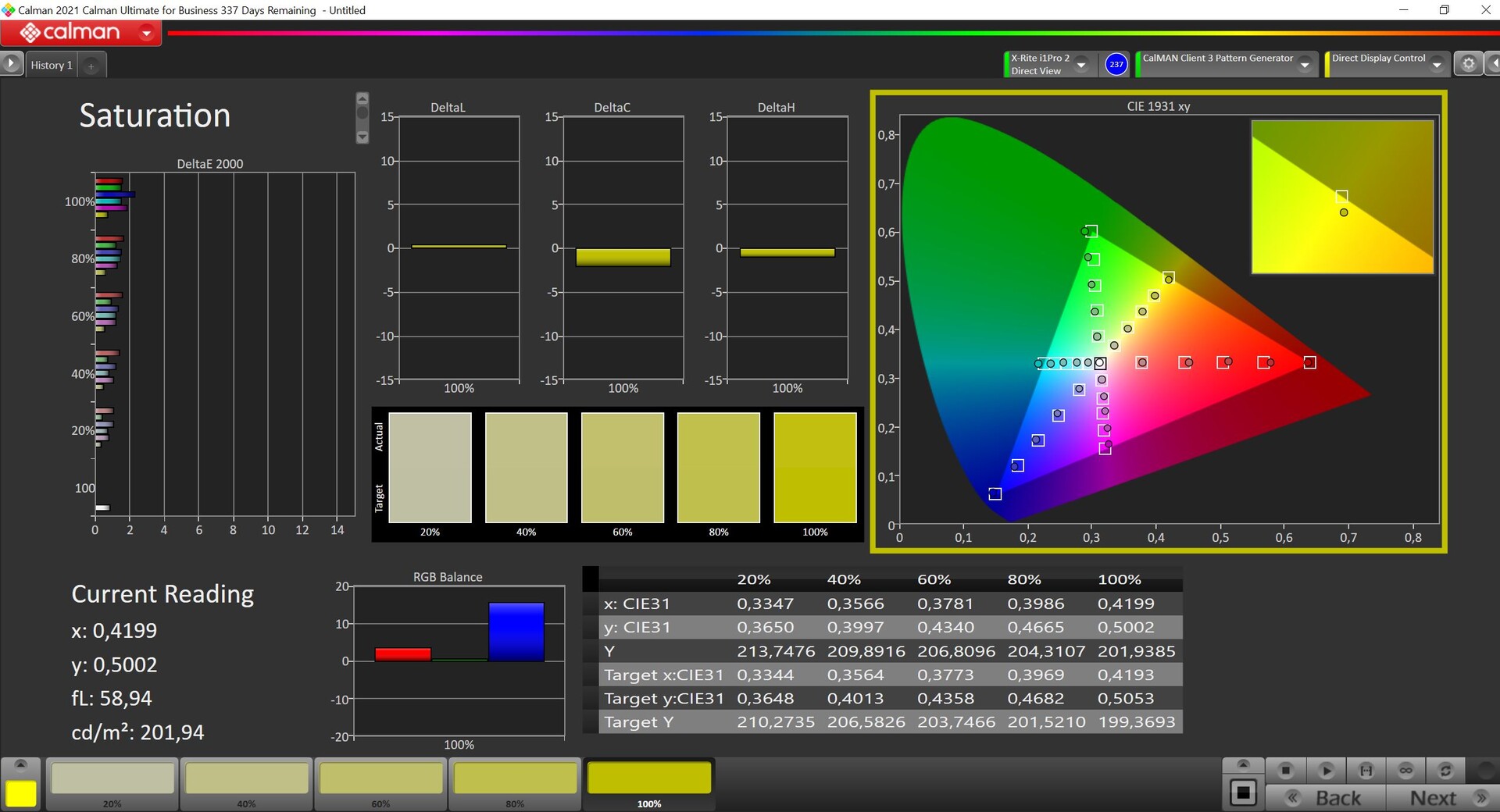

CalMAN 饱和度校准
CalMAN 饱和度校准
CalMAN ColorChecker 已校准
CalMAN ColorChecker 已校准

我们使用专业的 CalMAN 软件(X-Rite i1 Pro 2)对面板进行了测量。开箱即显示出明显的偏蓝和过冷的色温。色彩中还存在一些异常值。我们自己进行的校准控制了所有这些问题,灰度和色彩都低于重要的 DeltaE-2000 临界值 3。校准后,最大亮度降低了约 40 cd/m²,但由于图像质量显著提高,我们仍然推荐使用校准。我们的校准配置文件可在上面免费下载,但您应确保安装了相同的面板(例如,可通过 HWiNFO 确定)。

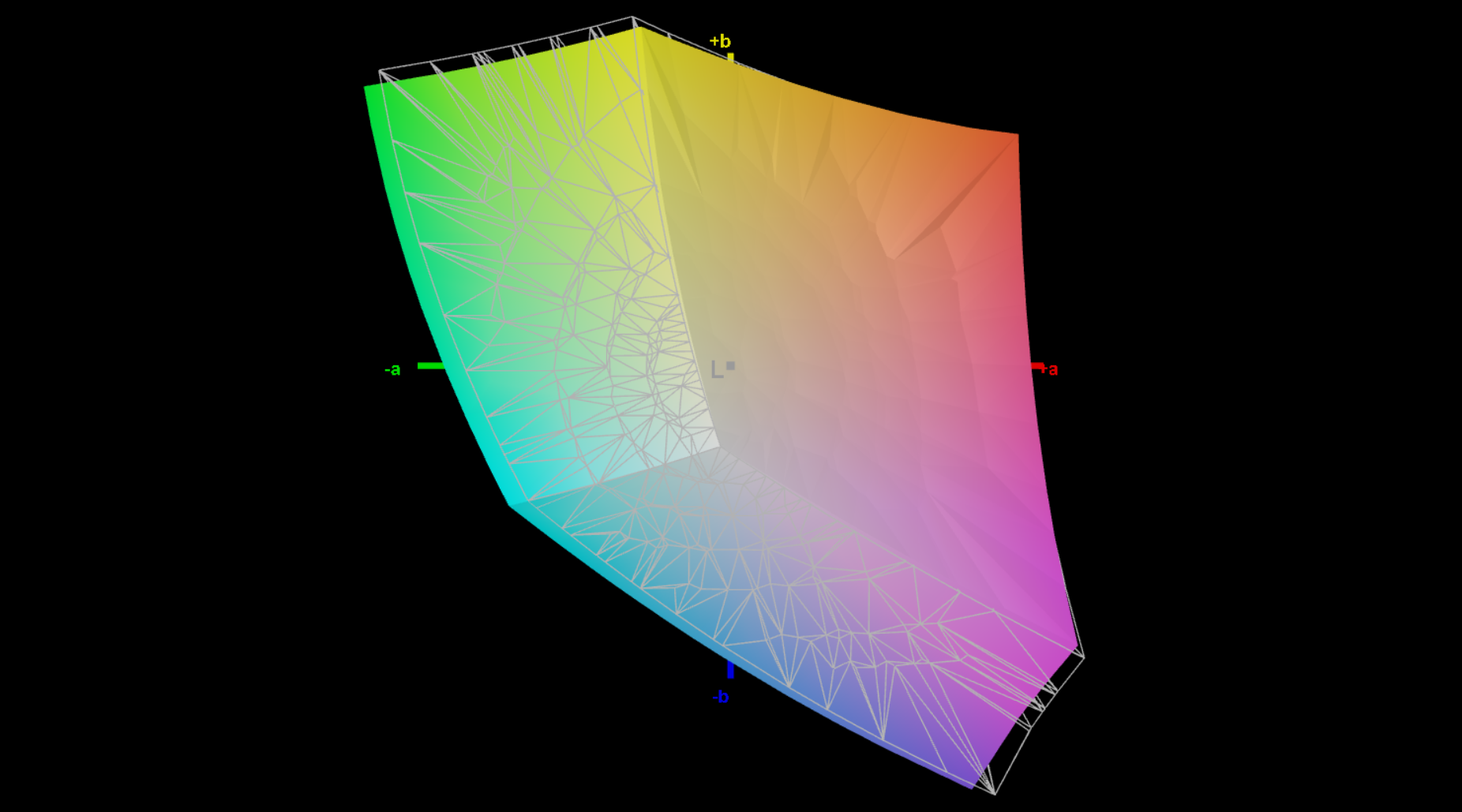

对比 sRGB
对比 sRGB

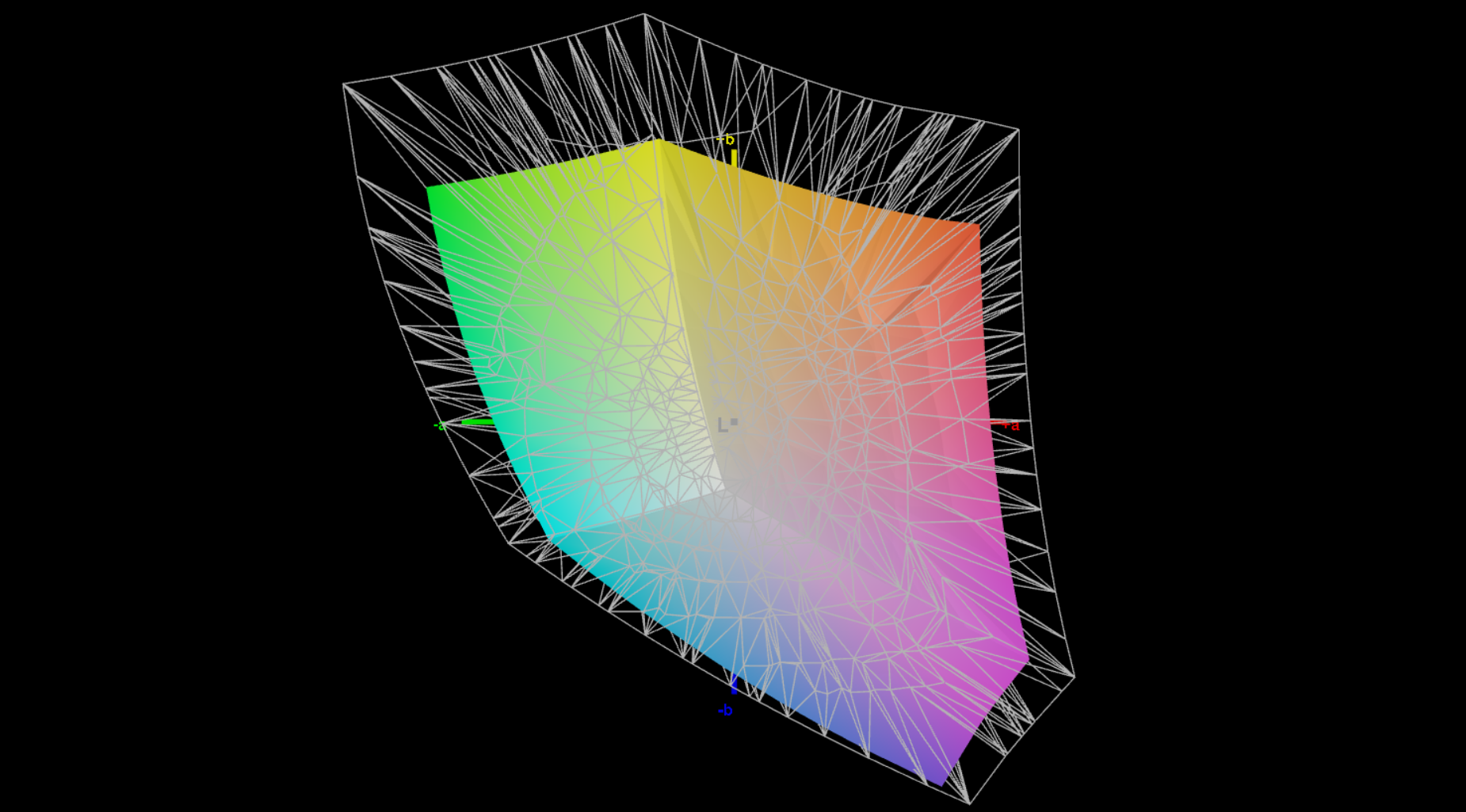

对 P3
对 P3

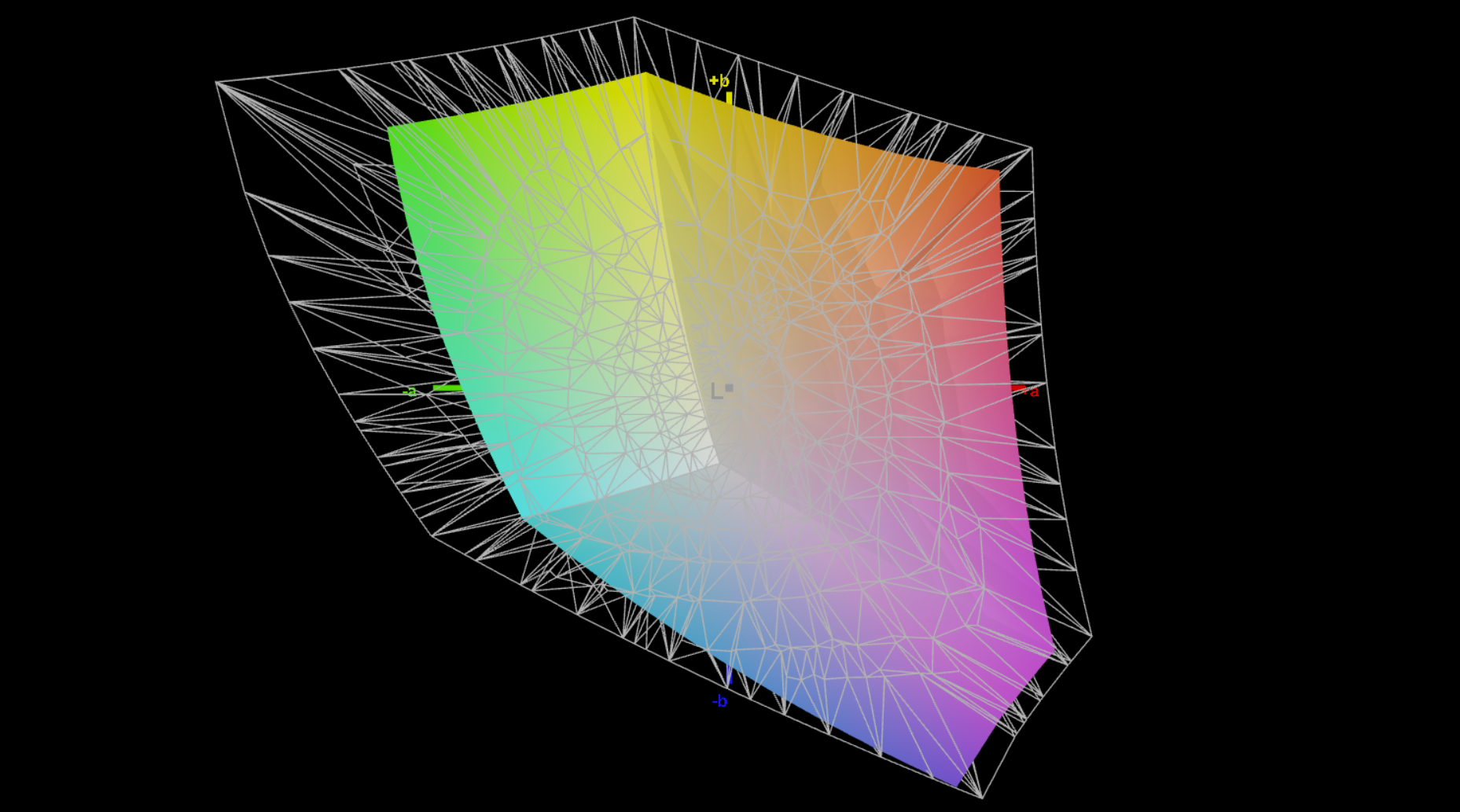

对比 AdobeRGB
对比 AdobeRGB

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

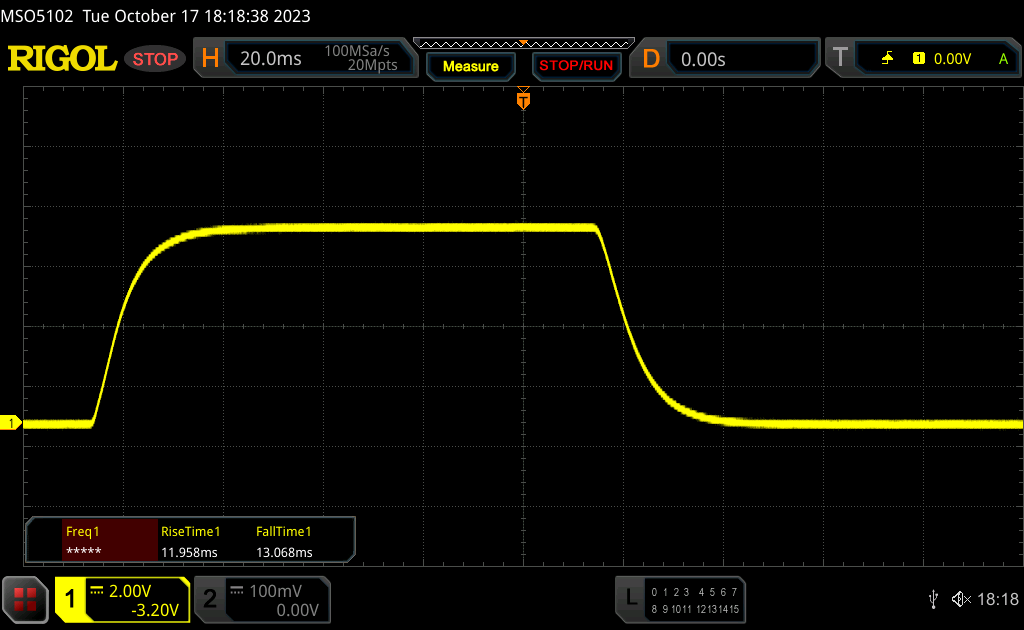

       Response Time Black to White
25.1 ms ... rise ↗ and fall ↘ combined↗ 12 ms rise
↘ 13.1 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 57 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21 ms).

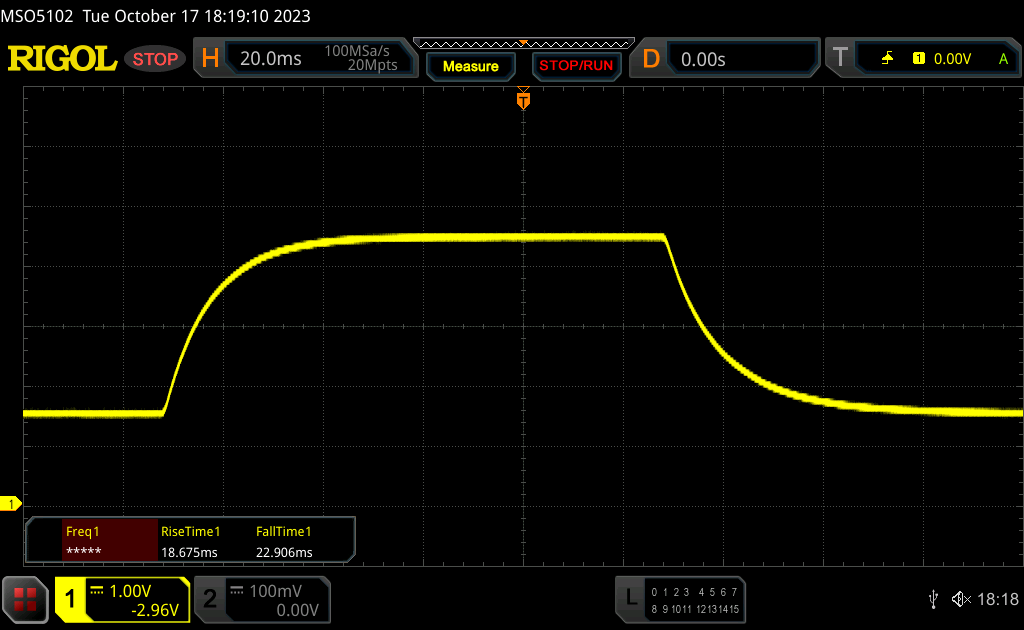

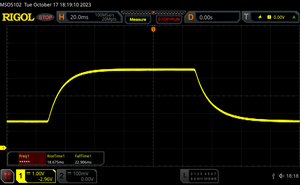

       Response Time 50% Grey to 80% Grey
41.6 ms ... rise ↗ and fall ↘ combined↗ 18.7 ms rise
↘ 22.9 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 64 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.9 ms).

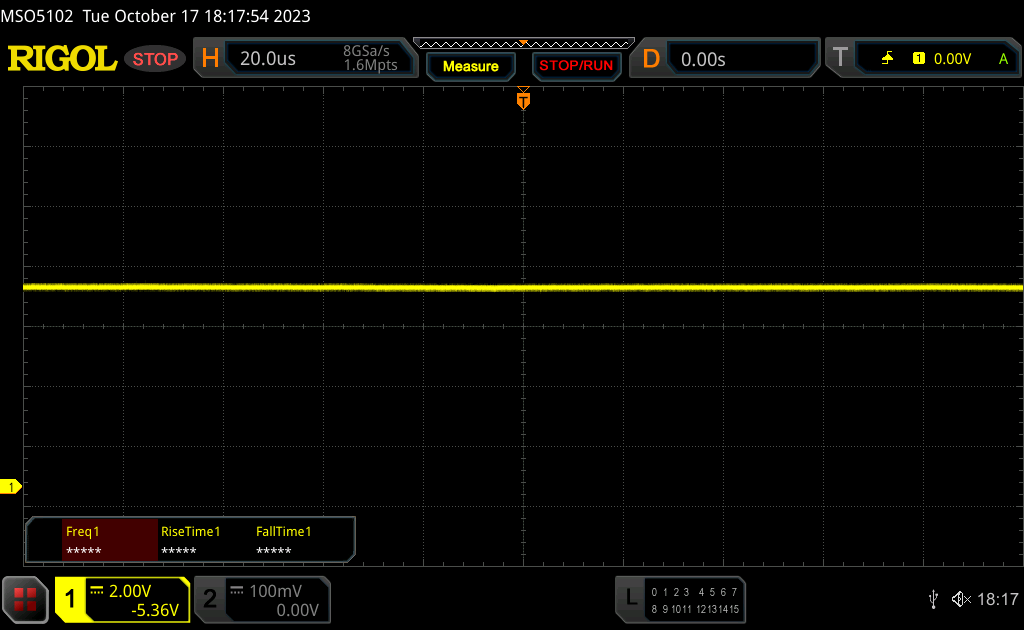

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8743 (minimum: 5 - maximum: 343500) Hz was measured.

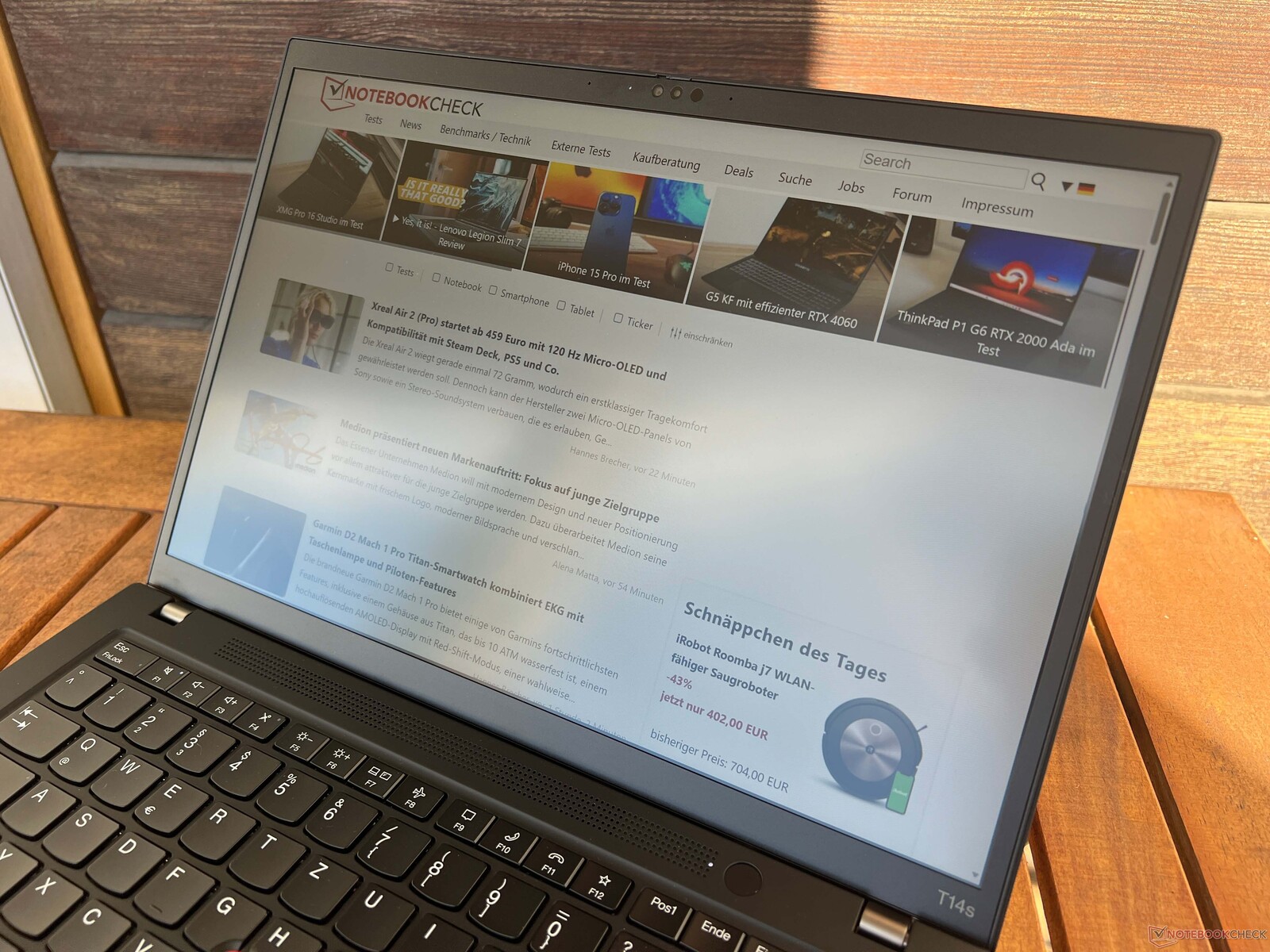

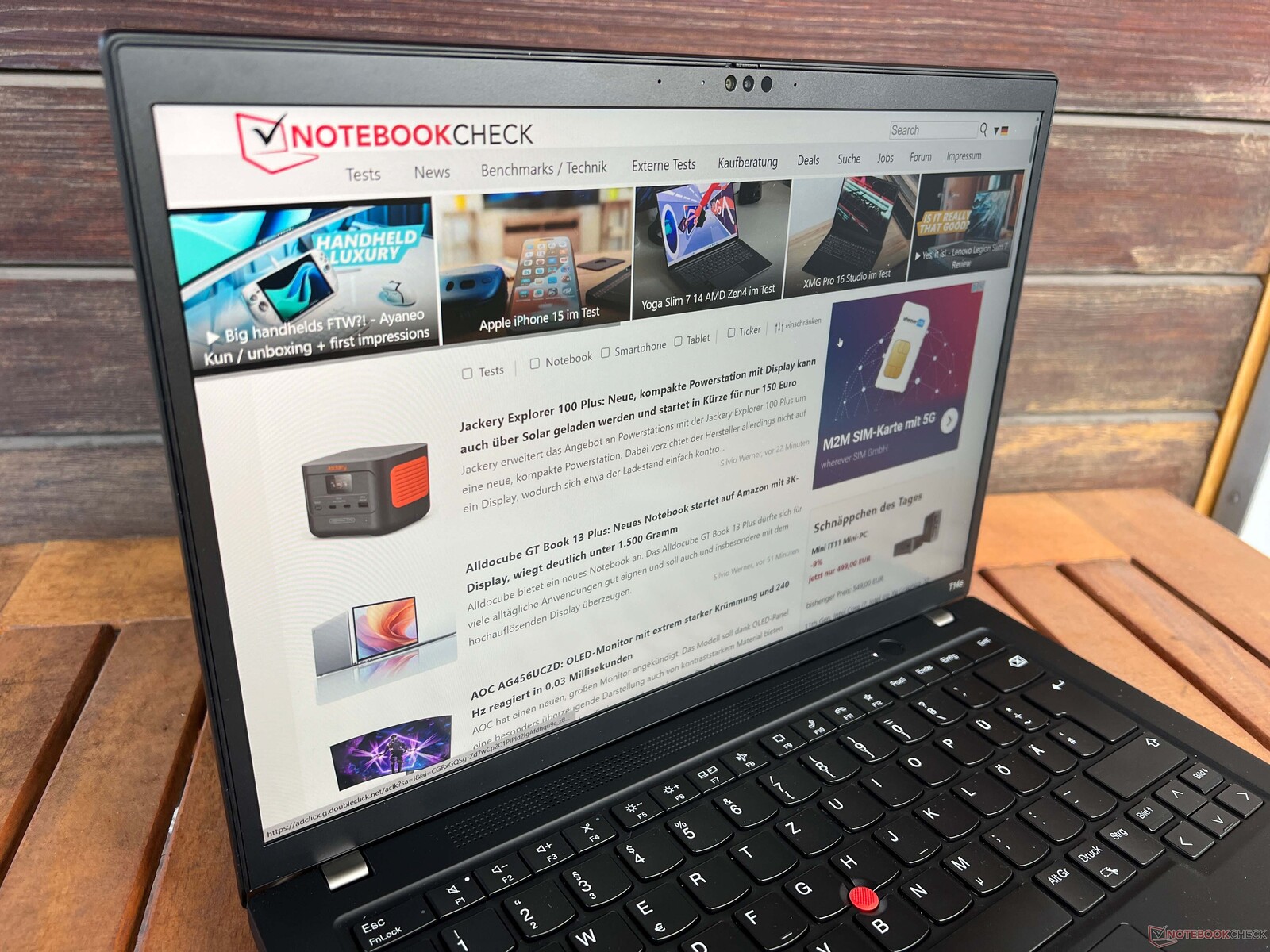

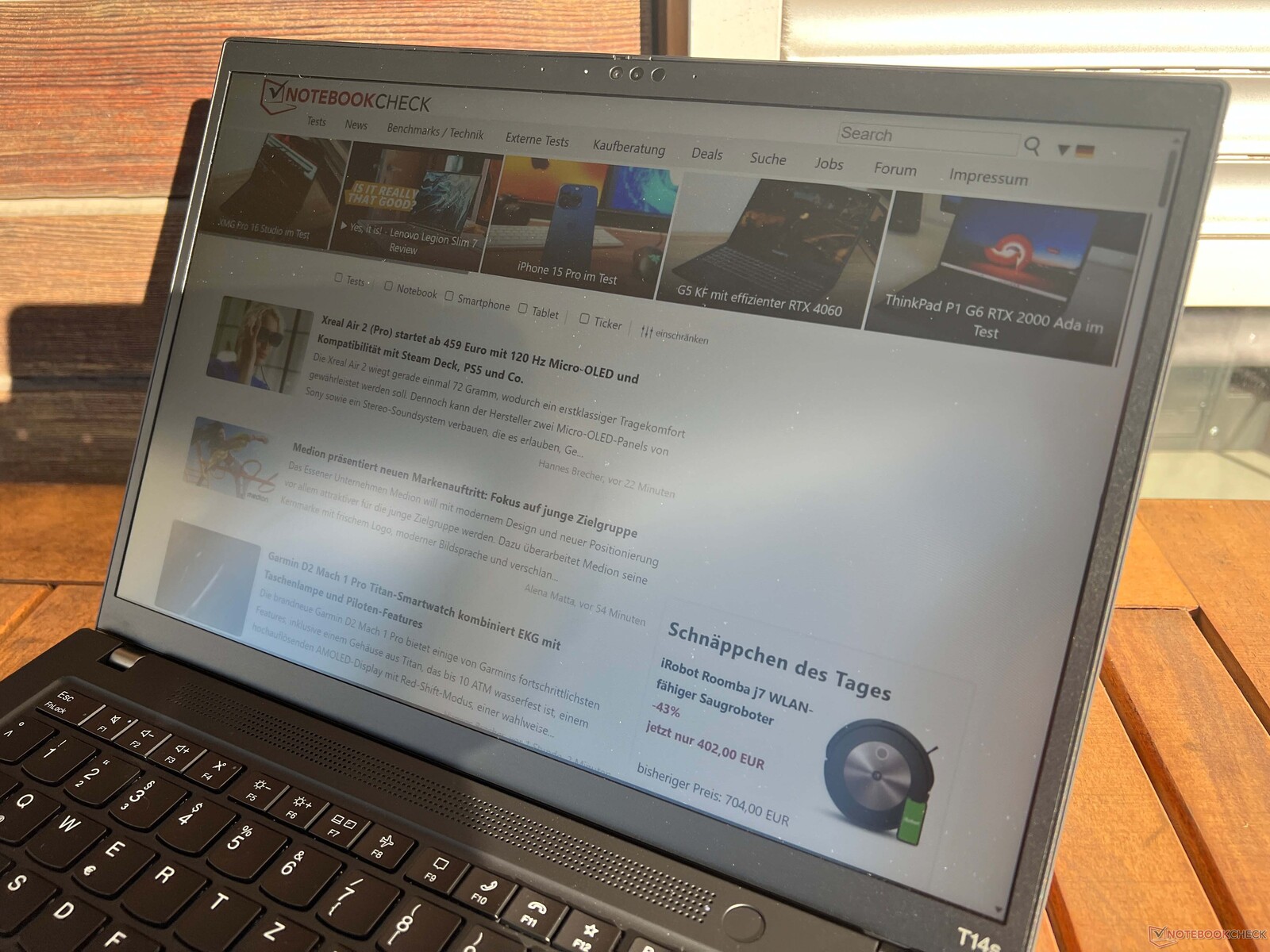

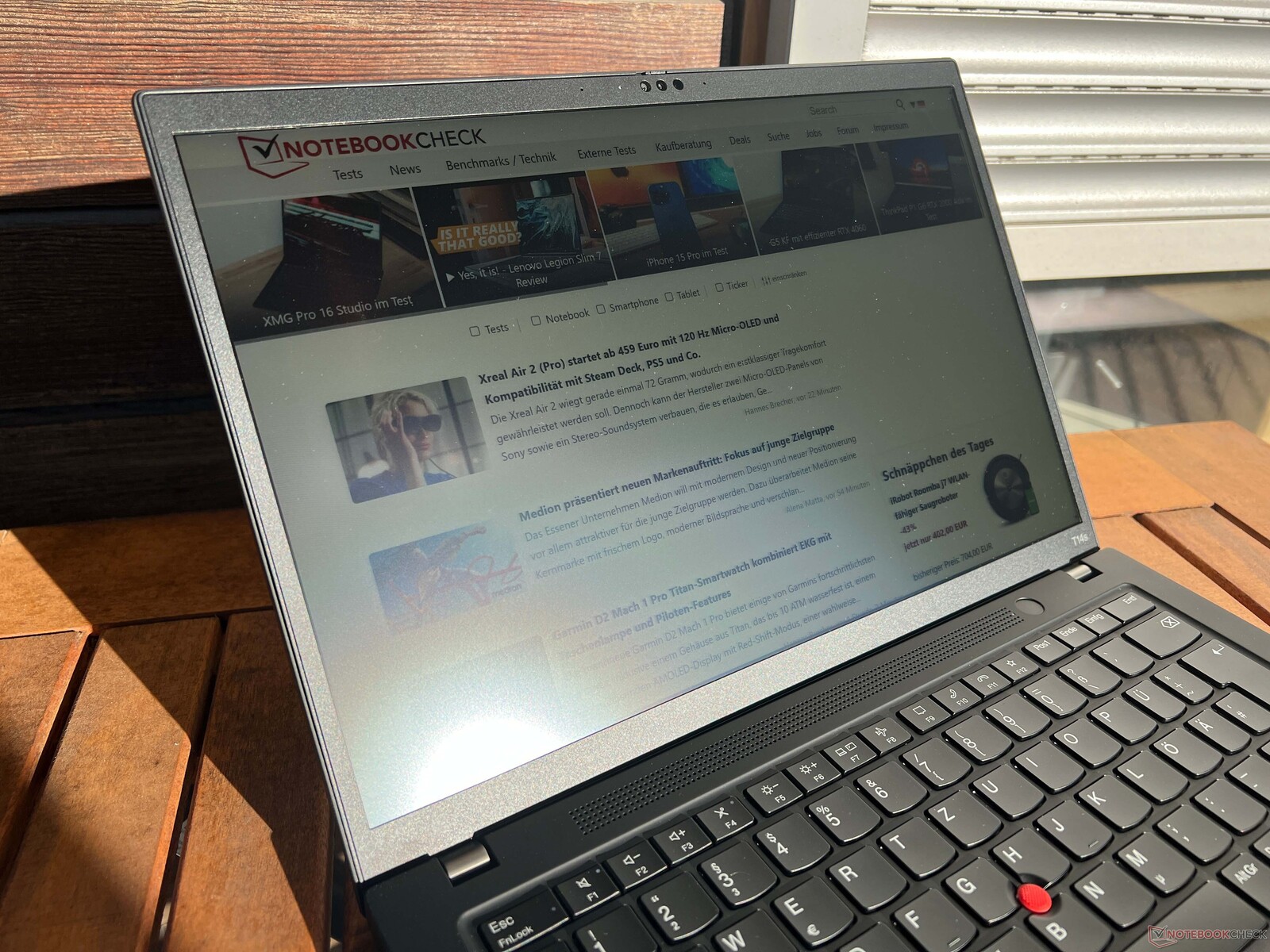

在阳光下(无阳光直射)
在阳光下(无阳光直射)

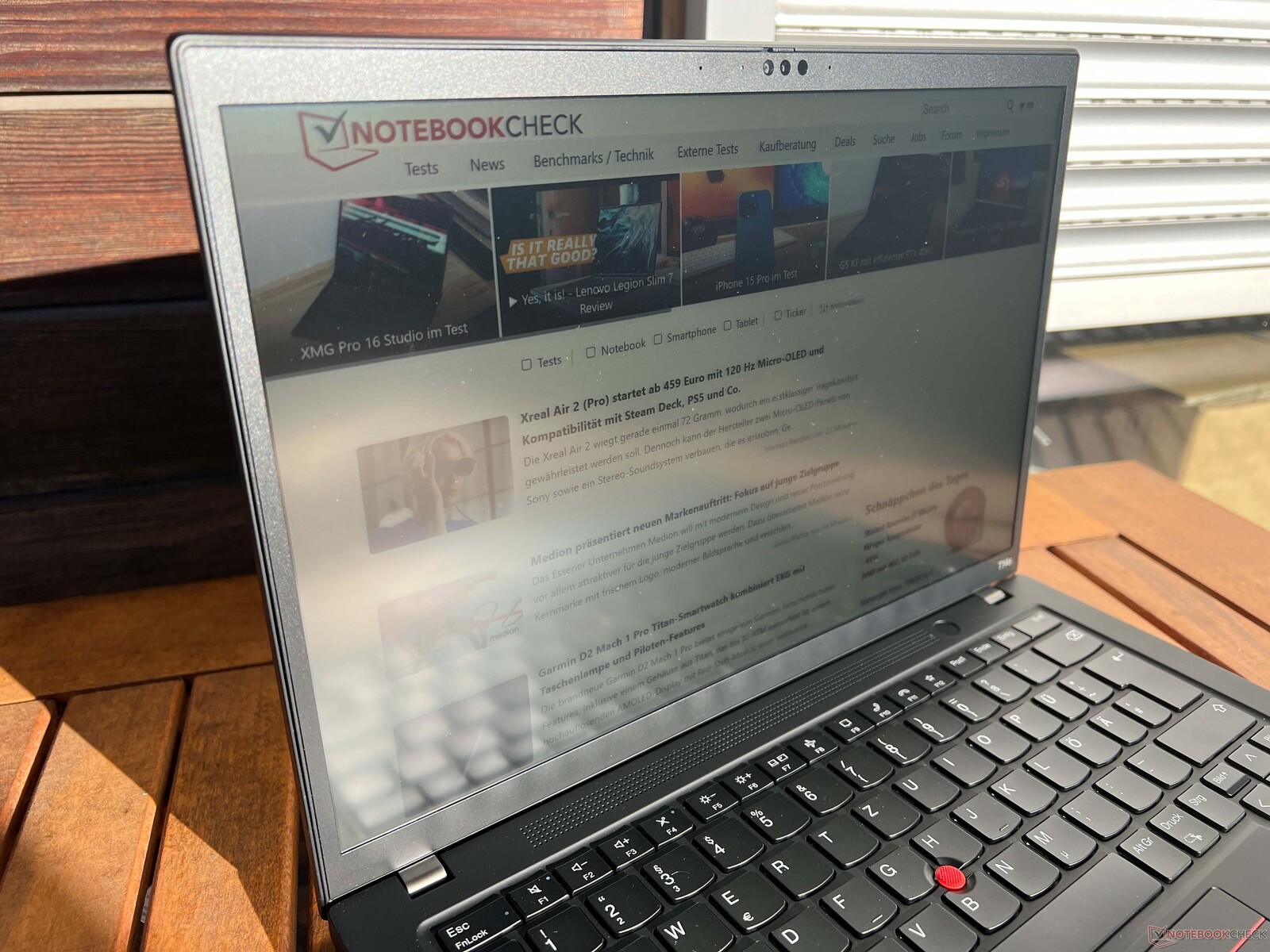

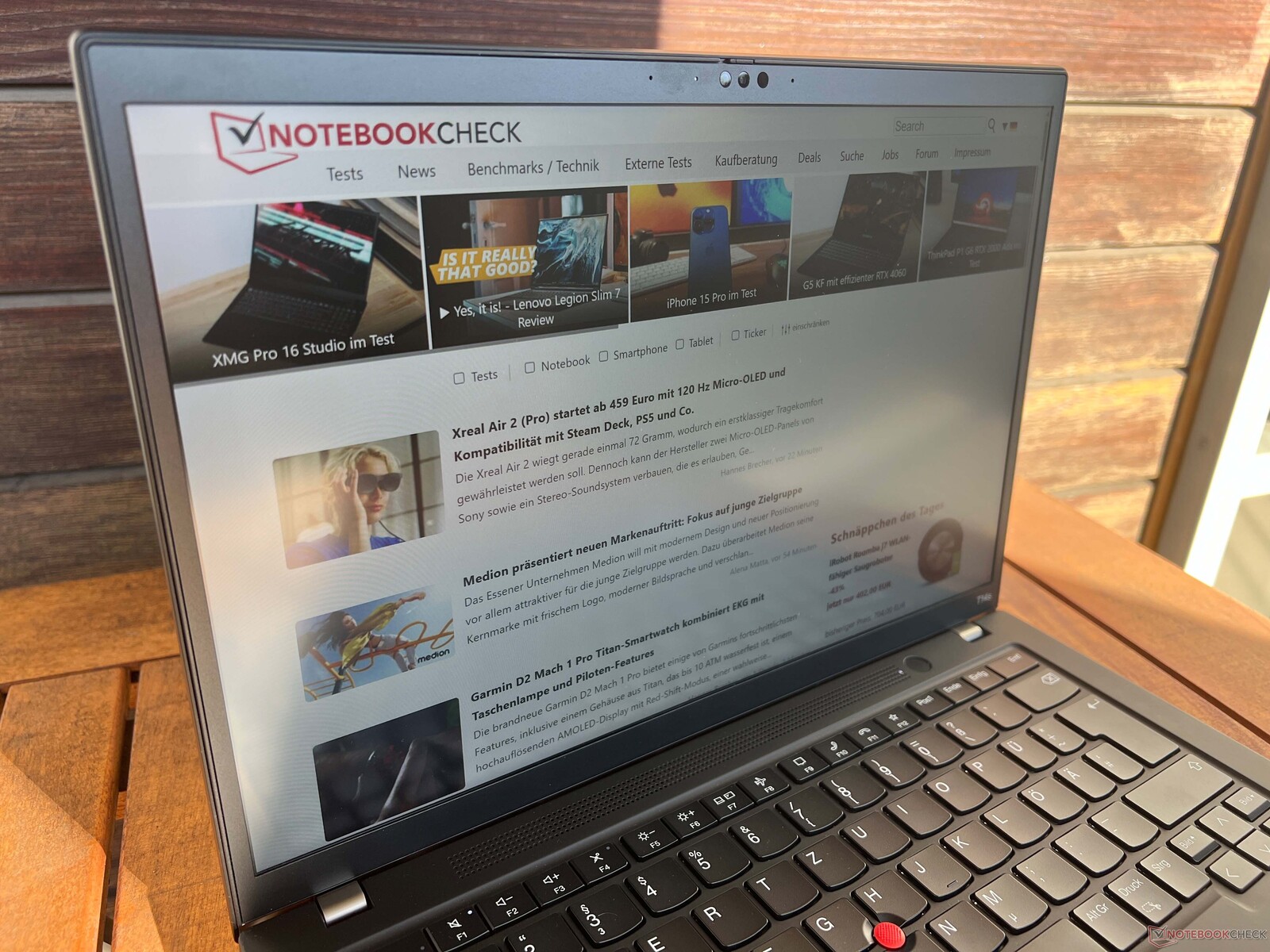

在阳光下(阳光直射)
在阳光下(阳光直射)
阴天
阴天

哑光面板的户外性能非常出色,即使在晴天,只要避免阳光直射,用户也可以将 T14s G4 带到户外。与半亚光 OLED 屏幕相比,该面板具有明显的优势。可视角度的稳定性无可挑剔。对比度会从上方角度降低,但这在实际使用中并不重要。

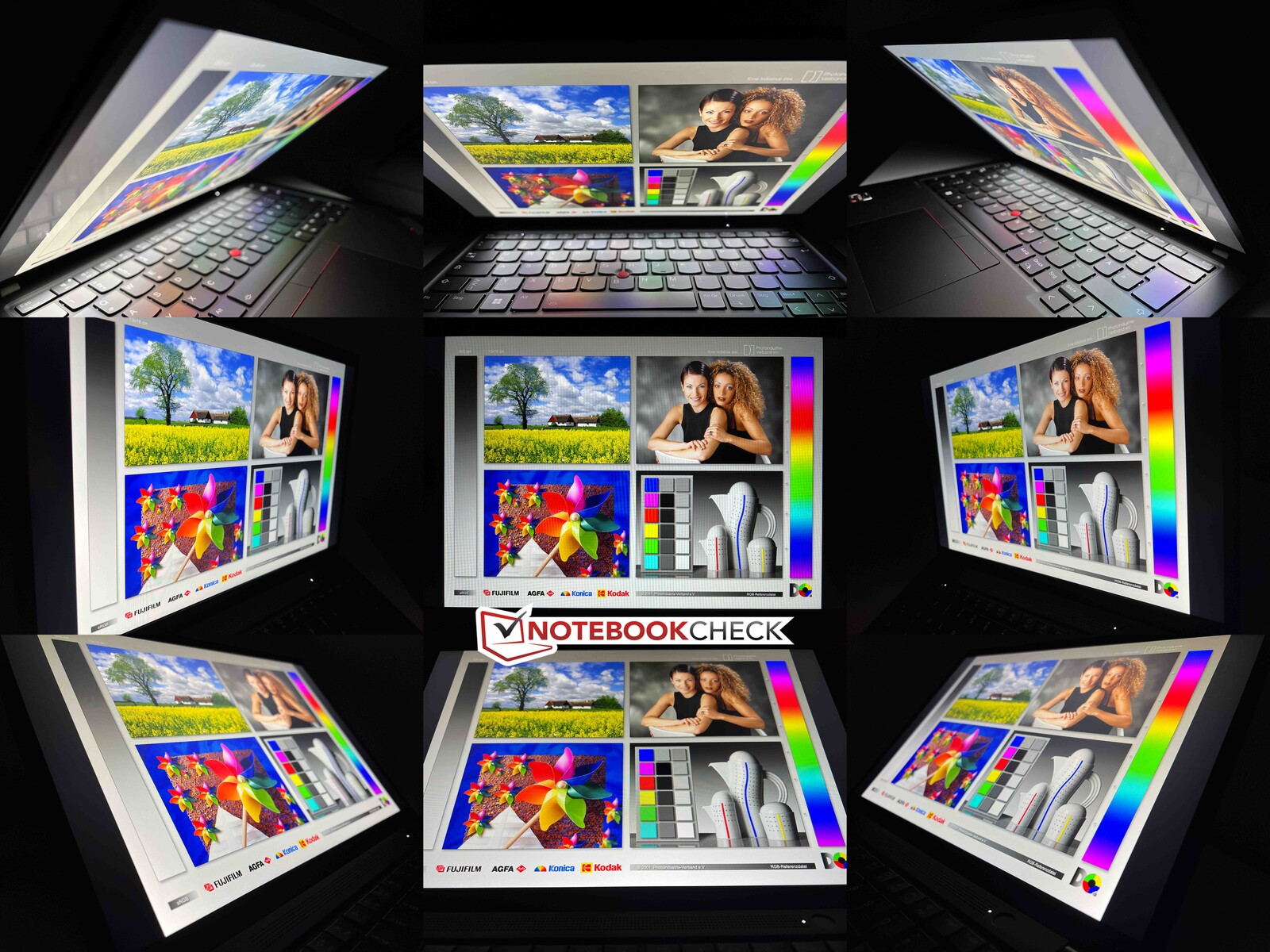

视角稳定性
视角稳定性

性能 - AMD Phoenix-U

ThinkPad T14s G4 配备了当前 Phoenix U 系列(Zen4)的 Ryzen 5 或 Ryzen 7 CPU。每个机箱都焊接了内存(LPDDR5x 6400),买家可以选择 16 或 32 GB。ThinkPad T14 不提供专用显卡。




测试条件

在 ThinkPads 上,联想的电源设置与 Windows 的常规能源配置文件直接关联,这对用户来说非常方便。如果查看处理器的 TDP 值,你会发现与英特尔型号的英特尔型号的 T14s G4酷睿 i7-1355U允许在短期负载峰值时消耗高达 50 瓦的功率。不过,两种型号的长期能耗都是 24 瓦。下表列出了不同能耗曲线的所有详细信息。在基准测试和测量中,我们将 "最佳性能 "作为默认配置文件。

配置文件 CPU 负载 Cinebench R15 Multi Time Spy 图形 最大风扇容量
最佳节能 12 瓦 1,025 分 1,631 分 26 分贝(A)
平衡型 25 -> 19 -> 15 瓦 1,659 分 2,383 分 32 分贝(A)
最佳性能 30 -> 25 瓦 1,932 分 2,512 分 39.2 dB(A)

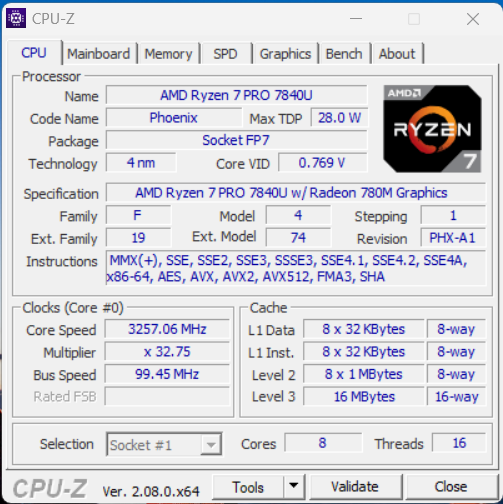

处理器 - Ryzen 7 7840U

......(英文 Ryzen 7 7840URyzen 7 7840U 属于 AMD 当前的 Phoenix U 代产品,提供 8 个快速 Zen4 内核,最高主频可达 5.1GHz,可同时处理多达 16 个线程。在 ThinkPad T14s 中,该处理器的功耗在短时间内达到 30 瓦,然后稳定在 24 瓦。因此,其性能不如 EliteBook 845 G10在后者中,处理器长时间保持 30 瓦的功耗,然后以 25 瓦的功耗运行。尽管如此,AMD ThinkPad 的性能仍然非常出色,而老式的 Ryzen 7 Pro 6850UThinkPad T14s G3在所有基准测试中平均超出 17%。性能 酷睿 i7-1355U在长时间负载情况下的多核基准测试中毫无胜算,只能归功于开始时大幅提高的功耗限制。当两个 CPU 的功耗都为 24 瓦时,Ryzen 7 7840U 的速度要快 60%。只有在单核测试中,英特尔处理器才会凭借性能内核取得(微弱的)优势。在电池模式下,性能保持稳定。更多 CPU 基准测试请访问https://www.notebookcheck.net/Mobile-Processors-Benchmark-List.2436.0.html.

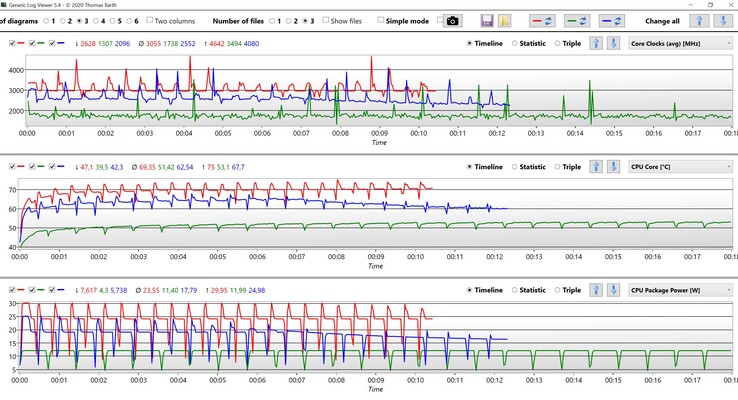

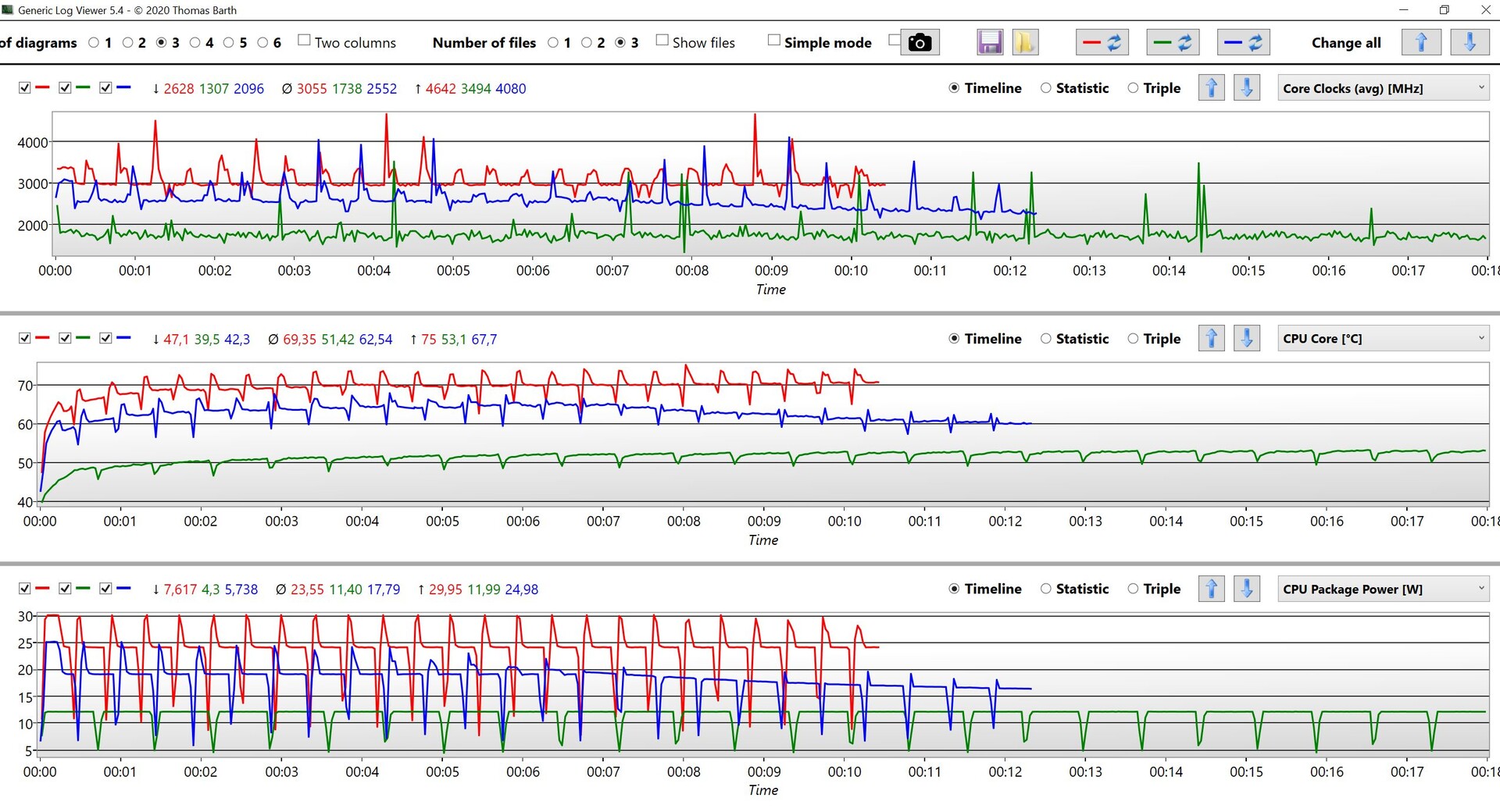

Cinebench R15 Multi Sustained Load

01002003004005006007008009001000110012001300140015001600170018001900Tooltip
Lenovo ThinkPad T14s G4-21F8002TGE AMD Ryzen 7 7840U; High Performance: Ø1811 (1798.56-1931.99)
Lenovo ThinkPad T14s G4 21F6005GGE Intel Core i7-1355U: Ø1117 (1045.81-1525.9)
HP EliteBook 845 G10 5Z4X0ES AMD Ryzen 7 7840U: Ø1925 (1898.97-1993.92)
Dell Latitude 7440 Intel Core i5-1345U: Ø1310 (929.37-1541.9)
Samsung Galaxy Book3 Pro 14 Intel Core i7-1360P: Ø1308 (1261.23-1592.48)
Lenovo ThinkPad T14s G3 21CQ002LGE AMD Ryzen 7 PRO 6850U: Ø1600 (1589.76-1685.63)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U
80 pt
Average AMD Ryzen 7 7840U

79.5 pt
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U
79.3 pt
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U
68.5 pt
Dell Latitude 7440
Intel Core i5-1345U
68.4 pt
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Ryzen 7 PRO 6850U
67.6 pt
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P
66.7 pt
Average of class Office

62 pt
Cinebench R23 / Multi Core
Average AMD Ryzen 7 7840U
  (11739 - 15074, n=10)
12884 Points +9%
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U
12385 Points +5%
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U
11797 Points
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U
10251 (7046.16min - 10251.4max) Points -13%
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Ryzen 7 PRO 6850U
10031 Points -15%
Dell Latitude 7440
Intel Core i5-1345U
9795 (7630.48min - 9794.71max) Points -17%
Average of class Office
  (1577 - 15743, n=92, last 2 years)
9250 Points -22%
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P
8472 Points -28%
Cinebench R23 / Single Core
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U
1851 Points +6%
Dell Latitude 7440
Intel Core i5-1345U
1757 Points +1%
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U
1742 Points
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P
1665 Points -4%
Average AMD Ryzen 7 7840U
  (1373 - 1742, n=10)
1646 Points -6%
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U
1581 Points -9%
Average of class Office
  (618 - 1995, n=92, last 2 years)
1563 Points -10%
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Ryzen 7 PRO 6850U
1520 Points -13%
Cinebench R20 / CPU (Multi Core)
Average AMD Ryzen 7 7840U
  (4469 - 5917, n=10)
5039 Points +9%
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U
4853 Points +5%
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U
4618 Points
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U
3898 Points -16%
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Ryzen 7 PRO 6850U
3879 Points -16%
Dell Latitude 7440
Intel Core i5-1345U
3610 Points -22%
Average of class Office
  (590 - 5980, n=92, last 2 years)
3556 Points -23%
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P
3286 Points -29%
Cinebench R20 / CPU (Single Core)
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U
712 Points +5%
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U
677 Points
Dell Latitude 7440
Intel Core i5-1345U
656 Points -3%
Average AMD Ryzen 7 7840U
  (533 - 678, n=10)
644 Points -5%
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P
634 Points -6%
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U
611 Points -10%
Average of class Office
  (229 - 764, n=92, last 2 years)
602 Points -11%
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Ryzen 7 PRO 6850U
594 Points -12%
Cinebench R15 / CPU Multi 64Bit
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U
1994 (1898.97min - 1993.92max) Points +3%
Average AMD Ryzen 7 7840U
  (1025 - 2439, n=12)
1946 Points +1%
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U
1932 (1798.56min - 1931.99max) Points
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Ryzen 7 PRO 6850U
1686 (1589.76min - 1685.63max) Points -13%
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P
1593 Points -18%
Average of class Office
  (246 - 2642, n=93, last 2 years)
1561 Points -19%
Dell Latitude 7440
Intel Core i5-1345U
1542 (929.37min - 1541.9max) Points -20%
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U
1526 (1045.81min - 1525.9max) Points -21%
Cinebench R15 / CPU Single 64Bit
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U
272 Points
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U
259 Points -5%
Average AMD Ryzen 7 7840U
  (217 - 272, n=10)
256 Points -6%
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U
250 Points -8%
Dell Latitude 7440
Intel Core i5-1345U
244 Points -10%
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Ryzen 7 PRO 6850U
241 Points -11%
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P
237 Points -13%
Average of class Office
  (98 - 284, n=92, last 2 years)
230 Points -15%
Blender / v2.79 BMW27 CPU
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U
450 Seconds * -67%
Average of class Office
  (208 - 1956, n=93, last 2 years)
419 Seconds * -55%
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P
357 Seconds * -32%
Dell Latitude 7440
Intel Core i5-1345U
332 Seconds * -23%
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Ryzen 7 PRO 6850U
306 Seconds * -13%
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U
270 Seconds *
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U
257 Seconds * +5%
Average AMD Ryzen 7 7840U
  (208 - 270, n=10)
251 Seconds * +7%
7-Zip 18.03 / 7z b 4
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U
56317 MIPS +5%
Average AMD Ryzen 7 7840U
  (50087 - 62156, n=10)
55687 MIPS +4%
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U
53700 MIPS
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Ryzen 7 PRO 6850U
48204 MIPS -10%
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U
41501 MIPS -23%
Dell Latitude 7440
Intel Core i5-1345U
40563 MIPS -24%
Average of class Office
  (7532 - 65460, n=93, last 2 years)
38934 MIPS -27%
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P
38344 MIPS -29%
7-Zip 18.03 / 7z b 4 -mmt1
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U
6082 MIPS
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U
5964 MIPS -2%
Average AMD Ryzen 7 7840U
  (4657 - 6408, n=10)
5816 MIPS -4%
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P
5729 MIPS -6%
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U
5639 MIPS -7%
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Ryzen 7 PRO 6850U
5338 MIPS -12%
Dell Latitude 7440
Intel Core i5-1345U
5296 MIPS -13%
Average of class Office
  (2972 - 6687, n=93, last 2 years)
5276 MIPS -13%
Geekbench 5.5 / Multi-Core
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U
9864 Points +2%
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U
9644 Points
Average AMD Ryzen 7 7840U
  (7399 - 10558, n=10)
9113 Points -6%
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P
9084 Points -6%
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U
9022 Points -6%
Dell Latitude 7440
Intel Core i5-1345U
8263 Points -14%
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Ryzen 7 PRO 6850U
7884 Points -18%
Average of class Office
  (1018 - 11980, n=92, last 2 years)
7612 Points -21%
Geekbench 5.5 / Single-Core
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U
1815 Points +2%
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P
1794 Points +1%
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U
1775 Points
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U
1723 Points -3%
Dell Latitude 7440
Intel Core i5-1345U
1710 Points -4%
Average AMD Ryzen 7 7840U
  (1355 - 1933, n=10)
1705 Points -4%
Average of class Office
  (510 - 1989, n=93, last 2 years)
1585 Points -11%
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Ryzen 7 PRO 6850U
1481 Points -17%
HWBOT x265 Benchmark v2.2 / 4k Preset
Average AMD Ryzen 7 7840U
  (14.4 - 18.6, n=10)
15.7 fps +9%
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U
14.8 fps +3%
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U
14.4 fps
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Ryzen 7 PRO 6850U
12.4 fps -14%
Dell Latitude 7440
Intel Core i5-1345U
10.8 fps -25%
Average of class Office
  (1.72 - 18.7, n=91, last 2 years)
10.4 fps -28%
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P
9.2 fps -36%
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U
8.59 fps -40%
LibreOffice / 20 Documents To PDF
Average of class Office
  (31.3 - 129.6, n=91, last 2 years)
53.2 s * -17%
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Ryzen 7 PRO 6850U
51.8 s * -14%
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U
50.4 s * -11%
Average AMD Ryzen 7 7840U
  (43.4 - 67.1, n=10)
50.1 s * -10%
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U
46 s * -1%
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U
45.6 s *
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P
45.5 s * -0%
Dell Latitude 7440
Intel Core i5-1345U
45.5 s * -0%
R Benchmark 2.5 / Overall mean
Average of class Office
  (0.4244 - 1.135, n=90, last 2 years)
0.543 sec * -17%
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Ryzen 7 PRO 6850U
0.518 sec * -11%
Dell Latitude 7440
Intel Core i5-1345U
0.4948 sec * -6%
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P
0.4895 sec * -5%
Average AMD Ryzen 7 7840U
  (0.4559 - 0.581, n=11)
0.4821 sec * -4%
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U
0.48 sec * -3%
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U
0.4745 sec * -2%
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U
0.4653 sec *

* ... smaller is better

Cinebench R15 Multi Sustained Load

01002003004005006007008009001000110012001300140015001600170018001900Tooltip
Lenovo ThinkPad T14s G4-21F8002TGE AMD Ryzen 7 7840U; High Performance: Ø1811 (1798.56-1931.99)
Lenovo ThinkPad T14s G4 21F6005GGE Intel Core i7-1355U: Ø1117 (1045.81-1525.9)
Lenovo ThinkPad T14s G4-21F8002TGE AMD Ryzen 7 7840U; Balanced: Ø1509 (1362.63-1658.72)
Lenovo ThinkPad T14s G4-21F8002TGE AMD Ryzen 7 7840U; Power Saver: Ø1016 (1007.91-1027.09)

我们还查看了其他两种能耗配置的多核性能。令人兴奋的是,AMD 处理器在 12 瓦时的多核性能几乎与酷睿 i7-1355U的多核性能几乎相同。因此,用户可以在执行简单任务时使用其中一个更高效的配置文件,并从更安静的风扇中获益。

CPU 数据 Cinebench R15 多环(红色:最佳性能,蓝色:平衡,绿色:最佳节能)
CPU 数据 Cinebench R15 多环(红色:最佳性能,蓝色:平衡,绿色:最佳节能)
Cinebench R15 CPU Multi 64Bit
1932 Points
Cinebench R15 OpenGL 64Bit
185.1 fps
Cinebench R15 Ref. Match 64Bit
97.9 %
Cinebench R15 CPU Single 64Bit
272 Points
Cinebench R20 CPU (Single Core)
677 Points
Cinebench R20 CPU (Multi Core)
4618 Points
Cinebench R23 Multi Core
11797 Points
Cinebench R23 Single Core
1742 Points
Cinebench 2024 CPU Single Core
97 Points
Cinebench 2024 CPU Multi Core
609 Points
Help

系统性能

主观性能印象非常高,合成基准测试结果也非常好。测试过程中也没有出现任何问题。

PCMark 10 / Score
HP EliteBook 845 G10 5Z4X0ES
Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G
6741 Points +4%
Lenovo ThinkPad T14s G4-21F8002TGE
Radeon 780M, R7 7840U, Samsung PM9A1a MZVL21T0HDLU
6480 Points
Average AMD Ryzen 7 7840U, AMD Radeon 780M
  (5866 - 7157, n=10)
6465 Points 0%
Lenovo ThinkPad T14s G3 21CQ002LGE
Radeon 680M, R7 PRO 6850U, SK Hynix PC711 512GB HFS512GDE9X081N
6152 Points -5%
Lenovo ThinkPad T14s G4 21F6005GGE
Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1a MZVL21T0HDLU
5652 Points -13%
Samsung Galaxy Book3 Pro 14
Iris Xe G7 96EUs, i7-1360P, WD PC SN740 512GB SDDPMQD-512G-1101
5635 Points -13%
Average of class Office
  (2463 - 7344, n=86, last 2 years)
5618 Points -13%
Dell Latitude 7440
Iris Xe G7 80EUs, i5-1345U, Samsung MZ9L4512HBLU-00BMV
5554 Points -14%
PCMark 10 / Essentials
Lenovo ThinkPad T14s G4 21F6005GGE
Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1a MZVL21T0HDLU
10864 Points +9%
Dell Latitude 7440
Iris Xe G7 80EUs, i5-1345U, Samsung MZ9L4512HBLU-00BMV
10758 Points +8%
HP EliteBook 845 G10 5Z4X0ES
Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G
10678 Points +7%
Samsung Galaxy Book3 Pro 14
Iris Xe G7 96EUs, i7-1360P, WD PC SN740 512GB SDDPMQD-512G-1101
10667 Points +7%
Average of class Office
  (5575 - 20841, n=86, last 2 years)
10136 Points +2%
Average AMD Ryzen 7 7840U, AMD Radeon 780M
  (9068 - 11081, n=10)
9985 Points 0%
Lenovo ThinkPad T14s G4-21F8002TGE
Radeon 780M, R7 7840U, Samsung PM9A1a MZVL21T0HDLU
9950 Points
Lenovo ThinkPad T14s G3 21CQ002LGE
Radeon 680M, R7 PRO 6850U, SK Hynix PC711 512GB HFS512GDE9X081N
9848 Points -1%
PCMark 10 / Productivity
HP EliteBook 845 G10 5Z4X0ES
Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G
9624 Points +4%
Lenovo ThinkPad T14s G4-21F8002TGE
Radeon 780M, R7 7840U, Samsung PM9A1a MZVL21T0HDLU
9292 Points
Average AMD Ryzen 7 7840U, AMD Radeon 780M
  (7323 - 10099, n=10)
9002 Points -3%
Lenovo ThinkPad T14s G3 21CQ002LGE
Radeon 680M, R7 PRO 6850U, SK Hynix PC711 512GB HFS512GDE9X081N
8891 Points -4%
Average of class Office
  (3041 - 10415, n=86, last 2 years)
7689 Points -17%
Lenovo ThinkPad T14s G4 21F6005GGE
Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1a MZVL21T0HDLU
7402 Points -20%
Dell Latitude 7440
Iris Xe G7 80EUs, i5-1345U, Samsung MZ9L4512HBLU-00BMV
7189 Points -23%
Samsung Galaxy Book3 Pro 14
Iris Xe G7 96EUs, i7-1360P, WD PC SN740 512GB SDDPMQD-512G-1101
7010 Points -25%
PCMark 10 / Digital Content Creation
Average AMD Ryzen 7 7840U, AMD Radeon 780M
  (7204 - 8987, n=10)
8185 Points +2%
HP EliteBook 845 G10 5Z4X0ES
Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G
8090 Points +1%
Lenovo ThinkPad T14s G4-21F8002TGE
Radeon 780M, R7 7840U, Samsung PM9A1a MZVL21T0HDLU
7989 Points
Lenovo ThinkPad T14s G3 21CQ002LGE
Radeon 680M, R7 PRO 6850U, SK Hynix PC711 512GB HFS512GDE9X081N
7217 Points -10%
Samsung Galaxy Book3 Pro 14
Iris Xe G7 96EUs, i7-1360P, WD PC SN740 512GB SDDPMQD-512G-1101
6494 Points -19%
Average of class Office
  (2126 - 9773, n=86, last 2 years)
6335 Points -21%
Lenovo ThinkPad T14s G4 21F6005GGE
Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1a MZVL21T0HDLU
6095 Points -24%
Dell Latitude 7440
Iris Xe G7 80EUs, i5-1345U, Samsung MZ9L4512HBLU-00BMV
6012 Points -25%
CrossMark / Overall
Samsung Galaxy Book3 Pro 14
Iris Xe G7 96EUs, i7-1360P, WD PC SN740 512GB SDDPMQD-512G-1101
1668 Points +8%
Lenovo ThinkPad T14s G4-21F8002TGE
Radeon 780M, R7 7840U, Samsung PM9A1a MZVL21T0HDLU
1546 Points
HP EliteBook 845 G10 5Z4X0ES
Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G
1544 Points 0%
Average AMD Ryzen 7 7840U, AMD Radeon 780M
  (1256 - 1804, n=10)
1498 Points -3%
Lenovo ThinkPad T14s G4 21F6005GGE
Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1a MZVL21T0HDLU
1478 Points -4%
Lenovo ThinkPad T14s G3 21CQ002LGE
Radeon 680M, R7 PRO 6850U, SK Hynix PC711 512GB HFS512GDE9X081N
1430 Points -8%
Average of class Office
  (348 - 1891, n=86, last 2 years)
1410 Points -9%
CrossMark / Productivity
Samsung Galaxy Book3 Pro 14
Iris Xe G7 96EUs, i7-1360P, WD PC SN740 512GB SDDPMQD-512G-1101
1608 Points +7%
Lenovo ThinkPad T14s G4-21F8002TGE
Radeon 780M, R7 7840U, Samsung PM9A1a MZVL21T0HDLU
1498 Points
Average AMD Ryzen 7 7840U, AMD Radeon 780M
  (1261 - 1798, n=10)
1492 Points 0%
HP EliteBook 845 G10 5Z4X0ES
Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G
1491 Points 0%
Lenovo ThinkPad T14s G4 21F6005GGE
Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1a MZVL21T0HDLU
1444 Points -4%
Lenovo ThinkPad T14s G3 21CQ002LGE
Radeon 680M, R7 PRO 6850U, SK Hynix PC711 512GB HFS512GDE9X081N
1426 Points -5%
Average of class Office
  (393 - 1870, n=86, last 2 years)
1409 Points -6%
CrossMark / Creativity
Samsung Galaxy Book3 Pro 14
Iris Xe G7 96EUs, i7-1360P, WD PC SN740 512GB SDDPMQD-512G-1101
1747 Points +2%
HP EliteBook 845 G10 5Z4X0ES
Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G
1708 Points 0%
Lenovo ThinkPad T14s G4-21F8002TGE
Radeon 780M, R7 7840U, Samsung PM9A1a MZVL21T0HDLU
1705 Points
Lenovo ThinkPad T14s G4 21F6005GGE
Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1a MZVL21T0HDLU
1609 Points -6%
Average AMD Ryzen 7 7840U, AMD Radeon 780M
  (1251 - 1835, n=10)
1571 Points -8%
Lenovo ThinkPad T14s G3 21CQ002LGE
Radeon 680M, R7 PRO 6850U, SK Hynix PC711 512GB HFS512GDE9X081N
1523 Points -11%
Average of class Office
  (340 - 1982, n=86, last 2 years)
1466 Points -14%
CrossMark / Responsiveness
Samsung Galaxy Book3 Pro 14
Iris Xe G7 96EUs, i7-1360P, WD PC SN740 512GB SDDPMQD-512G-1101
1616 Points +28%
Average AMD Ryzen 7 7840U, AMD Radeon 780M
  (1082 - 1775, n=10)
1334 Points +5%
Average of class Office
  (258 - 2017, n=86, last 2 years)
1269 Points 0%
HP EliteBook 845 G10 5Z4X0ES
Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G
1268 Points 0%
Lenovo ThinkPad T14s G4-21F8002TGE
Radeon 780M, R7 7840U, Samsung PM9A1a MZVL21T0HDLU
1266 Points
Lenovo ThinkPad T14s G4 21F6005GGE
Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1a MZVL21T0HDLU
1230 Points -3%
Lenovo ThinkPad T14s G3 21CQ002LGE
Radeon 680M, R7 PRO 6850U, SK Hynix PC711 512GB HFS512GDE9X081N
1194 Points -6%
PCMark 10 Score
6480 points
Help
AIDA64 / Memory Copy
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U, Iris Xe G7 96EUs
71600 MB/s +8%
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P, Iris Xe G7 96EUs
68962 MB/s +4%
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U, Radeon 780M
66321 MB/s
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U, Radeon 780M
62549 MB/s -6%
Average AMD Ryzen 7 7840U
  (43255 - 70532, n=11)
58370 MB/s -12%
Dell Latitude 7440
Intel Core i5-1345U, Iris Xe G7 80EUs
57716 MB/s -13%
Average of class Office
  (7158 - 108783, n=93, last 2 years)
49017 MB/s -26%
AIDA64 / Memory Read
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P, Iris Xe G7 96EUs
64931 MB/s +32%
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U, Radeon 780M
61542 MB/s +26%
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U, Iris Xe G7 96EUs
53173 MB/s +8%
Dell Latitude 7440
Intel Core i5-1345U, Iris Xe G7 80EUs
50185 MB/s +2%
Average AMD Ryzen 7 7840U
  (37399 - 61602, n=10)
49647 MB/s +1%
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U, Radeon 780M
49024 MB/s
Average of class Office
  (7325 - 112436, n=93, last 2 years)
48863 MB/s 0%
AIDA64 / Memory Write
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P, Iris Xe G7 96EUs
88805 MB/s 0%
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U, Radeon 780M
88540 MB/s
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U, Radeon 780M
78615 MB/s -11%
Dell Latitude 7440
Intel Core i5-1345U, Iris Xe G7 80EUs
72373 MB/s -18%
Average AMD Ryzen 7 7840U
  (49426 - 92289, n=12)
71395 MB/s -19%
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U, Iris Xe G7 96EUs
69667 MB/s -21%
Average of class Office
  (7579 - 117935, n=93, last 2 years)
53233 MB/s -40%
AIDA64 / Memory Latency
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U, Radeon 780M
137.2 ns *
Average AMD Ryzen 7 7840U
  (90 - 137.2, n=11)
121.3 ns * +12%
Dell Latitude 7440
Intel Core i5-1345U, Iris Xe G7 80EUs
102.1 ns * +26%
Average of class Office
  (8.3 - 185.2, n=93, last 2 years)
97.1 ns * +29%
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P, Iris Xe G7 96EUs
92.7 ns * +32%
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U, Radeon 780M
92.6 ns * +33%
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U, Iris Xe G7 96EUs
92.1 ns * +33%

* ... smaller is better

DPC 延迟

在我们的标准化延迟测试(互联网浏览、4K YouTube 播放、CPU 负载)中,测试设备在当前 BIOS 版本下未显示任何限制。其中一个驱动程序出现了峰值,但关键的中断延迟值非常低,因此在使用实时音频应用程序时应该不会出现任何问题。

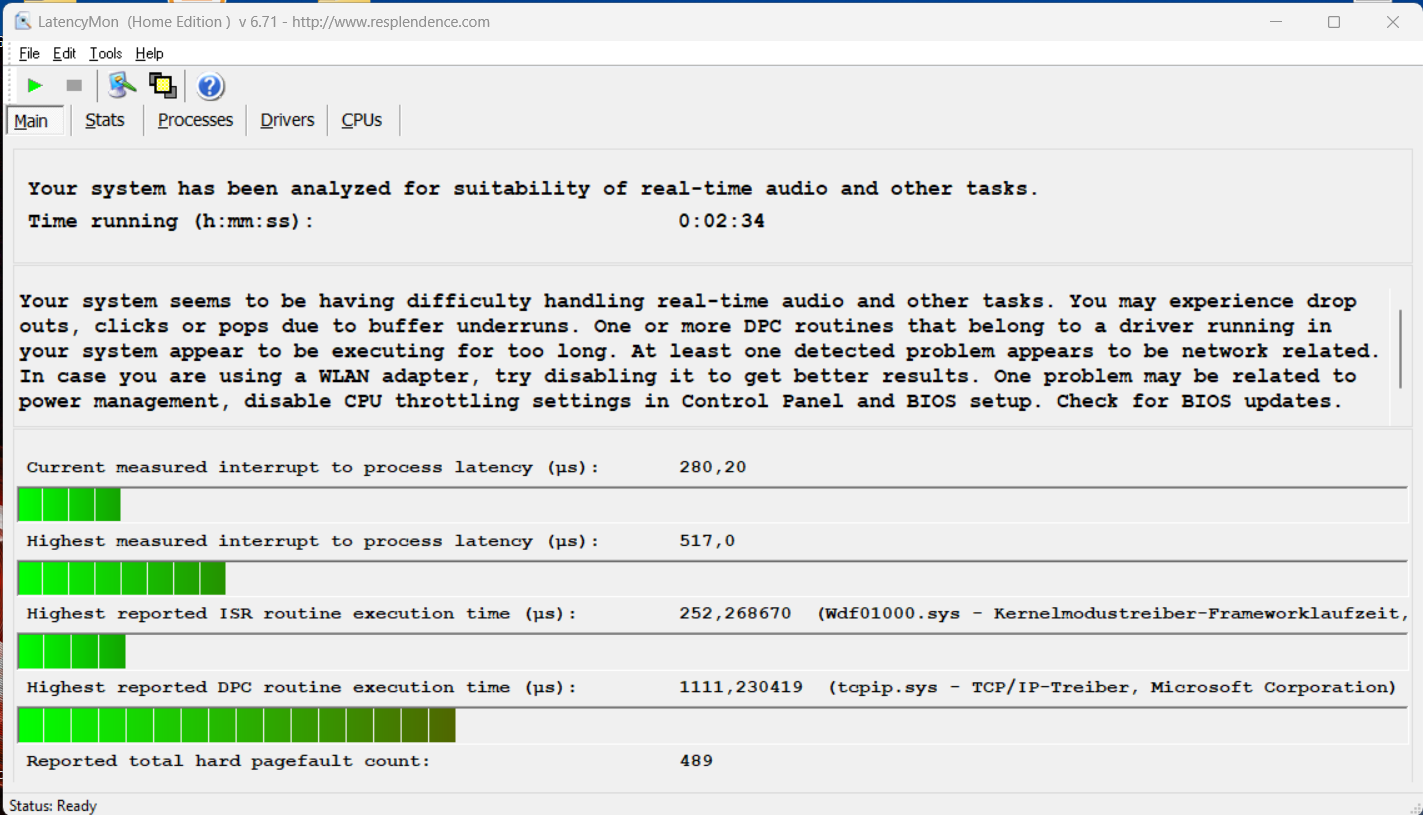

LatencyMon - 概述
LatencyMon - 概述

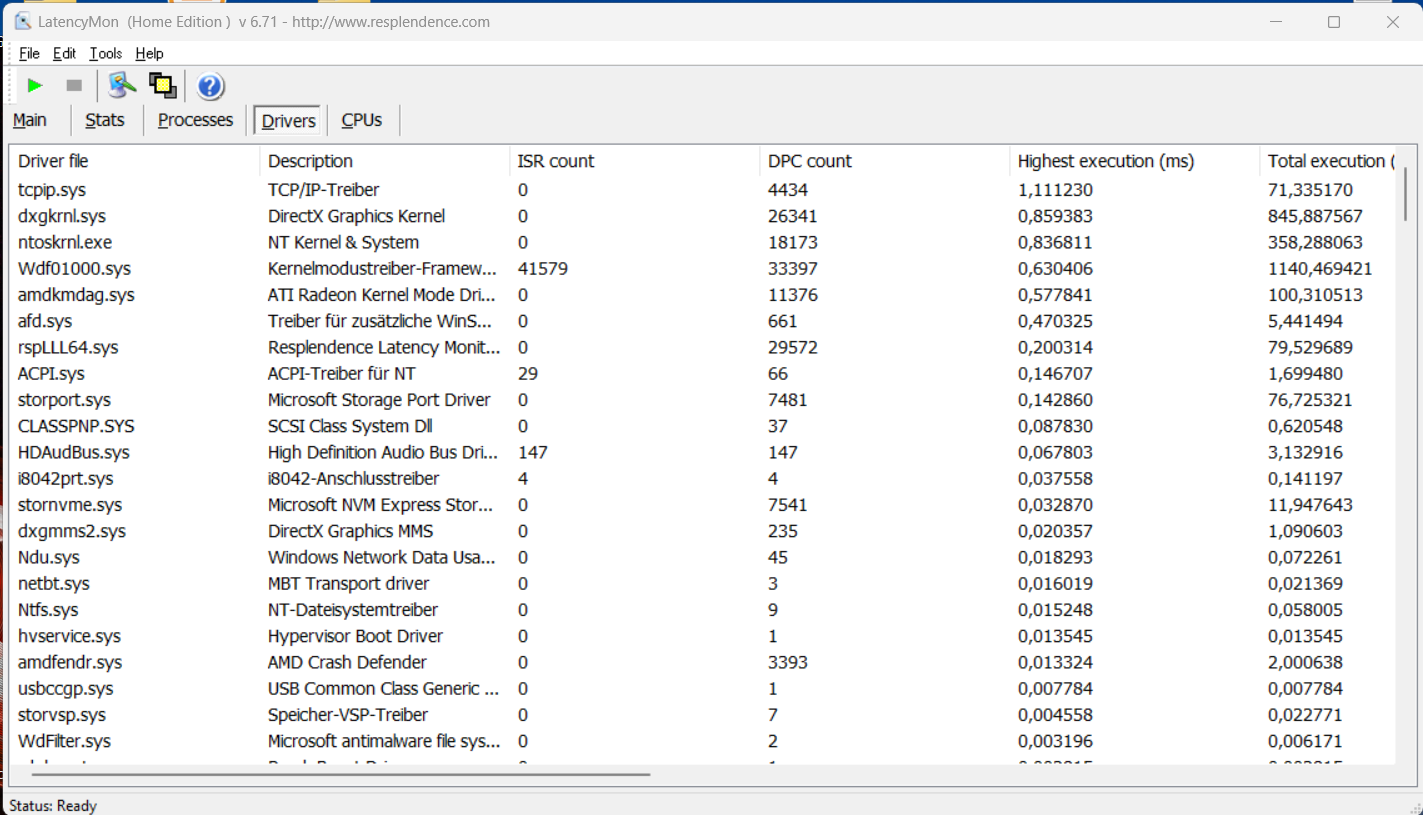

LatencyMon - 驱动程序
LatencyMon - 驱动程序
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo ThinkPad T14s G4 21F6005GGE
Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1a MZVL21T0HDLU
2197.1 μs * -325%
Samsung Galaxy Book3 Pro 14
Iris Xe G7 96EUs, i7-1360P, WD PC SN740 512GB SDDPMQD-512G-1101
2039.3 μs * -294%
Dell Latitude 7440
Iris Xe G7 80EUs, i5-1345U, Samsung MZ9L4512HBLU-00BMV
1203.08 μs * -133%
HP EliteBook 845 G10 5Z4X0ES
Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G
929.2 μs * -80%
Lenovo ThinkPad T14s G3 21CQ002LGE
Radeon 680M, R7 PRO 6850U, SK Hynix PC711 512GB HFS512GDE9X081N
545.7 μs * -6%
Lenovo ThinkPad T14s G4-21F8002TGE
Radeon 780M, R7 7840U, Samsung PM9A1a MZVL21T0HDLU
517 μs *

* ... smaller is better

存储设备

ThinkPad T14s G4 使用 PCIe 4.0 固态硬盘(M.2 2280),我们的测试设备安装了 1 TB 型号的三星 PM9A1a,初始启动后可用容量约为 900 GB。这是一款速度非常快的硬盘,最大传输速率为 7 GB/s,而且在长时间负载情况下性能依然稳定,这对于快速 PCIe 4.0 硬盘来说并非易事。更多固态硬盘基准测试这里.

Samsung PM9A1a MZVL21T0HDLU
CDM 5/6 Read Seq Q32T1: 7079 MB/s
CDM 5/6 Write Seq Q32T1: 5137 MB/s
CDM 5/6 Read 4K Q32T1: 430 MB/s
CDM 5/6 Write 4K Q32T1: 402 MB/s
CDM 5/6 Read 4K: 67.4 MB/s
CDM 5/6 Write 4K: 133.9 MB/s
CDM 6 Write 4K Q8T8: 398 MB/s
CDM 6 Read 4K Q8T8: 1077 MB/s
Drive Performance Rating - Percent
Average Samsung PM9A1a MZVL21T0HDLU

90.7 pt
Samsung Galaxy Book3 Pro 14
WD PC SN740 512GB SDDPMQD-512G-1101
81.6 pt
Lenovo ThinkPad T14s G4-21F8002TGE
Samsung PM9A1a MZVL21T0HDLU
76.6 pt
Lenovo ThinkPad T14s G4 21F6005GGE
Samsung PM9A1a MZVL21T0HDLU
76.3 pt
HP EliteBook 845 G10 5Z4X0ES
WD PC SN740 512GB SDDPNQD-512G
69.9 pt
Average of class Office

63.9 pt
Dell Latitude 7440
Samsung MZ9L4512HBLU-00BMV
51.8 pt
DiskSpd
seq read
HP EliteBook 845 G10 5Z4X0ES
WD PC SN740 512GB SDDPNQD-512G
3659 (3522.59min - 3659.34max) MB/s +10%
Lenovo ThinkPad T14s G4 21F6005GGE
Samsung PM9A1a MZVL21T0HDLU
3634 (3544.14min - 3634.15max) MB/s +9%
Average Samsung PM9A1a MZVL21T0HDLU
  (3028 - 4104, n=7)
3503 MB/s +5%
Lenovo ThinkPad T14s G4-21F8002TGE
Samsung PM9A1a MZVL21T0HDLU
3340 (3248.9min - 3340.13max) MB/s
Samsung Galaxy Book3 Pro 14
WD PC SN740 512GB SDDPMQD-512G-1101
2759 (2685.61min - 2758.8max) MB/s -17%
Average of class Office
  (121 - 4554, n=89, last 2 years)
2657 MB/s -20%
Dell Latitude 7440
Samsung MZ9L4512HBLU-00BMV
2443 (2427.84min - 2443.39max) MB/s -27%
seq write
Average Samsung PM9A1a MZVL21T0HDLU
  (2979 - 4533, n=7)
3447 MB/s +11%
Lenovo ThinkPad T14s G4 21F6005GGE
Samsung PM9A1a MZVL21T0HDLU
3199 (3158.1min - 3198.58max) MB/s +3%
Lenovo ThinkPad T14s G4-21F8002TGE
Samsung PM9A1a MZVL21T0HDLU
3104 (2953.84min - 3104.41max) MB/s
Samsung Galaxy Book3 Pro 14
WD PC SN740 512GB SDDPMQD-512G-1101
3017 (2926.39min - 3016.59max) MB/s -3%
HP EliteBook 845 G10 5Z4X0ES
WD PC SN740 512GB SDDPNQD-512G
3000 (2672.09min - 2999.56max) MB/s -3%
Average of class Office
  (43 - 5842, n=89, last 2 years)
2567 MB/s -17%
Dell Latitude 7440
Samsung MZ9L4512HBLU-00BMV
1776 (1737.28min - 1776.3max) MB/s -43%
seq q8 t1 read
Lenovo ThinkPad T14s G4 21F6005GGE
Samsung PM9A1a MZVL21T0HDLU
7002 (6108.79min - 7002.39max) MB/s 0%
Lenovo ThinkPad T14s G4-21F8002TGE
Samsung PM9A1a MZVL21T0HDLU
6999 (6129.25min - 6999.09max) MB/s
Average Samsung PM9A1a MZVL21T0HDLU
  (6023 - 7058, n=7)
6871 MB/s -2%
HP EliteBook 845 G10 5Z4X0ES
WD PC SN740 512GB SDDPNQD-512G
5080 (4484.81min - 5080.14max) MB/s -27%
Samsung Galaxy Book3 Pro 14
WD PC SN740 512GB SDDPMQD-512G-1101
4845 MB/s -31%
Average of class Office
  (124.2 - 7120, n=89, last 2 years)
4362 MB/s -38%
Dell Latitude 7440
Samsung MZ9L4512HBLU-00BMV
3519 (2577.61min - 3518.81max) MB/s -50%
seq q8 t1 write
Average Samsung PM9A1a MZVL21T0HDLU
  (4913 - 5265, n=7)
5005 MB/s +1%
Lenovo ThinkPad T14s G4-21F8002TGE
Samsung PM9A1a MZVL21T0HDLU
4957 (4934.18min - 4957.25max) MB/s
Lenovo ThinkPad T14s G4 21F6005GGE
Samsung PM9A1a MZVL21T0HDLU
4913 (4874.41min - 4912.79max) MB/s -1%
HP EliteBook 845 G10 5Z4X0ES
WD PC SN740 512GB SDDPNQD-512G
3743 (3714.18min - 3743.27max) MB/s -24%
Samsung Galaxy Book3 Pro 14
WD PC SN740 512GB SDDPMQD-512G-1101
3398 (2948.41min - 3398.23max) MB/s -31%
Average of class Office
  (46.7 - 6791, n=89, last 2 years)
3371 MB/s -32%
Dell Latitude 7440
Samsung MZ9L4512HBLU-00BMV
2210 (2175.38min - 2210.17max) MB/s -55%
4k q1 t1 read
Lenovo ThinkPad T14s G4 21F6005GGE
Samsung PM9A1a MZVL21T0HDLU
79.8 (77.82min - 79.8max) MB/s +16%
Dell Latitude 7440
Samsung MZ9L4512HBLU-00BMV
78.8 (76.59min - 78.83max) MB/s +14%
Average Samsung PM9A1a MZVL21T0HDLU
  (57.3 - 95.2, n=7)
72.2 MB/s +5%
Lenovo ThinkPad T14s G4-21F8002TGE
Samsung PM9A1a MZVL21T0HDLU
69 (65.74min - 69.01max) MB/s
Average of class Office
  (5.55 - 89.9, n=89, last 2 years)
58.3 MB/s -16%
HP EliteBook 845 G10 5Z4X0ES
WD PC SN740 512GB SDDPNQD-512G
57 (56.14min - 57.04max) MB/s -17%
Samsung Galaxy Book3 Pro 14
WD PC SN740 512GB SDDPMQD-512G-1101
47.6 (45.01min - 47.56max) MB/s -31%
4k q1 t1 write
Samsung Galaxy Book3 Pro 14
WD PC SN740 512GB SDDPMQD-512G-1101
261 (241.37min - 260.67max) MB/s +91%
Average Samsung PM9A1a MZVL21T0HDLU
  (119.6 - 270, n=7)
169.9 MB/s +25%
Average of class Office
  (1.23 - 429, n=89, last 2 years)
165.2 MB/s +21%
Lenovo ThinkPad T14s G4 21F6005GGE
Samsung PM9A1a MZVL21T0HDLU
136.4 (129.83min - 136.35max) MB/s 0%
Lenovo ThinkPad T14s G4-21F8002TGE
Samsung PM9A1a MZVL21T0HDLU
136.3 (127.95min - 136.27max) MB/s
Dell Latitude 7440
Samsung MZ9L4512HBLU-00BMV
131.4 (129.27min - 131.42max) MB/s -4%
HP EliteBook 845 G10 5Z4X0ES
WD PC SN740 512GB SDDPNQD-512G
119 (115.89min - 119.03max) MB/s -13%
4k q32 t16 read
Samsung Galaxy Book3 Pro 14
WD PC SN740 512GB SDDPMQD-512G-1101
1827 (1766.49min - 1827.28max) MB/s +96%
Average Samsung PM9A1a MZVL21T0HDLU
  (675 - 3896, n=7)
1766 MB/s +90%
Average of class Office
  (7.49 - 4425, n=89, last 2 years)
1254 MB/s +35%
HP EliteBook 845 G10 5Z4X0ES
WD PC SN740 512GB SDDPNQD-512G
1025 (959.27min - 1025.21max) MB/s +10%
Lenovo ThinkPad T14s G4-21F8002TGE
Samsung PM9A1a MZVL21T0HDLU
931 (883.78min - 930.56max) MB/s
Lenovo ThinkPad T14s G4 21F6005GGE
Samsung PM9A1a MZVL21T0HDLU
675 (656.71min - 674.92max) MB/s -27%
Dell Latitude 7440
Samsung MZ9L4512HBLU-00BMV
476 (466.05min - 475.52max) MB/s -49%
4k q32 t16 write
Samsung Galaxy Book3 Pro 14
WD PC SN740 512GB SDDPMQD-512G-1101
1681 (635.26min - 1681.27max) MB/s +313%
Average Samsung PM9A1a MZVL21T0HDLU
  (349 - 3717, n=7)
1350 MB/s +232%
Average of class Office
  (1.5 - 3254, n=89, last 2 years)
943 MB/s +132%
HP EliteBook 845 G10 5Z4X0ES
WD PC SN740 512GB SDDPNQD-512G
445 (439.44min - 445.36max) MB/s +9%
Lenovo ThinkPad T14s G4-21F8002TGE
Samsung PM9A1a MZVL21T0HDLU
407 (399.28min - 407.44max) MB/s
Lenovo ThinkPad T14s G4 21F6005GGE
Samsung PM9A1a MZVL21T0HDLU
363 (340.85min - 363.36max) MB/s -11%
Dell Latitude 7440
Samsung MZ9L4512HBLU-00BMV
360 (355.44min - 360.36max) MB/s -12%
AS SSD
Score Total
Average Samsung PM9A1a MZVL21T0HDLU
  (4533 - 9056, n=7)
6168 Points +25%
Samsung Galaxy Book3 Pro 14
WD PC SN740 512GB SDDPMQD-512G-1101
5546 Points +13%
Lenovo ThinkPad T14s G4-21F8002TGE
Samsung PM9A1a MZVL21T0HDLU
4928 Points
HP EliteBook 845 G10 5Z4X0ES
WD PC SN740 512GB SDDPNQD-512G
4744 Points -4%
Lenovo ThinkPad T14s G4 21F6005GGE
Samsung PM9A1a MZVL21T0HDLU
4533 Points -8%
Average of class Office
  (704 - 9204, n=87, last 2 years)
4202 Points -15%
Dell Latitude 7440
Samsung MZ9L4512HBLU-00BMV
3533 Points -28%
Score Read
Samsung Galaxy Book3 Pro 14
WD PC SN740 512GB SDDPMQD-512G-1101
2034 Points +46%
Average Samsung PM9A1a MZVL21T0HDLU
  (1283 - 3368, n=7)
1964 Points +41%
Average of class Office
  (252 - 3364, n=87, last 2 years)
1476 Points +6%
Lenovo ThinkPad T14s G4-21F8002TGE
Samsung PM9A1a MZVL21T0HDLU
1391 Points
HP EliteBook 845 G10 5Z4X0ES
WD PC SN740 512GB SDDPNQD-512G
1380 Points -1%
Lenovo ThinkPad T14s G4 21F6005GGE
Samsung PM9A1a MZVL21T0HDLU
1283 Points -8%
Dell Latitude 7440
Samsung MZ9L4512HBLU-00BMV
1028 Points -26%
Score Write
Average Samsung PM9A1a MZVL21T0HDLU
  (2703 - 4018, n=7)
3289 Points +13%
Lenovo ThinkPad T14s G4-21F8002TGE
Samsung PM9A1a MZVL21T0HDLU
2921 Points
HP EliteBook 845 G10 5Z4X0ES
WD PC SN740 512GB SDDPNQD-512G
2725 Points -7%
Lenovo ThinkPad T14s G4 21F6005GGE
Samsung PM9A1a MZVL21T0HDLU
2703 Points -7%
Samsung Galaxy Book3 Pro 14
WD PC SN740 512GB SDDPMQD-512G-1101
2496 Points -15%
Dell Latitude 7440
Samsung MZ9L4512HBLU-00BMV
2029 Points -31%
Average of class Office
  (247 - 4111, n=87, last 2 years)
2014 Points -31%
Seq Read
Average Samsung PM9A1a MZVL21T0HDLU
  (4590 - 5623, n=7)
5163 MB/s +7%
Lenovo ThinkPad T14s G4 21F6005GGE
Samsung PM9A1a MZVL21T0HDLU
5053 MB/s +5%
Lenovo ThinkPad T14s G4-21F8002TGE
Samsung PM9A1a MZVL21T0HDLU
4825 MB/s
HP EliteBook 845 G10 5Z4X0ES
WD PC SN740 512GB SDDPNQD-512G
3965 MB/s -18%
Samsung Galaxy Book3 Pro 14
WD PC SN740 512GB SDDPMQD-512G-1101
3912.13 MB/s -19%
Average of class Office
  (508 - 5796, n=87, last 2 years)
3452 MB/s -28%
Dell Latitude 7440
Samsung MZ9L4512HBLU-00BMV
3017.95 MB/s -37%
Seq Write
Samsung Galaxy Book3 Pro 14
WD PC SN740 512GB SDDPMQD-512G-1101
3194.48 MB/s +22%
Average Samsung PM9A1a MZVL21T0HDLU
  (2443 - 4482, n=7)
3121 MB/s +20%
Lenovo ThinkPad T14s G4-21F8002TGE
Samsung PM9A1a MZVL21T0HDLU
2609 MB/s
Lenovo ThinkPad T14s G4 21F6005GGE
Samsung PM9A1a MZVL21T0HDLU
2443 MB/s -6%
HP EliteBook 845 G10 5Z4X0ES
WD PC SN740 512GB SDDPNQD-512G
2420 MB/s -7%
Average of class Office
  (294 - 5880, n=87, last 2 years)
2350 MB/s -10%
Dell Latitude 7440
Samsung MZ9L4512HBLU-00BMV
1520.78 MB/s -42%
4K Read
Lenovo ThinkPad T14s G4 21F6005GGE
Samsung PM9A1a MZVL21T0HDLU
72.5 MB/s +13%
Dell Latitude 7440
Samsung MZ9L4512HBLU-00BMV
72.35 MB/s +13%
Samsung Galaxy Book3 Pro 14
WD PC SN740 512GB SDDPMQD-512G-1101
71.29 MB/s +12%
Average Samsung PM9A1a MZVL21T0HDLU
  (63.9 - 84.6, n=7)
71.2 MB/s +11%
Lenovo ThinkPad T14s G4-21F8002TGE
Samsung PM9A1a MZVL21T0HDLU
63.9 MB/s
Average of class Office
  (18 - 91.1, n=87, last 2 years)
58.3 MB/s -9%
HP EliteBook 845 G10 5Z4X0ES
WD PC SN740 512GB SDDPNQD-512G
52.2 MB/s -18%
4K Write
Samsung Galaxy Book3 Pro 14
WD PC SN740 512GB SDDPMQD-512G-1101
227.17 MB/s +44%
Dell Latitude 7440
Samsung MZ9L4512HBLU-00BMV
197.6 MB/s +25%
Lenovo ThinkPad T14s G4 21F6005GGE
Samsung PM9A1a MZVL21T0HDLU
180.5 MB/s +14%
Average Samsung PM9A1a MZVL21T0HDLU
  (146.2 - 231, n=7)
179.6 MB/s +14%
Average of class Office
  (28.2 - 350, n=87, last 2 years)
167.1 MB/s +6%
Lenovo ThinkPad T14s G4-21F8002TGE
Samsung PM9A1a MZVL21T0HDLU
157.8 MB/s
HP EliteBook 845 G10 5Z4X0ES
WD PC SN740 512GB SDDPNQD-512G
142.6 MB/s -10%
4K-64 Read
Samsung Galaxy Book3 Pro 14
WD PC SN740 512GB SDDPMQD-512G-1101
1571.21 MB/s +86%
Average Samsung PM9A1a MZVL21T0HDLU
  (705 - 2721, n=7)
1376 MB/s +63%
Average of class Office
  (182.3 - 2713, n=87, last 2 years)
1073 MB/s +27%
HP EliteBook 845 G10 5Z4X0ES
WD PC SN740 512GB SDDPNQD-512G
932 MB/s +10%
Lenovo ThinkPad T14s G4-21F8002TGE
Samsung PM9A1a MZVL21T0HDLU
844 MB/s
Lenovo ThinkPad T14s G4 21F6005GGE
Samsung PM9A1a MZVL21T0HDLU
705 MB/s -16%
Dell Latitude 7440
Samsung MZ9L4512HBLU-00BMV
654.24 MB/s -22%
4K-64 Write
Average Samsung PM9A1a MZVL21T0HDLU
  (2278 - 3339, n=7)
2797 MB/s +12%
Lenovo ThinkPad T14s G4-21F8002TGE
Samsung PM9A1a MZVL21T0HDLU
2502 MB/s
HP EliteBook 845 G10 5Z4X0ES
WD PC SN740 512GB SDDPNQD-512G
2340 MB/s -6%
Lenovo ThinkPad T14s G4 21F6005GGE
Samsung PM9A1a MZVL21T0HDLU
2278 MB/s -9%
Samsung Galaxy Book3 Pro 14
WD PC SN740 512GB SDDPMQD-512G-1101
1949.21 MB/s -22%
Dell Latitude 7440
Samsung MZ9L4512HBLU-00BMV
1678.93 MB/s -33%
Average of class Office
  (183.4 - 3394, n=87, last 2 years)
1612 MB/s -36%
Access Time Read
Samsung Galaxy Book3 Pro 14
WD PC SN740 512GB SDDPMQD-512G-1101
0.11 ms * -340%
Dell Latitude 7440
Samsung MZ9L4512HBLU-00BMV
0.098 ms * -292%
Average of class Office
  (0.022 - 0.302, n=87, last 2 years)
0.07797 ms * -212%
Average Samsung PM9A1a MZVL21T0HDLU
  (0.025 - 0.064, n=7)
0.04114 ms * -65%
HP EliteBook 845 G10 5Z4X0ES
WD PC SN740 512GB SDDPNQD-512G
0.038 ms * -52%
Lenovo ThinkPad T14s G4 21F6005GGE
Samsung PM9A1a MZVL21T0HDLU
0.028 ms * -12%
Lenovo ThinkPad T14s G4-21F8002TGE
Samsung PM9A1a MZVL21T0HDLU
0.025 ms *
Access Time Write
Dell Latitude 7440
Samsung MZ9L4512HBLU-00BMV
0.091 ms * -250%
Average of class Office
  (0.017 - 0.625, n=87, last 2 years)
0.06914 ms * -166%
HP EliteBook 845 G10 5Z4X0ES
WD PC SN740 512GB SDDPNQD-512G
0.027 ms * -4%
Lenovo ThinkPad T14s G4-21F8002TGE
Samsung PM9A1a MZVL21T0HDLU
0.026 ms *
Average Samsung PM9A1a MZVL21T0HDLU
  (0.019 - 0.027, n=7)
0.02343 ms * +10%
Lenovo ThinkPad T14s G4 21F6005GGE
Samsung PM9A1a MZVL21T0HDLU
0.023 ms * +12%
Samsung Galaxy Book3 Pro 14
WD PC SN740 512GB SDDPMQD-512G-1101
0.017 ms * +35%

* ... smaller is better

Sustained read performance: DiskSpd Read Loop, Queue Depth 8

035571010651420177521302485284031953550390542604615497053255680603563906745Tooltip
Lenovo ThinkPad T14s G4-21F8002TGE: Ø7002 (6313.1-7036.81)

显卡 - Radeon 780M

GPU-Z Radeon 780M
GPU-Z Radeon 780M

Radeon 780M Radeon 780MRadeon 780M 是一款快速的集成图形处理器,得益于双通道配置的快速 LPDDR5x 6400 内存。图形性能也明显优于英特尔机型,在合成基准测试中,AMD 机型要快 60% 左右。领先于 前代Radeon 680M在合成测试中仅领先不到 20%。

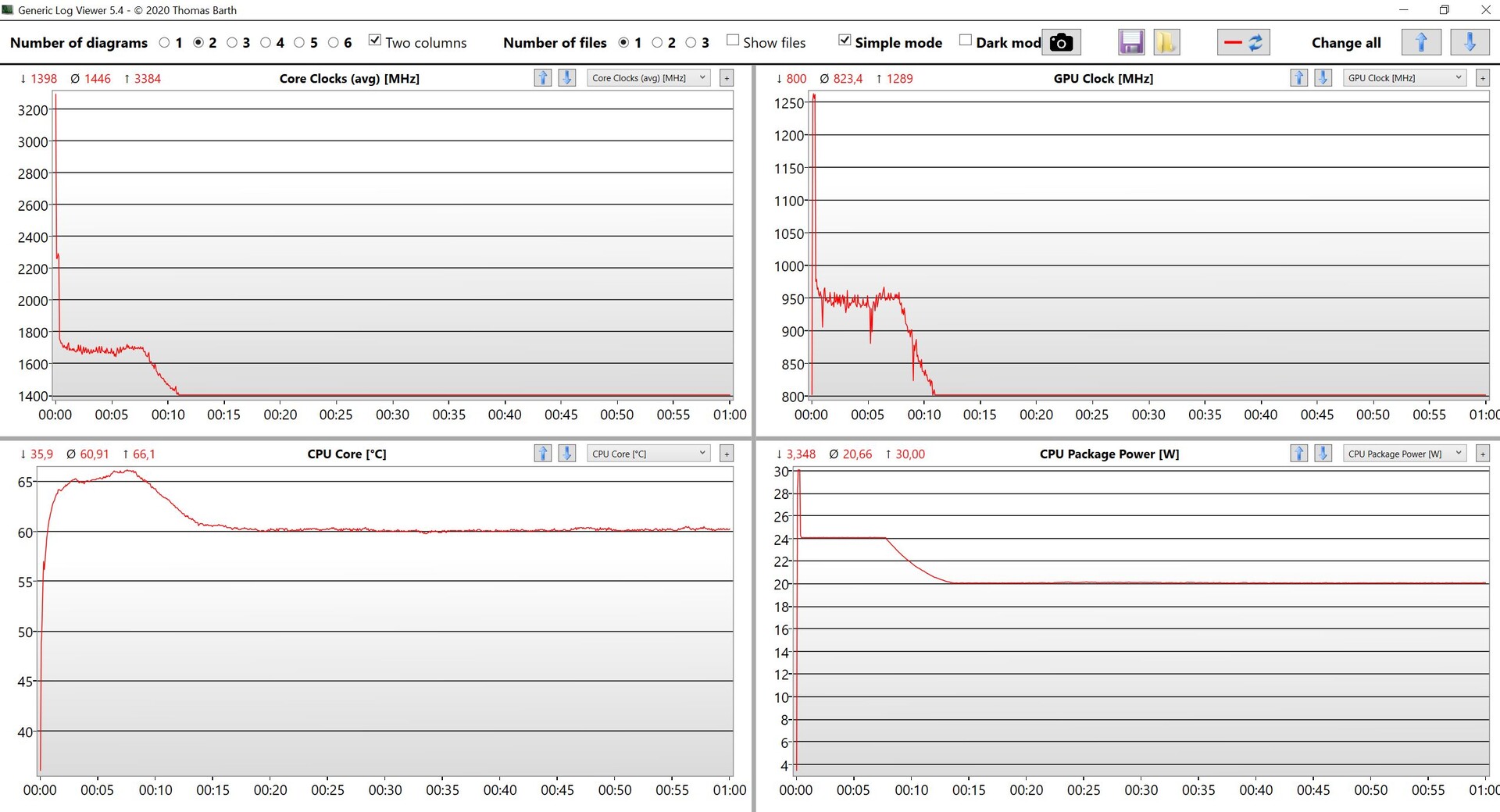

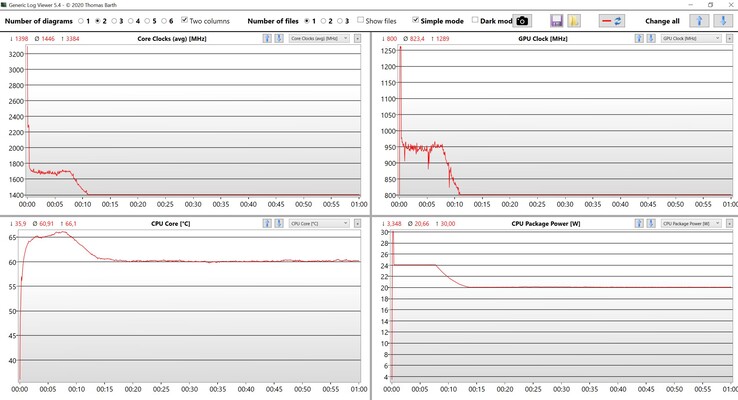

与 CPU 性能一样,GPU 性能在最初几秒后略有下降,这也是它未能通过Time Spy 95% 压力测试的原因。从根本上说,性能是稳定的,并且在长时间负载下也能保持稳定,我们的Witcher 3 长期测试也证实了这一点。在游戏测试中,Radeon 780M 明显快于英特尔的 Iris Xe Graphics G7在我们的标准游戏基准测试中,其领先优势约为 50%。这意味着旧版本和要求不高的游戏也能以高分辨率流畅运行。

在电池模式下,GPU 性能不会下降。更多 GPU 基准测试可在我们的技术部分.

3DMark Performance Rating - Percent
Average AMD Radeon 780M

99.2 pt
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Radeon 780M, AMD Ryzen 7 7840U
94.7 pt
HP EliteBook 845 G10 5Z4X0ES
AMD Radeon 780M, AMD Ryzen 7 7840U
85 pt
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Radeon 680M, AMD Ryzen 7 PRO 6850U
79.6 pt
Samsung Galaxy Book3 Pro 14
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
57.7 pt
Average of class Office

57.7 pt
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1355U
57.3 pt
Dell Latitude 7440
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1345U
48.1 pt
3DMark 11 - 1280x720 Performance GPU
Average AMD Radeon 780M
  (7868 - 14249, n=54)
12467 Points +8%
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Radeon 780M, AMD Ryzen 7 7840U
11528 Points
HP EliteBook 845 G10 5Z4X0ES
AMD Radeon 780M, AMD Ryzen 7 7840U
10209 Points -11%
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Radeon 680M, AMD Ryzen 7 PRO 6850U
9608 Points -17%
Average of class Office
  (1468 - 13132, n=88, last 2 years)
6704 Points -42%
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1355U
6405 Points -44%
Samsung Galaxy Book3 Pro 14
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
5877 Points -49%
Dell Latitude 7440
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1345U
5485 Points -52%
3DMark
1920x1080 Fire Strike Graphics
Average AMD Radeon 780M
  (4550 - 8816, n=56)
7746 Points +7%
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Radeon 780M, AMD Ryzen 7 7840U
7264 Points
HP EliteBook 845 G10 5Z4X0ES
AMD Radeon 780M, AMD Ryzen 7 7840U
6533 Points -10%
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Radeon 680M, AMD Ryzen 7 PRO 6850U
6431 Points -11%
Samsung Galaxy Book3 Pro 14
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
5315 Points -27%
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1355U
5073 Points -30%
Average of class Office
  (1089 - 9375, n=89, last 2 years)
4861 Points -33%
Dell Latitude 7440
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1345U
4442 Points -39%
2560x1440 Time Spy Graphics
Average AMD Radeon 780M
  (1496 - 3196, n=56)
2717 Points +8%
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Radeon 780M, AMD Ryzen 7 7840U
2512 Points
HP EliteBook 845 G10 5Z4X0ES
AMD Radeon 780M, AMD Ryzen 7 7840U
2277 Points -9%
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Radeon 680M, AMD Ryzen 7 PRO 6850U
1938 Points -23%
Average of class Office
  (313 - 4109, n=89, last 2 years)
1585 Points -37%
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1355U
1572 Points -37%
Samsung Galaxy Book3 Pro 14
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
1490 Points -41%
Dell Latitude 7440
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1345U
1318 Points -48%
Geekbench 5.5 - OpenCL Score
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Radeon 780M, AMD Ryzen 7 7840U
34161 Points
Average AMD Radeon 780M
  (20987 - 38330, n=53)
33126 Points -3%
HP EliteBook 845 G10 5Z4X0ES
AMD Radeon 780M, AMD Ryzen 7 7840U
30709 Points -10%
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Radeon 680M, AMD Ryzen 7 PRO 6850U
29688 Points -13%
Samsung Galaxy Book3 Pro 14
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
20588 Points -40%
Average of class Office
  (3627 - 46692, n=91, last 2 years)
19133 Points -44%
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1355U
18581 Points -46%
Dell Latitude 7440
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1345U
14541 Points -57%
3DMark 11 Performance
11316 points
3DMark Fire Strike Score
6773 points
3DMark Time Spy Score
2799 points
Help
Blender / v3.3 Classroom HIP/AMD
Average of class Office
  (298 - 1215, n=15, last 2 years)
727 Seconds *
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Radeon 680M, AMD Ryzen 7 PRO 6850U
322 Seconds *
Blender / v3.3 Classroom CPU
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1355U
855 Seconds * -91%
Average of class Office
  (343 - 3964, n=89, last 2 years)
773 Seconds * -73%
Samsung Galaxy Book3 Pro 14
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
741 Seconds * -65%
Dell Latitude 7440
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1345U
632 Seconds * -41%
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Radeon 680M, AMD Ryzen 7 PRO 6850U
528 Seconds * -18%
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Radeon 780M, AMD Ryzen 7 7840U
448 Seconds *
HP EliteBook 845 G10 5Z4X0ES
AMD Radeon 780M, AMD Ryzen 7 7840U
421 Seconds * +6%
Average AMD Radeon 780M
  (300 - 664, n=52)
375 Seconds * +16%

* ... smaller is better

Performance Rating - Percent
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U, AMD Radeon 780M
98.5 pt
Lenovo ThinkPad T14s G3 21CQ002LGE -1!
AMD Ryzen 7 PRO 6850U, AMD Radeon 680M
91.8 pt
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U, AMD Radeon 780M
89.5 pt
Average of class Office

68.2 pt
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs
65.4 pt
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
60.4 pt
Dell Latitude 7440
Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs
59.9 pt
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U, AMD Radeon 780M
25.2 (23min, 24P1) fps
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Ryzen 7 PRO 6850U, AMD Radeon 680M
24.5 (19min) fps -3%
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U, AMD Radeon 780M
22.2 (20min, 21P1) fps -12%
Average of class Office
  (3.8 - 34, n=79, last 2 years)
14.8 fps -41%
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs
14.5 (11min) fps -42%
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
13.6 (11min) fps -46%
Dell Latitude 7440
Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs
13.4 (12min) fps -47%
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U, AMD Radeon 780M
26 (1.319min, 16.4P1) fps
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U, AMD Radeon 780M
19.5 (3.27min, 13.2P1) fps -25%
Average of class Office
  (3.35 - 47.8, n=78, last 2 years)
12.7 fps -51%
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
10.3 (2.94min, 6.17P1) fps -60%
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs
10.2 (4.76min, 8.26P1) fps -61%
Dell Latitude 7440
Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs
8.81 (4.42min, 5.46P1) fps -66%
Final Fantasy XV Benchmark - 1920x1080 High Quality
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U, AMD Radeon 780M
25 fps
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U, AMD Radeon 780M
22.5 fps -10%
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Ryzen 7 PRO 6850U, AMD Radeon 680M
21.7 fps -13%
Dell Latitude 7440
Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs
16.8 fps -33%
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs
16 fps -36%
Average of class Office
  (3.86 - 35.7, n=87, last 2 years)
15.9 fps -36%
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
13 fps -48%
Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U, AMD Radeon 780M
42.8 (8.2min, 23P1) fps
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Ryzen 7 PRO 6850U, AMD Radeon 680M
38.3 (9.8min, 26.4P1) fps -11%
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U, AMD Radeon 780M
37.3 (7.2min, 8.95P1) fps -13%
Average of class Office
  (9.6 - 56.5, n=73, last 2 years)
27.1 fps -37%
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs
25.5 (5min, 8.36P1) fps -40%
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
23.9 (5min, 7.08P1) fps -44%
Dell Latitude 7440
Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs
21.9 (5min, 6.24P1) fps -49%
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U, AMD Radeon 780M
64.6 (54.9min) fps
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U, AMD Radeon 780M
62.6 (52.5min) fps -3%
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Ryzen 7 PRO 6850U, AMD Radeon 680M
56.6 (49min) fps -12%
Dell Latitude 7440
Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs
56.3 (41.5min) fps -13%
Average of class Office
  (13.4 - 121.2, n=94, last 2 years)
51.6 fps -20%
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs
51.4 (42.6min) fps -20%
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
46.6 (39.3min) fps -28%
X-Plane 11.11 - 1920x1080 high (fps_test=3)
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U, AMD Radeon 780M
31.8 fps +10%
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Ryzen 7 PRO 6850U, AMD Radeon 680M
31.2 fps +8%
Average of class Office
  (8.88 - 92.6, n=92, last 2 years)
30.1 fps +4%
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs
29.4 fps +1%
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U, AMD Radeon 780M
29 fps
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
28.3 fps -2%
Dell Latitude 7440
Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs
21.3 fps -27%

Witcher 3 FPS chart

0510152025Tooltip
Lenovo ThinkPad T14s G4-21F8002TGE R7 7840U, Radeon 780M: Ø25.2 (23-28)
lowmed.highultra
GTA V (2015) 137.5 125.9 56.8 26
The Witcher 3 (2015) 131 85 43 25.2
Dota 2 Reborn (2015) 116.5 96 73.8 64.6
Final Fantasy XV Benchmark (2018) 66.6 33.3 25
X-Plane 11.11 (2018) 48.8 35.6 29
Far Cry 5 (2018) 69 41 39 36
Strange Brigade (2018) 138.9 59.9 49.6 42.8
F1 2021 (2021) 169.6 81.9 64.2 26.6
F1 22 (2022) 80.4 70.2 50.5
F1 23 (2023) 73.2 64.5 44.1

排放与能源管理

噪音

用一个风扇冷却
用一个风扇冷却

从根本上说,AMD T14s G4 在日常使用中非常安静。只有在满载情况下,风扇的声音才会大得惊人,最高可达 39.2 dB(A),也比英特尔的英特尔变体。如果选择平衡 模式,噪音仅为 32 分贝(A)。在压力测试中,最佳节能模式的噪音仅为 26 dB(A)。没有检测到其他电子噪音。

Noise Level

Idle
24.6 / 24.6 / 26 dB(A)
Load
29.8 / 39.2 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 24.6 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2030.733.63734.232.735.92526.226.931.325.827.330.2312729.428.82828.728.94031.736.433.229.230.932.45026.626.427.12625.826.26330.226.226.327.827.825.28024.121.526.723.220.922.610021.318.422.128.32120.312518.519.219.12418.919.516018.918.717.621.117.918.220019.519.818.421.320.419.325021.318.419.72021.919.431520.418.917.215.616.216.740021.92017.113.912.714.9500232116.512.31114.463022.319.815.511.210.813.580024.62215.811.710.613.4100025.422.315.9121114.1125026.323.617.312.610.714.4160029.226.320.114.41115.3200029.325.719.413.611.515250028.625.919.113.811.714315028.325.117.814.211.816.1400027.323.819.213.812.515.6500027.726.518.613.412.712.9630029.224.214.814.112.713.1800024.417.613.413.612.8131000018.715.213.313.812.8131250016.514.113.113.512.812.71600013.512.512.212.41212.2SPL39.236.129.82624.626.7N32.31.20.80.60.8median 23median 20median 17.3median 13.8median 12.7median 14.4Delta4.32.82.12.531.9hearing rangehide median Fan NoiseLenovo ThinkPad T14s G4-21F8002TGE
Lenovo ThinkPad T14s G4-21F8002TGE
Radeon 780M, R7 7840U, Samsung PM9A1a MZVL21T0HDLU
Lenovo ThinkPad T14s G4 21F6005GGE
Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1a MZVL21T0HDLU
HP EliteBook 845 G10 5Z4X0ES
Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G
Dell Latitude 7440
Iris Xe G7 80EUs, i5-1345U, Samsung MZ9L4512HBLU-00BMV
Samsung Galaxy Book3 Pro 14
Iris Xe G7 96EUs, i7-1360P, WD PC SN740 512GB SDDPMQD-512G-1101
Lenovo ThinkPad T14s G3 21CQ002LGE
Radeon 680M, R7 PRO 6850U, SK Hynix PC711 512GB HFS512GDE9X081N
Noise
-1%
11%
9%
-16%
16%
off / environment *
24.6
24.2
2%
22.9
7%
22.8
7%
25.2
-2%
22.8
7%
Idle Minimum *
24.6
24.2
2%
22.9
7%
22.8
7%
25.2
-2%
22.8
7%
Idle Average *
24.6
24.2
2%
22.9
7%
22.8
7%
25.2
-2%
22.8
7%
Idle Maximum *
26
25.6
2%
22.9
12%
22.8
12%
32
-23%
22.8
12%
Load Average *
29.8
33.3
-12%
24.3
18%
26.3
12%
45.25
-52%
22.8
23%
Witcher 3 ultra *
36.1
37.4
-4%
32.4
10%
30
17%
27.5
24%
Load Maximum *
39.2
37.8
4%
33.9
14%
38.3
2%
45.3
-16%
27.3
30%

* ... smaller is better

温度

ThinkPad T14s G4 的表面温度绝对无害:压力测试结果最高仅为 42 °C。即使在满载情况下,笔记本电脑也可以毫不犹豫地放在大腿上。SoC 温度也稳定在较低的 60 °C,因此联想可以降低风扇转速或提高性能。

在综合 CPU/GPU 负载的压力测试中,处理器首先以 30 瓦的功率短时间运行,然后以 24 瓦的功率运行几分钟,最后稳定在 20 瓦。压力测试后,性能没有立即下降。

CPU/iGPU 数据压力测试
CPU/iGPU 数据压力测试
Max. Load
 41.1 °C42.1 °C39.2 °C
 39.6 °C42 °C38.4 °C
 28.2 °C27.1 °C29.1 °C
Maximum: 42.1 °C
Average: 36.3 °C
38.6 °C39.7 °C39.6 °C
39.2 °C38.7 °C37.8 °C
30.6 °C30.8 °C30.3 °C
Maximum: 39.7 °C
Average: 36.1 °C
Power Supply (max.)  39 °C | Room Temperature 20.6 °C | Fluke t3000FC (calibrated), Voltcraft IR-900
(±) The average temperature for the upper side under maximal load is 36.3 °C / 97 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 42.1 °C / 108 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 39.7 °C / 103 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 22.3 °C / 72 F, compared to the device average of 29.5 °C / 85 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 36.1 °C / 97 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.1 °C / 84.4 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-1.4 °C / -2.5 F).
表面温度应力测试(顶部)
表面温度应力测试(顶部)
表面温度应力测试(底部)
表面温度应力测试(底部)
Lenovo ThinkPad T14s G4-21F8002TGE
AMD Ryzen 7 7840U, AMD Radeon 780M
Lenovo ThinkPad T14s G4 21F6005GGE
Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs
HP EliteBook 845 G10 5Z4X0ES
AMD Ryzen 7 7840U, AMD Radeon 780M
Dell Latitude 7440
Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
Lenovo ThinkPad T14s G3 21CQ002LGE
AMD Ryzen 7 PRO 6850U, AMD Radeon 680M
Heat
-13%
-18%
-11%
-26%
-15%
Maximum Upper Side *
42.1
43.4
-3%
45.4
-8%
39
7%
43.9
-4%
49.2
-17%
Maximum Bottom *
39.7
37.8
5%
50.6
-27%
40.6
-2%
50.7
-28%
37.2
6%
Idle Upper Side *
23
29.7
-29%
26.8
-17%
28
-22%
30.8
-34%
31.1
-35%
Idle Bottom *
22.8
28.4
-25%
26.8
-18%
28.8
-26%
31.6
-39%
26
-14%

* ... smaller is better

发言人

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2032.737.32527.3303128.731.24030.932.75025.828.86327.825.58020.925.61002128.412518.933.416017.934.220020.444.325021.947.831516.25840012.761.65001162.563010.864.580010.662.910001166.8125010.77016001172.2200011.566.2250011.764.8315011.867.4400012.565.4500012.767.5630012.772.1800012.861.81000012.862.61250012.866.2160001258.5SPL24.679.8N0.646.5median 12.7median 62.9Delta37.835.134.528.832.232.629.938.436.326.929.225.825.221.423.819.227.71936.51743.217.955.517.861.316.267.814.168.613.269.412.871.413.170.713.370.912.274.31272.711.474.212.472.61472.512.46912.966.914.965.31368.213.166.11364.112.562.225.383.20.757.8median 13.1median 68.21.66.7hearing rangehide median Pink NoiseLenovo ThinkPad T14s G4-21F8002TGEHP EliteBook 845 G10 818N0EA
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo ThinkPad T14s G4-21F8002TGE audio analysis

(±) | speaker loudness is average but good (79.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 21.8% lower than median
(±) | linearity of bass is average (10.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.4% away from median
(+) | mids are linear (5.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.5% away from median
(+) | highs are linear (6.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.8% difference to median)
Compared to same class
» 25% of all tested devices in this class were better, 6% similar, 70% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 32% of all tested devices were better, 8% similar, 60% worse
» The best had a delta of 4%, average was 25%, worst was 134%

HP EliteBook 845 G10 818N0EA audio analysis

(+) | speakers can play relatively loud (83.2 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19.5% lower than median
(±) | linearity of bass is average (13.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.4% away from median
(+) | mids are linear (2.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.2% away from median
(+) | highs are linear (3.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14.2% difference to median)
Compared to same class
» 7% of all tested devices in this class were better, 3% similar, 89% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 15% of all tested devices were better, 4% similar, 82% worse
» The best had a delta of 4%, average was 25%, worst was 134%

耗电量

T14s G4 AMD 的功耗非常低,尽管最大亮度更高,但与惠普 EliteBook 845 G10 相当,低于英特尔机型。全亮度时的功耗为 2.7 瓦至最大 5.6 瓦,设备效率非常高,负载下的功耗也低于英特尔同类产品,后者的短期功耗限制要高得多。因此,随附的 65 瓦电源完全够用。

Lenovo ThinkPad T14s G4-21F8002TGE
Radeon 780M, R7 7840U, Samsung PM9A1a MZVL21T0HDLU
Lenovo ThinkPad T14s G4 21F6005GGE
Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1a MZVL21T0HDLU
HP EliteBook 845 G10 5Z4X0ES
Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G
Dell Latitude 7440
Iris Xe G7 80EUs, i5-1345U, Samsung MZ9L4512HBLU-00BMV
Samsung Galaxy Book3 Pro 14
Iris Xe G7 96EUs, i7-1360P, WD PC SN740 512GB SDDPMQD-512G-1101
Lenovo ThinkPad T14s G3 21CQ002LGE
Radeon 680M, R7 PRO 6850U, SK Hynix PC711 512GB HFS512GDE9X081N
Power Consumption
-20%
-1%
-33%
-46%
10%
Idle Minimum *
2.7
4.6
-70%
3.2
-19%
4.5
-67%
4.2
-56%
2.2
19%
Idle Average *
5.2
5.4
-4%
5.1
2%
6.5
-25%
4.7
10%
4.4
15%
Idle Maximum *
5.6
6.7
-20%
5.4
4%
7.3
-30%
11.4
-104%
5.1
9%
Load Average *
40.1
39.9
-0%
39.1
2%
52.5
-31%
61.5
-53%
33.3
17%
Witcher 3 ultra *
40.2
36.8
8%
39.8
1%
46.2
-15%
55.1
-37%
40.1
-0%
Load Maximum *
48.3
64.3
-33%
46.6
4%
63
-30%
64
-33%
48.5
-0%

* ... smaller is better

Power Consumption
Off / Standbydarklight 0.41 / 0.53 Watt
Idledarkmidlight 2.7 / 5.2 / 5.6 Watt
Load midlight 40.1 / 48.3 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy

Power consumption Witcher 3 / Stress test

051015202530354045Tooltip
Lenovo ThinkPad T14s G4-21F8002TGE; Witcher 3 ultra: Ø40.2 (39.6-46.7)
Lenovo ThinkPad T14s G4-21F8002TGE; 1280x720 Prime95 28.10 and Furmark 1.25: Ø40.8 (39.7-48.3)
Lenovo ThinkPad T14s G4-21F8002TGE; Idle 150cd/m2: Ø3.99 (3.73-4.99)

Power consumption with an external monitor

051015202530354045Tooltip
Lenovo ThinkPad T14s G4-21F8002TGE; Prime95 V2810 Stress (external Monitor): Ø34.3 (33.2-42.1)
Lenovo ThinkPad T14s G4-21F8002TGE; Cinebench R15 Multi (external Monitor): Ø40.4 (34.7-42.8)
Lenovo ThinkPad T14s G4-21F8002TGE; Cinebench R23 Single (external Monitor): Ø27.8 (21.2-43.2)
Lenovo ThinkPad T14s G4-21F8002TGE; Cinebench R23 Multi (external Monitor): Ø36.1 (34.2-45.3)
Lenovo ThinkPad T14s G4-21F8002TGE; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø39.7 (38.2-47.3)
Lenovo ThinkPad T14s G4-21F8002TGE; 1920x1080 The Witcher 3 ultra (external Monitor): Ø38.3 (37.6-44.1)
Lenovo ThinkPad T14s G4-21F8002TGE; Idle 1min (external Monitor): Ø4.19 (3.95-5.14)

电池寿命

充电曲线
充电曲线

57 Wh 电池的续航时间非常出色,与 OLED 机型相比,IPS 机型具有巨大优势。在调整亮度为 150 cd/m²(相当于我们测试设备最大亮度的 65%)的情况下,视频测试的运行时间略低于 16.5 小时,WLAN 测试的运行时间超过 13 小时。即使在全亮度状态下,该设备在 WLAN 测试中也能运行近 10 个小时。不过,电池电量可在 1.5 小时内耗尽(最大亮度下),但性能并未受到影响。

Battery Runtime
WiFi Websurfing (Edge 118)
13h 13min
WiFi Websurfing max. Brightness (Edge 118)
9h 52min
Big Buck Bunny H.264 1080p
16h 28min
Load (maximum brightness)
1h 39min
Lenovo ThinkPad T14s G4-21F8002TGE
R7 7840U, Radeon 780M, 57 Wh
Lenovo ThinkPad T14s G4 21F6005GGE
i7-1355U, Iris Xe G7 96EUs, 57 Wh
HP EliteBook 845 G10 5Z4X0ES
R7 7840U, Radeon 780M, 51 Wh
Dell Latitude 7440
i5-1345U, Iris Xe G7 80EUs, 57 Wh
Samsung Galaxy Book3 Pro 14
i7-1360P, Iris Xe G7 96EUs, 63 Wh
Lenovo ThinkPad T14s G3 21CQ002LGE
R7 PRO 6850U, Radeon 680M, 57 Wh
Average of class Office

Battery Runtime
-20%
-14%
32%
-17%
20%
-11%
H.264
988
760
-23%
712
-28%
WiFi v1.3
793
452
-43%
779
-2%
781
-2%
528
-33%
718
-9%
Load
99
102
3%
81
-18%
164
66%
109
10%
148
49%
Reader / Idle
1427
1257

Pros

+ 高质量、轻质底盘
+ 高性能
+ 舒适的输入设备
+ 集成 4G/LTE
+ 大量端口/安全功能
+ 超长电池寿命
+ 500 万像素网络摄像头

Cons

- 焊接内存
- 风扇运转声音比竞争对手大
- 没有 SD 读卡器

结论:采用 AMD 和 IPS 的商务笔记本电脑更出色

回顾:联想 ThinkPad T14s G4。测试设备由提供:
回顾:联想 ThinkPad T14s G4。测试设备由提供:

在评测了两款 ThinkPad T14s 之后,我们可以直接说,对于商务笔记本电脑来说,AMD 处理器和低功耗 IPS 面板的配置是更好的组合。AMD 处理器以更低的 TDP 提供更高的多核性能,在单核测试中也不落后于 Raptor Lake CPU。此外,图形性能也明显更高。

在显示屏方面,选择也很简单。sRGB 色彩空间完全满足日常办公使用的需要,而且面板比 OLED 屏幕更经济,后者还必须面对 PWM 闪烁的问题。除了大大延长电池寿命外,雾面 IPS 面板在户外也有更好的表现。

更强的性能和更长的电池续航时间:AMD Ryzen 处理器和雾面 IPS 显示屏确保联想 ThinkPad T14s G4 的性能更加出色,是市场上最好的商务笔记本电脑之一。

在 ThinkPad T14s G4 中做出选择非常明显,但如果比较 ThinkPad 和 惠普 EliteBook 845 G10 进行比较时,选择就变得更加困难了。这两款设备在很多方面都非常相似,而且都是目前最好的商务笔记本电脑之一。ThinkPad 的运行时间稍长,而 EliteBook 则凭借不那么敏感的机箱和可升级的内存取胜。此外,在配置相当的情况下,EliteBook 的价格也更便宜。总的来说,EliteBook 仍然是目前最好的商务笔记本电脑,尽管领先优势并不大。

价格和供应情况

作为 "黑色星期五 "优惠活动的一部分,ThinkPad T14s G4 目前在联想美国商店的销售折扣为 45%,起价 956.45 美元

价格截至 2023 年 11 月 1 日,可能会有变动。

Lenovo ThinkPad T14s G4-21F8002TGE - 10/30/2023 v7 (old)
Andreas Osthoff

Chassis
89 / 98 → 91%
Keyboard
91%
Pointing Device
92%
Connectivity
65 / 80 → 81%
Weight
71 / 20-75 → 92%
Battery
90%
Display
90%
Games Performance
75 / 78 → 96%
Application Performance
95 / 95 → 100%
Temperature
91%
Noise
95%
Audio
77%
Camera
44 / 85 → 52%
Average
82%
90%
Office - Weighted Average

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Price comparison

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 评测 > 联想ThinkPad T14s G4评测:采用 AMD Zen4 的商务笔记本电脑更出色
Andreas Osthoff, 2023-11- 1 (Update: 2023-11- 1)
