联想 ThinkPad X13 2 合 1 5 代笔记本电脑评测：高性能 Yoga 可折叠笔记本的继任者
二合一瑜伽
联想改变了命名方案。现在，该公司的可转换笔记本电脑的名称中都应该有 "2-in-1"，这意味着 ThinkPad X13 Yoga Gen 4 的继任者被称为 ThinkPad X13 2-in-1 Gen 5。该系统基于英特尔酷睿 Ultra 7 165U；本评测将探讨这一选择是否正确，以及除了命名结构之外还有哪些变化。Christian Hintze, 👁 Christian Hintze (translated by DeepL / Ninh Duy) Published 🇺🇸 🇩🇪 ...
结论 - 一辆非常出色的敞篷车，但仍有许多不足之处，令人吃惊
ThinkPad X13 2 合 1 总体而言是一款非常出色的可转换设备。它拥有坚固的镁合金外壳、12 小时的电池续航时间、手写笔，甚至还有 LTE（可选）。它的性能完全可以满足办公和人工智能工作负载以及轻量级内容编辑工作的需要。事实上，这款笔记本电脑并不缺少任何基本配置。
尽管如此，考虑到这是一款价值 2,000 欧元的笔记本电脑，我们还是惊讶地发现有这么多值得批评和需要改进的地方。首先是性能。与前代产品相比，第 4 代产品在性能方面没有任何明显改善。我们刚刚测试的这款笔记本电脑也是如此，它并不比 ThinkPad X13 Yoga 第 4 代快多少。如果我们暂时不考虑人工智能性能的提升，那么连续两代产品的停滞不前是显而易见的。
默认的触摸屏选项还算可以，但只能提供 300 尼特的亮度，而且只能覆盖 sRGB，好在还有更亮的屏幕选项可供选择。此外，"最高支持 Wi-Fi 7 "的宣传却没有实际可用性，这说明联想的营销部门在玩阴的。说到营销：我们非常希望联想能尽快对其 Vantage 软件采取一些措施，因为该软件显示的广告数量令人匪夷所思，而重要的性能设置却不见踪影。

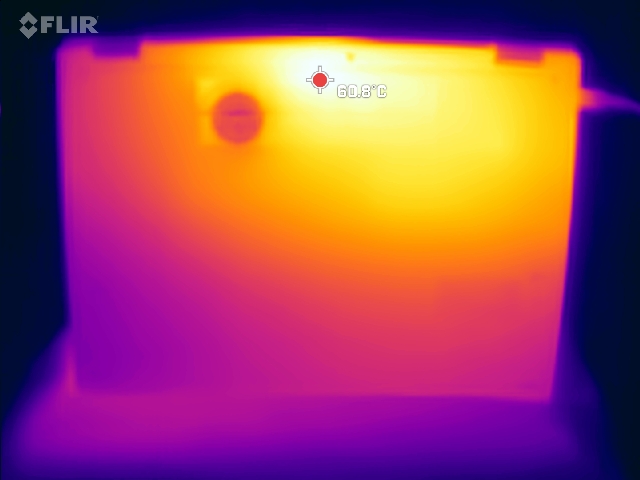

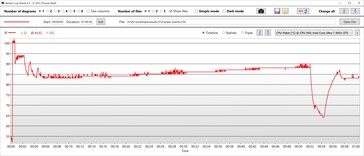

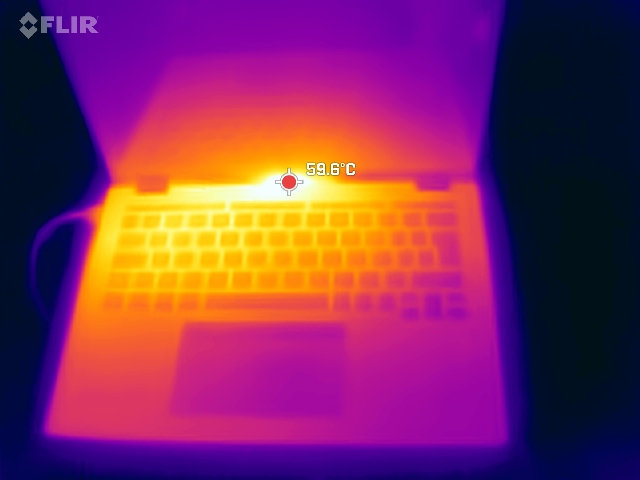

该系统也不擅长控制热量，因为尽管有一个大型铜制散热器，但固态硬盘还是会节流。
Pros
Cons
价格和供应情况
X13 2 合 1 并不便宜，我们的评测机型在德国的售价预计至少为 2,000 欧元（约合 2,100 美元）。不过，这款产品目前尚未上市。有几款较弱的 SKU 可以购买。例如，以酷睿 Ultra 7 155U 为基础的 SKU 售价约为 1,900 欧元。请访问Klarsicht-it.de 查看详情。.
可能的替代品比较
Image | Model / Review | Price | Weight | Height | Display |
|---|---|---|---|---|---|
1. 85.1%  | Lenovo ThinkPad X13 2-in-1 Gen 5 Intel Core Ultra 7 165U ⎘ Intel Graphics 4-Cores iGPU (Arc) ⎘ 32 GB Memory, 1000 GB SSD | Amazon: $1,715.95 List Price: 2107.23 Euro | 1.3 kg | 16.4 mm | 13.30" 1920x1200 170 PPI IPS |
2. 83.3%  | Dell Latitude 7350 Detachable Intel Core Ultra 7 164U ⎘ Intel Graphics 4-Cores iGPU (Arc) ⎘ 32 GB Memory, 1024 GB SSD | Amazon: List Price: 2390 USD | 865 g | 8.9 mm | 13.00" 2880x1920 266 PPI IPS |
3. 89.4% v7 (old)  | HP EliteBook x360 830 G10 7L7U1ET Intel Core i5-1335U ⎘ Intel Iris Xe Graphics G7 80EUs ⎘ 16 GB Memory, 512 GB SSD | Amazon: $929.98 List Price: 1300 Euro | 1.3 kg | 19.2 mm | 13.30" 1920x1200 170 PPI IPS LED |
4. 85.3%  | Dell XPS 13 9350 Intel Core Ultra 7 256V ⎘ Intel Arc Graphics 140V ⎘ 16 GB Memory, 512 GB SSD | Amazon: 1. $1,269.99 Dell XPS 13 Home & Business ... 2. $949.00 Dell XPS 13-9350 13.3-Inch H... 3. $31.54 DMKAOLLK XPS 13 9350 9343 JD... List Price: 1400 USD | 1.2 kg | 15.3 mm | 13.40" 1920x1200 169 PPI IPS |
5. 84%  | Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H ⎘ Intel Arc 8-Core iGPU ⎘ 32 GB Memory | List Price: 1500 USD | 1.4 kg | 15.85 mm | 13.50" 2880x1920 256 PPI IPS |
6. 88.4% v7 (old)  | Microsoft Surface Pro 9, i7-1255U Intel Core i7-1255U ⎘ Intel Iris Xe Graphics G7 96EUs ⎘ 16 GB Memory, 512 GB SSD | Amazon: 1. $1,199.01 Microsoft Surface Pro 9, 13.... 2. $934.99 Microsoft Surface Pro 9 Tabl... 3. $1,999.00 Microsoft Surface Pro 9, 13.... List Price: 2200€ | 877 g | 9.3 mm | 13.00" 2880x1920 266 PPI IPS |
7. 85.3%  | Asus ProArt PZ13 HT5306 Qualcomm Snapdragon X Plus X1P-42-100 ⎘ Qualcomm SD X Adreno X1-45 1.7 TFLOPS ⎘ 16 GB Memory, 1024 GB SSD | Amazon: 1. $16.98 Puccy 3 Pack Screen Protecto... 2. $39.99 Smatree Hard EVA Protective ... 3. $28.98 Puccy Privacy Screen Protect... List Price: 1599€ | 874 g | 9 mm | 13.30" 2880x1800 255 PPI OLED |
今年的联想 ThinkPad X13 2 合 1 并没有接替 联想 ThinkPad X13 G4.取而代之的是 联想 ThinkPad X13 Yoga G4所取代。显然，联想对这款产品进行了改名，用 "二合一 "取代了 "Yoga"。与新名称所暗示的相反，它几乎没有任何视觉上的变化，而硬件则从 13 代英特尔酷睿 i7 升级到了最新一代英特尔 Ultra 处理器。

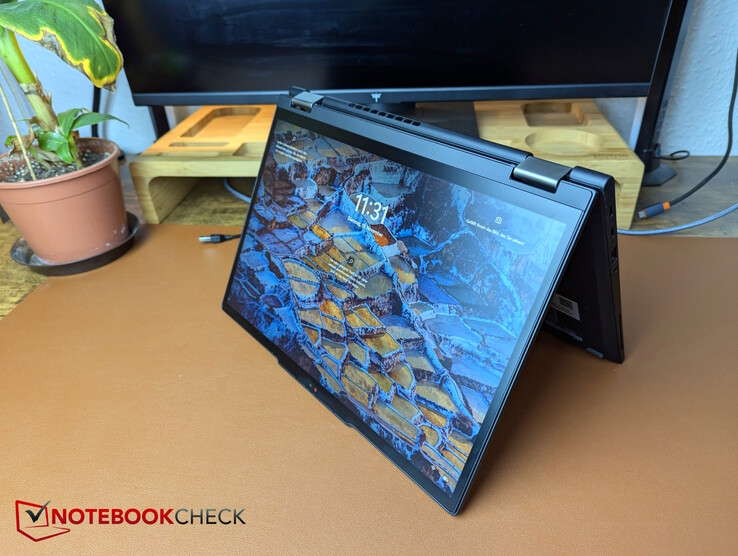

与标准的 X13 不同，这是一款真正的可折叠产品，同时也是 ThinkPad 产品家族的一员。Yoga G4 的电池续航时间给我们留下了深刻印象，但其性能并无特别之处。新的英特尔酷睿 Ultra CPU 能否帮助联想避免重蹈覆辙，我们拭目以待。
规格

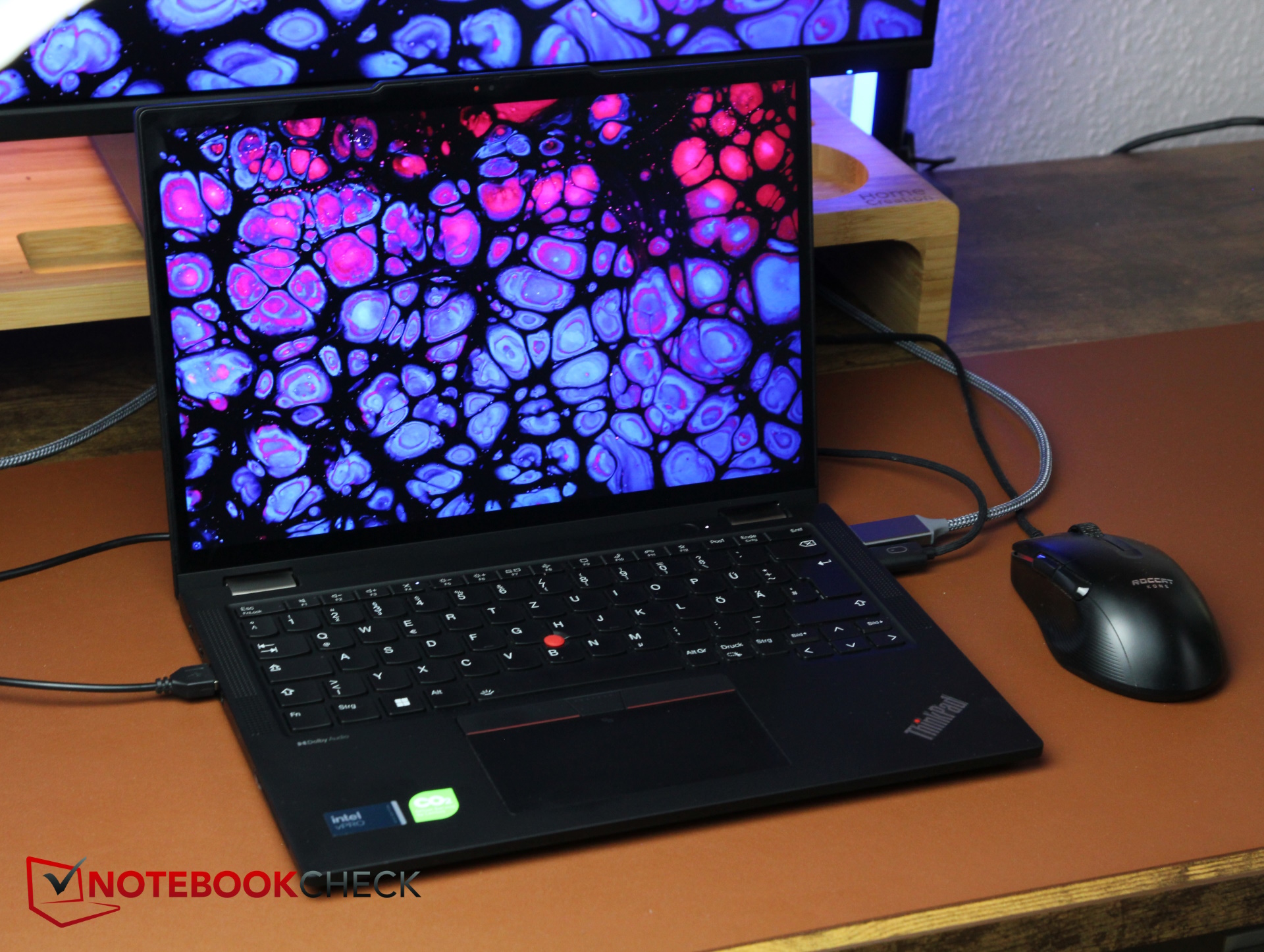

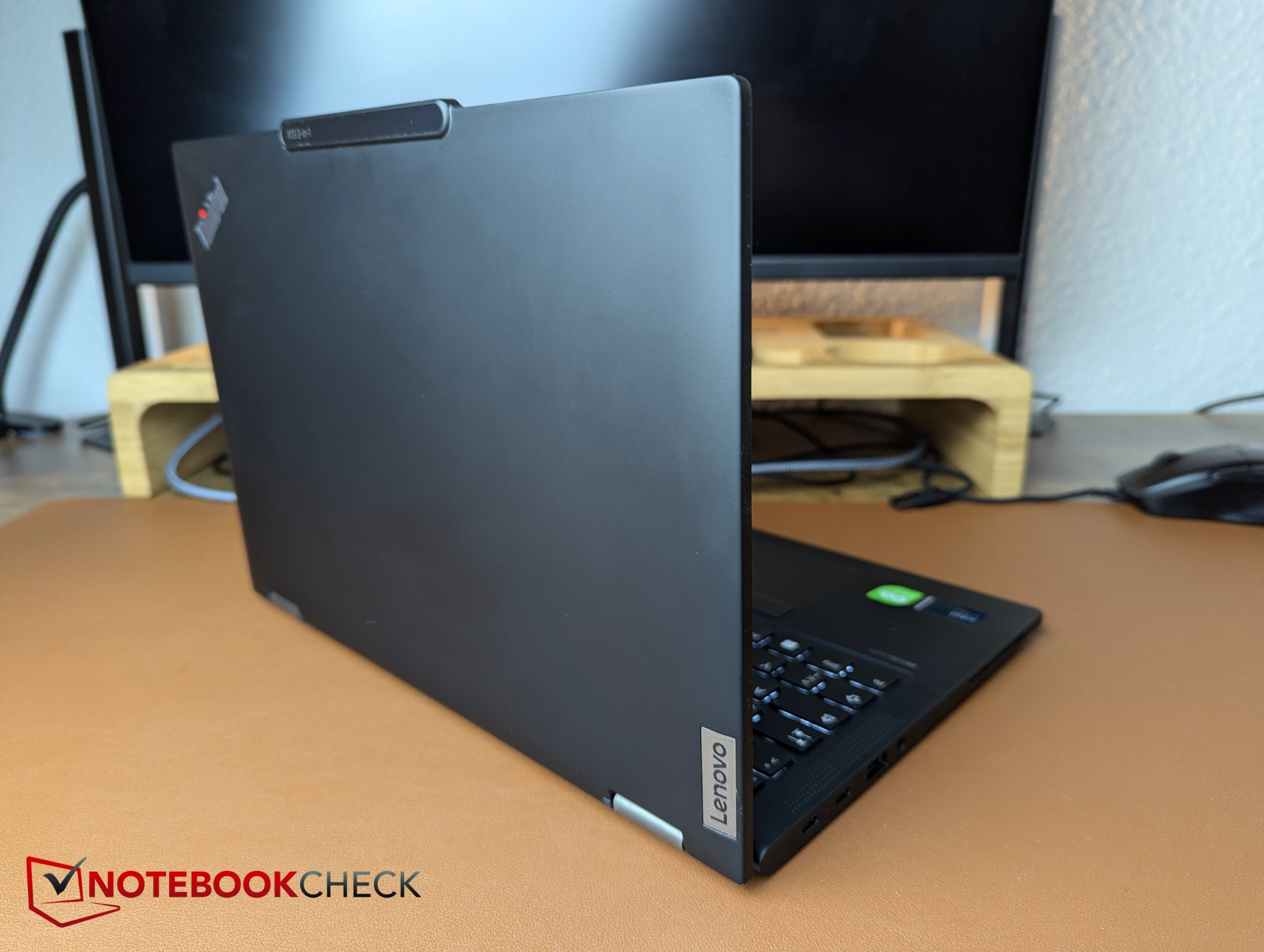

机壳 - 适用于 X13 2 合 1 的镁合金机壳

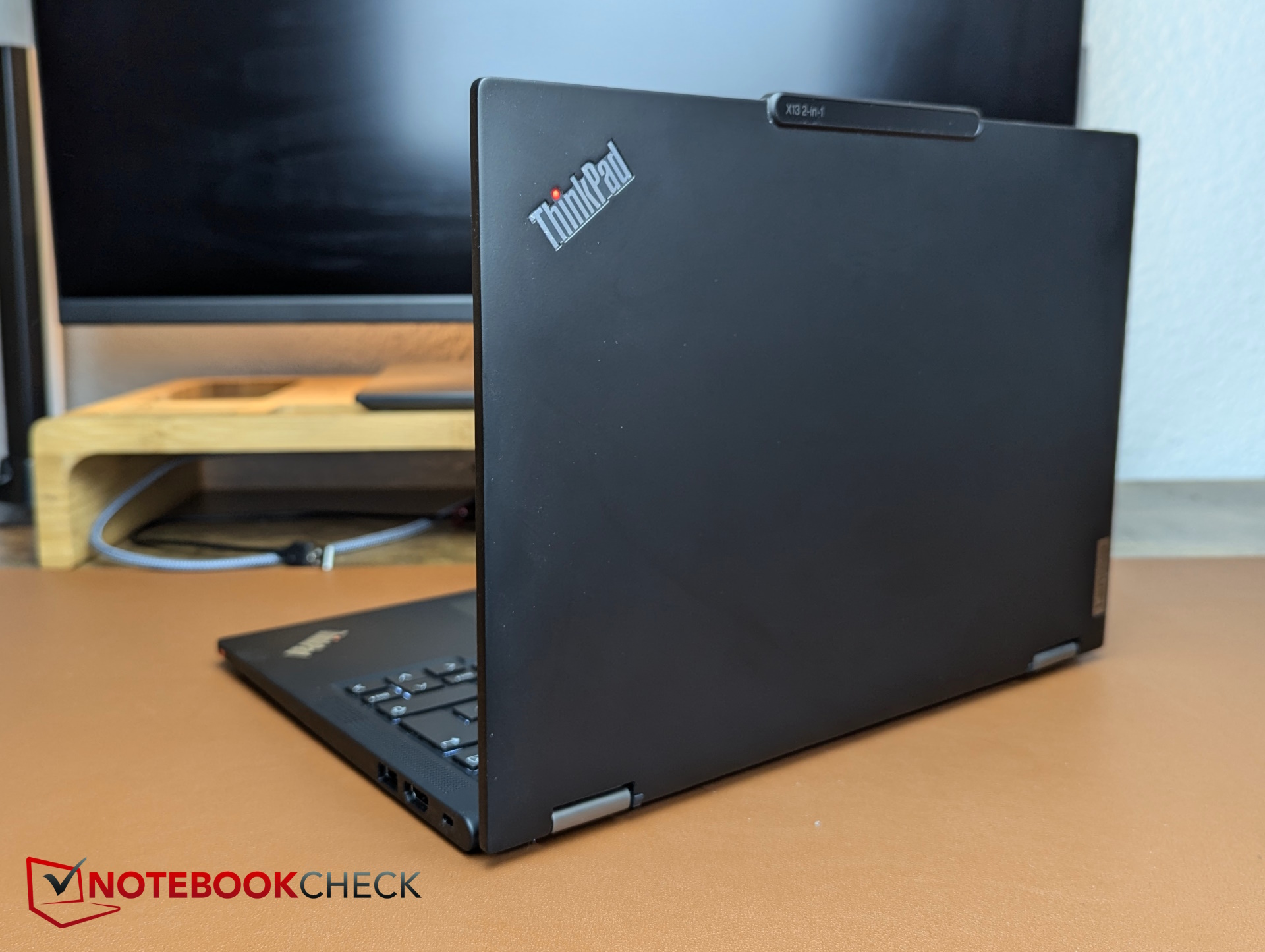

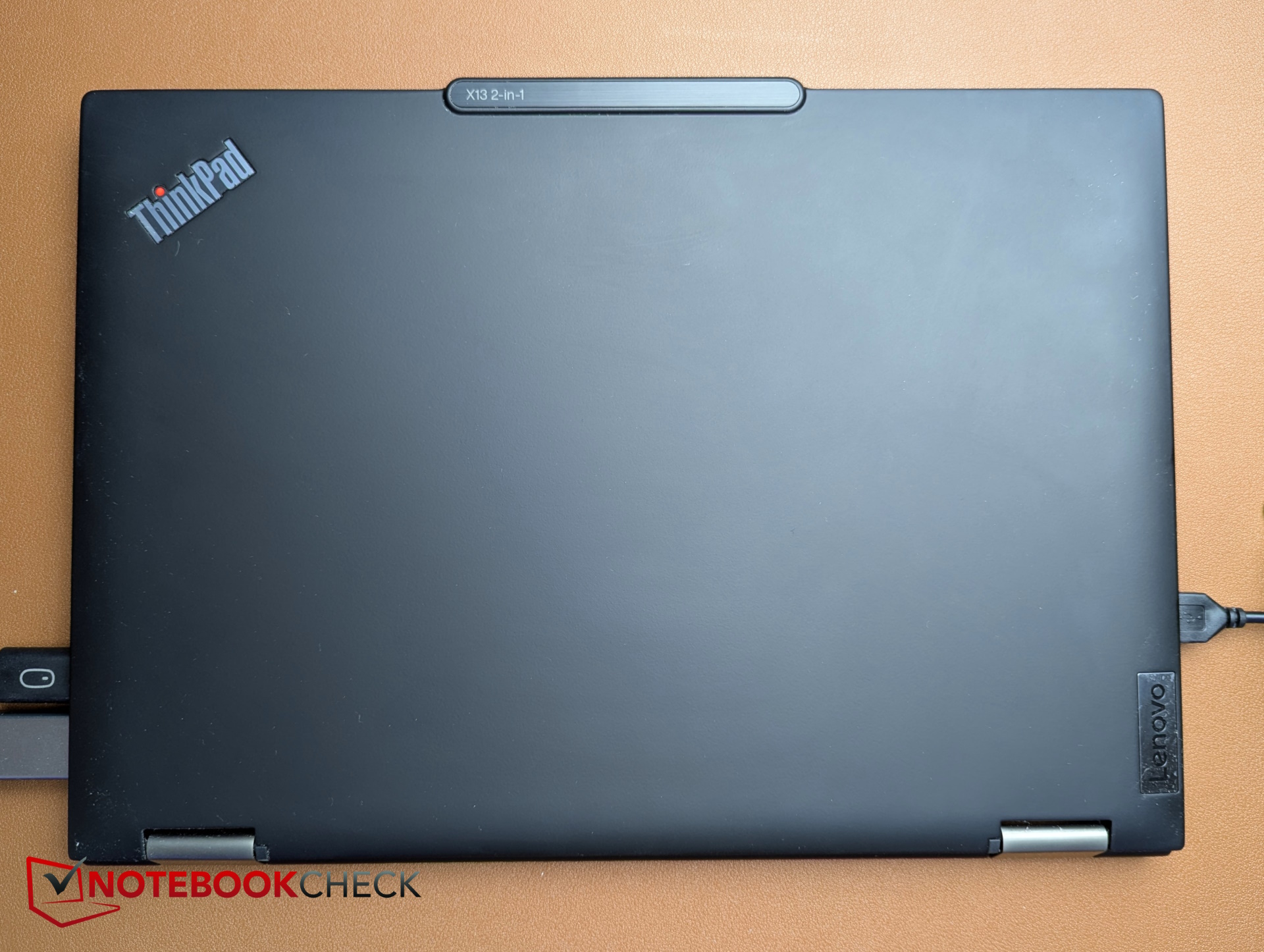

如上所述，该机在外观上没有任何变化，但有一处例外：与名称变化一致，背面的摄像头凹槽上现在写的是 "X13 2-in-1"，而不是 "X13 Yoga"。就是这样，我们已经把最大的视觉设计变化涵盖在内了。
深黑色 "的外壳仍然主要由镁合金制成，只有底部采用了铝合金。遗憾的是，表面很快就会布满指纹和油渍。两个铰链的颜色略低于周围环境，可将显示屏打开 360 度，实现平板电脑模式。显示屏由哑光玻璃面板覆盖。盖子上的 ThinkPad 字样 "锦上添花"，被设计成一个红色 LED，用于显示系统状态（开、关、空闲）。
可折叠机身非常坚固，几乎无法扭动，只有在受压或扭动时才会发出几声脆响。毕竟，它通过了 MIL-STD 810H 认证（这是美国国防部制定的标准）。
它的尺寸和重量与 X13 Yoga G4 并无不同。惠普 HP EliteBook x360 830 G10稍大一些。更小、更轻的是 戴尔 XPS 13 9350采用 Lunar Lake CPU。
连接性 - 标配 Thunderbolt 4；4G LTE 需额外收费

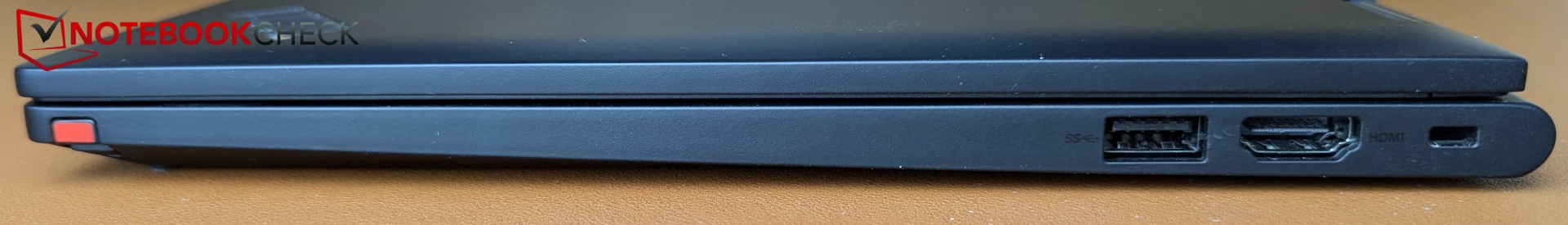

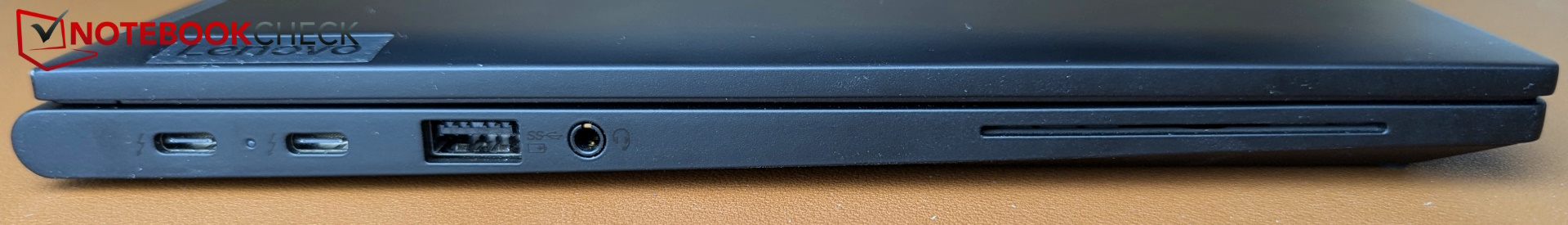

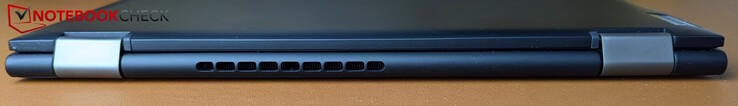

X13 2 合 1 一共有四个 USB 端口，其中两个是 USB-A（5 Gb/s），另外两个是支持 Thunderbolt 的 USB 4 规格 C 端口（40 Gb/s）。不过，两个 USB-C 端口中的一个通常会被充电线占用。

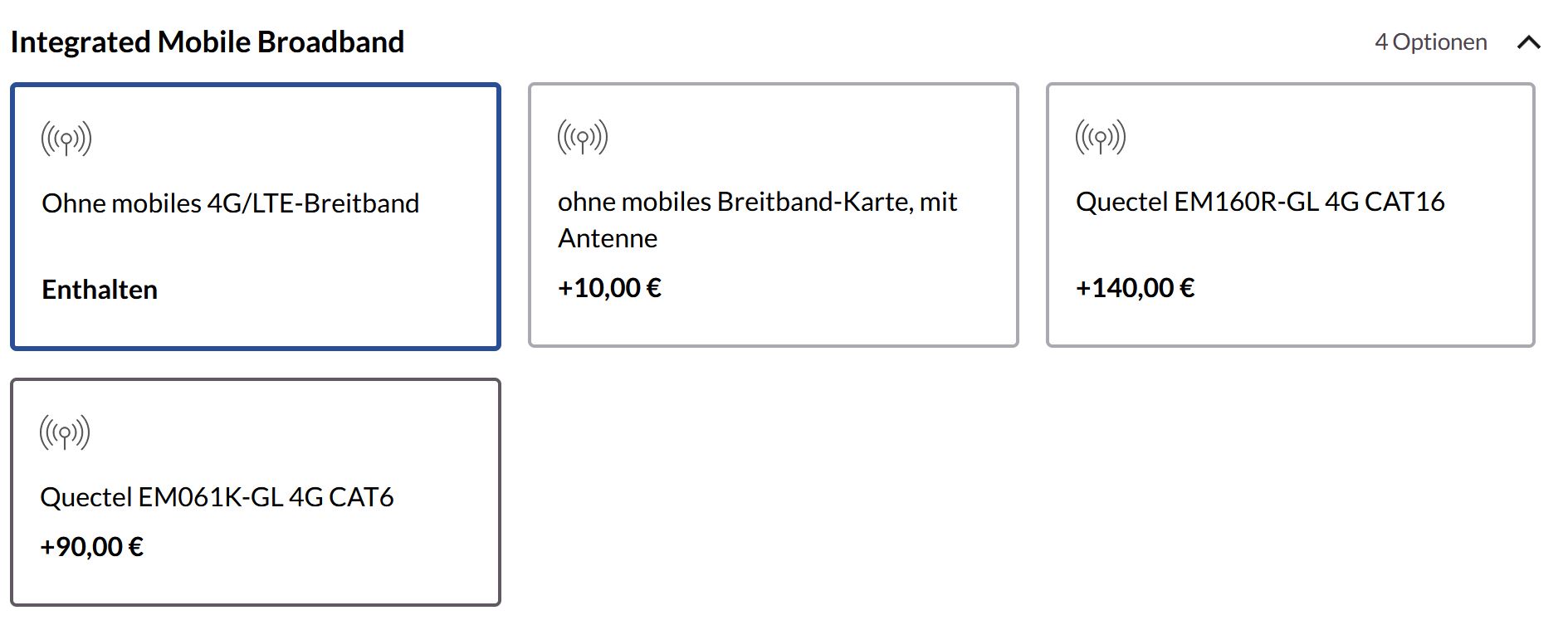

它仍然没有 LAN 端口或（micro）SD 读卡器，这在该级别设备中属于正常现象。这款笔记本可以配备内置蜂窝调制解调器，但我们的 SKU 没有配备。预装天线只需额外支付 10 欧元，而调制解调器本身则需要 90 至 140 欧元。可选的 SIM 卡插槽应该位于机身右侧，靠近 USB-A 端口。
交流

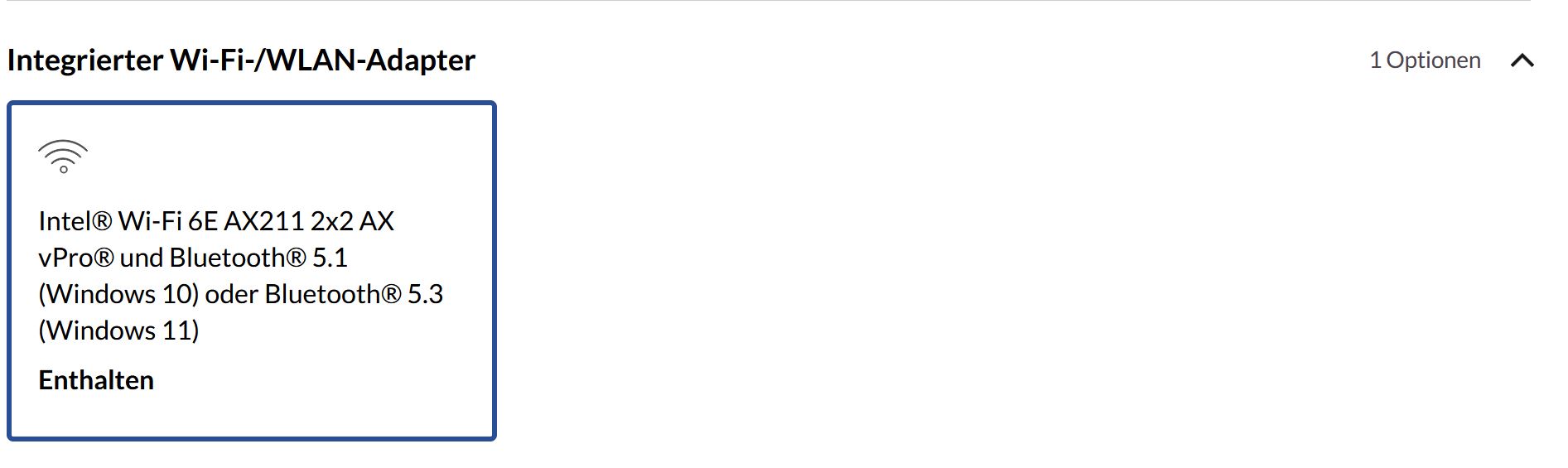

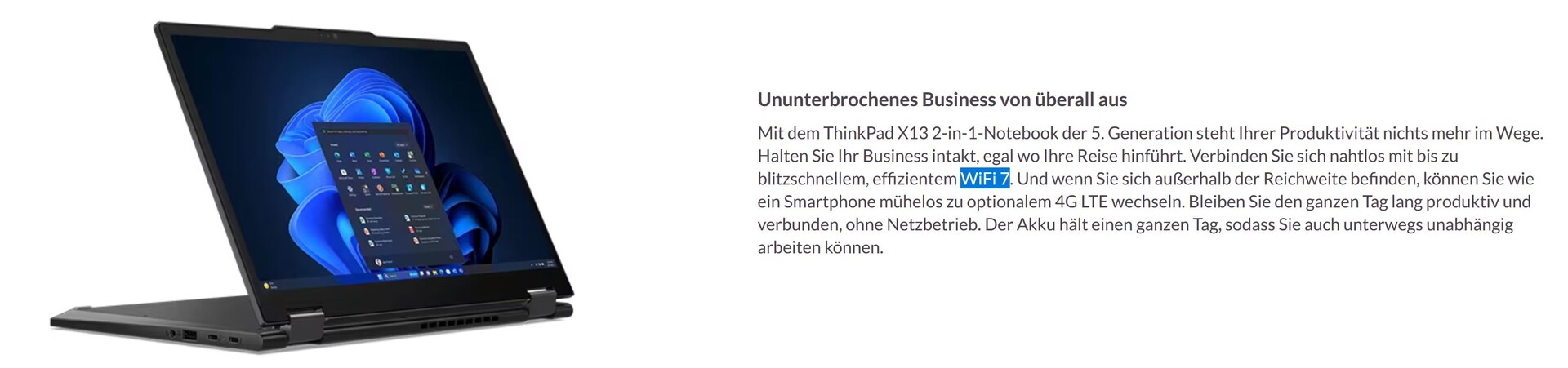

虽然联想宣传 X13 2 合 1 "最高支持 Wi-Fi 7"，但我们的机型采用的是英特尔 AX211 模块，支持 Wi-Fi 6E。截至目前，联想的在线配置器中还没有其他可选项。因此，目前还没有 Wi-Fi 7！

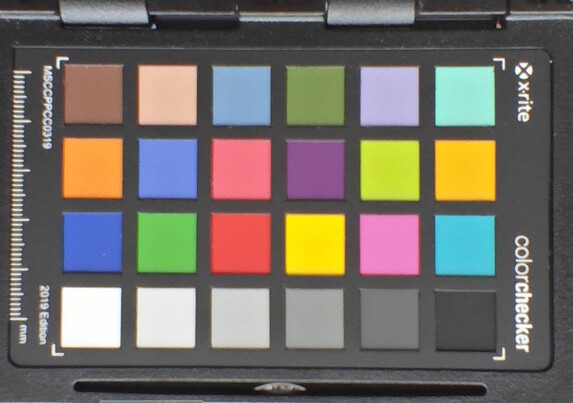

网络摄像头
根据联想官方网站和规格表，这是一个 500 万像素的网络摄像头。不过，由于长宽比为 16:9，默认情况下摄像头只能提供 370 万像素（1440p）的图像。如果用户切换到 4:3，则可以拍摄完整的 500 万像素照片；但视频录制则没有这样的选项，因为 "缺失 "的像素用于提供人工智能效果，如变焦、镜头跟踪等，同时尽可能减少质量损失。
虽然分辨率不错，但清晰度和色彩准确度却落后于搭载 Snapdragon 处理器的摄像头。 宏碁 Swift Go 14 AI.
安全
电源按钮中再次内置了兼容 Windows Hello 的指纹传感器。英特尔芯片组中也一如既往地配备了 TPM。其他安全功能包括一个红外摄像头（可根据需要暂时关闭）、一个 Kensington 插槽和一个位于左侧的智能卡插槽。
配件

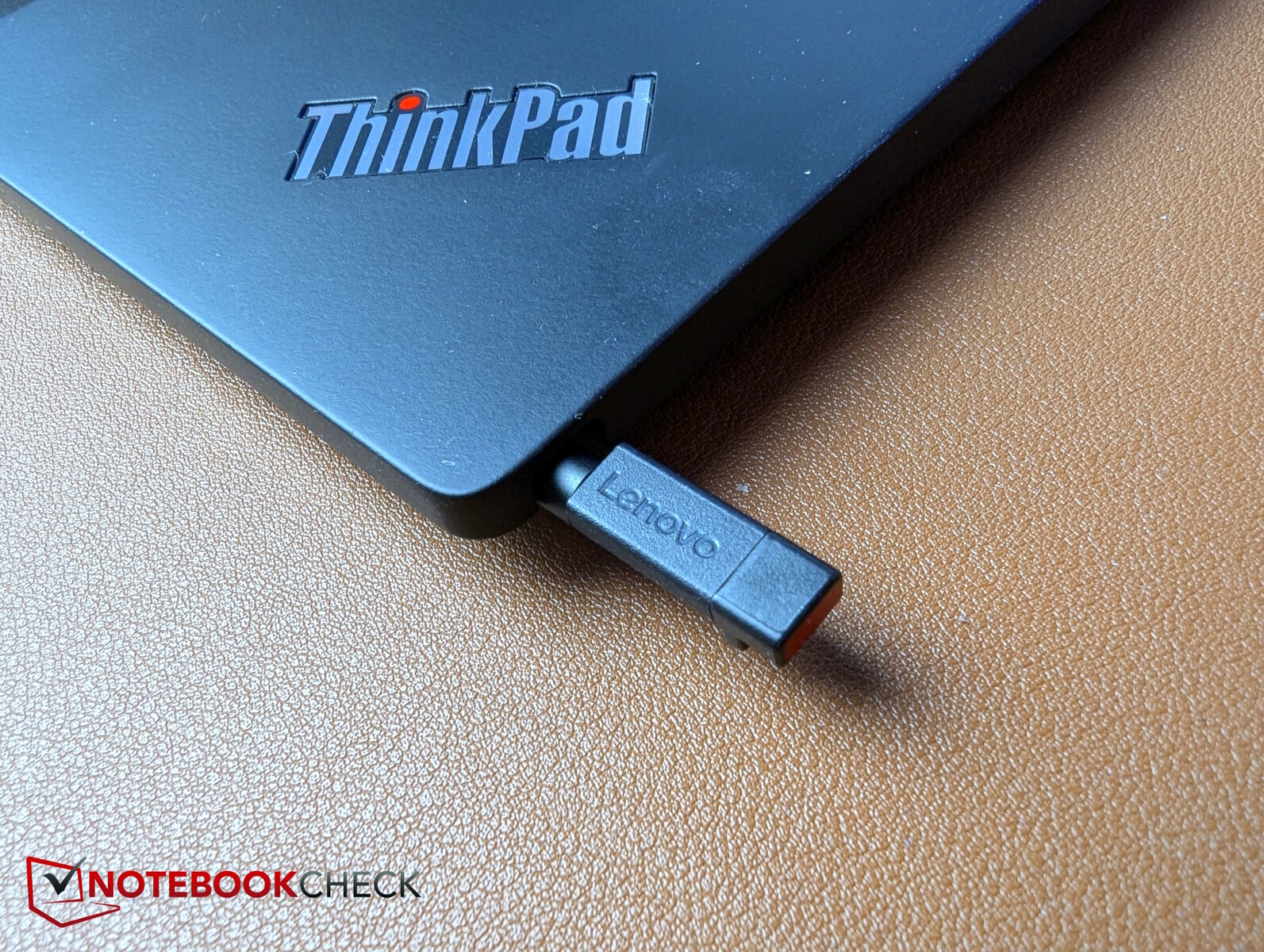

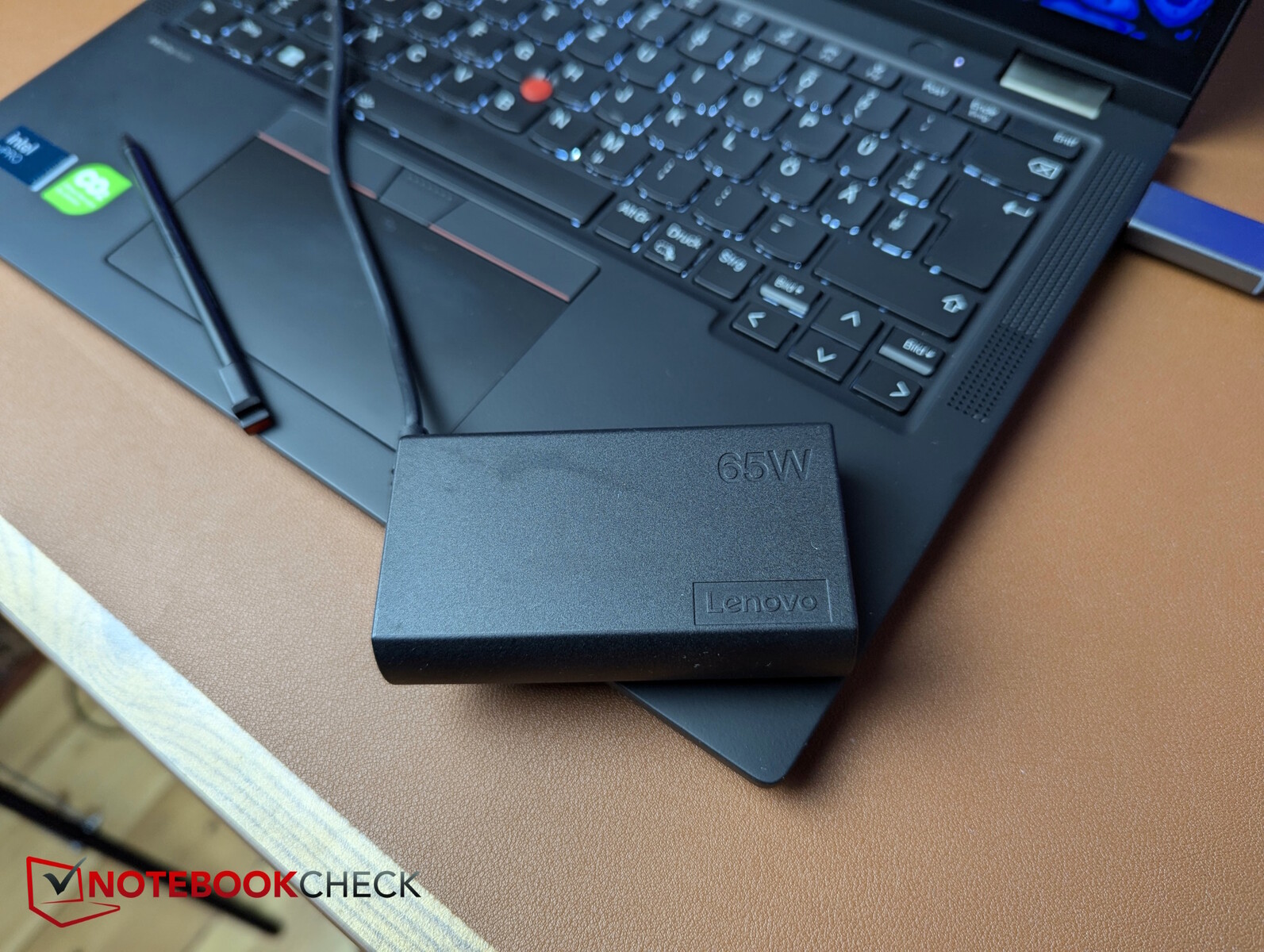

除了笔记本电脑和 65 W USB-C 电源装置外，还包括一支 Wacom 数字化笔。机箱右侧有一个隔层。
维护

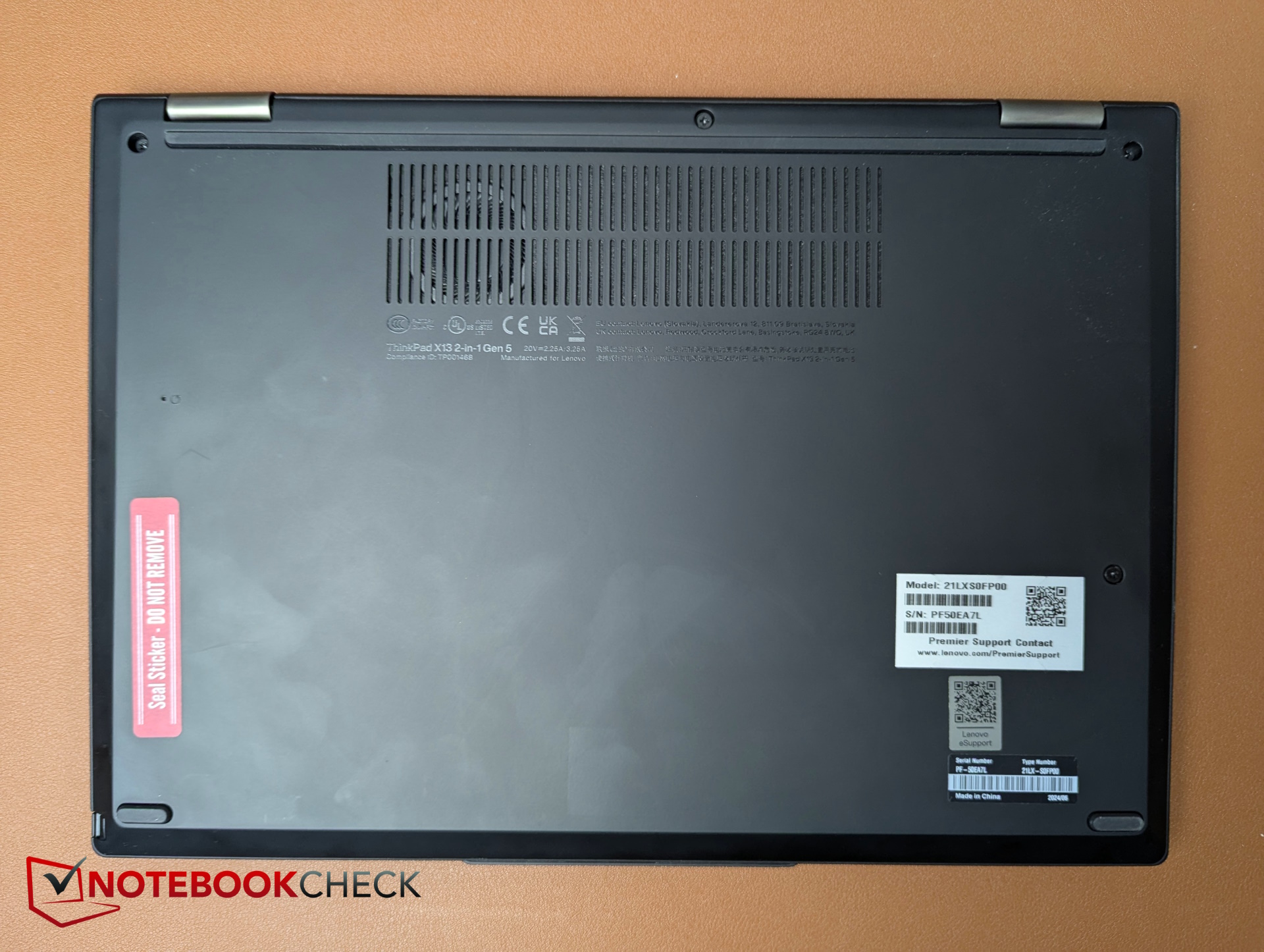

巧妙的设计底部的 5 颗十字螺丝不会脱落。撬动底部面板没有任何问题，但在撬动之前应先卸下数字转换笔。

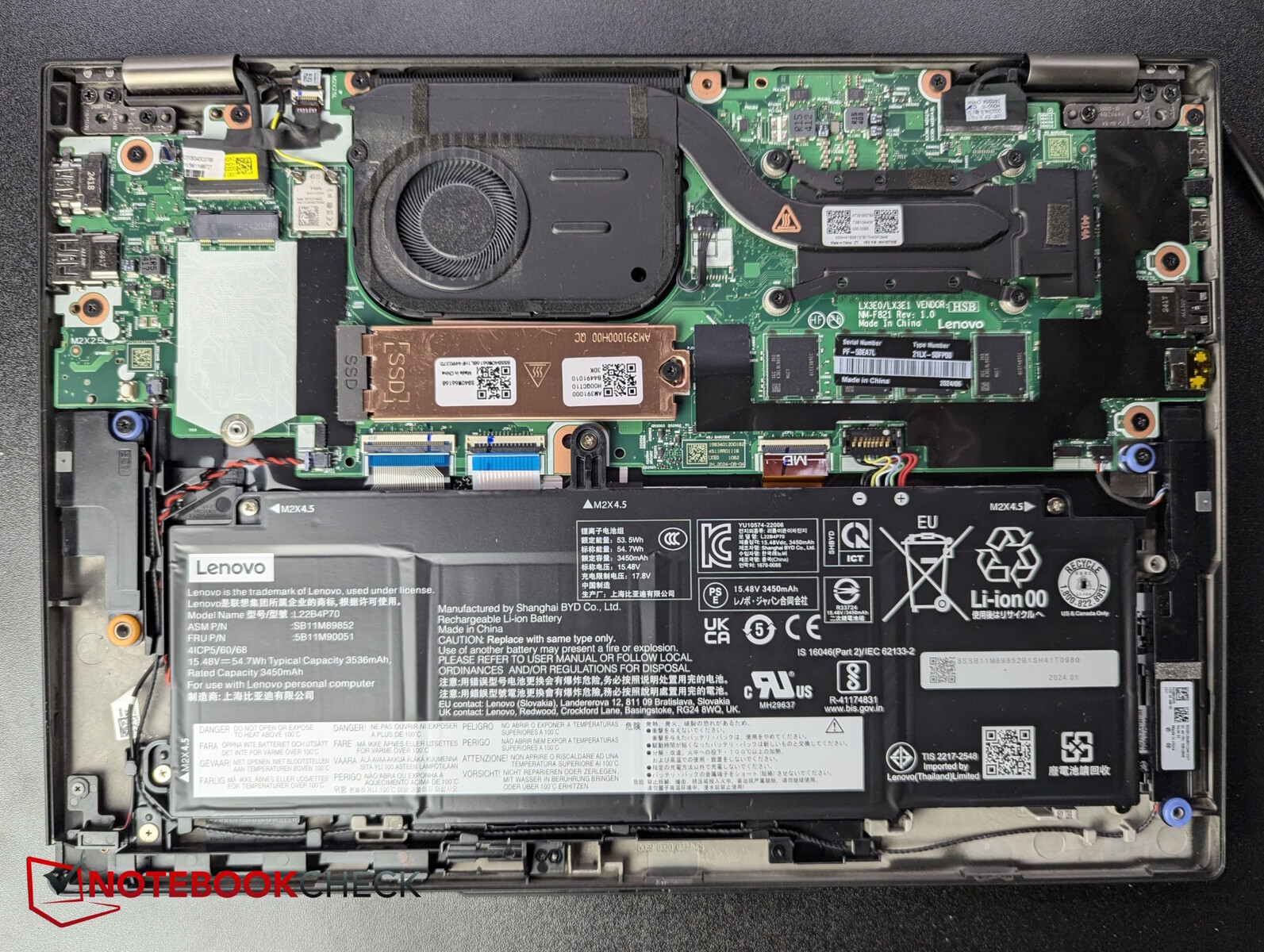

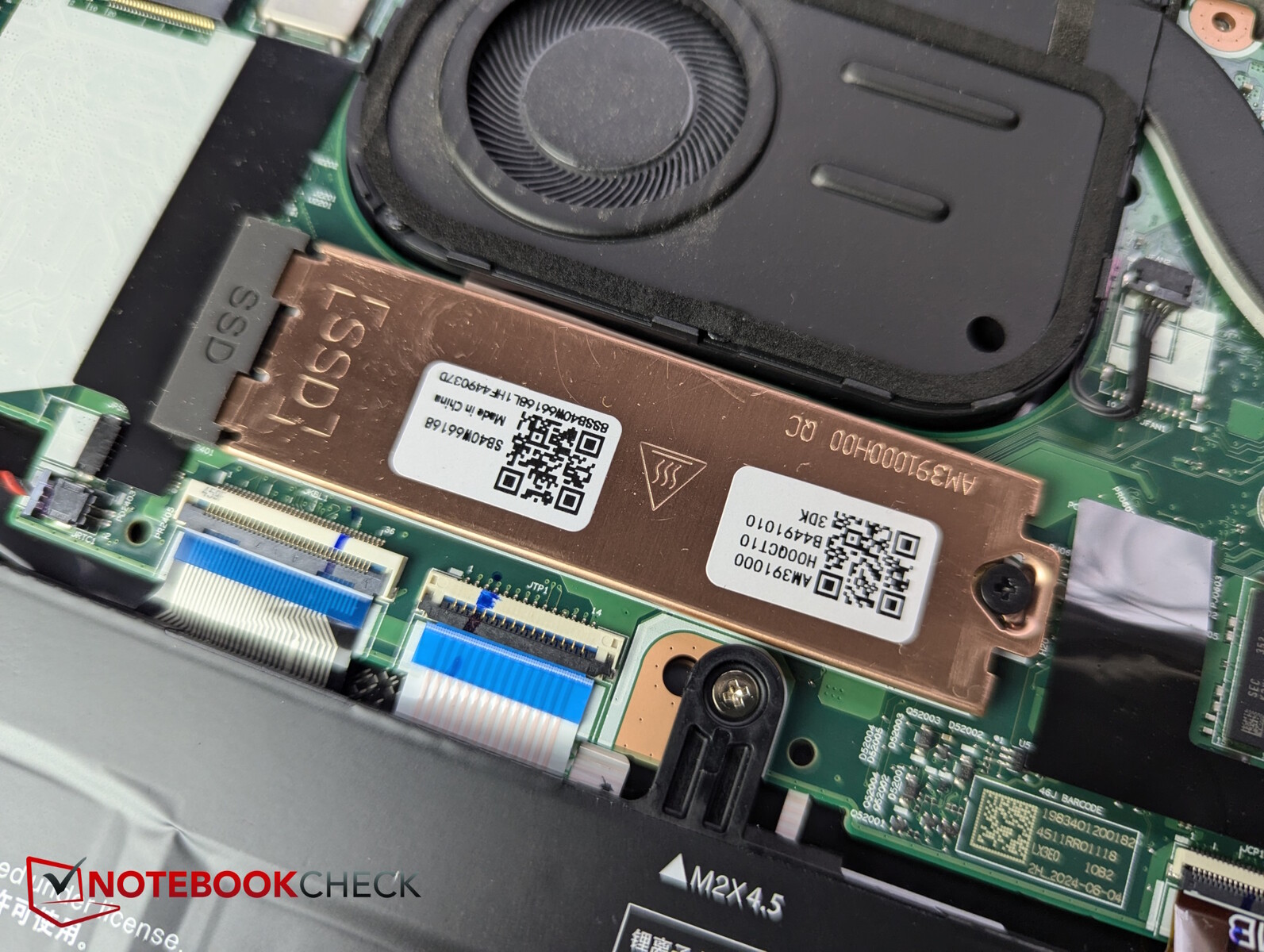

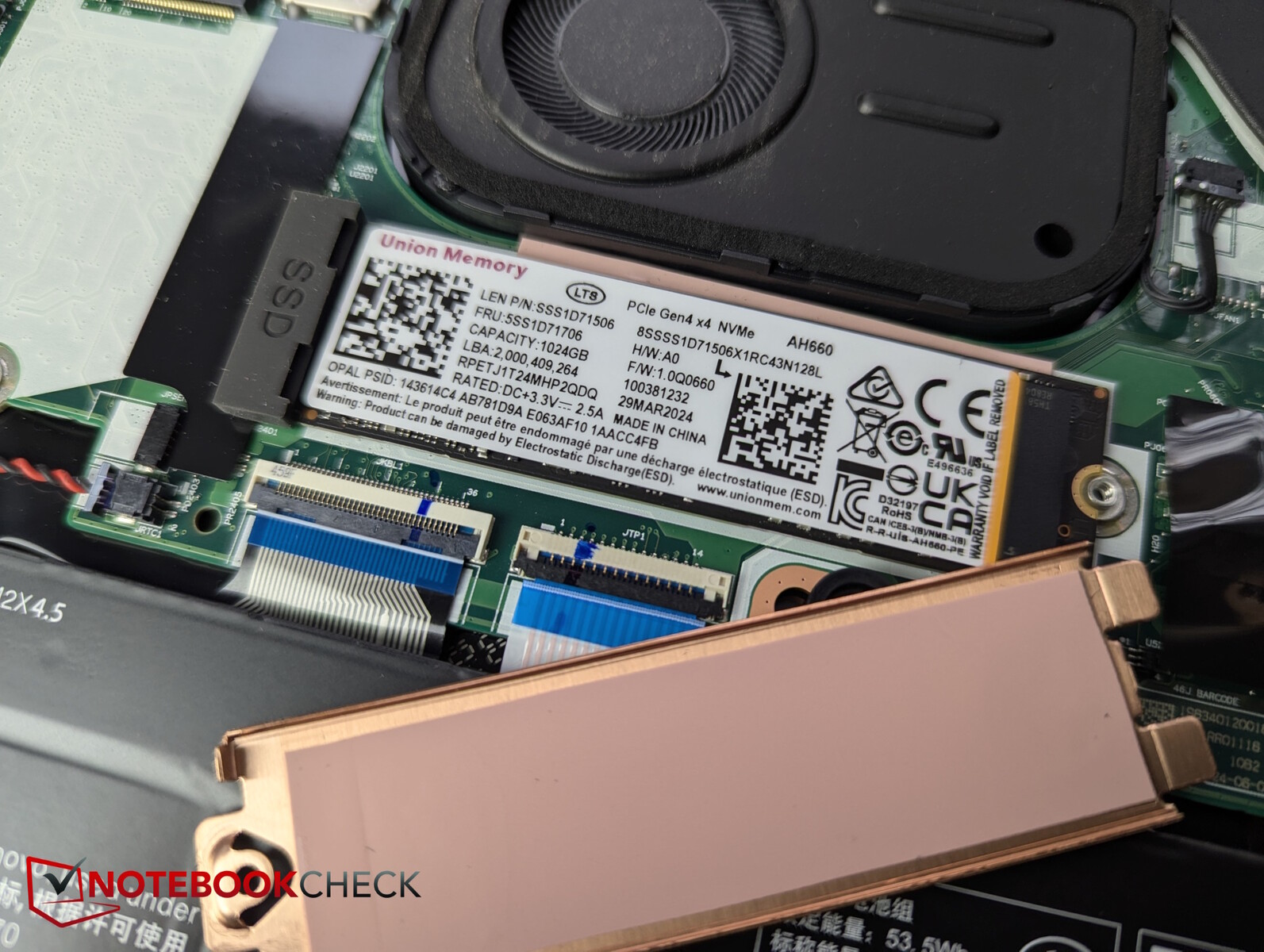

在机身内部，Wi-Fi 模块和内存不幸被焊接在一起，但我们可以看到位于铜制散热器下的 NVMe 固态硬盘、电池和单风扇。
可持续性
显然，联想现在开始关注可持续发展了。制造商表示，该机的顶部、键盘边框盖和底部使用了 90% 的可回收镁。此外，扬声器外壳的塑料由 90% 的可回收材料制成。 电池外壳也使用了 90% 的可回收 PCC 塑料，而电源则使用了高达 90% 的可回收 PCC 塑料。
在包装材料方面，这一积极趋势仍在继续，联想使用了100%可回收和/或森林管理委员会认证的可持续包装。这些信息来自官方产品页面，我们可以称其为优势和典范。
保修
在德国，通过快递或随身携带服务可享受 3 年保修。
输入设备 - 跟踪点和触控笔

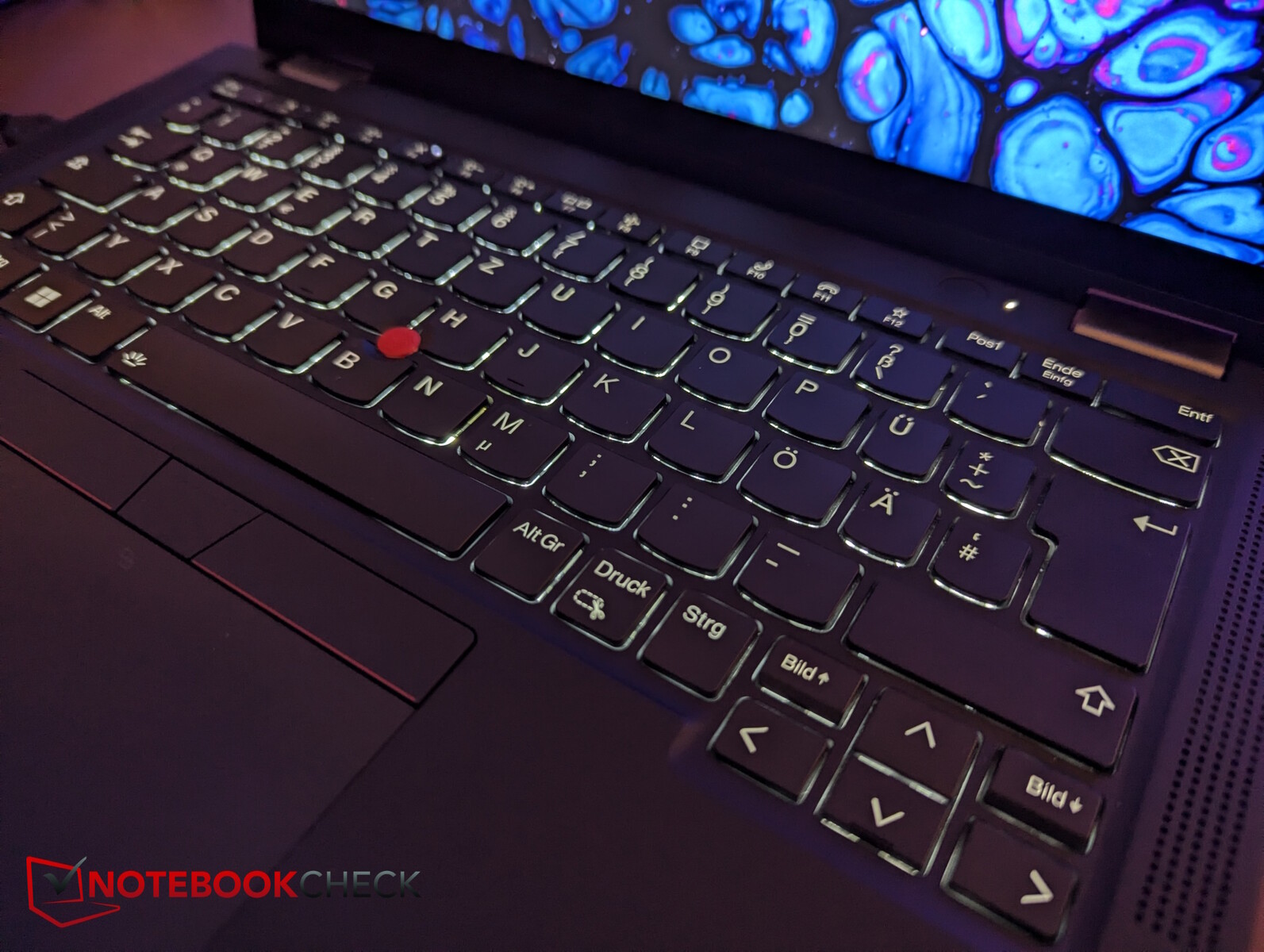

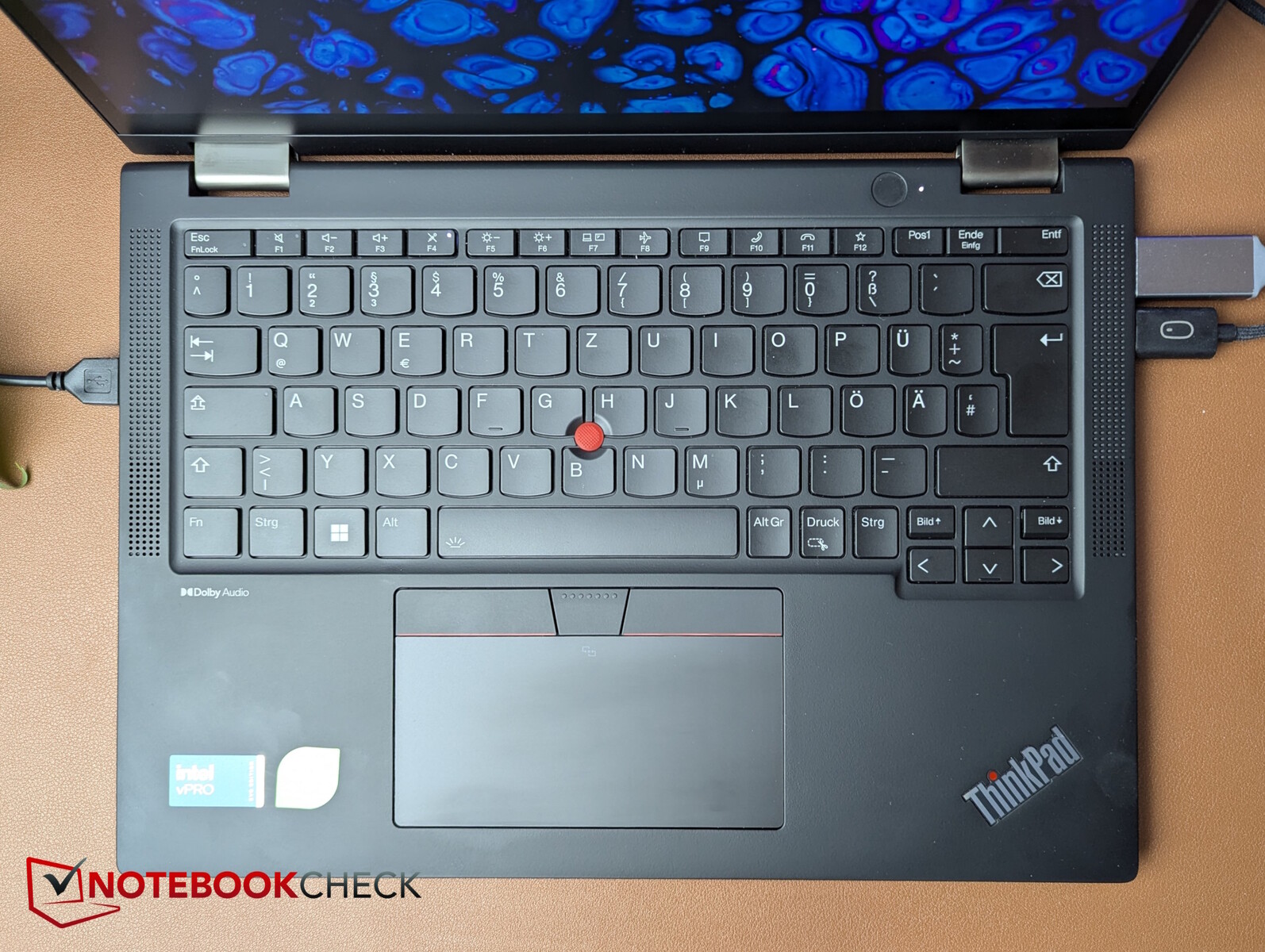

键盘
该键盘与前代产品 95% 的键盘相似，同样没有专门的插入键（但同时按住 End 键和 Fn 键可以实现插入）。
键盘的反馈有点软，但依然清晰，1.5 毫米深的键程让打字变得轻而易举，我们对此非常满意。

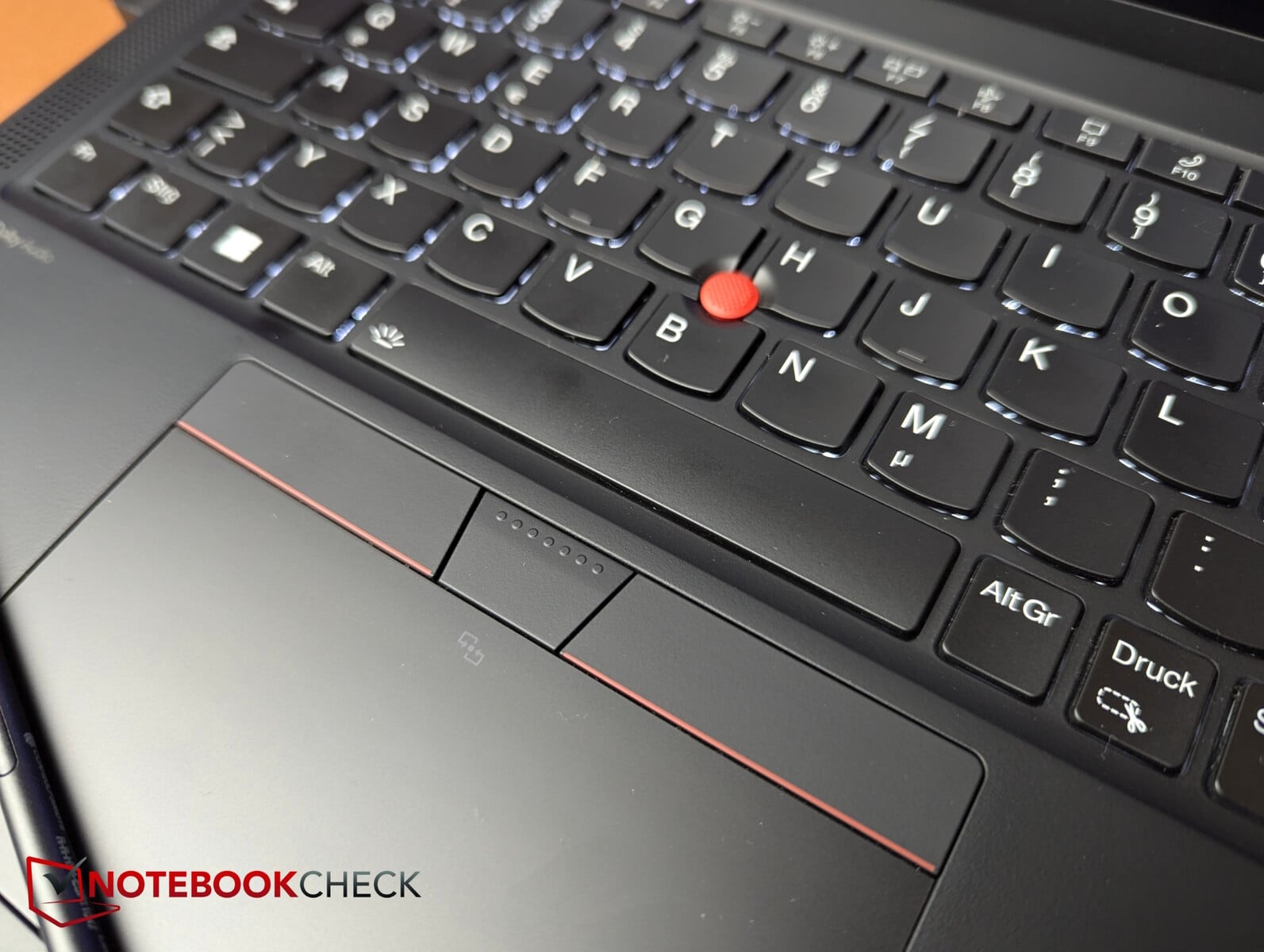

触摸板
触摸板现在略宽，为 11.5 厘米（以前为 10.5 厘米）。高度保持不变，约为 5.6 厘米。由于触摸板上方的区域用于三个专用鼠标按键，因此无法使用更高的触摸板。后者与 ThinkPad 典型的红色 TrackPoint 一起使用。
即使没有玻璃，触摸板也具有良好的滑动性能，额外的按钮只会发出非常小的咔哒声。总的来说，新触摸板比前一版本有所升级。

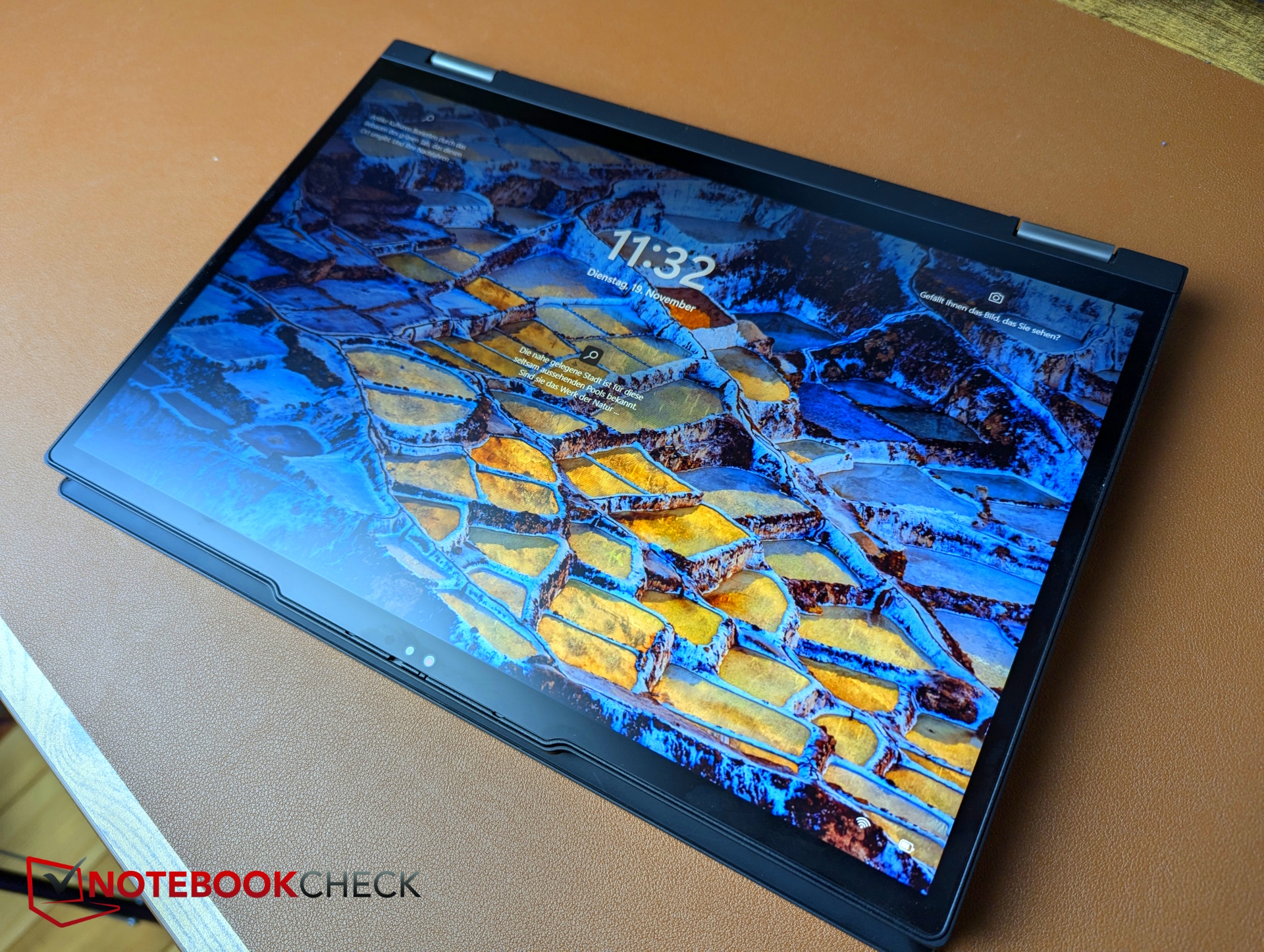

触摸屏

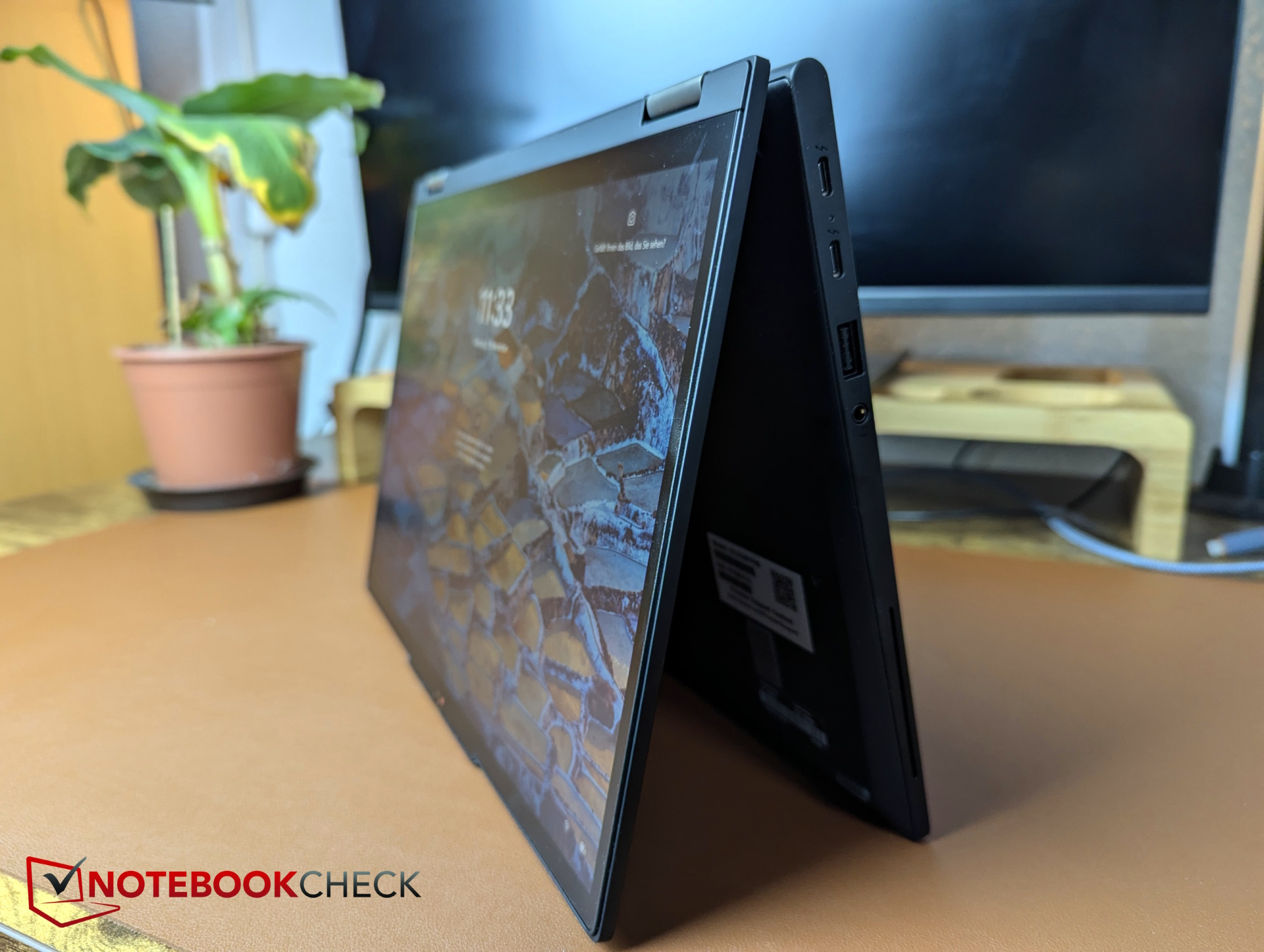

触摸屏是敞篷车的必备功能。

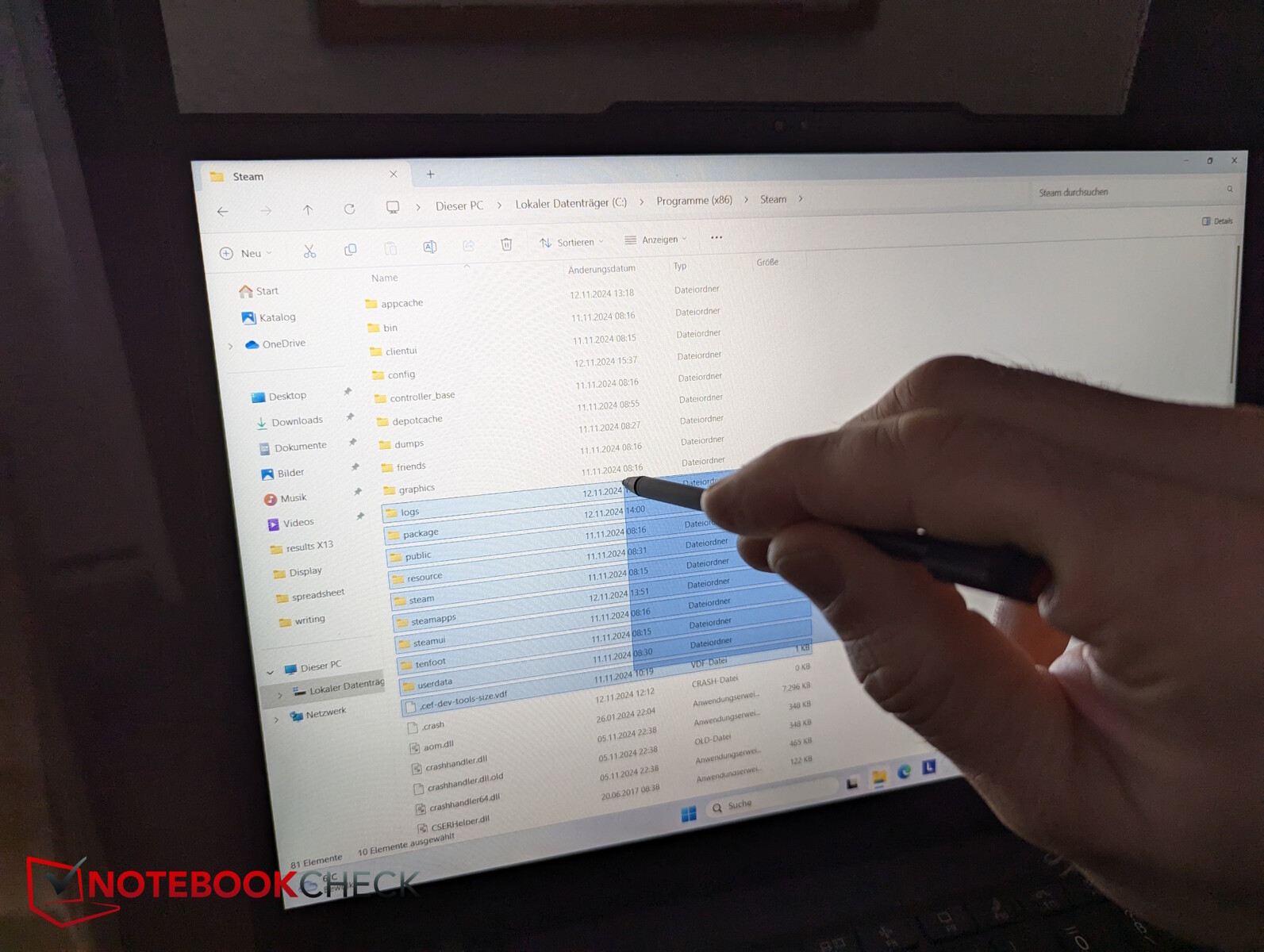

在 ThinkPad 上，触摸显示屏可以用手指操作，不使用时也可以用存放在机身右半部分的 Wacom 手写笔操作。在这两种情况下，屏幕的反应都足够灵敏，运行效果也符合预期。

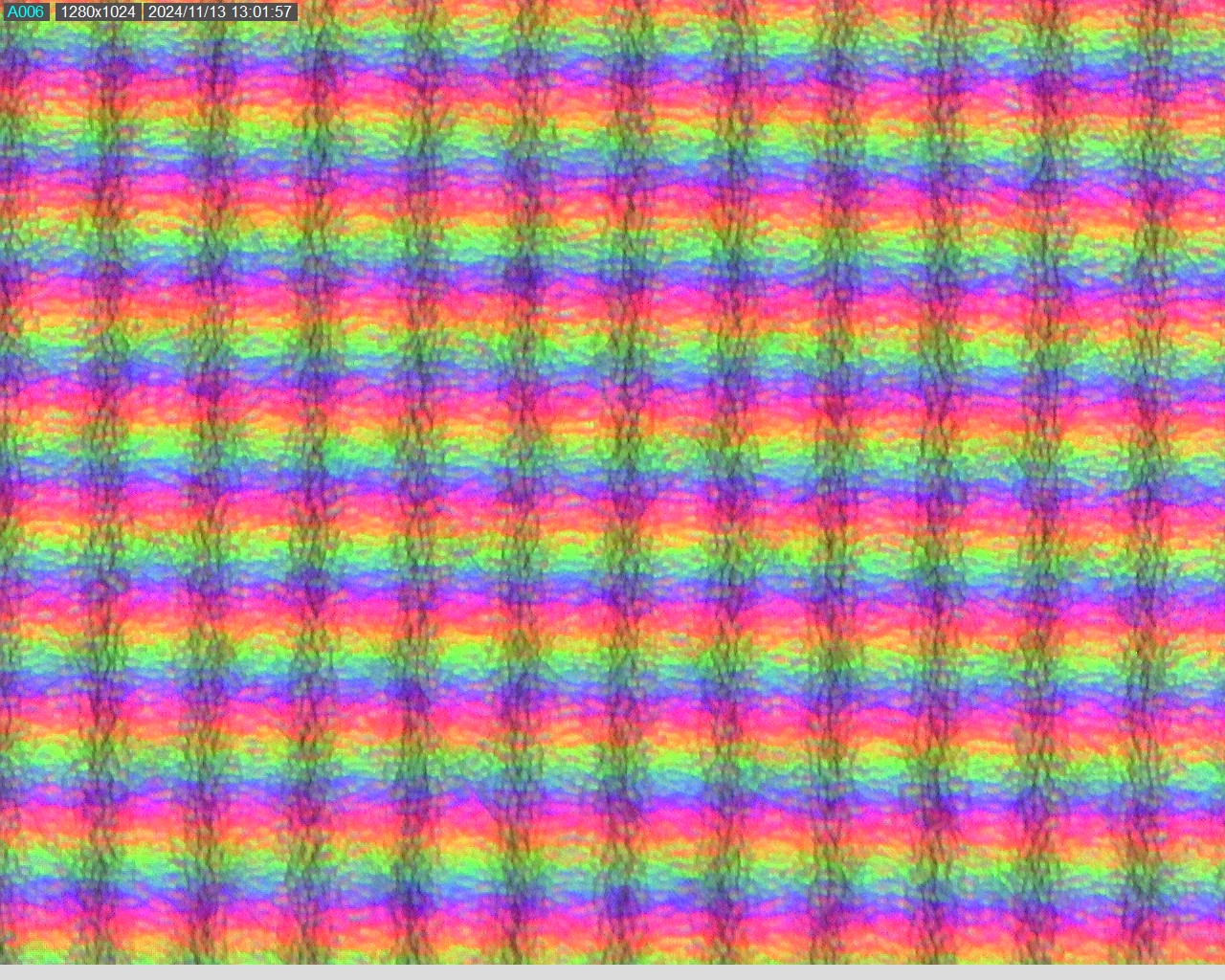

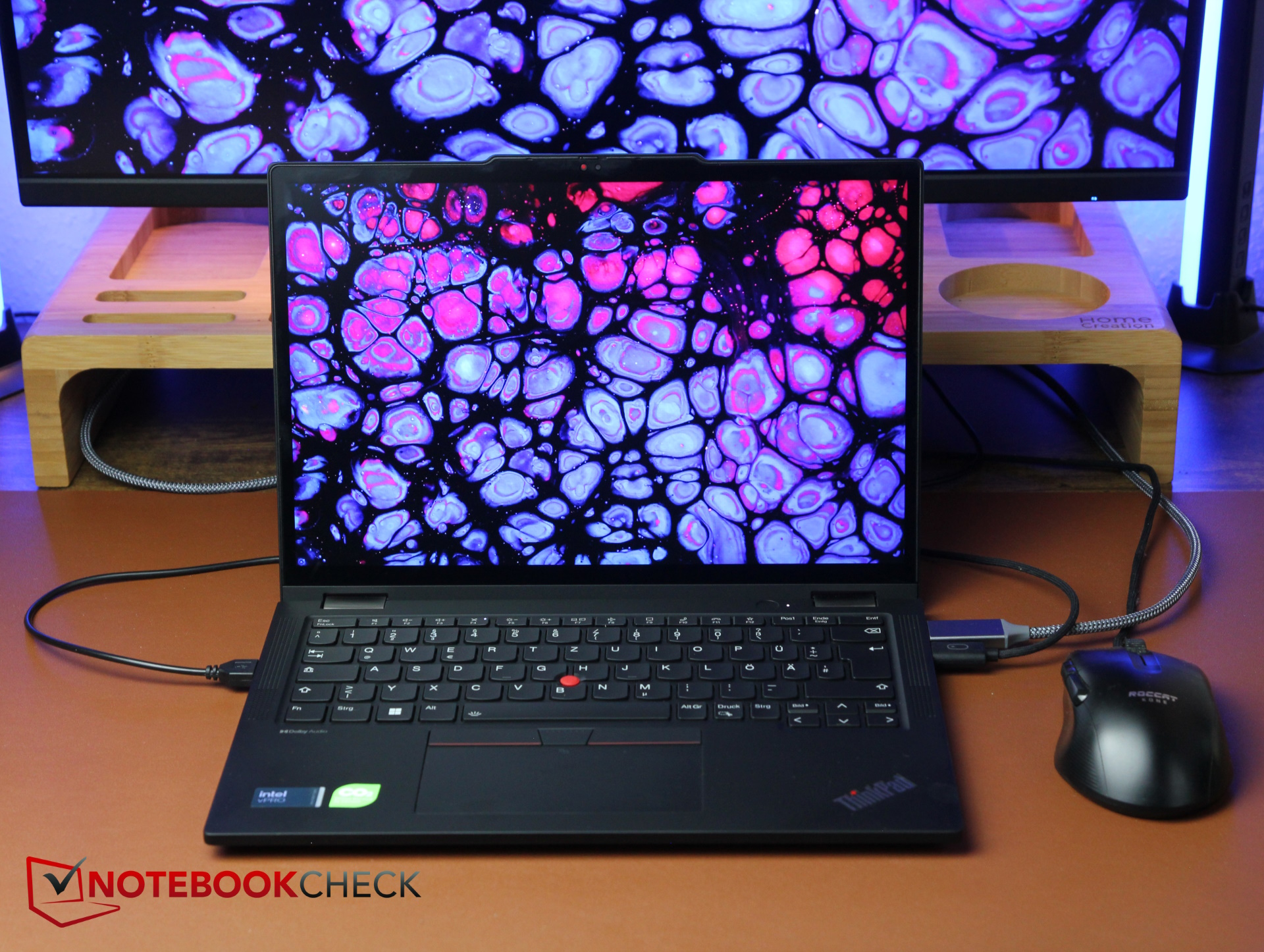

显示屏 - 3 个 IPS 选项？
我们测试的 Yoga G4 采用的是联想 B133UAN02.4；我们现在测试的二合一 G5 采用的是 B133UAN01.2（请看最后几个符号，这就是区别所在）。前代产品有三种显示屏可供选择，我们测试的是其中最好的一种。现在我们测试的是其中一个较低的选项。

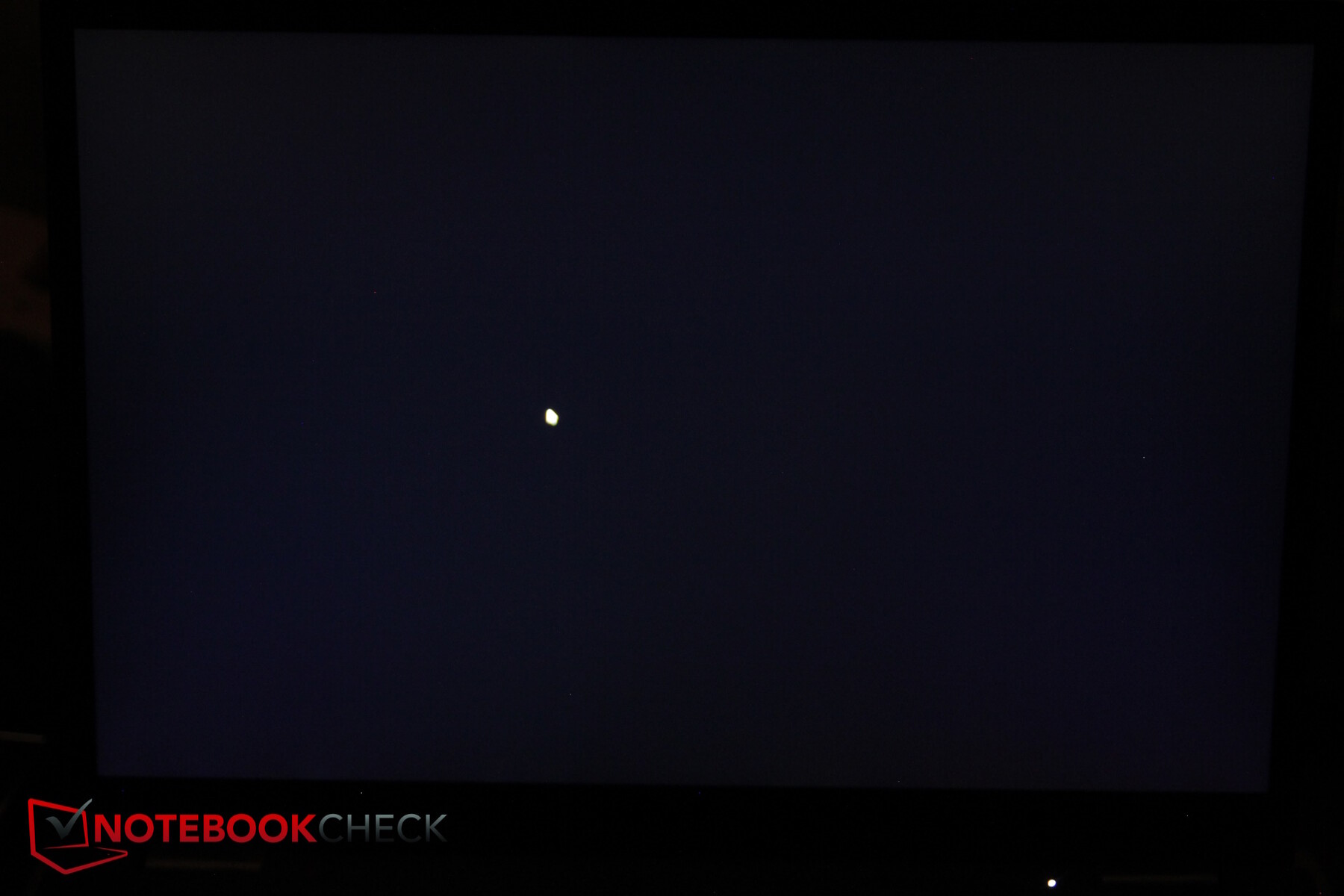

该面板亮度较低（308 nits 对 431 nits），光照不均匀（86% 对 95%），而且速度也明显慢于前代产品的顶级面板（从黑到白：32.3 ms 对 16 ms）。两块 IPS 面板的分辨率均为 1,920 x 1,200 像素，宽高比为 16:10。亚光覆盖层非常厚，以至于我们无法拍摄子像素的清晰照片。该面板的频率限制在 60 Hz。
我们的主观印象与测量数据相符：显示效果尚可，但在亮度和色彩饱和度/亮度方面不尽如人意。
| |||||||||||||||||||||||||
Brightness Distribution: 86 %
Center on Battery: 334 cd/m²
Contrast: 903:1 (Black: 0.37 cd/m²)
ΔE Color 2.36 | 0.5-29.43 Ø4.91, calibrated: 1.25
ΔE Greyscale 3.38 | 0.5-98 Ø5.2
71.7% AdobeRGB 1998 (Argyll 2.2.0 3D)
97.1% sRGB (Argyll 2.2.0 3D)
71.1% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.38
| Lenovo ThinkPad X13 2-in-1 Gen 5 Lenovo B133UAN01.2, IPS, 1920x1200, 13.3", 60 Hz | Dell Latitude 7350 Detachable BOE NE13A1M, IPS, 2880x1920, 13", 60 Hz | HP EliteBook x360 830 G10 7L7U1ET LGD06E5, IPS LED, 1920x1200, 13.3", Hz | Dell XPS 13 9350 LG Philips 134WU2, IPS, 1920x1200, 13.4", 120 Hz | Framework Laptop 13.5 Core Ultra 7 155H BOE NE135A1M-NY1, IPS, 2880x1920, 13.5", 120 Hz | Microsoft Surface Pro 9, i7-1255U LP129WT2-SPA6, IPS, 2880x1920, 13", 120 Hz | Lenovo ThinkPad X13 Yoga G4 21F20017GE B133UAN02.4, IPS-AHVA wLED, 1920x1200, 13.3", Hz | |
|---|---|---|---|---|---|---|---|
| Display | 1% | -8% | -2% | 2% | -4% | 2% | |
| Display P3 Coverage | 71.1 | 70.2 -1% | 63.2 -11% | 67.3 -5% | 72.8 2% | 65.6 -8% | 72.4 2% |
| sRGB Coverage | 97.1 | 98.9 2% | 92.7 -5% | 99 2% | 98.6 2% | 97.7 1% | 96 -1% |
| AdobeRGB 1998 Coverage | 71.7 | 72.1 1% | 65.1 -9% | 68.6 -4% | 72.9 2% | 67.7 -6% | 74.4 4% |
| Response Times | 20% | 20% | 24% | 22% | 57% | 46% | |
| Response Time Grey 50% / Grey 80% * | 50.2 ? | 43.8 ? 13% | 39.8 ? 21% | 37.3 ? 26% | 41.9 ? 17% | 13 ? 74% | 29.7 ? 41% |
| Response Time Black / White * | 32.6 ? | 24.1 ? 26% | 26.8 ? 18% | 25.9 ? 21% | 23.7 ? 27% | 19.4 ? 40% | 16 ? 51% |
| PWM Frequency | 29896 ? | ||||||
| Screen | 20% | 1% | 55% | -1% | 23% | -29% | |
| Brightness middle | 334 | 508.5 52% | 394 18% | 462.8 39% | 498.5 49% | 455 36% | 429 28% |
| Brightness | 308 | 507 65% | 372 21% | 435 41% | 464 51% | 453 47% | 431 40% |
| Brightness Distribution | 86 | 87 1% | 84 -2% | 87 1% | 86 0% | 94 9% | 95 10% |
| Black Level * | 0.37 | 0.24 35% | 0.17 54% | 0.19 49% | 0.36 3% | 0.38 -3% | 0.31 16% |
| Contrast | 903 | 2119 135% | 2318 157% | 2436 170% | 1385 53% | 1197 33% | 1384 53% |
| Colorchecker dE 2000 * | 2.36 | 3 -27% | 4.1 -74% | 1.92 19% | 4.27 -81% | 1.7 28% | 5.3 -125% |
| Colorchecker dE 2000 max. * | 4.93 | 7.03 -43% | 8.3 -68% | 3.45 30% | 7.08 -44% | 3.8 23% | 10 -103% |
| Colorchecker dE 2000 calibrated * | 1.25 | 1.28 -2% | 0.48 62% | 1.26 -1% | 1.5 -20% | 2 -60% | |
| Greyscale dE 2000 * | 3.38 | 4.6 -36% | 6.6 -95% | 0.6 82% | 4.7 -39% | 1.5 56% | 7.3 -116% |
| Gamma | 2.38 92% | 2.17 101% | 2.17 101% | 2.19 100% | 2.09 105% | 2.17 101% | 1.97 112% |
| CCT | 6352 102% | 6929 94% | 6019 108% | 6539 99% | 7417 88% | 6761 96% | 6479 100% |
| Total Average (Program / Settings) | 14% /
16% | 4% /
2% | 26% /
38% | 8% /
3% | 25% /
22% | 6% /
-11% |
* ... smaller is better

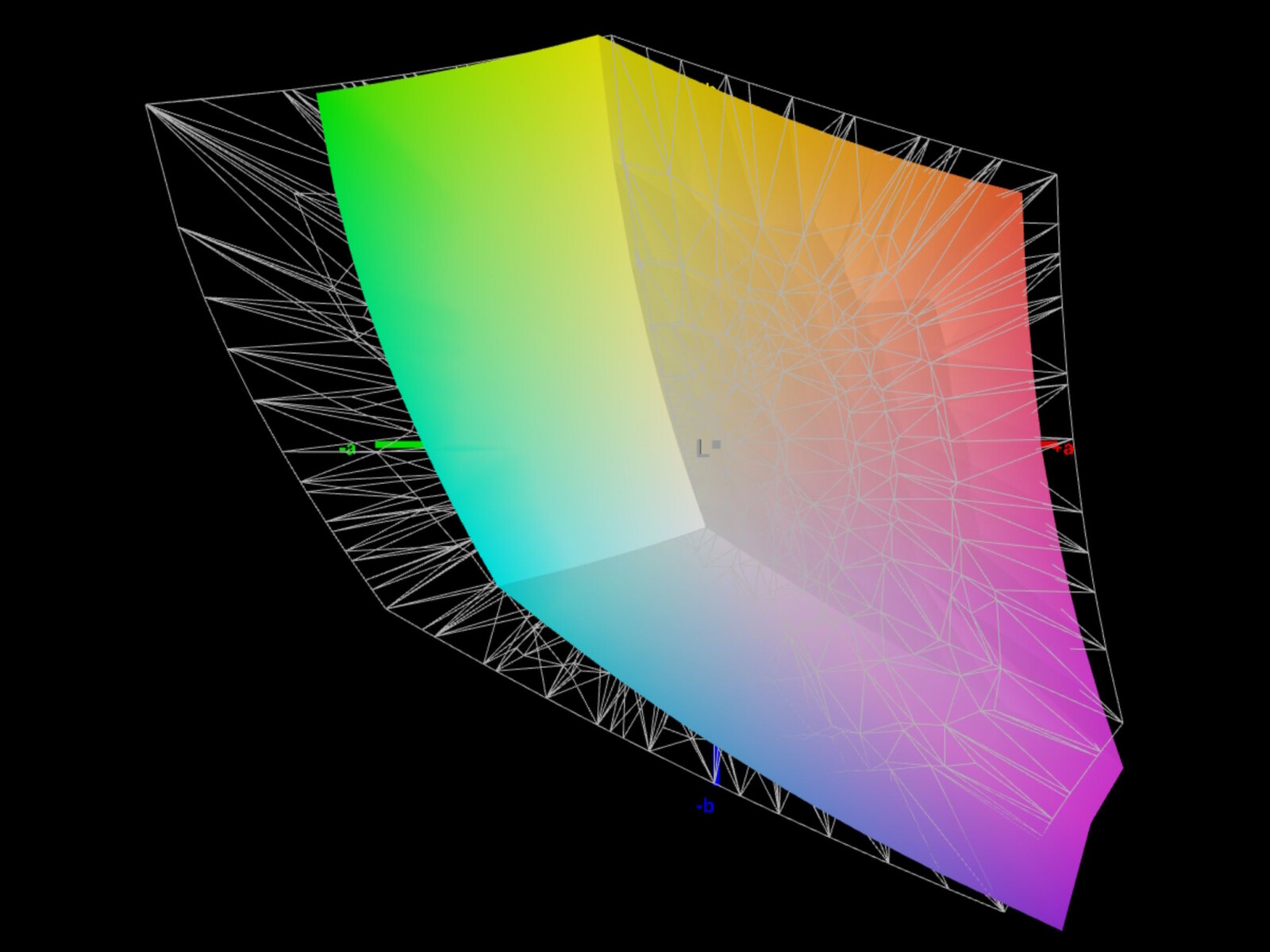

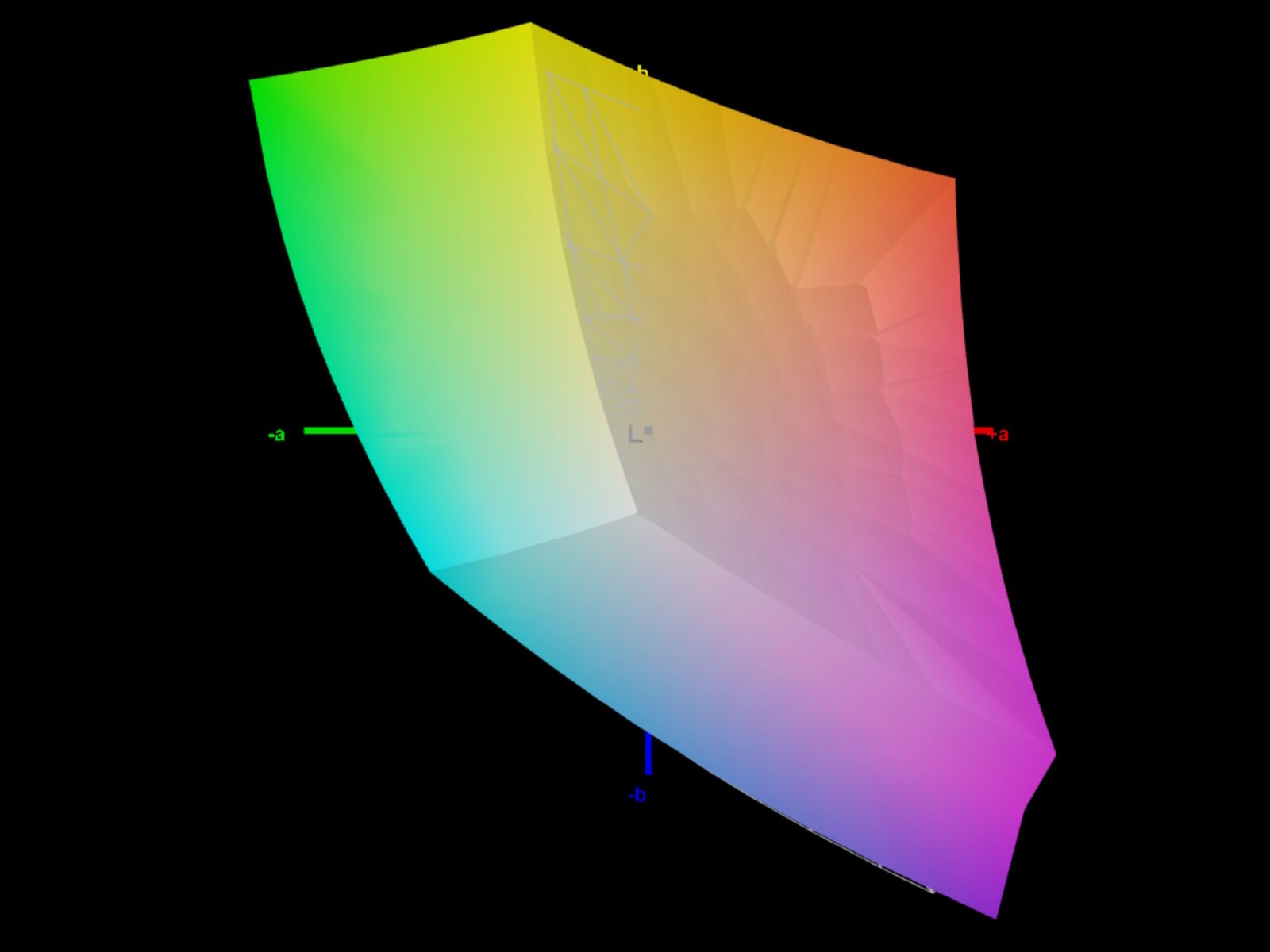

在通常的参考色彩空间中，只有 sRGB 是完全覆盖的。DisplayP3 和 AdobeRGB 的覆盖率约为 71%。

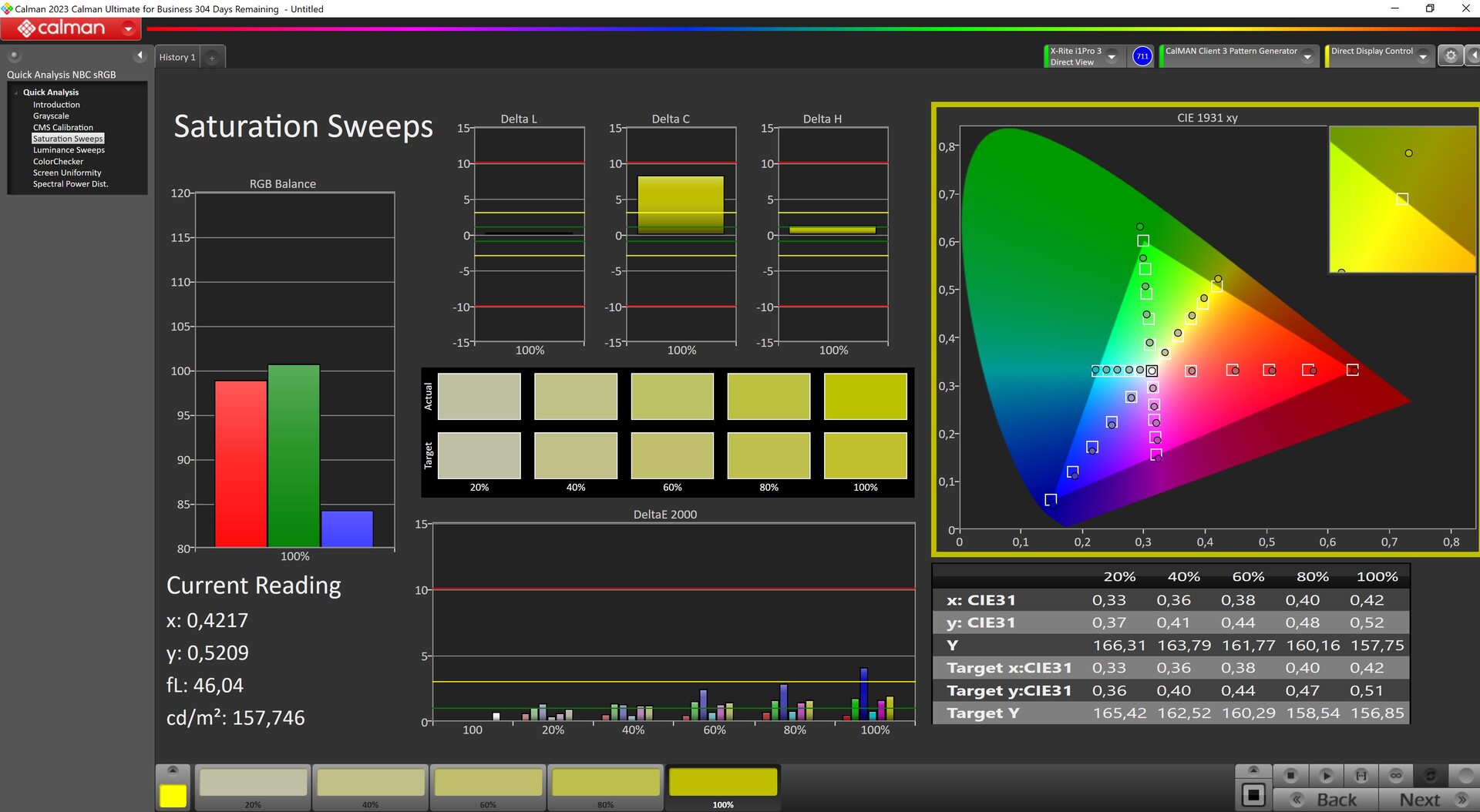

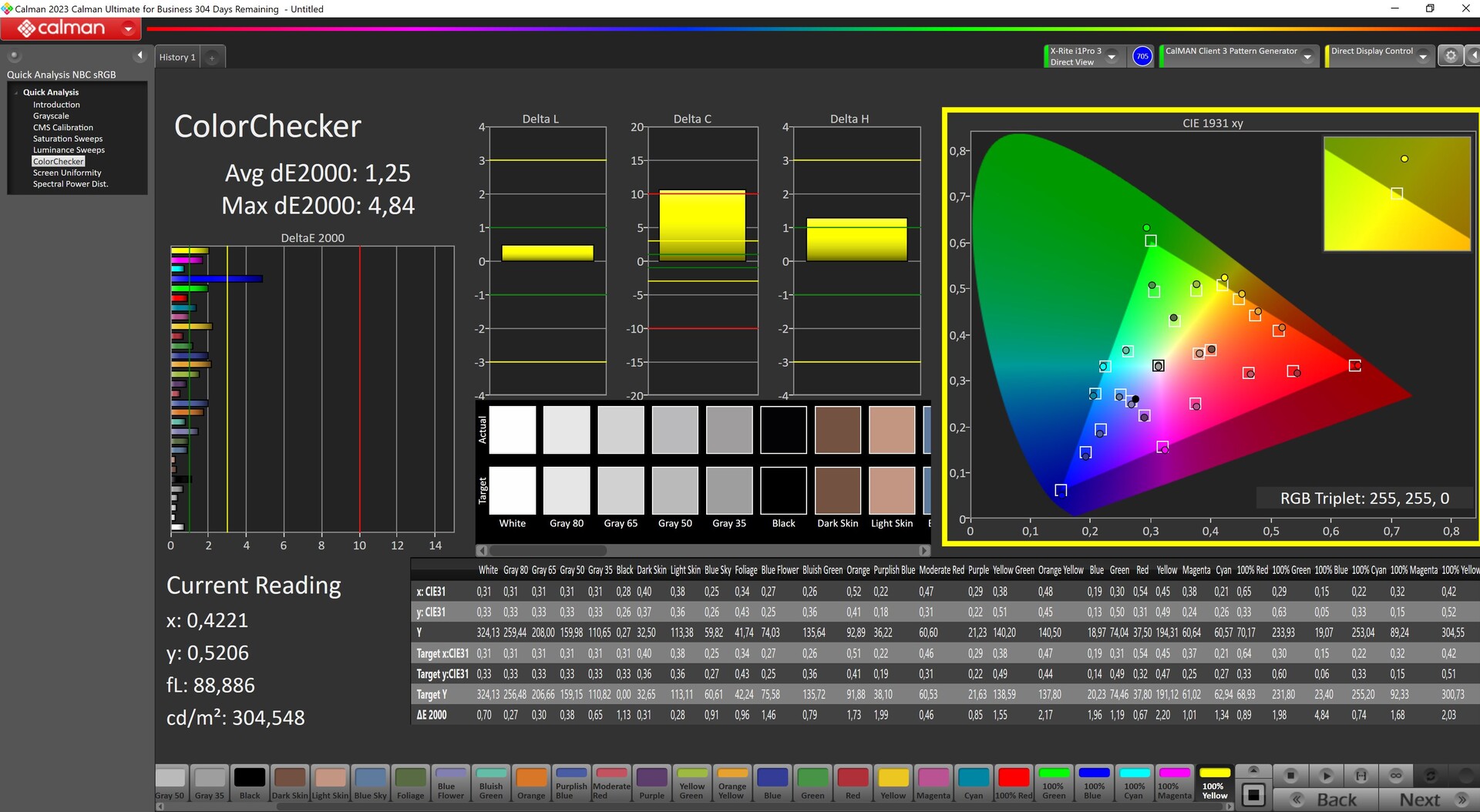

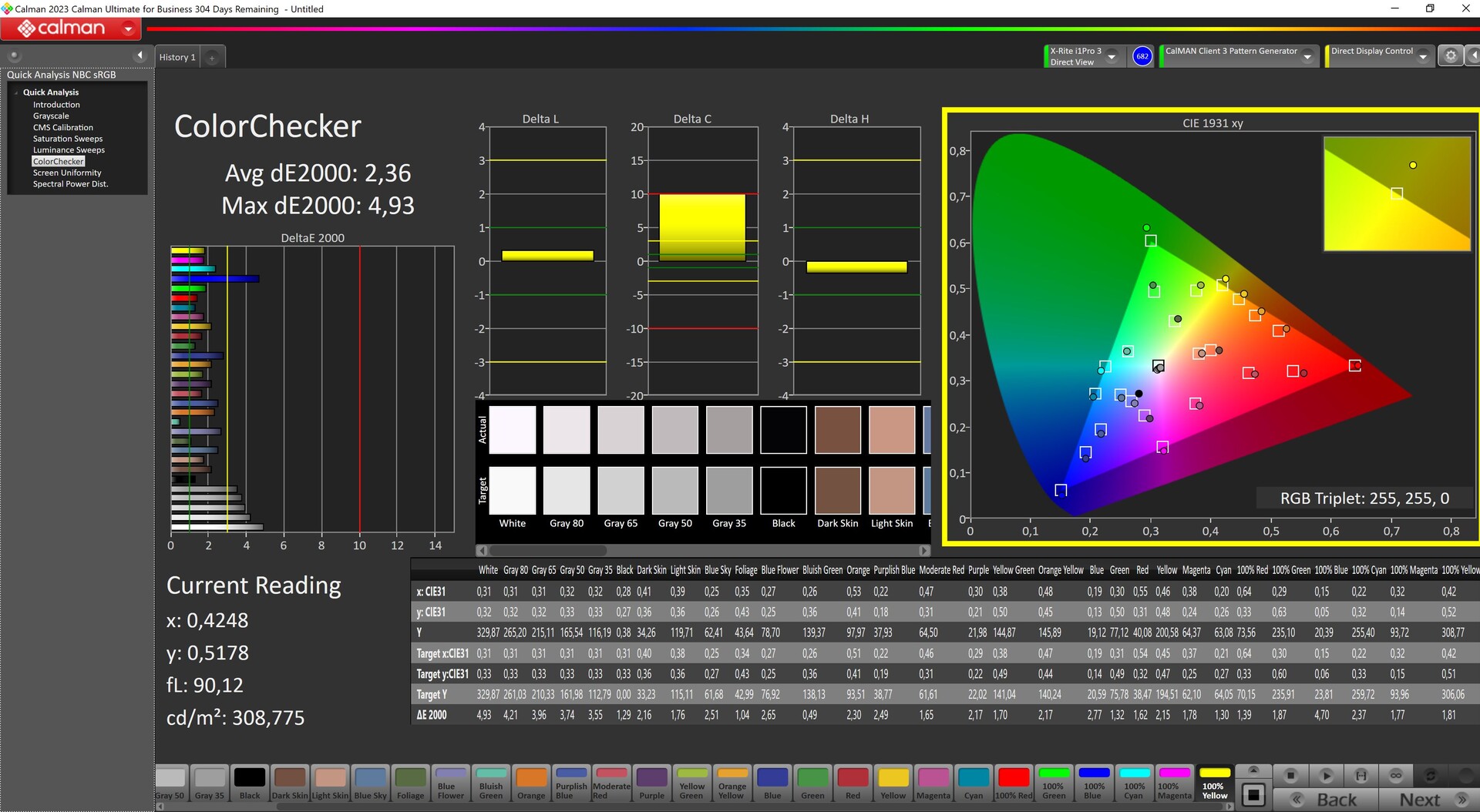

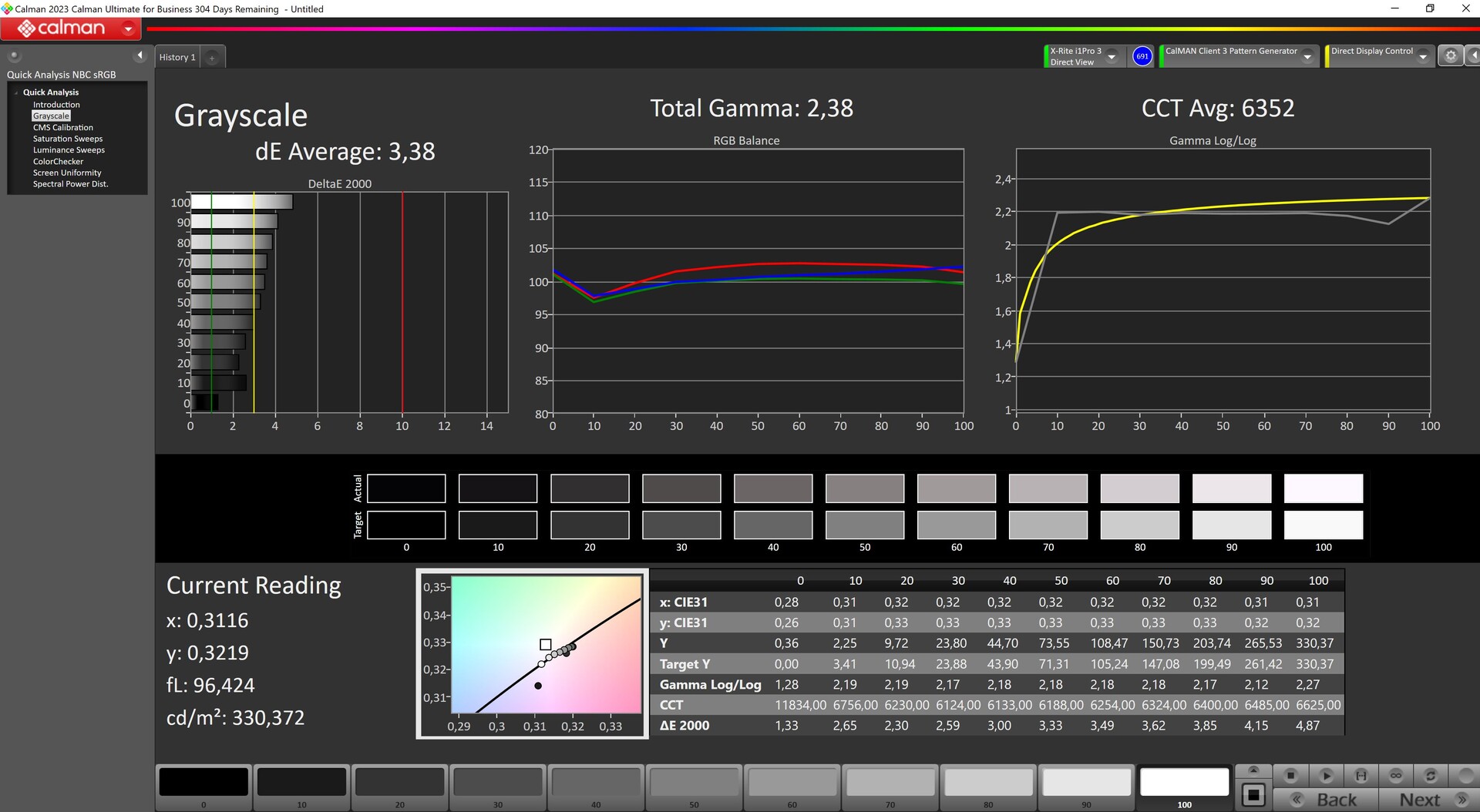

在出厂状态下，面板的灰度Δ-E 偏差超过 3，远非理想状态。我们使用 CalMAN 软件和 X-Rite i1Pro-3 色差计对其进行了校准，将灰度 Delta-E 降低到 1 以下。

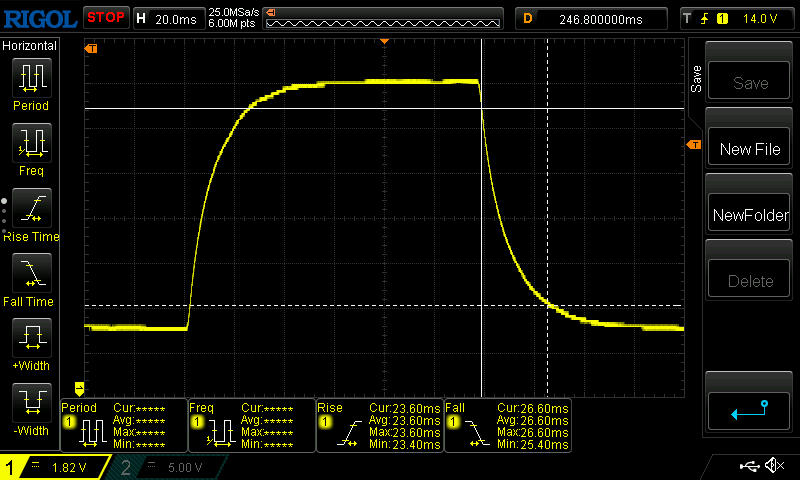

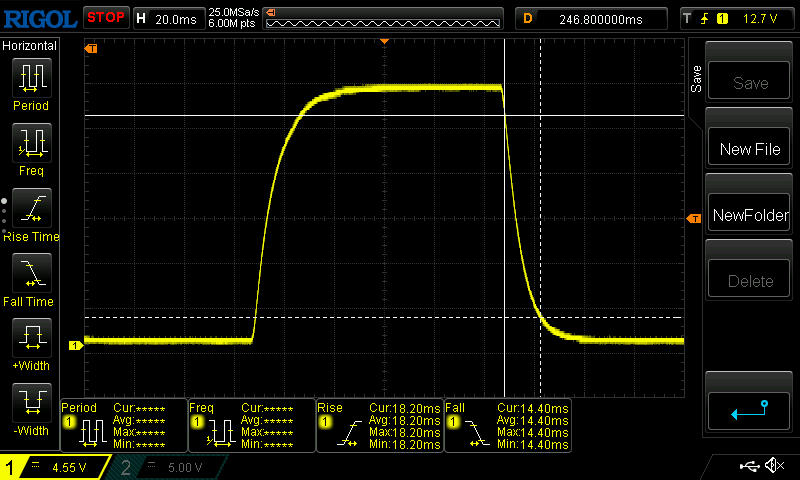

Display Response Times
| ↔ Response Time Black to White | ||
|---|---|---|
| 32.6 ms ... rise ↗ and fall ↘ combined | ↗ 18.2 ms rise |  |
| ↘ 14.4 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 87 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms). | ||
| ↔ Response Time 50% Grey to 80% Grey | ||
| 50.2 ms ... rise ↗ and fall ↘ combined | ↗ 23.6 ms rise |  |
| ↘ 26.6 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 85 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms). | ||

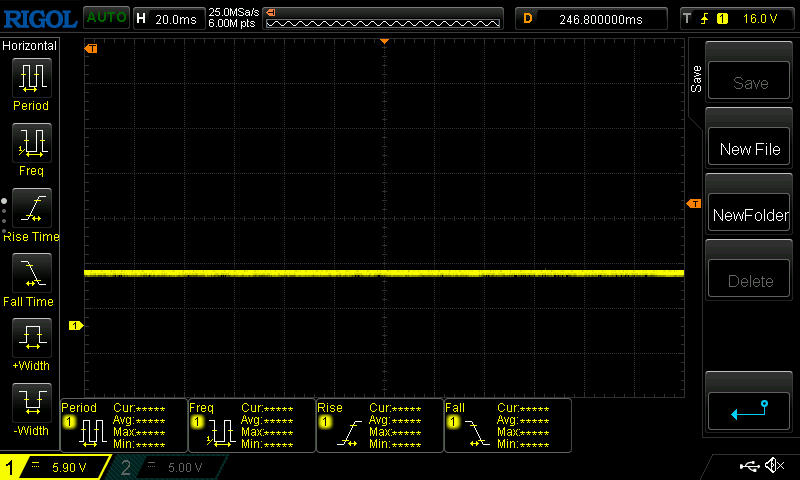

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured. | |||

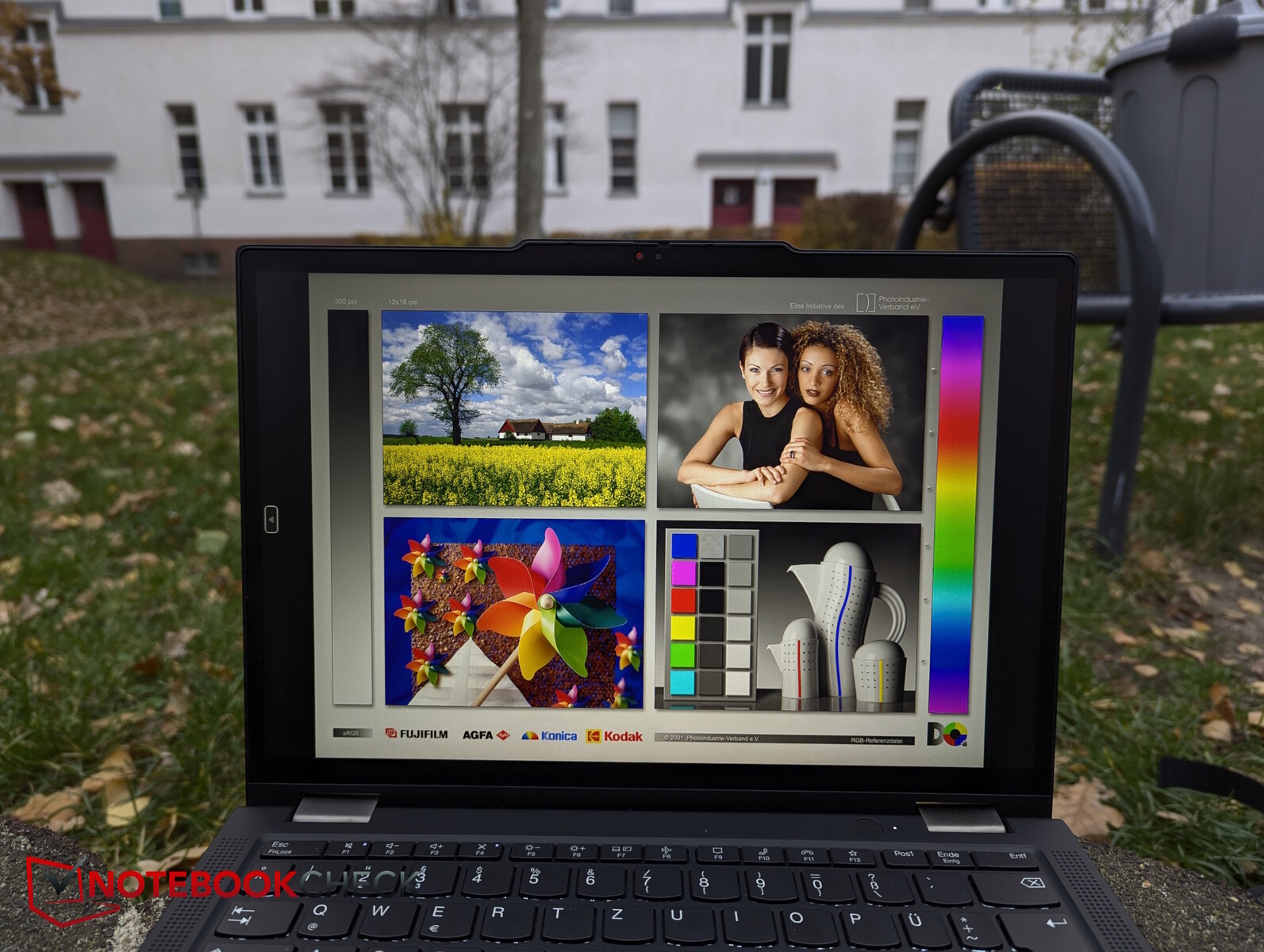

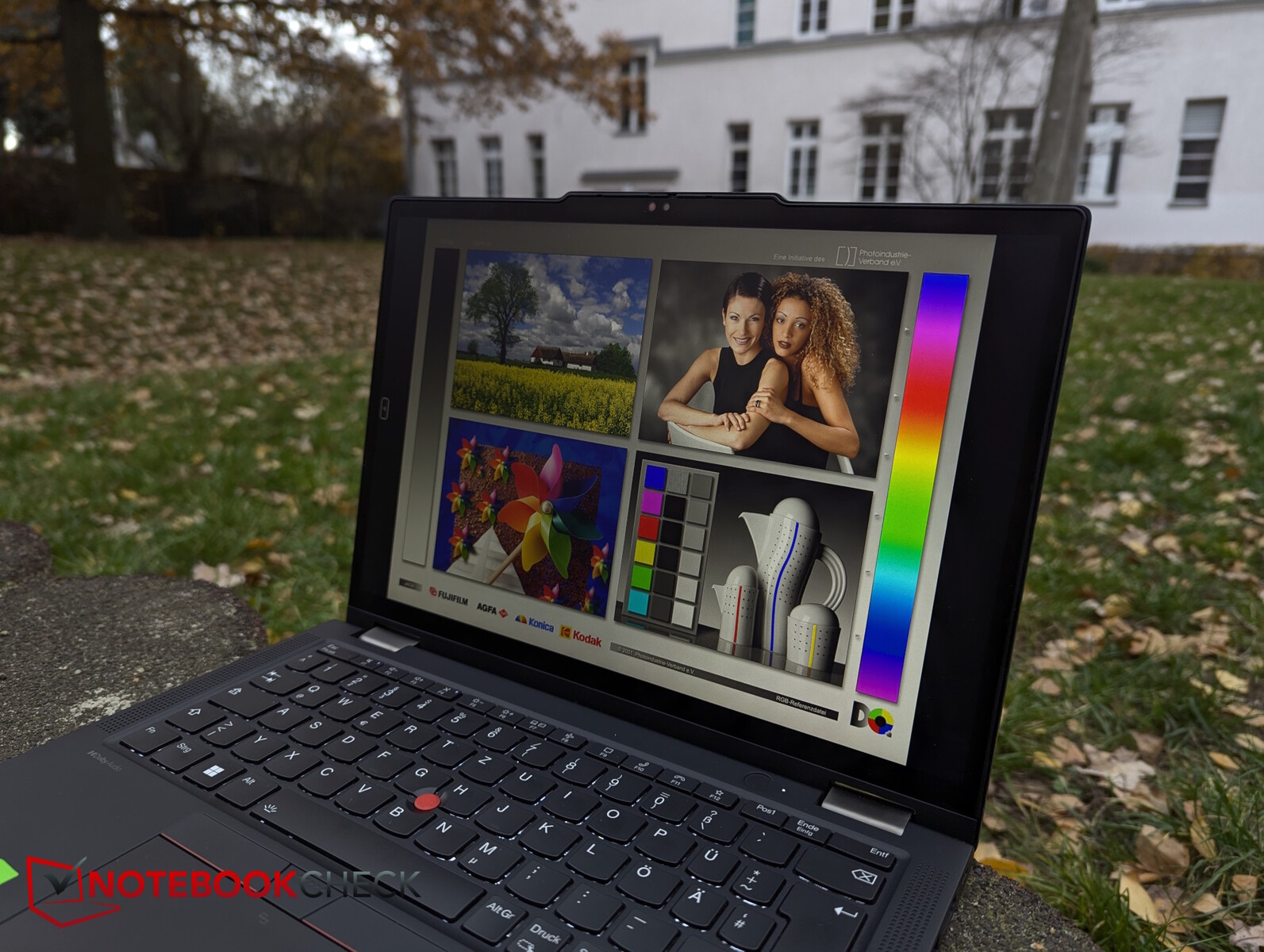

亮度足以满足户外使用，尤其是哑光表面不易反光。

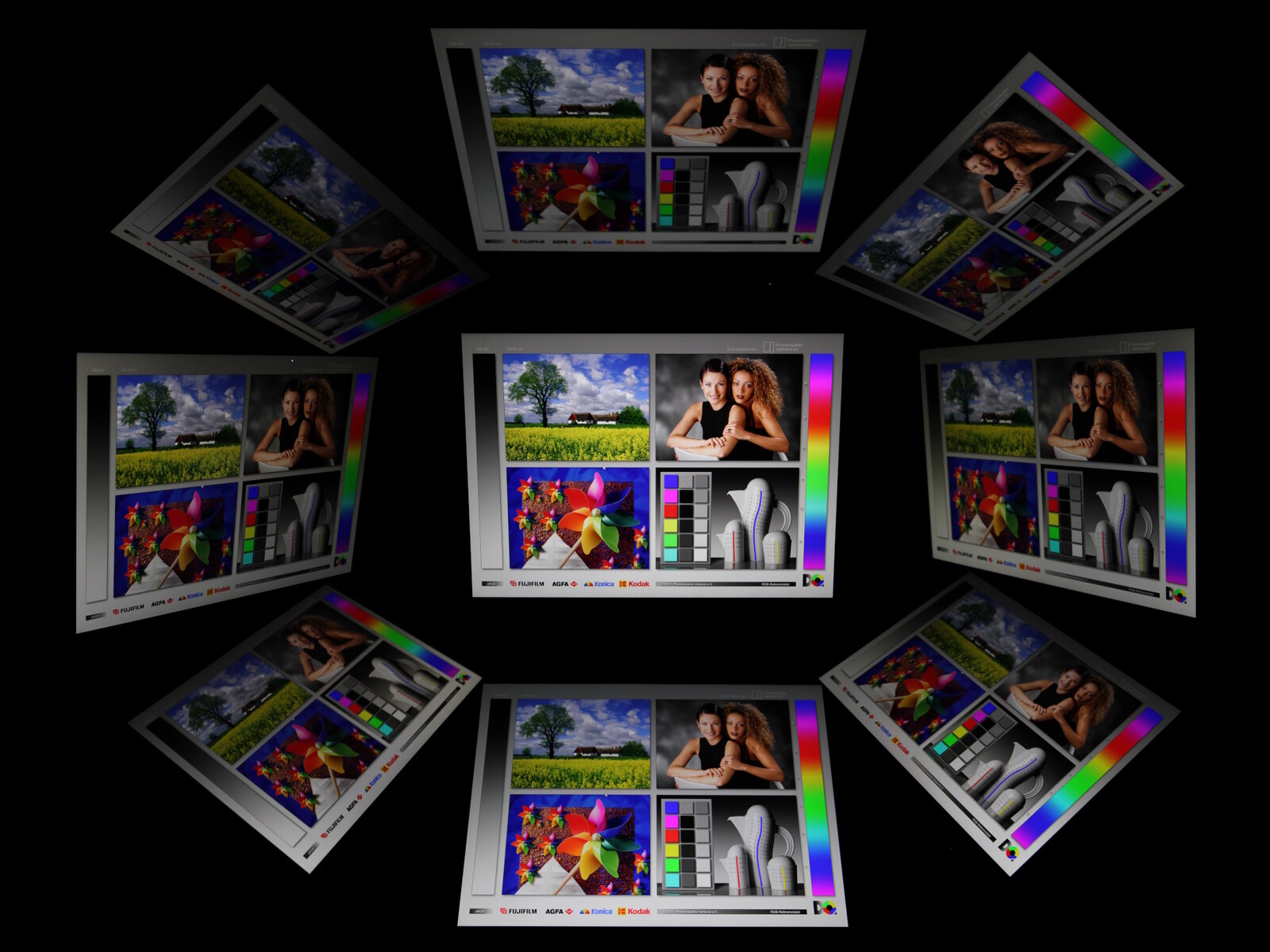

视角稳定性尚可，但我们也见过在这方面做得更好的 IPS 面板。从某一角度观看时，亮度和对比度开始下降得更快、更明显。不过，情况并不像下面的照片显示的那么糟糕。
性能 - 在人工智能之外几乎没有改进

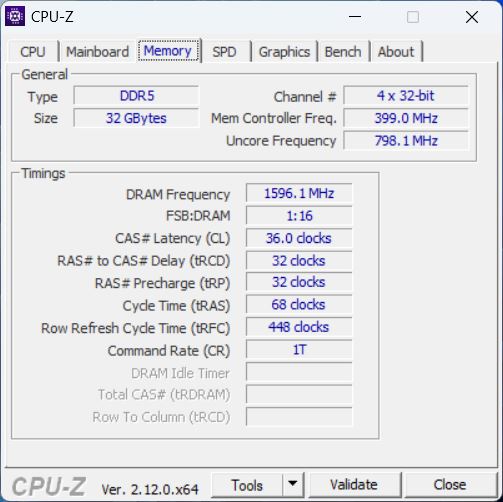

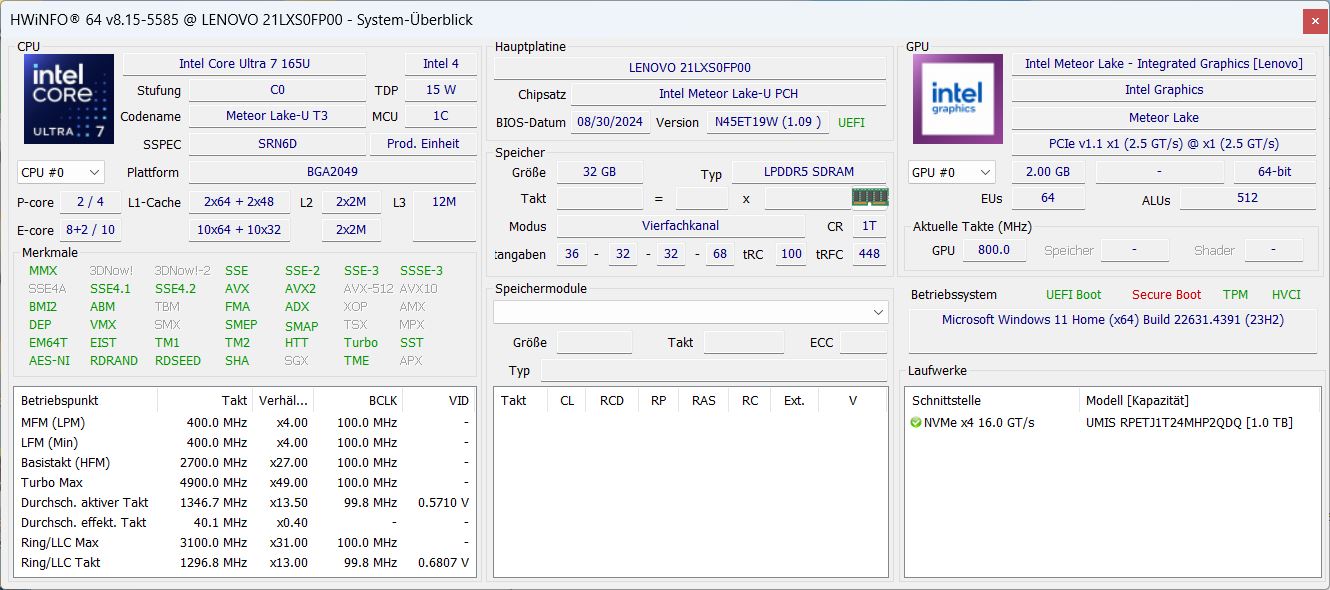

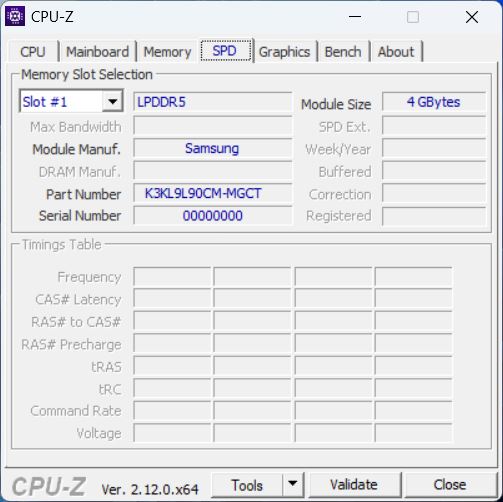

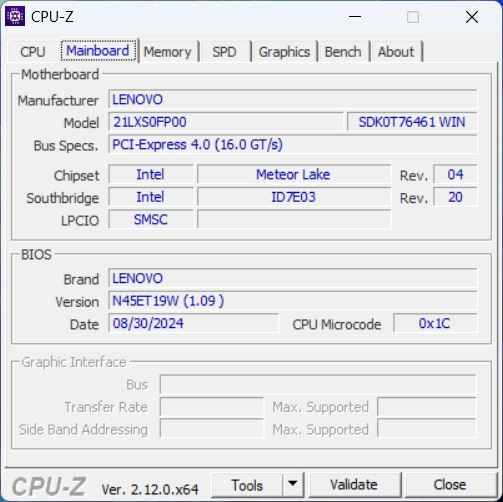

X13 2 合 1 配备了英特尔酷睿 Ultra 7 165U、32 GB 内存和 1 TB 固态硬盘，最重要的是，它采用了触摸屏和可折叠设计，是一款灵活、高度便携的全能伴侣，适用于办公任务、会议等商务使用场景、小型多媒体任务，甚至是中间的短时游戏。
测试条件

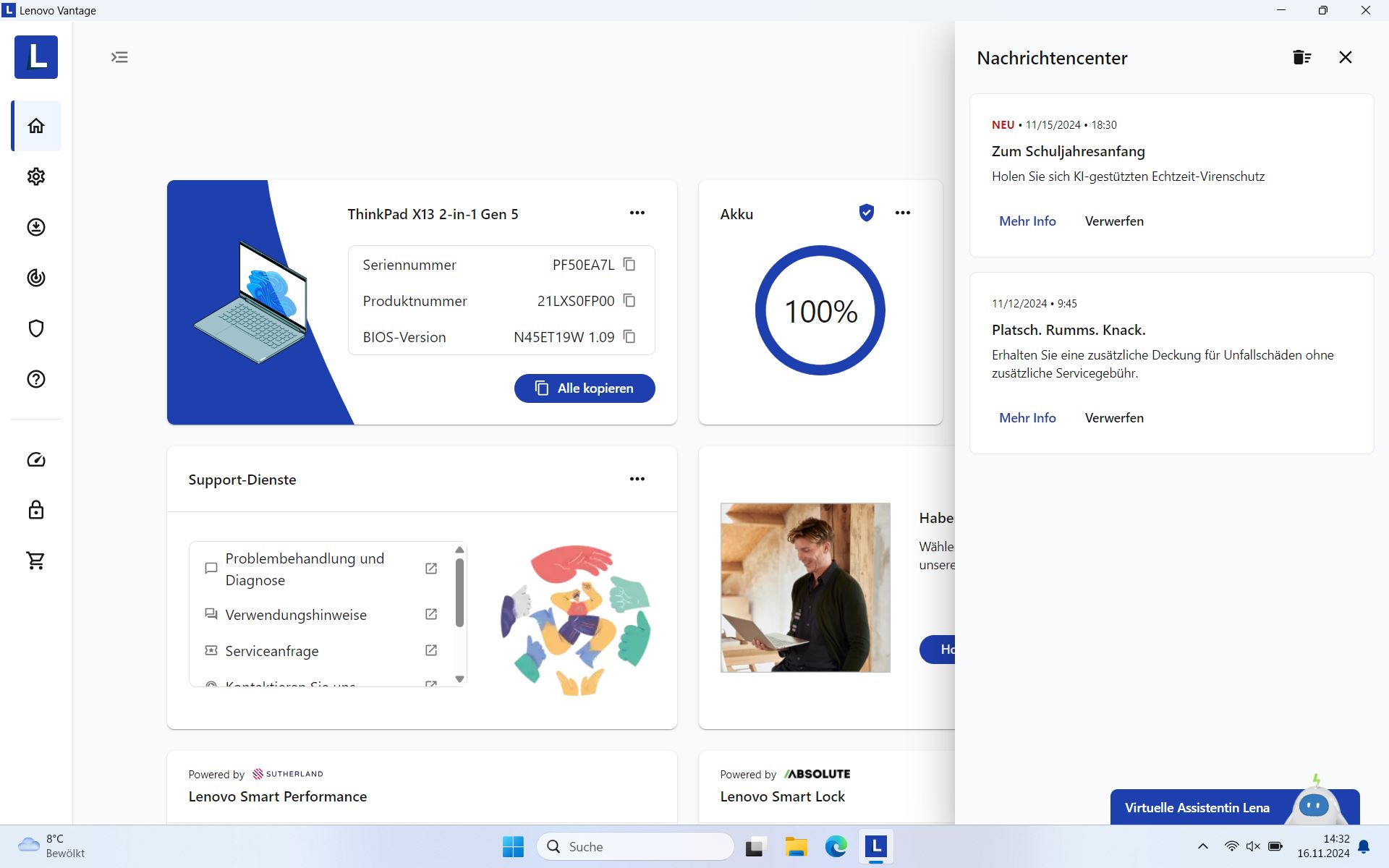

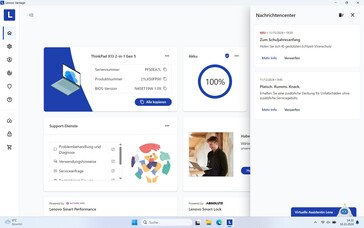

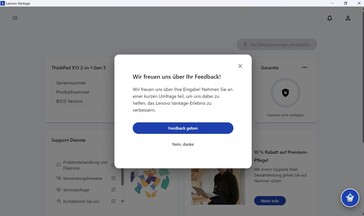

联想 Vantage 是控制中心的名称，它一开始就问我们是否要参与调查。不，我们不想参加，尤其是因为我们是第一次使用它，还没有任何印象可以分享。
Vantage 软件中没有真正的性能配置文件，但广告和付费功能却非常丰富。比如，我们可以每年支付 44.03 欧元，让系统每周 "自动修复 "一次，据说这样可以提高系统性能。主屏幕会告知我们 "实用的 "黑色星期五优惠，新闻中心则旨在以最好的方式描述保护计划。说到控制中心，制造商的胆量越来越难以忽视，正如我们最近看到的 宏碁 Swift Go 14 AI.
公平地说，该应用程序确实提供了一些设置，而且还允许您为笔记本电脑寻找备件。
在下面的测试中，我们激活了 Windows 中的性能电源模式。
处理器

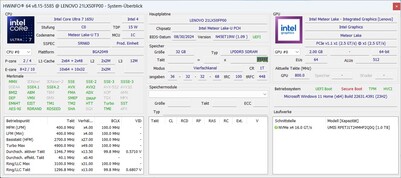

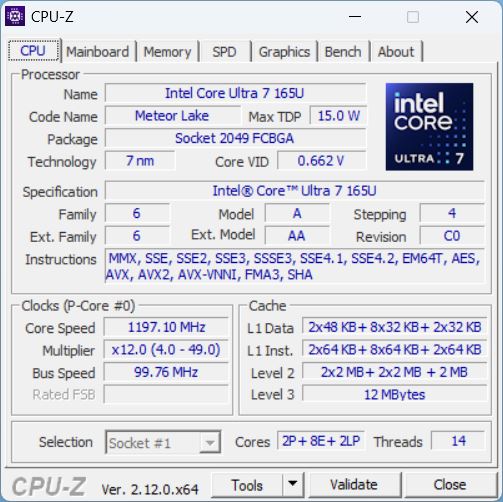

英特尔酷睿至尊 7 165U 属于流星湖 U 系列，于 2023 年 12 月发布。它提供 12 个 CPU 内核和一个 Arc GPU，功耗介于 15 瓦（基本 TDP）和 57 瓦（最大 Turbo）之间。此外，该笔记本电脑还可配备 Core Ultra 5 125U, 135U或 酷睿 Ultra 7 155U.

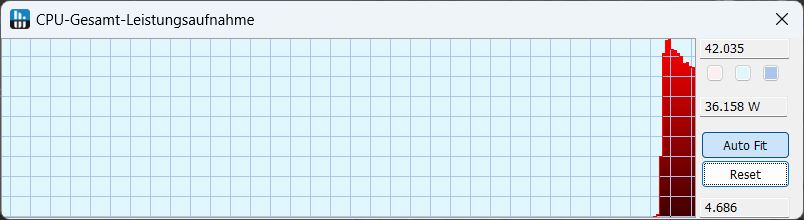

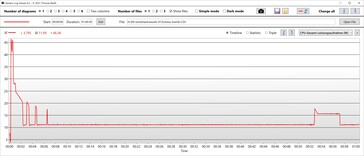

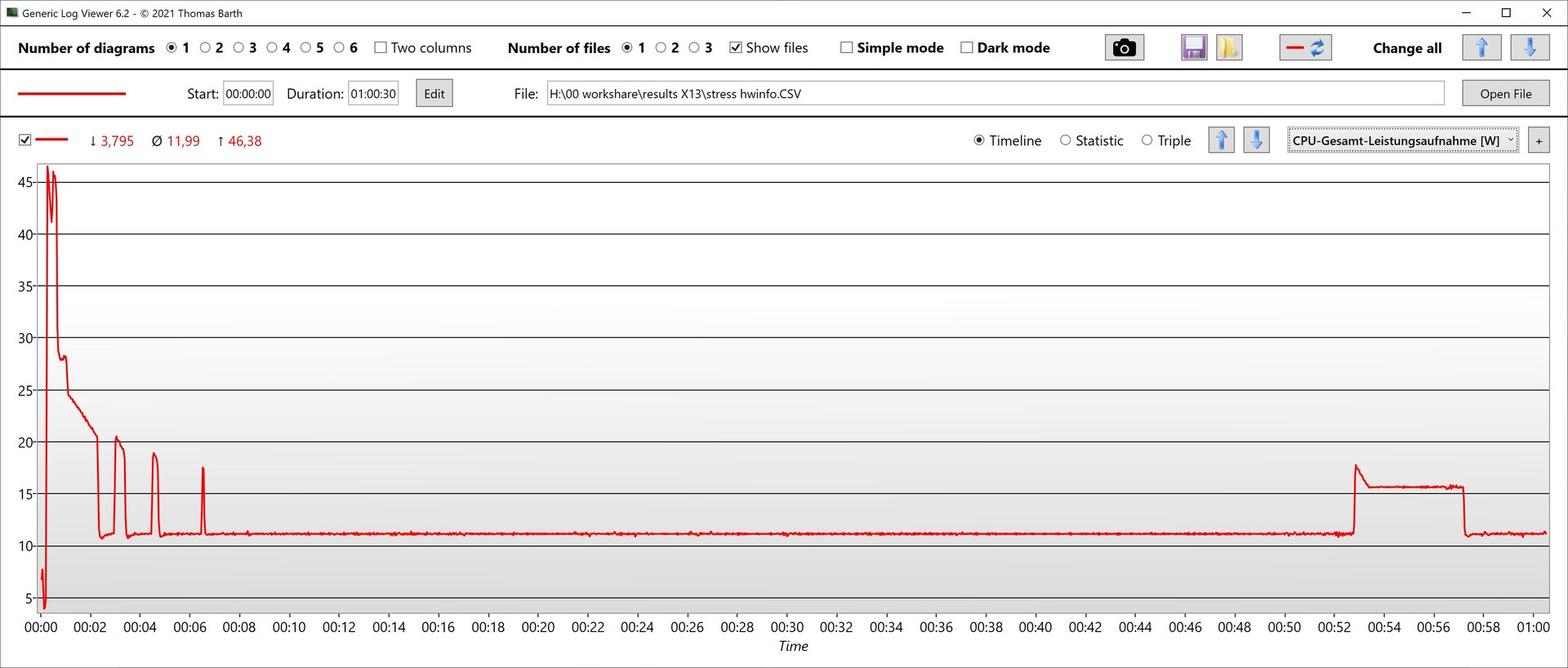

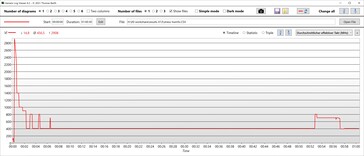

在 Cinebench R15 耐用性测试中，我们观察到在前 5 次运行中性能急剧下降，之后性能保持稳定，但仍略低于戴尔Latitude 7350 中性能稍弱的酷睿 Ultra 7 164U 的连续性能。另一方面，我们 X13 的 Turbo 性能略高。
在所有 CPU 测试中，该 CPU 的性能仍然低于其潜力；我们数据库中 165U 的平均性能要高出整整 13%。总体而言，这款笔记本电脑的运行速度并不比配备 英特尔酷睿 i5-1335U有些令人失望。

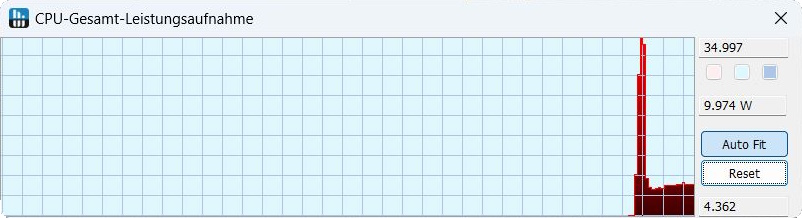

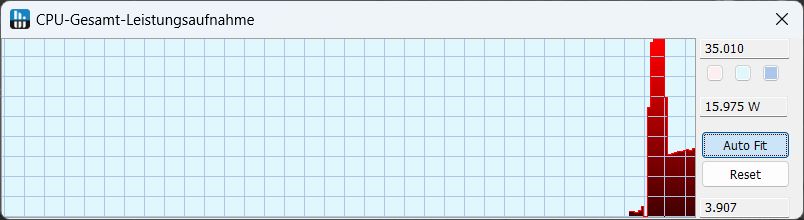

| 模式/配置文件 | Cinebench R15 多重评分 | CPU 功耗 |
|---|---|---|
| 节能 | 796 | 短暂 35 W，然后 10 W |
| 平衡 | 1,200 | 35 W 稍长，然后 15 W |
| 最佳性能 | 1,428 | 从 40 瓦持续降至 35 瓦 |

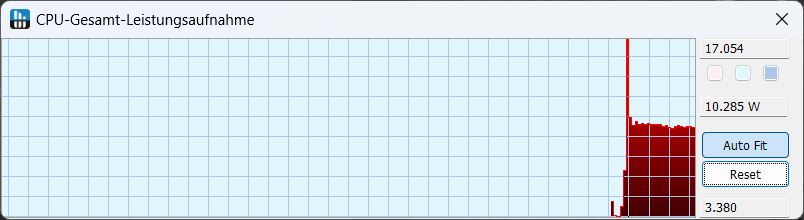

| 电池供电 | 760 | 很快为 17 瓦，然后为 10.3 瓦 |
Cinebench R15 Multi loop
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| CPU Performance Rating | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average of class Convertible | |
| Average Intel Core Ultra 7 165U | |
| Microsoft Surface Pro 9, i7-1255U -2! | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Dell Latitude 7350 Detachable | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| Cinebench R23 / Multi Core | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average of class Convertible (616 - 18698, n=64, last 2 years) | |
| Average Intel Core Ultra 7 165U (8498 - 10797, n=4) | |
| Microsoft Surface Pro 9, i7-1255U | |
| Dell Latitude 7350 Detachable | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Cinebench R23 / Single Core | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Microsoft Surface Pro 9, i7-1255U | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| Average Intel Core Ultra 7 165U (1507 - 1709, n=4) | |
| Average of class Convertible (308 - 1980, n=64, last 2 years) | |
| Dell Latitude 7350 Detachable | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Cinebench R20 / CPU (Multi Core) | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average of class Convertible (242 - 7303, n=64, last 2 years) | |
| Average Intel Core Ultra 7 165U (3254 - 4176, n=4) | |
| Microsoft Surface Pro 9, i7-1255U | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Dell Latitude 7350 Detachable | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| Cinebench R20 / CPU (Single Core) | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Microsoft Surface Pro 9, i7-1255U | |
| Average Intel Core Ultra 7 165U (604 - 661, n=4) | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| Average of class Convertible (149.8 - 781, n=63, last 2 years) | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Dell Latitude 7350 Detachable | |
| Cinebench R15 / CPU Multi 64Bit | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average of class Convertible (110.1 - 2889, n=66, last 2 years) | |
| Average Intel Core Ultra 7 165U (1428 - 1667, n=4) | |
| Microsoft Surface Pro 9, i7-1255U | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Dell Latitude 7350 Detachable | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| Cinebench R15 / CPU Single 64Bit | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average of class Convertible (68.6 - 302, n=63, last 2 years) | |
| Average Intel Core Ultra 7 165U (220 - 252, n=4) | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Dell Latitude 7350 Detachable | |
| Microsoft Surface Pro 9, i7-1255U | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Blender / v2.79 BMW27 CPU | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| Dell Latitude 7350 Detachable | |
| Microsoft Surface Pro 9, i7-1255U | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Average of class Convertible (175 - 1059, n=60, last 2 years) | |
| Average Intel Core Ultra 7 165U (310 - 380, n=4) | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| 7-Zip 18.03 / 7z b 4 | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average of class Convertible (12977 - 72400, n=61, last 2 years) | |
| Average Intel Core Ultra 7 165U (30898 - 43441, n=4) | |
| Microsoft Surface Pro 9, i7-1255U | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| Dell Latitude 7350 Detachable | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| 7-Zip 18.03 / 7z b 4 -mmt1 | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average of class Convertible (3672 - 6493, n=61, last 2 years) | |
| Microsoft Surface Pro 9, i7-1255U | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| Average Intel Core Ultra 7 165U (4644 - 4960, n=4) | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Dell Latitude 7350 Detachable | |
| Geekbench 6.3 / Multi-Core | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average of class Convertible (3257 - 14513, n=41, last 2 years) | |
| Average Intel Core Ultra 7 165U (9308 - 9944, n=4) | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| Dell Latitude 7350 Detachable | |
| Geekbench 6.3 / Single-Core | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average of class Convertible (1216 - 2814, n=42, last 2 years) | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Average Intel Core Ultra 7 165U (2092 - 2359, n=5) | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| Dell Latitude 7350 Detachable | |
| Geekbench 5.5 / Multi-Core | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Microsoft Surface Pro 9, i7-1255U | |
| Average of class Convertible (663 - 14016, n=64, last 2 years) | |
| Average Intel Core Ultra 7 165U (8028 - 8719, n=4) | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Dell Latitude 7350 Detachable | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| Geekbench 5.5 / Single-Core | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average Intel Core Ultra 7 165U (1714 - 1740, n=4) | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Microsoft Surface Pro 9, i7-1255U | |
| Average of class Convertible (319 - 2062, n=64, last 2 years) | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Dell Latitude 7350 Detachable | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| HWBOT x265 Benchmark v2.2 / 4k Preset | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average of class Convertible (0.73 - 22.4, n=63, last 2 years) | |
| Average Intel Core Ultra 7 165U (9.06 - 12.3, n=4) | |
| Microsoft Surface Pro 9, i7-1255U | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Dell Latitude 7350 Detachable | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| LibreOffice / 20 Documents To PDF | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Average of class Convertible (42 - 121.5, n=60, last 2 years) | |
| Microsoft Surface Pro 9, i7-1255U | |
| Average Intel Core Ultra 7 165U (43.5 - 56.4, n=4) | |
| Dell Latitude 7350 Detachable | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| R Benchmark 2.5 / Overall mean | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Dell Latitude 7350 Detachable | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| Microsoft Surface Pro 9, i7-1255U | |
| Average of class Convertible (0.4102 - 1.013, n=60, last 2 years) | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Average Intel Core Ultra 7 165U (0.4881 - 0.555, n=4) | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average of class Convertible | |
| Average Intel Core Ultra 7 165U | |
| Microsoft Surface Pro 9, i7-1255U | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Dell Latitude 7350 Detachable | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| AIDA64 / FP32 Ray-Trace | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average of class Convertible (468 - 29594, n=64, last 2 years) | |
| Average Intel Core Ultra 7 165U (6218 - 9685, n=4) | |
| Microsoft Surface Pro 9, i7-1255U | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Dell Latitude 7350 Detachable | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| AIDA64 / FPU Julia | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average of class Convertible (2644 - 114033, n=63, last 2 years) | |
| Average Intel Core Ultra 7 165U (32054 - 47555, n=4) | |
| Microsoft Surface Pro 9, i7-1255U | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Dell Latitude 7350 Detachable | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| AIDA64 / CPU SHA3 | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average of class Convertible (182 - 4841, n=63, last 2 years) | |
| Average Intel Core Ultra 7 165U (1739 - 2694, n=4) | |
| Microsoft Surface Pro 9, i7-1255U | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Dell Latitude 7350 Detachable | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| AIDA64 / CPU Queen | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average of class Convertible (10502 - 120368, n=63, last 2 years) | |
| Microsoft Surface Pro 9, i7-1255U | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Average Intel Core Ultra 7 165U (45867 - 47345, n=4) | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Dell Latitude 7350 Detachable | |
| AIDA64 / FPU SinJulia | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average of class Convertible (659 - 16315, n=63, last 2 years) | |
| Average Intel Core Ultra 7 165U (4547 - 5776, n=4) | |
| Microsoft Surface Pro 9, i7-1255U | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Dell Latitude 7350 Detachable | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| AIDA64 / FPU Mandel | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average of class Convertible (1420 - 61249, n=63, last 2 years) | |
| Average Intel Core Ultra 7 165U (15677 - 23352, n=4) | |
| Microsoft Surface Pro 9, i7-1255U | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Dell Latitude 7350 Detachable | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| AIDA64 / CPU AES | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average of class Convertible (1279 - 169089, n=63, last 2 years) | |
| Average Intel Core Ultra 7 165U (36912 - 50177, n=4) | |
| Microsoft Surface Pro 9, i7-1255U | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Dell Latitude 7350 Detachable | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| AIDA64 / CPU ZLib | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average Intel Core Ultra 7 165U (518 - 794, n=4) | |
| Average of class Convertible (61.4 - 1243, n=63, last 2 years) | |
| Microsoft Surface Pro 9, i7-1255U | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Dell Latitude 7350 Detachable | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| AIDA64 / FP64 Ray-Trace | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average of class Convertible (254 - 16065, n=63, last 2 years) | |
| Microsoft Surface Pro 9, i7-1255U | |
| Average Intel Core Ultra 7 165U (3182 - 4965, n=4) | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Dell Latitude 7350 Detachable | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| AIDA64 / CPU PhotoWorxx | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average Intel Core Ultra 7 165U (41747 - 49113, n=4) | |
| Microsoft Surface Pro 9, i7-1255U | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Dell Latitude 7350 Detachable | |
| Average of class Convertible (5136 - 53406, n=63, last 2 years) | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| HP EliteBook x360 830 G10 7L7U1ET | |
系统性能

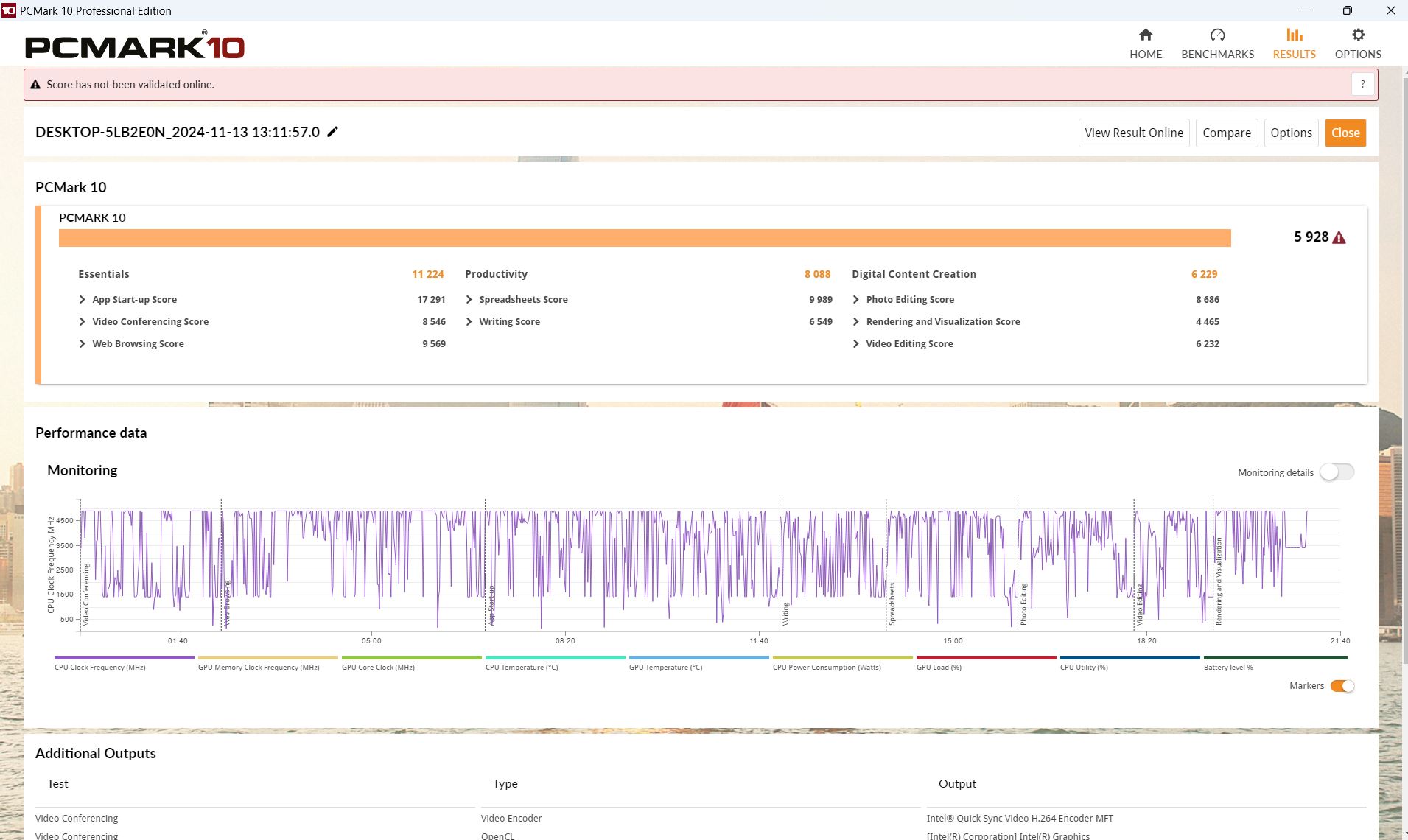

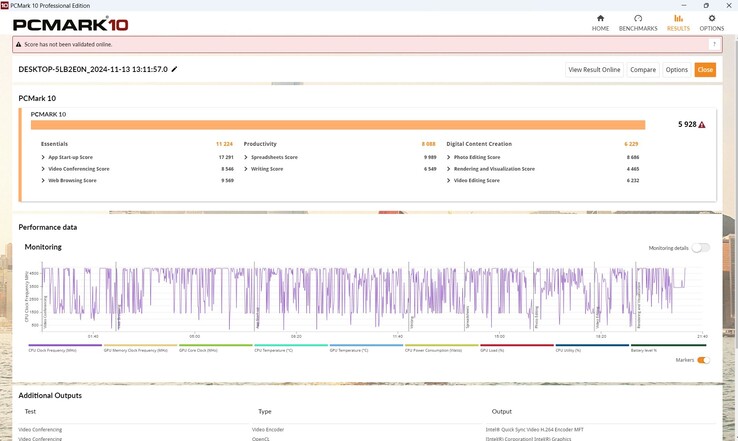

在 PCMark 10 中，我们的 X13 比上一代产品领先约 10%，与戴尔Latitude 不相上下。CrossMark 测试似乎更喜欢 X13；在这项测试中，X13 排名第二，仅次于戴尔的 框架笔记本 13.5笔记本电脑 13.5 酷睿至尊 7 155H.
CrossMark: Overall | Productivity | Creativity | Responsiveness
WebXPRT 3: Overall
WebXPRT 4: Overall
Mozilla Kraken 1.1: Total
| PCMark 10 / Score | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average Intel Core Ultra 7 165U, Intel Graphics 4-Cores iGPU (Arc) (5893 - 6421, n=4) | |
| Average of class Convertible (1486 - 7963, n=60, last 2 years) | |
| Dell Latitude 7350 Detachable | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Microsoft Surface Pro 9, i7-1255U | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| PCMark 10 / Essentials | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Average Intel Core Ultra 7 165U, Intel Graphics 4-Cores iGPU (Arc) (10937 - 11238, n=4) | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average of class Convertible (3975 - 12059, n=60, last 2 years) | |
| Dell Latitude 7350 Detachable | |
| Microsoft Surface Pro 9, i7-1255U | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| PCMark 10 / Productivity | |
| Dell Latitude 7350 Detachable | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average Intel Core Ultra 7 165U, Intel Graphics 4-Cores iGPU (Arc) (7722 - 8751, n=4) | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Average of class Convertible (2764 - 10800, n=60, last 2 years) | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Microsoft Surface Pro 9, i7-1255U | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| PCMark 10 / Digital Content Creation | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average of class Convertible (811 - 12360, n=60, last 2 years) | |
| Average Intel Core Ultra 7 165U, Intel Graphics 4-Cores iGPU (Arc) (6229 - 7325, n=4) | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Dell Latitude 7350 Detachable | |
| Microsoft Surface Pro 9, i7-1255U | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| CrossMark / Overall | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Average Intel Core Ultra 7 165U, Intel Graphics 4-Cores iGPU (Arc) (1471 - 1570, n=4) | |
| Microsoft Surface Pro 9, i7-1255U | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Average of class Convertible (310 - 1912, n=61, last 2 years) | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| Dell Latitude 7350 Detachable | |
| CrossMark / Productivity | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Average Intel Core Ultra 7 165U, Intel Graphics 4-Cores iGPU (Arc) (1448 - 1571, n=4) | |
| Microsoft Surface Pro 9, i7-1255U | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Average of class Convertible (389 - 1790, n=61, last 2 years) | |
| Dell Latitude 7350 Detachable | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| CrossMark / Creativity | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Microsoft Surface Pro 9, i7-1255U | |
| Average Intel Core Ultra 7 165U, Intel Graphics 4-Cores iGPU (Arc) (1555 - 1685, n=4) | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Average of class Convertible (252 - 2183, n=61, last 2 years) | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| Dell Latitude 7350 Detachable | |
| CrossMark / Responsiveness | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Average Intel Core Ultra 7 165U, Intel Graphics 4-Cores iGPU (Arc) (1305 - 1538, n=4) | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Microsoft Surface Pro 9, i7-1255U | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Average of class Convertible (295 - 1868, n=61, last 2 years) | |
| Dell Latitude 7350 Detachable | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| WebXPRT 3 / Overall | |
| Average Intel Core Ultra 7 165U, Intel Graphics 4-Cores iGPU (Arc) (261 - 399, n=4) | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average of class Convertible (84.2 - 407, n=63, last 2 years) | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| Microsoft Surface Pro 9, i7-1255U | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Dell Latitude 7350 Detachable | |
| WebXPRT 4 / Overall | |
| Average Intel Core Ultra 7 165U, Intel Graphics 4-Cores iGPU (Arc) (242 - 314, n=4) | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Microsoft Surface Pro 9, i7-1255U | |
| Average of class Convertible (49.4 - 314, n=61, last 2 years) | |
| Dell Latitude 7350 Detachable | |
| Mozilla Kraken 1.1 / Total | |
| Average of class Convertible (407 - 2676, n=64, last 2 years) | |
| Dell Latitude 7350 Detachable | |
| Microsoft Surface Pro 9, i7-1255U | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average Intel Core Ultra 7 165U, Intel Graphics 4-Cores iGPU (Arc) (407 - 562, n=4) | |
* ... smaller is better
| PCMark 10 Score | 5928 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Average Intel Core Ultra 7 165U (69844 - 84739, n=4) | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Dell Latitude 7350 Detachable | |
| Microsoft Surface Pro 9, i7-1255U | |
| Average of class Convertible (16353 - 108544, n=63, last 2 years) | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| AIDA64 / Memory Read | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Microsoft Surface Pro 9, i7-1255U | |
| Average of class Convertible (12706 - 125359, n=63, last 2 years) | |
| Average Intel Core Ultra 7 165U (52264 - 59571, n=4) | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Dell Latitude 7350 Detachable | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| AIDA64 / Memory Write | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| Average of class Convertible (10177 - 117920, n=63, last 2 years) | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Microsoft Surface Pro 9, i7-1255U | |
| Average Intel Core Ultra 7 165U (56033 - 64848, n=4) | |
| Dell Latitude 7350 Detachable | |
| AIDA64 / Memory Latency | |
| Dell Latitude 7350 Detachable | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Average Intel Core Ultra 7 165U (137.8 - 146.4, n=4) | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average of class Convertible (7.4 - 173, n=63, last 2 years) | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Microsoft Surface Pro 9, i7-1255U | |
* ... smaller is better

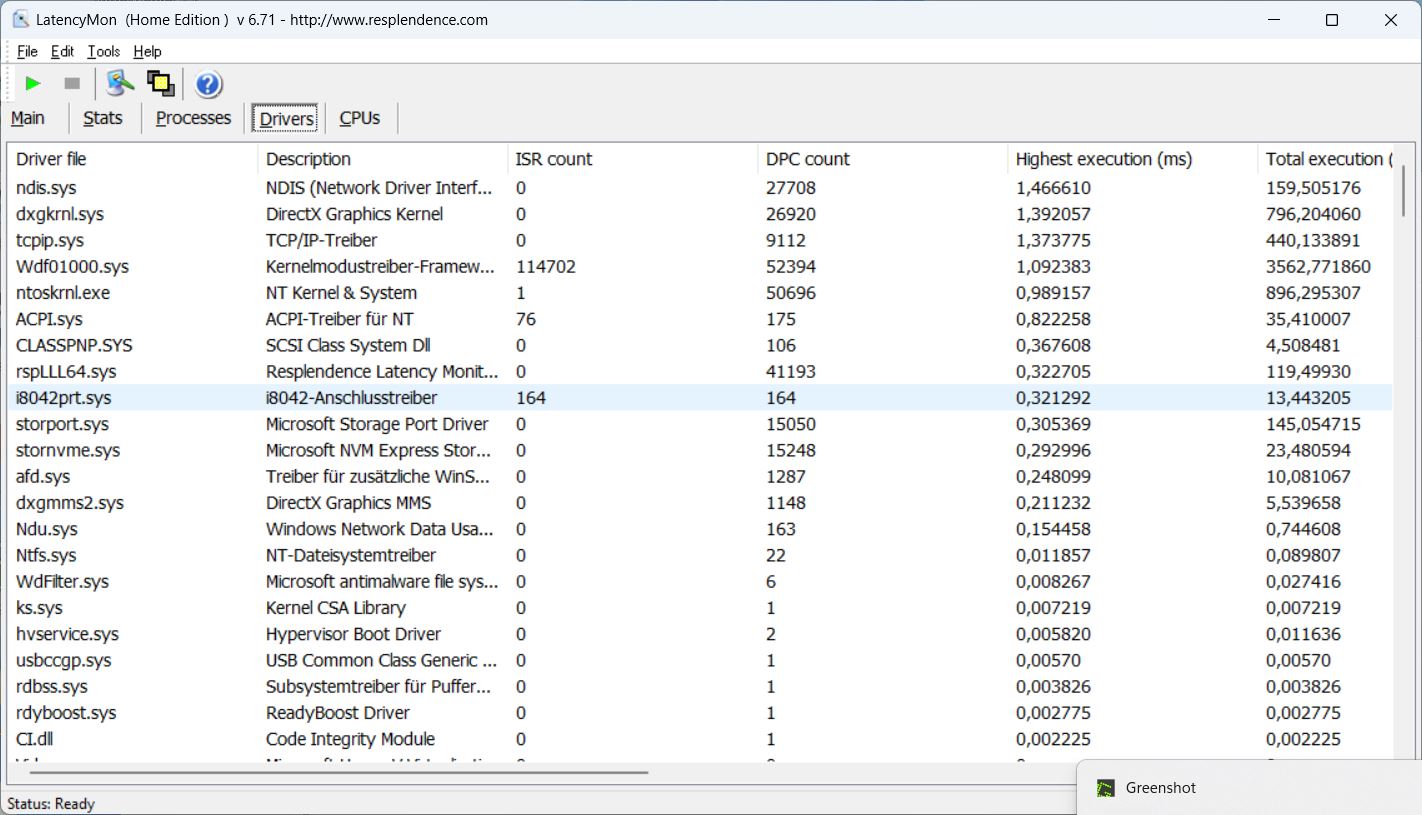

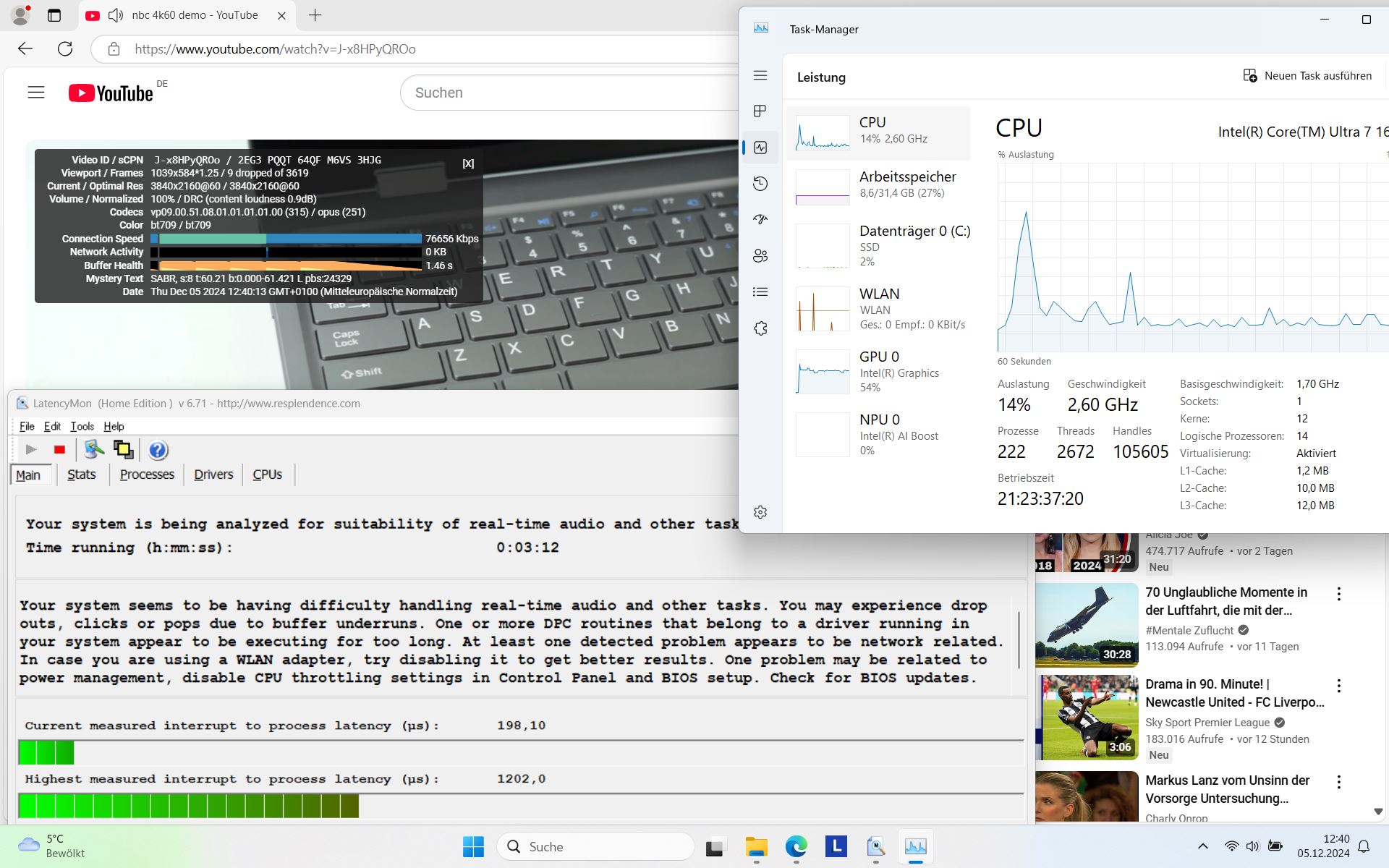

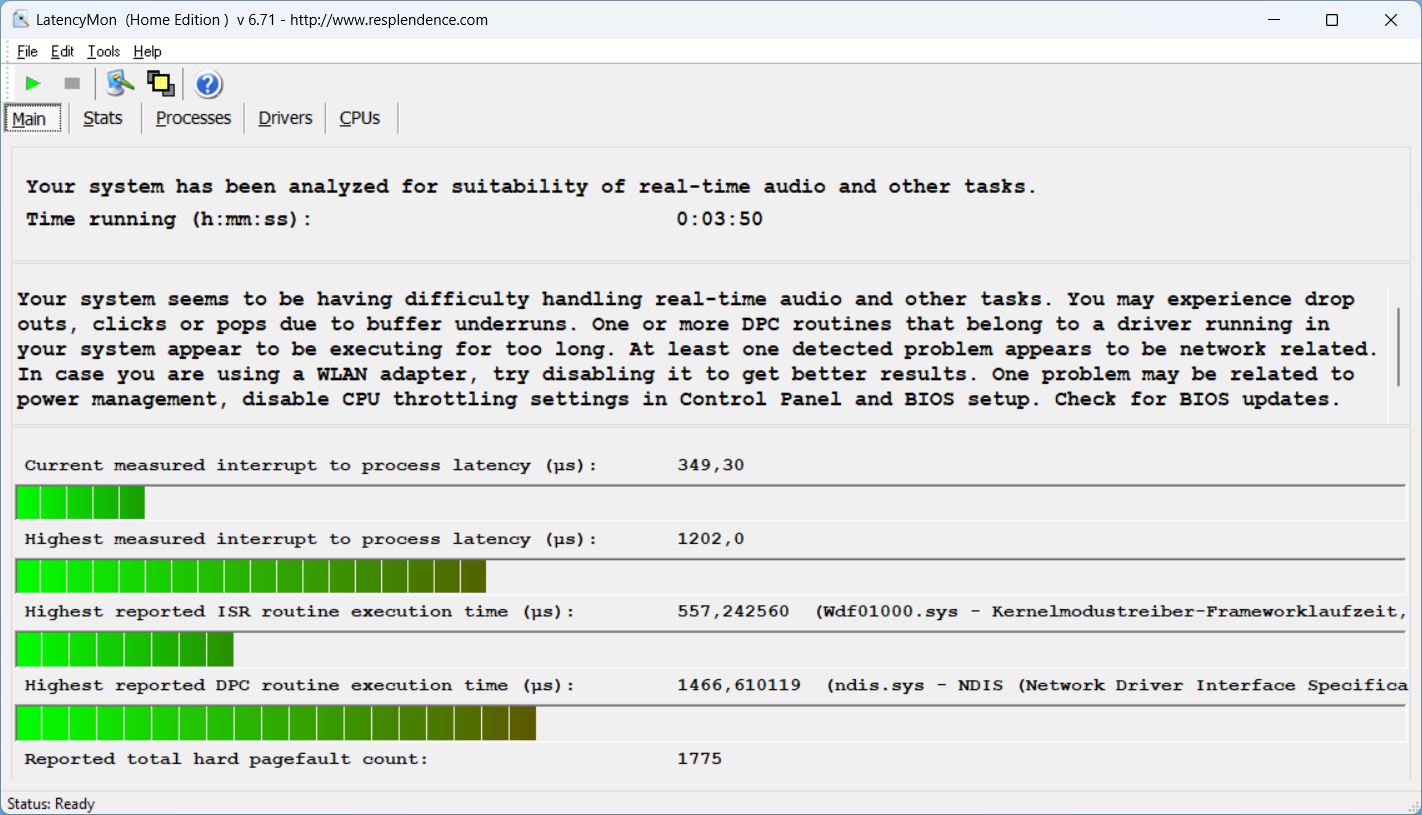

DPC 延迟
启动网络浏览器时没有异常延迟，但从我们的主页打开几篇文章时，延迟情况会发生变化。不过，延迟值仍在合理范围内。不过，在打开 YouTube 并播放我们测试的 4K/60 fps 视频时，延迟值有点高，而且还出现了 8 次丢帧。这里没有完美的视频播放体验。
与其他笔记本电脑相比，记录的延迟时间相当低。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Microsoft Surface Pro 9, i7-1255U | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| Dell Latitude 7350 Detachable | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
* ... smaller is better
存储设备
联想依靠的是其子品牌之一名为 UMIS 的固态硬盘，容量为 1 TB。在我们的 固态硬盘排名中它排在第 129 位，因此肯定不是最快的型号之一。
但在我们的 X13 2 合 1 中，它的表现却异常出色。事实上，它比同类笔记本电脑的固态硬盘性能更高。遗憾的是，尽管采用了大型铜质散热器，但在长时间负载情况下性能还是有所下降。这种情况也不会持续太久。
* ... smaller is better
Disk throttling: DiskSpd Read Loop, Queue Depth 8

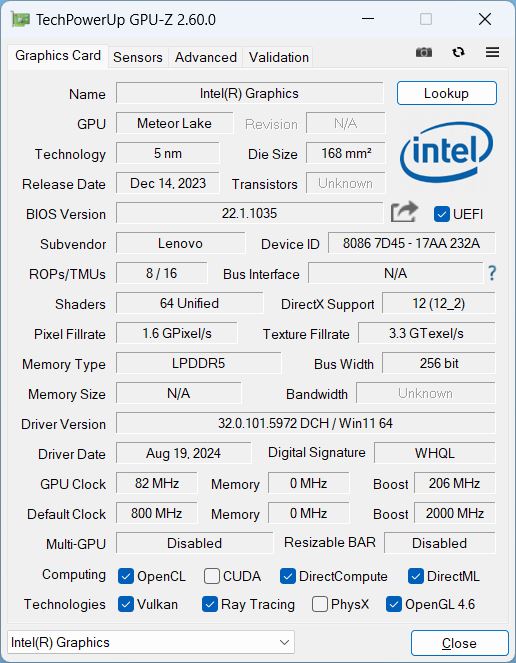

图形处理器性能
集成的英特尔图形处理器有 4 个内核和 64 个 Xe 向量引擎，负责 3D 计算。虽然它基于英特尔 Arc 架构，但由于只有 4 个内核而不是 7 或 8 个内核，因此没有正式使用 Arc 名称。
在合成 3DMark 测试中，它的表现略好于我们数据库中的普通 4 核 Arc Graphics。不过，它无法与 Framework 笔记本电脑中的英特尔 Arc 8 核图形处理器相媲美。

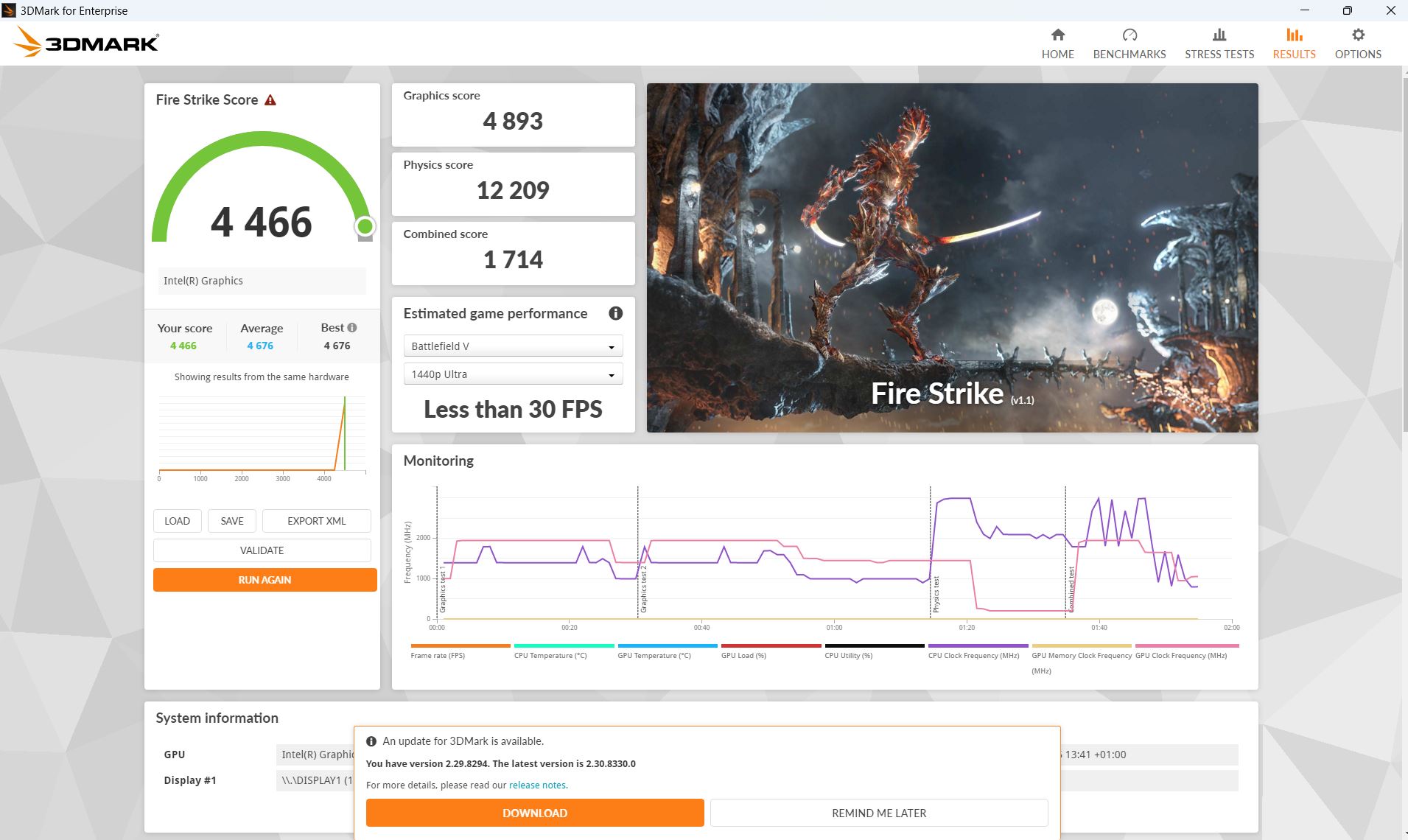

断开电源会导致 3D 性能下降 10%。

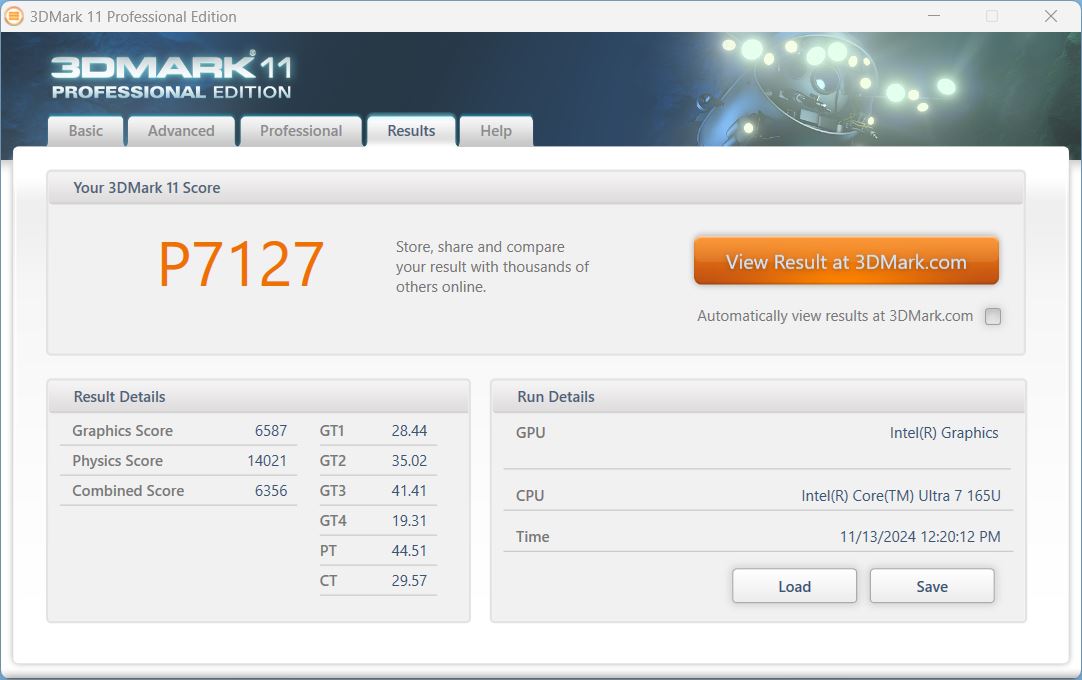

| 3DMark 11 Performance | 7127 points | |

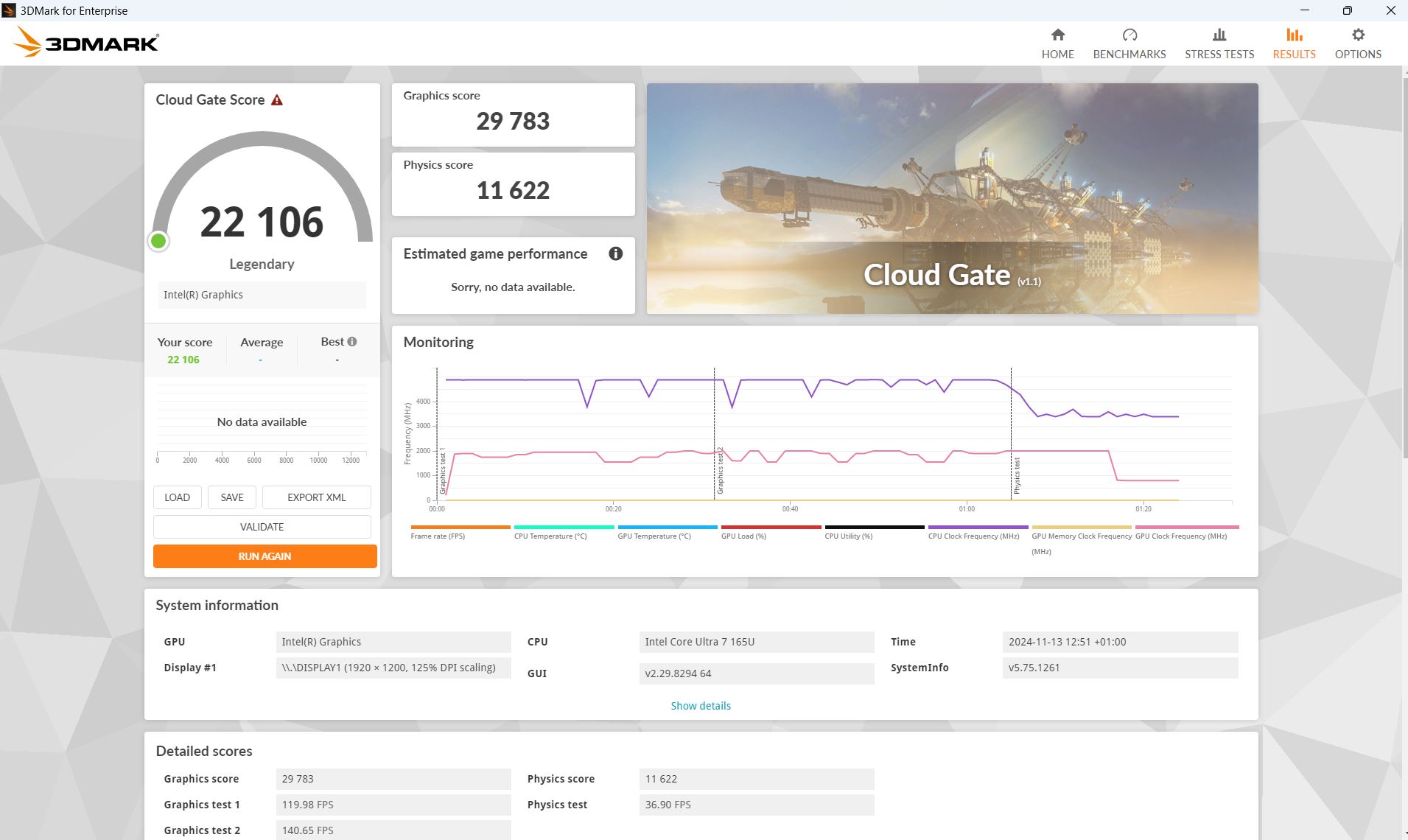

| 3DMark Cloud Gate Standard Score | 22106 points | |

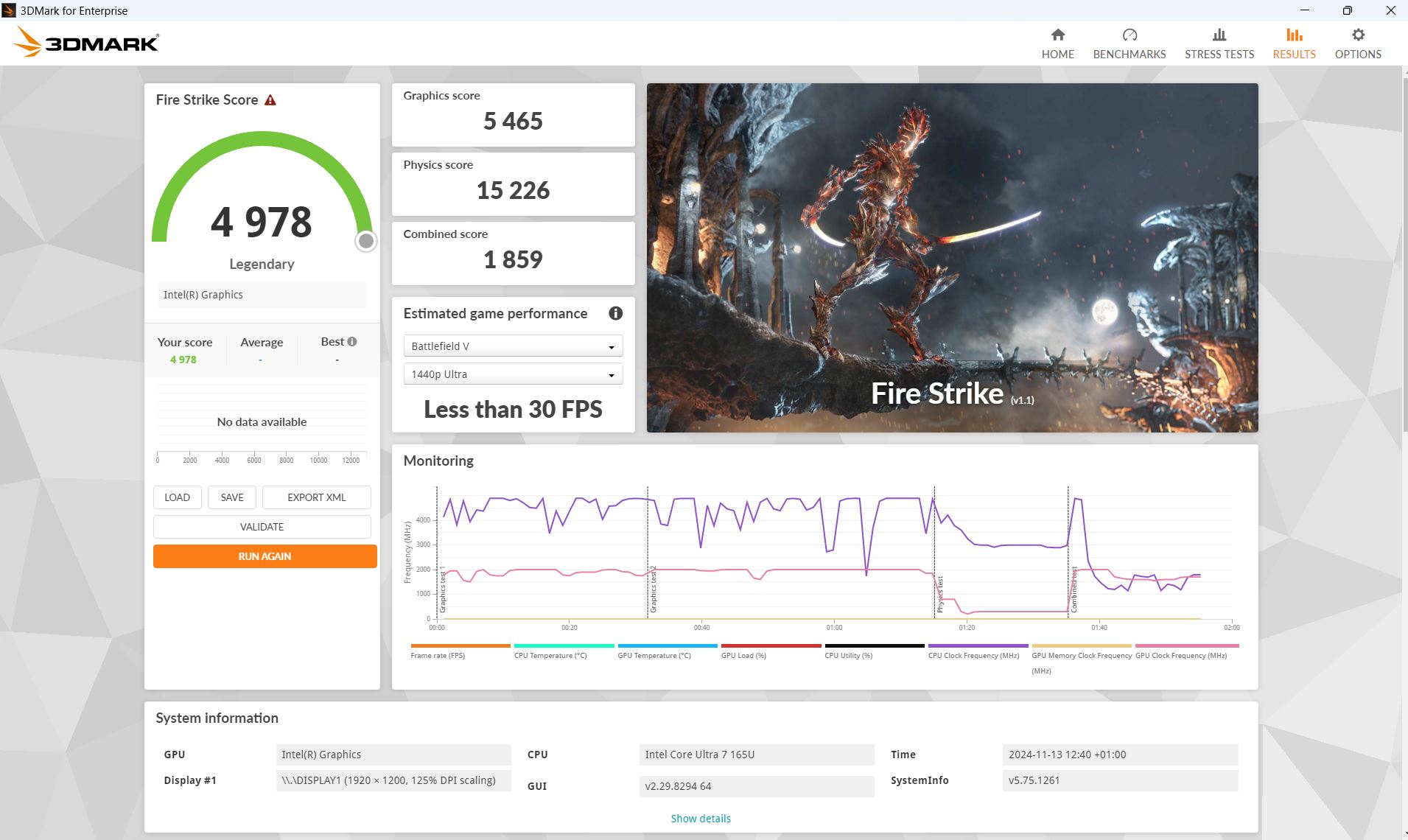

| 3DMark Fire Strike Score | 4978 points | |

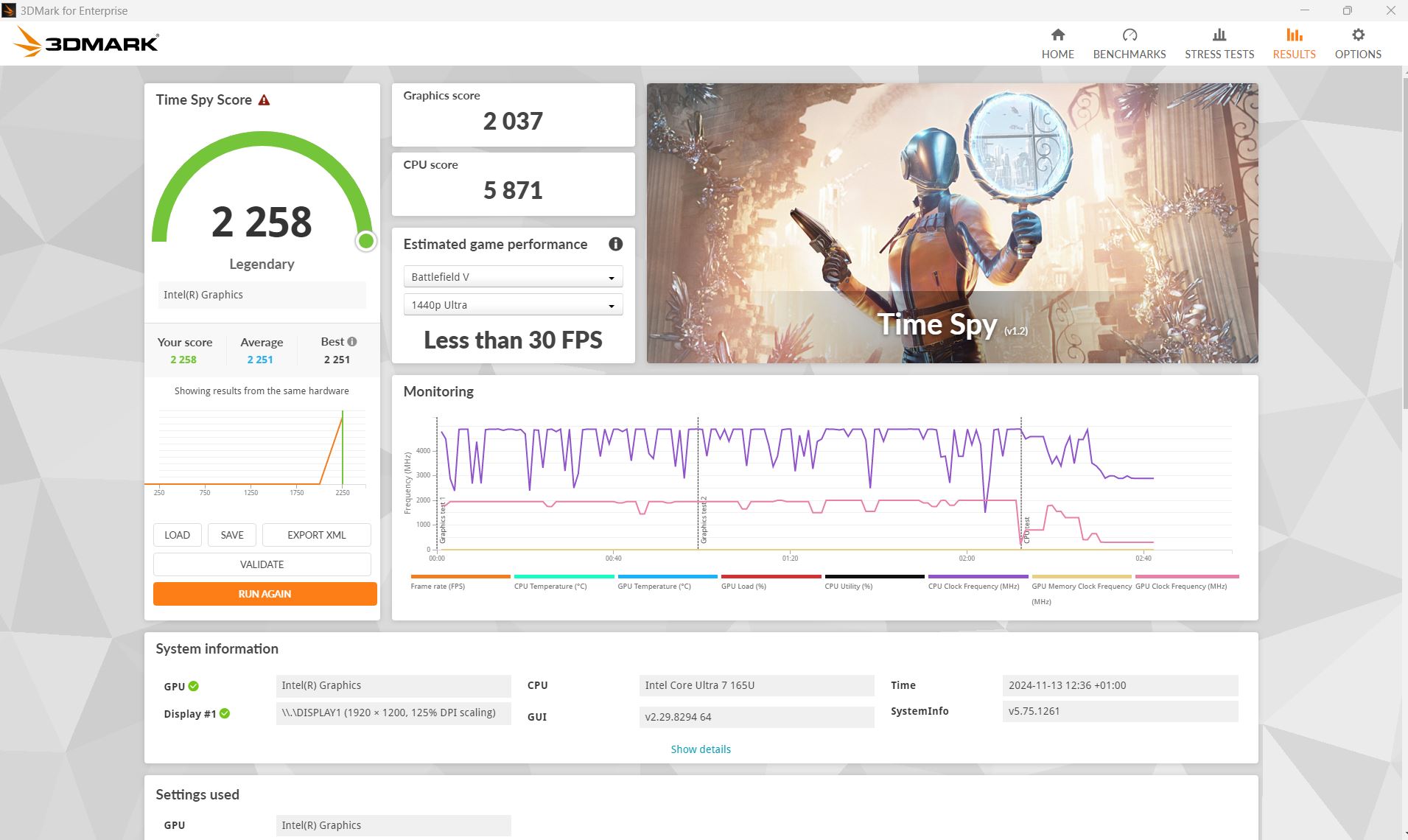

| 3DMark Time Spy Score | 2258 points | |

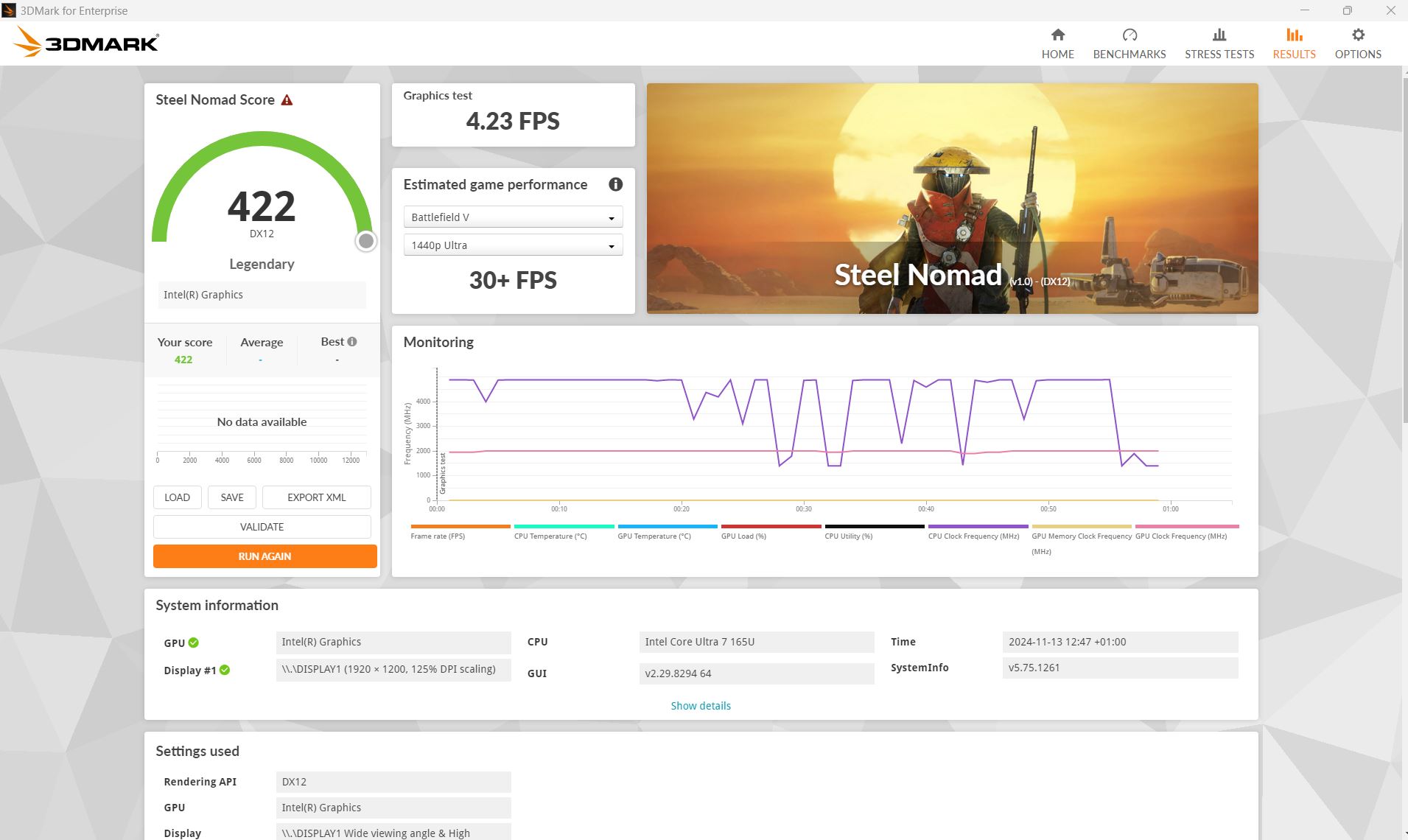

| 3DMark Steel Nomad Score | 422 points | |
Help | ||
* ... smaller is better
游戏性能
遗憾的是，正如弧形 GPU 经常出现的情况一样，英特尔 GPU 的良好合成性能并不能带来良好的实际游戏性能，因为英特尔驱动程序的优化程度仍然远远低于长期以来的顶级厂商 Nvidia。因此，根据游戏的不同，性能也会有很大差异。不得不说，我们的 X13 在某种程度上也落后于基于英特尔的笔记本电脑竞争对手。平均而言，它只比上一代产品高出 8%。与此同时，采用相同 iGPU 的戴尔Latitude 与我们的 X13 处于同一（低）水平。

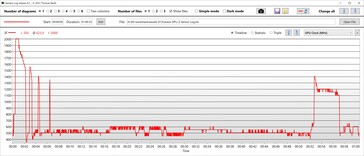

在我们进行的 30 分钟《赛博朋克 2077》测试中，帧率起初很不稳定。我们观察到 1 到 2 分钟内的帧数为 12 帧/秒，然后从 12 帧/秒跳至 8 帧/秒。最后帧率稳定在 8.5 帧左右。这也可以从下面的 GPU 参数（如时钟速度、温度和功耗）中看出。现在性能下降的原因已经很清楚了。这是因为 GPU 温度迅速上升到 99 °C，然后急剧下降。
总的来说，4 核 Arc 显卡并不是游戏怪兽。即使在降低分辨率和细节的情况下，也很难运行最新的游戏。旧版本和要求不高的游戏在中等设置下也能运行。
| Cyberpunk 2077 2.1 Phantom Liberty - 1920x1080 Ultra Preset (FSR off) | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average of class Convertible (8.2 - 83.5, n=25, last 2 years) | |
| Dell Latitude 7350 Detachable | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Baldur's Gate 3 - 1920x1080 Ultra Preset | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Average of class Convertible (10.5 - 63.1, n=15, last 2 years) | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| Dell Latitude 7350 Detachable | |
| GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
| Average of class Convertible (7.07 - 114.3, n=49, last 2 years) | |
| Framework Laptop 13.5 Core Ultra 7 155H | |
| Microsoft Surface Pro 9, i7-1255U | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 | |
| HP EliteBook x360 830 G10 7L7U1ET | |
| Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
| Dell Latitude 7350 Detachable | |
Cyberpunk 2077 Ultra preset FPS chart
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 94 | 109.3 | 24.2 | 9.45 |
| Dota 2 Reborn (2015) | 66.1 | 38.2 | 44.4 | 39.9 |
| Final Fantasy XV Benchmark (2018) | 33.7 | 17.1 | 12.2 | |
| X-Plane 11.11 (2018) | 28.7 | 21.6 | 19.1 | |
| Strange Brigade (2018) | 78.5 | 38 | 31.8 | 26.6 |
| Baldur's Gate 3 (2023) | 21.7 | 16.4 | 14.2 | 13.5 |
| Cyberpunk 2077 2.1 Phantom Liberty (2023) | 17.5 | 14 | 12.4 | 10.7 |
排放 - 安静但温暖
系统噪音
空转时，唯一的风扇基本保持静音。在高负载时，ThinkPad 也比竞争对手更安静，因为它在最大压力下甚至不会产生 40 分贝的噪音，这与某些替代产品不同。
样机似乎没有产生任何其他噪音，如线圈啸叫。
Noise Level
| Idle |
| 23 / 23 / 23 dB(A) |
| Load |
| 34.44 / 39.04 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 23 dB(A) | ||
| Lenovo ThinkPad X13 2-in-1 Gen 5 Graphics 4-Core, Ultra 7 165U, Lenovo UMIS RPETJ1T24MHP2QDQ | Dell Latitude 7350 Detachable Graphics 4-Core, Ultra 7 164U, Micron 2550 1TB | HP EliteBook x360 830 G10 7L7U1ET Iris Xe G7 80EUs, i5-1335U, Samsung PM991 MZVLQ512HBLU | Framework Laptop 13.5 Core Ultra 7 155H Arc 8-Core, Ultra 7 155H | Microsoft Surface Pro 9, i7-1255U Iris Xe G7 96EUs, i7-1255U, Samsung MZ9L4512HBLU-00BMV | Lenovo ThinkPad X13 Yoga G4 21F20017GE Iris Xe G7 80EUs, i5-1335U, Lenovo UMIS AM6A0 RPETJ512MKP1QDQ | |
|---|---|---|---|---|---|---|
| Noise | -5% | 0% | -11% | -7% | -3% | |
| off / environment * | 23 | 22.9 -0% | 23.2 -1% | 24 -4% | 24.3 -6% | 23.5 -2% |
| Idle Minimum * | 23 | 22.9 -0% | 23.2 -1% | 24.1 -5% | 24.3 -6% | 23.5 -2% |
| Idle Average * | 23 | 22.9 -0% | 23.2 -1% | 25.1 -9% | 24.3 -6% | 23.5 -2% |
| Idle Maximum * | 23 | 24.4 -6% | 23.2 -1% | 27 -17% | 24.3 -6% | 26.2 -14% |
| Load Average * | 34.44 | 29.7 14% | 29.4 15% | 38.4 -11% | 37.9 -10% | 34.3 -0% |
| Cyberpunk 2077 ultra * | 38.28 | 47.2 -23% | 43.7 -14% | |||
| Load Maximum * | 39.04 | 47.2 -21% | 42.5 -9% | 45.8 -17% | 41.8 -7% | 37.8 3% |
| Witcher 3 ultra * | 42.3 | 39.6 | 38.1 |
* ... smaller is better

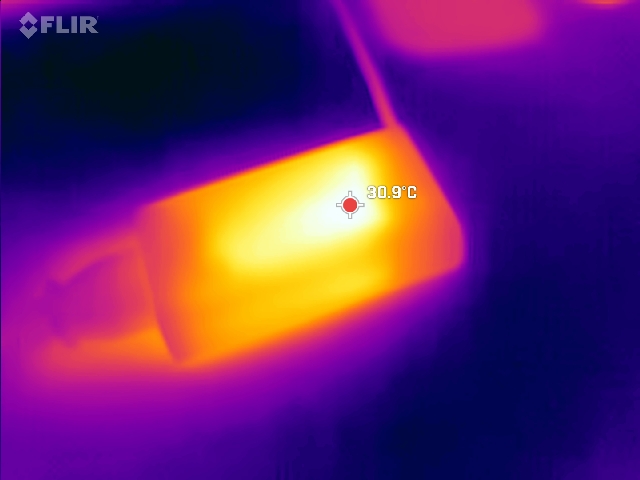

温度
低噪音是有代价的。长时间工作时，ThinkPad 会变得相当热。在压力测试中，我们在靠近显示屏的顶部中央测得高达 60°C 的热点，比所有竞争对手都要高。键盘左半部分的发热也相当高，而右半部分则相对凉爽。
请记住，我们的压力测试是一种极端情况，与 X13 2 合 1 的使用情况大相径庭。在日常使用中，发热量是可以承受的。
(-) The maximum temperature on the upper side is 60 °C / 140 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(-) The bottom heats up to a maximum of 57 °C / 135 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.2 °C / 76 F, compared to the device average of 30.3 °C / 87 F.
(-) 3: The average temperature for the upper side is 41.9 °C / 107 F, compared to the average of 30.3 °C / 87 F for the class Convertible.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (35 °C / 95 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (-7 °C / -12.6 F).
| Lenovo ThinkPad X13 2-in-1 Gen 5 Intel Core Ultra 7 165U, Intel Graphics 4-Cores iGPU (Arc) | Dell Latitude 7350 Detachable Intel Core Ultra 7 164U, Intel Graphics 4-Cores iGPU (Arc) | HP EliteBook x360 830 G10 7L7U1ET Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs | Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU | Microsoft Surface Pro 9, i7-1255U Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs | Lenovo ThinkPad X13 Yoga G4 21F20017GE Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs | |
|---|---|---|---|---|---|---|
| Heat | 15% | 9% | 12% | 16% | 2% | |
| Maximum Upper Side * | 60 | 38.4 36% | 40.2 33% | 42.8 29% | 44.6 26% | 53.1 11% |
| Maximum Bottom * | 57 | 40.6 29% | 42.4 26% | 45.2 21% | 45.9 19% | 51.1 10% |
| Idle Upper Side * | 27 | 28.2 -4% | 30 -11% | 27.2 -1% | 24.8 8% | 29.3 -9% |
| Idle Bottom * | 28 | 28.6 -2% | 31.8 -14% | 28.6 -2% | 25.3 10% | 28.9 -3% |
* ... smaller is better

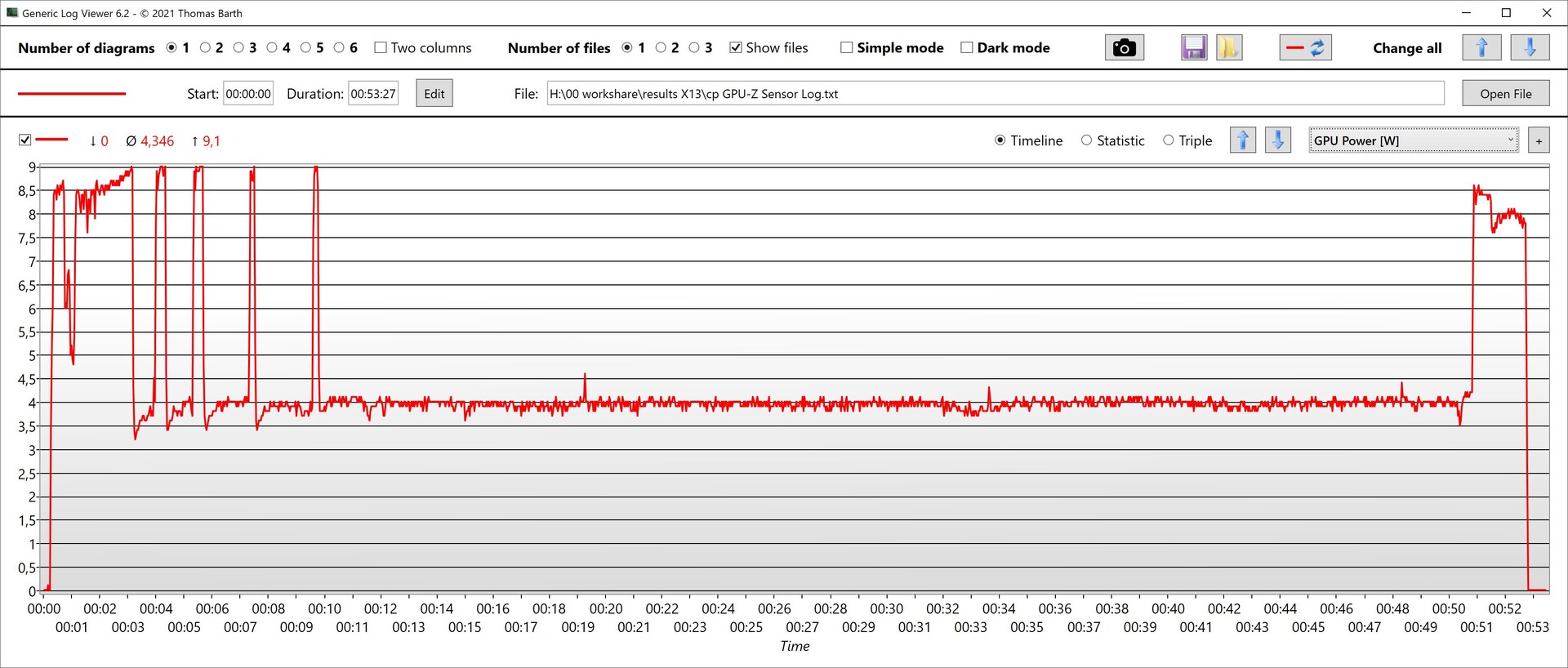

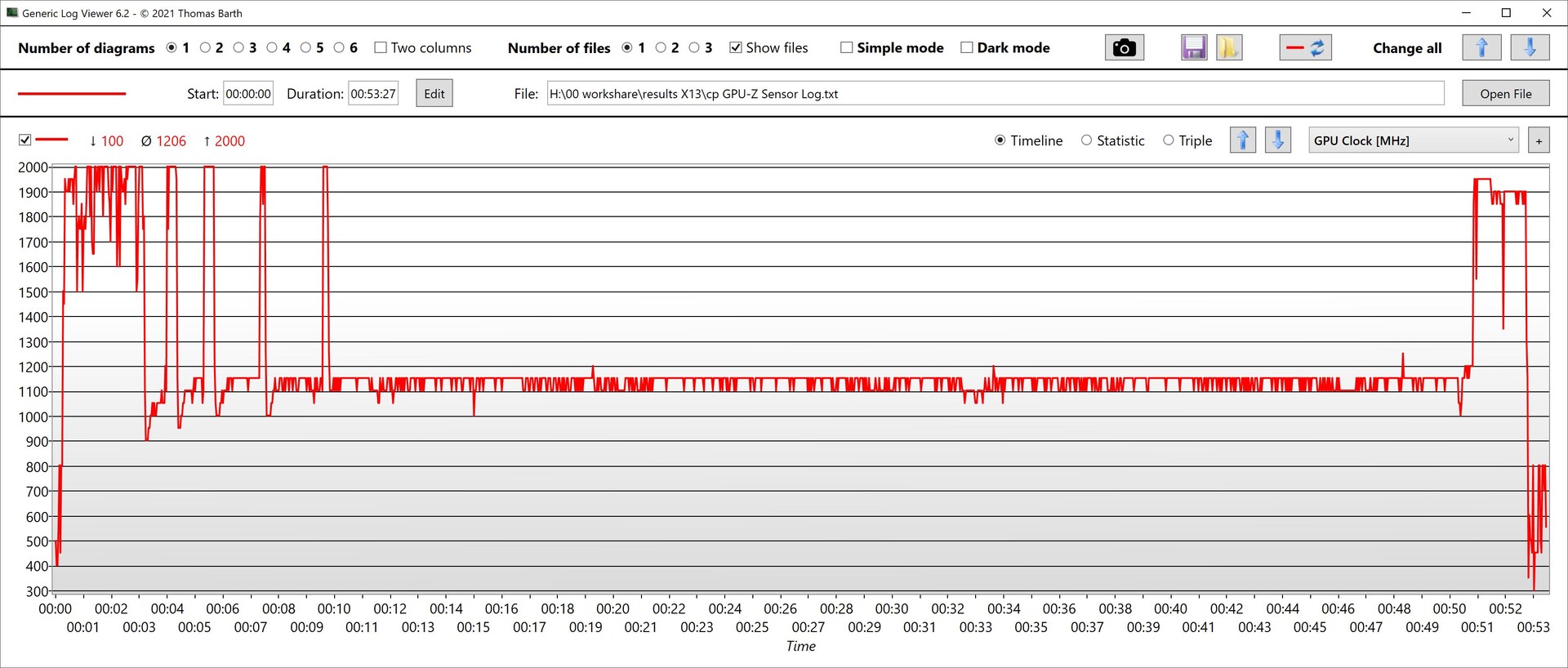

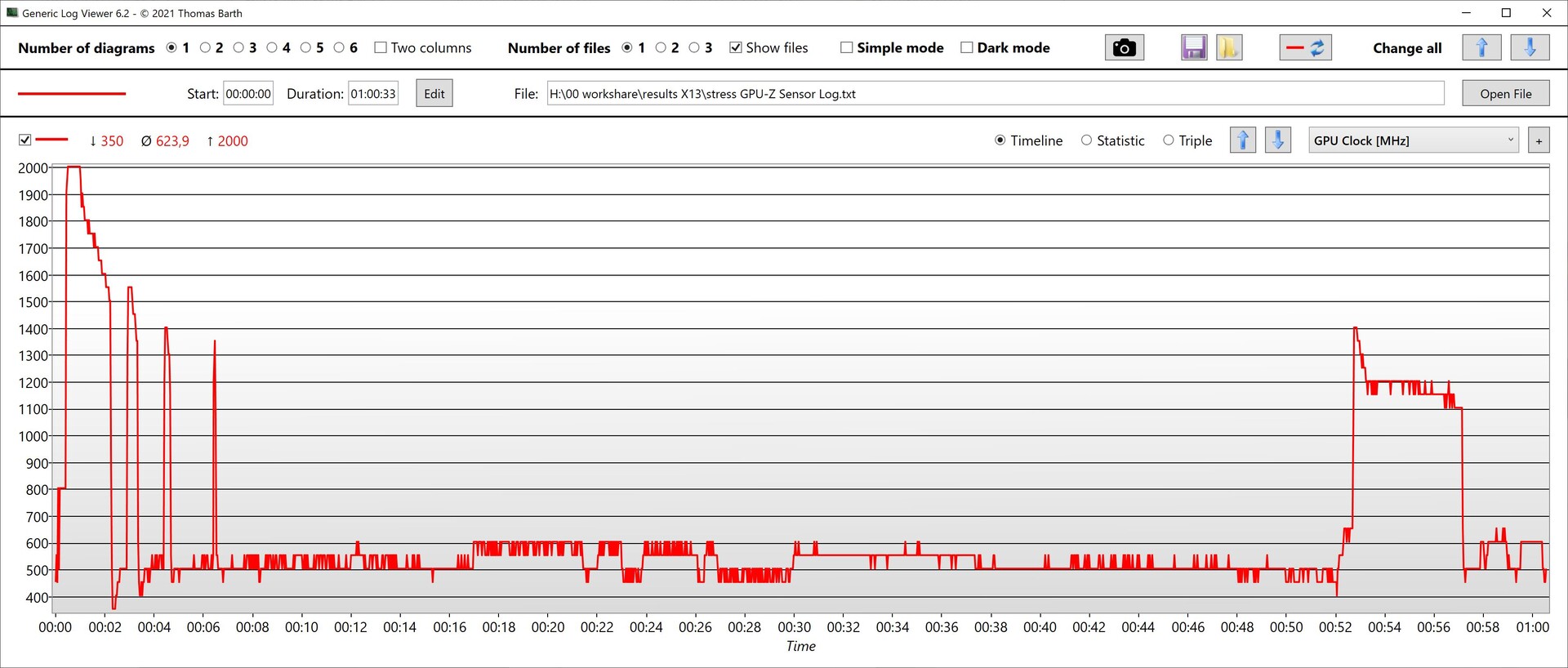

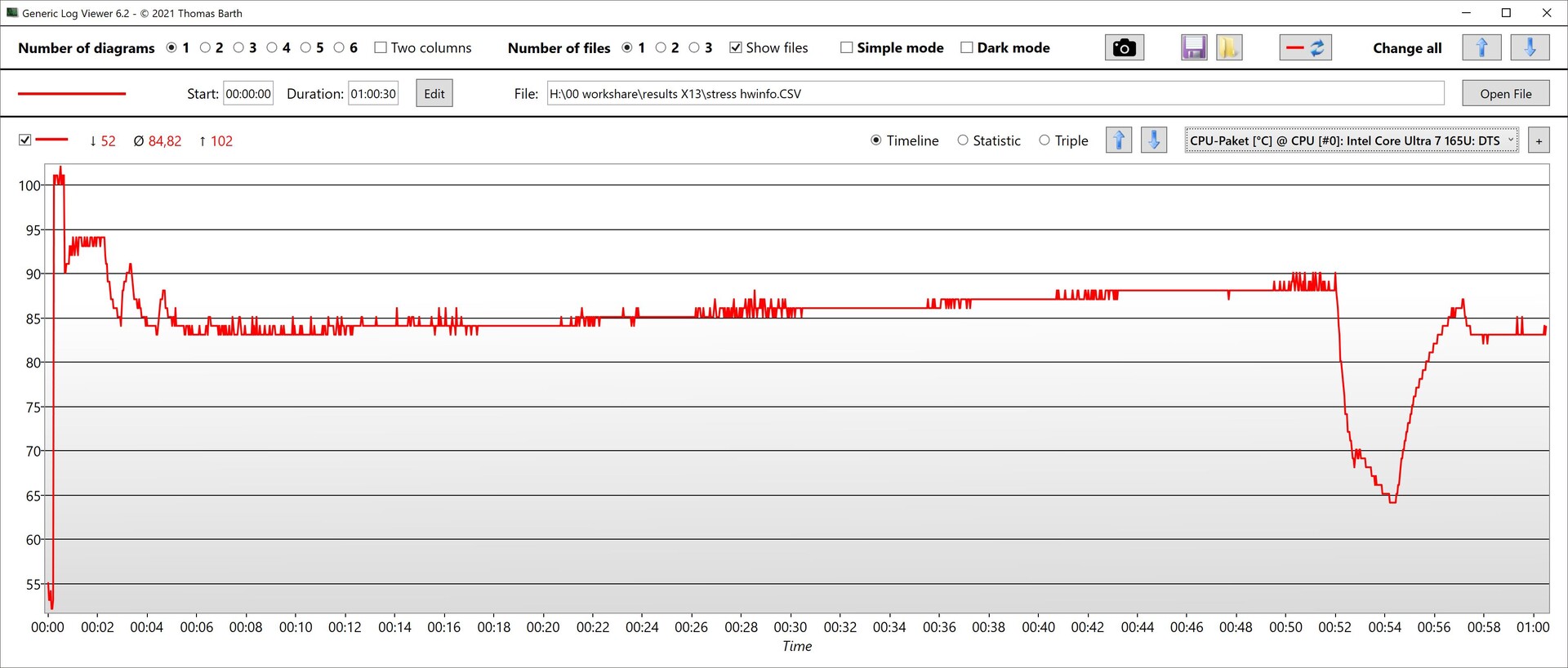

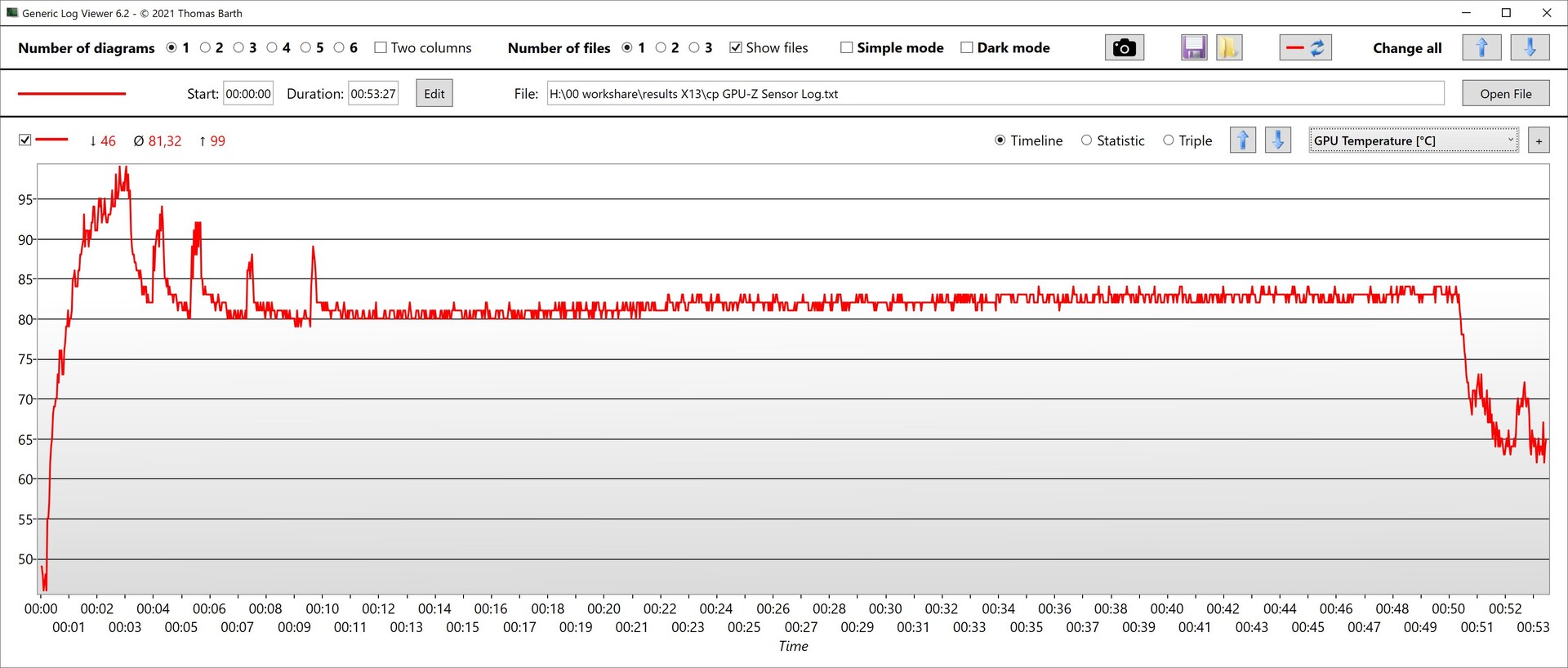

压力测试
1 小时压力测试开始后不久，CPU 温度上升到略高于 100 °C，随后功耗和时钟频率急剧下降。CPU 的功耗从最初的 45 W 降至 12 W，平均时钟频率从 2.9 GHz 降至 400 MHz。GPU 时钟频率也从 2,000 MHz 迅速降至 500 MHz。
| CPU 时钟 (MHz) | GPU 时钟 (MHz) | CPU 平均温度 (°C) | GPU 平均温度 (°C) | |
| 系统空闲 | 1,350 | 500 | 37 | 37 |
| Prime95 + FurMark Stress | 457 | 624 | 85 | 81 |
| 赛博朋克 2077》压力 | 273 | 1,200 | 84 | 81 |
发言人
虽然视频通话和其他音频资料可从这些扬声器均衡的中高音中获益，但低音和音量却有所欠缺。
标准 3.5 毫米耳机插孔可用于连接外部音频设备。[也可使用 HDMI、蓝牙或 USB]。
Lenovo ThinkPad X13 2-in-1 Gen 5 audio analysis
(±) | speaker loudness is average but good (79.65 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 23.5% lower than median
(±) | linearity of bass is average (13.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.6% away from median
(+) | mids are linear (5.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.1% away from median
(+) | highs are linear (4.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.6% difference to median)
Compared to same class
» 46% of all tested devices in this class were better, 6% similar, 48% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 46% of all tested devices were better, 7% similar, 47% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Dell Latitude 7350 Detachable audio analysis
(+) | speakers can play relatively loud (84.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19.7% lower than median
(±) | linearity of bass is average (11.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.9% away from median
(+) | mids are linear (5.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.8% away from median
(+) | highs are linear (3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.2% difference to median)
Compared to same class
» 26% of all tested devices in this class were better, 2% similar, 71% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 23% of all tested devices were better, 5% similar, 72% worse
» The best had a delta of 4%, average was 25%, worst was 134%
能源管理
耗电量
它在空闲时并不需要太多电量，但在中等负载下，例如在良好的老式 3DMark06 基准测试中，其消耗数据略高于其他具有类似硬件的笔记本电脑，例如戴尔Latitude 。另一方面，在游戏和最大负载情况下，评测设备的耗电量也相当适中。
我们测得的最高值为 62.5 W。在游戏时，预计功率会低于 40 W，这意味着附带的 65 W USB-C 电源应该能很好地应对。
| Off / Standby | 0.75 / 0.68 Watt |
| Idle | 3.2 / 6.1 / 6.7 Watt |
| Load |
44.2 / 62.5 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Lenovo ThinkPad X13 2-in-1 Gen 5 Ultra 7 165U, Graphics 4-Core, Lenovo UMIS RPETJ1T24MHP2QDQ, IPS, 1920x1200, 13.3" | Dell Latitude 7350 Detachable Ultra 7 164U, Graphics 4-Core, Micron 2550 1TB, IPS, 2880x1920, 13" | HP EliteBook x360 830 G10 7L7U1ET i5-1335U, Iris Xe G7 80EUs, Samsung PM991 MZVLQ512HBLU, IPS LED, 1920x1200, 13.3" | Framework Laptop 13.5 Core Ultra 7 155H Ultra 7 155H, Arc 8-Core, , IPS, 2880x1920, 13.5" | Microsoft Surface Pro 9, i7-1255U i7-1255U, Iris Xe G7 96EUs, Samsung MZ9L4512HBLU-00BMV, IPS, 2880x1920, 13" | Lenovo ThinkPad X13 Yoga G4 21F20017GE i5-1335U, Iris Xe G7 80EUs, Lenovo UMIS AM6A0 RPETJ512MKP1QDQ, IPS-AHVA wLED, 1920x1200, 13.3" | Average Intel Graphics 4-Cores iGPU (Arc) | Average of class Convertible | |
|---|---|---|---|---|---|---|---|---|
| Power Consumption | -1% | -5% | -15% | -41% | 10% | -9% | -36% | |
| Idle Minimum * | 3.2 | 3.6 -13% | 4.5 -41% | 2.5 22% | 5.1 -59% | 2.9 9% | 3.67 ? -15% | 5.21 ? -63% |
| Idle Average * | 6.1 | 6.1 -0% | 6 2% | 5.2 15% | 9.8 -61% | 4.7 23% | 6.63 ? -9% | 8.23 ? -35% |
| Idle Maximum * | 6.7 | 6.7 -0% | 6.5 3% | 5.8 13% | 11.3 -69% | 6.7 -0% | 8.26 ? -23% | 11.1 ? -66% |
| Load Average * | 44.2 | 33.7 24% | 36.7 17% | 47.5 -7% | 47.5 -7% | 32.5 26% | 42 ? 5% | 46.7 ? -6% |
| Cyberpunk 2077 ultra * | 25.2 | 37 -47% | 54.5 -116% | |||||
| Cyberpunk 2077 ultra external monitor * | 38.5 | 31.8 17% | 52.4 -36% | |||||
| Load Maximum * | 62.5 | 55.1 12% | 66.3 -6% | 61.5 2% | 68.5 -10% | 66.2 -6% | 65.4 ? -5% | 67.3 ? -8% |
| Witcher 3 ultra * | 40.2 | 36 | 35.3 |
* ... smaller is better
Power consumption, Cyberpunk 2077 (gaming stress test)
Power consumption, external monitor
电池寿命
在降低显示屏亮度（150 尼特）的情况下，X13 2 合 1 可在离线视频播放和 Wi-Fi 网页浏览测试中持续 12 小时。在最大亮度下，您可以浏览不到 9 个小时。
这款笔记本配备了 54.7 Wh 的电池。虽然其直接竞争对手的平均电池容量与 X13 相似，但它们的续航时间却不如 X13 长。
那些想连续 24 小时狂看电影和电视节目的人可以考虑一下新款宏碁 Swift Go 14 AI： Notebookcheck 评测.
| Lenovo ThinkPad X13 2-in-1 Gen 5 Ultra 7 165U, Graphics 4-Core, 54.7 Wh | Dell Latitude 7350 Detachable Ultra 7 164U, Graphics 4-Core, 46.5 Wh | HP EliteBook x360 830 G10 7L7U1ET i5-1335U, Iris Xe G7 80EUs, 51.3 Wh | Framework Laptop 13.5 Core Ultra 7 155H Ultra 7 155H, Arc 8-Core, 61 Wh | Microsoft Surface Pro 9, i7-1255U i7-1255U, Iris Xe G7 96EUs, 47.7 Wh | Lenovo ThinkPad X13 Yoga G4 21F20017GE i5-1335U, Iris Xe G7 80EUs, 54.7 Wh | Average of class Convertible | |
|---|---|---|---|---|---|---|---|
| Battery Runtime | 1% | 4% | -4% | -21% | 27% | 7% | |
| H.264 | 731 | 562 -23% | 770 ? 5% | ||||
| WiFi v1.3 | 739 | 619 -16% | 552 -25% | 630 -15% | 451 -39% | 698 -6% | 596 ? -19% |
| Load | 84 | 98 17% | 111 32% | 90 7% | 82 -2% | 134 60% | 113.1 ? 35% |
| Reader / Idle | 1493 | 2296 | 1330 ? |
笔记本检查评级
联想 ThinkPad X13 2 合 1 5 代是一款稳固、高品质、整体性能良好的可折叠电脑。虽然我们有各种改进建议，但这些都是小问题。
Lenovo ThinkPad X13 2-in-1 Gen 5
- 12/06/2024 v8
Christian Hintze
Total Sustainability Score: Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
