宏碁掠夺者 BiFrost Arc A770 OC 台式机显卡评测--配备 16GB VRAM 的英特尔最强游戏显卡性能如何?
英特尔推出 Arc 系列台式机显卡已有一年时间。起初,它在许多游戏中的性能都出现了一些问题,但随着驱动程序的不断改进,其性能得到了提升。英特尔 Arc A770 是该系列的顶级型号。您可以期待 16 GB 的 VRAM,因为 Nvidia 和 AMD 在 1080p 游戏领域长期以来只提供 8 GB 的 VRAM。只有在GeForce RTX 4060 Ti 16GB 上,Nvidia 才提供了更多显存的型号。此外,我们还想提一下配备 8GB 显存的英特尔 Arc A770,因为英特尔提供的价格更实惠一些。

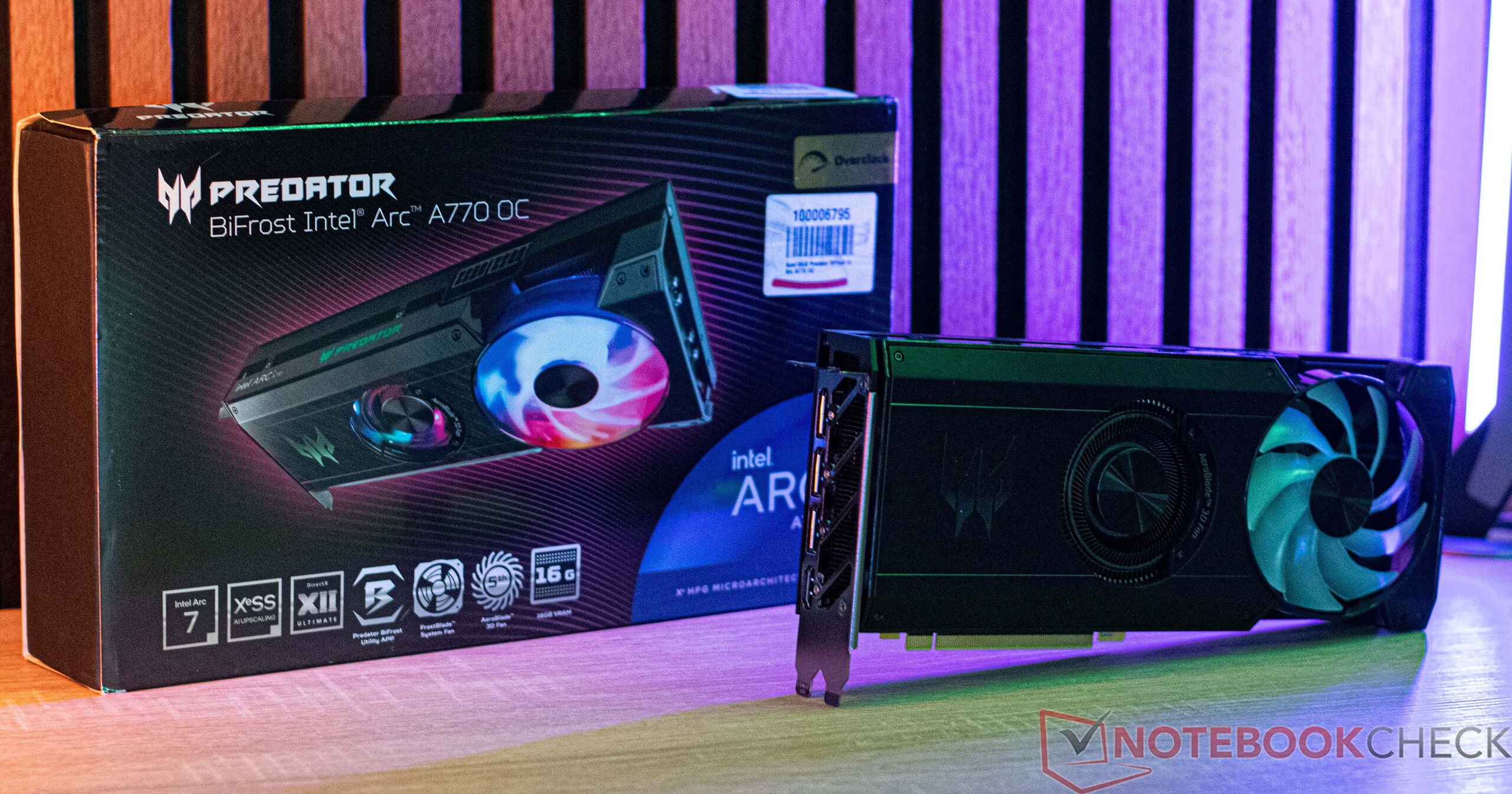

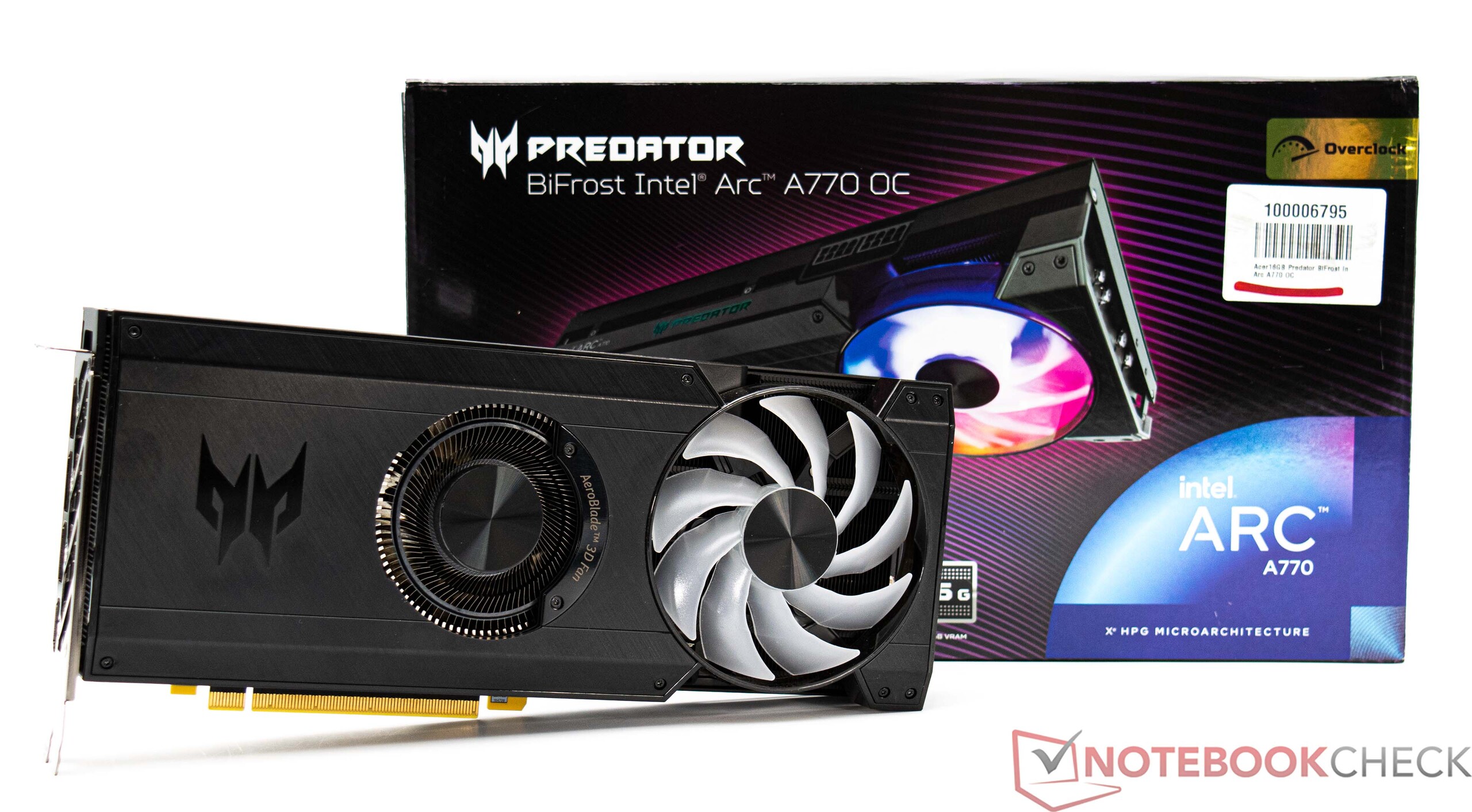

在本次测试中,我们使用的是宏碁掠夺者 BiFrost Arc A770 OC,它只有 16GB 版本。英特尔本身也在市场上推出了自己的型号,另外还有 "Asrock "和 "Sparkle "两家板卡合作伙伴在销售英特尔弧形显卡。作为图形芯片,DG2 512 配备了 4,096 个着色器单元。16 GB 的 VRAM 通过 256 位存储接口连接,结合存储速度,存储带宽达到 560 GB/s。宏碁规定标准预设功耗为 210 瓦,但我们在测试中很少能达到这个水平。

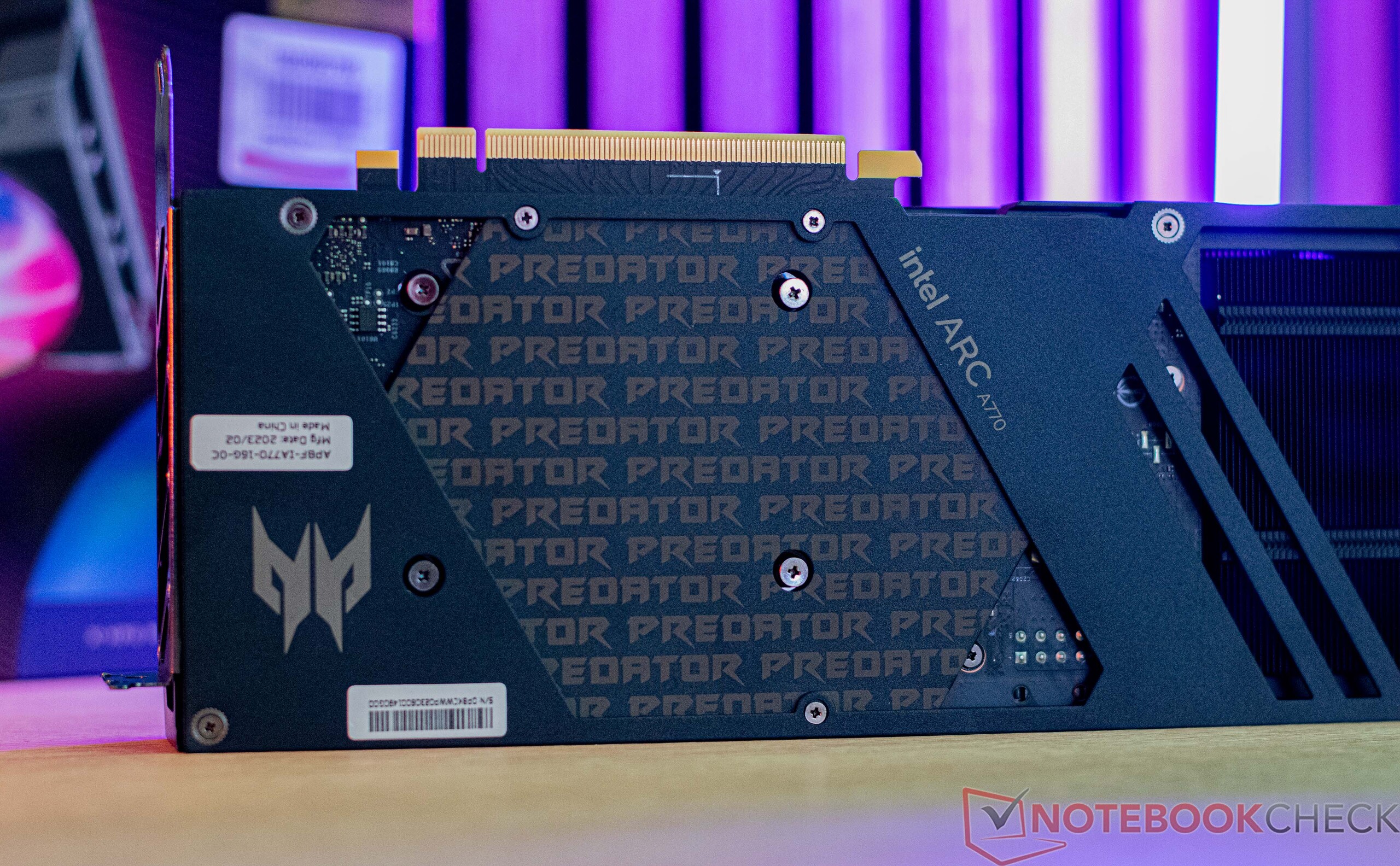

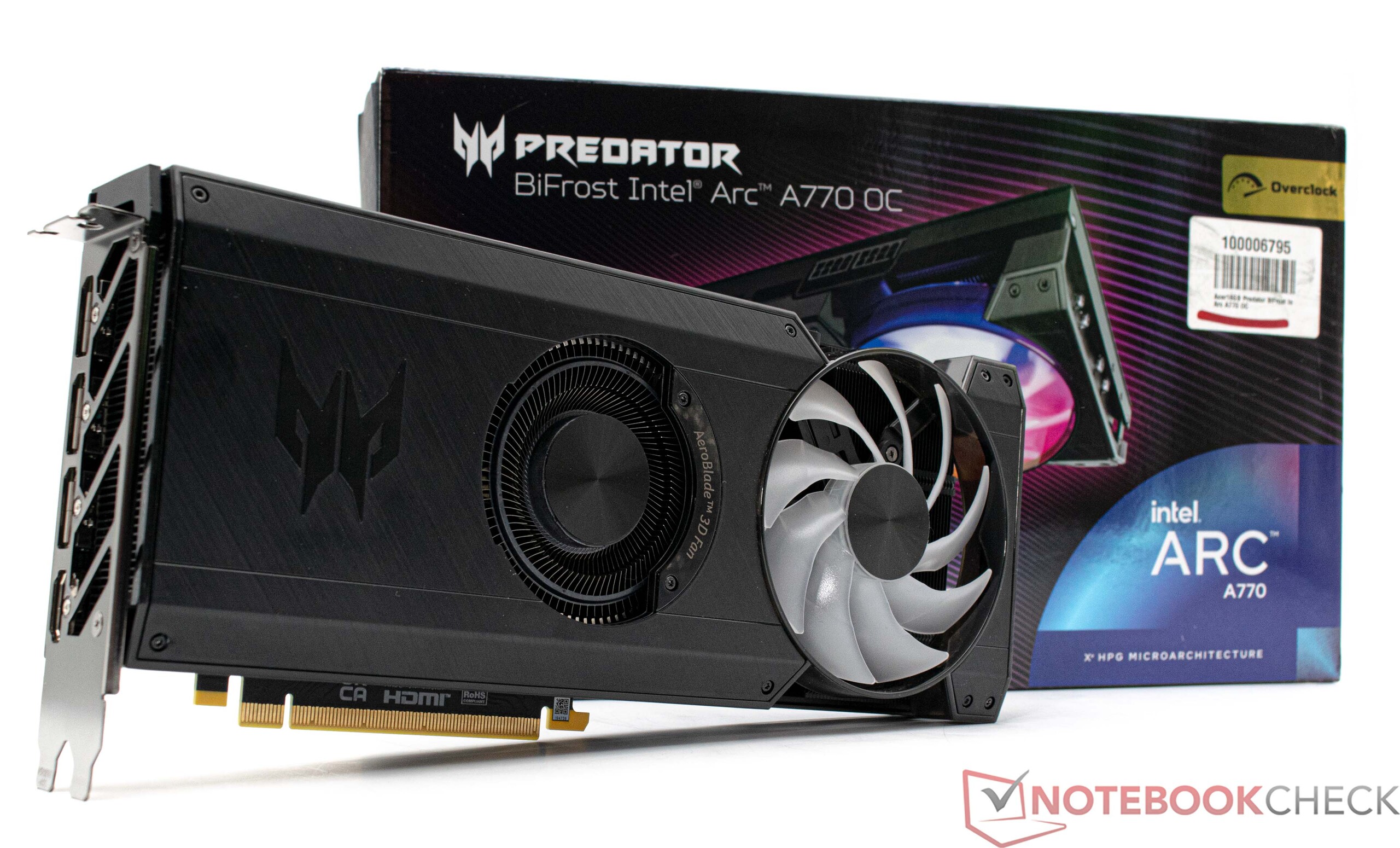

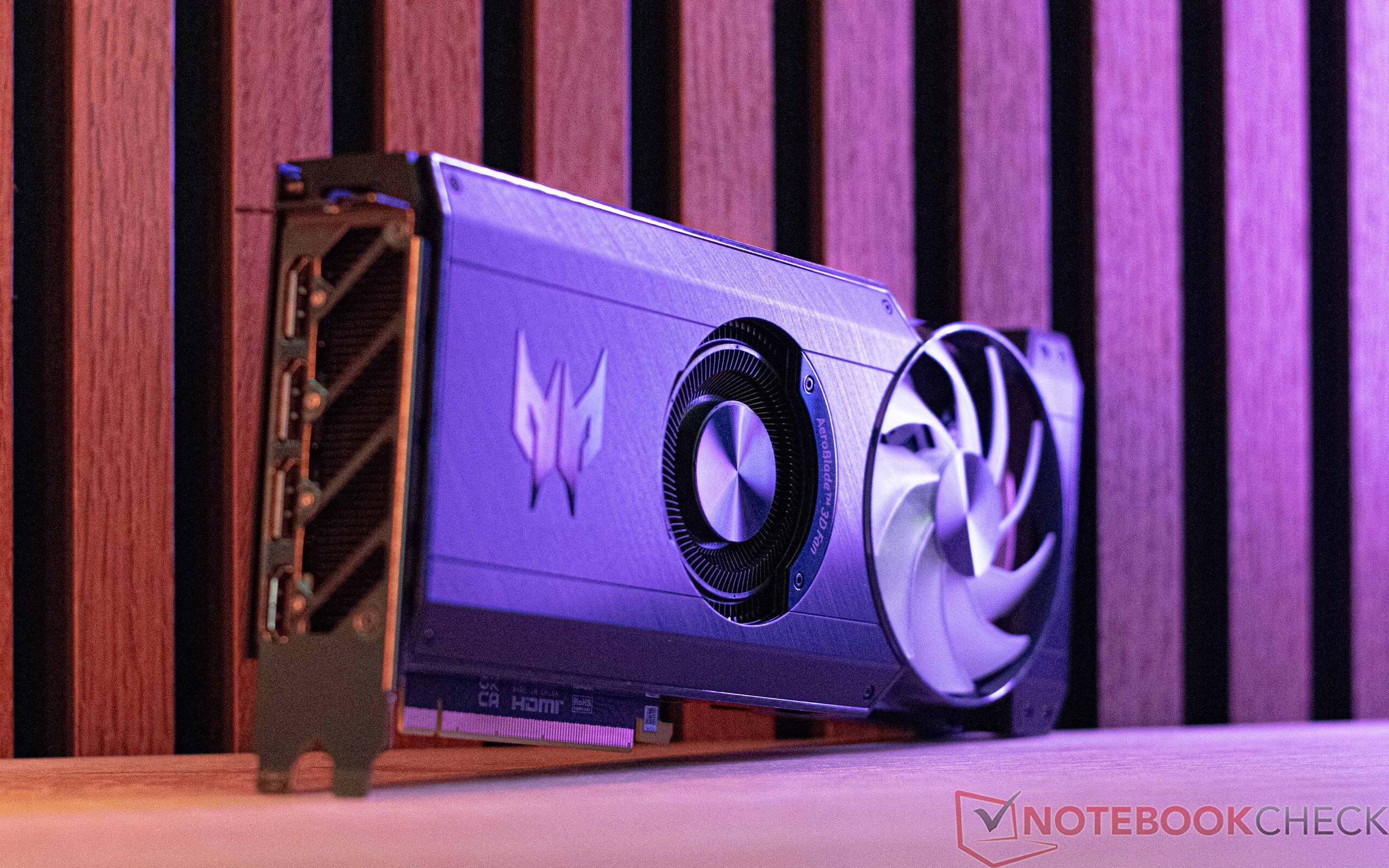

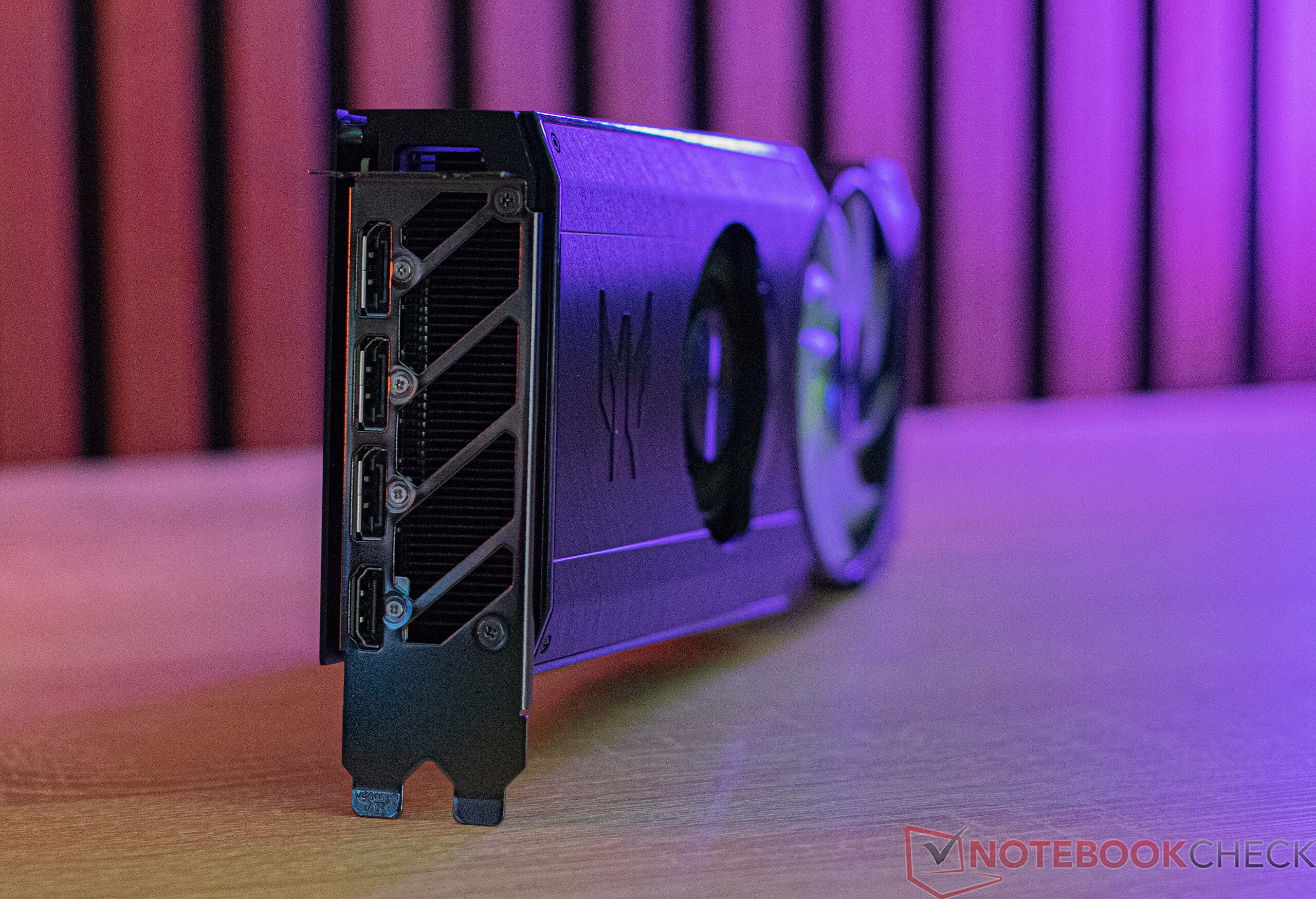

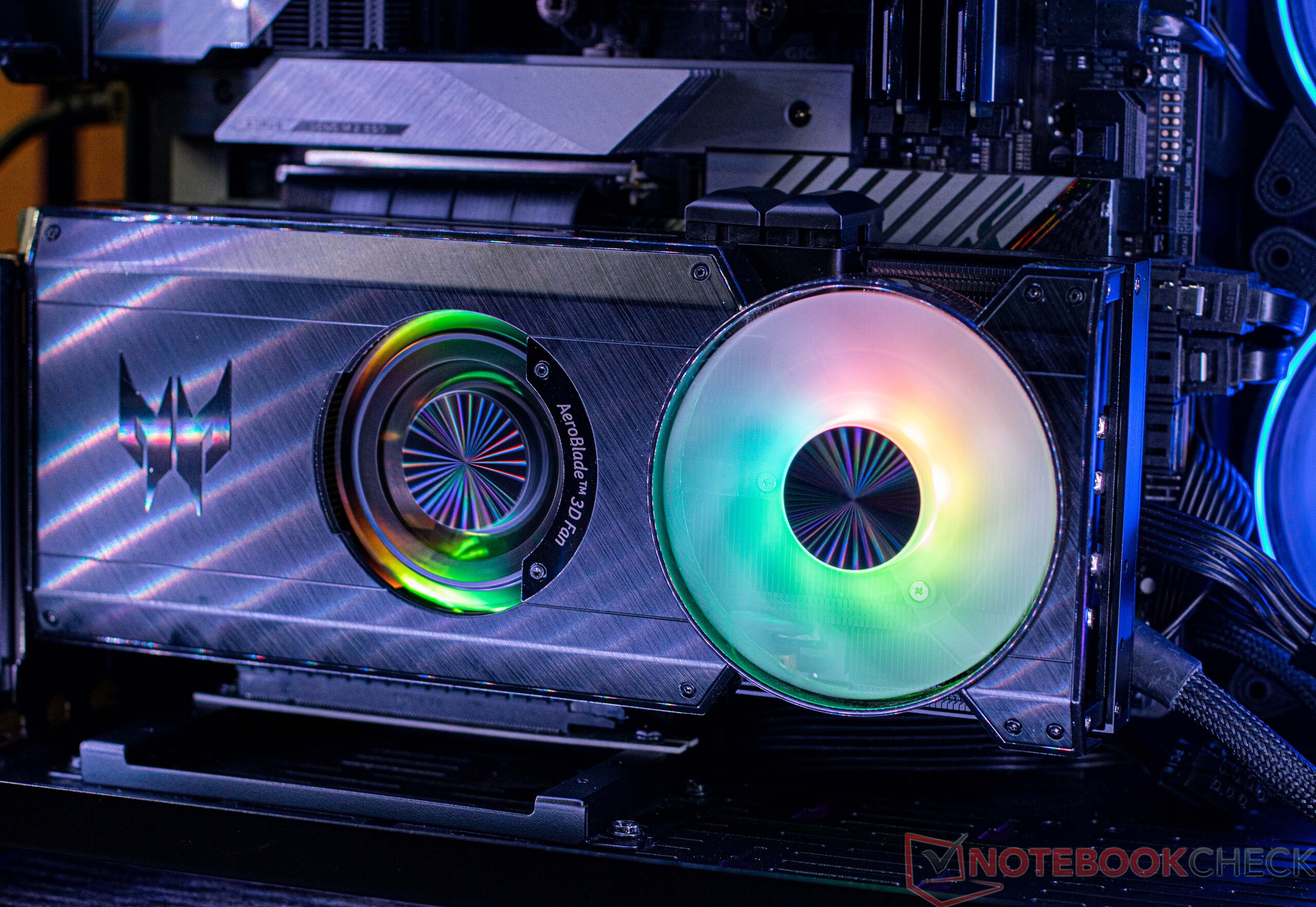

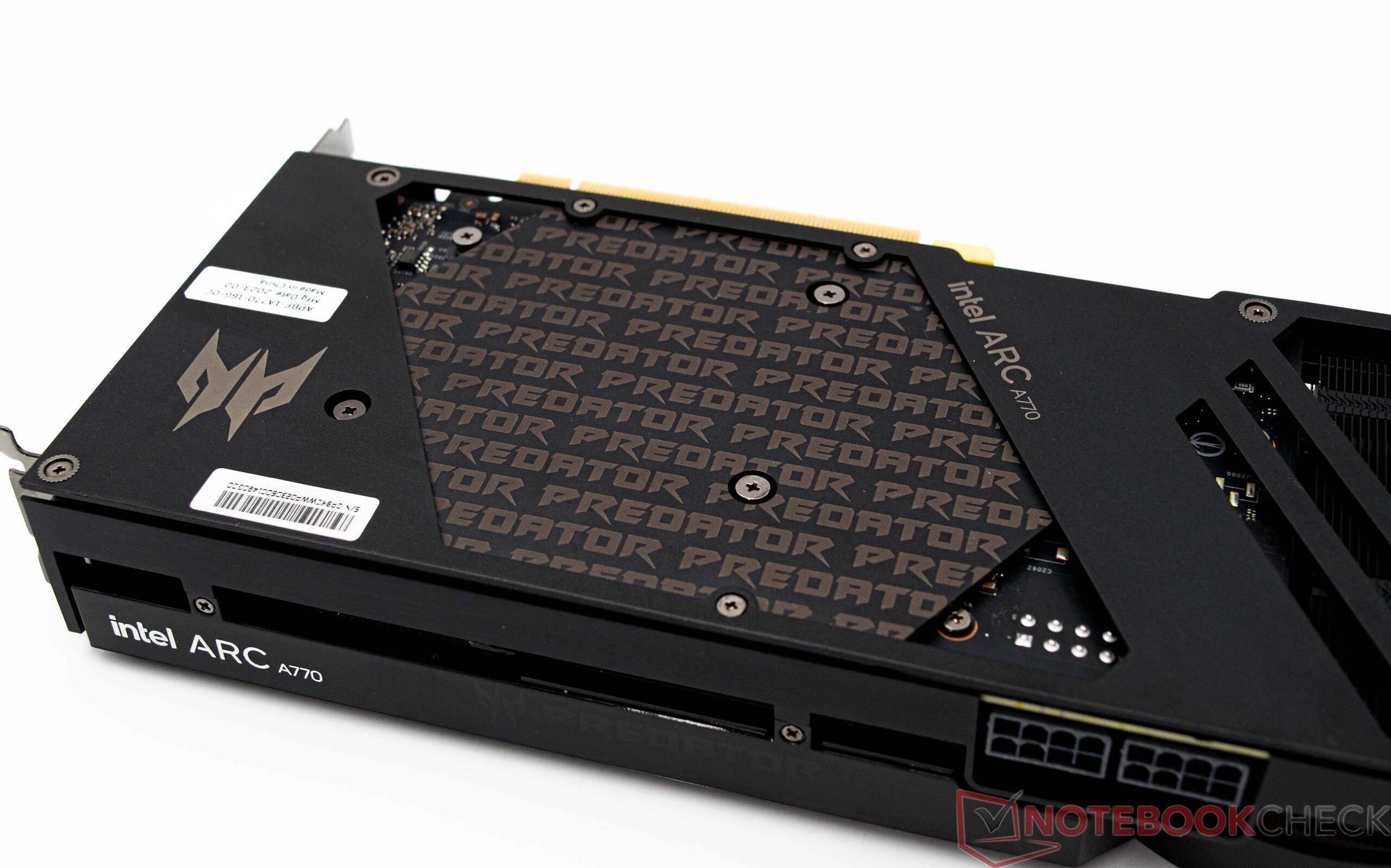

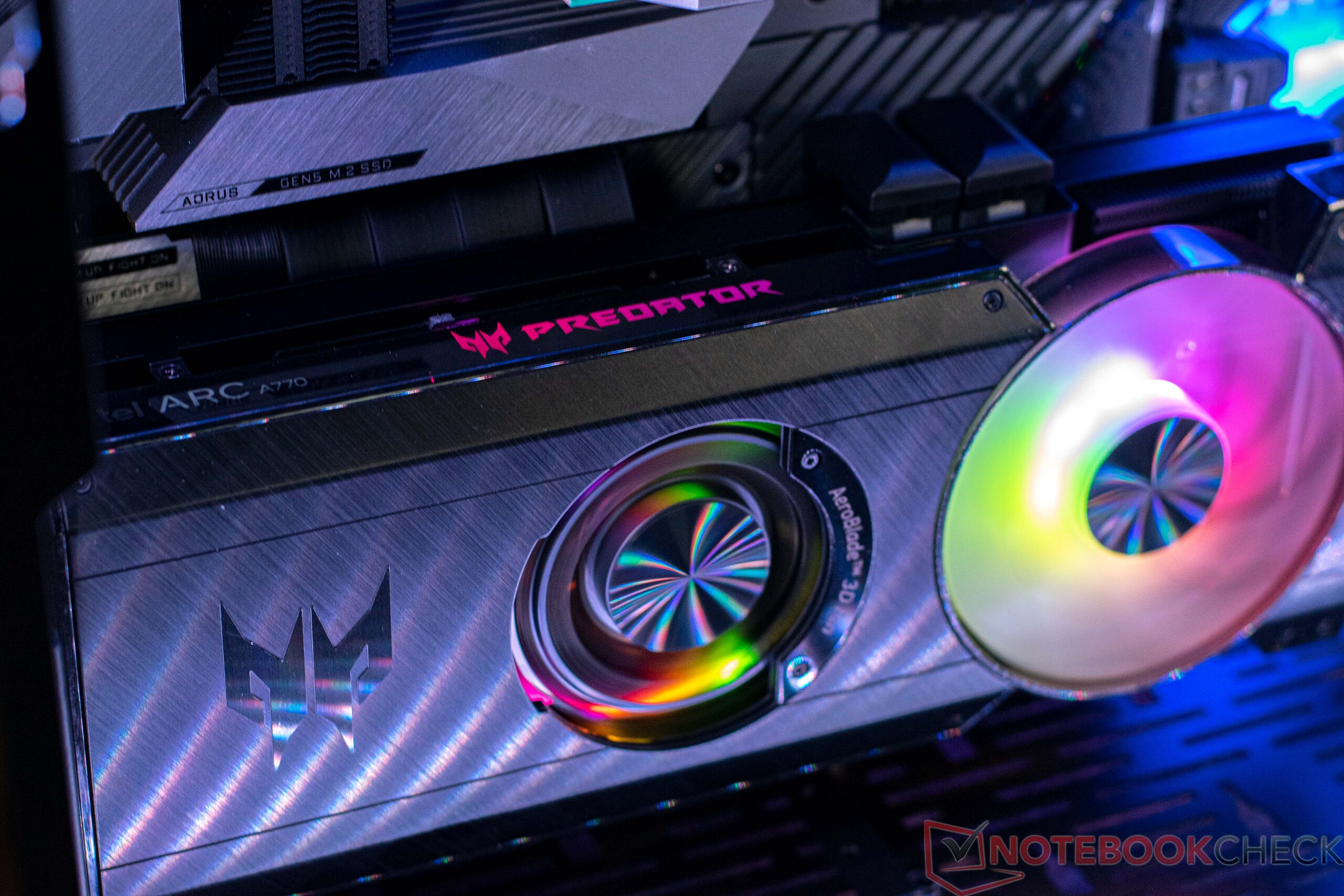

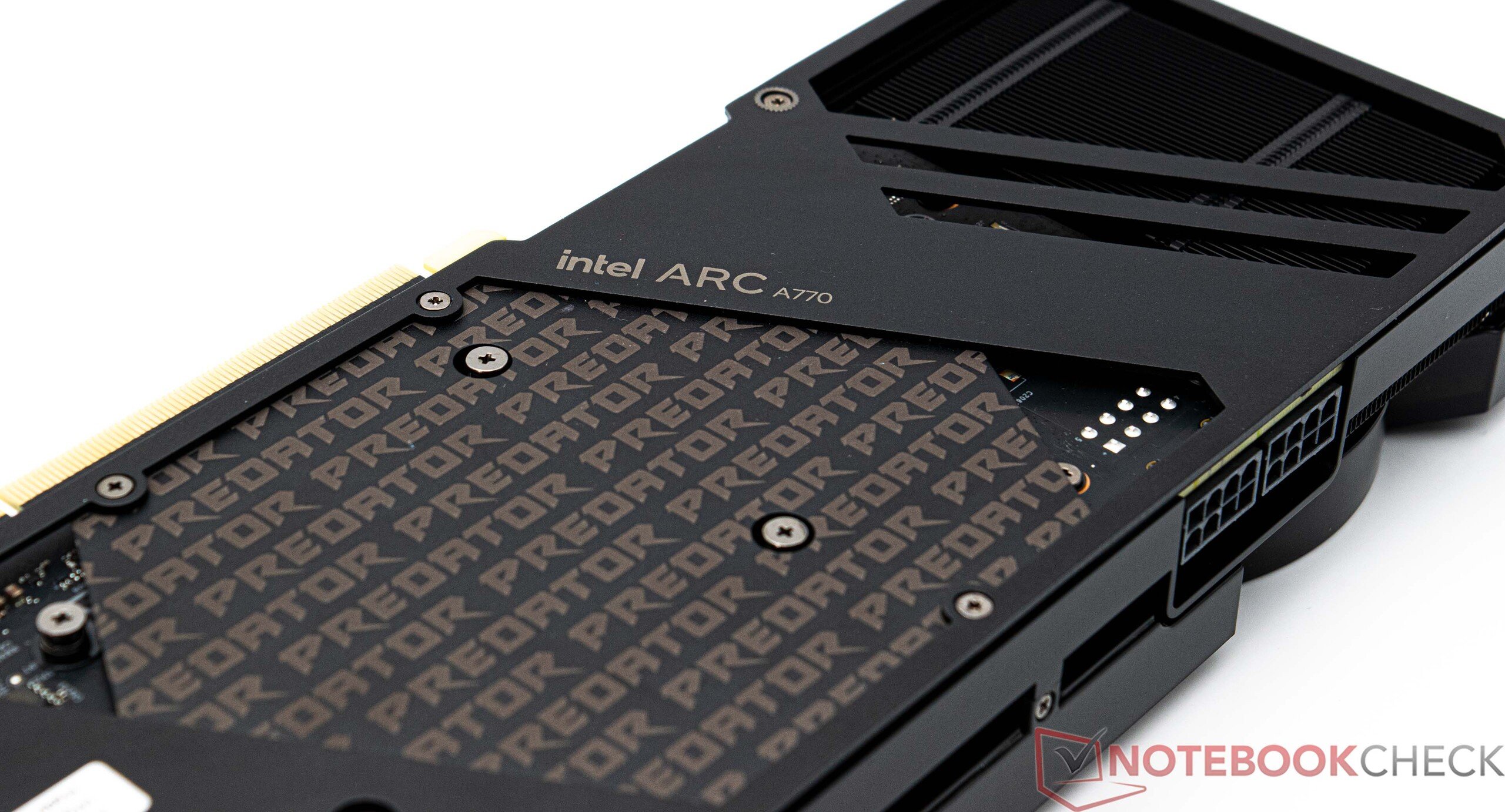

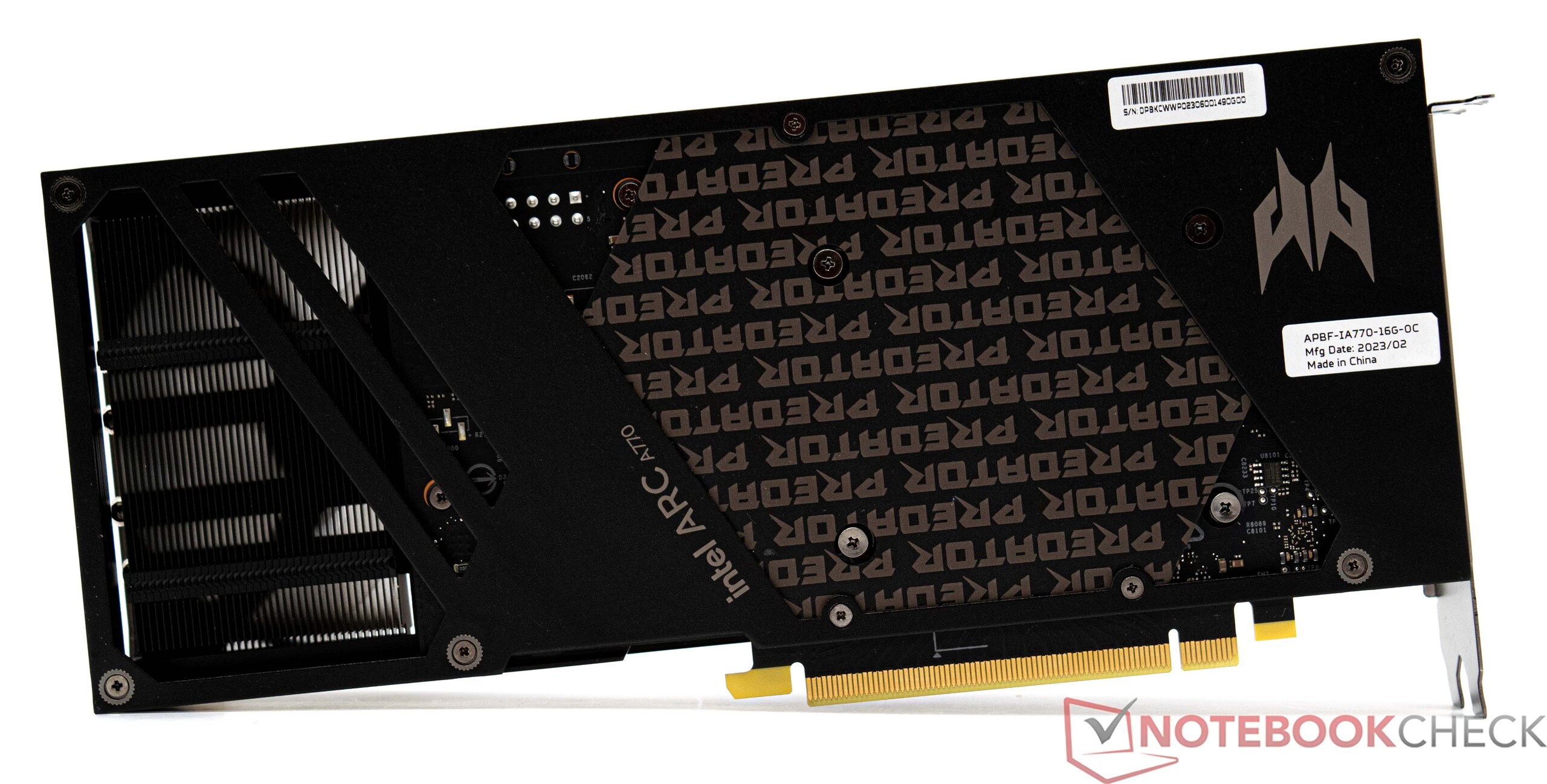

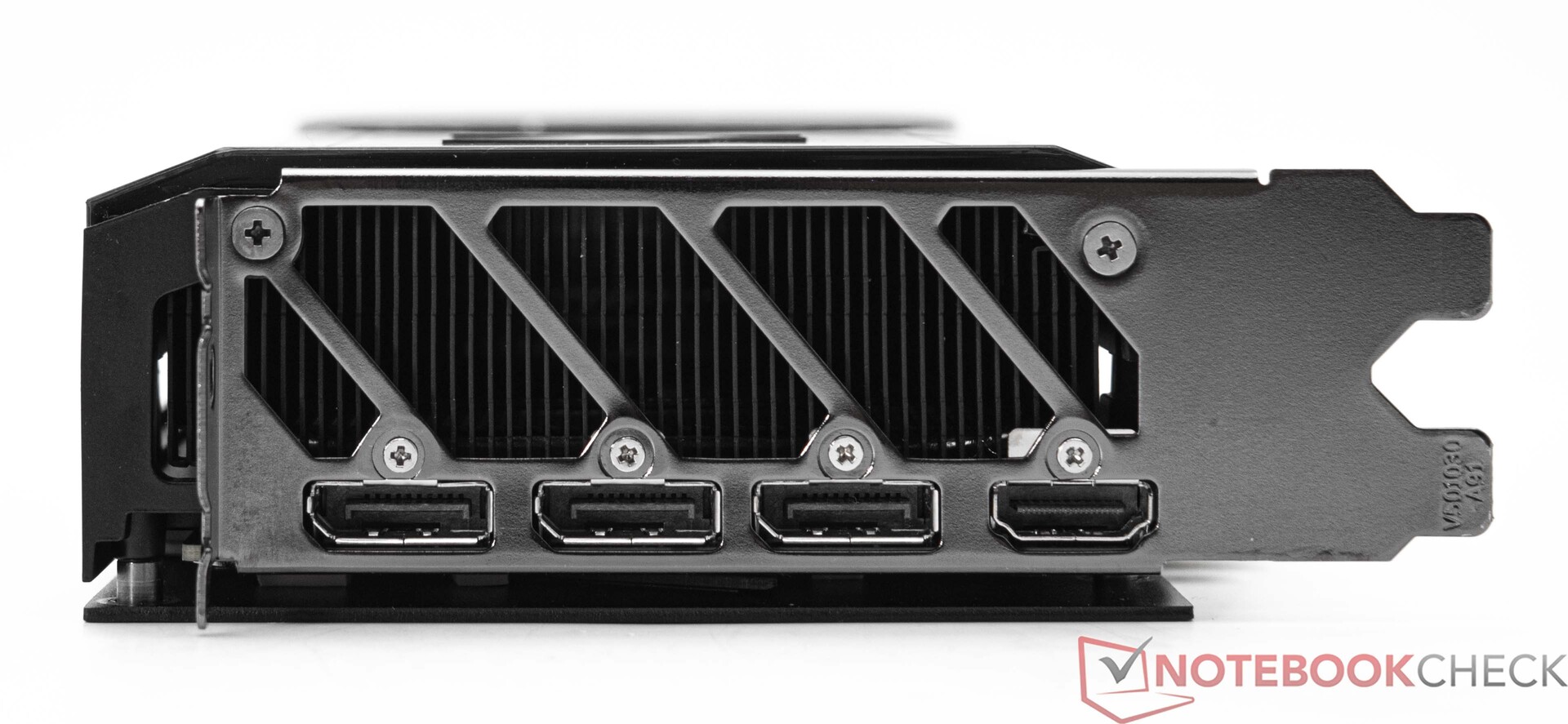

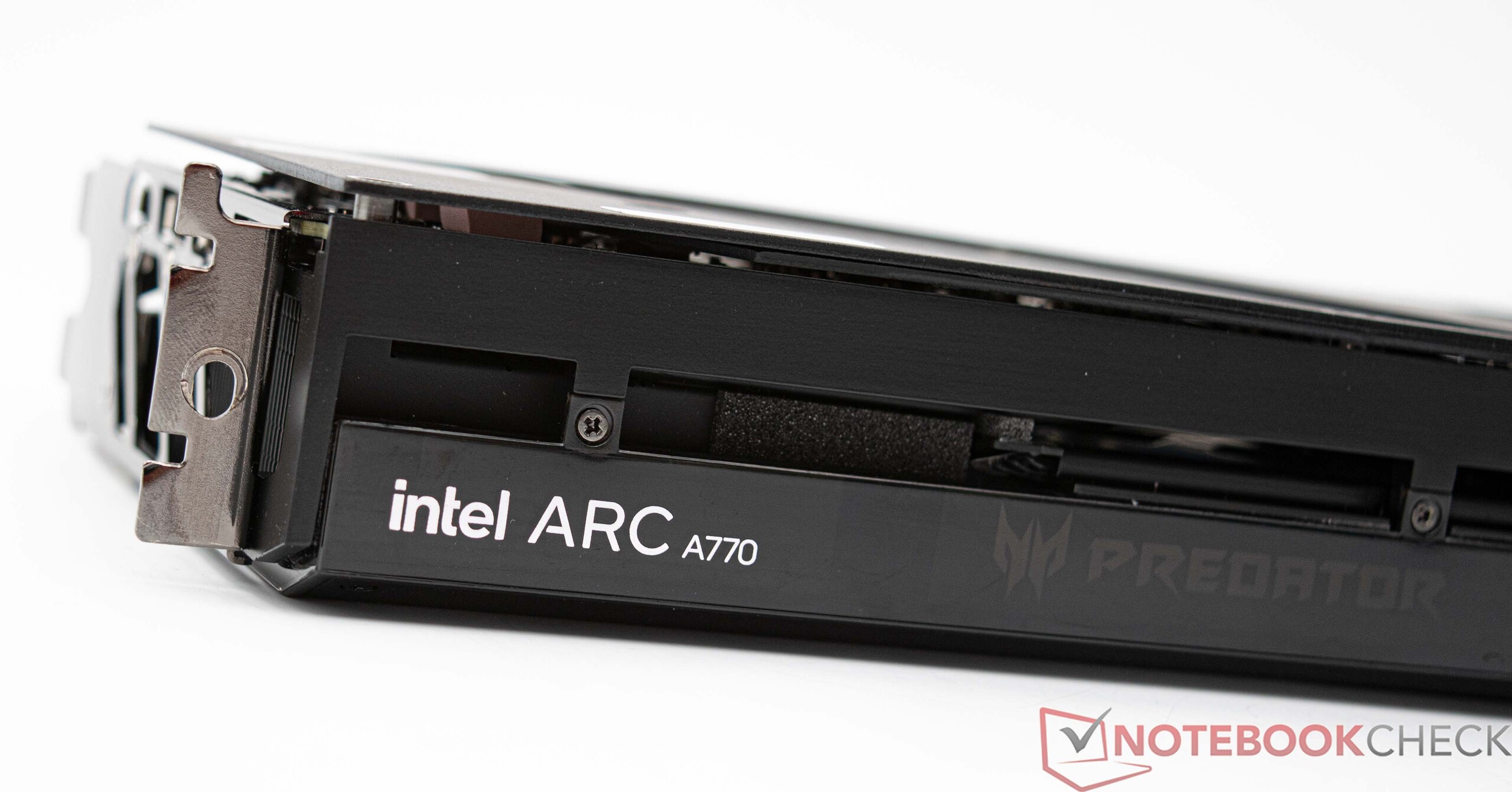

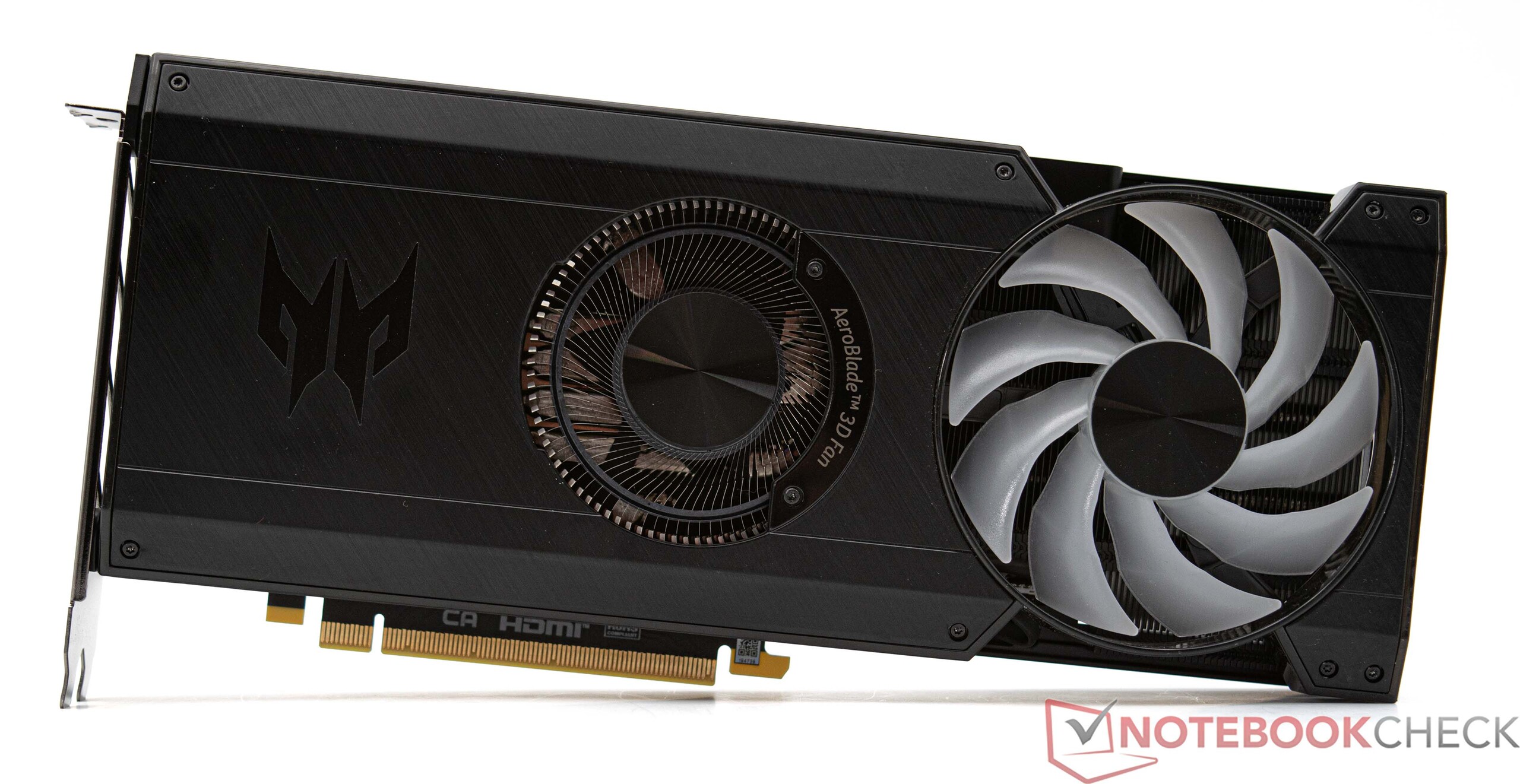

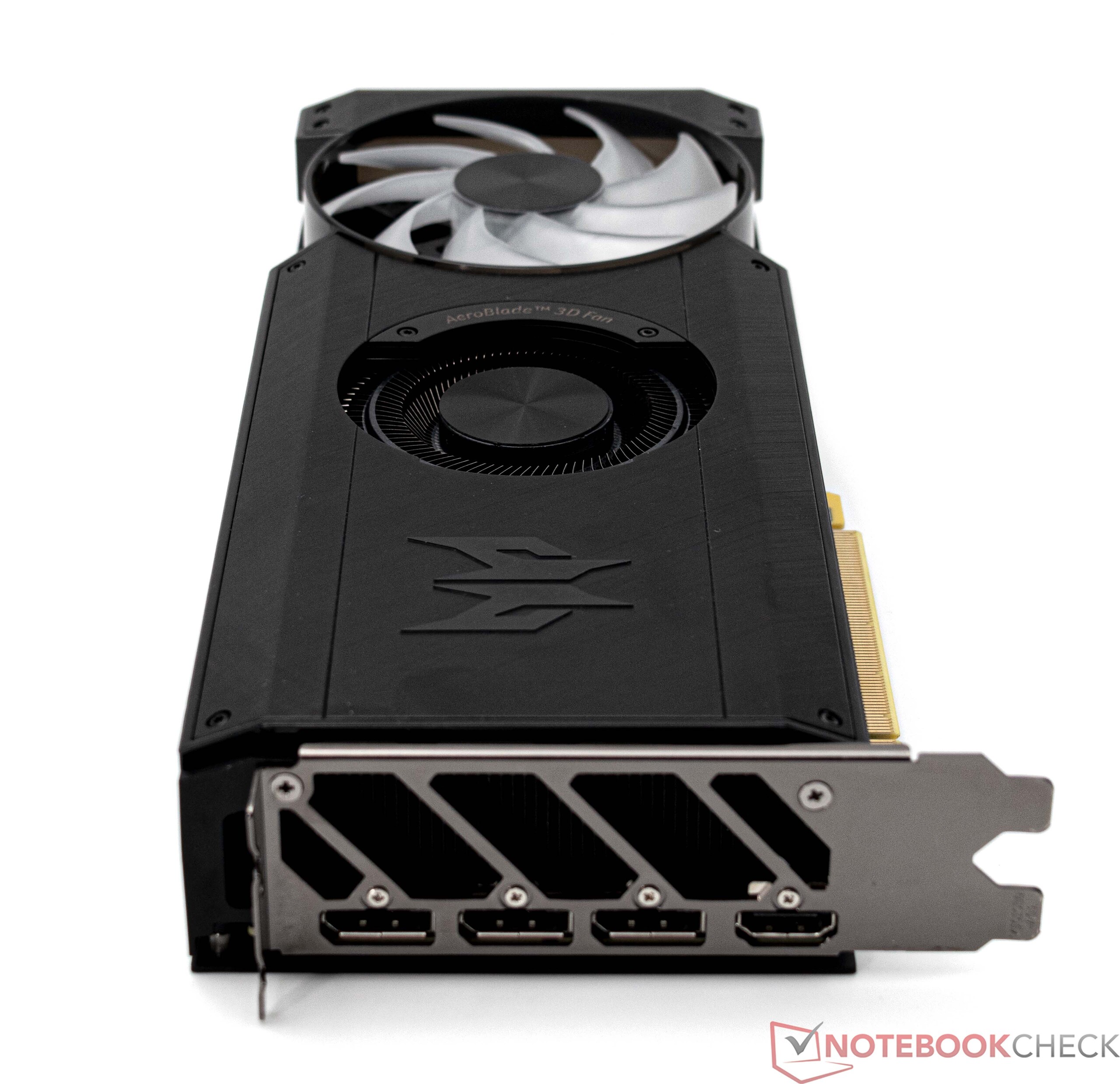

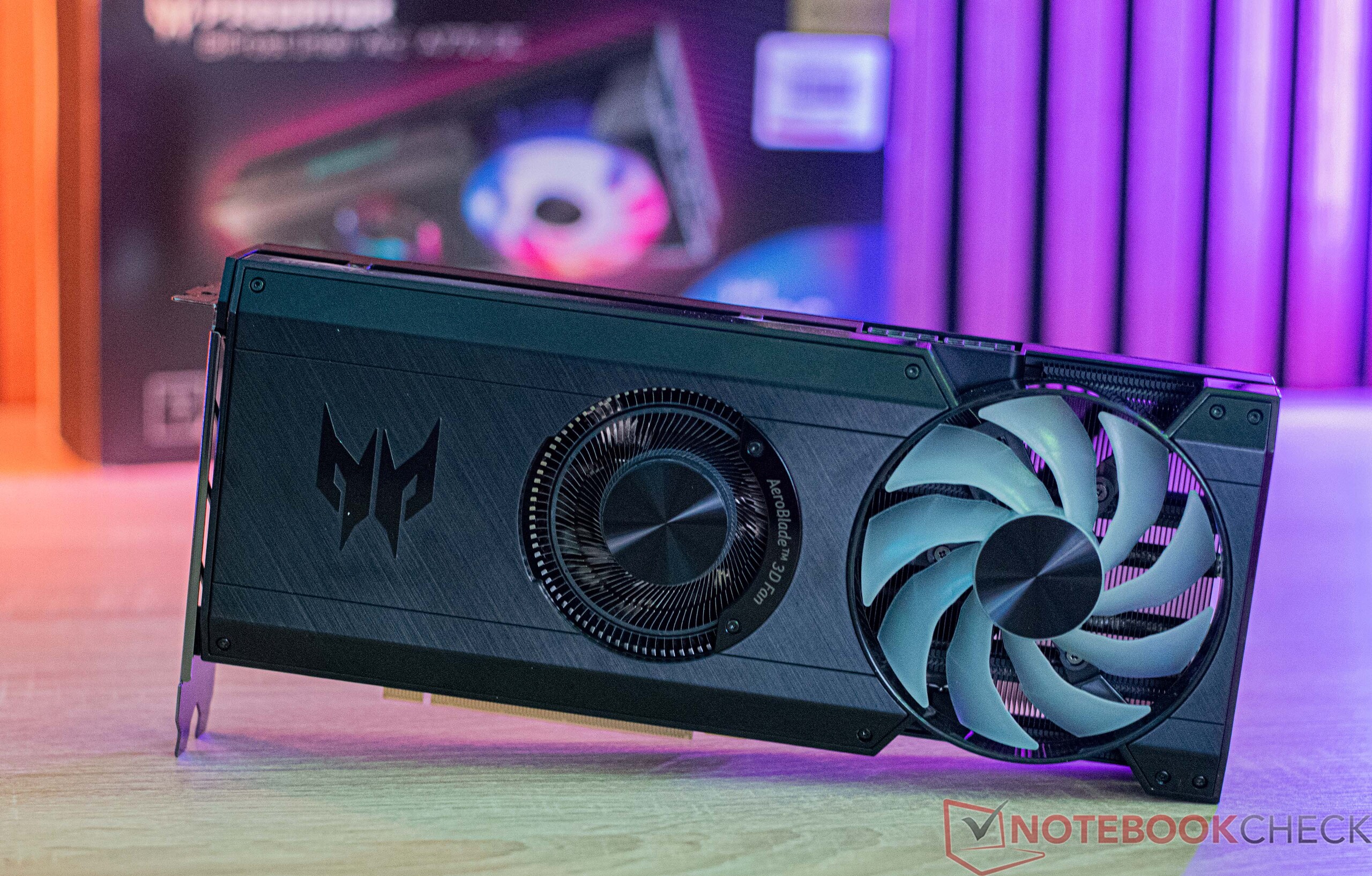

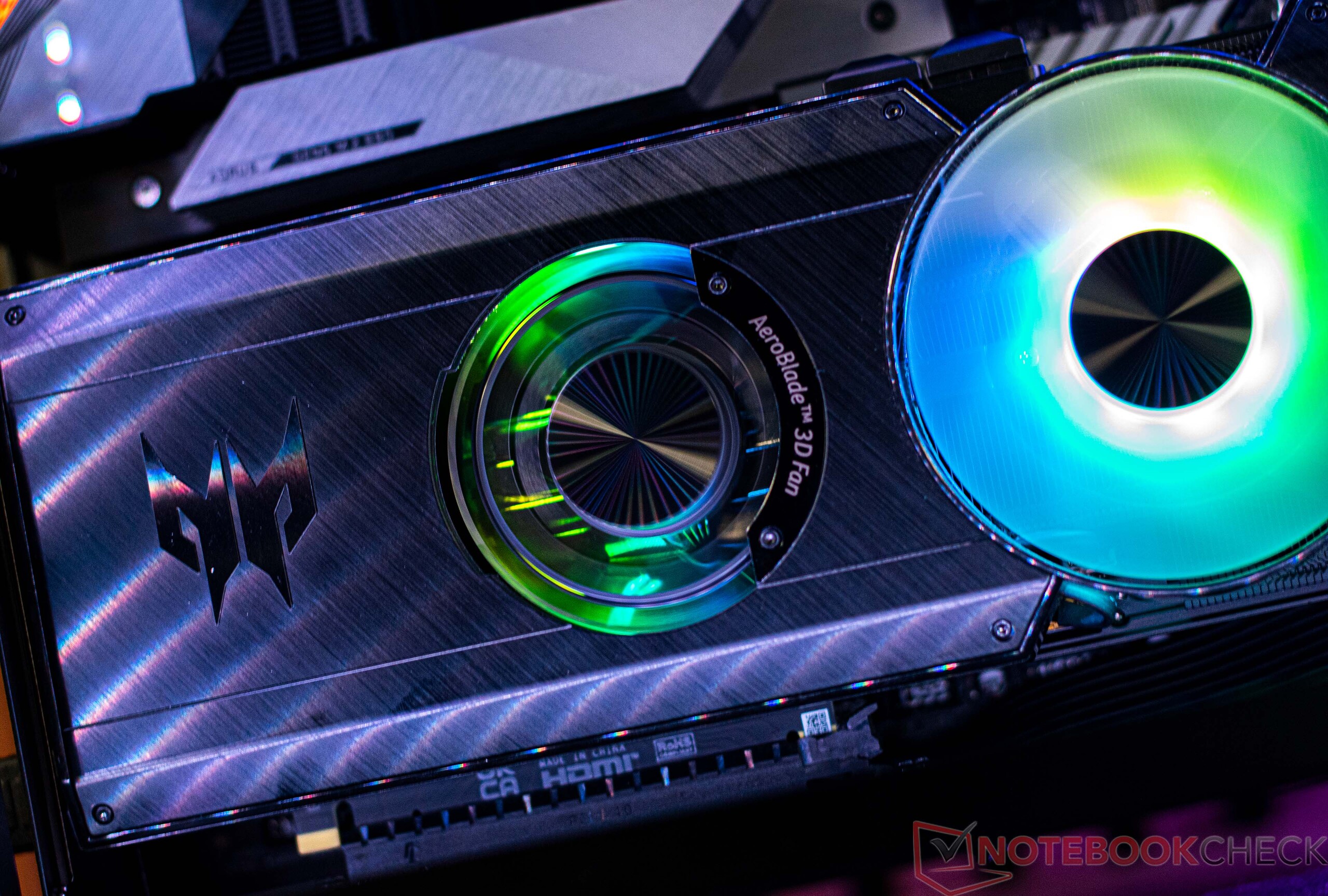

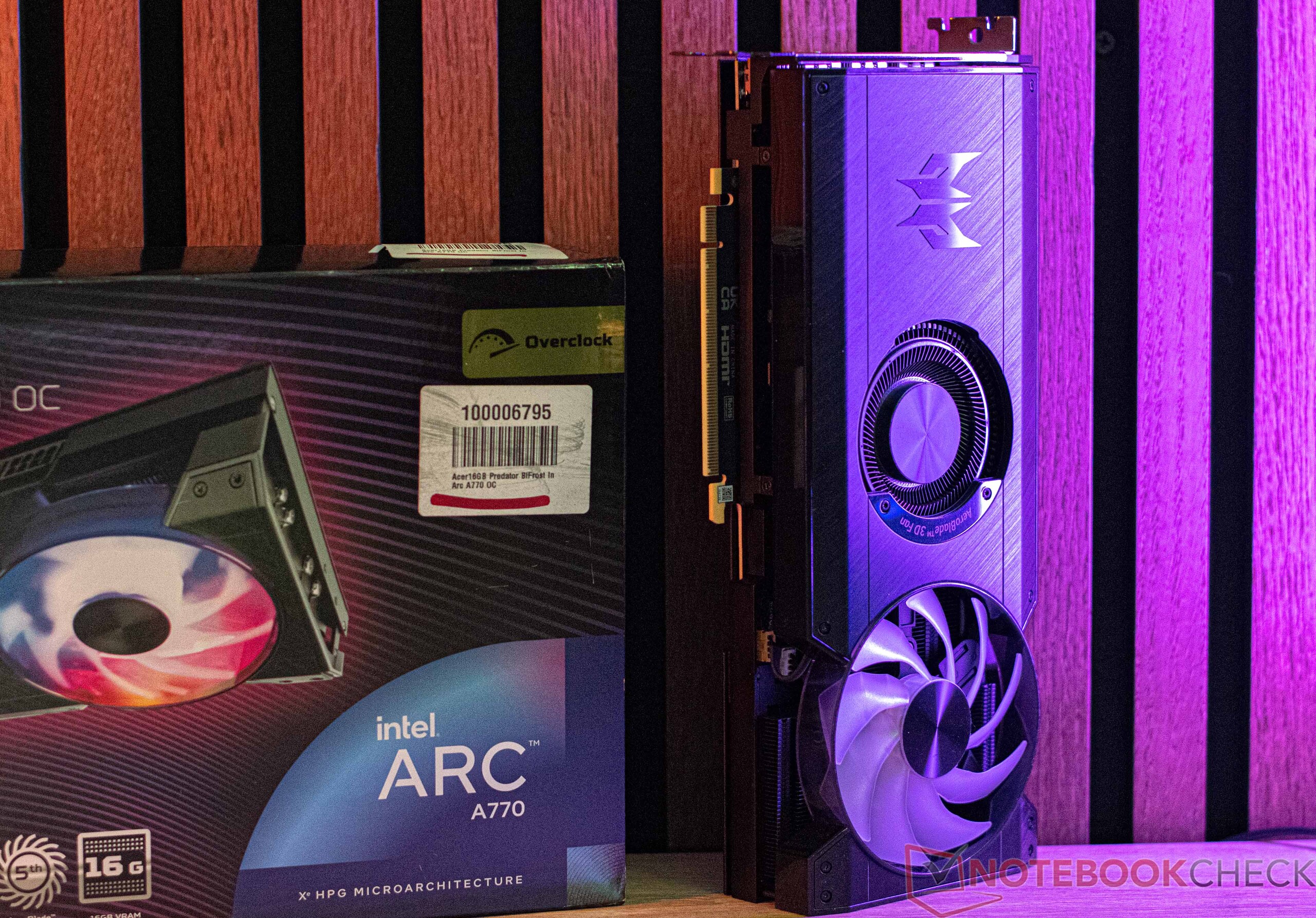

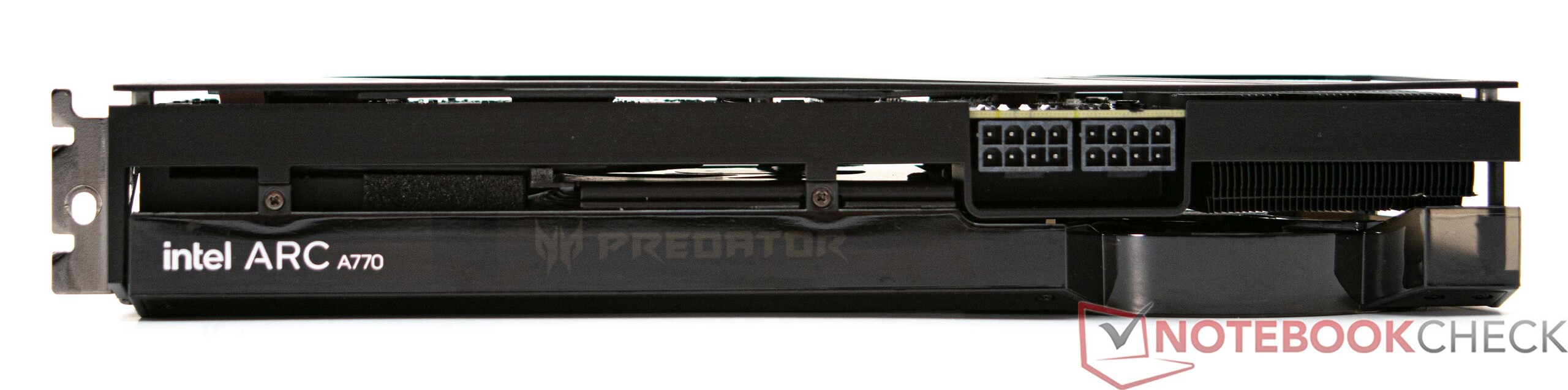

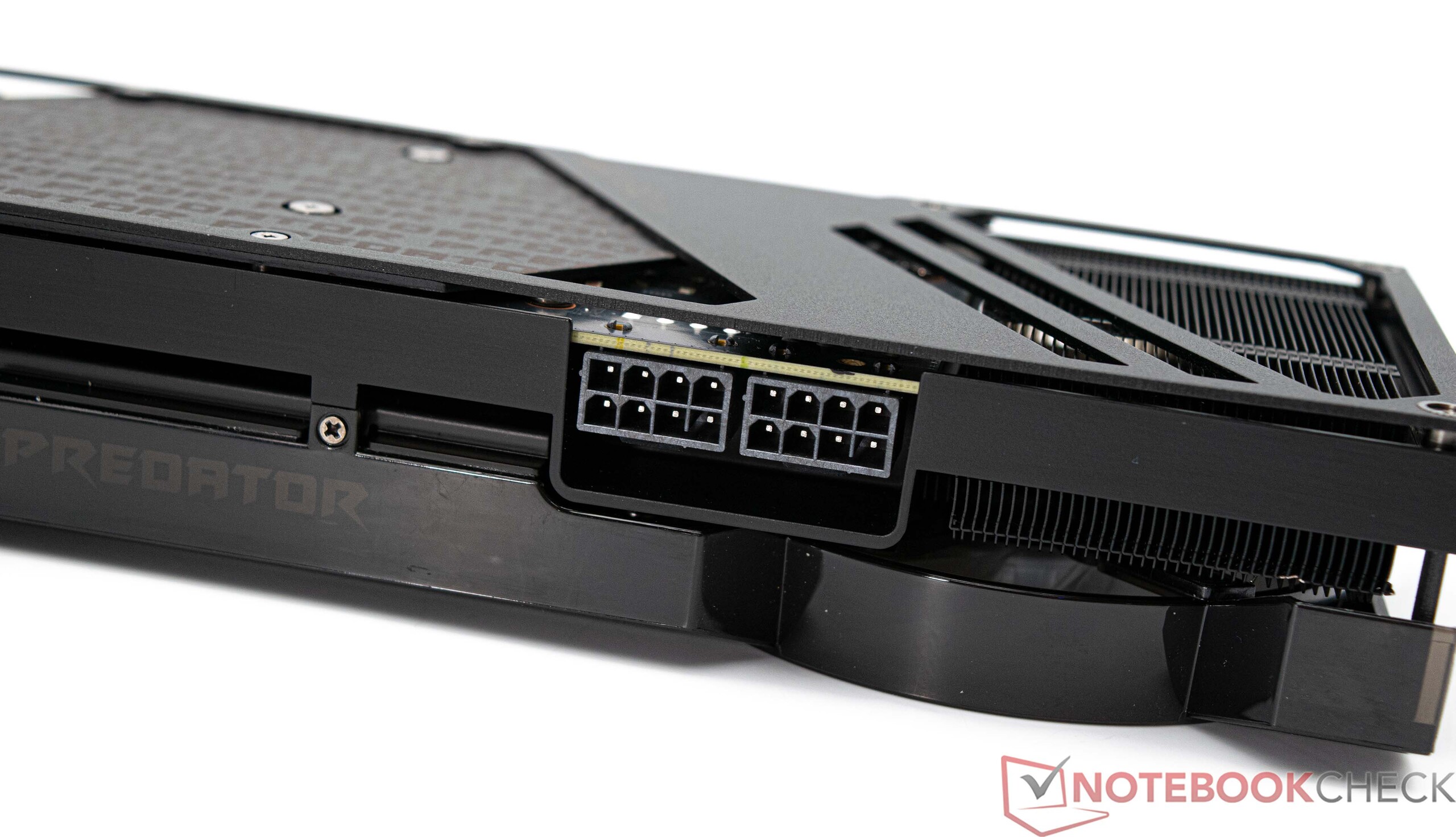

第一眼看上去,宏碁掠夺者 BiFrost Arc A770 OC 有点不寻常,但我们喜欢它。低调的 RGB 照明和带有一些金属元素的高品质做工也给人留下了良好的触觉印象。每个风扇的结构都不同,这也使它有别于许多显卡的已知设计。较小的风扇完全由金属制成,使得极薄的扇叶能推动更多空气通过散热片。许多笔记本电脑也采用了 Aeroblade 设计。在 PCIe 4.0 x16 插槽旁边,电源通过两个 6+2 针 PCIe 电源接口提供。在外部连接方面,宏碁掠夺者 BiFrost Arc A770 OC 几乎达到了最新的发展水平。除了 HDMI 2.1 连接外,还有三个 DisplayPort 2.0 连接。Nvidia 的 DisplayPort 接口只支持 1.4 标准,而 AMD 的所有 RX 7000 型号都提供 DisplayPort 2.1 接口。
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名
潜在的竞争对手比较
宏碁掠夺者 BiFrost Arc A770 OC 详解
技术数据对比
规格 | Intel Arc A770 | Intel Arc A750 | Intel Arc A580 | Intel Arc A380 | Radeon RX 7700 XT | Radeon RX 7600 | RTX 4060 Ti | RTX 4060 |
GPU | DG2512 | DG2 512 | DG2 512 | DG2 128 | Navi 32 XL | Navi 33 XL | AD106 | AD107 |
制造工艺 | 6 纳米 | 6 纳米 | 6 纳米 | 6 纳米 | 5/6 纳米 | 6 纳米 | TSMC 4N | TSMC 4N |
着色单元 | 4,096 | 3,584 | 3,072 | 1,024 | 3,456 | 2,048 | 4,352 | 3,072 |
纹理映射单元 | 256 | 224 | 192 | 64 | 216 | 128 | 136 | 96 |
光线加速器 | 32 | 28 | 24 | 8 | 54 | 32 | 34 | 24 |
基本时钟 | 2,100 MHz | 2,050 MHz | 1,700 MHz | 2,000 MHz | 1,700 MHz | 1,720 MHz | 2,310 MHz | 1,830 MHz |
游戏时钟 | - | - | - | - | 2.171 MHz | - | - | 1.815 MHz |
提升时钟 | 2,400 MHz | 2,400 MHz | 2,000 MHz | 2,050 MHz | 2,544 MHz | 2,535 MHz | 2,460 MHz | 2,105 MHz |
高速缓存 | 16 MB | 16 MB | 8 MB | 4 MB | 48 MB | 32 MB | 32 MB | 24 MB |
内存总线宽度 | 256 位 | 256 位 | 256 位 | 96 位 | 256 位 | 128 位 | 128 位 | 128 位 |
内存带宽 | 560GB/s | 512 GB/s | 512 GB/s | 186 GB/s | 432 GB/s | 288 GB/s | 288 GB/s | 272 GB/s |
内存大小 | 16 GB GDDR6 | 8 GB GDDR6 | 8 GB GDDR6 | 6 GB GDDR6 | 12 GB | 8 GB GDDR6 | 8 GB GDDR6 | 8 GB GDDR6 |
TBP | 225 W | 225 W | 175 W | 75 W | 245 W | 165 W | 160 W | 115 W |

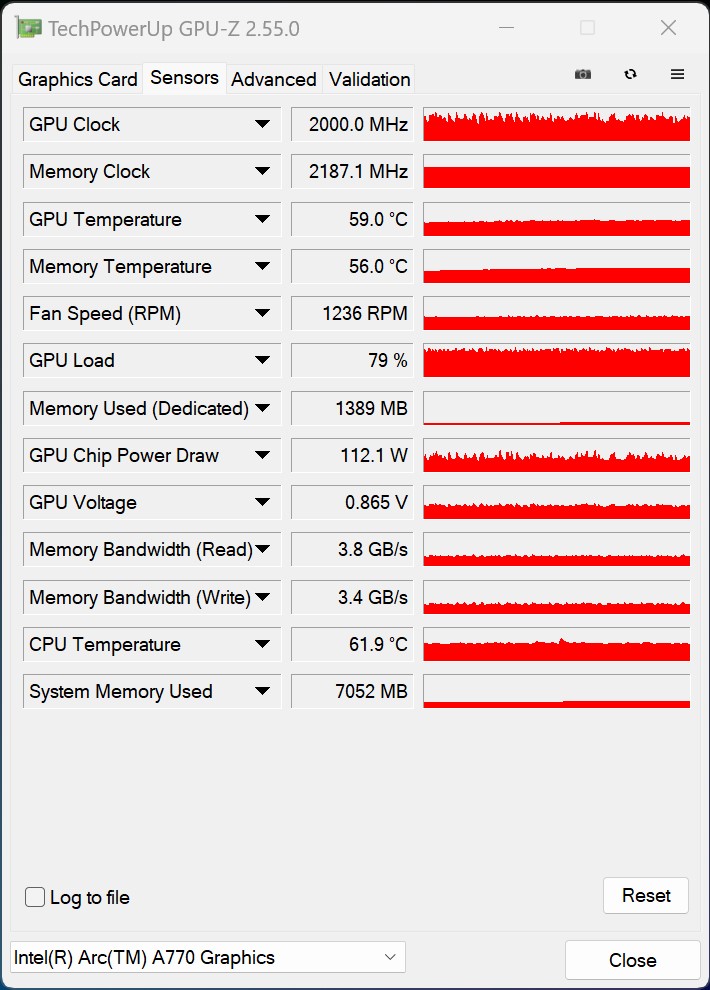

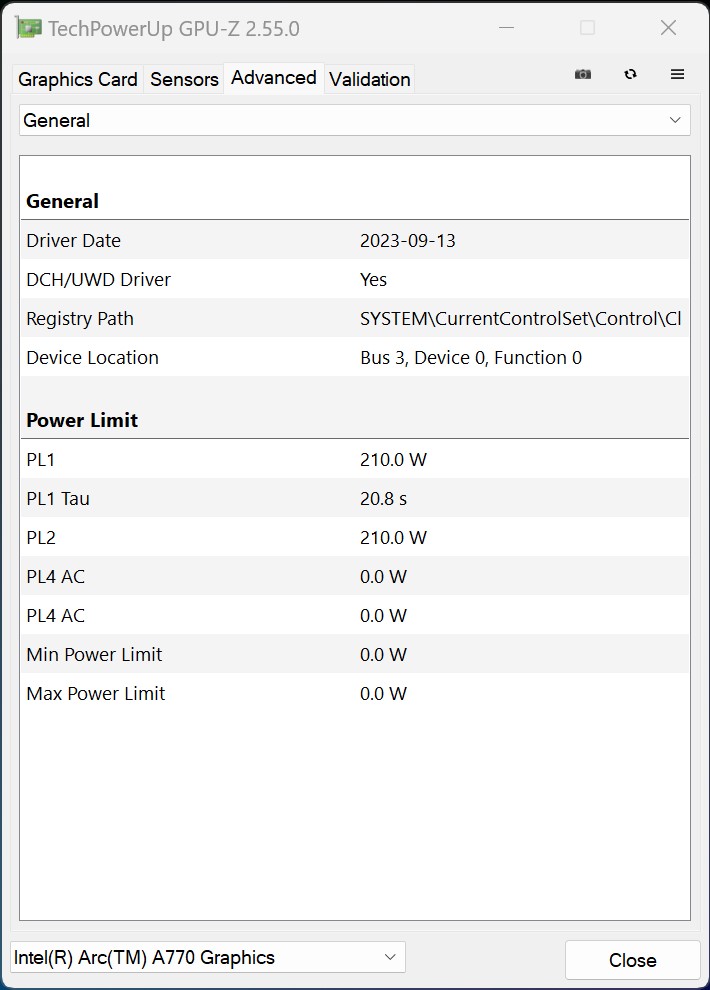

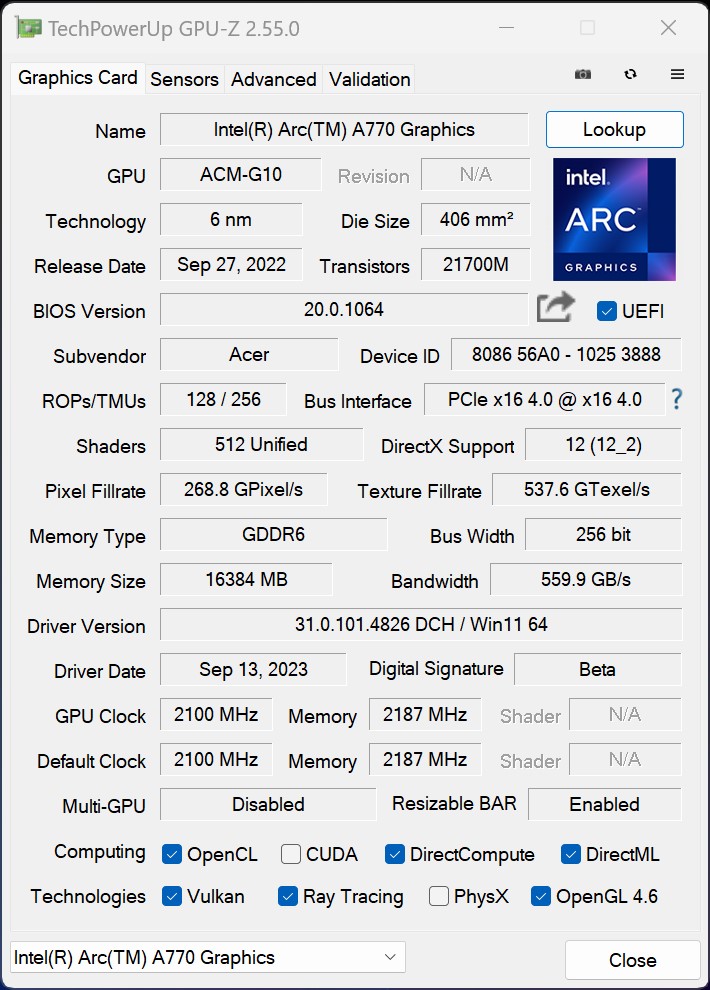

宏碁掠夺者 BiFrost Arc A770 OC 的时钟速度
在宏碁掠夺者 BiFrost Arc A770 OC 的速度方面,我们看到图形芯片的基本时钟频率为 2,200 MHz,比英特尔的参考型号至少高出 100 MHz。提升速度为 2,400 MHz,在我们的所有测试中都能保持不变。视频存储速度为 2,190 MHz,存储带宽为 560 GB/s。这明显高于直接竞争对手,如 AMD Radeon RX 7700 XT或 NvidiaGeForce RTX 4060 Ti.宏碁规定我们测试设备的功耗为 210 瓦。当使用随附工具激活涡轮增压模式时,宏碁掠夺者 BiFrost Arc A770 OC 的功耗可高达 235 瓦。不过,我们下面的所有测试都是在默认模式(210 瓦)下进行的。此外,还提供可将功耗控制在 160 瓦的静音模式。
合成基准
我们首先比较了宏碁掠夺者 BiFrost Arc A770 OC 在合成基准测试中的表现。我们的测试设备只能勉强超越 AMD Radeon RX 7600的性能,而宏碁掠夺者 BiFrost Arc A770 OC 的性能则无法与 Nvidia 的GeForce RTX 4060 Ti.不过,仅 7% 的劣势并不明显。另一方面,如果我们看一下 LuxMark 的基准测试结果,宏碁掠夺者 BiFrost Arc A770 OC 能够轻松地证明自己,甚至能够给 AMD Radeon RX 7860 Ti 带来一些压力。AMD Radeon RX 7800 XT.与 NvidiaGeForce RTX 4060 Ti 相比,我们测试显卡的劣势超过了 30%。
Performance Rating - Percent | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
Sapphire Pulse Radeon RX 7700 XT | |
Sapphire Pulse Radeon RX 6750 XT | |
AMD Radeon RX 6700 XT | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2070 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 |
LuxMark v2.0 64Bit | |
Room GPUs-only | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 4070 | |
NVIDIA GeForce RTX 4060 Ti 16G | |
NVIDIA GeForce RTX 4060 | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
Intel Arc A770 | |
AMD Radeon RX 7700 XT | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 6600 | |
Sala GPUs-only | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 4070 | |
AMD Radeon RX 7900 GRE | |
NVIDIA GeForce RTX 4060 Ti 16G | |
Intel Arc A770 | |
AMD Radeon RX 7800 XT | |
NVIDIA GeForce RTX 4060 | |
AMD Radeon RX 7700 XT | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 6600 |
Affinity Photo 2 - Combined (Single / Multi GPU) | |
NVIDIA GeForce RTX 4070 | |
NVIDIA GeForce RTX 4070 Ti | |
AMD Radeon RX 7800 XT | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
AMD Radeon RX 7900 GRE | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
AMD Radeon RX 7700 XT | |
AMD Radeon RX 6750 XT | |
NVIDIA GeForce RTX 3060 Ti | |
NVIDIA GeForce RTX 4060 | |
NVIDIA GeForce RTX 4060 Ti 16G | |
AMD Radeon RX 7600 | |
Intel Arc A770 | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 6600 |
3DMark 05 Standard | 71200 points | |
3DMark 06 Standard Score | 58321 points | |
3DMark Vantage P Result | 103295 points | |
3DMark 11 Performance | 35386 points | |
3DMark Ice Storm Standard Score | 245874 points | |
3DMark Cloud Gate Standard Score | 69520 points | |
3DMark Fire Strike Score | 30755 points | |
3DMark Fire Strike Extreme Score | 15132 points | |
3DMark Time Spy Score | 14047 points | |
Help |
专业应用
通常情况下,专业应用程序可以从特殊显卡中获益,这些显卡可以通过调整驱动程序进行最佳调整。Nvidia 和 AMD 都在其产品组合中提供了一些特殊的工作站显卡。但通常情况下,当前的游戏显卡也能提供足够的性能来执行各种渲染项目。不过,我们还是建议在专业应用中使用专用显卡,以尽可能获得最佳性能。与竞争对手相比,宏碁掠夺者 BiFrost Arc A770 OC 无法产生更好的性能,甚至连老化的 NvidiaGeForce RTX 2060 Super的部分性能也要高出许多。
Intel Arc A770 R9 7950X | NVIDIA GeForce RTX 2060 Super (Desktop) R9 7950X | NVIDIA GeForce RTX 2070 Super (Desktop) R9 7950X | NVIDIA GeForce RTX 3060 Ti R9 7950X | NVIDIA GeForce RTX 4060 R9 7950X | NVIDIA GeForce RTX 4060 Ti 16G R9 7950X | NVIDIA GeForce RTX 4070 R9 7950X | NVIDIA GeForce RTX 4070 Ti R9 7950X | AMD Radeon RX 7600 R9 7950X | AMD Radeon RX 7700 XT R9 7950X | AMD Radeon RX 7800 XT R9 7950X | AMD Radeon RX 7900 GRE R9 7950X | AMD Radeon RX 6600 R9 7950X | AMD Radeon RX 6650 XT R9 7950X | AMD Radeon RX 6700 XT R9 7950X | AMD Radeon RX 6750 XT R9 7950X | Average of class | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SPECviewperf 12 | 50% | 68% | 87% | 89% | 143% | 219% | 325% | 203% | 291% | 349% | 373% | 228% | 286% | 324% | 275% | 63% | |
1900x1060 3ds Max (3dsmax-05) | 179 | 220 23% | 247 38% | 297 66% | 251 40% | 290 62% | 382 113% | 436 144% | 279 56% | 373 108% | 427 139% | 444 148% | 258 44% | 310 73% | 363 103% | 377 111% | 192.3 ? 7% |
1900x1060 Catia (catia-04) | 174 | 84.5 -51% | 114 -34% | 114 -34% | 113 -35% | 128 -26% | 161 -7% | 192 10% | 273 57% | 351 102% | 386 122% | 448 157% | 256 47% | 314 80% | 339 95% | 360 107% | 105.4 ? -39% |
1900x1060 Creo (creo-01) | 45.3 | 58.8 30% | 65.7 45% | 65.2 44% | 60.6 34% | 73.4 62% | 89.1 97% | 99.4 119% | 115 154% | 123 172% | 148 227% | 155 242% | 133 194% | 142 213% | 152 236% | 154 240% | 64.4 ? 42% |
1900x1060 Energy (energy-01) | 2.44 | 11.6 375% | 12.4 408% | 14.4 490% | 15.9 552% | 22.6 826% | 31.7 1199% | 48 1867% | 25.5 945% | 33.4 1269% | 38.4 1474% | 40.3 1552% | 31.3 1183% | 37.6 1441% | 40.6 1564% | 30.1 1134% | 15.2 ? 523% |
1900x1060 Maya (maya-04) | 183 | 200 9% | 225 23% | 251 37% | 233 27% | 257 40% | 284 55% | 287 57% | 236 29% | 283 55% | 304 66% | 323 77% | 218 19% | 246 34% | 268 46% | 277 51% | 109.5 ? -40% |
1900x1060 Medical (medical-01) | 46.7 | 49.5 6% | 55.9 20% | 65.6 40% | 82.4 76% | 110 136% | 132 183% | 157 236% | 128 174% | 177 279% | 200 328% | 226 384% | 102 118% | 137 193% | 150 221% | 144 208% | 53.2 ? 14% |
1900x1060 Showcase (showcase-01) | 119 | 121 2% | 135 13% | 150 26% | 109 -8% | 132 11% | 190 60% | 244 105% | 127 7% | 179 50% | 235 97% | 222 87% | 125 5% | 151 27% | 176 48% | 186 56% | 95.8 ? -19% |
1900x1060 Solidworks (sw-03) | 73.4 | 79.7 9% | 95.1 30% | 93.5 27% | 91.2 24% | 95.1 30% | 109 49% | 118 61% | 221 201% | 288 292% | 322 339% | 319 335% | 232 216% | 242 230% | 275 275% | 290 295% | 86.1 ? 17% |
SPECviewperf 13 | 13% | 31% | 41% | 34% | 61% | 103% | 144% | 119% | 196% | 242% | 261% | 76% | 107% | 144% | 168% | 24% | |
3ds Max (3dsmax-06) | 179 | 218 22% | 247 38% | 297 66% | 252 41% | 289 61% | 381 113% | 433 142% | 280 56% | 371 107% | 434 142% | 439 145% | 258 44% | 310 73% | 360 101% | 379 112% | 184.7 ? 3% |
Catia (catia-05) | 260 | 119 -54% | 163 -37% | 167 -36% | 163 -37% | 189 -27% | 241 -7% | 290 12% | 410 58% | 529 103% | 588 126% | 661 154% | 387 49% | 482 85% | 528 103% | 565 117% | 197.9 ? -24% |
Creo (creo-02) | 90 | 203 126% | 240 167% | 243 170% | 230 156% | 301 234% | 375 317% | 455 406% | 294 227% | 387 330% | 442 391% | 470 422% | 279 210% | 317 252% | 353 292% | 389 332% | 202 ? 124% |
Energy (energy-02) | 22.5 | 21.9 -3% | 23.8 6% | 26.1 16% | 34.6 54% | 45.3 101% | 54.2 141% | 72.8 224% | 82.9 268% | 115 411% | 139 518% | 150 567% | 44 96% | 59.8 166% | 74.3 230% | 80.6 258% | 35.7 ? 59% |
Maya (maya-05) | 319 | 291 -9% | 344 8% | 372 17% | 343 8% | 403 26% | 510 60% | 591 85% | 333 4% | 487 53% | 548 72% | 580 82% | 348 9% | 403 26% | 462 45% | 482 51% | 263 ? -18% |
Medical (medical-02) | 80.8 | 54.2 -33% | 63.7 -21% | 74.3 -8% | 76.5 -5% | 85.1 5% | 112 39% | 132 63% | 226 180% | 300 271% | 332 311% | 372 360% | 88.8 10% | 105 30% | 148 83% | 202 150% | 77.1 ? -5% |
Showcase (showcase-02) | 119 | 122 3% | 135 13% | 150 26% | 108 -9% | 133 12% | 191 61% | 244 105% | 127 7% | 179 50% | 234 97% | 221 86% | 125 5% | 151 27% | 176 48% | 186 56% | 118 ? -1% |
Solidworks (sw-04) | 77.5 | 119 54% | 136 75% | 135 74% | 127 64% | 135 74% | 157 103% | 168 117% | 195 152% | 265 242% | 294 279% | 287 270% | 220 184% | 231 198% | 272 251% | 286 269% | 120.4 ? 55% |
SPECviewperf 2020 | -4% | 4% | 27% | 14% | 41% | 81% | 119% | 75% | 144% | 208% | 218% | 20% | 47% | 81% | 102% | 35% | |
3840x2160 Medical (medical-03) | 22.3 | 10.3 -54% | 12 -46% | 11.9 -47% | 13.7 -39% | 16.5 -26% | 22.2 0% | 26.9 21% | 36.1 62% | 56.2 152% | 63.7 186% | 76.1 241% | 20.9 -6% | 27.3 22% | 30.1 35% | 39.9 79% | 19.7 ? -12% |
3840x2160 Maya (maya-06) | 195 | 162 -17% | 185 -5% | 235 21% | 196 1% | 237 22% | 305 56% | 372 91% | 178 -9% | 261 34% | 346 77% | 161 -17% | 192 -2% | 258 32% | 279 43% | 202 ? 4% | |
3840x2160 Energy (energy-03) | 25 | 22.9 -8% | 17.8 -29% | 31.2 25% | 33.2 33% | 44.9 80% | 57.6 130% | 75.7 203% | 67 168% | 95 280% | 111 344% | 133 432% | 29.5 18% | 44.2 77% | 52.2 109% | 56.3 125% | 48.1 ? 92% |
3840x2160 Creo (creo-03) | 52.9 | 77.2 46% | 85.8 62% | 91.2 72% | 85.9 62% | 95.9 81% | 112 112% | 121 129% | 106 100% | 130 146% | 151 185% | 159 201% | 93.4 77% | 105 98% | 123 133% | 130 146% | 75 ? 42% |
3840x2160 CATIA (catia-06) | 38.9 | 30.5 -22% | 36.7 -6% | 40.5 4% | 34 -13% | 38.5 -1% | 51.6 33% | 61.2 57% | 68 75% | 88.8 128% | 101 160% | 107 175% | 60.8 56% | 70.1 80% | 77.2 98% | 83.8 115% | 45.5 ? 17% |
3840x2160 3ds Max (3dsmax-07) | 47.4 | 63.1 33% | 69.7 47% | 87 84% | 67.4 42% | 88.8 87% | 122 157% | 147 210% | 72.9 54% | 106 124% | 125 164% | 134 183% | 42.4 -11% | 51.5 9% | 85.4 80% | 96.8 104% | 77.5 ? 64% |
Total Average (Program / Settings) | 20% /
22% | 34% /
37% | 52% /
54% | 46% /
49% | 82% /
85% | 134% /
139% | 196% /
203% | 132% /
138% | 210% /
216% | 266% /
275% | 284% /
290% | 108% /
116% | 147% /
156% | 183% /
192% | 182% /
189% | 41% /
41% |

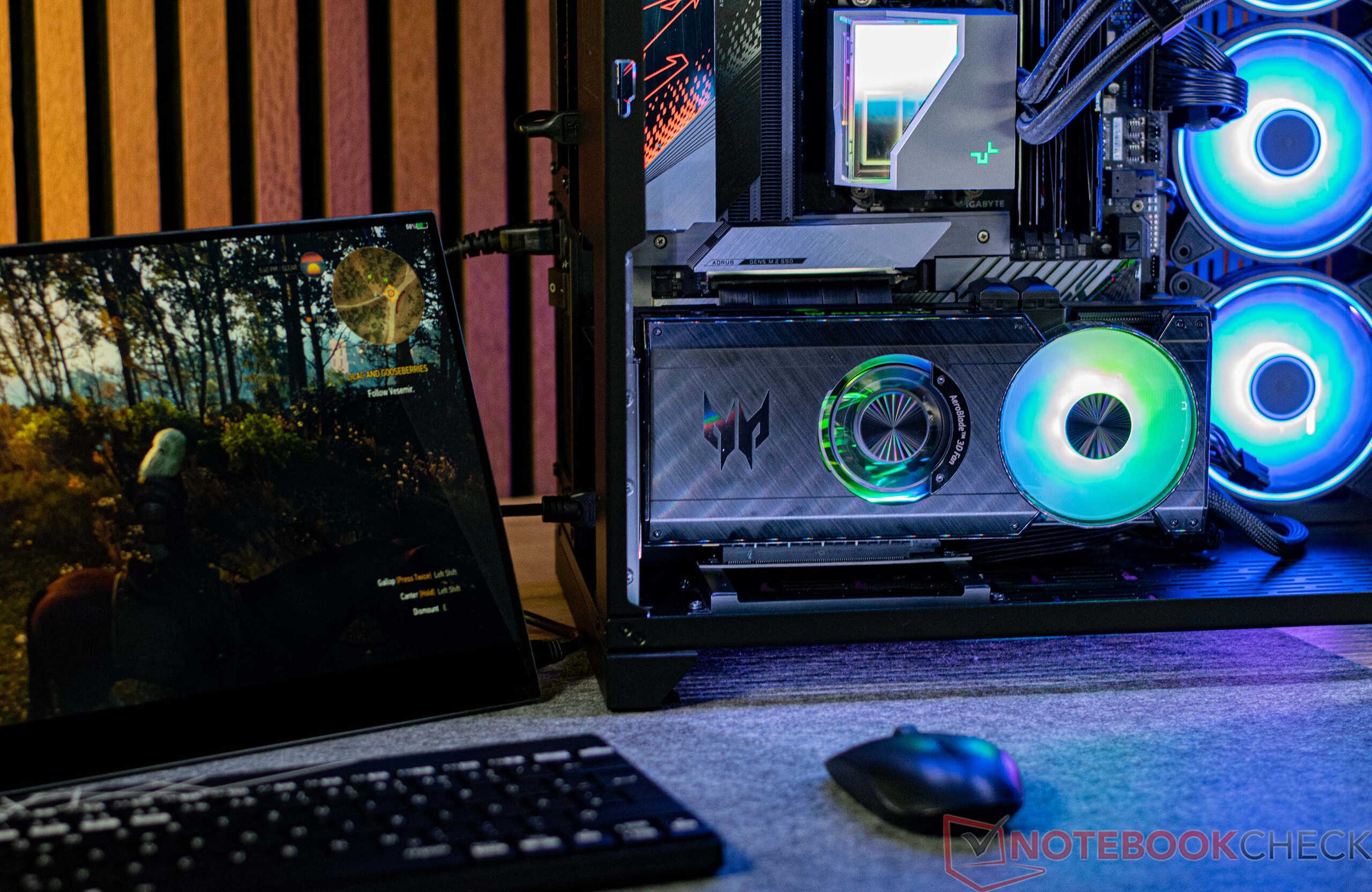

游戏性能
宏碁掠夺者 BiFrost Arc A770 OC 的测试结果非常好,我们很惊讶在测试过程中几乎没有遇到任何问题。但新游戏和旧游戏之间还是存在一些差异。在玩较新的游戏时,Arc A770 的表现明显更好。因此,宏碁掠夺者 BiFrost Arc A770 OC 的性能差异很大。在许多老游戏中,我们测试设备的性能与 AMD Radeon RX 6600 相当,而在新游戏中,你可以期待比 NvidiaGeForce RTX 4060 更高的性能。但你必须确保激活 Reziable BAR,才能充分发挥显卡的性能。
大多数游戏都能在 1080p 下流畅显示,尽管有一些限制。在较新的游戏中,《星际争霸》(Starfield)是一个例外,但通过未来的驱动优化仍可改善。另一个负面例子是《极限竞速地平线 4》(Forza Horizon 4),这款游戏不适合用宏碁掠夺者 BiFrost Arc A770 OC 来玩。
我们需要再次提及的是,宏碁掠夺者 BiFrost Arc A770 OC 早在一年前就已进入市场。与 AMD 的 Radeon RX 6000 和 Nvidia 的 RTX 3000 型号相比,英特尔 Arc A770 的性能基本处于同一水平。随着 AMD 和 Nvidia 新显卡的推出,英特尔 Arc A770 获得了更多的竞争对手,这也导致它落后更多。谣言正在加班加点地传播,随着Battlemage 的出现,英特尔 Arc 机型的后继者应该会在不久的将来紧随其后。但目前,我们还不知道任何细节。随着性能的提升和效率的提高,英特尔可能会继续给游戏显卡领域的两大巨头施加压力。
本次测试中使用的型号配备了 16GB 的 VRAM,这很不错,因为我们在 1080p 下甚至已经超过了 8GB 的大关。有了它,宏碁掠夺者 BiFrost Arc A770 OC 在最高细节下的掉帧现象明显减少。当我们比较 P1 值时,它足以勉强击败KFA2GeForce RTX 4060 。由于游戏性能参差不齐,我们的测试设备无法在此获得更大的优势。但在较低的帧速率下,测得的 P1 值相当稳定,确保了流畅的游戏体验。随着分辨率的不断提高,我们的测试设备也在不断进步,你甚至可以在 1440p 下享受某些游戏。与仅配备 8GB VRAM 的显卡相比,性能下降幅度明显较小。
F1 2021 | |
2560x1440 Ultra High Preset + Raytracing AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (874931) | |
KFA2 GeForce RTX 4080 SG (874931) | |
AMD Radeon RX 7900 XTX (874931) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (874931) | |
AMD Radeon RX 7900 XT (874931) | |
MSI Radeon RX 6950 XT Gaming X Trio (874931) | |
NVIDIA GeForce RTX 3090 Founders Edition (874931) | |
KFA2 GeForce RTX 4070 EX Gamer (874931) | |
AMD Radeon RX 7900 GRE (874931) | |
AMD Radeon RX 7800 XT (874931) | |
KFA2 GeForce RTX 3070 Ti SG (874931) | |
AMD Radeon RX 5700 XT (874931) | |
AMD Radeon RX 6800 (874931) | |
Nvidia Titan RTX (874931) | |
ASUS Dual GeForce RTX 4060 Ti OC (874931) | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (874931) | |
AMD Radeon RX 5700 (874931) | |
Sapphire Pulse Radeon RX 6750 XT (874931) | |
Nvidia GeForce RTX 3060 Ti FE (874931) | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (874931) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (874931) | |
Nvidia GeForce RTX 2070 Super (874931) | |
KFA2 GeForce GTX 1660 Super (874931) | |
Sapphire Nitro+ Radeon RX 6650 XT (874931) | |
PNY GeForce GTX 1660 (874931) | |
Nvidia GeForce RTX 2060 Super (874931) | |
Sapphire Pulse Radeon RX 6600 (874931) | |
1920x1080 Ultra High Preset + Raytracing AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (874931) | |
AMD Radeon RX 7900 XTX (874931) | |
KFA2 GeForce RTX 4080 SG (874931) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (874931) | |
AMD Radeon RX 7900 XT (874931) | |
MSI Radeon RX 6950 XT Gaming X Trio (874931) | |
NVIDIA GeForce RTX 3090 Founders Edition (874931) | |
KFA2 GeForce RTX 4070 EX Gamer (874931) | |
AMD Radeon RX 7900 GRE (874931) | |
AMD Radeon RX 7800 XT (874931) | |
KFA2 GeForce RTX 3070 Ti SG (874931) | |
AMD Radeon RX 5700 XT (874931) | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (874931) | |
ASUS Dual GeForce RTX 4060 Ti OC (874931) | |
AMD Radeon RX 6800 (874931) | |
Nvidia Titan RTX (874931) | |
AMD Radeon RX 5700 (874931) | |
Sapphire Pulse Radeon RX 6750 XT (874931) | |
Nvidia GeForce RTX 3060 Ti FE (874931) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (874931) | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (874931) | |
Nvidia GeForce RTX 2070 Super (874931) | |
Sapphire Nitro+ Radeon RX 6650 XT (874931) | |
KFA2 GeForce GTX 1660 Super (874931) | |
Nvidia GeForce RTX 2060 Super (874931) | |
PNY GeForce GTX 1660 (874931) | |
Sapphire Pulse Radeon RX 6600 (874931) |
F1 22 | |
2560x1440 Ultra High Preset AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (923662) | |
KFA2 GeForce RTX 4080 SG (939134) | |
AMD Radeon RX 7900 XTX (939134) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (959964) | |
AMD Radeon RX 5700 XT (959964) | |
AMD Radeon RX 7900 XT (939134) | |
NVIDIA GeForce RTX 3090 Founders Edition (923650) | |
AMD Radeon RX 5700 (959964) | |
AMD Radeon RX 7900 GRE (959964) | |
MSI Radeon RX 6950 XT Gaming X Trio (939134) | |
KFA2 GeForce RTX 4070 EX Gamer (959964) | |
KFA2 GeForce GTX 1660 Super (928484) | |
AMD Radeon RX 7800 XT (959964) | |
PNY GeForce GTX 1660 (928484) | |
KFA2 GeForce RTX 3070 Ti SG (939134) | |
Nvidia Titan RTX (923650) | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (959964) | |
ASUS Dual GeForce RTX 4060 Ti OC (959964) | |
AMD Radeon RX 6800 (928484) | |
Nvidia GeForce RTX 3060 Ti FE (923650) | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (959964) | |
Sapphire Pulse Radeon RX 6750 XT (959964) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (959964) | |
Nvidia GeForce RTX 2070 Super (923662) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (959964) | |
Nvidia GeForce RTX 2060 Super (923662) | |
Sapphire Nitro+ Radeon RX 6650 XT (946728) | |
Sapphire Pulse Radeon RX 6600 (946728) | |
1920x1080 Ultra High Preset AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 SG (939134) | |
AMD Radeon RX 7900 XTX (939134) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (959964) | |
NVIDIA GeForce RTX 3090 Founders Edition (923650) | |
AMD Radeon RX 7900 XT (939134) | |
AMD Radeon RX 5700 XT (959964) | |
MSI Radeon RX 6950 XT Gaming X Trio (939134) | |
KFA2 GeForce RTX 4070 EX Gamer (959964) | |
AMD Radeon RX 7900 GRE (959964) | |
AMD Radeon RX 7800 XT (959964) | |
AMD Radeon RX 5700 (959964) | |
KFA2 GeForce GTX 1660 Super (928484) | |
KFA2 GeForce RTX 3070 Ti SG (939134) | |
PNY GeForce GTX 1660 (928484) | |
Nvidia Titan RTX (923650) | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (959964) | |
ASUS Dual GeForce RTX 4060 Ti OC (959964) | |
Nvidia GeForce RTX 3060 Ti FE (923650) | |
AMD Radeon RX 6800 | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (959964) | |
Sapphire Pulse Radeon RX 6750 XT (959964) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (959964) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (959964) | |
Nvidia GeForce RTX 2070 Super (923662) | |
Nvidia GeForce RTX 2060 Super (923662) | |
Sapphire Nitro+ Radeon RX 6650 XT (946728) | |
Sapphire Pulse Radeon RX 6600 (946728) |
GRID Legends | |
2560x1440 Ultra Preset | |
AMD Radeon RX 7900 XTX (643827) | |
Palit GeForce RTX 4090 GameRock OC (591708) | |
AMD Radeon RX 7900 XT (643827) | |
MSI Radeon RX 6950 XT Gaming X Trio (643827) | |
KFA2 GeForce RTX 4080 SG (643827) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (712825) | |
NVIDIA GeForce RTX 3090 Founders Edition (591708) | |
AMD Radeon RX 7900 GRE (800660) | |
AMD Radeon RX 6800 (643827) | |
KFA2 GeForce RTX 3070 Ti SG (643827) | |
AMD Radeon RX 7800 XT (800660) | |
KFA2 GeForce RTX 4070 EX Gamer (712825) | |
Sapphire Pulse Radeon RX 6750 XT (712825) | |
Nvidia Titan RTX (591708) | |
ASUS Dual GeForce RTX 4060 Ti OC (800660) | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (800660) | |
Nvidia GeForce RTX 3060 Ti FE (591708) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (800660) | |
Sapphire Nitro+ Radeon RX 6650 XT (643827) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (800660) | |
Nvidia GeForce RTX 2070 Super (591708) | |
AMD Radeon RX 5700 XT (712825) | |
Nvidia GeForce RTX 2060 Super (623651) | |
Sapphire Pulse Radeon RX 6600 (683088) | |
AMD Radeon RX 5700 (712825) | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (800660) | |
KFA2 GeForce GTX 1660 Super (623651) | |
PNY GeForce GTX 1660 (623651) | |
1920x1080 Ultra Preset | |
AMD Radeon RX 7900 XTX (643827) | |
MSI Radeon RX 6950 XT Gaming X Trio (643827) | |
AMD Radeon RX 7900 XT (643827) | |
Palit GeForce RTX 4090 GameRock OC (591708) | |
KFA2 GeForce RTX 4080 SG (643827) | |
AMD Radeon RX 6800 (643827) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (712825) | |
NVIDIA GeForce RTX 3090 Founders Edition (591708) | |
KFA2 GeForce RTX 4070 EX Gamer (712825) | |
AMD Radeon RX 7900 GRE (800660) | |
Sapphire Pulse Radeon RX 6750 XT (712825) | |
AMD Radeon RX 7800 XT (800660) | |
KFA2 GeForce RTX 3070 Ti SG (643827) | |
Nvidia Titan RTX (591708) | |
Nvidia GeForce RTX 3060 Ti FE (591708) | |
Sapphire Nitro+ Radeon RX 6650 XT (643827) | |
ASUS Dual GeForce RTX 4060 Ti OC (800660) | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (800660) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (800660) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (800660) | |
Nvidia GeForce RTX 2070 Super (591708) | |
Sapphire Pulse Radeon RX 6600 (683088) | |
AMD Radeon RX 5700 XT (712825) | |
Nvidia GeForce RTX 2060 Super (623651) | |
AMD Radeon RX 5700 (712825) | |
KFA2 GeForce GTX 1660 Super (623651) | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (800660) | |
PNY GeForce GTX 1660 (623651) |
Final Fantasy XV Benchmark | |
1920x1080 High Quality | |
Palit GeForce RTX 4090 GameRock OC (1.3) | |
KFA2 GeForce RTX 4080 SG (1.3) | |
AMD Radeon RX 7900 XTX (1.3) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (1.3) | |
AMD Radeon RX 7900 XT (1.3) | |
MSI Radeon RX 6950 XT Gaming X Trio (1.3) | |
NVIDIA GeForce RTX 3090 Founders Edition (1.3) | |
KFA2 GeForce RTX 4070 EX Gamer (1.3) | |
AMD Radeon RX 7900 GRE (1.3) | |
AMD Radeon RX 7800 XT (1.3) | |
AMD Radeon RX 6800 (1.3) | |
Nvidia Titan RTX (1.3) | |
KFA2 GeForce RTX 3070 Ti SG (1.3) | |
ASUS Dual GeForce RTX 4060 Ti OC (1.3) | |
Sapphire Pulse Radeon RX 6750 XT (1.3) | |
Nvidia GeForce RTX 3060 Ti FE (1.3) | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (1.3) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.3) | |
Nvidia GeForce RTX 2070 Super (1.3) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.3) | |
Sapphire Nitro+ Radeon RX 6650 XT (1.3) | |
Nvidia GeForce RTX 2060 Super (1.3) | |
AMD Radeon RX 5700 XT (1.3) | |
Sapphire Pulse Radeon RX 6600 (1.3) | |
AMD Radeon RX 5700 (1.3) | |
KFA2 GeForce GTX 1660 Super (1.3) | |
PNY GeForce GTX 1660 (1.3) | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (1.3) | |
2560x1440 High Quality | |
Palit GeForce RTX 4090 GameRock OC (1.3) | |
KFA2 GeForce RTX 4080 SG (1.3) | |
AMD Radeon RX 7900 XTX (1.3) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (1.3) | |
MSI Radeon RX 6950 XT Gaming X Trio (1.3) | |
AMD Radeon RX 7900 XT (1.3) | |
NVIDIA GeForce RTX 3090 Founders Edition (1.3) | |
KFA2 GeForce RTX 4070 EX Gamer (1.3) | |
AMD Radeon RX 7900 GRE (1.3) | |
AMD Radeon RX 7800 XT (1.3) | |
AMD Radeon RX 6800 (1.3) | |
KFA2 GeForce RTX 3070 Ti SG (1.3) | |
Nvidia Titan RTX (1.3) | |
ASUS Dual GeForce RTX 4060 Ti OC (1.3) | |
Sapphire Pulse Radeon RX 6750 XT (1.3) | |
Nvidia GeForce RTX 3060 Ti FE (1.3) | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (1.3) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.3) | |
Nvidia GeForce RTX 2070 Super (1.3) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.3) | |
Sapphire Nitro+ Radeon RX 6650 XT (1.3) | |
Nvidia GeForce RTX 2060 Super (1.3) | |
AMD Radeon RX 5700 XT (1.3) | |
AMD Radeon RX 5700 (1.3) | |
Sapphire Pulse Radeon RX 6600 (1.3) | |
KFA2 GeForce GTX 1660 Super (1.3) | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (1.3) | |
PNY GeForce GTX 1660 (1.3) |
F1 23 | |
1920x1080 Ultra High Preset AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (1022189) | |
AMD Radeon RX 5700 XT (1022189) | |
AMD Radeon RX 5700 (1022189) | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE (1016022) | |
MSI Radeon RX 6950 XT Gaming X Trio (1016022) | |
AMD Radeon RX 7800 XT (1022189) | |
KFA2 GeForce GTX 1660 Super (1016022) | |
ASUS Dual GeForce RTX 4060 Ti OC (1012607) | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (1022189) | |
Nvidia Titan RTX (1021115) | |
PNY GeForce GTX 1660 (1016022) | |
Nvidia GeForce RTX 3060 Ti FE (1021115) | |
AMD Radeon RX 6800 (1016022) | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (1026791) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1008687) | |
Sapphire Pulse Radeon RX 6750 XT (1016022) | |
Nvidia GeForce RTX 2070 Super (1021115) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1016022) | |
Nvidia GeForce RTX 2060 Super (1021115) | |
Sapphire Nitro+ Radeon RX 6650 XT (1016022) | |
Sapphire Pulse Radeon RX 6600 (1016022) | |
2560x1440 Ultra High Preset AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (1022189) | |
AMD Radeon RX 5700 XT (1022189) | |
AMD Radeon RX 5700 (1022189) | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE (1016022) | |
MSI Radeon RX 6950 XT Gaming X Trio (1016022) | |
KFA2 GeForce GTX 1660 Super (1016022) | |
PNY GeForce GTX 1660 (1016022) | |
AMD Radeon RX 7800 XT (1022189) | |
Nvidia Titan RTX (1021115) | |
ASUS Dual GeForce RTX 4060 Ti OC (1012607) | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (1022189) | |
Nvidia GeForce RTX 3060 Ti FE (1021115) | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (1026791) | |
AMD Radeon RX 6800 (1016022) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1008687) | |
Sapphire Pulse Radeon RX 6750 XT (1016022) | |
Nvidia GeForce RTX 2070 Super (1021115) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1016022) | |
Nvidia GeForce RTX 2060 Super (1021115) | |
Sapphire Nitro+ Radeon RX 6650 XT (1016022) | |
Sapphire Pulse Radeon RX 6600 (1016022) |
P1 Values of the KFA2 GeForce RTX 4060 Ti EX - 8 GB vs. 16 GB
光线追踪性能
英特尔的 Arc 显卡在硬件方面也支持光线追踪。Arc A770 配备了 32 个光线加速器,实际性能相当不错,但由于游戏的不同,性能也会有所差异,因此我们无法给出总体的性能数据。在某些情况下,一个英伟达GeForce RTX 4060可以超越,而在其他游戏中,宏碁掠夺者 BiFrost Arc A770 OC 只能与 AMD Radeon RX 7600.要想获得更清晰的图像,您必须更详细地了解各个游戏。
Spider-Man Miles Morales - 1920x0180 Very High Preset + Ray-Tracing AA:T | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7800 XT | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 3070 Ti SG | |
AMD Radeon RX 7900 GRE | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 7700 XT | |
AMD Radeon RX 6800 | |
Nvidia GeForce RTX 3060 Ti FE | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2070 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Sapphire Pulse Radeon RX 6600 |
Metro Exodus - 1920x1080 Ultra Quality DXR AF:16x | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
KFA2 GeForce RTX 3070 Ti SG | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 3060 Ti FE | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
Sapphire Pulse Radeon RX 6750 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 |
Far Cry 6 - 1920x1080 Ultra Graphics Quality + HD Textures + DXR AA:T | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 6800 | |
Sapphire Pulse Radeon RX 7700 XT | |
Sapphire Pulse Radeon RX 6750 XT | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 3070 Ti SG | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X |
Cyberpunk 2077 1.6 - 1920x1080 Ray Tracing Ultra Preset (DLSS off) | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE (1.6) | |
ASUS Dual GeForce RTX 4060 Ti OC (1.6) | |
MSI Radeon RX 6950 XT Gaming X Trio (1.61) | |
KFA2 GeForce RTX 3070 Ti SG (1.61) | |
AMD Radeon RX 7800 XT (1.6) | |
Nvidia GeForce RTX 3060 Ti FE (1.5) | |
Sapphire Pulse Radeon RX 7700 XT (1.6) | |
Sapphire Pulse Radeon RX 7700 XT (1.6) | |
Sapphire Pulse Radeon RX 7700 XT (1.6) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.6) | |
AMD Radeon RX 6800 (1.61) | |
Nvidia GeForce RTX 2070 Super (1.6) | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (1.6) | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2060 Super (1.6) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.6) | |
Sapphire Nitro+ Radeon RX 6650 XT (1.5) |
The Callisto Protocol - 1920x1080 Ultra Preset (without FSR Upscaling) + Full Ray-Tracing | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
MSI Radeon RX 6950 XT Gaming X Trio | |
Nvidia GeForce RTX 3060 Ti FE | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6800 | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 3070 Ti SG | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Pulse Radeon RX 6600 | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6750 XT | |
PNY GeForce GTX 1660 | |
KFA2 GeForce GTX 1660 Super |
Guardians of the Galaxy - 1920x1080 Ultra Preset + Ultra Ray-Tracing | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE | |
MSI Radeon RX 6950 XT Gaming X Trio | |
ASUS Dual GeForce RTX 4060 Ti OC | |
AMD Radeon RX 7800 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Pulse Radeon RX 7700 XT | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Pulse Radeon RX 6750 XT | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
Nvidia GeForce RTX 2060 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT |
Returnal - 1920x1080 Epic Preset + Epic Ray-Tracing | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 7700 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
AMD Radeon RX 6800 | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2060 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
Sapphire Nitro+ Radeon RX 6650 XT |
F1 23 - 1920x1080 Ultra High Preset AA:T AF:16x | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE (1016022) | |
MSI Radeon RX 6950 XT Gaming X Trio (1016022) | |
AMD Radeon RX 7800 XT (1022189) | |
KFA2 GeForce GTX 1660 Super (1016022) | |
ASUS Dual GeForce RTX 4060 Ti OC (1012607) | |
PNY GeForce GTX 1660 (1016022) | |
Sapphire Pulse Radeon RX 7700 XT (1026791) | |
Nvidia GeForce RTX 3060 Ti FE (1021115) | |
AMD Radeon RX 6800 (1016022) | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (1026791) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1008687) | |
Sapphire Pulse Radeon RX 6750 XT (1016022) | |
Nvidia GeForce RTX 2070 Super (1021115) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1016022) | |
Nvidia GeForce RTX 2060 Super (1021115) | |
Sapphire Nitro+ Radeon RX 6650 XT (1016022) | |
Sapphire Pulse Radeon RX 6600 (1016022) |
Star Wars Jedi Survivor - 1920x1080 Epic Preset + Ray Tracing | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
MSI Radeon RX 6950 XT Gaming X Trio | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7800 XT | |
Sapphire Pulse Radeon RX 7700 XT | |
AMD Radeon RX 6800 | |
Nvidia GeForce RTX 3060 Ti FE | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 6750 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 |
Hogwarts Legacy - 1920x1080 Ultra Preset + Full Ray Tracing AA:High T | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
MSI Radeon RX 6950 XT Gaming X Trio | |
AMD Radeon RX 7900 GRE | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 3060 Ti FE | |
Sapphire Pulse Radeon RX 7700 XT | |
AMD Radeon RX 6800 | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Nitro+ Radeon RX 6650 XT | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition |
Ghostwire Tokyo - 1920x1080 Highest Settings + Maximum Ray Tracing | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE | |
MSI Radeon RX 6950 XT Gaming X Trio | |
AMD Radeon RX 7800 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 7700 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2070 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 |
low | med. | high | ultra | QHD | 4K DLSS | 4K | |
---|---|---|---|---|---|---|---|
GTA V (2015) | 187.9 | 186.8 | 144.3 | 65 | 45 | 48.2 | |
The Witcher 3 (2015) | 460 | 323 | 196.1 | 71.5 | 59.6 | 73 | |
Dota 2 Reborn (2015) | 143.9 | 129.2 | 119.1 | 111.6 | 94.2 | ||
Rise of the Tomb Raider (2016) | 63.2 | 59.2 | 62 | 62.5 | 62.1 | ||
Assassin´s Creed Origins (2017) | 78 | 66 | 64 | 57 | 52 | 38 | |
Final Fantasy XV Benchmark (2018) | 127.7 | 90.7 | 51 | 44.7 | 32.1 | ||
X-Plane 11.11 (2018) | 101.6 | 90.4 | 70.7 | 58.3 | |||
Far Cry 5 (2018) | 156 | 117 | 109 | 104 | 82 | 49 | |
Strange Brigade (2018) | 666 | 304 | 258 | 216 | 157.8 | 89.2 | |
Shadow of the Tomb Raider (2018) | 269 | 139 | 129.6 | 115.8 | 86.2 | 48.8 | |
Forza Horizon 4 (2018) | 73 | 33 | 31 | 23 | 15 | 8 | |
Assassin´s Creed Odyssey (2018) | 78 | 65 | 56 | 45 | 40 | 30 | |
Apex Legends (2019) | 143.9 | 144 | 143.5 | 143.6 | 132.9 | 83.2 | |
Far Cry New Dawn (2019) | 144 | 120 | 114 | 103 | 91 | 56 | |
Metro Exodus (2019) | 204 | 149.2 | 103.4 | 84.9 | 70.7 | 46.7 | |
Anno 1800 (2019) | 140.1 | 102.5 | 66.7 | 38.2 | 27.4 | 17.2 | |
Control (2019) | 212 | 108.5 | 89.4 | 65.1 | 34.9 | ||
Borderlands 3 (2019) | 116.7 | 100.4 | 95.8 | 84.3 | 65.4 | 35.5 | |
F1 2020 (2020) | 277 | 203 | 171.1 | 121.1 | 99.7 | 65.2 | |
Death Stranding (2020) | 191.1 | 143.2 | 136.1 | 134 | 102 | 61.4 | |
Horizon Zero Dawn (2020) | 135 | 126 | 115 | 103 | 84 | 47 | |
Watch Dogs Legion (2020) | 102.9 | 101.7 | 93.3 | 73.6 | 58.5 | 36.6 | |
Dirt 5 (2020) | 99.7 | 82.9 | 66.3 | 58.3 | 56.5 | 54.9 | |
Assassin´s Creed Valhalla (2020) | 116 | 92 | 79 | 72 | 60 | 38 | |
F1 2021 (2021) | 562 | 333 | 256 | 124.4 | 94 | 54.3 | |
Far Cry 6 (2021) | 195.6 | 134 | 116.9 | 100.9 | 79.3 | 48.8 | |
Guardians of the Galaxy (2021) | 172 | 129 | 127 | 120 | 92 | 52 | |
Forza Horizon 5 (2021) | 238 | 139 | 127 | 84 | 74 | 54 | |
Farming Simulator 22 (2021) | 362 | 246 | 185.9 | 168.6 | 143.3 | 92.3 | |
God of War (2022) | 87.8 | 80.5 | 69.3 | 54.3 | 47.7 | 34.5 | |
GRID Legends (2022) | 161.1 | 133.7 | 110.5 | 92.6 | 81.7 | 68.4 | |
Elden Ring (2022) | 60 | 60 | 60 | 60 | 60 | 50 | |
Cyberpunk 2077 1.6 (2022) | 78 | 70 | 61.3 | 58.2 | 44.5 | 25.6 | |
Ghostwire Tokyo (2022) | 148.8 | 146.7 | 146.3 | 138.8 | 99.7 | 50.3 | |
Tiny Tina's Wonderlands (2022) | 203 | 162.9 | 114.6 | 94 | 65.8 | 34.1 | |
F1 22 (2022) | 296 | 267 | 216 | 73.2 | 47.4 | 22.7 | |
The Quarry (2022) | 125.4 | 100 | 80.4 | 61.5 | 43.4 | 22.4 | |
A Plague Tale Requiem (2022) | 97.3 | 83.8 | 66.1 | 51.1 | 39.5 | 23.6 | |
Uncharted Legacy of Thieves Collection (2022) | 63.5 | 61.4 | 59.4 | 57.5 | 47.8 | 29.5 | |
Spider-Man Miles Morales (2022) | 137.3 | 124.4 | 117.4 | 111.5 | 87.2 | 47.2 | |
The Callisto Protocol (2022) | 168.7 | 128.4 | 120.5 | 85.8 | 68.8 | 44.9 | |
Need for Speed Unbound (2022) | 114.3 | 103.4 | 84.5 | 84.3 | 65.1 | 39.1 | |
High On Life (2023) | 268 | 175.3 | 142.5 | 113.7 | 73 | 33.7 | |
The Witcher 3 v4.00 (2023) | 154.9 | 129.7 | 115.6 | 104.5 | 94.8 | 52.1 | |
Dead Space Remake (2023) | 79.2 | 76 | 69.5 | 67.7 | 48.8 | 26.5 | |
Hogwarts Legacy (2023) | 125.1 | 92.2 | 74 | 62.2 | 47 | 27.4 | |
Returnal (2023) | 93 | 90 | 83 | 72 | 58 | 37 | |
Atomic Heart (2023) | 179.1 | 131.9 | 99.3 | 72.2 | 58.3 | 34.1 | |
Company of Heroes 3 (2023) | 182.7 | 155.2 | 125.9 | 123.8 | 94.4 | 59 | |
Sons of the Forest (2023) | 70.3 | 54.5 | 54.2 | 54 | 39.5 | 23 | |
Resident Evil 4 Remake (2023) | 165.8 | 119.9 | 111 | 75.2 | 60.7 | 37.1 | |
The Last of Us (2023) | 69.5 | 58.5 | 52.9 | 45.4 | 34.3 | 18.9 | |
Dead Island 2 (2023) | 217 | 187.3 | 149 | 117.8 | 88.2 | 46 | |
Star Wars Jedi Survivor (2023) | 81.1 | 73.1 | 68.4 | 65.1 | 44 | 22.3 | |
Diablo 4 (2023) | 213 | 193.8 | 177.5 | 157.1 | 112.6 | 61.7 | |
F1 23 (2023) | 299 | 264 | 196.7 | 67.2 | 44.2 | 21.4 | |
Ratchet & Clank Rift Apart (2023) | 113 | 98 | 79.2 | 68.5 | 56.4 | 36.2 | |
Atlas Fallen (2023) | 141.4 | 133.9 | 126.3 | 108.9 | 79.4 | 44.3 | |
Immortals of Aveum (2023) | 56.6 | 49 | 40.6 | 30.5 | 18.3 | ||
Armored Core 6 (2023) | 71.6 | 69.3 | 68 | 67.9 | 66.9 | 46.7 | |
Starfield (2023) | 48.9 | 42.8 | 36.3 | 33.6 | 28.8 | 20.5 | |
Lies of P (2023) | 174.5 | 154.5 | 136.8 | 123.6 | 88.8 | 47.5 | |
Baldur's Gate 3 (2023) | 130.1 | 109.6 | 94.6 | 90.9 | 63.8 | 33.8 | |
Cyberpunk 2077 2.1 Phantom Liberty (2023) | 116.3 | 99 | 88.3 | 83.2 | 58.6 | 9.65 | 30.4 |
Counter-Strike 2 (2023) | 317 | 270 | 168.1 | 117 | 89.6 | 46.7 | |
EA Sports FC 24 (2023) | 221 | 201 | 161.3 | 152.5 | 123 | 77 | |
Assassin's Creed Mirage (2023) | 77 | 70 | 70 | 64 | 50 | 34 | |
Total War Pharaoh (2023) | 386 | 244 | 151 | 119 | 86 | 46 | |
Lords of the Fallen (2023) | 100.4 | 89.8 | 73.1 | 59.4 | 50.4 | 35.1 | |
Alan Wake 2 (2023) | 56.5 | 55 | 51.6 | 36.1 | 20.1 | ||
EA Sports WRC (2023) | 107.1 | 77.7 | 70.1 | 65.9 | 52.7 | 33.2 | |
Call of Duty Modern Warfare 3 2023 (2023) | 106 | 97 | 79 | 75 | 57 | 36 | |
Avatar Frontiers of Pandora (2023) | 65 | 61 | 52 | 42 | 30 | 16 | |
The Finals (2023) | 204 | 161.7 | 146.2 | 121.5 | 83 | 40.5 | |
Ready or Not (2023) | 202 | 198.3 | 190.6 | 134.9 | 86.6 | 38 |
排放 - 低功耗,但遗憾的是总是有声音
噪音水平
宏碁掠夺者 BiFrost Arc A770 OC 有两个不同的风扇。遗憾的是,没有风扇停止模式,因此显卡的声音始终可闻。我们的测试设备在空闲运行和低负载时的噪音为 39 dB(A)。我们使用开放式测试装置进行所有噪音测量。如果显卡在封闭的机箱中使用,噪音水平应该会更低。在压力测试中,我们测得的最大噪音值为 42.5 dB(A)。在我们的比较中,宏碁掠夺者 BiFrost Arc A770 OC 处于中间位置。在过去的测试中,我们已经测试过噪音明显更大和更安静的台式机显卡。下图将我们的测试设备与 AMD 和 Nvidia 当前的中端显卡进行了比较。
Noise Level
Idle |
| 39 / 39 / 39 dB(A) |
Load |
| 39 / 42.1 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 25.4 dB(A) |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | AMD Radeon RX 7800 XT | KFA2 GeForce RTX 4070 Ti EX Gamer | KFA2 GeForce RTX 4070 EX Gamer | KFA2 GeForce RTX 4060 1-Click-OC 2X | ASUS Dual GeForce RTX 4060 Ti OC | XFX Speedster QICK 308 Radeon RX 7600 Black Edition | Sapphire Pulse Radeon RX 7700 XT | |
---|---|---|---|---|---|---|---|---|
Noise | 16% | 10% | 12% | 16% | 16% | 19% | 16% | |
off / environment * | 25.4 | 24.7 3% | 30 -18% | 30 -18% | 25.8 -2% | 25.4 -0% | 25.4 -0% | 25 2% |
Idle Minimum * | 39 | 26.8 31% | 30.1 23% | 30.2 23% | 25.9 34% | 26.7 32% | 26.3 33% | 27.4 30% |
Idle Average * | 39 | 27.2 30% | 30.1 23% | 30.2 23% | 25.9 34% | 26.7 32% | 26.3 33% | 27.5 29% |
Idle Maximum * | 39 | 27.3 30% | 30.1 23% | 30.2 23% | 25.9 34% | 26.7 32% | 26.3 33% | 28 28% |
Load Average * | 39 | 30.7 21% | 30.2 23% | 31.8 18% | 30.3 22% | 29.3 25% | 29.6 24% | 32.6 16% |
Witcher 3 ultra * | 41.5 | 42.6 -3% | 40.2 3% | 45.2 -9% | 42.5 -2% | 39.6 5% | 42.1 -1% | |
Load Maximum * | 42.1 | 43 -2% | 44.7 -6% | 41.1 2% | 43.5 -3% | 46 -9% | 39.4 6% | 37.6 11% |
* ... smaller is better
温度和功耗

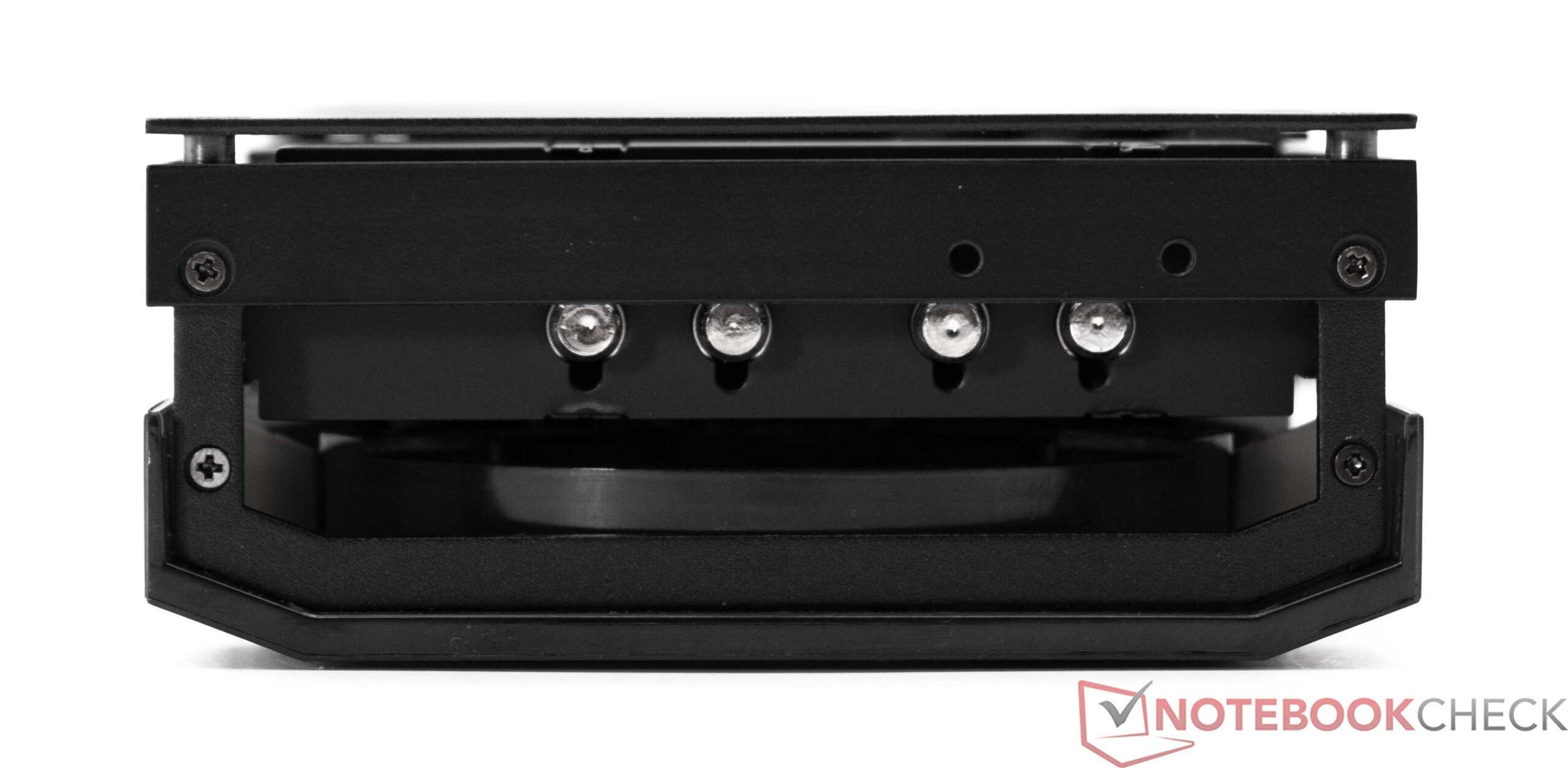

宏碁掠夺者 BiFrost Arc A770 OC 所使用的散热装置让我们想起了部分直接从机箱传热的老式显卡。其原理基本上是正确的,显卡不应该导致机箱内的温度明显升高。在压力测试中,我们看到最高温度为 82 °C(180 °F),完全不用担心。与噪音测量不同的是,我们使用封闭的机箱进行了温度测量和所有游戏测试。
宏碁掠夺者 BiFrost Arc A770 OC 的功耗出奇地低。在游戏过程中,我们测得整个系统的平均耗电量仅为 287 瓦。这只比 KFA2GeForce RTX 4060.压力测试对电源提出了更高的要求。宏碁掠夺者 BiFrost Arc A770 OC 测试系统的功耗为 350 瓦,与使用松景 Speedster QICK 30 的系统相近。 松景 Speedster QICK 308 Radeon RX 7600.
在效率方面,宏碁掠夺者 BiFrost Arc A770 OC 无法与竞争对手相提并论。宏碁建议我们的测试系统使用 650 瓦的电源。在我们看来,这是一个不错的选择,尽管我们在测试过程中没有达到 400 瓦大关。
Power Consumption / The Witcher 3 ultra (external Monitor) | |
AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
NVIDIA GeForce RTX 3090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 SG (Idle: 86.4 W) | |
AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7800 XT | |
Sapphire Pulse Radeon RX 6750 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4060 Ti EX | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 1-Click-OC 2X |

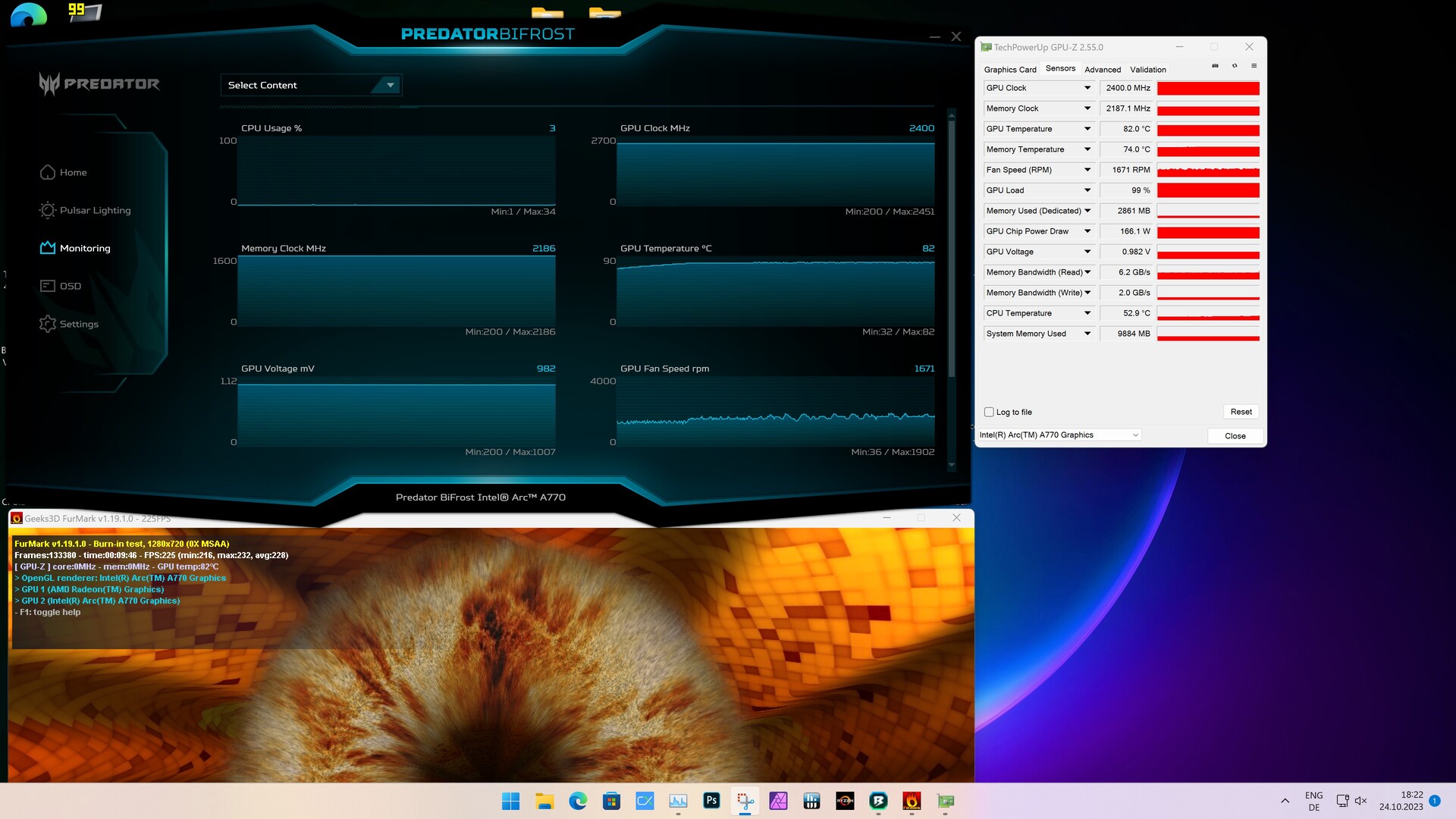

Power Consumption / FurMark 1.19 GPU Stress Test (external Monitor) | |
Palit GeForce RTX 4090 GameRock OC | |
AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
NVIDIA GeForce RTX 3090 Founders Edition | |
AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
KFA2 GeForce RTX 4080 SG (Idle: 86.4 W) | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
Sapphire Pulse Radeon RX 6750 XT | |
AMD Radeon RX 7800 XT | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X |
Power Consumption / Witcher 3 ultra Efficiency (external Monitor) | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 SG | |
AMD Radeon RX 7900 XT | |
AMD Radeon RX 7900 XTX | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 4060 Ti EX | |
AMD Radeon RX 7800 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Pulse Radeon RX 6750 XT | |
NVIDIA GeForce RTX 3090 Founders Edition | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 3070 Ti SG | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 |
* ... smaller is better
Power Consumption With External Monitor
Pros
Cons
评价 - 当前游戏的理想替代品
宏碁掠夺者 BiFrost Arc A770 OC 是一款出色的台式机显卡,非常适合在 1080p 下玩游戏。该显卡拥有 16GB 的 VRAM,这在玩当前的许多游戏时都是一个积极因素。 即使在 1080p 下,也有许多游戏需要使用超过 8GB 的 VRAM。由于 P1 值稳定,这可以防止帧速率下降,确保整体游戏体验更加流畅。我们的所有测试都出乎意料地顺利进行,在测试过程中没有遇到任何重大问题。
有了宏碁掠夺者 BiFrost Arc A770 OC,你目前就可以获得一块坚实的显卡,在 1080p 下玩现代游戏。
尽管有些游戏也可以在 1440p 下运行,但我们认为这款显卡更适合全高清领域。不过,你也必须注意,有一些游戏与显卡完全不兼容。英特尔能否通过不断调整驱动程序进一步提升弧形显卡的性能,我们只能拭目以待。自去年发布以来,英特尔 Arc 显卡在改进方面做了大量工作,因此其顶级型号现在甚至可以与 AMD 和 Nvidia 相媲美。英特尔 Arc 显卡的另一个亮点是支持 AV1。
目前的价格为 379 欧元(约合 400 美元),我们的测试设备比 XFX Speedster QICK 3032 稍贵。松景 Speedster QICK 308 Radeon RX 7600或KFA2GeForce RTX 4060.但它的视频存储空间也更大,甚至比 AMD 型号的光线追踪性能还要高得多。如果英特尔能够在下一代产品中进一步提高这一性能,那对消费者来说将是一件好事,因为英特尔显卡的价格也不错。当然,还有很多工作要做,但那些在去年 Arc A770 发布时已经购买了它的用户,现在仍然可以用它获得不错的可玩性。
价格和供应情况
宏碁掠夺者 BiFrost Arc A770 OC 目前可直接从Acer 购买,价格约为 400 美元或亚马逊,目前售价为 377 美元。
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was freely purchased by the author at his/her own expense. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
