AMD Radeon RX 7600 台式机 GPU 评测:RDNA3 与 Ada Lovelace 在入门级市场的较量
经过漫长的等待,AMD 目前的 RDNA 3 系列终于推出了入门级产品。作为目前系列中最低端的显卡,Radeon RX 7600 主要面向那些希望在 1080p 下进行游戏的用户。该 GPU 采用 Navi 33 芯片,拥有 2,048 个着色器单元。这比它的前代产品(Radeon RX 6600)略有改进。Radeon RX 6600)略有改进,但显存容量仍为 8 GB。不过,显存的运行速度大大提高,从而带来了更高的显存带宽。

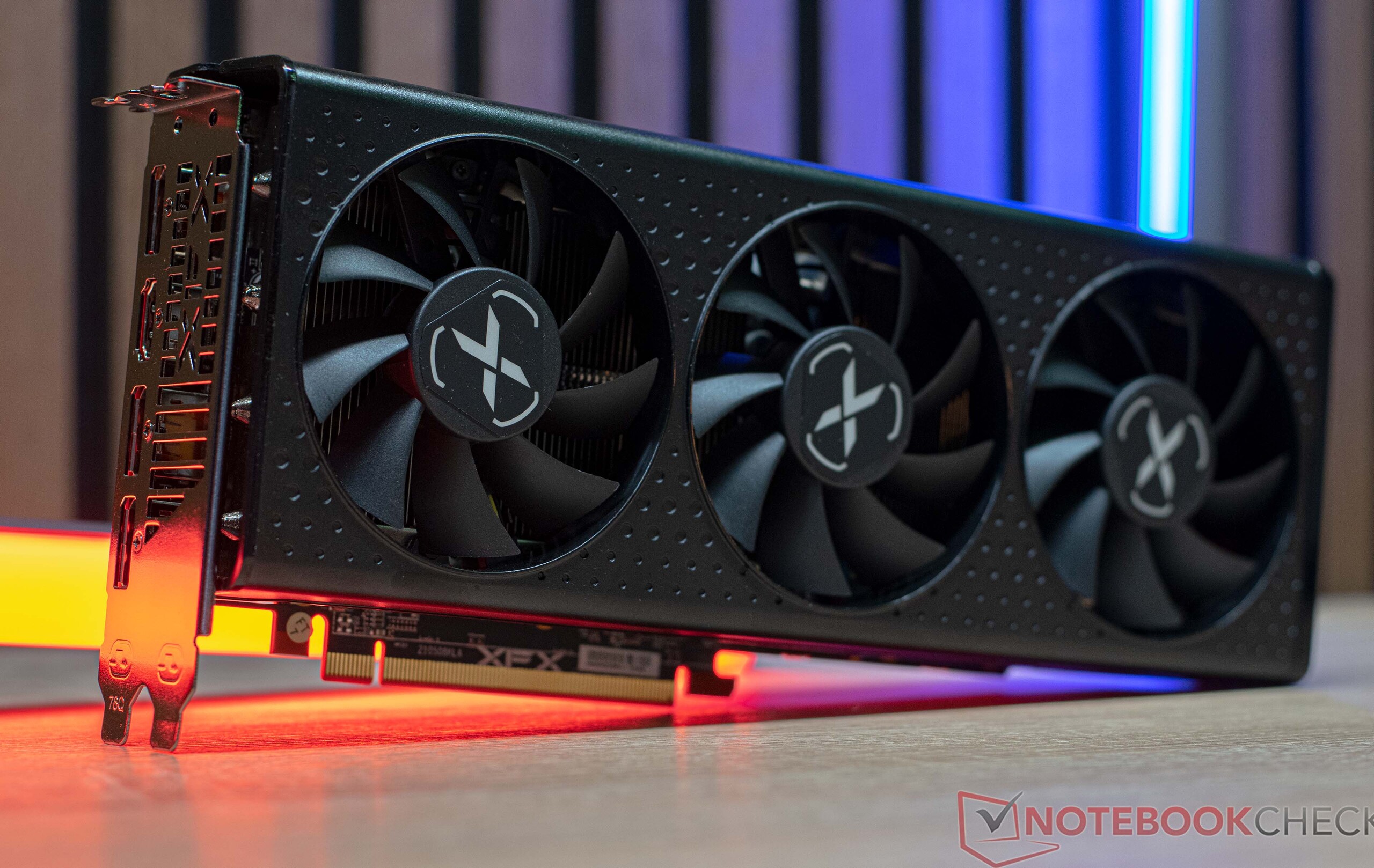

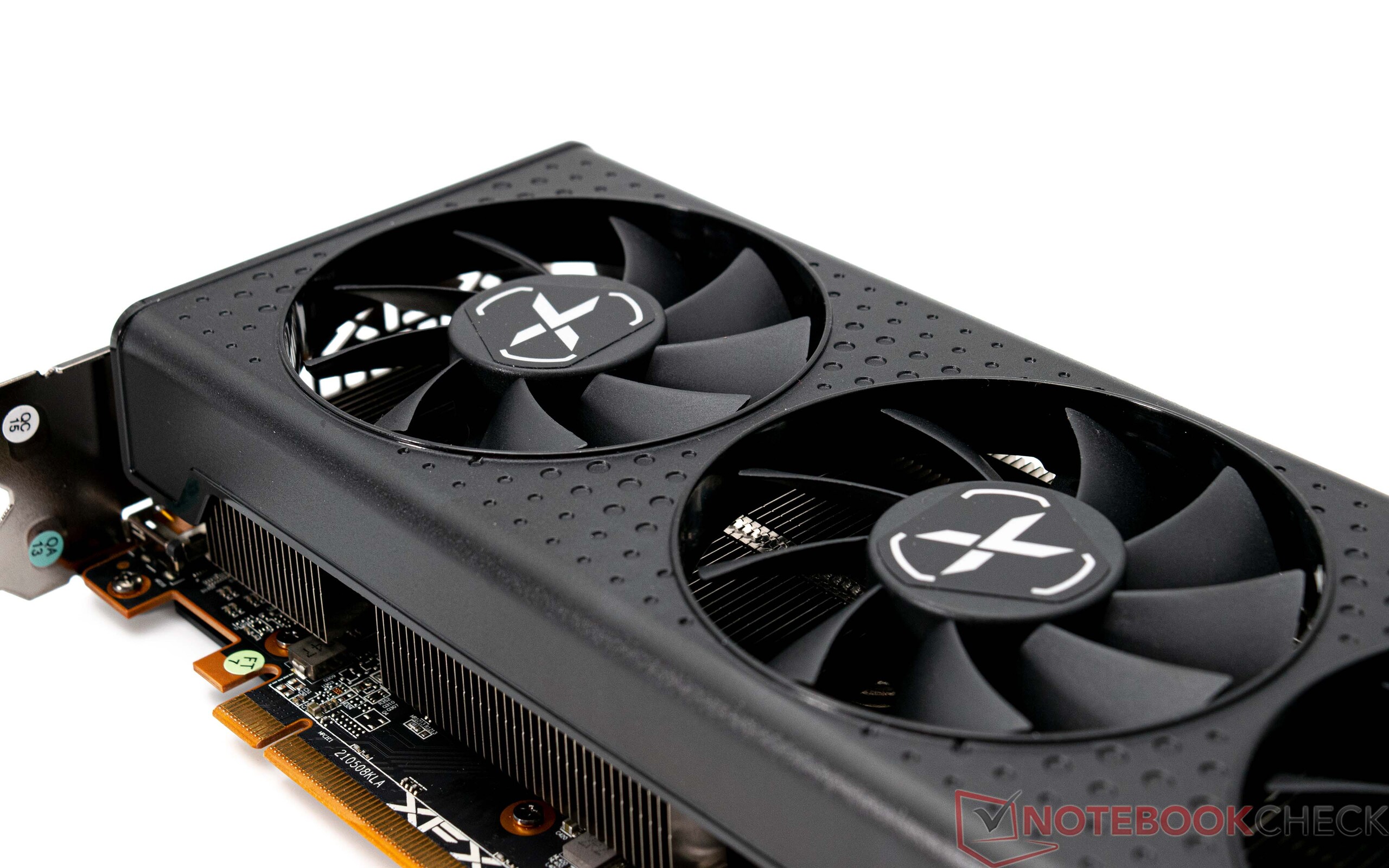

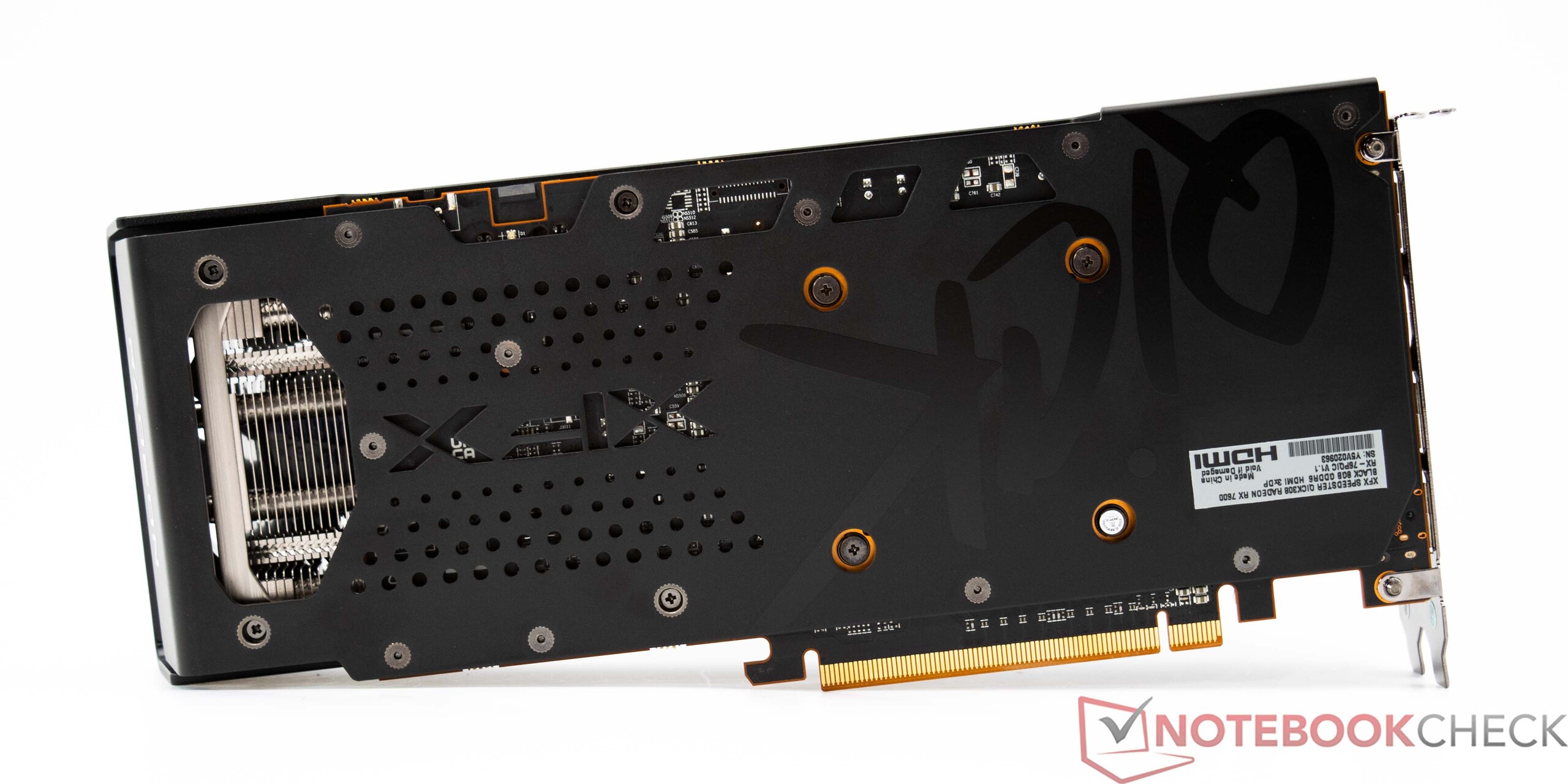

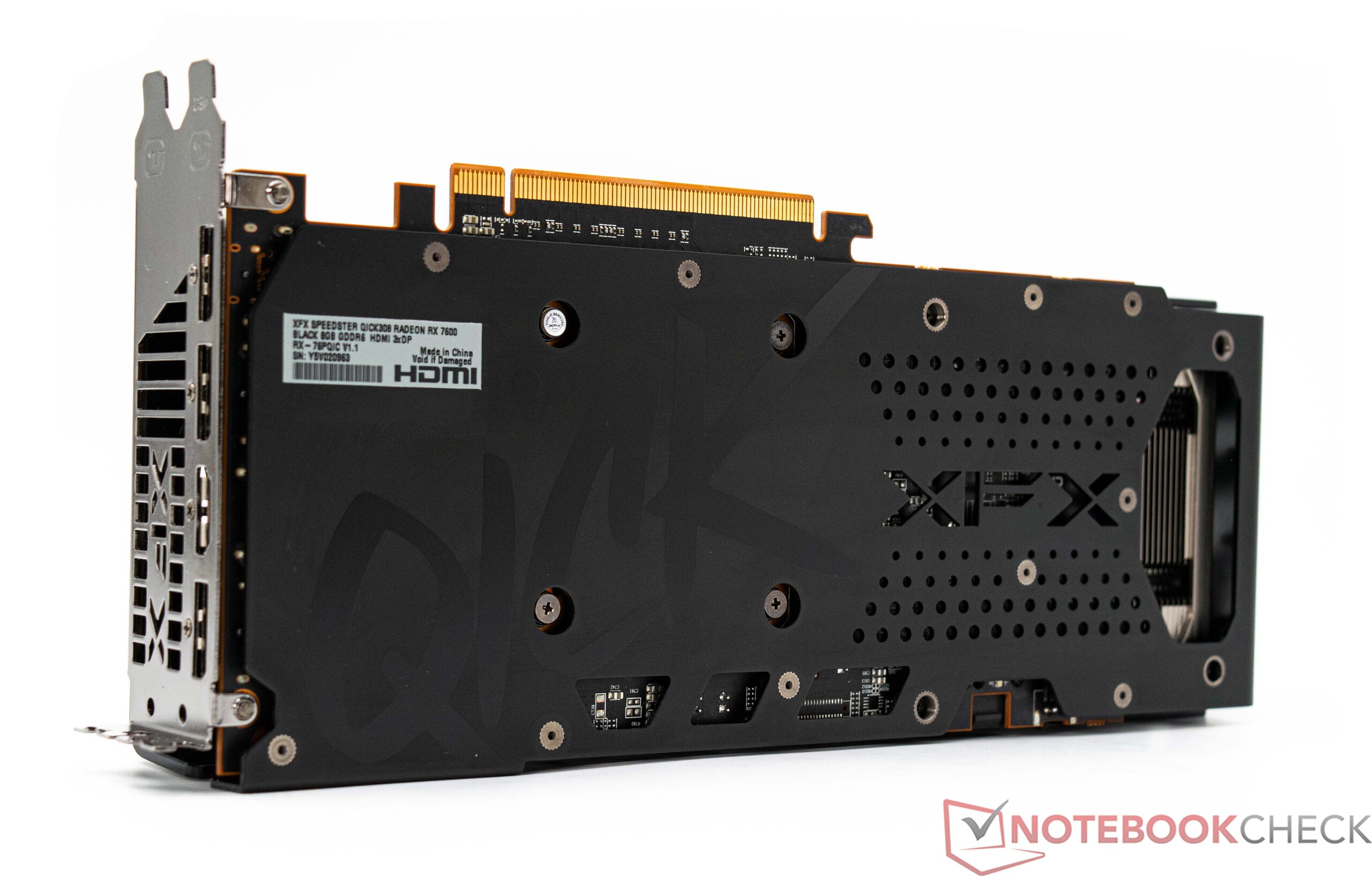

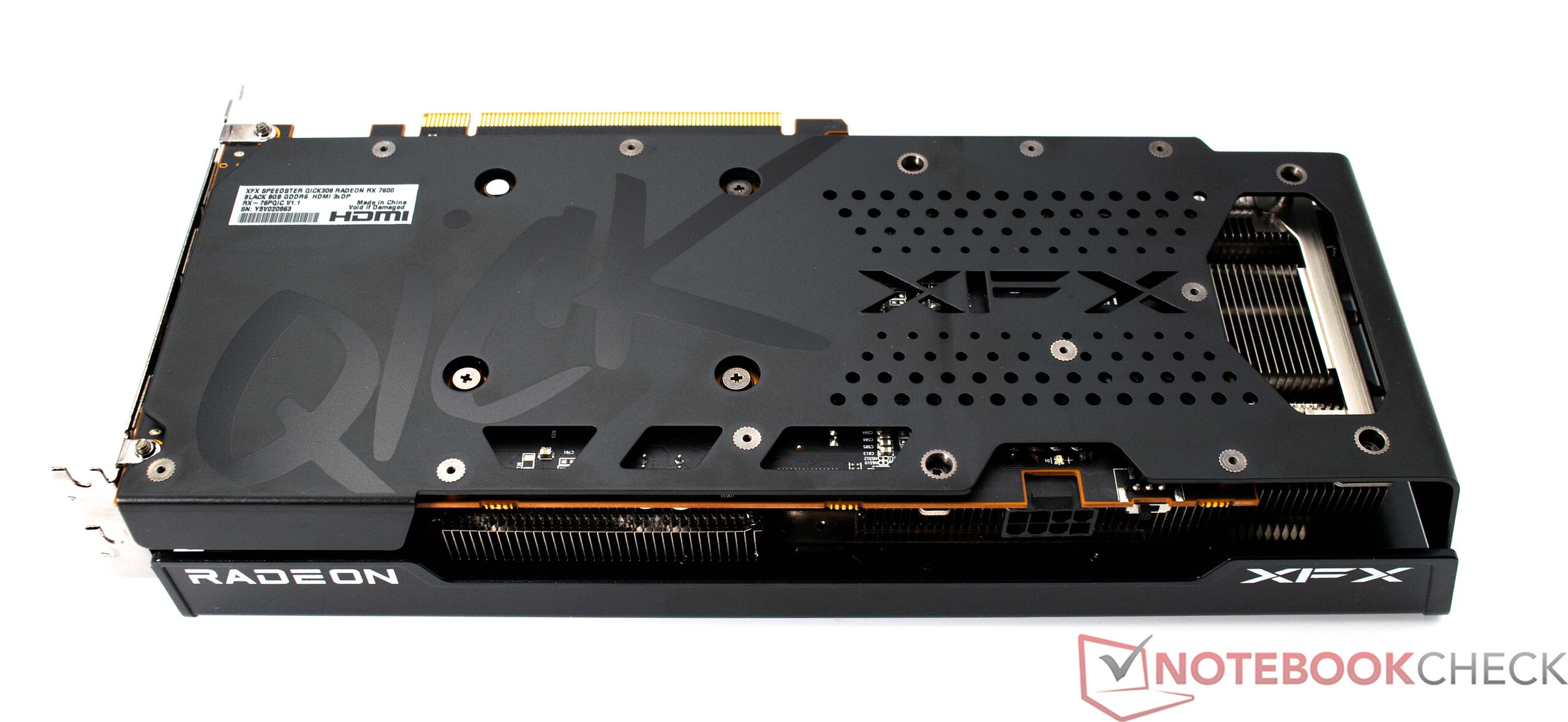

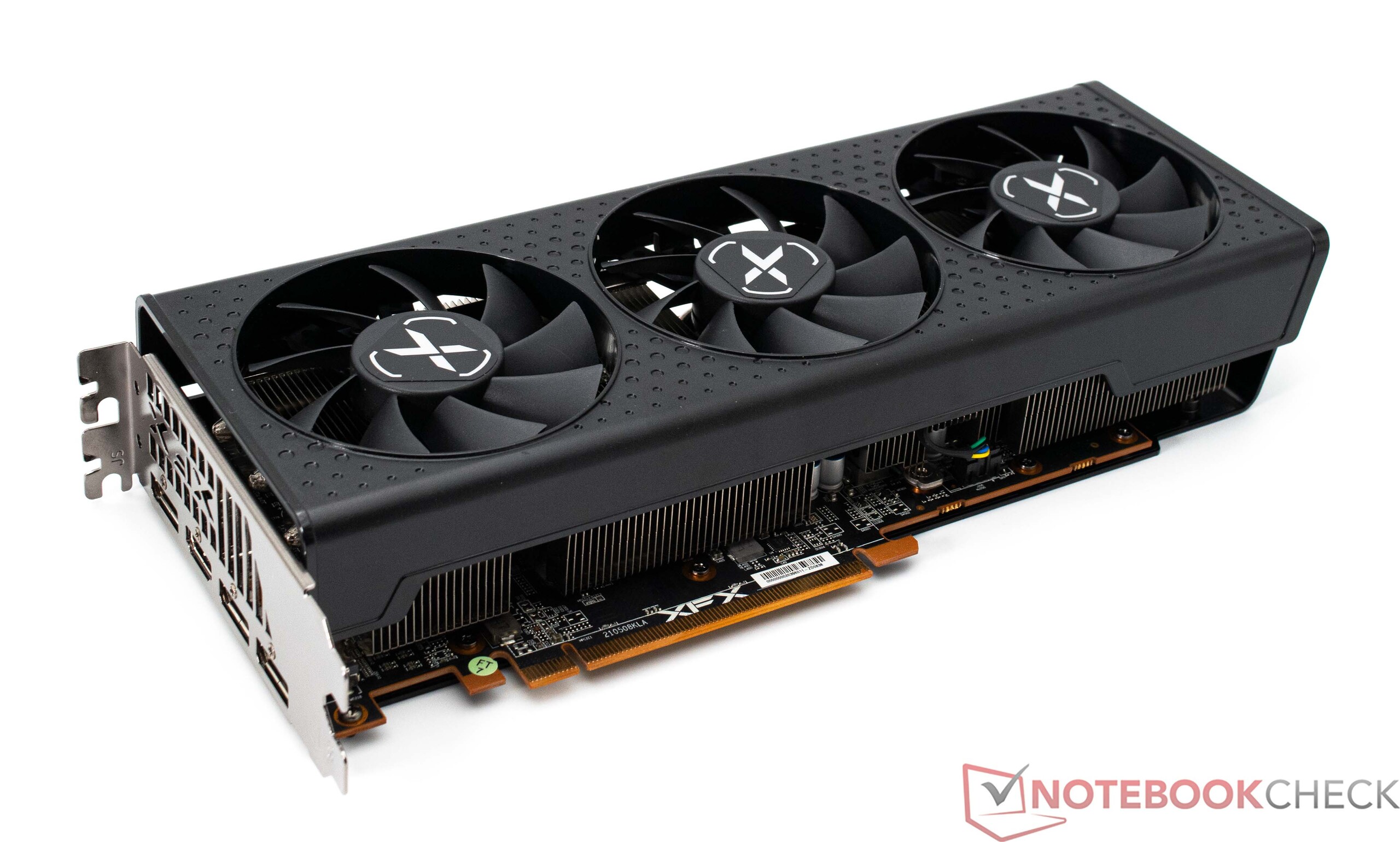

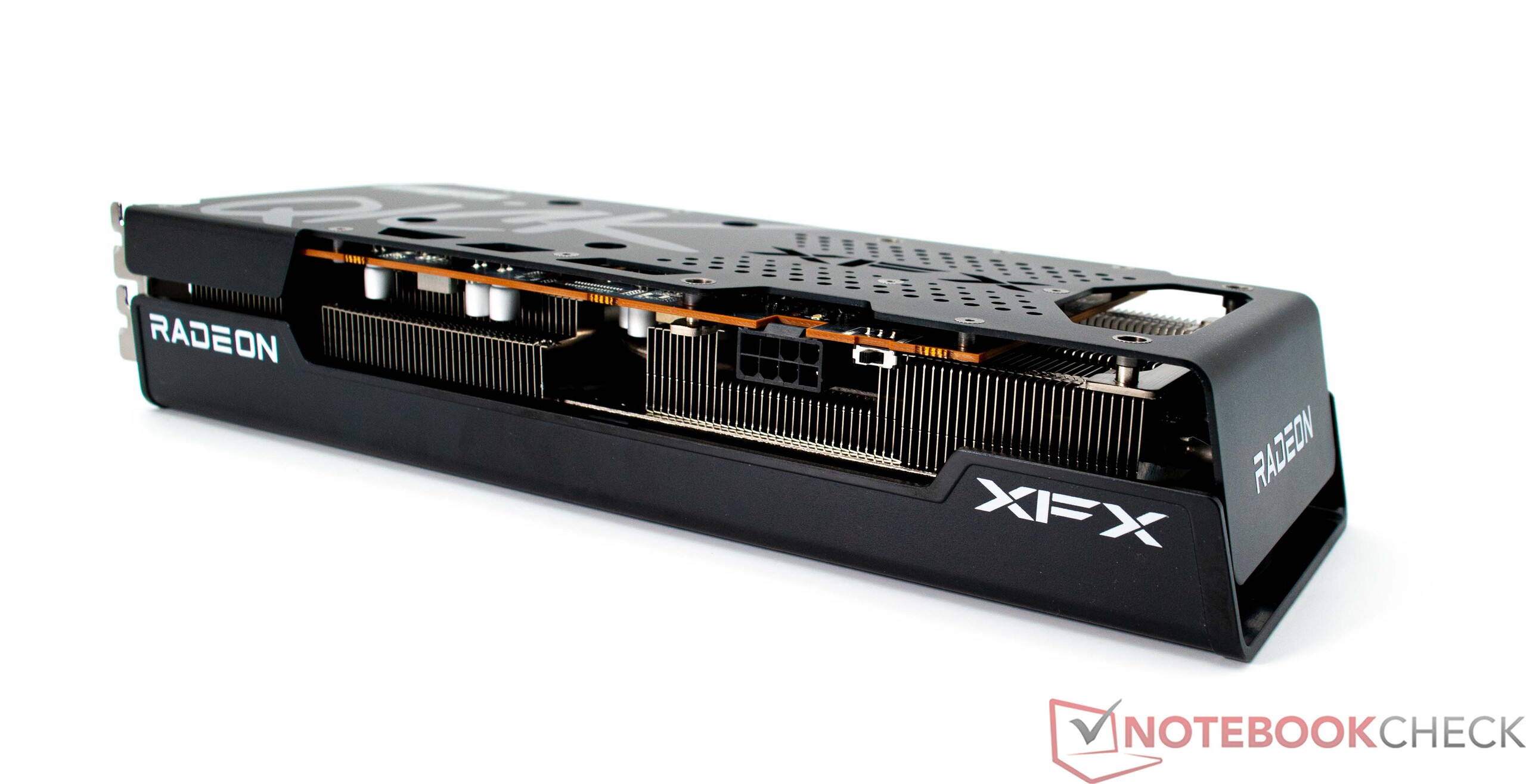

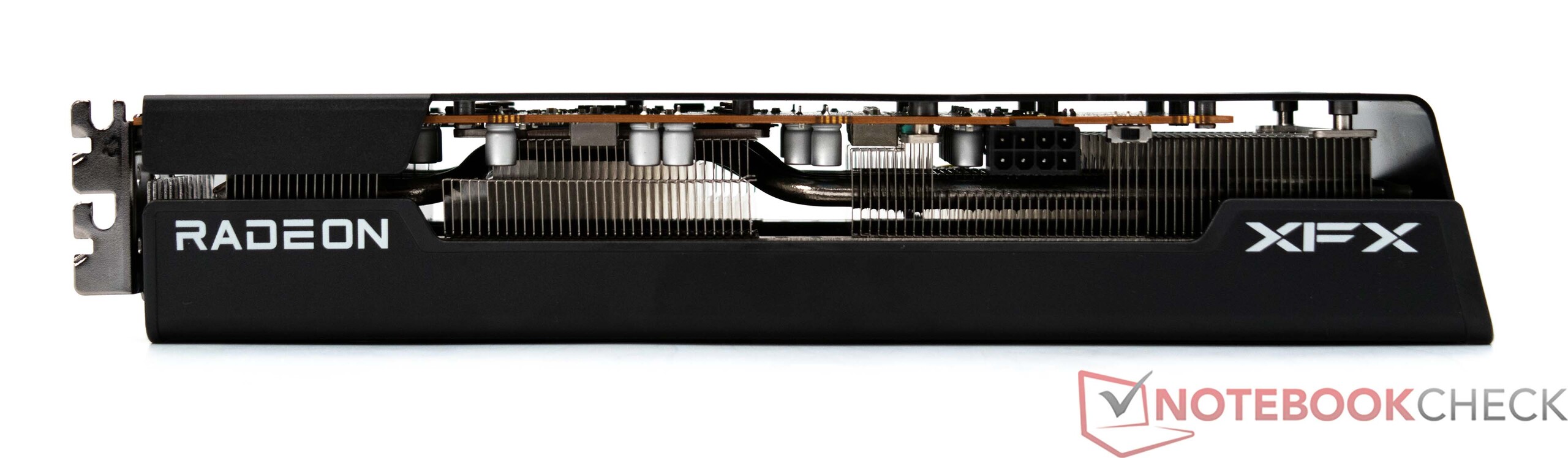

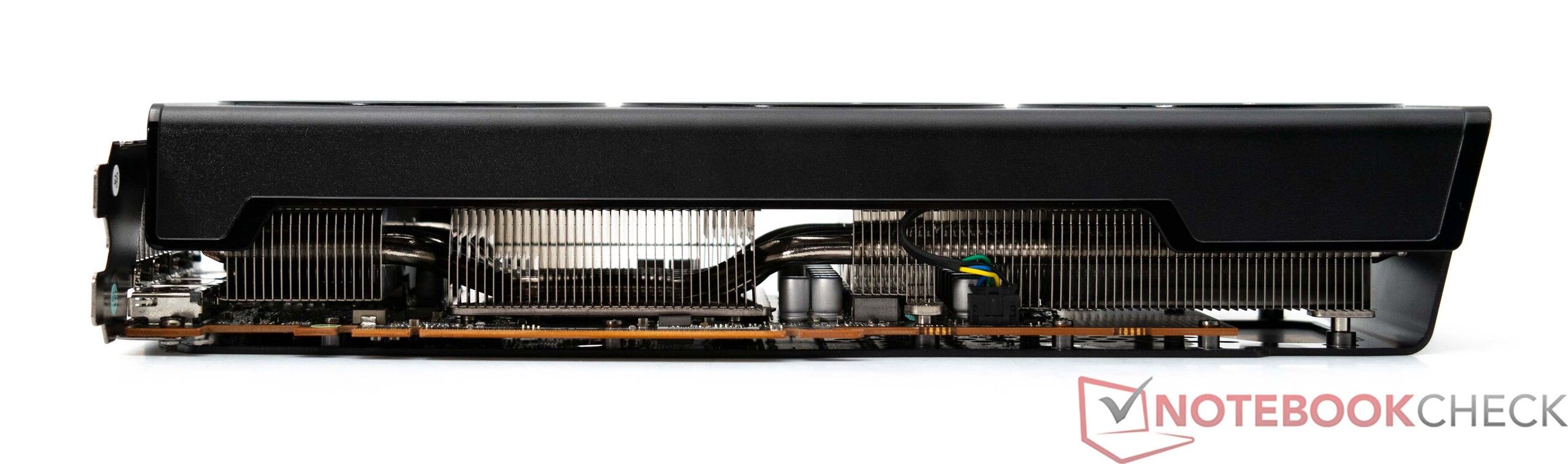

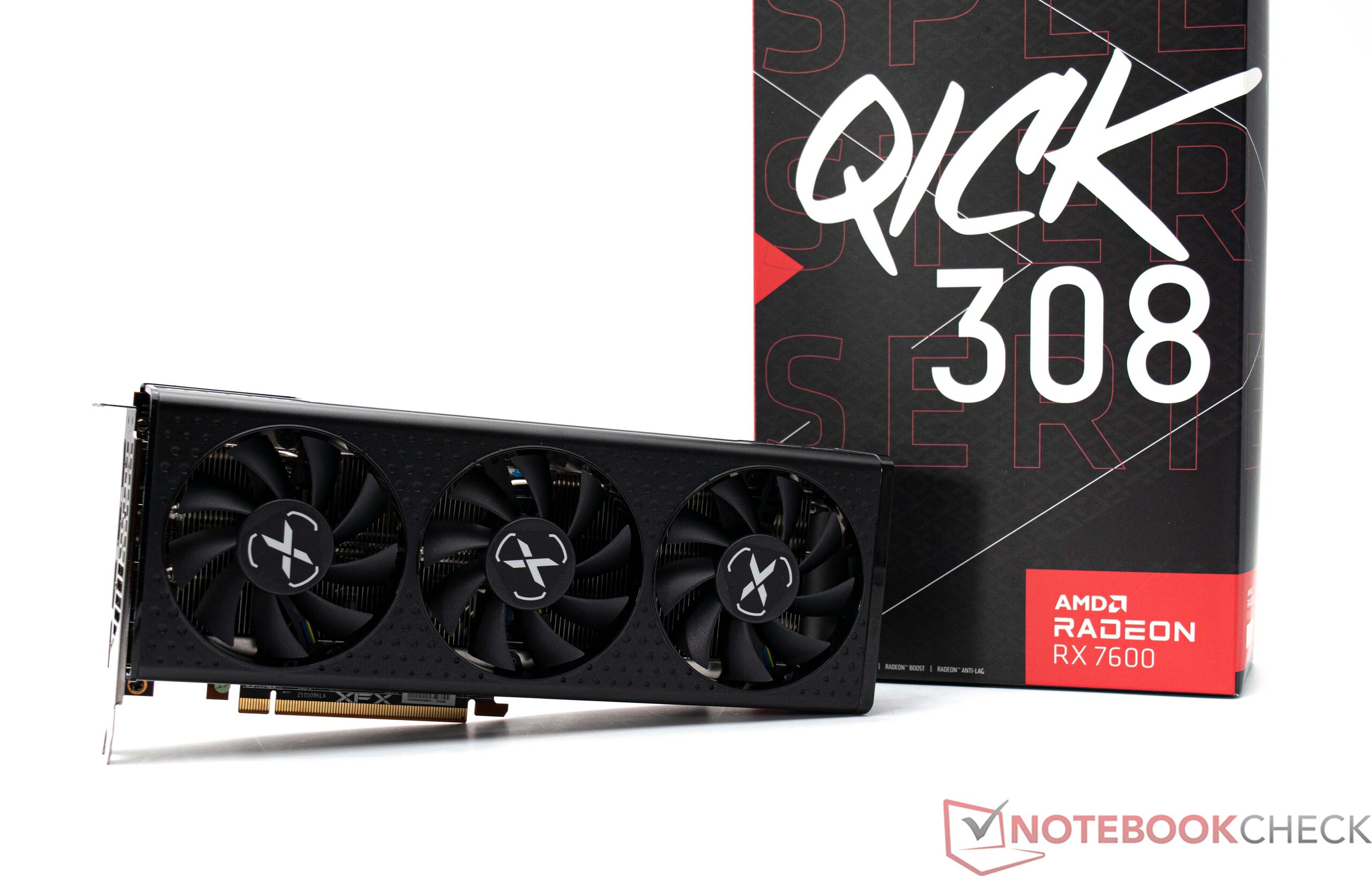

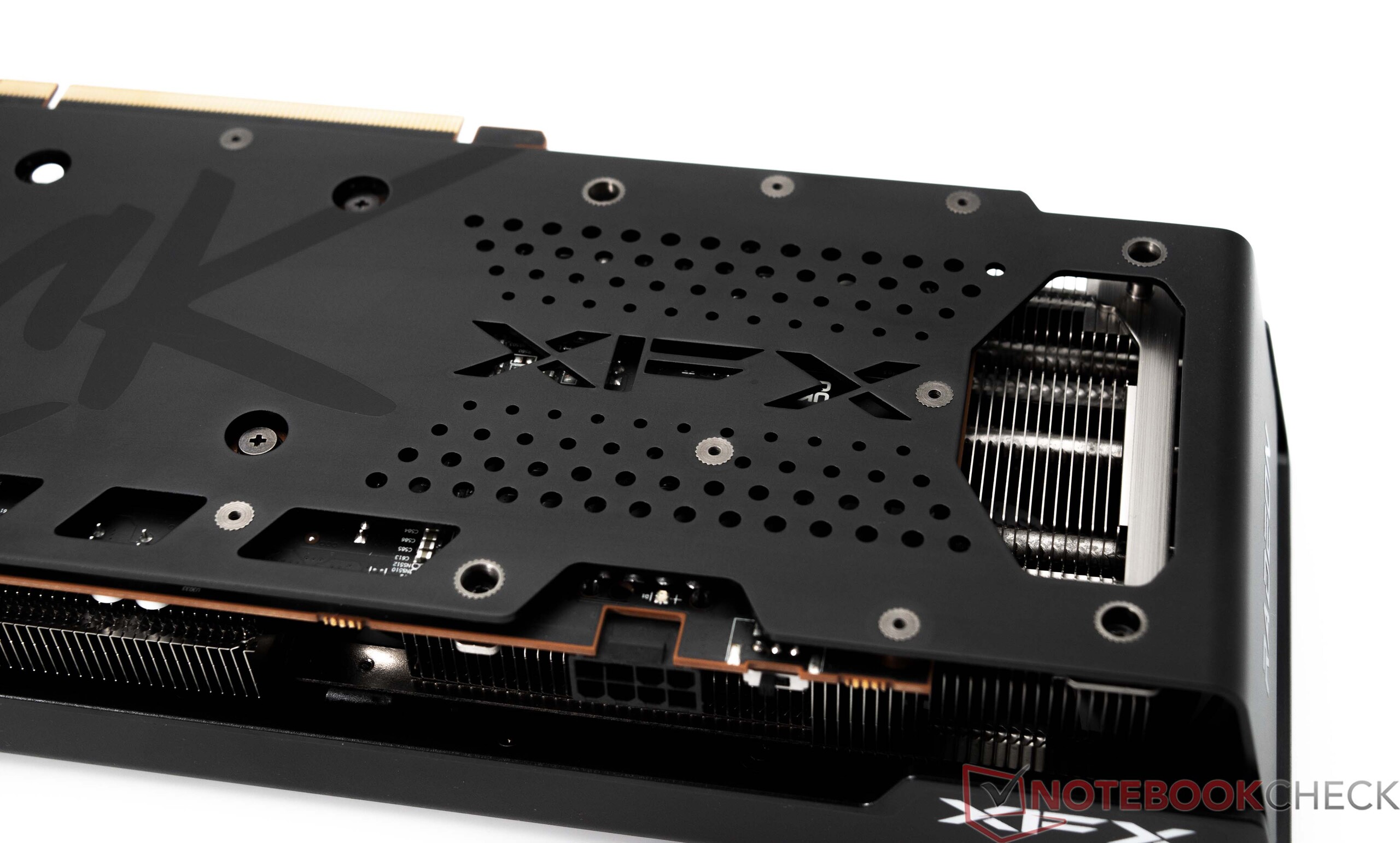

在本次评测中,我们将使用松景 Speedster QICK 308 Radeon RX 7600 黑色版。该型号配备了巨大的三插槽散热器,因此需要占用大量空间。显卡的长度也相当长,达到 27.4 厘米(10.8 英寸)。一般来说,大尺寸散热器有助于在 GPU 负载时保持低噪音。我们现在就可以告诉你:松景推出的 Speedster QICK 308 Radeon RX 7600 Black Edition 是一款出色的显卡,它不会通过巨大的风扇噪音吸引人们的注意。这款显卡在美观方面并无特别亮点。护罩由塑料制成,但背面装有坚固的金属背板。不过,背板并不是用来冷却显卡的。
新的入门级型号同样受益于 RDNA 3 架构带来的改进。你可以期待获得稍高的光线追踪性能,尽管这一功能最终只会在高端机型上提供真正的优势。RX 7600 的功耗也略高于 Radeon RX 6600(从 132 瓦增至目前的 165 瓦)。不过,一个 8 针连接器就足以为 GPU 供电。板载有三个 DisplayPort 2.1 接口和一个 HDMI 2.1 接口。在这方面,AMD 比竞争对手更具优势;Nvidia 和英特尔的 GPU 分别只提供 DisplayPort 1.4a 和 DisplayPort 2.0 接口。
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名

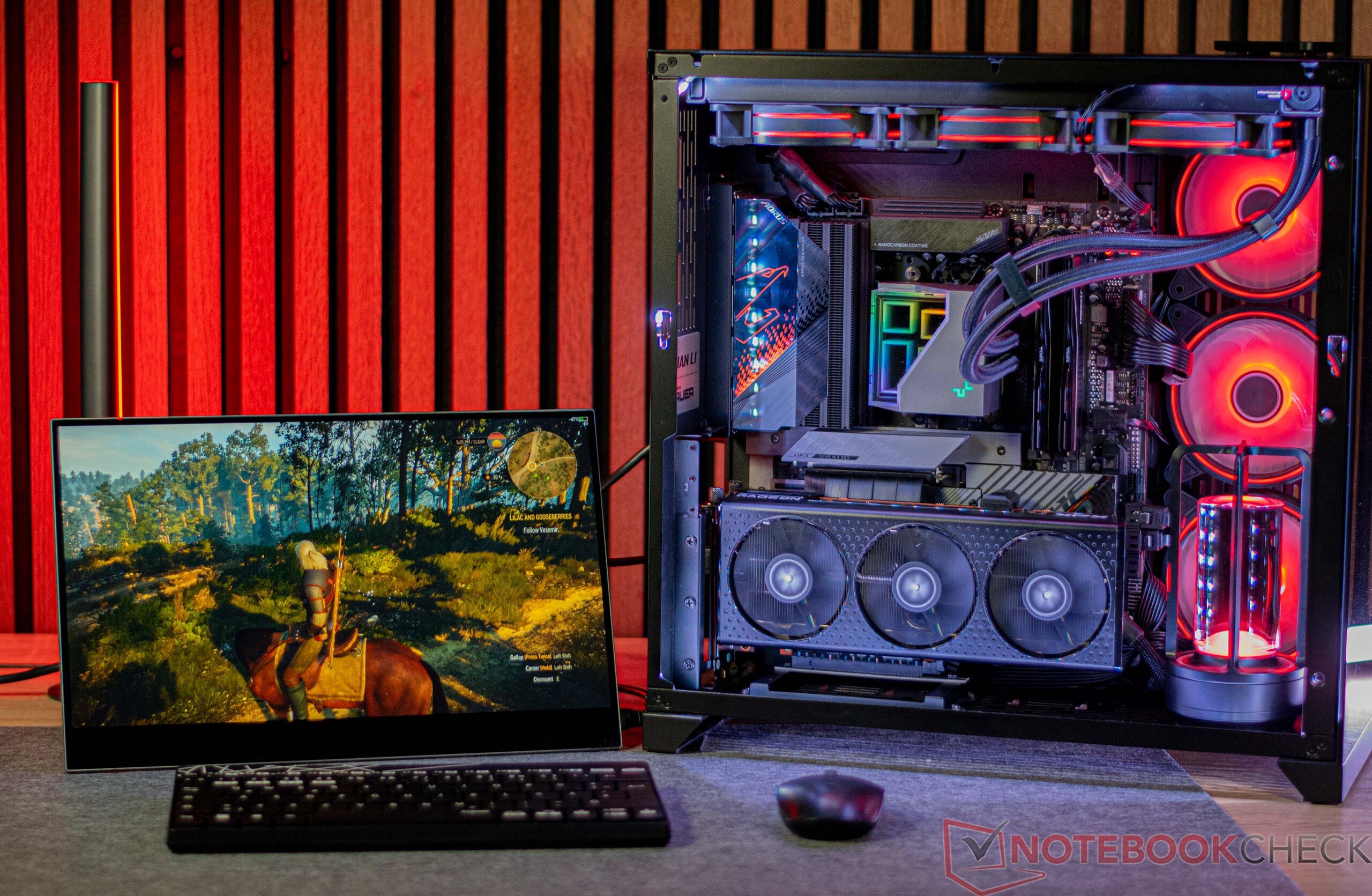

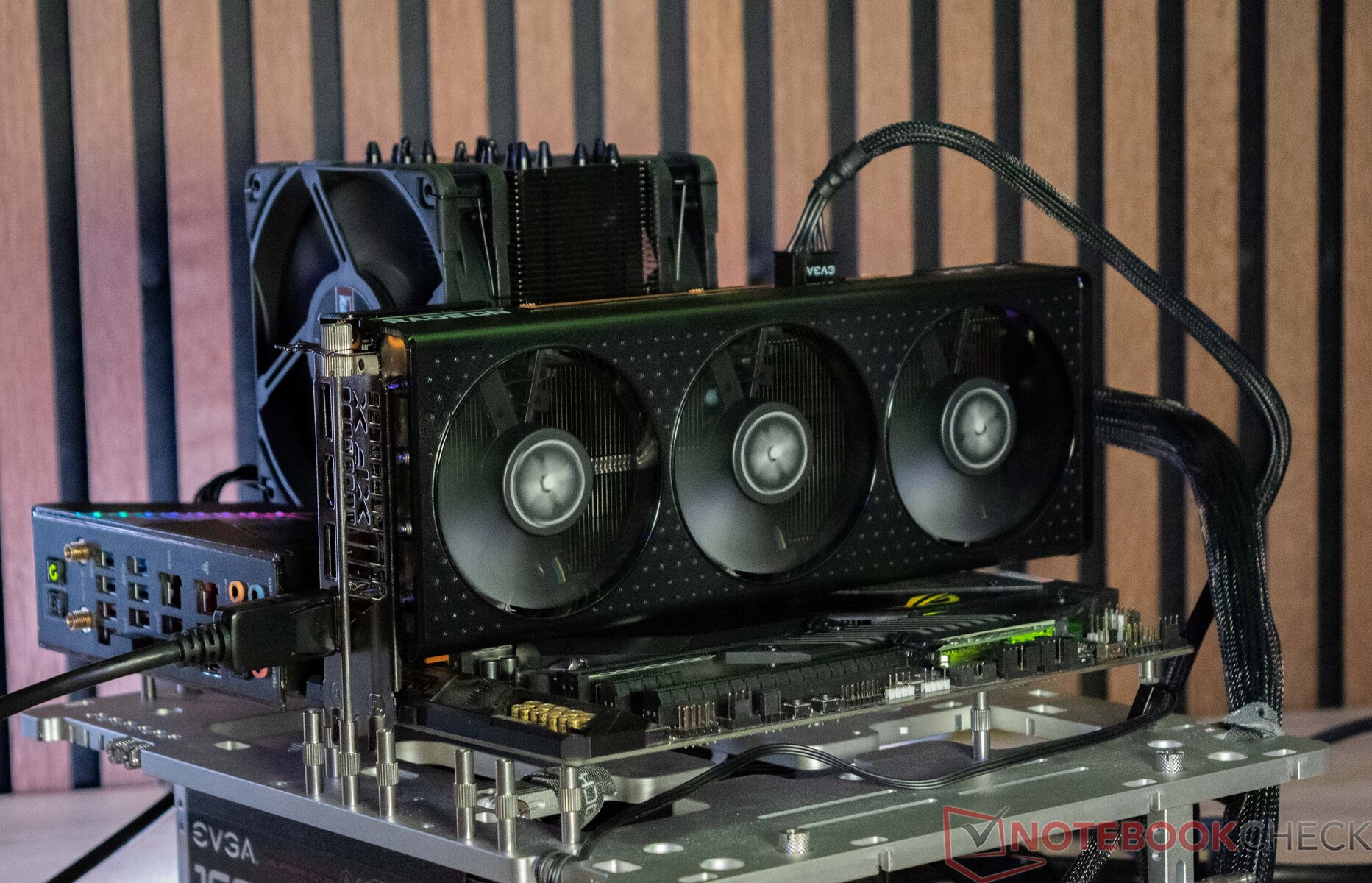

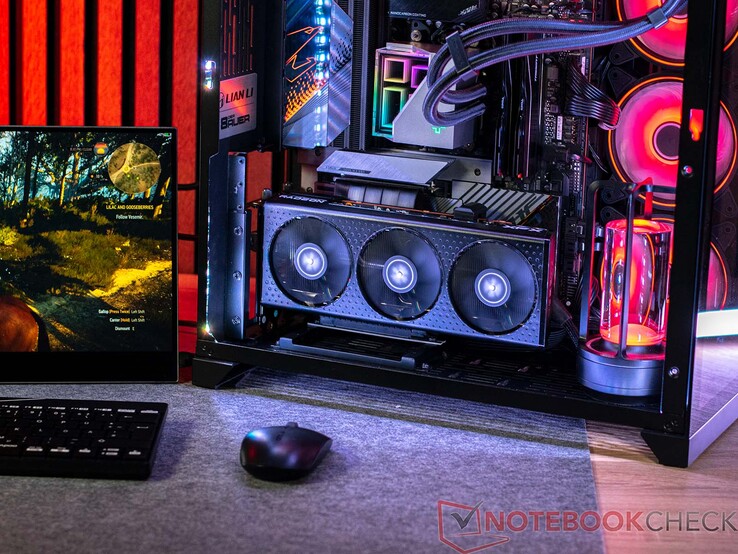

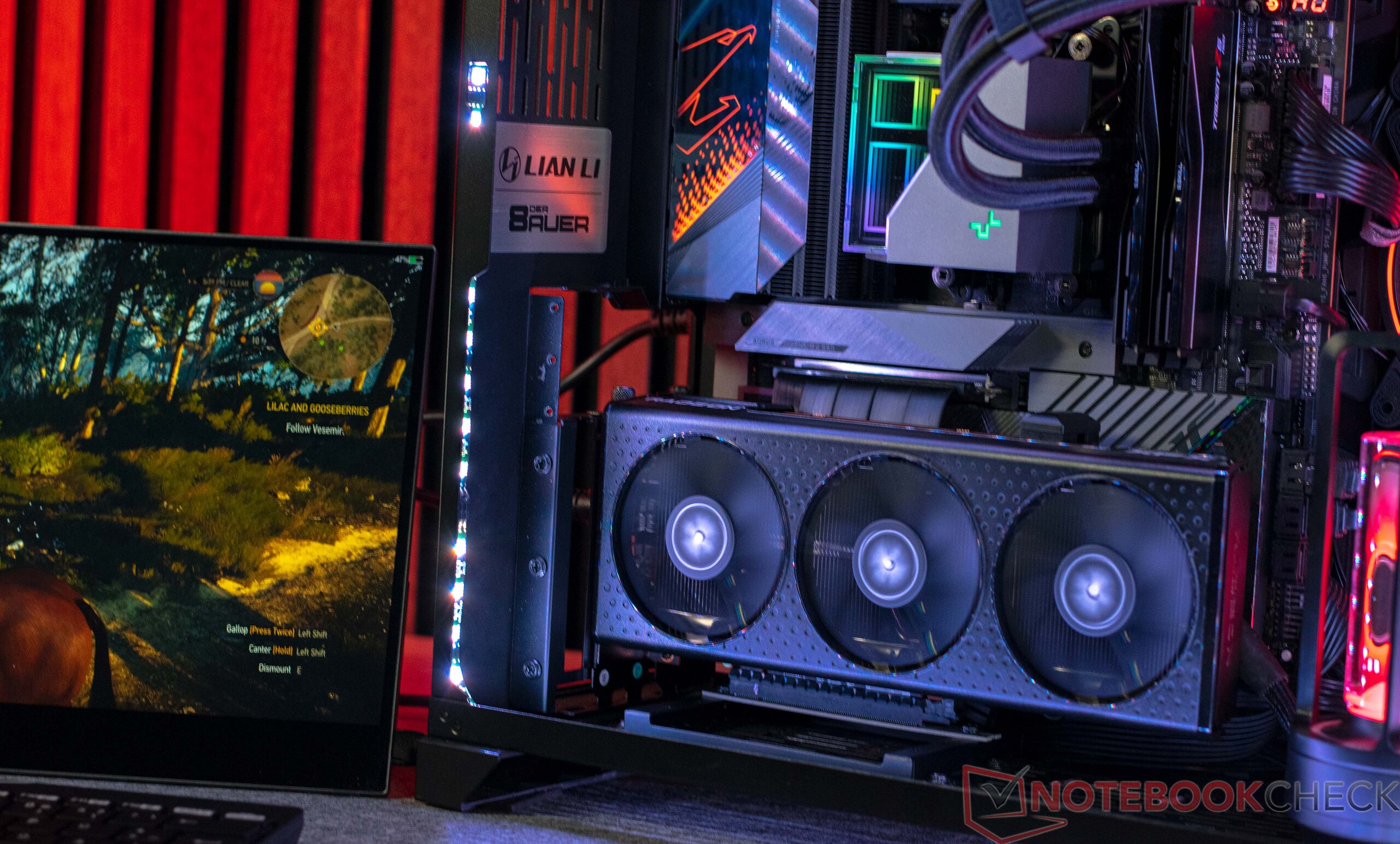

Info on our test system

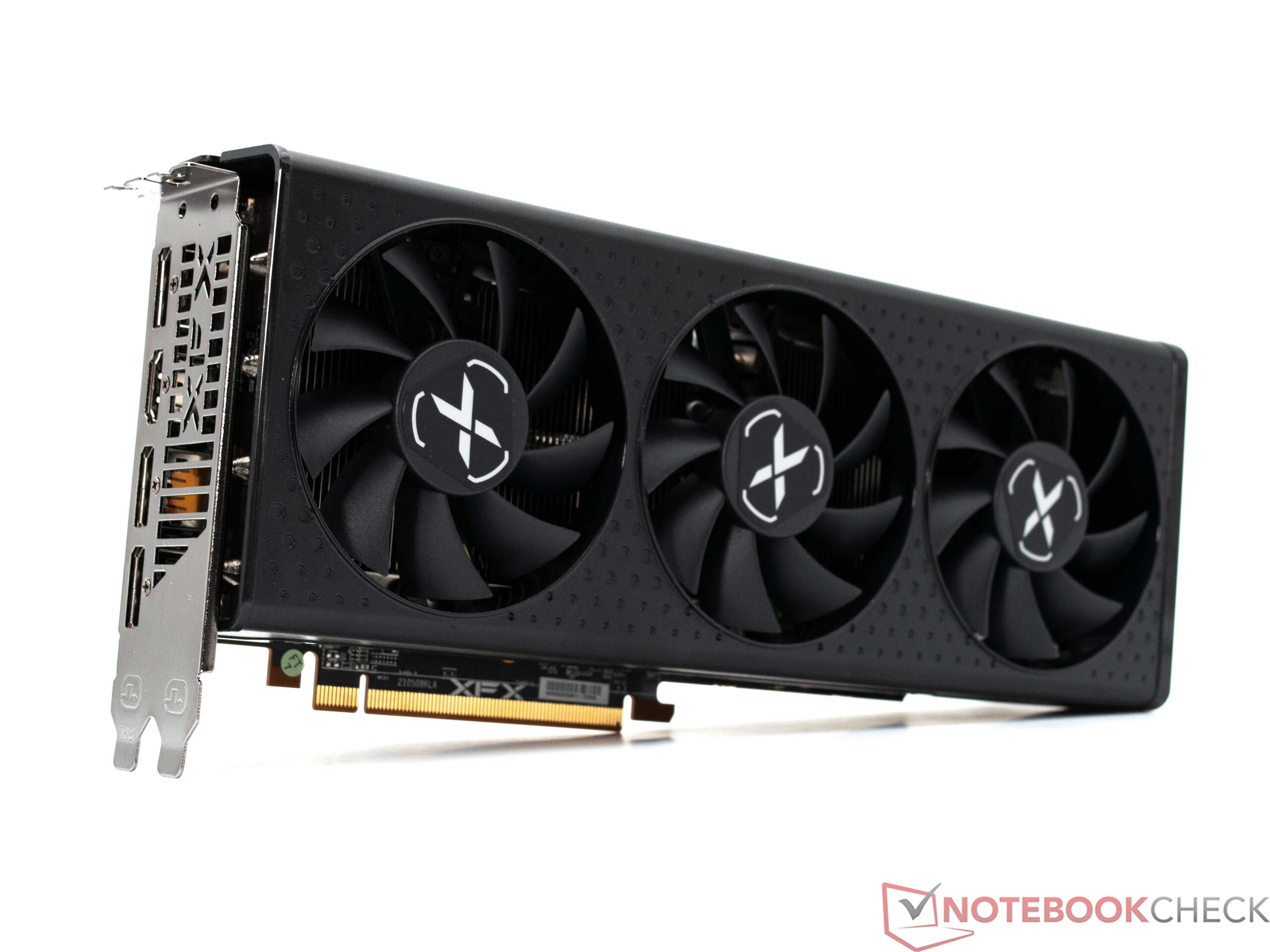

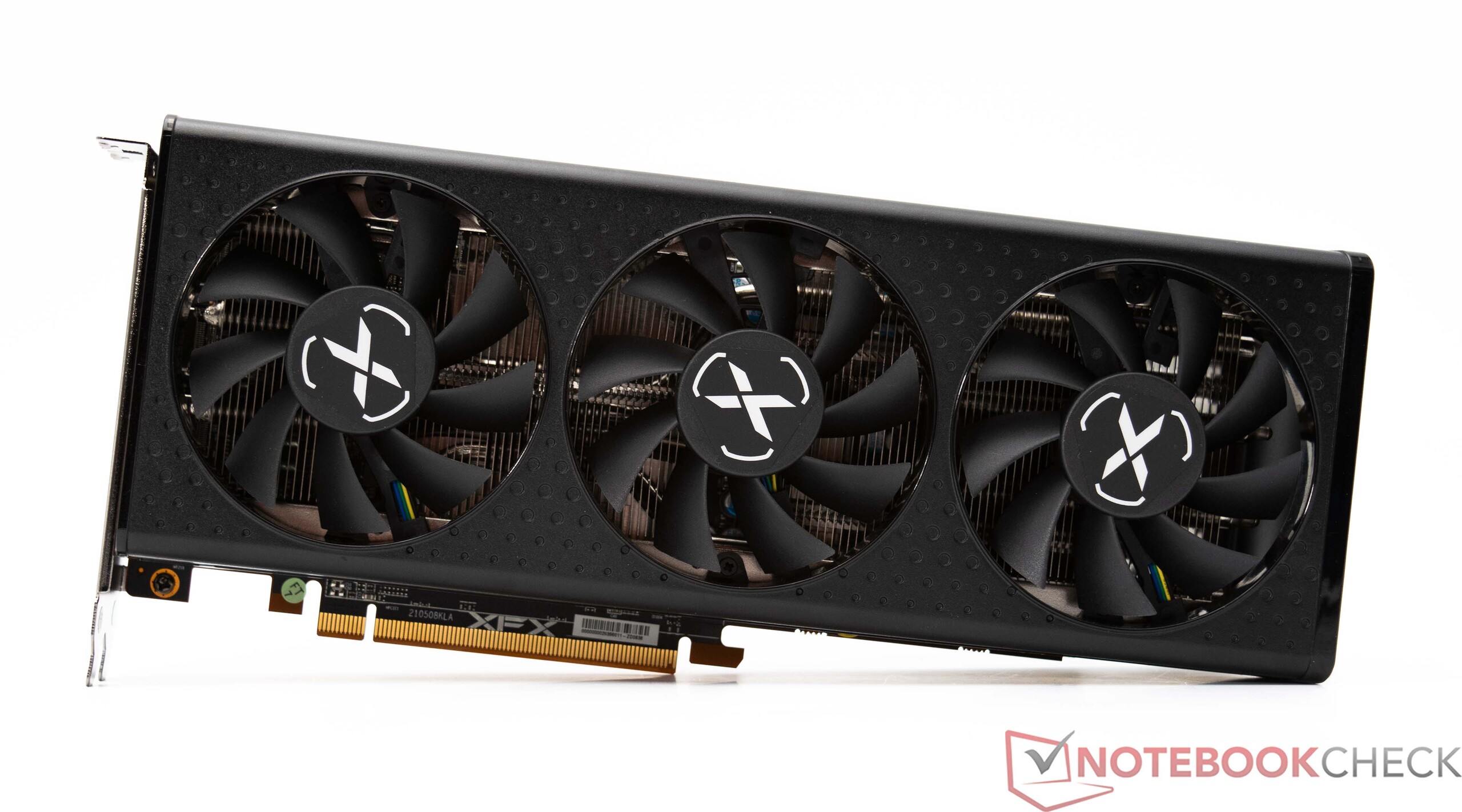

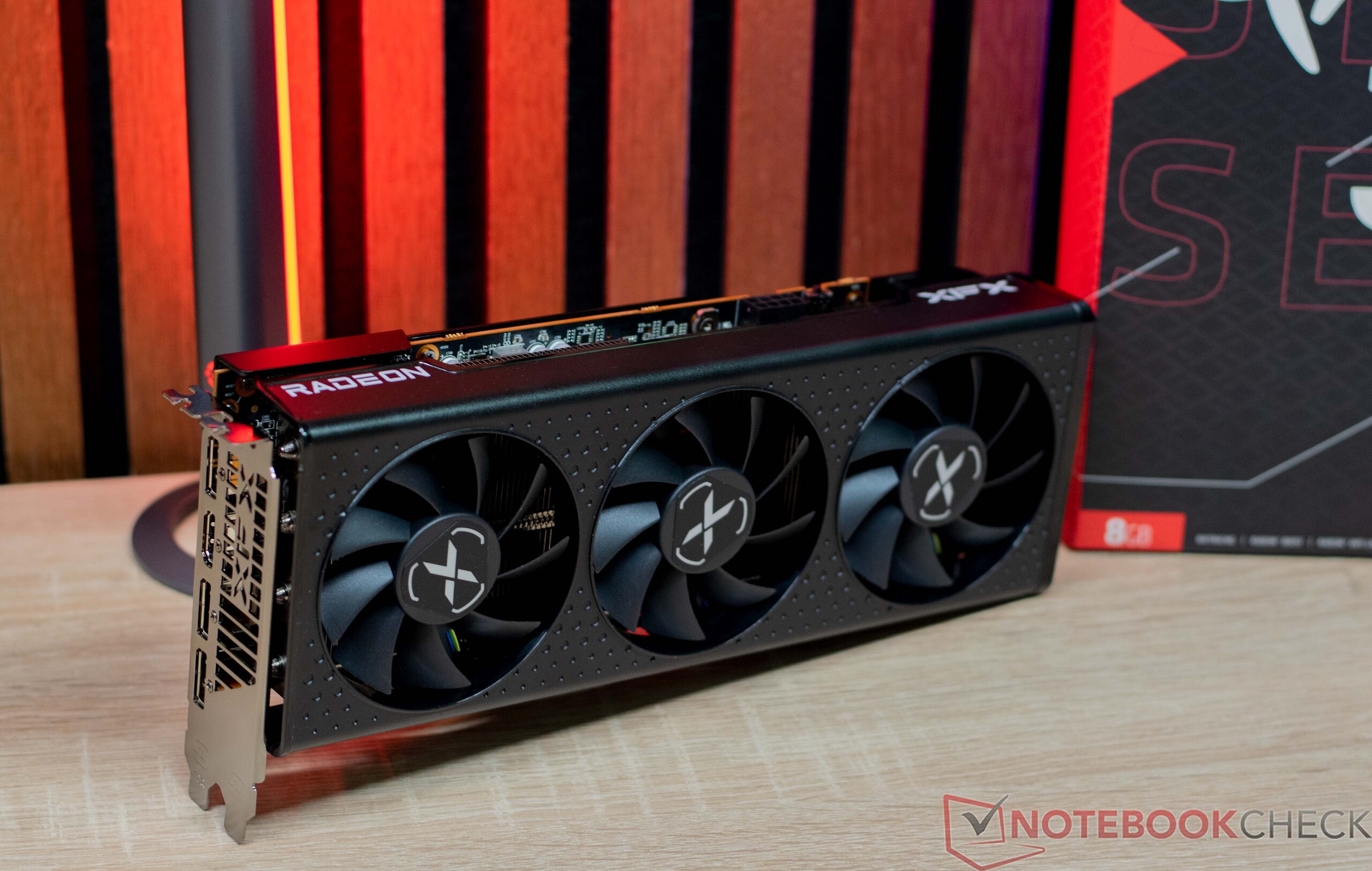

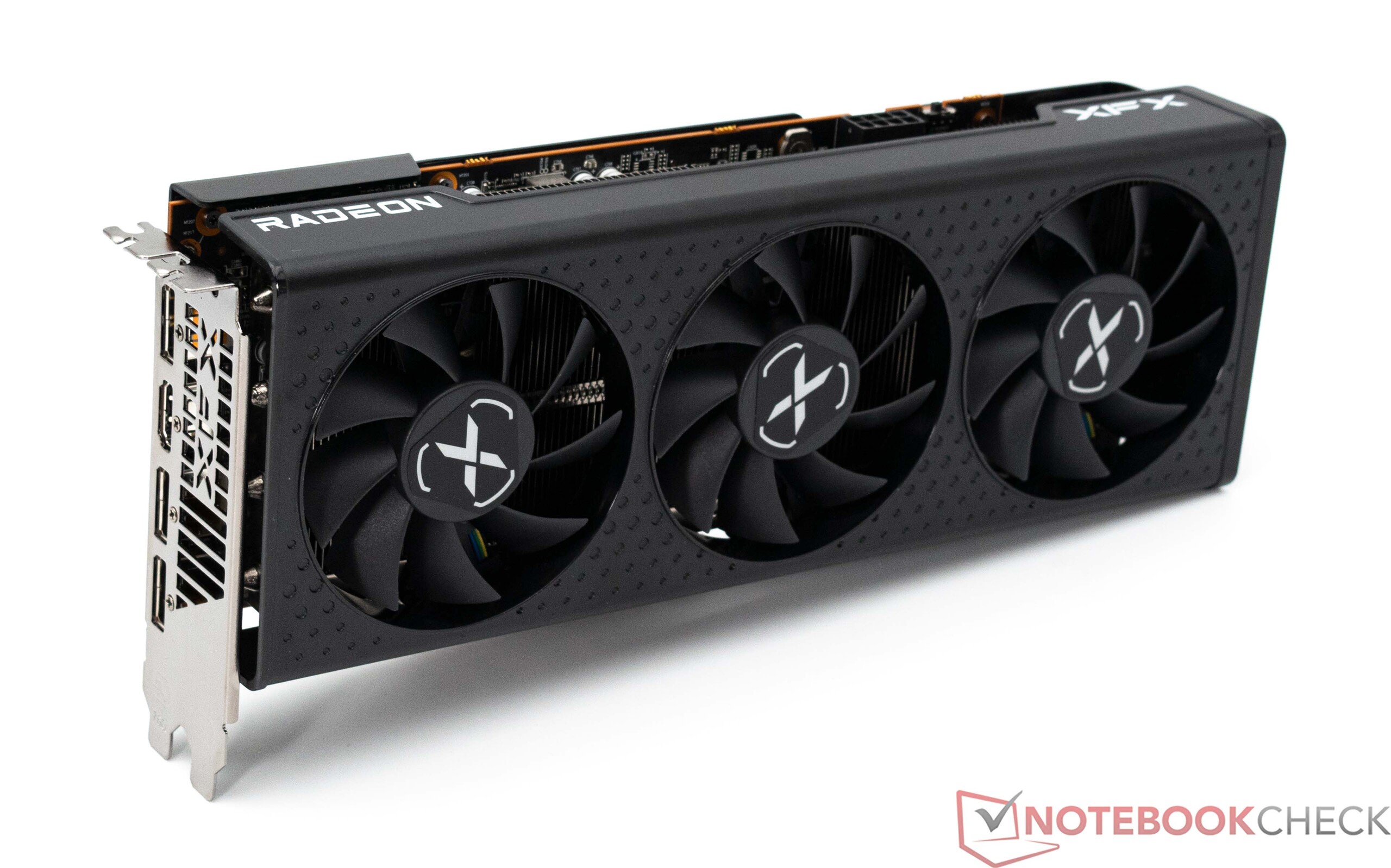

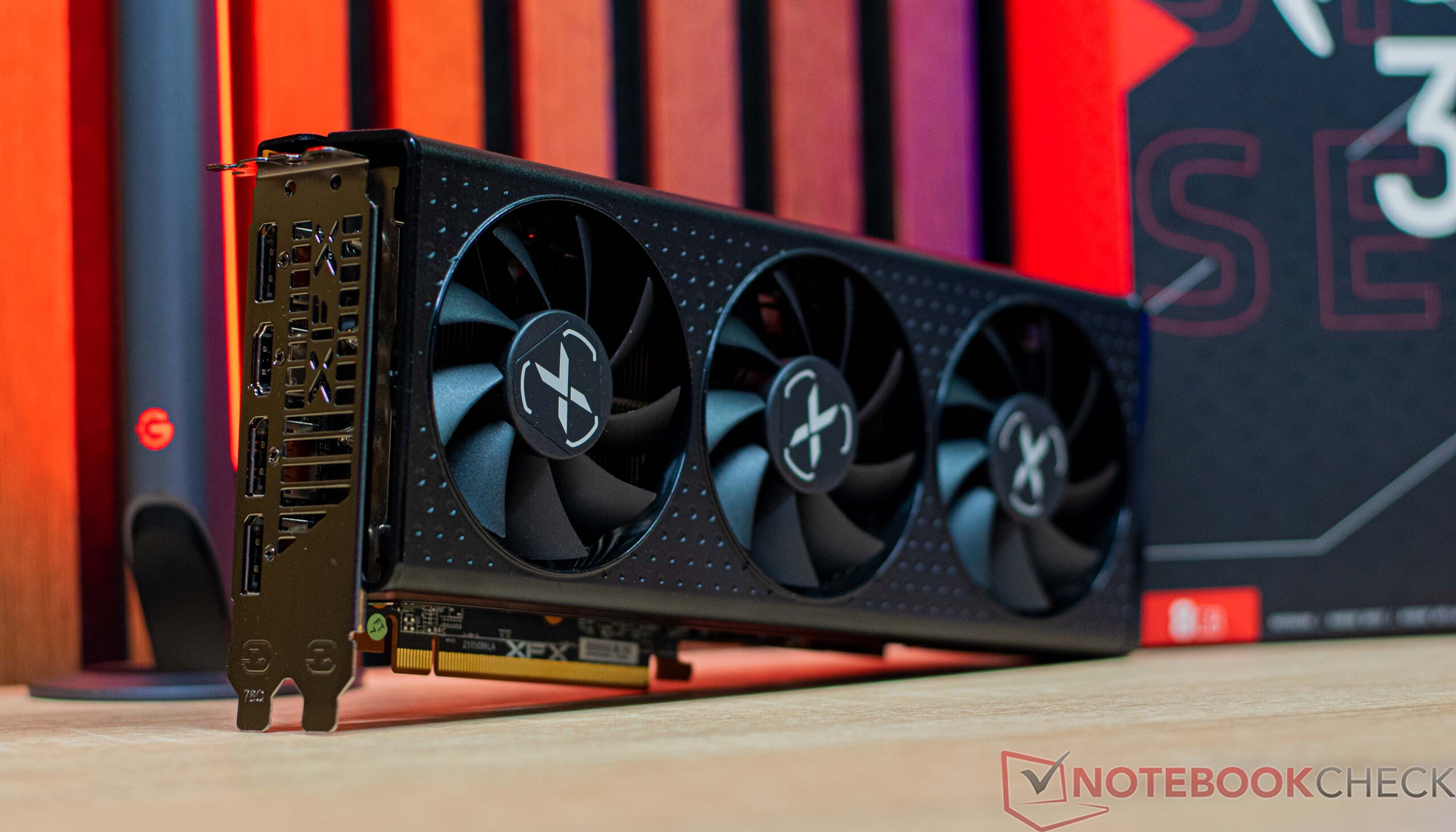

XFX Speedster QICK 308 Radeon RX 7600 黑色版
比较 AMD 的 Radeon GPU
规格 | Radeon RX 7900 XTX | Radeon RX 7900 XT | Radeon RX 7900 GRE | Radeon RX 7600 | Radeon RX 6650 XT | Radeon RX 6600 XT | Radeon RX 6600 |
GPU | Navi 31 XTX | Navi 31 XT | Navi 31 XT | Navi 33 | Navi 23 | Navi 23 | Navi 23 |
制造工艺 | 5/6 nm | 5/6 nm | 5/6 nm | 6 nm | 7 nm | 7 nm | 7 nm |
计算单元 | 96 | 84 | 80 | 32 | 32 | 32 | 28 |
着色单元 | 6,144 | 5,376 | 5,120 | 2,048 | 2,048 | 2,048 | 1,792 |
纹理映射单元 | 384 | 336 | 320 | 128 | 128 | 128 | 112 |
光线加速器 | 96 | 84 | 80 | 32 | 32 | 32 | 28 |
基本时钟 | 2,270 MHz | 2,000 MHz | 1,880 MHz | 1,720MHz | 2,055 MHz | 1,968 MHz | 1,626 MHz |
游戏时钟 | 2,300 MHz | 2,000 MHz | 1,880 MHz | 2,250MHz | 2,410 MHz | 2,359 MHz | 2,044 MHz |
提升时钟 | 2,500 MHz | 2,400 MHz | 2,245 MHz | 2,655MHz | 2,635 MHz | 2,589 MHz | 2,491 MHz |
无限缓存 | 96 MB | 80 MB | 64 MB | 32MB | 32 MB | 32 MB | 32 MB |
内存总线宽度 | 384 位 | 320 位 | 256 位 | 128位 | 128 位 | 128 位 | 128 位 |
内存带宽 | 960 GB/s | 800 GB/s | 576 GB/s | 288 GB/s | 280.3 GB/s | 256 GB/s | 224 GB/s |
内存大小 | 24 GB GDDR6 | 20 GB GDDR6 | 16 GB GDDR6 | 8 GB GDDR6 | 8 GB GDDR6 | 8 GB GDDR6 | 8 GB GDDR6 |
TBP | 355 W | 315 W | 260 W | 165W | 176 W | 160 W | 132 W |

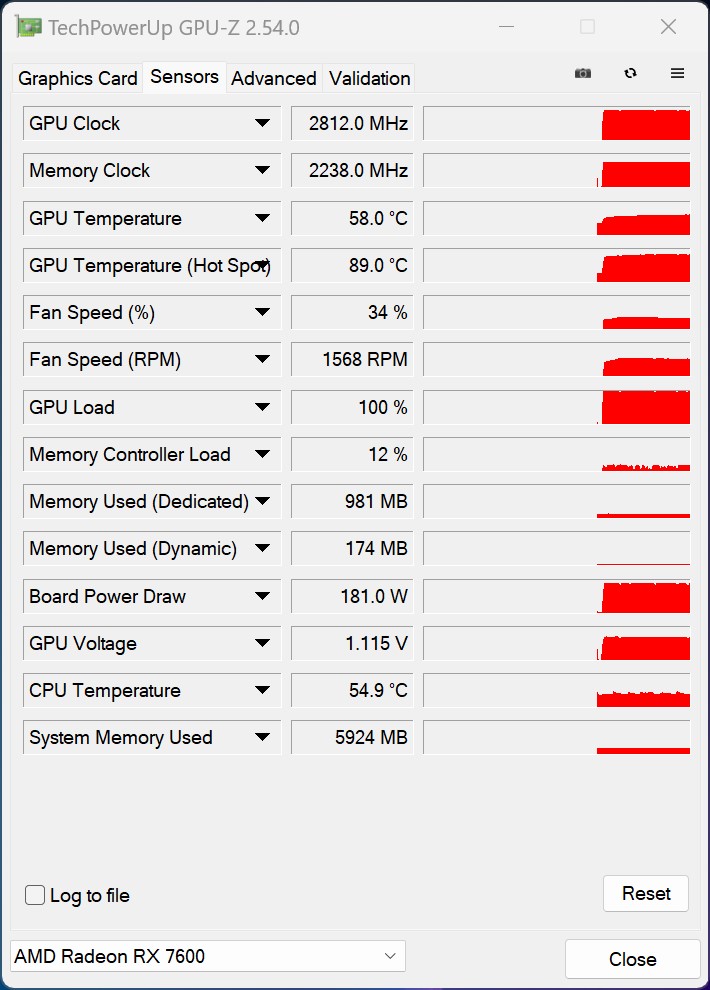

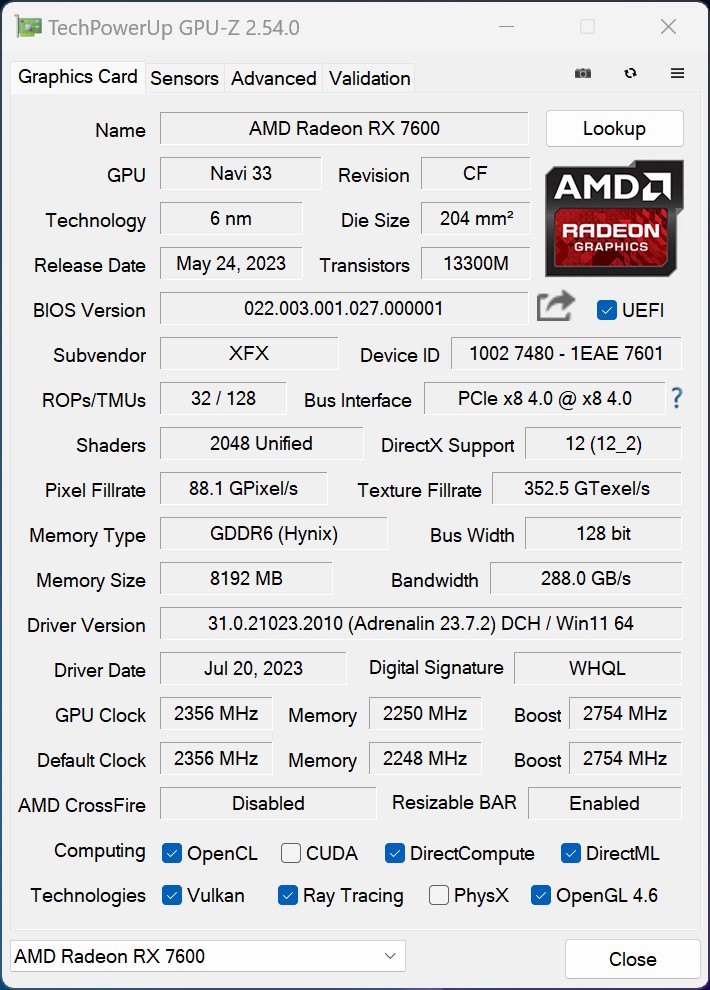

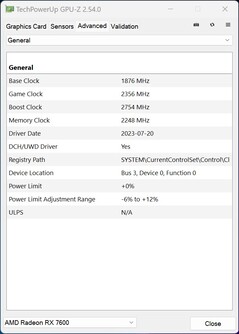

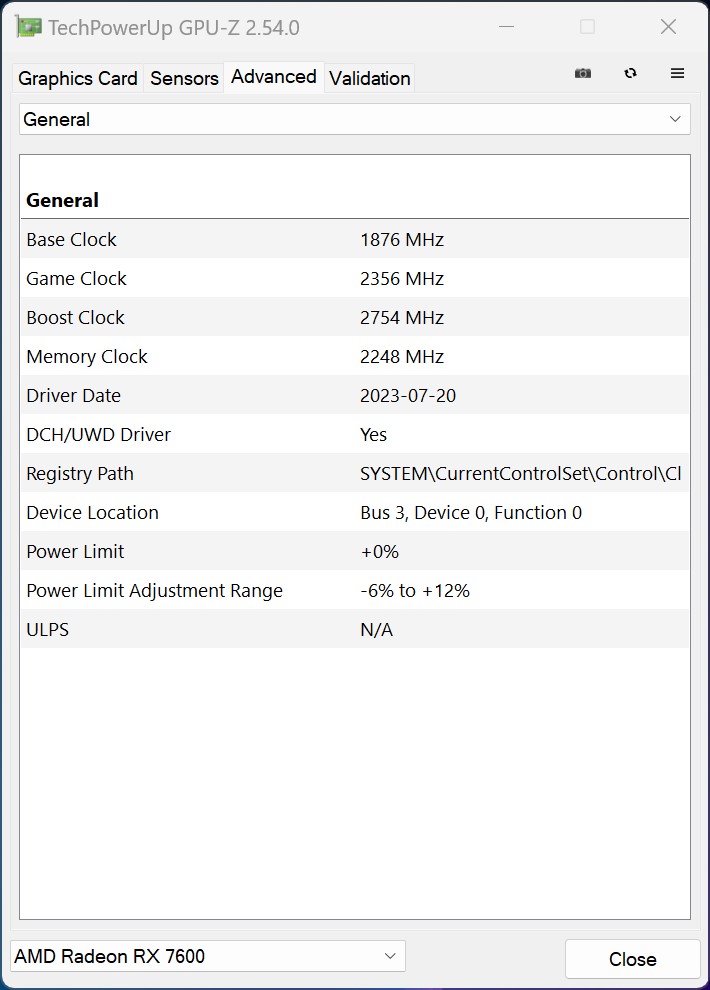

松景 Speedster QICK 308 Radeon RX 7600 黑色版的时钟速度
松景 Speedster QICK 308 Radeon RX 7600 Black Edition 是一款在外观和规格方面都不同于 AMD 参考型号的合作伙伴显卡。由于 GPU 的散热器较大,松景能够将时钟速度提高约 100 MHz,将最大提升时钟频率推高至不低于 2,754 MHz。在测试过程中,Speedster QICK 308 毫无问题地超过了这一提升频率。在峰值时,我们的评测单元甚至突破了 2,900 MHz 大关。
合成基准
在关注游戏测试之前,我们先来看看这款图形处理器在合成基准测试中的表现。在这里,松景 Speedster QICK 308 Radeon RX 7600 Black Edition 与 AMD Radeon RX 6650 XT(蓝宝石 Nitro+ 型号)不相上下。直接的前代产品--在这种情况下,Sapphire Pulse Radeon RX 6600- 比RX 7600慢25%左右。与 Nvidia 的产品相比,XFX Radeon RX 7600 落后于 华硕双GeForce RTX 4060 Ti OC相比,松景 Radeon RX 7600 落后于华硕 Dual RTX 4060 Ti OC KFA2GeForce RTX 4060 1-Click-OC 2X.这使得我们的评测卡介于绿色团队的两个 RTX 4060 型号之间。
Performance Rating - Percent | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 3060 Ti FE | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2070 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 |
3DMark | |
2560x1440 Time Spy Graphics | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
ASUS Dual GeForce RTX 4060 Ti OC | |
AMD Radeon RX 6700 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 | |
Fire Strike Extreme Graphics | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 3060 Ti FE | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 | |
3840x2160 Fire Strike Ultra Graphics | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6700 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2070 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Pulse Radeon RX 6600 | |
Nvidia GeForce RTX 2060 Super | |
1920x1080 Fire Strike Graphics | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 3060 Ti FE | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Pulse Radeon RX 6600 | |
Nvidia GeForce RTX 2060 Super |
Unigine Superposition | |
7680x4320 8k Optimized | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
Nvidia GeForce RTX 3060 Ti FE | |
AMD Radeon RX 6700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 2070 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 | |
3840x2160 4k Optimized | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 3060 Ti FE | |
AMD Radeon RX 6700 XT | |
Nvidia GeForce RTX 2070 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 | |
1920x1080 1080p Extreme | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
Nvidia GeForce RTX 3060 Ti FE | |
ASUS Dual GeForce RTX 4060 Ti OC | |
AMD Radeon RX 6700 XT | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2070 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 | |
1920x1080 1080p High | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
ASUS Dual GeForce RTX 4060 Ti OC | |
AMD Radeon RX 6700 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2070 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 | |
1280x720 720p Low | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
Nvidia GeForce RTX 3060 Ti FE | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
AMD Radeon RX 6700 XT | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Sapphire Pulse Radeon RX 6600 |
Unigine Heaven 4.0 | |
Extreme Preset DX11 | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
Nvidia GeForce RTX 3060 Ti FE | |
AMD Radeon RX 6700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 | |
Extreme Preset OpenGL | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6700 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2070 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Pulse Radeon RX 6600 | |
Nvidia GeForce RTX 2060 Super |
Unigine Valley 1.0 | |
1920x1080 Extreme HD DirectX AA:x8 | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
Nvidia GeForce RTX 3060 Ti FE | |
AMD Radeon RX 6700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2060 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Pulse Radeon RX 6600 | |
1920x1080 Extreme HD Preset OpenGL AA:x8 | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6700 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2070 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2060 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Pulse Radeon RX 6600 |
3DMark 11 | |
1280x720 Performance GPU | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
ASUS Dual GeForce RTX 4060 Ti OC | |
AMD Radeon RX 6700 XT | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Pulse Radeon RX 6600 | |
Nvidia GeForce RTX 2060 Super | |
1280x720 Performance | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
ASUS Dual GeForce RTX 4060 Ti OC | |
AMD Radeon RX 6700 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 |
LuxMark v2.0 64Bit | |
Room GPUs-only | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 4070 | |
NVIDIA GeForce RTX 4060 | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 6600 | |
Sala GPUs-only | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 4070 | |
NVIDIA GeForce RTX 4060 | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 6600 |
ComputeMark v2.1 | |
1024x600 Normal, QJuliaRayTrace | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 4070 | |
NVIDIA GeForce RTX 4060 | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 6650 XT | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
AMD Radeon RX 6600 | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
1024x600 Normal, Score | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 4070 | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6700 XT | |
NVIDIA GeForce RTX 4060 | |
AMD Radeon RX 6650 XT | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
AMD Radeon RX 6600 | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
1024x600 Normal, Fluid 3DTex | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 4070 | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 6700 XT | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
NVIDIA GeForce RTX 4060 | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 6600 | |
1024x600 Normal, Fluid 2DTexArr | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 4070 | |
AMD Radeon RX 6750 XT | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
AMD Radeon RX 6700 XT | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
NVIDIA GeForce RTX 4060 | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 6600 | |
1024x600 Normal, Mandel Vector | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 4070 | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 6650 XT | |
NVIDIA GeForce RTX 4060 | |
AMD Radeon RX 6600 | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
1024x600 Normal, Mandel Scalar | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 4070 | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 6650 XT | |
NVIDIA GeForce RTX 4060 | |
AMD Radeon RX 6600 | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
NVIDIA GeForce RTX 2060 Super (Desktop) |
Photoshop PugetBench | |
GPU Score | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 7600 | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
NVIDIA GeForce RTX 3060 Ti | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
AMD Radeon RX 6600 | |
NVIDIA GeForce RTX 4070 | |
NVIDIA GeForce RTX 4060 | |
NVIDIA GeForce RTX 4070 Ti | |
Overall Score | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6700 XT | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
AMD Radeon RX 6650 XT | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
NVIDIA GeForce RTX 4060 | |
NVIDIA GeForce RTX 3060 Ti | |
NVIDIA GeForce RTX 4070 | |
AMD Radeon RX 6600 | |
NVIDIA GeForce RTX 4070 Ti |
Premiere Pro PugetBench | |
GPU 0.9 | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 4070 | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
NVIDIA GeForce RTX 3060 Ti | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 6700 XT | |
NVIDIA GeForce RTX 4060 | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 6600 | |
Overall Score 0.9 | |
NVIDIA GeForce RTX 4070 | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
NVIDIA GeForce RTX 4060 | |
NVIDIA GeForce RTX 3060 Ti | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 6600 |
Affinity Photo 2 - Combined (Single / Multi GPU) | |
NVIDIA GeForce RTX 4070 | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
AMD Radeon RX 6750 XT | |
NVIDIA GeForce RTX 3060 Ti | |
NVIDIA GeForce RTX 4060 | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 6600 |
3DMark 05 Standard | 81832 points | |
3DMark 06 Standard Score | 66506 points | |
3DMark Vantage P Result | 114647 points | |
3DMark 11 Performance | 38744 points | |
3DMark Ice Storm Standard Score | 271021 points | |
3DMark Cloud Gate Standard Score | 78794 points | |
3DMark Fire Strike Score | 30440 points | |
3DMark Fire Strike Extreme Score | 14730 points | |
3DMark Time Spy Score | 11682 points | |
Help |
专业应用
专业渲染软件主要受益于特殊的驱动程序,这些驱动程序只在特定显卡上发挥作用。AMD 和 Nvidia 分别以 PRO 和 Quadro 品牌销售其专业图形处理器。在渲染测试中,消费级显卡的性能不及专业级显卡。也就是说,AMD 在这方面比 Nvidia 有明显优势,松景 Speedster QICK 308 Radeon RX 7600 Black Edition 知道如何利用这一优势。我们的 AMD 评测卡比 NvidiaGeForce RTX 4060 Ti 领先近 30%。当你从事小型业余项目或半专业工作时,使用 Radeon RX 7600 是一个可行的选择。
AMD Radeon RX 7600 R9 7950X | AMD Radeon RX 6600 R9 7950X | AMD Radeon RX 6650 XT R9 7950X | AMD Radeon RX 6700 XT R9 7950X | AMD Radeon RX 6800 XT R9 5950X | AMD Radeon RX 6950 XT R9 7950X | AMD Radeon RX 7900 GRE R9 7950X | AMD Radeon RX 7900 XT R9 7950X | AMD Radeon RX 7900 XTX R9 7950X | NVIDIA GeForce RTX 4060 R9 7950X | NVIDIA GeForce RTX 4060 Ti 8G R9 7950X | NVIDIA GeForce RTX 4070 R9 7950X | NVIDIA GeForce RTX 4070 Ti R9 7950X | NVIDIA GeForce RTX 4080 R9 7950X | NVIDIA GeForce RTX 4090 R9 7950X | Average of class | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SPECviewperf 12 | -0% | 16% | 29% | -18% | 17% | 57% | 91% | 114% | -40% | -29% | -8% | 11% | 31% | 41% | -50% | |
1900x1060 3ds Max (3dsmax-05) | 279 | 258 -8% | 310 11% | 363 30% | 167 -40% | 418 50% | 444 59% | 502 80% | 553 98% | 251 -10% | 286 3% | 382 37% | 436 56% | 502 80% | 571 105% | 192.3 ? -31% |
1900x1060 Catia (catia-04) | 273 | 256 -6% | 314 15% | 339 24% | 238 -13% | 368 35% | 448 64% | 481 76% | 536 96% | 113 -59% | 128 -53% | 161 -41% | 192 -30% | 221 -19% | 257 -6% | 105.6 ? -61% |
1900x1060 Creo (creo-01) | 115 | 133 16% | 142 23% | 152 32% | 119 3% | 163 42% | 155 35% | 176 53% | 187 63% | 60.6 -47% | 74.3 -35% | 89.1 -23% | 99.4 -14% | 110 -4% | 115 0% | 64.5 ? -44% |
1900x1060 Energy (energy-01) | 25.5 | 31.3 23% | 37.6 47% | 40.6 59% | 28.39 11% | 34.3 35% | 40.3 58% | 72.4 184% | 85.2 234% | 15.9 -38% | 22.8 -11% | 31.7 24% | 48 88% | 58.8 131% | 54.7 115% | 15.2 ? -40% |
1900x1060 Maya (maya-04) | 236 | 218 -8% | 246 4% | 268 14% | 118 -50% | 195 -17% | 323 37% | 347 47% | 367 56% | 233 -1% | 252 7% | 284 20% | 287 22% | 309 31% | 317 34% | 109.5 ? -54% |
1900x1060 Medical (medical-01) | 128 | 102 -20% | 137 7% | 150 17% | 77.3 -40% | 95.2 -26% | 226 77% | 288 125% | 347 171% | 82.4 -36% | 107 -16% | 132 3% | 157 23% | 171 34% | 119 -7% | 53.2 ? -58% |
1900x1060 Showcase (showcase-01) | 127 | 125 -2% | 151 19% | 176 39% | 223 76% | 264 108% | 222 75% | 278 119% | 322 154% | 109 -14% | 122 -4% | 190 50% | 244 92% | 333 162% | 457 260% | 95.8 ? -25% |
1900x1060 Siemens NX (snx-02) | 210 | 203 -3% | 230 10% | 257 22% | 45.07 -79% | 56.4 -73% | 341 62% | 373 78% | 400 90% | 14.2 -93% | 14.5 -93% | 16.4 -92% | 19 -91% | 21.6 -90% | 27.1 -87% | 58.6 ? -72% |
1900x1060 Solidworks (sw-03) | 221 | 232 5% | 242 10% | 275 24% | 150 -32% | 218 -1% | 319 44% | 342 55% | 360 63% | 91.2 -59% | 94.8 -57% | 109 -51% | 118 -47% | 113 -49% | 126 -43% | 86.2 ? -61% |
SPECviewperf 13 | -13% | 3% | 19% | -8% | 24% | 65% | 77% | 98% | -40% | -29% | -8% | 10% | 32% | 56% | -41% | |
3ds Max (3dsmax-06) | 280 | 258 -8% | 310 11% | 360 29% | 284 1% | 416 49% | 439 57% | 506 81% | 564 101% | 252 -10% | 286 2% | 381 36% | 433 55% | 497 78% | 563 101% | 184.7 ? -34% |
Catia (catia-05) | 410 | 387 -6% | 482 18% | 528 29% | 412 0% | 588 43% | 661 61% | 728 78% | 825 101% | 163 -60% | 187 -54% | 241 -41% | 290 -29% | 340 -17% | 402 -2% | 198.2 ? -52% |
Creo (creo-02) | 294 | 279 -5% | 317 8% | 353 20% | 276 -6% | 374 27% | 470 60% | 567 93% | 613 109% | 230 -22% | 298 1% | 375 28% | 455 55% | 529 80% | 552 88% | 203 ? -31% |
Energy (energy-02) | 82.9 | 44 -47% | 59.8 -28% | 74.3 -10% | 58.4 -30% | 60.8 -27% | 150 81% | 147 77% | 187 126% | 34.6 -58% | 45.3 -45% | 54.2 -35% | 72.8 -12% | 92.6 12% | 126 52% | 35.7 ? -57% |
Maya (maya-05) | 333 | 348 5% | 403 21% | 462 39% | 348 5% | 460 38% | 580 74% | 670 101% | 735 121% | 343 3% | 395 19% | 510 53% | 591 77% | 678 104% | 715 115% | 263 ? -21% |
Medical (medical-02) | 226 | 88.8 -61% | 105 -54% | 148 -35% | 130 -42% | 372 65% | 237 5% | 263 16% | 76.5 -66% | 92 -59% | 112 -50% | 132 -42% | 150 -34% | 186 -18% | 77.3 ? -66% | |
Showcase (showcase-02) | 127 | 125 -2% | 151 19% | 176 39% | 232 83% | 264 108% | 221 74% | 279 120% | 323 154% | 108 -15% | 121 -5% | 191 50% | 244 92% | 334 163% | 455 258% | 117.9 ? -7% |
Siemens NX (snx-03) | 379 | 366 -3% | 417 10% | 465 23% | 81.4 -79% | 101 -73% | 617 63% | 675 78% | 725 91% | 25.6 -93% | 26.3 -93% | 29.5 -92% | 34.1 -91% | 39 -90% | 49.1 -87% | 128.9 ? -66% |
Solidworks (sw-04) | 195 | 220 13% | 231 18% | 272 39% | 193 -1% | 254 30% | 287 47% | 307 57% | 323 66% | 127 -35% | 135 -31% | 157 -19% | 168 -14% | 179 -8% | 186 -5% | 120.6 ? -38% |
SPECviewperf 2020 | -25% | -10% | 10% | -13% | 12% | 80% | 78% | 106% | -39% | -29% | -3% | 16% | 38% | 73% | -25% | |
3840x2160 Siemens NX (snx-04) | 240 | 236 -2% | 265 10% | 287 20% | 81.7 -66% | 98.4 -59% | 402 68% | 476 98% | 514 114% | 19.5 -92% | 20.1 -92% | 23.9 -90% | 27.5 -89% | 31.9 -87% | 41.3 -83% | 87.8 ? -63% |
3840x2160 Medical (medical-03) | 36.1 | 20.9 -42% | 27.3 -24% | 30.1 -17% | 27.84 -23% | 35 -3% | 76.1 111% | 53.9 49% | 62.3 73% | 13.7 -62% | 17.5 -52% | 22.2 -39% | 26.9 -25% | 32.2 -11% | 45.9 27% | 20 ? -45% |
3840x2160 Maya (maya-06) | 178 | 161 -10% | 192 8% | 258 45% | 224 26% | 315 77% | 346 94% | 401 125% | 481 170% | 196 10% | 226 27% | 305 71% | 372 109% | 447 151% | 498 180% | 202 ? 13% |
3840x2160 Energy (energy-03) | 67 | 29.5 -56% | 44.2 -34% | 52.2 -22% | 60.8 -9% | 69.3 3% | 133 99% | 99.6 49% | 129 93% | 33.2 -50% | 44.8 -33% | 57.6 -14% | 75.7 13% | 90.4 35% | 141 110% | 48.7 ? -27% |
3840x2160 Creo (creo-03) | 106 | 93.4 -12% | 105 -1% | 123 16% | 65 -39% | 92.4 -13% | 159 50% | 173 63% | 187 76% | 85.9 -19% | 95.8 -10% | 112 6% | 121 14% | 128 21% | 133 25% | 75.3 ? -29% |
3840x2160 CATIA (catia-06) | 68 | 60.8 -11% | 70.1 3% | 77.2 14% | 42.4 -38% | 59.7 -12% | 107 57% | 113 66% | 127 87% | 34 -50% | 39.1 -42% | 51.6 -24% | 61.2 -10% | 75.5 11% | 95.3 40% | 45.8 ? -33% |
3840x2160 3ds Max (3dsmax-07) | 72.9 | 42.4 -42% | 51.5 -29% | 85.4 17% | 114 56% | 140 92% | 134 84% | 143 96% | 167 129% | 67.4 -8% | 74.5 2% | 122 67% | 147 102% | 179 146% | 228 213% | 77.6 ? 6% |
Total Average (Program / Settings) | -13% /
-12% | 3% /
4% | 19% /
20% | -13% /
-13% | 18% /
18% | 67% /
66% | 82% /
82% | 106% /
106% | -40% /
-39% | -29% /
-29% | -6% /
-7% | 12% /
12% | 34% /
33% | 57% /
55% | -39% /
-40% |
游戏性能
在列出所有测试游戏的表格中,我们可以看到松景 Speedster QICK 308 Radeon RX 7600 Black Edition 在全高清下运行大部分游戏都没有问题。这正是 GPU 的设计初衷,尽管新发布的游戏会迅速将显卡推向极限。在要求苛刻的游戏中,有时你可能不得不降低一些设置或使用高预设值,例如 F1 23, 棘轮与叮当Rift Apart和 艾维姆的不朽.
目前,2023 年 7 月的 Steam 硬件调查显示,大多数用户(超过 60%)仍在使用全高清进行游戏。这表明松景 Speedster QICK 308 Radeon RX 7600 黑色版的目标市场是值得信赖的中端市场。价格最终是决定性因素,因为大多数玩家并不愿意花四位数的价格购买显卡。我们的评测产品售价不到 300 欧元(约合 324 美元),其性能却优于 Nvidia RTX 40。 英伟达GeForce RTX 4060的性能更胜一筹。您已经需要多预留 100 欧元(109 美元)购买 GeForce RTX 4060 Ti.对于那些不介意购买旧型号的用户来说,花费大约 250 欧元(272 美元)购买一款 Radeon RX 6650 XT就能获得类似的性能。
F1 2021 | |
2560x1440 Ultra High Preset + Raytracing AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (874931) | |
KFA2 GeForce RTX 4080 SG (874931) | |
AMD Radeon RX 7900 XTX (874931) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (874931) | |
AMD Radeon RX 7900 XT (874931) | |
MSI Radeon RX 6950 XT Gaming X Trio (874931) | |
NVIDIA GeForce RTX 3090 Founders Edition (874931) | |
KFA2 GeForce RTX 4070 EX Gamer (874931) | |
AMD Radeon RX 7900 GRE (874931) | |
KFA2 GeForce RTX 3070 Ti SG (874931) | |
AMD Radeon RX 6800 (874931) | |
Nvidia Titan RTX (874931) | |
ASUS Dual GeForce RTX 4060 Ti OC (874931) | |
Sapphire Pulse Radeon RX 6750 XT (874931) | |
Nvidia GeForce RTX 3060 Ti FE (874931) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (874931) | |
Nvidia GeForce RTX 2070 Super (874931) | |
KFA2 GeForce GTX 1660 Super (874931) | |
Sapphire Nitro+ Radeon RX 6650 XT (874931) | |
PNY GeForce GTX 1660 (874931) | |
Nvidia GeForce RTX 2060 Super (874931) | |
Sapphire Pulse Radeon RX 6600 (874931) | |
1920x1080 Ultra High Preset + Raytracing AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (874931) | |
AMD Radeon RX 7900 XTX (874931) | |
KFA2 GeForce RTX 4080 SG (874931) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (874931) | |
AMD Radeon RX 7900 XT (874931) | |
MSI Radeon RX 6950 XT Gaming X Trio (874931) | |
NVIDIA GeForce RTX 3090 Founders Edition (874931) | |
KFA2 GeForce RTX 4070 EX Gamer (874931) | |
AMD Radeon RX 7900 GRE (874931) | |
KFA2 GeForce RTX 3070 Ti SG (874931) | |
ASUS Dual GeForce RTX 4060 Ti OC (874931) | |
AMD Radeon RX 6800 (874931) | |
Nvidia Titan RTX (874931) | |
Sapphire Pulse Radeon RX 6750 XT (874931) | |
Nvidia GeForce RTX 3060 Ti FE (874931) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (874931) | |
Nvidia GeForce RTX 2070 Super (874931) | |
Sapphire Nitro+ Radeon RX 6650 XT (874931) | |
KFA2 GeForce GTX 1660 Super (874931) | |
Nvidia GeForce RTX 2060 Super (874931) | |
PNY GeForce GTX 1660 (874931) | |
Sapphire Pulse Radeon RX 6600 (874931) |
F1 22 | |
2560x1440 Ultra High Preset AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (923662) | |
KFA2 GeForce RTX 4080 SG (939134) | |
AMD Radeon RX 7900 XTX (939134) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (959964) | |
AMD Radeon RX 7900 XT (939134) | |
NVIDIA GeForce RTX 3090 Founders Edition (923650) | |
AMD Radeon RX 7900 GRE (959964) | |
MSI Radeon RX 6950 XT Gaming X Trio (939134) | |
KFA2 GeForce RTX 4070 EX Gamer (959964) | |
KFA2 GeForce GTX 1660 Super (928484) | |
PNY GeForce GTX 1660 (928484) | |
KFA2 GeForce RTX 3070 Ti SG (939134) | |
Nvidia Titan RTX (923650) | |
ASUS Dual GeForce RTX 4060 Ti OC (959964) | |
AMD Radeon RX 6800 (928484) | |
Nvidia GeForce RTX 3060 Ti FE (923650) | |
Sapphire Pulse Radeon RX 6750 XT (959964) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (959964) | |
Nvidia GeForce RTX 2070 Super (923662) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (959964) | |
Nvidia GeForce RTX 2060 Super (923662) | |
Sapphire Nitro+ Radeon RX 6650 XT (946728) | |
Sapphire Pulse Radeon RX 6600 (946728) | |
1920x1080 Ultra High Preset AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 SG (939134) | |
AMD Radeon RX 7900 XTX (939134) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (959964) | |
NVIDIA GeForce RTX 3090 Founders Edition (923650) | |
AMD Radeon RX 7900 XT (939134) | |
MSI Radeon RX 6950 XT Gaming X Trio (939134) | |
KFA2 GeForce RTX 4070 EX Gamer (959964) | |
AMD Radeon RX 7900 GRE (959964) | |
KFA2 GeForce GTX 1660 Super (928484) | |
KFA2 GeForce RTX 3070 Ti SG (939134) | |
PNY GeForce GTX 1660 (928484) | |
Nvidia Titan RTX (923650) | |
ASUS Dual GeForce RTX 4060 Ti OC (959964) | |
Nvidia GeForce RTX 3060 Ti FE (923650) | |
AMD Radeon RX 6800 | |
Sapphire Pulse Radeon RX 6750 XT (959964) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (959964) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (959964) | |
Nvidia GeForce RTX 2070 Super (923662) | |
Nvidia GeForce RTX 2060 Super (923662) | |
Sapphire Nitro+ Radeon RX 6650 XT (946728) | |
Sapphire Pulse Radeon RX 6600 (946728) |
Cyberpunk 2077 1.6 | |
2560x1440 Ultra Preset | |
Palit GeForce RTX 4090 GameRock OC (1.6) | |
AMD Radeon RX 7900 XTX (1.61) | |
KFA2 GeForce RTX 4080 SG (1.61) | |
AMD Radeon RX 7900 XT (1.61) | |
MSI Radeon RX 6950 XT Gaming X Trio (1.61) | |
AMD Radeon RX 7900 GRE (1.6) | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6800 (1.61) | |
KFA2 GeForce RTX 3070 Ti SG (1.61) | |
Sapphire Pulse Radeon RX 6750 XT | |
ASUS Dual GeForce RTX 4060 Ti OC (1.6) | |
Nvidia GeForce RTX 3060 Ti FE (1.5) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.6) | |
Nvidia GeForce RTX 2070 Super (1.6) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.6) | |
Sapphire Nitro+ Radeon RX 6650 XT (1.5) | |
Nvidia GeForce RTX 2060 Super (1.6) | |
Sapphire Pulse Radeon RX 6600 (1.5) | |
KFA2 GeForce GTX 1660 Super (1.6) | |
PNY GeForce GTX 1660 (1.6) | |
1920x1080 Ultra Preset | |
Palit GeForce RTX 4090 GameRock OC (1.6) | |
AMD Radeon RX 7900 XTX (1.61) | |
KFA2 GeForce RTX 4080 SG (1.61) | |
AMD Radeon RX 7900 XT (1.61) | |
MSI Radeon RX 6950 XT Gaming X Trio (1.61) | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE (1.6) | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6800 (1.61) | |
KFA2 GeForce RTX 3070 Ti SG (1.61) | |
ASUS Dual GeForce RTX 4060 Ti OC (1.6) | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 3060 Ti FE (1.5) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.6) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.6) | |
Sapphire Nitro+ Radeon RX 6650 XT (1.5) | |
Nvidia GeForce RTX 2070 Super (1.6) | |
Nvidia GeForce RTX 2060 Super (1.6) | |
Sapphire Pulse Radeon RX 6600 (1.5) | |
KFA2 GeForce GTX 1660 Super (1.6) | |
PNY GeForce GTX 1660 (1.6) |
GRID Legends | |
2560x1440 Ultra Preset | |
AMD Radeon RX 7900 XTX (643827) | |
Palit GeForce RTX 4090 GameRock OC (591708) | |
AMD Radeon RX 7900 XT (643827) | |
MSI Radeon RX 6950 XT Gaming X Trio (643827) | |
KFA2 GeForce RTX 4080 SG (643827) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (712825) | |
NVIDIA GeForce RTX 3090 Founders Edition (591708) | |
AMD Radeon RX 7900 GRE (800660) | |
AMD Radeon RX 6800 (643827) | |
KFA2 GeForce RTX 3070 Ti SG (643827) | |
KFA2 GeForce RTX 4070 EX Gamer (712825) | |
Sapphire Pulse Radeon RX 6750 XT (712825) | |
Nvidia Titan RTX (591708) | |
ASUS Dual GeForce RTX 4060 Ti OC (800660) | |
Nvidia GeForce RTX 3060 Ti FE (591708) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (800660) | |
Sapphire Nitro+ Radeon RX 6650 XT (643827) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (800660) | |
Nvidia GeForce RTX 2070 Super (591708) | |
Nvidia GeForce RTX 2060 Super (623651) | |
Sapphire Pulse Radeon RX 6600 (683088) | |
KFA2 GeForce GTX 1660 Super (623651) | |
PNY GeForce GTX 1660 (623651) | |
1920x1080 Ultra Preset | |
AMD Radeon RX 7900 XTX (643827) | |
MSI Radeon RX 6950 XT Gaming X Trio (643827) | |
AMD Radeon RX 7900 XT (643827) | |
Palit GeForce RTX 4090 GameRock OC (591708) | |
KFA2 GeForce RTX 4080 SG (643827) | |
AMD Radeon RX 6800 (643827) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (712825) | |
NVIDIA GeForce RTX 3090 Founders Edition (591708) | |
KFA2 GeForce RTX 4070 EX Gamer (712825) | |
AMD Radeon RX 7900 GRE (800660) | |
Sapphire Pulse Radeon RX 6750 XT (712825) | |
KFA2 GeForce RTX 3070 Ti SG (643827) | |
Nvidia Titan RTX (591708) | |
Nvidia GeForce RTX 3060 Ti FE (591708) | |
Sapphire Nitro+ Radeon RX 6650 XT (643827) | |
ASUS Dual GeForce RTX 4060 Ti OC (800660) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (800660) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (800660) | |
Nvidia GeForce RTX 2070 Super (591708) | |
Sapphire Pulse Radeon RX 6600 (683088) | |
Nvidia GeForce RTX 2060 Super (623651) | |
KFA2 GeForce GTX 1660 Super (623651) | |
PNY GeForce GTX 1660 (623651) |
Final Fantasy XV Benchmark | |
1920x1080 High Quality | |
Palit GeForce RTX 4090 GameRock OC (1.3) | |
KFA2 GeForce RTX 4080 SG (1.3) | |
AMD Radeon RX 7900 XTX (1.3) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (1.3) | |
AMD Radeon RX 7900 XT (1.3) | |
MSI Radeon RX 6950 XT Gaming X Trio (1.3) | |
NVIDIA GeForce RTX 3090 Founders Edition (1.3) | |
KFA2 GeForce RTX 4070 EX Gamer (1.3) | |
AMD Radeon RX 7900 GRE (1.3) | |
AMD Radeon RX 6800 (1.3) | |
Nvidia Titan RTX (1.3) | |
KFA2 GeForce RTX 3070 Ti SG (1.3) | |
ASUS Dual GeForce RTX 4060 Ti OC (1.3) | |
Sapphire Pulse Radeon RX 6750 XT (1.3) | |
Nvidia GeForce RTX 3060 Ti FE (1.3) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.3) | |
Nvidia GeForce RTX 2070 Super (1.3) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.3) | |
Sapphire Nitro+ Radeon RX 6650 XT (1.3) | |
Nvidia GeForce RTX 2060 Super (1.3) | |
Sapphire Pulse Radeon RX 6600 (1.3) | |
KFA2 GeForce GTX 1660 Super (1.3) | |
PNY GeForce GTX 1660 (1.3) | |
2560x1440 High Quality | |
Palit GeForce RTX 4090 GameRock OC (1.3) | |
KFA2 GeForce RTX 4080 SG (1.3) | |
AMD Radeon RX 7900 XTX (1.3) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (1.3) | |
MSI Radeon RX 6950 XT Gaming X Trio (1.3) | |
AMD Radeon RX 7900 XT (1.3) | |
NVIDIA GeForce RTX 3090 Founders Edition (1.3) | |
KFA2 GeForce RTX 4070 EX Gamer (1.3) | |
AMD Radeon RX 7900 GRE (1.3) | |
AMD Radeon RX 6800 (1.3) | |
KFA2 GeForce RTX 3070 Ti SG (1.3) | |
Nvidia Titan RTX (1.3) | |
ASUS Dual GeForce RTX 4060 Ti OC (1.3) | |
Sapphire Pulse Radeon RX 6750 XT (1.3) | |
Nvidia GeForce RTX 3060 Ti FE (1.3) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.3) | |
Nvidia GeForce RTX 2070 Super (1.3) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.3) | |
Sapphire Nitro+ Radeon RX 6650 XT (1.3) | |
Nvidia GeForce RTX 2060 Super (1.3) | |
Sapphire Pulse Radeon RX 6600 (1.3) | |
KFA2 GeForce GTX 1660 Super (1.3) | |
PNY GeForce GTX 1660 (1.3) |
The Last of Us | |
1920x1080 Ultra Preset | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 4070 EX Gamer | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 6750 XT | |
AMD Radeon RX 6800 | |
Nvidia Titan RTX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 3060 Ti FE | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Sapphire Pulse Radeon RX 6600 | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
KFA2 GeForce GTX 1660 Super | |
PNY GeForce GTX 1660 | |
2560x1440 Ultra Preset | |
Palit GeForce RTX 4090 GameRock OC | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6800 | |
Nvidia Titan RTX | |
Sapphire Pulse Radeon RX 6750 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 3060 Ti FE | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 | |
KFA2 GeForce GTX 1660 Super | |
PNY GeForce GTX 1660 |
F1 23 | |
1920x1080 Ultra High Preset AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (1022189) | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE (1016022) | |
MSI Radeon RX 6950 XT Gaming X Trio (1016022) | |
KFA2 GeForce GTX 1660 Super (1016022) | |
ASUS Dual GeForce RTX 4060 Ti OC (1012607) | |
Nvidia Titan RTX (1021115) | |
PNY GeForce GTX 1660 (1016022) | |
Nvidia GeForce RTX 3060 Ti FE (1021115) | |
AMD Radeon RX 6800 (1016022) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1008687) | |
Sapphire Pulse Radeon RX 6750 XT (1016022) | |
Nvidia GeForce RTX 2070 Super (1021115) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1016022) | |
Nvidia GeForce RTX 2060 Super (1021115) | |
Sapphire Nitro+ Radeon RX 6650 XT (1016022) | |
Sapphire Pulse Radeon RX 6600 (1016022) | |
2560x1440 Ultra High Preset AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (1022189) | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE (1016022) | |
MSI Radeon RX 6950 XT Gaming X Trio (1016022) | |
KFA2 GeForce GTX 1660 Super (1016022) | |
PNY GeForce GTX 1660 (1016022) | |
Nvidia Titan RTX (1021115) | |
ASUS Dual GeForce RTX 4060 Ti OC (1012607) | |
Nvidia GeForce RTX 3060 Ti FE (1021115) | |
AMD Radeon RX 6800 (1016022) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1008687) | |
Sapphire Pulse Radeon RX 6750 XT (1016022) | |
Nvidia GeForce RTX 2070 Super (1021115) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1016022) | |
Nvidia GeForce RTX 2060 Super (1021115) | |
Sapphire Nitro+ Radeon RX 6650 XT (1016022) | |
Sapphire Pulse Radeon RX 6600 (1016022) |
Hogwarts Legacy | |
1920x1080 Ultra Preset AA:High T | |
MSI Radeon RX 6950 XT Gaming X Trio | |
Palit GeForce RTX 4090 GameRock OC | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6800 | |
Nvidia Titan RTX | |
Nvidia GeForce RTX 3060 Ti FE | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 6750 XT | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2070 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 | |
PNY GeForce GTX 1660 | |
KFA2 GeForce GTX 1660 Super | |
2560x1440 Ultra Preset AA:High T | |
Palit GeForce RTX 4090 GameRock OC | |
MSI Radeon RX 6950 XT Gaming X Trio | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6800 | |
Nvidia Titan RTX | |
Sapphire Pulse Radeon RX 6750 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 3060 Ti FE | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2070 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2060 Super | |
KFA2 GeForce GTX 1660 Super | |
Sapphire Pulse Radeon RX 6600 | |
PNY GeForce GTX 1660 |
光线追踪性能
如果你不想放弃那些出色的光线追踪功能,明显的性能下降是不可避免的。与 RDNA 2 相比,较新的 RDNA 3 架构提高了光线追踪性能。然而,在目前的对比中,AMD 无法与 Nvidia 匹敌。在我们测试的游戏中 KFA2GeForce RTX 4060 1-Click-OC 2X在启用光线追踪时,其性能基本优于松景 Speedster QICK 308 Radeon RX 7600 Black Edition。
Spider-Man Miles Morales - 1920x0180 Very High Preset + Ray-Tracing AA:T | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 3070 Ti SG | |
AMD Radeon RX 7900 GRE | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 3060 Ti FE | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2070 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Sapphire Pulse Radeon RX 6600 |
Metro Exodus - 1920x1080 Ultra Quality DXR AF:16x | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 3070 Ti SG | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 3060 Ti FE | |
Sapphire Pulse Radeon RX 6750 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 |
Far Cry 6 - 1920x1080 Ultra Graphics Quality + HD Textures + DXR AA:T | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 4070 EX Gamer | |
Sapphire Pulse Radeon RX 6750 XT | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 3070 Ti SG | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X |
Cyberpunk 2077 1.6 - 1920x1080 Ray Tracing Ultra Preset (DLSS off) | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE (1.6) | |
ASUS Dual GeForce RTX 4060 Ti OC (1.6) | |
MSI Radeon RX 6950 XT Gaming X Trio (1.61) | |
KFA2 GeForce RTX 3070 Ti SG (1.61) | |
Nvidia GeForce RTX 3060 Ti FE (1.5) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.6) | |
Nvidia GeForce RTX 2070 Super (1.6) | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2060 Super (1.6) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.6) | |
Sapphire Nitro+ Radeon RX 6650 XT (1.5) |
The Callisto Protocol - 1920x1080 Ultra Preset (without FSR Upscaling) + Full Ray-Tracing | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
ASUS Dual GeForce RTX 4060 Ti OC | |
MSI Radeon RX 6950 XT Gaming X Trio | |
Nvidia GeForce RTX 3060 Ti FE | |
KFA2 GeForce RTX 4070 EX Gamer | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 3070 Ti SG | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Pulse Radeon RX 6600 | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6750 XT | |
PNY GeForce GTX 1660 | |
KFA2 GeForce GTX 1660 Super |
Guardians of the Galaxy - 1920x1080 Ultra Preset + Ultra Ray-Tracing | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE | |
MSI Radeon RX 6950 XT Gaming X Trio | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 3060 Ti FE | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2060 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT |
Control - 1920x1080 High Quality Preset & High Ray Tracing Preset (DX12) | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 3060 Ti FE | |
Sapphire Pulse Radeon RX 6750 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Sapphire Pulse Radeon RX 6600 |
Returnal - 1920x1080 Epic Preset + Epic Ray-Tracing | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 3060 Ti FE | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2060 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT |
F1 23 - 1920x1080 Ultra High Preset AA:T AF:16x | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE (1016022) | |
MSI Radeon RX 6950 XT Gaming X Trio (1016022) | |
KFA2 GeForce GTX 1660 Super (1016022) | |
ASUS Dual GeForce RTX 4060 Ti OC (1012607) | |
PNY GeForce GTX 1660 (1016022) | |
Nvidia GeForce RTX 3060 Ti FE (1021115) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1008687) | |
Sapphire Pulse Radeon RX 6750 XT (1016022) | |
Nvidia GeForce RTX 2070 Super (1021115) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1016022) | |
Nvidia GeForce RTX 2060 Super (1021115) | |
Sapphire Nitro+ Radeon RX 6650 XT (1016022) | |
Sapphire Pulse Radeon RX 6600 (1016022) |
low | med. | high | ultra | QHD | 4K | |
---|---|---|---|---|---|---|
GTA V (2015) | 187.8 | 188 | 186.7 | 112.9 | 77.4 | 82.3 |
The Witcher 3 (2015) | 593.3 | 392.9 | 209.5 | 122.5 | 85.5 | 58.7 |
Dota 2 Reborn (2015) | 296.6 | 205.8 | 239.7 | 168.5 | 108.8 | |
Final Fantasy XV Benchmark (2018) | 235 | 146.9 | 103.6 | 74.2 | 39.3 | |
Far Cry 5 (2018) | 220 | 183 | 174 | 163 | 115 | 57 |
Strange Brigade (2018) | 697 | 284 | 230 | 198.7 | 129.4 | 69.3 |
Shadow of the Tomb Raider (2018) | 345 | 180.7 | 167.2 | 142.2 | 89.3 | 41.6 |
Far Cry New Dawn (2019) | 182 | 161 | 154 | 138 | 118 | 62 |
Metro Exodus (2019) | 266 | 148.7 | 107.3 | 83.5 | 64.9 | 38.1 |
Control (2019) | 240 | 139.7 | 100.3 | 63.6 | 31.3 | |
Borderlands 3 (2019) | 253 | 182.6 | 125 | 96.2 | 65.7 | 34.5 |
F1 2020 (2020) | 589 | 323 | 255 | 171.5 | 127.1 | 71.5 |
Death Stranding (2020) | 239 | 179.8 | 166.1 | 161.6 | 111.2 | 57.8 |
F1 2021 (2021) | 671 | 397 | 291 | 124.9 | 88.7 | 27.3 |
Far Cry 6 (2021) | 238 | 189.2 | 161 | 123.6 | 82.7 | 25.1 |
Guardians of the Galaxy (2021) | 207 | 146 | 145 | 136 | 96 | 52 |
God of War (2022) | 154.5 | 127.7 | 103.9 | 73.2 | 56.5 | 34.8 |
GRID Legends (2022) | 253 | 214 | 178.8 | 152.6 | 126.3 | 77.2 |
Cyberpunk 2077 1.6 (2022) | 147.5 | 117.4 | 100.1 | 89.9 | 55.9 | 24 |
Ghostwire Tokyo (2022) | 176.9 | 170.1 | 169.9 | 161 | 98.9 | 46.2 |
Tiny Tina's Wonderlands (2022) | 267 | 205 | 130.1 | 100 | 65.8 | 29.7 |
F1 22 (2022) | 365 | 323 | 237 | 61.6 | 37.8 | 12.6 |
The Quarry (2022) | 168.5 | 124.5 | 101.3 | 74.6 | 49.4 | 22.8 |
A Plague Tale Requiem (2022) | 129.3 | 97.4 | 70.9 | 53.4 | 38.4 | 20.9 |
Uncharted Legacy of Thieves Collection (2022) | 95 | 89.9 | 83.5 | 79.3 | 77.8 | 23.9 |
Spider-Man Miles Morales (2022) | 116 | 135.7 | 121.3 | 107.9 | 74.5 | 38.6 |
The Callisto Protocol (2022) | 172.5 | 124.6 | 105.6 | 68.1 | 54.5 | 33.3 |
High On Life (2023) | 283 | 180.7 | 141.2 | 106.2 | 62.9 | 26.2 |
The Witcher 3 v4.00 (2023) | 210.4 | 175.1 | 149.9 | 121.3 | 77.3 | 40.1 |
Dead Space Remake (2023) | 85.8 | 81.4 | 69.1 | 69.3 | 45.5 | 18.4 |
Hogwarts Legacy (2023) | 161.1 | 119.6 | 94.4 | 71 | 49.6 | 22.4 |
Returnal (2023) | 115 | 109 | 98 | 82 | 59 | 32 |
Atomic Heart (2023) | 213 | 158.3 | 92.6 | 70.7 | 52 | 30.5 |
Sons of the Forest (2023) | 125.4 | 112 | 105.2 | 104.8 | 71.6 | 41.2 |
Resident Evil 4 Remake (2023) | 149.1 | 112.5 | 98.5 | 66.8 | 49.4 | 27.3 |
The Last of Us (2023) | 114.2 | 93.6 | 75.8 | 64.3 | 36.5 | 15.2 |
Dead Island 2 (2023) | 285 | 245 | 181.9 | 129.7 | 88 | 44.9 |
Star Wars Jedi Survivor (2023) | 87.6 | 78.8 | 73.6 | 68.4 | 43 | 20.3 |
Diablo 4 (2023) | 267 | 226 | 202 | 161.7 | 96.5 | 50.1 |
F1 23 (2023) | 365 | 314 | 221 | 48.8 | 31.8 | 10.7 |
Ratchet & Clank Rift Apart (2023) | 84.5 | 71.2 | 50.2 | 40.9 | 33.4 | 20.2 |
Atlas Fallen (2023) | 144.7 | 138.6 | 127.9 | 100.3 | 67 | 38.4 |
Immortals of Aveum (2023) | 86.3 | 72.1 | 54.4 | 34.2 | 17.6 | |
Armored Core 6 (2023) | 119.8 | 118.4 | 114.6 | 100.7 | 74.5 | 40.6 |
Starfield (2023) | 80.2 | 76 | 61.2 | 55.5 | 43.6 | 26.7 |
Lies of P (2023) | 196.7 | 170.9 | 145 | 129.3 | 86.7 | 42.3 |
Baldur's Gate 3 (2023) | 135.8 | 112.8 | 93.7 | 90.9 | 64.2 | 33 |
Cyberpunk 2077 2.1 Phantom Liberty (2023) | 135.2 | 107.5 | 90.1 | 81 | 50.5 | 21.6 |
Counter-Strike 2 (2023) | 348 | 336 | 219 | 138 | 89.6 | 44.1 |
EA Sports FC 24 (2023) | 304 | 274 | 215 | 180.4 | 144.7 | 87.8 |
Assassin's Creed Mirage (2023) | 157 | 139 | 128 | 84 | 67 | 35 |
Total War Pharaoh (2023) | 402.9 | 271.5 | 163.1 | 129.1 | 83.3 | 40.8 |
Lords of the Fallen (2023) | 98 | 80.8 | 55 | 38.1 | 25.1 | 12.3 |
Alan Wake 2 (2023) | 77.9 | 69.3 | 62.8 | 40.3 | 20.3 | |
EA Sports WRC (2023) | 158.8 | 107.4 | 95.8 | 86.1 | 61.2 | 33.8 |
Call of Duty Modern Warfare 3 2023 (2023) | 179 | 162 | 120 | 112 | 75 | 41 |
Avatar Frontiers of Pandora (2023) | 72 | 65 | 57 | 42 | 28 | 14 |
The Finals (2023) | 291 | 210 | 186.4 | 135.6 | 81.9 | 35.3 |
Ready or Not (2023) | 212 | 194.7 | 194.5 | 133.6 | 76.7 | 33.8 |
排放 - 巨大的冷却器带来安静和凉爽
为了测量噪音水平,我们将松景 Speedster QICK 308 Radeon RX 7600 Black Edition 安装在露天测试台上。在测量过程中,所有其他风扇都被关闭。由于我们的评测设备带有风扇停止模式,因此在空闲状态下是完全静音的。根据我们的测量,该显卡在平均负载时达到 29.6 dB(A),在满载时达到 39.4 dB(A)。这意味着松景 Speedster QICK 308 Radeon RX 7600 黑色版的运行噪音比竞争对手略低,但比微星的 微星GeForce RTX 4060 Ti Gaming X Trio 8G在这方面仍然无与伦比。不过,我们可以主观地说,松景显卡上的三个风扇不会产生任何恼人的频率。在封闭的电脑机箱内几乎听不到任何声音。
Noise Level
Idle |
| 26.3 / 26.3 / 26.3 dB(A) |
Load |
| 29.6 / 39.4 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 25.4 dB(A) |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition R9 7950X, Radeon RX 7600 | MSI GeForce RTX 4060 Ti Gaming X Trio 8G R9 7950X, NVIDIA GeForce RTX 4060 Ti 8G | KFA2 GeForce RTX 4060 Ti EX R9 7950X, NVIDIA GeForce RTX 4060 Ti 8G | KFA2 GeForce RTX 4060 1-Click-OC 2X R9 7950X, NVIDIA GeForce RTX 4060 | KFA2 GeForce RTX 4070 EX Gamer R9 7950X, NVIDIA GeForce RTX 4070 | |
---|---|---|---|---|---|
Noise | -7% | -8% | -3% | -12% | |
off / environment * | 25.4 | 29.7 -17% | 29.7 -17% | 25.8 -2% | 30 -18% |
Idle Minimum * | 26.3 | 30.1 -14% | 30.1 -14% | 25.9 2% | 30.2 -15% |
Idle Average * | 26.3 | 30.1 -14% | 30.1 -14% | 25.9 2% | 30.2 -15% |
Idle Maximum * | 26.3 | 30.1 -14% | 30.1 -14% | 25.9 2% | 30.2 -15% |
Load Average * | 29.6 | 30.15 -2% | 30.3 -2% | 30.3 -2% | 31.8 -7% |
Witcher 3 ultra * | 39.6 | 35.8 10% | 45.2 -14% | ||
Load Maximum * | 39.4 | 31 21% | 40 -2% | 43.5 -10% | 41.1 -4% |
* ... smaller is better
温度和功率要求

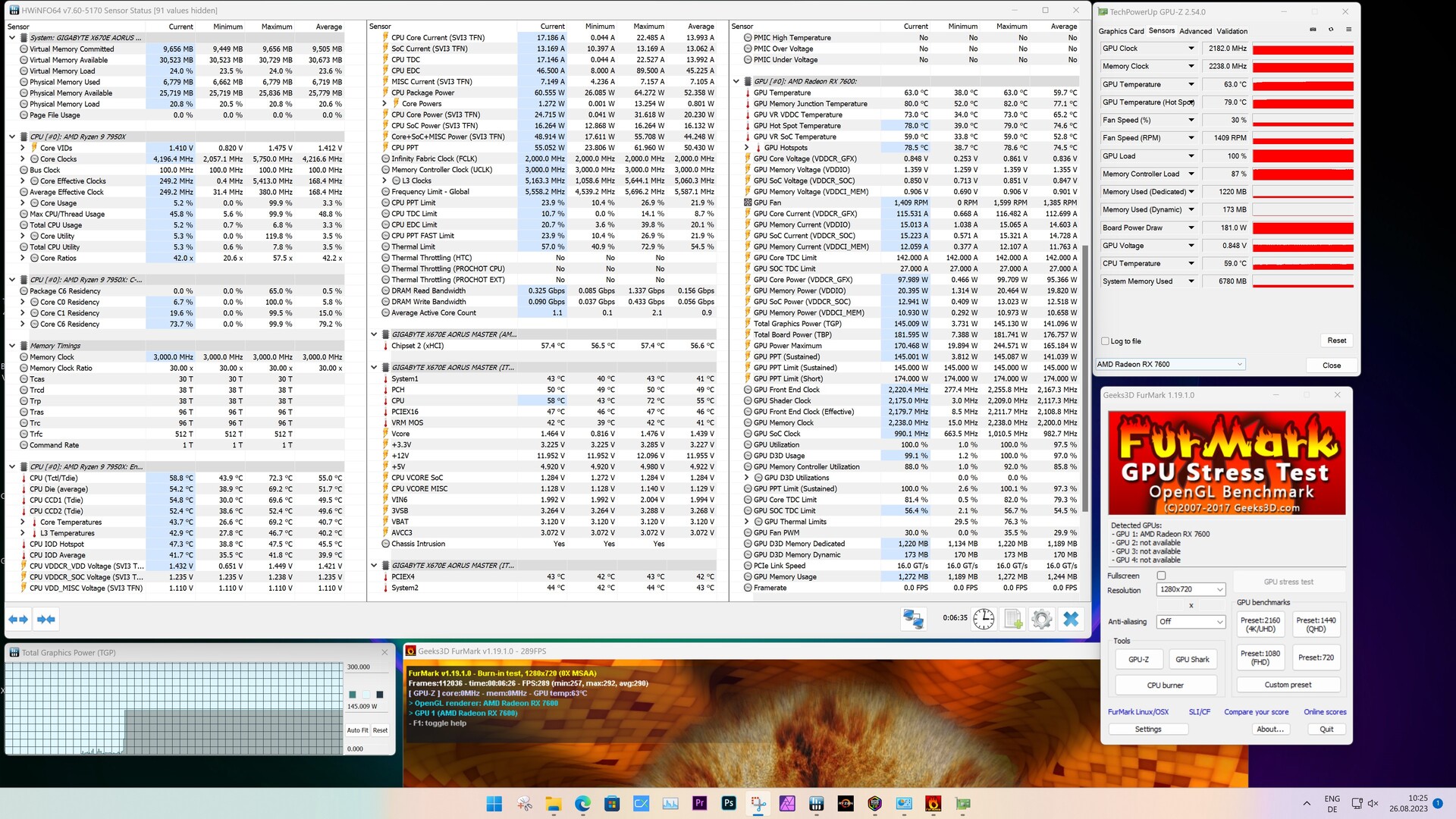

松景为Speedster QICK 308 Radeon RX 7600黑色版配备了厚重的散热器,使用三个80毫米轴流风扇可靠散热。由于 GPU 的额定功耗仅为 165 瓦,因此散热器可以毫无问题地将显卡保持在规定的温度范围内,而不会发出噪音。在压力测试中,HWiNFO64 报告的 GPU 热点温度仅为 79°C(174°F)。在相同负载下,VRAM 的温度略高,为 82°C (180°F)。即便如此,板载组件仍未接近其散热极限。

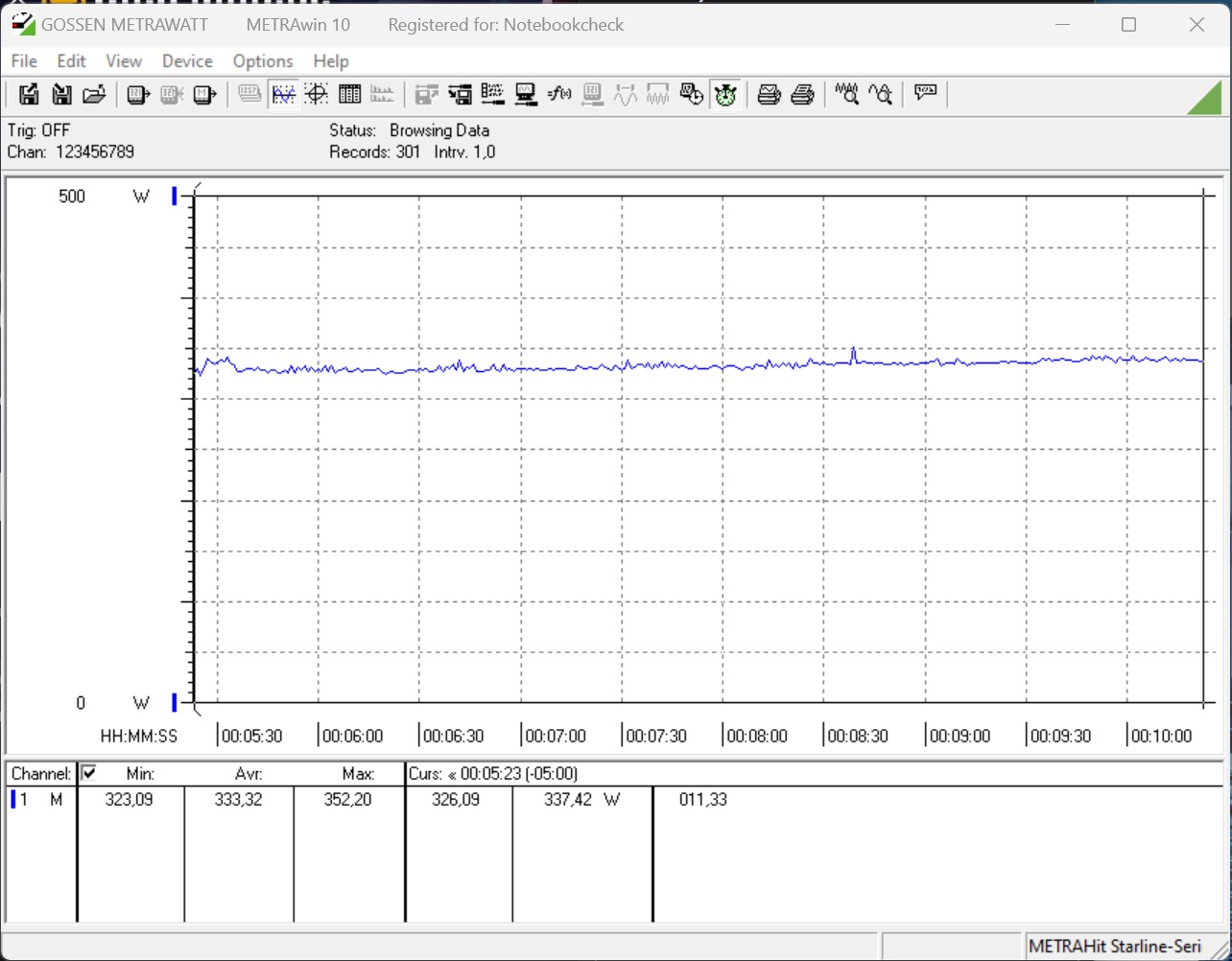

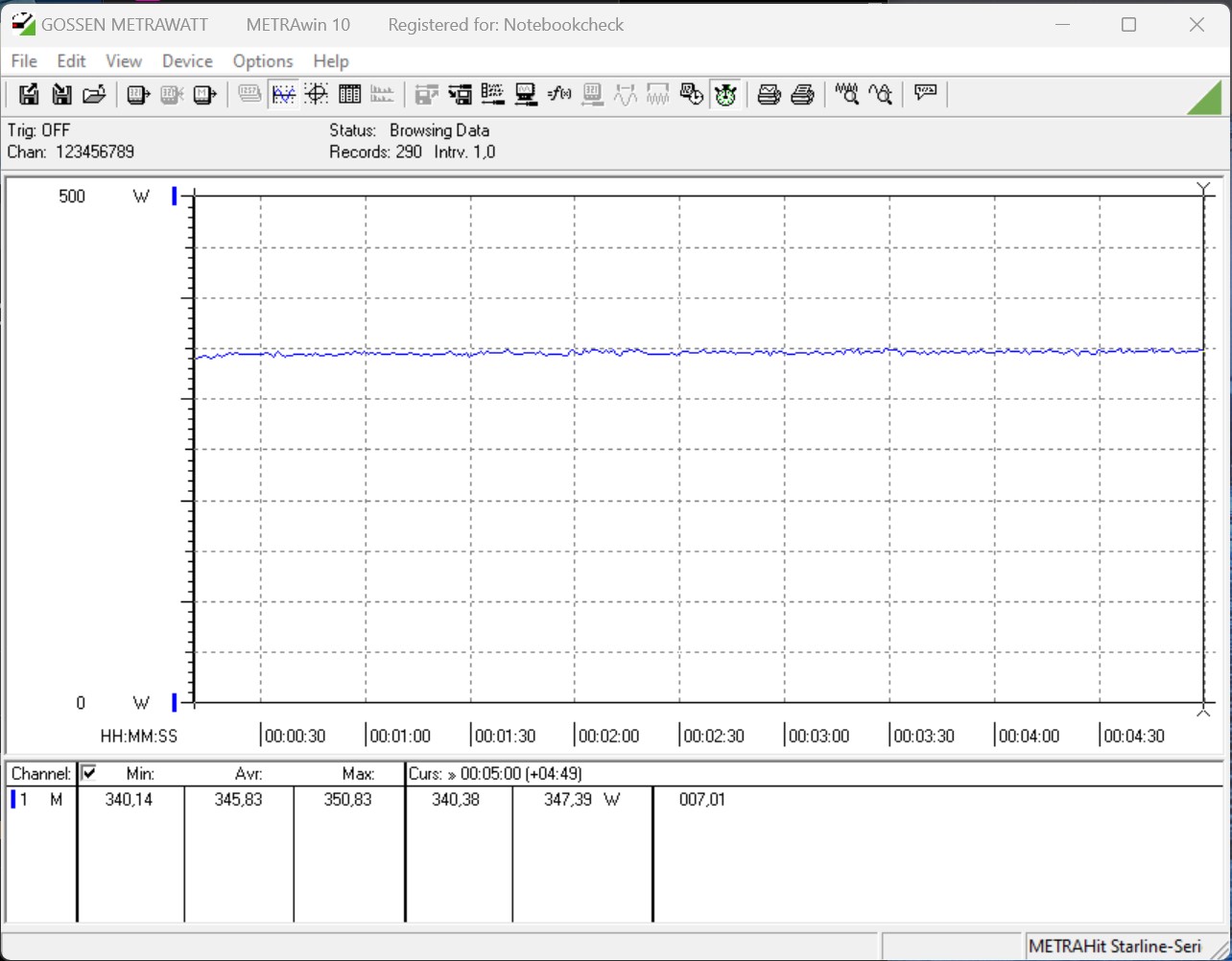

我们不能为 AMD 的入门级 RDNA 3 GPU 冠以能效之王的称号。根据我们的测量,测试设备在游戏过程中的功耗为 346 瓦,在运行 FurMark 压力测试时的功耗为 333 瓦。相比之下,速度稍快的KFA2GeForce RTX 4060 Ti EX 的效率要高得多。松景建议 Speedster QICK 308 Radeon RX 7600 Black Edition 使用 550 瓦的 PSU。
Power Consumption / The Witcher 3 ultra (external Monitor) | |
AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
NVIDIA GeForce RTX 3090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 3080 SG | |
KFA2 GeForce RTX 4080 SG (Idle: 86.4 W) | |
AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
Sapphire Pulse Radeon RX 6750 XT | |
NVIDIA GeForce RTX 3060 Ti Founders Edition (Idle: 111.39 W) | |
KFA2 GeForce RTX 4070 EX Gamer | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X |
Power Consumption / FurMark 1.19 GPU Stress Test (external Monitor) | |
Palit GeForce RTX 4090 GameRock OC | |
AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
NVIDIA GeForce RTX 3090 Founders Edition | |
AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
KFA2 GeForce RTX 3080 SG | |
KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
KFA2 GeForce RTX 4080 SG (Idle: 86.4 W) | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
Sapphire Pulse Radeon RX 6750 XT | |
NVIDIA GeForce RTX 3060 Ti Founders Edition (Idle: 111.39 W) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X |
Power Consumption / Witcher 3 ultra Efficiency (external Monitor) | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 SG | |
AMD Radeon RX 7900 XT | |
AMD Radeon RX 7900 XTX | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Pulse Radeon RX 6750 XT | |
NVIDIA GeForce RTX 3090 Founders Edition | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 3070 Ti SG | |
KFA2 GeForce RTX 3080 SG | |
Sapphire Nitro+ Radeon RX 6650 XT | |
NVIDIA GeForce RTX 3060 Ti Founders Edition |
* ... smaller is better
Power consumption with external monitor
Pros
Cons
结论:1080p 游戏显卡性能稳定
松景 Speedster QICK 308 Radeon RX 7600 黑色版让我们看到了 AMD 推出的新款入门级 Radeon RX 7000 系列 GPU。松景显卡的时钟速度略高于参考型号,与参考型号略有不同。在显卡的外观和散热器方面,松景也选择了自己的设计。他们的设计非常成功:显卡始终保持相对安静,在 2D 应用程序中甚至完全静音。坚固的冷却器可以毫无问题地去除产生的热量,即使在负载情况下也能保持 GPU 的良好冷却。
松景 Speedster QICK 308 Radeon RX 7600 Black Edition 性能出众,价格合理。
在我们的评测中,松景 Speedster QICK 308 Radeon RX 7600 黑色版能够胜任我们测试的游戏。作为一款 1080p 显卡,评测机型给人留下了坚实的印象。不过,需要注意的是,当图形设置达到最高时,图形处理器很难以 60 FPS 的速度运行最新的游戏。降低这些设置应该可以缓解这个问题,但在不久的将来,这个问题会越来越严重。AMD 不久将发布另一款中端 GPU Radeon RX 7700 XT,它将与 NvidiaGeForce RTX 4060 Ti 正面交锋。
如果你现在正在市场上购买新的图形加速器,那么购买 RX 6000 系列显卡也是一个安全的选择。蓝宝石 Radeon RX 6700 是一款速度稍快的 GPU,拥有 10 GB VRAM,但价格也比 XFX Speedster QICK 308 Radeon RX 7600 Black Edition 高出 30 欧元(33 美元),后者现已上市,售价 279 欧元(303 美元)起。
价格和供应情况
XFX Speedster QICK 308 Radeon RX 7600黑色版现已在亚马逊等零售商处发售(€293/US$270/£269)和Notebooksbilliger.de(293 欧元)。
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was freely purchased by the author at his/her own expense. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
