MagyarGPD G1 eGPU 评测：配备 8GB VRAM 的外置 AMD Radeon RX 7600M XT 使用 USB4 或 OCuLink
便携式手持 PC 和迷你 PC 越来越受欢迎。这些设备基于主要用于笔记本电脑的移动组件。与此同时，iGPU 的性能也随着功能越来越强大的 SoC 而不断提高。AMD 是其中的佼佼者，其当前的 Zen 4 Phoenix 处理器系列使该公司在 3D 性能方面的标准更上一层楼。其 Radeon 780M是目前最快的 iGPU，从而使 AMD 在集成显卡方面远远领先于英特尔。然而，许多现代游戏已经将 Radeon 780M 推向了极限。GPD G1 就是来解决这个问题的。但首先，您需要确保您的设备带有 USB4 或 OCuLink 端口，才能使用 eGPU。后者由 GPD 自己的手持设备原生支持（即 2023 版 GPD Win 4).

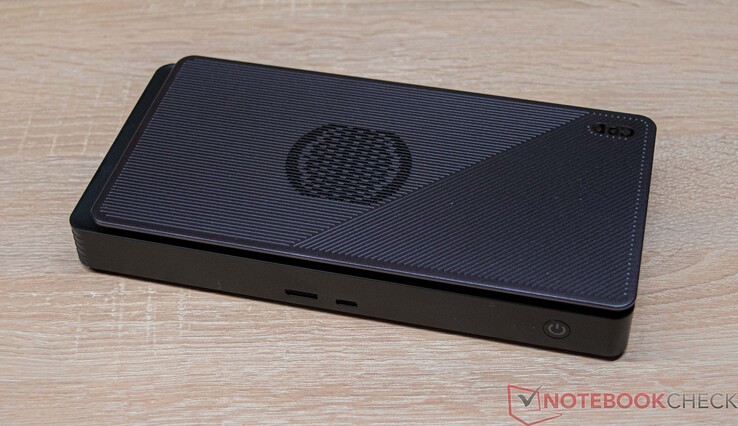

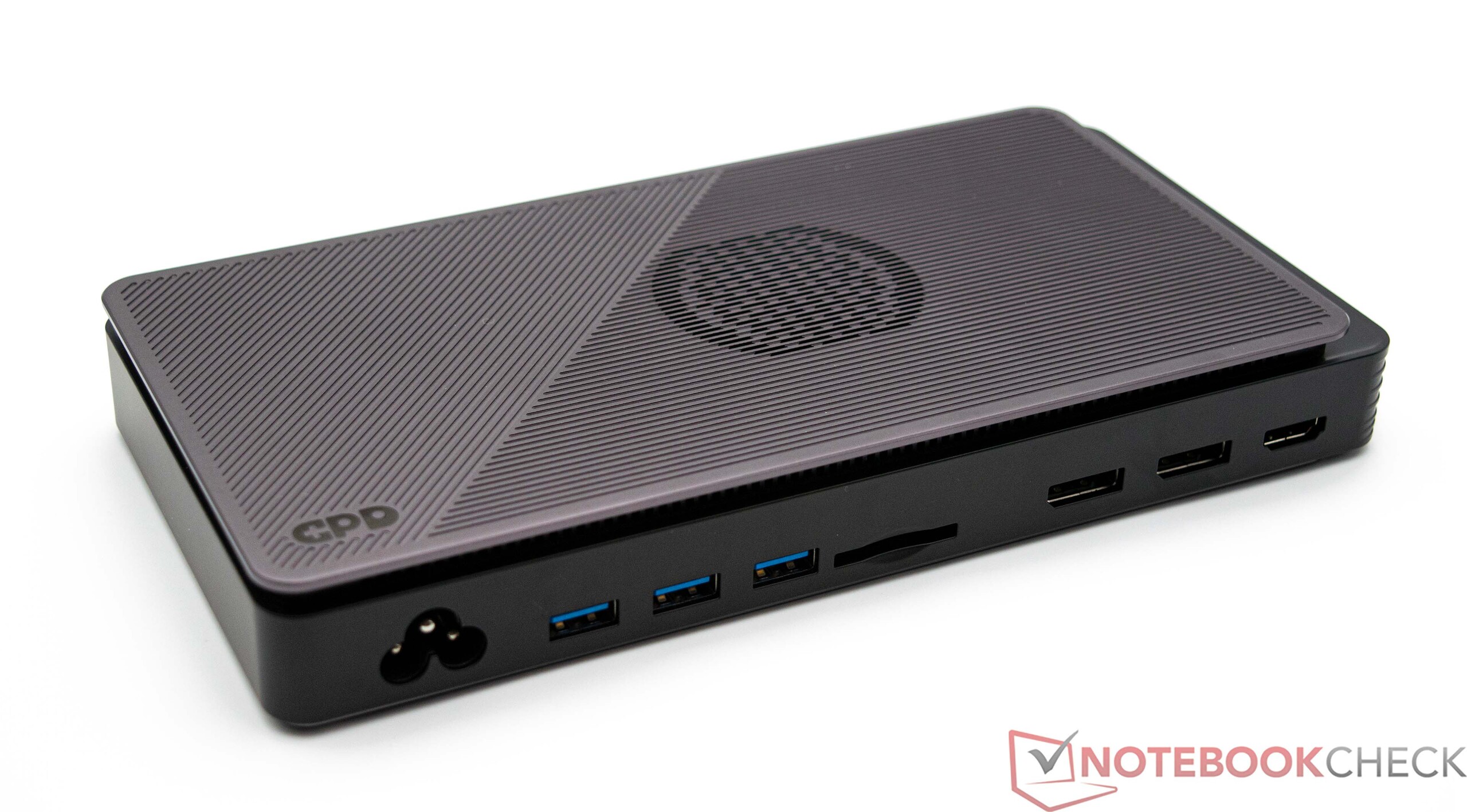

外部图形解决方案包含一个 AMD Radeon RX 7600M XT图形芯片，配备 8GB VRAM。制造商还设法把所有东西都装进了一个相对紧凑的外壳中，包括电源。外置图形处理器甚至还提供了额外的外部接口，如 USB 端口和 SD 读卡器，显示器可通过 DisplayPort 或 HDMI 与设备连接。eGPU 扩展坞的税前售价为 630 欧元（约合 655 美元），当然不算便宜。不过，目前还没有同类产品能如此轻松、显著地提升迷你 PC 或流行手持设备的 3D 性能。

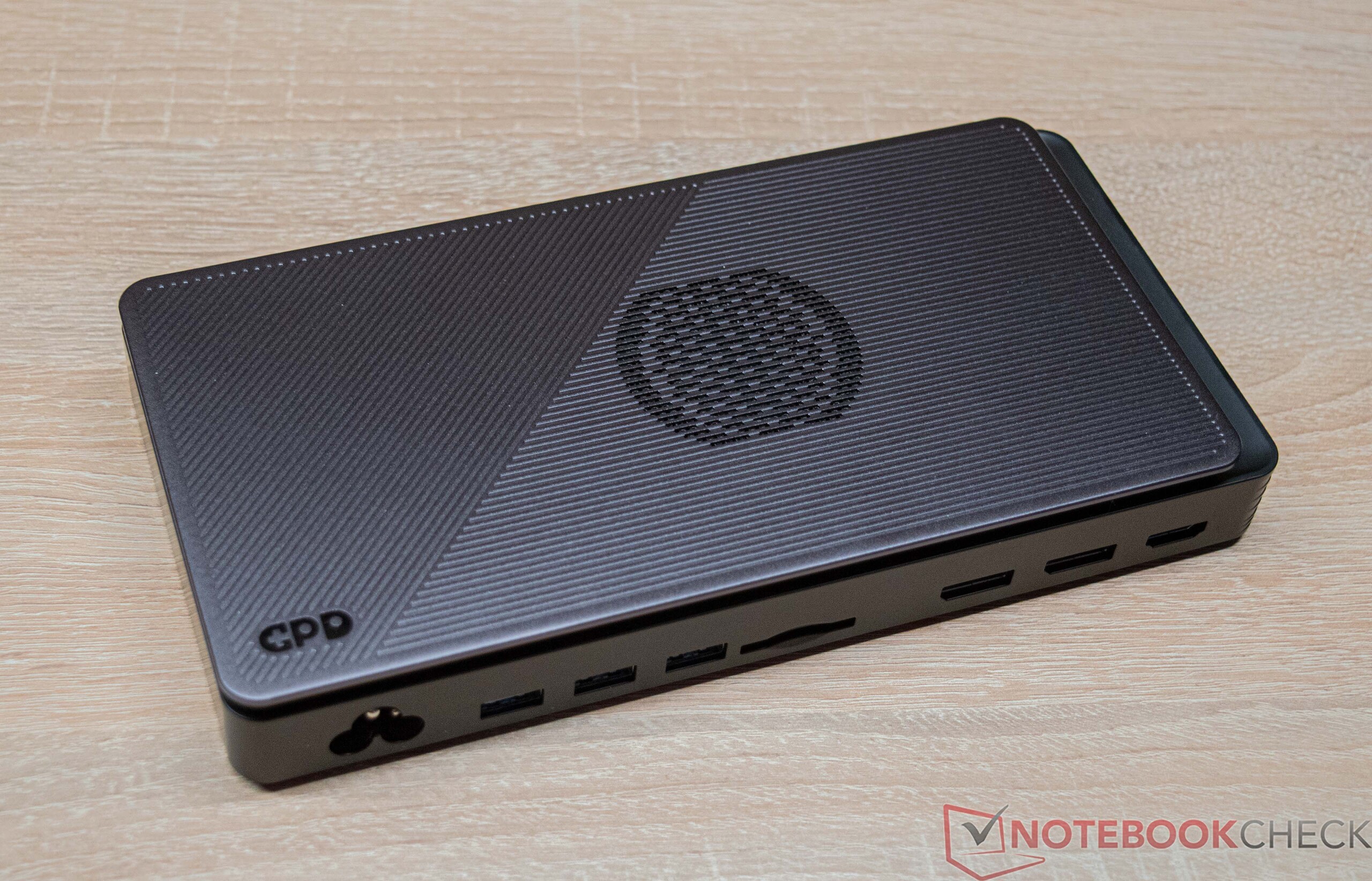

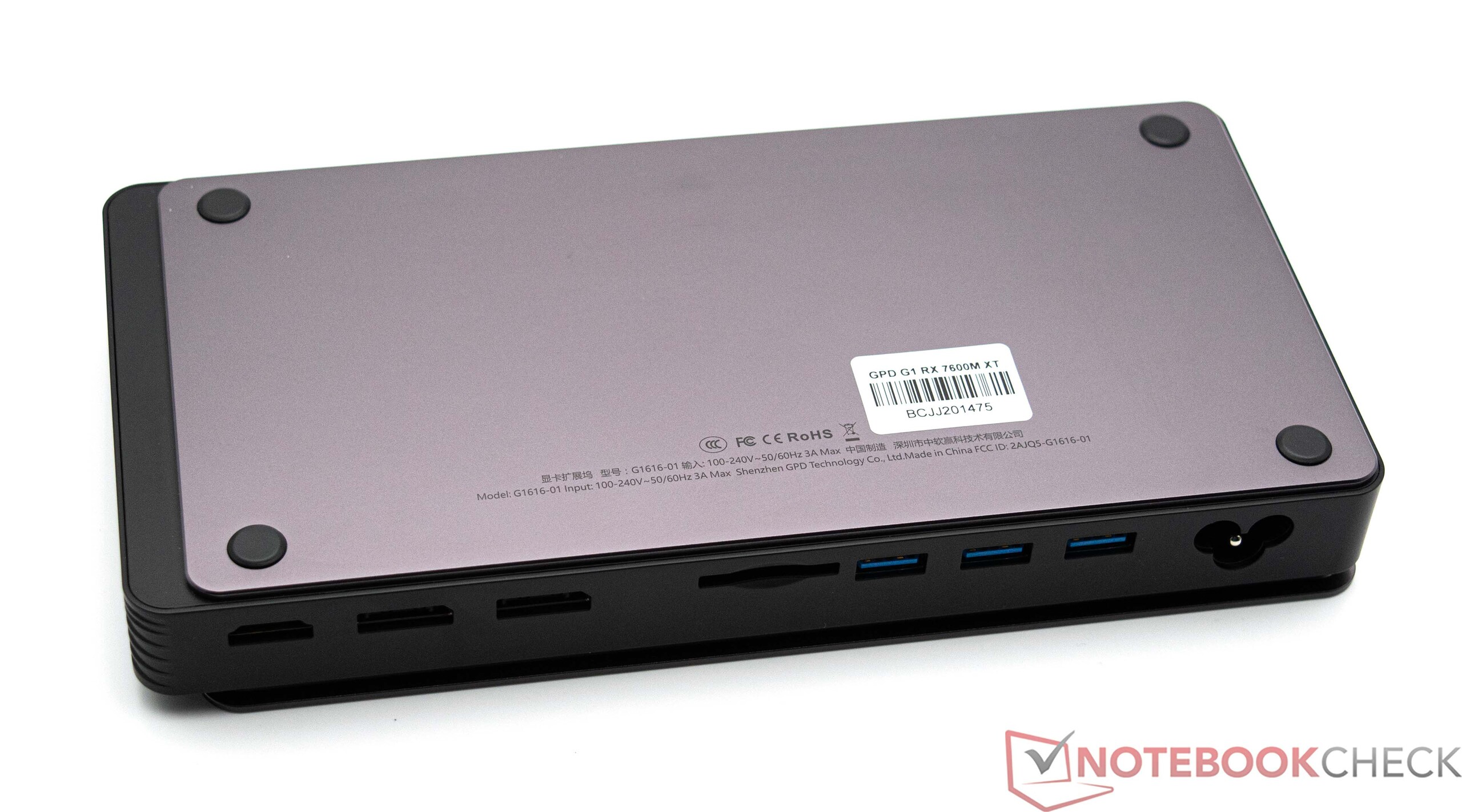

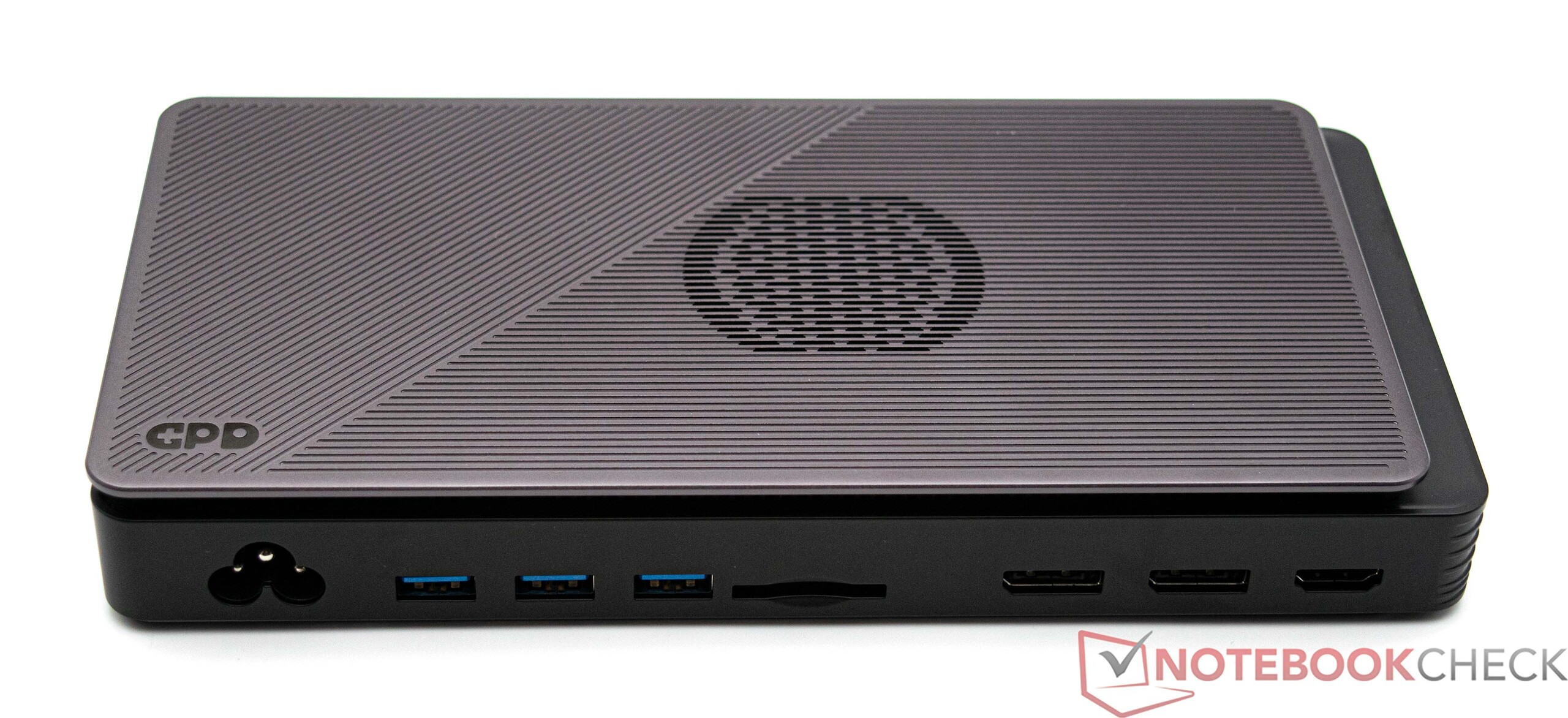

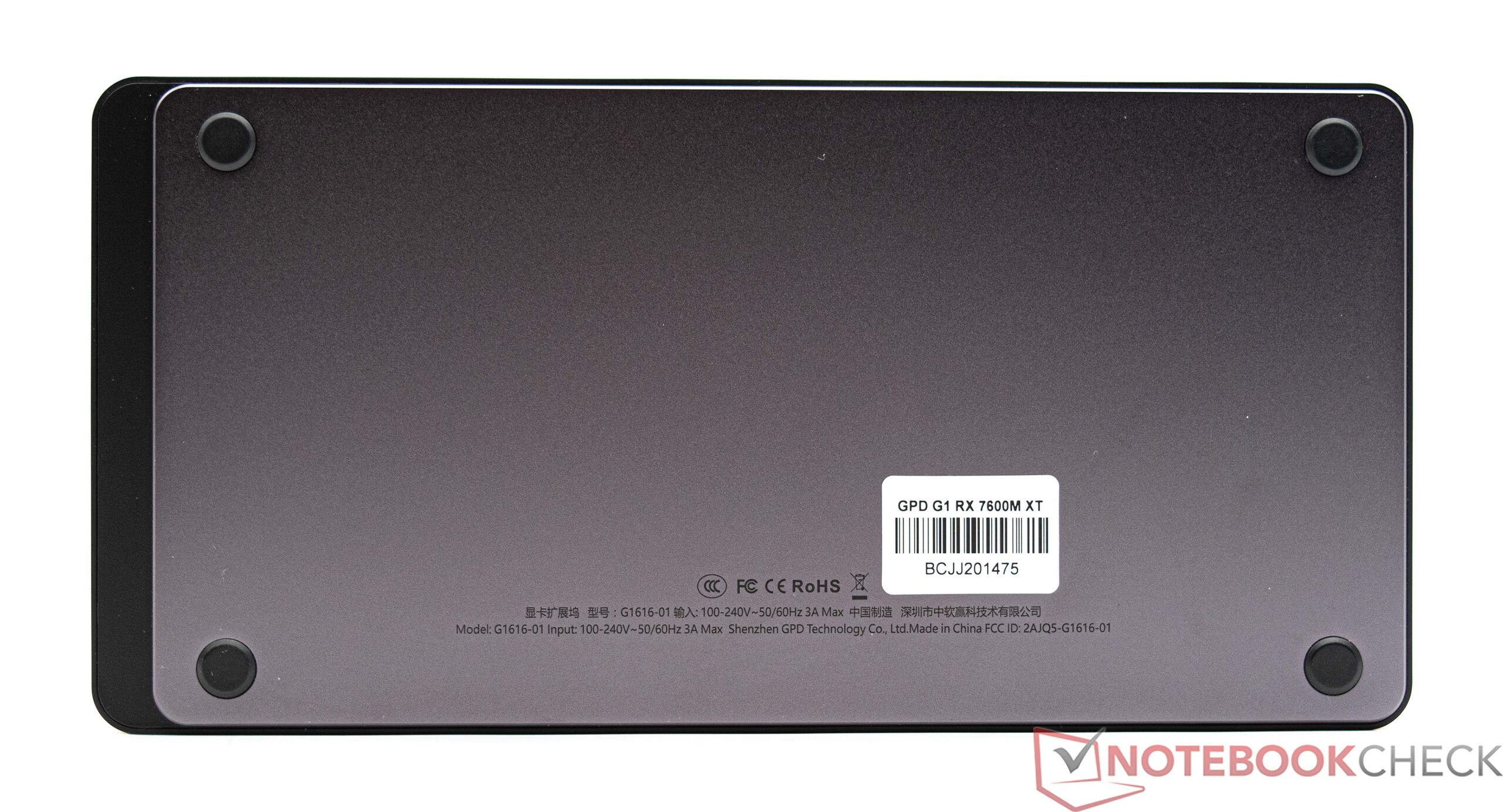

详细了解配备 AMD Radeon RX 7600M XT 的 GPD G1
各种 AMD Radeon GPU 的比较
| 规格 | Radeon RX 7900 XTX | Radeon RX 7900 XT | Radeon RX 7900 GRE | Radeon RX 7800 XT | Radeon RX 7700 XT | Radeon RX 7600 | Radeon RX 7600MXT | Radeon RX 6650 XT | Radeon RX 6600 XT | Radeon RX 6600 |
| GPU | Navi 31 XTX | Navi 31 XT | Navi 31 XT | Navi 32 XT | Navi 32 XL | Navi 33 | Navi 33 | Navi 23 | Navi 23 | Navi 23 |
| 制造工艺 | 5/6 nm | 5/6 nm | 5/6 nm | 5/6 nm | 5/6 nm | 6 nm | 6 nm | 7 nm | 7 nm | 7 nm |
| 计算单位 | 96 | 84 | 80 | 60 | 54 | 32 | 32 | 32 | 32 | 28 |
| 着色单元 | 6,144 | 5,376 | 5,120 | 3,840 | 3,456 | 2,048 | 2,048 | 2,048 | 2,048 | 1,792 |
| 纹理映射单元 | 384 | 336 | 320 | 240 | 216 | 128 | 128 | 128 | 128 | 112 |
| 光线加速器 | 96 | 84 | 80 | 60 | 54 | 32 | 32 | 32 | 32 | 28 |
| 基本时钟 | 2,270 MHz | 2,000 MHz | 1,880 MHz | 1,295 MHz | 1,700 MHz | 1,720 MHz | 1,437MHz | 2,055 MHz | 1,968 MHz | 1,626 MHz |
| 游戏时钟 | 2,300 MHz | 2,000 MHz | 1,880 MHz | 2,124 MHz | 2,171 MHz | 2,250 MHz | 2,330MHz | 2,410 MHz | 2,359 MHz | 2,044 MHz |
| 提升时钟 | 2,500 MHz | 2,400 MHz | 2,245 MHz | 2,430 MHz | 2,544 MHz | 2,655 MHz | 2,608MHz | 2,635 MHz | 2,589 MHz | 2,491 MHz |
| 无限缓存 | 96 MB | 80 MB | 64 MB | 64 MB | 48 MB | 32 MB | 32 MB | 32 MB | 32 MB | 32 MB |
| 内存总线宽度 | 384 位 | 320 位 | 256 位 | 256 位 | 256 位 | 128 位 | 128 位 | 128 位 | 128 位 | 128 位 |
| 内存带宽 | 960 GB/s | 800 GB/s | 576 GB/s | 620.8 GB/s | 432 GB/s | 288 GB/s | 288 GB/s | 280.3 GB/s | 256 GB/s | 224 GB/s |
| 内存大小 | 24 GB GDDR6 | 20 GB GDDR6 | 16 GB GDDR6 | 16 GB GDDR6 | 12 GB GDDR6 | 8 GB GDDR6 | 8 GB GDDR6 | 8 GB GDDR6 | 8 GB GDDR6 | 8 GB GDDR6 |
| TBP | 355 W | 315 W | 260 W | 263 W | 245 W | 165 W | 120W | 176 W | 160 W | 132 W |

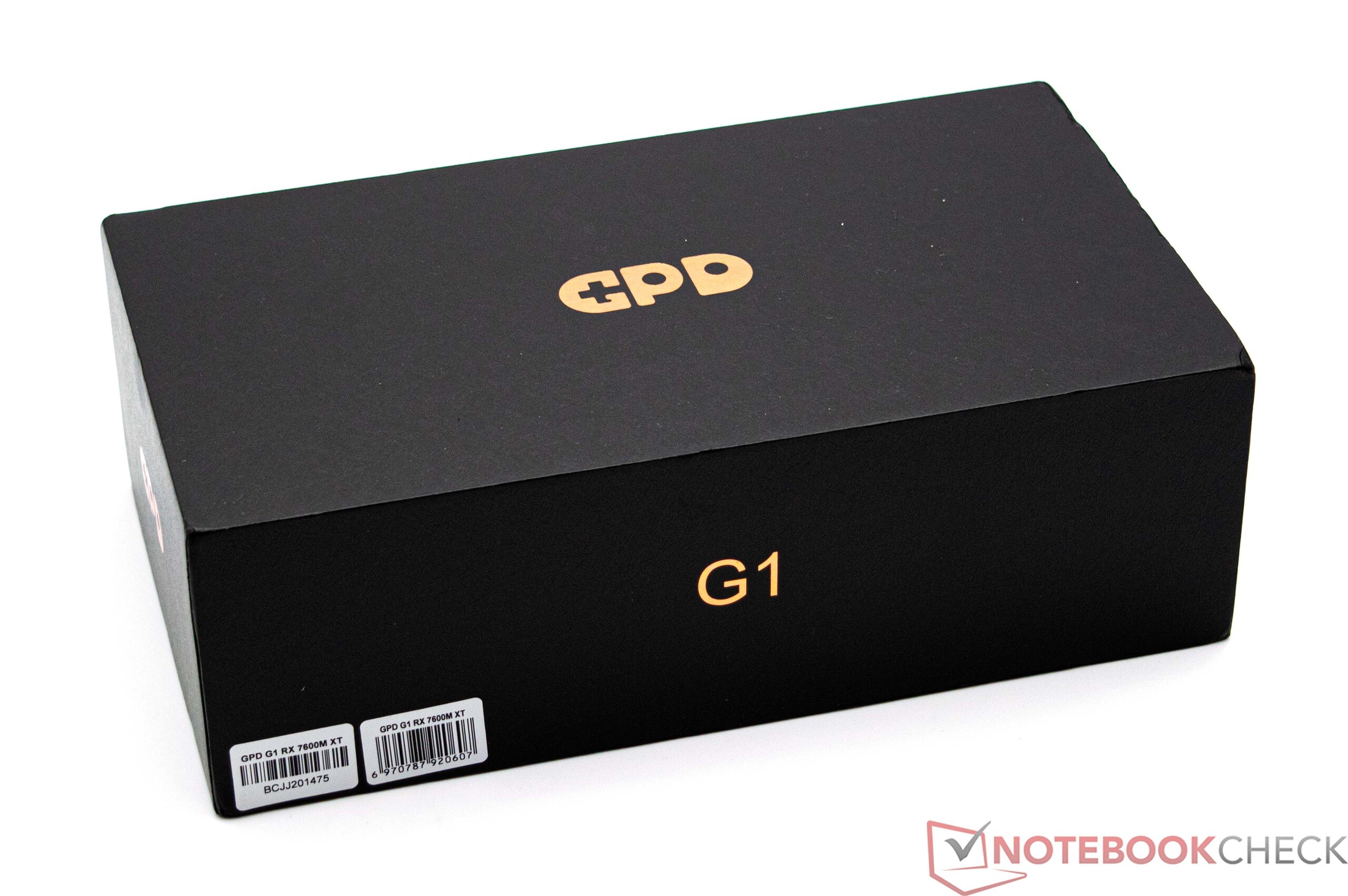

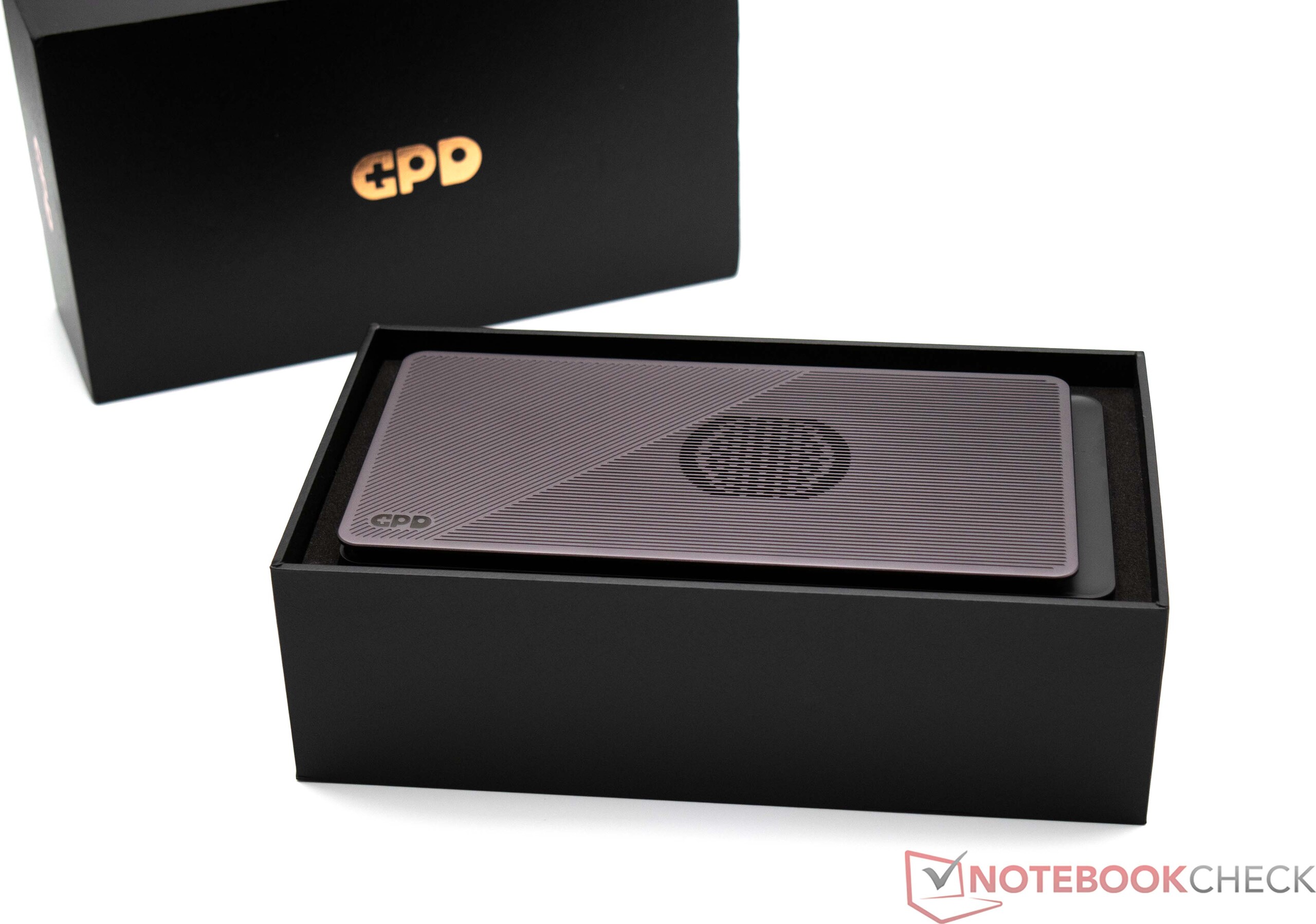

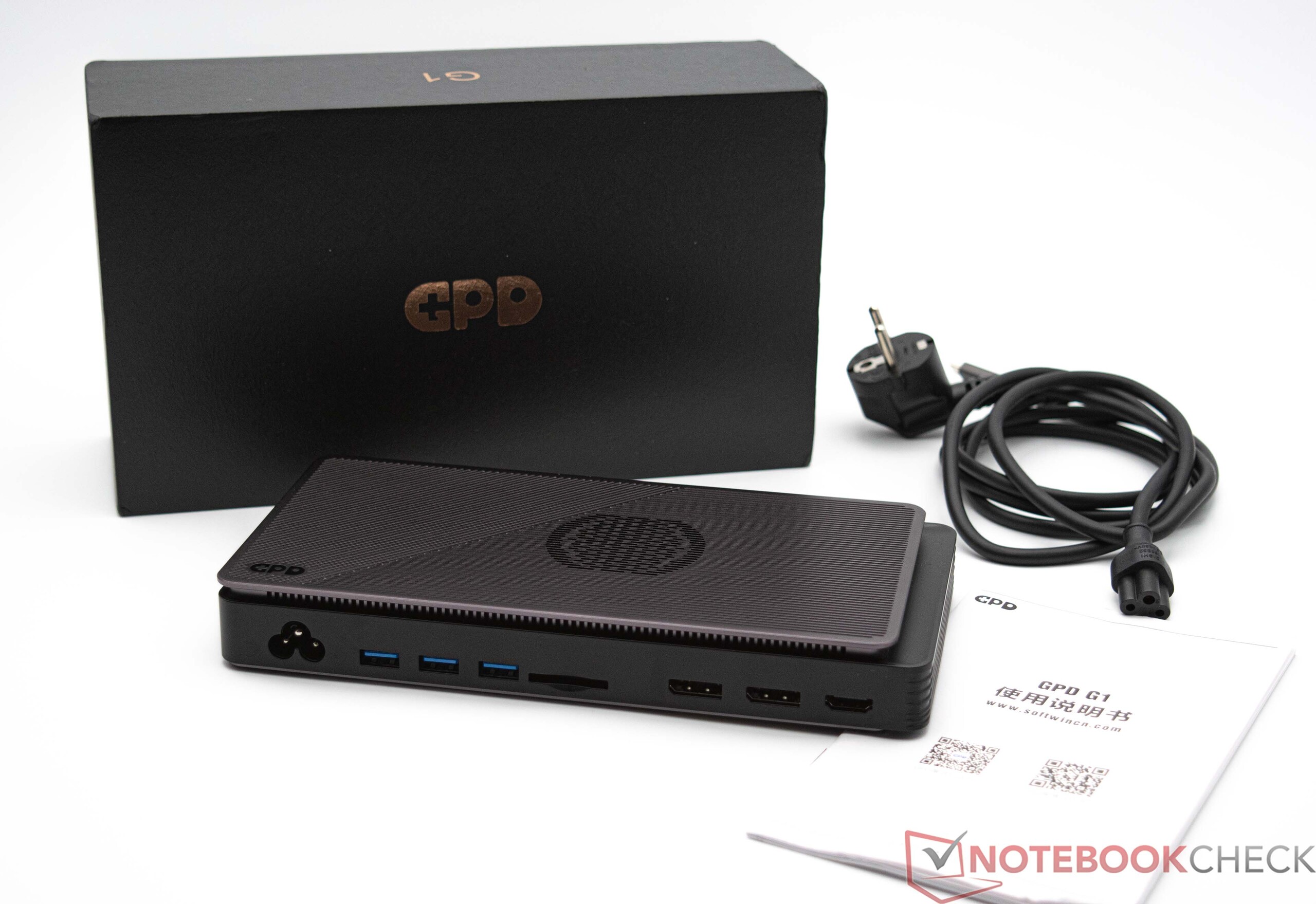

包装内容

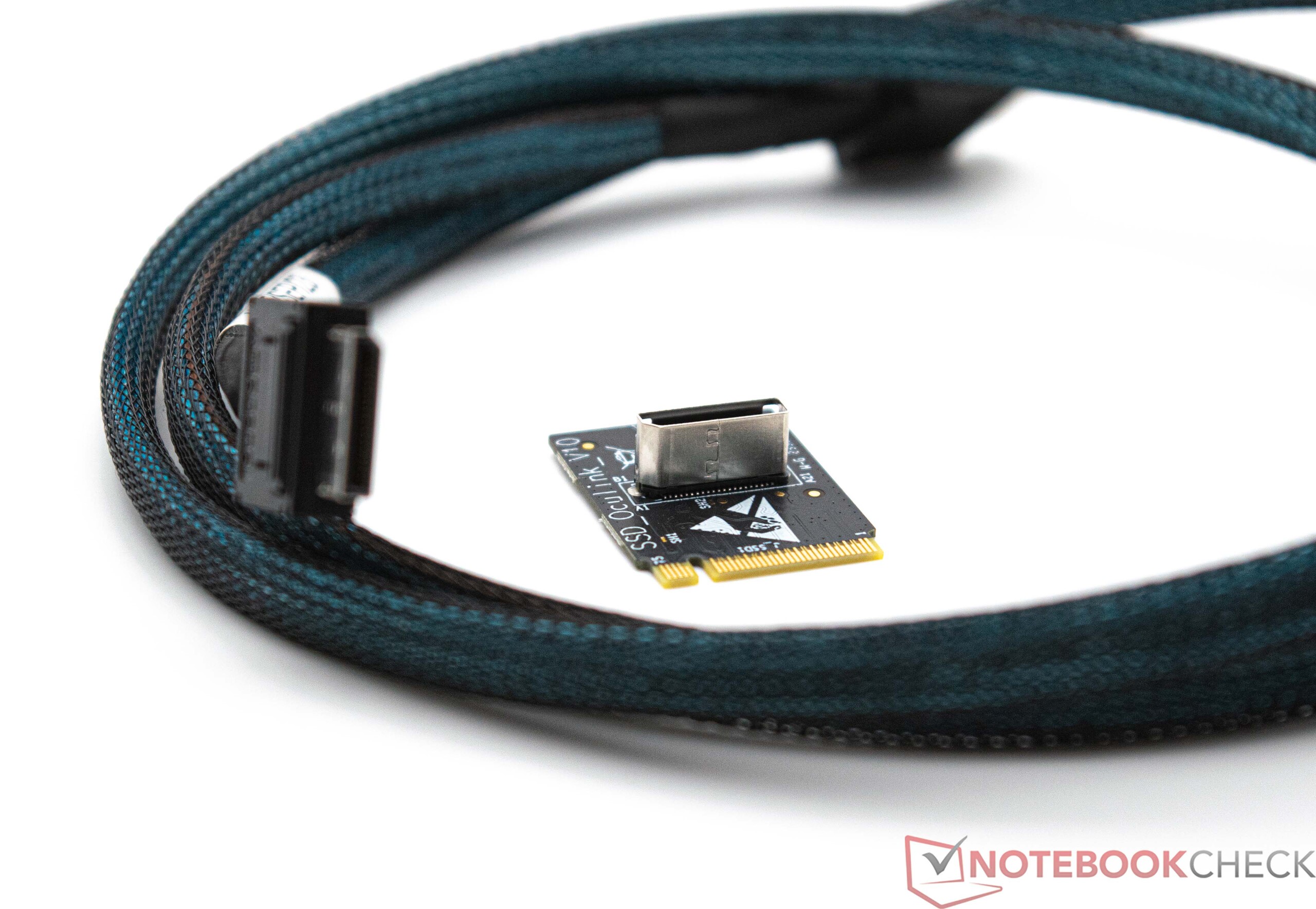

包装盒内的物品相当简陋：除了 eGPU 外，只有一根电源线和一条 USB-C 连接线。如果想使用速度更快的 OCuLink 接口连接 GPD G1，则需要额外的线缆。根据型号的不同，您可能需要再花大约 50 欧元（54 美元）购买一个 M.2-2230 适配器和一条合适的线缆。

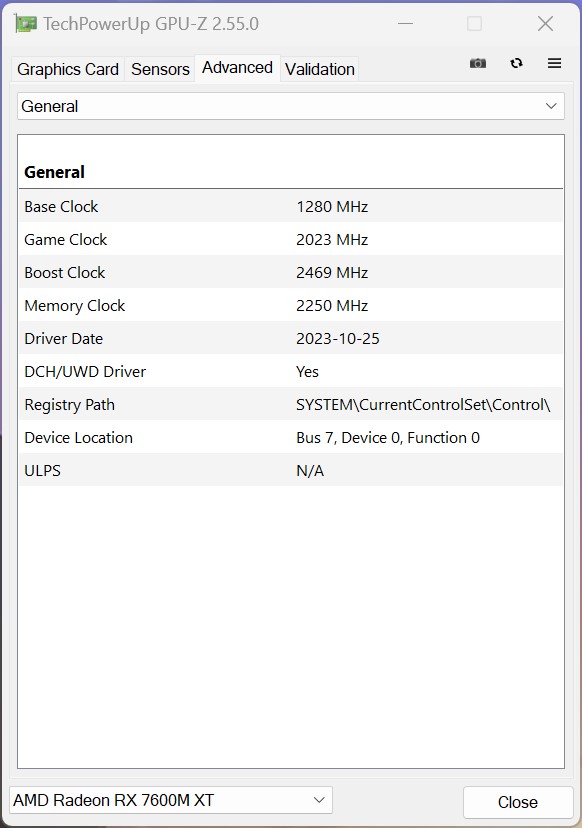

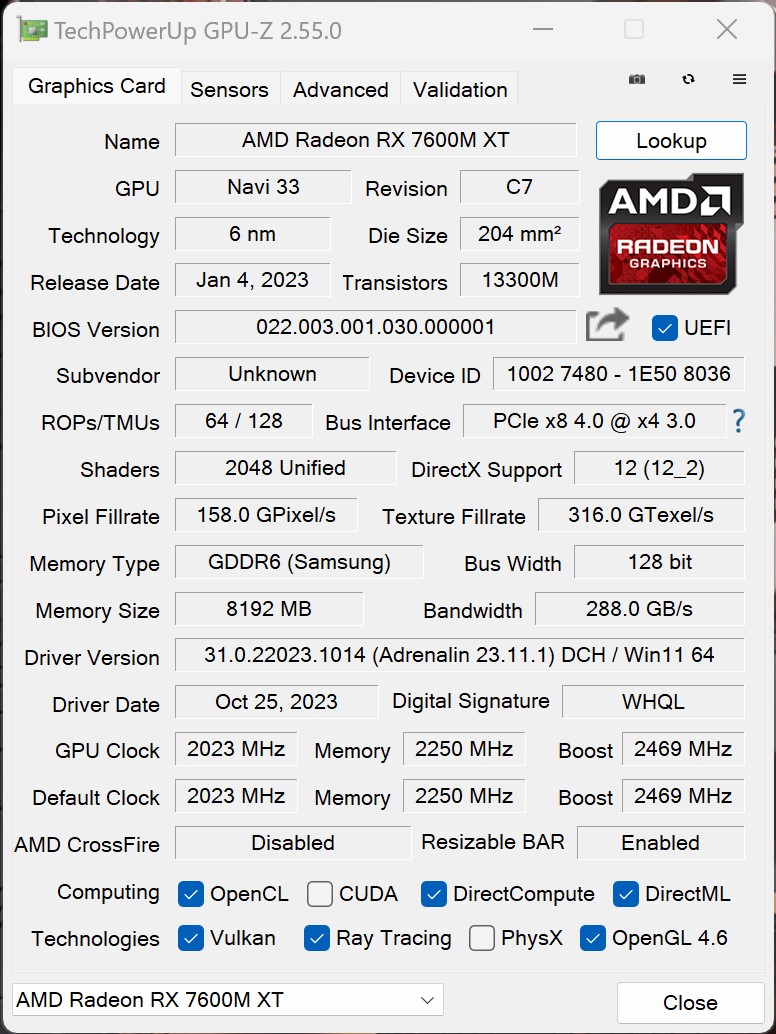

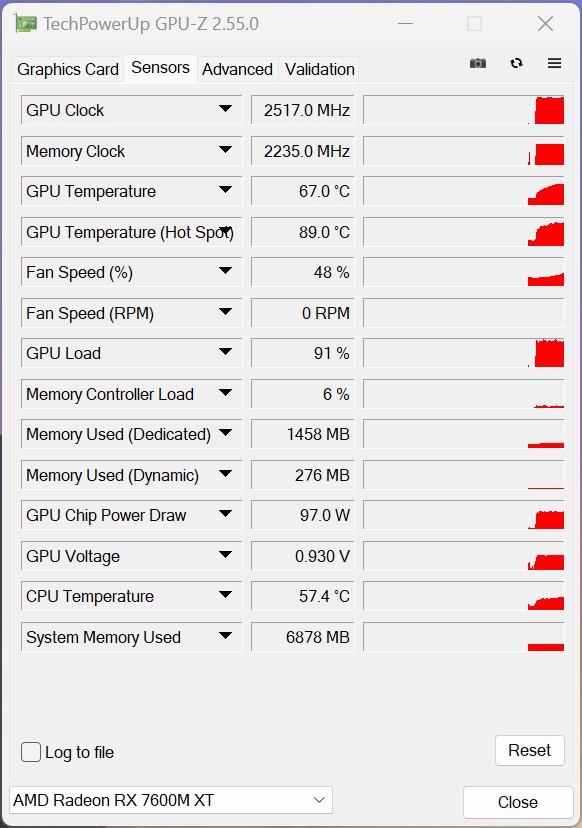

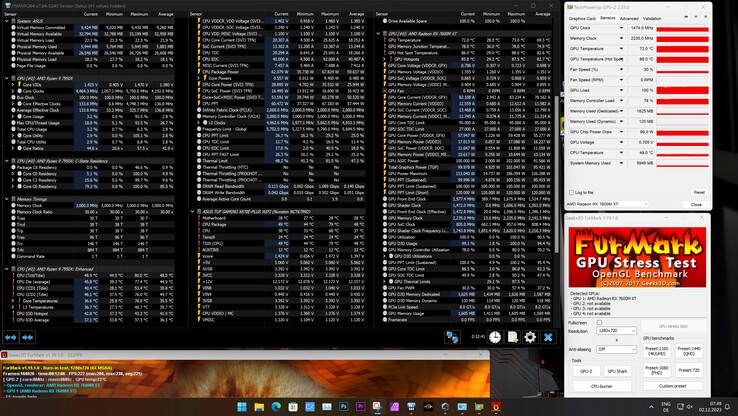

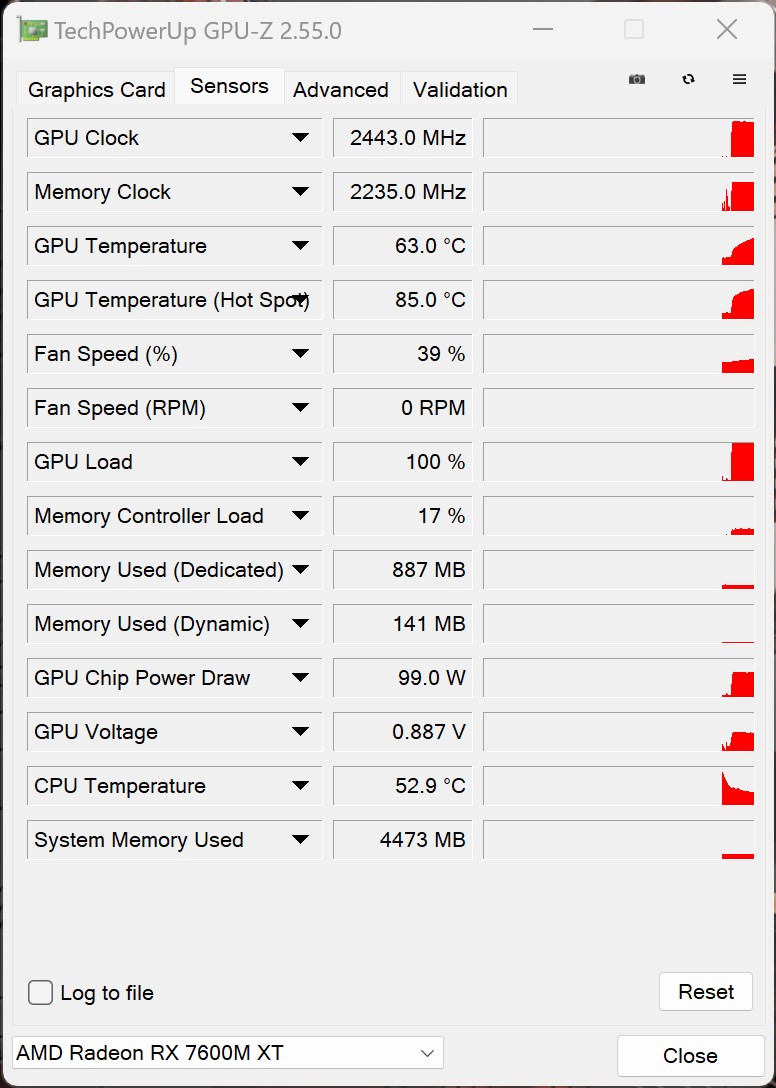

GPD G1 AMD Radeon RX 7600M XT 的时钟速度

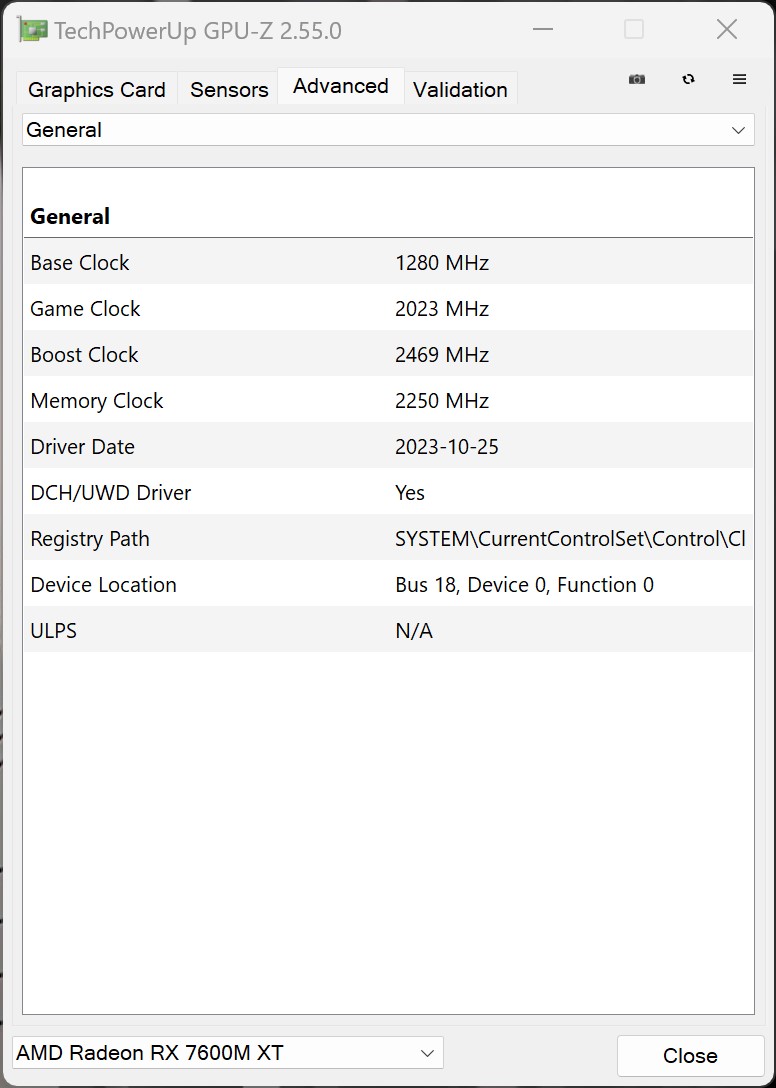

GPD 指出，G1 eGPU 的基本时钟频率为 2,023 MHZ，但可提升至 2,469 MHz。不过，在我们的测试中，该设备几乎总能超过提升时钟。移动版 Radeon RX 7600M XT 的运行速度略低于桌面版 Radeon RX 7600。低功耗是做出这一决定的根本原因。尽管如此，在 VRAM 方面却没有做出任何让步。与 Radeon RX 7600 一样，GPD G1 也配备了 8GB GDDR6 VRAM 和 128 位内存总线。因此，两者的内存带宽相同，均为 288 GB/s。
测试条件

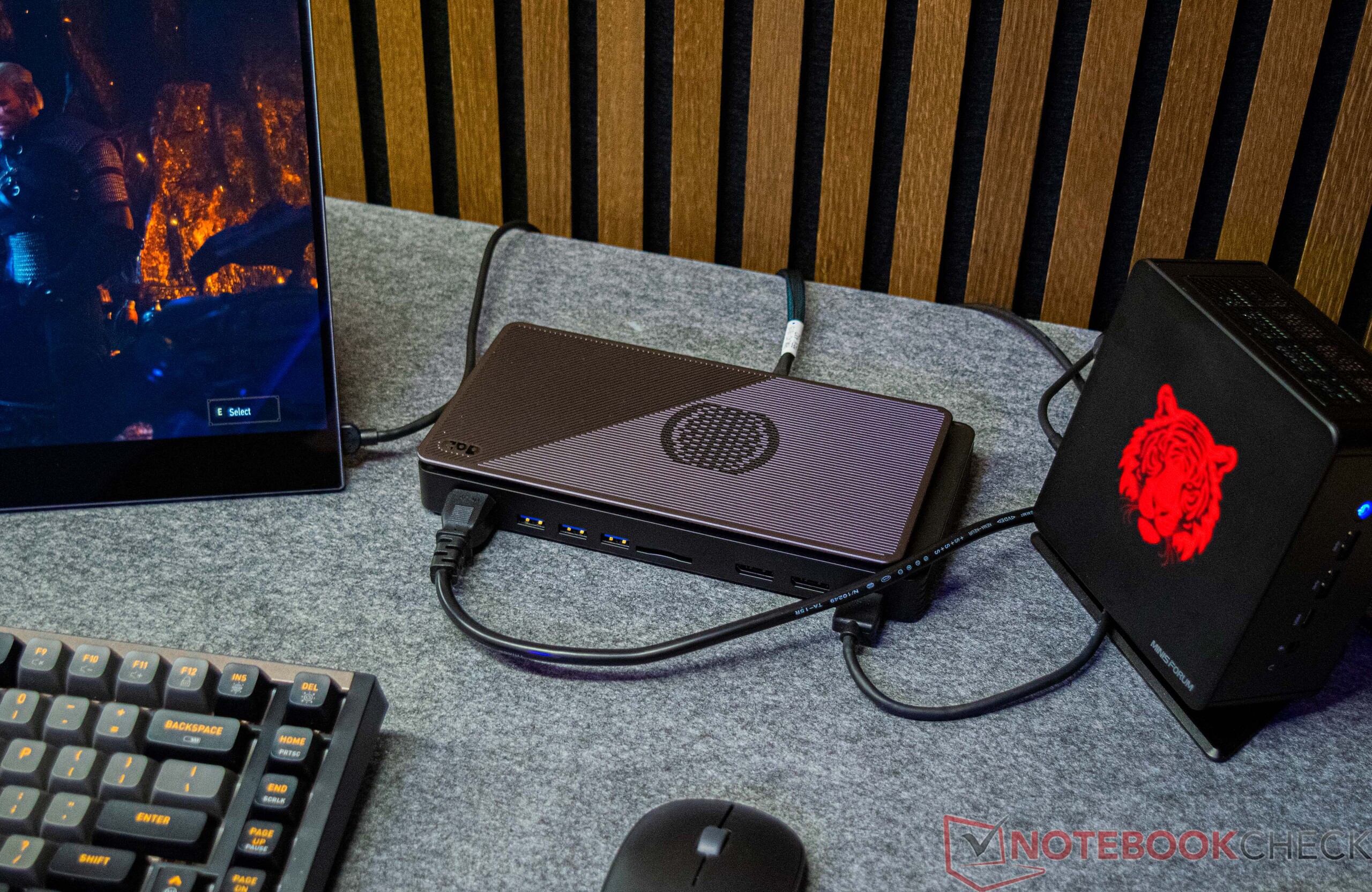

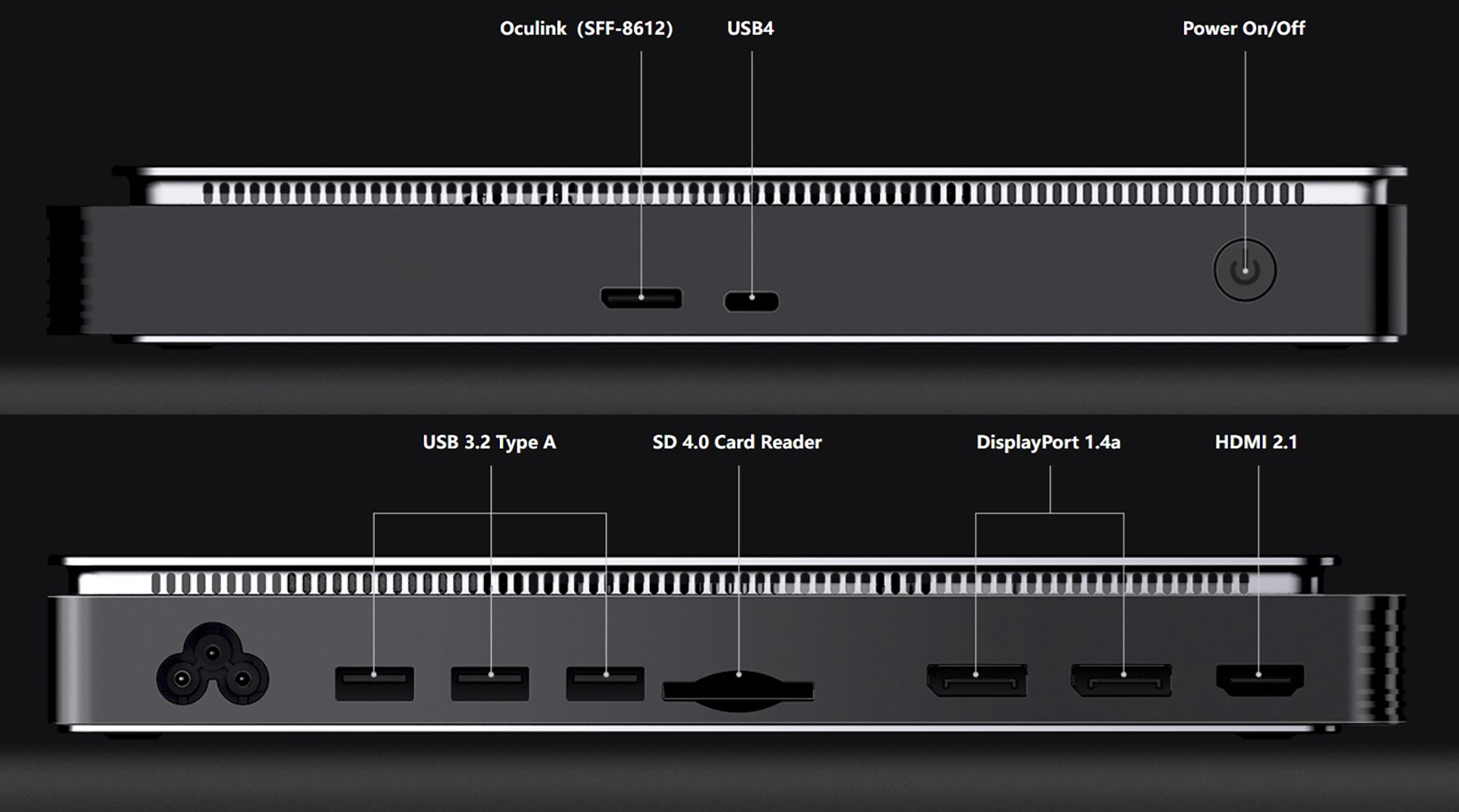

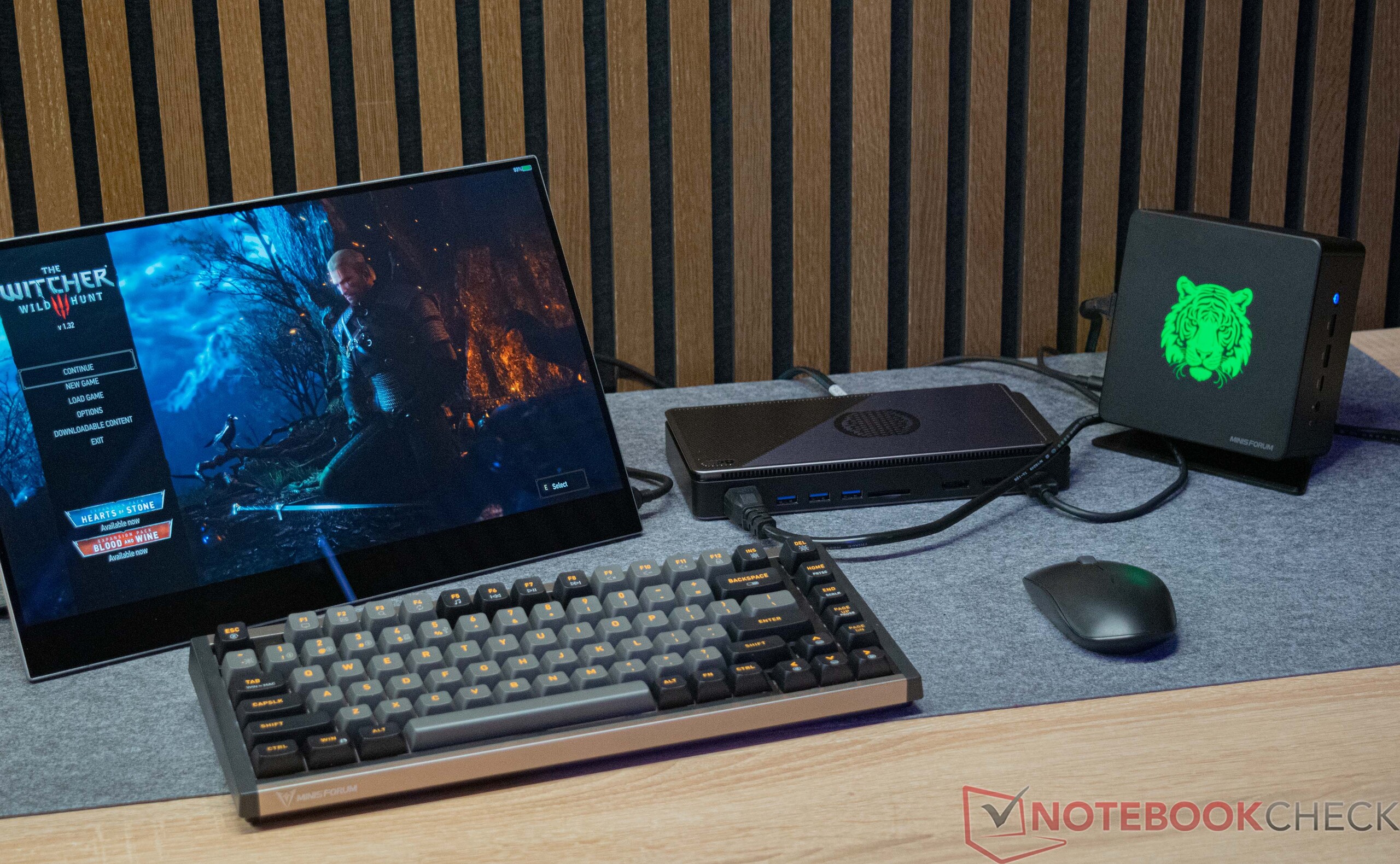

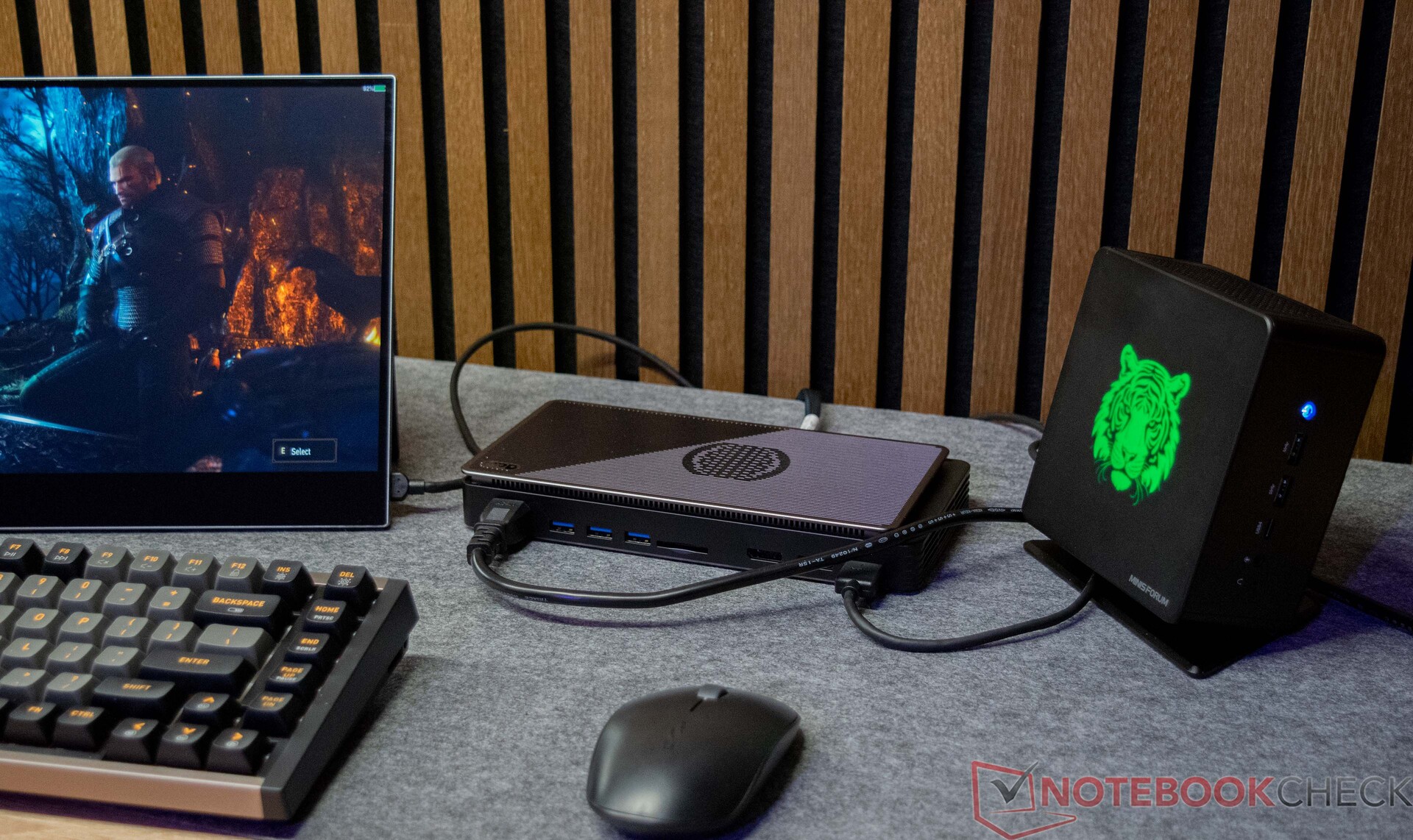

GPD G1 eGPU 可通过 USB4 或 OCuLink 与设备连接。我们首先在 GPU 测试系统中安装了 AMD Ryzen 9 7950X来了解 G1 在测试中与台式机显卡的对比情况。由于华硕 TUF Gaming X670E-Plus 没有原生 OCuLink 接口，我们不得不使用 M.2 适配器。在这一点上，我们需要提及的是，尽管 eGPU 支持 PCIe 4.0，但其连接速度仅为 PCIe 3.0。使用其他 M.2 插槽同样无法获得更高的数据传输速率。作为参考，在这种情况下可以说达到了 USB4 的 40 Gbps 速度。为了直接比较 USB4 和 OCuLink，我们还将 GPD G1 与 Minisforum UM780 XTX 配对进行了额外测试。Minisforum 迷你 PC 是市场上为数不多的配备该接口的设备之一。在这种组合下，GPD eGPU 能够充分展示 PCIe 4.0 x4 的强大性能。
合成基准
我们首先将 GPD G1 的性能与各种台式机显卡进行了比较，以了解它在相同测试系统中的表现。The mobile graphics chip in the GPD G1 is only around 20 percentage points behind its desktop counterpart (AMD Radeon RX 7600).但由于功耗较低，这也在意料之中。相比之下，我们的评测设备仅比 NvidiaGeForce RTX 4060 低 15%。
Performance Rating | 3DMark | Unigine Superposition | Unigine Heaven 4.0 | Unigine Valley 1.0 | 3DMark 11
| Performance Rating - Percent | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 6600 | |
| Minisforum Neptune Series HX77G | |
| Sapphire Pulse Radeon RX 5600 XT | |
| Unigine Heaven 4.0 | |
| Extreme Preset DX11 | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Sapphire Pulse Radeon RX 6600 | |
| Minisforum Neptune Series HX77G | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 5600 XT | |
| Extreme Preset OpenGL | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Sapphire Pulse Radeon RX 6600 | |
| Minisforum Neptune Series HX77G | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 5600 XT | |
| Unigine Valley 1.0 | |
| 1920x1080 Extreme HD DirectX AA:x8 | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 6600 | |
| Minisforum Neptune Series HX77G | |
| Sapphire Pulse Radeon RX 5600 XT | |
| 1920x1080 Extreme HD Preset OpenGL AA:x8 | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Sapphire Pulse Radeon RX 6600 | |
| Minisforum Neptune Series HX77G | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 5600 XT | |
| 3DMark 11 | |
| 1280x720 Performance GPU | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Minisforum Neptune Series HX77G | |
| Sapphire Pulse Radeon RX 6600 | |
| Sapphire Pulse Radeon RX 5600 XT | |
| 1280x720 Performance | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Sapphire Pulse Radeon RX 5600 XT | |
| Sapphire Pulse Radeon RX 6600 | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Minisforum Neptune Series HX77G | |
| LuxMark v2.0 64Bit | |
| Room GPUs-only | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Sapphire Pulse Radeon RX 7700 XT | |
| Minisforum Neptune Series HX77G | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 6600 | |
| Sapphire Pulse Radeon RX 5600 XT | |
| Sala GPUs-only | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Sapphire Pulse Radeon RX 7700 XT | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Minisforum Neptune Series HX77G | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 6600 | |
| Sapphire Pulse Radeon RX 5600 XT | |
| Affinity Photo 2 - Combined (Single / Multi GPU) | |
| Sapphire Pulse Radeon RX 7700 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 6600 | |
| Sapphire Pulse Radeon RX 5600 XT | |
| 3DMark 06 Standard Score | 26616 points | |
| 3DMark Vantage P Result | 99297 points | |
| 3DMark 11 Performance | 27492 points | |
| 3DMark Ice Storm Standard Score | 211414 points | |
| 3DMark Cloud Gate Standard Score | 57801 points | |
| 3DMark Fire Strike Score | 26214 points | |
| 3DMark Fire Strike Extreme Score | 12999 points | |
| 3DMark Time Spy Score | 9803 points | |
Help | ||
专业应用
AMD 在与渲染性能相关的基准测试中一直表现出色。GPD G1 同样也取得了相对不错的成绩。尽管如此，G1 的性能还不足以满足专业应用的需要。AMD 在其产品线中推出了针对此类应用的 PRO 系列，而 Nvidia 则以 Quadro 品牌销售其专业显卡。GPD G1 中的 Radeon RX 7600 XT 当然可以用于个人或半专业的小型项目。它还支持流行的 AV1 视频解码和编码格式。
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) R9 7950X | XFX Speedster QICK 308 Radeon RX 7600 Black Edition R9 7950X | Sapphire Pulse Radeon RX 5600 XT R9 7950X | Minisforum Neptune Series HX77G R7 7735HS | Sapphire Pulse Radeon RX 6600 R9 7950X | KFA2 GeForce RTX 4060 1-Click-OC 2X R9 7950X | ASUS Dual GeForce RTX 4060 Ti OC R9 7950X | Sapphire Pulse Radeon RX 7700 XT R9 7950X | Average of class | |
|---|---|---|---|---|---|---|---|---|---|
| SPECviewperf 12 | 14% | 25% | 6% | 14% | -23% | -9% | 47% | -39% | |
| 1900x1060 3ds Max (3dsmax-05) | 206 | 279 35% | 224 9% | 246 19% | 258 25% | 251 22% | 286 39% | 373 81% | 192.3 ? -7% |
| 1900x1060 Catia (catia-04) | 235 | 273 16% | 180 -23% | 248 6% | 256 9% | 113 -52% | 128 -46% | 351 49% | 105.4 ? -55% |
| 1900x1060 Creo (creo-01) | 90.3 | 115 27% | 93.6 4% | 109 21% | 133 47% | 60.6 -33% | 74.3 -18% | 123 36% | 64.4 ? -29% |
| 1900x1060 Energy (energy-01) | 24 | 25.5 6% | 95.4 298% | 31.3 30% | 31.3 30% | 15.9 -34% | 22.8 -5% | 33.4 39% | 15.2 ? -37% |
| 1900x1060 Maya (maya-04) | 208 | 236 13% | 90 -57% | 198 -5% | 218 5% | 233 12% | 252 21% | 283 36% | 109.5 ? -47% |
| 1900x1060 Medical (medical-01) | 113 | 128 13% | 103 -9% | 97.6 -14% | 102 -10% | 82.4 -27% | 107 -5% | 177 57% | 53.2 ? -53% |
| 1900x1060 Showcase (showcase-01) | 121 | 127 5% | 129 7% | 120 -1% | 125 3% | 109 -10% | 122 1% | 179 48% | 95.8 ? -21% |
| 1900x1060 Solidworks (sw-03) | 225 | 221 -2% | 167 -26% | 214 -5% | 232 3% | 91.2 -59% | 94.8 -58% | 288 28% | 86.1 ? -62% |
| SPECviewperf 13 | 13% | -32% | -5% | -4% | -25% | -12% | 53% | -31% | |
| 3ds Max (3dsmax-06) | 205 | 280 37% | 224 9% | 246 20% | 258 26% | 252 23% | 286 40% | 371 81% | 184.7 ? -10% |
| Catia (catia-05) | 354 | 410 16% | 259 -27% | 381 8% | 387 9% | 163 -54% | 187 -47% | 529 49% | 197.9 ? -44% |
| Creo (creo-02) | 263 | 294 12% | 87.9 -67% | 273 4% | 279 6% | 230 -13% | 298 13% | 387 47% | 202 ? -23% |
| Energy (energy-02) | 73.4 | 82.9 13% | 22.8 -69% | 41.8 -43% | 44 -40% | 34.6 -53% | 45.3 -38% | 115 57% | 35.7 ? -51% |
| Maya (maya-05) | 321 | 333 4% | 218 -32% | 340 6% | 348 8% | 343 7% | 395 23% | 487 52% | 263 ? -18% |
| Medical (medical-02) | 190 | 226 19% | 69.7 -63% | 130 -32% | 88.8 -53% | 76.5 -60% | 92 -52% | 300 58% | 77.1 ? -59% |
| Showcase (showcase-02) | 121 | 127 5% | 128 6% | 121 0% | 125 3% | 108 -11% | 121 0% | 179 48% | 118 ? -2% |
| Solidworks (sw-04) | 207 | 195 -6% | 185 -11% | 201 -3% | 220 6% | 127 -39% | 135 -35% | 265 28% | 120.4 ? -42% |
| SPECviewperf 2020 | 16% | -56% | -21% | -17% | -19% | -5% | 64% | -7% | |
| 3840x2160 Medical (medical-03) | 23.9 | 36.1 51% | 12.3 -49% | 20.7 -13% | 20.9 -13% | 13.7 -43% | 17.5 -27% | 56.2 135% | 19.6 ? -18% |
| 3840x2160 Maya (maya-06) | 165 | 178 8% | 74.4 -55% | 162 -2% | 161 -2% | 196 19% | 226 37% | 261 58% | 201 ? 22% |
| 3840x2160 Energy (energy-03) | 90.5 | 67 -26% | 17.8 -80% | 19.1 -79% | 29.5 -67% | 33.2 -63% | 44.8 -50% | 95 5% | 48 ? -47% |
| 3840x2160 Creo (creo-03) | 87.4 | 106 21% | 36.2 -59% | 88.4 1% | 93.4 7% | 85.9 -2% | 95.8 10% | 130 49% | 75.2 ? -14% |
| 3840x2160 CATIA (catia-06) | 63.1 | 68 8% | 23.6 -63% | 55.1 -13% | 60.8 -4% | 34 -46% | 39.1 -38% | 88.8 41% | 45.4 ? -28% |
| 3840x2160 3ds Max (3dsmax-07) | 54.5 | 72.9 34% | 37.8 -31% | 42.5 -22% | 42.4 -22% | 67.4 24% | 74.5 37% | 106 94% | 77.1 ? 41% |
| Total Average (Program / Settings) | 14% /
14% | -21% /
-18% | -7% /
-5% | -2% /
-1% | -22% /
-22% | -9% /
-9% | 55% /
53% | -26% /
-27% |
游戏性能
GPD G1 具有出色的游戏性能，在很大程度上优于 Radeon RX 6600.尽管如此，它在性能上还是略显不足，无法与 Radeon RX 7600.考虑到它的性能，除了全高清游戏外，你不应该指望使用 eGPU 做其他事情。但作为掌上电脑的扩展，它已经足够出色了。由于 RX 7600M XT 只配备了 8GB 的 VRAM，因此当以最大设置运行游戏时，eGPU 有时可能会达到 VRAM 的极限，导致 P1 值相对较低（低 1%）。在 Radeon RX 7600M XT还支持光线追踪，但我们只能说这是一个很好的营销噱头。实际上，启用光线追踪会大大降低帧率，以至于无法舒适地进行游戏。
从测试的游戏来看，我们发现 GPD G1 在高预设值下大多能达到不错的帧率。不过，在《棘轮与叮当》（Ratchet & Clank）中出现了一个重大异常：Rift Apart》中出现了重大异常。无论选择何种预设值，我们都无法获得可玩的帧率。目前，我们还不能完全排除这是驱动程序问题造成的。但如果考虑到 GPD G1 的价格，这里得到的结果显然不够好。同价位的台式机显卡如AMD Radeon RX 7800 XT和 NvidiaGeForce RTX 4070.
The Witcher 3 | Metro Exodus | Far Cry 5 | Far Cry 6 | F1 2021 | F1 22 | Cyberpunk 2077 1.6 | A Plague Tale Requiem | Spider-Man Miles Morales | Borderlands 3 | God of War | GTA V | The Quarry | Tiny Tina's Wonderlands | GRID Legends | Final Fantasy XV Benchmark | The Last of Us | F1 23 | Hogwarts Legacy
| The Witcher 3 | |
| 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 6600 | |
| Minisforum Neptune Series HX77G | |
| Sapphire Pulse Radeon RX 5600 XT | |
| 1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 6600 | |
| Minisforum Neptune Series HX77G | |
| Sapphire Pulse Radeon RX 5600 XT | |
| Metro Exodus | |
| 2560x1440 Ultra Quality AF:16x | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 5600 XT | |
| Sapphire Pulse Radeon RX 6600 | |
| Minisforum Neptune Series HX77G | |
| 1920x1080 Ultra Quality AF:16x | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 6600 | |
| Minisforum Neptune Series HX77G | |
| Sapphire Pulse Radeon RX 5600 XT | |
| Far Cry 5 | |
| 2560x1440 Ultra Preset AA:T | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 6600 | |
| Minisforum Neptune Series HX77G | |
| Sapphire Pulse Radeon RX 5600 XT | |
| 1920x1080 Ultra Preset AA:T | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| Sapphire Pulse Radeon RX 7700 XT | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 6600 | |
| Sapphire Pulse Radeon RX 5600 XT | |
| Minisforum Neptune Series HX77G | |
| F1 2021 | |
| 2560x1440 Ultra High Preset + Raytracing AA:T AF:16x | |
| Sapphire Pulse Radeon RX 7700 XT (874931) | |
| ASUS Dual GeForce RTX 4060 Ti OC (874931) | |
| Sapphire Pulse Radeon RX 5600 XT (874931) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (874931) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (874931) | |
| Sapphire Pulse Radeon RX 6600 (874931) | |
| Minisforum Neptune Series HX77G (874931) | |
| 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x | |
| ASUS Dual GeForce RTX 4060 Ti OC (874931) | |
| Sapphire Pulse Radeon RX 7700 XT (874931) | |
| Sapphire Pulse Radeon RX 5600 XT (874931) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (874931) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (874931) | |
| Sapphire Pulse Radeon RX 6600 (874931) | |
| Minisforum Neptune Series HX77G (874931) | |
| F1 22 | |
| 2560x1440 Ultra High Preset AA:T AF:16x | |
| Sapphire Pulse Radeon RX 5600 XT (959964) | |
| Sapphire Pulse Radeon RX 7700 XT (959964) | |
| ASUS Dual GeForce RTX 4060 Ti OC (959964) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (959964) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (959964) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (959964) | |
| Minisforum Neptune Series HX77G (959964) | |
| Sapphire Pulse Radeon RX 6600 (946728) | |
| 1920x1080 Ultra High Preset AA:T AF:16x | |
| Sapphire Pulse Radeon RX 5600 XT (959964) | |
| Sapphire Pulse Radeon RX 7700 XT (959964) | |
| ASUS Dual GeForce RTX 4060 Ti OC (959964) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (959964) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (959964) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (959964) | |
| Minisforum Neptune Series HX77G (959964) | |
| Sapphire Pulse Radeon RX 6600 (946728) | |
| Cyberpunk 2077 1.6 | |
| 2560x1440 Ultra Preset | |
| Sapphire Pulse Radeon RX 7700 XT (1.6) | |
| ASUS Dual GeForce RTX 4060 Ti OC (1.6) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.6) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (1.6) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (1.6) | |
| Minisforum Neptune Series HX77G (1.6) | |
| Sapphire Pulse Radeon RX 6600 (1.5) | |
| Sapphire Pulse Radeon RX 5600 XT | |
| 1920x1080 Ultra Preset | |
| Sapphire Pulse Radeon RX 7700 XT (1.6) | |
| ASUS Dual GeForce RTX 4060 Ti OC (1.6) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.6) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (1.6) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (1.6) | |
| Sapphire Pulse Radeon RX 6600 (1.5) | |
| Minisforum Neptune Series HX77G (1.6) | |
| Sapphire Pulse Radeon RX 5600 XT | |
| A Plague Tale Requiem | |
| 2560x1440 Ultra Preset | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 5600 XT | |
| Sapphire Pulse Radeon RX 6600 | |
| Minisforum Neptune Series HX77G | |
| 1920x1080 Ultra Preset | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 5600 XT | |
| Sapphire Pulse Radeon RX 6600 | |
| Minisforum Neptune Series HX77G | |
| Spider-Man Miles Morales | |
| 2560x1440 Very High Preset AA:T | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Sapphire Pulse Radeon RX 6600 | |
| Sapphire Pulse Radeon RX 5600 XT | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| 1920x1080 Very High Preset AA:T | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| Sapphire Pulse Radeon RX 7700 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 6600 | |
| Sapphire Pulse Radeon RX 5600 XT | |
| Borderlands 3 | |
| 2560x1440 Badass Overall Quality (DX11) | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 5600 XT | |
| Sapphire Pulse Radeon RX 6600 | |
| Minisforum Neptune Series HX77G | |
| 1920x1080 Badass Overall Quality (DX11) | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 5600 XT | |
| Sapphire Pulse Radeon RX 6600 | |
| Minisforum Neptune Series HX77G | |
| God of War | |
| 2560x1440 Ultra Preset | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Minisforum Neptune Series HX77G | |
| Sapphire Pulse Radeon RX 5600 XT | |
| Sapphire Pulse Radeon RX 6600 | |
| 1920x1080 Ultra Preset | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Minisforum Neptune Series HX77G | |
| Sapphire Pulse Radeon RX 6600 | |
| Sapphire Pulse Radeon RX 5600 XT | |
| GTA V | |
| 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 6600 | |
| Minisforum Neptune Series HX77G | |
| Sapphire Pulse Radeon RX 5600 XT | |
| 2560x1440 Highest Settings possible AA:4xMSAA + FX AF:16x | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 6600 | |
| Sapphire Pulse Radeon RX 5600 XT | |
| Minisforum Neptune Series HX77G | |
| The Quarry | |
| 2560x1440 Ultra Preset | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 5600 XT | |
| Sapphire Pulse Radeon RX 6600 | |
| Minisforum Neptune Series HX77G | |
| 1920x1080 Ultra Preset | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 6600 | |
| Sapphire Pulse Radeon RX 5600 XT | |
| Minisforum Neptune Series HX77G | |
| Tiny Tina's Wonderlands | |
| 2560x1440 Badass Preset (DX12) | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 6600 | |
| Minisforum Neptune Series HX77G | |
| Sapphire Pulse Radeon RX 5600 XT | |
| 1920x1080 Badass Preset (DX12) | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 6600 | |
| Minisforum Neptune Series HX77G | |
| Sapphire Pulse Radeon RX 5600 XT | |
| GRID Legends | |
| 2560x1440 Ultra Preset | |
| Sapphire Pulse Radeon RX 7700 XT (800660) | |
| ASUS Dual GeForce RTX 4060 Ti OC (800660) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (800660) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (800660) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (800660) | |
| Minisforum Neptune Series HX77G (800660) | |
| Sapphire Pulse Radeon RX 6600 (683088) | |
| Sapphire Pulse Radeon RX 5600 XT (712825) | |
| 1920x1080 Ultra Preset | |
| Sapphire Pulse Radeon RX 7700 XT (800660) | |
| ASUS Dual GeForce RTX 4060 Ti OC (800660) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (800660) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (800660) | |
| Sapphire Pulse Radeon RX 6600 (683088) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (800660) | |
| Minisforum Neptune Series HX77G (800660) | |
| Sapphire Pulse Radeon RX 5600 XT (712825) | |
| Final Fantasy XV Benchmark | |
| 1920x1080 High Quality | |
| Sapphire Pulse Radeon RX 7700 XT (1.3) | |
| ASUS Dual GeForce RTX 4060 Ti OC (1.3) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (1.3) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.3) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (1.3) | |
| Sapphire Pulse Radeon RX 6600 (1.3) | |
| Minisforum Neptune Series HX77G (1.3) | |
| Sapphire Pulse Radeon RX 5600 XT (1.3) | |
| 2560x1440 High Quality | |
| Sapphire Pulse Radeon RX 7700 XT (1.3) | |
| ASUS Dual GeForce RTX 4060 Ti OC (1.3) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (1.3) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.3) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (1.3) | |
| Sapphire Pulse Radeon RX 6600 (1.3) | |
| Minisforum Neptune Series HX77G (1.3) | |
| Sapphire Pulse Radeon RX 5600 XT (1.3) | |
| The Last of Us | |
| 1920x1080 Ultra Preset | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Sapphire Pulse Radeon RX 6600 | |
| Minisforum Neptune Series HX77G | |
| Sapphire Pulse Radeon RX 5600 XT | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| 2560x1440 Ultra Preset | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Sapphire Pulse Radeon RX 5600 XT | |
| Sapphire Pulse Radeon RX 6600 | |
| Minisforum Neptune Series HX77G | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| F1 23 | |
| 1920x1080 Ultra High Preset AA:T AF:16x | |
| Sapphire Pulse Radeon RX 5600 XT (1022189) | |
| ASUS Dual GeForce RTX 4060 Ti OC (1012607) | |
| Sapphire Pulse Radeon RX 7700 XT (1026791) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (1008687) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1016022) | |
| Sapphire Pulse Radeon RX 6600 (1016022) | |
| Minisforum Neptune Series HX77G (1038401) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (1050579) | |
| 2560x1440 Ultra High Preset AA:T AF:16x | |
| Sapphire Pulse Radeon RX 5600 XT (1022189) | |
| ASUS Dual GeForce RTX 4060 Ti OC (1012607) | |
| Sapphire Pulse Radeon RX 7700 XT (1026791) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (1008687) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1016022) | |
| Sapphire Pulse Radeon RX 6600 (1016022) | |
| Minisforum Neptune Series HX77G (1038401) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (1050579) | |
| Hogwarts Legacy | |
| 1920x1080 Ultra Preset AA:High T | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 6600 | |
| Sapphire Pulse Radeon RX 5600 XT | |
| 2560x1440 Ultra Preset AA:High T | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 6600 | |
| Sapphire Pulse Radeon RX 5600 XT | |
P1 values of the GPD G1 AMD Radeon RX 7600M XT
Performance Rating | Sons of the Forest | Diablo 4 | The Last of Us | Star Wars Jedi Survivor | Resident Evil 4 Remake | The Quarry | Spider-Man Miles Morales | Uncharted Legacy of Thieves Collection | Atomic Heart | Control | Dead Island 2 | Dead Space Remake
Ray tracing performance
Spider-Man Miles Morales | Metro Exodus | Far Cry 6 | Cyberpunk 2077 1.6 | Guardians of the Galaxy | Returnal | F1 23 | Star Wars Jedi Survivor | Hogwarts Legacy | Ghostwire Tokyo
| Spider-Man Miles Morales - 1920x0180 Very High Preset + Ray-Tracing AA:T | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7800 XT | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| KFA2 GeForce RTX 3070 Ti SG | |
| AMD Radeon RX 7900 GRE | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| Sapphire Pulse Radeon RX 7700 XT | |
| AMD Radeon RX 6800 | |
| Nvidia GeForce RTX 3060 Ti FE | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2070 Super | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Acer Predator BiFrost Arc A750 OC | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Sapphire Pulse Radeon RX 6600 | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Metro Exodus - 1920x1080 Ultra Quality DXR AF:16x | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 GRE | |
| AMD Radeon RX 7800 XT | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| Nvidia GeForce RTX 3060 Ti FE | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Acer Predator BiFrost Arc A750 OC | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Nvidia GeForce RTX 2070 Super | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Pulse Radeon RX 6600 | |
| Far Cry 6 - 1920x1080 Ultra Graphics Quality + HD Textures + DXR AA:T | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 GRE | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7800 XT | |
| AMD Radeon RX 6800 | |
| Sapphire Pulse Radeon RX 7700 XT | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Acer Predator BiFrost Arc A750 OC | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Cyberpunk 2077 1.6 - 1920x1080 Ray Tracing Ultra Preset (DLSS off) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 GRE (1.6) | |
| ASUS Dual GeForce RTX 4060 Ti OC (1.6) | |
| MSI Radeon RX 6950 XT Gaming X Trio (1.61) | |
| KFA2 GeForce RTX 3070 Ti SG (1.61) | |
| AMD Radeon RX 7800 XT (1.6) | |
| Nvidia GeForce RTX 3060 Ti FE (1.5) | |
| Sapphire Pulse Radeon RX 7700 XT (1.6) | |
| Sapphire Pulse Radeon RX 7700 XT (1.6) | |
| Sapphire Pulse Radeon RX 7700 XT (1.6) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (1.6) | |
| AMD Radeon RX 6800 (1.61) | |
| Nvidia GeForce RTX 2070 Super (1.6) | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (1.6) | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Acer Predator BiFrost Arc A750 OC (1.6) | |
| Nvidia GeForce RTX 2060 Super (1.6) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.6) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (1.6) | |
| Sapphire Nitro+ Radeon RX 6650 XT (1.5) | |
| Guardians of the Galaxy - 1920x1080 Ultra Preset + Ultra Ray-Tracing | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 GRE | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| AMD Radeon RX 7800 XT | |
| Nvidia GeForce RTX 3060 Ti FE | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Sapphire Pulse Radeon RX 7700 XT | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Nvidia GeForce RTX 2060 Super | |
| Acer Predator BiFrost Arc A750 OC | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Returnal - 1920x1080 Epic Preset + Epic Ray-Tracing | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 GRE | |
| AMD Radeon RX 7800 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| Sapphire Pulse Radeon RX 7700 XT | |
| Nvidia GeForce RTX 3060 Ti FE | |
| AMD Radeon RX 6800 | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2060 Super | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Acer Predator BiFrost Arc A750 OC | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| F1 23 - 1920x1080 Ultra High Preset AA:T AF:16x | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 GRE (1016022) | |
| MSI Radeon RX 6950 XT Gaming X Trio (1016022) | |
| AMD Radeon RX 7800 XT (1022189) | |
| KFA2 GeForce GTX 1660 Super (1016022) | |
| ASUS Dual GeForce RTX 4060 Ti OC (1012607) | |
| PNY GeForce GTX 1660 (1016022) | |
| Sapphire Pulse Radeon RX 7700 XT (1026791) | |
| Nvidia GeForce RTX 3060 Ti FE (1021115) | |
| AMD Radeon RX 6800 (1016022) | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (1026791) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (1008687) | |
| Sapphire Pulse Radeon RX 6750 XT (1016022) | |
| Acer Predator BiFrost Arc A750 OC (1042581) | |
| Nvidia GeForce RTX 2070 Super (1021115) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1016022) | |
| Nvidia GeForce RTX 2060 Super (1021115) | |
| Sapphire Nitro+ Radeon RX 6650 XT (1016022) | |
| Sapphire Pulse Radeon RX 6600 (1016022) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (1050579) | |
| Star Wars Jedi Survivor - 1920x1080 Epic Preset + Ray Tracing | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| AMD Radeon RX 7900 GRE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7800 XT | |
| Sapphire Pulse Radeon RX 7700 XT | |
| AMD Radeon RX 6800 | |
| Nvidia GeForce RTX 3060 Ti FE | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Acer Predator BiFrost Arc A750 OC | |
| Nvidia GeForce RTX 2060 Super | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 6600 | |
| Hogwarts Legacy - 1920x1080 Ultra Preset + Full Ray Tracing AA:High T | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| AMD Radeon RX 7900 GRE | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| Nvidia GeForce RTX 3060 Ti FE | |
| Sapphire Pulse Radeon RX 7700 XT | |
| AMD Radeon RX 6800 | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Acer Predator BiFrost Arc A750 OC | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Ghostwire Tokyo - 1920x1080 Highest Settings + Maximum Ray Tracing | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 GRE | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| AMD Radeon RX 7800 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| Sapphire Pulse Radeon RX 7700 XT | |
| Nvidia GeForce RTX 3060 Ti FE | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Acer Predator BiFrost Arc A750 OC | |
| Nvidia GeForce RTX 2070 Super | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Pulse Radeon RX 6600 | |
| low | med. | high | ultra | QHD | 4K DLSS | 4K | |
|---|---|---|---|---|---|---|---|
| GTA V (2015) | 188.4 | 188 | 183.7 | 93.7 | 68.4 | 73.3 | |
| The Witcher 3 (2015) | 487 | 329 | 171.7 | 100.2 | 71.7 | 52.2 | |
| Dota 2 Reborn (2015) | 228.3 | 164 | 170.9 | 119.5 | 91.4 | ||
| Rise of the Tomb Raider (2016) | 280 | 199.4 | 128.1 | 108.3 | 49.3 | ||
| Assassin´s Creed Origins (2017) | 125 | 89 | 89 | 73 | 59 | 37 | |
| Final Fantasy XV Benchmark (2018) | 234 | 131.7 | 92.4 | 67.7 | 35.8 | ||
| X-Plane 11.11 (2018) | 148.4 | 116 | 92.2 | 63.3 | |||
| Far Cry 5 (2018) | 193 | 161 | 152 | 141 | 102 | 50 | |
| Strange Brigade (2018) | 598 | 254 | 208 | 180.2 | 119.3 | 64.7 | |
| Shadow of the Tomb Raider (2018) | 317 | 159.2 | 146.8 | 120.6 | 77.5 | 32.5 | |
| Forza Horizon 4 (2018) | 273 | 237 | 233 | 174 | 138 | 89 | |
| Assassin´s Creed Odyssey (2018) | 135 | 125 | 114 | 79 | 60 | 29 | |
| Apex Legends (2019) | 144 | 144 | 143.9 | 139.6 | 124.4 | 98.8 | |
| Far Cry New Dawn (2019) | 158 | 141 | 137 | 122 | 105 | 56 | |
| Metro Exodus (2019) | 236 | 130 | 95.4 | 74.2 | 57.9 | 34.6 | |
| The Division 2 (2019) | 194 | 184 | 144 | 103 | 67 | 29 | |
| Anno 1800 (2019) | 112.3 | 109.1 | 94 | 48.4 | 38.5 | 21.6 | |
| Control (2019) | 236 | 110.4 | 81.5 | 53.4 | 27.2 | ||
| Borderlands 3 (2019) | 225 | 162.4 | 110.5 | 85 | 58.1 | 30.7 | |
| F1 2020 (2020) | 448 | 246 | 196 | 134.4 | 102.2 | 60 | |
| Death Stranding (2020) | 174.3 | 128.3 | 118.3 | 116.1 | 86.4 | 48.6 | |
| Horizon Zero Dawn (2020) | 147 | 117 | 106 | 96 | 79 | 42 | |
| Watch Dogs Legion (2020) | 142 | 136 | 123 | 49 | 34 | 17 | |
| Dirt 5 (2020) | 98 | 78.4 | 60.4 | 51.6 | 50.9 | 50.5 | |
| Assassin´s Creed Valhalla (2020) | 229 | 143 | 116 | 93 | 67 | 29 | |
| F1 2021 (2021) | 512 | 349 | 250 | 109.2 | 69 | 32.5 | |
| Far Cry 6 (2021) | 187.8 | 156.4 | 135.7 | 103.9 | 64.9 | 1 | |
| Guardians of the Galaxy (2021) | 165 | 118 | 118 | 110 | 81 | 46 | |
| Forza Horizon 5 (2021) | 216 | 192 | 176 | 63 | 50 | 27 | |
| Farming Simulator 22 (2021) | 429 | 232 | 196.8 | 167.1 | 130.1 | 82.3 | |
| God of War (2022) | 139.2 | 115.4 | 92.6 | 64.1 | 52.3 | 33.1 | |
| GRID Legends (2022) | 208 | 176.1 | 148.9 | 128.9 | 107.7 | 67.5 | |
| Cyberpunk 2077 1.6 (2022) | 115.9 | 95.6 | 81 | 74.3 | 47.6 | 21.7 | |
| Ghostwire Tokyo (2022) | 173.1 | 152.3 | 150.7 | 149.3 | 89.1 | 41.9 | |
| Tiny Tina's Wonderlands (2022) | 237 | 183.9 | 117.1 | 90.1 | 59.5 | 19.6 | |
| F1 22 (2022) | 294 | 263 | 203 | 48.6 | 26.6 | 5.01 | |
| The Quarry (2022) | 145.1 | 108 | 88.7 | 66.8 | 39.4 | 11.6 | |
| A Plague Tale Requiem (2022) | 102 | 77 | 56.6 | 43.2 | 31.6 | 18.4 | |
| Uncharted Legacy of Thieves Collection (2022) | 74.4 | 71 | 64.6 | 62.3 | 39.4 | 6.73 | |
| Spider-Man Miles Morales (2022) | 114.7 | 101.1 | 94.4 | 84.3 | 36.3 | 20.7 | |
| The Callisto Protocol (2022) | 181.9 | 127.5 | 114.8 | 75.1 | 56.4 | 33 | |
| Need for Speed Unbound (2022) | 137 | 120.9 | 90.3 | 90.1 | 66.3 | 30.2 | |
| High On Life (2023) | 270 | 130.8 | 168.5 | 101.1 | 57.1 | 20 | |
| The Witcher 3 v4.00 (2023) | 197.9 | 169.8 | 141.5 | 113.7 | 72.6 | 37.7 | |
| Dead Space Remake (2023) | 80.6 | 67.2 | 65.9 | 77.1 | 44.2 | 12.3 | |
| Hogwarts Legacy (2023) | 141.5 | 107.4 | 81.4 | 63.2 | 43.8 | 22.9 | |
| Returnal (2023) | 101 | 97 | 87 | 73 | 53 | 29 | |
| Atomic Heart (2023) | 173.1 | 130.9 | 79.9 | 60.9 | 46.4 | 27.6 | |
| Company of Heroes 3 (2023) | 159.8 | 142.7 | 109.5 | 107.9 | 79.1 | 46.5 | |
| Sons of the Forest (2023) | 111.6 | 101.1 | 93.1 | 92.1 | 64.7 | 35.3 | |
| Resident Evil 4 Remake (2023) | 135.6 | 101.2 | 88.6 | 57.8 | 43.7 | 10.5 | |
| The Last of Us (2023) | 89.9 | 73 | 60.2 | 41.6 | 25.4 | 8.81 | |
| Dead Island 2 (2023) | 250 | 215 | 161.2 | 114.3 | 79.2 | 38.1 | |
| Star Wars Jedi Survivor (2023) | 79.6 | 70.1 | 66 | 61.3 | 37.8 | 16.8 | |
| Diablo 4 (2023) | 205 | 243 | 184.4 | 147.5 | 89.4 | 47.2 | |
| F1 23 (2023) | 289 | 265 | 188.4 | 28.9 | 6.88 | 3.18 | |
| Ratchet & Clank Rift Apart (2023) | 26.5 | 21 | 12.8 | 11.5 | 9.4 | 6.7 | |
| Atlas Fallen (2023) | 138.3 | 132.4 | 120.5 | 97.1 | 67.1 | 6.5 | |
| Immortals of Aveum (2023) | 73.8 | 63.2 | 48.5 | 26.1 | 8.04 | ||
| Armored Core 6 (2023) | 114.4 | 98.4 | 91.5 | 59.2 | 77.9 | 34.4 | |
| Starfield (2023) | 66 | 57.7 | 47.9 | 43.8 | 35.9 | 22.5 | |
| Lies of P (2023) | 174.3 | 149 | 127 | 113.7 | 76.5 | 37.7 | |
| Baldur's Gate 3 (2023) | 126.7 | 104.5 | 89.7 | 87.3 | 59.7 | 30.2 | |
| Cyberpunk 2077 2.1 Phantom Liberty (2023) | 117 | 93.7 | 79.2 | 70.7 | 44.6 | 1.13 | 19.1 |
| Counter-Strike 2 (2023) | 348 | 316 | 192.8 | 132.2 | 84.3 | 39.3 | |
| EA Sports FC 24 (2023) | 202 | 172.2 | 142.7 | 128.3 | 105.3 | 68.7 | |
| Assassin's Creed Mirage (2023) | 139 | 124 | 110 | 68 | 52 | 24 | |
| Total War Pharaoh (2023) | 382.8 | 244.5 | 140.1 | 107.7 | 71.2 | 35.4 | |
| Lords of the Fallen (2023) | 83.3 | 69.5 | 46.9 | 33 | 21.5 | 4.6 | |
| Alan Wake 2 (2023) | 71.4 | 60.8 | 57.2 | 27.7 | 11.1 | ||
| EA Sports WRC (2023) | 140.7 | 95.6 | 85.4 | 76.9 | 54.9 | 30 | |
| Call of Duty Modern Warfare 3 2023 (2023) | 158 | 143 | 96 | 83 | 61 | 34 |
比较 GPD G1 在 USB4 和 OCuLink 上的性能

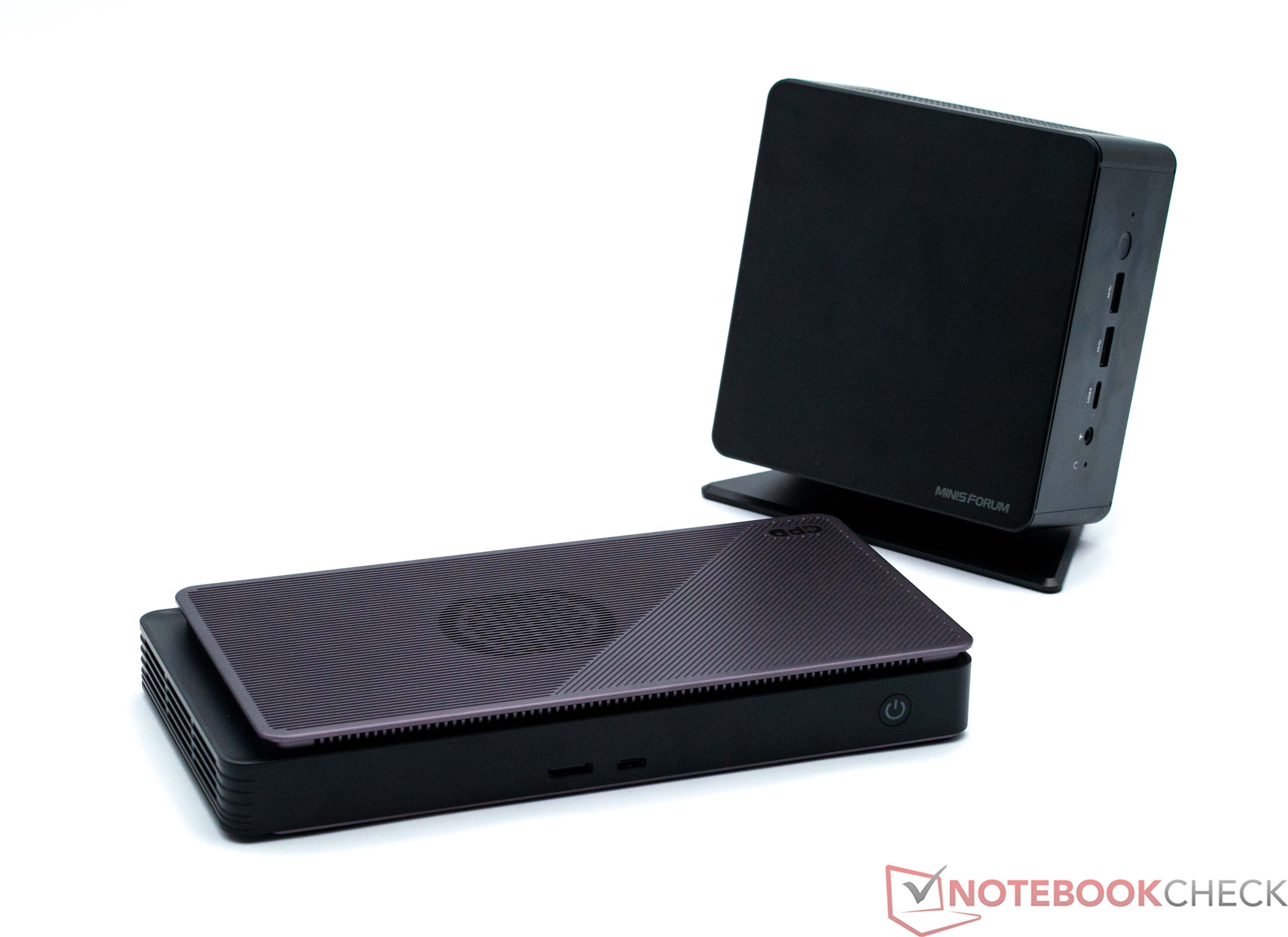

为了展示 GPD G1 的最佳性能，我们将 eGPU 连接到 Minisforum UM780 XTX 上进行了额外的基准测试。这款迷你 PC 配备了 USB4 端口和 OCuLink 接口，可让 Radeon RX 7600 XT 以 PCIe 4.0 x4 的速度运行。通过直接对比，我们很容易看出两种接口的性能差异。在最佳连接条件下，迷你 PC 的性能与我们的 GPU 测试系统相差无几。由于带宽更高，OCuLink 接口的性能比 USB4 高出 16%。
合成基准
Performance Rating | 3DMark | Unigine Superposition | Unigine Heaven 4.0 | Unigine Valley 1.0 | 3DMark 11
| Performance Rating - Percent | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| 3DMark | |
| 2560x1440 Time Spy Graphics | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| Fire Strike Extreme Graphics | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| 3840x2160 Fire Strike Ultra Graphics | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| 1920x1080 Fire Strike Graphics | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| Unigine Superposition | |
| 7680x4320 8k Optimized | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| 3840x2160 4k Optimized | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| 1920x1080 1080p Extreme | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| 1920x1080 1080p High | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| 1280x720 720p Low | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| Unigine Heaven 4.0 | |
| Extreme Preset DX11 | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| Extreme Preset OpenGL | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| Unigine Valley 1.0 | |
| 1920x1080 Extreme HD DirectX AA:x8 | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| 1920x1080 Extreme HD Preset OpenGL AA:x8 | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| 3DMark 11 | |
| 1280x720 Performance GPU | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| 1280x720 Performance | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
游戏性能
在游戏性能方面，GPD G1 比 OCuLink 能提供更好的效果。在较低分辨率下，我们已经在 USB4 连接的带宽极限附近徘徊。而使用 OCuLink 接口则不会出现这种情况。换句话说，如果您有条件，一定要使用 OCuLink 连接 GPD G1，以获得设备的最佳性能。
Performance Rating | GTA V | The Witcher 3 | Dota 2 Reborn | Final Fantasy XV Benchmark | Strange Brigade | Far Cry 5 | Far Cry New Dawn | Borderlands 3 | F1 22 | Tiny Tina's Wonderlands | Metro Exodus | GRID Legends
| Performance Rating - Percent | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| Final Fantasy XV Benchmark - 1920x1080 High Quality | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| Far Cry 5 - 1920x1080 Ultra Preset AA:T | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| Far Cry New Dawn - 1920x1080 Ultra Preset | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| Borderlands 3 - 1920x1080 Badass Overall Quality (DX11) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| F1 22 - 1920x1080 Ultra High Preset AA:T AF:16x | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| Tiny Tina's Wonderlands - 1920x1080 Badass Preset (DX12) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| Metro Exodus - 1920x1080 Ultra Quality AF:16x | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
| GRID Legends - 1920x1080 Ultra Preset | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
| GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
排放--高效但可闻
噪音排放

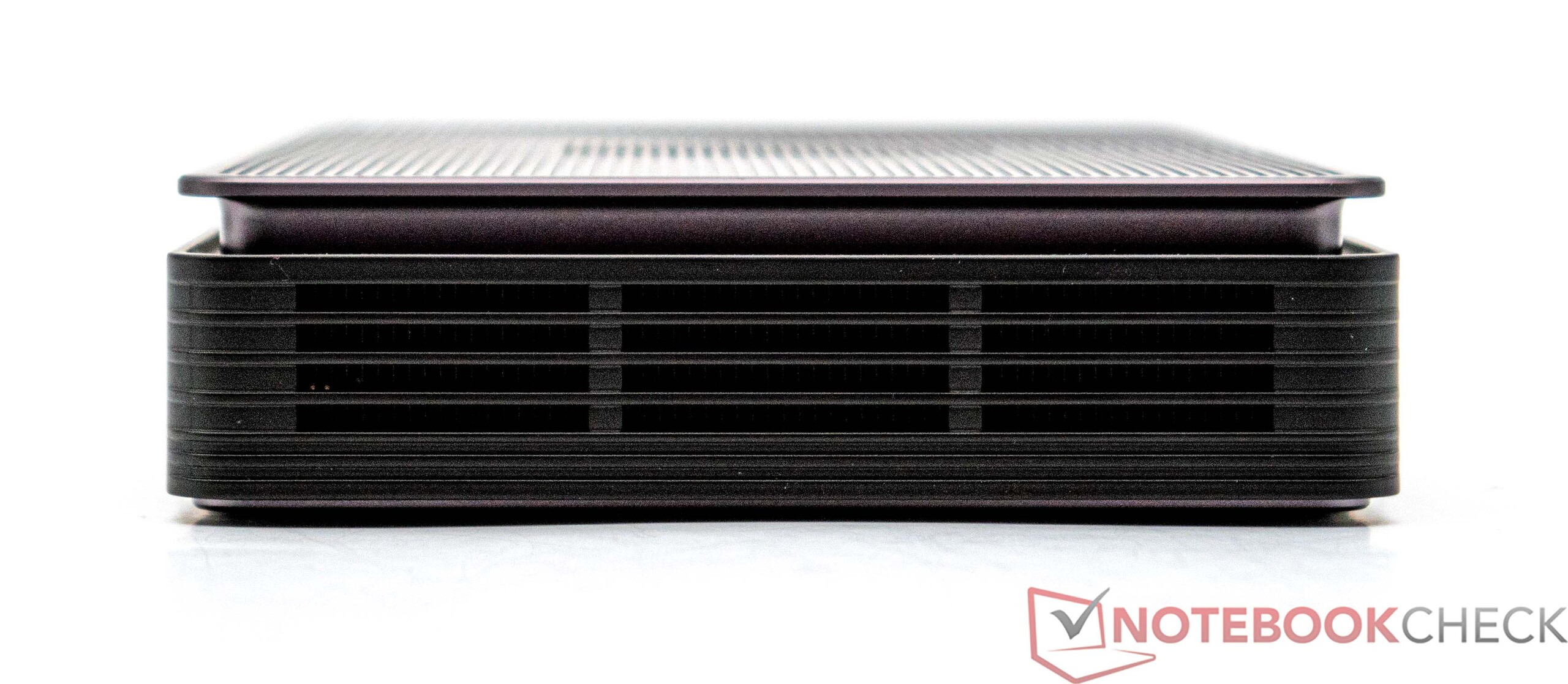

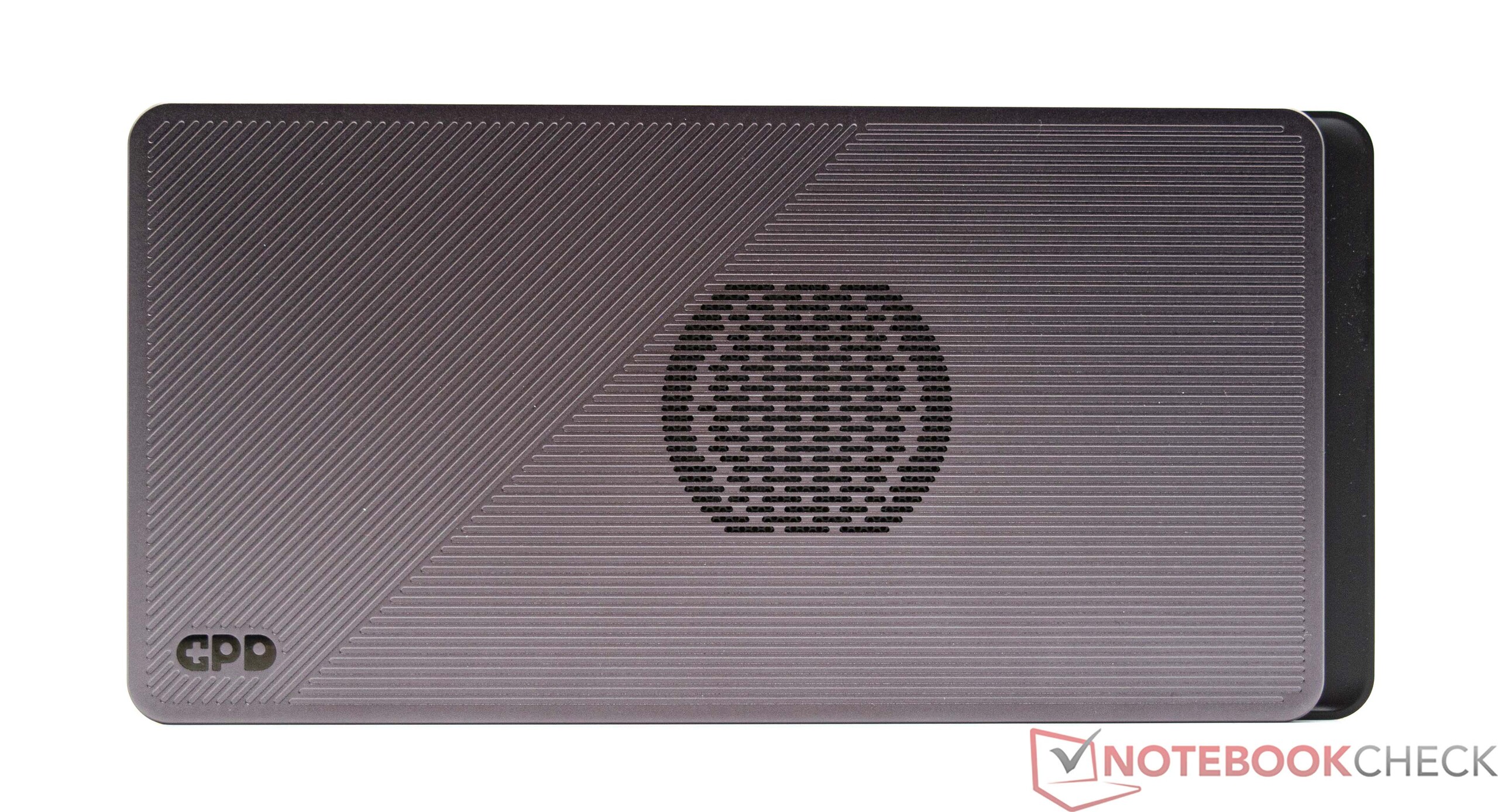

GPD 在设备中间安装了一个风扇，从顶部和两侧吸入空气。这种设计从根本上说是合理的，也是精心设计的。不过，你肯定能听到风扇运转的声音。即使在空闲状态下，我们也能测到 36 分贝（A）的噪音。在压力测试中，eGPU 的噪音高达 55.7 分贝（A）--可以说是非常恼人。如果没有一副好耳机，任何人都会一直听到显卡在后台运行的声音。由于风扇发出的声音相对较高，因此噪音感觉更大。我们希望 GPD G1 能有更有效的散热解决方案。使用外置电源也许是更好的选择，因为这样可以在机箱中留出更多空间，安装更大的散热器。
Noise Level
| Idle |
| 36.6 / 36.6 / 36.6 dB(A) |
| Load |
| 37.3 / 55.7 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R (15 cm distance) environment noise: 25 dB(A) | ||
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | XFX Speedster QICK 308 Radeon RX 7600 Black Edition | KFA2 GeForce RTX 4060 1-Click-OC 2X | ASUS Dual GeForce RTX 4060 Ti OC | Acer Predator BiFrost Arc A750 OC | Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | Sapphire Pulse Radeon RX 7700 XT | AMD Radeon RX 7800 XT | KFA2 GeForce RTX 4070 EX Gamer | KFA2 GeForce RTX 4070 Ti EX Gamer | |
|---|---|---|---|---|---|---|---|---|---|---|
| Noise | 22% | 21% | 20% | 13% | -1% | 20% | 20% | 12% | 12% | |
| off / environment * | 25 | 25.4 -2% | 25.8 -3% | 25.4 -2% | 25.4 -2% | 25.4 -2% | 25 -0% | 24.7 1% | 30 -20% | 30 -20% |
| Idle Minimum * | 36.6 | 26.3 28% | 25.9 29% | 26.7 27% | 29 21% | 39 -7% | 27.4 25% | 26.8 27% | 30.2 17% | 30.1 18% |
| Idle Average * | 36.6 | 26.3 28% | 25.9 29% | 26.7 27% | 29.2 20% | 39 -7% | 27.5 25% | 27.2 26% | 30.2 17% | 30.1 18% |
| Idle Maximum * | 36.6 | 26.3 28% | 25.9 29% | 26.7 27% | 29.3 20% | 39 -7% | 28 23% | 27.3 25% | 30.2 17% | 30.1 18% |
| Load Average * | 37.3 | 29.6 21% | 30.3 19% | 29.3 21% | 35.1 6% | 39 -5% | 32.6 13% | 30.7 18% | 31.8 15% | 30.2 19% |
| Load Maximum * | 55.7 | 39.4 29% | 43.5 22% | 46 17% | 49.7 11% | 42.1 24% | 37.6 32% | 43 23% | 41.1 26% | 44.7 20% |
| Witcher 3 ultra * | 39.6 | 45.2 | 42.5 | 44.2 | 41.5 | 42.1 | 42.6 | 40.2 |
* ... smaller is better
温度和用电量

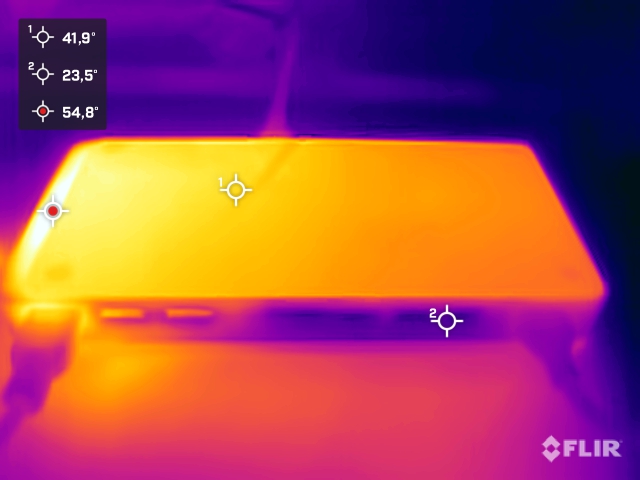

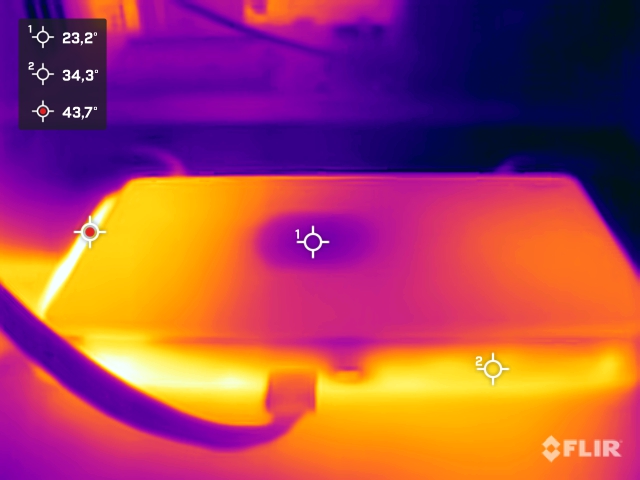

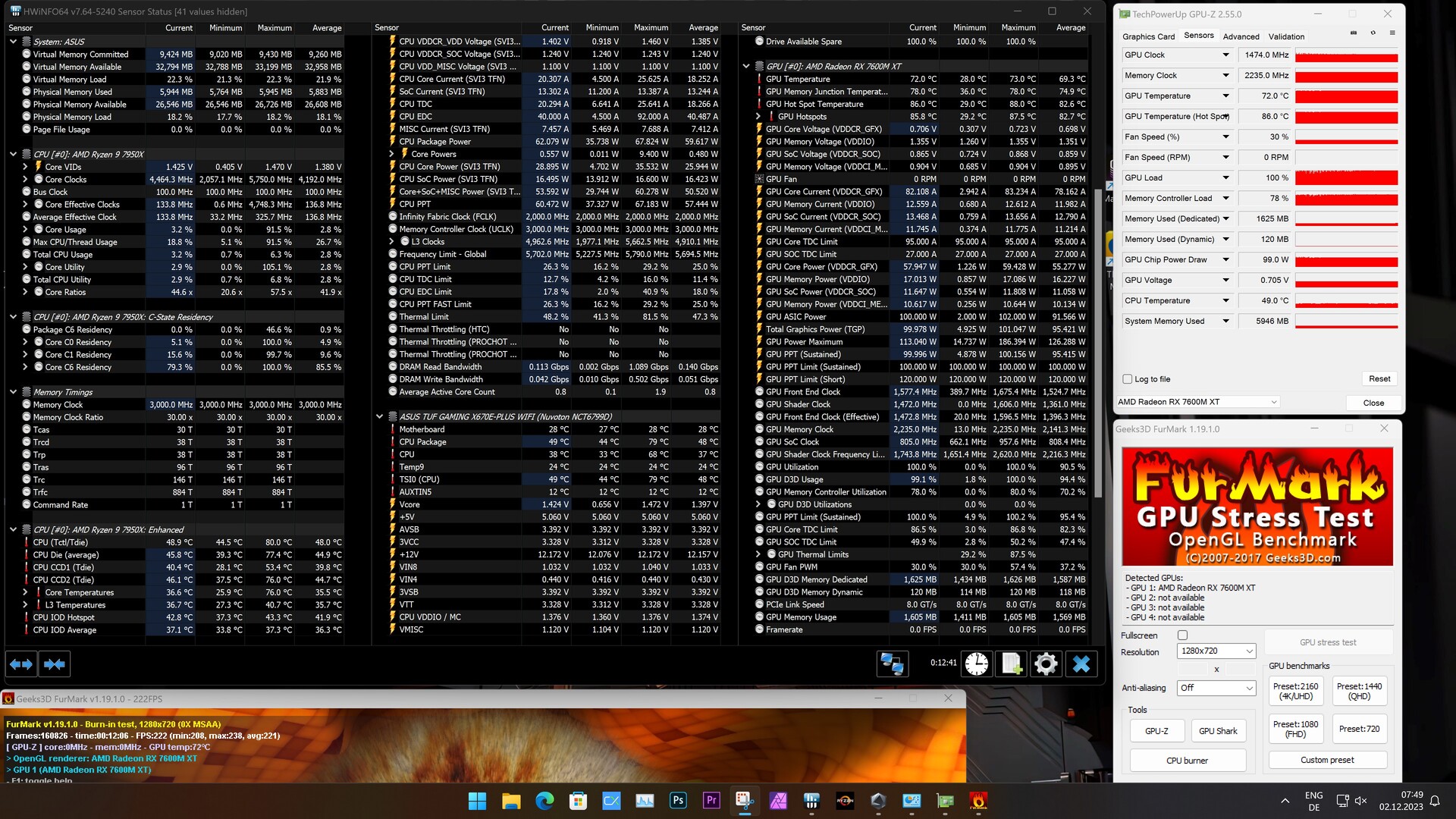

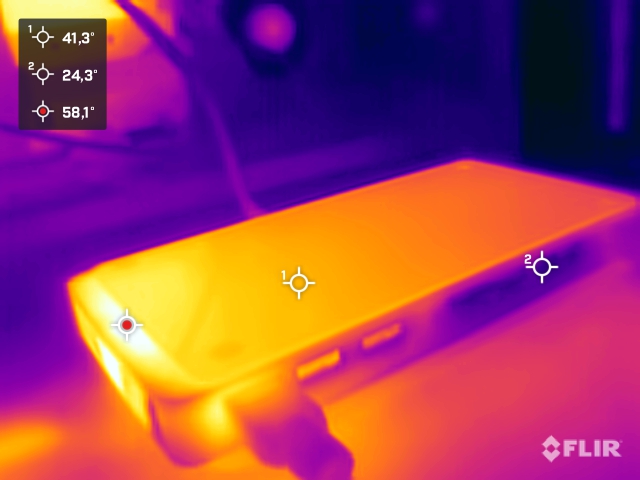

考虑到噪音水平较高，可以肯定的是，风扇必须非常努力地工作，以控制 GPU 的温度。实际上，该设备在这方面做得相当不错：在压力测试中，我们看到 GPU 的温度为 73°C（163.4°F）。但 GPU 热点温度确实达到了 88°C （190.4°F）的峰值。冷却装置的设计是将空气从机箱侧面导出。这也是我们记录到机箱温度最高的地方。此外，机箱底部的温度也大幅升高，这表明 GPD 也使用了这一表面进行散热。
说到功耗，GPD G1 得益于移动图形芯片的使用。Navi 33 芯片本身的功耗高达 100 瓦--在我们的测试过程中一直达到这一水平。根据我们的功率计，单是 eGPU 的峰值功耗约为 130 瓦，其中还包括其他组件的功耗和电源造成的各种功率损耗。因此，难怪整个设置（eGPU 加上我们的 GPU 测试系统）的功耗要求相对较低：游戏时约为 260 瓦，压力测试（FurMark）时为 245 瓦。这些都是不错的数字，整体上略低于 NvidiaGeForce RTX 4060 的需求。
GPD G1 通过其 USB4 端口支持功率传输，最高可达 60 瓦。
Power Consumption: 1920x1080 The Witcher 3 ultra (external Monitor) | 1280x720 FurMark 1.19 GPU Stress Test (external Monitor) | Witcher 3 ultra Efficiency (external Monitor)
| Power Consumption / The Witcher 3 ultra (external Monitor) | |
| AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG (Idle: 86.4 W) | |
| AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
| KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
| AMD Radeon RX 7900 GRE | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7800 XT | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Acer Predator BiFrost Arc A750 OC | |
| KFA2 GeForce RTX 4060 Ti EX | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Power Consumption / FurMark 1.19 GPU Stress Test (external Monitor) | |
| Palit GeForce RTX 4090 GameRock OC | |
| AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
| KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
| KFA2 GeForce RTX 4080 SG (Idle: 86.4 W) | |
| Acer Predator BiFrost Arc A750 OC | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 GRE | |
| Sapphire Pulse Radeon RX 6750 XT | |
| AMD Radeon RX 7800 XT | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 4060 Ti EX | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Power Consumption / Witcher 3 ultra Efficiency (external Monitor) | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 GRE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 4060 Ti EX | |
| AMD Radeon RX 7800 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
| Sapphire Pulse Radeon RX 6750 XT | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Acer Predator BiFrost Arc A750 OC | |
Power Consumption: 1920x1080 The Witcher 3 ultra (external Monitor) | 1280x720 FurMark 1.19 GPU Stress Test (external Monitor) | Witcher 3 ultra Efficiency (external Monitor)
* ... smaller is better
Power consumption with external monitor
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) Radeon RX 7600M XT, R9 7950X, Corsair MP600; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø245 (234-256)
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 NVIDIA GeForce RTX 4060 Ti 16G, R9 7950X, Corsair MP600; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø304 (297-311)
AMD Radeon RX 7800 XT Radeon RX 7800 XT, R9 7950X, Corsair MP600; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø408 (375-434)
XFX Speedster QICK 308 Radeon RX 7600 Black Edition Radeon RX 7600, R9 7950X, Corsair MP600; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø333 (323-352)
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 Arc A770, R9 7950X, Corsair MP600; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø350 (336-372)
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) Radeon RX 7600M XT, R9 7950X, Corsair MP600; 1920x1080 The Witcher 3 ultra (external Monitor): Ø261 (249-271)
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 NVIDIA GeForce RTX 4060 Ti 16G, R9 7950X, Corsair MP600; 1920x1080 The Witcher 3 ultra (external Monitor): Ø310 (306-336)
AMD Radeon RX 7800 XT Radeon RX 7800 XT, R9 7950X, Corsair MP600; 1920x1080 The Witcher 3 ultra (external Monitor): Ø425 (421-429)
XFX Speedster QICK 308 Radeon RX 7600 Black Edition Radeon RX 7600, R9 7950X, Corsair MP600; 1920x1080 The Witcher 3 ultra (external Monitor): Ø346 (340-351)
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 Arc A770, R9 7950X, Corsair MP600; 1920x1080 The Witcher 3 ultra (external Monitor): Ø287 (283-311)
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) Radeon RX 7600M XT, R9 7950X, Corsair MP600; Idle 1min (external Monitor): Ø81.6 (77.8-88.3)
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 NVIDIA GeForce RTX 4060 Ti 16G, R9 7950X, Corsair MP600; Idle 1min (external Monitor): Ø93.3 (87.7-99.3)
AMD Radeon RX 7800 XT Radeon RX 7800 XT, R9 7950X, Corsair MP600; Idle 1min (external Monitor): Ø92.9 (88.4-100.3)
XFX Speedster QICK 308 Radeon RX 7600 Black Edition Radeon RX 7600, R9 7950X, Corsair MP600; Idle 1min (external Monitor): Ø91.1 (87.8-100.3)
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 Arc A770, R9 7950X, Corsair MP600; Idle 1min (external Monitor): Ø123.2 (115.5-128.1)
Pros
+ 结构相对紧凑
+ 高质量的工艺
+ 低功耗
+ 支持 USB4 和 OCuLink
+ PD 功率高达 60 瓦
+ 与 iGPU 相比性能提升明显
Cons
- 负载时声音很大
- 价格昂贵
- 不包括 OCuLink 线缆
结论 - 昂贵的玩具
通过 GPD G1，我们在这次评测中看到了一种略有不同的 GPU。作为一款外置图形卡，该设备的使用范围有限。当然，在某些情况下使用这种电子 GPU 是有意义的。但问题是，你是否愿意花大价钱购买。因为 GPD G1 700 多欧元（750 美元）的价格绝不便宜。如果产品具有与之相匹配的性能，您或许可以忽略其高昂的价格。但是，你所能期待的只是 Radeon RX 6600 显卡的性能，而根据型号的不同，Radeon RX 6600 的价格低至 205 欧元（220 美元）。当然，你需要考虑 eGPU 外壳的价格，但这类产品的价格通常不会超过 400 欧元（430 美元）。现在，GPD G1 的一个优点是外形小巧。该设备还原生支持 OCuLink，这是一种速度更快的接口。这是目前 Razer 或 Sonnet 的 eGPU 机箱所不具备的功能。也就是说，与 G1 配对的设备也需要有 OCuLink 接口，这样才能获得最佳性能。Minisforum UM780 XTX 是少有的配备 OCuLink 接口的迷你 PC，其性能明显高于 USB4 连接。因此，其他制造商是否也会搭上这班车，为其即将推出的微型电脑配备 OCuLink 接口，我们拭目以待。
GPD G1 可以让你毫不费力地将一台小电脑变成一个紧凑的游戏系统。但其性能与售价完全不符。
GPD 自己也推出了 GPD Win 4（2023），这是一款可与 Steam Deck 相媲美的小型掌上系统。这款设备同样可以通过 OCuLink 与 GPD G1 进行原生连接。不过在这一点上，你可能会问自己，这样的设置是否还算便携，因为它真的不再便携了。
除了小巧的外形，GPD G1 还带来了额外的接口，如 USB 端口、显示输出和一个能以 UHS-II 速度读取 SD 卡的读卡器。尽管如此，说到噪音水平，我们真的不能粉饰太平。在负载情况下，eGPU 的噪音实在太大，令人心烦意乱，在测试过程中最高达到 55 分贝（A）。该公司应该考虑使用其他冷却解决方案。我们批评的另一点是包装内容--仅提供一条 USB4 电缆是不够的。考虑到该产品的价格，还应该配备一条 OCuLink 线缆。
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was freely purchased by the author at his/her own expense. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
