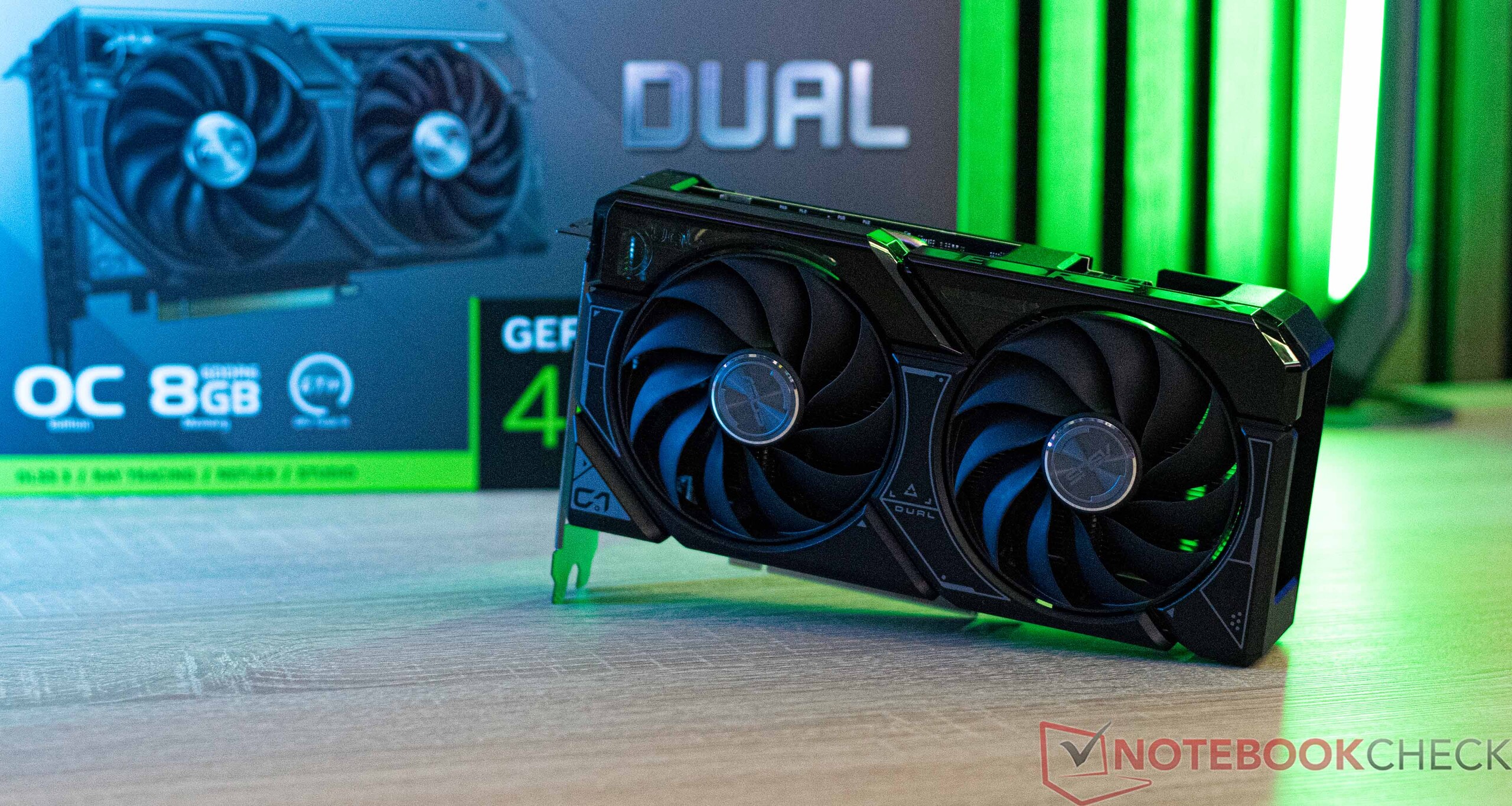

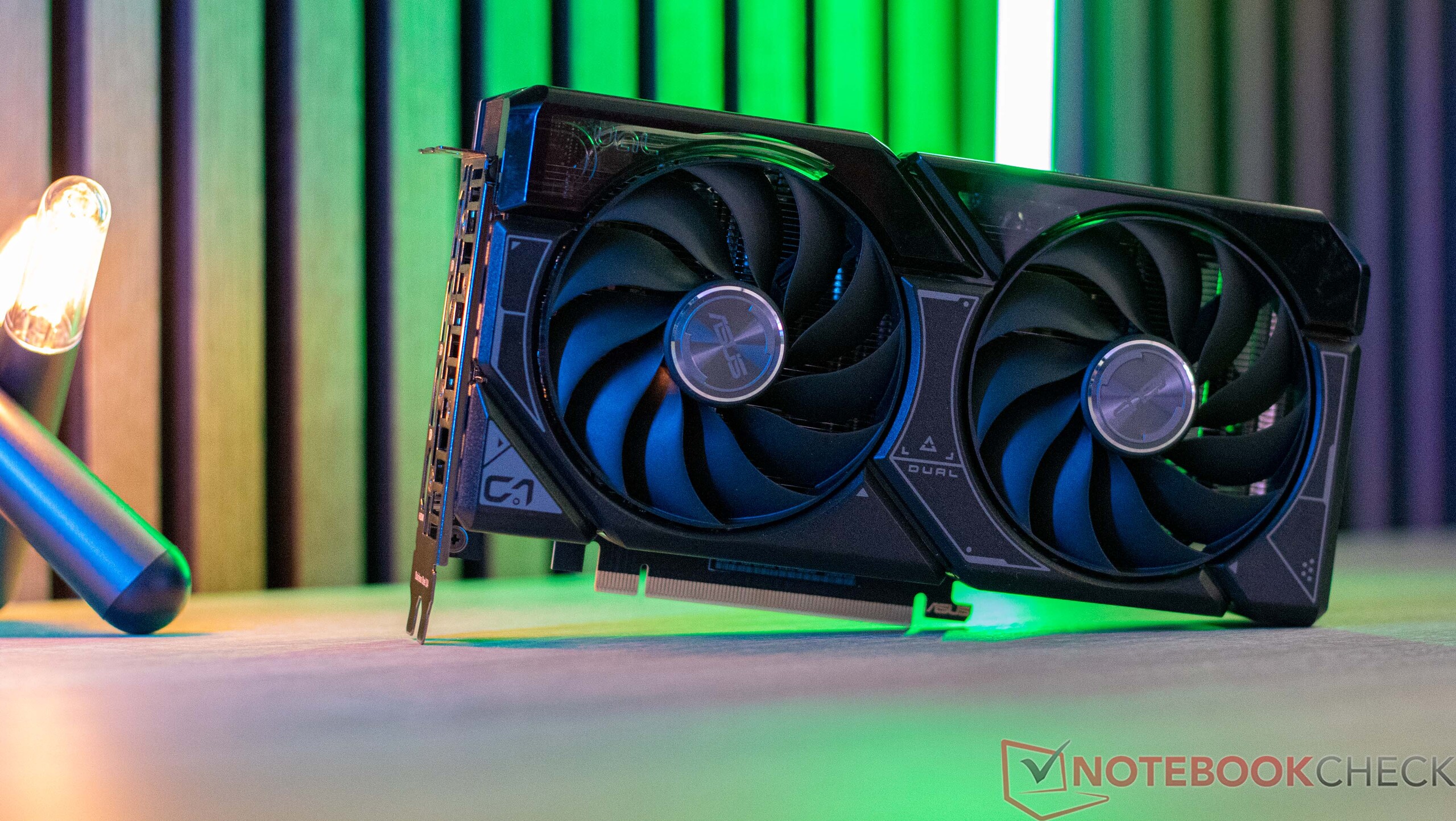

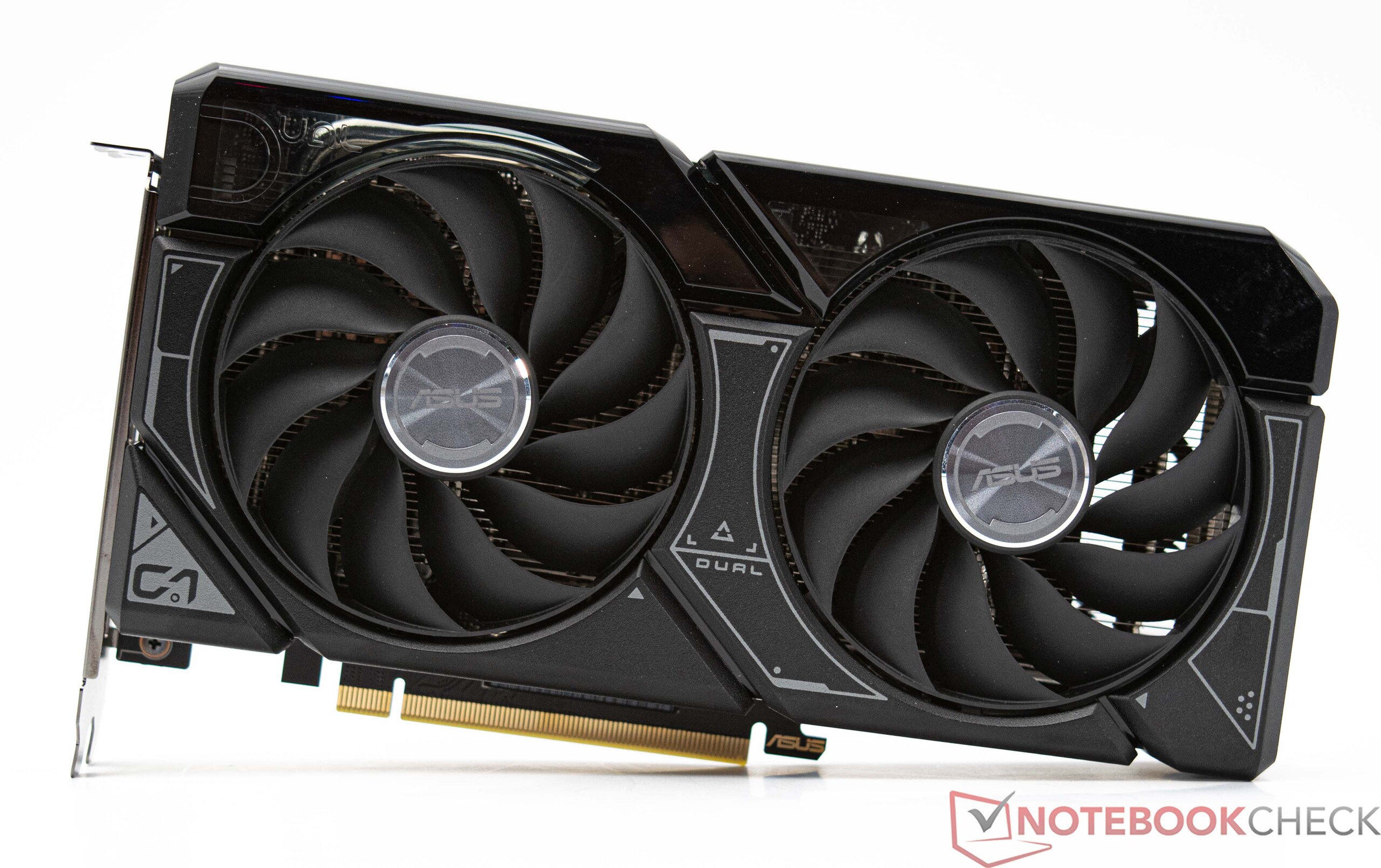

华硕双GeForce RTX 4060 Ti OC 台式机显卡评测:适用于全高清游戏的紧凑节俭型 GPU

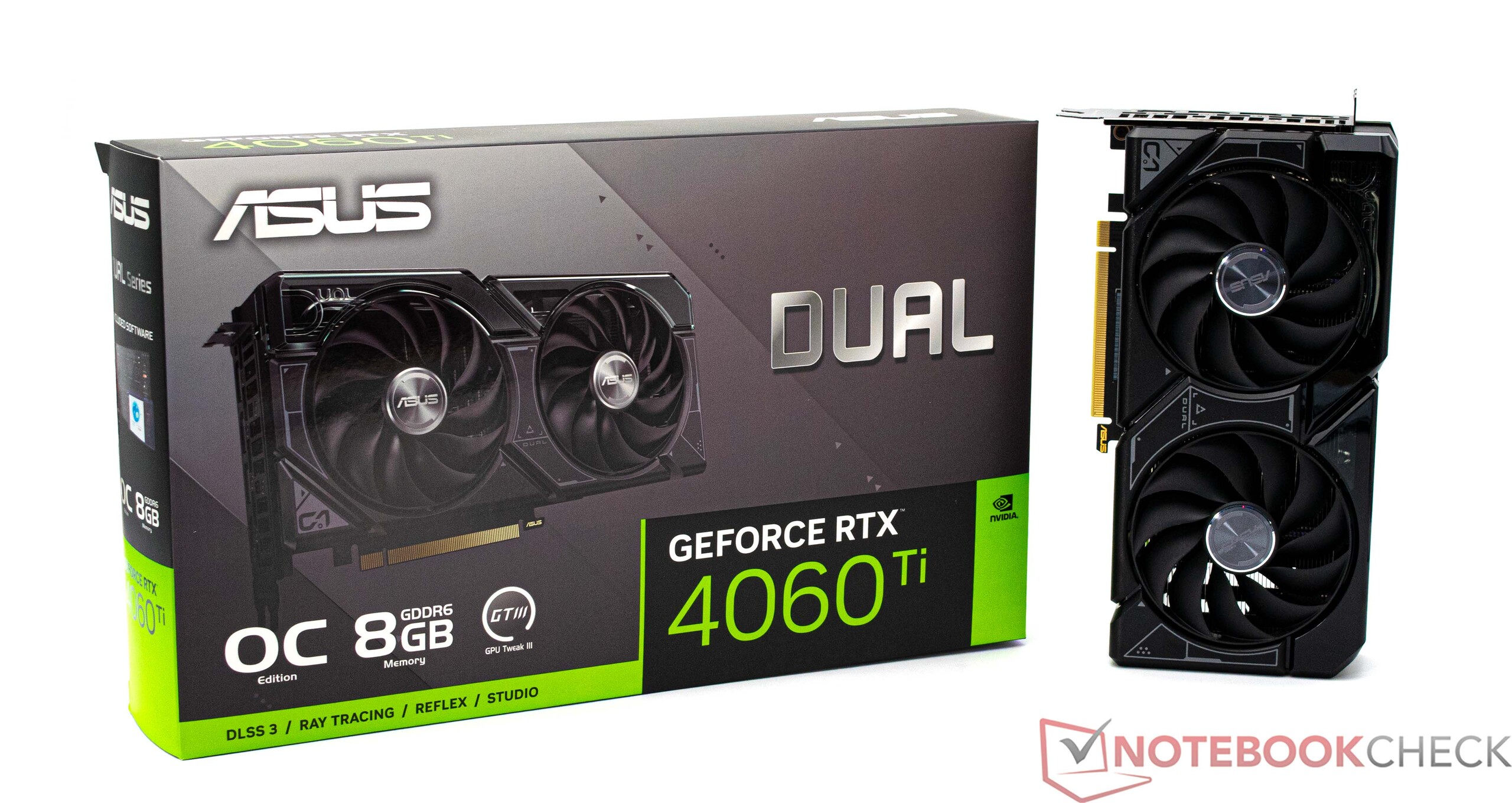

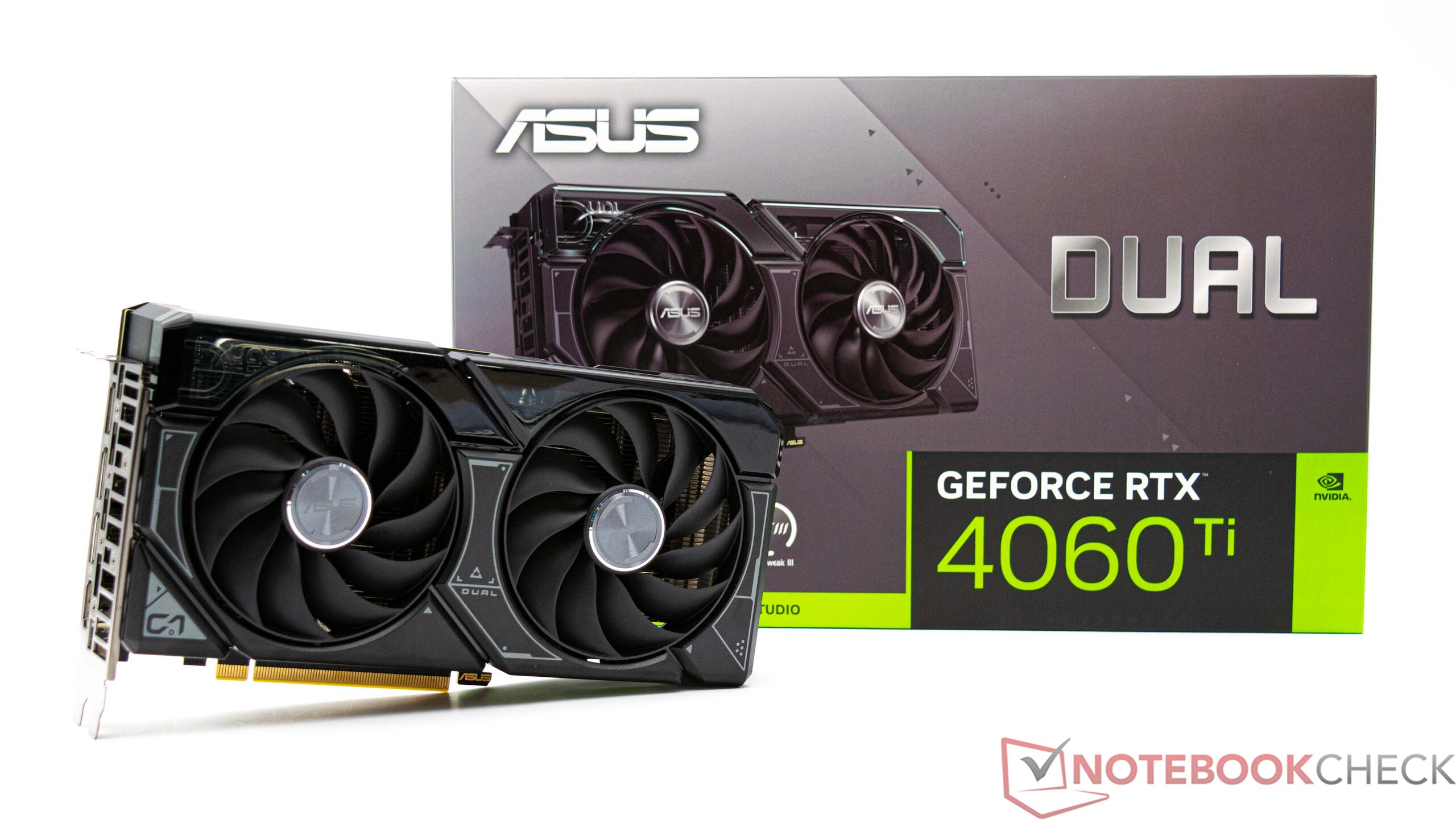

华硕为我们提供了华硕双GeForce RTX 4060 Ti OC 供试用。该型号仅配备了 8 GB VRAM,是华硕较为经济实惠的显卡之一。在测试期间,如果你想购买华硕的这款显卡,价格约为 400 美元。同一家制造商生产的 TUF 型号要大得多,价格要高出 50 美元左右。

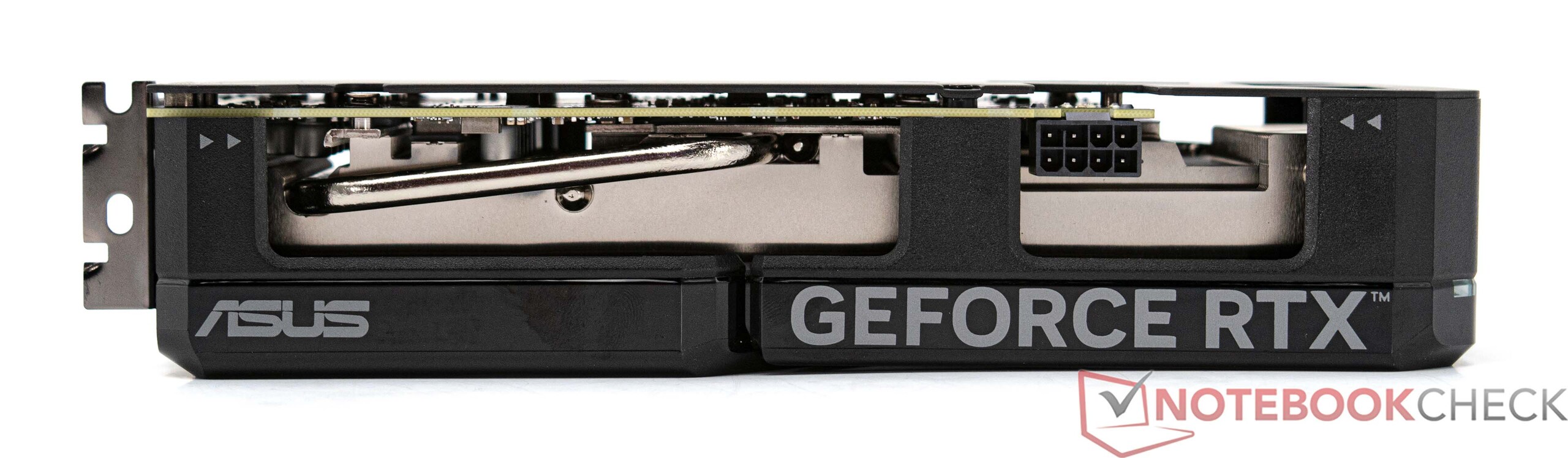

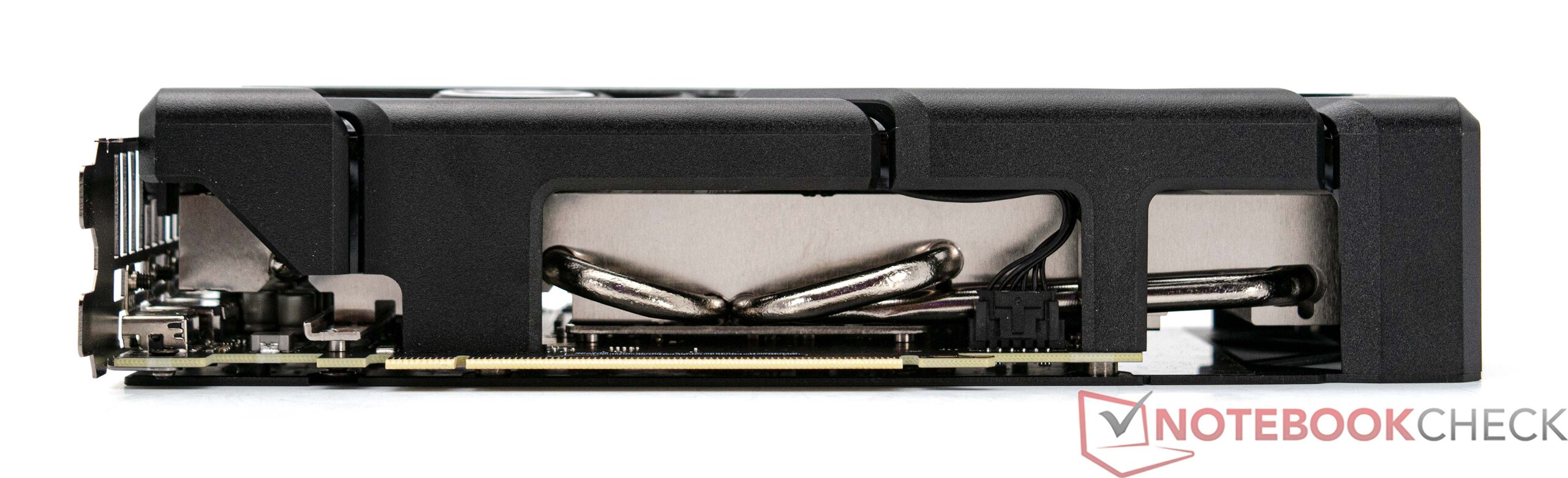

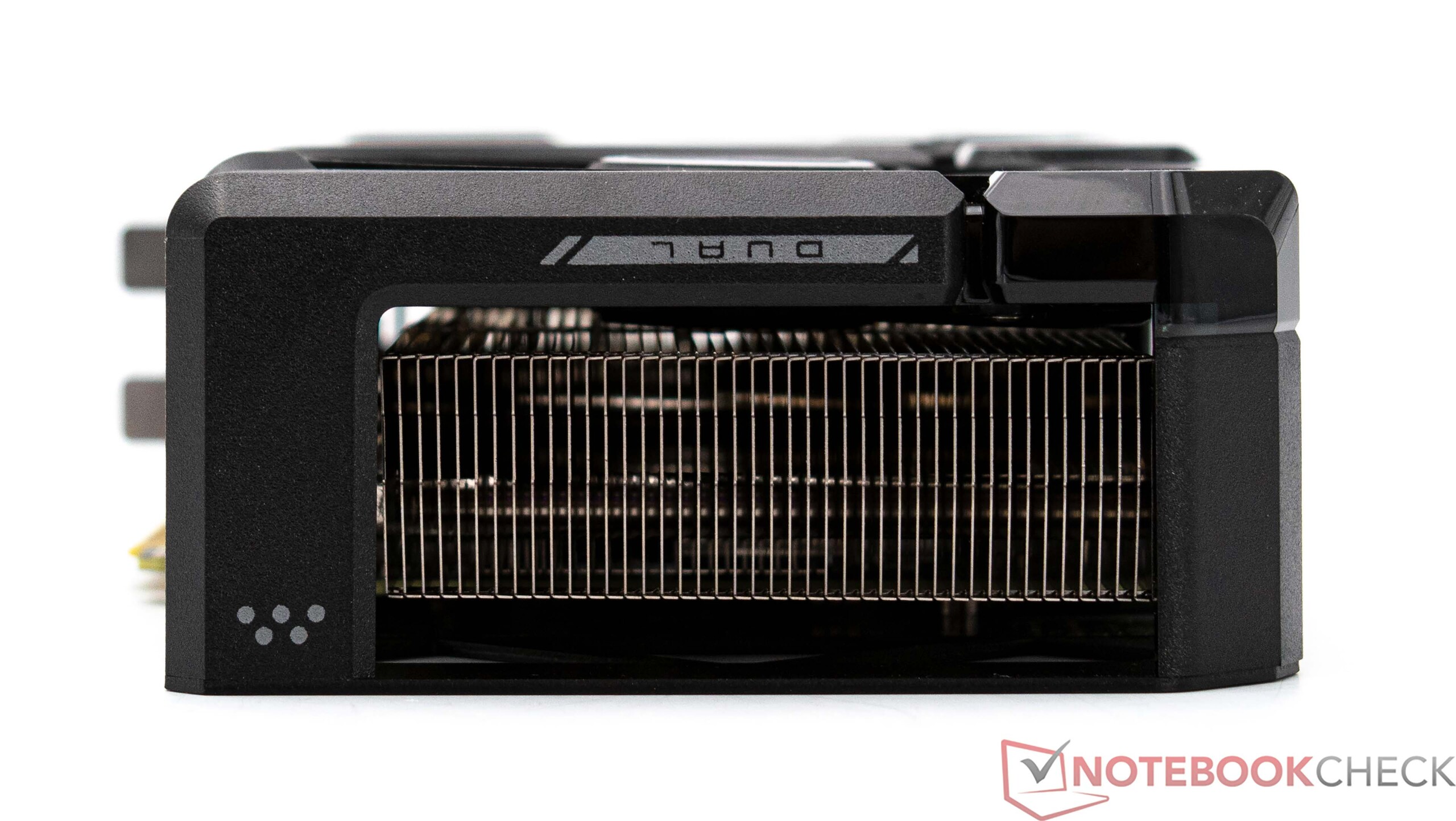

由于GeForce RTX 4060 Ti 的功耗很低,仅为 160 瓦,因此控制显卡的运行应该不难。即便如此,其内置散热器也不能完全避免批评。稍后再详述。华硕双GeForce RTX 4060 Ti OC 的结构非常紧凑,长度仅约 23 厘米。这比KFA2GeForce RTX 4060 Ti EX 小了不少。
对 Nvidia 的 VRAM 政策应持谨慎态度。在对板载合作伙伴 MSI 和 KFA2 的测试中,我们已经看到该显卡可以实现其制造目的。此外,Nvidia 还大幅扩展了 GPU 的二级缓存,这意味着通过 PCIe 插槽传输的数据更少了。与Nvidia Geforce RTX 3060 Ti 相比,这弥补了较低的内存带宽。

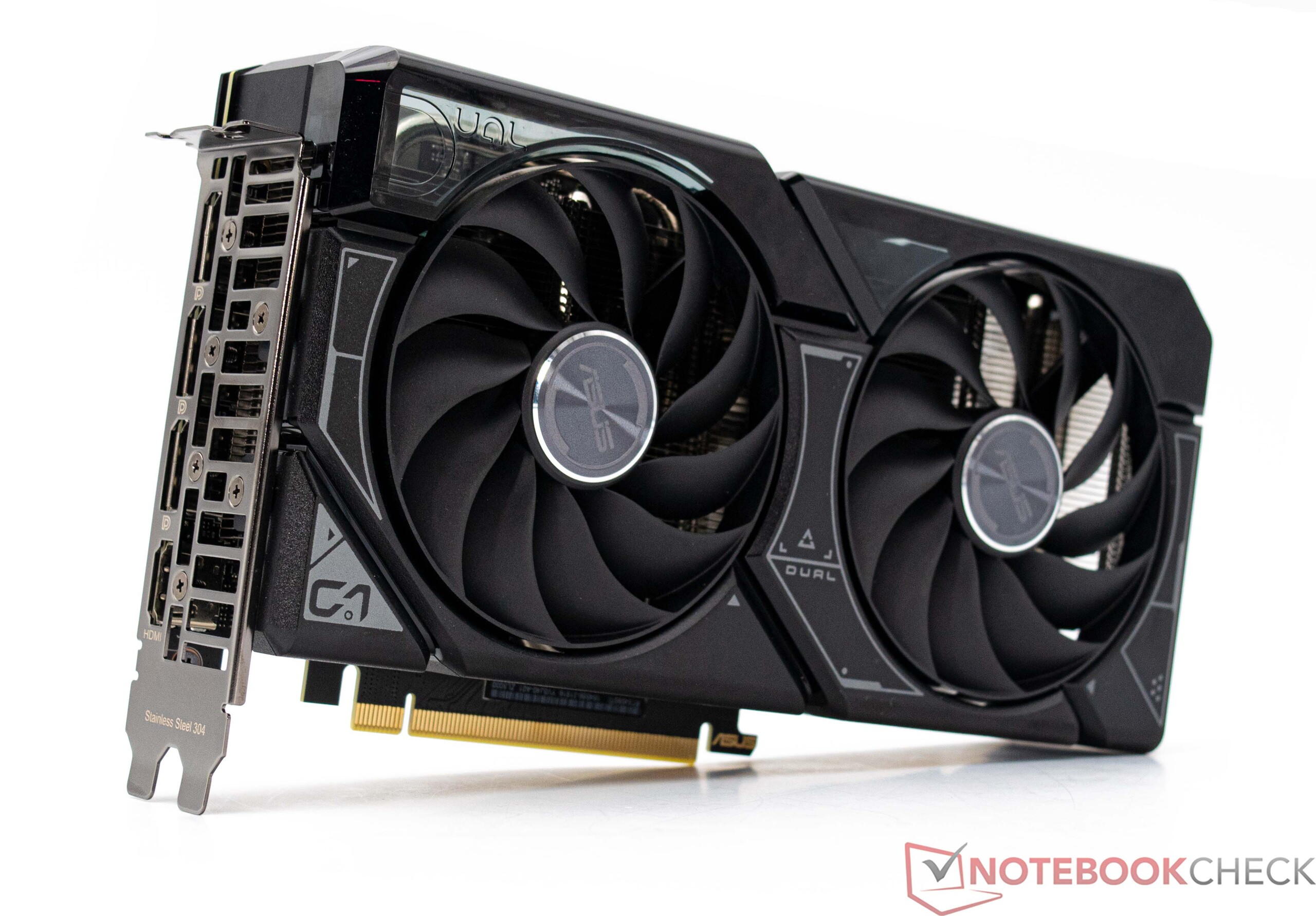

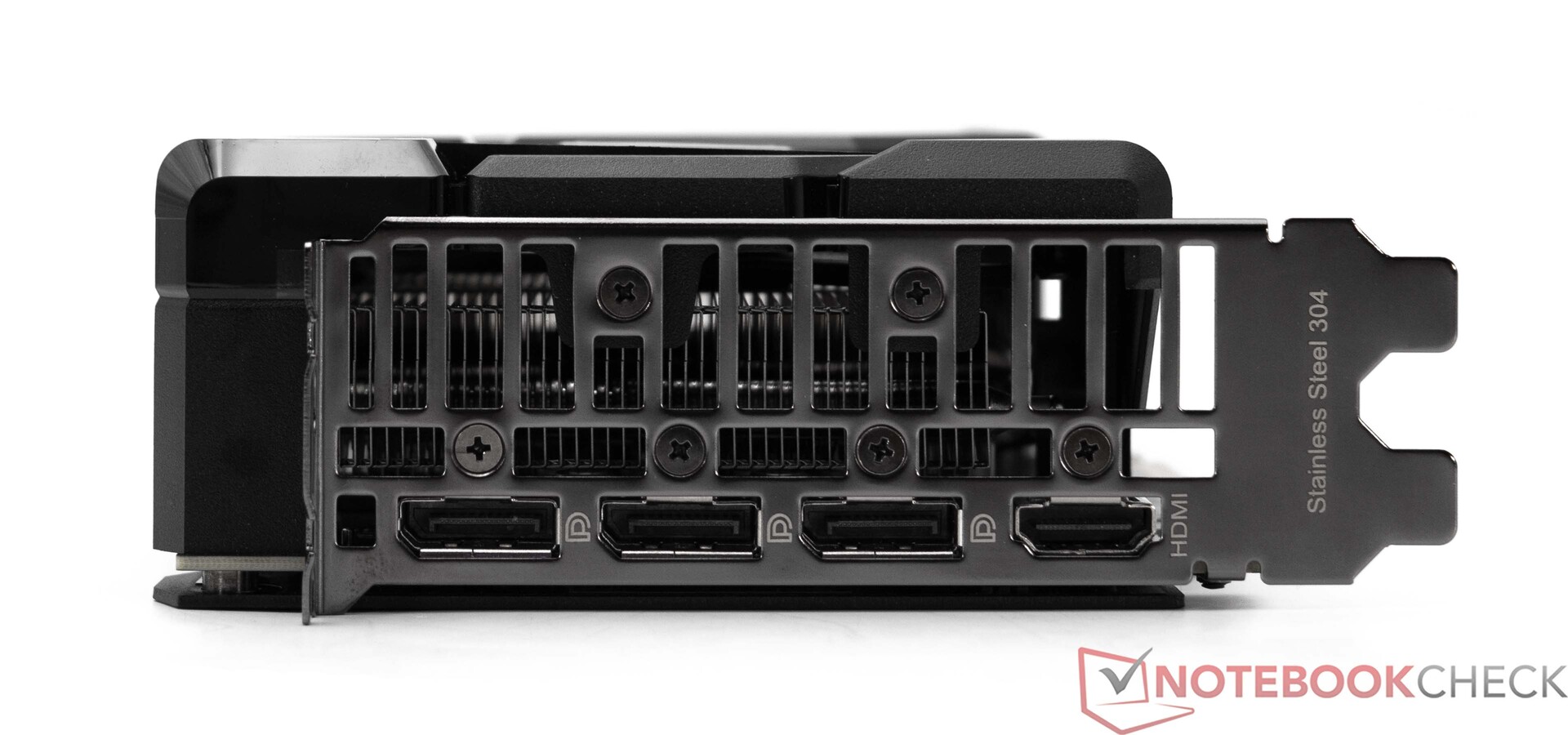

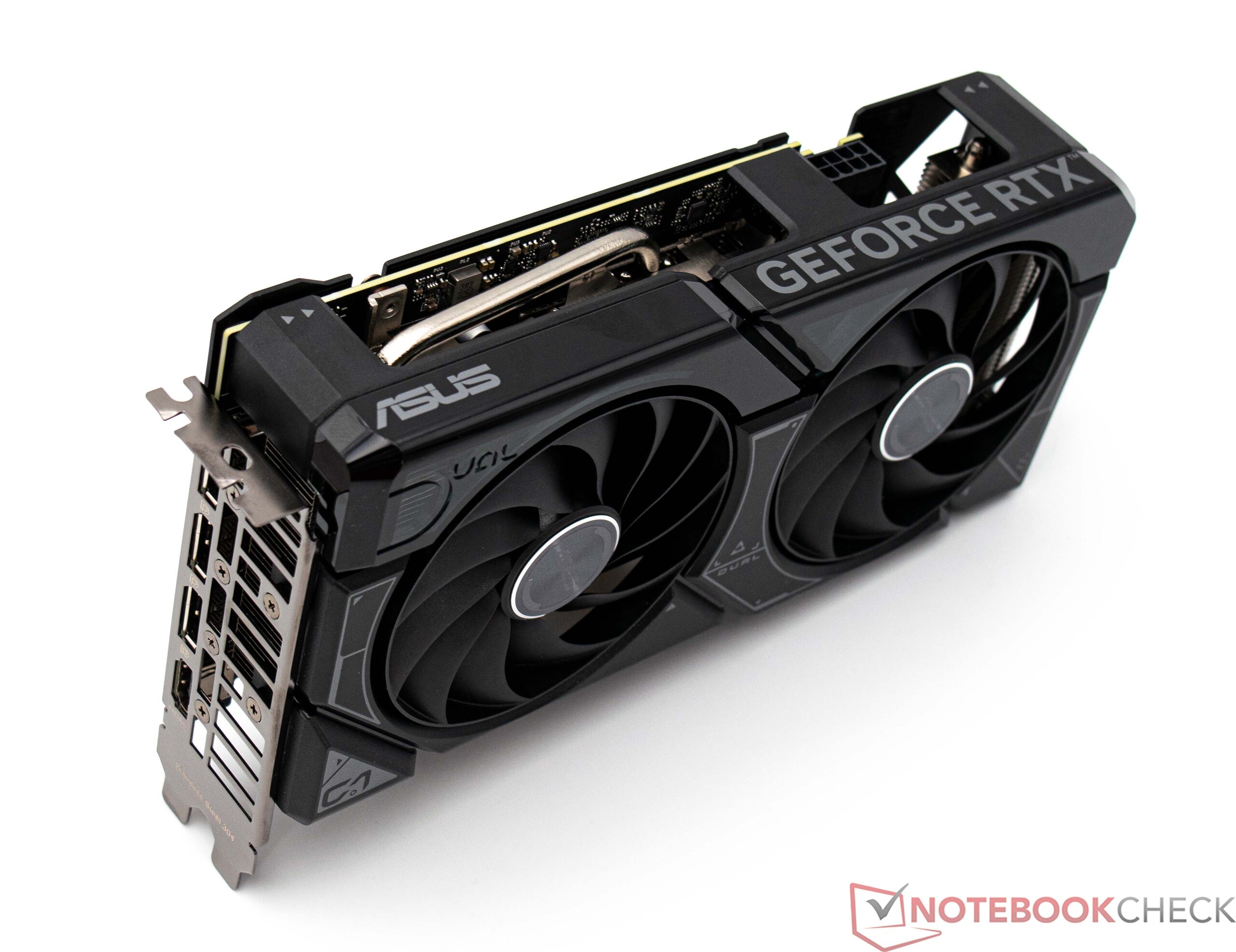

说到外部端口,你将不得不继续使用通常的标准。换句话说,该组件具有 1x HDMI 2.1a 和 3x DisplayPort 1.4a。目前,只有 AMD RDNA3 GPU 具有 DisplayPort 2.1 接口。
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名

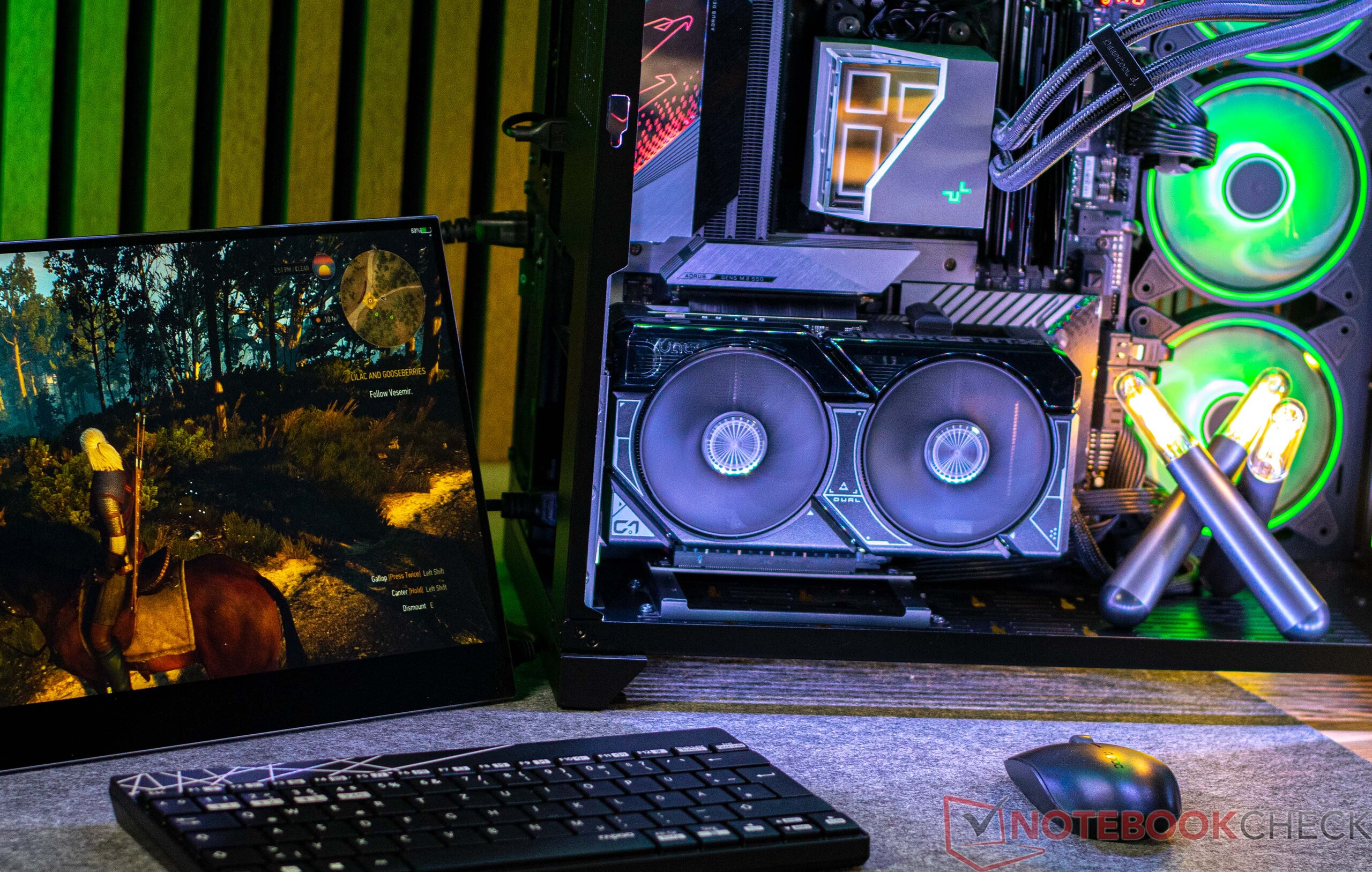

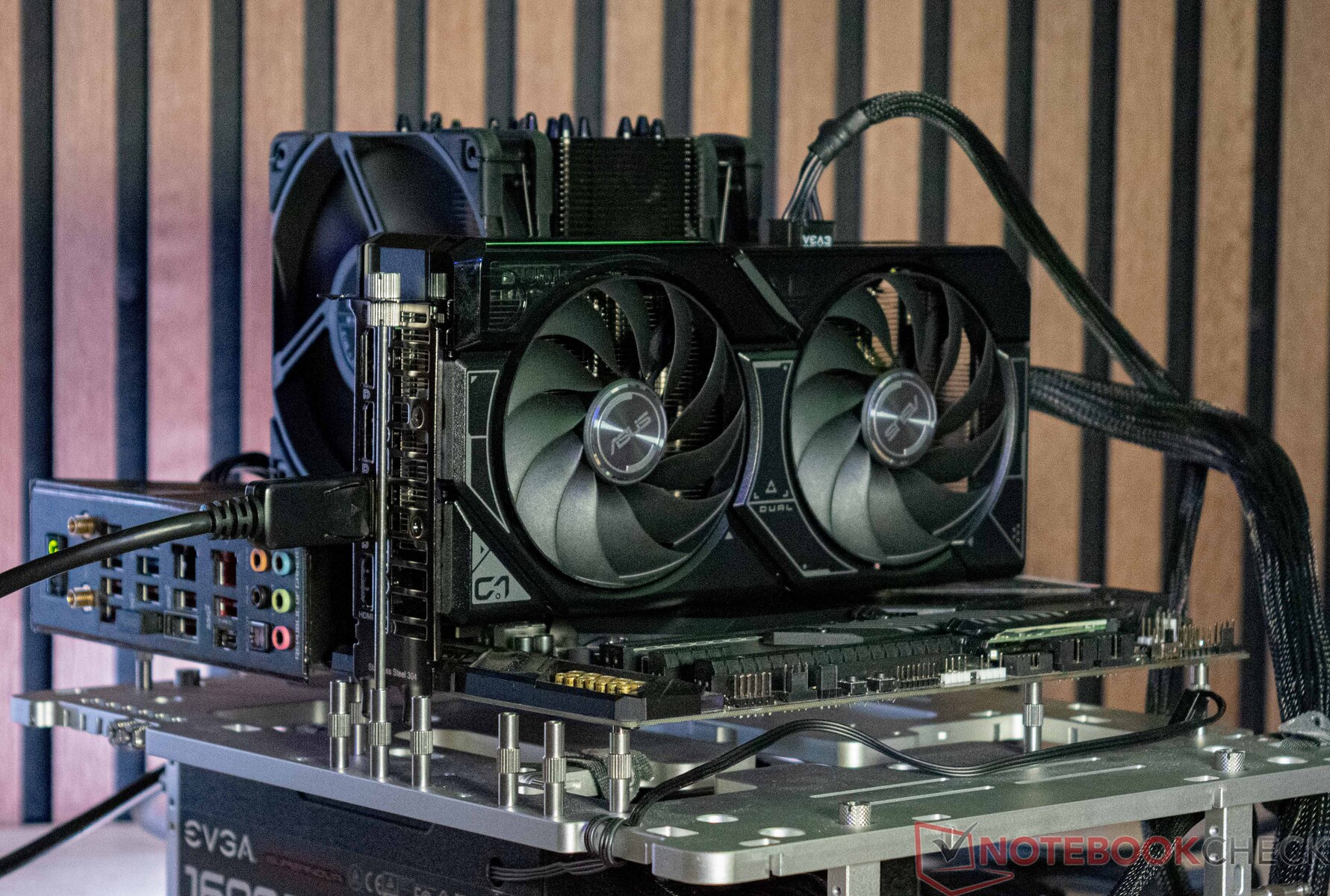

Infos about our test system

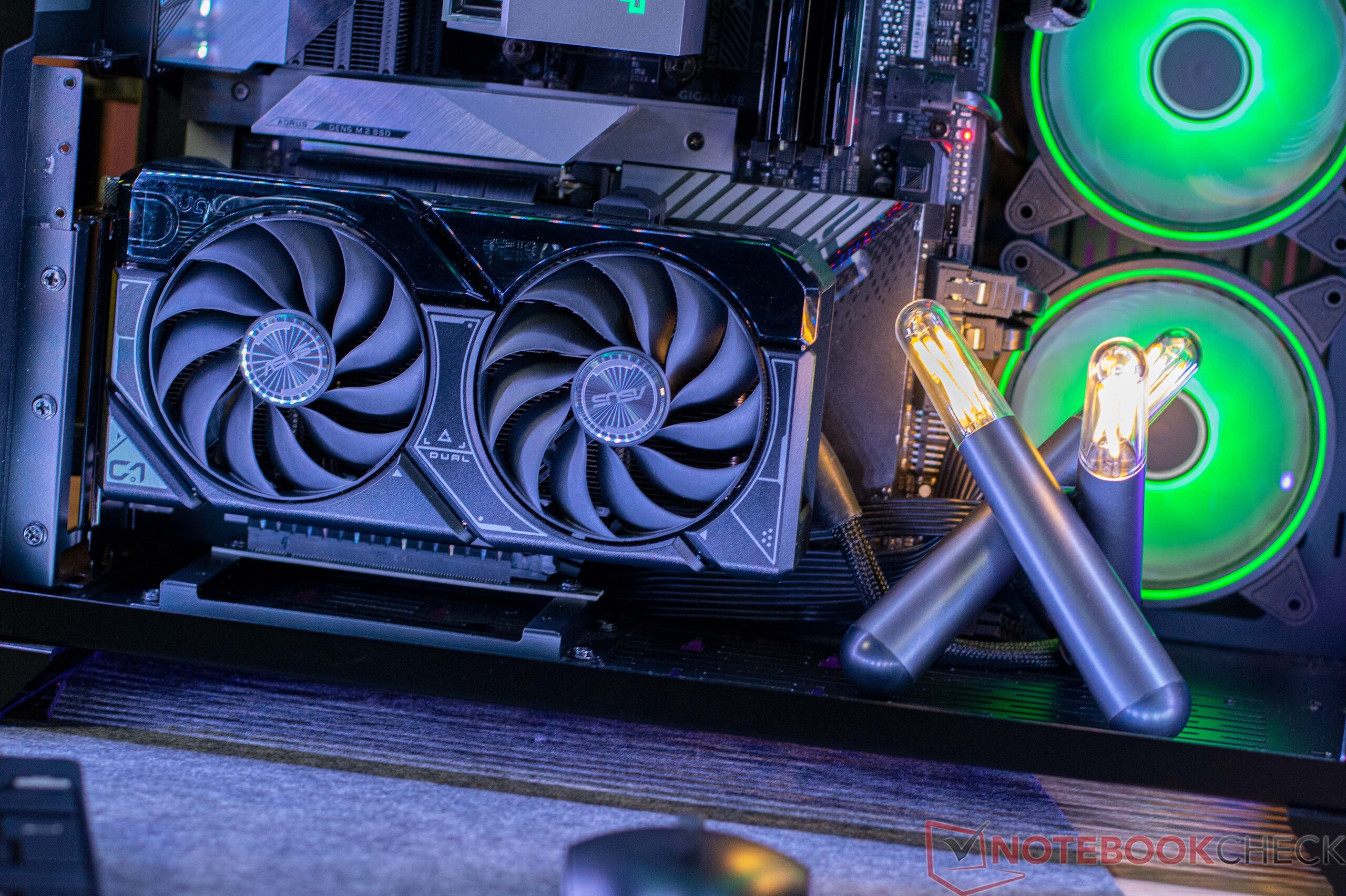

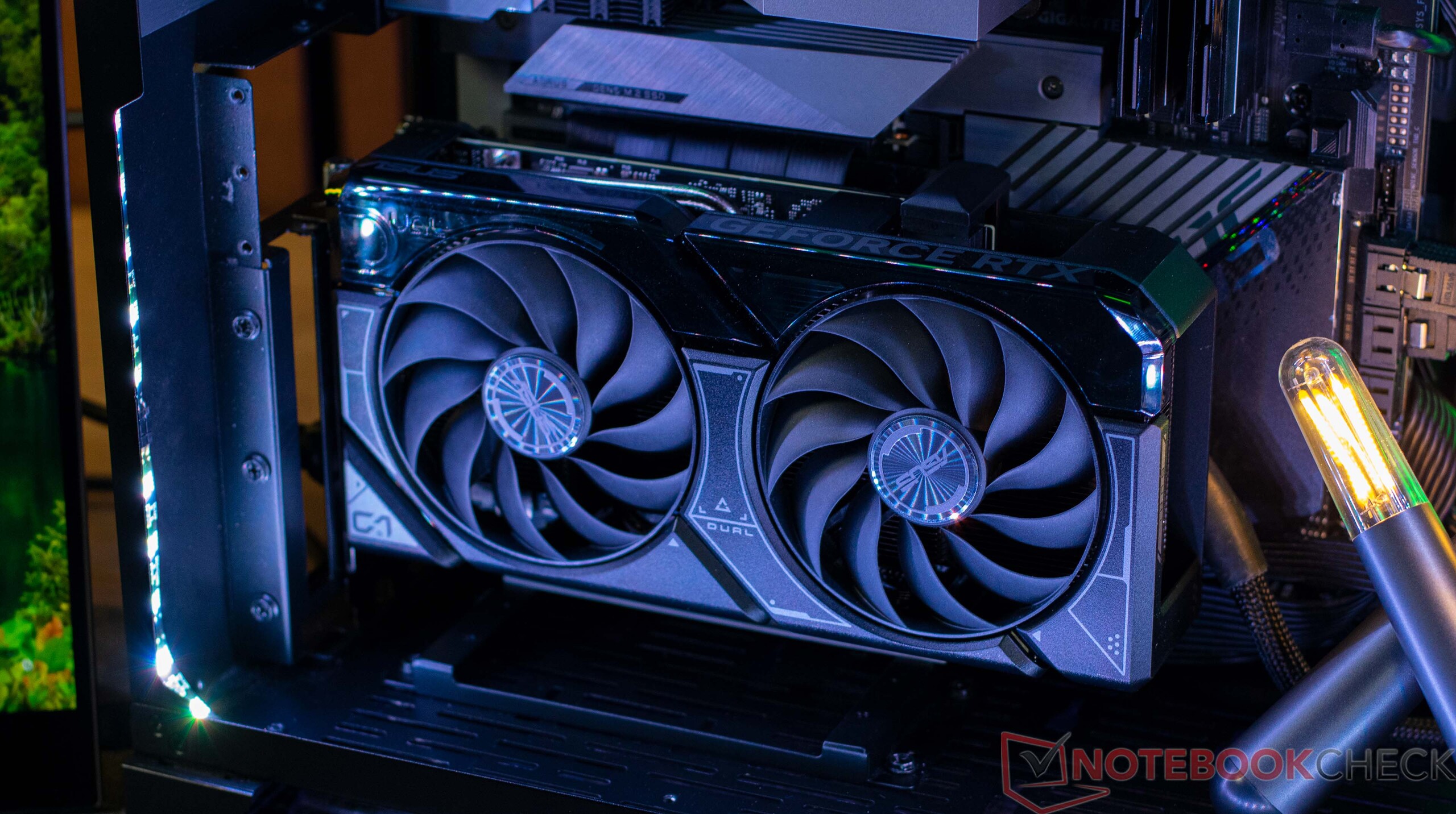

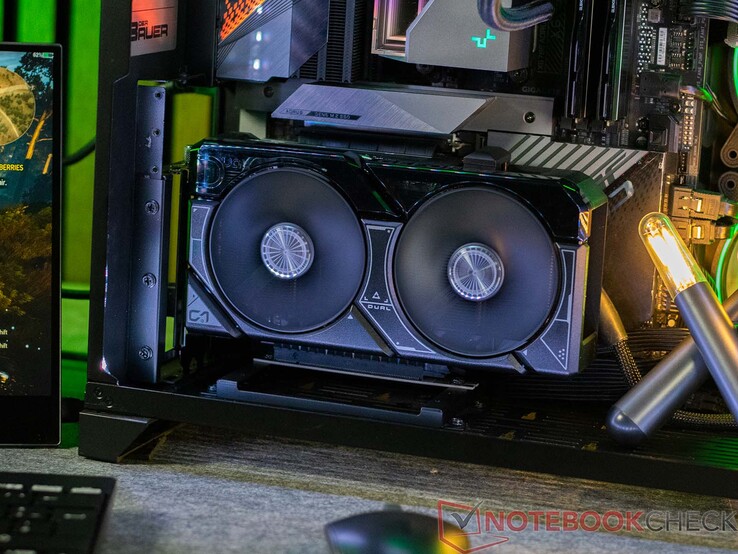

测试系统采用基于技嘉 X670E Aorus Master 的 AMD 平台。CPU (AMD Ryzen 9 7950X)性能卓越,我们使用 AiO 解决方案 Deepcool LT720 进行散热。32 GB 内存由 G.Skill 制造,使用 EXPO 配置文件进行匹配。我们使用技嘉 M32U 作为显示器。
测试系统详情
我们使用该系统进行了以下基准测试:
- 联力 O11 动态
- AMD Ryzen 9 7950X
- 技嘉 X670E Aorus Master,BIOS:F12a
- 深冷 LT720
- 海盗船 HX1200i 电源
- G.Skill Trident Z5 Neo DDR5-6000 2x 16 GB,EXPO(DDR5-6000 CL30-38-38-96)
- 海盗船 MP600,2 TB
- Crucial MX500,2 TB
- Microsoft Windows 11 专业版 64 位(版本 22H2)

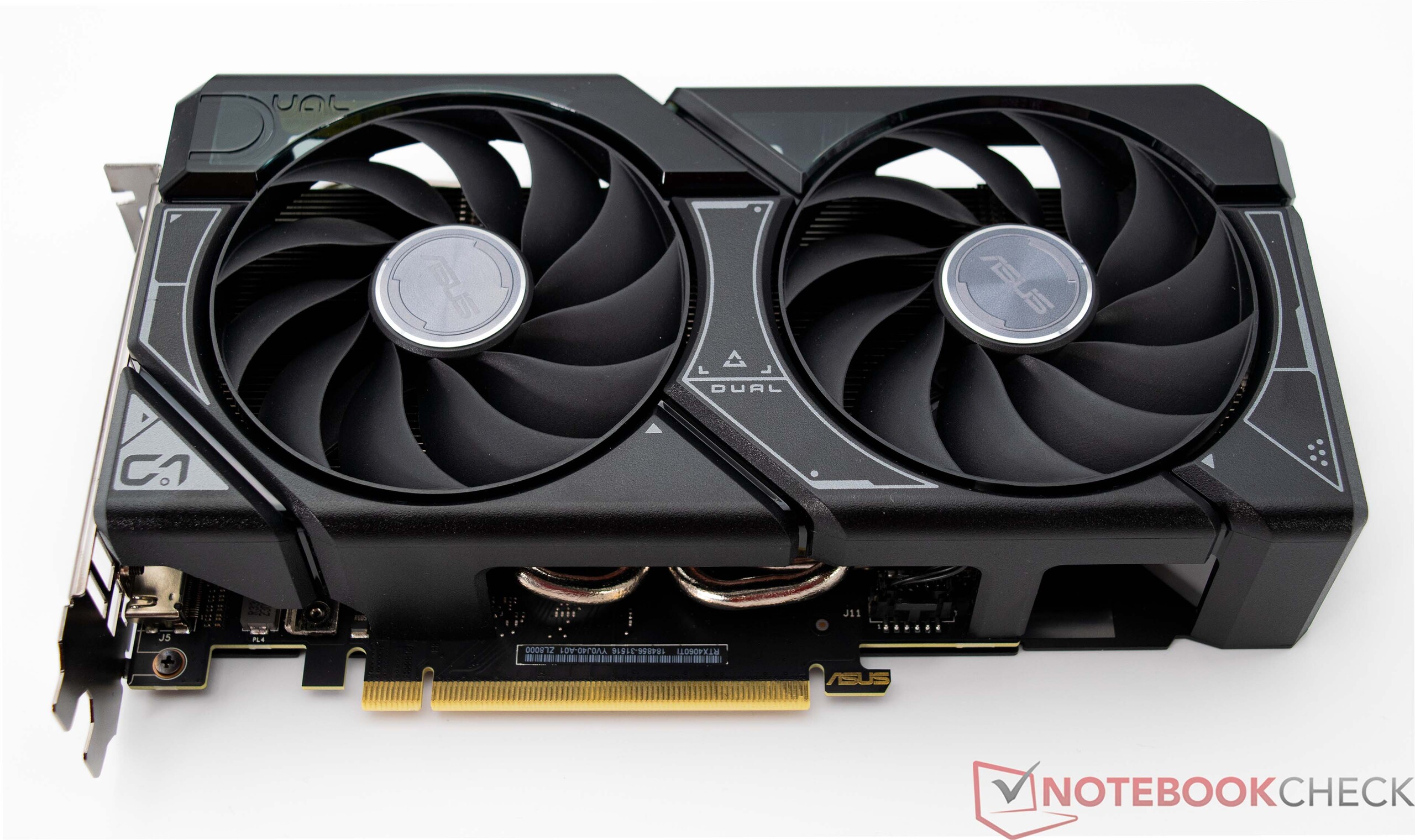

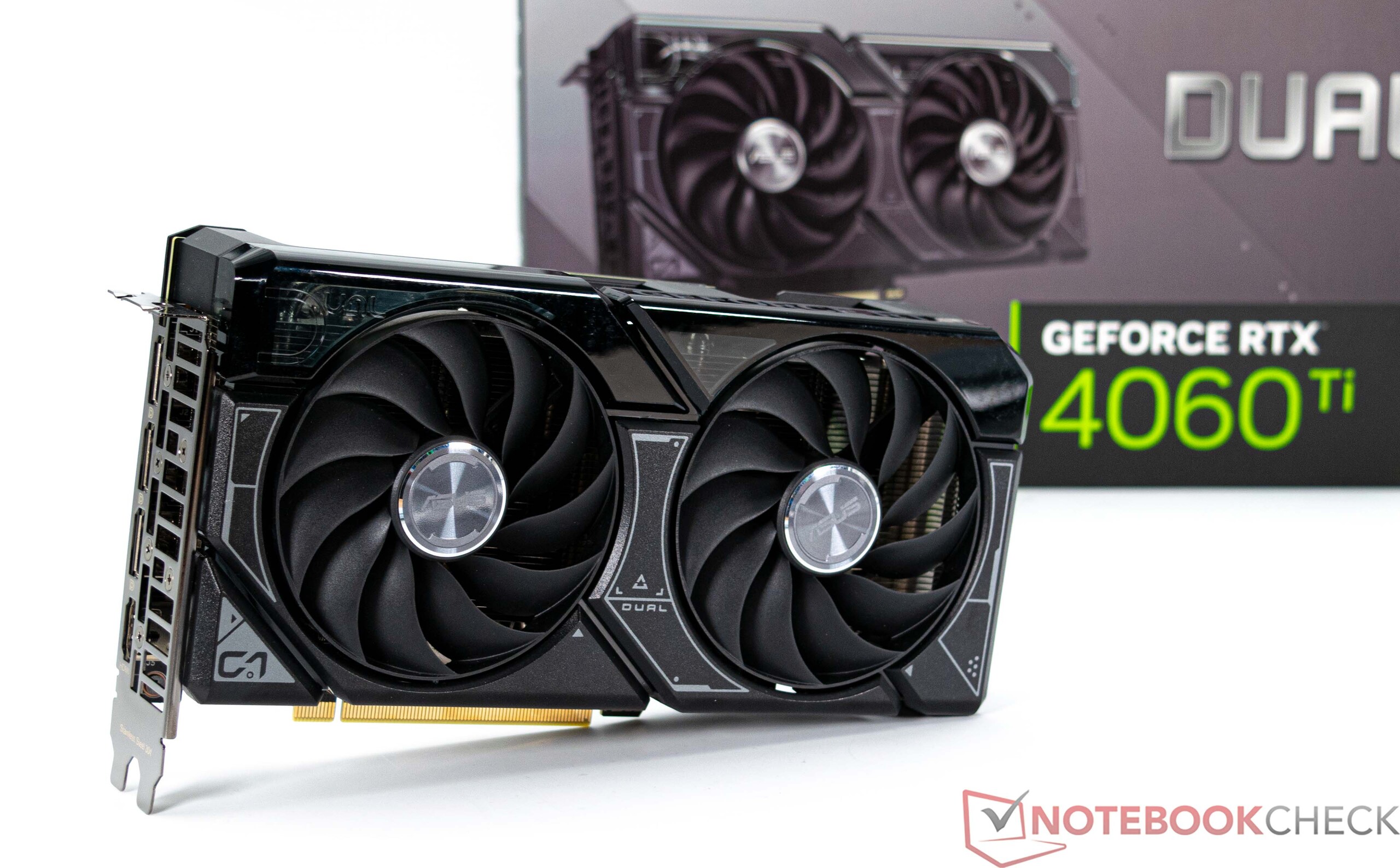

华硕双GeForce RTX 4060 Ti OC 详细介绍
GeForce 显卡规格比较
功能 | RTX 4090 | RTX 4080 | RTX 4070 Ti | RTX 4070 | RTX 4060Ti | RTX 3070 | RTX 3060 Ti |
芯片 | AD102 | AD103 | AD104 | AD104 | AD106 | GA104 | GA104 |
FinFET 工艺 | TSMC 4N | TSMC 4N | TSMC 4N | TSMC 4N | TSMC 4N | 8 纳米 | 8 纳米 |
CUDA 内核 | 16.384 | 9.728 | 7.680 | 5.888 | 4.352 | 5.888 | 4.864 |
纹理单元 | 512 | 304 | 240 | 184 | 136 | 184 | 152 |
张量核 | 512 第四代 | 304 第四代 | 240 第四代 | 184 第四代 | 136第四代 | 184 第三代 | 152 第三代 |
RT 内核 | 128 | 76 | 60 | 46 | 34 | 46 | 38 |
GPU 基本时钟 | 2,235 MHz | 2,205 MHz | 2,310 MHz | 1,920 MHz | 2,310MHz | 1,500 MHz | 1,410 MHz |
GPU 提升时钟 | 2,520 MHz | 2,505 MHz | 2,610 MHz | 2,475 MHz | 2,535MHz | 1,725 MHz | 1,665 MHz |
内存总线 | 384 位 | 256 位 | 192 位 | 192 位 | 128位 | 256 位 | 256 位 |
内存带宽 | 1,008 GB/s | 716.8 GB/s | 504.2 GB/s | 504.2 GB/s | 288 GB/s | 448 GB/s | 448 GB/s |
显存 | 24 GB GDDR6X | 16 GB GDDR6X | 12 GB GDDR6 | 12 GB GDDR6X | 8 GB GDDR6 | 8 GB GDDR6 | 8 GB GDDR6 |
功耗 | 450 W | 320 W | 285 W | 215 W | 160W | 220 W | 200 W |

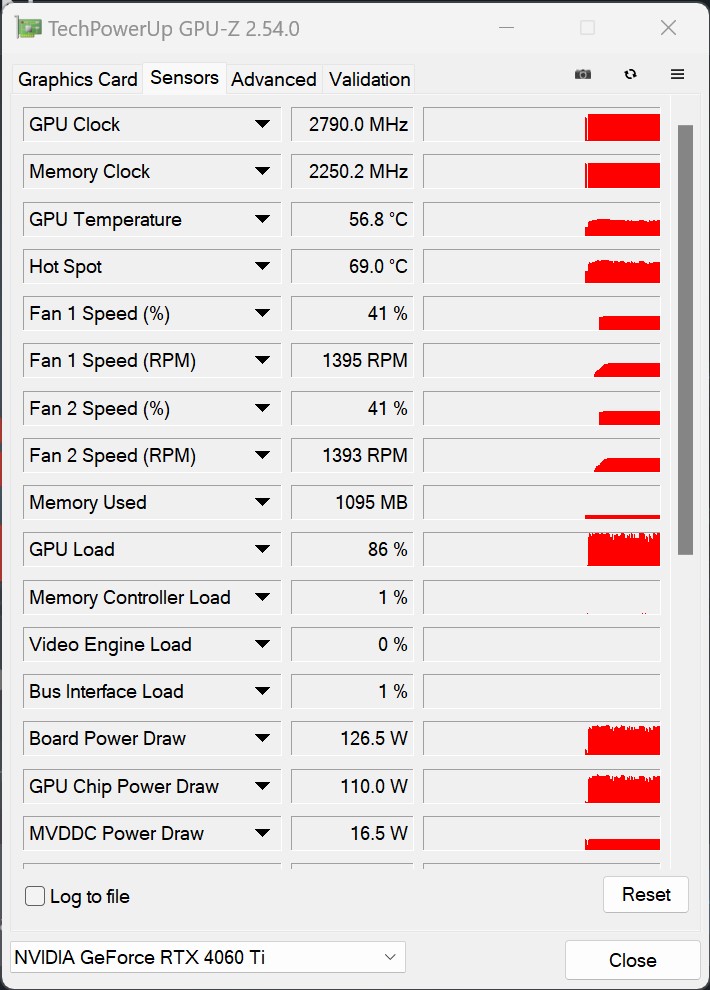

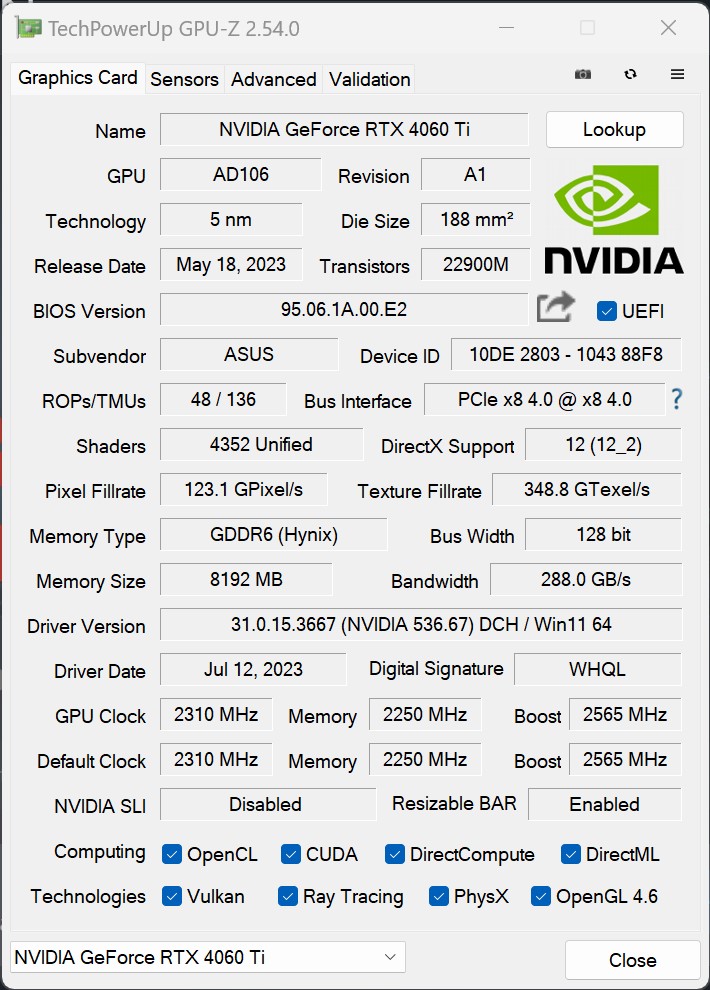

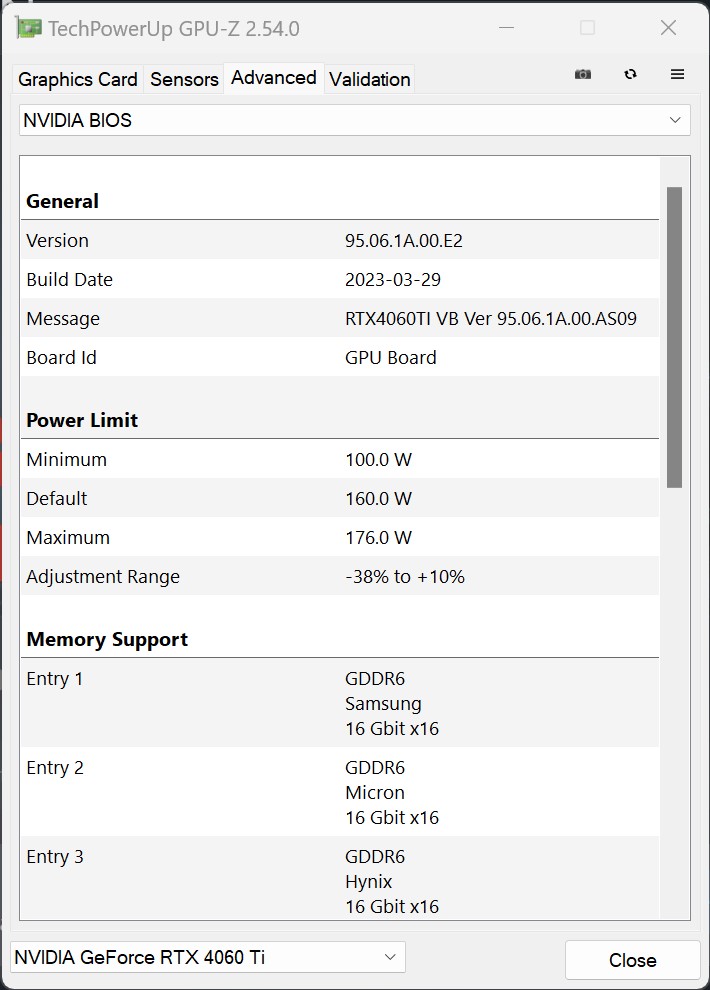

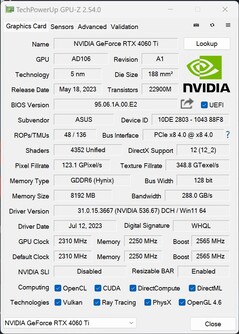

华硕双GeForce RTX 4060 Ti OC 的时钟频率
与GeForce RTX 4060 Ti Founders Edition 相比,我们只注意到华硕双GeForce RTX 4060 Ti OC 的提升时钟略高。这在实际使用中并没有给显卡带来任何优势,因为无论如何,其指定的 2565 MHz 的提升时钟在负载情况下几乎总是会被超过。它的显存带宽只有 Nvidia RTX 3060 Ti OC 的一半。NvidiaGeForce RTX 3060 Ti 的一半,即 128 位。由于 Nvidia 大幅增加了 GPU 的内部二级缓存,因此高内存带宽的相关性降低了。此外,NvidiaGeForce RTX 4060 Ti 是一款专为全高清游戏而设计的显卡。
合成基准
华硕双GeForce RTX 4060 Ti OC 很好地完成了合成基准测试,仅次于英伟达GeForce RTX 3060 Ti.我们的型号仅比基于安培的前代产品领先 8%。与AMD Radeon RX 6650 XT相比,华硕双GeForce RTX 4060 Ti OC 显得更轻松。尽管如此,我们的测试样本仍无法与速度更快的AMD Radeon RX 6750 XT.
Nvidia 基于GeForce RTX 4070性能提高了约 30%。这就为它在未来某个时候发布该领域的其他显卡提供了一点余地。
Performance Rating - Percent | |
Palit GeForce RTX 4090 GameRock OC | |
AMD Radeon RX 7900 XTX | |
KFA2 GeForce RTX 4080 SG | |
AMD Radeon RX 7900 XT | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
NVIDIA GeForce RTX 3090 Founders Edition | |
KFA2 GeForce RTX 3080 SG | |
KFA2 GeForce RTX 4070 EX Gamer | |
Nvidia Titan RTX | |
KFA2 GeForce RTX 3070 Ti SG | |
Sapphire Pulse Radeon RX 6750 XT | |
MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
NVIDIA GeForce RTX 3060 Ti FE | |
Nvidia GeForce RTX 2070 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2060 Super | |
KFA2 GeForce GTX 1660 Super | |
PNY GeForce GTX 1660 |
LuxMark v2.0 64Bit | |
Room GPUs-only | |
NVIDIA GeForce RTX 4090 | |
NVIDIA GeForce RTX 4080 | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 4070 | |
NVIDIA GeForce RTX 3090 | |
NVIDIA GeForce RTX 3080 12 GB | |
AMD Radeon RX 7900 XTX | |
AMD Radeon RX 6950 XT | |
NVIDIA GeForce RTX 4060 Ti 8G | |
NVIDIA Titan RTX | |
NVIDIA GeForce RTX 3070 Ti | |
AMD Radeon RX 7900 XT | |
NVIDIA GeForce RTX 4060 | |
NVIDIA GeForce RTX 3060 Ti | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 6650 XT | |
Sala GPUs-only | |
AMD Radeon RX 6950 XT | |
NVIDIA GeForce RTX 4090 | |
NVIDIA GeForce RTX 4080 | |
NVIDIA GeForce RTX 4070 Ti | |
AMD Radeon RX 7900 XTX | |
NVIDIA GeForce RTX 3090 | |
NVIDIA GeForce RTX 4070 | |
NVIDIA GeForce RTX 3080 12 GB | |
AMD Radeon RX 7900 XT | |
NVIDIA GeForce RTX 4060 Ti 8G | |
NVIDIA GeForce RTX 3070 Ti | |
NVIDIA Titan RTX | |
NVIDIA GeForce RTX 3060 Ti | |
NVIDIA GeForce RTX 4060 | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 6650 XT |
Photoshop PugetBench | |
GPU Score | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 7900 XT | |
AMD Radeon RX 7900 XTX | |
NVIDIA GeForce RTX 4080 | |
NVIDIA GeForce RTX 3070 Ti | |
NVIDIA GeForce RTX 4090 | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
NVIDIA GeForce GTX 1660 (Desktop) | |
NVIDIA Titan RTX | |
AMD Radeon RX 6950 XT | |
AMD Radeon RX 6650 XT | |
NVIDIA GeForce RTX 4070 | |
NVIDIA GeForce RTX 4060 Ti 8G | |
NVIDIA GeForce RTX 4060 | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 3080 12 GB | |
Overall Score | |
AMD Radeon RX 7900 XT | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 7900 XTX | |
NVIDIA GeForce RTX 3070 Ti | |
NVIDIA GeForce RTX 4080 | |
NVIDIA GeForce RTX 4090 | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
NVIDIA GeForce GTX 1660 (Desktop) | |
NVIDIA GeForce RTX 4060 | |
NVIDIA GeForce RTX 4060 Ti 8G | |
NVIDIA GeForce RTX 4070 | |
NVIDIA Titan RTX | |
NVIDIA GeForce RTX 4070 Ti | |
AMD Radeon RX 6950 XT | |
AMD Radeon RX 6650 XT | |
NVIDIA GeForce RTX 3080 12 GB |
Premiere Pro PugetBench | |
GPU 0.9 | |
NVIDIA GeForce RTX 4090 | |
NVIDIA GeForce RTX 4080 | |
NVIDIA GeForce RTX 3080 12 GB | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 4070 | |
AMD Radeon RX 7900 XTX | |
NVIDIA GeForce RTX 3070 Ti | |
NVIDIA Titan RTX | |
AMD Radeon RX 7900 XT | |
AMD Radeon RX 6950 XT | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
NVIDIA GeForce RTX 4060 Ti 8G | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 6650 XT | |
NVIDIA GeForce RTX 4060 | |
NVIDIA GeForce GTX 1660 (Desktop) | |
Overall Score 0.9 | |
NVIDIA GeForce RTX 4090 | |
NVIDIA GeForce RTX 4070 | |
NVIDIA GeForce RTX 4080 | |
NVIDIA Titan RTX | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
AMD Radeon RX 7900 XTX | |
NVIDIA GeForce RTX 4060 | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
NVIDIA GeForce RTX 3070 Ti | |
AMD Radeon RX 7900 XT | |
NVIDIA GeForce RTX 4060 Ti 8G | |
AMD Radeon RX 6750 XT | |
NVIDIA GeForce GTX 1660 (Desktop) | |
NVIDIA GeForce RTX 3080 12 GB | |
AMD Radeon RX 6950 XT | |
AMD Radeon RX 6650 XT |
Affinity Photo 2 - Combined (Single / Multi GPU) | |
NVIDIA GeForce RTX 4070 | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 4090 | |
NVIDIA GeForce RTX 4080 | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
NVIDIA GeForce RTX 3070 Ti | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
AMD Radeon RX 6750 XT | |
NVIDIA GeForce RTX 4060 | |
NVIDIA GeForce RTX 4060 Ti 8G | |
NVIDIA Titan RTX | |
NVIDIA GeForce GTX 1660 (Desktop) | |
NVIDIA GeForce GTX 1660 Super (Desktop) | |
AMD Radeon RX 7900 XTX | |
AMD Radeon RX 7900 XT |
华硕双GeForce RTX 4060 Ti OC 的内部竞争
RTX 4060 Ti 型号之间的直接竞争没有产生明显的赢家。我们的测试样品与我们之前测试过的 KFA2 和微星的型号性能相同。即便如此,微星微星GeForce RTX 4060 Ti Gaming X Trio还是略胜一筹--这大概要归功于它超大的散热装置。华硕双GeForce RTX 4060 Ti OC 和KFA2GeForce RTX 4060 Ti EX都配备了相当小的散热器,在一定程度上降低了性能水平。
Unigine Valley 1.0 | |
1920x1080 Extreme HD DirectX AA:x8 | |
KFA2 GeForce RTX 4070 EX Gamer | |
MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
1920x1080 Extreme HD Preset OpenGL AA:x8 | |
KFA2 GeForce RTX 4070 EX Gamer | |
MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X |
Affinity Photo 2 - Combined (Single / Multi GPU) | |
KFA2 GeForce RTX 4070 EX Gamer | |
MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
KFA2 GeForce RTX 4060 Ti EX |
专业用途
我们只能在有限的范围内推荐华硕双GeForce RTX 4060 Ti OC 用于专业用途。一般来说,与 Nvidia RTX 3060 Ti OC 相比,其性能可提高约 20%。英伟达GeForce RTX 3060 Ti.即便如此,它还是缺少了不少专业显卡上才有的功能。借助英伟达泰坦 RTX.在合成测试中,华硕双GeForce RTX 4060 Ti OC 的性能仅比 Nvidia Titan RTX 高出 20%,而在渲染测试中,这两款竞争者之间的差距更大,超过了 200%。
NVIDIA GeForce RTX 4060 Ti 8G R9 7950X | NVIDIA GeForce RTX 4060 R9 7950X | NVIDIA GeForce RTX 4070 R9 7950X | NVIDIA GeForce RTX 4070 Ti R9 7950X | NVIDIA GeForce RTX 4080 R9 7950X | NVIDIA GeForce RTX 4090 R9 7950X | AMD Radeon RX 7900 XT R9 7950X | AMD Radeon RX 7900 XTX R9 7950X | NVIDIA Titan RTX R9 7950X | NVIDIA GeForce RTX 3060 Ti R9 5950X | NVIDIA GeForce RTX 3070 Ti R9 7950X | NVIDIA GeForce RTX 3080 12 GB R9 5900X | Average of class | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SPECviewperf 12 | -13% | 27% | 51% | 75% | 92% | 419% | 468% | 265% | -20% | 9% | -12% | 8% | |
1900x1060 3ds Max (3dsmax-05) | 286 | 251 -12% | 382 34% | 436 52% | 502 76% | 571 100% | 502 76% | 553 93% | 315 10% | 252 -12% | 330 15% | 334 17% | 192.3 ? -33% |
1900x1060 Catia (catia-04) | 128 | 113 -12% | 161 26% | 192 50% | 221 73% | 257 101% | 481 276% | 536 319% | 332 159% | 109 -15% | 136 6% | 79.1 -38% | 105.6 ? -17% |
1900x1060 Creo (creo-01) | 74.3 | 60.6 -18% | 89.1 20% | 99.4 34% | 110 48% | 115 55% | 176 137% | 187 152% | 197 165% | 57.8 -22% | 72.6 -2% | 74.4 0% | 64.5 ? -13% |
1900x1060 Energy (energy-01) | 22.8 | 15.9 -30% | 31.7 39% | 48 111% | 58.8 158% | 54.7 140% | 72.4 218% | 85.2 274% | 28.8 26% | 13.9 -39% | 18 -21% | 17.2 -25% | 15.2 ? -33% |
1900x1060 Maya (maya-04) | 252 | 233 -8% | 284 13% | 287 14% | 309 23% | 317 26% | 347 38% | 367 46% | 260 3% | 197 -22% | 279 11% | 139 -45% | 109.5 ? -57% |
1900x1060 Medical (medical-01) | 107 | 82.4 -23% | 132 23% | 157 47% | 171 60% | 119 11% | 288 169% | 347 224% | 101 -6% | 59.4 -44% | 106 -1% | 40.3 -62% | 53.2 ? -50% |
1900x1060 Showcase (showcase-01) | 122 | 109 -11% | 190 56% | 244 100% | 333 173% | 457 275% | 278 128% | 322 164% | 197 61% | 144 18% | 199 63% | 226 85% | 95.8 ? -21% |
1900x1060 Siemens NX (snx-02) | 14.5 | 14.2 -2% | 16.4 13% | 19 31% | 21.6 49% | 27.1 87% | 373 2472% | 400 2659% | 283 1852% | 12.3 -15% | 14.7 1% | 12 -17% | 58.6 ? 304% |
1900x1060 Solidworks (sw-03) | 94.8 | 91.2 -4% | 109 15% | 118 24% | 113 19% | 126 33% | 342 261% | 360 280% | 207 118% | 71.1 -25% | 101 7% | 73.8 -22% | 86.2 ? -9% |
SPECviewperf 13 | -14% | 27% | 52% | 81% | 118% | 404% | 455% | 249% | -17% | 6% | 13% | 27% | |
3ds Max (3dsmax-06) | 286 | 252 -12% | 381 33% | 433 51% | 497 74% | 563 97% | 506 77% | 564 97% | 321 12% | 252 -12% | 330 15% | 334 17% | 184.7 ? -35% |
Catia (catia-05) | 187 | 163 -13% | 241 29% | 290 55% | 340 82% | 402 115% | 728 289% | 825 341% | 534 186% | 161 -14% | 201 7% | 206 10% | 198.2 ? 6% |
Creo (creo-02) | 298 | 230 -23% | 375 26% | 455 53% | 529 78% | 552 85% | 567 90% | 613 106% | 386 30% | 225 -24% | 286 -4% | 324 9% | 203 ? -32% |
Energy (energy-02) | 45.3 | 34.6 -24% | 54.2 20% | 72.8 61% | 92.6 104% | 126 178% | 147 225% | 187 313% | 51.8 14% | 25.6 -43% | 30 -34% | 37.6 -17% | 35.7 ? -21% |
Maya (maya-05) | 395 | 343 -13% | 510 29% | 591 50% | 678 72% | 715 81% | 670 70% | 735 86% | 499 26% | 344 -13% | 437 11% | 460 16% | 263 ? -33% |
Medical (medical-02) | 92 | 76.5 -17% | 112 22% | 132 43% | 150 63% | 186 102% | 237 158% | 263 186% | 92 0% | 72.2 -22% | 83.6 -9% | 102 11% | 77.3 ? -16% |
Showcase (showcase-02) | 121 | 108 -11% | 191 58% | 244 102% | 334 176% | 455 276% | 279 131% | 323 167% | 198 64% | 145 20% | 198 64% | 228 88% | 117.9 ? -3% |
Siemens NX (snx-03) | 26.3 | 25.6 -3% | 29.5 12% | 34.1 30% | 39 48% | 49.1 87% | 675 2467% | 725 2657% | 512 1847% | 22.3 -15% | 26.4 0% | 26.3 0% | 128.9 ? 390% |
Solidworks (sw-04) | 135 | 127 -6% | 157 16% | 168 24% | 179 33% | 186 38% | 307 127% | 323 139% | 218 61% | 99.6 -26% | 146 8% | 108 -20% | 120.6 ? -11% |
SPECviewperf 2020 | -14% | 32% | 58% | 87% | 142% | 434% | 494% | 303% | -19% | 11% | 20% | 50% | |
3840x2160 Siemens NX (snx-04) | 20.1 | 19.5 -3% | 23.9 19% | 27.5 37% | 31.9 59% | 41.3 105% | 476 2268% | 514 2457% | 375 1766% | 18.2 -9% | 22.2 10% | 21.8 8% | 87.6 ? 336% |
3840x2160 Medical (medical-03) | 17.5 | 13.7 -22% | 22.2 27% | 26.9 54% | 32.2 84% | 45.9 162% | 53.9 208% | 62.3 256% | 16.5 -6% | 11.4 -35% | 16.3 -7% | 18.8 7% | 20 ? 14% |
3840x2160 Maya (maya-06) | 226 | 196 -13% | 305 35% | 372 65% | 447 98% | 498 120% | 401 77% | 481 113% | 274 21% | 215 -5% | 290 28% | 314 39% | 202 ? -11% |
3840x2160 Energy (energy-03) | 44.8 | 33.2 -26% | 57.6 29% | 75.7 69% | 90.4 102% | 141 215% | 99.6 122% | 129 188% | 93.9 110% | 14.5 -68% | 39.1 -13% | 37.2 -17% | 48.6 ? 8% |
3840x2160 Creo (creo-03) | 95.8 | 85.9 -10% | 112 17% | 121 26% | 128 34% | 133 39% | 173 81% | 187 95% | 135 41% | 76.6 -20% | 99.3 4% | 90 -6% | 75.3 ? -21% |
3840x2160 CATIA (catia-06) | 39.1 | 34 -13% | 51.6 32% | 61.2 57% | 75.5 93% | 95.3 144% | 113 189% | 127 225% | 90.9 132% | 37.9 -3% | 48 23% | 53.7 37% | 45.8 ? 17% |
3840x2160 3ds Max (3dsmax-07) | 74.5 | 67.4 -10% | 122 64% | 147 97% | 179 140% | 228 206% | 143 92% | 167 124% | 118 58% | 80.1 8% | 99 33% | 128 72% | 77.6 ? 4% |
Total Average (Program / Settings) | -14% /
-14% | 29% /
28% | 54% /
53% | 81% /
81% | 117% /
115% | 419% /
418% | 472% /
470% | 272% /
270% | -19% /
-18% | 9% /
9% | 7% /
6% | 28% /
27% |
游戏基准
如前所述,NvidiaGeForce RTX 4060 Ti 的市场定位是以玩分辨率为 1920 x 1080 像素的游戏为主的玩家。这一点在游戏平台 Steam 目前进行的硬件调查中也有所体现,在 2023 年 7 月,这一数字刚刚超过 61%。在测试中,我们能够以最高细节设置流畅运行每款游戏。有一两款游戏,我们建议将图形细节降低一个级别。例如《霍格沃茨传奇》、《瘟疫物语:安魂曲》或《最后的我们》。在记录的帧率中,我们经常注意到低 FPS 的下降。这对游戏的运行造成了一定的影响,不过我们还是测得了 50-60 FPS 的相对较好的帧率。
纯粹从性能角度来看,我们注意到华硕双GeForce RTX 4060 Ti OC 经常与 AMD Radeon RX 6750 XT 竞争。与前代型号(NvidiaGeForce RTX 3060 Ti)相比,我们的测试样品性能提高了 20%。AMD 竞争对手的 12GB VRAM 与我们的测试样本相比没有明显优势。
F1 2021 | |
2560x1440 Ultra High Preset + Raytracing AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (874931) | |
KFA2 GeForce RTX 4080 SG (874931) | |
AMD Radeon RX 7900 XTX (874931) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (874931) | |
AMD Radeon RX 7900 XT (874931) | |
NVIDIA GeForce RTX 3090 Founders Edition (874931) | |
KFA2 GeForce RTX 4070 EX Gamer (874931) | |
KFA2 GeForce RTX 3080 SG (874931) | |
KFA2 GeForce RTX 3070 Ti SG (874931) | |
Nvidia Titan RTX (874931) | |
ASUS Dual GeForce RTX 4060 Ti OC (874931) | |
Sapphire Pulse Radeon RX 6750 XT (874931) | |
Nvidia GeForce RTX 2070 Super (874931) | |
KFA2 GeForce GTX 1660 Super (874931) | |
Sapphire Nitro+ Radeon RX 6650 XT (874931) | |
PNY GeForce GTX 1660 (874931) | |
Nvidia GeForce RTX 2060 Super (874931) | |
1920x1080 Ultra High Preset + Raytracing AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (874931) | |
AMD Radeon RX 7900 XTX (874931) | |
KFA2 GeForce RTX 4080 SG (874931) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (874931) | |
AMD Radeon RX 7900 XT (874931) | |
NVIDIA GeForce RTX 3090 Founders Edition (874931) | |
KFA2 GeForce RTX 4070 EX Gamer (874931) | |
KFA2 GeForce RTX 3080 SG (874931) | |
KFA2 GeForce RTX 3070 Ti SG (874931) | |
ASUS Dual GeForce RTX 4060 Ti OC (874931) | |
Nvidia Titan RTX (874931) | |
Sapphire Pulse Radeon RX 6750 XT (874931) | |
Nvidia GeForce RTX 2070 Super (874931) | |
Sapphire Nitro+ Radeon RX 6650 XT (874931) | |
KFA2 GeForce GTX 1660 Super (874931) | |
Nvidia GeForce RTX 2060 Super (874931) | |
PNY GeForce GTX 1660 (874931) |
F1 22 | |
2560x1440 Ultra High Preset AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (923662) | |
KFA2 GeForce RTX 4080 SG (939134) | |
AMD Radeon RX 7900 XTX (939134) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (959964) | |
AMD Radeon RX 7900 XT (939134) | |
NVIDIA GeForce RTX 3090 Founders Edition (923650) | |
KFA2 GeForce RTX 4070 EX Gamer (959964) | |
KFA2 GeForce GTX 1660 Super (928484) | |
PNY GeForce GTX 1660 (928484) | |
KFA2 GeForce RTX 3070 Ti SG (939134) | |
Nvidia Titan RTX (923650) | |
ASUS Dual GeForce RTX 4060 Ti OC (959964) | |
Sapphire Pulse Radeon RX 6750 XT (959964) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (959964) | |
Nvidia GeForce RTX 2070 Super (923662) | |
Nvidia GeForce RTX 2060 Super (923662) | |
Sapphire Nitro+ Radeon RX 6650 XT | |
1920x1080 Ultra High Preset AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 SG (939134) | |
AMD Radeon RX 7900 XTX (939134) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (959964) | |
NVIDIA GeForce RTX 3090 Founders Edition (923650) | |
AMD Radeon RX 7900 XT (939134) | |
KFA2 GeForce RTX 4070 EX Gamer (959964) | |
KFA2 GeForce GTX 1660 Super (928484) | |
KFA2 GeForce RTX 3070 Ti SG (939134) | |
PNY GeForce GTX 1660 (928484) | |
Nvidia Titan RTX (923650) | |
ASUS Dual GeForce RTX 4060 Ti OC (959964) | |
Sapphire Pulse Radeon RX 6750 XT (959964) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (959964) | |
Nvidia GeForce RTX 2070 Super (923662) | |
Nvidia GeForce RTX 2060 Super (923662) | |
Sapphire Nitro+ Radeon RX 6650 XT |
A Plague Tale Requiem | |
2560x1440 Ultra Preset | |
Palit GeForce RTX 4090 GameRock OC | |
AMD Radeon RX 7900 XTX | |
KFA2 GeForce RTX 4080 SG | |
AMD Radeon RX 7900 XT | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 3070 Ti SG | |
Nvidia Titan RTX | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2070 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2060 Super | |
KFA2 GeForce GTX 1660 Super | |
PNY GeForce GTX 1660 | |
1920x1080 Ultra Preset | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 SG | |
AMD Radeon RX 7900 XTX | |
AMD Radeon RX 7900 XT | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 3070 Ti SG | |
Nvidia Titan RTX | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 6750 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
KFA2 GeForce GTX 1660 Super | |
PNY GeForce GTX 1660 |
Spider-Man Miles Morales | |
2560x1440 Very High Preset AA:T | |
KFA2 GeForce RTX 4080 SG | |
Palit GeForce RTX 4090 GameRock OC | |
AMD Radeon RX 7900 XTX | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 3070 Ti SG | |
Nvidia Titan RTX | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 6750 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
PNY GeForce GTX 1660 | |
KFA2 GeForce GTX 1660 Super | |
1920x1080 Very High Preset AA:T | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 XTX | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 4080 SG | |
AMD Radeon RX 7900 XT | |
KFA2 GeForce RTX 3070 Ti SG | |
Nvidia Titan RTX | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 6750 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
KFA2 GeForce GTX 1660 Super | |
PNY GeForce GTX 1660 |
GRID Legends | |
2560x1440 Ultra Preset | |
AMD Radeon RX 7900 XTX (643827) | |
Palit GeForce RTX 4090 GameRock OC (591708) | |
AMD Radeon RX 7900 XT (643827) | |
KFA2 GeForce RTX 4080 SG (643827) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (712825) | |
NVIDIA GeForce RTX 3090 Founders Edition (591708) | |
KFA2 GeForce RTX 3070 Ti SG (643827) | |
KFA2 GeForce RTX 4070 EX Gamer (712825) | |
Sapphire Pulse Radeon RX 6750 XT (712825) | |
Nvidia Titan RTX (591708) | |
ASUS Dual GeForce RTX 4060 Ti OC (800660) | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (800660) | |
Nvidia GeForce RTX 2070 Super (591708) | |
Nvidia GeForce RTX 2060 Super (623651) | |
KFA2 GeForce GTX 1660 Super (623651) | |
PNY GeForce GTX 1660 (623651) | |
1920x1080 Ultra Preset | |
AMD Radeon RX 7900 XTX (643827) | |
AMD Radeon RX 7900 XT (643827) | |
Palit GeForce RTX 4090 GameRock OC (591708) | |
KFA2 GeForce RTX 4080 SG (643827) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (712825) | |
NVIDIA GeForce RTX 3090 Founders Edition (591708) | |
KFA2 GeForce RTX 4070 EX Gamer (712825) | |
Sapphire Pulse Radeon RX 6750 XT (712825) | |
KFA2 GeForce RTX 3070 Ti SG (643827) | |
Nvidia Titan RTX (591708) | |
ASUS Dual GeForce RTX 4060 Ti OC (800660) | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (800660) | |
Nvidia GeForce RTX 2070 Super (591708) | |
Nvidia GeForce RTX 2060 Super (623651) | |
KFA2 GeForce GTX 1660 Super (623651) | |
PNY GeForce GTX 1660 (623651) |
Final Fantasy XV Benchmark | |
1920x1080 High Quality | |
Palit GeForce RTX 4090 GameRock OC (1.3) | |
KFA2 GeForce RTX 4080 SG (1.3) | |
AMD Radeon RX 7900 XTX (1.3) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (1.3) | |
AMD Radeon RX 7900 XT (1.3) | |
NVIDIA GeForce RTX 3090 Founders Edition (1.3) | |
KFA2 GeForce RTX 4070 EX Gamer (1.3) | |
KFA2 GeForce RTX 3080 SG (1.3) | |
Nvidia Titan RTX (1.3) | |
KFA2 GeForce RTX 3070 Ti SG (1.3) | |
ASUS Dual GeForce RTX 4060 Ti OC (1.3) | |
Sapphire Pulse Radeon RX 6750 XT (1.3) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.3) | |
Nvidia GeForce RTX 2070 Super (1.3) | |
Sapphire Nitro+ Radeon RX 6650 XT (1.3) | |
Nvidia GeForce RTX 2060 Super (1.3) | |
KFA2 GeForce GTX 1660 Super (1.3) | |
PNY GeForce GTX 1660 (1.3) | |
2560x1440 High Quality | |
Palit GeForce RTX 4090 GameRock OC (1.3) | |
KFA2 GeForce RTX 4080 SG (1.3) | |
AMD Radeon RX 7900 XTX (1.3) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (1.3) | |
AMD Radeon RX 7900 XT (1.3) | |
NVIDIA GeForce RTX 3090 Founders Edition (1.3) | |
KFA2 GeForce RTX 4070 EX Gamer (1.3) | |
KFA2 GeForce RTX 3080 SG (1.3) | |
KFA2 GeForce RTX 3070 Ti SG (1.3) | |
Nvidia Titan RTX (1.3) | |
ASUS Dual GeForce RTX 4060 Ti OC (1.3) | |
Sapphire Pulse Radeon RX 6750 XT (1.3) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.3) | |
Nvidia GeForce RTX 2070 Super (1.3) | |
Sapphire Nitro+ Radeon RX 6650 XT (1.3) | |
Nvidia GeForce RTX 2060 Super (1.3) | |
KFA2 GeForce GTX 1660 Super (1.3) | |
PNY GeForce GTX 1660 (1.3) |
The Last of Us | |
1920x1080 Ultra Preset | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia Titan RTX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
KFA2 GeForce GTX 1660 Super | |
PNY GeForce GTX 1660 | |
2560x1440 Ultra Preset | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
Nvidia Titan RTX | |
Sapphire Pulse Radeon RX 6750 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
KFA2 GeForce GTX 1660 Super | |
PNY GeForce GTX 1660 |
F1 23 | |
1920x1080 Ultra High Preset AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (1022189) | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce GTX 1660 Super (1016022) | |
ASUS Dual GeForce RTX 4060 Ti OC (1012607) | |
Nvidia Titan RTX (1021115) | |
PNY GeForce GTX 1660 (1016022) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1008687) | |
Sapphire Pulse Radeon RX 6750 XT (1016022) | |
Nvidia GeForce RTX 2070 Super (1021115) | |
Nvidia GeForce RTX 2060 Super (1021115) | |
2560x1440 Ultra High Preset AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (1022189) | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce GTX 1660 Super (1016022) | |
PNY GeForce GTX 1660 (1016022) | |
Nvidia Titan RTX (1021115) | |
ASUS Dual GeForce RTX 4060 Ti OC (1012607) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1008687) | |
Sapphire Pulse Radeon RX 6750 XT (1016022) | |
Nvidia GeForce RTX 2070 Super (1021115) | |
Nvidia GeForce RTX 2060 Super (1021115) |
Hogwarts Legacy | |
1920x1080 Ultra Preset AA:High T | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
Nvidia Titan RTX | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2070 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2060 Super | |
PNY GeForce GTX 1660 | |
KFA2 GeForce GTX 1660 Super | |
2560x1440 Ultra Preset AA:High T | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
Nvidia Titan RTX | |
Sapphire Pulse Radeon RX 6750 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 2070 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2060 Super | |
KFA2 GeForce GTX 1660 Super | |
PNY GeForce GTX 1660 |
Asus vs. MSI and KFA2
Performance Rating - Percent | |
KFA2 GeForce RTX 4070 EX Gamer | |
MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X |

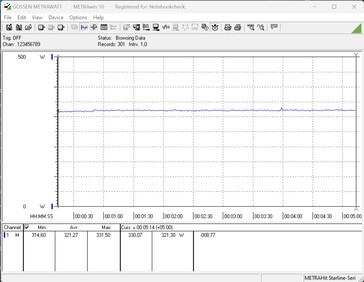

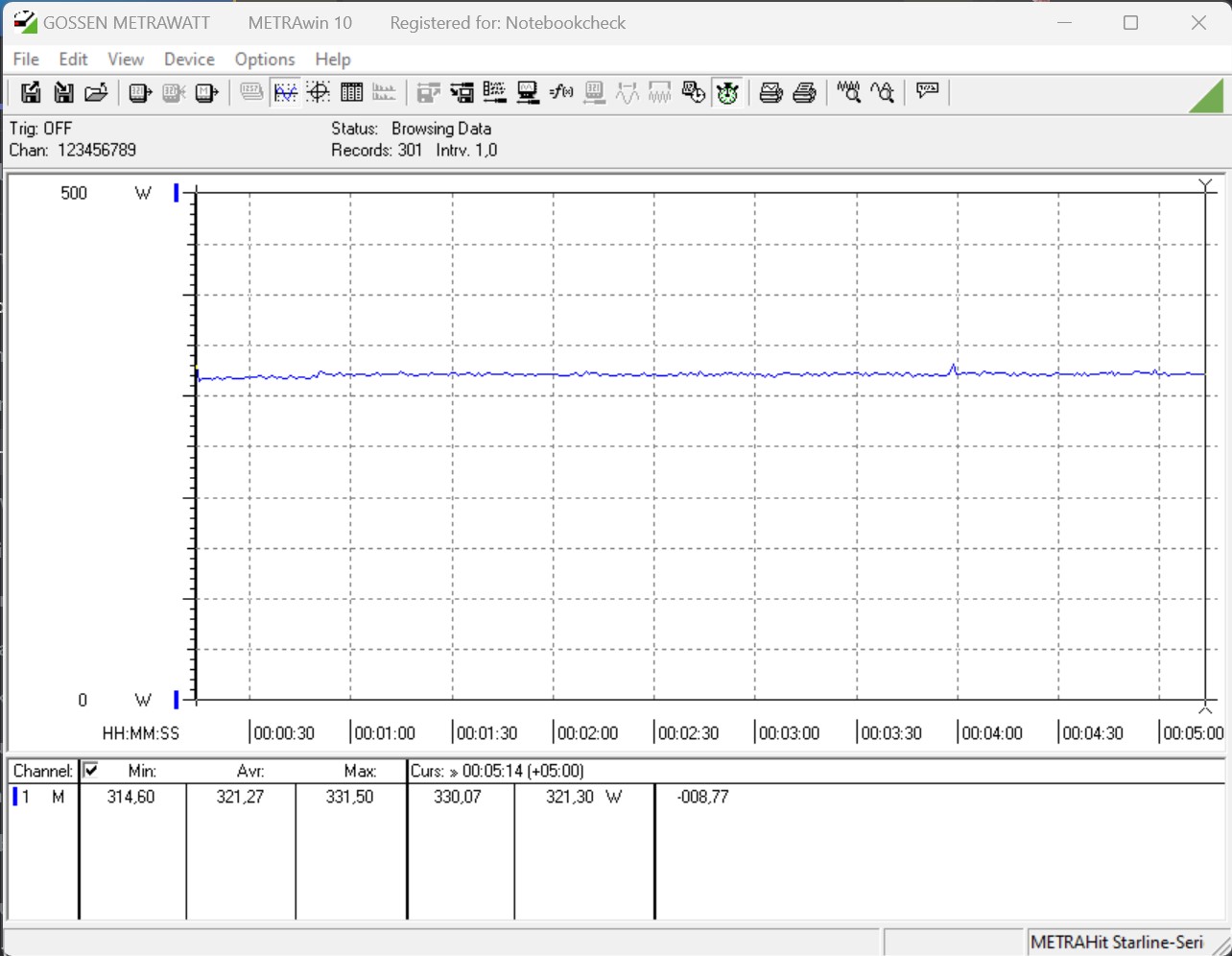

The Witcher 3 | |
1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 4060 Ti EX | |
MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 4060 Ti EX | |
MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 1-Click-OC 2X |
F1 22 | |
2560x1440 Ultra High Preset AA:T AF:16x | |
KFA2 GeForce RTX 4070 EX Gamer (959964) | |
MSI GeForce RTX 4060 Ti Gaming X Trio 8G (959964) | |
KFA2 GeForce RTX 4060 Ti EX (959964) | |
ASUS Dual GeForce RTX 4060 Ti OC (959964) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (959964) | |
1920x1080 Ultra High Preset AA:T AF:16x | |
KFA2 GeForce RTX 4070 EX Gamer (959964) | |
MSI GeForce RTX 4060 Ti Gaming X Trio 8G (959964) | |
KFA2 GeForce RTX 4060 Ti EX (959964) | |
ASUS Dual GeForce RTX 4060 Ti OC (959964) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (959964) |
Cyberpunk 2077 1.6 | |
2560x1440 Ultra Preset | |
KFA2 GeForce RTX 4070 EX Gamer | |
MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
ASUS Dual GeForce RTX 4060 Ti OC (1.6) | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.6) | |
1920x1080 Ultra Preset | |
KFA2 GeForce RTX 4070 EX Gamer | |
ASUS Dual GeForce RTX 4060 Ti OC (1.6) | |
MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.6) |
Spider-Man Miles Morales | |
2560x1440 Very High Preset AA:T | |
KFA2 GeForce RTX 4070 EX Gamer | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 Ti EX | |
MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
1920x1080 Very High Preset AA:T | |
KFA2 GeForce RTX 4070 EX Gamer | |
MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X |
Borderlands 3 | |
2560x1440 Badass Overall Quality (DX11) | |
KFA2 GeForce RTX 4070 EX Gamer | |
MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
1920x1080 Badass Overall Quality (DX11) | |
KFA2 GeForce RTX 4070 EX Gamer | |
MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X |
GTA V | |
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
KFA2 GeForce RTX 4070 EX Gamer | |
MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
2560x1440 Highest Settings possible AA:4xMSAA + FX AF:16x | |
KFA2 GeForce RTX 4070 EX Gamer | |
MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X |
Tiny Tina's Wonderlands | |
2560x1440 Badass Preset (DX12) | |
KFA2 GeForce RTX 4070 EX Gamer | |
MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
1920x1080 Badass Preset (DX12) | |
KFA2 GeForce RTX 4070 EX Gamer | |
MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X |
GRID Legends | |
2560x1440 Ultra Preset | |
KFA2 GeForce RTX 4070 EX Gamer (712825) | |
MSI GeForce RTX 4060 Ti Gaming X Trio 8G (800660) | |
ASUS Dual GeForce RTX 4060 Ti OC (800660) | |
KFA2 GeForce RTX 4060 Ti EX (800660) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (800660) | |
1920x1080 Ultra Preset | |
KFA2 GeForce RTX 4070 EX Gamer (712825) | |
MSI GeForce RTX 4060 Ti Gaming X Trio 8G (800660) | |
ASUS Dual GeForce RTX 4060 Ti OC (800660) | |
KFA2 GeForce RTX 4060 Ti EX (800660) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (800660) |
Final Fantasy XV Benchmark | |
1920x1080 High Quality | |
KFA2 GeForce RTX 4070 EX Gamer (1.3) | |
MSI GeForce RTX 4060 Ti Gaming X Trio 8G (1.3) | |
ASUS Dual GeForce RTX 4060 Ti OC (1.3) | |
KFA2 GeForce RTX 4060 Ti EX (1.3) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.3) | |
2560x1440 High Quality | |
KFA2 GeForce RTX 4070 EX Gamer (1.3) | |
ASUS Dual GeForce RTX 4060 Ti OC (1.3) | |
KFA2 GeForce RTX 4060 Ti EX (1.3) | |
MSI GeForce RTX 4060 Ti Gaming X Trio 8G (1.3) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.3) |
光线跟踪、DLSS 和 FG(帧生成)
光线追踪和 DLSS 可能是实现可播放帧率的关键功能。不过,我们这里指的是 WQHD 甚至 UHD 系列。DLSS 3 只能在 RTX 4000 显卡上使用,可以让你在更高分辨率下玩很多游戏。我们认为,想要使用光线追踪技术的用户应始终将其与 DLSS 结合使用。华硕双GeForce RTX 4060 Ti OC 的性能根本不足以实现足够的帧率。
Spider-Man Miles Morales - 1920x0180 Very High Preset + Ray-Tracing AA:T | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 SG | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 XTX | |
AMD Radeon RX 7900 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 3070 Ti SG | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia Titan RTX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super |
Metro Exodus - 1920x1080 Ultra Quality DXR AF:16x | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 SG | |
AMD Radeon RX 7900 XTX | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 XT | |
NVIDIA GeForce RTX 3090 Founders Edition | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 3080 SG | |
KFA2 GeForce RTX 3070 Ti SG | |
Nvidia Titan RTX | |
ASUS Dual GeForce RTX 4060 Ti OC | |
NVIDIA GeForce RTX 3060 Ti FE | |
Sapphire Pulse Radeon RX 6750 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super |
Far Cry 6 - 1920x1080 Ultra Graphics Quality + HD Textures + DXR AA:T | |
AMD Radeon RX 7900 XTX | |
AMD Radeon RX 7900 XT | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4070 EX Gamer | |
NVIDIA GeForce RTX 3090 Founders Edition | |
KFA2 GeForce RTX 4080 SG | |
Nvidia Titan RTX | |
Sapphire Pulse Radeon RX 6750 XT | |
KFA2 GeForce RTX 3070 Ti SG | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X |
Cyberpunk 2077 1.6 | |
3840x2160 Ray Tracing Ultra Preset (DLSS off) | |
Palit GeForce RTX 4090 GameRock OC (1.6) | |
KFA2 GeForce RTX 4080 SG (1.61) | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 XTX (1.61) | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 XT (1.61) | |
Sapphire Pulse Radeon RX 6750 XT | |
KFA2 GeForce RTX 3070 Ti SG (1.61) | |
Nvidia GeForce RTX 2070 Super (1.6) | |
ASUS Dual GeForce RTX 4060 Ti OC (1.6) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.6) | |
1920x1080 Ray Tracing Ultra Preset (DLSS off) | |
Palit GeForce RTX 4090 GameRock OC (1.6) | |
KFA2 GeForce RTX 4080 SG (1.61) | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 XTX (1.61) | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 XT (1.61) | |
ASUS Dual GeForce RTX 4060 Ti OC (1.6) | |
KFA2 GeForce RTX 3070 Ti SG (1.61) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.6) | |
Nvidia GeForce RTX 2070 Super (1.6) | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2060 Super (1.6) |
The Callisto Protocol - 1920x1080 Ultra Preset (without FSR Upscaling) + Full Ray-Tracing | |
AMD Radeon RX 7900 XTX | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
Palit GeForce RTX 4090 GameRock OC | |
ASUS Dual GeForce RTX 4060 Ti OC | |
AMD Radeon RX 7900 XT | |
KFA2 GeForce RTX 4080 SG | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 3070 Ti SG | |
Nvidia Titan RTX | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6750 XT | |
PNY GeForce GTX 1660 | |
KFA2 GeForce GTX 1660 Super |
Guardians of the Galaxy - 1920x1080 Ultra Preset + Ultra Ray-Tracing | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 XTX | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia Titan RTX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2060 Super |
A Plague Tale Requiem | |
3840x2160 Ultra DLSS Quality + Frame Generation | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
3840x2160 Ultra DLSS Quality | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 1-Click-OC 2X |
Control | |
1920x1080 High Quality Preset & High Ray Tracing Preset (DX12) | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 SG | |
AMD Radeon RX 7900 XTX | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 XT | |
KFA2 GeForce RTX 3080 SG | |
KFA2 GeForce RTX 4070 EX Gamer | |
Nvidia Titan RTX | |
ASUS Dual GeForce RTX 4060 Ti OC | |
NVIDIA GeForce RTX 3060 Ti FE | |
Sapphire Pulse Radeon RX 6750 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Nitro+ Radeon RX 6650 XT | |
3840x2160 High Quality Preset & High Ray Tracing Preset (DX12) | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
Sapphire Pulse Radeon RX 6750 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
ASUS Dual GeForce RTX 4060 Ti OC | |
3840x2160 High Quality, High Ray Tracing, DLSS | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 1-Click-OC 2X |
The Last of Us - 3840x2160 Ultra Preset + Quality DLSS | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
Nvidia Titan RTX | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super |
low | med. | high | ultra | QHD | 4K DLSS | 4K | |
---|---|---|---|---|---|---|---|
GTA V (2015) | 187.8 | 187.5 | 187.5 | 143.1 | 103.4 | 103.6 | |
The Witcher 3 (2015) | 691 | 474.4 | 275.9 | 136.2 | 100.7 | 80.4 | |
Dota 2 Reborn (2015) | 307 | 267 | 252 | 236 | 167.8 | ||
Final Fantasy XV Benchmark (2018) | 235 | 193.6 | 131.9 | 96.7 | 52.4 | ||
X-Plane 11.11 (2018) | 219 | 195.6 | 148.8 | 125 | |||
Far Cry 5 (2018) | 236 | 201 | 191 | 180 | 134 | 67 | |
Strange Brigade (2018) | 733 | 350 | 275 | 237 | 154.3 | 80.5 | |
Shadow of the Tomb Raider (2018) | 339 | 222 | 203 | 182.5 | 120.5 | 58.6 | |
Far Cry New Dawn (2019) | 199 | 173 | 166 | 148 | 127 | 70 | |
Metro Exodus (2019) | 308 | 170.6 | 127.9 | 100.8 | 79.3 | 48.6 | |
Control (2019) | 239 | 160.8 | 118.3 | 69.2 | 44.5 | 34.3 | |
Borderlands 3 (2019) | 243 | 204 | 156.8 | 121.8 | 84.2 | 43.7 | |
F1 2020 (2020) | 609 | 426 | 337 | 230 | 174.3 | 95.7 | |
F1 2021 (2021) | 726 | 463 | 355 | 175.8 | 127.2 | 66.5 | |
Far Cry 6 (2021) | 213 | 180.1 | 157 | 140.8 | 102 | 2.7 | |
Guardians of the Galaxy (2021) | 225 | 197 | 196 | 188 | 128 | 67 | |
God of War (2022) | 178.6 | 145.7 | 116.6 | 85.2 | 69.7 | 46.1 | |
GRID Legends (2022) | 255 | 223 | 197.4 | 163.8 | 136.5 | 84.5 | |
Cyberpunk 2077 1.6 (2022) | 172 | 135.7 | 113 | 102 | 59.9 | 25.2 | |
Ghostwire Tokyo (2022) | 234 | 222 | 219 | 217 | 126.3 | 58.1 | |
Tiny Tina's Wonderlands (2022) | 300 | 234 | 154 | 118.7 | 80.8 | 37.2 | |
F1 22 (2022) | 355 | 341 | 257 | 87.8 | 55.4 | 27.8 | |
The Quarry (2022) | 224 | 164.6 | 134 | 104.8 | 71.7 | 22.4 | |
A Plague Tale Requiem (2022) | 153.7 | 120.1 | 88.8 | 67.4 | 46.7 | 50.8 | 25 |
Uncharted Legacy of Thieves Collection (2022) | 113.1 | 110.3 | 102.7 | 98.5 | 71.5 | 29.9 | |
Spider-Man Miles Morales (2022) | 160.1 | 148.4 | 142.9 | 130.8 | 99.2 | 49.9 | |
The Callisto Protocol (2022) | 180.6 | 175.4 | 165.4 | 102.6 | 79.5 | 48.1 | |
High On Life (2023) | 335 | 220 | 160.9 | 132.1 | 77.4 | 32.2 | |
The Witcher 3 v4.00 (2023) | 272.9 | 227.2 | 188.1 | 150.9 | 99.8 | 52.6 | |
Dead Space Remake (2023) | 121.7 | 115.6 | 99.7 | 98 | 60.9 | ||
Hogwarts Legacy (2023) | 168.2 | 136.4 | 105.7 | 79.6 | 57.1 | 30.5 | |
Returnal (2023) | 133 | 128 | 116 | 98 | 72 | 41 | |
Atomic Heart (2023) | 264 | 202 | 117.4 | 92.5 | 68.8 | 38.1 | |
Company of Heroes 3 (2023) | 290.1 | 253 | 183.4 | 181.3 | 131.5 | 56.7 | |
Sons of the Forest (2023) | 139.2 | 120.5 | 115.4 | 114.5 | 86.3 | 51.1 | |
Resident Evil 4 Remake (2023) | 207 | 147.8 | 135.6 | 97.5 | 69.4 | 37.1 | |
The Last of Us (2023) | 145.4 | 118.6 | 102.7 | 87 | 49.5 | 38.4 | 23.7 |
Dead Island 2 (2023) | 343 | 316 | 225 | 165.9 | 104.1 | 54.5 | |
Star Wars Jedi Survivor (2023) | 117.5 | 101.1 | 94.2 | 87 | 54.2 | 25.4 | |
Diablo 4 (2023) | 269 | 253 | 242 | 252 | 158.5 | 91.7 | 66.2 |
F1 23 (2023) | 386 | 353 | 250 | 82.1 | 51.5 | 43.4 | 24.8 |
Ratchet & Clank Rift Apart (2023) | 101.5 | 91.1 | 73.3 | 68.3 | 63.7 | 56.6 | |
Atlas Fallen (2023) | 193.5 | 188.4 | 177.3 | 152 | 105.9 | 56.1 | |
Immortals of Aveum (2023) | 82 | 71.6 | 58.7 | 40.4 | 43.8 | 22.1 | |
Armored Core 6 (2023) | 119.7 | 119.4 | 119.5 | 119.4 | 97.5 | 51.2 | |
Baldur's Gate 3 (2023) | 153.6 | 124.2 | 103.8 | 100.6 | 67.4 | 64.7 | 35.2 |
华硕双GeForce RTX 4060 Ti OC 的排放量
噪音排放

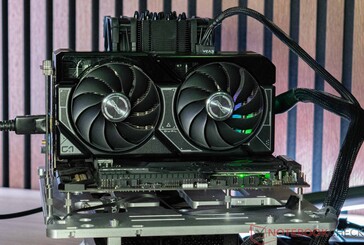

为了测量噪音,我们将华硕双GeForce RTX 4060 Ti OC 放在开放式设置的音量测量系统上。我们还确保在测量过程中没有其他风扇(CPU 冷却器和电源风扇)运行,以便只测定显卡的噪音排放。遗憾的是,华硕双GeForce RTX 4060 Ti OC 并不是一款安静的显卡。不过,该型号显卡提供风扇停止模式,允许显卡在低负载或 2D 模式下安静运行。然而,在负载情况下,显卡的声音却清晰可闻--我们测得高达 42.5 dB(A)。在压力测试中,两个风扇的转速更高,我们的测量设备显示峰值为 46 dB(A)。因此,这标志着华硕双GeForce RTX 4060 Ti OC 的最大劣势,因为我们甚至可以在负载情况下听到封闭测试系统中显卡的声音。在同类产品中,没有任何一款能与华硕 Dual RTX 4060 Ti OC 相媲美。 微星GeForce RTX 4060 Ti Gaming X Trio在负载情况下也几乎无声运行。
Noise Level
Idle |
| 26.7 / 26.7 / 26.7 dB(A) |
Load |
| 29.3 / 46 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 25.4 dB(A) |
ASUS Dual GeForce RTX 4060 Ti OC R9 7950X, NVIDIA GeForce RTX 4060 Ti 8G | MSI GeForce RTX 4060 Ti Gaming X Trio 8G R9 7950X, NVIDIA GeForce RTX 4060 Ti 8G | KFA2 GeForce RTX 4060 Ti EX R9 7950X, NVIDIA GeForce RTX 4060 Ti 8G | KFA2 GeForce RTX 4060 1-Click-OC 2X R9 7950X, NVIDIA GeForce RTX 4060 | KFA2 GeForce RTX 4070 EX Gamer R9 7950X, NVIDIA GeForce RTX 4070 | |
---|---|---|---|---|---|
Noise | -4% | -4% | 0% | -9% | |
off / environment * | 25.4 | 29.7 -17% | 29.7 -17% | 25.8 -2% | 30 -18% |
Idle Minimum * | 26.7 | 30.1 -13% | 30.1 -13% | 25.9 3% | 30.2 -13% |
Idle Average * | 26.7 | 30.1 -13% | 30.1 -13% | 25.9 3% | 30.2 -13% |
Idle Maximum * | 26.7 | 30.1 -13% | 30.1 -13% | 25.9 3% | 30.2 -13% |
Load Average * | 29.3 | 30.15 -3% | 30.3 -3% | 30.3 -3% | 31.8 -9% |
Witcher 3 ultra * | 42.5 | 35.8 16% | 45.2 -6% | ||
Load Maximum * | 46 | 31 33% | 40 13% | 43.5 5% | 41.1 11% |
* ... smaller is better
温度和功耗

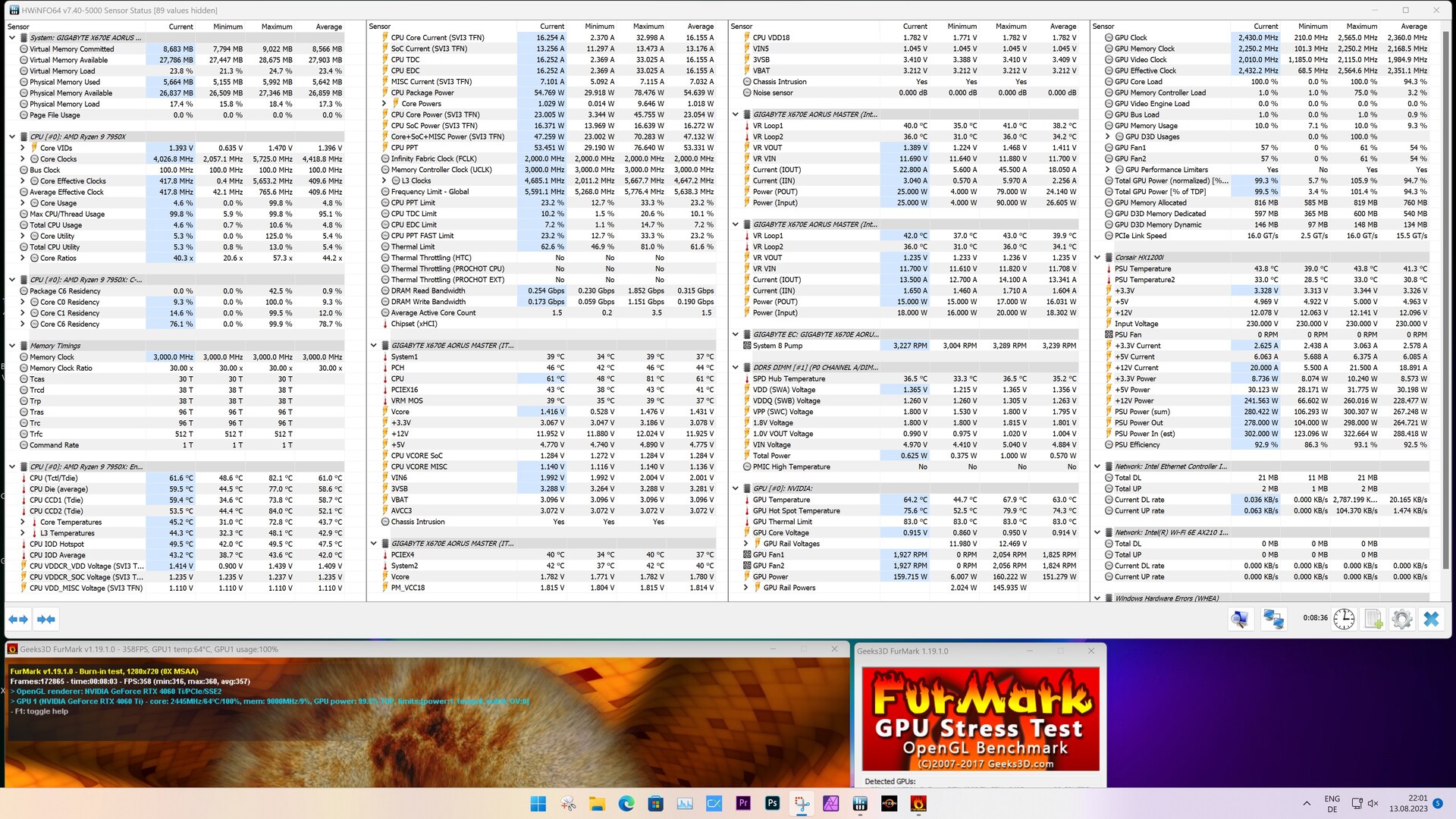

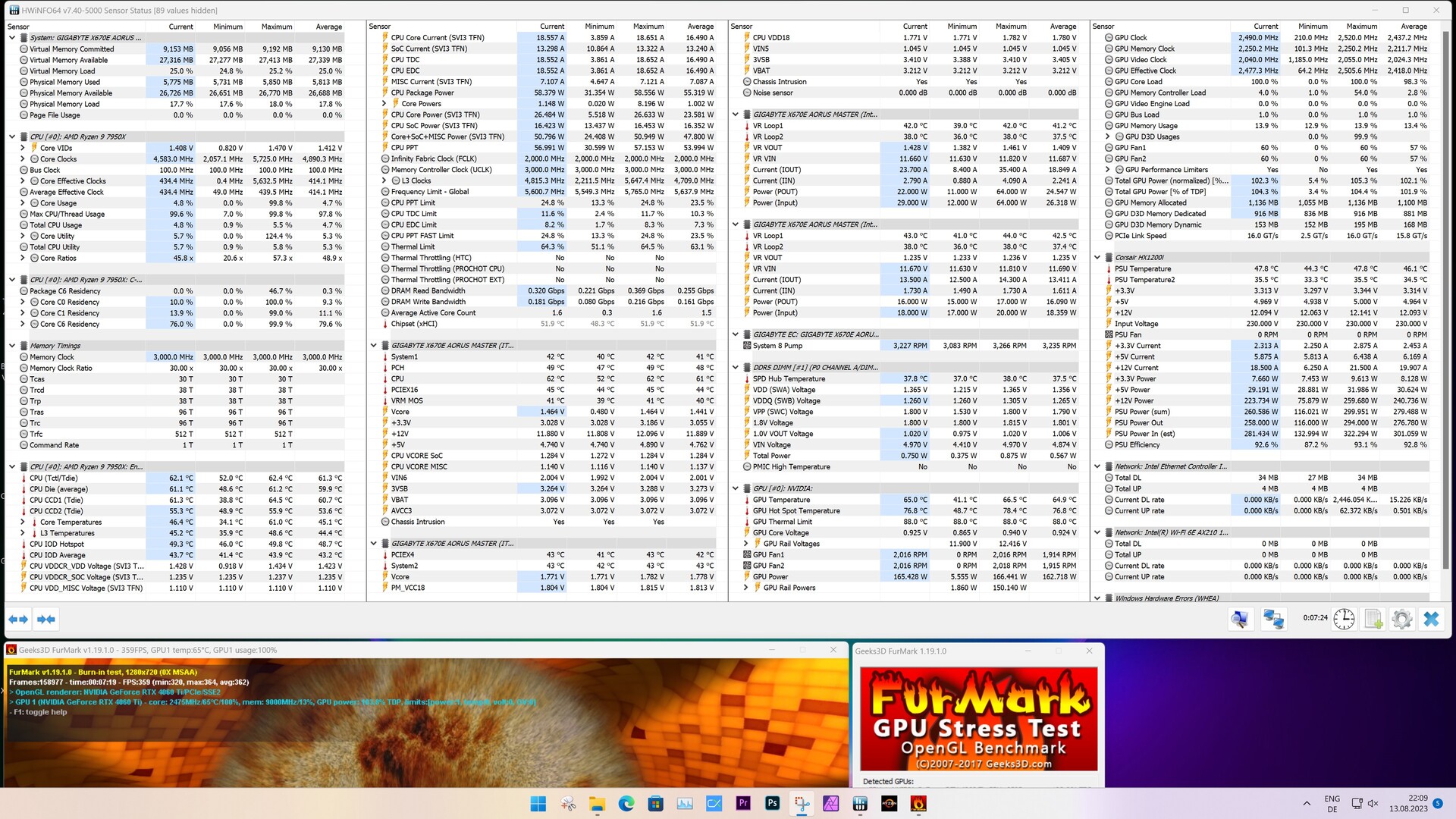

华硕双GeForce RTX 4060 Ti OC 的散热器相对较小,一般来说,为显卡可靠散热不成问题。其性能与微星GeForce RTX 4060 Ti Gaming X Trio证实了这一点。在压力测试中,我们注意到平均温度为 63 °C,相对较低。同时,热点值略低于 80 °C,这也不是什么大问题。为了稍稍缓解负载下的噪音问题,风扇曲线可以进行一定程度的优化。根据测得的 GPU 温度,我们认为用户仍有一定的余地。
在功耗方面,华硕 DualGeForce RTX 4060 Ti OC 仅 160 瓦的低 TBP 得分。与竞争对手相比,Nvidia 在这方面明显领先一步。即使是经常被击败的蓝宝石 Nitro+ Radeon RX 6650 XT也需要更多的功率。与 蓝宝石脉冲 Radeon RX 6750 XT相比,我们注意到测试样品所需的电量减少了 20%-30%。在某些游戏测试中,该型号还可能被华硕双GeForce RTX 4060 Ti OC 打败。
Power Consumption / The Witcher 3 ultra (external Monitor) | |
AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
NVIDIA GeForce RTX 3090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 3080 SG | |
KFA2 GeForce RTX 4080 SG (Idle: 86.4 W) | |
AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
Sapphire Pulse Radeon RX 6750 XT | |
NVIDIA GeForce RTX 3060 Ti Founders Edition (Idle: 111.39 W) | |
KFA2 GeForce RTX 4070 EX Gamer | |
Sapphire Nitro+ Radeon RX 6650 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 1-Click-OC 2X |

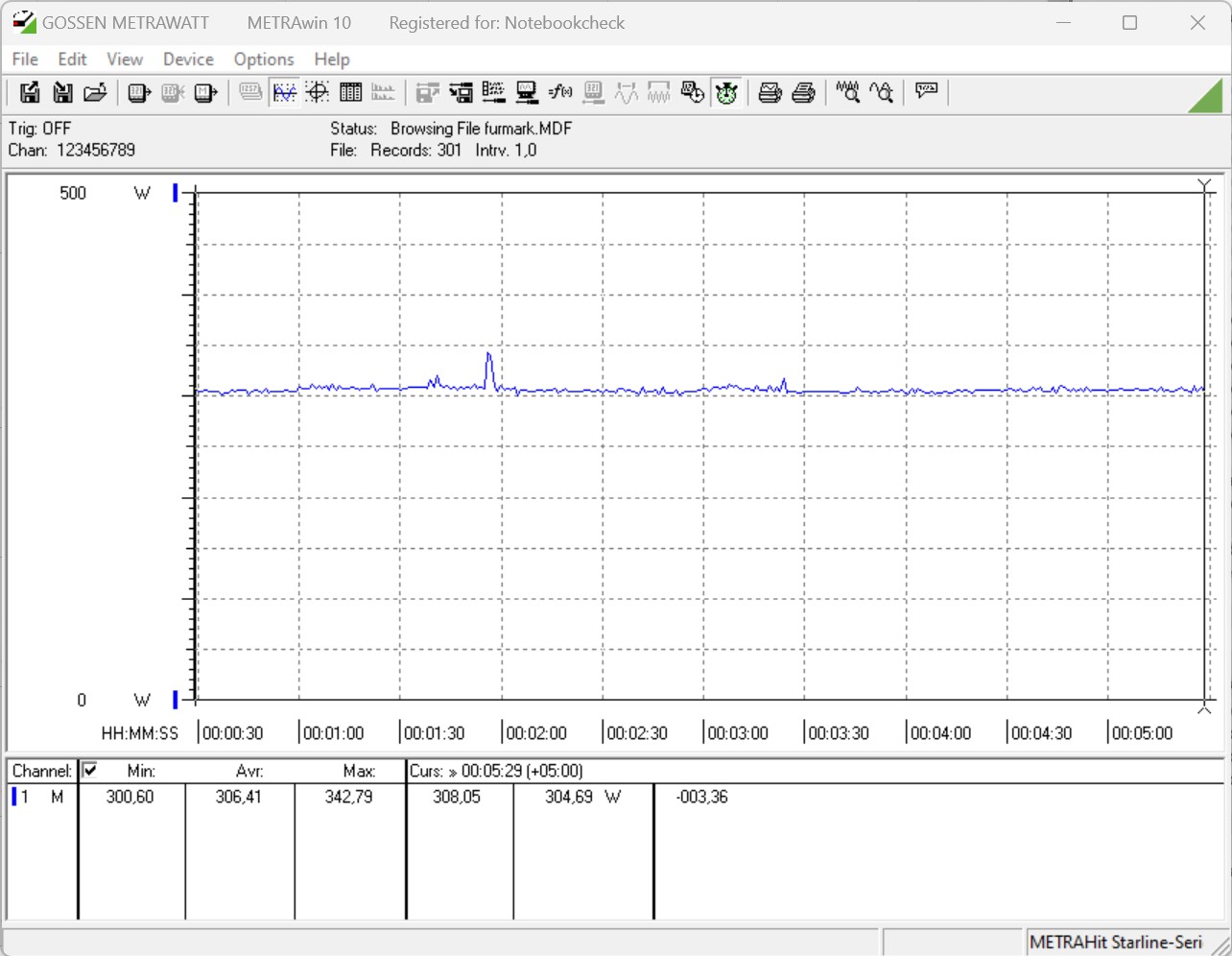

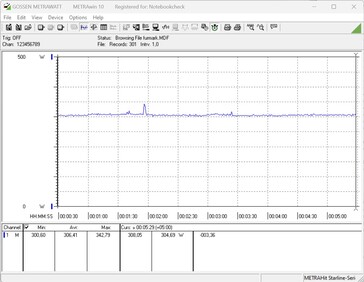

Power Consumption / FurMark 1.19 GPU Stress Test (external Monitor) | |
Palit GeForce RTX 4090 GameRock OC | |
AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
NVIDIA GeForce RTX 3090 Founders Edition | |
AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
KFA2 GeForce RTX 3080 SG | |
KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
KFA2 GeForce RTX 4080 SG (Idle: 86.4 W) | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
Sapphire Pulse Radeon RX 6750 XT | |
NVIDIA GeForce RTX 3060 Ti Founders Edition (Idle: 111.39 W) | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 1-Click-OC 2X |
Power Consumption / Witcher 3 ultra Efficiency (external Monitor) | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 SG | |
AMD Radeon RX 7900 XT | |
AMD Radeon RX 7900 XTX | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Pulse Radeon RX 6750 XT | |
NVIDIA GeForce RTX 3090 Founders Edition | |
KFA2 GeForce RTX 3070 Ti SG | |
KFA2 GeForce RTX 3080 SG | |
Sapphire Nitro+ Radeon RX 6650 XT | |
NVIDIA GeForce RTX 3060 Ti Founders Edition |
* ... smaller is better
Power consumption with external monitor
Pros
Cons
评价 - 性能稳定,非常节俭
华硕双GeForce RTX 4060 Ti OC 是一款时尚的显卡。它所显示的性能证明了这是一款稳固的、最新一代的显卡,完全适合全高清游戏。这包括能在更高分辨率下运行游戏。不过,这并不能保证。你必须自己看看你最喜欢的游戏需要什么样的性能。与 NvidiaGeForce RTX 3060 Ti 相比,该机型的性能仅有小幅提升。因此,我们认为没有必要直接升级。如果你还在使用 GTX 时代的显卡,那么如果你选择 NvidiaGeForce RTX 4060 Ti,你将从性能提升中获益良多。此外,该显卡还具有低功耗的优势,这意味着你甚至不需要购买新的电源。

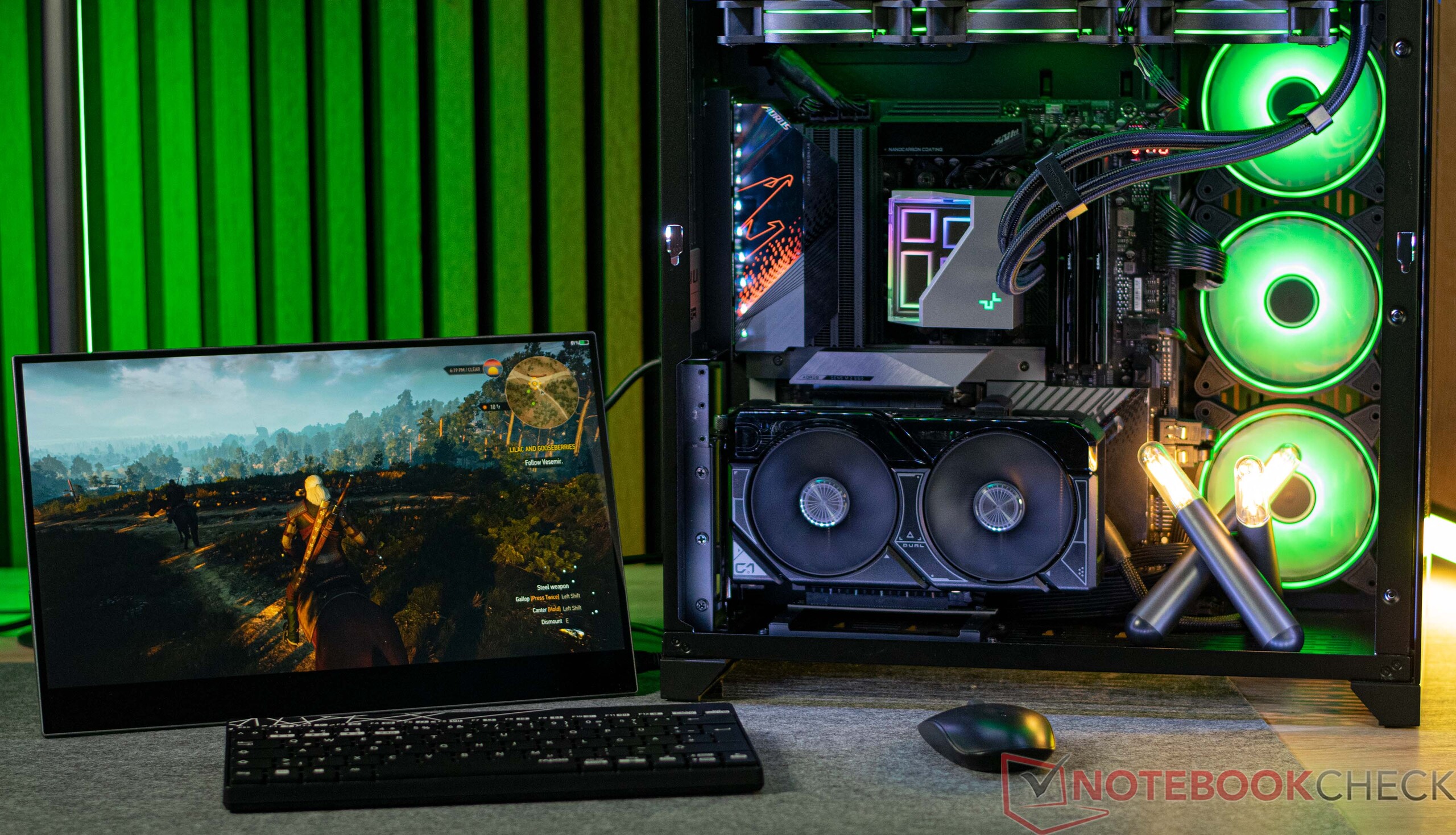

如果您要构建一台紧凑型 PC,华硕双GeForce RTX 4060 Ti OC 绝对是您的不二之选。在大多数情况下,8 GB 内存应该足够用了。

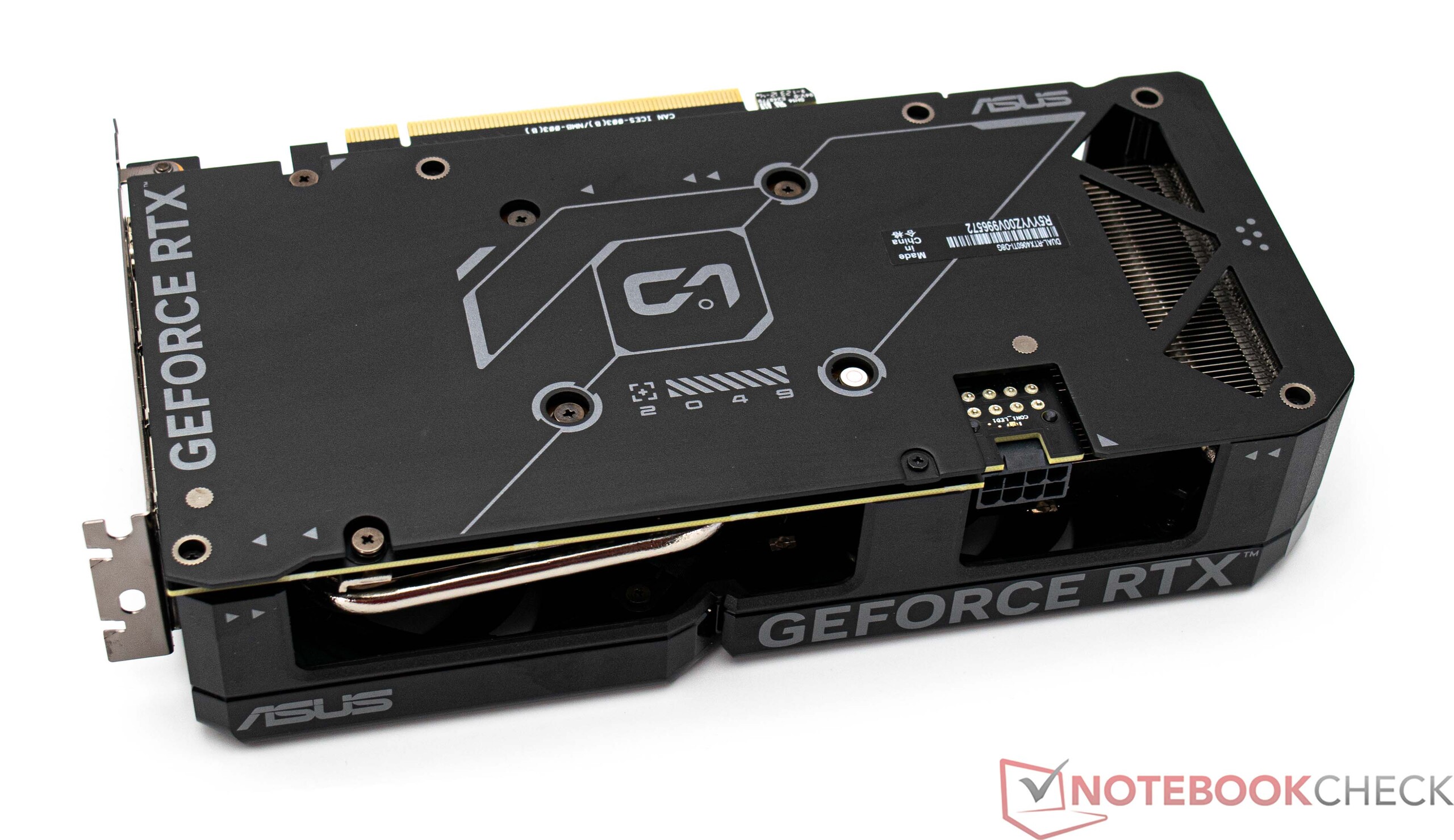

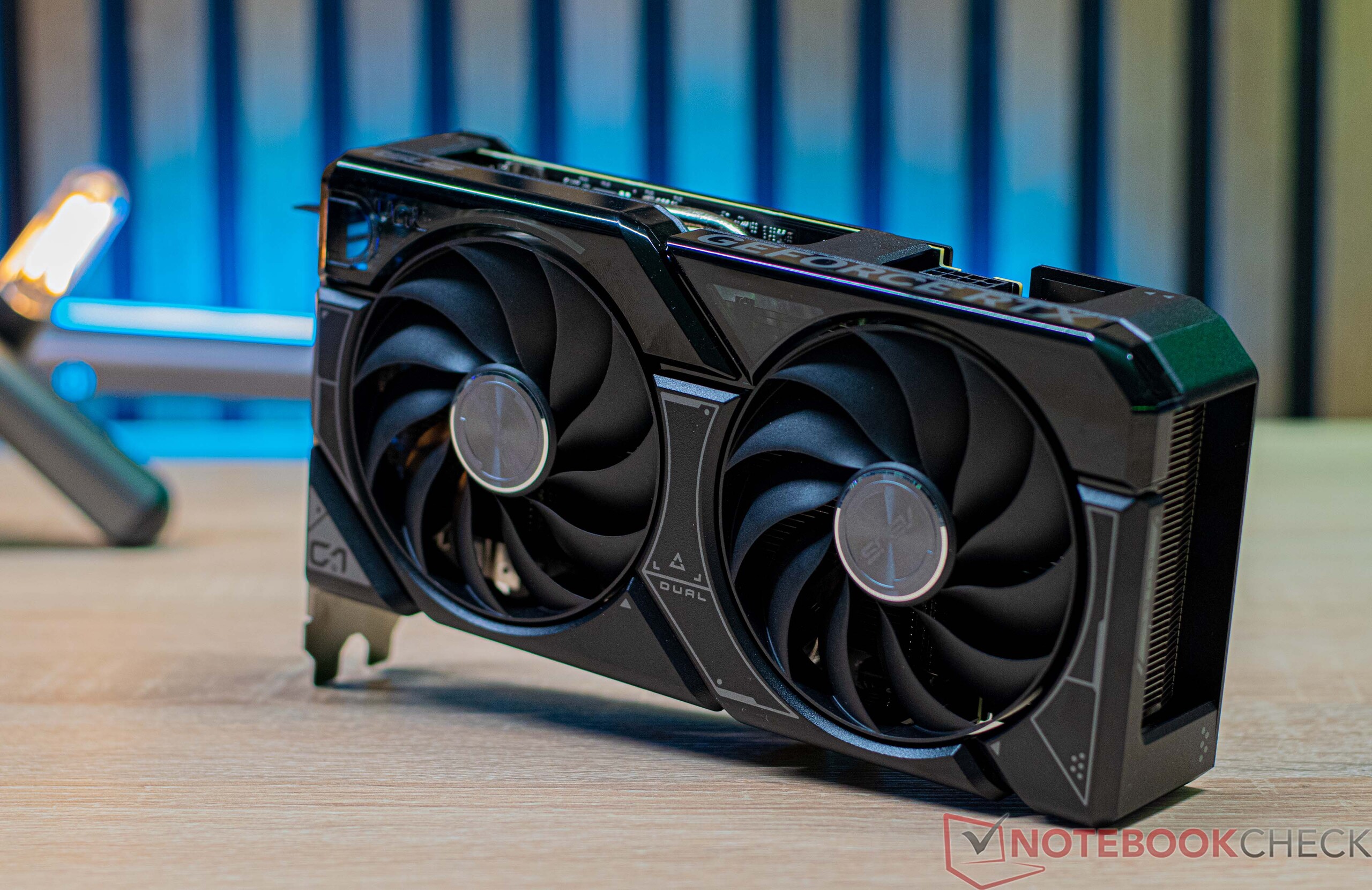

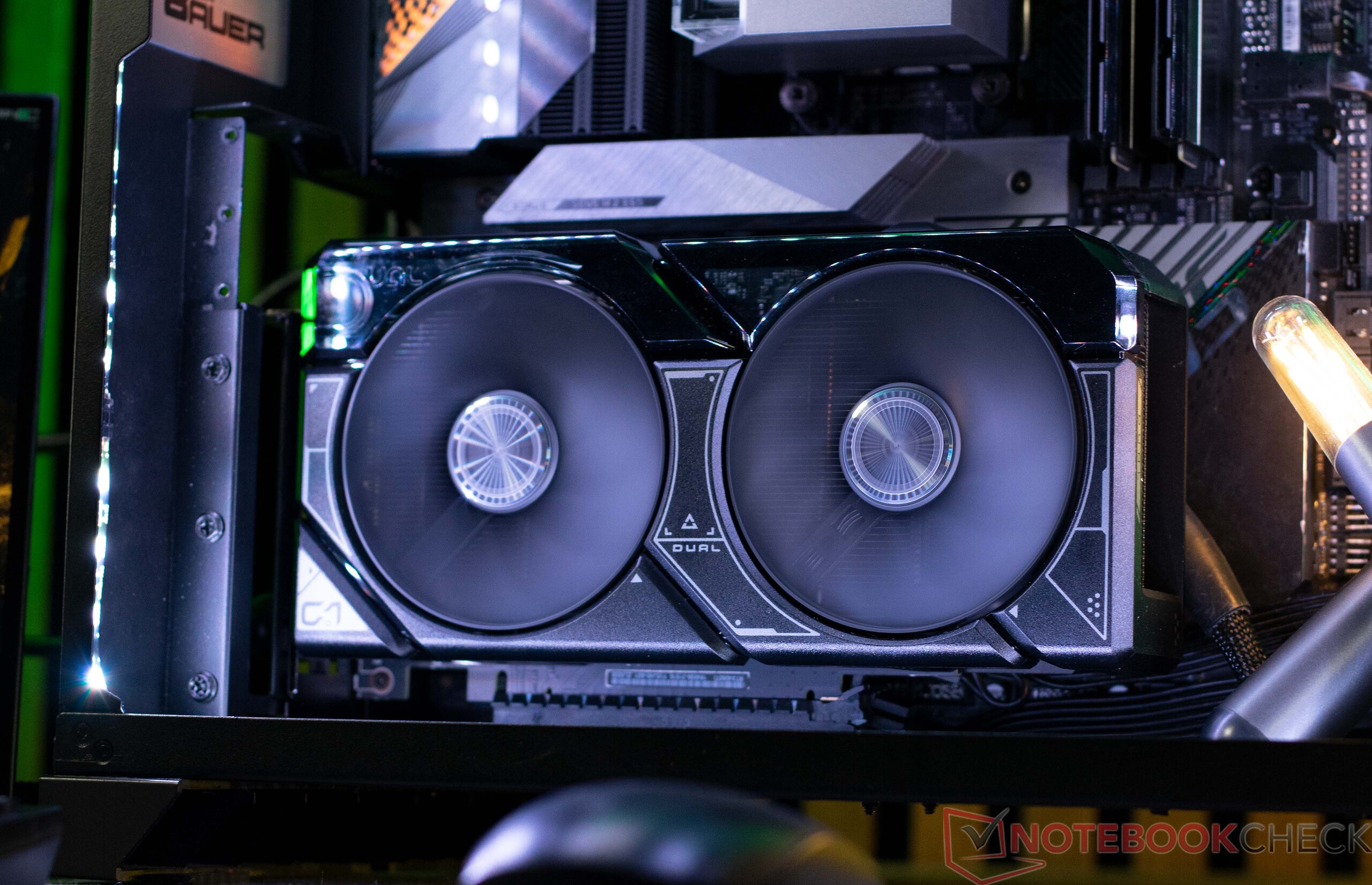

如果只看显卡的长度,我们测试的型号是华硕较小的型号之一。这意味着华硕 DualGeForce RTX 4060 Ti OC 几乎可以装进每一个电脑机箱。微星微星GeForce RTX 4060 Ti Gaming X Trio则会因其巨大的长度而受到更多限制。与此同时,华硕还失去了大量的散热面,这在我们的测试中以清晰可闻的风扇形状表现得很明显。
价格和供应情况
目前,您可以在亚马逊上以 399.99 美元的价格购买到华硕双GeForce RTX 4060 Ti OC。
