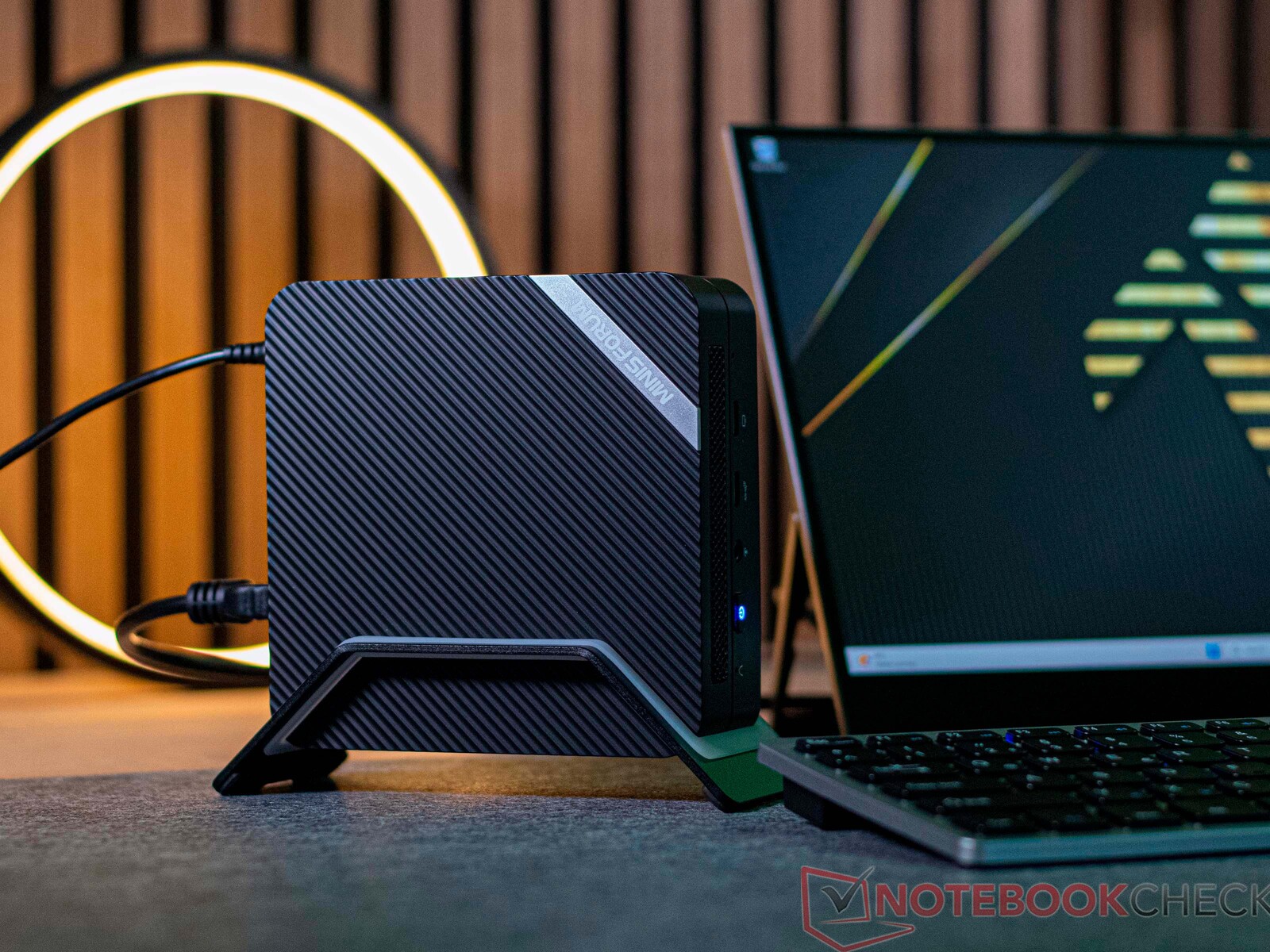

Minisforum Venus系列UM560 XT台式电脑评测：配备AMD Cezanne SoC的迷你电脑，价格实惠!

Name: Minisforum Venus Series UM560 XT
Brand: Minisforum

浪费表演!

Minisforum的Venus系列在最小的空间里提供了很大的能量。我们已经把顶级型号，也就是UM690，通过它的步伐。现在我们转向UM560 XT，它配备了Ryzen 5 5600H。我们的审查显示了该系统的表现如何。然而，有一点已经很清楚了：在价格和性能方面，MINISFORUM Venus系列UM560 XT处于领先地位。

Sebastian Bade (translated by DeepL / Ninh Duy), Published 05/25/2023 🇺🇸 🇩🇪 ...

Desktop Mini PC AMD Cezanne (Zen 3) Radeon

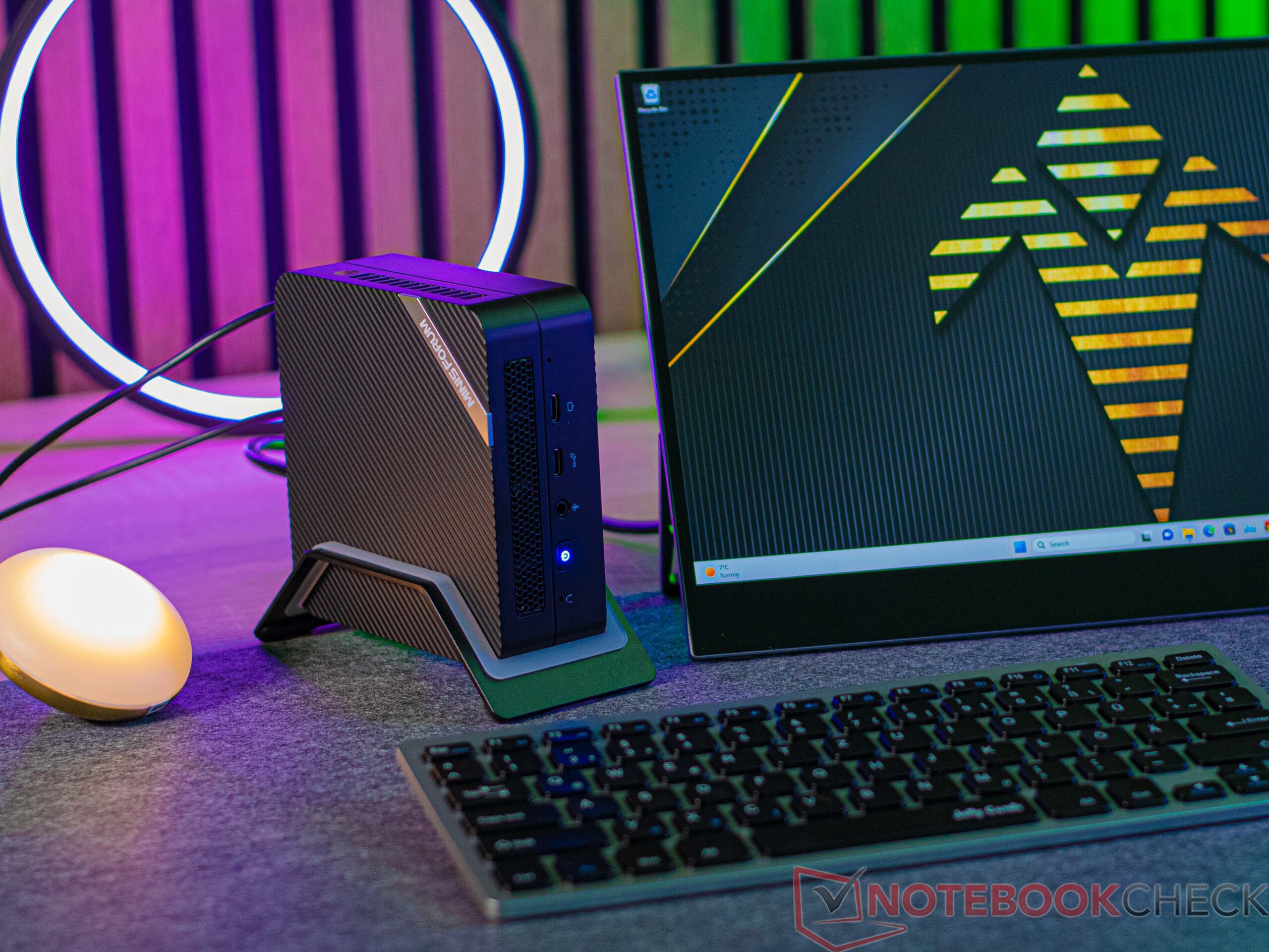

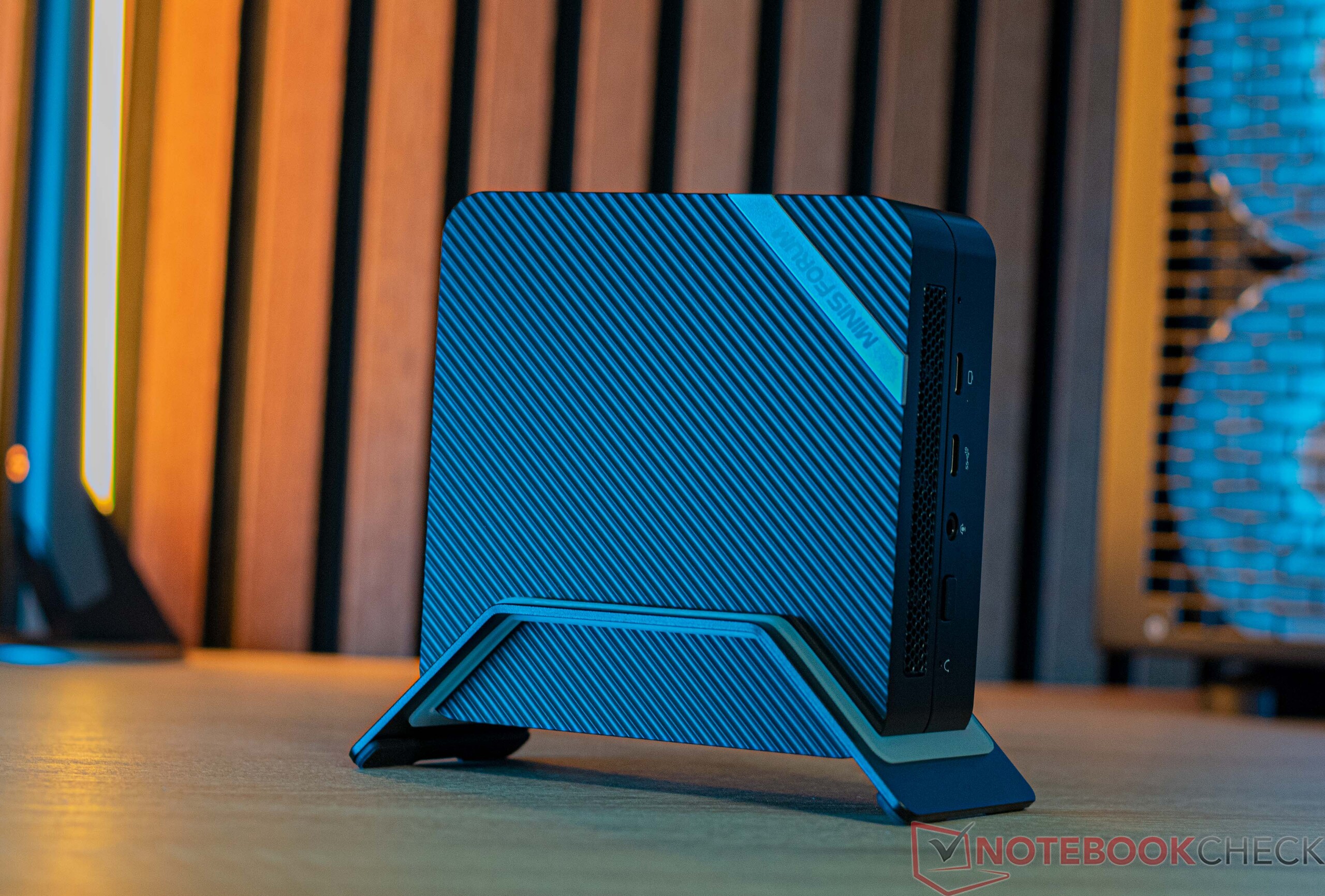

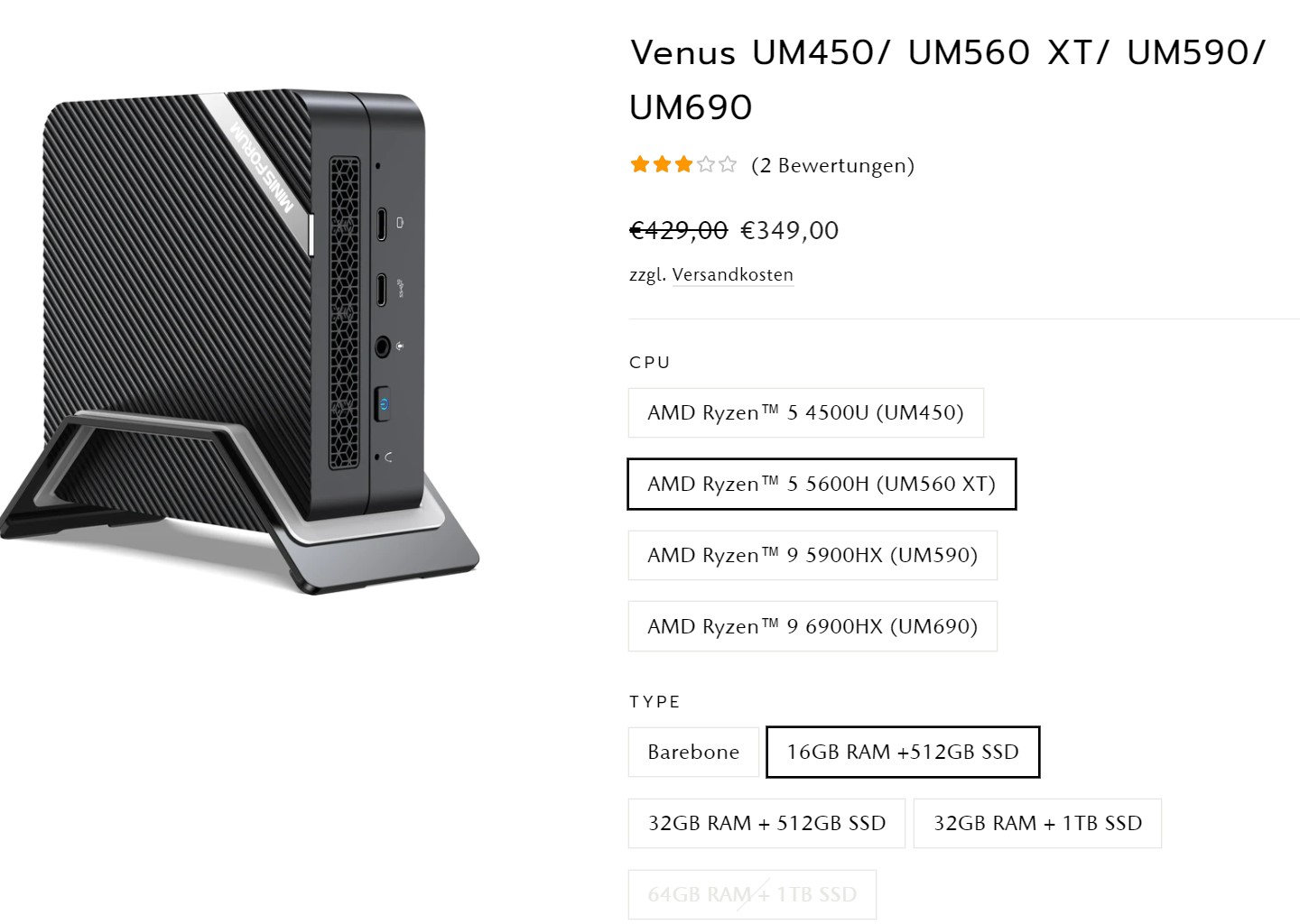

Minisforum维纳斯系列UM560 XT配置（来源：Minisforum）。

今年早些时候，我们看了Minisforum Venus系列UM690。除了基于AMD Ryzen 9 6900HX的顶级型号外，这家中国迷你PC制造商还提供其他配置。基于AMD Ryzen 5 5600H，UM560 XT在相同的情况下，价格明显较低。当然，将原生六核机器的性能与顶级机型进行比较是不公平的，但是以419美元的价格，配备16GB内存和512GB固态硬盘，这是一个有趣的提议。在裸机版本中，有可能再节省90美元。然而，这取决于用户对内存和SSD的处理。

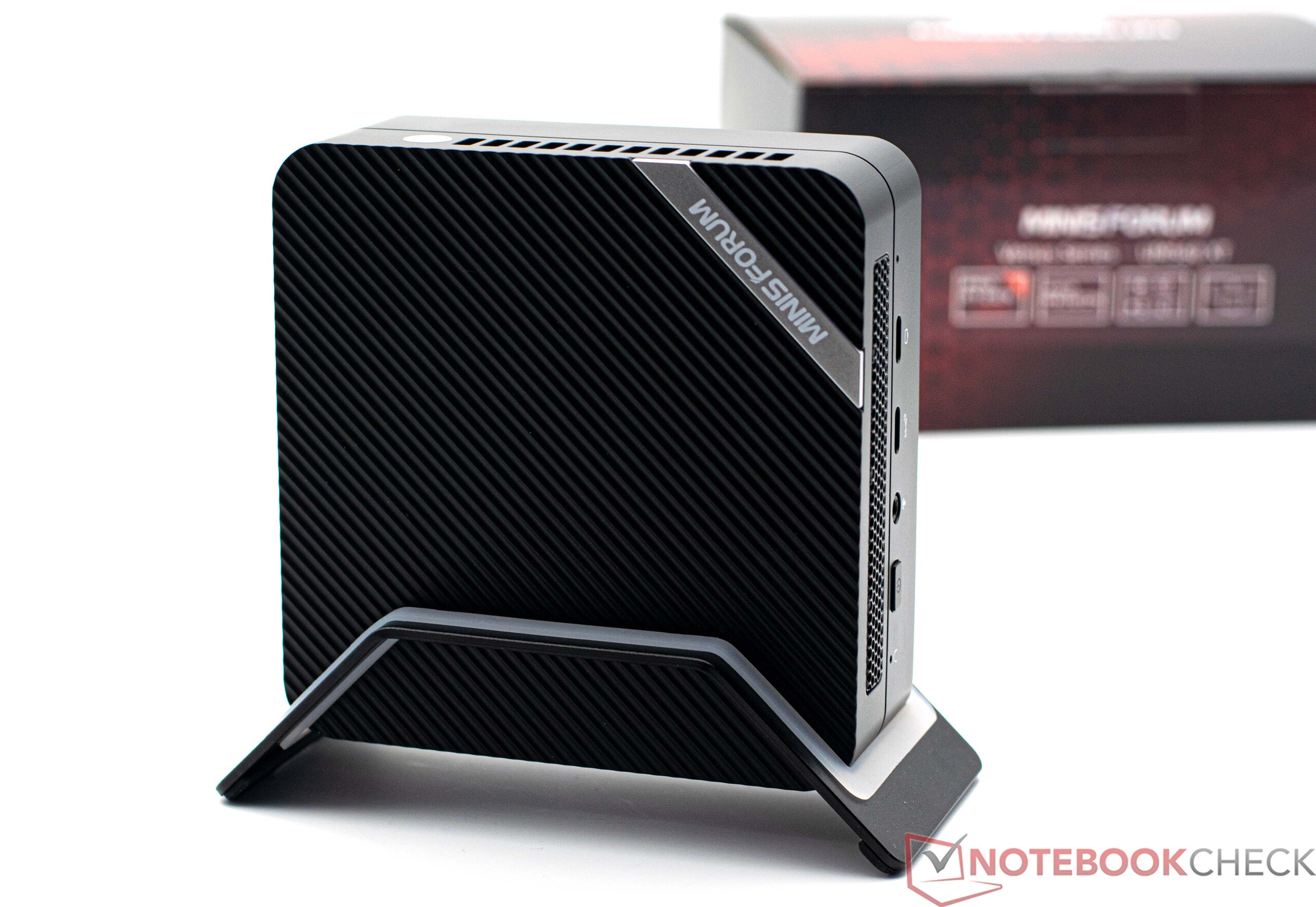

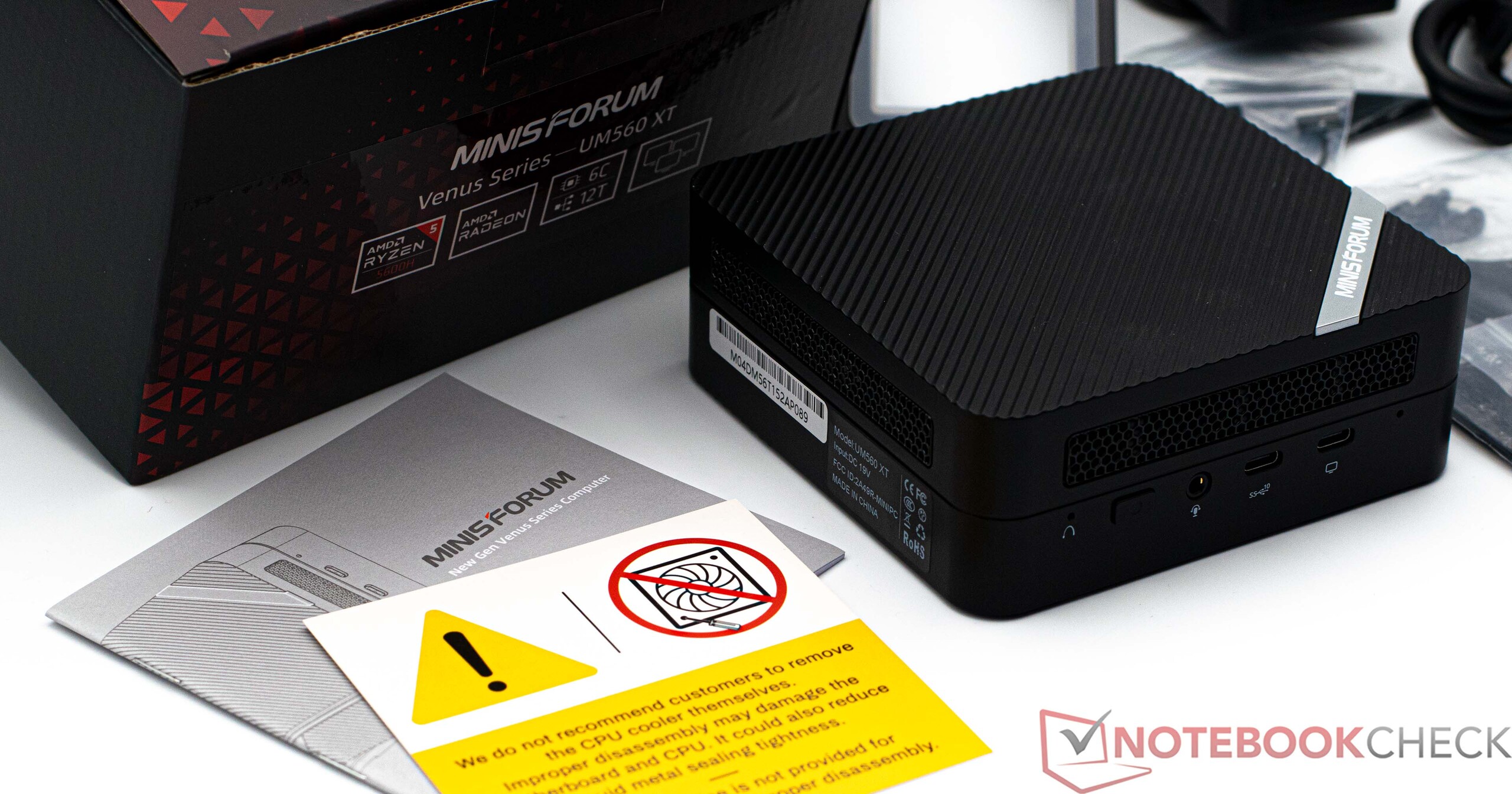

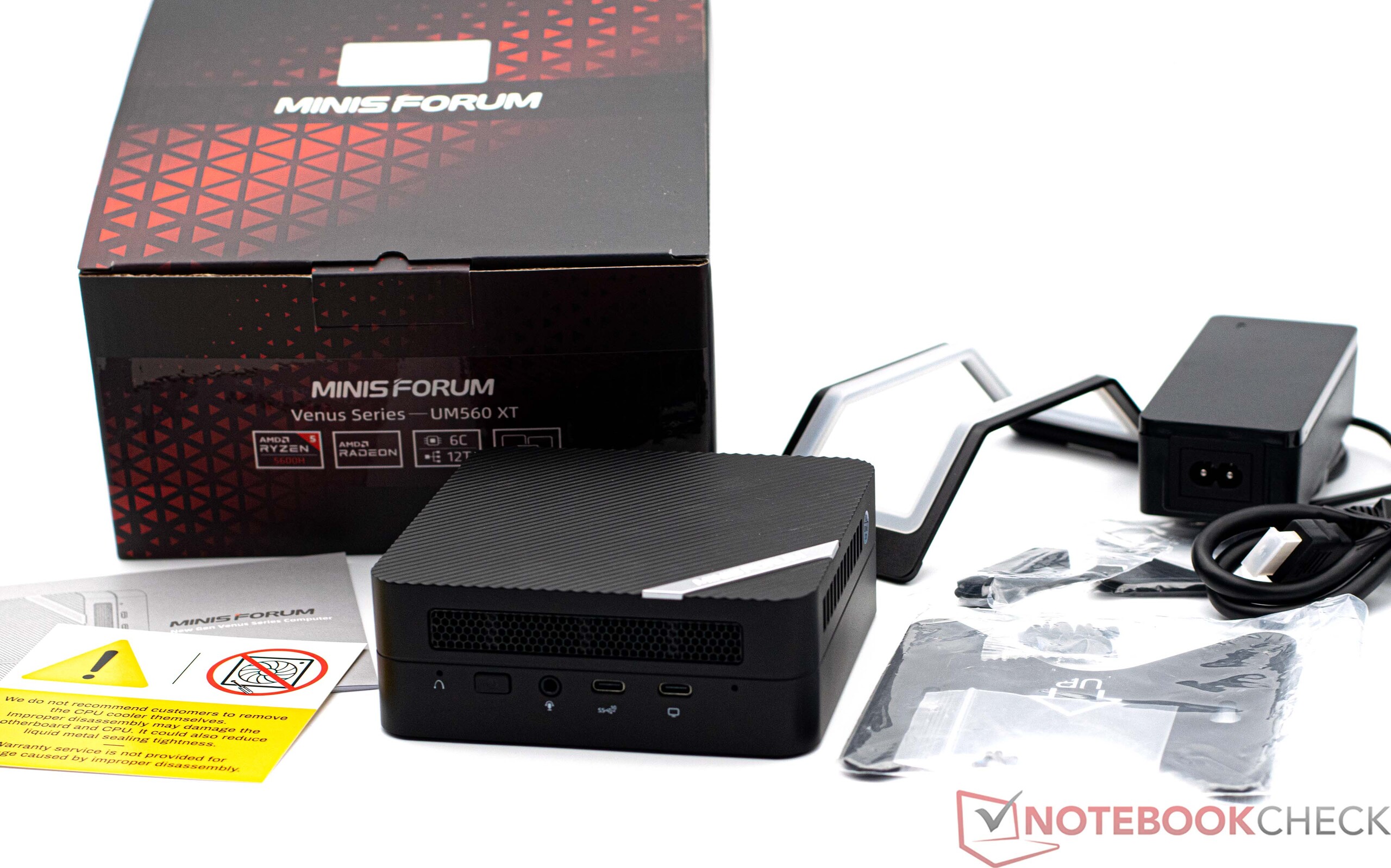

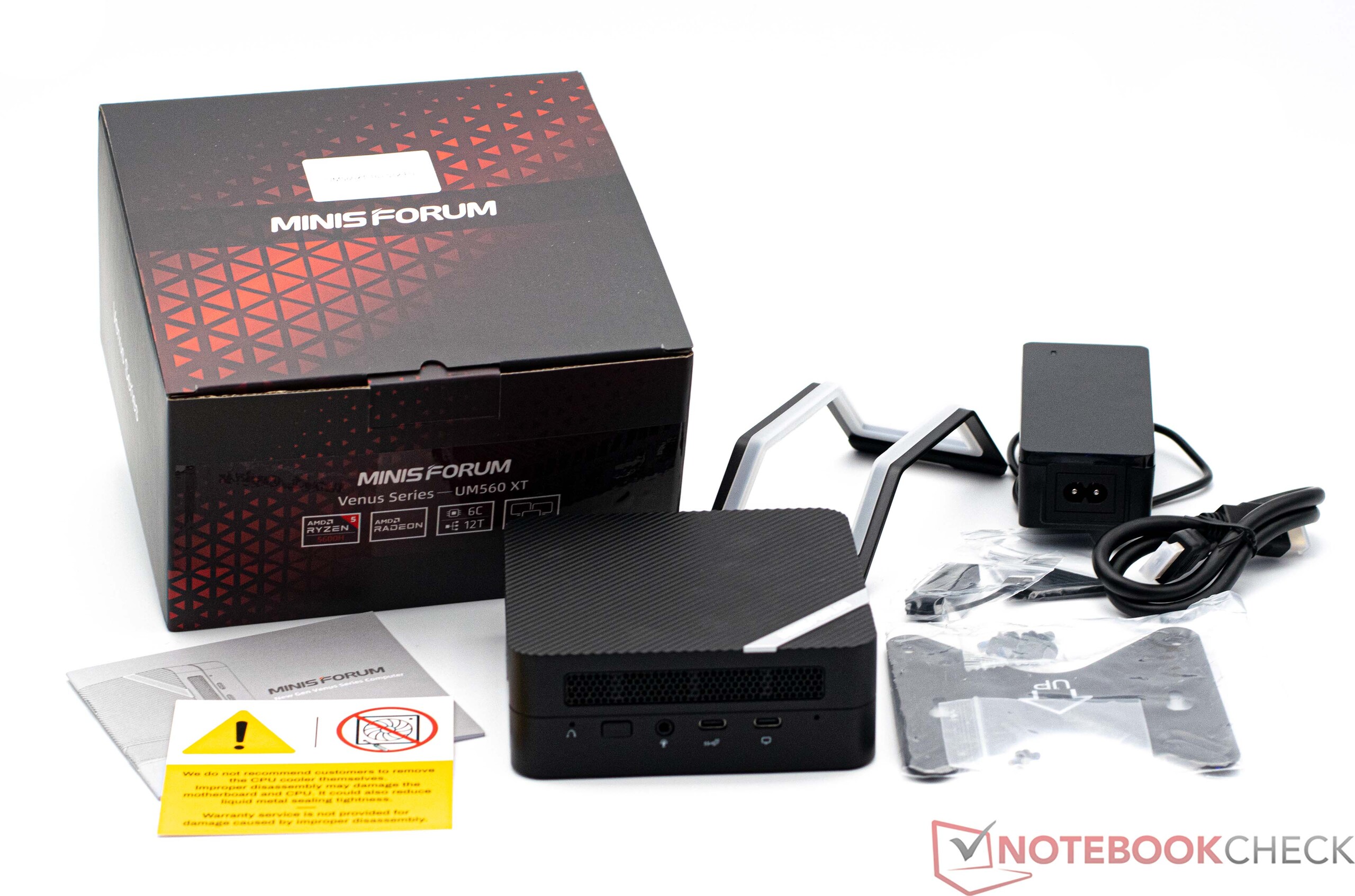

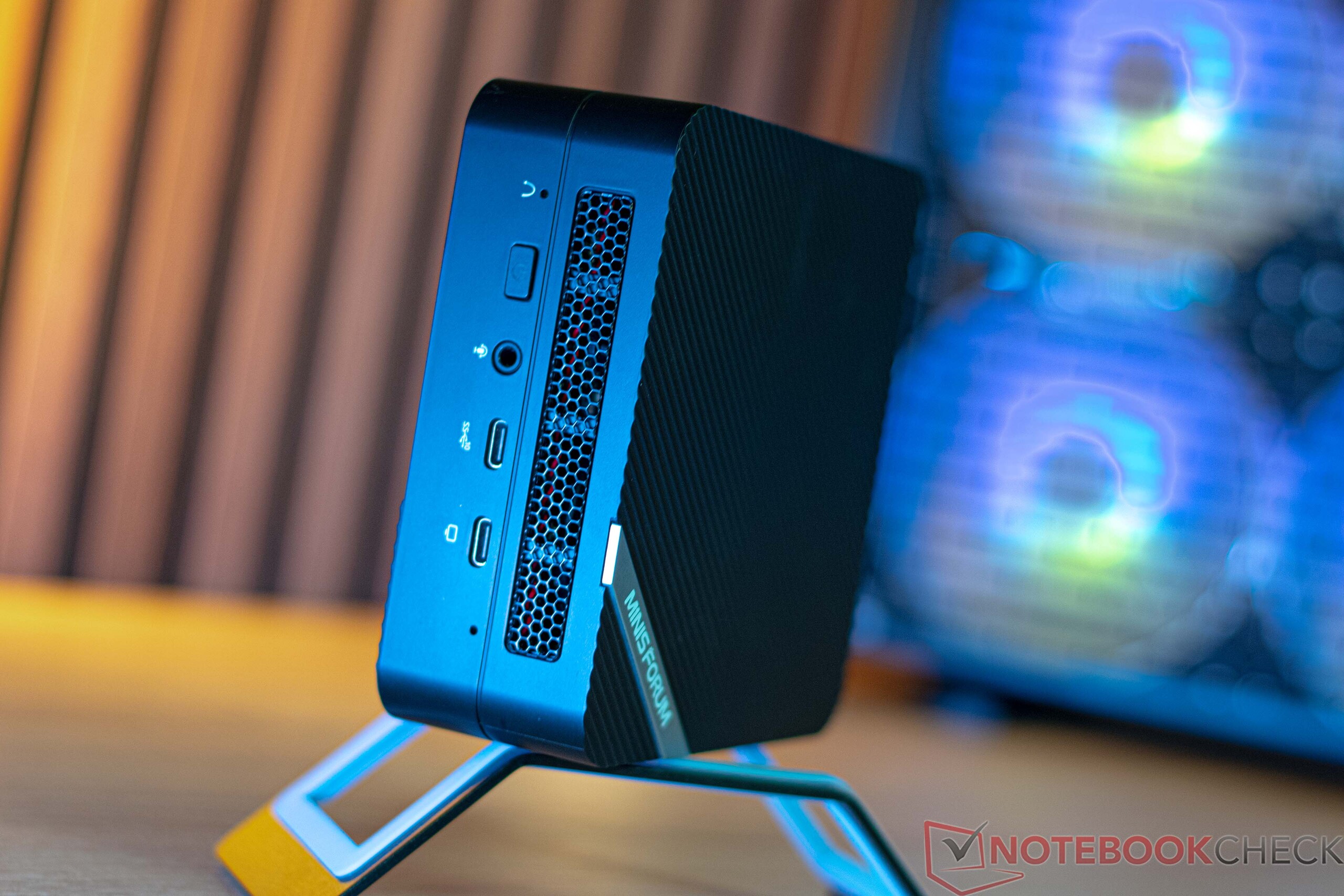

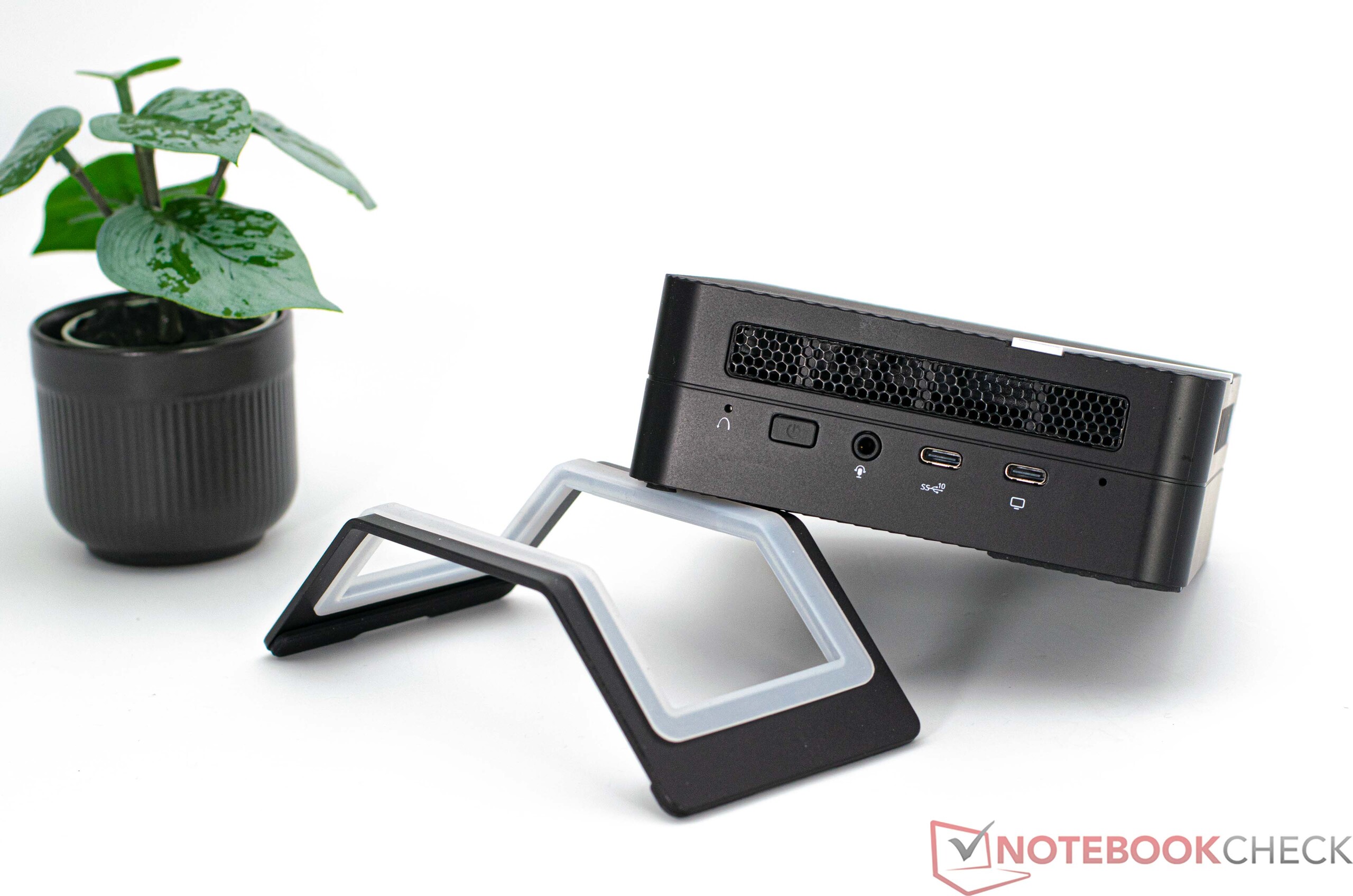

Minisforum Venus系列UM560 XT配备齐全。所有必要的物品都包括在内，以便让设备启动和运行。该设备还配有一块板子，可以将设备固定在显示器上（Vesa支架）。在这篇评论中，我们仔细研究了评论机型与顶级机型的性能比较，这个设备的价格几乎高出400美元。这种价格差异是合理的，还是入门级型号足够？还有，细节上的变化是什么？此外，Minisforum Venus系列UM560 XT不仅要与自己的内部挑战者竞争，还要与Geekom、Morefine和Intel在这个价格类别中的强大竞争者竞争。其清单可在下表中找到。

Test device courtesy of Minisforum

Download your licensed rating image as PNG / SVG

Minisforum Venus Series UM560 XT

Processor

AMD Ryzen 5 5600H 6 x 3.3 - 4.2 GHz, 35 W PL2 / Short Burst, 40 W PL1 / Sustained, Cezanne-H (Zen 3)

Graphics adapter

AMD Radeon RX Vega 7, Adrenalin 22.20.27.09

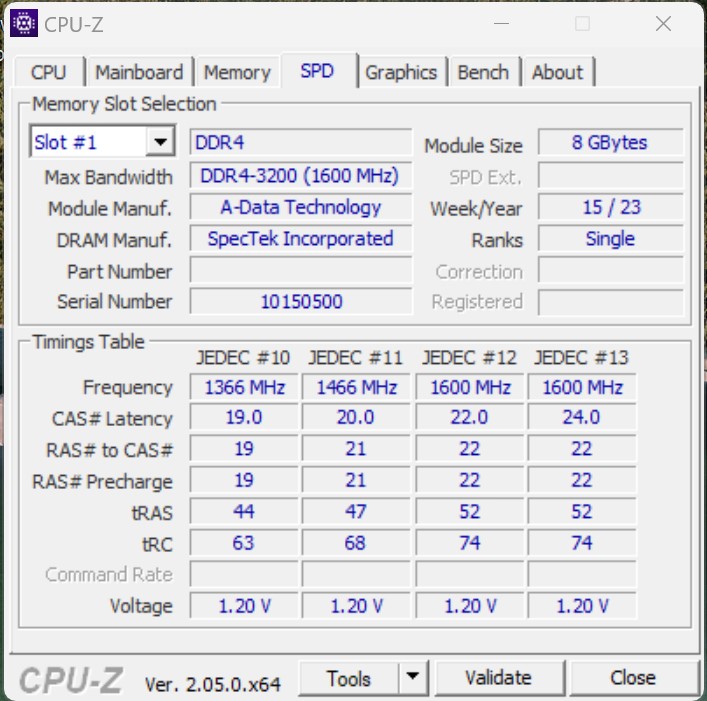

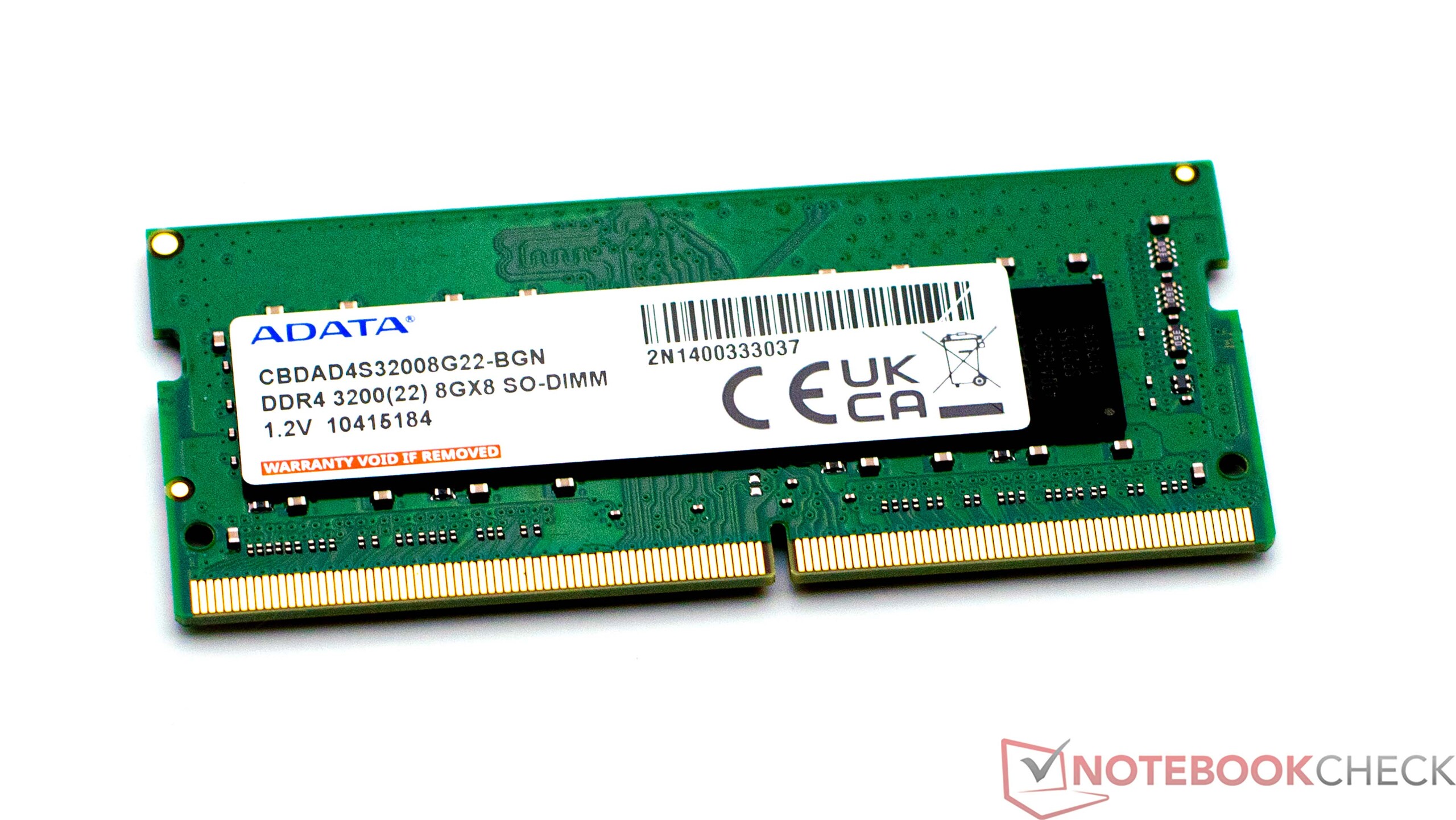

Memory

16 GB

, DDR4-3200, 2 of 2 occupied, max. 32 GB

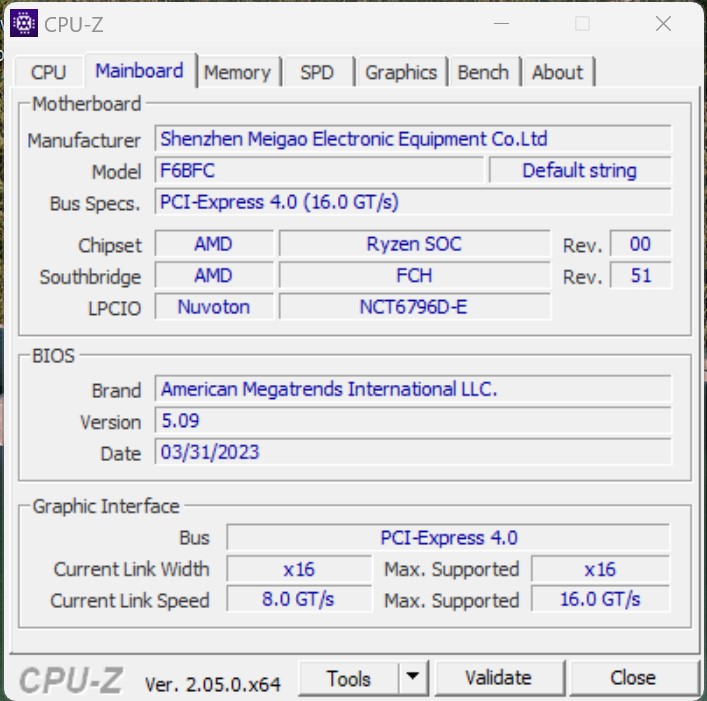

Mainboard

AMD Promontory/Bixby FCH

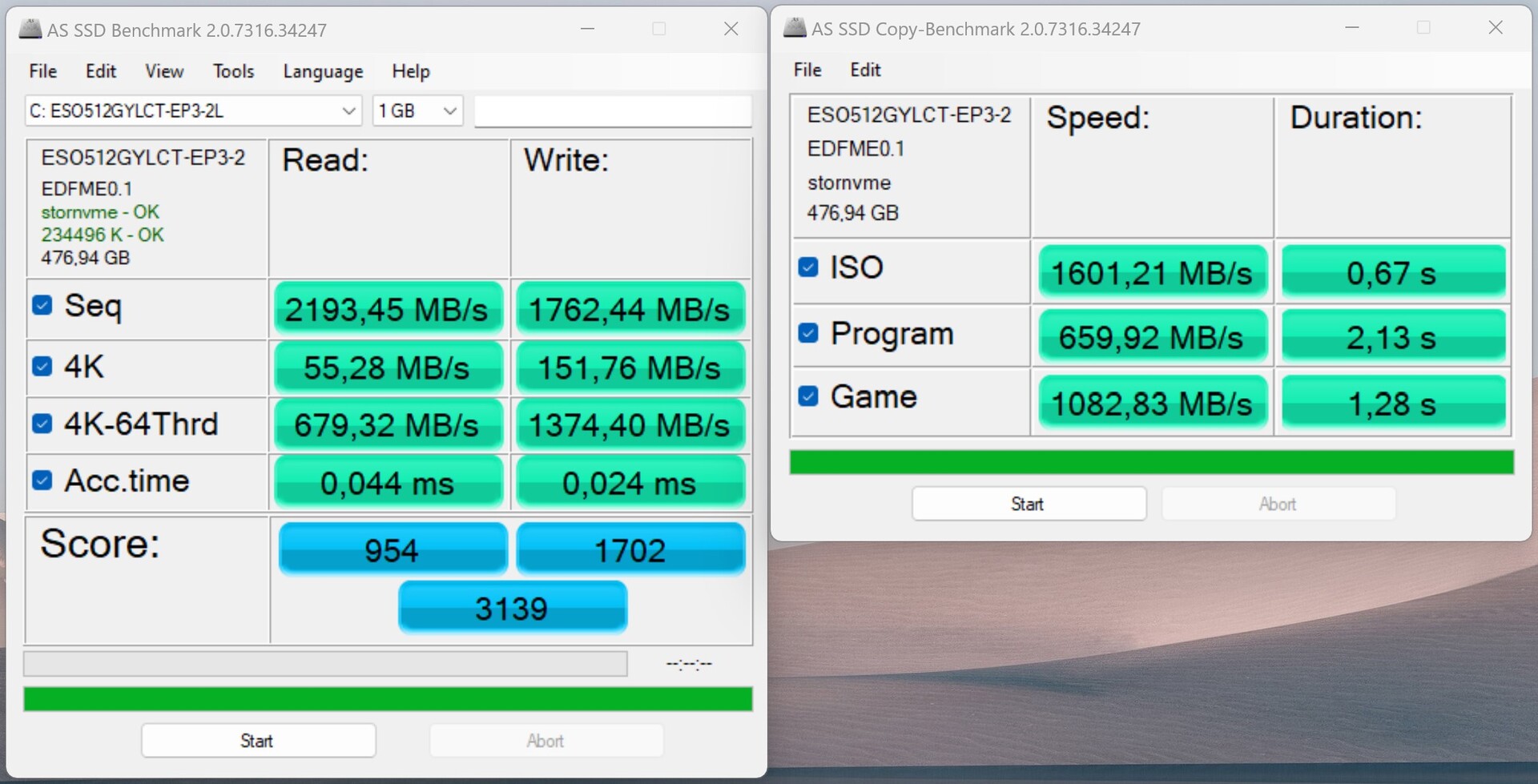

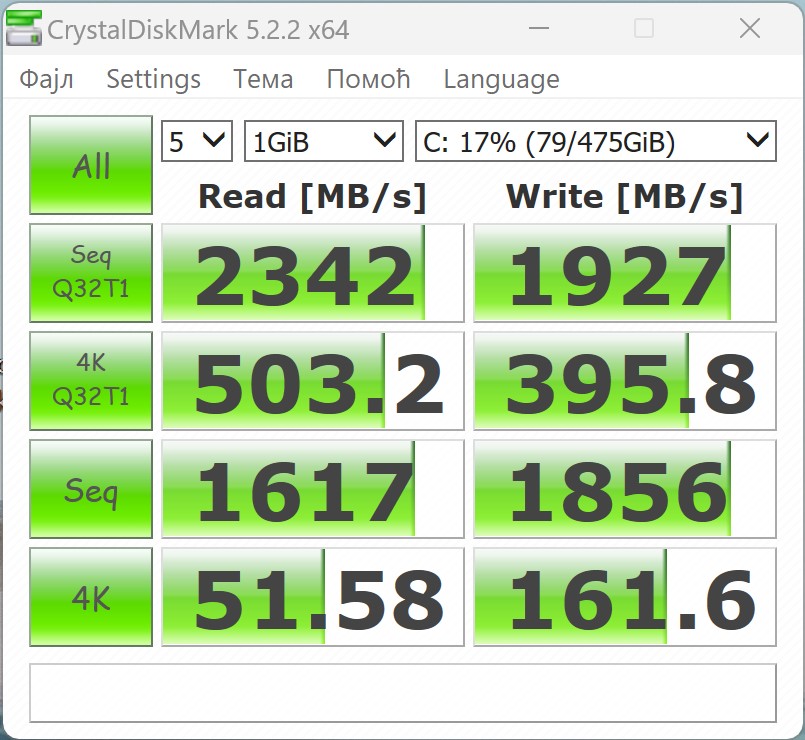

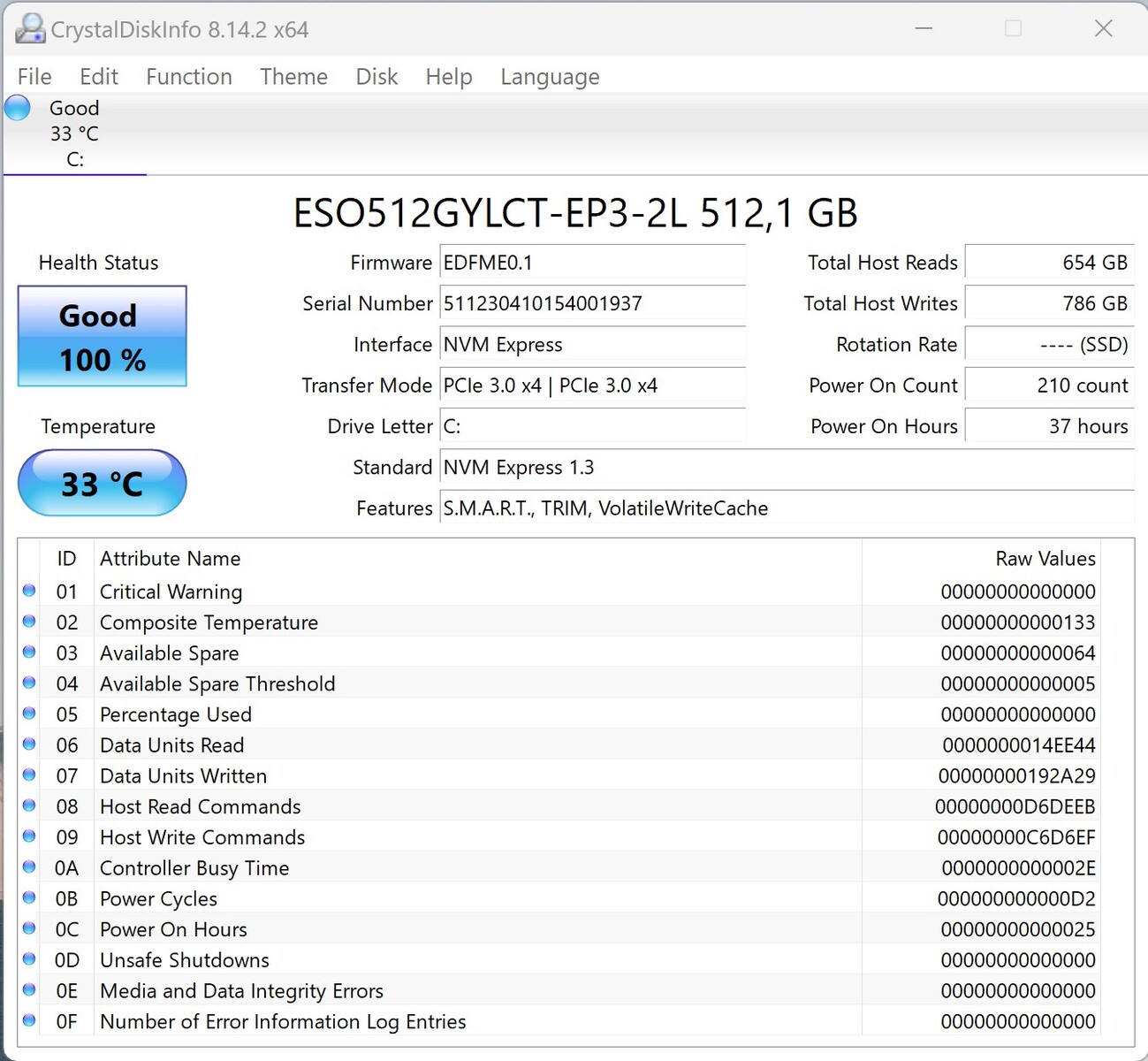

Storage

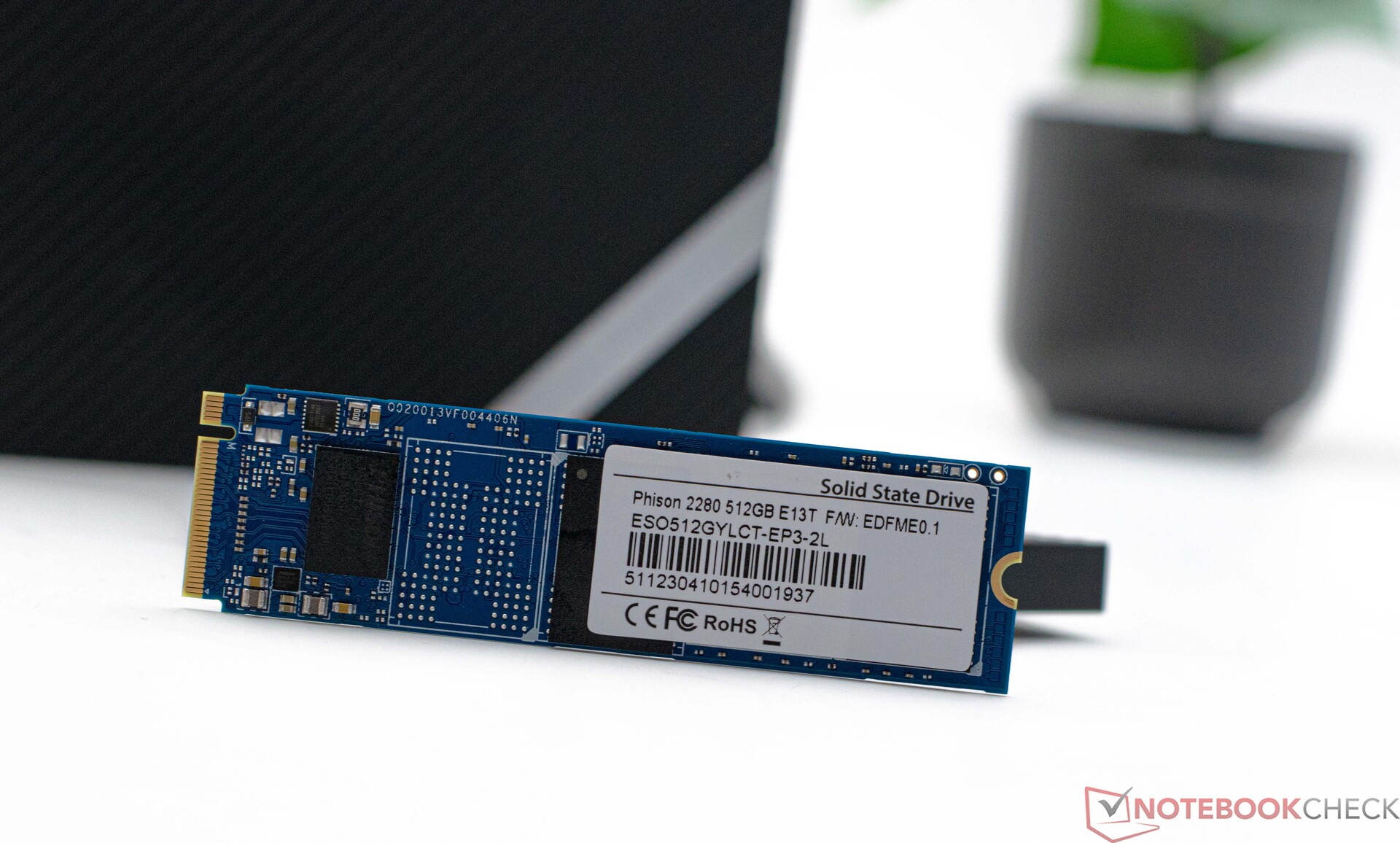

ESO512GYLCT, 512 GB

, M.2 2280, NVMe, 450 GB free

Soundcard

AMD Zen - Audio Processor - HD Audio Controller

Connections

2 USB 2.0, 4 USB 3.1 Gen2, USB-C Power Delivery (PD), 2 HDMI, 1 DisplayPort, 1 Kensington Lock

Networking

Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Size

height x width x depth (in mm): 48 x 129 x 126

Operating System

Microsoft Windows 11 Pro

Additional features

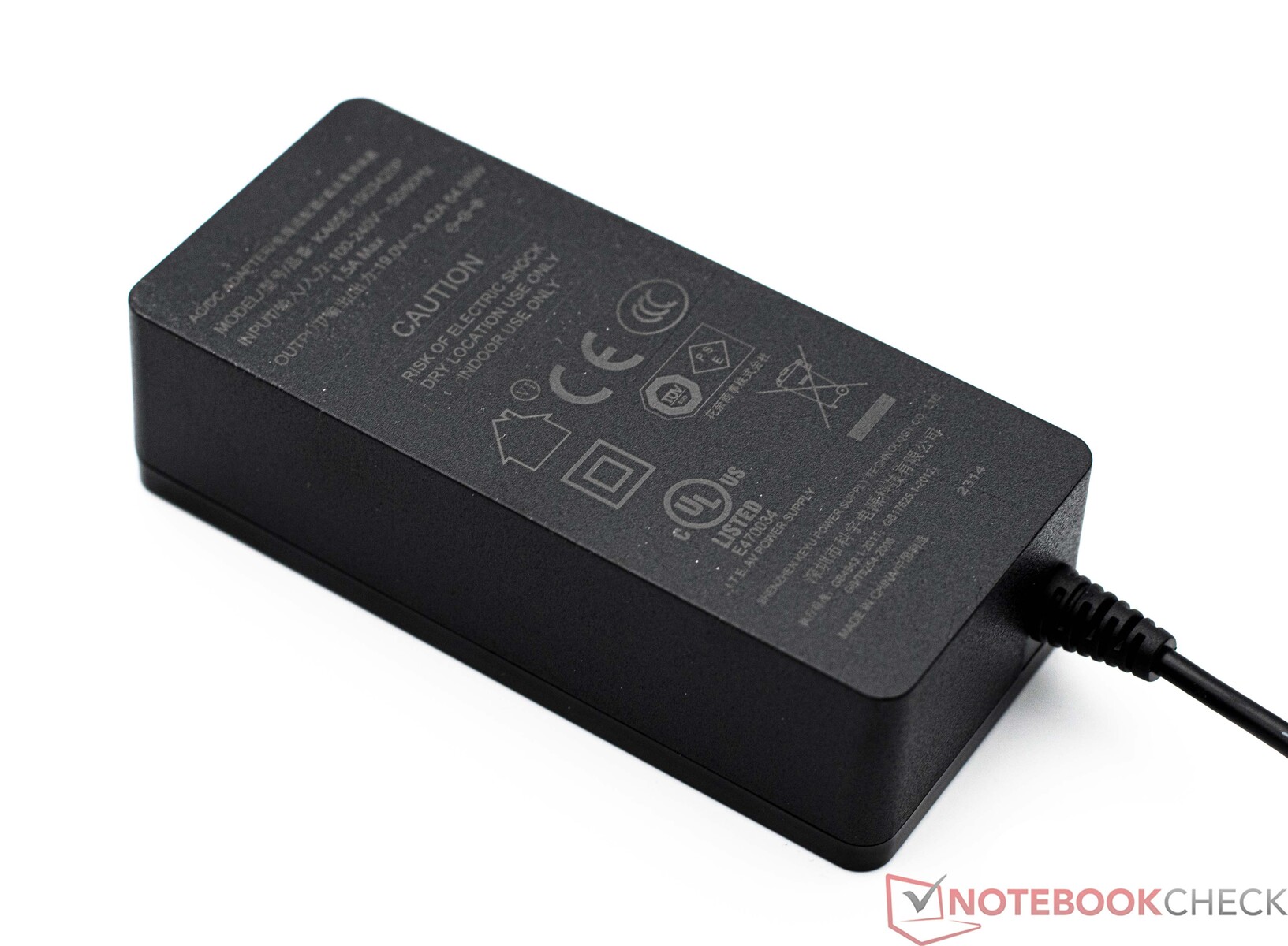

PSU with cable, HDMI cable, computer stand, Vesa mount assembly kit, user manual, 24 Months Warranty

Weight

652 g, Power Supply: 228 g

Price

429 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Possible competitors compared

Rating	Date	Model	Weight	Height
81.7 % v7 ^(old)	05 / 2023	Minisforum Venus Series UM560 XT R5 5600H, Vega 7	652 g	48 mm
v ^(old)	09 / 2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm
79.5 % v7 ^(old)	02 / 2023	Minisforum Mars Series MC560 R5 5600U, Vega 7	562 g	66 mm
81.9 % v7 ^(old)	05 / 2023	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	616 g	55 mm
85.5 % v7 ^(old)	03 / 2023	Morefine M600, 6900HX R9 6900HX, Radeon 680M	779 g	40.6 mm
86.1 % v7 ^(old)	02 / 2023	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	621 g	48 mm
82.3 % v7 ^(old)	05 / 2023	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	572 g	45.6 mm
85.1 % v7 ^(old)	01 / 2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
83.7 % v7 ^(old)	05 / 2023	Morefine M600, 6600U R5 6600U, Radeon 660M	768 g	40.6 mm

Minisforum Venus系列UM560 XT的详细介绍

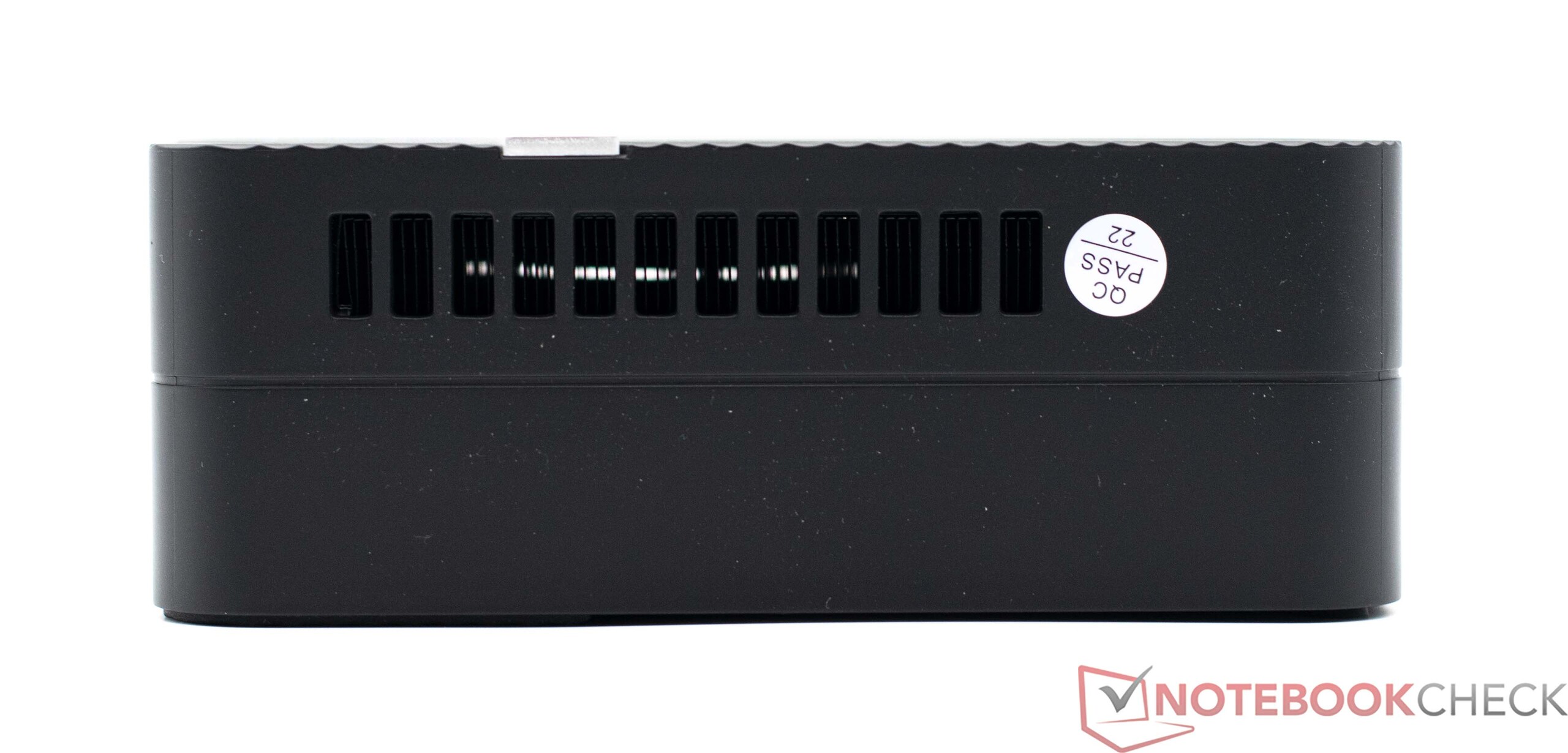

案例

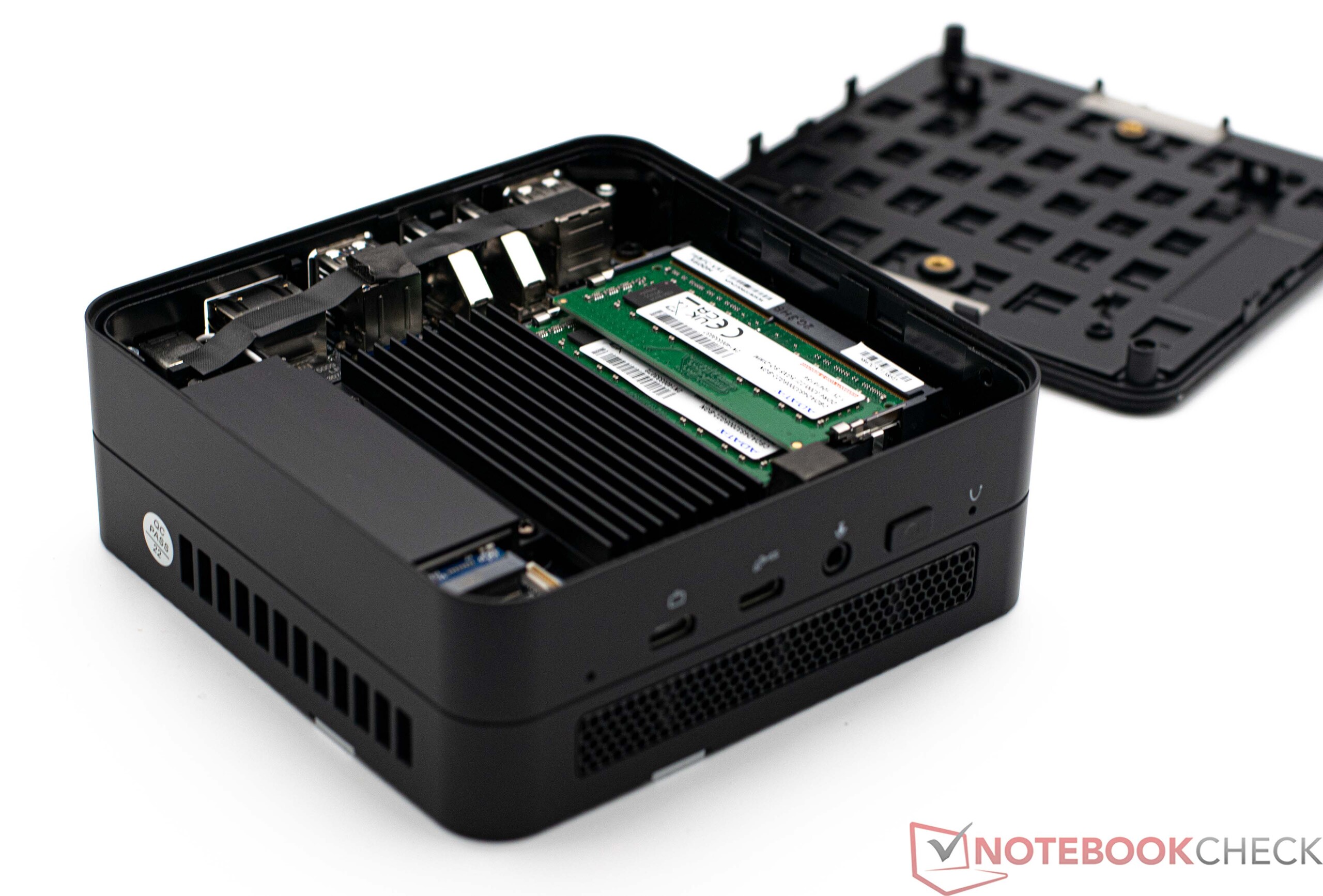

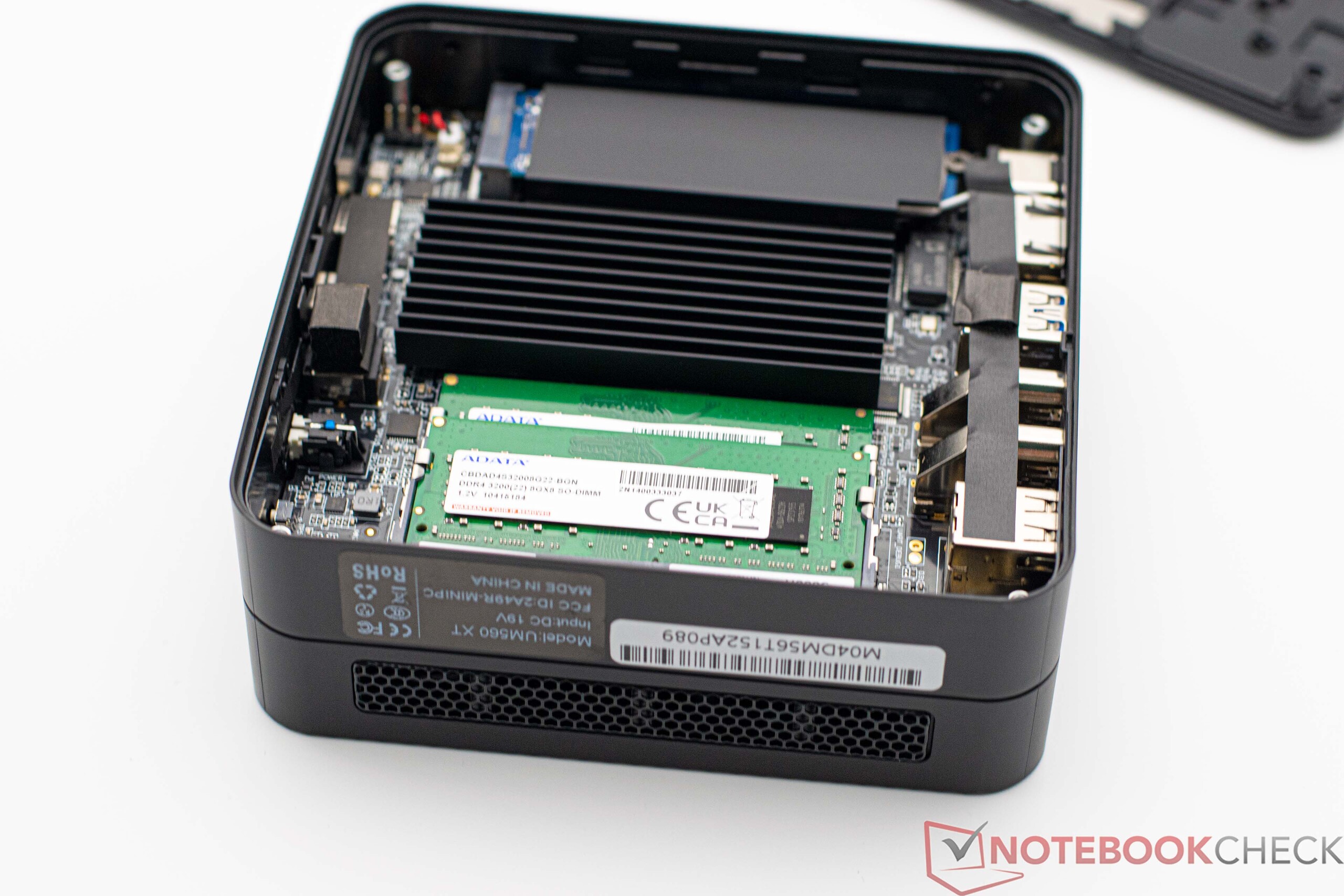

Minisforum UM560 XT在结构上与Minisforum UM690相似，配备AMD Ryzen 9 6900HX。有关该机箱的进一步细节，可以在我们的对顶级型号的评论.

特点

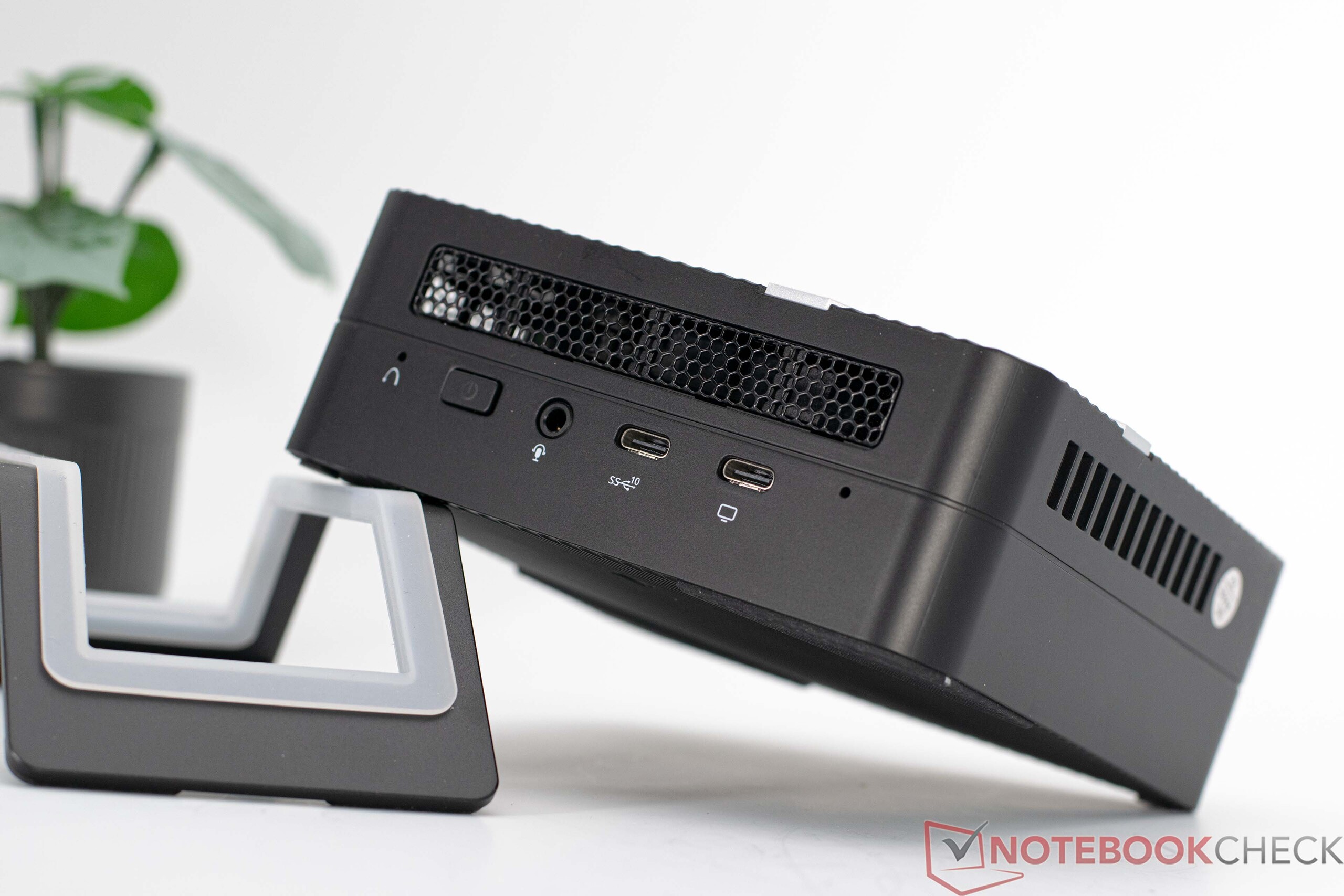

乍一看，MINISFORUM维纳斯系列UM560 XT提供的功能与 UM690型号.然而，USB4支持并不在船上。这意味着通过Thunderbolt实现的扩展类型在这里是不可能的。不过，值得庆幸的是，有六个USB端口。此外，如果设备前面的USB-C端口也被使用，三个显示器可以同时使用。

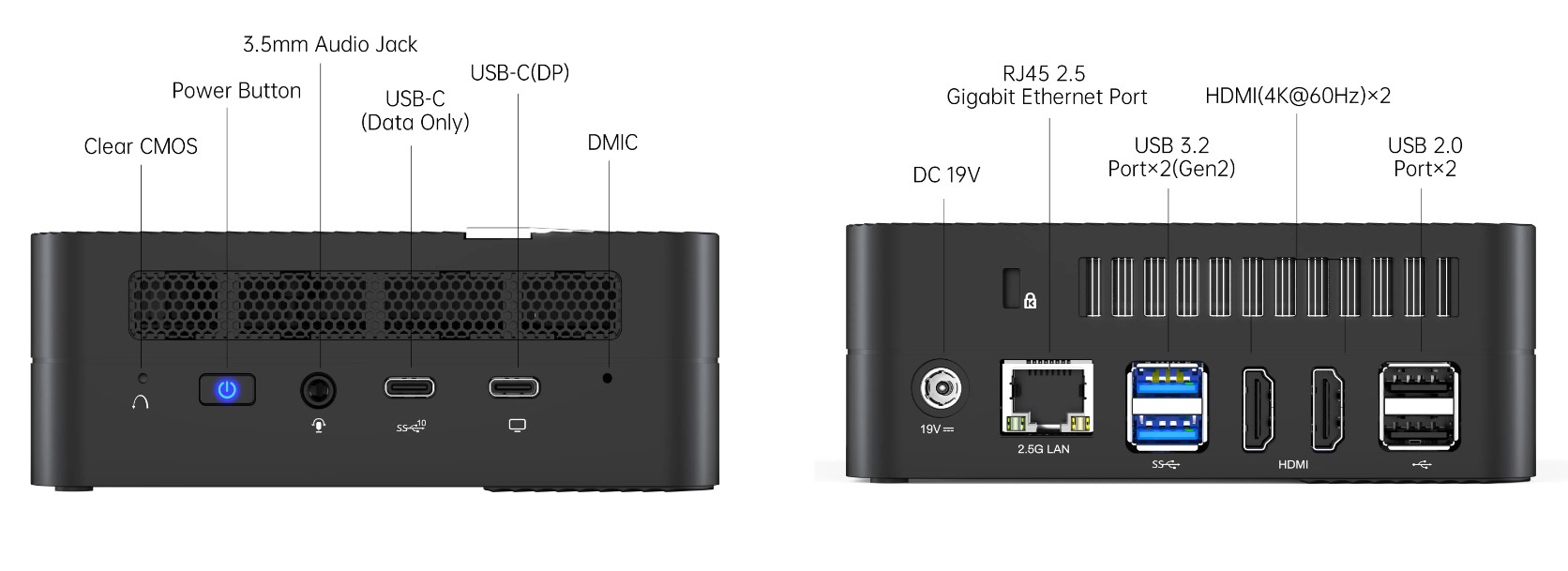

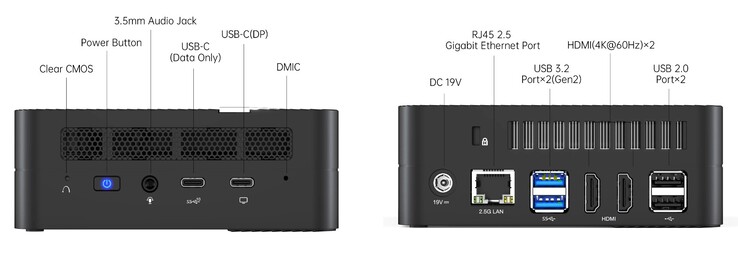

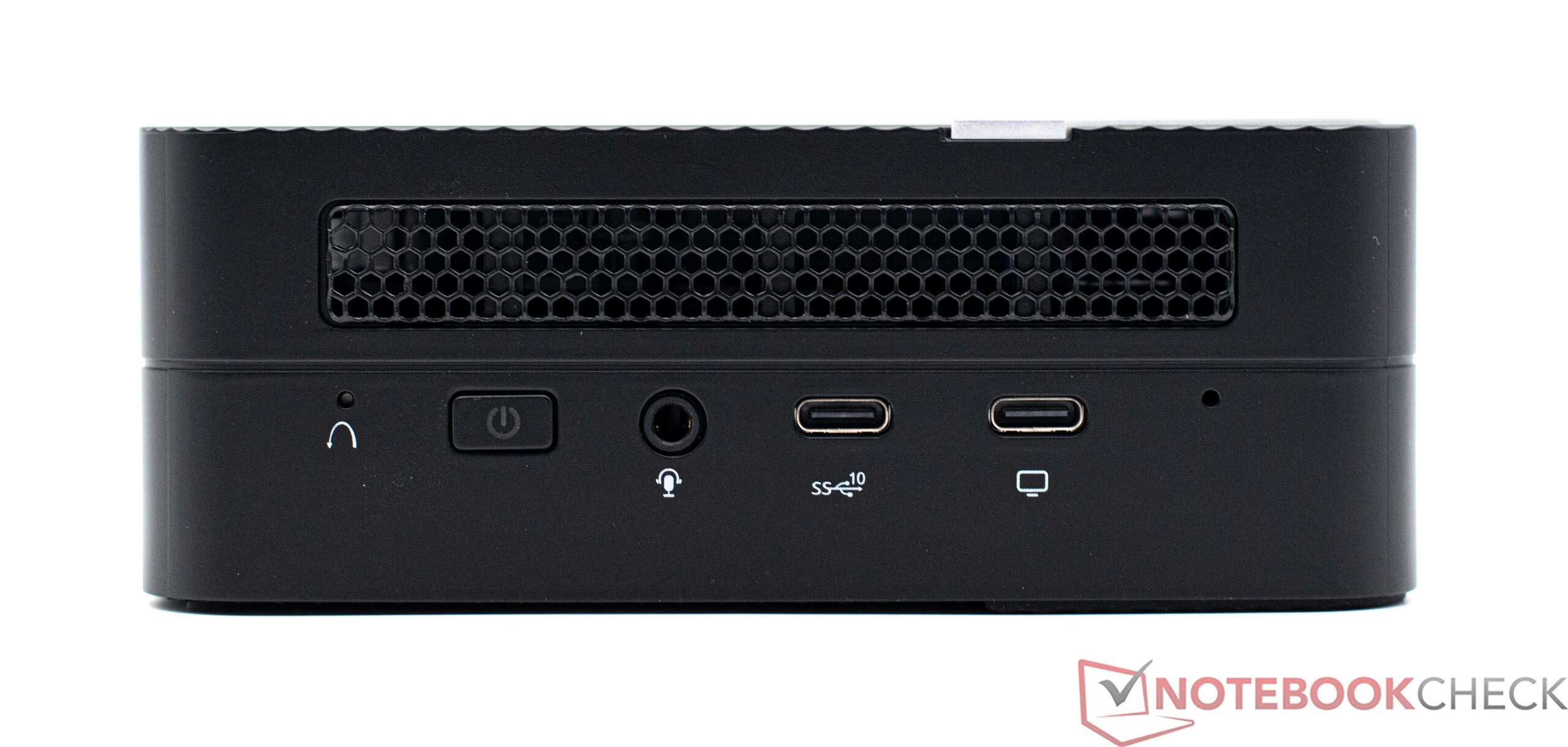

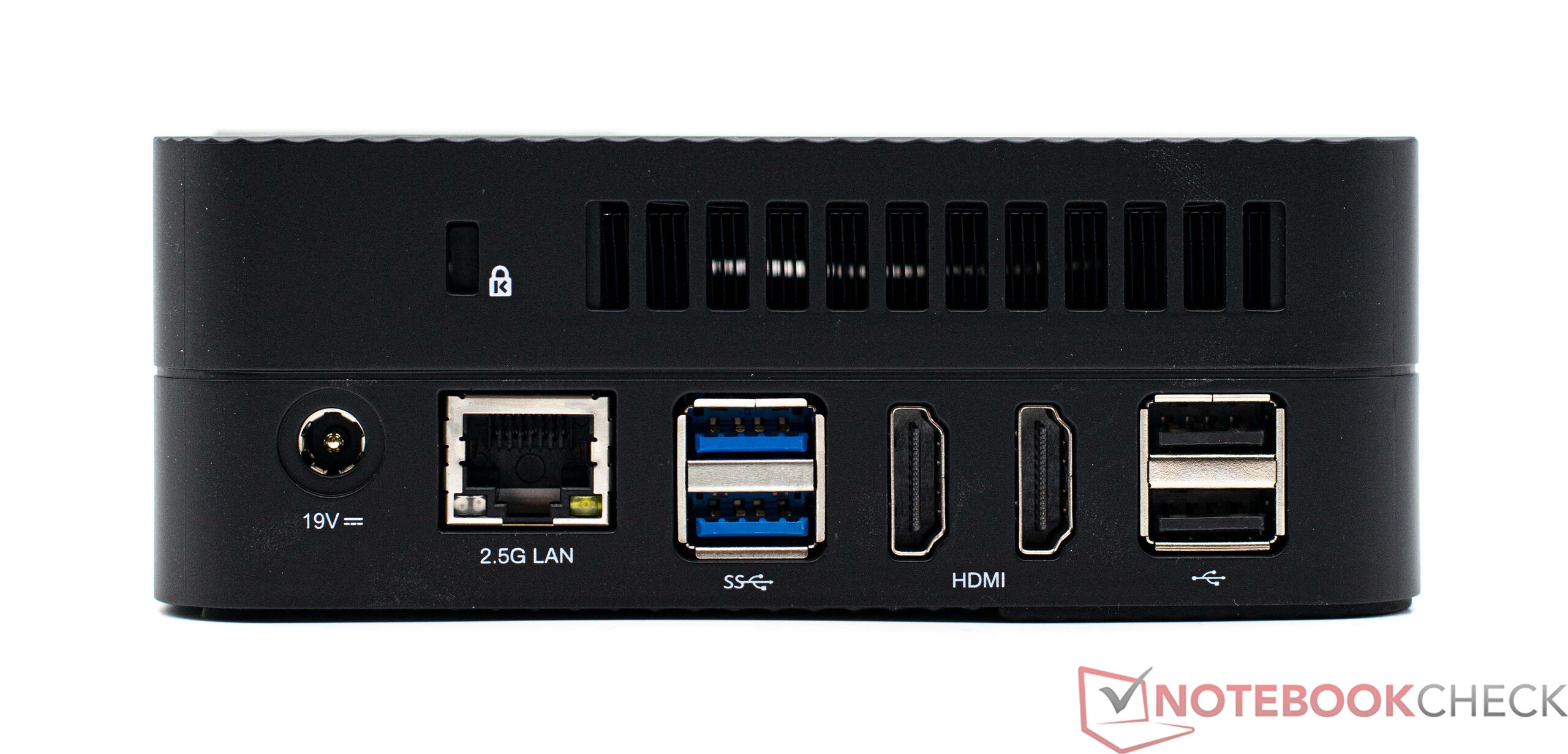

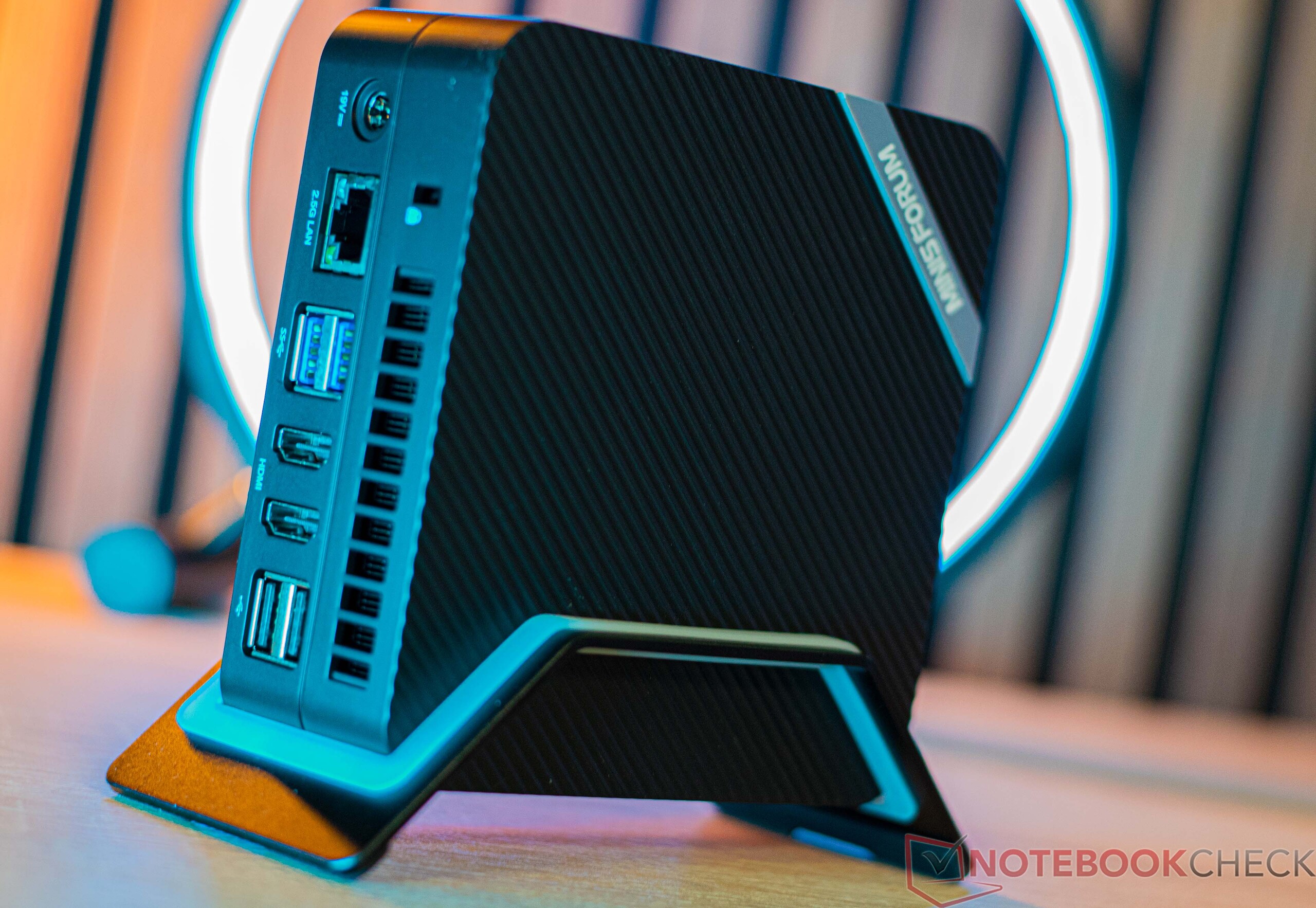

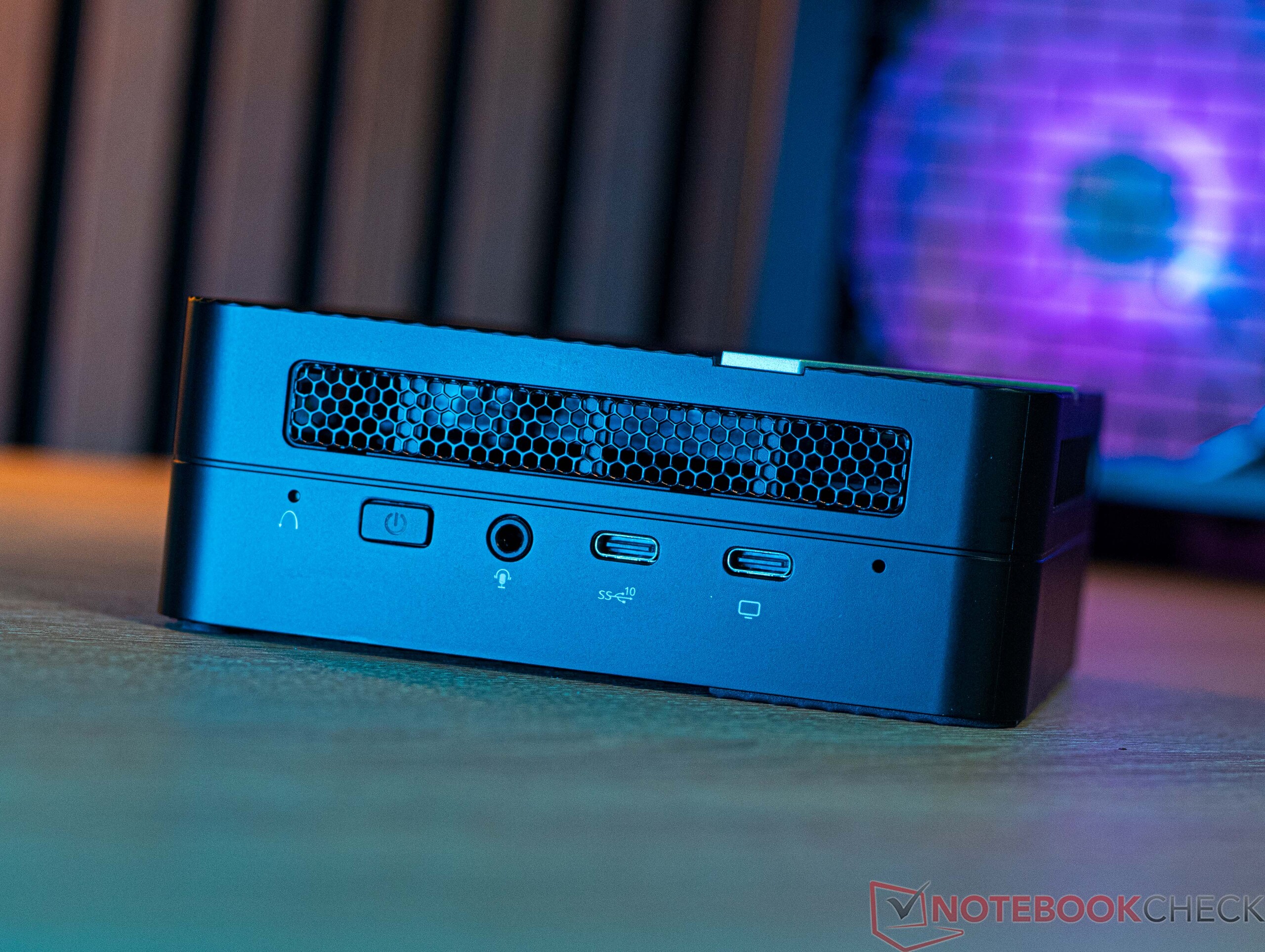

Minisforum Venus系列UM560 XT的外部端口（来源：Minisforum）

沟通

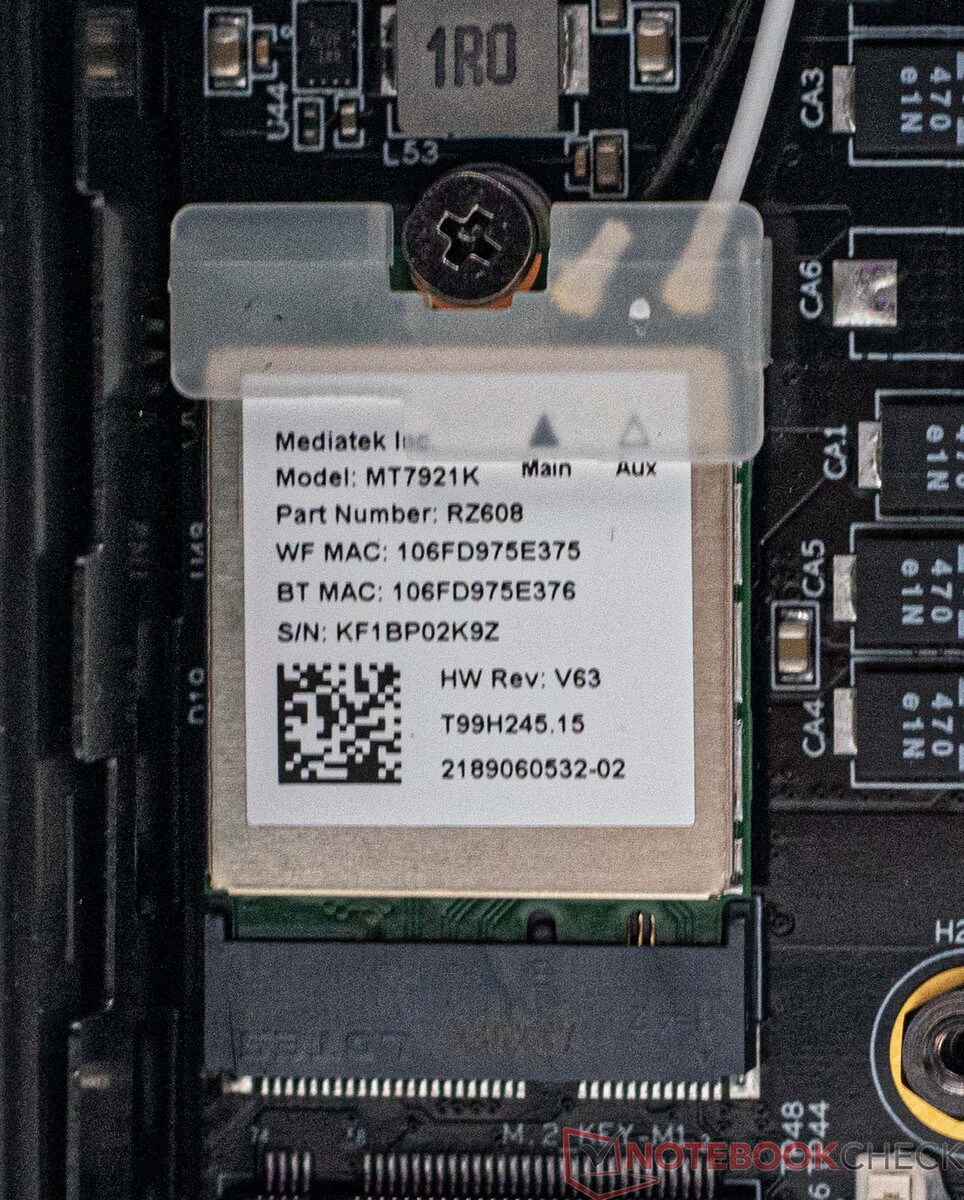

Minisforum为UM560 XT安装了与UM690中相同的Wi-Fi 6E模块。慕尼黑690.在实际测试中，联发科的模块表现良好。为了测试目的，我们使用了华硕ROG Rapture GT-AXE11000。另外，对于更快的数据连接，可以使用LAN端口，允许最大2.5GBit/s的数据传输。

Networking
iperf3 receive AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s +48%
Minisforum Venus Series UM690 MediaTek RZ608	956 (944^min - 963^max) MBit/s +7%
Minisforum Mars Series MC560 MediaTek RZ608	949 (924^min - 954^max) MBit/s +7%
Morefine M600, 6600U MediaTek RZ608	948 (934^min - 957^max) MBit/s +7%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	943 (923^min - 960^max) MBit/s +6%
Average of class Mini PC (320 - 1796, n=111, last 2 years)	941 MBit/s +6%
Morefine M600, 6900HX MediaTek RZ608	929 (874^min - 946^max) MBit/s +4%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 MBit/s +1%
Minisforum Venus Series UM560 XT MediaTek RZ608	890 (851^min - 908^max) MBit/s
Average MediaTek RZ608 (430 - 975, n=20)	886 MBit/s 0%
Minisforum Venus Series NAB6 MediaTek RZ608	787 (752^min - 801^max) MBit/s -12%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s +59%
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 MBit/s +17%
Morefine M600, 6900HX MediaTek RZ608	964 (924^min - 990^max) MBit/s +16%
Minisforum Venus Series UM690 MediaTek RZ608	943 (477^min - 981^max) MBit/s +14%
Minisforum Mars Series MC560 MediaTek RZ608	936 (873^min - 988^max) MBit/s +13%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	918 (892^min - 938^max) MBit/s +11%
Average of class Mini PC (184.1 - 1776, n=111, last 2 years)	868 MBit/s +5%
Average MediaTek RZ608 (572 - 979, n=20)	860 MBit/s +4%
Minisforum Venus Series UM560 XT MediaTek RZ608	829 (775^min - 889^max) MBit/s
Morefine M600, 6600U MediaTek RZ608	784 (381^min - 874^max) MBit/s -5%
Minisforum Venus Series NAB6 MediaTek RZ608	626 (301^min - 689^max) MBit/s -24%

Minisforum Venus Series UM560 XT; iperf3 receive AXE11000; iperf 3.1.3: Ø889 (851-908)

Minisforum Venus Series UM560 XT; iperf3 transmit AXE11000; iperf 3.1.3: Ø829 (775-889)

性能 - 基于塞尚一代的AMD

在Minisforum Venus系列UM560 XT中，一台 AMD Ryzen 5 5600H六个核心和十二个线程，帮助该设备为每天的工作任务做好准备。办公、多媒体和流媒体是这款迷你电脑的主要重点。有了AMD Radeon RX Vega 7，我们就有了一个很好的iGPU，可以很好地支持SoC。

测试条件

在进行所有的性能测试时，我们选择了高性能的能源概况。根据我们的测试标准，只对能量和体积测量进行了偏离。在BIOS中没有改变CPU的性能，我们也没有对有关冷却的风扇曲线进行任何改变。

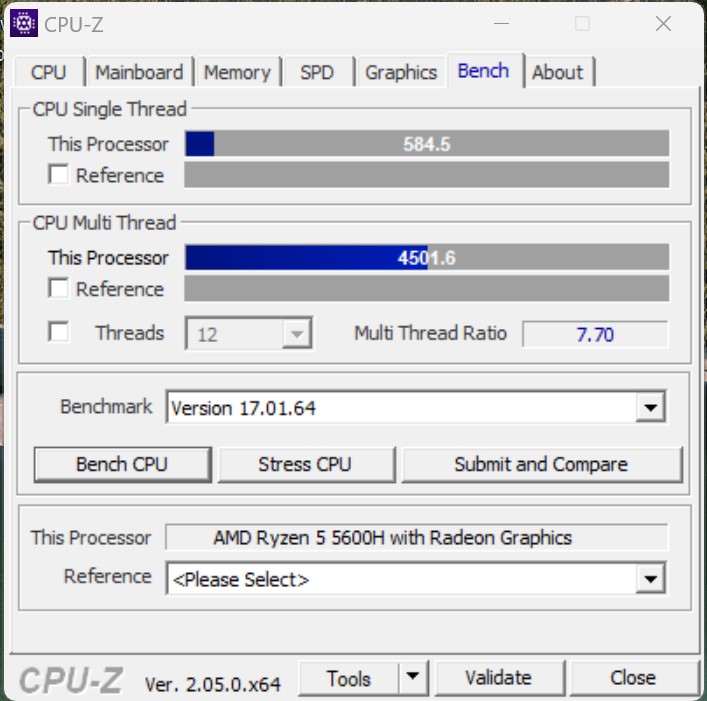

处理器

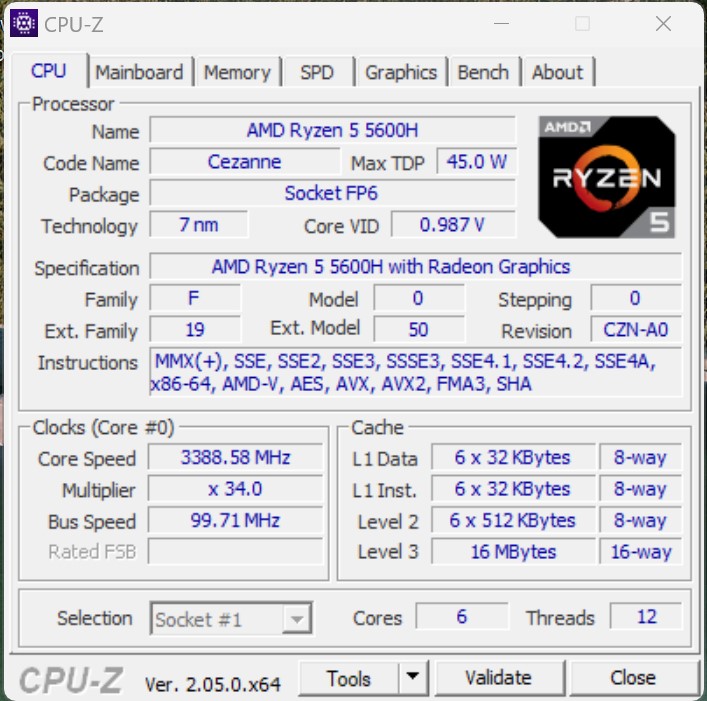

AMD Ryzen 5 5600H 属于AMD的塞尚系列，提供六个核心，共有十二个线程。与顶级型号的AMD Ryzen 9 6900HX 相比，Minicforum Venus Series UM560 XT在我们的性能评级中损失了13%，这大约是本次比较中所有CPU基准测试的中间值。然而，与竞争对手相比，我们的审查样本保持得非常好。基本上，Minisforum Venus系列UM560 XT提供的性能与Geekom Mini IT12 ，Intel Core i7-1260P 。此外，Morefine M600 6600U ，并保持在一定水平。尽管如此，我们的评测设备只提供了略微更好的性能，只有在测试条件下，才能真正检测到。

其他的处理器基准测试可以在这里.

Performance Rating - Percent
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	50.6 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	50.1 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	50 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	48.4 pt
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	45.8 pt
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	44.5 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	44 pt
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	42.2 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	41.8 pt

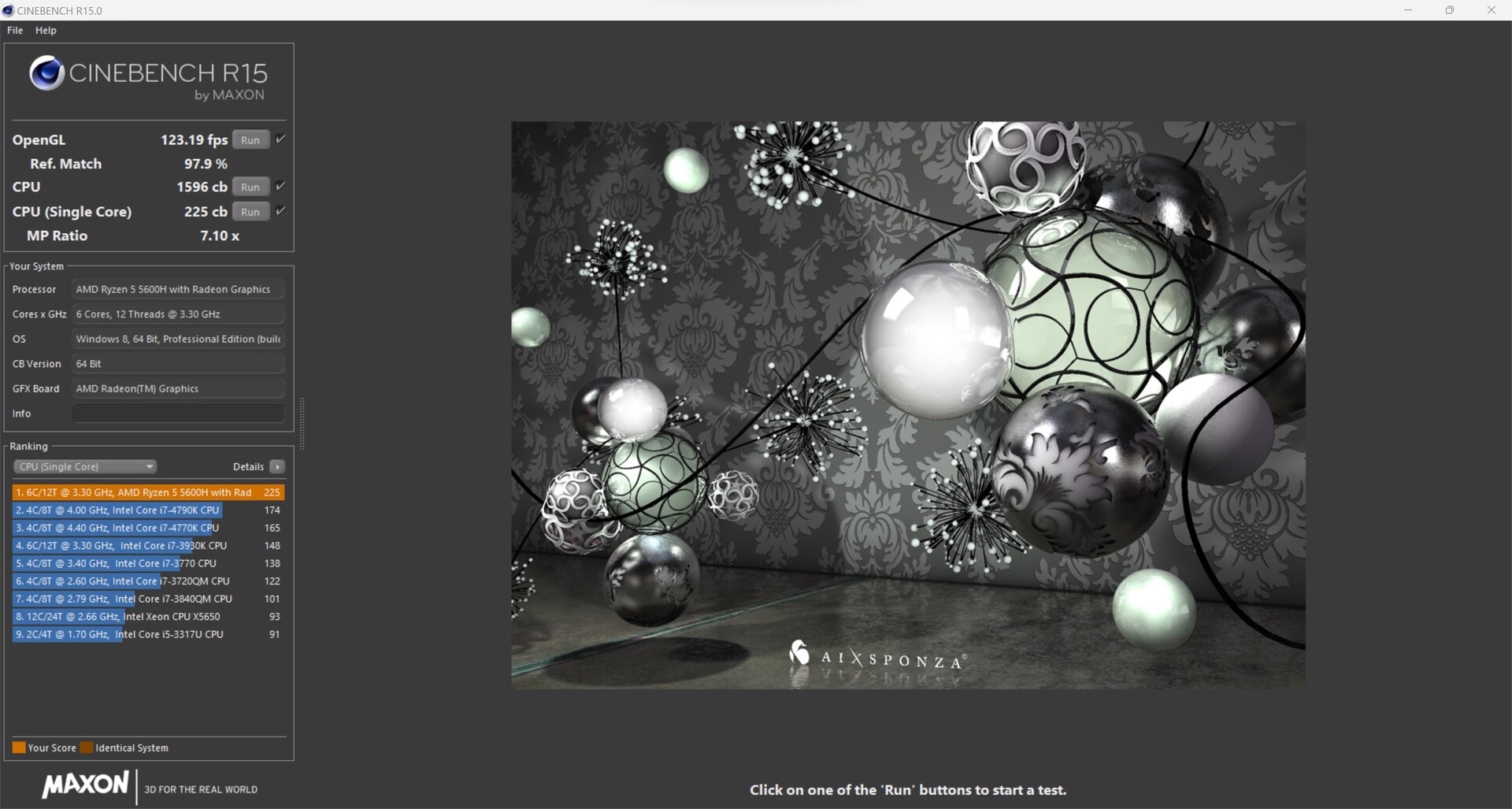

Cinebench R15
CPU Single 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	261 Points +16%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	260 Points +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	247 Points +10%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	244 Points +8%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	241 Points +7%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	227 Points +1%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	225 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points -1%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	223 Points -1%
CPU Multi 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	2231 Points +40%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2067 Points +30%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1920 Points +20%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1893 Points +19%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	1596 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1565 Points -2%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1361 Points -15%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1356 Points -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points -21%

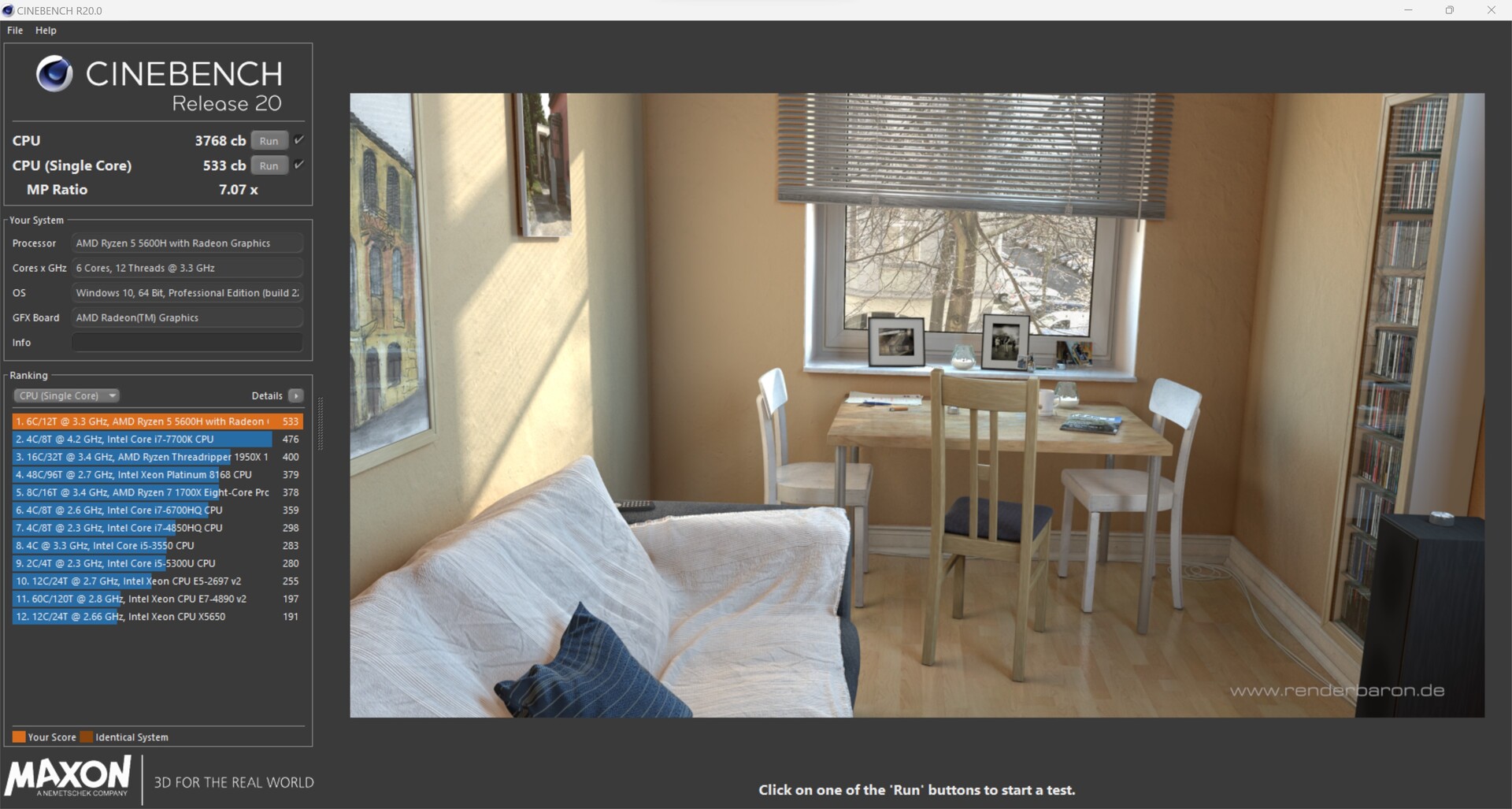

Cinebench R20
CPU (Single Core)
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	696 Points +31%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	682 Points +28%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	652 Points +22%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	629 Points +18%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	600 Points +13%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	558 Points +5%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	535 Points 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points 0%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	533 Points
CPU (Multi Core)
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	5328 Points +41%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	4941 Points +31%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	4788 Points +27%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	4781 Points +27%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	3768 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	3427 Points -9%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	3419 Points -9%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	3189 Points -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points -21%

Cinebench R11.5
CPU Single 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.14 Points +19%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	3.07 Points +17%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	2.93 Points +11%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2.88 Points +10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2.86 Points +9%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	2.73 Points +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points 0%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	2.63 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	2.61 Points -1%
CPU Multi 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	26.35 Points +41%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	25.96 Points +39%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	23.66 Points +27%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22.08 Points +18%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	20.06 Points +7%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	18.68 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	17.15 Points -8%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	15.96 Points -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points -21%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	14533 Points +30%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	13568 Points +21%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	12943 Points +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	12846 Points +15%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12185 Points +9%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11685 Points +4%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	11201 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	11132 Points -1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points -1%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	77409 Points +30%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	76758 Points +29%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	69797 Points +17%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	68516 Points +15%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	59479 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	54792 Points -8%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	53950 Points -9%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	50831 Points -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points -24%

Blender - v2.79 BMW27 CPU
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	426 Seconds * -34%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	415 Seconds * -30%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds * -25%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	319 Seconds *
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	285 Seconds * +11%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	279 Seconds * +13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	273 Seconds * +14%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	234 Seconds * +27%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	231 Seconds * +28%

wPrime 2.10
32m
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s * -18%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	4.848 s * -7%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	4.688 s * -3%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	4.552 s *
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	4.485 s * +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.705 s * +19%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	3.642 s * +20%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	3.461 s * +24%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	3.421 s * +25%
1024m
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	410.289 s * -218%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	237.123 s * -84%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	189.07 s * -46%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s * -21%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	147.807 s * -14%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	146.553 s * -13%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	129.204 s *
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	103.226 s * +20%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	93.19 s * +28%

X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	311.5 (311^min - 312^max) fps +24%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	262.5 (262^min - 266^max) fps +4%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	258.5 (256^min - 268^max) fps +3%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	251.21 fps
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	245 (239^min - 261^max) fps -2%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	236 (235^min - 246^max) fps -6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps -7%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	224 (222^min - 258^max) fps -11%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	212 (206^min - 224^max) fps -16%
Pass 2
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	127.8 (127.3^min - 129.1^max) fps +34%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	125.25 (105.2^min - 130^max) fps +32%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	114 (111.2^min - 119.4^max) fps +20%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	111.1 (96.7^min - 111.7^max) fps +17%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	95.18 fps
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	80.95 (76.3^min - 82.4^max) fps -15%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	77.75 (77.6^min - 113.9^max) fps -18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps -20%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	71.45 (70.2^min - 76.6^max) fps -25%

WinRAR - Result
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9090 KB/s +21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	7937 KB/s +6%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	7497 KB/s
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6937 KB/s -7%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6882 KB/s -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s -8%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	6858 KB/s -9%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6795 KB/s -9%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6559 KB/s -13%

TrueCrypt
AES Mean 100MB
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	13.4 GB/s +43%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12.1 GB/s +29%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.4 GB/s +11%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	10.1 GB/s +7%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	9.4 GB/s
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	9.3 GB/s -1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8.6 GB/s -9%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	8.3 GB/s -12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s -18%
Twofish Mean 100MB
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2 GB/s +54%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1.8 GB/s +38%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1.8 GB/s +38%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.8 GB/s +38%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.6 GB/s +23%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1.3 GB/s 0%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	1.3 GB/s
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1.2 GB/s -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s -15%
Serpent Mean 100MB
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1.2 GB/s +40%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s +28%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.1 GB/s +28%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1 GB/s +17%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.974 GB/s +14%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.857 GB/s 0%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	0.857 GB/s
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	0.796 GB/s -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s -18%

Geekbench 5.5
Multi-Core
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9706 Points +34%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points +34%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9363 Points +29%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9151 Points +26%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	8918 Points +23%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	7658 Points +6%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	7253 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	6523 Points -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points -15%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points +29%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1782 Points +23%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1767 Points +22%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1634 Points +13%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1547 Points +7%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1504 Points +4%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	1443 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points -1%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1427 Points -1%

Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	10249 Points +44%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10249 Points +44%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	10249 Points +44%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points +36%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9638 Points +35%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9099 Points +28%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	7128 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	6479 Points -9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points -14%
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points +32%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1736 Points +25%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1593 Points +14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1557 Points +12%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1557 Points +12%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1557 Points +12%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	1393 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points -1%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1371 Points -2%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points +31%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	7705 Points +26%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6804 Points +11%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6698 Points +9%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6698 Points +9%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6698 Points +9%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	6117 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	5918 Points -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points -4%
64 Bit Multi-Core Score
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	39852 Points +37%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	39852 Points +37%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	39852 Points +37%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	38566 Points +33%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points +27%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	34909 Points +20%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	28997 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	25738 Points -11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points -16%

3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	18382 Points +27%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	18363 Points +27%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	18277 Points +26%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15855 Points +9%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	14496 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	13130 Points -9%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	13067 Points -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points -13%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11630 Points -20%

7-Zip 18.03
7z b 4
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	61401 MIPS +32%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	56923 MIPS +22%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51151 MIPS +10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	47893 MIPS +3%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	46562 MIPS
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	44320 MIPS -5%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	40318 MIPS -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS -16%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	37570 MIPS -19%
7z b 4 -mmt1
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	6116 MIPS +14%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6067 MIPS +13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	6019 MIPS +12%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	5591 MIPS +4%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	5577 MIPS +4%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5486 MIPS +2%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	5369 MIPS
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS -2%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	5161 MIPS -4%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	17.1 fps +38%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15.4 fps +24%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	14.1 fps +14%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	13.6 fps +10%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	12.4 fps
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11.7 fps -6%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	10.2 fps -18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps -19%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.1 fps -19%

R Benchmark 2.5 - Overall mean
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	0.548 sec * -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec * -2%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	0.526 sec *
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.511 sec * +3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	0.4881 sec * +7%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	0.4757 sec * +10%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	0.4718 sec * +10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.4641 sec * +12%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	0.462 sec * +12%

LibreOffice - 20 Documents To PDF
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	57.5 s * -1%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	56.7 s *
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	53.4 s * +6%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	53 s * +7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s * +10%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	48.8 s * +14%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	48.1 s * +15%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	39.6 s * +30%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	38 s * +33%

WebXPRT 3 - Overall
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	311 Points +15%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	309 Points +14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	292 Points +8%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	287 Points +6%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	287 Points +6%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	274 Points +1%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	270 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	263 Points -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points -6%

Mozilla Kraken 1.1 - Total
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	659 ms * -1%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	651 ms *
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms * +1%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	619 ms * +5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	605 ms * +7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	577 ms * +11%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	571 ms * +12%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	539 ms * +17%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	519 ms * +20%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	25456 Points +21%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22441 Points +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	21422 Points +1%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	21110 Points
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	21001 Points -1%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	18599 Points -12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points -17%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	16412 Points -22%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	15903 Points -25%
1920x1080 Fire Strike Physics
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	25915 Points +23%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22426 Points +7%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22346 Points +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	22244 Points +6%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	21025 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points -14%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	17499 Points -17%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	16568 Points -21%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	15934 Points -24%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	10539 Points +56%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9354 Points +38%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9168 Points +35%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	8622 Points +27%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	6767 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6487 Points -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points -20%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5114 Points -24%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	5077 Points -25%

* ... smaller is better

Performance Rating
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	99.3 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	85.9 pt
Average of class Mini PC	76.8 pt
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	71.2 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	70.7 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	69.4 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	62.8 pt
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	62.3 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	60.2 pt
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	57 pt

AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	15102 KRay/s +33%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	13757 KRay/s +21%
Average of class Mini PC (646 - 51004, n=117, last 2 years)	12754 KRay/s +12%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	11347 KRay/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s -3%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	10839 KRay/s -4%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	9518 KRay/s -16%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	9406 KRay/s -17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s -20%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	7933 KRay/s -30%

AIDA64 / FPU Julia
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	98980 Points +40%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	87663 Points +24%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	70782 Points
Average of class Mini PC (3857 - 214250, n=117, last 2 years)	64155 Points -9%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	60111 Points -15%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	59704 Points -16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points -19%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points -22%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	54435 Points -23%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	40251 Points -43%

AIDA64 / CPU SHA3
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	3452 MB/s +46%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	2931 MB/s +24%
Average of class Mini PC (260 - 9399, n=117, last 2 years)	2829 MB/s +20%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s +8%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	2360 MB/s
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	2357 MB/s 0%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	2065 MB/s -12%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	2006 MB/s -15%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	1997 MB/s -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s -16%

AIDA64 / CPU Queen
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	103686 Points +37%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	100293 Points +32%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points +13%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	82454 Points +9%
Average of class Mini PC (8172 - 184747, n=117, last 2 years)	79428 Points +5%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	75724 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	75248 Points -1%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	73765 Points -3%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	70563 Points -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points -11%

AIDA64 / FPU SinJulia
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	13101 Points +46%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	12396 Points +38%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	8952 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	8738 Points -2%
Average of class Mini PC (408 - 29064, n=117, last 2 years)	8724 Points -3%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	8507 Points -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points -7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points -16%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	7444 Points -17%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	5567 Points -38%

AIDA64 / FPU Mandel
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	52710 Points +35%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	44629 Points +14%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	38989 Points
Average of class Mini PC (1987 - 113499, n=117, last 2 years)	33471 Points -14%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	33084 Points -15%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	32465 Points -17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points -19%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points -28%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	26735 Points -31%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	19857 Points -49%

AIDA64 / CPU AES
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	136723 MB/s +44%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s +5%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	95057 MB/s
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	92530 MB/s -3%
Average of class Mini PC (3691 - 325960, n=117, last 2 years)	87791 MB/s -8%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	82315 MB/s -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s -18%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	74716 MB/s -21%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	56199 MB/s -41%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	39680 MB/s -58%

AIDA64 / CPU ZLib
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	863 MB/s +41%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	745 MB/s +21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s +19%
Average of class Mini PC (74.9 - 2039, n=117, last 2 years)	732 MB/s +19%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	674 MB/s +10%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	614 MB/s
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	575 MB/s -6%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	531 MB/s -14%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	530 MB/s -14%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s -18%

AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	7973 KRay/s +38%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7288 KRay/s +26%
Average of class Mini PC (350 - 26952, n=117, last 2 years)	6821 KRay/s +18%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s 0%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	5777 KRay/s
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	5771 KRay/s 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	5058 KRay/s -12%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	5024 KRay/s -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s -20%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	4156 KRay/s -28%

AIDA64 / CPU PhotoWorxx
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	29765 MPixel/s +46%
Average of class Mini PC (4408 - 50500, n=117, last 2 years)	28317 MPixel/s +39%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	28118 MPixel/s +38%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	28010 MPixel/s +37%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	27720 MPixel/s +36%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	27456 MPixel/s +35%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s +19%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	20410 MPixel/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s -5%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	17803 MPixel/s -13%

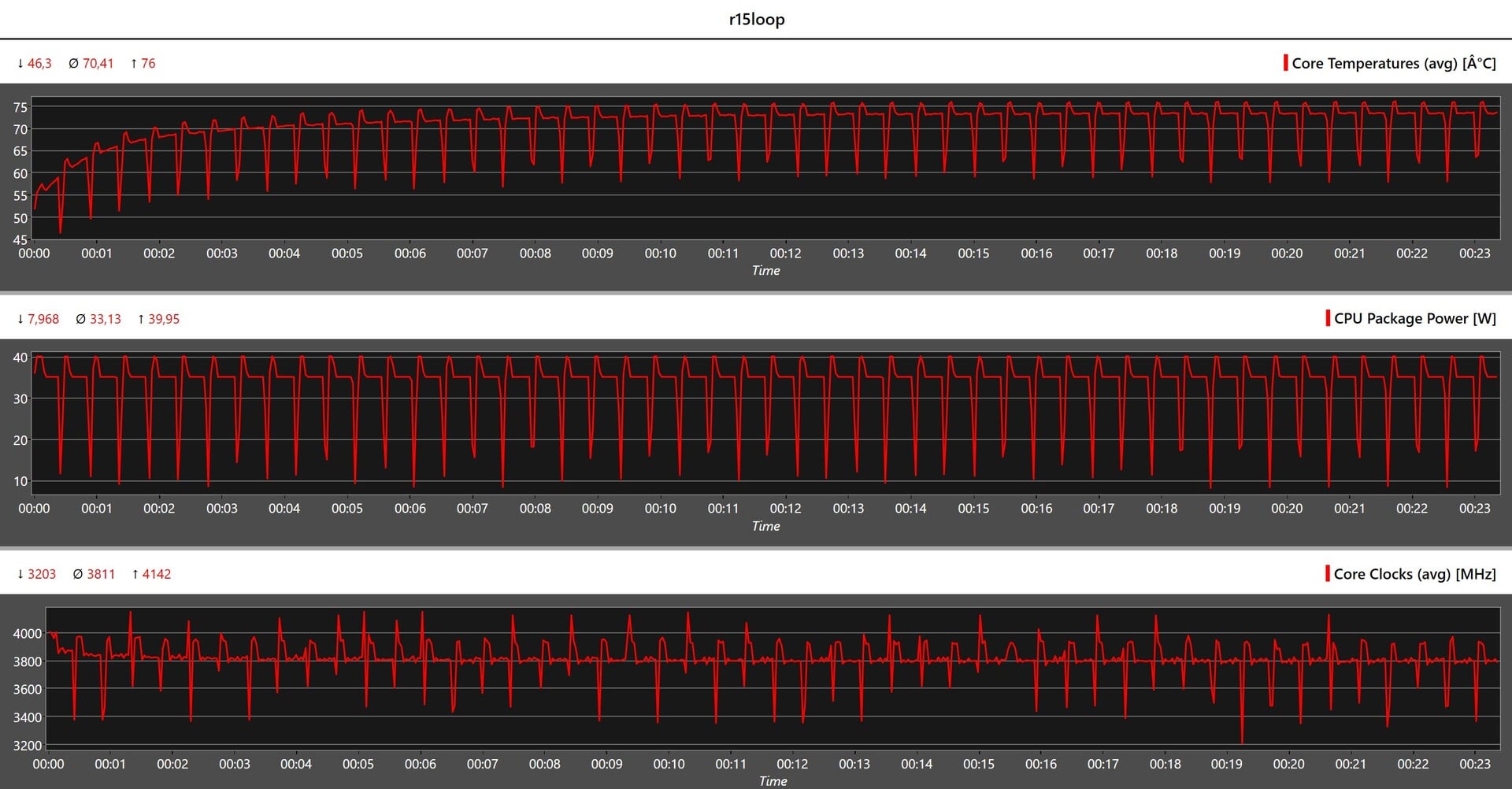

Minisforum Venus系列UM560 XT在Cinebench R15多循环测试中的表现

在Cinebench R15的连续循环中，可以很好地了解到系统在负载下的工作情况。Minisforum Venus系列UM560 XT出色地掌握了这项测试。AMD Ryzen 5 5600H在50次运行中的每一次结果都非常稳定，几乎没有明显的性能下降。在这个比较领域，没有其他系统能接近。

Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Ryzen 5 5600H: Ø1586 (1574.56-1611.34)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1099 (1072.7-1239.66)

Minisforum Venus Series NAB6 Intel Core i7-12650H, Intel Core i7-12650H: Ø1627 (1590.71-1899.25)

Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)

Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2111 (2087.36-2211.78)

Geekom Mini IT12 Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)

系统性能

在系统基准测试方面，MINISFORUM Venus Series UM560 XT表现非常好，在PCMark 10比较中取得了第三名。然而，在Crossmark比较中，情况显得有些不同。然而，正是在这个领域，所有配备AMD的设备都必须让位于英特尔的设备。拥有DDR4内存意味着Minisforum Venus系列UM560 XT只能用相当钝的武器来竞争。在这里，前三名被配备更快的DDR5内存的设备获得。尽管如此，我们的评测样本的性能是不错的，可以和UM560 XT相比。这在性能方面得到了主观的反映。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	7045 Points +14%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	6654 Points +8%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7, ESO512GYLCT	6189 Points
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	6187 Points 0%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	6057 Points -2%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	5872 Points -5%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, ESO512GYLCT	5862 Points -5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points -7%
Geekom Mini IT12, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	5658 Points -9%

PCMark 10 / Essentials
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	11395 Points +8%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	11217 Points +7%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	10838 Points +3%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7, ESO512GYLCT	10503 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, ESO512GYLCT	10484 Points 0%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	10390 Points -1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points -1%
Geekom Mini IT12, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	10139 Points -3%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9820 Points -7%

PCMark 10 / Productivity
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	10060 Points +4%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	9817 Points +2%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7, ESO512GYLCT	9642 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, ESO512GYLCT	9545 Points -1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points -1%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9031 Points -6%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	8164 Points -15%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	7673 Points -20%
Geekom Mini IT12, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	7427 Points -23%

CrossMark: Overall | Productivity | Creativity | Responsiveness

CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1894 Points +41%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1875 Points +39%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1738 Points +29%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1731 Points +29%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1517 Points +13%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1517 Points +13%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points +2%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1346 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1300 Points -3%

CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1921 Points +40%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1876 Points +37%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1738 Points +27%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1729 Points +26%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1491 Points +9%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1491 Points +9%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points +3%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1368 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1335 Points -2%

CrossMark / Creativity
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1811 Points +32%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1800 Points +31%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1749 Points +27%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1745 Points +27%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1652 Points +20%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1652 Points +20%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points 0%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1377 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1325 Points -4%

CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	2116 Points +77%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	2077 Points +74%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1734 Points +45%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1671 Points +40%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points +6%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1238 Points +3%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1238 Points +3%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1197 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1133 Points -5%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	50228 MB/s +20%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	47938 MB/s +15%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	47711 MB/s +14%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	46936 MB/s +12%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	45941 MB/s +10%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	44726 MB/s +7%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	41732 MB/s
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	38102 MB/s -9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s -16%

AIDA64 / Memory Read
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	51077 MB/s +9%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	50120 MB/s +7%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	49936 MB/s +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	49559 MB/s +6%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	47491 MB/s +1%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	46963 MB/s
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	46084 MB/s -2%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	40126 MB/s -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s -18%

AIDA64 / Memory Write
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	55194 MB/s +23%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	54750 MB/s +22%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	49353 MB/s +10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	47383 MB/s +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	46815 MB/s +4%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	46785 MB/s +4%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	44872 MB/s
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	40633 MB/s -9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s -16%

AIDA64 / Memory Latency
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	100 ns * -32%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	96.2 ns * -27%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	94 ns * -25%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	92.4 ns * -22%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * -21%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	83 ns * -10%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	80.2 ns * -6%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	75.5 ns *
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	71.6 ns * +5%

* ... smaller is better

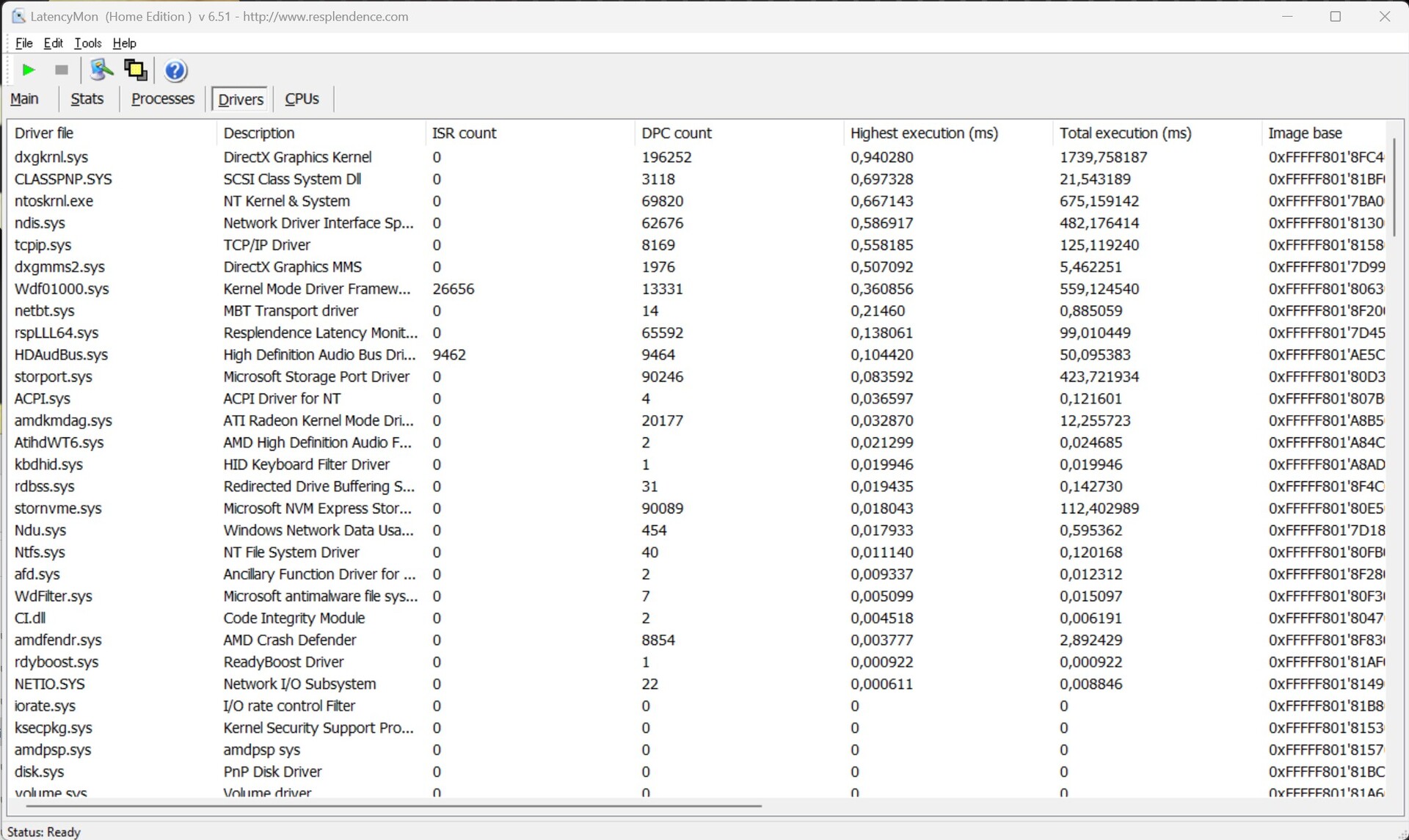

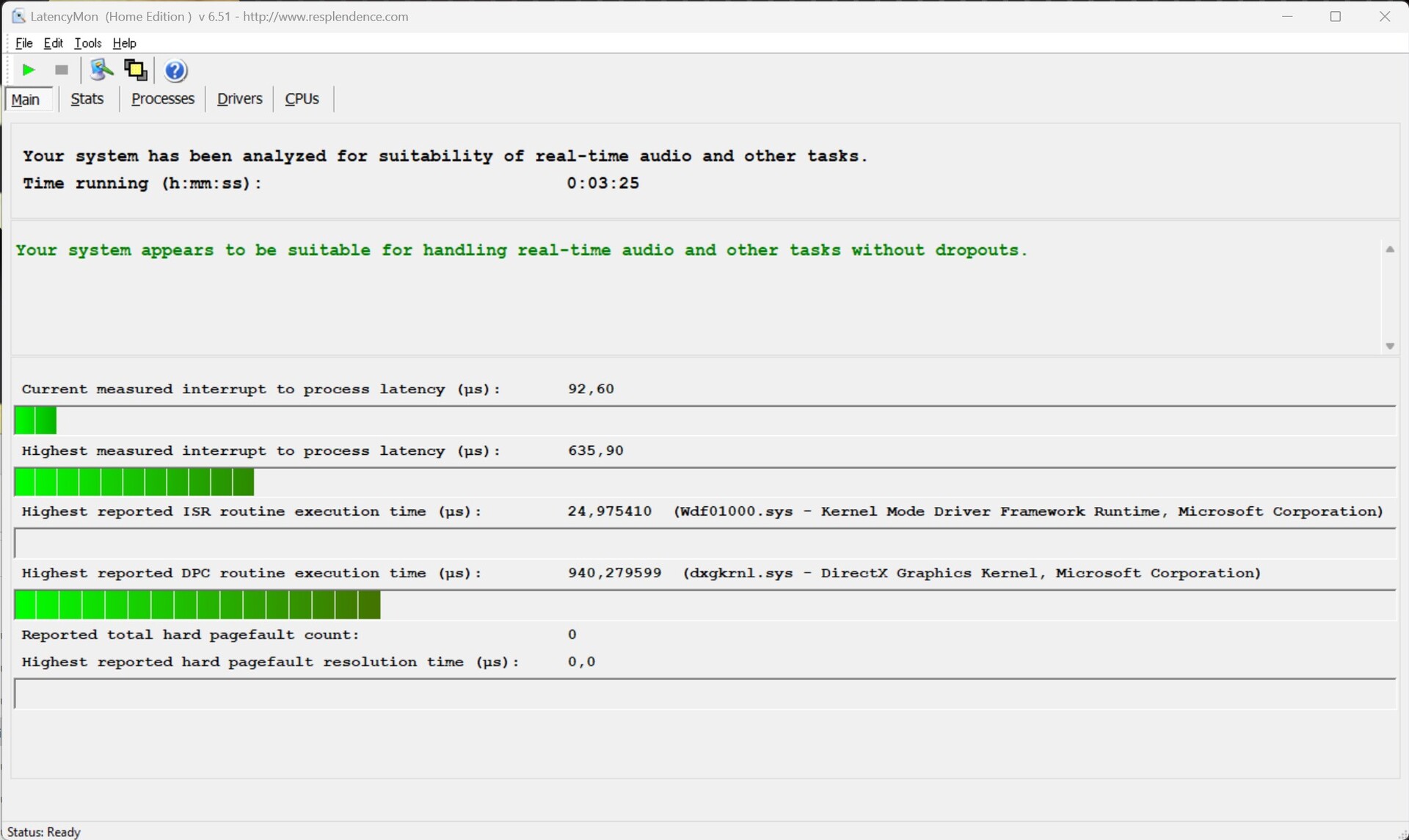

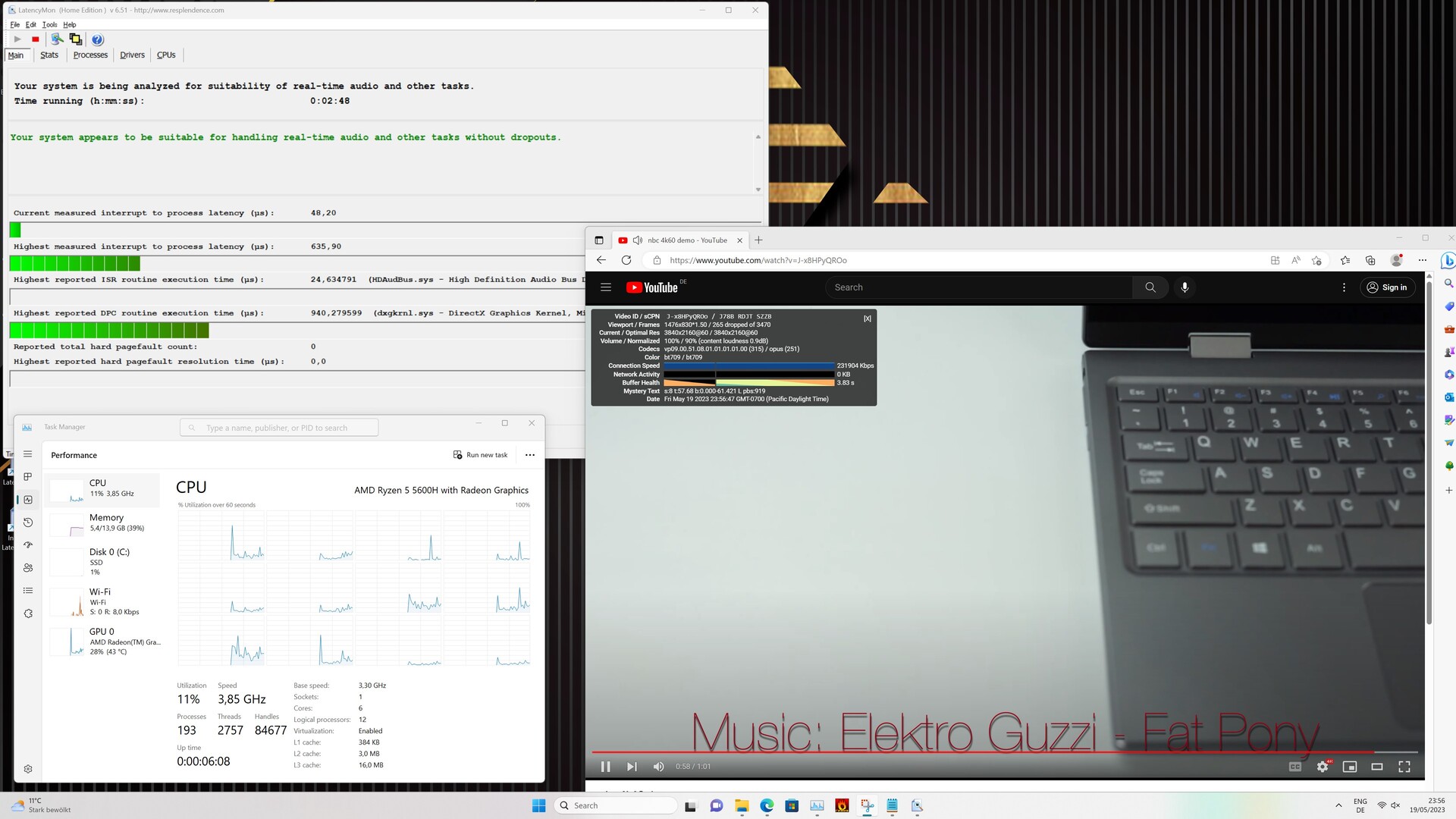

DPC延迟

Minisforum Venus Series UM560 XT没有遇到任何有问题的延迟。我们的评测设备完美地处理了Edge中多个标签的打开和4K测试视频的播放。使用Prime95，我们无法检测到任何增加的延迟。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1488 μs * -58%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1359.1 μs * -45%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1317 μs * -40%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1113.9 μs * -18%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1016.7 μs * -8%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	985.8 μs * -5%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	940.27 μs *
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	795 μs * +15%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	765 μs * +19%

* ... smaller is better

大容量存储

Minisforum为我们的Venus系列UM560 XT评测模型配备了一块512GB的固态硬盘，但没有说明其细节。安装的模型的传输率反映了其PCIe 3.0接口。拥有更快的PCIe 4.0固态硬盘的竞争者，享有不可企及的领先优势。在连续的负载下，MINISFORUM Venus系列UM560 XT在保持其SSD性能方面没有问题。正是在这一领域，为固态硬盘安装了一个相对较大的散热器，才有了回报。该设备总共可以容纳两个大容量存储设备。除了M.2接口，还有一个用于2.5英寸存储介质的SATA接口。该设备配备了相应的连接线。

其他比较和基准可以在我们的比较表.

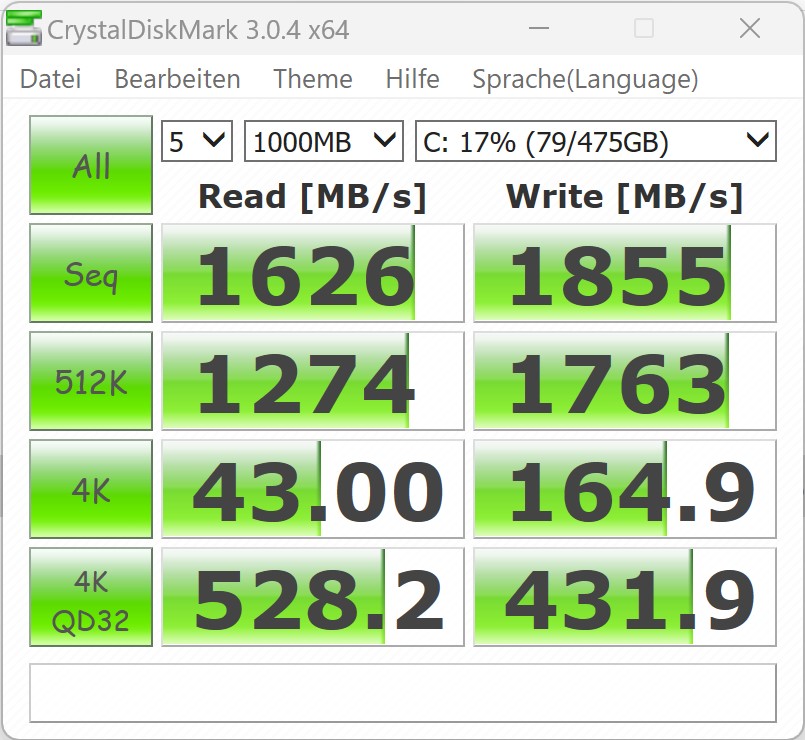

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

ESO512GYLCT

Sequential Read: 1626 MB/s

Sequential Write: 1855 MB/s

512K Read: 1274 MB/s

512K Write: 1763 MB/s

4K Read: 43 MB/s

4K Write: 164.9 MB/s

4K QD32 Read: 528.2 MB/s

4K QD32 Write: 431.9 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	85.3 pt
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	81.3 pt
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	69.7 pt
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	66.1 pt
Average of class Mini PC	52.7 pt
Minisforum Venus Series UM560 XT ESO512GYLCT	46.9 pt
Minisforum Mars Series MC560 ESO512GYLCT	41.1 pt
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	40.2 pt
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	36.8 pt
Geekom Mini IT12 Kingston OM8SEP4512N-A0	36.2 pt

DiskSpd
seq read
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3195 (3147.62^min - 3194.91^max) MB/s +94%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2815 (2802.79^min - 2814.97^max) MB/s +71%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2689 (2681.42^min - 2688.76^max) MB/s +63%
Average of class Mini PC (277 - 4357, n=117, last 2 years)	2326 MB/s +41%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s +27%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1720 (1344.24^min - 1720.17^max) MB/s +5%
Minisforum Venus Series UM560 XT ESO512GYLCT	1645 (1636.91^min - 1645.01^max) MB/s
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1451 (1441.37^min - 1451.23^max) MB/s -12%
Minisforum Mars Series MC560 ESO512GYLCT	1310 (1296.67^min - 1309.67^max) MB/s -20%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1176 (1169.13^min - 1175.87^max) MB/s -29%
seq write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3544 (3538.94^min - 3544.19^max) MB/s +89%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3539 (3516.6^min - 3538.94^max) MB/s +89%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3372.67^min - 3402.21^max) MB/s +81%
Average of class Mini PC (229 - 5595, n=117, last 2 years)	2492 MB/s +33%
Minisforum Venus Series UM560 XT ESO512GYLCT	1877 (1870.87^min - 1877.35^max) MB/s
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s -5%
Minisforum Mars Series MC560 ESO512GYLCT	1735 (1689.26^min - 1735.49^max) MB/s -8%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1530 (603.77^min - 1530.08^max) MB/s -18%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1203 (1169.58^min - 1202.51^max) MB/s -36%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1075 (545.51^min - 1075.26^max) MB/s -43%
seq q8 t1 read
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	4820 (3819.87^min - 4820.3^max) MB/s +104%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4801 (4506.78^min - 4800.59^max) MB/s +103%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4797 (4271.21^min - 4796.87^max) MB/s +103%
Average of class Mini PC (236 - 8430, n=117, last 2 years)	3772 MB/s +60%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2522 (2230.32^min - 2522.44^max) MB/s +7%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s +4%
Minisforum Venus Series UM560 XT ESO512GYLCT	2360 (2078.7^min - 2359.72^max) MB/s
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1987 (1409.4^min - 1987.27^max) MB/s -16%
Minisforum Mars Series MC560 ESO512GYLCT	1749 (1565.12^min - 1749.09^max) MB/s -26%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1694 (1415.05^min - 1693.87^max) MB/s -28%
seq q8 t1 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3541 (3519.65^min - 3541.04^max) MB/s +82%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3536 (3475.82^min - 3536.01^max) MB/s +82%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3374.28^min - 3401.67^max) MB/s +75%
Average of class Mini PC (239 - 6669, n=117, last 2 years)	2793 MB/s +44%
Minisforum Venus Series UM560 XT ESO512GYLCT	1946 (1938.09^min - 1945.74^max) MB/s
Minisforum Mars Series MC560 ESO512GYLCT	1815 (1770.86^min - 1814.81^max) MB/s -7%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s -9%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1599 (266.87^min - 1599.24^max) MB/s -18%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1213 (1155.74^min - 1212.78^max) MB/s -38%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1084 (553.02^min - 1084.16^max) MB/s -44%
4k q1 t1 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	82.8 (82.48^min - 82.75^max) MB/s +85%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.1 (81.4^min - 82.09^max) MB/s +83%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	70.8 (63.28^min - 70.81^max) MB/s +58%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	55.6 (54.87^min - 55.6^max) MB/s +24%
Average of class Mini PC (6.85 - 86.6, n=117, last 2 years)	55 MB/s +23%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	48.5 (48.27^min - 48.47^max) MB/s +8%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s +8%
Minisforum Venus Series UM560 XT ESO512GYLCT	44.8 (44.42^min - 44.77^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	40.3 (36.8^min - 40.3^max) MB/s -10%
Minisforum Mars Series MC560 ESO512GYLCT	35.4 (35.09^min - 35.36^max) MB/s -21%
4k q1 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	425 (415.92^min - 425.01^max) MB/s +152%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	420 (417.55^min - 420.16^max) MB/s +149%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	288 (287.39^min - 288.47^max) MB/s +71%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	276 (193.9^min - 275.81^max) MB/s +64%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	229 (165.03^min - 229.29^max) MB/s +36%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	220 (212.2^min - 220.15^max) MB/s +31%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s +25%
Average of class Mini PC (30.4 - 435, n=117, last 2 years)	196.5 MB/s +17%
Minisforum Venus Series UM560 XT ESO512GYLCT	168.4 (166.77^min - 168.37^max) MB/s
Minisforum Mars Series MC560 ESO512GYLCT	164.5 (163.24^min - 164.49^max) MB/s -2%
4k q32 t16 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1944 (1936.89^min - 1943.53^max) MB/s +134%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1939 (1934.48^min - 1939.25^max) MB/s +133%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	1933 (1926.8^min - 1932.75^max) MB/s +133%
Average of class Mini PC (26.1 - 4158, n=117, last 2 years)	1389 MB/s +67%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s +19%
Minisforum Venus Series UM560 XT ESO512GYLCT	831 (807.33^min - 831.01^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	561 (475.29^min - 560.56^max) MB/s -32%
Minisforum Mars Series MC560 ESO512GYLCT	424 (413.36^min - 423.78^max) MB/s -49%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	420 (418.45^min - 419.54^max) MB/s -49%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	354 (11.43^min - 353.56^max) MB/s -57%
4k q32 t16 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3388 (3373.11^min - 3387.88^max) MB/s +110%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3331 (2068.43^min - 3331.41^max) MB/s +107%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2396 (2376.28^min - 2396.46^max) MB/s +49%
Minisforum Venus Series UM560 XT ESO512GYLCT	1611 (1590.22^min - 1610.86^max) MB/s
Average of class Mini PC (32.6 - 4288, n=117, last 2 years)	1319 MB/s -18%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	942 (402.72^min - 941.71^max) MB/s -42%
Minisforum Mars Series MC560 ESO512GYLCT	934 (912.82^min - 933.64^max) MB/s -42%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	893 (601.78^min - 892.97^max) MB/s -45%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	659 (650.84^min - 659.33^max) MB/s -59%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	544 (355.98^min - 544.47^max) MB/s -66%

AS SSD
Score Total
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	9030 Points +188%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	7134 Points +127%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	6665 Points +112%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4744 Points +51%
Average of class Mini PC (211 - 10021, n=115, last 2 years)	4218 Points +34%
Minisforum Venus Series UM560 XT ESO512GYLCT	3139 Points
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2797 Points -11%
Minisforum Mars Series MC560 ESO512GYLCT	2491 Points -21%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2491 Points -21%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	748.83 Points -76%
Score Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3635 Points +281%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2391 Points +151%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2356 Points +147%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	2352 Points +147%
Average of class Mini PC (76 - 3741, n=115, last 2 years)	1567 Points +64%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1162 Points +22%
Minisforum Mars Series MC560 ESO512GYLCT	965 Points +1%
Minisforum Venus Series UM560 XT ESO512GYLCT	954 Points
Geekom Mini IT12 Kingston OM8SEP4512N-A0	725 Points -24%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	661 Points -31%
Score Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3615 Points +112%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3538 Points +108%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3145 Points +85%
Average of class Mini PC (88 - 4371, n=115, last 2 years)	1893 Points +11%
Minisforum Venus Series UM560 XT ESO512GYLCT	1702 Points
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1457 Points -14%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1308 Points -23%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1059 Points -38%
Minisforum Mars Series MC560 ESO512GYLCT	1037 Points -39%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	700 Points -59%
Seq Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	5338 MB/s +143%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4147 MB/s +89%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	4050 MB/s +85%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3874.21 MB/s +77%
Average of class Mini PC (291 - 6620, n=115, last 2 years)	3216 MB/s +47%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2844 MB/s +30%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2789 MB/s +27%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2260 MB/s +3%
Minisforum Venus Series UM560 XT ESO512GYLCT	2193 MB/s
Minisforum Mars Series MC560 ESO512GYLCT	2181 MB/s -1%
Seq Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3927 MB/s +123%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3292 MB/s +87%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3025 MB/s +72%
Average of class Mini PC (242 - 5783, n=115, last 2 years)	2271 MB/s +29%
Minisforum Mars Series MC560 ESO512GYLCT	1769 MB/s 0%
Minisforum Venus Series UM560 XT ESO512GYLCT	1762 MB/s
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1644 MB/s -7%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1232 MB/s -30%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	882.93 MB/s -50%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	524 MB/s -70%
4K Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	103.66 MB/s +87%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	102.97 MB/s +86%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	86.05 MB/s +56%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	66.6 MB/s +20%
Average of class Mini PC (21.4 - 104.3, n=115, last 2 years)	59.6 MB/s +8%
Minisforum Venus Series UM560 XT ESO512GYLCT	55.3 MB/s
Minisforum Mars Series MC560 ESO512GYLCT	55.1 MB/s 0%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	53.5 MB/s -3%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	52.54 MB/s -5%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	48.9 MB/s -12%
4K Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	365.87 MB/s +141%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	354.53 MB/s +134%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	273 MB/s +80%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	240.66 MB/s +59%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	209 MB/s +38%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	185.4 MB/s +22%
Average of class Mini PC (30.9 - 366, n=115, last 2 years)	177.2 MB/s +17%
Minisforum Mars Series MC560 ESO512GYLCT	160.1 MB/s +5%
Minisforum Venus Series UM560 XT ESO512GYLCT	151.8 MB/s
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	144.1 MB/s -5%
4K-64 Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3035 MB/s +347%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1872.82 MB/s +176%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1865.81 MB/s +175%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	1860.96 MB/s +174%
Average of class Mini PC (23.4 - 3220, n=115, last 2 years)	1185 MB/s +75%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	883.24 MB/s +30%
Minisforum Mars Series MC560 ESO512GYLCT	692 MB/s +2%
Minisforum Venus Series UM560 XT ESO512GYLCT	679 MB/s
Geekom Mini IT12 Kingston OM8SEP4512N-A0	397 MB/s -42%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	323 MB/s -52%
4K-64 Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3013 MB/s +119%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2842.9 MB/s +107%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	2602.12 MB/s +89%
Average of class Mini PC (32.8 - 3731, n=115, last 2 years)	1489 MB/s +8%
Minisforum Venus Series UM560 XT ESO512GYLCT	1374 MB/s
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1060 MB/s -23%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	865.27 MB/s -37%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	750.4 MB/s -45%
Minisforum Mars Series MC560 ESO512GYLCT	699 MB/s -49%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	462 MB/s -66%
Access Time Read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.117 ms * -166%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.098 ms * -123%
Average of class Mini PC (0.022 - 0.489, n=115, last 2 years)	0.09625 ms * -119%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.075 ms * -70%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.074 ms * -68%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.066 ms * -50%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	0.065 ms * -48%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.06 ms * -36%
Minisforum Venus Series UM560 XT ESO512GYLCT	0.044 ms *
Minisforum Mars Series MC560 ESO512GYLCT	0.022 ms * +50%
Access Time Write
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.118 ms * -392%
Average of class Mini PC (0.014 - 0.765, n=115, last 2 years)	0.111 ms * -363%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.11 ms * -358%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.102 ms * -325%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.031 ms * -29%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	0.031 ms * -29%
Minisforum Mars Series MC560 ESO512GYLCT	0.024 ms * -0%
Minisforum Venus Series UM560 XT ESO512GYLCT	0.024 ms *
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.023 ms * +4%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.018 ms * +25%

* ... smaller is better

Continuous performance Read: DiskSpd Read Loop, Queue Depth 8

Minisforum Venus Series UM560 XT ESO512GYLCT: Ø2347 (2148.11-2354.15)

Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G: Ø1878 (827.51-2439.04)

Minisforum Mars Series MC560 ESO512GYLCT: Ø1752 (1554.86-1765.21)

Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0: Ø4789 (4164.37-4807.96)

Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G: Ø1770 (1505.89-1954.62)

Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0: Ø2987 (1605.58-4819.04)

Geekom Mini IT12 Kingston OM8SEP4512N-A0: Ø2178 (1555.46-2595.65)

Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0: Ø3302 (1830.49-4799.45)

Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S: Ø1047 (95.4-2400.59)

图形卡

Minisforum Venus Series UM560 XT有一个集成显卡，其形式是AMD Radeon RX Vega 7 。在直接比较中，这个iGPU与Intel Iris Xe Graphics G7 或AMD Radeon 660M 的性能水平相似。AMD Radeon 680M 拥有明显更多的功率，除其他设备外，还可以在Minisforum Venus系列UM690中找到。

其他的比较和基准可以在我们的G PU比较表.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	99.1 pt
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	98 pt
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	72.5 pt
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	63 pt
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	62.3 pt
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	57.4 pt
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	54.3 pt
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	53.8 pt
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	51.4 pt

3DMark 11 - 1280x720 Performance GPU
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	11055 Points +82%
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	10845 Points +78%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	7057 Points +16%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6599 Points +9%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	6079 Points
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5923 Points -3%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	5634 Points -7%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points -8%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5462 Points -10%

3DMark
1280x720 Cloud Gate Standard Graphics
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	43275 Points +45%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	41124 Points +37%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	30434 Points +2%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	29927 Points
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	28159 Points -6%
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	27497 Points -8%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points -12%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	22570 Points -25%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	21383 Points -29%
1920x1080 Fire Strike Graphics
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	6679 Points +68%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6644 Points +67%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5526 Points +39%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4860 Points +22%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	4621 Points +16%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4098 Points +3%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	3971 Points
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3819 Points -4%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points -10%
2560x1440 Time Spy Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2408 Points +93%
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	2351 Points +89%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1658 Points +33%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1528 Points +23%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	1430 Points +15%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1247 Points
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1217 Points -2%
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1153 Points -8%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1102 Points -12%
Fire Strike Extreme Graphics
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	3206 Points +94%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	3066 Points +85%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	2455 Points +48%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	2150 Points +30%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	2149 Points +30%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1866 Points +13%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1654 Points
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1583 Points -4%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1472 Points -11%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1

Performance Rating - Percent
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	98.3 pt
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	90 pt
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57.9 pt
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	56.9 pt
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	55.8 pt
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	55 pt
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	50.1 pt
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	49.4 pt
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	48.8 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	34.6 fps +66%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	33.6 fps +61%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	23.3 fps +11%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21 fps 0%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	20.9 fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.4 fps -2%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	19.7 fps -6%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	18.6 fps -11%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.7 fps -15%
Extreme Preset DX11
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	33.4 fps +69%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	32.2 fps +63%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	24 fps +21%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21.7 fps +10%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.9 fps +6%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	20.4 fps +3%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	19.8 fps
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	18.2 fps -8%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.1 fps -14%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	21 fps +59%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	18.8 fps +42%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	14.3 fps +8%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	13.2 fps 0%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	13.2 fps
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	12.8 fps -3%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	12.3 fps -7%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.3 fps -14%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	10.9 fps -17%
1920x1080 Extreme HD Preset OpenGL AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	22.8 fps +69%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	21.3 fps +58%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	16.1 fps +19%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	15.2 fps +13%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	15.1 fps +12%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	13.5 fps
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	12.2 fps -10%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	11.6 fps -14%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.5 fps -15%

ComputeMark v2.1
1024x600 Normal, Score
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	7111 Points +119%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	5813 Points +79%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	3439 Points +6%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	3390 Points +5%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	3308 Points +2%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	3244 Points
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	3225 Points -1%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	2999 Points -8%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	2512 Points -23%
1024x600 Normal, Fluid 3DTex
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	400 Points +47%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	371 Points +36%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	318 Points +17%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	272 Points
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	243 Points -11%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points -13%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	234 Points -14%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	224 Points -18%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	216 Points -21%
1024x600 Normal, Fluid 2DTexArr
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	404 Points +55%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	367 Points +41%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	340 Points +31%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	260 Points
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	249 Points -4%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points -9%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	231 Points -11%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	220 Points -15%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	212 Points -18%
1024x600 Normal, Mandel Vector
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	2030 Points +114%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1677 Points +77%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	982 Points +4%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	948 Points
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	933 Points -2%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	851 Points -10%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	827 Points -13%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	790 Points -17%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	483 Points -49%
1024x600 Normal, Mandel Scalar
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	1945 Points +120%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1473 Points +67%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	906 Points +2%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	885 Points 0%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	884 Points
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	877 Points -1%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	865 Points -2%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	834 Points -6%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	770 Points -13%
1024x600 Normal, QJuliaRayTrace
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	2332 Points +165%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1924 Points +119%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1191 Points +35%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	1174 Points +33%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	963 Points +9%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	900 Points +2%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	880 Points
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	857 Points -3%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	823 Points -6%

3DMark 05 Standard		41219 points
3DMark 06 Standard Score		27686 points
3DMark Vantage P Result		19568 points
3DMark 11 Performance		6495 points
3DMark Ice Storm Standard Score		130670 points
3DMark Cloud Gate Standard Score		23474 points
3DMark Fire Strike Score		3632 points
3DMark Fire Strike Extreme Score		1639 points
3DMark Time Spy Score		1420 points
Help

... in comparison

游戏性能

由于iGPU的3D性能有限，Minicforum Venus系列UM560 XT不能说是适合游戏。然而，我们的审查设备显示，一些游戏在低细节下是可以玩的，这要归功于其 AMD Radeon RX Vega 7但大多不是在1080p分辨率下。任何对纯游戏性能非常重视的人都应该看看带有专用显卡的迷你PC。有两个很好的例子也是MINISFORUM的设备，它们是 HX99G以及NUCXi7.

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	131.8 fps +75%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	113.9 fps +51%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	101.7 fps +35%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	97.2 fps +29%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	86.9 fps +15%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	75.4 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	61.8 (16.1^min, 20.6^P0.1, 34.6^P1) fps -18%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	41.3 fps +80%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	39.4 fps +71%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	32 fps +39%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	31.1 fps +35%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	28.9 fps +26%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	23 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	19.6 (10.2^min, 13^P0.1, 16.4^P1) fps -15%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	90.7 fps +37%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	82.1 fps +24%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	66.4 fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	59.1 fps -11%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	55.5 fps -16%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	53.4 fps -20%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	51.8 fps -22%
1920x1080 High Overall Quality (DX11)
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	26.5 fps +70%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	24.1 fps +54%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	16.2 fps +4%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	16.2 fps +4%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	15.6 fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	14.8 fps -5%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	13.3 fps -15%

GTA V
1024x768 Lowest Settings possible
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	152.1 (2.73^min, 100^P1) fps +8%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	149.3 (5.43^min, 100^P1) fps +6%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	140.7 (5.04^min, 90.9^P1) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	135.3 (26.7^min, 90.9^P1) fps -4%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	126.2 (50.6^min, 76.9^P1) fps -10%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	119.3 (25.1^min, 76.9^P1) fps -15%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	114.3 (8.54^min, 76.9^P1) fps -19%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	53.5 (3.46^min, 38.5^P1) fps +69%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	49.3 (7.78^min, 34.5^P1) fps +56%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	31.7 (15.9^min, 23.3^P1) fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	27.2 (6.42^min, 20^P1) fps -14%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	21 (8.15^min, 16.1^P1) fps -34%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	20.7 (9.05^min, 15.9^P1) fps -35%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	18.6 (8^min, 14.3^P1) fps -41%

Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	75 (60^min) fps +32%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	71 (39^min) fps +25%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57 (49^min) fps 0%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	57 (51^min) fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	50 (41^min) fps -12%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	46 (37^min) fps -19%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	44 (38^min) fps -23%
1920x1080 High Preset AA:T
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	39 (34^min) fps +56%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	34 (30^min) fps +36%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	27 (24^min) fps +8%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	25 (22^min) fps 0%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (22^min) fps 0%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	25 (22^min) fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	20 (17^min) fps -20%

Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	66 (50^min) fps +27%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	65 (50^min) fps +25%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	52 (31^min) fps 0%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	52 (34^min) fps 0%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	52 (39^min) fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	46 (28^min) fps -12%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	40 (31^min) fps -23%
1920x1080 High Preset
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	37 (17^min) fps +54%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	37 (29^min) fps +54%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	28 (21^min) fps +17%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	28 (22^min) fps +17%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (19^min) fps +4%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	24 (20^min) fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	19 (16^min) fps -21%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	143 (124.5^min) fps +4%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	137.7 (114.5^min) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	136.9 (106.8^min) fps -1%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	133.4 (119^min) fps -3%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	123.8 (98^min) fps -10%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	111 (97.1^min) fps -19%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	108.1 (86.6^min) fps -21%
1920x1080 high (2/3)
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	84.3 (74.6^min) fps +36%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	82.2 (71.4^min) fps +32%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	68 (62.7^min) fps +10%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	67.6 (59.9^min) fps +9%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	62.1 (57.1^min) fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	60.9 (55.7^min) fps -2%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	50.5 (43.6^min) fps -19%

	low	med.	high	ultra
GTA V (2015)	140.7	123	31.7	15
The Witcher 3 (2015)	75.4	45.4	23	14.8
Dota 2 Reborn (2015)	137.7	107.8	62.1	58.2
Final Fantasy XV Benchmark (2018)	40.8	20.2	14.3
X-Plane 11.11 (2018)	49.5	37	31.9
Far Cry 5 (2018)	57	27	25	23
Strange Brigade (2018)	94.4	36.1	30.1	25.4
Far Cry New Dawn (2019)	52	26	24	22
Metro Exodus (2019)	44	19.1	14.1	11.8
Borderlands 3 (2019)	66.4	25.2	15.6	11.9
F1 2020 (2020)	102.7	45.3	35.3	24.7
F1 2021 (2021)	107.9	45.8	35.6	23.7
Far Cry 6 (2021)	47	21.9	18.1	15.3
Tiny Tina's Wonderlands (2022)	33.1	25.1	15.7	11.5
F1 22 (2022)	42.3	38	28.2	19.7

排放 - 尽管性能良好，但非常安静

声音排放

在声音测量方面，Minisforum Venus系列UM560 XT表现出色，属于这里比较的最安静的机器。当空闲或低负荷运行时，该设备几乎无声无息。我们的测量设备在高负荷下只记录了33.2分贝（A）的音量水平。

Noise Level

Idle		30.3 / 30.5 / 30.6 dB(A)
Load		32.5 / 33.2 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 30 dB(A)

	Minisforum Venus Series UM560 XT R5 5600H, Vega 7	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minisforum Mars Series MC560 R5 5600U, Vega 7	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Morefine M600, 6600U R5 6600U, Radeon 660M
Noise		-21%	0%	-1%	-5%	-4%	1%	2%	6%
off / environment *	30	30.5 -2%	30.2 -1%	29.4 2%	30.4 -1%	30.5 -2%	29.8 1%	30.2 -1%	29.4 2%
Idle Minimum *	30.3	31.5 -4%	30.4 -0%	29.4 3%	30.9 -2%	31.6 -4%	29.9 1%	30.5 -1%	29.4 3%
Idle Average *	30.5	32.6 -7%	30.4 -0%	29.5 3%	31.5 -3%	31.6 -4%	30.1 1%	30.5 -0%	29.4 4%
Idle Maximum *	30.6	33.8 -10%	30.4 1%	29.7 3%	31.5 -3%	31.6 -3%	30.2 1%	30.5 -0%	29.5 4%
Load Average *	32.5	49.3 -52%	31.8 2%	34.6 -6%	37.5 -15%	33.9 -4%	32.1 1%	30.5 6%	29.6 9%
Load Maximum *	33.2	50.9 -53%	33.4 -1%	36.1 -9%	34.1 -3%	34.4 -4%	32.5 2%	30.5 8%	29.6 11%

* ... smaller is better

温度

Minisforum Venus系列UM560 XT的机箱只有在空载运行时才会稍微发热。但即使在负载情况下，机箱的温度也基本保持在绿色区域。在风扇出口的区域可以感觉到明显的升温，这在我们的热成像仪图像中可以完美观察到。

在压力测试中，我们也看了一下内置的组件。即使在压力测试中，保守设置的SoC（最大40瓦）也被很好地控制住了。在我们的评测设备中，我们没有观察到任何超过77.6℃的温度。由于最大封装功率只在短时间内可用，所以最高温度只在短时间内达到。在压力测试中，SoC的工作温度为67℃。

消耗功率

在我们的比较中，我们的Minisforum Venus系列UM560 XT是最经济的设备，仅次于 Minisforum Mars系列MC560这有助于它获得第二名。对竞争对手的领先优势有时是相当大的。在空闲运行时，MINISFORUM通常能控制UM560 XT的功耗，而我们的评测设备正是在这一领域将自己与同行区分开来。在压力测试中，我们短暂地看到73.4瓦的最高值，但这并不是永久性的。在45.1瓦的时候，功率要求趋于平稳，与拥有类似SoC功率的竞争对手持平。电源单元可以提供高达120瓦的功率，它可靠地、持续地给我们的测试单元供电。这意味着有足够的空间用于可选的第二个存储介质。

Power Consumption

Off / Standby	0.7 / 1 Watt
Idle	6.6 / 6.8 / 7.2 Watt
Load	45.1 / 73.4 Watt


Key: min: , med: , max: Metrahit Energy

	Minisforum Venus Series UM560 XT R5 5600H, Vega 7	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minisforum Mars Series MC560 R5 5600U, Vega 7	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Morefine M600, 6600U R5 6600U, Radeon 660M	Average AMD Radeon RX Vega 7	Average of class Mini PC
Power Consumption		-12%	10%	-62%	-55%	-39%	-10%	-88%	-21%	7%	-58%
Idle Minimum *	6.6	8.4 -27%	6.2 6%	10.4 -58%	9.9 -50%	8.7 -32%	5 24%	12.1 -83%	8 -21%	4.66 ?(2.6 - 8.4, n=52) 29%	9.51 ?(1.9 - 45.7, n=119, last 2 years) -44%
Idle Average *	6.8	8.7 -28%	6.3 7%	12.3 -81%	11 -62%	9.6 -41%	7 -3%	13 -91%	8.7 -28%	7.56 ?(4.8 - 10.7, n=52) -11%	11.7 ?(1.9 - 47.5, n=117, last 2 years) -72%
Idle Maximum *	7.2	9.3 -29%	7.5 -4%	12.4 -72%	11.2 -56%	10.5 -46%	10.7 -49%	18.2 -153%	8.8 -22%	8.95 ?(5.6 - 13.8, n=52) -24%	15.1 ?(2.6 - 57.1, n=119, last 2 years) -110%
Load Average *	45.1	46.4 -3%	41.3 8%	72.9 -62%	74.2 -65%	65.8 -46%	50.3 -12%	70.6 -57%	54.6 -21%	38.7 ?(21.6 - 54.9, n=53) 14%	58.2 ?(11.3 - 170.6, n=119, last 2 years) -29%
Load Maximum *	73.4	52 29%	49 33%	101.2 -38%	103.2 -41%	94.5 -29%	82 -12%	113 -54%	83.2 -13%	51.9 ?(31 - 73.4, n=52) 29%	98.9 ?(18.1 - 423, n=119, last 2 years) -35%

* ... smaller is better

Power consumption with an external monitor

Minisforum Venus Series UM560 XT; Prime95 V2810 Stress (external Monitor): Ø64.9 (63.1-73.4)

Minisforum Venus Series UM560 XT; Cinebench R15 Multi (external Monitor): Ø65.1 (61.9-70.2)

Minisforum Venus Series UM560 XT; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø45.2 (42.7-58.8)

Minisforum Venus Series UM560 XT; Idle 1min (external Monitor): Ø7.26 (6.46-10.2)

Pros

+ 时尚的设计

+ 低能耗要求

+ 稳定的SSD性能

+ 非常紧凑的外壳

+ 低DPC延迟

+ 可以同时使用三个显示器（最大）。

+ 许多USB端口

+ 坚固的金属支架

+ VESA安装选项

+ 负载下几乎听不到声音

+ 价格低廉

Cons

- 没有SD卡读卡器

- 没有Thunderbolt/USB4

结论 - 一台具有良好性能的经济型迷你电脑

Minisforum维纳斯系列UM560 XT评测 - 由Minisforum提供

当我们对MINISFORUM金星系列UM560 XT进行评测时，我们知道我们面对的不是一个未知的竞争对手，因为我们已经被顶级机型的性能所说服并留下深刻印象。基于AMD Ryzen 5 5600H，制造商为这个模型配备了一个旧的SoC，就性能而言，目前仍然可以切割它。然而，在连接方面，你必须做到没有USB4。然而，从数字上看，许多可用的外部端口很快就打消了对连接性受损的担忧。在制造质量方面，我们没有发现任何缺陷，尽管通过覆盖的螺丝打开设备让我们有一些抱怨。但是，至少Minisforum Venus系列UM560 XT也可以作为裸机版本购买。这使得打开机箱成为必要。如果因此而使胶合的支脚失去稳定性，这不可避免地会导致某种程度上的预设视觉缺陷。

Minisforum Venus系列UM560 XT以其出色的性能和相对较低的价格给我们留下了深刻印象。然而，该设备缺乏最先进的端口，如Thunderbolt。

我们喜欢大型的、被动冷却的固态硬盘和坚实的建造质量，以及稳定的支架。该机器的低排放值得一提，因为迷你PC的功耗和噪音排放都可以被视为优势。这样一来，该系统在关键的地方得分很高。对于日常办公来说，MINISFORUM Venus系列UM560 XT也适合作为流媒体客户端，因为低延迟使得高分辨率视频的播放没有问题。然而，由于节流的功耗，制造商也浪费了该设备的潜力。相反，更多的价值被放在了拥有一个更平衡的系统上，该系统在执行日常任务时是安静的，但仍然能够提供足够的性能而不需要太多的电力。在我们看来，这个目标已经实现了。一个额外的卖点可能是以价格的形式出现的。我们的Minisforum Venus系列UM560 XT评测模型只有419美元，配备16GB内存和512GB存储，不会在家庭预算中留下一个巨大的漏洞。在这个领域，目前所有的竞争对手在我们的评论中都在努力跟上。任何目前对雷电技术不是绝对必须的，而且未来也不会有任何用途的人，都可以自信地扣动扳机购买这台机器。

价格和可用性

Minisforum Venus Series UM560 XT可以直接在Minisforum上购买。目前，正在提供有吸引力的折扣，并已包括税收。这意味着我们的测试设备，可以以419美元的价格买到。.如果没有任何折扣，价格约为549美元。目前，较便宜的裸机型号折扣为329美元。

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Minisforum Venus Series UM560 XT - 05/22/2023 v7 ^(old)
Sebastian Bade

Chassis

81 / 98 → 83%

Connectivity

62 / 81 → 76%

Weight

81%

Games Performance

67%

Application Performance

94%

Workstation

64%

Noise

87%

Average

77%

82%

Mini PC - Weighted Average

Minisforum Venus系列UM560 XT台式电脑评测：配备AMD Cezanne SoC的迷你电脑，价格实惠!

浪费表演!

Possible competitors compared

Minisforum Venus系列UM560 XT的详细介绍

案例

尺寸比较

特点

沟通

性能 - 基于塞尚一代的AMD

测试条件

处理器

Minisforum Venus系列UM560 XT在Cinebench R15多循环测试中的表现

系统性能

DPC延迟

大容量存储

Continuous performance Read: DiskSpd Read Loop, Queue Depth 8

图形卡

游戏性能

排放 - 尽管性能良好，但非常安静

声音排放

温度

消耗功率

Power consumption with an external monitor

Pros

Cons

结论 - 一台具有良好性能的经济型迷你电脑

价格和可用性

Transparency

More articles related to this device
