联想 ThinkBook 16p Gen 5 笔记本电脑评测：为创作者设计的隐藏式联想Legion

Name: Lenovo ThinkBook 16p G5 IRX 21N50011GE
Brand: Lenovo

性能高于一切。

联想 ThinkBook 16p Gen 5 IRX 是中小企业笔记本电脑 ThinkBook 系列中功能最强大的机型。它配备了广色域显示屏、笔记本电脑中最强的 i9 处理器和 NvidiaGeForce RTX 4060，主要面向创作者和多媒体市场。不过，不仅创作者可能会发现它的吸引力--ThinkBook 还可以玩游戏。
Benjamin Herzig, 👁 Benjamin Herzig (translated by DeepL / Ninh Duy) Published 10/23/2024 🇺🇸 🇩🇪 ...
Business Geforce Windows Raptor Lake Laptop / Notebook

结论联想 ThinkBook 16p G5 IRX 只适合放在办公桌上使用

作为一款多媒体笔记本电脑，联想 ThinkBook 16p Gen 5 IRX 主要提供了一样东西：性能。酷睿 i9 和 RTX 4060 的组合加上高功耗限制，让这款联想笔记本电脑在基准测试中一飞冲天。加上良好的输入设备和色域覆盖率极高的屏幕，它是一款能轻松应对创作者市场上各种任务的工作主力的绝佳组合。

Test device courtesy of campuspoint.de

Download your licensed rating image as PNG / SVG

需要指出的是，性能会对移动性造成影响：电池寿命低于平均水平，联想 ThinkBook 很快就没电了。再加上又大又重的充电器，带着这款笔记本出门可不是件好玩的事。如果需要一台功能强大的台式电脑替代品，而且只是偶尔携带，ThinkBook 16p Gen 5 IRX 可以是一个非常有趣的组合，它还提供了良好的可升级性。

Pros

+ 极高的 CPU 性能

+ 良好的输入设备

+ 端口多，包括 SD 卡

+ 屏幕覆盖 DCI P3

+ 坚固的铝制机箱

+ 游戏就绪

+ 可升级（2x SO-DIMM、2x M.2 2280、模块化 Wi-Fi）

Cons

- 电池寿命短

- 需要大而重的充电器

- 没有 OLED/微型 LED 屏幕

- 显示屏无动态刷新率

- 风扇噪音大

- 无 RJ45 以太网

- 保修期短

定价和可用性

联想ThinkBook 16p Gen 5 IRX在德国的测试版售价为2120欧元。在美国，该产品在 Lenovo.com 的起价为 1,559 美元。

$1,219.75

Lenovo ThinkBook 16p G4 IRH 21J8002LUS 16" Notebook - WQXGA - 2560 x 1600 - Intel Core i5 13th Gen i5-13500H Dodeca-core (12 Core) 2.60 GHz - 16 GB Total RAM - 512 GB SSD - Storm Gray

$1,423.75
Lenovo ThinkBook 16p G4 IRH 16" WQXGA Notebook Computer, Intel Core i7-13700H 2.4GHz, 16GB RAM, 512GB SSD, NVIDIA GeForce RTX 4060 8GB, Windows 11 Pro, Storm Gray
$699.00
Lenovo ThinkBook 16 G6 16" FHD+ Laptop Computer, Hexa-Core AMD Ryzen 5 7430U (Beat i7-1355U), 16GB DDR4 RAM, 512GB PCIe SSD, WiFi 6, Bluetooth 5.3, Fingerprint Reader, Windows 11 Pro, AZ-XUT

Price comparison

潜在的竞争对手比较

Image	Model / Review	Weight	Height	Display
1. 85.1%	Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX ⎘ NVIDIA GeForce RTX 4060 Laptop GPU ⎘ 32 GB Memory, 1024 GB SSD	2.2 kg	23.1 mm	16.00" 3200x2000 236 PPI IPS LCD
2. 87.9% ^{v7 (old)}	Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX ⎘ NVIDIA GeForce RTX 3060 Laptop GPU ⎘ 32 GB Memory, 1024 GB SSD	2.1 kg	19.5 mm	16.00" 2560x1600 189 PPI IPS
3. 87.8%	Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370 ⎘ NVIDIA GeForce RTX 4070 Laptop GPU ⎘ 64 GB Memory, 1024 GB SSD	1.8 kg	17.3 mm	16.00" 3840x2400 283 PPI OLED
4. 90% ^{v7 (old)}	Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H ⎘ NVIDIA GeForce RTX 4060 Laptop GPU ⎘ 32 GB Memory, 1024 GB SSD	1.9 kg	17.9 mm	16.00" 3072x1920 226 PPI IPS
5. 89.6% ^{v7 (old)}	Framework Laptop 16 AMD Ryzen 9 7940HS ⎘ AMD Radeon RX 7700S ⎘ 32 GB Memory, 1024 GB SSD	2.4 kg	20.95 mm	16.00" 2560x1600 189 PPI
6. 83.5%	Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H ⎘ NVIDIA GeForce RTX 4060 Laptop GPU ⎘ 32 GB Memory, 1024 GB SSD	2 kg	20.5 mm	16.00" 2560x1600 189 PPI IPS LED

结论联想 ThinkBook 16p G5 IRX 只适合放在办公桌上使用
机箱：带有Legion 设计元素的典型 ThinkBook
连接性ThinkBook 可升级
输入设备：配有漂亮键盘和玻璃触摸板的联想笔记本电脑
显示屏 3.高色域覆盖范围的 2K 屏幕

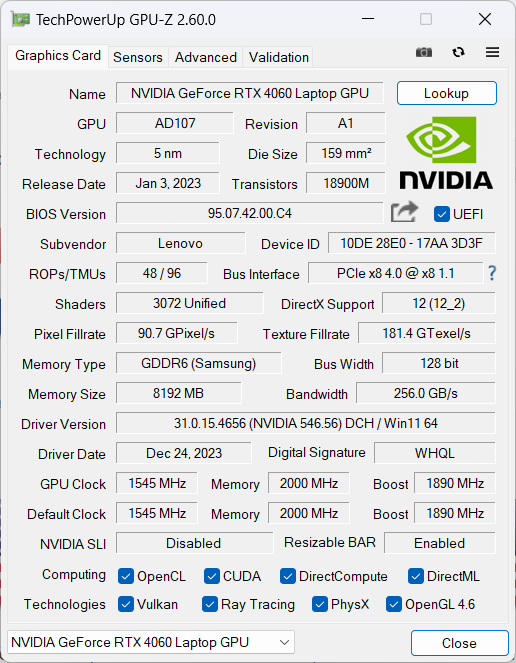

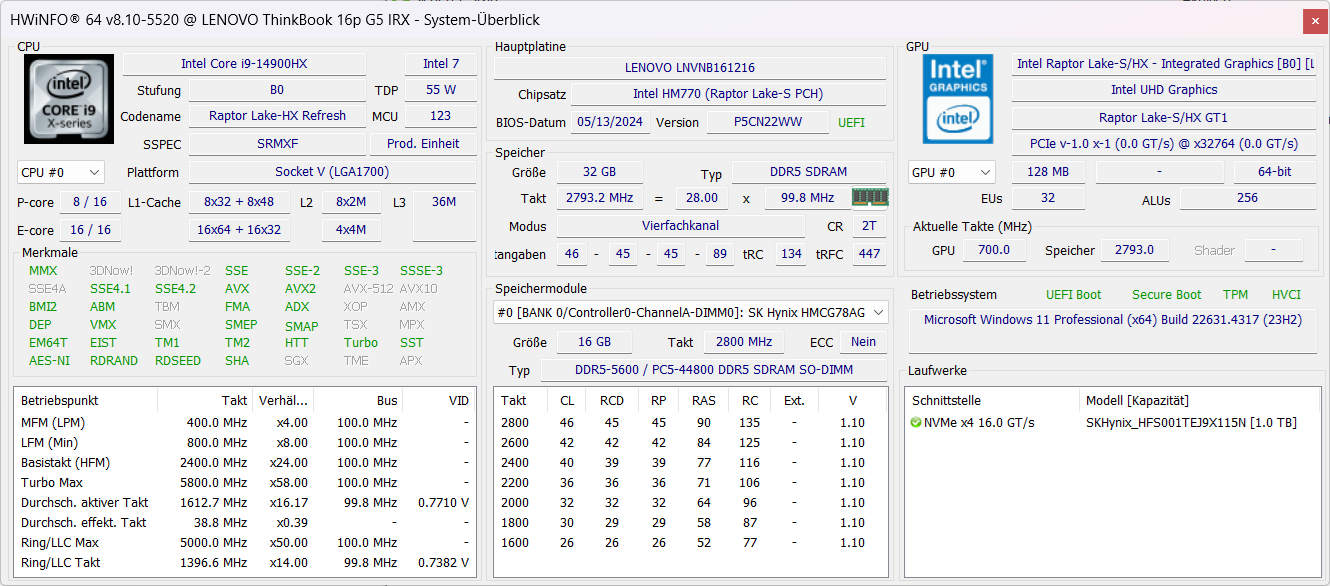

性能：英特尔 Raptor Lake 和英伟达GeForce RTX 4060
排放：响亮但也很酷的 ThinkBook 笔记本电脑
能源管理：ThinkBook 几乎无法外出使用
Notebookcheck 总体评分

联想的 ThinkBook 系列是一个有趣的中间点，介于这家最大的 PC 制造商的消费产品和企业产品系列之间，是连接两个不同世界的桥梁。大型联想 ThinkBook 16p 是该系列中功能最强大的笔记本电脑。联想将目标锁定在多媒体/创作者市场。最新版本的 ThinkBook 16p Gen 5 IRX 使用了英特尔 Raptor Lake HX（英特尔最强大的移动 CPU），以及专用的英伟达GeForce RTX 4060 笔记本电脑图形处理器。这可能会使 ThinkBook 成为休闲游戏的有趣选择。

Lenovo ThinkBook 16p G5 IRX 21N50011GE

Processor

Intel Core i9-14900HX 24 x 1.6 - 5.8 GHz, 160 W PL2 / Short Burst, 130 W PL1 / Sustained, Raptor Lake-HX Refresh

Graphics adapter

NVIDIA GeForce RTX 4060 Laptop GPU - 8 GB VRAM, Core: 1890 MHz, RAM: 2000 MHz, 115 W TDP, AD107, 546.56, Optimus Advanced/MUX Switch

Memory

32 GB

, DDR5-5600, 2x SO-DIMM, Dual Channel

Display

16.00 inch 16:10, 3200 x 2000 pixel 236 PPI, MNG007ZA1-2 , IPS LCD, glossy: no, 165 Hz

Mainboard

Intel HM770 (Raptor Lake-S PCH)

Storage

SK Hynix HFS001TEJ9X115N, 1024 GB

, M.2 2280, PCIe NVMe 4.0, 865 GB free

Soundcard

Realtek ALC3306

Connections

2 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 2 USB 4.0 40 Gbps, 2 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5mm Audio, Card Reader: SD card, 1 Fingerprint Reader, Brightness Sensor

Networking

Intel Wi-Fi 6E AX211 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.3

Size

height x width x depth (in mm): 23.1 x 354.6 x 258.2

Battery

80 Wh Lithium-Polymer

Operating System

Microsoft Windows 11 Pro

Camera

Webcam: 1080p w/IR & PrivacyShutter

Additional features

Speakers: Quad speakers, 4x 2 W, Keyboard: 6 row Chiclet full size w/numpad, 1.5mm travel, , Keyboard Light: yes, 300 W Slim tip charger, Lenovo Magic Bay Light, Lenovo Vantage, Lenovo Smart Meeting, Lenovo Now, Lenovo Hotkeys, McAfee, 12 Months Warranty

Weight

2.228 kg, Power Supply: 882 g

Price

2120 Euro

Links

Lenovo homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

机箱：带有Legion 设计元素的典型 ThinkBook

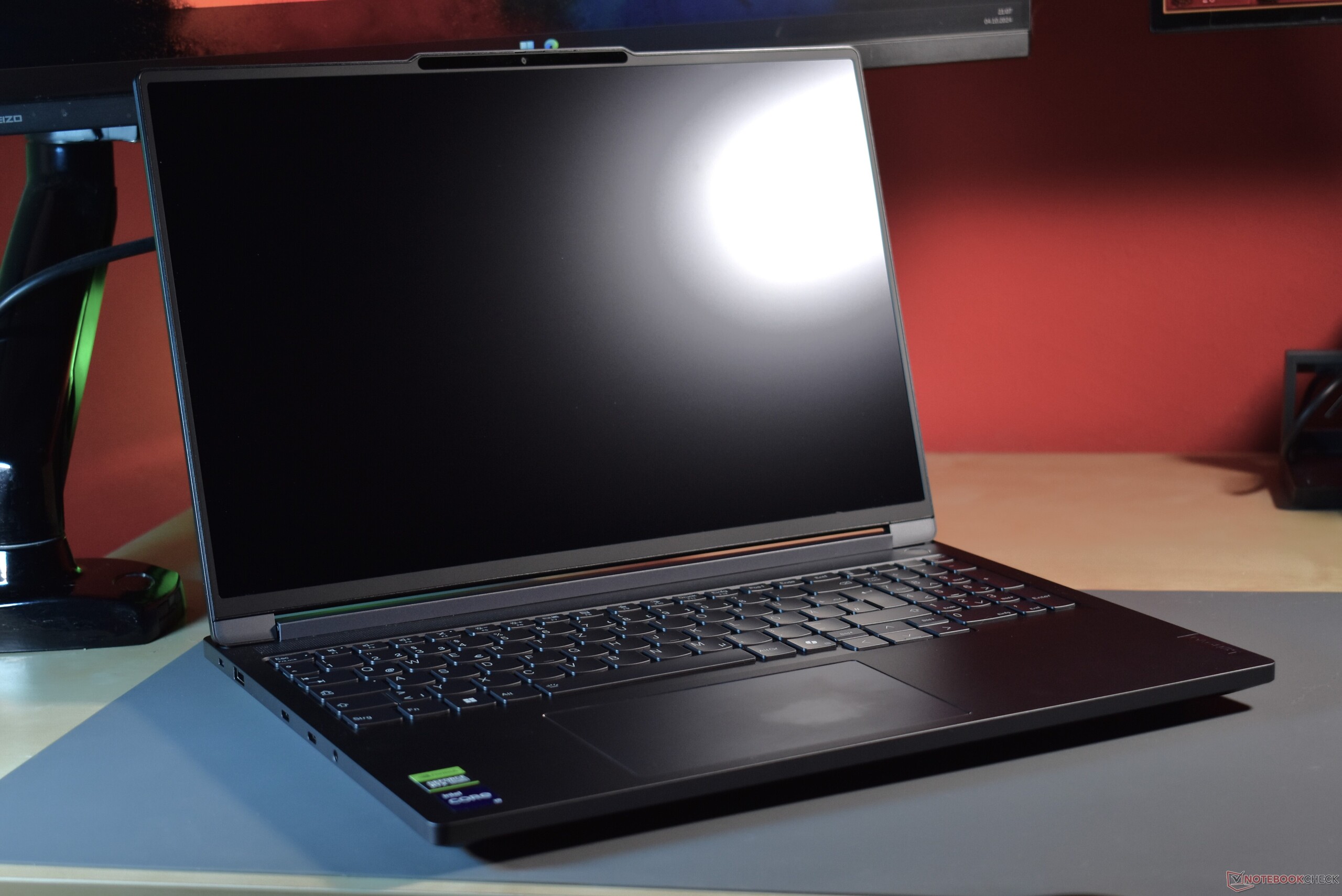

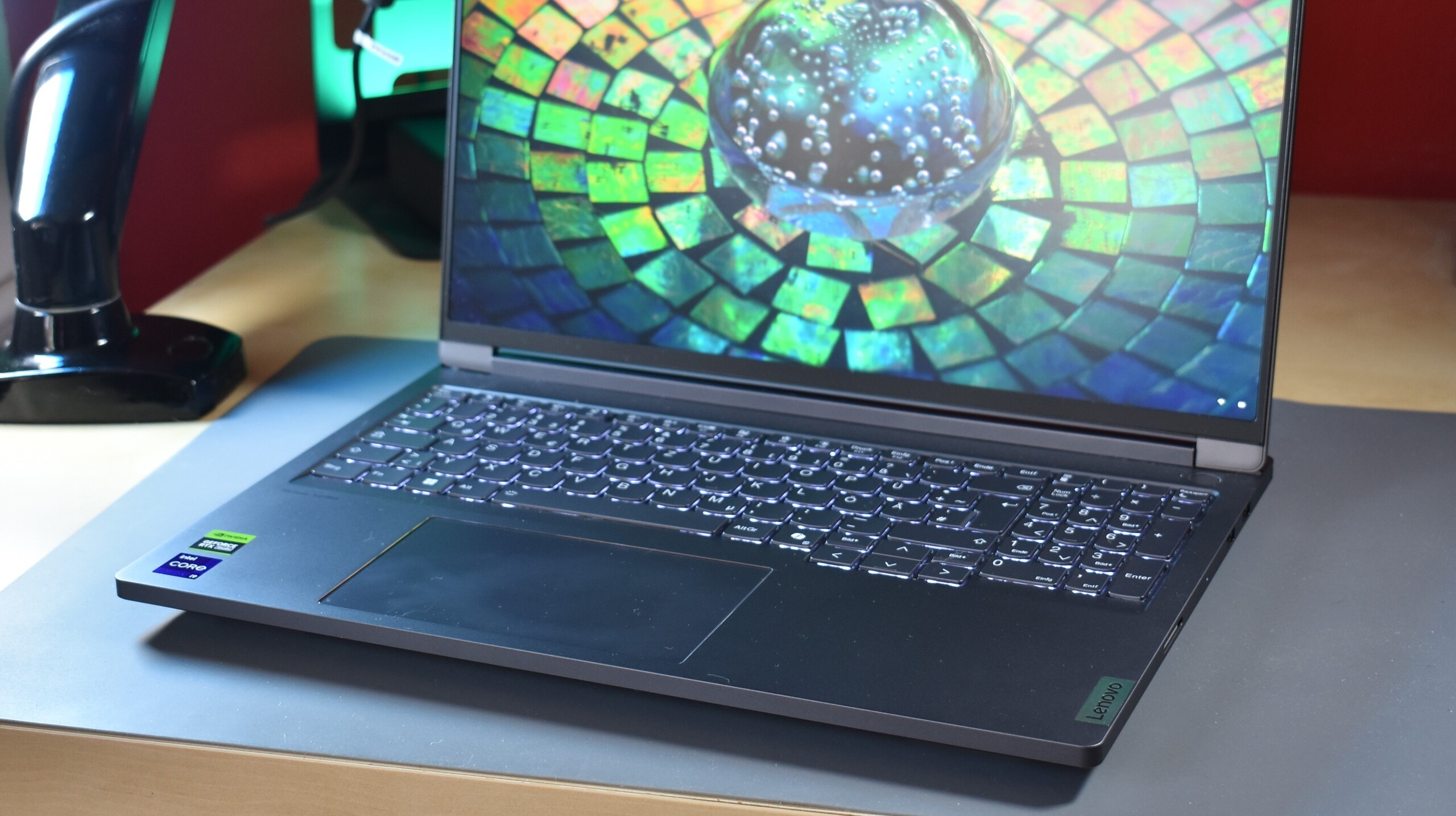

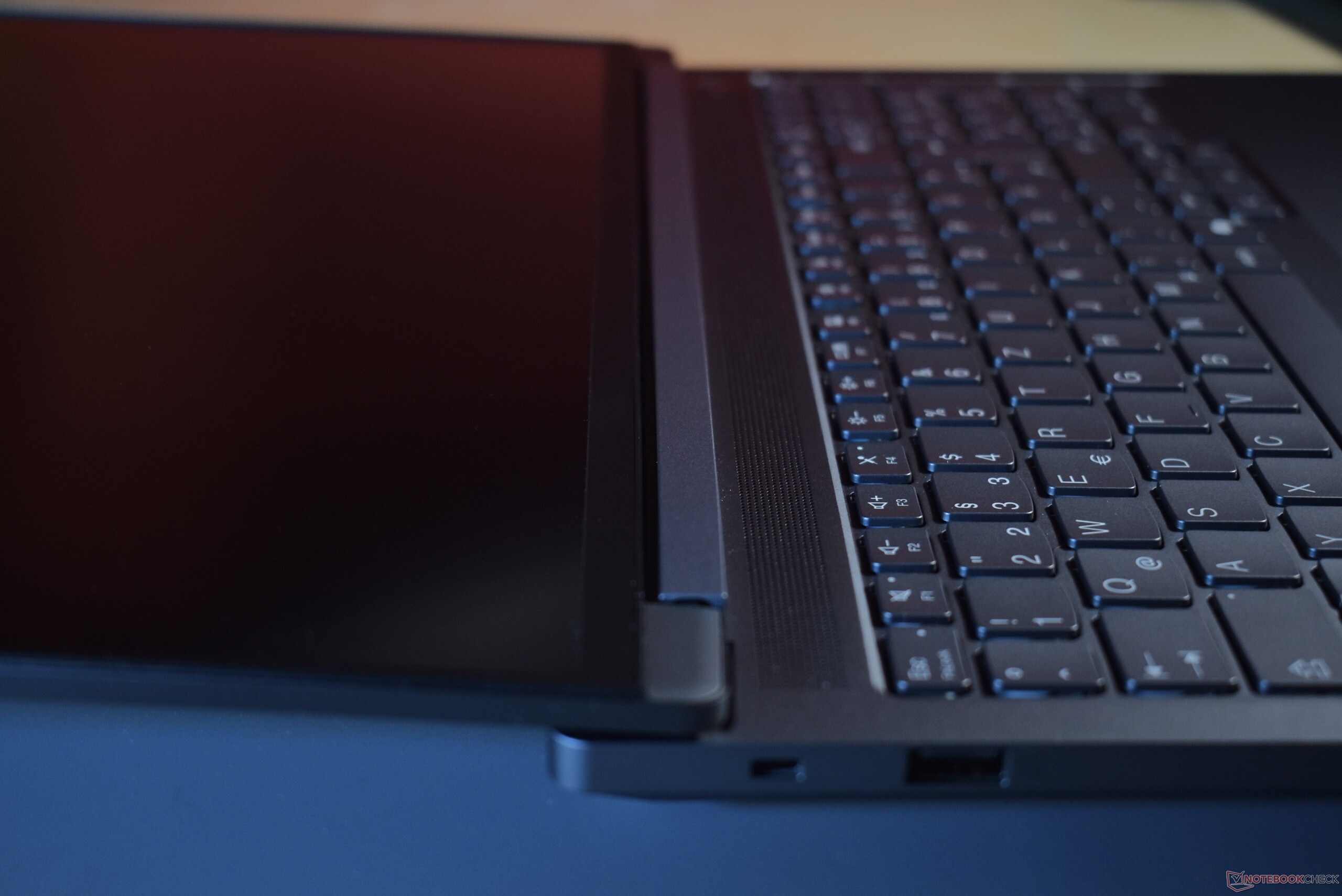

联想确实为其 ThinkBooks 找到了一种典型的设计语言，在视觉上有别于其他笔记本电脑系列。与 ThinkPad 系列的企业笔记本电脑不同，ThinkBook 采用全灰色铝合金外壳。盖子采用双色设计，下半部略微明亮。此外，它还有一个大大的 "ThinkBook "标志。设备的下半部分主要是包括数字键盘在内的全尺寸键盘。有趣的是底座上的铰链结构和背面的大风扇出风口。这是大多数 ThinkBook 所不具备的--这让我们想起了联想Legion 游戏笔记本电脑系列。

底座非常坚硬。机盖的柔韧性稍好一些，但仍然很结实。掌托没有任何弯曲，做工完美无瑕。从外观上看，触摸板和电源按钮周围的光面边缘非常显眼。除此之外，只有银色的联想徽标与 ThinkBook 的其他部分有所区别。

在这里，单手即可顺利打开机盖。最近推出的 ThinkPad 笔记本电脑上的摄像头凸起在这里可以作为一个有用的把手。盖子的最大开启角度为 180 度，铰链能很好地固定盖子。屏幕不会出现晃动。

ThinkBook 16p Gen 5 是本次对比中最厚的机型，厚度为 23 毫米。更贵的联想 ThinkPad P1 7 代更薄、更轻、更小。更大的是框架笔记本 16 - 模块化笔记本电脑的重量也有所增加。

尺寸比较

Lenovo ThinkBook 16p G5 IRX 21N50011GE Framework Laptop 16 Lenovo ThinkPad P1 Gen 7 21KV001SGE Lenovo ThinkBook 16p G3 ARH Asus ProArt P16 H7606WI Honor MagicBook Pro 16 2024 DIN A4 ❌

连接性ThinkBook 可升级

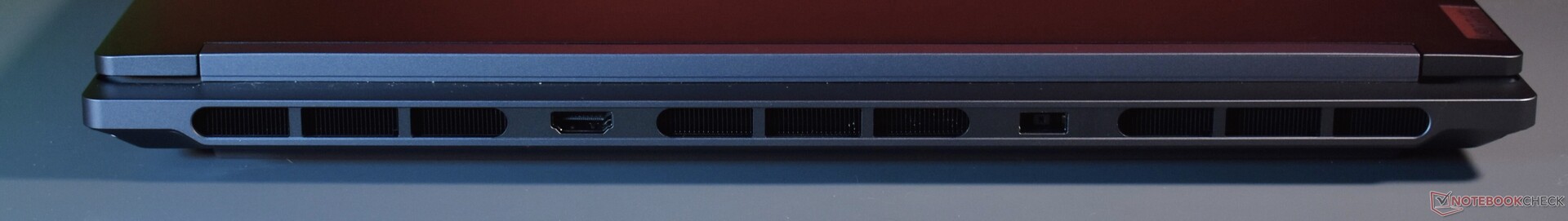

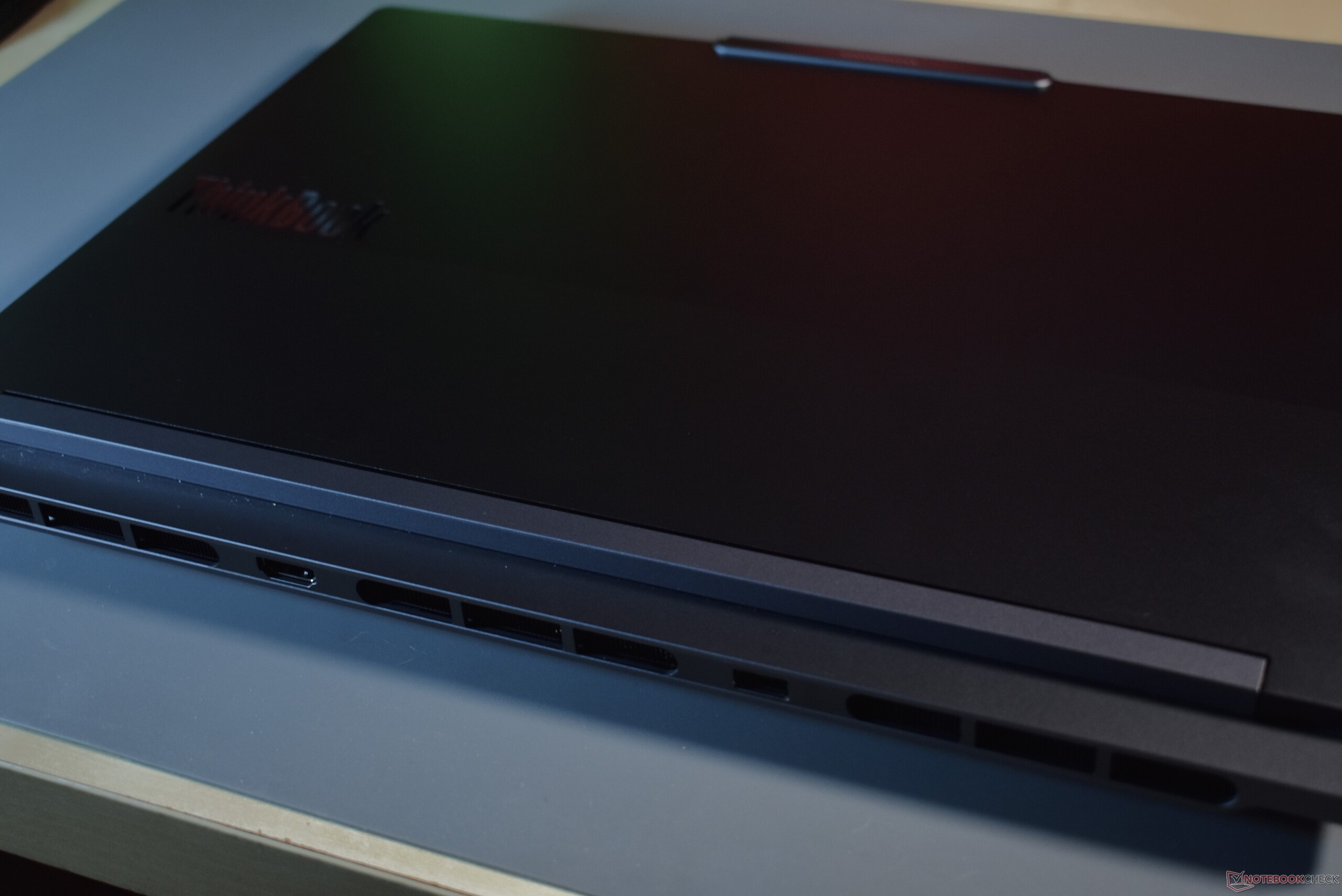

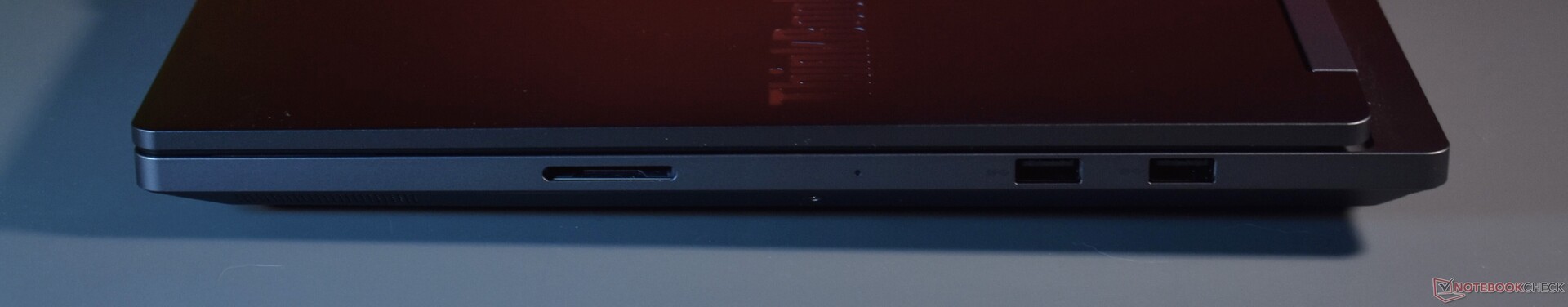

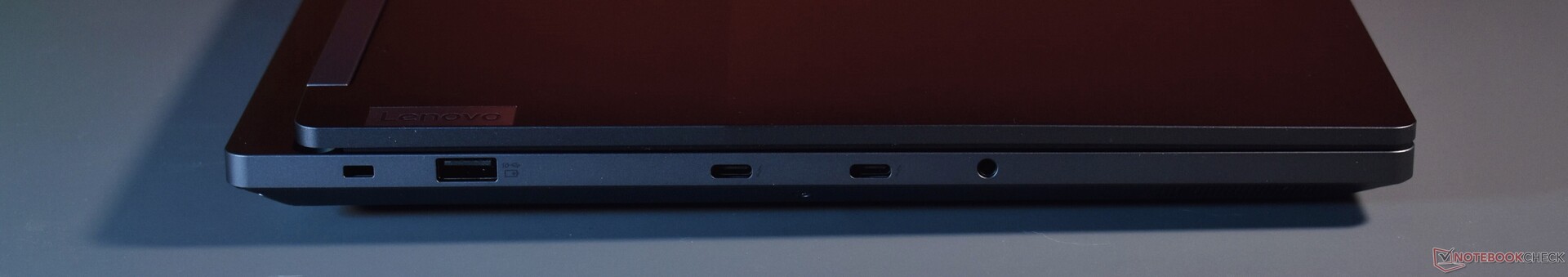

联想在 ThinkBook 的四面都设置了端口，只有正面没有。背面是充电端口和 HDMI，侧面是 USB 端口和 SD 卡插槽。端口选择很不错，不过我们还是怀念 RJ45 以太网。

可以通过 USB-C / Thunderbolt 充电，但即使使用 100 W 充电器，系统也会发出 "慢充 "通知。如果要在旅途中为设备充电，100 W 充电器可能就足够了，但要获得最佳性能，应始终使用专有的 Slim tip 充电器。

SD 读卡器

作为一款真正的创造者笔记本电脑，联想 ThinkBook 16p G5 拥有一个全尺寸 SD 卡插槽。SD 卡不能完全放入读卡器，因此不适合将卡放在里面。SD 读卡器的速度一般，我们使用 AV Pro microSD 128 GB V60 参考卡进行了测量。

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370 (Angelbird AV Pro V60)	127 MB/s +141%
Average of class Multimedia (18.4 - 201, n=60, last 2 years)	102.2 MB/s +94%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX (AV PRO microSD 128 GB V60)	75.4 MB/s +43%
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX (AV Pro V60)	52.6 MB/s
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H (AV Pro V60)	49.6 MB/s -6%
maximum AS SSD Seq Read Test (1GB)
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370 (Angelbird AV Pro V60)	254.4 MB/s +181%
Average of class Multimedia (25.8 - 266, n=59, last 2 years)	142.9 MB/s +58%
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX (AV Pro V60)	90.5 MB/s
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H (AV Pro V60)	89.3 MB/s -1%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX (AV PRO microSD 128 GB V60)	84.9 MB/s -6%

交流

与接收数据相比，联想 ThinkBook 16p G5 发送数据的速度较慢。总的来说，支持 Wi-Fi 6E 的英特尔 AX211 既快速又可靠。

Networking
iperf3 transmit AXE11000
Asus ProArt P16 H7606WI Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	1788 (1649^min - 1890^max) MBit/s +45%
Honor MagicBook Pro 16 2024 Intel Wi-Fi 6 AX201	1648 (1598^min, 1603.8^P1 - 1694^max) MBit/s +34%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Wi-Fi 7 BE200 320MHz	1433 (1179^min - 1568^max) MBit/s +16%
Average of class Multimedia (358 - 1921, n=79, last 2 years)	1363 MBit/s +10%
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Wi-Fi 6E AX211	1234 (634^min - 1437^max) MBit/s
Average Intel Wi-Fi 6E AX211 (464 - 1921, n=239)	1234 MBit/s 0%
Framework Laptop 16 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	956 (920^min - 1017^max) MBit/s -23%
Lenovo ThinkBook 16p G3 ARH Realtek RTL8852BE	879 (777^min - 963^max) MBit/s -29%
iperf3 receive AXE11000
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Wi-Fi 7 BE200 320MHz	1701 (1556^min - 1728^max) MBit/s +1%
Asus ProArt P16 H7606WI Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	1699 (1607^min - 1729^max) MBit/s +1%
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Wi-Fi 6E AX211	1689 (1495^min - 1727^max) MBit/s
Honor MagicBook Pro 16 2024 Intel Wi-Fi 6 AX201	1681 (1645^min, 1652.54^P1 - 1693^max) MBit/s 0%
Average of class Multimedia (709 - 1789, n=78, last 2 years)	1451 MBit/s -14%
Average Intel Wi-Fi 6E AX211 (582 - 1890, n=239)	1379 MBit/s -18%
Framework Laptop 16 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	880 (846^min - 906^max) MBit/s -48%
Lenovo ThinkBook 16p G3 ARH Realtek RTL8852BE	846 (706^min - 894^max) MBit/s -50%
iperf3 transmit AXE11000 6GHz
Average of class Multimedia (705 - 1816, n=36, last 2 years)	1411 MBit/s +17%
Average Intel Wi-Fi 6E AX211 (632 - 1851, n=211)	1372 MBit/s +14%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Wi-Fi 7 BE200 320MHz	1234 (810^min - 1550^max) MBit/s +3%
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Wi-Fi 6E AX211	1202 (633^min - 1423^max) MBit/s
Framework Laptop 16 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1010 (930^min - 1099^max) MBit/s -16%
iperf3 receive AXE11000 6GHz
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Wi-Fi 7 BE200 320MHz	1720 (1657^min - 1739^max) MBit/s +1%
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Wi-Fi 6E AX211	1707 (1630^min - 1735^max) MBit/s
Average Intel Wi-Fi 6E AX211 (700 - 1857, n=210)	1493 MBit/s -13%
Average of class Multimedia (700 - 1807, n=36, last 2 years)	1488 MBit/s -13%
Framework Laptop 16 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1123 (1095^min - 1152^max) MBit/s -34%

Lenovo ThinkBook 16p G5 IRX 21N50011GE; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1181 (633-1423)

Lenovo ThinkBook 16p G5 IRX 21N50011GE; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1706 (1630-1735)

Lenovo ThinkBook 16p G5 IRX 21N50011GE; iperf3 transmit AXE11000; iperf 3.1.3: Ø1213 (634-1437)

Lenovo ThinkBook 16p G5 IRX 21N50011GE; iperf3 receive AXE11000; iperf 3.1.3: Ø1688 (1495-1727)

网络摄像头

对于一款售价 2000 欧元的笔记本电脑来说，网络摄像头略微令人失望，分辨率只有 1080p。在这个价位上，人们可以期待更多。

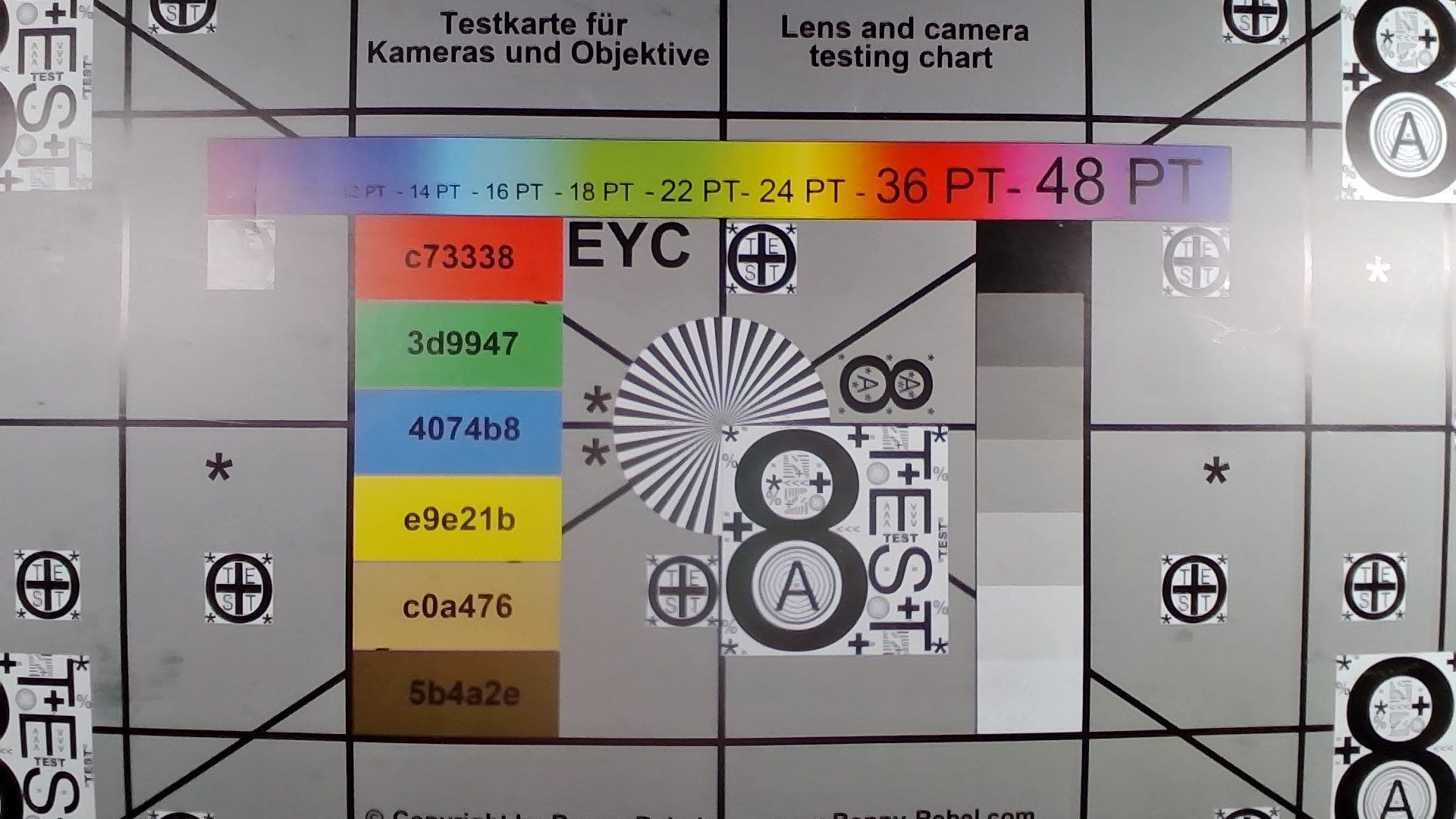

在光线条件良好的情况下，网络摄像头能拍摄出视频会议所需的照片。ThinkBook 16p 本身就可以通过附带的 Magic Bay Light 创造出这样的照明条件，它可以通过网络摄像头背面的插销连接到系统上。此外，联想还为网络摄像头配备了机械快门，以提高私密性。

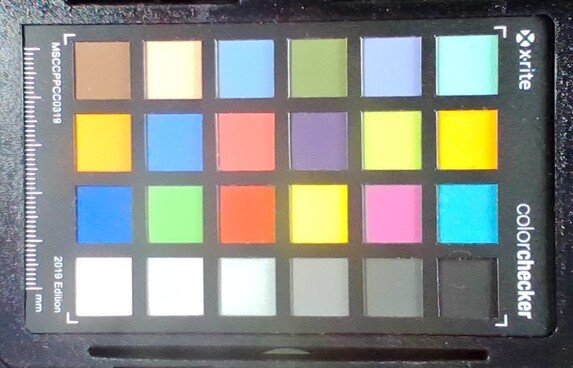

ColorChecker Lenovo ThinkBook 16p G5 IRX 21N50011GE: 25.11 ∆E min: 2.33 - max: 38.54 ∆E

配件

ThinkBook 16p 配有一个 300 瓦的大充电器，采用专有的细长接头，这是笔记本电脑发挥全部性能潜力所必需的。它的重量为 900 克，对于外出使用来说是个不小的负担。使用 100 W USB-C 充电器是可行的，但会导致性能下降、充电速度降低，而且在使用设备时电池可能也会失去电量。

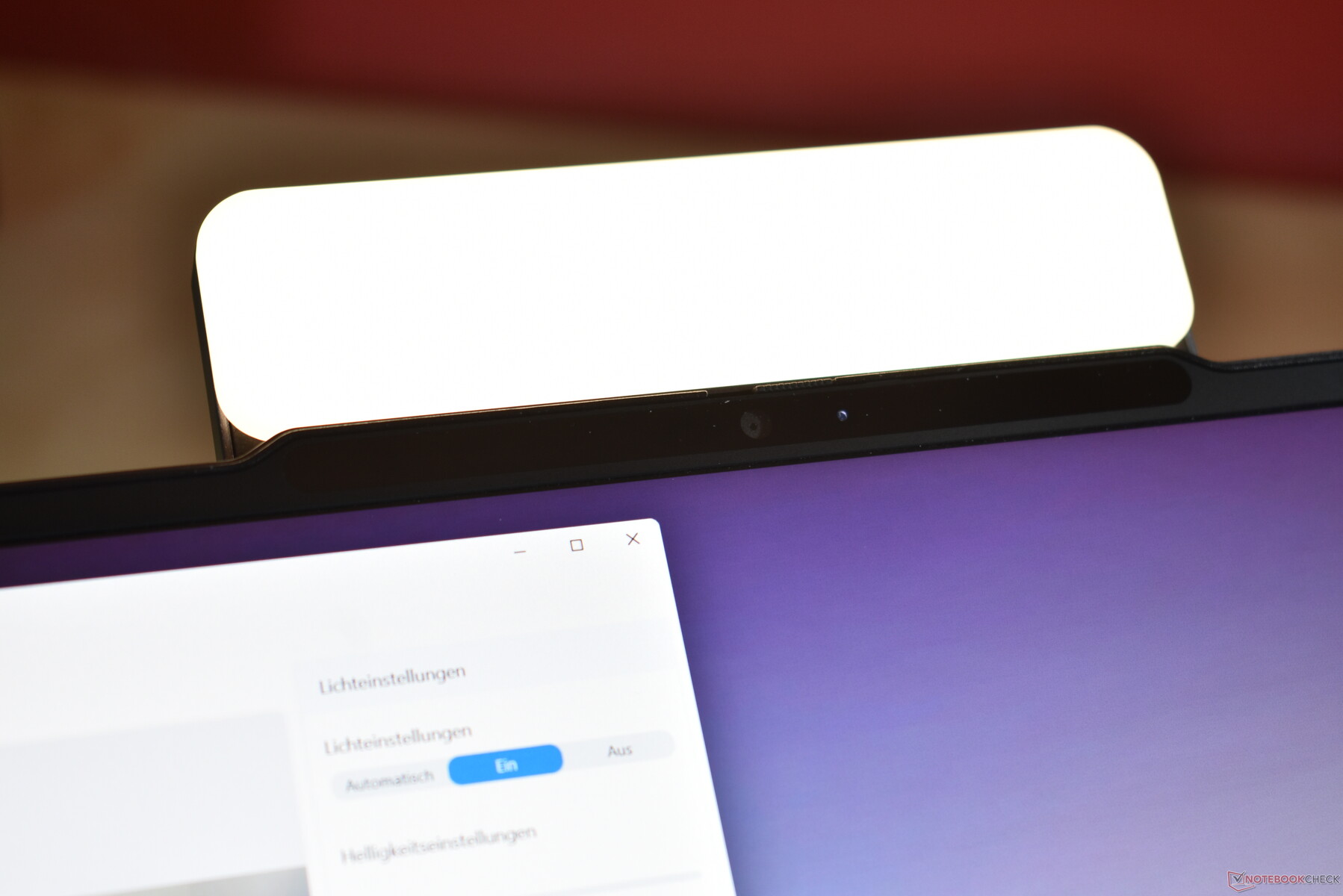

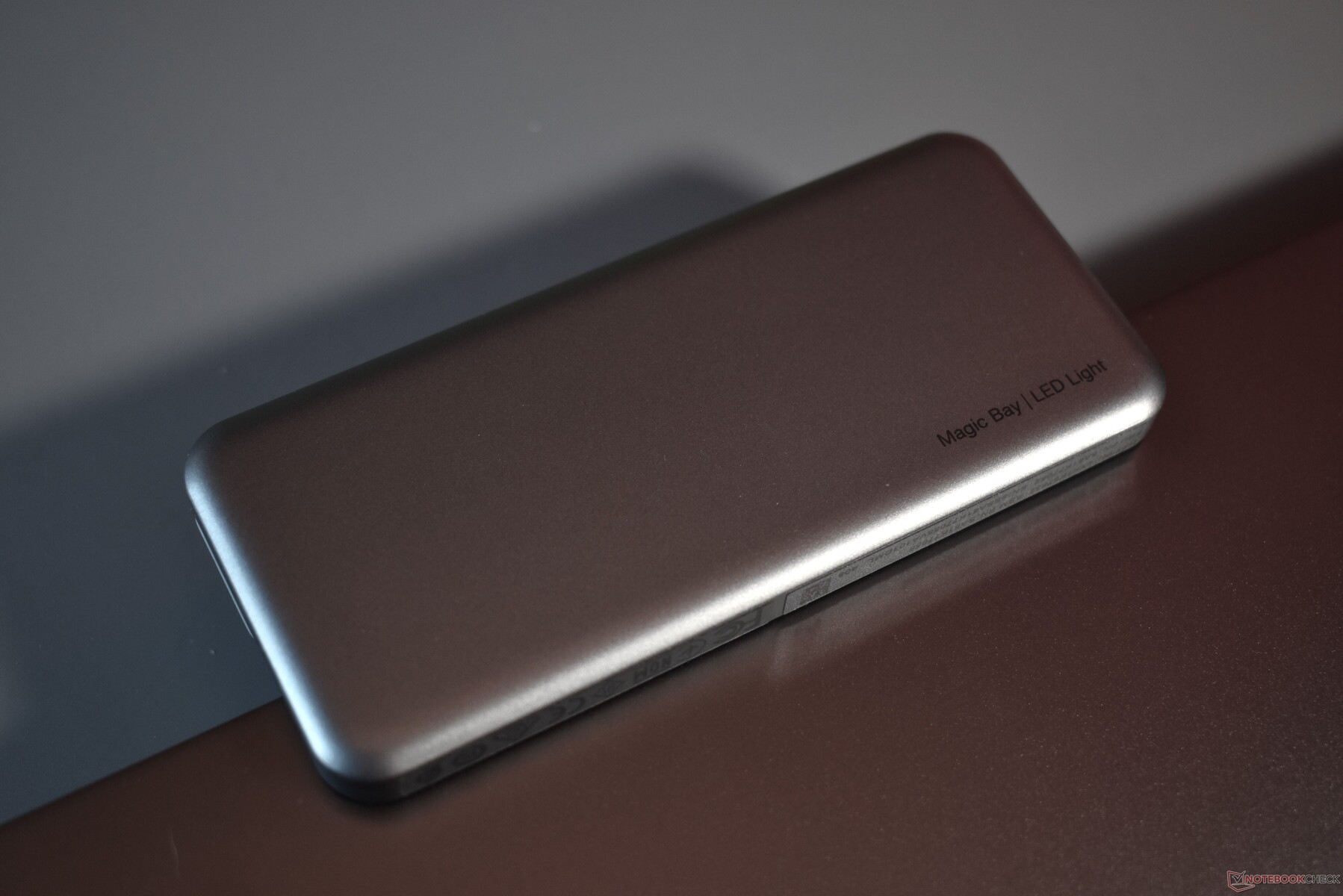

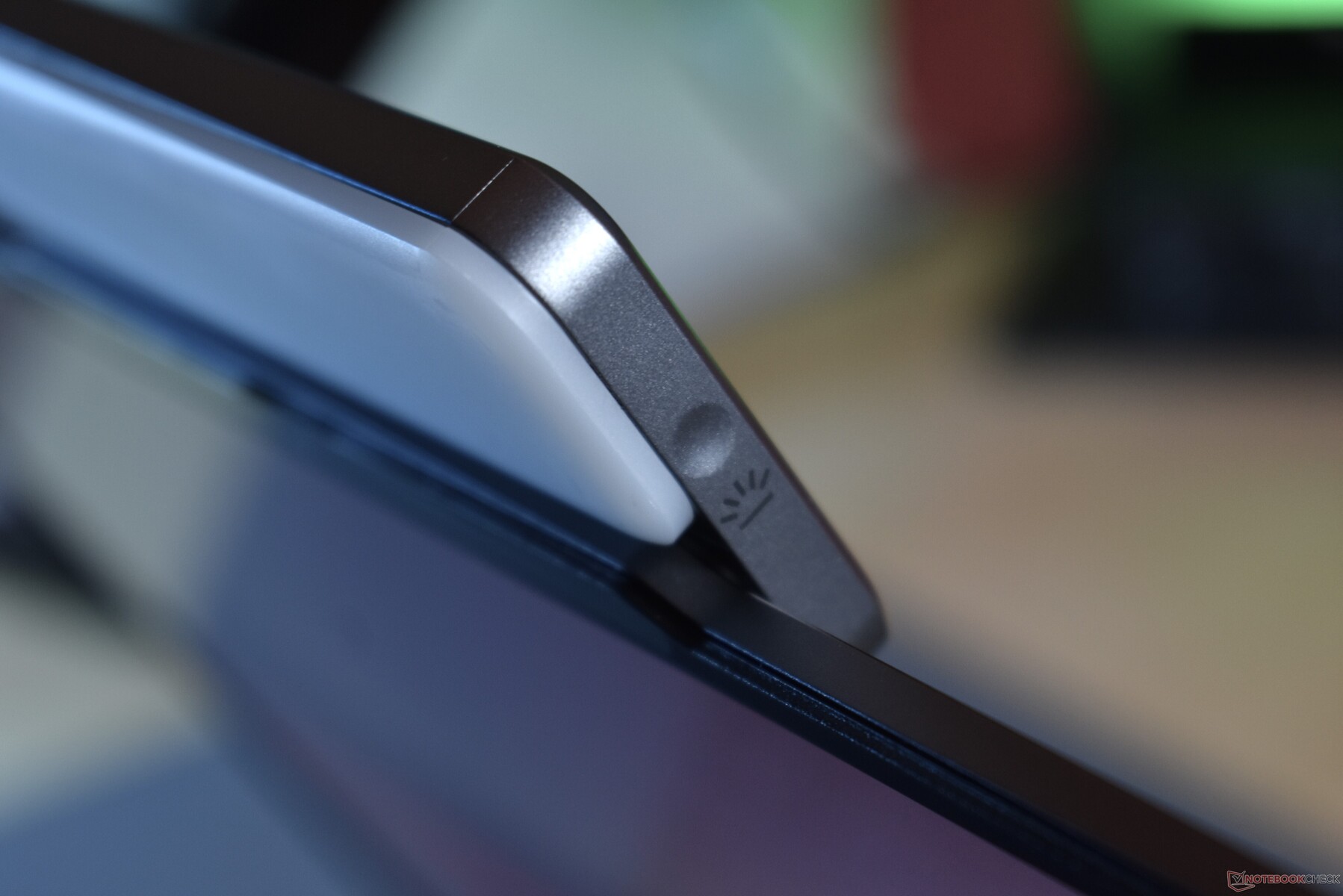

除了充电器，包装盒中还包括 Magic Bay Light。这是一个专有配件，通过磁力将其吸附在摄像头后面的盖子上，并使用 pogo 销钉固定。亮度可以通过灯侧面的电容按钮进行设置。

维护

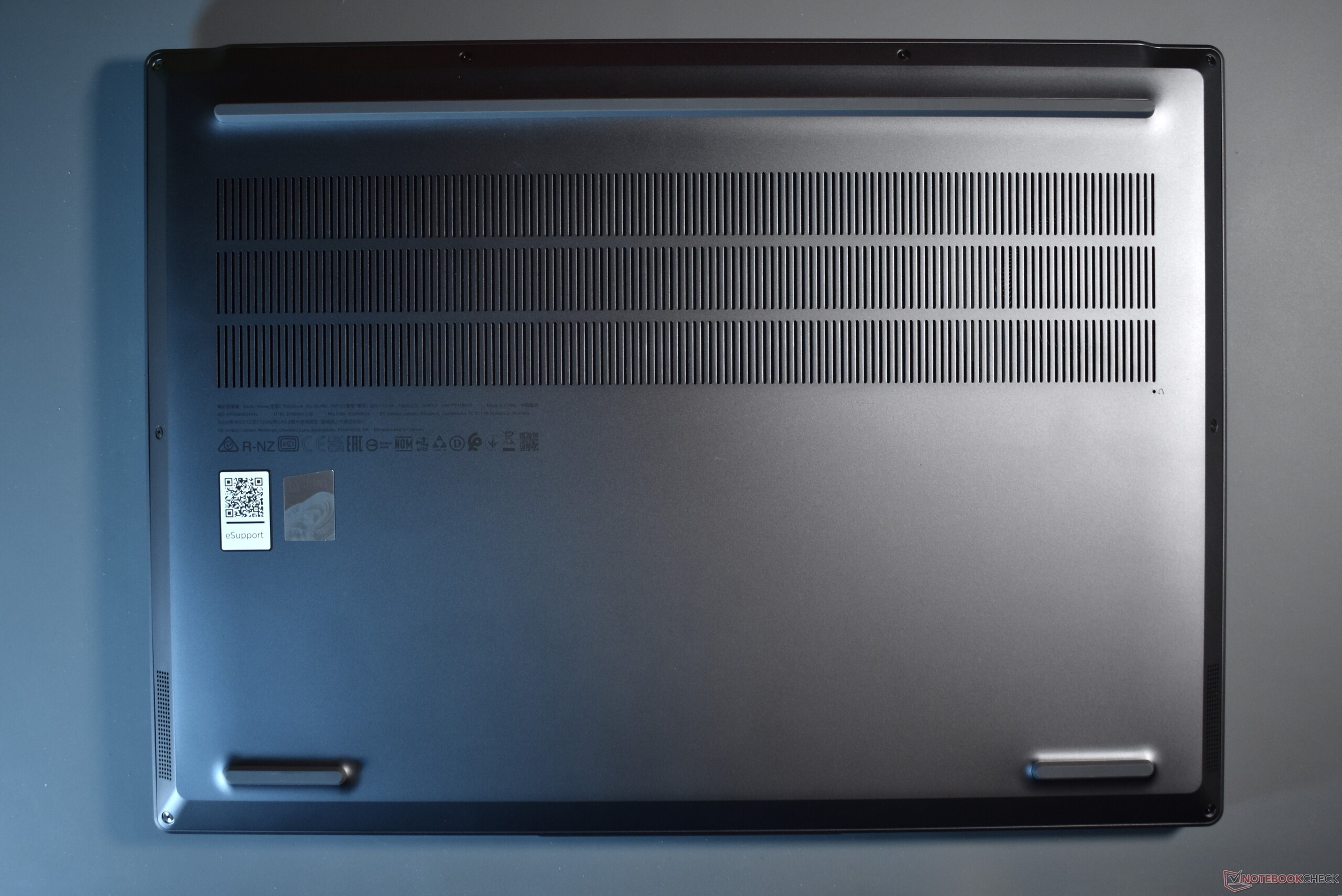

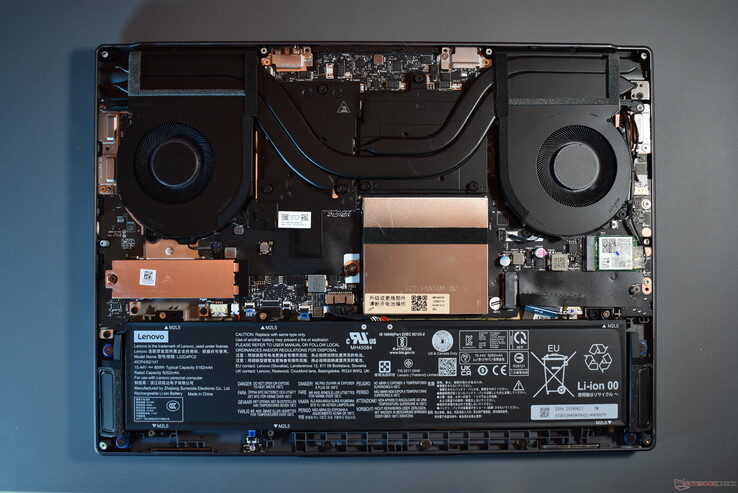

一共有八颗螺丝，外加几个夹子。固定底盖的螺钉是 Torx 螺钉，而且是非自锁螺钉，容易丢失--这说明 ThinkBook 系列实际上与联想的消费产品线关系更为密切，因为 ThinkPad 绝不会使用非自锁 Torx 螺钉。

拆下底盖后，系统升级就有了多种可能性。ThinkBook 16p 提供两个 SO-DIMM 插槽和两个 M.2 2280 托架，其中一个在出厂前是开放的。此外，Wi-Fi 模块没有焊接在一起。相反，联想使用了可升级的 M.2 2230 卡。电池和冷却系统用螺丝固定，易于更换。键盘的更换就不那么简单了。要更换键盘，必须拆卸整个设备，因为键盘与掌托是一体的。

可持续性

与其他一些联想笔记本电脑相比，联想ThinkBook 16p Gen 5并不十分环保。生产过程中的碳排放量为 253 千克/CO₂ 当量，与联想 ThinkPad P1 7 代相比，碳排放量更大。联想 ThinkPad P1 第 7 代.此外，包装也不是由可堆肥材料制成的，尽管至少有一部分是可回收的。铝制底盖也是如此，由 50% 的可回收合金制成。

联想提供了一本《硬件维护手册》，方便用户维修。不过，这款 ThinkBook 可能无法获得与企业用 ThinkPad 产品线相同的软件和更换部件支持。

保修

尽管售价高达 2000 欧元，但联想为 ThinkBook 16p G5 提供的保修期仅为一年。至少，ThinkBook 16p G5 附带了现场服务的高级支持，并且可以延长保修期。尽管如此，这仍然是一个低点。与企业系列的 ThinkPad 不同，ThinkBook 的保修只适用于购买地所在国，而非全球。

输入设备：配有漂亮键盘和玻璃触摸板的联想笔记本电脑

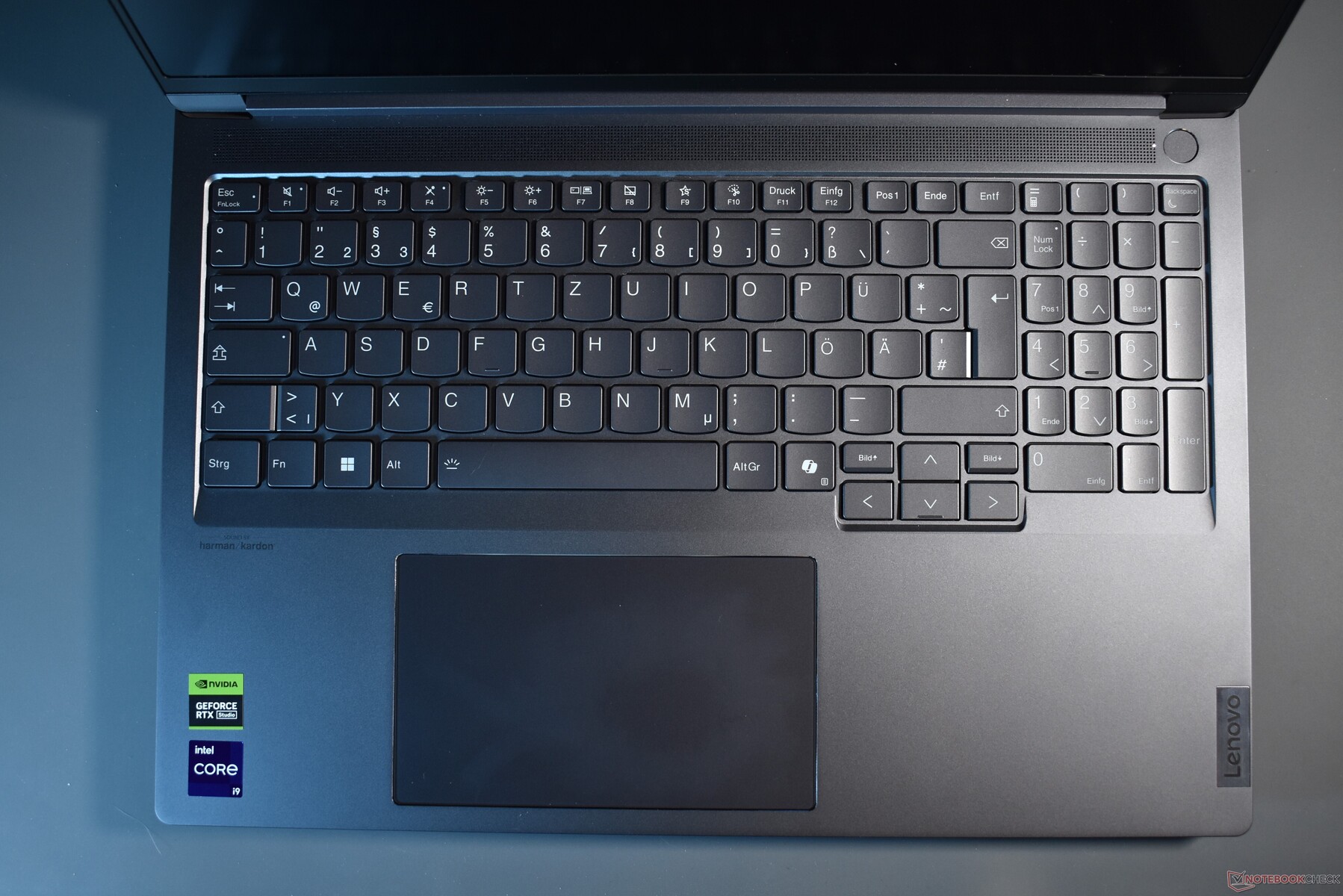

键盘

彩色键盘采用两段式 LED 背光，还提供自动模式。Chiclet 键的键程为 1.5 毫米，采用了与大多数联想笔记本电脑相同的圆形外形。键盘布局合理，方向键大小适中。在这款键盘上打字既轻松又舒适。对于经常与数字打交道的用户，联想为其配备了数字键盘。当然，数字键盘的按键较小，但功能依然存在。

触摸板

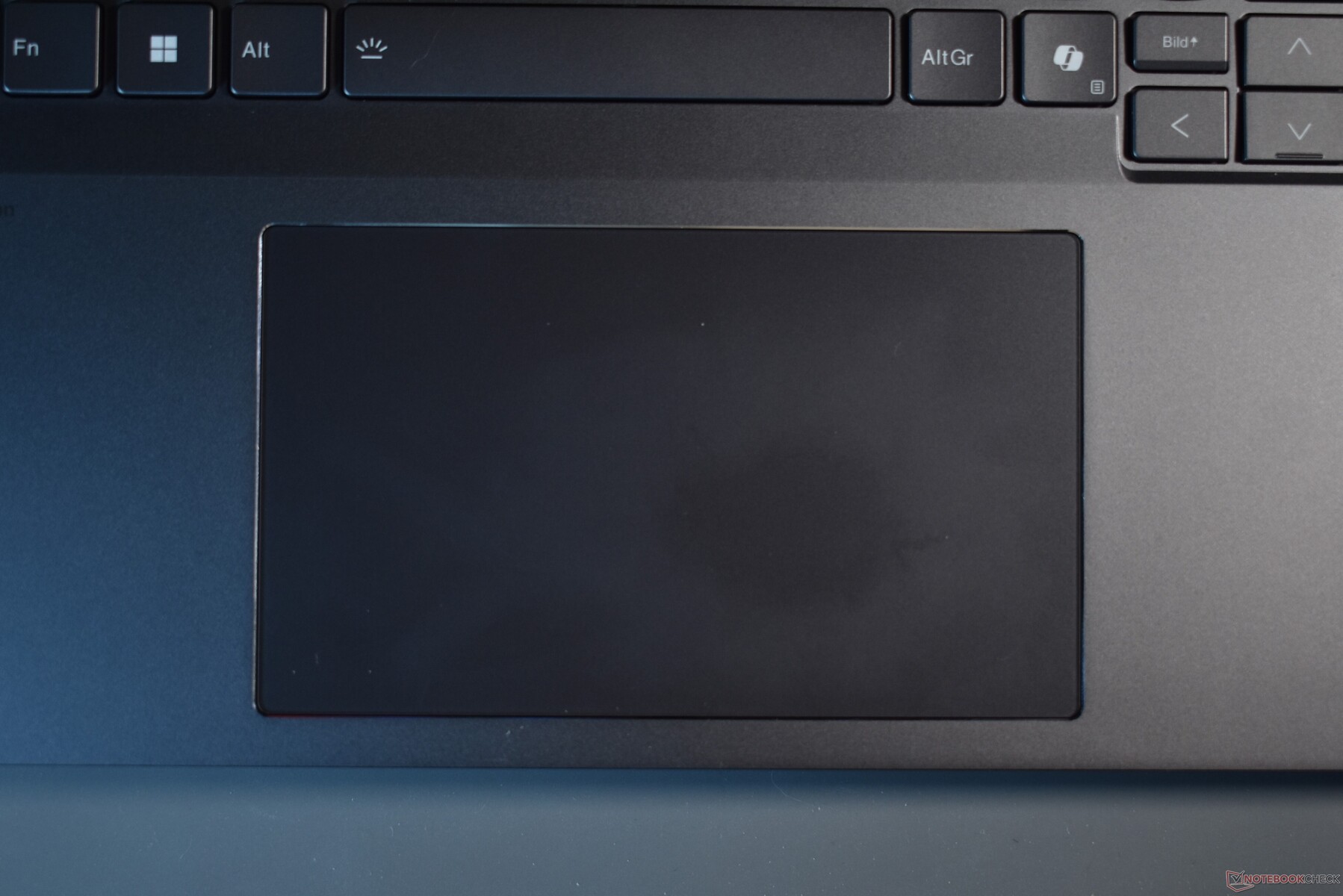

玻璃触摸板集成了点击装置，尺寸为 13.5 x 8 厘米。这是一款经典的机械点击板，带有铰链，只允许在下半部分点击。点击时声音较大。总的来说，触摸板能提供优质的用户体验，但它无法与联想 ThinkPad P1 7 的触觉触控板相媲美。联想 ThinkPad P1 7 代.使用这块触摸板工作起来很轻松。

显示屏 3.高色域覆盖范围的 2K 屏幕

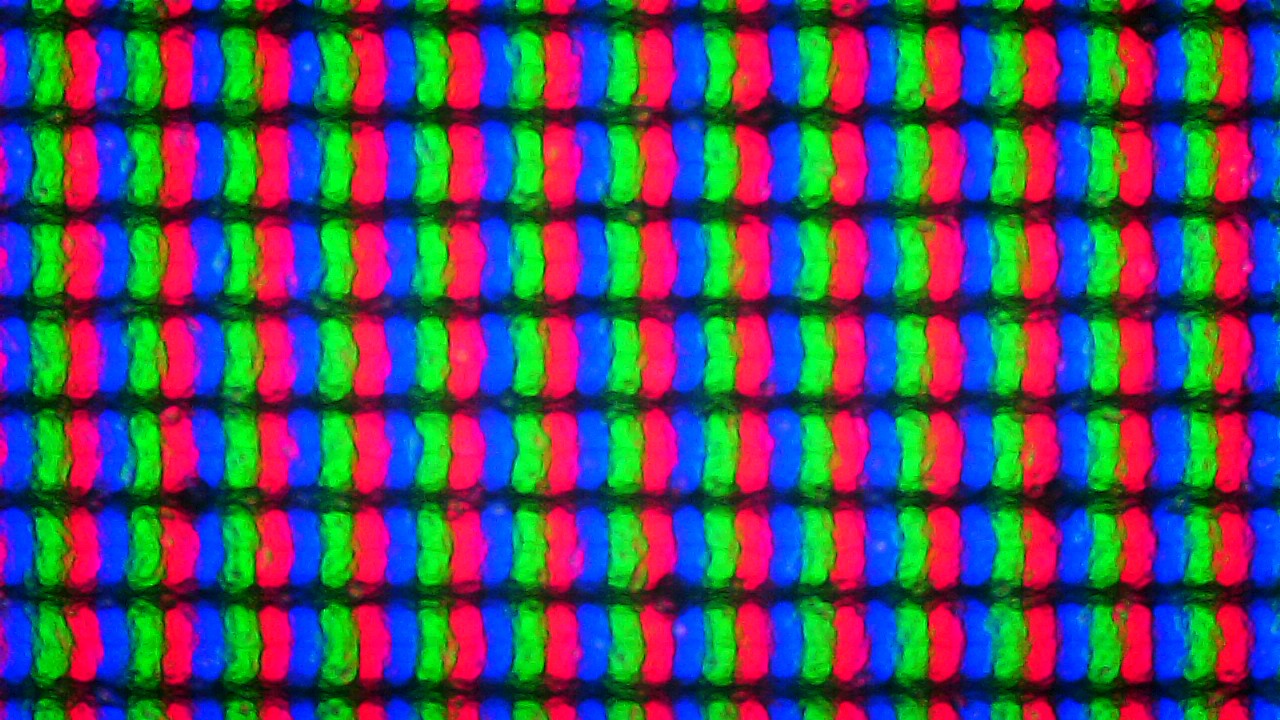

联想将 ThinkBook 16p Gen 5 IRX 限制为两种屏幕选择。两者都是对角线尺寸为 16 英寸的 16:10 IPS 雾面液晶屏：

WQXGA / 2.5K (2,560 x 1,600), 400 cd/m², 100 % sRGB, 60 Hz
3.2K（3,200 x 2,000），430 cd/m²，100 % DCI-P3，165 Hz，HDR

面板几乎达到了承诺的亮度，平均测量值为 426 cd/m²。这几乎是对比中最暗的屏幕，只有华硕 ProArt P16 更暗。联想 ThinkBook 16p 没有昂贵的 miniLED 或 OLED 选项。当然，这种面板的对比度无法与这些类型的显示器相媲美。

需要注意的是，联想出厂时将面板设置为 60 Hz，因此我们在此模式下进行了测试。165 Hz 可以在整个系统或个别游戏中选择激活。


418 cd/m²	424 cd/m²	436 cd/m²
420 cd/m²	448 cd/m²	457 cd/m²
386 cd/m²	405 cd/m²	441 cd/m²

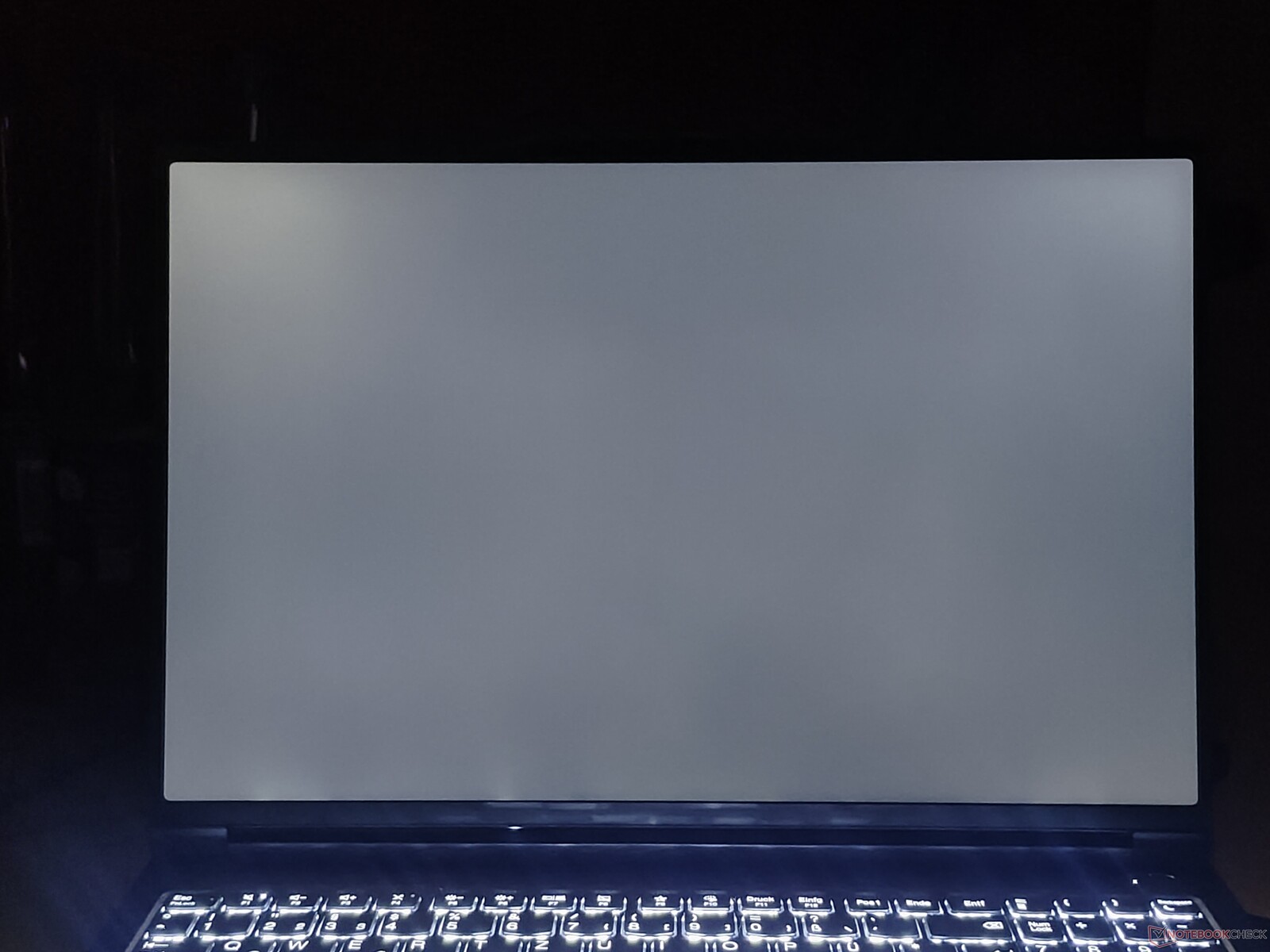

Distribution of brightness

MNG007ZA1-2 tested with X-Rite i1Pro 3

Maximum: 457 cd/m² (Nits) Average: 426.1 cd/m² Minimum: 2.6 cd/m²
Brightness Distribution: 84 %
Center on Battery: 448 cd/m²
Contrast: 1120:1 (Black: 0.4 cd/m²)
ΔE Color 3.3 | 0.5-29.43 Ø4.91, calibrated: 2.7
ΔE Greyscale 3 | 0.5-98 Ø5.2

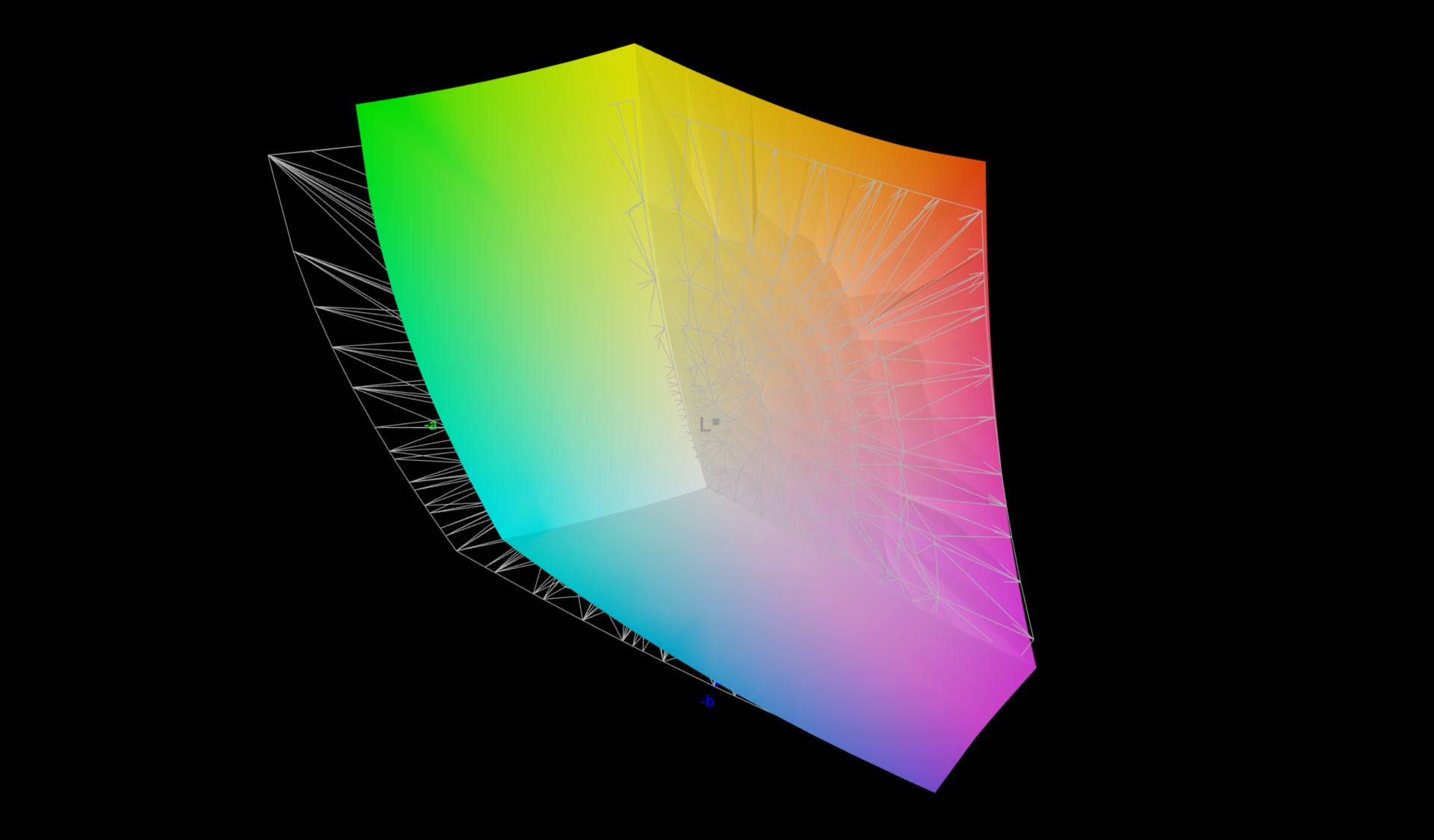

86% AdobeRGB 1998 (Argyll 2.2.0 3D)

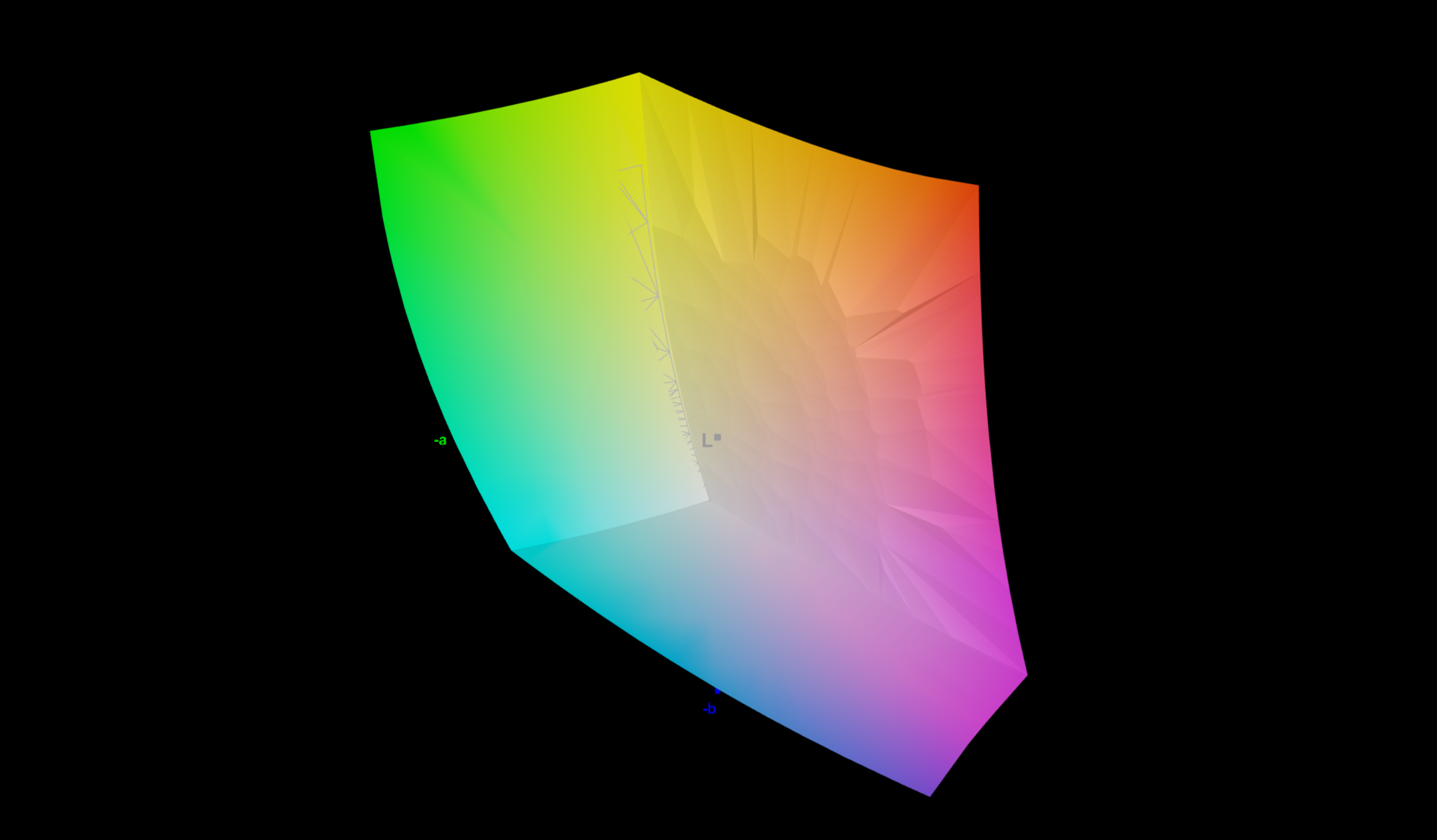

99.9% sRGB (Argyll 2.2.0 3D)
94.4% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.27

Download ICC File (X-Rite i1Pro 3)

	Lenovo ThinkBook 16p G5 IRX 21N50011GE MNG007ZA1-2 , IPS LCD, 3200x2000, 16", 165 Hz	Lenovo ThinkBook 16p G3 ARH BOE CQ NE160QDM-NY1, IPS, 2560x1600, 16", 165 Hz	Asus ProArt P16 H7606WI ATNA60YV02-0, OLED, 3840x2400, 16", 60 Hz	Honor MagicBook Pro 16 2024 TL160MDMP01, IPS, 3072x1920, 16", 165 Hz	Framework Laptop 16 2560x1600, 16", 165 Hz	Lenovo ThinkPad P1 Gen 7 21KV001SGE MNG007DA1-9 , IPS LED, 2560x1600, 16", 165 Hz
Display		-15%	7%	3%	1%	-15%
Display P3 Coverage	94.4	69.8 -26%	99.9 6%	98.8 5%	97.7 3%	69.4 -26%
sRGB Coverage	99.9	98.2 -2%	100 0%	100 0%	99.7 0%	97.6 -2%
AdobeRGB 1998 Coverage	86	71.4 -17%	99.1 15%	89.1 4%	87 1%	71.8 -17%
Response Times		-11%	89%	50%	-8%	7%
Response Time Grey 50% / Grey 80% *	15.5 ?(7, 8.5)	15.6 ?(7.2, 8.4) -1%	1.58 ?(0.84, 0.74) 90%	6.3 ?(2.5, 3.8) 59%	14.6 ?(7.1, 7.5) 6%	11.2 ?(5.6, 5.6) 28%
Response Time Black / White *	9.3 ?(5.5, 3.8)	11.2 ?(6, 5.2) -20%	1.25 ?(0.67, 0.58) 87%	5.6 ?(1.6, 4) 40%	11.3 ?(6.1, 5.2) -22%	10.6 ?(6.1, 4.5) -14%
PWM Frequency			240 ?(52, 93)
Screen		19%	26%	19%	25%	-6%
Brightness middle	448	532.8 19%	355 -21%	551 23%	504.8 13%	516 15%
Brightness	426	519 22%	360 -15%	524 23%	490 15%	505 19%
Brightness Distribution	84	94 12%	98 17%	91 8%	84 0%	89 6%
Black Level *	0.4	0.55 -38%		0.52 -30%	0.41 -3%	0.41 -3%
Contrast	1120	969 -13%		1060 -5%	1231 10%	1259 12%

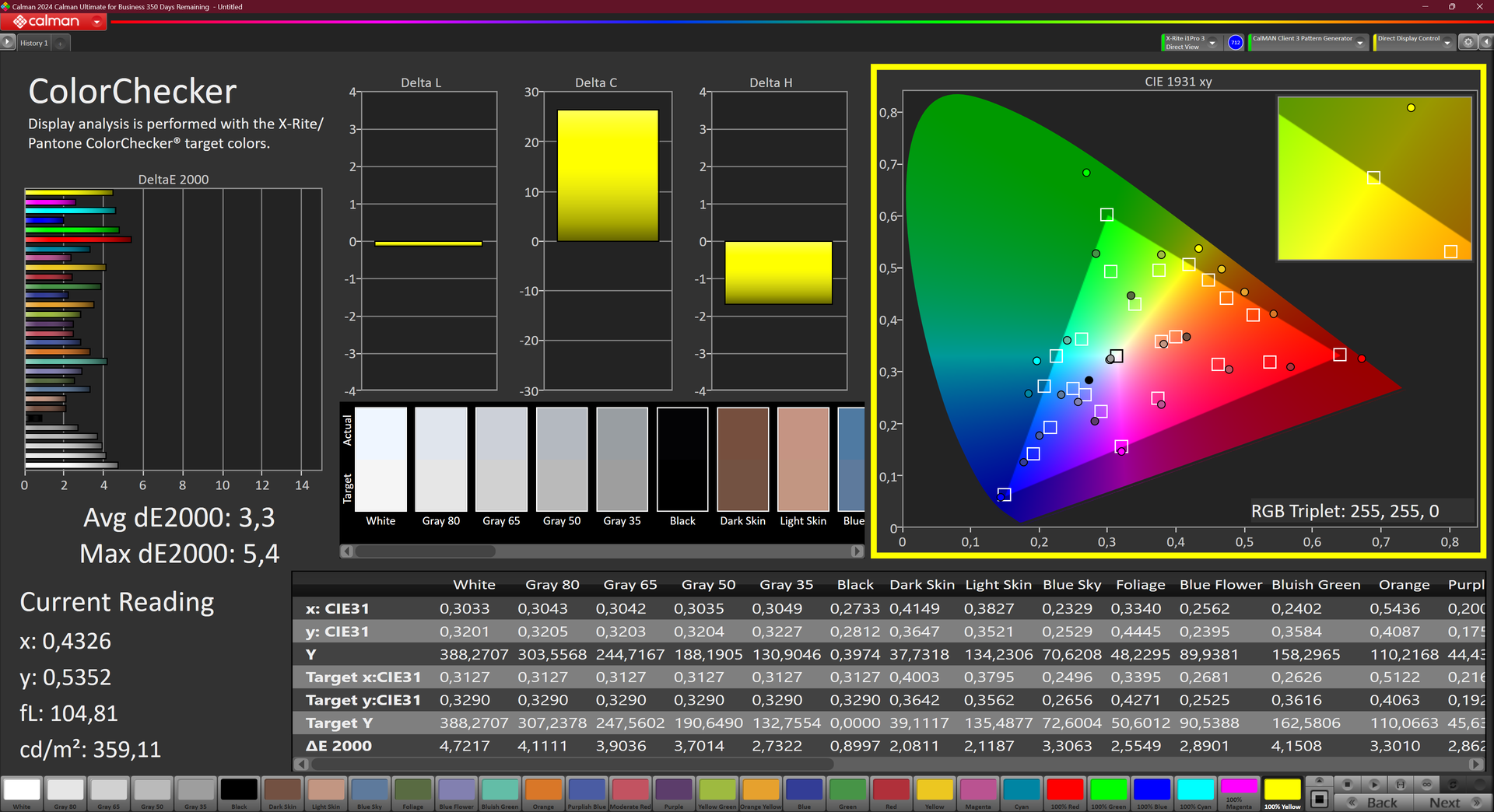

Colorchecker dE 2000 *	3.3	1.32 60%	1.2 64%	1.7 48%	1.23 63%	3.5 -6%
Colorchecker dE 2000 max. *	5.4	3.97 26%	2.6 52%	4.1 24%	3.74 31%	8.8 -63%
Colorchecker dE 2000 calibrated *	2.7	1.59 41%		1 63%	1.1 59%	1.2 56%
Greyscale dE 2000 *	3	1.8 40%	1.2 60%	2.4 20%	2 33%	5.6 -87%
Gamma	2.27 ^97%	2.64 ^83%	2.14 ^103%	2.2 ^100%	2.22 ^99%	2.27 ^97%
CCT	7110 ^91%	6761 ^96%	6526 ^100%	6842 ^95%	6670 ^97%	6071 ^107%
Total Average (Program / Settings)		-2% / 7%	41% / 32%	24% / 20%	6% / 15%	-5% / -6%

* ... smaller is better

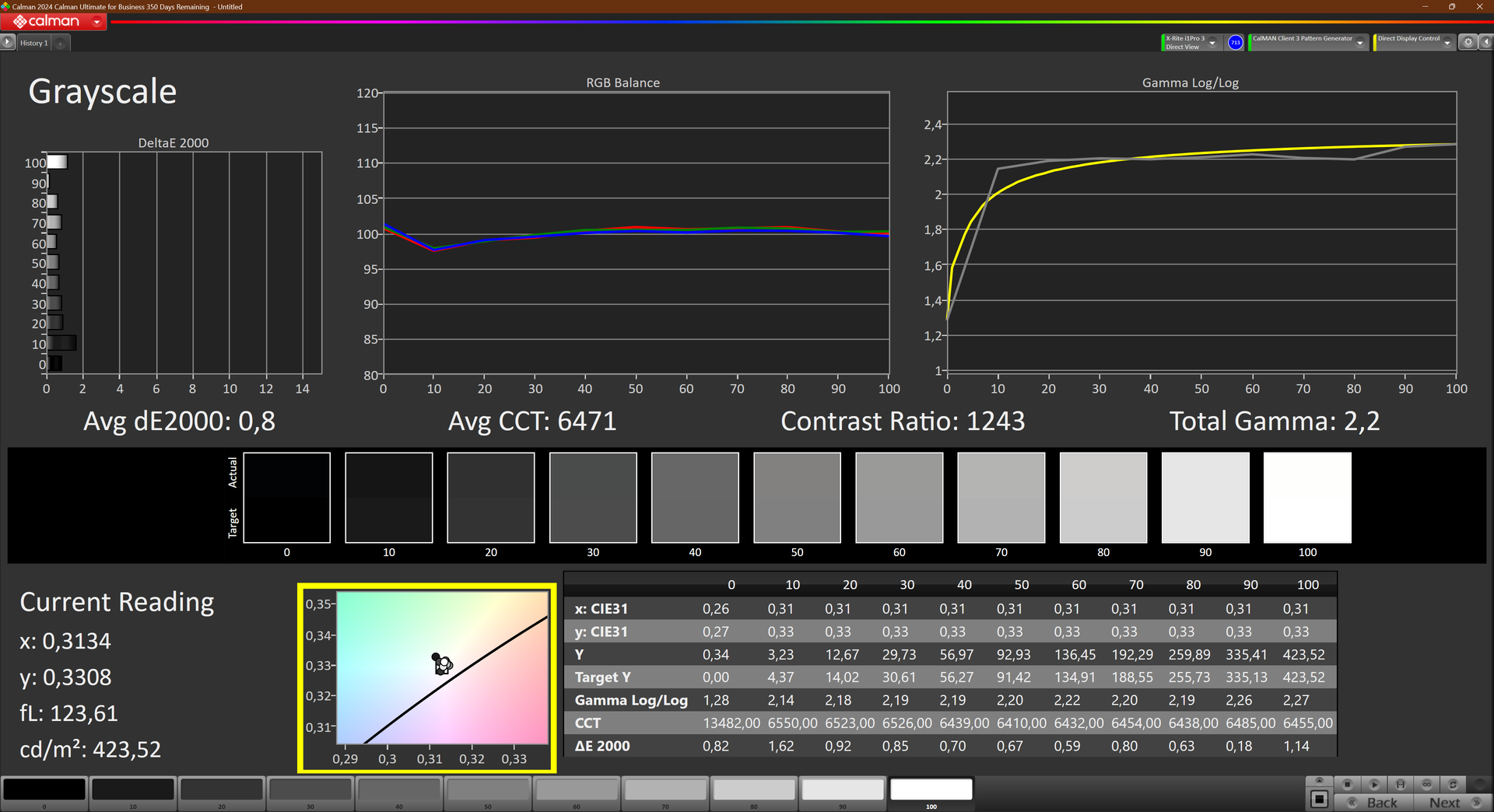

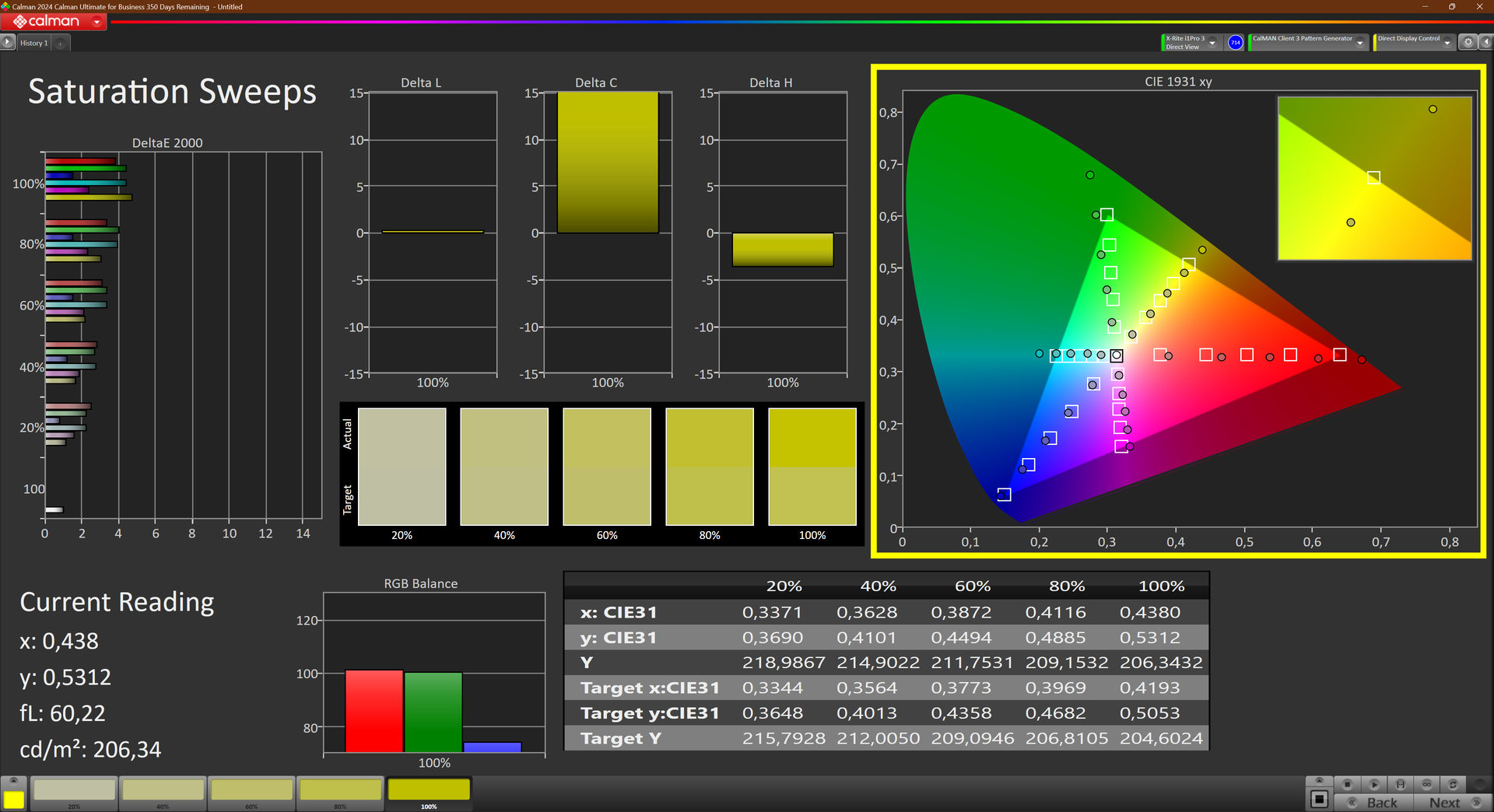

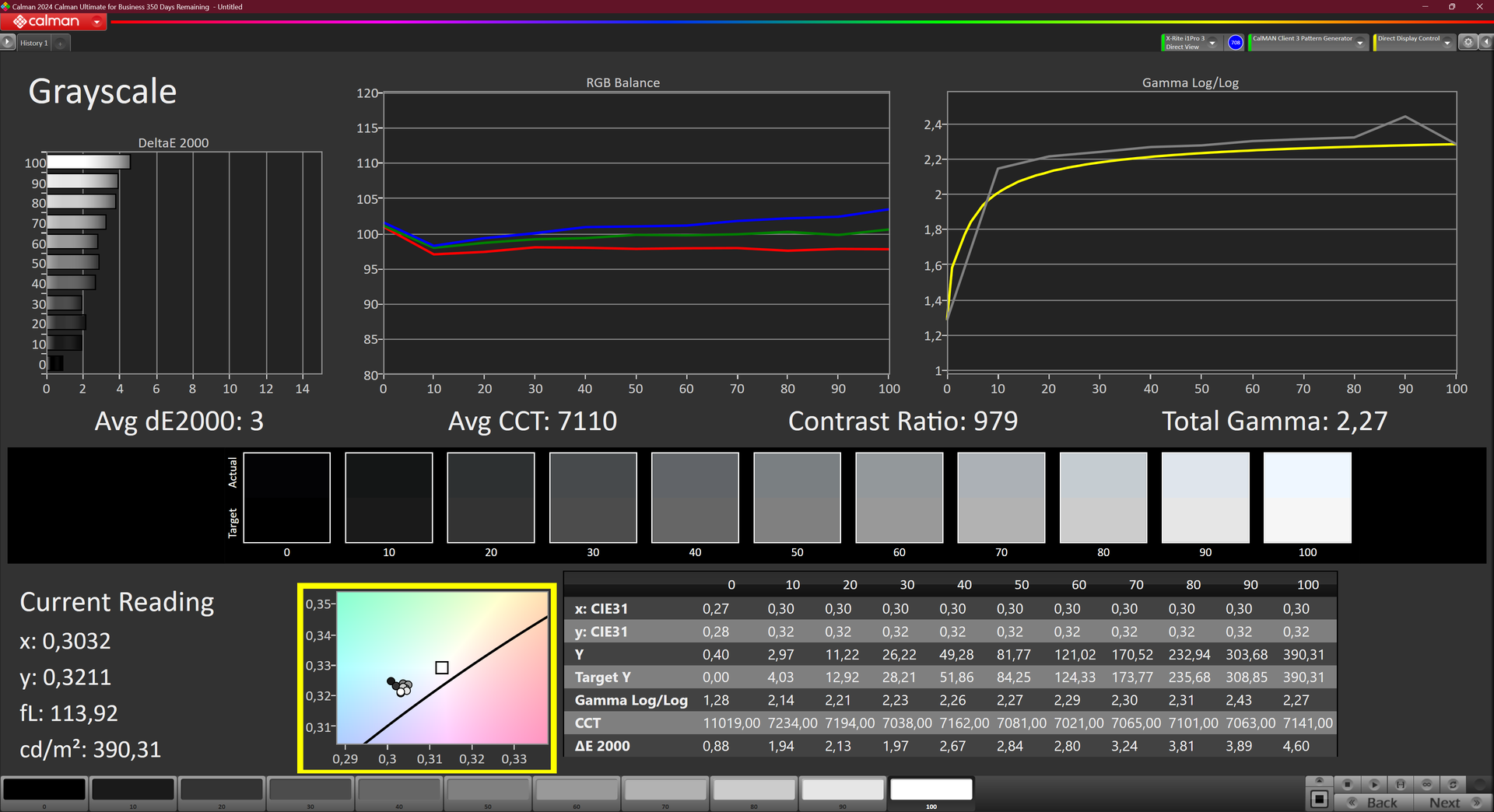

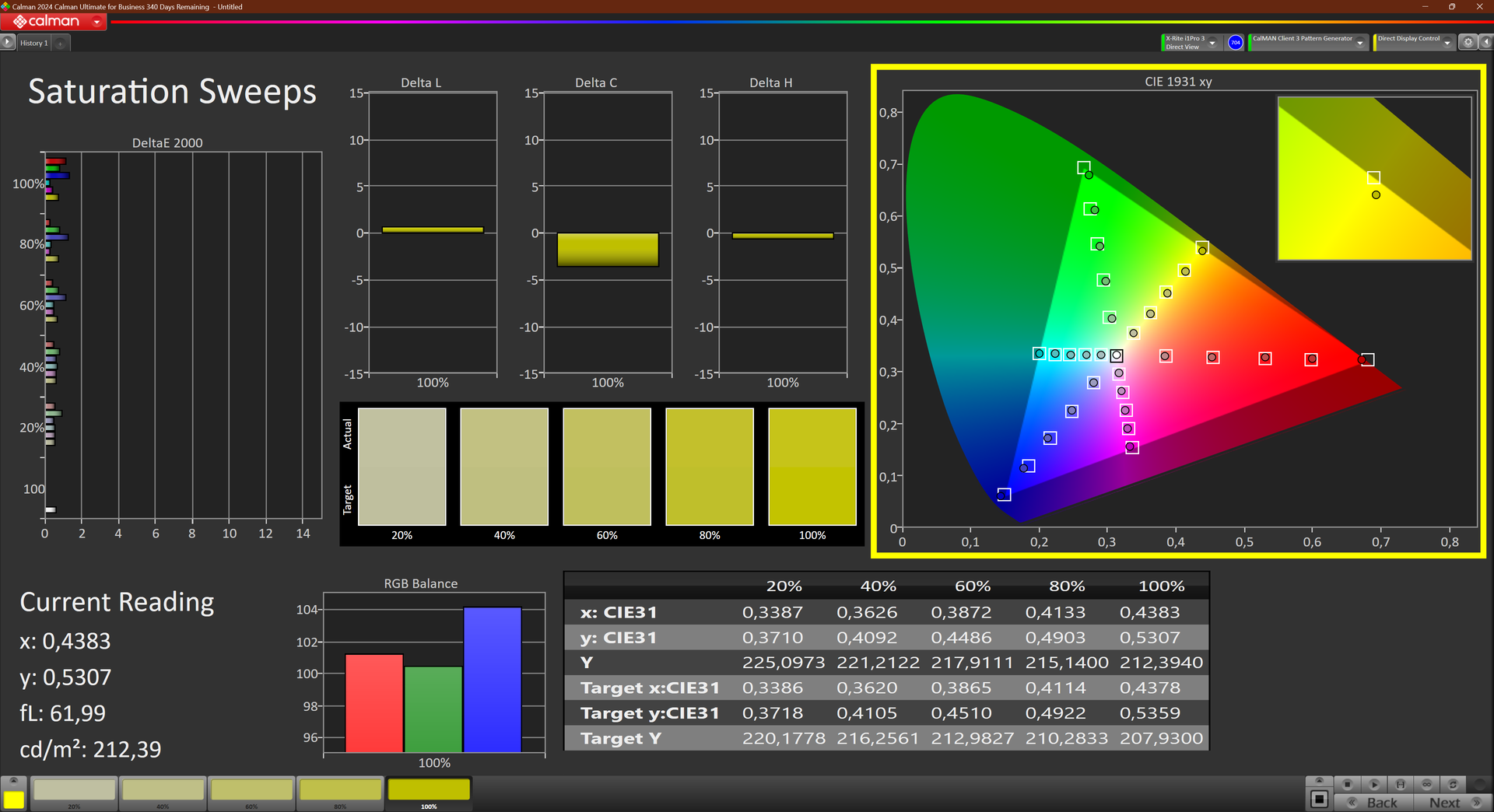

试图校准面板以正确显示 sRGB 色域中的颜色是行不通的。即使经过校准，色彩也会出错。如果您想在 DCI P3 色域中工作，我们只推荐您使用这款面板，因为只有在 DCI P3 色域中色彩才会准确。

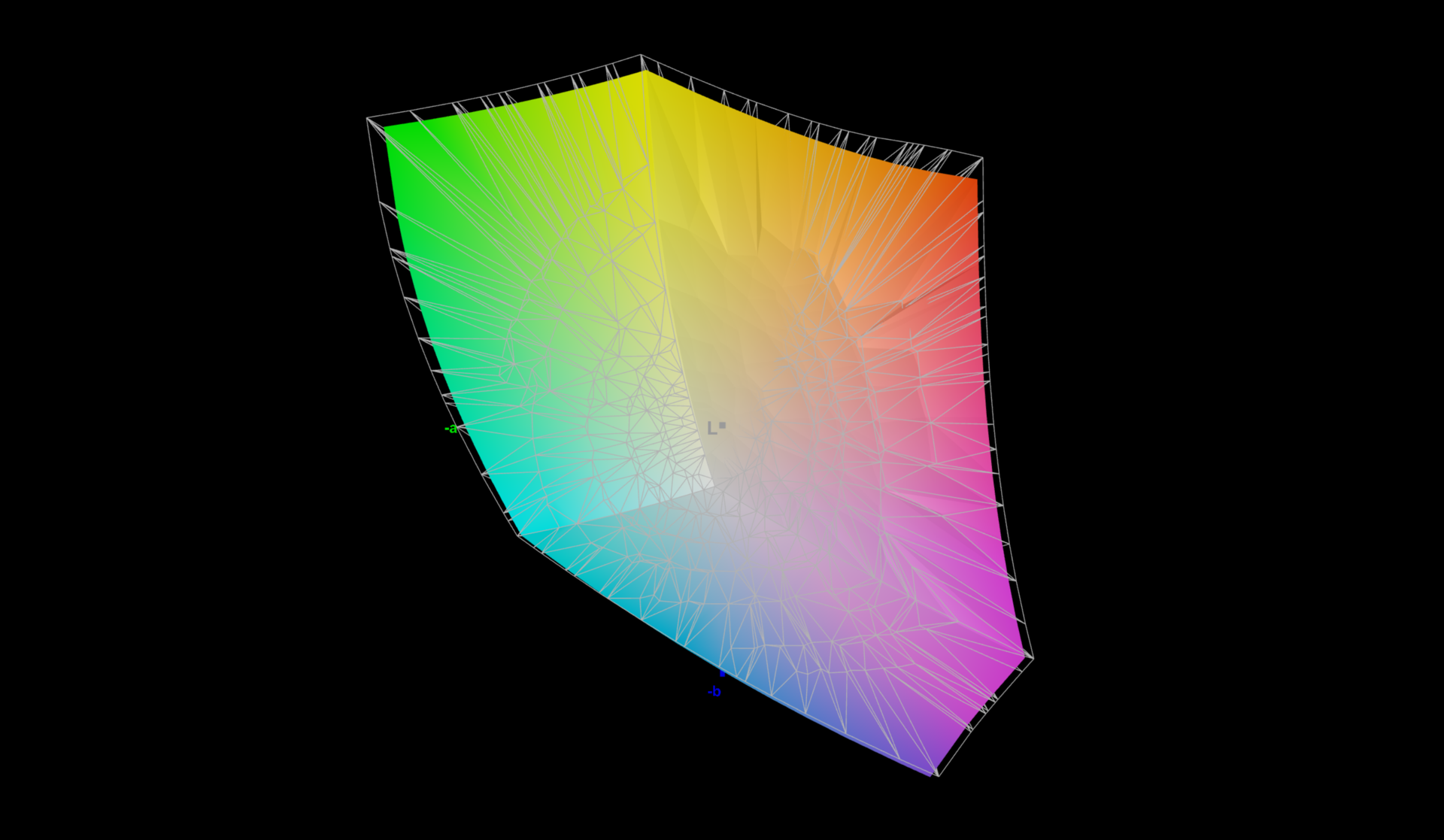

该屏幕几乎完全覆盖了 sRGB 色域和 DCI P3 色域。但如前所述，它主要适用于这两种色域中较宽的色域。

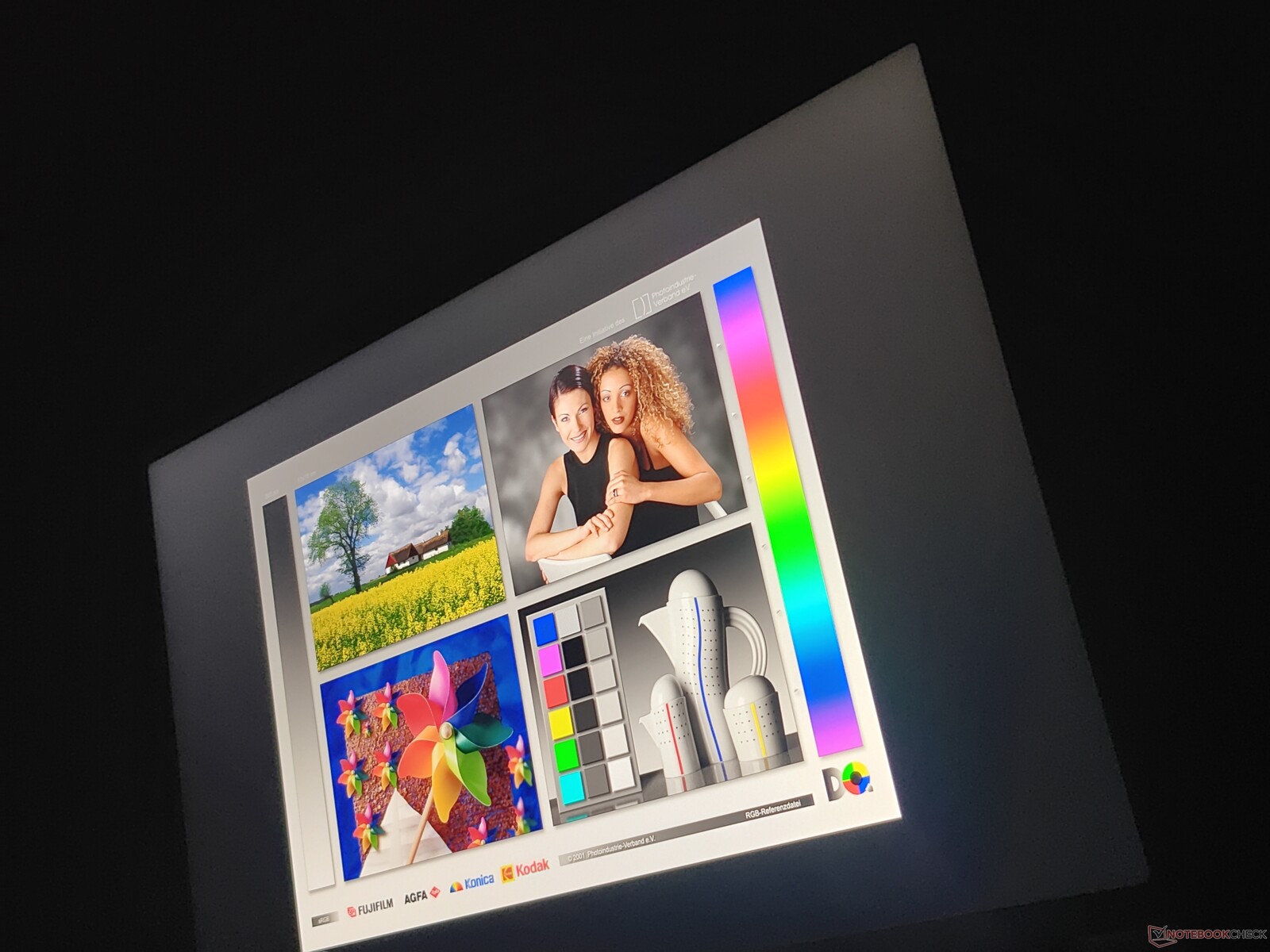

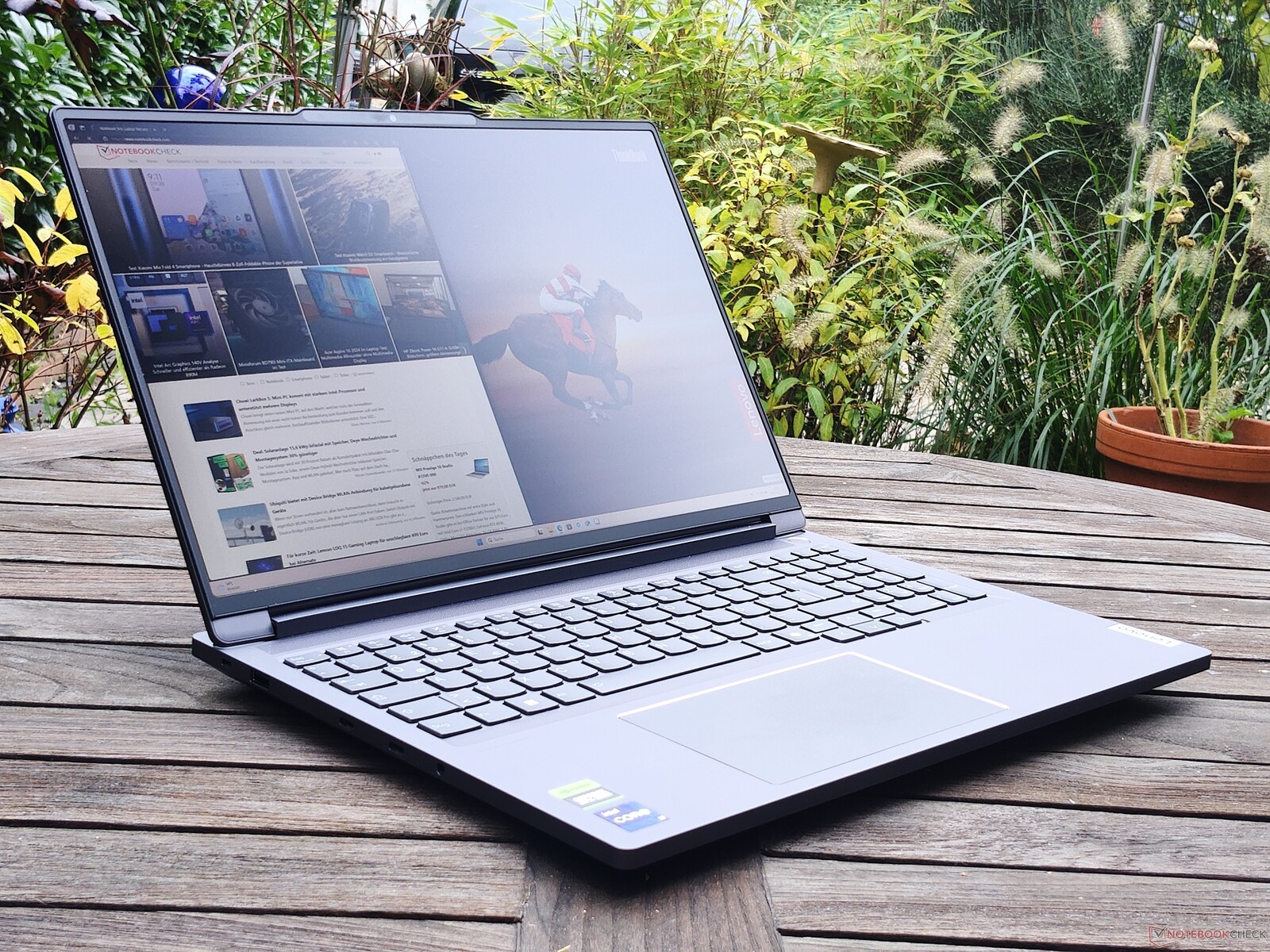

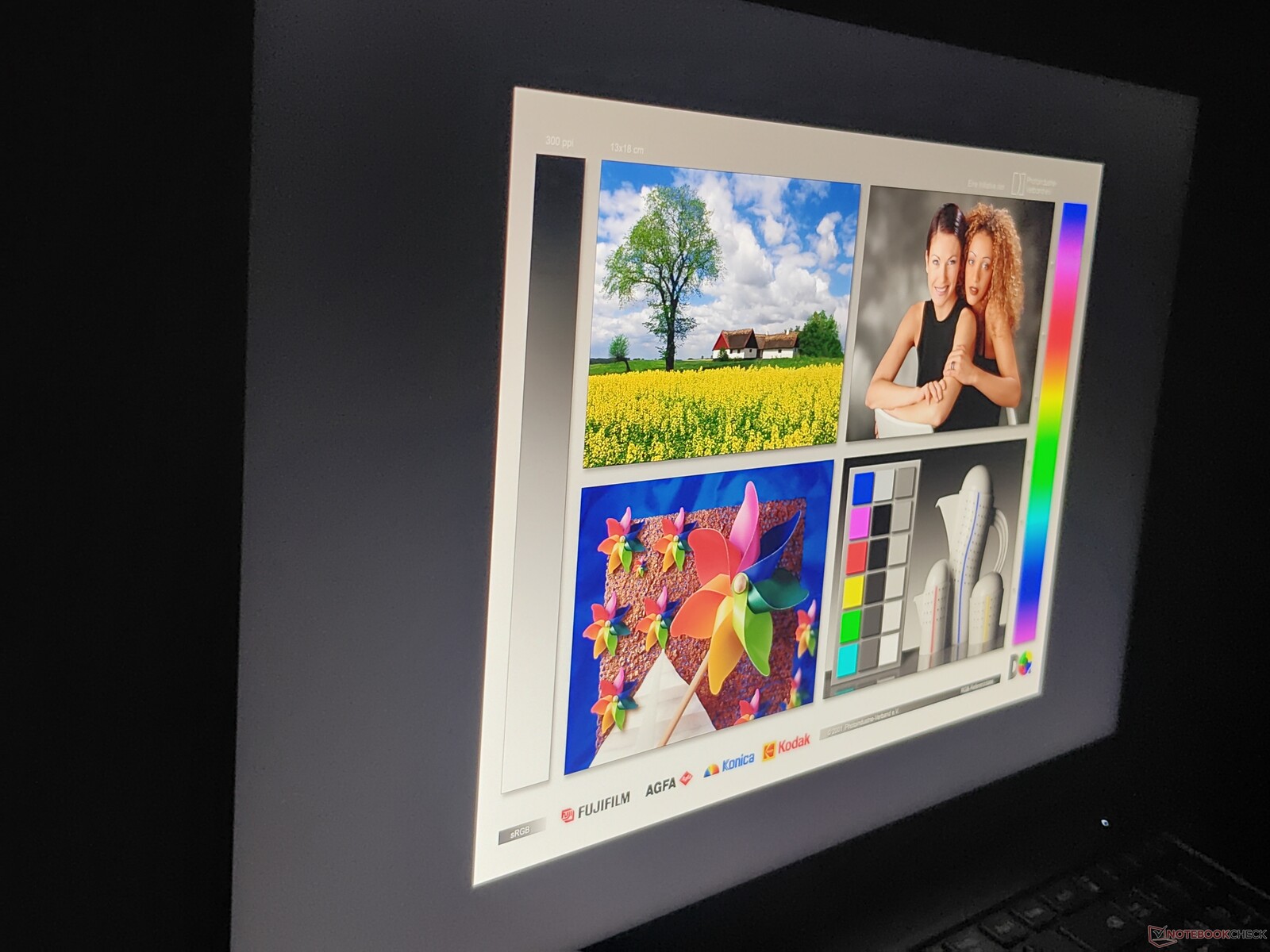

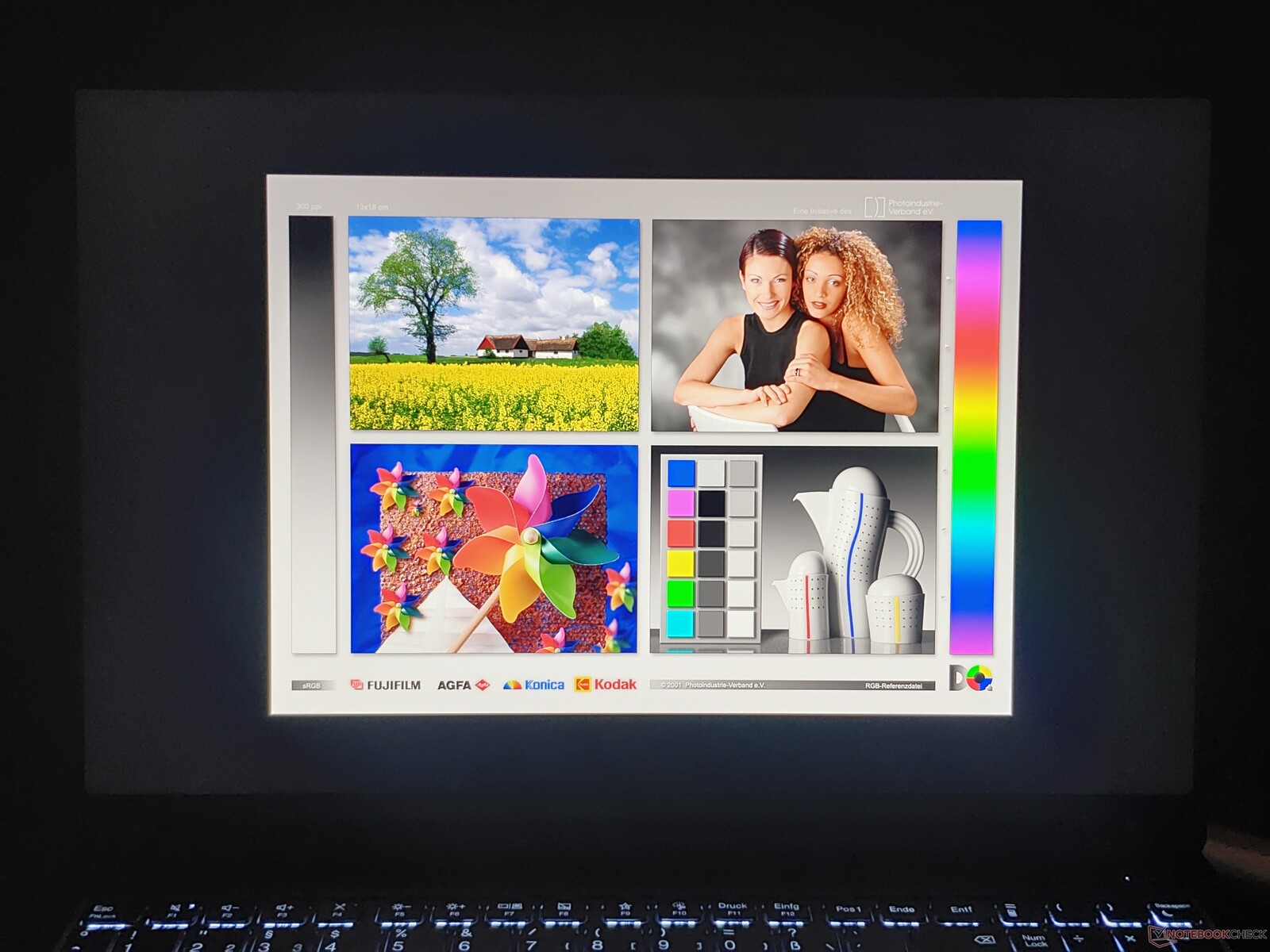

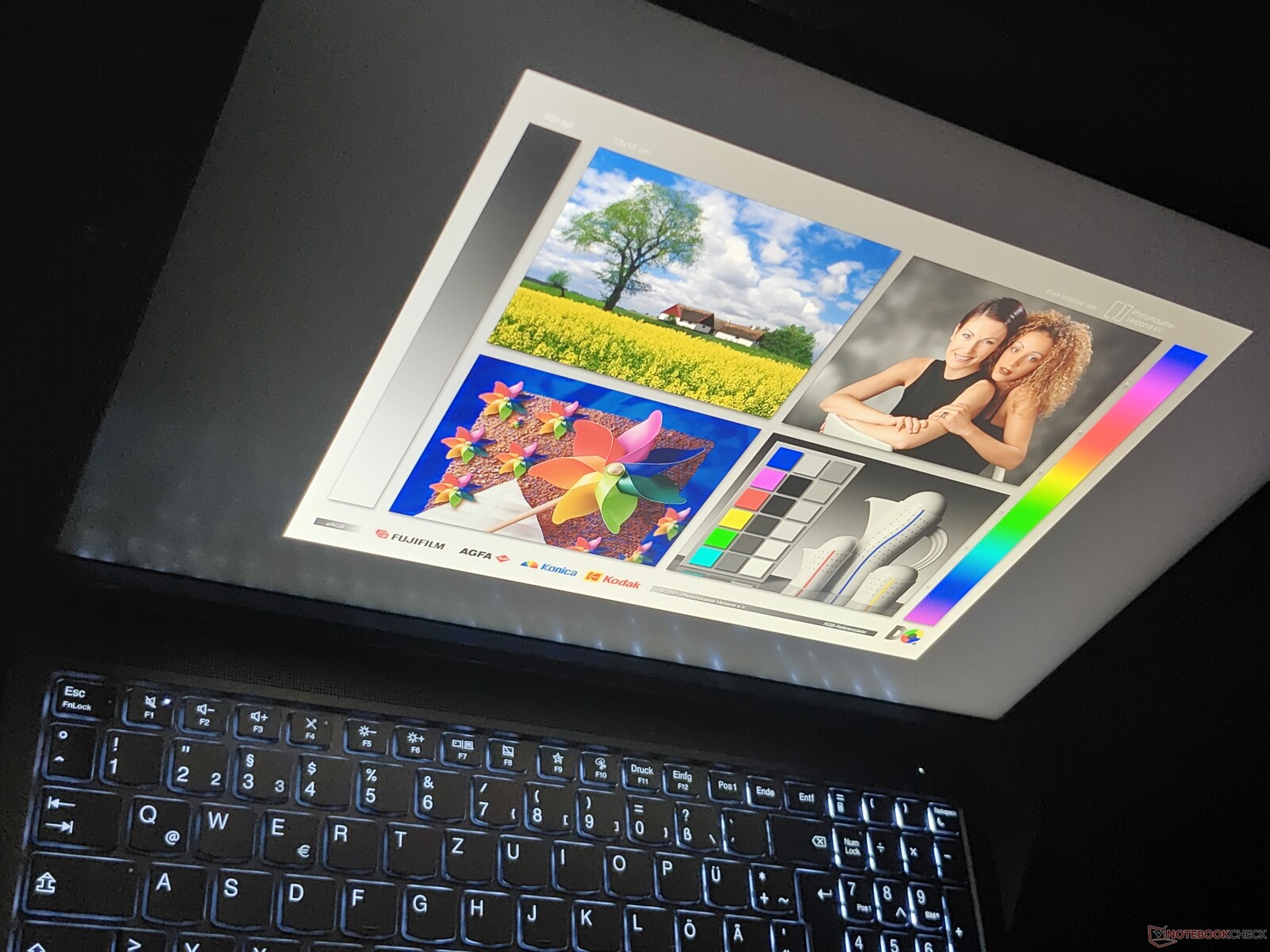

在室外，ThinkBook 的磨砂表面和超过 400 cd/m² 的亮度当然可以使用。不过，更高的亮度会更有用。

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

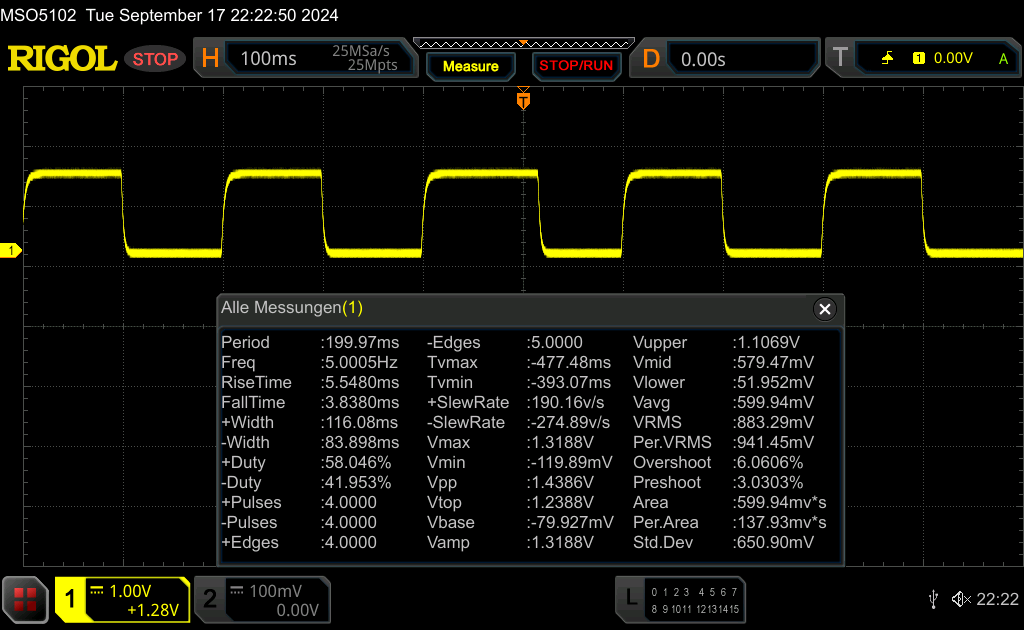

↔ Response Time Black to White
9.3 ms ... rise ↗ and fall ↘ combined	↗ 5.5 ms rise
9.3 ms ... rise ↗ and fall ↘ combined	↘ 3.8 ms fall
The screen shows fast response rates in our tests and should be suited for gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 22 % of all devices are better. This means that the measured response time is better than the average of all tested devices (20.9 ms).

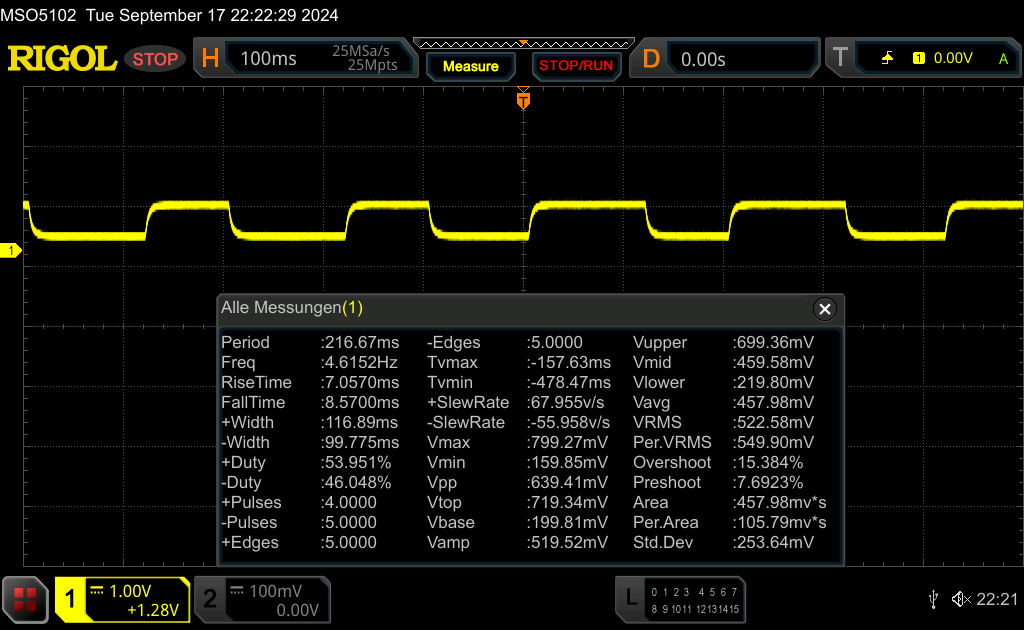

↔ Response Time 50% Grey to 80% Grey
15.5 ms ... rise ↗ and fall ↘ combined	↗ 7 ms rise
15.5 ms ... rise ↗ and fall ↘ combined	↘ 8.5 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 26 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.8 ms).

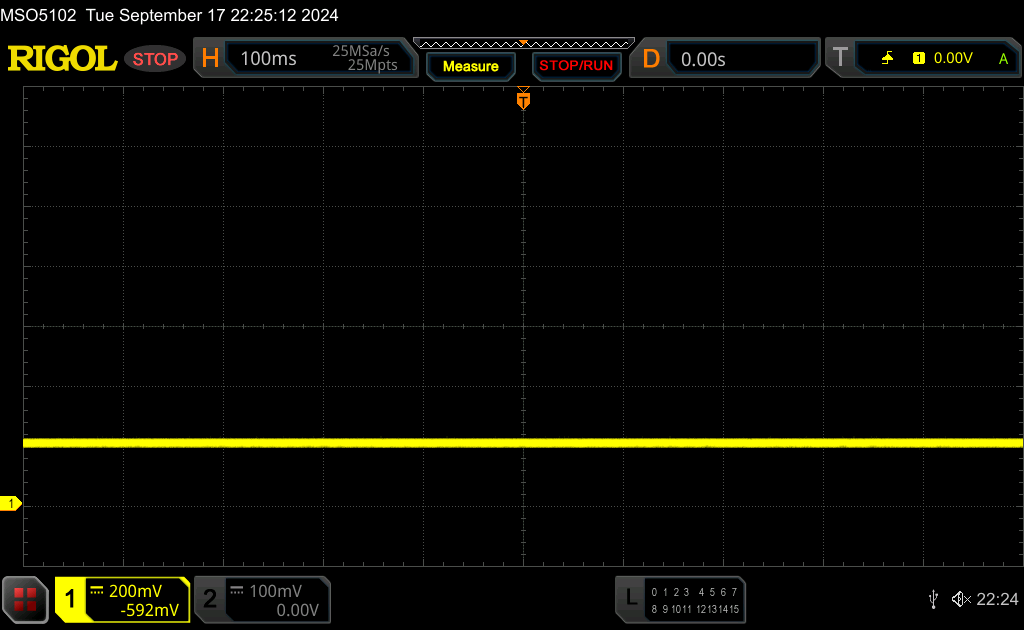

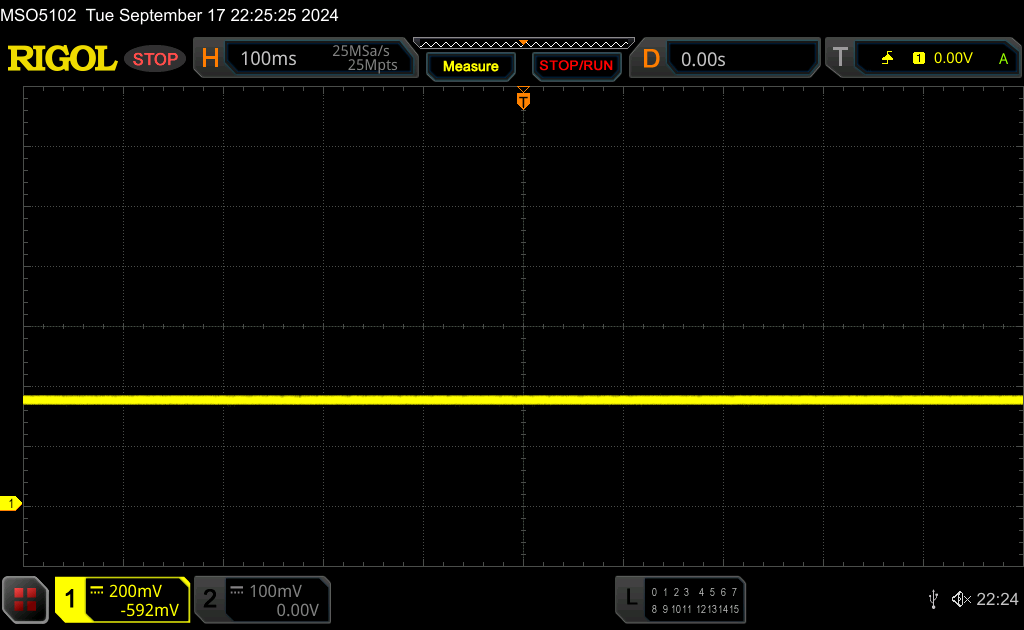

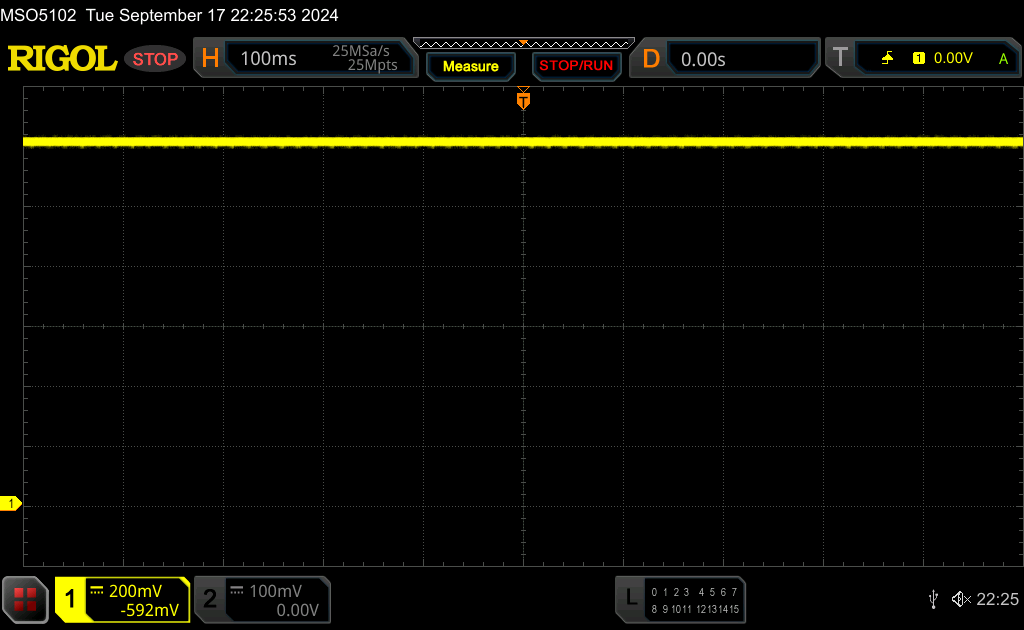

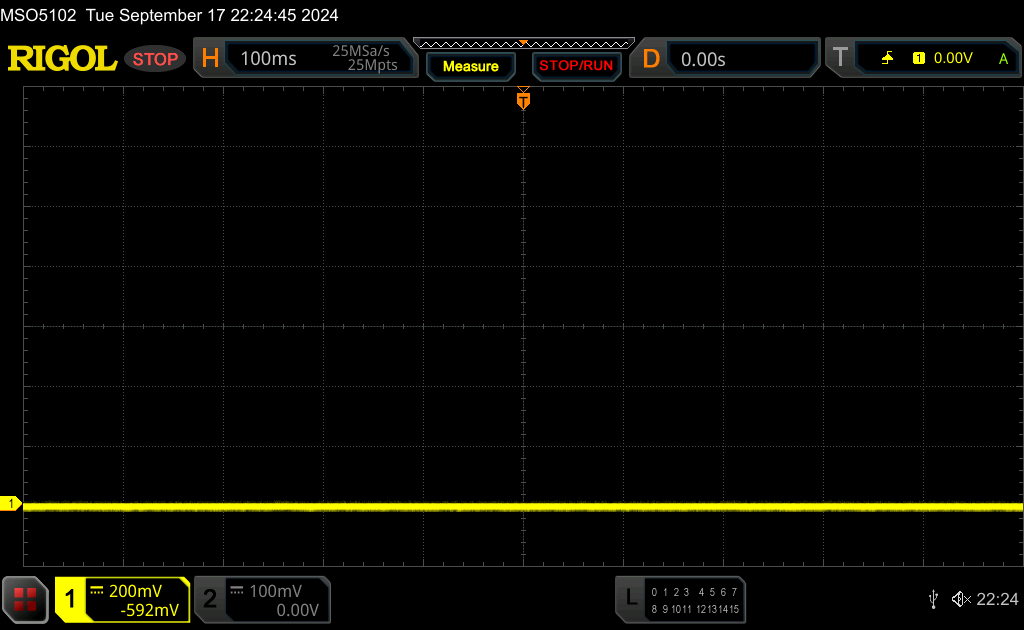

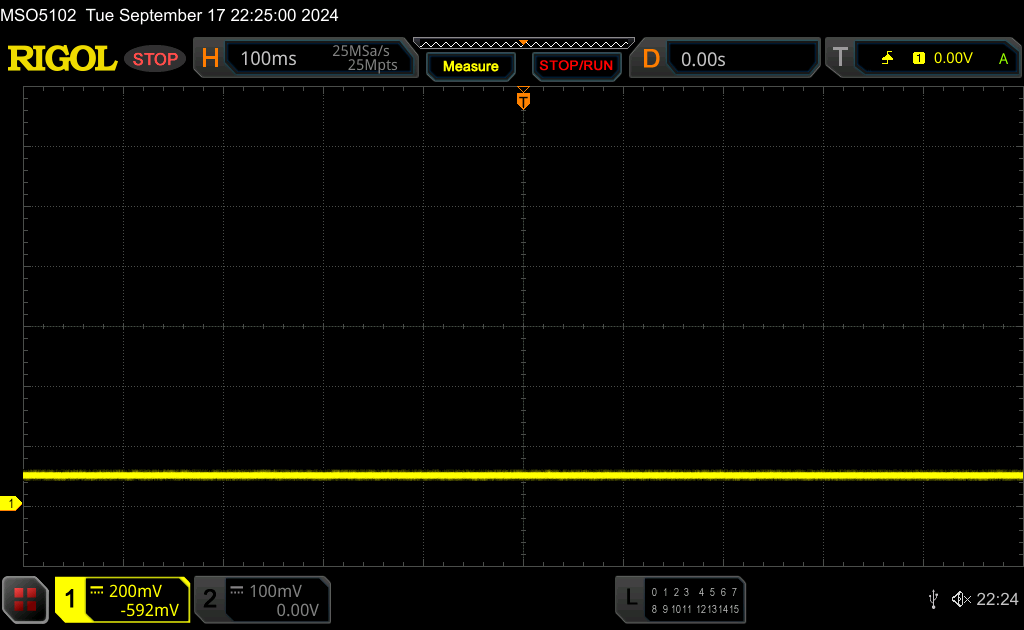

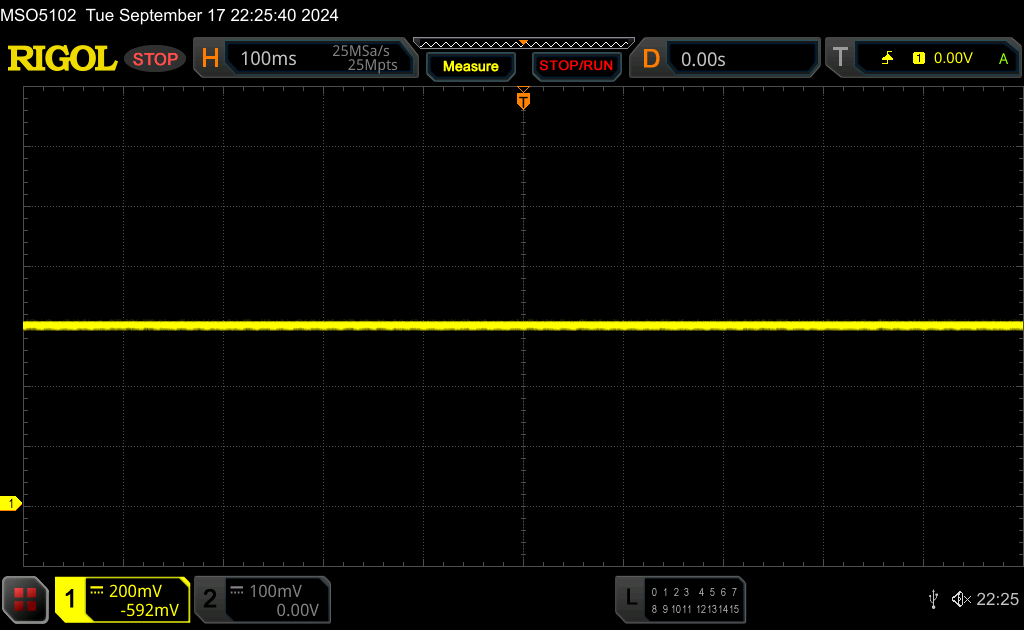

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured.

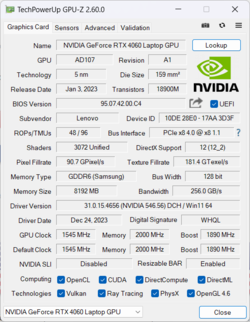

性能：英特尔 Raptor Lake 和英伟达GeForce RTX 4060

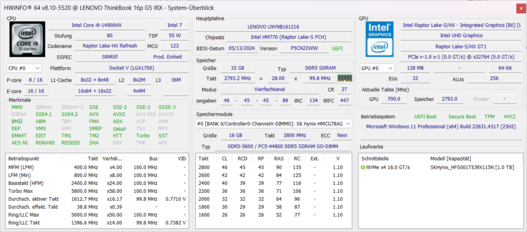

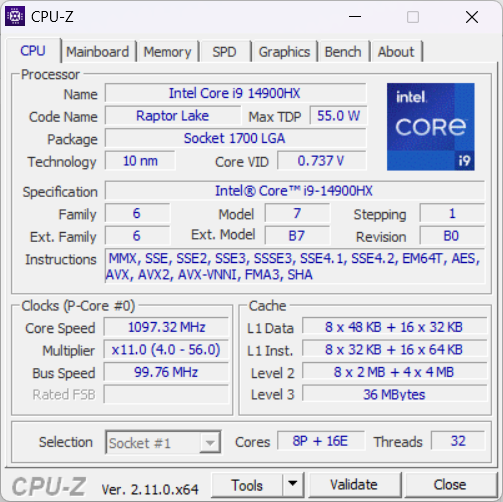

联想 ThinkBook 16p Gen 5 IRX 的选择并不多。联想销售的这款产品配备两种不同的 Raptor Lake HX CPU：英特尔英特尔酷睿 i7-14650HX或酷睿 i9-14900HX.该套件还配备了专用 GPU，即英伟达GeForce RTX 4060 笔记本电脑.

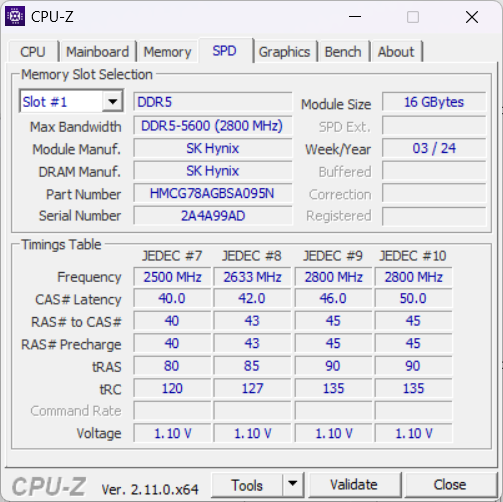

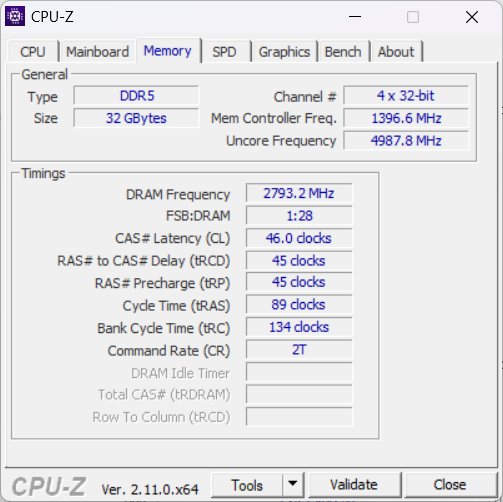

联想为两个 SO-DIMM 插槽配备了最大 32 GB DDR5-5600。理论最大值应为 96 GB，不过这还需要测试。此外，M.2 2280 插槽也是双层的。联想将固态硬盘的容量定为 2 TB，因此最大容量为 4 TB。

测试条件

ThinkBook 使用 Windows 能源配置文件。可以使用组合键 FN+Q 进行设置。有三种不同的配置文件可供选择：

最佳电池寿命：PL1 45 W / PL2 60 W
平衡PL1 95 W / PL2 135 W
最佳性能：PL1 130 瓦 / PL2 160 瓦

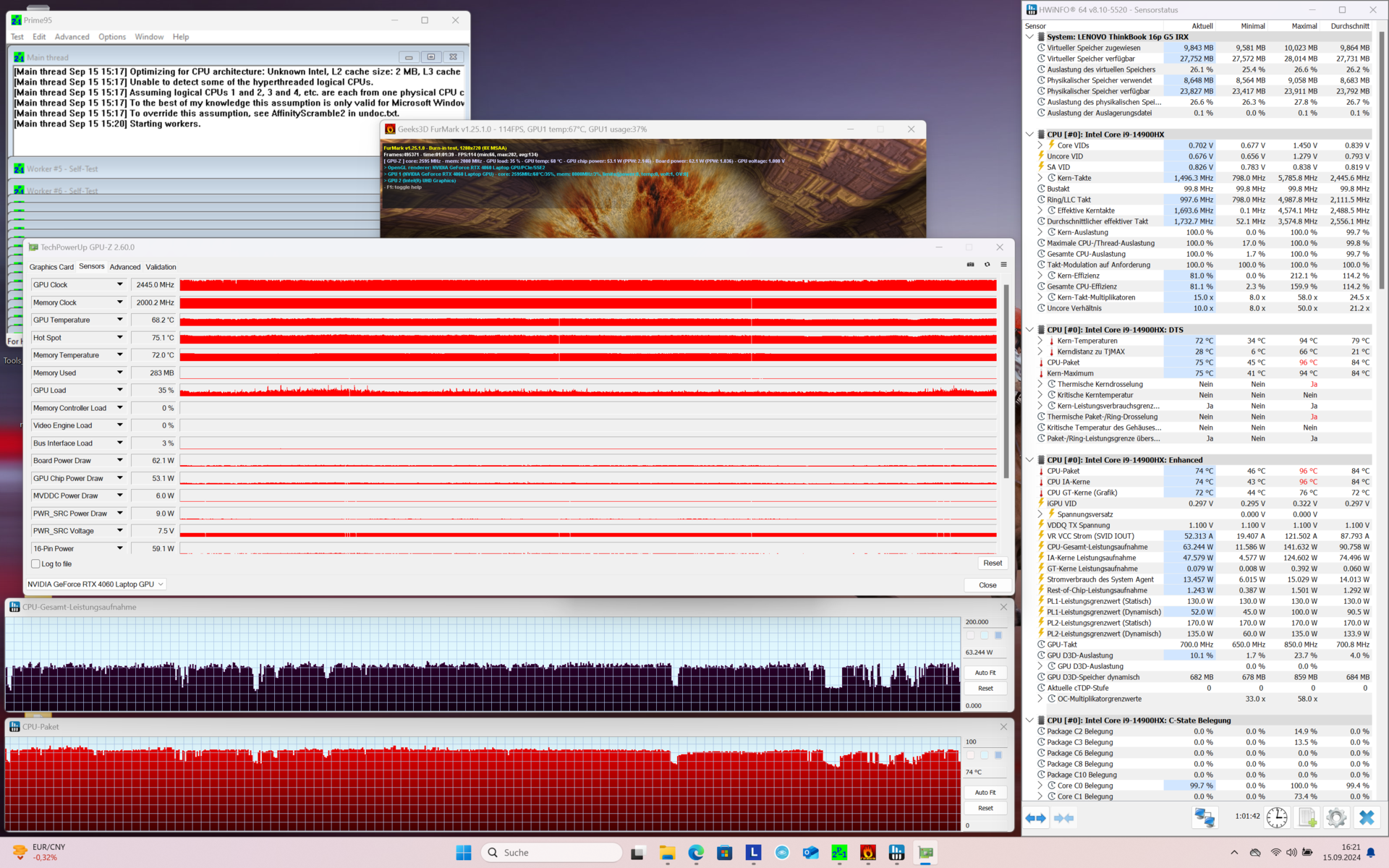

我们的所有性能基准测试都是在 "最佳性能 "模式下进行的。下表总结了各配置文件对性能、温度和风扇噪音的影响。

能源概况	PL1	PL2	CB R23 Multi	TGP	Time Spy 图形	CP 2077 QHD/Ultra	压力测试	最大风扇噪音
最佳电池寿命	45 W	60 W	18695	20 W	2246	9.6 FPS	CPU：62C GPU：50C	28.6 dB(A)
平衡	95 W	135 W	28628	80 W	10297	42.1 FPS	CPU：75C GPU：72C	49.4 dB(A)
最佳性能	130 W	160 W	29202	115 W	10625	46.3 FPS	CPU：80C GPU：82C	57.4 dB(a)

Prozessor

英特尔英特尔酷睿 i9-14900HX是英特尔最强劲的移动 CPU 之一，属于 HX55 系列，典型 TDP 为 55 W。它属于 HX55 系列，典型 TDP 为 55 W。8 个 P 核心的主频为 2.2 至 5.8 GHz，16 个 E 核心的主频为 1.6 至 4.1 GHz。总共有 32 个超线程。如需与其他处理器进行更全面的比较，请参阅我们的 CPU 列表可以使用。

联想 ThinkPad 16p Gen 5 拥有如此强大的 CPU，其卓越的性能也就不足为奇了。在所评测的设备中，无论是单核还是多核测试，它的性能都是最高的。即使在持续负载的情况下，ThinkBook 笔记本电脑也能保持性能，不会出现节流现象。

在电池模式下，CPU 性能大约会下降 40%。

Cinebench R15 Multi loop

Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX: Ø4637 (4531.04-4774.41)

Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX: Ø2145 (2133.11-2160.06)

Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370: Ø3476 (3466.5-3497.73)

Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H: Ø2672 (2597.07-2848.6)

Framework Laptop 16 AMD Ryzen 9 7940HS: Ø2617 (2587.82-2652.52)

Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H: Ø2743 (2699.24-2880.39)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX	87.9 pt
Average Intel Core i9-14900HX	83.2 pt
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370	72.2 pt
Framework Laptop 16 AMD Ryzen 9 7940HS	61.8 pt
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H	61.5 pt
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H	61.1 pt
Average of class Multimedia	55.4 pt
Lenovo ThinkBook 16p G3 ARH ^-2! AMD Ryzen 9 6900HX	45.5 pt

Cinebench R23 / Multi Core
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX	30416 Points
Average Intel Core i9-14900HX (17078 - 36249, n=36)	28815 Points -5%
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370	23750 Points -22%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H	19007 Points -38%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H	18762 Points -38%
Framework Laptop 16 AMD Ryzen 9 7940HS	16519 (16352.4^min - 16518.9^max) Points -46%
Average of class Multimedia (6936 - 30789, n=102, last 2 years)	15381 Points -49%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX	13463 (13112.3^min - 13463.1^max) Points -56%

Cinebench R23 / Single Core
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX	2245 Points
Average Intel Core i9-14900HX (1720 - 2245, n=36)	2149 Points -4%
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370	2044 Points -9%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H	1815 Points -19%
Average of class Multimedia (878 - 2290, n=93, last 2 years)	1764 Points -21%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H	1757 Points -22%
Framework Laptop 16 AMD Ryzen 9 7940HS	1733 Points -23%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX	1556 Points -31%

Cinebench R20 / CPU (Multi Core)
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX	11517 Points
Average Intel Core i9-14900HX (6579 - 13832, n=36)	10958 Points -5%
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370	9246 Points -20%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H	7409 Points -36%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H	7234 Points -37%
Framework Laptop 16 AMD Ryzen 9 7940HS	6402 Points -44%
Average of class Multimedia (2681 - 11768, n=86, last 2 years)	5672 Points -51%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX	5253 Points -54%

Cinebench R20 / CPU (Single Core)
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX	853 Points
Average Intel Core i9-14900HX (657 - 859, n=36)	824 Points -3%
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370	804 Points -6%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H	689 Points -19%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H	689 Points -19%
Framework Laptop 16 AMD Ryzen 9 7940HS	680 Points -20%
Average of class Multimedia (341 - 853, n=86, last 2 years)	652 Points -24%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX	604 Points -29%

Cinebench R15 / CPU Multi 64Bit
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX	4774 (4531.04^min - 4774.41^max) Points
Average Intel Core i9-14900HX (3263 - 5589, n=37)	4420 Points -7%
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370	3498 (3466.5^min - 3497.73^max) Points -27%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H	2880 (2699.24^min - 2880.39^max) Points -40%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H	2848.6 (2597.07^min - 2848.6^max) Points -40%
Framework Laptop 16 AMD Ryzen 9 7940HS	2653 (2587.82^min - 2652.52^max) Points -44%
Average of class Multimedia (1252 - 4774, n=93, last 2 years)	2432 Points -49%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX	2160 (2133.11^min - 2160.06^max) Points -55%

Cinebench R15 / CPU Single 64Bit
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX	323 Points
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370	310 Points -4%
Average Intel Core i9-14900HX (247 - 323, n=36)	305 Points -6%
Framework Laptop 16 AMD Ryzen 9 7940HS	277 Points -14%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H	268 Points -17%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H	266 Points -18%
Average of class Multimedia (99.6 - 323, n=88, last 2 years)	258 Points -20%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX	241 Points -25%

Blender / v2.79 BMW27 CPU
Average of class Multimedia (107 - 502, n=85, last 2 years)	253 Seconds * -136%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX	247 Seconds * -131%
Framework Laptop 16 AMD Ryzen 9 7940HS	195 Seconds * -82%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H	190 Seconds * -78%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H	175 Seconds * -64%
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370	140 Seconds * -31%
Average Intel Core i9-14900HX (91 - 206, n=36)	121.2 Seconds * -13%
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX	107 Seconds *

7-Zip 18.03 / 7z b 4
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX	121228 MIPS
Average Intel Core i9-14900HX (66769 - 136645, n=36)	111340 MIPS -8%
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370	83354 MIPS -31%
Framework Laptop 16 AMD Ryzen 9 7940HS	71464 MIPS -41%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H	70254 MIPS -42%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H	69955 MIPS -42%
Average of class Multimedia (30592 - 121228, n=79, last 2 years)	60219 MIPS -50%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX	55816 MIPS -54%

7-Zip 18.03 / 7z b 4 -mmt1
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX	7545 MIPS
Average Intel Core i9-14900HX (5452 - 7545, n=36)	7021 MIPS -7%
Framework Laptop 16 AMD Ryzen 9 7940HS	6599 MIPS -13%
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370	6179 MIPS -18%
Average of class Multimedia (3398 - 7545, n=79, last 2 years)	5716 MIPS -24%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H	5556 MIPS -26%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H	5539 MIPS -27%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX	5090 MIPS -33%

Geekbench 6.3 / Multi-Core
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX	18083 Points
Average Intel Core i9-14900HX (13158 - 19665, n=36)	17312 Points -4%
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370	15367 Points -15%
Average of class Multimedia (7592 - 22544, n=66, last 2 years)	13633 Points -25%
Framework Laptop 16 AMD Ryzen 9 7940HS	13217 Points -27%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H	13122 Points -27%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H	12952 Points -28%

Geekbench 6.3 / Single-Core
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX	3094 Points
Average Intel Core i9-14900HX (2419 - 3129, n=36)	2967 Points -4%
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370	2877 Points -7%
Average of class Multimedia (1534 - 3927, n=62, last 2 years)	2701 Points -13%
Framework Laptop 16 AMD Ryzen 9 7940HS	2630 Points -15%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H	2458 Points -21%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H	2389 Points -23%

Geekbench 5.5 / Multi-Core
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX	20422 Points
Average Intel Core i9-14900HX (8618 - 23194, n=36)	19403 Points -5%
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370	15012 Points -26%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H	13173 Points -35%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H	12982 Points -36%
Framework Laptop 16 AMD Ryzen 9 7940HS	12379 Points -39%
Average of class Multimedia (4990 - 23059, n=87, last 2 years)	12061 Points -41%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX	9341 Points -54%

Geekbench 5.5 / Single-Core
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX	2207 Points
Average Intel Core i9-14900HX (1669 - 2210, n=36)	2093 Points -5%
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370	2066 Points -6%
Framework Laptop 16 AMD Ryzen 9 7940HS	1963 Points -11%
Average of class Multimedia (891 - 2555, n=87, last 2 years)	1826 Points -17%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H	1809 Points -18%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H	1783 Points -19%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX	1549 Points -30%

HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX	30.4 fps
Average Intel Core i9-14900HX (16.8 - 38.9, n=36)	29.3 fps -4%
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370	24.6 fps -19%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H	21.1 fps -31%
Framework Laptop 16 AMD Ryzen 9 7940HS	21 fps -31%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H	20.7 fps -32%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX	16.8 fps -45%
Average of class Multimedia (5.26 - 30.5, n=78, last 2 years)	16.4 fps -46%

LibreOffice / 20 Documents To PDF
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX	57.8 s * -27%
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370	56.1 s * -24%
Average of class Multimedia (6.7 - 146.7, n=81, last 2 years)	49.2 s * -8%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H	46.6 s * -3%
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX	45.4 s *
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H	44.1 s * +3%
Framework Laptop 16 AMD Ryzen 9 7940HS	43.6 s * +4%
Average Intel Core i9-14900HX (31.4 - 85.1, n=36)	43.3 s * +5%

R Benchmark 2.5 / Overall mean
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX	0.4974 sec * -38%
Average of class Multimedia (0.3604 - 0.947, n=79, last 2 years)	0.4845 sec * -34%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H	0.4636 sec * -29%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H	0.4609 sec * -28%
Framework Laptop 16 AMD Ryzen 9 7940HS	0.4467 sec * -24%
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370	0.4041 sec * -12%
Average Intel Core i9-14900HX (0.3604 - 0.4859, n=36)	0.3853 sec * -7%
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX	0.3604 sec *

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

4774 Points

Cinebench R15 OpenGL 64Bit

299 fps

Cinebench R15 Ref. Match 64Bit

99.6 %

Cinebench R15 CPU Single 64Bit

323 Points

Cinebench R20 CPU (Multi Core)

11517 Points

Cinebench R20 CPU (Single Core)

853 Points

Cinebench R23 Single Core

2245 Points

Cinebench R23 Multi Core

30416 Points

Help

... in comparison

Performance Rating
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU	92.4 pt
Average Intel Core i9-14900HX	86.9 pt
Asus ProArt P16 H7606WI ^-2! AMD Ryzen AI 9 HX 370, NVIDIA GeForce RTX 4070 Laptop GPU	84.7 pt
Framework Laptop 16 AMD Ryzen 9 7940HS, Radeon RX 7700S	80 pt
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	66.2 pt
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	61.4 pt
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX, GeForce RTX 3060 Laptop GPU	56.8 pt
Average of class Multimedia	53.3 pt

AIDA64 / FP32 Ray-Trace
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU	27083 KRay/s
Framework Laptop 16 AMD Ryzen 9 7940HS, Radeon RX 7700S	26844 KRay/s -1%
Average Intel Core i9-14900HX (13098 - 33474, n=35)	24776 KRay/s -9%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	17612 KRay/s -35%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	17156 KRay/s -37%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX, GeForce RTX 3060 Laptop GPU	15817 KRay/s -42%
Average of class Multimedia (4906 - 36957, n=76, last 2 years)	14392 KRay/s -47%

AIDA64 / FPU Julia
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370, NVIDIA GeForce RTX 4070 Laptop GPU	147248 Points +8%
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU	136606 Points
Average Intel Core i9-14900HX (67573 - 166040, n=35)	124243 Points -9%
Framework Laptop 16 AMD Ryzen 9 7940HS, Radeon RX 7700S	112922 Points -17%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX, GeForce RTX 3060 Laptop GPU	99306 Points -27%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	93181 Points -32%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	89597 Points -34%
Average of class Multimedia (14528 - 147248, n=77, last 2 years)	72601 Points -47%

AIDA64 / CPU SHA3
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU	6698 MB/s
Average Intel Core i9-14900HX (3589 - 7979, n=35)	6137 MB/s -8%
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370, NVIDIA GeForce RTX 4070 Laptop GPU	5843 MB/s -13%
Framework Laptop 16 AMD Ryzen 9 7940HS, Radeon RX 7700S	4927 MB/s -26%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	4436 MB/s -34%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	4178 MB/s -38%
Average of class Multimedia (1529 - 6698, n=77, last 2 years)	3385 MB/s -49%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX, GeForce RTX 3060 Laptop GPU	3284 MB/s -51%

AIDA64 / CPU Queen
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU	141074 Points
Average Intel Core i9-14900HX (118405 - 148966, n=35)	138178 Points -2%
Framework Laptop 16 AMD Ryzen 9 7940HS, Radeon RX 7700S	121264 Points -14%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX, GeForce RTX 3060 Laptop GPU	102396 Points -27%
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370, NVIDIA GeForce RTX 4070 Laptop GPU	94661 Points -33%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	90886 Points -36%
Average of class Multimedia (21547 - 141074, n=77, last 2 years)	90675 Points -36%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	84062 Points -40%

AIDA64 / FPU SinJulia
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370, NVIDIA GeForce RTX 4070 Laptop GPU	19021 Points +17%
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU	16233 Points
Average Intel Core i9-14900HX (10475 - 18517, n=35)	15240 Points -6%
Framework Laptop 16 AMD Ryzen 9 7940HS, Radeon RX 7700S	14935 Points -8%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX, GeForce RTX 3060 Laptop GPU	13146 Points -19%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	10625 Points -35%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	10563 Points -35%
Average of class Multimedia (1240 - 19021, n=77, last 2 years)	9325 Points -43%

AIDA64 / FPU Mandel
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU	67326 Points
Average Intel Core i9-14900HX (32543 - 83662, n=35)	61114 Points -9%
Framework Laptop 16 AMD Ryzen 9 7940HS, Radeon RX 7700S	60474 Points -10%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX, GeForce RTX 3060 Laptop GPU	54727 Points -19%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	44509 Points -34%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	43427 Points -35%
Average of class Multimedia (9903 - 75780, n=76, last 2 years)	36124 Points -46%

AIDA64 / CPU AES
Framework Laptop 16 AMD Ryzen 9 7940HS, Radeon RX 7700S	169946 MB/s +34%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	152179 MB/s +20%
Average Intel Core i9-14900HX (86964 - 241777, n=35)	139720 MB/s +10%
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU	126540 MB/s
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	84385 MB/s -33%
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370, NVIDIA GeForce RTX 4070 Laptop GPU	81929 MB/s -35%
Average of class Multimedia (31432 - 169946, n=77, last 2 years)	75931 MB/s -40%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX, GeForce RTX 3060 Laptop GPU	54613 MB/s -57%

AIDA64 / CPU ZLib
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU	1973 MB/s
Average Intel Core i9-14900HX (1054 - 2292, n=35)	1792 MB/s -9%
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370, NVIDIA GeForce RTX 4070 Laptop GPU	1520 MB/s -23%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	1250 MB/s -37%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	1209 MB/s -39%
Average of class Multimedia (454 - 1973, n=77, last 2 years)	934 MB/s -53%
Framework Laptop 16 AMD Ryzen 9 7940HS, Radeon RX 7700S	866 MB/s -56%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX, GeForce RTX 3060 Laptop GPU	838 MB/s -58%

AIDA64 / FP64 Ray-Trace
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370, NVIDIA GeForce RTX 4070 Laptop GPU	20608 KRay/s +39%
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU	14794 KRay/s
Framework Laptop 16 AMD Ryzen 9 7940HS, Radeon RX 7700S	14231 KRay/s -4%
Average Intel Core i9-14900HX (6809 - 18349, n=35)	13343 KRay/s -10%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	9296 KRay/s -37%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	8776 KRay/s -41%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX, GeForce RTX 3060 Laptop GPU	8400 KRay/s -43%
Average of class Multimedia (2738 - 20608, n=77, last 2 years)	7814 KRay/s -47%

AIDA64 / CPU PhotoWorxx
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU	49218 MPixel/s
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370, NVIDIA GeForce RTX 4070 Laptop GPU	48273 MPixel/s -2%
Average Intel Core i9-14900HX (23903 - 54702, n=35)	46809 MPixel/s -5%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	46208 MPixel/s -6%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	41311 MPixel/s -16%
Framework Laptop 16 AMD Ryzen 9 7940HS, Radeon RX 7700S	41024 MPixel/s -17%
Average of class Multimedia (7419 - 53918, n=77, last 2 years)	40793 MPixel/s -17%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX, GeForce RTX 3060 Laptop GPU	26873 MPixel/s -45%

系统性能

不出所料，凭借出色的 CPU 性能，ThinkBook 16p 的系统性能也在对比中名列前茅。这反映出日常使用非常流畅。

PCMark 10 / Score
Framework Laptop 16 Radeon RX 7700S, R9 7940HS, WDC PC SN810 1TB	8670 Points +4%
Lenovo ThinkBook 16p G5 IRX 21N50011GE NVIDIA GeForce RTX 4060 Laptop GPU, i9-14900HX, SK Hynix HFS001TEJ9X115N	8322 Points
Average Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU (7830 - 8322, n=2)	8076 Points -3%
Asus ProArt P16 H7606WI NVIDIA GeForce RTX 4070 Laptop GPU, Ryzen AI 9 HX 370, Micron 2400 MTFDKBA1T0QFM	7752 Points -7%
Lenovo ThinkPad P1 Gen 7 21KV001SGE NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, Kioxia XG8 KXG8AZNV1T02	7370 Points -11%
Lenovo ThinkBook 16p G3 ARH GeForce RTX 3060 Laptop GPU, R9 6900HX, Micron 3400 1TB MTFDKBA1T0TFH	6838 Points -18%
Honor MagicBook Pro 16 2024 NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, WD PC SN740 SDDPNQD-1T00	6800 Points -18%
Average of class Multimedia (4542 - 8670, n=72, last 2 years)	6789 Points -18%

PCMark 10 / Essentials
Framework Laptop 16 Radeon RX 7700S, R9 7940HS, WDC PC SN810 1TB	12420 Points +9%
Lenovo ThinkBook 16p G5 IRX 21N50011GE NVIDIA GeForce RTX 4060 Laptop GPU, i9-14900HX, SK Hynix HFS001TEJ9X115N	11413 Points
Average Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU (11022 - 11413, n=2)	11218 Points -2%
Average of class Multimedia (8480 - 12420, n=72, last 2 years)	10515 Points -8%
Lenovo ThinkPad P1 Gen 7 21KV001SGE NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, Kioxia XG8 KXG8AZNV1T02	10446 Points -8%
Lenovo ThinkBook 16p G3 ARH GeForce RTX 3060 Laptop GPU, R9 6900HX, Micron 3400 1TB MTFDKBA1T0TFH	10167 Points -11%
Asus ProArt P16 H7606WI NVIDIA GeForce RTX 4070 Laptop GPU, Ryzen AI 9 HX 370, Micron 2400 MTFDKBA1T0QFM	10009 Points -12%
Honor MagicBook Pro 16 2024 NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, WD PC SN740 SDDPNQD-1T00	9476 Points -17%

PCMark 10 / Productivity
Lenovo ThinkBook 16p G5 IRX 21N50011GE NVIDIA GeForce RTX 4060 Laptop GPU, i9-14900HX, SK Hynix HFS001TEJ9X115N	10558 Points
Framework Laptop 16 Radeon RX 7700S, R9 7940HS, WDC PC SN810 1TB	10512 Points 0%
Average Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU (9776 - 10558, n=2)	10167 Points -4%
Asus ProArt P16 H7606WI NVIDIA GeForce RTX 4070 Laptop GPU, Ryzen AI 9 HX 370, Micron 2400 MTFDKBA1T0QFM	9891 Points -6%
Lenovo ThinkBook 16p G3 ARH GeForce RTX 3060 Laptop GPU, R9 6900HX, Micron 3400 1TB MTFDKBA1T0TFH	9073 Points -14%
Lenovo ThinkPad P1 Gen 7 21KV001SGE NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, Kioxia XG8 KXG8AZNV1T02	8951 Points -15%
Average of class Multimedia (6089 - 10742, n=72, last 2 years)	8919 Points -16%
Honor MagicBook Pro 16 2024 NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, WD PC SN740 SDDPNQD-1T00	8461 Points -20%

PCMark 10 / Digital Content Creation
Framework Laptop 16 Radeon RX 7700S, R9 7940HS, WDC PC SN810 1TB	13548 Points +4%
Lenovo ThinkBook 16p G5 IRX 21N50011GE NVIDIA GeForce RTX 4060 Laptop GPU, i9-14900HX, SK Hynix HFS001TEJ9X115N	12979 Points
Asus ProArt P16 H7606WI NVIDIA GeForce RTX 4070 Laptop GPU, Ryzen AI 9 HX 370, Micron 2400 MTFDKBA1T0QFM	12771 Points -2%
Average Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU (12091 - 12979, n=2)	12535 Points -3%
Lenovo ThinkPad P1 Gen 7 21KV001SGE NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, Kioxia XG8 KXG8AZNV1T02	11620 Points -10%
Honor MagicBook Pro 16 2024 NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, WD PC SN740 SDDPNQD-1T00	10643 Points -18%
Lenovo ThinkBook 16p G3 ARH GeForce RTX 3060 Laptop GPU, R9 6900HX, Micron 3400 1TB MTFDKBA1T0TFH	9408 Points -28%
Average of class Multimedia (3651 - 13548, n=72, last 2 years)	9194 Points -29%

CrossMark / Overall
Lenovo ThinkBook 16p G5 IRX 21N50011GE NVIDIA GeForce RTX 4060 Laptop GPU, i9-14900HX, SK Hynix HFS001TEJ9X115N	2184 Points
Average Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU (2103 - 2184, n=2)	2144 Points -2%
Asus ProArt P16 H7606WI NVIDIA GeForce RTX 4070 Laptop GPU, Ryzen AI 9 HX 370, Micron 2400 MTFDKBA1T0QFM	1794 Points -18%
Honor MagicBook Pro 16 2024 NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, WD PC SN740 SDDPNQD-1T00	1723 Points -21%
Average of class Multimedia (978 - 2184, n=89, last 2 years)	1713 Points -22%
Lenovo ThinkPad P1 Gen 7 21KV001SGE NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, Kioxia XG8 KXG8AZNV1T02	1708 Points -22%
Framework Laptop 16 Radeon RX 7700S, R9 7940HS, WDC PC SN810 1TB	1674 Points -23%
Lenovo ThinkBook 16p G3 ARH GeForce RTX 3060 Laptop GPU, R9 6900HX, Micron 3400 1TB MTFDKBA1T0TFH	1518 Points -30%

CrossMark / Productivity
Average Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU (2040 - 2042, n=2)	2041 Points 0%
Lenovo ThinkBook 16p G5 IRX 21N50011GE NVIDIA GeForce RTX 4060 Laptop GPU, i9-14900HX, SK Hynix HFS001TEJ9X115N	2040 Points
Honor MagicBook Pro 16 2024 NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, WD PC SN740 SDDPNQD-1T00	1677 Points -18%
Lenovo ThinkPad P1 Gen 7 21KV001SGE NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, Kioxia XG8 KXG8AZNV1T02	1630 Points -20%
Average of class Multimedia (913 - 2064, n=89, last 2 years)	1623 Points -20%
Asus ProArt P16 H7606WI NVIDIA GeForce RTX 4070 Laptop GPU, Ryzen AI 9 HX 370, Micron 2400 MTFDKBA1T0QFM	1611 Points -21%
Framework Laptop 16 Radeon RX 7700S, R9 7940HS, WDC PC SN810 1TB	1583 Points -22%
Lenovo ThinkBook 16p G3 ARH GeForce RTX 3060 Laptop GPU, R9 6900HX, Micron 3400 1TB MTFDKBA1T0TFH	1501 Points -26%

CrossMark / Creativity
Lenovo ThinkBook 16p G5 IRX 21N50011GE NVIDIA GeForce RTX 4060 Laptop GPU, i9-14900HX, SK Hynix HFS001TEJ9X115N	2472 Points
Average Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU (2240 - 2472, n=2)	2356 Points -5%
Asus ProArt P16 H7606WI NVIDIA GeForce RTX 4070 Laptop GPU, Ryzen AI 9 HX 370, Micron 2400 MTFDKBA1T0QFM	2270 Points -8%
Average of class Multimedia (1054 - 2594, n=89, last 2 years)	1923 Points -22%
Lenovo ThinkPad P1 Gen 7 21KV001SGE NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, Kioxia XG8 KXG8AZNV1T02	1903 Points -23%
Framework Laptop 16 Radeon RX 7700S, R9 7940HS, WDC PC SN810 1TB	1866 Points -25%
Honor MagicBook Pro 16 2024 NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, WD PC SN740 SDDPNQD-1T00	1811 Points -27%
Lenovo ThinkBook 16p G3 ARH GeForce RTX 3060 Laptop GPU, R9 6900HX, Micron 3400 1TB MTFDKBA1T0TFH	1658 Points -33%

CrossMark / Responsiveness
Average Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU (1849 - 1899, n=2)	1874 Points +1%
Lenovo ThinkBook 16p G5 IRX 21N50011GE NVIDIA GeForce RTX 4060 Laptop GPU, i9-14900HX, SK Hynix HFS001TEJ9X115N	1849 Points
Honor MagicBook Pro 16 2024 NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, WD PC SN740 SDDPNQD-1T00	1608 Points -13%
Average of class Multimedia (869 - 2171, n=89, last 2 years)	1440 Points -22%
Framework Laptop 16 Radeon RX 7700S, R9 7940HS, WDC PC SN810 1TB	1429 Points -23%
Lenovo ThinkPad P1 Gen 7 21KV001SGE NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, Kioxia XG8 KXG8AZNV1T02	1418 Points -23%
Asus ProArt P16 H7606WI NVIDIA GeForce RTX 4070 Laptop GPU, Ryzen AI 9 HX 370, Micron 2400 MTFDKBA1T0QFM	1225 Points -34%
Lenovo ThinkBook 16p G3 ARH GeForce RTX 3060 Laptop GPU, R9 6900HX, Micron 3400 1TB MTFDKBA1T0TFH	1206 Points -35%

WebXPRT 3 / Overall
Framework Laptop 16 Radeon RX 7700S, R9 7940HS, WDC PC SN810 1TB	349 Points +3%
Lenovo ThinkBook 16p G5 IRX 21N50011GE NVIDIA GeForce RTX 4060 Laptop GPU, i9-14900HX, SK Hynix HFS001TEJ9X115N	339 Points
Average Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU (329 - 339, n=2)	334 Points -1%
Average of class Multimedia (136.4 - 545, n=86, last 2 years)	317 Points -6%
Asus ProArt P16 H7606WI NVIDIA GeForce RTX 4070 Laptop GPU, Ryzen AI 9 HX 370, Micron 2400 MTFDKBA1T0QFM	298 Points -12%
Honor MagicBook Pro 16 2024 NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, WD PC SN740 SDDPNQD-1T00	287 Points -15%
Lenovo ThinkPad P1 Gen 7 21KV001SGE NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, Kioxia XG8 KXG8AZNV1T02	285 Points -16%
Lenovo ThinkBook 16p G3 ARH GeForce RTX 3060 Laptop GPU, R9 6900HX, Micron 3400 1TB MTFDKBA1T0TFH	260 Points -23%

WebXPRT 4 / Overall
Lenovo ThinkBook 16p G5 IRX 21N50011GE NVIDIA GeForce RTX 4060 Laptop GPU, i9-14900HX, SK Hynix HFS001TEJ9X115N	319 Points
Average Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU (309 - 319, n=2)	314 Points -2%
Framework Laptop 16 Radeon RX 7700S, R9 7940HS, WDC PC SN810 1TB	265 Points -17%
Honor MagicBook Pro 16 2024 NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, WD PC SN740 SDDPNQD-1T00	262 Points -18%
Average of class Multimedia (133.2 - 353, n=78, last 2 years)	261 Points -18%
Lenovo ThinkPad P1 Gen 7 21KV001SGE NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, Kioxia XG8 KXG8AZNV1T02	258 Points -19%
Asus ProArt P16 H7606WI NVIDIA GeForce RTX 4070 Laptop GPU, Ryzen AI 9 HX 370, Micron 2400 MTFDKBA1T0QFM	244 Points -24%
Lenovo ThinkBook 16p G3 ARH GeForce RTX 3060 Laptop GPU, R9 6900HX, Micron 3400 1TB MTFDKBA1T0TFH	200 Points -37%

Mozilla Kraken 1.1 / Total
Lenovo ThinkBook 16p G3 ARH GeForce RTX 3060 Laptop GPU, R9 6900HX, Micron 3400 1TB MTFDKBA1T0TFH	594 ms * -38%
Lenovo ThinkPad P1 Gen 7 21KV001SGE NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, Kioxia XG8 KXG8AZNV1T02	528 ms * -23%
Honor MagicBook Pro 16 2024 NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, WD PC SN740 SDDPNQD-1T00	522 ms * -21%
Average of class Multimedia (254 - 1016, n=90, last 2 years)	505 ms * -17%
Framework Laptop 16 Radeon RX 7700S, R9 7940HS, WDC PC SN810 1TB	490 ms * -14%
Asus ProArt P16 H7606WI NVIDIA GeForce RTX 4070 Laptop GPU, Ryzen AI 9 HX 370, Micron 2400 MTFDKBA1T0QFM	439 ms * -2%
Average Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU (430 - 439, n=2)	435 ms * -1%
Lenovo ThinkBook 16p G5 IRX 21N50011GE NVIDIA GeForce RTX 4060 Laptop GPU, i9-14900HX, SK Hynix HFS001TEJ9X115N	430 ms *

* ... smaller is better

PCMark 10 Score		8322 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370, NVIDIA GeForce RTX 4070 Laptop GPU	89675 MB/s +14%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	84014 MB/s +7%
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU	78805 MB/s
Framework Laptop 16 AMD Ryzen 9 7940HS, Radeon RX 7700S	78739 MB/s 0%
Average Intel Core i9-14900HX (38028 - 83392, n=35)	74992 MB/s -5%
Average of class Multimedia (20549 - 104459, n=77, last 2 years)	69078 MB/s -12%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	64710 MB/s -18%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX, GeForce RTX 3060 Laptop GPU	50007 MB/s -37%

AIDA64 / Memory Read
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370, NVIDIA GeForce RTX 4070 Laptop GPU	100415 MB/s +15%
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU	87568 MB/s
Average Intel Core i9-14900HX (43306 - 87568, n=35)	81259 MB/s -7%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	76398 MB/s -13%
Average of class Multimedia (22917 - 125604, n=77, last 2 years)	70185 MB/s -20%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	63755 MB/s -27%
Framework Laptop 16 AMD Ryzen 9 7940HS, Radeon RX 7700S	61735 MB/s -30%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX, GeForce RTX 3060 Laptop GPU	43892 MB/s -50%

AIDA64 / Memory Write
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370, NVIDIA GeForce RTX 4070 Laptop GPU	100176 MB/s +29%
Framework Laptop 16 AMD Ryzen 9 7940HS, Radeon RX 7700S	87033 MB/s +12%
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU	77637 MB/s
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	75899 MB/s -2%
Average Intel Core i9-14900HX (37146 - 80589, n=35)	72271 MB/s -7%
Average of class Multimedia (20226 - 117933, n=77, last 2 years)	70291 MB/s -9%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	60440 MB/s -22%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX, GeForce RTX 3060 Laptop GPU	51085 MB/s -34%

AIDA64 / Memory Latency
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	141.6 ns * -81%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	134.2 ns * -72%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX, GeForce RTX 3060 Laptop GPU	120.6 ns * -54%
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370, NVIDIA GeForce RTX 4070 Laptop GPU	113.2 ns * -45%
Average of class Multimedia (7 - 346, n=77, last 2 years)	107 ns * -37%
Framework Laptop 16 AMD Ryzen 9 7940HS, Radeon RX 7700S	91.4 ns * -17%
Average Intel Core i9-14900HX (76.1 - 105, n=35)	84.8 ns * -9%
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU	78.1 ns *

* ... smaller is better

DPC 延迟

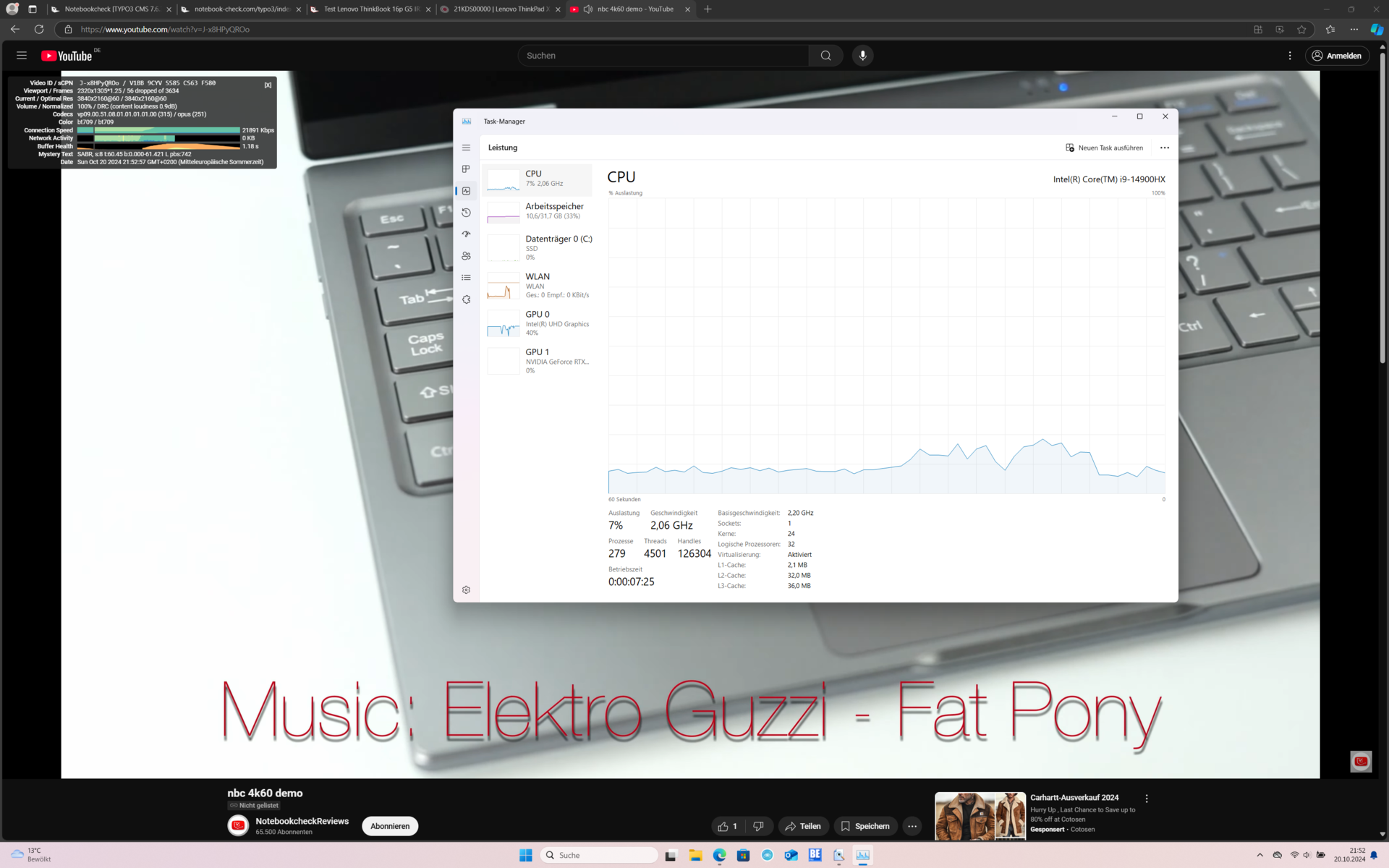

尽管联想 ThinkBook 16p Gen 5 的 DPC 延迟值总体较低，但在我们的 YouTube 测试中仍会出现卡顿和跳帧现象。

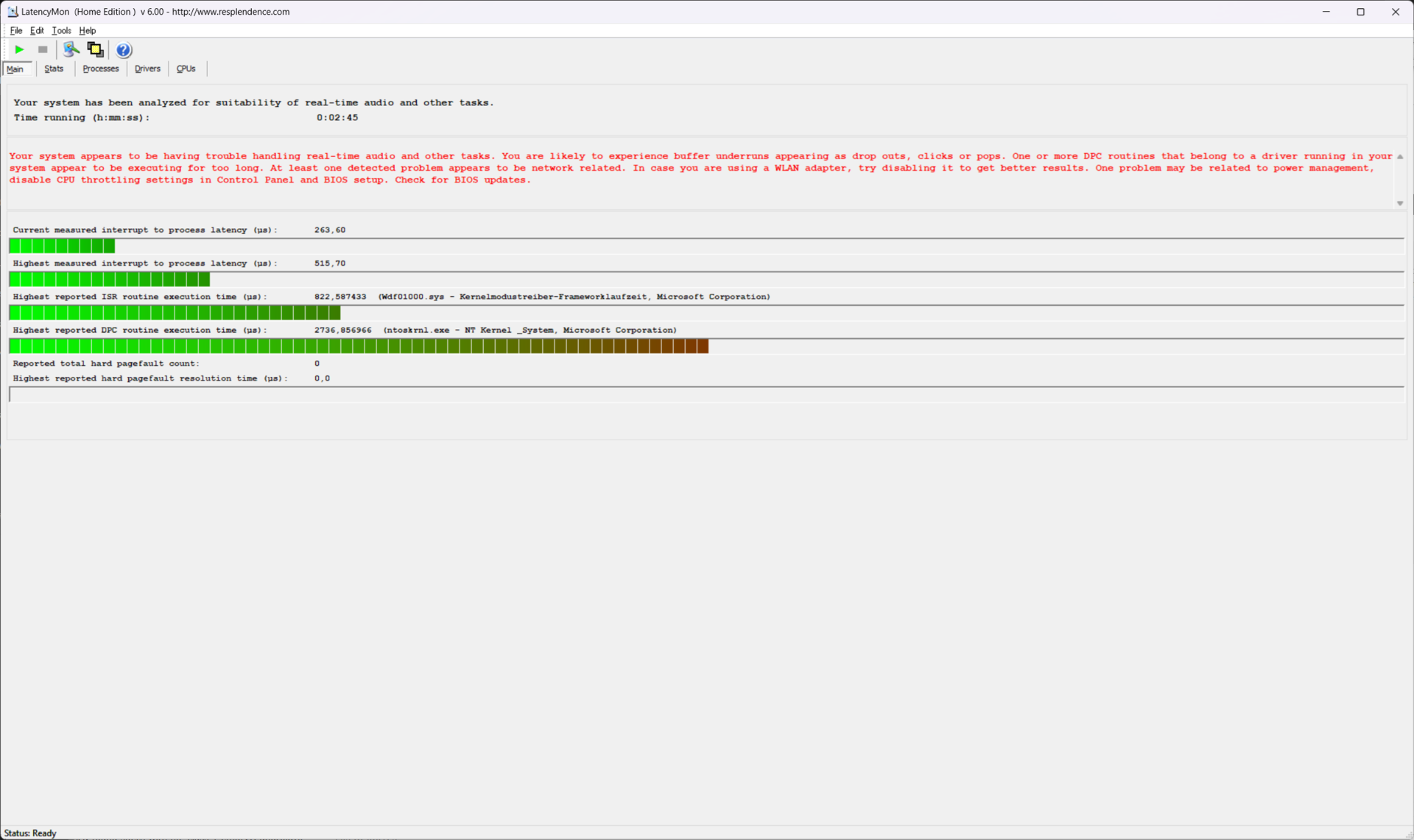

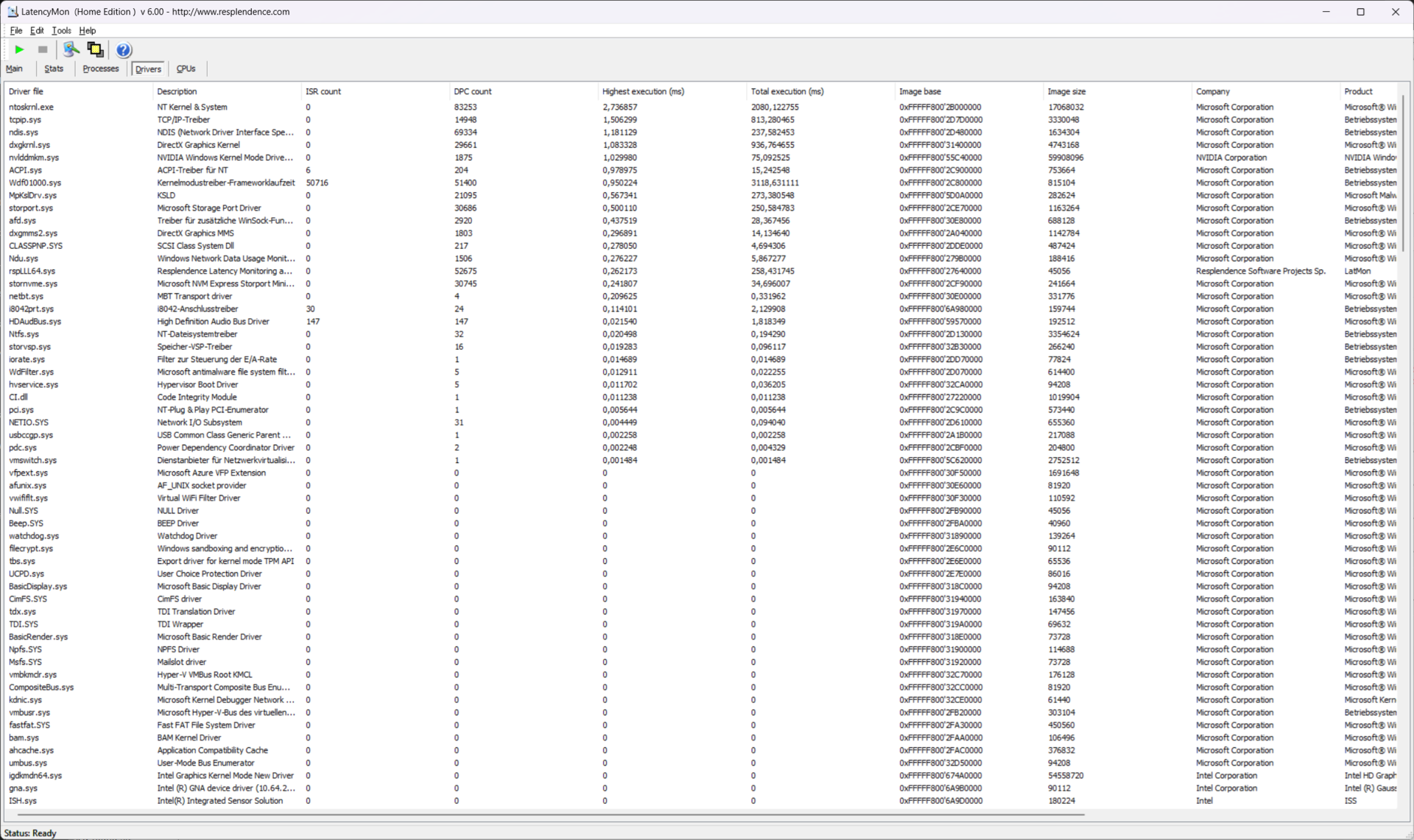

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo ThinkBook 16p G3 ARH GeForce RTX 3060 Laptop GPU, R9 6900HX, Micron 3400 1TB MTFDKBA1T0TFH	1756 μs * -241%
Honor MagicBook Pro 16 2024 NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, WD PC SN740 SDDPNQD-1T00	1657 μs * -221%
Lenovo ThinkPad P1 Gen 7 21KV001SGE NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, Kioxia XG8 KXG8AZNV1T02	1519.7 μs * -195%
Framework Laptop 16 Radeon RX 7700S, R9 7940HS, WDC PC SN810 1TB	1159 μs * -125%
Lenovo ThinkBook 16p G5 IRX 21N50011GE NVIDIA GeForce RTX 4060 Laptop GPU, i9-14900HX, SK Hynix HFS001TEJ9X115N	515.7 μs *

* ... smaller is better

存储

SK Hynix 固态硬盘的速度很快，容量为 1 TB，空间也很大。在对比中，联想 ThinkBook 16p 并没有落后于竞争对手，固态硬盘在持续负载下也没有出现节流现象。

正如我们在维护部分所述，联想 ThinkBook 16p G5 提供了一个免费的 M.2 2280 插槽。这意味着存储空间可以轻松扩展。

AS SSD

DiskSpd

SK Hynix HFS001TEJ9X115N

Sequential Read: 5320MB/s

Sequential Write: 2924MB/s

4K Read: 63.1MB/s

4K Write: 260MB/s

4K-64 Read: 989MB/s

4K-64 Write: 3969MB/s

Access Time Read: 0.047ms

Access Time Write: 0.017ms

Copy ISO: 4526.66MB/s

Copy Program: 1184.51MB/s

Copy Game: 2578.58MB/s

Score Read: 1585Points

Score Write: 4521Points

Score Total: 6810Points

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average SK Hynix HFS001TEJ9X115N	91 pt
Honor MagicBook Pro 16 2024 WD PC SN740 SDDPNQD-1T00	81.5 pt
Lenovo ThinkBook 16p G5 IRX 21N50011GE SK Hynix HFS001TEJ9X115N	78.2 pt
Framework Laptop 16 WDC PC SN810 1TB	69.7 pt
Average of class Multimedia	67.3 pt
Lenovo ThinkBook 16p G3 ARH Micron 3400 1TB MTFDKBA1T0TFH	61 pt
Lenovo ThinkPad P1 Gen 7 21KV001SGE Kioxia XG8 KXG8AZNV1T02	60.9 pt
Asus ProArt P16 H7606WI Micron 2400 MTFDKBA1T0QFM	46 pt

DiskSpd
seq read
Average SK Hynix HFS001TEJ9X115N (2757 - 5965, n=10)	3856 MB/s +36%
Framework Laptop 16 WDC PC SN810 1TB	3713 (3692.83^min - 3713.34^max) MB/s +31%
Honor MagicBook Pro 16 2024 WD PC SN740 SDDPNQD-1T00	3459 (3401.28^min - 3459.04^max) MB/s +22%
Average of class Multimedia (1629 - 4861, n=76, last 2 years)	2979 MB/s +5%
Lenovo ThinkBook 16p G5 IRX 21N50011GE SK Hynix HFS001TEJ9X115N	2829 (2751.67^min - 2828.64^max) MB/s
Lenovo ThinkBook 16p G3 ARH Micron 3400 1TB MTFDKBA1T0TFH	2493 (2013.43^min - 2492.51^max) MB/s -12%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Kioxia XG8 KXG8AZNV1T02	2232 (2223.15^min - 2232.42^max) MB/s -21%
Asus ProArt P16 H7606WI Micron 2400 MTFDKBA1T0QFM	2119 (2090.65^min - 2119.22^max) MB/s -25%
seq write
Average SK Hynix HFS001TEJ9X115N (3235 - 7185, n=10)	4366 MB/s +32%
Framework Laptop 16 WDC PC SN810 1TB	3984 (3947.47^min - 3984.38^max) MB/s +20%
Honor MagicBook Pro 16 2024 WD PC SN740 SDDPNQD-1T00	3923 (3558.45^min - 3922.64^max) MB/s +18%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Kioxia XG8 KXG8AZNV1T02	3342 (3251.21^min - 3342.47^max) MB/s +1%
Lenovo ThinkBook 16p G3 ARH Micron 3400 1TB MTFDKBA1T0TFH	3330 (3236.77^min - 3330.07^max) MB/s 0%
Lenovo ThinkBook 16p G5 IRX 21N50011GE SK Hynix HFS001TEJ9X115N	3314 (3155.17^min - 3313.5^max) MB/s
Average of class Multimedia (463 - 5711, n=76, last 2 years)	3127 MB/s -6%
Asus ProArt P16 H7606WI Micron 2400 MTFDKBA1T0QFM	2138 (1936.3^min - 2137.63^max) MB/s -35%
seq q8 t1 read
Framework Laptop 16 WDC PC SN810 1TB	6972 (6567.52^min - 6972.09^max) MB/s +5%
Average SK Hynix HFS001TEJ9X115N (5974 - 7154, n=10)	6812 MB/s +2%
Lenovo ThinkBook 16p G5 IRX 21N50011GE SK Hynix HFS001TEJ9X115N	6654 (5666.92^min - 6653.94^max) MB/s
Lenovo ThinkBook 16p G3 ARH Micron 3400 1TB MTFDKBA1T0TFH	6619 (5489.64^min - 6619.24^max) MB/s -1%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Kioxia XG8 KXG8AZNV1T02	5539 (4519.36^min - 5539.17^max) MB/s -17%
Average of class Multimedia (2132 - 7126, n=76, last 2 years)	5465 MB/s -18%
Honor MagicBook Pro 16 2024 WD PC SN740 SDDPNQD-1T00	5145 (4433.23^min - 5144.94^max) MB/s -23%
Asus ProArt P16 H7606WI Micron 2400 MTFDKBA1T0QFM	4785 (3105.25^min - 4784.86^max) MB/s -28%
seq q8 t1 write
Average SK Hynix HFS001TEJ9X115N (5873 - 9243, n=10)	6480 MB/s +6%
Lenovo ThinkBook 16p G5 IRX 21N50011GE SK Hynix HFS001TEJ9X115N	6132 (6078.18^min - 6132.28^max) MB/s
Framework Laptop 16 WDC PC SN810 1TB	5213 (5149.53^min - 5212.74^max) MB/s -15%
Lenovo ThinkBook 16p G3 ARH Micron 3400 1TB MTFDKBA1T0TFH	4938 (4568.02^min - 4938.35^max) MB/s -19%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Kioxia XG8 KXG8AZNV1T02	4768 (1915.48^min - 4767.78^max) MB/s -22%
Average of class Multimedia (555 - 6898, n=76, last 2 years)	4195 MB/s -32%
Honor MagicBook Pro 16 2024 WD PC SN740 SDDPNQD-1T00	4055 (3954.18^min - 4054.84^max) MB/s -34%
Asus ProArt P16 H7606WI Micron 2400 MTFDKBA1T0QFM	3109 (2917.35^min - 3109.45^max) MB/s -49%
4k q1 t1 read
Honor MagicBook Pro 16 2024 WD PC SN740 SDDPNQD-1T00	78.6 (77.75^min - 78.62^max) MB/s +9%
Lenovo ThinkBook 16p G5 IRX 21N50011GE SK Hynix HFS001TEJ9X115N	71.9 (70.89^min - 71.85^max) MB/s
Average SK Hynix HFS001TEJ9X115N (58.8 - 85.7, n=10)	70.7 MB/s -2%
Framework Laptop 16 WDC PC SN810 1TB	67.2 (66.93^min - 67.19^max) MB/s -7%
Average of class Multimedia (14.6 - 97.7, n=76, last 2 years)	63.4 MB/s -12%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Kioxia XG8 KXG8AZNV1T02	58.2 (57.88^min - 58.18^max) MB/s -19%
Lenovo ThinkBook 16p G3 ARH Micron 3400 1TB MTFDKBA1T0TFH	43.7 (43.05^min - 43.74^max) MB/s -39%
Asus ProArt P16 H7606WI Micron 2400 MTFDKBA1T0QFM	39.9 (39.46^min - 39.9^max) MB/s -45%
4k q1 t1 write
Honor MagicBook Pro 16 2024 WD PC SN740 SDDPNQD-1T00	254 (251.14^min - 254.13^max) MB/s +41%
Average SK Hynix HFS001TEJ9X115N (135.6 - 334, n=10)	206 MB/s +14%
Lenovo ThinkBook 16p G5 IRX 21N50011GE SK Hynix HFS001TEJ9X115N	180.5 (170.74^min - 180.48^max) MB/s
Average of class Multimedia (69.4 - 378, n=76, last 2 years)	172 MB/s -5%
Framework Laptop 16 WDC PC SN810 1TB	167.4 (166.73^min - 167.4^max) MB/s -7%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Kioxia XG8 KXG8AZNV1T02	130.9 (128.88^min - 130.93^max) MB/s -27%
Lenovo ThinkBook 16p G3 ARH Micron 3400 1TB MTFDKBA1T0TFH	125.8 (123.09^min - 125.81^max) MB/s -30%
Asus ProArt P16 H7606WI Micron 2400 MTFDKBA1T0QFM	75.9 (71.09^min - 75.93^max) MB/s -58%
4k q32 t16 read
Average SK Hynix HFS001TEJ9X115N (805 - 5870, n=10)	2493 MB/s +160%
Honor MagicBook Pro 16 2024 WD PC SN740 SDDPNQD-1T00	1985 (1758.24^min - 1985.03^max) MB/s +107%
Framework Laptop 16 WDC PC SN810 1TB	1754 (1748.82^min - 1754.02^max) MB/s +83%
Average of class Multimedia (295 - 4881, n=76, last 2 years)	1407 MB/s +47%
Lenovo ThinkBook 16p G5 IRX 21N50011GE SK Hynix HFS001TEJ9X115N	960 (943.33^min - 959.54^max) MB/s
Lenovo ThinkBook 16p G3 ARH Micron 3400 1TB MTFDKBA1T0TFH	955 (920.63^min - 955.11^max) MB/s -1%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Kioxia XG8 KXG8AZNV1T02	829 (815.32^min - 829.26^max) MB/s -14%
Asus ProArt P16 H7606WI Micron 2400 MTFDKBA1T0QFM	548 (543.4^min - 547.55^max) MB/s -43%
4k q32 t16 write
Honor MagicBook Pro 16 2024 WD PC SN740 SDDPNQD-1T00	2328 (2118.19^min - 2328.38^max) MB/s +319%
Average SK Hynix HFS001TEJ9X115N (346 - 4437, n=10)	1614 MB/s +191%
Average of class Multimedia (192.1 - 4074, n=76, last 2 years)	1059 MB/s +91%
Framework Laptop 16 WDC PC SN810 1TB	636 (609.51^min - 636.01^max) MB/s +15%
Lenovo ThinkBook 16p G5 IRX 21N50011GE SK Hynix HFS001TEJ9X115N	555 (512.35^min - 555.1^max) MB/s
Lenovo ThinkPad P1 Gen 7 21KV001SGE Kioxia XG8 KXG8AZNV1T02	421 (416.51^min - 421^max) MB/s -24%
Lenovo ThinkBook 16p G3 ARH Micron 3400 1TB MTFDKBA1T0TFH	328 (316.99^min - 327.82^max) MB/s -41%
Asus ProArt P16 H7606WI Micron 2400 MTFDKBA1T0QFM	231 (200.24^min - 231.41^max) MB/s -58%

AS SSD
Score Total
Average SK Hynix HFS001TEJ9X115N (4226 - 10769, n=10)	7309 Points +7%
Lenovo ThinkBook 16p G5 IRX 21N50011GE SK Hynix HFS001TEJ9X115N	6810 Points
Framework Laptop 16 WDC PC SN810 1TB	5283 Points -22%
Honor MagicBook Pro 16 2024 WD PC SN740 SDDPNQD-1T00	5273 Points -23%
Average of class Multimedia (2033 - 9972, n=73, last 2 years)	5101 Points -25%
Lenovo ThinkBook 16p G3 ARH Micron 3400 1TB MTFDKBA1T0TFH	5046 Points -26%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Kioxia XG8 KXG8AZNV1T02	4784 Points -30%
Asus ProArt P16 H7606WI Micron 2400 MTFDKBA1T0QFM	3843 Points -44%
Score Read
Average SK Hynix HFS001TEJ9X115N (1300 - 3925, n=10)	2265 Points +43%
Average of class Multimedia (669 - 3501, n=73, last 2 years)	1646 Points +4%
Lenovo ThinkBook 16p G5 IRX 21N50011GE SK Hynix HFS001TEJ9X115N	1585 Points
Framework Laptop 16 WDC PC SN810 1TB	1534 Points -3%
Lenovo ThinkBook 16p G3 ARH Micron 3400 1TB MTFDKBA1T0TFH	1532 Points -3%
Honor MagicBook Pro 16 2024 WD PC SN740 SDDPNQD-1T00	1494 Points -6%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Kioxia XG8 KXG8AZNV1T02	1379 Points -13%
Asus ProArt P16 H7606WI Micron 2400 MTFDKBA1T0QFM	962 Points -39%
Score Write
Lenovo ThinkBook 16p G5 IRX 21N50011GE SK Hynix HFS001TEJ9X115N	4521 Points
Average SK Hynix HFS001TEJ9X115N (1662 - 5126, n=10)	3953 Points -13%
Framework Laptop 16 WDC PC SN810 1TB	3058 Points -32%
Honor MagicBook Pro 16 2024 WD PC SN740 SDDPNQD-1T00	3001 Points -34%
Lenovo ThinkBook 16p G3 ARH Micron 3400 1TB MTFDKBA1T0TFH	2829 Points -37%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Kioxia XG8 KXG8AZNV1T02	2786 Points -38%
Average of class Multimedia (656 - 4813, n=73, last 2 years)	2674 Points -41%
Asus ProArt P16 H7606WI Micron 2400 MTFDKBA1T0QFM	2455 Points -46%
Seq Read
Average SK Hynix HFS001TEJ9X115N (5178 - 7153, n=10)	5678 MB/s +7%
Lenovo ThinkBook 16p G5 IRX 21N50011GE SK Hynix HFS001TEJ9X115N	5320 MB/s
Framework Laptop 16 WDC PC SN810 1TB	5210.14 MB/s -2%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Kioxia XG8 KXG8AZNV1T02	5138 MB/s -3%
Lenovo ThinkBook 16p G3 ARH Micron 3400 1TB MTFDKBA1T0TFH	4788.87 MB/s -10%
Honor MagicBook Pro 16 2024 WD PC SN740 SDDPNQD-1T00	4414 MB/s -17%
Average of class Multimedia (1718 - 5730, n=73, last 2 years)	4257 MB/s -20%
Asus ProArt P16 H7606WI Micron 2400 MTFDKBA1T0QFM	3776 MB/s -29%
Seq Write
Honor MagicBook Pro 16 2024 WD PC SN740 SDDPNQD-1T00	4365 MB/s +49%
Average SK Hynix HFS001TEJ9X115N (2245 - 5986, n=10)	4137 MB/s +41%
Framework Laptop 16 WDC PC SN810 1TB	3139.42 MB/s +7%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Kioxia XG8 KXG8AZNV1T02	3126 MB/s +7%
Lenovo ThinkBook 16p G5 IRX 21N50011GE SK Hynix HFS001TEJ9X115N	2924 MB/s
Average of class Multimedia (414 - 5651, n=73, last 2 years)	2791 MB/s -5%
Lenovo ThinkBook 16p G3 ARH Micron 3400 1TB MTFDKBA1T0TFH	2633.81 MB/s -10%
Asus ProArt P16 H7606WI Micron 2400 MTFDKBA1T0QFM	2397 MB/s -18%
4K Read
Average SK Hynix HFS001TEJ9X115N (54.4 - 83.5, n=10)	67.1 MB/s +6%
Honor MagicBook Pro 16 2024 WD PC SN740 SDDPNQD-1T00	67 MB/s +6%
Lenovo ThinkBook 16p G5 IRX 21N50011GE SK Hynix HFS001TEJ9X115N	63.1 MB/s
Average of class Multimedia (28.7 - 98.5, n=73, last 2 years)	62 MB/s -2%
Framework Laptop 16 WDC PC SN810 1TB	55.09 MB/s -13%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Kioxia XG8 KXG8AZNV1T02	55 MB/s -13%
Lenovo ThinkBook 16p G3 ARH Micron 3400 1TB MTFDKBA1T0TFH	52 MB/s -18%
Asus ProArt P16 H7606WI Micron 2400 MTFDKBA1T0QFM	28.7 MB/s -55%
4K Write
Lenovo ThinkBook 16p G5 IRX 21N50011GE SK Hynix HFS001TEJ9X115N	260 MB/s
Honor MagicBook Pro 16 2024 WD PC SN740 SDDPNQD-1T00	233 MB/s -10%
Average SK Hynix HFS001TEJ9X115N (128.1 - 292, n=10)	218 MB/s -16%
Average of class Multimedia (66.5 - 328, n=73, last 2 years)	190.9 MB/s -27%
Asus ProArt P16 H7606WI Micron 2400 MTFDKBA1T0QFM	178 MB/s -32%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Kioxia XG8 KXG8AZNV1T02	177 MB/s -32%
Framework Laptop 16 WDC PC SN810 1TB	151.65 MB/s -42%
Lenovo ThinkBook 16p G3 ARH Micron 3400 1TB MTFDKBA1T0TFH	137.34 MB/s -47%
4K-64 Read
Average SK Hynix HFS001TEJ9X115N (695 - 3270, n=10)	1630 MB/s +65%
Average of class Multimedia (350 - 2989, n=73, last 2 years)	1158 MB/s +17%
Lenovo ThinkBook 16p G3 ARH Micron 3400 1TB MTFDKBA1T0TFH	1001.57 MB/s +1%
Lenovo ThinkBook 16p G5 IRX 21N50011GE SK Hynix HFS001TEJ9X115N	989 MB/s
Honor MagicBook Pro 16 2024 WD PC SN740 SDDPNQD-1T00	985 MB/s 0%
Framework Laptop 16 WDC PC SN810 1TB	957.67 MB/s -3%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Kioxia XG8 KXG8AZNV1T02	806 MB/s -19%
Asus ProArt P16 H7606WI Micron 2400 MTFDKBA1T0QFM	555 MB/s -44%
4K-64 Write
Lenovo ThinkBook 16p G5 IRX 21N50011GE SK Hynix HFS001TEJ9X115N	3969 MB/s
Average SK Hynix HFS001TEJ9X115N (935 - 4295, n=10)	3321 MB/s -16%
Framework Laptop 16 WDC PC SN810 1TB	2592.65 MB/s -35%
Lenovo ThinkBook 16p G3 ARH Micron 3400 1TB MTFDKBA1T0TFH	2427.93 MB/s -39%
Honor MagicBook Pro 16 2024 WD PC SN740 SDDPNQD-1T00	2332 MB/s -41%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Kioxia XG8 KXG8AZNV1T02	2296 MB/s -42%
Average of class Multimedia (411 - 4265, n=73, last 2 years)	2204 MB/s -44%
Asus ProArt P16 H7606WI Micron 2400 MTFDKBA1T0QFM	2038 MB/s -49%
Access Time Read
Lenovo ThinkPad P1 Gen 7 21KV001SGE Kioxia XG8 KXG8AZNV1T02	0.105 ms * -123%
Framework Laptop 16 WDC PC SN810 1TB	0.078 ms * -66%
Average of class Multimedia (0.018 - 0.15, n=73, last 2 years)	0.05499 ms * -17%
Lenovo ThinkBook 16p G5 IRX 21N50011GE SK Hynix HFS001TEJ9X115N	0.047 ms *
Lenovo ThinkBook 16p G3 ARH Micron 3400 1TB MTFDKBA1T0TFH	0.042 ms * +11%
Average SK Hynix HFS001TEJ9X115N (0.016 - 0.055, n=10)	0.0339 ms * +28%
Asus ProArt P16 H7606WI Micron 2400 MTFDKBA1T0QFM	0.027 ms * +43%
Honor MagicBook Pro 16 2024 WD PC SN740 SDDPNQD-1T00	0.026 ms * +45%
Access Time Write
Asus ProArt P16 H7606WI Micron 2400 MTFDKBA1T0QFM	0.137 ms * -706%
Lenovo ThinkBook 16p G3 ARH Micron 3400 1TB MTFDKBA1T0TFH	0.092 ms * -441%
Framework Laptop 16 WDC PC SN810 1TB	0.074 ms * -335%
Average of class Multimedia (0.013 - 0.414, n=73, last 2 years)	0.06101 ms * -259%
Average SK Hynix HFS001TEJ9X115N (0.017 - 0.089, n=10)	0.0373 ms * -119%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Kioxia XG8 KXG8AZNV1T02	0.021 ms * -24%
Honor MagicBook Pro 16 2024 WD PC SN740 SDDPNQD-1T00	0.017 ms * -0%
Lenovo ThinkBook 16p G5 IRX 21N50011GE SK Hynix HFS001TEJ9X115N	0.017 ms *

* ... smaller is better

Dauerleistung Lesen: DiskSpd Read Loop, Queue Depth 8

Lenovo ThinkBook 16p G5 IRX 21N50011GE; diskspd 2.0.17 f: Ø6531 (5295.52-6629.94)

图形卡

笔记本电脑 NvidiaGeForce RTX 4060 笔记本电脑是目前 Nvidia 产品线中的一款中端芯片。在联想 ThinkBook 16p Gen 5 IRX 中，GPU 的功耗可高达 115 W，比在联想 ThinkPad P1 Gen 7 中使用的相同芯片还要高。联想 ThinkPad P1 第 7 代(80 W).它在合成 3DMark 基准测试中的性能高于 RTX 4060 的平均水平。ThinkBook 比 ThinkPad P1 平均快 11%。与旧版 GeForce RTX 3060在 ThinkBook 16p Gen 3相比，这里的 RTX 4060 快了 40%。只有英伟达GeForce RTX 4070的华硕 ProArt P16快 14%。

与 CPU 一样，GPU 在电池模式下也会受到限制。性能降低了 20%。

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Asus ProArt P16 H7606WI NVIDIA GeForce RTX 4070 Laptop GPU, AMD Ryzen AI 9 HX 370	100 pt
Lenovo ThinkBook 16p G5 IRX 21N50011GE NVIDIA GeForce RTX 4060 Laptop GPU, Intel Core i9-14900HX	87.5 pt
Framework Laptop 16 AMD Radeon RX 7700S, AMD Ryzen 9 7940HS	84.8 pt
Average NVIDIA GeForce RTX 4060 Laptop GPU	83.3 pt
Lenovo ThinkPad P1 Gen 7 21KV001SGE NVIDIA GeForce RTX 4060 Laptop GPU, Intel Core Ultra 7 155H	78.6 pt
Honor MagicBook Pro 16 2024 NVIDIA GeForce RTX 4060 Laptop GPU, Intel Core Ultra 7 155H	76.9 pt
Lenovo ThinkBook 16p G3 ARH NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 9 6900HX	62.7 pt
Average of class Multimedia	47.2 pt

3DMark 11 - 1280x720 Performance GPU
Asus ProArt P16 H7606WI NVIDIA GeForce RTX 4070 Laptop GPU, AMD Ryzen AI 9 HX 370	42821 Points +17%
Framework Laptop 16 AMD Radeon RX 7700S, AMD Ryzen 9 7940HS	37918 Points +3%
Lenovo ThinkBook 16p G5 IRX 21N50011GE NVIDIA GeForce RTX 4060 Laptop GPU, Intel Core i9-14900HX	36747 Points
Average NVIDIA GeForce RTX 4060 Laptop GPU (28136 - 38912, n=55)	34858 Points -5%
Lenovo ThinkPad P1 Gen 7 21KV001SGE NVIDIA GeForce RTX 4060 Laptop GPU, Intel Core Ultra 7 155H	32735 Points -11%
Honor MagicBook Pro 16 2024 NVIDIA GeForce RTX 4060 Laptop GPU, Intel Core Ultra 7 155H	32054 Points -13%
Lenovo ThinkBook 16p G3 ARH NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 9 6900HX	25962 Points -29%
Average of class Multimedia (3505 - 60250, n=77, last 2 years)	20238 Points -45%

3DMark
1920x1080 Fire Strike Graphics
Asus ProArt P16 H7606WI NVIDIA GeForce RTX 4070 Laptop GPU, AMD Ryzen AI 9 HX 370	30137 Points +14%
Lenovo ThinkBook 16p G5 IRX 21N50011GE NVIDIA GeForce RTX 4060 Laptop GPU, Intel Core i9-14900HX	26395 Points
Average NVIDIA GeForce RTX 4060 Laptop GPU (20533 - 29656, n=53)	25748 Points -2%
Lenovo ThinkPad P1 Gen 7 21KV001SGE NVIDIA GeForce RTX 4060 Laptop GPU, Intel Core Ultra 7 155H	24468 Points -7%
Framework Laptop 16 AMD Radeon RX 7700S, AMD Ryzen 9 7940HS	24246 Points -8%
Honor MagicBook Pro 16 2024 NVIDIA GeForce RTX 4060 Laptop GPU, Intel Core Ultra 7 155H	24153 Points -8%
Lenovo ThinkBook 16p G3 ARH NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 9 6900HX	19597 Points -26%
Average of class Multimedia (1835 - 46022, n=80, last 2 years)	14545 Points -45%
2560x1440 Time Spy Graphics
Asus ProArt P16 H7606WI NVIDIA GeForce RTX 4070 Laptop GPU, AMD Ryzen AI 9 HX 370	11941 Points +12%
Lenovo ThinkBook 16p G5 IRX 21N50011GE NVIDIA GeForce RTX 4060 Laptop GPU, Intel Core i9-14900HX	10625 Points
Framework Laptop 16 AMD Radeon RX 7700S, AMD Ryzen 9 7940HS	10206 Points -4%
Average NVIDIA GeForce RTX 4060 Laptop GPU (7484 - 11451, n=55)	9936 Points -6%
Lenovo ThinkPad P1 Gen 7 21KV001SGE NVIDIA GeForce RTX 4060 Laptop GPU, Intel Core Ultra 7 155H	9351 Points -12%
Honor MagicBook Pro 16 2024 NVIDIA GeForce RTX 4060 Laptop GPU, Intel Core Ultra 7 155H	9026 Points -15%
Lenovo ThinkBook 16p G3 ARH NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 9 6900HX	7470 Points -30%
Average of class Multimedia (622 - 17620, n=81, last 2 years)	5488 Points -48%

3DMark 11 Performance		32622 points
3DMark Fire Strike Score		24371 points
3DMark Time Spy Score		11149 points
Help

... in comparison

Blender
v3.3 Classroom OPTIX/RTX
Average of class Multimedia (19 - 105, n=45, last 2 years)	42.3 Seconds * -84%
Lenovo ThinkBook 16p G3 ARH NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 9 6900HX	34 Seconds * -48%
Lenovo ThinkPad P1 Gen 7 21KV001SGE NVIDIA GeForce RTX 4060 Laptop GPU, Intel Core Ultra 7 155H	24 Seconds * -4%
Honor MagicBook Pro 16 2024 NVIDIA GeForce RTX 4060 Laptop GPU, Intel Core Ultra 7 155H	23 Seconds * -0%
Lenovo ThinkBook 16p G5 IRX 21N50011GE NVIDIA GeForce RTX 4060 Laptop GPU, Intel Core i9-14900HX	23 Seconds *
Average NVIDIA GeForce RTX 4060 Laptop GPU (19 - 28, n=51)	22.9 Seconds * -0%
Asus ProArt P16 H7606WI NVIDIA GeForce RTX 4070 Laptop GPU, AMD Ryzen AI 9 HX 370	22 Seconds * +4%
v3.3 Classroom CUDA
Average of class Multimedia (32 - 181, n=47, last 2 years)	73.4 Seconds * -67%
Lenovo ThinkBook 16p G3 ARH NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 9 6900HX	58 Seconds * -32%
Lenovo ThinkBook 16p G5 IRX 21N50011GE NVIDIA GeForce RTX 4060 Laptop GPU, Intel Core i9-14900HX	44 Seconds *
Average NVIDIA GeForce RTX 4060 Laptop GPU (39 - 53, n=52)	43.2 Seconds * +2%
Lenovo ThinkPad P1 Gen 7 21KV001SGE NVIDIA GeForce RTX 4060 Laptop GPU, Intel Core Ultra 7 155H	42 Seconds * +5%
Honor MagicBook Pro 16 2024 NVIDIA GeForce RTX 4060 Laptop GPU, Intel Core Ultra 7 155H	41 Seconds * +7%
Asus ProArt P16 H7606WI NVIDIA GeForce RTX 4070 Laptop GPU, AMD Ryzen AI 9 HX 370	34 Seconds * +23%
v3.3 Classroom CPU
Average of class Multimedia (189 - 946, n=85, last 2 years)	428 Seconds * -126%
Lenovo ThinkBook 16p G3 ARH NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 9 6900HX	404 Seconds * -114%
Honor MagicBook Pro 16 2024 NVIDIA GeForce RTX 4060 Laptop GPU, Intel Core Ultra 7 155H	317 Seconds * -68%
Framework Laptop 16 AMD Radeon RX 7700S, AMD Ryzen 9 7940HS	311 Seconds * -65%
Average NVIDIA GeForce RTX 4060 Laptop GPU (189 - 452, n=51)	311 Seconds * -65%
Lenovo ThinkPad P1 Gen 7 21KV001SGE NVIDIA GeForce RTX 4060 Laptop GPU, Intel Core Ultra 7 155H	297 Seconds * -57%
Asus ProArt P16 H7606WI NVIDIA GeForce RTX 4070 Laptop GPU, AMD Ryzen AI 9 HX 370	214 Seconds * -13%
Lenovo ThinkBook 16p G5 IRX 21N50011GE NVIDIA GeForce RTX 4060 Laptop GPU, Intel Core i9-14900HX	189 Seconds *

* ... smaller is better

游戏性能

联想笔记本电脑的游戏性能非常出色。在这一点上，即使是拥有更好 GPU 的华硕 ProArt 也毫不逊色。老式游戏可以达到 4K-UHD（3,840 x 2,160）分辨率，所有设置均为超高清。对于较新的游戏，QHD（2,560 x 1,440）似乎是最大值。

Performance Rating | GTA V | Final Fantasy XV Benchmark | Dota 2 Reborn | X-Plane 11.11

Performance Rating - Percent
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU	97.9 pt
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370, NVIDIA GeForce RTX 4070 Laptop GPU	79.5 pt
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	73.7 pt
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	71.9 pt
Framework Laptop 16 AMD Ryzen 9 7940HS, AMD Radeon RX 7700S	65.7 pt
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX, NVIDIA GeForce RTX 3060 Laptop GPU	57.4 pt
Average of class Multimedia	46.9 pt

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU	126.3 (8.35^min, 83.3^P1) fps
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370, NVIDIA GeForce RTX 4070 Laptop GPU	111.2 (9.03^min, 76.9^P1) fps -12%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	100.4 (2.7^min, 58.8^P1) fps -21%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	97.9 (4.85^min, 66.7^P1) fps -22%
Framework Laptop 16 AMD Ryzen 9 7940HS, AMD Radeon RX 7700S	95.8 (13^min, 58.8^P1) fps -24%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX, NVIDIA GeForce RTX 3060 Laptop GPU	78.5 (7.51^min, 55.6^P1) fps -38%
Average of class Multimedia (5.09 - 126.3, n=80, last 2 years)	53.6 fps -58%

Final Fantasy XV Benchmark - 1920x1080 High Quality
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370, NVIDIA GeForce RTX 4070 Laptop GPU	115.3 fps +9%
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU	105.5 fps
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	90.3 fps -14%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	84.3 fps -20%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX, NVIDIA GeForce RTX 3060 Laptop GPU	78.2 fps -26%
Framework Laptop 16 AMD Ryzen 9 7940HS, AMD Radeon RX 7700S	74.8 fps -29%
Average of class Multimedia (6.53 - 141.8, n=81, last 2 years)	51.4 fps -51%

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU	179.9 (153.5^min) fps
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370, NVIDIA GeForce RTX 4070 Laptop GPU	141.6 (119.2^min) fps -21%
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	139.5 (120.8^min) fps -22%
Framework Laptop 16 AMD Ryzen 9 7940HS, AMD Radeon RX 7700S	136.8 (116^min) fps -24%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	131.2 (114.3^min) fps -27%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX, NVIDIA GeForce RTX 3060 Laptop GPU	96.8 (84.6^min) fps -46%
Average of class Multimedia (26.3 - 179.9, n=82, last 2 years)	96.2 fps -47%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU	141.1 fps
Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	91.4 fps -35%
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	83.3 fps -41%
Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370, NVIDIA GeForce RTX 4070 Laptop GPU	72.3 fps -49%
Average of class Multimedia (23 - 141.1, n=82, last 2 years)	66.7 fps -53%
Framework Laptop 16 AMD Ryzen 9 7940HS, AMD Radeon RX 7700S	65 fps -54%
Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX, NVIDIA GeForce RTX 3060 Laptop GPU	64.8 fps -54%

在赛博朋克负载测试中，性能没有大幅下降。

Cyberpunk 2077 ultra FPS diagram

Lenovo ThinkBook 16p G5 IRX 21N50011GE i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU: Ø71.2 (67.5-71.9)

	low	med.	high	ultra	QHD	4K DLSS	4K
GTA V (2015)	187.4	185.6	186.1	126.3	90.8		84.4
Dota 2 Reborn (2015)	233	208	196.9	179.9			139.3
Final Fantasy XV Benchmark (2018)	225	154.5	105.5		75.6		42
X-Plane 11.11 (2018)	196.4	177.4	141.1				114.7
Far Cry 5 (2018)	182	161	150	145	106		54
Baldur's Gate 3 (2023)	145.6	112.1	99.2	96	65.8	58.5	35
Cyberpunk 2077 2.1 Phantom Liberty (2023)	131.2	101.3	89.3	75.3	46.7		19.1
F1 24 (2024)	253	230	179.8	59.5	38.2	31.9	18.4

排放：响亮但也很酷的 ThinkBook 笔记本电脑

噪音

两个风扇的最大噪音值为 57.4 dB(a)，高于竞争对手--考虑到这款设备的功率，这并不奇怪。即使在上网等日常使用中，也能听到风扇的声音。如果你想让风扇保持安静，"最佳电池寿命 "模式会将风扇的噪音限制在大约 28 dB(a)。不过，这确实会大大降低性能，尤其是 GPU 的性能。

没有检测到线圈啸叫。

Noise Level

Idle		25 / 25 / 25 dB(A)
Load		47.9 / 57.4 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 25 dB(A)

	Lenovo ThinkBook 16p G5 IRX 21N50011GE NVIDIA GeForce RTX 4060 Laptop GPU, i9-14900HX, SK Hynix HFS001TEJ9X115N	Lenovo ThinkBook 16p G3 ARH GeForce RTX 3060 Laptop GPU, R9 6900HX, Micron 3400 1TB MTFDKBA1T0TFH	Asus ProArt P16 H7606WI NVIDIA GeForce RTX 4070 Laptop GPU, Ryzen AI 9 HX 370, Micron 2400 MTFDKBA1T0QFM	Honor MagicBook Pro 16 2024 NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, WD PC SN740 SDDPNQD-1T00	Framework Laptop 16 Radeon RX 7700S, R9 7940HS, WDC PC SN810 1TB	Lenovo ThinkPad P1 Gen 7 21KV001SGE NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, Kioxia XG8 KXG8AZNV1T02
Noise		14%	-1%	11%	11%	4%
off / environment *	25	22.7 9%	24.4 2%	24 4%	23.8 5%	24.7 1%
Idle Minimum *	25	23.1 8%	24.4 2%	24 4%	23.9 4%	24.7 1%
Idle Average *	25	23.2 7%	27.7 -11%	24 4%	23.9 4%	24.7 1%
Idle Maximum *	25	23.6 6%	32.3 -29%	27.2 -9%	23.9 4%	24.7 1%
Load Average *	47.9	30.6 36%	42.2 12%	29 39%	28.5 41%	43.7 9%
Cyberpunk 2077 ultra *	57.3		53.2 7%			53.2 7%
Load Maximum *	57.4	47.5 17%	53.2 7%	45 22%	53.7 6%	53.3 7%
Witcher 3 ultra *		47.6		42.1	51.9

* ... smaller is better

热量

尽管联想ThinkBook 16p Gen 5 IRX具有很高的性能，但机箱温度却保持在可控范围内。温度确实达到了 41.1 摄氏度/106 华氏度，但这并不值得担心，而且比大多数竞争对手都要低。

在最大 CPU 和 GPU 负载的压力测试中，联想笔记本电脑可以无限冷却 125 W。这样，CPU 和 GPU 的功耗大约为 60 W。

Max. Load

Idle

Cyberpunk


37.3 °C	41.1 °C	31.7 °C
28.8 °C	40.1 °C	28.8 °C
28.4 °C	33.9 °C	30 °C

Maximum: 41.1 °C
Average: 33.3 °C


33.2 °C	37.5 °C	34.9 °C
29 °C	40.8 °C	30 °C
28.5 °C	30.3 °C	28.6 °C

Maximum: 40.8 °C
Average: 32.5 °C

Power Supply (max.) 41.3 °C | Room Temperature 19.8 °C | Fluke 62 Max+

Max. Load

Idle

Cyberpunk


24.7 °C	26 °C	25.1 °C
24.1 °C	24.4 °C	23.1 °C
23.7 °C	22.6 °C	22.9 °C

Maximum: 26 °C
Average: 24.1 °C


24.9 °C	26 °C	25.5 °C
23.7 °C	24.6 °C	24.1 °C
23.5 °C	23.2 °C	23.1 °C

Maximum: 26 °C
Average: 24.3 °C

Power Supply (max.) 22.1 °C | Room Temperature 18.9 °C | Fluke 62 Max+

Max. Load

Idle

Cyberpunk


35 °C	37.5 °C	32.5 °C
27.4 °C	38.2 °C	27.7 °C
27 °C	32.8 °C	30 °C

Maximum: 38.2 °C
Average: 32 °C


31.1 °C	37.8 °C	34.8 °C
28.5 °C	38.3 °C	28.4 °C
28.5 °C	29.4 °C	27.5 °C

Maximum: 38.3 °C
Average: 31.6 °C

Power Supply (max.) 41.9 °C | Room Temperature 20.2 °C | Fluke 62 Max+

(±) The average temperature for the upper side under maximal load is 33.3 °C / 92 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(±) The maximum temperature on the upper side is 41.1 °C / 106 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(±) The bottom heats up to a maximum of 40.8 °C / 105 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 24.1 °C / 75 F, compared to the device average of 31.3 °C / 88 F.
(±) 3: The average temperature for the upper side is 32 °C / 90 F, compared to the average of 31.3 °C / 88 F for the class Multimedia.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (33.9 °C / 93 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-5.1 °C / -9.2 F).

	Lenovo ThinkBook 16p G5 IRX 21N50011GE Intel Core i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU	Lenovo ThinkBook 16p G3 ARH AMD Ryzen 9 6900HX, NVIDIA GeForce RTX 3060 Laptop GPU	Asus ProArt P16 H7606WI AMD Ryzen AI 9 HX 370, NVIDIA GeForce RTX 4070 Laptop GPU	Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU	Framework Laptop 16 AMD Ryzen 9 7940HS, AMD Radeon RX 7700S	Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU
Heat		-23%	-16%	4%	-8%	-7%
Maximum Upper Side *	41.1	48.2 -17%	46.9 -14%	39.7 3%	42.4 -3%	50.3 -22%
Maximum Bottom *	40.8	49.6 -22%	50.9 -25%	42.9 -5%	40.8 -0%	38 7%
Idle Upper Side *	26	31.8 -22%	28.9 -11%	23.7 9%	31.4 -21%	28.3 -9%
Idle Bottom *	26	33.6 -29%	30 -15%	23.5 10%	27.8 -7%	27.3 -5%

* ... smaller is better

发言人

联想 ThinkBook 16p Gen 5 的上扬扬声器音量不足。在低频方面，它们比普通笔记本电脑扬声器表现更好。

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Lenovo ThinkBook 16p G5 IRX 21N50011GE audio analysis

(±) | speaker loudness is average but good (78.9 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 7.6% lower than median
(±) | linearity of bass is average (10.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.3% away from median
(+) | mids are linear (6.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 0.9% away from median
(+) | highs are linear (3.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (8.8% difference to median)
Compared to same class
» 8% of all tested devices in this class were better, 2% similar, 90% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 2% of all tested devices were better, 1% similar, 97% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Lenovo ThinkPad P1 Gen 7 21KV001SGE audio analysis

(±) | speaker loudness is average but good (81.4 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 6.8% lower than median
(±) | linearity of bass is average (10.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.4% away from median
(+) | mids are linear (4.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.1% away from median
(+) | highs are linear (6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.2% difference to median)
Compared to same class
» 3% of all tested devices in this class were better, 2% similar, 94% worse
» The best had a delta of 7%, average was 18%, worst was 35%
Compared to all devices tested
» 3% of all tested devices were better, 1% similar, 97% worse
» The best had a delta of 4%, average was 25%, worst was 134%

能源管理：ThinkBook 几乎无法外出使用

耗电量

联想 ThinkBook 16p Gen 5 并不是一款省电设备，它的耗电量超过了所有竞争对手，尽管其中一些竞争对手采用了能效更低的 OLED 屏幕。这说明这里的组件，尤其是 Raptor Lake HX 芯片的能效非常低。

最大功耗达到 270 W。

Power Consumption

Off / Standby	0.7 / 1.3 Watt
Idle	11.6 / 18.5 / 19.9 Watt
Load	126.3 / 270.4 Watt


Key: min: , med: , max: Metrahit Energy

	Lenovo ThinkBook 16p G5 IRX 21N50011GE i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU, SK Hynix HFS001TEJ9X115N, IPS LCD, 3200x2000, 16"	Lenovo ThinkBook 16p G3 ARH R9 6900HX, GeForce RTX 3060 Laptop GPU, Micron 3400 1TB MTFDKBA1T0TFH, IPS, 2560x1600, 16"	Asus ProArt P16 H7606WI Ryzen AI 9 HX 370, NVIDIA GeForce RTX 4070 Laptop GPU, Micron 2400 MTFDKBA1T0QFM, OLED, 3840x2400, 16"	Honor MagicBook Pro 16 2024 Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU, WD PC SN740 SDDPNQD-1T00, IPS, 3072x1920, 16"	Framework Laptop 16 R9 7940HS, Radeon RX 7700S, WDC PC SN810 1TB, , 2560x1600, 16"	Lenovo ThinkPad P1 Gen 7 21KV001SGE Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU, Kioxia XG8 KXG8AZNV1T02, IPS LED, 2560x1600, 16"	Average NVIDIA GeForce RTX 4060 Laptop GPU	Average of class Multimedia
Power Consumption		14%	35%	29%	20%	36%	11%	43%
Idle Minimum *	11.6	10.3 11%	8 31%	5.2 55%	9.5 18%	7.3 37%	11.7 ?(3 - 33, n=46) -1%	6.66 ?(2.1 - 21.1, n=87, last 2 years) 43%
Idle Average *	18.5	16 14%	9.9 46%	14.4 22%	17 8%	12.3 34%	16.2 ?(6.9 - 35, n=46) 12%	11.2 ?(4.6 - 30, n=87, last 2 years) 39%
Idle Maximum *	19.9	24 -21%	11.6 42%	15.4 23%	17.2 14%	17.9 10%	20.6 ?(7.6 - 45, n=46) -4%	13.3 ?(5.6 - 30.4, n=87, last 2 years) 33%
Load Average *	126.3	85.4 32%	76.9 39%	105.4 17%	96.2 24%	78.2 38%	93.8 ?(59 - 190, n=45) 26%	70.1 ?(14.3 - 147, n=85, last 2 years) 44%
Cyberpunk 2077 ultra external monitor *	237		156.6 34%			117.7 50%
Cyberpunk 2077 ultra *	233		157.7 32%			123.5 47%
Load Maximum *	270.4	181.9 33%	212.6 21%	195.2 28%	175.7 35%	167.5 38%	212 ?(99 - 364, n=46) 22%	116.3 ?(47.7 - 270, n=86, last 2 years) 57%
Witcher 3 ultra *		132.2		107.6	171.9

* ... smaller is better

Energieaufnahme Cyberpunk / Stresstest

Lenovo ThinkBook 16p G5 IRX 21N50011GE; 1280x720 Prime95 28.10 and Furmark 1.25: Ø247 (204-292)

Lenovo ThinkBook 16p G5 IRX 21N50011GE; Idle 150cd/m2: Ø13.8 (9.82-19.3)

Lenovo ThinkBook 16p G5 IRX 21N50011GE; Cyberpunk 2077 FHD ultra no FSR 150cd: Ø233 (213-259)

Energieaufnahme mit externem Monitor

Lenovo ThinkBook 16p G5 IRX 21N50011GE; Prime95 V2810 Stress (external Monitor): Ø203 (178.4-228)

Lenovo ThinkBook 16p G5 IRX 21N50011GE; Cinebench R23 Multi (external Monitor): Ø214 (205-223)

Lenovo ThinkBook 16p G5 IRX 21N50011GE; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø168.1 (157.7-215)

Lenovo ThinkBook 16p G5 IRX 21N50011GE; Idle 1min (external Monitor): Ø31.8 (29.3-71.4)

Lenovo ThinkBook 16p G5 IRX 21N50011GE; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø237 (214-255)

电池寿命

尽管有强大的组件和高亮度的屏幕，联想还是为其配备了相对较小的 80 Wh 电池。这充分说明：ThinkBook 16p Gen 5 IRX 根本不适合外出使用。结果，在我们的 Wi-Fi 测试中（亮度为 150 cd/m²），电池续航时间仅为 5 小时 45 分钟。其他竞争对手的表现也同样糟糕。

Battery Runtime

WiFi Websurfing		5h 44min
WiFi Websurfing max. Brightness		4h 45min
Load (maximum brightness)		0h 59min

	Lenovo ThinkBook 16p G5 IRX 21N50011GE i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU, 80 Wh	Lenovo ThinkBook 16p G3 ARH R9 6900HX, GeForce RTX 3060 Laptop GPU, 71 Wh	Asus ProArt P16 H7606WI Ryzen AI 9 HX 370, NVIDIA GeForce RTX 4070 Laptop GPU, 90 Wh	Honor MagicBook Pro 16 2024 Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU, 75 Wh	Framework Laptop 16 R9 7940HS, Radeon RX 7700S, 85 Wh	Lenovo ThinkPad P1 Gen 7 21KV001SGE Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU, 90 Wh	Average of class Multimedia
Battery Runtime		13%	71%	56%	58%	83%	75%
WiFi v1.3	344	387 13%	499 45%	734 113%	548 59%	595 73%	635 ?(279 - 1204, n=87, last 2 years) 85%
Load	59		116 97%	58 -2%	92 56%	114 93%	97.6 ?(39 - 212, n=64, last 2 years) 65%

Notebookcheck 总体评分

联想 ThinkBook 16p Gen 5 IRX 是一款非常适合创作者使用的快速笔记本电脑。由于电池续航能力较差，它主要适合固定使用。

Back to the verdict

Lenovo ThinkBook 16p G5 IRX 21N50011GE - 10/21/2024 v8
Benjamin Herzig

Chassis

88 / 98 → 89%

Keyboard

90%

Pointing Device

89%

Connectivity

73 / 80 → 91%

Weight

62 / 20-74 → 77%

Battery

65 / 95 → 68%

Display

86%

Games Performance

80 / 88 → 90%

Application Performance

92 / 92 → 100%

Temperature

92%

Noise

65 / 95 → 68%

Audio

84%

Camera

30 / 75 → 40%

Average

68%

85%

Multimedia - Weighted Average

CO2 Emissions
61.3%

Materials
50%

Packaging
25%

Power Use
71.1%

Repairability
75%

Software Updates
39%

Total Sustainability Score: 53.6%

Price comparison

Editor of the original article: Benjamin Herzig - Managing Editor - 1224 articles published on Notebookcheck since 2016

contact me via: LinkedIn

Translator: Ninh Ngoc Duy - Editorial Assistant - 463597 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 联想 ThinkBook 16p Gen 5 笔记本电脑评测：为创作者设计的隐藏式联想Legion

Benjamin Herzig, 2024-10-23 (Update: 2024-10-23)

Cinebench R15 CPU Multi 64 Bit in comparison
Lenovo B50-30 (min) N2815, HD Graphics (Bay Trail)	49
...
Asus ROG Strix G16 G614JZ i9-13980HX, NVIDIA GeForce RTX 4080 Laptop GPU	4731
R9 7900X, Radeon Graphics (Ryzen 7000)	4753
Asus ROG Strix G16 G614JZ i9-13980HX, NVIDIA GeForce RTX 4080 Laptop GPU	4764
Lenovo ThinkBook 16p G5 IRX 21N50011GE i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU	4774
Asus ROG Strix Scar 18 2023 G834JY-N6005W i9-13980HX, NVIDIA GeForce RTX 4090 Laptop GPU	4781
MSI Titan 18 HX A14VIG i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU	4782
Lenovo ThinkStation P3 Tiny-30H0006AGE i9-14900, T1000	4793
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	15842

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
Framework Laptop 16 R9 7940HS, Radeon RX 7700S	32427
HP Omen Transcend 16-u1095ng i9-14900HX, NVIDIA GeForce RTX 4070 Laptop GPU	32528
Lenovo ThinkPad P16 G1 RTX A5500 i9-12950HX, RTX A5500 Laptop GPU	32536
Lenovo ThinkBook 16p G5 IRX 21N50011GE i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU	32622
Eurocom Nightsky TXi317 i7-12700H, GeForce RTX 3080 Ti Laptop GPU	32627
SCHENKER XMG Apex 17 (Late 23) R7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU	32639
SCHENKER VISION 16 Pro (M23) i7-13700H, NVIDIA GeForce RTX 4070 Laptop GPU	32729
...
(max) R7 9800X3D, NVIDIA GeForce RTX 4090	77609

结论联想 ThinkBook 16p G5 IRX 只适合放在办公桌上使用

Pros

Cons

定价和可用性

Price comparison

潜在的竞争对手比较

Table of Contents

机箱：带有Legion 设计元素的典型 ThinkBook

尺寸比较

连接性ThinkBook 可升级

SD 读卡器

交流

网络摄像头

配件

维护

可持续性

保修

输入设备：配有漂亮键盘和玻璃触摸板的联想笔记本电脑

键盘

触摸板

显示屏 3.高色域覆盖范围的 2K 屏幕

Display Response Times

Screen Flickering / PWM (Pulse-Width Modulation)

性能：英特尔 Raptor Lake 和英伟达GeForce RTX 4060

测试条件

Prozessor

Cinebench R15 Multi loop

系统性能

DPC 延迟

存储

Dauerleistung Lesen: DiskSpd Read Loop, Queue Depth 8

图形卡

游戏性能

Cyberpunk 2077 ultra FPS diagram

排放：响亮但也很酷的 ThinkBook 笔记本电脑

噪音

热量

发言人

Lenovo ThinkBook 16p G5 IRX 21N50011GE audio analysis

Lenovo ThinkPad P1 Gen 7 21KV001SGE audio analysis

能源管理：ThinkBook 几乎无法外出使用

耗电量

Energieaufnahme Cyberpunk / Stresstest

Energieaufnahme mit externem Monitor

电池寿命

Notebookcheck 总体评分

More articles related to this device

Transparency

Price comparison
