自 2010 年推出以来，联想 ThinkPad L 系列一直处于价格更高的 ThinkPad T 系列的阴影之下，这是不公平的。价格更实惠的企业系列畅销大型企业，是许多人的工作笔记本电脑。即使设备的某些方面质量较差，L 系列也获得了许多过去只有更昂贵的 ThinkPad 才拥有的功能。在本次评测中，我们将看到最新的变体--联想 ThinkPad L14 5 代。根据其在联想产品线中的位置，它是以下型号的廉价替代品 ThinkPad T14 第 5 代.与 T14 一样，L14 也有英特尔和 AMD 两种处理器可供选择，我们测试的是 AMD Ryzen 处理器。
潜在的竞争对手比较
Rating | Version | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|---|
| 85.3 % | v8 | 09 / 2024 | Lenovo ThinkPad L14 G5 21L50014GE R5 7535U, Radeon 660M | 1.6 kg | 23 mm | 14.00" | 1920x1200 | |
| 88.6 % v7 (old) | v7 (old) | 08 / 2023 | Lenovo ThinkPad L14 G4 21H6S00900 R5 7530U, Vega 7 | 1.5 kg | 19.83 mm | 14.00" | 1920x1080 | |
| 85.3 % v7 (old) | v7 (old) | 06 / 2023 | Dell Latitude 3440 i5-1345U, Iris Xe G7 80EUs | 1.5 kg | 19.4 mm | 14.00" | 1920x1080 | |
| 84.6 % v7 (old) | v7 (old) | 10 / 2023 | HP ProBook 445 G10 R5 7530U, Vega 7 | 1.3 kg | 20 mm | 14.00" | 1920x1080 | |
| 86.6 % | v8 | 08 / 2024 | Lenovo ThinkPad T14 G5 21ML005JGE Ultra 7 155U, Graphics 4-Core | 1.5 kg | 21.7 mm | 14.00" | 1920x1200 |
注：我们最近更新了评级系统，第 8 版的结果与第 7 版的结果不具可比性。更多信息 此处.

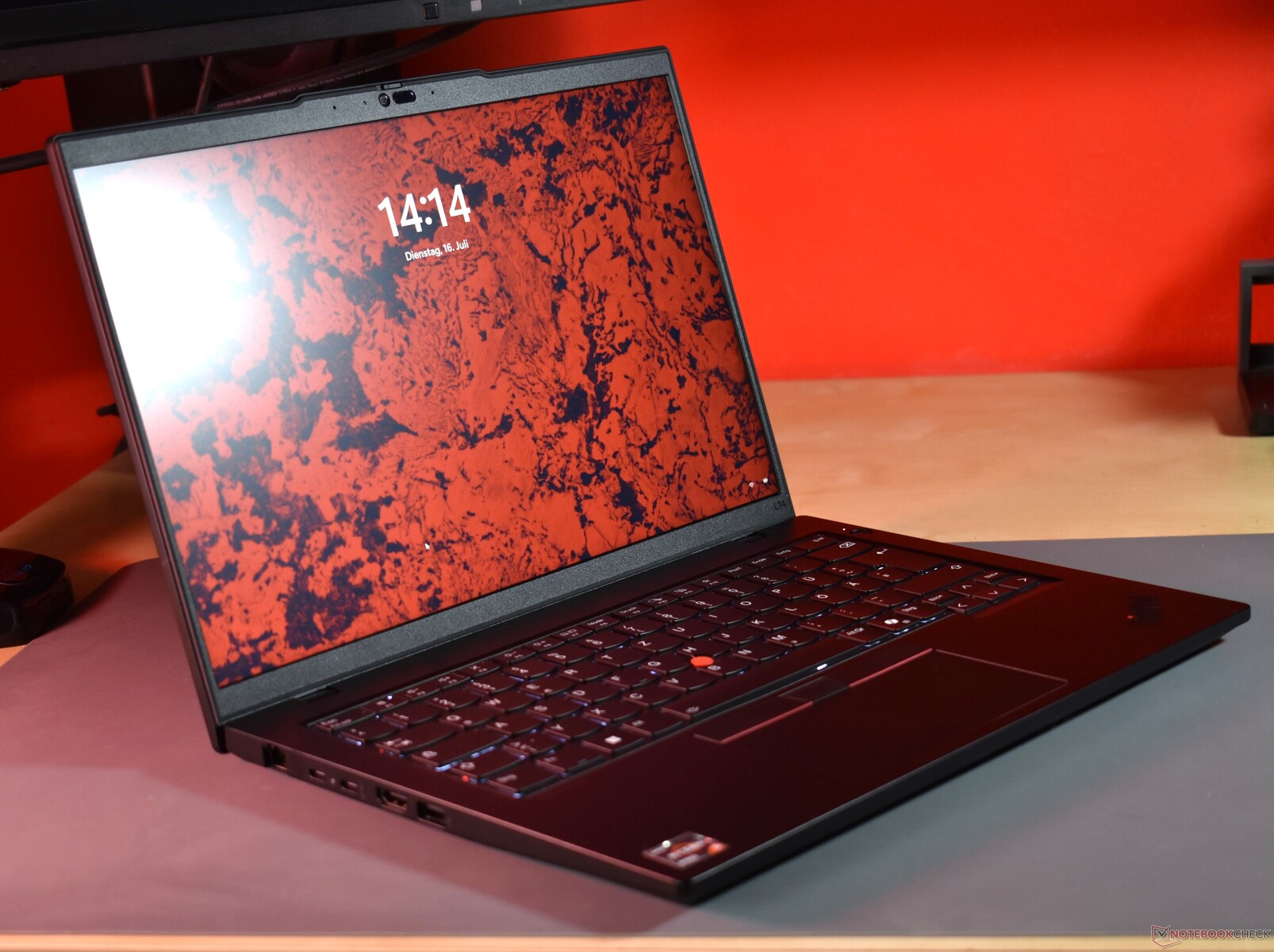

机箱：经济型 ThinkPad 使用塑料
如今，塑料的名声并不好--不利于环境、质量低劣，这是许多人对这种材料的看法。不过，如果使用得当，塑料也不是那么糟糕，因为它重量轻，而且相当坚固。联想 ThinkPad L14 5 代给人的第一印象不错。尽管 L 系列没有采用 T 系列的镁合金结构框架，但底座的硬度与 T14 相似。掌托和键盘同样坚固，做工不错。底座和屏幕都不太容易弯曲。在这方面，L14 5 代比前一代 L14 4 代有所改进。屏幕背面受到的压力很快就会影响到面板，因此这是一个比较薄弱的地方。屏幕盖和掌托都采用了光滑的涂层，而底部则是简单粗糙的塑料。手感并不好，这也暴露了该机型的预算水平。
联想在 T14 G5 上引入的许多设计变化 T14 G5同样适用于 ThinkPad L14 5 代。ThinkPad 徽标采用黑色，铰链也是如此。与 ThinkPad T 系列相比，这里的 "摄像头凸起 "明显减少了。如果不喜欢这种设计，L14 G5 可能是一个不错的选择。总的来说，L14 Gen 5 看起来像一台典型的新一代 ThinkPad，采用方形设计，屏幕盖板有一些微妙的弧度，侧面呈锥形。
两个下拉式小铰链可实现 180 度的打开角度。单手无法打开屏幕，因为铰链太紧了。优点我们没有发现屏幕有太大的晃动。
联想 ThinkPad L14 Gen 5 的重量为 1.56 千克，比昂贵的 ThinkPad T14 Gen 5.L ThinkPad 还比 T 型重一毫米。

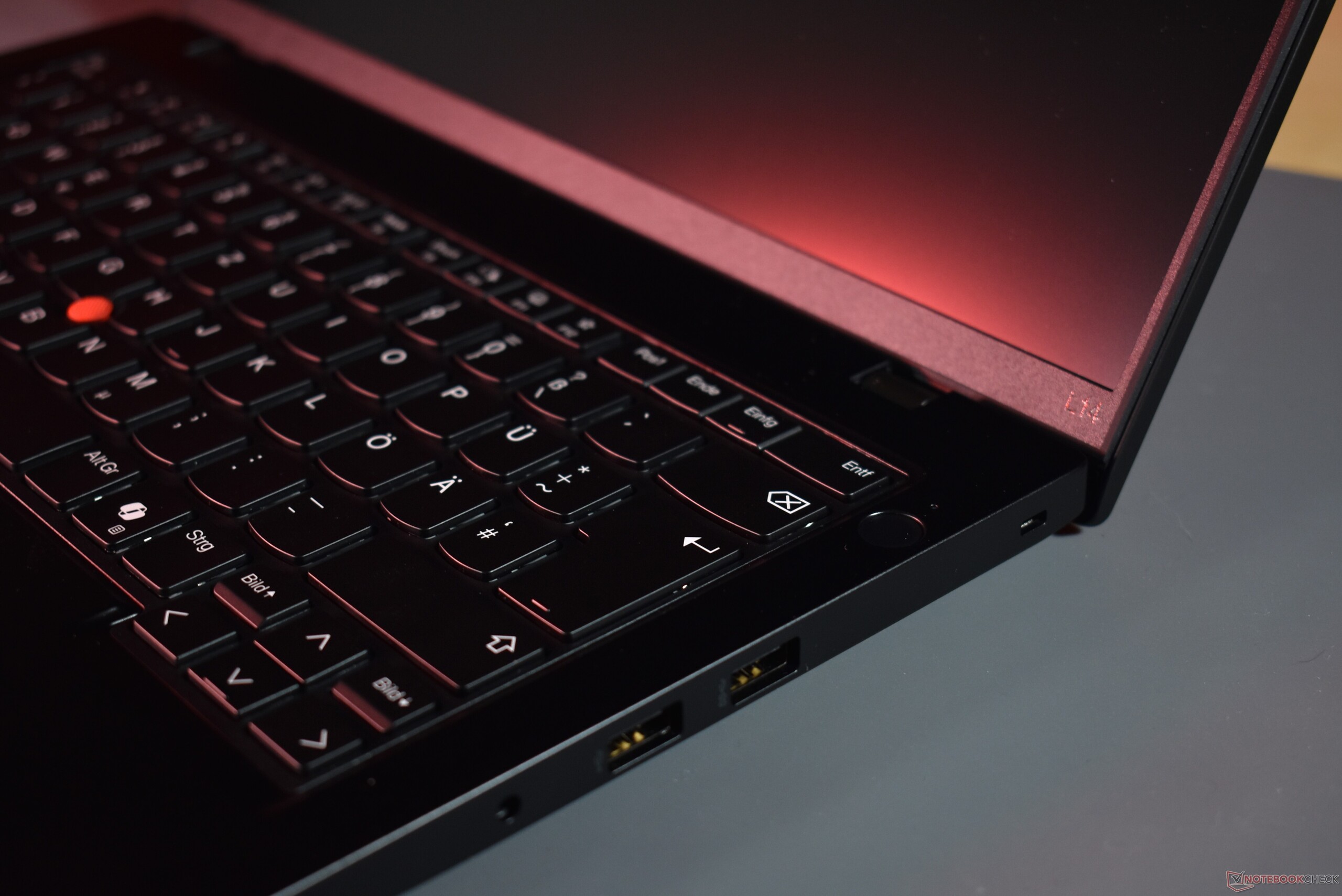

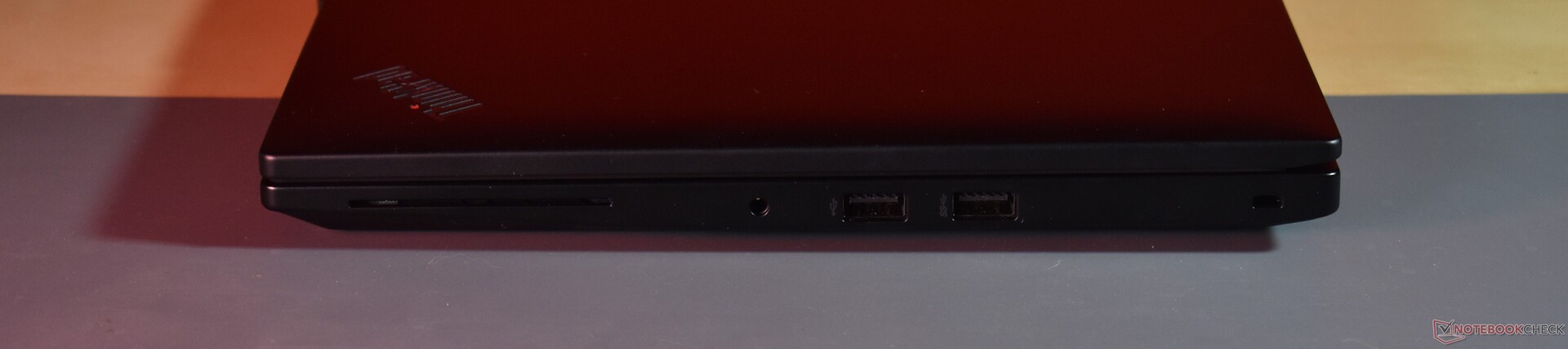

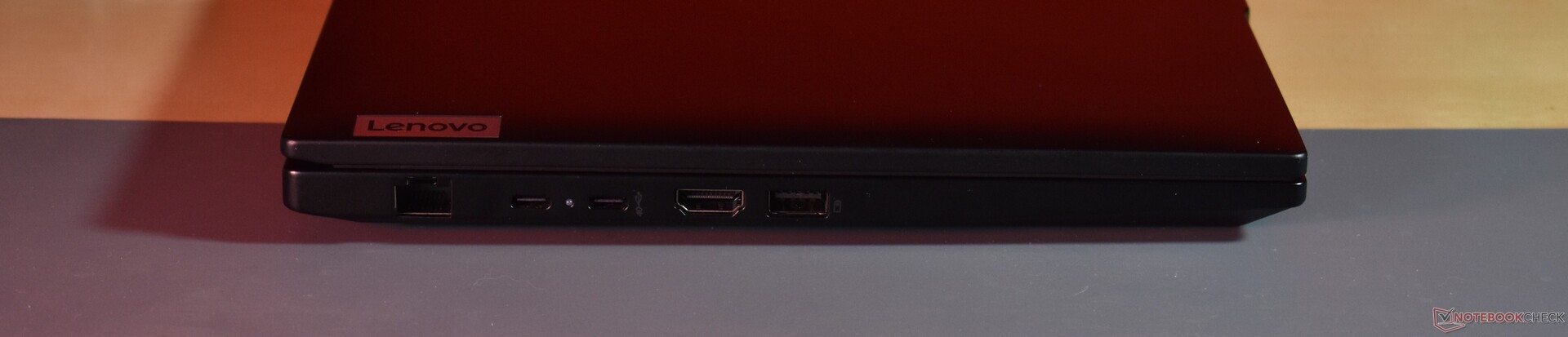

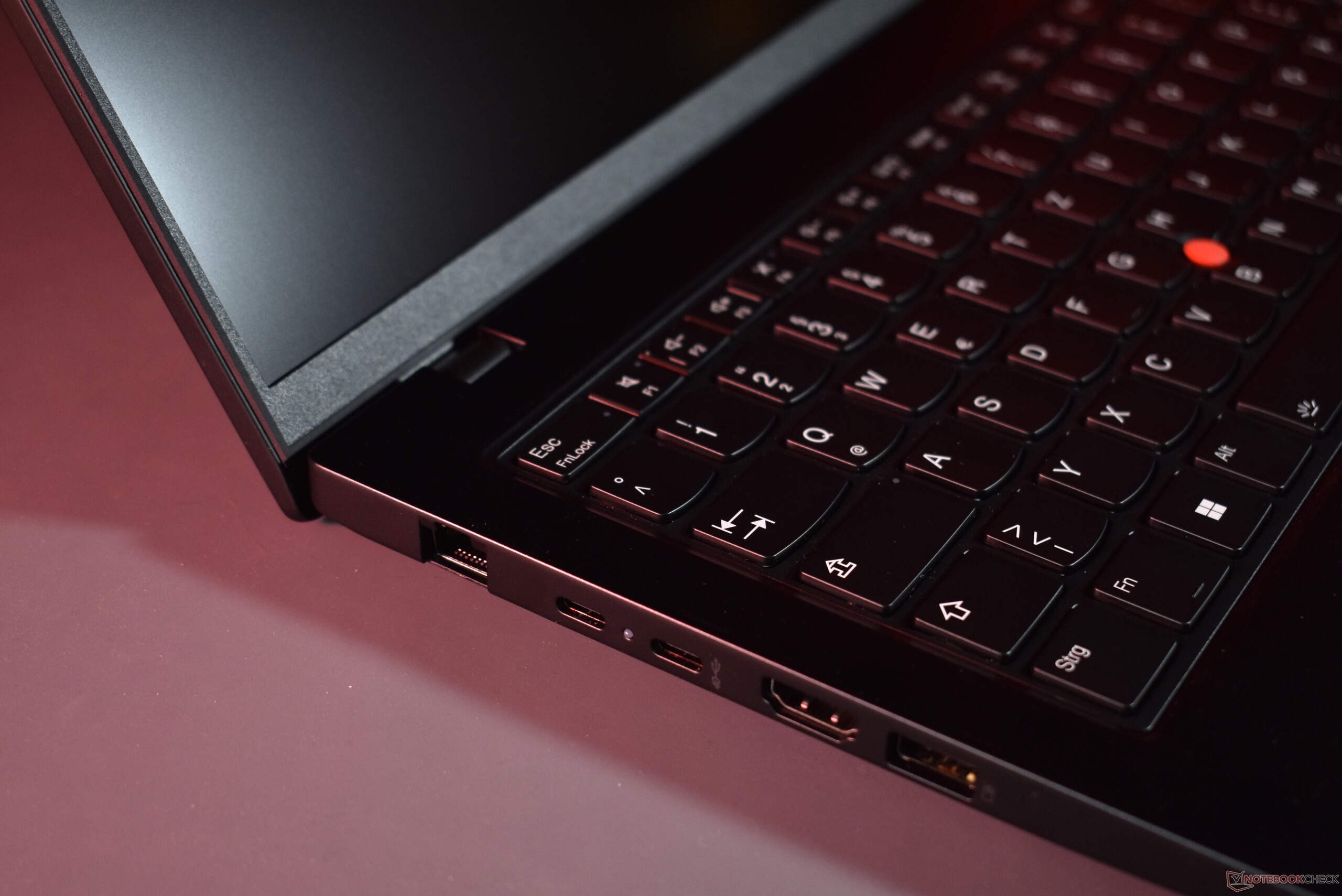

连接性唯一配备三个 USB-A 端口的 14 英寸 ThinkPad
L 系列的 AMD 机型是为数不多的仍缺少 Thunderbolt 或 USB4 的 ThinkPad 之一。随着联想 ThinkPad L14 第 5 代 AMD 机型的推出，这种遗憾终于得到了改变。升级到 Zen3+ 后，USB4 出现了。两个 USB-C 端口中有一个支持 USB4。与 ThinkPad L14 Gen 4，L14 5 代还增加了一个 USB-A 端口。这也是多年来第一台拥有三个 USB-A 端口的 14 英寸 ThinkPad。另一方面，上一代产品的 microSD 读卡器被取消了。另一方面，RJ45 以太网接口依然存在。
交流
联想ThinkPad L14 Gen 5 AMD配备了高通公司的Wi-Fi 6E网卡，在发送和接收数据时都能实现稳定的高传输速率。
除 Wi-Fi 和 RJ45 以太网外，ThinkPad L14 G5 AMD 还可选配 WWAN - CAT6 或 CAT16 4G/LTE。我们的机型可以升级 WWAN。不过，由于 ThinkPad 有 WWAN 白名单，只有专门为这款笔记本电脑制造的联想 FRU 的 WWAN 模块才能使用。

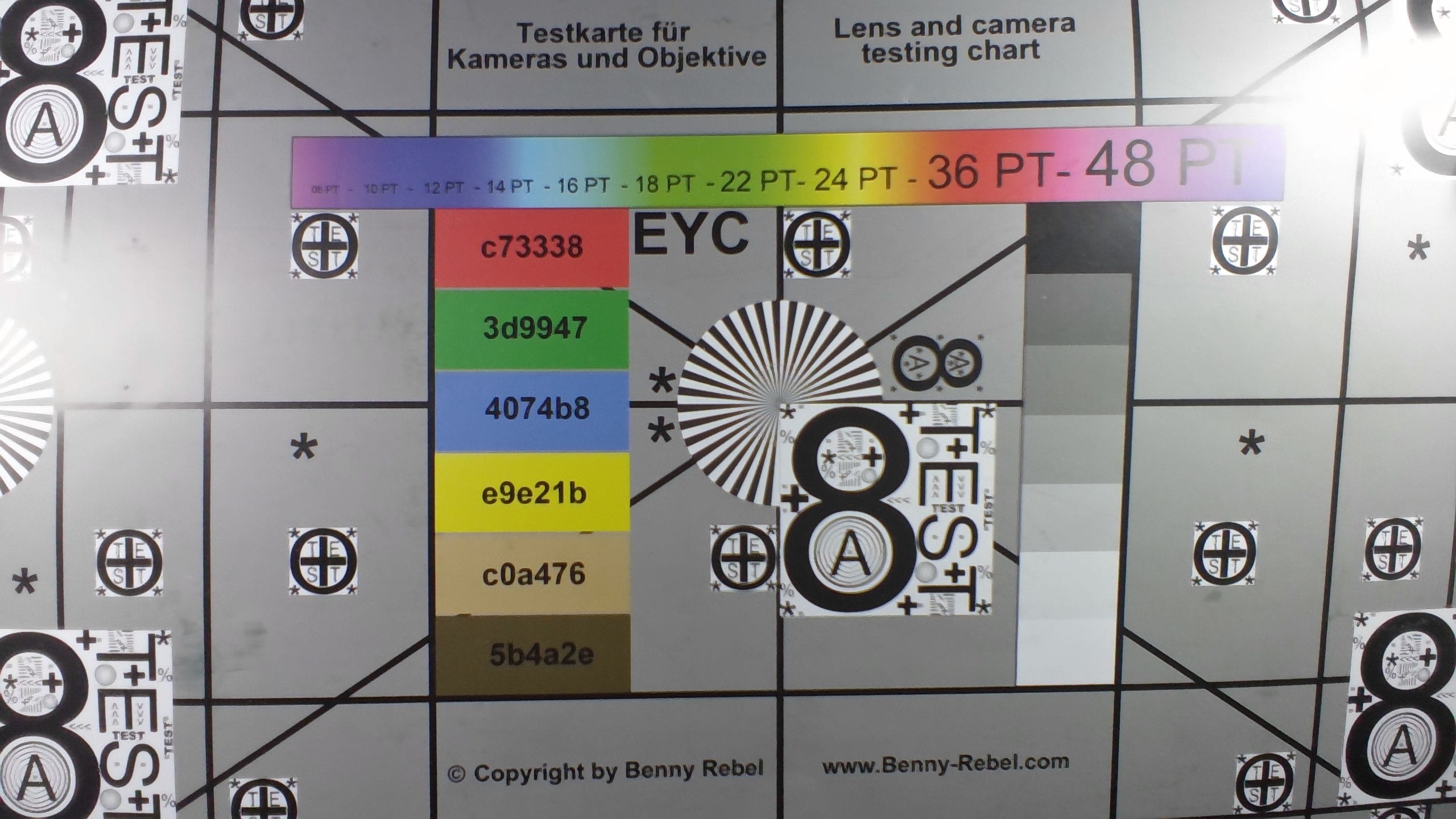

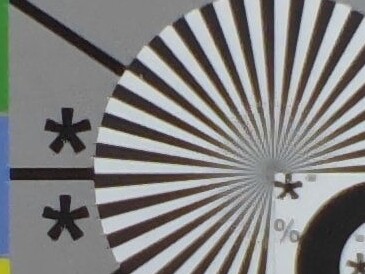

网络摄像头
之前的型号配备的是 1080p 网络摄像头。ThinkPad L14 G5 AMD 是第一款配备摄像头的 L 机型，配备了 500 万像素网络摄像头，但仍有 720p 网络摄像头供吝啬的企业客户选择。在光线充足的环境下，我们使用的这款分辨率更高的摄像头能生成清晰的图像。它当然足以满足视频会议的要求，但不能满足更多要求。
安全
从安全功能的清单和数量可以看出，联想 ThinkPad L14 Gen 5 AMD 是一款真正的商务笔记本电脑。智能卡读卡器、指纹传感器、红外摄像头、Kensington 锁插槽和隐私快门是外部的安全功能。在内部，我们发现了专用的 TPM 2.0 安全芯片。联想 ThinkPad L14 Gen 5 AMD 还具有底部防篡改检测功能，可确保底盖无法移除--或者说，它要求用户在底盖被移除后输入主管密码。
配件
联想 ThinkPad L14 5 代 AMD 的包装盒里只有 65 W USB-C 充电器和一些纸片。

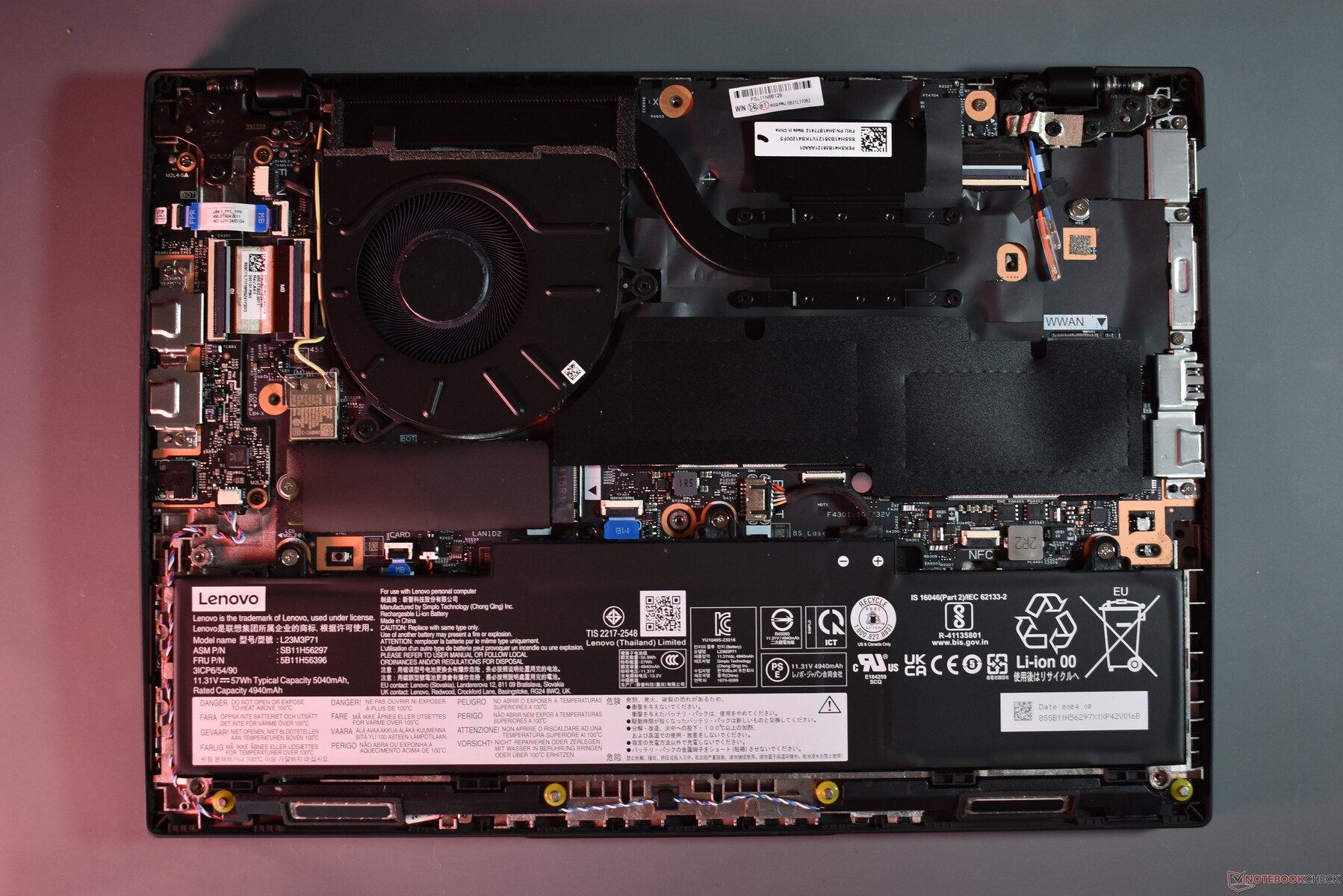

维护
与 ThinkPad T 系列不同，联想从未在 L14 上使用焊接内存。联想ThinkPad L14 Gen 5 AMD仍然有两个SO-DIMM插槽，但现在已经升级到了急需的DDR5内存。除此之外，值得注意的是，联想重新使用了 M.2 2280 SSD，而不是前两代的 M.2 2242 模块。出厂时，WWAN 模块的 M.2 插槽是开放的，天线和 SIM 卡插槽都已就位。下面焊接的是 Wi-Fi 模块和 USB-C 端口。旋入式电池可由用户更换。但与最新的 T 系列不同的是，在保修期内，只有维修技师才能更换电池。

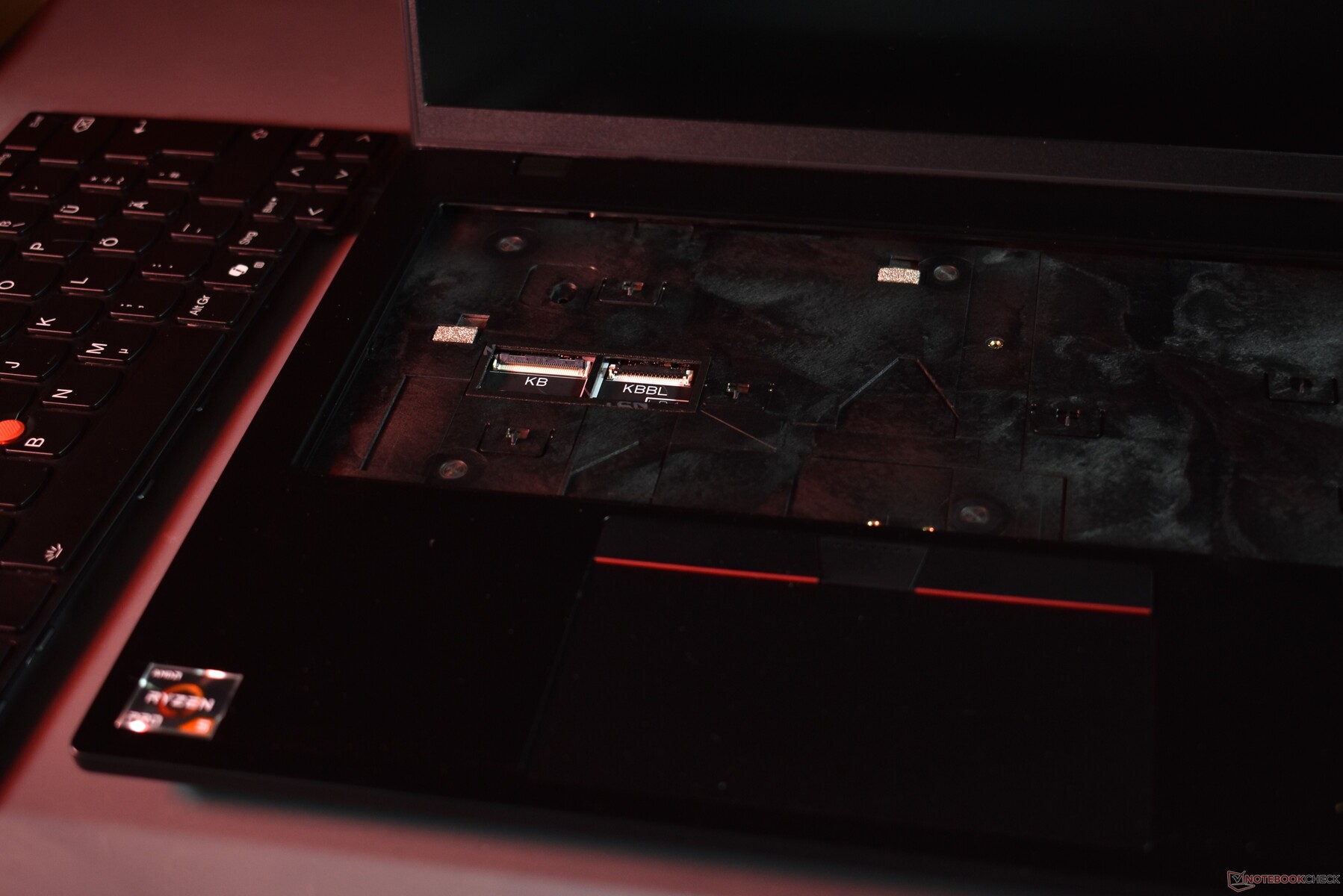

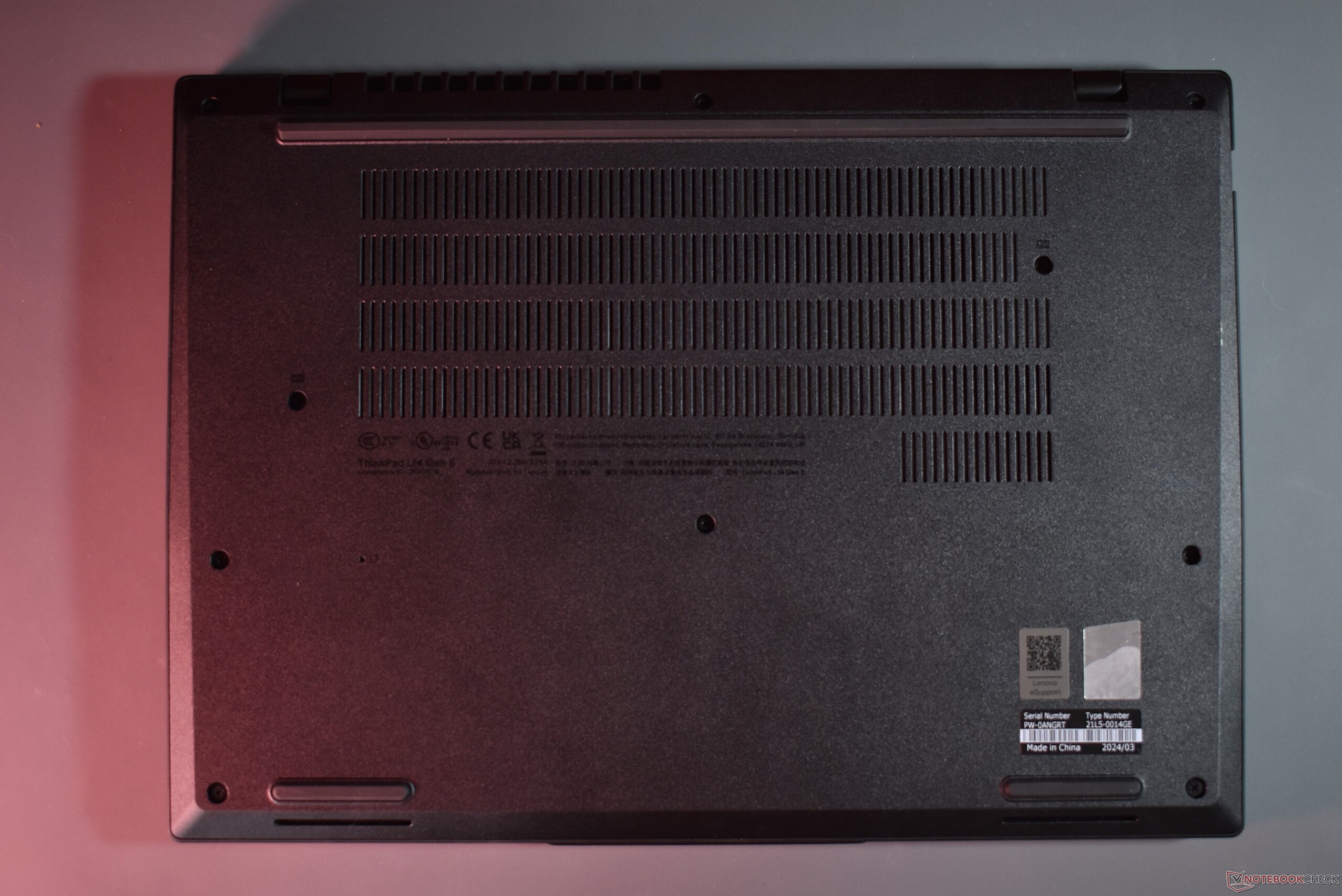

在固定底盖的十颗螺丝中，有两颗标有键盘符号。如果松开这两颗螺丝，键盘就可以拆卸下来--这一功能是 ThinkPad 与竞争对手的区别所在。由于键盘作为一个机械部件很容易出现故障，因此这是一个非常重要的可维修功能。
可持续性
即使是 2010 年推出的第一代 ThinkPad L 系列，如 ThinkPad L512也被称为 "绿色 ThinkPad"。除了良好的可维修性，这一传统的一部分还包括使用可回收材料的机箱和可堆肥的包装。CO₂ 产值为 145 千克 CO₂ 当量。联想一如既往地为 ThinkPad 提供全面的视频和文字拆卸指南。联想提供多年的部件和软件更新支持。
保修
L 系列和 T 系列 ThinkPad 的保修服务差别很大：经济实惠的 L 系列只提供一年的标准保修，而 T 系列则提供三年。当然，ThinkPad L14 Gen 5 AMD 的保修期可以延长，但需要支付一定的费用。还可选择现场服务，因为这是一种商业模式。出厂时，只提供全球适用的保修服务。

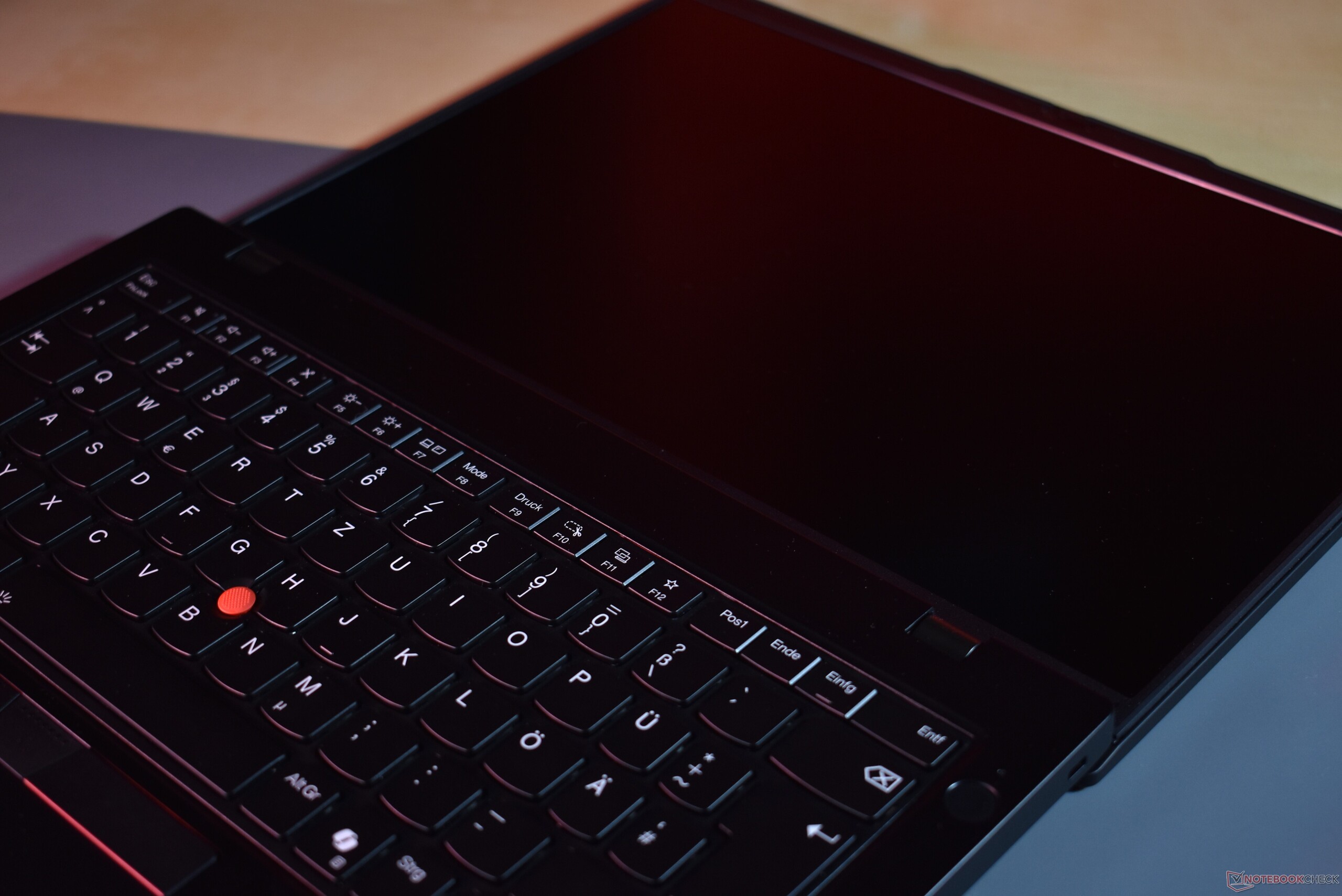

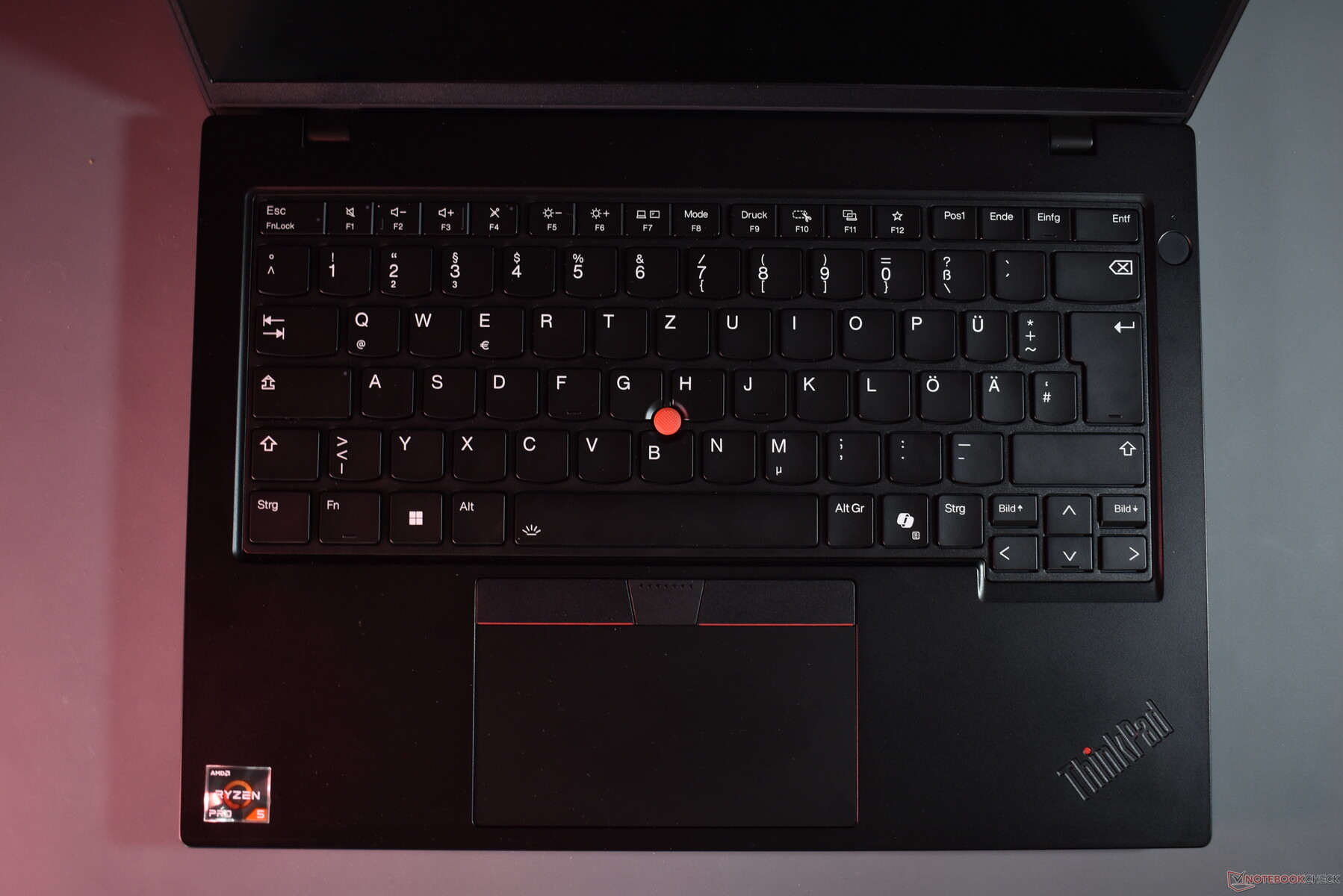

输入设备：带有一些新功能的典型 ThinkPad 键盘
键盘
早在 2020 年，联想就已经在 ThinkPad L 系列上实现了向 1.5 毫米键程的过渡。 L14 Gen 1.在这方面，L14 5 代没有任何变化。不过，与 联想 ThinkPad L14 4 代.制造商精元在这里使用的键盘具有很好的平衡性，驱动力不太大，但仍能给键盘带来坚实的反馈。有了这款键盘，您可以长时间工作并输入长文本，例如本评论。
键盘布局有一些变化：联想调换了 Ctrl 和 FN 键的位置。这将使从其他品牌转换到 ThinkPad 更加容易。长期使用旧布局的 ThinkPad 用户仍可在 UEFI-BIOS 中切换按键功能。此外，还新增了 Copilot 键，可将 PrtScr 键移至 F9。除了这些变化，联想还为 Ins、FN、Enter 或音量增大/减小键等按键添加了触觉标记。这样做的目的是让盲人更容易使用键盘。

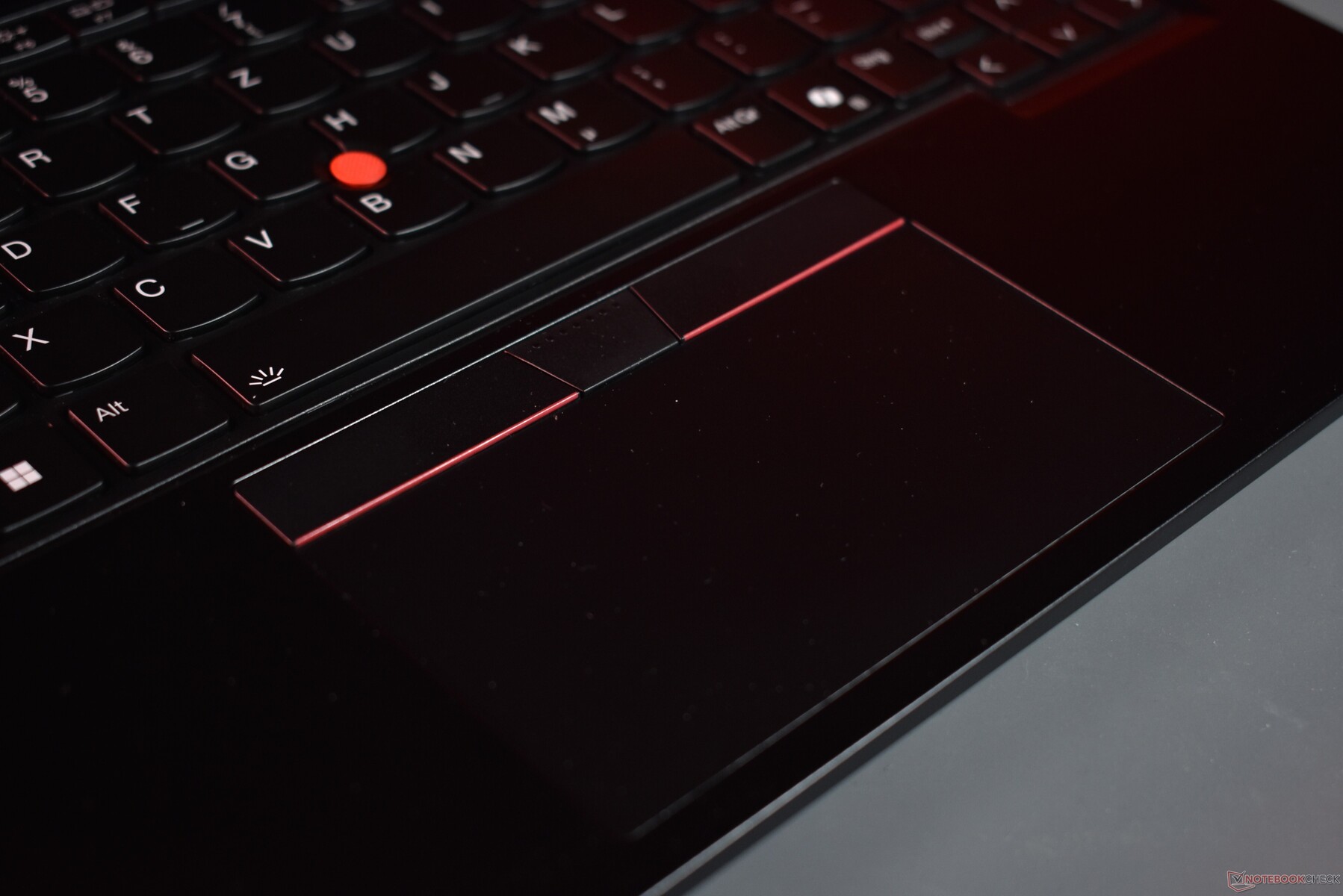

触摸板和轨迹点
随着 16:10 面板的加长，联想也增加了触摸板的长度。塑料触摸板的表面从 11.5 x 5.5 厘米（L14 G4）增至 11.5 x 6 厘米（L14 G5）。就表面触感而言，这款触控板无法与高级笔记本电脑相媲美。塑料表面给人廉价的感觉。只能在触摸板的下半部分激活的集成点击机构的机械质量非常好。总的来说，这是一块非常实用的触摸板。
红色的 ThinkPad TrackPoint 也同样好用，它提供了另一种通过压力控制鼠标指针的方法。与触摸板相比，TrackPoint 的优势在于用户可以将手放在键盘上。此外，在火车或平原等狭窄环境中使用它也更方便。触摸板上方的三个专用鼠标按键也很好用。中键可用于滚动。双击菜单是这一代产品的新功能，当你点击 TrackPoint 两次时，菜单就会出现。在这里，可以进行一些快速设置，还可以激活 "语音转文字 "模式。
显示屏亮度更高，但色域覆盖率仍然较低

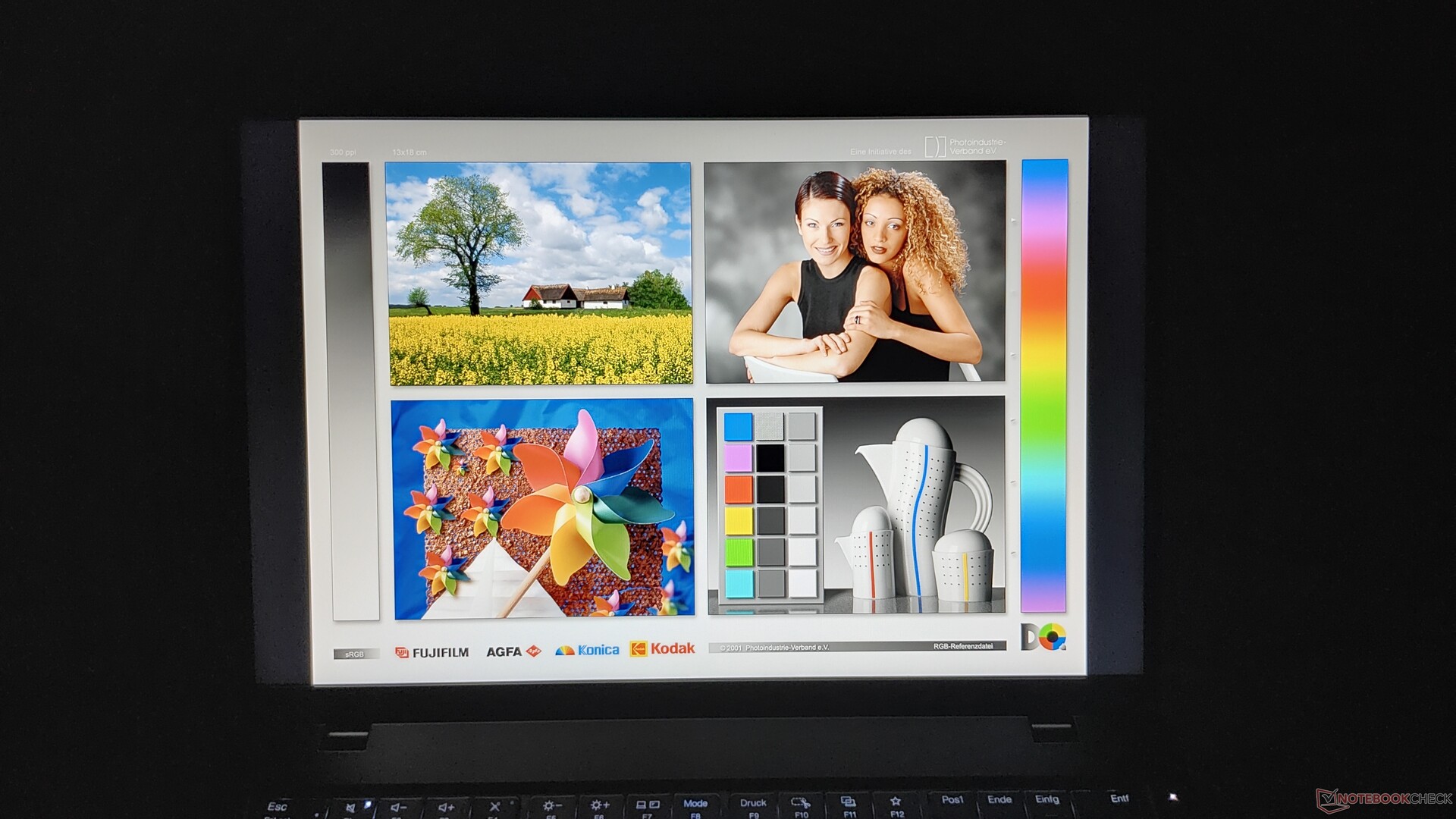

只剩下三个：联想减少了 ThinkPad L14 5 代的屏幕选项。高清分辨率（1,366 x 768）的 TN 液晶屏不复存在--没有人会错过这个选项。此外，联想还将基本屏幕的亮度从 250 / 300 cd/m² 提高到 400 cd/m²。其余三款 14 英寸产品均采用 IPS 技术，并首次在 14 英寸 L 系列产品中采用 16:10 屏幕--ThinkPad 产品线终于完成了向 16:10 格式的过渡，TN 技术也在慢慢消亡。
- WUXGA (1,920 x 1,200), IPS, 400 cd/m², 45 % NTSC, 雾面
- WUXGA（1,920 x 1,200），IPS，400 cd/m²，45 % NTSC，亚光，On-Cell Touch
- WUXGA (1,920 x 1,200), IPS, 400 cd/m², 100 % sRGB, 雾面, 低功耗

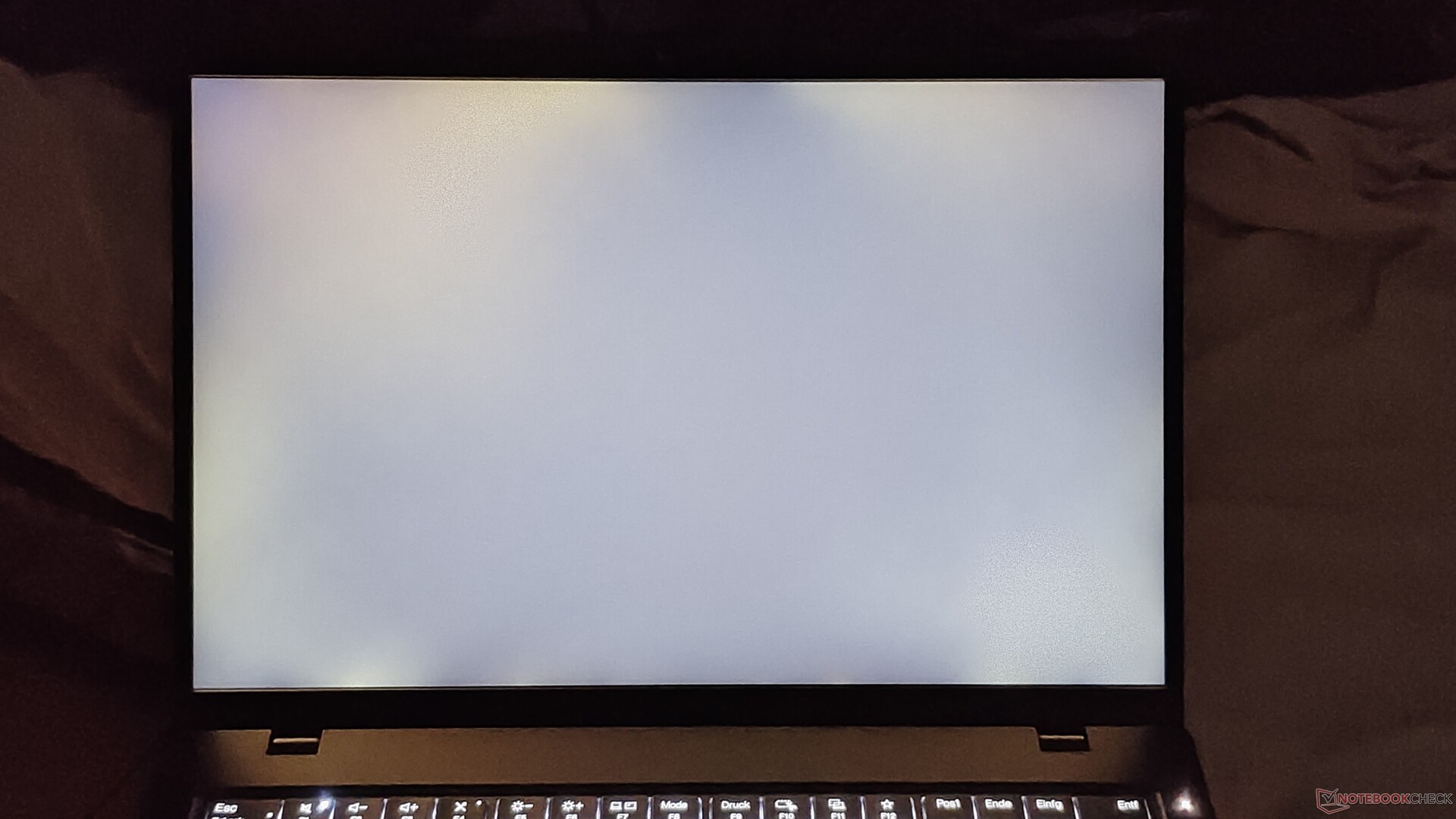

屏幕几乎达到了宣传的 400 cd/m²。399 cd/m² 是测得的平均最大亮度。与前代产品相比，同等屏幕的亮度为 250 cd/m²，这是一个很大的进步。
| |||||||||||||||||||||||||
Brightness Distribution: 89 %
Center on Battery: 419 cd/m²
Contrast: 1352:1 (Black: 0.31 cd/m²)
ΔE Color 7.5 | 0.5-29.43 Ø4.92, calibrated: 6.2
ΔE Greyscale 4.6 | 0.5-98 Ø5.2

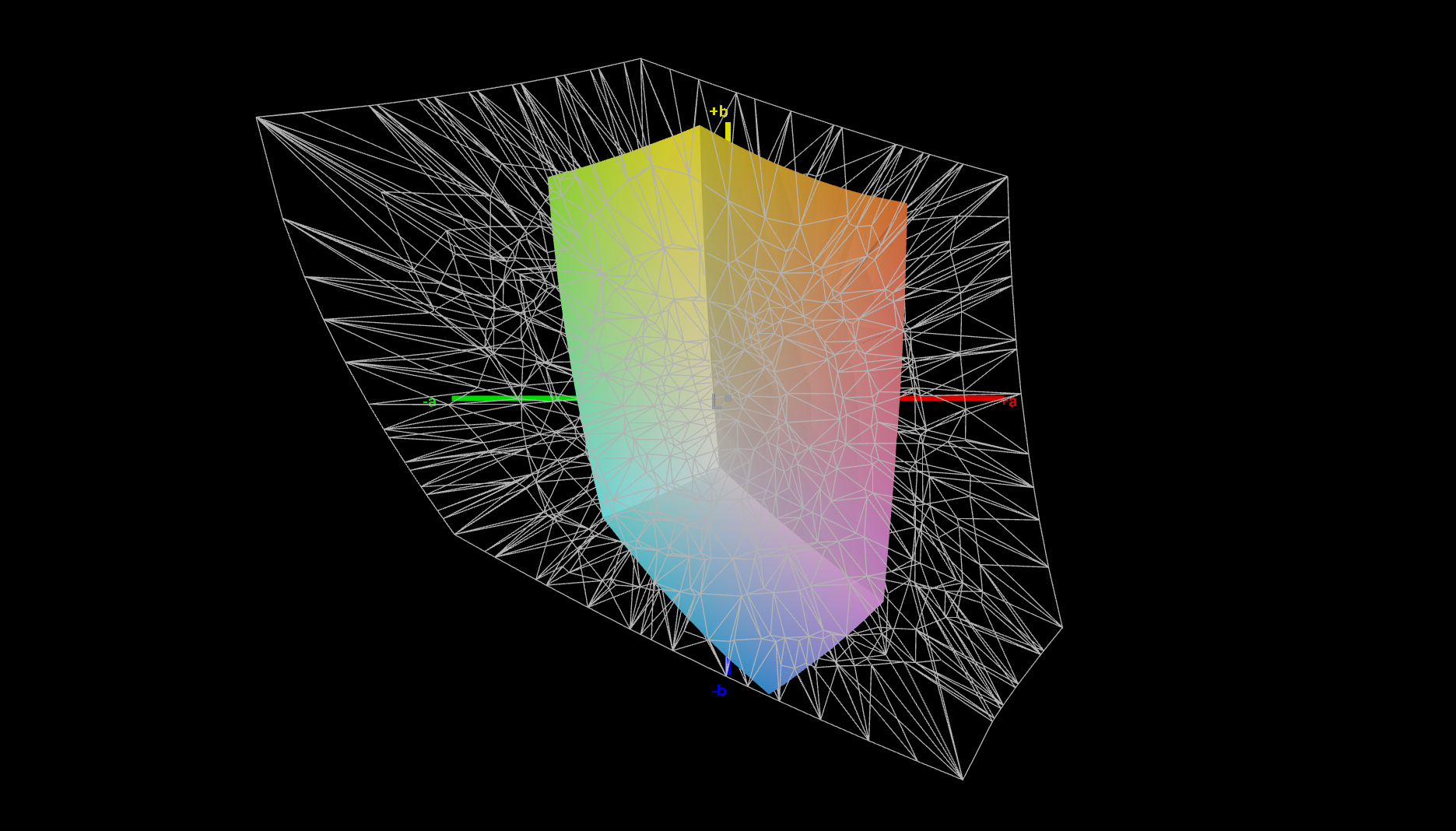

39% AdobeRGB 1998 (Argyll 2.2.0 3D)

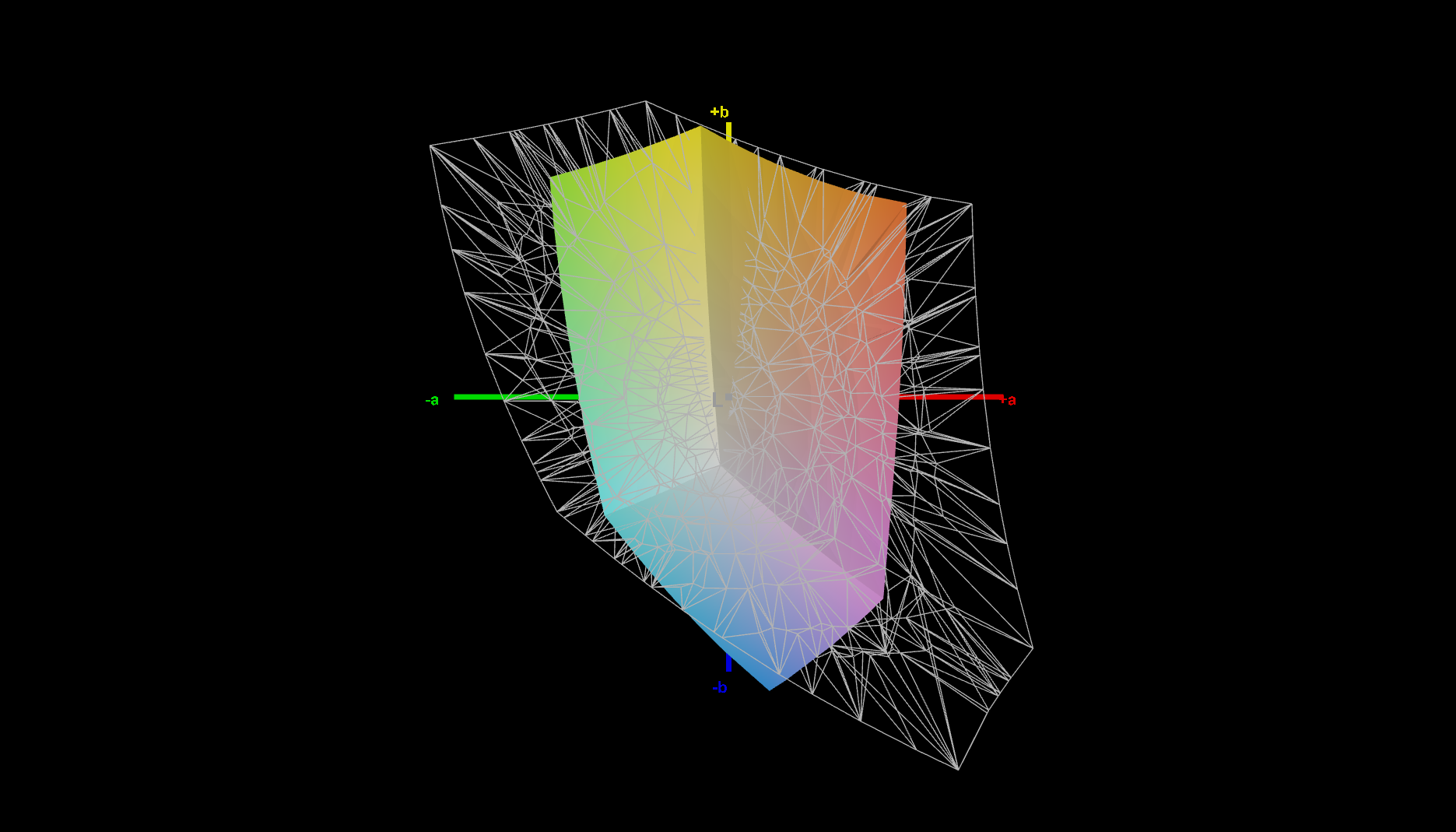

56.1% sRGB (Argyll 2.2.0 3D)
37.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.02
| Lenovo ThinkPad L14 G5 21L50014GE NV140WUM-N49, IPS LED, 1920x1200, 14" | Lenovo ThinkPad L14 G4 21H6S00900 B140HAN06.9, IPS LED, 1920x1080, 14" | Dell Latitude 3440 BOE NE140FH, IPS, 1920x1080, 14" | HP ProBook 445 G10 AUO2FA6, IPS, 1920x1080, 14" | Lenovo ThinkPad T14 G5 21ML005JGE MNE007JA1-2, IPS LED, 1920x1200, 14" | |
|---|---|---|---|---|---|
| Display | 86% | 7% | 77% | 71% | |
| Display P3 Coverage | 37.7 | 73.2 94% | 40.4 7% | 68.4 81% | 64.9 72% |
| sRGB Coverage | 56.1 | 98.9 76% | 60.7 8% | 95.2 70% | 94.6 69% |
| AdobeRGB 1998 Coverage | 39 | 73.9 89% | 41.8 7% | 70.6 81% | 67.2 72% |
| Response Times | -111% | -55% | -72% | -42% | |
| Response Time Grey 50% / Grey 80% * | 23.5 ? | 58.1 ? -147% | 35.3 ? -50% | 53.4 ? -127% | 34 ? -45% |
| Response Time Black / White * | 18.8 ? | 32.7 ? -74% | 29.8 ? -59% | 21.8 ? -16% | 26.2 ? -39% |
| PWM Frequency | |||||
| Screen | 30% | 18% | 37% | 41% | |
| Brightness middle | 419 | 430 3% | 292.6 -30% | 501 20% | 382 -9% |
| Brightness | 399 | 409 3% | 270 -32% | 464 16% | 373 -7% |
| Brightness Distribution | 89 | 88 -1% | 88 -1% | 87 -2% | 94 6% |
| Black Level * | 0.31 | 0.31 -0% | 0.19 39% | 0.26 16% | 0.23 26% |
| Contrast | 1352 | 1387 3% | 1540 14% | 1927 43% | 1661 23% |
| Colorchecker dE 2000 * | 7.5 | 2.4 68% | 4.63 38% | 2.64 65% | 1.1 85% |
| Colorchecker dE 2000 max. * | 28.3 | 4.7 83% | 17.1 40% | 5.06 82% | 2.3 92% |
| Colorchecker dE 2000 calibrated * | 6.2 | 1.4 77% | 2.13 66% | 1.57 75% | 0.9 85% |
| Greyscale dE 2000 * | 4.6 | 3 35% | 3.2 30% | 3.8 17% | 1.5 67% |
| Gamma | 2.02 109% | 2.3 96% | 2.34 94% | 2.103 105% | 2.17 101% |
| CCT | 6057 107% | 6489 100% | 7184 90% | 6562 99% | 6664 98% |
| Total Average (Program / Settings) | 2% /
22% | -10% /
6% | 14% /
30% | 23% /
36% |
* ... smaller is better

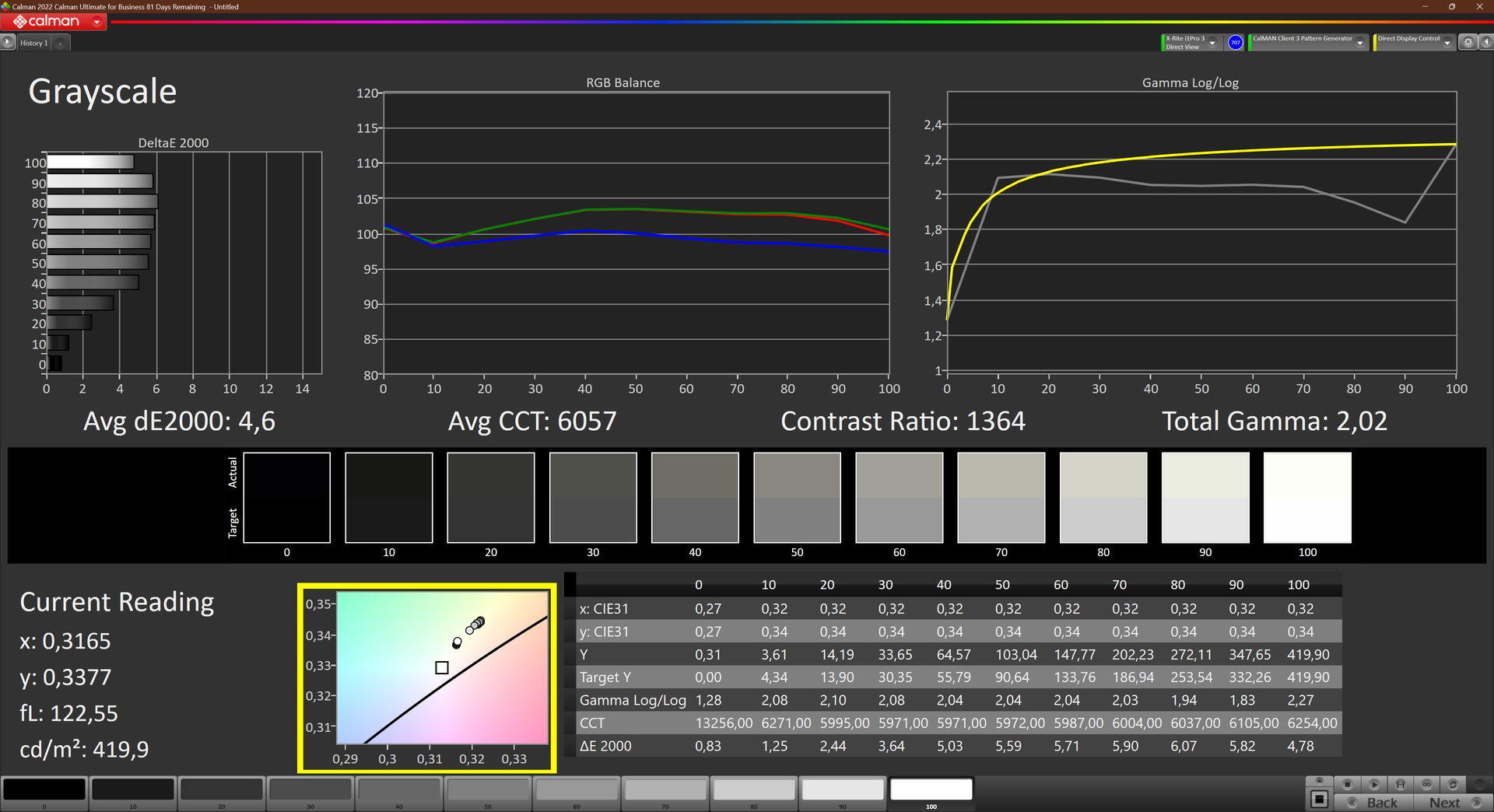

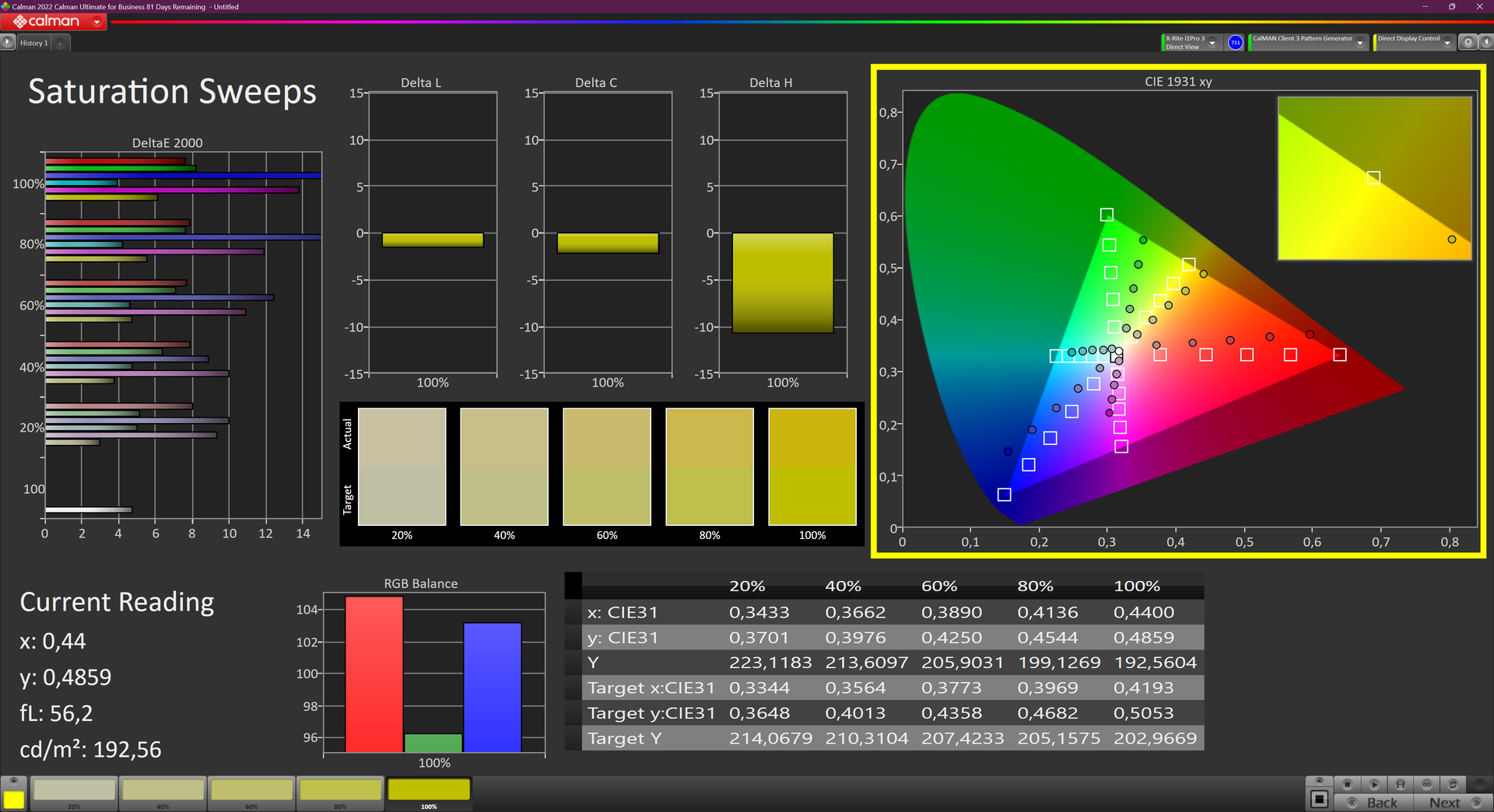

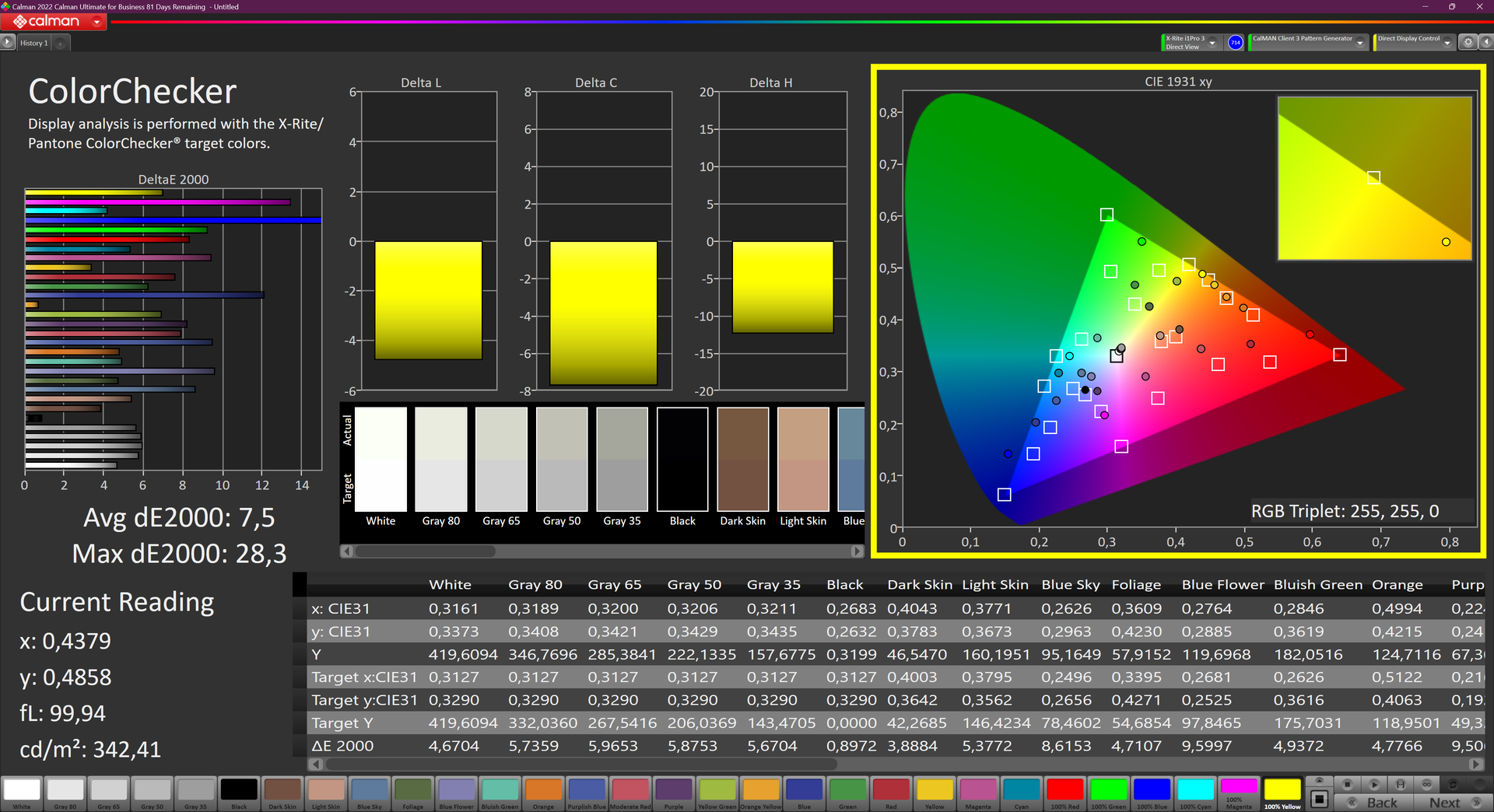

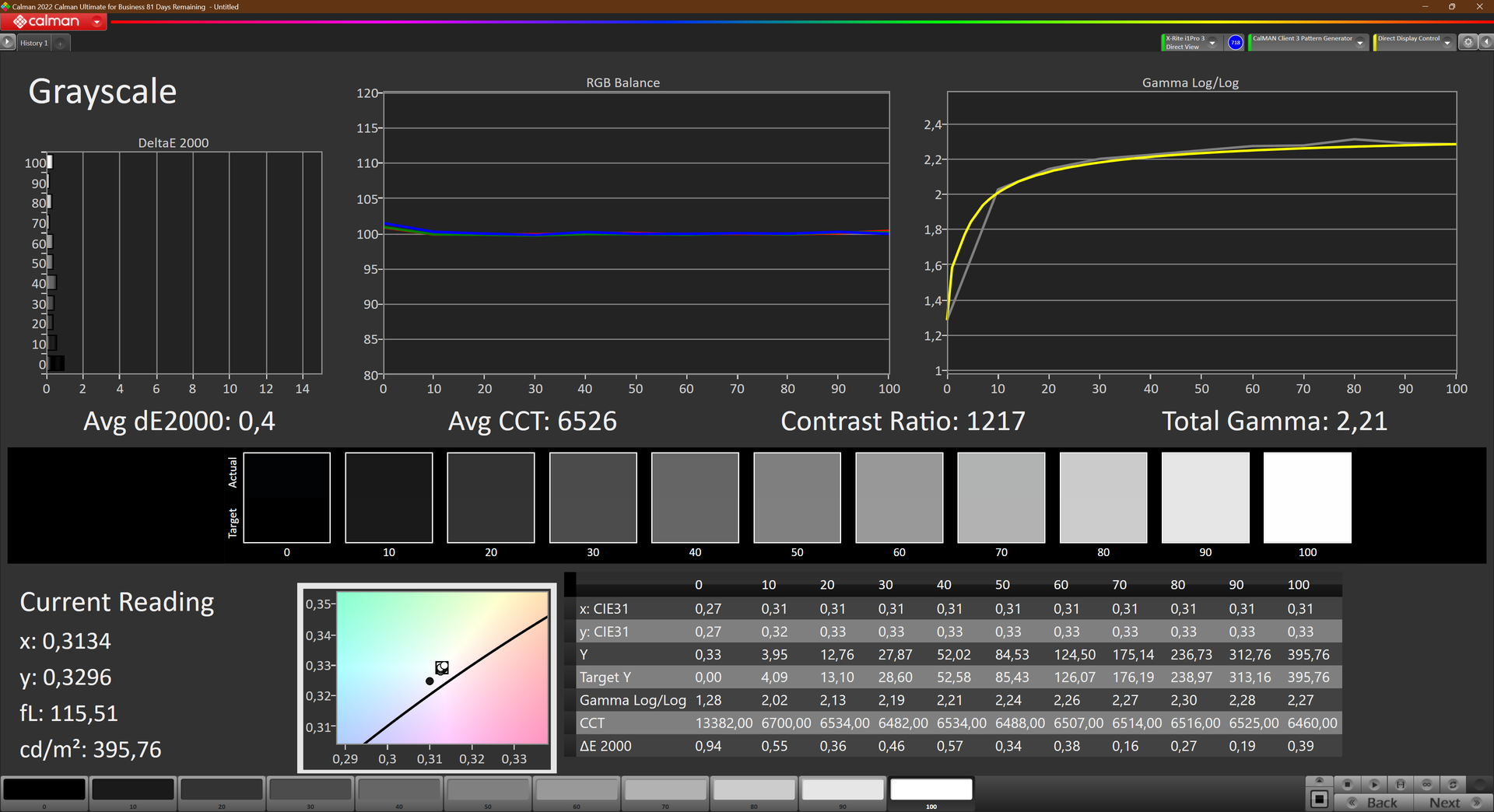

出厂时，色彩质量非常糟糕。使用 X-Rite i1Pro 3 校准后，卡尔曼测量值略有改善，但只有灰度值得到了真正的改善。

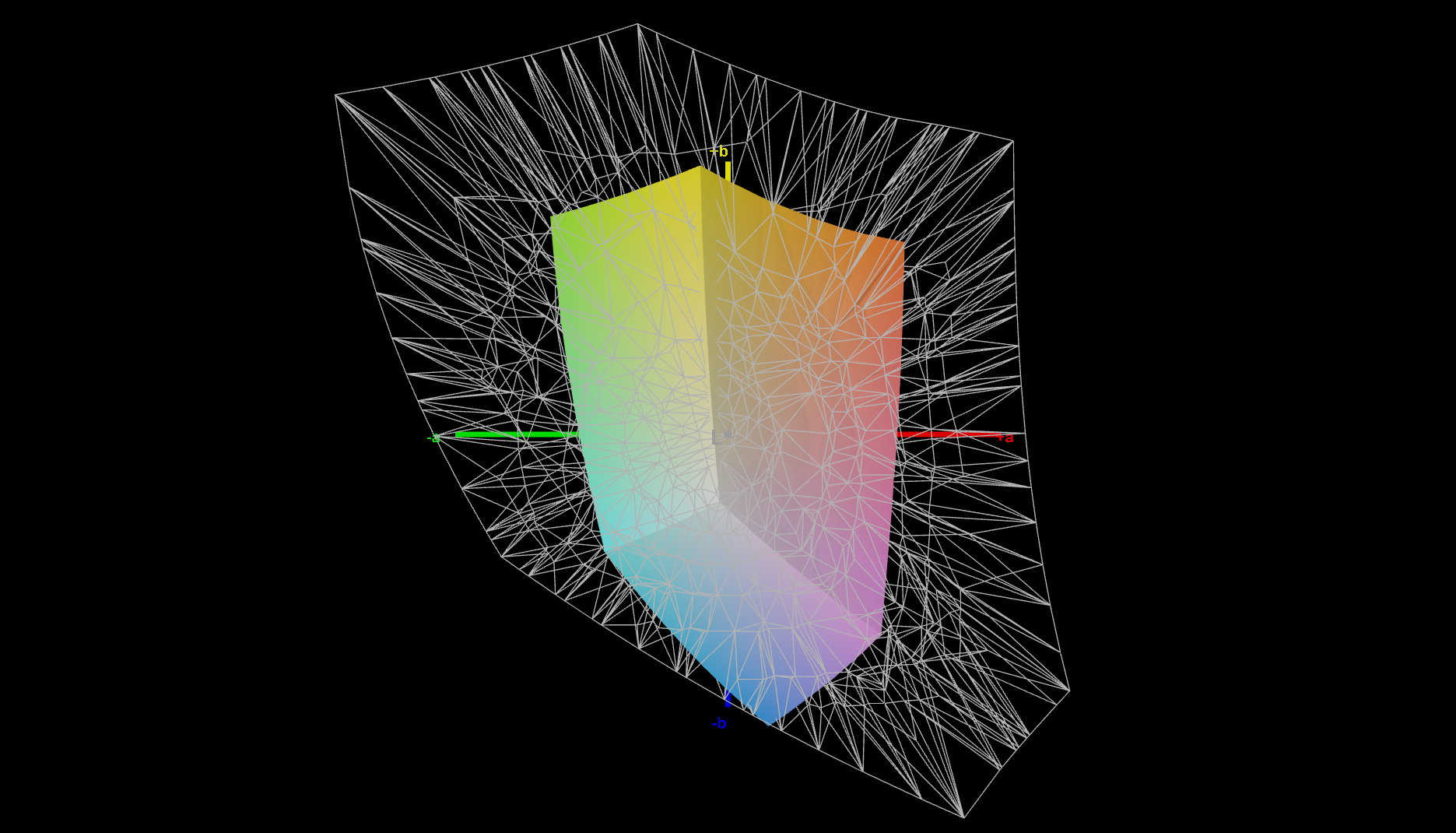

由于色彩准确度低，该屏幕不适合任何与色彩有关的工作。色域覆盖率低也证实了这一点，即使是较小的 sRGB 色域也没有覆盖。对于 ThinkPad L14 Gen 5 的廉价面板选项来说，这一弱点依然存在。

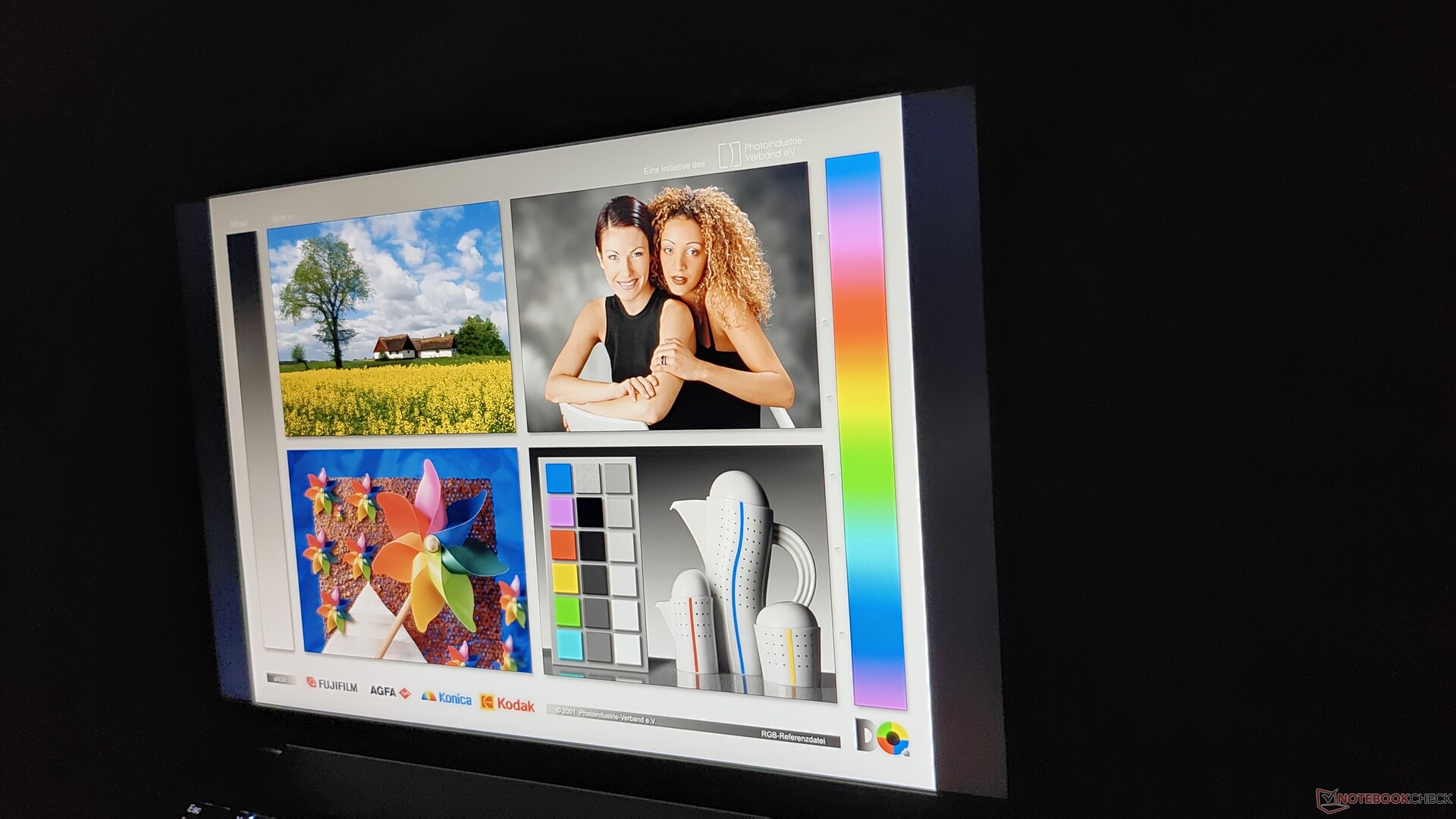

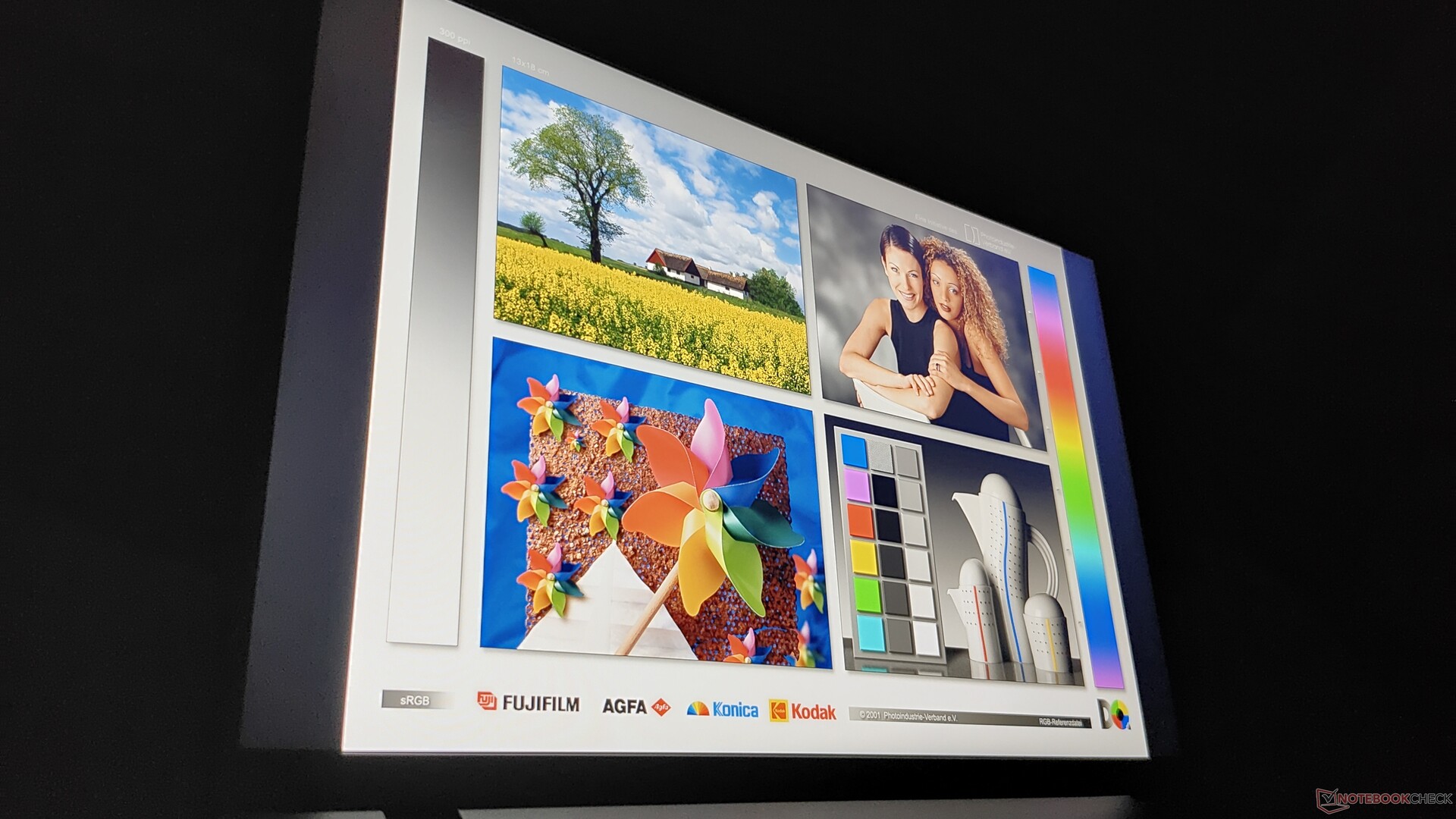

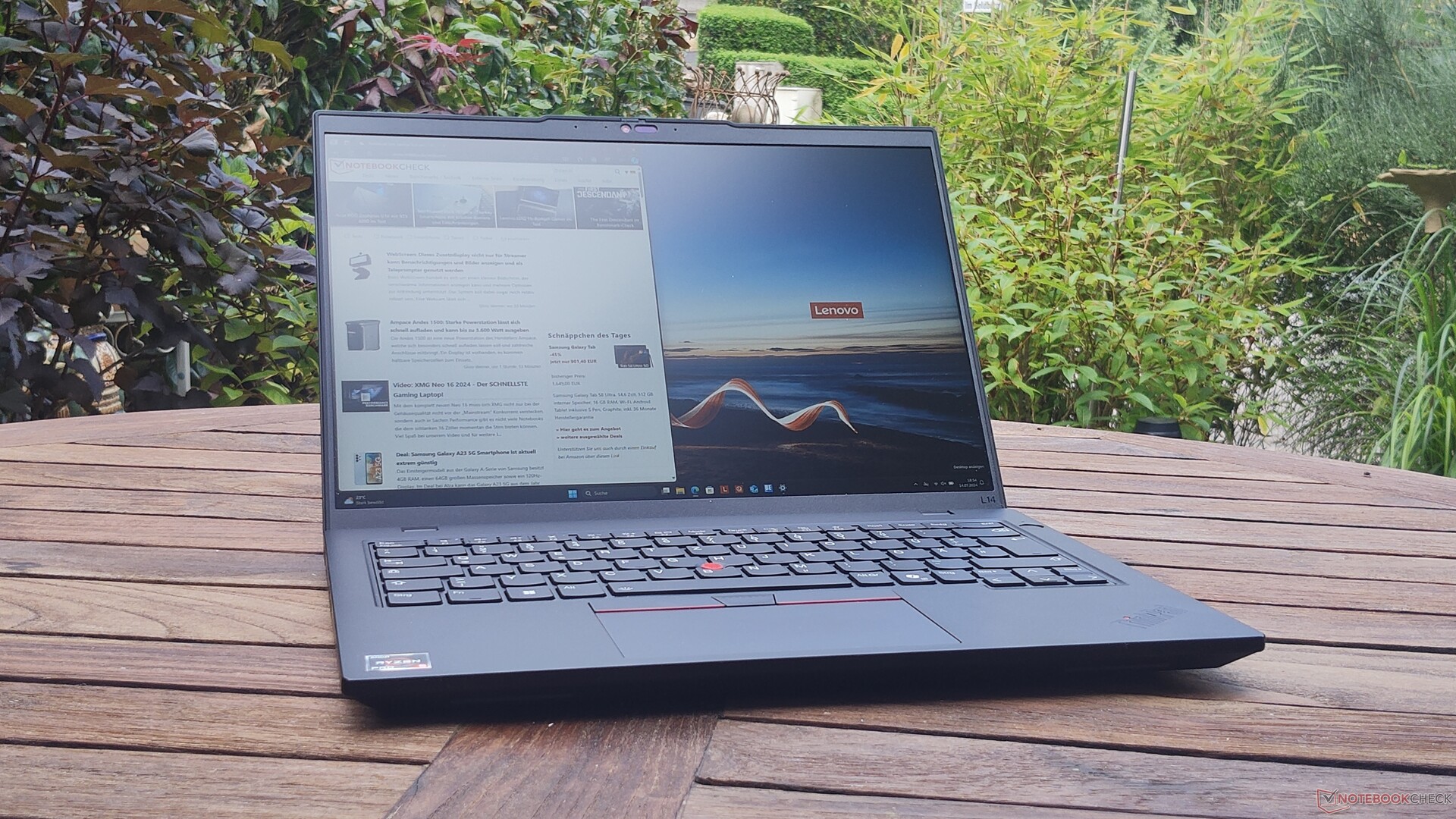

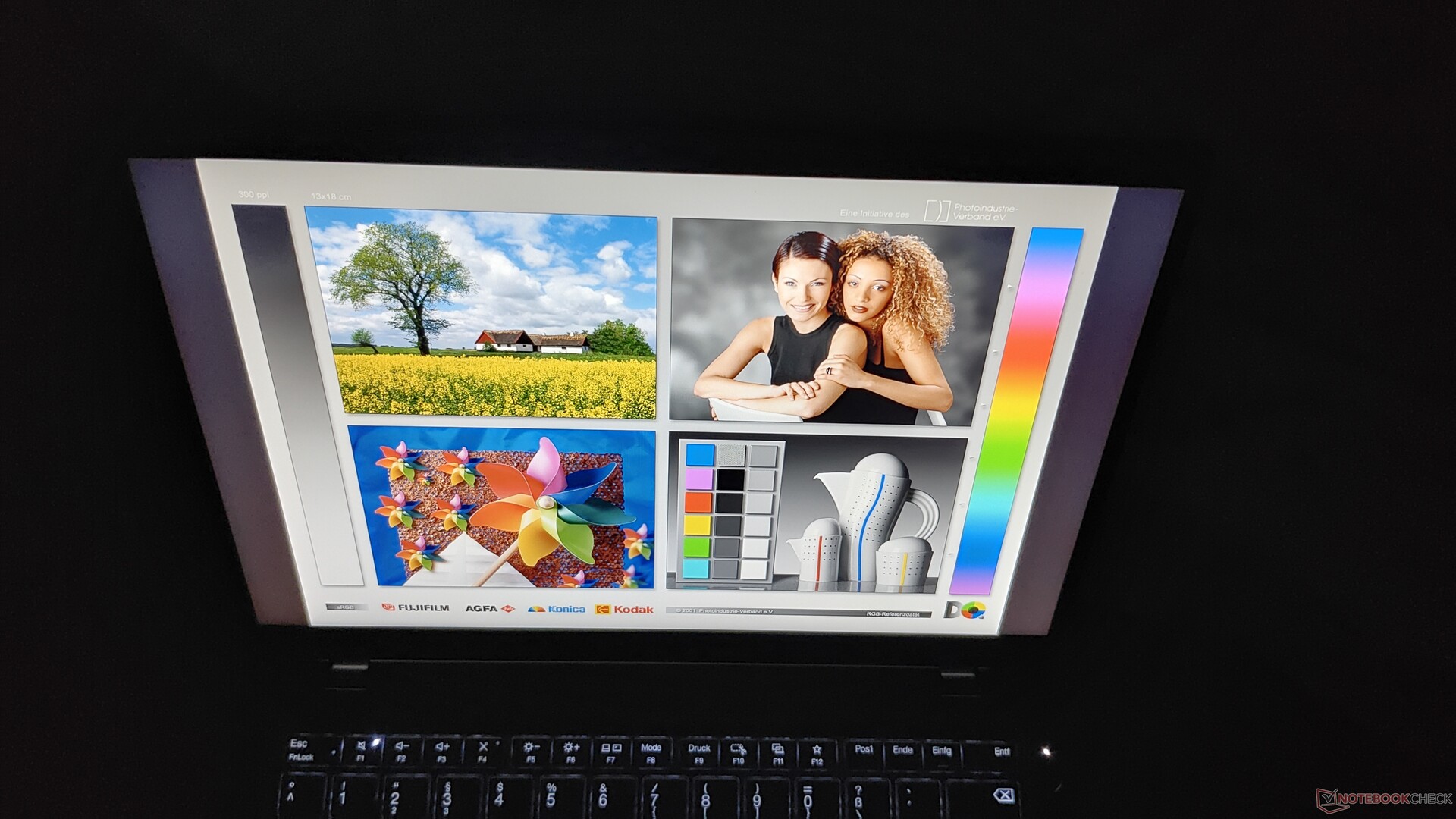

ThinkPad 的亮度为 400 cd/m²，只要避免阳光直射，在户外也能使用。

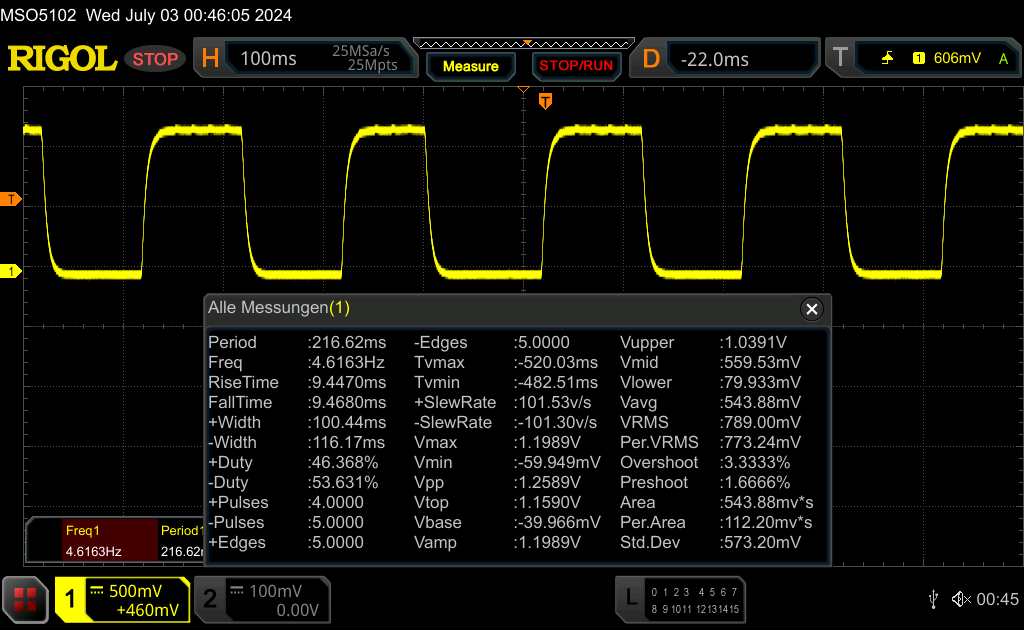

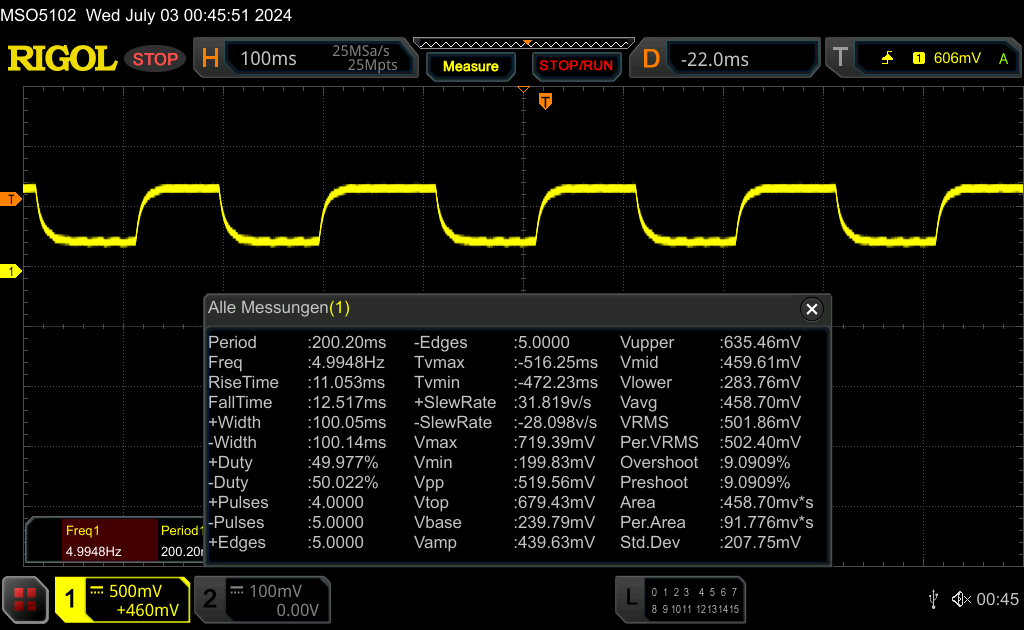

Display Response Times
| ↔ Response Time Black to White | ||
|---|---|---|
| 18.8 ms ... rise ↗ and fall ↘ combined | ↗ 9.4 ms rise |  |
| ↘ 9.4 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 38 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21 ms). | ||
| ↔ Response Time 50% Grey to 80% Grey | ||
| 23.5 ms ... rise ↗ and fall ↘ combined | ↗ 11 ms rise |  |
| ↘ 12.5 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 31 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.9 ms). | ||

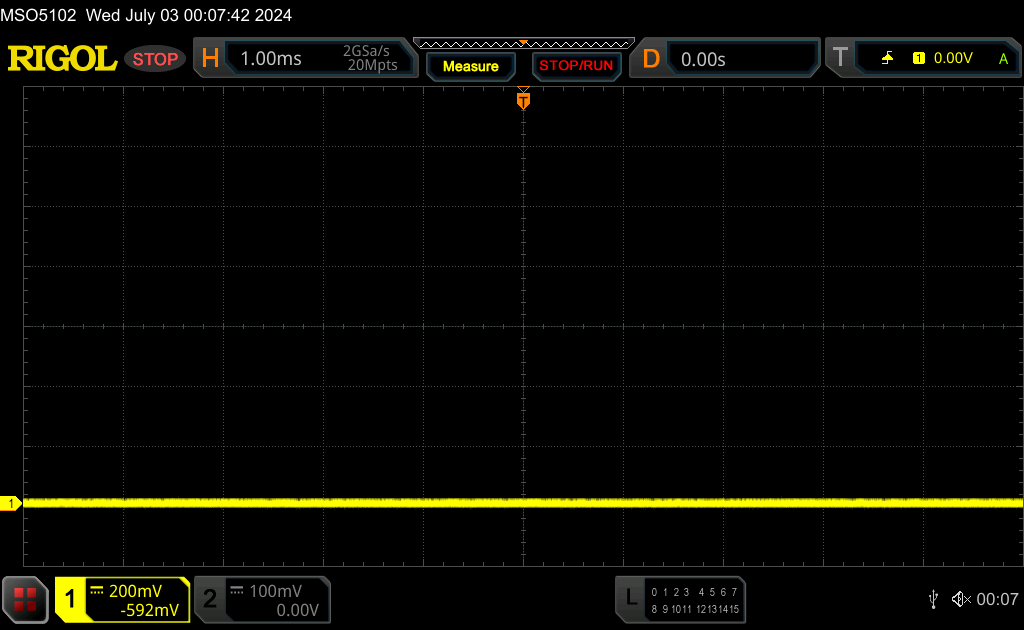

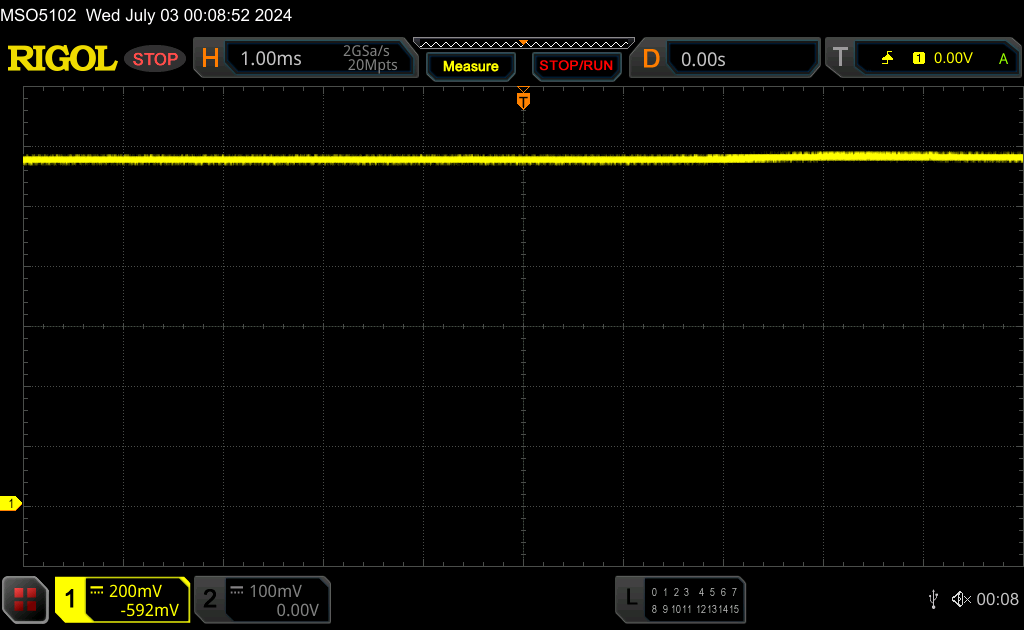

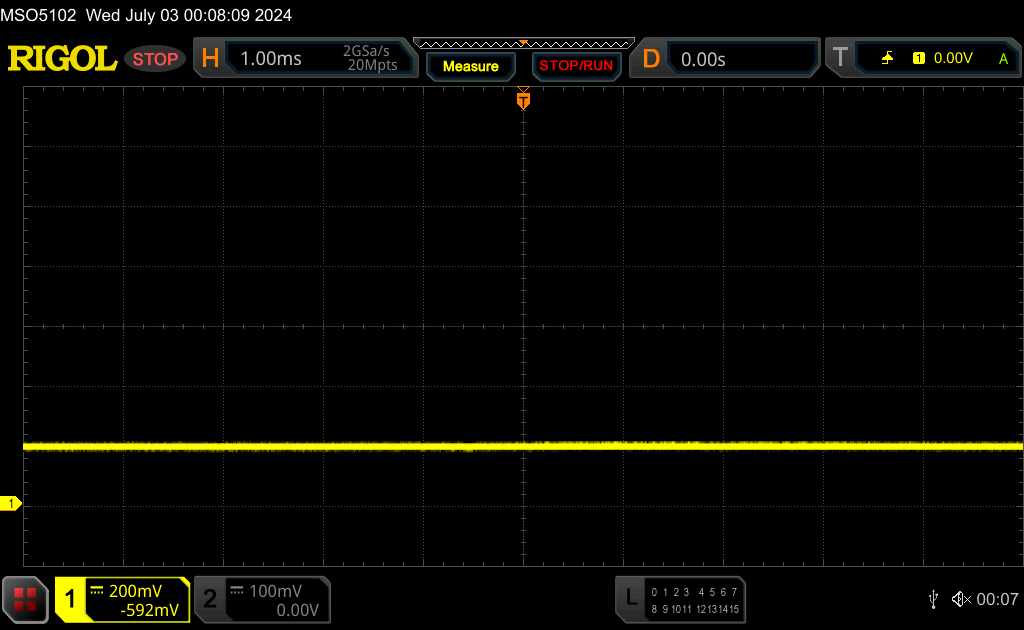

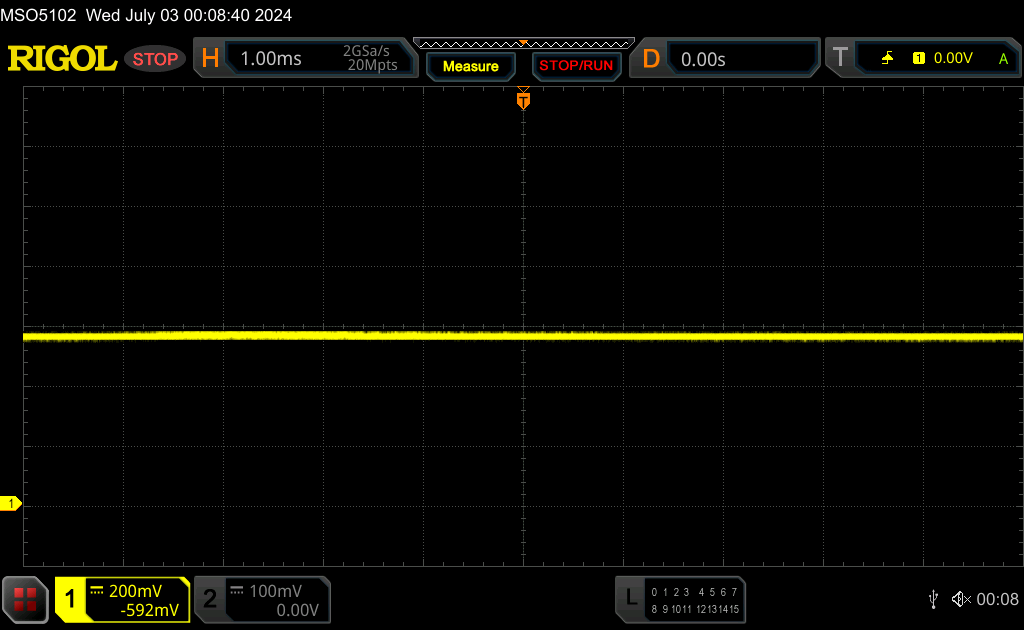

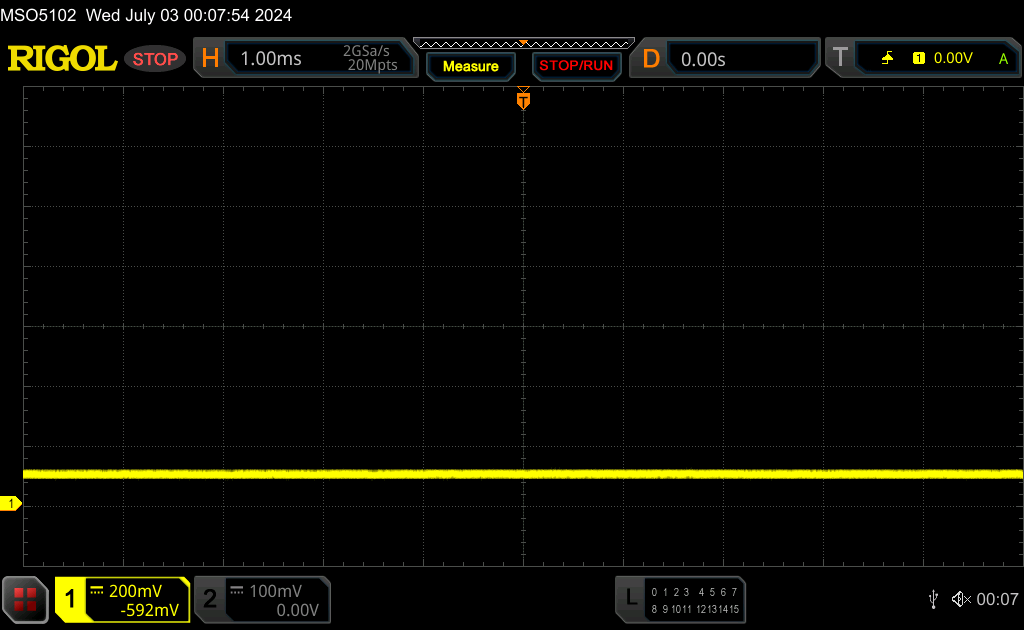

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured. | |||
性能L14 现在配备 DDR5 和 PCIe Gen 4
在停滞了三年之后，联想 ThinkPad L14 Gen 5 AMD 终于为 AMD L 系列带来了新的 CPU。有三种芯片可供选择AMD Ryzen 3 Pro 7335U, Ryzen 5 Pro 7535U, Ryzen 7 Pro 7735U)系列的 AMD Ryzen 7035U 基于 Ryzen 6000 - L14 第 2 代。 L14 Gen 2, L14 第 3 代和 L14 4 代都使用基于 Ryzen 5000 的 CPU。随着从 Zen3 升级到 Zen3+，我们也从 Vega 升级到 RNDA2。买家可以选择 Radeon 660M或 Radeon 680M取决于所选的 CPU。

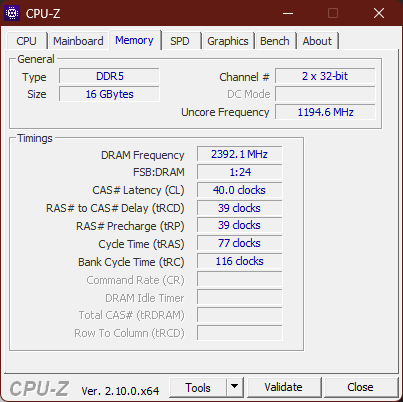

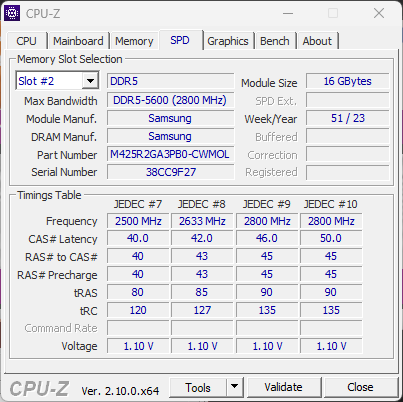

联想 ThinkPad L14 5 代 AMD 的两个 SO-DIMM 插槽可容纳 64 GB DDR5-4800，而不是前代产品的 64 GB DDR4-3200。在固态硬盘方面，联想终于从 PCIe 3.0 转向了 PCIe 4.0。格式也从 M.2 2242 变为 M.2 2280。出厂最大容量为 2 TB。
测试条件

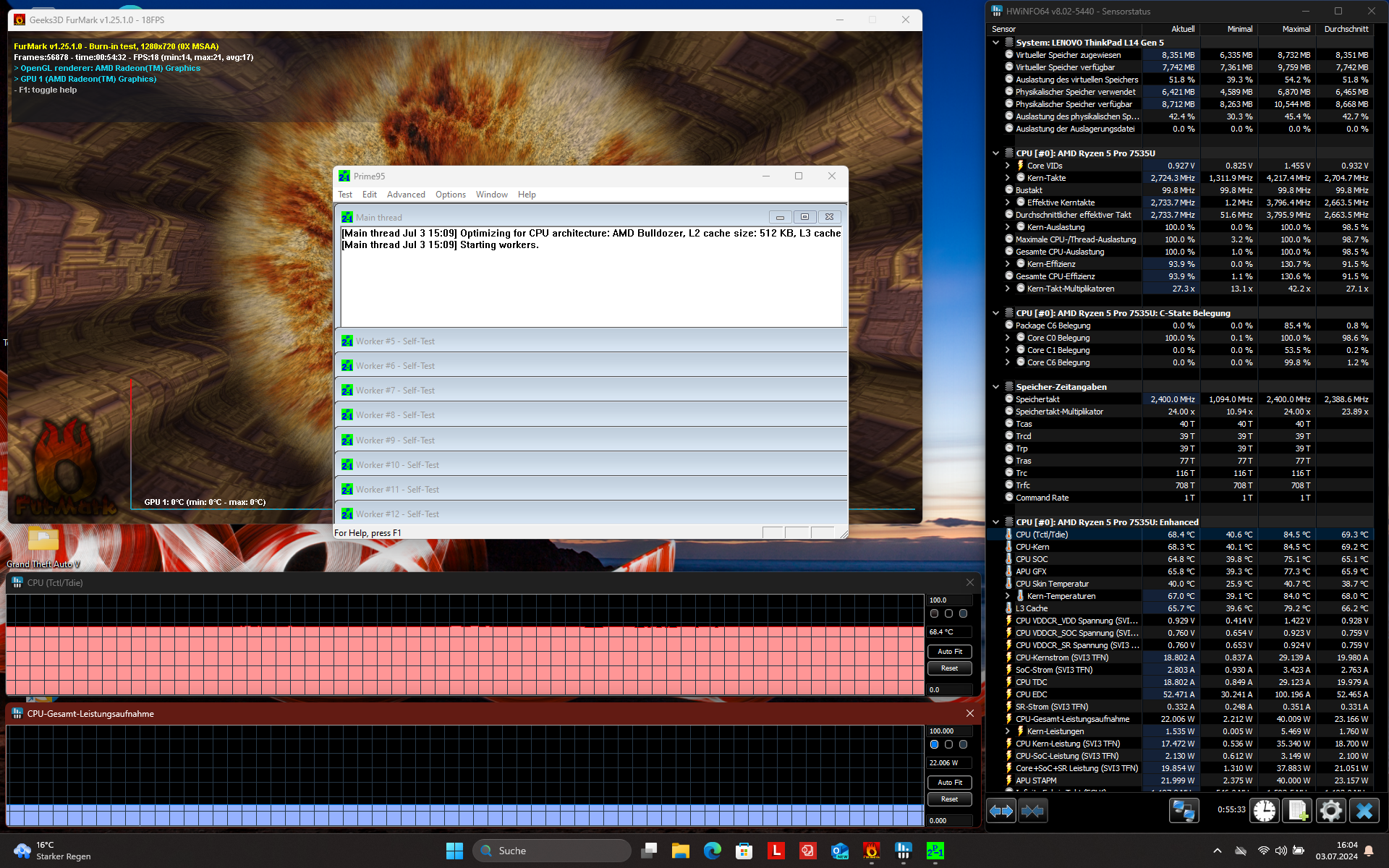

联想通过本地 Windows 设置提供了三种不同的能耗配置文件。它们都会影响处理器在持续负载（功率限制 1/PL1）和短期负载（功率限制 2/PL2）下的功耗：
- 最佳电池寿命：PL1 10 W / PL2 10 W
- 平衡：PL1 14 W / PL2 18 W
- 最佳性能：PL1 22 瓦 / PL2 40 瓦
处理器

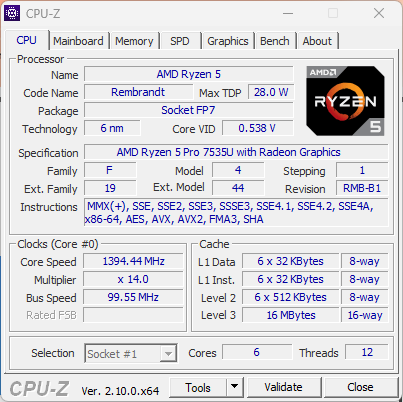

餈 AMD Ryzen 5 Pro 7535U是一款拥有六个 Zen3+ 内核的处理器。它属于 "伦勃朗刷新 "系列，基于 2022 年首次发布的 Ryzen 6000。作为 U CPU，它的功耗优化在 15 到 30 W 之间。六个内核的时钟频率在 2.9 GHz 到 4.55 GHz 之间。通过我们的 CPU 比较列表。
尽管采用了更新的架构，但在我们的基准测试中，联想 ThinkPad L14 第 5 代 AMD 处理器的速度与前代产品相比还是稍慢了一些。问题在于与旧款 ThinkPad 相比，L14 G5 的功耗限制更低，旧款 ThinkPad 在持续负载情况下功耗可达 25 W，而 L14 G5 功耗限制为 22 W。笔记本 ThinkPad T14 5 代尽管 T14 G5 的 CPU 性能也不出色，但配备酷睿 Ultra CPU 的 ThinkPad T14 Gen 5 比 L14 Gen 5 AMD 更快。
在使用电池供电的情况下，设备没有出现节流现象。
Cinebench R15 multi loop
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| CPU Performance Rating | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Average of class Office | |
| Dell Latitude 3440 -2! | |
| Lenovo ThinkPad L14 G4 21H6S00900 -2! | |
| HP ProBook 445 G10 | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U | |
| Cinebench R23 / Multi Core | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| Average of class Office (1577 - 15743, n=92, last 2 years) | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| HP ProBook 445 G10 | |
| Dell Latitude 3440 | |
| Cinebench R23 / Single Core | |
| Dell Latitude 3440 | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Average of class Office (618 - 1995, n=92, last 2 years) | |
| HP ProBook 445 G10 | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| Cinebench R20 / CPU (Multi Core) | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Average of class Office (590 - 5980, n=92, last 2 years) | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| HP ProBook 445 G10 | |
| Dell Latitude 3440 | |
| Cinebench R20 / CPU (Single Core) | |
| Dell Latitude 3440 | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Average of class Office (229 - 764, n=92, last 2 years) | |
| HP ProBook 445 G10 | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| Cinebench R15 / CPU Multi 64Bit | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Average of class Office (246 - 2642, n=93, last 2 years) | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| HP ProBook 445 G10 | |
| Dell Latitude 3440 | |
| Cinebench R15 / CPU Single 64Bit | |
| Dell Latitude 3440 | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| HP ProBook 445 G10 | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| Average of class Office (98 - 284, n=92, last 2 years) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| Blender / v2.79 BMW27 CPU | |
| Average of class Office (208 - 1956, n=93, last 2 years) | |
| Dell Latitude 3440 | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| HP ProBook 445 G10 | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| 7-Zip 18.03 / 7z b 4 | |
| Average of class Office (7532 - 65460, n=93, last 2 years) | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| HP ProBook 445 G10 | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| Dell Latitude 3440 | |
| 7-Zip 18.03 / 7z b 4 -mmt1 | |
| Dell Latitude 3440 | |
| HP ProBook 445 G10 | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| Average of class Office (2972 - 6687, n=93, last 2 years) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Geekbench 6.3 / Multi-Core | |
| Average of class Office (662 - 14767, n=58, last 2 years) | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| HP ProBook 445 G10 | |
| Geekbench 6.3 / Single-Core | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Average of class Office (457 - 2769, n=57, last 2 years) | |
| HP ProBook 445 G10 | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| Geekbench 5.5 / Multi-Core | |
| Average of class Office (1018 - 11980, n=92, last 2 years) | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Dell Latitude 3440 | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| HP ProBook 445 G10 | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| Geekbench 5.5 / Single-Core | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Dell Latitude 3440 | |
| Average of class Office (510 - 1989, n=93, last 2 years) | |
| HP ProBook 445 G10 | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| HWBOT x265 Benchmark v2.2 / 4k Preset | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Average of class Office (1.72 - 18.7, n=91, last 2 years) | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| HP ProBook 445 G10 | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| Dell Latitude 3440 | |
| LibreOffice / 20 Documents To PDF | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| HP ProBook 445 G10 | |
| Average of class Office (31.3 - 129.6, n=91, last 2 years) | |
| Dell Latitude 3440 | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| R Benchmark 2.5 / Overall mean | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| Average of class Office (0.4244 - 1.135, n=90, last 2 years) | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| HP ProBook 445 G10 | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Dell Latitude 3440 | |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U | |
| Average of class Office | |
| HP ProBook 445 G10 | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Dell Latitude 3440 | |
| AIDA64 / FP32 Ray-Trace | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| Average of class Office (763 - 24250, n=92, last 2 years) | |
| HP ProBook 445 G10 | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Dell Latitude 3440 | |
| AIDA64 / FPU Julia | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| HP ProBook 445 G10 | |
| Average of class Office (4113 - 102228, n=92, last 2 years) | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Dell Latitude 3440 | |
| AIDA64 / CPU SHA3 | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Average of class Office (287 - 4551, n=92, last 2 years) | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| HP ProBook 445 G10 | |
| Dell Latitude 3440 | |
| AIDA64 / CPU Queen | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| Average of class Office (8185 - 115197, n=92, last 2 years) | |
| HP ProBook 445 G10 | |
| Dell Latitude 3440 | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| AIDA64 / FPU SinJulia | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| HP ProBook 445 G10 | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| Average of class Office (404 - 14288, n=92, last 2 years) | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Dell Latitude 3440 | |
| AIDA64 / FPU Mandel | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| HP ProBook 445 G10 | |
| Average of class Office (2075 - 54365, n=92, last 2 years) | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Dell Latitude 3440 | |
| AIDA64 / CPU AES | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| Average of class Office (7860 - 155900, n=92, last 2 years) | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| Dell Latitude 3440 | |
| HP ProBook 445 G10 | |
| AIDA64 / CPU ZLib | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Average of class Office (78 - 1018, n=92, last 2 years) | |
| Dell Latitude 3440 | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| HP ProBook 445 G10 | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| AIDA64 / FP64 Ray-Trace | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| Average of class Office (432 - 12755, n=92, last 2 years) | |
| HP ProBook 445 G10 | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Dell Latitude 3440 | |
| AIDA64 / CPU PhotoWorxx | |
| Average of class Office (4814 - 54971, n=92, last 2 years) | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Dell Latitude 3440 | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| HP ProBook 445 G10 | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
系统性能
与 CPU 性能一样，联想 ThinkPad L14 5 代 AMD 在系统性能方面基本与老款 L14 G4 相当。换算到日常性能，我们可以说没有进步，但前代产品的速度也已经足够快了--因此在这方面没有任何进步的必要。
CrossMark: Overall | Productivity | Creativity | Responsiveness
WebXPRT 3: Overall
WebXPRT 4: Overall
Mozilla Kraken 1.1: Total
| PCMark 10 / Score | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U, AMD Radeon 660M () | |
| HP ProBook 445 G10 | |
| Average of class Office (2463 - 7344, n=86, last 2 years) | |
| Dell Latitude 3440 | |
| PCMark 10 / Essentials | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| Dell Latitude 3440 | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| HP ProBook 445 G10 | |
| Average of class Office (5575 - 20841, n=86, last 2 years) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U, AMD Radeon 660M () | |
| PCMark 10 / Productivity | |
| HP ProBook 445 G10 | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U, AMD Radeon 660M () | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Average of class Office (3041 - 10415, n=86, last 2 years) | |
| Dell Latitude 3440 | |
| PCMark 10 / Digital Content Creation | |
| Average of class Office (2126 - 9773, n=86, last 2 years) | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U, AMD Radeon 660M () | |
| Dell Latitude 3440 | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| HP ProBook 445 G10 | |
| CrossMark / Overall | |
| Dell Latitude 3440 | |
| Average of class Office (348 - 1891, n=86, last 2 years) | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U, AMD Radeon 660M () | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| CrossMark / Productivity | |
| Dell Latitude 3440 | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Average of class Office (393 - 1870, n=86, last 2 years) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U, AMD Radeon 660M () | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| CrossMark / Creativity | |
| Dell Latitude 3440 | |
| Average of class Office (340 - 1982, n=86, last 2 years) | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U, AMD Radeon 660M () | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| CrossMark / Responsiveness | |
| Average of class Office (258 - 2017, n=86, last 2 years) | |
| Dell Latitude 3440 | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U, AMD Radeon 660M () | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| WebXPRT 3 / Overall | |
| Dell Latitude 3440 | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Average of class Office (121 - 455, n=84, last 2 years) | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U, AMD Radeon 660M () | |
| WebXPRT 4 / Overall | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Dell Latitude 3440 | |
| Average of class Office (80 - 328, n=84, last 2 years) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U, AMD Radeon 660M () | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| Mozilla Kraken 1.1 / Total | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U, AMD Radeon 660M () | |
| Average of class Office (404 - 1966, n=91, last 2 years) | |
| Dell Latitude 3440 | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
* ... smaller is better
| PCMark 10 Score | 5705 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Average of class Office (7158 - 108783, n=93, last 2 years) | |
| Dell Latitude 3440 | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| HP ProBook 445 G10 | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| AIDA64 / Memory Read | |
| Average of class Office (7325 - 112436, n=93, last 2 years) | |
| Dell Latitude 3440 | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| HP ProBook 445 G10 | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| AIDA64 / Memory Write | |
| Average of class Office (7579 - 117935, n=93, last 2 years) | |
| Dell Latitude 3440 | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| HP ProBook 445 G10 | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| AIDA64 / Memory Latency | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| Average of class Office (8.3 - 185.2, n=93, last 2 years) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average AMD Ryzen 5 7535U () | |
| HP ProBook 445 G10 | |
| Dell Latitude 3440 | |
* ... smaller is better

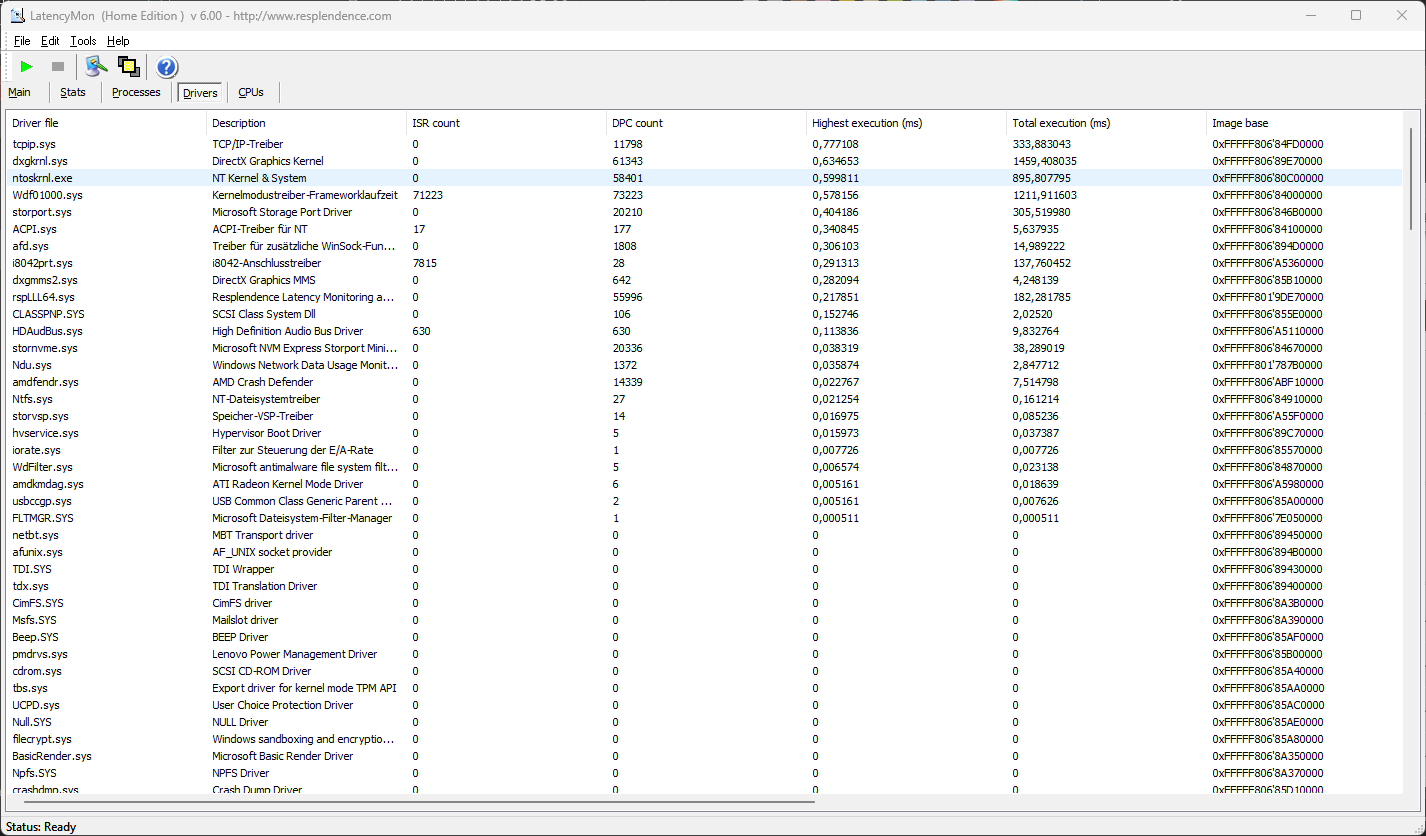

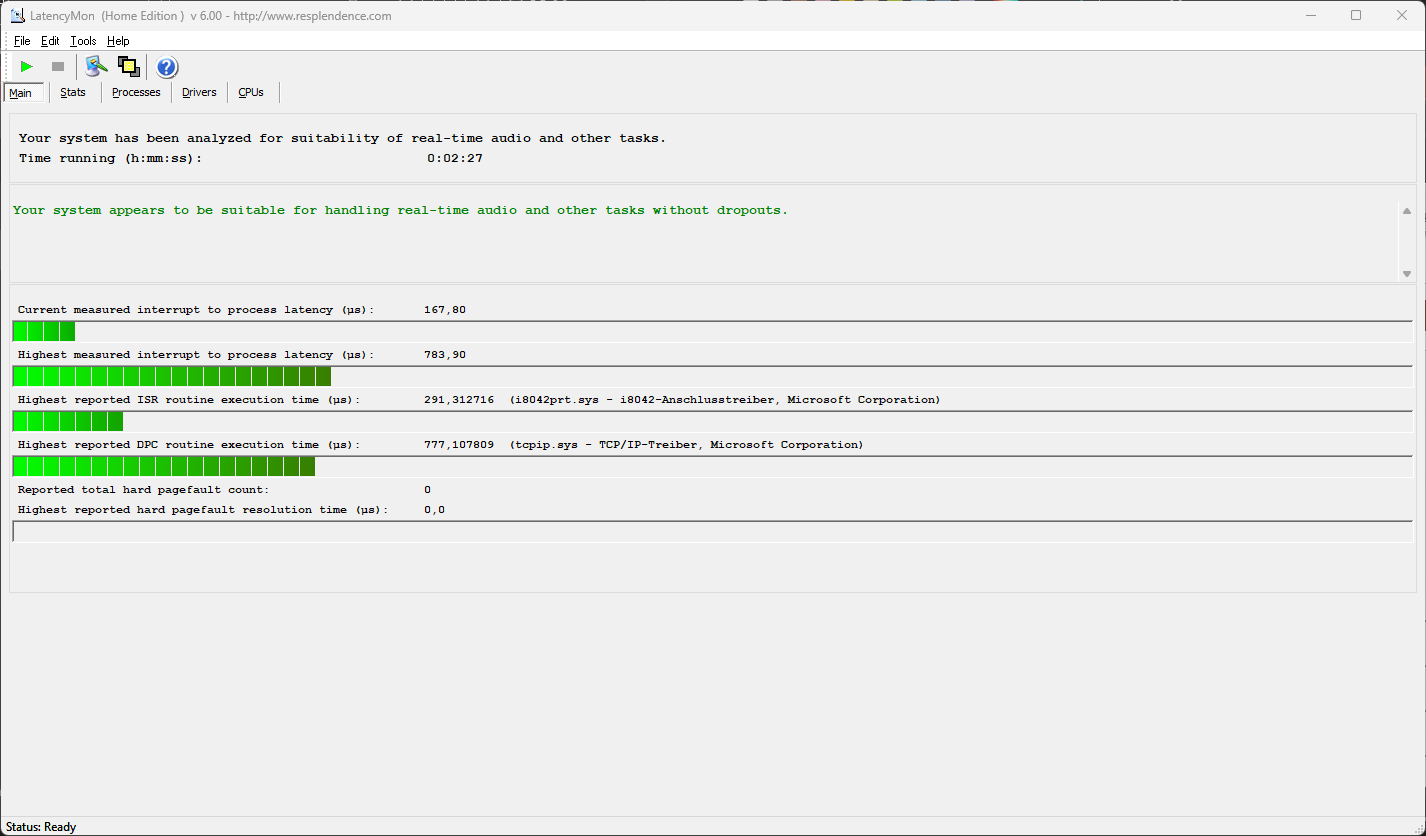

DPC 延迟
我们没有发现 ThinkPad L14 Gen 5 AMD 存在任何 DPC 延迟问题。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Dell Latitude 3440 | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| HP ProBook 445 G10 | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
* ... smaller is better
存储
联想 ThinkPad L14 第 5 代 AMD 的 PCIe NVMe 4.0 固态硬盘的高分成绩要好于老款 L14 的闪存，但 4K 结果是对比中最慢的。容量为 512 GB 的 UMIS SSD 速度足够快，不会拖累日常使用。
* ... smaller is better
Sustained load read: DiskSpd Read Loop, Queue Depth 8

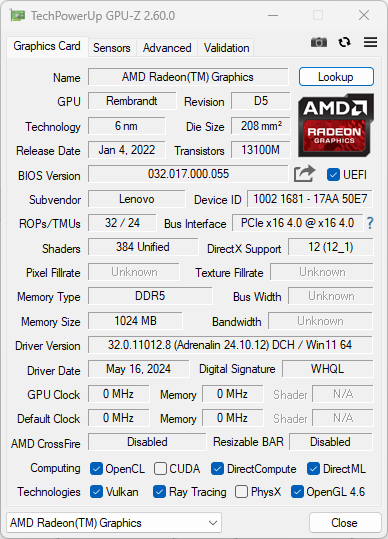

GPU
迚ケ谿オ譎る俣 AMD Radeon 660M是 Ryzen 5 CPU 的集成 GPU 解决方案，属于 Ryzen 6000 和 Ryzen 7035 系列。与前一型号的 AMD Radeon RX Vega 7 相比，最新的 RNDA2 GPU 在合成基准测试中的速度提高了 10% 至 30%，具体取决于基准测试。在游戏测试中，差距达到 26% 至 33%。当然，这些只是相对数字。总体而言，GPU 性能较弱，仅能满足简单任务和较老游戏的需求。
| 3DMark 11 Performance | 4904 points | |
| 3DMark Fire Strike Score | 3263 points | |
| 3DMark Time Spy Score | 1153 points | |
Help | ||
* ... smaller is better
| Performance Rating - Percent | |
| Average of class Office | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Dell Latitude 3440 | |
| HP ProBook 445 G10 | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
| Average of class Office (3.35 - 47.8, n=78, last 2 years) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| HP ProBook 445 G10 | |
| Dell Latitude 3440 | |
| Final Fantasy XV Benchmark - 1920x1080 High Quality | |
| Average of class Office (3.86 - 35.7, n=87, last 2 years) | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Dell Latitude 3440 | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| HP ProBook 445 G10 | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
| Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
| Average of class Office (13.4 - 121.2, n=94, last 2 years) | |
| Lenovo ThinkPad T14 G5 21ML005JGE | |
| Dell Latitude 3440 | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| HP ProBook 445 G10 | |
| Lenovo ThinkPad L14 G4 21H6S00900 | |
Cyberpunk 2077 ultra FPS diagram
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 92.6 | 80 | 23.1 | 10.3 |
| Dota 2 Reborn (2015) | 103.6 | 78.6 | 49.2 | 42.7 |
| Final Fantasy XV Benchmark (2018) | 33.1 | 16.2 | 11.1 | |
| X-Plane 11.11 (2018) | 38.4 | 27.4 | 25.1 | |
| Far Cry 5 (2018) | 38 | 18 | 16 | 16 |
| Baldur's Gate 3 (2023) | 16.5 | 12.8 | 10.3 | 9.97 |
| Cyberpunk 2077 2.1 Phantom Liberty (2023) | 14.9 | 11.5 | 8.85 | 7.77 |
| F1 24 (2024) | 31.6 | 26.8 | 19.8 |
排放物：底部的 ThinkPad 扬声器
噪音
联想 ThinkPad L14 Gen 5 AMD 的风扇在空转时基本上是静音的。当风扇开始运转时，即使仅在中等负载（配置文件：平衡）下，其噪音也高达 38 dB(a)。在最大负载情况下（配置文件：最高性能），风扇噪音仅略有增加。噪音水平高于前代产品 联想 ThinkPad L14 4 代 AMD.
遗憾的是，这款 ThinkPad 笔记本电脑确实存在线圈啸叫。将耳朵贴在键盘上会明显感觉到。
Noise Level
| Idle |
| 24.5 / 24.5 / 24.5 dB(A) |
| Load |
| 38 / 41.5 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 24.5 dB(A) | ||
| Lenovo ThinkPad L14 G5 21L50014GE Radeon 660M, R5 7535U, Lenovo UMIS AM6A0 RPETJ512MKP1QDQ | Lenovo ThinkPad L14 G4 21H6S00900 Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G | Dell Latitude 3440 Iris Xe G7 80EUs, i5-1345U, Samsung PM9A1 MZVL2512HCJQ | HP ProBook 445 G10 Vega 7, R5 7530U, Kioxia BG5 KBG50ZNS512G | Lenovo ThinkPad T14 G5 21ML005JGE Graphics 4-Core, Ultra 7 155U, WD PC SN740 SDDQNQD-512G-1014 | |
|---|---|---|---|---|---|
| Noise | 1% | 1% | 2% | 2% | |
| off / environment * | 24.5 | 25.2 -3% | 23.9 2% | 24 2% | 24.6 -0% |
| Idle Minimum * | 24.5 | 25.2 -3% | 24.4 -0% | 24 2% | 24.6 -0% |
| Idle Average * | 24.5 | 25.2 -3% | 24.4 -0% | 25 -2% | 24.6 -0% |
| Idle Maximum * | 24.5 | 27.3 -11% | 24.4 -0% | 28 -14% | 26.2 -7% |
| Load Average * | 38 | 32.1 16% | 37.1 2% | 33 13% | 29.6 22% |
| Cyberpunk 2077 ultra * | 41.4 | 40.3 3% | |||
| Load Maximum * | 41.5 | 38.3 8% | 40.2 3% | 36 13% | 43.9 -6% |
| Witcher 3 ultra * | 35.7 | 38.2 | 36 |
* ... smaller is better
热量
在负载情况下，L14 机箱的温度高达 46.7 摄氏度/华氏 114 度。掌托始终保持凉爽。
压力测试中没有出现节流现象。
(±) The maximum temperature on the upper side is 43.1 °C / 110 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 45.7 °C / 114 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25.3 °C / 78 F, compared to the device average of 29.5 °C / 85 F.
(+) 3: The average temperature for the upper side is 28.8 °C / 84 F, compared to the average of 29.5 °C / 85 F for the class Office.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 24.1 °C / 75.4 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (+3.6 °C / 6.5 F).
| Lenovo ThinkPad L14 G5 21L50014GE AMD Ryzen 5 7535U, AMD Radeon 660M | Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U, AMD Radeon RX Vega 7 | Dell Latitude 3440 Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs | HP ProBook 445 G10 AMD Ryzen 5 7530U, AMD Radeon RX Vega 7 | Lenovo ThinkPad T14 G5 21ML005JGE Intel Core Ultra 7 155U, Intel Graphics 4-Cores iGPU (Arc) | |
|---|---|---|---|---|---|
| Heat | -5% | 2% | -4% | -4% | |
| Maximum Upper Side * | 43.1 | 39 10% | 35.2 18% | 43 -0% | 40.5 6% |
| Maximum Bottom * | 45.7 | 46.3 -1% | 41 10% | 51 -12% | 49.3 -8% |
| Idle Upper Side * | 27.9 | 26.3 6% | 29.8 -7% | 27 3% | 29.5 -6% |
| Idle Bottom * | 28.3 | 37.5 -33% | 32 -13% | 30 -6% | 29.9 -6% |
* ... smaller is better
发言人
联想将两个立体声扬声器隐藏在前边缘下方，它们是底部发射的。当 ThinkPad 笔记本电脑放在平整、坚硬的表面上时，这不是问题。如果表面比较柔软，比如人的膝盖，声音就会减弱一些。反正扬声器的音量也不大--这也是大多数笔记本电脑的典型扬声器，没有底座。
Lenovo ThinkPad L14 G5 21L50014GE audio analysis
(±) | speaker loudness is average but good (80.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 16.5% lower than median
(±) | linearity of bass is average (11.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.3% away from median
(+) | mids are linear (3.9% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.6% higher than median
(+) | highs are linear (5.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (15.6% difference to median)
Compared to same class
» 13% of all tested devices in this class were better, 4% similar, 83% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 21% of all tested devices were better, 4% similar, 75% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Lenovo ThinkPad T14 G5 21ML005JGE audio analysis
(±) | speaker loudness is average but good (78.9 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 16.8% lower than median
(±) | linearity of bass is average (12.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.2% away from median
(+) | mids are linear (3.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.6% away from median
(+) | highs are linear (4.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14.3% difference to median)
Compared to same class
» 8% of all tested devices in this class were better, 3% similar, 89% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 15% of all tested devices were better, 4% similar, 81% worse
» The best had a delta of 4%, average was 25%, worst was 134%
能源管理：电池寿命超过 12 小时
耗电量
联想 ThinkPad L14 第 5 代 AMD 并不是同类产品中最省电的。4.4 W 的最低负载高于大多数竞争对手的水平。
ThinkPad 笔记本电脑的功耗高达 65.9 瓦，超过了 65 瓦充电器的功率。不过，耗电量很快就会下降。在负载情况下，电池电量应该不会有任何损失。
| Off / Standby | 0.6 / 0.5 Watt |
| Idle | 4.4 / 7 / 7.3 Watt |
| Load |
24.4 / 65.9 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Lenovo ThinkPad L14 G5 21L50014GE R5 7535U, Radeon 660M, Lenovo UMIS AM6A0 RPETJ512MKP1QDQ, IPS LED, 1920x1200, 14" | Lenovo ThinkPad L14 G4 21H6S00900 R5 7530U, Vega 7, Kioxia BG5 KBG5AZNT512G, IPS LED, 1920x1080, 14" | Dell Latitude 3440 i5-1345U, Iris Xe G7 80EUs, Samsung PM9A1 MZVL2512HCJQ, IPS, 1920x1080, 14" | HP ProBook 445 G10 R5 7530U, Vega 7, Kioxia BG5 KBG50ZNS512G, IPS, 1920x1080, 14" | Lenovo ThinkPad T14 G5 21ML005JGE Ultra 7 155U, Graphics 4-Core, WD PC SN740 SDDQNQD-512G-1014, IPS LED, 1920x1200, 14" | Average AMD Radeon 660M | Average of class Office | |
|---|---|---|---|---|---|---|---|
| Power Consumption | -2% | -20% | -21% | 6% | -20% | -21% | |
| Idle Minimum * | 4.4 | 3.5 20% | 3.7 16% | 7 -59% | 2.6 41% | 4.41 ? -0% | 4.54 ? -3% |
| Idle Average * | 7 | 7.2 -3% | 6.5 7% | 8 -14% | 5.1 27% | 6.74 ? 4% | 7.49 ? -7% |
| Idle Maximum * | 7.3 | 7.6 -4% | 9.5 -30% | 9 -23% | 6.5 11% | 8.29 ? -14% | 9.14 ? -25% |
| Load Average * | 24.4 | 32.2 -32% | 46.9 -92% | 34 -39% | 37.5 -54% | 46 ? -89% | 42.8 ? -75% |
| Cyberpunk 2077 ultra external monitor * | 40.4 | 36.6 9% | |||||
| Cyberpunk 2077 ultra * | 39.6 | 37.8 5% | |||||
| Load Maximum * | 65.9 | 61.3 7% | 67 -2% | 47 29% | 63.8 3% | 65.7 ? -0% | 61.3 ? 7% |
| Witcher 3 ultra * | 35.7 | 42.1 | 36.2 |
* ... smaller is better
Power consumption Cyberpunk / stress test
Power consumption with external monitor

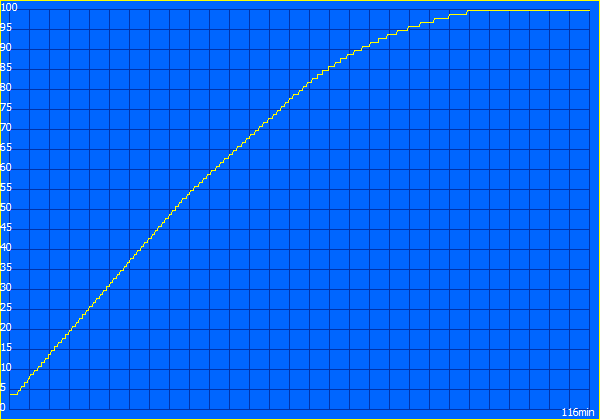

电池寿命
不同于 ThinkPad L14 第 4 代 AMDL14 5 代 AMD 只有两种电池可选。联想仍然提供 46.5 瓦时电池和 57 瓦时电池，但取消了 63 瓦时电池选项。我们的评测设备配备了较大的 57 Wh 电池，在我们的 Wi-Fi 测试（150 cd/m²）中，电池续航时间超过了 12 小时。在这方面，前代产品略胜一筹。
| Lenovo ThinkPad L14 G5 21L50014GE R5 7535U, Radeon 660M, 57 Wh | Lenovo ThinkPad L14 G4 21H6S00900 R5 7530U, Vega 7, 57 Wh | Dell Latitude 3440 i5-1345U, Iris Xe G7 80EUs, 54 Wh | HP ProBook 445 G10 R5 7530U, Vega 7, 42 Wh | Lenovo ThinkPad T14 G5 21ML005JGE Ultra 7 155U, Graphics 4-Core, 52.5 Wh | Average of class Office | |
|---|---|---|---|---|---|---|
| Battery Runtime | 3% | -29% | -24% | 12% | 15% | |
| WiFi v1.3 | 748 | 814 9% | 528 -29% | 568 -24% | 680 -9% | 600 ? -20% |
| Load | 79 | 76 -4% | 104 32% | 118.1 ? 49% |
Pros
Cons
结论ThinkPad L14 第 5 代 AMD 的众多新功能
联想 ThinkPad L14 5 代 AMD 是一款笔记本电脑，与前代机型相比，它在技术上有了巨大的更新。许多东西都是新的，但对于 ThinkPad 而言，许多东西也保持不变。
首先是变化：ThinkPad L14 Gen 5 是经济实惠的 L 系列中首款配备 16:10 宽高比屏幕的 14 英寸 ThinkPad。在这种情况下，基本配置的显示屏比以前更亮了。此外，廉价过时的高清 TN 显示屏也不复存在。在内部，联想将 Ryzen 5000 架构换成了基于 Ryzen-6000 的新芯片。在向前迈进的同时，还采用了许多更新的标准--DDR5、NVMe PCIe 4.0 和 USB4。ThinkPad L14 G5 AMD 首次支持这些标准。新增的第三个 USB-A 端口是 ThinkPad 笔记本电脑的一大特色。我们还很欣赏联想将较小的 M.2 2242 SSD 转换为较大的 M.2 2280 SSD，从而提高了可升级性。
关于可升级性：联想保留了两个 SO-DIMM 插槽，用户可更换键盘也是如此。遗憾的是，联想还保留了默认屏幕的糟糕色域覆盖，这是经济型商务笔记本电脑的典型标志。至少屏幕亮度得到了改善。比屏幕好得多的是输入设备。它们达到了典型的 ThinkPad 标准。另一方面，L14 的性能并不理想，在这方面停滞不前。由于功耗限制较低，L14 G5 AMD 的性能并没有超过 L14 G4 AMD.在风扇噪音和发热方面，ThinkPad 只有一些小缺点。电池续航时间也还不错，尽管比前代产品稍差一些。
L 系列价格实惠，但对许多办公用户来说仍是不错的选择。如果你想省钱，联想 ThinkPad L14 第 5 代 AMD 是一款出色的工作主力，可以胜任工程和多媒体任务之外的大多数工作相关事务。
总的来说，我们非常喜欢联想 ThinkPad L14 5 代 AMD。与更昂贵的 T 系列相比，L14 G5 的差异感觉比以往任何时候都要小，比 L14 G4 更现代。在材料和屏幕质量方面，买家必须做出牺牲。除此以外，这还是一款价格比较实惠的办公笔记本电脑。屏幕色彩质量不佳，性能不佳，这确实意味着它不适合工程和多媒体任务，但在办公和网络应用方面，它却大放异彩。
与 L14 Gen 5 价格相近的竞争产品有惠普 600 系列 EliteBook 和戴尔Latitude 5000。惠普 惠普 ProBook 445 G10也有可能与之不相上下。它的优点是价格更低，重量更轻。不过，它缺乏可选的 WWAN 或 USB4 等功能。
定价和可用性
经过测试的联想 ThinkPad L14 Gen 5 在德国的售价约为 1,000 欧元。在美国，ThinkPad L14 Gen 5 AMD 的起价约为 735 美元。
注：我们最近更新了评级系统，第 8 版的结果与第 7 版的结果不具可比性。更多信息 此处.
Lenovo ThinkPad L14 G5 21L50014GE
- 09/13/2024 v8
Benjamin Herzig
Total Sustainability Score: Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
Price comparison
