申克 Vision 14 2023 评测:电池续航时间超长的镁合金超极本

Raptor Lake H45 和 90 Hz 显示屏。

申克公司升级了其紧凑型 Vision 14 超极本,配备了英特尔 Raptor Lake 处理器和可选的GeForce RTX 3050。今天要评测的是 iGPU 版,它配备 99 Wh 电池,可实现超长的运行时间,并有非常好的维护选项。
Intel Laptop / Notebook Raptor Lake Thunderbolt Ultrabook Windows

申克公司升级了其紧凑型 Vision 14 超极本,配备了英特尔最新的 Raptor-Lake 处理器和可选的 GeForce RTX 3050 Refresh。我们的评测样品是 iGPU 机型,配备了 酷睿 i7-13700H32 GB 内存、快速 1 TB 固态硬盘和 14 英寸哑光 IPS 面板(16:10),分辨率为 2,880 x 1,800,频率为 90 Hz。Vision 14 的起价为 1,549 欧元,我们的测试配置价格约为 1,680 欧元。

SCHENKER Vision 14 2023
Processor
Intel Core i7-13700H 14 x 1.8 - 5 GHz, Raptor Lake-H
Memory
32 GB
, DDR5-4800, Dual-Channel, 2 Slots, max. 64 GB
Display
14.00 inch 16:10, 2880 x 1800 pixel 243 PPI, CSOT T3 MNE007ZA1-3, IPS, glossy: no, 90 Hz
Mainboard
Intel Alder Lake-P PCH
Storage
Samsung 990 Pro 1 TB, 1024 GB
, 900 GB free
Soundcard
Intel Raptor Lake-P/U/H PCH - cAVS
Connections
2 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 USB 4.0 40 Gbps, 1 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 1 DisplayPort, Audio Connections: 3.5 mm Stereo, Card Reader: SDXC
Networking
Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.0
Size
height x width x depth (in mm): 16.6 x 308.8 x 215
Battery
99 Wh Lithium-Polymer
Camera
Webcam: 1080p
Primary Camera: 2 MPix
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, 130W PSU, 24 Months Warranty
Weight
1.268 kg, Power Supply: 503 g
Price
1680 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



潜在的竞争对手比较

Rating
Date
Model
Weight
Height
Size
Resolution
Price
88.9 %
v7 (old)
10 / 2023
SCHENKER Vision 14 2023
i7-13700H, Iris Xe G7 96EUs
1.3 kg16.6 mm14.00"2880x1800
90 %
v7 (old)
08 / 2023
LG Gram Style 14Z90RS-G.AD7AG
i7-1360P, Iris Xe G7 96EUs
987 g16.5 mm14.00"2880x1800
88.5 %
v7 (old)
06 / 2023
Asus ZenBook 14X UX3404VC
i9-13900H, Iris Xe G7 96EUs
1.6 kg16.9 mm14.50"2880x1800
89 %
v7 (old)
04 / 2023
Lenovo Yoga Pro 7 14ARP G8
R7 7735HS, Radeon 680M
1.5 kg15.6 mm14.50"2560x1600
90.2 %
v7 (old)
05 / 2023
Lenovo Yoga Pro 7 14IRH G8
i7-13700H, NVIDIA GeForce RTX 4050 Laptop GPU
1.5 kg15.6 mm14.50"3072x1920
85.6 %
v7 (old)
05 / 2023
Samsung Galaxy Book3 Pro 14
i7-1360P, Iris Xe G7 96EUs
1.2 kg11.3 mm14.00"2880x1800

箱子和设备

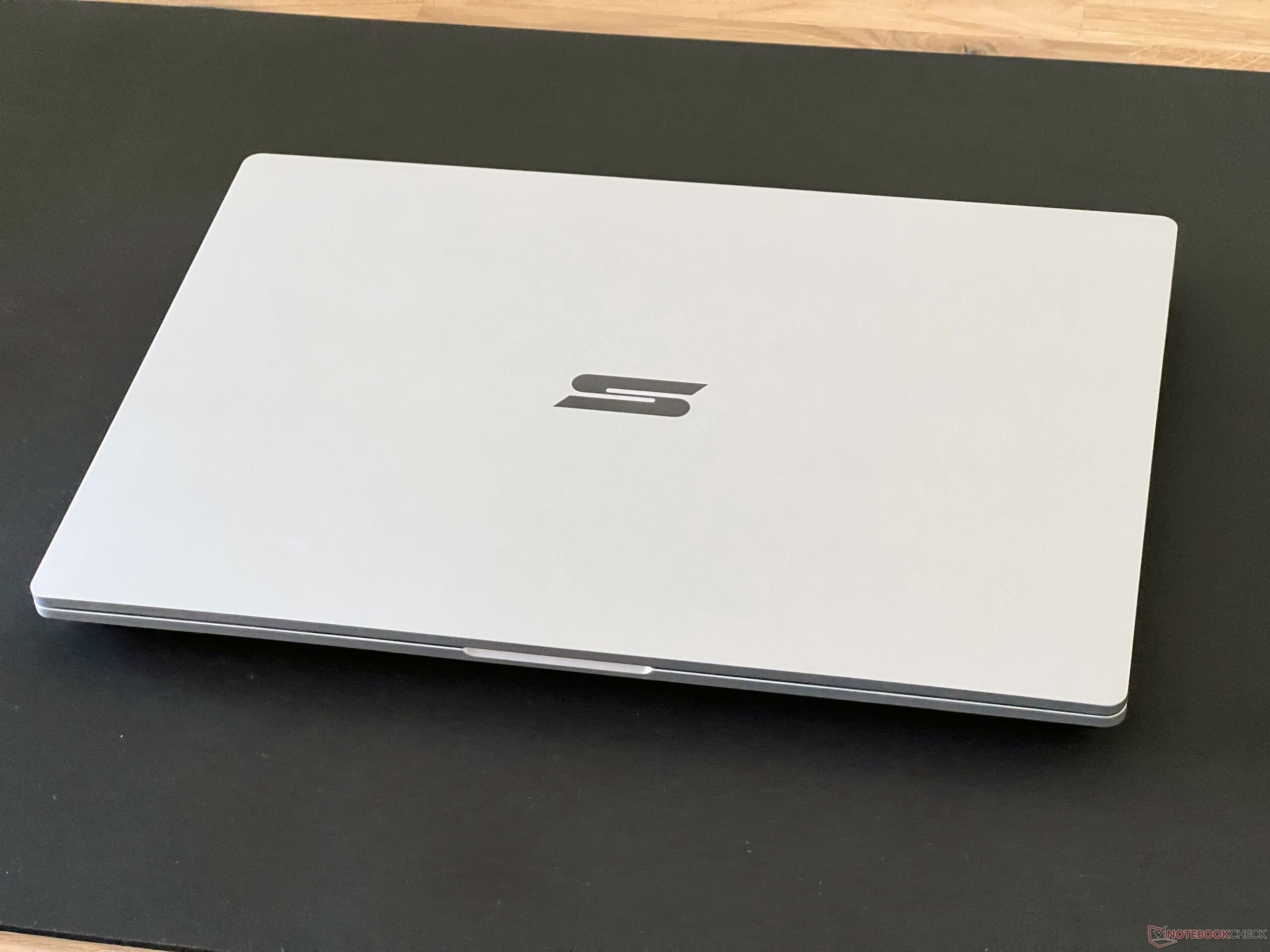

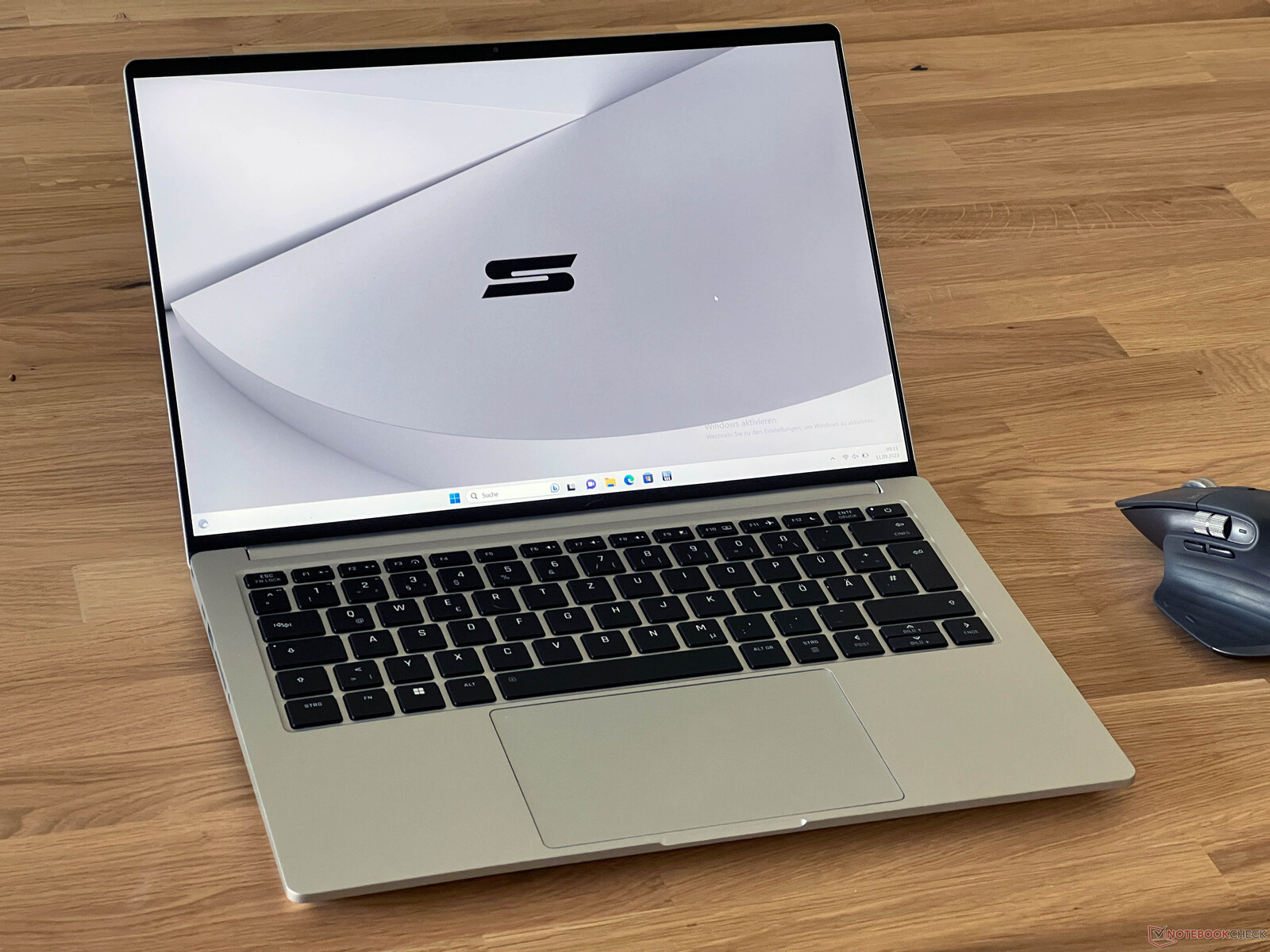

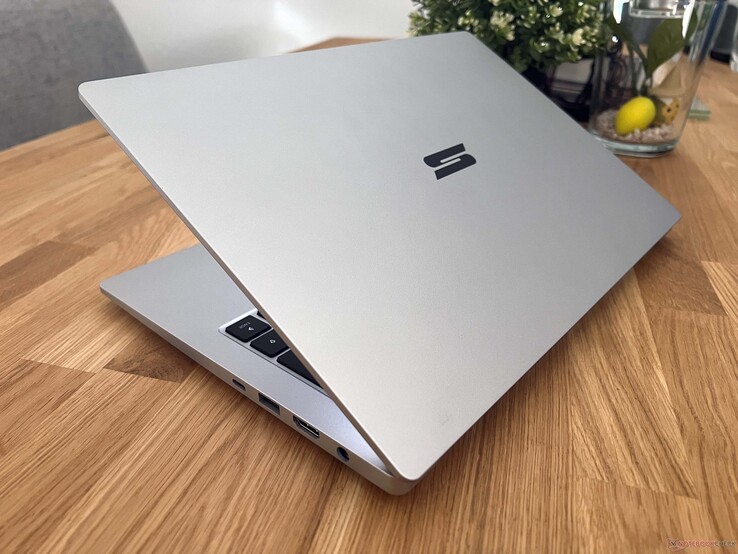

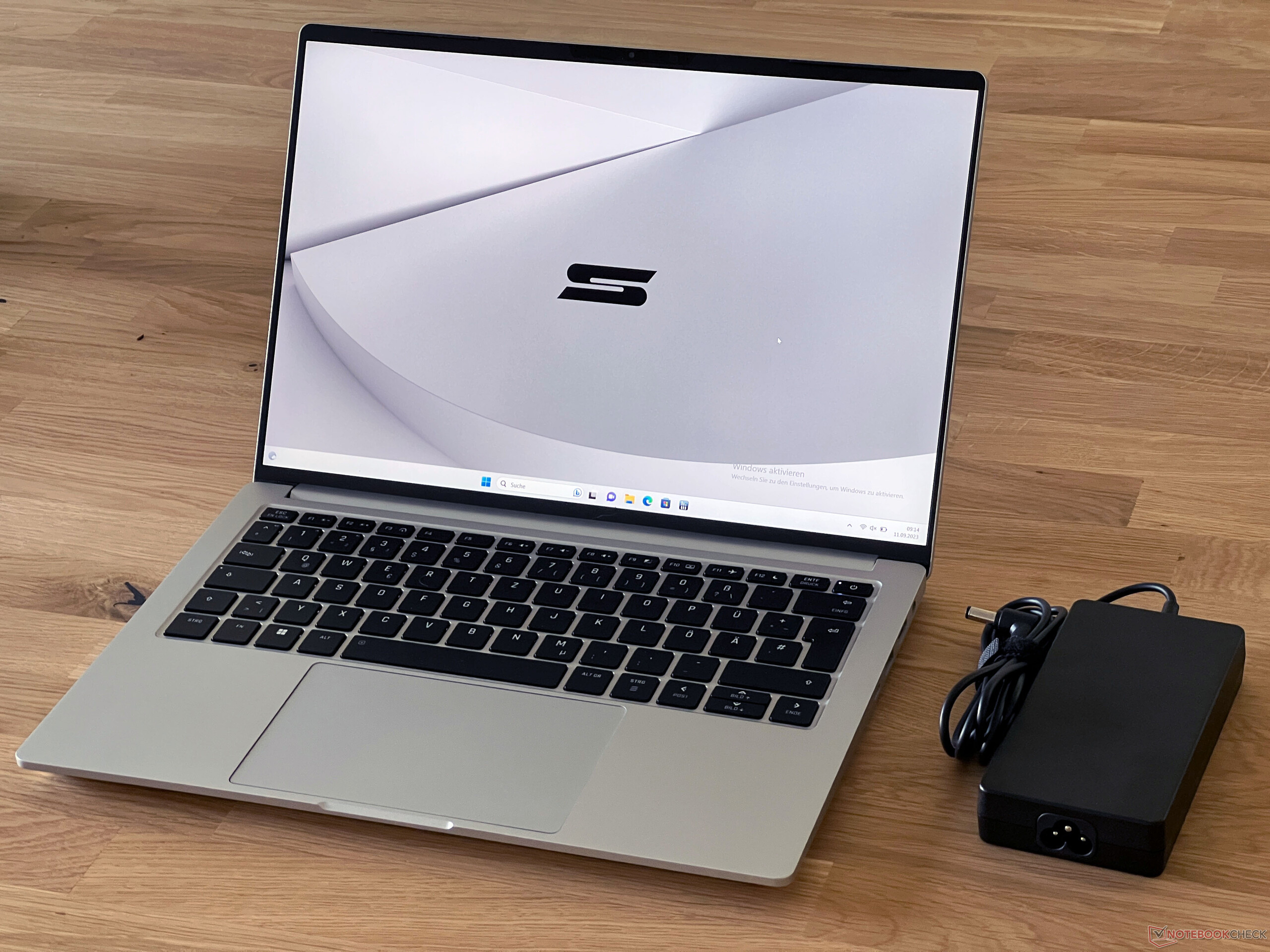

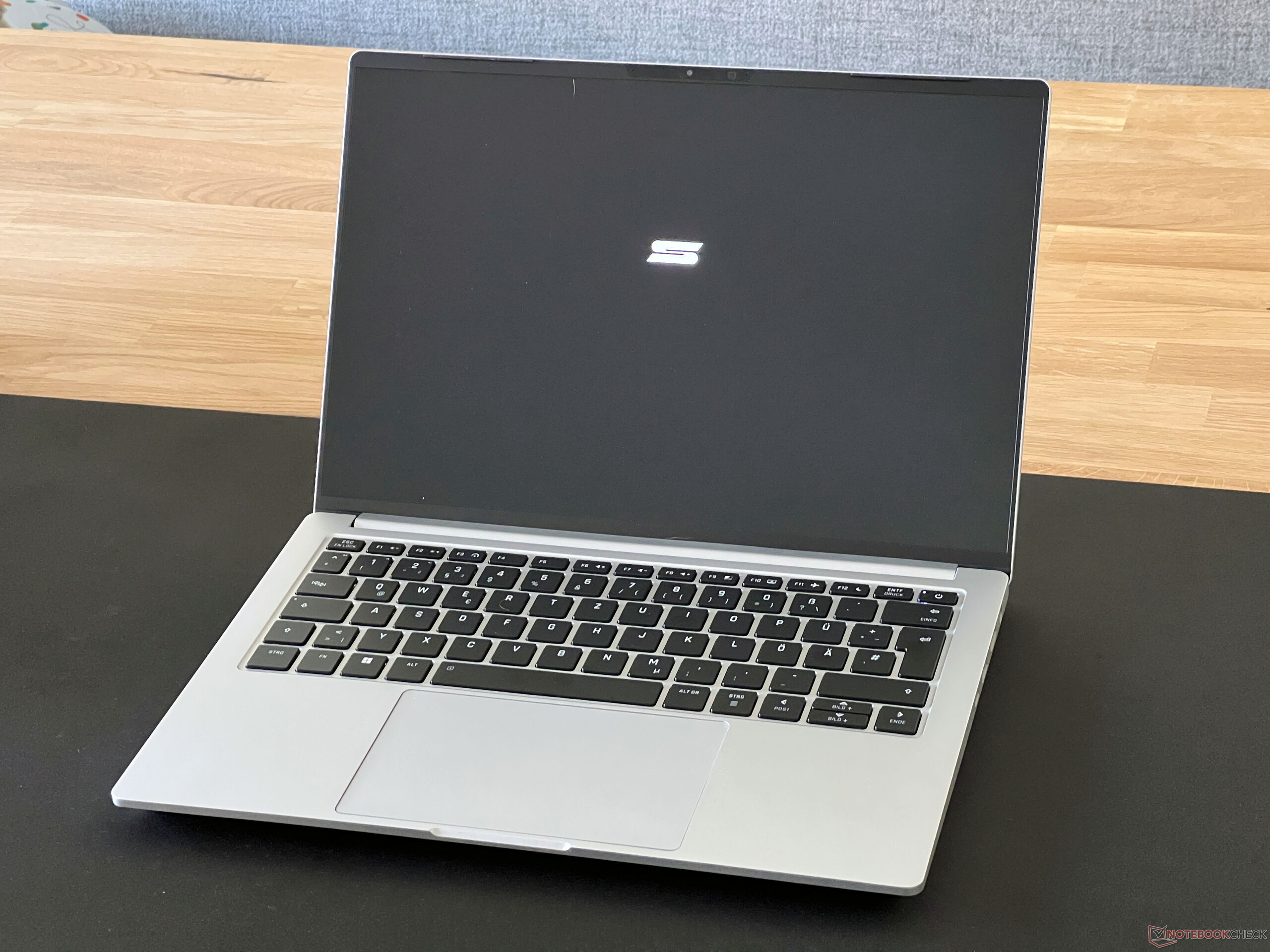

与去年相比,Vision 14 的外壳没有任何变化,仍然使用镁合金,有银色和黑色两种。除了颜色之外,没有任何区别,但黑色版本更容易沾染指纹。底座的稳定性非常好,但盖子非常薄,在扭转压力下会有一点扭曲,但不会产生嘎吱声或图像错误。今年的薄弱环节再次出现在铰链上,因为盖子会明显晃动。最大开启角度约为 160 度。

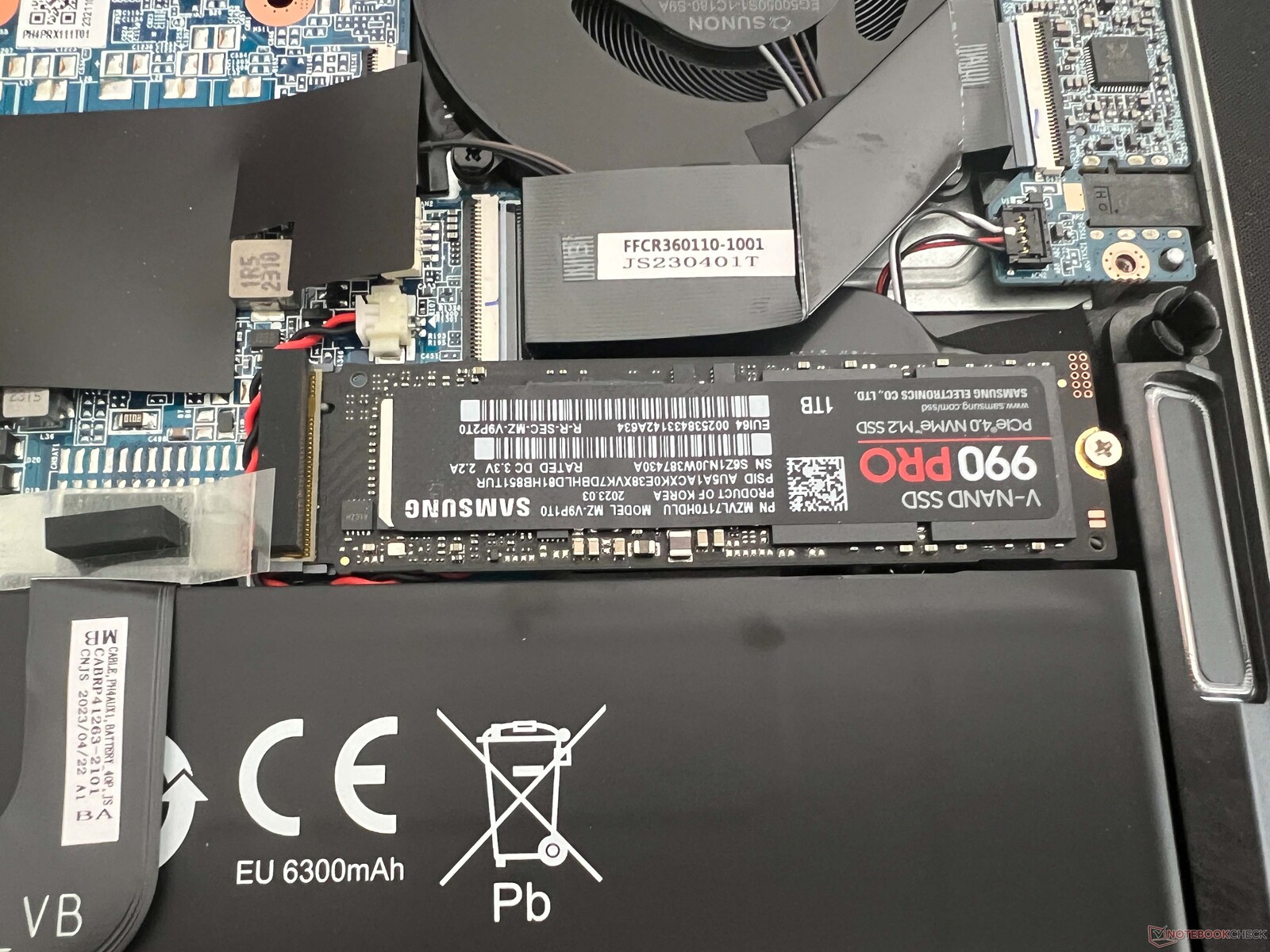

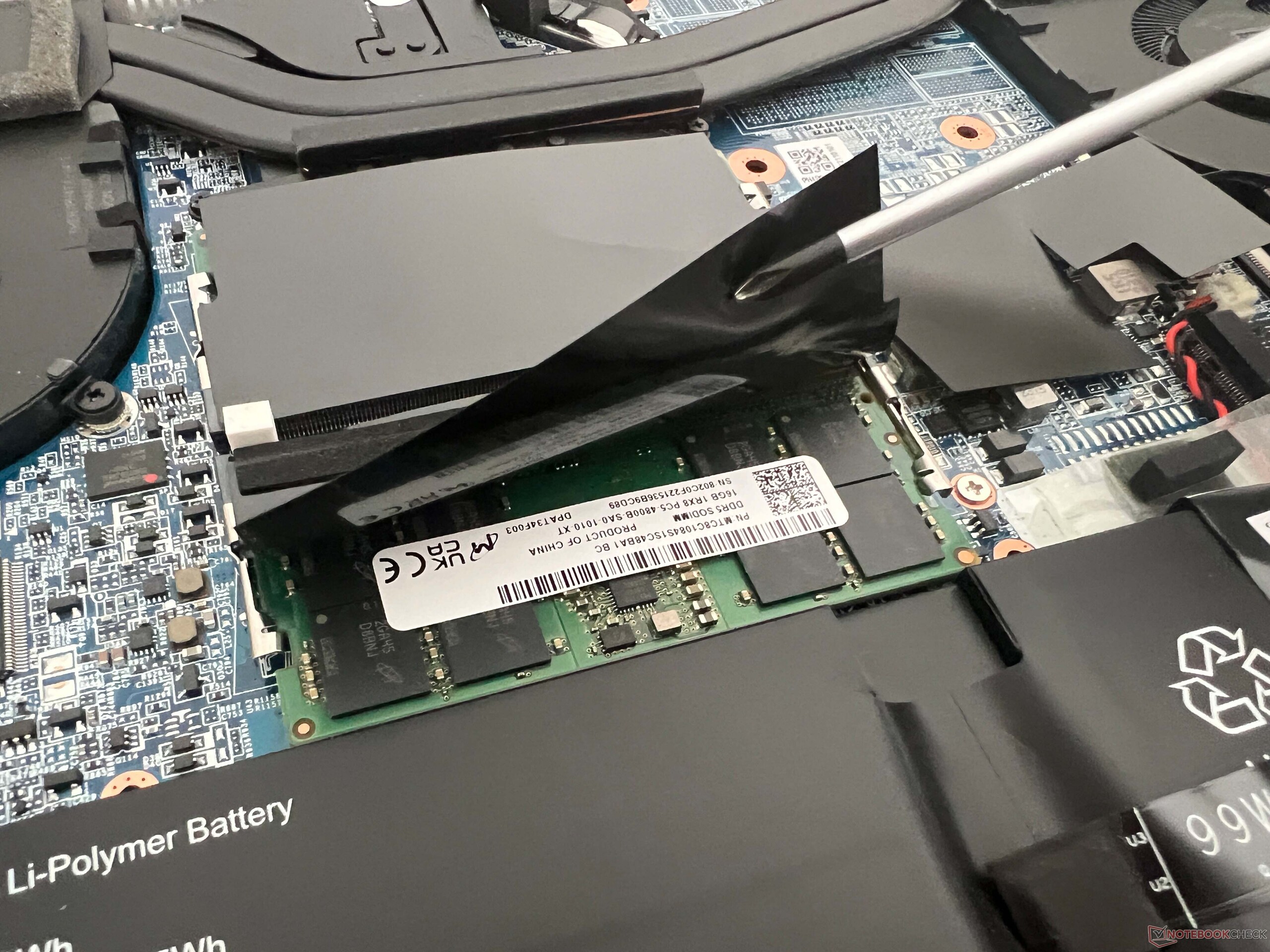

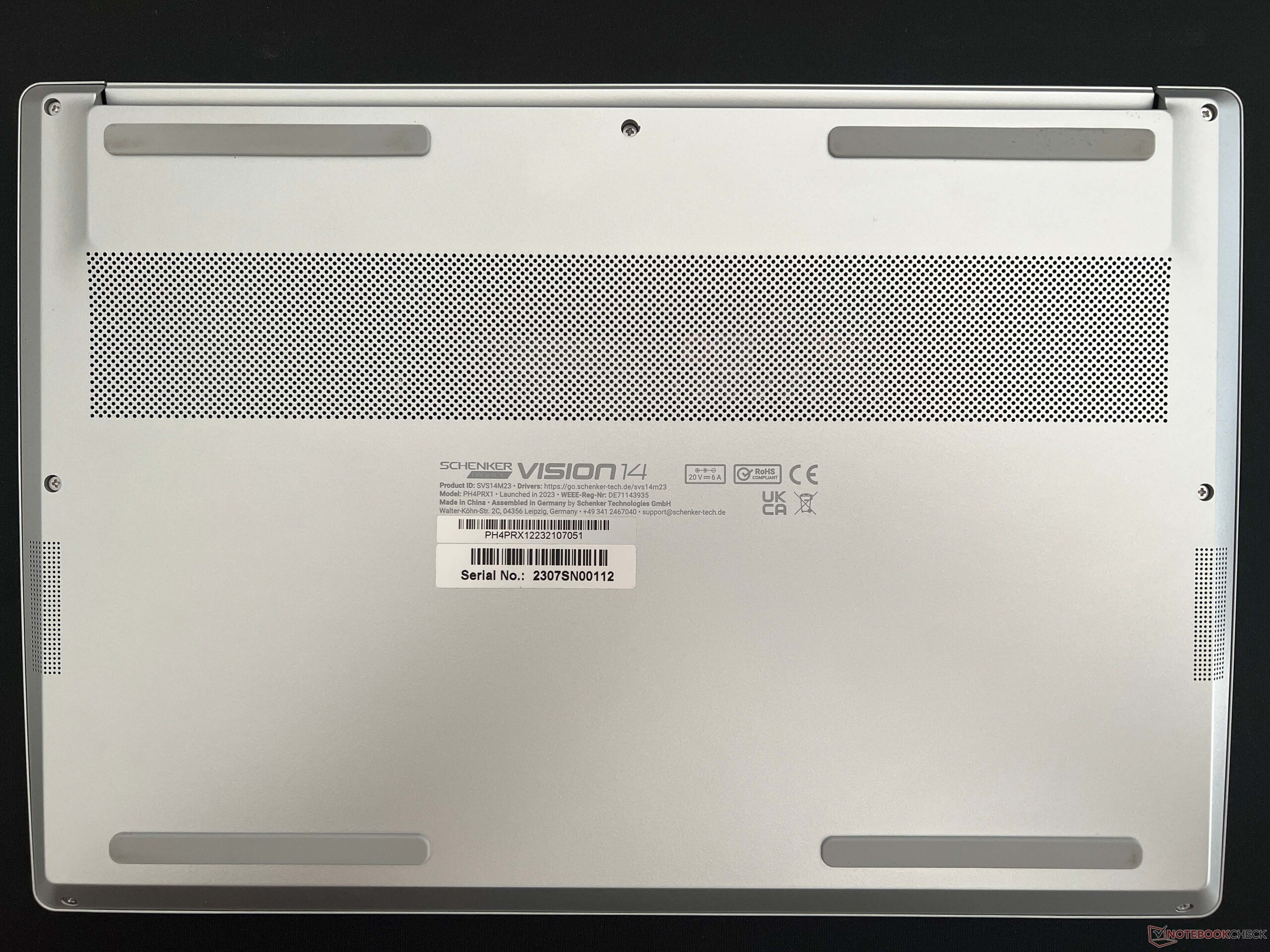

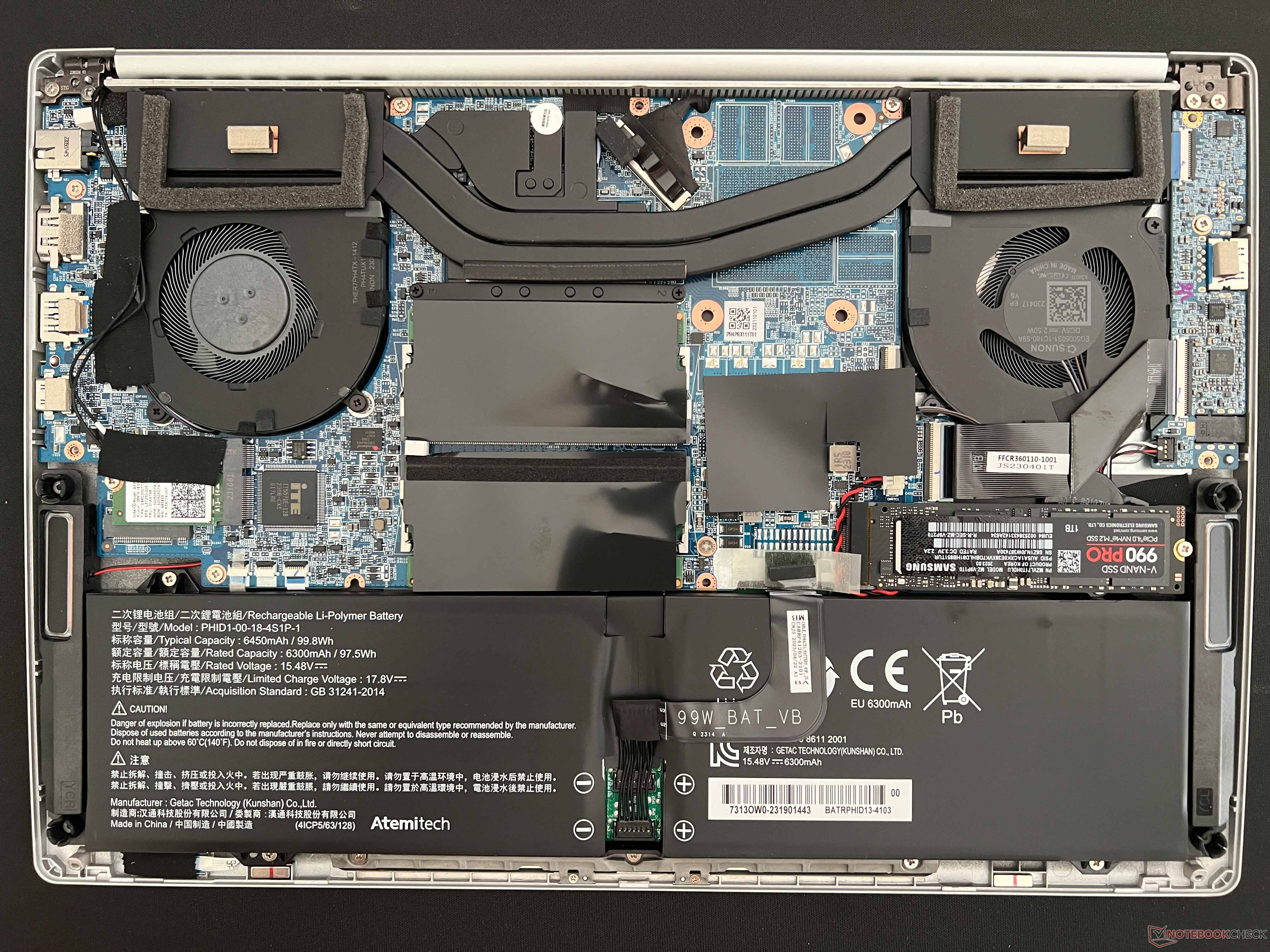

底盖仅用五颗十字螺丝固定,很容易拆卸。WLAN 模块、两个内存模块和 M.2 2280 固态硬盘均可更换。不过,由于采用了 99 Wh 的大容量电池,因此不再有第二个 M2 插槽。

与前几代产品不同的是,Vision 14 只提供配备 99 Wh 大容量电池的机型,而不再提供配备 53 Wh 电池的更薄(1 毫米)、更轻(约 1.1 千克)的机型,因此重量增加到 1.27 千克(配备 RTX GPU 的机型约为 1.31 千克)。尽管如此,Vision 14 仍然是较轻的机型之一。只有LG Gram Style 14 明显更轻,不到 1 千克,但有些设备更重,达到 1.5-1.6 千克。

根据 GPU 的选择,Vision 14 配备了 130 瓦或 150 瓦的电源。150 瓦充电器更现代、更小巧,但重量都在 500 克左右,而且都使用专有的充电端口。

尺寸比较

326 mm 227 mm 15.6 mm 1.5 kg326 mm 227 mm 15.6 mm 1.5 kg321.8 mm 225.6 mm 16.9 mm 1.6 kg312 mm 213 mm 16.5 mm 987 g308.8 mm 215 mm 16.6 mm 1.3 kg308.8 mm 215 mm 16.6 mm 1.3 kg312.3 mm 223.8 mm 11.3 mm 1.2 kg297 mm 210 mm 1 mm 5.7 g

在端口方面,几乎没有什么可诟病的,因为日常生活所需的一切都一应俱全。借助右侧的 Thunderbolt 4 端口,您还可以连接外置显卡。在我们的 iGPU 版本中,左侧 USB-C 端口不支持Display Port ALT 功能;只有配备 Nvidia GPU 的 Vision 14 才支持该功能。支持 USB-C 电源(最小 65 瓦,最大 100 瓦)。

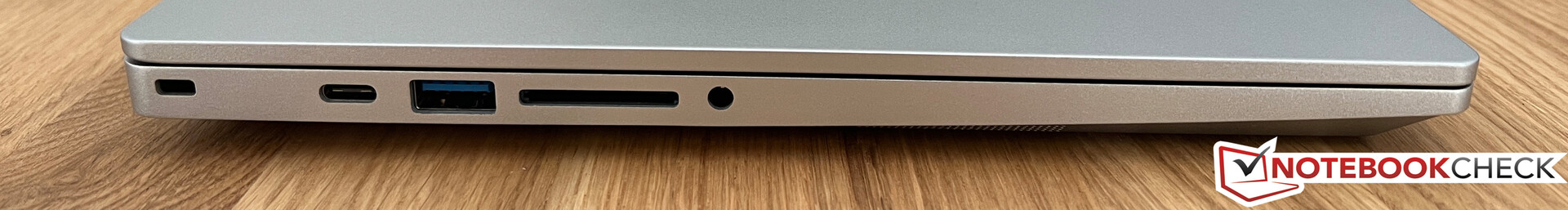

左:Kensington 锁、USB-C 3.2 Gen.2(10 GBit/s,Power Delivery)、USB-A 3.2 Gen.1(5 GBit/s)、读卡器、3.5 毫米音频
左:Kensington 锁、USB-C 3.2 Gen.2(10 GBit/s,Power Delivery)、USB-A 3.2 Gen.1(5 GBit/s)、读卡器、3.5 毫米音频

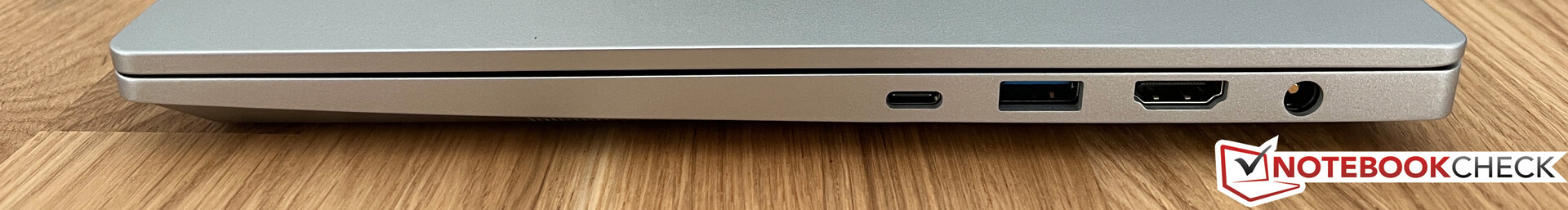

右侧带 Thunderbolt 4(40 GBit/s、DisplayPort ALT 模式 1.4、Power Delivery)的 USB-C 4.0、USB 3.2 Gen.1(5 GBit/s)、HDMI 2.0b、电源
右侧带 Thunderbolt 4(40 GBit/s、DisplayPort ALT 模式 1.4、Power Delivery)的 USB-C 4.0、USB 3.2 Gen.1(5 GBit/s)、HDMI 2.0b、电源

与去年的机型相比,功能齐全的 SD 卡读卡器速度变慢了,现在似乎是通过 USB 2.0 连接的,因为我们测定的传输速率只有 20 多 MB/s。WLAN 模块(英特尔 AX201)也没有变化,性能稳定。Vision 14 的天线配置不支持 6 GHz 网络(Wi-Fi 6E),因此没有提供相应的模块。1080p 网络摄像头发挥了作用。

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P (AV Pro SD microSD 128 GB V60)
78.9 MB/s +248%
LG Gram Style 14Z90RS-G.AD7AG
Intel Core i7-1360P (AV PRO microSD 128 GB V60)
75.6 MB/s +233%
SCHENKER Vision 14 2022 RTX 3050 Ti
Intel Core i7-12700H
57.8 MB/s +155%
Average of class Subnotebook
  (18.4 - 142, n=14, last 2 years)
50.3 MB/s +122%
SCHENKER Vision 14 2023
Intel Core i7-13700H (Angelbird AV Pro V60)
22.7 MB/s
maximum AS SSD Seq Read Test (1GB)
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P (AV Pro SD microSD 128 GB V60)
87 MB/s +213%
SCHENKER Vision 14 2022 RTX 3050 Ti
Intel Core i7-12700H
80.5 MB/s +190%
LG Gram Style 14Z90RS-G.AD7AG
Intel Core i7-1360P (AV PRO microSD 128 GB V60)
80.2 MB/s +188%
Average of class Subnotebook
  (22.5 - 207, n=14, last 2 years)
68.3 MB/s +146%
SCHENKER Vision 14 2023
Intel Core i7-13700H (Angelbird AV Pro V60)
27.8 MB/s
Networking
SCHENKER Vision 14 2023
Intel Wi-Fi 6 AX201
iperf3 transmit AXE11000
1633 (min: 1588) MBit/s ∼95%
iperf3 receive AXE11000
1681 (min: 1584) MBit/s ∼95%
LG Gram Style 14Z90RS-G.AD7AG
Intel Wi-Fi 6E AX211
iperf3 transmit AXE11000
936 (min: 757) MBit/s ∼55%
iperf3 receive AXE11000
928 (min: 467) MBit/s ∼52%
iperf3 transmit AXE11000 6GHz
1630 (min: 1558) MBit/s ∼99%
iperf3 receive AXE11000 6GHz
1665 (min: 1588) MBit/s ∼100%
Asus ZenBook 14X UX3404VC
Intel Wi-Fi 6E AX211
iperf3 transmit AXE11000
1615 (min: 826) MBit/s ∼94%
iperf3 receive AXE11000
1541 (min: 1471) MBit/s ∼87%
iperf3 transmit AXE11000 6GHz
1351 (min: 577) MBit/s ∼82%
iperf3 receive AXE11000 6GHz
1485 (min: 1454) MBit/s ∼89%
Lenovo Yoga Pro 7 14ARP G8
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
iperf3 transmit AXE11000
1713 (min: 1690) MBit/s ∼100%
iperf3 receive AXE11000
1775 (min: 1751) MBit/s ∼100%
Lenovo Yoga Pro 7 14IRH G8
Intel Wi-Fi 6E AX211
iperf3 transmit AXE11000
1348 (min: 1296) MBit/s ∼79%
iperf3 receive AXE11000
1541 (min: 1426) MBit/s ∼87%
Samsung Galaxy Book3 Pro 14
Intel Wi-Fi 6E AX211
iperf3 transmit AXE11000
1626 (min: 1558) MBit/s ∼95%
iperf3 receive AXE11000
1579 (min: 1502) MBit/s ∼89%
iperf3 transmit AXE11000 6GHz
1640 (min: 1599) MBit/s ∼100%
iperf3 receive AXE11000 6GHz
1511 (min: 1483) MBit/s ∼91%
SCHENKER Vision 14 2022 RTX 3050 Ti
Intel Wi-Fi 6 AX201
iperf3 transmit AXE11000
1458 (min: 1294) MBit/s ∼85%
iperf3 receive AXE11000
1570 (min: 1446) MBit/s ∼88%
050100150200250300350400450500550600650700750800850900950100010501100115012001250130013501400145015001550160016501700Tooltip
SCHENKER Vision 14 2023; iperf3 transmit AXE11000: Ø1633 (1588-1672)
SCHENKER Vision 14 2023; iperf3 receive AXE11000: Ø1681 (1584-1736)
ColorChecker
6.3 ∆E
7.7 ∆E
11 ∆E
12.2 ∆E
11.2 ∆E
9.3 ∆E
10.7 ∆E
12.9 ∆E
9.2 ∆E
2.5 ∆E
9.4 ∆E
9.6 ∆E
7.3 ∆E
9.8 ∆E
9.3 ∆E
8.4 ∆E
6.3 ∆E
13.1 ∆E
5.5 ∆E
4.1 ∆E
5.9 ∆E
4.9 ∆E
3.2 ∆E
8 ∆E
ColorChecker SCHENKER Vision 14 2023: 8.23 ∆E min: 2.46 - max: 13.1 ∆E

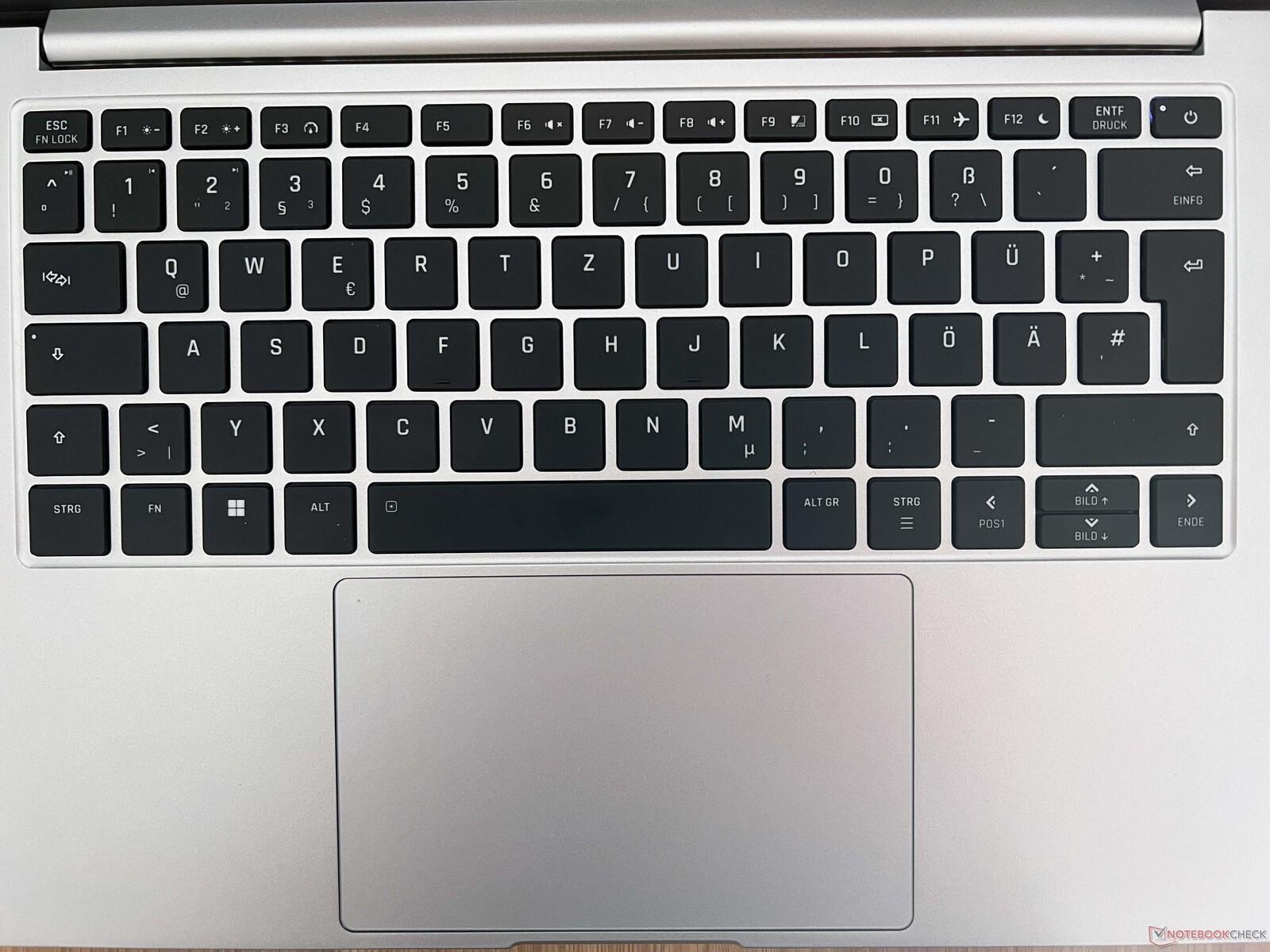

输入设备 - 背光键盘和玻璃触摸板

输入设备与去年相比没有变化 背光键盘提供了舒适的键入感,长时间打字也没有问题。背光键盘提供了舒适的键入感觉,长篇文字也不成问题,但在我们的评测样本中,按键略有晃动。大尺寸玻璃触摸板也运行良好,只是咔嗒声仍然有些过大。

输入设备
输入设备

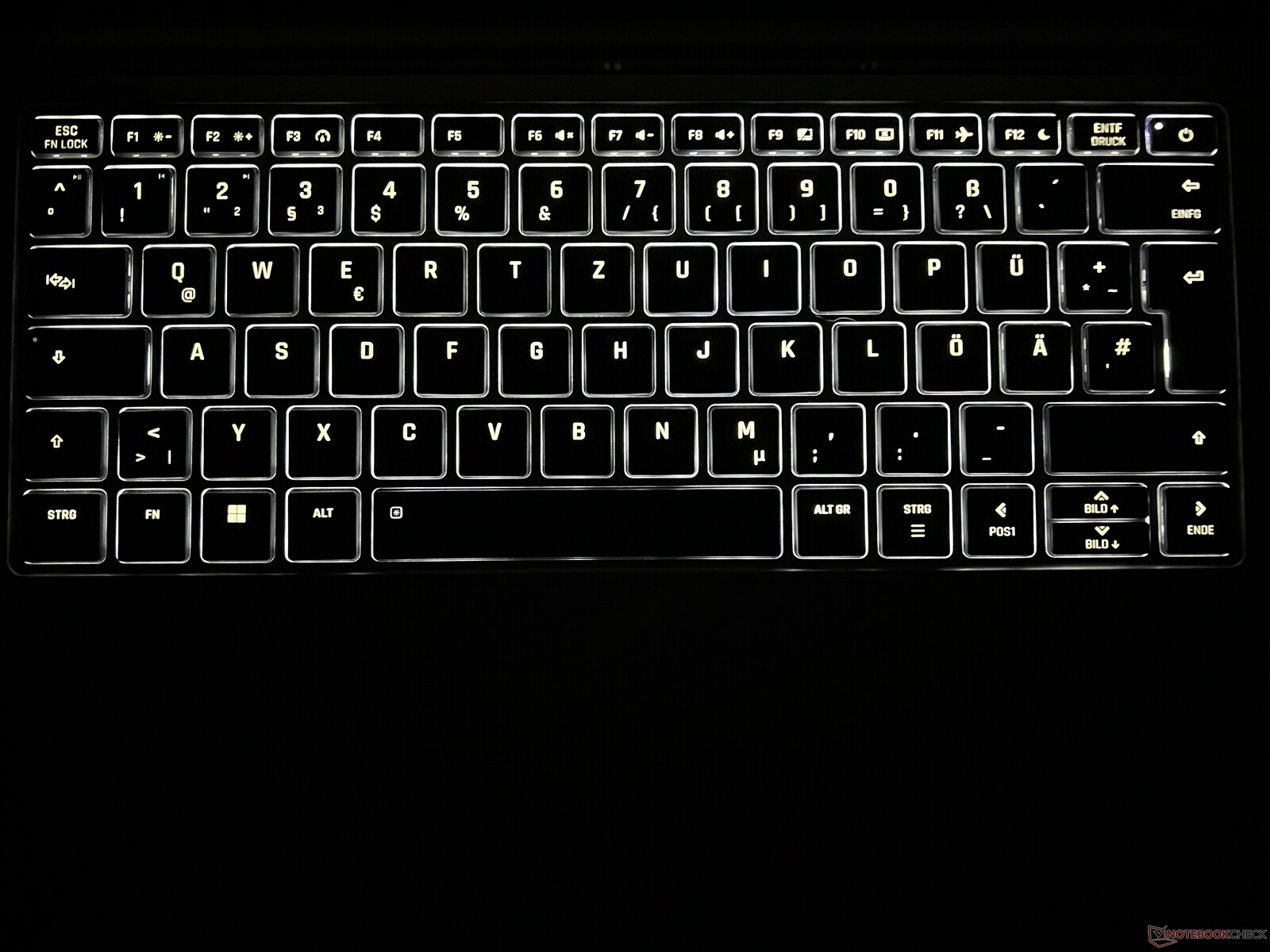

键盘背光
键盘背光

显示屏 - 90 Hz 的 IPS 面板

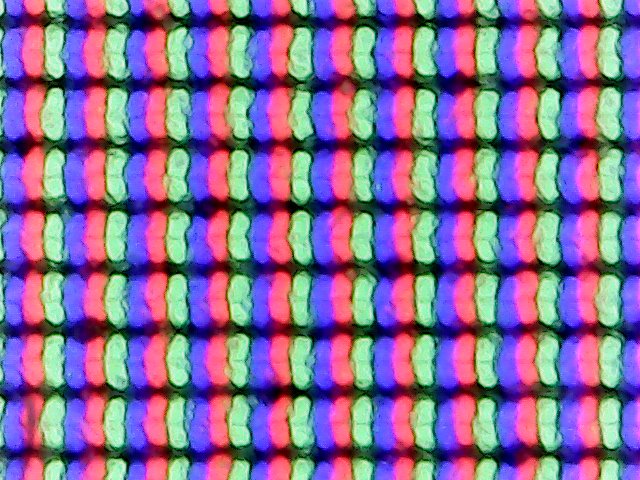

子像素排列
子像素排列

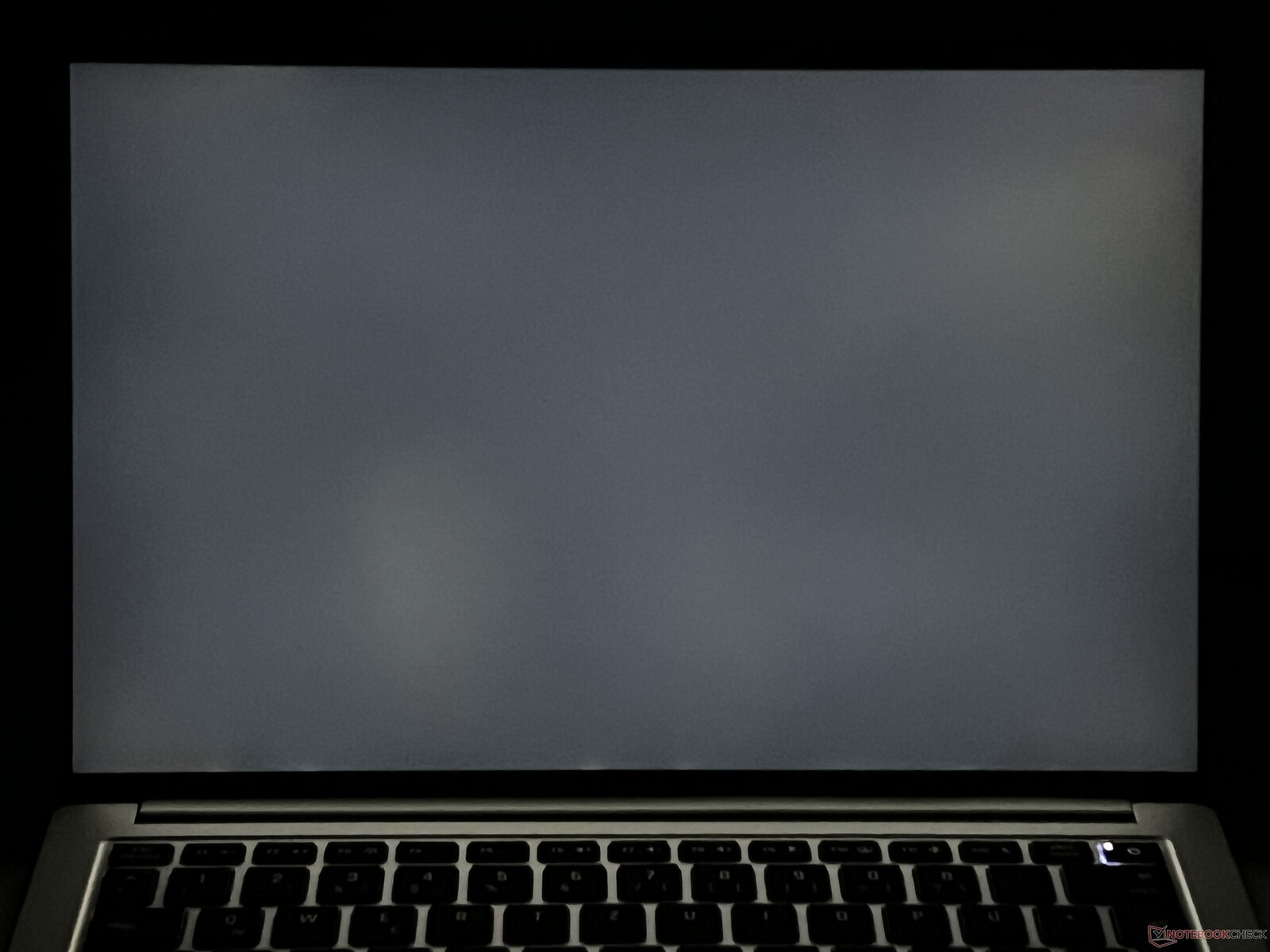

轻微光晕
轻微光晕

关于显示屏,我们可以再次简单介绍一下,因为它仍然是 16:10 格式的哑光 3K IPS 显示屏(2,880 x 1,800)。主观画质非常好,明亮的表面没有颗粒感。移动流畅,没有重影效果,尽管响应时间不是最快的。没有检测到 PWM 闪烁。

申克公司规定的亮度为 380 cd/m²,我们的测试也证实了这一点。不过,亮度值略低于前代产品,这与正常的系列分散性相符。黑色值为 0.27 cd/m²,最大对比度接近 1,500:1,非常不错。我们使用专业的 CalMAN 软件对面板进行了测量,其数值在交付状态下已经非常不错。没有偏色现象,除了 100% 红色之外,其他颜色的偏差也低于重要的 DeltaE-2000 偏差 3。该面板完全覆盖了 sRGB 色彩空间。

369
cd/m²
367
cd/m²
388
cd/m²
362
cd/m²
402
cd/m²
367
cd/m²
344
cd/m²
380
cd/m²
356
cd/m²
Distribution of brightness
CSOT T3 MNE007ZA1-3 tested with X-Rite i1Pro 2
Maximum: 402 cd/m² (Nits) Average: 370.6 cd/m² Minimum: 18.8 cd/m²
Brightness Distribution: 86 %
Center on Battery: 402 cd/m²
Contrast: 1489:1 (Black: 0.27 cd/m²)
ΔE Color 1.8 | 0.5-29.43 Ø4.89, calibrated: 1.5
ΔE Greyscale 1.8 | 0.5-98 Ø5.1
75.8% AdobeRGB 1998 (Argyll 2.2.0 3D)
99.6% sRGB (Argyll 2.2.0 3D)
74.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.27
SCHENKER Vision 14 2023
CSOT T3 MNE007ZA1-3, IPS, 2880x1800, 14"
LG Gram Style 14Z90RS-G.AD7AG
Samsung SDC417F ATNA40YK10-1, OLED, 2880x1800, 14"
Asus ZenBook 14X UX3404VC
Samsung, OLED, 2880x1800, 14.5"
Lenovo Yoga Pro 7 14ARP G8
LEN145WQXGA, IPS, 2560x1600, 14.5"
Lenovo Yoga Pro 7 14IRH G8
LEN145-3K, IPS, 3072x1920, 14.5"
Samsung Galaxy Book3 Pro 14
Samsung ATNA40CU02-0, AMOLED, 2880x1800, 14"
SCHENKER Vision 14 2022 RTX 3050 Ti
MNE007ZA1-1, IPS, 2880x1800, 14"
Display
20%
19%
-3%
16%
20%
-1%
Display P3 Coverage
74.7
99.92
34%
99
33%
71.8
-4%
98.7
32%
99.7
33%
74.1
-1%
sRGB Coverage
99.6
100
0%
100
0%
99.2
0%
100
0%
100
0%
97.4
-2%
AdobeRGB 1998 Coverage
75.8
94.71
25%
95
25%
73.1
-4%
87.6
16%
95.7
26%
75.3
-1%
Response Times
91%
91%
-51%
-1%
99%
4%
Response Time Grey 50% / Grey 80% *
32.2 ?(14.9, 17.3)
2 ?(1, 1)
94%
2 ?(1, 1)
94%
43.2 ?(19.9, 23.3)
-34%
31.5 ?(14.5, 17)
2%
0.5 ?(290, 280)
98%
31.5 ?(14, 17.5)
2%
Response Time Black / White *
15.4 ?(5.6, 9.8)
2 ?(1, 1)
87%
2 ?(1, 1)
87%
25.9 ?(13.3, 12.6)
-68%
15.8 ?(5.4, 10.4)
-3%
0.1 ?(80, 80)
99%
14.5 ?(4.7, 9.8)
6%
PWM Frequency
350
250 ?(70)
240 ?(100)
Screen
31%
270%
-54%
27%
283%
-32%
Brightness middle
402
384
-4%
372
-7%
386
-4%
441
10%
409
2%
421
5%
Brightness
371
388
5%
376
1%
366
-1%
453
22%
410
11%
416
12%
Brightness Distribution
86
97
13%
98
14%
91
6%
92
7%
99
15%
89
3%
Black Level *
0.27
0.054
80%
0.01
96%
0.26
4%
0.34
-26%
0.01
96%
0.28
-4%
Contrast
1489
7111
378%
37200
2398%
1485
0%
1297
-13%
40900
2647%
1504
1%
Colorchecker dE 2000 *
1.8
2.47
-37%
2.01
-12%
3.8
-111%
0.6
67%
2.36
-31%
3.2
-78%
Colorchecker dE 2000 max. *
3.6
4.33
-20%
4.05
-13%
9.1
-153%
1.3
64%
4.07
-13%
5.5
-53%
Colorchecker dE 2000 calibrated *
1.5
2.81
-87%
2.17
-45%
1.2
20%
0.6
60%
3.16
-111%
2
-33%
Greyscale dE 2000 *
1.8
2.63
-46%
1.84
-2%
6.2
-244%
0.8
56%
3.06
-70%
4.4
-144%
Gamma
2.27 97%
2.18 101%
2.39 92%
2.09 105%
2.2 100%
2.49 88%
2.22 99%
CCT
6695 97%
6279 104%
6488 100%
6618 98%
6597 99%
6882 94%
6384 102%
Total Average (Program / Settings)
47% / 37%
127% / 191%
-36% / -42%
14% / 21%
134% / 200%
-10% / -21%

* ... smaller is better

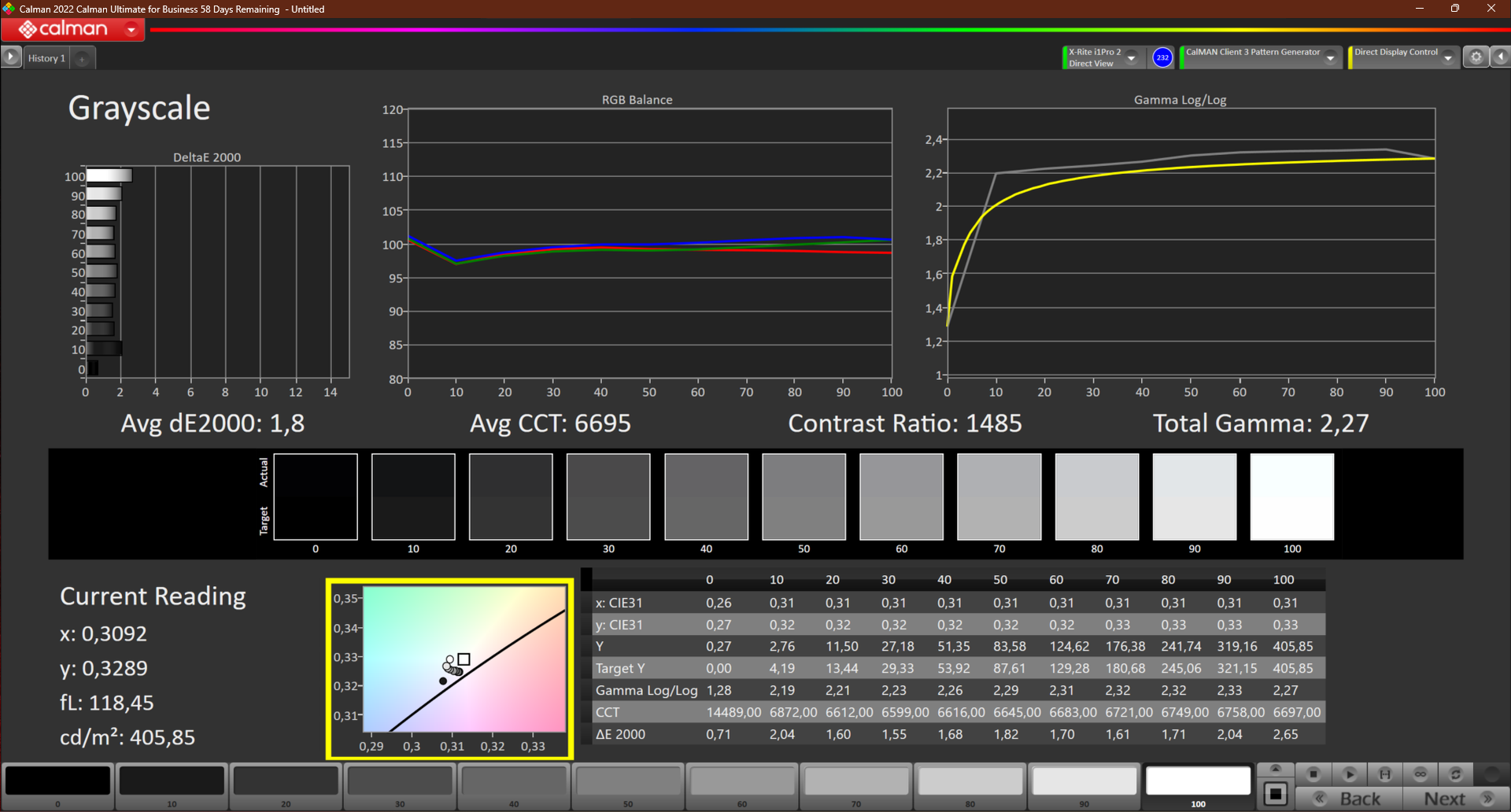

卡尔曼灰度
卡尔曼灰度
CalMAN 饱和度
CalMAN 饱和度

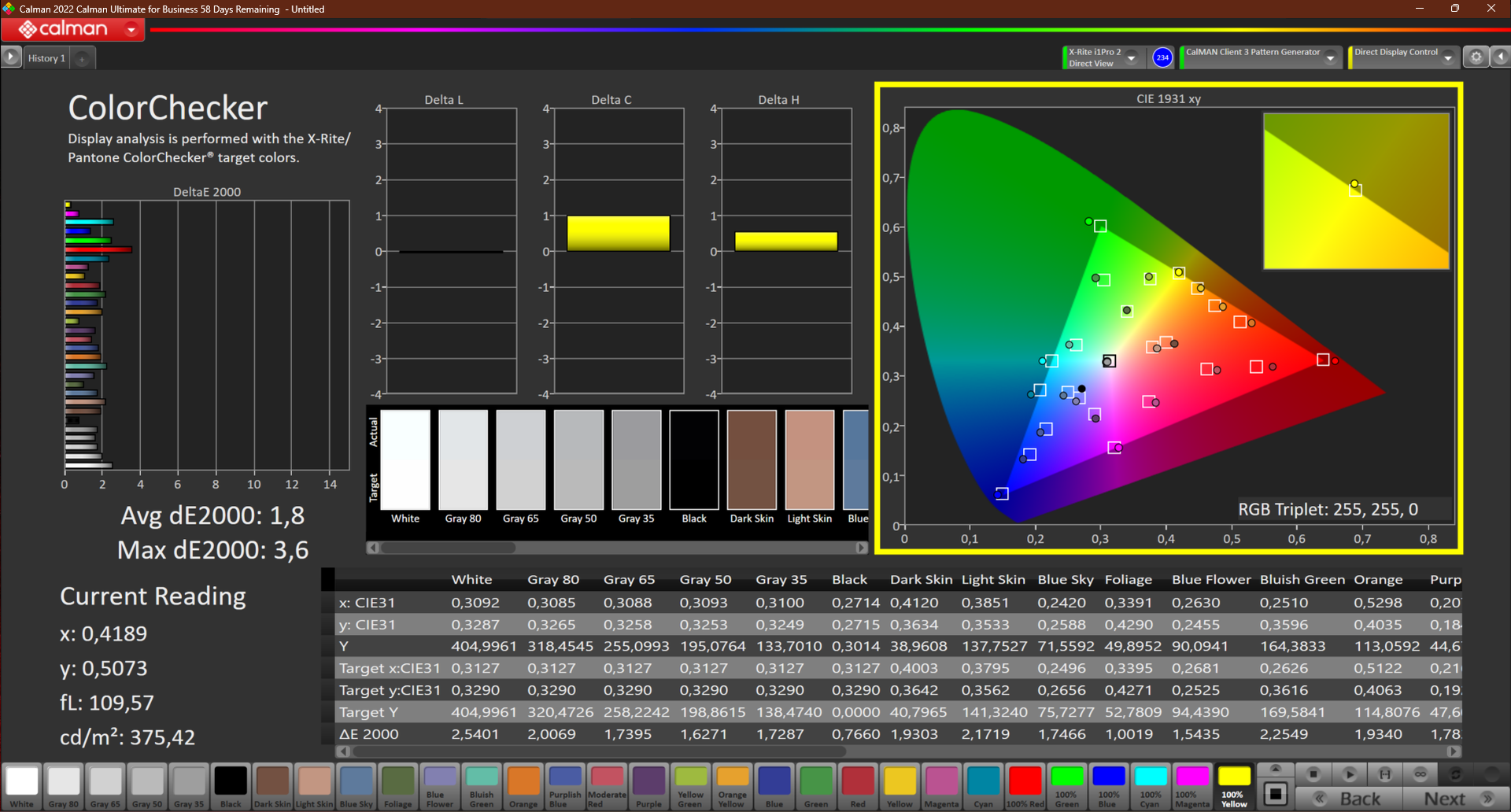

CalMAN 色彩检查器
CalMAN 色彩检查器
CalMAN 灰度校准
CalMAN 灰度校准

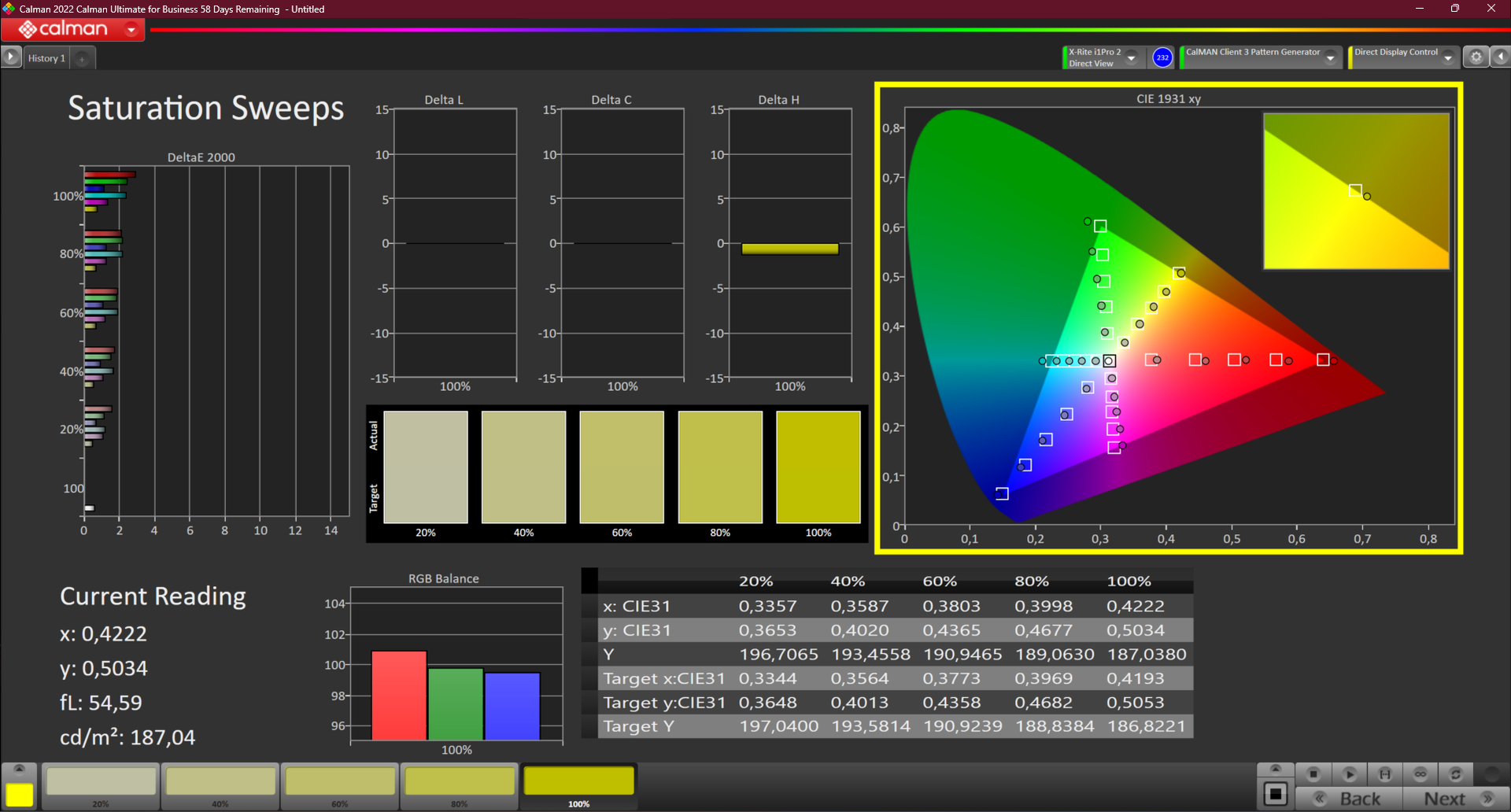

CalMAN 饱和度校准
CalMAN 饱和度校准
CalMAN ColorChecker 已校准
CalMAN ColorChecker 已校准

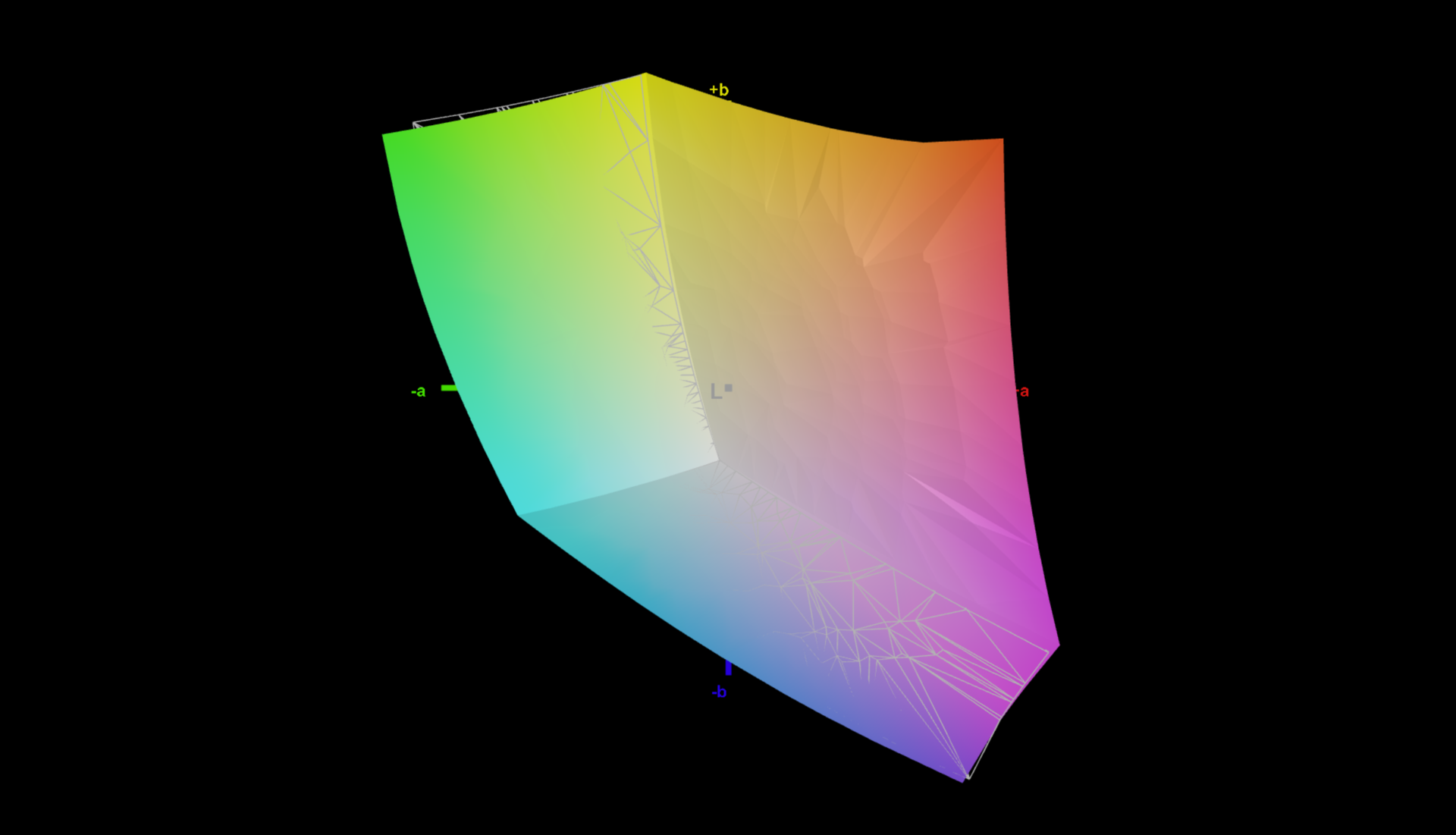

对比 sRGB
对比 sRGB

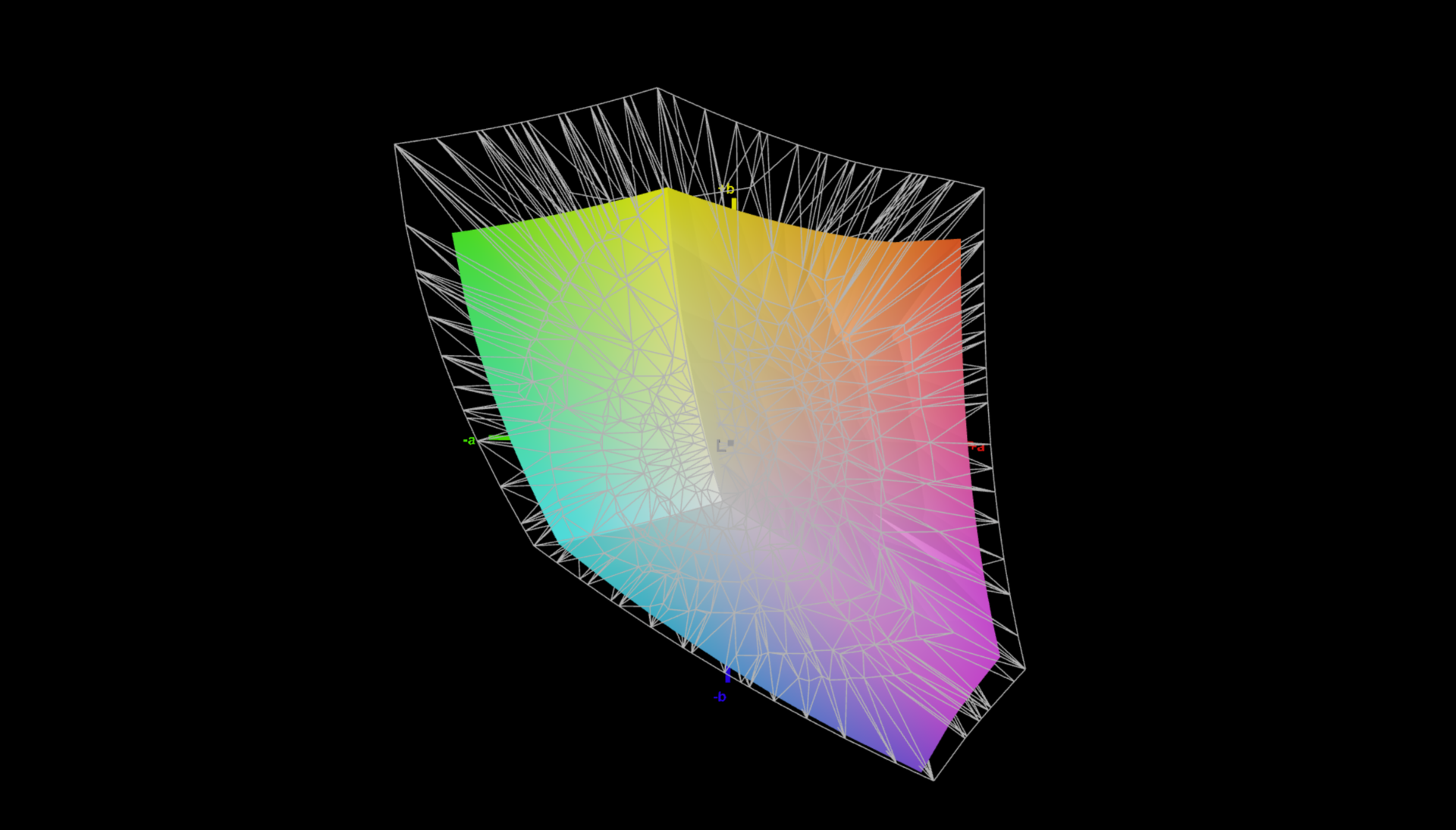

对 P3
对 P3

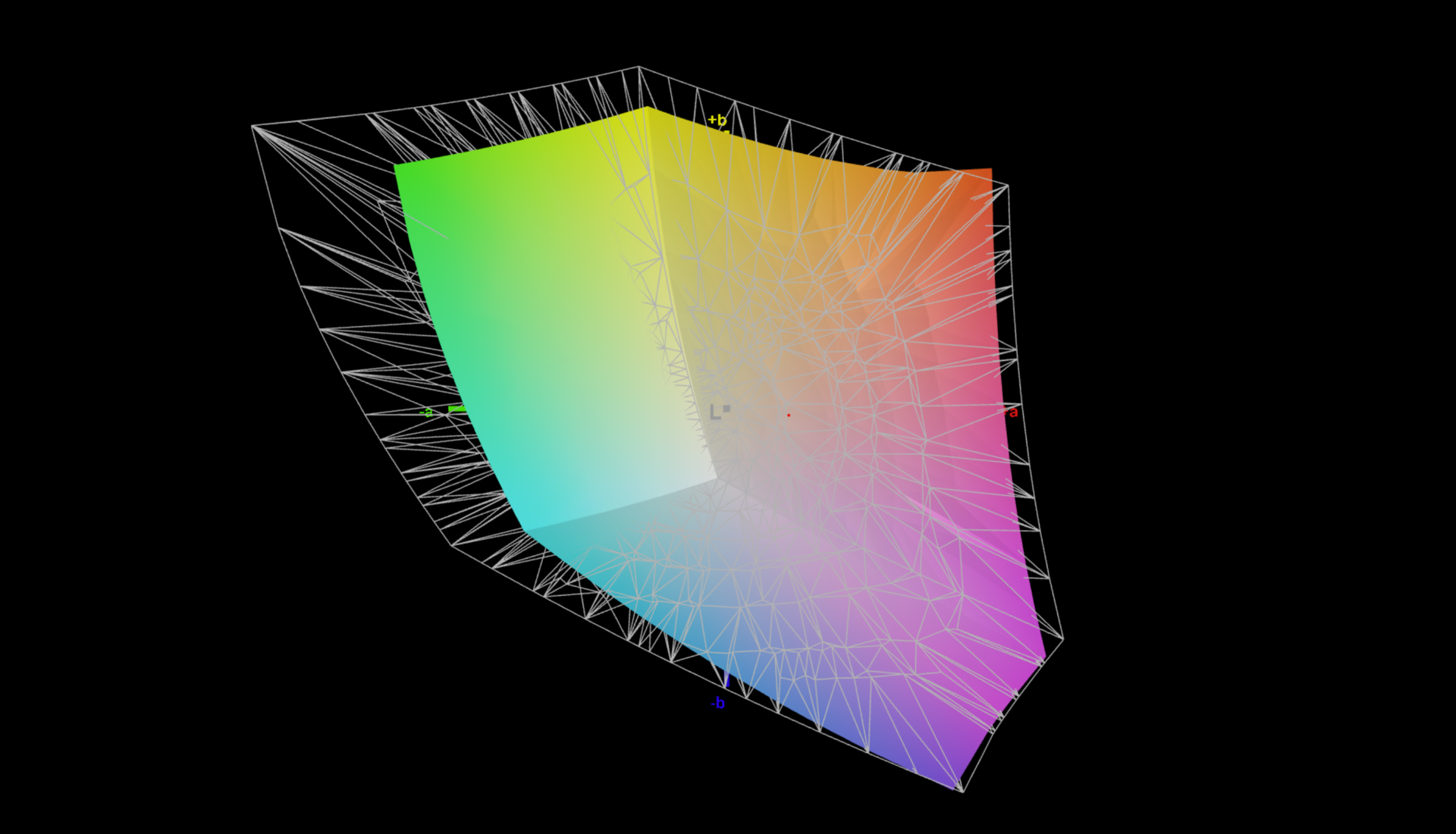

对比 AdobeRGB
对比 AdobeRGB

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

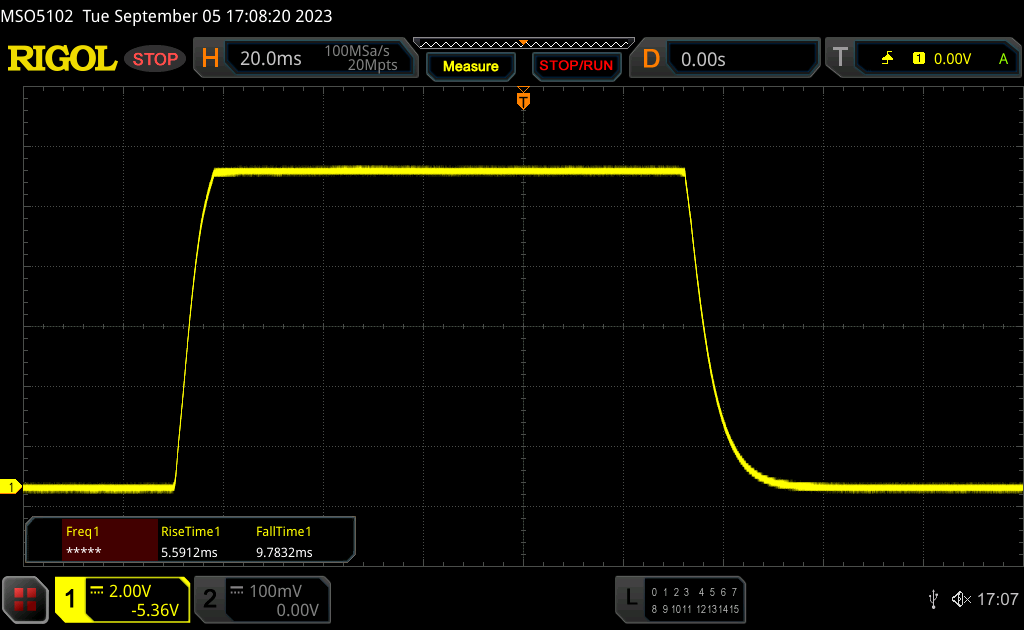

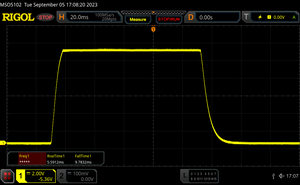

       Response Time Black to White
15.4 ms ... rise ↗ and fall ↘ combined↗ 5.6 ms rise
↘ 9.8 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 33 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (20.9 ms).

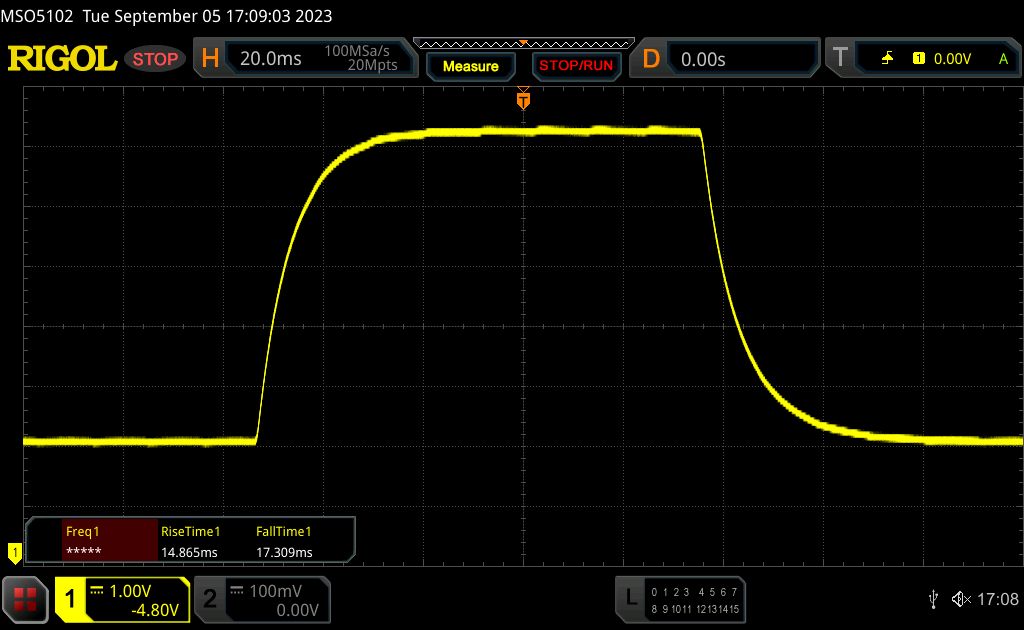

       Response Time 50% Grey to 80% Grey
32.2 ms ... rise ↗ and fall ↘ combined↗ 14.9 ms rise
↘ 17.3 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 40 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (32.7 ms).

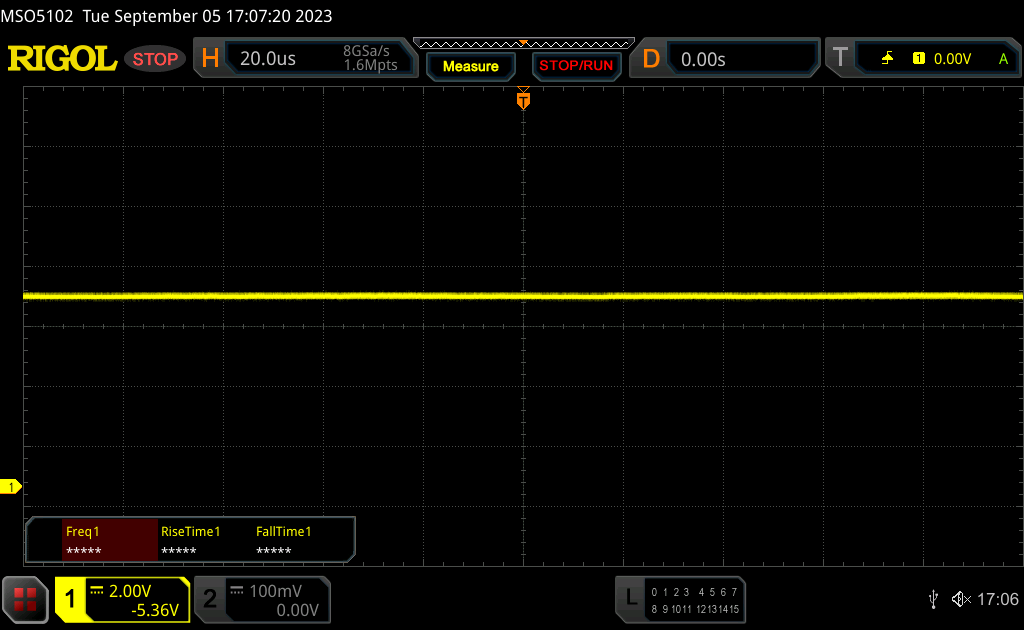

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8611 (minimum: 5 - maximum: 343500) Hz was measured.

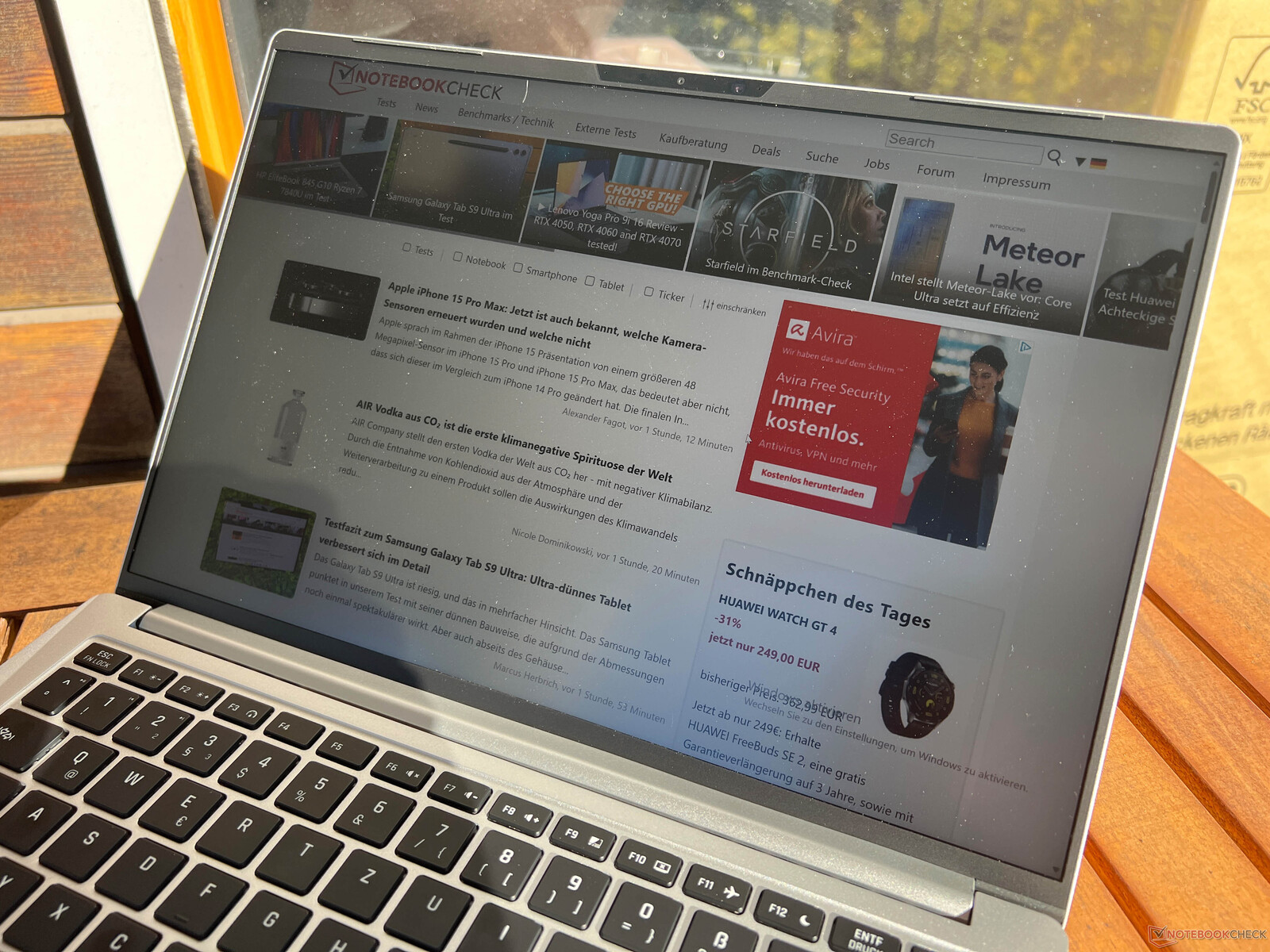

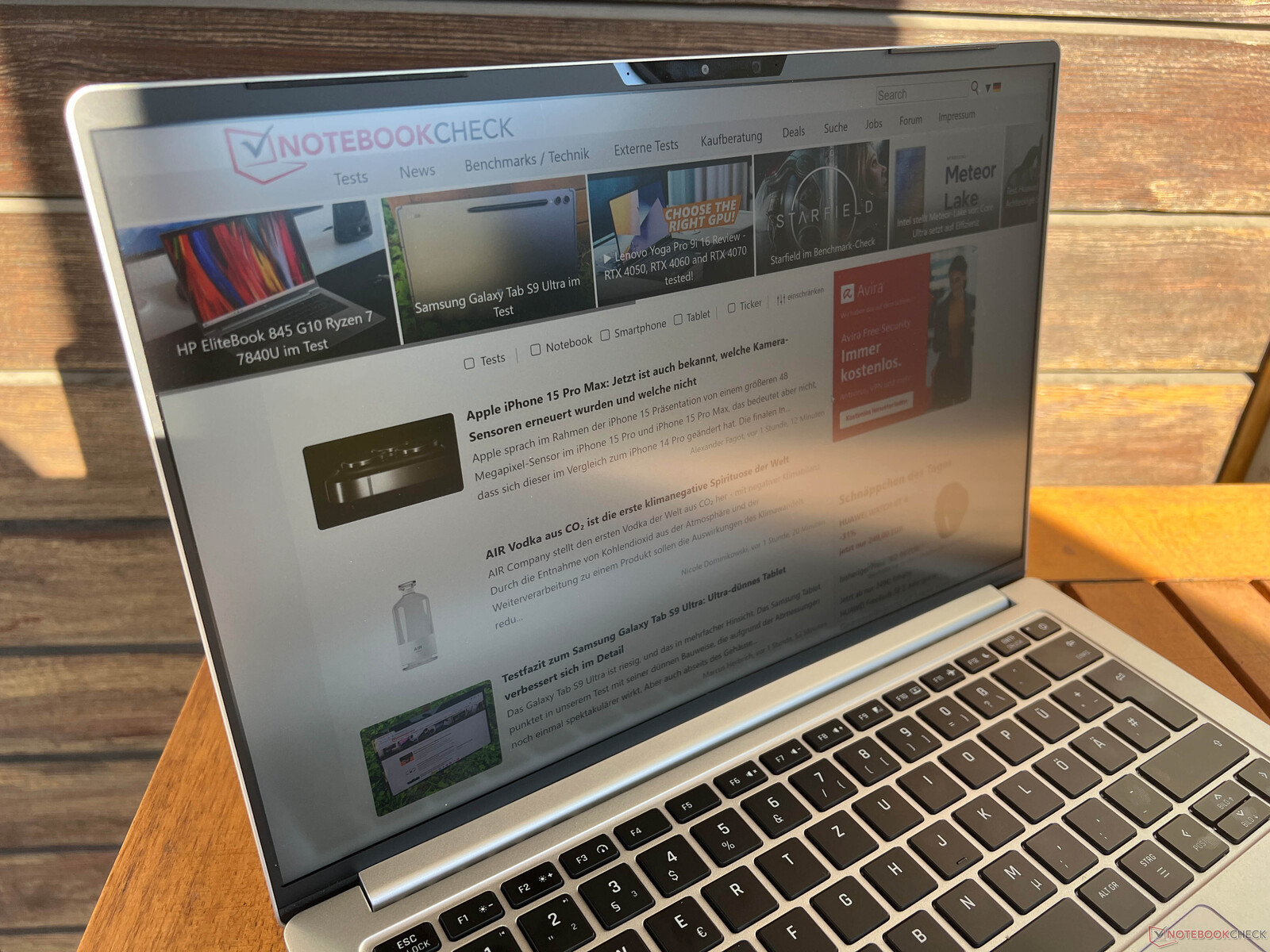

在树荫下
在树荫下

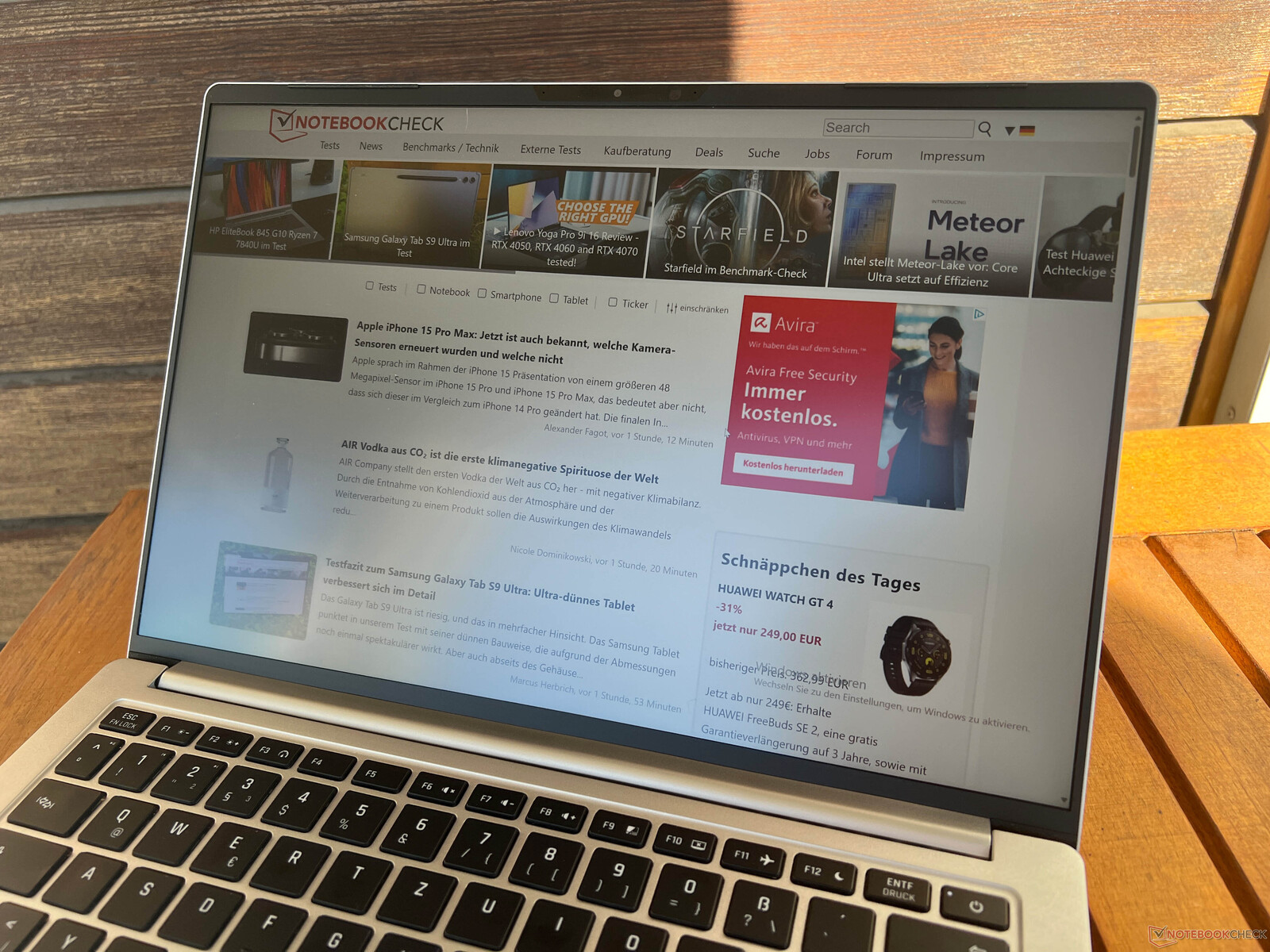

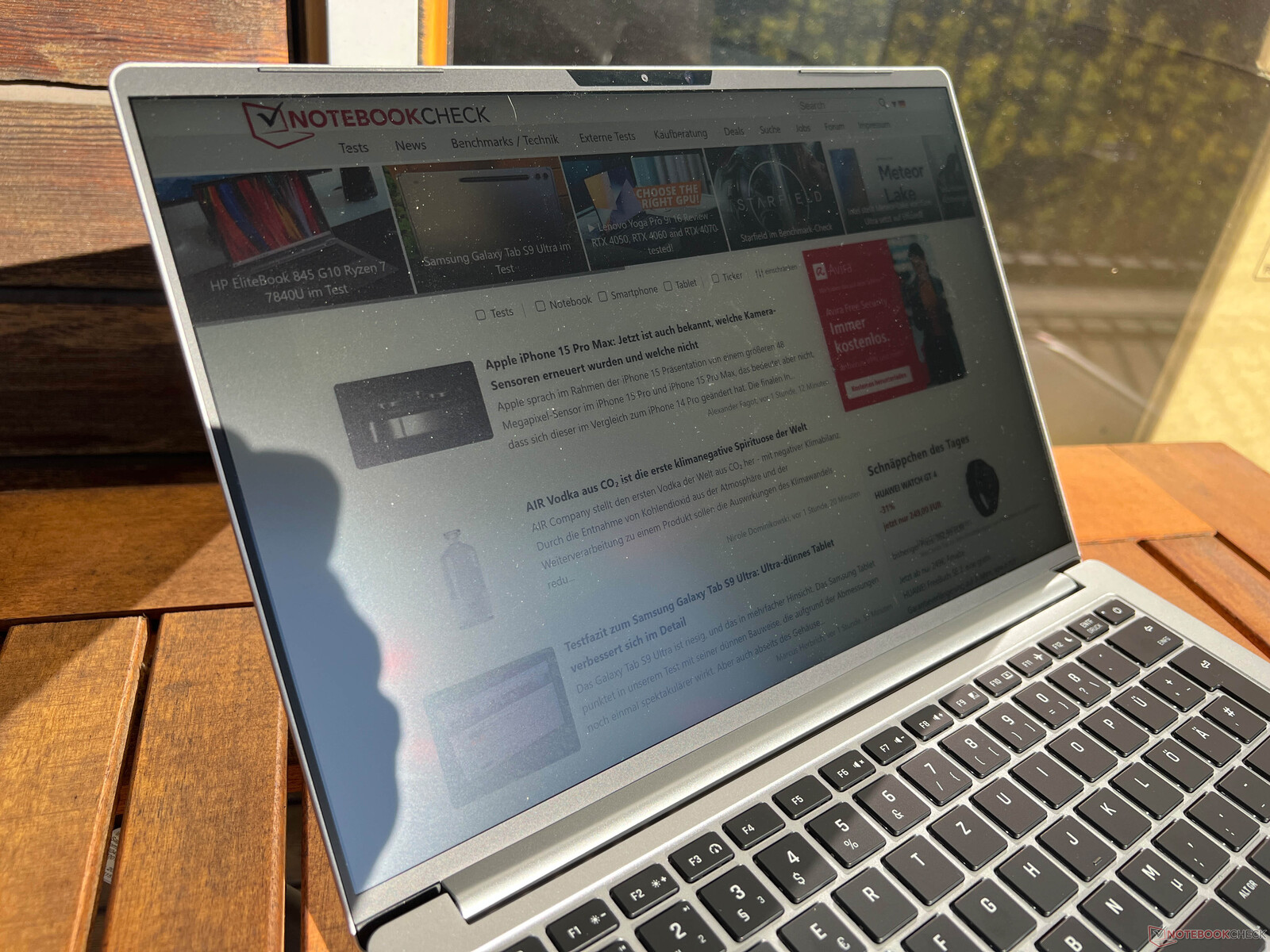

在阳光下
在阳光下

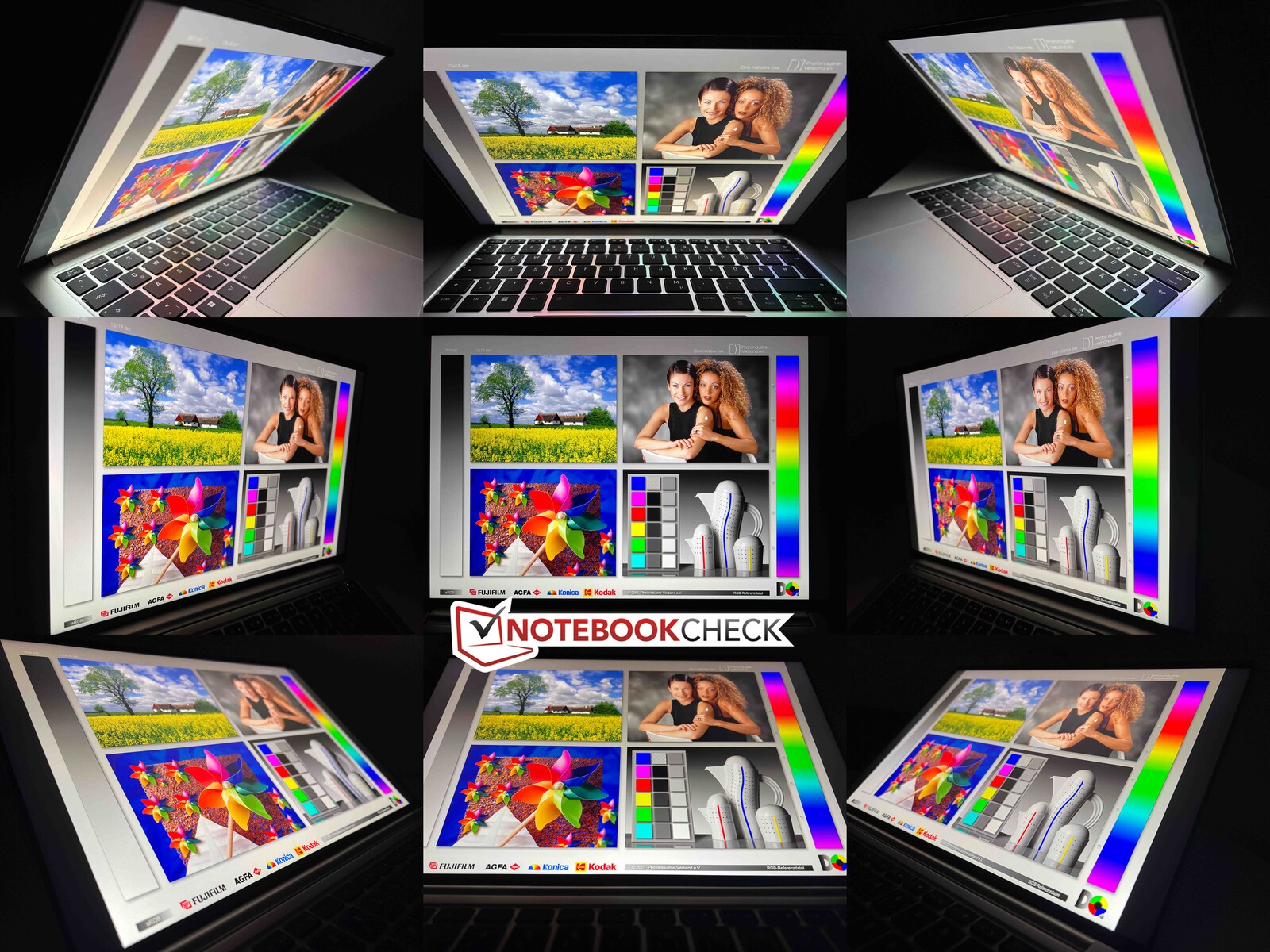

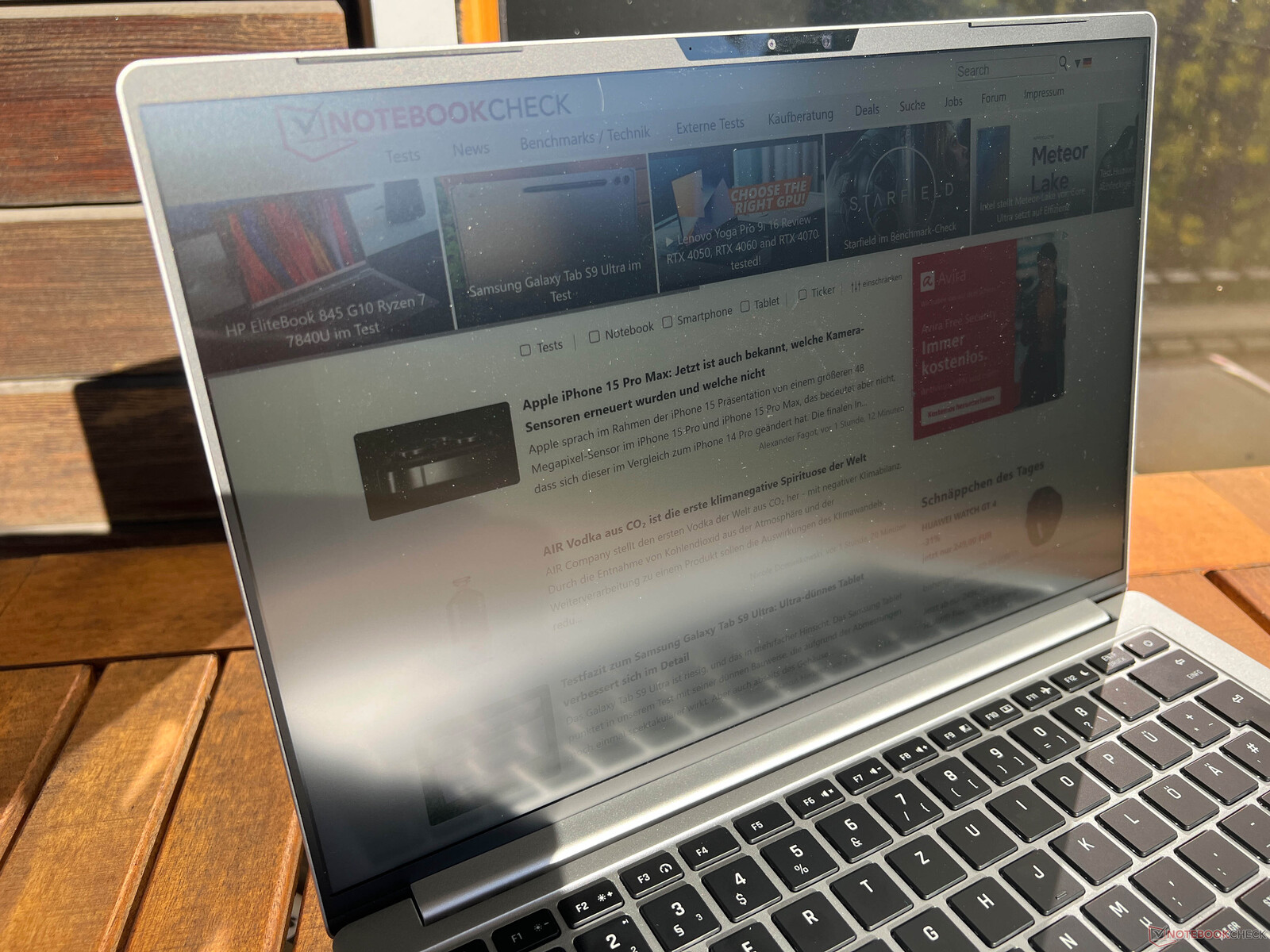

Vision 14 的哑光显示屏在户外也能舒适使用,在视角稳定性方面没有大问题。从以上角度观察时,面板只会稍微变亮。

视角稳定性
视角稳定性

性能 - Raptor Lake-H45

Vision 14 M23 仅配备猛禽湖酷睿 i7-13700H。如前所述GeForce RTX 3050 Refresh与去年的型号相比,现在使用的是 DDR5-4800 内存,而不是 DDR4-3200 内存。





测试条件

申克公司在预装的控制中心提供两种不同的性能配置文件:静音 高性能。在"静音"模式下,处理器的最大 TDP 降至 20 瓦,而在 "性能 "模式(以及 "平衡 "和"发烧"两个子模式)下,最大 TDP 为 45 -> 40 瓦。这与前代产品相比有所降低,前代产品允许处理器在短时间内消耗高达 60 瓦的功率,然后在 40 瓦时趋于平稳。我们选择Enthusiast 配置文件进行以下基准测试和测量。

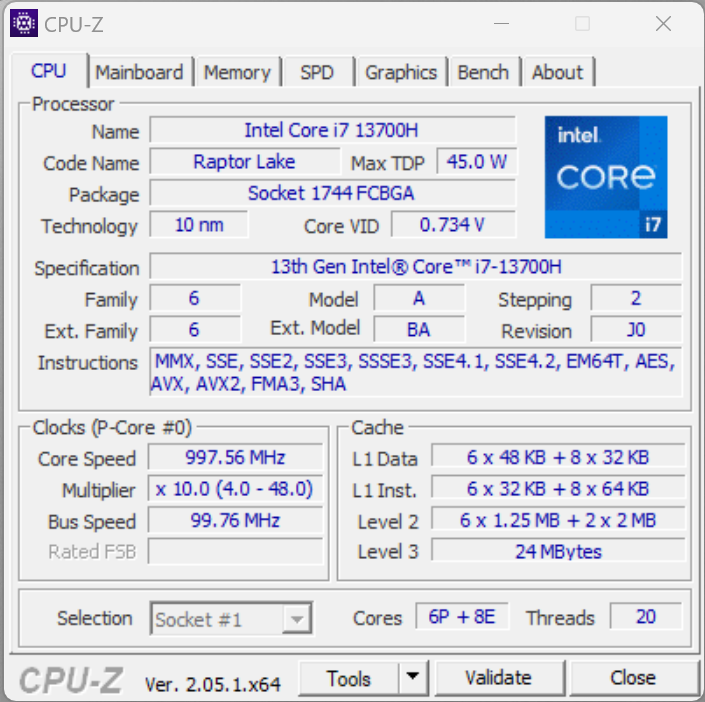

处理器 - 酷睿 i7-13700H

酷睿 i7-13700H 酷睿 i7-13700H是去年的 酷睿 i7-12700H(Alder Lake)的直接继承者,性能值最终完全相同。不过,在当前的 Vision 14 M23 中,处理器只允许短时间消耗 45 瓦,而不是去年机型的 60 瓦,这就是新机型多核性能最初较差的原因。在持续负载情况下,两者的运行功耗均为规定的 40 瓦,实际上不相上下。

Cinebench R15 Multi Sustained Load

0135270405540675810945108012151350148516201755189020252160229524302565Tooltip
SCHENKER Vision 14 2023 Intel Core i7-13700H: Ø1949 (1907.49-1999.5)
LG Gram Style 14Z90RS-G.AD7AG Intel Core i7-1360P: Ø1209 (1178.03-1454.97)
Asus ZenBook 14X UX3404VC Intel Core i9-13900H: Ø2188 (2143.85-2496.57)
Lenovo Yoga Pro 7 14ARP G8 AMD Ryzen 7 7735HS: Ø2092 (2055.39-2153.43)
Lenovo Yoga Pro 7 14IRH G8 Intel Core i7-13700H: Ø2374 (2297.79-2615.58)
Samsung Galaxy Book3 Pro 14 Intel Core i7-1360P: Ø1308 (1261.23-1592.48)
SCHENKER Vision 14 2022 RTX 3050 Ti Intel Core i7-12700H: Ø1988 (1948.94-2166.26)
Lenovo Yoga 9 14IRP G8 Intel Core i7-1360P: Ø1703 (1611.41-2114.84)

虽然酷睿 i7-13700H 是一款 45 瓦的处理器,但它很少作为 45 瓦处理器使用,在极端情况下功耗可超过 120 瓦。因此,人们可能会认为 Raptor-Lake P 处理器(4 个 P 核心)是更好的选择,但事实并非如此。通过与酷睿 i7-1360P 处理器的直接比较,我们可以清楚地看到这一点。酷睿 i7-1360P联想 Yoga 9 14由于短期功耗较高,i7-1360P 最初的运行速度较快,但在 38 瓦的功耗下,它明显落后于 40 瓦的 i7-13700H(约 13%)。

在电池供电情况下,处理器的最大功耗为 40 瓦(实际功耗达到 40 瓦需要几秒钟的时间),这就是多核性能降低约 14% 的原因。更多 CPU 基准测试这里.

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Lenovo Yoga Pro 7 14IRH G8
Intel Core i7-13700H
83.9 pt
Asus ZenBook 14X UX3404VC
Intel Core i9-13900H
79.5 pt
Average Intel Core i7-13700H

76.1 pt
SCHENKER Vision 14 2022 RTX 3050 Ti
Intel Core i7-12700H
72.7 pt
SCHENKER Vision 14 2023
Intel Core i7-13700H
72.2 pt
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
69.3 pt
Lenovo Yoga Pro 7 14ARP G8
AMD Ryzen 7 7735HS
68.2 pt
Average of class Subnotebook

61.2 pt
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P
57.9 pt
LG Gram Style 14Z90RS-G.AD7AG
Intel Core i7-1360P
50.8 pt

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
2000 Points
Cinebench R15 OpenGL 64Bit
109.1 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
276 Points
Cinebench R20 CPU (Multi Core)
4870 Points
Cinebench R20 CPU (Single Core)
734 Points
Cinebench R23 Single Core
1912 Points
Cinebench R23 Multi Core
12275 Points
Help
Performance Rating
Lenovo Yoga Pro 7 14IRH G8
Intel Core i7-13700H, NVIDIA GeForce RTX 4050 Laptop GPU
90.1 pt
Asus ZenBook 14X UX3404VC
Intel Core i9-13900H, Iris Xe G7 96EUs
85.8 pt
Average Intel Core i7-13700H

84.1 pt
Lenovo Yoga Pro 7 14ARP G8
AMD Ryzen 7 7735HS, Radeon 680M
81.6 pt
SCHENKER Vision 14 2022 RTX 3050 Ti
Intel Core i7-12700H, GeForce RTX 3050 Ti Laptop GPU
75.9 pt
SCHENKER Vision 14 2023
Intel Core i7-13700H, Iris Xe G7 96EUs
74.6 pt
Average of class Subnotebook

71.9 pt
LG Gram Style 14Z90RS-G.AD7AG
Intel Core i7-1360P, Iris Xe G7 96EUs
54.7 pt
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P, Iris Xe G7 96EUs
51.8 pt

系统性能

我们对其性能的主观印象非常好,在日常使用中,所有输入都能顺利实现。测试过程中也没有出现任何问题。

PCMark 10 / Score
Lenovo Yoga Pro 7 14IRH G8
NVIDIA GeForce RTX 4050 Laptop GPU, i7-13700H, Samsung PM9A1 MZVL21T0HCLR
7292 Points +28%
Lenovo Yoga Pro 7 14ARP G8
Radeon 680M, R7 7735HS, Samsung PM9A1 MZVL21T0HCLR
6767 Points +19%
SCHENKER Vision 14 2022 RTX 3050 Ti
GeForce RTX 3050 Ti Laptop GPU, i7-12700H, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
6623 Points +16%
Average of class Subnotebook
  (4993 - 7788, n=51, last 2 years)
6467 Points +14%
Asus ZenBook 14X UX3404VC
Iris Xe G7 96EUs, i9-13900H, Micron 2450 1TB MTFDKBA1T0TFK
6330 Points +11%
Average Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs
  (5531 - 6247, n=5)
5880 Points +3%
SCHENKER Vision 14 2023
Iris Xe G7 96EUs, i7-13700H, Samsung 990 Pro 1 TB
5687 Points
Samsung Galaxy Book3 Pro 14
Iris Xe G7 96EUs, i7-1360P, WD PC SN740 512GB SDDPMQD-512G-1101
5635 Points -1%
LG Gram Style 14Z90RS-G.AD7AG
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS001TEJ9X101N
5621 Points -1%
PCMark 10 Score
5687 points
Help
AIDA64 / Memory Copy
Average of class Subnotebook
  (14554 - 108756, n=62, last 2 years)
72113 MB/s +11%
LG Gram Style 14Z90RS-G.AD7AG
Intel Core i7-1360P, Iris Xe G7 96EUs
68974 MB/s +6%
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P, Iris Xe G7 96EUs
68962 MB/s +6%
SCHENKER Vision 14 2023
Intel Core i7-13700H, Iris Xe G7 96EUs
65123 MB/s
Lenovo Yoga Pro 7 14IRH G8
Intel Core i7-13700H, NVIDIA GeForce RTX 4050 Laptop GPU
64736 MB/s -1%
Asus ZenBook 14X UX3404VC
Intel Core i9-13900H, Iris Xe G7 96EUs
62724 MB/s -4%
Average Intel Core i7-13700H
  (24334 - 78081, n=29)
61613 MB/s -5%
Lenovo Yoga Pro 7 14ARP G8
AMD Ryzen 7 7735HS, Radeon 680M
51974 MB/s -20%
SCHENKER Vision 14 2022 RTX 3050 Ti
Intel Core i7-12700H, GeForce RTX 3050 Ti Laptop GPU
47829 MB/s -27%

* ... smaller is better

DPC 延迟

在我们的标准化延迟测试(网页浏览、4K YouTube 播放、CPU 负载)中,我们的测试设备在当前 BIOS 版本下运行实时音频应用程序时显示出了局限性。

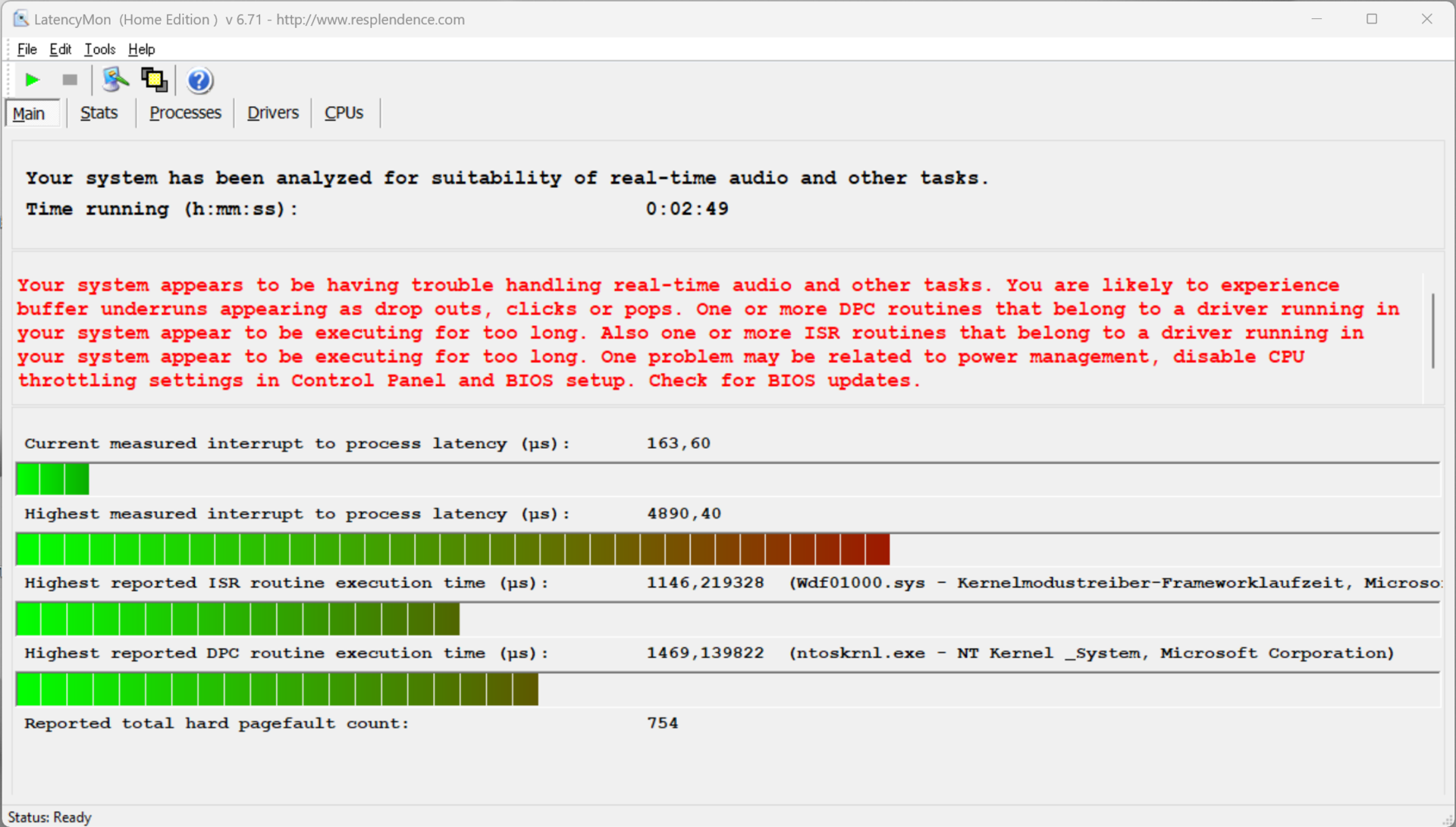

LatencyMon - 概述
LatencyMon - 概述

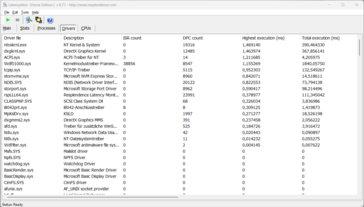

LatencyMon - 驱动程序
LatencyMon - 驱动程序
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
SCHENKER Vision 14 2023
Iris Xe G7 96EUs, i7-13700H, Samsung 990 Pro 1 TB
4890.4 μs *
Samsung Galaxy Book3 Pro 14
Iris Xe G7 96EUs, i7-1360P, WD PC SN740 512GB SDDPMQD-512G-1101
2039.3 μs * +58%
Asus ZenBook 14X UX3404VC
Iris Xe G7 96EUs, i9-13900H, Micron 2450 1TB MTFDKBA1T0TFK
1682 μs * +66%
LG Gram Style 14Z90RS-G.AD7AG
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS001TEJ9X101N
1550 μs * +68%
Lenovo Yoga Pro 7 14ARP G8
Radeon 680M, R7 7735HS, Samsung PM9A1 MZVL21T0HCLR
965.5 μs * +80%
Lenovo Yoga Pro 7 14IRH G8
NVIDIA GeForce RTX 4050 Laptop GPU, i7-13700H, Samsung PM9A1 MZVL21T0HCLR
925.8 μs * +81%
SCHENKER Vision 14 2022 RTX 3050 Ti
GeForce RTX 3050 Ti Laptop GPU, i7-12700H, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
868.4 μs * +82%

* ... smaller is better

存储设备

M.2 2280 固态硬盘
M.2 2280 固态硬盘

你可以在配置器中选择不同的固态硬盘,我们的测试设备包含 1 TB 版本的三星 990 Pro,这是一款高速 PCIe 4.0 硬盘。传输速率极高,高达 7 GB/秒,而且即使在长时间负载的情况下也能保持稳定,这一点是毋庸置疑的。我们的技术部分.

Samsung 990 Pro 1 TB
CDM 5/6 Read Seq Q32T1: 7116 MB/s
CDM 5/6 Write Seq Q32T1: 6773 MB/s
CDM 5/6 Read 4K Q32T1: 665 MB/s
CDM 5/6 Write 4K Q32T1: 493 MB/s
CDM 5/6 Read 4K: 83.8 MB/s
CDM 5/6 Write 4K: 257 MB/s
CDM 6 Write 4K Q8T8: 2371 MB/s
CDM 6 Read 4K Q8T8: 2762 MB/s
Drive Performance Rating - Percent
SCHENKER Vision 14 2023
Samsung 990 Pro 1 TB
95.2 pt
Average Samsung 990 Pro 1 TB

91.5 pt
SCHENKER Vision 14 2022 RTX 3050 Ti
Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
90.3 pt
Lenovo Yoga Pro 7 14IRH G8
Samsung PM9A1 MZVL21T0HCLR
68.2 pt
LG Gram Style 14Z90RS-G.AD7AG
SK hynix PC801 HFS001TEJ9X101N
66.8 pt
Samsung Galaxy Book3 Pro 14
WD PC SN740 512GB SDDPMQD-512G-1101
64.4 pt
Lenovo Yoga Pro 7 14ARP G8
Samsung PM9A1 MZVL21T0HCLR
60.5 pt
Average of class Subnotebook

56 pt
Asus ZenBook 14X UX3404VC
Micron 2450 1TB MTFDKBA1T0TFK
51 pt

* ... smaller is better

Sustained Read Performance: DiskSpd Read Loop, Queue Depth 8

036072010801440180021602520288032403600396043204680504054005760612064806840Tooltip
SCHENKER Vision 14 2023: Ø7115 (6561.36-7132.84)

图形卡

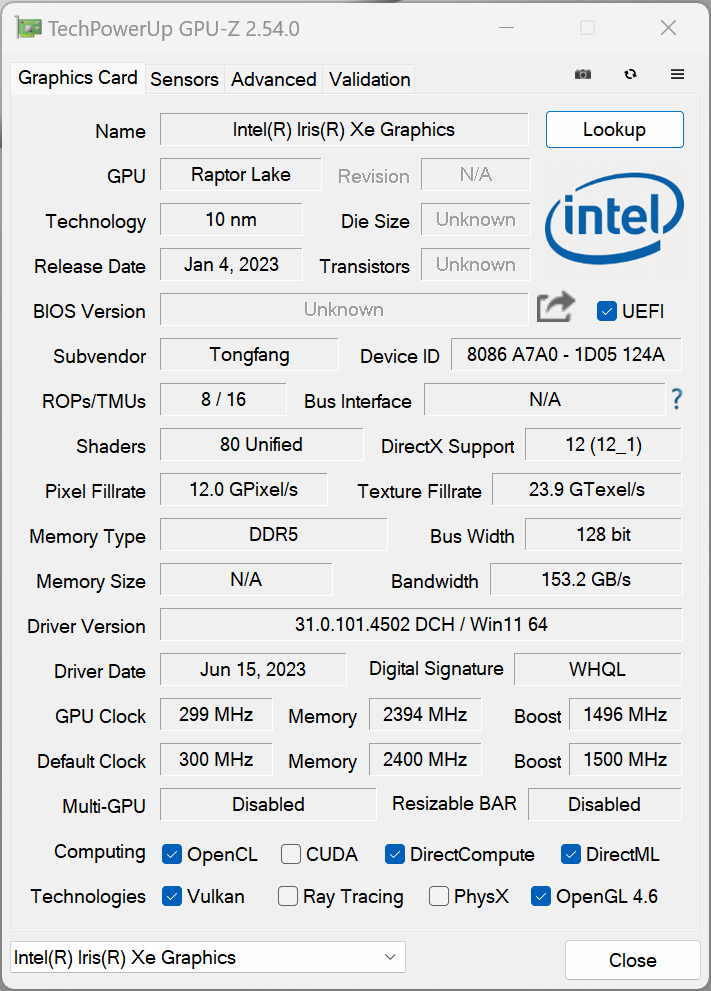

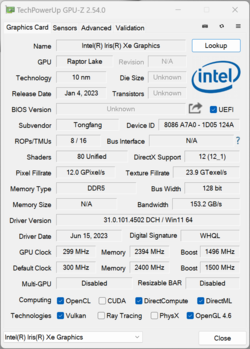

GPU-Z Iris Xe Graphics G7
GPU-Z Iris Xe Graphics G7

图形输出仍由英特尔集成的Iris Xe Graphics G7 处理。选择可选专用GeForce GPU 的用户现在将获得配备 6 GB 内存的刷新版GeForce RTX 3050 ;去年的型号是配备 4 GB 内存的 RTX 3050 Ti。两款 dGPU 的性能应该大致相当,但由于增加了 VRAM,新的 RTX 3050 Refresh 在高细节或高分辨率方面的限制更少。

不出意外,Iris Xe Graphics G7 的性能保持不变,当然足以满足高分辨率视频播放等日常活动的需求,但那些想用 Vision 14 玩游戏的用户一定要多花 275 欧元购买专用 GPU,否则即使是旧版游戏,也会受限于低/中细节。至少在长时间的游戏过程中,性能会保持稳定。


在电池供电的情况下,GPU 性能会降低约 10%。更多基准测试这里.

3DMark Performance Rating - Percent
Lenovo Yoga Pro 7 14IRH G8
NVIDIA GeForce RTX 4050 Laptop GPU, Intel Core i7-13700H
100 pt
SCHENKER Vision 14 2022 RTX 3050 Ti
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-12700H
72.8 pt
Lenovo Yoga Pro 7 14ARP G8
AMD Radeon 680M, AMD Ryzen 7 7735HS
44.4 pt
Average of class Subnotebook

40.4 pt
Asus ZenBook 14X UX3404VC -2!
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H
32.3 pt
SCHENKER Vision 14 2023
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H
31.2 pt
LG Gram Style 14Z90RS-G.AD7AG
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
26.5 pt
Samsung Galaxy Book3 Pro 14
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
26.4 pt
Average Intel Iris Xe Graphics G7 96EUs

26.4 pt
3DMark 11 Performance
7781 points
3DMark Fire Strike Score
5591 points
3DMark Time Spy Score
2047 points
Help
Blender / v3.3 Classroom HIP/AMD
Average of class Subnotebook
  (302 - 548, n=3, last 2 years)
390 Seconds *
Lenovo Yoga Pro 7 14ARP G8
AMD Radeon 680M, AMD Ryzen 7 7735HS
320 Seconds *

* ... smaller is better

Performance Rating - Percent
Lenovo Yoga Pro 7 14IRH G8 -1!
Intel Core i7-13700H, NVIDIA GeForce RTX 4050 Laptop GPU
100 pt
SCHENKER Vision 14 2022 RTX 3050 Ti
Intel Core i7-12700H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
81.9 pt
Lenovo Yoga Pro 7 14ARP G8
AMD Ryzen 7 7735HS, AMD Radeon 680M
41.5 pt
Average of class Subnotebook

36.7 pt
SCHENKER Vision 14 2023
Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs
28.6 pt
Asus ZenBook 14X UX3404VC -1!
Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs
27.1 pt
LG Gram Style 14Z90RS-G.AD7AG
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
24.8 pt
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
23.8 pt

Witcher 3 FPS Chart

0123456789101112131415Tooltip
SCHENKER Vision 14 2023 i7-13700H, Iris Xe G7 96EUs: Ø14.8 (13-16)
lowmed.highultraQHD
GTA V (2015) 122.2 109.9 25.6 10.6
The Witcher 3 (2015) 94 63 36 14.8
Dota 2 Reborn (2015) 96 72.3 63.1 56.2
Final Fantasy XV Benchmark (2018) 44 26.1 18.2
X-Plane 11.11 (2018) 47.8 39.4 35.5
Far Cry 5 (2018) 55 30 28 26 18
Strange Brigade (2018) 84.9 41.9 33.6 27.7
F1 2021 (2021) 101.5 52.1 40.4 28.9
F1 22 (2022) 45.7 41.3 30.4
F1 23 (2023) 42.4 37.7 26.6

排放与能源

噪音

遗憾的是,在日常使用中,两个风扇的启动速度相当快,这也适用于静音 模式。虽然音量不是很大,但还是有点恼人。在负载情况下,风扇转速很快就会达到 42-45 dB(A),这对于一款纯 iGPU 机型来说是相当高的,因为它还使用了液态金属来实现更好的散热,而且与前代 RTX 3050 Ti 相差无几,当时我们记录到的最高噪音略低于 49 dB(A)。在静音 模式下,两个风扇的最大噪音为 36.4 分贝(A)。没有检测到其他电子噪音。

Noise Level

Idle
24.5 / 24.5 / 30.4 dB(A)
Load
39.5 / 44.9 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 24.5 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2044.147.746.345.447.147.344.12533.335.935.835.73738.833.33129.8323433.634.230.429.8403031.132.531.633.130305029.828.632.229.430.833.529.86326.325.328.526.829.125.226.38021.222.924.922.724.220.521.21002122.323.62324.119.52112520.522.822.519.92318.520.516019.423.920.520.319.917.219.420023.825.123.922.921.720.723.825023.626.824.724.121.821.323.631522.426.826.122.61915.322.440023.128.726.824.318.513.123.150023.329.927.625.618.411.423.363023.23129.626.418.911.423.280022.9312926.817.31122.9100023.530.528.926.517.810.723.5125024.332.229.927.118.810.824.3160026.93531.129.220.210.826.92000283633.131.120.811.228250027.335.732.830.420.311.527.3315023.532.728.927.617.411.923.540002534.429.728.91812.325500021.932.328.92615.812.621.9630018.331.126.923.113.812.718.3800015.326.922.919.113.412.715.3100001421.618.416.413.712.6141250013.31917.61713.312.613.3160001315.618.819.513.411.913SPL36.444.941.739.530.424.536.4N2.34.73.73.11.30.62.3median 23.1median 29.9median 26.9median 24.3median 18.5median 12.6median 23.1Delta2.74.33.53.62.32.62.7hearing rangehide median Fan NoiseSCHENKER Vision 14 2023
SCHENKER Vision 14 2023
Iris Xe G7 96EUs, i7-13700H, Samsung 990 Pro 1 TB
LG Gram Style 14Z90RS-G.AD7AG
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS001TEJ9X101N
Asus ZenBook 14X UX3404VC
Iris Xe G7 96EUs, i9-13900H, Micron 2450 1TB MTFDKBA1T0TFK
Lenovo Yoga Pro 7 14ARP G8
Radeon 680M, R7 7735HS, Samsung PM9A1 MZVL21T0HCLR
Lenovo Yoga Pro 7 14IRH G8
NVIDIA GeForce RTX 4050 Laptop GPU, i7-13700H, Samsung PM9A1 MZVL21T0HCLR
Samsung Galaxy Book3 Pro 14
Iris Xe G7 96EUs, i7-1360P, WD PC SN740 512GB SDDPMQD-512G-1101
SCHENKER Vision 14 2022 RTX 3050 Ti
GeForce RTX 3050 Ti Laptop GPU, i7-12700H, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
Noise
6%
0%
7%
-4%
-5%
-4%
off / environment *
24.5
25
-2%
25.2
-3%
24.2
1%
22.9
7%
25.2
-3%
24.4
-0%
Idle Minimum *
24.5
25
-2%
25.2
-3%
24.2
1%
22.9
7%
25.2
-3%
24.4
-0%
Idle Average *
24.5
25
-2%
25.2
-3%
24.2
1%
22.9
7%
25.2
-3%
24.4
-0%
Idle Maximum *
30.4
25
18%
26.5
13%
24.2
20%
36.8
-21%
32
-5%
27.8
9%
Load Average *
39.5
37
6%
39.8
-1%
36.2
8%
43.7
-11%
45.25
-15%
43.3
-10%
Witcher 3 ultra *
41.7
37
11%
42.7
-2%
46.2
-11%
48.2
-16%
Load Maximum *
44.9
40.62
10%
45.5
-1%
36.2
19%
46.2
-3%
45.3
-1%
48.8
-9%

* ... smaller is better

温度

Vision 14 的表面温度从未达到临界值。正常使用时,机箱始终保持凉爽宜人的温度,我们在压力测试中仅在少数几个地方测得超过 40 °C的温度。最热的地方在键盘中上部,打字时也很明显,但这并不会造成任何限制。即使在负载情况下,将笔记本放在大腿上也没有问题。

在综合 CPU/GPU 负载的压力测试中,处理器最初的工作功率为 45 瓦,几分钟后降至 40 瓦。

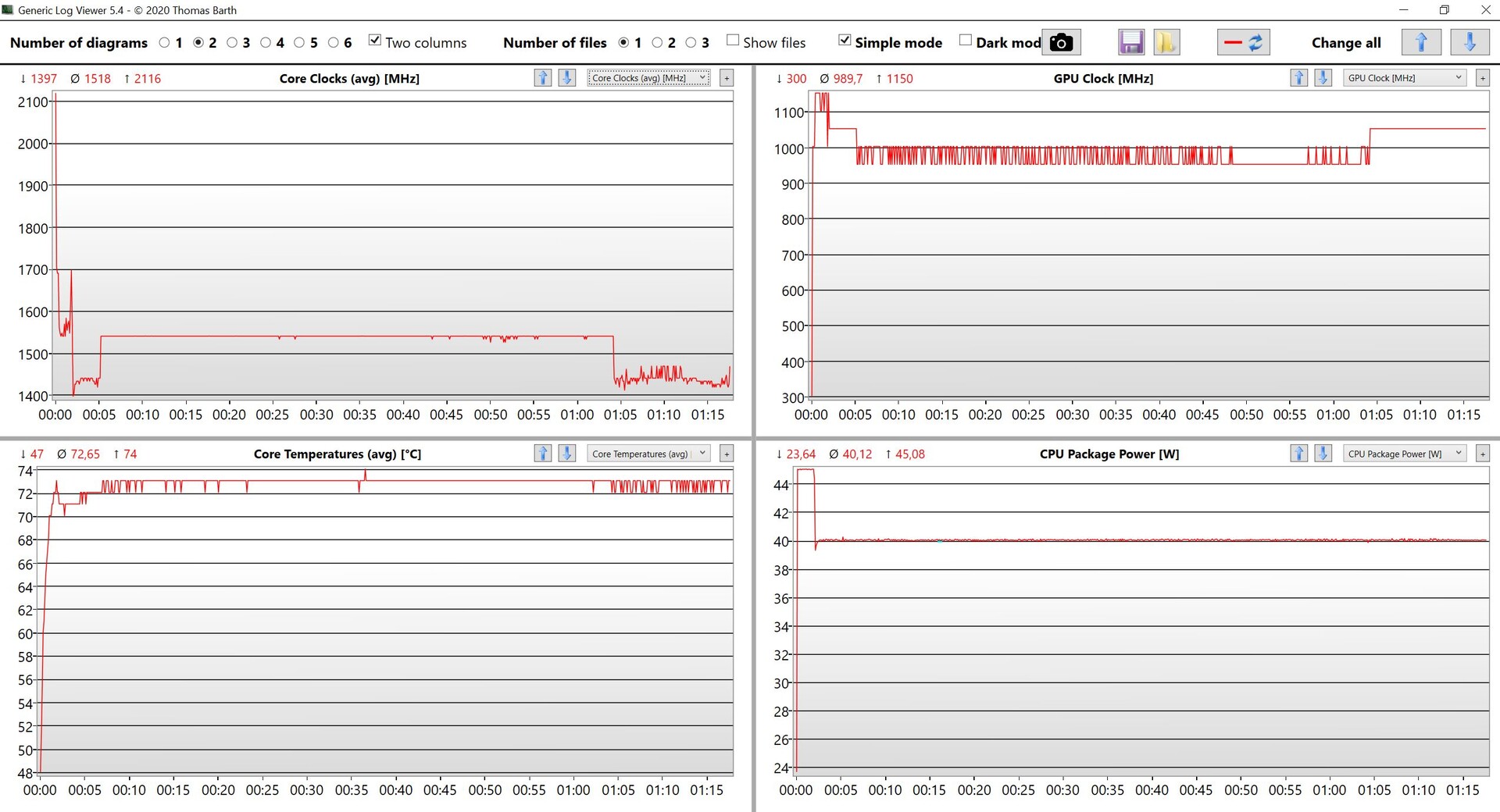

CPU/iGPU 压力测试数据
CPU/iGPU 压力测试数据
Max. Load
 34 °C45.8 °C41.8 °C
 33.8 °C38.4 °C36.3 °C
 26.8 °C27 °C27 °C
Maximum: 45.8 °C
Average: 34.5 °C
39.7 °C42 °C33.3 °C
33.4 °C35.4 °C32.2 °C
26.3 °C27.5 °C27.1 °C
Maximum: 42 °C
Average: 33 °C
Power Supply (max.)  38.5 °C | Room Temperature 21.4 °C | Fluke t3000FC (calibrated), Voltcraft IR-900
(±) The average temperature for the upper side under maximal load is 34.5 °C / 94 F, compared to the average of 30.8 °C / 87 F for the devices in the class Subnotebook.
(-) The maximum temperature on the upper side is 45.8 °C / 114 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 42 °C / 108 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 26.6 °C / 80 F, compared to the device average of 30.8 °C / 87 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 32.6 °C / 91 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.2 °C / 81 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.2 °C / 82.8 F (+1 °C / 1.8 F).

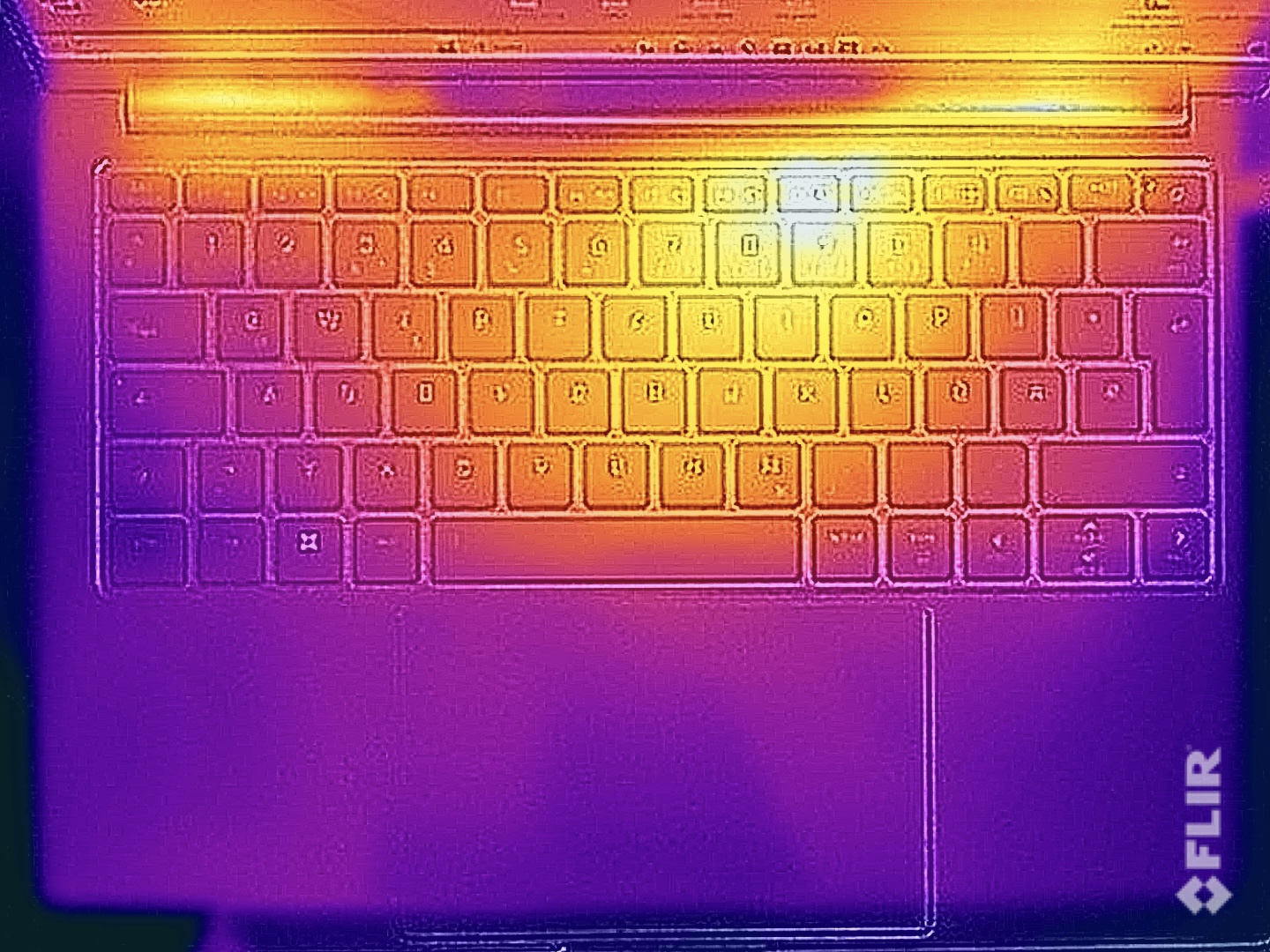

表面温度应力测试(顶部)
表面温度应力测试(顶部)

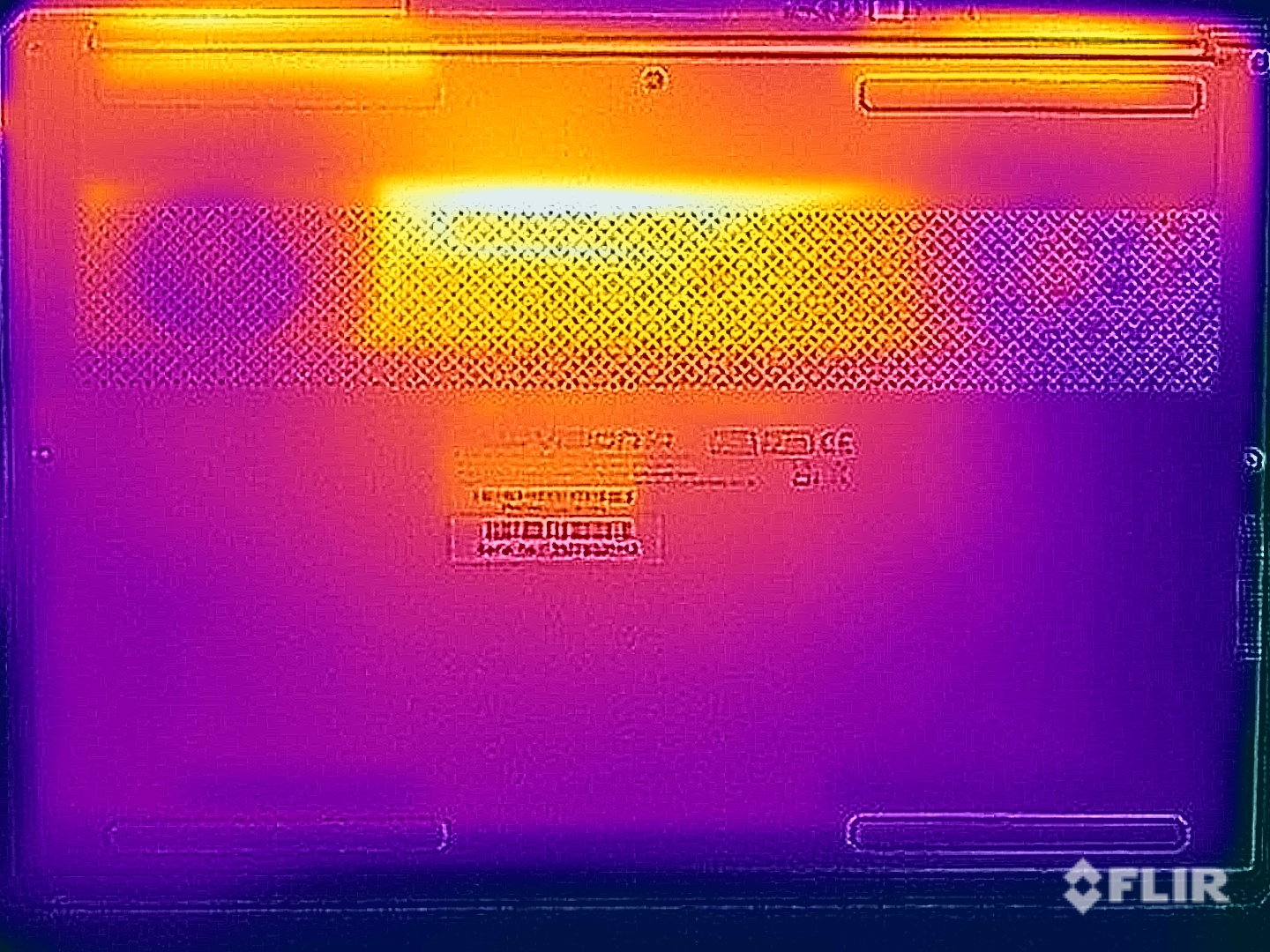

表面温度应力测试(底部)
表面温度应力测试(底部)
SCHENKER Vision 14 2023
Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs
LG Gram Style 14Z90RS-G.AD7AG
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
Asus ZenBook 14X UX3404VC
Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs
Lenovo Yoga Pro 7 14ARP G8
AMD Ryzen 7 7735HS, AMD Radeon 680M
Lenovo Yoga Pro 7 14IRH G8
Intel Core i7-13700H, NVIDIA GeForce RTX 4050 Laptop GPU
Samsung Galaxy Book3 Pro 14
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
SCHENKER Vision 14 2022 RTX 3050 Ti
Intel Core i7-12700H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
Heat
7%
-10%
4%
-5%
-12%
-13%
Maximum Upper Side *
45.8
36.3
21%
38.9
15%
39.2
14%
41.6
9%
43.9
4%
48.4
-6%
Maximum Bottom *
42
36.8
12%
43.4
-3%
49.8
-19%
55.7
-33%
50.7
-21%
57.1
-36%
Idle Upper Side *
27.5
29.2
-6%
33.5
-22%
24.2
12%
25.9
6%
30.8
-12%
28.1
-2%
Idle Bottom *
27.1
27.4
-1%
35.3
-30%
25.1
7%
28
-3%
31.6
-17%
29
-7%

* ... smaller is better

发言人

与去年的型号相比,我们在立体声扬声器上看到了不同之处:尽管声音仍然有些单薄,但整体质量有所提高。至少,Vision 14 现在可以与其他竞争对手媲美,如Yoga Pro 7 14.

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2047.348.82538.842.63130.439.6403037.75033.538.96325.238.18020.536.910019.535.812518.541.716017.249.120020.758.925021.363.931515.369.840013.169.150011.473.663011.474.78001172.5100010.773.5125010.872.6160010.873.9200011.271.1250011.571.8315011.974400012.371.7500012.668.8630012.768.2800012.7671000012.664.21250012.660.61600011.952.3SPL24.583.9N0.661.9median 12.6median 69.1Delta2.66.530.329.732.834.222.629.225.834.323.126.921.631.621.733.821.241.323.146.218.851.818.455.517.160.515.564.814.566.812.965.713.266.910.871.311.168.911.164.910.862.611.660.911.567.811.372.811.670.111.864.71263.512.161.412.162.21260.911.754.424.279.70.647.2median 12median 63.52.54.9hearing rangehide median Pink NoiseSCHENKER Vision 14 2023Lenovo Yoga Pro 7 14ARP G8
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
SCHENKER Vision 14 2023 audio analysis

(+) | speakers can play relatively loud (83.9 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 16.2% lower than median
(±) | linearity of bass is average (10.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.5% away from median
(+) | mids are linear (3.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.6% away from median
(+) | highs are linear (3.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (13.5% difference to median)
Compared to same class
» 20% of all tested devices in this class were better, 6% similar, 74% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 12% of all tested devices were better, 3% similar, 84% worse
» The best had a delta of 4%, average was 24%, worst was 134%

Lenovo Yoga Pro 7 14ARP G8 audio analysis

(±) | speaker loudness is average but good (79.7 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 10.6% lower than median
(±) | linearity of bass is average (10% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.4% away from median
(+) | mids are linear (4.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.5% away from median
(+) | highs are linear (6.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (12.4% difference to median)
Compared to same class
» 15% of all tested devices in this class were better, 4% similar, 82% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 9% of all tested devices were better, 2% similar, 89% worse
» The best had a delta of 4%, average was 24%, worst was 134%

耗电量

申克公司已经将空闲功耗降低了一些,因为新机型的最大功耗仅为 8 瓦,而不是前代产品的 11.4 瓦。当然,显示屏颜色稍深也是一个原因,但这并不能解释两者之间的巨大差异,这也是为什么必须进行进一步优化的原因。在负载情况下,我们测得的最大功率为 76 瓦,但几分钟后就稳定在 68 瓦左右。因此,附带的 130 瓦电源实际上过大了,如果使用更紧凑的 90 瓦型号就足够了。

Power Consumption
Off / Standbydarklight 0.63 / 1.1 Watt
Idledarkmidlight 4.2 / 7.4 / 8 Watt
Load midlight 42.8 / 76 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
SCHENKER Vision 14 2023
i7-13700H, Iris Xe G7 96EUs, Samsung 990 Pro 1 TB, IPS, 2880x1800, 14"
LG Gram Style 14Z90RS-G.AD7AG
i7-1360P, Iris Xe G7 96EUs, SK hynix PC801 HFS001TEJ9X101N, OLED, 2880x1800, 14"
Asus ZenBook 14X UX3404VC
i9-13900H, Iris Xe G7 96EUs, Micron 2450 1TB MTFDKBA1T0TFK, OLED, 2880x1800, 14.5"
Lenovo Yoga Pro 7 14ARP G8
R7 7735HS, Radeon 680M, Samsung PM9A1 MZVL21T0HCLR, IPS, 2560x1600, 14.5"
Lenovo Yoga Pro 7 14IRH G8
i7-13700H, NVIDIA GeForce RTX 4050 Laptop GPU, Samsung PM9A1 MZVL21T0HCLR, IPS, 3072x1920, 14.5"
Samsung Galaxy Book3 Pro 14
i7-1360P, Iris Xe G7 96EUs, WD PC SN740 512GB SDDPMQD-512G-1101, AMOLED, 2880x1800, 14"
SCHENKER Vision 14 2022 RTX 3050 Ti
i7-12700H, GeForce RTX 3050 Ti Laptop GPU, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW, IPS, 2880x1800, 14"
Average Intel Iris Xe Graphics G7 96EUs

Average of class Subnotebook

Power Consumption
-2%
-17%
-16%
-87%
-8%
-66%
-15%
-4%
Idle Minimum *
4.2
3.58
15%
6
-43%
4.1
2%
7.6
-81%
4.2
-0%
7.5
-79%
5.34 ?(2.2 - 46.5, n=194)
-27%
Idle Average *
7.4
7.125
4%
7
5%
7.7
-4%
13.3
-80%
4.7
36%
10.4
-41%
8.56 ?(3.8 - 63, n=194)
-16%
Idle Maximum *
8
12.1
-51%
11.8
-48%
7.9
1%
13.7
-71%
11.4
-43%
11.4
-43%
10.8 ?(5.8 - 68.9, n=194)
-35%
Load Average *
42.8
40.67
5%
44
-3%
66.2
-55%
88.2
-106%
61.5
-44%
83.3
-95%
Witcher 3 ultra *
47.9
42.6
11%
61.5
-28%
94.2
-97%
55.1
-15%
92.7
-94%
Load Maximum *
76
64.2
16%
95
-25%
84.3
-11%
143
-88%
64
16%
110.3
-45%

* ... smaller is better

Power consumption Witcher 3 / Stress test

051015202530354045505560657075Tooltip
SCHENKER Vision 14 2023; Witcher 3 ultra: Ø47.9 (46.9-49.6)
SCHENKER Vision 14 2023; 1280x720 Prime95 28.10 and Furmark 1.25: Ø72.5 (66.5-76.4)
SCHENKER Vision 14 2023; Idle 150cd/m2: Ø6.8 (3.8-13.6)

Power consumption with an external monitor

0510152025303540455055606570Tooltip
SCHENKER Vision 14 2023; Prime95 V2810 Stress (external Monitor): Ø68.9 (62.2-73.3)
SCHENKER Vision 14 2023; Cinebench R15 Multi (external Monitor): Ø68.1 (67.3-69)
SCHENKER Vision 14 2023; Cinebench R23 Single (external Monitor): Ø35.9 (32.8-39.3)
SCHENKER Vision 14 2023; Cinebench R23 Multi (external Monitor): Ø66.4 (63.3-69.6)
SCHENKER Vision 14 2023; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø62.9 (58-66)
SCHENKER Vision 14 2023; 1920x1080 The Witcher 3 ultra (external Monitor): Ø43.9 (43.2-45.4)
SCHENKER Vision 14 2023; Idle 1min (external Monitor): Ø5.48 (4.2-10.3)

电池寿命

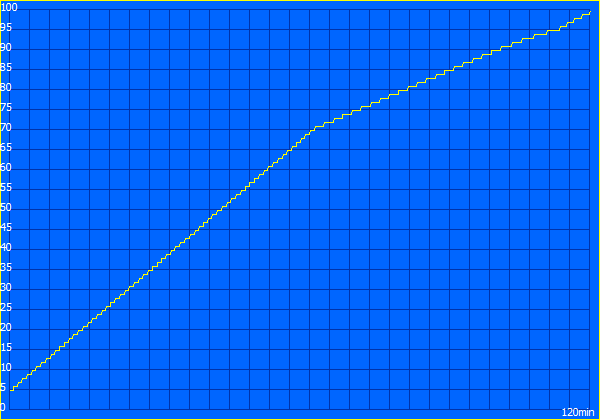

充电曲线
充电曲线

Vision 14 的电池续航能力非常出色,与前代产品相比,它的优化也非常明显。在 150 cd/m²(相当于最大亮度的 37%)的 WLAN 测试中,我们使用 99 Wh 的大容量电池记录了近 14 小时的续航时间。在全屏亮度下,这个时间仍然超过了 10 小时,这是一个显著的进步,只有 WQHD 版本的联想 Yoga 7 才有这样的表现。 联想 Yoga Pro 7 14才能跟上。在设备开启的情况下,充满电需要 2 个小时,而 70% 的电量只需不到 1 个小时即可恢复。

Battery Runtime
WiFi Websurfing (Edge 115)
13h 43min
WiFi Websurfing max. Brightness (Edge 115)
10h 05min
Battery Runtime
WiFi Websurfing
SCHENKER Vision 14 2023
i7-13700H, Iris Xe G7 96EUs, 99 Wh
823 min
Lenovo Yoga Pro 7 14ARP G8
R7 7735HS, Radeon 680M, 73 Wh
783 min -5%
Average of class Subnotebook
  (389 - 1585, n=64, last 2 years)
735 min -11%
LG Gram Style 14Z90RS-G.AD7AG
i7-1360P, Iris Xe G7 96EUs, 72 Wh
700 min -15%
SCHENKER Vision 14 2022 RTX 3050 Ti
i7-12700H, GeForce RTX 3050 Ti Laptop GPU, 99.8 Wh
607 min -26%
Asus ZenBook 14X UX3404VC
i9-13900H, Iris Xe G7 96EUs, 70 Wh
600 min -27%
Lenovo Yoga Pro 7 14IRH G8
i7-13700H, NVIDIA GeForce RTX 4050 Laptop GPU, 73 Wh
595 min -28%
Samsung Galaxy Book3 Pro 14
i7-1360P, Iris Xe G7 96EUs, 63 Wh
528 min -36%
WiFi Websurfing max. Brightness
SCHENKER Vision 14 2023
i7-13700H, Iris Xe G7 96EUs, 99 Wh
605 min
Lenovo Yoga Pro 7 14ARP G8
R7 7735HS, Radeon 680M, 73 Wh
595 min -2%
LG Gram Style 14Z90RS-G.AD7AG
i7-1360P, Iris Xe G7 96EUs, 72 Wh
504 min -17%
Average of class Subnotebook
  (297 - 855, n=40, last 2 years)
489 min -19%
SCHENKER Vision 14 2022 RTX 3050 Ti
i7-12700H, GeForce RTX 3050 Ti Laptop GPU, 99.8 Wh
479 min -21%
Lenovo Yoga Pro 7 14IRH G8
i7-13700H, NVIDIA GeForce RTX 4050 Laptop GPU, 73 Wh
433 min -28%

Pros

+ 轻便稳定的镁合金外壳
+ 超长电池寿命
+ 包括 TB4 在内的大量端口
+ 非常出色的 3K 面板,无 PWM
+ 两个内存插槽
+ 系统性能高
+ 全 SD 读卡器...

Cons

- ......变得缓慢
- 摇摇欲坠的铰链
- 无 Wi-Fi 6E
- 降低了短期负载的功率限制
- iGPU 变体风扇活动频繁

结论 - Vision 14 2023 以其强大的后劲令人信服

回顾全球国际货运代理 Vision 14 2023。测试设备由申克技术公司提供。
回顾全球国际货运代理 Vision 14 2023。测试设备由申克技术公司提供。

申克 Vision 14 的 2023 型号让人感觉非常熟悉。这款小巧的超极本近年来经历了多次变化,现在只有配备 99 Wh 大容量电池的基本型号,这也是早期型号的第二个 M.2 插槽不再可用的原因。现在的重量略低于 1.3 千克,显然已经脱离了 1 千克的型号。镁合金机身(可选银色或黑色)的质量依然令人印象深刻,维护选项也非常不错。只有铰链有些晃动,仍然是设计中的一个弱点。

与旧款 Alder Lake 处理器相比,新款 Raptor Lake 处理器的性能出人意料地略有下降,这是由于短期负载下的功率限制降低了。对于我们来说,这种下降是不可理解的,但整体性能仍然不错。在这个 40 瓦左右的性能级别中,目前的 AMD 处理器自然是更好的选择,而且还能提供更快的 iGPU,但目前还没有。90 Hz、3K 显示屏仍然不错,在日常生活中没有任何问题,但竞争品牌现在提供了许多 120 Hz 或 P3 显示屏的机型,因此申克需要尽快提升一个级别,以保持竞争力。

Schenker Vision 14 M23 配备了新的 Raptor Lake 处理器,如果选择 iGPU 变体,只能算是小幅升级。不过,它的整体性能还是不错的,电池续航能力有所提高,维护选项也不错,但日常工作中有些躁动的风扇可能会让人烦恼。

最大的优势当然是超长的电池续航时间,这不仅得益于 99 Wh 的电池,还得益于优化的功耗。即使在全屏亮度下,我们的 WLAN 测试也能运行 10 多个小时,而在调整亮度下,13-14 个小时也很容易实现。几乎所有竞争对手在这方面都明显处于劣势。事实上,iGPU 版本还配备了 130 瓦的大功率电源,这是没有必要的;更紧凑的 90 瓦型号就足够了。

不过,Vision 14 1549 欧元的基本售价并不便宜,这个价位的竞争产品很多。非常不错的 联想 Yoga Pro 7配备 AMD 处理器和 90 Hz 显示屏,售价约为 1,100 欧元(联想美国公司售价为 1050 美元),而配备酷睿 i7 处理器、Intel® Core™ 处理器、Intel® Radeon™ 处理器和 Intel® Core™ 处理器的 配备酷睿 i7 处理器、RTX 4050和 120 Hz 3K 显示屏的变体售价约为 1,700 欧元,显然比 Vision 14 的 dGPU 变体便宜。

Download your licensed rating image as SVG / PNG

价格和供应情况

Schenker Vision 14 2023 的起始配置价格为 1549 欧元。.该价格仅适用于欧洲客户;有兴趣的买家应仔细检查(通过价格下方的"含税不含运费"链接)是否可以将货物运至其所在国家,以及可能产生的费用。

SCHENKER Vision 14 2023 - 10/13/2023 v7 (old)
Andreas Osthoff

Chassis
88 / 98 → 89%
Keyboard
87%
Pointing Device
98%
Connectivity
66 / 75 → 88%
Weight
72 / 20-75 → 94%
Battery
90%
Display
92%
Games Performance
69 / 78 → 89%
Application Performance
96 / 85 → 100%
Temperature
91%
Noise
77%
Audio
84 / 91 → 92%
Camera
37 / 85 → 44%
Average
80%
89%
Subnotebook - Weighted Average

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Price comparison

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 评测 > 申克 Vision 14 2023 评测:电池续航时间超长的镁合金超极本
Andreas Osthoff, 2023-10-14 (Update: 2023-10-14)
