华硕VivoBook 15X OLED M3504笔记本电脑评论:具备AMD Ryzen Barcelo-R和OLED的强大日常驱动力

禅宗的3-信仰。

华硕VivoBook 15X OLED M3504搭载了AMD Barcelo-R Ryzen 5 7530U APU,这是2021年Zen 3 Cezanne架构的重新刷新。尽管如此,VivoBook 15X继续依靠该系列的成功公式:充分的性能和OLED显示屏,不会在钱包上打洞。
Laptop / Notebook AMD Cezanne (Zen 3)

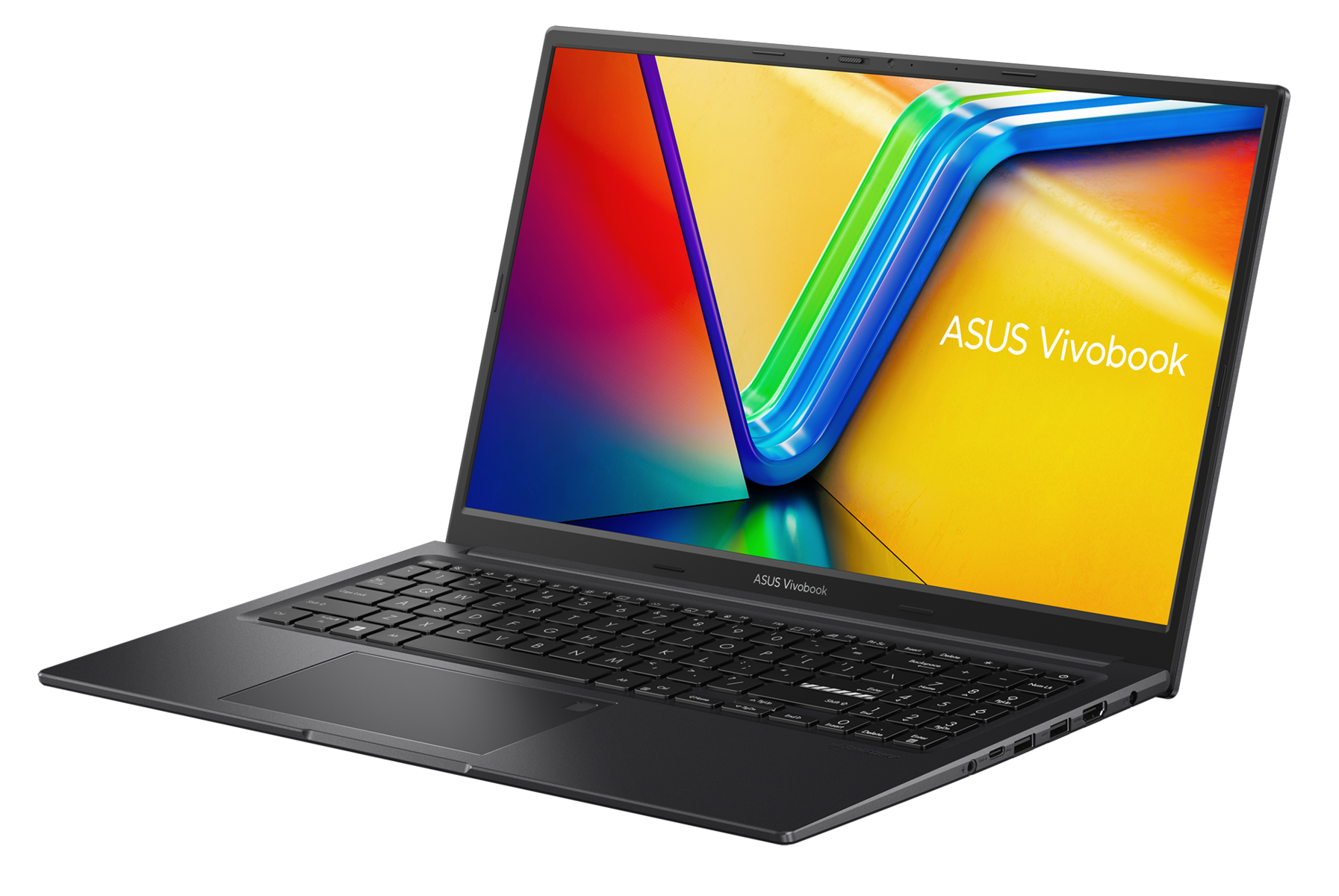

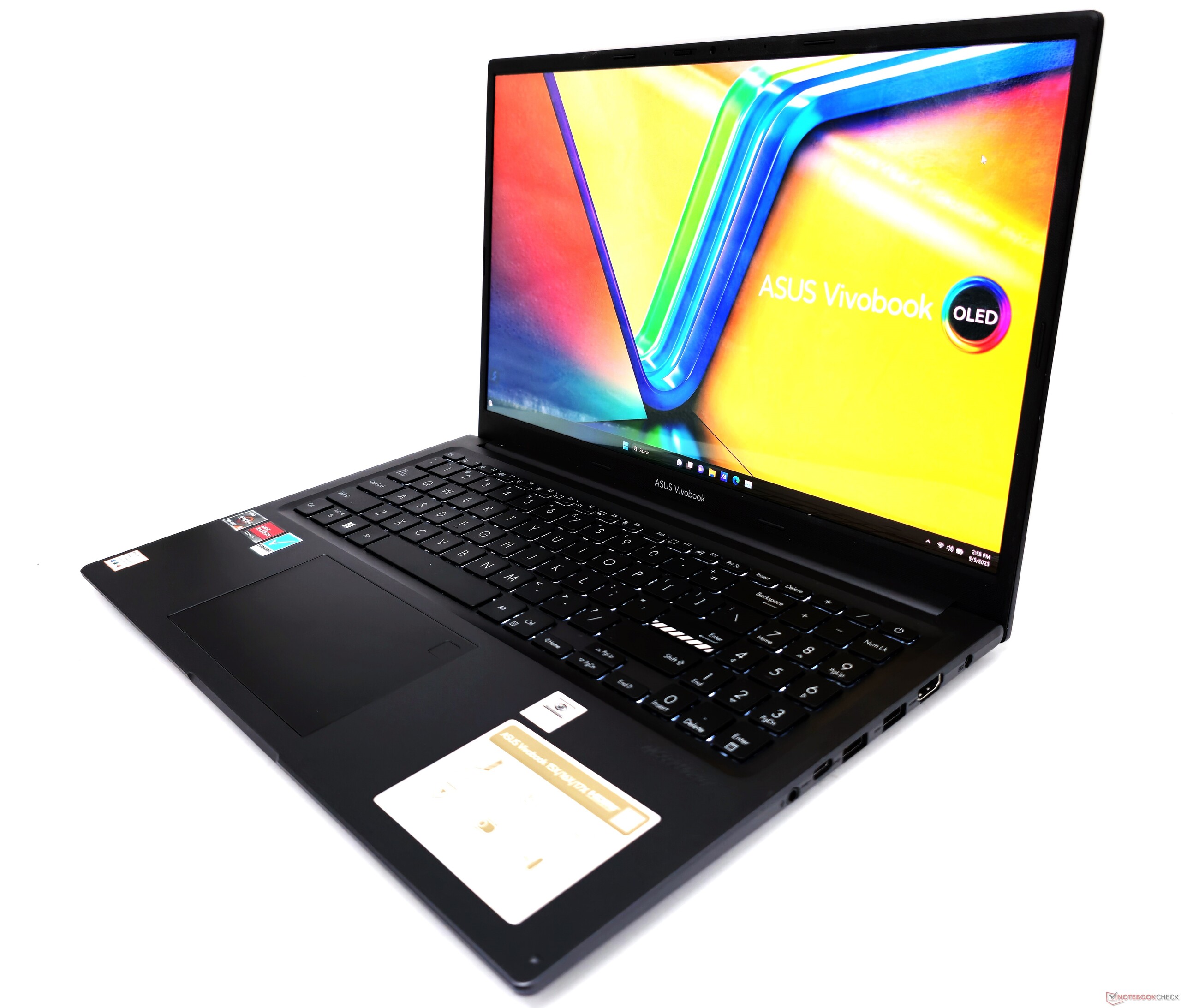

华硕VivoBook 15X OLED

VivoBook系列面向那些寻找实惠的多媒体和生产力解决方案的人。多年来,华硕逐步改进了其日常驱动的VivoBook系列,现在该组合的大部分产品都采用了OLED面板。然而,今年的VivoBook的产品看到的更多是迭代而非创新。

在此之前, vivoBook 15X采用了H系列芯片,如 AMD Ryzen 5 5600H.今年,华硕提供的几款VivoBook 15X笔记本电脑采用了英特尔13代锐龙-P和AMD Ryzen 7030U处理器,而英特尔13代H45处理器只提供给VivoBook 14X和VivoBook 16X系列。

我们现在有了新的华硕VivoBook 15X M3504。这款笔记本电脑由一个 AMD Barcelo-R Ryzen 5 7530U处理器,集成了 Radeon RX Vega 7图形。

我们的VivoBook 15X单元还具有15.6英寸1080p 60 Hz三星OLED面板, 16 GB DDR4-3200内存, 512 GB SSD, Wi-Fi 6E, 和50 WHr电池。目前,这一配置在印度的折扣价为66,990英镑(813美元)。配备英特尔Alder Lake-P的VivoBook 15X K3504变体也可以从79,990起售。

在这篇评论中,我们对新的VivoBook 15X OLED进行了测试,看看两年前的Cezanne Zen 3架构的重新刷新在2023年的表现如何。

Asus VivoBook 15X OLED M3504YA
Processor

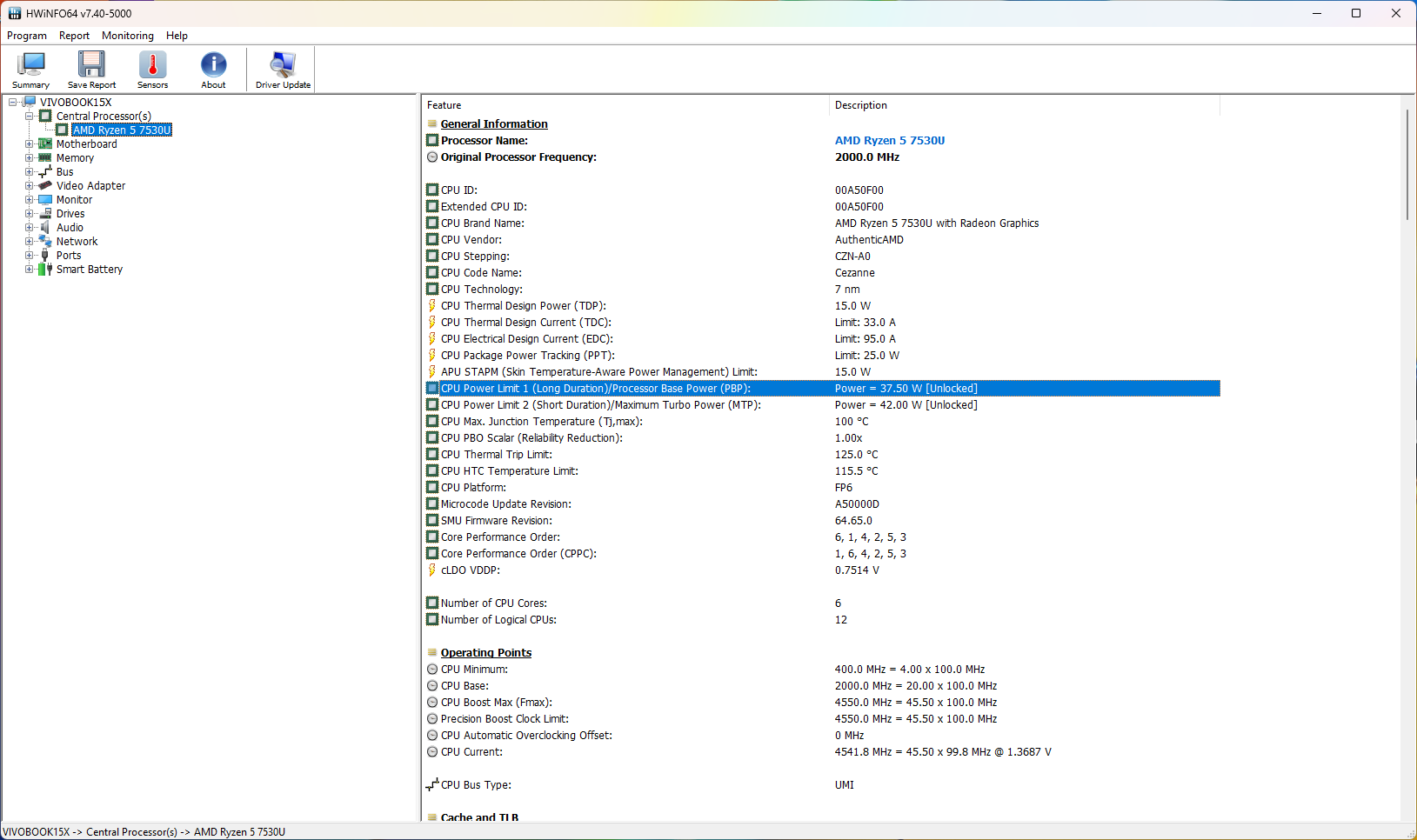

AMD Ryzen 5 7530U 6 x 2 - 4.5 GHz, 42 W PL2 / Short Burst, 37.5 W PL1 / Sustained, Barcelo-U Refresh
Graphics adapter
AMD Radeon RX Vega 7, AMD Adrenalin 22.20.44.37-230215a-388528C-Asus

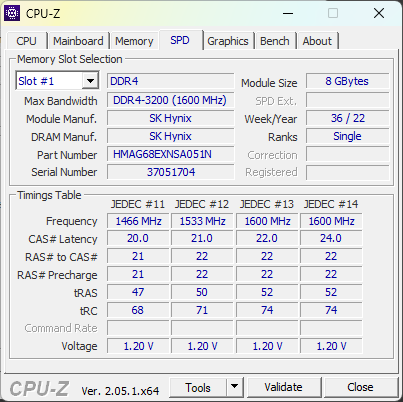

Memory
16 GB

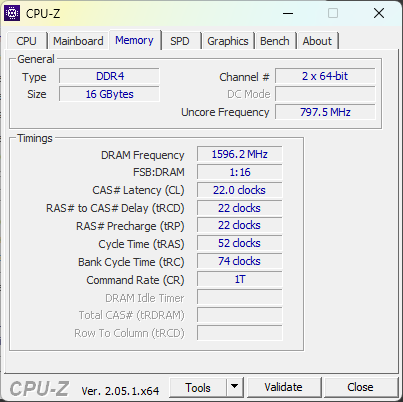

, 8 GB Soldered + 8 GB SO-DIMM DDR4-3200 Timings: 22-22-22-52
Display
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, Samsung ATNA56YX03-0, OLED, VESA-Certified Display HDR True Black 600, glossy: yes, HDR, 60 Hz
Mainboard
AMD Promontory/Bixby FCH
Storage
Micron 2400 MTFDKBA512QFM, 512 GB
, 428 GB free
Soundcard
AMD Zen - Audio Processor - HD Audio Controller
Connections
1 USB 2.0, 3 USB 3.0 / 3.1 Gen1, USB-C Power Delivery (PD), 1 HDMI, Audio Connections: 3.5 mm Combo Audio Jack, 1 Fingerprint Reader
Networking
MediaTek Wi-Fi 6E MT7902 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.3
Size
height x width x depth (in mm): 17.9 x 359.7 x 232
Battery
50 Wh Lithium-Ion, 3S1P, 3-cell
Charging
fast charging / Quickcharge
Operating System
Microsoft Windows 11 Home
Camera
Webcam: 720p HD 3DNR, Privacy Shutter
Primary Camera: 0.9 MPix
Additional features
Speakers: Stereo Speakers, DTS Audio Processing, Keyboard: Chiclet, Keyboard Light: yes, MyAsus, 12 Months Warranty
Weight
1.7 kg
Price
750 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



潜在的竞争对手比较

Rating
Date
Model
Weight
Height
Size
Resolution
Price
82.8 %
v7 (old)
06 / 2023
Asus VivoBook 15X OLED M3504YA
R5 7530U, Vega 7
1.7 kg17.9 mm15.60"1920x1080
80.7 %
v7 (old)
04 / 2023
Lenovo IdeaPad Flex 5 16ABR G8
R7 7730U, Vega 8
2 kg18.7 mm16.00"1920x1200
88 %
v7 (old)
03 / 2023
Lenovo Yoga 6 13 83B2001SGE
R7 7730U, Vega 8
1.4 kg18.6 mm13.30"1920x1200
88.6 %
v7 (old)
08 / 2023
Lenovo ThinkPad L14 G4 21H6S00900
R5 7530U, Vega 7
1.5 kg19.83 mm14.00"1920x1080
88.5 %
v7 (old)
06 / 2021
Asus ZenBook 13 UM325S
R7 5800U, Vega 8
1.2 kg13.9 mm13.30"1920x1080
80.5 %
v7 (old)
11 / 2021
Asus VivoBook 15 KM513UA-L503TS
R5 5500U, Vega 7
1.8 kg18.6 mm15.60"1920x1080
82.1 %
v7 (old)
02 / 2023
Lenovo IdeaPad 3 15ABA7
R5 5625U, Vega 7
1.6 kg19.9 mm15.60"1920x1080
80.7 %
v7 (old)
06 / 2023
Samsung Galaxy Book3 15, Core i5-1335U
i5-1335U, Iris Xe G7 80EUs
1.5 kg15.4 mm15.60"1920x1080
83.1 %
v7 (old)
02 / 2023
Asus VivoBook 15 X M1503QA
R5 5600H, Vega 7
1.7 kg19.9 mm15.60"1920x1080

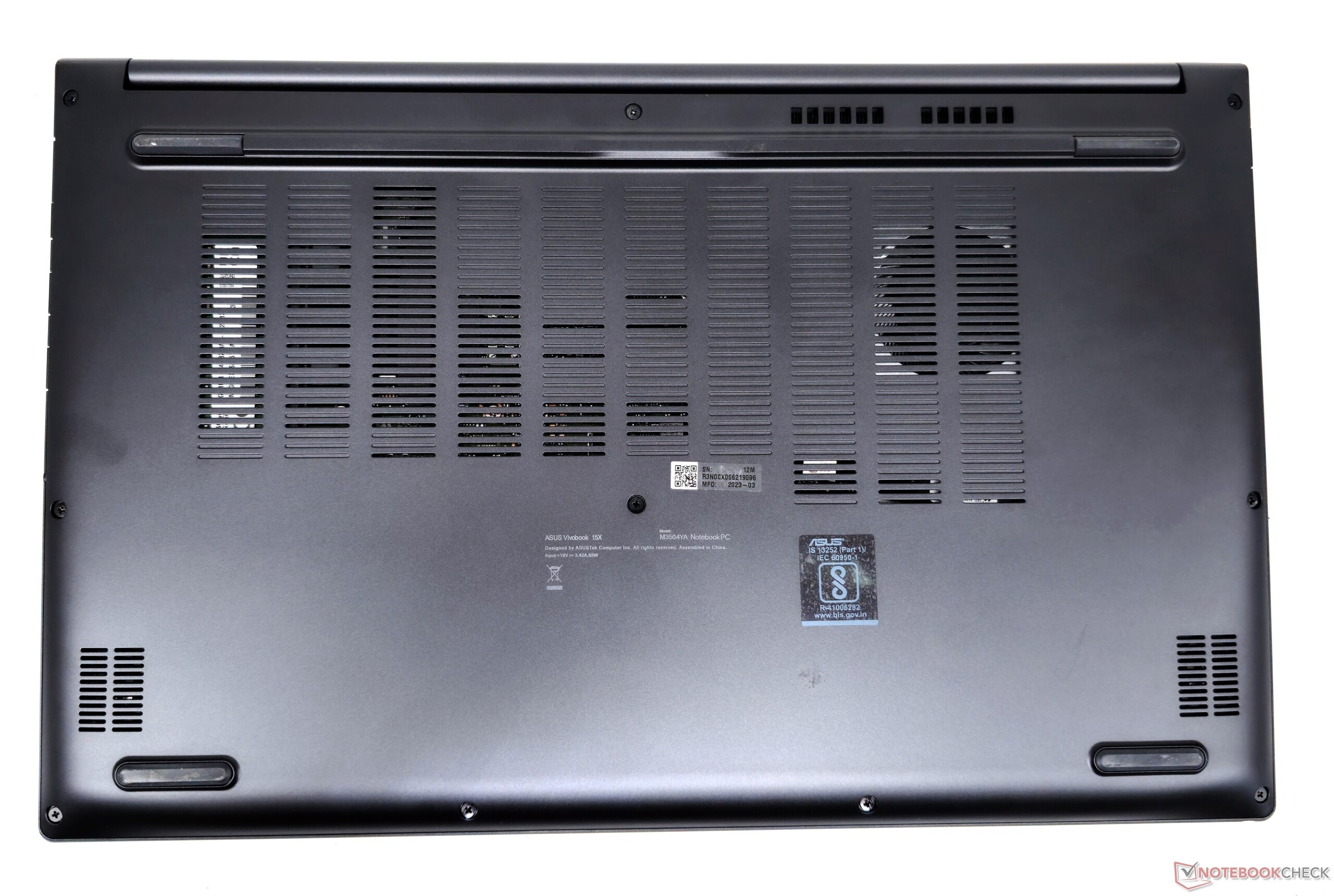

外壳:轻质塑料底盘,有一定的弯曲度

华硕为VivoBook 15X提供酷银色和独立黑色两种颜色选择。新的VivoBook 15X M3504感觉与我们之前测试的VivoBook相似。其结构主要是塑料,只有金属盖子例外,该盖子上有独特的VivoBook标志,可以以180°角平放。

1.7公斤的机身重量分布均匀,给人以轻盈的感觉。盖子可以用一根手指打开。然而,在压力下,键盘和显示屏有明显的弯曲。

华硕还声称在机箱经常接触的地方加入了抗菌卫士技术 ,据称在24小时内可以抑制99%的细菌生长,符合ISO 22196标准。

尺寸比较

359.2 mm 236.5 mm 19.9 mm 1.6 kg359.8 mm 235.3 mm 18.6 mm 1.8 kg359.7 mm 232 mm 17.9 mm 1.7 kg356.8 mm 227.6 mm 19.9 mm 1.7 kg357.8 mm 253.9 mm 18.7 mm 2 kg356.6 mm 229.1 mm 15.4 mm 1.5 kg325.4 mm 217 mm 19.83 mm 1.5 kg301 mm 218 mm 18.6 mm 1.4 kg304 mm 203 mm 13.9 mm 1.2 kg297 mm 210 mm 1 mm 5.7 g

连接性:不是一个非常理想的端口分布

大多数端口都在右侧边缘,只有一个USB 2.0 Type-A端口在左侧。这些端口的间距很均匀,但大部分端口都在一侧,在连接外部外设时可能很不方便。

唯一的USB 3.2 Gen1 Type-C端口可以实现Power Delivery,但不能实现DisplayPort输出。HDMI 1.4规格将外部显示器输出限制在4K 30 Hz。

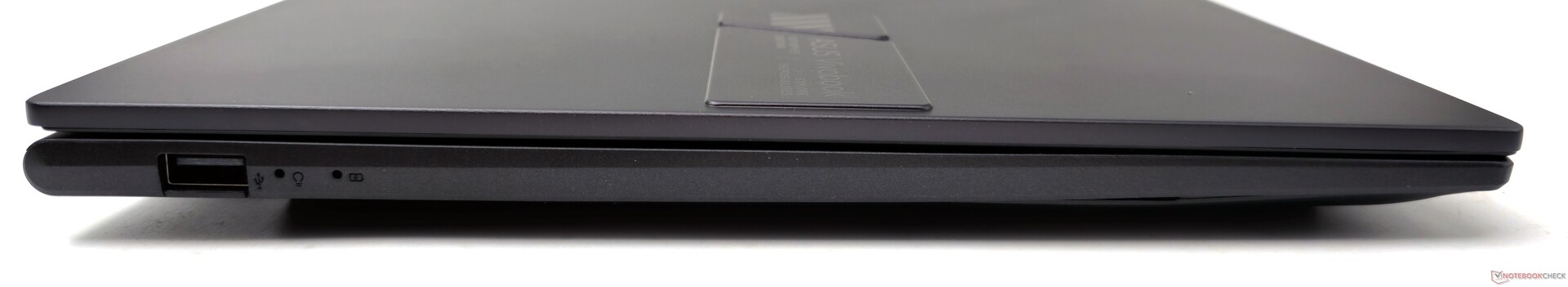

左边:USB 2.0 Type-A
左边:USB 2.0 Type-A

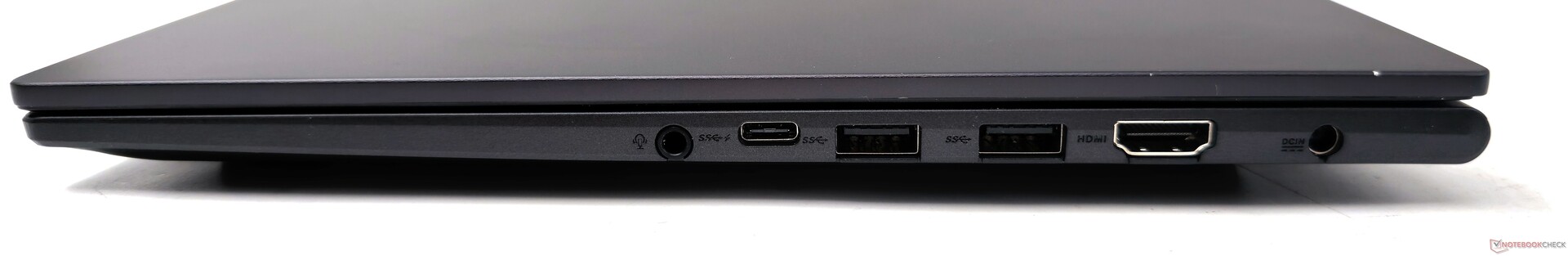

右边:3.5毫米组合音频插孔,带PD的USB 3.2 Gen1 Type-C,2个USB 3.2 Gen1 Type-A,HDMI 1.4输出,DC输入
右边:3.5毫米组合音频插孔,带PD的USB 3.2 Gen1 Type-C,2个USB 3.2 Gen1 Type-A,HDMI 1.4输出,DC输入

沟通

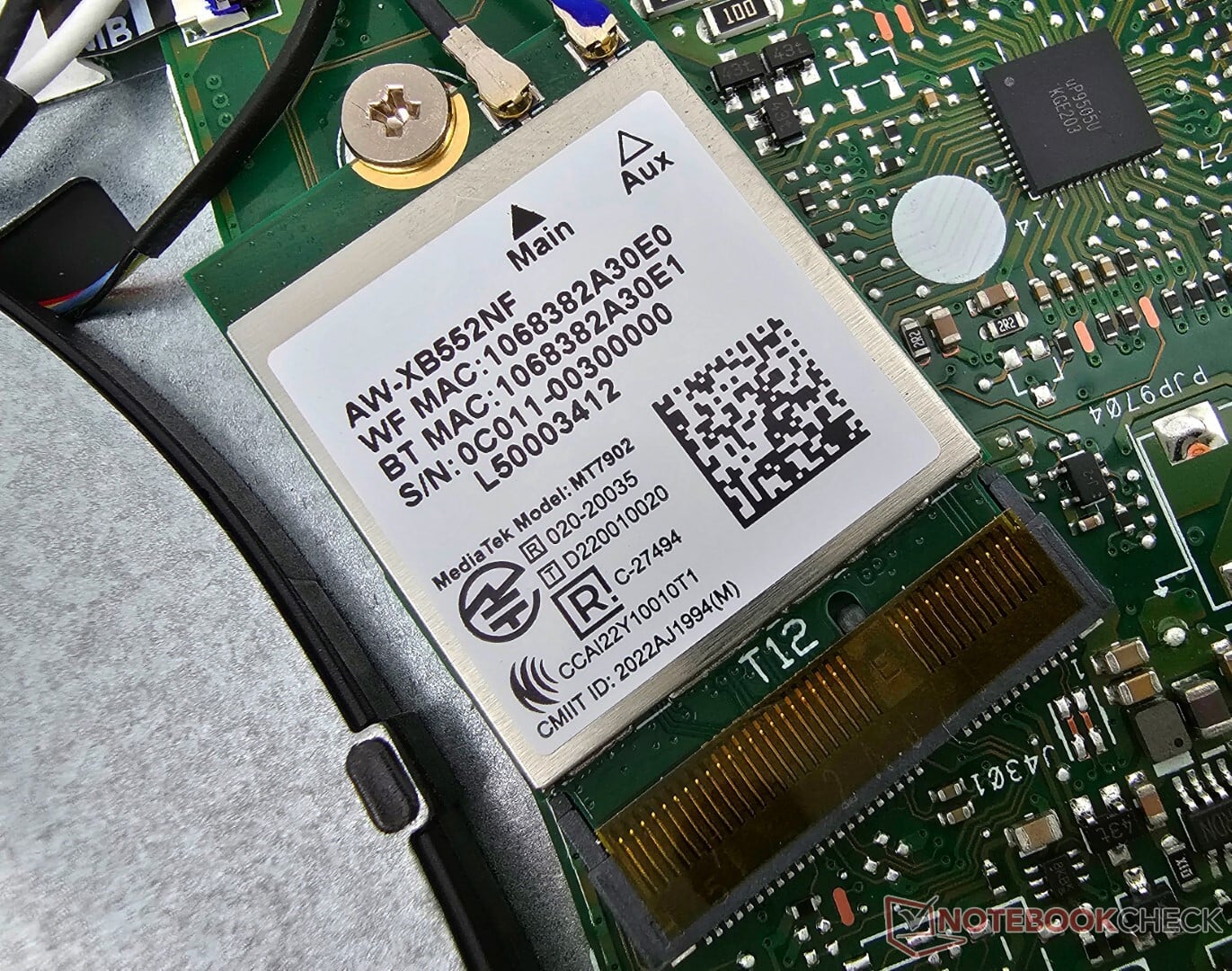

MT7902 WLAN卡的速度不是特别快
MT7902 WLAN卡的速度不是特别快

VivoBook 15X中的联发科MT7902 WLAN卡支持Wi-Fi 6E接收。 然而,性能虽然良好,但在与我们的参考华硕ROG Rapture GT-AXE11000路由器测试时,明显低于英特尔Wi-Fi 6 AX201卡。

总体吞吐量在5GHz和6GHz频段之间没有明显差异,尽管后者确实可以获得稍高的峰值速度。

Networking / iperf3 transmit AXE11000
Samsung Galaxy Book3 15, Core i5-1335U
Intel Wi-Fi 6 AX201
1649 (1353min - 1700max) MBit/s +75%
Average of class Multimedia
  (358 - 1921, n=78, last 2 years)
1359 MBit/s +45%
Average MediaTek Wi-Fi 6E MT7902
  (940 - 989, n=2)
965 MBit/s +3%
Lenovo Yoga 6 13 83B2001SGE
MediaTek MT7921
940 (733min - 1062max) MBit/s 0%
Asus VivoBook 15X OLED M3504YA
MediaTek Wi-Fi 6E MT7902
940 (768min - 1000max) MBit/s
Lenovo IdeaPad Flex 5 16ABR G8
Realtek RTL8852BE
913 (884min - 946max) MBit/s -3%
Lenovo IdeaPad 3 15ABA7
Realtek RTL8852BE
904 (845min - 939max) MBit/s -4%
Asus VivoBook 15 X M1503QA
MediaTek MT7921
851 (795min - 887max) MBit/s -9%
Lenovo ThinkPad L14 G4 21H6S00900
MediaTek RZ616
783 (529min - 1434max) MBit/s -17%
Networking / iperf3 receive AXE11000
Samsung Galaxy Book3 15, Core i5-1335U
Intel Wi-Fi 6 AX201
1720 (1676min - 1738max) MBit/s +86%
Lenovo ThinkPad L14 G4 21H6S00900
MediaTek RZ616
1660 (1594min - 1748max) MBit/s +80%
Average of class Multimedia
  (709 - 1789, n=77, last 2 years)
1447 MBit/s +57%
Lenovo IdeaPad Flex 5 16ABR G8
Realtek RTL8852BE
955 (935min - 969max) MBit/s +3%
Average MediaTek Wi-Fi 6E MT7902
  (924 - 952, n=2)
938 MBit/s +2%
Lenovo IdeaPad 3 15ABA7
Realtek RTL8852BE
934 (884min - 959max) MBit/s +1%
Asus VivoBook 15X OLED M3504YA
MediaTek Wi-Fi 6E MT7902
924 (847min - 937max) MBit/s
Lenovo Yoga 6 13 83B2001SGE
MediaTek MT7921
919 (908min - 927max) MBit/s -1%
Asus VivoBook 15 X M1503QA
MediaTek MT7921
716 (544min - 878max) MBit/s -23%
Networking / iperf3 transmit AXE11000 6GHz
Average of class Multimedia
  (705 - 1816, n=37, last 2 years)
1416 MBit/s +48%
Average MediaTek Wi-Fi 6E MT7902
  (960 - 1016, n=2)
988 MBit/s +3%
Lenovo ThinkPad L14 G4 21H6S00900
MediaTek RZ616
960 (629min - 1568max) MBit/s 0%
Asus VivoBook 15X OLED M3504YA
MediaTek Wi-Fi 6E MT7902
960 (760min - 1034max) MBit/s
Networking / iperf3 receive AXE11000 6GHz
Lenovo ThinkPad L14 G4 21H6S00900
MediaTek RZ616
1735 (1685min - 1761max) MBit/s +76%
Average of class Multimedia
  (700 - 1807, n=37, last 2 years)
1494 MBit/s +51%
Average MediaTek Wi-Fi 6E MT7902
  (987 - 1011, n=2)
999 MBit/s +1%
Asus VivoBook 15X OLED M3504YA
MediaTek Wi-Fi 6E MT7902
987 (496min - 1000max) MBit/s
0501001502002503003504004505005506006507007508008509009501000Tooltip
Asus VivoBook 15X OLED M3504YA MediaTek Wi-Fi 6E MT7902; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø960 (760-1034)
Asus VivoBook 15X OLED M3504YA MediaTek Wi-Fi 6E MT7902; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø970 (496-1000)

网络摄像头

华硕为VivoBook 15X配备了一个720p网络摄像头。据该公司称,该网络摄像头通过MyAsus应用程序提供3D降噪和AI效果。

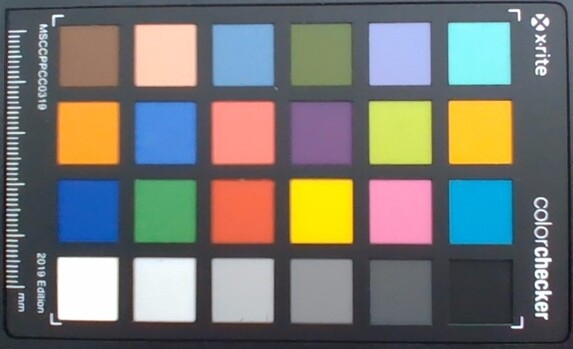

尽管如此,该摄像头显示出较大的颜色偏差,特别是在X-Rite ColorChecker护照中的红色阴影。测试图的输出似乎也相当嘈杂。

话虽如此,网络摄像头应该仍然足以应付偶尔的视频通话。为了保护隐私,还提供了一个物理网络摄像头快门。

ColorChecker
15.5 ∆E
16 ∆E
17.8 ∆E
15.2 ∆E
18.9 ∆E
17.2 ∆E
14 ∆E
20.3 ∆E
19.8 ∆E
14.9 ∆E
11.5 ∆E
12.2 ∆E
12.3 ∆E
8 ∆E
23.4 ∆E
9.2 ∆E
21 ∆E
14.6 ∆E
2.3 ∆E
10.1 ∆E
10.6 ∆E
11.4 ∆E
8.6 ∆E
2.8 ∆E
ColorChecker Asus VivoBook 15X OLED M3504YA: 13.65 ∆E min: 2.33 - max: 23.41 ∆E

安全问题

VivoBook 15X OLED缺乏红外摄像头,但它在触摸板的右上角有一个快速、反应灵敏的指纹识别器。 还提供了TPM 2.0模块。

配件和保修

除了65W的电源适配器和通常的文书工作外,盒子里没有其他配件。

华硕在印度为VivoBook 15X OLED提供了一年的标准保修。作为"回到大学 "促销活动的一部分,购买者目前可以享受保修期延长和当地意外损坏保护的折扣优惠。到2023年6月30日。

维护

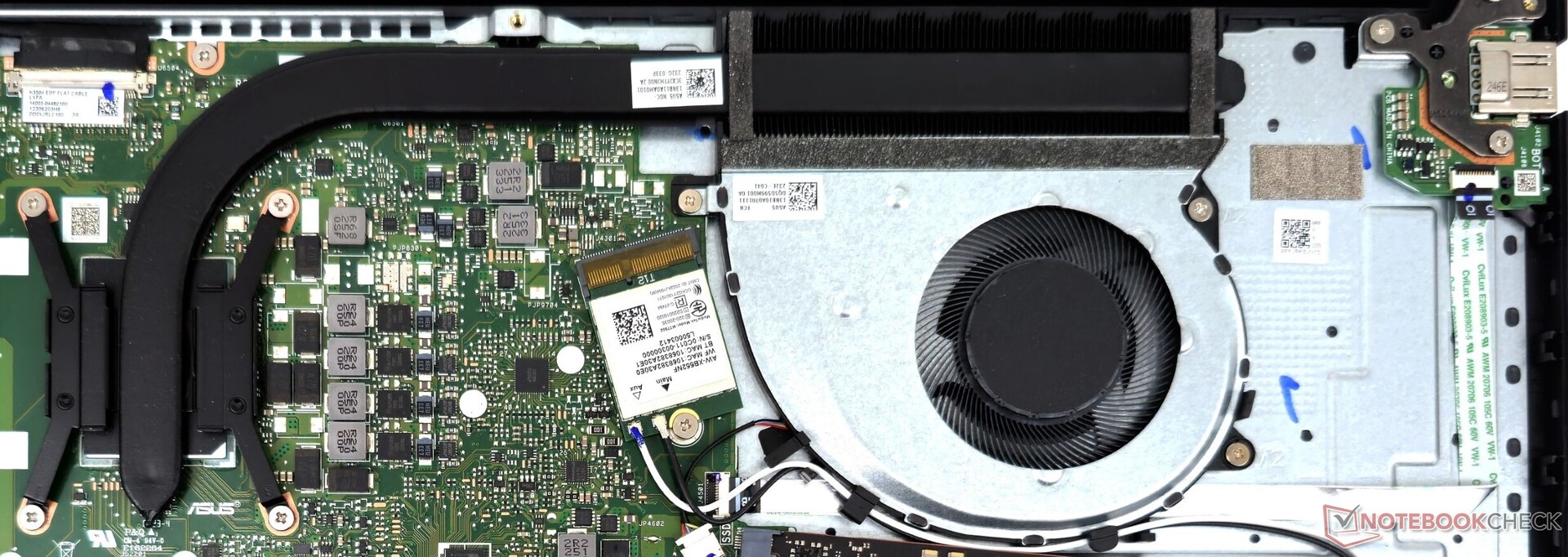

拧开10个PH0螺丝,就可以把背板拆下来。记下哪颗螺丝的位置,因为以后要正确装回去可能会很困难。

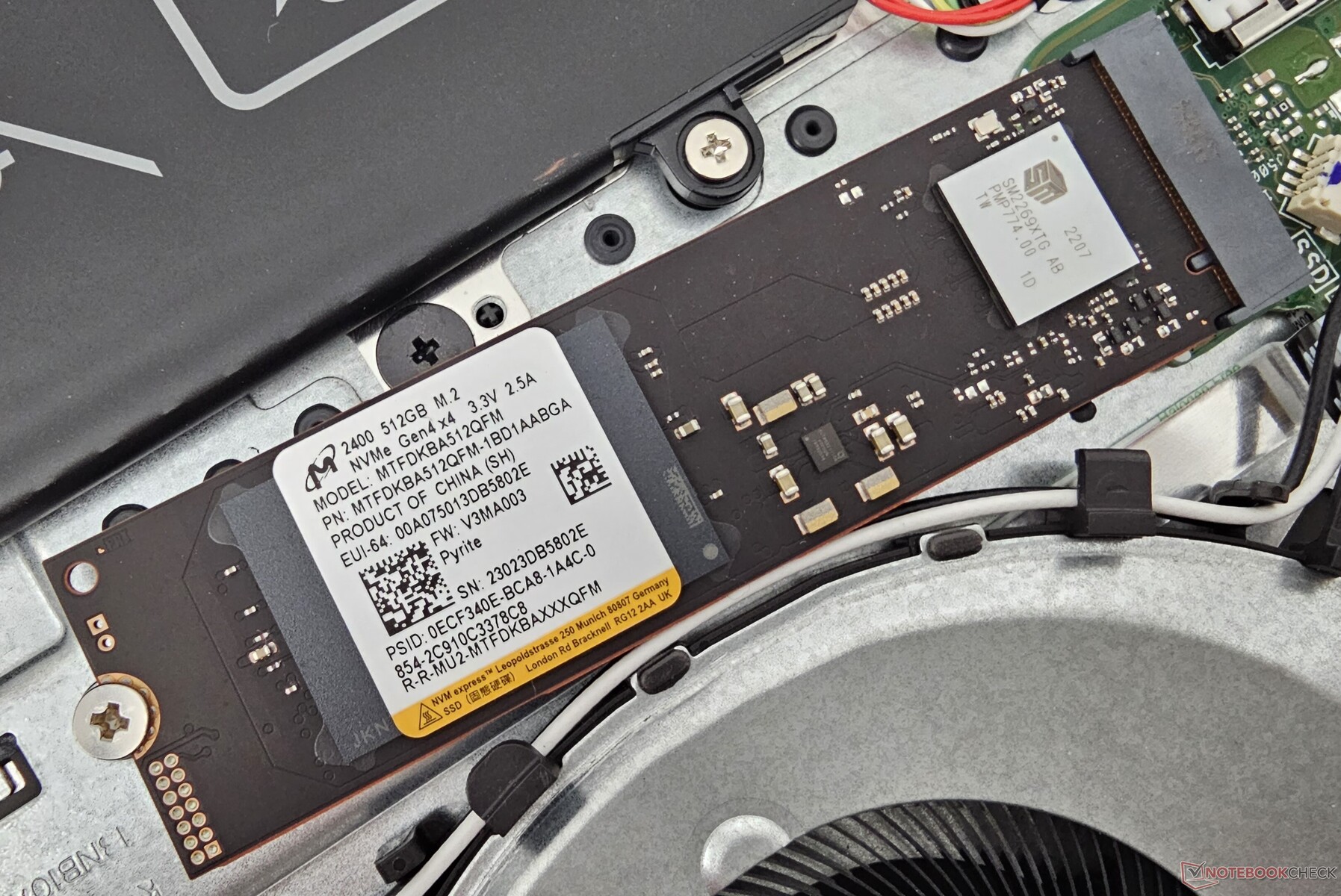

由于8GB内存被焊接在主板上,所以只有一个SO-DIMM插座用于内存扩展到16GB。WLAN卡和NVMe SSD是可以更换的,如果有必要,可以拧开电池进行更换。

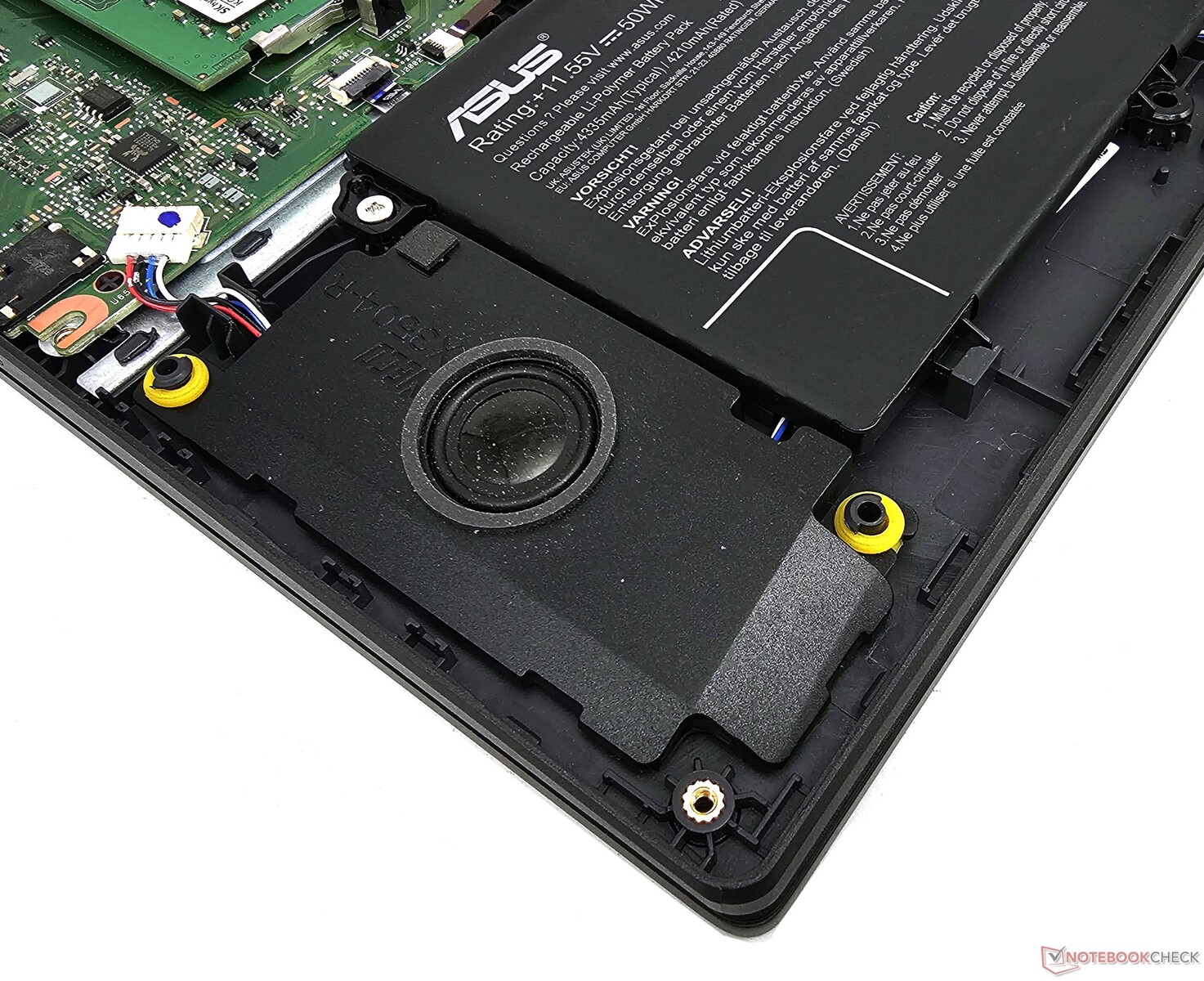

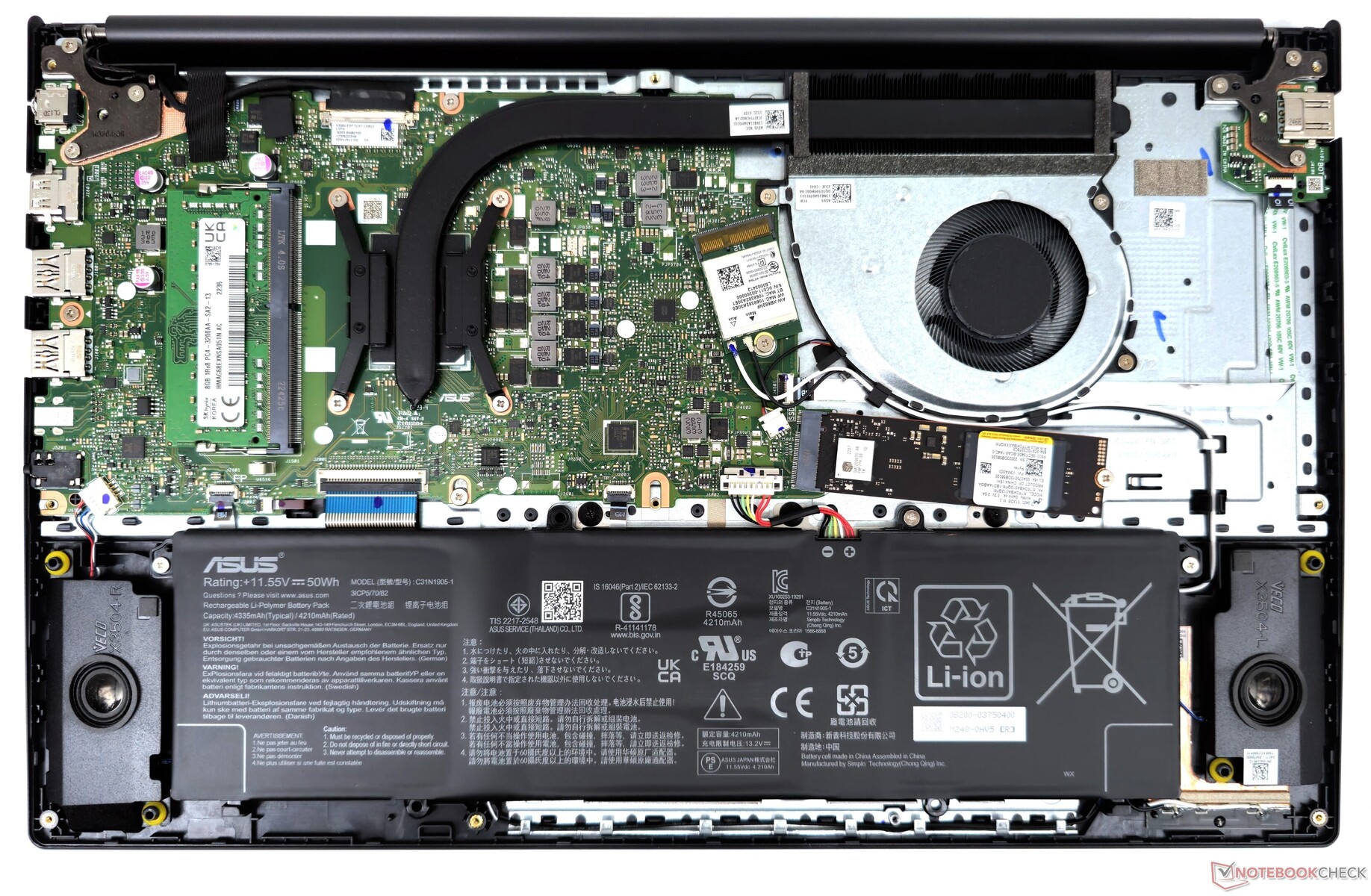

华硕VivoBook 15X OLED M3504YA:内部情况
华硕VivoBook 15X OLED M3504YA:内部情况

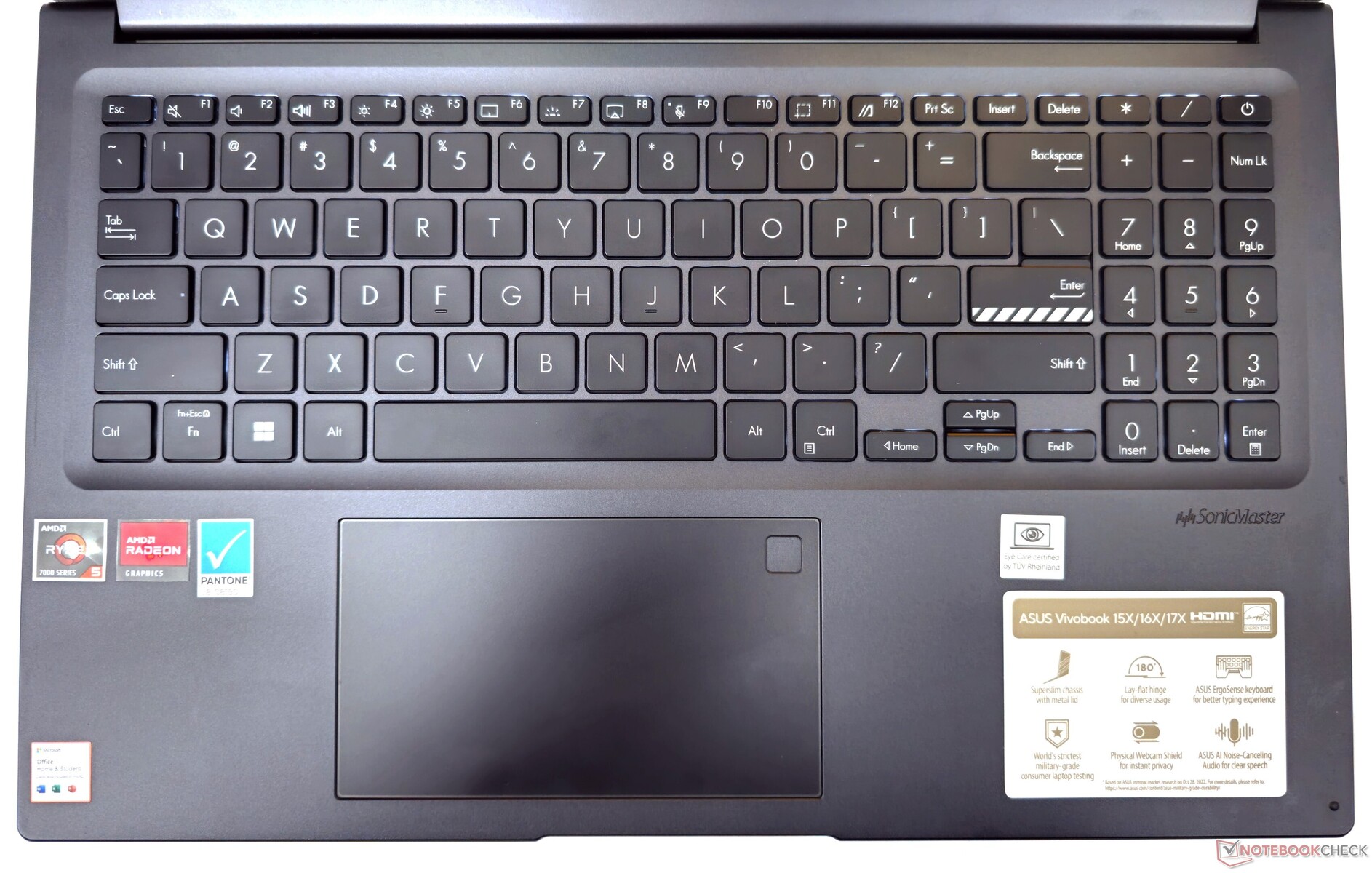

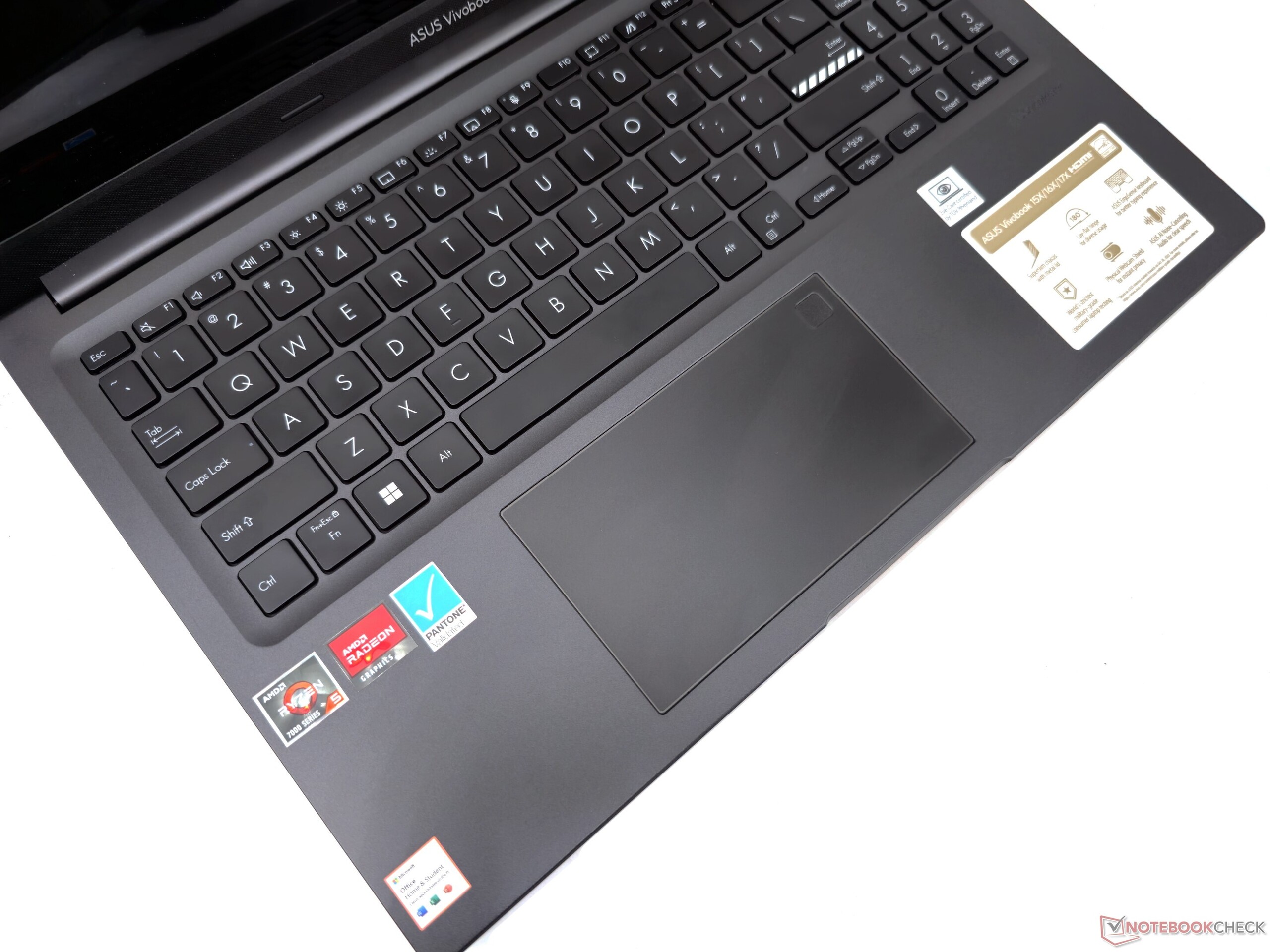

输入设备:全尺寸键盘和宽敞的触摸板,触感良好

键盘

VivoBook 15X上的全尺寸ErgoSense键盘具有均匀的间距,盘状的按键,行程为1.4毫米,提供良好的触觉反馈。回车键以其独特的VivoBook设计从其他按键中脱颖而出。

最上面一排包含功能键,也可以作为关键功能的快捷键。相机不能从这里关闭;但是,麦克风可以被消音。三段式背光提供了白色照明,以便在夜间也能看清。

触摸板

9.5厘米×17厘米的触摸板有一个光滑、反应灵敏的滑行表面,并支持WindowsPrecision 手势。

整个表面的功能就像一个鼠标左键。点击相对不费力,产生的噪音很小。

VivoBook 15X提供了一个体面的打字和导航体验
VivoBook 15X提供了一个体面的打字和导航体验

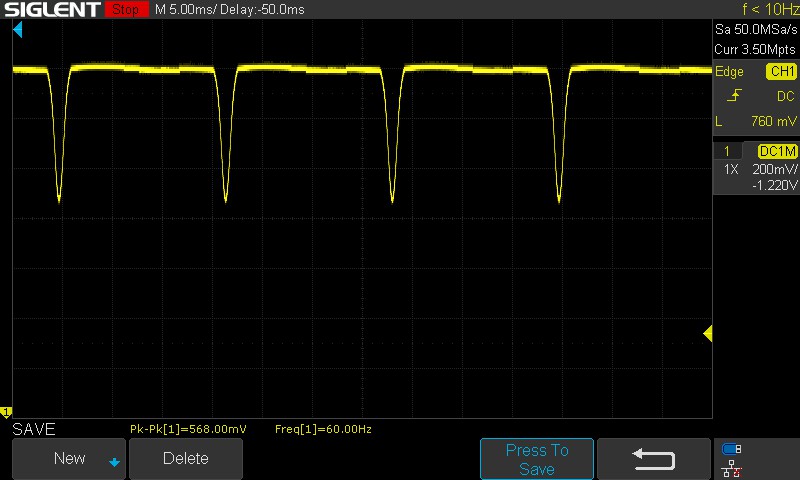

显示:充满活力的60赫兹OLED,具有直流调光功能

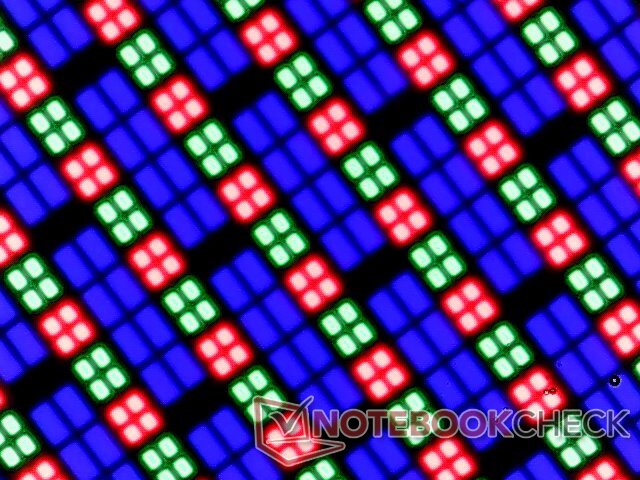

子像素矩阵
子像素矩阵

VivoBook 15X具有相同的三星ATNA56YX03 OLED面板作为 VivoBook 15 KM513, VivoBook 15 ProZenBook Pro 15.因此,这些笔记本电脑的面板特性基本上是一致的。由于这是一块OLED面板,所以没有背光渗漏。

亮度分布很好,为97%,对比度几乎为无限大。与前述型号相比,SDR峰值亮度似乎略低,但对于大多数应用来说,它仍然足够。该显示器还支持VESA DisplayHDR 600,用于HDR内容。

387
cd/m²
380
cd/m²
379
cd/m²
380
cd/m²
378
cd/m²
380
cd/m²
378
cd/m²
379
cd/m²
389
cd/m²
Distribution of brightness
Samsung ATNA56YX03-0 tested with X-Rite i1Basic Pro 3
Maximum: 389 cd/m² (Nits) Average: 381.1 cd/m² Minimum: 4.9 cd/m²
Brightness Distribution: 97 %
Center on Battery: 378 cd/m²
Contrast: ∞:1 (Black: 0 cd/m²)
ΔE Color 2.91 | 0.5-29.43 Ø4.92, calibrated: 2.08
ΔE Greyscale 3.1 | 0.5-98 Ø5.2
96.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
99.9% sRGB (Argyll 2.2.0 3D)
99.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.14
Asus VivoBook 15X OLED M3504YA
Samsung ATNA56YX03-0, OLED, 1920x1080, 15.6"
Lenovo IdeaPad Flex 5 16ABR G8
LEN160WUXGA, IPS, 1920x1200, 16"
Asus VivoBook 15 KM513UA-L503TS
Samsung ATNA56YX03-0, OLED, 1920x1080, 15.6"
Samsung Galaxy Book3 15, Core i5-1335U
BOE 18 NE156FHM-NS0, IPS, 1920x1080, 15.6"
Asus VivoBook 15 X M1503QA
Samsung ATNA56YX03-0, OLED, 1920x1080, 15.6"
Lenovo IdeaPad 3 15ABA7
Lenovo LEN156FHD, IPS, 1920x1080, 15.6"
Display
-53%
0%
-49%
-2%
-55%
Display P3 Coverage
99.7
40
-60%
99.9
0%
43.17
-57%
99.6
0%
38.2
-62%
sRGB Coverage
99.9
57.6
-42%
100
0%
65.03
-35%
99.9
0%
57.3
-43%
AdobeRGB 1998 Coverage
96.3
41.3
-57%
96.7
0%
44.6
-54%
89.7
-7%
39.5
-59%
Response Times
-295%
56%
-136%
50%
-214%

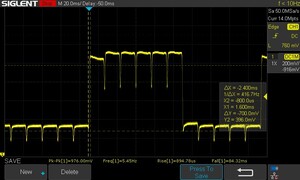

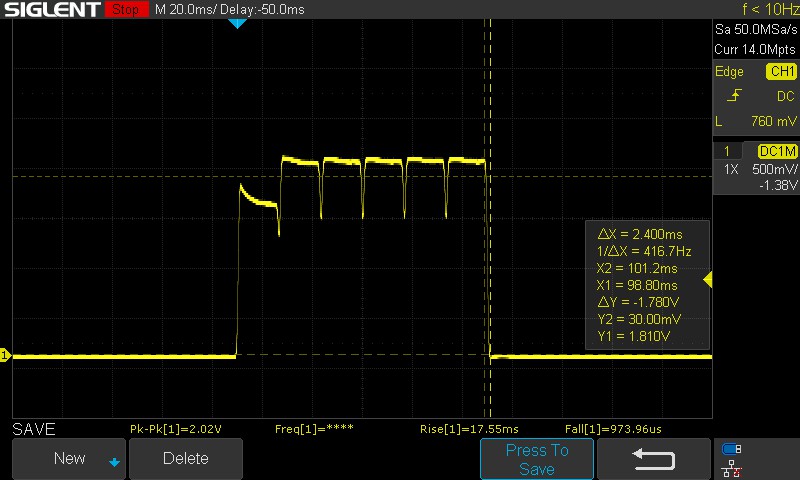

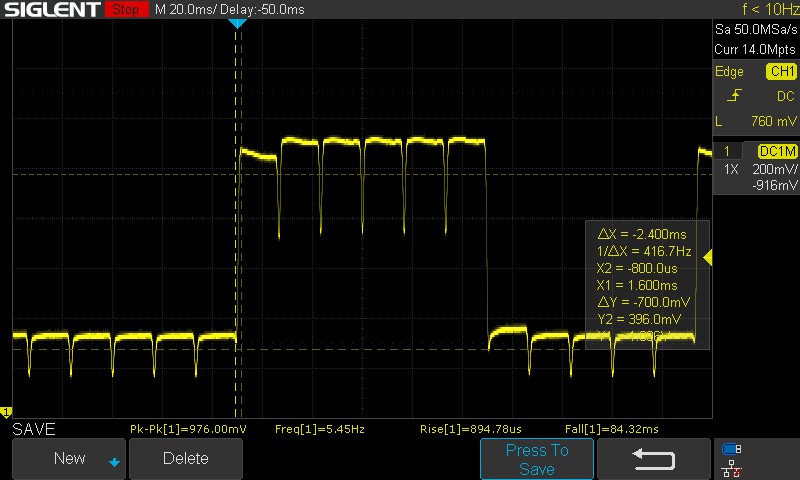

Response Time Grey 50% / Grey 80% *
4.8 ?(2.4, 2.4)
33 ?(15.9, 17.1)
-588%
0.89 ?(0.86, 0.03)
81%
20 ?(3, 17)
-317%
1.8 ?(0.92, 0.88)
62%
27 ?(5, 22)
-463%

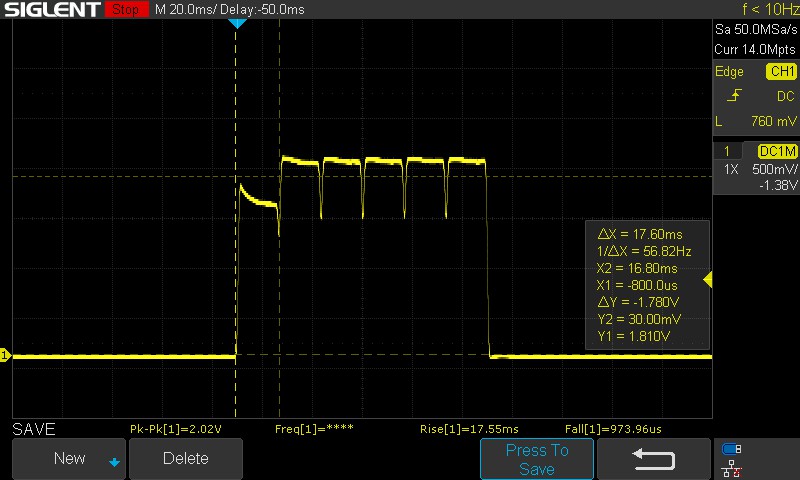

Response Time Black / White *
20 ?(17.6, 2.4)
20.2 ?(10, 10.2)
-1%
2.31 ?(1.39, 0.92)
88%
11 ?(2, 9)
45%
2.2 ?(0.96, 1.2)
89%
13 ?(3, 10)
35%

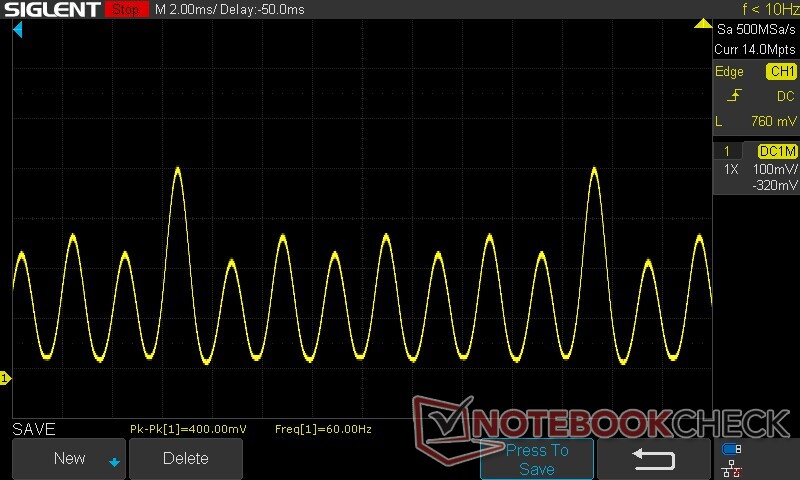

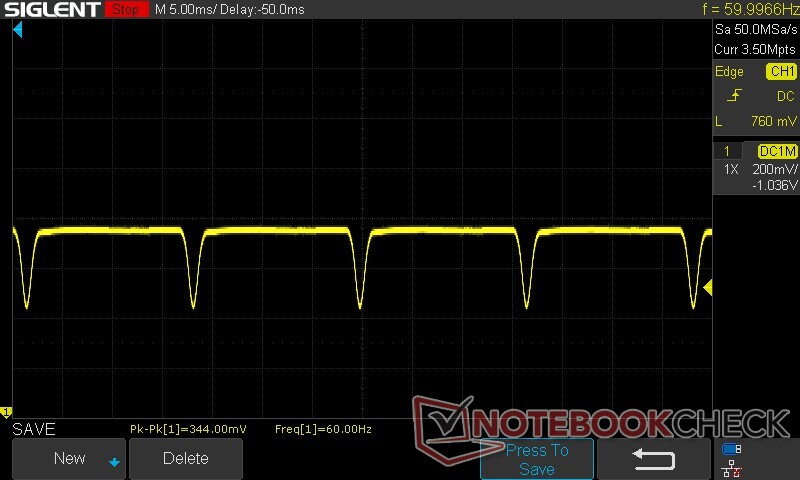

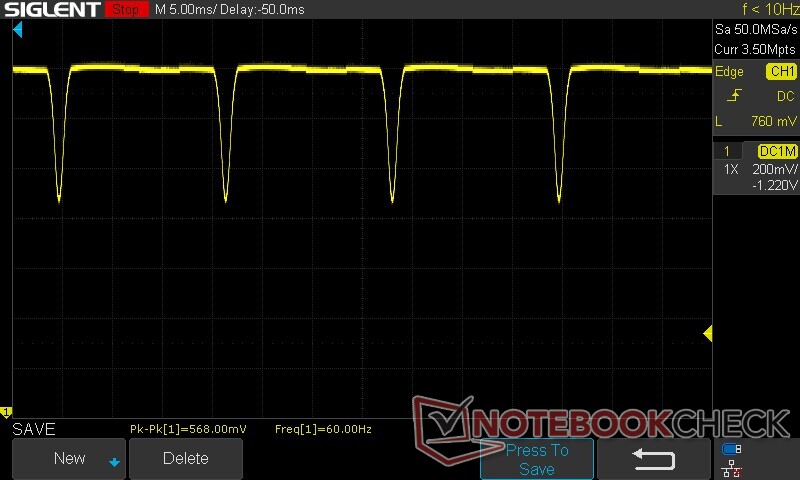

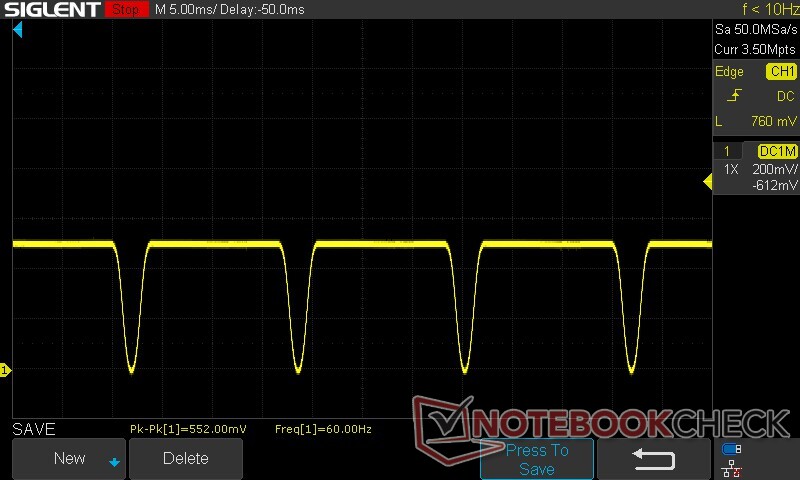

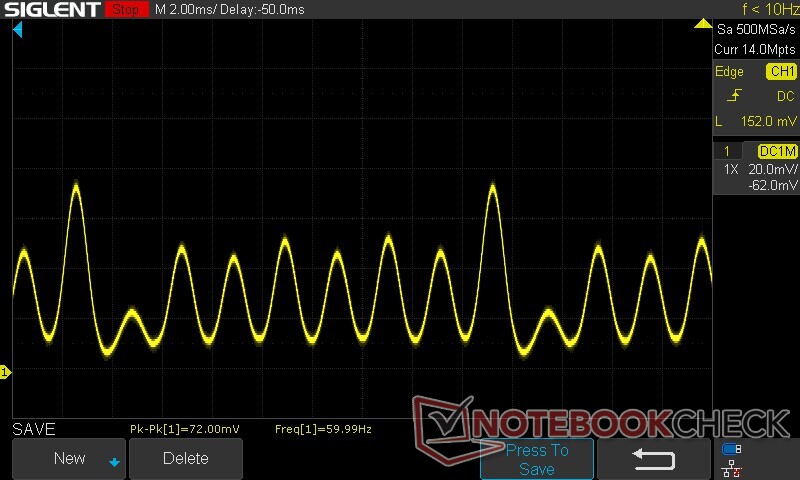

PWM Frequency
60 ?(100)
60 ?(100)
0%
59.52
-1%
Screen
-103%
-1%
-69%
25%
-77%
Brightness middle
378
392
4%
401
6%
308
-19%
379
0%
333
-12%
Brightness
381
371
-3%
403
6%
290
-24%
379
-1%
312
-18%
Brightness Distribution
97
89
-8%
98
1%
83
-14%
98
1%
82
-15%
Black Level *
0.25
0.425
0.31
Colorchecker dE 2000 *
2.91
7.3
-151%
3.24
-11%
5.27
-81%
1.13
61%
5.39
-85%
Colorchecker dE 2000 max. *
5.26
20.8
-295%
6.42
-22%
16.43
-212%
3.15
40%
19.18
-265%
Colorchecker dE 2000 calibrated *
2.08
5.4
-160%
2.13
-2%
2.58
-24%
4.77
-129%
Greyscale dE 2000 *
3.1
6.5
-110%
2.7
13%
6.38
-106%
1.6
48%
3.56
-15%
Gamma
2.14 103%
2.29 96%
2.14 103%
2.4 92%
2.23 99%
2.47 89%
CCT
6285 103%
5993 108%
6374 102%
7784 84%
6583 99%
6290 103%
Contrast
1568
725
1074
Total Average (Program / Settings)
-150% / -123%
18% / 12%
-85% / -75%
24% / 24%
-115% / -94%

* ... smaller is better

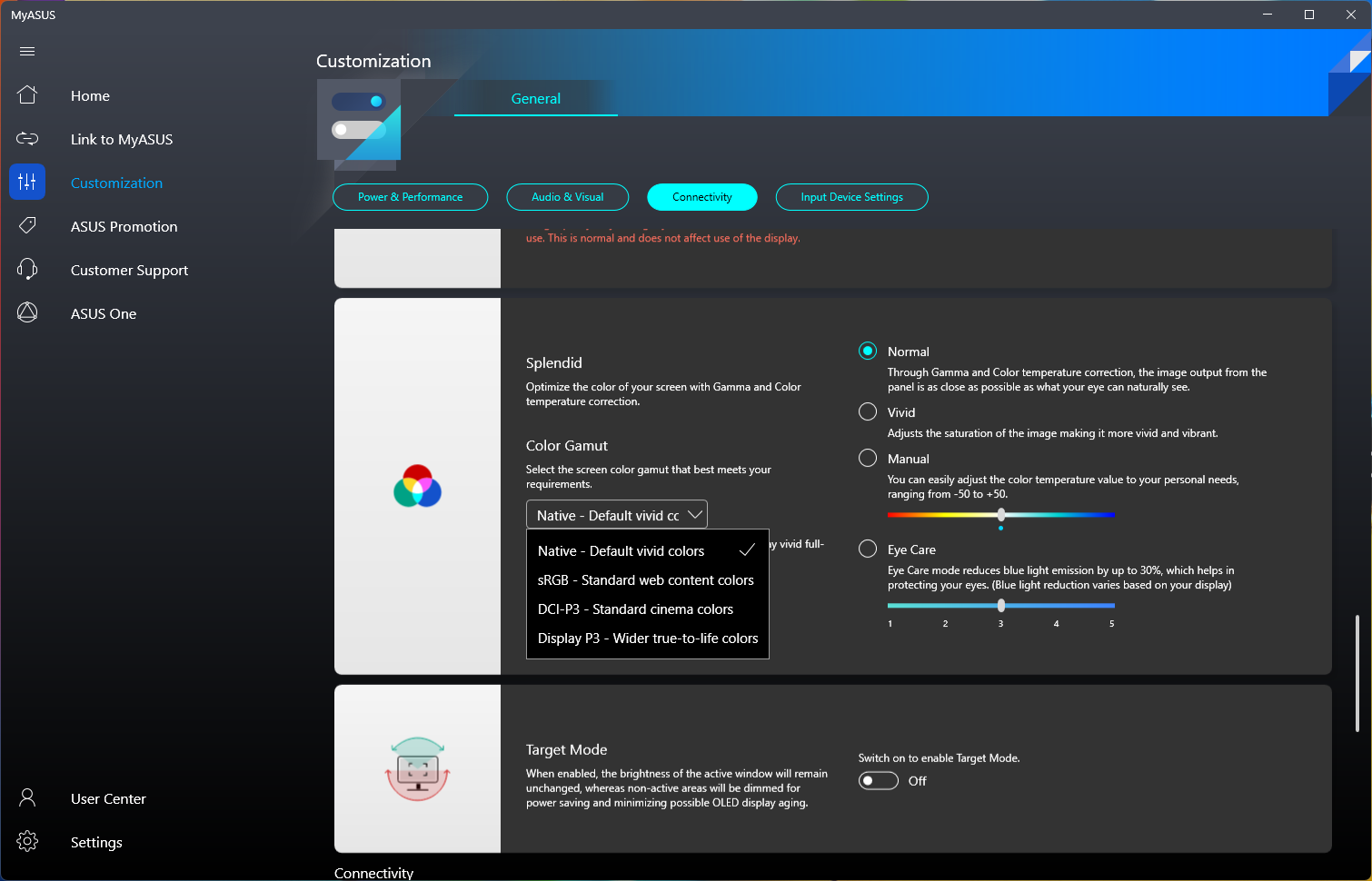

MyAsus应用程序提供了防止OLED烧毁的设置以及几种颜色配置文件选择。我们使用了带有本地色彩配置文件的正常模式,并在Display P3色彩空间中进行了色彩校准。

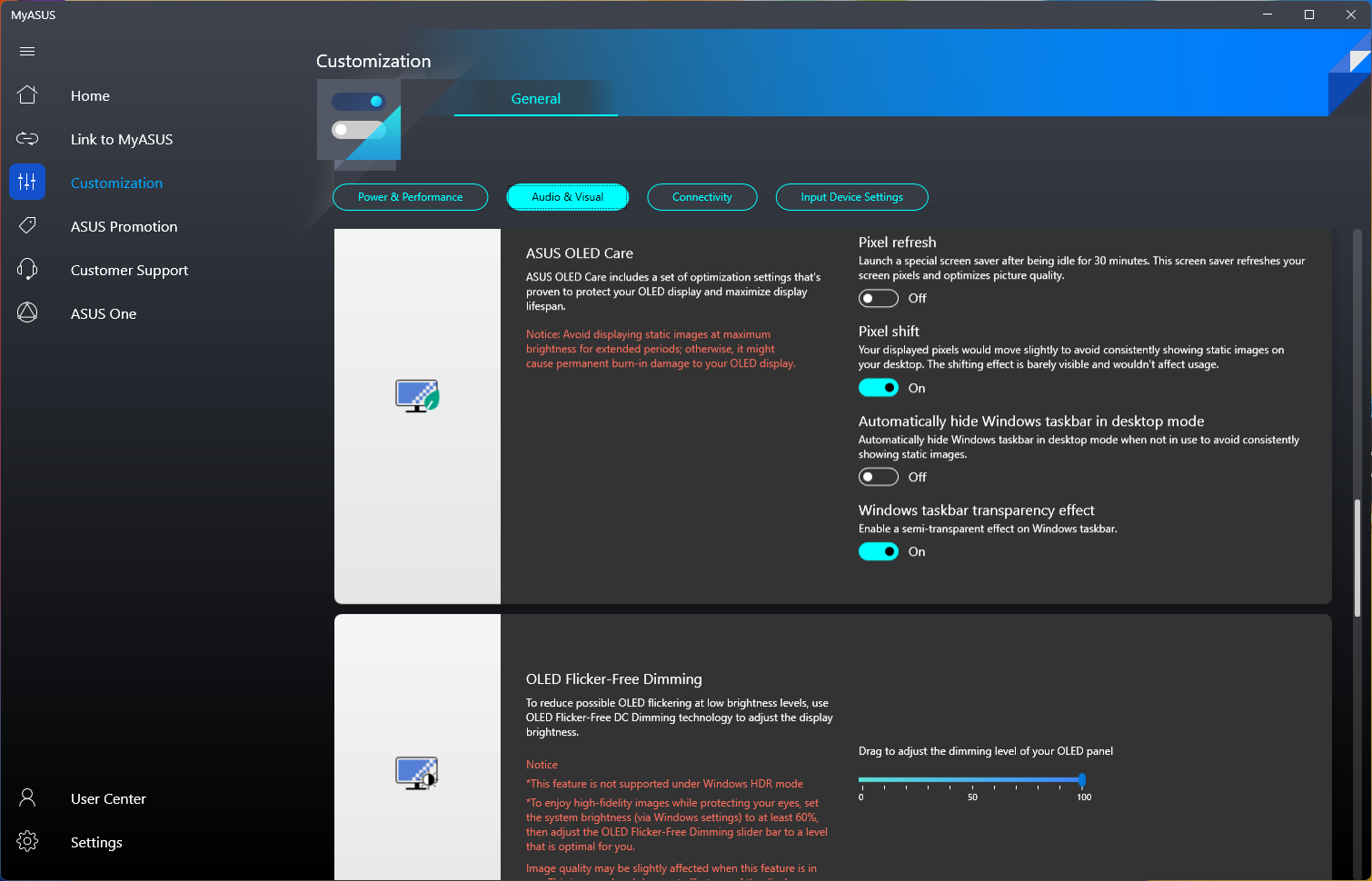

MyAsus OLED设置
MyAsus OLED设置
MyAsus颜色配置文件
MyAsus颜色配置文件

该面板几乎涵盖了整个sRGB和Display P3色域。Adobe RGB的覆盖率也很出色,达到96.3%,这应该使这台显示器对媒体观看和严肃的内容创作都非常适应。

与sRGB相比--99.9%的覆盖率
与sRGB相比--99.9%的覆盖率
vs. Adobe RGB - 96.3%的覆盖率
vs. Adobe RGB - 96.3%的覆盖率

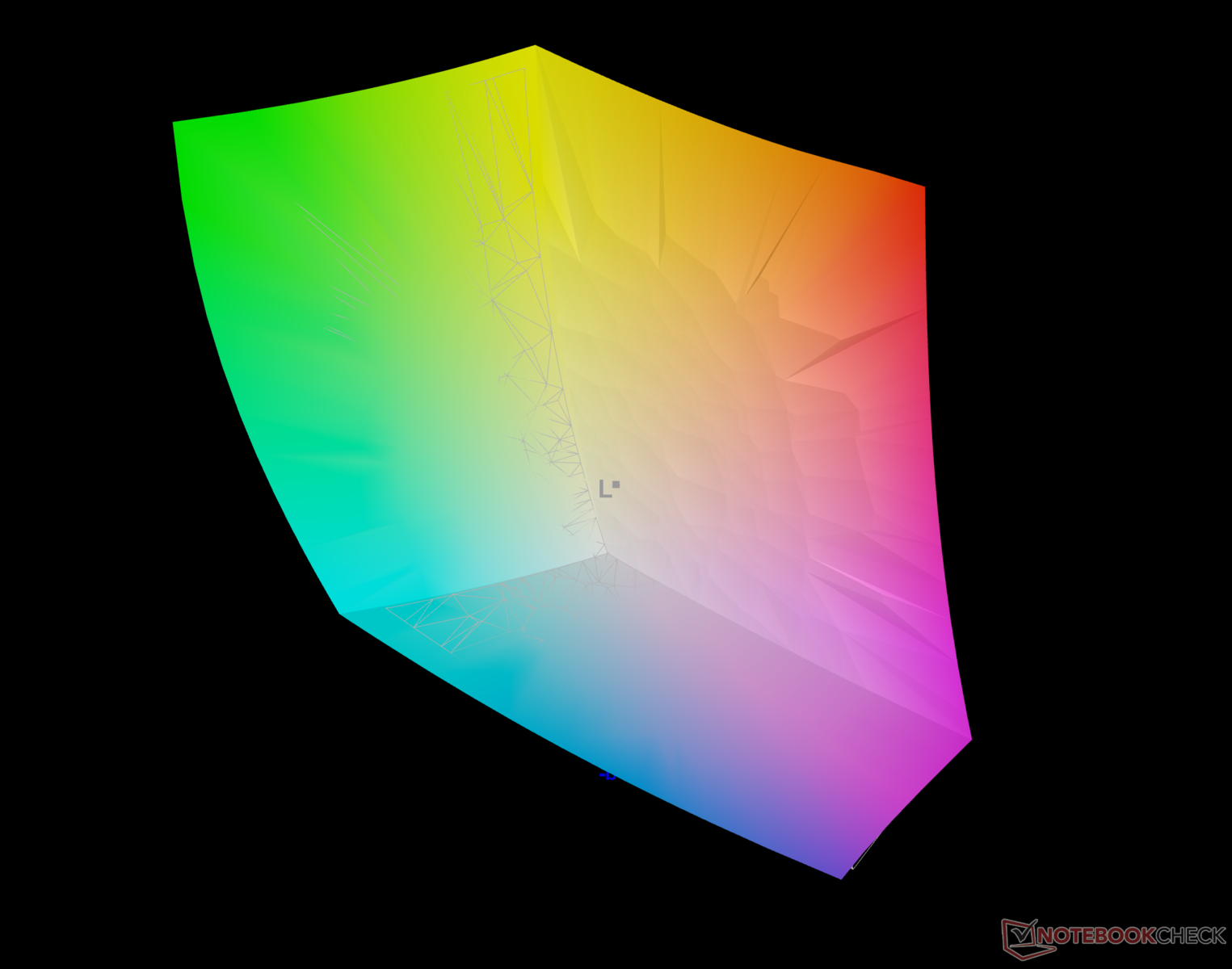

对比显示P3 - 99.7%的覆盖率
对比显示P3 - 99.7%的覆盖率

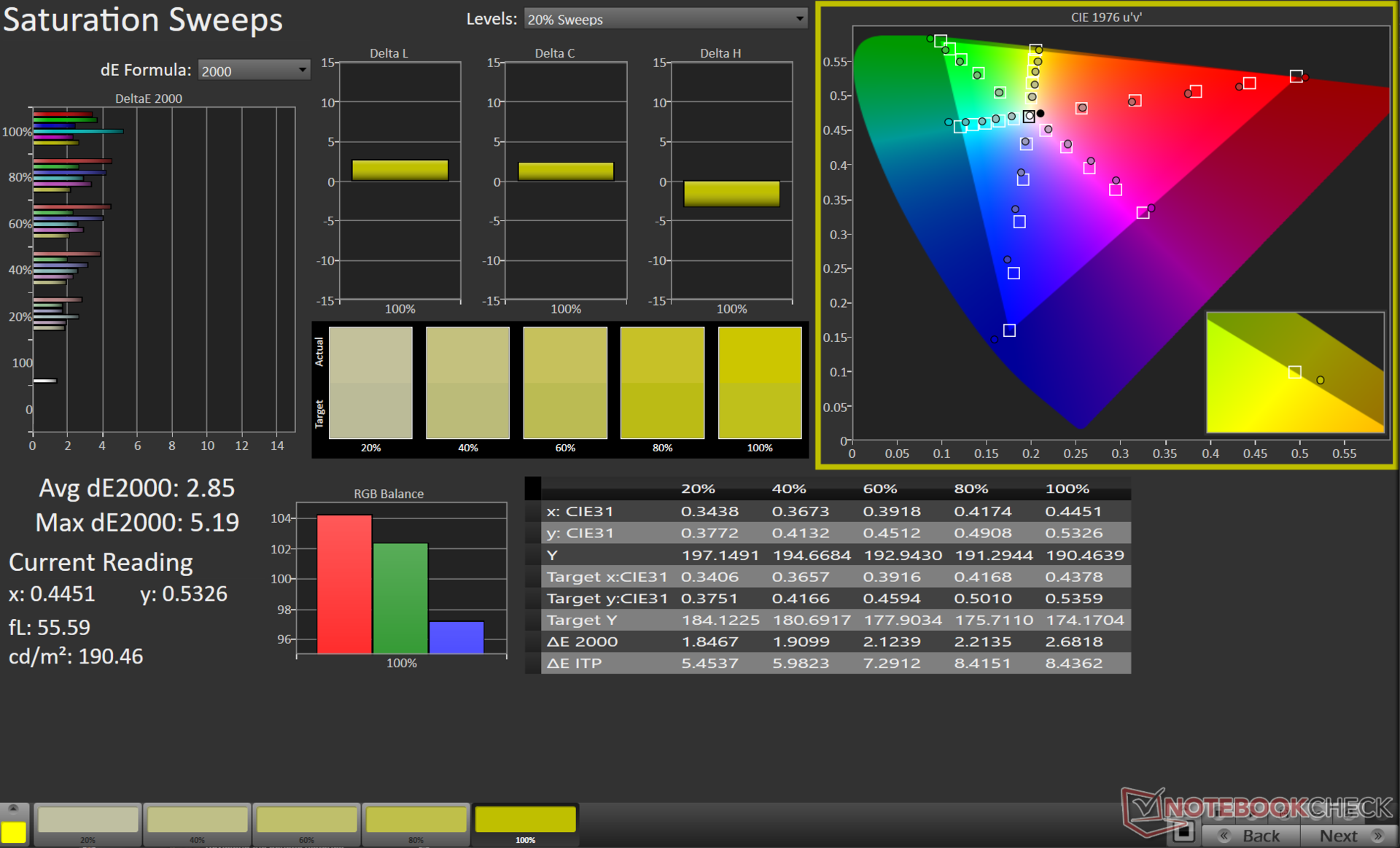

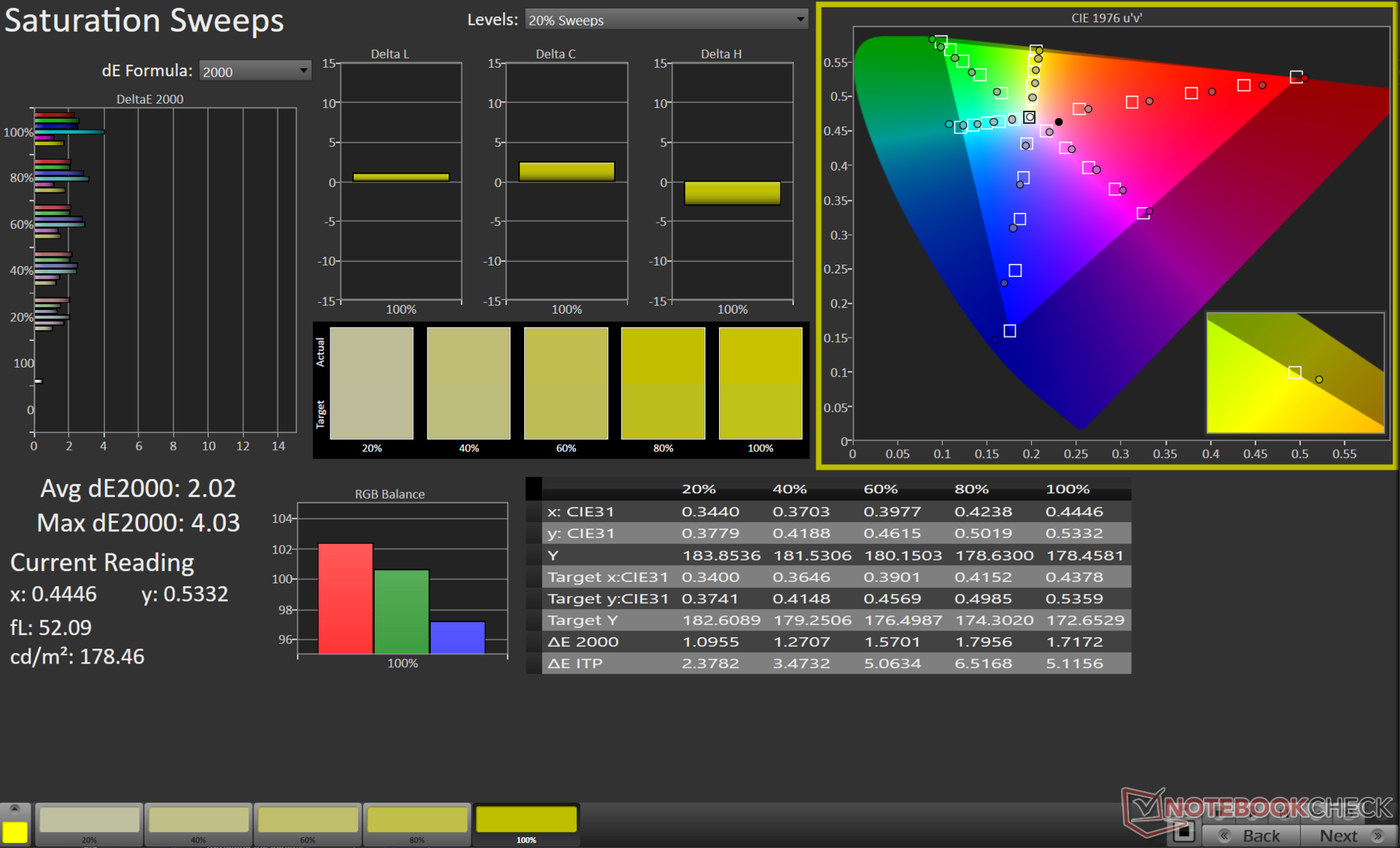

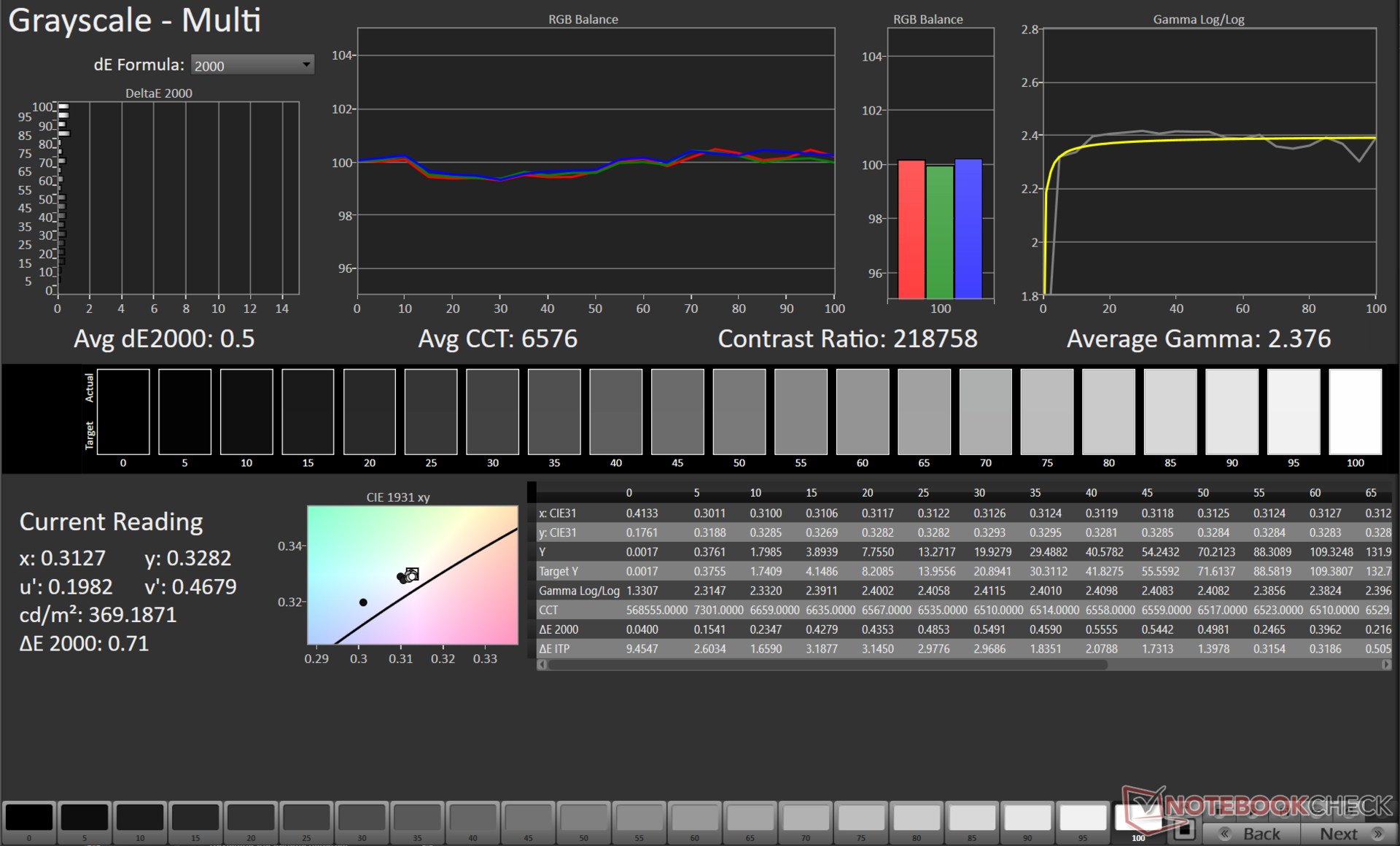

VivoBook 15X的显示屏在开箱后已经得到了充分的校准。我们使用X-Rite i1Basic Pro 3分光光度计和Portrait Display的Calman Ultimate色彩校准软件的校准程序,将灰度Delta E 2000大幅提高到0.5,ColorChecker Delta E 2000的平均值提高到2.08。

校准后的ICC文件可以从上面的链接下载。

校准前的灰度
校准前的灰度
校准前的ColorChecker
校准前的ColorChecker
校准前的饱和扫频
校准前的饱和扫频
校准后的灰度(显示P3)
校准后的灰度(显示P3)
校准后的ColorChecker(显示P3)。
校准后的ColorChecker(显示P3)。
校准后的饱和度扫频(显示P3)
校准后的饱和度扫频(显示P3)

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
20 ms ... rise ↗ and fall ↘ combined↗ 17.6 ms rise
↘ 2.4 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 39 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (21 ms).
       Response Time 50% Grey to 80% Grey
4.8 ms ... rise ↗ and fall ↘ combined↗ 2.4 ms rise
↘ 2.4 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 13 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (32.9 ms).

由于背景PWM闪烁的性质,计算响应时间不是一个简单的过程。人工估计显示,该面板从100%黑色到100%白色的转换需要20毫秒,这对OLED面板来说是比较高的。50%灰色到80%灰色的转换相对较快,为4.8毫秒。

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 60 Hz ≤ 100 % brightness setting

The display backlight flickers at 60 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 100 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 60 Hz is very low, so the flickering may cause eyestrain and headaches after extended use.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8743 (minimum: 5 - maximum: 343500) Hz was measured.

VivoBook 15X的OLED面板采用了60赫兹的PWM频率来管理显示亮度。这是一个低频率,对于那些对PWM敏感的人来说可能会有问题。

我们建议在亮度设置低于51%时利用该面板。在这些水平上,面板切换到60赫兹的直流调光模式,这应该比PWM对眼睛的影响要小。

0%的亮度:直流调光60赫兹
0%的亮度:直流调光60赫兹
25%的亮度:直流调光60赫兹
25%的亮度:直流调光60赫兹
50%的亮度:PWM 60 Hz
50%的亮度:PWM 60 Hz
75%的亮度:PWM 60 Hz
75%的亮度:PWM 60 Hz
100%的亮度:PWM 60 Hz
100%的亮度:PWM 60 Hz

欲了解更多信息,请查看我们的文章,"为什么PWM是如此令人头痛"和"分析:直流调光与PWM--你能在不闪烁的情况下调光AMOLED显示器吗?".我们的 PWM排名表提供了所有评测设备的PWM测量概况。

光滑的屏幕使得在阳光直射下的户外观看具有挑战性。可视角度非常一致,但我们确实观察到一些极端的绿色着色,这在OLED中并不罕见。

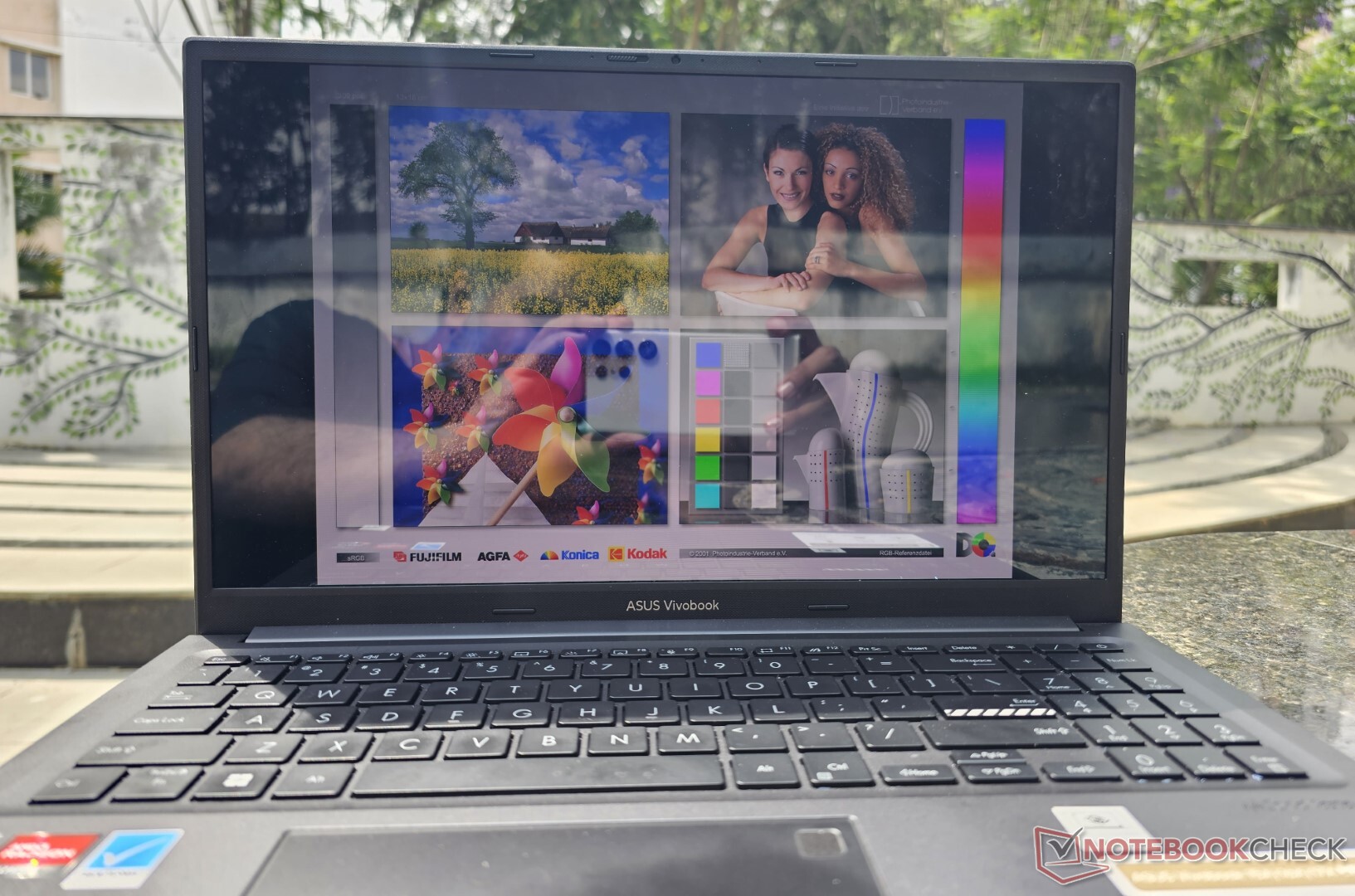

阳光下的户外观看
阳光下的户外观看

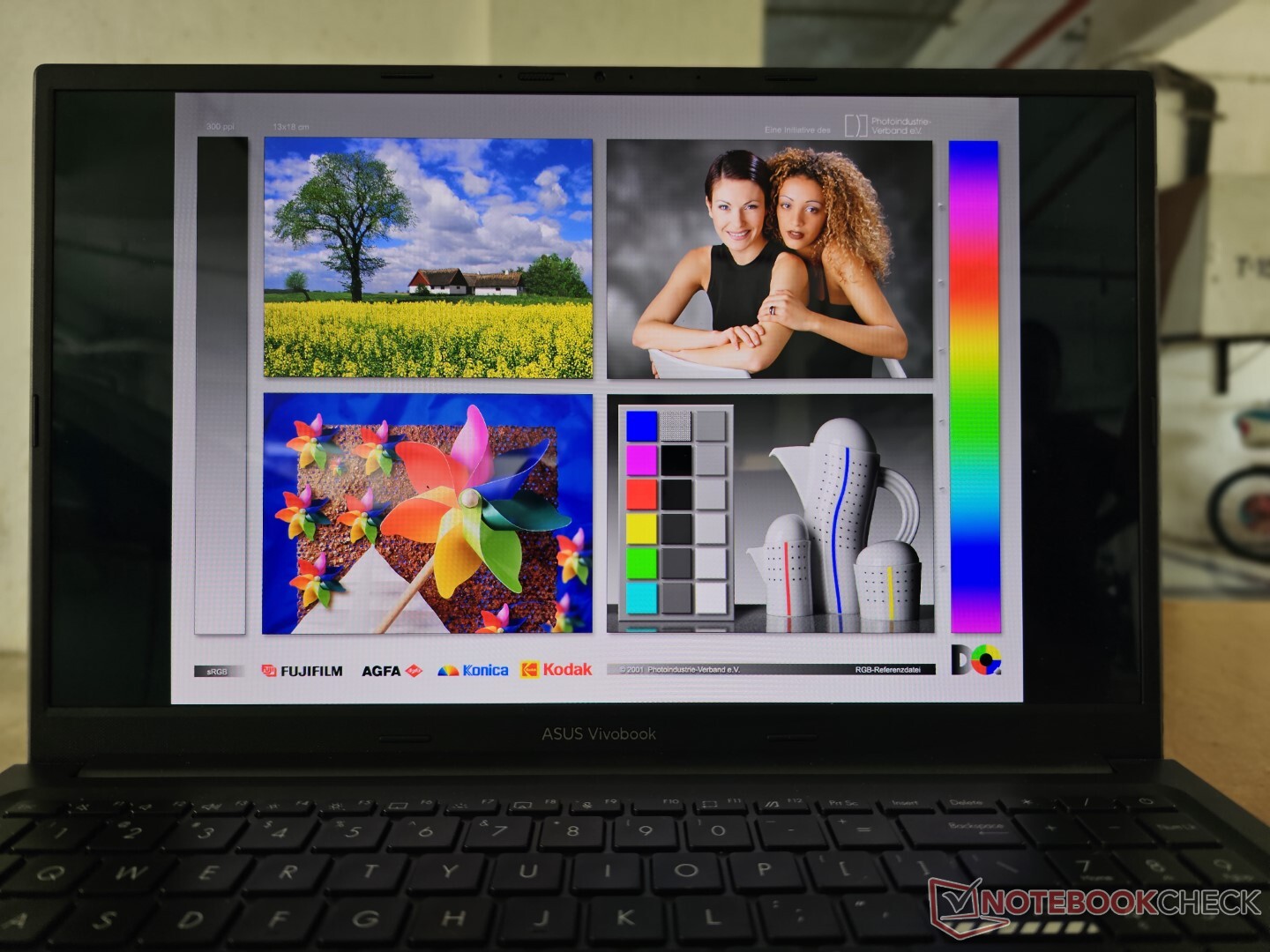

在树荫下的户外观赏
在树荫下的户外观赏

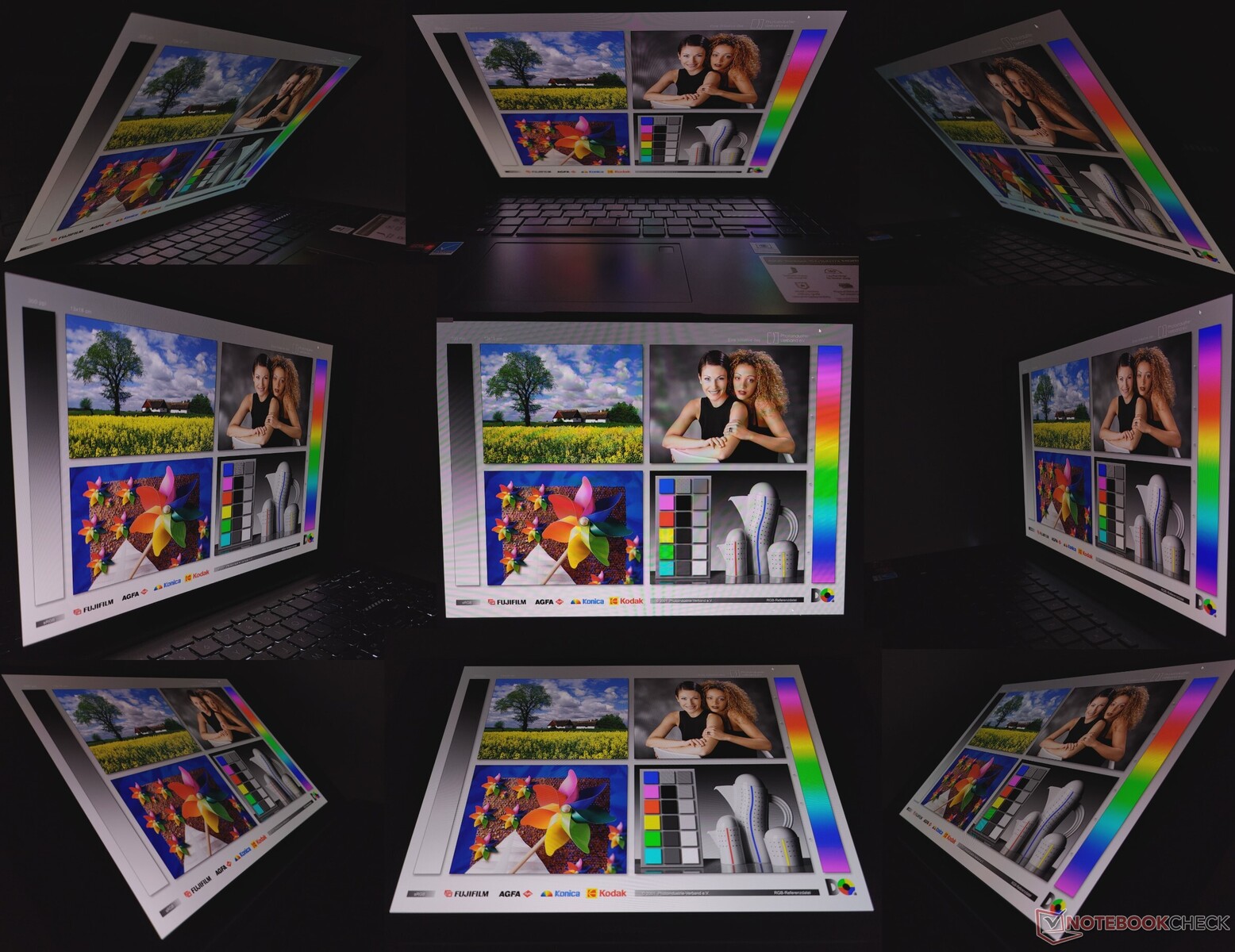

在极端视角下观察到绿色着色
在极端视角下观察到绿色着色

性能:比原来的Barcelo略有提高

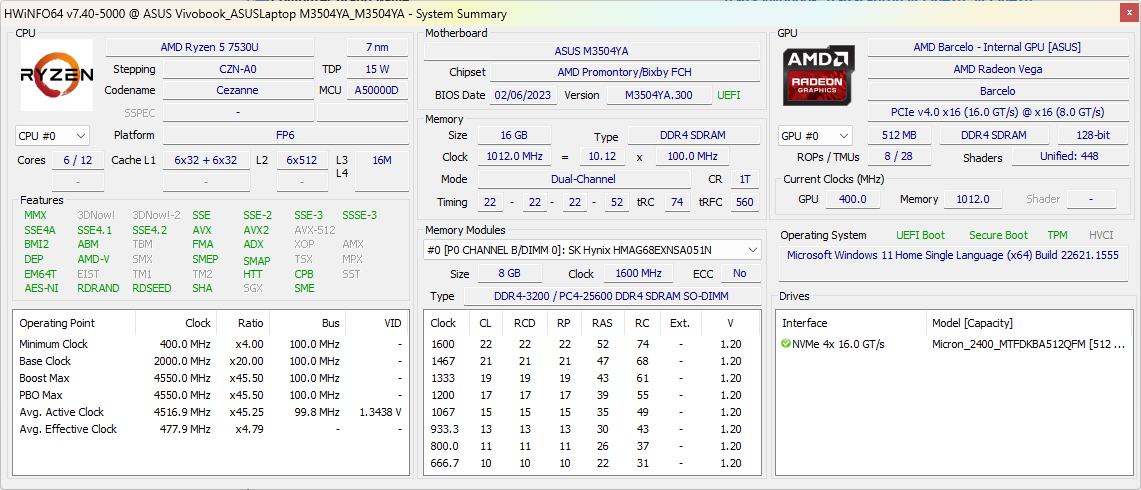

我们的VivoBook 15X设备是由 AMD Ryzen 5 7530UAPU。华硕还提供了VivoBook 15X的一个 AMD Ryzen 7 7730U笔记本电脑支持高达16GB的DDR4-3200内存扩展,其中8GB是焊接的。




测试条件

MyAsus应用程序允许您从各种风扇配置文件中进行选择。PL0,即皮肤温度感知电源管理(STAPM),在所有配置文件中都保持在15W。

我们利用性能模式进行所有基准测试,利用标准模式进行电池测试。

风扇外形 PL0 / STAPM 限制(W) PL1 限制(W) PL2 限制(W)
Whisper 15 25 32
标准 15 37 40
性能 15 37 42

处理器

与上一代产品相比,Ryzen 5 7530U的整体收益不大。
与上一代产品相比,Ryzen 5 7530U的整体收益不大。

Ryzen 5 7530U是一款6C/12T处理器,TDP为15W。这是Zen 3 Cezanne的第二次更新,被称为Barcelo Refresh。与之相比 Ryzen 5 5625U,Ryzen 5 7530U的基础时钟速度低了300MHz,提升频率高了200MHz。

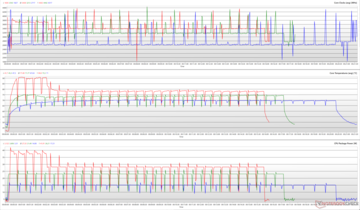

在Cinebench R15 multi中,Ryzen 5 7530U落后于Ryzen 7 7730U 3%,但我们观察到在第10次运行后出现了一些节流现象。

累积起来,Ryzen 5 7530U比Lenovo IdeaPad 3 15 的Ryzen 5 5625U和VivoBook 15X M1503QA的45W Ryzen 5600H的性能略有提高。然而,它比IdeaPad Flex 5 16中的Ryzen 7 7730U少了8%

Cinebench R15 Multi Loop

01002003004005006007008009001000110012001300140015001600170018001900Tooltip
Asus VivoBook 15X OLED M3504YA AMD Ryzen 5 7530U: Ø1457 (1395.38-1541.07)
Lenovo IdeaPad Flex 5 16ABR G8 AMD Ryzen 7 7730U: Ø1725 (1610.5-1942.41)
Lenovo Yoga 6 13 83B2001SGE AMD Ryzen 7 7730U: Ø1419 (1265.06-1588.12)
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U: Ø1246 (1194.78-1499.93)
Asus ZenBook 13 UM325S AMD Ryzen 7 5800U: Ø1209 (1163.3-1526.78)
Asus VivoBook 15 KM513UA-L503TS AMD Ryzen 5 5500U; Performance: Ø1182 (1166.66-1226.69)
Asus VivoBook 15 KM513UA-L503TS AMD Ryzen 5 5500U; Balanced: Ø1051 (1030.98-1103.84)
Lenovo IdeaPad 3 15ABA7 AMD Ryzen 5 5625U: Ø1383 (1347.8-1447.13)
Samsung Galaxy Book3 15, Core i5-1335U Intel Core i5-1335U: Ø1259 (1080.88-1547.27)
Asus VivoBook 15 X M1503QA AMD Ryzen 5 5600H: Ø1520 (1499.87-1552.92)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Average of class Multimedia

84.9 pt
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U
67.5 pt
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
65.1 pt
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U
62.4 pt
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
59.7 pt
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U
59.7 pt
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
59.3 pt
Average AMD Ryzen 5 7530U

59.3 pt
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
58.7 pt
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H
58.5 pt
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
45.5 pt
Cinebench R23 / Multi Core
Average of class Multimedia
  (6936 - 30789, n=100, last 2 years)
15387 Points +67%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U
11490 Points +24%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H
9352 (7077.19min - 9351.9max) Points +1%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U
9233 Points
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
8915 Points -3%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U
8561 Points -7%
Average AMD Ryzen 5 7530U
  (6931 - 9347, n=8)
8479 Points -8%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
8291 (7179.95min - 8290.57max) Points -10%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
8154 Points -12%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
7286 Points -21%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
7151 Points -23%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
6496 Points -30%
Cinebench R23 / Single Core
Average of class Multimedia
  (878 - 2290, n=91, last 2 years)
1757 Points +20%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
1685 Points +15%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U
1470 Points
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U
1442 Points -2%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
1441 Points -2%
Average AMD Ryzen 5 7530U
  (1371 - 1470, n=8)
1438 Points -2%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
1427 Points -3%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U
1399 Points -5%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H
1362 Points -7%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
1335 Points -9%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
1179 Points -20%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
1173 Points -20%
Cinebench R20 / CPU (Multi Core)
Average of class Multimedia
  (2681 - 11768, n=86, last 2 years)
5683 Points +57%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U
3798 Points +5%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U
3614 Points
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H
3585 Points -1%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
3415 Points -6%
Average AMD Ryzen 5 7530U
  (2833 - 3655, n=8)
3304 Points -9%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
3303 Points -9%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U
3299 Points -9%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
3295 Points -9%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
2849 Points -21%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
2738 Points -24%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
2517 Points -30%
Cinebench R20 / CPU (Single Core)
Average of class Multimedia
  (341 - 853, n=86, last 2 years)
652 Points +14%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
643 Points +12%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U
574 Points
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
564 Points -2%
Average AMD Ryzen 5 7530U
  (528 - 574, n=8)
561 Points -2%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
555 Points -3%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U
552 Points -4%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U
544 Points -5%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H
535 Points -7%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
533 Points -7%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
457 Points -20%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
454 Points -21%
Cinebench R15 / CPU Multi 64Bit
Average of class Multimedia
  (1252 - 4774, n=90, last 2 years)
2435 Points +58%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U
1942 (1610.5min - 1942.41max) Points +26%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
1588 (1265.06min - 1588.12max) Points +3%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H
1553 (1499.87min - 1552.92max) Points +1%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
1547 (1080.88min - 1547.27max) Points 0%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U
1541 (1395.38min - 1541.07max) Points
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
1522 Points -1%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
1500 (1194.78min - 1499.93max) Points -3%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U
1447 Points -6%
Average AMD Ryzen 5 7530U
  (1289 - 1599, n=8)
1447 Points -6%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
1227 (1166.66min - 1226.69max) Points -20%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
1104 (1030.98min - 1103.84max) Points -28%
Cinebench R15 / CPU Single 64Bit
Average of class Multimedia
  (99.6 - 323, n=86, last 2 years)
257 Points +8%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
240 Points +1%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U
237 Points
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
230 Points -3%
Average AMD Ryzen 5 7530U
  (213 - 237, n=8)
230 Points -3%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
227 Points -4%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U
226 Points -5%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U
226 Points -5%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H
222 Points -6%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
221 Points -7%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
177 Points -25%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
177 Points -25%
Blender / v2.79 BMW27 CPU
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
453.5 Seconds * -30%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
407.2 Seconds * -17%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
387 Seconds * -11%
Average AMD Ryzen 5 7530U
  (330 - 469, n=7)
377 Seconds * -8%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
374 Seconds * -7%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
372.7 Seconds * -7%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U
365 Seconds * -5%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
362 Seconds * -4%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U
348 Seconds *
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H
329 Seconds * +5%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U
277 Seconds * +20%
Average of class Multimedia
  (107 - 502, n=84, last 2 years)
253 Seconds * +27%
7-Zip 18.03 / 7z b 4
Average of class Multimedia
  (30592 - 121228, n=79, last 2 years)
60265 MIPS +47%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U
49961 MIPS +22%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
41574 MIPS +2%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U
40888 MIPS
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
40263 MIPS -2%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U
39048 MIPS -5%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
38513 MIPS -6%
Average AMD Ryzen 5 7530U
  (32204 - 42364, n=7)
37957 MIPS -7%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
37126 MIPS -9%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H
36315 MIPS -11%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
33890 MIPS -17%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
32335 MIPS -21%
7-Zip 18.03 / 7z b 4 -mmt1
Average of class Multimedia
  (3398 - 7545, n=79, last 2 years)
5722 MIPS +3%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U
5544 MIPS
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
5359 MIPS -3%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
5339 MIPS -4%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U
5333 MIPS -4%
Average AMD Ryzen 5 7530U
  (5113 - 5544, n=7)
5328 MIPS -4%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H
5291 MIPS -5%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U
5250 MIPS -5%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
5222 MIPS -6%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
5215 MIPS -6%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
4352 MIPS -22%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
4331 MIPS -22%
Geekbench 5.5 / Multi-Core
Average of class Multimedia
  (4990 - 23059, n=86, last 2 years)
11967 Points +87%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
8044 Points +26%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U
7723 Points +21%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
7423 Points +16%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
7026 Points +10%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U
6390 Points
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U
6137 Points -4%
Average AMD Ryzen 5 7530U
  (5475 - 6648, n=7)
6121 Points -4%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
5475 Points -14%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
5409 Points -15%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
5268 Points -18%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H
4990 Points -22%
Geekbench 5.5 / Single-Core
Average of class Multimedia
  (891 - 2342, n=86, last 2 years)
1818 Points +21%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
1672 Points +12%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U
1498 Points
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
1471 Points -2%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U
1464 Points -2%
Average AMD Ryzen 5 7530U
  (1393 - 1498, n=7)
1464 Points -2%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
1450 Points -3%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U
1442 Points -4%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
1434 Points -4%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H
1372 Points -8%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
1123 Points -25%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
1122 Points -25%
HWBOT x265 Benchmark v2.2 / 4k Preset
Average of class Multimedia
  (5.26 - 30.5, n=78, last 2 years)
16.4 fps +52%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U
12.4 fps +15%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U
10.8 fps
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U
10.7 fps -1%
Average AMD Ryzen 5 7530U
  (8.17 - 11.6, n=7)
10.3 fps -5%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
10.2 fps -6%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
10 fps -7%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
10 fps -7%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H
9.92 fps -8%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
9.91 fps -8%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
8.75 fps -19%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
7.69 fps -29%
LibreOffice / 20 Documents To PDF
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
63.3 s * -18%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
54.8 s * -2%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U
53.5 s *
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H
52.9 s * +1%
Average AMD Ryzen 5 7530U
  (44.6 - 58.1, n=7)
52 s * +3%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U
51.3 s * +4%
Average of class Multimedia
  (6.7 - 146.7, n=80, last 2 years)
49.6 s * +7%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
48.4 s * +10%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U
46.9 s * +12%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
46.6 s * +13%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
44.6 s * +17%
R Benchmark 2.5 / Overall mean
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
0.628 sec * -22%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U
0.617 sec * -20%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H
0.561 sec * -9%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
0.544 sec * -6%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
0.543 sec * -5%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U
0.54 sec * -5%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
0.537 sec * -4%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U
0.534 sec * -4%
Average AMD Ryzen 5 7530U
  (0.515 - 0.567, n=7)
0.533 sec * -3%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U
0.515 sec *
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
0.503 sec * +2%
Average of class Multimedia
  (0.3604 - 0.947, n=79, last 2 years)
0.484 sec * +6%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
1541 Points
Cinebench R15 OpenGL 64Bit
117.7 fps
Cinebench R15 Ref. Match 64Bit
97.9 %
Cinebench R15 CPU Single 64Bit
237 Points
Cinebench R20 CPU (Multi Core)
3614 Points
Cinebench R20 CPU (Single Core)
574 Points
Cinebench R23 Single Core
1470 Points
Cinebench R23 Multi Core
9233 Points
Help

下图显示了各种CPU指标是如何被每个风扇配置文件改变的。性能模式可以实现4.36GHz的峰值提升,但要牺牲42W的封装功率和近91℃的核心温度。

性能模式仅在前几次运行中提供了明显的性能改进,之后,与标准配置相比,这些CPU指标中的每一个平均值都没有过高的表现。

在电池上,Cinebench R20的单核性能受到59.5%的严重影响,而多核则下降了近50%。

在Cinebench R15循环中的CPU时钟、核心温度和封装功率。(红色:性能,绿色:标准,蓝色:低语)
在Cinebench R15循环中的CPU时钟、核心温度和封装功率。(红色:性能,绿色:标准,蓝色:低语)

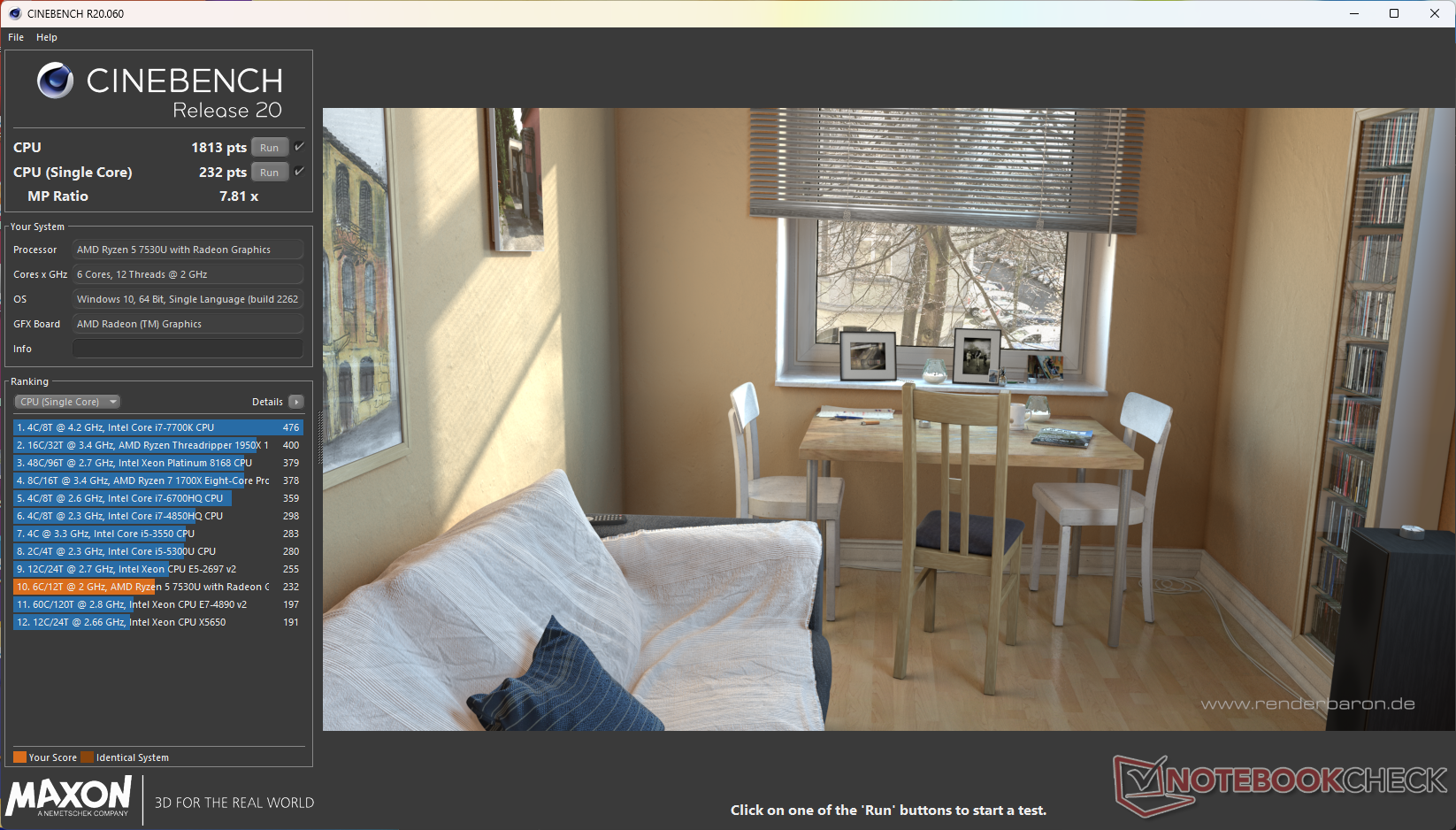

Cinebench R20的得分在电池电量上占很大比重
Cinebench R20的得分在电池电量上占很大比重

芯片 英特尔酷睿i5-1335U中的 三星Galaxy Book3在整体CPU性能上成功超越Ryzen 5 7530U 4%,但在AIDA64 CPU测试中遭受了重大挫折。

Performance Rating
Average of class Multimedia

94.8 pt
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, Vega 8
79.2 pt
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
77.5 pt
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, Vega 7
76 pt
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, Vega 7
70 pt
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, Vega 7
68.7 pt
Average AMD Ryzen 5 7530U

67.2 pt
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
66.4 pt
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
58.2 pt
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, Vega 7
57.2 pt
AIDA64 / FP32 Ray-Trace
Average of class Multimedia
  (4906 - 36957, n=76, last 2 years)
14429 KRay/s +36%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, Vega 8
11582 KRay/s +9%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
11322 KRay/s +7%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, Vega 7
10985 KRay/s +4%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, Vega 7
10607 KRay/s
Average AMD Ryzen 5 7530U
  (8845 - 10970, n=7)
9684 KRay/s -9%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, Vega 7
9678 KRay/s -9%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
8845 KRay/s -17%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, Vega 7
7994 KRay/s -25%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
7525 KRay/s -29%
AIDA64 / FPU Julia
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, Vega 8
73889 Points +9%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
72772 Points +7%
Average of class Multimedia
  (14528 - 147248, n=77, last 2 years)
72714 Points +7%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, Vega 7
68738 Points +1%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, Vega 7
67786 Points
Average AMD Ryzen 5 7530U
  (57481 - 68384, n=7)
61842 Points -9%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, Vega 7
60664 Points -11%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
58914 Points -13%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, Vega 7
44706 Points -34%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
38538 Points -43%
AIDA64 / CPU SHA3
Average of class Multimedia
  (1529 - 6698, n=77, last 2 years)
3389 MB/s +47%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
2424 MB/s +5%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, Vega 8
2424 MB/s +5%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, Vega 7
2305 MB/s
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, Vega 7
2304 MB/s 0%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, Vega 7
2094 MB/s -9%
Average AMD Ryzen 5 7530U
  (1923 - 2323, n=7)
2088 MB/s -9%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
2060 MB/s -11%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
2018 MB/s -12%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, Vega 7
1442 MB/s -37%
AIDA64 / CPU Queen
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, Vega 8
95529 Points +25%
Average of class Multimedia
  (21547 - 141074, n=77, last 2 years)
90849 Points +19%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
87356 Points +15%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, Vega 7
76198 Points
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
75683 Points -1%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, Vega 7
73837 Points -3%
Average AMD Ryzen 5 7530U
  (68103 - 78105, n=7)
73792 Points -3%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, Vega 7
71538 Points -6%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, Vega 7
70197 Points -8%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
60626 Points -20%
AIDA64 / FPU SinJulia
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, Vega 8
10994 Points +19%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
10753 Points +16%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, Vega 7
9382 Points +1%
Average of class Multimedia
  (1240 - 19021, n=77, last 2 years)
9329 Points +1%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, Vega 7
9248 Points
Average AMD Ryzen 5 7530U
  (8277 - 9248, n=7)
8688 Points -6%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, Vega 7
8656 Points -6%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, Vega 7
8581 Points -7%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
8303 Points -10%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
4950 Points -46%
AIDA64 / FPU Mandel
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, Vega 8
40723 Points +9%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
40080 Points +7%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, Vega 7
38085 Points +2%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, Vega 7
37325 Points
Average of class Multimedia
  (9903 - 75780, n=76, last 2 years)
36169 Points -3%
Average AMD Ryzen 5 7530U
  (31632 - 37624, n=7)
34058 Points -9%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, Vega 7
33798 Points -9%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
32676 Points -12%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, Vega 7
23375 Points -37%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
19131 Points -49%
AIDA64 / CPU AES
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, Vega 7
92360 MB/s
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, Vega 7
83989 MB/s -9%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
83182 MB/s -10%
Average of class Multimedia
  (31432 - 169946, n=77, last 2 years)
75995 MB/s -18%
Average AMD Ryzen 5 7530U
  (33314 - 92360, n=7)
56469 MB/s -39%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, Vega 7
44346 MB/s -52%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, Vega 7
43713 MB/s -53%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
42697 MB/s -54%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, Vega 8
42560 MB/s -54%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
39602 MB/s -57%
AIDA64 / CPU ZLib
Average of class Multimedia
  (454 - 1973, n=77, last 2 years)
935 MB/s +57%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, Vega 8
652 MB/s +9%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
646 MB/s +8%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
637 MB/s +7%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, Vega 7
597 MB/s
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, Vega 7
589 MB/s -1%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, Vega 7
557 MB/s -7%
Average AMD Ryzen 5 7530U
  (503 - 612, n=7)
545 MB/s -9%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
507 MB/s -15%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, Vega 7
492 MB/s -18%
AIDA64 / FP64 Ray-Trace
Average of class Multimedia
  (2738 - 20608, n=77, last 2 years)
7836 KRay/s +44%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, Vega 8
6081 KRay/s +12%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
5986 KRay/s +10%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, Vega 7
5687 KRay/s +4%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, Vega 7
5452 KRay/s
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, Vega 7
5198 KRay/s -5%
Average AMD Ryzen 5 7530U
  (4593 - 5738, n=7)
5059 KRay/s -7%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
4593 KRay/s -16%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, Vega 7
4352 KRay/s -20%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
4031 KRay/s -26%
AIDA64 / CPU PhotoWorxx
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
41123 MPixel/s +166%
Average of class Multimedia
  (7419 - 53918, n=77, last 2 years)
40459 MPixel/s +162%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
19414 MPixel/s +26%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, Vega 8
19308 MPixel/s +25%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, Vega 7
16888 MPixel/s +9%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, Vega 7
15444 MPixel/s
Average AMD Ryzen 5 7530U
  (9832 - 19525, n=7)
14538 MPixel/s -6%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, Vega 7
14434 MPixel/s -7%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
9832 MPixel/s -36%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, Vega 7
7419 MPixel/s -52%

查看我们专门的 AMD Ryzen 5 7530U页面了解更多信息和性能比较。

系统性能

在PCMark 10和CrossMark中,整体系统性能与Ryzen 7 7730U相当。尽管在PCMark 10中,配备Core i5-1335U的Galaxy Book3输给了VivoBook 15X,但它设法在CrossMark中夺回了领先地位。

PCMark 10 / Score
Average of class Multimedia
  (4542 - 8670, n=72, last 2 years)
6795 Points +9%
Lenovo IdeaPad Flex 5 16ABR G8
Vega 8, R7 7730U, Samsung PM9B1 1024GB MZAL41T0HBLB
6403 Points +3%
Asus VivoBook 15X OLED M3504YA
Vega 7, R5 7530U, Micron 2400 MTFDKBA512QFM
6209 Points
Average AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
  (5686 - 6209, n=7)
5930 Points -4%
Asus ZenBook 13 UM325S
Vega 8, R7 5800U, SK Hynix HFM001TD3JX013N
5890 Points -5%
Lenovo IdeaPad 3 15ABA7
Vega 7, R5 5625U, Micron 2450 512GB MTFDKCD512TFK
5830 Points -6%
Lenovo ThinkPad L14 G4 21H6S00900
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
5736 Points -8%
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
5314 Points -14%
Asus VivoBook 15 X M1503QA
Vega 7, R5 5600H, Intel SSD 670p SSDPEKNU512GZ
5309 Points -14%
Lenovo Yoga 6 13 83B2001SGE
Vega 8, R7 7730U, WD PC SN740 512GB SDDPMQD-512G-1101
5285 Points -15%
Asus VivoBook 15 KM513UA-L503TS
Vega 7, R5 5500U, WDC PC SN530 SDBPMPZ-265G
5121 Points -18%
PCMark 10 / Essentials
Lenovo IdeaPad Flex 5 16ABR G8
Vega 8, R7 7730U, Samsung PM9B1 1024GB MZAL41T0HBLB
11458 Points +7%
Asus VivoBook 15X OLED M3504YA
Vega 7, R5 7530U, Micron 2400 MTFDKBA512QFM
10754 Points
Lenovo ThinkPad L14 G4 21H6S00900
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
10614 Points -1%
Average AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
  (10016 - 11242, n=7)
10608 Points -1%
Average of class Multimedia
  (8480 - 12420, n=72, last 2 years)
10521 Points -2%
Lenovo IdeaPad 3 15ABA7
Vega 7, R5 5625U, Micron 2450 512GB MTFDKCD512TFK
10107 Points -6%
Lenovo Yoga 6 13 83B2001SGE
Vega 8, R7 7730U, WD PC SN740 512GB SDDPMQD-512G-1101
10084 Points -6%
Asus ZenBook 13 UM325S
Vega 8, R7 5800U, SK Hynix HFM001TD3JX013N
9917 Points -8%
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
9828 Points -9%
Asus VivoBook 15 X M1503QA
Vega 7, R5 5600H, Intel SSD 670p SSDPEKNU512GZ
9326 Points -13%
Asus VivoBook 15 KM513UA-L503TS
Vega 7, R5 5500U, WDC PC SN530 SDBPMPZ-265G
9182 Points -15%
PCMark 10 / Productivity
Asus VivoBook 15X OLED M3504YA
Vega 7, R5 7530U, Micron 2400 MTFDKBA512QFM
9967 Points
Average AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
  (8983 - 9967, n=7)
9514 Points -5%
Lenovo IdeaPad Flex 5 16ABR G8
Vega 8, R7 7730U, Samsung PM9B1 1024GB MZAL41T0HBLB
9510 Points -5%
Asus ZenBook 13 UM325S
Vega 8, R7 5800U, SK Hynix HFM001TD3JX013N
9410 Points -6%
Lenovo ThinkPad L14 G4 21H6S00900
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
9292 Points -7%
Lenovo IdeaPad 3 15ABA7
Vega 7, R5 5625U, Micron 2450 512GB MTFDKCD512TFK
9209 Points -8%
Average of class Multimedia
  (6089 - 10742, n=72, last 2 years)
8932 Points -10%
Asus VivoBook 15 X M1503QA
Vega 7, R5 5600H, Intel SSD 670p SSDPEKNU512GZ
8850 Points -11%
Lenovo Yoga 6 13 83B2001SGE
Vega 8, R7 7730U, WD PC SN740 512GB SDDPMQD-512G-1101
8443 Points -15%
Asus VivoBook 15 KM513UA-L503TS
Vega 7, R5 5500U, WDC PC SN530 SDBPMPZ-265G
7579 Points -24%
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
6874 Points -31%
PCMark 10 / Digital Content Creation
Average of class Multimedia
  (3651 - 13548, n=72, last 2 years)
9202 Points +52%
Lenovo IdeaPad Flex 5 16ABR G8
Vega 8, R7 7730U, Samsung PM9B1 1024GB MZAL41T0HBLB
6538 Points +8%
Asus VivoBook 15X OLED M3504YA
Vega 7, R5 7530U, Micron 2400 MTFDKBA512QFM
6061 Points
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
6029 Points -1%
Asus ZenBook 13 UM325S
Vega 8, R7 5800U, SK Hynix HFM001TD3JX013N
5945 Points -2%
Lenovo IdeaPad 3 15ABA7
Vega 7, R5 5625U, Micron 2450 512GB MTFDKCD512TFK
5779 Points -5%
Average AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
  (4941 - 6093, n=7)
5626 Points -7%
Asus VivoBook 15 KM513UA-L503TS
Vega 7, R5 5500U, WDC PC SN530 SDBPMPZ-265G
5239 Points -14%
Lenovo ThinkPad L14 G4 21H6S00900
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
5193 Points -14%
Asus VivoBook 15 X M1503QA
Vega 7, R5 5600H, Intel SSD 670p SSDPEKNU512GZ
4921 Points -19%
Lenovo Yoga 6 13 83B2001SGE
Vega 8, R7 7730U, WD PC SN740 512GB SDDPMQD-512G-1101
4705 Points -22%
CrossMark / Overall
Average of class Multimedia
  (978 - 2184, n=87, last 2 years)
1703 Points +27%
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
1450 Points +9%
Asus VivoBook 15X OLED M3504YA
Vega 7, R5 7530U, Micron 2400 MTFDKBA512QFM
1336 Points
Lenovo Yoga 6 13 83B2001SGE
Vega 8, R7 7730U, WD PC SN740 512GB SDDPMQD-512G-1101
1321 Points -1%
Lenovo IdeaPad 3 15ABA7
Vega 7, R5 5625U, Micron 2450 512GB MTFDKCD512TFK
1313 Points -2%
Lenovo IdeaPad Flex 5 16ABR G8
Vega 8, R7 7730U, Samsung PM9B1 1024GB MZAL41T0HBLB
1296 Points -3%
Average AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
  (1029 - 1336, n=6)
1228 Points -8%
Asus VivoBook 15 X M1503QA
Vega 7, R5 5600H, Intel SSD 670p SSDPEKNU512GZ
1157 Points -13%
Lenovo ThinkPad L14 G4 21H6S00900
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
1029 Points -23%
CrossMark / Productivity
Average of class Multimedia
  (913 - 2064, n=87, last 2 years)
1616 Points +18%
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
1428 (1479min - 1268max) Points +4%
Asus VivoBook 15X OLED M3504YA
Vega 7, R5 7530U, Micron 2400 MTFDKBA512QFM
1370 Points
Lenovo IdeaPad 3 15ABA7
Vega 7, R5 5625U, Micron 2450 512GB MTFDKCD512TFK
1361 Points -1%
Lenovo Yoga 6 13 83B2001SGE
Vega 8, R7 7730U, WD PC SN740 512GB SDDPMQD-512G-1101
1335 Points -3%
Lenovo IdeaPad Flex 5 16ABR G8
Vega 8, R7 7730U, Samsung PM9B1 1024GB MZAL41T0HBLB
1301 Points -5%
Average AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
  (1115 - 1370, n=6)
1275 Points -7%
Asus VivoBook 15 X M1503QA
Vega 7, R5 5600H, Intel SSD 670p SSDPEKNU512GZ
1217 Points -11%
Lenovo ThinkPad L14 G4 21H6S00900
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
1115 Points -19%
CrossMark / Creativity
Average of class Multimedia
  (1054 - 2594, n=87, last 2 years)
1909 Points +37%
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
1528 Points +10%
Lenovo IdeaPad Flex 5 16ABR G8
Vega 8, R7 7730U, Samsung PM9B1 1024GB MZAL41T0HBLB
1428 Points +3%
Lenovo Yoga 6 13 83B2001SGE
Vega 8, R7 7730U, WD PC SN740 512GB SDDPMQD-512G-1101
1396 Points 0%
Asus VivoBook 15X OLED M3504YA
Vega 7, R5 7530U, Micron 2400 MTFDKBA512QFM
1390 Points
Lenovo IdeaPad 3 15ABA7
Vega 7, R5 5625U, Micron 2450 512GB MTFDKCD512TFK
1316 Points -5%
Average AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
  (992 - 1390, n=6)
1268 Points -9%
Asus VivoBook 15 X M1503QA
Vega 7, R5 5600H, Intel SSD 670p SSDPEKNU512GZ
1184 Points -15%
Lenovo ThinkPad L14 G4 21H6S00900
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
992 Points -29%
CrossMark / Responsiveness
Average of class Multimedia
  (869 - 2171, n=87, last 2 years)
1435 Points +31%
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
1299 Points +19%
Lenovo IdeaPad 3 15ABA7
Vega 7, R5 5625U, Micron 2450 512GB MTFDKCD512TFK
1170 Points +7%
Asus VivoBook 15X OLED M3504YA
Vega 7, R5 7530U, Micron 2400 MTFDKBA512QFM
1096 Points
Lenovo Yoga 6 13 83B2001SGE
Vega 8, R7 7730U, WD PC SN740 512GB SDDPMQD-512G-1101
1086 Points -1%
Average AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
  (900 - 1096, n=6)
996 Points -9%
Lenovo IdeaPad Flex 5 16ABR G8
Vega 8, R7 7730U, Samsung PM9B1 1024GB MZAL41T0HBLB
955 Points -13%
Asus VivoBook 15 X M1503QA
Vega 7, R5 5600H, Intel SSD 670p SSDPEKNU512GZ
926 Points -16%
Lenovo ThinkPad L14 G4 21H6S00900
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
900 Points -18%
PCMark 8 Home Score Accelerated v2
4946 points
PCMark 8 Work Score Accelerated v2
5791 points
PCMark 10 Score
6209 points
Help
AIDA64 / Memory Copy
Average of class Multimedia
  (20549 - 104459, n=77, last 2 years)
68580 MB/s +98%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
60884 MB/s +75%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, Vega 8
42813 MB/s +23%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
42732 MB/s +23%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, Vega 7
34927 MB/s +1%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, Vega 7
34720 MB/s
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, Vega 7
33687 MB/s -3%
Average AMD Ryzen 5 7530U
  (20155 - 42853, n=7)
31487 MB/s -9%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, Vega 7
20549 MB/s -41%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
20155 MB/s -42%
AIDA64 / Memory Read
Average of class Multimedia
  (22917 - 125604, n=77, last 2 years)
69599 MB/s +74%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
53476 MB/s +33%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, Vega 7
42816 MB/s +7%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, Vega 7
40094 MB/s
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
39278 MB/s -2%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, Vega 8
39246 MB/s -2%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, Vega 7
38526 MB/s -4%
Average AMD Ryzen 5 7530U
  (23068 - 40094, n=7)
34081 MB/s -15%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
23068 MB/s -42%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, Vega 7
22917 MB/s -43%
AIDA64 / Memory Write
Average of class Multimedia
  (20226 - 117933, n=77, last 2 years)
69752 MB/s +92%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
65947 MB/s +82%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, Vega 8
41792 MB/s +15%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
40196 MB/s +11%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, Vega 7
38867 MB/s +7%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, Vega 7
36241 MB/s
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, Vega 7
32256 MB/s -11%
Average AMD Ryzen 5 7530U
  (22954 - 41838, n=7)
32074 MB/s -11%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
22954 MB/s -37%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, Vega 7
20226 MB/s -44%
AIDA64 / Memory Latency
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
110.6 ns * -17%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, Vega 8
109.7 ns * -16%
Average of class Multimedia
  (7 - 346, n=77, last 2 years)
106.6 ns * -13%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
102.6 ns * -9%
Average AMD Ryzen 5 7530U
  (88.1 - 110.8, n=7)
101.4 ns * -7%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
99.4 ns * -5%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, Vega 7
98.2 ns * -4%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, Vega 7
96 ns * -2%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, Vega 7
94.4 ns *
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, Vega 7
75 ns * +21%

* ... smaller is better

DPC延时

VivoBook 15X M3504并不存在高DPC延迟问题。然而,所提供的硬件并不强大,不足以用于实时音频和视频编辑工作流程,尤其是大型项目。

VivoBook 15X的DPC延迟不是太高
VivoBook 15X的DPC延迟不是太高
DirectX图形内核具有最高的执行时间
DirectX图形内核具有最高的执行时间
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Asus VivoBook 15 X M1503QA
Vega 7, R5 5600H, Intel SSD 670p SSDPEKNU512GZ
1800.2 μs * -174%
Lenovo ThinkPad L14 G4 21H6S00900
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
1783.9 μs * -171%
Lenovo Yoga 6 13 83B2001SGE
Vega 8, R7 7730U, WD PC SN740 512GB SDDPMQD-512G-1101
1402 μs * -113%
Lenovo IdeaPad Flex 5 16ABR G8
Vega 8, R7 7730U, Samsung PM9B1 1024GB MZAL41T0HBLB
1309.9 μs * -99%
Asus VivoBook 15 KM513UA-L503TS
Vega 7, R5 5500U, WDC PC SN530 SDBPMPZ-265G
1080 μs * -64%
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
947 μs * -44%
Lenovo IdeaPad 3 15ABA7
Vega 7, R5 5625U, Micron 2450 512GB MTFDKCD512TFK
868.5 μs * -32%
Asus VivoBook 15X OLED M3504YA
Vega 7, R5 7530U, Micron 2400 MTFDKBA512QFM
658.1 μs *
Asus ZenBook 13 UM325S
Vega 8, R7 5800U, SK Hynix HFM001TD3JX013N
395.4 μs * +40%

* ... smaller is better

我们的 DPC 延迟排名页面提供了更多跨测试设备的延迟比较。

存储设备

美光2400 512GB SSD的性能足以满足休闲使用的需要
美光2400 512GB SSD的性能足以满足休闲使用的需要

美光2400 512GB NVMe固态硬盘并没有打破任何I/O速度记录,远远落后于西部数据SN740、三星PM9B1和美光自己的2450级固态硬盘。

尽管如此,其性能对于休闲的家庭或多媒体使用应该是绰绰有余的。

在队列深度为8的DiskSpd读取循环测试中,我们没有观察到任何性能节流。

Micron 2400 MTFDKBA512QFM
CDM 5/6 Read Seq Q32T1: 3354 MB/s
CDM 5/6 Write Seq Q32T1: 1777 MB/s
CDM 5/6 Read 4K Q32T1: 415.4 MB/s
CDM 5/6 Write 4K Q32T1: 471.9 MB/s
CDM 5 Read Seq: 1642 MB/s
CDM 5 Write Seq: 1608 MB/s
CDM 5/6 Read 4K: 39.72 MB/s
CDM 5/6 Write 4K: 122.6 MB/s
CDM 6 Write 4K Q8T8: 1755.2 MB/s
CDM 6 Read 4K Q8T8: 1218 MB/s
Drive Performance Rating - Percent
Average of class Multimedia

89.1 pt
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
82.7 pt
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
74.3 pt
Lenovo IdeaPad 3 15ABA7
Micron 2450 512GB MTFDKCD512TFK
71.5 pt
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
63.3 pt
Lenovo IdeaPad Flex 5 16ABR G8
Samsung PM9B1 1024GB MZAL41T0HBLB
61.6 pt
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
55.5 pt
Average Micron 2400 MTFDKBA512QFM

53.2 pt
Asus VivoBook 15X OLED M3504YA
Micron 2400 MTFDKBA512QFM
51.2 pt
Asus VivoBook 15 X M1503QA
Intel SSD 670p SSDPEKNU512GZ
47.1 pt
Asus VivoBook 15 KM513UA-L503TS
WDC PC SN530 SDBPMPZ-265G
41.1 pt
DiskSpd
seq read
Average of class Multimedia
  (1629 - 4861, n=76, last 2 years)
2970 MB/s +54%
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
2574 (2756.5min - 2781.24max) MB/s +33%
Lenovo IdeaPad Flex 5 16ABR G8
Samsung PM9B1 1024GB MZAL41T0HBLB
2437 (2397.7min - 2436.84max) MB/s +26%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
2271 (2228.17min - 2270.87max) MB/s +17%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
2076 (2064.65min - 2075.93max) MB/s +7%
Lenovo IdeaPad 3 15ABA7
Micron 2450 512GB MTFDKCD512TFK
1987 (1963.2min - 1987.27max) MB/s +3%
Asus VivoBook 15X OLED M3504YA
Micron 2400 MTFDKBA512QFM
1934 (1928.75min - 1933.57max) MB/s
Average Micron 2400 MTFDKBA512QFM
  (1748 - 2253, n=5)
1891 MB/s -2%
Asus VivoBook 15 X M1503QA
Intel SSD 670p SSDPEKNU512GZ
1629 (1530.08min - 1629.16max) MB/s -16%
Asus VivoBook 15 KM513UA-L503TS
WDC PC SN530 SDBPMPZ-265G
1600 (1586.91min - 1599.92max) MB/s -17%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
1476 (1435.36min - 1475.98max) MB/s -24%
seq write
Average of class Multimedia
  (463 - 5711, n=76, last 2 years)
3092 MB/s +90%
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
2718 (2573.82min - 2597.37max) MB/s +67%
Lenovo IdeaPad 3 15ABA7
Micron 2450 512GB MTFDKCD512TFK
2637 (2362.55min - 2637.38max) MB/s +62%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
2359 (2323.61min - 2359.19max) MB/s +45%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
2081 (1864.41min - 2081.25max) MB/s +28%
Lenovo IdeaPad Flex 5 16ABR G8
Samsung PM9B1 1024GB MZAL41T0HBLB
2048 (1983.07min - 2047.97max) MB/s +26%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
1706 (1502.19min - 1706.45max) MB/s +5%
Asus VivoBook 15X OLED M3504YA
Micron 2400 MTFDKBA512QFM
1628 (1556.93min - 1627.7max) MB/s
Asus VivoBook 15 X M1503QA
Intel SSD 670p SSDPEKNU512GZ
1624 (86.58min - 1623.93max) MB/s 0%
Average Micron 2400 MTFDKBA512QFM
  (1519 - 1671, n=5)
1585 MB/s -3%
Asus VivoBook 15 KM513UA-L503TS
WDC PC SN530 SDBPMPZ-265G
960 (959.66min - 960.29max) MB/s -41%
seq q8 t1 read
Average of class Multimedia
  (2132 - 7126, n=76, last 2 years)
5486 MB/s +64%
Average Micron 2400 MTFDKBA512QFM
  (3234 - 4294, n=5)
3728 MB/s +12%
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
3717 (3356.07min - 3728.85max) MB/s +11%
Lenovo IdeaPad Flex 5 16ABR G8
Samsung PM9B1 1024GB MZAL41T0HBLB
3658 (3170.63min - 3657.88max) MB/s +9%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
3607 (3276.17min - 3606.89max) MB/s +8%
Asus VivoBook 15X OLED M3504YA
Micron 2400 MTFDKBA512QFM
3342 (2908.59min - 3342.44max) MB/s
Lenovo IdeaPad 3 15ABA7
Micron 2450 512GB MTFDKCD512TFK
3161 (2564.82min - 3161.04max) MB/s -5%
Asus VivoBook 15 KM513UA-L503TS
WDC PC SN530 SDBPMPZ-265G
2467 (2257.58min - 2466.67max) MB/s -26%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
2153 (1995.22min - 2153.45max) MB/s -36%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
2133 (1921.83min - 2132.73max) MB/s -36%
Asus VivoBook 15 X M1503QA
Intel SSD 670p SSDPEKNU512GZ
2132 (1872.13min - 2131.96max) MB/s -36%
seq q8 t1 write
Average of class Multimedia
  (555 - 6898, n=76, last 2 years)
4169 MB/s +139%
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
3077 (3209.06min - 3220.18max) MB/s +76%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
2955 (2654.16min - 2955.1max) MB/s +69%
Lenovo IdeaPad 3 15ABA7
Micron 2450 512GB MTFDKCD512TFK
2940 (2656.67min - 2940max) MB/s +68%
Lenovo IdeaPad Flex 5 16ABR G8
Samsung PM9B1 1024GB MZAL41T0HBLB
2902 (2587.47min - 2902.46max) MB/s +66%
Asus VivoBook 15X OLED M3504YA
Micron 2400 MTFDKBA512QFM
1745 (1671.86min - 1745.25max) MB/s
Average Micron 2400 MTFDKBA512QFM
  (1610 - 1773, n=5)
1682 MB/s -4%
Asus VivoBook 15 X M1503QA
Intel SSD 670p SSDPEKNU512GZ
1636 (91.65min - 1636.07max) MB/s -6%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
1188 (1164.94min - 1187.76max) MB/s -32%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
1114 (738.82min - 1113.8max) MB/s -36%
Asus VivoBook 15 KM513UA-L503TS
WDC PC SN530 SDBPMPZ-265G
963 (959.06min - 962.8max) MB/s -45%
4k q1 t1 read
Average of class Multimedia
  (14.6 - 97.7, n=76, last 2 years)
62.9 MB/s +98%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
60.2 (60.01min - 60.16max) MB/s +89%
Lenovo IdeaPad 3 15ABA7
Micron 2450 512GB MTFDKCD512TFK
55.8 (52.71min - 55.77max) MB/s +75%
Asus VivoBook 15 X M1503QA
Intel SSD 670p SSDPEKNU512GZ
55.2 (53.37min - 55.22max) MB/s +74%
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
54 (56.47min - 57max) MB/s +70%
Lenovo IdeaPad Flex 5 16ABR G8
Samsung PM9B1 1024GB MZAL41T0HBLB
53.6 (52.4min - 53.64max) MB/s +69%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
49.3 (47.4min - 49.31max) MB/s +55%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
44.1 (43.66min - 44.07max) MB/s +39%
Asus VivoBook 15 KM513UA-L503TS
WDC PC SN530 SDBPMPZ-265G
35.5 (34.08min - 35.5max) MB/s +12%
Average Micron 2400 MTFDKBA512QFM
  (29.9 - 32.8, n=5)
31.9 MB/s 0%
Asus VivoBook 15X OLED M3504YA
Micron 2400 MTFDKBA512QFM
31.8 (31.53min - 31.75max) MB/s
4k q1 t1 write
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
185.5 (181.45min - 185.46max) MB/s +53%
Average of class Multimedia
  (69.4 - 378, n=76, last 2 years)
170.9 MB/s +41%
Lenovo IdeaPad 3 15ABA7
Micron 2450 512GB MTFDKCD512TFK
169.1 (140.27min - 169.07max) MB/s +40%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
142 (139.45min - 142.06max) MB/s +17%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
125.1 (122.37min - 125.09max) MB/s +3%
Average Micron 2400 MTFDKBA512QFM
  (106.4 - 132, n=5)
123.7 MB/s +2%
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
123.4 (113.69min - 120.08max) MB/s +2%
Asus VivoBook 15X OLED M3504YA
Micron 2400 MTFDKBA512QFM
121.2 (115.69min - 121.2max) MB/s
Lenovo IdeaPad Flex 5 16ABR G8
Samsung PM9B1 1024GB MZAL41T0HBLB
102.2 (98.77min - 102.22max) MB/s -16%
Asus VivoBook 15 KM513UA-L503TS
WDC PC SN530 SDBPMPZ-265G
99.9 (99.22min - 99.93max) MB/s -18%
Asus VivoBook 15 X M1503QA
Intel SSD 670p SSDPEKNU512GZ
82.2 (48.83min - 82.24max) MB/s -32%
4k q32 t16 read
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
1942 (1938.03min - 1946.49max) MB/s +88%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
1730 (1720.68min - 1730.47max) MB/s +67%
Lenovo IdeaPad 3 15ABA7
Micron 2450 512GB MTFDKCD512TFK
1511 (1486.36min - 1511.13max) MB/s +46%
Average of class Multimedia
  (295 - 4881, n=76, last 2 years)
1357 MB/s +31%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
1120 (1057.46min - 1120.06max) MB/s +8%
Asus VivoBook 15X OLED M3504YA
Micron 2400 MTFDKBA512QFM
1034 (731.09min - 1033.71max) MB/s
Average Micron 2400 MTFDKBA512QFM
  (766 - 1705, n=5)
1017 MB/s -2%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
871 (866.74min - 870.51max) MB/s -16%
Asus VivoBook 15 KM513UA-L503TS
WDC PC SN530 SDBPMPZ-265G
698 (696.16min - 698.26max) MB/s -32%
Lenovo IdeaPad Flex 5 16ABR G8
Samsung PM9B1 1024GB MZAL41T0HBLB
692 (674.08min - 692.21max) MB/s -33%
Asus VivoBook 15 X M1503QA
Intel SSD 670p SSDPEKNU512GZ
466 (460.96min - 465.88max) MB/s -55%
4k q32 t16 write
Lenovo IdeaPad 3 15ABA7
Micron 2450 512GB MTFDKCD512TFK
2213 (1035.02min - 2212.9max) MB/s +393%
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
2123 (1682.73min - 1790.55max) MB/s +373%
Average of class Multimedia
  (192.1 - 4074, n=76, last 2 years)
1025 MB/s +128%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
858 (854.84min - 857.91max) MB/s +91%
Asus VivoBook 15 KM513UA-L503TS
WDC PC SN530 SDBPMPZ-265G
598 (301.66min - 598.4max) MB/s +33%
Average Micron 2400 MTFDKBA512QFM
  (313 - 1585, n=5)
595 MB/s +33%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
587 (456.04min - 586.76max) MB/s +31%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
503 (493.05min - 503.32max) MB/s +12%
Asus VivoBook 15X OLED M3504YA
Micron 2400 MTFDKBA512QFM
449 (429.26min - 448.88max) MB/s
Lenovo IdeaPad Flex 5 16ABR G8
Samsung PM9B1 1024GB MZAL41T0HBLB
329 (308.61min - 328.51max) MB/s -27%
Asus VivoBook 15 X M1503QA
Intel SSD 670p SSDPEKNU512GZ
221 (87.39min - 221.44max) MB/s -51%
AS SSD
Score Total
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
5159 Points +69%
Average of class Multimedia
  (2033 - 9972, n=73, last 2 years)
5061 Points +65%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
4451 Points +45%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
4138 Points +35%
Lenovo IdeaPad 3 15ABA7
Micron 2450 512GB MTFDKCD512TFK
4000 Points +31%
Average Micron 2400 MTFDKBA512QFM
  (2845 - 4261, n=4)
3370 Points +10%
Lenovo IdeaPad Flex 5 16ABR G8
Samsung PM9B1 1024GB MZAL41T0HBLB
3126 Points +2%
Asus VivoBook 15X OLED M3504YA
Micron 2400 MTFDKBA512QFM
3060 Points
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
2774 Points -9%
Asus VivoBook 15 X M1503QA
Intel SSD 670p SSDPEKNU512GZ
2364 Points -23%
Asus VivoBook 15 KM513UA-L503TS
WDC PC SN530 SDBPMPZ-265G
1659 Points -46%
Score Read
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
1905 Points +54%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
1831 Points +48%
Lenovo IdeaPad 3 15ABA7
Micron 2450 512GB MTFDKCD512TFK
1688 Points +36%
Average of class Multimedia
  (669 - 3501, n=73, last 2 years)
1630 Points +31%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
1359 Points +10%
Average Micron 2400 MTFDKBA512QFM
  (1031 - 1830, n=4)
1305 Points +5%
Asus VivoBook 15X OLED M3504YA
Micron 2400 MTFDKBA512QFM
1241 Points
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
1137 Points -8%
Lenovo IdeaPad Flex 5 16ABR G8
Samsung PM9B1 1024GB MZAL41T0HBLB
993 Points -20%
Asus VivoBook 15 KM513UA-L503TS
WDC PC SN530 SDBPMPZ-265G
765 Points -38%
Asus VivoBook 15 X M1503QA
Intel SSD 670p SSDPEKNU512GZ
669 Points -46%
Score Write
Average of class Multimedia
  (656 - 4813, n=73, last 2 years)
2660 Points +112%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
2452 Points +95%
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
2290 Points +82%
Lenovo IdeaPad Flex 5 16ABR G8
Samsung PM9B1 1024GB MZAL41T0HBLB
1663 Points +32%
Average Micron 2400 MTFDKBA512QFM
  (1257 - 1735, n=4)
1491 Points +19%
Lenovo IdeaPad 3 15ABA7
Micron 2450 512GB MTFDKCD512TFK
1468 Points +17%
Asus VivoBook 15 X M1503QA
Intel SSD 670p SSDPEKNU512GZ
1369 Points +9%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
1359 Points +8%
Asus VivoBook 15X OLED M3504YA
Micron 2400 MTFDKBA512QFM
1257 Points
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
1091 Points -13%
Asus VivoBook 15 KM513UA-L503TS
WDC PC SN530 SDBPMPZ-265G
553 Points -56%
Seq Read
Average of class Multimedia
  (1718 - 5730, n=73, last 2 years)
4248 MB/s +52%
Average Micron 2400 MTFDKBA512QFM
  (2798 - 3691, n=4)
3189 MB/s +14%
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
3117 MB/s +11%
Lenovo IdeaPad Flex 5 16ABR G8
Samsung PM9B1 1024GB MZAL41T0HBLB
2934 MB/s +5%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
2916 MB/s +4%
Asus VivoBook 15X OLED M3504YA
Micron 2400 MTFDKBA512QFM
2801.51 MB/s
Lenovo IdeaPad 3 15ABA7
Micron 2450 512GB MTFDKCD512TFK
2786.69 MB/s -1%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
2629.16 MB/s -6%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
2289 MB/s -18%
Asus VivoBook 15 KM513UA-L503TS
WDC PC SN530 SDBPMPZ-265G
2155 MB/s -23%
Asus VivoBook 15 X M1503QA
Intel SSD 670p SSDPEKNU512GZ
1718.27 MB/s -39%
Seq Write
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
2870 MB/s +133%
Average of class Multimedia
  (414 - 5651, n=73, last 2 years)
2749 MB/s +123%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
2413 MB/s +96%
Lenovo IdeaPad 3 15ABA7
Micron 2450 512GB MTFDKCD512TFK
2134.13 MB/s +73%
Lenovo IdeaPad Flex 5 16ABR G8
Samsung PM9B1 1024GB MZAL41T0HBLB
1881 MB/s +53%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
1708.34 MB/s +39%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
1566 MB/s +27%
Average Micron 2400 MTFDKBA512QFM
  (1156 - 1633, n=4)
1329 MB/s +8%
Asus VivoBook 15X OLED M3504YA
Micron 2400 MTFDKBA512QFM
1233.15 MB/s
Asus VivoBook 15 X M1503QA
Intel SSD 670p SSDPEKNU512GZ
1036.66 MB/s -16%
Asus VivoBook 15 KM513UA-L503TS
WDC PC SN530 SDBPMPZ-265G
931 MB/s -25%
4K Read
Lenovo IdeaPad 3 15ABA7
Micron 2450 512GB MTFDKCD512TFK
63.49 MB/s +60%
Average of class Multimedia
  (28.7 - 98.5, n=73, last 2 years)
61.6 MB/s +55%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
56 MB/s +41%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
52.4 MB/s +32%
Asus VivoBook 15 X M1503QA
Intel SSD 670p SSDPEKNU512GZ
51.69 MB/s +30%
Lenovo IdeaPad Flex 5 16ABR G8
Samsung PM9B1 1024GB MZAL41T0HBLB
49.3 MB/s +24%
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
49.1 MB/s +24%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
46.78 MB/s +18%
Asus VivoBook 15 KM513UA-L503TS
WDC PC SN530 SDBPMPZ-265G
39.89 MB/s +1%
Asus VivoBook 15X OLED M3504YA
Micron 2400 MTFDKBA512QFM
39.67 MB/s
Average Micron 2400 MTFDKBA512QFM
  (30 - 42.8, n=4)
35.7 MB/s -10%
4K Write
Average of class Multimedia
  (66.5 - 328, n=73, last 2 years)
190.3 MB/s +45%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
160.19 MB/s +22%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
159.8 MB/s +22%
Lenovo IdeaPad 3 15ABA7
Micron 2450 512GB MTFDKCD512TFK
147.33 MB/s +13%
Asus VivoBook 15 KM513UA-L503TS
WDC PC SN530 SDBPMPZ-265G
137.2 MB/s +5%
Asus VivoBook 15X OLED M3504YA
Micron 2400 MTFDKBA512QFM
130.89 MB/s
Average Micron 2400 MTFDKBA512QFM
  (99.8 - 137.5, n=4)
121.6 MB/s -7%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
121.5 MB/s -7%
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
108.1 MB/s -17%
Asus VivoBook 15 X M1503QA
Intel SSD 670p SSDPEKNU512GZ
101.77 MB/s -22%
Lenovo IdeaPad Flex 5 16ABR G8
Samsung PM9B1 1024GB MZAL41T0HBLB
91.4 MB/s -30%
4K-64 Read
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
1549 MB/s +68%
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
1544 MB/s +68%
Lenovo IdeaPad 3 15ABA7
Micron 2450 512GB MTFDKCD512TFK
1346.13 MB/s +46%
Average of class Multimedia
  (350 - 2989, n=73, last 2 years)
1144 MB/s +24%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
1011 MB/s +10%
Average Micron 2400 MTFDKBA512QFM
  (721 - 1430, n=4)
953 MB/s +3%
Asus VivoBook 15X OLED M3504YA
Micron 2400 MTFDKBA512QFM
921.08 MB/s
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
823.86 MB/s -11%
Lenovo IdeaPad Flex 5 16ABR G8
Samsung PM9B1 1024GB MZAL41T0HBLB
651 MB/s -29%
Asus VivoBook 15 KM513UA-L503TS
WDC PC SN530 SDBPMPZ-265G
509 MB/s -45%
Asus VivoBook 15 X M1503QA
Intel SSD 670p SSDPEKNU512GZ
445.56 MB/s -52%
4K-64 Write
Average of class Multimedia
  (411 - 4265, n=73, last 2 years)
2195 MB/s +119%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
2136 MB/s +113%
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
1895 MB/s +89%
Lenovo IdeaPad Flex 5 16ABR G8
Samsung PM9B1 1024GB MZAL41T0HBLB
1384 MB/s +38%
Average Micron 2400 MTFDKBA512QFM
  (1003 - 1468, n=4)
1258 MB/s +25%
Asus VivoBook 15 X M1503QA
Intel SSD 670p SSDPEKNU512GZ
1163.3 MB/s +16%
Lenovo IdeaPad 3 15ABA7
Micron 2450 512GB MTFDKCD512TFK
1107.36 MB/s +10%
Asus VivoBook 15X OLED M3504YA
Micron 2400 MTFDKBA512QFM
1002.8 MB/s
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
996 MB/s -1%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
759.51 MB/s -24%
Asus VivoBook 15 KM513UA-L503TS
WDC PC SN530 SDBPMPZ-265G
323.1 MB/s -68%
Access Time Read
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
0.159 ms * -6%
Asus VivoBook 15X OLED M3504YA
Micron 2400 MTFDKBA512QFM
0.15 ms *
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
0.143 ms * +5%
Asus VivoBook 15 KM513UA-L503TS
WDC PC SN530 SDBPMPZ-265G
0.123 ms * +18%
Lenovo IdeaPad 3 15ABA7
Micron 2450 512GB MTFDKCD512TFK
0.109 ms * +27%
Asus VivoBook 15 X M1503QA
Intel SSD 670p SSDPEKNU512GZ
0.096 ms * +36%
Average Micron 2400 MTFDKBA512QFM
  (0.039 - 0.15, n=4)
0.095 ms * +37%
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
0.087 ms * +42%
Average of class Multimedia
  (0.018 - 0.15, n=73, last 2 years)
0.0551 ms * +63%
Lenovo IdeaPad Flex 5 16ABR G8
Samsung PM9B1 1024GB MZAL41T0HBLB
0.038 ms * +75%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
0.028 ms * +81%
Access Time Write
Average Micron 2400 MTFDKBA512QFM
  (0.116 - 0.414, n=4)
0.1968 ms * -70%
Lenovo IdeaPad 3 15ABA7
Micron 2450 512GB MTFDKCD512TFK
0.171 ms * -47%
Asus VivoBook 15X OLED M3504YA
Micron 2400 MTFDKBA512QFM
0.116 ms *
Average of class Multimedia
  (0.013 - 0.414, n=73, last 2 years)
0.06104 ms * +47%
Asus VivoBook 15 KM513UA-L503TS
WDC PC SN530 SDBPMPZ-265G
0.051 ms * +56%
Lenovo IdeaPad Flex 5 16ABR G8
Samsung PM9B1 1024GB MZAL41T0HBLB
0.044 ms * +62%
Asus VivoBook 15 X M1503QA
Intel SSD 670p SSDPEKNU512GZ
0.042 ms * +64%
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
0.035 ms * +70%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
0.033 ms * +72%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
0.028 ms * +76%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
0.024 ms * +79%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

017034051068085010201190136015301700187020402210238025502720289030603230Tooltip
Asus VivoBook 15X OLED M3504YA: Ø3355 (2961.55-3369.05)

GPU性能

在累积的3DMark测试中,VivoBook 15X中的Radeon RX Vega 7比该iGPU的平均得分快17%,但它比8%的速度慢。 Radeon RX Vega 8中的 联想Yoga 6 13.

IdeaPad Flex 5 16中的RX Vega 8在Blender 3.3教室HIP渲染中比VivoBook 15X的Vega 7最多快10%。

3DMark Performance Rating - Percent
Average of class Multimedia

100 pt
Lenovo Yoga 6 13 83B2001SGE
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
33.5 pt
Samsung Galaxy Book3 15, Core i5-1335U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U
32.2 pt
Asus ZenBook 13 UM325S
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800U
31.5 pt
Asus VivoBook 15X OLED M3504YA
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
31.1 pt
Lenovo IdeaPad 3 15ABA7
AMD Radeon RX Vega 7, AMD Ryzen 5 5625U
29.3 pt
Lenovo IdeaPad Flex 5 16ABR G8 -1!
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
28.6 pt
Asus VivoBook 15 KM513UA-L503TS
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
28.3 pt
Average AMD Radeon RX Vega 7

26.6 pt
Lenovo ThinkPad L14 G4 21H6S00900
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
20.8 pt
Asus VivoBook 15 X M1503QA
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
16.8 pt
3DMark 11 - 1280x720 Performance GPU
Average of class Multimedia
  (3505 - 60250, n=77, last 2 years)
20075 Points +250%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
6556 Points +14%
Asus ZenBook 13 UM325S
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800U
5870 Points +2%
Asus VivoBook 15X OLED M3504YA
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
5739 Points
Lenovo Yoga 6 13 83B2001SGE
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
5656 Points -1%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U
5554 Points -3%
Lenovo IdeaPad 3 15ABA7
AMD Radeon RX Vega 7, AMD Ryzen 5 5625U
5282 Points -8%
Asus VivoBook 15 KM513UA-L503TS
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
5253 Points -8%
Average AMD Radeon RX Vega 7
  (3353 - 6249, n=58)
5054 Points -12%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
4224 Points -26%
Asus VivoBook 15 X M1503QA
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
3505 Points -39%
3DMark
1280x720 Cloud Gate Standard Graphics
Average of class Multimedia
  (14679 - 130614, n=38, last 2 years)
56887 Points +100%
Lenovo Yoga 6 13 83B2001SGE
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
30501 Points +7%
Asus ZenBook 13 UM325S
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800U
28491 Points 0%
Asus VivoBook 15X OLED M3504YA
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
28466 Points
Lenovo IdeaPad 3 15ABA7
AMD Radeon RX Vega 7, AMD Ryzen 5 5625U
27032 Points -5%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U
25519 Points -10%
Asus VivoBook 15 KM513UA-L503TS
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
25036 Points -12%
Average AMD Radeon RX Vega 7
  (13713 - 31437, n=43)
23324 Points -18%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
17909 Points -37%
Asus VivoBook 15 X M1503QA
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
14679 Points -48%
1920x1080 Fire Strike Graphics
Average of class Multimedia
  (1835 - 46022, n=80, last 2 years)
14437 Points +306%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U
4523 Points +27%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
4159 Points +17%
Lenovo Yoga 6 13 83B2001SGE
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
4147 Points +17%
Asus ZenBook 13 UM325S
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800U
3861 Points +9%
Asus VivoBook 15X OLED M3504YA
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
3553 Points
Asus VivoBook 15 KM513UA-L503TS
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
3365 Points -5%
Lenovo IdeaPad 3 15ABA7
AMD Radeon RX Vega 7, AMD Ryzen 5 5625U
3352 Points -6%
Average AMD Radeon RX Vega 7
  (1772 - 4037, n=62)
3189 Points -10%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
2384 Points -33%
Asus VivoBook 15 X M1503QA
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
1835 Points -48%
2560x1440 Time Spy Graphics
Average of class Multimedia
  (622 - 17620, n=81, last 2 years)
5446 Points +371%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U
1348 Points +17%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
1330 Points +15%
Lenovo Yoga 6 13 83B2001SGE
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
1283 Points +11%
Asus VivoBook 15X OLED M3504YA
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
1156 Points
Lenovo IdeaPad 3 15ABA7
AMD Radeon RX Vega 7, AMD Ryzen 5 5625U
1088 Points -6%
Asus ZenBook 13 UM325S
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800U
1082 Points -6%
Asus VivoBook 15 KM513UA-L503TS
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
1075 Points -7%
Average AMD Radeon RX Vega 7
  (496 - 1249, n=57)
991 Points -14%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
775 Points -33%
Asus VivoBook 15 X M1503QA
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
622 Points -46%
3DMark 11 Performance
5951 points
3DMark Ice Storm Standard Score
157825 points
3DMark Cloud Gate Standard Score
22448 points
3DMark Fire Strike Score
3252 points
3DMark Fire Strike Extreme Score
1460 points
3DMark Time Spy Score
1314 points
Help
Blender
v3.3 Classroom HIP/AMD
Lenovo ThinkPad L14 G4 21H6S00900
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
1123 Seconds * -64%
Average AMD Radeon RX Vega 7
  (570 - 1215, n=12)
791 Seconds * -16%
Lenovo IdeaPad 3 15ABA7
AMD Radeon RX Vega 7, AMD Ryzen 5 5625U
725 Seconds * -6%
Asus VivoBook 15X OLED M3504YA
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
683 Seconds *
Lenovo Yoga 6 13 83B2001SGE
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
634 Seconds * +7%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
612 Seconds * +10%
Average of class Multimedia
  (308 - 683, n=5, last 2 years)
461 Seconds * +33%
v3.3 Classroom CPU
Lenovo ThinkPad L14 G4 21H6S00900
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
763 Seconds * -23%
Average AMD Radeon RX Vega 7
  (556 - 878, n=24)
702 Seconds * -14%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U
676 Seconds * -9%
Lenovo Yoga 6 13 83B2001SGE
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
648 Seconds * -5%
Lenovo IdeaPad 3 15ABA7
AMD Radeon RX Vega 7, AMD Ryzen 5 5625U
636 Seconds * -3%
Asus VivoBook 15X OLED M3504YA
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
618 Seconds *
Asus VivoBook 15 X M1503QA
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
582 Seconds * +6%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
488 Seconds * +21%
Average of class Multimedia
  (189 - 946, n=84, last 2 years)
430 Seconds * +30%

* ... smaller is better

游戏性能

RX Vega 7只能在低设置和低分辨率下玩老游戏。在1080p Ultra的测试标题中,总体性能与其他配备该iGPU的笔记本电脑相当。

华硕ZenBook 13中的RX Vega 8 华硕ZenBook 13在1080p Ultra下比VivoBook 15X中的Vega 7性能高出22%。

Witcher 3 在VivoBook 15X1080p Ultra下几乎无法播放,尽管输出的帧数相当稳定。

Performance Rating - Percent
Average of class Multimedia

100 pt
Asus ZenBook 13 UM325S -3!
AMD Ryzen 7 5800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
39.3 pt
Samsung Galaxy Book3 15, Core i5-1335U -1!
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
35.8 pt
Lenovo IdeaPad Flex 5 16ABR G8 -1!
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
34.6 pt
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
31.8 pt
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
31.5 pt
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, AMD Radeon RX Vega 7
31.4 pt
Asus VivoBook 15 KM513UA-L503TS -1!
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
30.8 pt
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
20.7 pt
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
18.7 pt
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Average of class Multimedia
  (8 - 143.2, n=80, last 2 years)
54 fps +297%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.7 (12min, 14P1) fps +8%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
13.6 (12min, 13P1) fps 0%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
13.6 (11min, 11P1) fps
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13 fps -4%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
12.9 (11min, 11P1) fps -5%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, AMD Radeon RX Vega 7
12.6 (10min) fps -7%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
8.22 (6min) fps -40%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
8 (7min) fps -41%
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Average of class Multimedia
  (5.09 - 126.3, n=80, last 2 years)
53.5 fps +378%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12.3 (1.009min, 8.2P1) fps +10%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, AMD Radeon RX Vega 7
11.6 (2.32min, 8.26P1) fps +4%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11.5 (3.02min, 8.26P1) fps +3%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
11.2 (4.15min, 7.75P1) fps
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
6.94 (1.624min, 4.78P1) fps -38%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
5.09 (0.715min, 3.55P1) fps -55%
Final Fantasy XV Benchmark - 1920x1080 High Quality
Average of class Multimedia
  (6.53 - 141.8, n=81, last 2 years)
50.9 fps +304%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
15.4 fps +22%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12.9 fps +2%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
12.6 fps
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, AMD Radeon RX Vega 7
12.2 fps -3%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11.7 fps -7%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
11.1 fps -12%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
8 fps -37%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
6.53 fps -48%
Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Average of class Multimedia
  (11 - 233, n=80, last 2 years)
87.4 fps +290%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
24.1 (6.1min, 7.58P1) fps +8%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
22.7 (5min, 5.54P1) fps +1%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
22.4 (12.5min, 15.8P1) fps
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
21.9 (5min, 6.51P1) fps -2%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, AMD Radeon RX Vega 7
21.2 (10.8min, 14.9P1) fps -5%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
20.9 (5.4min, 16.2P1) fps -7%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
12.9 (8.6min, 9.74P1) fps -42%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
11 (5min, 6.85P1) fps -51%
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Average of class Multimedia
  (26.3 - 179.9, n=82, last 2 years)
96.4 fps +105%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
56.5 (49min) fps +20%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
53.3 (46.9min) fps +13%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
50.4 (44.6min) fps +7%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
48.3 (42.5min) fps +3%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
47.1 (42.8min) fps
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, AMD Radeon RX Vega 7
46 (42.8min) fps -2%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
44 (40min) fps -7%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
31.3 (29.7min) fps -34%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
26.3 (24.5min) fps -44%
X-Plane 11.11 - 1920x1080 high (fps_test=3)
Average of class Multimedia
  (23 - 141.1, n=82, last 2 years)
66.8 fps +130%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, AMD Radeon RX Vega 7
31.8 fps +9%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
29.9 fps +3%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
29.1 fps
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
27.7 fps -5%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
26.8 fps -8%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
26.7 fps -8%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
25.8 fps -11%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
23.4 fps -20%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
22.1 fps -24%
The Witcher 3 / Low Graphics & Postprocessing
Average of class Multimedia
  (36 - 428, n=47, last 2 years)
213 fps +223%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
81.7 fps +24%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
77 fps +17%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
65.9 (57min, 58.2P1) fps
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, AMD Radeon RX Vega 7
60.7 (50min) fps -8%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
60 fps -9%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
59.1 (52min, 52P1) fps -10%
Average AMD Radeon RX Vega 7
  (25.5 - 105.8, n=50)
58.1 fps -12%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
38.9 (32min) fps -41%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
36 (32min) fps -45%
The Witcher 3 / Medium Graphics & Postprocessing
Average of class Multimedia
  (23 - 327, n=40, last 2 years)
144.6 fps +248%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
53.5 fps +29%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
41.6 (38min, 38P1) fps
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
39 fps -6%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, AMD Radeon RX Vega 7
38.3 (34min) fps -8%
Average AMD Radeon RX Vega 7
  (9.74 - 81.3, n=37)
34.1 fps -18%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
23.8 (20min) fps -43%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
23 (21min) fps -45%
The Witcher 3 / High Graphics & Postprocessing (Nvidia HairWorks Off)
Average of class Multimedia
  (11.2 - 290, n=73, last 2 years)
100.8 fps +382%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
27.9 fps +33%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
24 fps +15%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
20.9 (18min, 18P1) fps
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
20 fps -4%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, AMD Radeon RX Vega 7
19 (16min) fps -9%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
18.2 (15min, 15P1) fps -13%
Average AMD Radeon RX Vega 7
  (8.96 - 26.2, n=49)
18.1 fps -13%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
11.8 (9min) fps -44%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
11.2 (10min) fps -46%
The Witcher 3 / Ultra Graphics & Postprocessing (HBAO+)
Average of class Multimedia
  (8 - 143.2, n=80, last 2 years)
54 fps +297%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.7 (12min, 14P1) fps +8%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
13.6 (12min, 13P1) fps 0%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
13.6 (11min, 11P1) fps
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13 fps -4%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
12.9 (11min, 11P1) fps -5%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, AMD Radeon RX Vega 7
12.6 (10min) fps -7%
Average AMD Radeon RX Vega 7
  (6.5 - 15.8, n=42)
11.9 fps -12%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
8.22 (6min) fps -40%
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
8 (7min) fps -41%
F1 22 / Ultra Low Preset
Average of class Multimedia
  (23.7 - 360, n=32, last 2 years)
176.5 fps +165%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
71.7 (55min, 52P1) fps +8%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
66.6 (55min, 54P1) fps
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, AMD Radeon RX Vega 7
64.7 (53min, 53P1) fps -3%
Average AMD Radeon RX Vega 7
  (43.6 - 80.8, n=11)
64.5 fps -3%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
56 fps -16%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
43.6 (35min, 33P1) fps -35%
F1 22 / Low Preset
Average of class Multimedia
  (12.1 - 251, n=49, last 2 years)
118.9 fps +240%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
41.4 (34min, 30P1) fps +18%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
39.4 (33min, 32P1) fps +13%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
35.1 (29min, 25P1) fps 0%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
35 (29min, 28P1) fps
Average AMD Radeon RX Vega 7
  (23.4 - 42.3, n=10)
34.2 fps -2%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, AMD Radeon RX Vega 7
33.7 (28min, 26P1) fps -4%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
28 fps -20%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
23.4 (19min, 18P1) fps -33%
F1 22 / Medium Preset
Average of class Multimedia
  (10.9 - 242, n=51, last 2 years)
114.7 fps +268%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
37 (31min, 28P1) fps +19%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
34.8 (29min, 27P1) fps +12%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
32.5 (26min, 24P1) fps +4%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
31.2 (26min, 25P1) fps
Average AMD Radeon RX Vega 7
  (20.9 - 38, n=10)
30.4 fps -3%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, AMD Radeon RX Vega 7
30.2 (24min, 23P1) fps -3%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
25 fps -20%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
20.9 (17min, 15P1) fps -33%
F1 22 / High Preset
Average of class Multimedia
  (7.73 - 183, n=53, last 2 years)
89.2 fps +269%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
26.5 (22min, 21P1) fps +10%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
26.2 (22min, 20P1) fps +8%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
24.2 (20min, 20P1) fps
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
23.6 (21min, 19P1) fps -2%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, AMD Radeon RX Vega 7
23.4 (20min, 19P1) fps -3%
Average AMD Radeon RX Vega 7
  (16.5 - 28.2, n=10)
23 fps -5%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
18 fps -26%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
16.5 (11min, 12P1) fps -32%
F1 22 / Ultra High Preset
Average of class Multimedia
  (5.23 - 72.6, n=51, last 2 years)
35.3 fps +102%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
20.1 (17min, 16P1) fps +15%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
18.5 (16min, 15P1) fps +6%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
17.5 (14min, 14P1) fps
Average AMD Radeon RX Vega 7
  (12.1 - 20.6, n=9)
16.9 fps -3%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, AMD Radeon RX Vega 7
16.7 (13min, 13P1) fps -5%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
16.4 (14min, 12P1) fps -6%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
12.1 (9min, 9P1) fps -31%
Far Cry 5 / Low Preset
Average of class Multimedia
  (37 - 187, n=50, last 2 years)
106.8 fps +132%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
48 fps +4%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
47 (43min) fps +2%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
47 (24min) fps +2%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
46 (42min) fps
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, AMD Radeon RX Vega 7
44 (39min) fps -4%
Average AMD Radeon RX Vega 7
  (27 - 57, n=24)
40.5 fps -12%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
39 (35min) fps -15%
Far Cry 5 / Medium Preset
Average of class Multimedia
  (20 - 162, n=54, last 2 years)
78.6 fps +293%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
24 (22min) fps +20%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
23 (14min) fps +15%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
23 fps +15%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, AMD Radeon RX Vega 7
21 (19min) fps +5%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
20 (17min) fps
Average AMD Radeon RX Vega 7
  (13 - 27, n=23)
19.1 fps -4%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
18 (15min) fps -10%
Far Cry 5 / High Preset
Average of class Multimedia
  (18 - 154, n=58, last 2 years)
73.2 fps +307%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
22 (20min) fps +22%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
21 (3min) fps +17%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
20 fps +11%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, AMD Radeon RX Vega 7
19 (17min) fps +6%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
18 (16min) fps
Average AMD Radeon RX Vega 7
  (12 - 25, n=21)
17.7 fps -2%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
17 (15min) fps -6%
Far Cry 5 / Ultra Preset
Average of class Multimedia
  (17 - 145, n=58, last 2 years)
68.6 fps +281%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
21 (19min) fps +17%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
20 (5min) fps +11%
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
19 fps +6%
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, AMD Radeon RX Vega 7
18 (16min) fps 0%
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
18 (15min) fps
Average AMD Radeon RX Vega 7
  (11 - 23, n=15)
17.4 fps -3%
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
16 (15min) fps -11%

The Witcher 3 FPS Chart

0123456789101112131415Tooltip
Asus VivoBook 15X OLED M3504YA R5 7530U, Vega 7: Ø13.8 (12-15)
lowmed.highultra
GTA V (2015) 107.7 95.3 26 11.2
The Witcher 3 (2015) 65.9 41.6 20.9 13.6
Dota 2 Reborn (2015) 116.8 93.3 50.7 47.1
Final Fantasy XV Benchmark (2018) 35.2 17.7 12.6
X-Plane 11.11 (2018) 42.6 32.8 29.1
Far Cry 5 (2018) 46 20 18 18
Strange Brigade (2018) 81.5 31.2 26.1 22.4
F1 22 (2022) 35 31.2 24.2 17.5

排放:单个热管和风扇组合完成所有的重任

系统噪音

VivoBook 15X的风扇噪音在大多数情况下是可控的。
VivoBook 15X的风扇噪音在大多数情况下是可控的。

华硕在VivoBook 15X中使用了一个单风扇,就像以前的VivoBook一样。我们的噪音测试表明,华硕很可能在每个风扇配置文件中设置了最大噪音水平的上限--低调30分贝(A),标准40分贝(A),和性能50分贝(A)。

在测试过程中,我们没有观察到任何恼人的线圈而或组件的声音。从主观上讲,VivoBook 15X在大多数情况下都是静音运行。我们建议在一般情况下使用 "标准 "风扇配置。

Noise Level

Idle
30.94 / 30.94 / 30.94 dB(A)
Load
46.62 / 46.54 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 22.03 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2015.217.12515.313.73113.814.44013.815.45022.219.76322.125.68020.128.810025.826.512521.524.416020.622.220021.62625016.72531514.228.44001329.25001027.96309.526.680010.628.1100010.230.412509.432.716009.532.820007.436.225007.134.731507.536.4400010.437.150008.23763008.136.280007.235.4100007.329.2125006.827.6160006.223.7SPL2246.5N0.45.3median 9.5median 29.2Delta4.64.7hearing rangehide median Fan NoiseAsus VivoBook 15X OLED M3504YA
Ambient: 22.03 dB(A)
风扇概况 闲置分贝(A) 负载平均分贝(A) 负载最大分贝(A) Witcher 3 分贝(A)
低音 29.29 29.77 28.31 27.11
标准 29.09 38.89 38.64 38.53
性能 30.94 46.62 46.54 47.14
各种性能模式下的负载平均风扇噪声曲线
各种性能模式下的负载平均风扇噪声曲线
各种性能模式下的负载最大风扇噪声曲线
各种性能模式下的负载最大风扇噪声曲线
Witcher 3 各种性能模式下的风扇噪音情况
Witcher 3 各种性能模式下的风扇噪音情况
Asus VivoBook 15X OLED M3504YA
R5 7530U, Vega 7
Lenovo IdeaPad Flex 5 16ABR G8
R7 7730U, Vega 8
Asus VivoBook 15 KM513UA-L503TS
R5 5500U, Vega 7
Samsung Galaxy Book3 15, Core i5-1335U
i5-1335U, Iris Xe G7 80EUs
Asus VivoBook 15 X M1503QA
R5 5600H, Vega 7
Lenovo IdeaPad 3 15ABA7
R5 5625U, Vega 7
Noise
13%
6%
5%
21%
5%
off / environment *
22.03
24.2
-10%
28.28
-28%
25.2
-14%
23.8
-8%
26
-18%
Idle Minimum *
30.94
24.2
22%
28.28
9%
25.2
19%
24.1
22%
26
16%
Idle Average *
30.94
24.2
22%
28.28
9%
25.2
19%
24.1
22%
26
16%
Idle Maximum *
30.94
28.7
7%
28.28
9%
31.6
-2%
24.1
22%
26
16%
Load Average *
46.62
33.1
29%
35.76
23%
45.4
3%
27.3
41%
46
1%
Witcher 3 ultra *
47.1
41.8
11%
42.79
9%
29.7
37%
Load Maximum *
46.54
41.8
10%
42.67
8%
45.4
2%
41.4
11%
47.9
-3%

* ... smaller is better

温度

VivoBook 15X的单风扇单热管冷却系统在保持表面温度方面做得不错。机箱的左下方经历了高达54.2℃的热量积累,而顶部表面、触摸板和掌托部分保持相对凉爽。

VivoBook 15X采用单风扇单热管冷却解决方案
VivoBook 15X采用单风扇单热管冷却解决方案
Max. Load
 36 °C38.8 °C38.8 °C
 32.4 °C38.2 °C39 °C
 27.4 °C31.6 °C31.6 °C
Maximum: 39 °C
Average: 34.9 °C
54.2 °C45.4 °C32.8 °C
45.4 °C42.6 °C26.2 °C
27.8 °C28.2 °C25.8 °C
Maximum: 54.2 °C
Average: 36.5 °C
Power Supply (max.)  52.8 °C | Room Temperature 22 °C | Amprobe TMD-50 // Fluke 62 Mini IR Thermometer
(±) The average temperature for the upper side under maximal load is 34.9 °C / 95 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(+) The maximum temperature on the upper side is 39 °C / 102 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(-) The bottom heats up to a maximum of 54.2 °C / 130 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 26.9 °C / 80 F, compared to the device average of 31.3 °C / 88 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 33.2 °C / 92 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.6 °C / 88.9 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-2.8 °C / -5.1 F).
系统空闲--顶部
系统空闲--顶部
系统空闲 - 底部
系统空闲 - 底部
Prime95 + FurMark压力 - 上衣
Prime95 + FurMark压力 - 上衣
Prime95 + FurMark压力 - 底部
Prime95 + FurMark压力 - 底部
TheWitcher 3 stress - Top
TheWitcher 3 stress - Top
TheWitcher 3 stress - Bottom
TheWitcher 3 stress - Bottom
Asus VivoBook 15X OLED M3504YA
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
Lenovo IdeaPad Flex 5 16ABR G8
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
Asus VivoBook 15 KM513UA-L503TS
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
Asus VivoBook 15 X M1503QA
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
Lenovo IdeaPad 3 15ABA7
AMD Ryzen 5 5625U, AMD Radeon RX Vega 7
Heat
1%
-6%
-5%
17%
5%
Maximum Upper Side *
39
51.4
-32%
43.8
-12%
45.9
-18%
33.4
14%
41.1
-5%
Maximum Bottom *
54.2
47.8
12%
42.2
22%
43.5
20%
35.6
34%
42.3
22%
Idle Upper Side *
27.8
24.8
11%
33.4
-20%
31.1
-12%
24.6
12%
26.8
4%
Idle Bottom *
28.4
24.9
12%
32.6
-15%
31.6
-11%
26
8%
28.6
-1%

* ... smaller is better

压力测试

用Prime95原地大型FFT对VivoBook 15X施加压力,Ryzen 5 7530U达到了4.05 GHz的最大提升,同时消耗了近42 W。

将FurMark添加到等式中,导致最大提升时钟下降到接近3.8 GHz,CPU封装功率下降到28 W.然后RX Vega 7利用这一热和功率空间,提升到1425 MHz,同时消耗30 W。

我们看到Ryzen 5 7530U(4.5 GHz)和Vega 7(2,000 MHz)在使用1080p Ultra的TheWitcher 3时都有较高的提升。在这种压力下,iGPU平均消耗约27W,但这可能激增到60W。

Prime95压力下的CPU/GPU时钟、温度和功率变化
Prime95压力下的CPU/GPU时钟、温度和功率变化
在Prime95 + FurMark压力下,CPU/GPU的时钟、温度和功率变化
在Prime95 + FurMark压力下,CPU/GPU的时钟、温度和功率变化
在《Witcher 3 》的压力下,CPU/GPU的时钟、温度和功率变化。
在《Witcher 3 》的压力下,CPU/GPU的时钟、温度和功率变化。
压力测试 CPU时钟(GHz) GPU时钟(MHz) CPU平均温度(℃) GPU平均温度(℃)
系统空闲 2.99 399 38.5 38.1
Prime95 3.57 200 71.5 68
Prime95 + FurMark 3.43 1,375 69.4 66.7
TheWitcher 3 2.76 2,000 59.6 58.7

发言人

VivoBook 15X有一对底部发射的立体声扬声器。扬声器的峰值声压级(SPL)为75.4 dB(A),并不完全是惊天动地的,但其音量足以填满一个普通大小的房间,并用于享受多媒体。

低音响应不是特别深,但中音和高音似乎很干净。华硕安装了一个DTS音频处理应用程序来调整声音输出。通过3.5毫米组合音频插孔或通过蓝牙可以获得更好的音频输出。

VivoBook 15X有底部发射的立体声扬声器
VivoBook 15X有底部发射的立体声扬声器
粉红噪声示意图
粉红噪声示意图
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2015.217.42515.315.53113.814.64013.815.25022.218.16322.119.68020.120.410025.830.112521.541.216020.647.220021.651.925016.756.431514.260.44001361.75001062.96309.564.480010.663.9100010.262.112509.459.516009.557.820007.46025007.158.331507.559.8400010.461.550008.267.963008.167.180007.266.6100007.362.9125006.863.3160006.262.6SPL2275.4N0.437.2median 9.5median 61.5Delta4.64.926.325.821.422.12624.925.127.622.532.523.448.72655.818.860.922.167.2267019.372.317.674.217.774.319.575.31571.711.871.311.27410.574.21072.710.17210.67210.97511.374.811.671.71269.71269.612.371.112.669.61270.111.269.824.784.70.666.6median 12median 71.73.42.2hearing rangehide median Pink NoiseAsus VivoBook 15X OLED M3504YAApple MacBook Pro 16 2021 M1 Pro
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Asus VivoBook 15X OLED M3504YA audio analysis

(±) | speaker loudness is average but good (75.4 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.6% lower than median
(±) | linearity of bass is average (12.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.8% away from median
(+) | mids are linear (3.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.3% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (12.4% difference to median)
Compared to same class
» 18% of all tested devices in this class were better, 4% similar, 78% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 9% of all tested devices were better, 2% similar, 89% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook Pro 16 2021 M1 Pro audio analysis

(+) | speakers can play relatively loud (84.7 dB)
Bass 100 - 315 Hz
(+) | good bass - only 3.8% away from median
(+) | bass is linear (5.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (2.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (4.6% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 100% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 4%, average was 25%, worst was 134%

能源管理:节约能源消耗,电池寿命大

消耗功率

当涉及到能源消耗时,VivoBook 15X被认为是一个节俭的耗电者。

AMD的Ryzen 5 7530U在能源效率方面的小幅提升似乎反映在其上一代的同类产品Ryzen 5 5625U在联想IdeaPad 3 15中的整体功耗高出27%。

Power Consumption
Off / Standbydarklight 0.13 / 0.18 Watt
Idledarkmidlight 3.5 / 5.8 / 6.4 Watt
Load midlight 40.9 / 47.7 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Asus VivoBook 15X OLED M3504YA
R5 7530U, Vega 7, OLED, 1920x1080, 15.6"
Lenovo IdeaPad Flex 5 16ABR G8
R7 7730U, Vega 8, IPS, 1920x1200, 16"
Asus VivoBook 15 KM513UA-L503TS
R5 5500U, Vega 7, OLED, 1920x1080, 15.6"
Samsung Galaxy Book3 15, Core i5-1335U
i5-1335U, Iris Xe G7 80EUs, IPS, 1920x1080, 15.6"
Asus VivoBook 15 X M1503QA
R5 5600H, Vega 7, OLED, 1920x1080, 15.6"
Lenovo IdeaPad 3 15ABA7
R5 5625U, Vega 7, IPS, 1920x1080, 15.6"
Average AMD Radeon RX Vega 7

Average of class Multimedia

Power Consumption
-53%
-17%
0%
-32%
-27%
-21%
-104%
Idle Minimum *
3.5
5.4
-54%
4.96
-42%
3.5
-0%
5.4
-54%
5
-43%
4.66 ?(2.6 - 8.4, n=52)
-33%
Idle Average *
5.8
11.1
-91%
7.38
-27%
7
-21%
7.4
-28%
8.7
-50%
7.56 ?(4.8 - 10.7, n=52)
-30%
Idle Maximum *
6.4
11.6
-81%
7.79
-22%
7.6
-19%
13.8
-116%
9.1
-42%
8.95 ?(5.6 - 13.8, n=52)
-40%
Load Average *
40.9
52.7
-29%
41.77
-2%
33
19%
30.3
26%
41
-0%
Witcher 3 ultra *
38.4
47.6
-24%
38.2
1%
32.7
15%
32.8
15%
41.9
-9%
Load Maximum *
47.7
67
-40%
50.95
-7%
44
8%
63
-32%
55.7
-17%
51.9 ?(31 - 73.4, n=52)
-9%

* ... smaller is better

Power Consumption: The Witcher 3 / Stress test

05101520253035404550Tooltip
Asus VivoBook 15X OLED M3504YA; 3DMark06 Return To Proxycon: Ø40.9 (31.6-53.5)
Asus VivoBook 15X OLED M3504YA; 1280x720 Prime95 28.10 and Furmark 1.25: Ø45.4 (44.5-47.7)
Asus VivoBook 15X OLED M3504YA; Witcher 3 ultra: Ø38.4 (36.7-51.7)

Power Consumption: External monitor

051015202530354045505560Tooltip
Asus VivoBook 15X OLED M3504YA; Prime95 V2810 Stress (external Monitor): Ø51.6 (41.7-60.5)
Asus VivoBook 15X OLED M3504YA; Cinebench R15 Multi (external Monitor): Ø53.6 (52-57.3)
Asus VivoBook 15X OLED M3504YA; Cinebench R20 Single (external Monitor): Ø23.5 (22.2-32.2)
Asus VivoBook 15X OLED M3504YA; Cinebench R20 Multi (external Monitor): Ø40.8 (38.6-45.1)
Asus VivoBook 15X OLED M3504YA; Cinebench R23 Single (external Monitor): Ø23.5 (21.9-49.7)
Asus VivoBook 15X OLED M3504YA; Cinebench R23 Multi (external Monitor): Ø51.4 (46.8-54.3)
Asus VivoBook 15X OLED M3504YA; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø35.5 (34.1-43.8)
Asus VivoBook 15X OLED M3504YA; 1920x1080 The Witcher 3 ultra (external Monitor): Ø36 (34.2-41.1)
Asus VivoBook 15X OLED M3504YA; Idle 1min (external Monitor): Ø3.43 (3.12-4.26)

电池寿命

电源消耗的好处也转化为良好的电池寿命收益。VivoBook 15X的50瓦时电池可以舒适地持续一天的工作,当你完成一天的工作时,仍然有一些剩余的电量。

在关闭WLAN的情况下,在150尼特的1080p视频播放循环测试中的电池寿命尤其令人印象深刻。

VivoBook 15X的50WHr电池提供了非常好的运行时间
VivoBook 15X的50WHr电池提供了非常好的运行时间
Battery Runtime
WiFi Websurfing
9h 57min
WiFi Websurfing max. Brightness
6h 42min
Big Buck Bunny H.264 1080p
15h 30min
Asus VivoBook 15X OLED M3504YA
R5 7530U, Vega 7, 50 Wh
Lenovo IdeaPad Flex 5 16ABR G8
R7 7730U, Vega 8, 52.5 Wh
Asus VivoBook 15 KM513UA-L503TS
R5 5500U, Vega 7, 42 Wh
Samsung Galaxy Book3 15, Core i5-1335U
i5-1335U, Iris Xe G7 80EUs, 54 Wh
Asus VivoBook 15 X M1503QA
R5 5600H, Vega 7, 70 Wh
Lenovo IdeaPad 3 15ABA7
R5 5625U, Vega 7, 45 Wh
Average of class Multimedia

Battery Runtime
-9%
-36%
-44%
13%
-16%
-4%
H.264
930
783
-16%
426
-54%
664
-29%
WiFi v1.3
597
585
-2%
382.9
-36%
397
-34%
674
13%
584
-2%
Load
66
53
121
110
56
Reader / Idle
709
1134
1302

Pros

+ 轻量级
+ 合适的键盘和触摸板
+ 良好的色域覆盖率
+ 经济实惠的耗电量
+ 良好的电池寿命

Cons

- 显示屏和键盘的弯曲度
- Wi-Fi 6E的性能可以更好
- 在较高的亮度水平上,60赫兹的显示PWM
- Ryzen 5 7530U的性能比Ryzen 5 5625U略有提升
- 单个热管-风扇组合在被推到极限的时候会有压力

评语:体面的日常驾驶,有一些不可避免的妥协

华硕VivoBook 15X M3504。审查单位由华硕印度公司提供。
华硕VivoBook 15X M3504。审查单位由华硕印度公司提供。

当我们审查 华硕VivoBook 15 KM5132021年时,我们称赞这款笔记本电脑使Zen 3和OLED更加实惠。从那时起已经过去两年了,华硕似乎很乐意安于现状。新的VivoBook 15X M3504,虽然本身是一款不错的中档笔记本电脑,但基本上只是新瓶装旧酒。

VivoBook 15X的塑料结构可能并不令人振奋,但它能使人容易携带。华硕为VivoBook 15X配备了一套体面的端口和Wi-Fi 6E连接,但所有重要的端口都集中在一侧,这种不理想的做法是可以避免的。

华硕VivoBook 15X建立在其前辈的成功公式上。它为休闲计算提供了足够的性能,但AMD对两年前的架构的重新改造已经开始显示其年龄。

通过改进旧的芯片可以提取的性能只有这么多,而且塞尚似乎在这里已经达到了饱和,因为我们看到Ryzen 5 7530U比Ryzen 5 5625U在联想IdeaPad 3 15X中发现的只有很小的收益。 联想IdeaPad 3 15.

也就是说,AMD在Barcelo-R方面的改进确实为VivoBook 15X的低能耗和长电池寿命带来了好处。Ryzen 5 7530U甚至比上一代的45 W Ryzen 5 5600H还要快。 VivoBook 15X M1503QA.

VivoBook 15X的OLED显示屏是该设备的另一个值得注意的方面。虽然在中档笔记本电脑中仍然很难得到OLED HDR显示屏,但华硕的VivoBook已经开始了一个有希望的趋势。例如,普通的三星Galaxy Book3也以类似的价格(折扣后)出售,但却采用了亮度很差的平庸的IPS面板。

然而,制造商年复一年地使用相同的三星面板,这导致PWM非常低,常规的60赫兹刷新率,以及只有16:9的1080p选项。外部显示器也被限制在4K 30 Hz,因为笔记本电脑只提供HDMI 1.4输出。

如果这些妥协并不那么关键,而且你主要是为基本的生产力或学校寻找一台具有良好电池寿命的笔记本电脑,华硕VivoBook 15X应该在你的愿望清单上占据重要位置。

价格和可用性

华硕VivoBook 15X M3504可以直接从华硕印度在线商店进行配置和购买。在价格开始从66,990.经过测试的配置目前在印度亚马逊上的零售价格要低得多₹62,990。采用Ryzen 7 7730U的变体可以在美国亚马逊以799.99美元的价格买到。

Asus VivoBook 15X OLED M3504YA - 06/08/2023 v7 (old)
Vaidyanathan Subramaniam

Chassis
79 / 98 → 81%
Keyboard
87%
Pointing Device
86%
Connectivity
51 / 80 → 64%
Weight
67 / 20-72 → 90%
Battery
89 / 95 → 94%
Display
87%
Games Performance
64 / 90 → 72%
Application Performance
92 / 90 → 100%
Temperature
88%
Noise
74 / 95 → 78%
Audio
77%
Camera
38 / 85 → 44%
Average
75%
83%
Multimedia - Weighted Average

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Price comparison

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 评测 > 华硕VivoBook 15X OLED M3504笔记本电脑评论:具备AMD Ryzen Barcelo-R和OLED的强大日常驱动力
Vaidyanathan Subramaniam, 2023-06- 8 (Update: 2023-06- 8)
