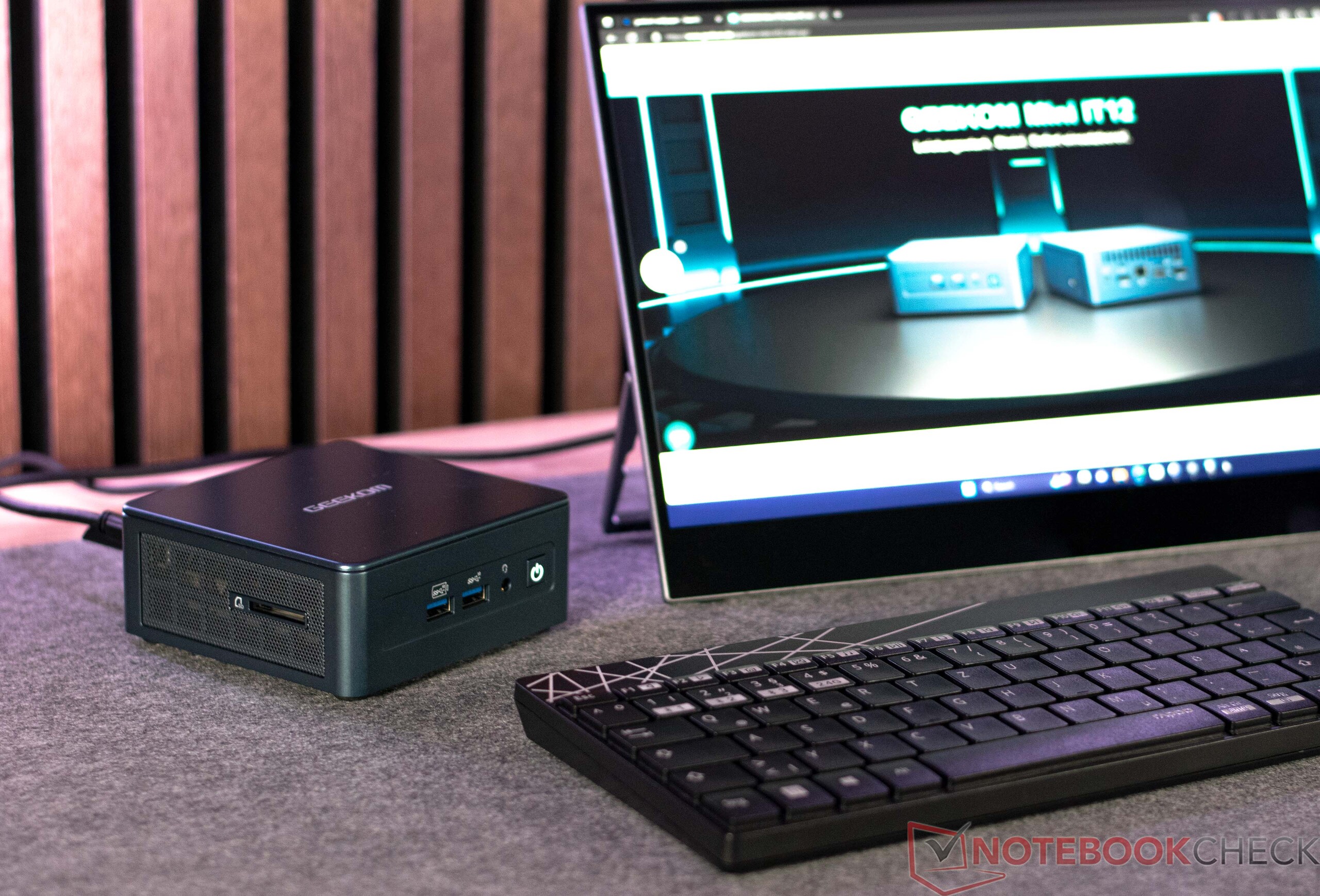

配备英特尔酷睿 i5-12450H 处理器的 Geekom Mini IT12 评测 - 性能卓越、配备两个 USB 4 端口的迷你 PC

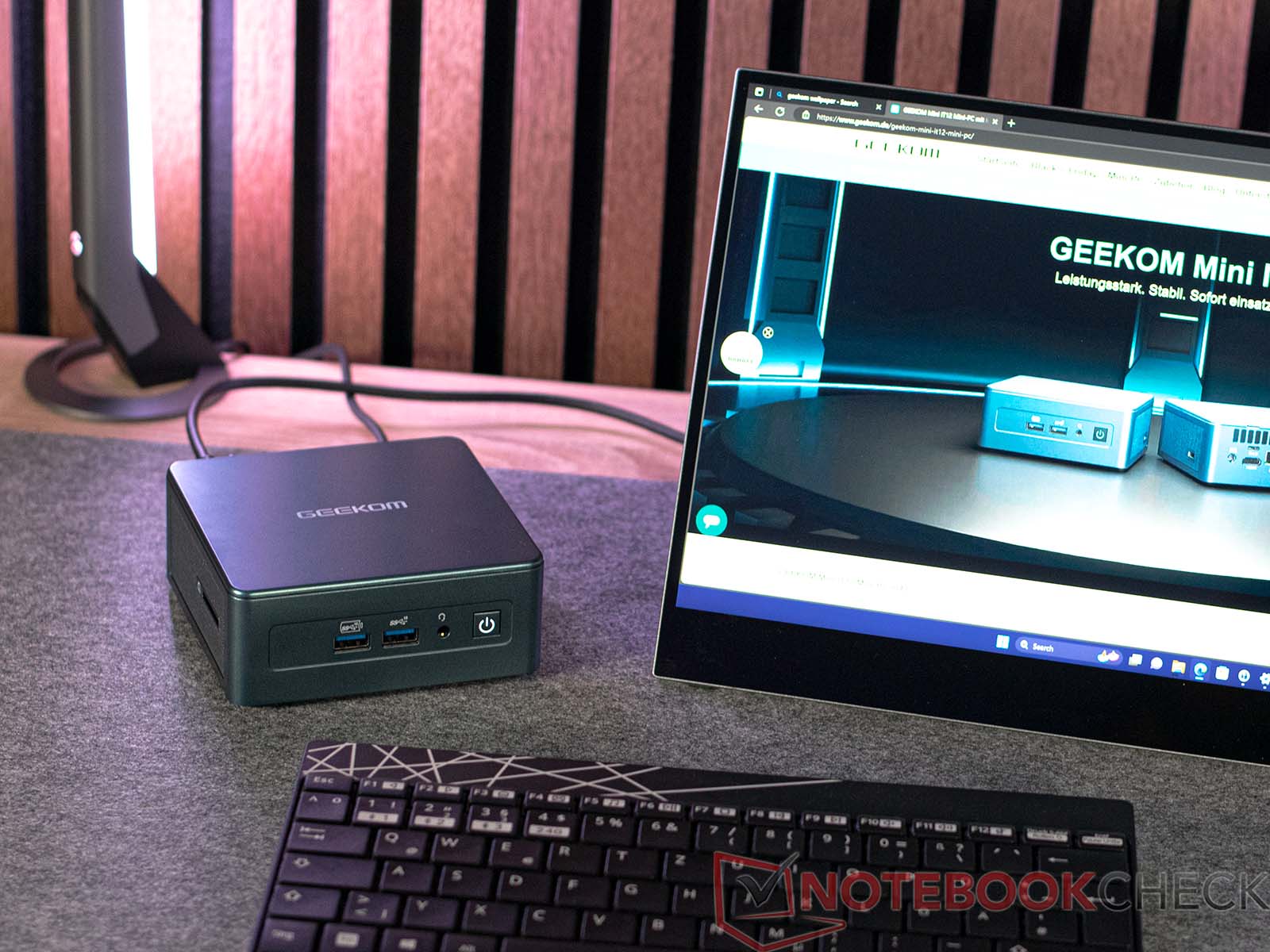

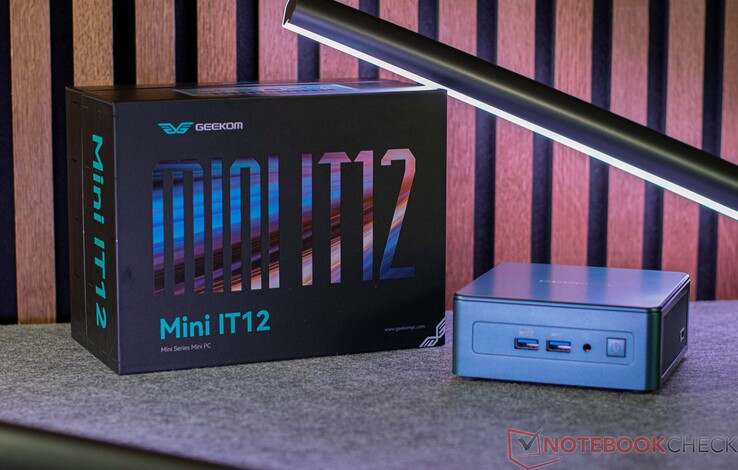

Geekom Mini IT12 是一款结构紧凑、功能强大的微型电脑,配备了 英特尔酷睿 i5-12450H在我们的测试配置中,它配备了英特尔酷睿 i5-12450H、16 GB 内存和 512 GB 固态硬盘。Geekom 的售价为 449 美元,在市场上同类设备中极具竞争力。值得注意的是,Geekom Mini IT12 的连接性略胜一筹,可能会影响购买决策。
面向英特尔 NUC 系列(现由华硕提供),Geekom Mini IT12 面临着 Minisforum 和 NiPoGi 的竞争,两家都推出了同类产品。在下面的概述中,我们为本次评测整理了一份对比设备清单。
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Price |
---|---|---|---|---|---|
79.5 % v7 (old) | 11 / 2023 | Geekom Mini IT12 i5-12450H, UHD Graphics 64EUs | 572 g | 45.6 mm | |
82.3 % v7 (old) | 05 / 2023 | Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs | 572 g | 45.6 mm | |
80.8 % v7 (old) | 04 / 2023 | Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs | 538 g | 37 mm | |
79.5 % v7 (old) | 02 / 2023 | Minisforum Mars Series MC560 R5 5600U, Vega 7 | 562 g | 66 mm | |
78.9 % v7 (old) | 11 / 2022 | Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs | 511 g | 37 mm | |
78 % v7 (old) | 10 / 2023 | Minisforum Venus Series UN1245 i5-12450H, UHD Graphics 64EUs | 545 g | 54.3 mm | |
77.2 % v7 (old) | 10 / 2023 | NiPoGi CK10 i5-12450H, UHD Graphics 64EUs | 481 g | 50 mm |
Geekom Mini IT12 i5-12450H 详细信息

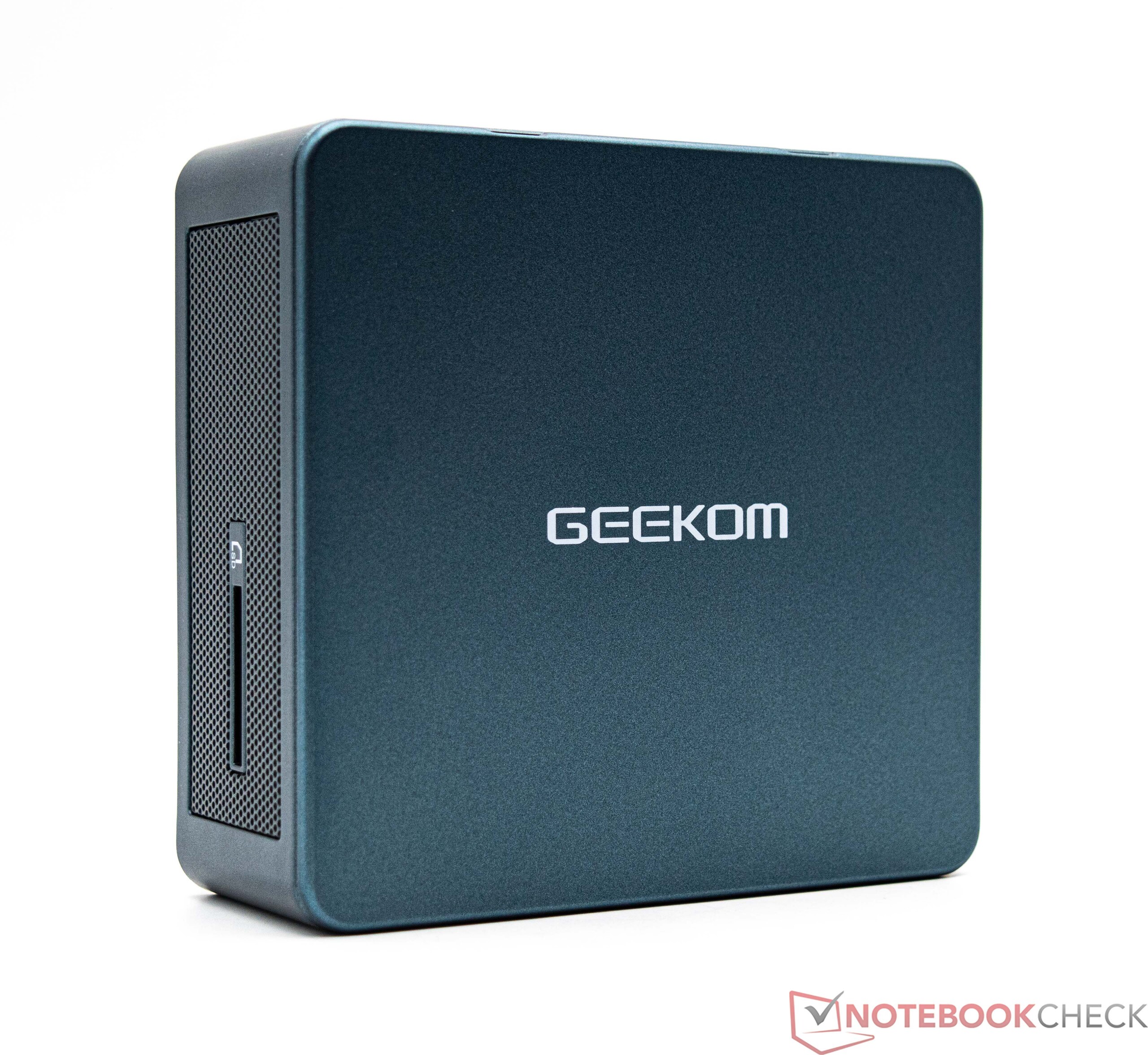

外壳 - 熟悉的 Intel NUC 风格外观

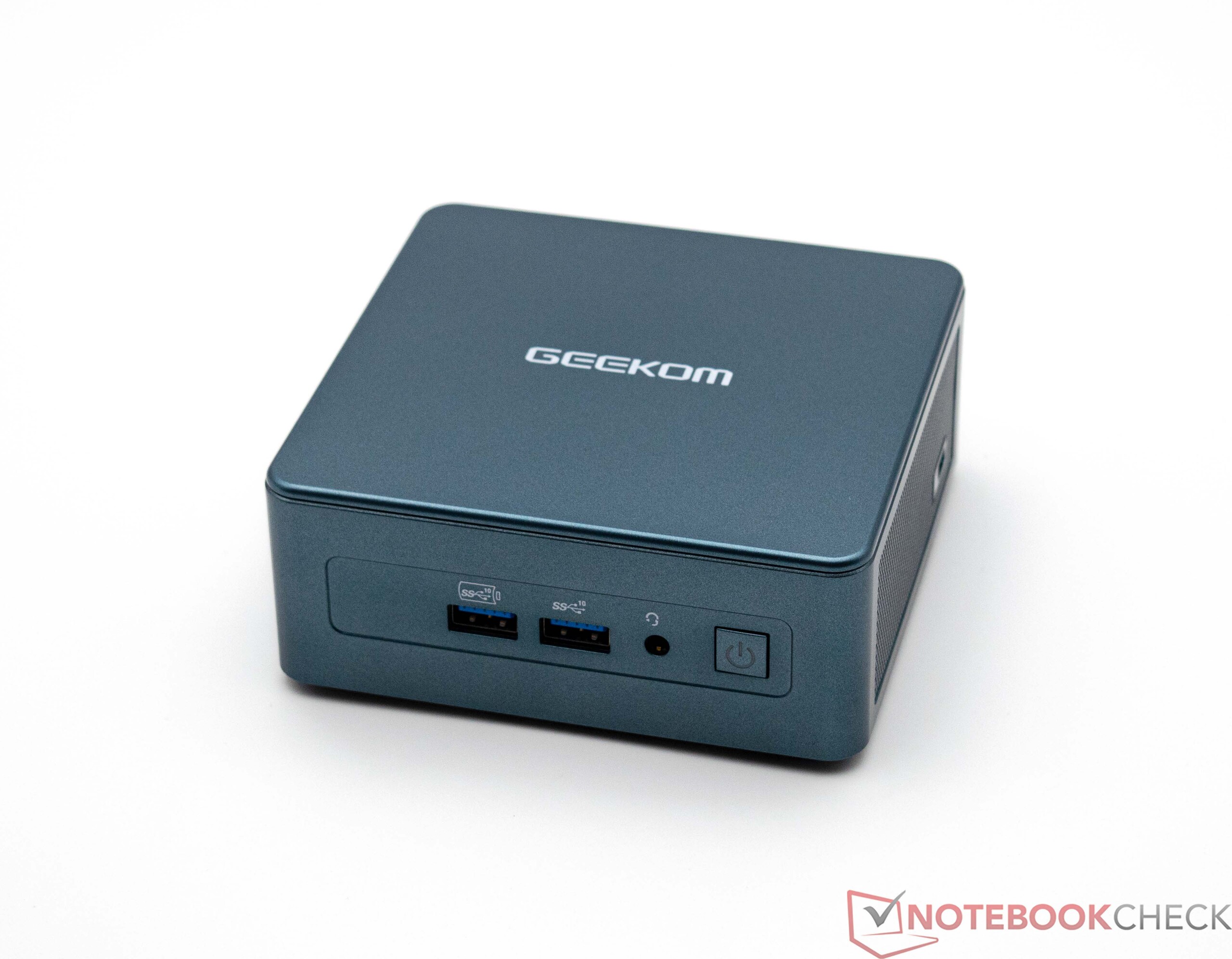

Geekom Mini IT12 与英特尔 NUC 设备非常相似,但它采用了更高的设计,可以安装 2.5 英寸数据载体。与英特尔之前的 "小 "和 "高 "型号不同,Mini IT12 的尺寸为 4.6 × 4.4 英寸,体积小巧,最大限度地减少了桌面空间。绿松石色的外壳散发着高品质的外观,而不像钢琴漆表面那样容易刮花。虽然 Geekom 在材料上坚持使用塑料,这与所选择的竞争对手相比是标准的,但一些制造商已经采用全铝外壳,以获得更高级的感觉。值得注意的是,与许多其他迷你电脑一样,Geekom Mini IT12 配备了 VESA 支架,方便安装到显示器上。

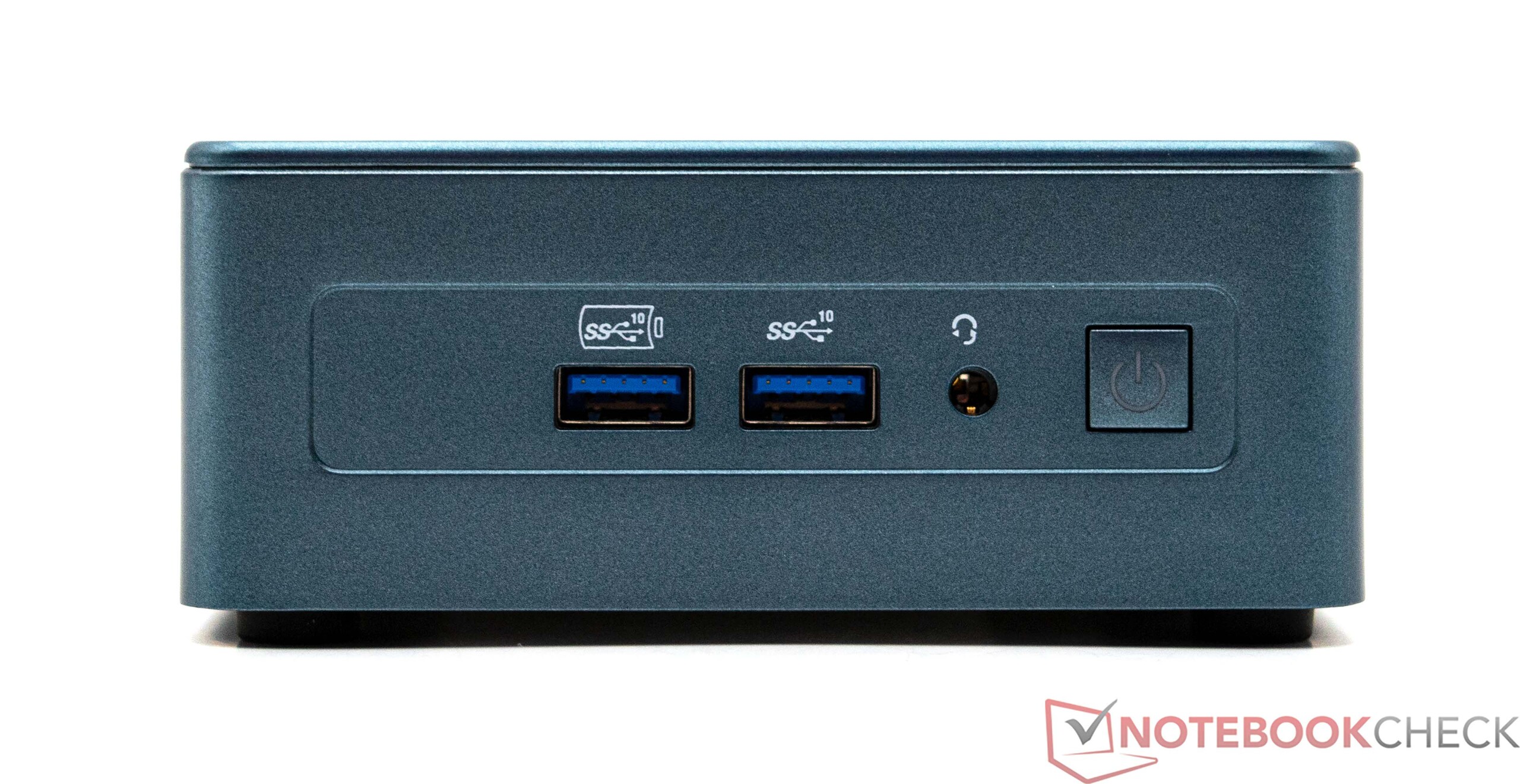

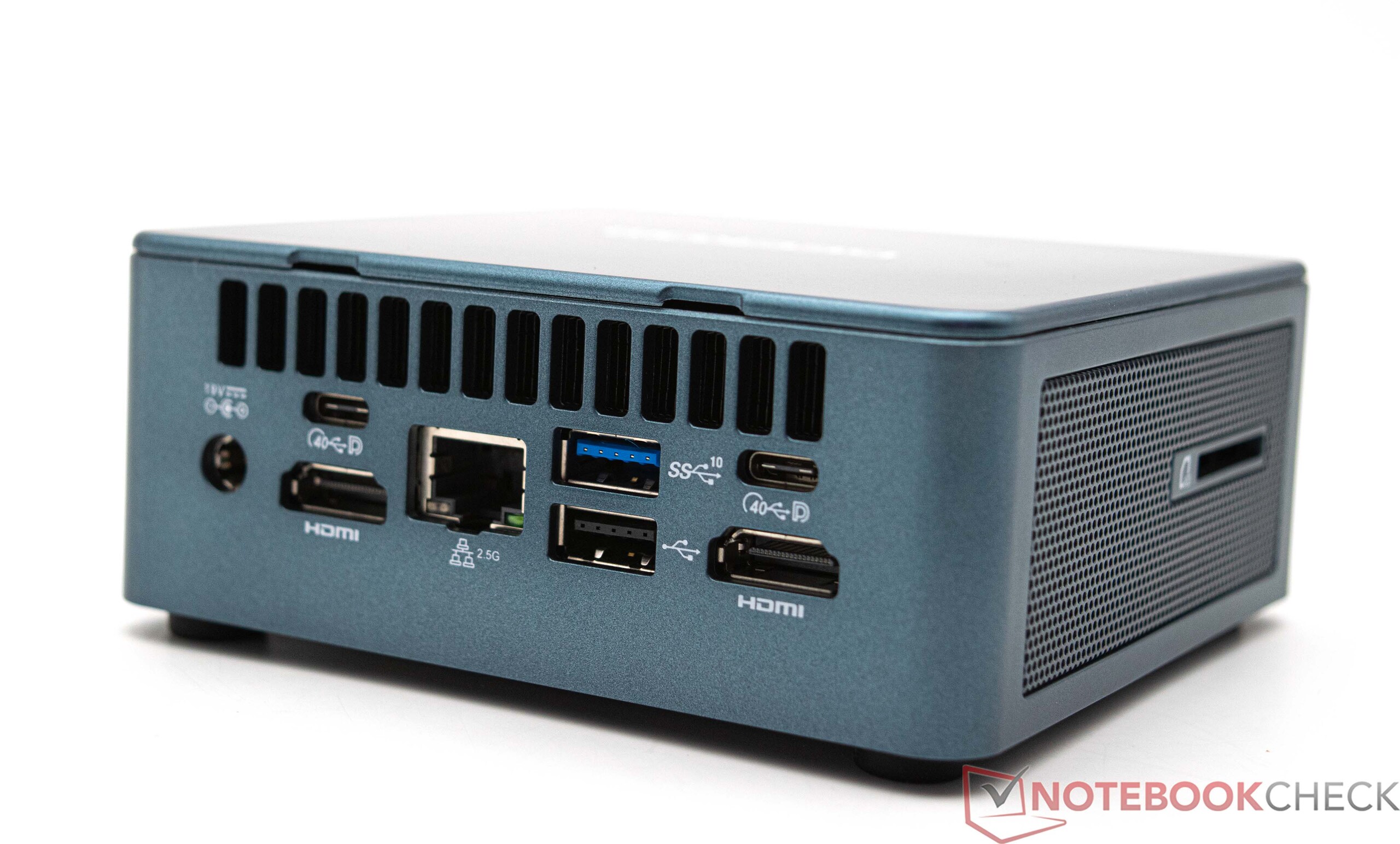

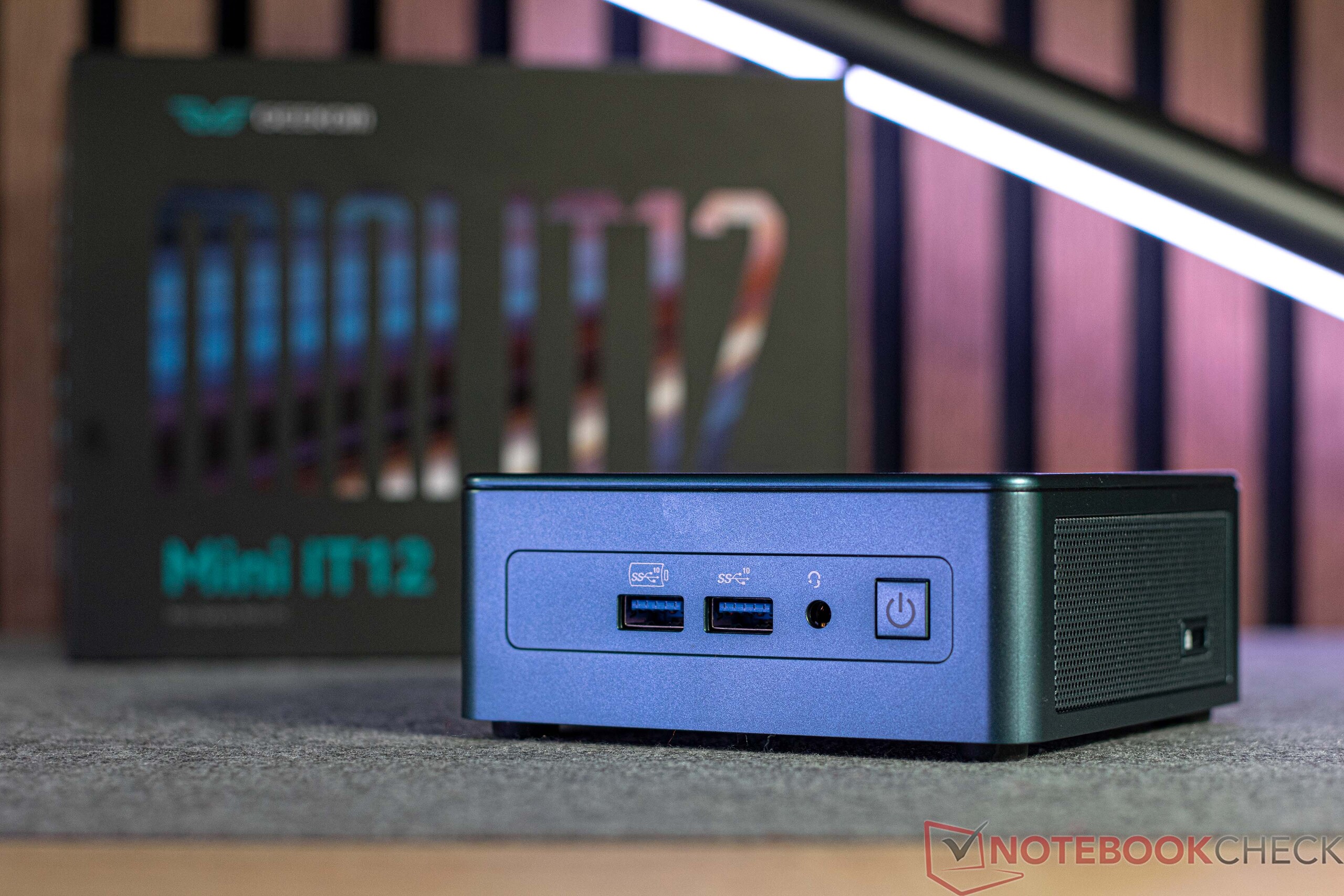

连接性

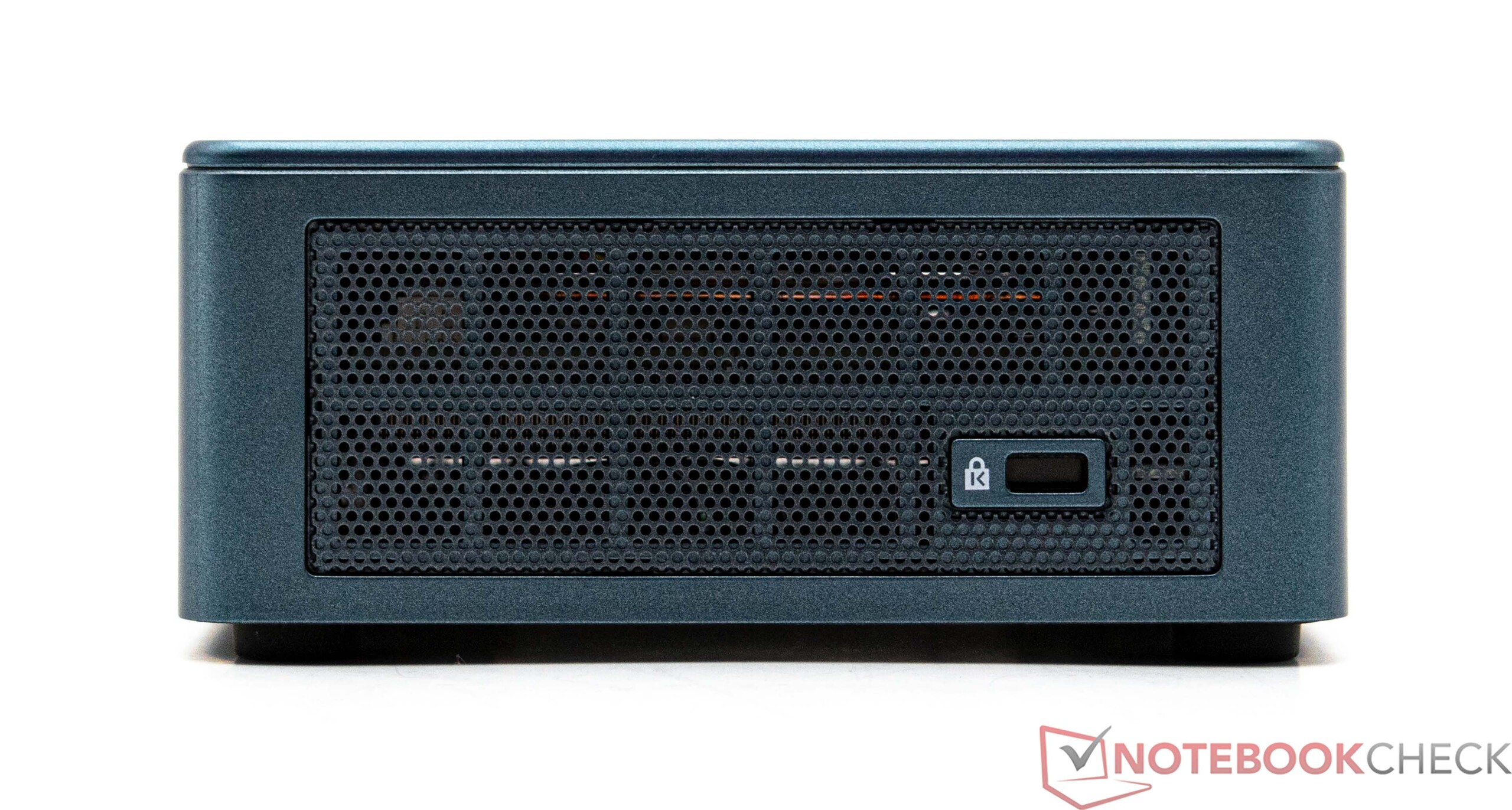

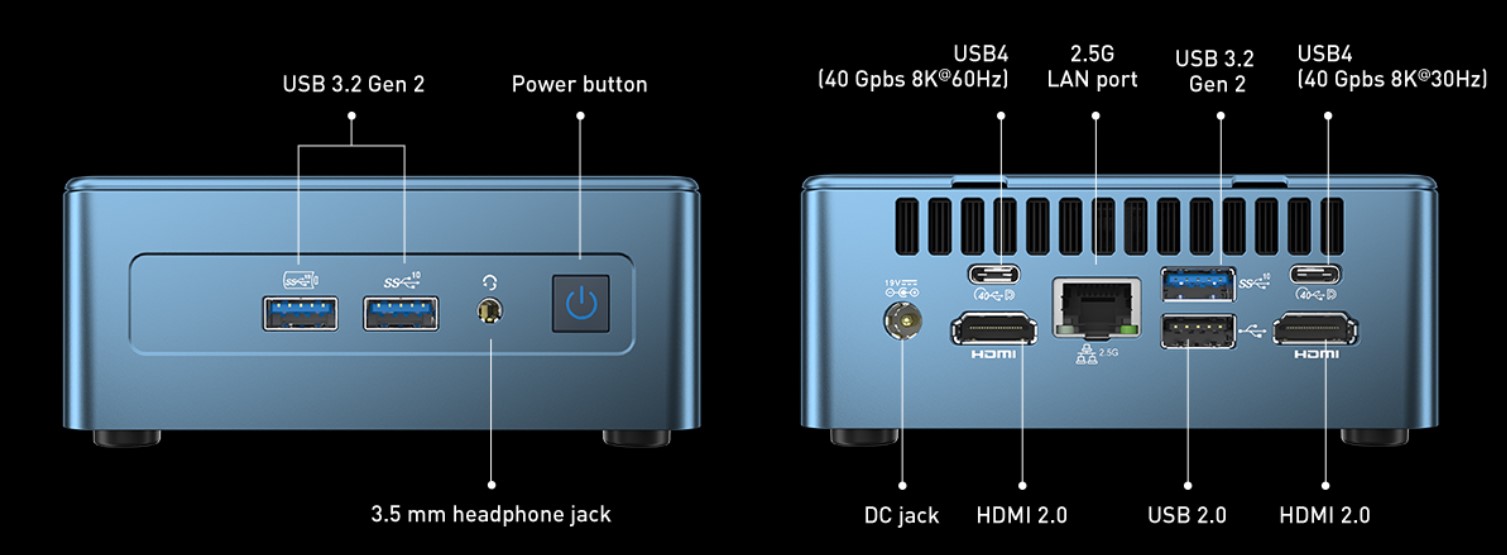

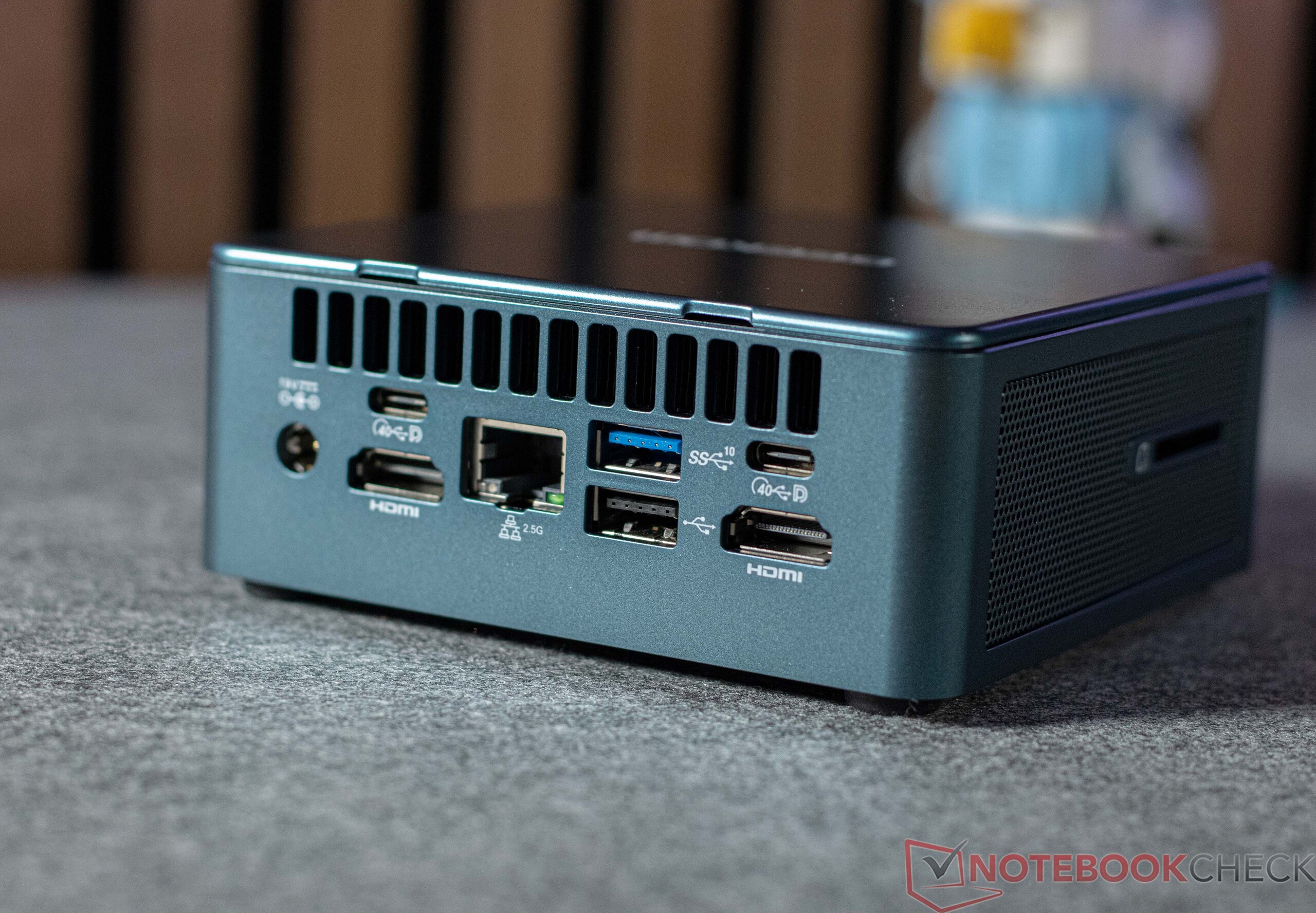

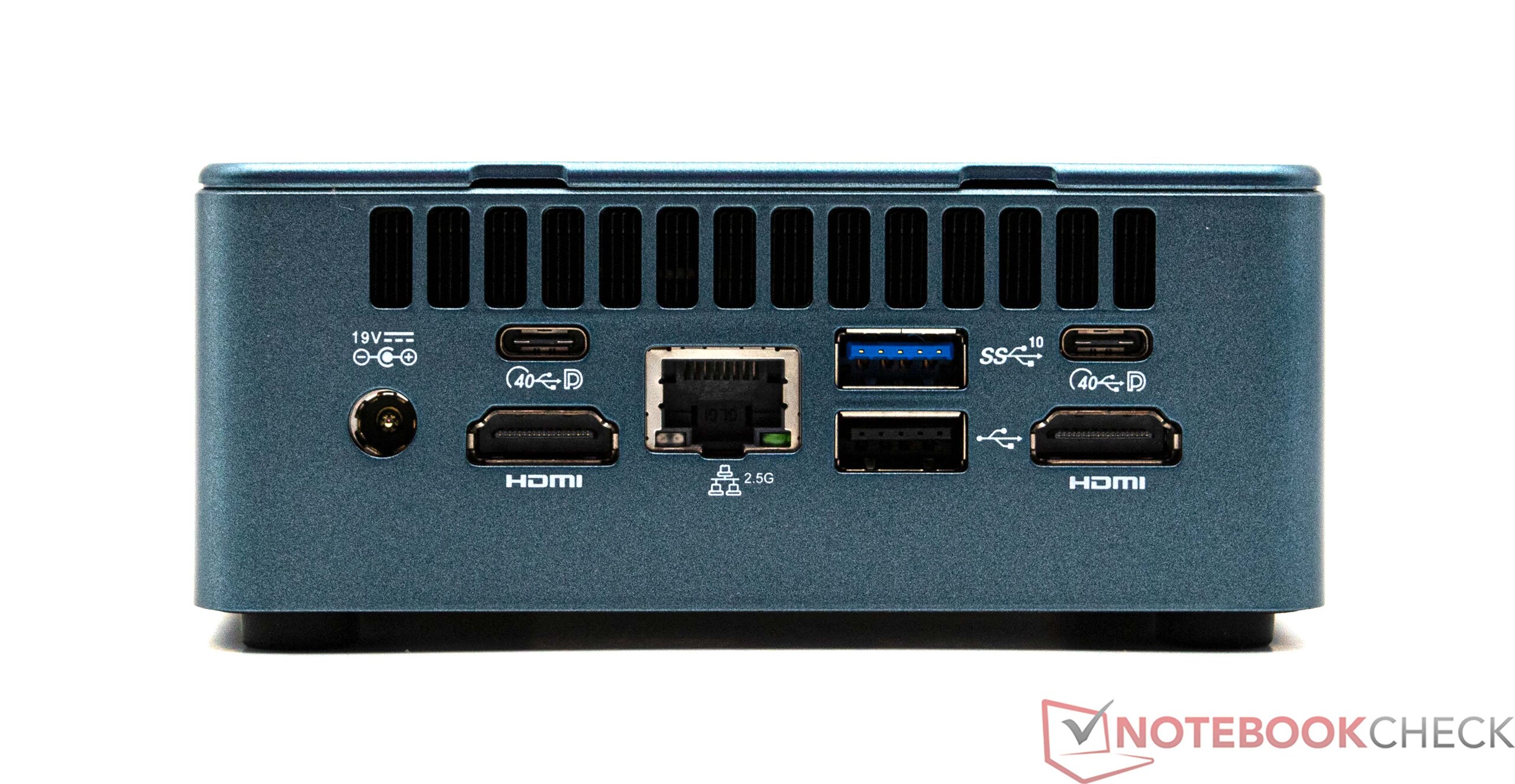

它为外部设备提供了多种连接选项。值得注意的是,它支持同时操作多达四个屏幕,这在许多微型电脑中并不多见。四个 A 型 USB 端口分布在前部和后部,方便用户使用。此外,后部的两个 USB 4 端口允许连接专用显卡,从而扩大了 Mini IT12 的应用范围。USB 4 的存在为兼容第三方制造商的各种配件提供了可能。
SD 读卡器

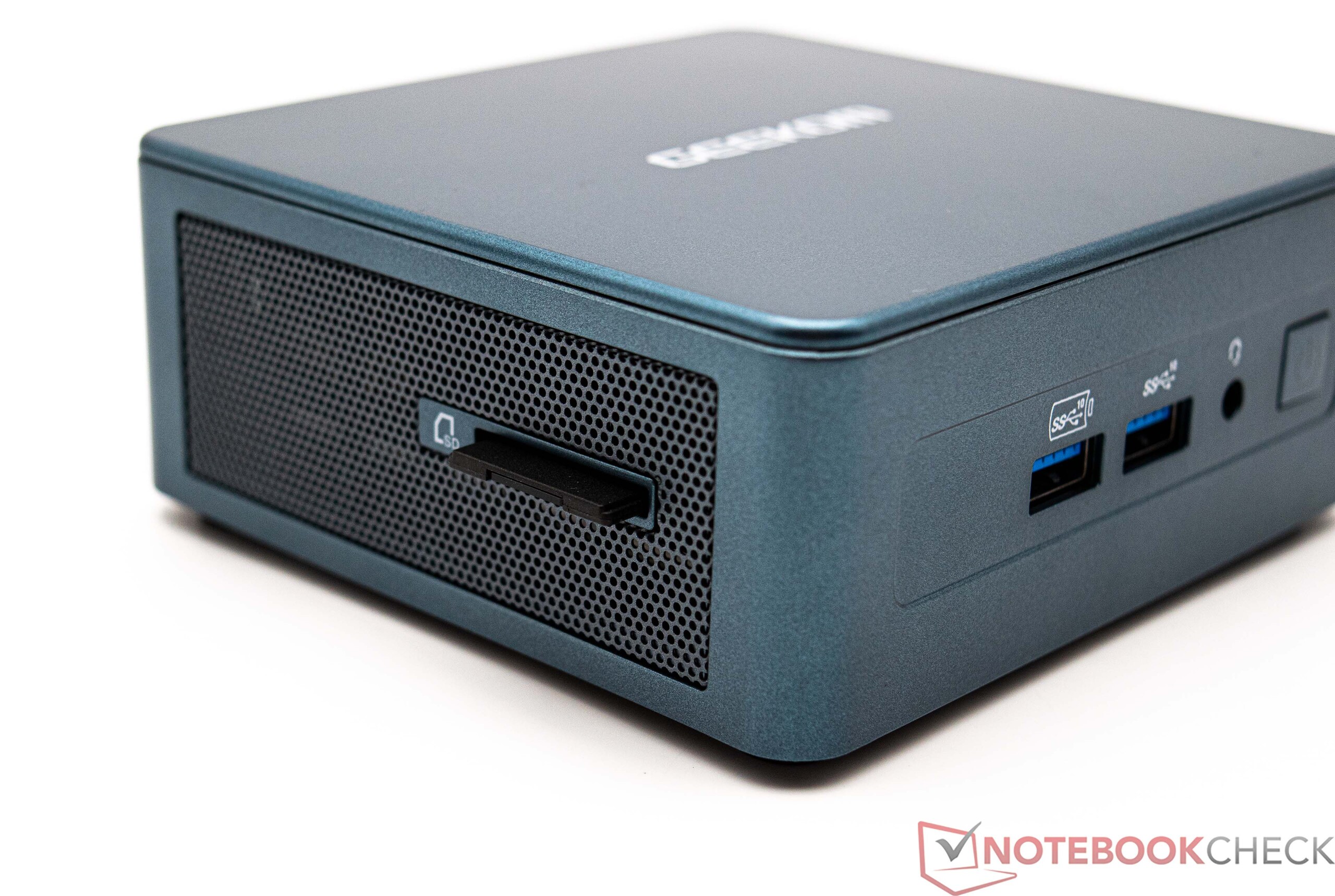

Geekom Mini IT12 配备的 SD 读卡器能够提供令人印象深刻的性能。与我们的参考存储卡(Angelbird SD Card AV PRO UHS-II 128GB V60)搭配使用时,传输速率远远超过 100 MB/s。值得注意的是,要充分发挥这一性能,必须使用支持 UHS-II 的存储卡。
SD Card Reader | |
average JPG Copy Test (av. of 3 runs) | |
Intel Beast Canyon NUC (AV Pro SD microSD 128 GB V60) | |
Intel Dragon Canyon NUC | |
Geekom Mini IT12 (AV Pro SD microSD 128 GB V60) | |
Geekom Mini IT12 (AV Pro SD microSD 128 GB V60) | |
Average of class Mini PC (15.1 - 214, n=26, last 2 years) | |
Zotac ZBOX Magnus EN173070C (AV Pro SD microSD 128 GB V60) | |
Geekom MiniAir 11 Special Edition (AV Pro SD microSD 128 GB V60) | |
maximum AS SSD Seq Read Test (1GB) | |
Intel Beast Canyon NUC (AV Pro SD microSD 128 GB V60) | |
Intel Dragon Canyon NUC | |
Geekom Mini IT12 (AV Pro SD microSD 128 GB V60) | |
Geekom Mini IT12 (AV Pro SD microSD 128 GB V60) | |
Average of class Mini PC (18.2 - 221, n=26, last 2 years) | |
Zotac ZBOX Magnus EN173070C (AV Pro SD microSD 128 GB V60) | |
Geekom MiniAir 11 Special Edition (AV Pro SD microSD 128 GB V60) |
交流

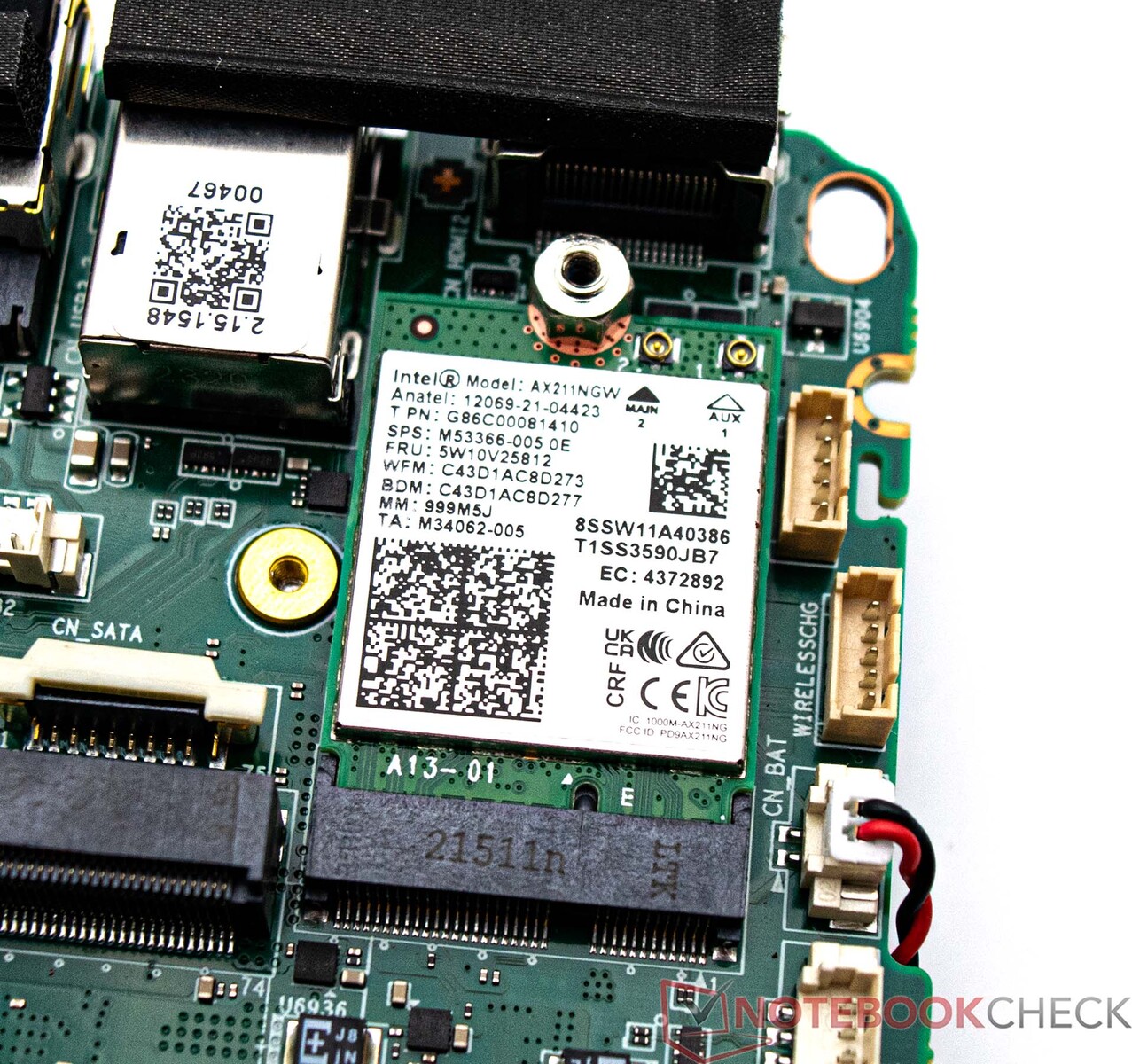

Geekom 在 Mini IT12 中采用了英特尔公司生产的现代 Wi-Fi 6E-AX211 模块。测试结果表明,其性能未达到预期标准。在 5 GHz 和 6 GHz 频段,测得的数据传输和接收速率均低于采用相同 WLAN 模块的竞争对手。值得注意的是,我们的测试使用的是华硕 ROG Rapture GT-AXE11000 路由器。
配件

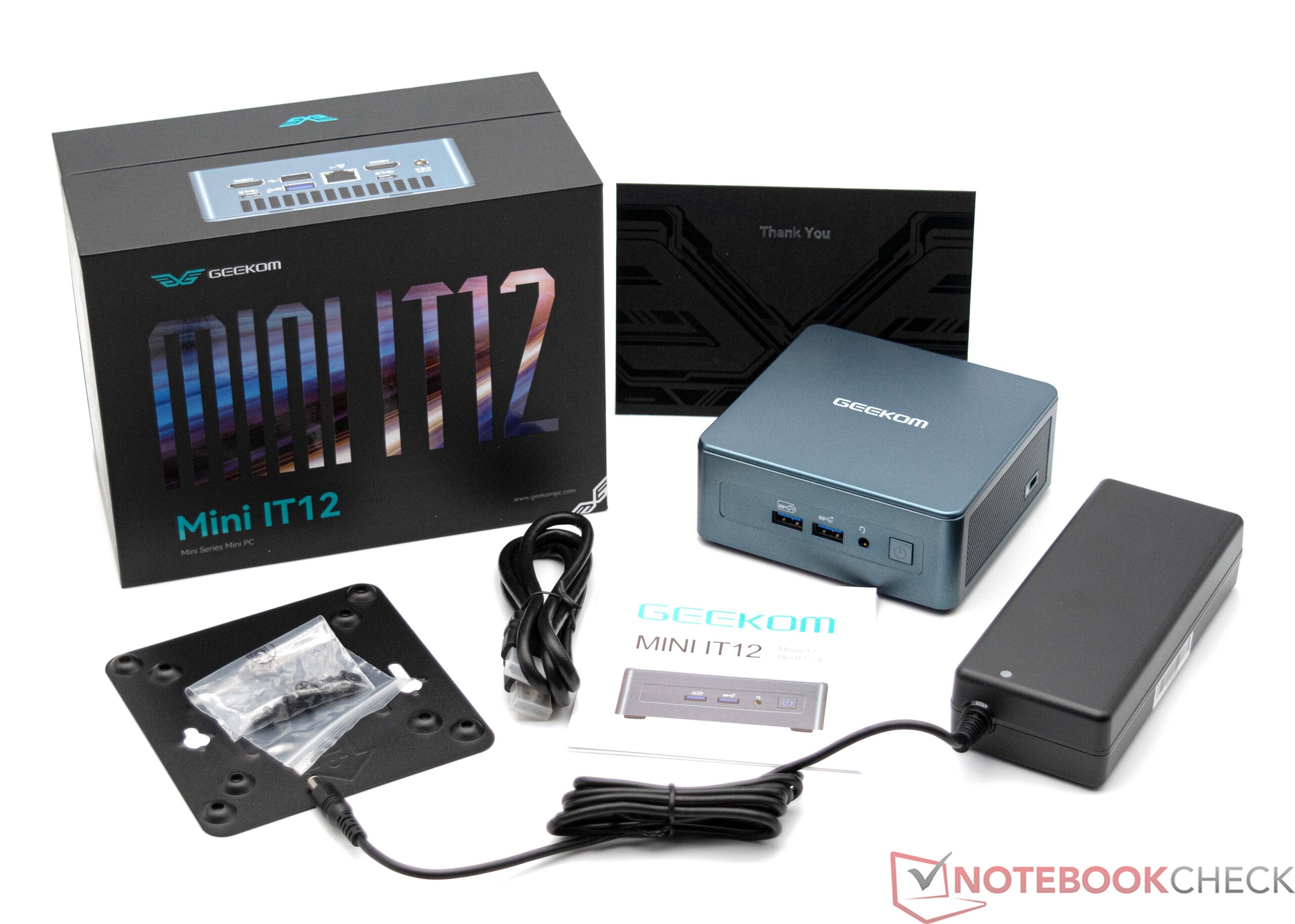

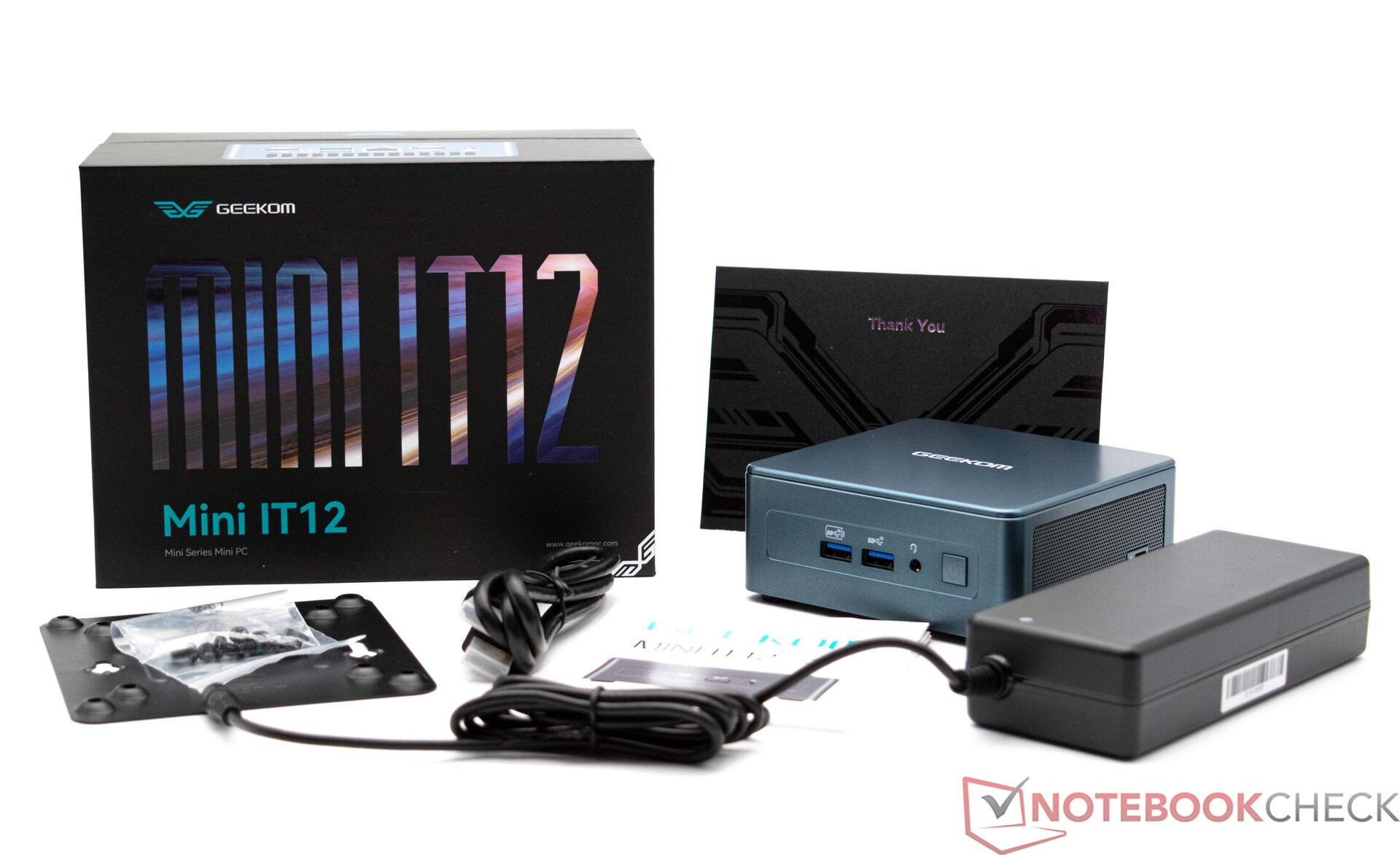

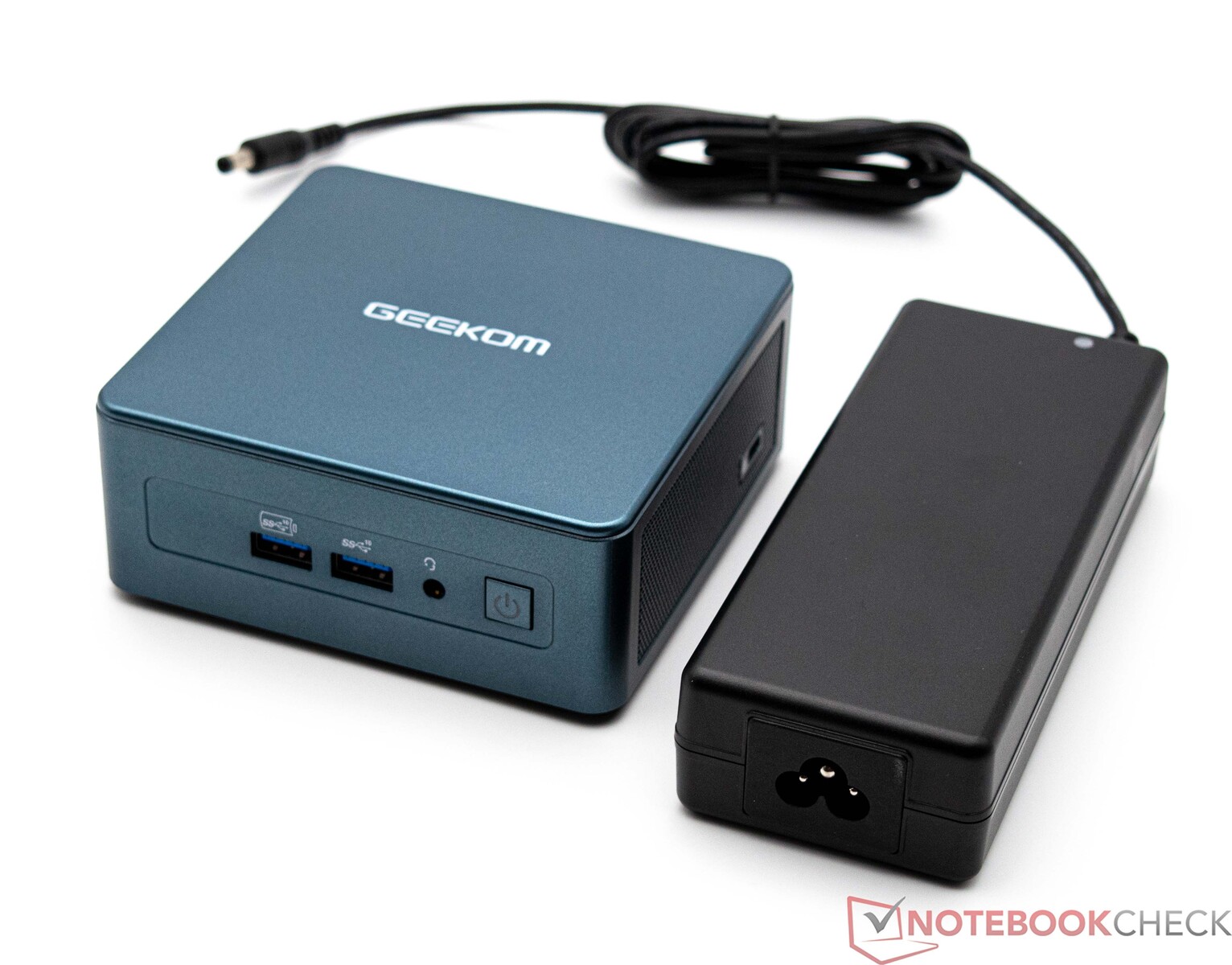

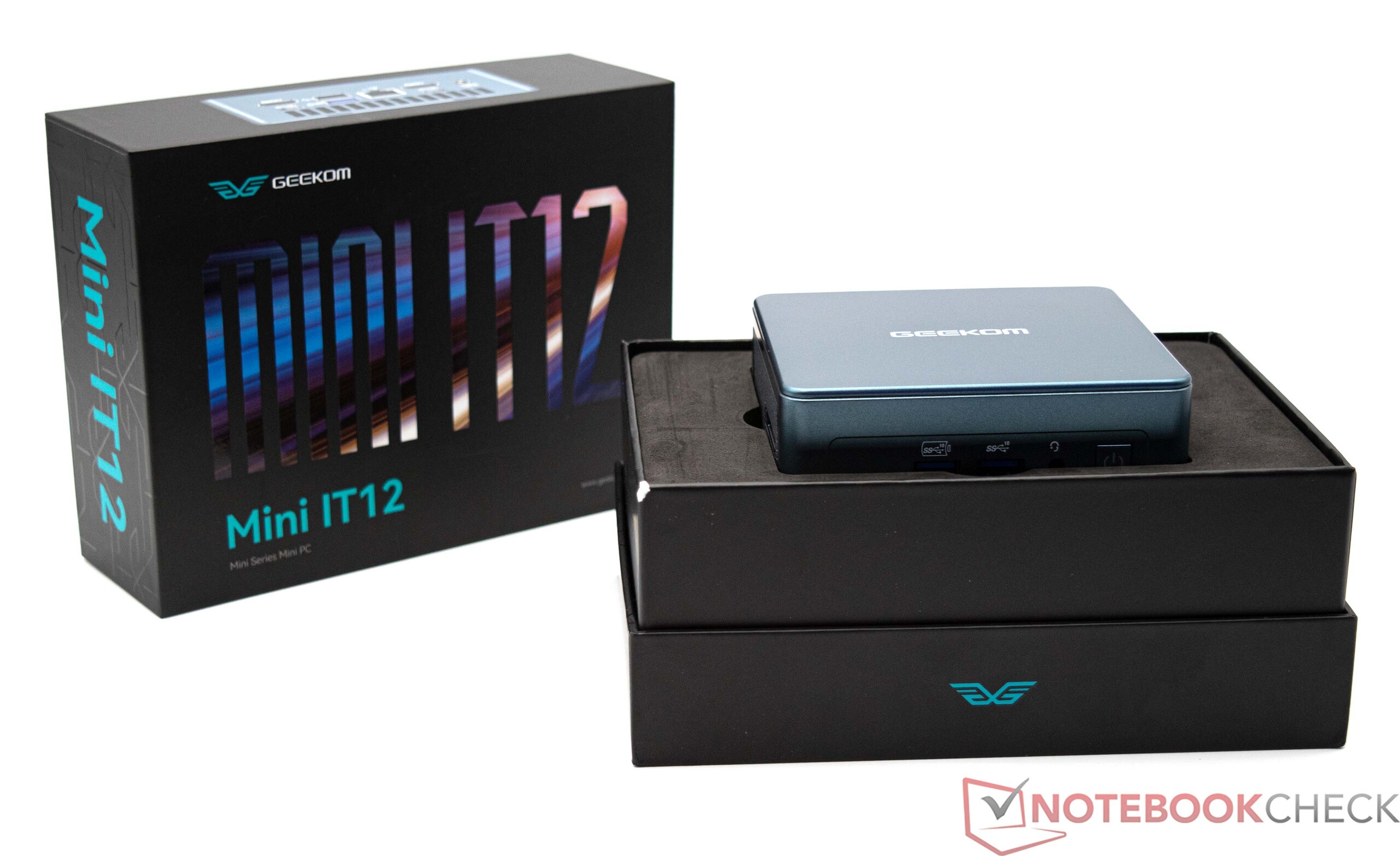

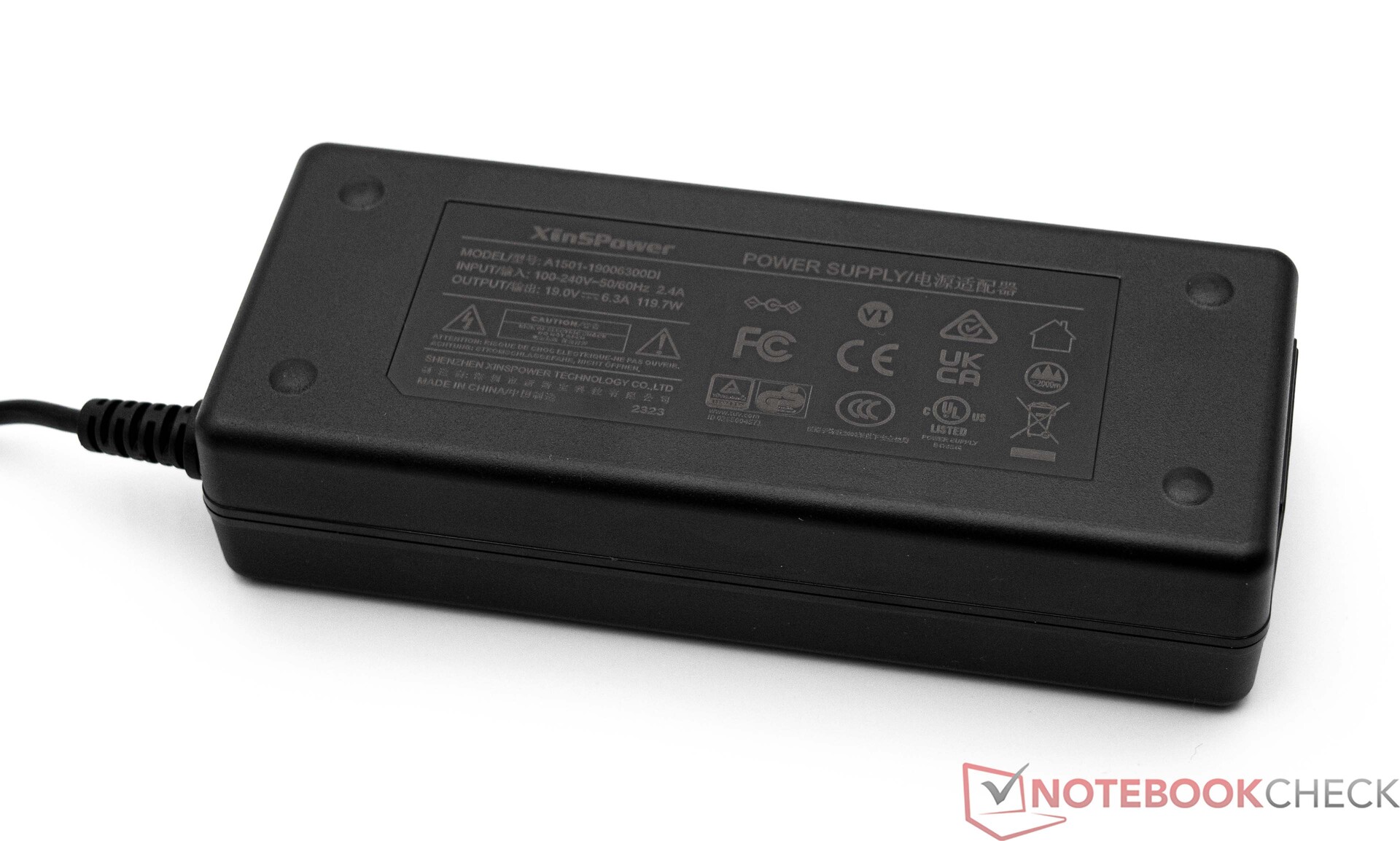

除设备外,包装中还包括一个 90 瓦的电源、一个用于将设备安装到显示器上的 VESA 安装板、一根 HDMI 电缆、一份快速入门指南和一张感谢卡。

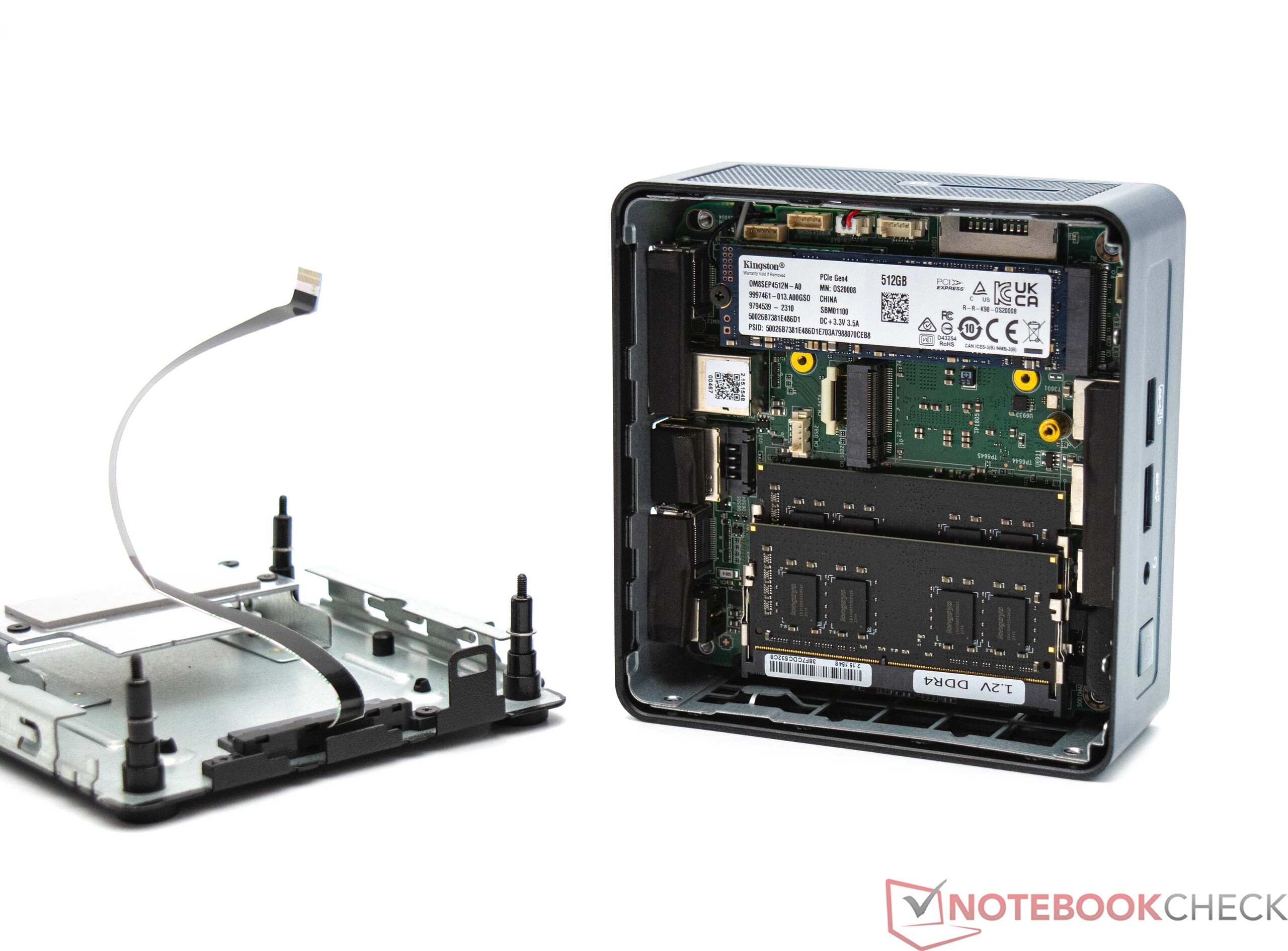

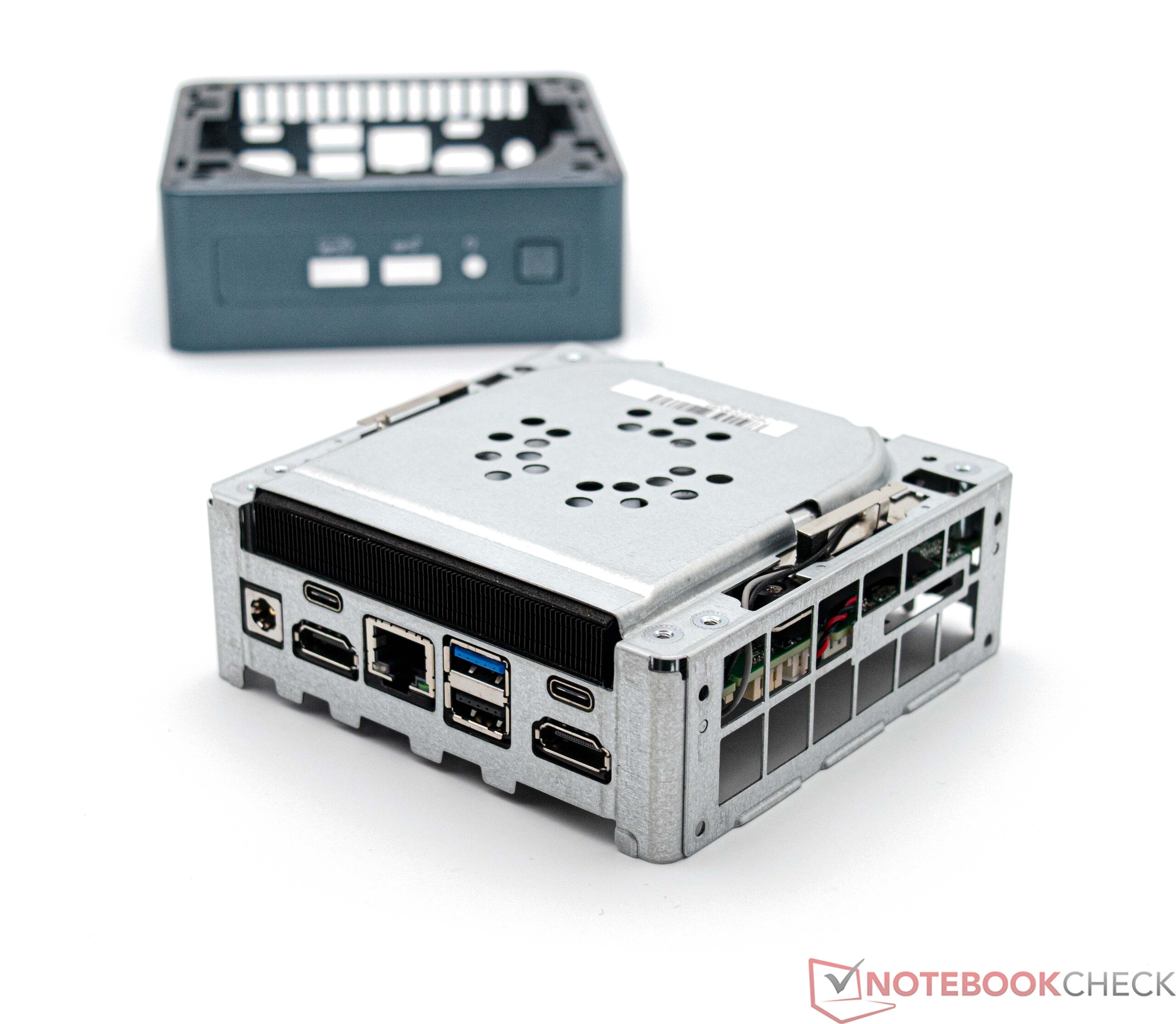

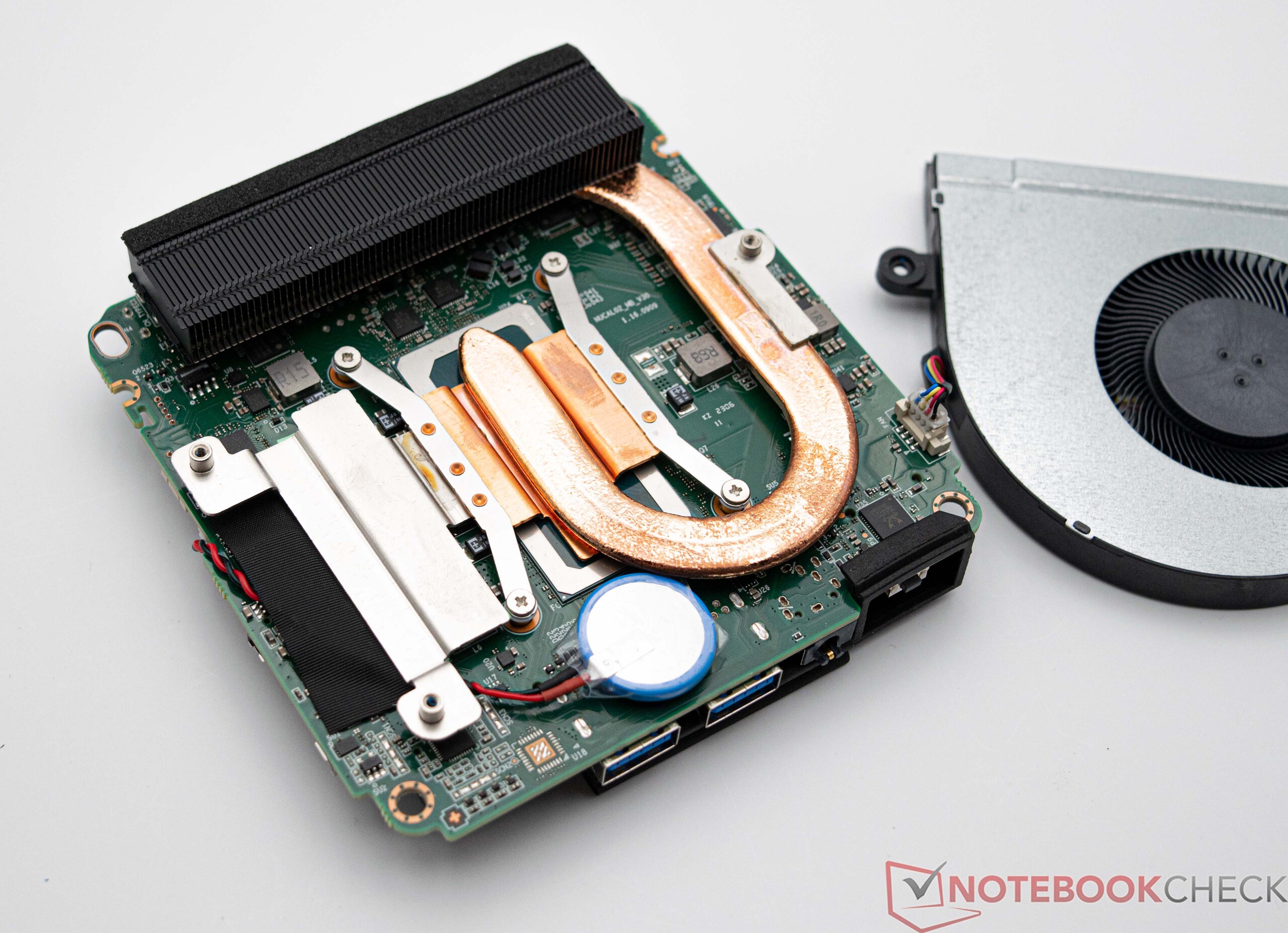

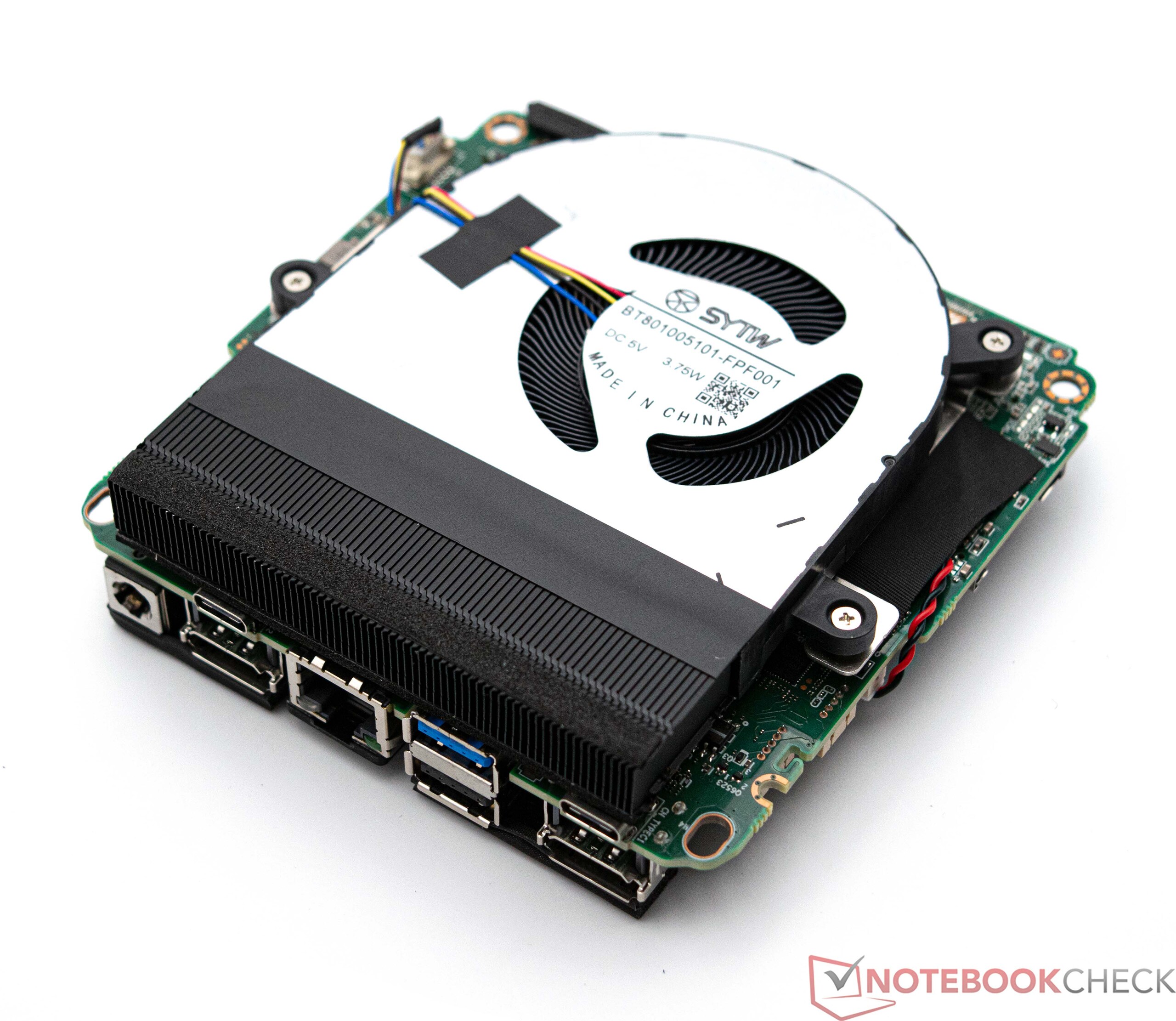

维护

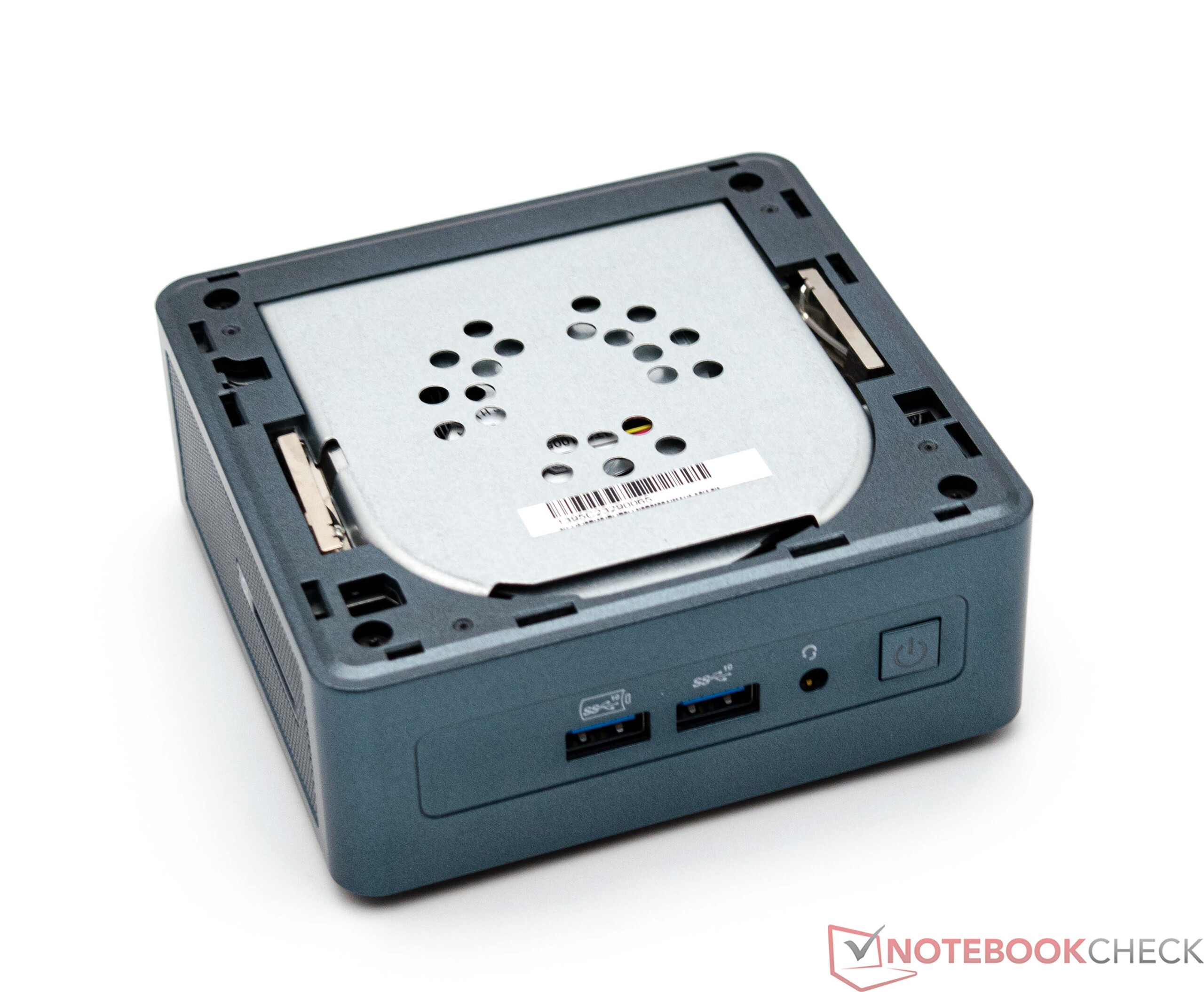

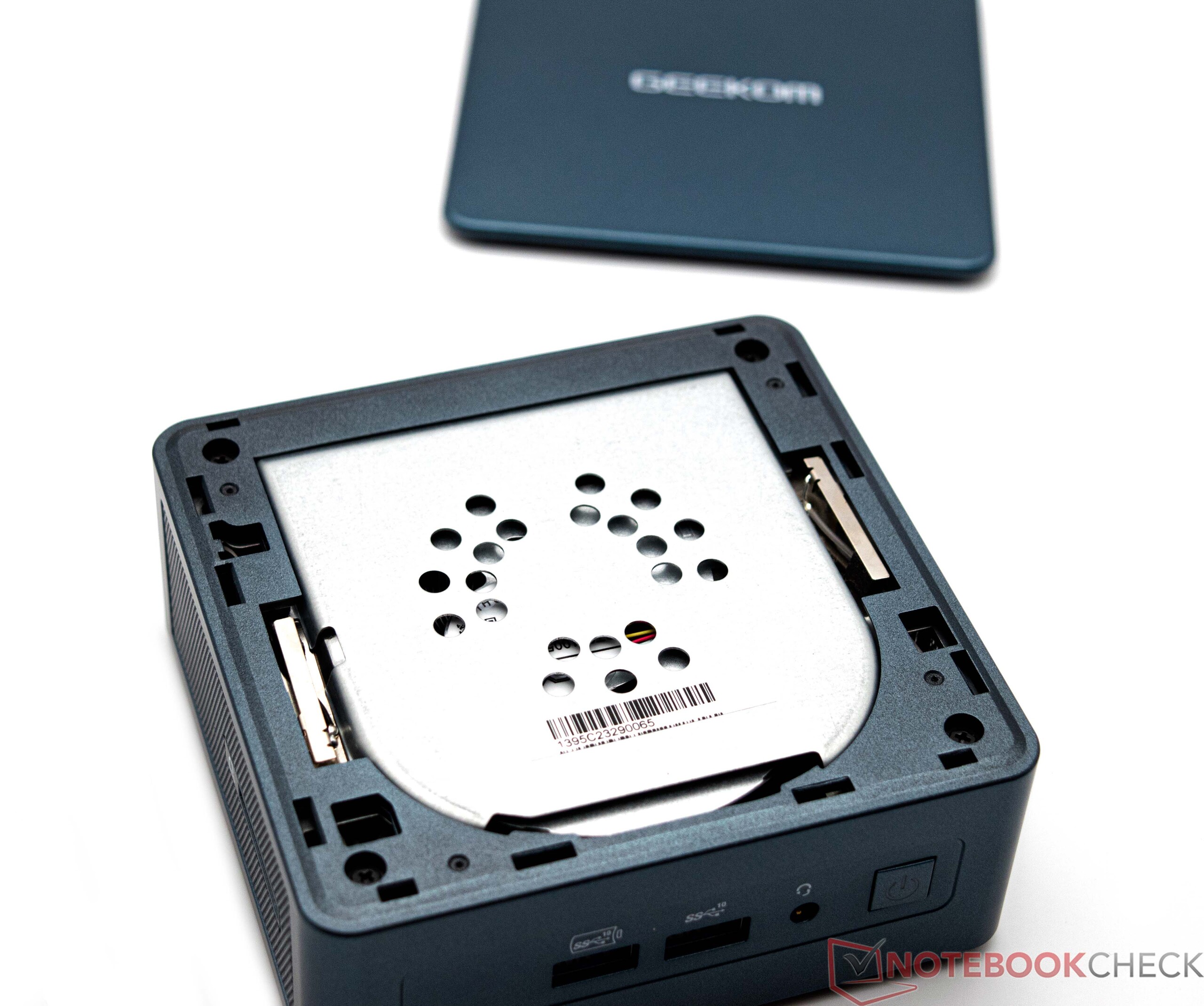

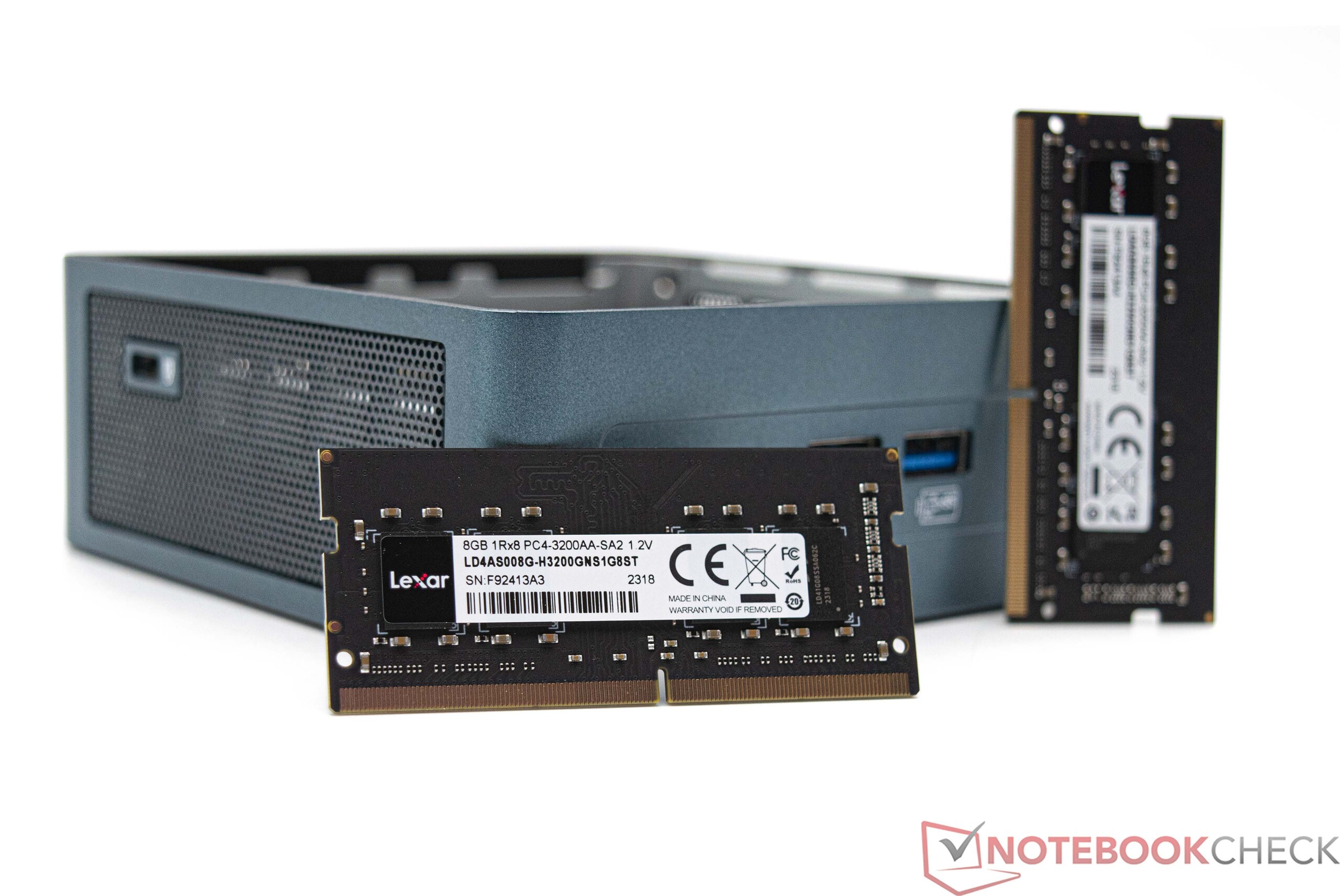

如果要接触设备的内部组件,需要先卸下底板。拆卸过程非常简单:固定底板的螺丝位于四个橡胶脚垫下方。取下底板后,您就可以轻松访问已安装的组件,如内存、固态硬盘或 WLAN 模块。Geekom Mini IT12 还有一个额外的 M.2 插槽,可用于安装额外的大容量存储设备。此外,它还可容纳 2.5 英寸的大容量存储设备。该设备可根据需要进一步拆卸,以便清洁风扇或涂抹新的散热膏。
性能 - Alder Lake-H 配有 P 和 E 内核
即使不是最新版本,Geekom Mini IT12 配备的英特尔酷睿 i5-12450H SoC 也是值得信赖的。尽管如此,这颗拥有 8 核 12 线程的 CPU 仍能轻松应对苛刻的工作负载。值得一提的是,Geekom Mini IT12 还配备了英特尔酷睿 i7-12650H 处理器。
测试条件
我们使用平衡电源配置文件进行了所有性能测试。我们没有改变 SoC 的性能,而是根据 BIOS 设置将其保持在默认状态。
处理器

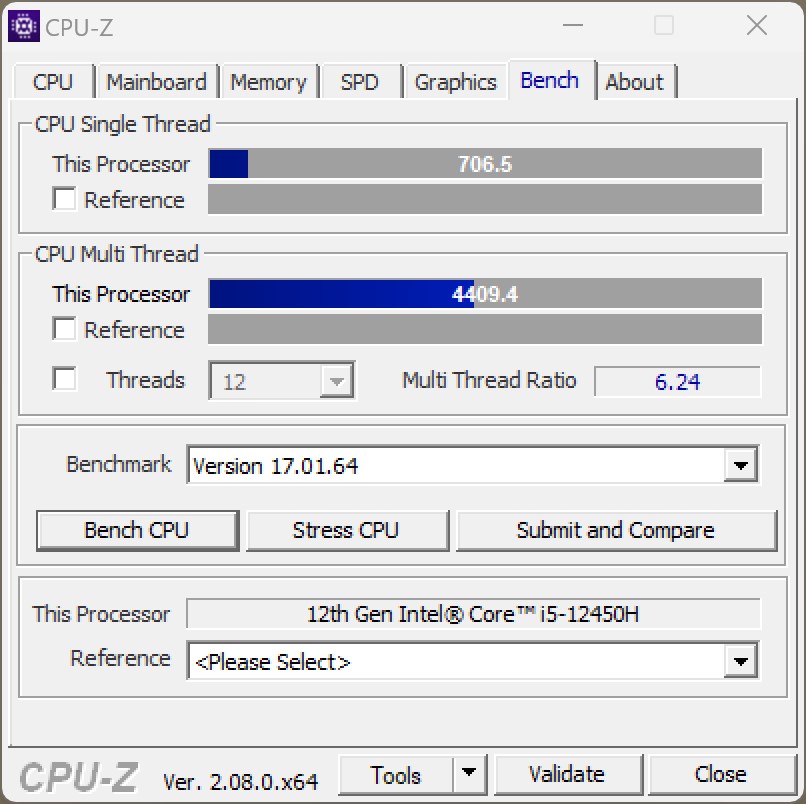

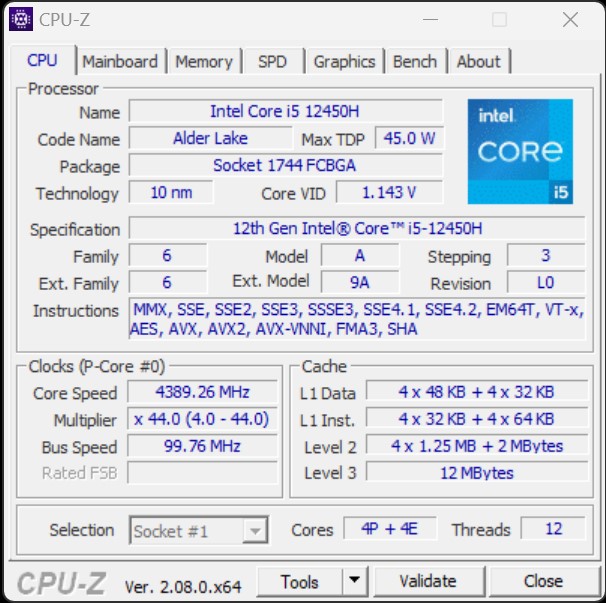

Geekom 为 Mini IT12 配备了 英特尔酷睿 i5-12450H处理器。这款 Alder Lake H 系列处理器也用于 迷你维纳斯系列 UN1245和 NiPoGi CK10.在直接对比中,Geekom 的整体表现更好,在与 Geekom Mini IT12 的内部对决中以微弱劣势落败。 迷你 IT12的内部对决中以微弱劣势落败。我们的测试样品在性能上要优于英特尔 NUC 的两个竞争对手。
更多比较和基准,请参阅我们的 CPU 对照表。
Performance Rating - Percent | |
Intel NUC 13 Pro Kit NUC13ANK | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Geekom Mini IT12 | |
Geekom Mini IT12 | |
Minisforum Venus Series UN1245 | |
NiPoGi CK10 | |
Minisforum Mars Series MC560 |
Blender - v2.79 BMW27 CPU | |
Minisforum Mars Series MC560 | |
NiPoGi CK10 | |
Geekom Mini IT12 | |
Minisforum Venus Series UN1245 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Geekom Mini IT12 | |
Intel NUC 13 Pro Kit NUC13ANK |
WinRAR - Result | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Mars Series MC560 | |
Geekom Mini IT12 | |
Minisforum Venus Series UN1245 | |
Geekom Mini IT12 | |
Intel NUC 13 Pro Kit NUC13ANK | |
NiPoGi CK10 |
3DMark 11 - 1280x720 Performance Physics | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Geekom Mini IT12 | |
Minisforum Venus Series UN1245 | |
NiPoGi CK10 | |
Minisforum Mars Series MC560 | |
Geekom Mini IT12 |
HWBOT x265 Benchmark v2.2 - 4k Preset | |
Intel NUC 13 Pro Kit NUC13ANK | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Venus Series UN1245 | |
Geekom Mini IT12 | |
Minisforum Mars Series MC560 | |
Geekom Mini IT12 | |
NiPoGi CK10 |
R Benchmark 2.5 - Overall mean | |
Minisforum Mars Series MC560 | |
NiPoGi CK10 | |
Minisforum Venus Series UN1245 | |
Geekom Mini IT12 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Geekom Mini IT12 | |
Intel NUC 13 Pro Kit NUC13ANK |
LibreOffice - 20 Documents To PDF | |
Minisforum Mars Series MC560 | |
Geekom Mini IT12 | |
Geekom Mini IT12 | |
Minisforum Venus Series UN1245 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Intel NUC 13 Pro Kit NUC13ANK | |
NiPoGi CK10 |
WebXPRT 3 - Overall | |
Intel NUC 13 Pro Kit NUC13ANK | |
Geekom Mini IT12 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Venus Series UN1245 | |
Geekom Mini IT12 | |
NiPoGi CK10 | |
Minisforum Mars Series MC560 |
Mozilla Kraken 1.1 - Total | |
Minisforum Mars Series MC560 | |
Minisforum Venus Series UN1245 | |
NiPoGi CK10 | |
Geekom Mini IT12 | |
Geekom Mini IT12 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Intel NUC 13 Pro Kit NUC13ANK |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
Average of class Mini PC | |
Intel NUC 13 Pro Kit NUC13ANK | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Mars Series MC560 | |
Minisforum Venus Series UN1245 | |
Geekom Mini IT12 | |
Geekom Mini IT12 | |
NiPoGi CK10 |
AIDA64 / FP32 Ray-Trace | |
Average of class Mini PC (561 - 51004, n=119, last 2 years) | |
Intel NUC 13 Pro Kit NUC13ANK | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Mars Series MC560 | |
Minisforum Venus Series UN1245 | |
Geekom Mini IT12 | |
Geekom Mini IT12 | |
NiPoGi CK10 |
AIDA64 / FPU SinJulia | |
Average of class Mini PC (408 - 29064, n=119, last 2 years) | |
Minisforum Mars Series MC560 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Venus Series UN1245 | |
Geekom Mini IT12 | |
Geekom Mini IT12 | |
NiPoGi CK10 |
AIDA64 / FP64 Ray-Trace | |
Average of class Mini PC (308 - 26952, n=119, last 2 years) | |
Intel NUC 13 Pro Kit NUC13ANK | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Mars Series MC560 | |
Minisforum Venus Series UN1245 | |
Geekom Mini IT12 | |
Geekom Mini IT12 | |
NiPoGi CK10 |
AIDA64 / CPU PhotoWorxx | |
Intel NUC 13 Pro Kit NUC13ANK | |
Minisforum Venus Series UN1245 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Geekom Mini IT12 | |
NiPoGi CK10 | |
Average of class Mini PC (4408 - 50500, n=119, last 2 years) | |
Geekom Mini IT12 | |
Minisforum Mars Series MC560 |

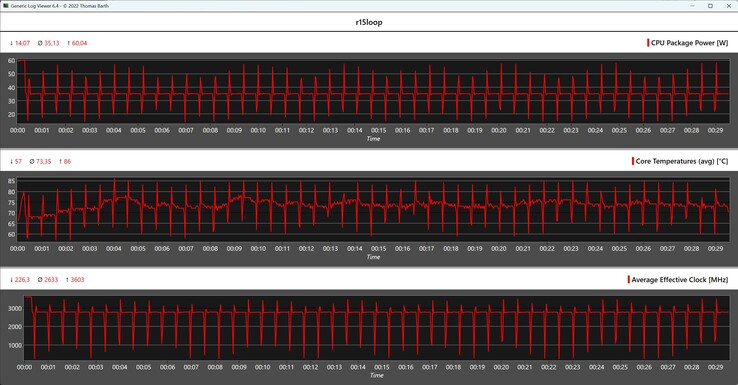

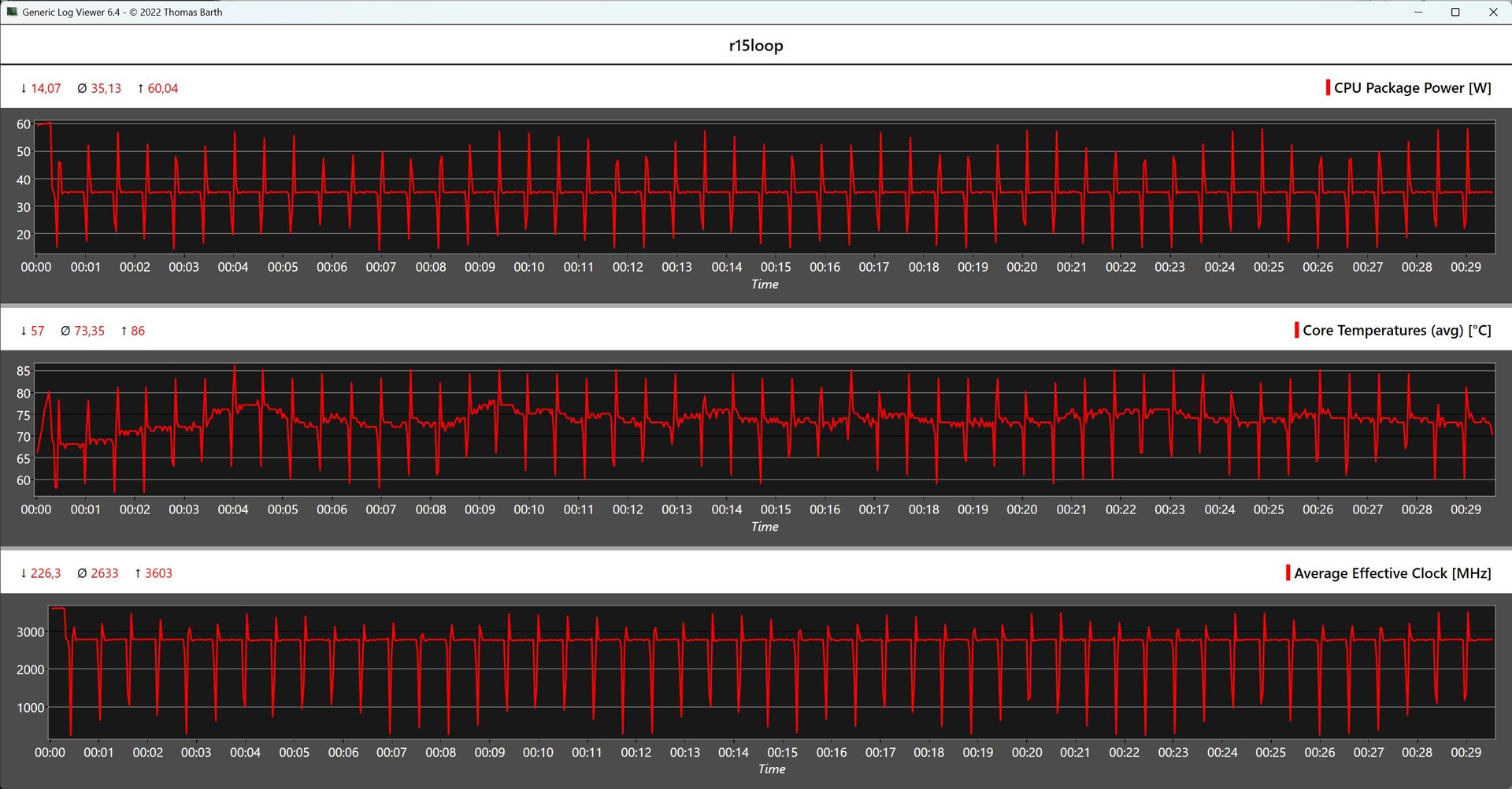

Geekom Mini IT12 与 Cinebench-R15 多回路对比

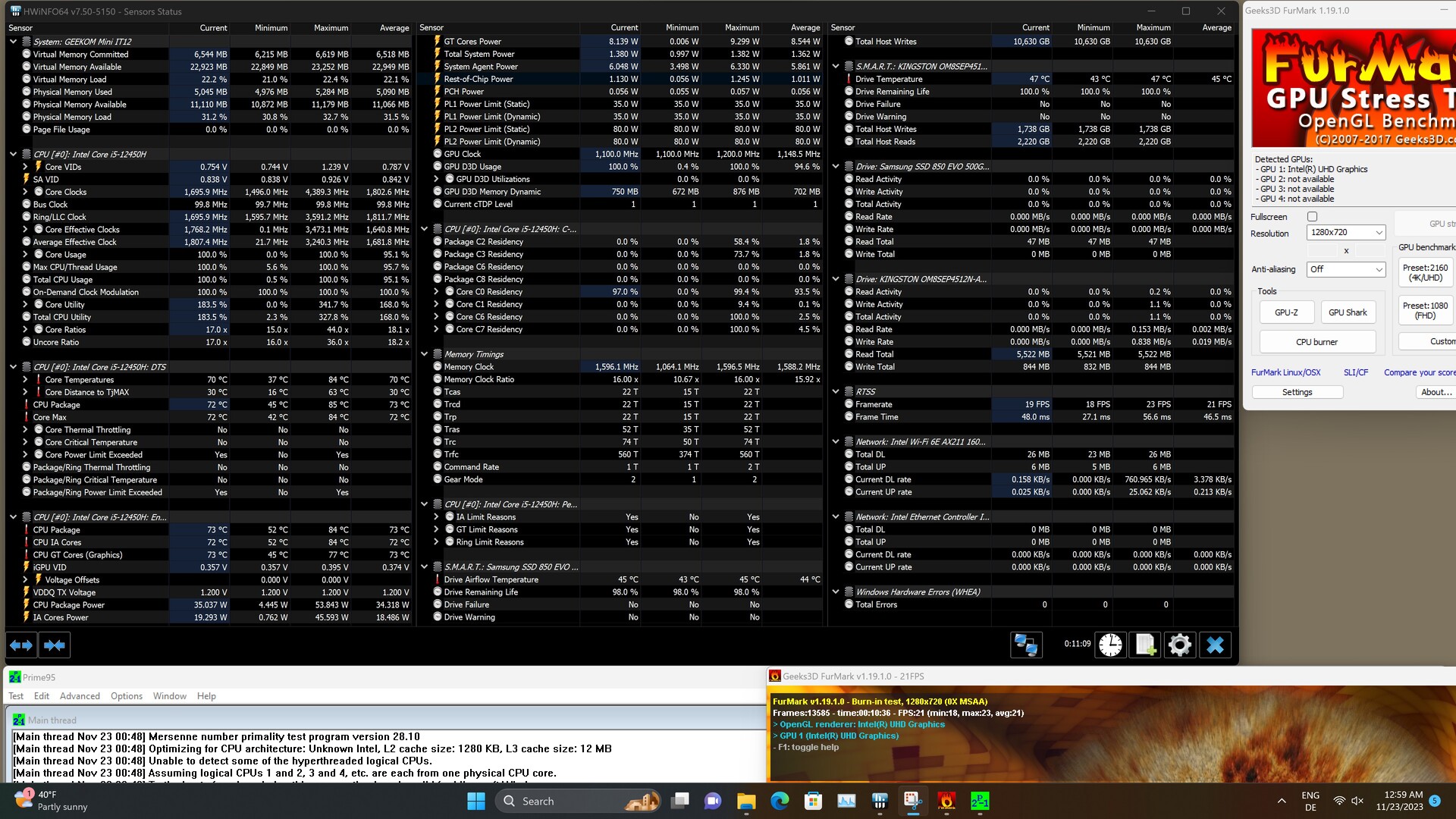

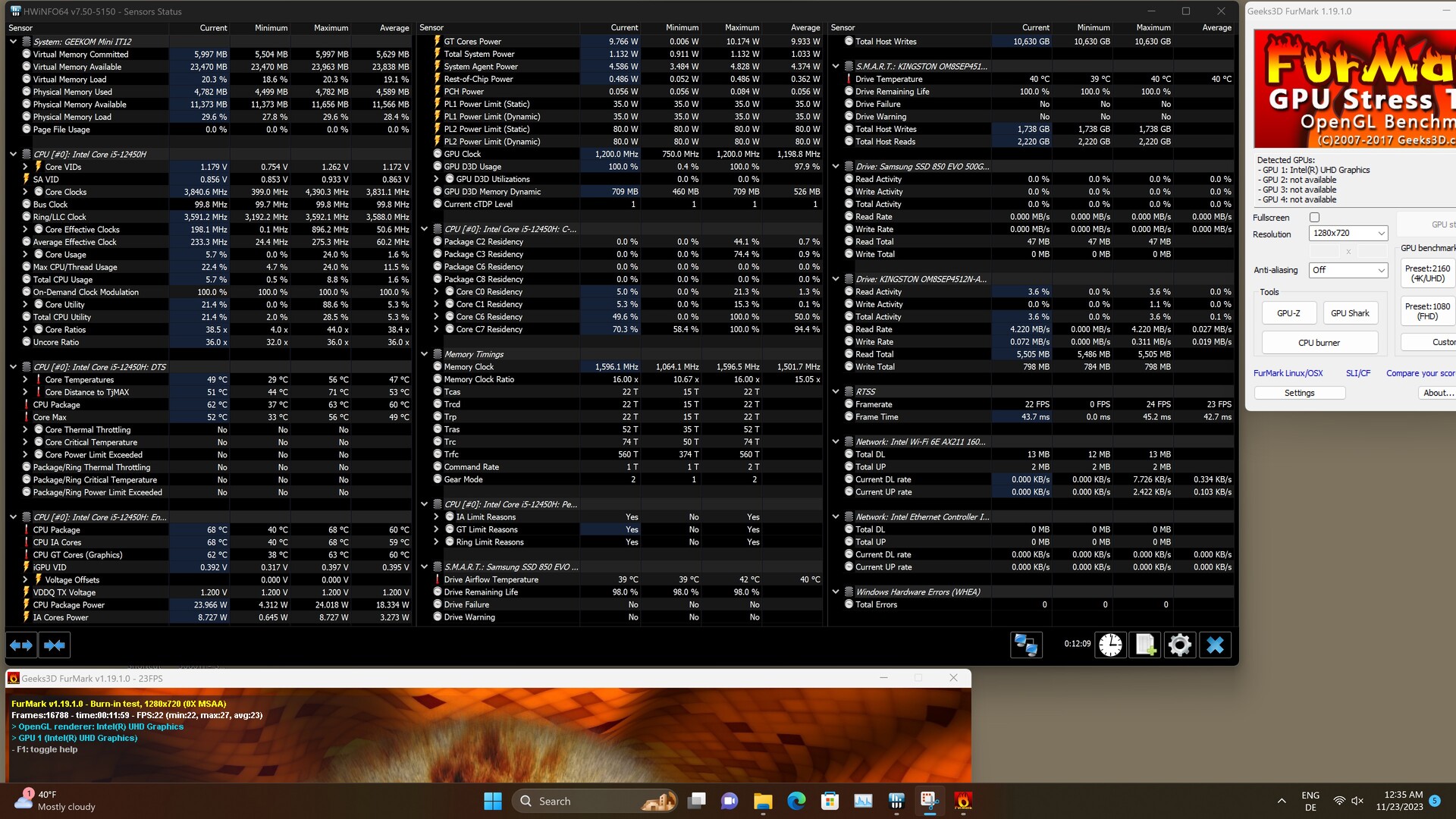

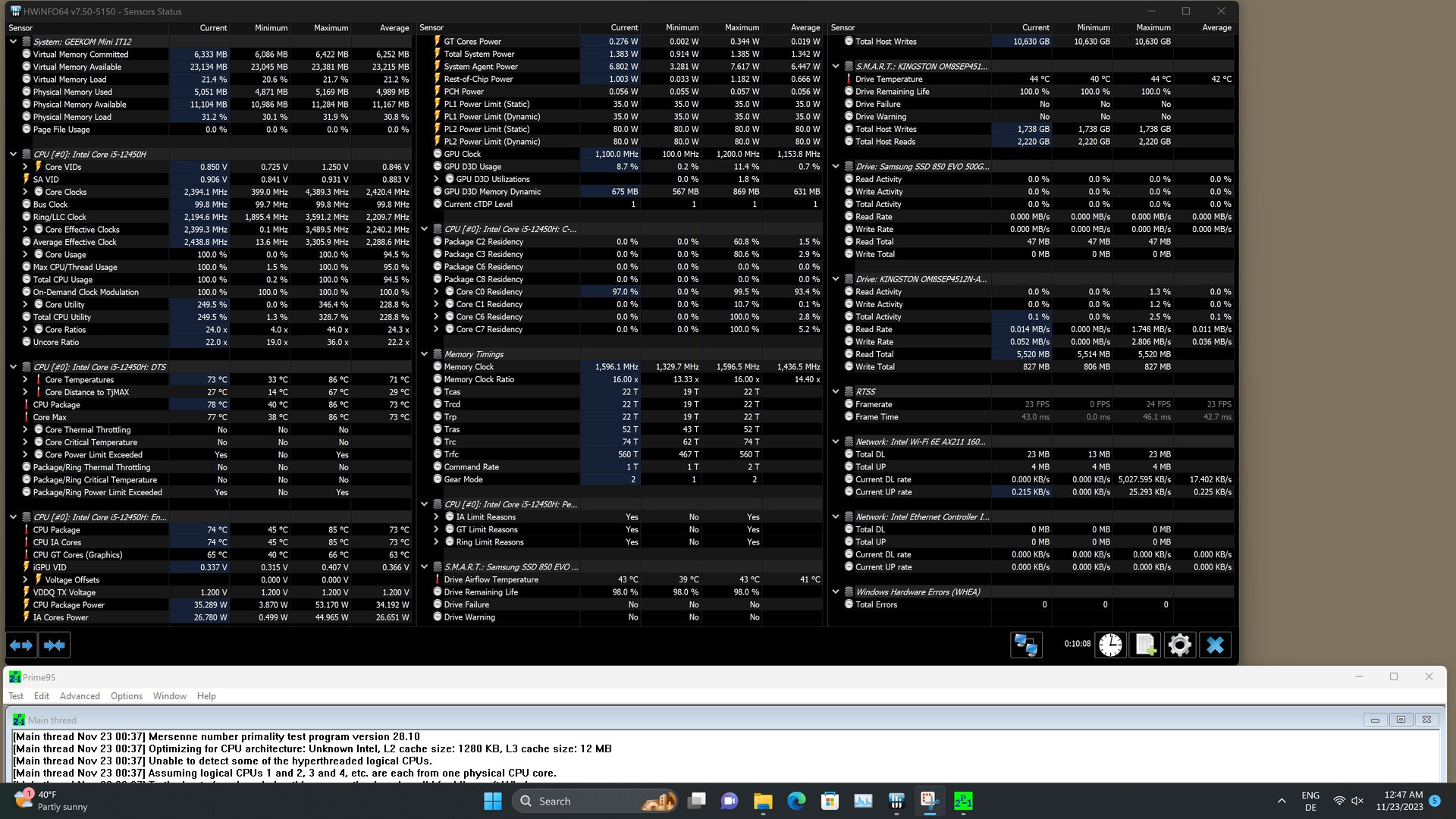

我们结合英特尔酷睿 i5-12450H 处理器的功率目标,对内置冷却系统的性能进行了调查。 英特尔酷睿 i5-12450H的性能。结果表明,处理器的最高性能仅在开始运行时可用。第二次运行后,性能急剧下降,但在测试的剩余时间里趋于稳定。我们的测试小工具在该基准测试中排名第六,平均得分 1,211 分。
系统性能
系统性能基准测试结果与先前的 CPU 性能测试结果类似。Geekom Mini IT12 的性能再次超过了两个竞争对手、 Minisforum 金星系列 UN1245和 NiPoGi CK10.在内存测试中,所有设备都表现出相似的性能,因为没有一家制造商冒险安装速度更快的 DDR5 内存。值得注意的是 英特尔酷睿 i5-12450H支持速度高达 5,200 MT/s 的 DDR5 内存。
AIDA64 / Memory Write | |
Average of class Mini PC (6862 - 98583, n=119, last 2 years) | |
Geekom Mini IT12 | |
NiPoGi CK10 | |
Geekom Mini IT12 | |
Minisforum Venus Series UN1245 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Minisforum Mars Series MC560 |
AIDA64 / Memory Latency | |
Minisforum Mars Series MC560 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Average of class Mini PC (44.9 - 184.8, n=119, last 2 years) | |
Geekom Mini IT12 | |
Minisforum Venus Series UN1245 | |
NiPoGi CK10 | |
Geekom Mini IT12 |
* ... smaller is better

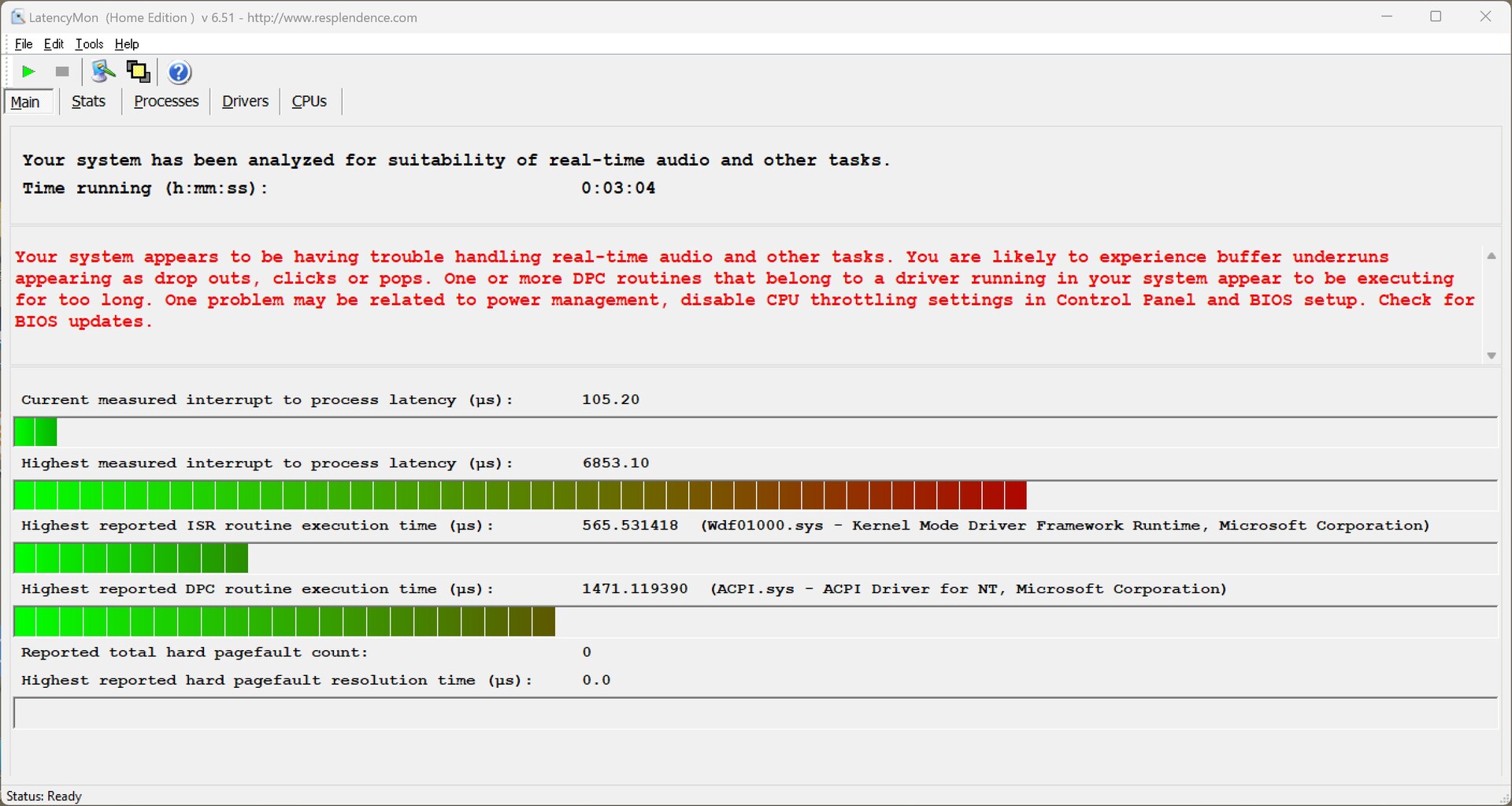

DPC 延迟

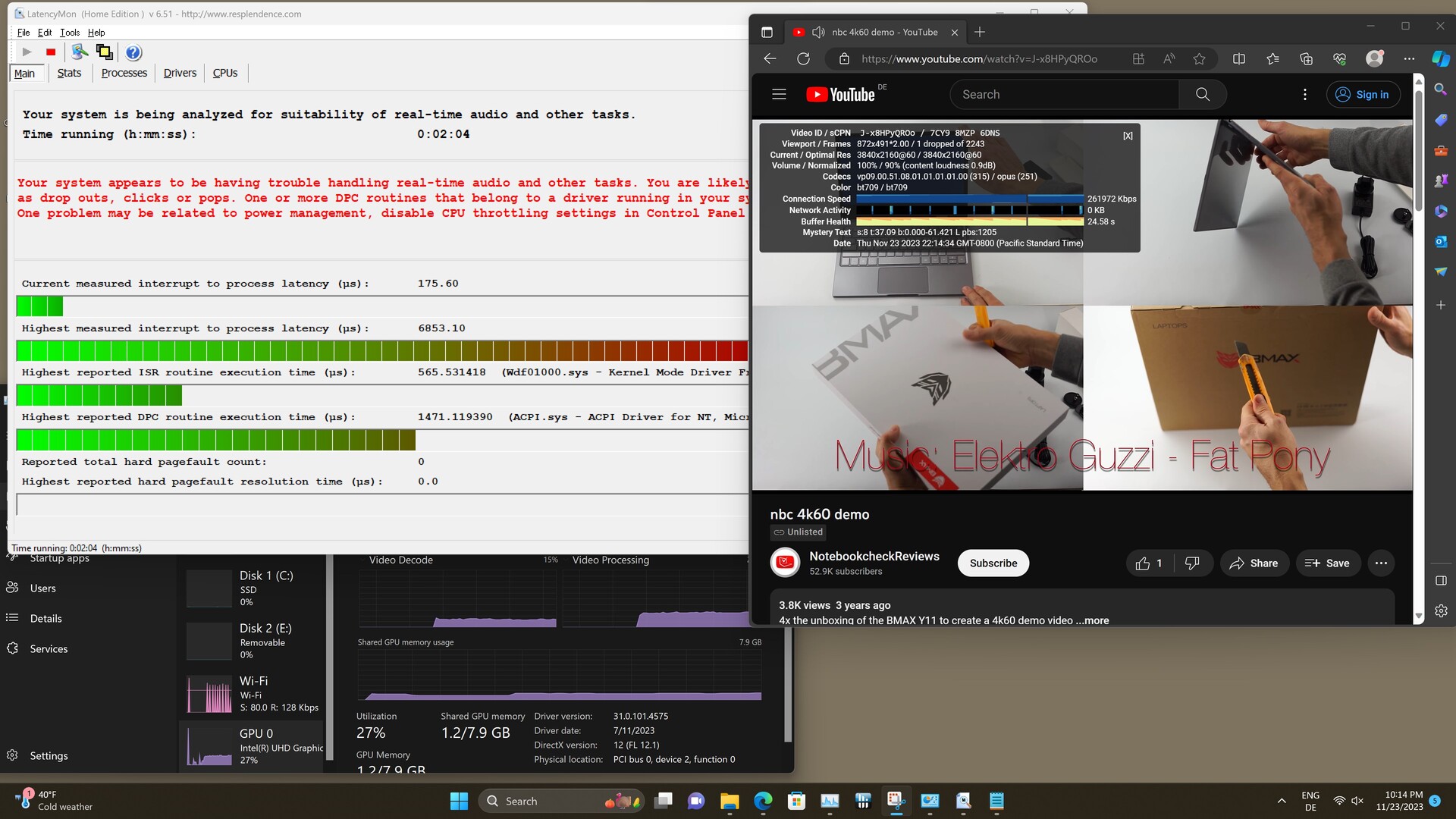

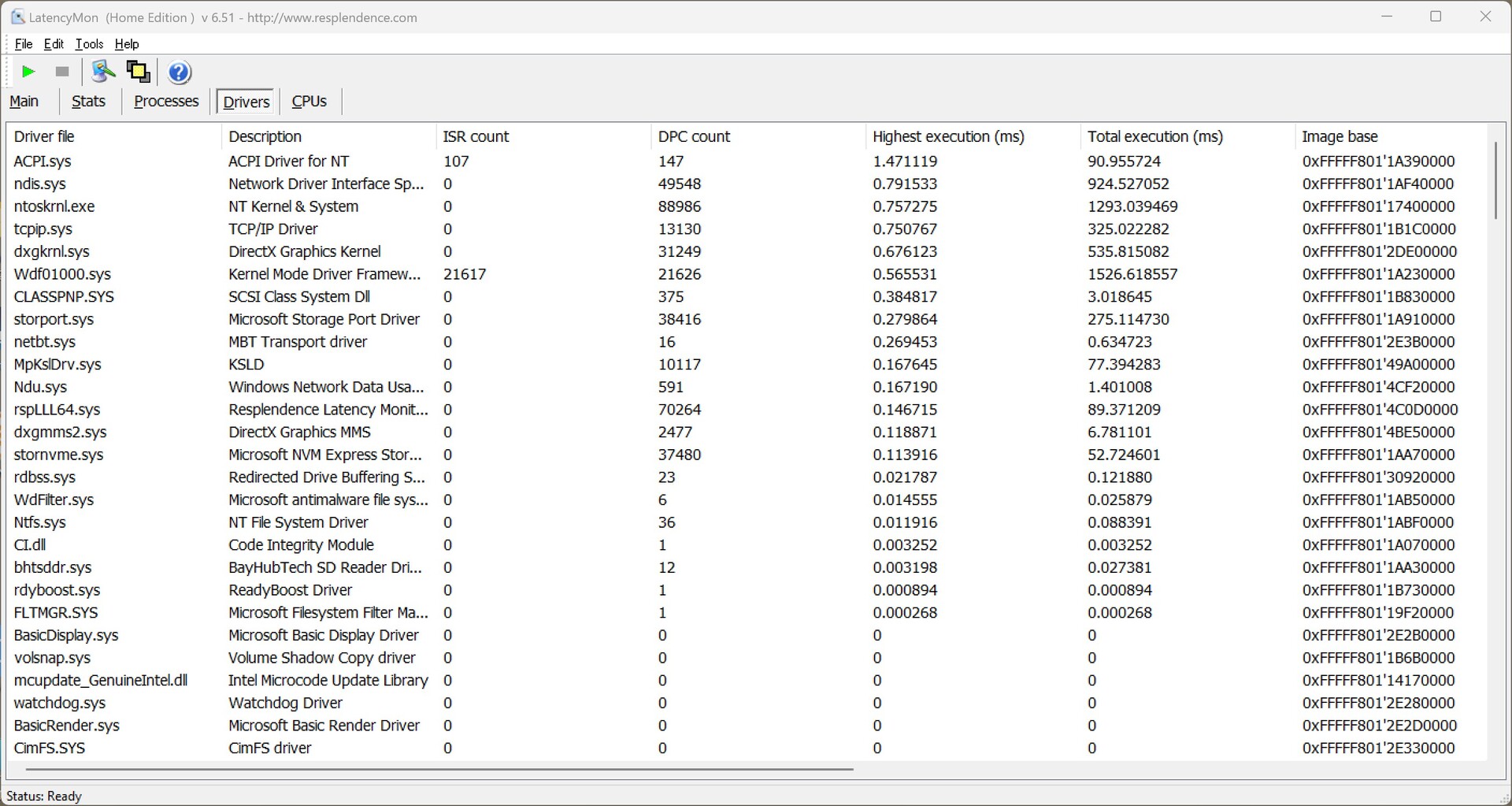

Geekom Mini IT12 基于 英特尔酷睿 i5-12450H在 DPC 延迟方面表现不佳。LatencyMon 显示,即使在 Edge 浏览器中打开多个标签页,延迟也非常高。幸运的是,在播放 4K 测试视频时没有出现明显的性能下降。Geekom Mini IT12 的丢帧率很低,因此仍可用作客厅的流媒体客户端。
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Geekom Mini IT12 | |
Minisforum Mars Series MC560 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Geekom Mini IT12 | |
NiPoGi CK10 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Venus Series UN1245 |
* ... smaller is better

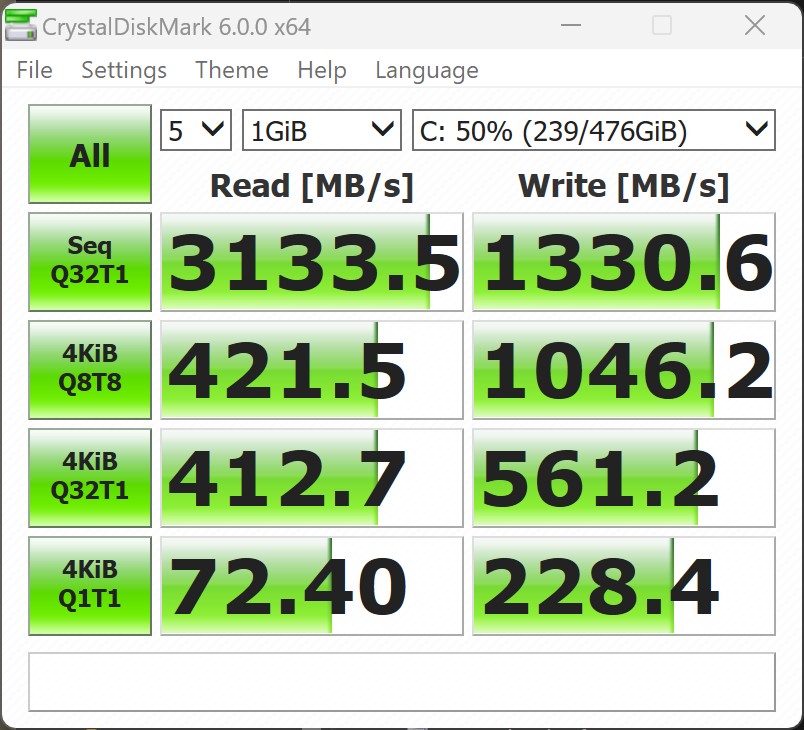

存储设备

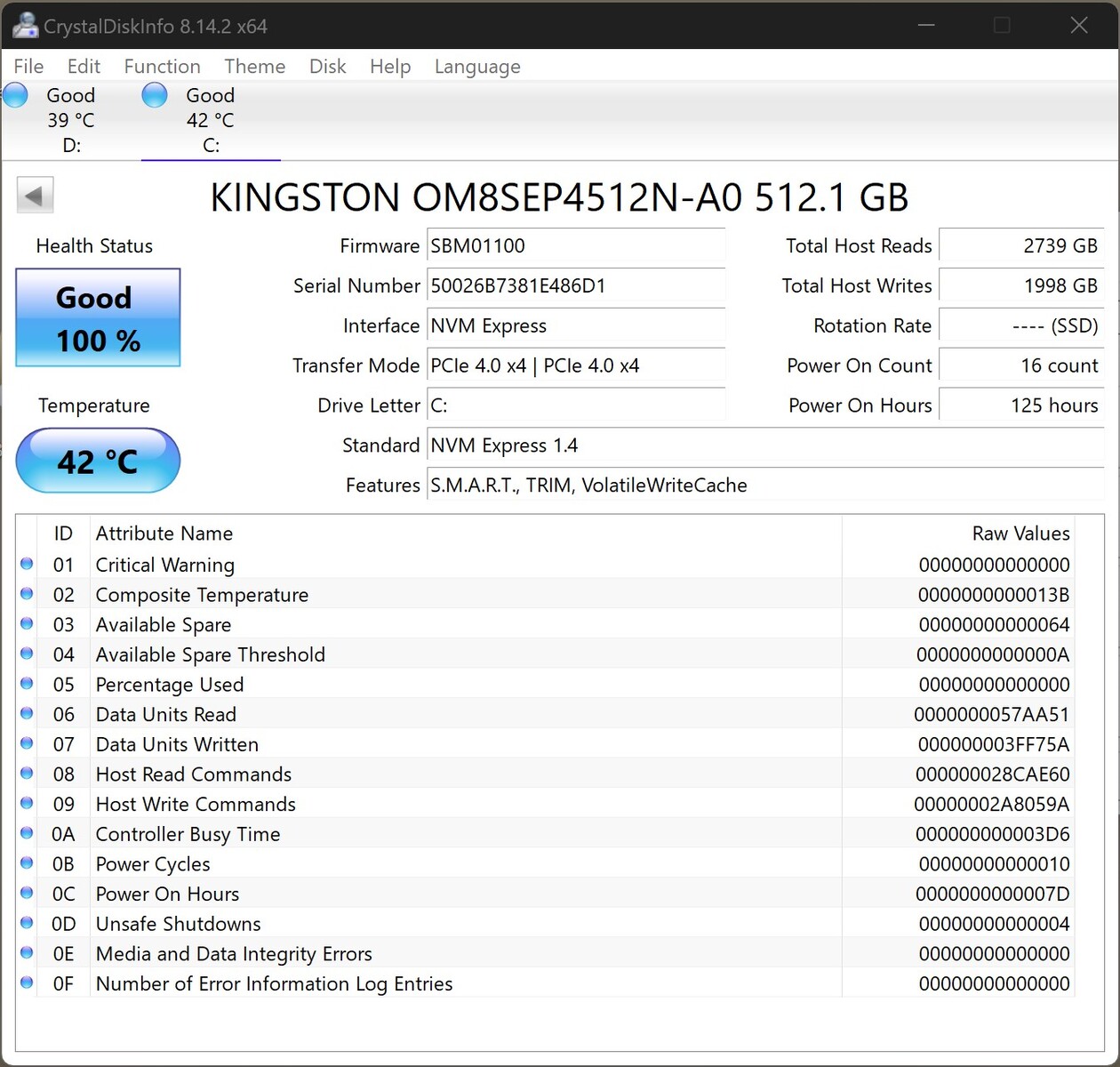

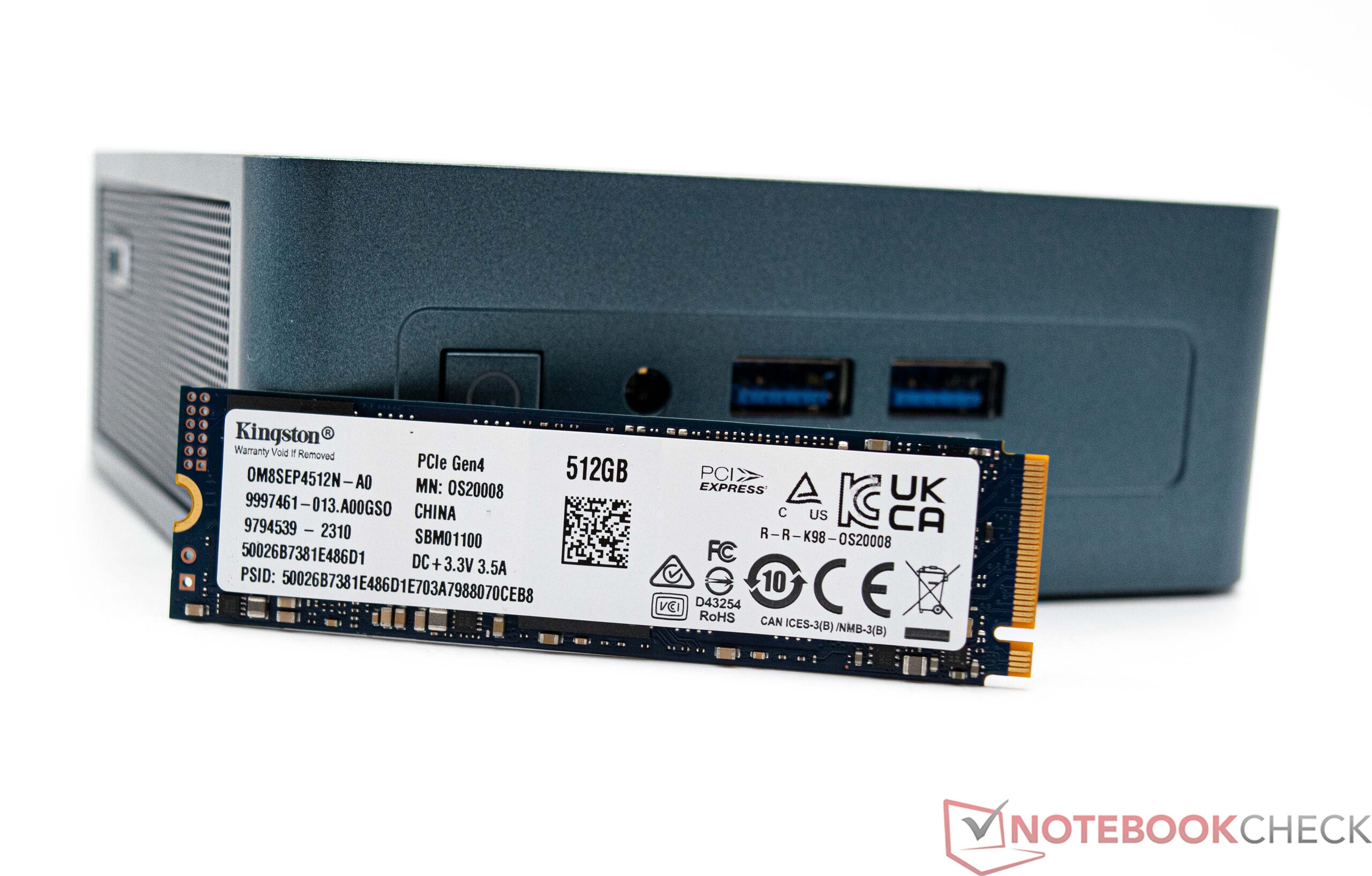

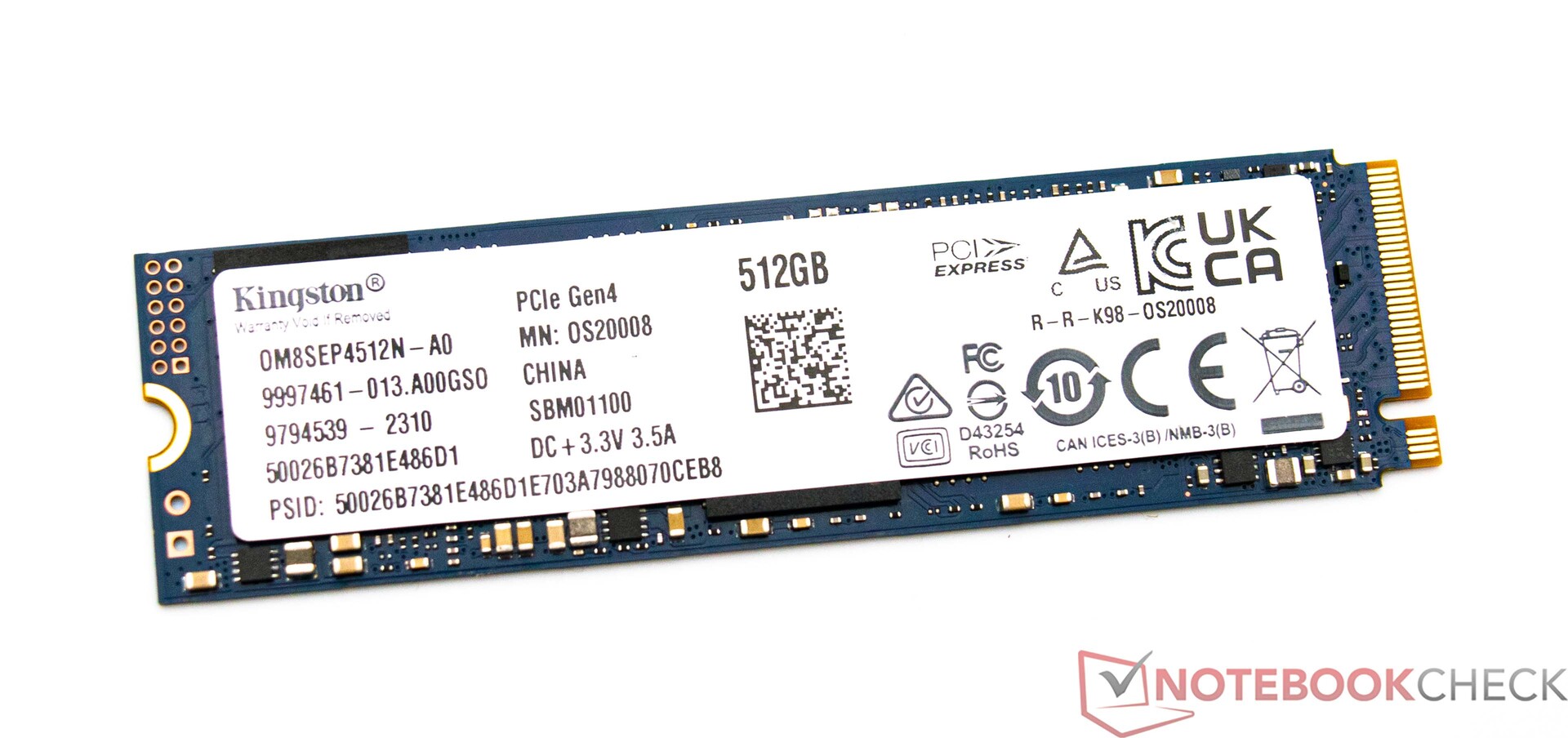

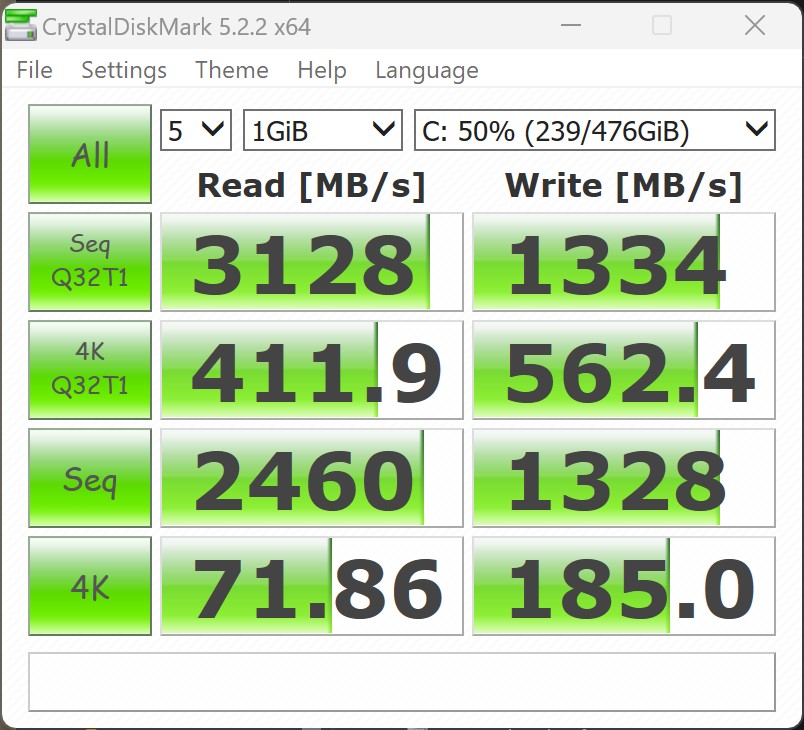

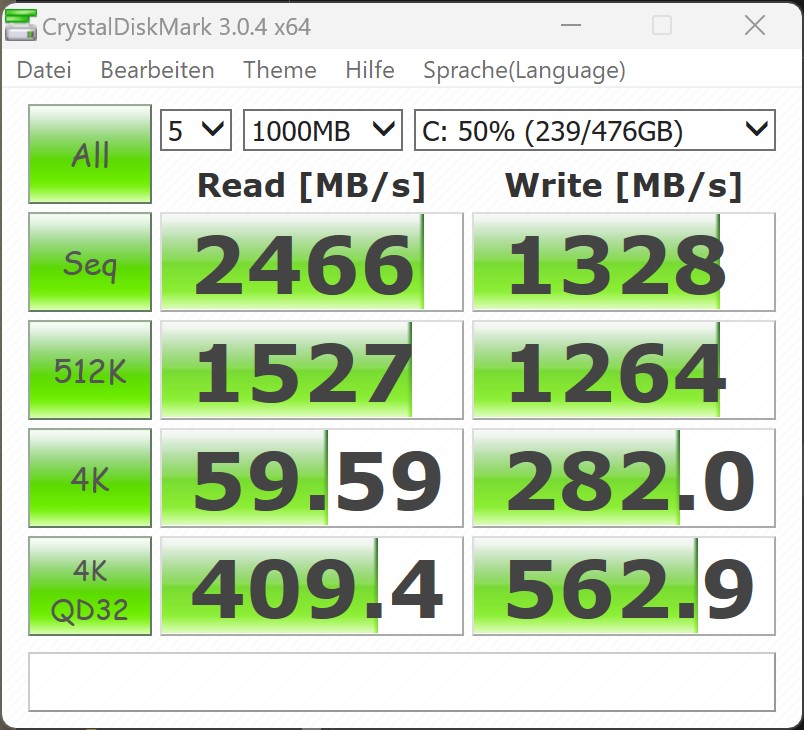

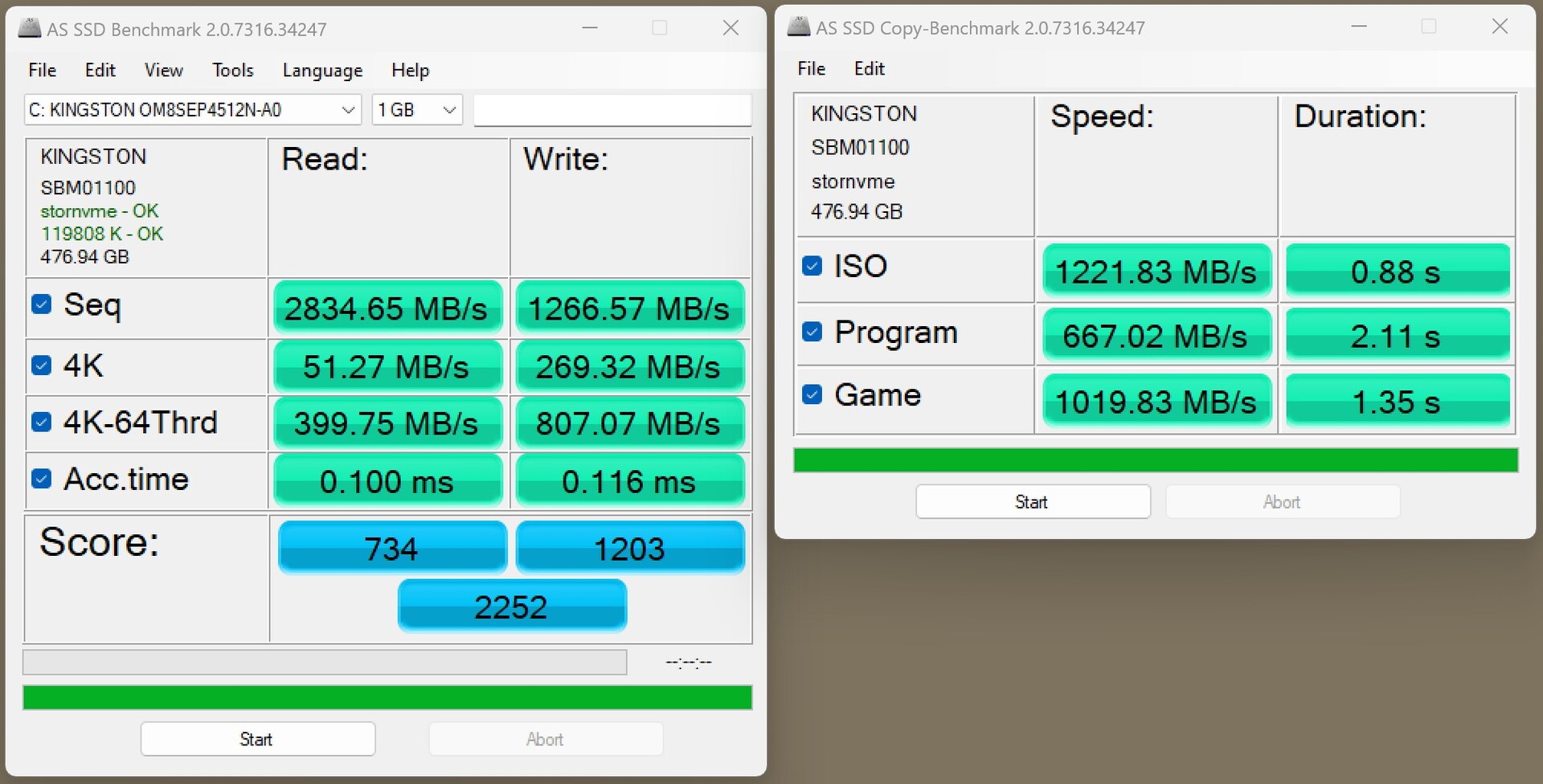

Geekom 为 Mini IT12 配备了我们熟悉的金士顿 512 GB NVMe 固态硬盘,这种型号我们在其他系统中也见过。这款固态硬盘使用 NVMe 接口,配备 QLC 内存,连接 PCIe 4.0x4。不过,在测试中,这款固态硬盘落后于竞争对手,因为其中一些竞争对手配备了速度更快的固态硬盘。不过,在日常使用中,性能应该不会明显下降。写入和读取速度都足够快,安装测试程序也很快完成。得益于底板的被动散热,固态硬盘能很好地应对持续负载,我们也没有注意到负载下的性能下降。Geekom Mini IT12 最多可容纳三个大容量存储设备,包括另一个 M.2-2242 格式的固态硬盘和一个 2.5 英寸的大容量存储设备,最大高度为 7 毫米。
更多比较和基准,请参阅我们的比较表。
* ... smaller is better
Dauerleistung Lesen: DiskSpd Read Loop, Queue Depth 8
图形卡

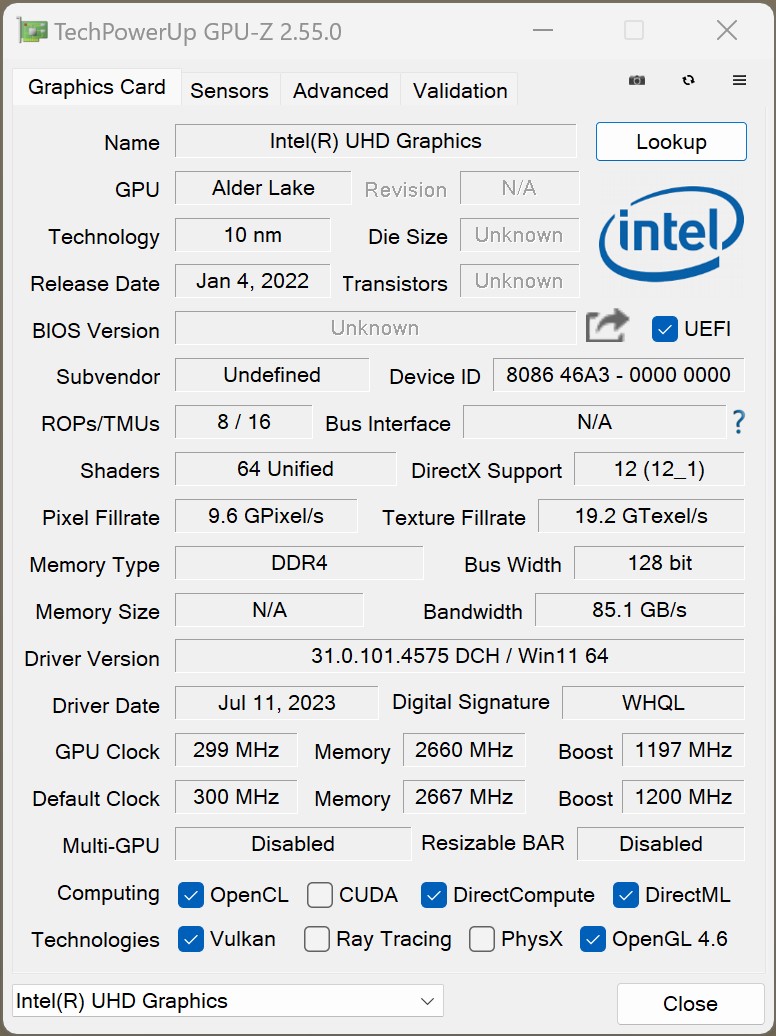

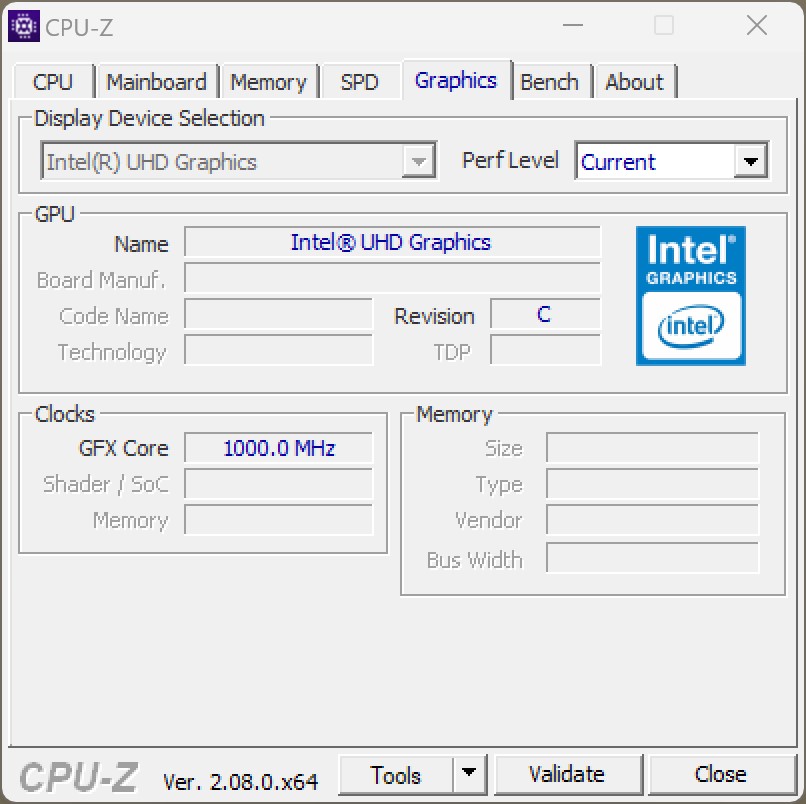

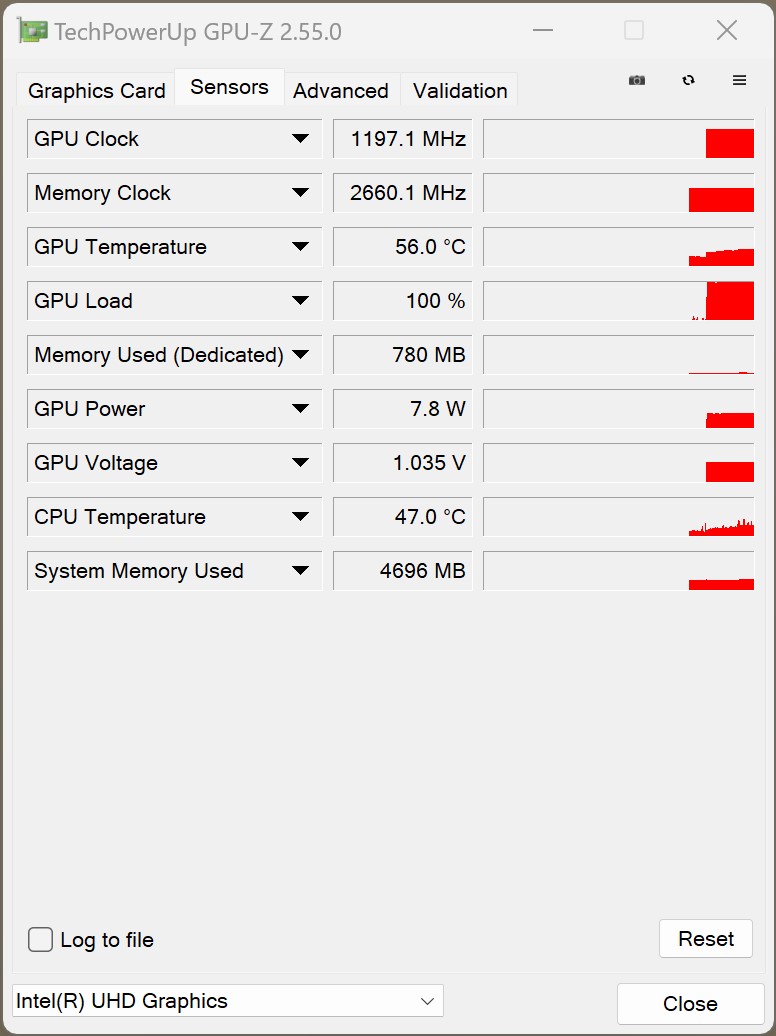

Geekom Mini IT12 配备了基本的 iGPU(64 个 EU)和英特尔处理器。 英特尔UHD Graphics.在我们的测试样品中,集成图形处理器的性能超过了 Minisforum 金星系列 UN1245和 NiPoGi CK10.不过,该机型与配备英特尔酷睿 i7-1260P 的 Geekom Mini IT12 之间存在显著差异,因为英特尔在速度稍快的 CPU 中配备了 96 EU 的 iGPU。考虑 AMD 的 Radeon 680M或 Radeon 780M
进一步的比较和基准测试可参阅我们的 GPU 对照表。
Affinity Photo 2 - Combined (Single / Multi GPU) | |
Intel NUC 13 Pro Kit NUC13ANK | |
Minisforum Venus Series UN1245 | |
Geekom Mini IT12 | |
NiPoGi CK10 | |
Average AMD Radeon 780M (1233 - 1889, n=10) | |
Minisforum Mars Series MC560 | |
Average AMD Radeon 680M (555 - 2339, n=11) |
3DMark 05 Standard | 37574 points | |
3DMark 06 Standard Score | 23680 points | |
3DMark Vantage P Result | 15554 points | |
3DMark 11 Performance | 4450 points | |
3DMark Ice Storm Standard Score | 111432 points | |
3DMark Cloud Gate Standard Score | 18265 points | |
3DMark Fire Strike Score | 2879 points | |
3DMark Fire Strike Extreme Score | 1348 points | |
3DMark Time Spy Score | 982 points | |
Help |
游戏性能 - iGPU
英特尔 英特尔UHD Graphics在 Geekom Mini IT12 上玩复杂的 3D 游戏并不有趣。这台小型 PC 的主要兴趣不是游戏。玩休闲游戏打发时间是有限制的。如果游戏性能是首要考虑因素,那么 Minisforum UM790 Pro配备 AMD Radeon 780M或 Geekom AS 6配备 AMD Ryzen 9 6900HX和 AMD Radeon 680M可能是更好的选择。此外,对于那些正在寻找配备专用显卡的小型 PC 的用户来说,Minisforum HX77G 也是不错的选择。 Minisforum HX77G和 Minisforum NUCXi7值得考虑。
The Witcher 3 | |
1024x768 Low Graphics & Postprocessing | |
Average AMD Radeon 780M (74 - 163.3, n=37) | |
Average AMD Radeon 680M (67.4 - 150, n=30) | |
Intel NUC 13 Pro Kit NUC13ANK | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Geekom Mini IT12 | |
Minisforum Mars Series MC560 | |
Minisforum Venus Series UN1245 | |
Geekom Mini IT12 | |
NiPoGi CK10 | |
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
Average AMD Radeon 780M (21.3 - 52.2, n=45) | |
Average AMD Radeon 680M (22.3 - 48, n=32) | |
Intel NUC 13 Pro Kit NUC13ANK | |
Geekom Mini IT12 | |
Minisforum Mars Series MC560 | |
Minisforum Venus Series UN1245 | |
Geekom Mini IT12 | |
NiPoGi CK10 | |
Intel NUC 12 Pro Kit NUC12WSKi7 |
low | med. | high | ultra | |
---|---|---|---|---|
GTA V (2015) | 108.9 | 90.1 | 14.4 | 6.18 |
The Witcher 3 (2015) | 60.8 | 37.5 | 20 | 10.2 |
Dota 2 Reborn (2015) | 115.2 | 84.1 | 44.4 | 41 |
X-Plane 11.11 (2018) | 36.8 | 24.4 | 21.9 | |
Far Cry 5 (2018) | 36 | 17 | 16 | 15 |
Strange Brigade (2018) | 63.4 | 25.1 | 19.9 | 16.8 |
Shadow of the Tomb Raider (2018) | 34.2 | 15.3 | 14.1 | |
Far Cry New Dawn (2019) | 35 | 17 | 16 | 15 |
Metro Exodus (2019) | 27.5 | 12.9 | 9.61 | 7.86 |
Borderlands 3 (2019) | 32.2 | 14.2 | 8.51 | 6.17 |
F1 2021 (2021) | 69.2 | 31.1 | 24.8 | 16.1 |
F1 22 (2022) | 27.3 | 24.5 | 17.5 | 13.5 |
F1 23 (2023) | 24.6 | 22.1 | 15.2 |

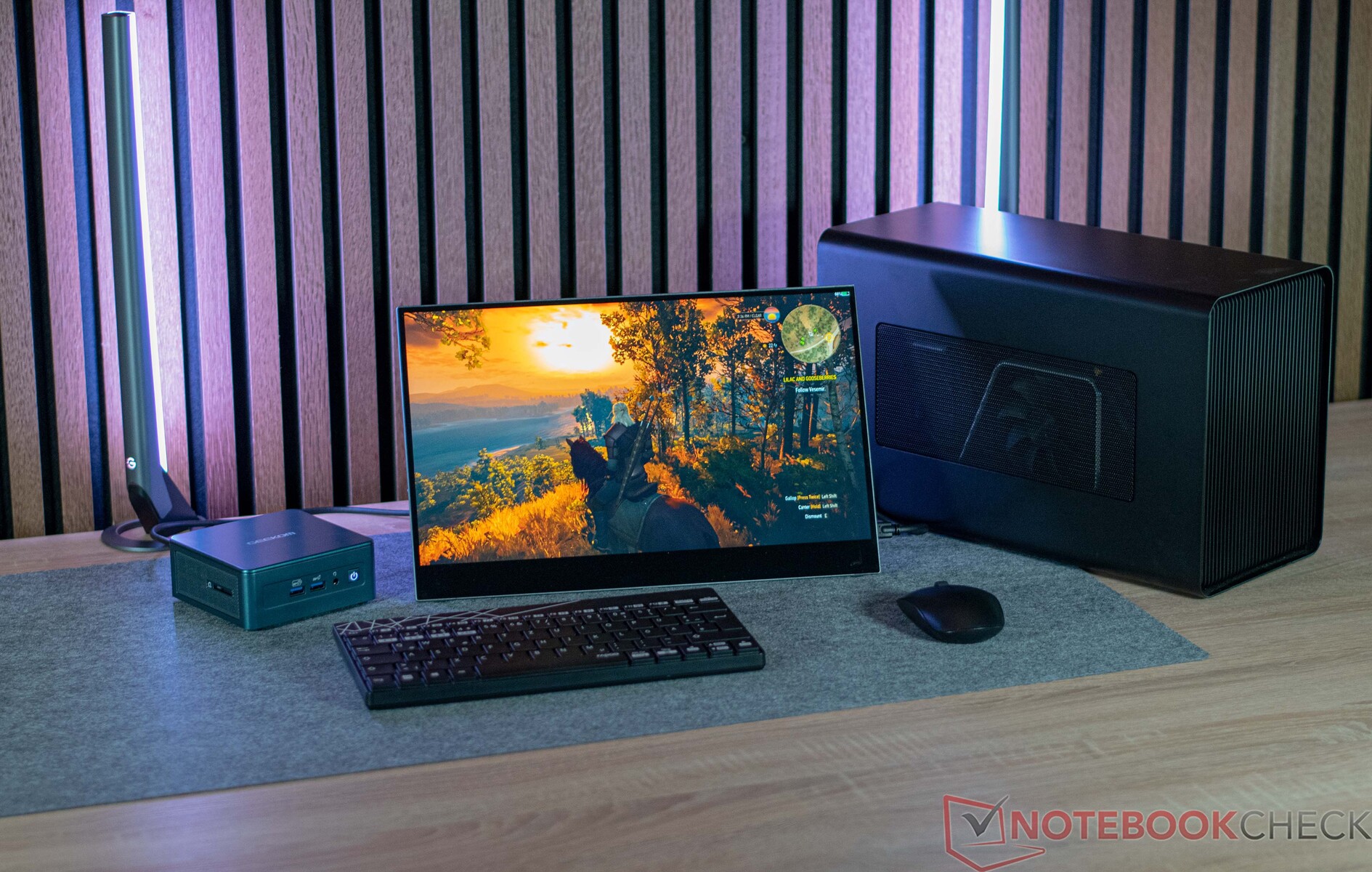

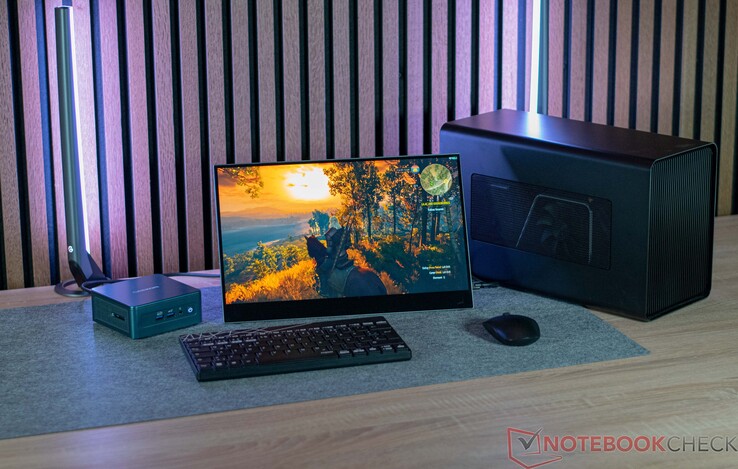

通过配备 NvidiaGeForce RTX 3060 Ti 的 eGPU-Dock 实现 3D 性能
由于 Geekom Mini IT12 有两个 USB 4 端口,我们将其性能与 Razer Core X 和 Nvidia RTX 3060 Ti 进行比较。 英伟达GeForce RTX 3060 Ti.有了这个组合,3D 性能可能会大幅提升。由于带宽限制(PCIe x4 3.0),专用显卡的性能无法与传统台式机相提并论。在测试中,我们发现其性能与采用相同配件的其他 Mini PC 不相上下。从本质上讲,这个组合的效果非常出色。有了这个附加组件,许多游戏都能流畅运行,帧率和细节都能达到可接受的水平。
Performance Rating - Percent | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) |
3DMark 11 - 1280x720 Performance GPU | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
3DMark | |
2560x1440 Time Spy Graphics | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1920x1080 Fire Strike Graphics | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
3840x2160 Fire Strike Ultra Graphics | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Unigine Superposition | |
1280x720 720p Low | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
1920x1080 1080p High | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1920x1080 1080p Extreme | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
3840x2160 4k Optimized | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
7680x4320 8k Optimized | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) |
Unigine Valley 1.0 | |
1920x1080 Extreme HD DirectX AA:x8 | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1920x1080 Extreme HD Preset OpenGL AA:x8 | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Unigine Heaven 4.0 | |
Extreme Preset OpenGL | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Extreme Preset DX11 | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
ComputeMark v2.1 | |
1024x600 Normal, Score | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, Fluid 3DTex | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, Fluid 2DTexArr | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, Mandel Vector | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, Mandel Scalar | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, QJuliaRayTrace | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Performance Rating - Percent | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) |
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Final Fantasy XV Benchmark - 1920x1080 High Quality | |
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) |
Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Far Cry 5 - 1920x1080 Ultra Preset AA:T | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Far Cry New Dawn - 1920x1080 Ultra Preset | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Borderlands 3 - 1920x1080 Badass Overall Quality (DX11) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
F1 22 - 1920x1080 Ultra High Preset AA:T AF:16x | |
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Tiny Tina's Wonderlands - 1920x1080 Badass Preset (DX12) | |
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) |
Shadow of the Tomb Raider - 1920x1080 Highest Preset AA:T | |
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) |
Metro Exodus - 1920x1080 Ultra Quality AF:16x | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
God of War - 1920x1080 Ultra Preset | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekbench Mini IT12 (Nvidia GeForce RTX 3060 Ti FE) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) |
low | med. | high | ultra | QHD | 4K | |
---|---|---|---|---|---|---|
GTA V (2015) | 175 | 169.3 | 152.3 | 91.6 | 86.9 | 102.8 |
The Witcher 3 (2015) | 286 | 212 | 153.9 | 73.5 | 63.6 | 72.9 |
Dota 2 Reborn (2015) | 155.9 | 138.1 | 127.2 | 120.9 | 102.6 | |
Final Fantasy XV Benchmark (2018) | 144.7 | 87.9 | 64.1 | 43.5 | 23.7 | |
Far Cry 5 (2018) | 127 | 89 | 84 | 80 | 50 | 24 |
Strange Brigade (2018) | 176.3 | 121.6 | 112.2 | 107.6 | 74.1 | 32.8 |
Shadow of the Tomb Raider (2018) | 145.3 | 102.6 | 100.1 | 92.8 | 76.1 | 50.1 |
Far Cry New Dawn (2019) | 130 | 115 | 110 | 100 | 94 | 60 |
Metro Exodus (2019) | 111.3 | 53.6 | 49.2 | 40.3 | 31.5 | 19.9 |
Borderlands 3 (2019) | 121.8 | 82.5 | 65.6 | 55.9 | 38.8 | 21.5 |
F1 2020 (2020) | 194.1 | 115.2 | 119.8 | 101.7 | 90.7 | 60 |
F1 2021 (2021) | 138.2 | 107.2 | 69.4 | 52.5 | 48.7 | 41.3 |
Far Cry 6 (2021) | 67.7 | 53.3 | 45.5 | 40.2 | 32.8 | |
God of War (2022) | 108.1 | 97.6 | 81.6 | 60.2 | 53.6 | 39.9 |
GRID Legends (2022) | 81 | 64.4 | 55.5 | 50.7 | 39 | 23.6 |
Tiny Tina's Wonderlands (2022) | 103.7 | 84.3 | 64.2 | 55.2 | 39.2 | 21.8 |
F1 22 (2022) | 60.2 | 55 | 42.6 | 27.9 | 26.1 | 19.7 |
F1 23 (2023) | 66.8 | 65.4 | 54.1 | 33.5 | 31.2 | 17.7 |
Intel UHD Graphics 64EUs (Alder Lake 12th Gen) i5-12450H | i5-12450H | Intel Arc A770 R9 7950X | NVIDIA GeForce RTX 2060 Super (Desktop) R9 7950X | NVIDIA GeForce RTX 2070 Super (Desktop) R9 7950X | NVIDIA GeForce RTX 3060 Ti R9 7950X | NVIDIA GeForce RTX 4060 R9 7950X | NVIDIA GeForce RTX 4060 Ti 16G R9 7950X | NVIDIA GeForce RTX 4070 R9 7950X | NVIDIA GeForce RTX 4070 Ti R9 7950X | AMD Radeon RX 7600 R9 7950X | AMD Radeon RX 7700 XT R9 7950X | AMD Radeon RX 7800 XT R9 7950X | AMD Radeon RX 7900 GRE R9 7950X | AMD Radeon RX 6600 R9 7950X | AMD Radeon RX 6650 XT R9 7950X | AMD Radeon RX 6700 XT R9 7950X | AMD Radeon RX 6750 XT R9 7950X | Average of class Mini PC | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SPECviewperf 12 | 1223% | 581% | 1056% | 1178% | 1354% | 1401% | 1888% | 2558% | 3571% | 2212% | 2928% | 3380% | 3586% | 2436% | 2953% | 3231% | 2707% | 848% | |
1900x1060 3ds Max (3dsmax-05) | 29.8 | 147 393% | 179 501% | 220 638% | 247 729% | 297 897% | 251 742% | 290 873% | 382 1182% | 436 1363% | 279 836% | 373 1152% | 427 1333% | 444 1390% | 258 766% | 310 940% | 363 1118% | 377 1165% | 75.4 ? 153% |
1900x1060 Catia (catia-04) | 22.9 | 115 402% | 174 660% | 84.5 269% | 114 398% | 114 398% | 113 393% | 128 459% | 161 603% | 192 738% | 273 1092% | 351 1433% | 386 1586% | 448 1856% | 256 1018% | 314 1271% | 339 1380% | 360 1472% | 64.2 ? 180% |
1900x1060 Creo (creo-01) | 17.7 | 59.7 237% | 45.3 156% | 58.8 232% | 65.7 271% | 65.2 268% | 60.6 242% | 73.4 315% | 89.1 403% | 99.4 462% | 115 550% | 123 595% | 148 736% | 155 776% | 133 651% | 142 702% | 152 759% | 154 770% | 37 ? 109% |
1900x1060 Energy (energy-01) | 0.24 | 13.4 5483% | 2.44 917% | 11.6 4733% | 12.4 5067% | 14.4 5900% | 15.9 6525% | 22.6 9317% | 31.7 13108% | 48 19900% | 25.5 10525% | 33.4 13817% | 38.4 15900% | 40.3 16692% | 31.3 12942% | 37.6 15567% | 40.6 16817% | 30.1 12442% | 13.3 ? 5442% |
1900x1060 Maya (maya-04) | 22.8 | 203 790% | 183 703% | 200 777% | 225 887% | 251 1001% | 233 922% | 257 1027% | 284 1146% | 287 1159% | 236 935% | 283 1141% | 304 1233% | 323 1317% | 218 856% | 246 979% | 268 1075% | 277 1115% | 64 ? 181% |
1900x1060 Medical (medical-01) | 5.07 | 73.5 1350% | 46.7 821% | 49.5 876% | 55.9 1003% | 65.6 1194% | 82.4 1525% | 110 2070% | 132 2504% | 157 2997% | 128 2425% | 177 3391% | 200 3845% | 226 4358% | 102 1912% | 137 2602% | 150 2859% | 144 2740% | 28.5 ? 462% |
1900x1060 Showcase (showcase-01) | 13.2 | 149 1029% | 119 802% | 121 817% | 135 923% | 150 1036% | 109 726% | 132 900% | 190 1339% | 244 1748% | 127 862% | 179 1256% | 235 1680% | 222 1582% | 125 847% | 151 1044% | 176 1233% | 186 1309% | 35.3 ? 167% |
1900x1060 Solidworks (sw-03) | 38.9 | 78.3 101% | 73.4 89% | 79.7 105% | 95.1 144% | 93.5 140% | 91.2 134% | 95.1 144% | 109 180% | 118 203% | 221 468% | 288 640% | 322 728% | 319 720% | 232 496% | 242 522% | 275 607% | 290 646% | 72.4 ? 86% |
SPECviewperf 13 | 968% | 900% | 836% | 972% | 1081% | 1120% | 1395% | 1784% | 2251% | 2347% | 3236% | 3803% | 4102% | 1434% | 1814% | 2240% | 2534% | 433% | |
3ds Max (3dsmax-06) | 29.6 | 147 397% | 179 505% | 218 636% | 247 734% | 297 903% | 252 751% | 289 876% | 381 1187% | 433 1363% | 280 846% | 371 1153% | 434 1366% | 439 1383% | 258 772% | 310 947% | 360 1116% | 379 1180% | 74.8 ? 153% |
Catia (catia-05) | 32.7 | 163 398% | 260 695% | 119 264% | 163 398% | 167 411% | 163 398% | 189 478% | 241 637% | 290 787% | 410 1154% | 529 1518% | 588 1698% | 661 1921% | 387 1083% | 482 1374% | 528 1515% | 565 1628% | 91.4 ? 180% |
Creo (creo-02) | 26.5 | 230 768% | 90 240% | 203 666% | 240 806% | 243 817% | 230 768% | 301 1036% | 375 1315% | 455 1617% | 294 1009% | 387 1360% | 442 1568% | 470 1674% | 279 953% | 317 1096% | 353 1232% | 389 1368% | 73 ? 175% |
Energy (energy-02) | 0.94 | 25.8 2645% | 22.5 2294% | 21.9 2230% | 23.8 2432% | 26.1 2677% | 34.6 3581% | 45.3 4719% | 54.2 5666% | 72.8 7645% | 82.9 8719% | 115 12134% | 139 14687% | 150 15857% | 44 4581% | 59.8 6262% | 74.3 7804% | 80.6 8474% | 17.7 ? 1783% |
Maya (maya-05) | 32.2 | 355 1002% | 319 891% | 291 804% | 344 968% | 372 1055% | 343 965% | 403 1152% | 510 1484% | 591 1735% | 333 934% | 487 1412% | 548 1602% | 580 1701% | 348 981% | 403 1152% | 462 1335% | 482 1397% | 97.5 ? 203% |
Medical (medical-02) | 4.49 | 65.3 1354% | 80.8 1700% | 54.2 1107% | 63.7 1319% | 74.3 1555% | 76.5 1604% | 85.1 1795% | 112 2394% | 132 2840% | 226 4933% | 300 6582% | 332 7294% | 372 8185% | 88.8 1878% | 105 2239% | 148 3196% | 202 4399% | 37.6 ? 737% |
Showcase (showcase-02) | 13.1 | 150 1045% | 119 808% | 122 831% | 135 931% | 150 1045% | 108 724% | 133 915% | 191 1358% | 244 1763% | 127 869% | 179 1266% | 234 1686% | 221 1587% | 125 854% | 151 1053% | 176 1244% | 186 1320% | 35 ? 167% |
Solidworks (sw-04) | 47.2 | 109 131% | 77.5 64% | 119 152% | 136 188% | 135 186% | 127 169% | 135 186% | 157 233% | 168 256% | 195 313% | 265 461% | 294 523% | 287 508% | 220 366% | 231 389% | 272 476% | 286 506% | 76.6 ? 62% |
SPECviewperf 2020 | 1005% | 1724% | 1419% | 1368% | 1914% | 1896% | 2460% | 3213% | 4074% | 3597% | 5203% | 6877% | 7116% | 1932% | 2647% | 3171% | 3596% | 638% | |
3840x2160 Medical (medical-03) | 0.78 | 9.9 1169% | 22.3 2759% | 10.3 1221% | 12 1438% | 11.9 1426% | 13.7 1656% | 16.5 2015% | 22.2 2746% | 26.9 3349% | 36.1 4528% | 56.2 7105% | 63.7 8067% | 76.1 9656% | 20.9 2579% | 27.3 3400% | 30.1 3759% | 39.9 5015% | 7.74 ? 892% |
3840x2160 Maya (maya-06) | 15.3 | 148 867% | 195 1175% | 162 959% | 185 1109% | 235 1436% | 196 1181% | 237 1449% | 305 1893% | 372 2331% | 178 1063% | 261 1606% | 346 2161% | 161 952% | 192 1155% | 258 1586% | 279 1724% | 56.4 ? 269% | |
3840x2160 Energy (energy-03) | 0.52 | 13.4 2477% | 25 4708% | 22.9 4304% | 17.8 3323% | 31.2 5900% | 33.2 6285% | 44.9 8535% | 57.6 10977% | 75.7 14458% | 67 12785% | 95 18169% | 111 21246% | 133 25477% | 29.5 5573% | 44.2 8400% | 52.2 9938% | 56.3 10727% | 10.8 ? 1977% |
3840x2160 Creo (creo-03) | 9.17 | 59 543% | 52.9 477% | 77.2 742% | 85.8 836% | 91.2 895% | 85.9 837% | 95.9 946% | 112 1121% | 121 1220% | 106 1056% | 130 1318% | 151 1547% | 159 1634% | 93.4 919% | 105 1045% | 123 1241% | 130 1318% | 29.7 ? 224% |
3840x2160 CATIA (catia-06) | 5.24 | 31.2 495% | 38.9 642% | 30.5 482% | 36.7 600% | 40.5 673% | 34 549% | 38.5 635% | 51.6 885% | 61.2 1068% | 68 1198% | 88.8 1595% | 101 1827% | 107 1942% | 60.8 1060% | 70.1 1238% | 77.2 1373% | 83.8 1499% | 18.3 ? 249% |
3840x2160 3ds Max (3dsmax-07) | 6.95 | 40.1 477% | 47.4 582% | 63.1 808% | 69.7 903% | 87 1152% | 67.4 870% | 88.8 1178% | 122 1655% | 147 2015% | 72.9 949% | 106 1425% | 125 1699% | 134 1828% | 42.4 510% | 51.5 641% | 85.4 1129% | 96.8 1293% | 21.8 ? 214% |
Total Average (Program / Settings) | 1065% /
1071% | 1068% /
1009% | 1104% /
1075% | 1173% /
1155% | 1450% /
1408% | 1472% /
1434% | 1914% /
1865% | 2518% /
2455% | 3299% /
3228% | 2719% /
2639% | 3789% /
3660% | 4687% /
4374% | 4935% /
4737% | 1934% /
1934% | 2471% /
2455% | 2881% /
2854% | 2946% /
2887% | 640% /
639% |
排放 - 风扇控制有问题,效率高
系统噪音
我们测试的 Geekom Mini IT12 在音量测量方面表现不佳。即使在空闲状态下,我们也录得了 36.5 dB(A),与其他产品相比明显偏大。此外,风扇噪音高亢,进一步增加了噪音水平的主观感受。在平均负载情况下,声压级的增幅很小,峰值为 47.5 dB(A)。在 BIOS 中,用户可以选择 "静音"、"自动 "和 "性能 "配置文件,但这也会改变处理器的功率限制。令人费解的是,没有单独定义功率限制和风扇速度的选项。建议 Geekom 解决这个问题,以大幅降低噪音水平。钛合金 配备英特尔酷睿 i7-1260P 的 Geekom Mini IT12在这方面有所改善。
Noise Level
Idle |
| 36.5 / 36.5 / 36.5 dB(A) |
Load |
| 36.6 / 47.5 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 24.8 dB(A) |
Geekom Mini IT12 i5-12450H, UHD Graphics 64EUs | Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs | Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs | Minisforum Mars Series MC560 R5 5600U, Vega 7 | Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs | Minisforum Venus Series UN1245 i5-12450H, UHD Graphics 64EUs | NiPoGi CK10 i5-12450H, UHD Graphics 64EUs | |
---|---|---|---|---|---|---|---|
Noise | 13% | 5% | 12% | 1% | 6% | 11% | |
off / environment * | 24.8 | 29.8 -20% | 29.8 -20% | 30.2 -22% | 30.4 -23% | 25.2 -2% | 25 -1% |
Idle Minimum * | 36.5 | 29.9 18% | 30.2 17% | 30.4 17% | 33.1 9% | 32 12% | 30.6 16% |
Idle Average * | 36.5 | 30.1 18% | 31.1 15% | 30.4 17% | 33.1 9% | 32.1 12% | 31.1 15% |
Idle Maximum * | 36.5 | 30.2 17% | 31.9 13% | 30.4 17% | 33.1 9% | 32.2 12% | 31.7 13% |
Load Average * | 36.6 | 32.1 12% | 40 -9% | 31.8 13% | 38.1 -4% | 39.8 -9% | 32.9 10% |
Witcher 3 ultra * | 36.6 | 36.2 1% | |||||
Load Maximum * | 47.5 | 32.5 32% | 40.5 15% | 33.4 30% | 43.6 8% | 43.3 9% | 36.1 24% |
* ... smaller is better
温度

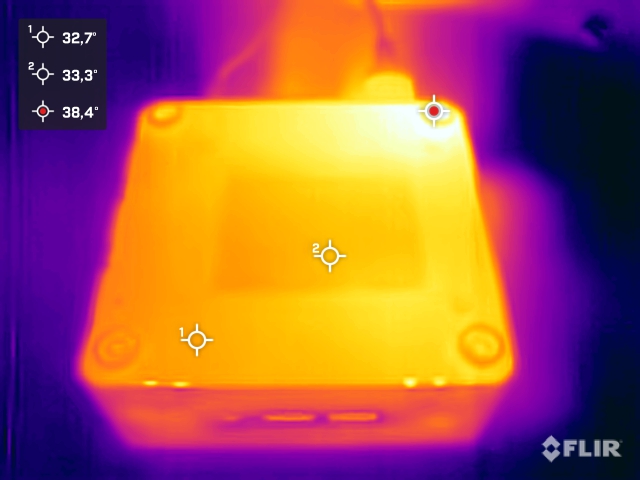

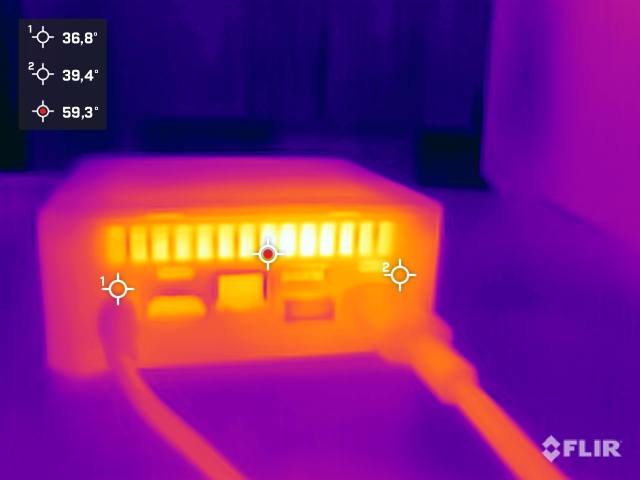

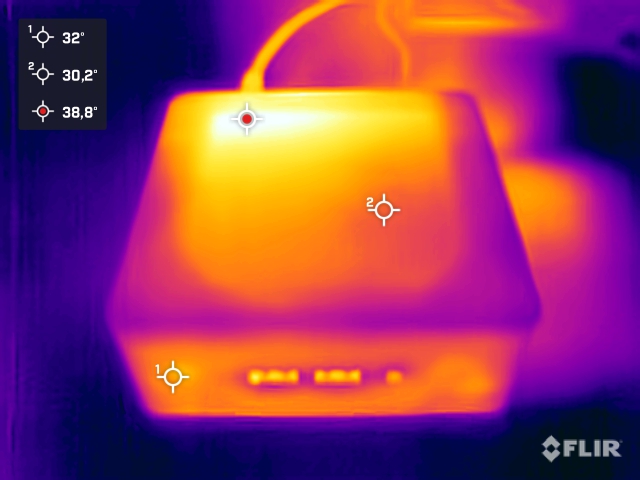

Geekom Mini IT12 的外壳仅在空闲时略微发热,在负载情况下发热区域会变得明显。压力测试期间的最高温度为 106.52 °F,对人体无害。英特尔酷睿 i5-12450H 在连续负载下的功耗为 35 瓦,在整个压力测试过程中始终保持这一数值。虽然 SoC 在开始时短暂达到 53 瓦,导致最高温度达到 185 华氏度,但似乎制造商已经设定了一个限制,因为 CPU 温度稳定在 163.4 华氏度,低于任何基准测试中 80 瓦的最大功率限制。
(±) The maximum temperature on the upper side is 41.4 °C / 107 F, compared to the average of 35.7 °C / 96 F, ranging from 24 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 39.1 °C / 102 F, compared to the average of 36.2 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 27.5 °C / 82 F, compared to the device average of 32.2 °C / 90 F.
耗电量
Geekom 故意对处理器的功耗进行了一定的限制,从而使 Mini IT12 在空闲和负载条件下都具有很高的能效。空闲模式下的功耗为 5.5 至 11.3 瓦。虽然 90 瓦的电源可能需要短暂提供略低于 87 瓦的功率,但这并不构成问题。Geekom Mini IT12 的平均功耗略高于 40 瓦,与同类产品相比,能效表现出色。
Off / Standby | 1.6 / 1.7 Watt |
Idle | 5.5 / 8.5 / 11.3 Watt |
Load |
42.3 / 86.5 Watt |
Key:
min: ,
med: ,
max: Metrahit Energy |
Geekom Mini IT12 i5-12450H, UHD Graphics 64EUs | Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs | Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs | Minisforum Mars Series MC560 R5 5600U, Vega 7 | Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs | Minisforum Venus Series UN1245 i5-12450H, UHD Graphics 64EUs | NiPoGi CK10 i5-12450H, UHD Graphics 64EUs | Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen) | Average of class Mini PC | |
---|---|---|---|---|---|---|---|---|---|
Power Consumption | 4% | -7% | 18% | -48% | -9% | -22% | -31% | -38% | |
Idle Minimum * | 5.5 | 5 9% | 5.1 7% | 6.2 -13% | 12.1 -120% | 8.2 -49% | 9.1 -65% | 9.53 ? -73% | 9.48 ? -72% |
Idle Average * | 8.5 | 7 18% | 5.8 32% | 6.3 26% | 12.2 -44% | 8.6 -1% | 11.3 -33% | 11.4 ? -34% | 11.5 ? -35% |
Idle Maximum * | 11.3 | 10.7 5% | 10.2 10% | 7.5 34% | 12.3 -9% | 9.6 15% | 13.7 -21% | 15.9 ? -41% | 14.9 ? -32% |
Load Average * | 42.3 | 50.3 -19% | 68.1 -61% | 41.3 2% | 64 -51% | 52.1 -23% | 49.5 -17% | 52.6 ? -24% | 57.4 ? -36% |
Load Maximum * | 86.5 | 82 5% | 108.3 -25% | 49 43% | 98.8 -14% | 73.6 15% | 62.3 28% | 71.9 ? 17% | 97.5 ? -13% |
* ... smaller is better
Energieaufnahme mit externem Monitor
Pros
Cons
结论 - 经济型办公电脑,功能强大
事实证明,Geekom Mini IT12 是一款适合家庭使用的可靠迷你电脑。它采用英特尔酷睿 i5-12450H,可无缝处理大多数日常任务。其丰富的连接选项使其适用于各种应用,并能顺利兼容外置显卡。与同型号的英特尔酷睿 i7-1260P 版本相比,测试设备的性能有所欠缺。从纸面上看,配置类似的 金星系列 UN1245和 NiPoGi CK10与 Geekom Mini IT12 相比,实际性能差异微乎其微,往往难以察觉。Geekom 在连接性方面优势明显,配备了现代 USB 4 端口--这是竞争对手所缺乏的功能。

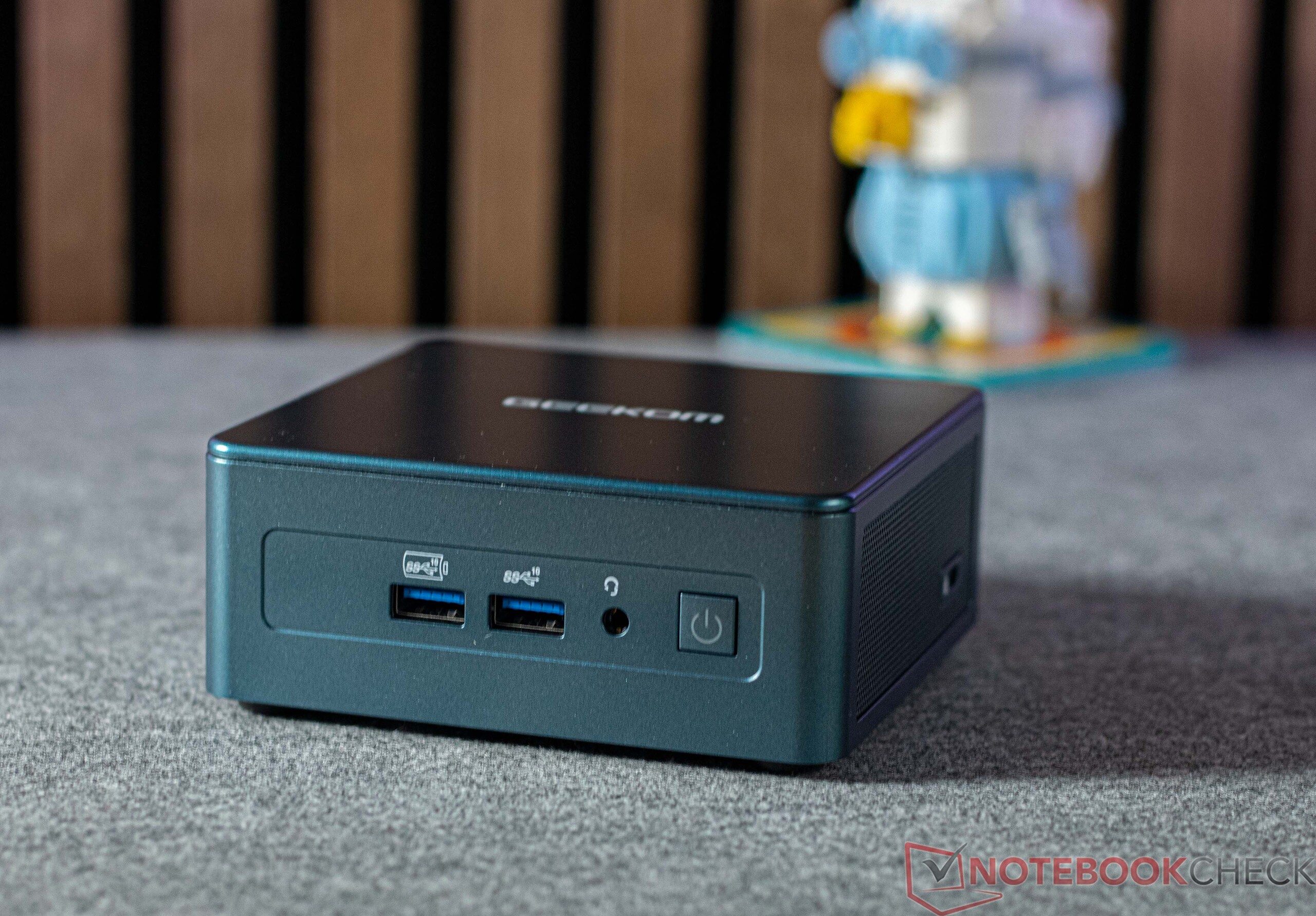

Geekom Mini IT12 结构紧凑,适用性广,连接性极佳,甚至可支持外置显卡。
Geekom 在工艺和设计方面保持了一贯的品质。不过,焕然一新的外观可以为其设备增色不少。在我们的测试中,风扇噪音是一个值得注意的问题,而在我们对配备英特尔酷睿 i7-1260P 的 Mini IT12 的测试中,风扇噪音并没有出现。制造商是否会通过 BIOS 更新来解决这个问题,我们拭目以待。如果担心风扇噪音,最好选择英特尔酷睿 i7-1260P 机型(如果有的话)。生产商的任何改进都将在我们今后的测试中得到应有的反映。
价格和供应情况
Geekom Mini IT12
- 11/27/2023 v7 (old)
Sebastian Bade
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
