配备 AMD Ryzen 7 7735H 和 32 GB 内存的 Acemagic AM20 迷你电脑可为智能手机无线充电
通过 AM20,Acemagic 扩展了其产品组合,并推出了一款非常有趣的同类产品。不过,我们面对的不是现有型号的简单升级,而是一个全新的型号。有了AMD Ryzen 7 7735H,制造商采用了当前的 SoC,该 SoC 拥有强大的 iGPU,即AMD Radeon 680M.众所周知,英特尔在这方面已经落后,而有了上述 iGPU,甚至可以进行一些小型游戏会话。Acemagic 为该设备配备了 32 GB 内存和 512 GB 固态硬盘,这意味着这款电脑目前的配置已经很高。购买配备 16GB 内存的 Acemagic AM20,只需预留 570 美元。我们的评测样品目前还未在 Acermagic 商店上市。
在本次评测中,我们将 Acemagic AM20 与已经通过我们测试的知名竞争对手进行比较。本次评测的对比设备列表请参阅以下概述。
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Price |
---|---|---|---|---|---|
84 % v7 (old) | 10 / 2023 | Acemagic AM20 R7 7735H, Radeon 680M | 339 g | 38 mm | |
82.8 % v7 (old) | 07 / 2023 | Minisforum Venus Series UM790 Pro R9 7940HS, Radeon 780M | 666 g | 52.3 mm | |
85.1 % v7 (old) | 01 / 2023 | Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs | 1.2 kg | 66 mm | |
83.7 % v7 (old) | 05 / 2023 | Morefine M600, 6600U R5 6600U, Radeon 660M | 768 g | 40.6 mm | |
82.8 % v7 (old) | 07 / 2023 | Geekom AS 6, R9 6900HX R9 6900HX, Radeon 680M | 753 g | 58 mm | |
82.3 % v7 (old) | 05 / 2023 | Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs | 572 g | 45.6 mm | |
81.7 % v7 (old) | 05 / 2023 | Minisforum Venus Series UM560 XT R5 5600H, Vega 7 | 652 g | 48 mm | |
73.8 % v7 (old) | 08 / 2023 | Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H) | 678 g | 75.5 mm |
Acemagic AM20 的详细资料

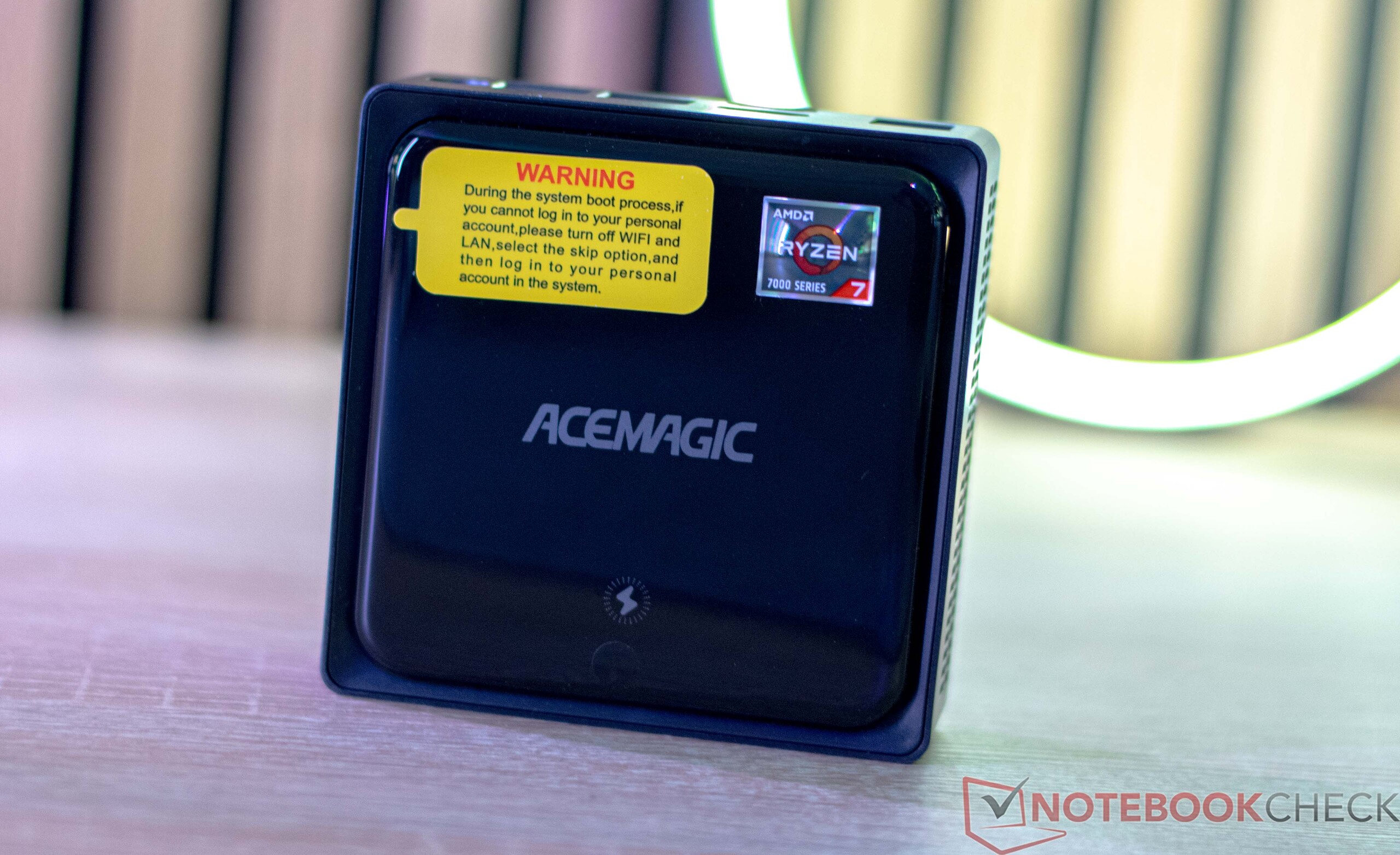

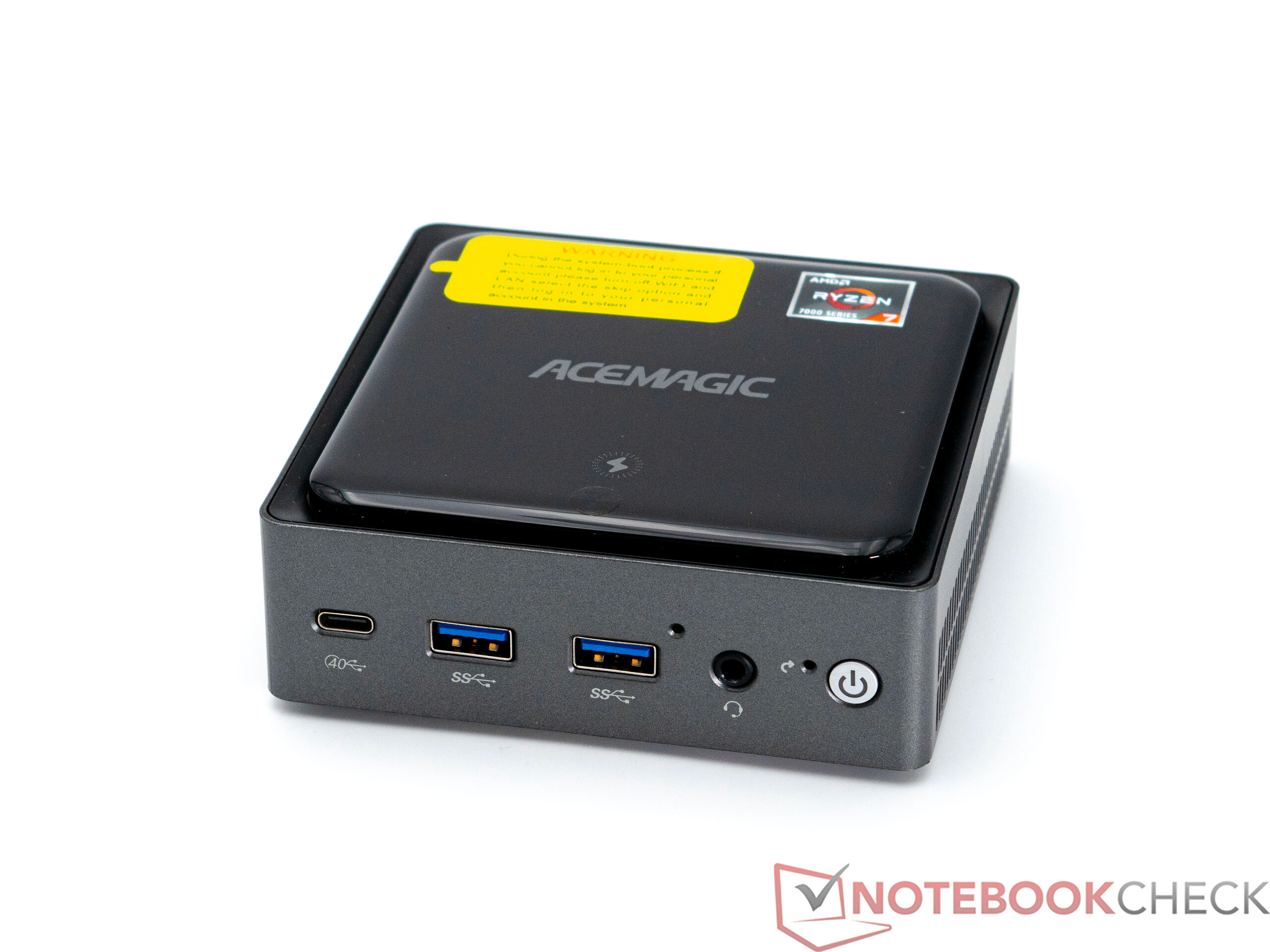

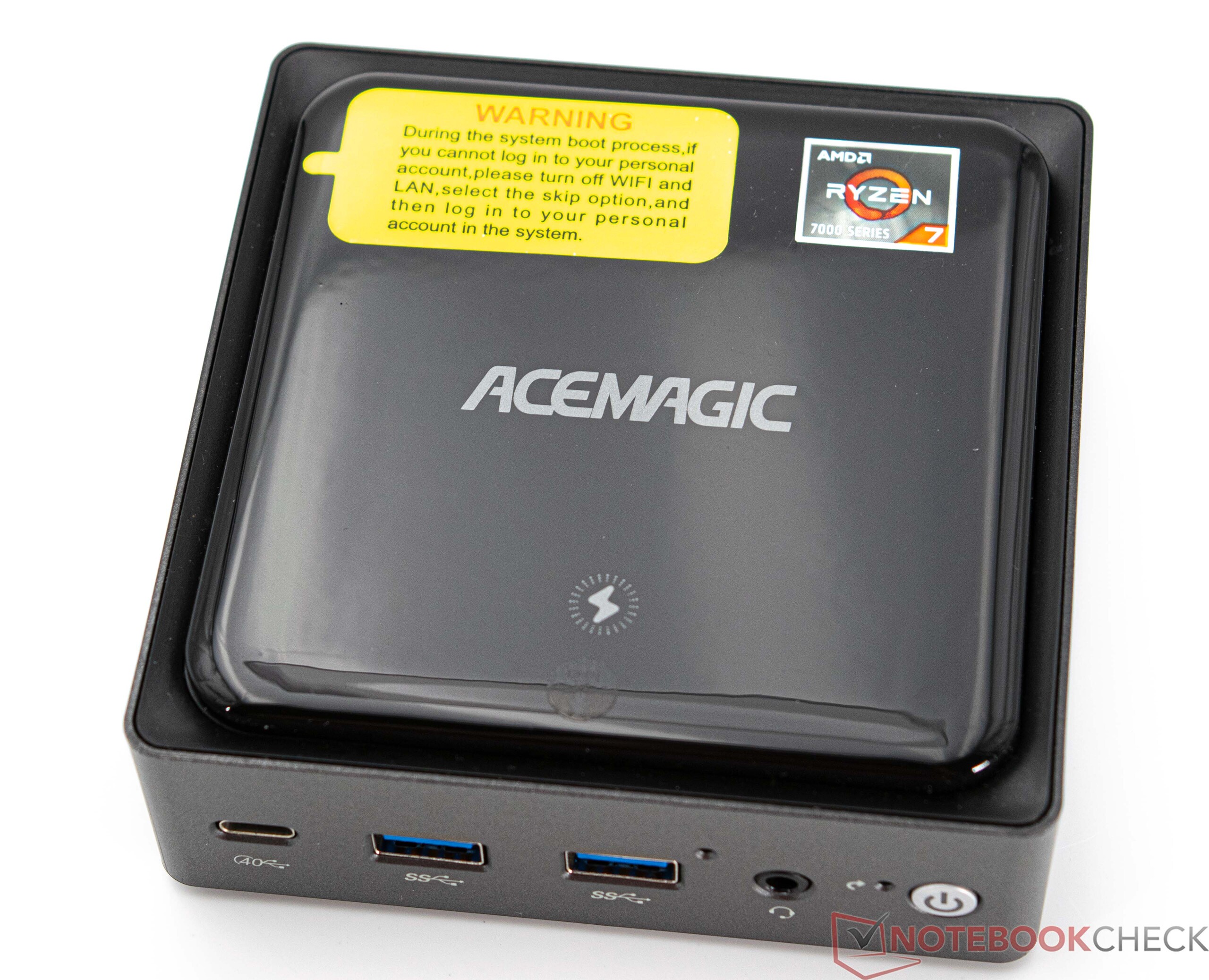

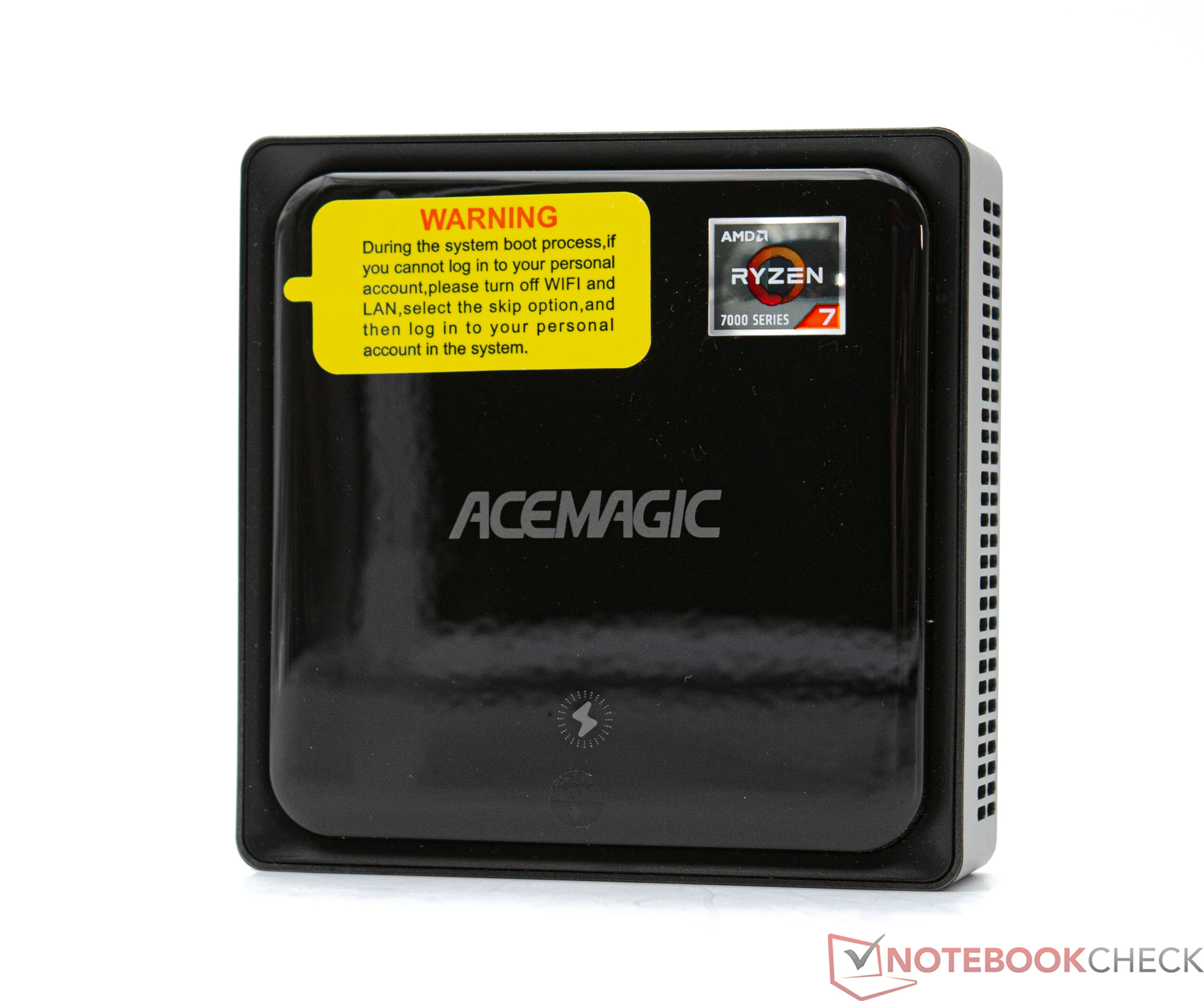

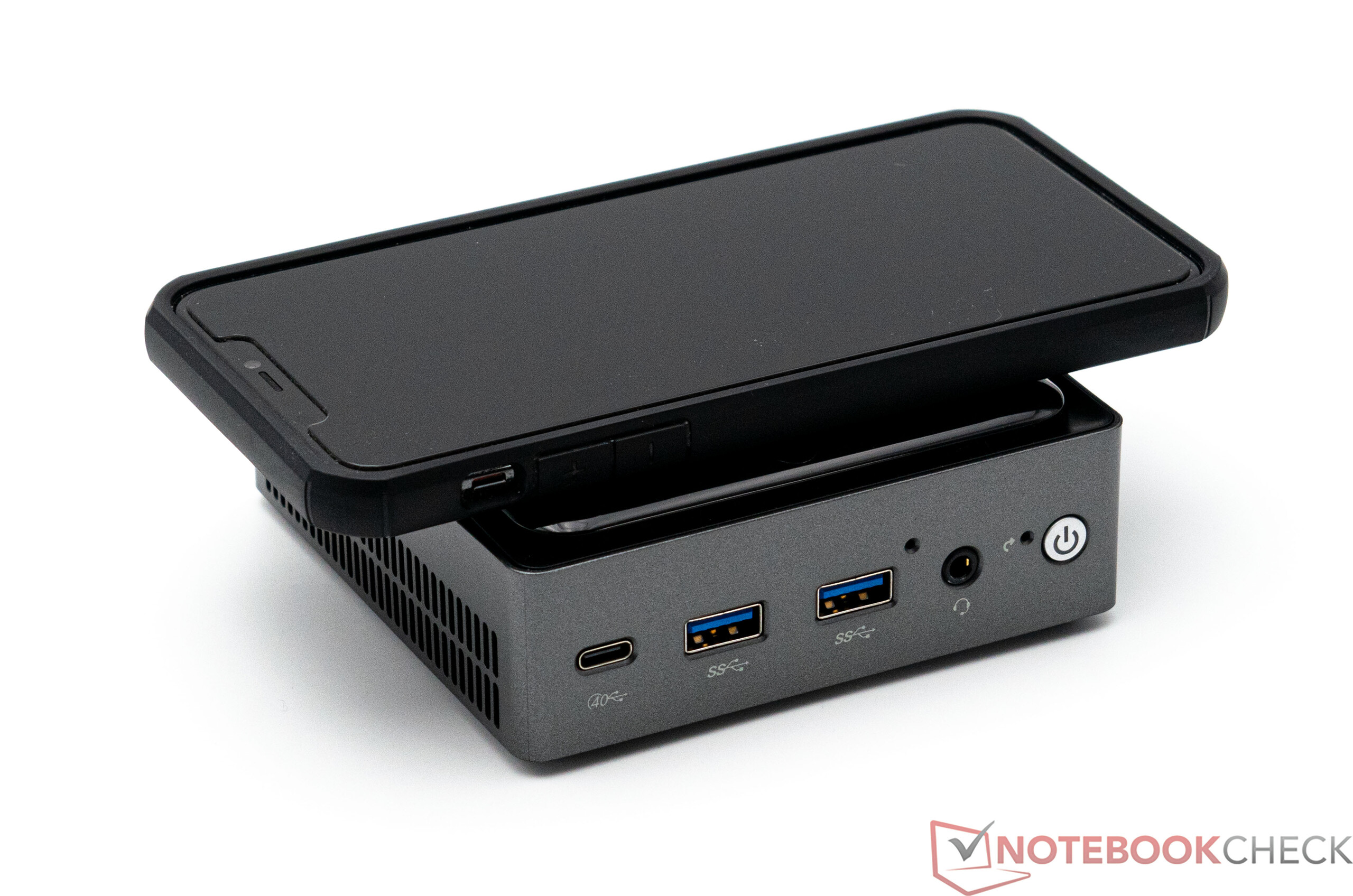

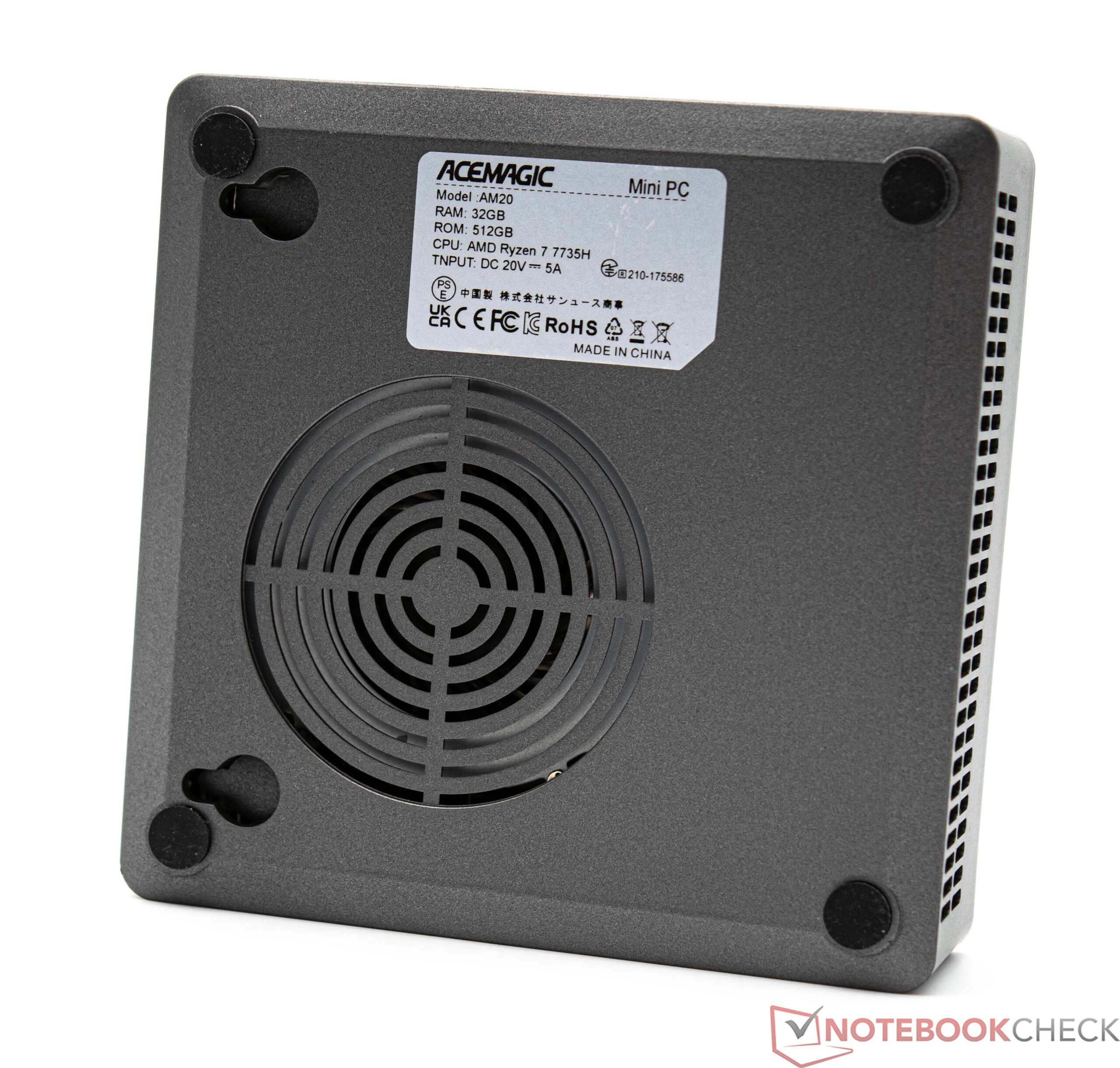

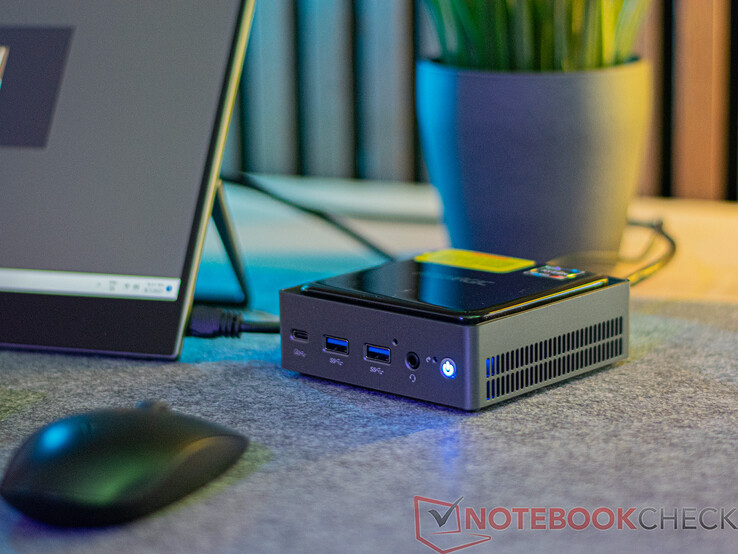

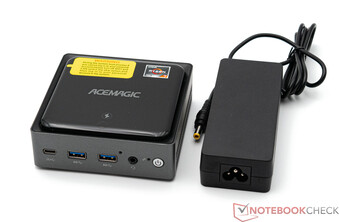

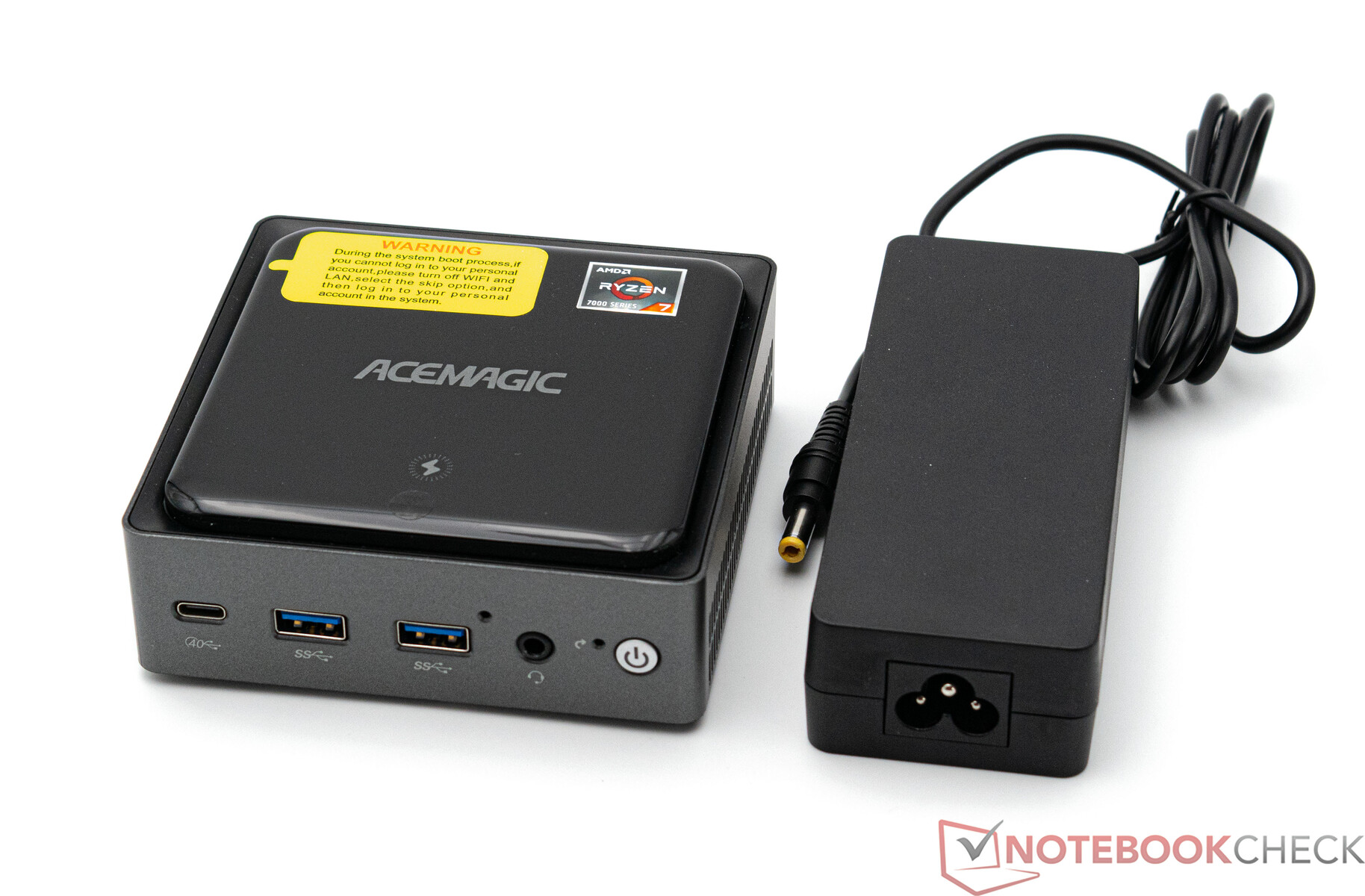

外壳 - 带有无线充电功能

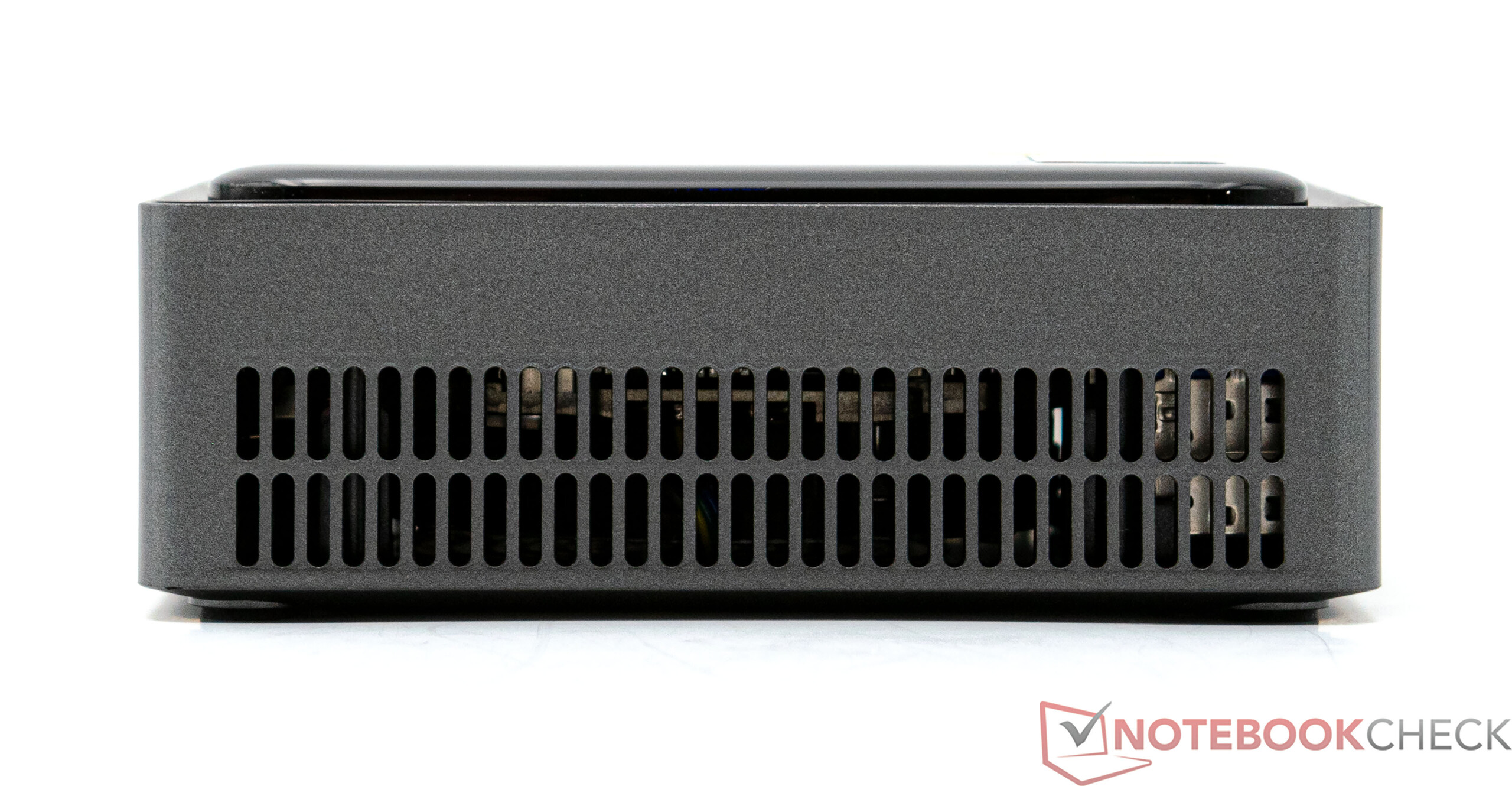

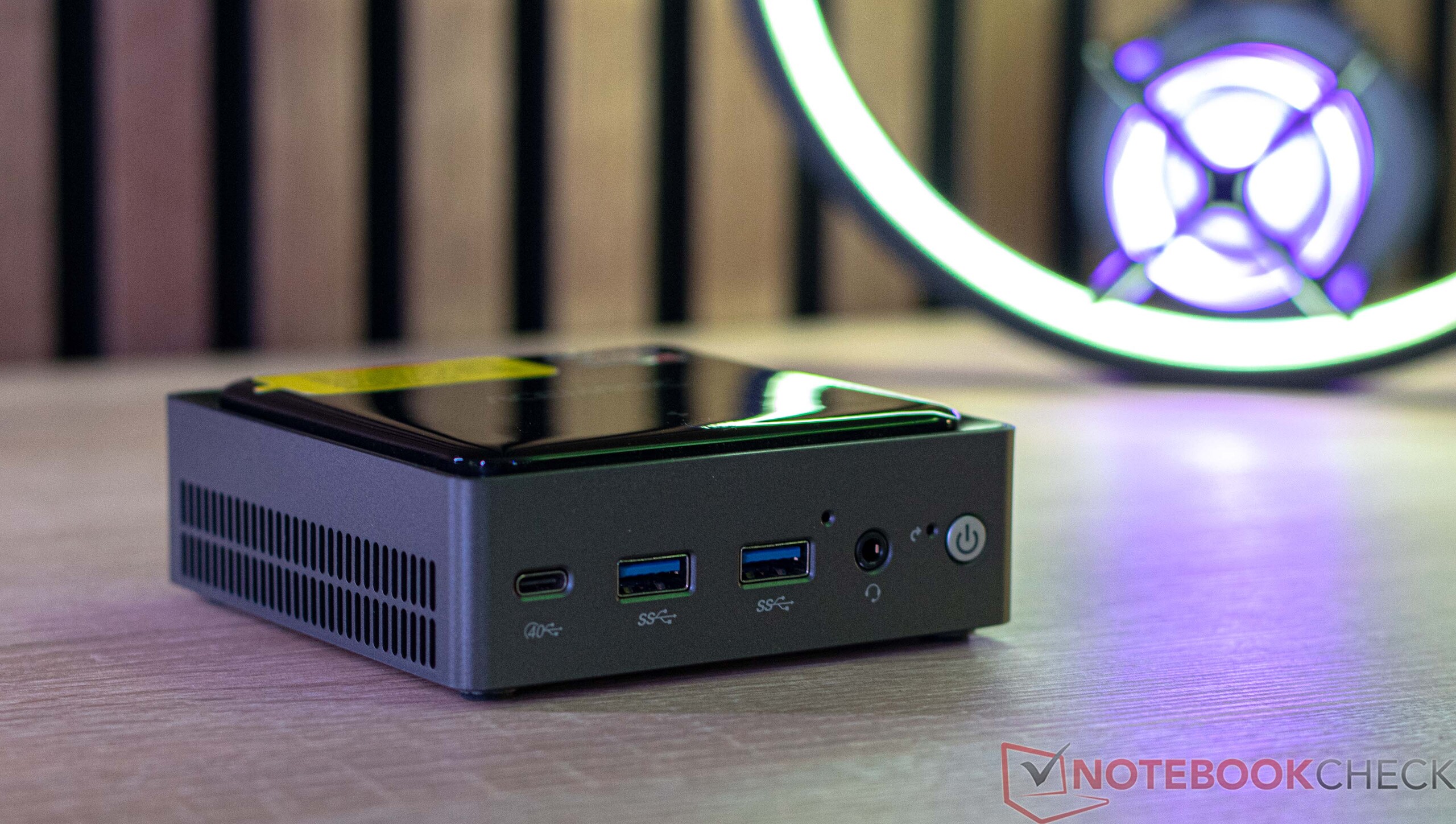

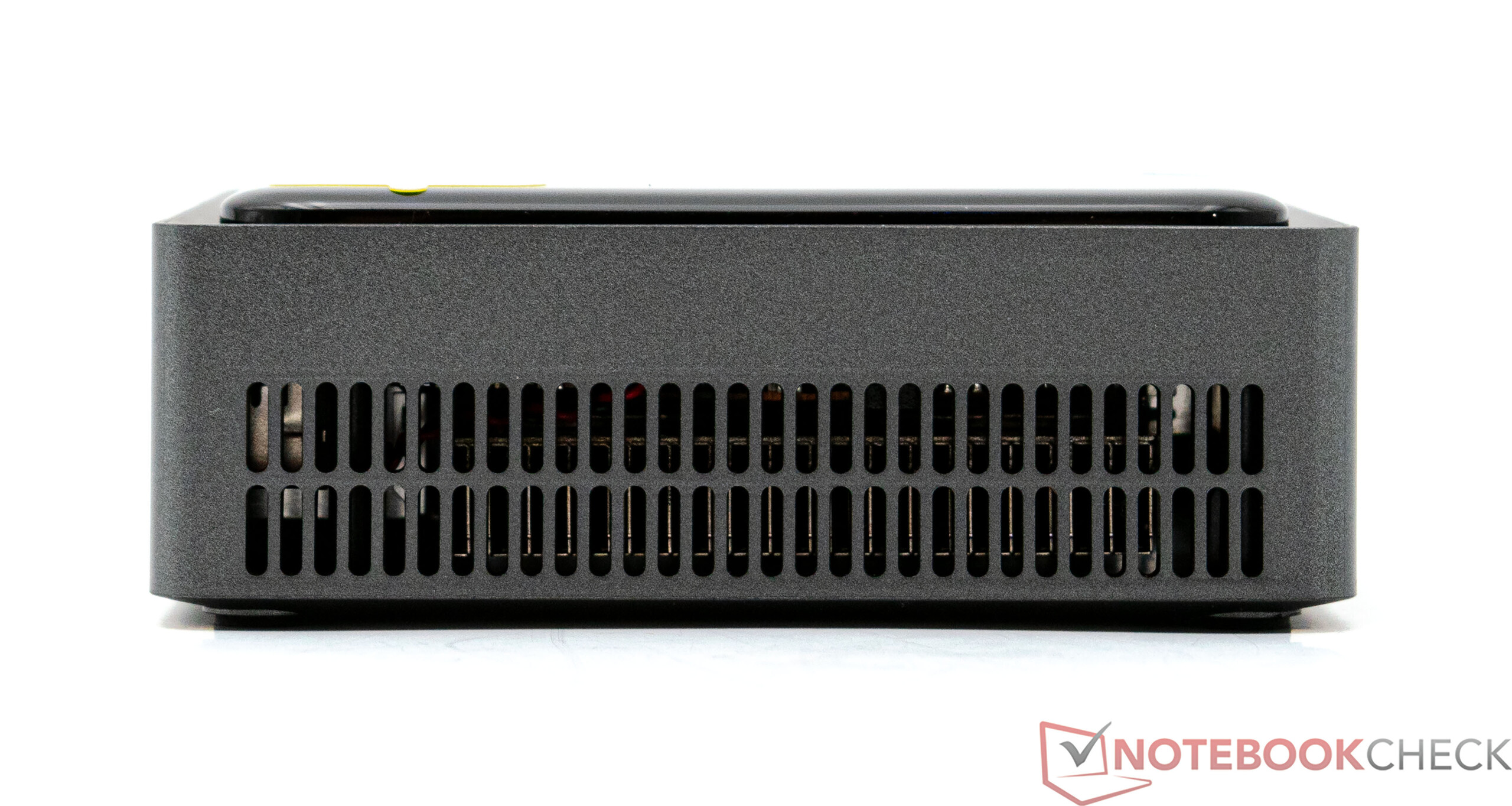

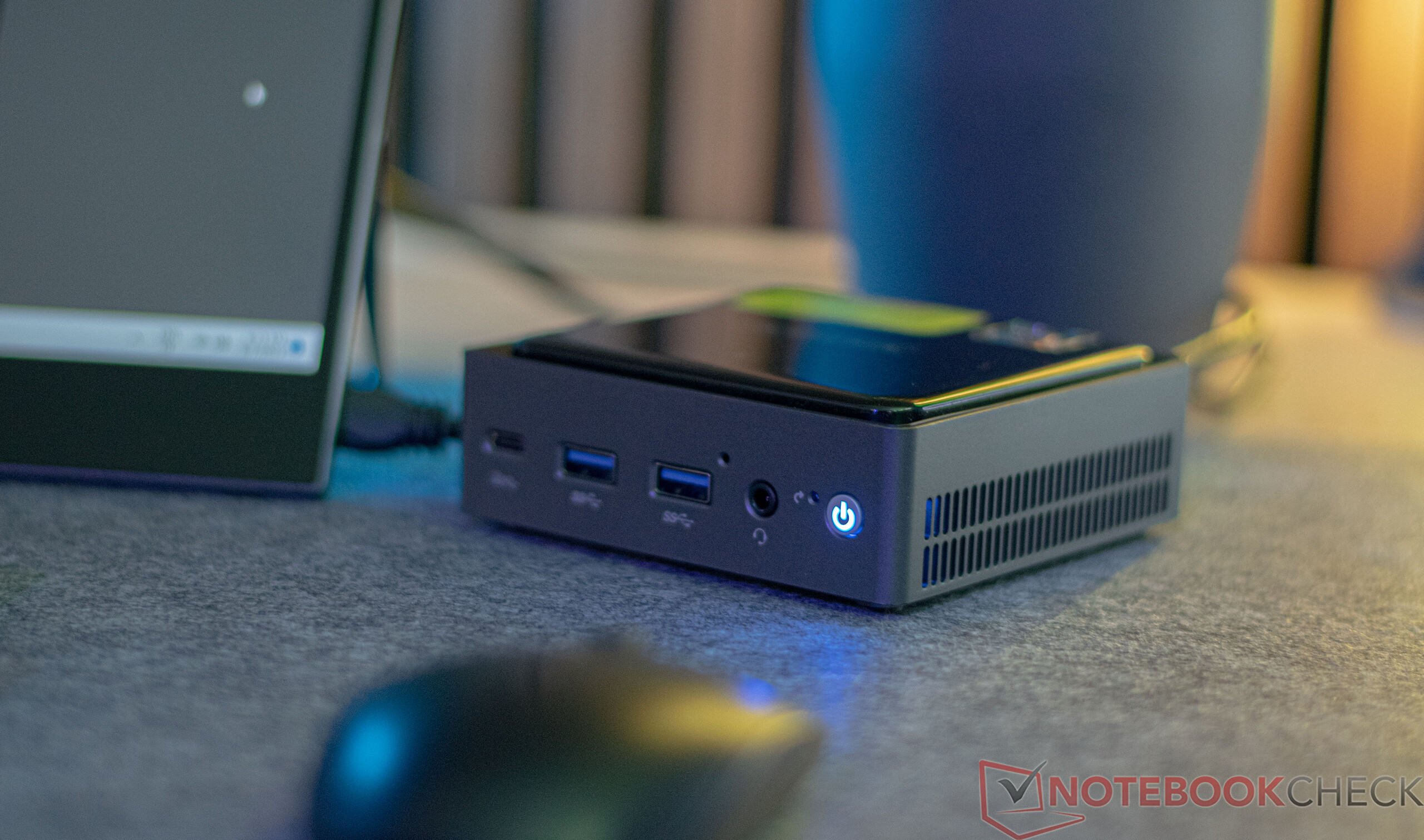

Acemagic AM20 的外观并不引人注目。该设备的外观为深灰色,但上盖为黑色。它闪耀着高光泽的外观,不幸的是,这使它很容易吸附指纹。外壳内隐藏着一个用于无线充电的充电装置。例如,智能手机在运行过程中的充电功率可达 10 瓦。这使得 Acemagic AM20 成为具有无线充电功能的最小迷你电脑。从空间要求来看,Acermagic AM20 再次属于最紧凑的设备。它的尺寸为 10.7 × 10.7 厘米,占地面积非常小。高度方面,我们测量的高度也只有 3.8 厘米。
Acemagic AM20 可以通过 VESA 支架固定在显示器上。不过,这种安装方式应该会导致难以使用外壳中的集成充电装置。
功能 - 包括 Thunderbolt 在内的多种选择

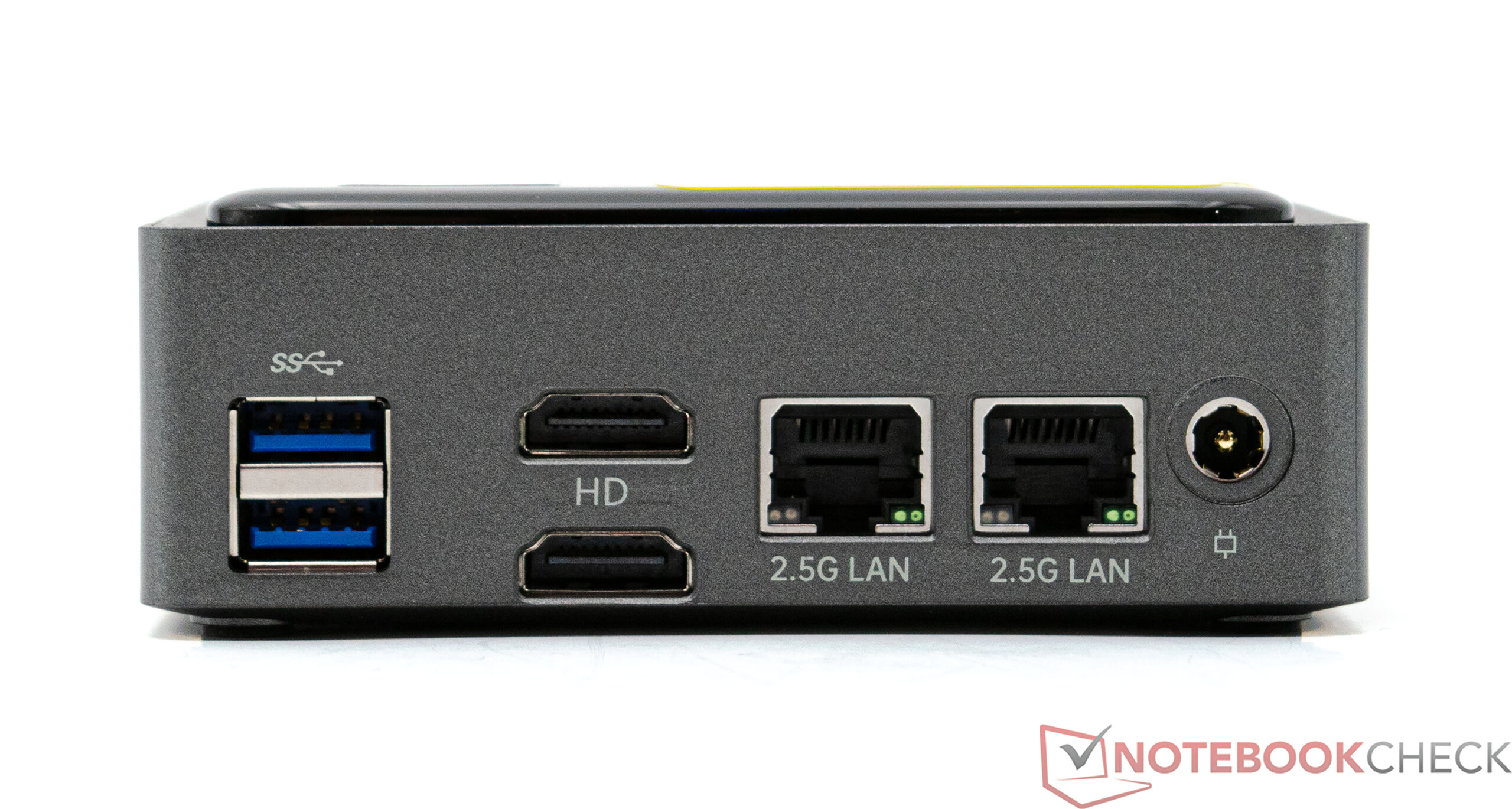

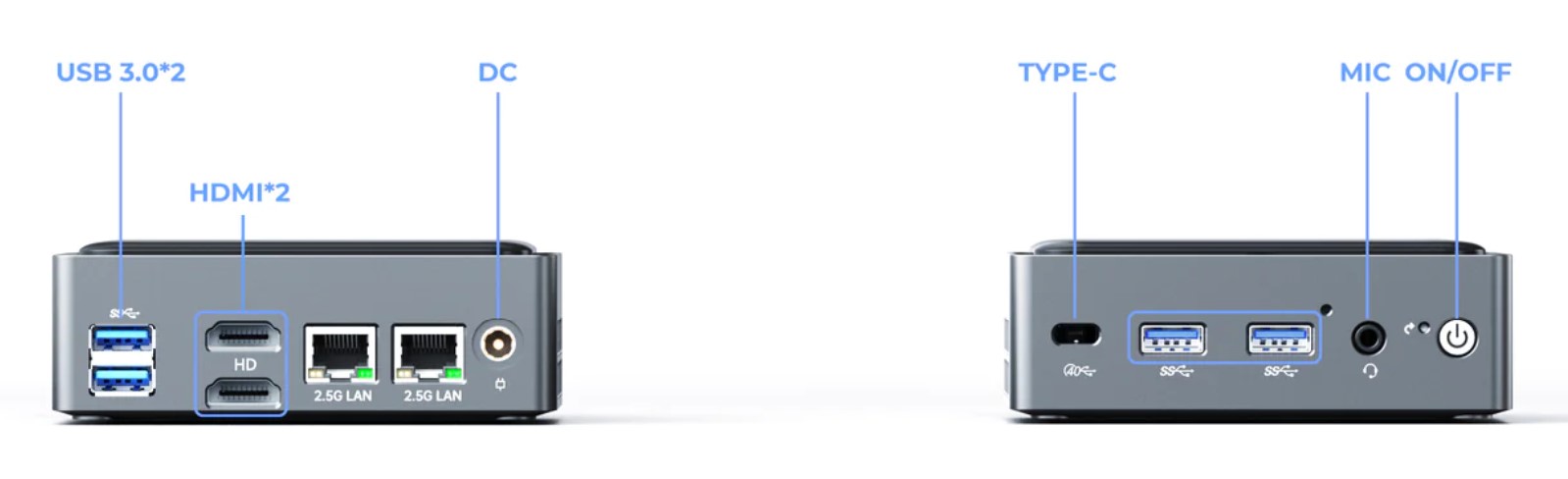

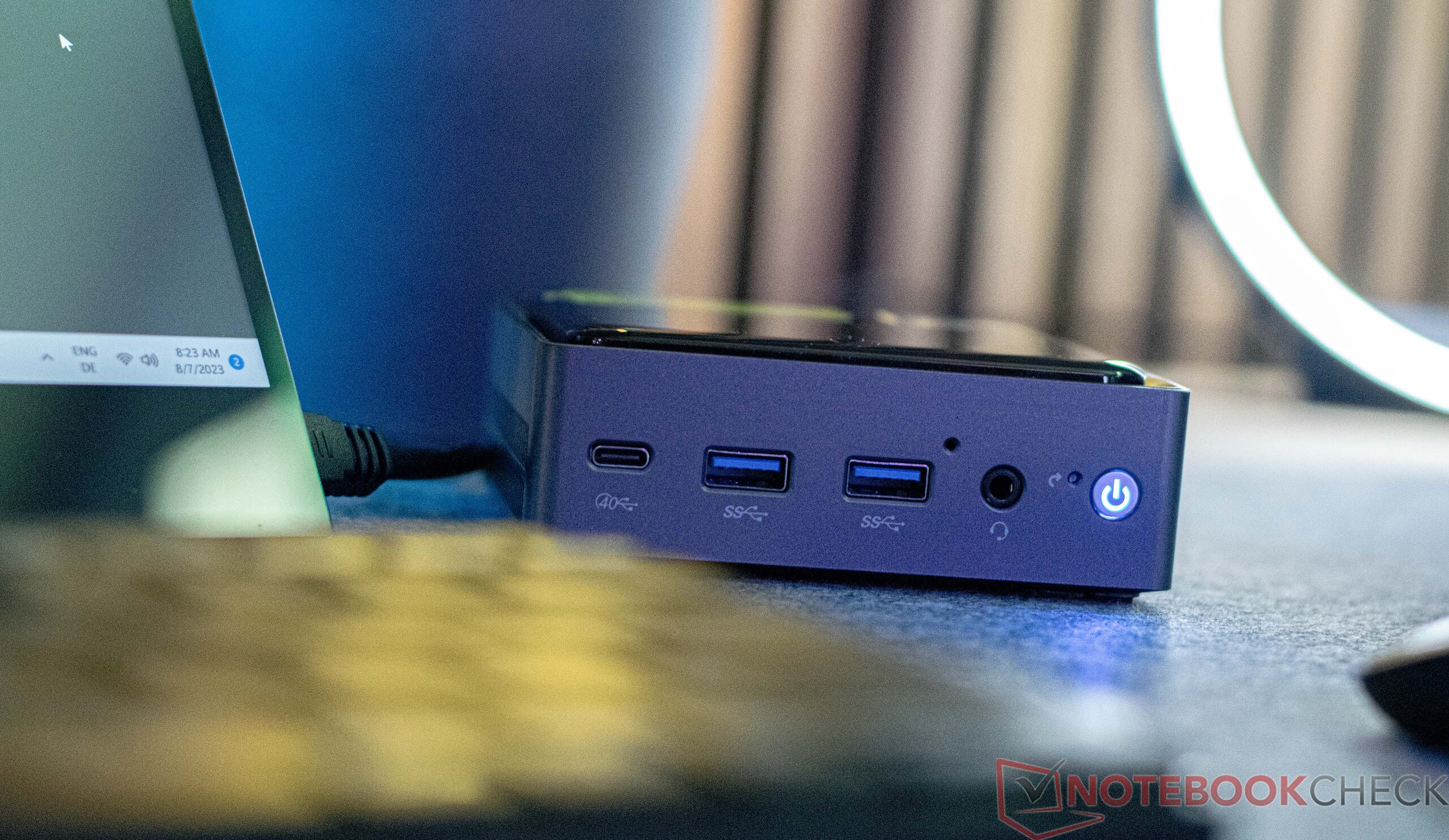

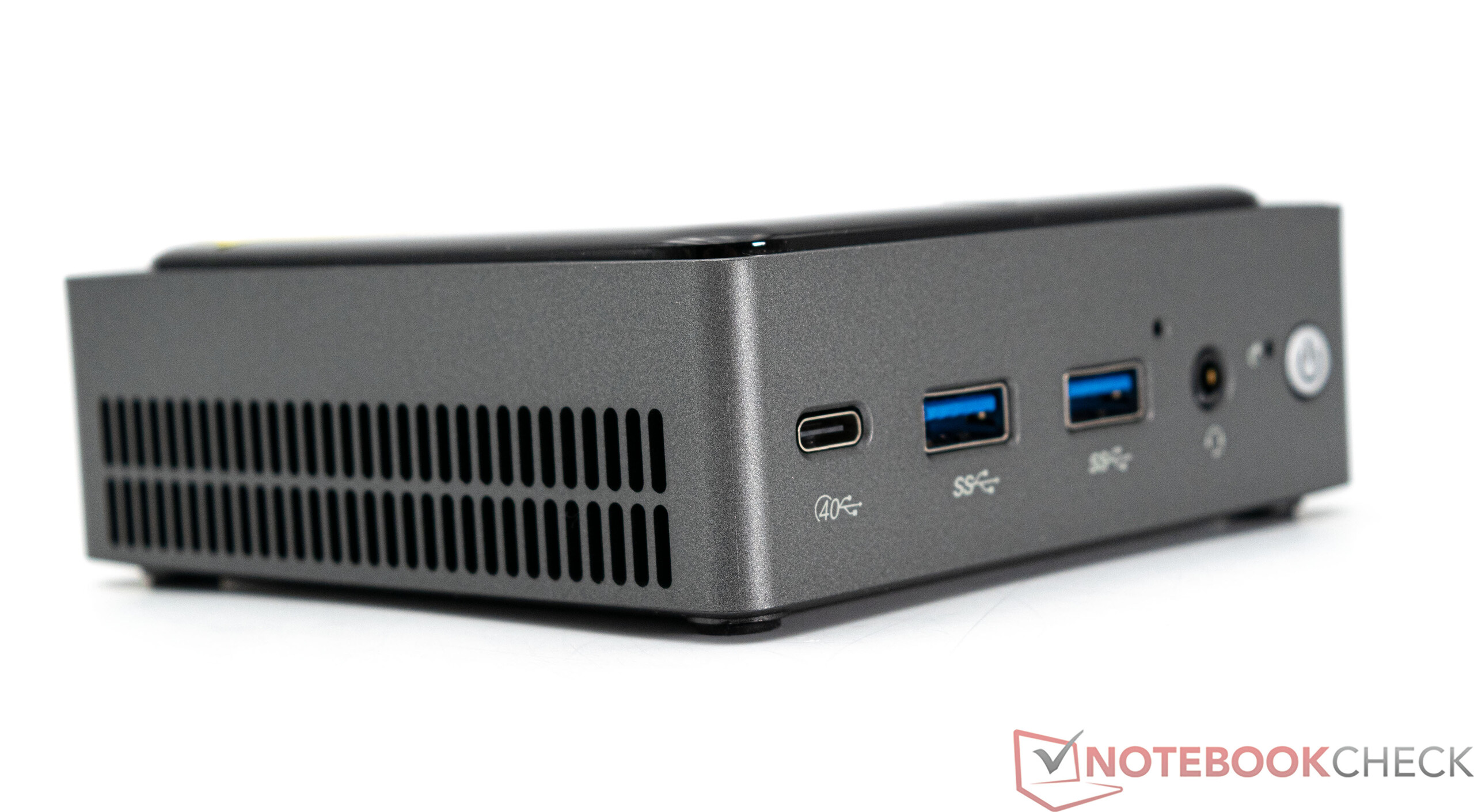

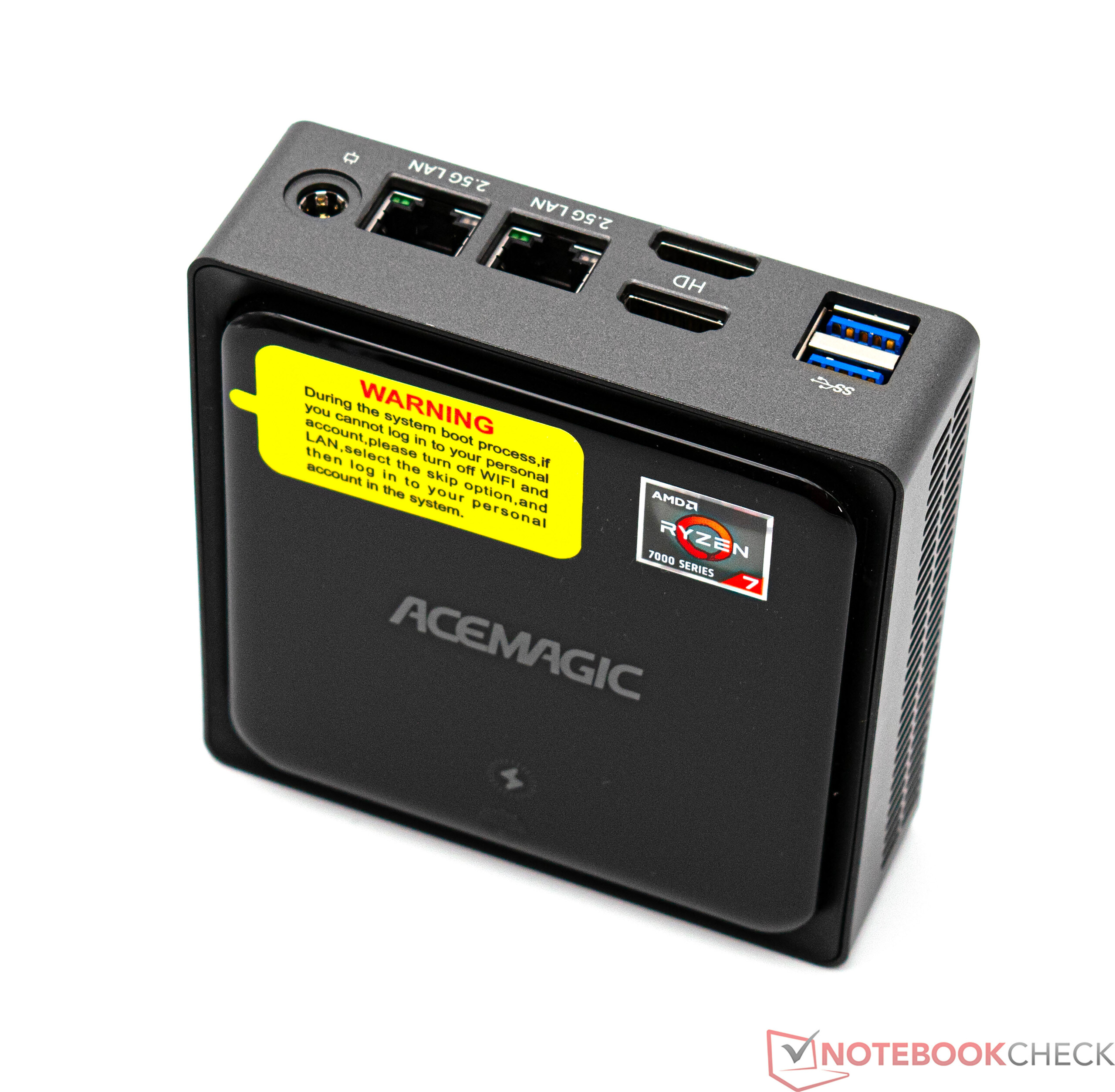

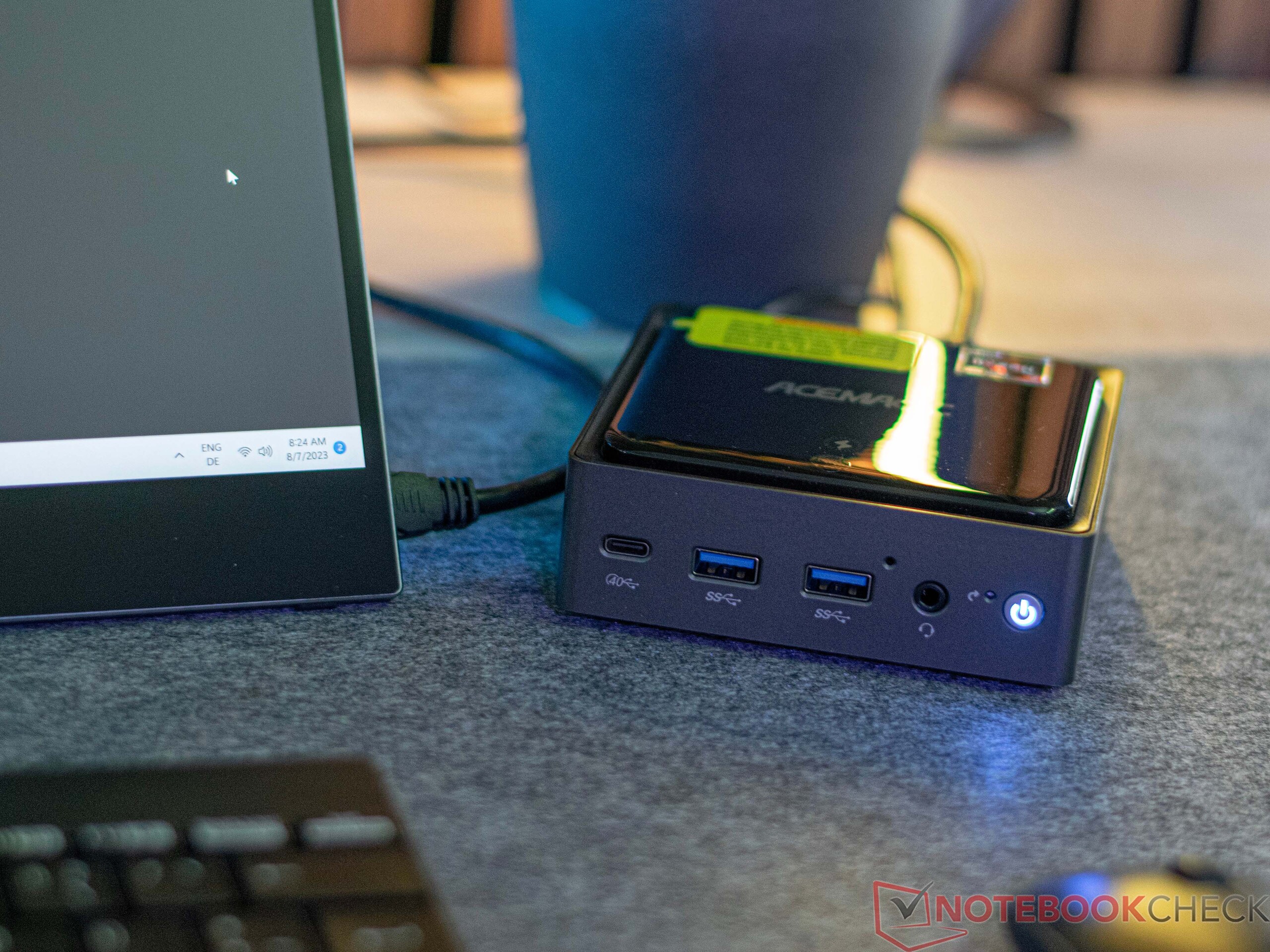

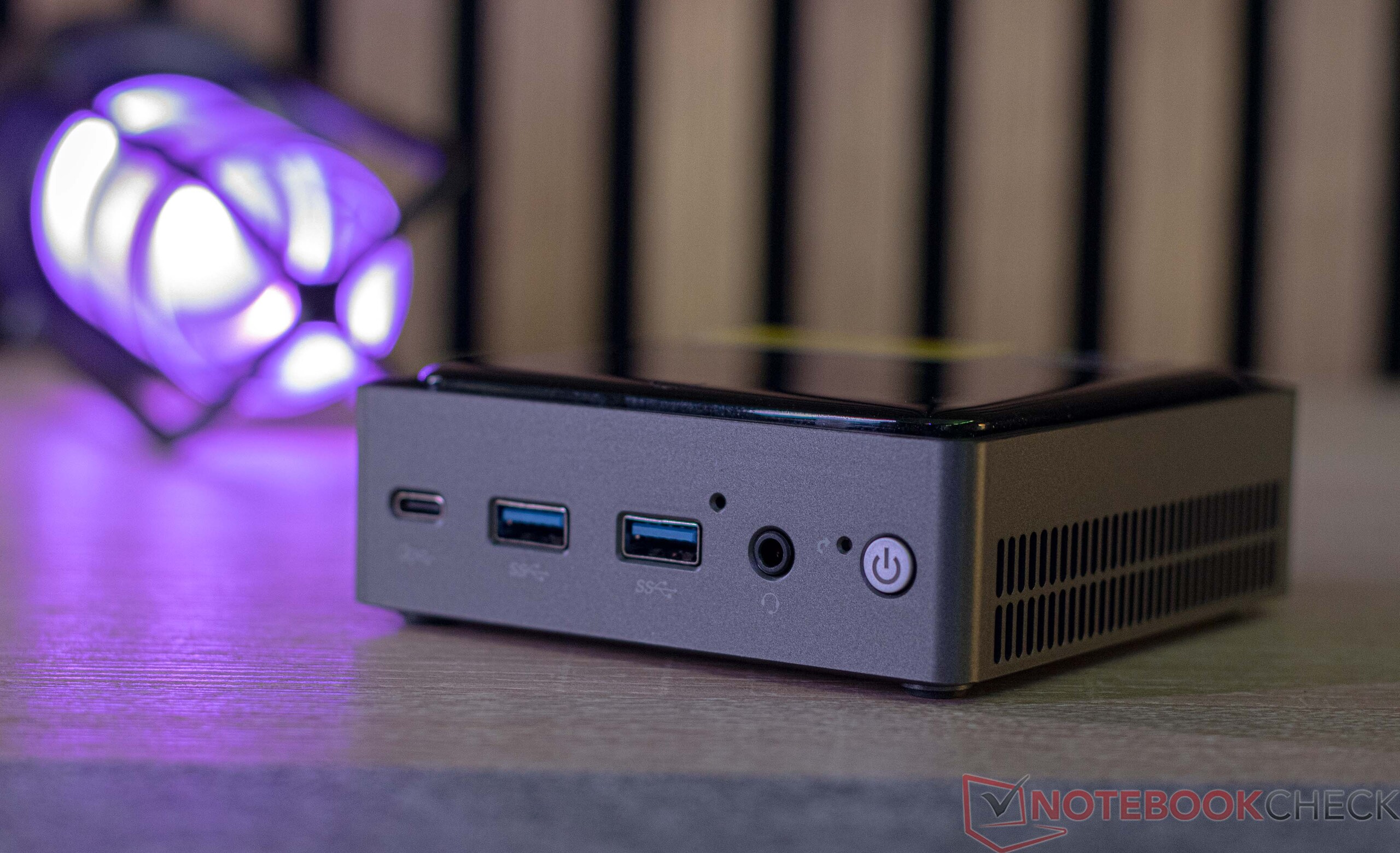

Acemagic AM20 的正面和背面都有多种端口可供选择。总共有五个 USB 端口,其中一个还支持 Thunderbolt 功能。显示器可通过 HDMI 或 USB-C 接口控制,这意味着 Acemagic AM20 支持三屏显示。
交流

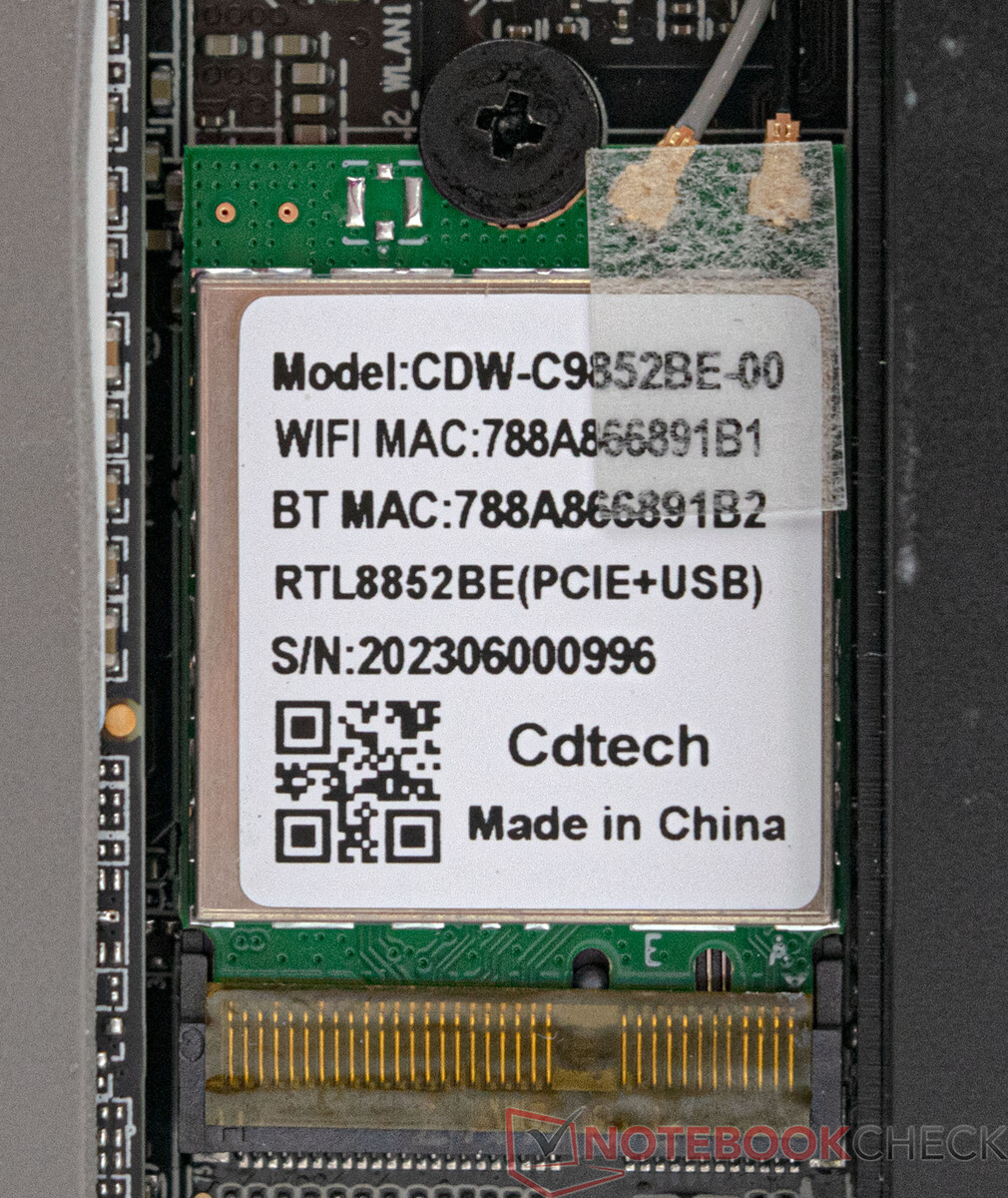

所安装的 Wi-Fi 模块来自 Realtek,理想的工作频段为 5 GHz。不过,它也向后兼容 2.4 GHz 频段。在对所安装的 Wi-Fi 模块进行评测时,我们发现了相应的结果:在数据接收方面,Acemagic AM20 仍处于中等水平,但在数据发送方面,我们的评测设备却滑落到了最后一名。不过,这些结果无需担心,因为其性能足以满足日常使用。在本次评测中,我们使用了测试路由器华硕 ROG Rapture GT-AXE11000。两个 LAN 插座都值得强调,因为它们可以作为无线连接的替代品。它们都能提供高达 2.5 GBit/s 的速度,这并不是迷你 PC 的标准。
维护

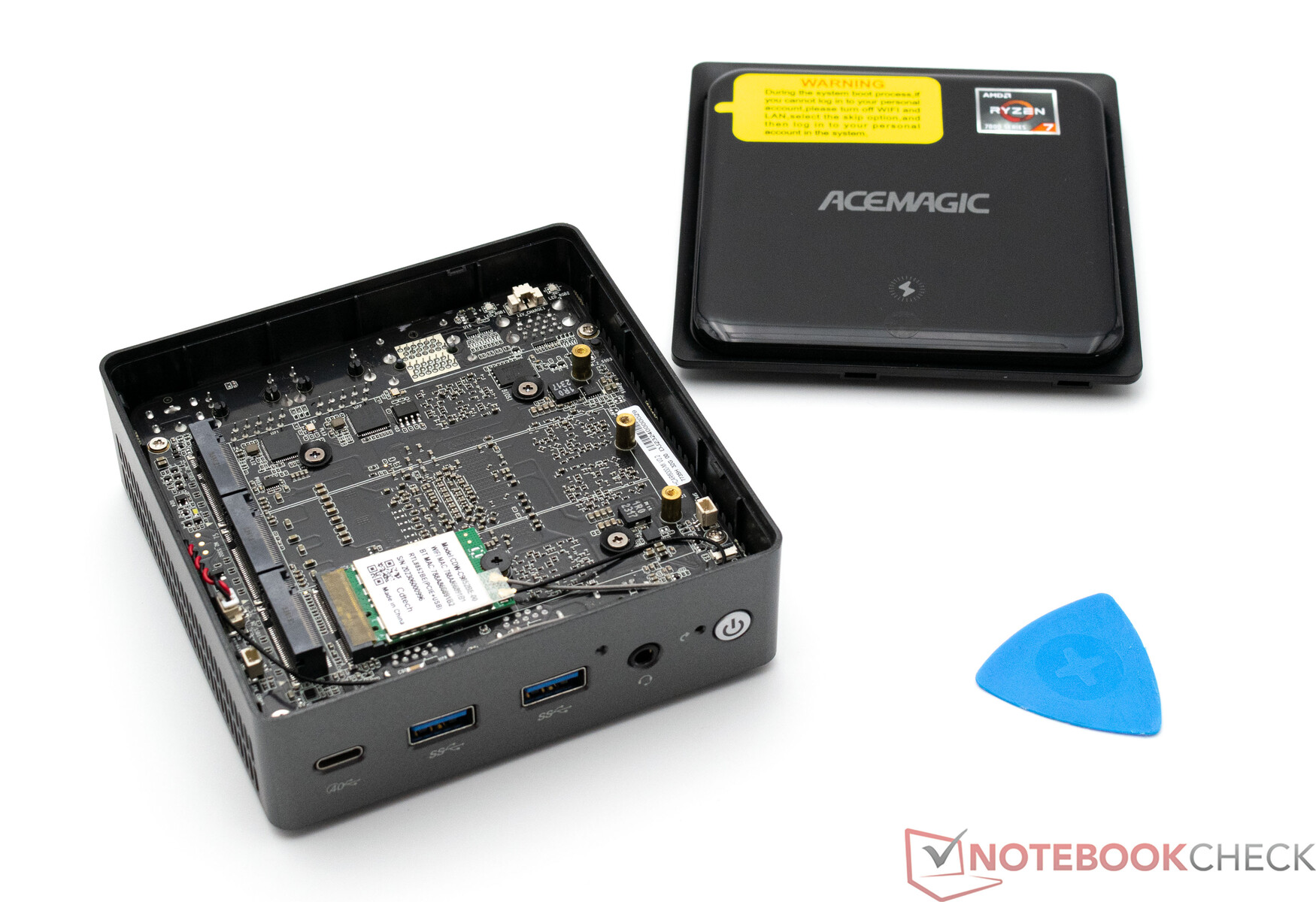

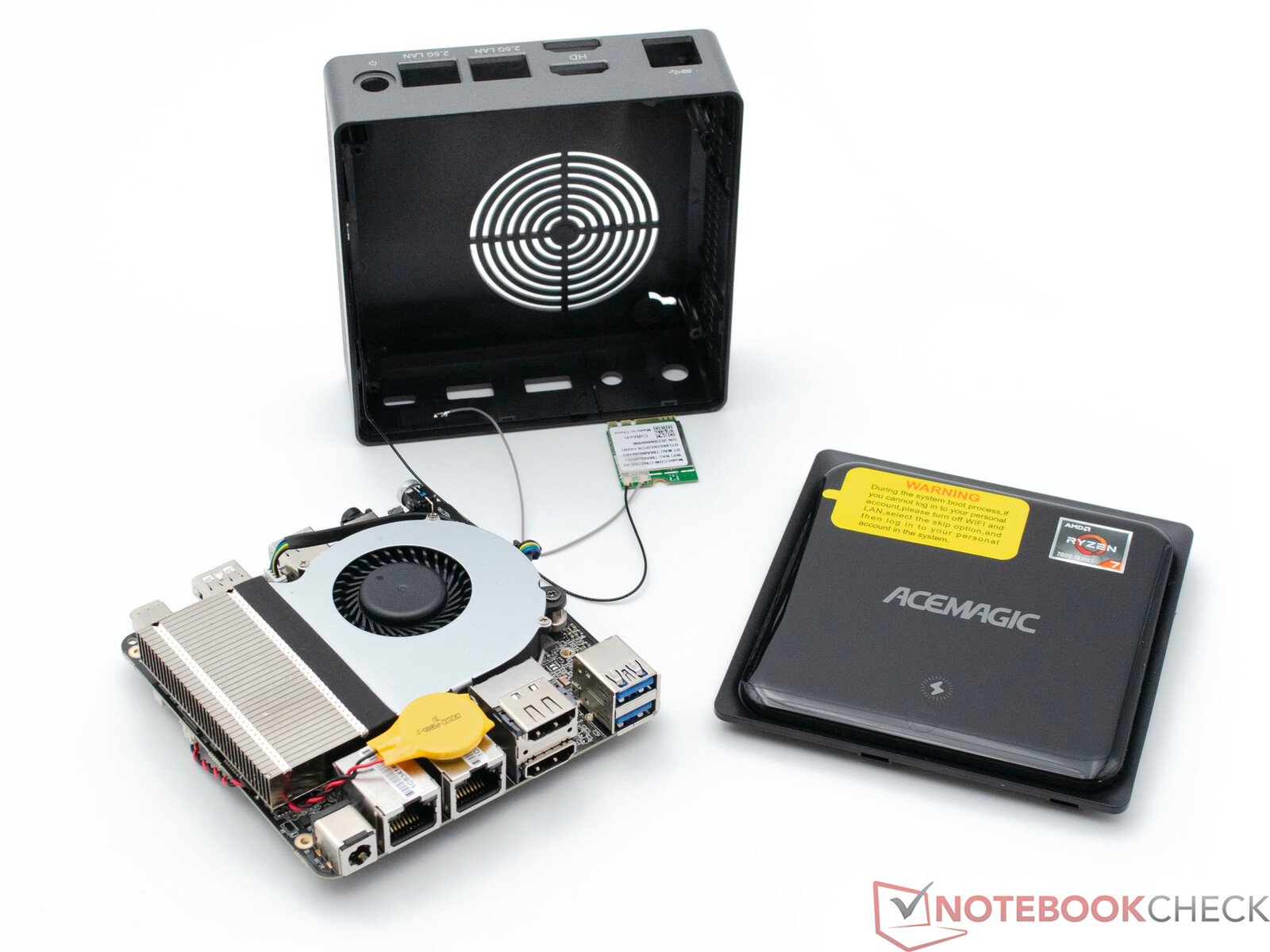

Acemagic AM20 的顶部可以轻松打开,因为制造商在设备上安装了一个用磁铁固定的挡板。下面隐藏着大容量存储器和 Wi-Fi 模块,这两个模块都可以轻松更换。你会立刻注意到三个用于固态硬盘的 M.2 接口。同样,这也不是标准配置,考虑到其小巧的外形,这是决定购买时的一个重要方面。任何人如果想清洁风扇,都必须进一步拆卸设备,而这基本上是可以通过细腻的触感和正确的工具来实现的。

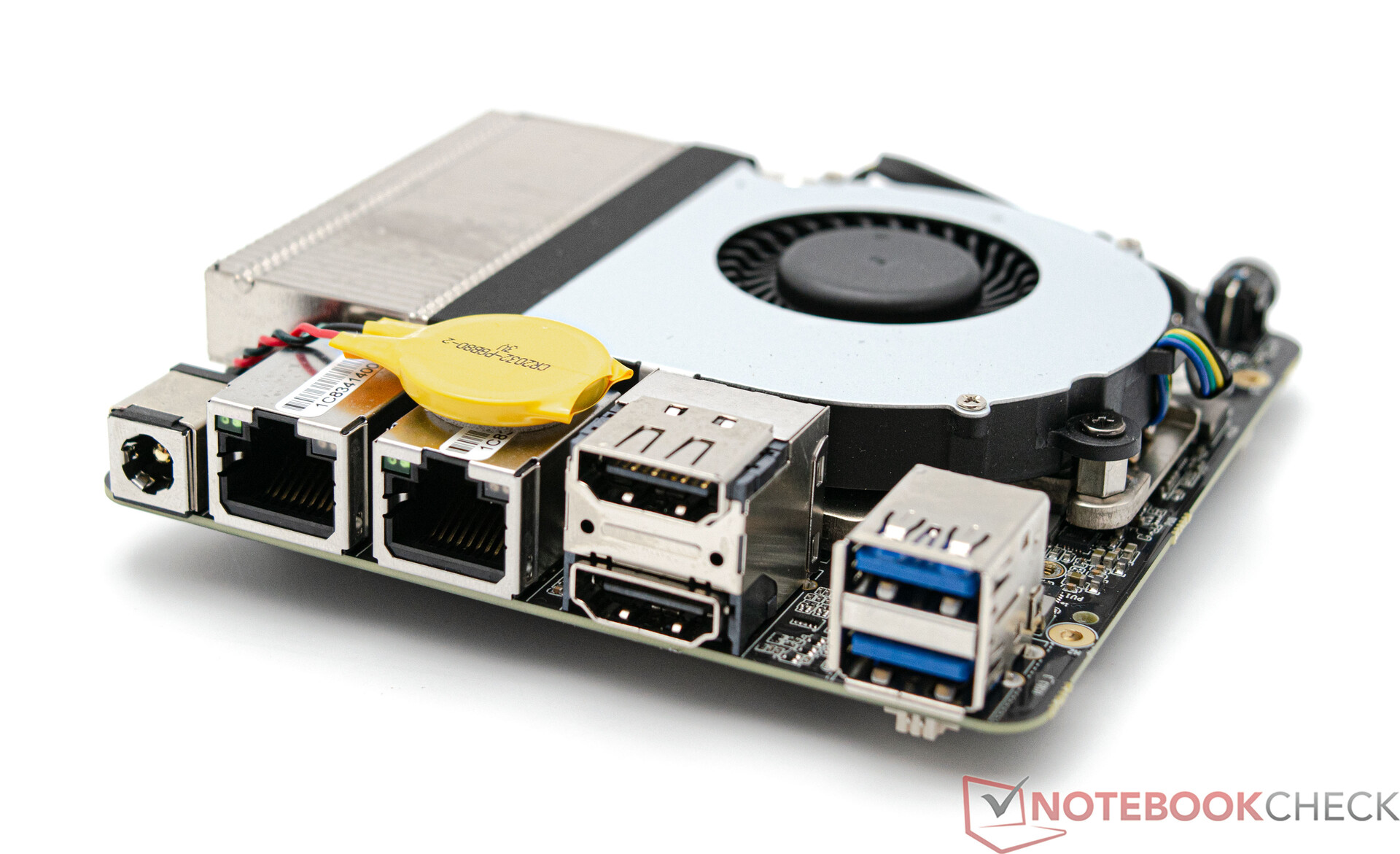

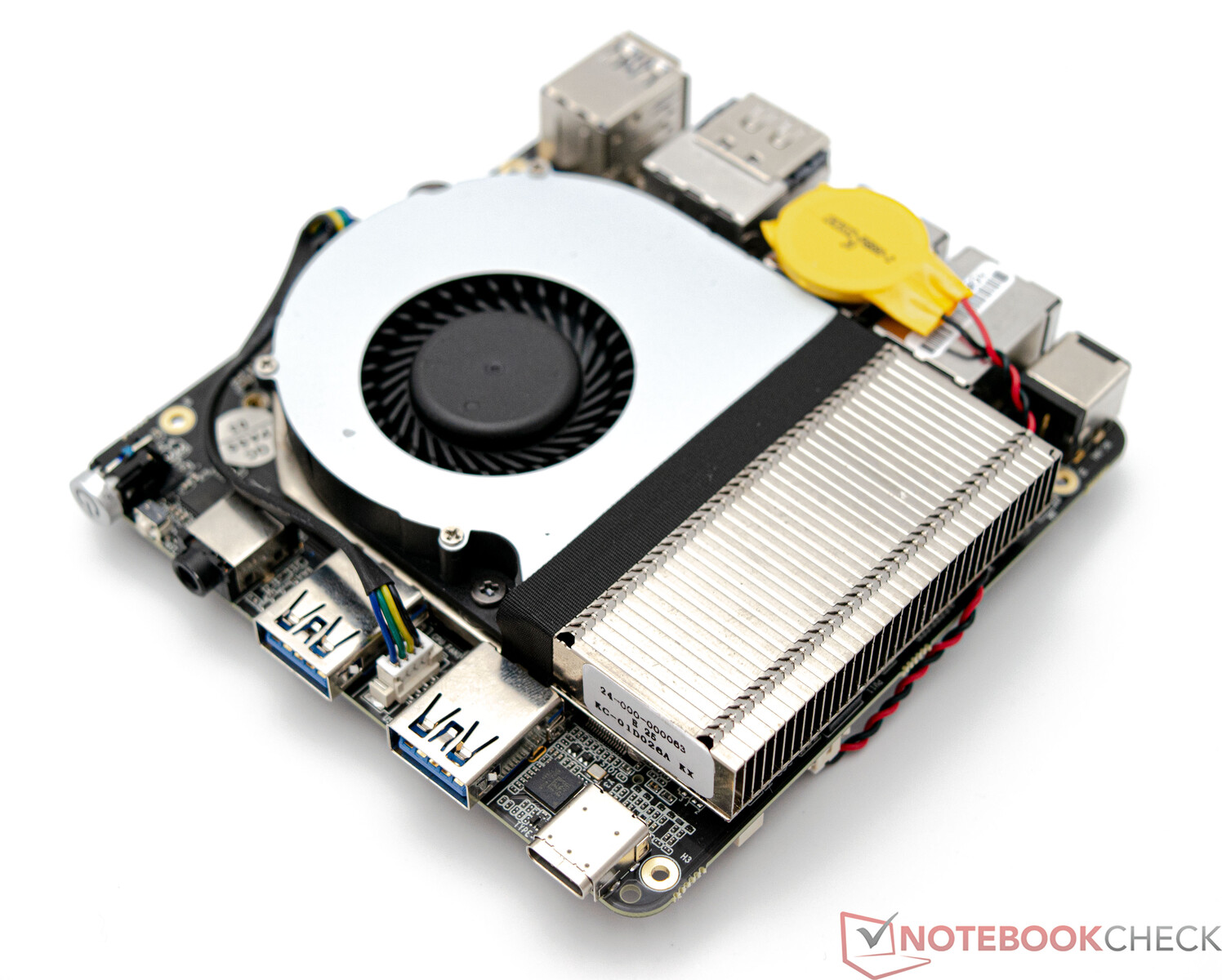

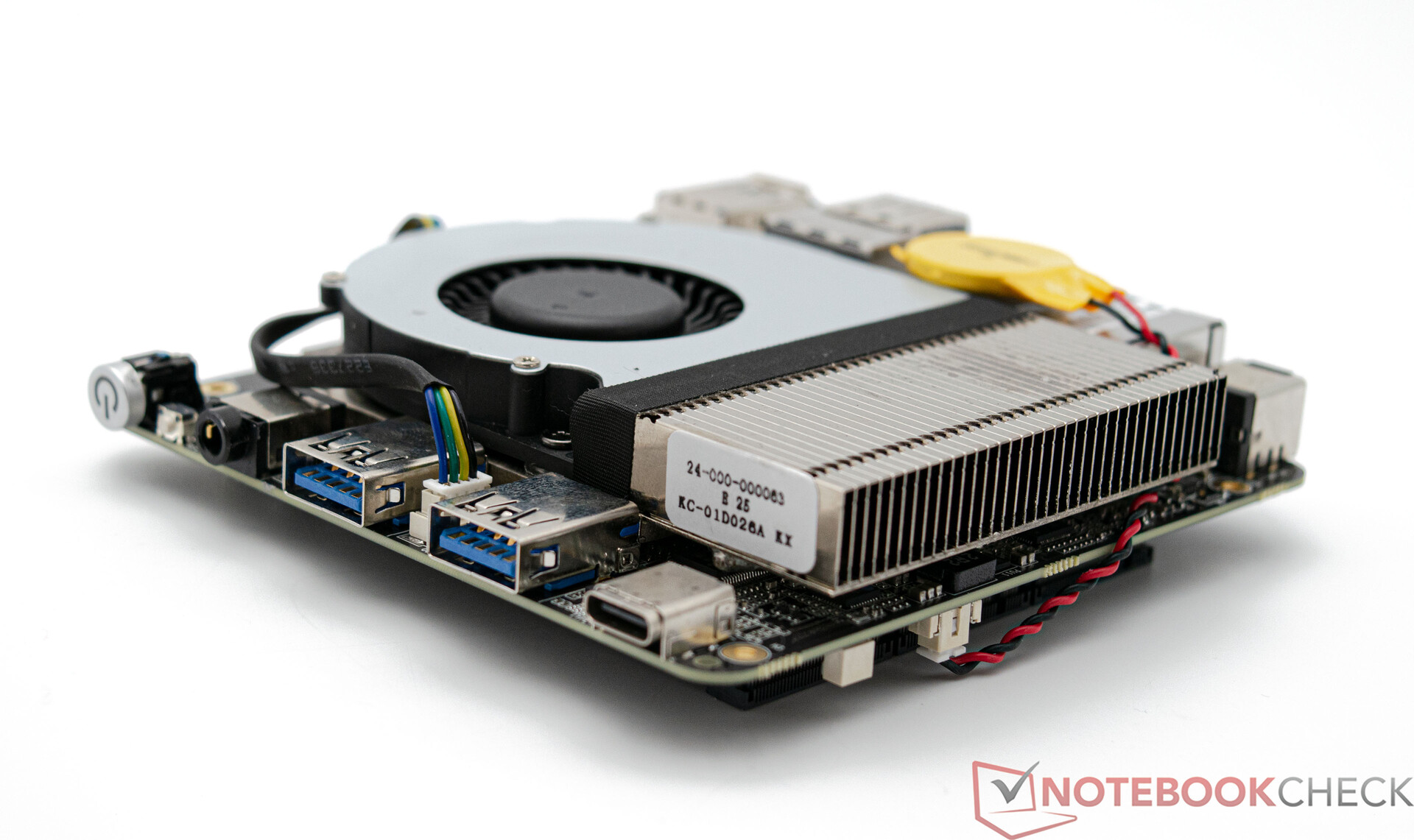

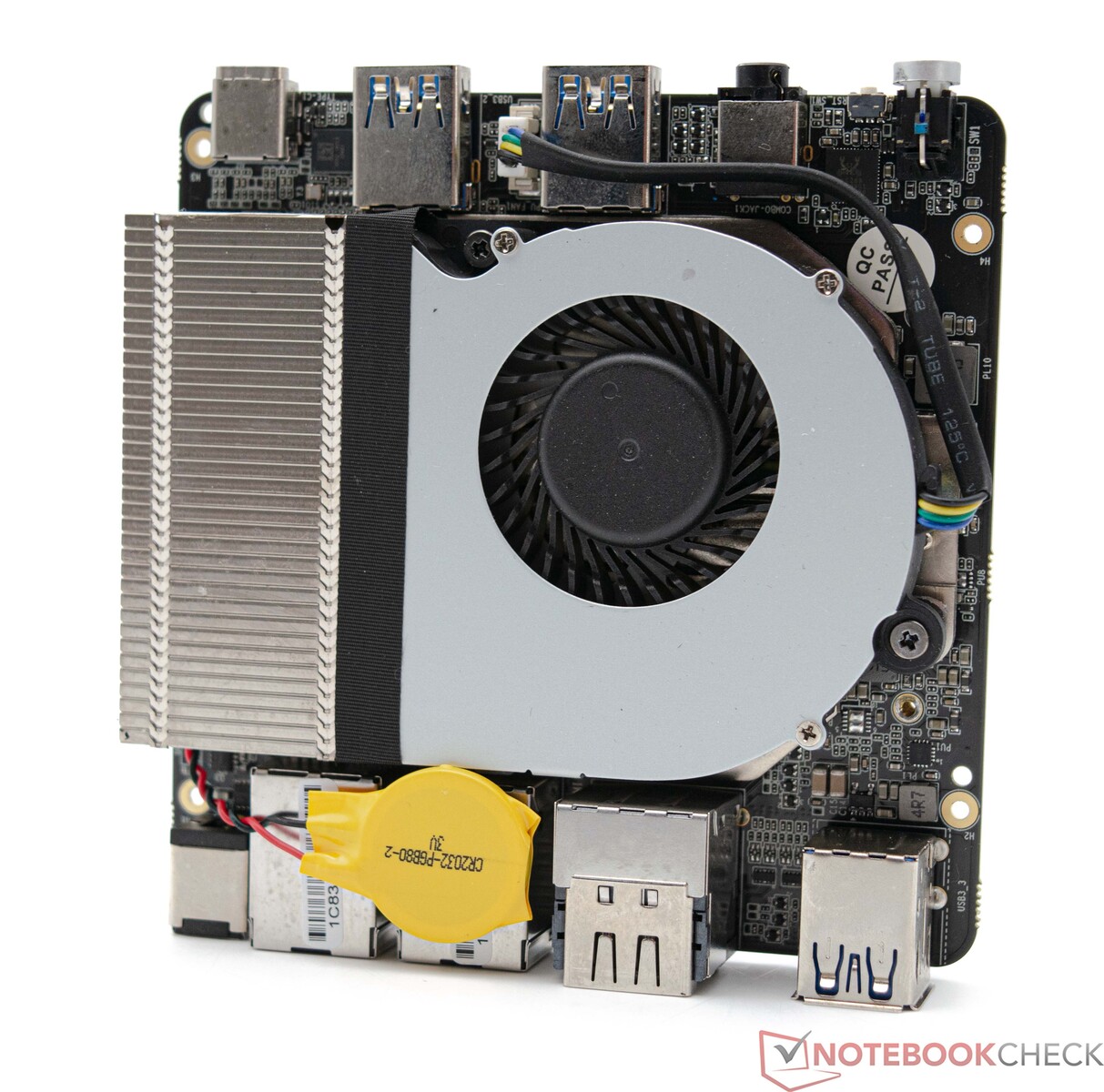

拆卸的 Acemagic AM20
性能 - AMD Ryzen 7 7735H 只有 Zen 3+ 内核

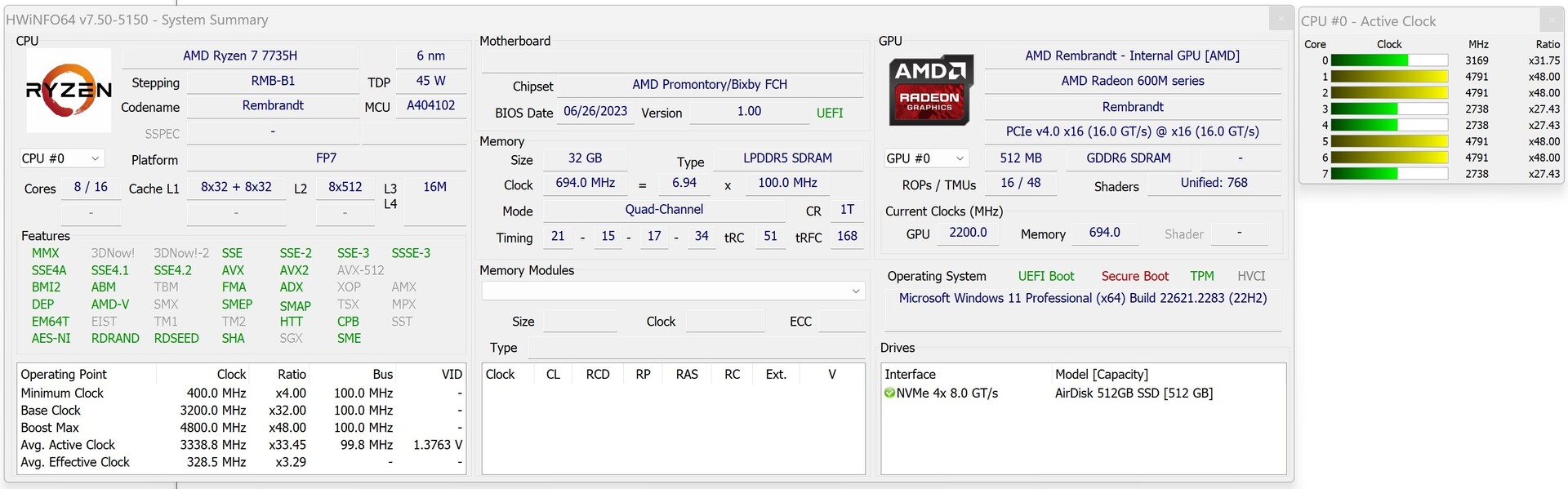

使用AMD Ryzen 7 7735HAcemagic AM20 配备了相对最新的 SoC,拥有 8 个内核和 16 个线程。这可以确保您有足够的能力处理大多数任务。到目前为止,其他配置尚未披露。在内存方面,Acemagic AM20 有 16 或 32 GB 两种选择。由于无法升级,因此最好选择后者。
测试条件
我们使用 "高性能 "能耗配置文件进行了所有性能测试。我们没有改变 SoC 的性能,并根据 BIOS 设置将设备保持在出厂模式。不同的节能方案仅用于功耗测量和噪音水平分析。
处理器

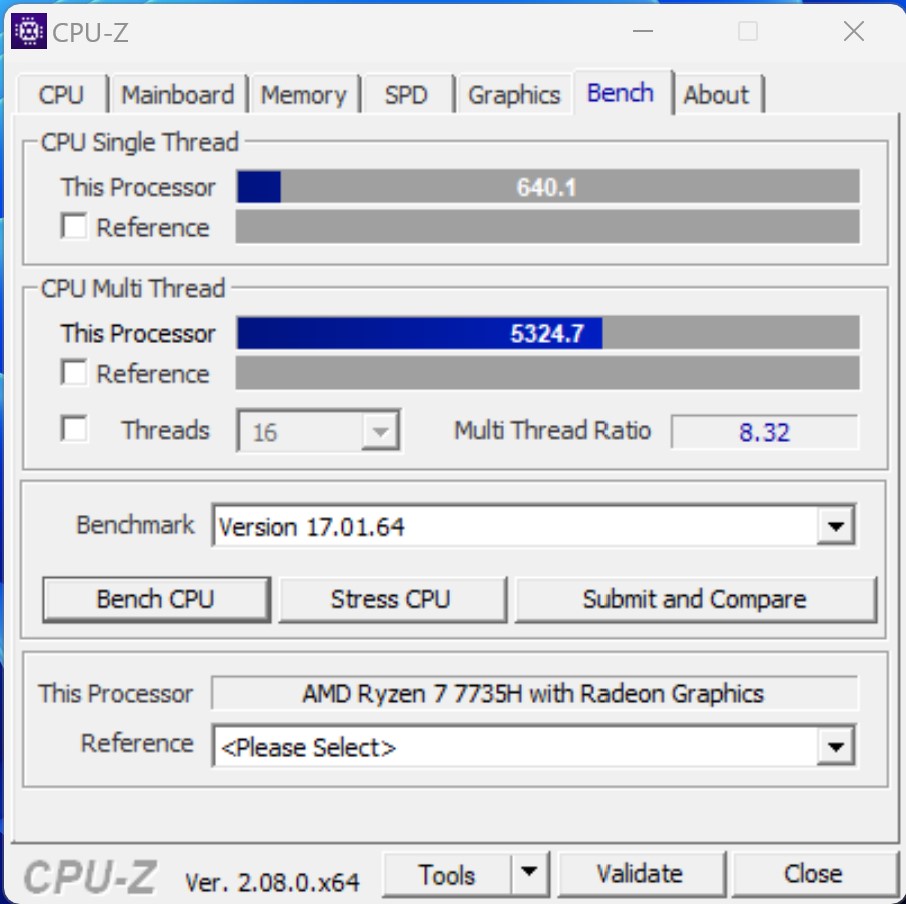

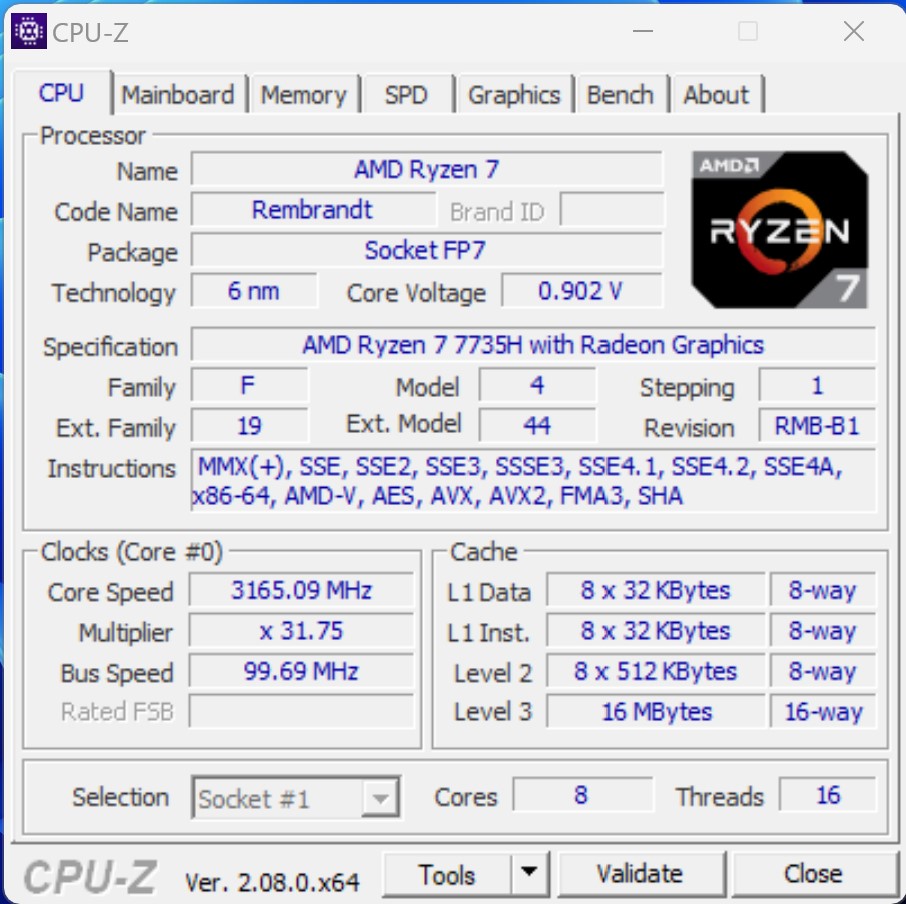

餈AMD Ryzen 7 7735H结合了 8 个 Zen 3+ 内核,这意味着制造商决定不使用 AMD 当前的 Phoenix 系列。尽管如此,拥有 8 个内核和 16 个线程的 SoC 仍然实现了不错的多核性能。不过,这也让我们看到,Acemagic AM20 的性能仅略微领先于Minisforum UM560 XT。相比AMD Ryzen 9 6900HX和 AMD Ryzen 7 7735H大约降低了 7%。与Geekom Mini IT12相比,我们观察到几乎相同的性能评级分数。
在 AIDA64 基准测试中,Acemagic AM20 精彩地展示了其安装的强大 SoC。尽管如此,Geekom AS 6 和Minisforum UM790 Pro 显然更胜一筹。
更多比较和基准测试可参阅我们的CPU 比较表 。
WinRAR - Result | |
Minisforum Neptune Series NAD9 | |
Minisforum Venus Series UM560 XT | |
Minisforum Venus Series UM790 Pro | |
Geekom AS 6, R9 6900HX | |
Morefine M600, 6600U | |
Geekom Mini IT12 | |
Acemagic AM20 | |
Blackview MP200 |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx

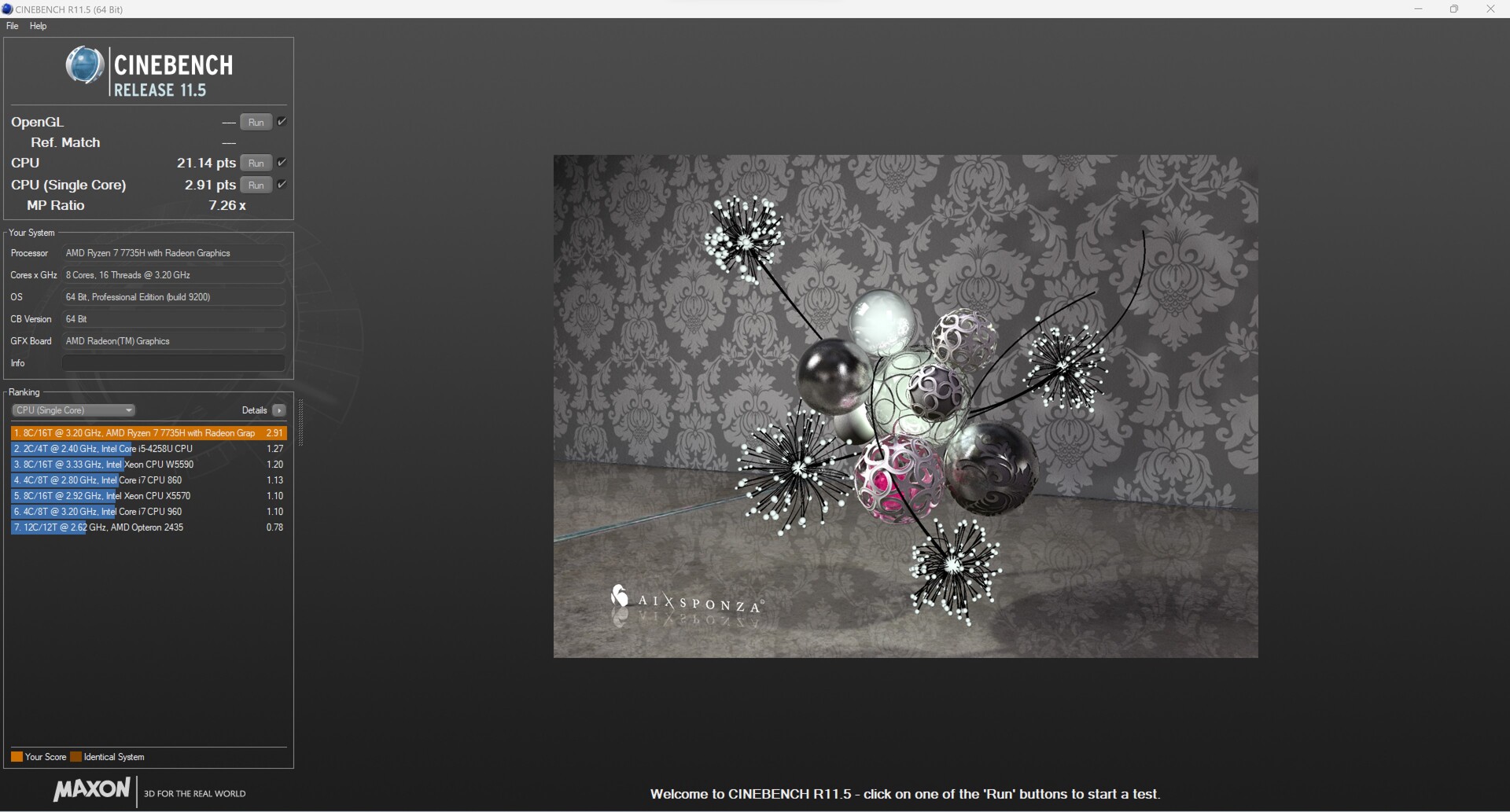

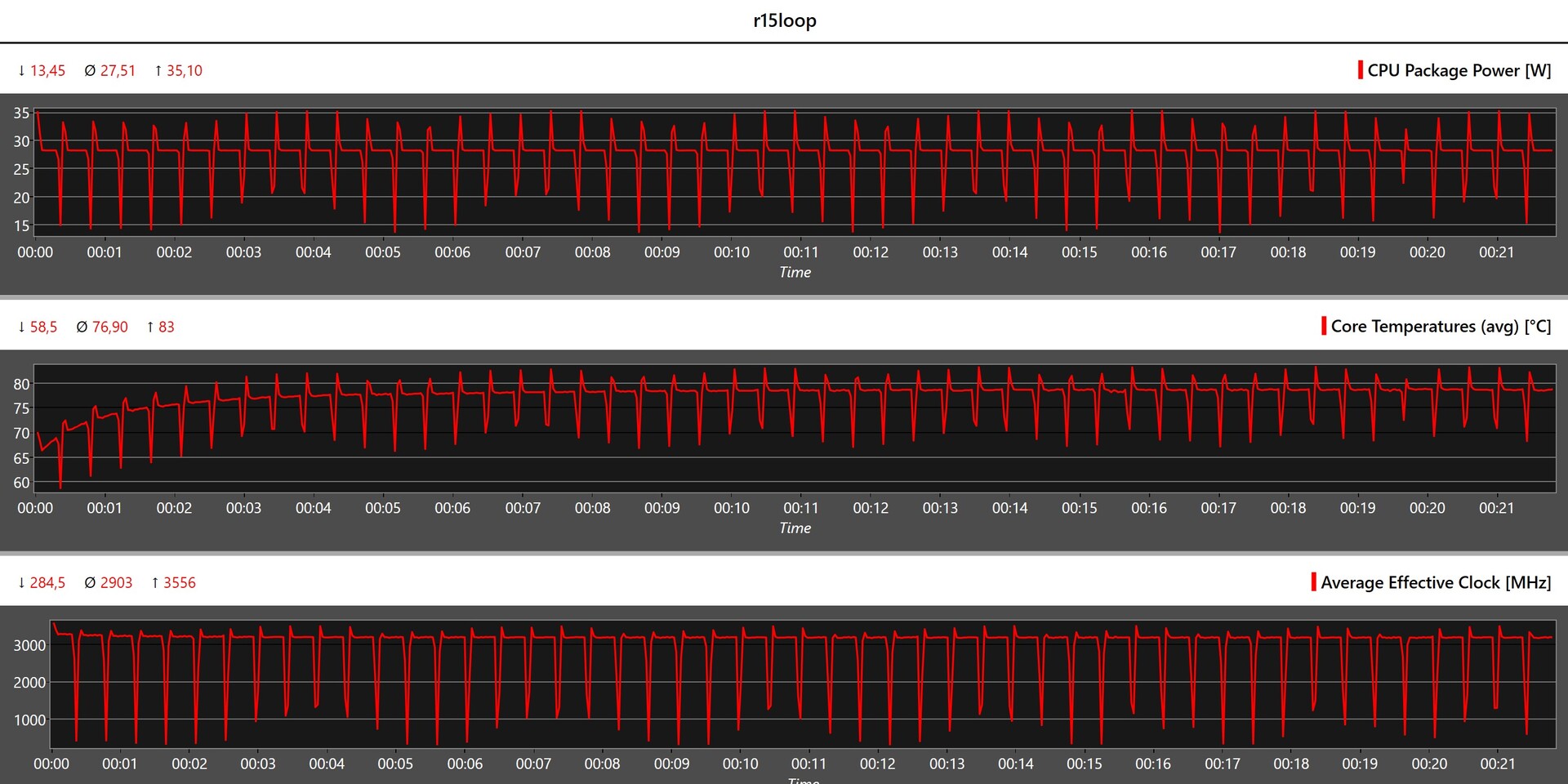

Acemagic AM20 与 Cinebench R15 多环对比

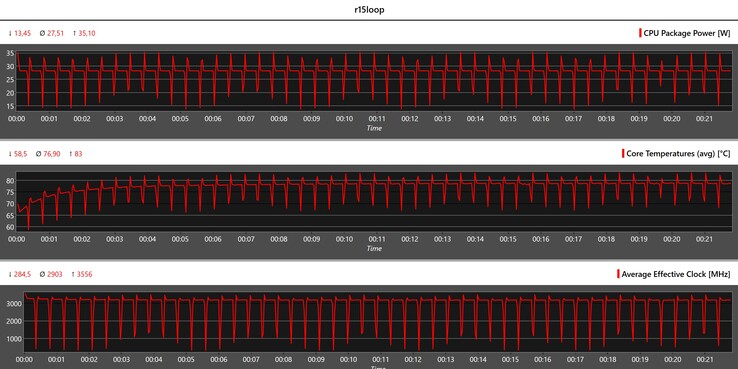

通过 Cinebench R15 连续循环,我们分析了 AMD Ryzen 7 77350H的性能表现。Acemagic AM20 很好地完成了 50 次运行,性能没有明显下降。与 Minisforum NAD9时,我们的评测机型甚至占了上风,取得了略胜一筹的成绩。
系统性能
从主观角度来看,Acemagic AM20 的系统性能良好,这一点在合成基准测试中得到了证明。在 PCMark 10 中,只有Minisforum UM790 Pro更快。在 Crossmark 中,我们观察到类似的情况,尽管它在英特尔处理器上的表现更好。这就是为什么NAD9和Geekom 迷你 IT12也在我们的评测设备前占据一席之地的原因。在内存测试中,Acemagic 得益于 6400 MT/s 的快速 DDR5 内存。由于延迟较高,我们的评测样品无法跟上同类产品的速度。
* ... smaller is better

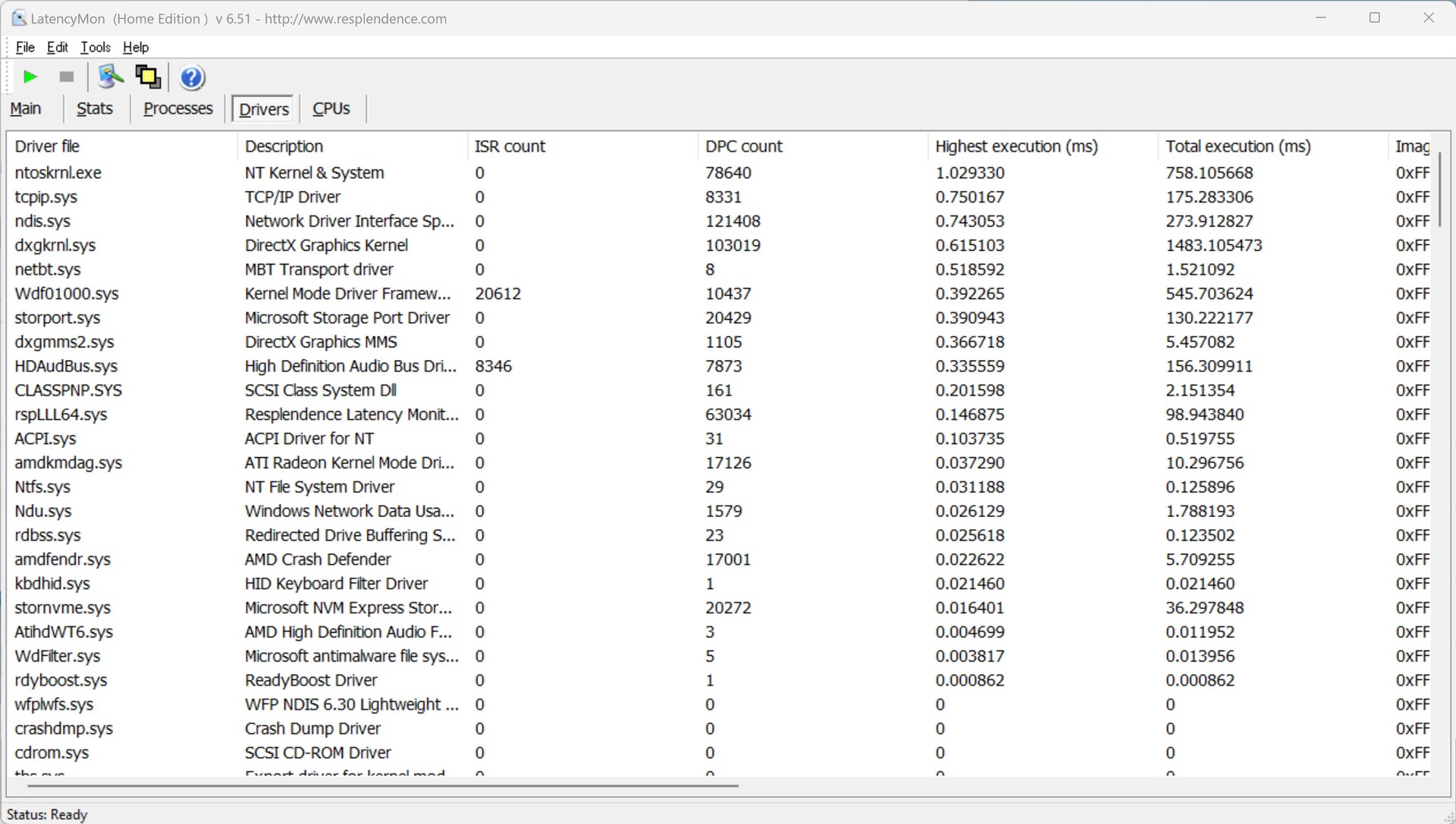

DPC 延迟

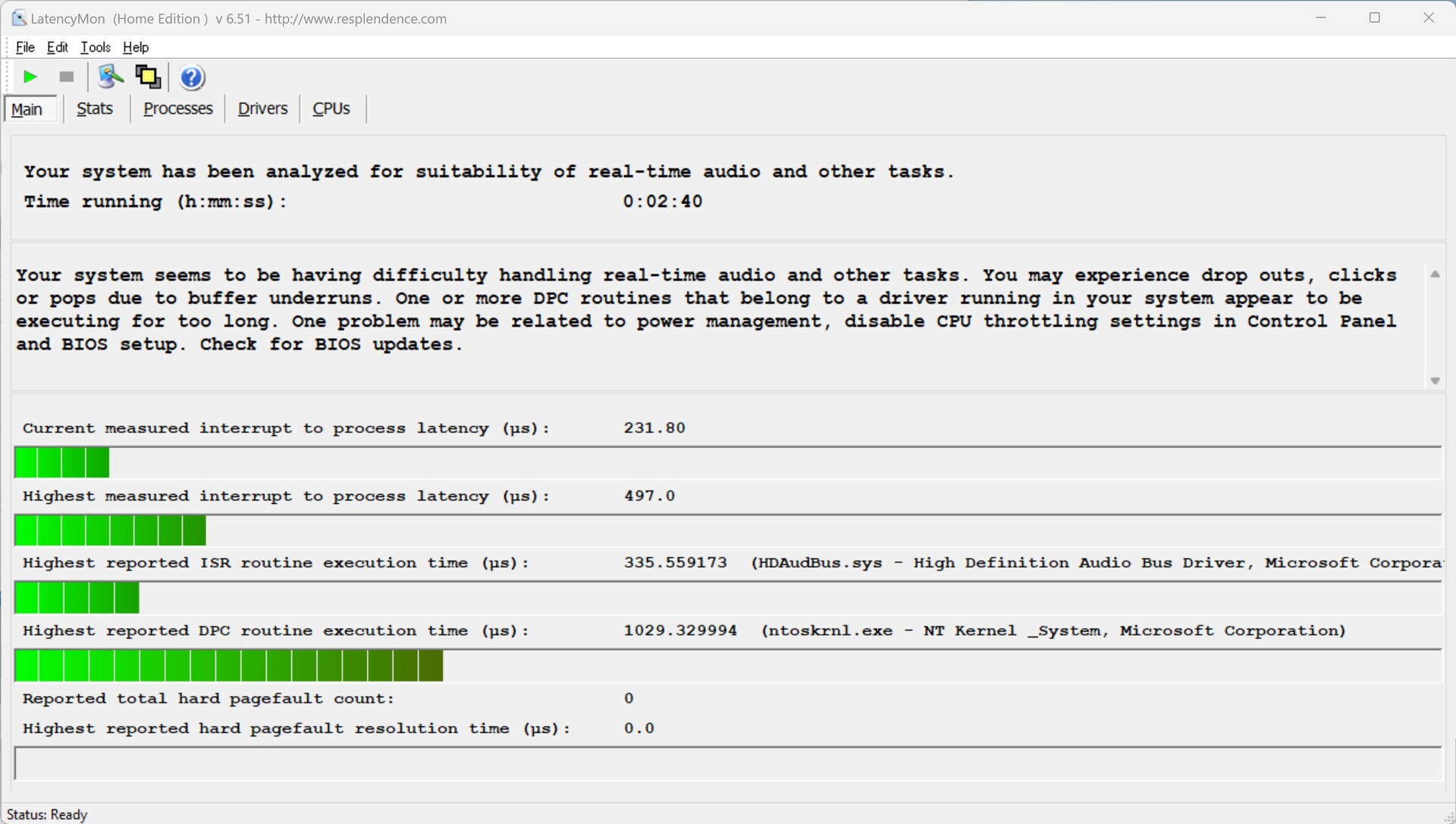

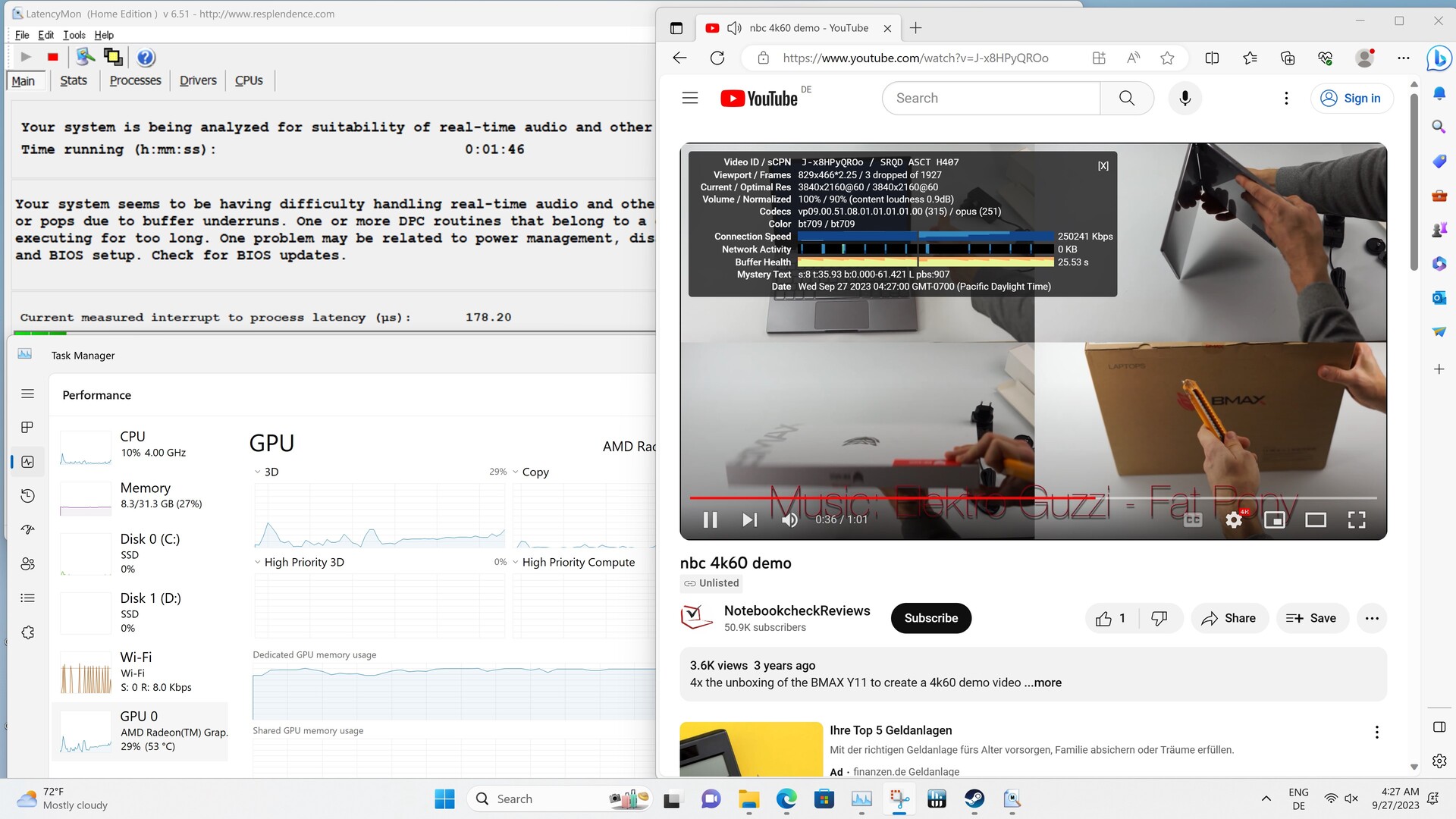

到目前为止,我们在 Edge 浏览器中打开多个标签页时还没有发现任何延迟问题。LatencyMon 仅在播放 4K 测试视频时显示延迟增加,但并不特别明显。迄今为止,性能较好的设备在这方面的表现并不出色,这意味着 Acemagic AM20 在我们的比较中处于中等水平。
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Geekom AS 6, R9 6900HX | |
Blackview MP200 | |
Minisforum Neptune Series NAD9 | |
Minisforum Venus Series UM790 Pro | |
Acemagic AM20 | |
Morefine M600, 6600U | |
Geekom Mini IT12 | |
Minisforum Venus Series UM560 XT |
* ... smaller is better
大容量存储器

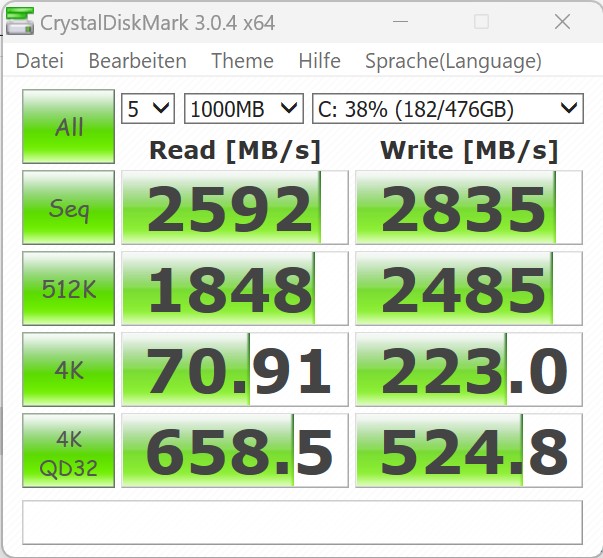

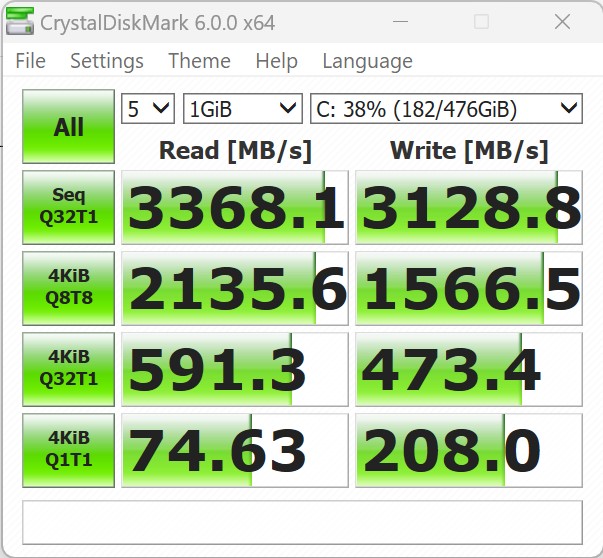

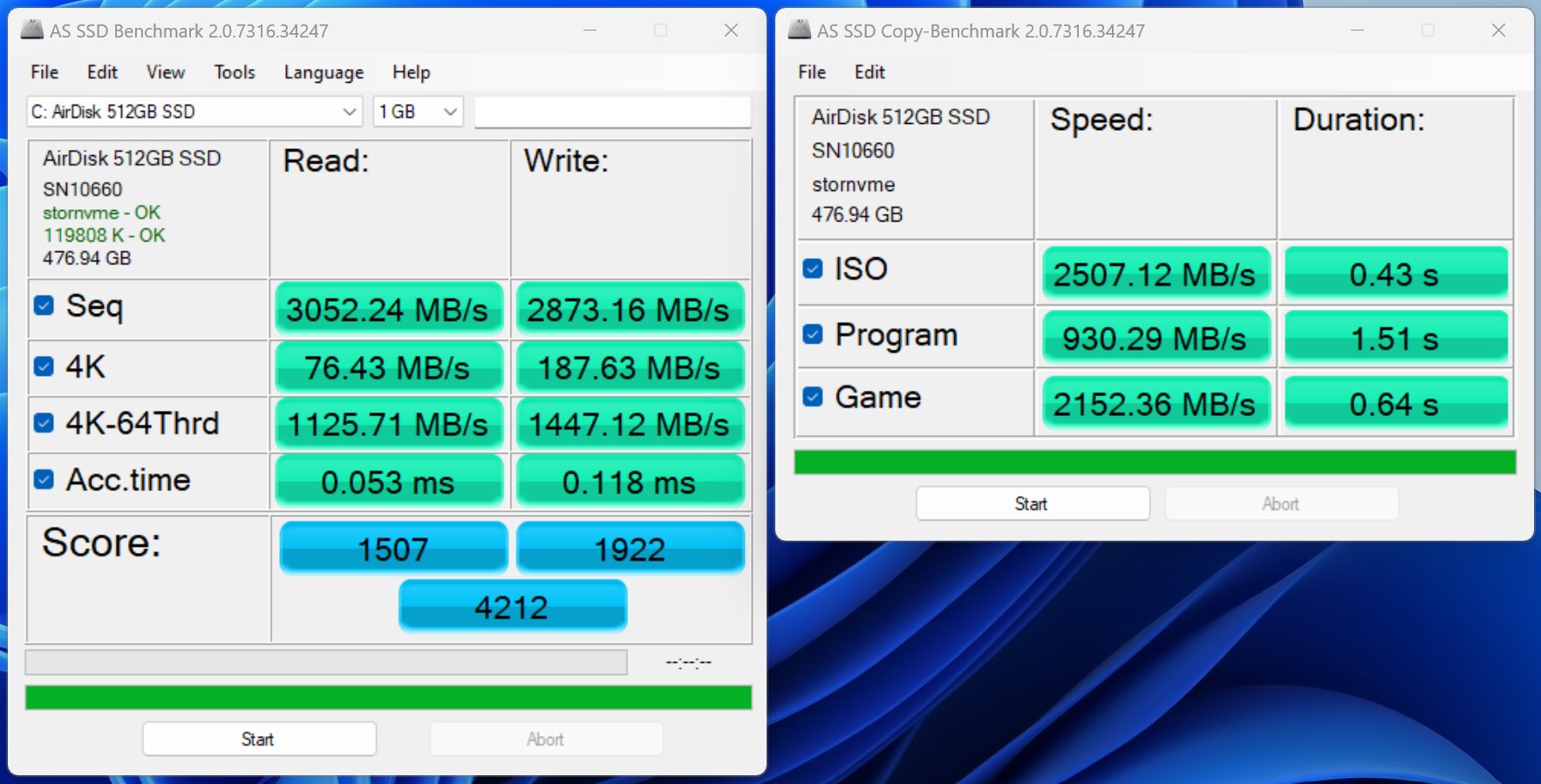

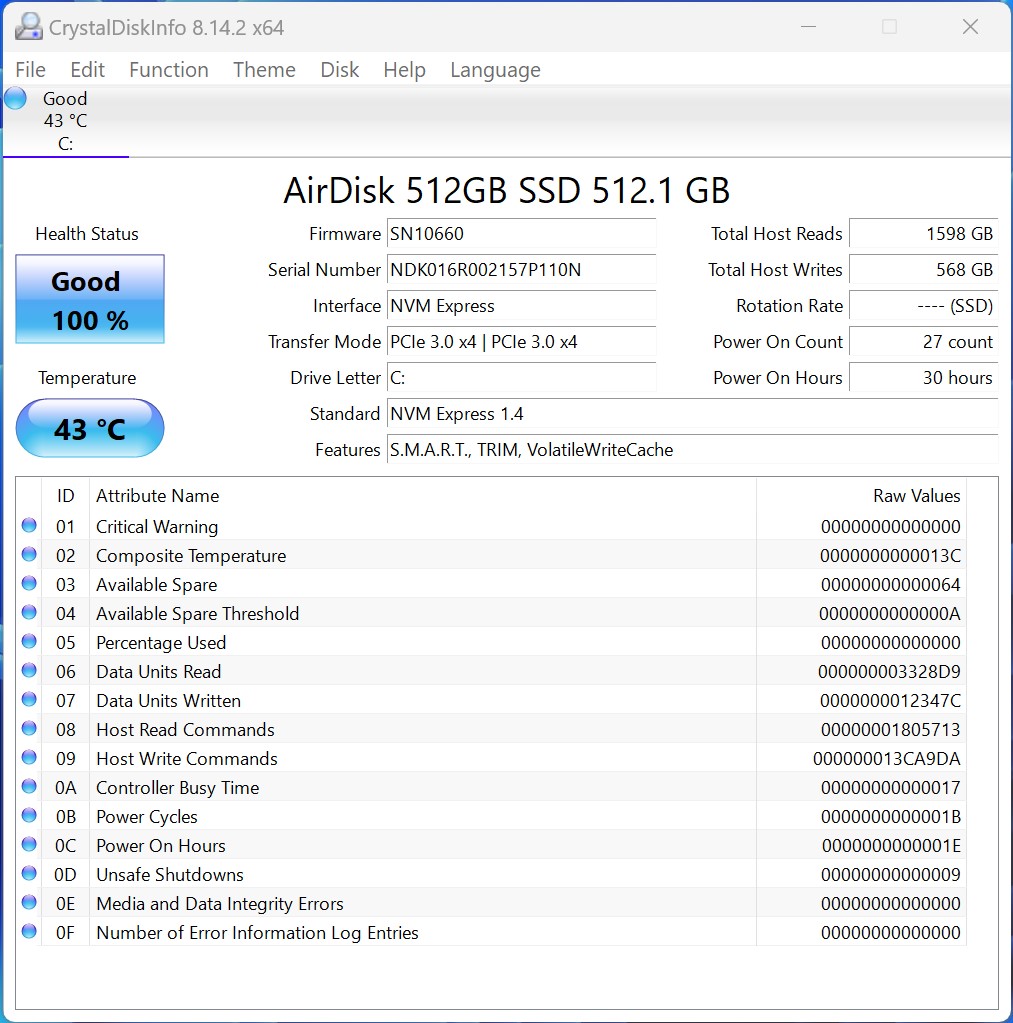

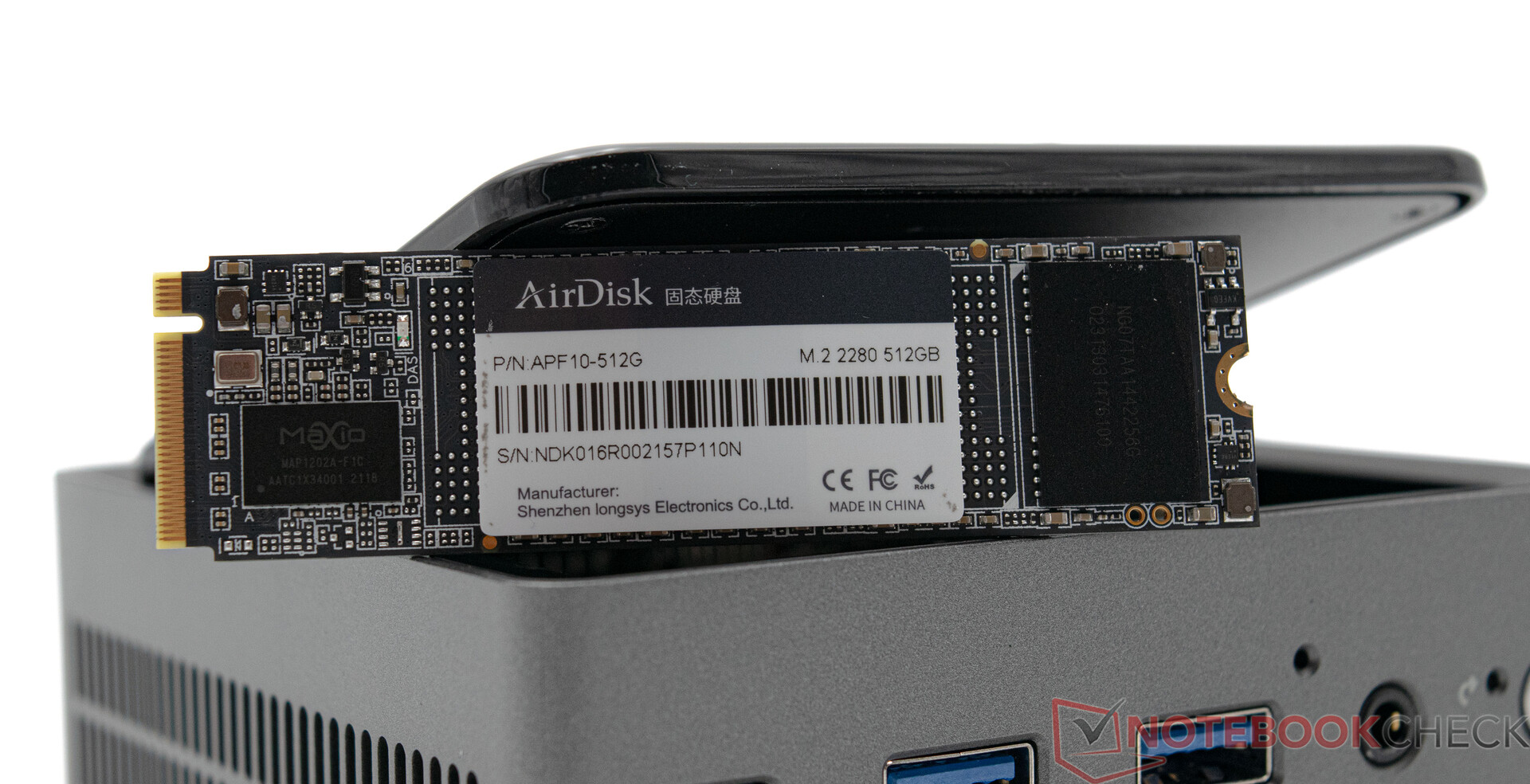

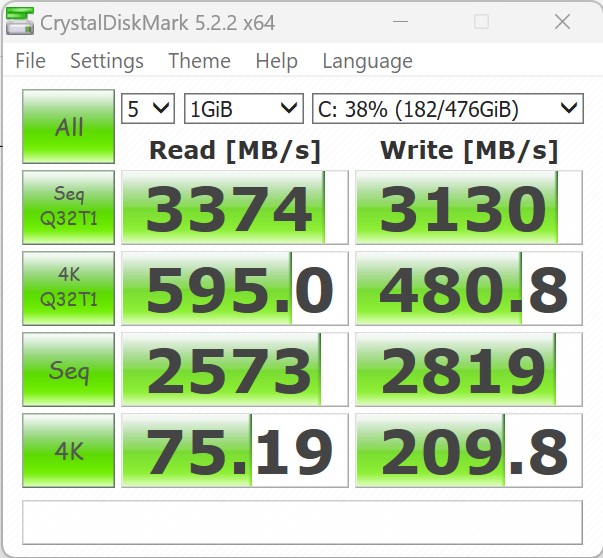

我们的评测设备采用了来自制造商 AirDisk 的 512 GB 固态硬盘。这是一家名不见经传的公司,我们尚未对其进行过评测。不过,安装的固态硬盘使用的是 PCIe 接口,这意味着该大容量存储设备能提供足够的性能。不过,Acemagic AM20 的得分并不符合Minisforum NAD9.尽管如此,我们的评测样品再次获得了第二名的好成绩。在散热方面,Acemagic 对 AM20 控制得很好,尽管大容量存储设备只能通过外壳的散热垫被动散热。测试表明,这样做是有效的,磁盘的性能也没有下降。总共可以安装三个 M.2 大容量存储设备。不过,Acemagic AM20 无法安装 2.5 英寸存储设备。
更多比较和基准测试请参阅我们的 比较表.
* ... smaller is better
Continuous Performance Read: DiskSpd Read Loop, Queue Depth 8

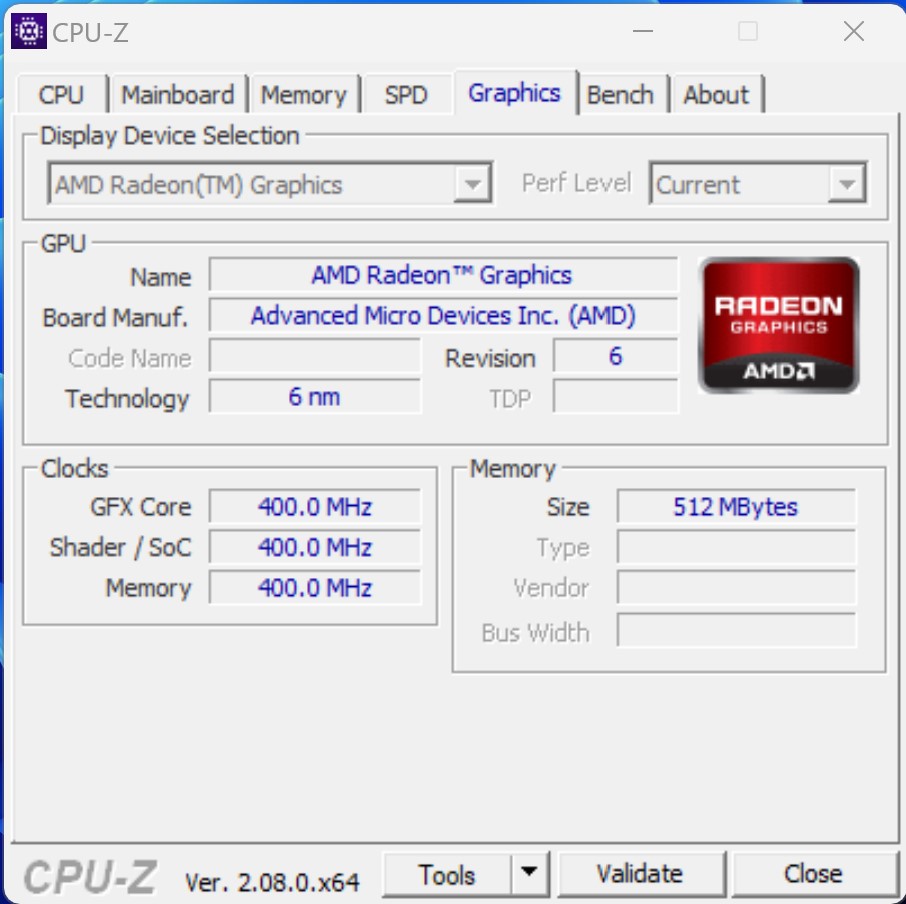

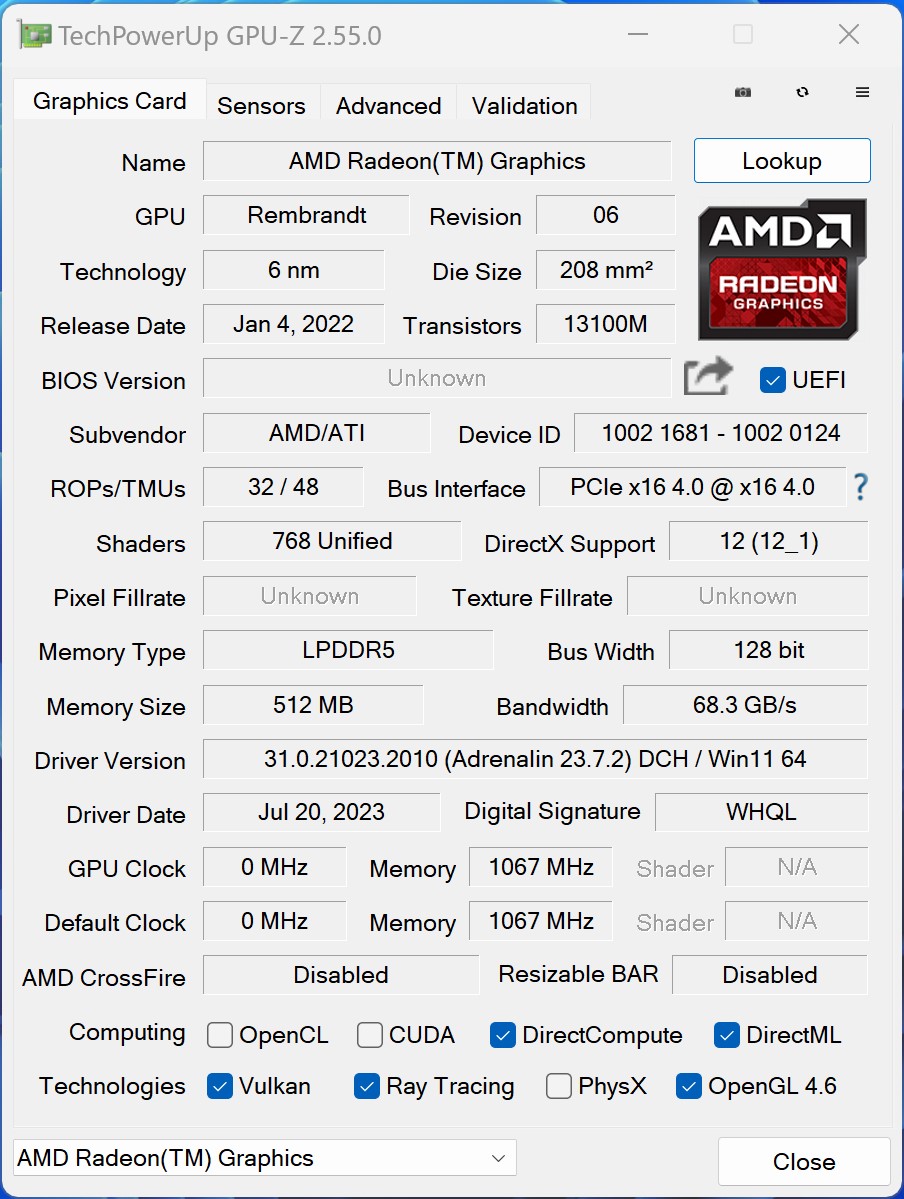

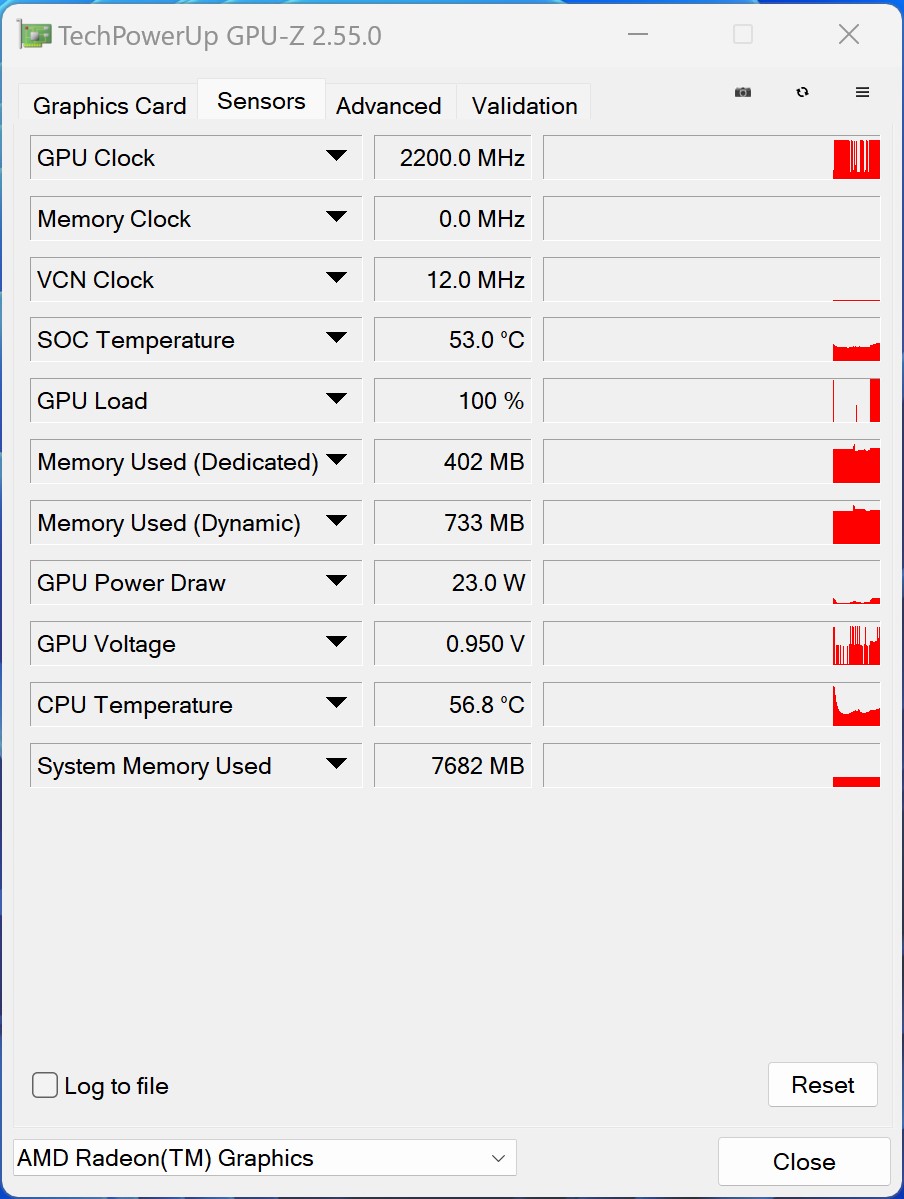

显卡 - AMD Radeon 680M
在合成基准测试中,Acemagic AM20 的优势在于 AMD Ryzen 7 7735H的 iGPU、AMD Radeon 680M及其出色的基本性能。它几乎可以忽略不计地落后于Minisforum UM790 Pro和Geekom AS 6- 被挤到了第三位。在这一点上,英特尔没有机会,也没有什么可以反击的。凭借目前的英特尔 Iris Xe Graphics G7 iGPU,Geekom Mini IT12 迷你版 IT12远远落后,只能排在中游。
Unigine Valley 1.0 | |
1920x1080 Extreme HD DirectX AA:x8 | |
Acemagic AM20 | |
Geekom AS 6, R9 6900HX | |
Minisforum Venus Series UM790 Pro | |
Minisforum Neptune Series NAD9 | |
Geekom Mini IT12 | |
Minisforum Venus Series UM560 XT | |
Morefine M600, 6600U | |
Blackview MP200 | |
1920x1080 Extreme HD Preset OpenGL AA:x8 | |
Acemagic AM20 | |
Geekom AS 6, R9 6900HX | |
Minisforum Venus Series UM790 Pro | |
Geekom Mini IT12 | |
Minisforum Neptune Series NAD9 | |
Minisforum Venus Series UM560 XT | |
Morefine M600, 6600U | |
Blackview MP200 |
Affinity Photo 2 - Combined (Single / Multi GPU) | |
Minisforum Neptune Series NAD9 | |
Minisforum Venus Series UM560 XT | |
Acemagic AM20 | |
Minisforum Venus Series UM790 Pro | |
Blackview MP200 | |
Geekom AS 6, R9 6900HX |
3DMark 05 Standard | 51389 points | |
3DMark 06 Standard Score | 35629 points | |
3DMark Vantage P Result | 34781 points | |
3DMark 11 Performance | 10939 points | |
3DMark Ice Storm Standard Score | 160248 points | |
3DMark Cloud Gate Standard Score | 32366 points | |
3DMark Fire Strike Score | 6858 points | |
3DMark Fire Strike Extreme Score | 3434 points | |
3DMark Time Spy Score | 2712 points | |
Help |
游戏性能 - AMD Radeon 680M
对于 iGPU 而言,AMD Radeon 680M 已经给我们留下了深刻的印象。已经给我们留下了深刻印象。在这一领域,Acemagic AM20 毫无例外地与Geekom AS 6.只要在图形细节方面稍加限制,就可以流畅地玩许多游戏。不过,这并不能取代显卡。
The Witcher 3 | |
1024x768 Low Graphics & Postprocessing | |
Minisforum Venus Series UM790 Pro | |
Acemagic AM20 | |
Geekom AS 6, R9 6900HX | |
Minisforum Neptune Series NAD9 | |
Geekom Mini IT12 | |
Morefine M600, 6600U | |
Minisforum Venus Series UM560 XT | |
Blackview MP200 | |
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
Minisforum Venus Series UM790 Pro | |
Acemagic AM20 | |
Geekom AS 6, R9 6900HX | |
Minisforum Neptune Series NAD9 | |
Geekom Mini IT12 | |
Minisforum Venus Series UM560 XT | |
Morefine M600, 6600U | |
Blackview MP200 |
Borderlands 3 | |
1280x720 Very Low Overall Quality (DX11) | |
Minisforum Venus Series UM790 Pro | |
Acemagic AM20 | |
Minisforum Venus Series UM560 XT | |
Geekom AS 6, R9 6900HX | |
Minisforum Neptune Series NAD9 | |
Geekom Mini IT12 | |
Morefine M600, 6600U | |
Blackview MP200 | |
1920x1080 High Overall Quality (DX11) | |
Minisforum Venus Series UM790 Pro | |
Geekom AS 6, R9 6900HX | |
Acemagic AM20 | |
Minisforum Neptune Series NAD9 | |
Minisforum Venus Series UM560 XT | |
Geekom Mini IT12 | |
Morefine M600, 6600U | |
Blackview MP200 |
GTA V | |
1024x768 Lowest Settings possible | |
Minisforum Venus Series UM790 Pro | |
Acemagic AM20 | |
Morefine M600, 6600U | |
Minisforum Venus Series UM560 XT | |
Minisforum Neptune Series NAD9 | |
Geekom AS 6, R9 6900HX | |
Geekom Mini IT12 | |
Blackview MP200 | |
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x | |
Minisforum Venus Series UM790 Pro | |
Acemagic AM20 | |
Geekom AS 6, R9 6900HX | |
Morefine M600, 6600U | |
Minisforum Venus Series UM560 XT | |
Minisforum Neptune Series NAD9 | |
Geekom Mini IT12 | |
Blackview MP200 |
low | med. | high | ultra | |
---|---|---|---|---|
GTA V (2015) | 144.2 | 130.5 | 52.9 | 23.2 |
The Witcher 3 (2015) | 116.4 | 51.4 | 40.2 | 26.3 |
Dota 2 Reborn (2015) | 125.7 | 102.8 | 79.5 | 69.2 |
Final Fantasy XV Benchmark (2018) | 64.7 | 35.5 | 25.7 | |
X-Plane 11.11 (2018) | 56.7 | 44 | 35.4 | |
Far Cry 5 (2018) | 67 | 41 | 38 | 36 |
Strange Brigade (2018) | 148.9 | 60.5 | 49.5 | 42.5 |
Shadow of the Tomb Raider (2018) | 90 | 39.2 | 35.6 | 30.5 |
Far Cry New Dawn (2019) | 61 | 39 | 37 | 34 |
Metro Exodus (2019) | 72.2 | 30.6 | 23.4 | 18.8 |
Borderlands 3 (2019) | 78.8 | 38.7 | 25.6 | 20.1 |
F1 2020 (2020) | 158 | 80.5 | 62.4 | 42.8 |
F1 2021 (2021) | 168.1 | 85 | 26.8 | |
Far Cry 6 (2021) | 71.8 | 40.6 | 34.5 | 29.7 |
God of War (2022) | 37.6 | 30.5 | 24.2 | 18.1 |
GRID Legends (2022) | 76.9 | 60.6 | 47 | 38.4 |
Tiny Tina's Wonderlands (2022) | 56.2 | 42.2 | 28.6 | 22.5 |
F1 22 (2022) | 80.2 | 69.9 | 50.5 | 12.3 |
F1 23 (2023) | 71.8 | 64.5 | 44.7 | 9.36 |

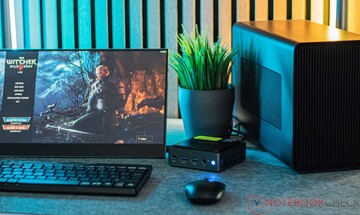

通过配备 NvidiaGeForce RTX 3060 Ti 的 eGPU 底座实现 3D 性能

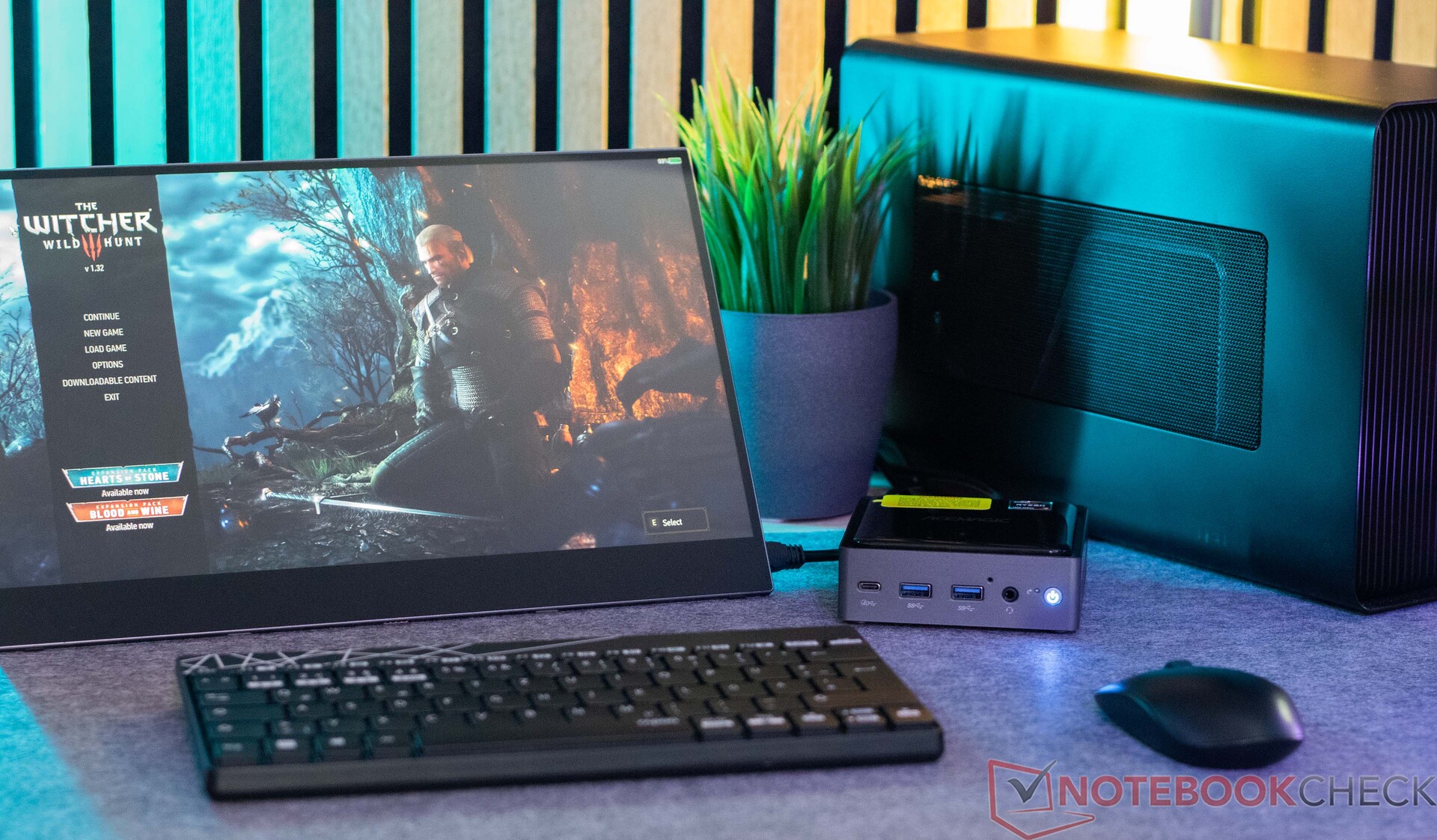

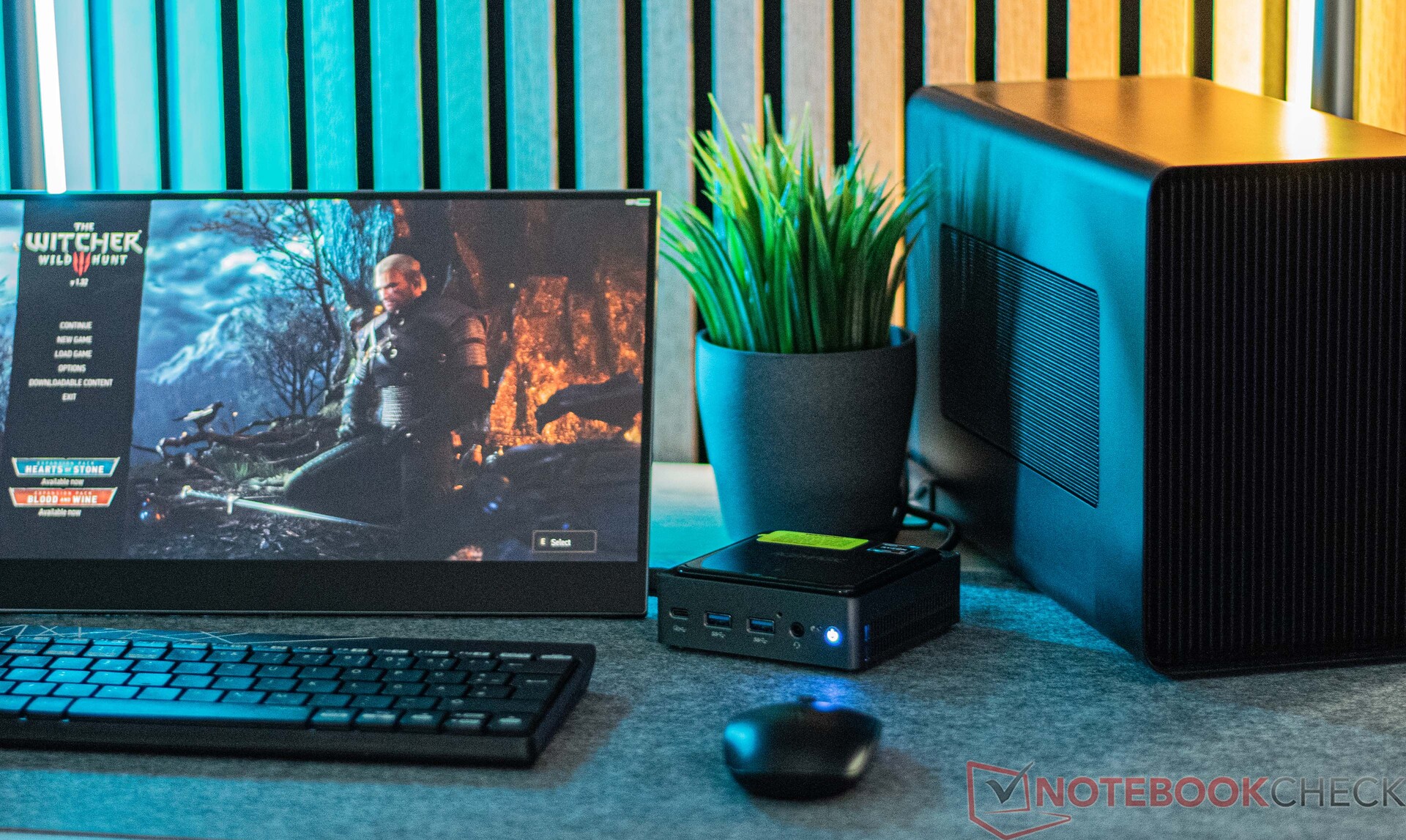

由于 Acemagic AM20 配备了一个 Thunderbolt 端口,我们将其与 Razer Core X 和 Nvidia RTX 3060 Ti 搭配使用。英伟达GeForce RTX 3060 Ti以实现外部 3D 图形性能的提升。原则上,3D 性能有明显提升。不过,相比之下,我们看到英特尔 NUC 13 Pro 套件性能要好得多。Acemagic AM20 与Morefine M600 6600U.
从主观角度来看,我们可以肯定,这样的组合能让您流畅地玩更多游戏。不过,您也应该注意一些限制。安装的显卡只能通过四条 PCIe 3.0 通道与系统通信。这导致带宽急剧下降。这一点在 F1 22 和 F1 23 游戏中尤为明显。我们甚至记录了比 iGPU 更差的结果。
Performance Rating - Percent | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) |
3DMark 11 - 1280x720 Performance GPU | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
3DMark | |
2560x1440 Time Spy Graphics | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
1920x1080 Fire Strike Graphics | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
3840x2160 Fire Strike Ultra Graphics | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) |
Unigine Superposition | |
1280x720 720p Low | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1920x1080 1080p High | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1920x1080 1080p Extreme | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
3840x2160 4k Optimized | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
7680x4320 8k Optimized | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) |
Unigine Valley 1.0 | |
1920x1080 Extreme HD DirectX AA:x8 | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1920x1080 Extreme HD Preset OpenGL AA:x8 | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Unigine Heaven 4.0 | |
Extreme Preset OpenGL | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Extreme Preset DX11 | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
ComputeMark v2.1 | |
1024x600 Normal, Score | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, Fluid 3DTex | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, Fluid 2DTexArr | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, Mandel Vector | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, Mandel Scalar | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, QJuliaRayTrace | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Performance Rating - Percent | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) |
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Final Fantasy XV Benchmark - 1920x1080 High Quality | |
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
Far Cry 5 - 1920x1080 Ultra Preset AA:T | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Far Cry New Dawn - 1920x1080 Ultra Preset | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Borderlands 3 - 1920x1080 Badass Overall Quality (DX11) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
F1 22 - 1920x1080 Ultra High Preset AA:T AF:16x | |
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
Tiny Tina's Wonderlands - 1920x1080 Badass Preset (DX12) | |
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acemagic AM20 (Nvidia GeForce RTX 3060 Ti FE) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
low | med. | high | ultra | QHD | 4K DLSS | 4K | |
---|---|---|---|---|---|---|---|
GTA V (2015) | 161.5 | 148.2 | 88 | 59.7 | 41.8 | 32.3 | |
The Witcher 3 (2015) | 209 | 167.7 | 107.1 | 56.2 | 49.8 | 60.8 | |
Dota 2 Reborn (2015) | 126.9 | 114.3 | 111.9 | 106.4 | 94.7 | ||
Final Fantasy XV Benchmark (2018) | 172.5 | 129.9 | 91.8 | 74.2 | 47.1 | ||
X-Plane 11.11 (2018) | 102.3 | 88.2 | 71.4 | 62.8 | |||
Far Cry 5 (2018) | 120 | 107 | 103 | 96 | 88 | 56 | |
Strange Brigade (2018) | 167.8 | 129.7 | 128.1 | 125.2 | 115.8 | 80.4 | |
Shadow of the Tomb Raider (2018) | 113.8 | 90.9 | 89.4 | 86.2 | 78.8 | 52 | |
Far Cry New Dawn (2019) | 103 | 92 | 87 | 78 | 74 | 56 | |
Metro Exodus (2019) | 112.9 | 77 | 58.6 | 44.1 | 39.3 | 30.2 | |
Borderlands 3 (2019) | 106.2 | 94.1 | 84.1 | 74.5 | 60.8 | 37.2 | |
F1 2020 (2020) | 170.5 | 95 | 96.7 | 81 | 72.4 | 52.3 | |
F1 2021 (2021) | 112.7 | 85.4 | 55.6 | 42.4 | 38.9 | 33.2 | |
Far Cry 6 (2021) | 61.8 | 53 | 43.8 | 37.4 | 37 | ||
God of War (2022) | 99.4 | 89.1 | 73.7 | 56.7 | 50.8 | 37.9 | |
GRID Legends (2022) | 100.1 | 82.4 | 67.7 | 57.8 | 52 | 43 | |
Tiny Tina's Wonderlands (2022) | 153 | 124.7 | 90.8 | 74.4 | 57.7 | 34.7 | |
F1 22 (2022) | 47.9 | 43.9 | 34.2 | 22.4 | 21.5 | 17.5 | |
F1 23 (2023) | 52.9 | 51.9 | 43 | 27.5 | 26.1 | 26.2 | 14.1 |
排放 - 性能良好但仍然经济
噪音排放
与竞争对手相比,Acemagic AM20 的运行噪音并不安静。这款微型电脑只有在空闲和低负载时才能安静运行。在平均负载下,我们已经成功达到了 44.7 dB(A)。在压力测试中,我们测得的最大噪音为 45.4 dB(A),这台小型电脑伴侣的噪音明显可闻。在 MP200显示出了更大的声音。
Noise Level
Idle |
| 26.1 / 26.1 / 26.4 dB(A) |
Load |
| 44.7 / 45.4 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 25.2 dB(A) |
Acemagic AM20 R7 7735H, Radeon 680M | Minisforum Venus Series UM790 Pro R9 7940HS, Radeon 780M | Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs | Morefine M600, 6600U R5 6600U, Radeon 660M | Geekom AS 6, R9 6900HX R9 6900HX, Radeon 680M | Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs | Minisforum Venus Series UM560 XT R5 5600H, Vega 7 | Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H) | |
---|---|---|---|---|---|---|---|---|
Noise | -1% | -1% | 2% | -12% | -1% | -2% | -1% | |
off / environment * | 25.2 | 29.7 -18% | 30.2 -20% | 29.4 -17% | 30 -19% | 29.8 -18% | 30 -19% | 25.1 -0% |
Idle Minimum * | 26.1 | 31.7 -21% | 30.5 -17% | 29.4 -13% | 33.2 -27% | 29.9 -15% | 30.3 -16% | 25.3 3% |
Idle Average * | 26.1 | 31.7 -21% | 30.5 -17% | 29.4 -13% | 33.6 -29% | 30.1 -15% | 30.5 -17% | 25.3 3% |
Idle Maximum * | 26.4 | 31.7 -20% | 30.5 -16% | 29.5 -12% | 33.6 -27% | 30.2 -14% | 30.6 -16% | 25.3 4% |
Load Average * | 44.7 | 32.8 27% | 30.5 32% | 29.6 34% | 36.8 18% | 32.1 28% | 32.5 27% | 46 -3% |
Witcher 3 ultra * | 43.3 | 32.8 24% | ||||||
Load Maximum * | 45.4 | 35.2 22% | 30.5 33% | 29.6 35% | 39.8 12% | 32.5 28% | 33.2 27% | 51.8 -14% |
* ... smaller is better
温度

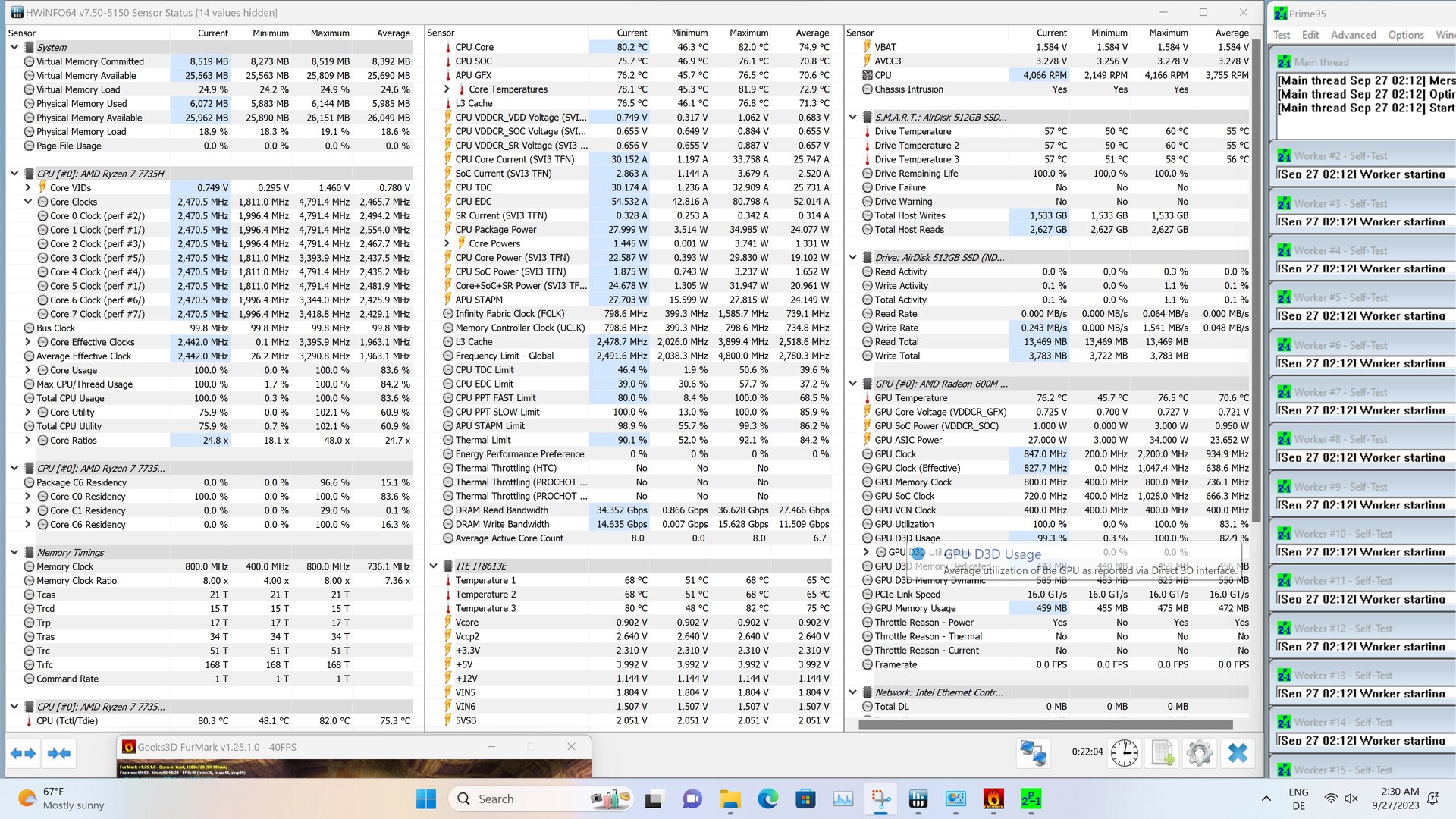

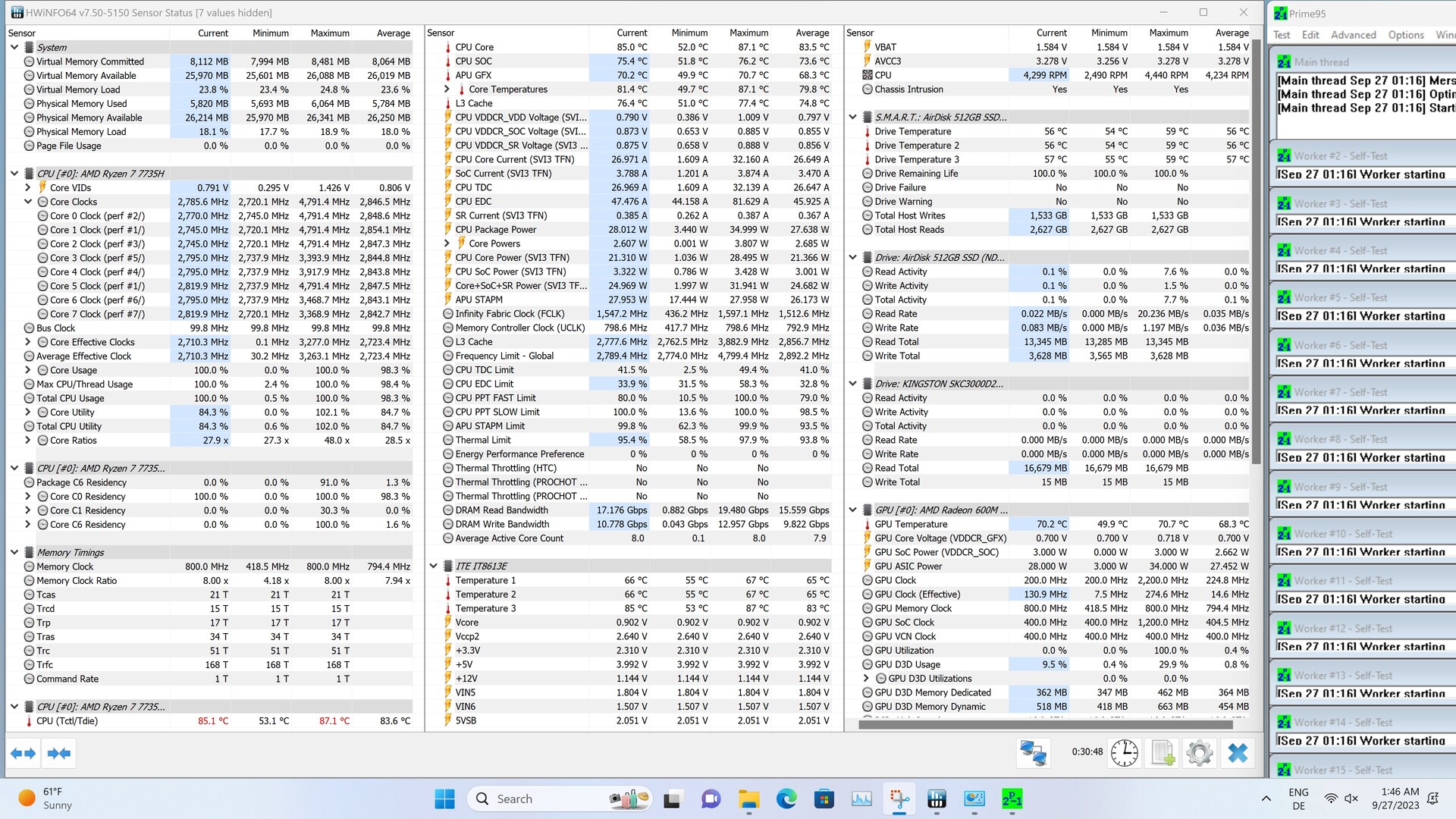

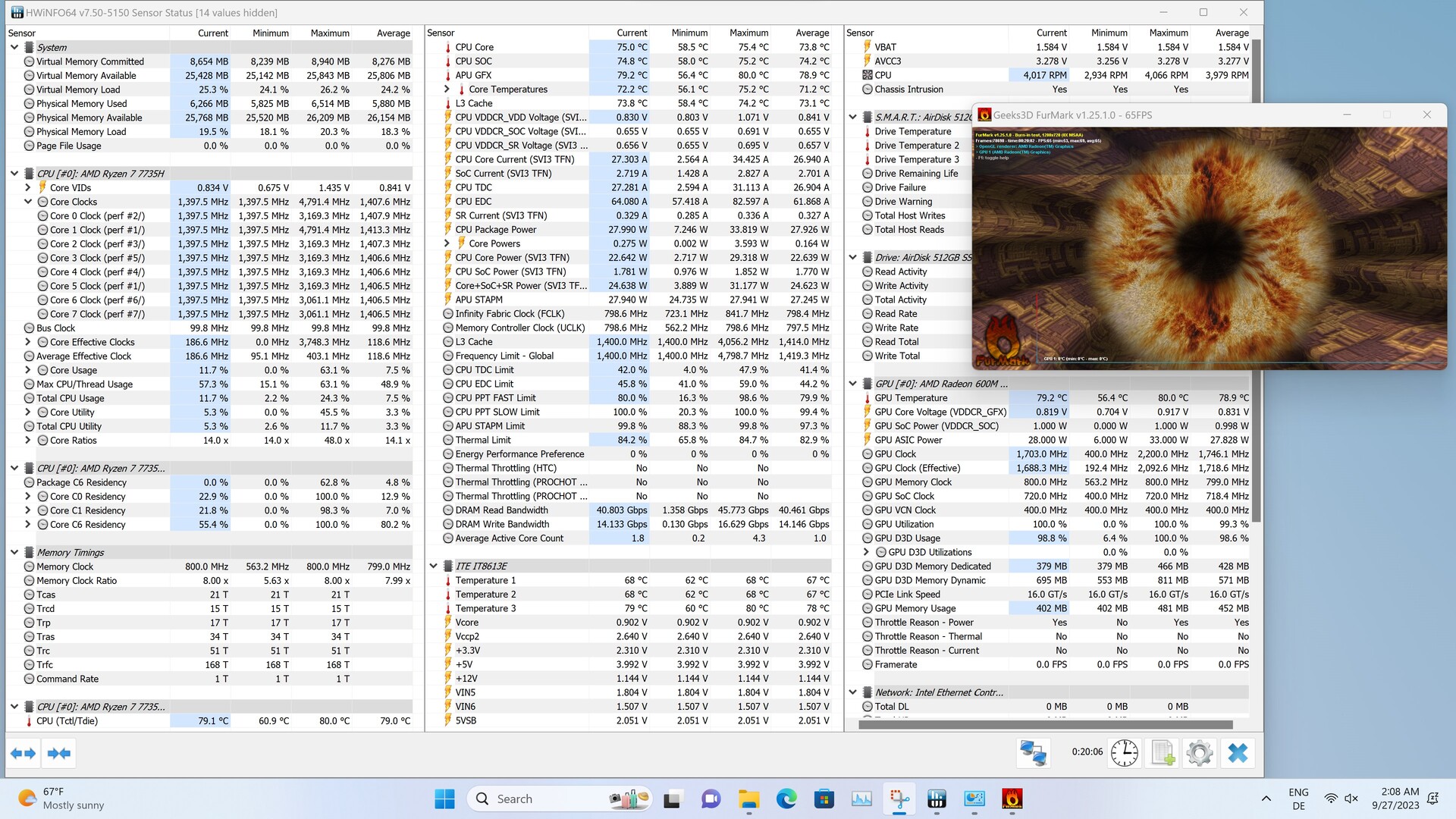

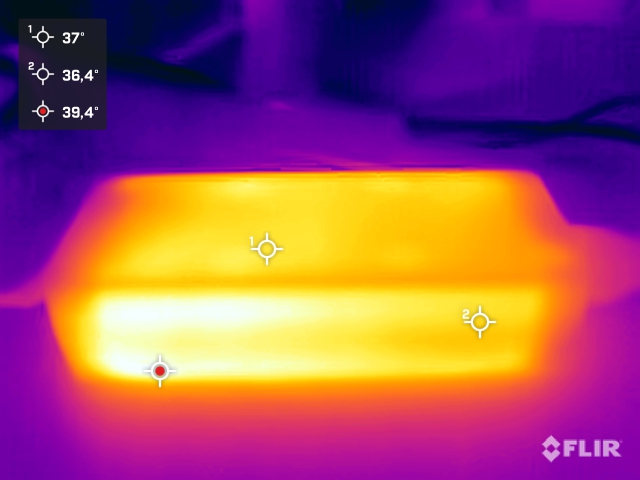

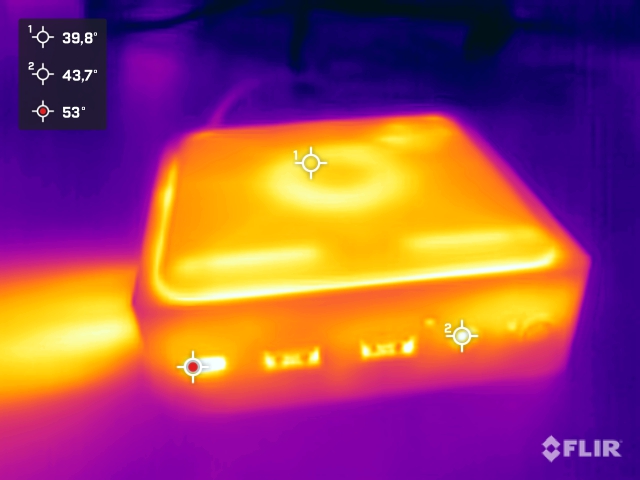

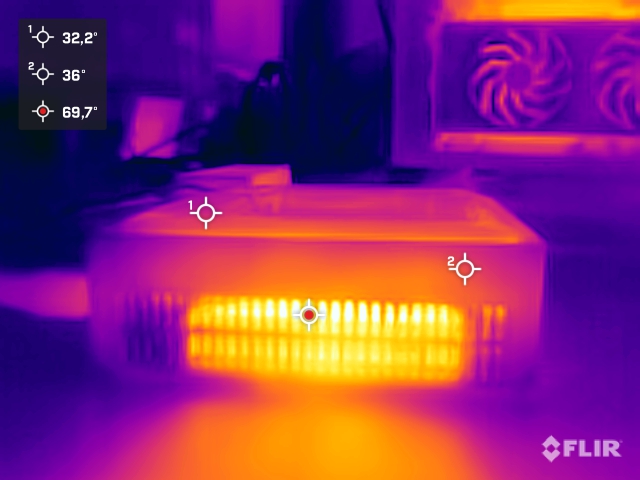

Acemagic AM20 机箱的温度无可挑剔。不过,机箱盖的温度要高于其他机箱部件,这可能与固态硬盘的散热有关。如果在 AM20 上配备三块大容量存储硬盘,无疑会达到更高的数值。在 Prime95 的压力测试中AMD Ryzen 7 7735H 最高温度达到 87 °C。尽管我们观察到 SoC 的功耗不超过 35 瓦,但这仍然可以被认为是相对微不足道的。这里有一个明确的限制,同样适用于 Cinebench R15 多循环。不过,性能极限可以保持,即使在连续负载半小时后,处理器的运行功耗也只有 28 瓦。
(±) The maximum temperature on the upper side is 41.6 °C / 107 F, compared to the average of 35.8 °C / 96 F, ranging from 24 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 38 °C / 100 F, compared to the average of 36.4 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 31.7 °C / 89 F, compared to the device average of 32.1 °C / 90 F.
耗电量

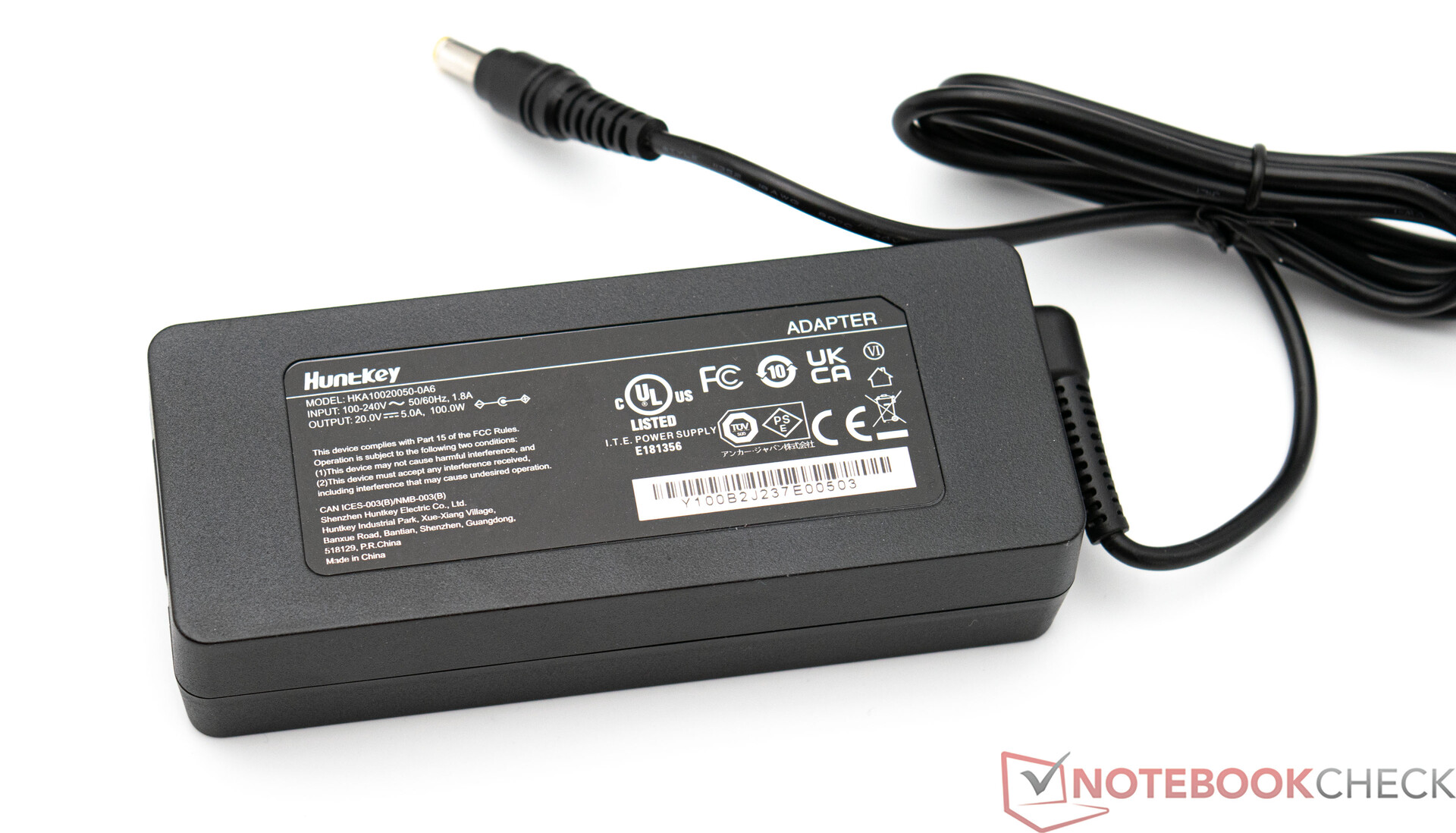

考虑到功率,Acemagic AM20 是一款非常经济的机型。该机型AMD Ryzen 7 7735H如果不是因为散热限制,其性能肯定会更高。这就意味着,制造商只有 35 瓦的性能硬限制,而 SoC 严格遵守了这一限制。基本上,所有这些都不是问题,因为在满载近 65 瓦的情况下,我们的评测样本与同类产品相比是最经济的,而且还有一定的优势。由于 PSU 的最大供电功率为 100 瓦,这让它显得有些过大。不过,我们不应忘记外壳中还集成了一个充电站。除其他功能外,它还能为智能手机充电,最高功率可达 10 瓦。此外,还可以安装额外的大容量存储驱动器,这些驱动器也需要供电。因此,我们对内置 100 瓦 PSU 的决定表示欢迎。
Off / Standby | 1.7 / 1.8 Watt |
Idle | 8.7 / 9.5 / 10.3 Watt |
Load |
50.8 / 64.9 Watt |
Key:
min: ,
med: ,
max: Metrahit Energy |
Acemagic AM20 R7 7735H, Radeon 680M | Minisforum Venus Series UM790 Pro R9 7940HS, Radeon 780M | Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs | Morefine M600, 6600U R5 6600U, Radeon 660M | Geekom AS 6, R9 6900HX R9 6900HX, Radeon 680M | Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs | Minisforum Venus Series UM560 XT R5 5600H, Vega 7 | Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H) | Average AMD Radeon 680M | Average of class Mini PC | |
---|---|---|---|---|---|---|---|---|---|---|
Power Consumption | -2% | -53% | -1% | -9% | 8% | 16% | -24% | 4% | -28% | |
Idle Minimum * | 8.7 | 4.6 47% | 12.1 -39% | 8 8% | 6.8 22% | 5 43% | 6.6 24% | 9 -3% | 6.7 ? 23% | 9.59 ? -10% |
Idle Average * | 9.5 | 6 37% | 13 -37% | 8.7 8% | 9.4 1% | 7 26% | 6.8 28% | 10.6 -12% | 8.73 ? 8% | 11.5 ? -21% |
Idle Maximum * | 10.3 | 10.6 -3% | 18.2 -77% | 8.8 15% | 13.7 -33% | 10.7 -4% | 7.2 30% | 19.9 -93% | 10.3 ? -0% | 14.9 ? -45% |
Load Average * | 50.8 | 72.5 -43% | 70.6 -39% | 54.6 -7% | 45.3 11% | 50.3 1% | 45.1 11% | 30.9 39% | 53.1 ? -5% | 57.6 ? -13% |
Load Maximum * | 64.9 | 94.6 -46% | 113 -74% | 83.2 -28% | 94.8 -46% | 82 -26% | 73.4 -13% | 97.8 -51% | 70.3 ? -8% | 97.3 ? -50% |
Cyberpunk 2077 ultra external monitor * | 95.7 | |||||||||
Witcher 3 ultra * | 44.8 |
* ... smaller is better
Power consumption with an external monitor
Pros
Cons
结论 - 带有充电站的微型电脑
Acemagic AM20 采用了一种很好的方法,以便在众多迷你 PC 中脱颖而出。Acemagic 是目前为数不多的几家可以将其放在智能手机顶部进行无线充电的制造商之一。因此,结合其尺寸,AM20 甚至有了一个独特的卖点。不过,作为一种限制,你只能忍受仅有 10 瓦的低充电性能。
虽然 AM20 基本没有使用金属材质,但其制造质量完美无瑕。性能方面,AMD Ryzen 7 7735H 是一款稳定的 SoC。虽然 SoC 属于 7000 系列,但我们面对的并不是采用 Zen 4 计算核心的 SoC,而是基于 Zen 3 的处理器。尽管如此,AMD Ryzen 7735H 仍能提供稳定的性能。AMD SoC 的最大优势体现在 3D 性能方面。AMD Radeon 680M 明显优于英特尔,甚至可以使用 Acemagic AM20 进行小型游戏。
Acemagic AM20 是一款功能强大且经济实惠的微型电脑,拥有 8 核 16 线程,执行多线程任务不成问题。
值得强调的是,AM20 拥有两个网络端口和一个 Thunderbolt 端口。这样就可以合理地扩展设备,甚至可以使用外置显卡。说到 WiF 模块的选择,我们更倾向于更现代化的模块。该设备在负载情况下的噪音水平也是一个缺点。由于外形小巧,Acemagic 没有太多空间容纳其他组件,因此不得不在这方面做出妥协。
价格和供应情况
Der Acemagic AM20 可直接通过制造商的在线商店订购,售价为569 美元。不过,此优惠仅适用于美国和英国。目前,该公司还没有覆盖德语地区的计划。
Acemagic AM20
- 02/27/2024 v7 (old)
Sebastian Bade
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
