宏碁 Aspire Spin 14 评测：二合一笔记本电脑的疯狂世界
Core Ultra 5 115U 的首发。

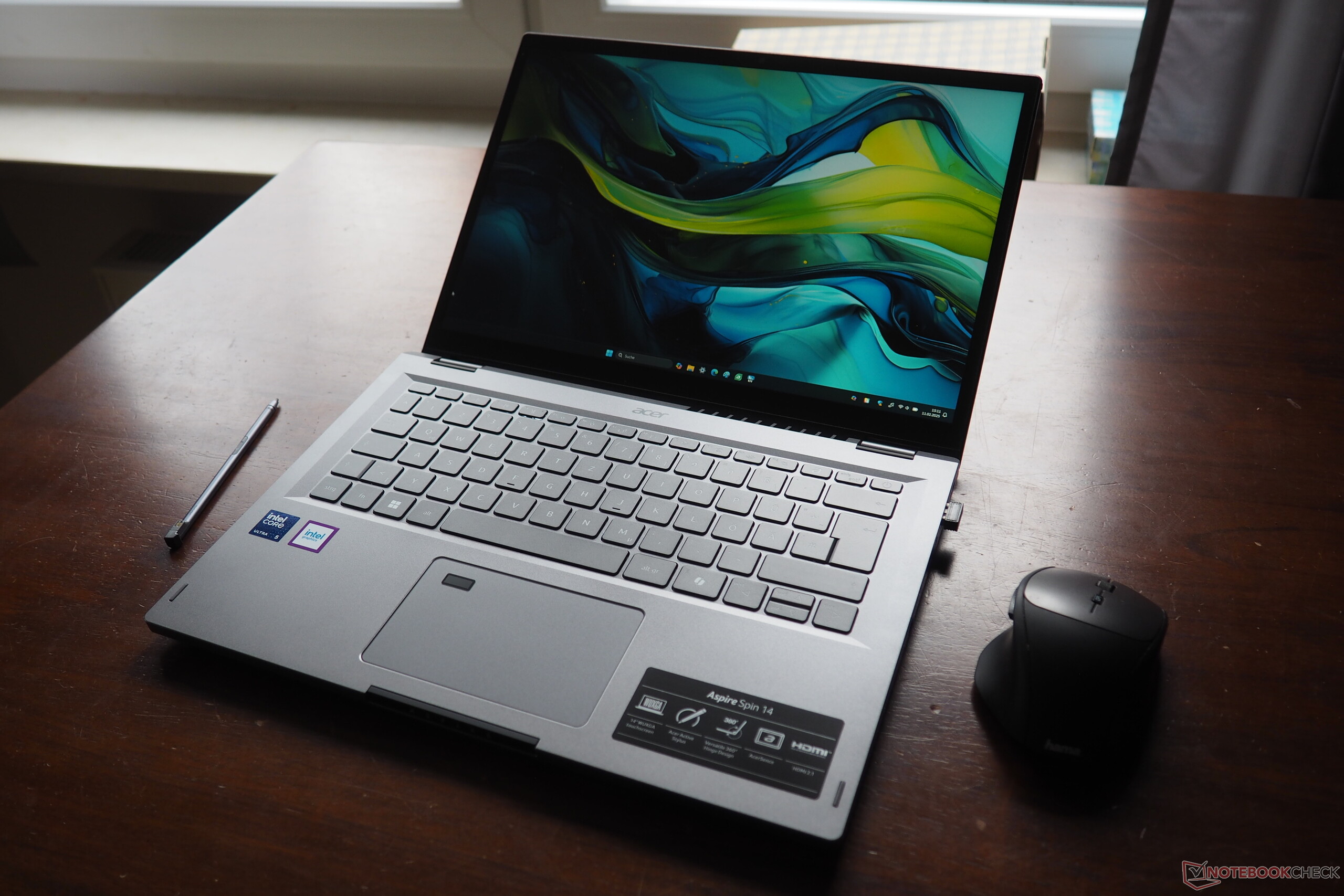

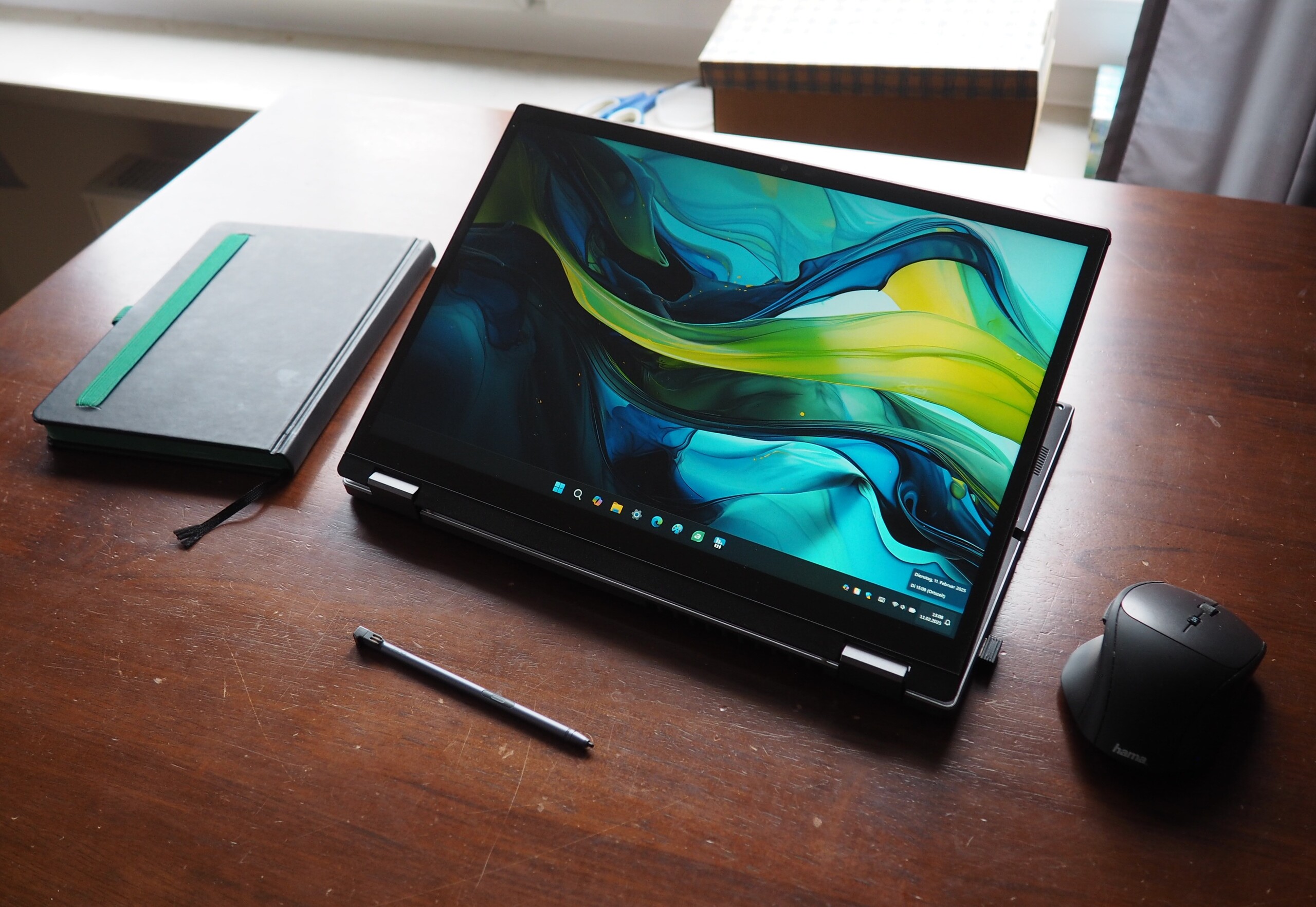

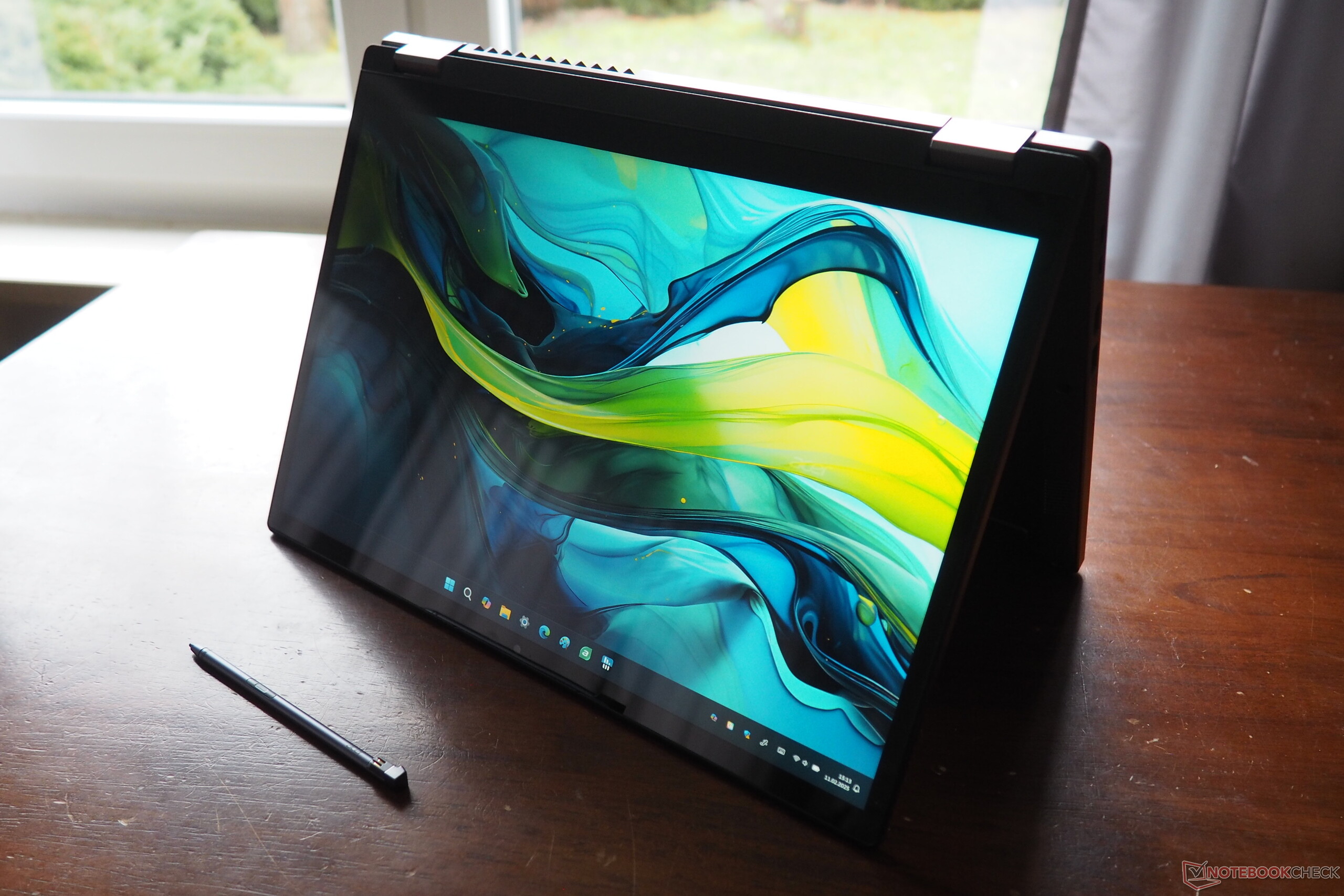

宏碁推出的 Aspire Spin 14 是一款适用于多种用途的二合一产品。我们对这款基于英特尔处理器的 14 英寸机型进行了广泛的测试，发现了一些不足之处，其中有些还不小。Florian Glaser, 👁 Florian Glaser (translated by DeepL / Ninh Duy) Published 🇺🇸 🇩🇪 ...
判决

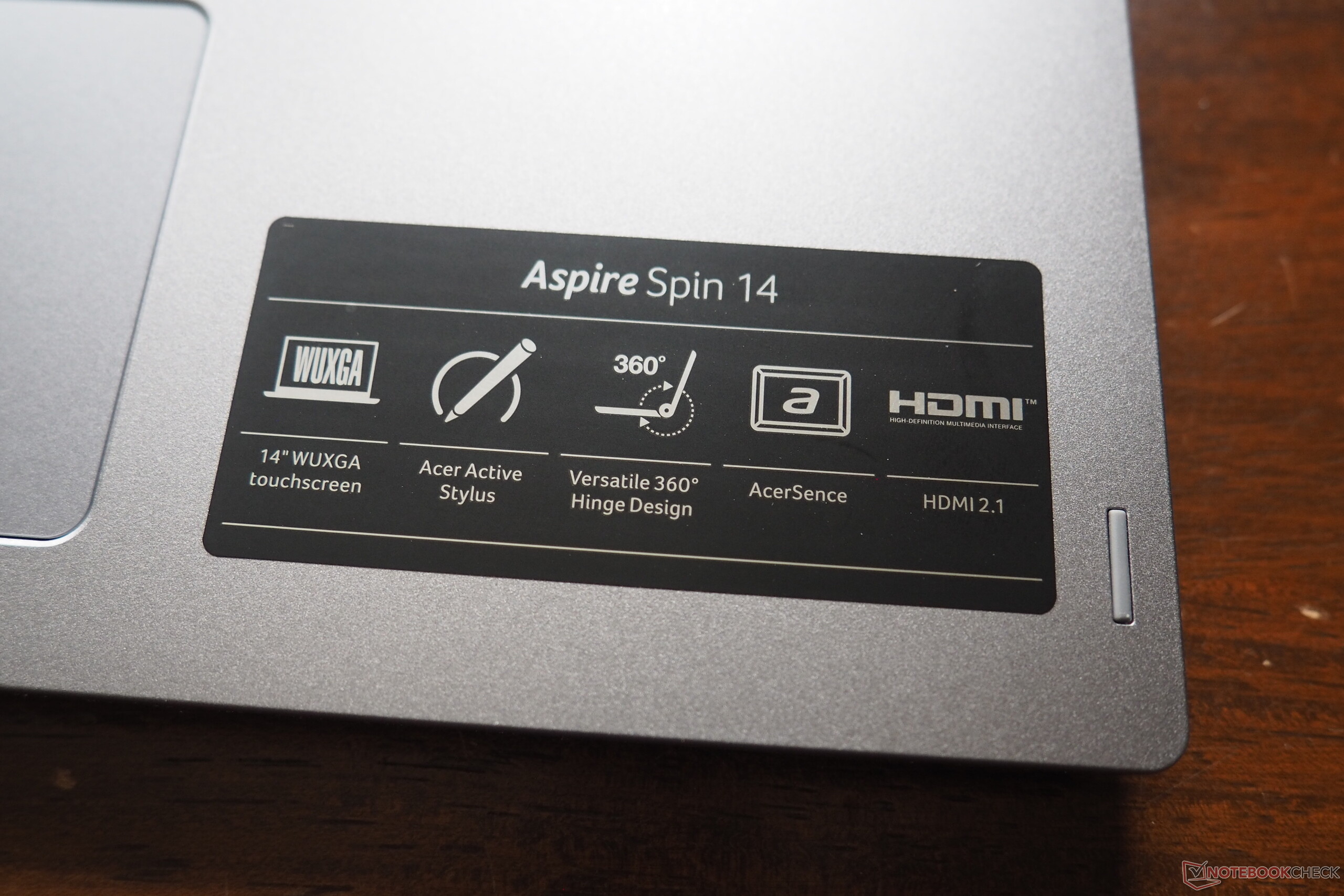

如果只考虑规格，Aspire Spin 14 是一款不错的产品。尤其是二合一机制和触摸屏，让这款 14 英寸机型在众多多媒体和全能笔记本电脑中脱颖而出。但遗憾的是，宏碁在某些方面削减了成本。例如，16:10 显示屏不得不使用较差的色彩空间。此外，风扇在负载情况下会发出很大的声音，这也是一个遗憾，使它无法获得更高的分数。升级选项也是如此，由于采用焊接内存，升级选项相当有限。
不过，从积极的一面来看，该产品的端口种类齐全，有四个 USB 接口，其中两个支持 Thunderbolt 4。在电池续航时间方面，这款二合一电脑也没有什么值得诟病的地方，恰恰相反。机箱、输入设备、扬声器和不显眼的温度都可以轻松归类为中端产品。配备 iGPU Graphics 4 核心的英特尔酷睿至尊 5 115U 给我们留下了喜忧参半的感觉。考虑到适中的能耗，其性能并不差，但在实际使用中，同类 AMD 笔记本电脑通常给人感觉更加迅捷。不过，对于基本的办公、视频和网络任务来说，性能绰绰有余。
Pros
Cons
价格和供应情况
经过评测的宏碁 Aspire Spin 14 ASP14 52MTN 51V5配备了酷睿Ultra 5 115U、16 GB内存和512 GB固态硬盘，目前在各大在线商店的售价约为790美元。
在选择竞争设备时，我们尤其关注其他节能 CPU 和 iGPU。比较表中列出了 Aspire 5 Spin 14(酷睿 i5-1335U, Iris Xe Graphics G7 80EUs)、 惠普Pavilion Plus 14(酷睿 i7-1355U, Iris Xe Graphics G7 96EUs)和 联想 Yoga Slim 6 14(Ryzen 5 7540U, Radeon 740M).
可能的替代品比较
Image | Model / Review | Price | Weight | Height | Display |
|---|---|---|---|---|---|
1. 78.3%  | Acer Aspire Spin 14 ASP14-52MTN-51V5 Intel Core Ultra 5 115U ⎘ Intel Graphics 4-Core iGPU (Arc) ⎘ 16 GB Memory, 512 GB SSD | Amazon: 1. $29.99 65W Charger for Acer Aspire ... 2. $29.99 65W Charger for Acer Aspire ... 3. $345.00 Acer Aspire A514-54-501Z 14"... List Price: 800 EUR | 1.6 kg | 21.1 mm | 14.00" 1920x1200 162 PPI IPS |
2. 82.2% v7 (old)  | Acer Aspire 5 Spin 14 Intel Core i5-1335U ⎘ Intel Iris Xe Graphics G7 80EUs ⎘ 16 GB Memory, 512 GB SSD | Amazon: 1. $849.99 Acer Aspire Spin 14 Converti... 2. $490.26 Acer Aspire 5 15 Slim Laptop... 3. $347.58 Acer Aspire 3 Spin 14 Conver... List Price: 999 Euro | 1.6 kg | 17.99 mm | 14.00" 1920x1200 162 PPI IPS |
3. 87.5% v7 (old)  | HP Pavilion Plus 14-ew0153TU Intel Core i7-1355U ⎘ Intel Iris Xe Graphics G7 96EUs ⎘ 16 GB Memory, 1024 GB SSD | Amazon: 1. $1,153.74 HP Pavilion Plus 14 inch Lap... 2. $680.96 HP Pavilion Plus 14 inch Lap... 3. $9.99 CPU Cooling Fan for HP Pavil... List Price: 1020 USD | 1.4 kg | 17.5 mm | 14.00" 2880x1800 243 PPI OLED |
4. 83.9%  | Lenovo Yoga Slim 6 14APU8 AMD Ryzen 5 7540U ⎘ AMD Radeon 740M ⎘ 16 GB Memory, 1024 GB SSD | Amazon: $575.00 List Price: 800 EUR | 1.4 kg | 15 mm | 14.00" 1920x1200 162 PPI OLED |
5. 87.4% v7 (old)  | HP ZBook Firefly 14 G10 A AMD Ryzen 5 PRO 7640HS ⎘ AMD Radeon 760M ⎘ 16 GB Memory, 512 GB SSD | Amazon: 1. $860.48 HP ZBook Firefly G10 14" Tou... 2. $1,129.00 HP ZBook Firefly 14 G10 14" ... 3. $1,149.99 HP Zbook Firefly G10 Mobile ... List Price: 1200 EUR | 1.5 kg | 20 mm | 14.00" 1920x1200 162 PPI IPS |
规格
案例

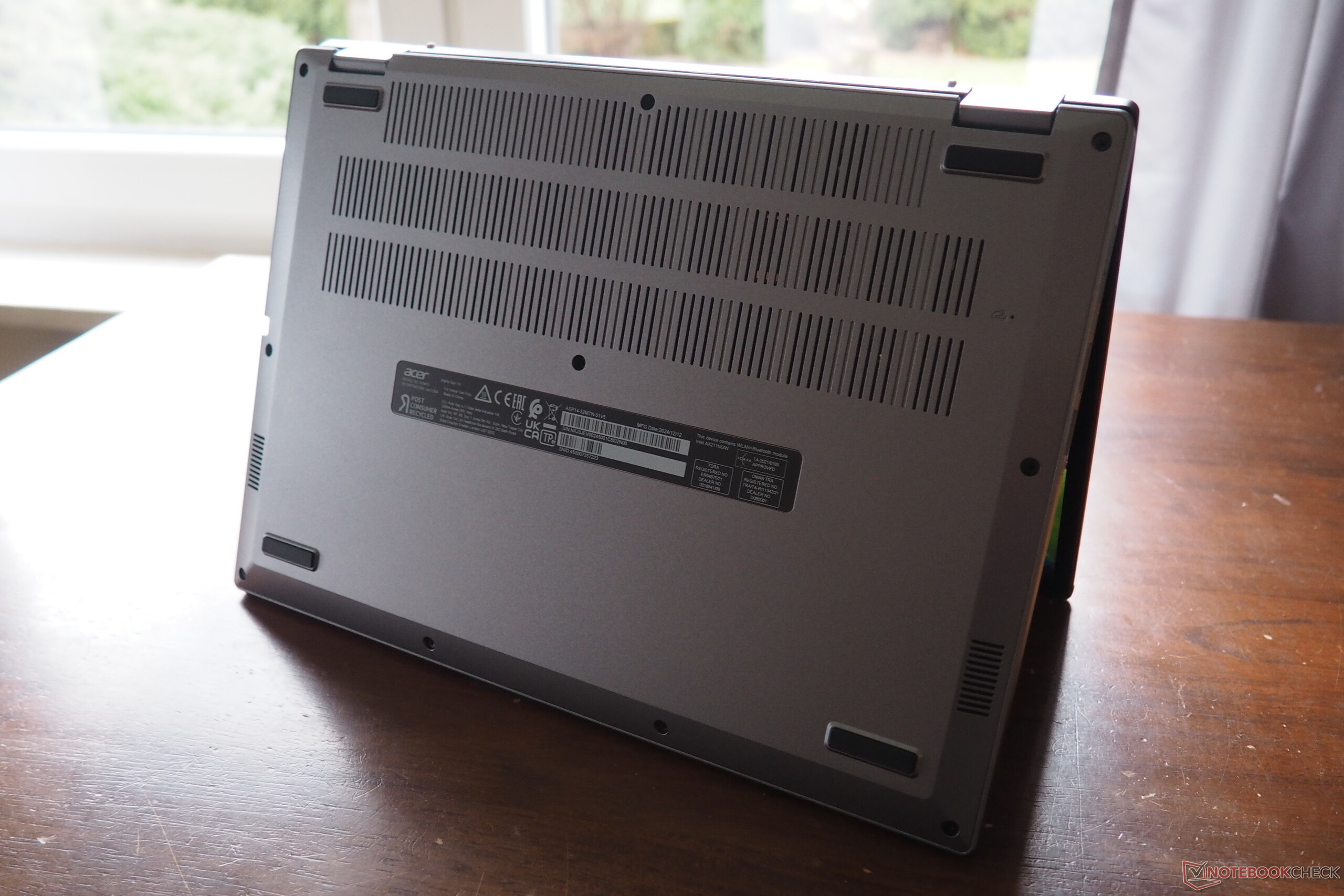

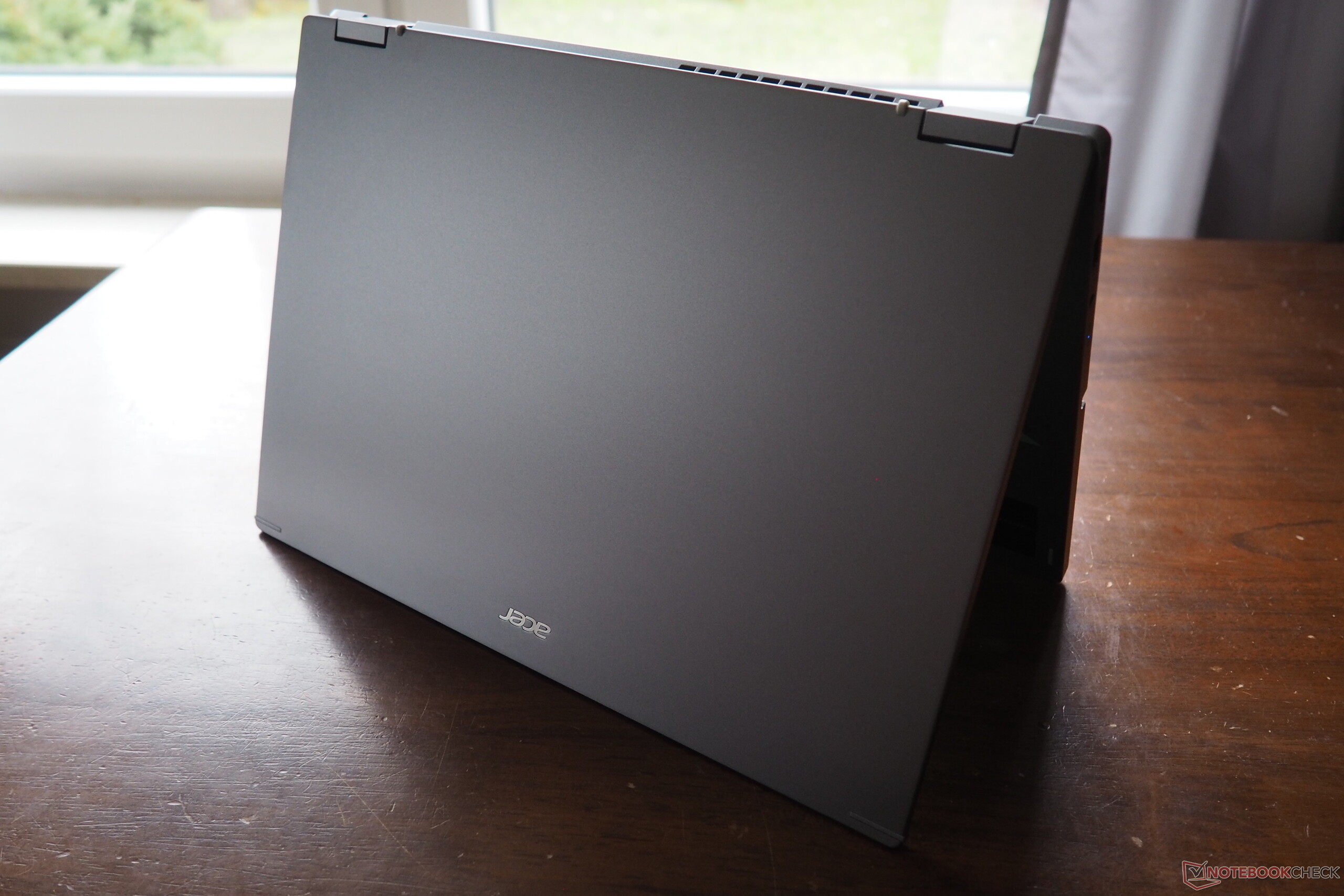

在质量方面，Aspire Spin 14 并不是最出色的产品之一。所有表面都由塑料制成，没有特别高级的感觉。尽管如此，它的工艺还是非常出色的，无可挑剔。由于颜色较浅，除了光面显示屏外，几乎看不到指纹。屏幕的折叠装置运行良好，但底座在打开时会有轻微摆动。这意味着我们建议您始终用双手使用该设备。我们认为底座的稳定性还算不错，只有在施加额外压力时铰链之间才会有明显的弯曲。
这款产品的重量略低于 1.6 千克，在我们的比较范围内处于上端，竞争对手通常在 1.4 至 1.5 千克之间。高度也类似：Aspire Spin 14 的高度为 2.1 厘米，比同类产品高出不少，不过这些产品通常都没有二合一功能。
特点

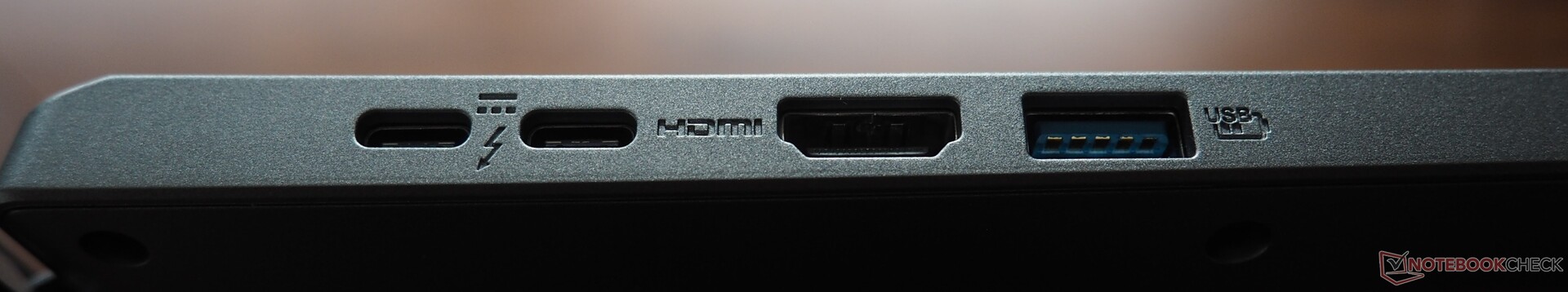

接口

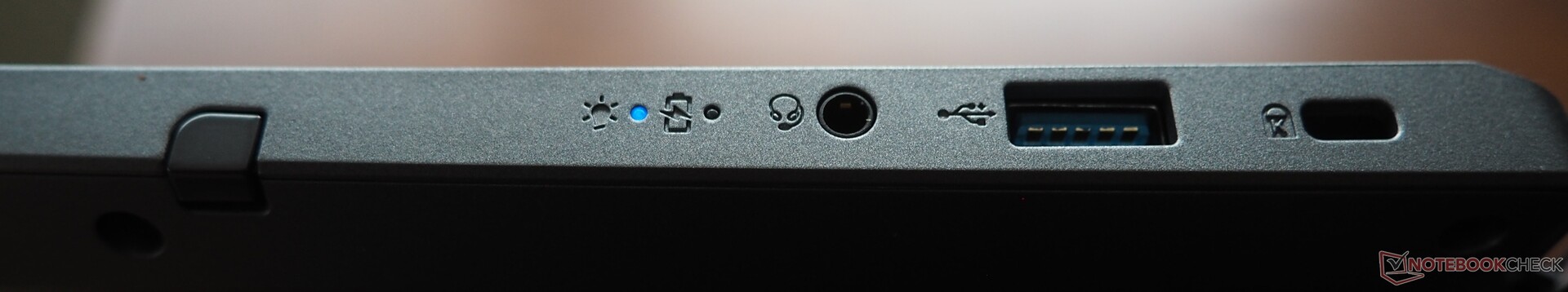

如果不考虑没有读卡器的问题，接口还是相当不错的。除了一个音频插孔、一个 HDMI 2.1 端口和一个 Kensington 锁插槽外，宏碁还为 14 英寸机型配备了四个 USB 端口。正如开头提到的，Type-C 接口支持现代的 Thunderbolt 4，包括 Power Delivery 和 DisplayPort 1.4。由于所有端口都位于两个侧板的后部区域，因此插入的线缆很少会碍事。
交流
内置的 Wi-Fi 6E 模块来自英特尔（型号 AX211），在我们的 Wi-Fi 测试中，它的发送效果尚可，接收效果也很好。
网络摄像头

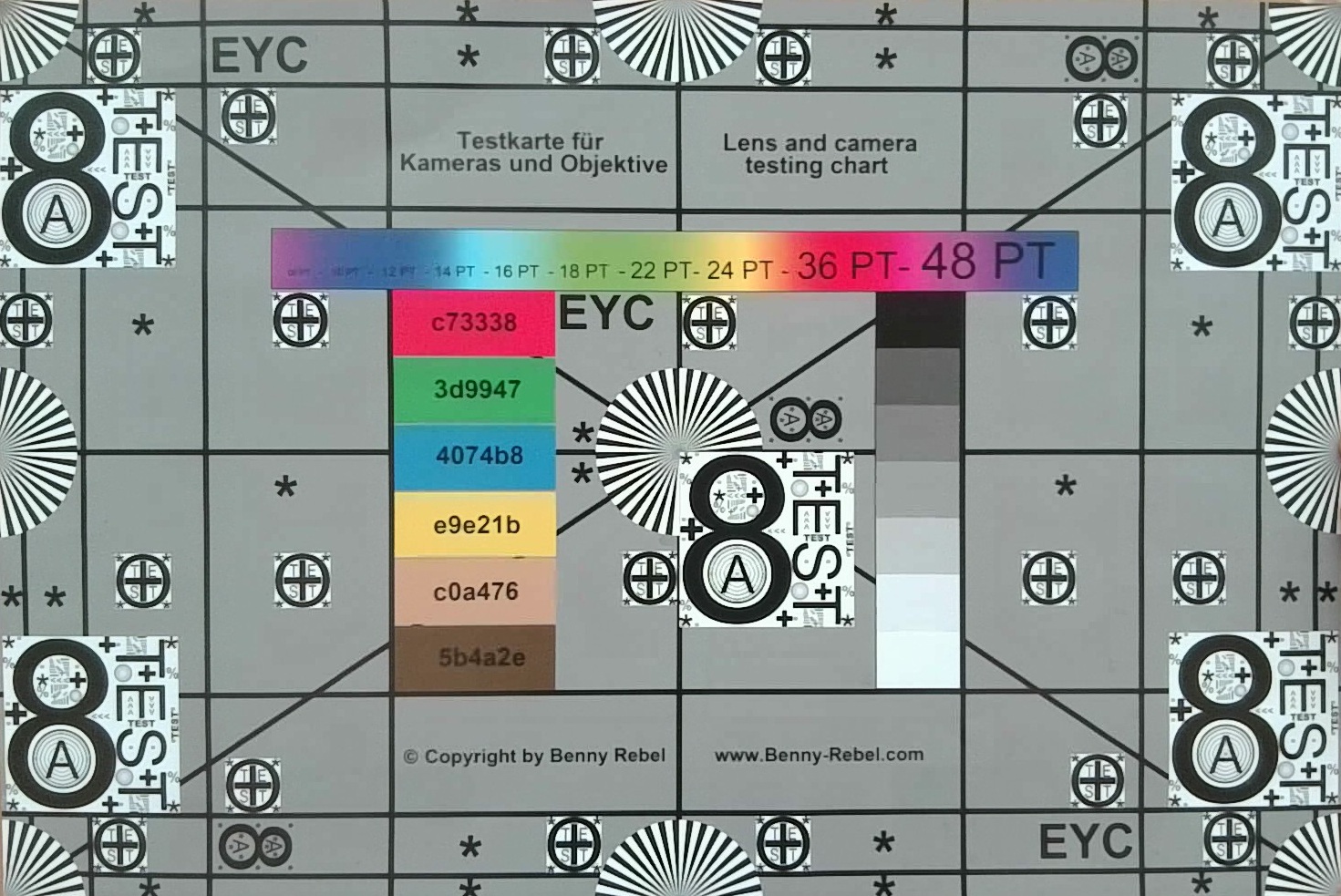

网络摄像头的分辨率为 200 万像素，从笔记本电脑的角度来看，图像质量还算不错（关键词：清晰度）。不过，色彩准确度还需大幅提高，而且没有隐私快门。
配件
开箱时，宏碁随附了一个小巧的 65 瓦电源，可通过 USB-C 接口连接。
维护

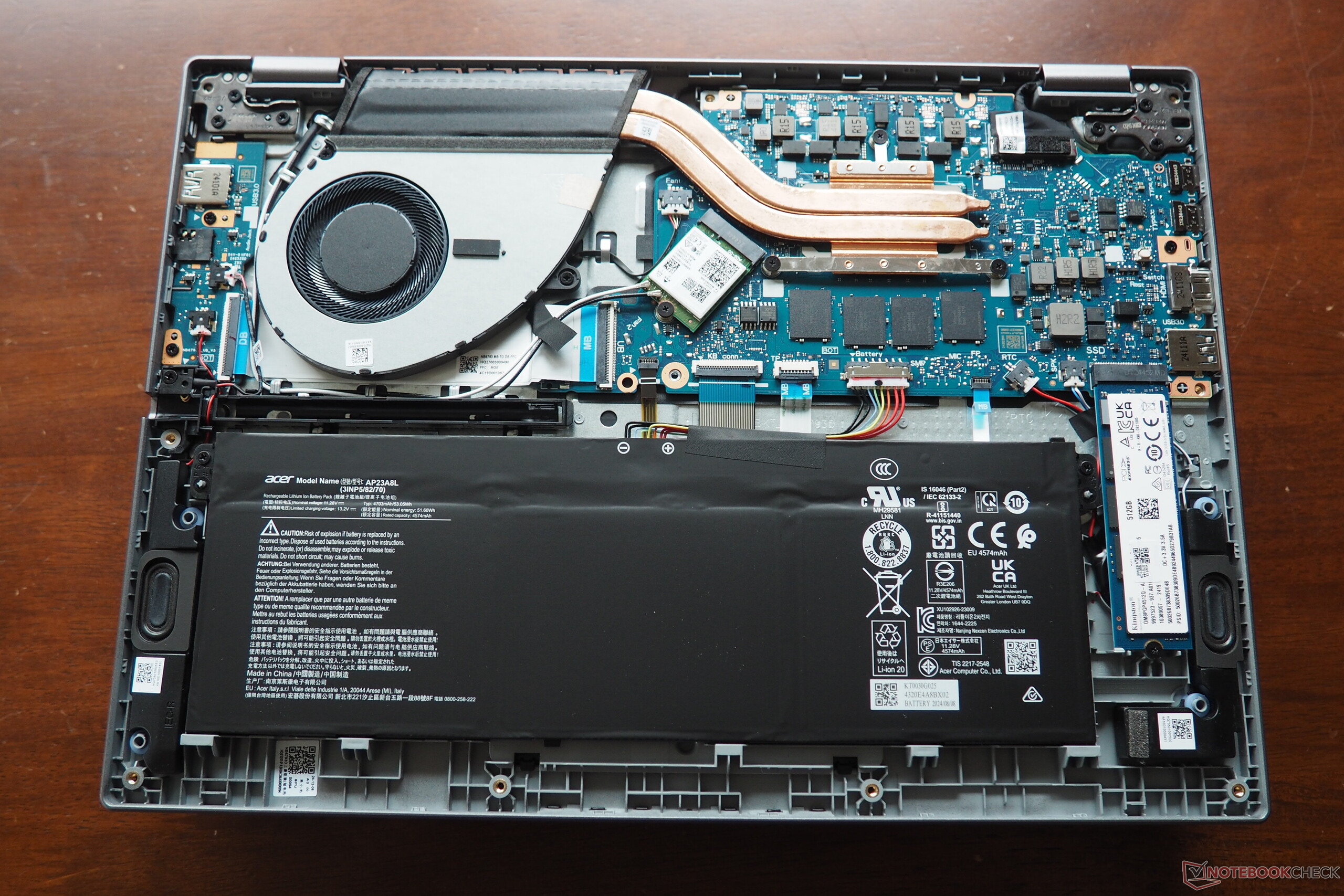

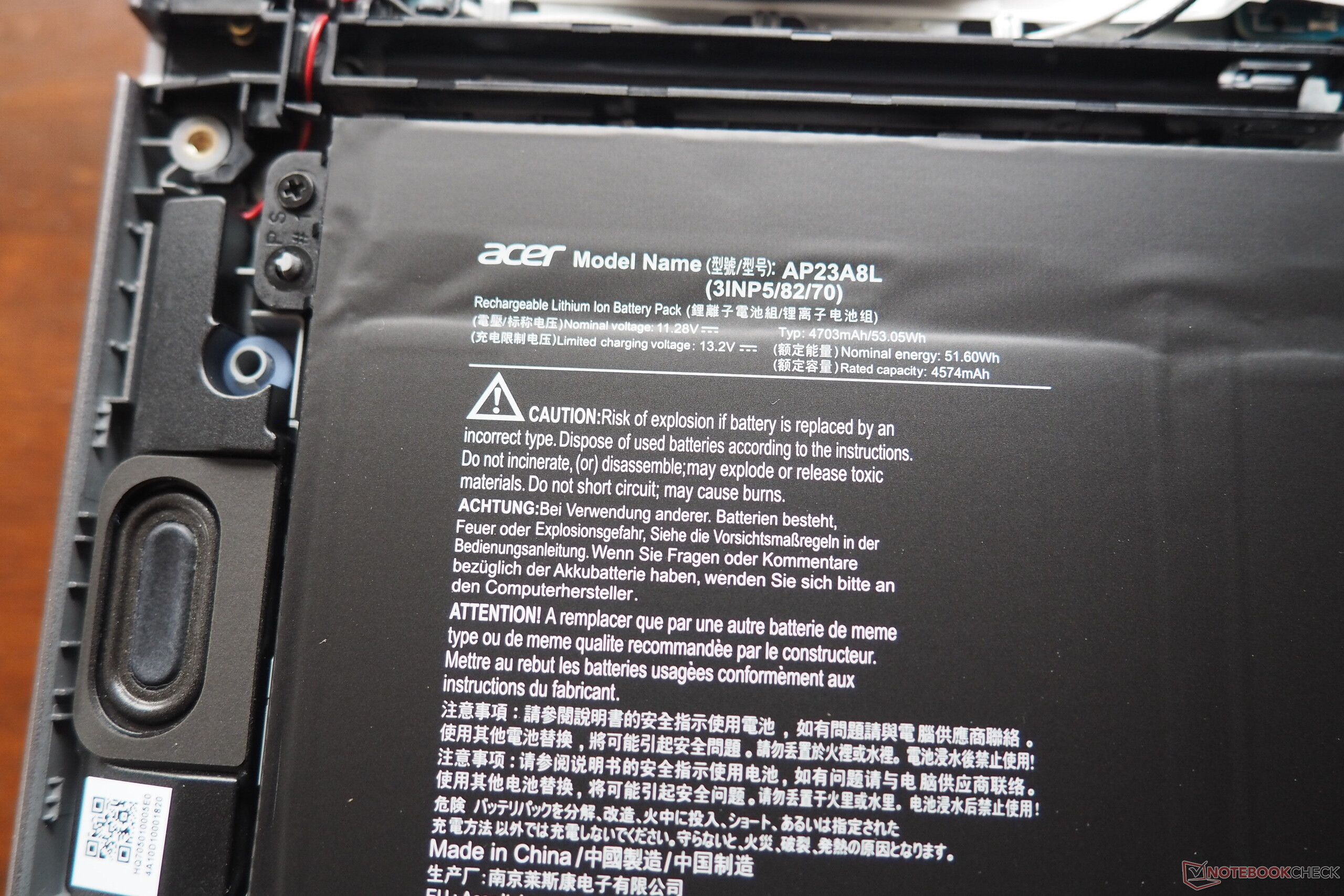

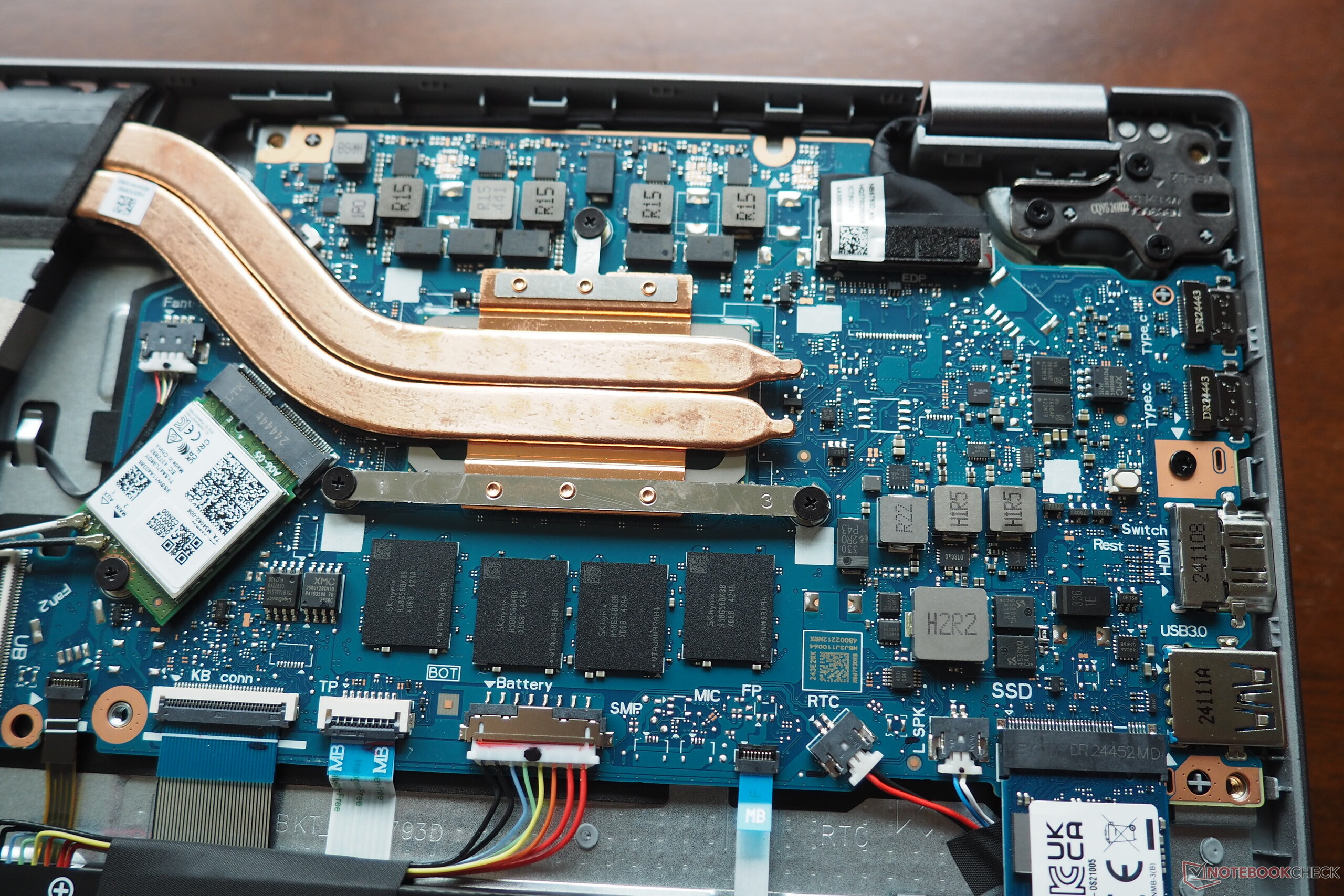

底板由 10 颗十字螺丝固定。引擎盖下是一块大电池，旁边只有一个 M.2 插槽。两根热管从风扇通向内置 CPU。Wi-Fi 模块位于两者之间。
可持续性
在包装方面，宏碁主要使用了硬纸板，电源盖和笔记本电脑的盖子则由塑料制成。
保修
保修期为两年。

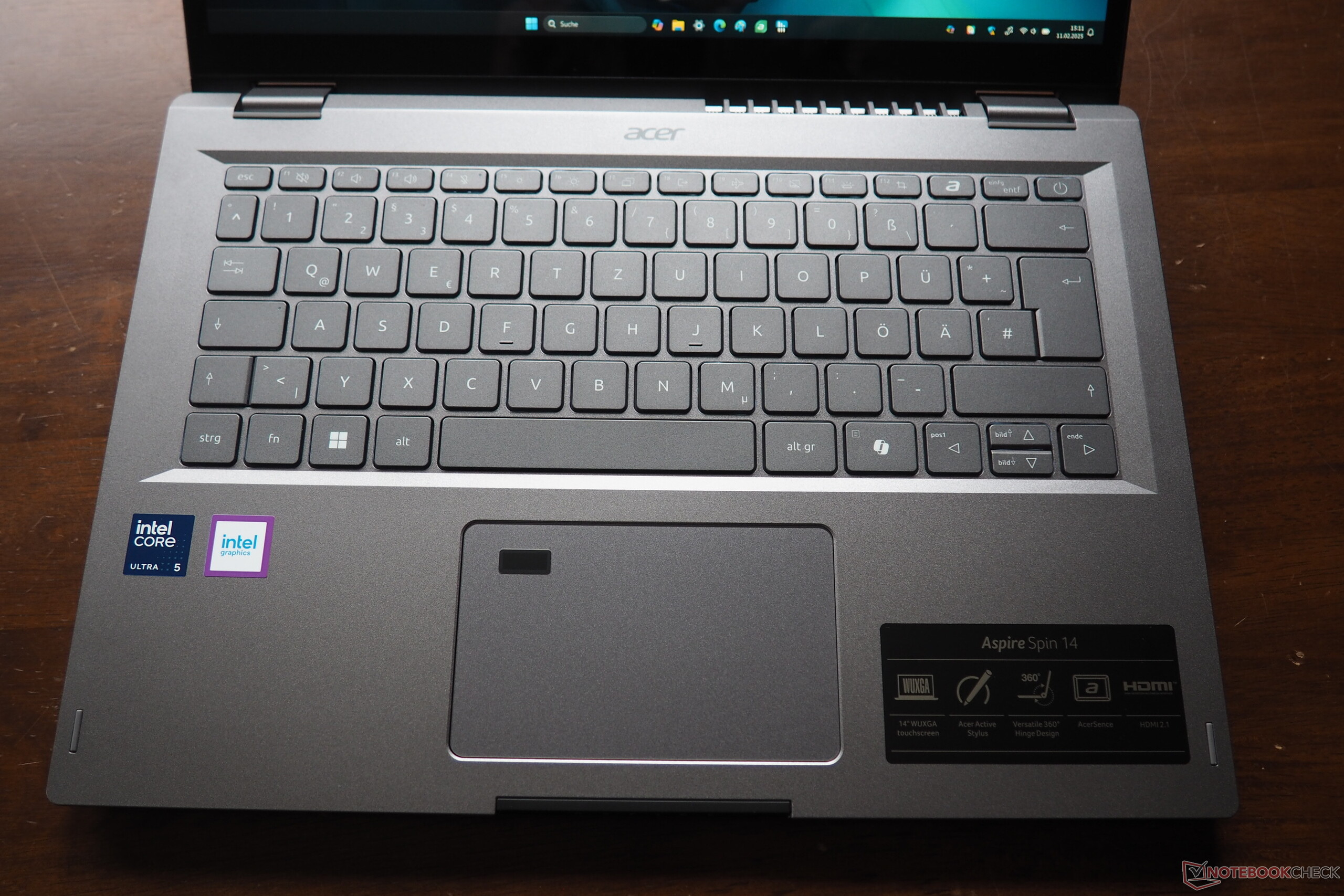

输入设备
键盘

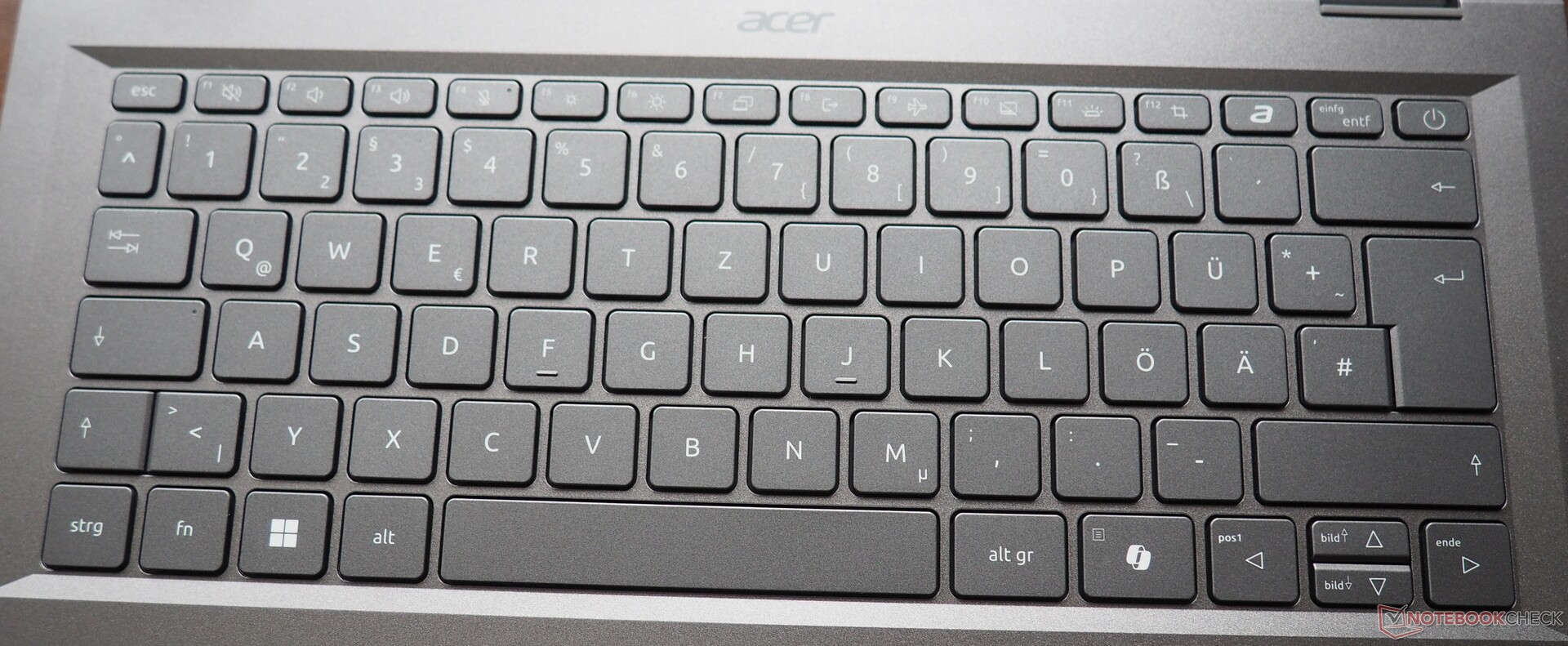

键盘既不令人失望，也没有给人留下特别深刻的印象。与典型的橡胶圆顶键盘一样，键盘的反馈有点松散，但打字时的噪音仍然清晰可闻。键盘布局基本遵循了德国标准，但我们希望看到一个独立的电源按钮和更大的中央方向箭头。白色灯光可调节为两种强度。

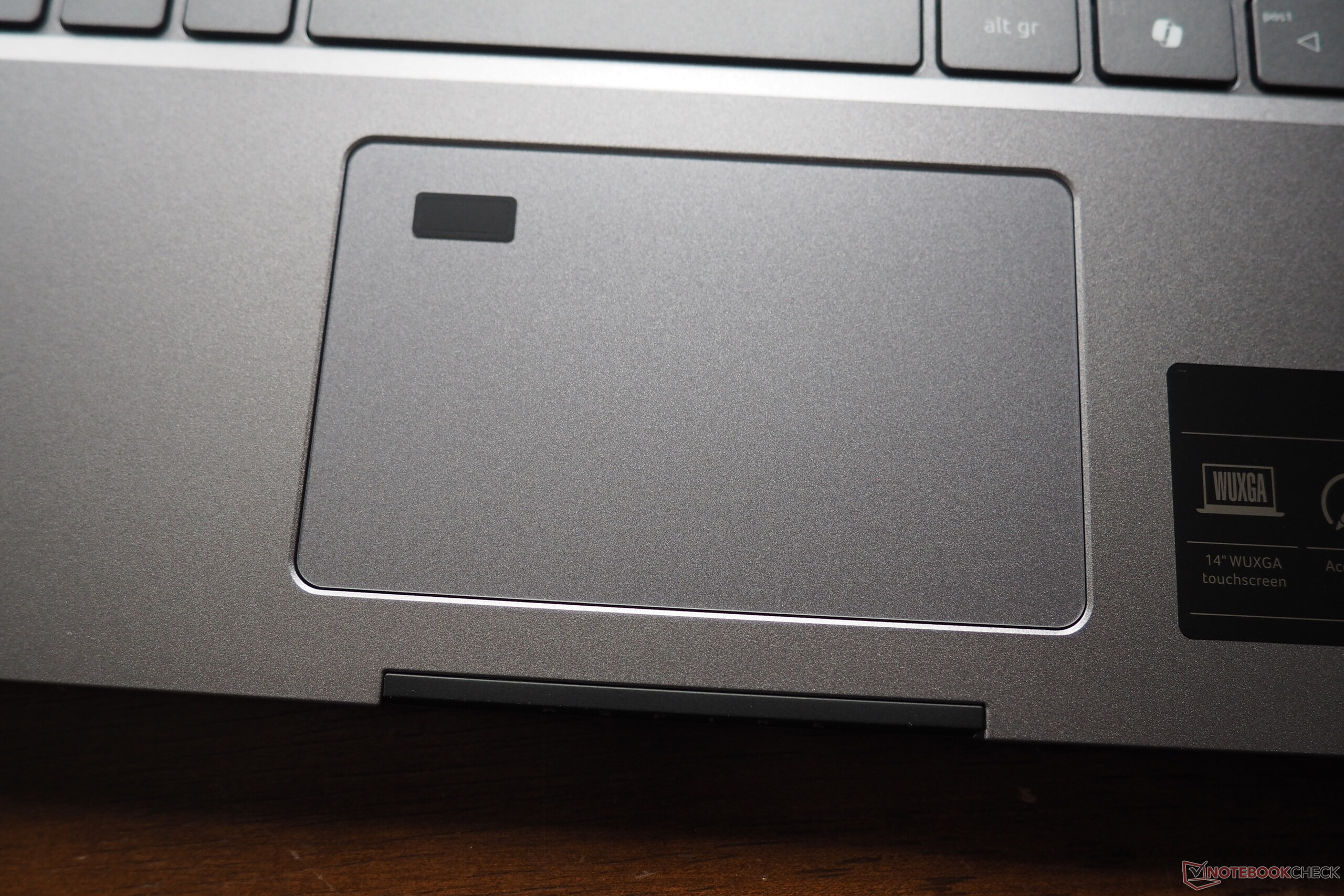

触摸板
触摸板的尺寸为 10.5 x 6.5 厘米，对于一款 14 英寸设备来说不算大，但也够用了。它的触感精确、坚实、顺滑，支持多点触控，让人几乎没有抱怨的余地。触摸板左上角有一个指纹传感器。
显示屏

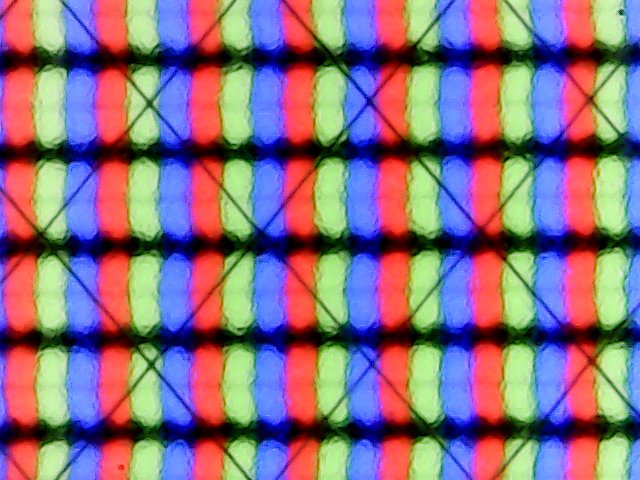

16:10 宽高比、1,920 x 1,200 像素的显示屏肯定还有改进的余地。
| |||||||||||||||||||||||||
Brightness Distribution: 87 %
Center on Battery: 357 cd/m²
Contrast: 1373:1 (Black: 0.26 cd/m²)

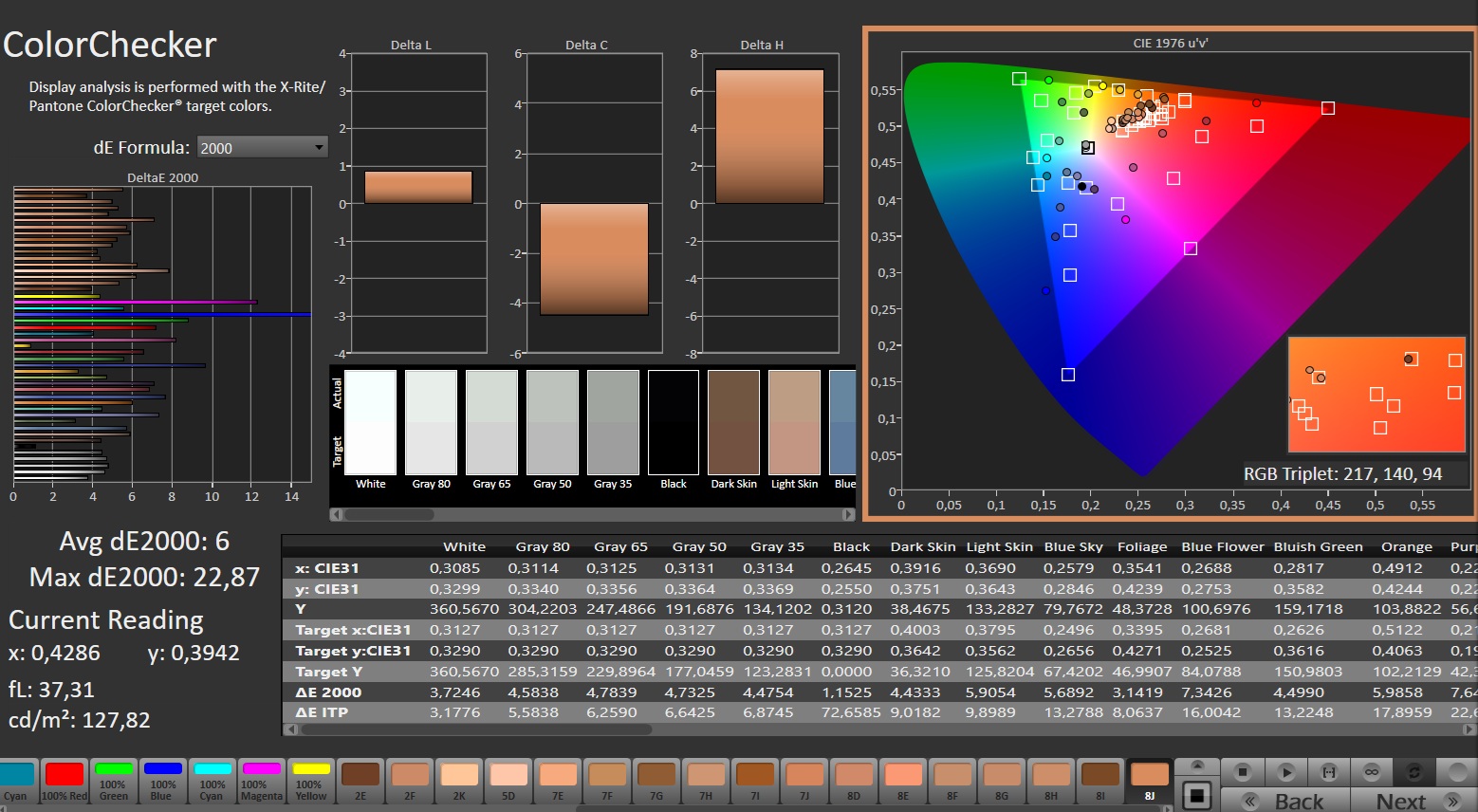

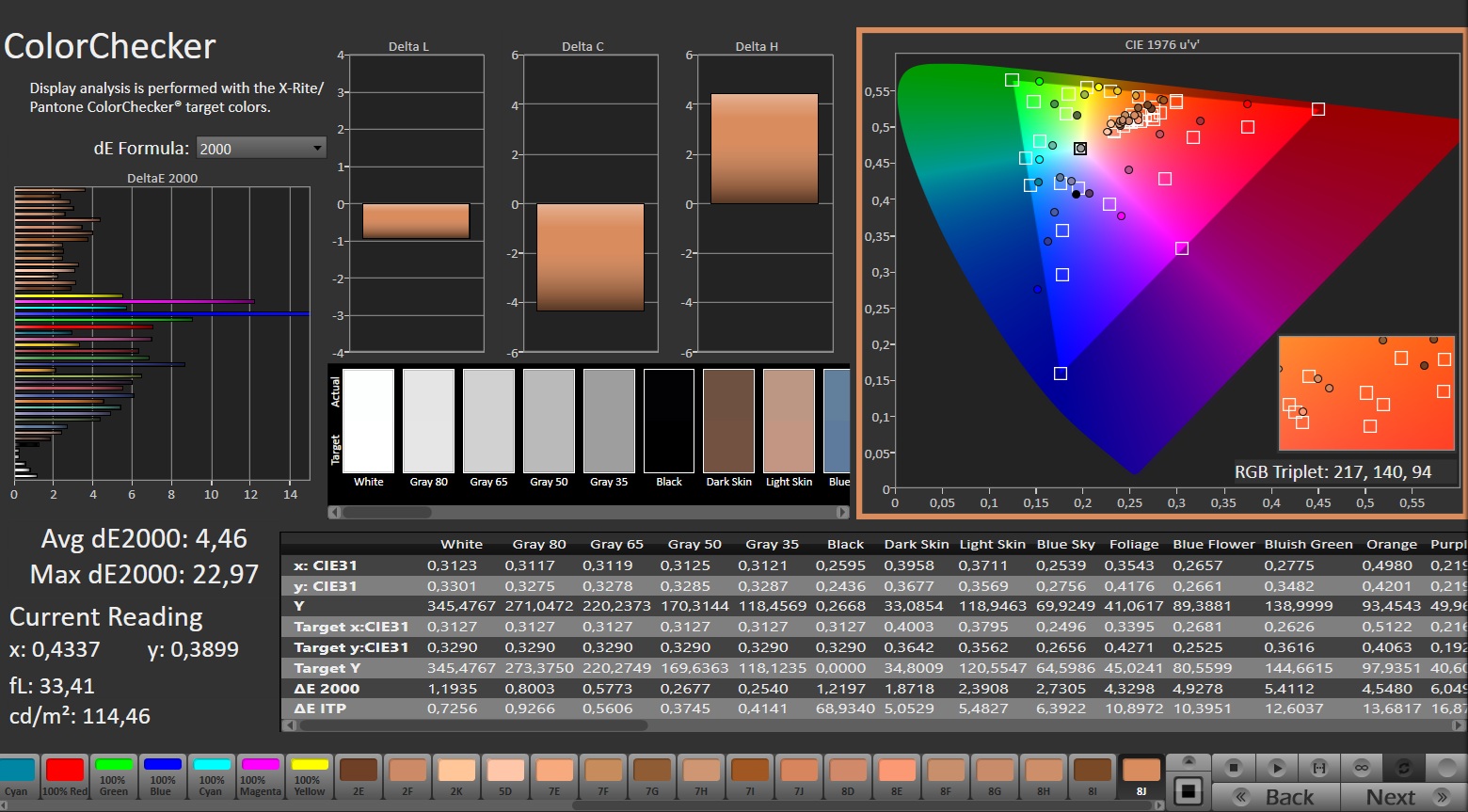

ΔE Color 6 | 0.5-29.43 Ø4.89, calibrated: 4.46

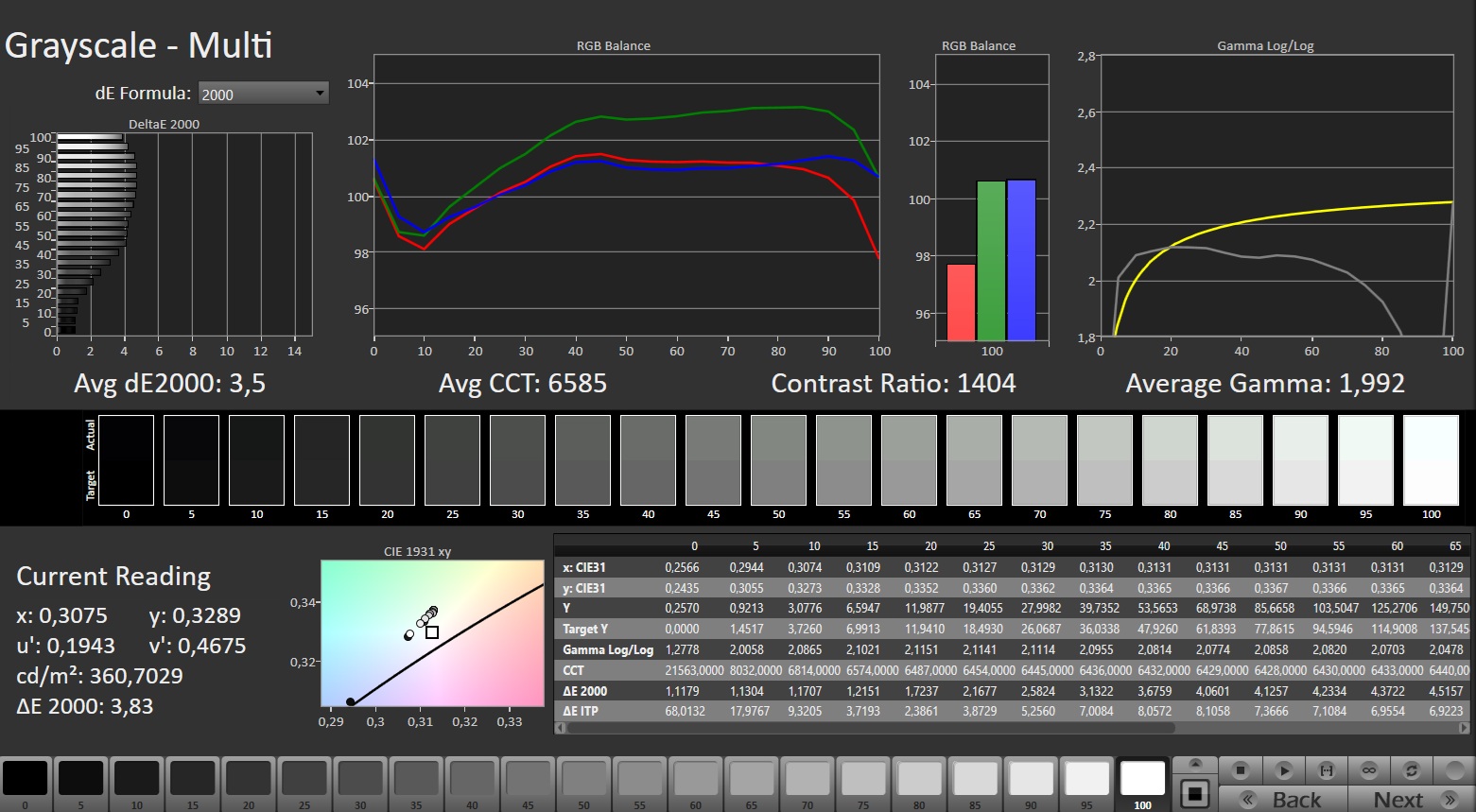

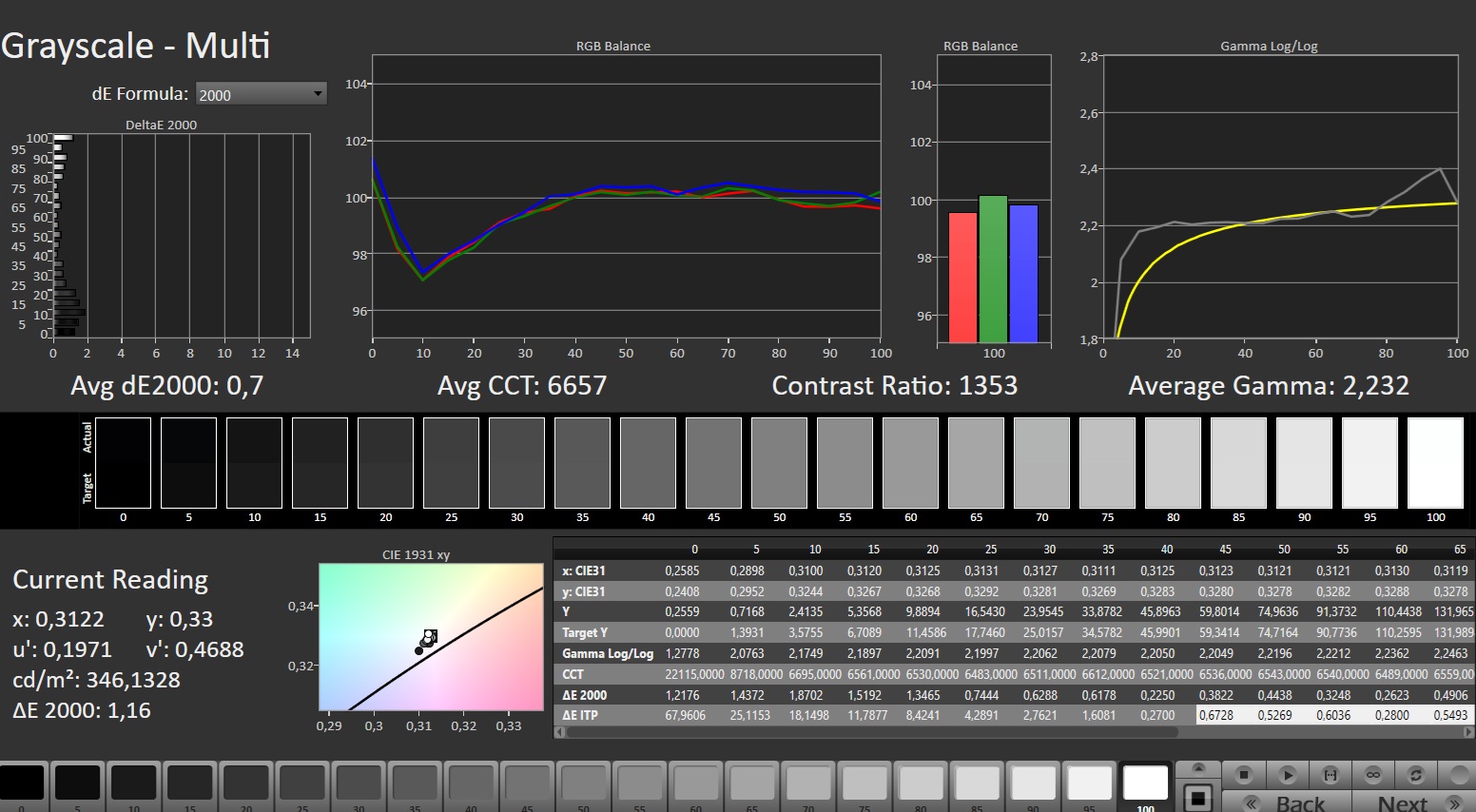

ΔE Greyscale 3.5 | 0.5-98 Ø5.1

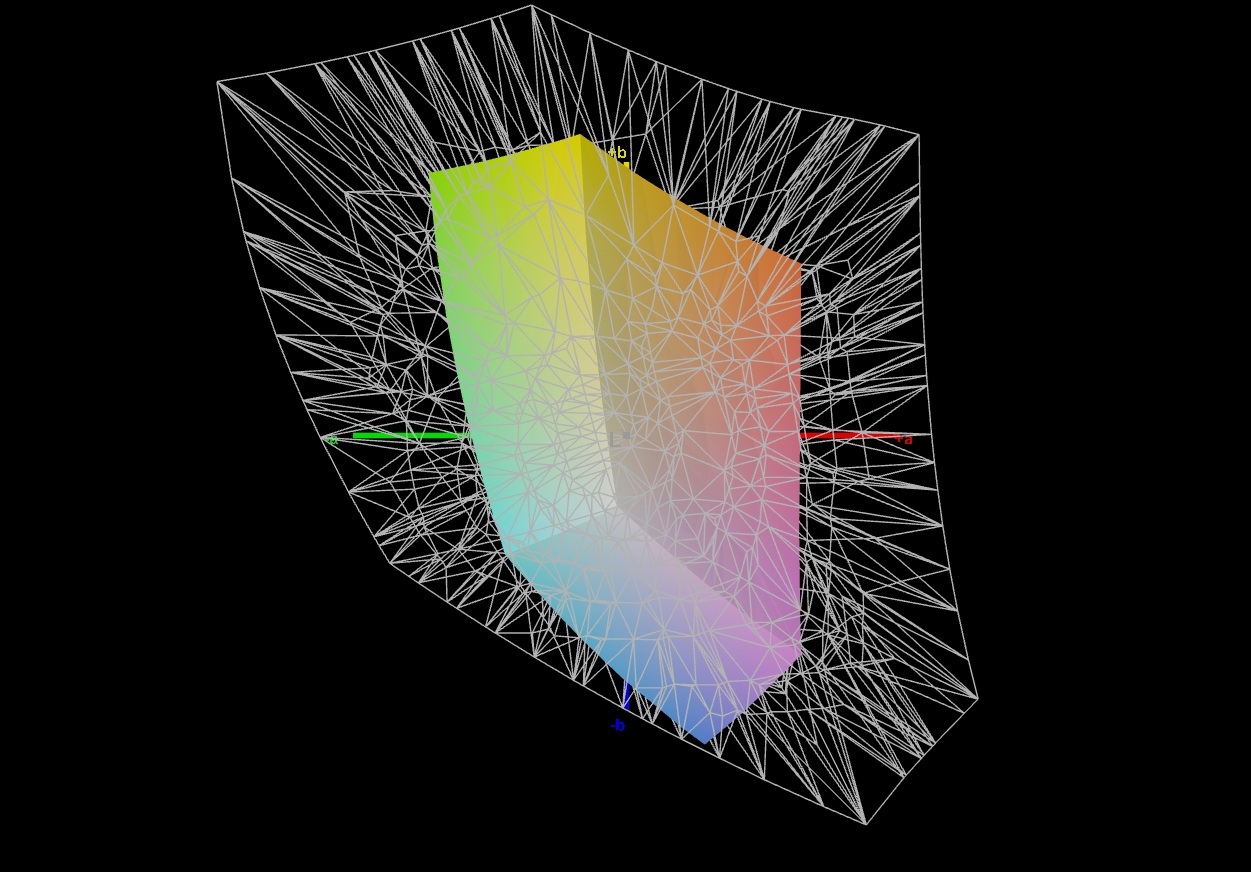

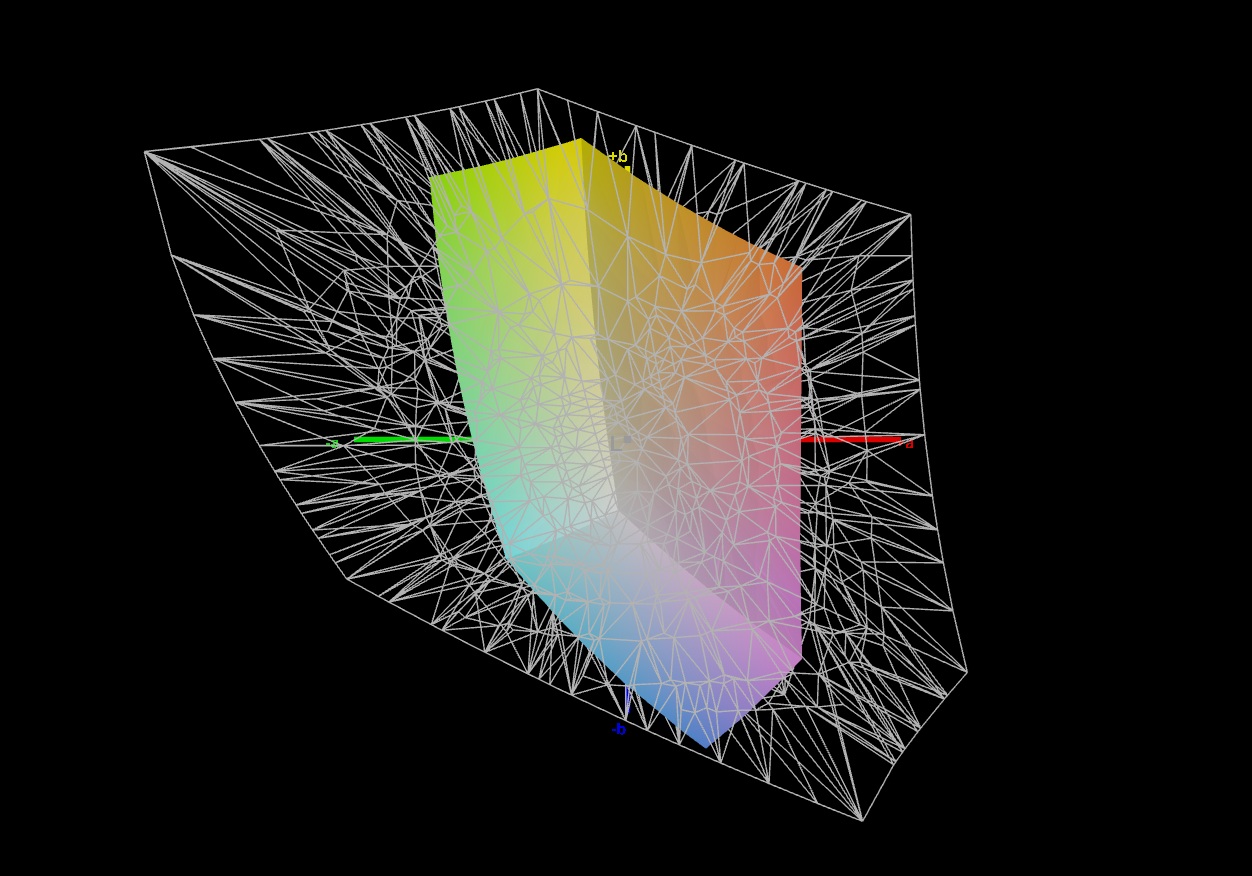

40.5% AdobeRGB 1998 (Argyll 2.2.0 3D)
57.9% sRGB (Argyll 2.2.0 3D)
39.1% Display P3 (Argyll 2.2.0 3D)
Gamma: 1.992
| Acer Aspire Spin 14 ASP14-52MTN-51V5 NV140WUM-N41 (BOE0C63), IPS, 1920x1200, 14", 60 Hz | Acer Aspire 5 Spin 14 BOE CQ NV140WUM-N41, IPS, 1920x1200, 14", 60 Hz | HP Pavilion Plus 14-ew0153TU Samsung SDC4197, OLED, 2880x1800, 14", 120 Hz | Lenovo Yoga Slim 6 14APU8 Lenovo LEN140WUXGA (LEN88AC), OLED, 1920x1200, 14", 60 Hz | HP ZBook Firefly 14 G10 A CMN1435, IPS, 1920x1200, 14", 60 Hz | |
|---|---|---|---|---|---|
| Display | -2% | 116% | 123% | 74% | |
| Display P3 Coverage | 39.1 | 38.5 -2% | 97.9 150% | 99.9 155% | 68.7 76% |
| sRGB Coverage | 57.9 | 57.3 -1% | 99.6 72% | 100 73% | 98.2 70% |
| AdobeRGB 1998 Coverage | 40.5 | 39.8 -2% | 92.1 127% | 97 140% | 70.8 75% |
| Response Times | 2% | 58% | 95% | -62% | |
| Response Time Grey 50% / Grey 80% * | 28.8 ? | 29 ? -1% | 10.8 ? 62% | 1.4 ? 95% | 56.2 ? -95% |
| Response Time Black / White * | 19.7 ? | 19 ? 4% | 9.29 ? 53% | 1.2 ? 94% | 25.2 ? -28% |
| PWM Frequency | 120 ? | 480 ? | |||
| Screen | -2% | 344% | 191% | 31% | |
| Brightness middle | 357 | 249 -30% | 387 8% | 391 10% | 397 11% |
| Brightness | 344 | 235 -32% | 387 13% | 386 12% | 367 7% |
| Brightness Distribution | 87 | 85 -2% | 97 11% | 95 9% | 86 -1% |
| Black Level * | 0.26 | 0.27 -4% | 0.01 96% | 0.02 92% | 0.25 4% |
| Contrast | 1373 | 922 -33% | 38700 2719% | 19550 1324% | 1588 16% |
| Colorchecker dE 2000 * | 6 | 5 17% | 2.03 66% | 1.89 68% | 2.35 61% |
| Colorchecker dE 2000 max. * | 22.87 | 8.32 64% | 3.86 83% | 4.43 81% | 4.68 80% |
| Colorchecker dE 2000 calibrated * | 4.46 | 5.06 -13% | 1.6 64% | 1.79 60% | 1.15 74% |
| Greyscale dE 2000 * | 3.5 | 2.86 18% | 2.3 34% | 1.3 63% | 2.4 31% |
| Gamma | 1.992 110% | 2.19 100% | 2.23 99% | 2.204 100% | 2.067 106% |
| CCT | 6585 99% | 6419 101% | 6523 100% | 6411 101% | 6409 101% |
| Total Average (Program / Settings) | -1% /
-1% | 173% /
254% | 136% /
163% | 14% /
27% |
* ... smaller is better
虽然该设备 344 cd/m² 的平均亮度明显高于（旧）Aspire 5 Spin 14 的 235 cd/m²，但在非常相似但不完全相同的情况下，400 cd/m² 甚至 500 cd/m² 以上的亮度更适合户外使用，特别是考虑到高反射表面。

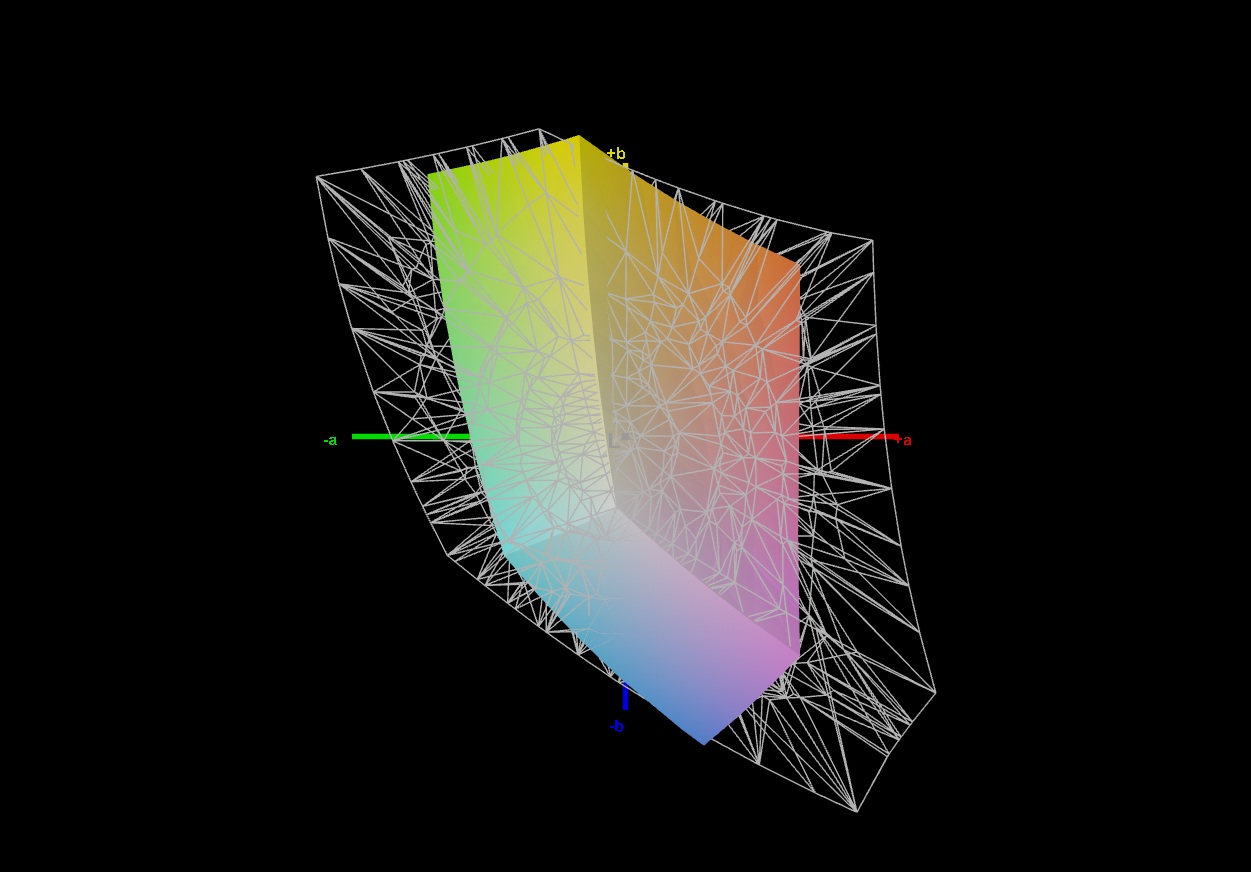

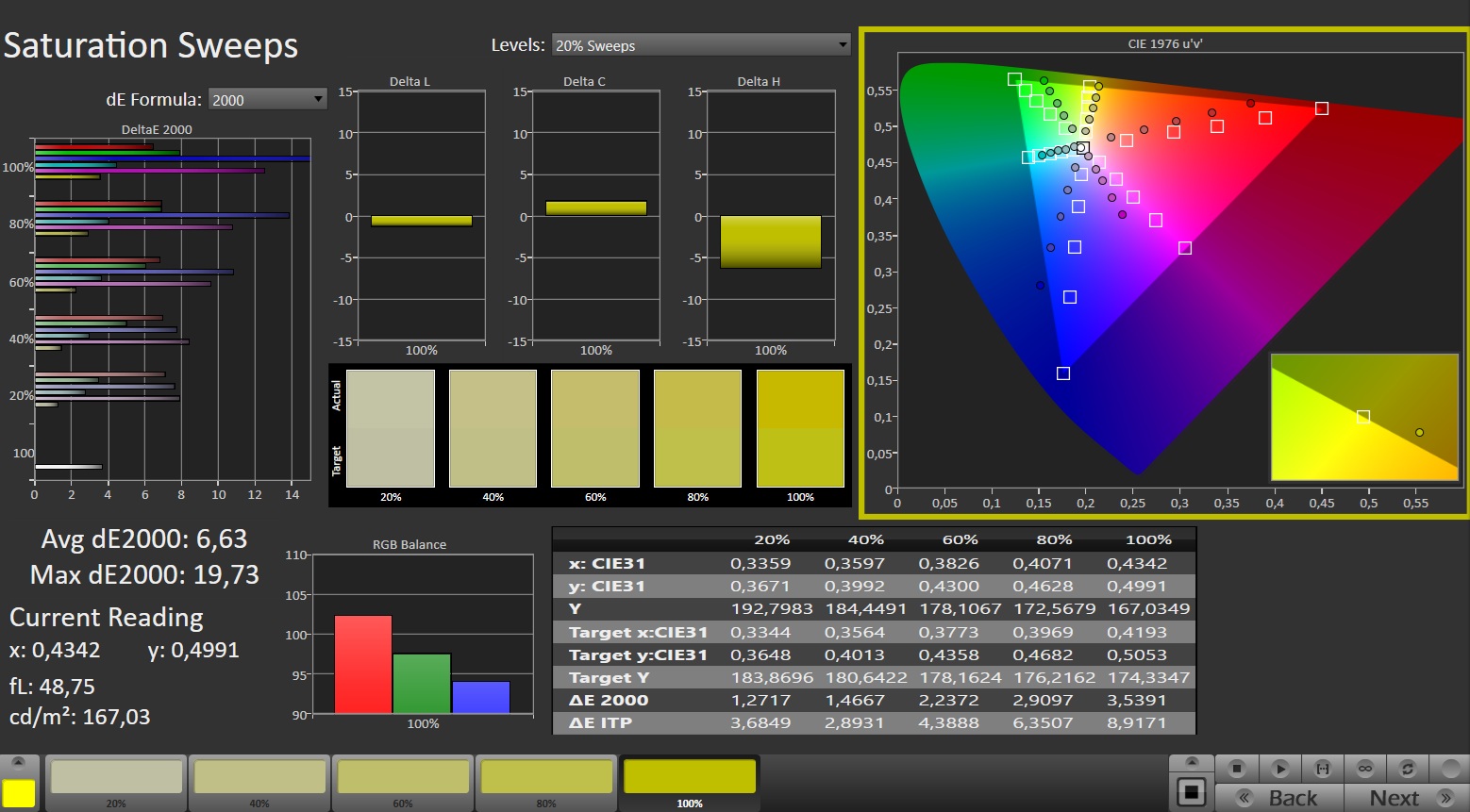

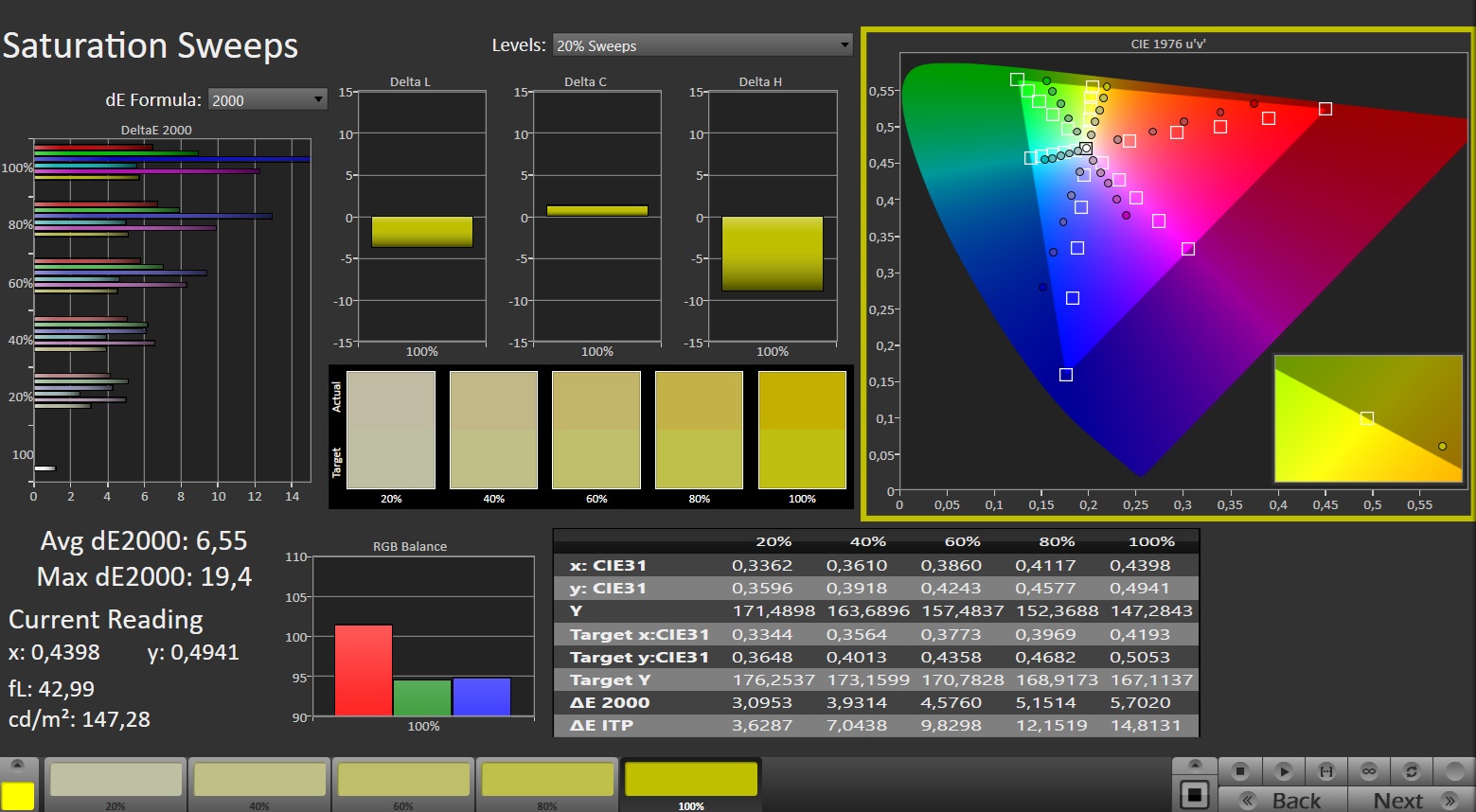

不过，60 Hz 屏幕最大的弱点是色彩空间较差：尽管对比度为 1,373:1 而且还算不错，但 58% sRGB 色彩空间还是会导致图像比较暗淡，这在电影中尤为明显。即使经过校准，色彩准确度也会更好。

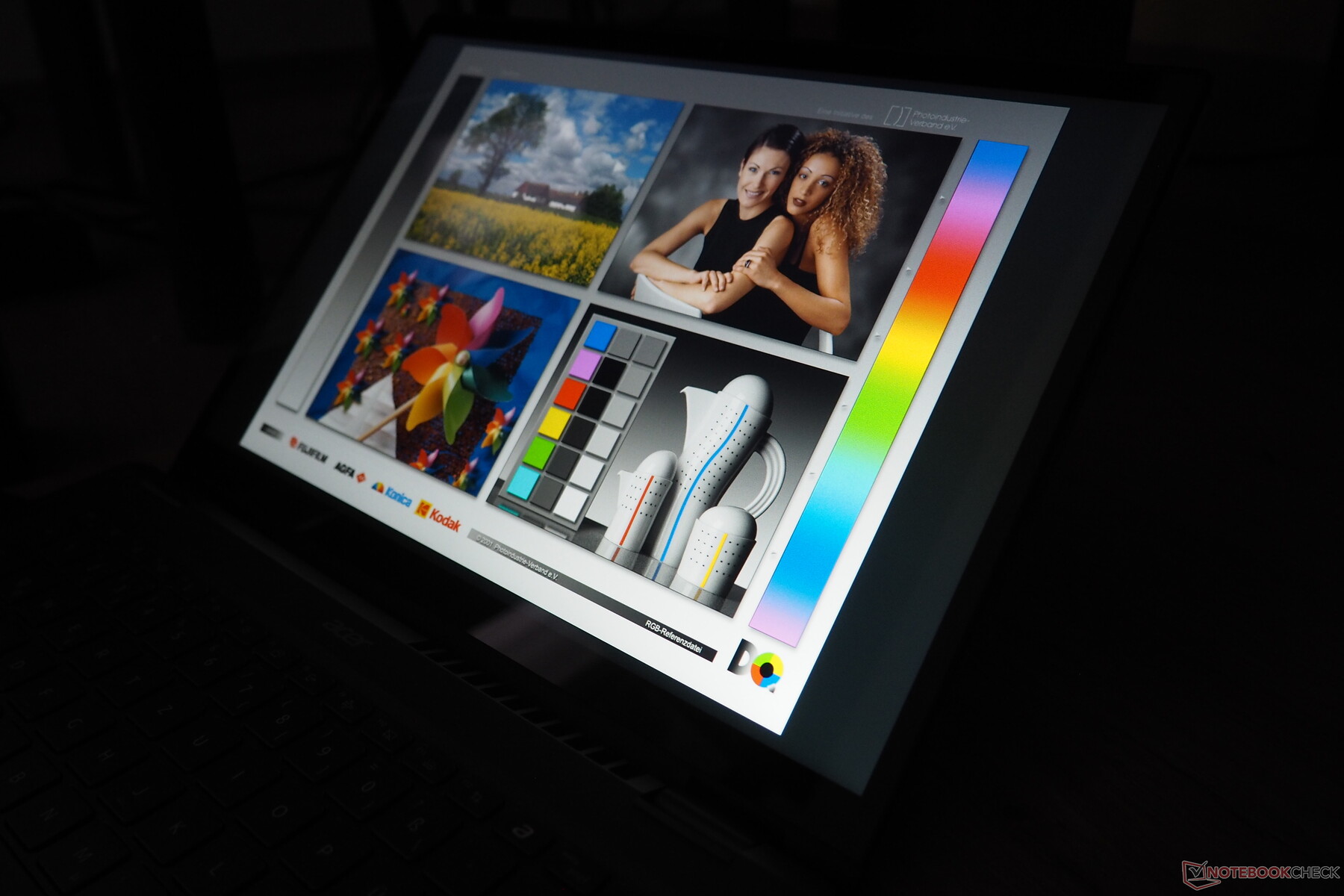

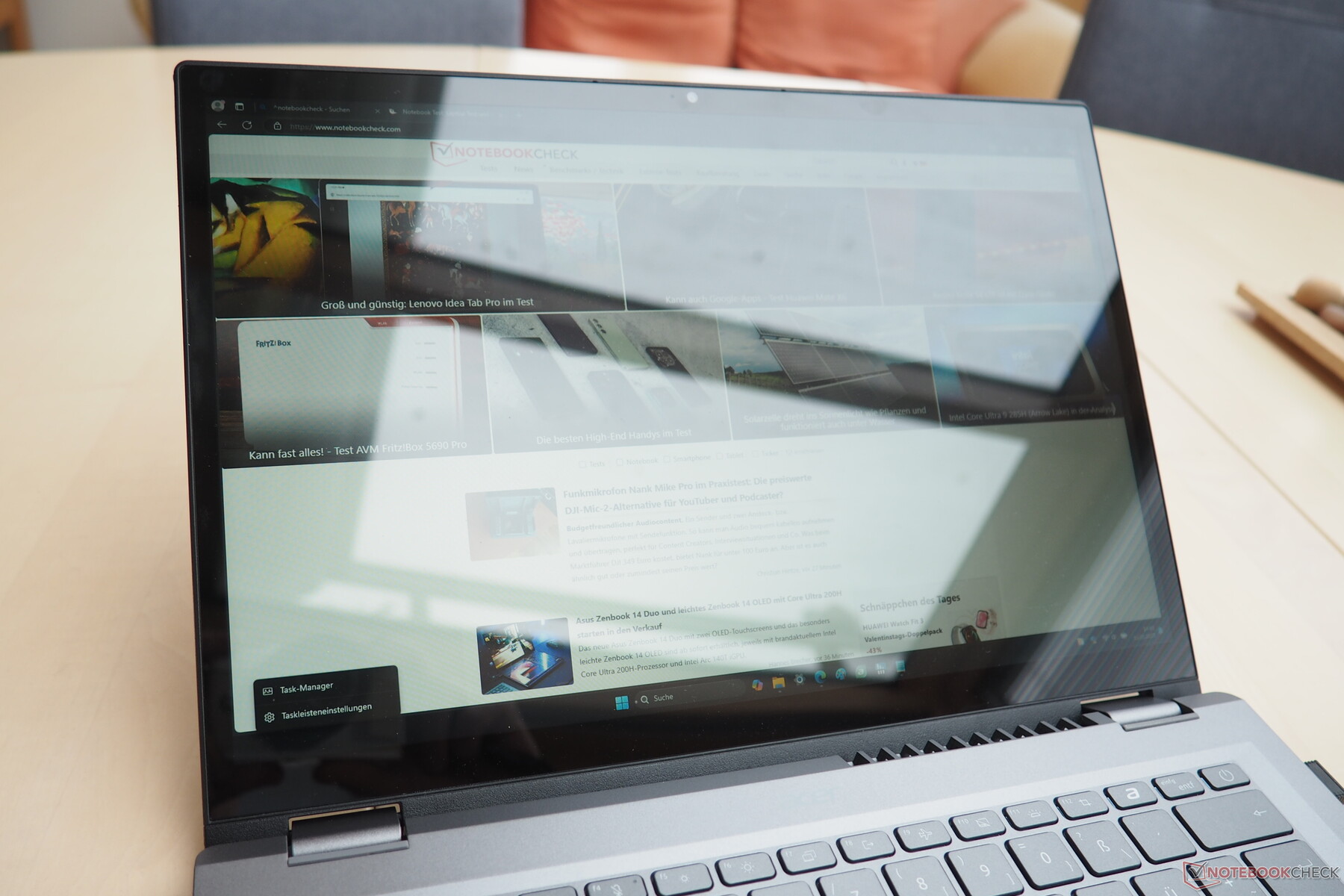

对于 IPS 面板来说，可视角度既好又典型，响应时间也在可接受的范围内。在我们的测试中，无论是使用手指还是附带的触控笔（可存放在机壳中）进行触摸输入，通常都能可靠地识别和接受。

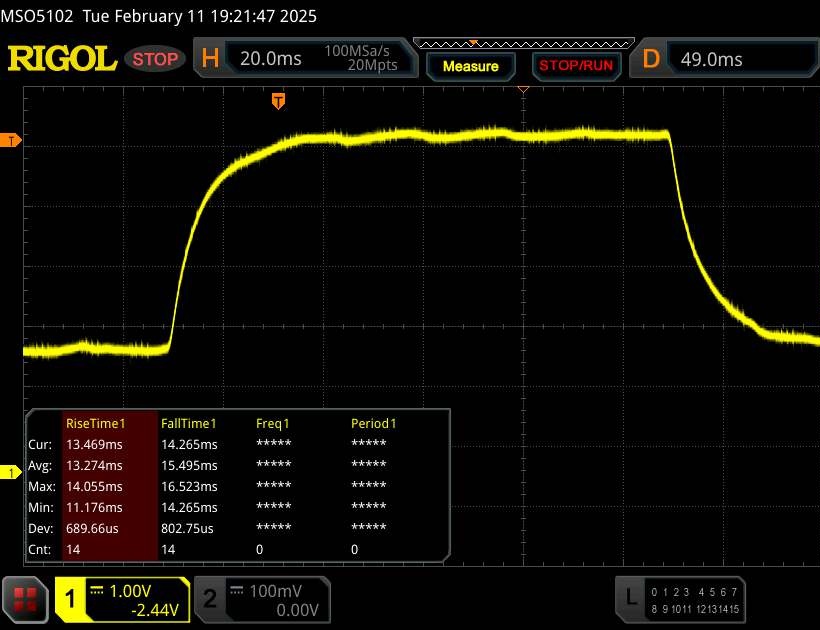

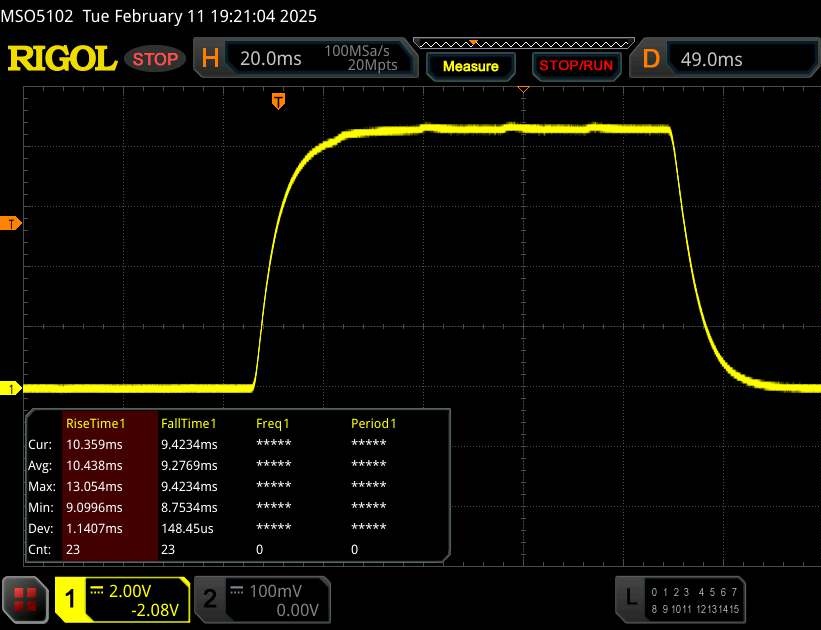

Display Response Times
| ↔ Response Time Black to White | ||
|---|---|---|
| 19.7 ms ... rise ↗ and fall ↘ combined | ↗ 10.4 ms rise |  |
| ↘ 9.3 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 40 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (20.9 ms). | ||
| ↔ Response Time 50% Grey to 80% Grey | ||
| 28.8 ms ... rise ↗ and fall ↘ combined | ↗ 13.3 ms rise |  |
| ↘ 15.5 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 35 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.7 ms). | ||

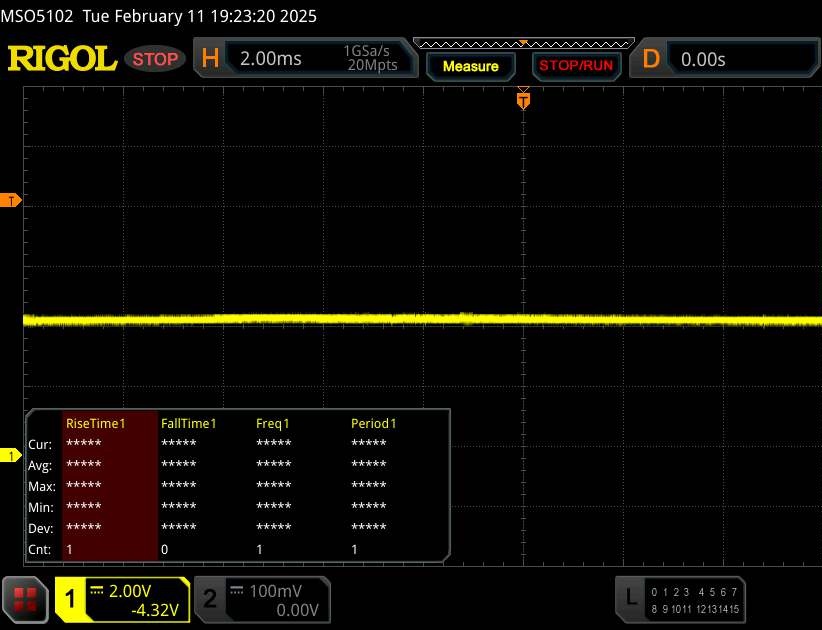

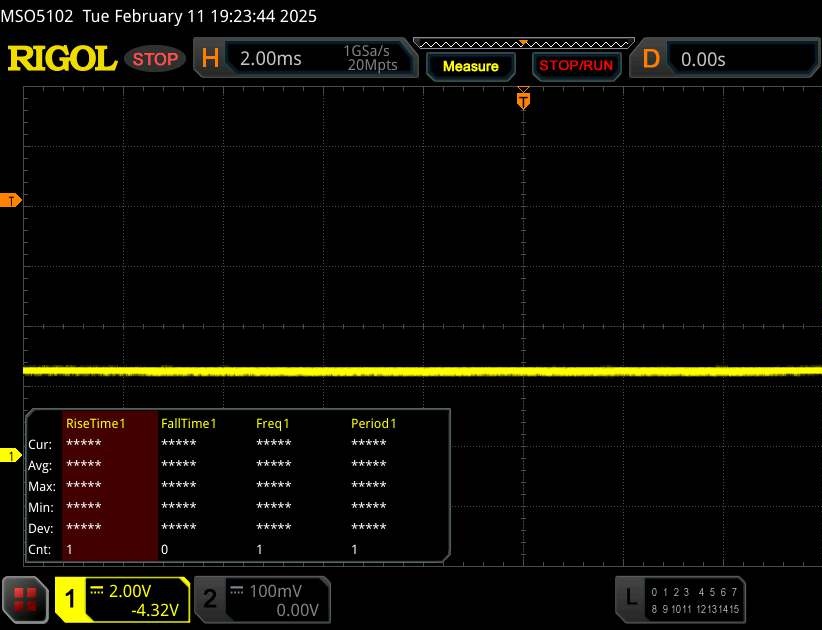

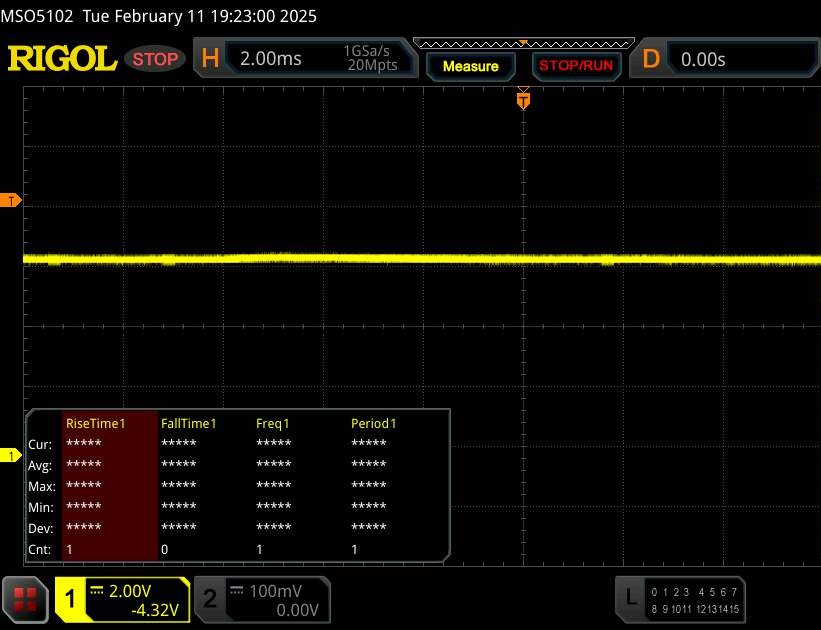

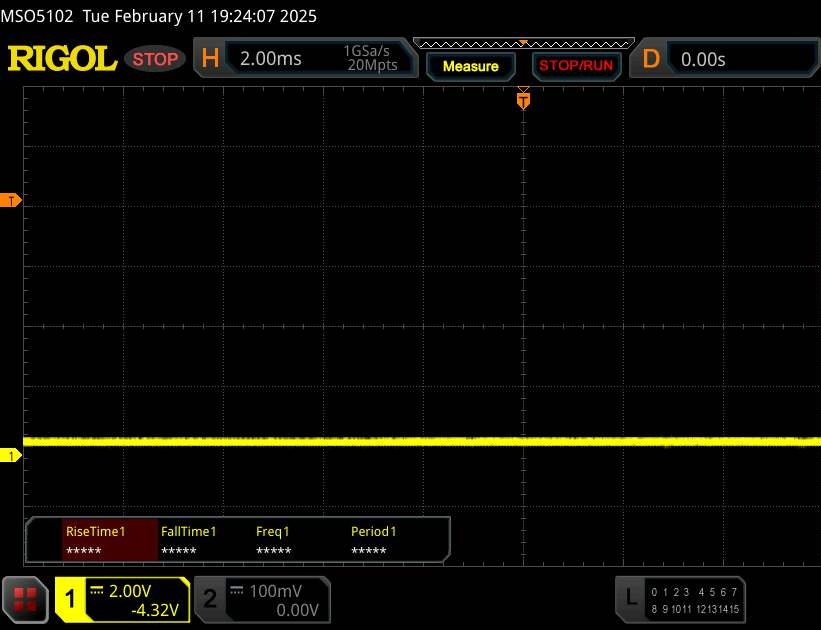

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8619 (minimum: 5 - maximum: 343500) Hz was measured. | |||
性能

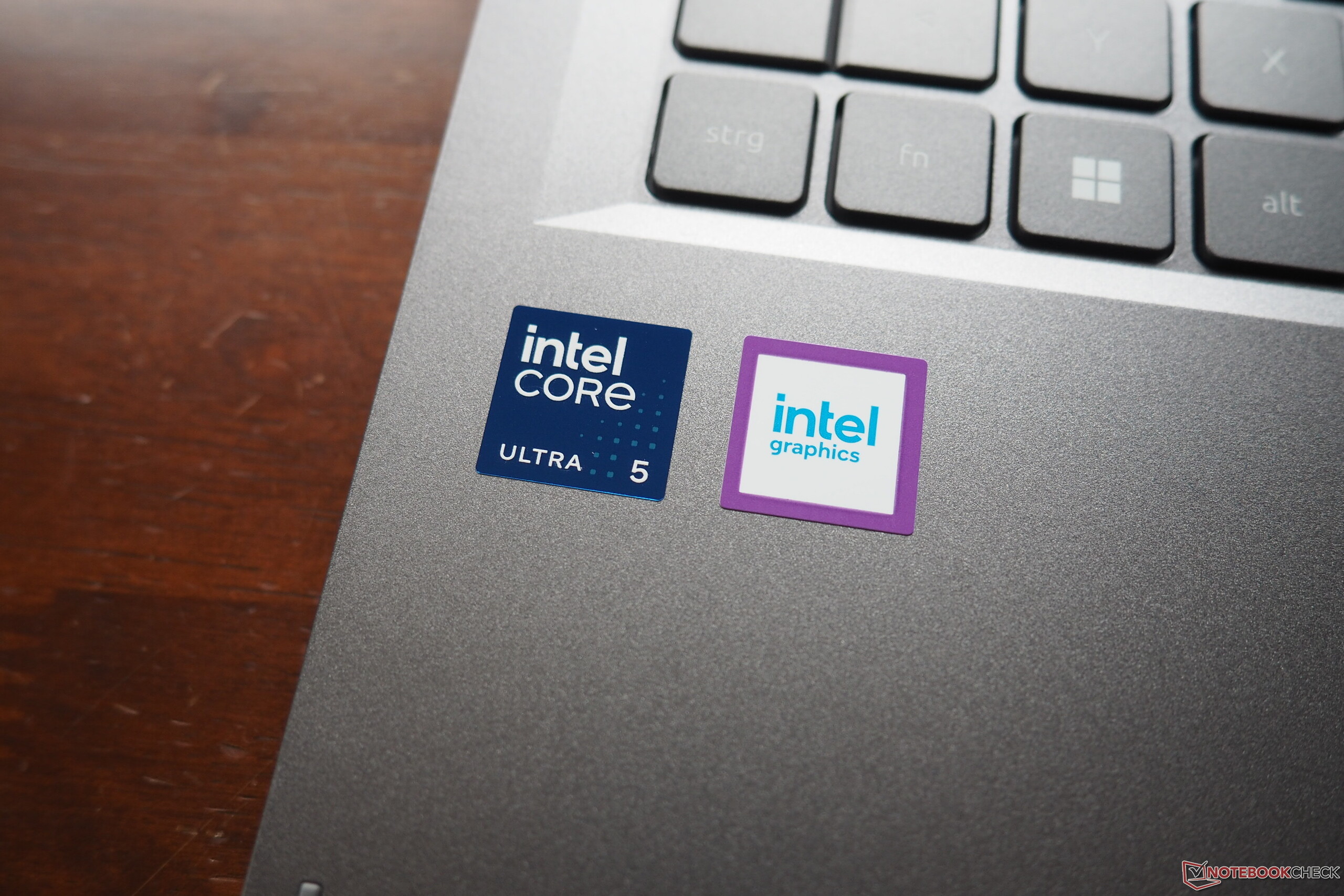

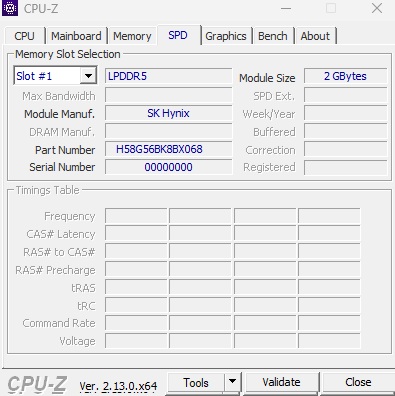

Aspire Spin 14 目前的配置是 Core Ultra 5 115U 和 16GB LPDDR5 内存，介于入门级和中端之间。市场上还有性能更强的 800 美元笔记本电脑，不过它们并不总是提供二合一功能或触摸屏--这两项你可能会看重的功能。
测试条件

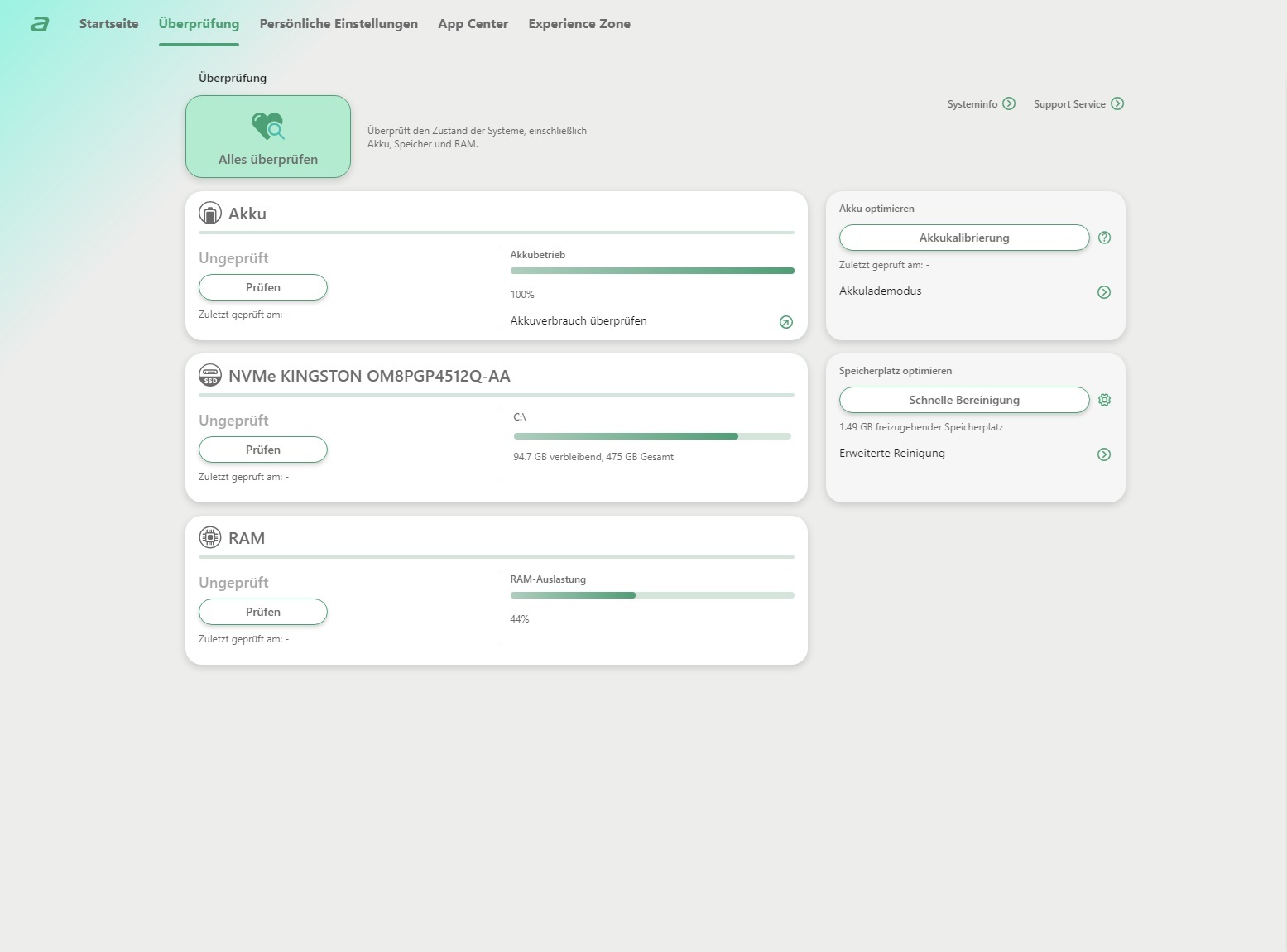

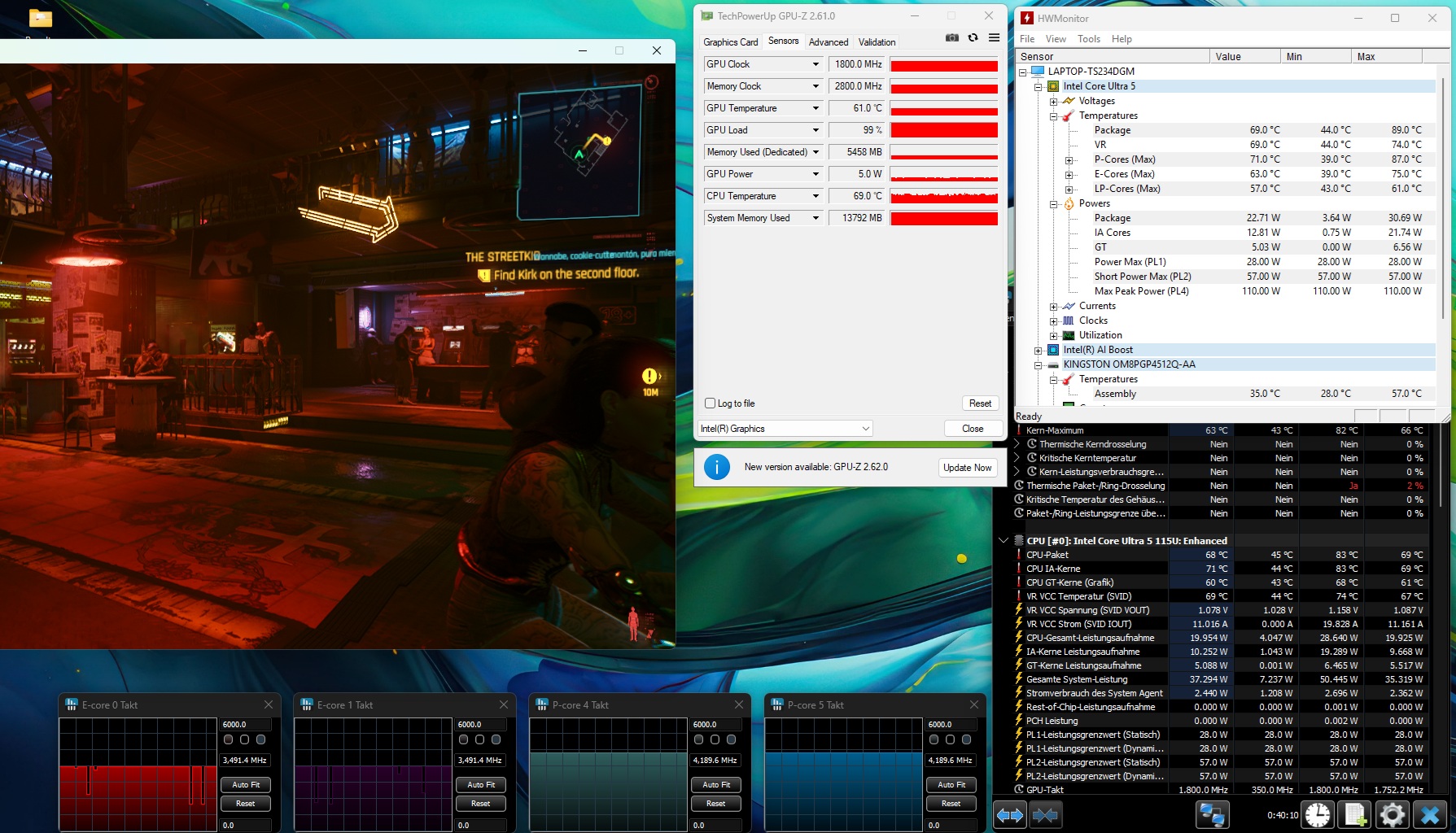

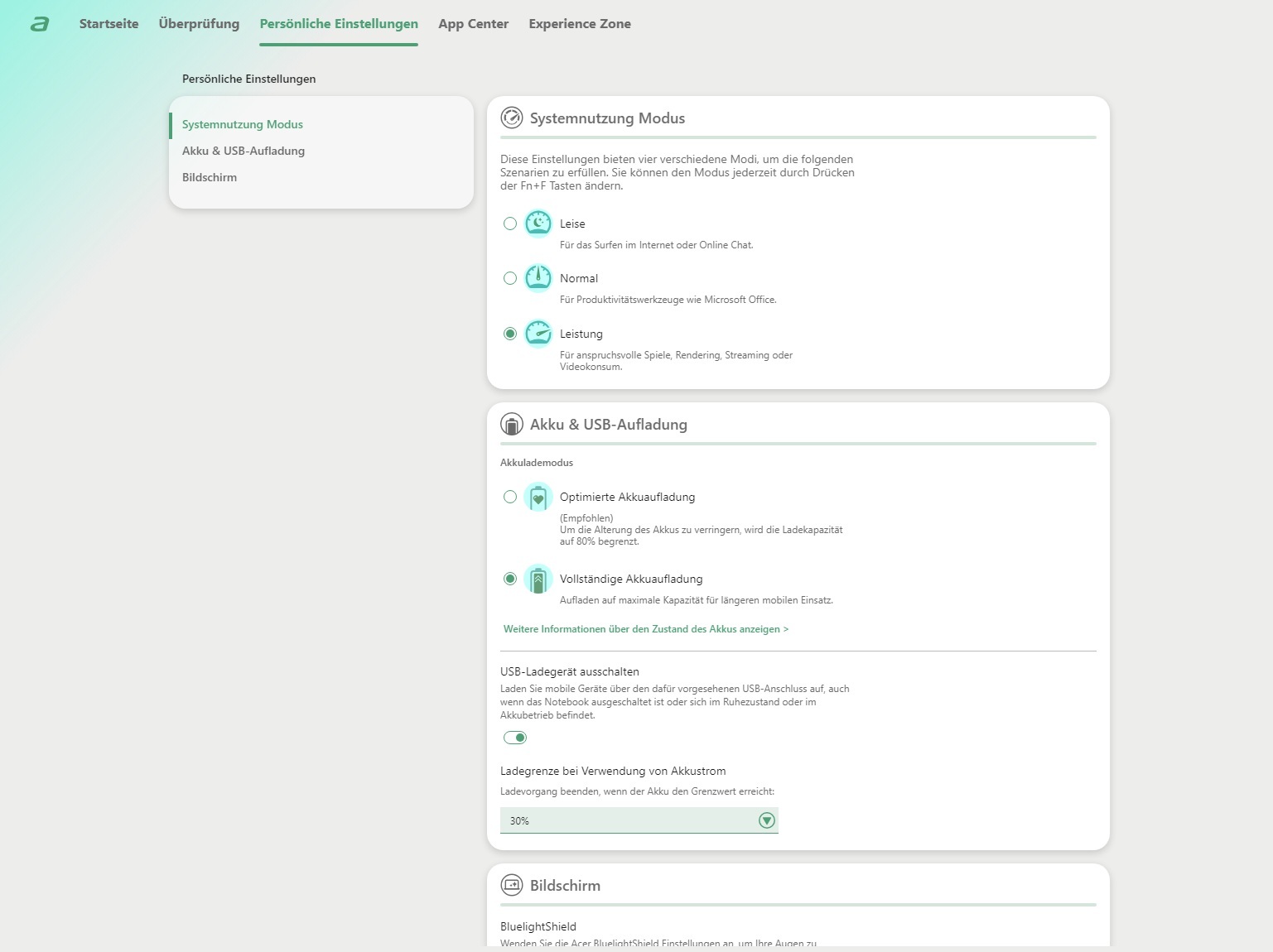

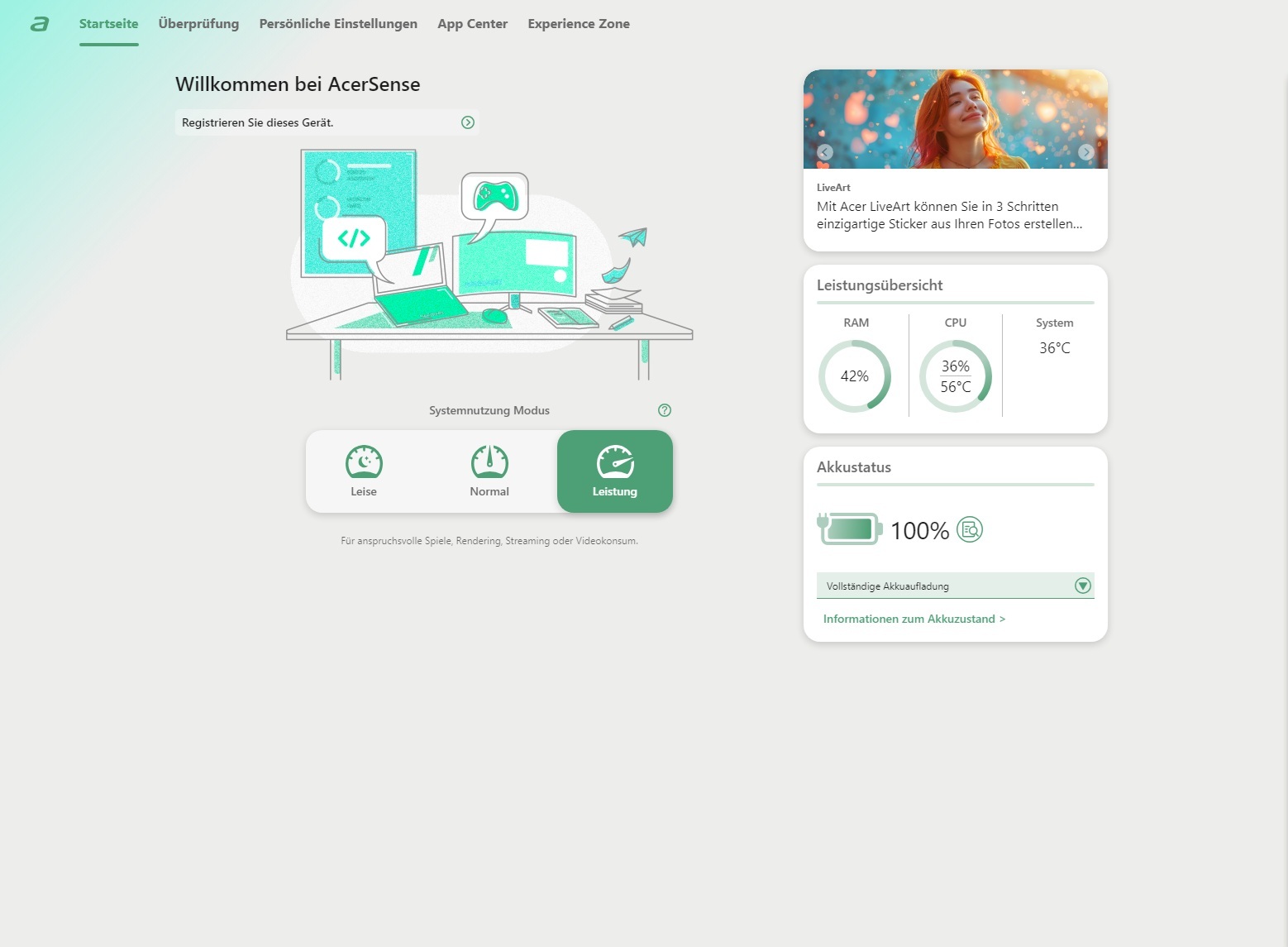

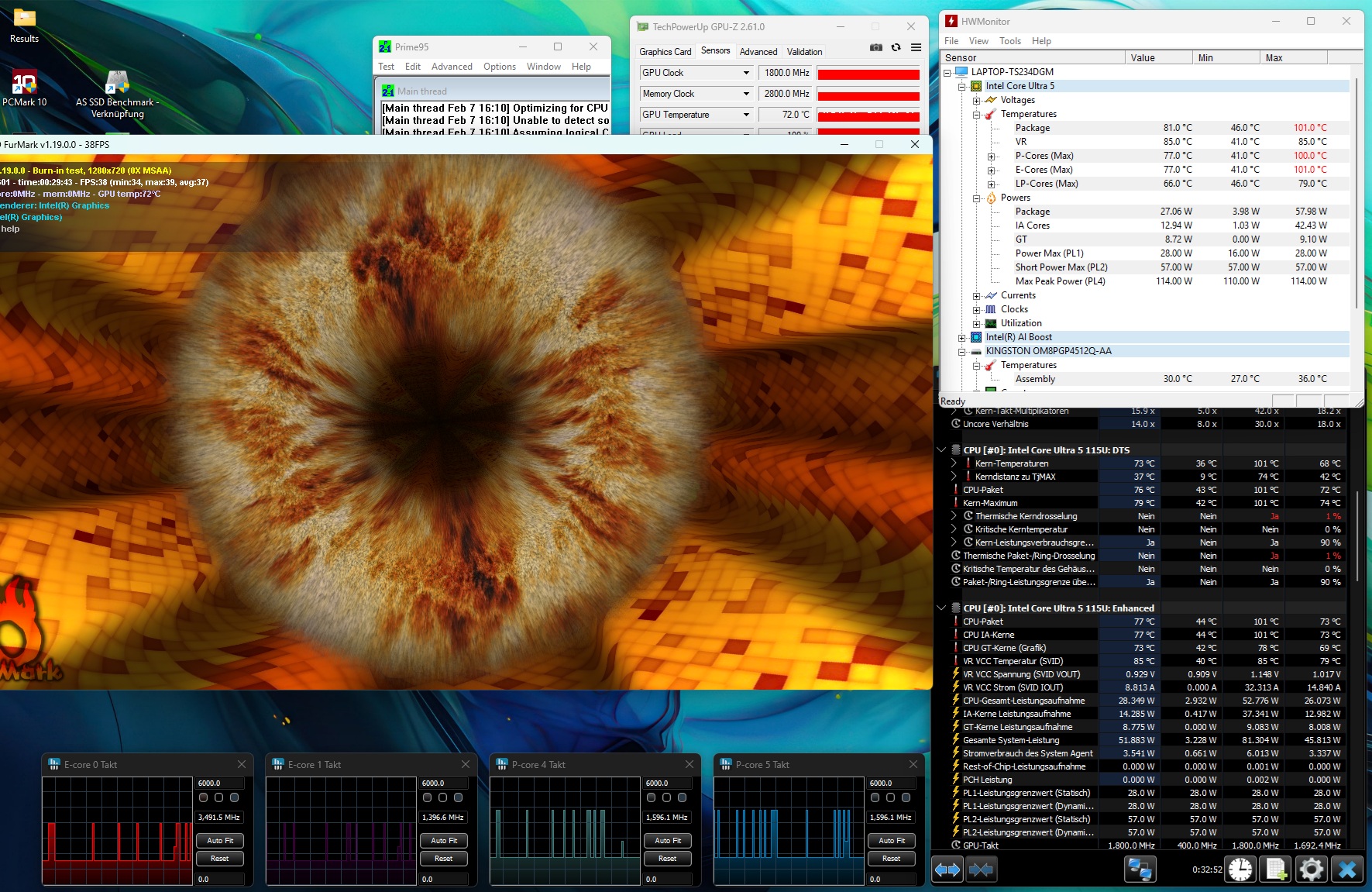

制造商的 Acer Sense 软件提供三种系统模式：安静、正常和高性能。第一种模式至少在噪音方面有所不同，而后两种模式的结果几乎完全相同。我们使用性能模式进行测试。
| AcerSense 模式 | 静音 | 正常 | 性能 |
| 赛博朋克 2077 噪音 | 40 dB(A) | 47 dB(A) | 47 dB(A) |
| 赛博朋克 2077》性能（FHD/超高清） | 8.9 FPS | 9.9 FPS | 10.0 FPS |
| Cinebench R15 Multi Score | 1,144 分 | 1,177 分 | 1,179 分 |
| CPU PL1 | 25 W | 28 W | 28 W |
| CPU PL2 | 50 W | 57 W | 57 W |
处理器

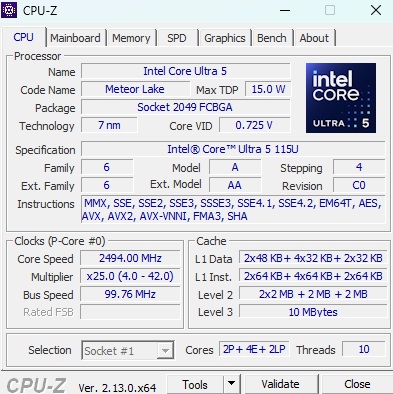

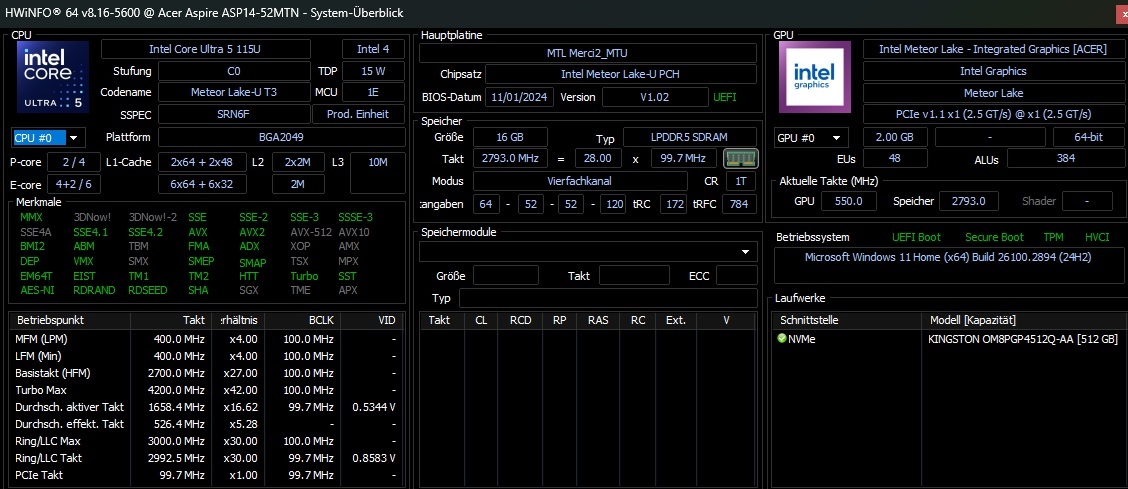

我们尚未对酷睿 Ultra 5 115U 进行评测，它是一款八核流星湖一代处理器，可同时处理多达 10 个线程（更多详情，请参阅 "CPU "页面）。 CPU 页面).28 瓦的 PL1 和 57 瓦的 PL2 使 Aspire Spin 14 能够享受可用的性能，与 10 核 12 线程的酷睿 i5-1335U 大致相当，只是略有妥协。Ryzen 5 7540U（6 核 12 线程）的整体速度快了近 30%。
Cinebench R15 Multi Continuous Test
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo Yoga Slim 6 14APU8 | |
| Average of class Convertible | |
| Acer Aspire 5 Spin 14 | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Average Intel Core Ultra 5 115U | |
| HP Pavilion Plus 14-ew0153TU | |
| AIDA64 / FP32 Ray-Trace | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo Yoga Slim 6 14APU8 | |
| Average of class Convertible (2179 - 64158, n=60, last 2 years) | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Average Intel Core Ultra 5 115U () | |
| Acer Aspire 5 Spin 14 | |
| HP Pavilion Plus 14-ew0153TU | |
| AIDA64 / FPU Julia | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo Yoga Slim 6 14APU8 | |
| Average of class Convertible (11392 - 183760, n=59, last 2 years) | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Average Intel Core Ultra 5 115U () | |
| Acer Aspire 5 Spin 14 | |
| HP Pavilion Plus 14-ew0153TU | |
| AIDA64 / CPU SHA3 | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo Yoga Slim 6 14APU8 | |
| Average of class Convertible (797 - 8151, n=59, last 2 years) | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Average Intel Core Ultra 5 115U () | |
| Acer Aspire 5 Spin 14 | |
| HP Pavilion Plus 14-ew0153TU | |
| AIDA64 / CPU Queen | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo Yoga Slim 6 14APU8 | |
| Average of class Convertible (22413 - 145339, n=59, last 2 years) | |
| Acer Aspire 5 Spin 14 | |
| HP Pavilion Plus 14-ew0153TU | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Average Intel Core Ultra 5 115U () | |
| AIDA64 / FPU SinJulia | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo Yoga Slim 6 14APU8 | |
| Average of class Convertible (1120 - 29155, n=59, last 2 years) | |
| Acer Aspire 5 Spin 14 | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Average Intel Core Ultra 5 115U () | |
| HP Pavilion Plus 14-ew0153TU | |
| AIDA64 / FPU Mandel | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo Yoga Slim 6 14APU8 | |
| Average of class Convertible (5749 - 97193, n=59, last 2 years) | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Average Intel Core Ultra 5 115U () | |
| Acer Aspire 5 Spin 14 | |
| HP Pavilion Plus 14-ew0153TU | |
| AIDA64 / CPU AES | |
| Acer Aspire 5 Spin 14 | |
| HP ZBook Firefly 14 G10 A | |
| Average of class Convertible (21774 - 169089, n=59, last 2 years) | |
| Lenovo Yoga Slim 6 14APU8 | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Average Intel Core Ultra 5 115U () | |
| HP Pavilion Plus 14-ew0153TU | |
| AIDA64 / CPU ZLib | |
| HP ZBook Firefly 14 G10 A | |
| Average of class Convertible (218 - 2001, n=59, last 2 years) | |
| Lenovo Yoga Slim 6 14APU8 | |
| Acer Aspire 5 Spin 14 | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Average Intel Core Ultra 5 115U () | |
| HP Pavilion Plus 14-ew0153TU | |
| AIDA64 / FP64 Ray-Trace | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo Yoga Slim 6 14APU8 | |
| Average of class Convertible (1169 - 34297, n=59, last 2 years) | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Average Intel Core Ultra 5 115U () | |
| Acer Aspire 5 Spin 14 | |
| HP Pavilion Plus 14-ew0153TU | |
| AIDA64 / CPU PhotoWorxx | |
| Average of class Convertible (13761 - 81626, n=59, last 2 years) | |
| Acer Aspire 5 Spin 14 | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Average Intel Core Ultra 5 115U () | |
| HP Pavilion Plus 14-ew0153TU | |
| Lenovo Yoga Slim 6 14APU8 | |
| HP ZBook Firefly 14 G10 A | |
系统性能

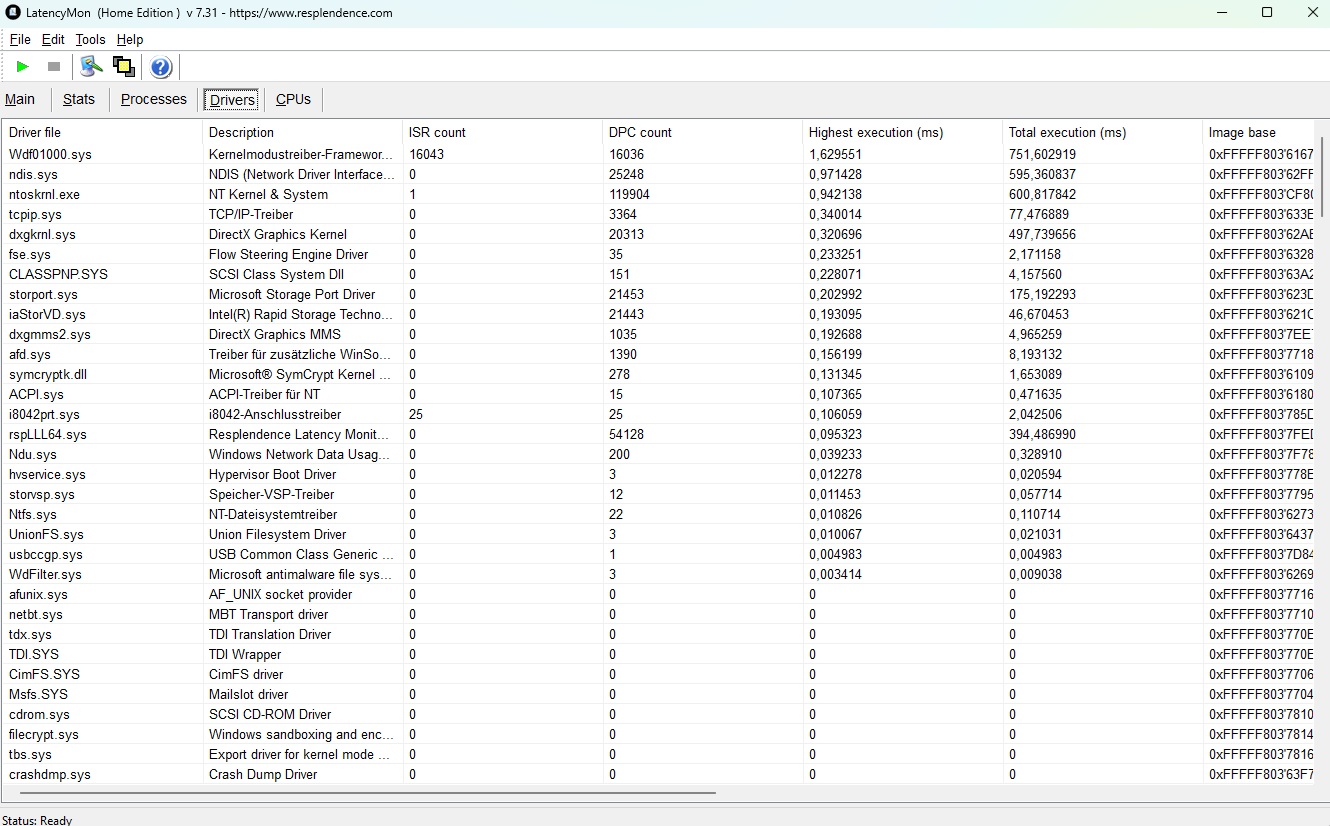

根据 PCMark 10 的测试结果，这款 14 英寸机型在系统性能方面也与旧款 Aspire 5 Spin 相似。从主观上看，电脑有时显得有些迟钝，尤其是在加载、安装和打开程序时。在这方面，同类 AMD 笔记本电脑通常表现得更好。
CrossMark: Overall | Productivity | Creativity | Responsiveness
WebXPRT 3: Overall
WebXPRT 4: Overall
Mozilla Kraken 1.1: Total
| PCMark 10 / Score | |
| HP ZBook Firefly 14 G10 A | |
| Average of class Convertible (3229 - 9125, n=57, last 2 years) | |
| Lenovo Yoga Slim 6 14APU8 | |
| HP Pavilion Plus 14-ew0153TU | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Average Intel Core Ultra 5 115U, Intel Graphics 4-Core iGPU (Arc) () | |
| Acer Aspire 5 Spin 14 | |
| PCMark 10 / Essentials | |
| Average of class Convertible (7233 - 12005, n=57, last 2 years) | |
| Acer Aspire 5 Spin 14 | |
| HP Pavilion Plus 14-ew0153TU | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo Yoga Slim 6 14APU8 | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Average Intel Core Ultra 5 115U, Intel Graphics 4-Core iGPU (Arc) () | |
| PCMark 10 / Productivity | |
| Lenovo Yoga Slim 6 14APU8 | |
| HP ZBook Firefly 14 G10 A | |
| Average of class Convertible (4777 - 10800, n=57, last 2 years) | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Average Intel Core Ultra 5 115U, Intel Graphics 4-Core iGPU (Arc) () | |
| HP Pavilion Plus 14-ew0153TU | |
| Acer Aspire 5 Spin 14 | |
| PCMark 10 / Digital Content Creation | |
| HP ZBook Firefly 14 G10 A | |
| Average of class Convertible (2496 - 16551, n=57, last 2 years) | |
| Lenovo Yoga Slim 6 14APU8 | |
| HP Pavilion Plus 14-ew0153TU | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Average Intel Core Ultra 5 115U, Intel Graphics 4-Core iGPU (Arc) () | |
| Acer Aspire 5 Spin 14 | |
| CrossMark / Overall | |
| Acer Aspire 5 Spin 14 | |
| HP Pavilion Plus 14-ew0153TU | |
| Average of class Convertible (524 - 2274, n=60, last 2 years) | |
| CrossMark / Productivity | |
| Acer Aspire 5 Spin 14 | |
| HP Pavilion Plus 14-ew0153TU | |
| Average of class Convertible (554 - 1925, n=60, last 2 years) | |
| CrossMark / Creativity | |
| Average of class Convertible (550 - 2949, n=60, last 2 years) | |
| HP Pavilion Plus 14-ew0153TU | |
| Acer Aspire 5 Spin 14 | |
| CrossMark / Responsiveness | |
| Acer Aspire 5 Spin 14 | |
| HP Pavilion Plus 14-ew0153TU | |
| Average of class Convertible (381 - 1868, n=60, last 2 years) | |
| WebXPRT 3 / Overall | |
| Lenovo Yoga Slim 6 14APU8 | |
| Average of class Convertible (171 - 426, n=61, last 2 years) | |
| HP Pavilion Plus 14-ew0153TU | |
| HP ZBook Firefly 14 G10 A | |
| HP ZBook Firefly 14 G10 A | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Average Intel Core Ultra 5 115U, Intel Graphics 4-Core iGPU (Arc) () | |
| Acer Aspire 5 Spin 14 | |
| WebXPRT 4 / Overall | |
| HP Pavilion Plus 14-ew0153TU | |
| Average of class Convertible (91.2 - 317, n=58, last 2 years) | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Average Intel Core Ultra 5 115U, Intel Graphics 4-Core iGPU (Arc) () | |
| Acer Aspire 5 Spin 14 | |
| Mozilla Kraken 1.1 / Total | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Average Intel Core Ultra 5 115U, Intel Graphics 4-Core iGPU (Arc) () | |
| HP ZBook Firefly 14 G10 A | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo Yoga Slim 6 14APU8 | |
| Acer Aspire 5 Spin 14 | |
| Average of class Convertible (407 - 1089, n=61, last 2 years) | |
| HP Pavilion Plus 14-ew0153TU | |
* ... smaller is better
| PCMark 10 Score | 5274 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Average of class Convertible (29473 - 158525, n=59, last 2 years) | |
| Lenovo Yoga Slim 6 14APU8 | |
| HP ZBook Firefly 14 G10 A | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Average Intel Core Ultra 5 115U () | |
| HP Pavilion Plus 14-ew0153TU | |
| Acer Aspire 5 Spin 14 | |
| AIDA64 / Memory Read | |
| Average of class Convertible (28905 - 126517, n=59, last 2 years) | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo Yoga Slim 6 14APU8 | |
| HP Pavilion Plus 14-ew0153TU | |
| Acer Aspire 5 Spin 14 | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Average Intel Core Ultra 5 115U () | |
| AIDA64 / Memory Write | |
| Lenovo Yoga Slim 6 14APU8 | |
| HP ZBook Firefly 14 G10 A | |
| HP Pavilion Plus 14-ew0153TU | |
| Acer Aspire 5 Spin 14 | |
| Average of class Convertible (30110 - 216896, n=59, last 2 years) | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Average Intel Core Ultra 5 115U () | |
| AIDA64 / Memory Latency | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Average Intel Core Ultra 5 115U () | |
| Average of class Convertible (7.4 - 173, n=59, last 2 years) | |
| Lenovo Yoga Slim 6 14APU8 | |
| HP Pavilion Plus 14-ew0153TU | |
| Acer Aspire 5 Spin 14 | |
| HP ZBook Firefly 14 G10 A | |
* ... smaller is better

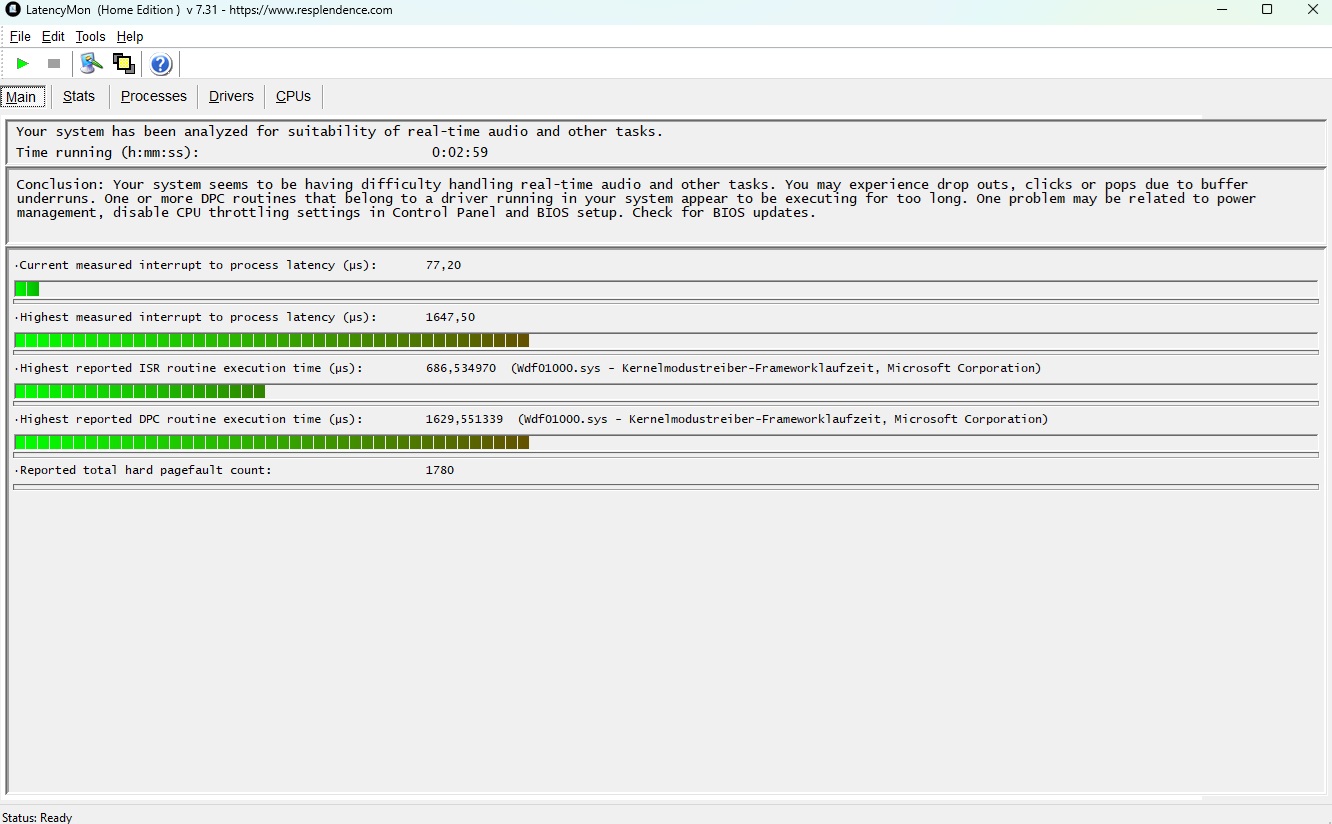

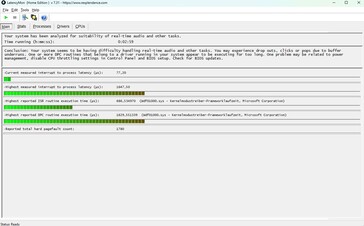

DPC 延迟
与许多笔记本电脑一样，Aspire Spin 14 开箱后的延迟非常适中，也不例外。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| HP Pavilion Plus 14-ew0153TU | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Lenovo Yoga Slim 6 14APU8 | |
| HP ZBook Firefly 14 G10 A | |
| Acer Aspire 5 Spin 14 | |
* ... smaller is better
大容量存储器
金士顿 512 GB NVMe 固态硬盘（M.2 2280）的速度可圈可点，不过根据 DiskSpd 循环，随着时间的推移，速度会明显下降，与Pavilion Plus 14 类似（见图）。
* ... smaller is better
Continuous Performance Read: DiskSpd Read Loop, Queue Depth 8

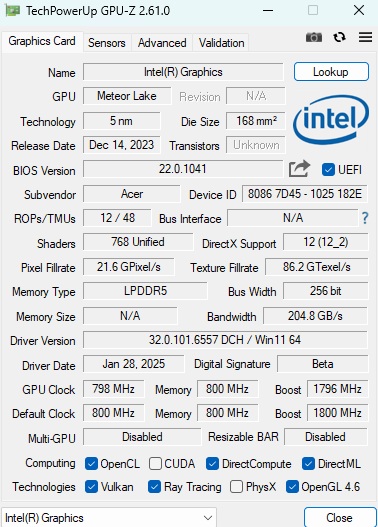

图形卡
集成的 Ultra 5 115U 图形 4 核与 Arc 7 和 Arc 8 不同的是，集成的 Ultra 5 115U Graphics 4-Core 只有 4 个 Xe 内核，而不是 7 或 8 个。在合成基准测试中，iGPU 的性能与配备 80 个 EU 的旧版 Iris Xe Graphics G7 差不多，而配备 96 个 EU 的版本则提高了约 25%。Radeon 740M 甚至领先 30% 以上。不过，我们应该提到，Spin 14 的 Graphics 4 核心比以前确定的该显卡平均值低 20%左右。因此，它的表现要好于其他设备。
| 3DMark 06 Standard Score | 27772 points | |
| 3DMark 11 Performance | 4964 points | |
| 3DMark Ice Storm Standard Score | 124658 points | |
| 3DMark Cloud Gate Standard Score | 18463 points | |
| 3DMark Fire Strike Score | 3766 points | |
| 3DMark Time Spy Score | 1747 points | |
Help | ||
* ... smaller is better
游戏性能
在游戏基准测试中，尽管现代游戏通常会让图形芯片不堪重负，但 Aspire Spin 14 还是扳回了一些失地。在 2024 年发布和测试的游戏中，只有 波斯王子可玩，其他游戏在分辨率为 1,920 x 1,080 像素和低细节的情况下，帧数都在 20 帧以下。因此，14 英寸机型只适合较老和/或要求不高的游戏。
| Performance Rating - Percent | |
| Average of class Convertible | |
| HP ZBook Firefly 14 G10 A -2! | |
| Lenovo Yoga Slim 6 14APU8 | |
| HP Pavilion Plus 14-ew0153TU -2! | |
| Acer Aspire 5 Spin 14 -2! | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Cyberpunk 2077 2.2 Phantom Liberty - 1920x1080 Ultra Preset (FSR off) | |
| Average of class Convertible (8.2 - 83.5, n=31, last 2 years) | |
| Lenovo Yoga Slim 6 14APU8 | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Baldur's Gate 3 - 1920x1080 Ultra Preset | |
| Average of class Convertible (9.2 - 85.3, n=21, last 2 years) | |
| Lenovo Yoga Slim 6 14APU8 | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
| Average of class Convertible (7.2 - 114.3, n=49, last 2 years) | |
| Lenovo Yoga Slim 6 14APU8 | |
| HP ZBook Firefly 14 G10 A | |
| Acer Aspire 5 Spin 14 | |
| HP Pavilion Plus 14-ew0153TU | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Final Fantasy XV Benchmark - 1920x1080 High Quality | |
| Average of class Convertible (4.48 - 107.1, n=59, last 2 years) | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo Yoga Slim 6 14APU8 | |
| HP Pavilion Plus 14-ew0153TU | |
| Acer Aspire 5 Spin 14 | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
| Average of class Convertible (10.8 - 196.9, n=54, last 2 years) | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo Yoga Slim 6 14APU8 | |
| HP Pavilion Plus 14-ew0153TU | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| Acer Aspire 5 Spin 14 | |
| Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
| HP ZBook Firefly 14 G10 A | |
| Average of class Convertible (18.8 - 158.3, n=60, last 2 years) | |
| Lenovo Yoga Slim 6 14APU8 | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| HP Pavilion Plus 14-ew0153TU | |
| Acer Aspire 5 Spin 14 | |
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 116.5 | 91.9 | 19.9 | 7.93 |
| Dota 2 Reborn (2015) | 90.1 | 66.7 | 54.5 | 51.3 |
| Final Fantasy XV Benchmark (2018) | 37.8 | 19.4 | 14.1 | |
| X-Plane 11.11 (2018) | 33.1 | 26.1 | 21.6 | |
| Strange Brigade (2018) | 77 | 34.8 | 27.2 | 23 |
| Baldur's Gate 3 (2023) | 16.1 | 13 | 10.7 | 10.2 |
| Cyberpunk 2077 2.2 Phantom Liberty (2023) | 16.7 | 13.5 | 11.4 | 10 |
| Prince of Persia The Lost Crown (2024) | 96.4 | 48.4 | 45.7 | |
| Helldivers 2 (2024) | 16 | 12.2 | 11 | |
| Horizon Forbidden West (2024) | 13.8 | 12.3 | 8 | |
| Dragon's Dogma 2 (2024) | 9.13 | 6.81 | ||
| Ghost of Tsushima (2024) | 11.5 | 9.75 | 8.89 | |
| Senua's Saga Hellblade 2 (2024) | 6.43 | 5.37 | 4.14 | |
| Star Wars Outlaws (2024) | 0 game wont start (crash) | 0 game wont start (crash) | 0 game wont start (crash) | |
| Space Marine 2 (2024) | 10.2 | 8.12 | 7.41 | |
| Final Fantasy XVI (2024) | 7.97 | 7.96 | 6.71 | |
| Until Dawn (2024) | 17.3 | 11.5 | 7.44 | |
| Call of Duty Black Ops 6 (2024) | 15 | 14 | 10 | |
| Stalker 2 (2024) | 6.8 | 5.99 | 5.33 | |
| Indiana Jones and the Great Circle (2024) | 7.09 |
| Cyberpunk 2077 2.2 Phantom Liberty | |
| 1920x1080 Low Preset (FSR off) | |
| Average of class Convertible (13.1 - 124.8, n=33, last 2 years) | |
| Lenovo Yoga Slim 6 14APU8 | |
| Average Intel Graphics 4-Core iGPU (Arc) (16.7 - 21.6, n=17) | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| 1920x1080 Medium Preset (FSR off) | |
| Average of class Convertible (11.2 - 105.3, n=31, last 2 years) | |
| Lenovo Yoga Slim 6 14APU8 | |
| Average Intel Graphics 4-Core iGPU (Arc) (13.2 - 17.6, n=17) | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
| 1920x1080 High Preset (FSR off) | |
| Average of class Convertible (9.57 - 91.5, n=33, last 2 years) | |
| Lenovo Yoga Slim 6 14APU8 | |
| Average Intel Graphics 4-Core iGPU (Arc) (11.4 - 14.9, n=17) | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 | |
在与 赛博朋克 2077帧速率非常稳定--与 Cinebench R15 循环类似。
Cyberpunk 2077 ultra FPS diagram
排放量
噪音排放
虽然在静音模式下噪音水平还算适中，但在正常模式下，Aspire Spin 14 在负载场景下的噪音会变得相当大。例如，在《赛博朋克 2077》中，47 分贝（A）的噪音明显高于联想 Yoga Slim 6（37 分贝），而联想 Yoga Slim 6 的 Ryzen 5 7540U 在 CPU 和 GPU 方面都取得了明显更高的性能分数。在满载情况下，与宏碁笔记本的差距更大，为 51 至 38 dB(A)。在空闲模式下，风扇要么完全停止运转，要么以 28 至 29 dB(A) 的中等可闻水平运转。
Noise Level
| Idle |
| 25 / 28 / 29 dB(A) |
| Load |
| 37 / 51 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 25 dB(A) | ||
| Acer Aspire Spin 14 ASP14-52MTN-51V5 Ultra 5 115U, Graphics 4-Core | Acer Aspire 5 Spin 14 i5-1335U, Iris Xe G7 80EUs | HP Pavilion Plus 14-ew0153TU i7-1355U, Iris Xe G7 96EUs | Lenovo Yoga Slim 6 14APU8 R5 7540U, Radeon 740M | HP ZBook Firefly 14 G10 A R5 PRO 7640HS, Radeon 760M | |
|---|---|---|---|---|---|
| Noise | -5% | 25% | 8% | 0% | |
| off / environment * | 25 | 26 -4% | 19.35 23% | 24 4% | 25 -0% |
| Idle Minimum * | 25 | 27.7 -11% | 20.57 18% | 25 -0% | 25 -0% |
| Idle Average * | 28 | 27.7 1% | 20.57 27% | 27 4% | 26 7% |
| Idle Maximum * | 29 | 29.7 -2% | 20.57 29% | 29 -0% | 27 7% |
| Load Average * | 37 | 46.3 -25% | 32.18 13% | 37 -0% | 45 -22% |
| Cyberpunk 2077 ultra * | 47 | 37 21% | |||
| Load Maximum * | 51 | 45.4 11% | 32.26 37% | 38 25% | 46 10% |
| Witcher 3 ultra * | 29.44 | 45 |
* ... smaller is better

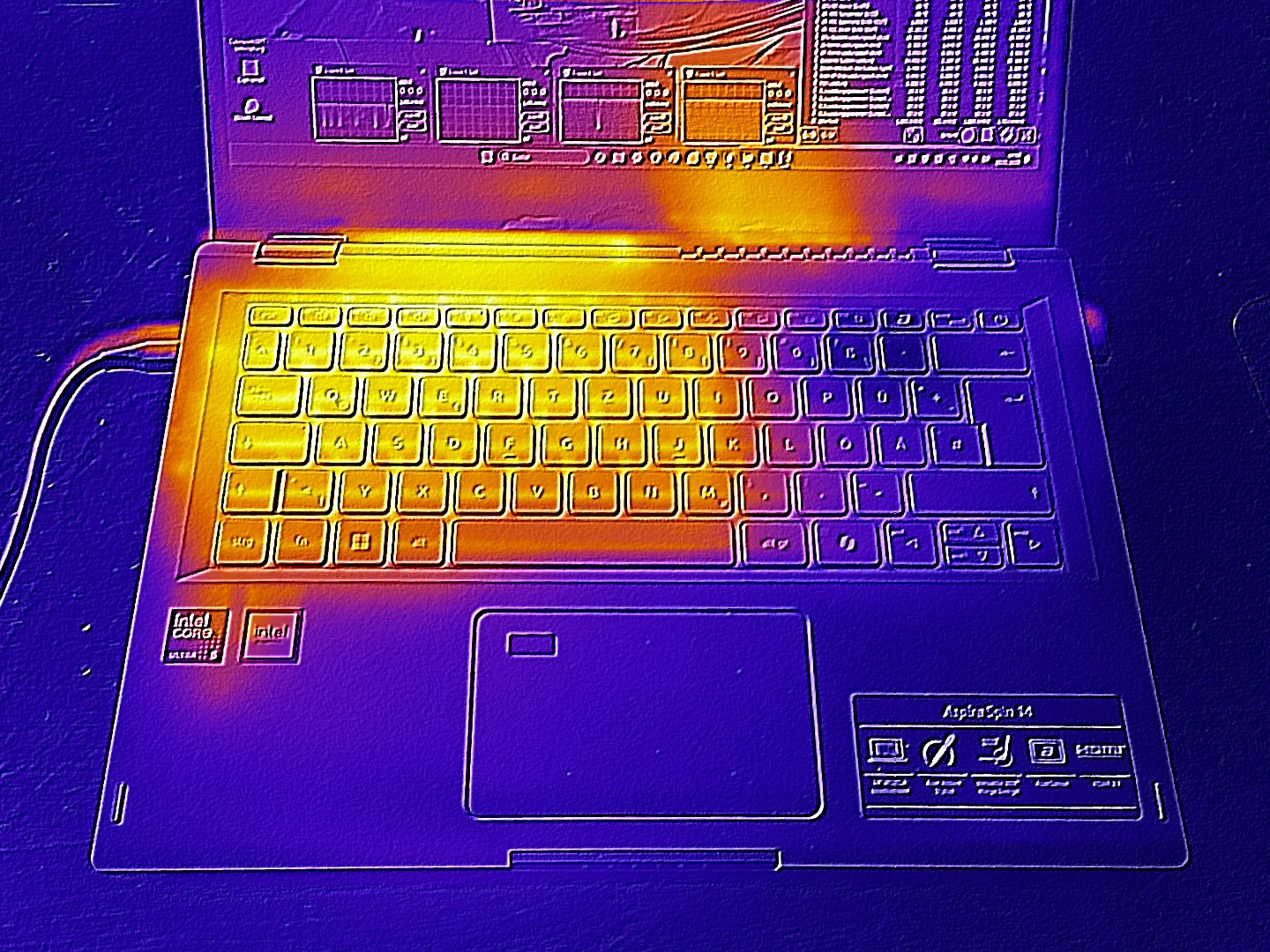

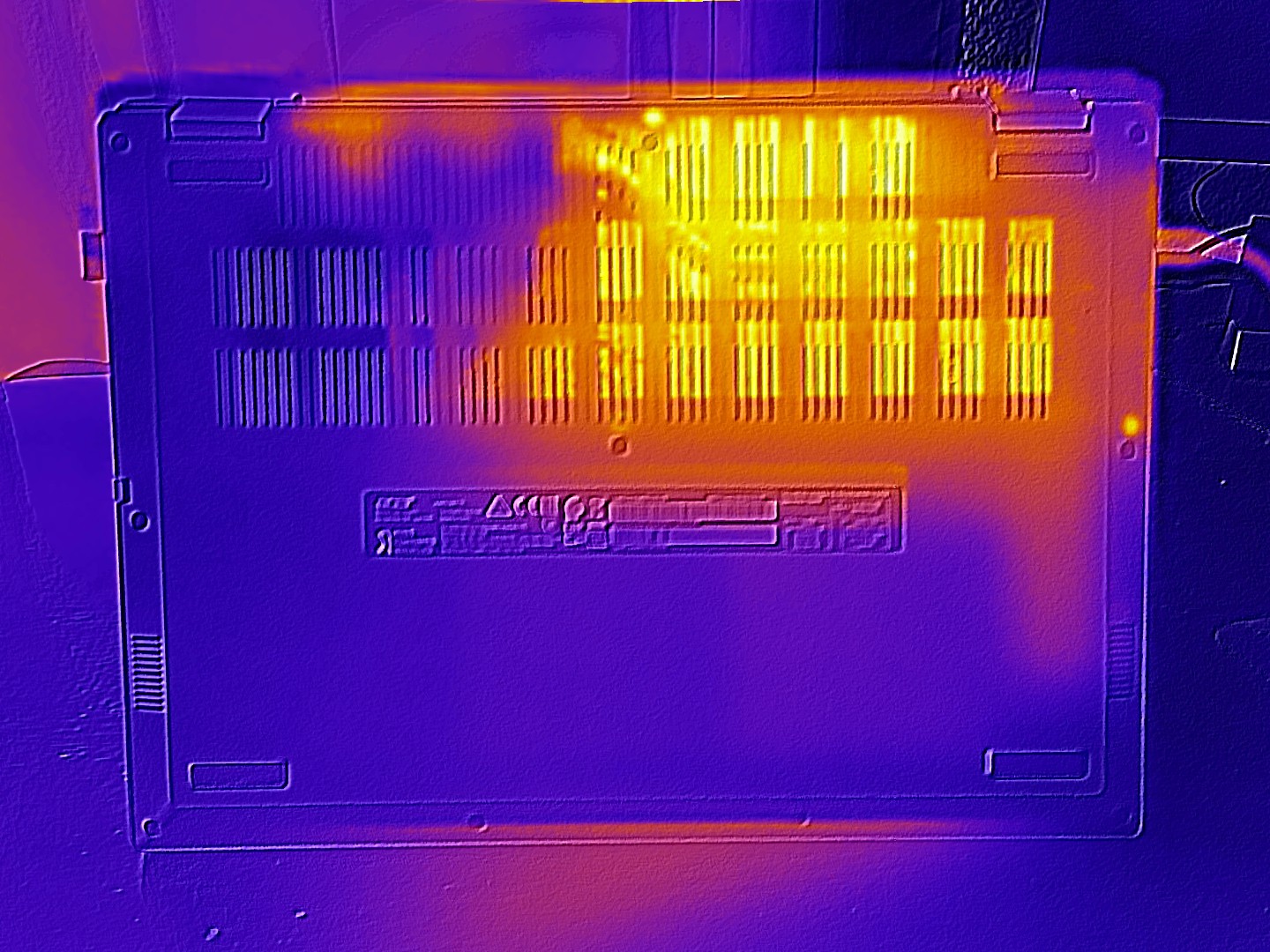

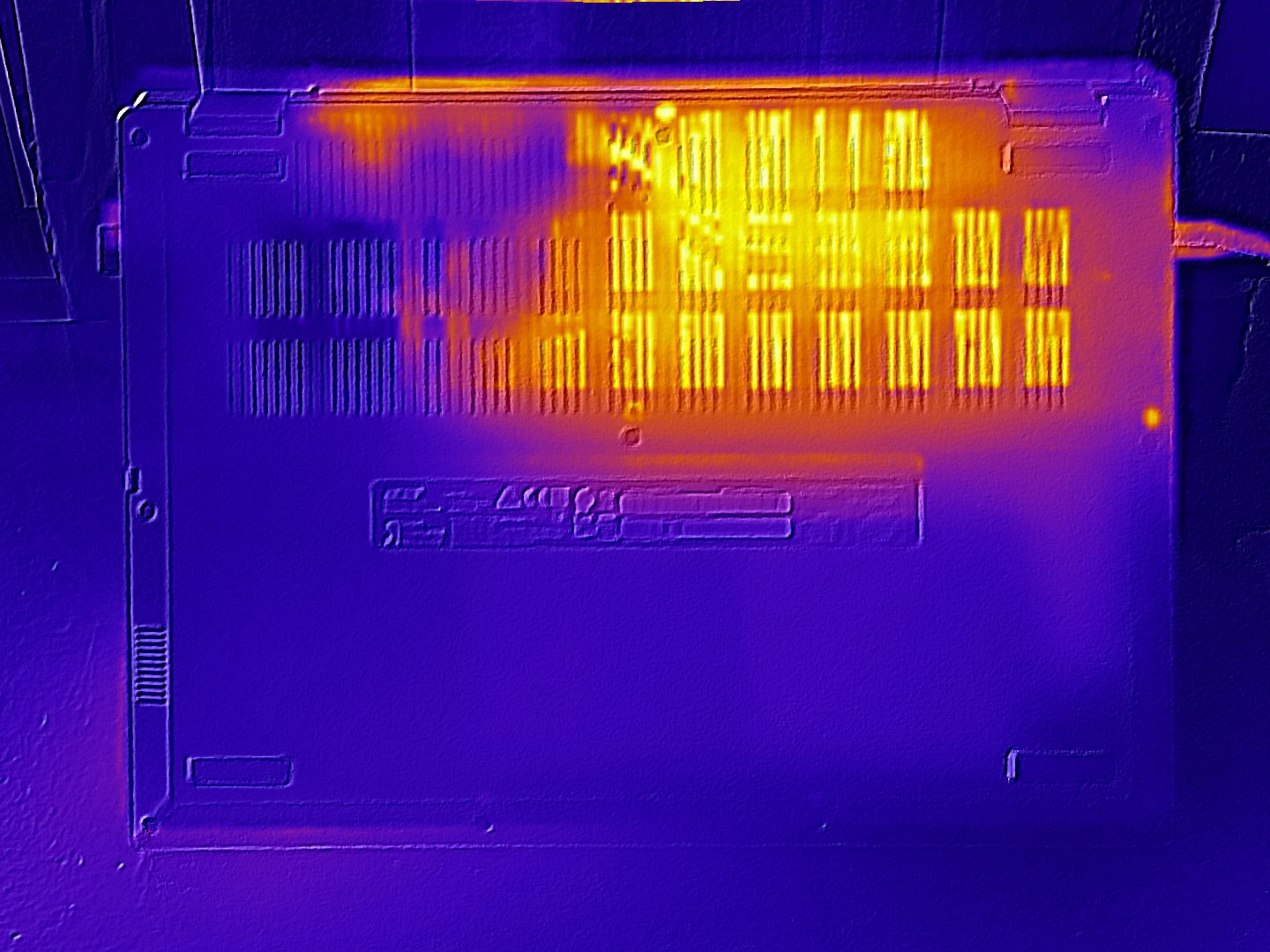

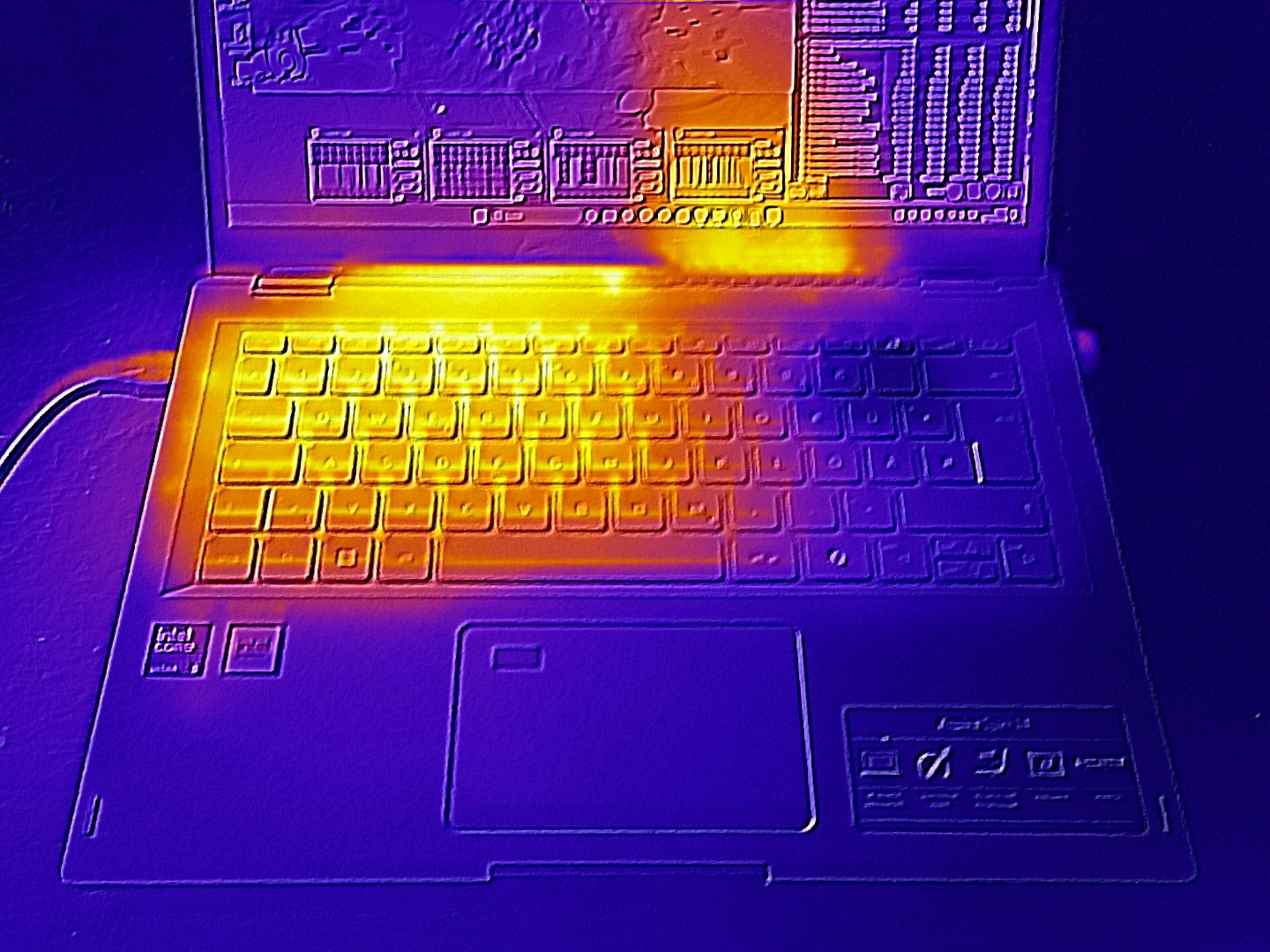

温度
在温度方面，情况要好一些。在这方面，Aspire Spin 14 的表现与上述 Yoga Slim 6 相似。平均温度分别为 33 和 34 摄氏度。在满载情况下，35 摄氏度和 25 或 28 摄氏度的空闲运行温度（设备顶部/机箱底部）一样可以接受。掌托始终保持舒适的触感。
(±) The maximum temperature on the upper side is 41 °C / 106 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(-) The bottom heats up to a maximum of 47 °C / 117 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25.1 °C / 77 F, compared to the device average of 30.2 °C / 86 F.
(±) 3: The average temperature for the upper side is 32.6 °C / 91 F, compared to the average of 30.2 °C / 86 F for the class Convertible.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (33 °C / 91.4 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (-5 °C / -9 F).
| Acer Aspire Spin 14 ASP14-52MTN-51V5 Ultra 5 115U, Graphics 4-Core | Acer Aspire 5 Spin 14 i5-1335U, Iris Xe G7 80EUs | HP Pavilion Plus 14-ew0153TU i7-1355U, Iris Xe G7 96EUs | Lenovo Yoga Slim 6 14APU8 R5 7540U, Radeon 740M | HP ZBook Firefly 14 G10 A R5 PRO 7640HS, Radeon 760M | |
|---|---|---|---|---|---|
| Heat | -7% | 5% | 2% | -3% | |
| Maximum Upper Side * | 41 | 41.7 -2% | 36.6 11% | 39 5% | 50 -22% |
| Maximum Bottom * | 47 | 54.4 -16% | 37.2 21% | 46 2% | 51 -9% |
| Idle Upper Side * | 27 | 30.4 -13% | 31.6 -17% | 28 -4% | 25 7% |
| Idle Bottom * | 31 | 29.8 4% | 30 3% | 29 6% | 27 13% |
* ... smaller is better
压力测试
在使用 Furmark 和 Prime95 工具进行的压力测试中，CPU 温度略低于 80 °C。赛博朋克 2077》中的平均温度为 70 °C，也（仍然）无需担心。
发言人
根据我们的音频分析，Aspire Spin 14 的音质比前代产品更好（见表）--至少在高音方面。总体而言，音质只能说是一般，最弱的地方是低音。
Acer Aspire Spin 14 ASP14-52MTN-51V5 audio analysis
(±) | speaker loudness is average but good (80 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 27.6% lower than median
(-) | bass is not linear (15% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.9% away from median
(+) | mids are linear (6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.3% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.7% difference to median)
Compared to same class
» 32% of all tested devices in this class were better, 10% similar, 59% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 32% of all tested devices were better, 8% similar, 60% worse
» The best had a delta of 4%, average was 24%, worst was 134%
Acer Aspire 5 Spin 14 audio analysis
(±) | speaker loudness is average but good (81.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 32% lower than median
(±) | linearity of bass is average (12.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.2% away from median
(+) | mids are linear (5.8% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 7.8% higher than median
(±) | linearity of highs is average (7.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (25.3% difference to median)
Compared to same class
» 75% of all tested devices in this class were better, 7% similar, 18% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 75% of all tested devices were better, 5% similar, 19% worse
» The best had a delta of 4%, average was 24%, worst was 134%
能源管理
耗电量
功耗令人印象深刻：考虑到所提供的性能，5 至 9 瓦的闲置功耗和 32 至 67 瓦的负载功耗（仍然）是合适的。作为对比：Yoga Slim 6 中的 Ryzen 5 7540U 在《赛博朋克 2077》中的功耗为 42.5 瓦至 34.4 瓦，高出近 10 瓦，而宏碁笔记本在最高分上领先近 10 瓦。
| Off / Standby | 0.3 / 0.8 Watt |
| Idle | 5 / 6 / 9 Watt |
| Load |
32 / 67 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Acer Aspire Spin 14 ASP14-52MTN-51V5 Ultra 5 115U, Graphics 4-Core | Acer Aspire 5 Spin 14 i5-1335U, Iris Xe G7 80EUs | HP Pavilion Plus 14-ew0153TU i7-1355U, Iris Xe G7 96EUs | Lenovo Yoga Slim 6 14APU8 R5 7540U, Radeon 740M | HP ZBook Firefly 14 G10 A R5 PRO 7640HS, Radeon 760M | Average of class Convertible | |
|---|---|---|---|---|---|---|
| Power Consumption | -4% | -24% | -8% | 2% | -20% | |
| Idle Minimum * | 5 | 4.3 14% | 6.7 -34% | 5 -0% | 3 40% | 5.08 ? -2% |
| Idle Average * | 6 | 5.8 3% | 7.16 -19% | 6 -0% | 4 33% | 8 ? -33% |
| Idle Maximum * | 9 | 8.8 2% | 11.17 -24% | 10 -11% | 8 11% | 10.8 ? -20% |
| Load Average * | 32 | 44 -38% | 46.5 -45% | 41 -28% | 56 -75% | 45.9 ? -43% |
| Cyberpunk 2077 ultra external monitor * | 32 | |||||
| Cyberpunk 2077 ultra * | 34.4 | 42.5 -24% | ||||
| Load Maximum * | 67 | 67 -0% | 64.36 4% | 58 13% | 66 1% | 67.4 ? -1% |
| Witcher 3 ultra * | 41.5 | 37.2 | 58.2 |
* ... smaller is better
Power consumption Cyberpunk / stress test
Power consumption with an external monitor
电池运行时间
从纸面上看，电池容量约为 50 Wh，是测试领域中容量较低的电池之一。在上网（亮度降低至 150 cd/m²）时，电池续航时间约为 12.5 小时。不过，它在同类产品中排名第二，仅被惠普 ZBook Firefly 14 G10 超越。
| Acer Aspire Spin 14 ASP14-52MTN-51V5 Ultra 5 115U, Graphics 4-Core, 50 Wh | Acer Aspire 5 Spin 14 i5-1335U, Iris Xe G7 80EUs, 54.6 Wh | HP Pavilion Plus 14-ew0153TU i7-1355U, Iris Xe G7 96EUs, 68 Wh | Lenovo Yoga Slim 6 14APU8 R5 7540U, Radeon 740M, 60 Wh | HP ZBook Firefly 14 G10 A R5 PRO 7640HS, Radeon 760M, 51 Wh | Average of class Convertible | |
|---|---|---|---|---|---|---|
| Battery Runtime | -11% | -23% | -21% | 5% | -18% | |
| WiFi v1.3 | 748 | 664 -11% | 578 -23% | 590 -21% | 782 5% | 617 ? -18% |
| H.264 | 720 | 833 ? |
Notebookcheck 总体评分
总而言之，搭载 Core Ultra 5 115U 处理器的 Aspire Spin 14 是一款出色的二合一产品，但它的显示屏色彩空间可能会更大，负载时的噪音也会更低。
Acer Aspire Spin 14 ASP14-52MTN-51V5
- 02/12/2025 v8
Florian Glaser
Total Sustainability Score: Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
