Ayaneo Flip KB 评测--采用效率较低的 AMD Ryzen 7 8840U 的功能强大的掌上游戏机
Bogdan Solca, 👁 Bogdan Solca (translated by DeepL / Ninh Duy) Published 🇺🇸 🇫🇷 ...
评价：优雅的蛤壳外形，中端性能

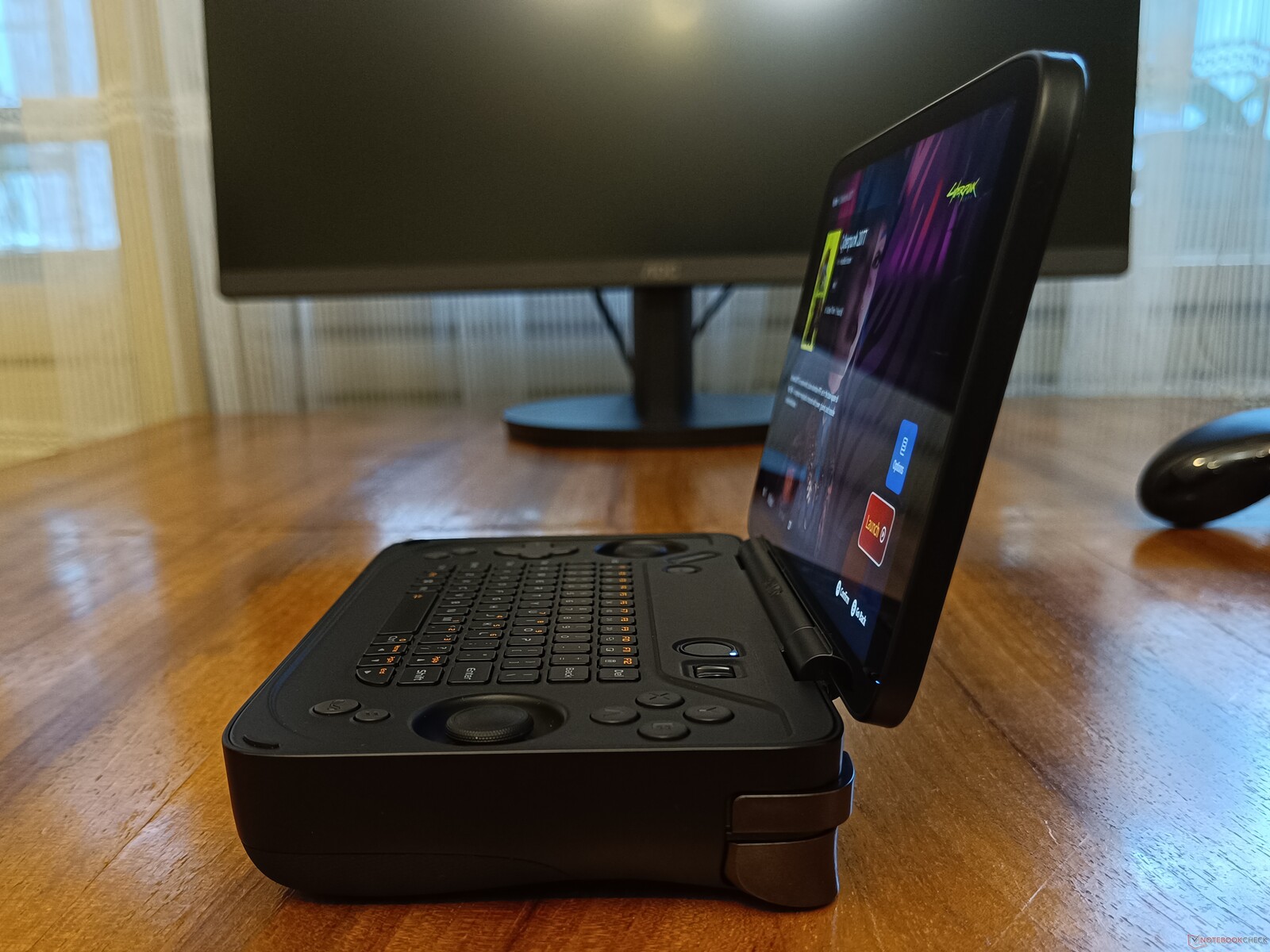

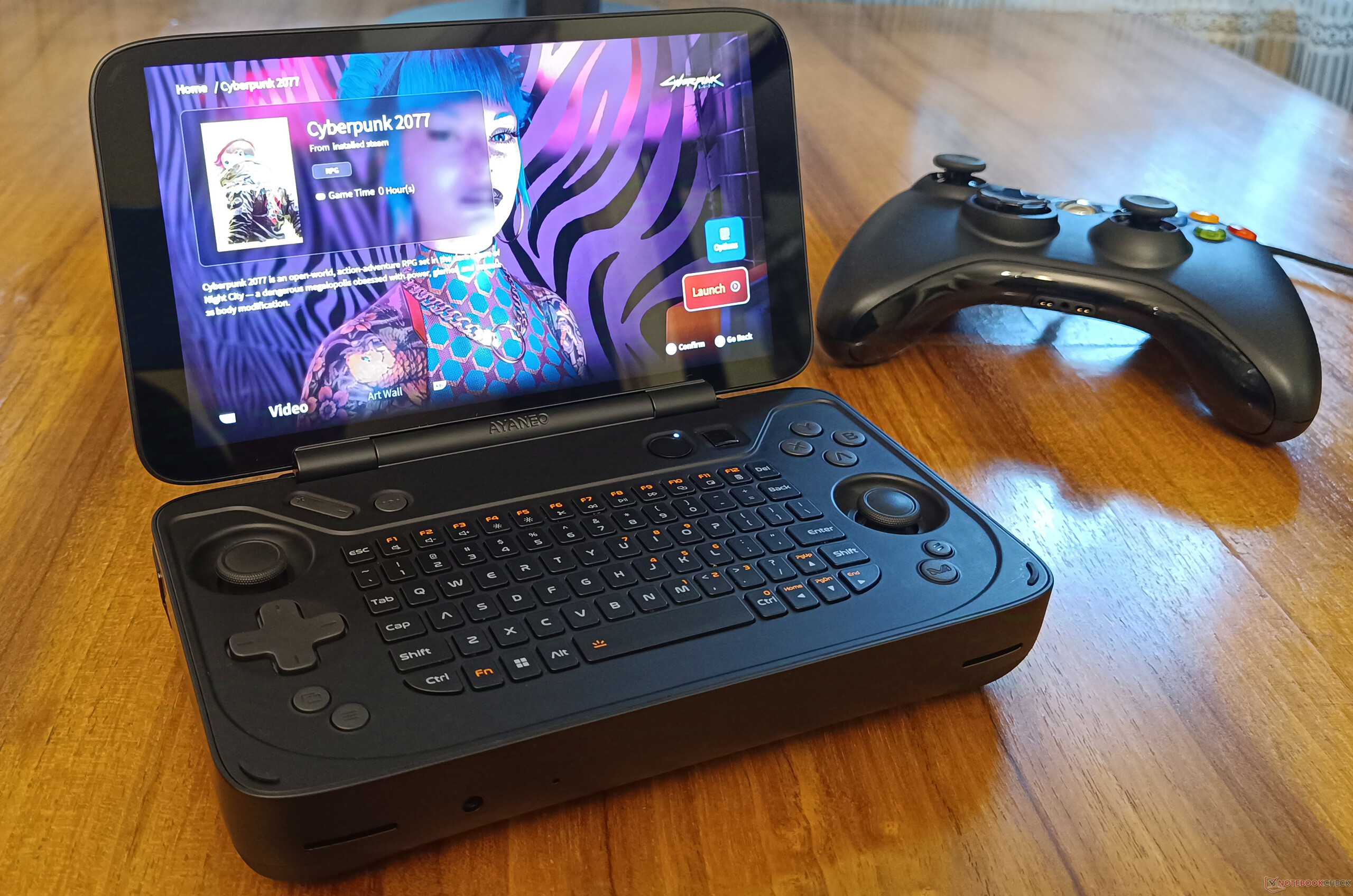

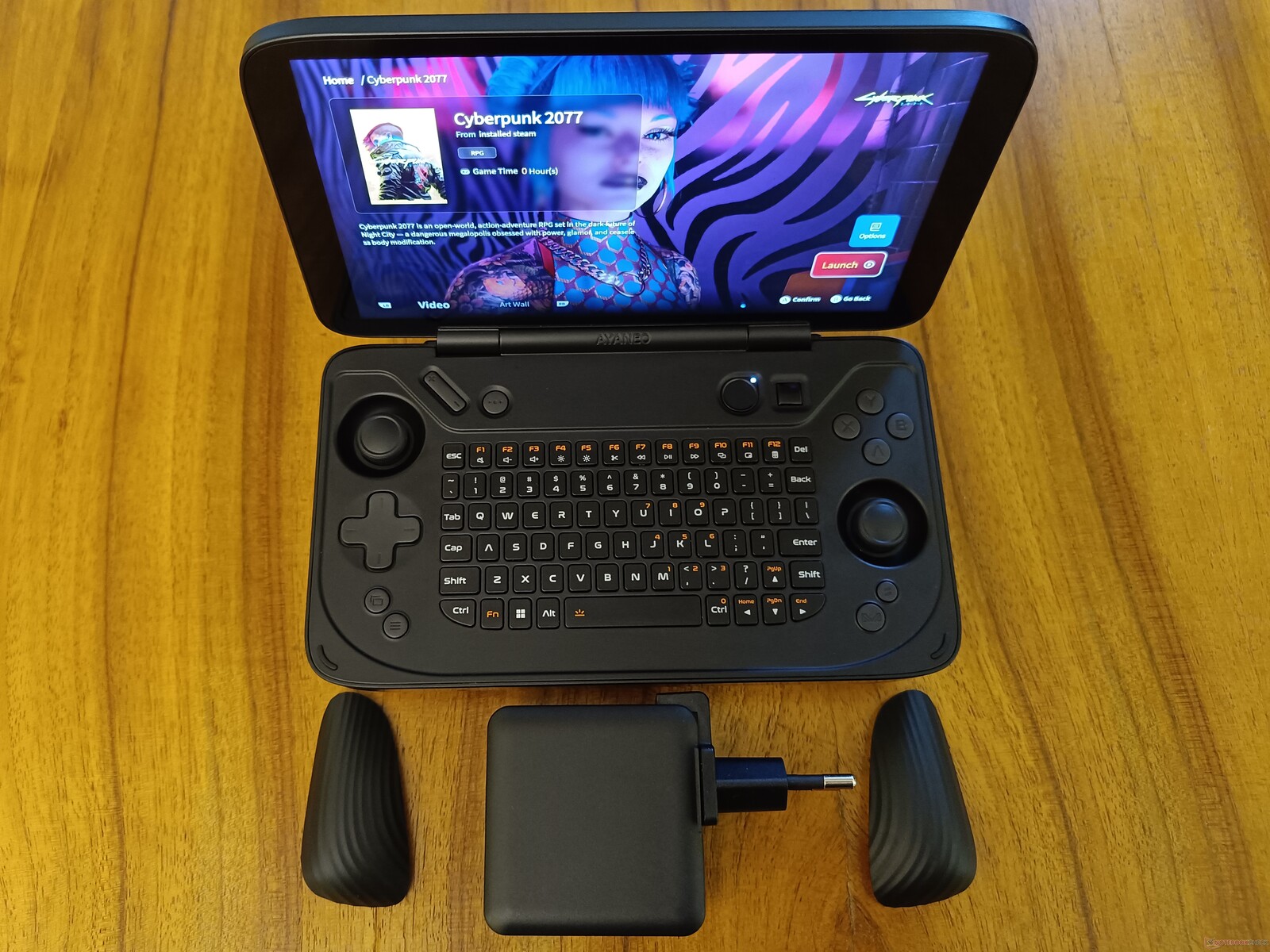

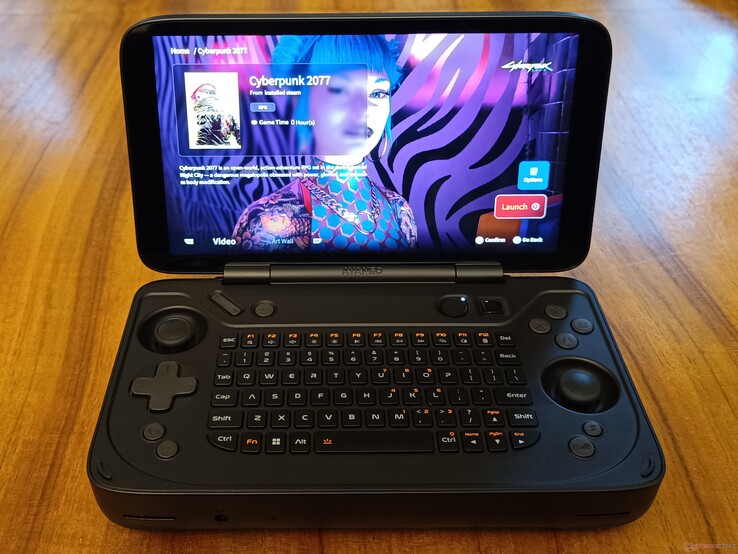

Flip 系列是 Ayaneo 首次推出的掌上电脑，其灵感来自任天堂 DS 的经典设计。与配备双触摸屏的 Flip DS 版本不同，KB 型号用 RGB 迷你键盘取代了下方的屏幕。从设计上看，这款游戏机可以整齐地放在手掌中，所有的游戏控制器都反应灵敏，并按照人体工程学原理分别放在两侧。在显示屏方面，IPS 屏幕的亮度和出色的触摸功能给人留下了深刻印象。端口选择提供了面向未来的连接器，如 USB4 和 OCuLink，以及快速的 microSD 读卡器。AMD 的 Ryzen 7 8840U CPU 在 30 TDP W 的限制下可能无法很好地扩展，但至少 Radeon 780M iGPU 提供了不错的性能。此外，AYASpace 2.0 控制软件的可配置性也很高。
与往常一样，它也有一些缺点。首先是之前暗示过的 CPU 扩展问题，尽管 32 DDR5X-6400 内存和 2 TB NVMe 固态硬盘的速度相对较快，但还是导致系统性能低于平均水平。因此，主机的能效也有所欠缺，耗电量几乎与速度更快的竞争对手相当。键盘仅靠拇指无法真正使用，在需要接近满载的长时间游戏过程中，键盘左侧会变得相当热。虽然散热系统配备了蒸汽腔，但风扇在满载情况下的噪音比同类产品要大得多，但至少风扇曲线是可以调节的。最后但并非最不重要的一点是，事实证明 45 Wh 电池无法提供长时间的游戏体验。
Pros
Cons
可能的替代品比较
Image | Model / Review | Price | Display | Weight | Dimensions |
|---|---|---|---|---|---|
1. 77.1%  | Ayaneo Flip KB AMD Ryzen 7 8840U ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 2048 GB SSD | Amazon: 1. $14.99 [2 Pack] Synvy Anti Blue Lig... 2. $12.98 Puccy 4 Pack Screen Protecto... 3. $12.99 Vaxson 4-Pack Screen Protect... List Price: 1020€ | 7.00" 1920x1080 368 PPI IPS | 650 g | 108 x 180 x 37.5 mm |
2. 76.9%  | GPD Win Mini 2024 7" AMD Ryzen 7 8840U ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 512 GB SSD | Amazon: $1,299.99 List Price: 1000 USD | 7.00" 1920x1080 315 PPI IPS | 526 g | 109 x 168 x 26 mm |
3. 85.2% v7 (old)  | Ayaneo Kun AMD Ryzen 7 7840U ⎘ AMD Radeon 780M ⎘ 64 GB Memory, SSD | Amazon: 1. $19.95 BoxWave Screen Protector Com... 2. $19.95 BoxWave Screen Protector Com... 3. $29.97 brotect Glass Screen Protect... List Price: 999€ | 8.40" 2560x1600 359 PPI IPS | 942 g | 140 x 325 x 22 mm |
4. 84.6%  | Asus ROG Ally X AMD Ryzen Z1 Extreme ⎘ AMD Radeon 780M ⎘ 24 GB Memory, 1024 GB SSD | Amazon: $549.99 List Price: 899€ | 7.00" 1920x1080 315 PPI IPS | 685 g | 111 x 280 x 36.9 mm |
5. 77.4%  | MSI Claw Intel Core Ultra 7 155H ⎘ Intel Arc 8-Core iGPU ⎘ 16 GB Memory, 1024 GB SSD | Amazon: $547.00 List Price: 849€ | 7.00" 1920x1080 315 PPI IPS | 672 g | 117 x 294 x 33 mm |
在 Flip 之前，Ayaneo 已经推出了不少机型，大多采用类似 Steam Deck 的设计。通过 Flip KB / DS，Ayaneo 探索了任天堂二十年前推出的广受欢迎的DS 蛤壳设计任天堂 20 年前推出的 DS。DS 机型配备双触摸显示屏，而 KB 机型则用迷你键盘取代了下部屏幕。这两款产品都配备了常用的游戏控制器和符合人体工程学的外形，可以舒适地握在手掌中。

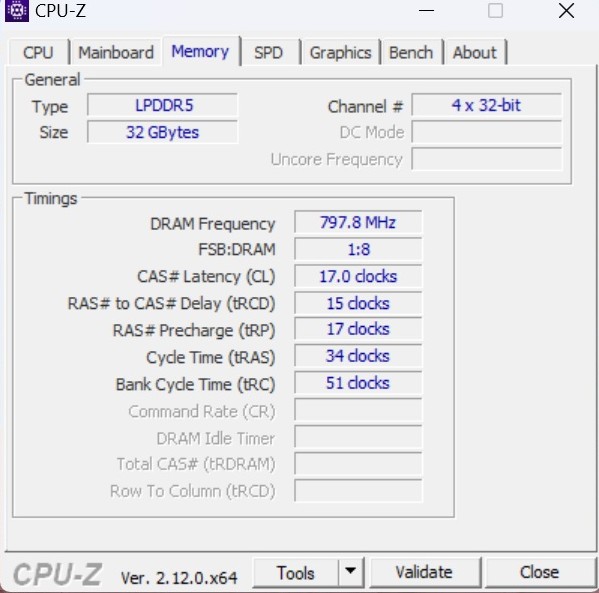

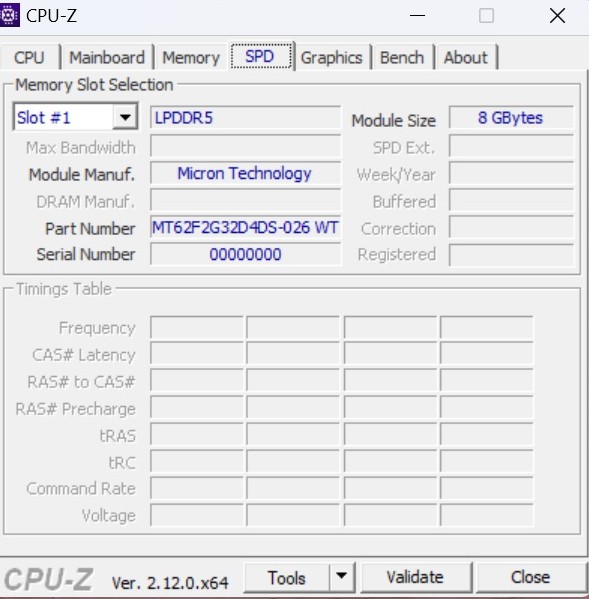

除了 30 W AMD Ryzen 7 8840UAPU 和 32 GB LPDDR5X-6400 内存以及2 TB WD NVMe 固态硬盘外，Ayaneo 的 Flip KB 机型还具有以下亮点：非常明亮的 7 英寸 IPS 触摸屏，刷新率为 120 Hz，色域几乎达到了全 sRGB，显示屏角度可调，带有霍尔传感器的游戏控制器反应灵敏，以及 RGB 迷你键盘、蒸汽腔冷却系统和端口选择带 USB4和 OCuLink连接器。

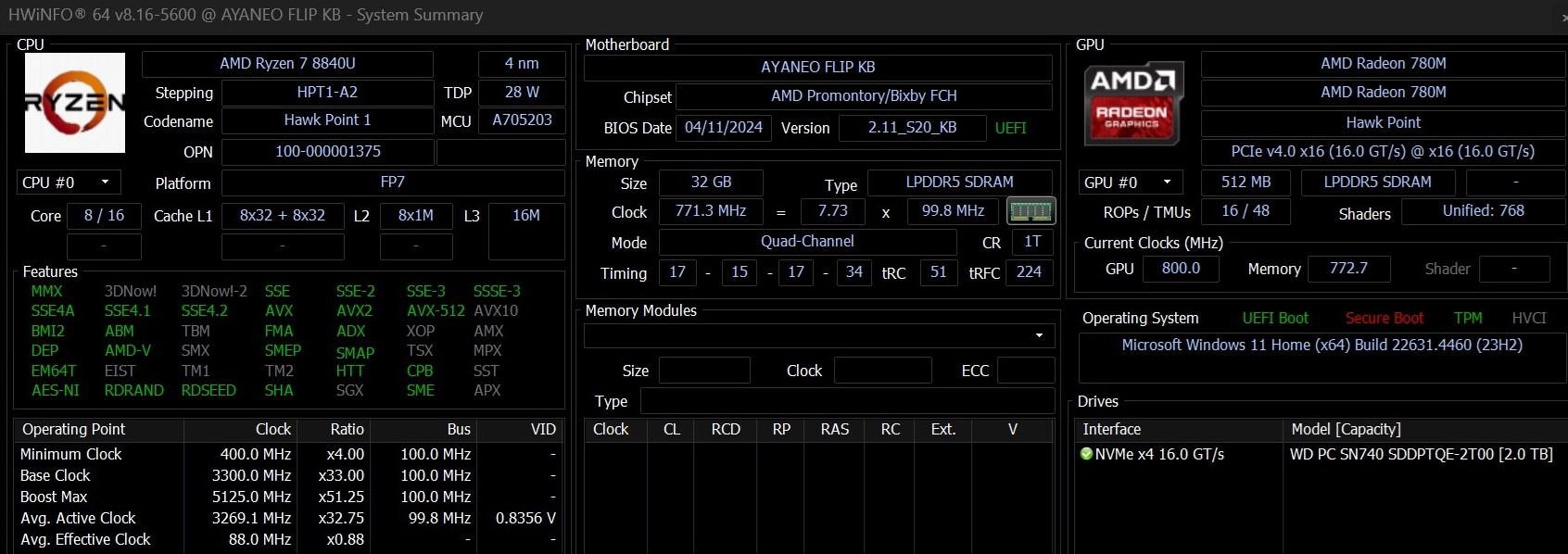

规格

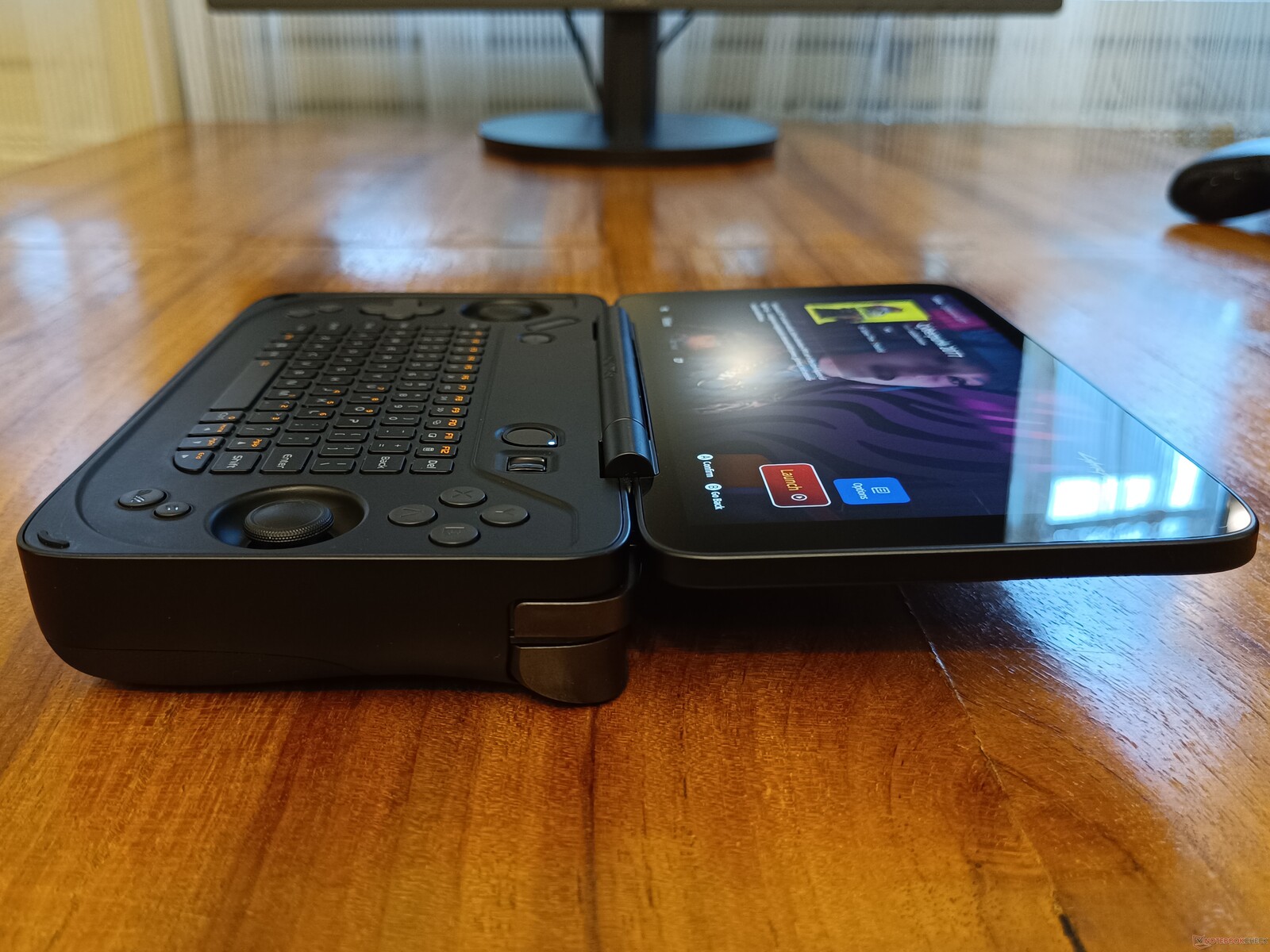

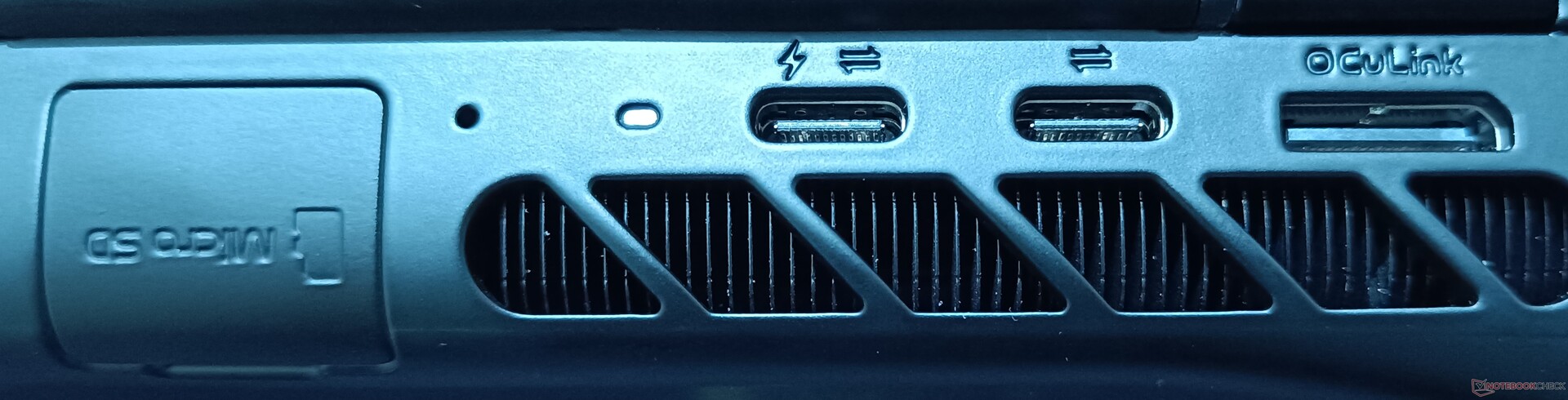

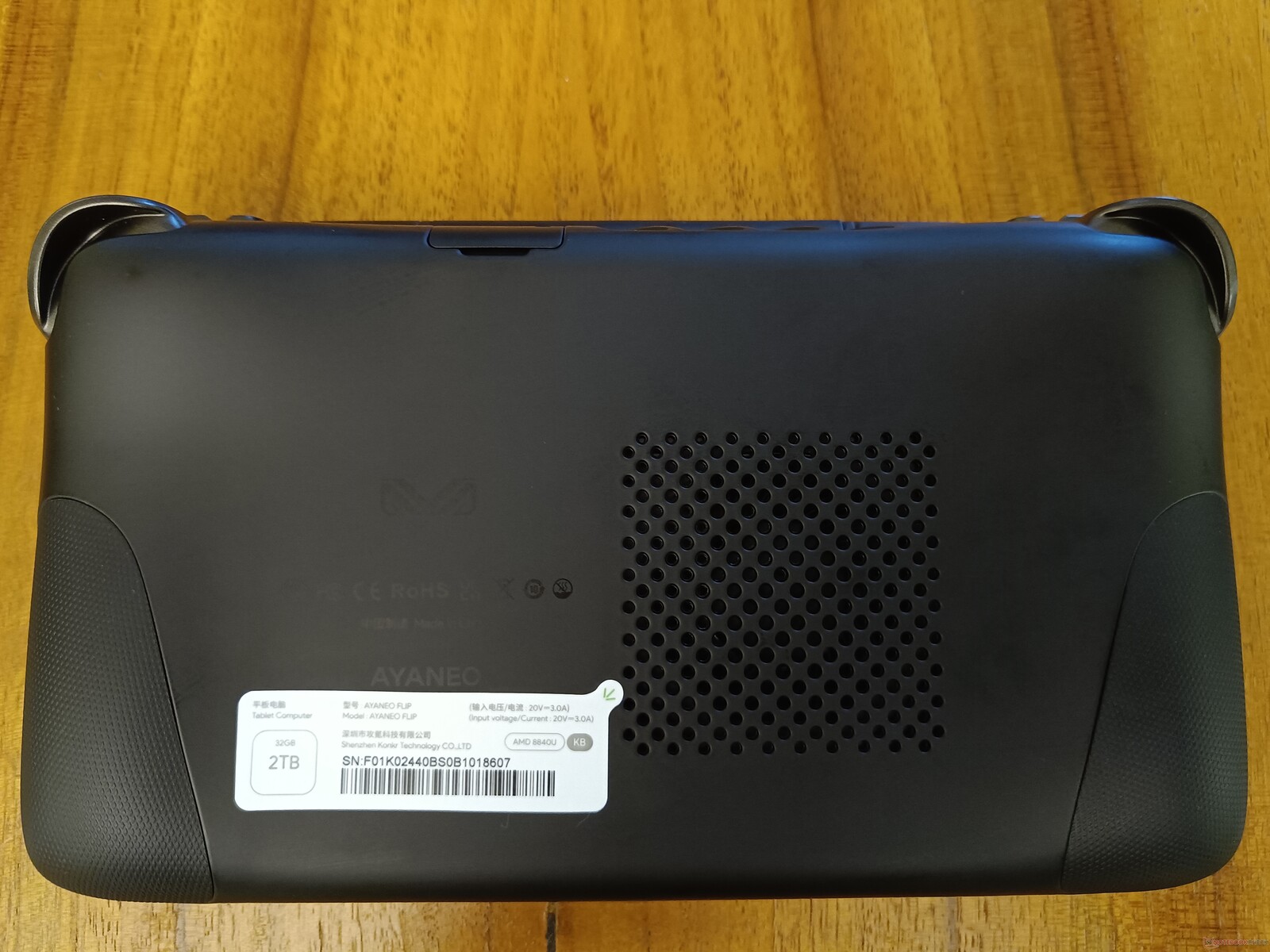

外壳和连接：符合人体工程学的设计和快速端口

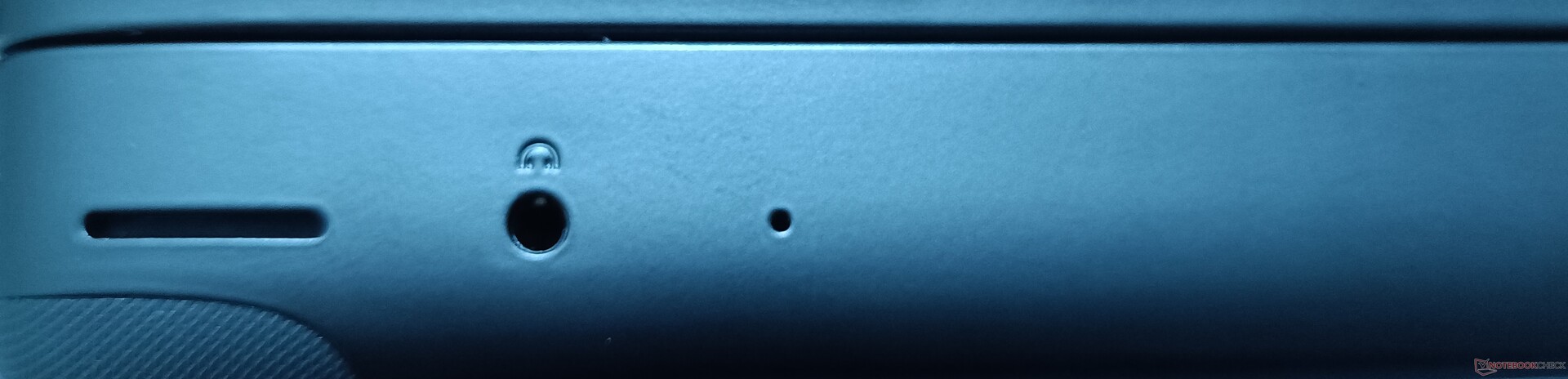

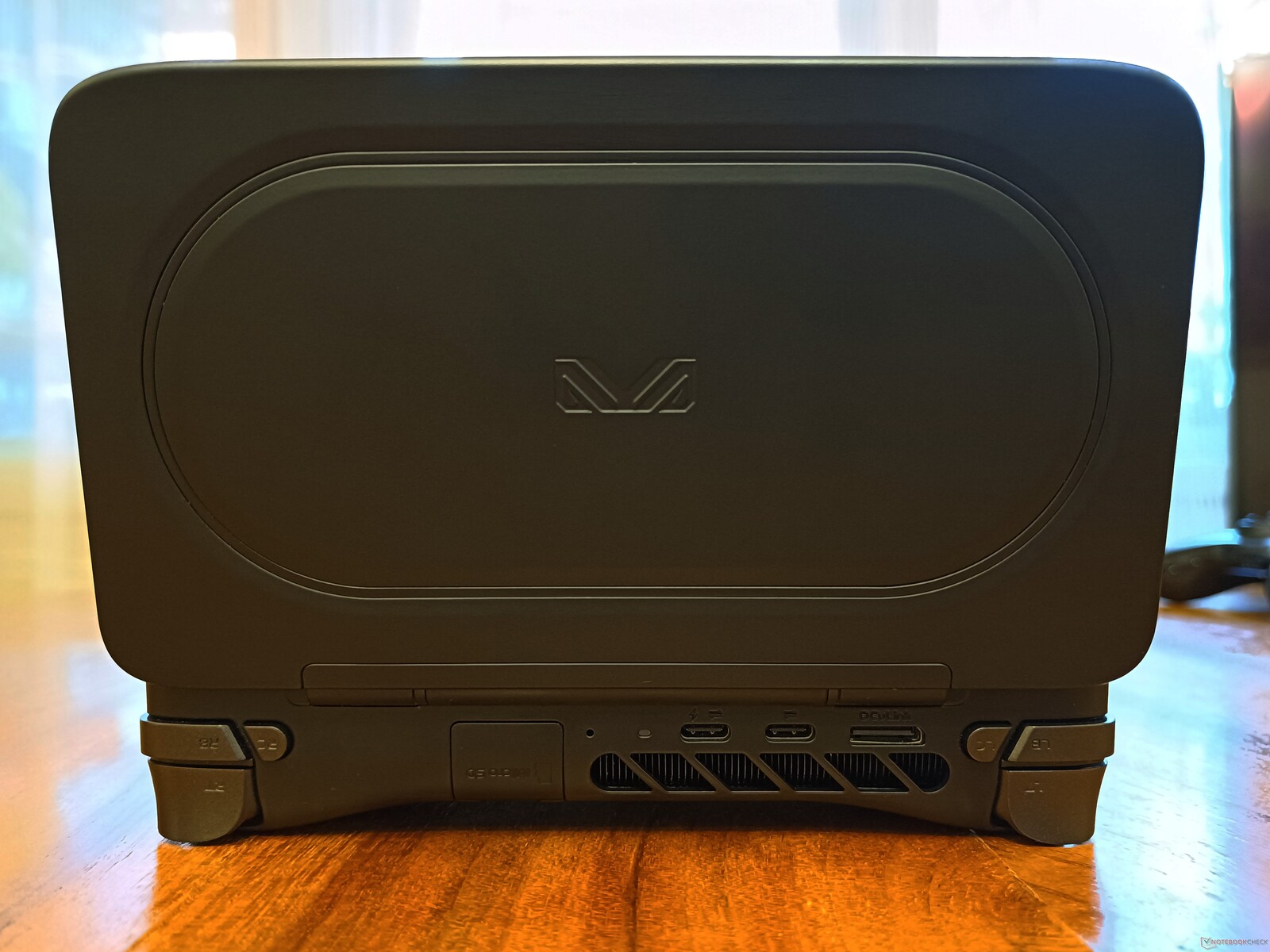

连接性
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Ayaneo Flip KB | |
| Ayaneo Kun | |
| Average of class Handheld / UMPC (20.9 - 184, n=9, last 2 years) | |
| Asus ROG Ally X (Angelbird AV Pro v60) | |
| GPD Win Mini 2024 7" (AV Pro SD microSD 128 GB V60) | |
| maximum AS SSD Seq Read Test (1GB) | |
| Asus ROG Ally X (Angelbird AV Pro v60) | |
| Ayaneo Flip KB | |
| Ayaneo Kun | |
| Average of class Handheld / UMPC (84.6 - 260, n=8, last 2 years) | |
| GPD Win Mini 2024 7" (AV Pro SD microSD 128 GB V60) | |
| Networking | |
| iperf3 transmit AXE11000 6GHz | |
| Ayaneo Kun | |
| Ayaneo Flip KB | |
| GPD Win Mini 2024 7" | |
| iperf3 receive AXE11000 6GHz | |
| Ayaneo Kun | |
| Ayaneo Flip KB | |
| GPD Win Mini 2024 7" | |
| iperf3 transmit AXE11000 | |
| Asus ROG Ally X | |
| Ayaneo Kun | |
| GPD Win Mini 2024 7" | |
| Ayaneo Flip KB | |
| iperf3 receive AXE11000 | |
| Asus ROG Ally X | |
| Ayaneo Kun | |
| Ayaneo Flip KB | |
| GPD Win Mini 2024 7" | |
输入设备

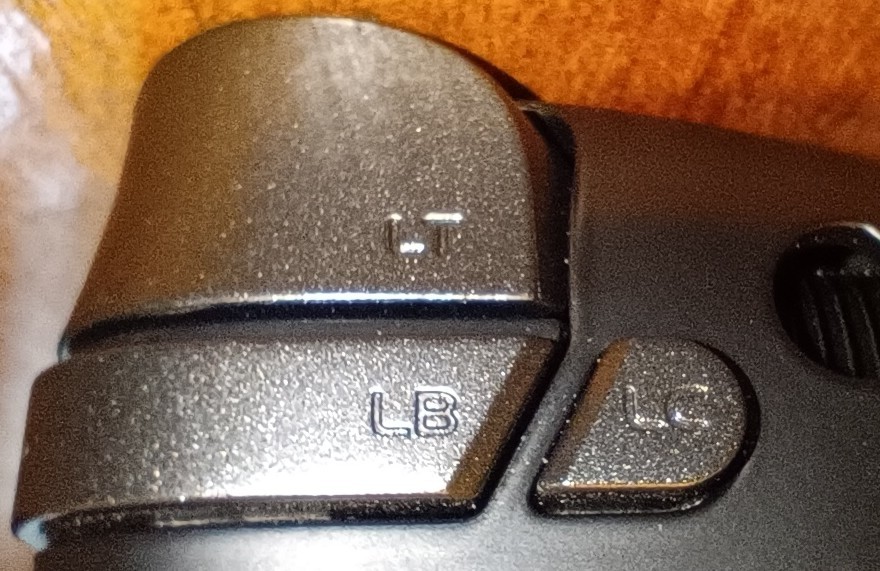

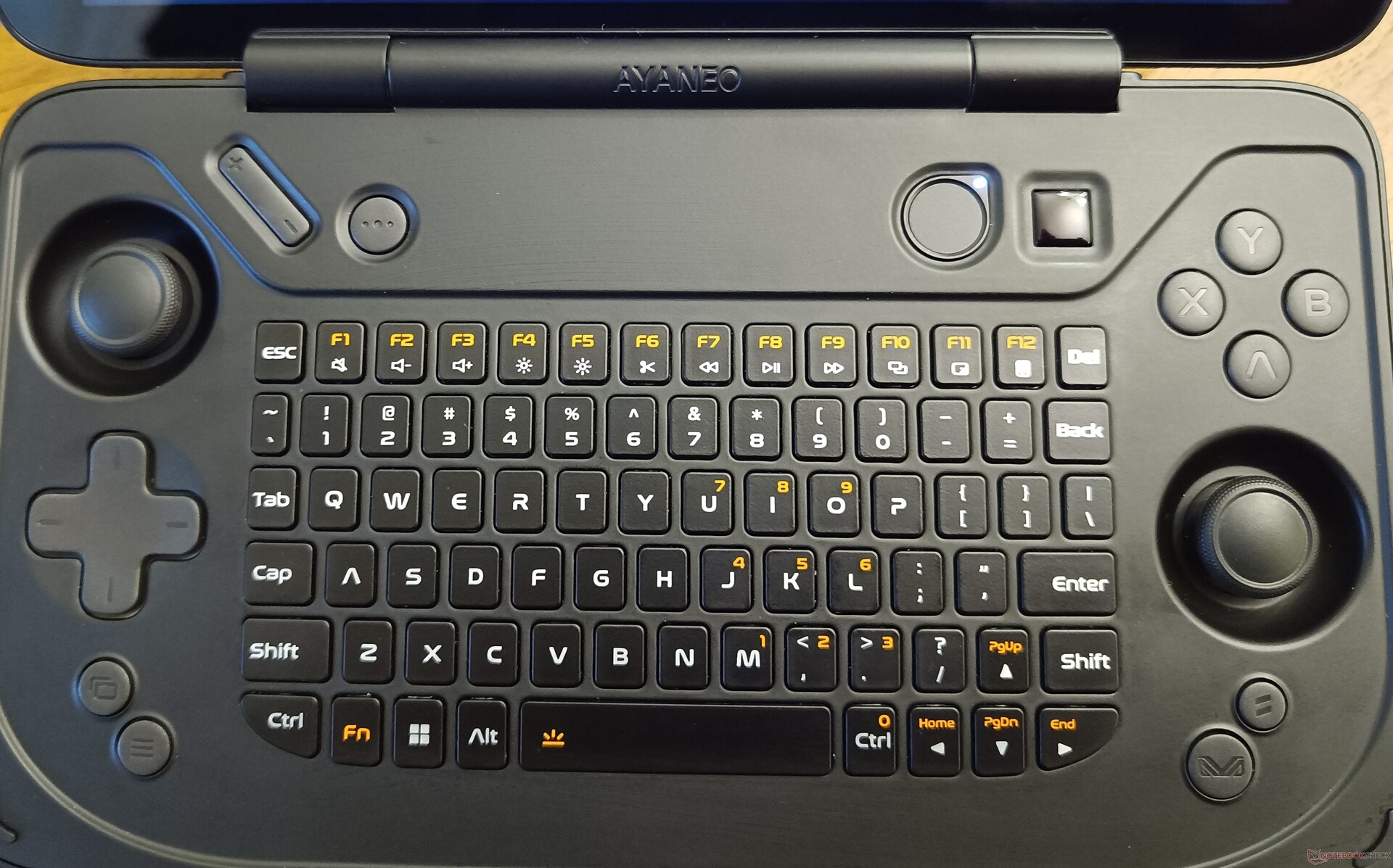

该机型配备了常用的游戏控制器，还包括一个光电手指鼠标、一个顶部带有 F 键但没有数字键盘和触摸屏功能的迷你键盘。虽然 D 键盘、操纵杆、扳机键、肩部按键和 AYASpace 界面快捷键都符合人体工程学，一般大小的手都能轻松操作，但小键盘却很难在手持游戏机时进行交互。要获得适当的打字体验或更复杂的快捷键组合，用户实际上需要将控制台平放在平面上。此外，光学手指鼠标可能会出现故障，特别是对于拇指较大的用户。对于通常的 Windows 任务，鼠标功能可以很容易地被反应灵敏的触摸屏取代。

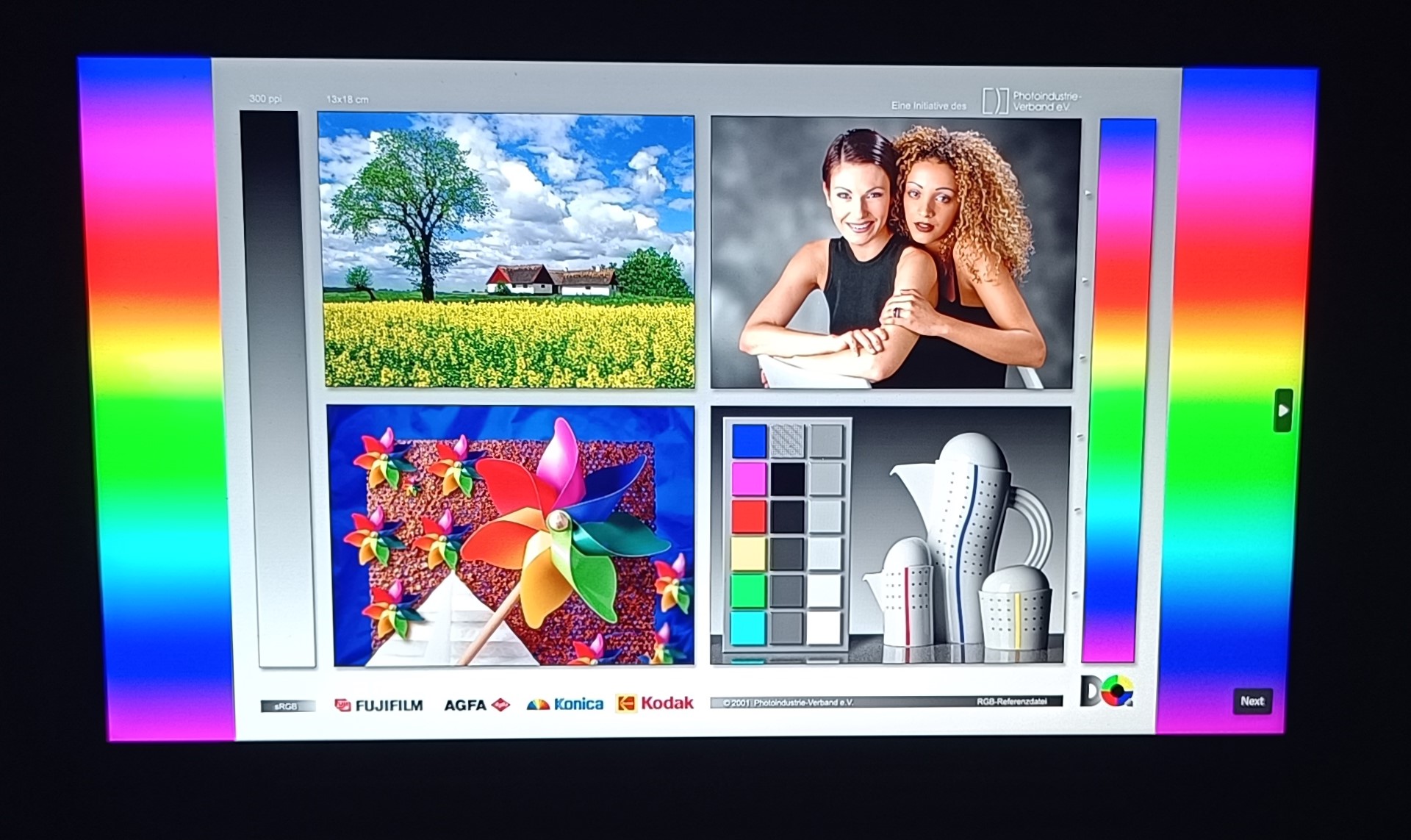

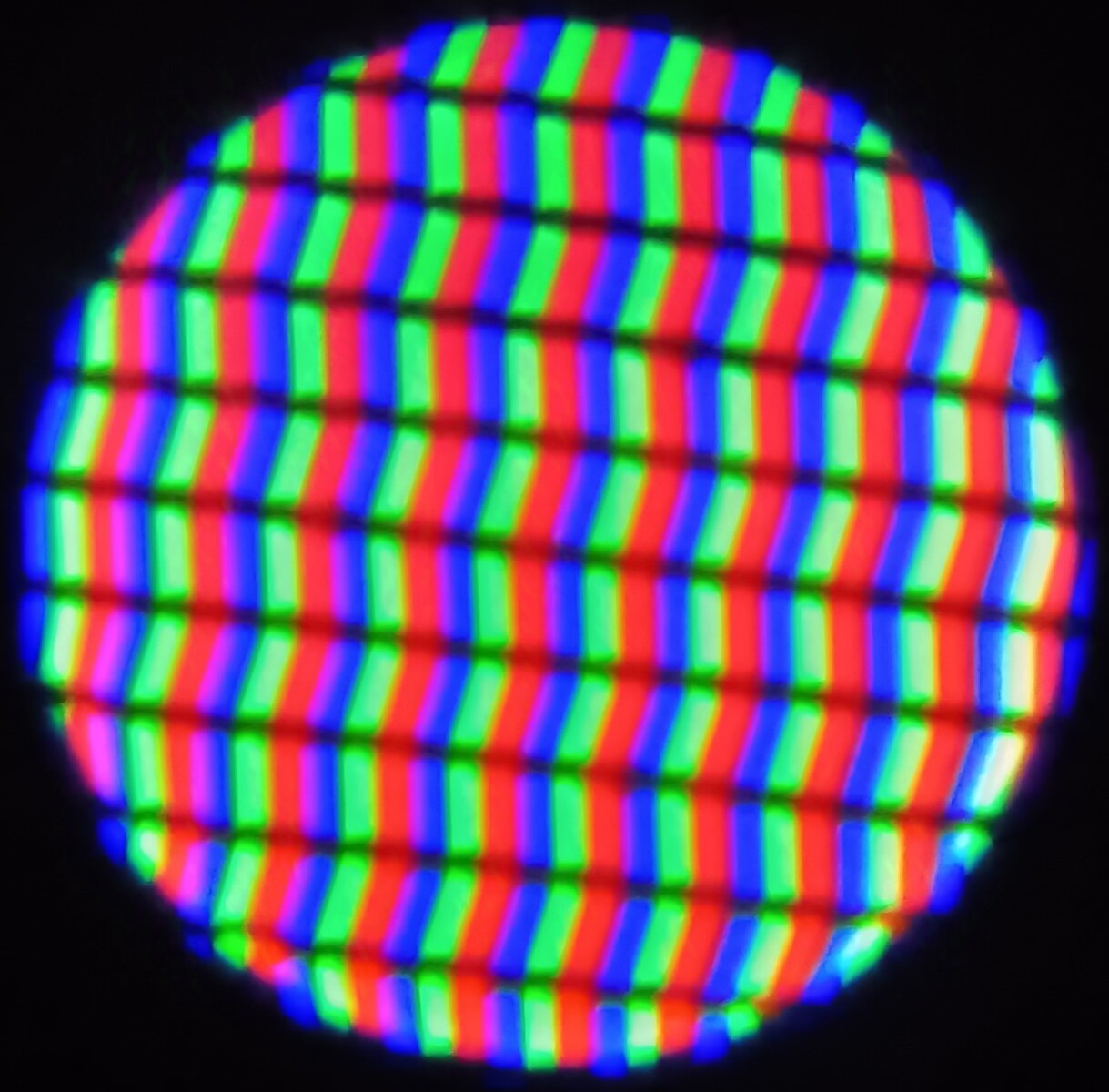

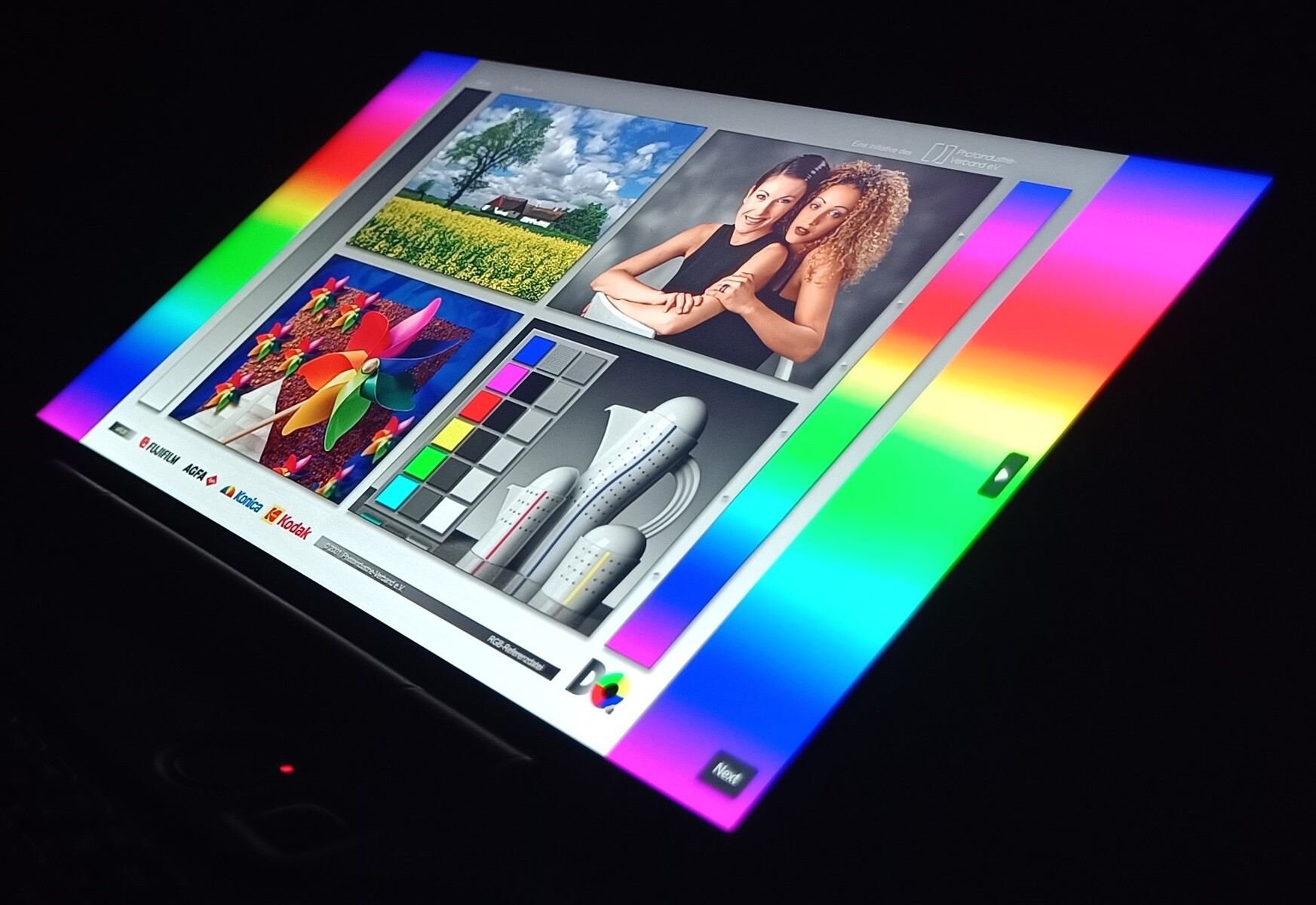

显示屏：超亮 1080p IPS 触摸屏
由于这是一款预生产机型，显示屏的分辨率被锁定在 1080p，因此所有测试都是在此分辨率下进行的。不过，这是我们发现的显示屏唯一的问题，Ayaneo 承诺会通过更新来解决这个问题。除此之外，这块触摸屏配备了我们在掌上游戏机上测试过的最亮的 IPS 面板之一，平均亮度为 720 尼特。

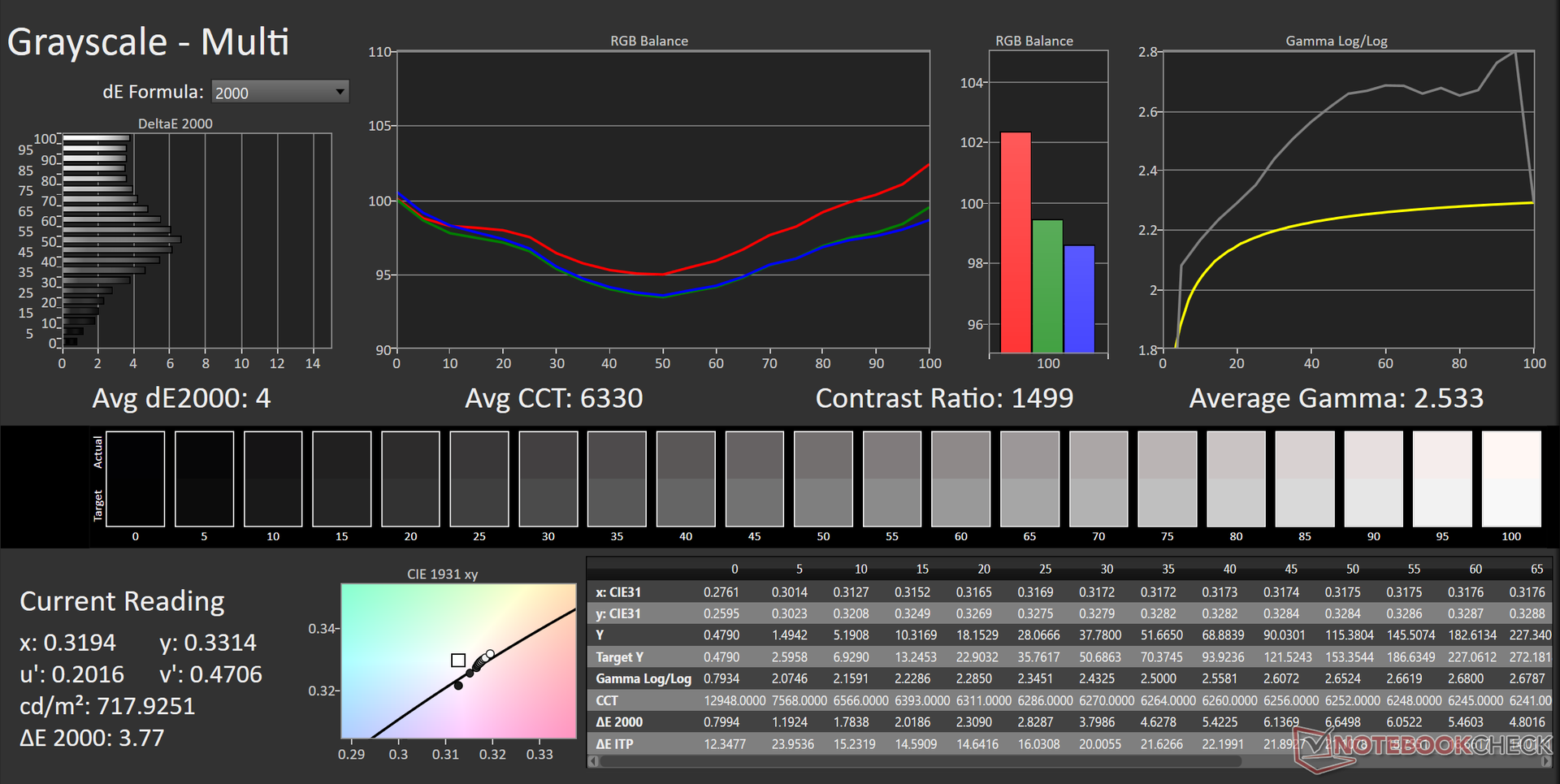

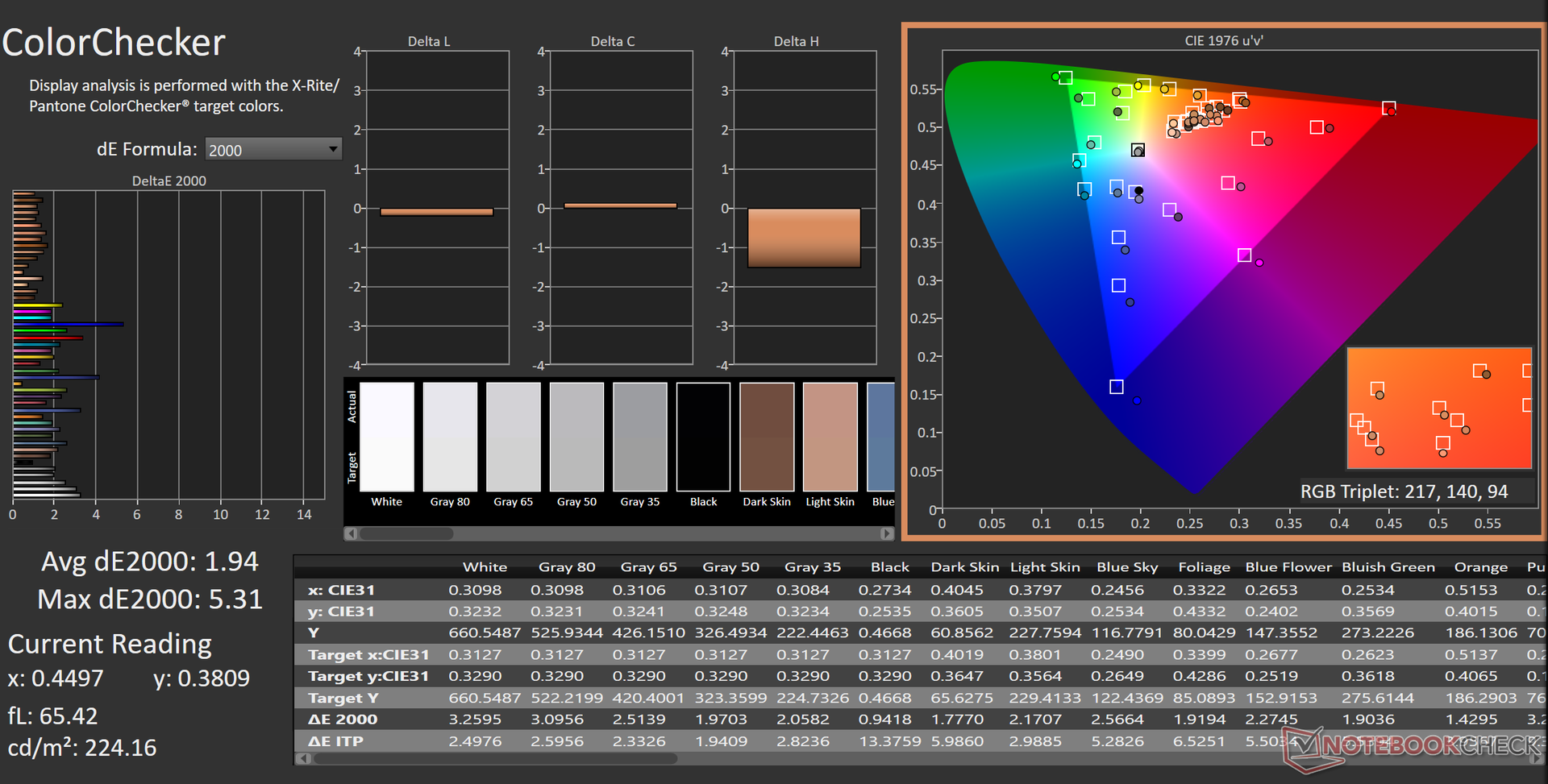

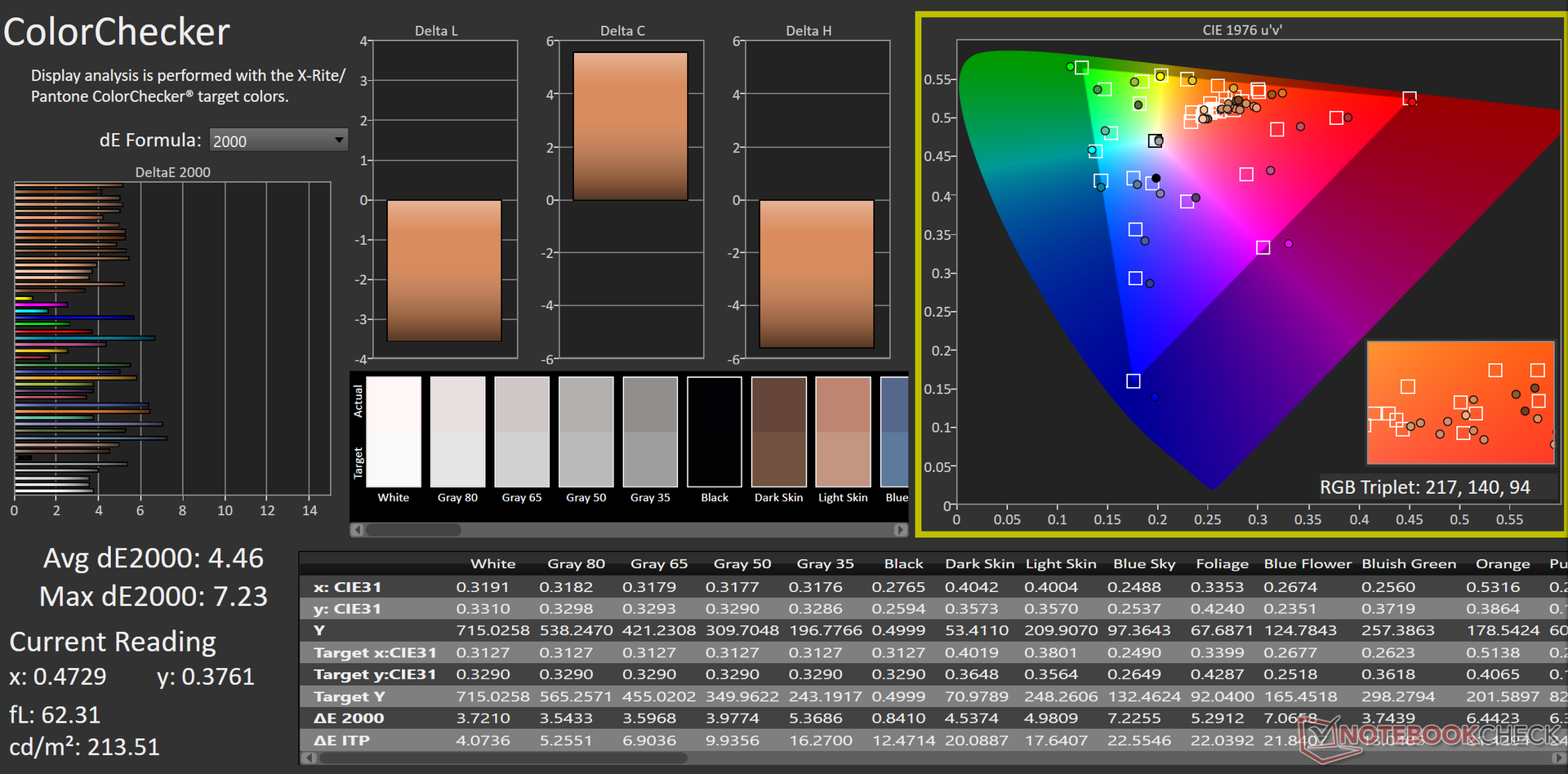

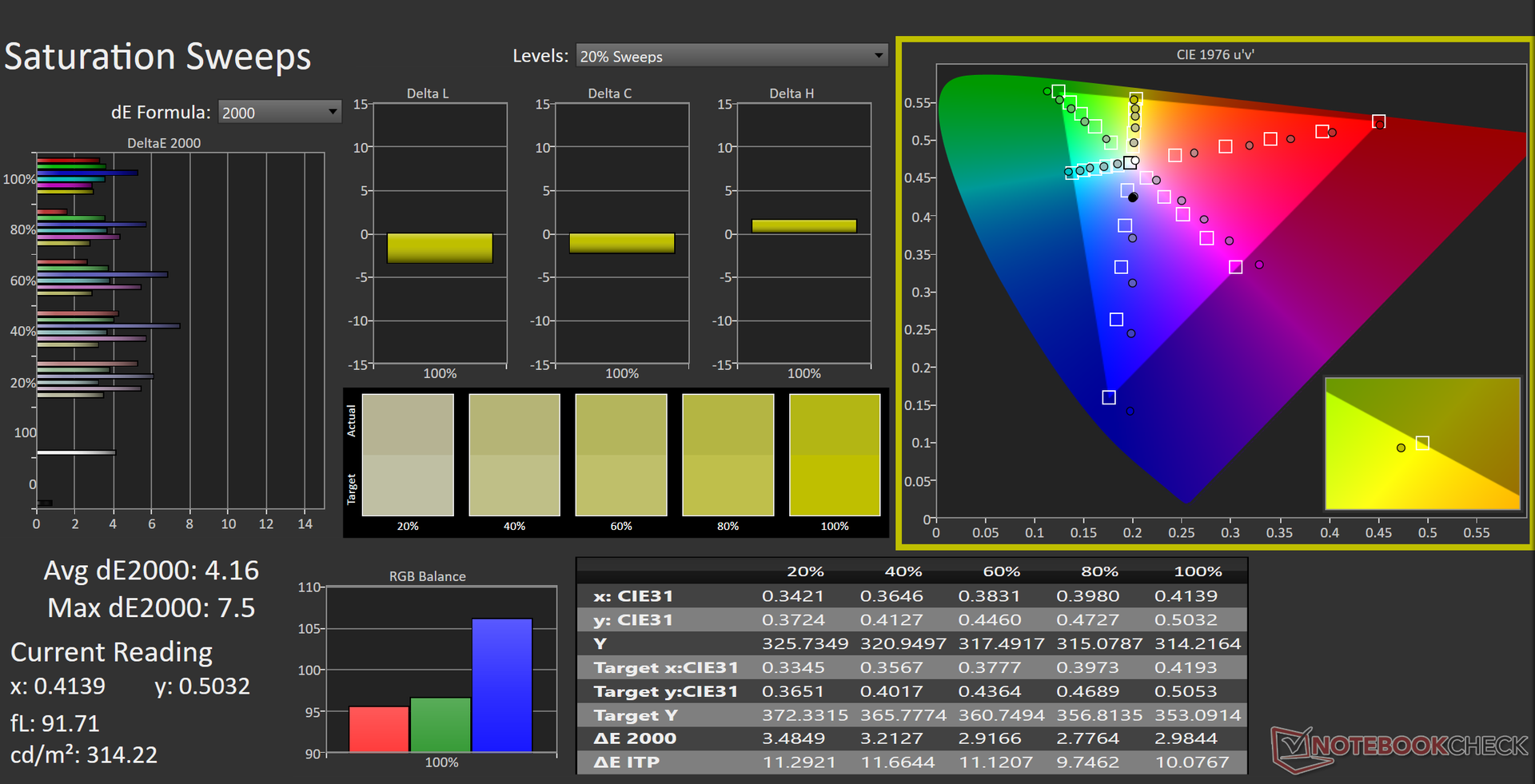

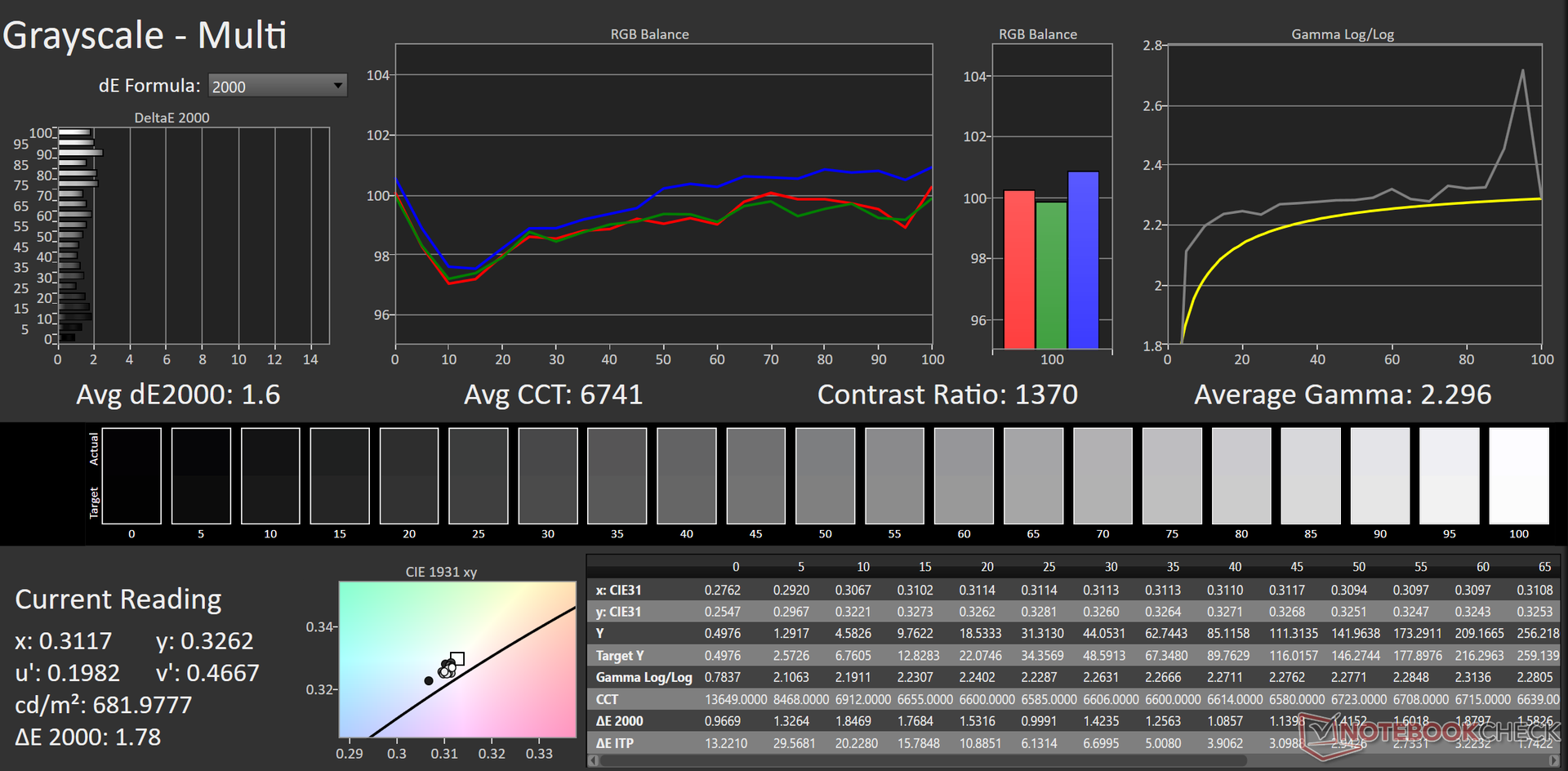

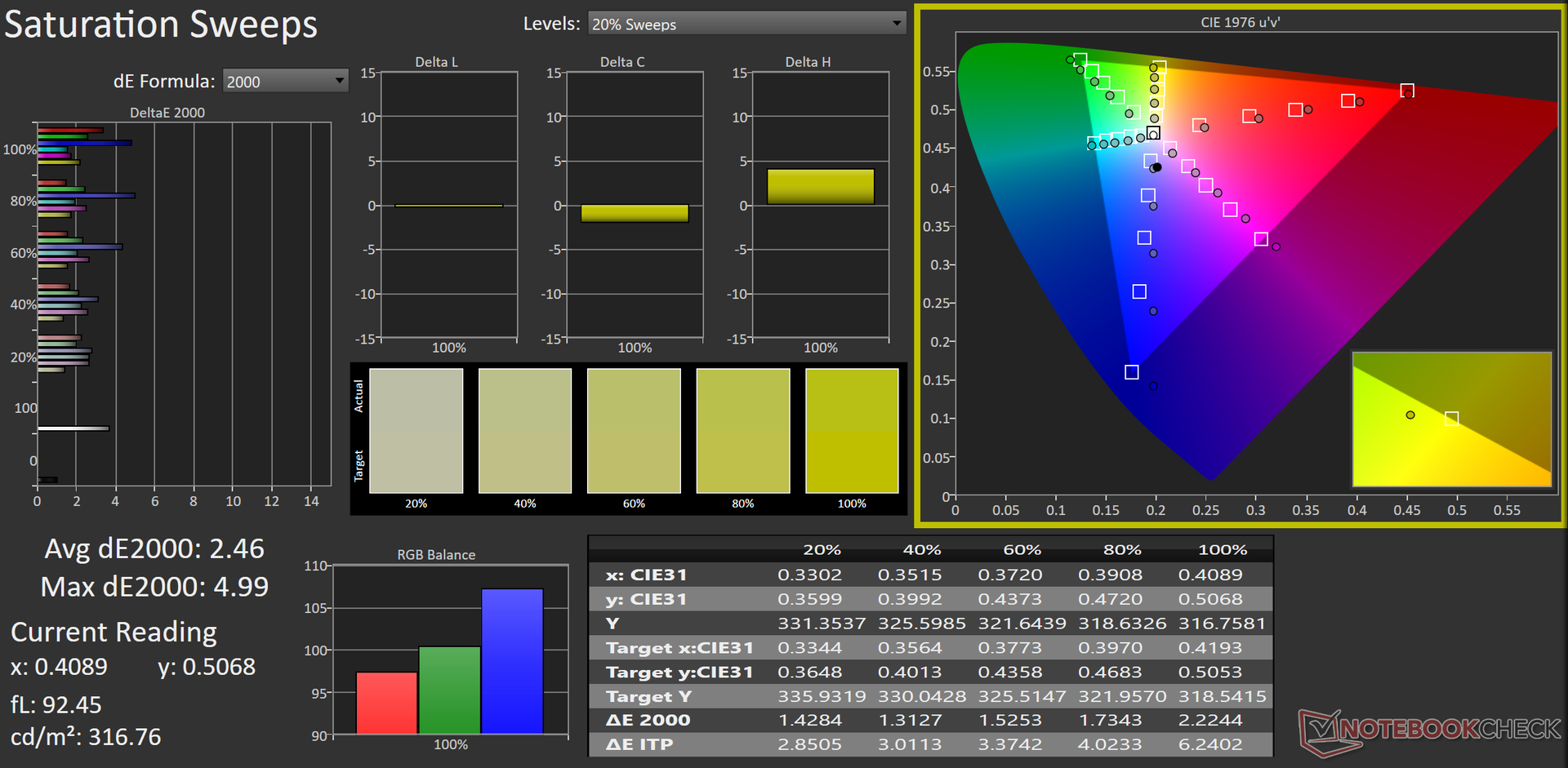

与同类产品相比，它的黑度略有提高，但较高的对比度有助于抵消这种不便。sRGb 色彩还原接近广告宣传的最大值，我们通过适当的校准将 deltaE 误差降到了 2 以下。

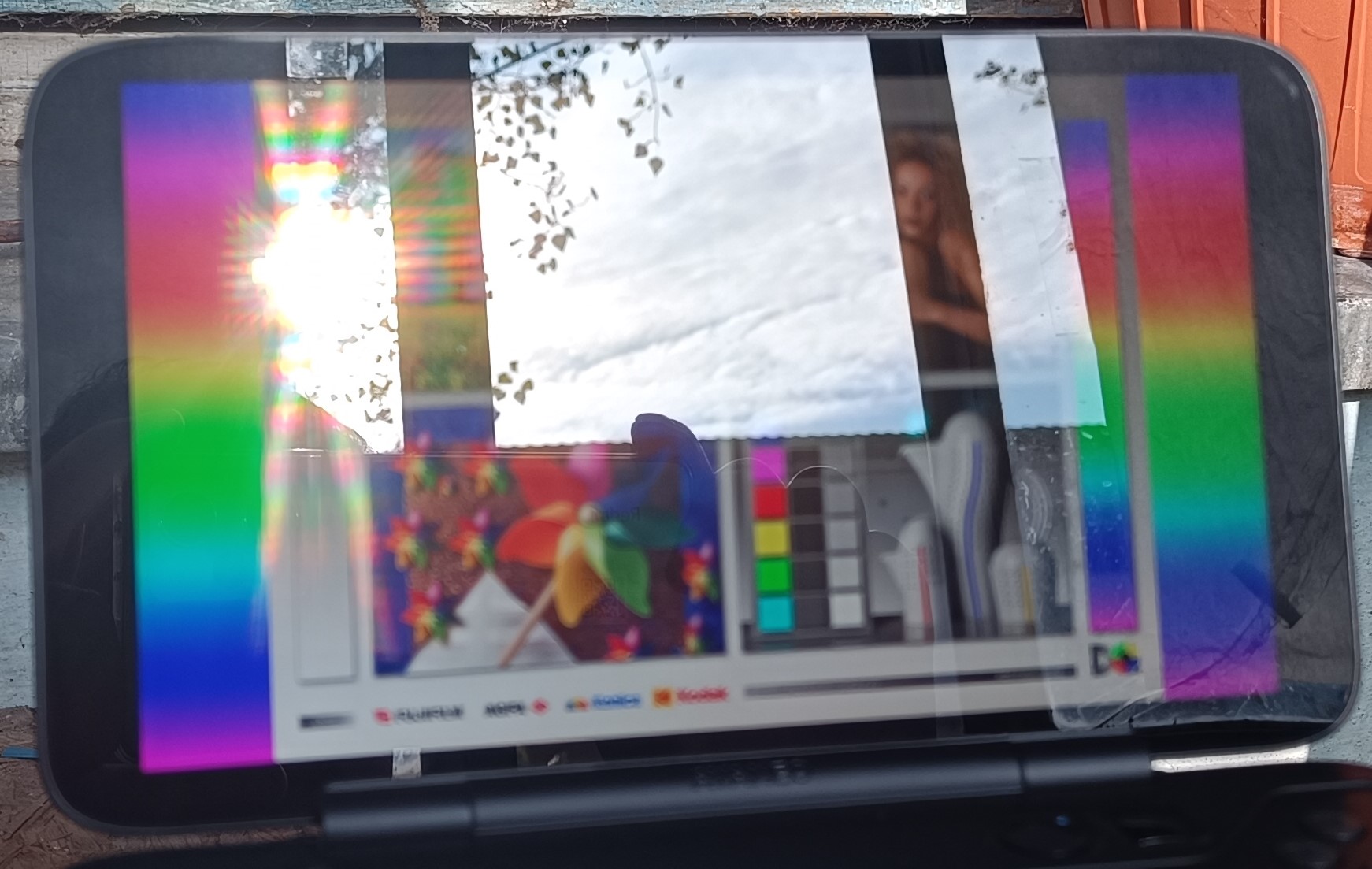

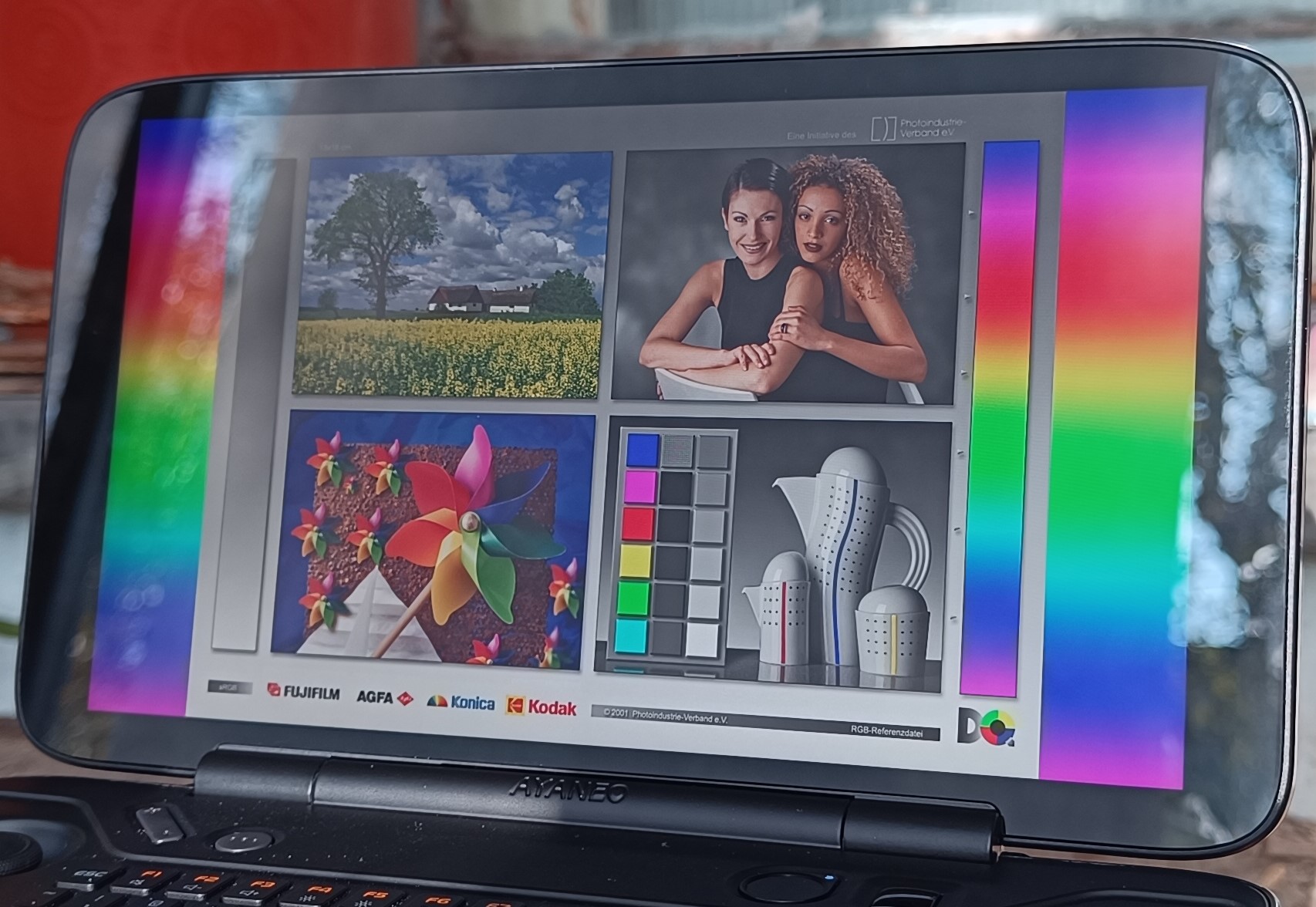

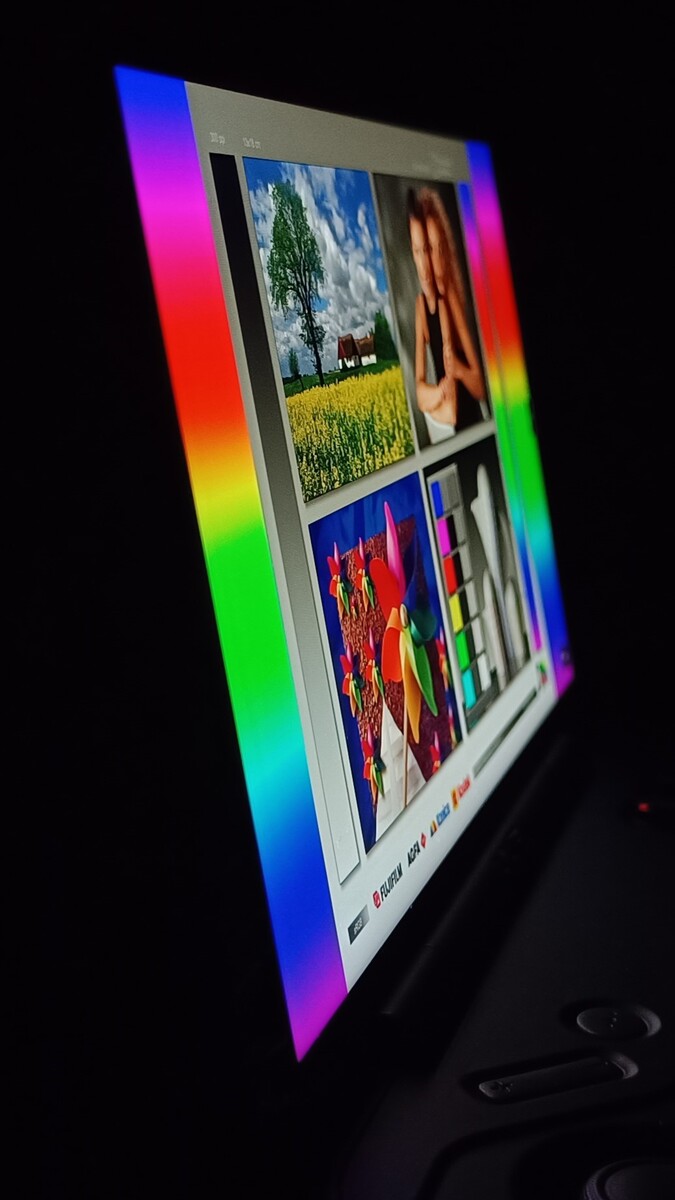

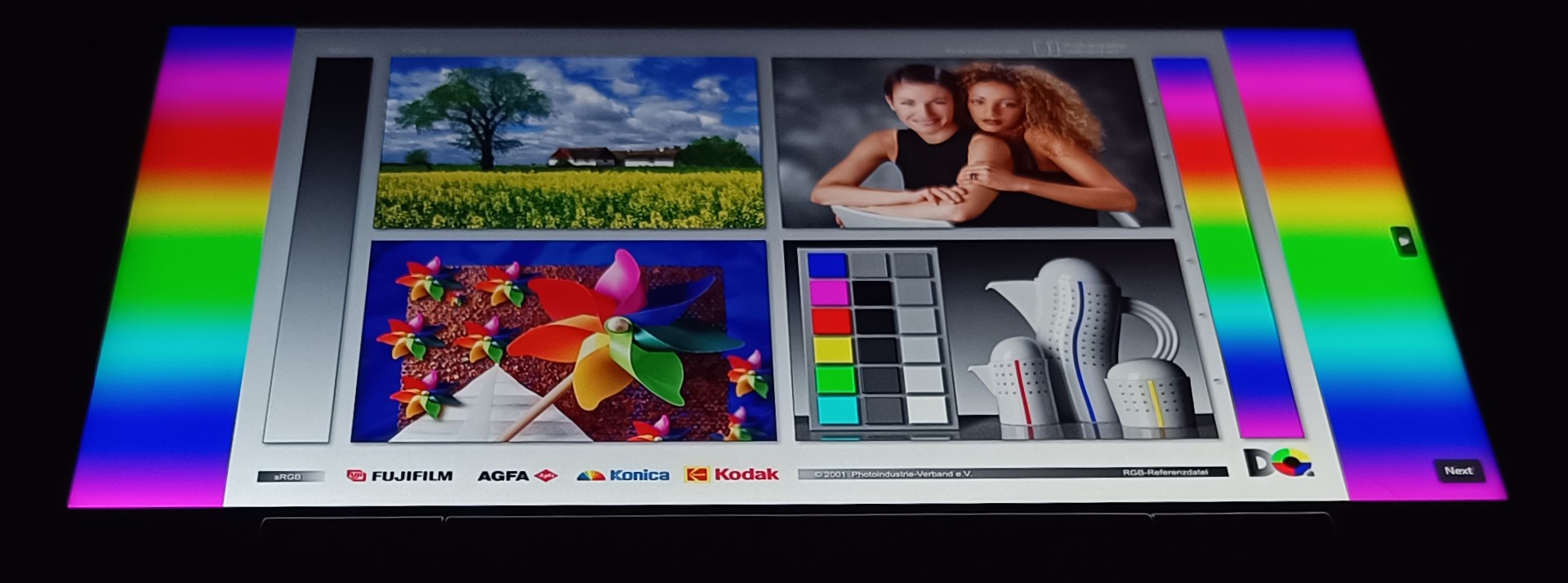

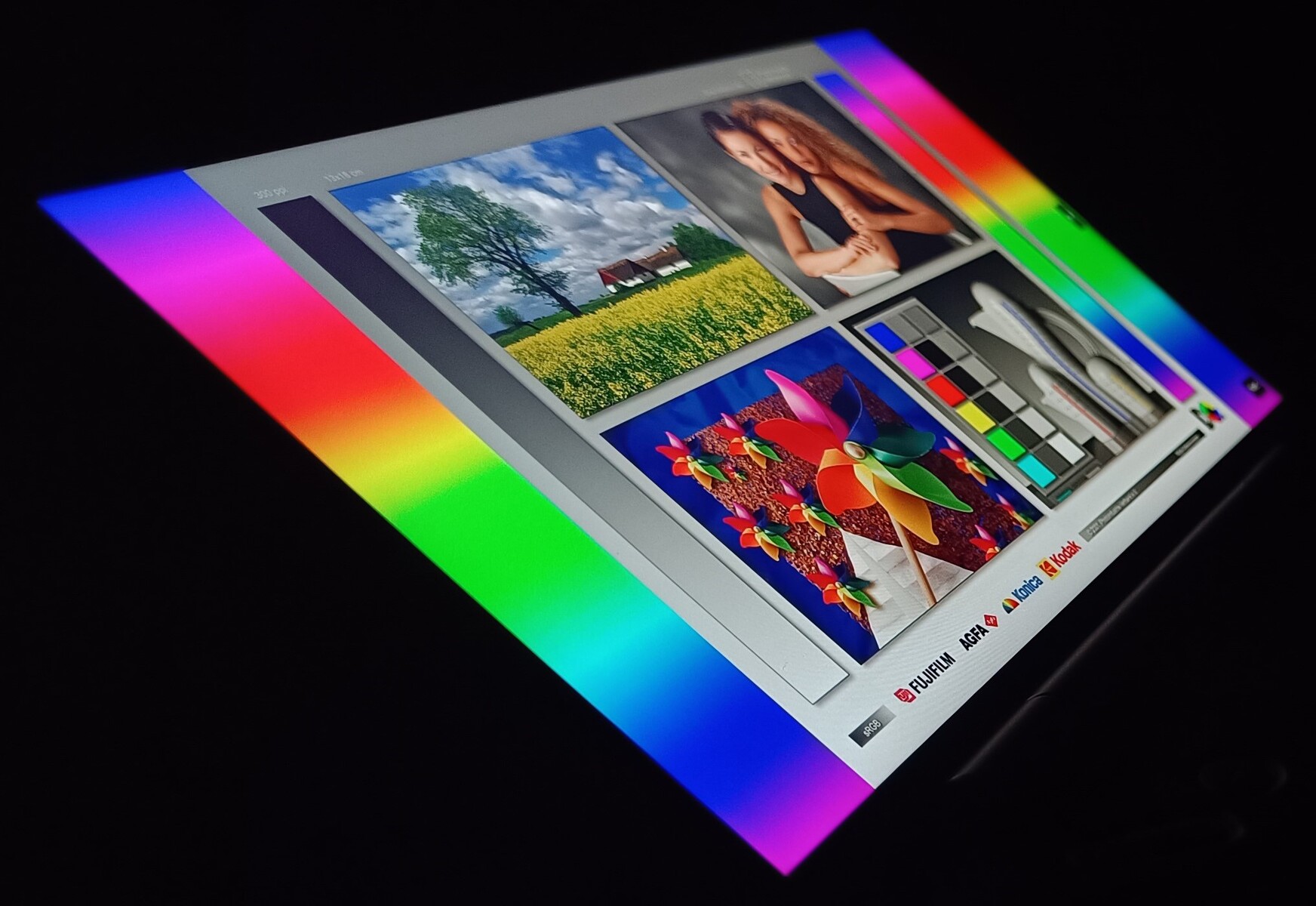

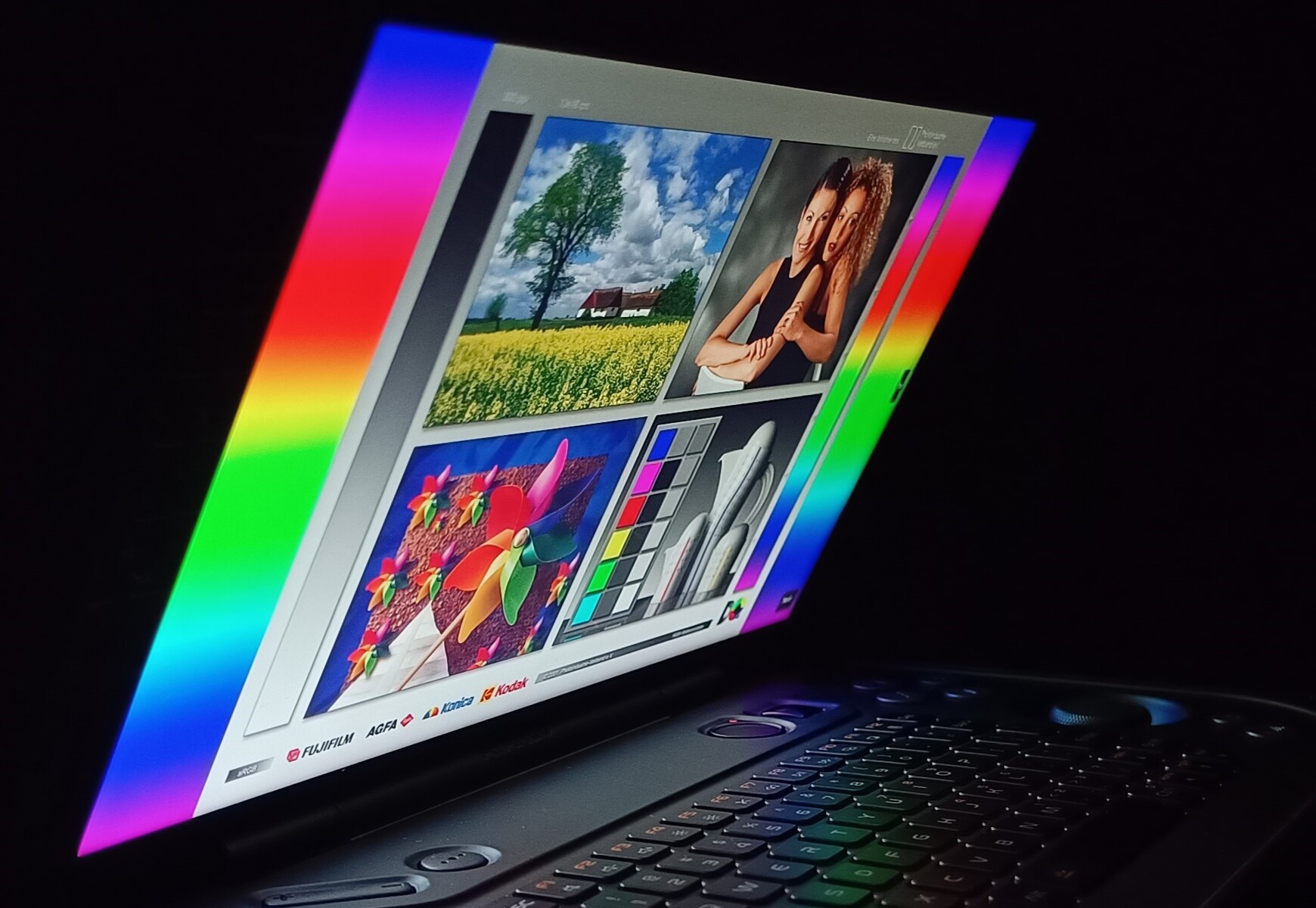

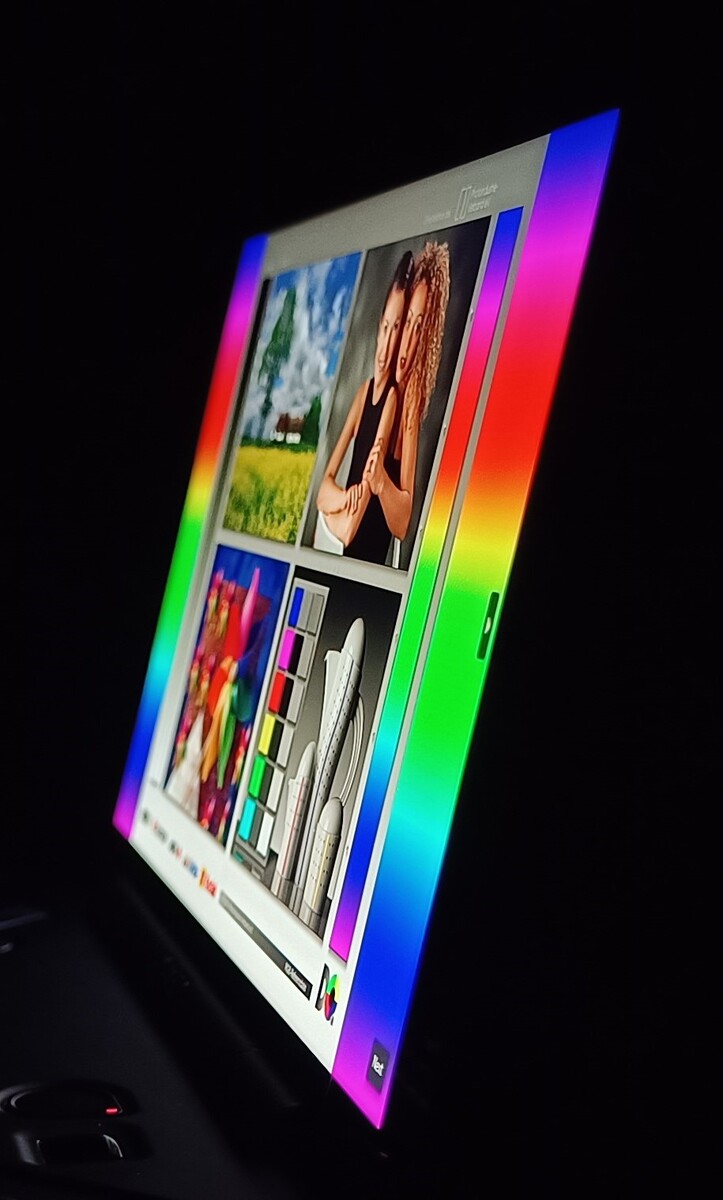

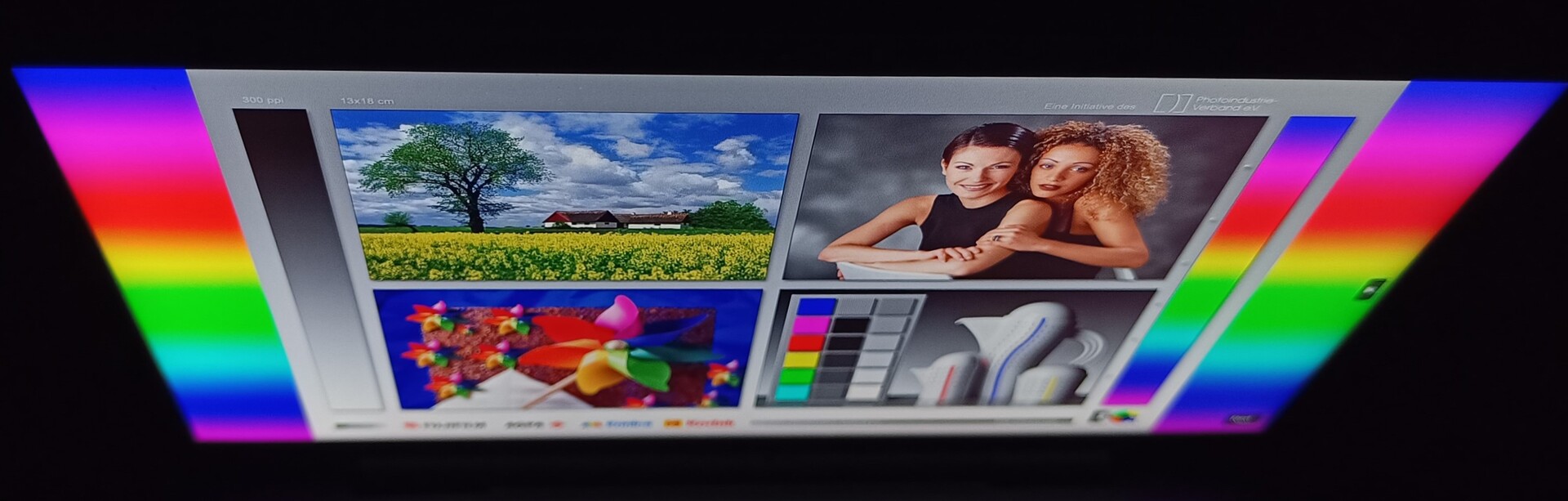

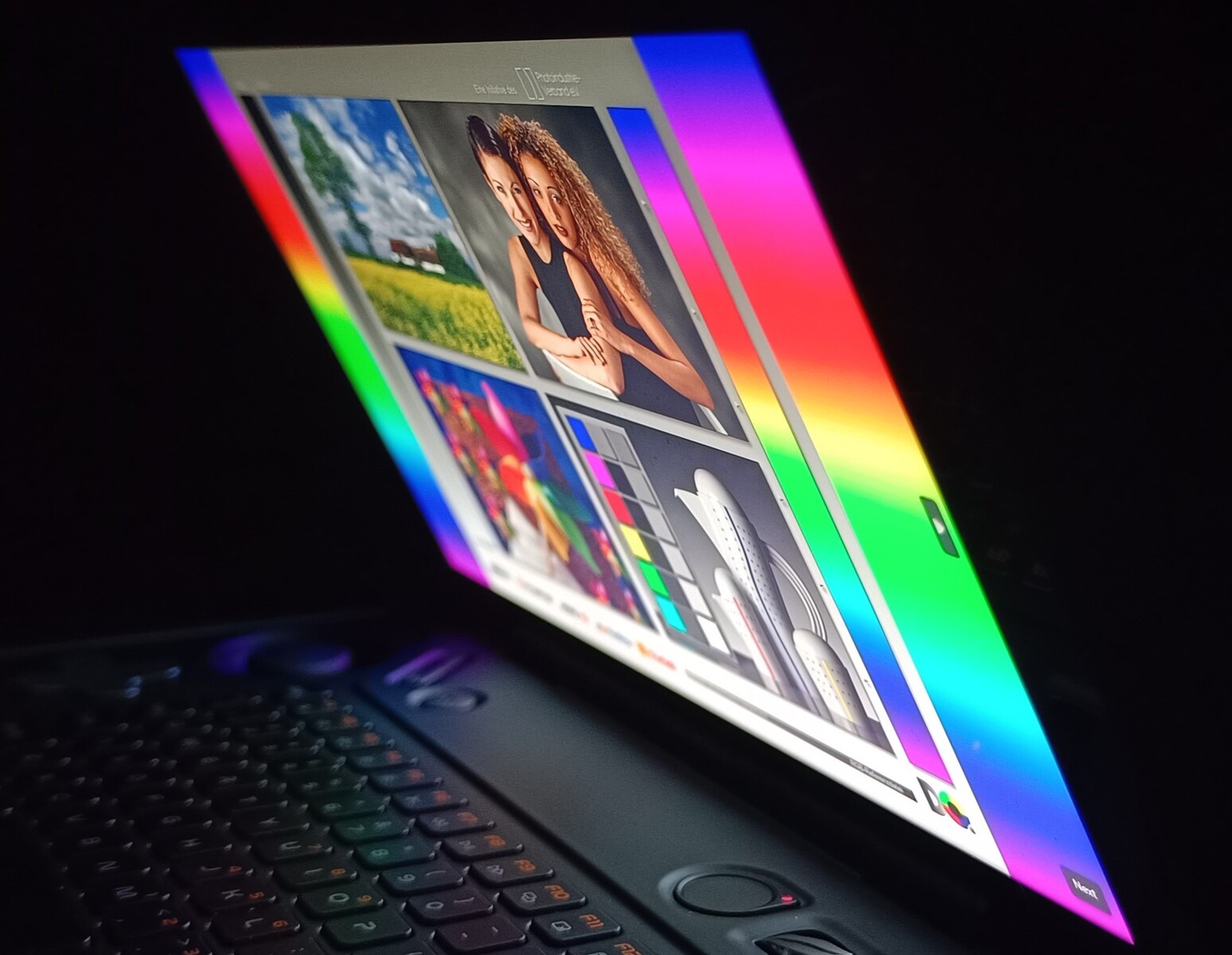

在室内使用时，光面效果非常好，但不建议在室外使用，因为会有明显的眩光。可视角度也不错。我们没有检测到任何 PWM 或闪烁现象，在线 2 毫秒的 BtW 响应对于此类屏幕来说相当出色。不过，对于快节奏的射击游戏来说，GtG 响应并不是很好。
| |||||||||||||||||||||||||
Brightness Distribution: 86 %
Center on Battery: 732 cd/m²
Contrast: 1512:1 (Black: 0.49 cd/m²)
ΔE Color 4.46 | 0.5-29.43 Ø4.9, calibrated: 1.94
ΔE Greyscale 4 | 0.5-98 Ø5.2
69.57% AdobeRGB 1998 (Argyll 2.2.0 3D)
96.63% sRGB (Argyll 2.2.0 3D)
69.47% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.533
| Ayaneo Flip KB 1920x1080, 7" | GPD Win Mini 2024 7" TL070FVSX01-0, , 1920x1080, 7" | Ayaneo Kun Ayaneo 2K, , 2560x1600, 8.4" | Asus ROG Ally X TL070FVXS01-0, , 1920x1080, 7" | MSI Claw TL070FVXS02-0, , 1920x1080, 7" | |
|---|---|---|---|---|---|
| Display | -5% | 23% | -3% | -2% | |
| Display P3 Coverage | 69.47 | 64.8 -7% | 93.52 35% | 66.2 -5% | 67 -4% |
| sRGB Coverage | 96.63 | 93.3 -3% | 99.4 3% | 93.4 -3% | 94.4 -2% |
| AdobeRGB 1998 Coverage | 69.57 | 67 -4% | 91.2 31% | 68.5 -2% | 69.4 0% |
| Response Times | -82% | -371% | -69% | -90% | |
| Response Time Grey 50% / Grey 80% * | 18.4 ? | 8.9 ? 52% | 24.2 ? -32% | 9.7 ? 47% | 9.2 ? 50% |
| Response Time Black / White * | 2 ? | 6.3 ? -215% | 16.2 ? -710% | 5.7 ? -185% | 6.6 ? -230% |
| PWM Frequency | 20000 | ||||
| Screen | -1% | -12% | 0% | 6% | |
| Brightness middle | 741 | 493 -33% | 680 -8% | 484 -35% | 477 -36% |
| Brightness | 720 | 470 -35% | 678 -6% | 456 -37% | 461 -36% |
| Brightness Distribution | 86 | 86 0% | 91 6% | 88 2% | 88 2% |
| Black Level * | 0.49 | 0.47 4% | 0.5 -2% | 0.35 29% | 0.32 35% |
| Contrast | 1512 | 1049 -31% | 1360 -10% | 1383 -9% | 1491 -1% |
| Colorchecker dE 2000 * | 4.46 | 2.36 47% | 4 10% | 2.9 35% | 2.6 42% |
| Colorchecker dE 2000 max. * | 7.23 | 6.36 12% | 9 -24% | 7.1 2% | 5.8 20% |
| Colorchecker dE 2000 calibrated * | 1.94 | 1.3 33% | 1 48% | 1.4 28% | 1.5 23% |
| Greyscale dE 2000 * | 4 | 4.4 -10% | 9 -125% | 4.5 -13% | 3.9 2% |
| Gamma | 2.533 87% | 2.28 96% | 2 110% | 2.24 98% | 2.17 101% |
| CCT | 6330 103% | 7142 91% | 7188 90% | 7534 86% | 7250 90% |
| Total Average (Program / Settings) | -29% /
-14% | -120% /
-56% | -24% /
-10% | -29% /
-10% |
* ... smaller is better

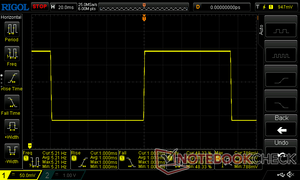

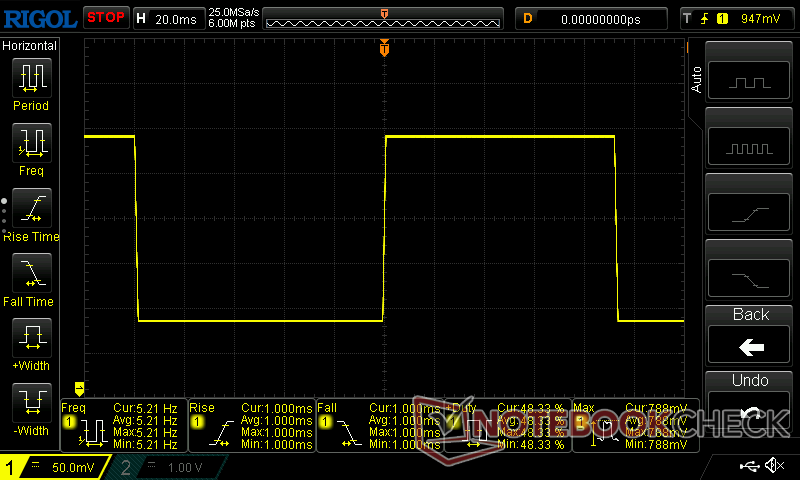

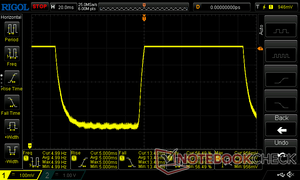

Display Response Times
| ↔ Response Time Black to White | ||
|---|---|---|
| 2 ms ... rise ↗ and fall ↘ combined | ↗ 1 ms rise |  |
| ↘ 1 ms fall | ||
| The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 7 % of all devices are better. This means that the measured response time is better than the average of all tested devices (20.9 ms). | ||

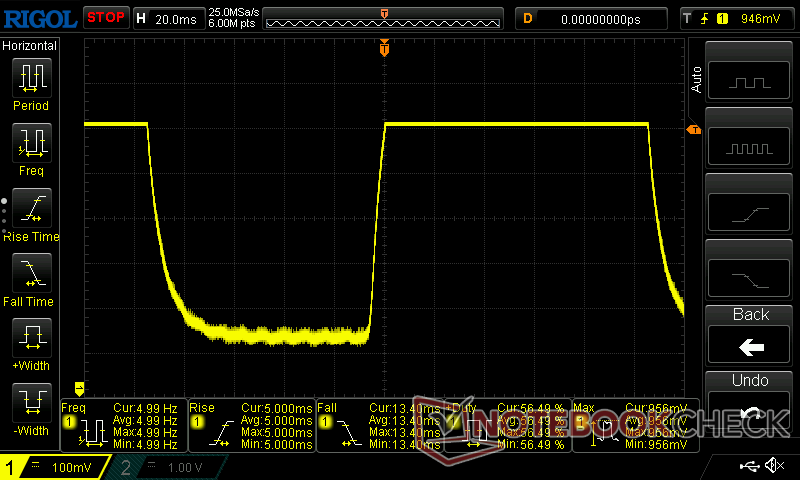

| ↔ Response Time 50% Grey to 80% Grey | ||
| 18.4 ms ... rise ↗ and fall ↘ combined | ↗ 5 ms rise |  |
| ↘ 13.4 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 29 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.8 ms). | ||

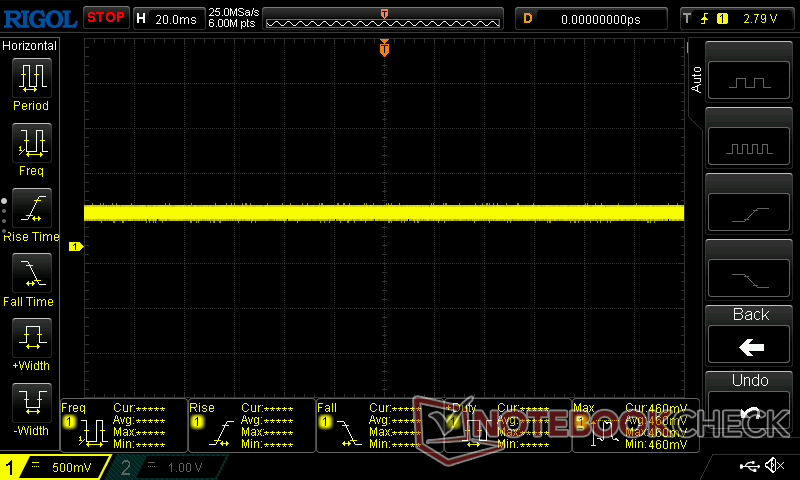

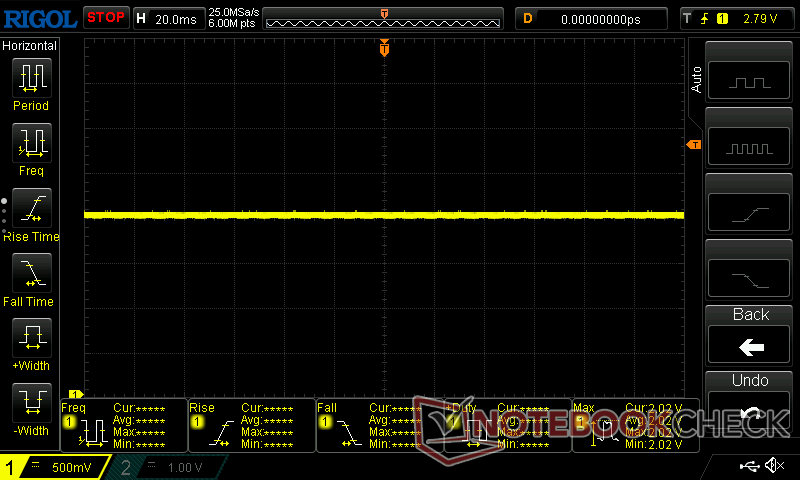

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM not detected | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8687 (minimum: 5 - maximum: 343500) Hz was measured. | ||
性能：CPU 速度低于平均水平，但 iGPU 性能不错
测试条件

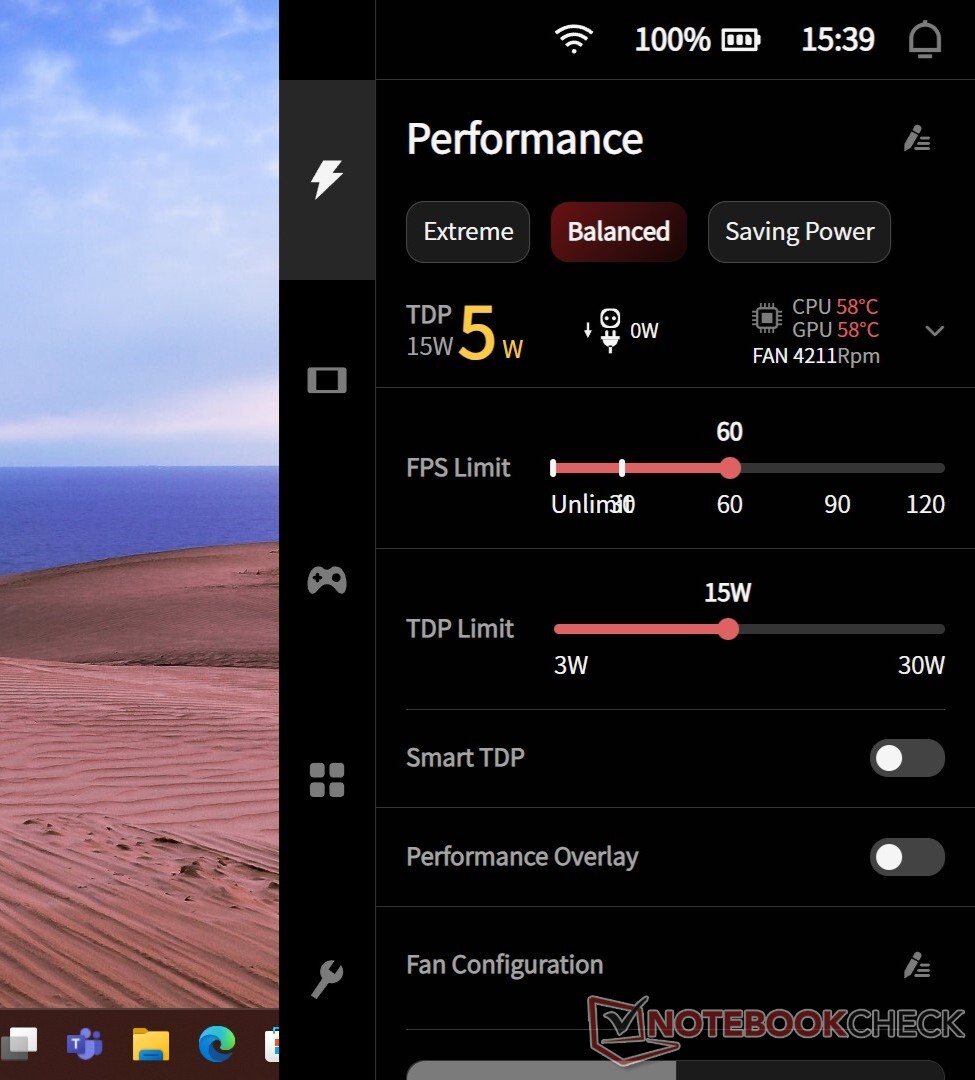

所有性能结果都是在启用极限配置文件（除非另有说明）的情况下记录的，该配置文件将 FPS 设为无限，风扇设为自动，APU TDP 设为 30 W。许多其他设置也可即时配置，如风扇曲线、游戏控制器、游戏启动器、应用程序启动器等。
处理器

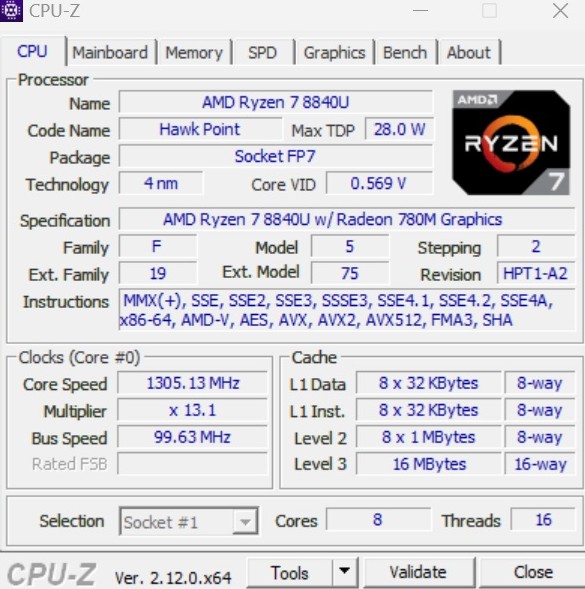

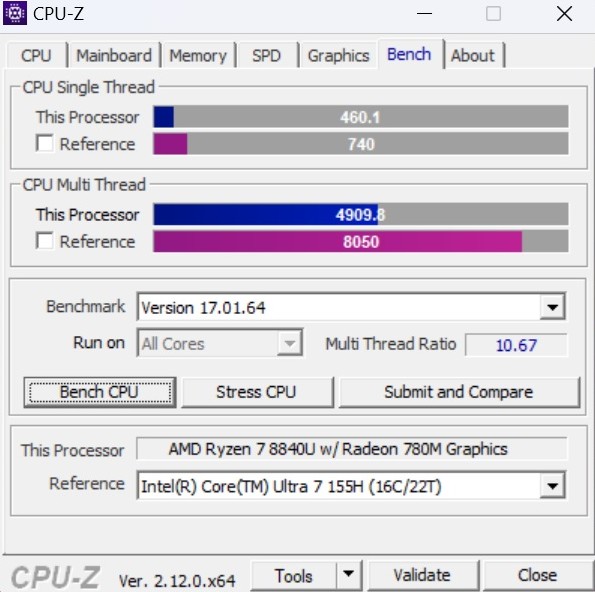

Flip KB 采用 Ryzen 7 8840U APU，其 TDP 可配置为 3 W 至 30 W。它配备 8 个 Ryzen 4 核心和 16 个线程，最高主频可达 5.1 GHz。APU 配有 32 GB LPDDR5-6400 内存。在我们的 CPU 合成测试中，Flip KB 似乎没有针对非游戏任务进行调整，因为它通常排在最后或倒数第二位。从积极的方面看，Cinebench R15 Multi Loop 显示性能实际上提高了一半。
Cinebench R15 Multi Loop
Cinebench R15: CPU Single 64Bit | CPU Multi 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.5: Single-Core | Multi-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| Cinebench R20 / CPU (Single Core) | |
| MSI Claw | |
| Asus ROG Ally X | |
| GPD Win Mini 2024 7" | |
| Ayaneo Kun | |
| Average AMD Ryzen 7 8840U (427 - 680, n=4) | |
| Average of class Handheld / UMPC (357 - 684, n=9, last 2 years) | |
| Ayaneo Flip KB | |
| Cinebench R20 / CPU (Multi Core) | |
| Ayaneo Kun | |
| Asus ROG Ally X | |
| MSI Claw | |
| Average AMD Ryzen 7 8840U (3987 - 5336, n=4) | |
| Average of class Handheld / UMPC (1521 - 5917, n=9, last 2 years) | |
| Ayaneo Flip KB | |
| GPD Win Mini 2024 7" | |
| Cinebench R15 / CPU Single 64Bit | |
| GPD Win Mini 2024 7" | |
| Asus ROG Ally X | |
| MSI Claw | |
| Average of class Handheld / UMPC (176.6 - 268, n=8, last 2 years) | |
| Ayaneo Kun | |
| Average AMD Ryzen 7 8840U (176.6 - 275, n=4) | |
| Ayaneo Flip KB | |
| Cinebench R15 / CPU Multi 64Bit | |
| Ayaneo Kun | |
| Asus ROG Ally X | |
| Average AMD Ryzen 7 8840U (1539 - 2453, n=4) | |
| MSI Claw | |
| Ayaneo Flip KB | |
| Average of class Handheld / UMPC (689 - 2439, n=9, last 2 years) | |
| GPD Win Mini 2024 7" | |
| Blender / v2.79 BMW27 CPU | |
| GPD Win Mini 2024 7" | |
| Ayaneo Flip KB | |
| Average AMD Ryzen 7 8840U (239 - 315, n=4) | |
| Average of class Handheld / UMPC (208 - 315, n=7, last 2 years) | |
| MSI Claw | |
| Asus ROG Ally X | |
| Ayaneo Kun | |
| 7-Zip 18.03 / 7z b 4 -mmt1 | |
| Asus ROG Ally X | |
| GPD Win Mini 2024 7" | |
| Average AMD Ryzen 7 8840U (4168 - 6469, n=4) | |
| Ayaneo Kun | |
| MSI Claw | |
| Average of class Handheld / UMPC (3653 - 6077, n=8, last 2 years) | |
| Ayaneo Flip KB | |
| 7-Zip 18.03 / 7z b 4 | |
| Asus ROG Ally X | |
| Ayaneo Kun | |
| Average AMD Ryzen 7 8840U (47579 - 59549, n=4) | |
| MSI Claw | |
| Average of class Handheld / UMPC (19684 - 64454, n=9, last 2 years) | |
| Ayaneo Flip KB | |
| GPD Win Mini 2024 7" | |
| Geekbench 5.5 / Single-Core | |
| Asus ROG Ally X | |
| GPD Win Mini 2024 7" | |
| MSI Claw | |
| Average AMD Ryzen 7 8840U (1278 - 1937, n=4) | |
| Average of class Handheld / UMPC (1278 - 1917, n=10, last 2 years) | |
| Ayaneo Kun | |
| Ayaneo Flip KB | |
| Geekbench 5.5 / Multi-Core | |
| Asus ROG Ally X | |
| MSI Claw | |
| Average AMD Ryzen 7 8840U (8205 - 11296, n=4) | |
| Ayaneo Flip KB | |
| Average of class Handheld / UMPC (4457 - 10713, n=10, last 2 years) | |
| Ayaneo Kun | |
| GPD Win Mini 2024 7" | |
| HWBOT x265 Benchmark v2.2 / 4k Preset | |
| Asus ROG Ally X | |
| Ayaneo Kun | |
| Average of class Handheld / UMPC (12.5 - 18.7, n=8, last 2 years) | |
| Average AMD Ryzen 7 8840U (12.5 - 16.5, n=4) | |
| Ayaneo Flip KB | |
| MSI Claw | |
| GPD Win Mini 2024 7" | |
| LibreOffice / 20 Documents To PDF | |
| Ayaneo Flip KB | |
| Average AMD Ryzen 7 8840U (49 - 63.8, n=4) | |
| Ayaneo Kun | |
| Average of class Handheld / UMPC (46.2 - 63.8, n=8, last 2 years) | |
| Asus ROG Ally X | |
| GPD Win Mini 2024 7" | |
| MSI Claw | |
| R Benchmark 2.5 / Overall mean | |
| Ayaneo Flip KB | |
| Average AMD Ryzen 7 8840U (0.4514 - 0.678, n=4) | |
| Average of class Handheld / UMPC (0.4601 - 0.678, n=9, last 2 years) | |
| Ayaneo Kun | |
| Ayaneo Kun | |
| GPD Win Mini 2024 7" | |
| MSI Claw | |
| Asus ROG Ally X | |
* ... smaller is better
系统性能
与 APU 合成测试类似，使用 PCMark 10 进行的系统测试显示，Flip KB 并不特别适合一般任务。
| PCMark 10 / Score | |
| Asus ROG Ally X | |
| GPD Win Mini 2024 7" | |
| Average AMD Ryzen 7 8840U, AMD Radeon 780M (5940 - 7098, n=4) | |
| Ayaneo Kun | |
| Average of class Handheld / UMPC (5866 - 7149, n=9, last 2 years) | |
| Ayaneo Flip KB | |
| PCMark 10 / Essentials | |
| Asus ROG Ally X | |
| GPD Win Mini 2024 7" | |
| Average AMD Ryzen 7 8840U, AMD Radeon 780M (9541 - 10664, n=4) | |
| Average of class Handheld / UMPC (9068 - 10633, n=9, last 2 years) | |
| Ayaneo Flip KB | |
| Ayaneo Kun | |
| PCMark 10 / Productivity | |
| Asus ROG Ally X | |
| GPD Win Mini 2024 7" | |
| Average AMD Ryzen 7 8840U, AMD Radeon 780M (7522 - 10386, n=4) | |
| Average of class Handheld / UMPC (7323 - 9912, n=9, last 2 years) | |
| Ayaneo Kun | |
| Ayaneo Flip KB | |
| PCMark 10 / Digital Content Creation | |
| Asus ROG Ally X | |
| Ayaneo Kun | |
| Average of class Handheld / UMPC (7204 - 9408, n=9, last 2 years) | |
| Average AMD Ryzen 7 8840U, AMD Radeon 780M (7690 - 8762, n=4) | |
| Ayaneo Flip KB | |
| GPD Win Mini 2024 7" | |
| PCMark 10 Score | 5940 points | |
Help | ||
DPC 延迟

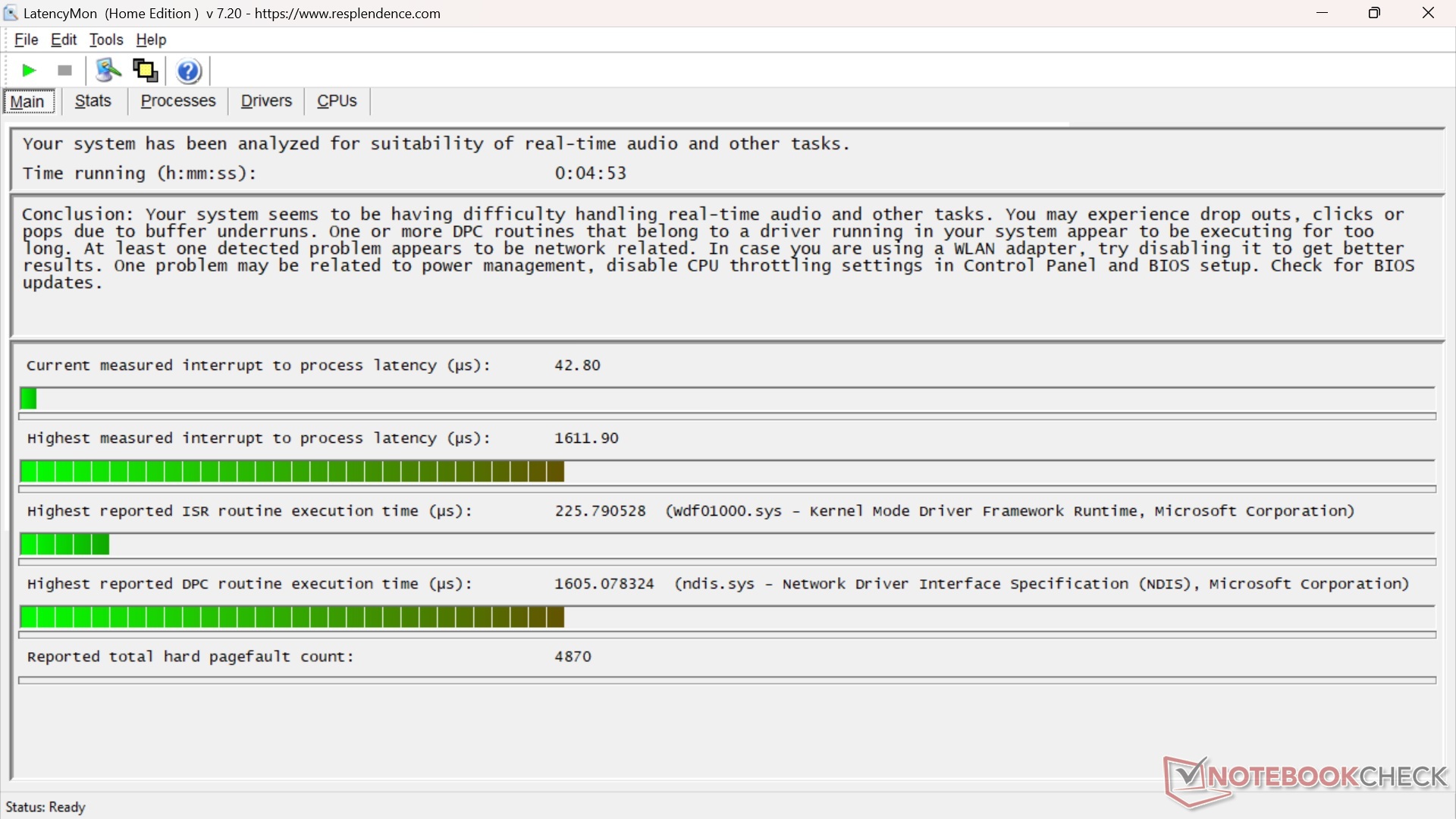

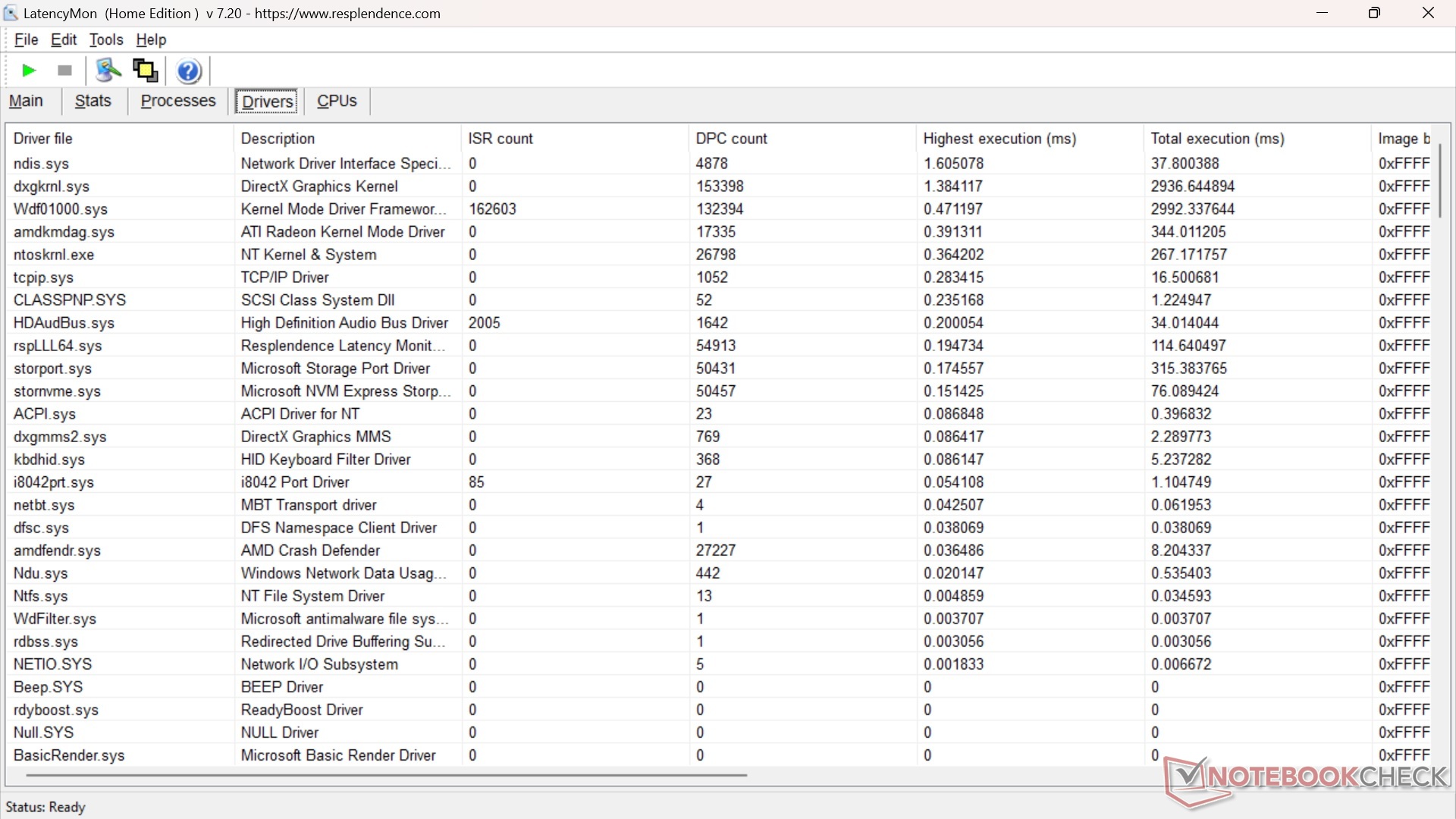

DPC 延迟有些高，LatencyMon 显示实时音频处理有些困难。不过，延迟与配备了 Z1 ExtremeAPU 的 ROG Ally X 一致，但似乎比 Ayaneo Kun 上的 Ryzen 7 7840U 高出一倍多。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| GPD Win Mini 2024 7" | |
| Ayaneo Flip KB | |
| Asus ROG Ally X | |
| Ayaneo Kun | |
* ... smaller is better
存储设备
根据 AS SSD 和 DiskSpd 的结果，Flip KB 控制台上的 WD PC SN740 SSD 在比较的机型中排名第二。节流测试显示，Flip KB 的性能起伏不定，但平均速度仍位居第二。
| Drive Performance Rating - Percent | |
| Ayaneo Kun | |
| Average WD PC SN740 SDDPNQE-2T00 | |
| Ayaneo Flip KB | |
| MSI Claw | |
| Asus ROG Ally X | |
| Average of class Handheld / UMPC | |
* ... smaller is better
Disk Throttling: DiskSpd Read Loop, Queue Depth 8
图形处理器性能

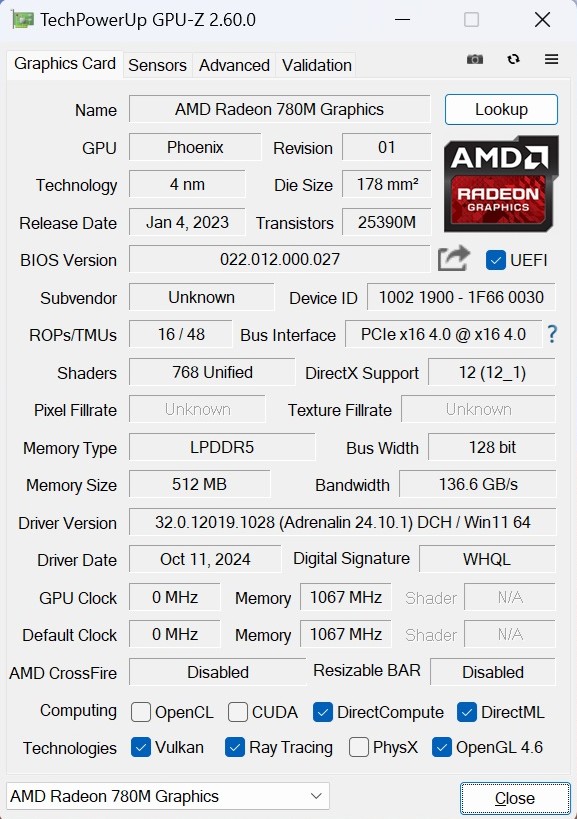

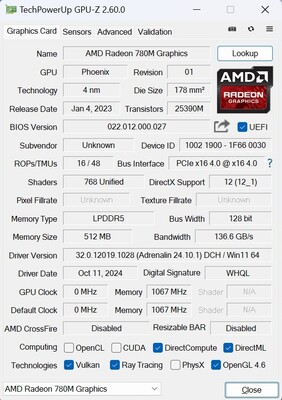

Ryzen 7 8840U 集成了 Radeon 780M图形处理器。合成测试将 Flip KB 排在倒数第二位，但在实际游戏场景中情况有所不同。
| 3DMark 11 - 1280x720 Performance GPU | |
| Asus ROG Ally X | |
| Average AMD Radeon 780M (7868 - 14249, n=57) | |
| MSI Claw | |
| Average of class Handheld / UMPC (10150 - 13828, n=8, last 2 years) | |
| Ayaneo Flip KB | |
| GPD Win Mini 2024 7" | |
| 3DMark 11 Performance | 10973 points | |
| 3DMark Fire Strike Score | 6591 points | |
| 3DMark Time Spy Score | 2832 points | |
Help | ||
游戏性能
Flip KB 在大多数游戏中都能击败 GPD 机型，有时甚至还能击败配备了 Arc 8 核 iGPU在要求更高的游戏中，如《赛博朋克》和《博德之门 3》。遗憾的是，FSR 和帧生成功能在 Flip KB 上无法正常工作，因为早期生产的设备将屏幕分辨率锁定为 1080p。Ayaneo 将在量产机型上解锁分辨率。要求较高的游戏在超设置下无法达到 30 帧/秒，但启用 FSR 和 FG 后，这些游戏的帧数应该会有不错的提升，达到 30 帧/秒。像《GTA V》或《Strange Brigade》这样的老游戏在高设置下几乎能达到 60 fps。
说到电源配置文件对 GPU 性能的影响，15 W 的平衡运行与 30 W 的极限运行相比，性能下降了约 33%，而仅 5 W 的节能运行则下降了约 66%。进入电池模式后，性能与供电模式相比没有差异。
| 电源计划 | 赛博朋克 PL FHD 超高清 | Furmark 1.32 |
| 极致（30 瓦） | 21.5 帧/秒 | 28 帧/秒 |
| 平衡（15 瓦） | 14.24 帧/秒 | 21 帧/秒 |
| 节能模式（5 瓦） | 7.12 帧/秒 | 8 帧/秒 |
| GTA V | |
| 1920x1080 Lowest Settings possible | |
| Ayaneo Kun | |
| Ayaneo Kun | |
| Ayaneo Kun | |
| Average AMD Radeon 780M (60.9 - 130.2, n=34) | |
| Average of class Handheld / UMPC (72.9 - 121, n=7, last 2 years) | |
| Ayaneo Flip KB | |
| 1920x1080 Normal/Off AF:4x | |
| Asus ROG Ally X | |
| Average AMD Radeon 780M (64.9 - 133.5, n=33) | |
| Average of class Handheld / UMPC (77.1 - 120.9, n=6, last 2 years) | |
| Ayaneo Kun | |
| Ayaneo Flip KB | |
| 1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x | |
| Ayaneo Kun | |
| Ayaneo Kun | |
| Asus ROG Ally X | |
| Average AMD Radeon 780M (32.5 - 68.6, n=52) | |
| Average of class Handheld / UMPC (39.6 - 68.4, n=11, last 2 years) | |
| Ayaneo Flip KB | |
| MSI Claw | |
| 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
| Asus ROG Ally X | |
| Ayaneo Kun | |
| Ayaneo Kun | |
| Average of class Handheld / UMPC (18.6 - 27.1, n=11, last 2 years) | |
| Average AMD Radeon 780M (12.2 - 27.7, n=52) | |
| Ayaneo Flip KB | |
| The Witcher 3 | |
| 1920x1080 Medium Graphics & Postprocessing | |
| Average AMD Radeon 780M (26.6 - 59.2, n=10) | |
| Ayaneo Flip KB | |
| Average of class Handheld / UMPC (last 2 years) | |
| 1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
| MSI Claw | |
| Asus ROG Ally X | |
| Average AMD Radeon 780M (21.3 - 52.2, n=45) | |
| Ayaneo Kun | |
| Average of class Handheld / UMPC (27.5 - 51, n=10, last 2 years) | |
| GPD Win Mini 2024 7" | |
| Ayaneo Flip KB | |
| 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
| Ayaneo Kun | |
| Asus ROG Ally X | |
| Average AMD Radeon 780M (14.3 - 36, n=47) | |
| Average of class Handheld / UMPC (17.5 - 33.9, n=11, last 2 years) | |
| MSI Claw | |
| GPD Win Mini 2024 7" | |
| Ayaneo Flip KB | |
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 52.9 | 23.6 | ||
| The Witcher 3 (2015) | 35.6 | 24.2 | ||
| Dota 2 Reborn (2015) | 34.7 | 33.6 | 31.6 | 30.8 |
| Final Fantasy XV Benchmark (2018) | 71.1 | 35.2 | 26.3 | |
| X-Plane 11.11 (2018) | 42 | 36.5 | 31.5 | |
| Strange Brigade (2018) | 64.3 | 53.3 | 45.7 | |
| Baldur's Gate 3 (2023) | 32.4 | 25.6 | 21.7 | 21.2 |
| Cyberpunk 2077 2.1 Phantom Liberty (2023) | 37.8 | 29.5 | 23.6 | 20.3 |
Cyberpunk 2077 ultra FPS Chart
Emissions & Energy
系统噪音
尽管底盘比大多数竞争对手都要笨重，但蒸汽室冷却系统在最大负荷情况下的噪音要大得多。怠速和中等负载时的噪音与同类产品基本一致。在使用要求不高的游戏时，可在 AYASpace 2.0 套件中轻松调整风扇曲线。
Noise Level
| Idle |
| 29.65 / 29.65 / 29.65 dB(A) |
| Load |
| 37.78 / 52.79 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 23.83 dB(A) | ||
| Ayaneo Flip KB Radeon 780M, R7 8840U, WD PC SN740 SDDPNQE-2T00 | GPD Win Mini 2024 7" Radeon 780M, R7 8840U, Kioxia BG5 KBG50ZNS512G | Ayaneo Kun Radeon 780M, R7 7840U, Phison M.2 2280 E18 4000GB | Asus ROG Ally X Radeon 780M, Z1 Extreme, WD PC SN560 SDDPNQE-1T00 | MSI Claw Arc 8-Core, Ultra 7 155H, Kioxia BG5 KBG50ZNS1T02 | |
|---|---|---|---|---|---|
| Noise | 10% | 5% | 8% | 3% | |
| off / environment * | 23.83 | 24.2 -2% | 24.7 -4% | 25.7 -8% | |
| Idle Minimum * | 29.65 | 24.7 17% | 25.31 15% | 24.7 17% | 25.7 13% |
| Idle Average * | 29.65 | 26.2 12% | 25.31 15% | 24.7 17% | 31.7 -7% |
| Idle Maximum * | 29.65 | 28 6% | 34.5 -16% | 28.5 4% | 31.7 -7% |
| Load Average * | 37.78 | 34.2 9% | 34.9 8% | 42.6 -13% | 36.6 3% |
| Cyberpunk 2077 ultra * | 50.95 | 42.6 16% | 45.5 11% | ||
| Load Maximum * | 52.79 | 42.5 19% | 50.78 4% | 42.6 19% | 45.5 14% |
| Witcher 3 ultra * | 43 |
* ... smaller is better
温度

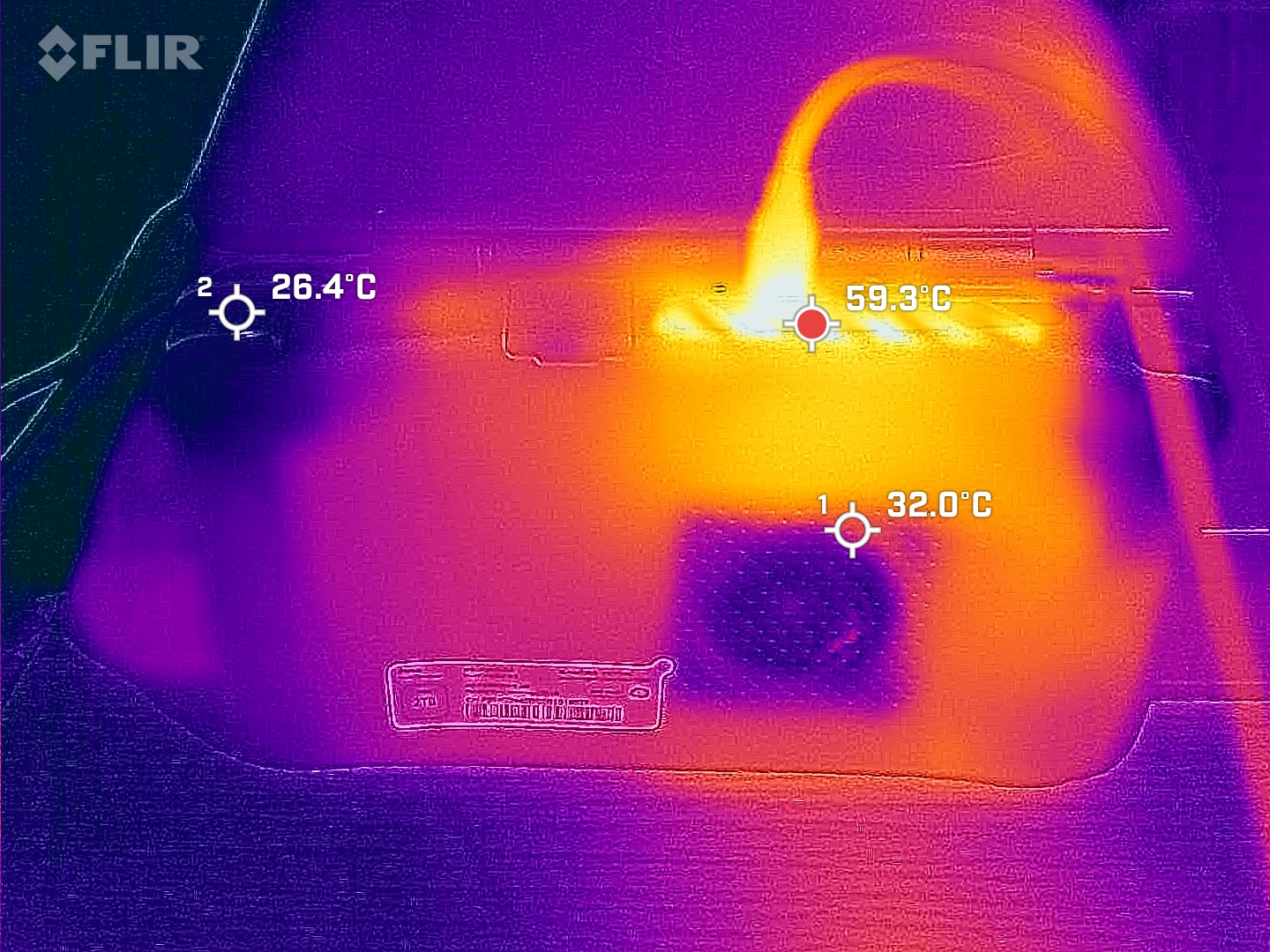

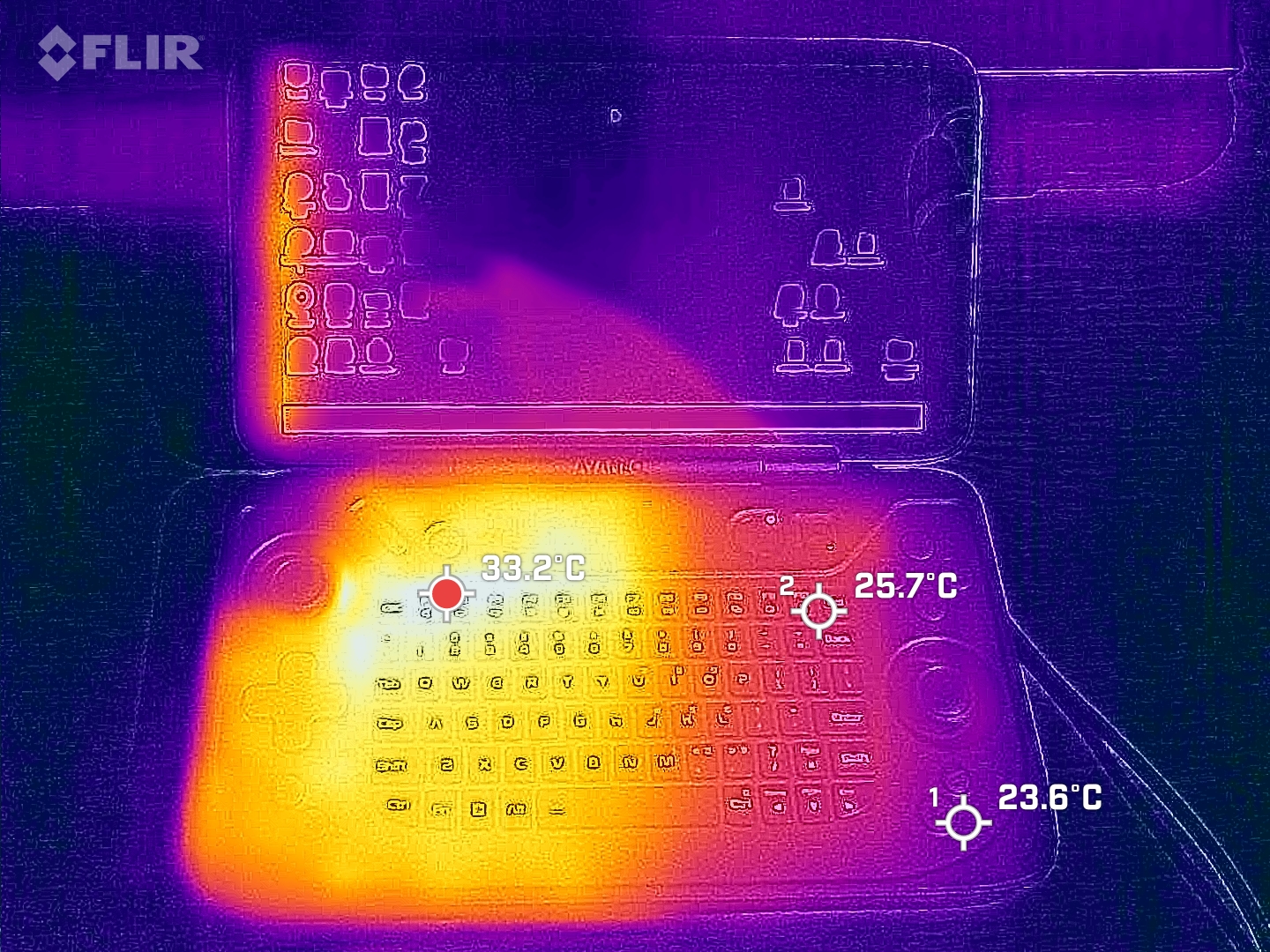

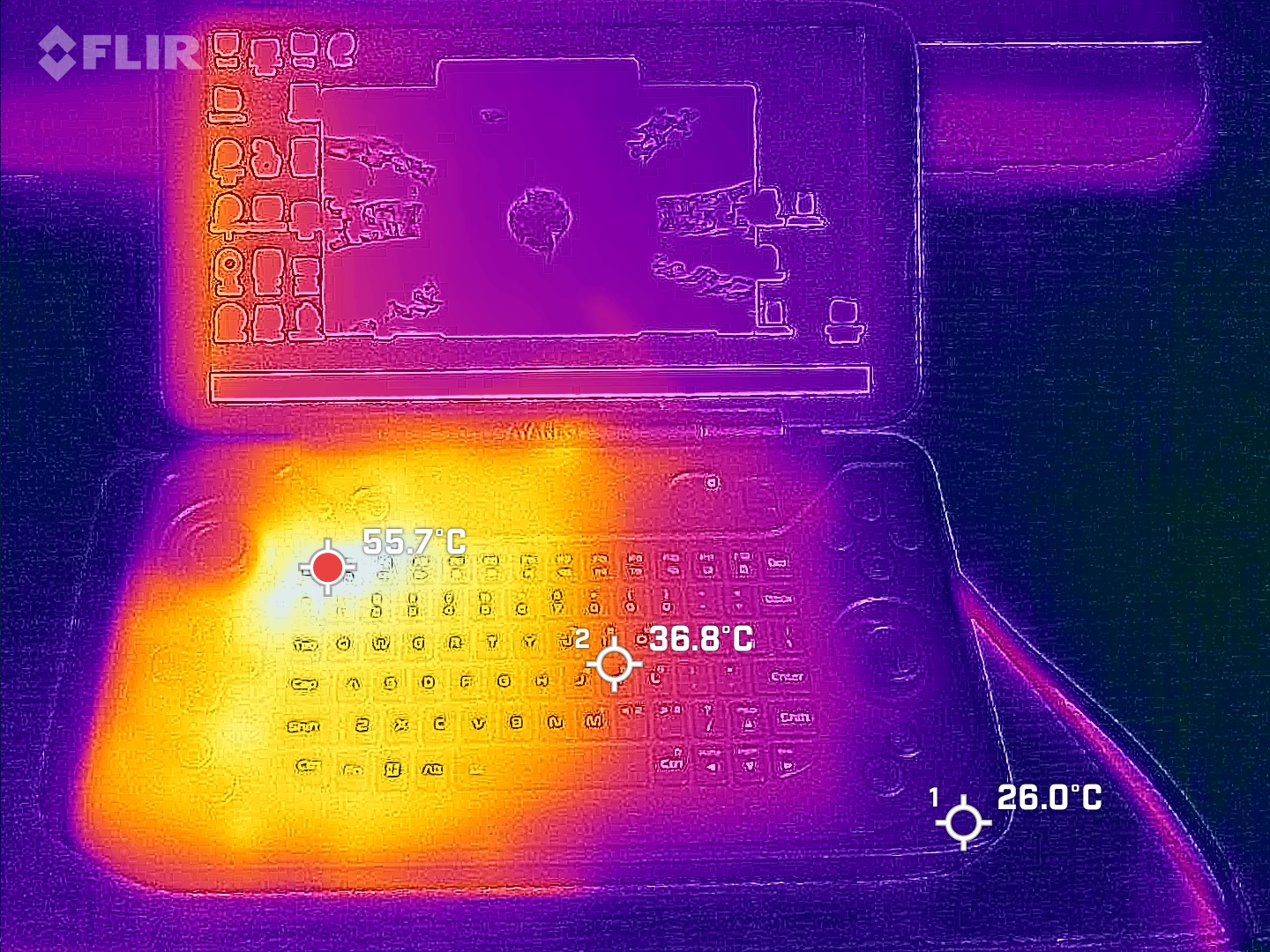

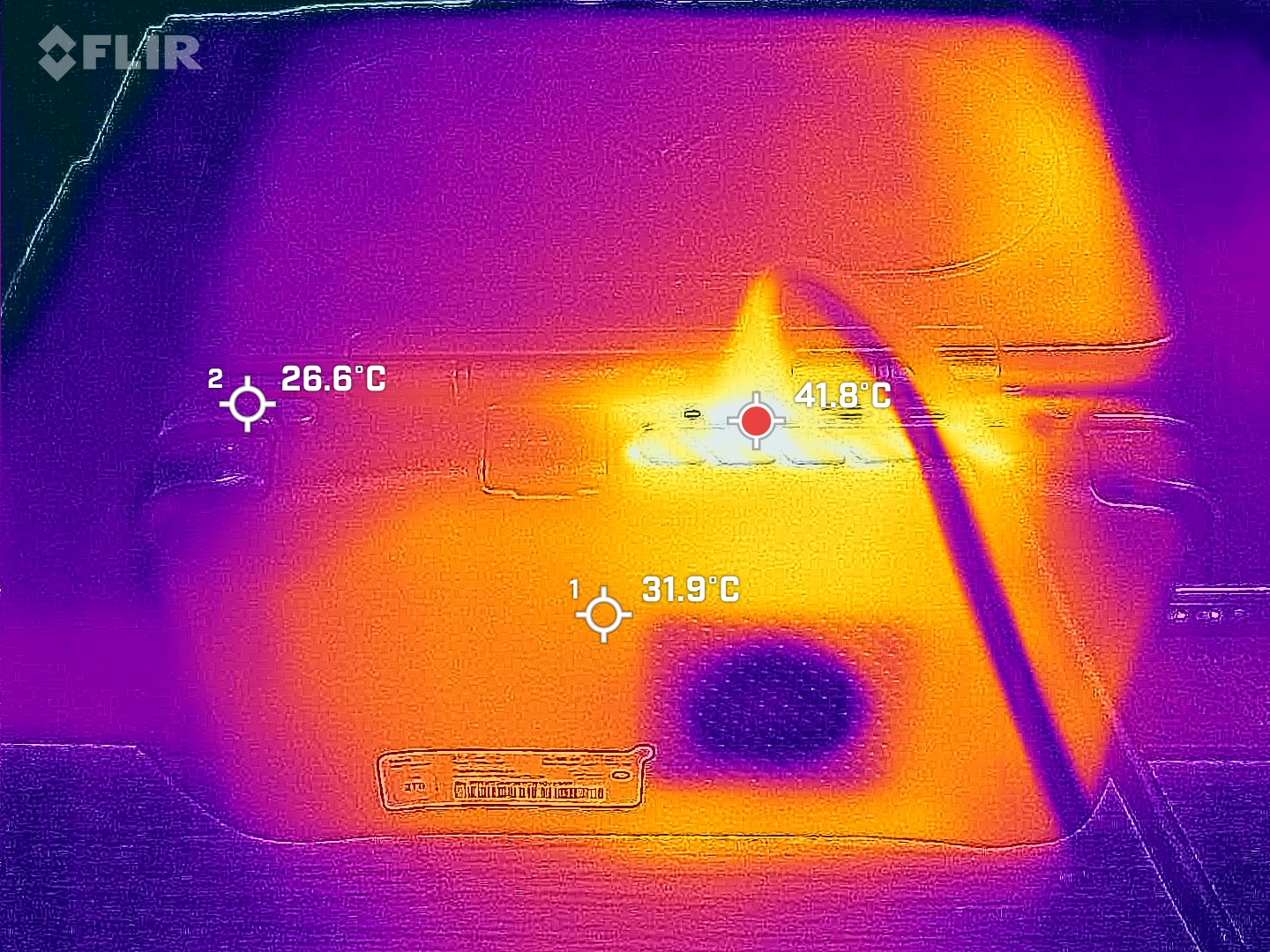

空闲状态下，上下两侧的温度相对较高，但与其他机型相比基本一致。另一方面，在满载状态下，上侧（键盘左侧）的温度要高于下侧，因为风扇排气口靠近上侧边缘。
(-) The maximum temperature on the upper side is 49 °C / 120 F, compared to the average of 39.3 °C / 103 F, ranging from 28 to 55 °C for the class Handheld / UMPC.
(±) The bottom heats up to a maximum of 44 °C / 111 F, compared to the average of 38.1 °C / 101 F
(±) In idle usage, the average temperature for the upper side is 34.9 °C / 95 F, compared to the device average of 34.6 °C / 94 F.
(-) The palmrests and touchpad can get very hot to the touch with a maximum of 42 °C / 107.6 F.
(-) The average temperature of the palmrest area of similar devices was 33 °C / 91.4 F (-9 °C / -16.2 F).
发言人
尽管这款机型的体积更为小巧，但扬声器的音量却大得出奇，甚至比某些 17 英寸笔记本电脑上的 2W 立体声扬声器还要大。当然，缺点是低频非常弱。
Ayaneo Flip KB audio analysis
(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 20.6% lower than median
(±) | linearity of bass is average (9.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.1% higher than median
(+) | mids are linear (5.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.3% away from median
(+) | highs are linear (5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19% difference to median)
Compared to same class
» 54% of all tested devices in this class were better, 8% similar, 38% worse
» The best had a delta of 13%, average was 18%, worst was 23%
Compared to all devices tested
» 41% of all tested devices were better, 8% similar, 51% worse
» The best had a delta of 4%, average was 25%, worst was 134%
耗电量
怠速功耗略高于其他竞争对手。满载功耗在所比较的机型中最为线性，而《赛博朋克 2077》测试则显示出初始变化，但平均功耗几乎与采用更强大 APU 的机型一致，如 Z1 和 酷睿至尊 7 155H.
| Off / Standby | 1.66 / 1.71 Watt |
| Idle | 11.37 / 12.6 / 16.53 Watt |
| Load |
/ 55.3 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
Power Consumption Cyberpunk / Stress Test
Power Consumption external Monitor
电池寿命
在这次比较中，Wi-Fi 上网的电池续航时间最短。GPD 机型的电池和 APU 性能相当，但续航时间却比 GPD 长 59%。像《赛博朋克 2077》这样的高要求游戏不到一小时就会耗尽电池，但通过调整电源配置文件，可以有效地管理电池的运行时间。设置平衡配置文件（15 W TDP）、将帧速率限制在 60 fps、将亮度降低到 50%等限制条件后，《奇异旅社》这样的游戏可以运行 101 分钟。当然，要求不高的游戏也可以使用 30 帧/秒的限制和更低的 TDP 设置来运行，这样电池的续航时间会更长。
| Battery Runtime - WiFi Websurfing | |
| Asus ROG Ally X | |
| Average of class Handheld / UMPC (326 - 949, n=9, last 2 years) | |
| GPD Win Mini 2024 7" | |
| MSI Claw | |
| Ayaneo Flip KB | |
笔记本检查评级
Ayaneo Flip KB 采用优雅小巧的蛤壳式设计，可提供舒适的掌上游戏体验。尽管 TDP 限制为 30 W，但 Radeon 780M GPU 的性能与更强大的竞争对手不相上下。内存和存储速度足够快，屏幕也是我们测试过的同类产品中最亮的之一。USB4 和 OCuLink 的连接性面向未来，专用控制软件也很到位。不足之处包括冷却系统在满负荷运行时噪音有点大，电池运行时间缩短。
Ayaneo Flip KB
- 12/02/2024 v8
Bogdan Solca
Total Sustainability Score: Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
Price comparison
