BOSGAME M2 迷你电脑评测：修正了原版 M1 的一大缺陷

Name: BOSGAME M2
Brand: BOSGAME

同样的外观，全新的处理器。

M2 解决了我们在 M1 上报道过的音频问题，同时将基本处理器选项从 Ryzen 7 提升到了 Ryzen 9。不过，我们认为制造商本应再接再厉，更好地区分这两款机型。
Allen Ngo, 👁 Allen Ngo (translated by DeepL / Ninh Duy) Published 01/29/2025 🇺🇸 🇫🇷 ...
AMD Zen 4 Mini PC

结论 - 与 M1 性能基本相同

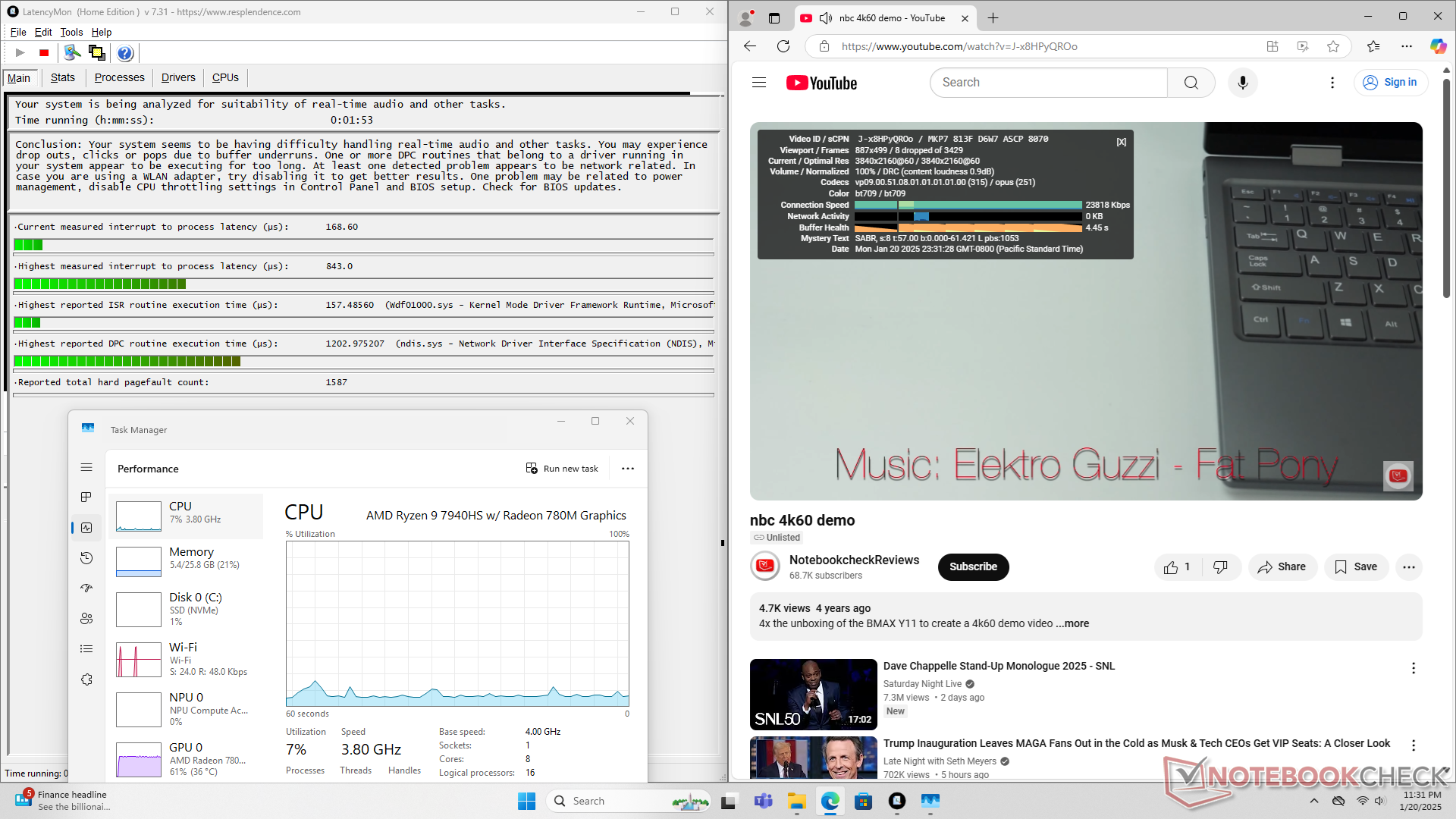

Bosgame M2 解决了原版 M1 中出现的音频延迟问题。原版 M1 的音频延迟问题。因此，较新的型号可能会吸引重视扬声器的用户，因为这种功能在大多数迷你 PC 上并不常见。除此之外，尽管处理器 "升级 "了，但性能基本相同。

Test device courtesy of Bosgame

Download your licensed rating image as PNG / SVG

对于未来可能的改版，我们希望看到该系统不再使用专有的交流适配器，而是改用通用的 USB-C Power Delivery。同样令人遗憾的是，M2 继续使用 AMD Zen 4，而 Zen 5 已经集成了人工智能加速功能。从这个意义上说，M2 感觉更像是 M1 的一个独立 SKU，而不是真正的继任者。或许 "M1 Pro "或 "M1 Ryzen 9 Edition "才是更合适的名称。

Pros

+ 集成扬声器没有明显的音频延迟

+ 体积小，性能好

+ 维修相对容易

+ 多个 USB-C 4.0 端口

Cons

- 与 M1 相比，性能没有提高

- 仍使用专有交流适配器供电

- 集成扬声器的音量可以更大

- 不支持 Wi-Fi 7

价格和供应情况

亚马逊现已开始销售Bosgame M2，售价 600 美元，配备 32 GB 内存和 1 TB SSD。用户也可以直接从制造商处购买https://www.bosgamepc.com/products/bosgame-mini-pc-m2-amd-ryzen-97940hs价格为 700 美元。

$699.00

BOSGAME M2 Mini PC, AMD Ryzen 9 7940HS Processor Mini Computer(8C/16T, up to 5.2GHz) 32GB DDR5, 1TB M.2 SSD, Quad Display Desktop Gaming PC, Pre-in Windows 11 Pro, Dual LAN, WiFi 6E, BT 5.2

可能的替代品比较

Image	Model / Review	Price	Weight	Height	Display
1. 79%	BOSGAME M2 AMD Ryzen 9 7940HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory	Amazon: $699.00 List Price: 600 USD	819 g	51 mm	x
2. 84.5% ^{v7 (old)}	BOSGAME M1 AMD Ryzen 7 7840HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory	Amazon: 1. $619.00 BOSGAME Mini Gaming PC M1, M... 2. $499.99 BOSGAME Gaming Mini PC Ryzen... 3. $59.99 PowerHOOD AC Power Adapter C... List Price: 690 USD	766 g	51 mm	x
3. 66.1%	GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H ⎘ AMD Radeon 680M ⎘ 32 GB Memory	Amazon: List Price: 440 USD	621 g	58.4 mm	x
4. 77.1%	Beelink SER9 AMD Ryzen AI 9 HX 370 ⎘ AMD Radeon 890M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: $999.00 List Price: 1000 USD	814 g	44.7 mm	x
5. 74.7%	Asus NUC 14 Pro Intel Core Ultra 5 125H ⎘ Intel Arc 7-Core iGPU ⎘ , 2048 GB SSD	Amazon: 1. $627.99 ASUS NUC 14 Pro Tall Barebon... 2. $1,000.00 ASUS NUC 14 Pro+ Full System... 3. $909.00 ASUS NUC 14 Pro AI Mini PC, ... List Price: 500 EUR	525 g	37 mm	x
6. 83.1% ^{v7 (old)}	Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P ⎘ Intel Iris Xe Graphics G7 96EUs ⎘ 32 GB Memory, 512 GB SSD	Amazon: 1. $582.00 Intel NUC 13 Pro Kit NUC13AN... 2. $666.99 Intel NUC 13 Pro Kit NUC13AN... 3. $706.00 Intel NUC 13 Pro Kit NUC13AN... List Price: 800€	558 g	37 mm	x

结论 - 与 M1 性能基本相同
规格
案例
连接性
性能
排放量
能源管理
笔记本检查评级

Bosgame M2 继承了 Bosgame M1，将 Ryzen 7 7840HS 升级到了 Ryzen 9 7940HS。除此之外，它从上到下基本上都是同一款迷你 PC。

我们的测试机配备了上述 Ryzen 9 CPU、32 GB 内存和 1 TB NVMe SSD，售价约为 600 美元。在撰写本文时，其他 SKU 尚未广泛上市。

Bosgame M2 的替代产品包括其他高性能迷你 PC，如 Beelink SER9, 华硕 NUC 14 Pro或 GMK NucBox M7 Pro.

更多 Bosgame 评论：

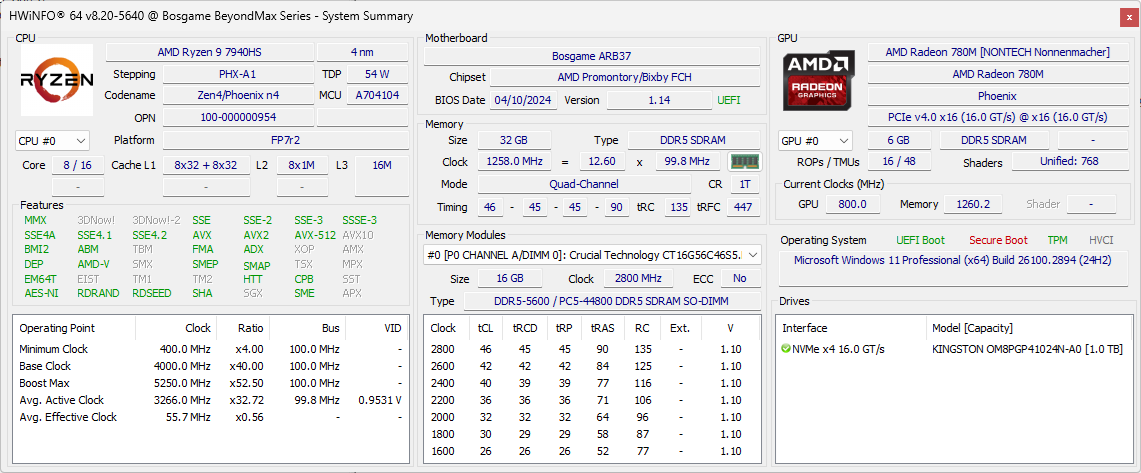

规格

BOSGAME M2

Processor

AMD Ryzen 9 7940HS 8 x 4 - 5.2 GHz, 65 W PL2 / Short Burst, 54 W PL1 / Sustained, Phoenix-HS (Zen 4)

Graphics adapter

AMD Radeon 780M, Core: 2800 MHz, RAM: 1000 MHz, DDR5, 32.0.12033.1030

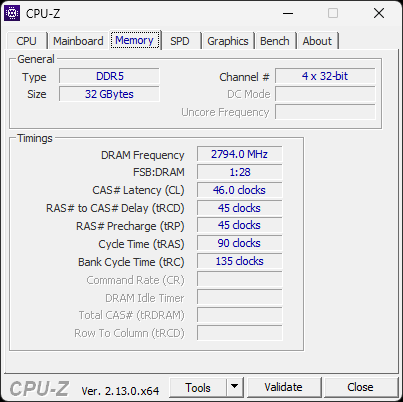

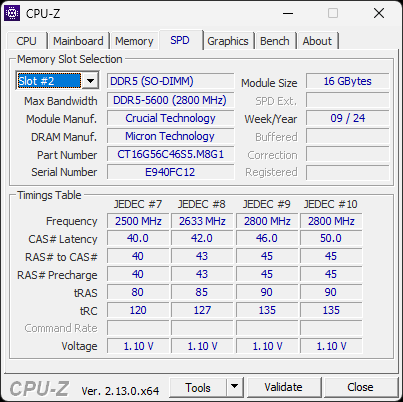

Memory

32 GB

, Crucial, DDR5-5600, Dual-Channel, 46-45-45-90

Mainboard

AMD Promontory/Bixby FCH

Soundcard

AMD Zen - Audio Processor - HD Audio Controller

Connections

1 USB 2.0, 4 USB 3.1 Gen2, 2 USB 4.0 40 Gbps, USB-C Power Delivery (PD), 1 HDMI, 3 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5 mm combo

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), Intel Wi-Fi 6E AX210 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Size

height x width x depth (in mm): 51 x 136 x 132

Operating System

Microsoft Windows 11 Pro

Additional features

Speakers: Stereo, HDMI, VESA mounting bracket, 12 Months Warranty

Weight

819 g, Power Supply: 605 g

Price

600 USD

Amazon

$699.00

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

案例

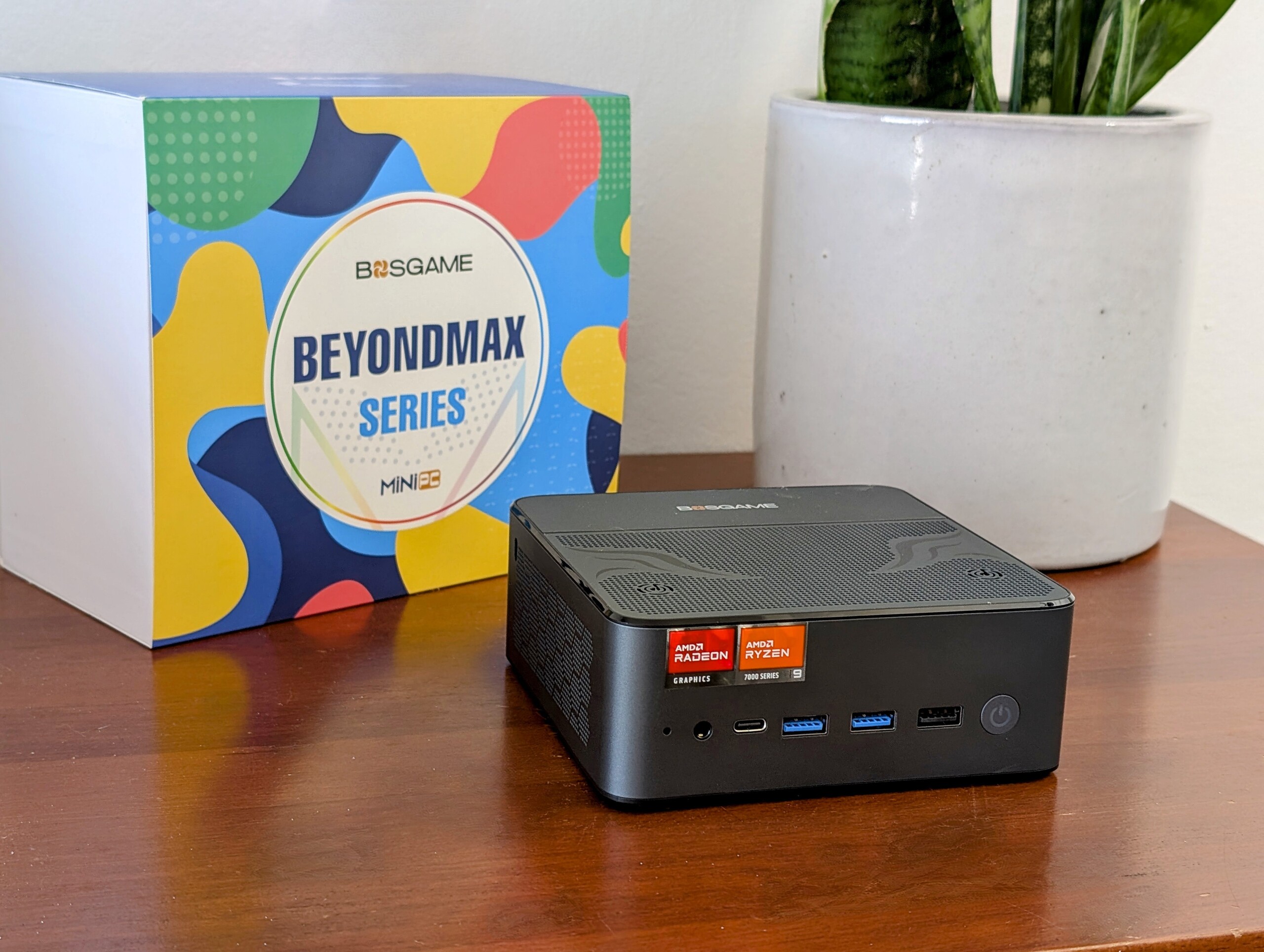

金属机身与去年的 M1 保持一致。用户必须在机身底部寻找 M2 标签，以便从视觉上区分该机型与前代 M1。

尺寸比较

连接性

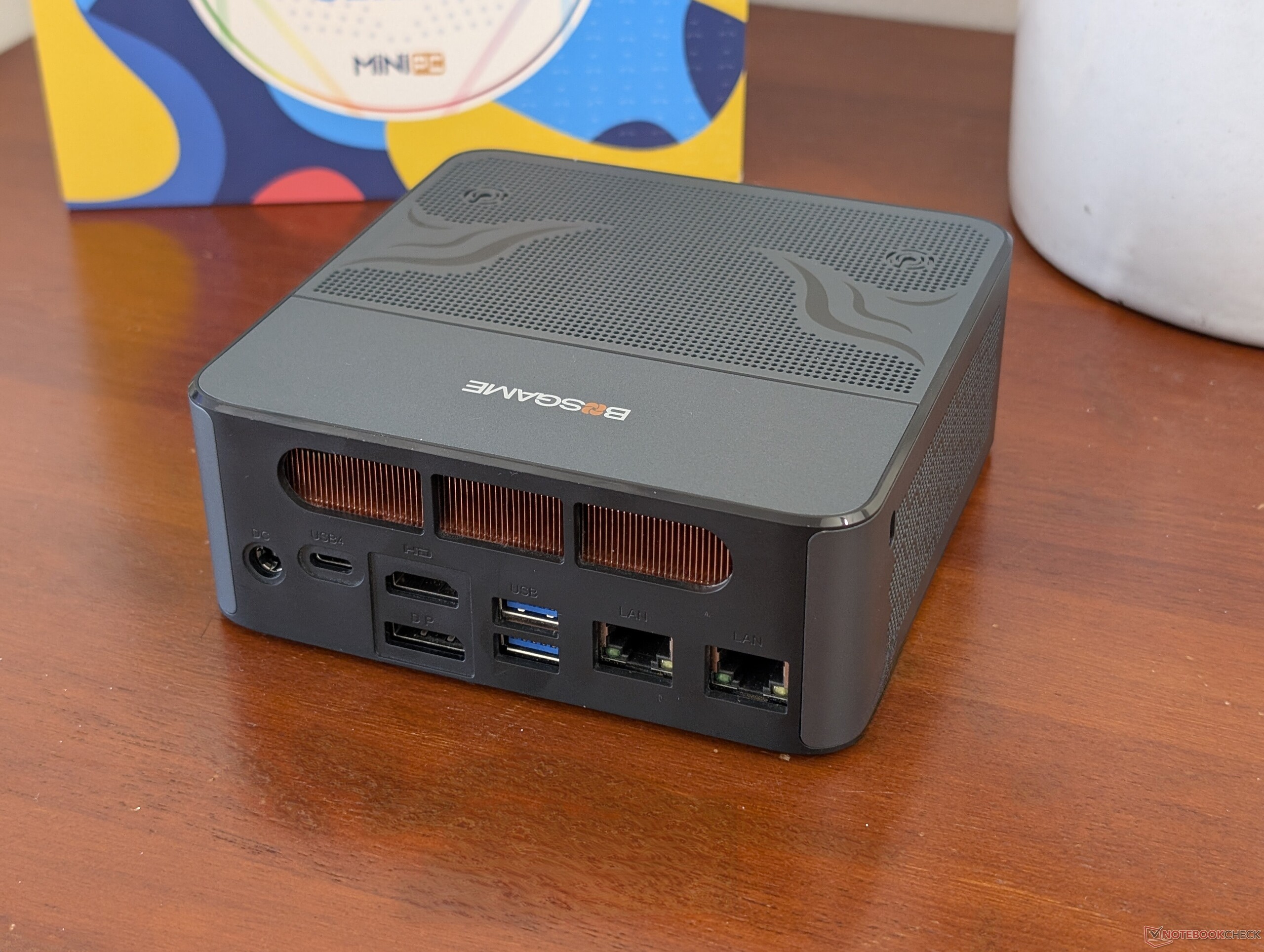

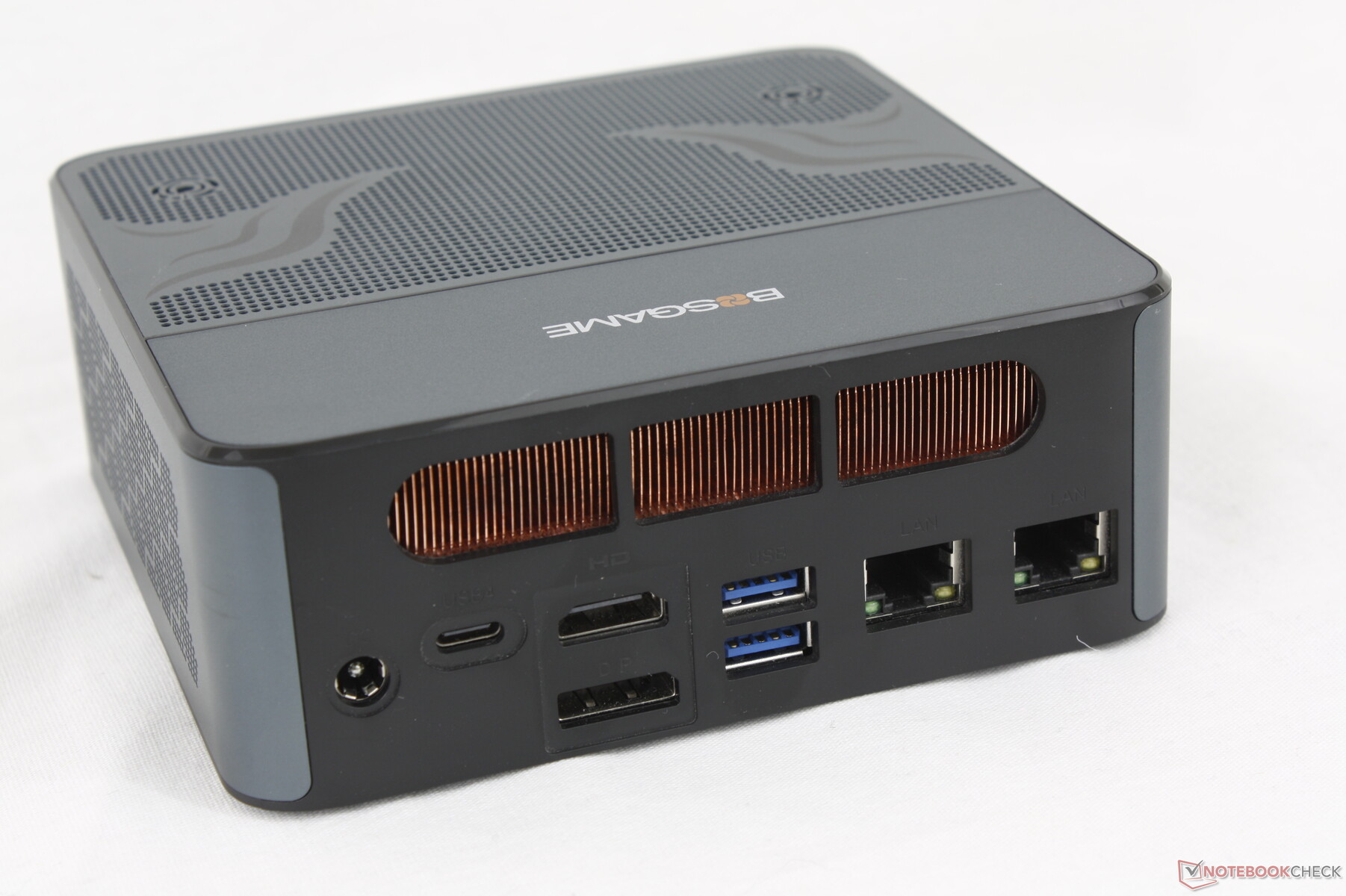

端口选项没有改变，包括使用专有的交流电桶适配器端口，而不是完全依赖通用的 USB-C Power Delivery。

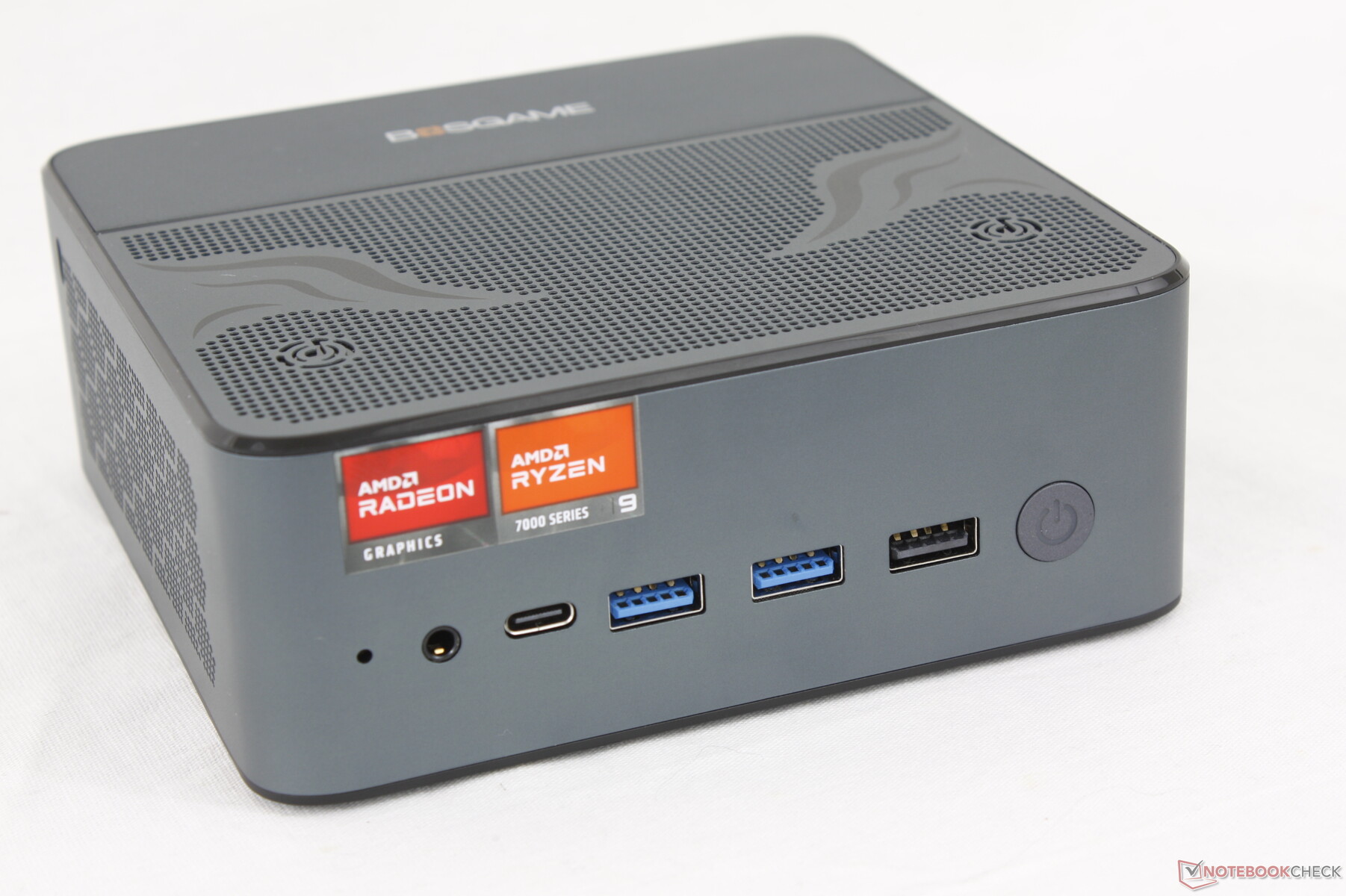

前置：重置按钮、3.5 毫米耳机、USB-C 4.0 w/ Power Delivery + DisplayPort (8K@60 Hz)、2x USB-A 3.2 Gen. 2 (10 Gbps)、USB-A 2.0、电源按钮

交流

英特尔 AX210 标配支持 Wi-Fi 6E 和蓝牙 5.3。BE200 最好能提供 Wi-Fi 7 连接，以便更好地将 M2 与原来的 M1 型号区分开来。

Networking
iperf3 transmit AXE11000
BOSGAME M1 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1470 (1310^min - 1625^max) MBit/s +40%
Asus NUC 14 Pro Intel Wi-Fi 6E AX211	1331 (1187^min - 1442^max) MBit/s +27%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1301 (514^min - 1422^max) MBit/s +24%
GMK NucBox M7 Pro	1147 (1025^min - 1206^max) MBit/s +9%
BOSGAME M2 Intel Wi-Fi 6E AX210	1048 (916^min - 1169^max) MBit/s
Beelink SER9 Intel Wi-Fi 6 AX200	609 (334^min - 677^max) MBit/s -42%
iperf3 receive AXE11000
BOSGAME M1 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1479 (1255^min - 1539^max) MBit/s +41%
Asus NUC 14 Pro Intel Wi-Fi 6E AX211	1379 (1016^min - 1613^max) MBit/s +32%
GMK NucBox M7 Pro	1267 (1019^min - 1377^max) MBit/s +21%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1117 (884^min - 1368^max) MBit/s +7%
BOSGAME M2 Intel Wi-Fi 6E AX210	1048 (830^min - 1181^max) MBit/s
Beelink SER9 Intel Wi-Fi 6 AX200	814 (717^min - 861^max) MBit/s -22%
iperf3 transmit AXE11000 6GHz
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1511 (1451^min - 1552^max) MBit/s +50%
Asus NUC 14 Pro Intel Wi-Fi 6E AX211	1379 (1299^min - 1425^max) MBit/s +37%
BOSGAME M1 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1324 (1090^min - 1580^max) MBit/s +31%
BOSGAME M2 Intel Wi-Fi 6E AX210	1008 (959^min - 1072^max) MBit/s
iperf3 receive AXE11000 6GHz
Asus NUC 14 Pro Intel Wi-Fi 6E AX211	1729 (1594^min - 1755^max) MBit/s +137%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1448 (1357^min - 1490^max) MBit/s +99%
BOSGAME M1 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1321 (1233^min - 1393^max) MBit/s +81%
BOSGAME M2 Intel Wi-Fi 6E AX210	729 (652^min - 857^max) MBit/s

BOSGAME M2; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1008 (959-1072)

BOSGAME M2; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø729 (652-857)

维护

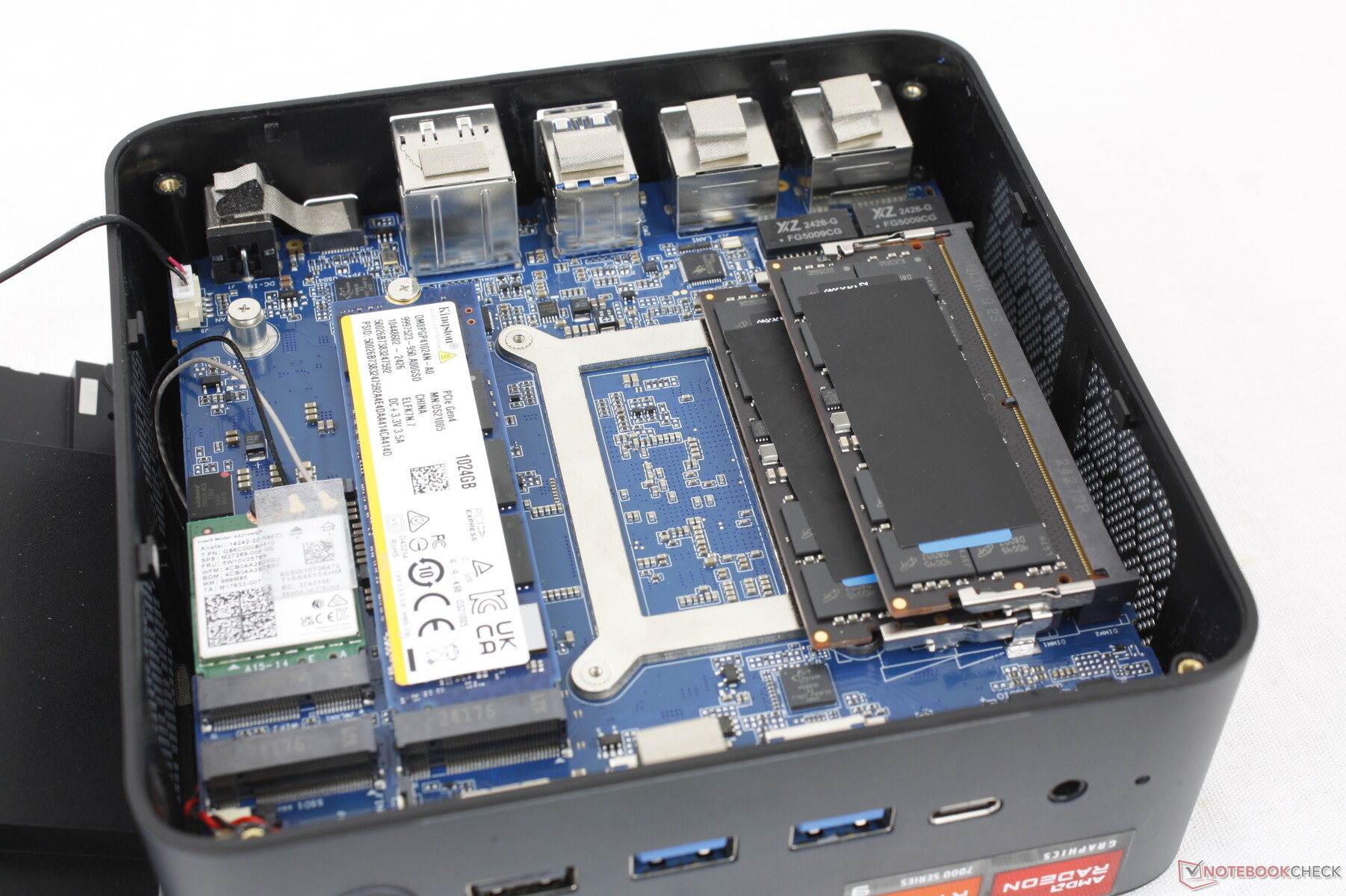

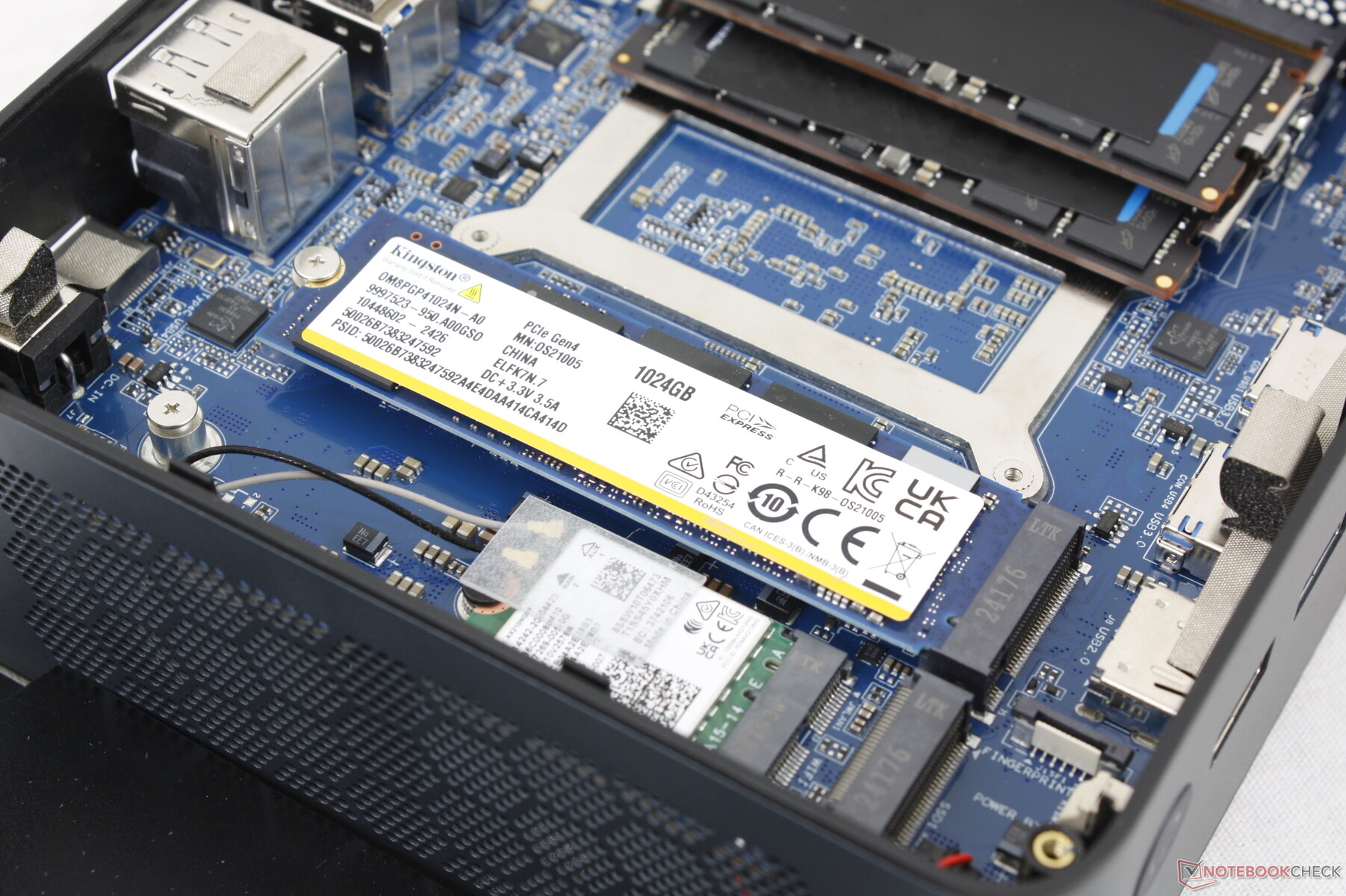

底部面板只需一把十字螺丝刀即可轻松拆卸。可升级组件包括两个 DDR5 SODIMM 插槽、两个 M.2 PCIe4 x4 NVMe 2280 插槽和可拆卸 WLAN 模块。

可持续性

制造商没有提到在生产过程中采取了任何可持续发展措施。包装本身主要是硬纸板和一些塑料包装。

配件和保修

零售包装盒包括一个交流适配器、可拆卸的 VESA 安装支架、HDMI 线缆和用户手册。

如果在美国购买，制造商提供一年有限保修。

性能

测试条件

在运行以下基准测试之前，我们将 Windows 设置为性能模式。没有预装特殊的 "控制中心 "应用程序。

处理器

......（英文 Ryzen 9 7940HS 性能几乎与 Ryzen 7 7840HS.它们的纸面规格仅相差几百 MHz，因此对于熟悉 Ryzen 系列的发烧友来说，结果应该不足为奇。

Cinebench R15 Multi Loop

BOSGAME M2 AMD Ryzen 9 7940HS: Ø2493 (2069.54-2584.65)

BOSGAME M1 AMD Ryzen 7 7840HS: Ø2554 (2501.09-2597.23)

GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H: Ø2139 (2119.65-2152.85)

Beelink SER9 AMD Ryzen AI 9 HX 370: Ø3253 (3218.02-3282.46)

Asus NUC 14 Pro Intel Core Ultra 5 125H: Ø2021 (1900.15-2203.13)

Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P: Ø1753 (1686.77-2083.33)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.4: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Beelink SER9 AMD Ryzen AI 9 HX 370	87.3 pt
Beelink SER8 AMD Ryzen 7 8845HS	77.2 pt
Average AMD Ryzen 9 7940HS	76.7 pt
BOSGAME M2 AMD Ryzen 9 7940HS	76.1 pt
BOSGAME M1 AMD Ryzen 7 7840HS	75.4 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	65.6 pt
Geekom XT13 Pro Intel Core i9-13900H	65.6 pt
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	64.8 pt
Asus NUC 14 Pro Intel Core Ultra 5 125H	60 pt
Beelink SER6 Pro ^-2! AMD Ryzen 7 6800H	58 pt
GMK NucBox M6 AMD Ryzen 5 6600H	55.9 pt
MSI Cubi NUC 1M Intel Core 7 150U	55 pt
Beelink SER5 AMD Ryzen 5 5560U	42.6 pt

Cinebench R23 / Multi Core
Beelink SER9 AMD Ryzen AI 9 HX 370	21897 (21441.9^min - 21897.4^max) Points +36%
Average AMD Ryzen 9 7940HS (15556 - 18131, n=11)	16801 Points +4%
Beelink SER8 AMD Ryzen 7 8845HS	16661 (16363.9^min - 16661^max) Points +3%
BOSGAME M2 AMD Ryzen 9 7940HS	16148 (15722.4^min - 16148.2^max) Points
BOSGAME M1 AMD Ryzen 7 7840HS	16123 (15200.9^min - 16122.9^max) Points 0%
Asus NUC 14 Pro Intel Core Ultra 5 125H	14516 Points -10%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	13501 (13281^min - 13501.3^max) Points -16%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	12155 Points -25%
Geekom XT13 Pro Intel Core i9-13900H	11997 Points -26%
Beelink SER6 Pro AMD Ryzen 7 6800H	11481 (10813.7^min - 11481.3^max) Points -29%
GMK NucBox M6 AMD Ryzen 5 6600H	10418 (10142.8^min - 10418^max) Points -35%
Beelink SER5 AMD Ryzen 5 5560U	7667 (7546.82^min - 7667.18^max) Points -53%
MSI Cubi NUC 1M Intel Core 7 150U	7226 (6983.97^min - 7226.42^max) Points -55%

Cinebench R23 / Single Core
Beelink SER9 AMD Ryzen AI 9 HX 370	2035 Points +16%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1878 Points +7%
MSI Cubi NUC 1M Intel Core 7 150U	1878 Points +7%
Average AMD Ryzen 9 7940HS (1733 - 1832, n=11)	1784 Points +2%
Beelink SER8 AMD Ryzen 7 8845HS	1783 Points +2%
BOSGAME M2 AMD Ryzen 9 7940HS	1754 Points
Asus NUC 14 Pro Intel Core Ultra 5 125H	1721 Points -2%
Geekom XT13 Pro Intel Core i9-13900H	1719 Points -2%
BOSGAME M1 AMD Ryzen 7 7840HS	1718 Points -2%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	1615 Points -8%
Beelink SER6 Pro AMD Ryzen 7 6800H	1506 Points -14%
GMK NucBox M6 AMD Ryzen 5 6600H	1486 Points -15%
Beelink SER5 AMD Ryzen 5 5560U	1260 Points -28%

Cinebench R20 / CPU (Multi Core)
Beelink SER9 AMD Ryzen AI 9 HX 370	8605 Points +37%
Average AMD Ryzen 9 7940HS (6277 - 7111, n=11)	6575 Points +4%
Beelink SER8 AMD Ryzen 7 8845HS	6431 Points +2%
BOSGAME M1 AMD Ryzen 7 7840HS	6349 Points +1%
BOSGAME M2 AMD Ryzen 9 7940HS	6293 Points
Asus NUC 14 Pro Intel Core Ultra 5 125H	5617 Points -11%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	5256 Points -16%
Geekom XT13 Pro Intel Core i9-13900H	4935 Points -22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	4687 Points -26%
Beelink SER6 Pro AMD Ryzen 7 6800H	4460 Points -29%
GMK NucBox M6 AMD Ryzen 5 6600H	4106 Points -35%
Beelink SER5 AMD Ryzen 5 5560U	3019 Points -52%
MSI Cubi NUC 1M Intel Core 7 150U	2821 Points -55%

Cinebench R20 / CPU (Single Core)
Beelink SER9 AMD Ryzen AI 9 HX 370	793 Points +17%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	723 Points +6%
MSI Cubi NUC 1M Intel Core 7 150U	718 Points +6%
Average AMD Ryzen 9 7940HS (679 - 714, n=11)	699 Points +3%
Beelink SER8 AMD Ryzen 7 8845HS	698 Points +3%
BOSGAME M1 AMD Ryzen 7 7840HS	682 Points 0%
BOSGAME M2 AMD Ryzen 9 7940HS	679 Points
Geekom XT13 Pro Intel Core i9-13900H	649 Points -4%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	629 Points -7%
Asus NUC 14 Pro Intel Core Ultra 5 125H	622 Points -8%
Beelink SER6 Pro AMD Ryzen 7 6800H	584 Points -14%
GMK NucBox M6 AMD Ryzen 5 6600H	584 Points -14%
Beelink SER5 AMD Ryzen 5 5560U	498 Points -27%

Cinebench R15 / CPU Multi 64Bit
Beelink SER9 AMD Ryzen AI 9 HX 370	3282 (3218.02^min - 3282.46^max) Points +27%
Average AMD Ryzen 9 7940HS (2470 - 2848, n=11)	2665 Points +3%
Beelink SER8 AMD Ryzen 7 8845HS	2627 (2586.82^min - 2626.57^max) Points +2%
BOSGAME M1 AMD Ryzen 7 7840HS	2597 (2501.09^min - 2597.23^max) Points 0%
BOSGAME M2 AMD Ryzen 9 7940HS	2585 (2069.54^min - 2584.65^max) Points
Geekom XT13 Pro Intel Core i9-13900H	2448 Points -5%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	2153 (2119.65^min - 2152.85^max) Points -17%
Asus NUC 14 Pro Intel Core Ultra 5 125H	2141 Points -17%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1990 Points -23%
Beelink SER6 Pro AMD Ryzen 7 6800H	1931 (1821.83^min - 1930.5^max) Points -25%
GMK NucBox M6 AMD Ryzen 5 6600H	1737 (1708.16^min - 1737.02^max) Points -33%
Beelink SER5 AMD Ryzen 5 5560U	1280 (1263.74^min - 1280.29^max) Points -50%
MSI Cubi NUC 1M Intel Core 7 150U	1040 (535.59^min - 1039.66^max) Points -60%

Cinebench R15 / CPU Single 64Bit
Beelink SER9 AMD Ryzen AI 9 HX 370	315 Points +22%
Beelink SER8 AMD Ryzen 7 8845HS	283 Points +10%
Average AMD Ryzen 9 7940HS (258 - 288, n=11)	281 Points +9%
BOSGAME M1 AMD Ryzen 7 7840HS	275 Points +7%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	267 Points +3%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	260 Points +1%
MSI Cubi NUC 1M Intel Core 7 150U	258 Points 0%
BOSGAME M2 AMD Ryzen 9 7940HS	258 Points
Asus NUC 14 Pro Intel Core Ultra 5 125H	248 Points -4%
Geekom XT13 Pro Intel Core i9-13900H	245 Points -5%
GMK NucBox M6 AMD Ryzen 5 6600H	243 Points -6%
Beelink SER6 Pro AMD Ryzen 7 6800H	242 Points -6%
Beelink SER5 AMD Ryzen 5 5560U	202 Points -22%

Blender / v2.79 BMW27 CPU
MSI Cubi NUC 1M Intel Core 7 150U	451 Seconds * -129%
Beelink SER5 AMD Ryzen 5 5560U	392 Seconds * -99%
GMK NucBox M6 AMD Ryzen 5 6600H	293 Seconds * -49%
Beelink SER6 Pro AMD Ryzen 7 6800H	268 Seconds * -36%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	268 Seconds * -36%
Geekom XT13 Pro Intel Core i9-13900H	261 Seconds * -32%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	232 Seconds * -18%
Asus NUC 14 Pro Intel Core Ultra 5 125H	228 Seconds * -16%
BOSGAME M2 AMD Ryzen 9 7940HS	197 Seconds *
BOSGAME M1 AMD Ryzen 7 7840HS	196 Seconds * +1%
Average AMD Ryzen 9 7940HS (182 - 202, n=10)	191.7 Seconds * +3%
Beelink SER8 AMD Ryzen 7 8845HS	191 Seconds * +3%
Beelink SER9 AMD Ryzen AI 9 HX 370	148 Seconds * +25%

7-Zip 18.03 / 7z b 4
Beelink SER9 AMD Ryzen AI 9 HX 370	81175 MIPS +16%
Beelink SER8 AMD Ryzen 7 8845HS	70937 MIPS +2%
Average AMD Ryzen 9 7940HS (66408 - 73434, n=11)	70800 MIPS +2%
BOSGAME M1 AMD Ryzen 7 7840HS	70417 MIPS +1%
BOSGAME M2 AMD Ryzen 9 7940HS	69688 MIPS
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	61152 MIPS -12%
Geekom XT13 Pro Intel Core i9-13900H	56068 MIPS -20%
Beelink SER6 Pro AMD Ryzen 7 6800H	55963 MIPS -20%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	51340 MIPS -26%
GMK NucBox M6 AMD Ryzen 5 6600H	49353 MIPS -29%
Beelink SER5 AMD Ryzen 5 5560U	38281 MIPS -45%
MSI Cubi NUC 1M Intel Core 7 150U	31447 MIPS -55%
Asus NUC 14 Pro Intel Core Ultra 5 125H	0 MIPS -100%

7-Zip 18.03 / 7z b 4 -mmt1
Beelink SER8 AMD Ryzen 7 8845HS	6714 MIPS +6%
Average AMD Ryzen 9 7940HS (6310 - 6776, n=11)	6614 MIPS +5%
BOSGAME M1 AMD Ryzen 7 7840HS	6602 MIPS +5%
BOSGAME M2 AMD Ryzen 9 7940HS	6310 MIPS
Beelink SER9 AMD Ryzen AI 9 HX 370	6208 MIPS -2%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	5970 MIPS -5%
MSI Cubi NUC 1M Intel Core 7 150U	5898 MIPS -7%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	5840 MIPS -7%
Geekom XT13 Pro Intel Core i9-13900H	5828 MIPS -8%
Beelink SER6 Pro AMD Ryzen 7 6800H	5768 MIPS -9%
GMK NucBox M6 AMD Ryzen 5 6600H	5720 MIPS -9%
Asus NUC 14 Pro Intel Core Ultra 5 125H	5136 MIPS -19%
Beelink SER5 AMD Ryzen 5 5560U	4740 MIPS -25%

Geekbench 6.4 / Multi-Core
Beelink SER9 AMD Ryzen AI 9 HX 370	15043 Points +13%
Beelink SER8 AMD Ryzen 7 8845HS	13362 Points 0%
BOSGAME M2 AMD Ryzen 9 7940HS	13345 Points
BOSGAME M1 AMD Ryzen 7 7840HS	13326 Points 0%
Average AMD Ryzen 9 7940HS (9899 - 13470, n=9)	12446 Points -7%
Asus NUC 14 Pro Intel Core Ultra 5 125H	11749 Points -12%
Geekom XT13 Pro Intel Core i9-13900H	11541 Points -14%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	10997 Points -18%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	10439 Points -22%
GMK NucBox M6 AMD Ryzen 5 6600H	9240 Points -31%
MSI Cubi NUC 1M Intel Core 7 150U	8756 Points -34%
Beelink SER5 AMD Ryzen 5 5560U	6723 Points -50%

Geekbench 6.4 / Single-Core
Beelink SER9 AMD Ryzen AI 9 HX 370	2863 Points +5%
BOSGAME M2 AMD Ryzen 9 7940HS	2722 Points
Beelink SER8 AMD Ryzen 7 8845HS	2694 Points -1%
MSI Cubi NUC 1M Intel Core 7 150U	2646 Points -3%
BOSGAME M1 AMD Ryzen 7 7840HS	2640 Points -3%
Average AMD Ryzen 9 7940HS (2426 - 2746, n=9)	2638 Points -3%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	2575 Points -5%
Geekom XT13 Pro Intel Core i9-13900H	2415 Points -11%
Asus NUC 14 Pro Intel Core Ultra 5 125H	2316 Points -15%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	2217 Points -19%
GMK NucBox M6 AMD Ryzen 5 6600H	2042 Points -25%
Beelink SER5 AMD Ryzen 5 5560U	1765 Points -35%

Geekbench 5.5 / Multi-Core
Beelink SER9 AMD Ryzen AI 9 HX 370	14301 Points +17%
BOSGAME M2 AMD Ryzen 9 7940HS	12244 Points
Beelink SER8 AMD Ryzen 7 8845HS	12196 Points 0%
BOSGAME M1 AMD Ryzen 7 7840HS	12116 Points -1%
Average AMD Ryzen 9 7940HS (11207 - 12500, n=12)	11931 Points -3%
Geekom XT13 Pro Intel Core i9-13900H	11536 Points -6%
Asus NUC 14 Pro Intel Core Ultra 5 125H	10856 Points -11%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	10269 Points -16%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	9596 Points -22%
Beelink SER6 Pro AMD Ryzen 7 6800H	9218 Points -25%
GMK NucBox M6 AMD Ryzen 5 6600H	8195 Points -33%
MSI Cubi NUC 1M Intel Core 7 150U	7788 Points -36%
Beelink SER5 AMD Ryzen 5 5560U	5955 Points -51%

Geekbench 5.5 / Single-Core
Beelink SER8 AMD Ryzen 7 8845HS	2004 Points +1%
BOSGAME M2 AMD Ryzen 9 7940HS	1993 Points
Average AMD Ryzen 9 7940HS (1823 - 2032, n=12)	1983 Points -1%
Beelink SER9 AMD Ryzen AI 9 HX 370	1957 Points -2%
BOSGAME M1 AMD Ryzen 7 7840HS	1928 Points -3%
MSI Cubi NUC 1M Intel Core 7 150U	1910 Points -4%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1832 Points -8%
Geekom XT13 Pro Intel Core i9-13900H	1708 Points -14%
Asus NUC 14 Pro Intel Core Ultra 5 125H	1685 Points -15%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	1641 Points -18%
Beelink SER6 Pro AMD Ryzen 7 6800H	1554 Points -22%
GMK NucBox M6 AMD Ryzen 5 6600H	1513 Points -24%
Beelink SER5 AMD Ryzen 5 5560U	1318 Points -34%

HWBOT x265 Benchmark v2.2 / 4k Preset
Beelink SER9 AMD Ryzen AI 9 HX 370	26.1 fps +23%
BOSGAME M2 AMD Ryzen 9 7940HS	21.2 fps
Beelink SER8 AMD Ryzen 7 8845HS	21.1 fps 0%
Average AMD Ryzen 9 7940HS (20.1 - 22.6, n=10)	21.1 fps 0%
BOSGAME M1 AMD Ryzen 7 7840HS	20.3 fps -4%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	16.5 fps -22%
Asus NUC 14 Pro Intel Core Ultra 5 125H	15.7 fps -26%
Beelink SER6 Pro AMD Ryzen 7 6800H	15 fps -29%
Geekom XT13 Pro Intel Core i9-13900H	14.7 fps -31%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	13.9 fps -34%
GMK NucBox M6 AMD Ryzen 5 6600H	13.9 fps -34%
Beelink SER5 AMD Ryzen 5 5560U	10 fps -53%
MSI Cubi NUC 1M Intel Core 7 150U	8.57 fps -60%

LibreOffice / 20 Documents To PDF
Beelink SER5 AMD Ryzen 5 5560U	57.1 s * -34%
Asus NUC 14 Pro Intel Core Ultra 5 125H	55.7 s * -30%
GMK NucBox M6 AMD Ryzen 5 6600H	52.4 s * -23%
Beelink SER9 AMD Ryzen AI 9 HX 370	51.6 s * -21%
Beelink SER6 Pro AMD Ryzen 7 6800H	48.8 s * -14%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	47.5 s * -11%
BOSGAME M1 AMD Ryzen 7 7840HS	47.4 s * -11%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	46.9 s * -10%
Geekom XT13 Pro Intel Core i9-13900H	46.8 s * -10%
Beelink SER8 AMD Ryzen 7 8845HS	46.1 s * -8%
Average AMD Ryzen 9 7940HS (36.9 - 54.8, n=11)	45.2 s * -6%
BOSGAME M2 AMD Ryzen 9 7940HS	42.7 s *
MSI Cubi NUC 1M Intel Core 7 150U	37.9 s * +11%

R Benchmark 2.5 / Overall mean
Beelink SER5 AMD Ryzen 5 5560U	0.584 sec * -36%
GMK NucBox M6 AMD Ryzen 5 6600H	0.4995 sec * -16%
Beelink SER6 Pro AMD Ryzen 7 6800H	0.4989 sec * -16%
Asus NUC 14 Pro Intel Core Ultra 5 125H	0.4982 sec * -16%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	0.4715 sec * -10%
Geekom XT13 Pro Intel Core i9-13900H	0.4693 sec * -9%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	0.45 sec * -5%
MSI Cubi NUC 1M Intel Core 7 150U	0.4438 sec * -3%
BOSGAME M1 AMD Ryzen 7 7840HS	0.4418 sec * -3%
Beelink SER8 AMD Ryzen 7 8845HS	0.4336 sec * -1%
Average AMD Ryzen 9 7940HS (0.4159 - 0.4467, n=11)	0.4296 sec * -0%
BOSGAME M2 AMD Ryzen 9 7940HS	0.4293 sec *
Beelink SER9 AMD Ryzen AI 9 HX 370	0.406 sec * +5%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

2585 Points

Cinebench R15 OpenGL 64Bit

210 fps

Cinebench R15 Ref. Match 64Bit

97.9 %

Cinebench R15 CPU Single 64Bit

258 Points

Cinebench R20 CPU (Multi Core)

6293 Points

Cinebench R20 CPU (Single Core)

679 Points

Cinebench R23 Multi Core

16148 Points

Cinebench R23 Single Core

1754 Points

Cinebench 2024 CPU Single Core

102.9 Points

Cinebench 2024 CPU Multi Core

912 Points

Help

... in comparison

Performance Rating
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	92.9 pt
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	84.9 pt
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	83.4 pt
Average AMD Ryzen 9 7940HS	82 pt
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	63.5 pt
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	54.3 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44.9 pt

AIDA64 / FP32 Ray-Trace
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	34743 KRay/s +31%
Average AMD Ryzen 9 7940HS (25226 - 29109, n=9)	26960 KRay/s +2%
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	26520 KRay/s
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	26022 KRay/s -2%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	15374 KRay/s -42%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	13347 KRay/s -50%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	11188 KRay/s -58%

AIDA64 / FPU Julia
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	132394 Points +17%
Average AMD Ryzen 9 7940HS (106512 - 123214, n=9)	115281 Points +2%
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	113423 Points
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	110752 Points -2%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	95131 Points -16%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	68551 Points -40%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	56942 Points -50%

AIDA64 / CPU SHA3
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	5656 MB/s +14%
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	4975 MB/s
Average AMD Ryzen 9 7940HS (4566 - 5119, n=9)	4888 MB/s -2%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	4854 MB/s -2%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	3323 MB/s -33%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	3297 MB/s -34%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	2669 MB/s -46%

AIDA64 / CPU Queen
Average AMD Ryzen 9 7940HS (118174 - 124783, n=9)	120945 Points +1%
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	119475 Points
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	117809 Points -1%
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	99023 Points -17%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	97443 Points -18%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	86881 Points -27%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	79866 Points -33%

AIDA64 / FPU SinJulia
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	18959 Points +25%
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	15211 Points
Average AMD Ryzen 9 7940HS (14663 - 15551, n=9)	15153 Points 0%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	14915 Points -2%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	12639 Points -17%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	7851 Points -48%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	7246 Points -52%

AIDA64 / FPU Mandel
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	70450 Points +16%
Average AMD Ryzen 9 7940HS (56839 - 66238, n=9)	61463 Points +2%
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	60518 Points
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	59072 Points -2%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	53002 Points -12%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	34225 Points -43%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	28019 Points -54%

AIDA64 / CPU AES
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	171350 MB/s
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	166944 MB/s -3%
Average AMD Ryzen 9 7940HS (86309 - 171350, n=9)	132825 MB/s -22%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	131458 MB/s -23%
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	81324 MB/s -53%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	64107 MB/s -63%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	53328 MB/s -69%

AIDA64 / CPU ZLib
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	1444 MB/s +37%
Average AMD Ryzen 9 7940HS (866 - 1152, n=9)	1061 MB/s 0%
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	1057 MB/s
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	1051 MB/s -1%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	969 MB/s -8%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	819 MB/s -23%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	775 MB/s -27%

AIDA64 / FP64 Ray-Trace
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	18694 KRay/s +32%
Average AMD Ryzen 9 7940HS (13175 - 15675, n=9)	14468 KRay/s +2%
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	14133 KRay/s
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	13897 KRay/s -2%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	8111 KRay/s -43%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	6786 KRay/s -52%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	5957 KRay/s -58%

AIDA64 / CPU PhotoWorxx
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	48813 MPixel/s +17%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	47377 MPixel/s +14%
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	41567 MPixel/s
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	41516 MPixel/s 0%
Average AMD Ryzen 9 7940HS (29922 - 41567, n=9)	36002 MPixel/s -13%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	29899 MPixel/s -28%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	29263 MPixel/s -30%

系统性能

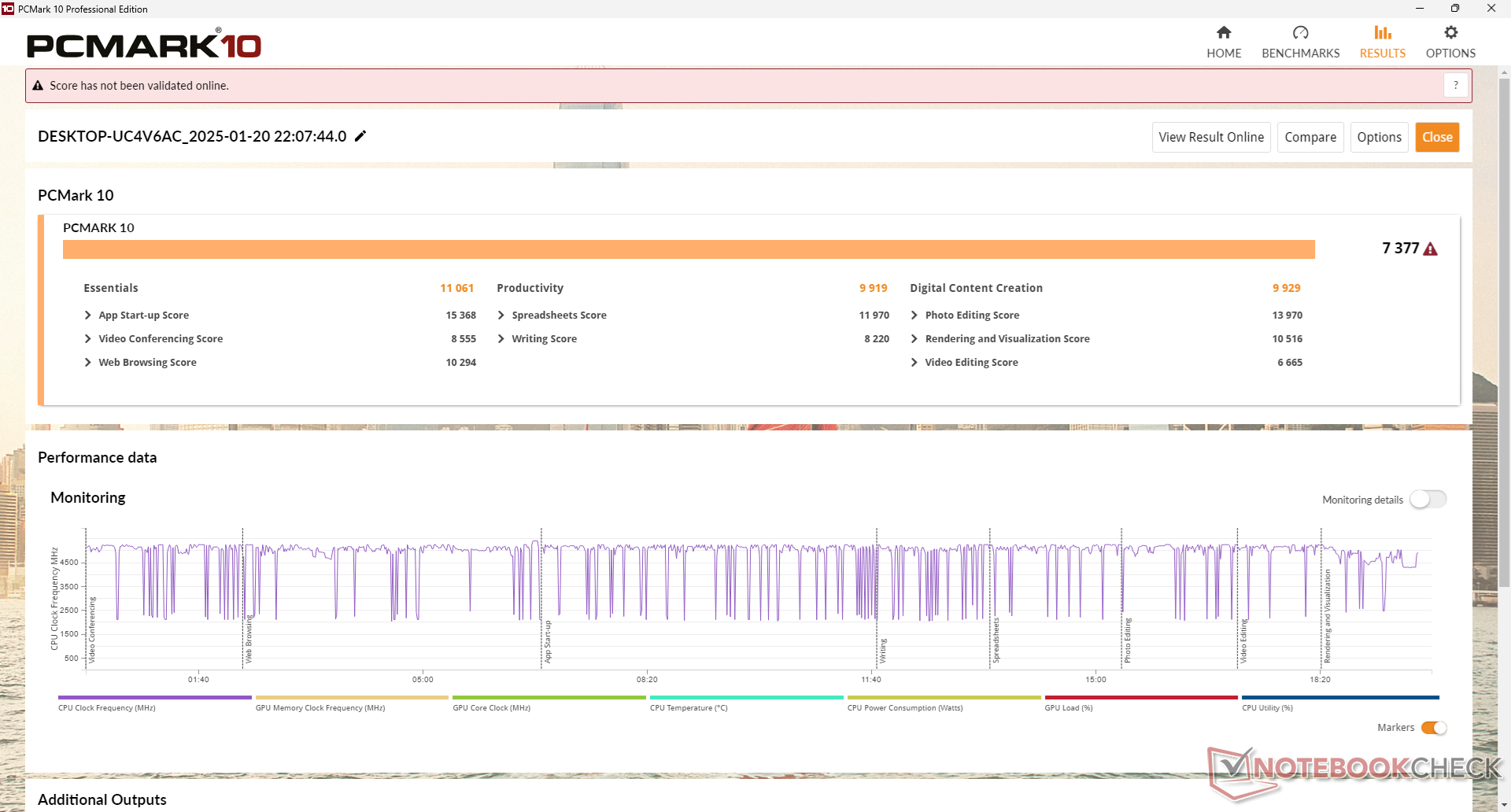

PCMark 10 的成绩对于迷你 PC 来说仍然不错，即使与 M1 相比没有进步

PCMark 10 / Score
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	7613 Points +3%
BOSGAME M2 Radeon 780M, R9 7940HS	7377 Points
Average AMD Ryzen 9 7940HS, AMD Radeon 780M (7048 - 7520, n=4)	7350 Points 0%
BOSGAME M1 Radeon 780M, R7 7840HS	7198 Points -2%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	6679 Points -9%
Asus NUC 14 Pro Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G	6282 Points -15%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5882 Points -20%

PCMark 10 / Essentials
BOSGAME M1 Radeon 780M, R7 7840HS	11211 Points +1%
BOSGAME M2 Radeon 780M, R9 7940HS	11061 Points
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11035 Points 0%
Average AMD Ryzen 9 7940HS, AMD Radeon 780M (10448 - 11114, n=4)	10920 Points -1%
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	10684 Points -3%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	10458 Points -5%
Asus NUC 14 Pro Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G	10050 Points -9%

PCMark 10 / Productivity
Average AMD Ryzen 9 7940HS, AMD Radeon 780M (9919 - 10717, n=4)	10225 Points +3%
BOSGAME M2 Radeon 780M, R9 7940HS	9919 Points
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	9812 Points -1%
BOSGAME M1 Radeon 780M, R7 7840HS	9075 Points -9%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	8752 Points -12%
Asus NUC 14 Pro Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G	7042 Points -29%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6576 Points -34%

PCMark 10 / Digital Content Creation
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	11422 Points +15%
BOSGAME M1 Radeon 780M, R7 7840HS	9948 Points 0%
BOSGAME M2 Radeon 780M, R9 7940HS	9929 Points
Average AMD Ryzen 9 7940HS, AMD Radeon 780M (9119 - 9929, n=4)	9655 Points -3%
Asus NUC 14 Pro Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G	9506 Points -4%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	8834 Points -11%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7612 Points -23%

CrossMark / Overall
BOSGAME M1 Radeon 780M, R7 7840HS	1891 Points +7%
Average AMD Ryzen 9 7940HS, AMD Radeon 780M (1726 - 1861, n=4)	1791 Points +2%
BOSGAME M2 Radeon 780M, R9 7940HS	1762 Points
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	1692 Points -4%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1596 Points -9%
Asus NUC 14 Pro Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G	1522 Points -14%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	1448 Points -18%

CrossMark / Productivity
BOSGAME M1 Radeon 780M, R7 7840HS	1823 Points +9%
Average AMD Ryzen 9 7940HS, AMD Radeon 780M (1672 - 1781, n=4)	1715 Points +3%
BOSGAME M2 Radeon 780M, R9 7940HS	1672 Points
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	1588 Points -5%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1537 Points -8%
Asus NUC 14 Pro Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G	1432 Points -14%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	1381 Points -17%

CrossMark / Creativity
BOSGAME M1 Radeon 780M, R7 7840HS	2013 Points +4%
Average AMD Ryzen 9 7940HS, AMD Radeon 780M (1914 - 2072, n=4)	1983 Points +3%
BOSGAME M2 Radeon 780M, R9 7940HS	1934 Points
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	1868 Points -3%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1769 Points -9%
Asus NUC 14 Pro Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G	1765 Points -9%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	1702 Points -12%

CrossMark / Responsiveness
BOSGAME M1 Radeon 780M, R7 7840HS	1749 Points +12%
BOSGAME M2 Radeon 780M, R9 7940HS	1562 Points
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	1520 Points -3%
Average AMD Ryzen 9 7940HS, AMD Radeon 780M (1382 - 1562, n=4)	1503 Points -4%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1311 Points -16%
Asus NUC 14 Pro Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G	1171 Points -25%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	1030 Points -34%

WebXPRT 3 / Overall
BOSGAME M2 Radeon 780M, R9 7940HS	342 Points
Average AMD Ryzen 9 7940HS, AMD Radeon 780M (302 - 342, n=5)	323 Points -6%
BOSGAME M1 Radeon 780M, R7 7840HS	319 Points -7%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	304 Points -11%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	301 Points -12%
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	286 Points -16%
Asus NUC 14 Pro Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G	254 Points -26%

WebXPRT 4 / Overall
BOSGAME M2 Radeon 780M, R9 7940HS	274 Points
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	265 Points -3%
Average AMD Ryzen 9 7940HS, AMD Radeon 780M (234 - 274, n=4)	260 Points -5%
BOSGAME M1 Radeon 780M, R7 7840HS	258 Points -6%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	237 Points -14%
Asus NUC 14 Pro Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G	231 Points -16%
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	231 Points -16%

Mozilla Kraken 1.1 / Total
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	570 ms * -13%
Asus NUC 14 Pro Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G	567 ms * -13%
BOSGAME M1 Radeon 780M, R7 7840HS	526 ms * -5%
BOSGAME M2 Radeon 780M, R9 7940HS	503 ms *
Average AMD Ryzen 9 7940HS, AMD Radeon 780M (487 - 514, n=5)	503 ms * -0%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	496 ms * +1%
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	445 ms * +12%

* ... smaller is better

PCMark 10 Score		7377 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	89287 MB/s +28%
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	69770 MB/s
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	69508 MB/s 0%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	69264 MB/s -1%
Average AMD Ryzen 9 7940HS (59712 - 78739, n=9)	66186 MB/s -5%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	51181 MB/s -27%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44299 MB/s -37%

AIDA64 / Memory Read
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	98398 MB/s +60%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	74415 MB/s +21%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	61765 MB/s 0%
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	61614 MB/s
Average AMD Ryzen 9 7940HS (50399 - 61836, n=9)	60273 MB/s -2%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	51788 MB/s -16%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44751 MB/s -27%

AIDA64 / Memory Write
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	98583 MB/s +13%
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	87234 MB/s
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	86719 MB/s -1%
Average AMD Ryzen 9 7940HS (72541 - 91567, n=9)	82439 MB/s -5%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	72443 MB/s -17%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	55227 MB/s -37%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	45887 MB/s -47%

AIDA64 / Memory Latency
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	127.3 ns * -32%
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	115.2 ns * -19%
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	96.5 ns *
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	96.2 ns * -0%
Average AMD Ryzen 9 7940HS (87.6 - 111.1, n=9)	93.1 ns * +4%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	89.8 ns * +7%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	84.4 ns * +13%

* ... smaller is better

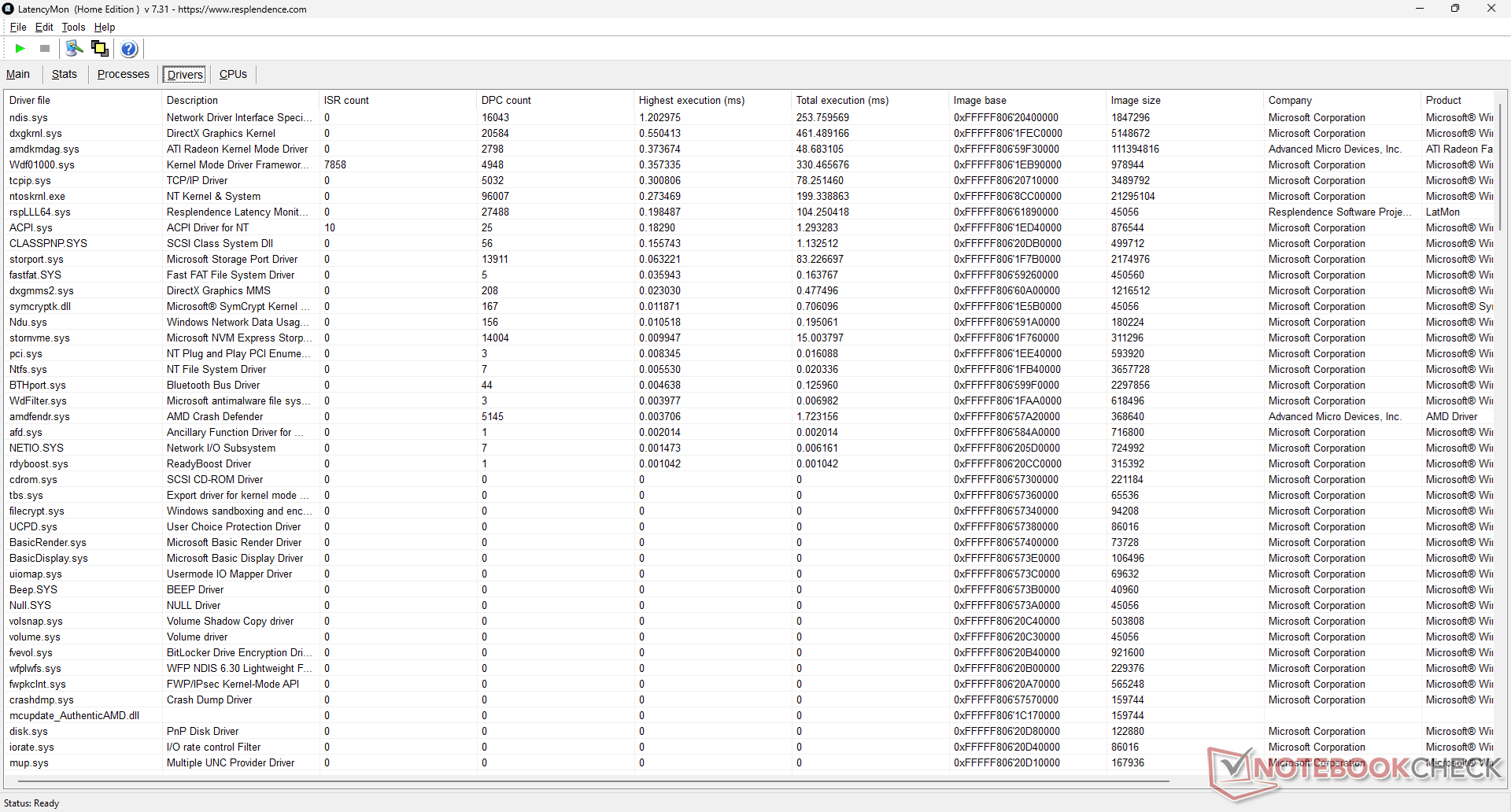

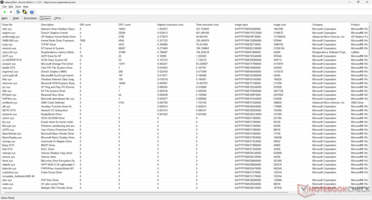

DPC 延迟

在打开主页的多个浏览器标签页时，LatencyMon 仅显示出轻微的 DPC 问题。遗憾的是，4K60 视频回放并不完美，在 60 秒的时间跨度内出现了 8 次跳帧。在正常使用过程中，帧跳得很低，基本上不会被察觉，但理想情况下还是应该为零。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	13915.3 μs * -1551%
Asus NUC 14 Pro Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G	2776 μs * -229%
BOSGAME M1 Radeon 780M, R7 7840HS	1179.5 μs * -40%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1068.7 μs * -27%
BOSGAME M2 Radeon 780M, R9 7940HS	843 μs *

* ... smaller is better

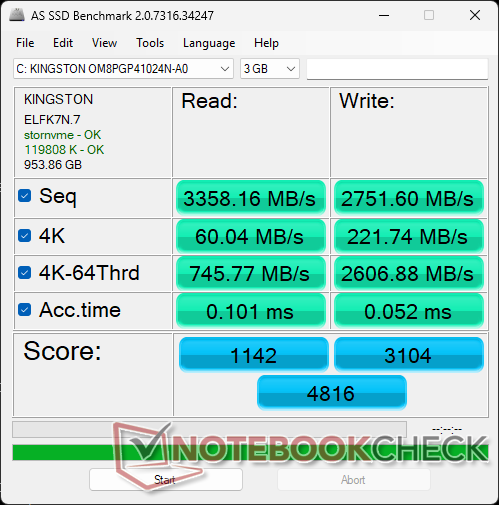

存储设备

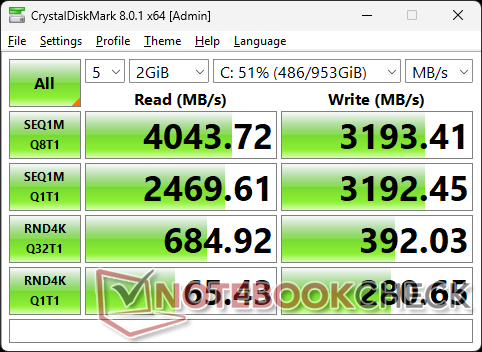

我们的测试设备配备了相同的金士顿 OM8SEP41024N-A0NVMe 固态硬盘。最高传输速率约为 4000 MB/s，没有明显的性能节流问题。

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

CDM 5/6 Read Seq Q32T1: 4074 MB/s

CDM 5/6 Write Seq Q32T1: 3194 MB/s

CDM 5/6 Read 4K Q32T1: 684.7 MB/s

CDM 5/6 Write 4K Q32T1: 388.6 MB/s

CDM 5 Read Seq: 2455 MB/s

CDM 5 Write Seq: 3195 MB/s

CDM 5/6 Read 4K: 65.15 MB/s

CDM 5/6 Write 4K: 274.8 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	79.7 pt
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	76.1 pt
BOSGAME M2	75.2 pt
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	73.8 pt
BOSGAME M1	71 pt
GMK NucBox M7 Pro	63.6 pt

DiskSpd
seq read
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	3706 (3594.04^min - 3706.37^max) MB/s +48%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3337 (3301.03^min - 3337.16^max) MB/s +34%
GMK NucBox M7 Pro	2601 (2578.12^min - 2600.64^max) MB/s +4%
BOSGAME M1	2533 (2518.88^min - 2532.52^max) MB/s +1%
BOSGAME M2	2496 (2483.24^min - 2495.57^max) MB/s
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	2257 (2254.02^min - 2257.37^max) MB/s -10%
seq write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3356 (3181.73^min - 3356.49^max) MB/s +7%
BOSGAME M1	3176 (2921.36^min - 3176.08^max) MB/s +1%
BOSGAME M2	3151 (2303.72^min - 3150.76^max) MB/s
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	2928 (1958.53^min - 2927.62^max) MB/s -7%
GMK NucBox M7 Pro	2810 (2768.58^min - 2810.02^max) MB/s -11%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	1873 (688.38^min - 1873.41^max) MB/s -41%
seq q8 t1 read
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	7110 (6058.21^min - 7110.02^max) MB/s +75%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5438 (4937.74^min - 5438.31^max) MB/s +34%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	4658 (3456.11^min - 4657.77^max) MB/s +14%
BOSGAME M1	4109 (3651.18^min - 4108.53^max) MB/s +1%
BOSGAME M2	4071 (3372.85^min - 4070.78^max) MB/s
GMK NucBox M7 Pro	3500 (3155.37^min - 3500.44^max) MB/s -14%
seq q8 t1 write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4955 (4929.56^min - 4955.41^max) MB/s +57%
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	4712 (3064.99^min - 4711.88^max) MB/s +49%
BOSGAME M1	3187 (3142.8^min - 3187.38^max) MB/s +1%
BOSGAME M2	3164 (3161.46^min - 3163.55^max) MB/s
GMK NucBox M7 Pro	3154 (3135.87^min - 3154.12^max) MB/s 0%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	2047 (794.1^min - 2047.34^max) MB/s -35%
4k q1 t1 read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	84.5 (83.02^min - 84.54^max) MB/s +35%
GMK NucBox M7 Pro	65 (61.11^min - 64.99^max) MB/s +4%
BOSGAME M1	64.4 (64.2^min - 64.35^max) MB/s +3%
BOSGAME M2	62.7 (61.92^min - 62.74^max) MB/s
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	53.7 (52.17^min - 53.71^max) MB/s -14%
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	53.4 (49.89^min - 53.35^max) MB/s -15%
4k q1 t1 write
BOSGAME M1	261 (258.95^min - 260.75^max) MB/s +3%
BOSGAME M2	254 (91.72^min - 253.66^max) MB/s
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	236 (212.83^min - 235.59^max) MB/s -7%
GMK NucBox M7 Pro	178 (177.2^min - 178.04^max) MB/s -30%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	144.6 (143.6^min - 144.57^max) MB/s -43%
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	83.1 (75.3^min - 83.11^max) MB/s -67%
4k q32 t16 read
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	3162 (3155.7^min - 3161.51^max) MB/s +303%
GMK NucBox M7 Pro	1942 (1937.92^min - 1941.71^max) MB/s +148%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	808 (792.58^min - 807.51^max) MB/s +3%
BOSGAME M1	791 (751.42^min - 791.35^max) MB/s +1%
BOSGAME M2	784 (747.62^min - 783.51^max) MB/s
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	731 (660.89^min - 731.29^max) MB/s -7%
4k q32 t16 write
BOSGAME M1	3112 (3068.44^min - 3111.56^max) MB/s +3%
BOSGAME M2	3032 (2937.1^min - 3032.48^max) MB/s
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	1782 (864.63^min - 1781.78^max) MB/s -41%
GMK NucBox M7 Pro	1434 (1109.55^min - 1433.62^max) MB/s -53%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	454 (443.2^min - 453.53^max) MB/s -85%
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	186.7 (155.05^min - 186.74^max) MB/s -94%

AS SSD
Score Total
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5249 Points +9%
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	5131 Points +7%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	4872 Points +1%
BOSGAME M2	4816 Points
BOSGAME M1	4263 Points -11%
GMK NucBox M7 Pro	3732 Points -23%
Score Read
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	1511 Points +32%
GMK NucBox M7 Pro	1388 Points +22%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	1320 Points +16%
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	1275 Points +12%
BOSGAME M1	1146 Points 0%
BOSGAME M2	1142 Points
Score Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3326 Points +7%
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	3313 Points +7%
BOSGAME M2	3104 Points
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	2688 Points -13%
BOSGAME M1	2547 Points -18%
GMK NucBox M7 Pro	1629 Points -48%
Seq Read
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	5158 MB/s +54%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4536 MB/s +35%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	3789.22 MB/s +13%
BOSGAME M1	3438.69 MB/s +2%
BOSGAME M2	3358.16 MB/s
GMK NucBox M7 Pro	3027.6 MB/s -10%
Seq Write
BOSGAME M1	2877.44 MB/s +5%
GMK NucBox M7 Pro	2851.13 MB/s +4%
BOSGAME M2	2751.6 MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2698 MB/s -2%
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	2646 MB/s -4%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	1679.72 MB/s -39%
4K Read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	72 MB/s +20%
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	63.6 MB/s +6%
BOSGAME M2	60.04 MB/s
GMK NucBox M7 Pro	59.12 MB/s -2%
BOSGAME M1	48.27 MB/s -20%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	46.12 MB/s -23%
4K Write
BOSGAME M2	221.74 MB/s
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	219.64 MB/s -1%
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	169.5 MB/s -24%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	166.8 MB/s -25%
GMK NucBox M7 Pro	149.72 MB/s -32%
BOSGAME M1	114.69 MB/s -48%
4K-64 Read
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	1086.32 MB/s +46%
GMK NucBox M7 Pro	1026.38 MB/s +38%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	794 MB/s +6%
BOSGAME M1	754.28 MB/s +1%
BOSGAME M2	745.77 MB/s
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	695 MB/s -7%
4K-64 Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2889 MB/s +11%
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	2878 MB/s +10%
BOSGAME M2	2606.88 MB/s
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	2300.17 MB/s -12%
BOSGAME M1	2144.62 MB/s -18%
GMK NucBox M7 Pro	1193.68 MB/s -54%
Access Time Read
BOSGAME M2	0.101 ms *
BOSGAME M1	0.088 ms * +13%
GMK NucBox M7 Pro	0.066 ms * +35%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	0.061 ms * +40%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.06 ms * +41%
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	0.053 ms * +48%
Access Time Write
GMK NucBox M7 Pro	0.44 ms * -746%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	0.092 ms * -77%
BOSGAME M1	0.058 ms * -12%
BOSGAME M2	0.052 ms *
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	0.043 ms * +17%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.024 ms * +54%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

BOSGAME M2 ; diskspd 2.0.17 f: Ø4037 (3556.56-4052.54)

BOSGAME M1 ; diskspd 2.0.17 f: Ø4089 (3680.06-4103.47)

图形处理器性能

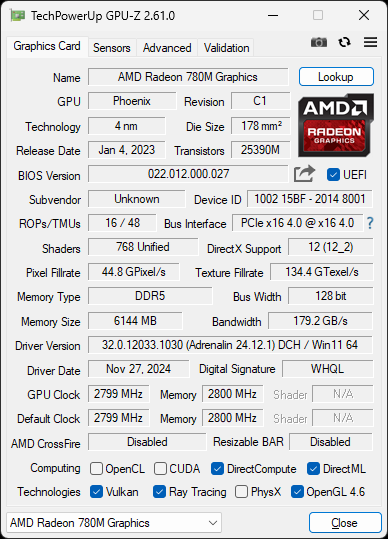

Ryzen 7 7840HS 和 Ryzen 9 7940HS 都集成了相同的 Radeon 780M图形处理器，两者在图形性能上没有重大差异。

3DMark Performance Rating | 3DMark | 3DMark 11

3DMark Performance Rating - Percent
Beelink SER9 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	93.4 pt
BOSGAME M1 AMD Radeon 780M, AMD Ryzen 7 7840HS	91.2 pt
BOSGAME M2 AMD Radeon 780M, AMD Ryzen 9 7940HS	91.1 pt
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	85.2 pt
Asus NUC 14 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	82.9 pt
Average AMD Radeon 780M	78.5 pt
GMK NucBox M7 Pro ^-1! AMD Radeon 680M, AMD Ryzen 9 PRO 6950H	74.4 pt
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	70.7 pt
Geekom XT13 Pro ^-1! Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	52.9 pt
Intel NUC 13 Pro Desk Edition Kit ^-1! Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	51.2 pt
GMK NucBox M6 ^-1! AMD Radeon 660M, AMD Ryzen 5 6600H	48.5 pt
MSI Cubi NUC 1M ^-1! Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	44.7 pt
Beelink SER5 ^-1! AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	31.4 pt

3DMark
1280x720 Cloud Gate Standard Graphics
Beelink SER9 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	55908 Points +5%
BOSGAME M1 AMD Radeon 780M, AMD Ryzen 7 7840HS	53972 Points +2%
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	53347 Points 0%
BOSGAME M2 AMD Radeon 780M, AMD Ryzen 9 7940HS	53089 Points
Average AMD Radeon 780M (27771 - 53972, n=32)	46905 Points -12%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	45727 Points -14%
GMK NucBox M7 Pro AMD Radeon 680M, AMD Ryzen 9 PRO 6950H	44934 Points -15%
Asus NUC 14 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	41975 Points -21%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	34469 Points -35%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	32427 Points -39%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	31849 Points -40%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	29301 Points -45%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	22822 Points -57%
1920x1080 Fire Strike Graphics
Beelink SER9 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	10037 Points +13%
BOSGAME M2 AMD Radeon 780M, AMD Ryzen 9 7940HS	8904 Points
BOSGAME M1 AMD Radeon 780M, AMD Ryzen 7 7840HS	8816 Points -1%
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	8572 Points -4%
Asus NUC 14 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	7900 Points -11%
Average AMD Radeon 780M (4550 - 8904, n=62)	7784 Points -13%
GMK NucBox M7 Pro AMD Radeon 680M, AMD Ryzen 9 PRO 6950H	7706 Points -13%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	7026 Points -21%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	5845 Points -34%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5616 Points -37%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	4984 Points -44%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	4899 Points -45%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	3056 Points -66%
2560x1440 Time Spy Graphics
Beelink SER9 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3546 Points +12%
Asus NUC 14 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	3205 Points +1%
BOSGAME M1 AMD Radeon 780M, AMD Ryzen 7 7840HS	3178 Points 0%
BOSGAME M2 AMD Radeon 780M, AMD Ryzen 9 7940HS	3167 Points
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	2917 Points -8%
Average AMD Radeon 780M (1496 - 3196, n=62)	2729 Points -14%
GMK NucBox M7 Pro AMD Radeon 680M, AMD Ryzen 9 PRO 6950H	2500 Points -21%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	2452 Points -23%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1682 Points -47%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1672 Points -47%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	1582 Points -50%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	1428 Points -55%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	996 Points -69%

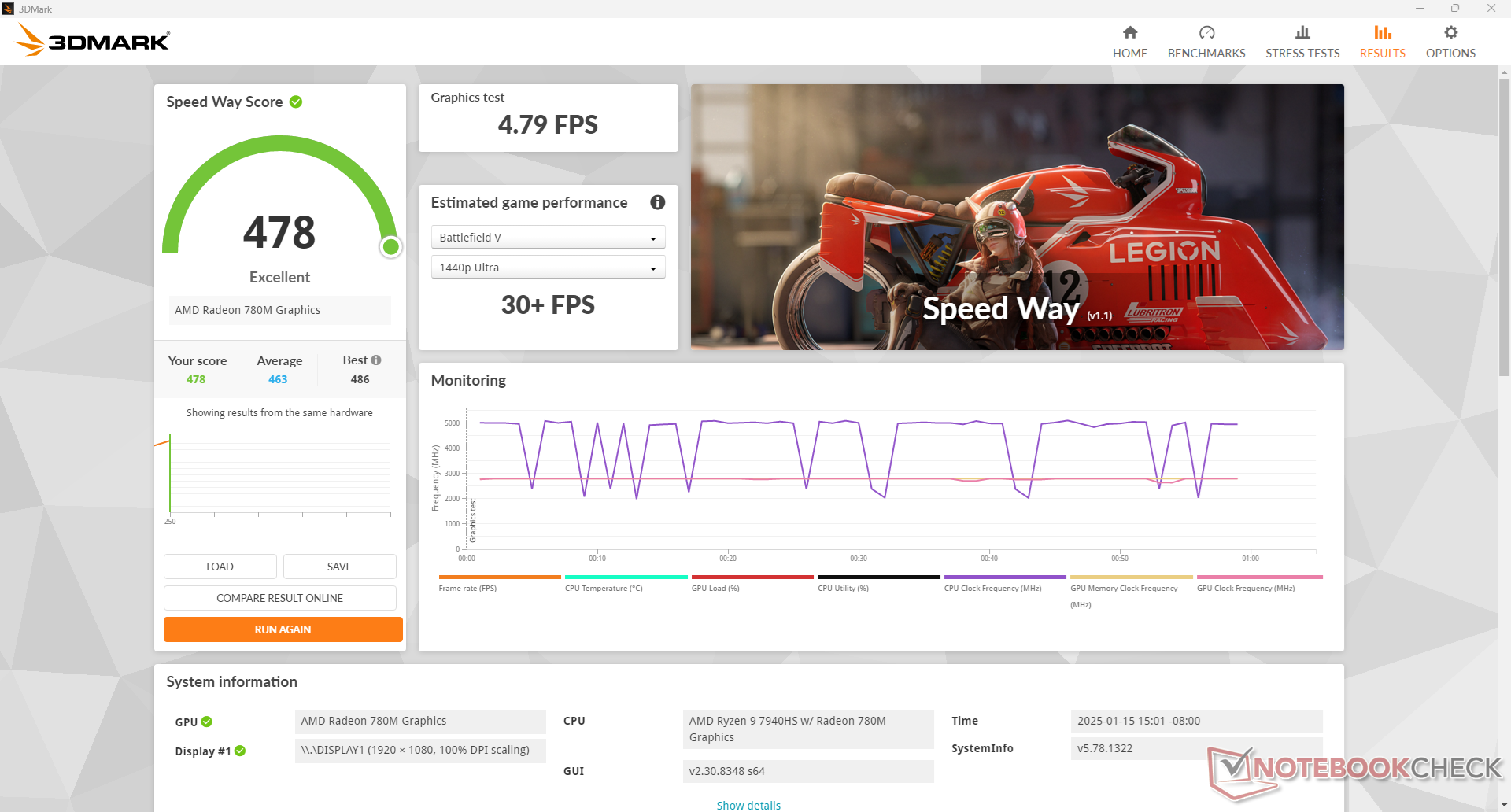

2560x1440 Speed Way Score
Asus NUC 14 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	489 Points +2%
BOSGAME M2 AMD Radeon 780M, AMD Ryzen 9 7940HS	478 Points
BOSGAME M1 AMD Radeon 780M, AMD Ryzen 7 7840HS	476 Points 0%
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	398 Points -17%
Average AMD Radeon 780M (225 - 478, n=18)	389 Points -19%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	334 Points -30%
Beelink SER9 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	328 Points -31%

3DMark 11 - 1280x720 Performance GPU
Beelink SER9 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	16800 Points +18%
BOSGAME M2 AMD Radeon 780M, AMD Ryzen 9 7940HS	14274 Points
BOSGAME M1 AMD Radeon 780M, AMD Ryzen 7 7840HS	14249 Points 0%
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	13673 Points -4%
Average AMD Radeon 780M (7868 - 14274, n=60)	12521 Points -12%
Asus NUC 14 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	11785 Points -17%
GMK NucBox M7 Pro AMD Radeon 680M, AMD Ryzen 9 PRO 6950H	11755 Points -18%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	10807 Points -24%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	7428 Points -48%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7321 Points -49%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	7184 Points -50%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	6282 Points -56%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	4439 Points -69%

3DMark Performance Rating | 3DMark | 3DMark 11

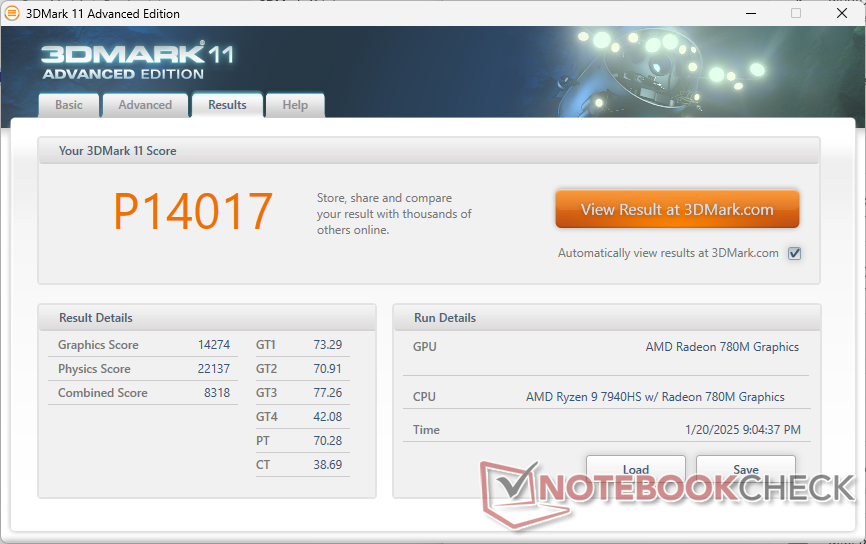

3DMark 11 Performance		14017 points
3DMark Cloud Gate Standard Score		38111 points

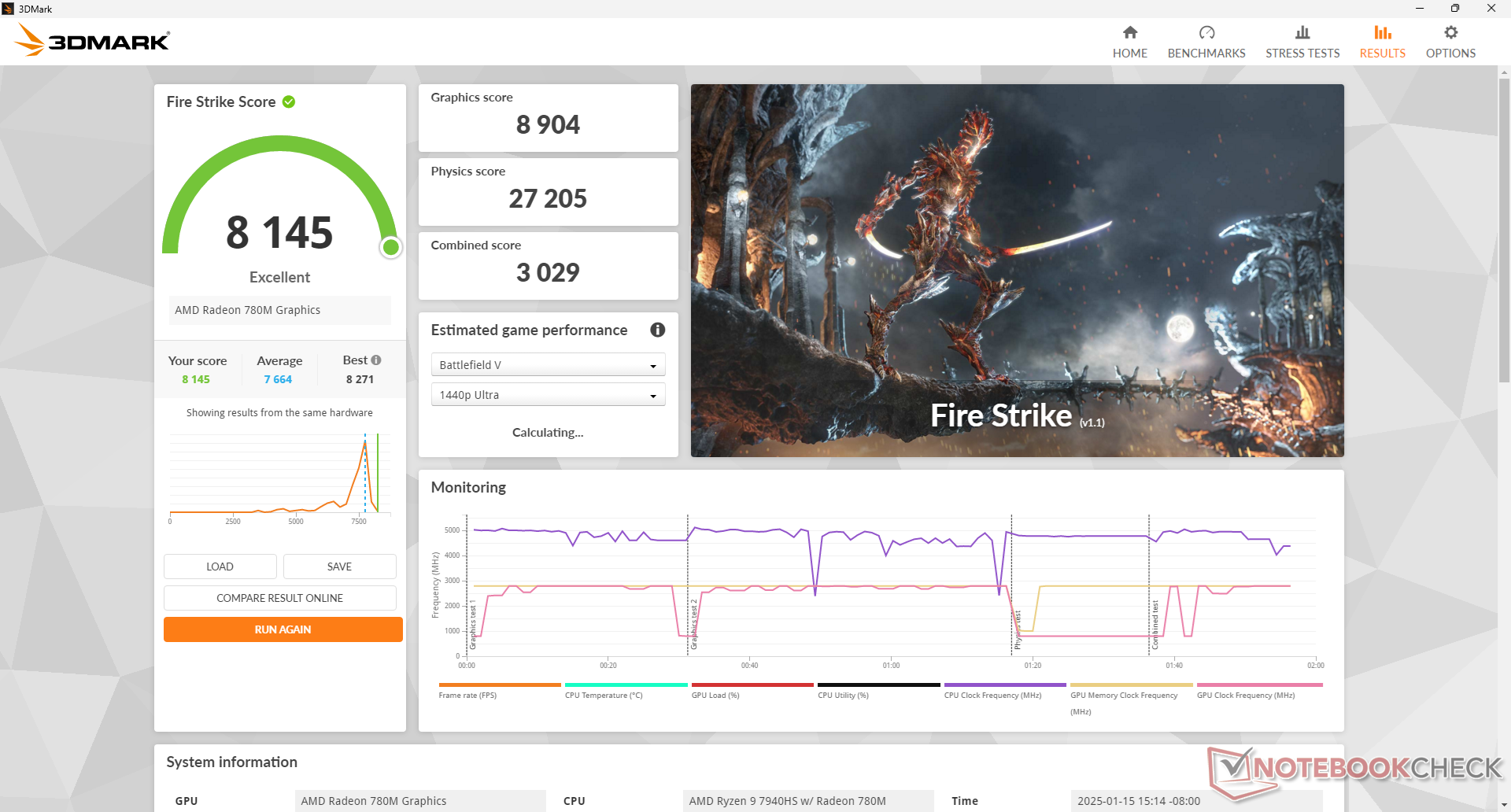

3DMark Fire Strike Score		8145 points

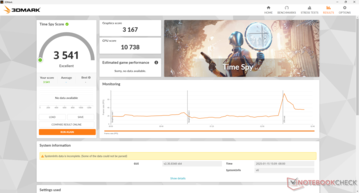

3DMark Time Spy Score		3541 points

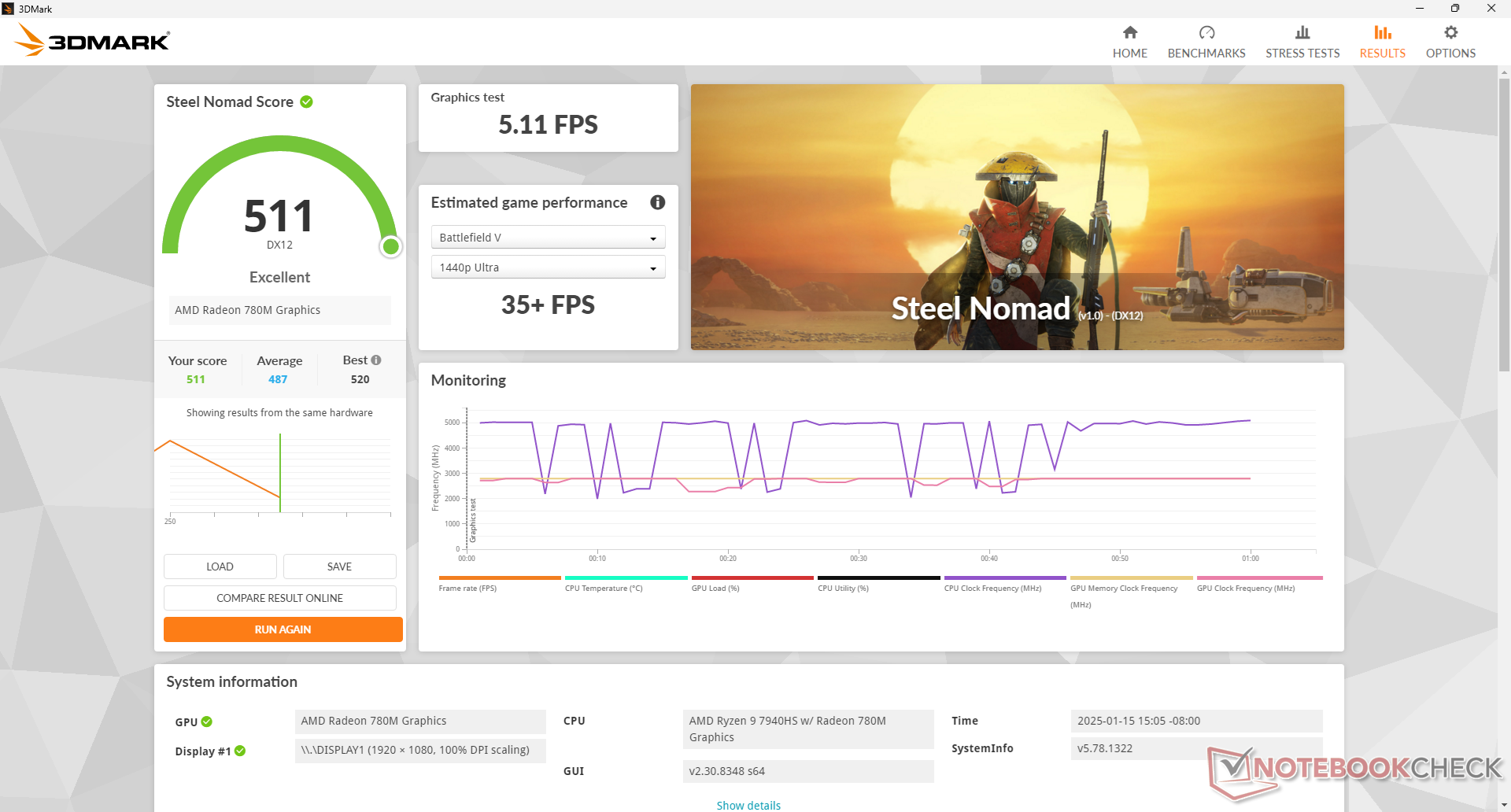

3DMark Steel Nomad Score		511 points
Help

... in comparison

Blender
v3.3 Classroom HIP/AMD
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	675 Seconds *
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	318 Seconds *
v3.3 Classroom CPU
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	829 Seconds * -164%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	677 Seconds * -116%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	497 Seconds * -58%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	477 Seconds * -52%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	453 Seconds * -44%
Asus NUC 14 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	399 Seconds * -27%
GMK NucBox M7 Pro AMD Radeon 680M, AMD Ryzen 9 PRO 6950H	392 Seconds * -25%
Average AMD Radeon 780M (300 - 664, n=58)	373 Seconds * -19%
BOSGAME M1 AMD Radeon 780M, AMD Ryzen 7 7840HS	319 Seconds * -2%
BOSGAME M2 AMD Radeon 780M, AMD Ryzen 9 7940HS	314 Seconds *
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	310 Seconds * +1%
Beelink SER9 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	229 Seconds * +27%

* ... smaller is better

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	170.3 fps +25%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	142.1 fps +4%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	136.6 fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	127.9 fps -6%
Average AMD Radeon 780M (62.6 - 152.7, n=25)	118.9 fps -13%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	104.6 fps -23%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	80.8 fps -41%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	57.7 fps -58%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	54 fps -60%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	37.9 fps -72%
1920x1080 Low Preset (DX12)
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	88.3 fps +15%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	77.7 fps +1%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	76.9 fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	72.8 fps -5%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	65.6 fps -15%
Average AMD Radeon 780M (34.3 - 77.7, n=25)	62.8 fps -18%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	40 fps -48%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32.3 fps -58%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	27.5 fps -64%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	25.6 fps -67%
1920x1080 Medium Preset (DX12)
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	62.3 fps +11%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	55.9 fps 0%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	55.9 fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	52.8 fps -6%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	47.7 fps -15%
Average AMD Radeon 780M (28.4 - 55.9, n=25)	45.9 fps -18%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	31.3 fps -44%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.4 fps -55%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	20.3 fps -64%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	19.5 fps -65%
1920x1080 High Preset (DX12)
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	41.8 fps +11%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	37.9 fps 0%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	37.8 fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	36.8 fps -3%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	32.3 fps -15%
Average AMD Radeon 780M (18.6 - 38.8, n=25)	31.8 fps -16%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	20.5 fps -46%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	15.9 fps -58%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	14 fps -63%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	12.1 fps -68%
1920x1080 Badass Preset (DX12)
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	32.5 fps +7%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.3 fps 0%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	30.3 fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	29.6 fps -2%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	26.1 fps -14%
Average AMD Radeon 780M (16.5 - 31.3, n=25)	26 fps -14%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	15.6 fps -49%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	13.5 fps -55%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	10.9 fps -64%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	8.9 fps -71%

X-Plane 11.11
1280x720 low (fps_test=1)
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	85.1 fps +29%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	66.4 fps 0%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	66.3 fps 0%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	66.1 fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	65.9 fps 0%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	64.2 fps -3%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	54.6 fps -17%
Average AMD Radeon 780M (39 - 69.6, n=64)	53.6 fps -19%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	51.8 fps -22%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	47.5 fps -28%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	38 fps -43%
1920x1080 med (fps_test=2)
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	67.6 fps +38%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	52.9 fps +8%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	52.9 fps +8%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	49.1 fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	47.8 fps -3%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	46.3 fps -6%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	41 fps -16%
Average AMD Radeon 780M (26.2 - 49.1, n=64)	39.2 fps -20%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	38.5 fps -22%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	38.5 fps -22%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	27.4 fps -44%
1920x1080 high (fps_test=3)
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	51.6 fps +25%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	44.5 fps +7%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	43 fps +4%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	41.4 fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	39.6 fps -4%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	38.7 fps -7%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	35.4 fps -14%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	33.2 fps -20%
Average AMD Radeon 780M (24.5 - 41.5, n=63)	33 fps -20%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	32.9 fps -21%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.2 fps -42%

GTA V
1024x768 Lowest Settings possible
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	166.6 (5.68^min, 111.1^P1) fps
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	166.1 (4.25^min, 100^P1) fps 0%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	156.3 (4.92^min, 90.9^P1) fps -6%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	152.3 (4.42^min, 100^P1) fps -9%
Average AMD Radeon 780M (91.6 - 169.4, n=53)	146.4 fps -12%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	141.6 (4.93^min, 100^P1) fps -15%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	124.5 (12.7^min, 76.9^P1) fps -25%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	123.5 (30.5^min, 66.7^P1) fps -26%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	111.2 (8.07^min, 76.9^P1) fps -33%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	100.3 (39.9^min, 62.5^P1) fps -40%
1920x1080 Lowest Settings possible
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	150.9 (4.46^min, 100^P1) fps +17%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	129.8 (58.5^min, 90.9^P1) fps +1%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	129 (21.4^min, 83.3^P1) fps
Average AMD Radeon 780M (60.9 - 130.2, n=37)	114.2 fps -11%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	111.4 (35^min, 71.4^P1) fps -14%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	110.4 (9.4^min, 71.4^P1) fps -14%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	91.3 (21.4^min, 52.6^P1) fps -29%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	87.6 (30.9^min, 58.8^P1) fps -32%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	78.6 (26^min, 50^P1) fps -39%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	64 (8.04^min, 45.5^P1) fps -50%
1366x768 Normal/Off AF:4x
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	158.9 (4.43^min, 100^P1) fps +2%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	155.8 (5.63^min, 100^P1) fps
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	148.8 (4.43^min, 83.3^P1) fps -4%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	139.7 (5.95^min, 90.9^P1) fps -10%
Average AMD Radeon 780M (91.2 - 159, n=44)	139.6 fps -10%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	137.1 (7.4^min, 83.3^P1) fps -12%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	105.9 (23.9^min, 47.6^P1) fps -32%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	101.9 (27.6^min, 62.5^P1) fps -35%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	97.5 (36.1^min, 62.5^P1) fps -37%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	86.1 (7.7^min, 50^P1) fps -45%
1920x1080 Normal/Off AF:4x
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	145.5 (4.84^min, 90.9^P1) fps +9%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	133.2 (8.14^min, 83.3^P1) fps
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	117.6 (36.7^min, 83.3^P1) fps -12%
Average AMD Radeon 780M (64.9 - 133.5, n=36)	115.5 fps -13%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	112.3 (21.5^min, 71.4^P1) fps -16%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	110.4 (6.6^min, 71.4^P1) fps -17%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	78.5 (6.01^min, 40^P1) fps -41%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	74.8 (27^min, 47.6^P1) fps -44%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	71 (6.44^min, 40^P1) fps -47%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	64.1 (29.4^min, 45.5^P1) fps -52%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	79 (9.77^min, 52.6^P1) fps +14%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	69.4 (11.3^min, 47.6^P1) fps
Average AMD Radeon 780M (32.5 - 69.4, n=55)	60.3 fps -13%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	53.2 (4.77^min, 35.7^P1) fps -23%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	51.9 (14.3^min, 37^P1) fps -25%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	39.9 (3.1^min, 29.4^P1) fps -43%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.6 (11.1^min, 17.9^P1) fps -65%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	23.6 (8.96^min, 17.2^P1) fps -66%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	22.1 (7.08^min, 16.4^P1) fps -68%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	20.9 (10.5^min, 16.7^P1) fps -70%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	31.5 (3.06^min, 21.7^P1) fps +11%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	28.5 (6.6^min, 19.6^P1) fps
Average AMD Radeon 780M (12.2 - 29, n=55)	24.8 fps -13%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	23.9 (2.34^min, 15.6^P1) fps -16%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	23.7 (9.52^min, 16.4^P1) fps -17%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	16.6 (2.85^min, 11.4^P1) fps -42%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.2 (6.84^min, 7.58^P1) fps -61%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	9.98 (4.2^min, 6.21^P1) fps -65%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	9 (3.72^min, 7.14^P1) fps -68%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	8.8 (4.66^min, 7.35^P1) fps -69%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	94.6 fps +13%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	84.5 fps +1%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	83.8 fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	79.7 fps -5%
Average AMD Radeon 780M (41.1 - 84.5, n=58)	71.1 fps -15%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	68.1 fps -19%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	67.6 fps -19%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	60.6 fps -28%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	48.3 fps -42%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	46 fps -45%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45.6 fps -46%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	40.9 fps -51%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	32.2 fps -62%
1920x1080 Standard Quality
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	47.5 fps +14%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	41.5 fps
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	40.9 fps -1%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	40.2 fps -3%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	35.6 fps -14%
Average AMD Radeon 780M (21 - 41.5, n=60)	35.5 fps -14%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	35.4 fps -15%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	34.7 fps -16%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	25.7 fps -38%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	24.7 fps -40%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24.3 fps -41%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	23 fps -45%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	16.1 fps -61%
1920x1080 High Quality
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	33.3 fps +11%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.8 fps +2%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	30.1 fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	29.4 fps -2%
Average AMD Radeon 780M (15.9 - 30.8, n=61)	26.5 fps -12%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	25.3 fps -16%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	24.6 fps -18%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	24.5 fps -19%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	18.2 fps -40%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	17.9 fps -41%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	17.4 fps -42%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	16.6 fps -45%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.5 fps -62%

Dota 2 Reborn
1280x720 min (0/3) fastest
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	175.6 (150.3^min) fps +13%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	159.5 (137.7^min) fps +2%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	155.8 (134.9^min) fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	151.9 (101.9^min) fps -3%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	146.2 (124.5^min) fps -6%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	144.9 (123.5^min) fps -7%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	143.3 (123.8^min) fps -8%
Average AMD Radeon 780M (34.7 - 164.8, n=62)	133.5 fps -14%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	117.2 (74.5^min) fps -25%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	113.8 (8.3^min) fps -27%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	110.7 (97.6^min) fps -29%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	97.7 (57.3^min) fps -37%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	97.1 (61.8^min) fps -38%
1366x768 med (1/3)
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	133.6 (115.4^min) fps +9%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	130.1 (91.5^min) fps +6%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	126.5 (104.4^min) fps +3%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	122.7 (101.9^min) fps
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	114.4 (96.3^min) fps -7%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	113.4 (94^min) fps -8%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	107.9 (92.8^min) fps -12%
Average AMD Radeon 780M (33.6 - 130.2, n=62)	107.4 fps -12%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	90.8 (71^min) fps -26%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	86.4 (68.3^min) fps -30%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	82.9 (52.4^min) fps -32%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	79.2 (57.5^min) fps -35%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	61.9 (45.9^min) fps -50%
1920x1080 high (2/3)
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	100 (89^min) fps +2%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	98.8 (88.1^min) fps 0%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	98.8 (80.5^min) fps 0%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	98.4 (87.5^min) fps
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	85.1 (74.5^min) fps -14%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	83.9 (73.4^min) fps -15%
Average AMD Radeon 780M (31.6 - 98.8, n=62)	80 fps -19%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	75.9 (45.7^min) fps -23%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	72.5 (53^min) fps -26%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	70 (63.6^min) fps -29%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	67.6 (58.9^min) fps -31%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	62.5 (42.1^min) fps -36%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	48.7 (44.8^min) fps -51%
1920x1080 ultra (3/3) best looking
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	90.4 (71.8^min) fps +3%
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	89.8 (79.5^min) fps +2%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	88.5 (78.9^min) fps 0%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	88.1 (78.3^min) fps
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	75.6 (67.2^min) fps -14%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	73.1 (64^min) fps -17%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	72.9 (47.2^min) fps -17%
Average AMD Radeon 780M (30.8 - 91.2, n=62)	72.1 fps -18%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	66.5 (50.4^min) fps -25%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	60.8 (54.4^min) fps -31%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	60.5 (52.3^min) fps -31%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	57.8 (39.9^min) fps -34%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	45.4 (42.4^min) fps -48%

Cyberpunk 2077 2.2 Phantom Liberty
1280x720 Low Preset (FSR off)
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	82.2 (67.7^min) fps +6%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	80.6 (51.6^min) fps +3%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	77.9 (64.8^min) fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	72.6 (60.1^min) fps -7%
Average AMD Radeon 780M (53.6 - 80.6, n=23)	67.3 fps -14%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	62.3 (52.4^min) fps -20%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	46.3 (39.2^min) fps -41%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	31.8 (24.6^min) fps -59%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	25.5 (19.8^min) fps -67%
1920x1080 Low Preset (FSR off)
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	49.6 (42^min) fps +7%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	47.9 (37.5^min) fps +3%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	46.3 (39.5^min) fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	43.8 (37.3^min) fps -5%
Average AMD Radeon 780M (29.3 - 52.1, n=44)	40.3 fps -13%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	37.3 (31.9^min) fps -19%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	30.1 (25.8^min) fps -35%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	24.3 (20.5^min) fps -48%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	18.6 (15.4^min) fps -60%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	15.4 (12.1^min) fps -67%
1920x1080 Medium Preset (FSR off)
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	40.5 (35.1^min) fps +12%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	37.5 (30.6^min) fps +3%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	36.3 (31.7^min) fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	34.5 (29.8^min) fps -5%
Average AMD Radeon 780M (16.3 - 37.5, n=40)	30.8 fps -15%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	28.7 (24.7^min) fps -21%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	25.2 (22.3^min) fps -31%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	18.1 (15.7^min) fps -50%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	15 (12.4^min) fps -59%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	12.4 (10.3^min) fps -66%
1920x1080 High Preset (FSR off)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.6 (23.3^min) fps +1%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	29.2 (25.2^min) fps
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	28.7 (24.8^min) fps -2%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	27.1 (22.6^min) fps -7%
Average AMD Radeon 780M (13.8 - 29.6, n=41)	24.7 fps -15%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	22.6 (19.3^min) fps -23%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	21.7 (18.8^min) fps -26%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	13 (11^min) fps -55%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	11.6 (10^min) fps -60%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	10.8 (8.83^min) fps -63%
1920x1080 Ultra Preset (FSR off)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	25.8 (19.9^min) fps 0%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	25.8 (21.9^min) fps
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	25.5 (20.9^min) fps -1%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	23.4 (19^min) fps -9%
Average AMD Radeon 780M (11.5 - 26.3, n=36)	21.3 fps -17%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	19.6 (16.7^min) fps -24%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	19.3 (16^min) fps -25%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	11.4 (9.68^min) fps -56%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	9.46 (7.99^min) fps -63%

F1 22
1280x720 Ultra Low Preset AA:T AF:16x
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	186.8 (137^min, 123^P1) fps +4%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	186.7 (148^min, 125^P1) fps +4%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	179.5 (147^min, 122^P1) fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	145.7 (108^min, 89^P1) fps -19%
Average AMD Radeon 780M (85.4 - 186.7, n=29)	145.7 fps -19%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	144.7 (122^min, 92^P1) fps -19%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	107.3 (86^min, 79^P1) fps -40%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	80.1 (65^min, 63^P1) fps -55%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	71.8 (51^min, 58^P1) fps -60%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	61.5 (52^min, 51^P1) fps -66%
1920x1080 Low Preset AA:T AF:16x
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	110.1 (87^min, 54^P1) fps +3%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	109.9 (95^min, 85^P1) fps +2%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	107.3 (94^min, 79^P1) fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	99 (86^min, 76^P1) fps -8%
Average AMD Radeon 780M (47 - 109.9, n=35)	85.8 fps -20%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	82.4 (65^min, 59^P1) fps -23%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	58.3 (43^min, 42^P1) fps -46%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	47.6 (39^min, 39^P1) fps -56%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	42.3 (35^min, 32^P1) fps -61%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	32.4 (28^min, 26^P1) fps -70%
1920x1080 Medium Preset AA:T AF:16x
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	100.8 (78^min, 63^P1) fps +8%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	95 (81^min, 76^P1) fps +2%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	93.3 (79^min, 72^P1) fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	85.9 (73^min, 68^P1) fps -8%
Average AMD Radeon 780M (41.5 - 95, n=35)	75.8 fps -19%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	75.1 (63^min, 53^P1) fps -20%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	52.3 (41^min, 39^P1) fps -44%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	43.4 (36^min, 36^P1) fps -53%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	38.2 (32^min, 31^P1) fps -59%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	28.6 (25^min, 24^P1) fps -69%
1920x1080 High Preset AA:T AF:16x
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	76.8 (55^min, 44^P1) fps +11%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	70.6 (60^min, 59^P1) fps +2%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	69.1 (60^min, 58^P1) fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	65.6 (54^min, 52^P1) fps -5%
Average AMD Radeon 780M (31.7 - 70.6, n=35)	56.5 fps -18%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	56.2 (46^min, 40^P1) fps -19%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	37.2 (31^min, 29^P1) fps -46%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31.7 (27^min, 26^P1) fps -54%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	28.3 (24^min, 22^P1) fps -59%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	21.6 (18^min, 18^P1) fps -69%
1920x1080 Ultra High Preset AA:T AF:16x
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24 (20^min, 20^P1) fps +24%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	21.4 (17^min, 16^P1) fps +11%
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	21.2 (12^min, 13^P1) fps +10%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	19.3 (14^min, 14^P1) fps
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	19.2 (14^min, 14^P1) fps -1%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	17.9 (13^min, 13^P1) fps -7%
Average AMD Radeon 780M (9.92 - 19.3, n=27)	15.7 fps -19%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	15.3 (13^min, 13^P1) fps -21%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	14.7 (10^min, 10^P1) fps -24%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	8.43 (6^min, 6^P1) fps -56%

Baldur's Gate 3
1280x720 Low Preset
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	65.8 fps
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	64.7 fps -2%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	63.4 fps -4%
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	58.9 fps -10%
Average AMD Radeon 780M (30.7 - 67.4, n=18)	58.2 fps -12%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	50.2 (27.7^min, 29.7^P0.1, 32.6^P1) fps -24%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	50.1 fps -24%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	37.3 fps -43%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	28.2 (13.8^min, 15.1^P0.1, 19.8^P1) fps -57%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	22.9 fps -65%
1920x1080 Low Preset
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	44.1 fps
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	43.9 fps 0%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	41.6 fps -6%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	38.6 fps -12%
Average AMD Radeon 780M (20.2 - 44.1, n=27)	36.5 fps -17%
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	35 fps -21%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	33.5 (20.9^min, 21^P0.1, 23.4^P1) fps -24%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	22.9 fps -48%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	19.9 (15.5^min, 15.6^P0.1, 16.4^P1) fps -55%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	15.3 fps -65%
1920x1080 Medium Preset
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	36.8 fps +1%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	36.5 fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	34.8 fps -5%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	32 fps -12%
Average AMD Radeon 780M (15.7 - 36.8, n=30)	29.4 fps -19%
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	29.1 fps -20%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	25.9 (5.81^min, 8.8^P0.1, 15.9^P1) fps -29%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	15.4 (11.8^min, 11.9^P0.1, 12.7^P1) fps -58%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	15.1 fps -59%
1920x1080 High Preset
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	30.6 fps
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.9 fps -2%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	28.9 fps -6%
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	28.2 fps -8%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	26 fps -15%
Average AMD Radeon 780M (13.3 - 30.6, n=30)	24.4 fps -20%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	22.4 (14^min, 14.2^P0.1, 15.3^P1) fps -27%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	13.5 (11.2^min, 11.2^P0.1, 11.6^P1) fps -56%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	13.3 fps -57%
1920x1080 Ultra Preset
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	29.6 fps
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.2 fps -1%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	28 fps -5%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	25.3 fps -15%
Average AMD Radeon 780M (12.8 - 29.6, n=29)	23.7 fps -20%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	21.5 (13.6^min, 13.7^P0.1, 14.1^P1) fps -27%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	13 (10.1^min, 10.1^P0.1, 11^P1) fps -56%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	12.6 fps -57%

Far Cry 5
1280x720 Low Preset AA:T
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	101 (84^min) fps +15%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	89 (77^min) fps +1%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	88 (77^min) fps 0%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	88 (77^min) fps
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	75 (66^min) fps -15%
Average AMD Radeon 780M (42 - 89, n=46)	72.7 fps -17%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	71 (62^min) fps -19%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	49 (43^min) fps -44%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	46 (41^min) fps -48%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45 (40^min) fps -49%
1920x1080 Medium Preset AA:T
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	60 (53^min) fps +13%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	54 (48^min) fps +2%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	53 (48^min) fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	51 (45^min) fps -4%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	45 (40^min) fps -15%
Average AMD Radeon 780M (22 - 54, n=48)	42.6 fps -20%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	33 (29^min) fps -38%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	29 (27^min) fps -45%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	28 (24^min) fps -47%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	21 (18^min) fps -60%
1920x1080 High Preset AA:T
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	55 (48^min) fps +12%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	49 (43^min) fps 0%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	49 (43^min) fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	47 (42^min) fps -4%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	41 (37^min) fps -16%
Average AMD Radeon 780M (21 - 49, n=48)	39.3 fps -20%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	30 (26^min) fps -39%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	27 (25^min) fps -45%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	26 (22^min) fps -47%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	19 (17^min) fps -61%
1920x1080 Ultra Preset AA:T
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	52 (46^min) fps +13%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	47 (41^min) fps +2%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	46 (41^min) fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	45 (40^min) fps -2%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	39 (35^min) fps -15%
Average AMD Radeon 780M (21 - 47, n=48)	37.3 fps -19%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	27 (20^min) fps -41%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26 (23^min) fps -43%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	24 (21^min) fps -48%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	18 (16^min) fps -61%

Strange Brigade
1280x720 lowest AF:1
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	199.8 (147.5^min, 170.3^P1) fps +14%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	175.9 (26.4^min, 151.8^P1) fps 0%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	175.1 (40.4^min, 151.6^P1) fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	173.7 (119.2^min, 145.2^P1) fps -1%
Average AMD Radeon 780M (74.1 - 178.9, n=52)	150.6 fps -14%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	142.4 (103.7^min, 121.7^P1) fps -19%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	141.9 (78.6^min, 116.6^P1) fps -19%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	120.2 (78.3^min, 104.5^P1) fps -31%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	99 (21.7^min, 36.5^P1) fps -43%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	88.2 (20^min, 29.9^P1) fps -50%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	78.9 (56.9^min, 66.5^P1) fps -55%
1920x1080 medium AA:medium AF:4
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	82 (48.6^min, 70.5^P1) fps +16%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	70.9 (5^min, 61.9^P1) fps +1%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	70.4 (17.6^min, 61.6^P1) fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	68.9 (55.3^min, 59.1^P1) fps -2%
Average AMD Radeon 780M (31.7 - 72.5, n=53)	62.7 fps -11%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	57.8 (43.1^min, 50.8^P1) fps -18%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	57.4 (49.6^min, 51.6^P1) fps -18%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	43 (36.6^min, 37.4^P1) fps -39%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	39.4 (14.1^min, 23^P1) fps -44%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	38.9 (14.7^min, 28.5^P1) fps -45%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	30.3 (25.6^min, 27.4^P1) fps -57%
1920x1080 high AA:high AF:8
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	69.8 (49.9^min, 54.1^P1) fps +17%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	60.6 (32.5^min, 47.4^P1) fps +2%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	59.7 (25.1^min, 46.7^P1) fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	58.7 (43.2^min, 45.6^P1) fps -2%
Average AMD Radeon 780M (27.3 - 60.6, n=53)	52.9 fps -11%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	48.7 (32.8^min, 38.7^P1) fps -18%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	48.6 (34.2^min, 38.3^P1) fps -19%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	35.9 (28.5^min, 29.1^P1) fps -40%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32 (8.4^min, 15.8^P1) fps -46%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	31.1 (8.7^min, 16.3^P1) fps -48%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.6 (19.8^min, 20.3^P1) fps -59%
1920x1080 ultra AA:ultra AF:16
Beelink SER9 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	59.7 (43.6^min, 46.2^P1) fps +17%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	52.1 (5.2^min, 33.8^P1) fps +2%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	51.2 (27.3^min, 41.1^P1) fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	50.8 (24.5^min, 33.9^P1) fps -1%
Average AMD Radeon 780M (23.5 - 52.1, n=54)	45.2 fps -12%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	42 (31.2^min, 33.7^P1) fps -18%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	41.9 (32.6^min, 33.4^P1) fps -18%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	29.6 (21^min, 24.7^P1) fps -42%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26.1 (5.3^min, 8.13^P1) fps -49%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	25.2 (5.3^min, 6.89^P1) fps -51%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	20.5 (12.2^min, 14.6^P1) fps -60%

Cyberpunk 2077 ultra FPS Chart

BOSGAME M2 R9 7940HS, Radeon 780M: Ø24.2 (22.7-24.6)

	low	med.	high	ultra
GTA V (2015)	166.6	155.8	69.4	28.5
Dota 2 Reborn (2015)	155.8	122.7	98.4	88.1
Final Fantasy XV Benchmark (2018)	83.8	41.5	30.1
X-Plane 11.11 (2018)	66.1	49.1	41.4
Far Cry 5 (2018)	88	53	49	46
Strange Brigade (2018)	175.1	70.4	59.7	51.2
Tiny Tina's Wonderlands (2022)	76.9	55.9	37.8	30.3
F1 22 (2022)	107.3	93.3	69.1	19.3
Baldur's Gate 3 (2023)	44.1	36.5	30.6	29.6
Cyberpunk 2077 2.2 Phantom Liberty (2023)	46.3	36.3	29.2	25.8

排放量

系统噪音

根据我们的测量，风扇噪音和特性与 M1 基本相同。游戏时，系统噪音略高于 40 dB(A)，比价格较高的 Beelink SER9 但也比性能较弱的华硕 NUC 14 Pro.

风扇噪音曲线（白色：背景，红色：系统空闲，蓝色：3DMark 06，橙色：《赛博朋克 2077》，绿色：《赛博朋克 2077》：赛博朋克 2077，绿色：Prime95+FurMark 压力）

Noise Level

Idle		31.5 / 32.3 / 34.9 dB(A)
Load		39 / 42.5 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 23 dB(A)

	BOSGAME M2 Radeon 780M, R9 7940HS	BOSGAME M1 Radeon 780M, R7 7840HS	GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	Asus NUC 14 Pro Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G	Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
Noise		1%	-3%	15%	3%	4%
off / environment *	23	23.2 -1%	23 -0%	23.2 -1%	24 -4%	25.2 -10%
Idle Minimum *	31.5	32 -2%	35.9 -14%	26.6 16%	26 17%	28.1 11%
Idle Average *	32.3	32 1%	36.7 -14%	26.8 17%	26.2 19%	28.2 13%
Idle Maximum *	34.9	32 8%	36.7 -5%	26.8 23%	26.2 25%	28.3 19%
Load Average *	39	38.7 1%	38.4 2%	33.4 14%	42.4 -9%	42 -8%
Cyberpunk 2077 ultra *	40.3		38.7 4%	34.6 14%	47.7 -18%
Load Maximum *	42.5	42 1%	39.8 6%	33.8 20%	47.8 -12%	42.1 1%
Witcher 3 ultra *		41.7

* ... smaller is better

温度

底盘的六个面中有五个是通风的，因此表面温度相对较低。前部和后部是热点，温度可达 40 摄氏度左右。

Error: "0" heat distribution data found for specs ID 351425 / head id (should be one or two!)

压力测试

在运行 Prime95 压力测试时，CPU 的主频将升至 4.4 GHz，功耗为 65 W，几秒钟后核心温度达到 81 C。相比之下，在类似条件下，Beelink SER9 中速度更快的 AMD CPU 的核心温度会稳定在 71 摄氏度。

	CPU 平均时钟 (GHz)	GPU 时钟 (MHz)	CPU 平均温度 (°C)
系统闲置	--	--	32
Prime95 压力	4.0	800	87
Prime95 + FurMark Stress	4.2	2078	74
赛博朋克 2077》压力	1.2	2800	66

发言人

虽然音质和最大音量没有变化，但我们在 M1 上发现的轻微音频延迟问题现已得到解决。这使得集成扬声器更适合游戏或视频播放。如果你打算将集成扬声器主要用于播放音乐，那么原版 M1 可能更适合你，因为延迟问题已不再是问题。

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

BOSGAME M2 audio analysis

(±) | speaker loudness is average but good (81.2 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.6% lower than median
(+) | bass is linear (5.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.2% higher than median
(+) | mids are linear (3.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.8% away from median
(+) | highs are linear (3.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.3% difference to median)
Compared to same class
» 11% of all tested devices in this class were better, 16% similar, 74% worse
» The best had a delta of 13%, average was 25%, worst was 64%
Compared to all devices tested
» 24% of all tested devices were better, 5% similar, 71% worse
» The best had a delta of 4%, average was 24%, worst was 134%

Apple MacBook Pro 16 2021 M1 Pro audio analysis

(+) | speakers can play relatively loud (84.7 dB)
Bass 100 - 315 Hz
(+) | good bass - only 3.8% away from median
(+) | bass is linear (5.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (2.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (4.6% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 100% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 4%, average was 24%, worst was 134%

能源管理

耗电量

消耗率与我们在 M1 上记录的几乎完全相同，如下图所示，Ryzen 9 7940HS 既没有比 Ryzen 7 7840HS 更快，也没有比 Ryzen 7 7840HS 更高效。

启动 Prime95 应力时，功耗会飙升至 99.5 瓦，然后下降，大约 10 秒后稳定在 86 瓦

Power Consumption

Off / Standby	0.5 / 1.2 Watt
Idle	6.4 / 7.3 / 7.5 Watt
Load	75 / 99.9 Watt


Key: min: , med: , max: Metrahit Energy

	BOSGAME M2 R9 7940HS, Radeon 780M, , , x,	BOSGAME M1 R7 7840HS, Radeon 780M, , , x,	GMK NucBox M7 Pro R9 PRO 6950H, Radeon 680M, , , x,	Beelink SER9 Ryzen AI 9 HX 370, Radeon 890M, Crucial P3 Plus CT1000P3PSSD8, , x,	Asus NUC 14 Pro Ultra 5 125H, Arc 7-Core, Kingston KC3000 2048G SKC3000D2048G, , x,	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x,
Power Consumption		-4%	-58%	14%	-2%	-10%
Idle Minimum *	6.4	7.3 -14%	14.6 -128%	5.7 11%	5.1 20%	7 -9%
Idle Average *	7.3	7.3 -0%	15 -105%	5.9 19%	6.4 12%	9.2 -26%
Idle Maximum *	7.5	8.4 -12%	16 -113%	6 20%	14.7 -96%	11.8 -57%
Load Average *	75	72.7 3%	80.4 -7%	68.7 8%	55.5 26%	45 40%
Cyberpunk 2077 ultra external monitor *	83		86.2 -4%	78.2 6%	59.1 29%
Load Maximum *	99.9	99.1 1%	89.5 10%	82 18%	103.3 -3%	97.2 3%
Witcher 3 ultra *		80.5

* ... smaller is better

Power Consumption Cyberpunk / Stress Test

BOSGAME M2 R9 7940HS, Radeon 780M: Ø86.7 (85.1-99.9)

BOSGAME M1 R7 7840HS, Radeon 780M: Ø85.4 (84.2-99.1)

Power Consumption external Monitor

BOSGAME M2 R9 7940HS, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø86.5 (84.9-99.5)

BOSGAME M1 R7 7840HS, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø85.9 (84.5-100.1)

BOSGAME M2 R9 7940HS, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø81 (78.4-82.6)

BOSGAME M1 R7 7840HS, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø85.7 (77.6-92.1)

BOSGAME M2 R9 7940HS, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø84.6 (81.5-86.2)

BOSGAME M1 R7 7840HS, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø84.3 (82.7-87)

BOSGAME M2 R9 7940HS, Radeon 780M; Idle 1min (external Monitor): Ø7.45 (6.71-11.1)

BOSGAME M1 R7 7840HS, Radeon 780M; Idle 1min (external Monitor): Ø8.07 (7.06-17.7)

BOSGAME M2 R9 7940HS, Radeon 780M; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø83 (80.8-85.4)

笔记本检查评级

Back to the verdict

BOSGAME M2 - 01/27/2025 v8
Allen Ngo

Chassis

85 / 98 → 87%

Connectivity

69 / 81 → 85%

Weight

78%

Games Performance

55 / 80 → 68%

Application Performance

85 / 92 → 92%

Temperature

90%

Noise

71%

Audio

79%

Average

55%

79%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
0%

Packaging
50%

Power Use
75.5%

Repairability
40%

Software Updates
22.3%

Total Sustainability Score: 31.3%

Cinebench 2024 CPU Multi Core in comparison
Asus ExpertCenter PN42-BBN200MV (min) N200, UHD Graphics Xe 750 32EUs	91
...
Lenovo ThinkPad P14s G5 21G3S00A00 Ultra 7 155H, Nvidia RTX 500 Ada Generation Laptop GPU	906
Apple MacBook Pro 14 2023 M3 Pro Apple M3 Pro 11-Core, M3 Pro 14-Core GPU	908
HP ZBook Power 15 G10 R7 PRO 7840HS, NVIDIA RTX 2000 Ada Generation Laptop GPU	911
BOSGAME M2 R9 7940HS, Radeon 780M	912
SCHENKER VIA 14 Pro (M24) R7 8845HS, Radeon 780M	912
SCHENKER XMG Apex 15 (Late 23) R7 7840HS, NVIDIA GeForce RTX 4050 Laptop GPU	913
Beelink GTI12 Ultra EX Docking Station i9-12900H, NVIDIA GeForce RTX 3070	920
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

BOSGAME M2 迷你电脑评测：修正了原版 M1 的一大缺陷

同样的外观，全新的处理器。

结论 - 与 M1 性能基本相同

Pros

Cons

价格和供应情况

可能的替代品比较

Table of Contents

规格

案例

尺寸比较

连接性

交流

维护

可持续性

配件和保修

性能

测试条件

处理器

Cinebench R15 Multi Loop

系统性能

DPC 延迟

存储设备

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

图形处理器性能

Cyberpunk 2077 ultra FPS Chart

排放量

系统噪音

温度

压力测试

发言人

BOSGAME M2 audio analysis

Apple MacBook Pro 16 2021 M1 Pro audio analysis

能源管理

耗电量

Power Consumption Cyberpunk / Stress Test

Power Consumption external Monitor

笔记本检查评级

More articles related to this device

Transparency

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
Lenovo IdeaPad Pro 5 16IMH G9 Ultra 7 155H, Arc 8-Core	13943
BOSGAME M1 R7 7840HS, Radeon 780M	13985
Acer Swift X SFX14-51G-5876 i5-1240P, GeForce RTX 3050 4GB Laptop GPU	14005
BOSGAME M2 R9 7940HS, Radeon 780M	14017
Asus G701VO-CS74K 6820HK, GeForce GTX 980 (Laptop)	14046
HP Omen 17-w110ng 6700HQ, GeForce GTX 1070 Mobile	14116
MSI Pulse GL66 12UEK i9-12900H, GeForce RTX 3060 Laptop GPU	14164
...
NVIDIA GeForce RTX 5090 Founders Edition (max) R7 9800X3D, GeForce RTX 5090	82642
