Minisforum Venus 系列 NPB5 评测：搭载 Raptor Lake-H 也就是英特尔酷睿 i5-13500H 和 USB4 的迷你 PC

Name: Minisforum Venus Series NPB5
Brand: Minisforum

猛禽湖动力十足！

Minisforum Venus 系列 NPB5 采用英特尔酷睿 i5-13500H 处理器，有望成为适合各种用途的现代 SoC。凭借 DDR5 和包括 USB4 在内的强大连接选项，该设备几乎有无限的可能性。在这篇包括各种基准测试在内的详细评测中，您可以了解到这款时尚迷你 PC 的其他优势。

Sebastian Bade (translated by DeepL / Ninh Duy), Published 08/05/2023 🇺🇸 🇩🇪 ...

Mini PC Desktop Intel Raptor Lake Thunderbolt

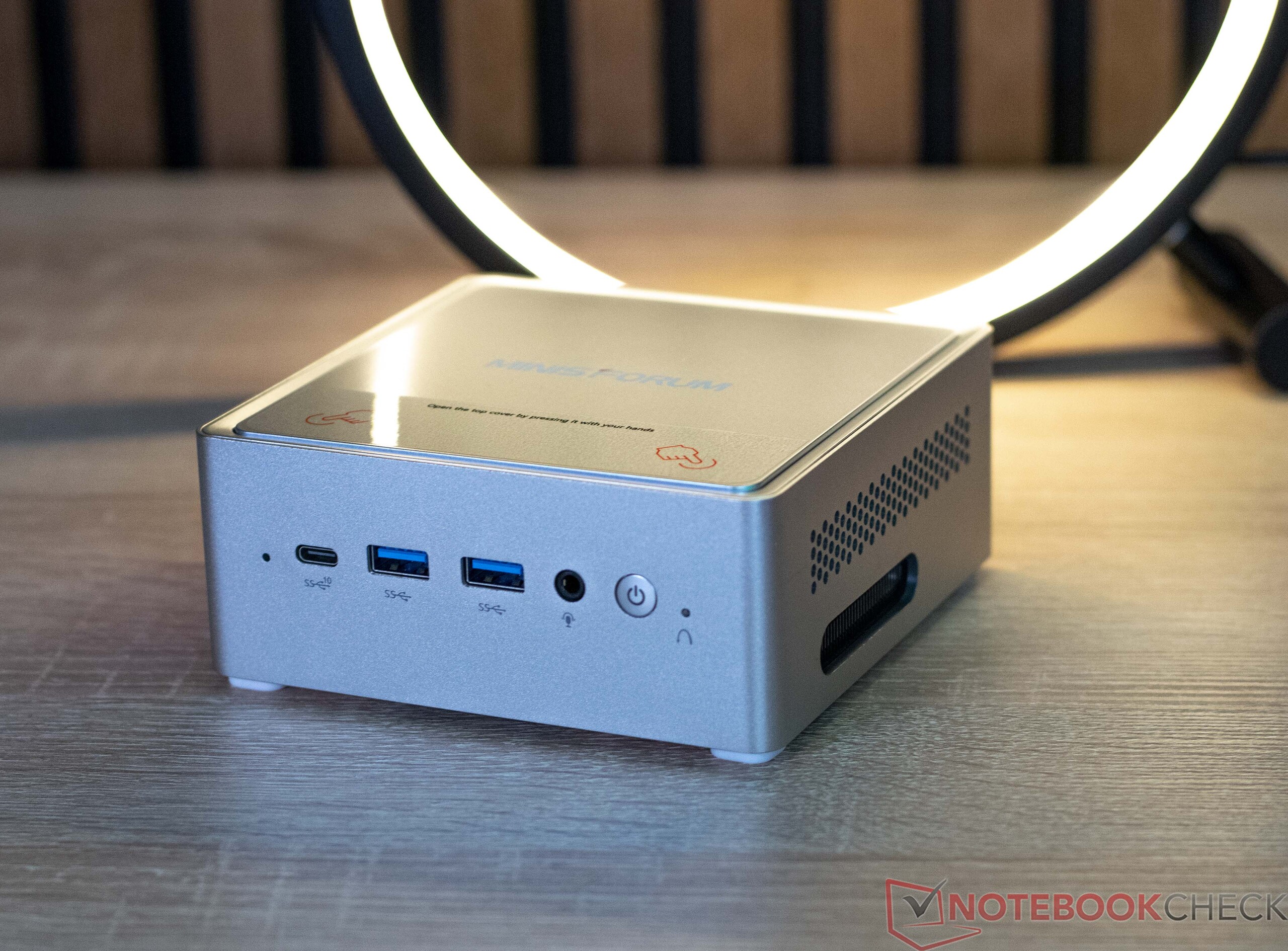

Minisforum Venus 系列 NPB5、酷睿 i5-13500H、16 GB 内存、512 GB 固态硬盘

乍一看，Minisforum 似乎只是对其金星系列 NPB5 进行了一些产品护理，因为它与 Minisforum 金星系列 NAB6 相似度极高。这两款设备采用相同的外壳，各有利弊。它目前采用的是英特尔酷睿 i5-13500H，这是一款现代的 Raptor Lake-H 系列 SoC - 旧型号的英特尔酷睿 i7-12650H仍基于 Alder Lake-H。最大的变化体现在处理器上，它现在配备了更强大的 iGPU 和 DDR5 内存。我们的测试设备配备了 16 GB DDR5 内存、512 GB 固态硬盘和 Windows 11 专业版，目前的售价约为 549 美元。如果你想购买不带内存或固态硬盘的裸机版 Minisforum Venus Series NPB5，目前需要支付 439 美元。另外，你还可以找到基于英特尔酷睿 i7-13700H 处理器的相同配置版本的 Venus Series NPB7。在内存和固态硬盘配置相同的情况下，这款机型的价格为 729 美元。

在本次评测中，我们选择了一系列类似的紧凑型台式电脑作为对比设备。你可以在下表中找到这些设备的概览。

Test device courtesy of Minisforum

Download your licensed rating image as PNG / SVG

Minisforum Venus Series NPB5

Processor

Intel Core i5-13500H 12 x 1.9 - 4.7 GHz, 95 W PL2 / Short Burst, 45 W PL1 / Sustained, Raptor Lake-H

Graphics adapter

Intel Iris Xe Graphics G7 80EUs, Core: 1450 MHz, 31.0.101.4575

Memory

16 GB

, DDR5-4800, 2 of 2 installed, max. 32GB

Mainboard

Intel Alder Lake-P PCH

Storage

Kingston OM8PGP4512Q-A0, 512 GB

, M.2-2280, NVMe, 450 GB free

Soundcard

Intel Raptor Lake-P/U/H PCH - cAVS

Connections

2 USB 3.0 / 3.1 Gen1, 3 USB 3.1 Gen2, 2 USB 4.0 40 Gbps, 2 Thunderbolt, USB-C Power Delivery (PD), 2 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5mm Kombibuchse, Intel Ethernet Controller I225-V

Networking

Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Size

height x width x depth (in mm): 55 x 127 x 127

Operating System

Microsoft Windows 11 Pro

Additional features

power adapter with cable, HDMI cable, Vesa mount assembly kit, instructions manual, 24 Months Warranty

Weight

604 g, Power Supply: 453 g

Price

689 Euro

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height
81.7 % v7 ^(old)	08 / 2023	Minisforum Venus Series NPB5 i5-13500H, Iris Xe G7 80EUs	604 g	55 mm
85.1 % v7 ^(old)	01 / 2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
85.5 % v7 ^(old)	03 / 2023	Morefine M600, 6900HX R9 6900HX, Radeon 680M	779 g	40.6 mm
82.8 % v7 ^(old)	07 / 2023	Minisforum Venus Series UM790 Pro R9 7940HS, Radeon 780M	666 g	52.3 mm
82.8 % v7 ^(old)	07 / 2023	Geekom AS 6, R9 6900HX R9 6900HX, Radeon 680M	753 g	58 mm
82.3 % v7 ^(old)	05 / 2023	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	572 g	45.6 mm
82 % v7 ^(old)	06 / 2023	ACEMagician Ace Magician AM08 Pro R9 6900HX, Radeon 680M	874 g	188.5 mm
81.9 % v7 ^(old)	05 / 2023	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	616 g	55 mm
80.8 % v7 ^(old)	04 / 2023	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	538 g	37 mm

Minisforum 维纳斯系列 NPB5 的详细介绍

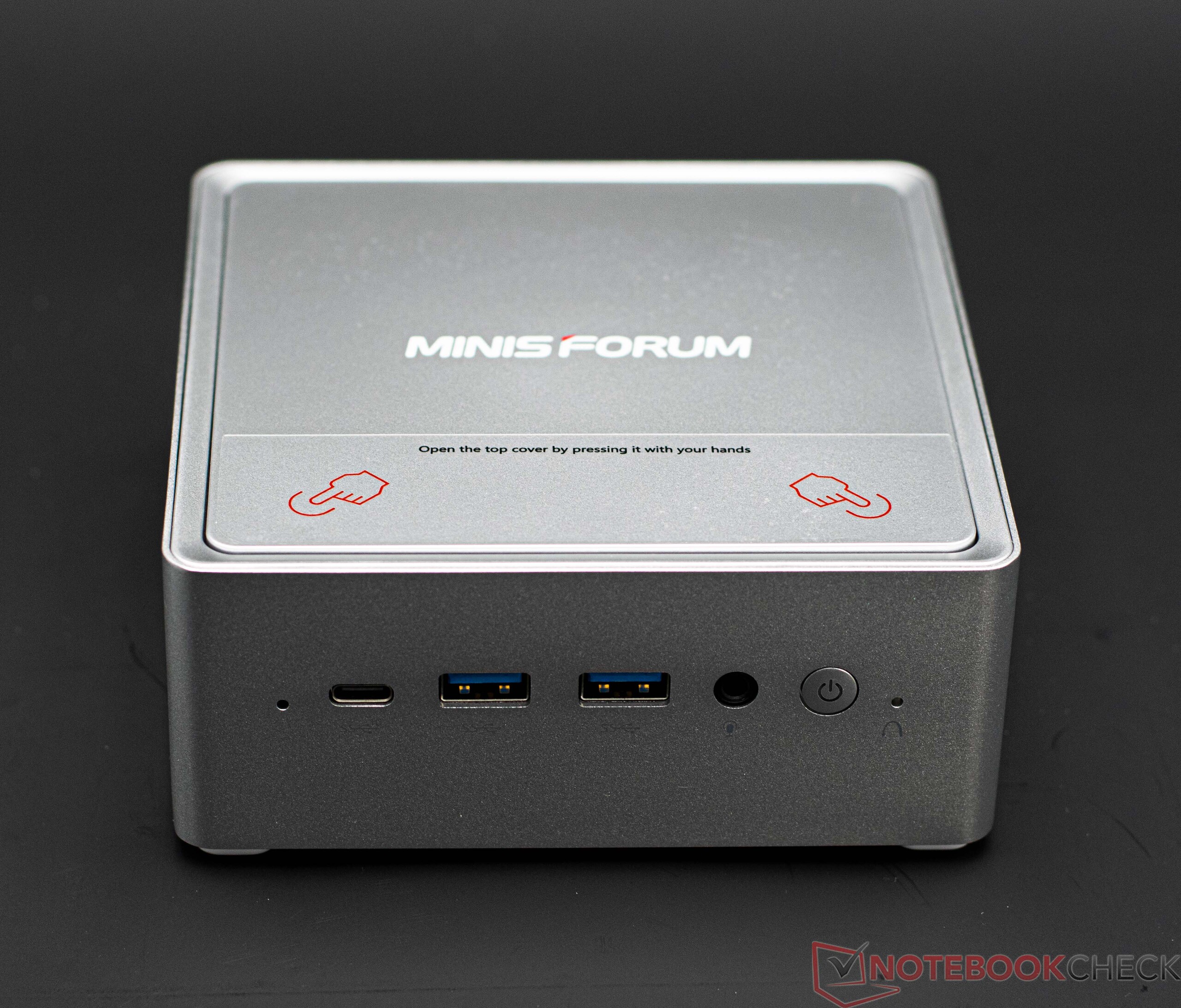

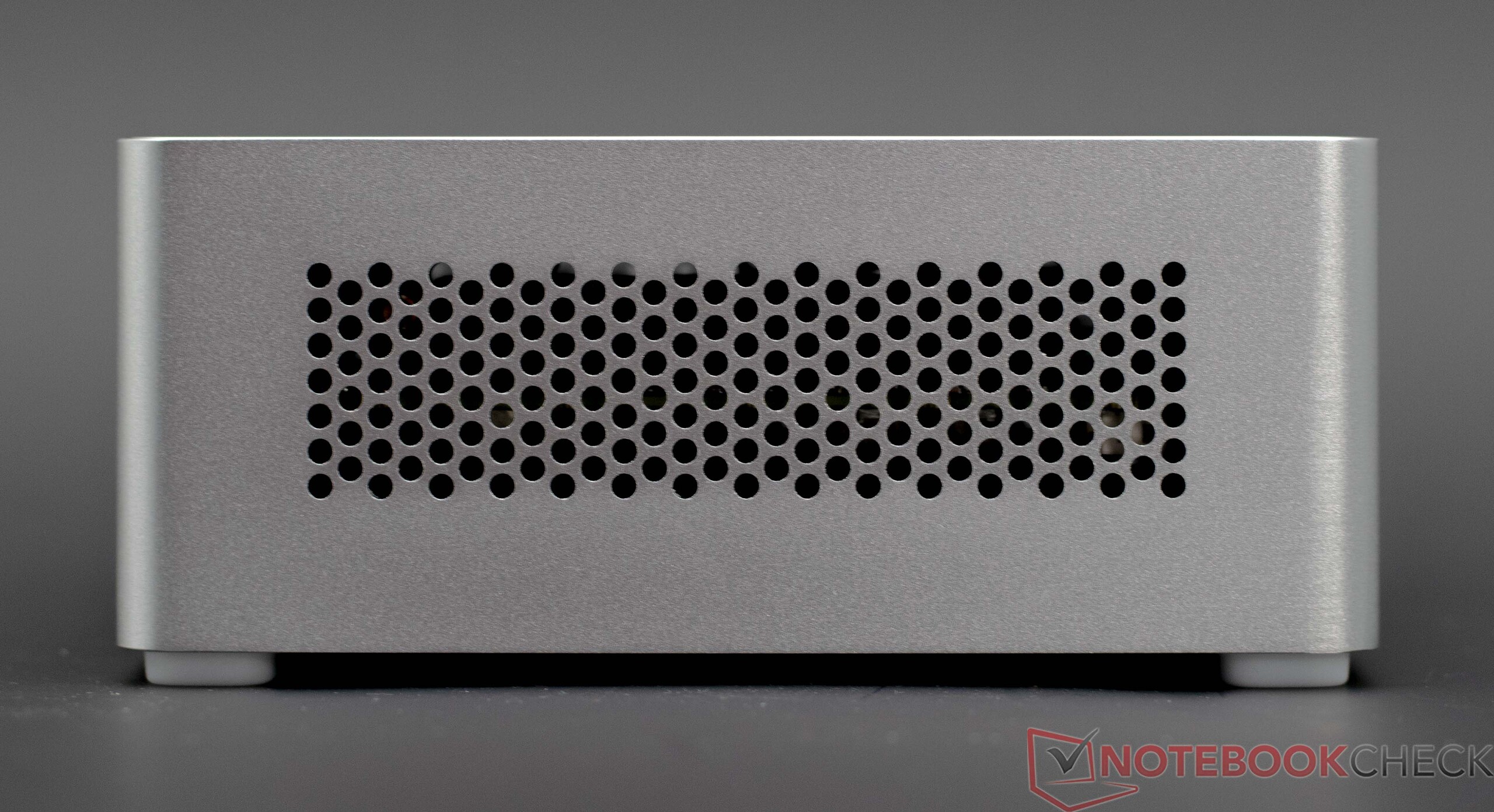

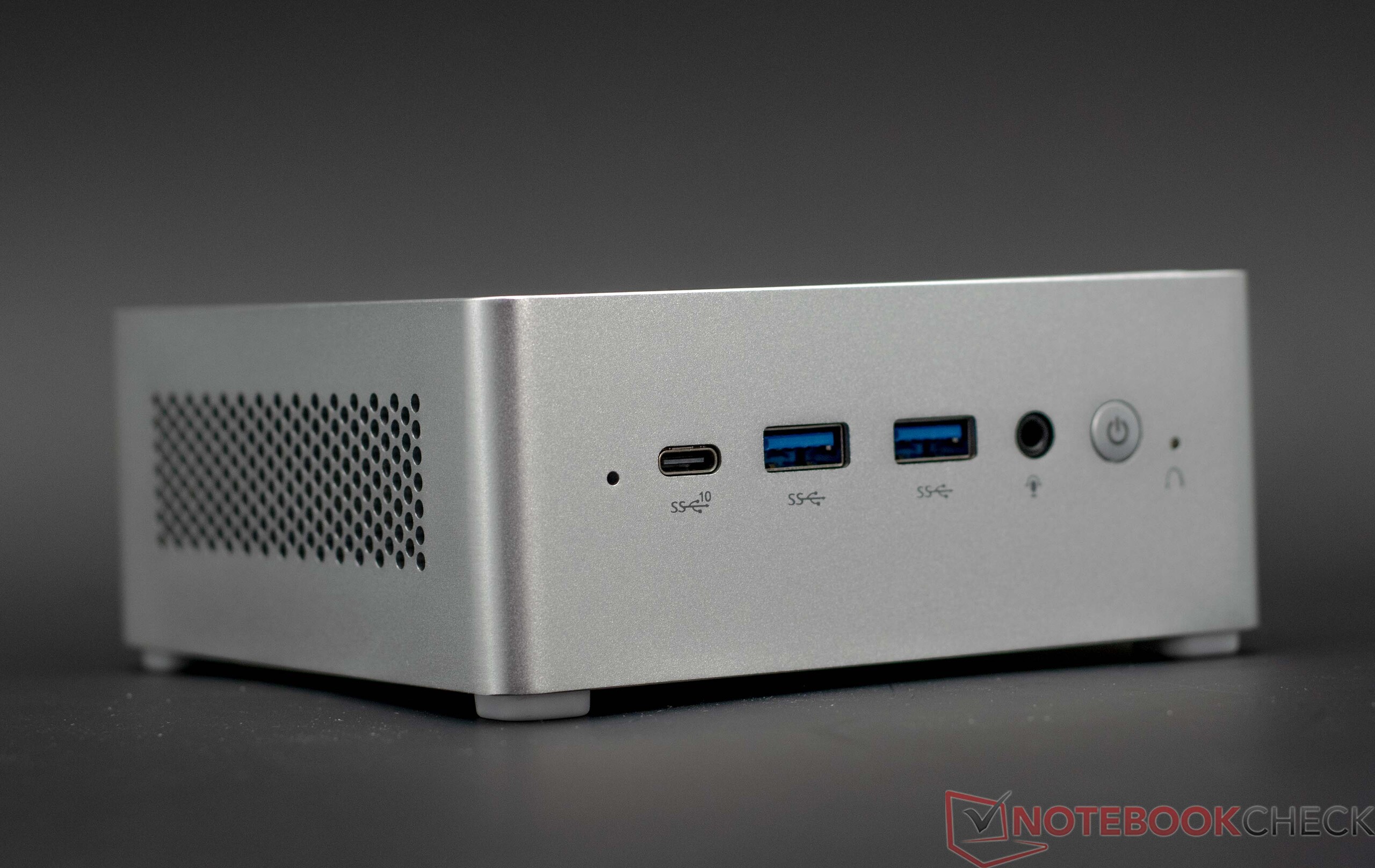

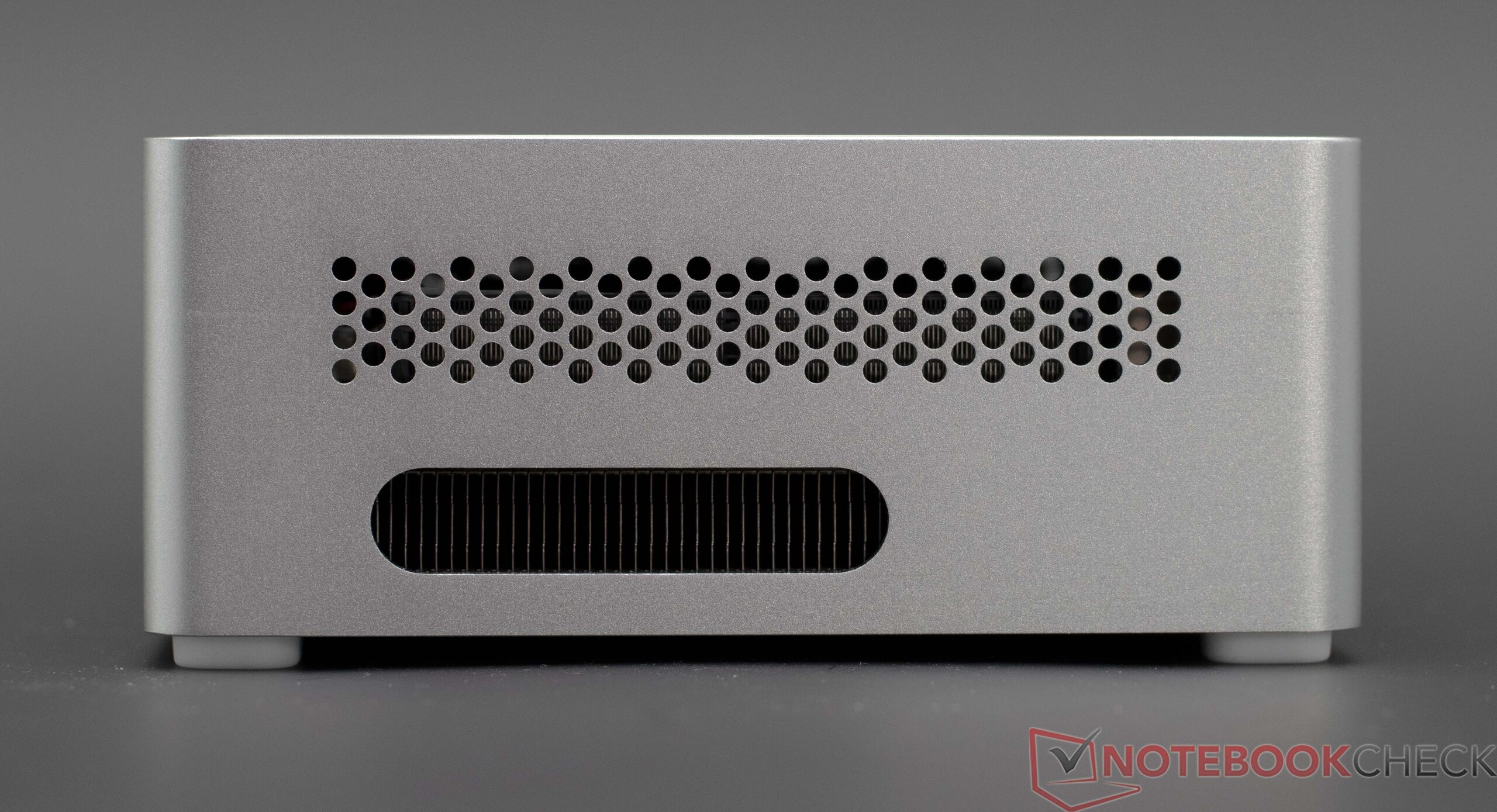

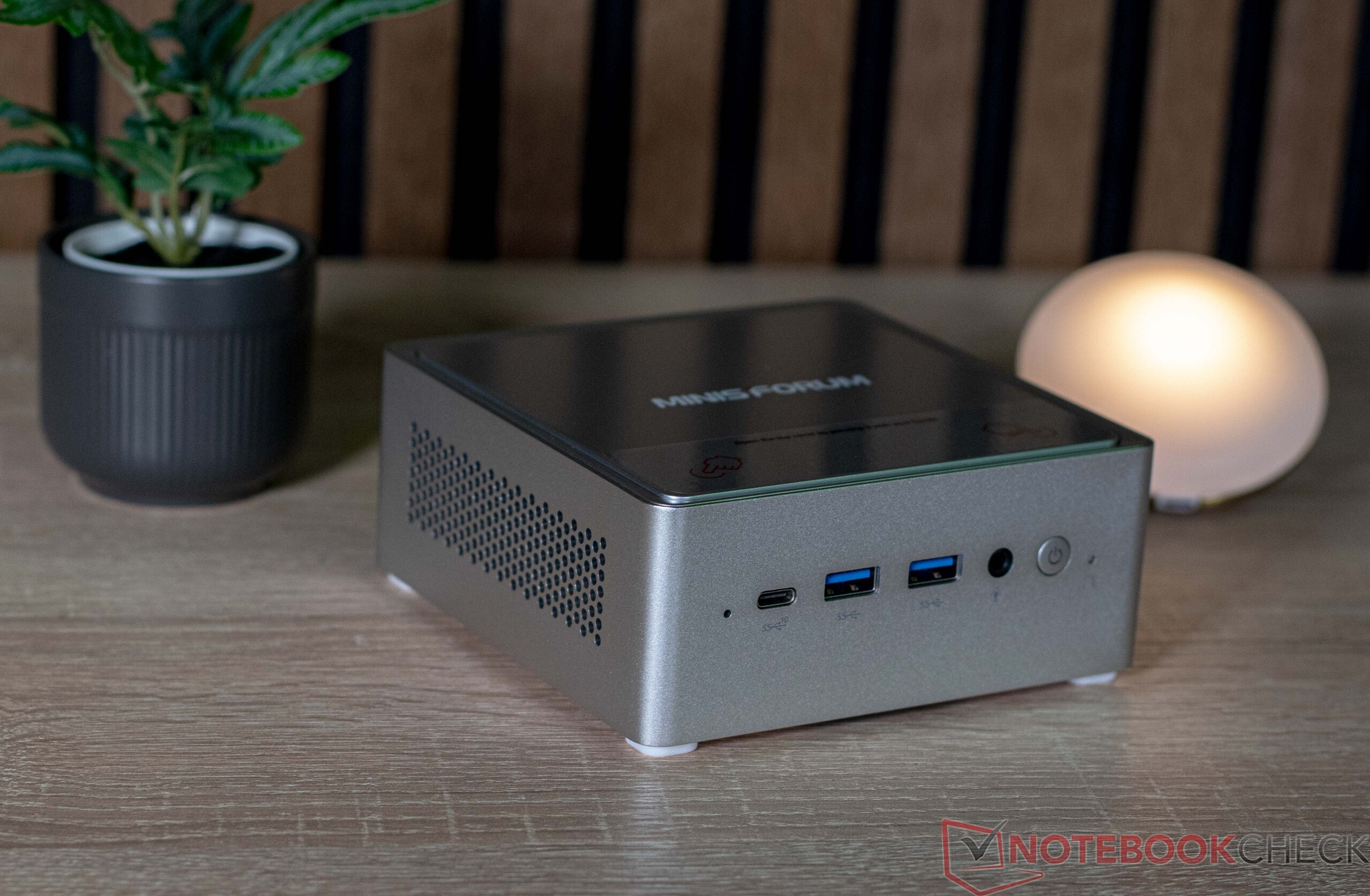

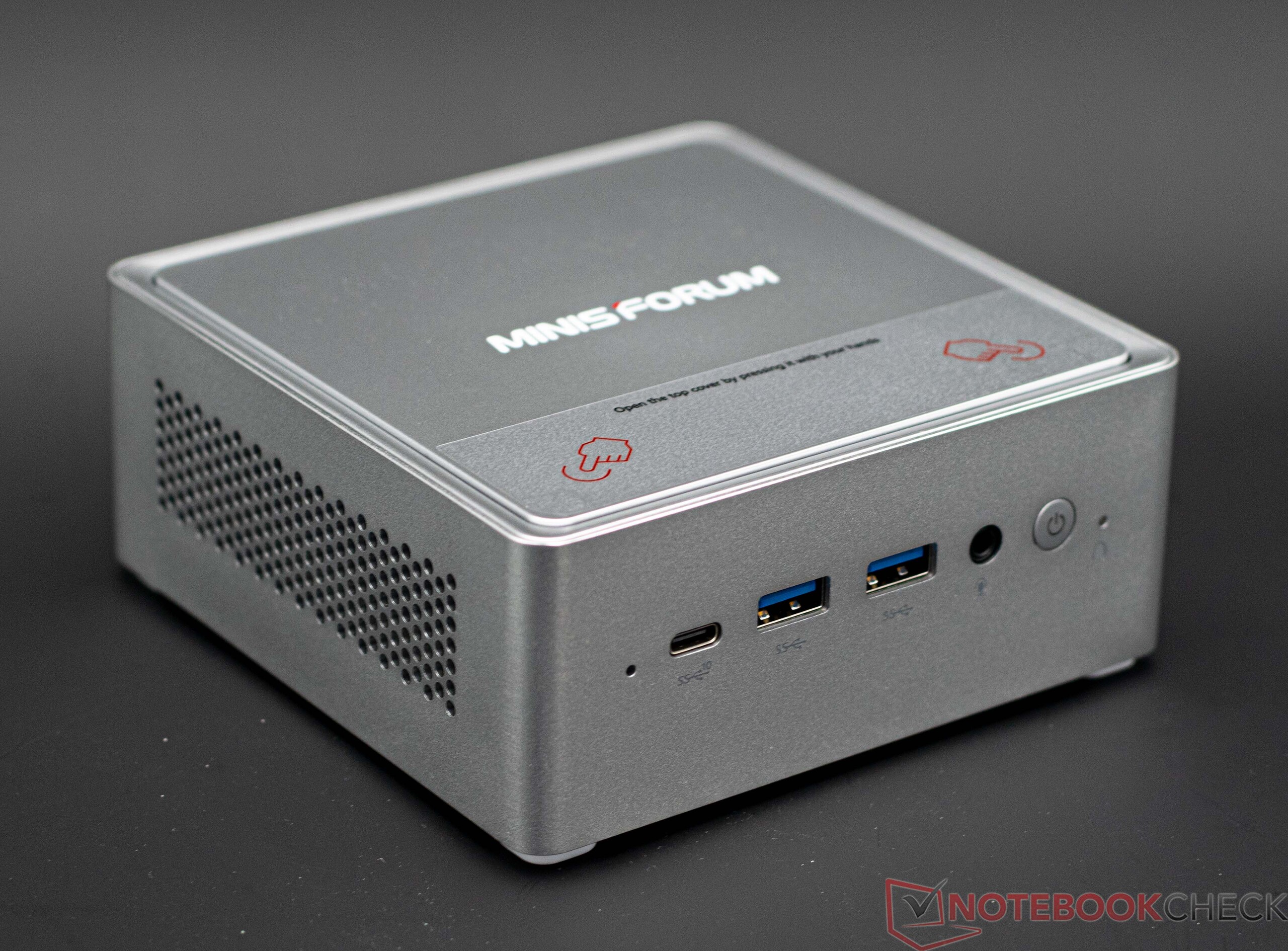

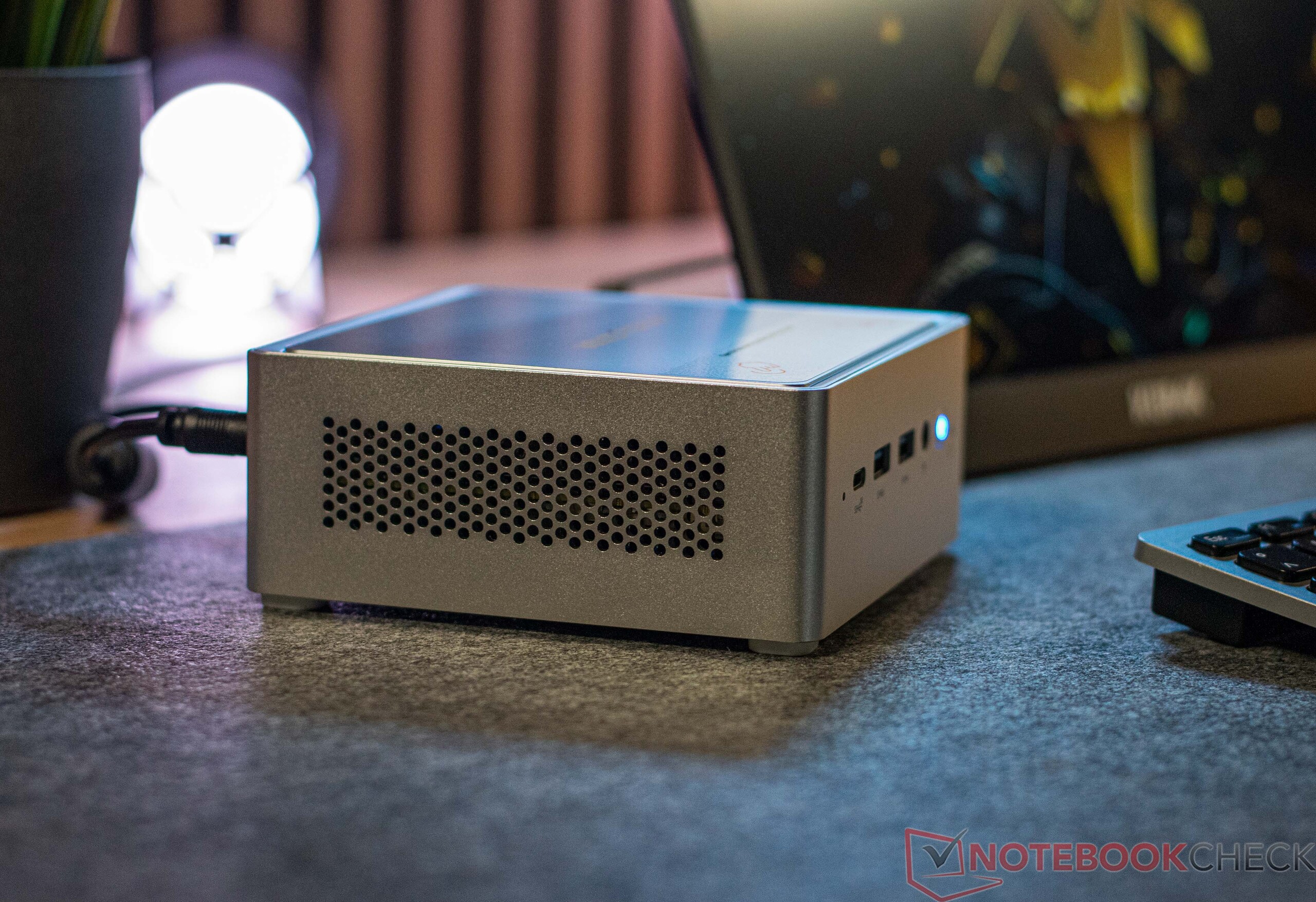

外壳 - 铝和塑料的组合

我们已经从 Minisforum Venus Series NAB6 上了解了 Minisforum Venus Series NPB5 的外壳。其流线型设计--也是通过高品质的材料得分--具有良好的稳定性，同时能够散热。盖子和底座由塑料制成，可以拆卸。

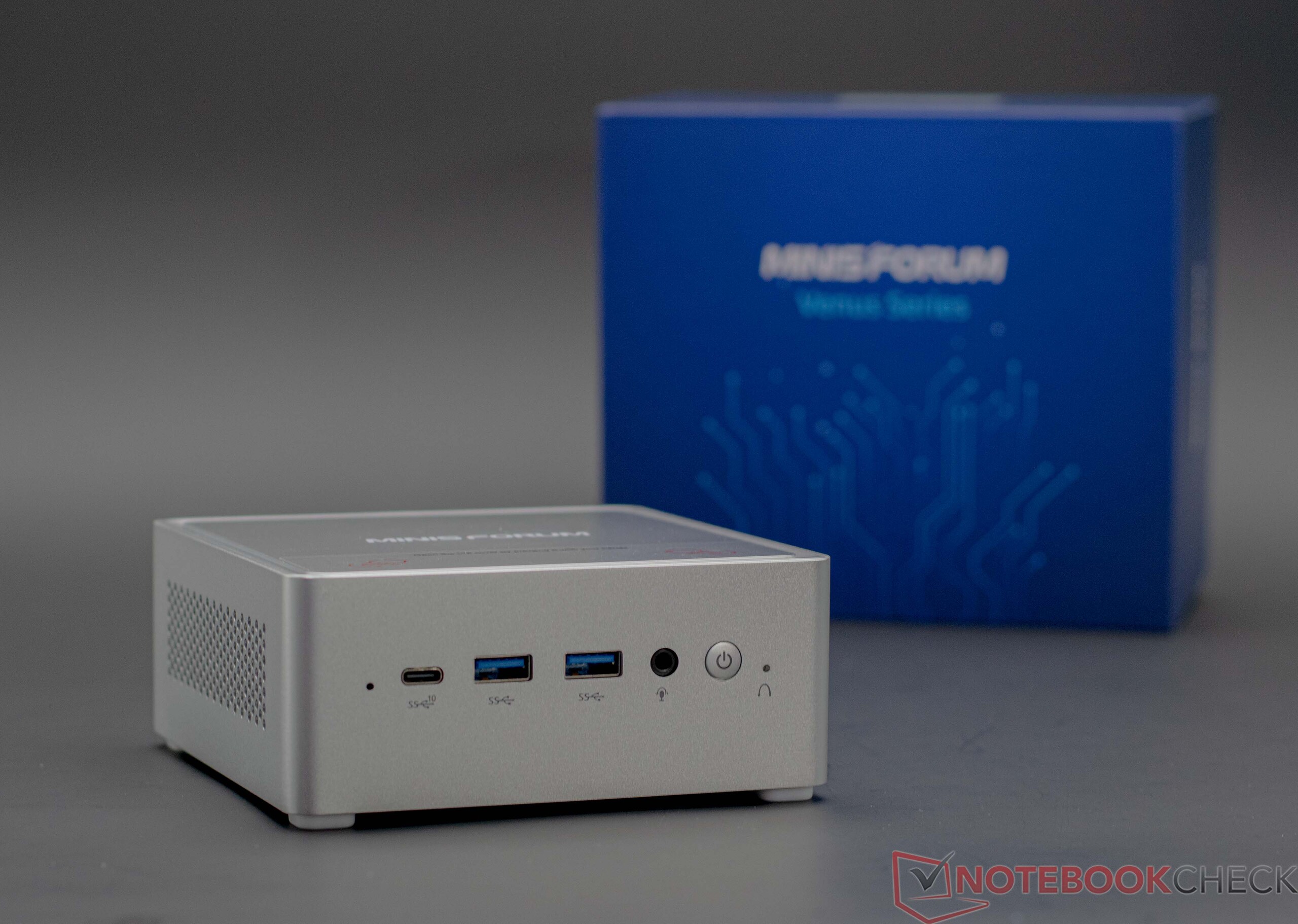

Minisforum Venus 系列 NPB5 体积小巧，不会占用桌面空间。其占地面积仅为 12.7 x 12.7 厘米。如果您想将电脑安装到显示器上，可以使用随附的 VESA 安装板。此外，该设备仅重 604 克，也相当轻巧。其电源接口重 453 克，与许多竞争对手相似。

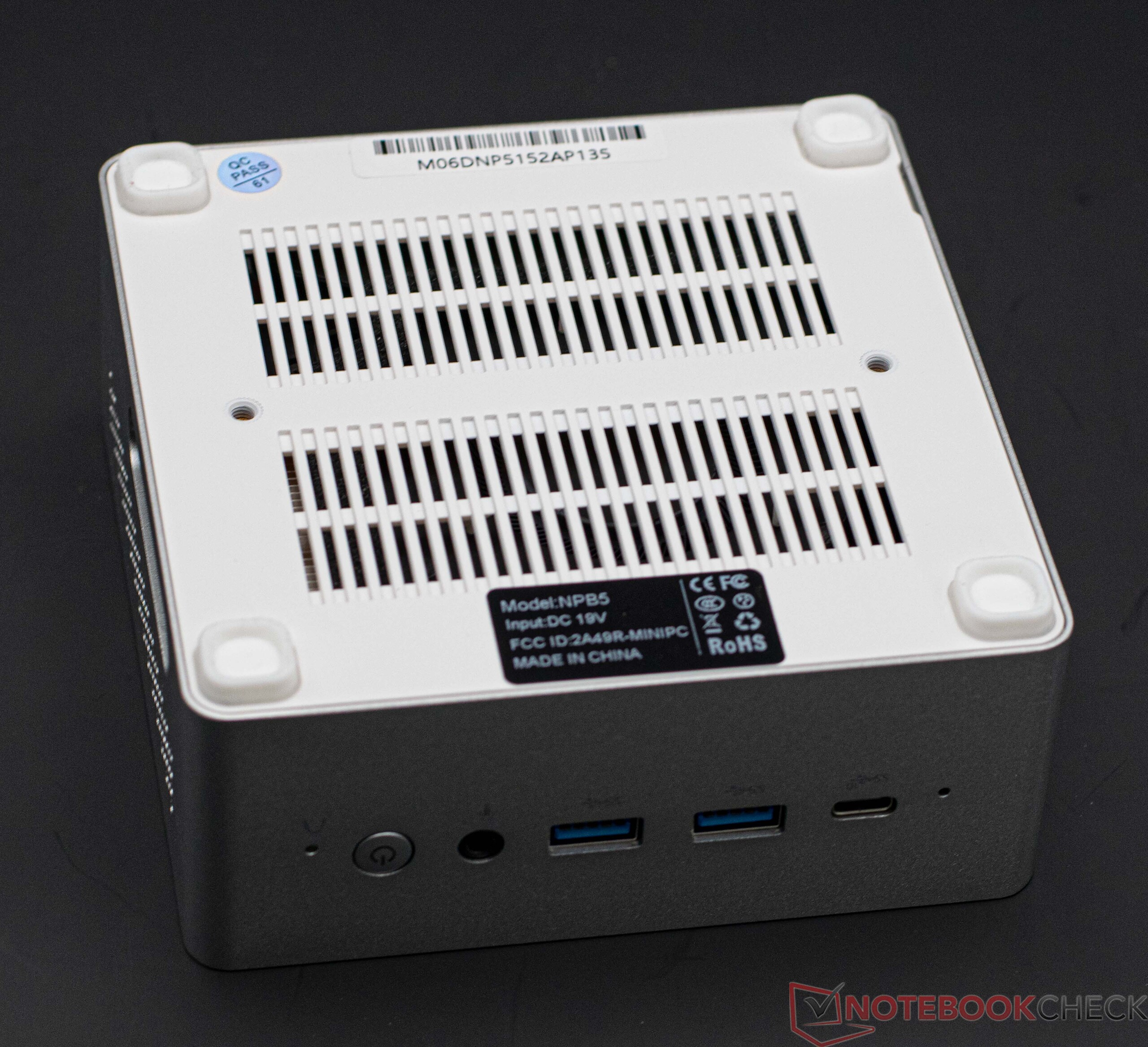

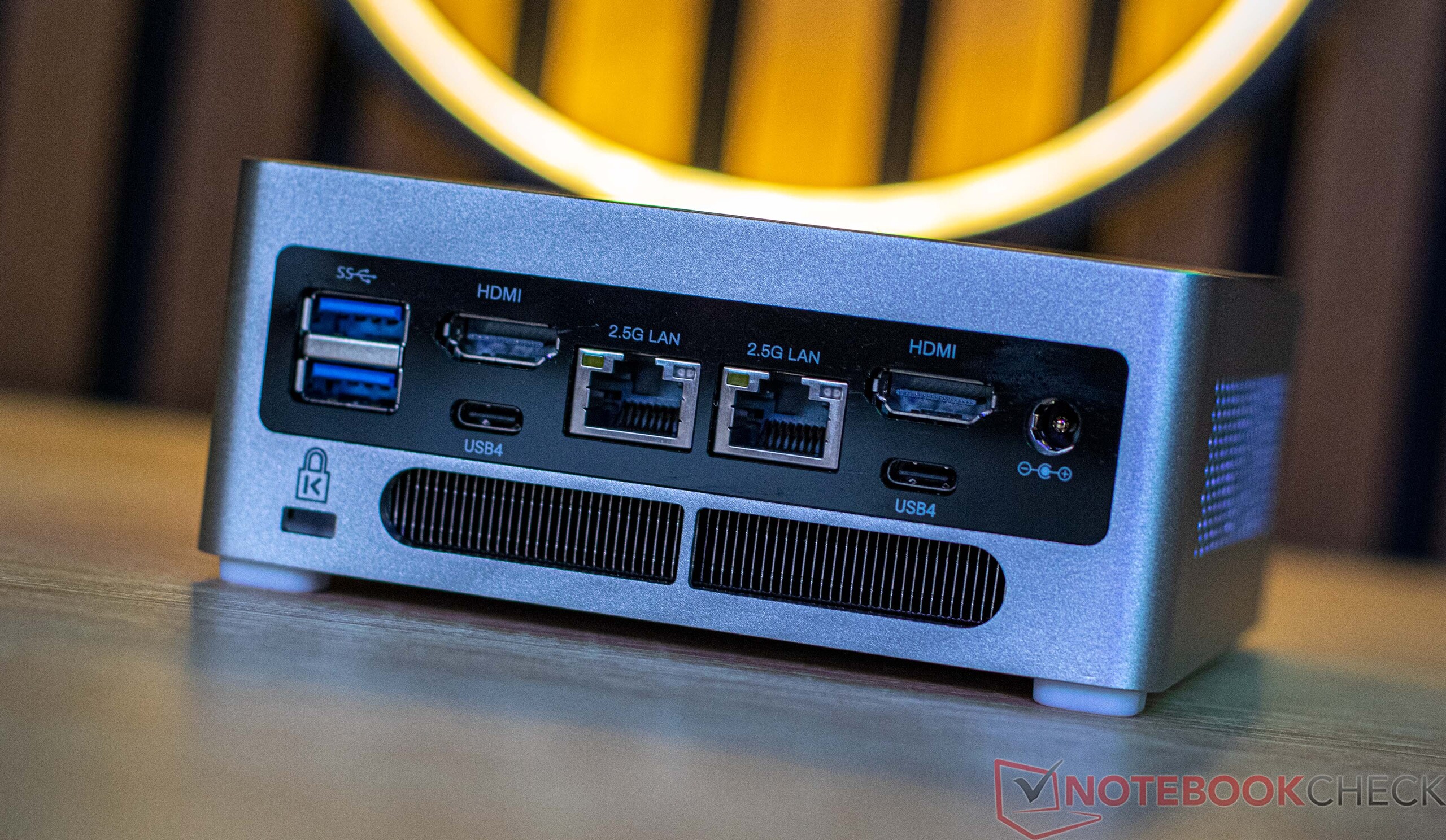

连通性 - 所有领域的完美选择

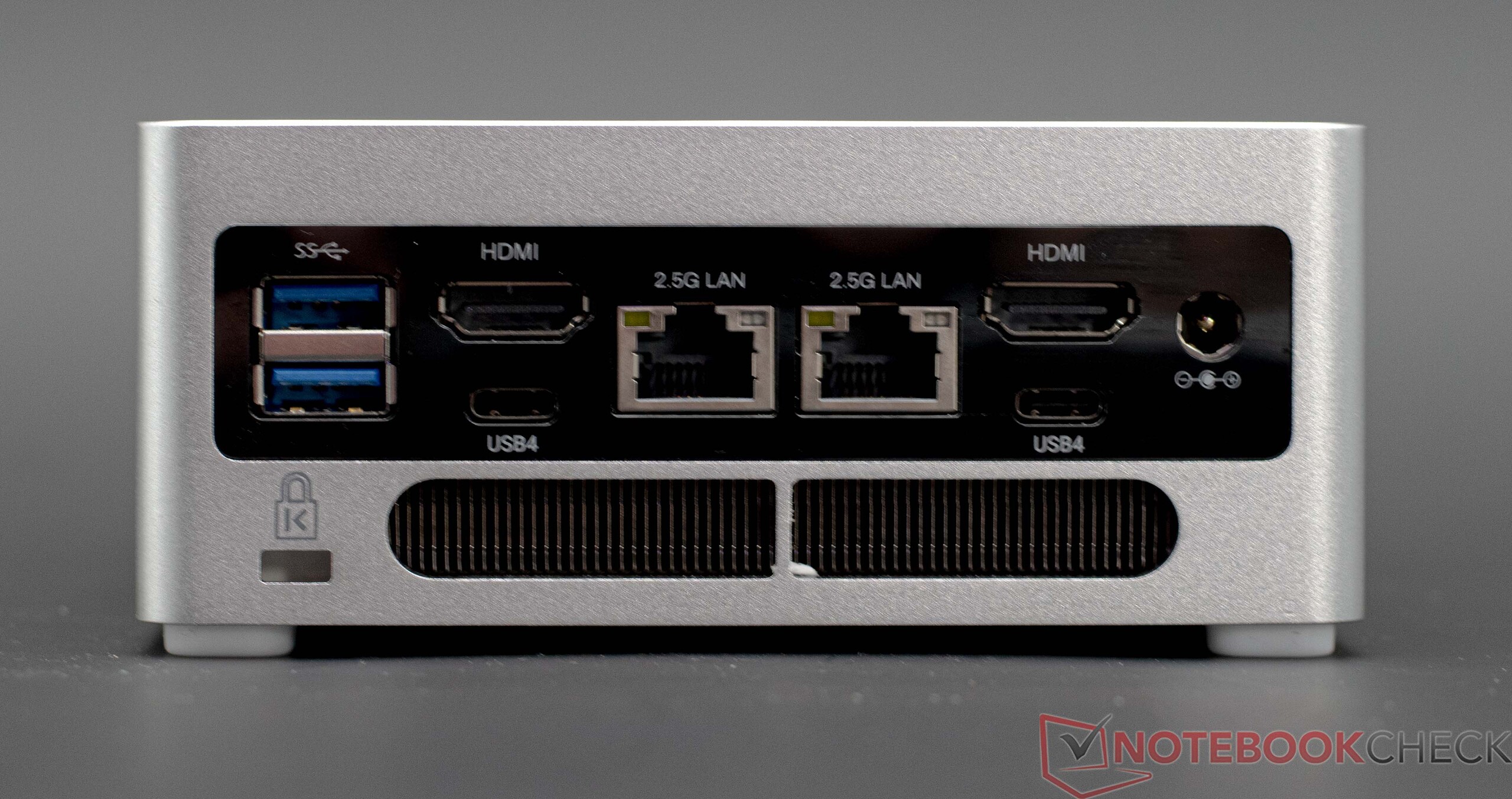

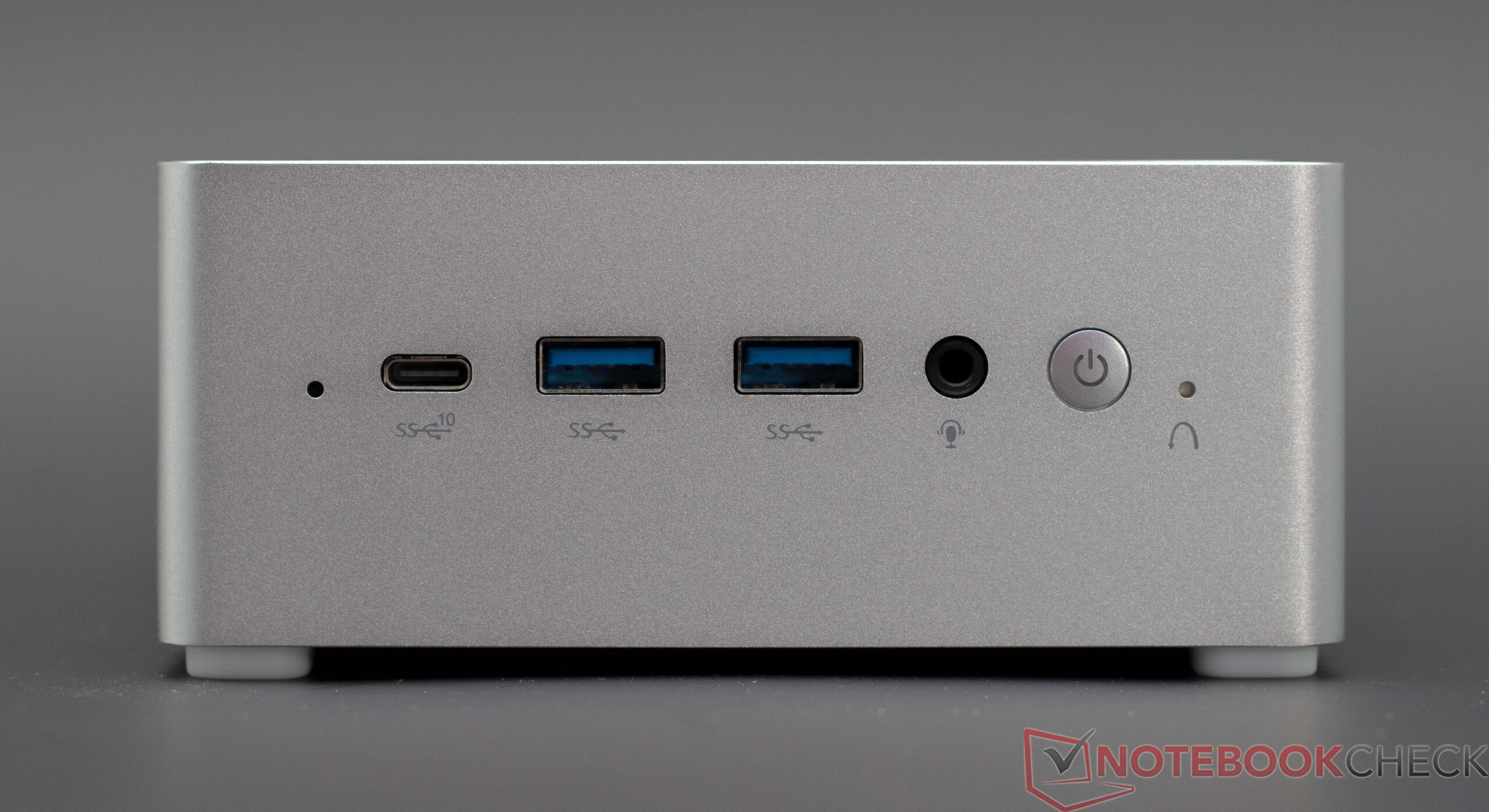

与 Minisforum Venus Series NAB6 相比，我们也无法辨认出该 PC 的外部端口有任何变化。Minisforum Venus 系列 NAB6.它的 7 个 USB 端口仍然提供大量连接选项。但最大的变化是，其中两个甚至提供了 USB-4 速度。这意味着在第三方配件的帮助下，Minisforum Venus 系列 NPB5 的使用范围可以大大扩展。您甚至可以连接外置显卡，从而大大提高设备的 3D 性能水平。稍后再详述。此外，Minisforum Venus 系列 NPB5 最多可同时连接四个屏幕。这在很多迷你电脑上都不是标配，我们还想提一下它的双局域网选项，有两个 2.5 位端口。

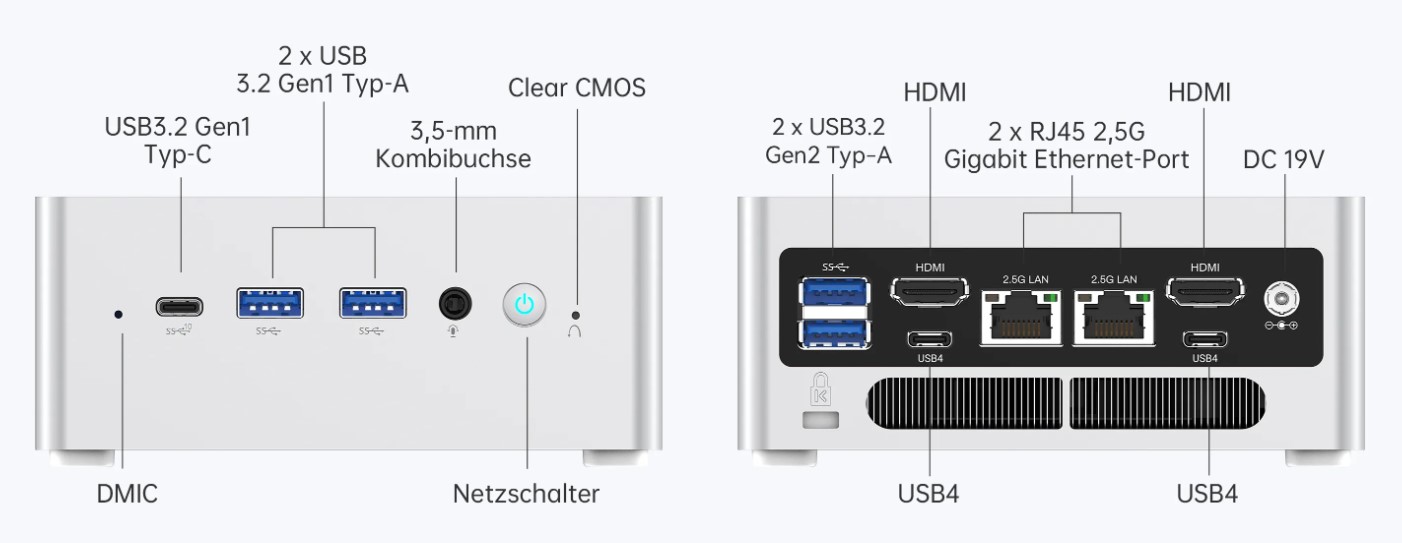

Minisforum Venus 系列 NPB5 的外部端口（来源：Minisforum）

交流

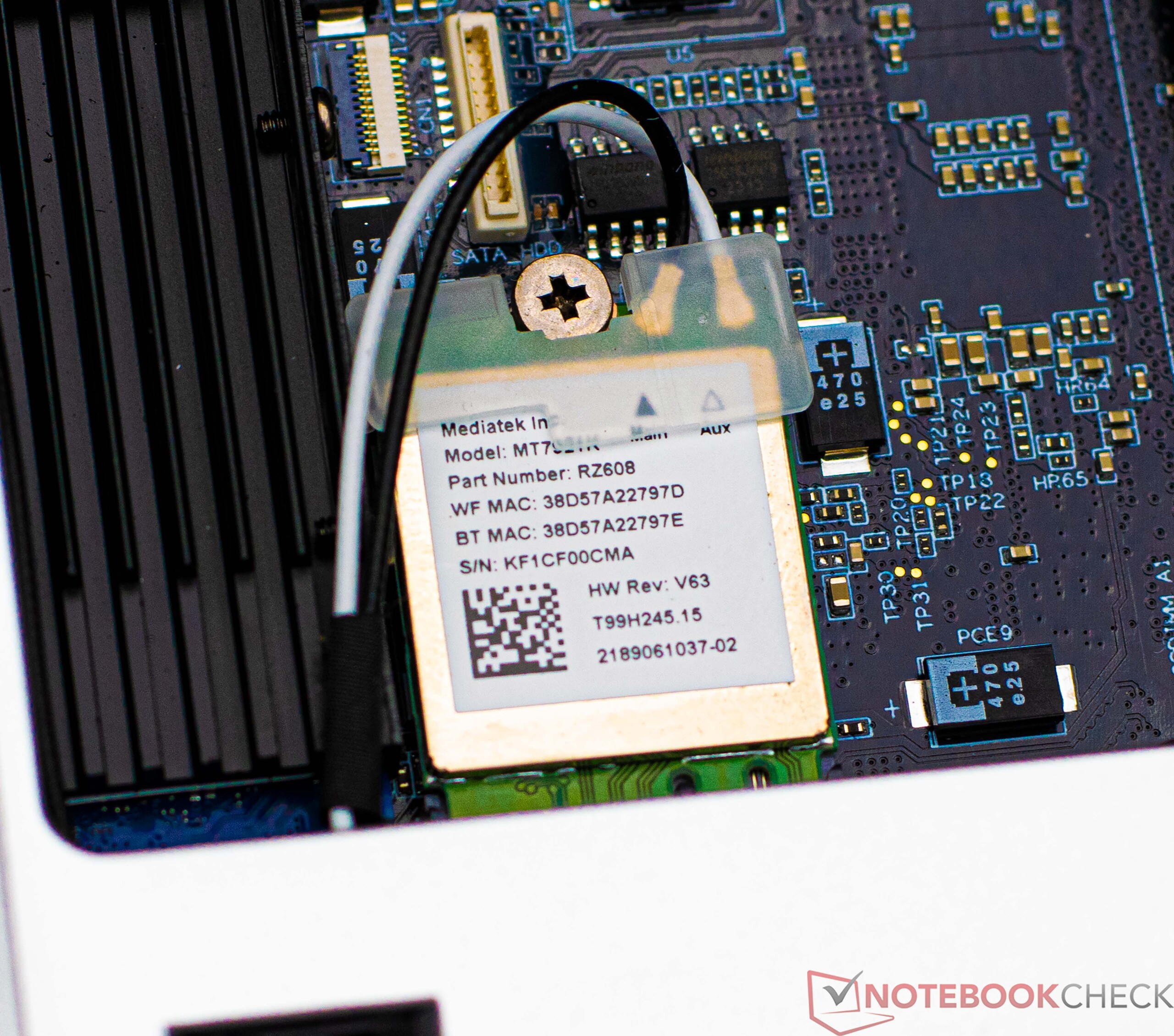

迷你 PC 的 WLAN 模块是老相识了，即 Mediathek RZ608。Minisforum 经常在其 PC 中使用该模块。总的来说，这个模块并不差，但其竞争对手英特尔 AX211 无线模块的传输速率明显更高。在我们的测试中，Minisforum Venus 系列 NPB5 的无线局域网模块提供了稳定的传输速率。我们使用华硕 ROG Rapture GT-AXE11000 作为测试路由器。此外，Minisforum Venus 系列 NPB5 还具有两个快速有线连接，速度高达 2.5 Gbit。

Networking
iperf3 receive AXE11000 6GHz
Geekom AS 6, R9 6900HX MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1719 (1695^min - 1733^max) MBit/s
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1668 (1467^min - 1725^max) MBit/s
Geekom Mini IT12 Intel Wi-Fi 6E AX211	1519 (1392^min - 1699^max) MBit/s
Average of class Mini PC (684 - 1771, n=53, last 2 years)	1381 MBit/s
Minisforum Venus Series UM790 Pro Intel Killer Wi-Fi 6E AX1675x (210NGW)	1013 (571^min - 1177^max) MBit/s
Average MediaTek RZ608 (430 - 961, n=16)	826 MBit/s
Minisforum Venus Series NAB6 MediaTek RZ608	791 (776^min - 799^max) MBit/s
iperf3 transmit AXE11000 6GHz
Geekom Mini IT12 Intel Wi-Fi 6E AX211	1622 (1561^min - 1670^max) MBit/s
Geekom AS 6, R9 6900HX MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1611 (1514^min - 1705^max) MBit/s
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1445 (736^min - 1476^max) MBit/s
Average of class Mini PC (394 - 1800, n=53, last 2 years)	1328 MBit/s
Minisforum Venus Series UM790 Pro Intel Killer Wi-Fi 6E AX1675x (210NGW)	1127 (177^min - 1337^max) MBit/s
Minisforum Venus Series NAB6 MediaTek RZ608	919 (853^min - 980^max) MBit/s
Average MediaTek RZ608 (572 - 980, n=16)	825 MBit/s
iperf3 receive AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s +46%
Geekom AS 6, R9 6900HX MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	959 (947^min - 969^max) MBit/s +6%
ACEMagician Ace Magician AM08 Pro Realtek RTL8852BE	947 (787^min - 981^max) MBit/s +5%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	943 (923^min - 960^max) MBit/s +5%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	939 (921^min - 952^max) MBit/s +4%
Average of class Mini PC (192.9 - 1796, n=113, last 2 years)	932 MBit/s +3%
Morefine M600, 6900HX MediaTek RZ608	929 (874^min - 946^max) MBit/s +3%
Minisforum Venus Series NPB5 MediaTek RZ608	902 (865^min - 926^max) MBit/s
Average MediaTek RZ608 (430 - 975, n=20)	886 MBit/s -2%
Minisforum Venus Series NAB6 MediaTek RZ608	787 (752^min - 801^max) MBit/s -13%
Minisforum Venus Series UM790 Pro Intel Killer Wi-Fi 6E AX1675x (210NGW)	774 (347^min - 841^max) MBit/s -14%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s +39%
Morefine M600, 6900HX MediaTek RZ608	964 (924^min - 990^max) MBit/s +1%
Minisforum Venus Series NPB5 MediaTek RZ608	951 (864^min - 1006^max) MBit/s
Geekom Mini IT12 Intel Wi-Fi 6E AX211	918 (892^min - 938^max) MBit/s -3%
Average of class Mini PC (184.1 - 1776, n=113, last 2 years)	864 MBit/s -9%
Average MediaTek RZ608 (572 - 979, n=20)	860 MBit/s -10%
Geekom AS 6, R9 6900HX MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	834 (769^min - 893^max) MBit/s -12%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	833 (805^min - 866^max) MBit/s -12%
Minisforum Venus Series UM790 Pro Intel Killer Wi-Fi 6E AX1675x (210NGW)	768 (738^min - 792^max) MBit/s -19%
ACEMagician Ace Magician AM08 Pro Realtek RTL8852BE	737 (369^min - 758^max) MBit/s -23%
Minisforum Venus Series NAB6 MediaTek RZ608	626 (301^min - 689^max) MBit/s -34%

Minisforum Venus Series NAB6 MediaTek RZ608; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø919 (853-980)

Minisforum Venus Series NAB6 MediaTek RZ608; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø791 (776-799)

Minisforum Venus Series NPB5 MediaTek RZ608; iperf3 receive AXE11000; iperf 3.1.3: Ø902 (865-926)

Minisforum Venus Series NAB6 MediaTek RZ608; iperf3 receive AXE11000; iperf 3.1.3: Ø786 (752-801)

Minisforum Venus Series NPB5 MediaTek RZ608; iperf3 transmit AXE11000; iperf 3.1.3: Ø951 (864-1006)

Minisforum Venus Series NAB6 MediaTek RZ608; iperf3 transmit AXE11000; iperf 3.1.3: Ø616 (301-689)

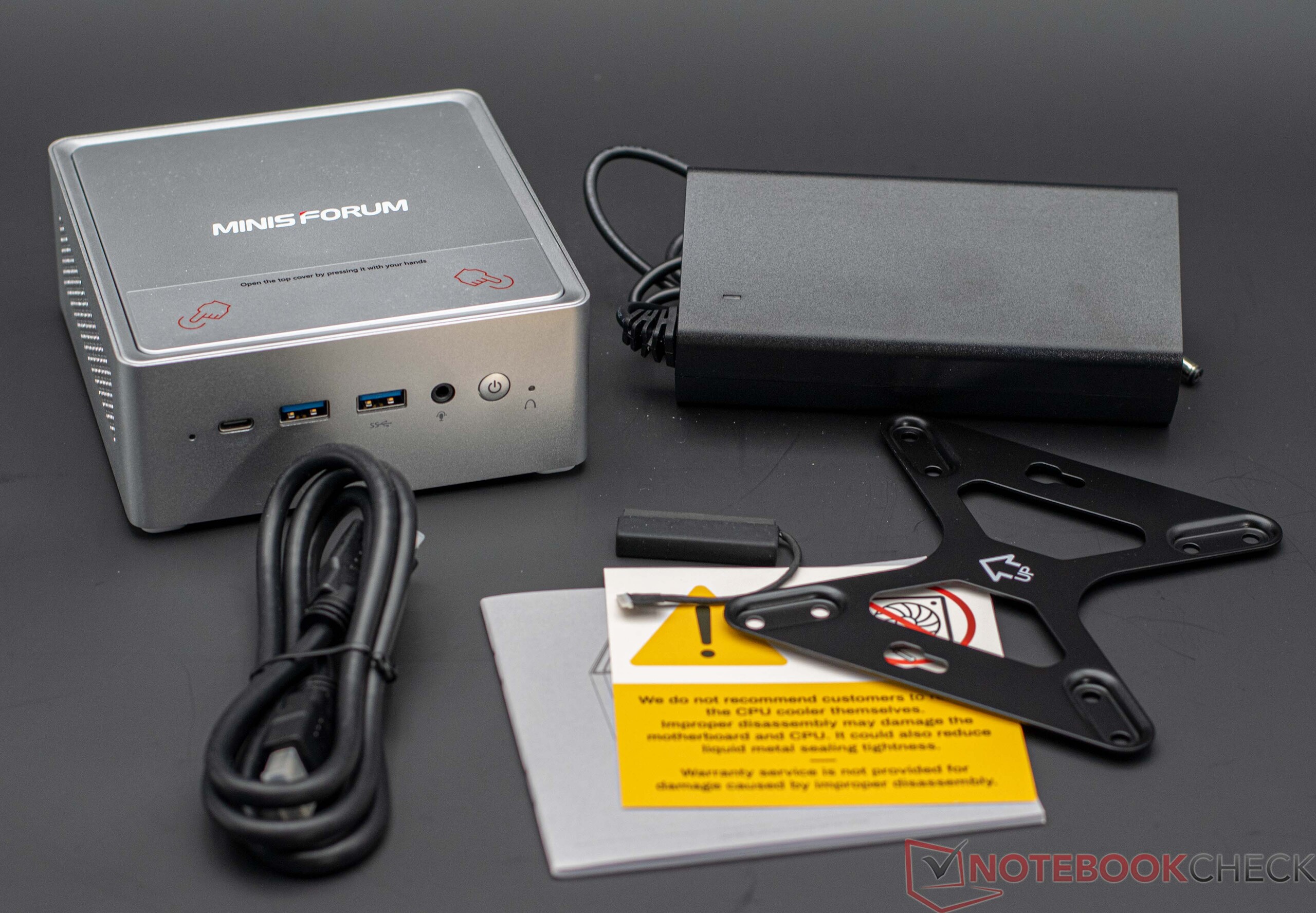

配件

除电脑本身外，供货范围还包括 120 瓦的电源适配器、可将电脑连接到显示器的安装板（VESA 安装）、HDMI 电缆以及简短的使用说明书。

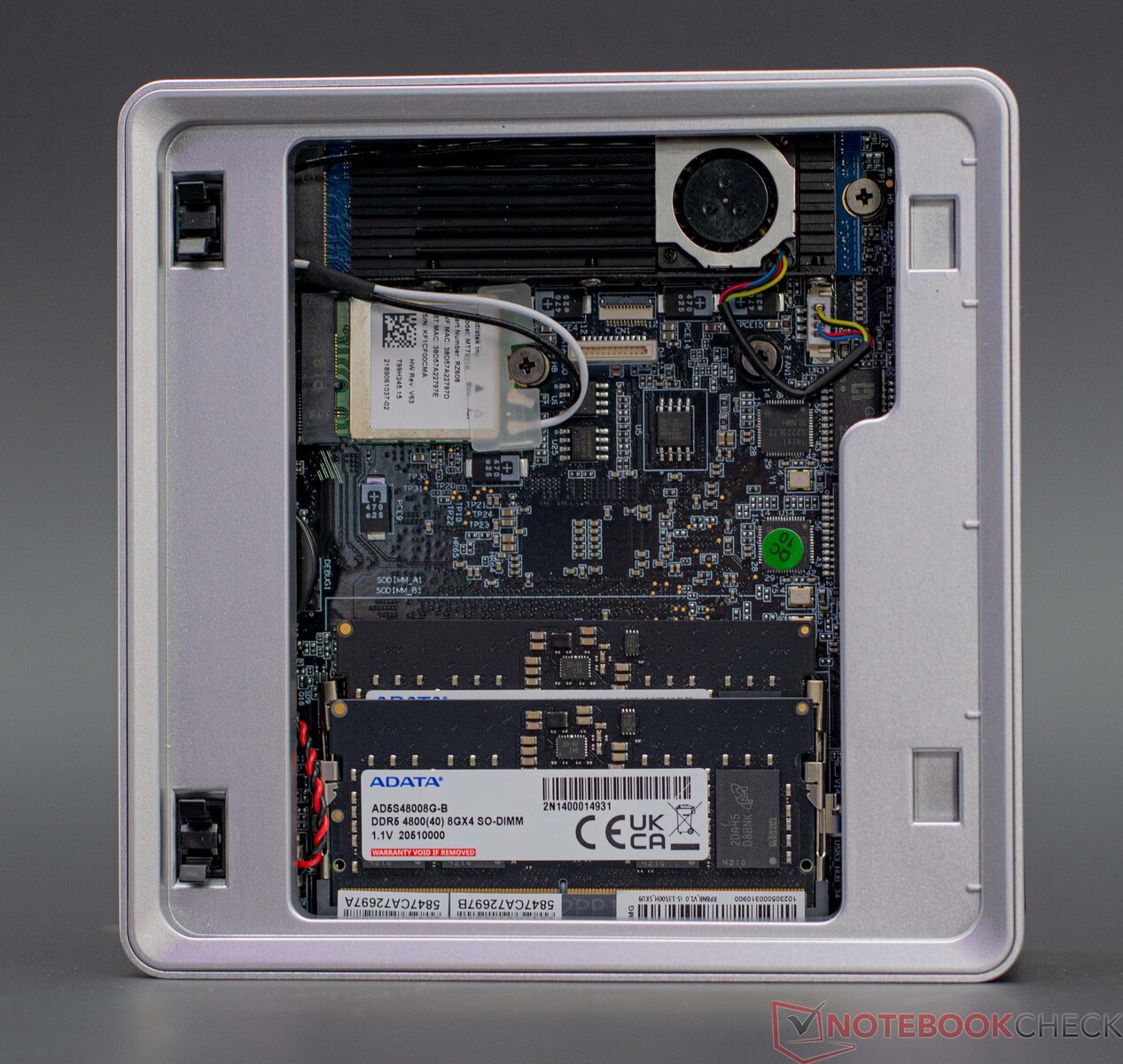

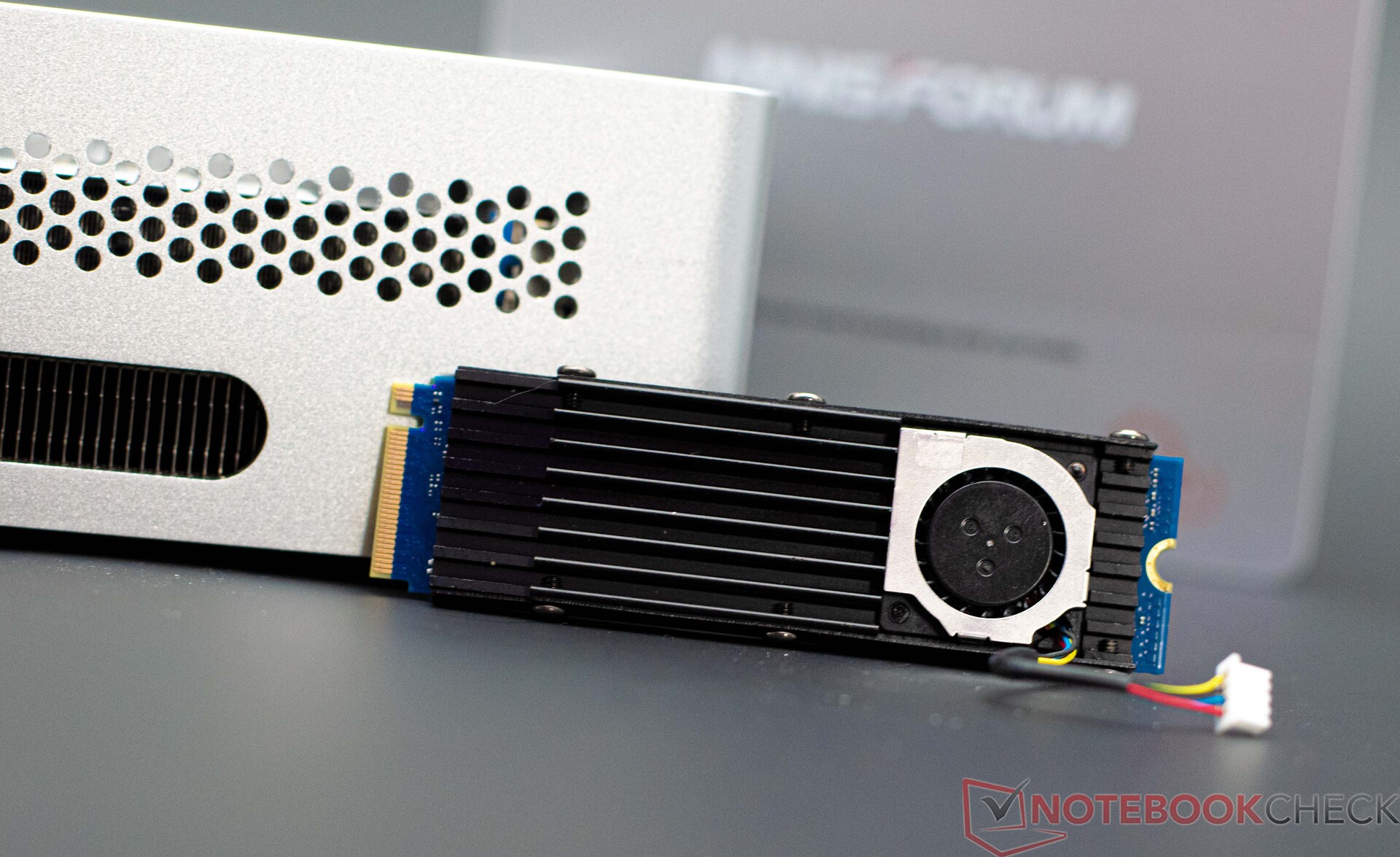

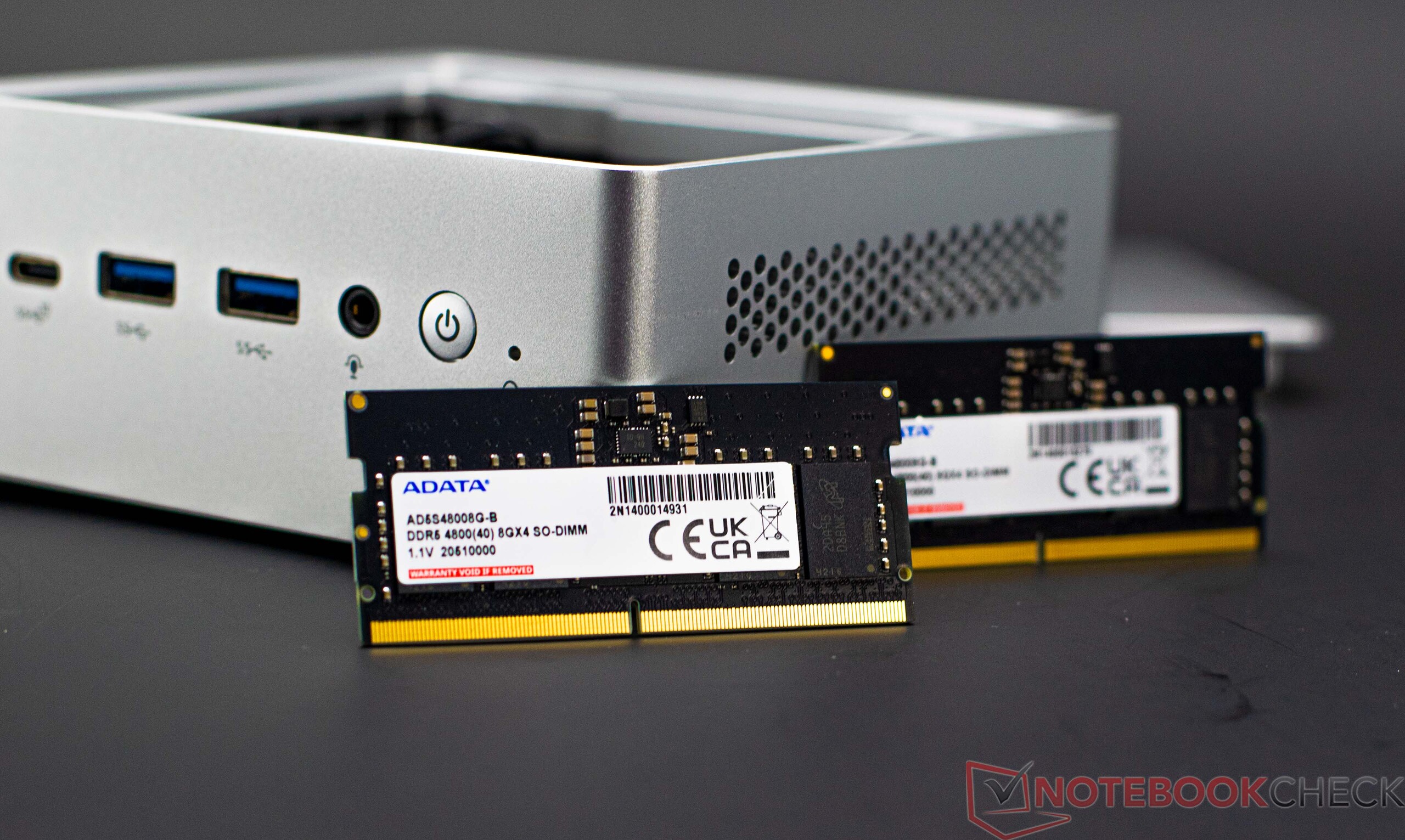

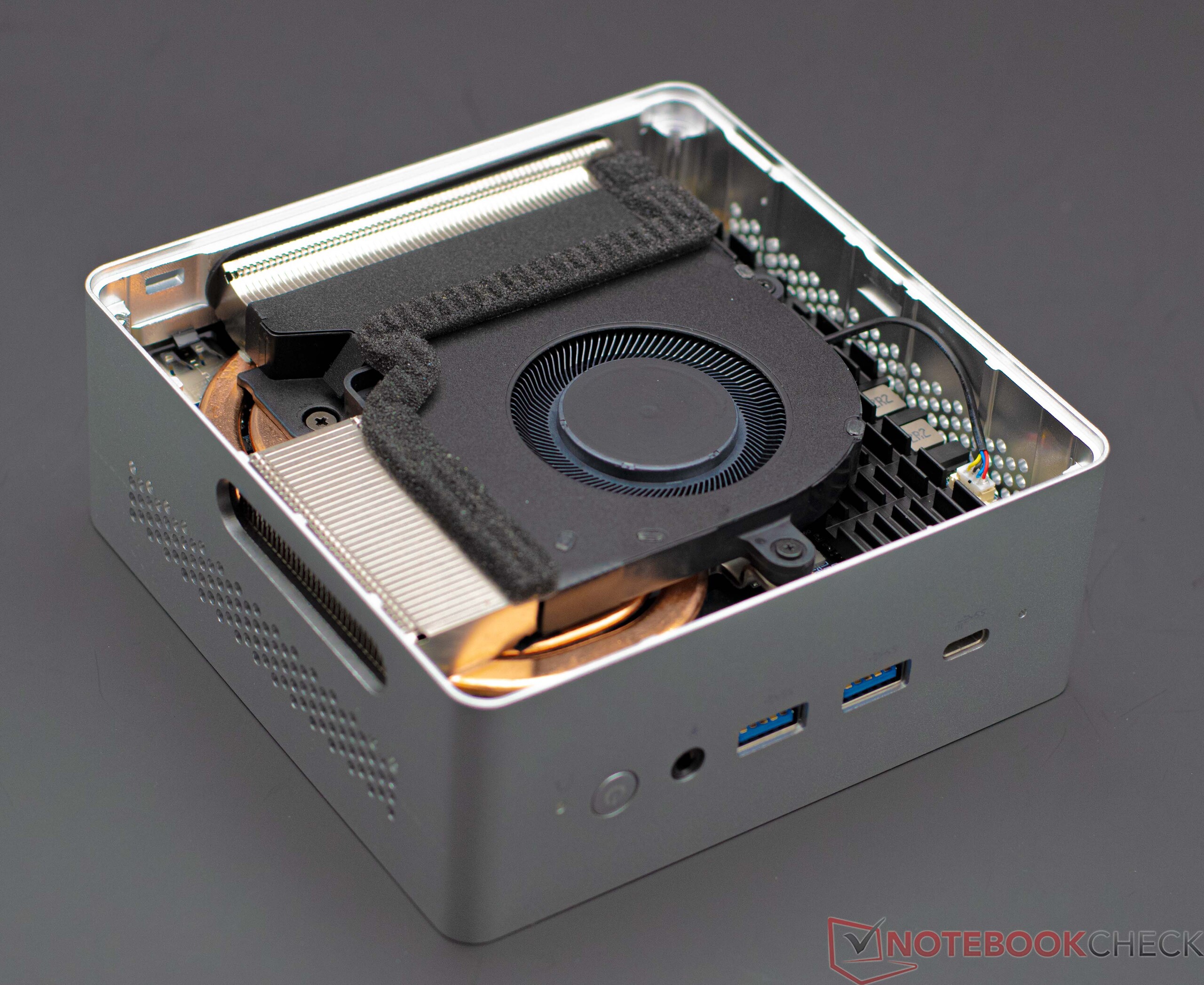

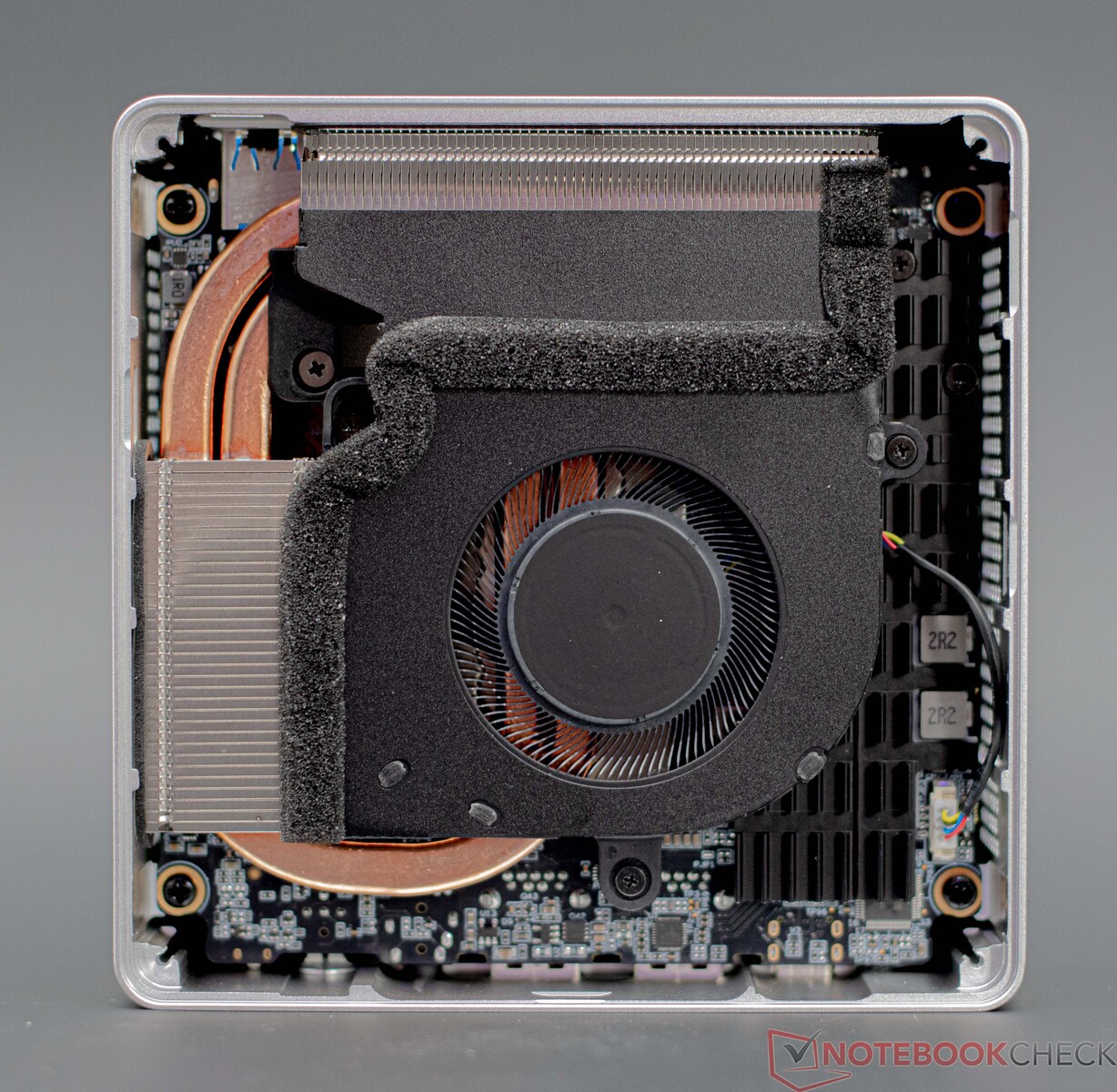

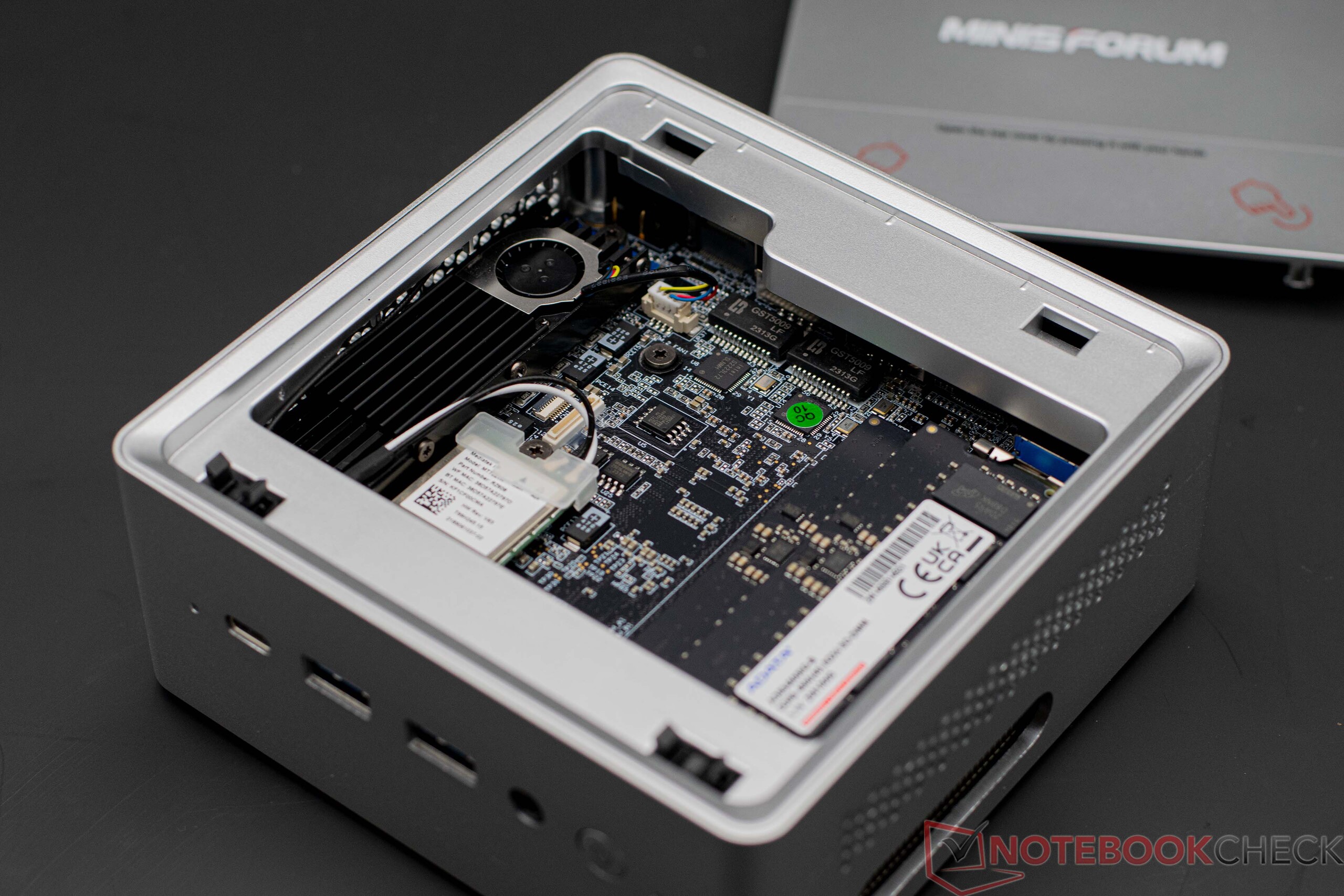

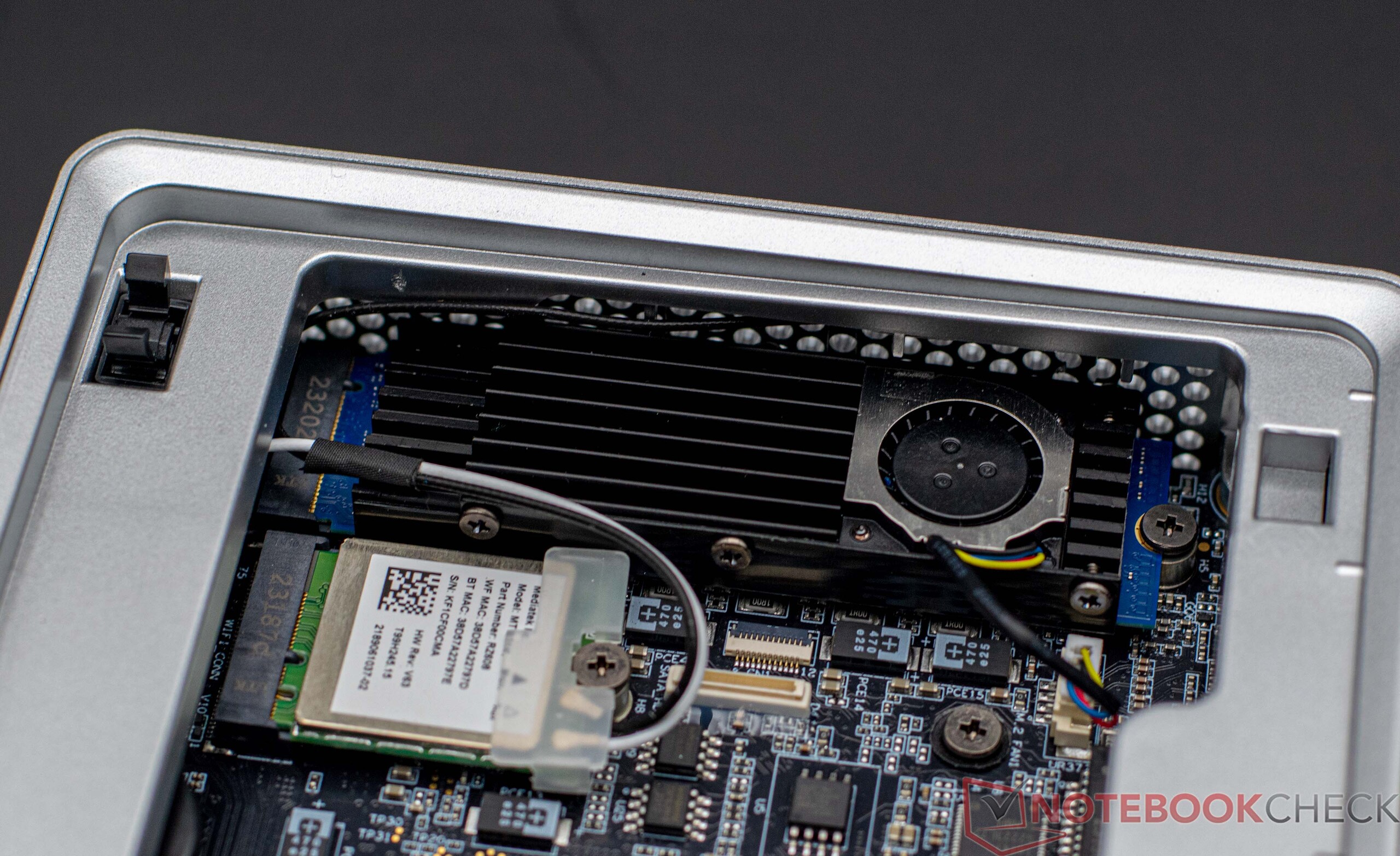

维护

对 Minisforum Venus Series NPB5 进行维护检查非常简单。Minisforum 还提供不带内存和固态硬盘的设备，因此安装这些设备不成问题。由于顶盖仅由两个压力点固定，因此无需使用工具即可拆卸。而底部则由底部的四颗螺丝固定。它们位于粘在一起的橡胶脚垫下方--您首先必须取下这些脚垫，这可能有点麻烦。不过，你其实不应该取下这一面，因为它只容纳了 CPU 风扇和利用液态金属优化热传导的冷却装置。

性能 - 英特尔 Raptor Lake-H，12 个核心和 16 个线程

Minisforum Venus 系列 NPB5 电脑英特尔酷睿 i5-13500H是一款稳定的 SoC，具有良好的多线程性能。在日常使用中，该 SoC 可以毫不费力地工作，甚至可以处理相当耗电的任务。不过，其内存可能很快就会达到极限。即便如此，只要不同时打开和使用大量的标签页，16 GB 的内存也不会有问题。根据制造商提供的信息，该机最高支持 32GB DDR5 内存，这意味着你可以顺利升级。

测试条件

我们使用 "最高性能 "能耗配置文件进行了所有性能测试。在 BIOS 中没有更改 SoC 的性能，而是根据制造商的设置保持其交付状态。根据我们的测试标准.

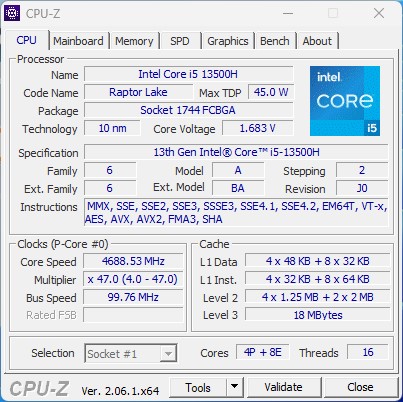

处理器

Minisforum Venus 系列 NPB5 电脑英特尔酷睿 i5-13500H是一款最新的 SoC，具有 12 个原生内核，可同时处理 16 个线程。凭借这颗 SoC，我们的测试样品在性能评级中稳居第二。在单项评估中，Minisforum Venus Series NPB5 有时只能取得平均成绩，但其持续稳定的性能使其最终取得了不错的成绩。在本次测试中，Minisforum Venus Series NPB5 仅被以下产品击败UM790 Pro相比。与 Minisforum Venus Series NAB6 相比，我们注意到其性能提高了约 5 个百分点。

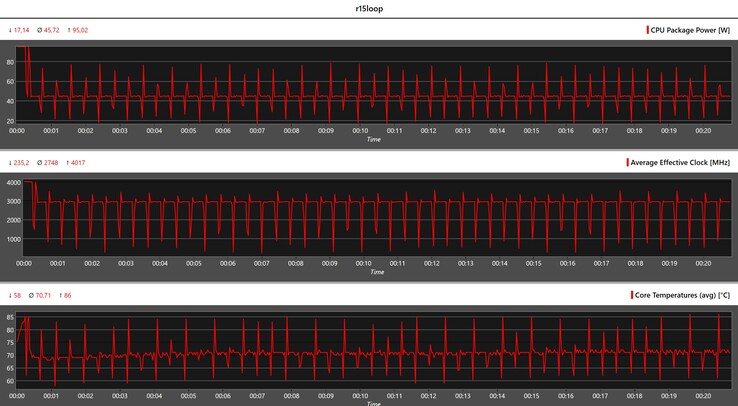

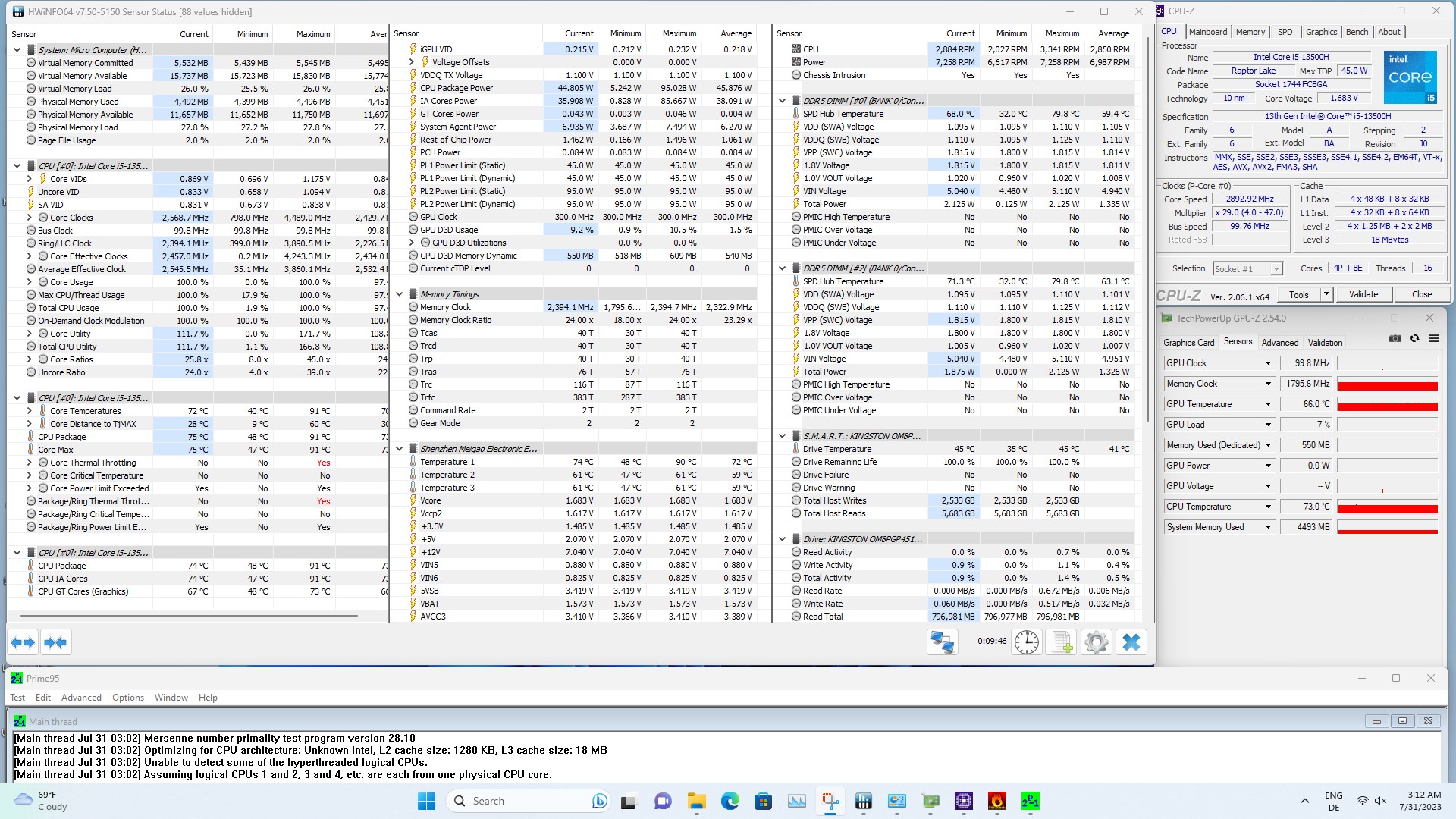

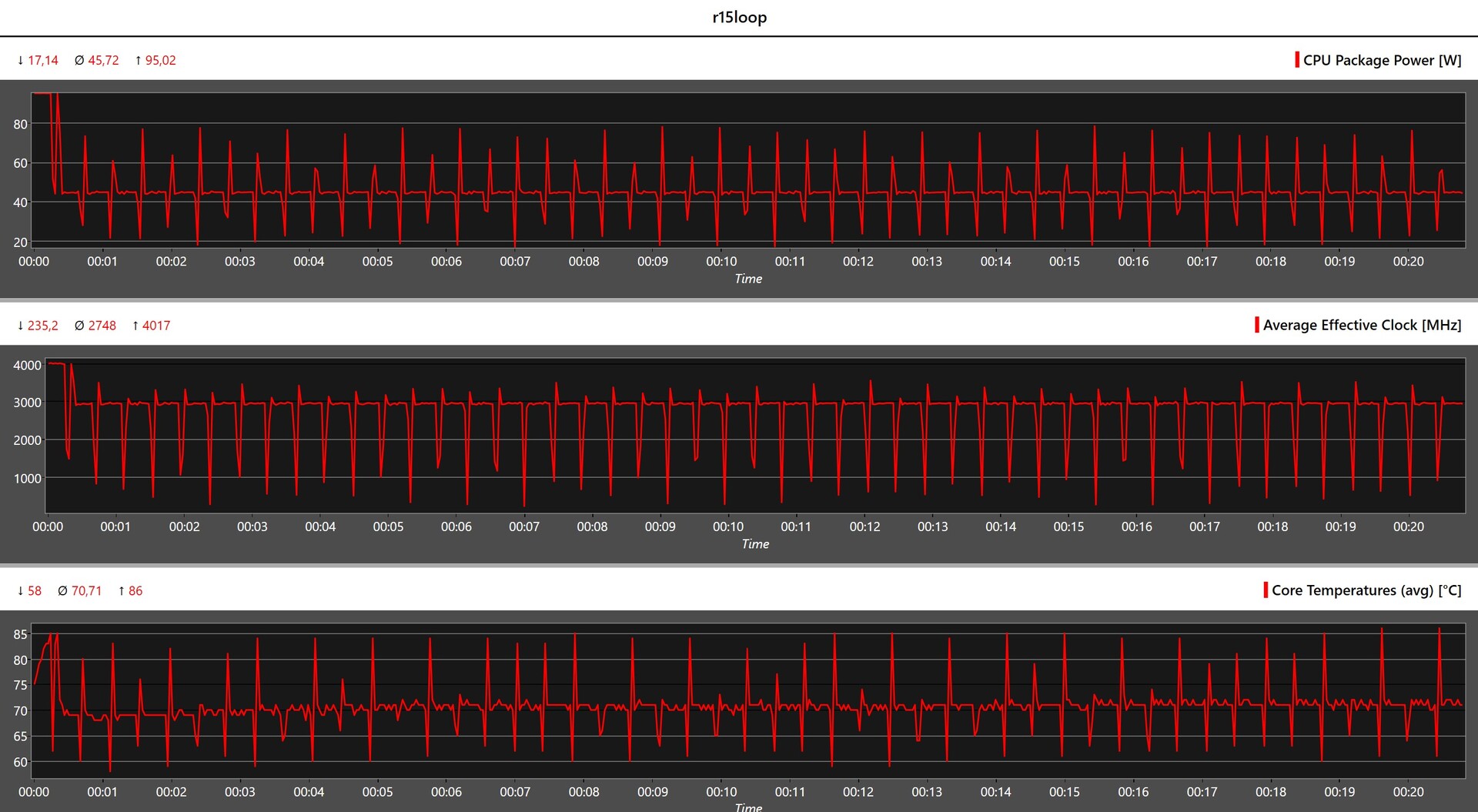

英特尔酷睿 i5-13500H 的功耗上限被制造商设定为 95 瓦，用于短时间负载。在连续负载的情况下，SoC 的功耗降至约 45 瓦，即 PL1（功耗限制）。

如需进一步比较和基准测试，请访问CPU 对比表。

Performance Rating - Percent
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	55 pt
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	52.4 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	50.8 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	49.7 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	49.6 pt
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	48.7 pt
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	48 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	47.9 pt
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	45.5 pt

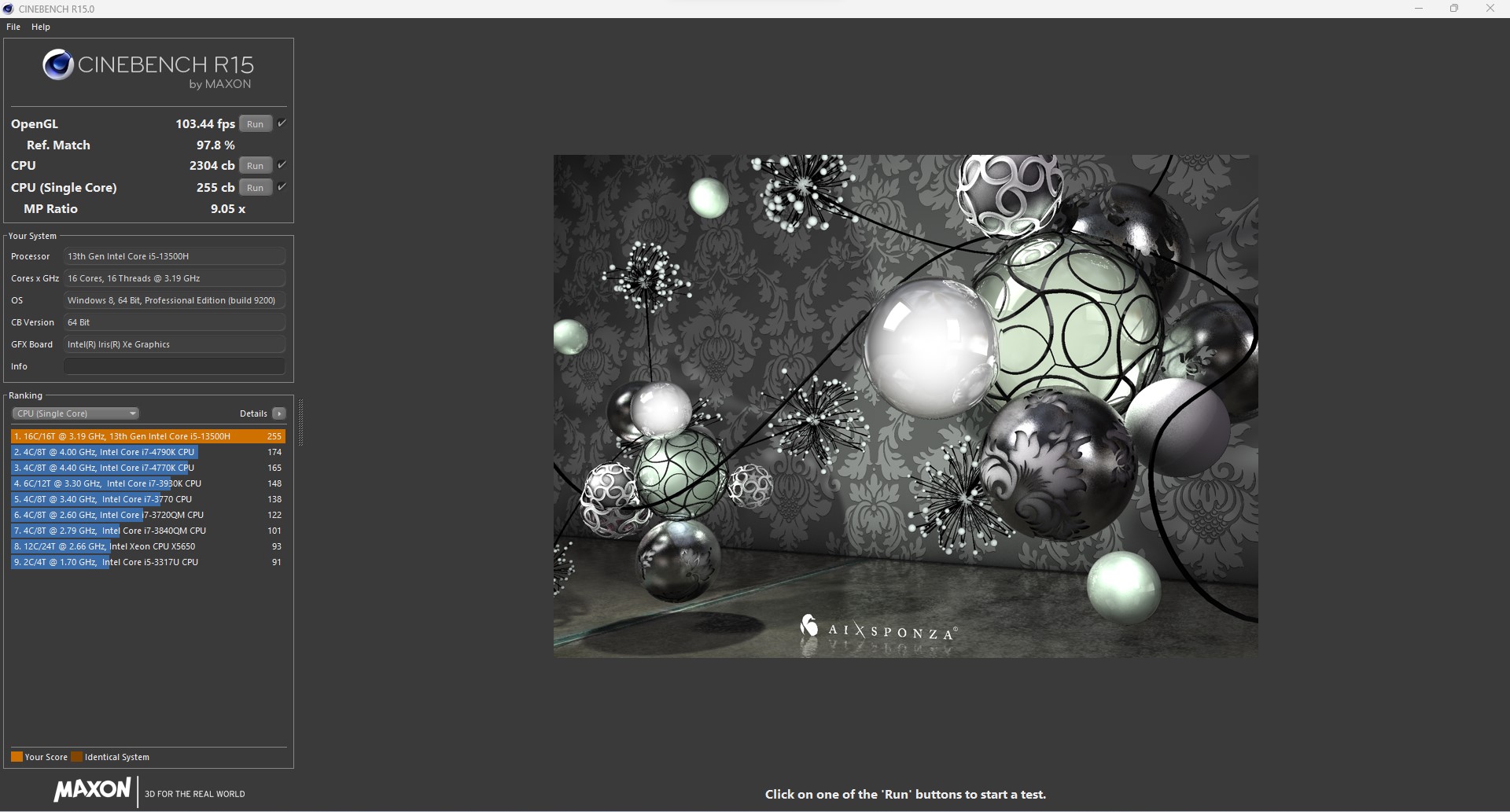

Cinebench R15
CPU Single 64Bit
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	284 Points +11%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	271 Points +6%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	260 Points +2%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	255 Points
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	250 Points -2%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	249 Points -2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	247 Points -3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	244 Points -4%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	241 Points -5%
CPU Multi 64Bit
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	2663 Points +16%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	2304 Points
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	2071 Points -10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2067 Points -10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	2030 Points -12%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2028 Points -12%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1920 Points -17%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1893 Points -18%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1565 Points -32%

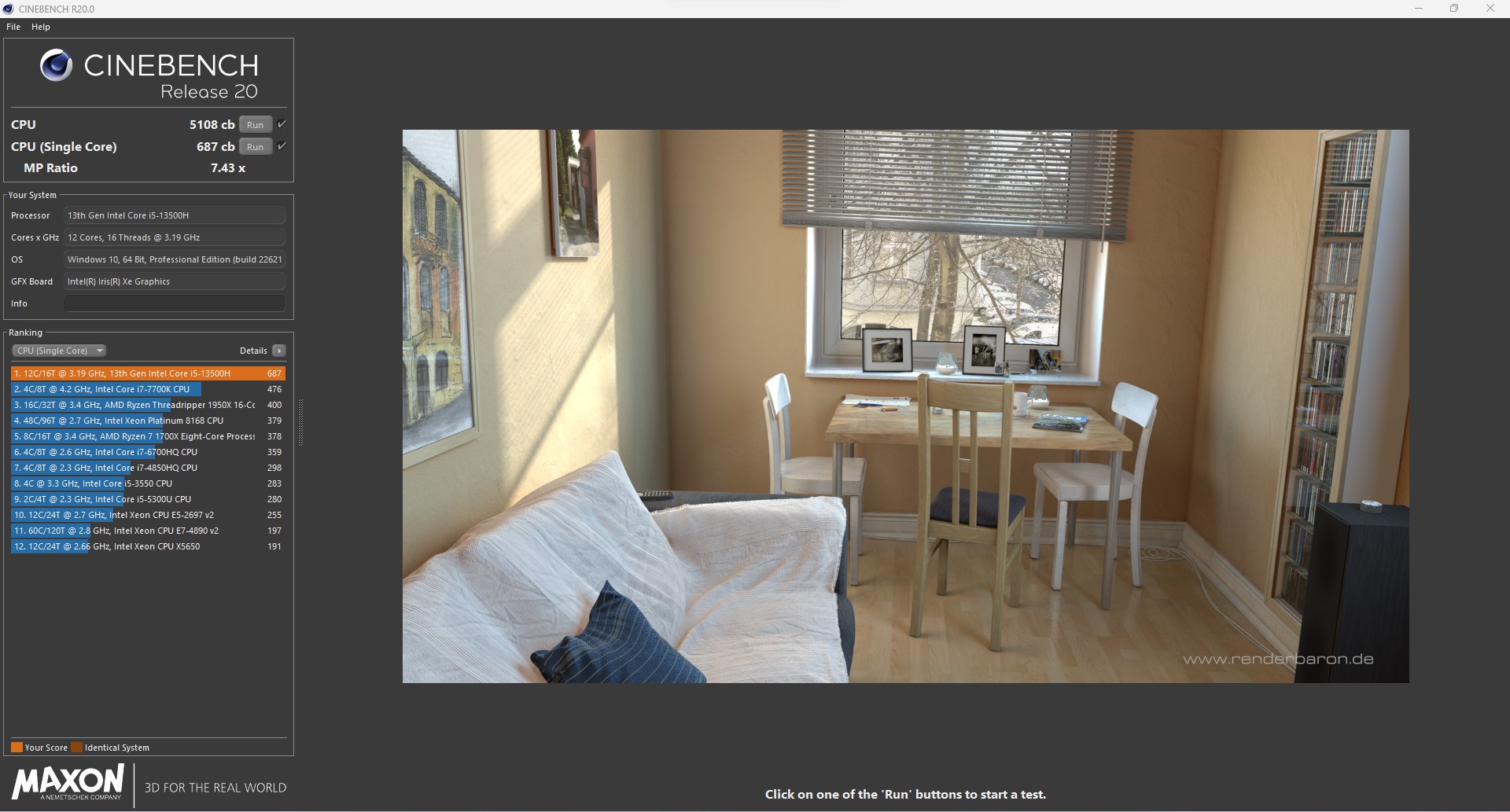

Cinebench R20
CPU (Single Core)
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	736 Points +7%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	711 Points +3%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	696 Points +1%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	687 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	682 Points -1%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	652 Points -5%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	610 Points -11%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	607 Points -12%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	600 Points -13%
CPU (Multi Core)
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	6640 Points +30%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	5108 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	4941 Points -3%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	4938 Points -3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	4887 Points -4%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	4788 Points -6%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	4781 Points -6%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	4776 Points -6%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	3427 Points -33%

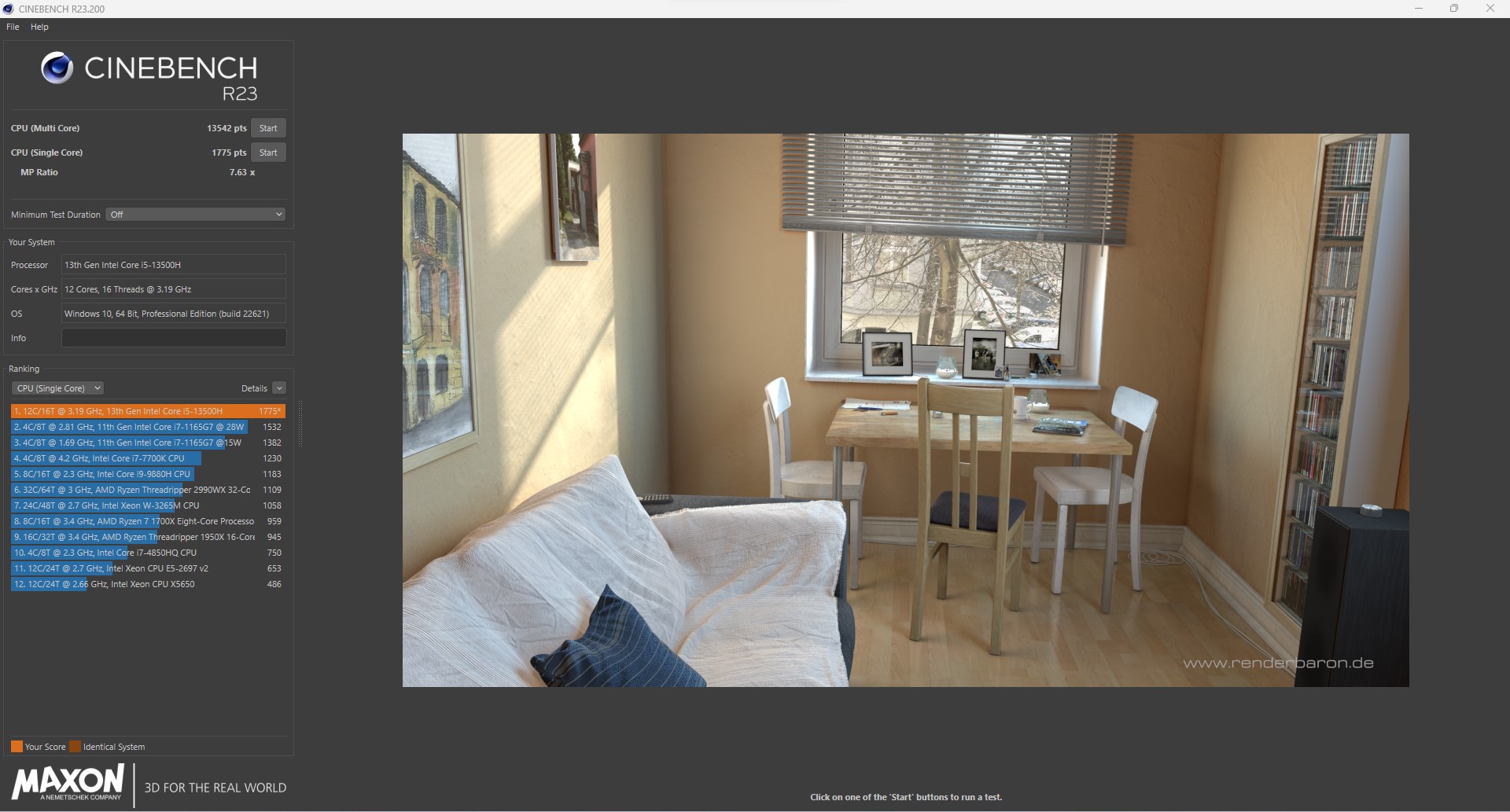

Cinebench R23
Single Core
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1909 Points +8%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	1813 Points +2%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1804 Points +2%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	1775 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1743 Points -2%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1693 Points -5%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	1558 Points -12%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1550 Points -13%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1533 Points -14%
Multi Core
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	16985 Points +25%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	13542 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	13320 Points -2%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	12665 Points -6%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	12637 Points -7%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12486 Points -8%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12375 Points -9%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	12072 Points -11%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	8846 Points -35%

Cinebench R11.5
CPU Single 64Bit
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	3.46 Points +12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	3.3 Points +6%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.14 Points +1%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	3.1 Points
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2.94 Points -5%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	2.93 Points -5%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	2.92 Points -6%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2.88 Points -7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2.86 Points -8%
CPU Multi 64Bit
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	30.88 Points +9%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	28.34 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	25.96 Points -8%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	25.12 Points -11%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	24.09 Points -15%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	23.66 Points -17%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	23.48 Points -17%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22.08 Points -22%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	20.06 Points -29%

Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	15471 Points +7%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	14731 Points +2%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	14533 Points +1%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	14421 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	13568 Points -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	12846 Points -11%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	12320 Points -15%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12185 Points -16%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12133 Points -16%
Rendering Multiple CPUs 64Bit
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	88529 Points +4%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	85169 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	77409 Points -9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	76744 Points -10%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	70291 Points -17%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	69797 Points -18%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	68516 Points -20%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	68188 Points -20%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	53950 Points -37%

Blender - v2.79 BMW27 CPU
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	285 Seconds * -10%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	279 Seconds * -7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	275 Seconds * -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	273 Seconds * -5%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	260 Seconds * -0%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	260 Seconds *
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	245 Seconds * +6%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	231 Seconds * +11%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	188 Seconds * +28%

wPrime 2.10
32m
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	4.485 s * -37%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	3.765 s * -15%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	3.762 s * -15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	3.735 s * -14%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.705 s * -13%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	3.642 s * -11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	3.421 s * -5%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	3.268 s *
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	2.698 s * +17%
1024m
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	410.289 s * -82%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	277.01 s * -23%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	237.123 s * -5%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	225.417 s *
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	189.07 s * +16%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	104.788 s * +54%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	103.226 s * +54%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	98.696 s * +56%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	66.801 s * +70%

X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	336 (304^min - 337^max) fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	312 (305^min - 331^max) fps -7%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	311.5 (311^min - 312^max) fps -7%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	304.5 (304^min - 306^max) fps -9%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	258.5 (256^min - 268^max) fps -23%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	255.5 (254^min - 259^max) fps -24%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	249 (246^min - 255^max) fps -26%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	245 (239^min - 261^max) fps -27%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	224 (222^min - 258^max) fps -33%
Pass 2
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	150.8 (150.7^min - 152.5^max) fps +14%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	132.2 (107.8^min - 142^max) fps
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	125.25 (105.2^min - 130^max) fps -5%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	120.2 (119.9^min - 121.3^max) fps -9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	116.4 (108.5^min - 128.8^max) fps -12%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	114.45 (113.9^min - 116.5^max) fps -13%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	114 (111.2^min - 119.4^max) fps -14%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	111.1 (96.7^min - 111.7^max) fps -16%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	77.75 (77.6^min - 113.9^max) fps -41%

WinRAR - Result
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9090 KB/s +24%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	7937 KB/s +8%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	7439 KB/s +2%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	7325 KB/s
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6980 KB/s -5%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	6860 KB/s -6%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6795 KB/s -7%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6559 KB/s -10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	5759 KB/s -21%

TrueCrypt
AES Mean 100MB
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	14.8 GB/s +11%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	13.3 GB/s
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	12.5 GB/s -6%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12.1 GB/s -9%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	11.9 GB/s -11%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	11.8 GB/s -11%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.4 GB/s -22%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	10.1 GB/s -24%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8.6 GB/s -35%
Twofish Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	2.2 GB/s 0%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	2.2 GB/s
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	2.1 GB/s -5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2 GB/s -9%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1.8 GB/s -18%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.8 GB/s -18%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	1.7 GB/s -23%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.7 GB/s -23%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.6 GB/s -27%
Serpent Mean 100MB
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	1.4 GB/s +17%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1.2 GB/s 0%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	1.2 GB/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s -8%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.1 GB/s -8%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s -8%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s -8%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1 GB/s -17%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.974 GB/s -19%

Geekbench 5.5
Multi-Core
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	11564 Points +1%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	11465 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	10574 Points -8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points -15%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	9399 Points -18%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9363 Points -18%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9278 Points -19%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9151 Points -20%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	8918 Points -22%
Single-Core
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	1975 Points +12%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points +6%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1850 Points +5%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1782 Points +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1767 Points 0%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	1762 Points
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1586 Points -10%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	1581 Points -10%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1547 Points -12%

Geekbench 5.0
5.0 Multi-Core
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	11392 Points
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	11232 Points -1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	10249 Points -10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	10249 Points -10%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10249 Points -10%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	10249 Points -10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points -15%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9351 Points -18%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9099 Points -20%
5.0 Single-Core
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	1898 Points +10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points +6%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1736 Points 0%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	1730 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1557 Points -10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1557 Points -10%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1557 Points -10%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	1557 Points -10%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1538 Points -11%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points +4%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	7904 Points +2%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	7737 Points
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	7705 Points 0%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6698 Points -13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	6698 Points -13%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6698 Points -13%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	6698 Points -13%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6648 Points -14%
64 Bit Multi-Core Score
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	46270 Points +9%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	42297 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	39852 Points -6%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	39852 Points -6%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	39852 Points -6%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	39852 Points -6%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	36780 Points -13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points -13%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	34909 Points -17%

3DMark 11 - 1280x720 Performance Physics
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	21848 Points +3%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	21177 Points
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	18393 Points -13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	18382 Points -13%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	18363 Points -13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	17973 Points -15%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	17810 Points -16%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15855 Points -25%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	13067 Points -38%

7-Zip 18.03
7z b 4
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	70019 MIPS +33%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	58963 MIPS +12%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	56930 MIPS +8%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	56923 MIPS +8%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	52959 MIPS +1%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	52630 MIPS
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51151 MIPS -3%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	47893 MIPS -9%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	37570 MIPS -29%
7z b 4 -mmt1
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	6683 MIPS +17%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	6116 MIPS +7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	6019 MIPS +6%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	5961 MIPS +5%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	5790 MIPS +2%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	5721 MIPS 0%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	5695 MIPS
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	5591 MIPS -2%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	5577 MIPS -2%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	20.7 fps +42%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	15.8 fps +8%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15.8 fps +8%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15.4 fps +5%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	14.6 fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	14.2 fps -3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	14.1 fps -3%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	13.6 fps -7%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.1 fps -31%

R Benchmark 2.5 - Overall mean
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	0.4887 sec * -3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	0.4881 sec * -3%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	0.4849 sec * -3%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	0.473 sec *
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	0.4718 sec * -0%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.4641 sec * +2%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	0.462 sec * +2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	0.445 sec * +6%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	0.4192 sec * +11%

LibreOffice - 20 Documents To PDF
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	53.4 s * -21%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	50.2 s * -14%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	48.1 s * -9%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	47.1 s * -7%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	46.3 s * -5%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	44 s *
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	43.7 s * +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	39.6 s * +10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	38 s * +14%

WebXPRT 3 - Overall
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	311 Points +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	309 Points +1%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	307 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	305 Points -1%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	302 Points -2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	292 Points -5%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	287 Points -7%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	287 Points -7%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	268 Points -13%

Mozilla Kraken 1.1 - Total
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	605 ms * -17%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	600 ms * -16%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	600 ms * -16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	577 ms * -12%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	539 ms * -4%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	519 ms * -0%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	517 ms *
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	494 ms * +4%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	487 ms * +6%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	27579 Points +4%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	26402 Points
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	24167 Points -8%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22441 Points -15%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22237 Points -16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	21422 Points -19%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	21001 Points -20%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	20158 Points -24%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	15903 Points -40%
1920x1080 Fire Strike Physics
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	28247 Points +3%
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	27369 Points
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	24175 Points -12%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22740 Points -17%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22426 Points -18%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22346 Points -18%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	22244 Points -19%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	21523 Points -21%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	16568 Points -39%
2560x1440 Time Spy CPU
Minisforum Venus Series NPB5 Intel Core i5-13500H, 1900 MHz	10814 Points
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	10563 Points -2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	10539 Points -3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	9334 Points -14%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	9324 Points -14%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9168 Points -15%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9004 Points -17%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	8622 Points -20%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6487 Points -40%

* ... smaller is better

Performance Rating
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	95.7 pt
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	72.9 pt
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	72.6 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	66.6 pt
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	60.6 pt
Average of class Mini PC	58.4 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	58.1 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55.8 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	54.7 pt
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	45.1 pt

AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	26146 KRay/s +134%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	14418 KRay/s +29%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	14406 KRay/s +29%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	13757 KRay/s +23%
Average of class Mini PC (561 - 51004, n=119, last 2 years)	12449 KRay/s +12%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	11161 KRay/s
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	11040 KRay/s -1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s -2%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	10839 KRay/s -3%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	7933 KRay/s -29%

AIDA64 / FPU Julia
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	116269 Points +103%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	91475 Points +60%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	89540 Points +56%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	87663 Points +53%
Average of class Mini PC (3604 - 214250, n=119, last 2 years)	62645 Points +9%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	57280 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	55557 Points -3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points -4%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	54435 Points -5%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	40251 Points -30%

AIDA64 / CPU SHA3
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	4890 MB/s +76%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	3117 MB/s +12%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	3065 MB/s +10%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	2931 MB/s +5%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	2784 MB/s
Average of class Mini PC (225 - 9399, n=119, last 2 years)	2760 MB/s -1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	2728 MB/s -2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s -8%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	2357 MB/s -15%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	2006 MB/s -28%

AIDA64 / CPU Queen
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	119569 Points +40%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	100293 Points +17%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	99180 Points +16%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	93870 Points +10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	86691 Points +1%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	85501 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	82454 Points -4%
Average of class Mini PC (8172 - 184747, n=119, last 2 years)	77998 Points -9%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	73765 Points -14%

AIDA64 / FPU SinJulia
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	15312 Points +110%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	12642 Points +73%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	12396 Points +70%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	11771 Points +61%
Average of class Mini PC (408 - 29064, n=119, last 2 years)	8538 Points +17%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points +3%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	7444 Points +2%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	7297 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	7269 Points 0%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	5567 Points -24%

AIDA64 / FPU Mandel
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	62219 Points +121%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	50025 Points +78%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	49558 Points +76%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	44629 Points +59%
Average of class Mini PC (1958 - 113499, n=119, last 2 years)	32689 Points +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points 0%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	28106 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	27772 Points -1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	26735 Points -5%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	19857 Points -29%

AIDA64 / CPU AES
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	124515 MB/s +24%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	119363 MB/s +19%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	100301 MB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s -1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	99244 MB/s -1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	92530 MB/s -8%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	86346 MB/s -14%
Average of class Mini PC (3691 - 325960, n=119, last 2 years)	85358 MB/s -15%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	74716 MB/s -26%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	56199 MB/s -44%

AIDA64 / CPU ZLib
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	1114 MB/s +41%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	807 MB/s +2%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	790 MB/s
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	754 MB/s -5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	745 MB/s -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s -7%
Average of class Mini PC (74.8 - 2039, n=119, last 2 years)	714 MB/s -10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	674 MB/s -15%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	578 MB/s -27%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	575 MB/s -27%

AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	14472 KRay/s +141%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	7680 KRay/s +28%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7551 KRay/s +26%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7288 KRay/s +22%
Average of class Mini PC (308 - 26952, n=119, last 2 years)	6658 KRay/s +11%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	5998 KRay/s
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	5920 KRay/s -1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s -4%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	5771 KRay/s -4%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	4156 KRay/s -31%

AIDA64 / CPU PhotoWorxx
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	37433 MPixel/s
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	32647 MPixel/s -13%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	30049 MPixel/s -20%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	30038 MPixel/s -20%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	29765 MPixel/s -20%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	29108 MPixel/s -22%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	28118 MPixel/s -25%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	28010 MPixel/s -25%
Average of class Mini PC (4408 - 50500, n=119, last 2 years)	27805 MPixel/s -26%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s -35%

Minisforum Venus Series NPB5 与 Cinebench R15 多环路比较

Cinebench R15 连续循环显示了处理器在长时间负载下的表现。Minisforum Venus 系列 NPB5 在第一次运行时达到了最佳值，因为它的 Turbo 可以保持更长时间。在第二次运行时，我们注意到性能有了明显的下降，但在第三次运行后又趋于稳定。与 Minisforum Venus Series NAB6 相比，我们的测试设备仍然取得了更好的成绩。从遥测数据中可以清楚地看到，它一开始就能发挥 95 瓦的全部性能。随后，我们记录的平均功率为 45 瓦，也就是 PL1 的设定值。我们注意到平均温度为 70.7 °C，这完全没有问题。

Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Core i5-13500H: Ø1783 (1762.11-2310.94)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)

Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Ryzen 9 7940HS: Ø2646 (2612.16-2667.2)

Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1878 (1825.15-2068.58)

Geekom Mini IT12 Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)

ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2050 (2014.91-2082.68)

Minisforum Venus Series NAB6 Intel Core i7-12650H, Intel Core i7-12650H: Ø1627 (1590.71-1899.25)

Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Core i7-1360P: Ø1825 (1794.93-2181.38)

系统性能

在与电脑系统性能相关的合成基准测试中，我们的测试样本无法完全跟上 CPU 基准测试中的优异成绩。在 PCMark10 测试中，我们的样品成绩一般。只有在 Crossmark 测试中获得了第一名。必须指出的是，英特尔处理器在 Crossmark 测试中通常表现更好。由于 Minisforum 的金星系列 NPB5 配备了 DDR5 内存，我们的测试设备在 AIDA64 测试中也能跟上，并确保了自己的第二名。主观而言，金星系列 NPB5 在日常任务中给我们留下了非常好的印象。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum Venus Series UM790 Pro, AMD Ryzen 9 7940HS AMD Radeon 780M, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	7048 Points +12%
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AMD Radeon 680M, BiWin CE480Y2D100-512G	6802 Points +8%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	6654 Points +6%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	6653 Points +6%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	6281 Points 0%
Minisforum Venus Series NPB5, Intel Core i5-13500H Intel Iris Xe Graphics G7 80EUs, Kingston OM8PGP4512Q-A0	6280 Points
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	6187 Points -1%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	6057 Points -4%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	5658 Points -10%

PCMark 10 / Essentials
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	11596 Points +5%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	11395 Points +3%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	11217 Points +2%
Minisforum Venus Series NPB5, Intel Core i5-13500H Intel Iris Xe Graphics G7 80EUs, Kingston OM8PGP4512Q-A0	11035 Points
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	10504 Points -5%
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AMD Radeon 680M, BiWin CE480Y2D100-512G	10496 Points -5%
Minisforum Venus Series UM790 Pro, AMD Ryzen 9 7940HS AMD Radeon 780M, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	10448 Points -5%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	10390 Points -6%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	10139 Points -8%

PCMark 10 / Productivity
Minisforum Venus Series UM790 Pro, AMD Ryzen 9 7940HS AMD Radeon 780M, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	9971 Points +21%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	9817 Points +20%
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AMD Radeon 680M, BiWin CE480Y2D100-512G	9574 Points +17%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	9550 Points +16%
Minisforum Venus Series NPB5, Intel Core i5-13500H Intel Iris Xe Graphics G7 80EUs, Kingston OM8PGP4512Q-A0	8212 Points
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	8164 Points -1%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	7893 Points -4%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	7673 Points -7%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	7427 Points -10%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Minisforum Venus Series NPB5, Intel Core i5-13500H Intel Iris Xe Graphics G7 80EUs, Kingston OM8PGP4512Q-A0	1982 Points
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1894 Points -4%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1875 Points -5%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1810 Points -9%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1738 Points -12%
Minisforum Venus Series UM790 Pro, AMD Ryzen 9 7940HS AMD Radeon 780M, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1726 Points -13%
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AMD Radeon 680M, BiWin CE480Y2D100-512G	1595 Points -20%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1517 Points -23%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	1476 Points -26%

CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	2116 Points 0%
Minisforum Venus Series NPB5, Intel Core i5-13500H Intel Iris Xe Graphics G7 80EUs, Kingston OM8PGP4512Q-A0	2110 Points
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	2077 Points -2%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1734 Points -18%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1578 Points -25%
Minisforum Venus Series UM790 Pro, AMD Ryzen 9 7940HS AMD Radeon 780M, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1382 Points -35%
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AMD Radeon 680M, BiWin CE480Y2D100-512G	1329 Points -37%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1238 Points -41%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	1060 Points -50%

CrossMark / Creativity
Minisforum Venus Series NPB5, Intel Core i5-13500H Intel Iris Xe Graphics G7 80EUs, Kingston OM8PGP4512Q-A0	1985 Points
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1970 Points -1%
Minisforum Venus Series UM790 Pro, AMD Ryzen 9 7940HS AMD Radeon 780M, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1914 Points -4%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1811 Points -9%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1800 Points -9%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1749 Points -12%
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AMD Radeon 680M, BiWin CE480Y2D100-512G	1712 Points -14%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	1675 Points -16%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1652 Points -17%

CrossMark / Productivity
Minisforum Venus Series NPB5, Intel Core i5-13500H Intel Iris Xe Graphics G7 80EUs, Kingston OM8PGP4512Q-A0	1938 Points
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1921 Points -1%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1876 Points -3%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1740 Points -10%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1729 Points -11%
Minisforum Venus Series UM790 Pro, AMD Ryzen 9 7940HS AMD Radeon 780M, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1675 Points -14%
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AMD Radeon 680M, BiWin CE480Y2D100-512G	1580 Points -18%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1491 Points -23%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	1451 Points -25%

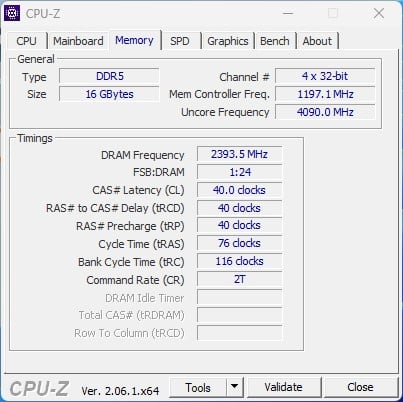

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	62093 MB/s +8%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	57457 MB/s
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	50714 MB/s -12%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	50608 MB/s -12%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	50228 MB/s -13%
Average of class Mini PC (6481 - 89287, n=119, last 2 years)	47585 MB/s -17%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	46936 MB/s -18%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	45941 MB/s -20%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	44892 MB/s -22%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	44726 MB/s -22%

AIDA64 / Memory Read
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	65470 MB/s
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	61458 MB/s -6%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	51580 MB/s -21%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	51552 MB/s -21%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	51077 MB/s -22%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	50120 MB/s -23%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	49559 MB/s -24%
Average of class Mini PC (6914 - 99171, n=119, last 2 years)	48328 MB/s -26%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	47491 MB/s -27%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	45196 MB/s -31%

AIDA64 / Memory Write
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	79298 MB/s +33%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	59816 MB/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	55194 MB/s -8%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	55144 MB/s -8%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	55128 MB/s -8%
Average of class Mini PC (6862 - 98583, n=119, last 2 years)	52056 MB/s -13%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	47383 MB/s -21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	46815 MB/s -22%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	46785 MB/s -22%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	46179 MB/s -23%

AIDA64 / Memory Latency
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	100 ns * -7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	96.1 ns * -2%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	93.8 ns *
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	92.4 ns * +1%
Average of class Mini PC (44.9 - 184.8, n=119, last 2 years)	91.9 ns * +2%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	89.9 ns * +4%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	87.8 ns * +6%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	87.6 ns * +7%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	80.2 ns * +14%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	71.6 ns * +24%

* ... smaller is better

DPC 延迟

使用 LatencyMon 工具，我们已经注意到在 Edge 中打开多个标签页时延迟略有增加。在播放 4K 测试视频时，Minisforum Venus Series NPB5 没有出现任何问题。我们没有看到任何掉帧现象，开始时记录的延迟也没有进一步增加。Prime95 也没有对此产生影响。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1588.3 μs * -95%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	1371.2 μs * -69%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1317 μs * -62%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1113.9 μs * -37%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1087 μs * -34%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1063 μs * -31%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	985.8 μs * -21%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	813.7 μs *
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	795 μs * +2%

* ... smaller is better

存储设备

Minisforum Venus 系列 NPB5 配备了金士顿的 512GB NVMe 固态硬盘。我们在同一制造商生产的许多其他迷你 PC 中都看到过这种型号。不过，它们的性能水平差别很大。NPB5 的性能相当不错，几乎与Minisforum 海王星系列 NAD9 的性能相当。它的读写速率始终保持在较高水平，所安装的型号甚至拥有超过 100 MB/s 的 4K 读取速率。Minisforum 借助主动冷却系统解决了散热问题，以防止固态硬盘在连续负载下性能下降。我们在压力测试中注意到了稳定的读取率，这证实了这是一个很好的解决方案。

Minisforum Venus 系列 NPB5 总共可以安装两个固态硬盘。除了 NVMe 固态硬盘外，还可以安装另一块 M.2 2242 格式的固态硬盘。后者只能达到 SATA 速度。此外，该设备还可容纳 2.5 英寸存储设备。不过，它的最大构建高度只有 7 毫米。

有关进一步的比较和基准测试，请访问我们的比较表。

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kingston OM8PGP4512Q-A0

Sequential Read: 3167 MB/s

Sequential Write: 3530 MB/s

512K Read: 1851 MB/s

512K Write: 1005 MB/s

4K Read: 78.78 MB/s

4K Write: 394.7 MB/s

4K QD32 Read: 850.7 MB/s

4K QD32 Write: 500.1 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	84.4 pt
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	82 pt
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	71.3 pt
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	70.7 pt
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	66.1 pt
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	53.9 pt
Average of class Mini PC	53.5 pt
Geekom Mini IT12 Kingston OM8SEP4512N-A0	39.2 pt
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	29 pt
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	20.1 pt

DiskSpd
seq read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3375 (3310.44^min - 3375.33^max) MB/s 0%
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	3372 (3365.32^min - 3372.43^max) MB/s
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3248 (3141.12^min - 3248.07^max) MB/s -4%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2815 (2802.79^min - 2814.97^max) MB/s -17%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2689 (2681.42^min - 2688.76^max) MB/s -20%
Average of class Mini PC (233 - 4357, n=119, last 2 years)	2288 MB/s -32%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1451 (1441.37^min - 1451.23^max) MB/s -57%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	1414 (1406.14^min - 1414.43^max) MB/s -58%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	1290 (1269.59^min - 1290.1^max) MB/s -62%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1176 (1169.13^min - 1175.87^max) MB/s -65%
seq write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3544 (3538.94^min - 3544.19^max) MB/s +1%
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	3518 (3504.76^min - 3518.39^max) MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3372.67^min - 3402.21^max) MB/s -3%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3360 (1416.73^min - 3360.47^max) MB/s -4%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3148 (613.87^min - 3148.03^max) MB/s -11%
Average of class Mini PC (222 - 5595, n=119, last 2 years)	2448 MB/s -30%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1530 (603.77^min - 1530.08^max) MB/s -57%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1203 (1169.58^min - 1202.51^max) MB/s -66%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	676 (608.43^min - 676.24^max) MB/s -81%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	259 (255.55^min - 258.69^max) MB/s -93%
seq q8 t1 read
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	7654 (6491.54^min - 7653.98^max) MB/s +60%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6729 (6134.8^min - 6728.5^max) MB/s +40%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4801 (4506.78^min - 4800.59^max) MB/s 0%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4797 (4271.21^min - 4796.87^max) MB/s 0%
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	4791 (4243.38^min - 4790.88^max) MB/s
Average of class Mini PC (236 - 8430, n=119, last 2 years)	3706 MB/s -23%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	2557 (2087.92^min - 2556.98^max) MB/s -47%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1987 (1409.4^min - 1987.27^max) MB/s -59%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	1976 (1110.86^min - 1975.52^max) MB/s -59%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1694 (1415.05^min - 1693.87^max) MB/s -65%
seq q8 t1 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3541 (3519.65^min - 3541.04^max) MB/s 0%
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	3533 (3516.71^min - 3532.86^max) MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3374.28^min - 3401.67^max) MB/s -4%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3301 (1115.06^min - 3301.44^max) MB/s -7%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2830 (1138.15^min - 2830.32^max) MB/s -20%
Average of class Mini PC (228 - 6669, n=119, last 2 years)	2743 MB/s -22%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1213 (1155.74^min - 1212.78^max) MB/s -66%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1084 (553.02^min - 1084.16^max) MB/s -69%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	670 (614.49^min - 669.54^max) MB/s -81%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	271 (261.51^min - 270.62^max) MB/s -92%
4k q1 t1 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	82.8 (82.48^min - 82.75^max) MB/s +1%
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	82.3 (82.16^min - 82.3^max) MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.1 (81.4^min - 82.09^max) MB/s 0%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	55.6 (54.87^min - 55.6^max) MB/s -32%
Average of class Mini PC (5.67 - 86.6, n=119, last 2 years)	54.7 MB/s -34%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	51.8 (51.62^min - 51.84^max) MB/s -37%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	48.9 (31.16^min - 48.85^max) MB/s -41%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	48.5 (48.27^min - 48.47^max) MB/s -41%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	48.2 (46.14^min - 48.16^max) MB/s -41%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	27.7 (27.3^min - 27.66^max) MB/s -66%
4k q1 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	425 (415.92^min - 425.01^max) MB/s +5%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	420 (417.55^min - 420.16^max) MB/s +3%
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	406 (403.52^min - 406^max) MB/s
Geekom Mini IT12 Kingston OM8SEP4512N-A0	276 (193.9^min - 275.81^max) MB/s -32%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	220 (212.2^min - 220.15^max) MB/s -46%
Average of class Mini PC (30.4 - 435, n=119, last 2 years)	194.7 MB/s -52%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	183.3 (149.75^min - 183.3^max) MB/s -55%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	177.7 (176.17^min - 177.7^max) MB/s -56%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	126 (96.77^min - 125.97^max) MB/s -69%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	88 (84.11^min - 87.99^max) MB/s -78%
4k q32 t16 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1944 (1936.89^min - 1943.53^max) MB/s 0%
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	1943 (1940.06^min - 1942.8^max) MB/s
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1939 (1934.48^min - 1939.25^max) MB/s 0%
Average of class Mini PC (26.1 - 4158, n=119, last 2 years)	1360 MB/s -30%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1225 (1194.7^min - 1224.8^max) MB/s -37%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	760 (325.52^min - 759.71^max) MB/s -61%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	740 (734.91^min - 739.88^max) MB/s -62%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	700 (683.05^min - 700^max) MB/s -64%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	420 (418.45^min - 419.54^max) MB/s -78%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	354 (11.43^min - 353.56^max) MB/s -82%
4k q32 t16 write
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	3412 (3388.97^min - 3411.66^max) MB/s
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3388 (3373.11^min - 3387.88^max) MB/s -1%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2396 (2376.28^min - 2396.46^max) MB/s -30%
Average of class Mini PC (30.2 - 4288, n=119, last 2 years)	1287 MB/s -62%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	942 (402.72^min - 941.71^max) MB/s -72%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	893 (601.78^min - 892.97^max) MB/s -74%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	635 (272.57^min - 635.12^max) MB/s -81%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	626 (605.6^min - 625.63^max) MB/s -82%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	425 (345.14^min - 425.25^max) MB/s -88%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	210 (203.49^min - 210.22^max) MB/s -94%

AS SSD
Score Total
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	9030 Points +47%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	7134 Points +16%
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	6154 Points
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6005 Points -2%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4744 Points -23%
Average of class Mini PC (181.5 - 10021, n=117, last 2 years)	4121 Points -33%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3361 Points -45%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2491 Points -60%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	2075 Points -66%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	1602 Points -74%
Score Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3635 Points +53%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2391 Points 0%
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	2381 Points
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2356 Points -1%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1673 Points -30%
Average of class Mini PC (61 - 3741, n=117, last 2 years)	1534 Points -36%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1528 Points -36%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	910 Points -62%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	899 Points -62%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	725 Points -70%
Score Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3615 Points +40%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3574 Points +39%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3538 Points +38%
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	2573 Points
Average of class Mini PC (88 - 4371, n=117, last 2 years)	1851 Points -28%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1457 Points -43%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1308 Points -49%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1137 Points -56%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	785 Points -69%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	325 Points -87%
Seq Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	5338 MB/s +29%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	5272 MB/s +28%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	4767 MB/s +15%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4147 MB/s 0%
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	4129 MB/s
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3874.21 MB/s -6%
Average of class Mini PC (291 - 6620, n=117, last 2 years)	3161 MB/s -23%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2789 MB/s -32%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	2302 MB/s -44%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	2229 MB/s -46%
Seq Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3927 MB/s +20%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3385 MB/s +3%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3292 MB/s 0%
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	3283 MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2442 MB/s -26%
Average of class Mini PC (240 - 5783, n=117, last 2 years)	2212 MB/s -33%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1232 MB/s -62%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	882.93 MB/s -73%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	609 MB/s -81%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	277 MB/s -92%
4K Read
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	104.2 MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	103.66 MB/s -1%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	102.97 MB/s -1%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	78.3 MB/s -25%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	66.6 MB/s -36%
Average of class Mini PC (6.08 - 104.3, n=117, last 2 years)	58.9 MB/s -43%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	53.2 MB/s -49%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	48.9 MB/s -53%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	45 MB/s -57%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	27 MB/s -74%
4K Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	365.87 MB/s +4%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	354.53 MB/s 0%
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	353 MB/s
Geekom Mini IT12 Kingston OM8SEP4512N-A0	273 MB/s -23%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	209 MB/s -41%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	209 MB/s -41%
Average of class Mini PC (30.9 - 366, n=117, last 2 years)	175.1 MB/s -50%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	157 MB/s -56%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	150.4 MB/s -57%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	119.3 MB/s -66%
4K-64 Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3035 MB/s +63%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1872.82 MB/s 0%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1865.81 MB/s 0%
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	1864 MB/s
Average of class Mini PC (23.4 - 3220, n=117, last 2 years)	1159 MB/s -38%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1118 MB/s -40%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	947 MB/s -49%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	653 MB/s -65%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	631 MB/s -66%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	397 MB/s -79%
4K-64 Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3120 MB/s +65%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3013 MB/s +59%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2842.9 MB/s +50%
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	1892 MB/s
Average of class Mini PC (32.8 - 3731, n=117, last 2 years)	1455 MB/s -23%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1060 MB/s -44%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	865.27 MB/s -54%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	679 MB/s -64%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	567 MB/s -70%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	146.7 MB/s -92%
Access Time Read
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	0.15 ms * -42%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	0.141 ms * -33%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	0.133 ms * -25%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.117 ms * -10%
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	0.106 ms *
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.098 ms * +8%
Average of class Mini PC (0.022 - 0.489, n=117, last 2 years)	0.09726 ms * +8%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.074 ms * +30%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.066 ms * +38%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.045 ms * +58%
Access Time Write
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	0.263 ms * -748%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	0.183 ms * -490%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.118 ms * -281%
Average of class Mini PC (0.014 - 0.765, n=117, last 2 years)	0.1153 ms * -272%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.11 ms * -255%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	0.088 ms * -184%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.031 ms * -0%
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	0.031 ms *
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.02 ms * +35%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.018 ms * +42%

* ... smaller is better

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0: Ø4780 (4259.19-4798.12)

Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0: Ø3302 (1830.49-4799.45)

Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G: Ø1770 (1505.89-1954.62)

Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0): Ø6430 (5686.85-6828.93)

Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G: Ø1820 (713.49-2039.48)

Geekom Mini IT12 Kingston OM8SEP4512N-A0: Ø2178 (1555.46-2595.65)

ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G: Ø2845 (145.88-3195.22)

Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0: Ø4789 (4164.37-4807.96)

Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ: Ø6536 (5743.42-6561.78)

图形卡

微型 PC 使用集成图形处理器，即英特尔 Iris Xe 图形处理器有 80 个 EU。这使得 Minisforum Venus 系列 NPB5 的速度比 NAB6 稍快，后者只配备了英特尔 Iris Xe 图形处理器NAB6 更快一些。在完全扩展的情况下，英特尔的集成显卡单元可以运行到 96 EU。您可以查看英特尔 NUC 13 Pro 套件作为参考。这也仍然远远落后于 AMD 的竞争对手。英特尔Minisforum 金星系列 UM790 Pro配备了AMD Radeon 780M领先我们的测试样本约 60%。

有关进一步的比较和基准测试，请参阅我们的G PU 对比表.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	99.9 pt
ACEMagician Ace Magician AM08 Pro AMD Radeon 680M, AMD Ryzen 9 6900HX	93.8 pt
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	88.9 pt
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	85.5 pt
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	65.8 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	63.3 pt
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	62.2 pt
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	57.2 pt
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	48.8 pt

3DMark 11 - 1280x720 Performance GPU
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	12384 Points +91%
ACEMagician Ace Magician AM08 Pro AMD Radeon 680M, AMD Ryzen 9 6900HX	11478 Points +77%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	11055 Points +71%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	10399 Points +61%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7143 Points +10%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	7057 Points +9%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6599 Points +2%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	6477 Points
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5462 Points -16%

3DMark
1280x720 Cloud Gate Standard Graphics
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	47968 Points +64%
ACEMagician Ace Magician AM08 Pro AMD Radeon 680M, AMD Ryzen 9 6900HX	41726 Points +43%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	41124 Points +41%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	39814 Points +36%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	30434 Points +4%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	29178 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	27511 Points -6%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	22570 Points -23%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	21383 Points -27%
1920x1080 Fire Strike Graphics
ACEMagician Ace Magician AM08 Pro AMD Radeon 680M, AMD Ryzen 9 6900HX	7303 Points +38%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	7284 Points +37%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6644 Points +25%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6501 Points +23%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5526 Points +4%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	5305 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5229 Points -1%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4860 Points -8%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4098 Points -23%
2560x1440 Time Spy Graphics
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	2632 Points +75%
ACEMagician Ace Magician AM08 Pro AMD Radeon 680M, AMD Ryzen 9 6900HX	2437 Points +62%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2408 Points +60%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2210 Points +47%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1673 Points +11%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1658 Points +10%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1528 Points +1%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	1508 Points
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1217 Points -19%
Fire Strike Extreme Graphics
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	3519 Points +47%
ACEMagician Ace Magician AM08 Pro AMD Radeon 680M, AMD Ryzen 9 6900HX	3408 Points +43%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	3088 Points +29%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	3066 Points +28%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	2455 Points +3%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	2390 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	2340 Points -2%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	2150 Points -10%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1866 Points -22%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1

Performance Rating - Percent
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	95.7 pt
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	78.8 pt
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	78.3 pt
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	78 pt
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	55.3 pt
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	54.4 pt
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	51.2 pt
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	49.2 pt
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	43.8 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	34.2 fps +62%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	33.6 fps +59%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	29.7 fps +41%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	28.9 fps +37%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	23.6 fps +12%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	23.3 fps +10%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	21.1 fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21 fps 0%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	19.7 fps -7%
Extreme Preset DX11
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	32.6 fps +26%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	32.2 fps +25%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	32 fps +24%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	31.1 fps +21%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	25.8 fps
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	24.5 fps -5%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	24 fps -7%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21.7 fps -16%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	20.4 fps -21%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	21 fps +24%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	21 fps +24%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	20.4 fps +20%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	17 fps
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	15.3 fps -10%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	15.1 fps -11%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	14.3 fps -16%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	13.2 fps -22%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	12.8 fps -25%
1920x1080 Extreme HD Preset OpenGL AA:x8
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	22.9 fps +41%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	22.8 fps +41%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	17.7 fps +9%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	17.7 fps +9%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	17 fps +5%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	16.2 fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	16.1 fps -1%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	15.2 fps -6%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	15.1 fps -7%

ComputeMark v2.1
1024x600 Normal, Score
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	10495 Points +233%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	6834 Points +117%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	5813 Points +84%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	5602 Points +78%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	3603 Points +14%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	3390 Points +8%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	3308 Points +5%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	3152 Points
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	2512 Points -20%
1024x600 Normal, Fluid 3DTex
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	427 Points +40%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	413 Points +35%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	393 Points +28%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	371 Points +21%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	306 Points
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	284 Points -7%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points -23%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	234 Points -24%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	216 Points -29%
1024x600 Normal, Fluid 2DTexArr
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	427 Points +43%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	424 Points +42%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	400 Points +34%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	367 Points +23%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	299 Points
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	277 Points -7%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	249 Points -17%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points -21%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	220 Points -26%
1024x600 Normal, Mandel Vector
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	2984 Points +331%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	1914 Points +177%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1677 Points +142%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1582 Points +129%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	911 Points +32%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	851 Points +23%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	827 Points +20%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	692 Points
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	483 Points -30%
1024x600 Normal, Mandel Scalar
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	2808 Points +241%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	1803 Points +119%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1473 Points +79%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1451 Points +76%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	865 Points +5%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	862 Points +5%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	834 Points +1%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	823 Points
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	770 Points -6%
1024x600 Normal, QJuliaRayTrace
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3849 Points +273%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	2279 Points +121%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1924 Points +86%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1776 Points +72%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1268 Points +23%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1191 Points +15%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	1174 Points +14%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	1032 Points
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	823 Points -20%

3DMark 05 Standard		45907 points
3DMark 06 Standard Score		34471 points
3DMark Vantage P Result		26656 points
3DMark 11 Performance		7227 points
3DMark Ice Storm Standard Score		132831 points
3DMark Cloud Gate Standard Score		25911 points
3DMark Fire Strike Score		4962 points
3DMark Fire Strike Extreme Score		2392 points
3DMark Time Spy Score		1731 points
Help

... in comparison

游戏性能

由于其 3D 性能有限，我们不能推荐 Minisforum Venus Series NPB5 用于游戏。我们的测试样品只能在较老的游戏中达到可玩的帧率，而且细节很少--尽管这与 NAB6 相比仍有进步。如果您更看重 3D 性能，那么不妨仔细看看Miniforum 维纳斯系列 UM790 Pro.它的 iGPU 性能明显更好。另外，我们还建议您看看HX99G和NUCXi7- 同样来自 Minisforum。由于采用了集成显卡，这两款机型都能达到不错的游戏性能水平。

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	135.1 fps +39%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	130.7 fps +34%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	113.9 fps +17%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	107.7 fps +11%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	101.7 fps +4%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	97.4 fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	97.2 fps 0%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	86.9 fps -11%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	80.8 fps -17%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	43.3 fps +29%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	42.6 fps +27%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	39.4 fps +18%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	39.3 fps +17%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	33.5 fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	32 fps -4%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	31.1 fps -7%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	28.9 fps -14%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	26.2 fps -22%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	90.7 fps +57%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	90.4 fps +57%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	86.6 fps +50%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	66.4 fps +15%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	59.1 fps +3%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	57.6 fps
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	55.5 fps -4%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	51.8 fps -10%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	46 fps -20%
1920x1080 High Overall Quality (DX11)
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	29 fps +85%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	26.2 fps +67%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	24.1 fps +54%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	17.7 fps +13%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	16.2 fps +3%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	16.2 fps +3%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	15.7 fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	14.8 fps -6%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	12.1 fps -23%

GTA V
1024x768 Lowest Settings possible
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	157.8 (4.54^min, 111.1^P1) fps +9%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	155.4 (6.68^min, 111.1^P1) fps +7%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	152.1 (2.73^min, 100^P1) fps +5%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	144.6 (8.46^min, 100^P1) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	135.3 (26.7^min, 90.9^P1) fps -6%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	129.9 (16.1^min, 83.3^P1) fps -10%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	126.2 (50.6^min, 76.9^P1) fps -13%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	125.5 (11.9^min, 83.3^P1) fps -13%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	119.3 (25.1^min, 76.9^P1) fps -17%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	59.7 (4.52^min, 40^P1) fps +146%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	53.5 (3.46^min, 38.5^P1) fps +120%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	52.2 (11.6^min, 26.3^P1) fps +115%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	49.2 (13.3^min, 33.3^P1) fps +102%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	24.3 (14.7^min, 18.9^P1) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	21 (8.15^min, 16.1^P1) fps -14%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	20.7 (9.05^min, 15.9^P1) fps -15%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	18.6 (8^min, 14.3^P1) fps -23%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	18.5 (6.9^min, 14.3^P1) fps -24%

Far Cry 5
1280x720 Low Preset AA:T
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	80 (69^min) fps +27%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	75 (60^min) fps +19%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	73 (65^min) fps +16%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	68 (58^min) fps +8%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	63 (57^min) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57 (49^min) fps -10%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	50 (41^min) fps -21%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	50 (44^min) fps -21%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	46 (37^min) fps -27%
1920x1080 High Preset AA:T
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	41 (36^min) fps +41%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	40 (35^min) fps +38%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	38 (32^min) fps +31%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	34 (30^min) fps +17%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	29 (25^min) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	27 (24^min) fps -7%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	25 (22^min) fps -14%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (22^min) fps -14%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	22 (19^min) fps -24%

Far Cry New Dawn
1280x720 Low Preset
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	70 (50^min) fps +19%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	66 (50^min) fps +12%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	64 (49^min) fps +8%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	59 (40^min) fps
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	58 (46^min) fps -2%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	52 (31^min) fps -12%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	52 (34^min) fps -12%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	48 (32^min) fps -19%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	46 (28^min) fps -22%
1920x1080 High Preset
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	40 (32^min) fps +33%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	39 (31^min) fps +30%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	37 (29^min) fps +23%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	36 (29^min) fps +20%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	30 (22^min) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	28 (21^min) fps -7%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	28 (22^min) fps -7%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (19^min) fps -17%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	23 (17^min) fps -23%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	150.2 (132.8^min) fps +7%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	140.3 (102.2^min) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	136.9 (106.8^min) fps -2%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	136.8 (122.1^min) fps -2%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	134.7 (102.1^min) fps -4%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	133.4 (119^min) fps -5%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	123.8 (98^min) fps -12%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	110.5 (93.1^min) fps -21%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	108.1 (86.6^min) fps -23%
1920x1080 high (2/3)
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	89.9 (78.3^min) fps +27%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	85.3 (74.5^min) fps +21%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	82.2 (71.4^min) fps +16%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	70.7 (65.7^min) fps
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	69.6 (59.3^min) fps -2%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	68 (62.7^min) fps -4%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	67.6 (59.9^min) fps -4%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	60.9 (55.7^min) fps -14%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	57.8 (54.5^min) fps -18%

	low	med.	high	ultra
GTA V (2015)	144.6	133.8	24.3	10.3
The Witcher 3 (2015)	97.4		33.5	15.7
Dota 2 Reborn (2015)	140.3	101.3	70.7	64.5
Final Fantasy XV Benchmark (2018)	45.6	25.1	17.4
X-Plane 11.11 (2018)	48.7	34.4	30.3
Far Cry 5 (2018)	63	31	29	27
Strange Brigade (2018)	98.7	40.9	32.3	26.2
Shadow of the Tomb Raider (2018)	62.8	27.9	25.9	21.6
Far Cry New Dawn (2019)	59	32	30	27
Metro Exodus (2019)	39.4	18.8	13.7	11
Borderlands 3 (2019)	57.6	25.8	15.7	11.7
GRID Legends (2022)	49.6	39.7	35.5	25.8
Tiny Tina's Wonderlands (2022)	30.3	23.9	14.7	11.4
F1 22 (2022)	46.6	42.5	29.8	22.8
F1 23 (2023)	43	38.4	25.9

通过配备 NvidiaGeForce RTX 3060 Ti 的 eGPU 底座提升 3D 性能

由于 Minisforum Venus 系列 NPB5 配备了 USB4 端口，我们还可以借助 Razer Core X 和 Nvidia RTX 3060 Ti 来查看其 3D 性能。英伟达GeForce RTX 3060 Ti.这一组合似乎非常和谐，因为我们的测试样品在合成测试和游戏测试中都获得了第一名的性能评级。即使是配备相同配件的英特尔 NUC 13 Pro 套件也远远比不上 Minisforum Venus 系列 NPB5。

由于 Thunderbolt 连接的带宽限制，你不能指望获得外置显卡的全部性能。在传统 PC 中，显卡可以通过全部 16 个 PCIe 通道进行通信，性能水平会更高。即便如此，这项测试还是显示了使用合适的配件提高迷你 PC 的 3D 性能是多么快速和容易。

Performance Rating - Percent
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	99.2 pt
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	99.1 pt
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	98.5 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	96.9 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	96.7 pt
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	96.5 pt
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	95.9 pt

3DMark 11 - 1280x720 Performance GPU
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	33577 Points +418%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	33282 Points +414%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	33147 Points +412%
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	33095 Points +411%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32915 Points +408%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32835 Points +407%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32726 Points +405%
	6477 Points

3DMark
2560x1440 Time Spy Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	11031 Points +631%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	11012 Points +630%
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	10891 Points +622%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10777 Points +615%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	10764 Points +614%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10743 Points +612%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10717 Points +611%
	1508 Points
1920x1080 Fire Strike Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	25669 Points +384%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	25163 Points +374%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24905 Points +369%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24657 Points +365%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	24452 Points +361%
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	24396 Points +360%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24360 Points +359%
	5305 Points
3840x2160 Fire Strike Ultra Graphics
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	7114 Points +501%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	7076 Points +498%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	7036 Points +494%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	6996 Points +491%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6977 Points +489%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6967 Points +488%
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	6875 Points +481%
	1184 Points

Unigine Superposition
1280x720 720p Low
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	33051 Points +377%
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	32114 Points +364%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	31403 Points +353%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	28935 Points +318%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	28235 Points +308%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	27744 Points +300%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	27313 Points +294%
	6928 Points
1920x1080 1080p High
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	15114 Points +582%
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	15073 Points +580%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	14936 Points +574%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	14751 Points +566%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	14698 Points +563%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	14660 Points +562%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	14362 Points +548%
	2216 Points
1920x1080 1080p Extreme
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	7146 Points +602%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	7129 Points +600%
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	7115 Points +599%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	7036 Points +591%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	7035 Points +591%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6971 Points +585%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	6894 Points +577%
	1018 Points
3840x2160 4k Optimized
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	9368 Points
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	9335 Points
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	9308 Points
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	9193 Points
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	9152 Points
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	9039 Points
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	8782 Points
7680x4320 8k Optimized
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	4061 Points
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	4054 Points
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	4050 Points
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	4036 Points
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	3989 Points
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	3966 Points
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	3910 Points

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	144.1 fps +748%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	143.1 fps +742%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	139.8 fps +722%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	134.2 fps +689%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	133 fps +682%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	131.7 fps +675%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	131.4 fps +673%
	17 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	125.8 fps +677%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	125.7 fps +676%
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	124.7 fps +670%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	122.7 fps +657%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	122.2 fps +654%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	121.1 fps +648%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	119.2 fps +636%
	16.2 fps

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	170.6 fps +709%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	169.6 fps +704%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	169 fps +701%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	167.3 fps +693%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	167.3 fps +693%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	163.2 fps +673%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	160.7 fps +662%
	21.1 fps
Extreme Preset DX11
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	165.1 fps +540%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	164.8 fps +539%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	161.9 fps +528%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	154.5 fps +499%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	154.3 fps +498%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	152.4 fps +491%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	147.7 fps +472%
	25.8 fps

ComputeMark v2.1
1024x600 Normal, Score
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	28209 Points +795%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	27929 Points +786%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	27847 Points +783%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	27842 Points +783%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	27811 Points +782%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	27740 Points +780%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	27460 Points +771%
	3152 Points
1024x600 Normal, Fluid 3DTex
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	2712 Points +786%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2691 Points +779%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	2689 Points +779%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	2689 Points +779%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	2681 Points +776%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2679 Points +775%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2667 Points +772%
	306 Points
1024x600 Normal, Fluid 2DTexArr
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	2647 Points +785%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2622 Points +777%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	2621 Points +777%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2619 Points +776%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	2619 Points +776%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	2614 Points +774%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2598 Points +769%
	299 Points
1024x600 Normal, Mandel Vector
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	5817 Points +741%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	5738 Points +729%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	5726 Points +727%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	5694 Points +723%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	5689 Points +722%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	5655 Points +717%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	5606 Points +710%
	692 Points
1024x600 Normal, Mandel Scalar
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	6392 Points +677%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	6317 Points +668%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6306 Points +666%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	6275 Points +662%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	6253 Points +660%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6251 Points +660%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6202 Points +654%
	823 Points
1024x600 Normal, QJuliaRayTrace
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	10642 Points +931%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	10564 Points +924%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	10555 Points +923%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	10548 Points +922%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10539 Points +921%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10536 Points +921%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10388 Points +907%
	1032 Points

Performance Rating - Percent
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	99.2 pt
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	93.5 pt
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	91.9 pt
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	91.4 pt
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	86.5 pt
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	84.1 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	82.1 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	80.3 pt

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	111.9 (15.9^min, 71.4^P1 - 206^max) fps +986%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	100.6 (9.76^min, 66.7^P1 - 197.6^max) fps +877%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	96.6 (15^min, 66.7^P1 - 168.7^max) fps +838%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	93.6 (18.1^min, 66.7^P1 - 185.1^max) fps +809%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	93.3 (11.5^min, 58.8^P1 - 195.1^max) fps +806%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	90.5 (15.8^min, 62.5^P1 - 187.2^max) fps +779%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	89.5 (16.6^min, 58.8^P1 - 175.8^max) fps +769%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	88.7 (13.3^min, 22.2^P1 - 196.2^max) fps +761%
	10.3 (4.68^min, 5.59^P1 - 44.6^max) fps

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	75.4 fps +380%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	74.8 fps +376%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	73.8 fps +370%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	64.8 fps +313%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	58.4 fps +272%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	57.9 fps +269%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	56.4 fps +259%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	56.3 fps +259%
	15.7 fps

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	143.3 (121^min) fps +122%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	128.3 (106.8^min) fps +99%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	127.5 (110.1^min) fps +98%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	126.2 (108.1^min) fps +96%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	121.2 (104.6^min) fps +88%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	113.8 (93.5^min) fps +76%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	113.3 (94.8^min) fps +76%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	111.7 (92.8^min) fps +73%
	64.5 (58.2^min) fps

Final Fantasy XV Benchmark - 1920x1080 High Quality
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	99.8 fps +474%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	98.7 fps +467%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	98.5 fps +466%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	97.4 fps +460%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	93.5 fps +437%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	92.2 fps +430%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	91.8 fps +428%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	91.5 fps +426%
	17.4 fps

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	159.2 (21.7^min, 103.6^P1 - 296^max) fps +508%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	157.9 (77.9^min, 97.3^P1 - 300^max) fps +503%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	150 (76.6^min, 93.3^P1 - 295^max) fps +473%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	147 (76.9^min, 90.8^P1 - 300^max) fps +461%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	138.4 (68^min, 84.1^P1 - 279^max) fps +428%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	135 (67.5^min, 82.2^P1 - 274^max) fps +415%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	131.1 (68.1^min, 78.3^P1 - 270^max) fps +400%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	127.4 (45.3^min, 77.9^P1 - 260^max) fps +386%
	26.2 (5.2^min, 9.1^P1 - 326^max) fps

Far Cry 5 - 1920x1080 Ultra Preset AA:T
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	130 (108^min - 164^max) fps +381%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	117 (88^min - 156^max) fps +333%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	116 (88^min - 153^max) fps +330%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	114 (85^min - 152^max) fps +322%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	111 (90^min - 149^max) fps +311%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	111 (86^min - 148^max) fps +311%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	107 (72^min - 143^max) fps +296%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	104 (77^min - 138^max) fps +285%
	27 (24^min - 32^max) fps

Far Cry New Dawn - 1920x1080 Ultra Preset
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	112 (85^min - 152^max) fps +315%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	99 fps +267%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	97 (69^min - 141^max) fps +259%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	95 (69^min - 143^max) fps +252%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	93 (68^min - 140^max) fps +244%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	92 (65^min - 143^max) fps +241%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	88 (63^min - 132^max) fps +226%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	87 (62^min - 135^max) fps +222%
	27 (19^min - 34^max) fps

Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	86 fps +635%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	83.2 fps +611%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	82.8 fps +608%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	80.8 fps +591%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	79.5 fps +579%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	77.9 fps +566%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	76.4 fps +553%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	69.8 fps +497%
	11.7 fps

F1 22 - 1920x1080 Ultra High Preset AA:T AF:16x
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	31.2 (18^min, 9^P1 - 46^max) fps +37%
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	28.9 (16^min, 7^P1 - 46^max) fps +27%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	28.5 (16^min, 8^P1 - 46^max) fps +25%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	27.8 (18^min, 7^P1 - 38^max) fps +22%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	24.1 (13^min, 7^P1 - 40^max) fps +6%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	23.6 (12^min, 6^P1 - 38^max) fps +4%
	22.8 (19^min, 17^P1 - 26^max) fps
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	22.6 (13^min, 6^P1 - 36^max) fps -1%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	20.5 (12^min, 6^P1 - 29^max) fps -10%

Tiny Tina's Wonderlands - 1920x1080 Badass Preset (DX12)
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	81.7 fps +617%
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	81.5 fps +615%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	80.7 fps +608%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	80.4 fps +605%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	76 fps +567%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	75.3 fps +561%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	74.8 fps +556%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	74.1 fps +550%
	11.4 fps

	low	med.	high	ultra	QHD	4K
GTA V (2015)	185	179.8	175.2	111.9	95.4	103.8
The Witcher 3 (2015)	311.1	211.4	152.8	75.4		71.3
Dota 2 Reborn (2015)	184.6	164.6	155.5	143.3		108.2
Final Fantasy XV Benchmark (2018)	195.4	144.2	99.8		76.2	48.1
X-Plane 11.11 (2018)	138.1	122.1	98.2			84.2
Far Cry 5 (2018)	175	149	137	130	102	59
Strange Brigade (2018)	224	173.5	166.1	159.2	130	84.9
Shadow of the Tomb Raider (2018)	170.7	112.7	107.7	99.8	79.8	49.8
Far Cry New Dawn (2019)	151	131	124	112	96	60
Metro Exodus (2019)	149.5	93.6	54.1	53.4	46.4	33.8
Borderlands 3 (2019)	162.3	136.8	107	86	65.8	38.6
Far Cry 6 (2021)	81.4	68.5	56	48.7	46.9
GRID Legends (2022)	125.7	100.6	84.8	71.5	64.3	50.9
Tiny Tina's Wonderlands (2022)	175.8	139.7	100.4	81.5	61.8	36.3
F1 22 (2022)	64.6	57	44.2	28.9	28.3	19.7
F1 23 (2023)	69.6	68.9	55.8	35.9	32.8	17.4

排放 - 性能好，但功耗高

噪音排放

在我们的噪音测试中，Minisforum 推出的设备似乎总是比较安静。对于 Minisforum Venus 系列 NPB5，我们的感受略有不同。首先，我们注意到测试样品在空闲模式下运行非常安静。在低于 28 分贝（A）的情况下，你几乎听不到迷你 PC 的声音。在负载模式下，情况很快发生了变化，我们测得的峰值为 45.8 dB(A)。这是一个相当高的数值，但还不足以让人感到非常恼火。此外ACEMagician AM08 Pro的噪声发射测量值可高达 47.8 dB(A)。在平均负载下，我们测得的平均值为 38.9 dB(A)。

Noise Level

Idle		27.8 / 27.8 / 27.9 dB(A)
Load		38.9 / 45.8 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 25.1 dB(A)

	Minisforum Venus Series NPB5 i5-13500H, Iris Xe G7 80EUs	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Minisforum Venus Series UM790 Pro R9 7940HS, Radeon 780M	Geekom AS 6, R9 6900HX R9 6900HX, Radeon 680M	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	ACEMagician Ace Magician AM08 Pro R9 6900HX, Radeon 680M	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs
Noise		1%	-5%	-4%	-10%	1%	-14%	-1%	-8%
off / environment *	25.1	30.2 -20%	30.4 -21%	29.7 -18%	30 -20%	29.8 -19%	30 -20%	29.4 -17%	29.8 -19%
Idle Minimum *	27.8	30.5 -10%	30.9 -11%	31.7 -14%	33.2 -19%	29.9 -8%	31.3 -13%	29.4 -6%	30.2 -9%
Idle Average *	27.8	30.5 -10%	31.5 -13%	31.7 -14%	33.6 -21%	30.1 -8%	31.3 -13%	29.5 -6%	31.1 -12%
Idle Maximum *	27.9	30.5 -9%	31.5 -13%	31.7 -14%	33.6 -20%	30.2 -8%	31.4 -13%	29.7 -6%	31.9 -14%
Load Average *	38.9	30.5 22%	37.5 4%	32.8 16%	36.8 5%	32.1 17%	47.6 -22%	34.6 11%	40 -3%
Load Maximum *	45.8	30.5 33%	34.1 26%	35.2 23%	39.8 13%	32.5 29%	47.8 -4%	36.1 21%	40.5 12%
Witcher 3 ultra *				32.8

* ... smaller is better

温度

Minisforum Venus Series NPB5 的外壳在无负载的情况下仅有轻微发热。另一方面，在压力测试中，金属表面变得相当热。机身右侧和背面都有通风口，使用时不应遮盖。值得庆幸的是，在我们的测试过程中，这些区域的热热点被控制在了一定范围内。

在 Prime95 的压力测试中，英特尔酷睿 i5-13500H 的最高温度达到 91 °C，这可以归因于其高达 95 瓦的功耗。达到最高温度后，系统芯片的功耗进一步降低到 45 瓦左右。之后，温度逐渐下降，平均温度为 70 °C，处理器没有达到任何临界值。

耗电量

说到功耗，Minisforum Venus Series NPB5 开始让人产生许多疑问。在空闲模式下，该设备看起来并不起眼，尽管它并不是最省钱的 PC 之一，功耗在 8.4 到 14.5 瓦之间。在负载模式下，我们测得的数值非常高，峰值为 149 瓦。其中 95 瓦由 SoC 使用，其余（约 50 瓦）由其他组件使用。电源的额定功率为 120 瓦，这意味着它经常超载，即使只是短时间的超载。

因此，我们更换了一个电源，再次进行测试。然而，结果还是一样。这意味着我们可以排除电源连接器故障的可能性。进行测量后，我们与制造商取得了联系，以排除任何问题。他们向我们保证不存在任何问题，所提供的电源连接器能够处理这些短时间的过载。

在我们的测试过程中，系统从未出现过死机的情况，而死机本应是电力供应不足的先兆。

Power Consumption

Off / Standby	1.5 / 2.6 Watt
Idle	8.4 / 11.3 / 14.5 Watt
Load	70 / 149 Watt


Key: min: , med: , max: Metrahit Energy

	Minisforum Venus Series NPB5 i5-13500H, Iris Xe G7 80EUs	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Minisforum Venus Series UM790 Pro R9 7940HS, Radeon 780M	Geekom AS 6, R9 6900HX R9 6900HX, Radeon 680M	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	ACEMagician Ace Magician AM08 Pro R9 6900HX, Radeon 680M	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	Average Intel Iris Xe Graphics G7 80EUs	Average of class Mini PC
Power Consumption		-12%	7%	30%	23%	35%	9%	2%	30%	45%	7%
Idle Minimum *	8.4	12.1 -44%	9.9 -18%	4.6 45%	6.8 19%	5 40%	9.6 -14%	10.4 -24%	5.1 39%	4.48 ?(2.3 - 15.8, n=105) 47%	9.48 ?(1.9 - 45.7, n=119, last 2 years) -13%
Idle Average *	11.3	13 -15%	11 3%	6 47%	9.4 17%	7 38%	9.9 12%	12.3 -9%	5.8 49%	7.37 ?(3.5 - 16.8, n=105) 35%	11.5 ?(1.9 - 47.5, n=117, last 2 years) -2%
Idle Maximum *	14.5	18.2 -26%	11.2 23%	10.6 27%	13.7 6%	10.7 26%	11.8 19%	12.4 14%	10.2 30%	9.24 ?(4.5 - 17, n=105) 36%	14.9 ?(2.6 - 57.1, n=119, last 2 years) -3%
Load Average *	70	70.6 -1%	74.2 -6%	72.5 -4%	45.3 35%	50.3 28%	77.5 -11%	72.9 -4%	68.1 3%	36.4 ?(14.3 - 70, n=103) 48%	57.4 ?(11.3 - 170.6, n=119, last 2 years) 18%
Load Maximum *	149	113 24%	103.2 31%	94.6 37%	94.8 36%	82 45%	89.8 40%	101.2 32%	108.3 27%	61.7 ?(24.2 - 149, n=105) 59%	97.5 ?(18.1 - 423, n=119, last 2 years) 35%
Cyberpunk 2077 ultra external monitor *				95.7

* ... smaller is better

Power consumption with external monitor

Minisforum Venus Series NPB5; Prime95 V2810 Stress (external Monitor): Ø79 (66.3-144.5)

Minisforum Venus Series NPB5; Cinebench R15 Multi (external Monitor): Ø136.5 (135.5-137.4)

Minisforum Venus Series NPB5; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø54 (51-62.1)

Minisforum Venus Series NPB5; 1920x1080 The Witcher 3 ultra (external Monitor): Ø71.9 (70.3-87.9)

Minisforum Venus Series NPB5; Idle 1min (external Monitor): Ø12.2 (11.2-14.5)

Minisforum Venus Series NPB5; Cinebench R23 Single (external Monitor): Ø34 (31.9-81.6)

Minisforum Venus Series NPB5; Cinebench R23 Multi (external Monitor): Ø99.6 (65.5-137)

Pros

+ 设计美观时尚

+ 机箱非常稳定

+ DDR5 内存

+ SoC 可充分发挥其潜能

+ 最多可同时连接四台显示器

+ 2x USB4

+ 双 2.5 位/秒以太网

+ 无需工具即可打开（机箱盖）

+ 稳定的固态硬盘性能

Cons

- 没有 SD 读卡器

- 负载时可听到冷却装置的声音

- 主动式固态硬盘冷却器存在问题

- 120 瓦电源接口的功率明显过大

结论：英特尔酷睿 i5-13500H 的全面性能

Minisforum Venus Series NPB5 评论 - 测试样品由 Minisforum 提供

随着 Minisforum Venus 系列 NPB5 的发布，该制造商对其产品进行了精心呵护，同时也拓宽了其产品组合。这款基于英特尔酷睿 i5-13500H 处理器的新款迷你电脑拥有 12 个内核和 16 个线程，这意味着它比英特尔酷睿 i7-12650H 处理器的性能更好一些。然而，性能的提升是以更高的功耗值为代价的。即便如此，我们仍能发现这款较新的 Raptor Lake-H 型号的一系列优势。例如，由于采用了包括 USB4 在内的连接选项，它现在可以确保面向未来。这也意味着它的用途更加广泛。在测试过程中，我们注意到 Minisforum Venus 系列 NPB5 甚至有可能在外置显卡的帮助下变成一台成熟的游戏电脑。它拥有大量的端口，有时甚至比竞争对手还要多。此外，该设备还拥有两个 2.5 位 LAN 插座，这在迷你 PC 中并不常见。

Minisforum Venus 系列 NPB5 是一款出色的工作设备，具有多种连接选项。遗憾的是，这款设备并没有在众多迷你 PC 中脱颖而出。

我们喜欢它精美的构造，包括高品质的材料选择。然而，它只是缺少了一些额外的东西。例如，如果能采用全铝外壳就更好了，这将使该设备在质量上更上一层楼。我们只能部分理解使用主动冷却系统的原因，因为即使没有冷却，固态硬盘的性能也不会下降。值得庆幸的是，小型散热器在负载情况下不会造成太大的噪音。

制造商选择的电源适配器有点糟糕。根据电脑的实测功耗，我们本以为至少需要一个 150 瓦的适配器。例如，Geekom AS 6 就有一个这样的适配器。说到竞争对手，采用 AMD 处理器的机型也有速度更快的 iGPU。如果你想继续忠于 Minisforum，那么不妨看看Minisforum Venus Series UM790 Pro ，售价约为 640 美元。

价格和供应情况

在撰写本文时，Minisforum Venus Series NPB5可直接从制造商的网站上购买。配备 32 GB 内存和 1 TB 固态硬盘的版本价格为$569。.您可以购买裸机版本，价格为 389 美元。.

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Minisforum Venus Series NPB5 - 08/01/2023 v7 ^(old)
Sebastian Bade

Chassis

82 / 98 → 84%

Connectivity

63 / 81 → 78%

Weight

81%

Games Performance

71%

Application Performance

91%

Workstation

58%

Noise

84%

Average

76%

82%

Mini PC - Weighted Average

Minisforum Venus 系列 NPB5 评测：搭载 Raptor Lake-H 也就是英特尔酷睿 i5-13500H 和 USB4 的迷你 PC

猛禽湖动力十足！

潜在的竞争对手比较

Minisforum 维纳斯系列 NPB5 的详细介绍

外壳 - 铝和塑料的组合

尺寸比较

连通性 - 所有领域的完美选择

交流

配件

维护

性能 - 英特尔 Raptor Lake-H，12 个核心和 16 个线程

测试条件

处理器

Minisforum Venus Series NPB5 与 Cinebench R15 多环路比较

系统性能

DPC 延迟

存储设备

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

图形卡

游戏性能

通过配备 NvidiaGeForce RTX 3060 Ti 的 eGPU 底座提升 3D 性能

排放 - 性能好，但功耗高

噪音排放

温度

耗电量

Power consumption with external monitor

Pros

Cons

结论：英特尔酷睿 i5-13500H 的全面性能

价格和供应情况

Transparency

More articles related to this device
