联想Yoga 7 14 G7评测。采用AMD Ryzen 7 6800U的多媒体敞篷车大放异彩

Ryzen, OLED & USB 4.

通过新的Yoga 7,联想提供了一个非常激动人心的14英寸可折叠机,使用最新的AMD Ryzen 7 6800U。性能值非常好,但该设备的其他部分也达到了要求吗?瑜伽7也许比瑜伽9i还要好吗?
AMD Laptop / Notebook Convertible / 2-in-1 Touchscreen Windows

我们最近评测了联想最新的旗舰型敞篷车,即Yoga 9i 14。 瑜伽9i 14。这次评测的主题,Yoga 7 14,在产品层次上要低一个档次,但由于它使用了相对较新的AMD处理器,因此也不乏趣味。我们只测试了 Ryzen 7 6800U华硕的Zenbook S 13到目前为止,这就是为什么我们非常好奇它在这款14英寸的可折叠电脑上会有怎样的表现。

我们的样品设备,型号为82QF0018GE的Yoga 7 14 G7,建议零售价为1499欧元(约1500美元),配备了上述的Ryzen 7 6800U,一个集成的680M-GPU16GB内存,1TB固态硬盘和90Hz OLED面板。

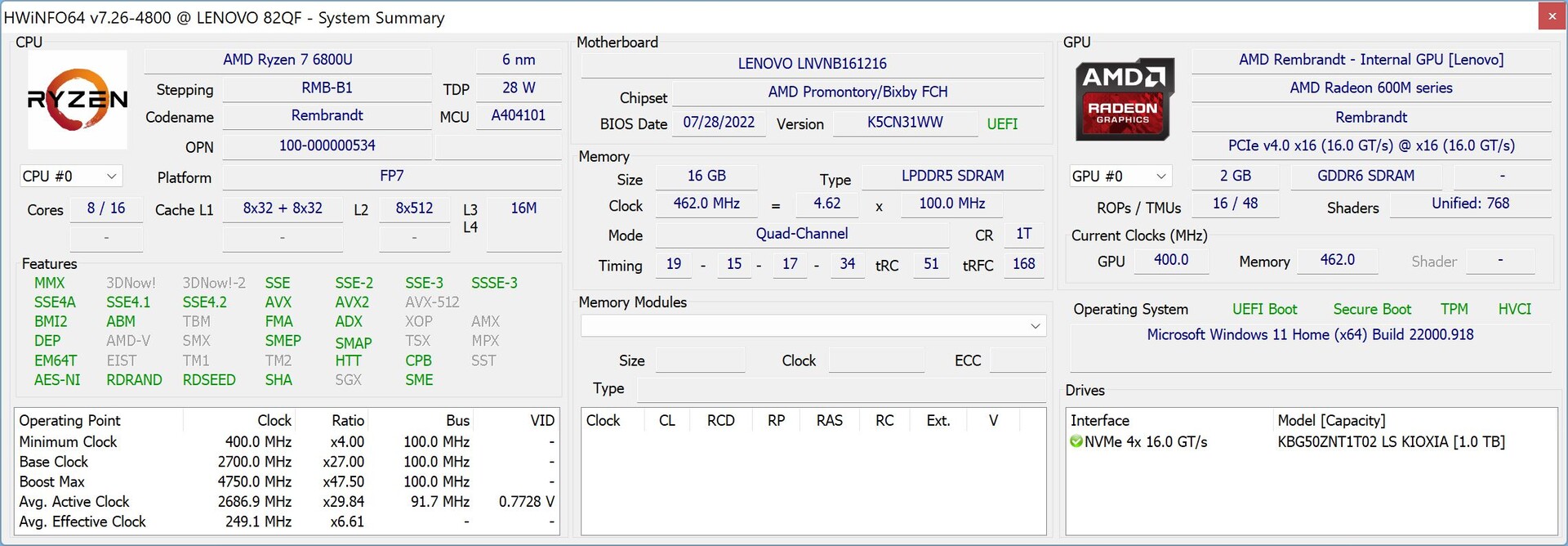

Lenovo Yoga 7-14ARB G7 (Yoga 7 Series)
Processor
AMD Ryzen 7 6800U 8 x 2.7 - 4.7 GHz, 45 W PL2 / Short Burst, 25 W PL1 / Sustained, Rembrandt-U (Zen 3+)
Graphics adapter
AMD Radeon 680M
Memory
16 GB
, LPDDR5-6400, Dual-Channel, onboard
Display
14.00 inch 16:10, 2880 x 1800 pixel 243 PPI, capacitive, LEN140WQ+, OLED, glossy: yes, HDR, 90 Hz
Mainboard
AMD Promontory/Bixby FCH
Storage
Kioxia BG5 KBG50ZNT1T02, 1024 GB
, 905 GB free
Soundcard
AMD Zen - Audio Processor - HD Audio Controller
Connections
1 USB 3.1 Gen2, 1 USB 3.2 Gen 2x2 20Gbps, 1 USB 4.0 40 Gbps, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, Audio Connections: 3.5 mm, Card Reader: microSD
Networking
MediaTek RZ616 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2
Size
height x width x depth (in mm): 17.4 x 317 x 220
Battery
71 Wh Lithium-Ion, 4-cell
Operating System
Microsoft Windows 11 Home
Camera
Webcam: 1080p
Primary Camera: 2 MPix
Additional features
Speakers: 4 Stereo Speakers (2x 2W woofer & 2x 2W tweeter), Keyboard: Chiclet, Keyboard Light: yes, 65W PSU, Lenovo Vantage, 24 Months Warranty
Weight
1.43 kg, Power Supply: 338 g
Price
1349 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



潜在的竞争对手比较

Rating
Date
Model
Weight
Height
Size
Resolution
Price
90 %
v7 (old)
09 / 2022
Lenovo Yoga 7-14ARB G7
R7 6800U, Radeon 680M
1.4 kg17.4 mm14.00"2880x1800
from EUR 1349
90.3 %
v7 (old)
08 / 2022
HP Spectre x360 13.5 14t-ef000
i7-1255U, Iris Xe G7 96EUs
1.4 kg17 mm13.50"3000x2000
Alternative specs USD 1,499.00
89.8 %
v7 (old)
08 / 2022
Dell Latitude 9430 2-in-1
i7-1265U, Iris Xe G7 96EUs
1.5 kg13.94 mm14.00"2560x1600
Alternative specs USD 1,098.90
83.7 %
v7 (old)
06 / 2022
Dell Inspiron 14 7420 2-in-1
i7-1255U, Iris Xe G7 96EUs
1.6 kg17.86 mm14.00"1920x1200
Alternative specs USD 777.99
90.6 %
v7 (old)
05 / 2022
Lenovo Yoga 9i 14 2022 i7-1260P
i7-1260P, Iris Xe G7 96EUs
1.4 kg15.25 mm14.00"3840x2400
from EUR 2000
90.1 %
v7 (old)
07 / 2022
Asus Zenbook S 13 OLED
R7 6800U, Radeon 680M
1.1 kg14.9 mm13.30"2880x1800
Alternative specs USD 635.99

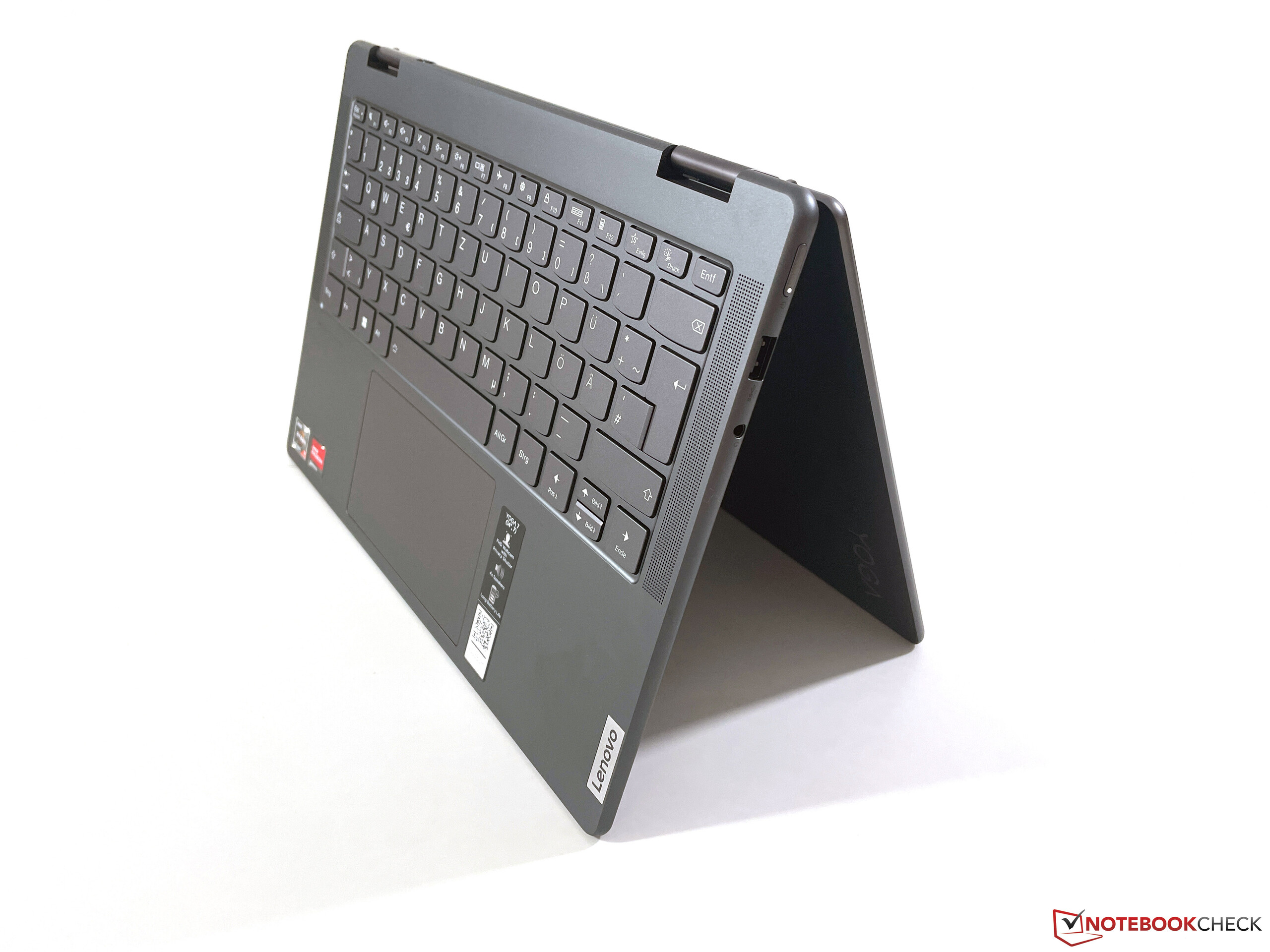

外壳 - 瑜珈7的铝制外壳

深灰色的Yoga 7 14类似于更昂贵的 瑜伽9i在设计方面类似于更昂贵的Yoga 9i,并且也使用了圆角。显示屏盖也比基本单元略小,这一点在屏幕向下翻转、将可折叠机作为平板电脑使用时尤其明显。这款 瑜伽9i然而,由于在底座上使用了抛光的金属,它的外观更显高档。但Yoga 7的铝制一体成型外壳一点也不含糊:我们的评测样品在稳定性和触觉方面给人留下了非常高质量的印象。底座和显示屏盖子都不会凹陷,也没有吱吱作响的声音。

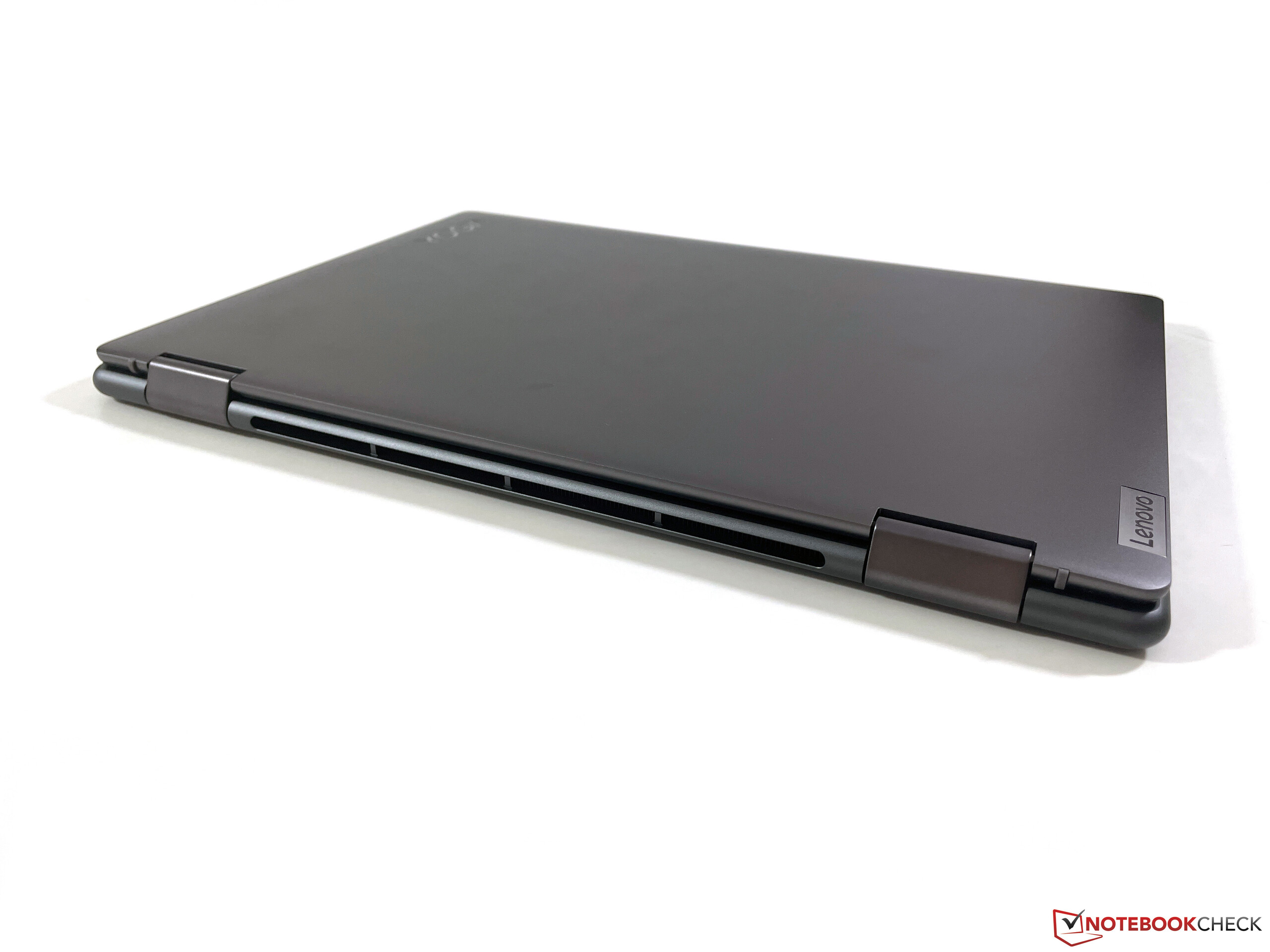

瑜伽9i的中央铰链没有 瑜伽9i(包括扬声器),这里使用了两个铰链,调整得非常好,有效地防止了显示器的摇晃。单手打开是可能的,但不是那么容易。Yoga 7 14还可以选择浅蓝色(石蓝)。指纹不是一个大问题,至少在我们的版本中不是这样。

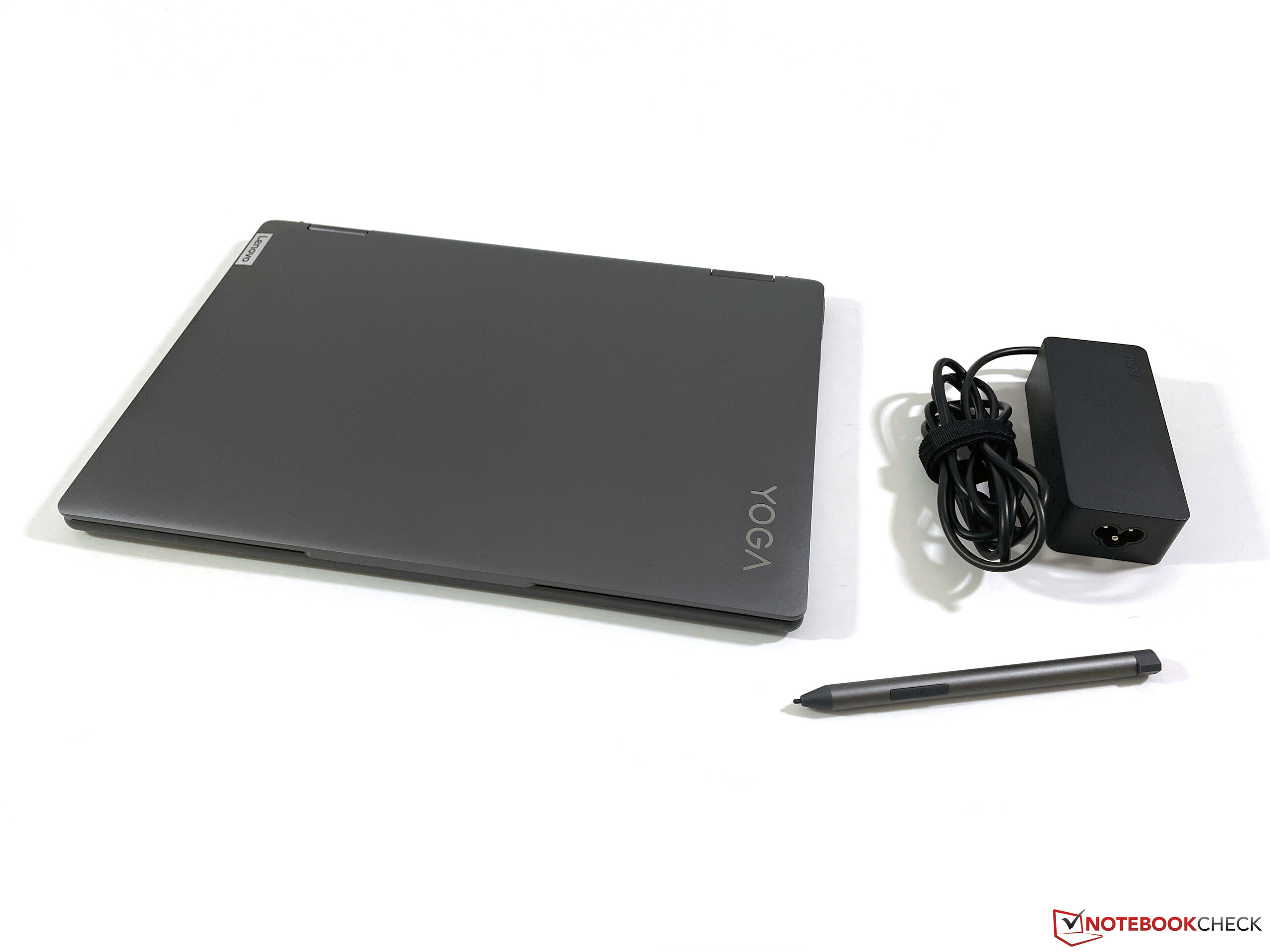

瑜伽7 14的重量约为1.4公斤,是折叠式电脑中的领先者之一,但更昂贵的瑜伽9i甚至更薄。附带的65瓦电源适配器是熟悉的联想USB-C适配器,重量为338克。

尺寸比较

320.4 mm 214.6 mm 17.7 mm 1.5 kg317 mm 220 mm 17.4 mm 1.4 kg318 mm 230 mm 15.25 mm 1.4 kg314 mm 227.5 mm 17.86 mm 1.6 kg310.59 mm 215.18 mm 13.94 mm 1.5 kg298 mm 220 mm 17 mm 1.4 kg296.7 mm 210.5 mm 14.9 mm 1.1 kg297 mm 210 mm 1 mm 5.7 g

设备 - 带有USB 4的AMD敞篷车

在重要的连接标准方面没有任何牺牲。除了USB-C和USB-A端口外,还有一个读卡器和一个成熟的HDMI输出。特别是前面的USB-C端口是一个亮点,因为它支持现代的USB 4.0标准。除了内部显示器外,iGPU还可以为三个额外的显示器供电。

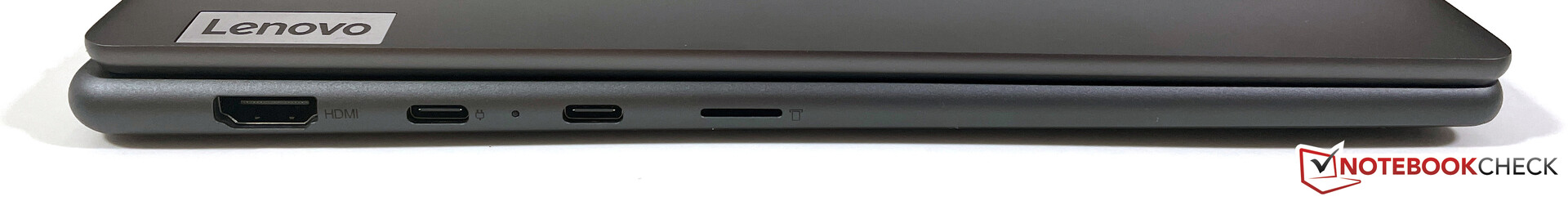

左边:HDMI 2.1,USB-C 3.2 Gen 2(10 Gbps,DisplayPort ALT模式1.4,Power Delivery),USB-C 4(40 Gbps,DisplayPort ALT模式1.4,Power Delivery 3.0)microSD阅读器
左边:HDMI 2.1,USB-C 3.2 Gen 2(10 Gbps,DisplayPort ALT模式1.4,Power Delivery),USB-C 4(40 Gbps,DisplayPort ALT模式1.4,Power Delivery 3.0)microSD阅读器

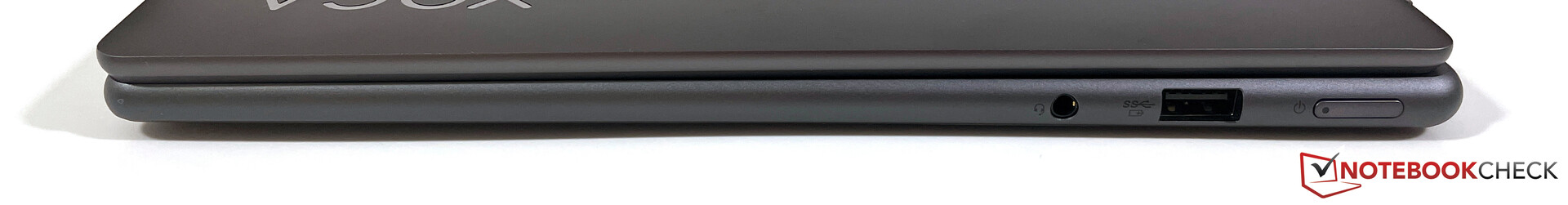

右边:3.5毫米音频,USB-A 3.2 Gen 2,电源按钮
右边:3.5毫米音频,USB-A 3.2 Gen 2,电源按钮

SD卡阅读器

Yoga 7 14在左侧提供了一个microSD读卡器,使用了一个弹簧机制。插入时,卡会稍微伸出来,但这也使移除变得更加容易。在速度方面,读卡器的表现一般,我们用Angelbird AV Pro V60参考卡测得的峰值略高于90MB/s,复制图像文件时略低于80MB/s。

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Dell Latitude 9430 2-in-1
Intel Core i7-1265U (AV Pro UHS-II V60)
153.7 MB/s +94%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U (Angelbird AV Pro V60)
79.3 MB/s
Average of class Convertible
  (22.4 - 209, n=29, last 2 years)
72.4 MB/s -9%
HP Spectre x360 13.5 14t-ef000
Intel Core i7-1255U (AV Pro UHS-II V60)
49.2 MB/s -38%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U (Toshiba Exceria Pro SDXC 64 GB UHS-II)
20.91 MB/s -74%
maximum AS SSD Seq Read Test (1GB)
Dell Latitude 9430 2-in-1
Intel Core i7-1265U (AV Pro UHS-II V60)
169 MB/s +85%
Average of class Convertible
  (25.2 - 256, n=28, last 2 years)
106.1 MB/s +16%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U (Angelbird AV Pro V60)
91.5 MB/s
HP Spectre x360 13.5 14t-ef000
Intel Core i7-1255U (AV Pro UHS-II V60)
79.9 MB/s -13%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U (Toshiba Exceria Pro SDXC 64 GB UHS-II)
27.43 MB/s -70%

沟通

联想部署了一个来自联发科的Wi-Fi模块(RZ616,2x2),除了目前的Wi-Fi 6E标准外,还支持蓝牙5.2。然而,我们无法连接到华硕的参考路由器的6GHz网络。在5GHz网络中,近1.7GBit/s的传输率非常好,而且非常稳定。在测试过程中,没有发现范围或距离方面的问题。

Networking
iperf3 transmit AXE11000
Lenovo Yoga 7-14ARB G7
MediaTek RZ616
1694 (1593min - 1761max) MBit/s
Asus Zenbook S 13 OLED
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
1492 (1365min - 1583max) MBit/s -12%
Average of class Convertible
  (131.3 - 1834, n=62, last 2 years)
1151 MBit/s -32%
Average MediaTek RZ616
  (593 - 1793, n=18)
1126 MBit/s -34%
iperf3 receive AXE11000
Lenovo Yoga 7-14ARB G7
MediaTek RZ616
1707 (1675min - 1724max) MBit/s
Asus Zenbook S 13 OLED
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
1553 (1443min - 1620max) MBit/s -9%
Average MediaTek RZ616
  (750 - 1752, n=18)
1551 MBit/s -9%
Average of class Convertible
  (492 - 1755, n=63, last 2 years)
1296 MBit/s -24%
iperf3 transmit AXE11000 6GHz
Lenovo Yoga 9i 14 2022 i7-1260P
Intel Wi-Fi 6E AX211
1613 (1478min - 1688max) MBit/s
Average MediaTek RZ616
  (432 - 1767, n=10)
1324 MBit/s
HP Spectre x360 13.5 14t-ef000
Intel Wi-Fi 6E AX211
1321 (960min - 1431max) MBit/s
Dell Inspiron 14 7420 2-in-1
Intel Wi-Fi 6E AX211
1283 (1220min - 1318max) MBit/s
Average of class Convertible
  (685 - 1775, n=42, last 2 years)
1276 MBit/s
Dell Latitude 9430 2-in-1
Intel Wi-Fi 6E AX211
1082 (994min - 1138max) MBit/s
iperf3 receive AXE11000 6GHz
Average MediaTek RZ616
  (984 - 1738, n=10)
1483 MBit/s
Lenovo Yoga 9i 14 2022 i7-1260P
Intel Wi-Fi 6E AX211
1467 (1440min - 1493max) MBit/s
Dell Latitude 9430 2-in-1
Intel Wi-Fi 6E AX211
1447 (1316min - 1494max) MBit/s
Average of class Convertible
  (824 - 1771, n=44, last 2 years)
1415 MBit/s
Dell Inspiron 14 7420 2-in-1
Intel Wi-Fi 6E AX211
1412 (1379min - 1476max) MBit/s
HP Spectre x360 13.5 14t-ef000
Intel Wi-Fi 6E AX211
1137 (1033min - 1230max) MBit/s
0501001502002503003504004505005506006507007508008509009501000105011001150120012501300135014001450150015501600165017001750Tooltip
Lenovo Yoga 7-14ARB G7; iperf3 receive AXE11000; iperf 3.1.3: Ø1706 (1675-1724)
Lenovo Yoga 7-14ARB G7; iperf3 transmit AXE11000; iperf 3.1.3: Ø1694 (1593-1761)

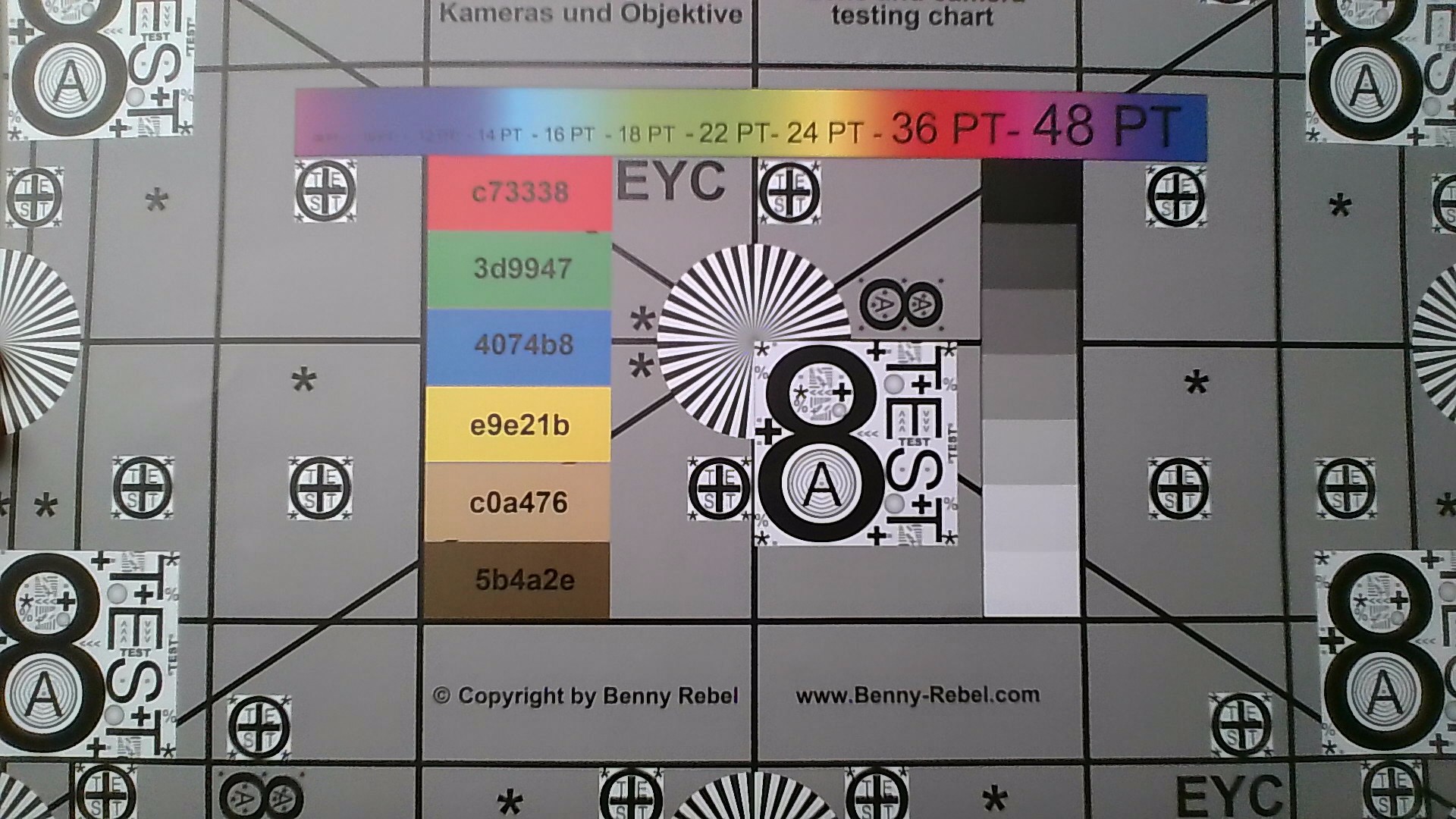

网络摄像头

显示器上方是一个红外摄像头以及一个1080p网络摄像头,包括一个机械快门,但事实证明这有点难用。该摄像头的质量比以前的720p模块有改进,你也可以看到视频会议的改进。

ColorChecker
6.3 ∆E
14.5 ∆E
14.6 ∆E
13 ∆E
11.3 ∆E
11.3 ∆E
9.4 ∆E
17.1 ∆E
13.2 ∆E
9 ∆E
12 ∆E
7.2 ∆E
6.5 ∆E
11.6 ∆E
11.1 ∆E
7.4 ∆E
6.4 ∆E
11.7 ∆E
2.3 ∆E
5.9 ∆E
6.1 ∆E
6.4 ∆E
7.3 ∆E
10.8 ∆E
ColorChecker Lenovo Yoga 7-14ARB G7: 9.68 ∆E min: 2.26 - max: 17.1 ∆E

维护

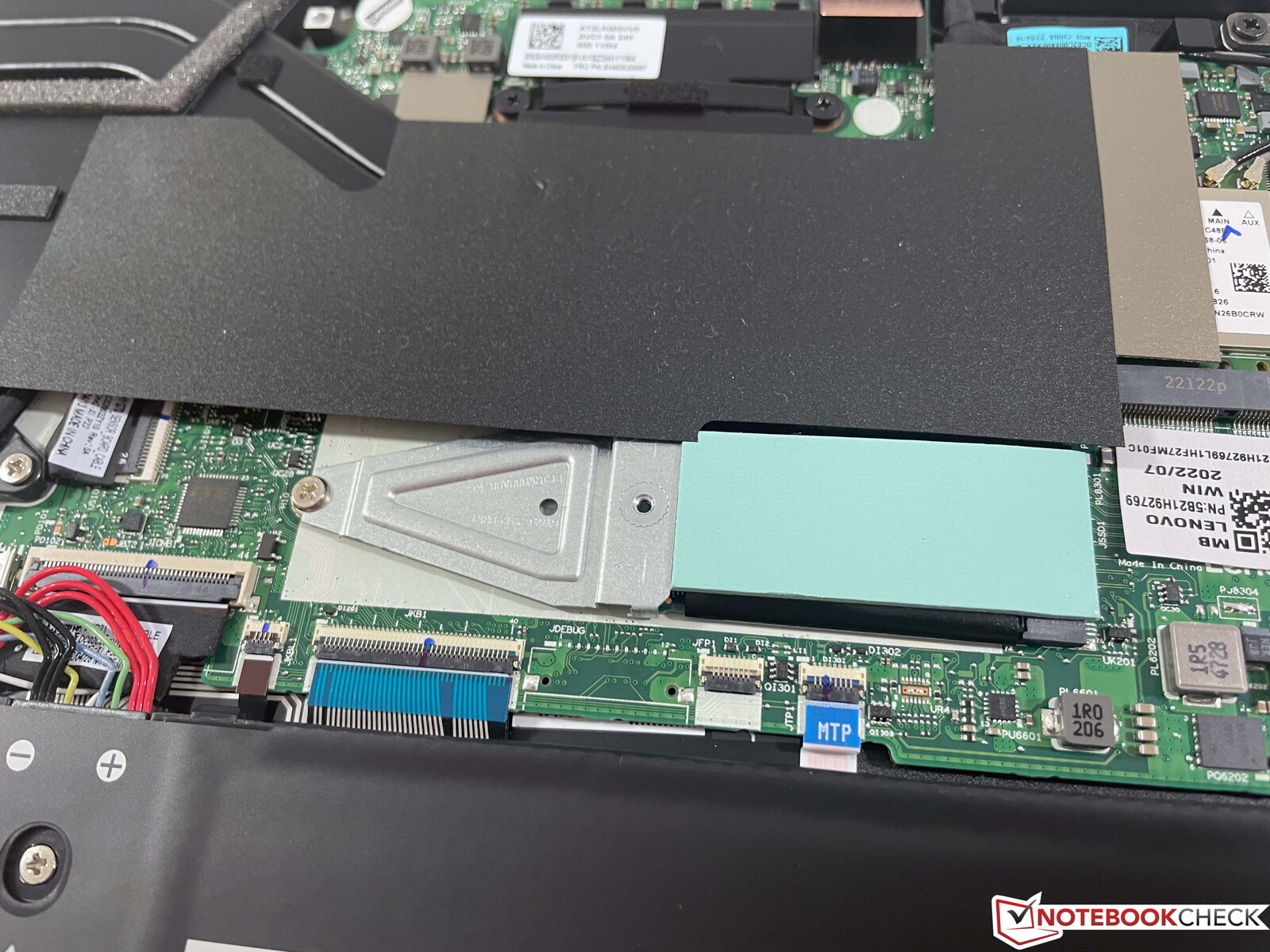

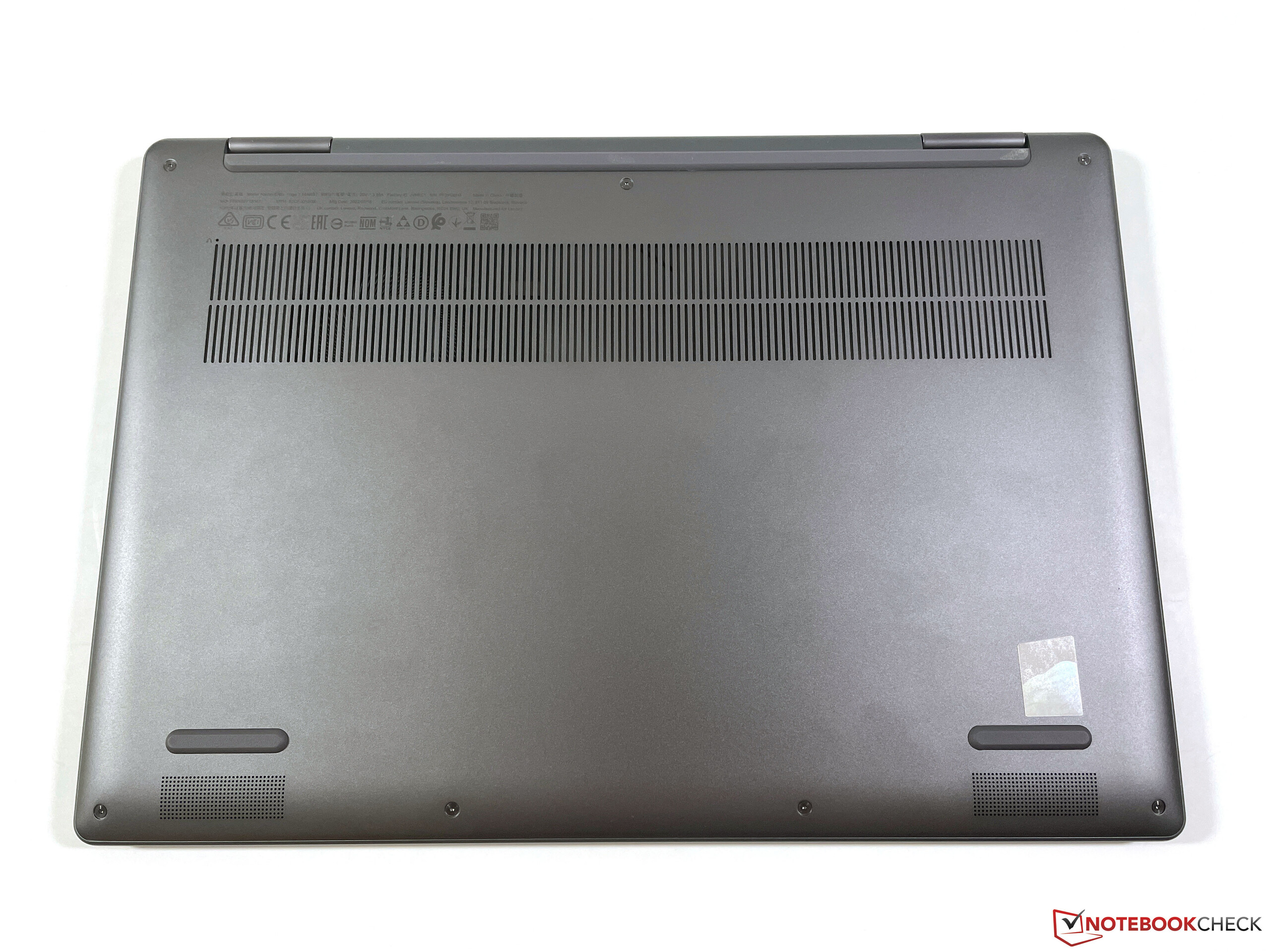

底板用几个Torx螺丝(T5)固定,可以很容易地拆下来。联想在出厂时安装了一个带有适配器的紧凑型M.2-2230固态硬盘,但普通的M.2-2280固态硬盘也可以安装在这里。WLAN模块位于一个额外的盖子下面,用胶带半遮盖着,但可以被替换。否则,用户只能清洁风扇。

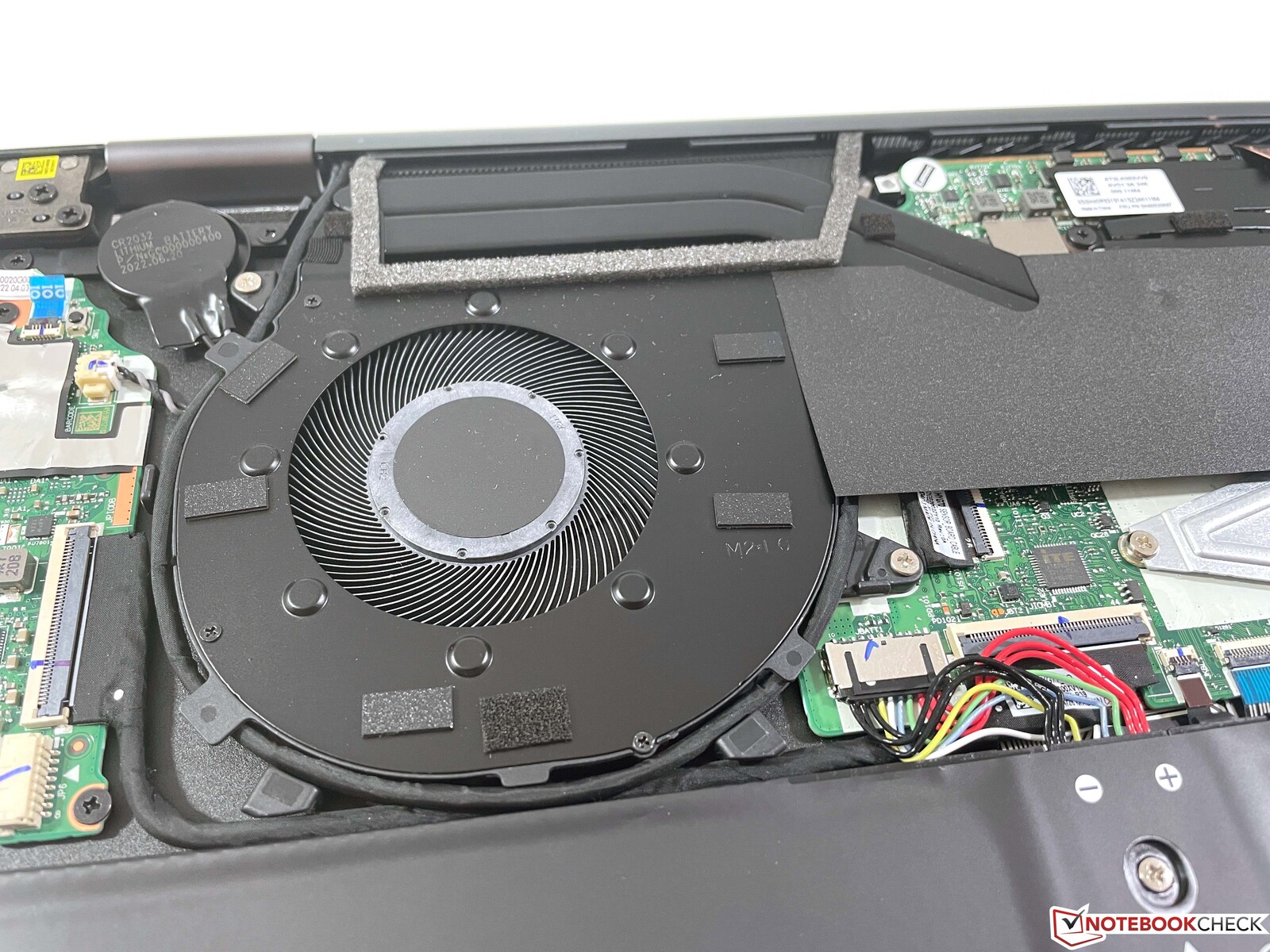

内部工作原理
内部工作原理

输入设备 - 包括有源手写笔

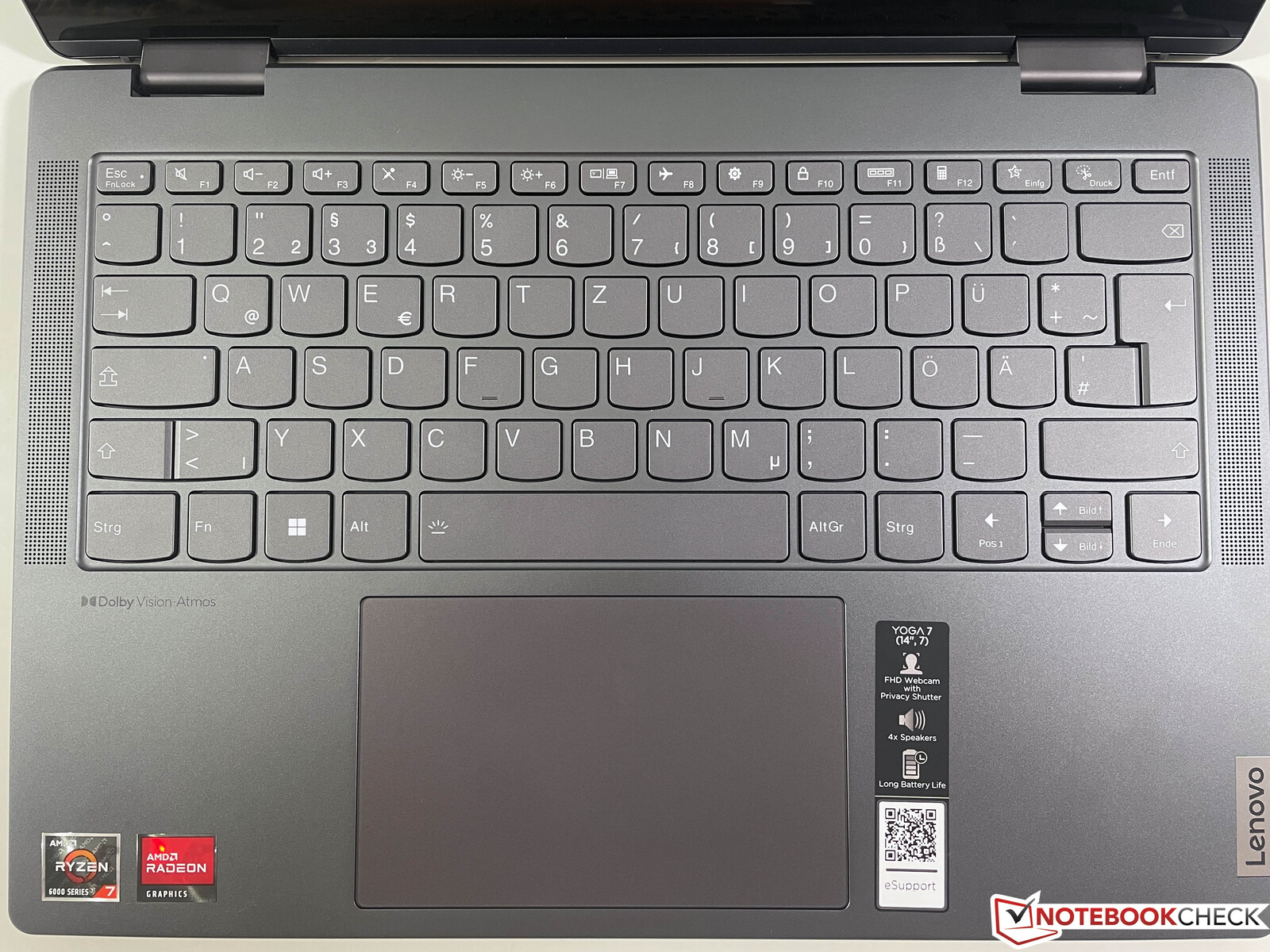

键盘

深灰色的Chiclet键盘提供了一个平均的打字体验。笔画很浅,但反馈很精确,键盘相当安静。然而,从质量上看,其他笔记本电脑在输入功能方面提供了更好的服务,我们也主观上喜欢更昂贵的Yoga 9 14的键盘。瑜伽9 14键盘更好一些。白色键盘照明提供两个强度级别,但不能通过传感器自动激活。也没有指纹扫描仪。

输入设备
输入设备

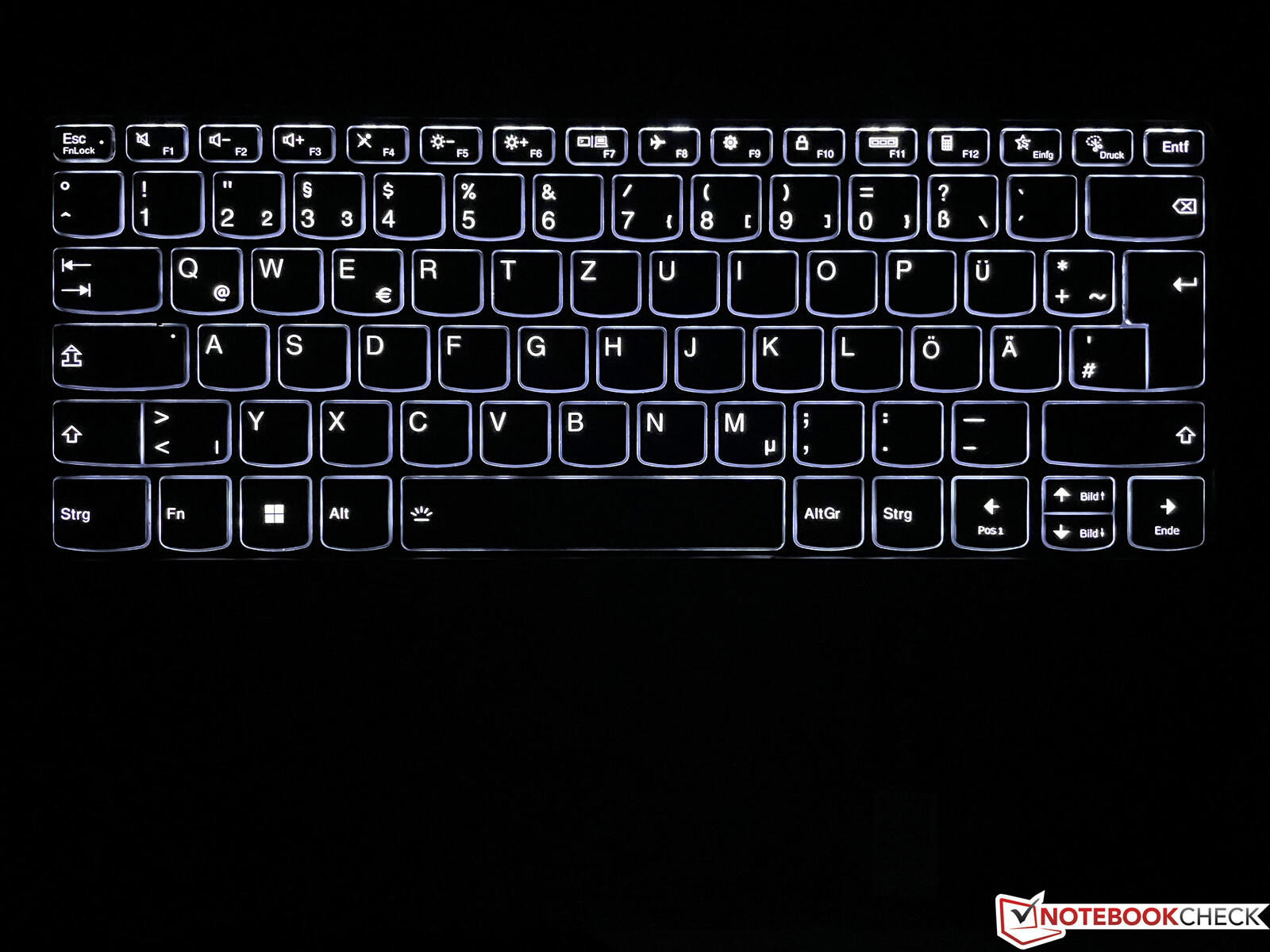

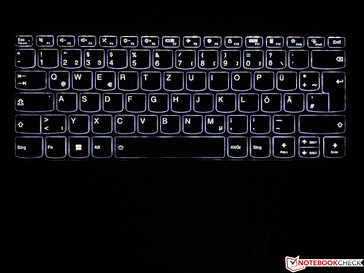

键盘背光
键盘背光

触摸板和触摸屏

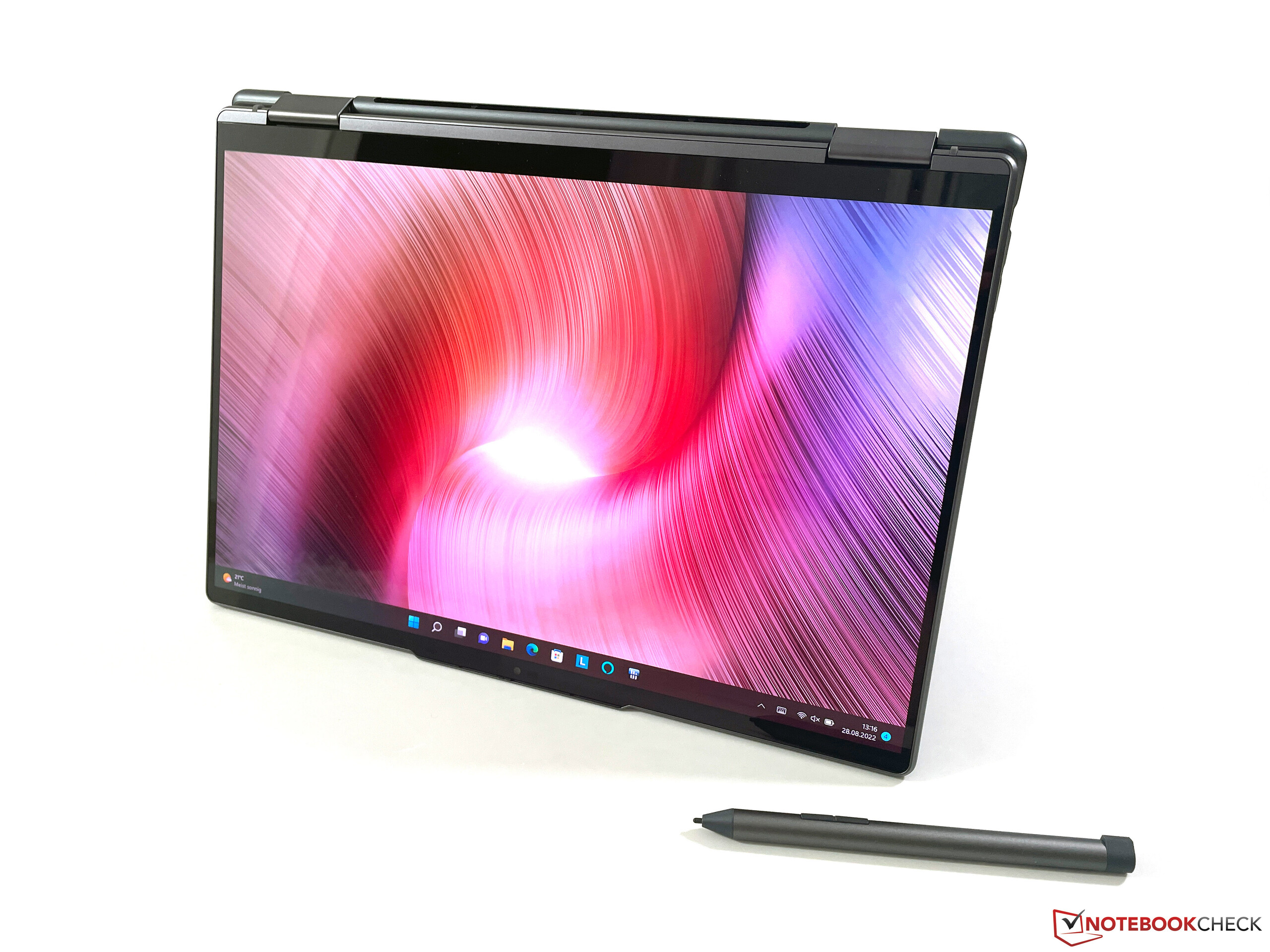

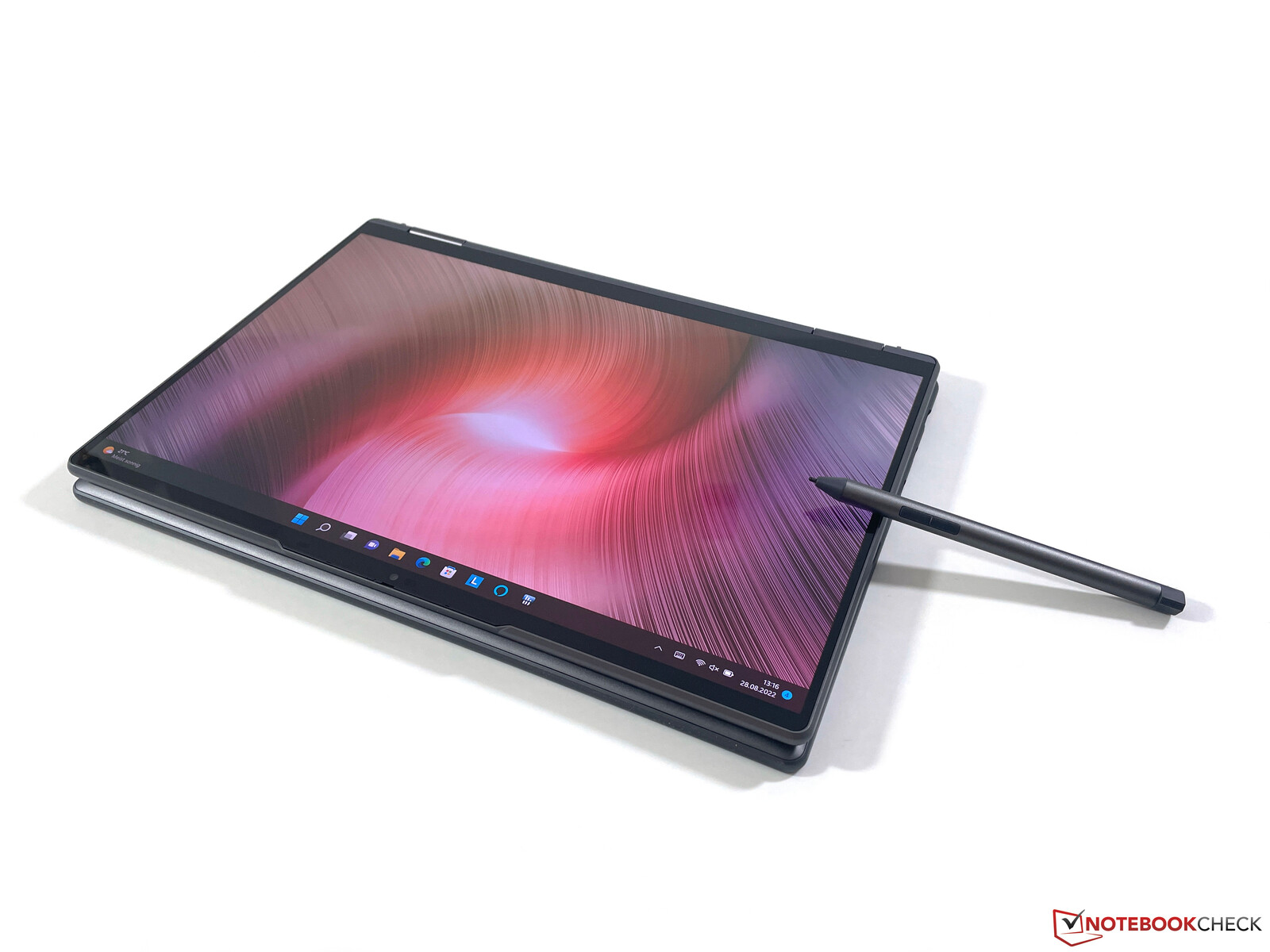

瑜伽7 14配备了一支主动式手写笔
瑜伽7 14配备了一支主动式手写笔

大型ClickPad给人留下的印象有点复杂。12 x 7.5厘米的尺寸对于多达四个手指的手势来说是足够大的,而且基本功能也没有问题,但是像许多其他的点击板一样,点击的声音似乎太响了,而且很廉价,这与笔记本电脑的其他高质量印象根本不相符。我们建议只在敲击输入时使用该垫子。

主动笔也包括在内,是电池供电的。它支持4096个压力级别,在测试中功能令人满意,但不幸的是,它不能储存在机箱中或以磁力连接到机箱。

电容式触摸屏工作得很完美。

显示屏 - 90 Hz的OLED面板

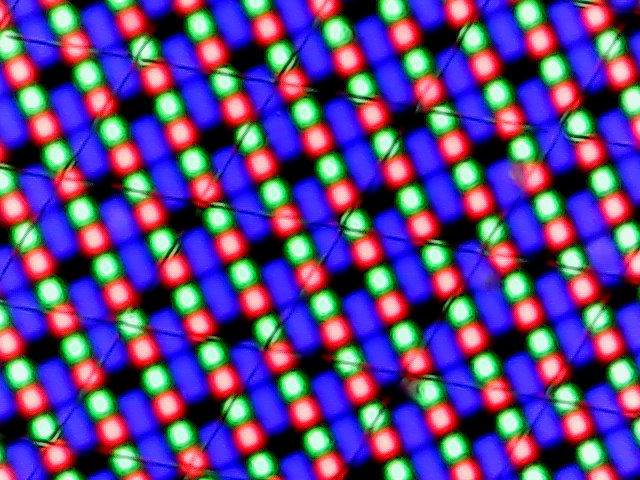

子像素网格
子像素网格

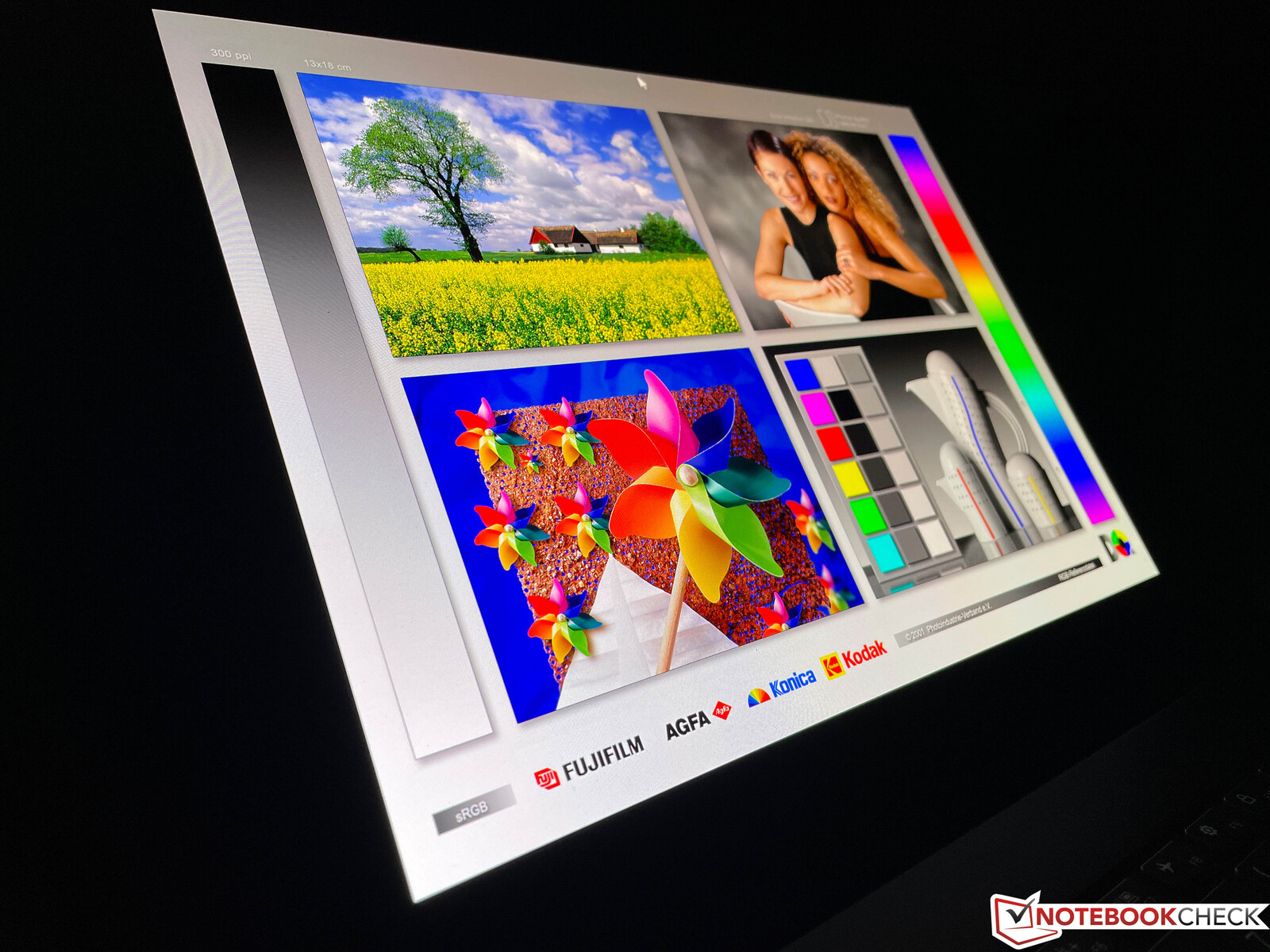

视角稳定
视角稳定

Yoga 7 14配备了一块2.8K的OLED显示屏,分辨率为2880x1800像素,格式为16:10。我们已经在其他联想笔记本电脑中遇到过这种面板(LEN140WQ+),如IdeaPad Slim 7i Pro。这里的特殊功能是90赫兹的较高频率,但这需要先在设置中手动激活。与传统的60赫兹面板相比,图像质量,特别是在运动和媒体播放过程中,要平滑得多。一般来说,主观的画面印象非常好。

在亮度方面,我们记录的数值是目前OLED的典型数值,即在正常SDR模式下,最大亮度略低于400cd/m²。只有在HDR模式下,也必须手动激活(如Windows的典型情况),然后在某些明亮的区域,亮度增加到高达592 cd/m²,当画面几乎完全是白色时,甚至达到560 cd/m²。由于OLED的黑值为0,所以对比度非常高,而且没有光晕(OLED面板技术应该是这样的)。然而,频率为360赫兹的PWM闪烁在80%和更低的亮度下出现,这在某些情况下可能会造成限制。视角稳定性非常好。只有从某些角度可以看到轻微的蓝色偏光,这对OLED面板来说是正常的。

390
cd/m²
387
cd/m²
393
cd/m²
389
cd/m²
386
cd/m²
392
cd/m²
389
cd/m²
385
cd/m²
389
cd/m²
Distribution of brightness
LEN140WQ+ tested with X-Rite i1Pro 2
Maximum: 393 cd/m² (Nits) Average: 388.9 cd/m² Minimum: 4.8 cd/m²
Brightness Distribution: 98 %
Center on Battery: 386 cd/m²
Contrast: 7720:1 (Black: 0.05 cd/m²)
ΔE Color 2.6 | 0.5-29.43 Ø4.86, calibrated: 1.8
ΔE Greyscale 2.3 | 0.09-98 Ø5.1

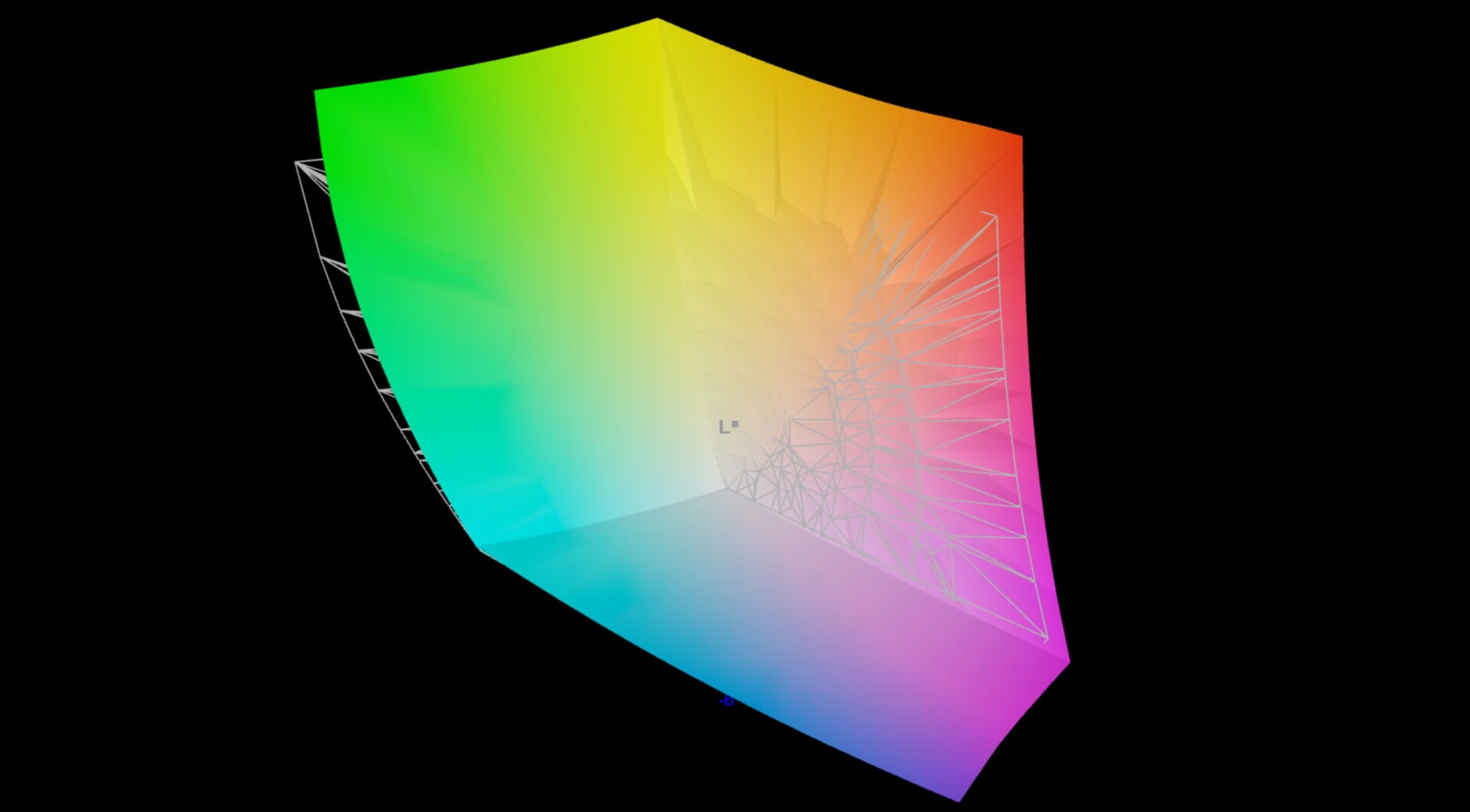

97.2% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
99.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.21
Lenovo Yoga 7-14ARB G7
LEN140WQ+, OLED, 2880x1800, 14"
HP Spectre x360 13.5 14t-ef000
SDC4160, OLED, 3000x2000, 13.5"
Dell Latitude 9430 2-in-1
AU Optronics B140QAN, IPS, 2560x1600, 14"
Dell Inspiron 14 7420 2-in-1
BOE NV14N42, IPS, 1920x1200, 14"
Lenovo Yoga 9i 14 2022 i7-1260P
LEN140WQUXGA, OLED, 3840x2400, 14"
Asus Zenbook S 13 OLED
SDC4172, OLED, 2880x1800, 13.3"
Lenovo Yoga 7 14ITL5
BOE CQ NV140FHM-N65, IPS, 1920x1080, 14"
Display
-2%
-13%
-55%
0%
0%
-23%

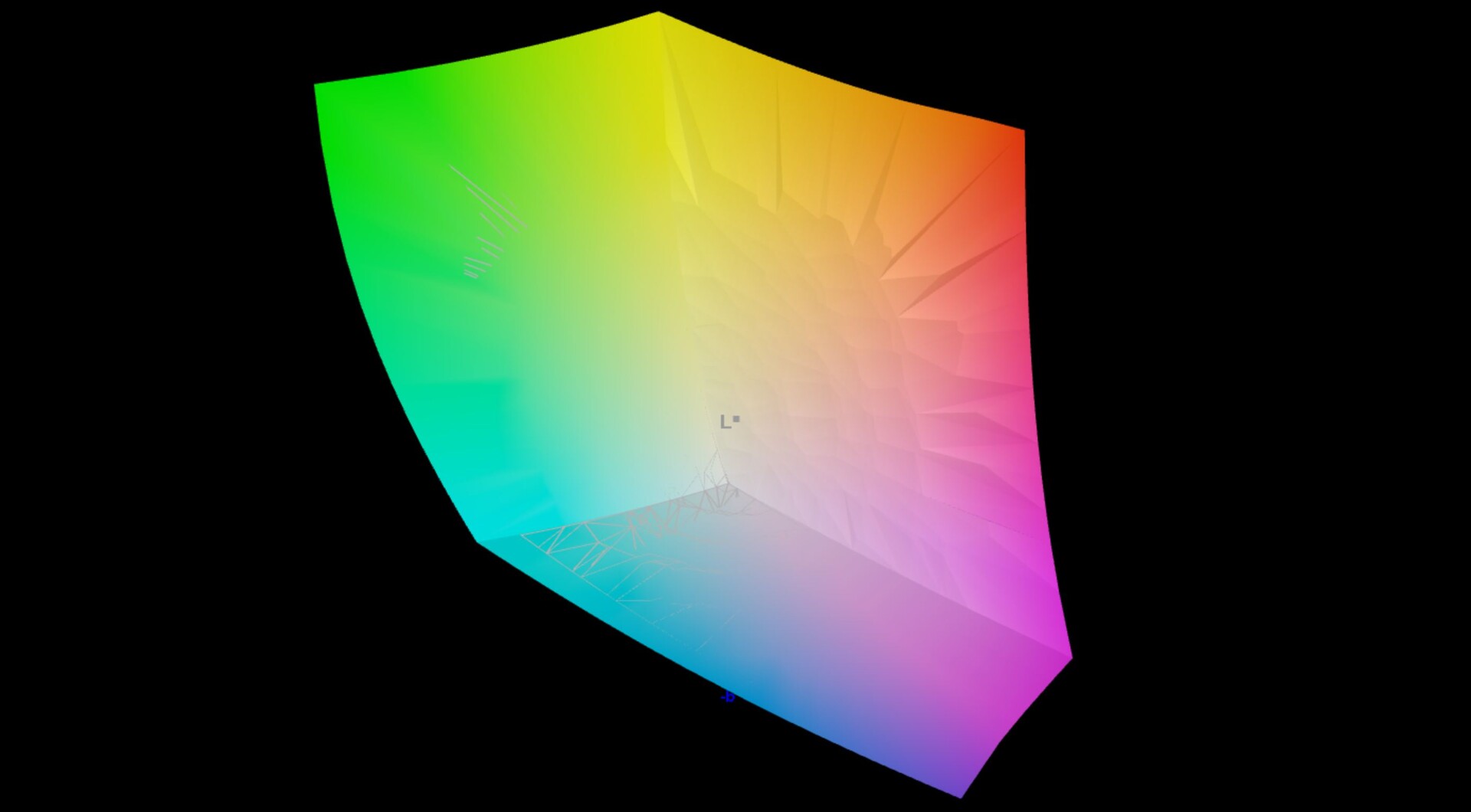

Display P3 Coverage
99.9
99.9
0%
79.4
-21%
38.6
-61%
98.7
-1%
99.8
0%
70.9
-29%
sRGB Coverage
100
100
0%
100
0%
56.2
-44%
99.8
0%
100
0%
92.2
-8%
AdobeRGB 1998 Coverage
97.2
90.8
-7%
79.4
-18%
39.9
-59%
98.5
1%
97.8
1%
67.4
-31%
Response Times
-96%
-4760%
-2300%
-131%
-70%
-4000%

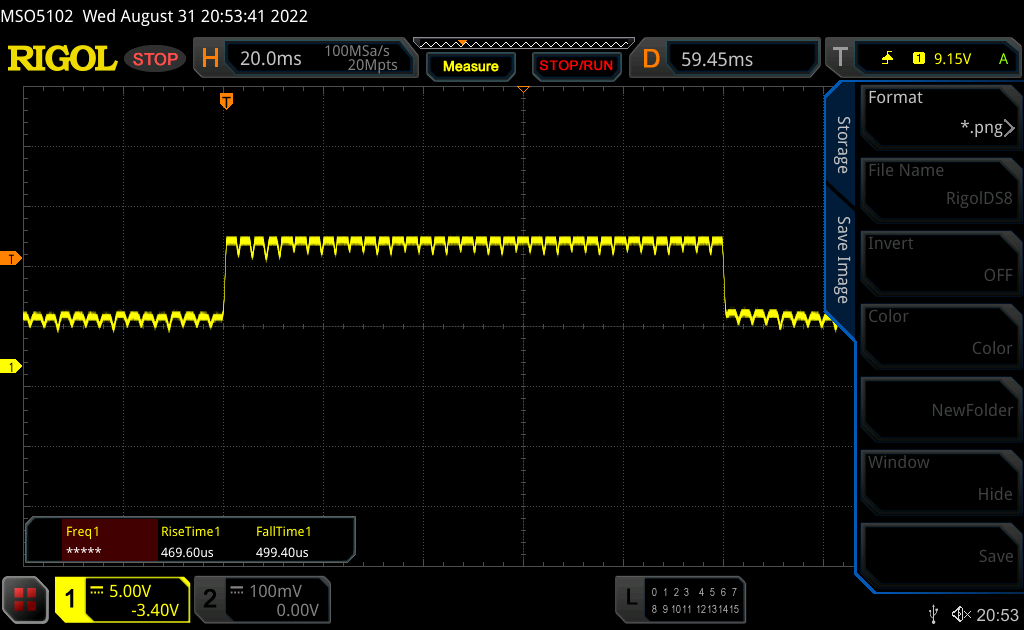

Response Time Grey 50% / Grey 80% *
1 ?(0.5, 0.5)
1.9 ?(0.92, 0.98)
-90%
63.6 ?(33.2, 30.4)
-6260%
27.2 ?(14, 13.2)
-2620%
2.8 ?(1.2, 1.6)
-180%
2.1 ?(1.1, 1)
-110%
43.2 ?(22.4, 20.8)
-4220%

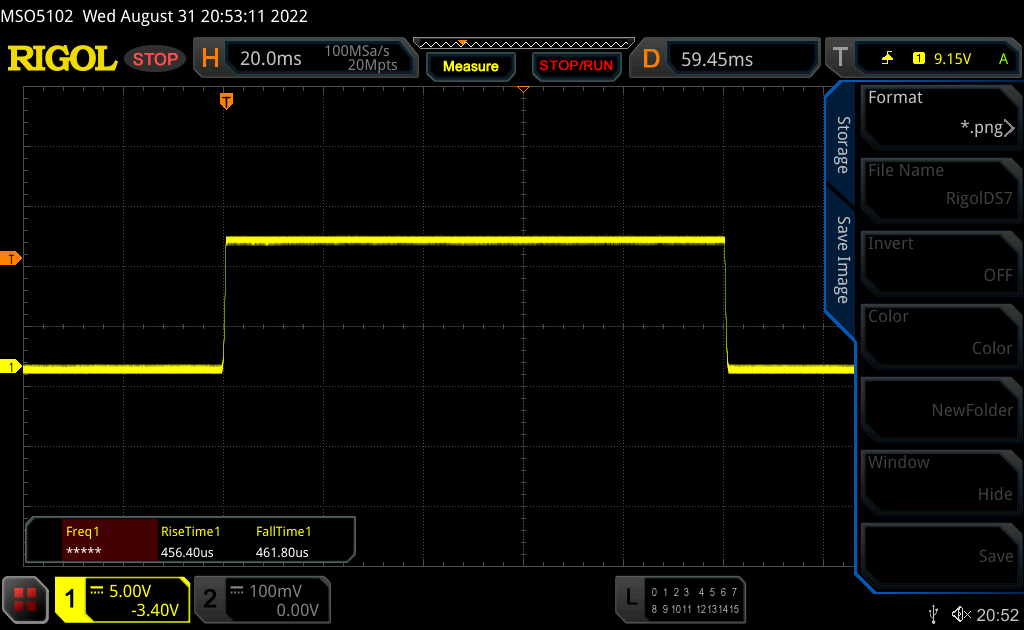

Response Time Black / White *
1 ?(0.5, 0.5)
2.16 ?(0.96, 1.2)
-116%
33.6 ?(17.2, 16.4)
-3260%
20.8 ?(11.6, 9.2)
-1980%
2.8 ?(1.2, 1.6)
-180%
1.68 ?(0.86, 0.82)
-68%
38.8 ?(21.6, 17.2)
-3780%

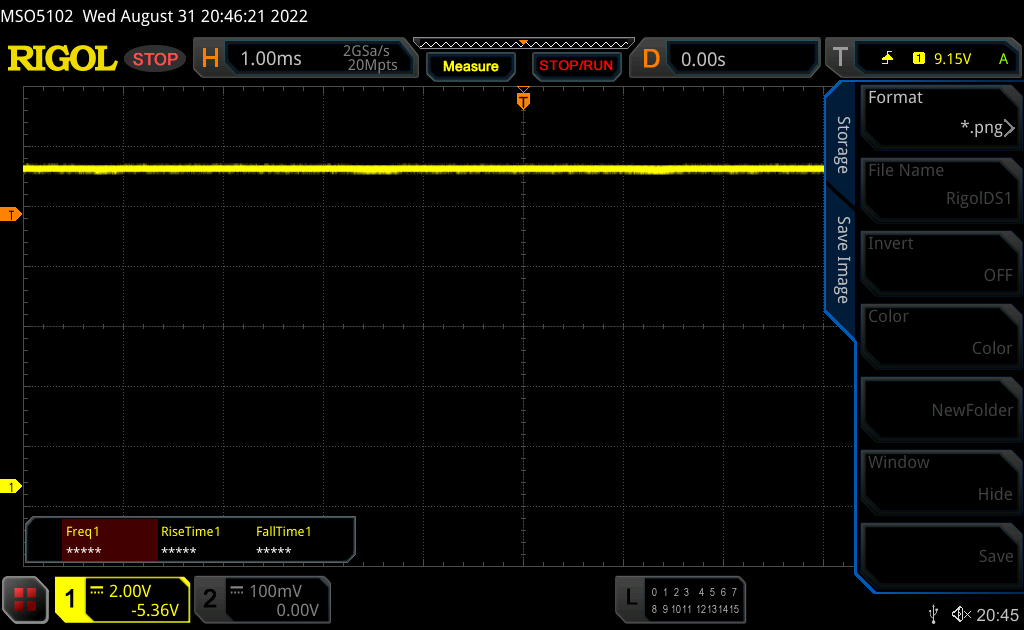

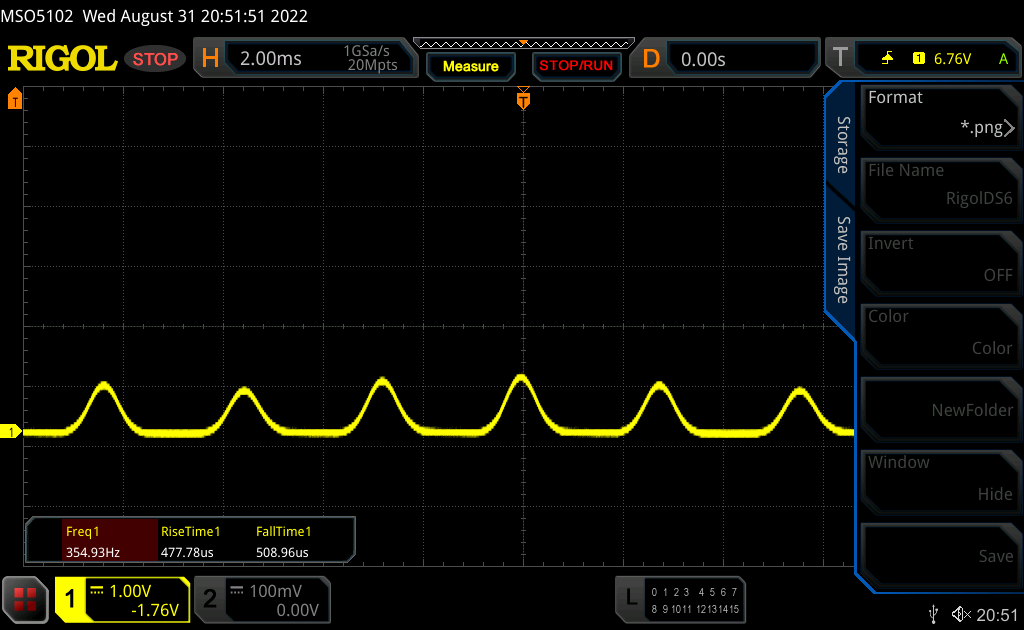

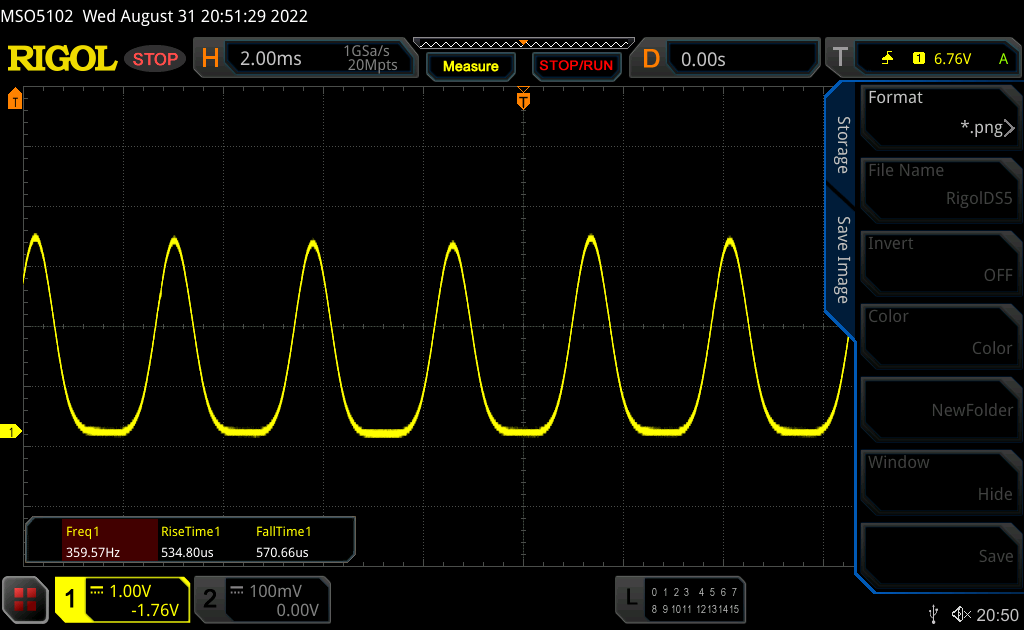

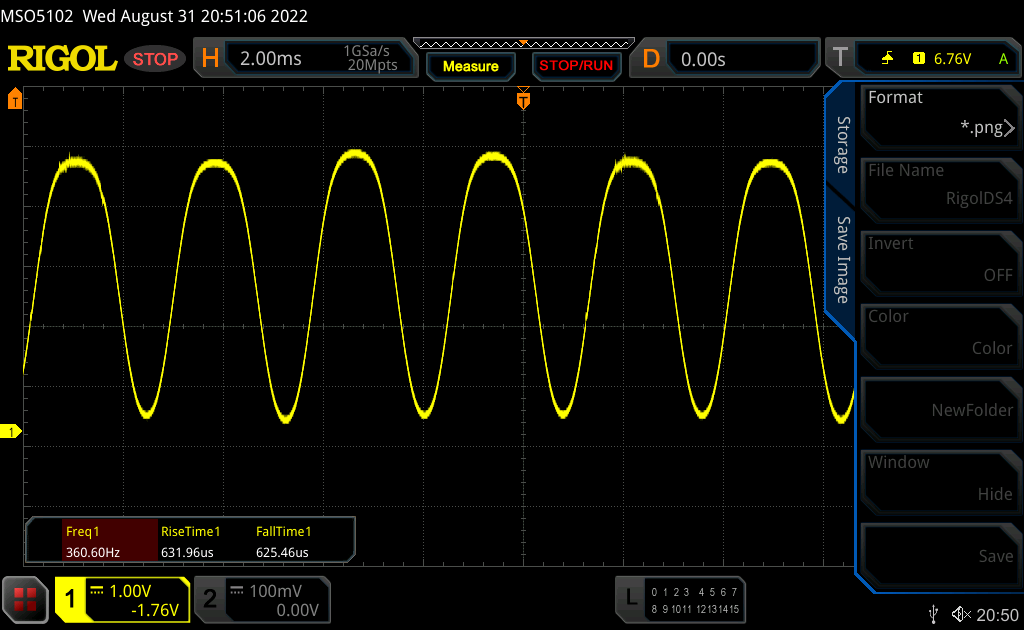

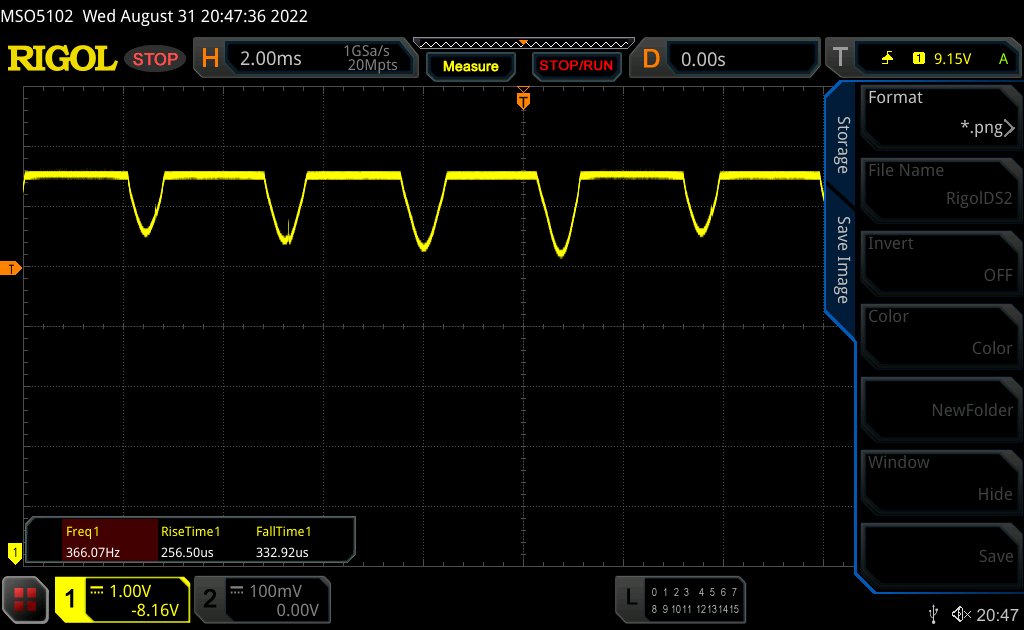

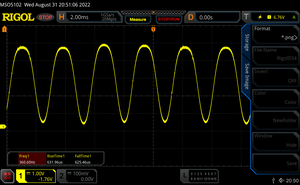

PWM Frequency
360 ?(80)
60.2 ?(100)
-83%
239.2 ?(50)
-34%
240.4 ?(53)
-33%
Screen
-4%
-72%
-173%
581%
30%
-79%
Brightness middle
386
351.7
-9%
517.7
34%
269.4
-30%
361
-6%
336
-13%
292.3
-24%
Brightness
389
351
-10%
493
27%
260
-33%
362
-7%
338
-13%
280
-28%
Brightness Distribution
98
87
-11%
90
-8%
89
-9%
98
0%
99
1%
89
-9%
Black Level *
0.05
0.33
-560%
0.41
-720%
0.001
98%
0.02
60%
0.28
-460%
Contrast
7720
1569
-80%
657
-91%
361000
4576%
16800
118%
1044
-86%
Colorchecker dE 2000 *
2.6
1.78
32%
3.38
-30%
6.53
-151%
2.8
-8%
1.8
31%
2.99
-15%
Colorchecker dE 2000 max. *
4.8
6.14
-28%
6.25
-30%
19.76
-312%
5.8
-21%
3.8
21%
7
-46%
Colorchecker dE 2000 calibrated *
1.8
0.41
77%
3.13
-74%
1.8
-0%
3.1
-72%
Greyscale dE 2000 *
2.3
2.3
-0%
4
-74%
5.4
-135%
1.9
17%
0.9
61%
1.6
30%
Gamma
2.21 100%
2.11 104%
2.13 103%
2.05 107%
2.16 102%
2.22 99%
2.22 99%
CCT
6121 106%
6683 97%
6186 105%
6007 108%
6181 105%
6580 99%
6732 97%
Color Space (Percent of AdobeRGB 1998)
60
Color Space (Percent of sRGB)
91.8
Total Average (Program / Settings)
-34% / -27%
-1615% / -729%
-843% / -451%
150% / 304%
-13% / 4%
-1367% / -627%

* ... smaller is better

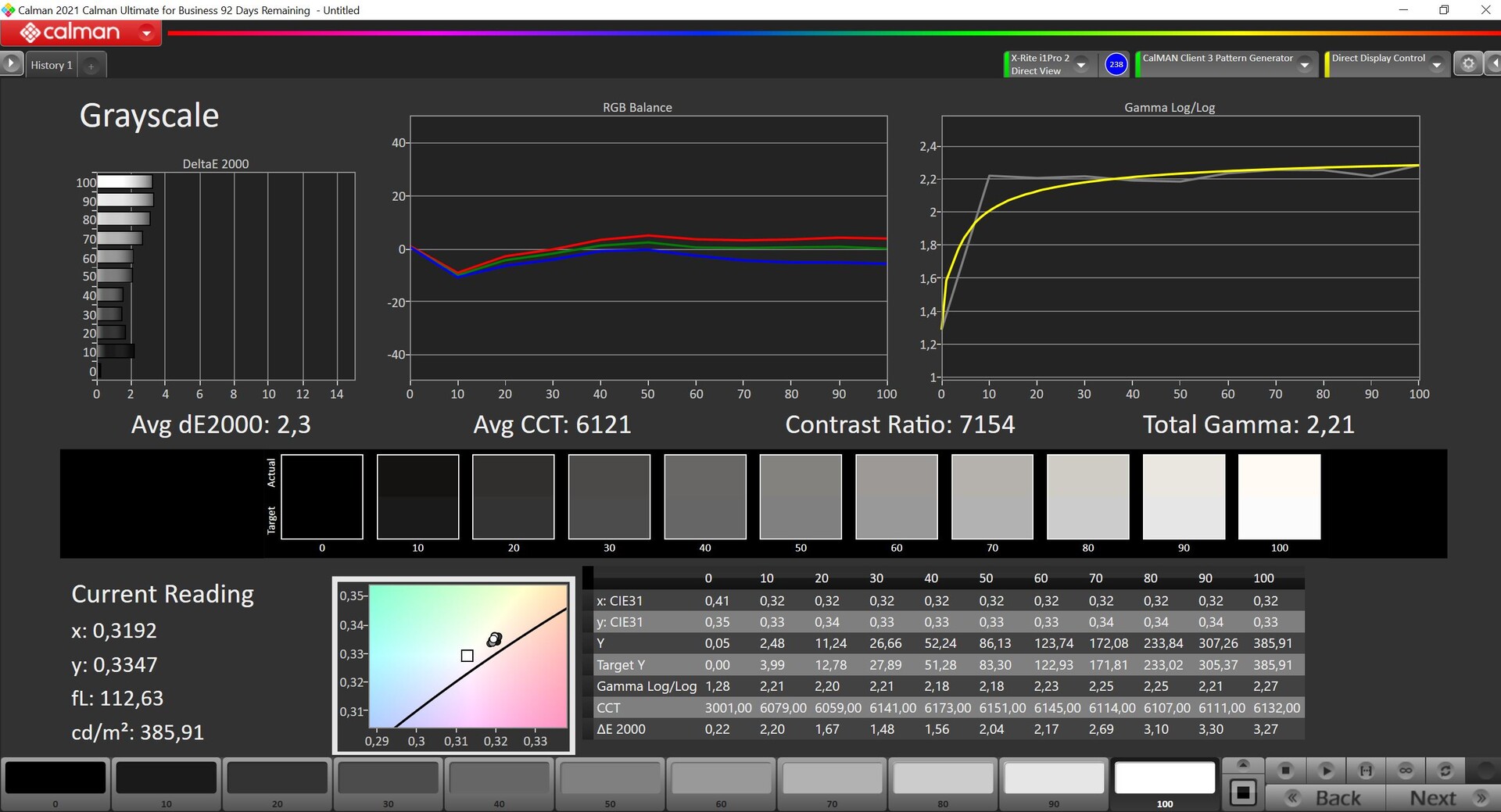

CalMAN灰度(目标色彩空间P3)。
CalMAN灰度(目标色彩空间P3)。
卡尔曼饱和度(目标色彩空间P3)。
卡尔曼饱和度(目标色彩空间P3)。

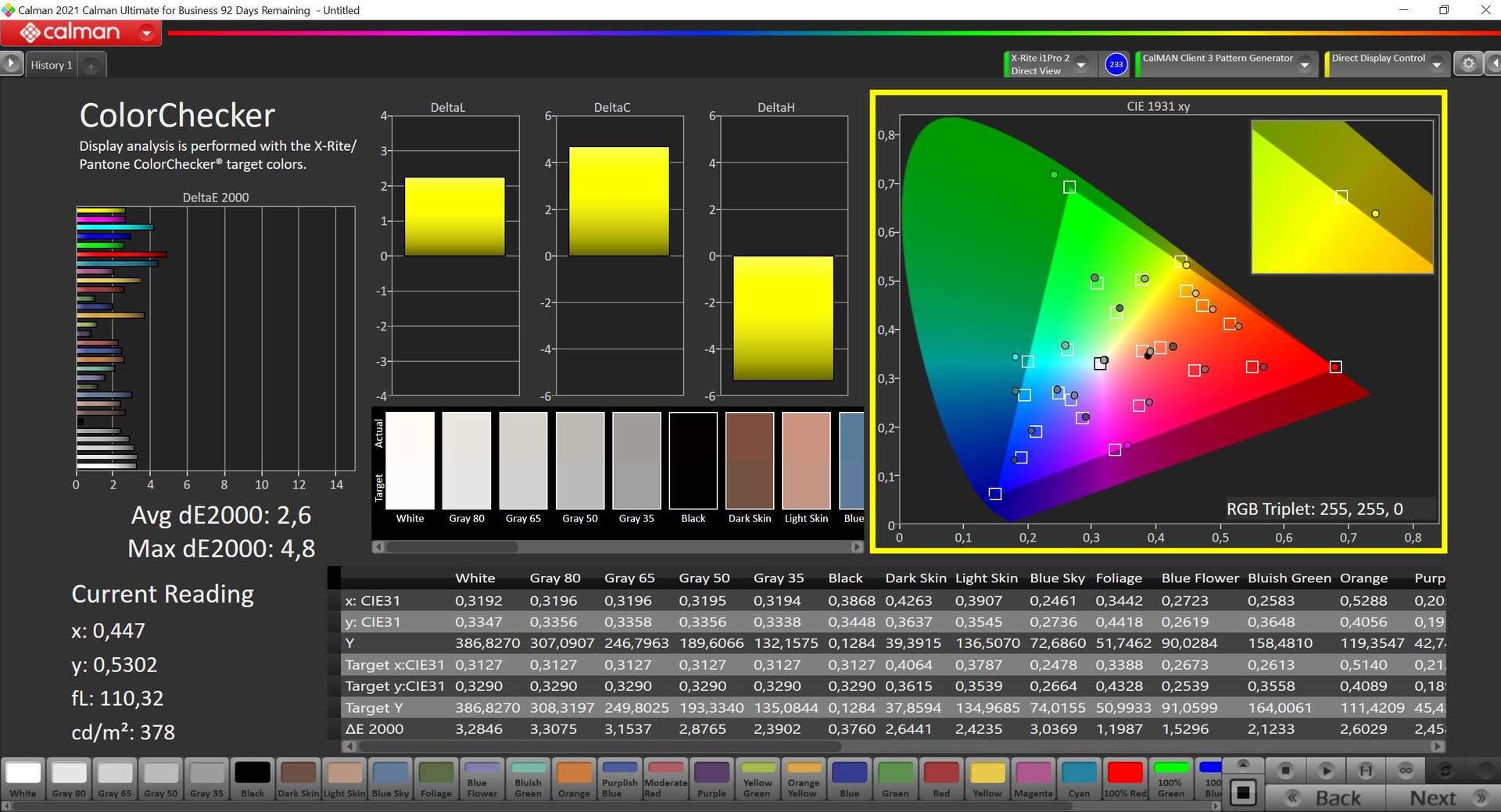

CalMAN ColorChecker (Zielfarbraum P3)
CalMAN ColorChecker (Zielfarbraum P3)
CalMAN灰度校准(目标色彩空间P3)。
CalMAN灰度校准(目标色彩空间P3)。

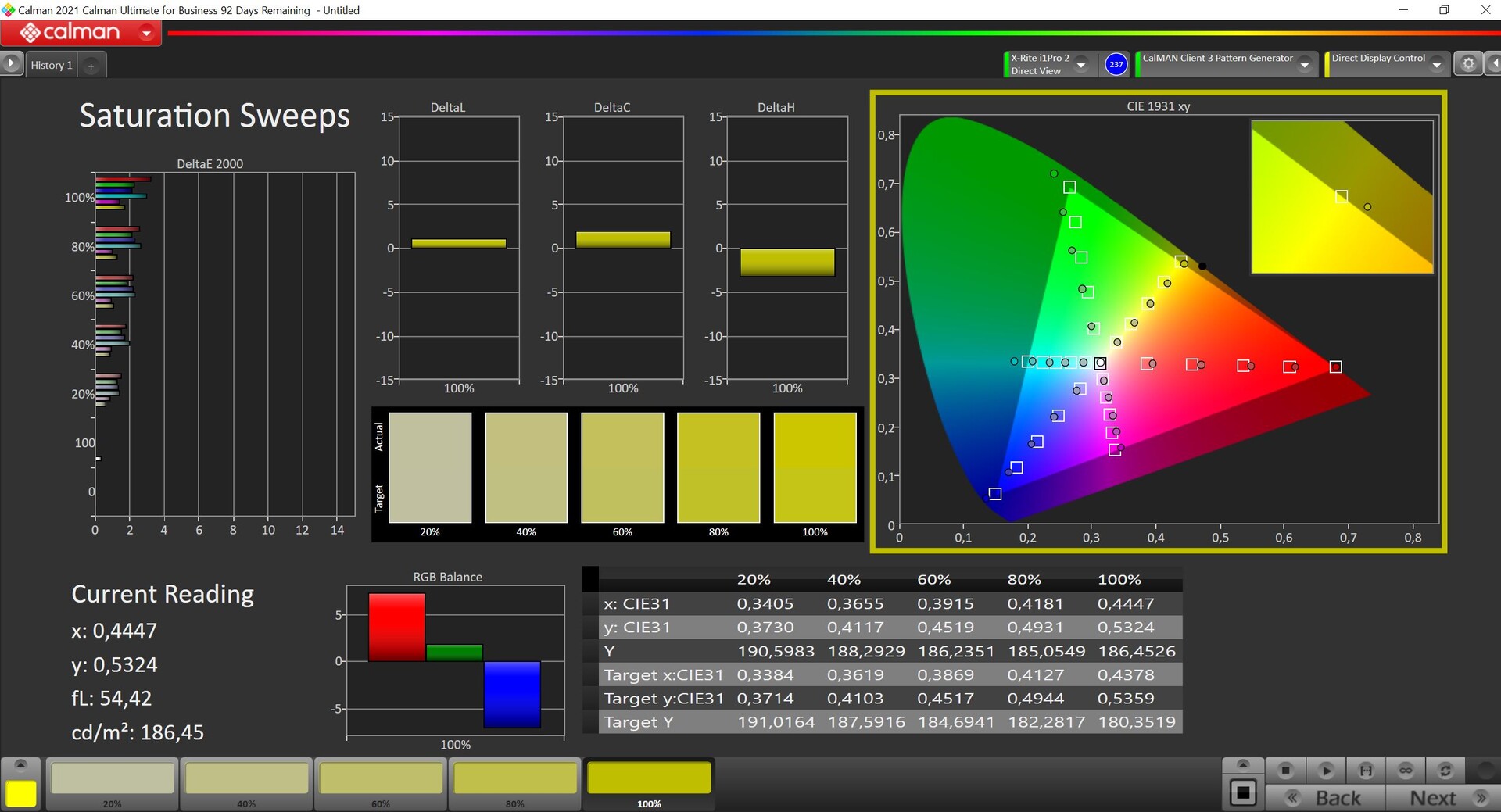

CalMAN饱和度校准(目标色彩空间P3)。
CalMAN饱和度校准(目标色彩空间P3)。
CalMAN ColorChecker已校准(目标色彩空间P3)。
CalMAN ColorChecker已校准(目标色彩空间P3)。

使用专业的CalMAN软件(X-Rite i1 Pro 2)进行分析,发现了肉眼看不到的最小色差。然而,色温有些过暖,而且出厂时的颜色也有几个异常值,超过了3的偏差标志。我们能够通过校准来改善显示效果(相应的配置文件可在上面免费下载)。再加上P3色彩空间的完全覆盖,Yoga 7 14因此相当适合视频/图像编辑。

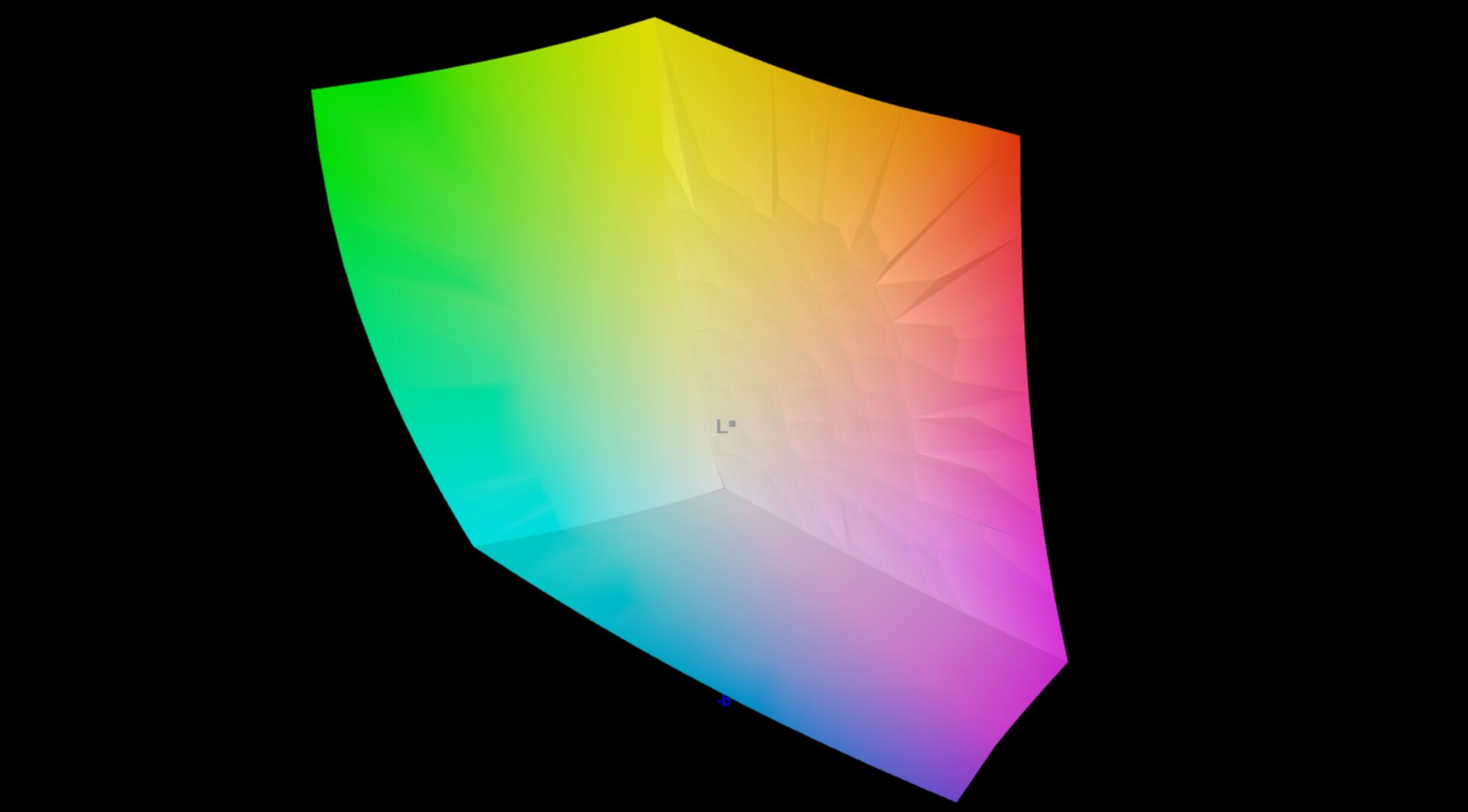

vs. sRGB
vs. sRGB
vs. P3
vs. P3
vs. AdobeRGB
vs. AdobeRGB

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
1 ms ... rise ↗ and fall ↘ combined↗ 0.5 ms rise
↘ 0.5 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 2 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (20.7 ms).
       Response Time 50% Grey to 80% Grey
1 ms ... rise ↗ and fall ↘ combined↗ 0.5 ms rise
↘ 0.5 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 2 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (32.4 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 360 Hz ≤ 80 % brightness setting

The display backlight flickers at 360 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 80 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 360 Hz is relatively high, so most users sensitive to PWM should not notice any flickering. However, there are reports that some users are still sensitive to PWM at 500 Hz and above, so be aware.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8439 (minimum: 5 - maximum: 343500) Hz was measured.

100%的亮度
100%的亮度
90%的亮度
90%的亮度
80%的亮度
80%的亮度
60%的亮度
60%的亮度
40%的亮度
40%的亮度
20%的亮度
20%的亮度
0%的亮度
0%的亮度

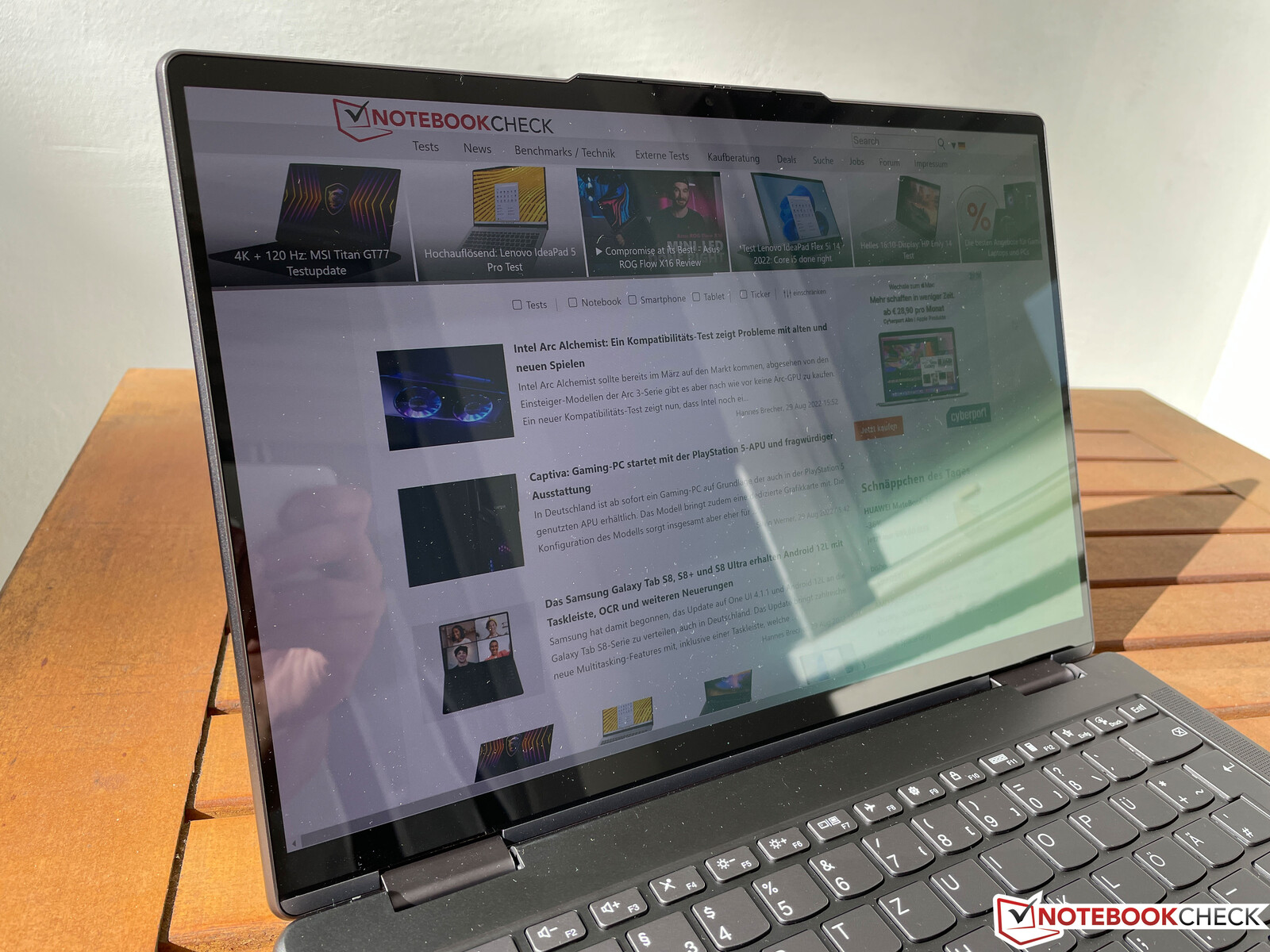

触摸屏的反射非常强烈,在户外有很大的反射问题。用户必须考虑并找到一个合适的位置,以便能够合理地工作。

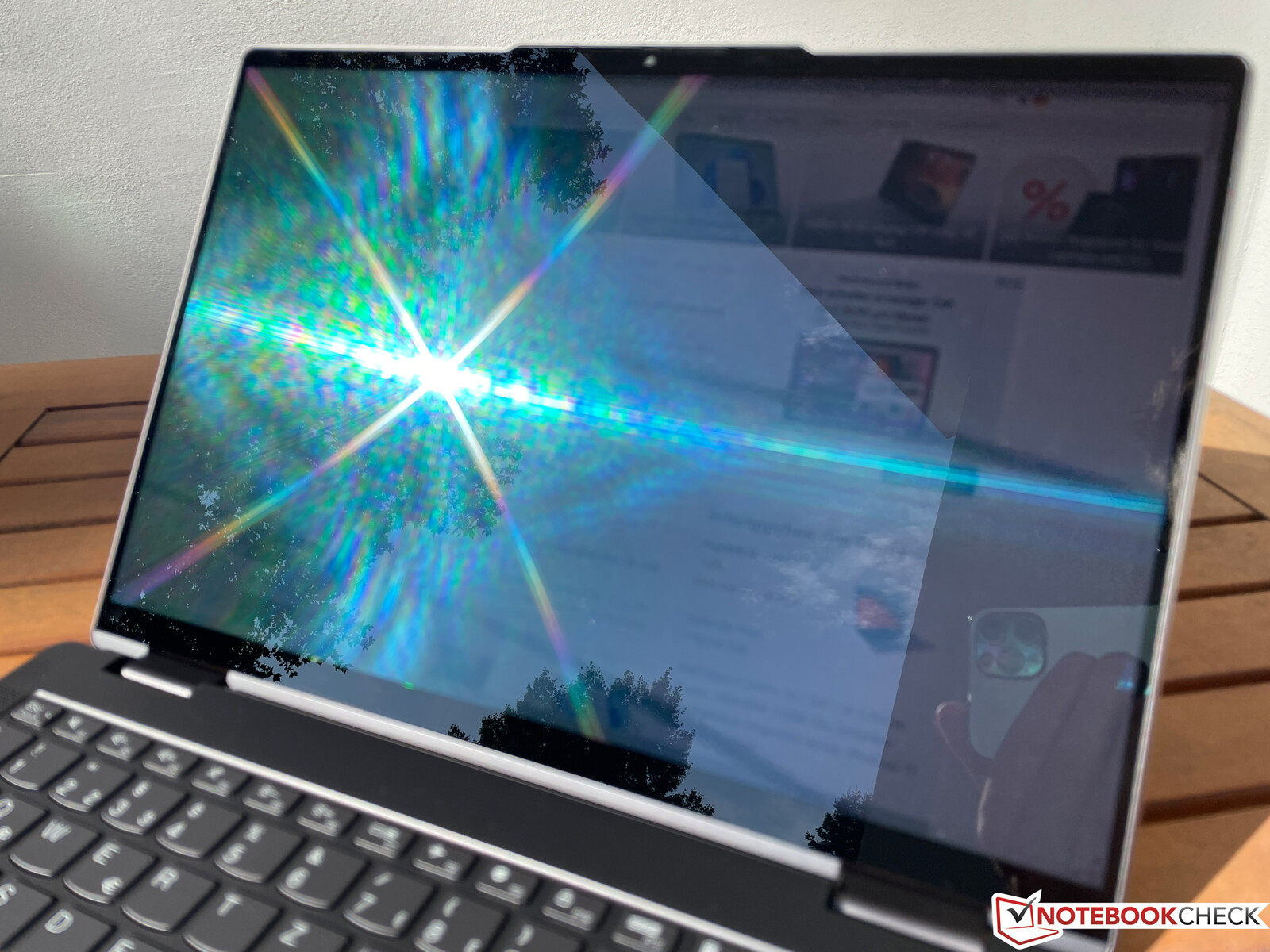

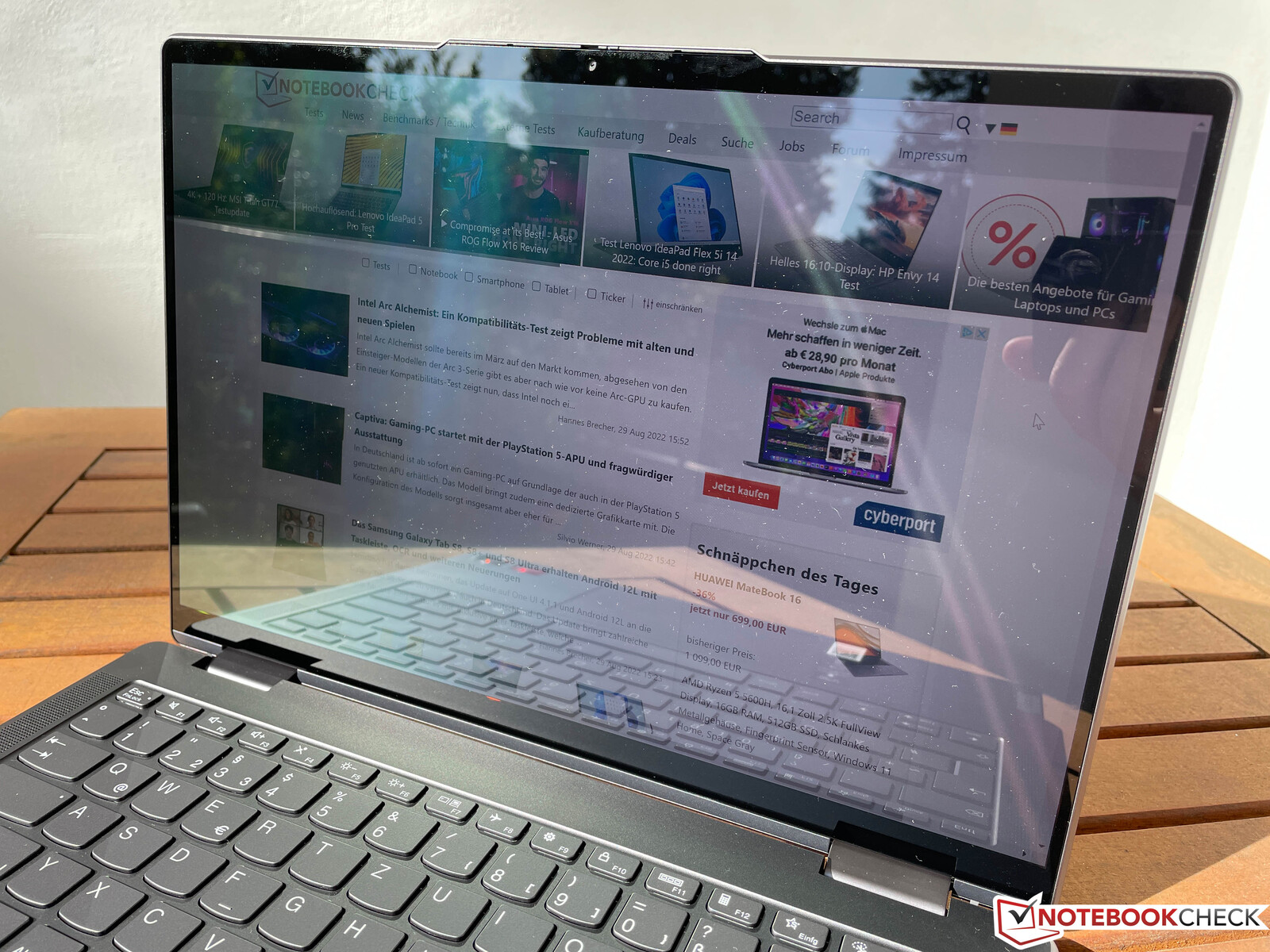

在阳光下
在阳光下

性能 - AMD Ryzen 7和PCIe 4.0

我们的样本设备配备了一个相对较新的AMD移动处理器,但联想也提供了一个设备,配有英特尔酷睿i7-1260P价格相同。




测试条件

联想提供了常规的电源设置。电池保护器、智能冷却 性能,可以通过预装的Vantage应用程序或Fn+P组合键选择。在下面的表格中,我们列出了不同模式的TDP限制。

功率设置 功率消耗 最大风扇噪音
性能 45 -> 25 Watt 42,8 dB(A)
智能冷却 32 -> 20 瓦 37,2 dB(A)
电池保护 20 -> 12 瓦 31,2 dB(A)

我们选择了 "性能 "模式来进行下面的测量和基准测试。其他模式的效果也将在本评论的其他部分进行考察。电源模式的简单切换使用户能够快速选择一个较弱的模式,以便从更安静的风扇中获益,例如。

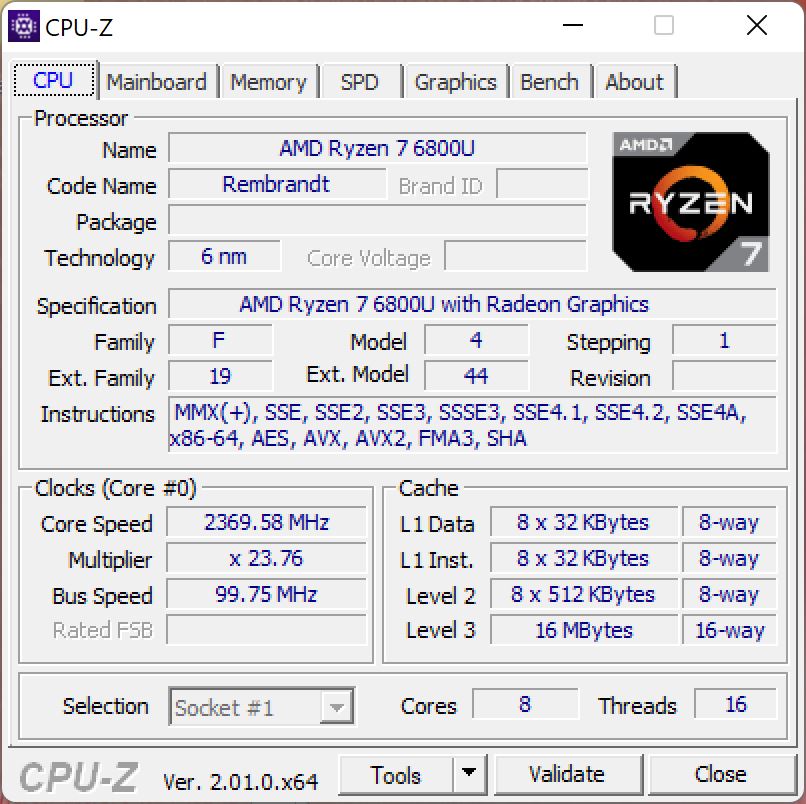

处理器 - AMD Ryzen 7 6800U

这只是我们第二次测试AMD Ryzen 7 6800U,AMD最新的移动处理器有8个Zen3+核心(Rembrandt-U),可以同时处理最多16个线程。最大的核心频率高达4.7GHz--更多技术细节列在这里 这里.

特别是Ryzen 7 6800U的多核性能非常突出,该CPU远远领先于目前的英特尔芯片,而后者也需要更多的电力。

Cinebench R15 Multi Sustained Load

01002003004005006007008009001000110012001300140015001600170018001900Tooltip
Lenovo Yoga 7-14ARB G7 AMD Ryzen 7 6800U: Ø1771 (1657.55-1978.53)
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U: Ø1377 (1342.78-1400.12)
Dell Latitude 9430 2-in-1 Intel Core i7-1265U: Ø1267 (1223.84-1572.02)
Dell Inspiron 14 7420 2-in-1 Intel Core i7-1255U: Ø1118 (1067.98-1158.61)
Lenovo Yoga 9i 14 2022 i7-1260P Intel Core i7-1260P: Ø1634 (1600.9-1805.05)
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U: Ø1607 (1576.98-1742.1)
Lenovo Yoga 7 14ITL5 Intel Core i5-1135G7: Ø848 (841.08-854.59)

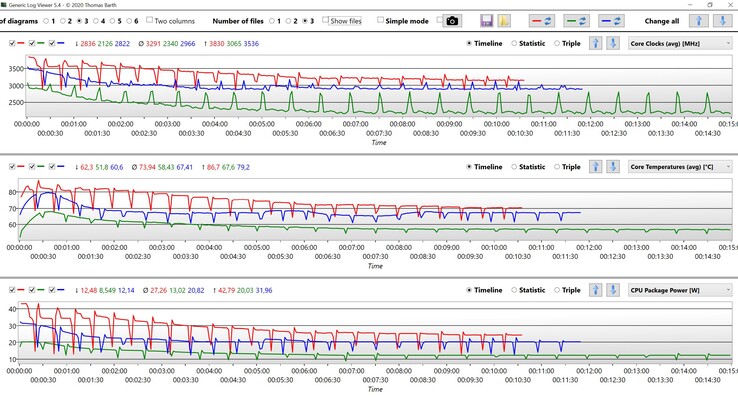

CPU数据--Cinebench R15多循环(红色:性能,蓝色:智能冷却,绿色:睡眠)。
CPU数据--Cinebench R15多循环(红色:性能,蓝色:智能冷却,绿色:睡眠)。

我们的Cinebench循环显示,处理器在几分钟后趋于平稳,功耗为25瓦几分钟,然后多核性能与第一次运行相比下降了约16%。尽管如此,Yoga 7比使用Core i7-1260P 的Yoga 9i更快。你只需看看这里的功耗,因为英特尔处理器在稳定在38瓦特之前消耗了64瓦特,但仍然比Ryzen 7 6800U 的25瓦特慢。这充分说明了目前谁提供的移动处理器效率更高。

英特尔在单核性能方面领先,但这是以高耗电为代价的。总而言之,AMD处理器是更好的选择,而且我们还没有考虑到更好的GPU性能。在电池模式下,CPU性能不会降低。更多CPU基准测试可在 我们的技术部分.

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U
79.5 pt
Lenovo Yoga 9i 14 2022 i7-1260P
Intel Core i7-1260P
79.1 pt
Dell Latitude 9430 2-in-1 -1!
Intel Core i7-1265U
78 pt
Average of class Convertible

77 pt
Asus Zenbook S 13 OLED
AMD Ryzen 7 6800U
73 pt
Average AMD Ryzen 7 6800U

71.9 pt
HP Spectre x360 13.5 14t-ef000
Intel Core i7-1255U
70.7 pt
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
65.5 pt
Lenovo Yoga 7 14ITL5 -2!
Intel Core i5-1135G7
46.7 pt

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
1978.53 Points
Cinebench R15 OpenGL 64Bit
121 fps
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 CPU Single 64Bit
243 Points
Cinebench R20 CPU (Multi Core)
4574 Points
Cinebench R20 CPU (Single Core)
597 Points
Cinebench R23 Multi Core
11741 Points
Cinebench R23 Single Core
1518 Points
Help
Performance Rating
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, Radeon 680M
90.7 pt
Average AMD Ryzen 7 6800U

87.5 pt
Asus Zenbook S 13 OLED
AMD Ryzen 7 6800U, Radeon 680M
84.5 pt
Average of class Convertible

77.8 pt
Dell Latitude 9430 2-in-1
Intel Core i7-1265U, Iris Xe G7 96EUs
64 pt
HP Spectre x360 13.5 14t-ef000
Intel Core i7-1255U, Iris Xe G7 96EUs
61.1 pt
Lenovo Yoga 9i 14 2022 i7-1260P
Intel Core i7-1260P, Iris Xe G7 96EUs
44.4 pt
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U, Iris Xe G7 96EUs
41.4 pt

系统性能

合成基准测试的结果非常好。主观上,系统性能没有批评的余地。该设备的响应速度非常快,在日常使用中没有滞后或卡顿。然而,可以说,这也是目前这个价格范围内几乎所有设备的真实情况。

PCMark 10 / Score
Lenovo Yoga 7-14ARB G7
Radeon 680M, R7 6800U, Kioxia BG5 KBG50ZNT1T02
6469 Points
Asus Zenbook S 13 OLED
Radeon 680M, R7 6800U, Samsung PM9A1 MZVL21T0HCLR
6346 Points -2%
Average of class Convertible
  (3229 - 9125, n=60, last 2 years)
6329 Points -2%
Average AMD Ryzen 7 6800U, AMD Radeon 680M
  (5057 - 6639, n=7)
6058 Points -6%
Lenovo Yoga 9i 14 2022 i7-1260P
Iris Xe G7 96EUs, i7-1260P, Samsung PM9A1 MZVL21T0HCLR
5738 Points -11%
HP Spectre x360 13.5 14t-ef000
Iris Xe G7 96EUs, i7-1255U, Micron 3400 1TB MTFDKBA1T0TFH
5523 Points -15%
Dell Latitude 9430 2-in-1
Iris Xe G7 96EUs, i7-1265U
5474 Points -15%
Dell Inspiron 14 7420 2-in-1
Iris Xe G7 96EUs, i7-1255U, WDC PC SN530 SDBPMPZ-512G
5271 Points -19%
Lenovo Yoga 7 14ITL5
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZALQ512HALU
4615 Points -29%
PCMark 10 Score
6469 points
Help
AIDA64 / Memory Copy
Average of class Convertible
  (29473 - 158525, n=62, last 2 years)
75422 MB/s +45%
Dell Latitude 9430 2-in-1
Intel Core i7-1265U, Iris Xe G7 96EUs
72204 MB/s +38%
HP Spectre x360 13.5 14t-ef000
Intel Core i7-1255U, Iris Xe G7 96EUs
62098 MB/s +19%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, Radeon 680M
52159 MB/s
Average AMD Ryzen 7 6800U
  (47010 - 52159, n=6)
50018 MB/s -4%
Asus Zenbook S 13 OLED
AMD Ryzen 7 6800U, Radeon 680M
47701 MB/s -9%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U, Iris Xe G7 96EUs
39797 MB/s -24%

* ... smaller is better

DPC延时

在我们的标准化延迟测试中(网页浏览、4K YouTube播放、CPU负载),我们的评测设备在目前的BIOS版本中显示出轻微的限制,这就是为什么它不是实时音频应用的理想选择。

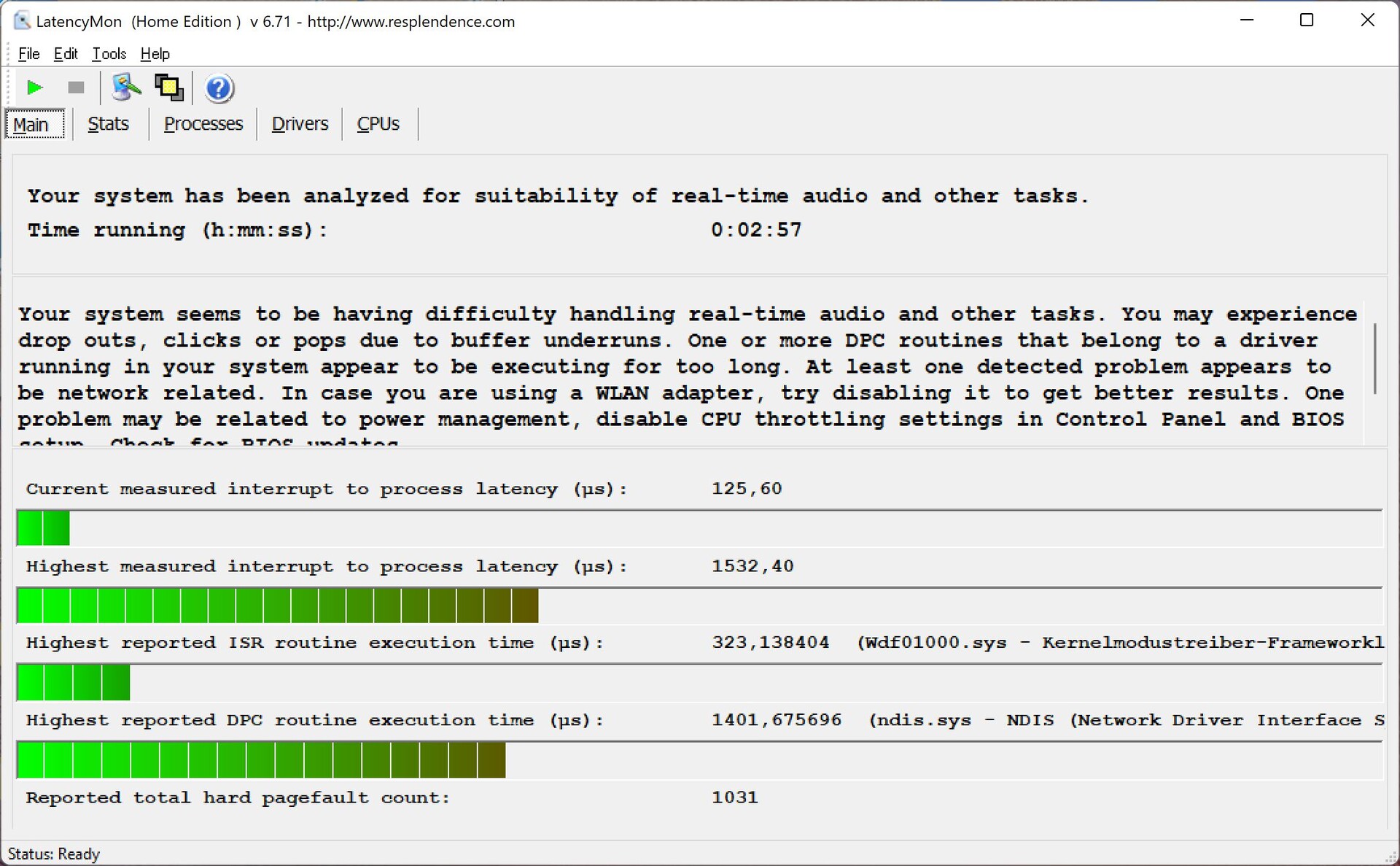

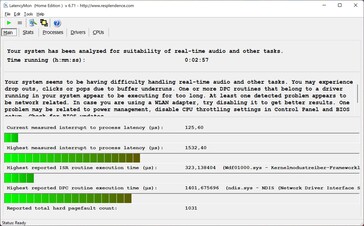

LatencyMon - 概述
LatencyMon - 概述

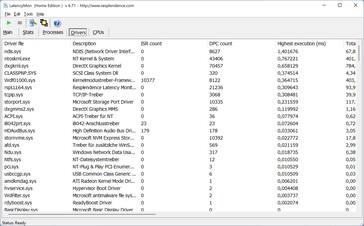

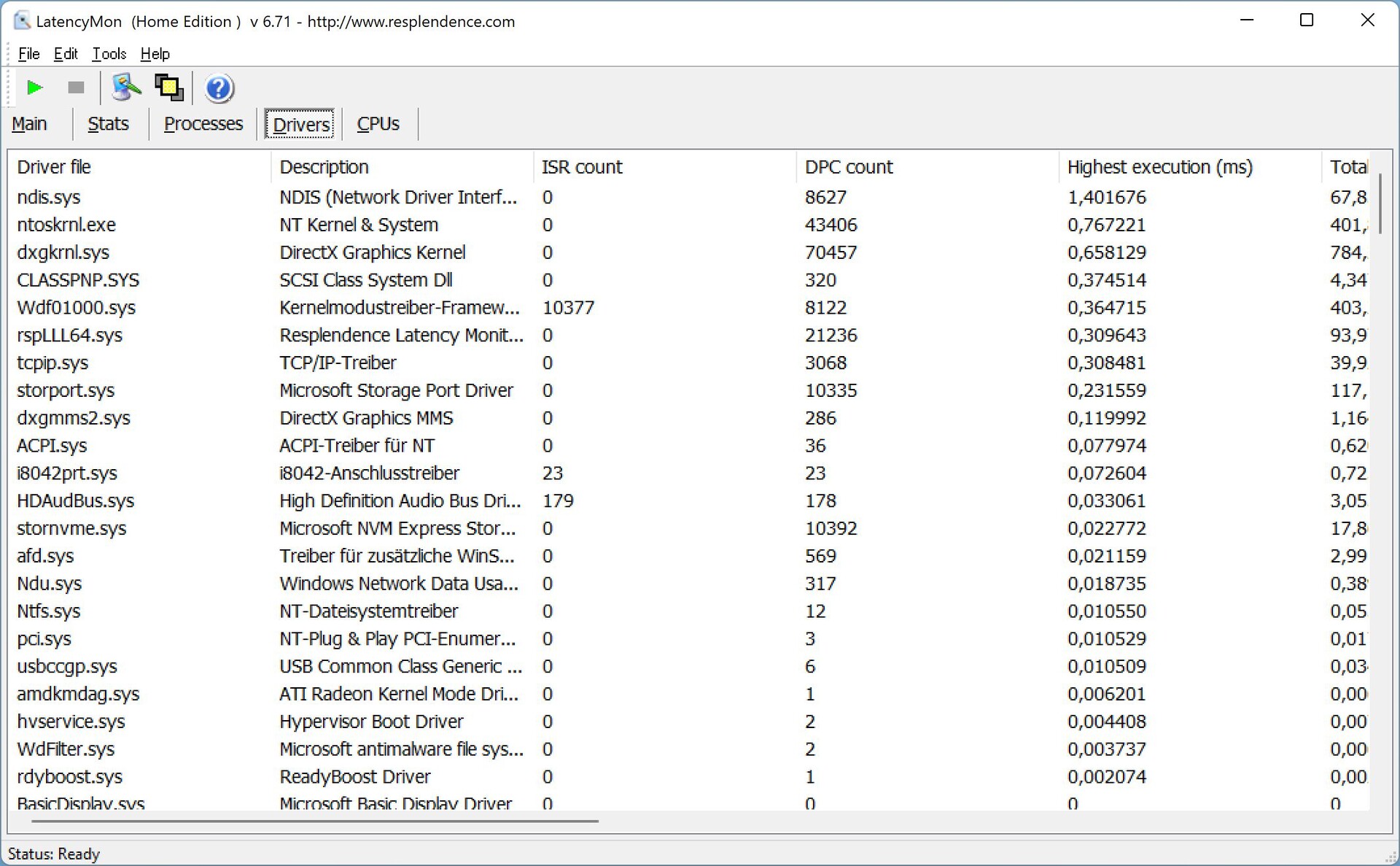

LatencyMon - 驱动程序
LatencyMon - 驱动程序
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo Yoga 7-14ARB G7
Radeon 680M, R7 6800U, Kioxia BG5 KBG50ZNT1T02
1532.4 μs *
Lenovo Yoga 9i 14 2022 i7-1260P
Iris Xe G7 96EUs, i7-1260P, Samsung PM9A1 MZVL21T0HCLR
959.5 μs * +37%
Dell Latitude 9430 2-in-1
Iris Xe G7 96EUs, i7-1265U
798.1 μs * +48%
Lenovo Yoga 7 14ITL5
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZALQ512HALU
777 μs * +49%
Dell Inspiron 14 7420 2-in-1
Iris Xe G7 96EUs, i7-1255U, WDC PC SN530 SDBPMPZ-512G
640.5 μs * +58%
Asus Zenbook S 13 OLED
Radeon 680M, R7 6800U, Samsung PM9A1 MZVL21T0HCLR
588.9 μs * +62%
HP Spectre x360 13.5 14t-ef000
Iris Xe G7 96EUs, i7-1255U, Micron 3400 1TB MTFDKBA1T0TFH
558.7 μs * +64%

* ... smaller is better

存储设备

紧凑型M.2-2230固态硬盘
紧凑型M.2-2230固态硬盘

Yoga 7 14支持PCIe 4.0固态硬盘,Kioxia硬盘也支持同样的快速标准,但该硬盘只能达到略高于3GB/s的传输率。因此,这里本来可以做得更多,但没有大的限制,即使在持续的负载下,性能仍然相当稳定。然而,在实践中,用户受益于大存储容量(1TB),首次启动后有905GB可用。这是一款短小的M.2-2230固态硬盘,但它是用支架安装在2280插槽中的,所以如果需要的话,普通的2280固态硬盘也可以毫无问题地安装在这里。更多的SSD基准测试可以在下面找到这里.

Kioxia BG5 KBG50ZNT1T02
CDM 5/6 Read Seq Q32T1: 3001.7 MB/s
CDM 5/6 Write Seq Q32T1: 2947.1 MB/s
CDM 5/6 Read 4K Q32T1: 384.24 MB/s
CDM 5/6 Write 4K Q32T1: 353.27 MB/s
CDM 5/6 Read 4K: 58 MB/s
CDM 5/6 Write 4K: 136.2 MB/s
CDM 6 Write 4K Q8T8: 372.86 MB/s
CDM 6 Read 4K Q8T8: 1070.72 MB/s
Drive Performance Rating - Percent
Lenovo Yoga 9i 14 2022 i7-1260P
Samsung PM9A1 MZVL21T0HCLR
97.1 pt
Asus Zenbook S 13 OLED
Samsung PM9A1 MZVL21T0HCLR
71.9 pt
HP Spectre x360 13.5 14t-ef000
Micron 3400 1TB MTFDKBA1T0TFH
65.8 pt
Average of class Convertible

56 pt
Lenovo Yoga 7-14ARB G7
Kioxia BG5 KBG50ZNT1T02
46 pt
Average Kioxia BG5 KBG50ZNT1T02

46 pt
Dell Latitude 9430 2-in-1

42.7 pt
Dell Inspiron 14 7420 2-in-1
WDC PC SN530 SDBPMPZ-512G
35.2 pt
Lenovo Yoga 7 14ITL5
Samsung PM991 MZALQ512HALU
34.2 pt

* ... smaller is better

Sustained Read Performance: DiskSpd Read Loop, Queue Depth 8

01452904355807258701015116013051450159517401885203021752320246526102755Tooltip
Lenovo Yoga 7-14ARB G7: Ø2727 (2591.93-2888.29)

绘画作品

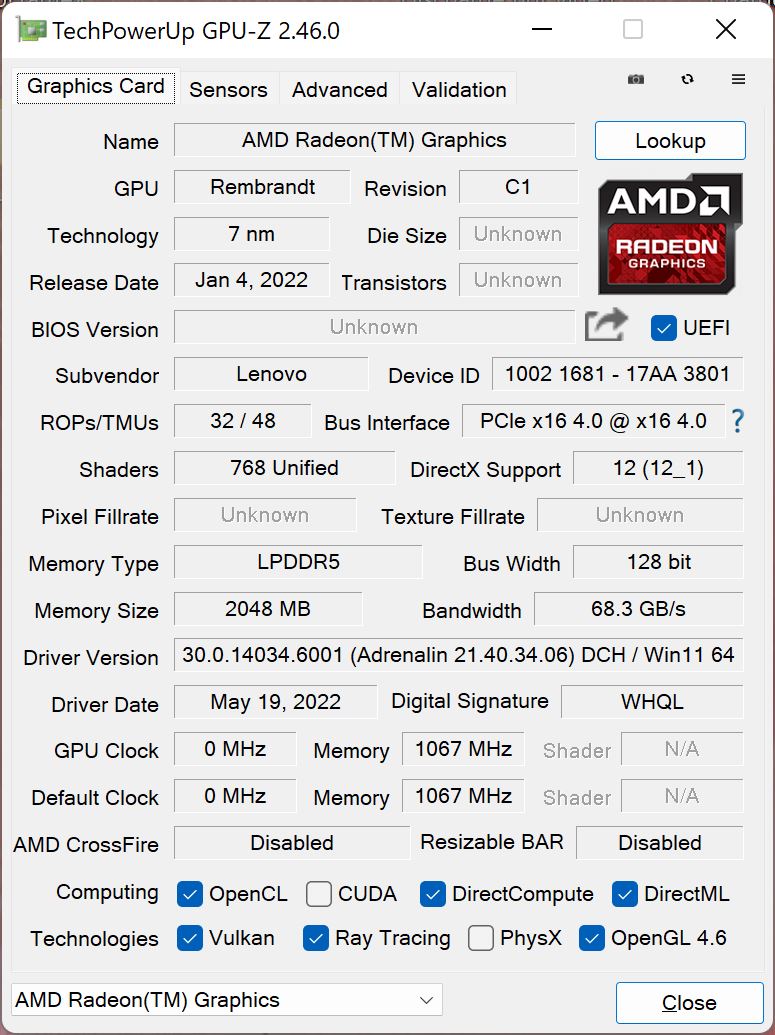

GPU-Z AMD Radeon 680M
GPU-Z AMD Radeon 680M

芯片 锐龙680M是一款强大的集成显卡,远远领先于英特尔的 Iris Xe Graphics G7(平均约为40-50%),可以与入门级GPU竞争,如 GeForce MX450或英特尔的新 弧形A350M,特别是在游戏基准测试中。由于视频解码器的存在,播放高分辨率视频完全没有问题。

由于Yoga 7 14的高TDP限制,Radeon 680M也比华硕Zenbook S 13 (合成测试中平均7%)略快。然而,与处理器一样,GPU性能在持续负载下略有下降,Time Spy 压力测试未能通过,为94.2%。在Witcher 3 循环中也有轻微的性能下降。

用Yoga 7 14 AMD玩游戏是绝对可能的。Witcher 3例如,在高细节下运行非常流畅。基本上,许多游戏都可以在高细节下进行;只有像《赛博朋克2077》这样要求非常高的游戏,你才不得不使用最低设置。

在电池模式下,GPU性能不会降低。更多的GPU基准测试可在这里.

3DMark Performance Rating - Percent
Samsung Galaxy Book2 15
Intel Arc A350M, Intel Core i7-1260P
97.8 pt
Average of class Convertible

93.7 pt
Lenovo Yoga 7-14ARB G7
AMD Radeon 680M, AMD Ryzen 7 6800U
92.9 pt
Average AMD Radeon 680M

89.4 pt
Asus Zenbook S 13 OLED
AMD Radeon 680M, AMD Ryzen 7 6800U
86.9 pt
Asus ZenBook 14X OLED UX5400EA-L7154W
NVIDIA GeForce MX450, Intel Core i7-1165G7
79.3 pt
Lenovo Yoga 9i 14 2022 i7-1260P
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
68.6 pt
HP Spectre x360 13.5 14t-ef000
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U
62.2 pt
Dell Latitude 9430 2-in-1
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U
61.7 pt
Dell Inspiron 14 7420 2-in-1
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U
52.4 pt
Lenovo Yoga 7 14ITL5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
35.9 pt
3DMark 11 Performance
9708 points
3DMark Cloud Gate Standard Score
31377 points
3DMark Fire Strike Score
6601 points
3DMark Time Spy Score
2722 points
Help
The Witcher 3
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7, NVIDIA GeForce MX450
43.5 fps +1%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
43 fps
Samsung Galaxy Book2 15
Intel Core i7-1260P, Intel Arc A350M
41 fps -5%
Asus Zenbook S 13 OLED
AMD Ryzen 7 6800U, AMD Radeon 680M
40 fps -7%
Average of class Convertible
  (21.1 - 155.3, n=33, last 2 years)
39.4 fps -8%
Average AMD Radeon 680M
  (22.3 - 48, n=32)
37.4 fps -13%
Lenovo Yoga 9i 14 2022 i7-1260P
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
36 fps -16%
HP Spectre x360 13.5 14t-ef000
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
32.7 (29min) fps -24%
Dell Latitude 9430 2-in-1
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
29.9 (26min) fps -30%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
25.3 (23min) fps -41%
Lenovo Yoga 7 14ITL5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
12.8 (11min) fps -70%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
25.4 (19min, 24P1) fps
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7, NVIDIA GeForce MX450
23.8 fps -6%
Average of class Convertible
  (10.2 - 101, n=36, last 2 years)
23.1 fps -9%
Asus Zenbook S 13 OLED
AMD Ryzen 7 6800U, AMD Radeon 680M
23 (19min, 22P1) fps -9%
Average AMD Radeon 680M
  (14.3 - 27.1, n=32)
23 fps -9%
Samsung Galaxy Book2 15
Intel Core i7-1260P, Intel Arc A350M
18.4 (15min, 17P1) fps -28%
HP Spectre x360 13.5 14t-ef000
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
14.8 (14min) fps -42%
Dell Latitude 9430 2-in-1
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
14.4 (13min) fps -43%
Lenovo Yoga 9i 14 2022 i7-1260P
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
14.1 (13min, 13P1) fps -44%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
12.3 (11min) fps -52%
Lenovo Yoga 7 14ITL5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
7 (5min) fps -72%

Witcher 3 FPS Chart

0510152025Tooltip
Lenovo Yoga 7-14ARB G7 R7 6800U, Radeon 680M: Ø25.4 (19-29)

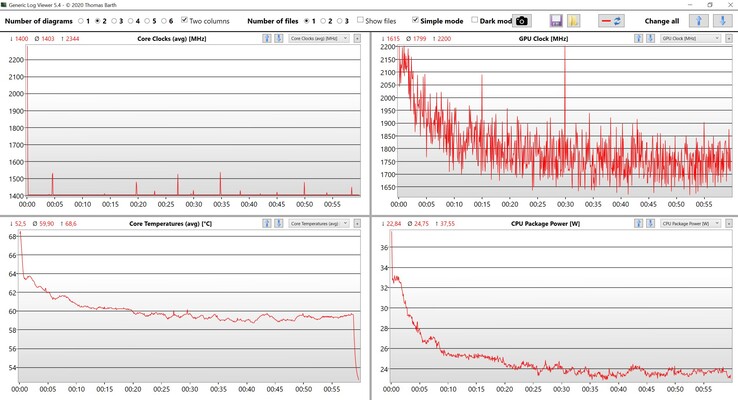

CPU/iGPU数据 -Witcher 3 Ultra设置
CPU/iGPU数据 -Witcher 3 Ultra设置
lowmed.highultraQHD
GTA V (2015) 131.1 119.6 49.5 23.5 17
The Witcher 3 (2015) 126 76 43 25.4
Dota 2 Reborn (2015) 114.6 97.6 74 64.2
Final Fantasy XV Benchmark (2018) 68.5 34 24.2 17
X-Plane 11.11 (2018) 54.6 41.9 36.2
Far Cry 5 (2018) 66 38 36 35 21
Strange Brigade (2018) 140.5 58.4 48.1 41.8 27.8
F1 2021 (2021) 152.9 82.1 60.3 25.6 17
Cyberpunk 2077 1.6 (2022) 34 26 19 15

排放--《瑜伽7》与扬声器磕磕碰碰

噪声排放

瑜伽》的粉丝
瑜伽》的粉丝

在使用过程中,你会立即注意到,联想只安装了一个风扇。结合相对较高的TDP限制,即使在中等负荷下,风扇也会迅速达到最大音量(取决于电源模式)。我们登记了以下数值。在电池保护模式 下最大为31.2分贝(A),在智能冷却模式下为37.2分贝(A),在性能 模式下为42.8分贝(A)。另一方面,噪音并不高亢或令人讨厌。在日常使用中,风扇经常被停用,或者噪音水平相当安静。没有检测到恼人的噪音,如线圈啸叫。

Noise Level

Idle
24.5 / 24.5 / 28.1 dB(A)
Load
42.8 / 42.8 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 24.5 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.131.331.231.22931.62529.932.829.429.428.731.83125.732.126.826.824.427.54027.82931.431.428.728.45026.528.428.528.523.830.36322.926.825.525.522.724.18023.728.523.223.221.822.310020.624202019.321.912521.52621.221.219.421.61602124.122221921.720019.424.620.620.617.52125018.425.118.118.115.421.131518.52618.818.813.722.540020.829.218.518.512.724.150019.728.318.418.412.523.663019.327.9181812.123.180018.428.116.816.811.423100019.929.216.416.411.724.8125020.430.917.117.111.226160020.932.116.816.811.427.2200022.134.117.417.412.128.6250020.232.8161612.326.931501930.714.714.712.225.4400018.731.714.714.712.325.650001731.113.413.412.724.3630014.730.813.113.112.923800013.425.913.113.112.917.3100001320.8131312.914.61250012.617.412.712.712.813.21600012.314.712.312.31212.5SPL31.242.828.128.124.537.2N1.44.1110.62.5median 19.3median 28.1median 16.8median 16.8median 12.7median 23Delta2.63.72.62.60.92.8hearing rangehide median Fan NoiseLenovo Yoga 7-14ARB G7
Lenovo Yoga 7-14ARB G7
Radeon 680M, R7 6800U, Kioxia BG5 KBG50ZNT1T02
HP Spectre x360 13.5 14t-ef000
Iris Xe G7 96EUs, i7-1255U, Micron 3400 1TB MTFDKBA1T0TFH
Dell Latitude 9430 2-in-1
Iris Xe G7 96EUs, i7-1265U
Dell Inspiron 14 7420 2-in-1
Iris Xe G7 96EUs, i7-1255U, WDC PC SN530 SDBPMPZ-512G
Lenovo Yoga 9i 14 2022 i7-1260P
Iris Xe G7 96EUs, i7-1260P, Samsung PM9A1 MZVL21T0HCLR
Asus Zenbook S 13 OLED
Radeon 680M, R7 6800U, Samsung PM9A1 MZVL21T0HCLR
Lenovo Yoga 7 14ITL5
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZALQ512HALU
Noise
12%
6%
6%
3%
8%
-1%
off / environment *
24.5
23.5
4%
23.7
3%
23.1
6%
24.1
2%
24
2%
27.4
-12%
Idle Minimum *
24.5
23.5
4%
23.7
3%
24.7
-1%
24.1
2%
24
2%
27.4
-12%
Idle Average *
24.5
23.5
4%
23.7
3%
24.7
-1%
24.1
2%
24
2%
29
-18%
Idle Maximum *
28.1
23.5
16%
23.7
16%
24.7
12%
30
-7%
24
15%
29.1
-4%
Load Average *
42.8
27
37%
35.1
18%
27.7
35%
39.4
8%
33.1
23%
29.1
32%
Witcher 3 ultra *
42.8
36.2
15%
43.3
-1%
45.1
-5%
39.4
8%
40.2
6%
36.1
16%
Load Maximum *
42.8
42.4
1%
43
-0%
45.1
-5%
39.4
8%
41.7
3%
46.3
-8%

* ... smaller is better

温度

铝制机箱在日常使用中保持着令人愉快的凉爽。即使在负载情况下,用户也不必担心表面发热,因为我们在压力测试中测得底部最高温度约为45℃。即便如此,你仍然可以将设备放在你的大腿上。

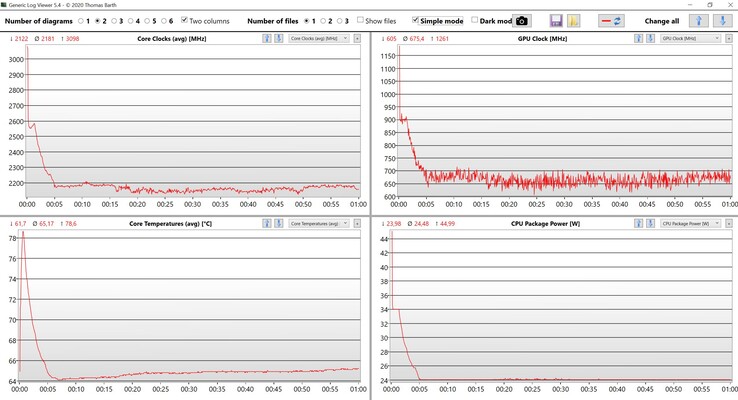

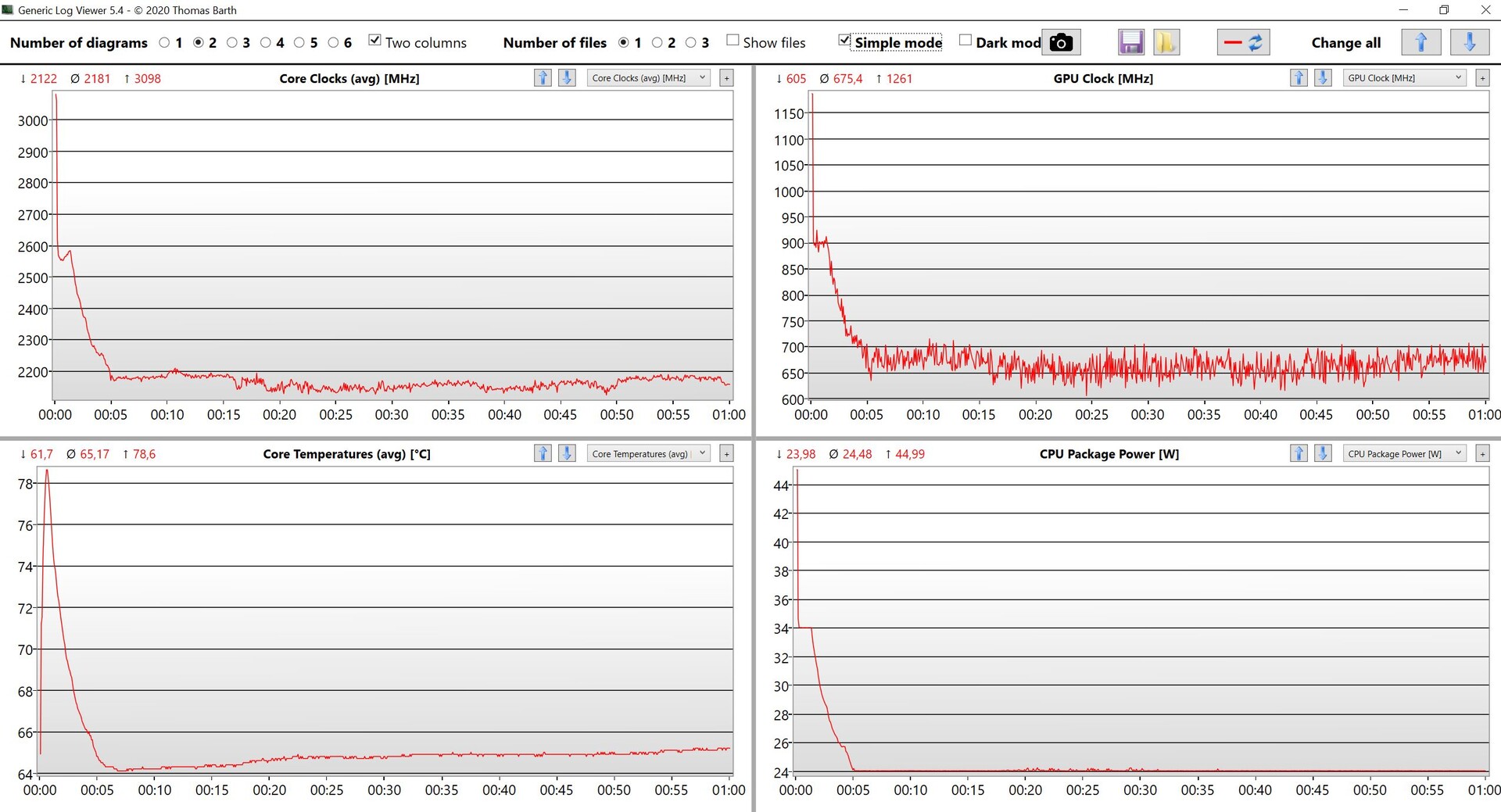

原则上,我们在压力测试中观察到与纯CPU负载相同的行为:在45瓦的短暂峰值后,最初运行34瓦,几分钟后稳定在24瓦。在压力测试之后,性能没有下降

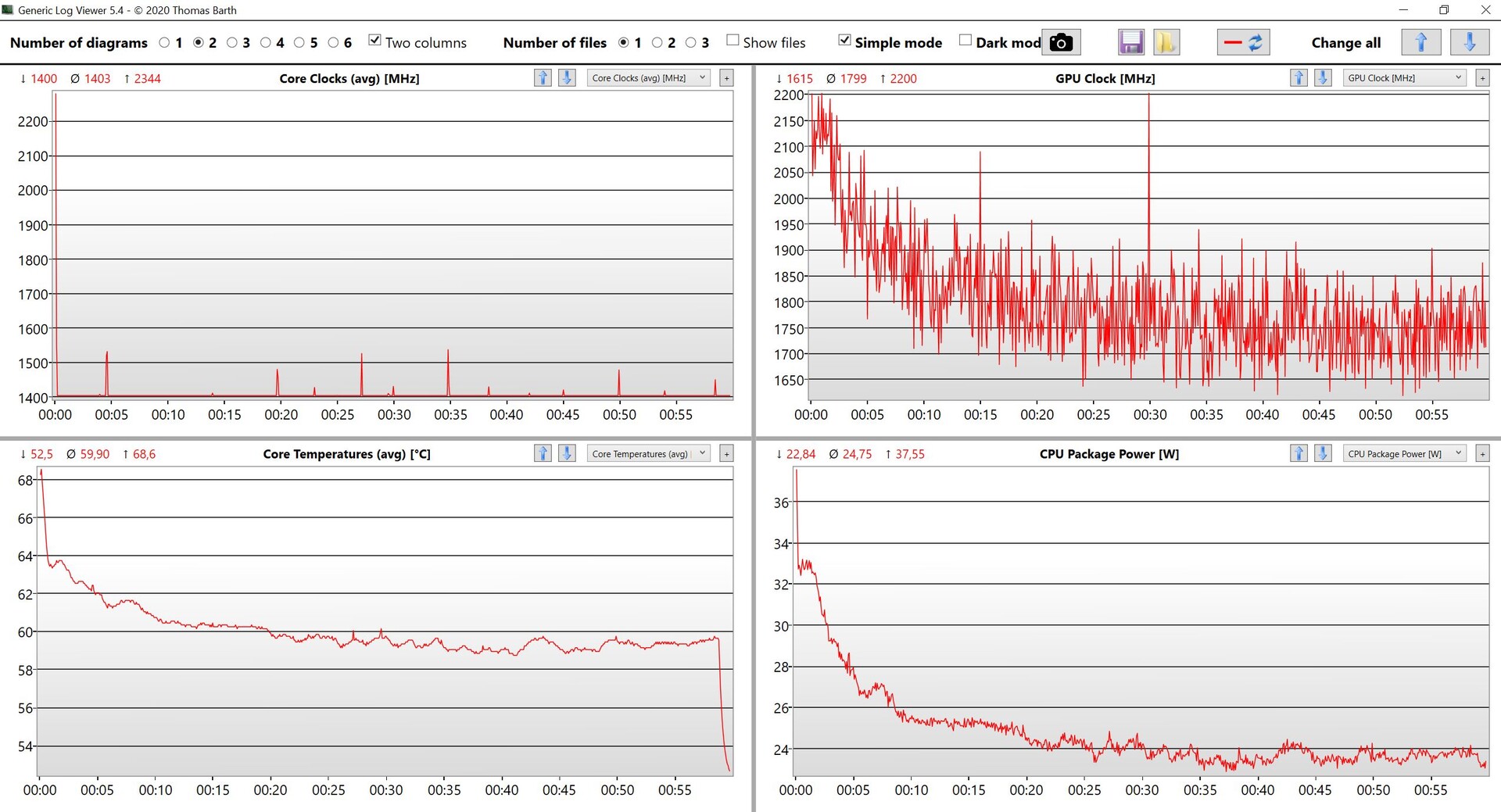

CPU/iGPU数据压力测试
CPU/iGPU数据压力测试
Max. Load
 41.3 °C42.3 °C40.6 °C
 40.2 °C40.7 °C32.8 °C
 30.5 °C27.8 °C27.8 °C
Maximum: 42.3 °C
Average: 36 °C
34.9 °C45.4 °C44.6 °C
30.1 °C41.8 °C39.8 °C
27.1 °C31.3 °C31.2 °C
Maximum: 45.4 °C
Average: 36.2 °C
Power Supply (max.)  43.6 °C | Room Temperature 21.5 °C | Fluke t3000FC (calibrated), Voltcraft IR-900
(±) The average temperature for the upper side under maximal load is 36 °C / 97 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 42.3 °C / 108 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(-) The bottom heats up to a maximum of 45.4 °C / 114 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25.3 °C / 78 F, compared to the device average of 30.3 °C / 87 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 34.1 °C / 93 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.5 °C / 86.9 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (-2.5 °C / -4.5 F).

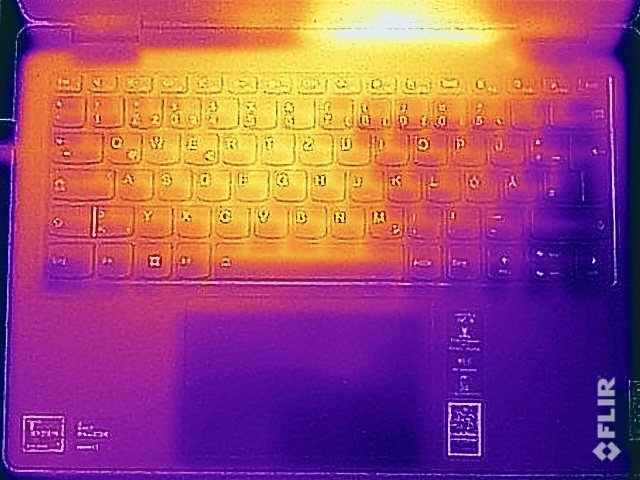

表面温度上侧(压力测试)
表面温度上侧(压力测试)

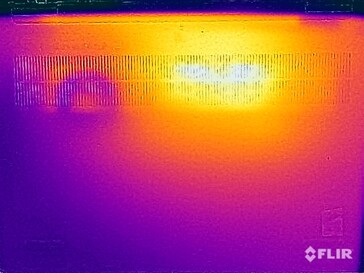

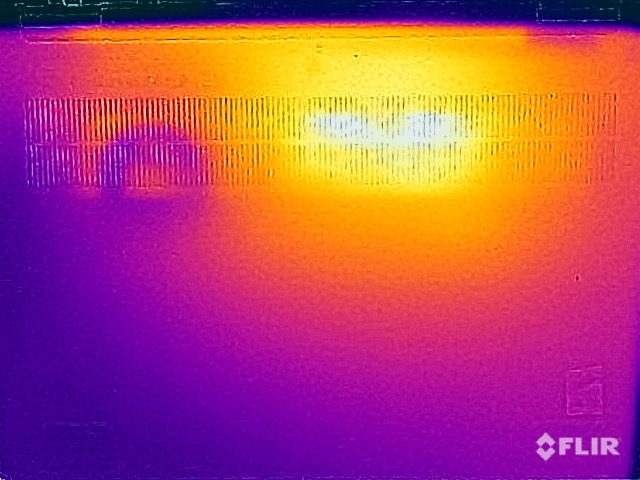

表面温度底面(压力测试)
表面温度底面(压力测试)
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
HP Spectre x360 13.5 14t-ef000
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
Dell Latitude 9430 2-in-1
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
Lenovo Yoga 9i 14 2022 i7-1260P
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
Asus Zenbook S 13 OLED
AMD Ryzen 7 6800U, AMD Radeon 680M
Lenovo Yoga 7 14ITL5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
Heat
17%
11%
-1%
-9%
-11%
-7%
Maximum Upper Side *
42.3
36.4
14%
39.2
7%
38.2
10%
47.5
-12%
47.9
-13%
40
5%
Maximum Bottom *
45.4
37
19%
44.8
1%
45.6
-0%
52.2
-15%
56.1
-24%
44.2
3%
Idle Upper Side *
26.2
20.8
21%
21.4
18%
27.4
-5%
27.1
-3%
26.8
-2%
30.4
-16%
Idle Bottom *
26.6
22.6
15%
22.4
16%
28.4
-7%
28.5
-7%
27.3
-3%
31.6
-19%

* ... smaller is better

发言人

瑜伽7 14共有四个扬声器(2个2W的低音扬声器和2个2W的高音扬声器),但与更昂贵的瑜伽7 14相比,质量上有明显的差别。瑜伽9i 14扬声器变得相当响亮,但声音出奇的单薄,主观上没有印象。在我们的测量中,该音响系统也没有特别好的表现。

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs202937.82528.733.93124.434.14028.732.85023.831.36322.7338021.834.810019.336.412519.441.4160194420017.55125015.453.731513.758.640012.765.850012.568.363012.174.480011.476100011.772.7125011.272.6160011.473.7200012.173.8250012.370.4315012.263.9400012.360.9500012.757.2630012.953.2800012.949.31000012.952.71250012.856.6160001254.5SPL24.582.5N0.648median 12.7median 58.6Delta0.910.427.53227.333.821.434.227.835.128.536.824.638.119.644.319.956.219.659.519.861.619.967.819.469.115.369.813.370.912.573.412.171.511.273.510.771.410.470.110.468.310.771.411.272.711.367.911.872.612.172.512.374.412.273.812.473.812.372.411.569.924.1840.666median 12.2median 71.41.92.5hearing rangehide median Pink NoiseLenovo Yoga 7-14ARB G7Lenovo Yoga 9i 14 2022 i7-1260P
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo Yoga 7-14ARB G7 audio analysis

(+) | speakers can play relatively loud (82.5 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.1% lower than median
(±) | linearity of bass is average (8.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 13.5% higher than median
(+) | mids are linear (6% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | reduced highs - on average 5.9% lower than median
(±) | linearity of highs is average (8.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (22.4% difference to median)
Compared to same class
» 66% of all tested devices in this class were better, 5% similar, 29% worse
» The best had a delta of 6%, average was 20%, worst was 57%
Compared to all devices tested
» 63% of all tested devices were better, 6% similar, 31% worse
» The best had a delta of 4%, average was 24%, worst was 134%

Lenovo Yoga 9i 14 2022 i7-1260P audio analysis

(+) | speakers can play relatively loud (84 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 7.4% lower than median
(±) | linearity of bass is average (7.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.1% away from median
(+) | mids are linear (3.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.1% away from median
(+) | highs are linear (3.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (6% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 100% worse
» The best had a delta of 6%, average was 20%, worst was 57%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 4%, average was 24%, worst was 134%

能源管理 - 良好的续航能力,但没有快速充电功能

消耗功率

鉴于高分辨率的OLED面板,特别是在空闲模式下的消耗率是非常有效的。即使是华硕Zenbook S 1313.3英寸的OLED也需要更多的电力。这一点也适用于 瑜伽9i也是如此,尽管它也使用4K OLED。

在负载情况下,我们的评测设备短暂地刮到了65瓦的电源适配器的功率限制,但这个问题在几秒钟后就解决了。在压力测试中,笔记本电脑的功率达到了44瓦,这就是为什么电源适配器的尺寸足够大。


Power Consumption
Off / Standbydarklight 0.3 / 0.49 Watt
Idledarkmidlight 5.1 / 8.2 / 8.7 Watt
Load midlight 51.4 / 64.8 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Lenovo Yoga 7-14ARB G7
R7 6800U, Radeon 680M, Kioxia BG5 KBG50ZNT1T02, OLED, 2880x1800, 14"
HP Spectre x360 13.5 14t-ef000
i7-1255U, Iris Xe G7 96EUs, Micron 3400 1TB MTFDKBA1T0TFH, OLED, 3000x2000, 13.5"
Dell Latitude 9430 2-in-1
i7-1265U, Iris Xe G7 96EUs, , IPS, 2560x1600, 14"
Dell Inspiron 14 7420 2-in-1
i7-1255U, Iris Xe G7 96EUs, WDC PC SN530 SDBPMPZ-512G, IPS, 1920x1200, 14"
Lenovo Yoga 9i 14 2022 i7-1260P
i7-1260P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL21T0HCLR, OLED, 3840x2400, 14"
Asus Zenbook S 13 OLED
R7 6800U, Radeon 680M, Samsung PM9A1 MZVL21T0HCLR, OLED, 2880x1800, 13.3"
Lenovo Yoga 7 14ITL5
i5-1135G7, Iris Xe G7 80EUs, Samsung PM991 MZALQ512HALU, IPS, 1920x1080, 14"
Average AMD Radeon 680M

Average of class Convertible

Power Consumption
8%
21%
4%
-27%
5%
13%
-15%
0%
Idle Minimum *
5.1
4
22%
2.9
43%
5.2
-2%
7.1
-39%
4.8
6%
4
22%
6.76 ?(2.2 - 14.6, n=36)
-33%
Idle Average *
8.2
4.9
40%
5.8
29%
8.2
-0%
10
-22%
8.7
-6%
7.8
5%
8.87 ?(4.4 - 15, n=36)
-8%
Idle Maximum *
8.7
12.5
-44%
6.6
24%
9.9
-14%
10.8
-24%
10.1
-16%
8.3
5%
10.5 ?(5.1 - 18.6, n=36)
-21%
Load Average *
51.4
48.1
6%
49.2
4%
44.4
14%
64
-25%
45.6
11%
37.8
26%
53.2 ?(20 - 80.4, n=35)
-4%
Witcher 3 ultra *
46.3
35.8
23%
35.3
24%
35
24%
47.7
-3%
42.4
8%
36
22%
Load Maximum *
64.8
65.2
-1%
63.1
3%
62.5
4%
97
-50%
49.5
24%
67.3
-4%

* ... smaller is better

Power consumption Witcher 3 / Stress test

051015202530354045505560Tooltip
Lenovo Yoga 7-14ARB G7; Witcher 3 ultra: Ø46.3 (43.5-50.9)
Lenovo Yoga 7-14ARB G7; 1280x720 Prime95 28.10 and Furmark 1.25: Ø49.7 (44-64.8)

Power consumption with an external monitor

051015202530354045505560Tooltip
Lenovo Yoga 7-14ARB G7; Prime95 V2810 Stress (external Monitor): Ø48 (43.8-56.3)
Lenovo Yoga 7-14ARB G7; Cinebench R15 Multi (external Monitor): Ø58 (49.4-63.9)
Lenovo Yoga 7-14ARB G7; Cinebench R23 Single (external Monitor): Ø27.6 (25.7-41.4)
Lenovo Yoga 7-14ARB G7; Cinebench R23 Multi (external Monitor): Ø50.5 (47.9-62.8)
Lenovo Yoga 7-14ARB G7; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø52.2 (45.4-59.5)
Lenovo Yoga 7-14ARB G7; 1920x1080 The Witcher 3 ultra (external Monitor): Ø47.8 (42.6-53.4)
Lenovo Yoga 7-14ARB G7; Idle 1min (external Monitor): Ø4.62 (3.84-6.18)

电池寿命

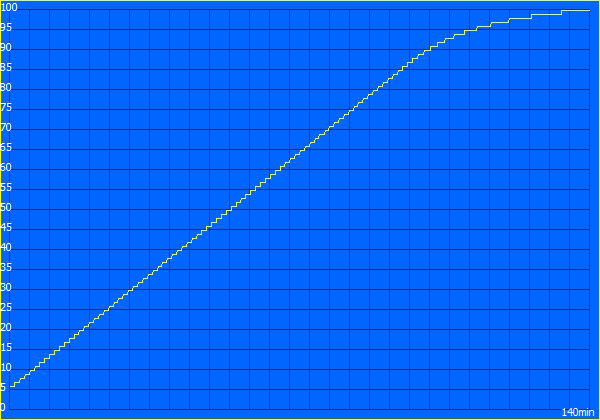

充电过程
充电过程

联想安装了一个71Wh的大电池,在我们的WLAN测试中,可以实现7:13小时(最大SDR亮度)和9:44小时(150cd/m²,相当于最大亮度的67%)的运行时间。在150cd/m²的情况下,视频播放时间甚至可以超过12小时。对于我们的对比组来说,这些都是很好的结果。

一个全亮度的HDR视频在3:15小时内耗尽了电池。根据我们对Alder-Lake移动处理器的经验(以及单核负载下的高功耗),我们预计配备Intel Core i7-1260P 的相同Yoga 7 14的运行时间会稍短。

据联想称,这款笔记本电脑支持快速充电,但我们无法证实这一点。我们在两个USB-C接口上都尝试了附带的65瓦电源适配器和更强的100瓦模块,但充电曲线总是一样的。在设备打开的情况下,充满电需要140分钟;50%的电量在~53分钟后可以使用。


Battery Runtime
WiFi Websurfing (Edge 104)
9h 44min
WiFi Websurfing max. Brightness (Edge 104)
7h 13min
Big Buck Bunny H.264 1080p
12h 42min
Load (maximum brightness)
1h 50min
Lenovo Yoga 7-14ARB G7
R7 6800U, Radeon 680M, 71 Wh
HP Spectre x360 13.5 14t-ef000
i7-1255U, Iris Xe G7 96EUs, 66 Wh
Dell Latitude 9430 2-in-1
i7-1265U, Iris Xe G7 96EUs, 60 Wh
Dell Inspiron 14 7420 2-in-1
i7-1255U, Iris Xe G7 96EUs, 54 Wh
Lenovo Yoga 9i 14 2022 i7-1260P
i7-1260P, Iris Xe G7 96EUs, 75 Wh
Asus Zenbook S 13 OLED
R7 6800U, Radeon 680M, 67 Wh
Lenovo Yoga 7 14ITL5
i5-1135G7, Iris Xe G7 80EUs, 68.7 Wh
Average of class Convertible

Battery Runtime
2%
31%
-4%
-8%
16%
-11%
10%
H.264
762
758
-1%
912
20%
WiFi v1.3
584
481
-18%
767
31%
455
-22%
517
-11%
550
-6%
605
4%
Load
110
133
21%
143
30%
127
15%
98
-11%
146
33%
83
-25%
Reader / Idle
1223
1667
954
1855

Pros

+ 高品质外壳
+ 快速高效的AMD处理器
+ USB 4、Wi-Fi 6E和PCIe 4.0
+ 良好的OLED屏幕
+ 电池寿命长
+ 附带手写笔

Cons

- PWM闪烁
- 平庸的扬声器
- 有限的维护选项

评语--AMD敞篷车发挥了它的力量

在审查中。联想Yoga 7 14 AMD.样品设备由:
在审查中。联想Yoga 7 14 AMD.样品设备由:

新的Yoga 7 14是一个非常有趣的敞篷车,因为联想将高质量的铝制机箱与快速的 AMD Ryzen 7 6800U与目前的英特尔Alder-Lake CPU相比,它提供了更多的多核性能,但需要更少的电力。在相同的配置下,Yoga也可使用英特尔处理器,价格相同,但只提供两个优势,即略微更好的单核性能和雷电4。AMD和英特尔的配置都提供USB 4。

总体而言,该设备在日常使用中表现良好,但OLED面板中存在PWM,扬声器也令人失望。在这方面,更昂贵的 联想瑜伽9i 14更好,但反过来说,它的处理器和图形性能更差。

联想Yoga 7 14是一款采用AMD处理器的极其强大的可折叠机。此外,就效率和明显更快的iGPU而言,AMD Ryzen 7 6800U目前被证明是紧凑型笔记本或敞篷车的更好选择。

与基于英特尔(通常更昂贵)的对手相比,如 HP Spectre x360戴尔Latitude 9430相比,Yoga 7 14 AMD主要提供性能优势。总而言之,它总体上是一个非常好的包装。我们只希望扬声器能更好。

价格和可用性

联想Yoga 7 14 (AMD)似乎在欧洲通过联想的官方网站以不同的价格广泛销售,例如在UK(909.49英镑),the Netherlands(1104.16欧元),法国(1.049.15欧元)、意大利(1097.10欧元)和瑞典(11033.10 kr)。这个名单并不详尽。

然而,在欧洲之外,Yoga 7 14(AMD)似乎还没有到达联想成立的所有国家。在美国、加拿大、巴西、印度和新加坡进行搜索,没有结果。到目前为止,澳大利亚似乎是唯一的例外在澳大利亚,该设备的售价为2,149.00澳元。

价格和供应情况截至2022年9月3日,可能会有变化。建议用户(在适用的情况下)定期通过联想的官方网站检查可用性。

Lenovo Yoga 7-14ARB G7 - 09/01/2022 v7 (old)
Andreas Osthoff

Chassis
89 / 98 → 91%
Keyboard
91%
Pointing Device
97%
Connectivity
66 / 75 → 88%
Weight
70 / 20-75 → 91%
Battery
88%
Display
90%
Games Performance
74 / 78 → 94%
Application Performance
92 / 85 → 100%
Temperature
89%
Noise
88%
Audio
75 / 91 → 83%
Camera
42 / 85 → 49%
Average
81%
90%
Convertible - Weighted Average

Price comparison

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 评测 > 联想Yoga 7 14 G7评测。采用AMD Ryzen 7 6800U的多媒体敞篷车大放异彩
Andreas Osthoff, 2022-09- 3 (Update: 2022-09- 3)
