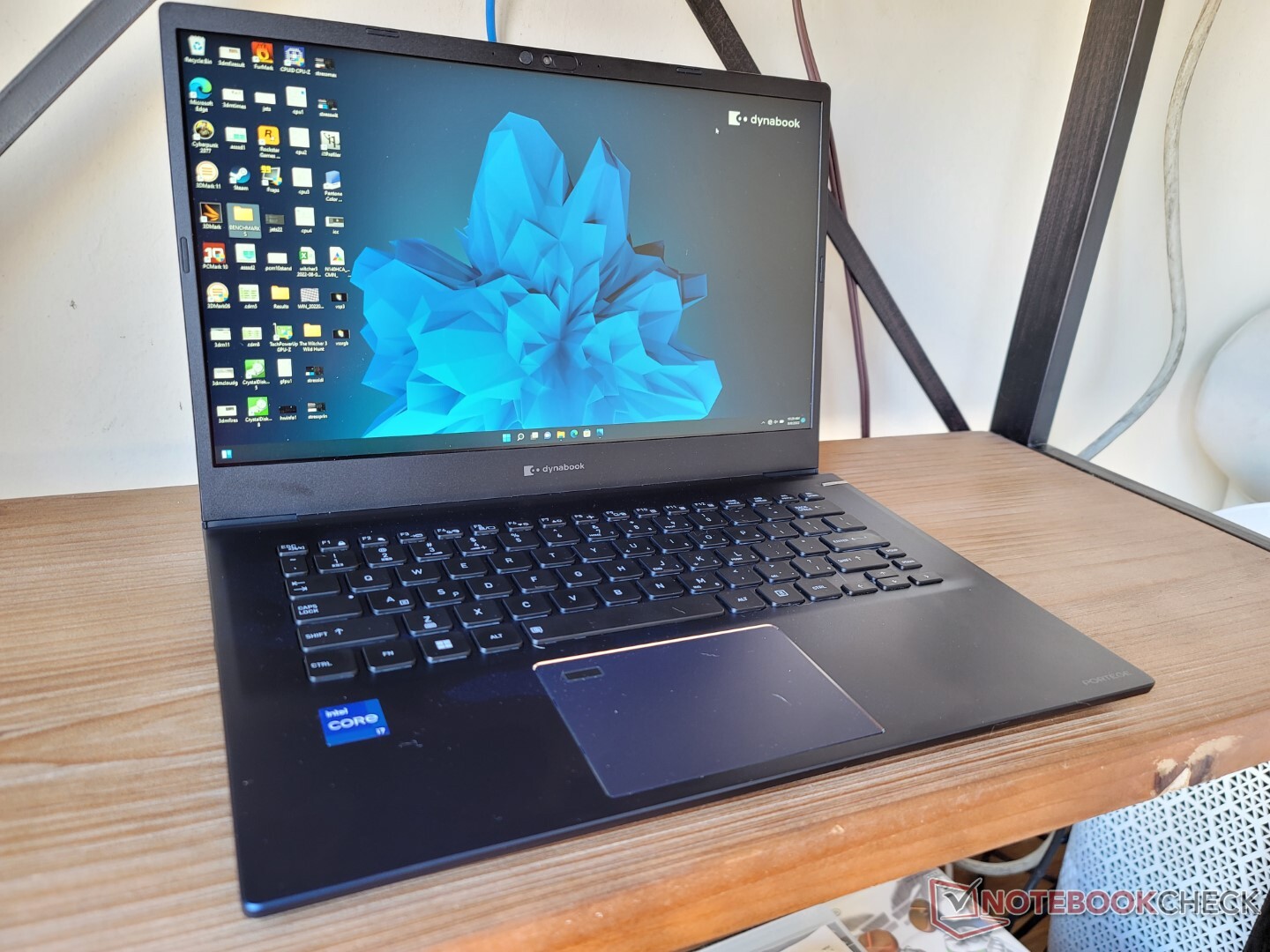

Dynabook Portégé X40-K评论。具有经济型显示屏的高级笔记本电脑
寻找高级商务笔记本电脑的办公人员有很多选择，包括联想ThinkPad X1 Carbon系列 ，惠普EliteBook系列 ，以及戴尔Latitude 7000或9000系列 。不容忽视的是，Dynabook推出了Portege X40-K，与更多知名厂商的高端机型竞争。Portege型号可以配置12代Core-P vPro CPU，触摸和非触摸FHD IPS显示屏，以及8至32GB可移动内存，起价约为1400美元。我们的具体测试配置是一个中档选项，配备酷睿i7-1260P，16GB内存和非触摸FHD显示屏。
更多Dynabook评论。
Dynabook Portégé X40-K (Portégé X40 Series)
Processor
Intel Core i7-1260P 12 x 1.5 - 4.7 GHz, 39 W PL2 / Short Burst, 28 W PL1 / Sustained, Alder Lake-P
Graphics adapter
Intel Iris Xe Graphics G7 96EUs, Core: 1400 MHz, RAM: 2667 MHz, DDR4, 30.0.101.1368

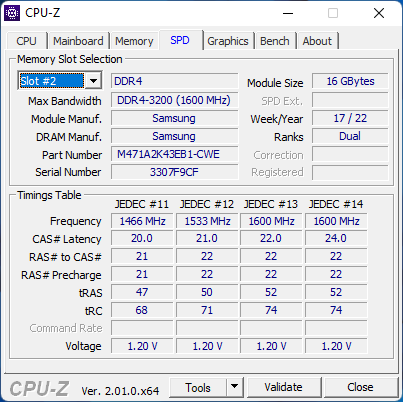

Memory
16 GB

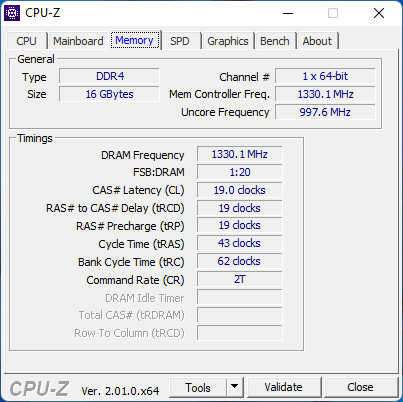

, Samsung DDR4-3200, 19-19-19-43, Single-Channel (2x SODIMM)
Display
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, Chi Mei N140HCA-EAC, IPS, CMN14D4, glossy: no, 60 Hz

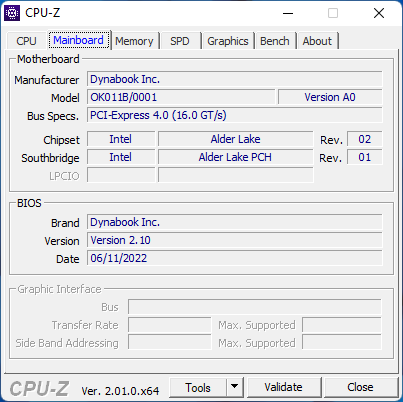

Mainboard
Intel Alder Lake-P PCH
Storage

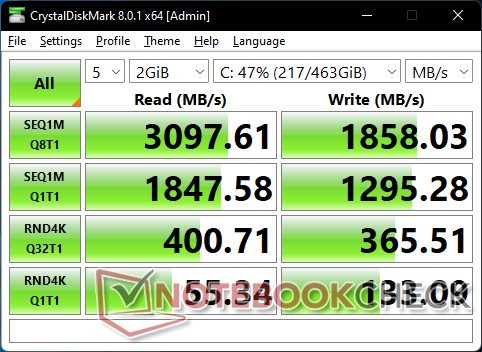

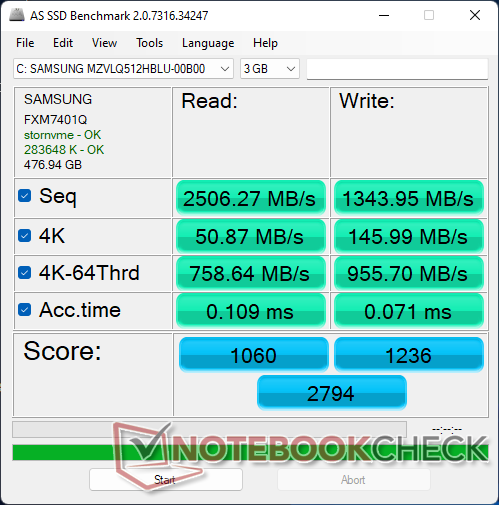

Samsung PM991 MZVLQ512HBLU, 512 GB
Weight
1.477 kg, Power Supply: 309 g
Price
1450 USD
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 84.3 % v7 (old) | 08 / 2022 | Dynabook Portégé X40-K i7-1260P, Iris Xe G7 96EUs | 1.5 kg | 17.9 mm | 14.00" | 1920x1080 | |
| 82 % v7 (old) | 08 / 2022 | VAIO FE 14.1 VWNC51429-SL i5-1235U, Iris Xe G7 80EUs | 1.6 kg | 19.8 mm | 14.10" | 1920x1080 | |
| 85.3 % v7 (old) | 07 / 2022 | HP ProBook 445 G8-3Z6Q8ES R5 5600U, Vega 7 | 1.4 kg | 19.8 mm | 14.00" | 1920x1080 | |
| 85.2 % v7 (old) | 02 / 2022 | Asus ExpertBook B3 Flip B3402FEA i7-1165G7, Iris Xe G7 96EUs | 1.6 kg | 19.5 mm | 14.00" | 1920x1080 | |
| 85.3 % v7 (old) | 01 / 2022 | Acer TravelMate P4 TMP414-51-59MR i5-1135G7, Iris Xe G7 80EUs | 1.4 kg | 17.9 mm | 14.00" | 1920x1080 | |
| 84.6 % v7 (old) | 08 / 2022 | Dell Inspiron 14 5425 6VPKR R5 5625U, Vega 7 | 1.6 kg | 18.37 mm | 14.00" | 1920x1200 |
案例

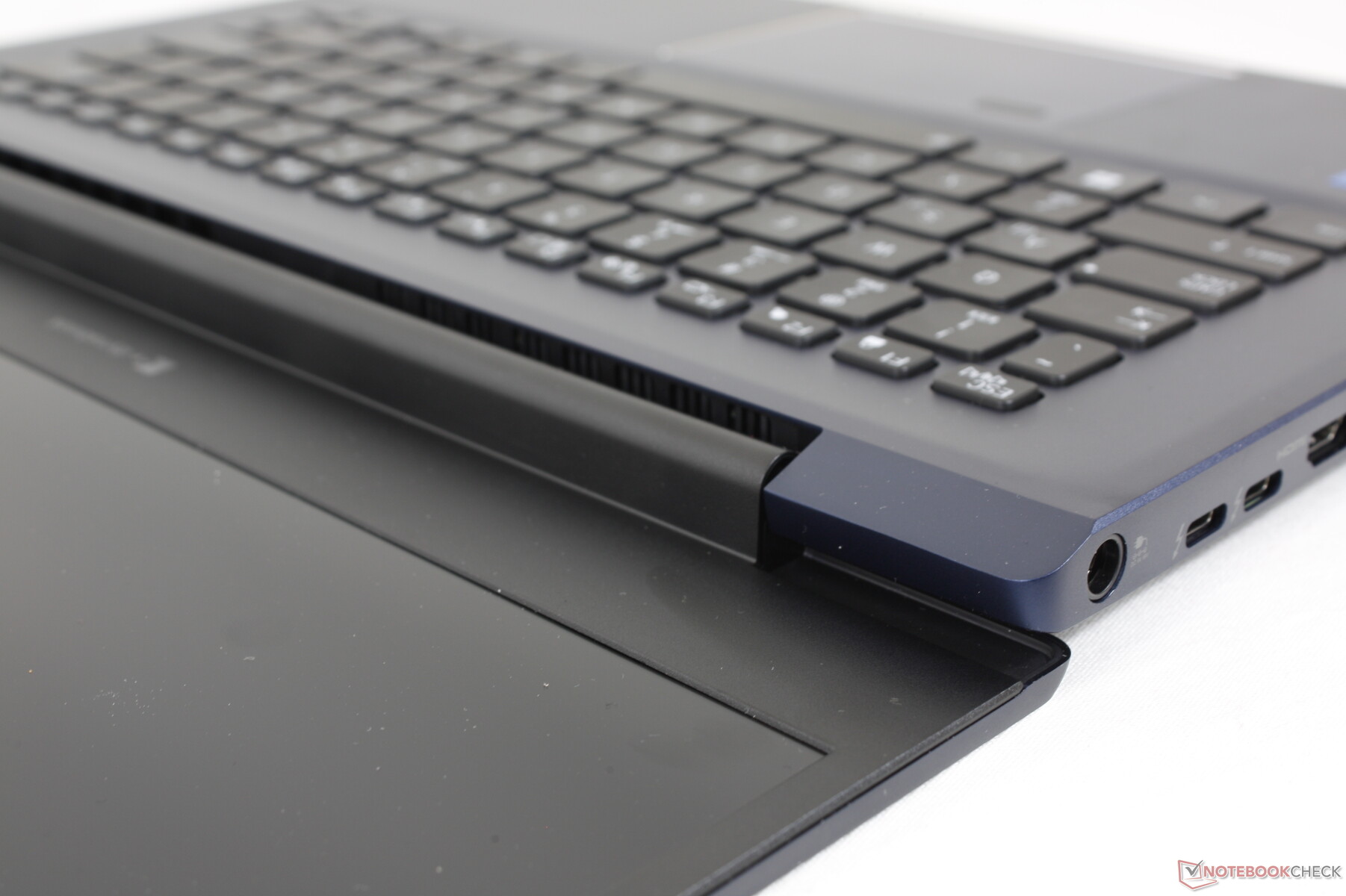

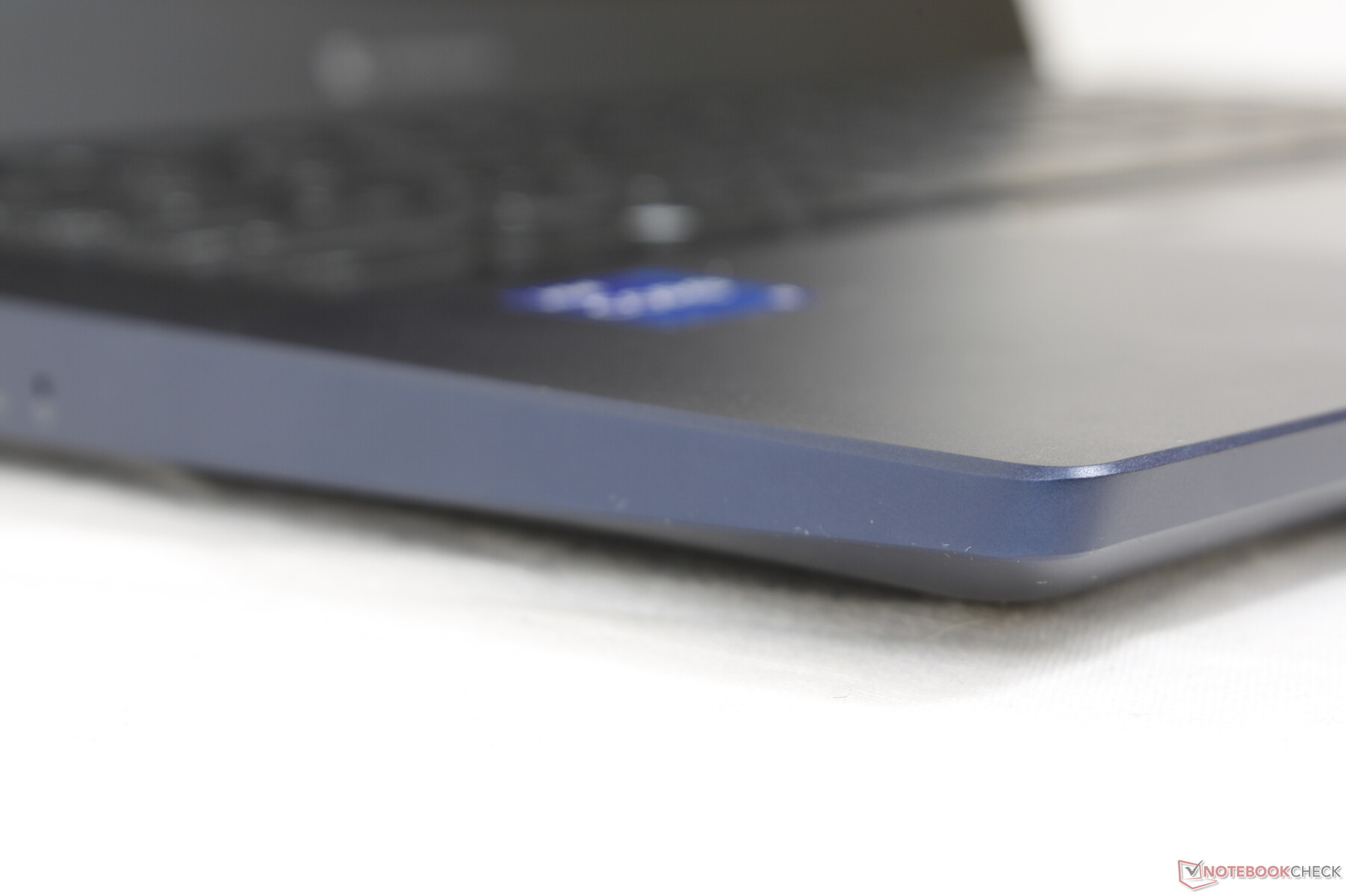

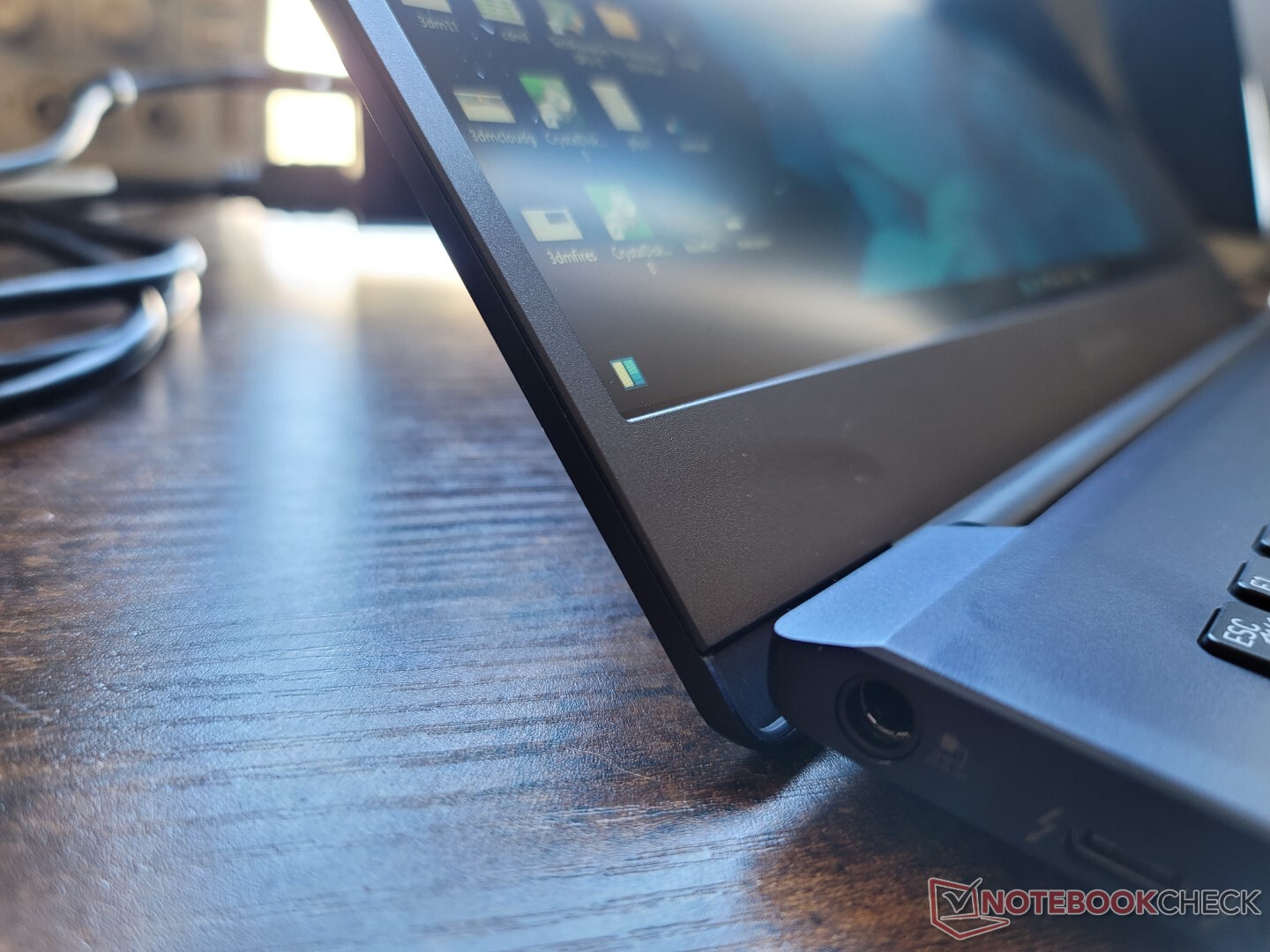

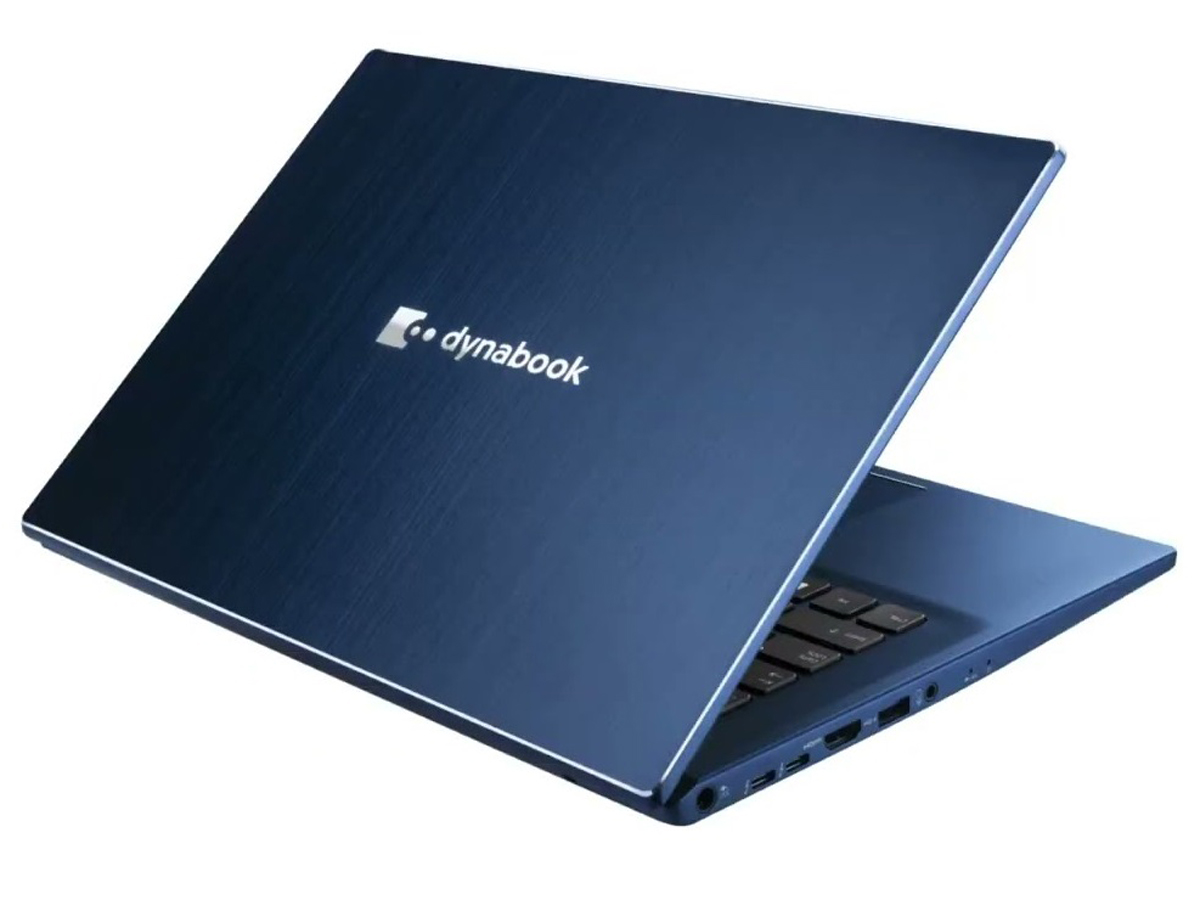

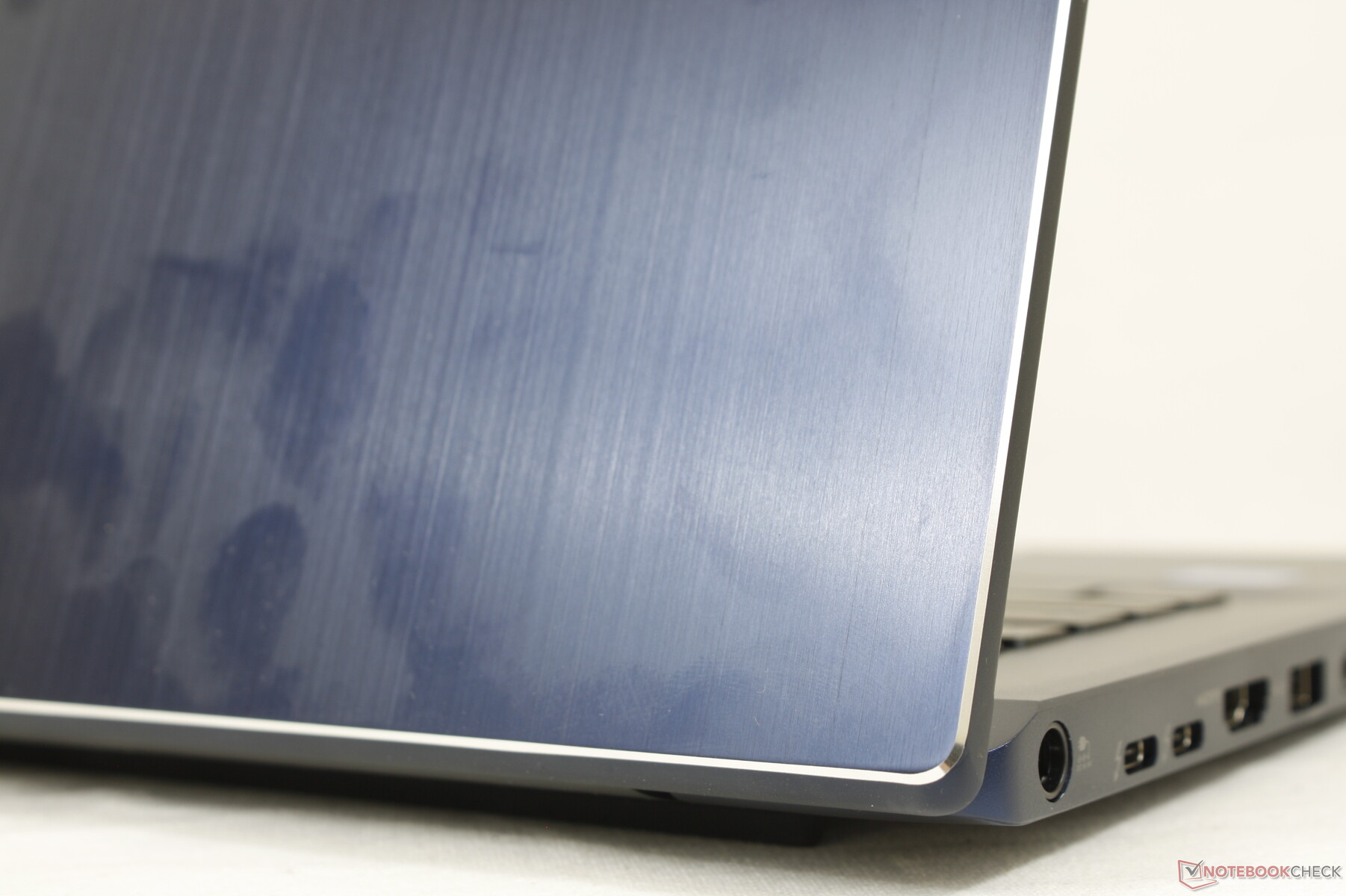

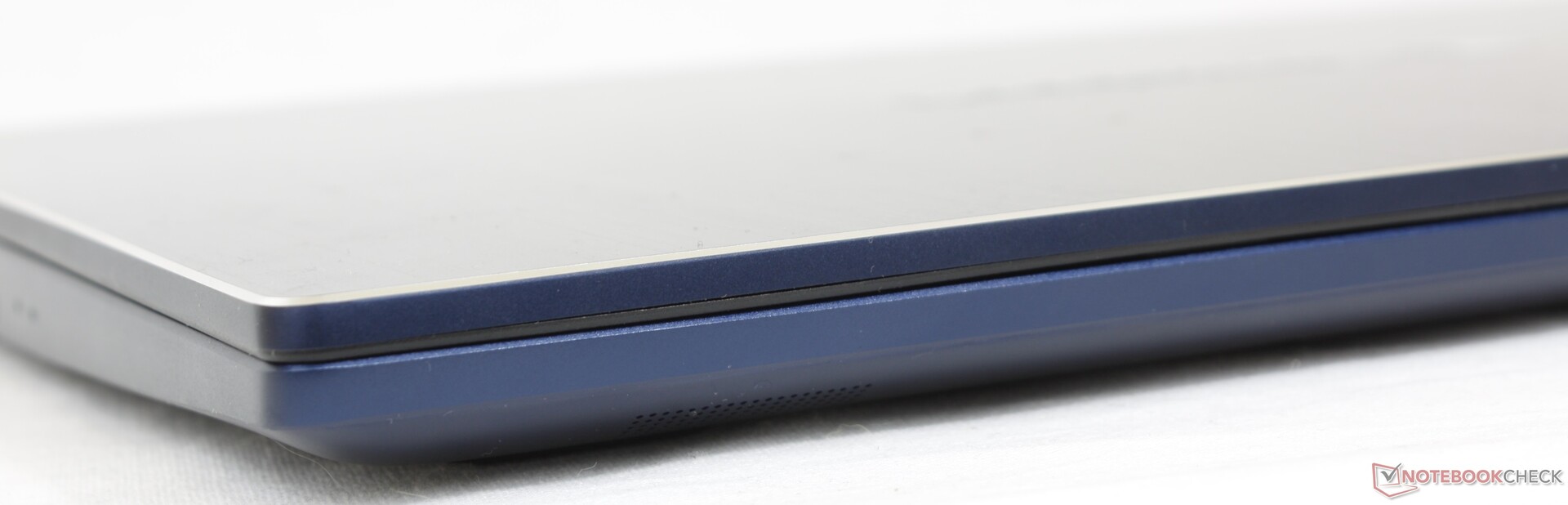

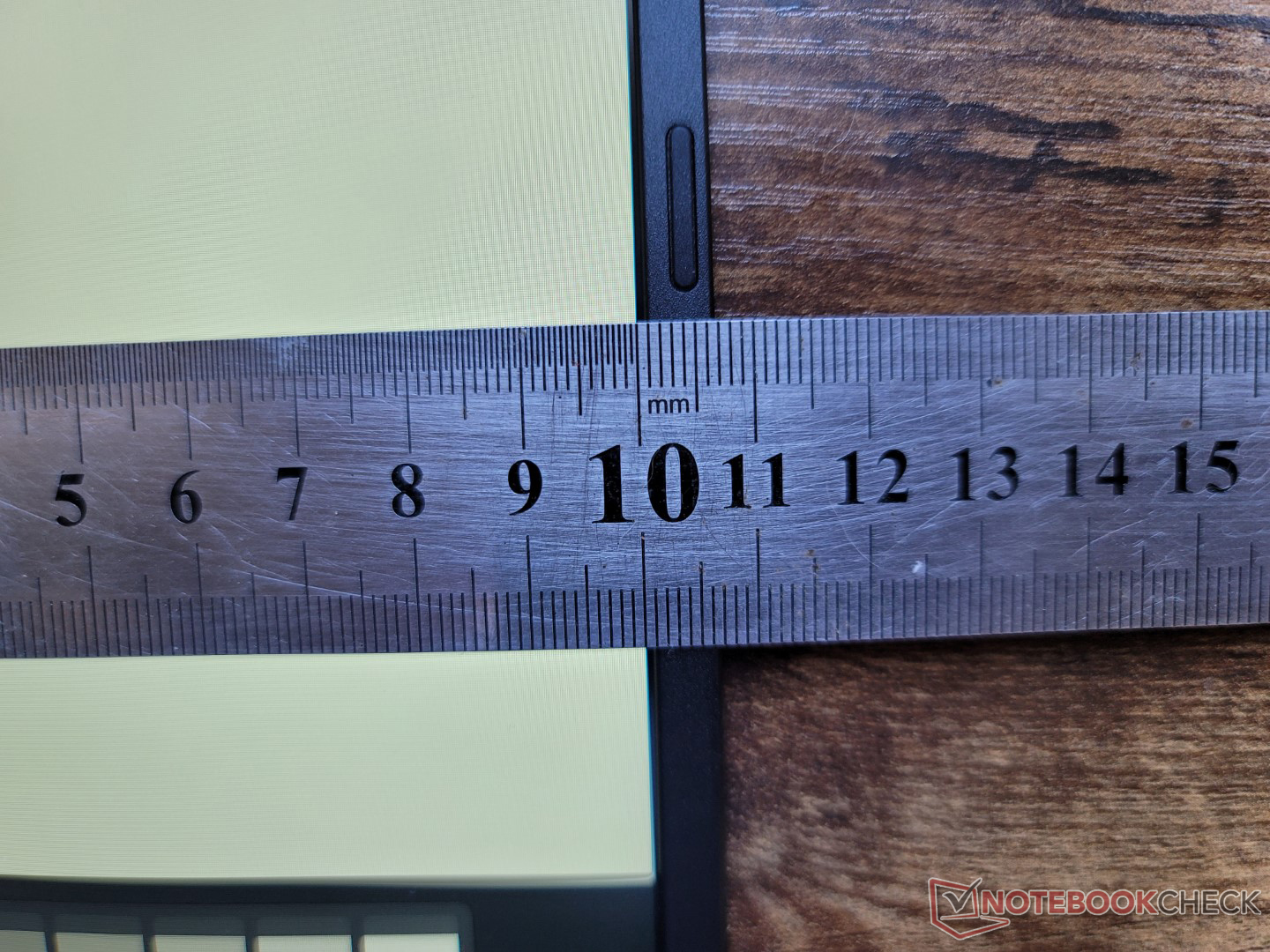

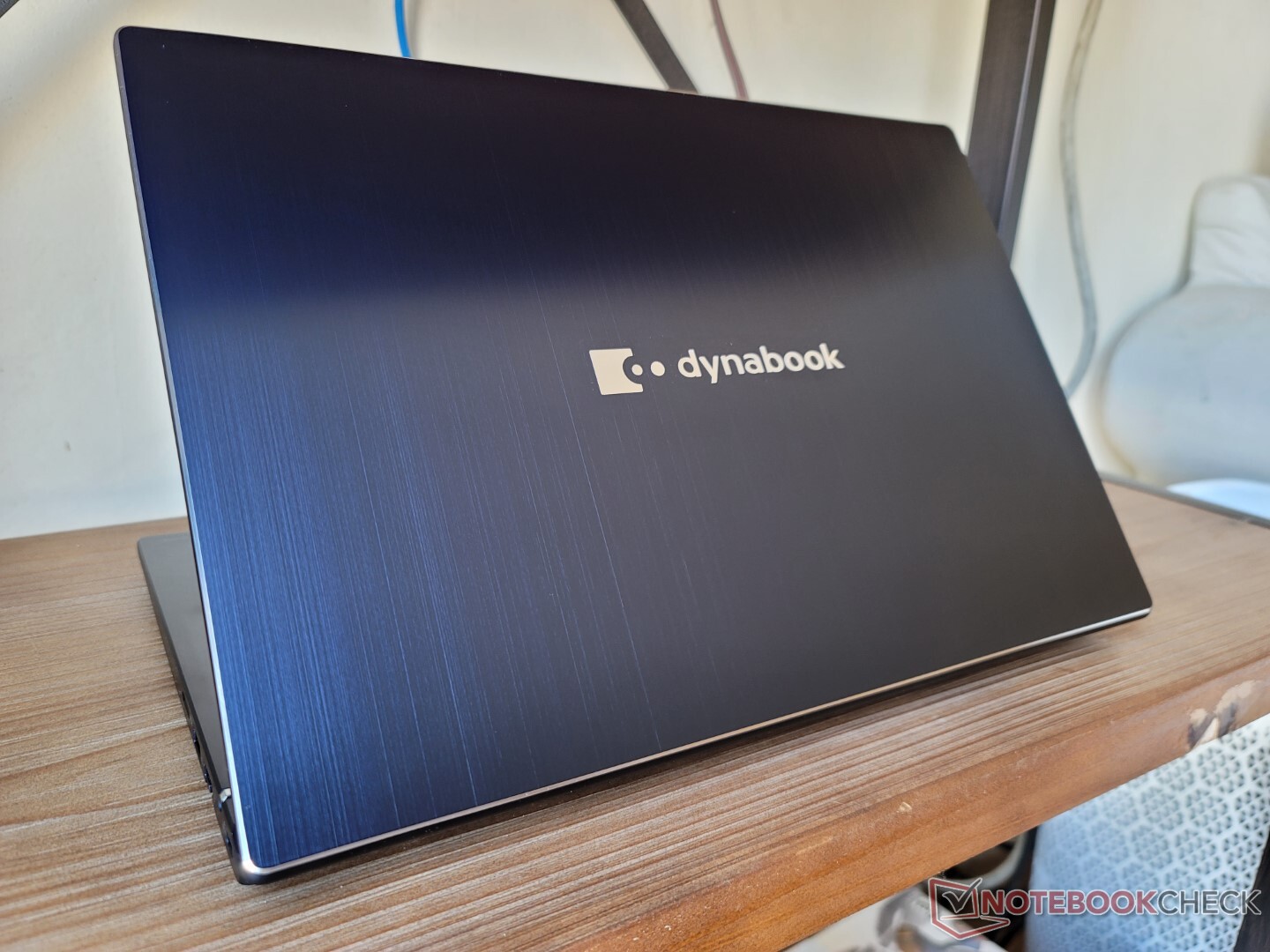

机箱是对老款Portege X40-G的全面修订。它的边框在所有方面都更窄，而沿着后角的两个大的灰色铰链现在已经消失，转而采用条形铰链。盖子的边缘和角落现在也是铬合金切割。
对于一台14英寸的商务笔记本电脑来说，尺寸是平均水平。这款 ThinkPad X1 Carbon相比之下明显更轻，但也更贵。

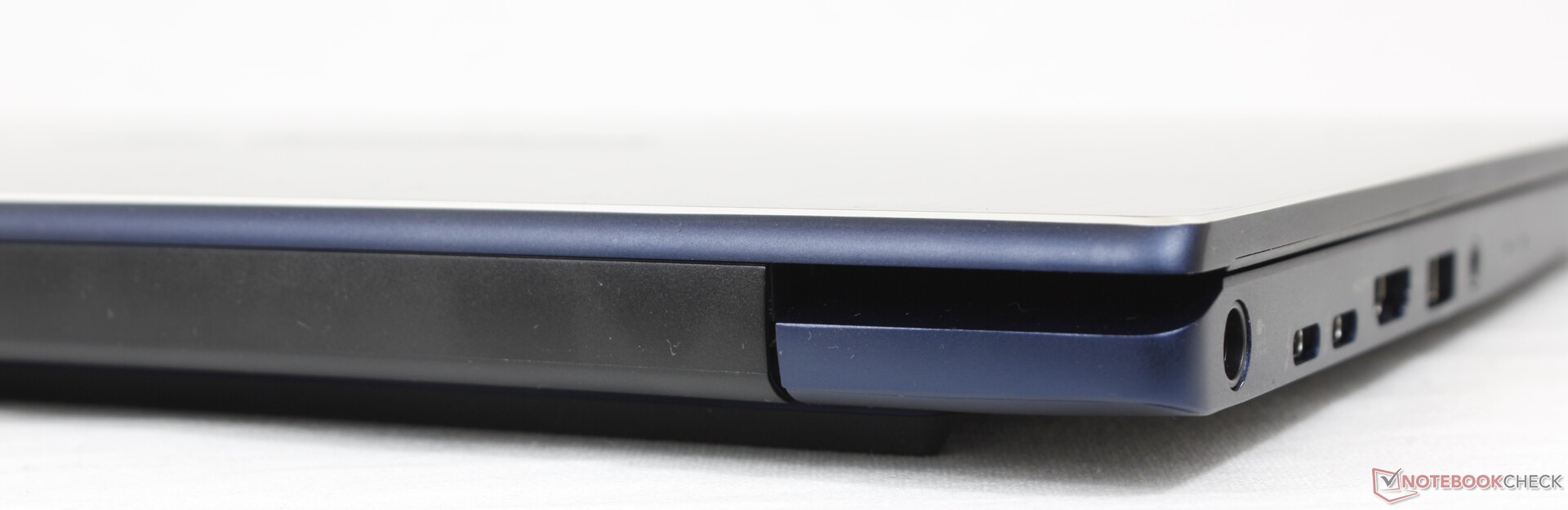

连接性

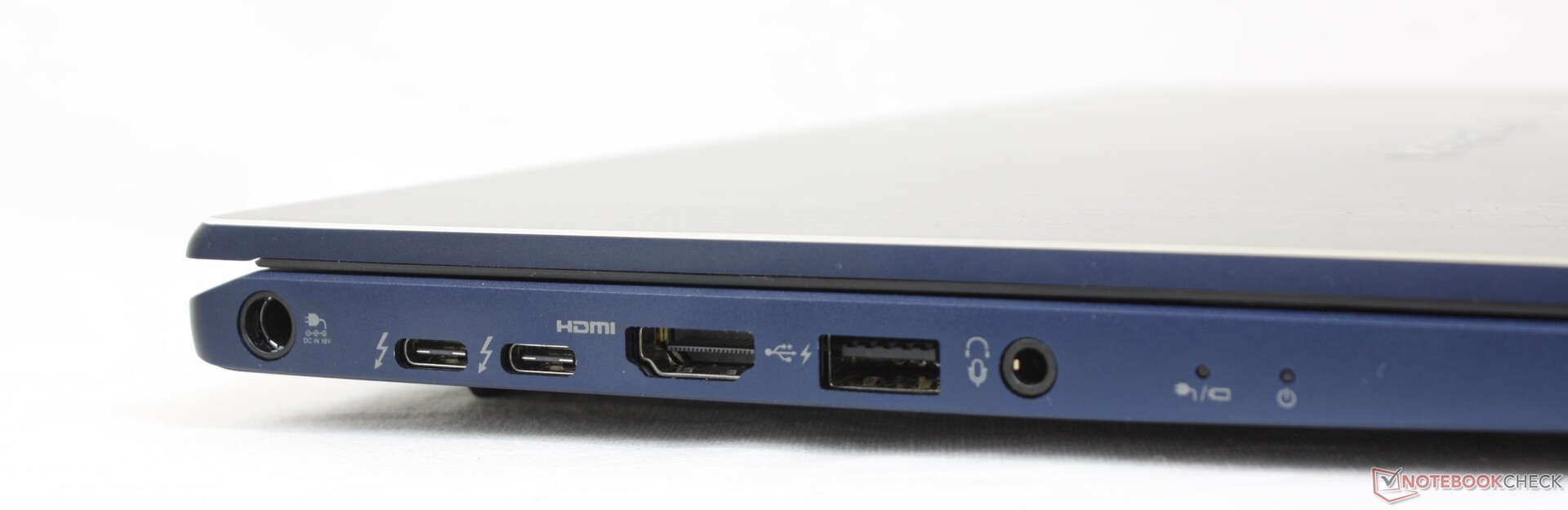

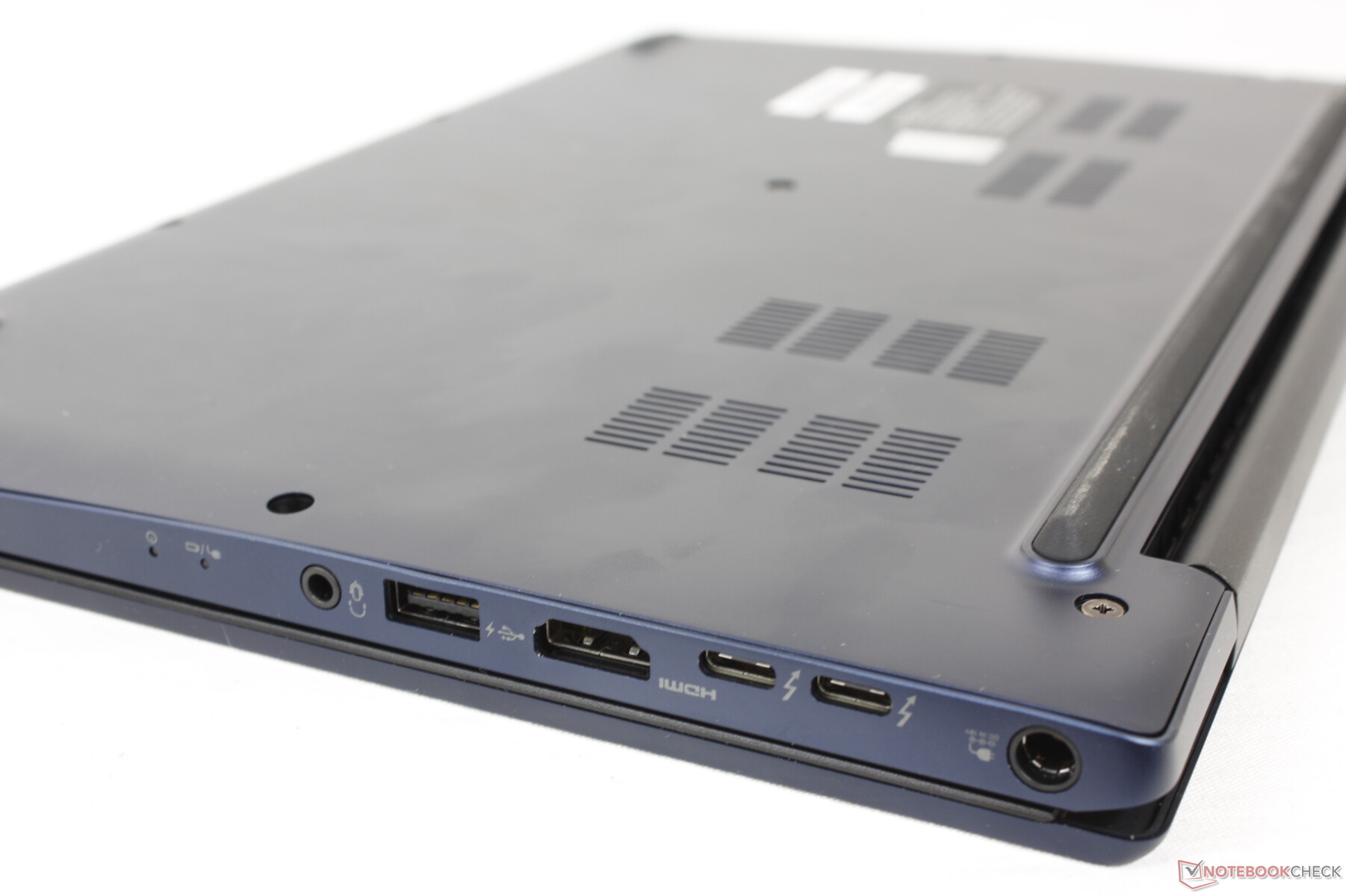

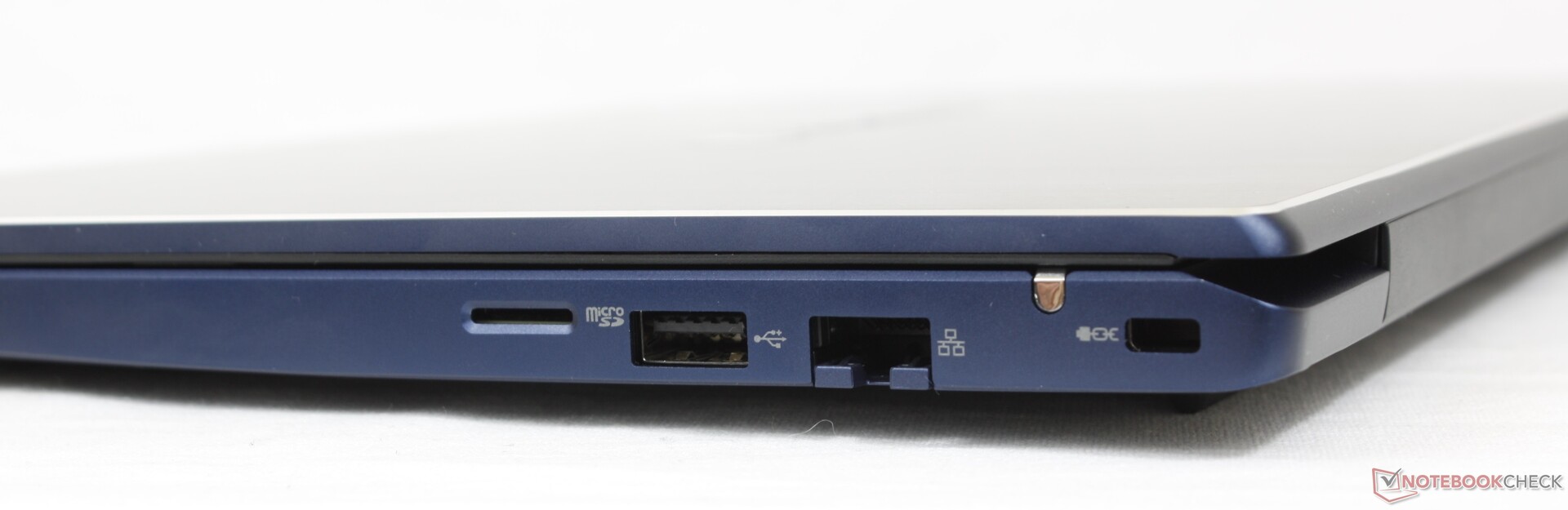

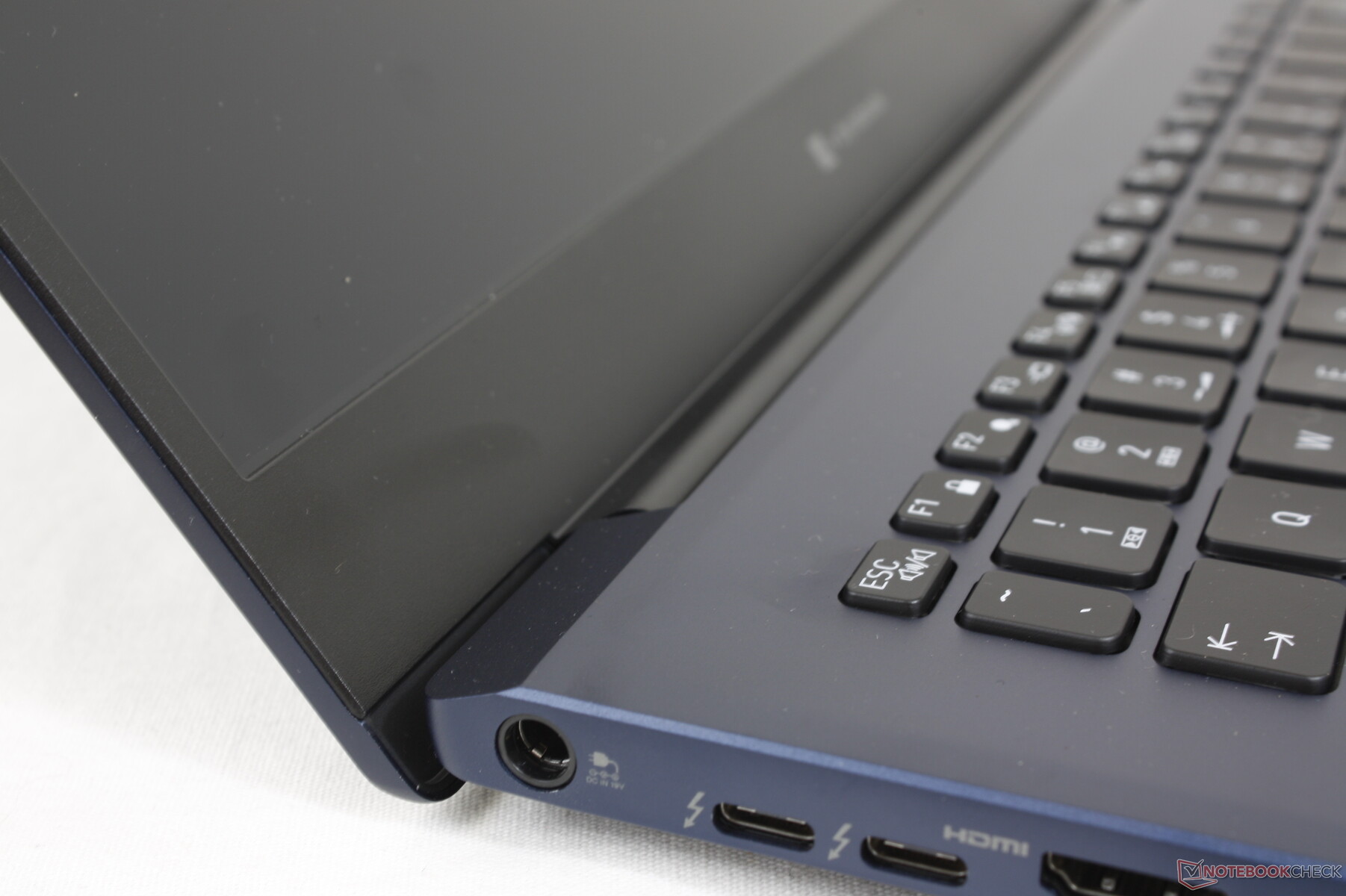

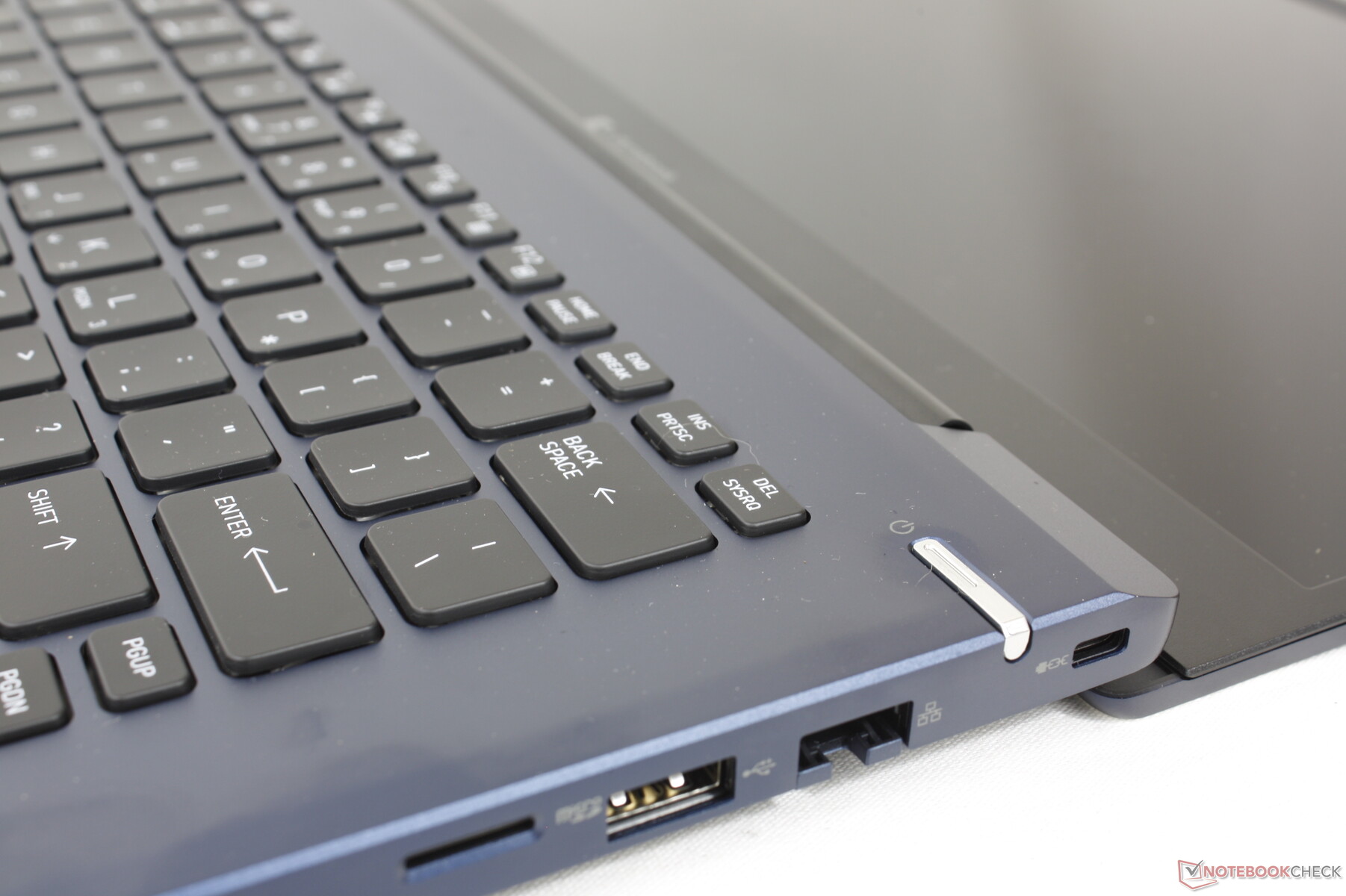

有很多端口可供选择，包括四个USB端口（2个USB-C + 2个USB-A），并支持Thunderbolt 4。我们的主要抱怨在于端口的定位，因为它们被紧密地挤在一起。较厚的USB设备或HDMI线可能会因此而妨碍相邻的端口。

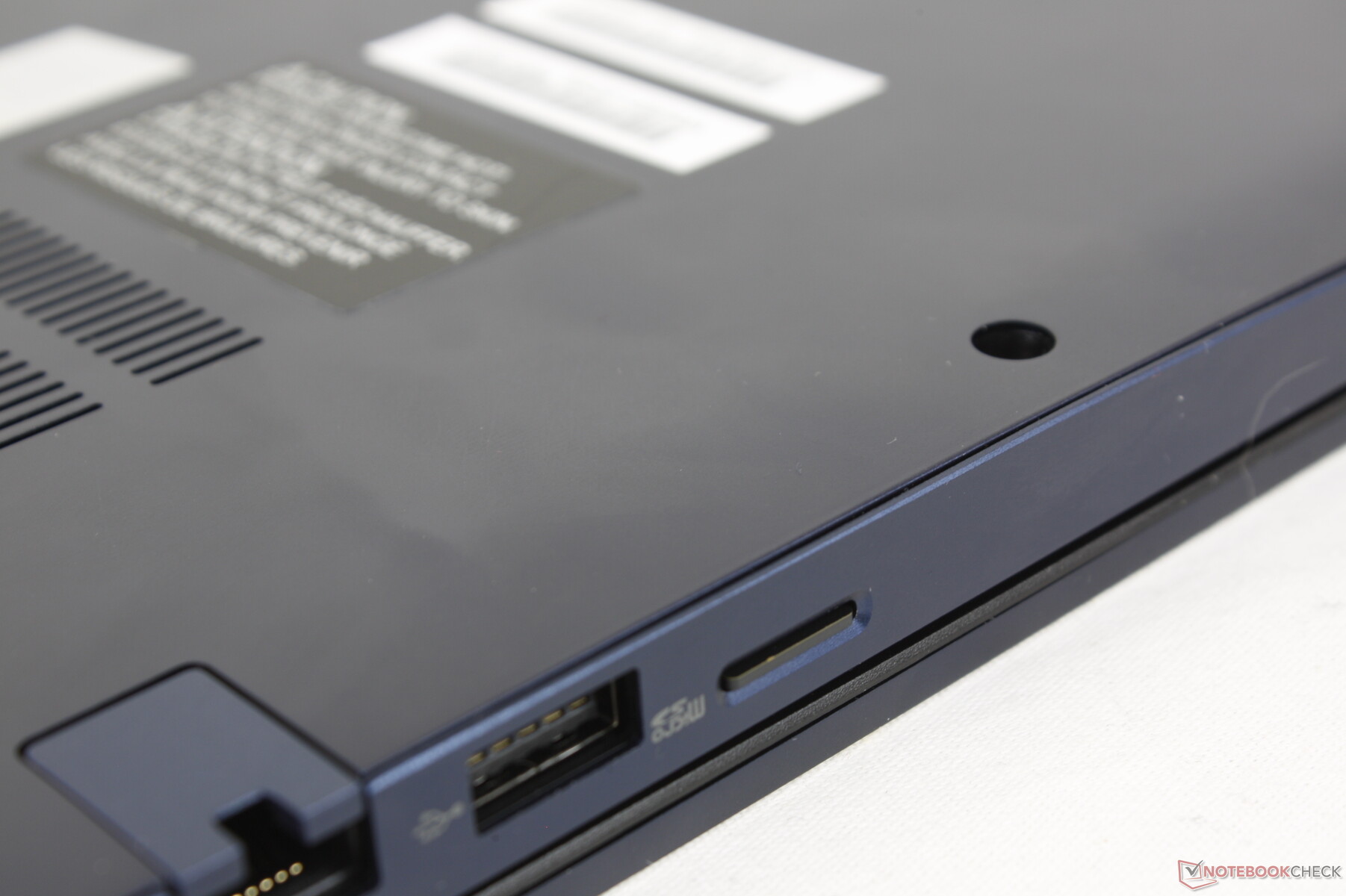

SD卡阅读器
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| HP ProBook 445 G8-3Z6Q8ES (AV Pro SD microSD 128 GB V60) | |
| Dynabook Portégé X40-K (AV Pro SD microSD V60) | |
| Dell Inspiron 14 5425 6VPKR (AV Pro SD microSD 128 GB V60) | |
| Asus ExpertBook B3 Flip B3402FEA (AV Pro SD microSD 128 GB V60) | |
| Acer TravelMate P4 TMP414-51-59MR (AV Pro SD microSD 128 GB V60) | |
| VAIO FE 14.1 VWNC51429-SL (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| maximum AS SSD Seq Read Test (1GB) | |
| HP ProBook 445 G8-3Z6Q8ES (AV Pro SD microSD 128 GB V60) | |
| Dynabook Portégé X40-K (AV Pro SD microSD V60) | |
| Dell Inspiron 14 5425 6VPKR (AV Pro SD microSD 128 GB V60) | |
| Asus ExpertBook B3 Flip B3402FEA (AV Pro SD microSD 128 GB V60) | |
| Acer TravelMate P4 TMP414-51-59MR (AV Pro SD microSD 128 GB V60) | |
| VAIO FE 14.1 VWNC51429-SL (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
沟通
英特尔AX211是Wi-Fi 6E和蓝牙5.2连接的标准配置。在与我们的6GHz本地网络配对时，传输率既出色又稳定。
| Networking | |
| iperf3 transmit AX12 | |
| Acer TravelMate P4 TMP414-51-59MR | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Dell Inspiron 14 5425 6VPKR | |
| iperf3 receive AX12 | |
| Dell Inspiron 14 5425 6VPKR | |
| Acer TravelMate P4 TMP414-51-59MR | |
| Asus ExpertBook B3 Flip B3402FEA | |
| iperf3 transmit AXE11000 6GHz | |
| Dynabook Portégé X40-K | |
| iperf3 receive AXE11000 6GHz | |
| Dynabook Portégé X40-K | |
Dynabook Portégé X40-K; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1288 (1247-1342)
Dynabook Portégé X40-K; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1319 (1194-1369)
网络摄像头

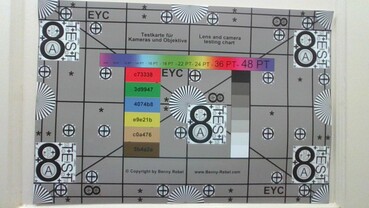

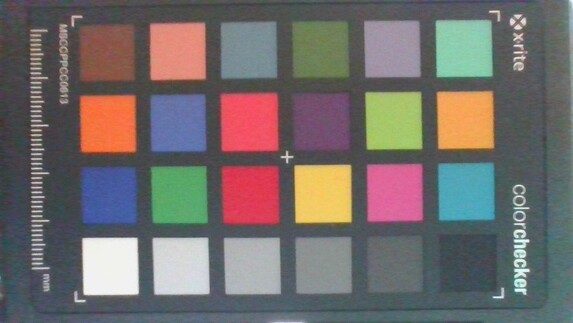

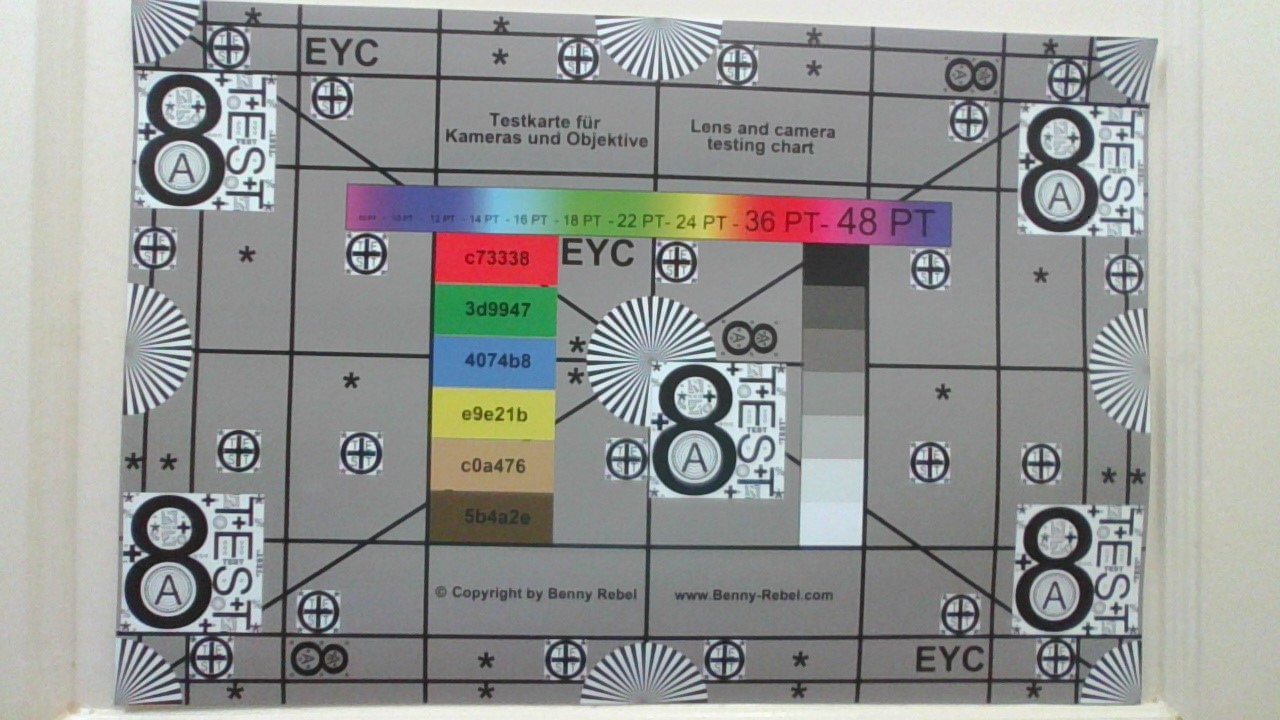

720p的网络摄像头很模糊，考虑到 "优质 "的价位，应该是1080p。红外线支持是可选的，但至少在所有SKU上都有一个快门以保护隐私。
5.9 ∆E
9.6 ∆E
13.8 ∆E
8 ∆E
12.5 ∆E
6.9 ∆E
12.2 ∆E
9.3 ∆E
9.6 ∆E
8.6 ∆E
5.7 ∆E
9.4 ∆E
9.6 ∆E
7.6 ∆E
10.8 ∆E
6.9 ∆E
9.2 ∆E
12.3 ∆E
2.4 ∆E
3.5 ∆E
6.4 ∆E
9.5 ∆E
9.9 ∆E
9.3 ∆E

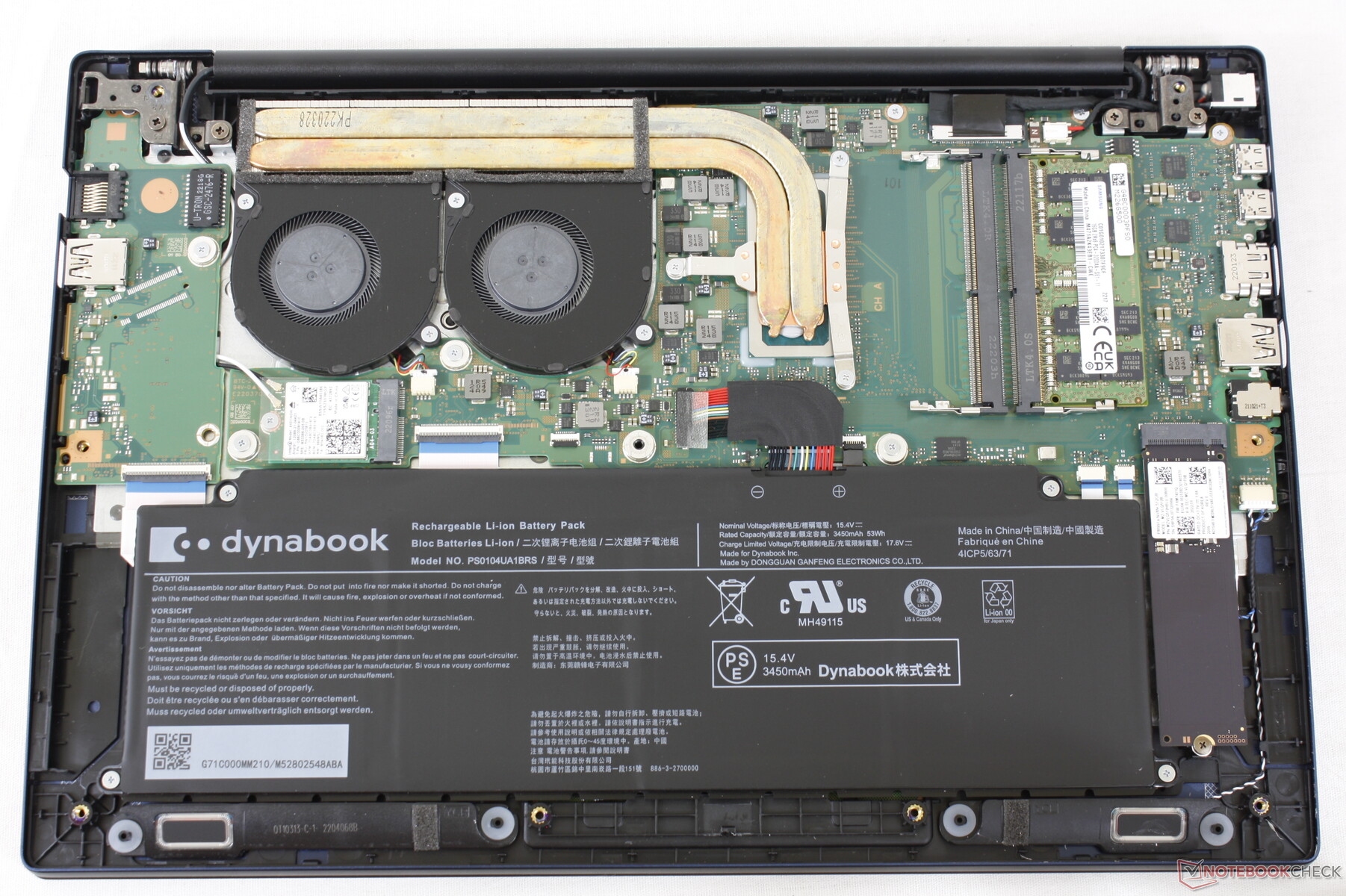

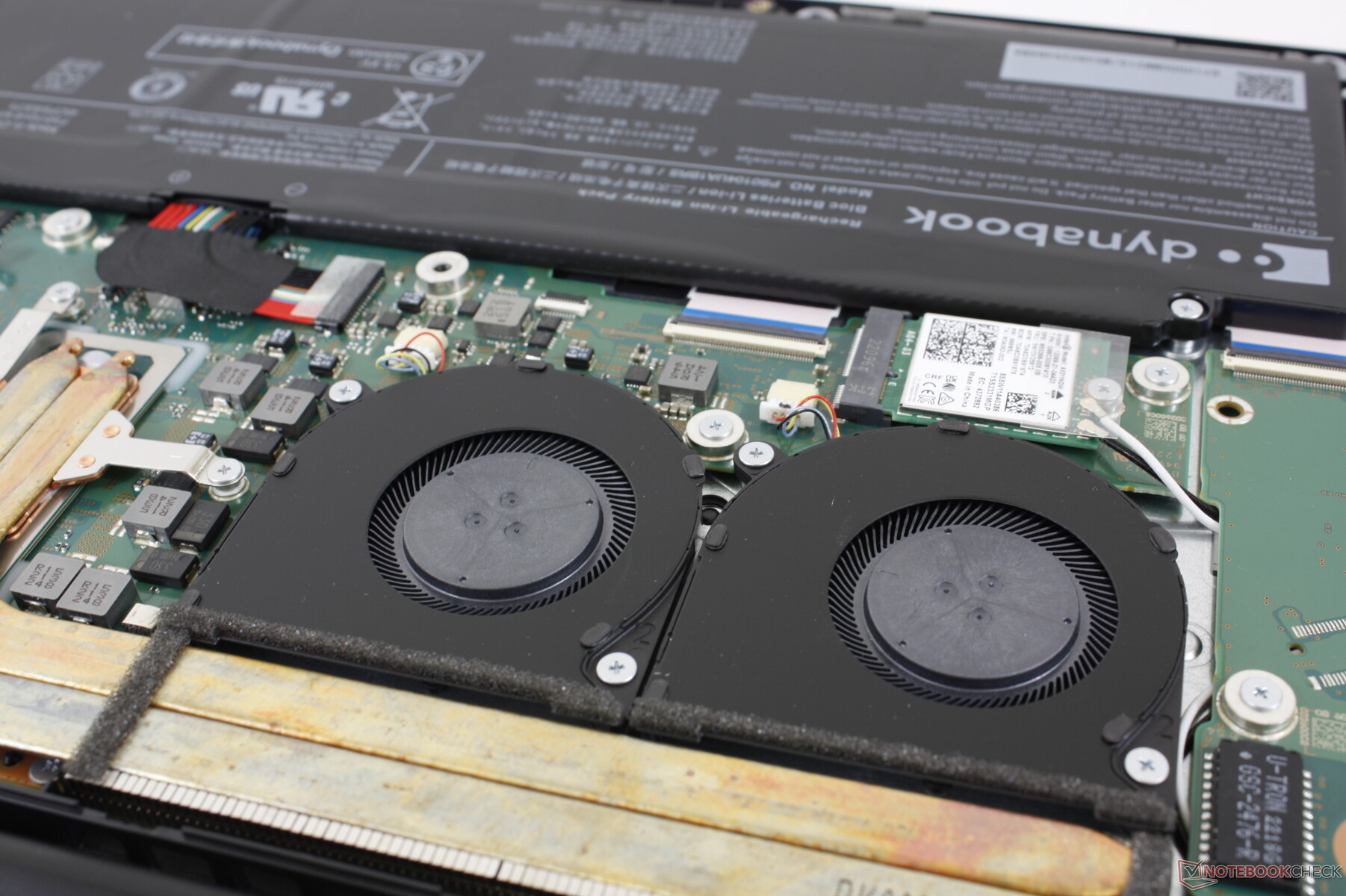

维护

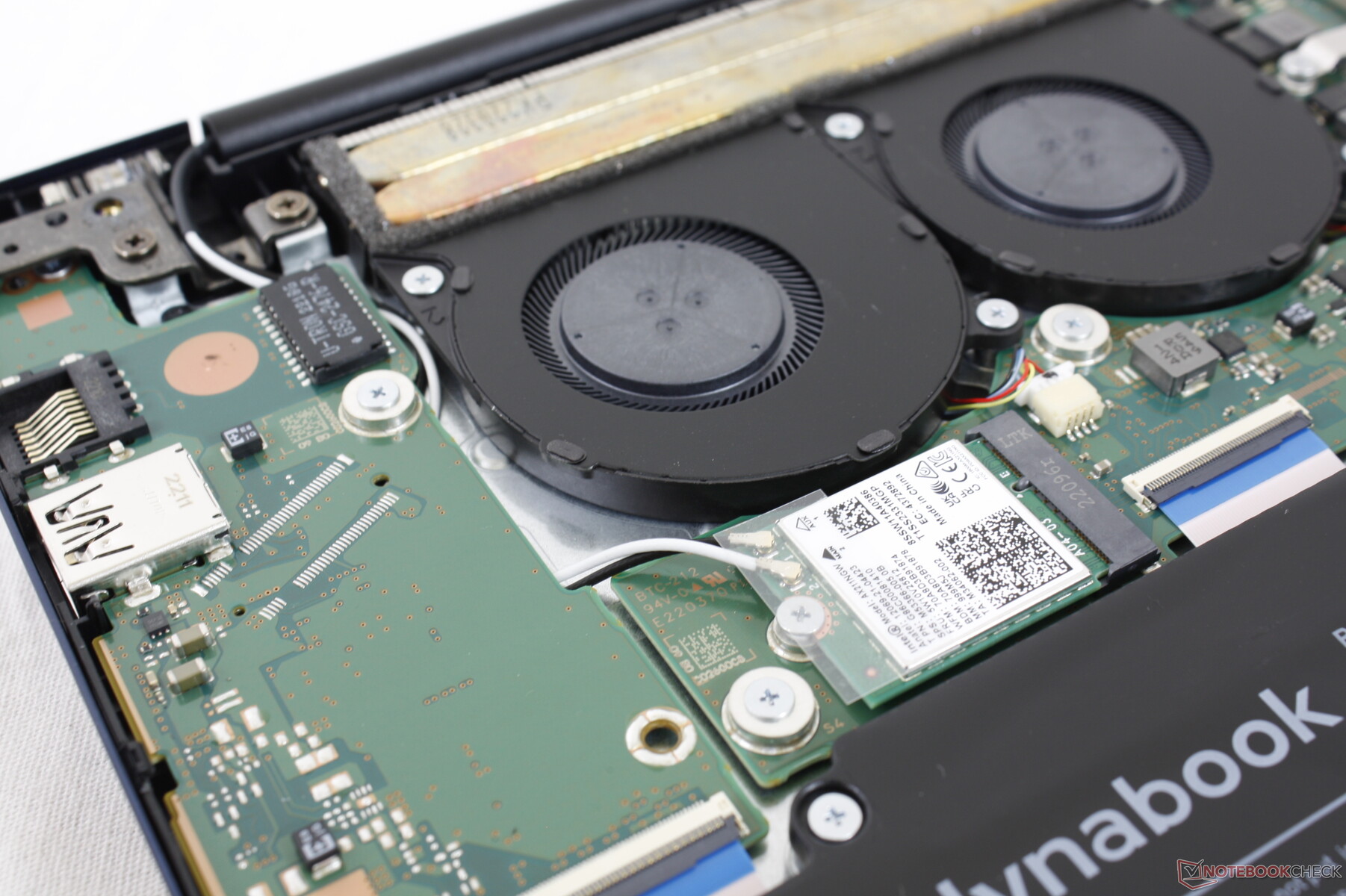

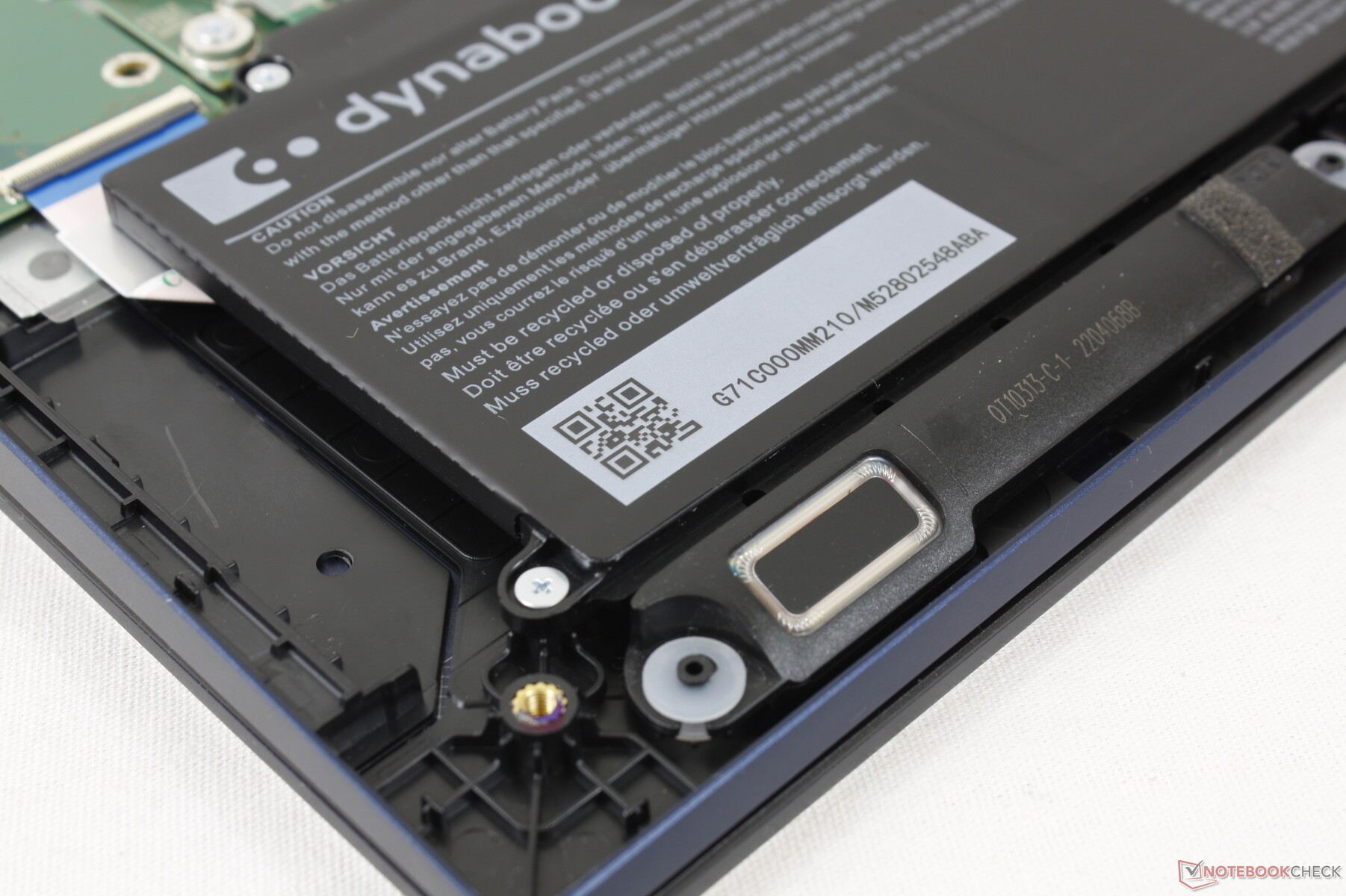

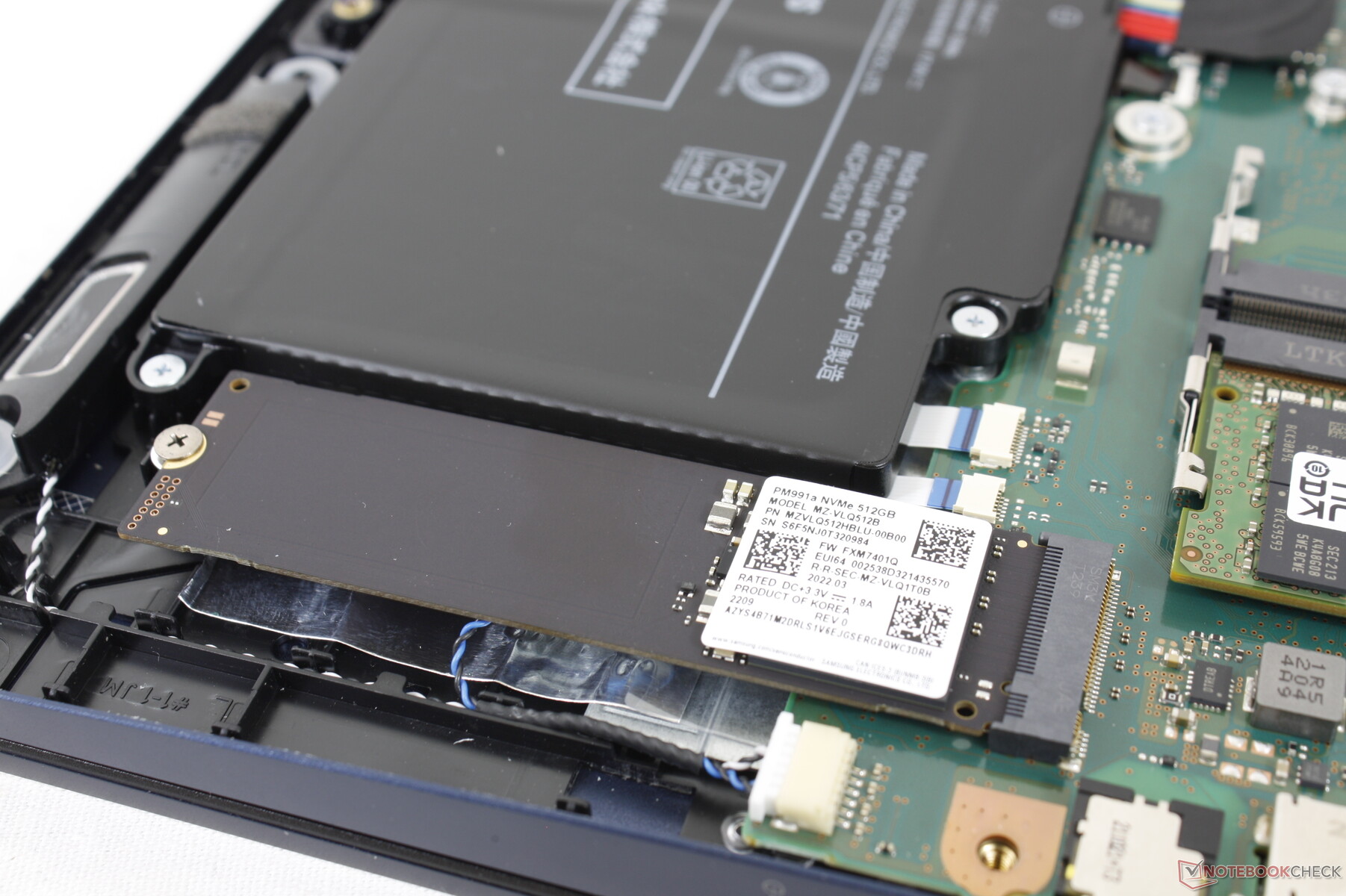

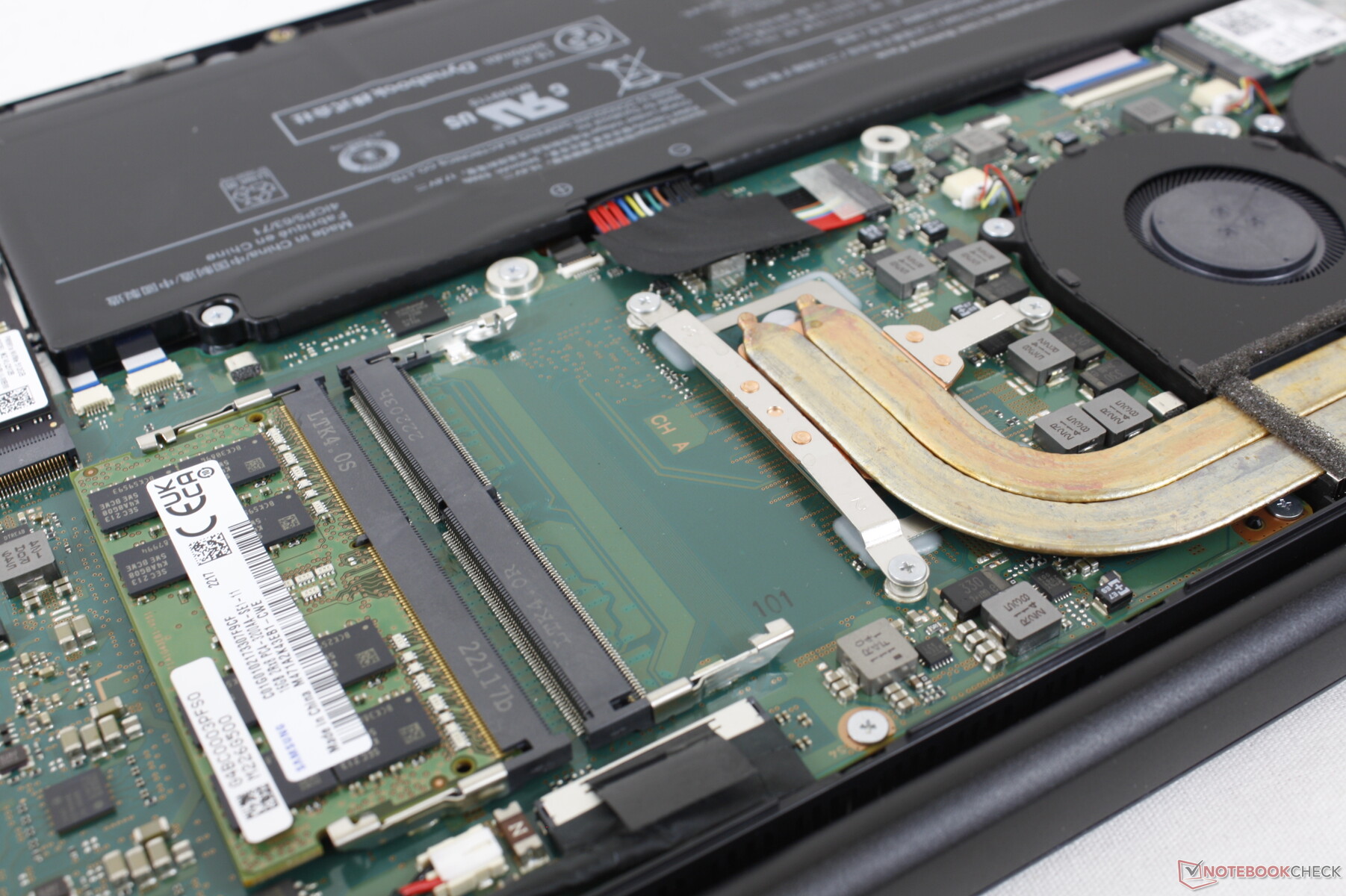

底部面板只需用一把十字螺丝刀就能轻松拆下，便于维修。
配件和保修

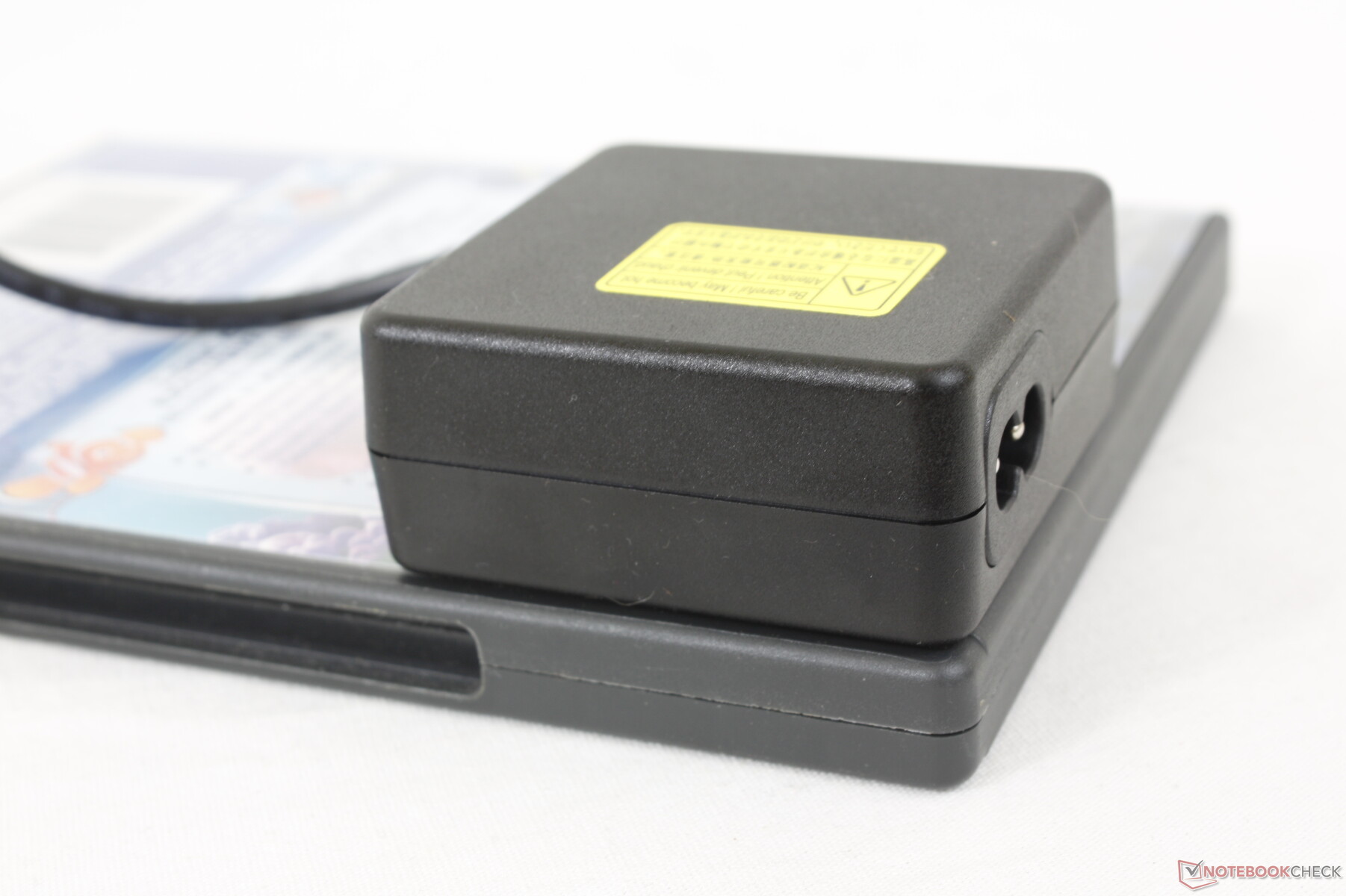

除了用户手册和文件外，盒子里没有任何额外的东西。从好的方面看，这是为数不多的经济型办公笔记本电脑之一，标配3年有限制造商保修。

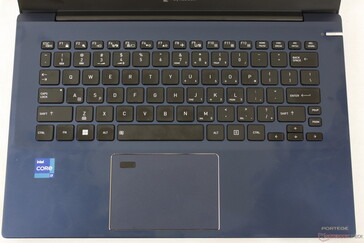

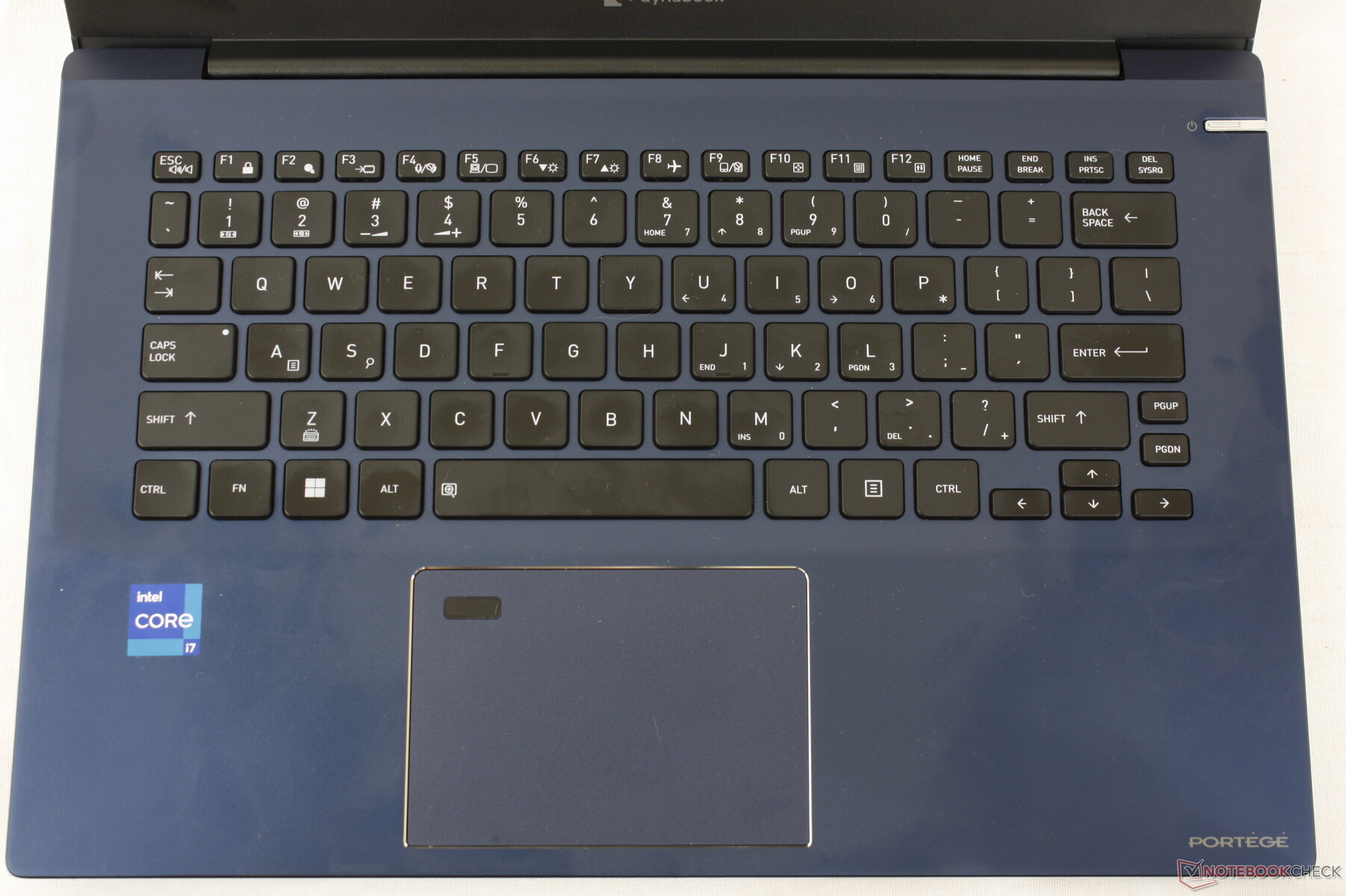

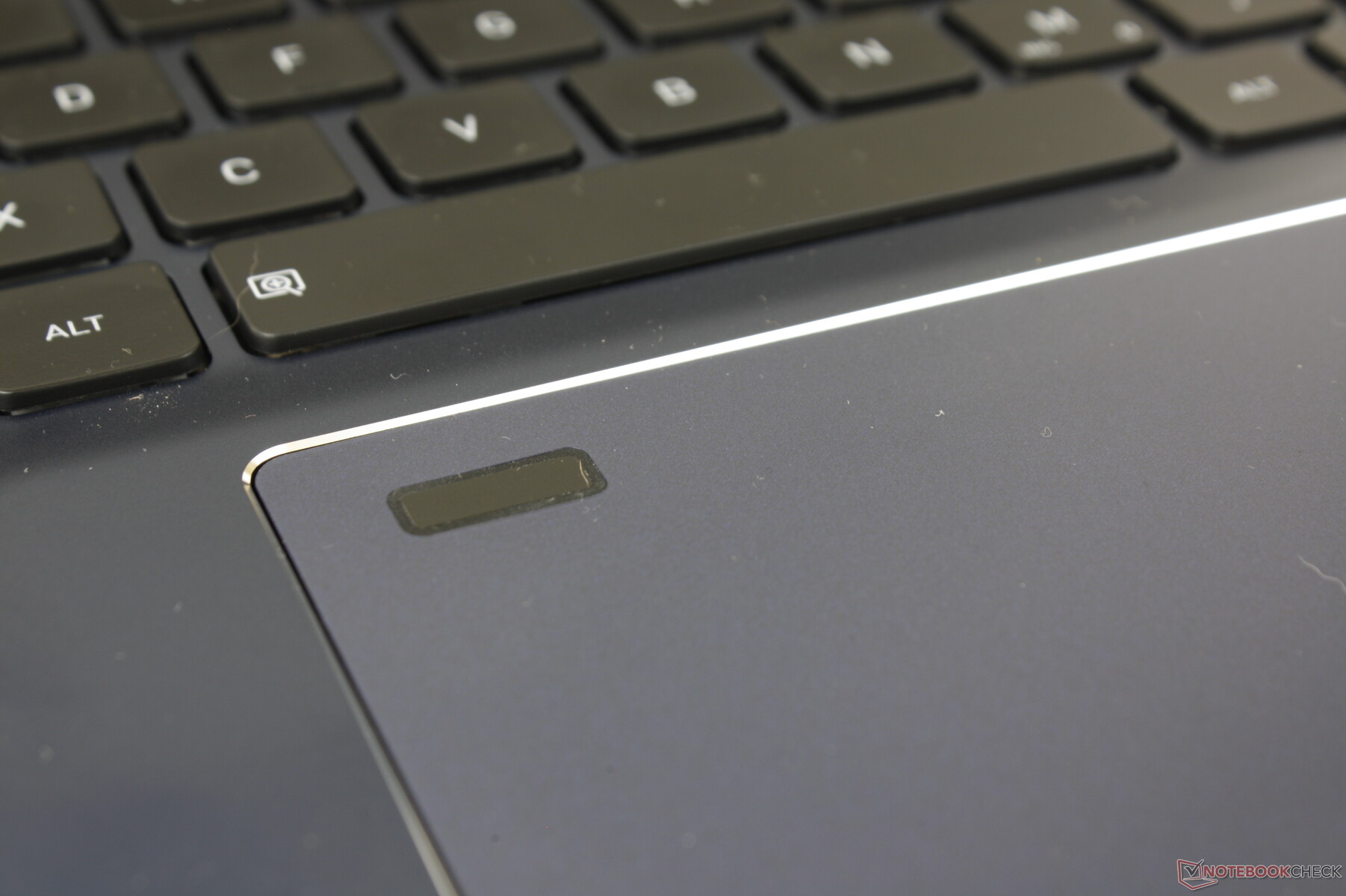

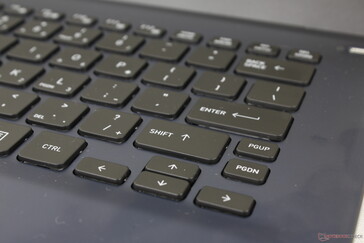

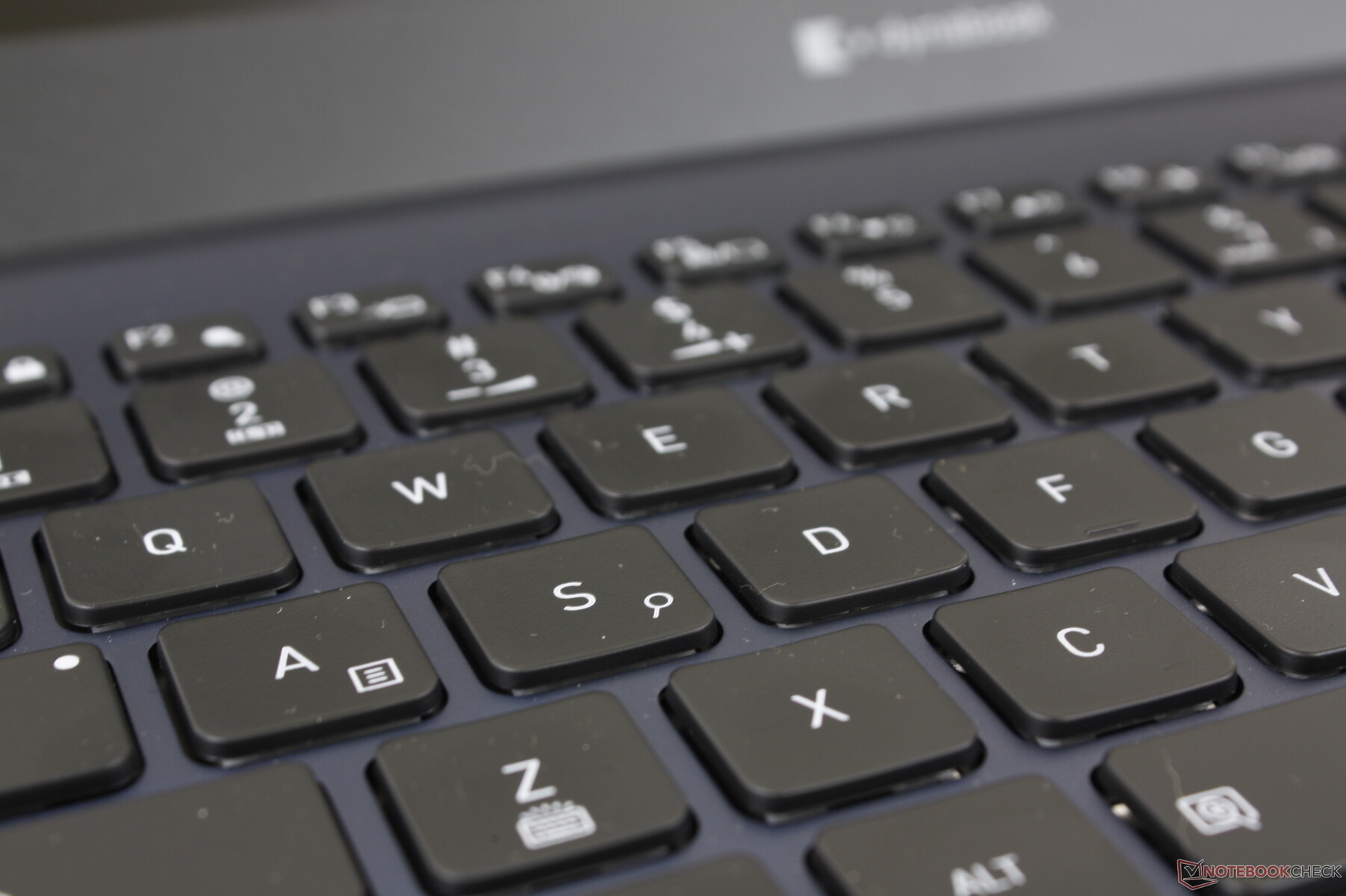

输入设备

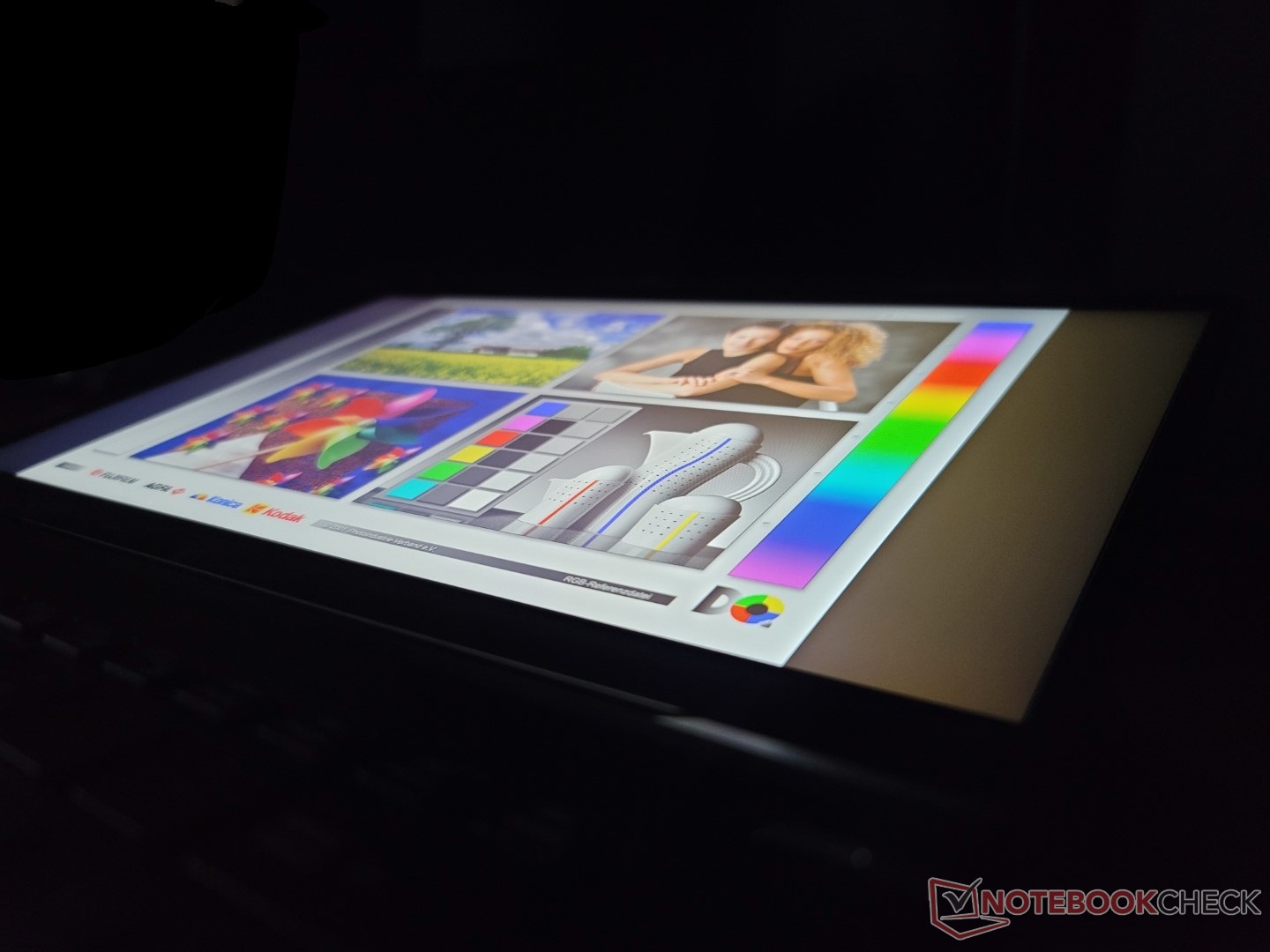

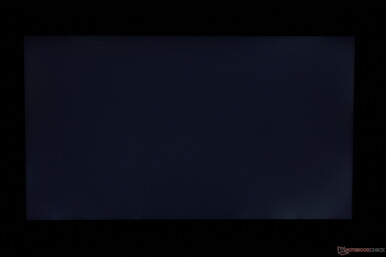

显示

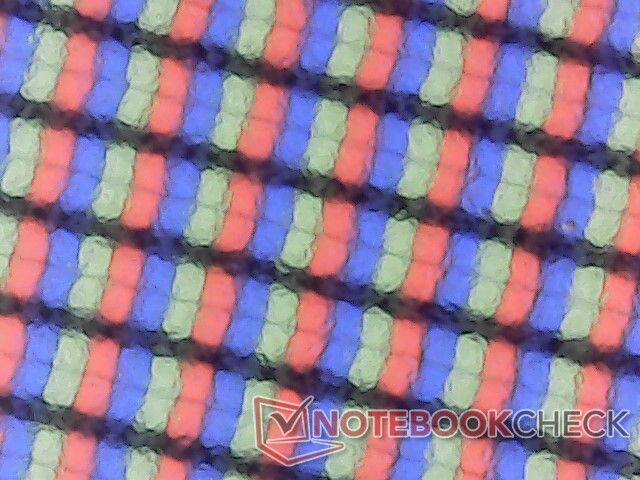

我们的设备配备了类似于Vaio FE14上的Chi Mei面板。 Vaio FE14(N140HCA-EAC对N140HCA-EAD)。因此，这两块经济型面板具有相似的属性，包括有限的65%sRGB覆盖空间，但我们的Dynabook显示器似乎具有较弱的黑色水平，对比度较浅。
| |||||||||||||||||||||||||
Chi Mei N140HCA-EAC tested with X-Rite i1Pro 2
Maximum: 249 cd/m² (Nits) Average: 237.3 cd/m² Minimum: 13.49 cd/m²Brightness Distribution: 88 %
Center on Battery: 246.4 cd/m²
Contrast: 601:1 (Black: 0.41 cd/m²)
ΔE Color 6 | 0.5-29.43 Ø4.91, calibrated: 1.86
ΔE Greyscale 6.4 | 0.5-98 Ø5.2

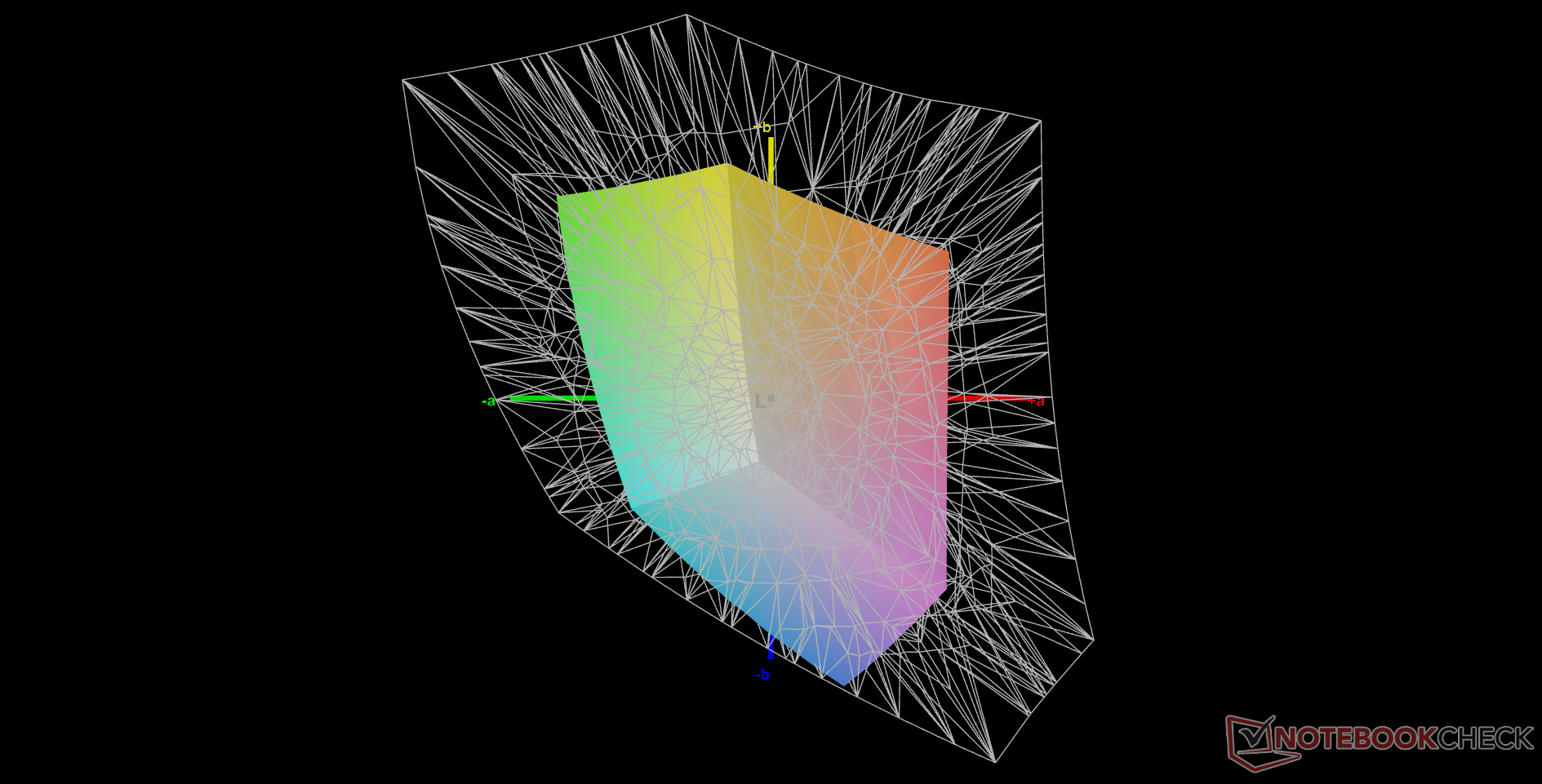

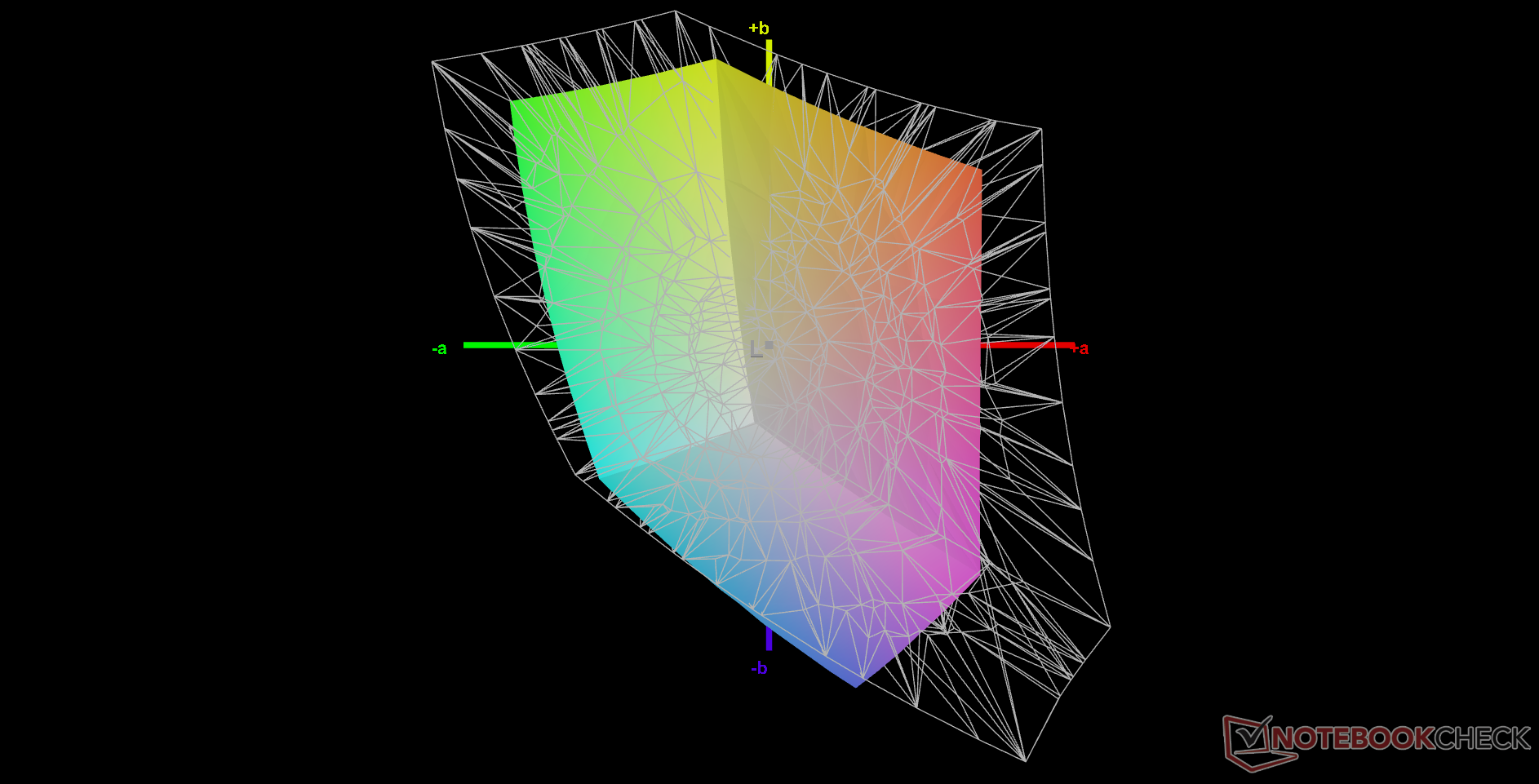

44.9% AdobeRGB 1998 (Argyll 2.2.0 3D)
64.6% sRGB (Argyll 2.2.0 3D)
43.4% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.01
| Dynabook Portégé X40-K Chi Mei N140HCA-EAC, IPS, 1920x1080, 14" | VAIO FE 14.1 VWNC51429-SL Chi Mei N140HCA-EAD, IPS, 1920x1080, 14.1" | HP ProBook 445 G8-3Z6Q8ES AUO559C, IPS LED, 1920x1080, 14" | Asus ExpertBook B3 Flip B3402FEA AU Optronics B140HAN04.0, IPS, 1920x1080, 14" | Acer TravelMate P4 TMP414-51-59MR AU Optronics B140HAN04.0, IPS, 1920x1080, 14" | Dell Inspiron 14 5425 6VPKR BOE NV14N42, IPS, 1920x1200, 14" | |
|---|---|---|---|---|---|---|
| Display | 5% | -15% | -10% | -9% | -10% | |
| Display P3 Coverage | 43.4 | 45.7 5% | 36.9 -15% | 39.1 -10% | 39.6 -9% | 39.2 -10% |
| sRGB Coverage | 64.6 | 68.6 6% | 55.5 -14% | 58.6 -9% | 59.4 -8% | 57.4 -11% |
| AdobeRGB 1998 Coverage | 44.9 | 47.2 5% | 38.2 -15% | 40.4 -10% | 40.9 -9% | 40.5 -10% |
| Response Times | -22% | -27% | -27% | -31% | 29% | |
| Response Time Grey 50% / Grey 80% * | 33.6 ? | 34.8 ? -4% | 39 ? -16% | 41 ? -22% | 40 ? -19% | 23 ? 32% |
| Response Time Black / White * | 20.4 ? | 28.4 ? -39% | 28 ? -37% | 27 ? -32% | 29 ? -42% | 15 ? 26% |
| PWM Frequency | 25250 ? | |||||
| Screen | 16% | 10% | 47% | 41% | 17% | |
| Brightness middle | 246.4 | 278.1 13% | 304 23% | 265 8% | 273 11% | 292 19% |
| Brightness | 237 | 256 8% | 270 14% | 247 4% | 264 11% | 279 18% |
| Brightness Distribution | 88 | 87 -1% | 83 -6% | 88 0% | 88 0% | 90 2% |
| Black Level * | 0.41 | 0.27 34% | 0.25 39% | 0.14 66% | 0.22 46% | 0.34 17% |
| Contrast | 601 | 1030 71% | 1216 102% | 1893 215% | 1241 106% | 859 43% |
| Colorchecker dE 2000 * | 6 | 4.01 33% | 6.78 -13% | 5.09 15% | 4.27 29% | 6.26 -4% |
| Colorchecker dE 2000 max. * | 21.16 | 18.76 11% | 17.59 17% | 19.84 6% | 7.76 63% | 19.14 10% |
| Colorchecker dE 2000 calibrated * | 1.86 | 3.12 -68% | 4.69 -152% | |||
| Greyscale dE 2000 * | 6.4 | 3.5 45% | 2.43 62% | 2.33 64% | 2.5 61% | 4.31 33% |
| Gamma | 2.01 109% | 2.23 99% | 2.43 91% | 2.42 91% | 2.43 91% | 2.27 97% |
| CCT | 6738 96% | 7247 90% | 6759 96% | 6344 102% | 6463 101% | 6102 107% |
| Total Average (Program / Settings) | -0% /
9% | -11% /
-1% | 3% /
23% | 0% /
18% | 12% /
13% |
* ... smaller is better

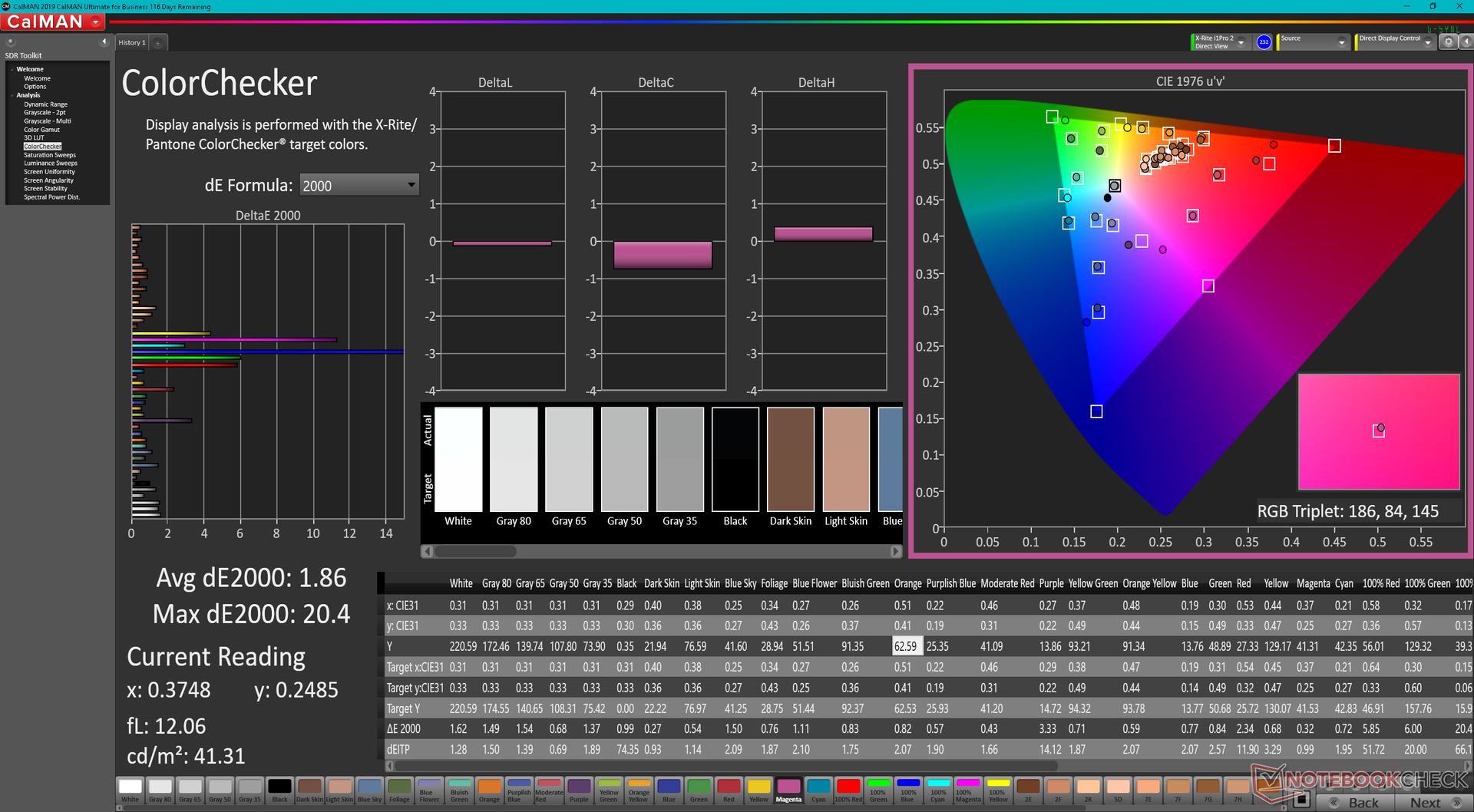

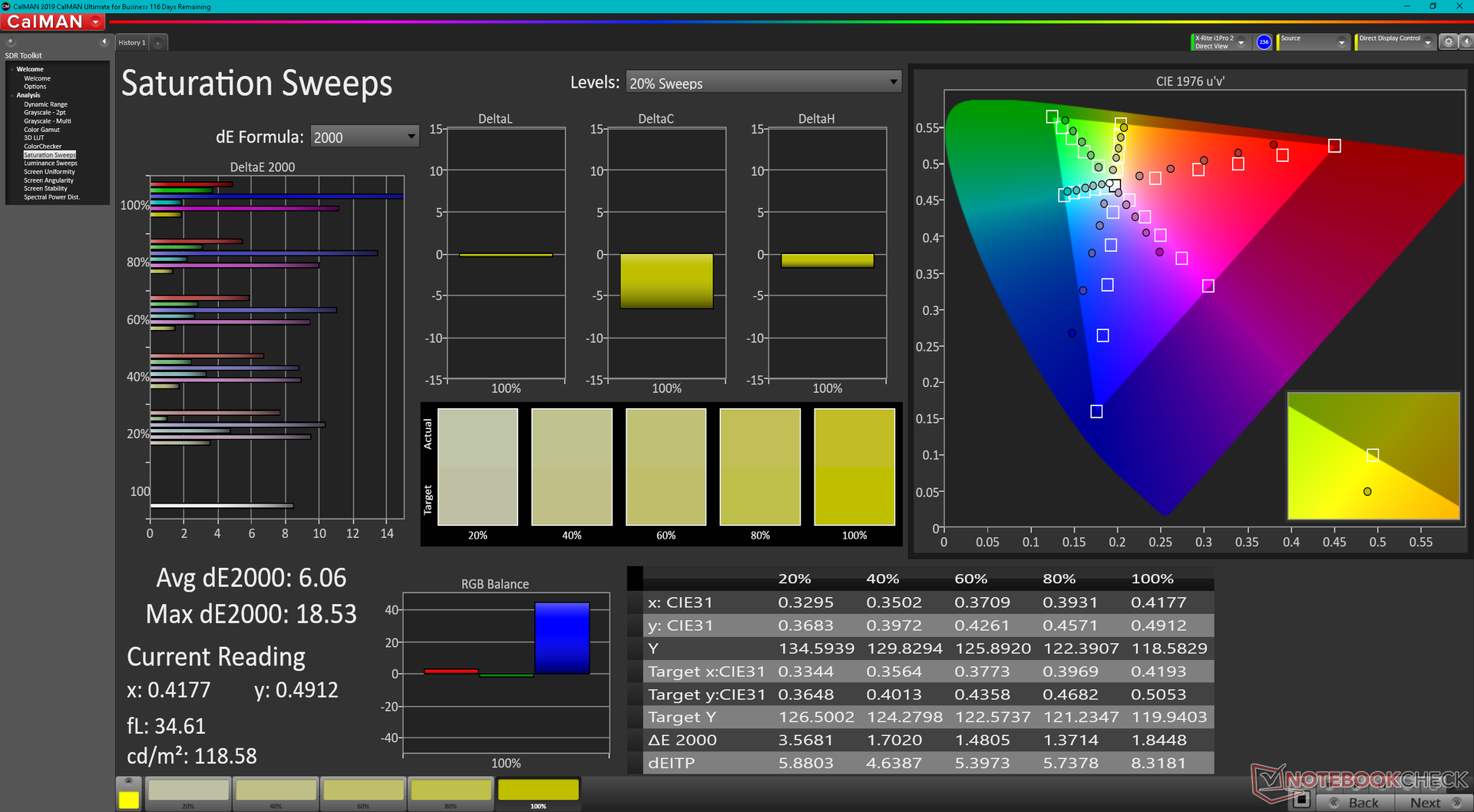

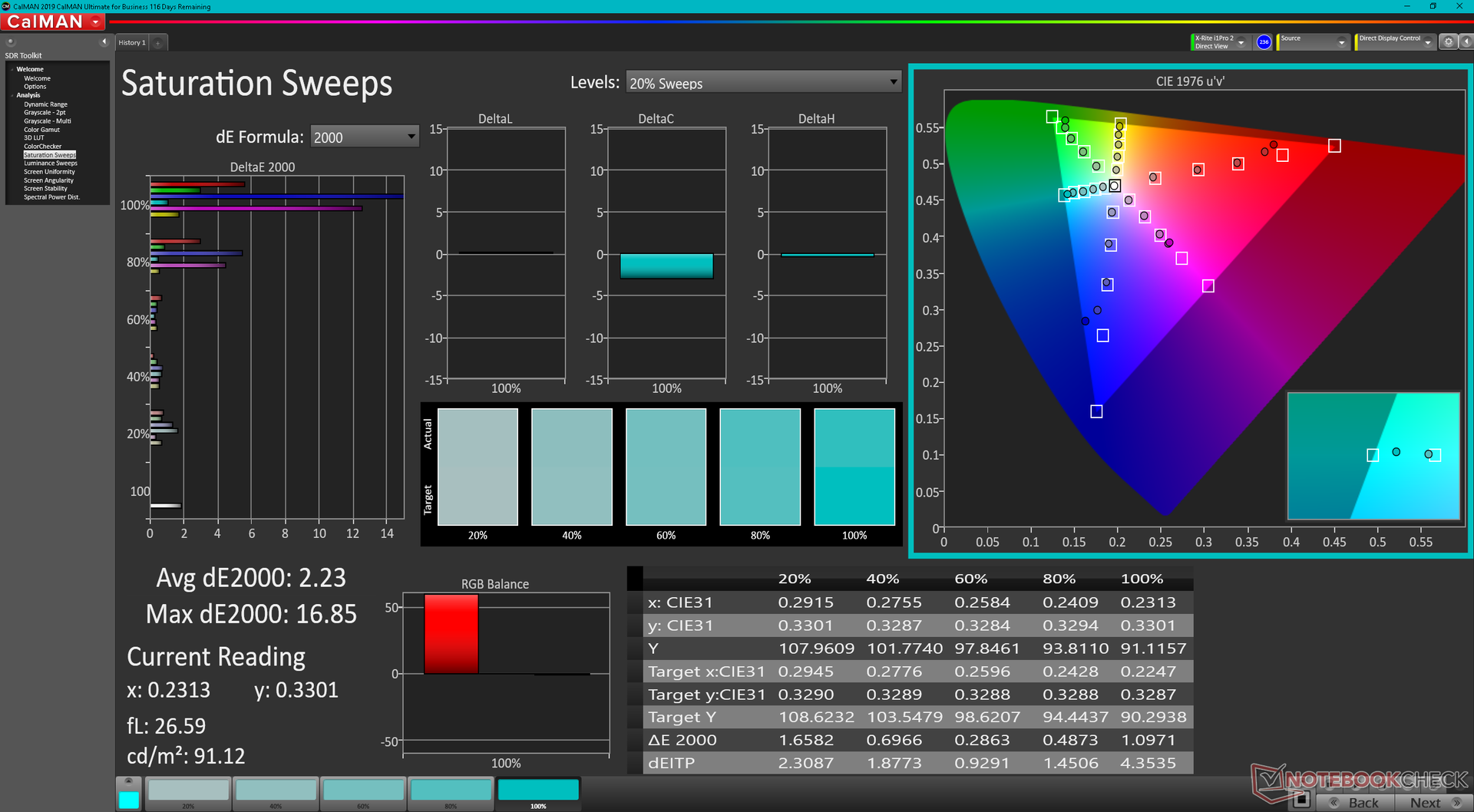

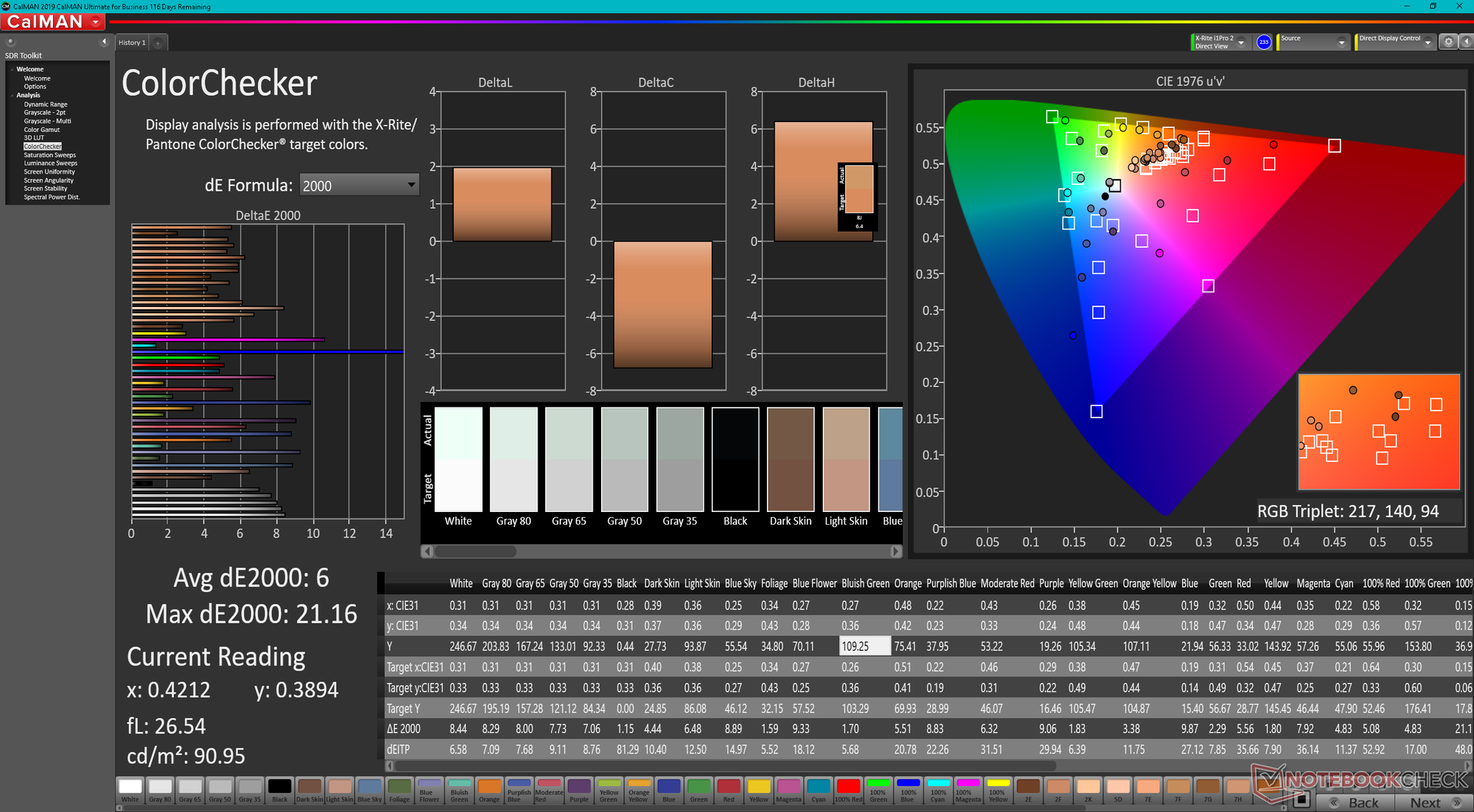

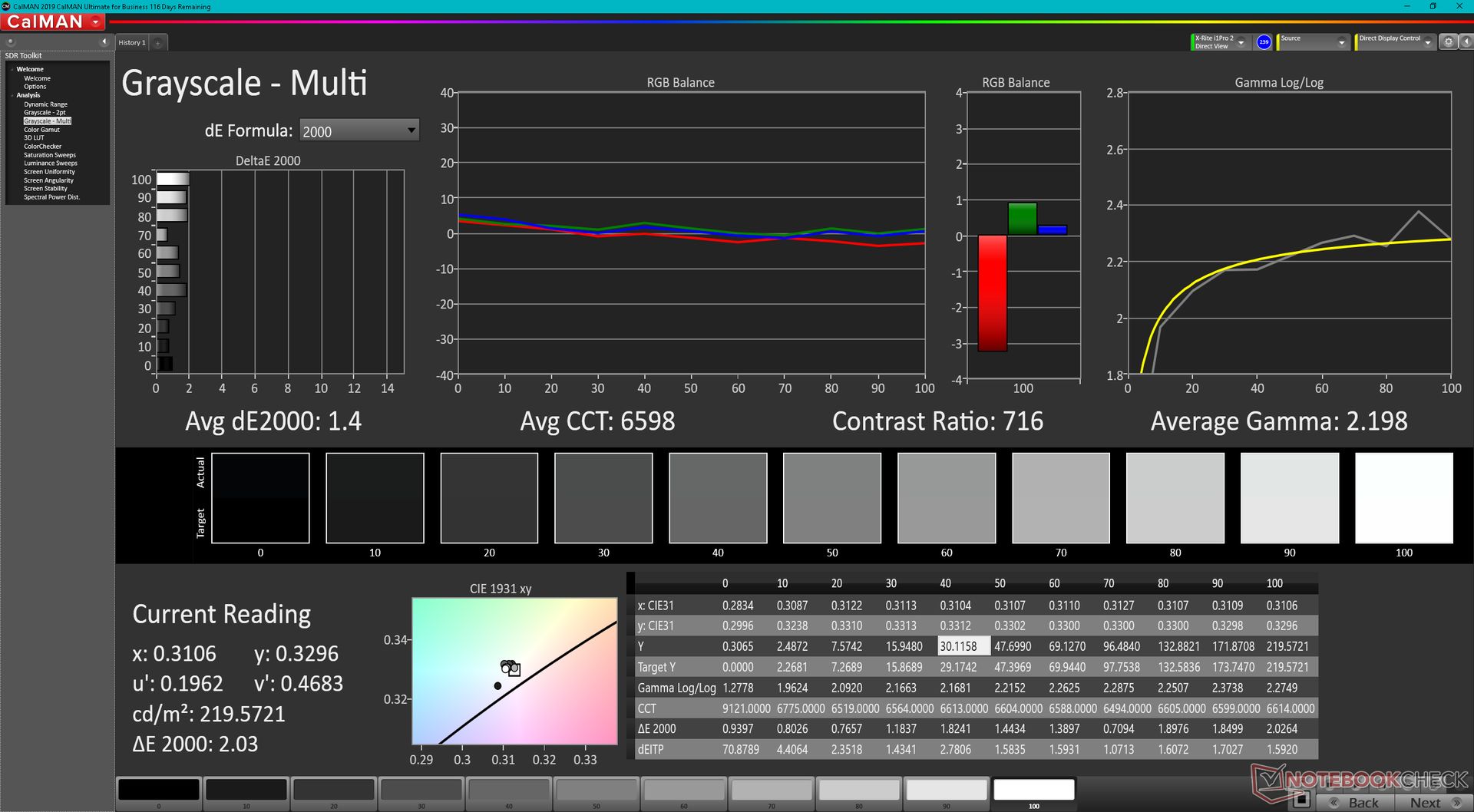

该显示器开箱后没有得到很好的校准。用X-Rite色度计自行校准显示器将大大改善平均DeltaE值，正如我们下面的CalMAN屏幕截图所示。尽管如此，由于上述狭窄的色彩空间，一些颜色在较高的饱和度水平上仍然非常不准确。尤其是品红和蓝色，几乎没有像其他原色和次要颜色那样准确。

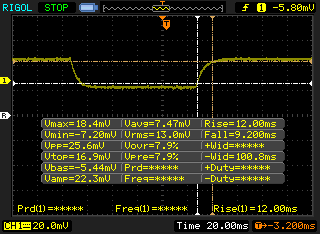

Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 20.4 ms ... rise ↗ and fall ↘ combined | ↗ 12 ms rise |  |
| ↘ 9.2 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 42 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (20.9 ms). | ||

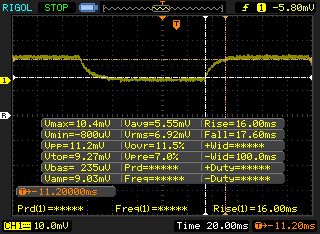

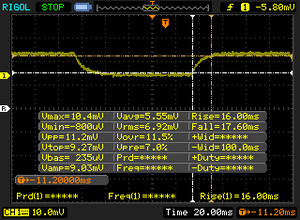

| ↔ Response Time 50% Grey to 80% Grey | ||
| 33.6 ms ... rise ↗ and fall ↘ combined | ↗ 16 ms rise |  |
| ↘ 17.6 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 42 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (32.8 ms). | ||

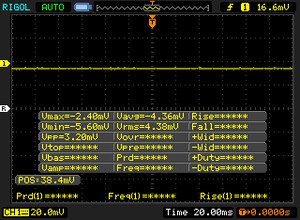

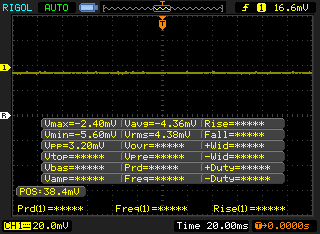

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8715 (minimum: 5 - maximum: 343500) Hz was measured. | |||

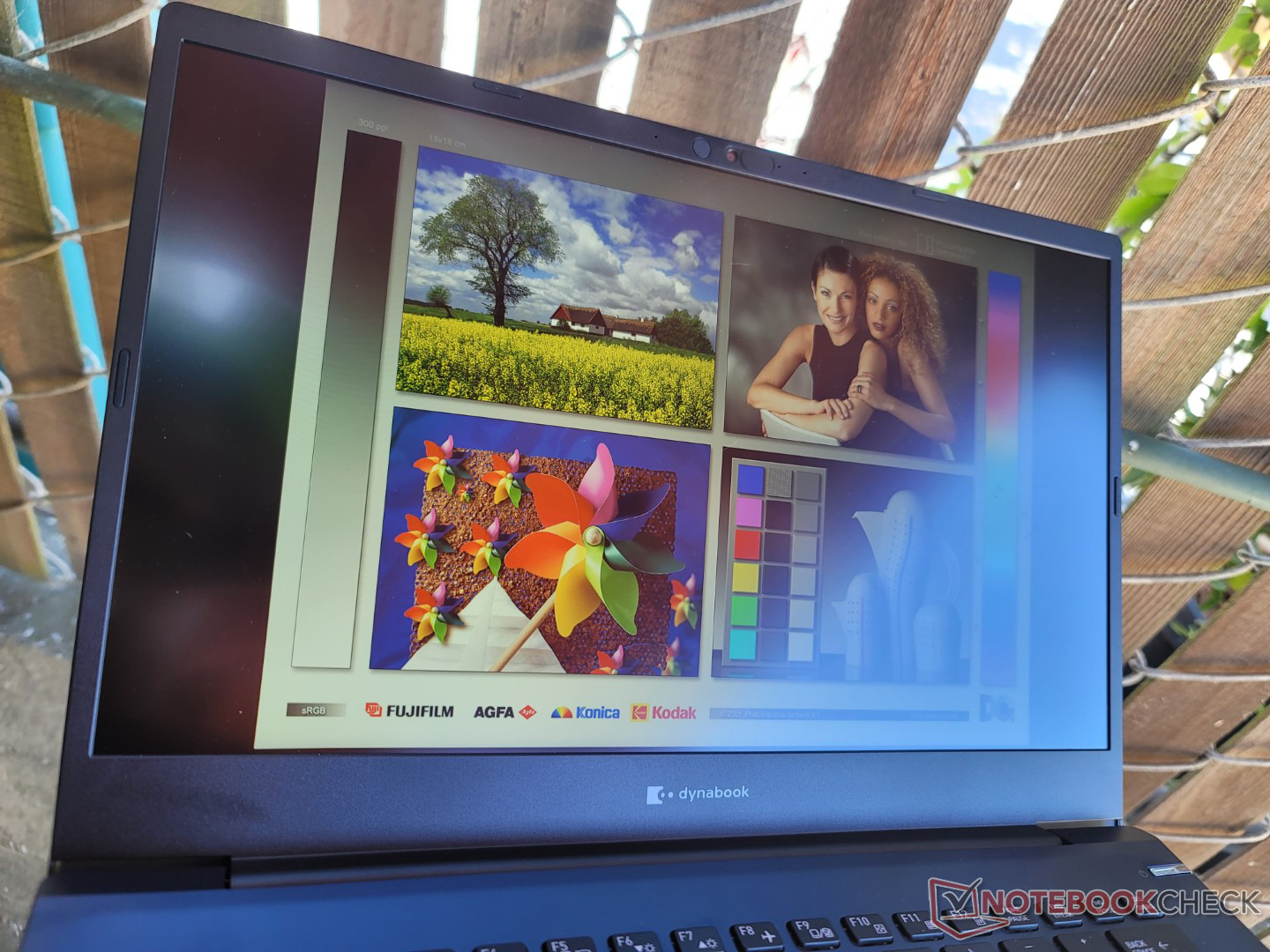

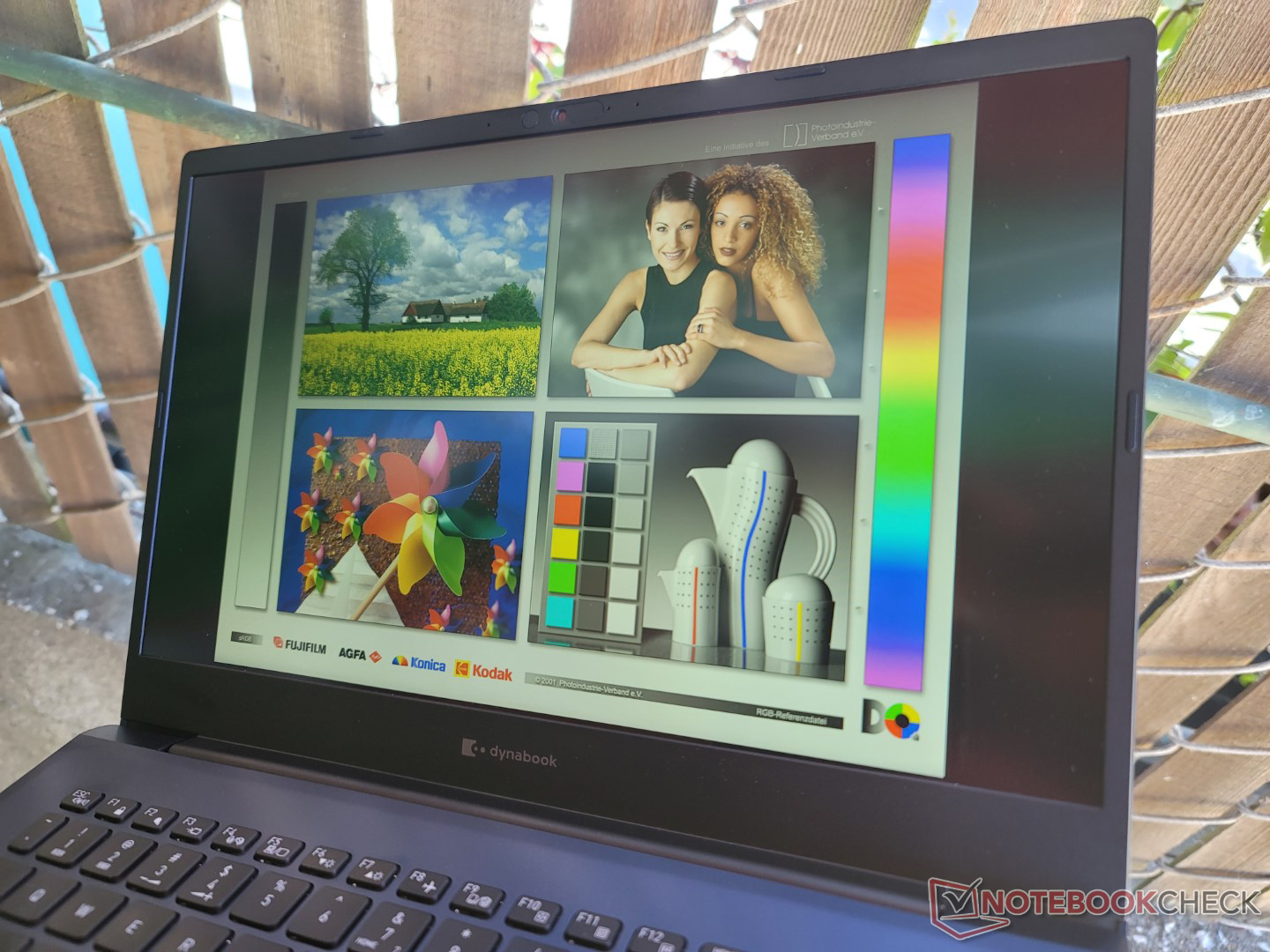

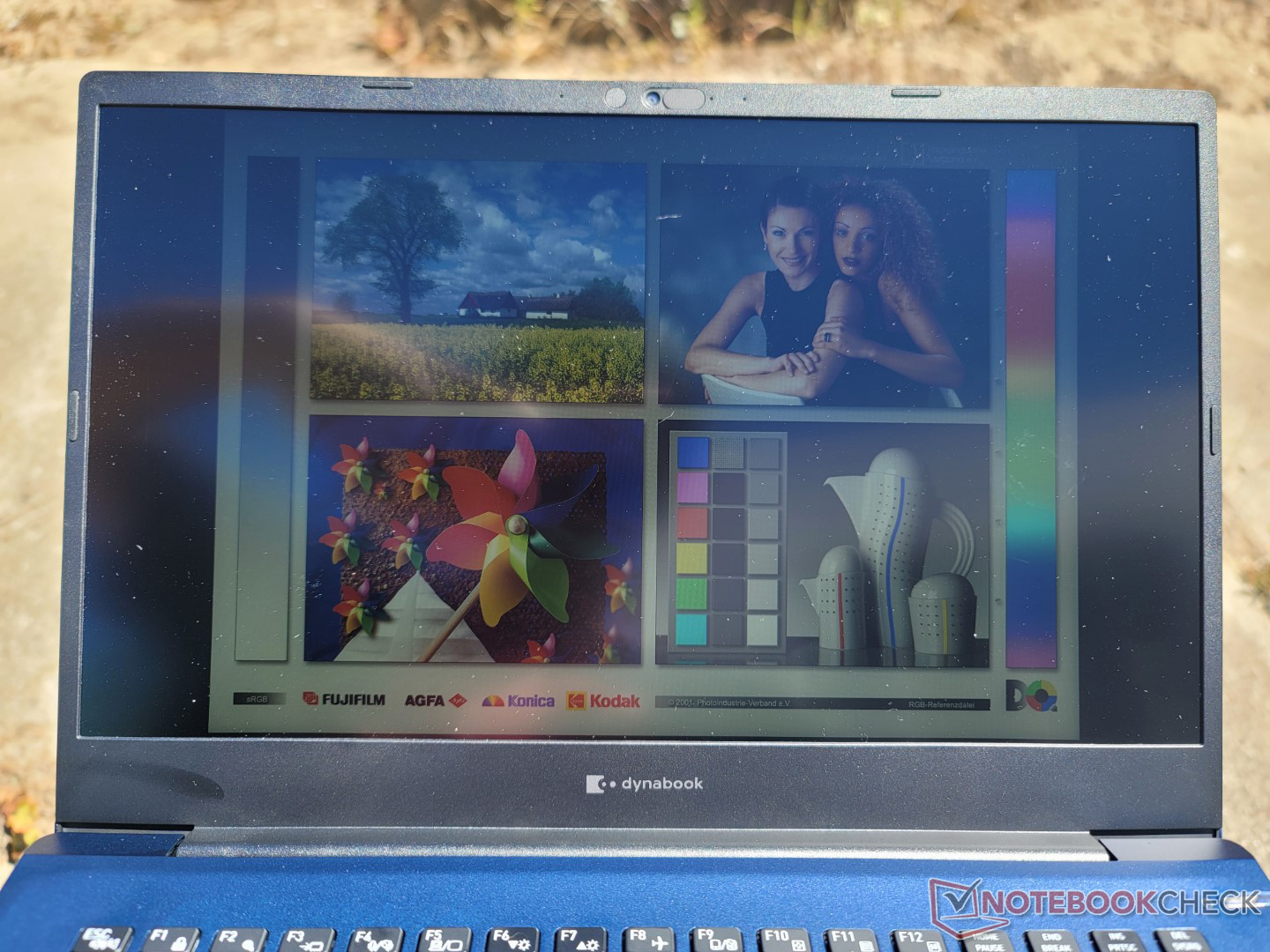

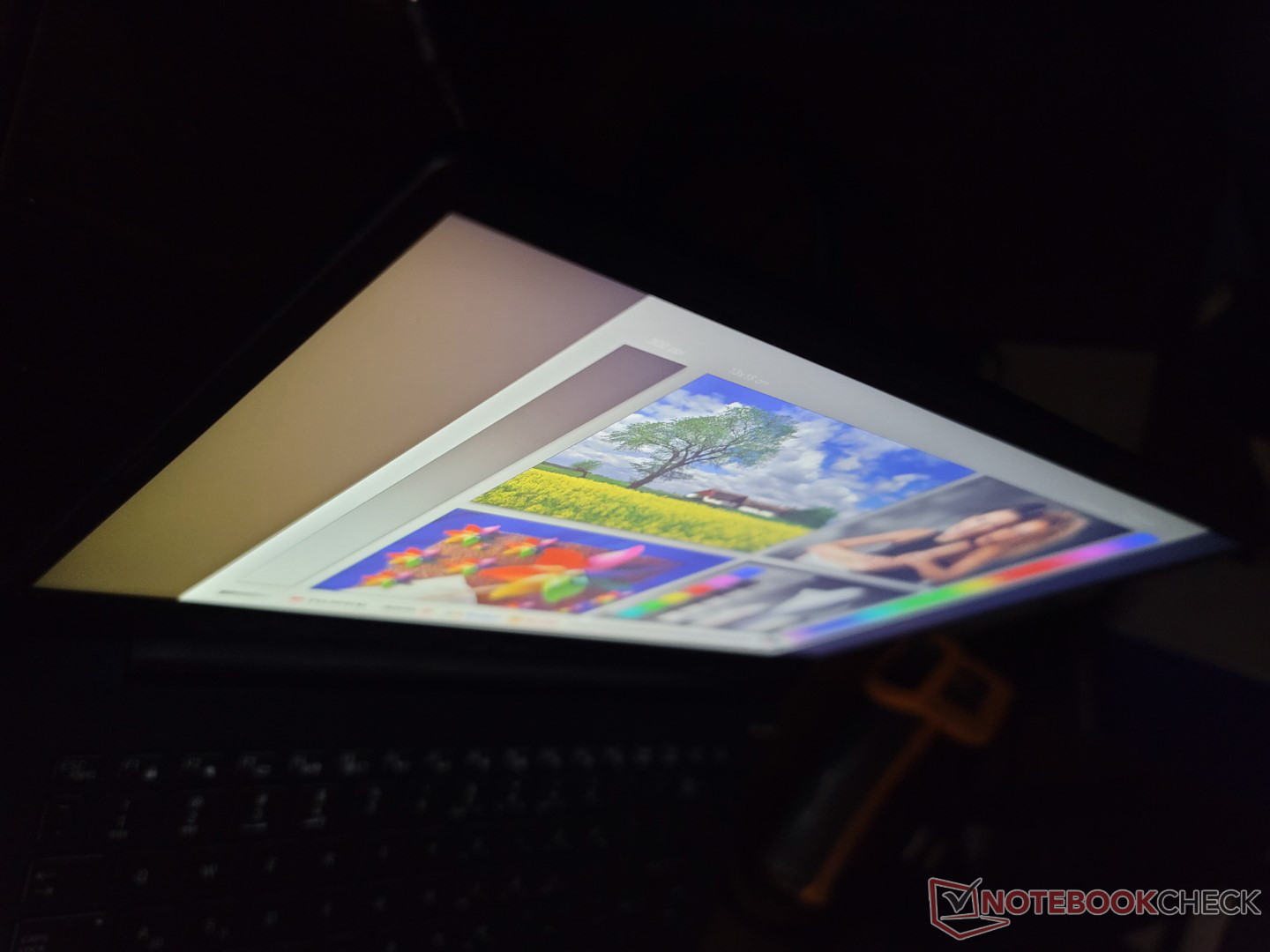

在只有大约250尼特的情况下，屏幕的亮度不足以在大多数户外环境中使用，而不会出现颜色被洗掉的情况。戴尔Latitude 和惠普EliteBook笔记本电脑的亮度可以达到2倍以上，但它们的零售价也高得多。
业绩
测试条件

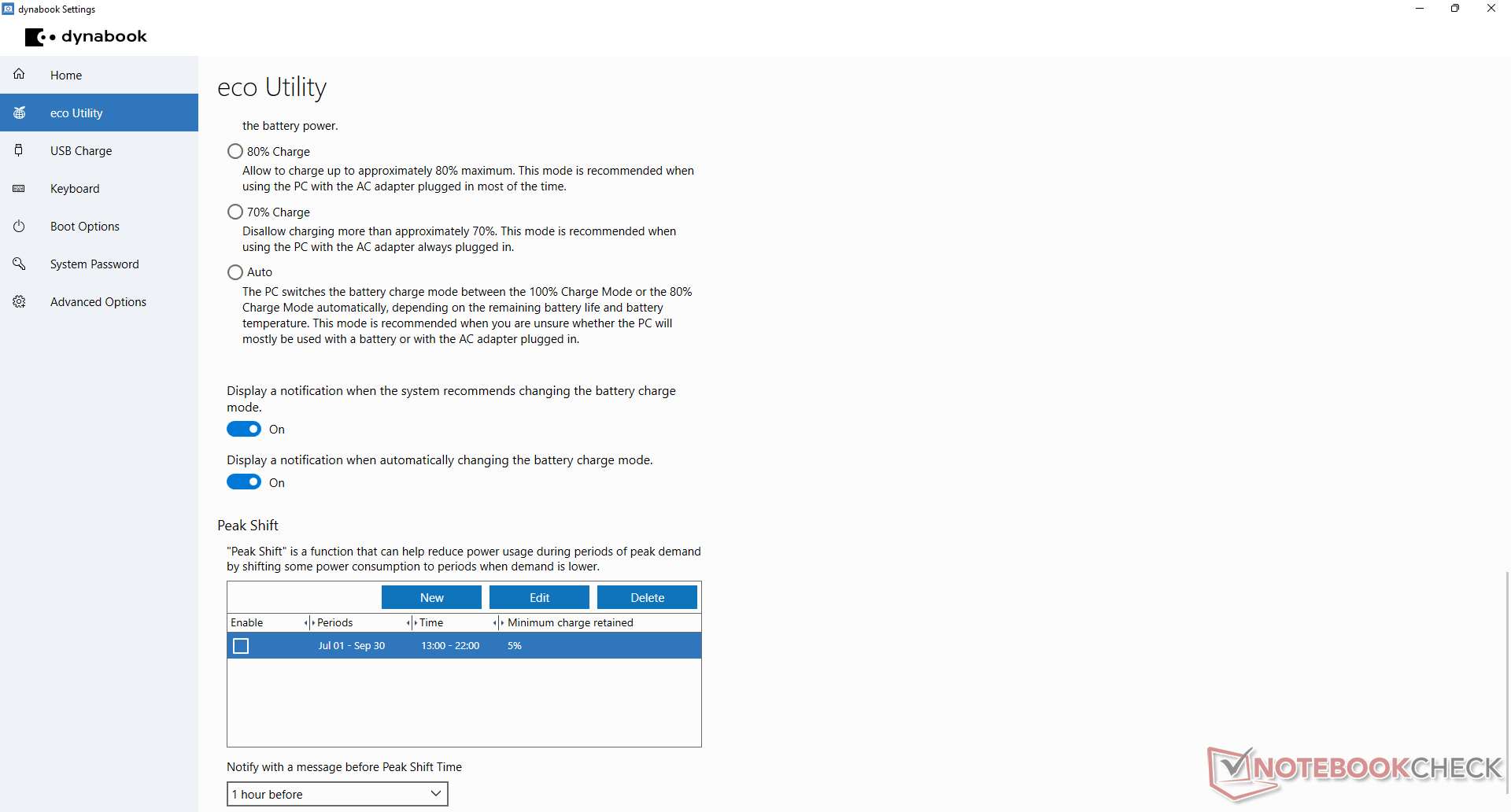

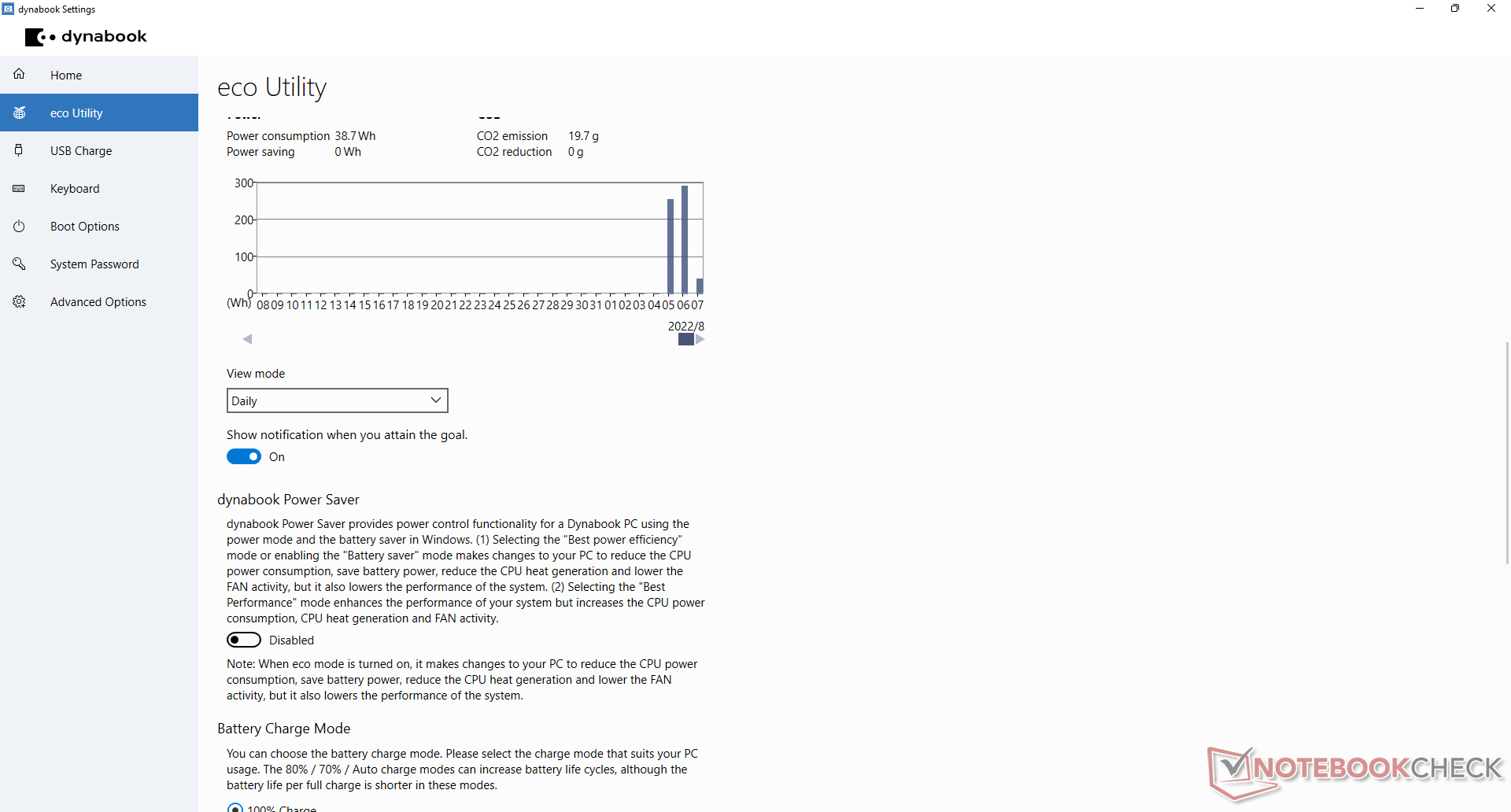

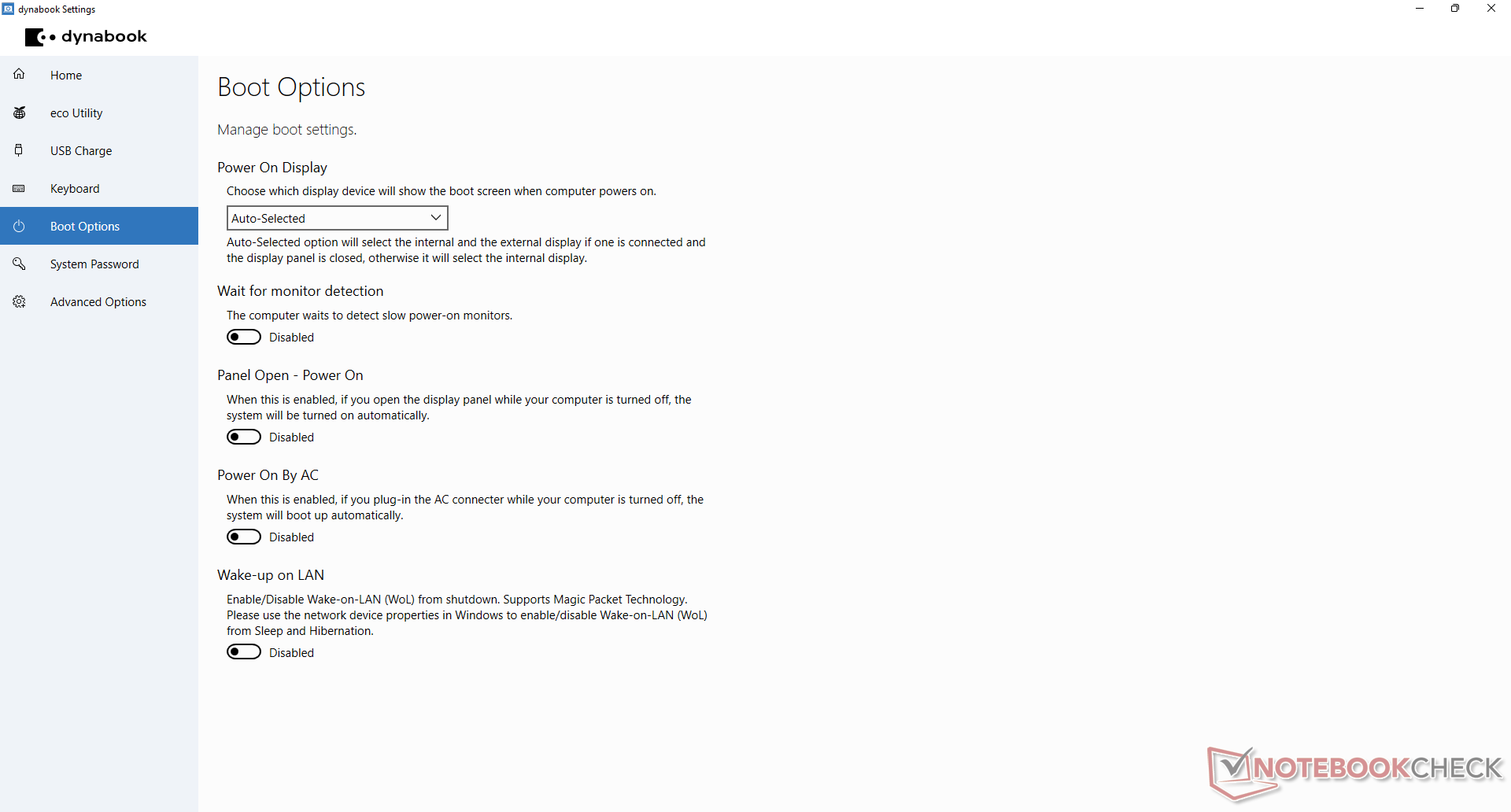

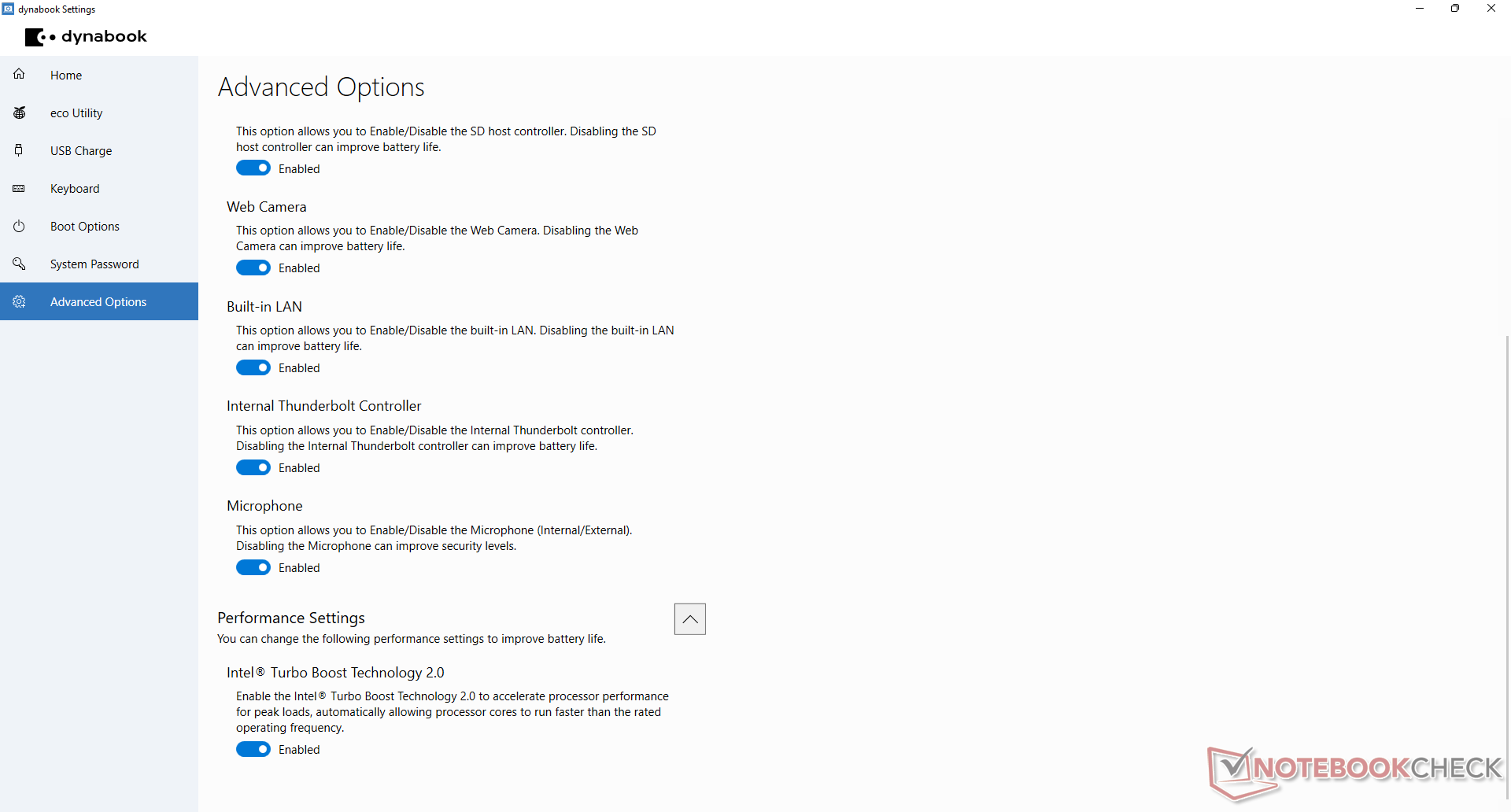

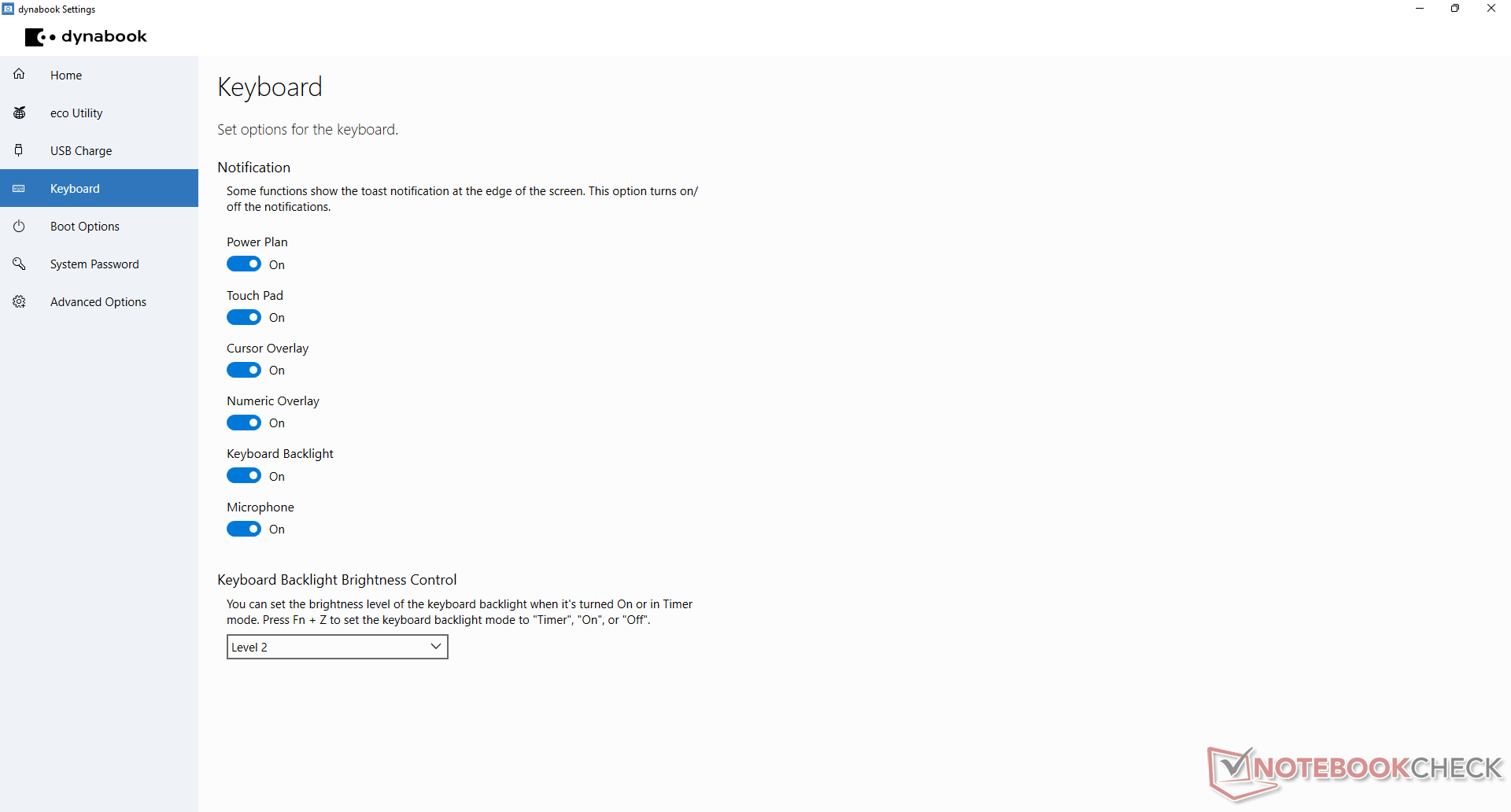

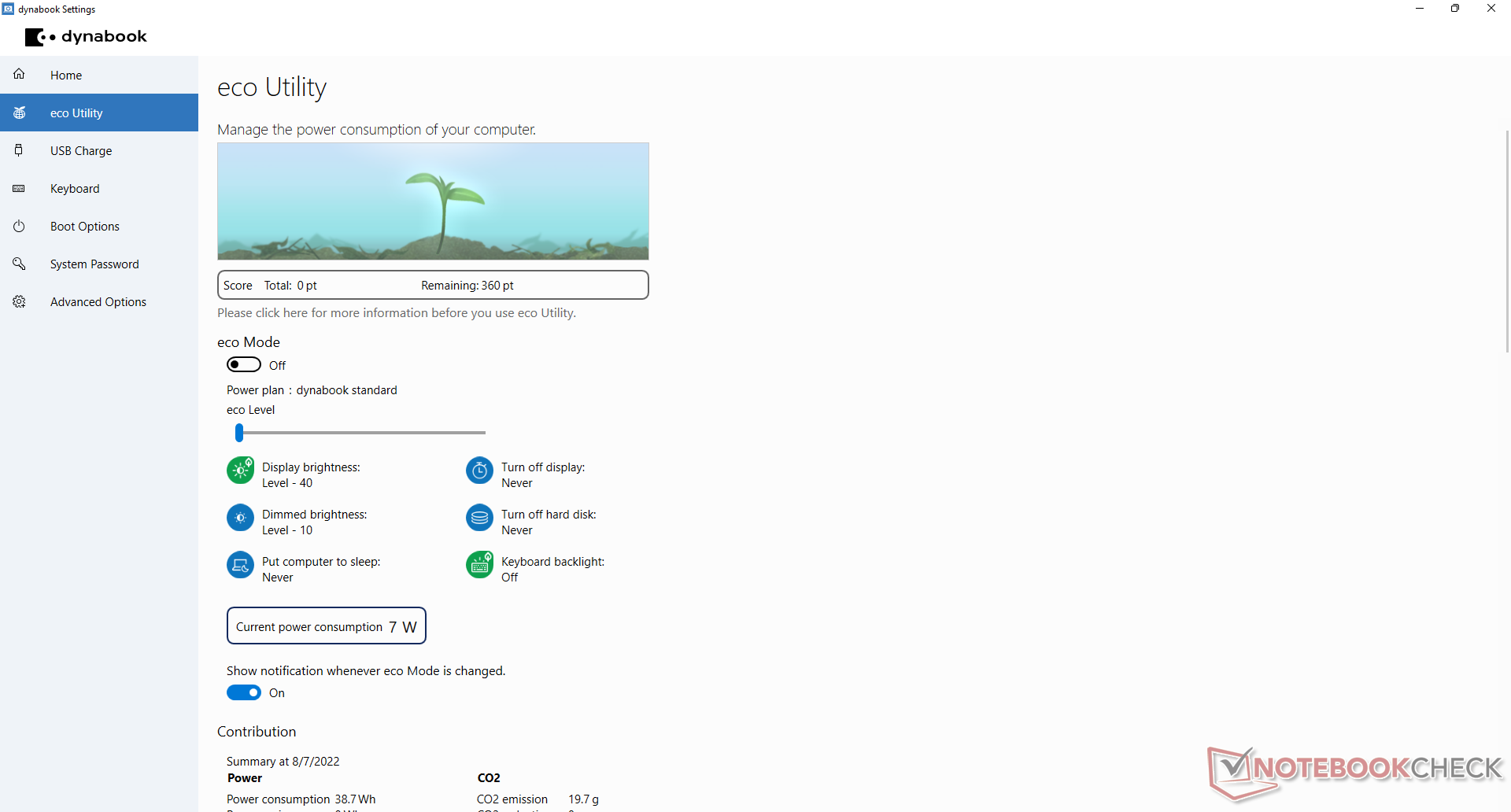

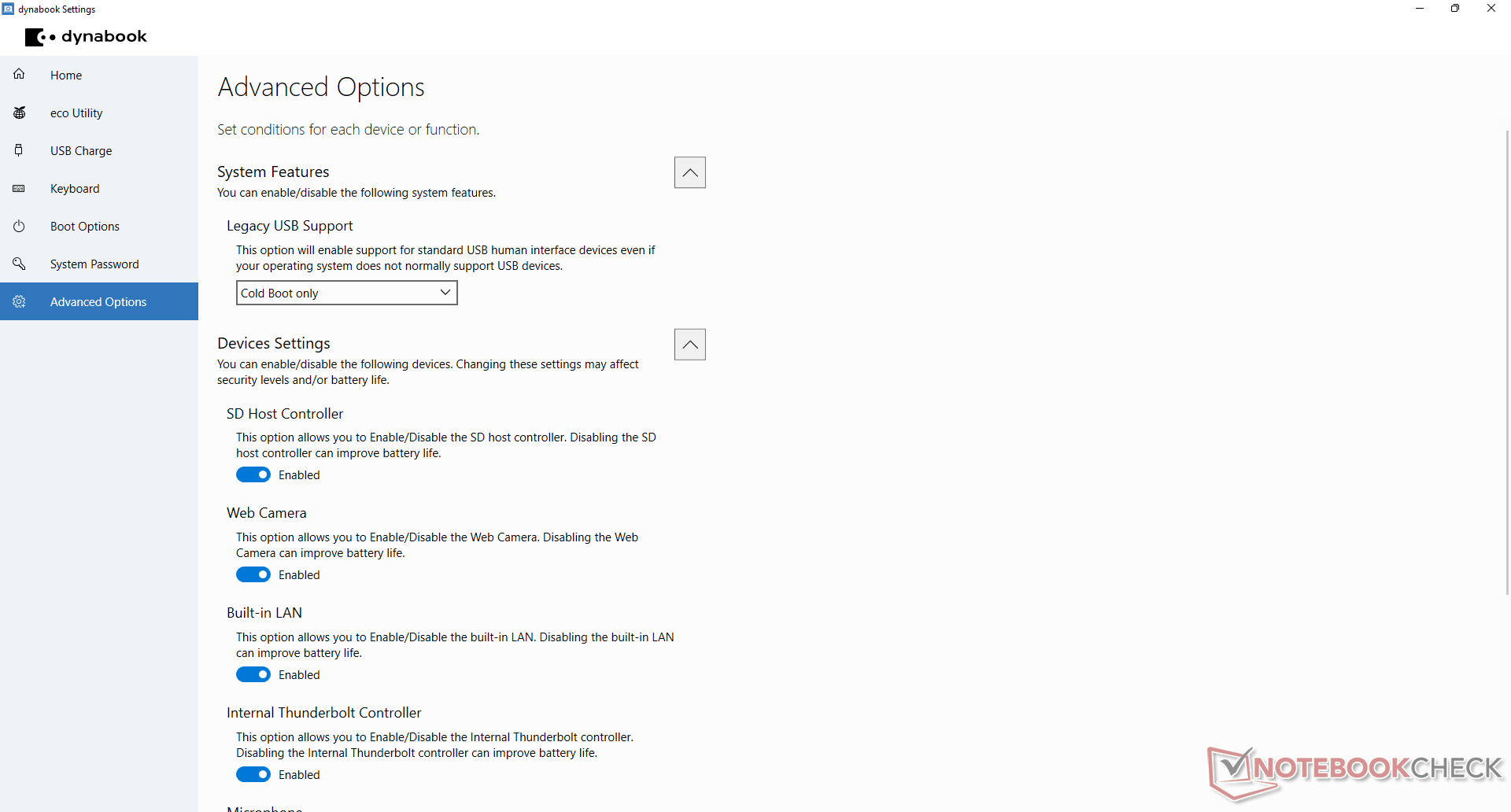

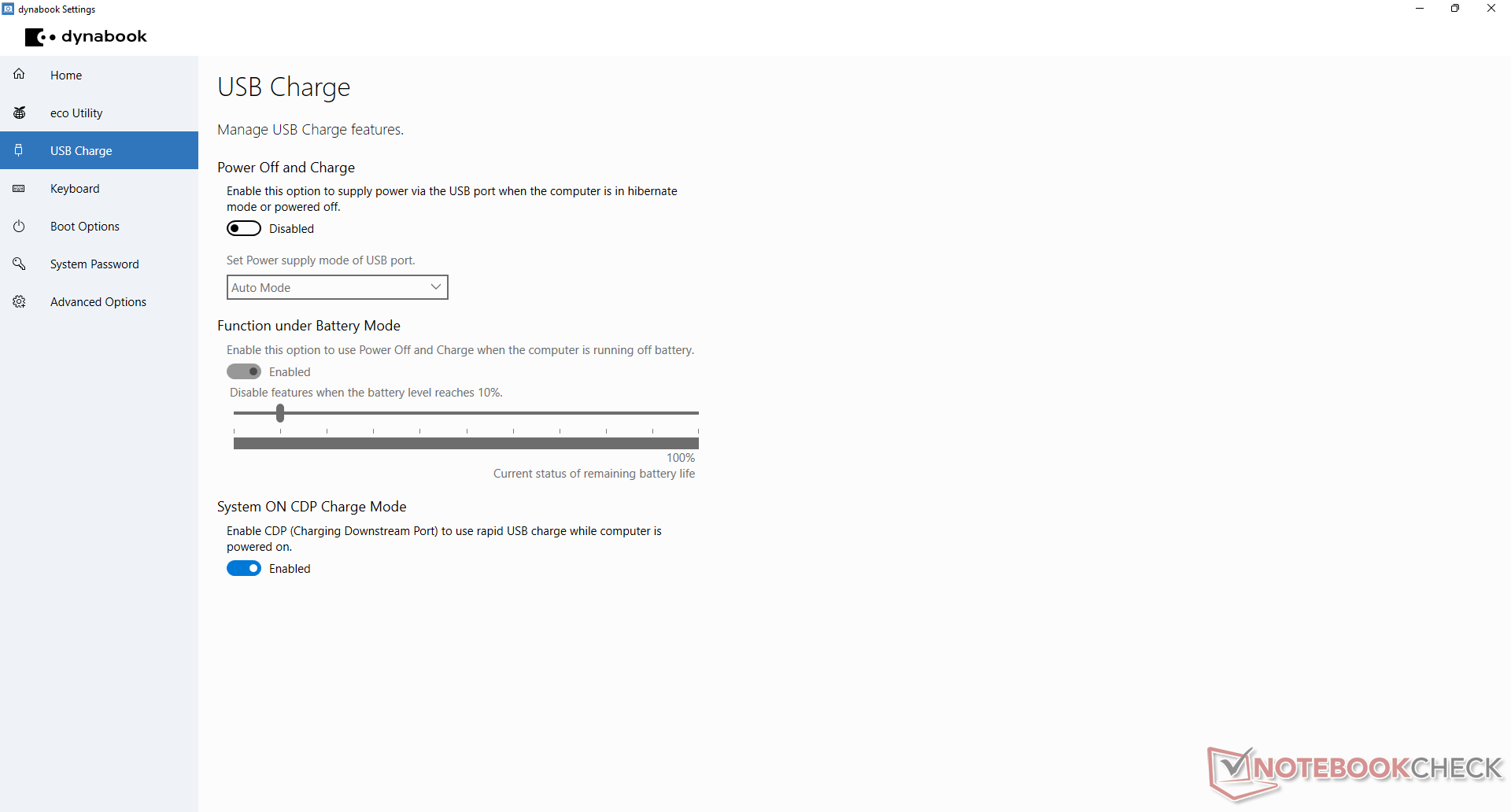

在运行以下任何基准测试之前，我们通过Windows将我们的设备设置为性能模式。我们还通过预装的Dynabook设置软件禁用了 "环保模式"。建议用户熟悉Dynabook设置，因为这里可以进行各种设置，包括性能、充电、启动选项、密码等。它甚至包括一个实时功耗读数，这在笔记本电脑上是不常见的功能。下面的屏幕截图显示了一些可用的设置。

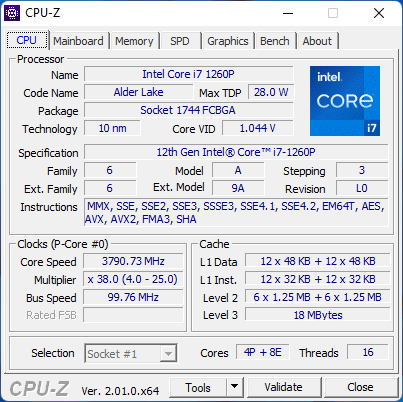

处理器
CPU性能非常好，多核结果比平均速度快10%至30%。 酷睿i7-1260P在我们的数据库中。在审查时，该CPU比大多数（如果不是所有的酷睿U系列和Ryzen U系列替代品）都快。

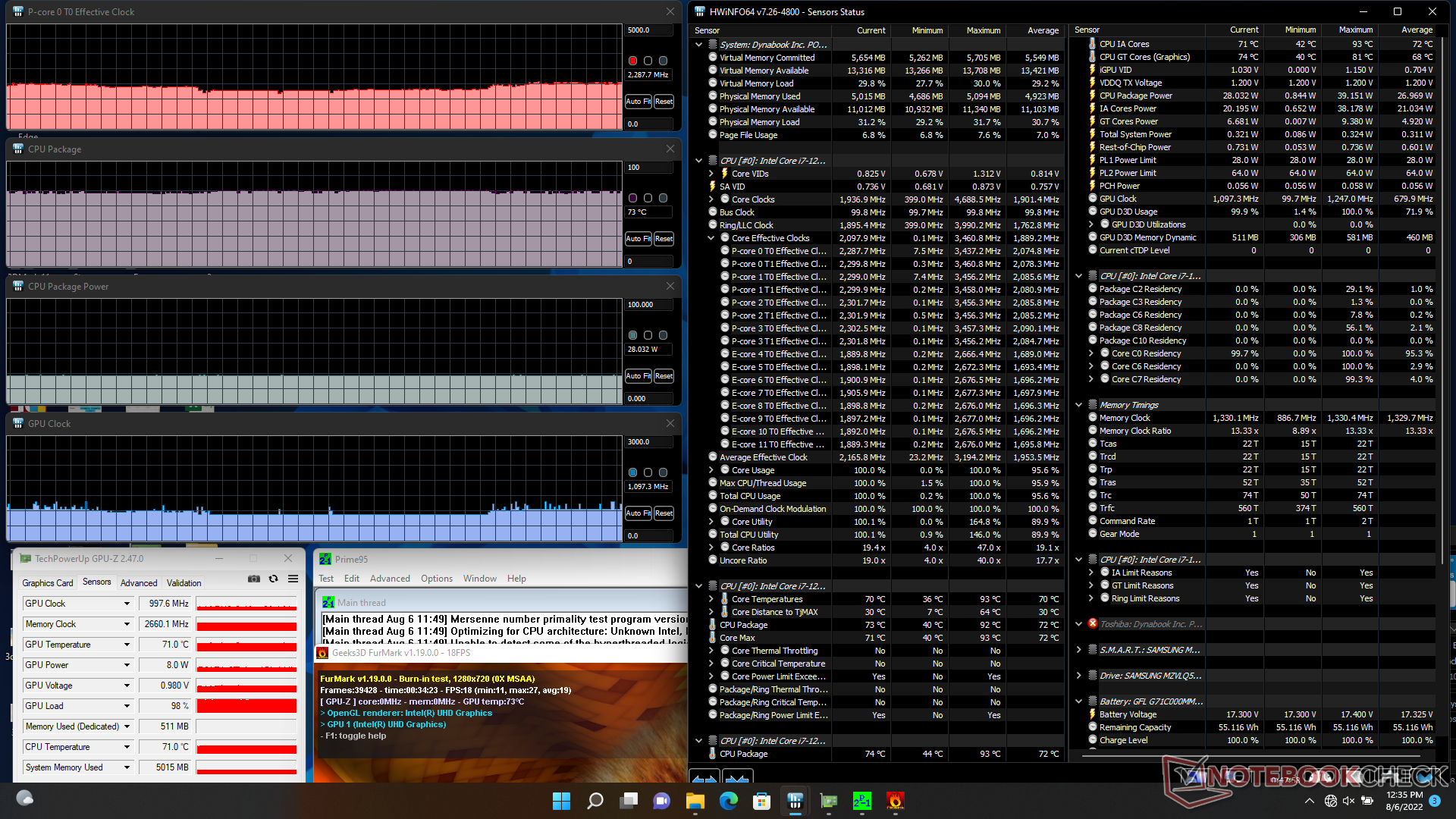

性能的可持续性可能会更好一点。当循环运行CineBench R15 xT时，如我们的下图所示，处理器性能在初始运行后会下降约18%。
Cinebench R15 Multi Loop
Dynabook Portégé X40-K Intel Core i7-1260P: Ø1487 (1467.3-1868.9)
MSI Summit E14 Flip Evo A12MT Intel Core i7-1260P: Ø1384 (1302.3-1394.12)
Lenovo Yoga 9 14IAP7 82LU0001US Intel Core i7-1260P: Ø1361 (1340.62-1461.29)
Lenovo Yoga Slim 7i Pro 14IAP G7 Intel Core i5-1240P: Ø1675 (1651.8-1830.66)
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| Geekbench 5.5 / Multi-Core | |
| HP Pavilion Plus 14 eh0097nr | |
| Average Intel Core i7-1260P (3866 - 10570, n=25) | |
| Dell Inspiron 14 5425 6VPKR | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Huawei MateBook 14 2021 AMD | |
| VAIO FE 14.1 VWNC51429-SL | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Acer TravelMate P4 TMP414-51-59MR | |
| Geekbench 5.5 / Single-Core | |
| Average Intel Core i7-1260P (1436 - 1786, n=25) | |
| HP Pavilion Plus 14 eh0097nr | |
| VAIO FE 14.1 VWNC51429-SL | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Dell Inspiron 14 5425 6VPKR | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Acer TravelMate P4 TMP414-51-59MR | |
| Huawei MateBook 14 2021 AMD | |
* ... smaller is better
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Dell Inspiron 14 5425 6VPKR | |
| Dynabook Portégé X40-K | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Average Intel Core i7-1260P | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Acer TravelMate P4 TMP414-51-59MR | |
| VAIO FE 14.1 VWNC51429-SL | |
| AIDA64 / FP32 Ray-Trace | |
| Dell Inspiron 14 5425 6VPKR | |
| Dynabook Portégé X40-K | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Average Intel Core i7-1260P (2176 - 10898, n=26) | |
| Acer TravelMate P4 TMP414-51-59MR | |
| VAIO FE 14.1 VWNC51429-SL | |
| AIDA64 / FPU Julia | |
| Dell Inspiron 14 5425 6VPKR | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Dynabook Portégé X40-K | |
| Average Intel Core i7-1260P (11015 - 56906, n=26) | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Acer TravelMate P4 TMP414-51-59MR | |
| VAIO FE 14.1 VWNC51429-SL | |
| AIDA64 / CPU SHA3 | |
| Dynabook Portégé X40-K | |
| Dell Inspiron 14 5425 6VPKR | |
| Asus ExpertBook B3 Flip B3402FEA | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Average Intel Core i7-1260P (669 - 2709, n=26) | |
| Acer TravelMate P4 TMP414-51-59MR | |
| VAIO FE 14.1 VWNC51429-SL | |
| AIDA64 / CPU Queen | |
| Dynabook Portégé X40-K | |
| Average Intel Core i7-1260P (42571 - 82493, n=26) | |
| Dell Inspiron 14 5425 6VPKR | |
| HP ProBook 445 G8-3Z6Q8ES | |
| VAIO FE 14.1 VWNC51429-SL | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Acer TravelMate P4 TMP414-51-59MR | |
| AIDA64 / FPU SinJulia | |
| Dell Inspiron 14 5425 6VPKR | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Dynabook Portégé X40-K | |
| Average Intel Core i7-1260P (2901 - 6975, n=26) | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Acer TravelMate P4 TMP414-51-59MR | |
| VAIO FE 14.1 VWNC51429-SL | |
| AIDA64 / FPU Mandel | |
| Dell Inspiron 14 5425 6VPKR | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Dynabook Portégé X40-K | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Average Intel Core i7-1260P (5950 - 26376, n=26) | |
| Acer TravelMate P4 TMP414-51-59MR | |
| VAIO FE 14.1 VWNC51429-SL | |
| AIDA64 / CPU AES | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Acer TravelMate P4 TMP414-51-59MR | |
| Dynabook Portégé X40-K | |
| Average Intel Core i7-1260P (16041 - 92356, n=26) | |
| Dell Inspiron 14 5425 6VPKR | |
| HP ProBook 445 G8-3Z6Q8ES | |
| VAIO FE 14.1 VWNC51429-SL | |
| AIDA64 / CPU ZLib | |
| Dynabook Portégé X40-K | |
| Average Intel Core i7-1260P (259 - 771, n=26) | |
| Dell Inspiron 14 5425 6VPKR | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Acer TravelMate P4 TMP414-51-59MR | |
| VAIO FE 14.1 VWNC51429-SL | |
| AIDA64 / FP64 Ray-Trace | |
| Dell Inspiron 14 5425 6VPKR | |
| Dynabook Portégé X40-K | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Average Intel Core i7-1260P (1237 - 5858, n=26) | |
| Acer TravelMate P4 TMP414-51-59MR | |
| VAIO FE 14.1 VWNC51429-SL | |
| AIDA64 / CPU PhotoWorxx | |
| Average Intel Core i7-1260P (13261 - 43652, n=26) | |
| VAIO FE 14.1 VWNC51429-SL | |
| Dynabook Portégé X40-K | |
| Dell Inspiron 14 5425 6VPKR | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Acer TravelMate P4 TMP414-51-59MR | |
系统性能
PCMark 10: Score | Essentials | Productivity | Digital Content Creation
CrossMark: Overall | Productivity | Creativity | Responsiveness
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| Dell Inspiron 14 5425 6VPKR | |
| Dynabook Portégé X40-K | |
| Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs (4796 - 6068, n=17) | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Asus ExpertBook B3 Flip B3402FEA | |
| VAIO FE 14.1 VWNC51429-SL | |
| Acer TravelMate P4 TMP414-51-59MR | |
| PCMark 10 / Essentials | |
| Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs (9260 - 11251, n=17) | |
| Dell Inspiron 14 5425 6VPKR | |
| VAIO FE 14.1 VWNC51429-SL | |
| Dynabook Portégé X40-K | |
| Asus ExpertBook B3 Flip B3402FEA | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Acer TravelMate P4 TMP414-51-59MR | |
| PCMark 10 / Productivity | |
| Dell Inspiron 14 5425 6VPKR | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs (6167 - 8629, n=17) | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Dynabook Portégé X40-K | |
| VAIO FE 14.1 VWNC51429-SL | |
| Acer TravelMate P4 TMP414-51-59MR | |
| PCMark 10 / Digital Content Creation | |
| Dynabook Portégé X40-K | |
| Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs (5231 - 6908, n=17) | |
| Dell Inspiron 14 5425 6VPKR | |
| Asus ExpertBook B3 Flip B3402FEA | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Acer TravelMate P4 TMP414-51-59MR | |
| VAIO FE 14.1 VWNC51429-SL | |
| CrossMark / Overall | |
| Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs (1484 - 1811, n=16) | |
| Dynabook Portégé X40-K | |
| VAIO FE 14.1 VWNC51429-SL | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Dell Inspiron 14 5425 6VPKR | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Acer TravelMate P4 TMP414-51-59MR | |
| CrossMark / Productivity | |
| Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs (1486 - 1755, n=16) | |
| Dynabook Portégé X40-K | |
| Asus ExpertBook B3 Flip B3402FEA | |
| VAIO FE 14.1 VWNC51429-SL | |
| Dell Inspiron 14 5425 6VPKR | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Acer TravelMate P4 TMP414-51-59MR | |
| CrossMark / Creativity | |
| Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs (1451 - 1872, n=16) | |
| Dynabook Portégé X40-K | |
| VAIO FE 14.1 VWNC51429-SL | |
| Dell Inspiron 14 5425 6VPKR | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Acer TravelMate P4 TMP414-51-59MR | |
| CrossMark / Responsiveness | |
| Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs (1253 - 1807, n=16) | |
| Asus ExpertBook B3 Flip B3402FEA | |
| VAIO FE 14.1 VWNC51429-SL | |
| Dynabook Portégé X40-K | |
| Dell Inspiron 14 5425 6VPKR | |
| Acer TravelMate P4 TMP414-51-59MR | |
| HP ProBook 445 G8-3Z6Q8ES | |

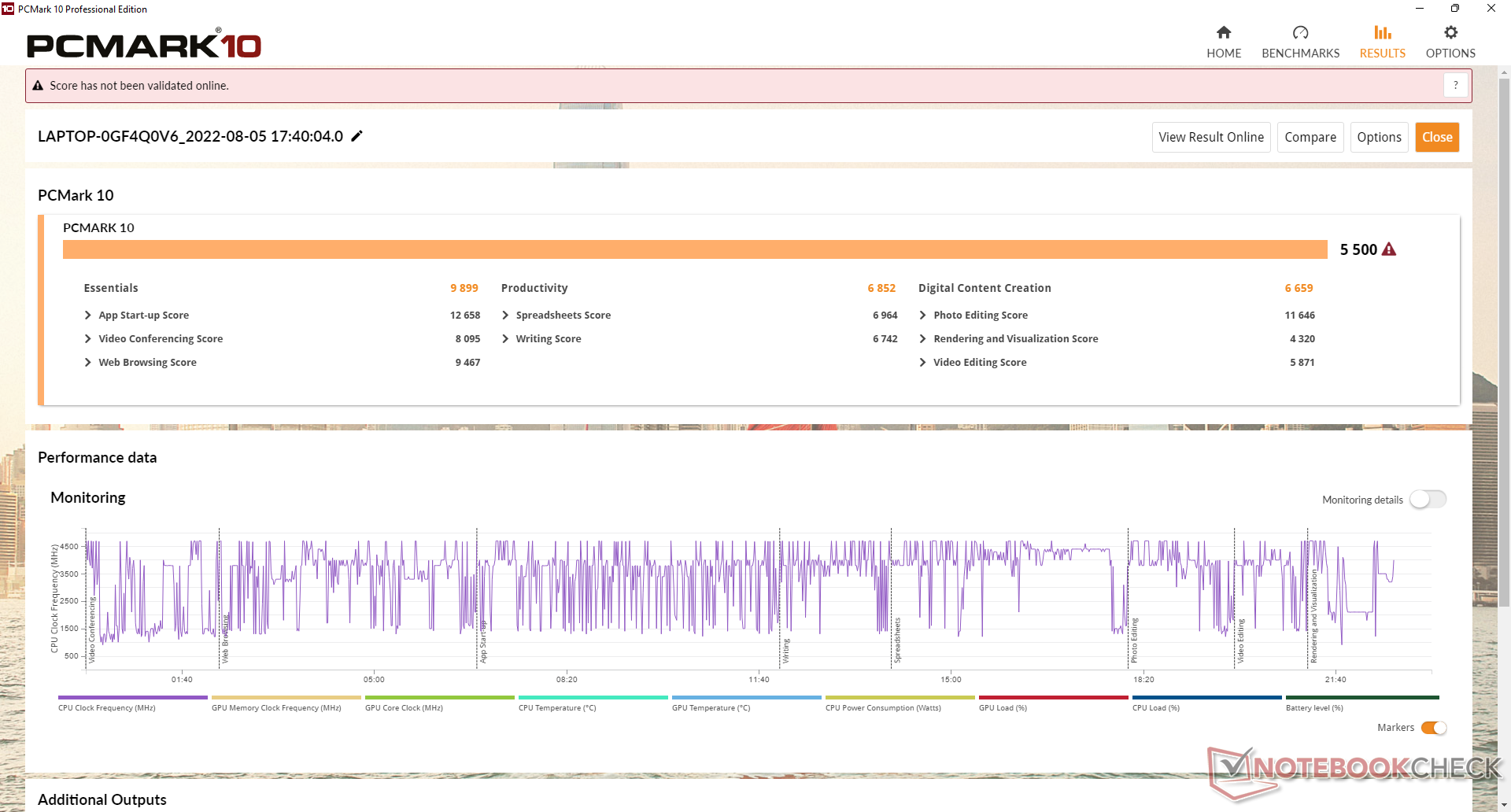

| PCMark 10 Score | 5500 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Average Intel Core i7-1260P (25125 - 71544, n=25) | |
| VAIO FE 14.1 VWNC51429-SL | |
| Dell Inspiron 14 5425 6VPKR | |
| Dynabook Portégé X40-K | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Acer TravelMate P4 TMP414-51-59MR | |
| AIDA64 / Memory Read | |
| Average Intel Core i7-1260P (24983 - 72065, n=25) | |
| VAIO FE 14.1 VWNC51429-SL | |
| Dell Inspiron 14 5425 6VPKR | |
| Dynabook Portégé X40-K | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Acer TravelMate P4 TMP414-51-59MR | |
| AIDA64 / Memory Write | |
| Average Intel Core i7-1260P (23512 - 66799, n=25) | |
| VAIO FE 14.1 VWNC51429-SL | |
| Dell Inspiron 14 5425 6VPKR | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Dynabook Portégé X40-K | |
| Acer TravelMate P4 TMP414-51-59MR | |
| Asus ExpertBook B3 Flip B3402FEA | |
| AIDA64 / Memory Latency | |
| Dell Inspiron 14 5425 6VPKR | |
| VAIO FE 14.1 VWNC51429-SL | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Acer TravelMate P4 TMP414-51-59MR | |
| Average Intel Core i7-1260P (77.9 - 118.4, n=21) | |
| Dynabook Portégé X40-K | |
* ... smaller is better
DPC延时

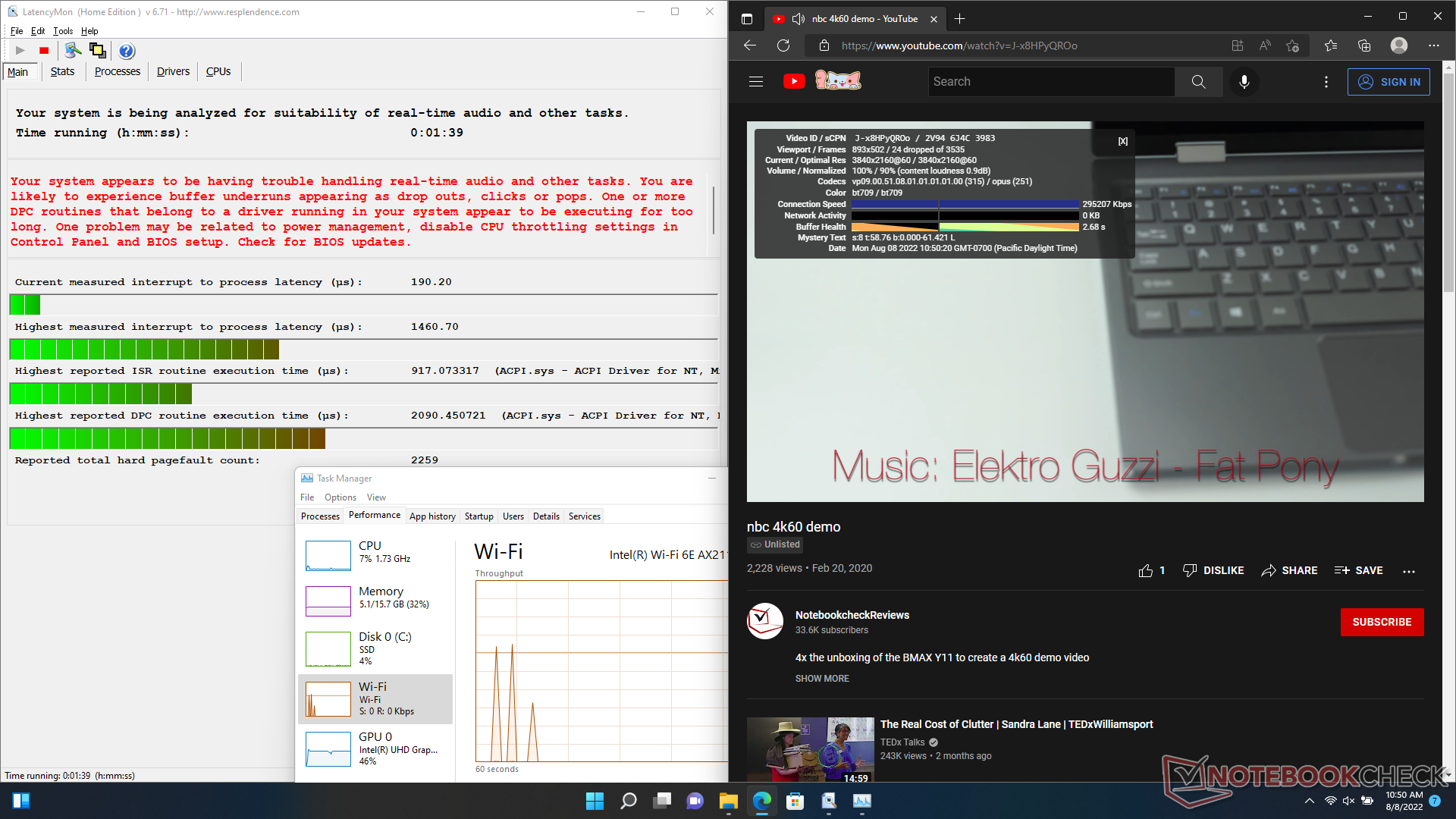

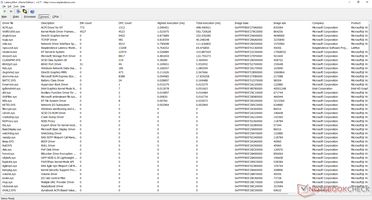

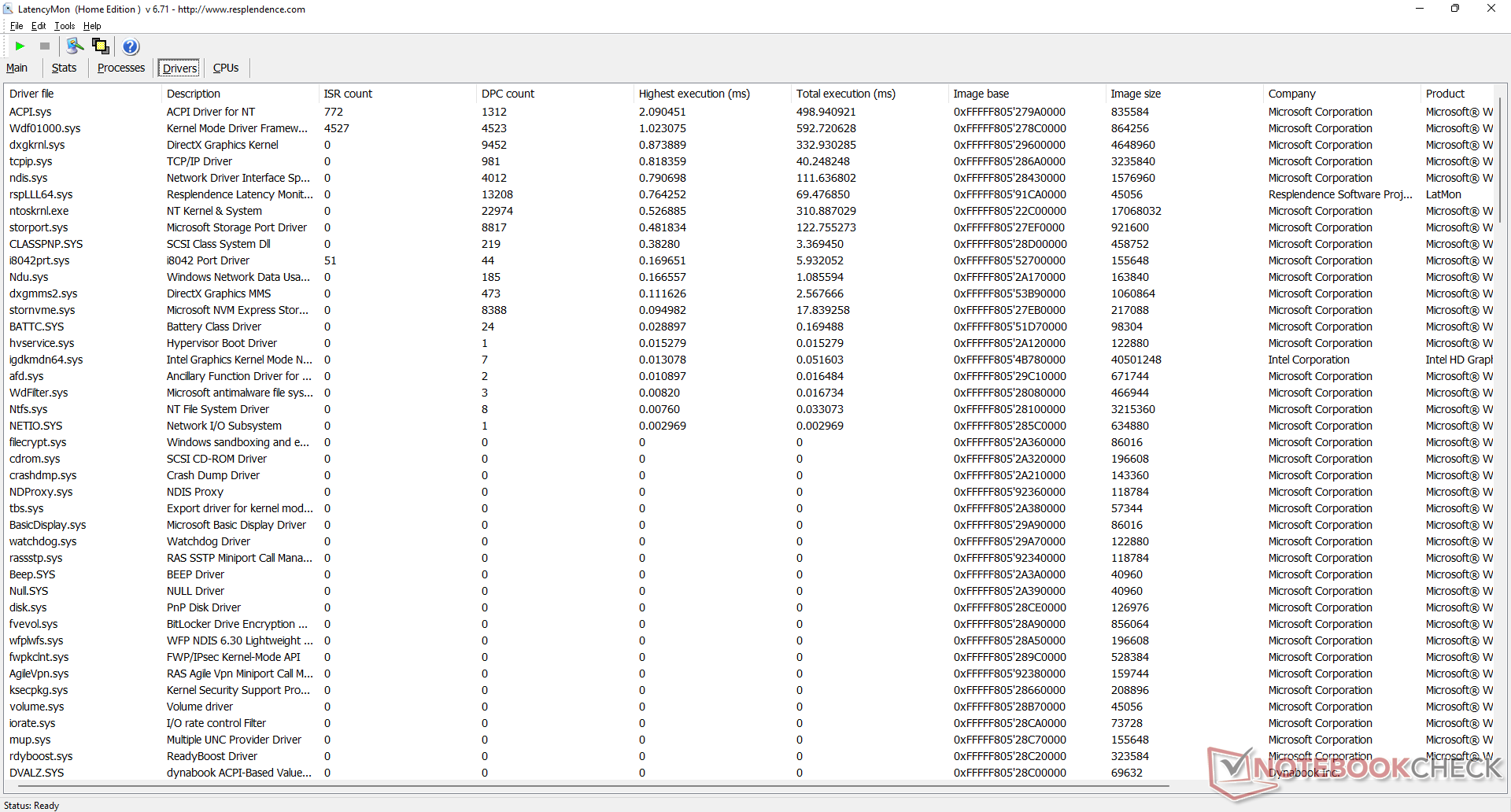

LatencyMon显示了在我们的主页上打开多个浏览器标签时的DPC问题。在60 FPS下的4K视频播放也不完美，在我们长达1分钟的视频中出现了24个丢帧。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| VAIO FE 14.1 VWNC51429-SL | |
| Acer TravelMate P4 TMP414-51-59MR | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Dynabook Portégé X40-K | |
| Dell Inspiron 14 5425 6VPKR | |
| HP ProBook 445 G8-3Z6Q8ES | |
* ... smaller is better
存储设备
的三星PM991在我们的测试装置中，在压力下会表现出性能问题。循环运行DiskSpd时，连续读取率在测试开始时高达3000MB/s，然后下降到1500MB/s至2200MB/s的低水平，如下图所示。
Samsung PM991 MZVLQ512HBLU
CDM 5/6 Read Seq Q32T1:
3102 MB/s
CDM 5/6 Write Seq Q32T1:
1824 MB/s
CDM 5/6 Read 4K Q32T1:
400.2 MB/s
CDM 5/6 Write 4K Q32T1:
363.4 MB/s
CDM 5 Read Seq:
1566 MB/s
CDM 5 Write Seq:
1166 MB/s
CDM 5/6 Read 4K:
50.88 MB/s
CDM 5/6 Write 4K:
131.1 MB/s
| Drive Performance Rating - Percent | |
| Dell Inspiron 14 5425 6VPKR | |
| Dynabook Portégé X40-K | |
| VAIO FE 14.1 VWNC51429-SL -11! | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Acer TravelMate P4 TMP414-51-59MR | |
| HP ProBook 445 G8-3Z6Q8ES | |
* ... smaller is better
Disk Throttling: DiskSpd Read Loop, Queue Depth 8
Dynabook Portégé X40-K: Ø1959 (1581.25-3024.72)

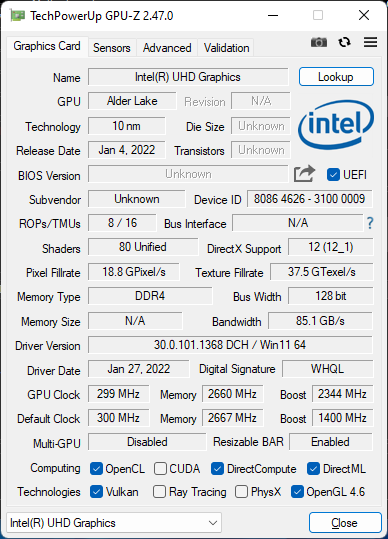

GPU性能

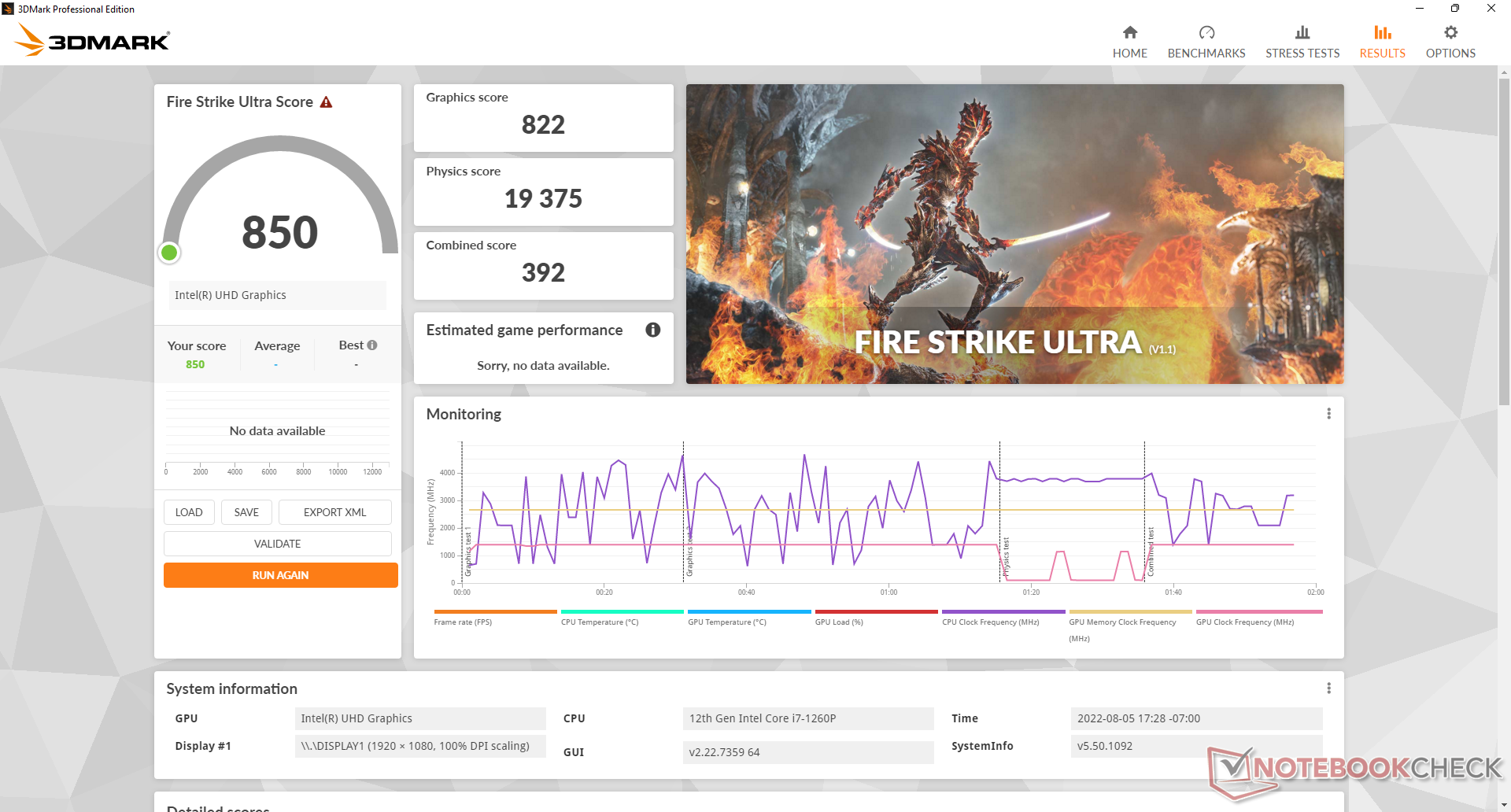

图形性能比我们数据库中具有相同功能的平均笔记本电脑慢10%到15%。 Iris Xe 96 EUs GPU.这方面的不足可以归因于我们测试设备的单通道RAM配置。我们建议添加第二个RAM模块，以显著提高GPU的性能。

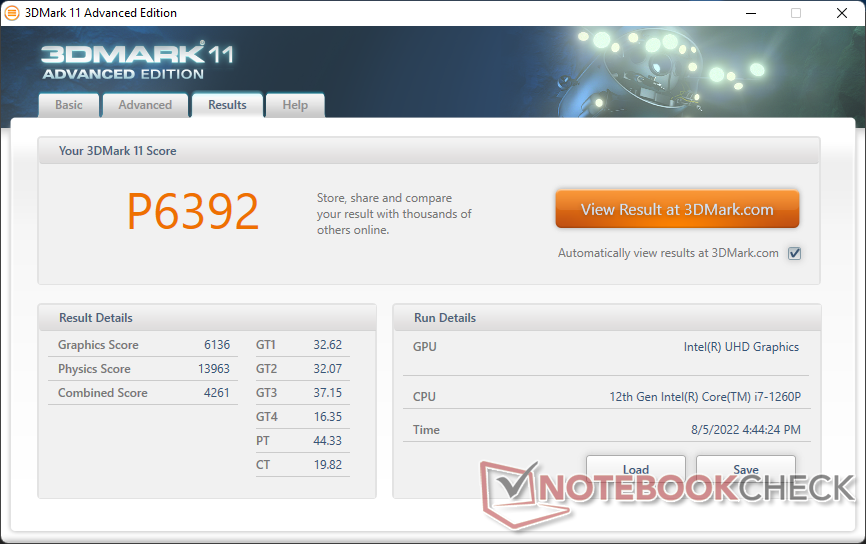

| 3DMark 11 Performance | 6392 points | |

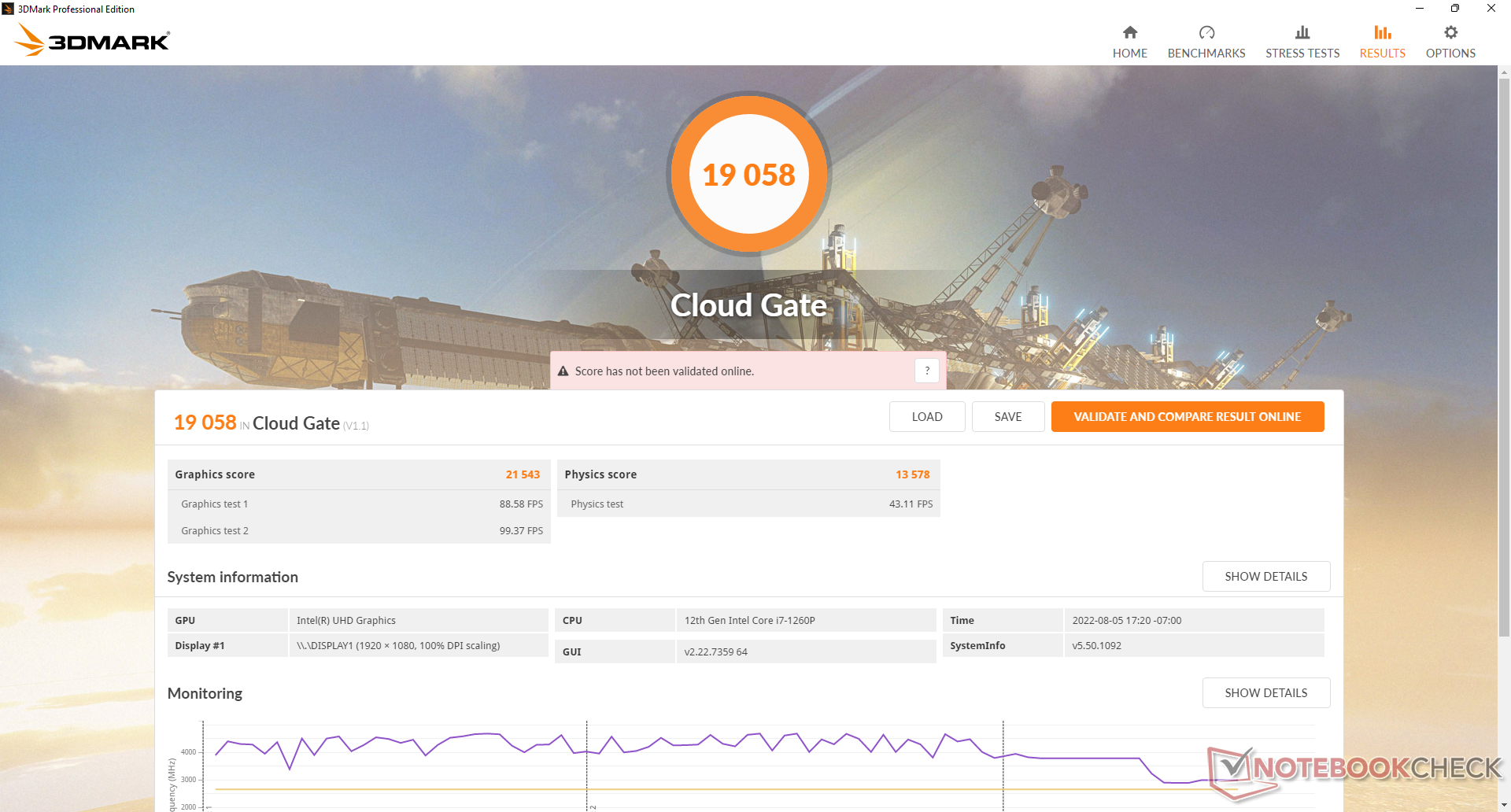

| 3DMark Cloud Gate Standard Score | 19058 points | |

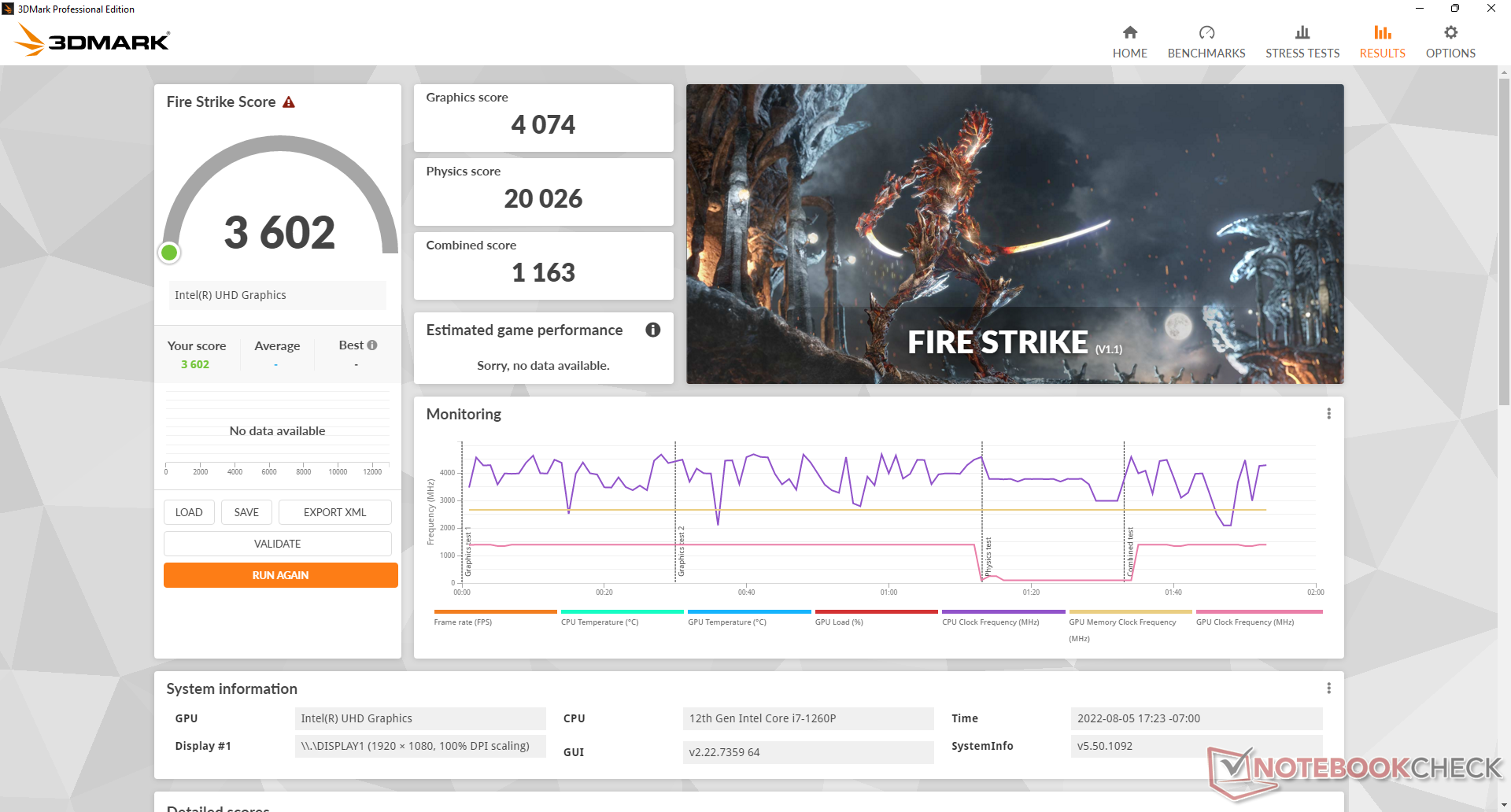

| 3DMark Fire Strike Score | 3602 points | |

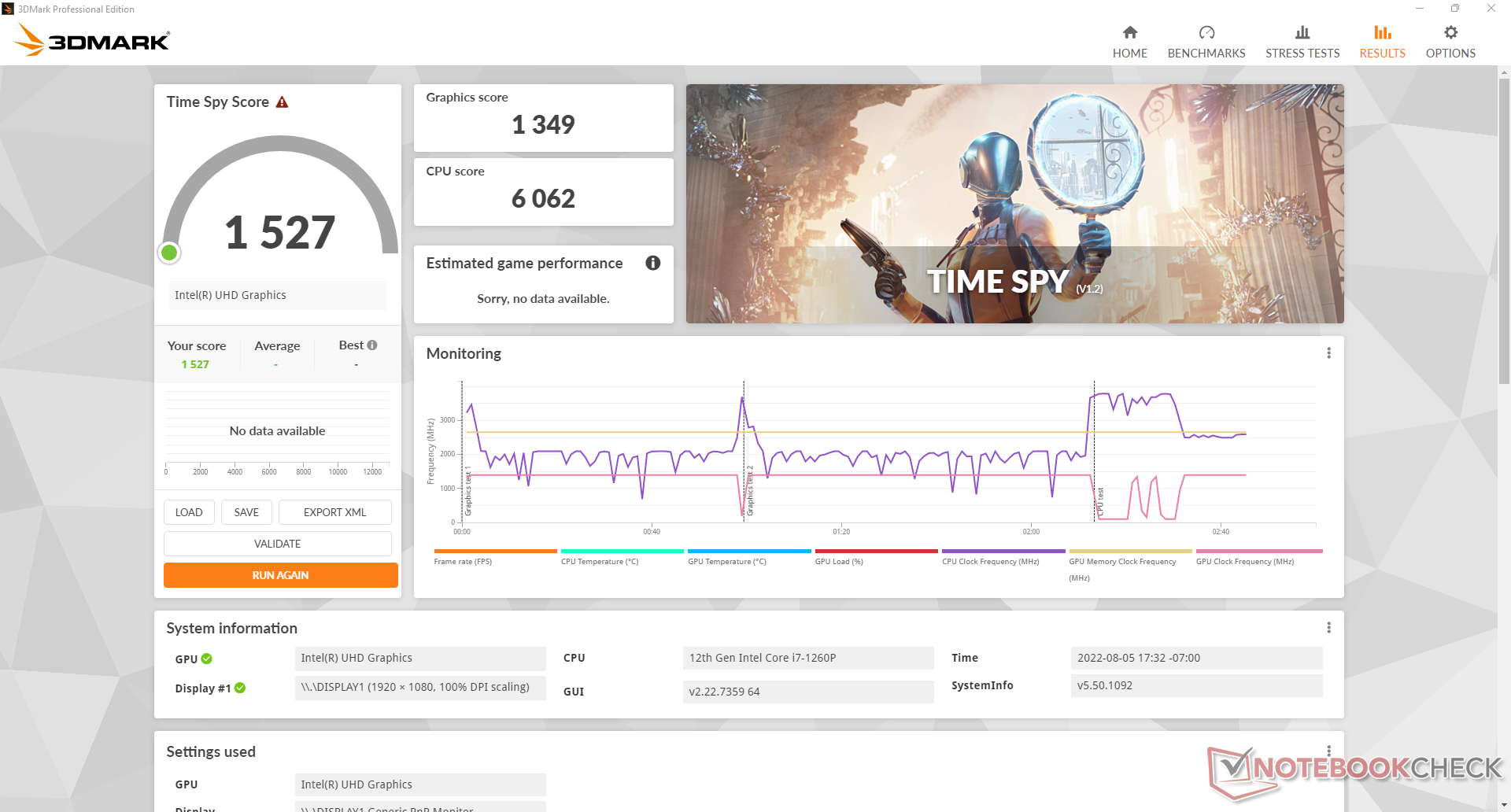

| 3DMark Time Spy Score | 1527 points | |
Help | ||
Final Fantasy XV Benchmark | The Witcher 3 | X-Plane 11.11 | Dota 2 Reborn | Cyberpunk 2077 1.6 | Strange Brigade | GTA V
| Cyberpunk 2077 1.6 | |
| 1920x1080 Low Preset | |
| Asus Zenbook S 13 OLED | |
| HP Pavilion Plus 14 eh0097nr | |
| Average Intel Iris Xe Graphics G7 96EUs (13 - 25.9, n=42) | |
| Dynabook Portégé X40-K | |
| VAIO FE 14.1 VWNC51429-SL | |
| 1920x1080 Medium Preset | |
| Asus Zenbook S 13 OLED | |
| HP Pavilion Plus 14 eh0097nr | |
| Average Intel Iris Xe Graphics G7 96EUs (10.8 - 21.7, n=37) | |
| Dynabook Portégé X40-K | |
| 1920x1080 High Preset | |
| Asus Zenbook S 13 OLED | |
| Average Intel Iris Xe Graphics G7 96EUs (9.8 - 16.9, n=34) | |
| HP Pavilion Plus 14 eh0097nr | |
| 1920x1080 Ultra Preset | |
| Asus Zenbook S 13 OLED | |
| Average Intel Iris Xe Graphics G7 96EUs (7.4 - 16.8, n=32) | |
Witcher 3 FPS Chart
Dynabook Portégé X40-K: Ø74.9 (70-79)
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 71.3 | 56.9 | 11.4 | 5.14 |
| The Witcher 3 (2015) | 74.9 | 45.2 | 23.7 | 11.9 |
| Dota 2 Reborn (2015) | 102.8 | 71.9 | 44 | 41.7 |
| Final Fantasy XV Benchmark (2018) | 31.6 | 16.1 | 12.2 | |
| X-Plane 11.11 (2018) | 51.1 | 38.4 | 34.2 | |
| Strange Brigade (2018) | 70.7 | 26.9 | 23.1 | 18.7 |
| Cyberpunk 2077 1.6 (2022) | 17 | 14 |
排放
系统噪音

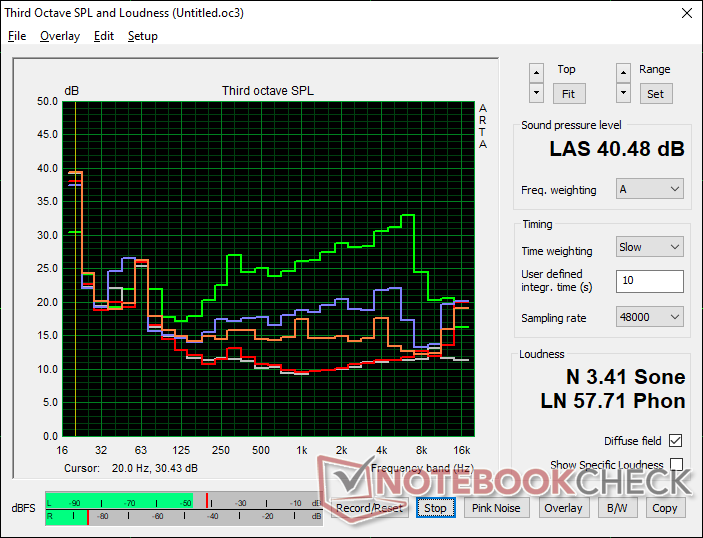

我们的测试装置会表现出轻微的电子噪音或线圈啸叫，而静音背景为22.8 dB(A)。当运行在1080p Ultra设置下时，风扇噪音仍然相对安静。 Witcher 3由于帧率很低，在1080p Ultra设置下运行时，风扇噪音仍然相对安静。相反，用户在游戏时应期待31.2至40 dB(A)的风扇噪音。
与VAIO FE14相比，Portege的内部风扇能够保持更长时间的安静。VAIO FE14或Acer TravelMate P4.
Noise Level
| Idle |
| 23.4 / 23.4 / 23.4 dB(A) |
| Load |
| 31.2 / 40.5 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 22.8 dB(A) | ||
| Dynabook Portégé X40-K Iris Xe G7 96EUs, i7-1260P, Samsung PM991 MZVLQ512HBLU | VAIO FE 14.1 VWNC51429-SL Iris Xe G7 80EUs, i5-1235U, Netac S930E 1TB | HP ProBook 445 G8-3Z6Q8ES Vega 7, R5 5600U, SSSTC CL1-8D512-HP | Asus ExpertBook B3 Flip B3402FEA Iris Xe G7 96EUs, i7-1165G7, Micron 2210 MTFDHBA512QFD | Acer TravelMate P4 TMP414-51-59MR Iris Xe G7 80EUs, i5-1135G7, SK hynix BC511 HFM256GDJTNI-82A0 | Dell Inspiron 14 5425 6VPKR Vega 7, R5 5625U, SK Hynix BC711 512GB HFM512GD3GX013N | |
|---|---|---|---|---|---|---|
| Noise | -4% | -1% | -19% | -7% | -11% | |
| off / environment * | 22.8 | 23.8 -4% | 25 -10% | 25 -10% | 25.4 -11% | 25.5 -12% |
| Idle Minimum * | 23.4 | 23.8 -2% | 25 -7% | 25 -7% | 25.4 -9% | 25.5 -9% |
| Idle Average * | 23.4 | 23.8 -2% | 25 -7% | 25 -7% | 25.4 -9% | 25.5 -9% |
| Idle Maximum * | 23.4 | 23.8 -2% | 25 -7% | 32.3 -38% | 25.4 -9% | 25.5 -9% |
| Load Average * | 31.2 | 28.6 8% | 30.7 2% | 44.1 -41% | 34.6 -11% | 37.7 -21% |
| Witcher 3 ultra * | 27.1 | 37.1 -37% | ||||
| Load Maximum * | 40.5 | 37.3 8% | 30.7 24% | 44.1 -9% | 37.4 8% | 43.3 -7% |
* ... smaller is better
温度

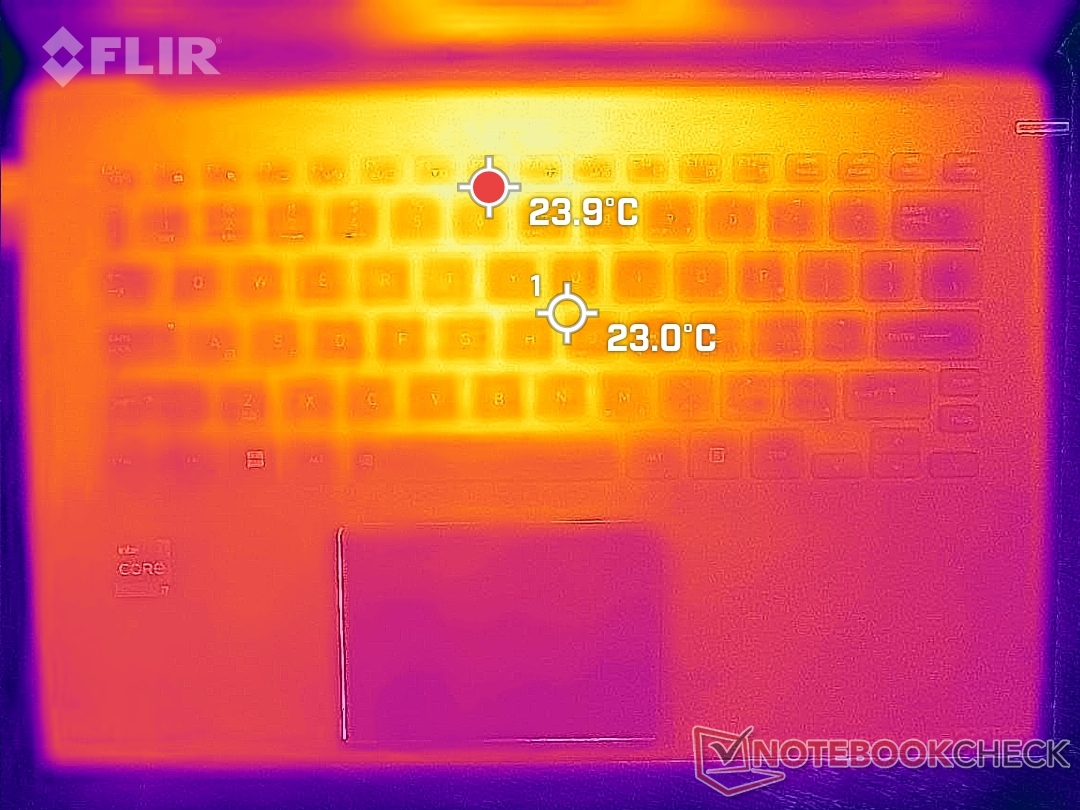

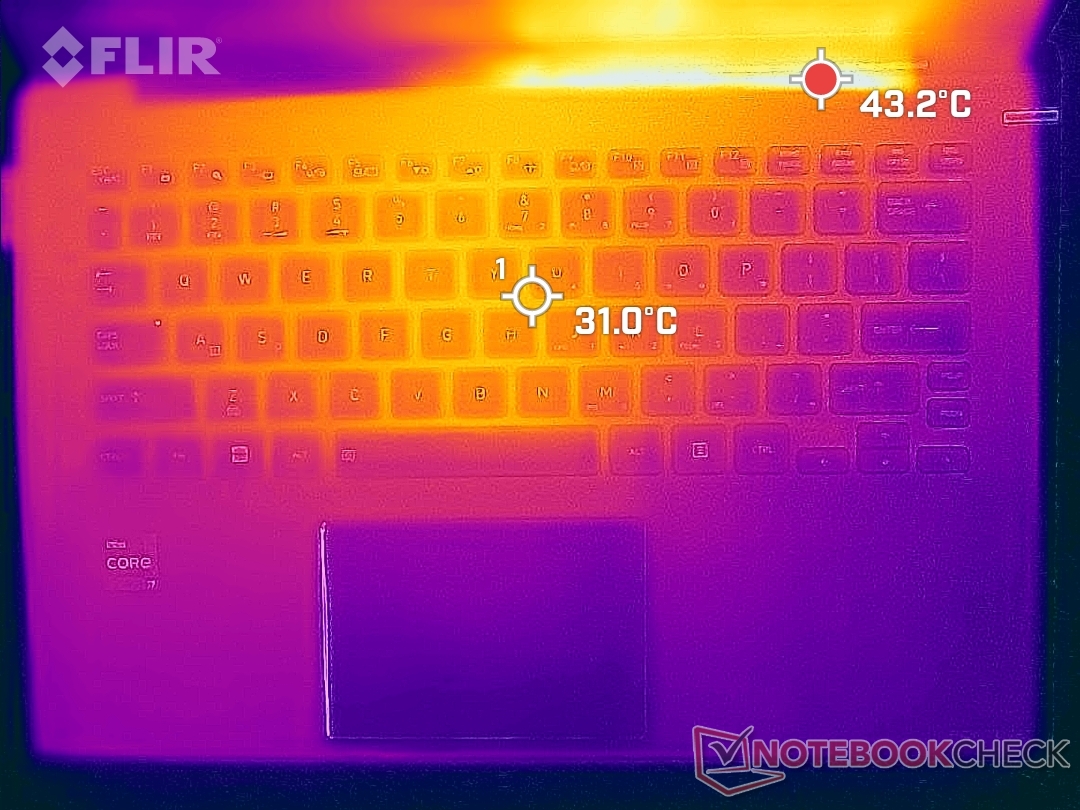

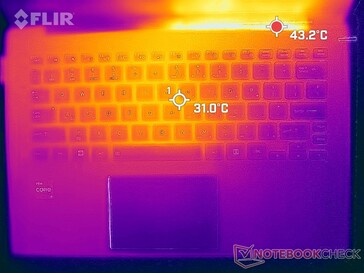

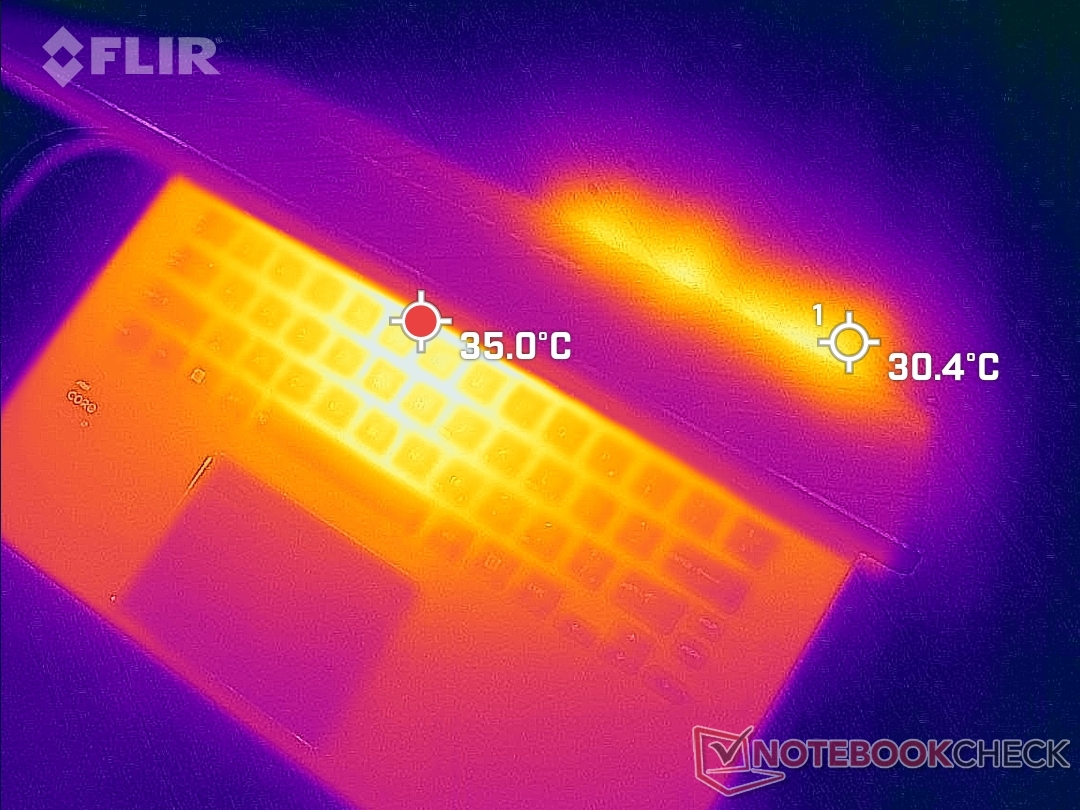

表面温度比预期的要低。当运行要求较高的负载时，键盘中心和底部表面的热点分别只达到32℃左右，而配备较慢的酷睿U系列CPU的Vaio FE14则为34℃至40℃。
(+) The average temperature for the upper side under maximal load is 26 °C / 79 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 31.6 °C / 89 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.

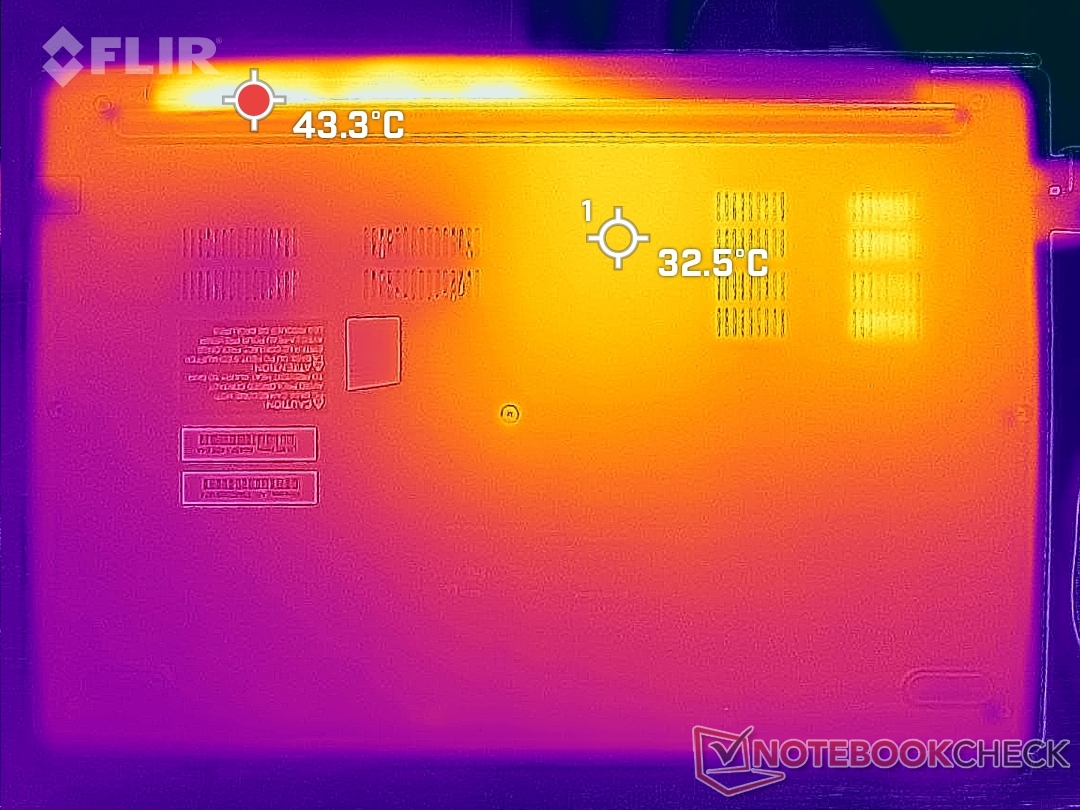

(+) The bottom heats up to a maximum of 32.8 °C / 91 F, compared to the average of 36.8 °C / 98 F

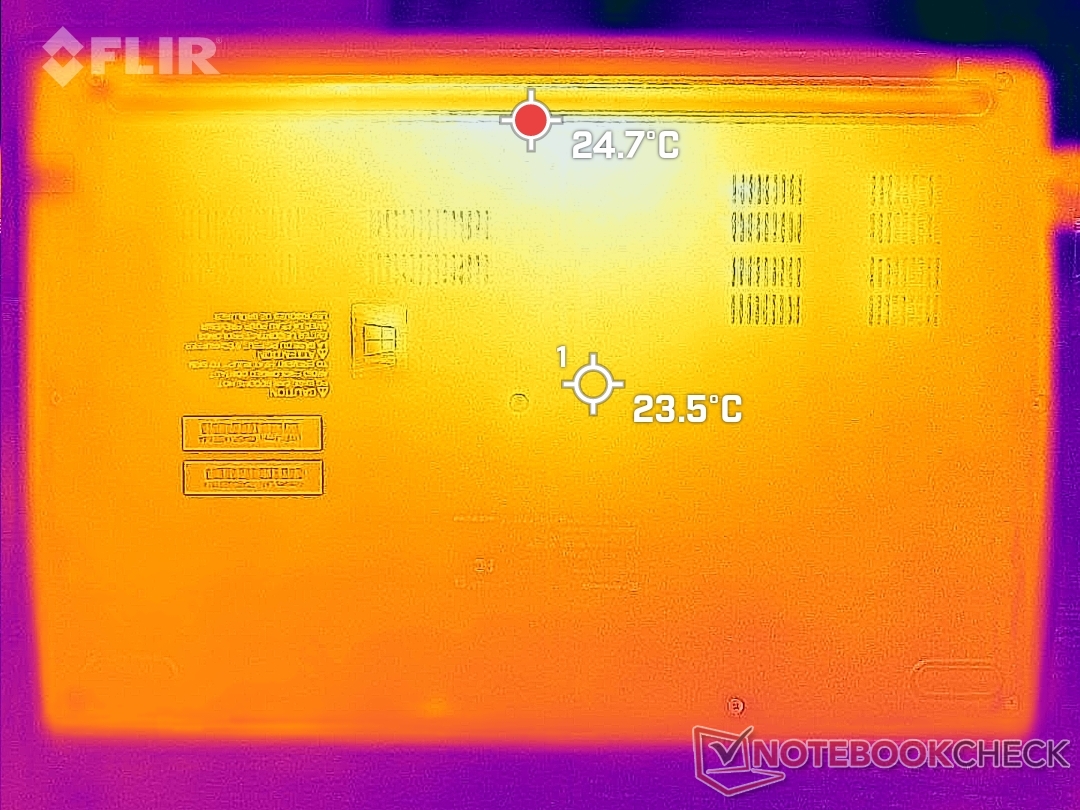

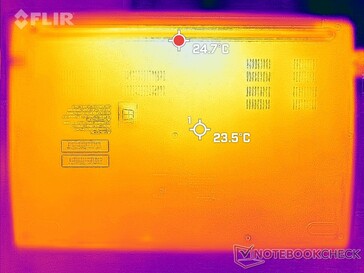

(+) In idle usage, the average temperature for the upper side is 21.9 °C / 71 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 22.6 °C / 72.7 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (+5 °C / 9 F).
(+) The maximum temperature on the upper side is 31.6 °C / 89 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 32.8 °C / 91 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 21.9 °C / 71 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 22.6 °C / 72.7 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (+5 °C / 9 F).
| Dynabook Portégé X40-K Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs | VAIO FE 14.1 VWNC51429-SL Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs | HP ProBook 445 G8-3Z6Q8ES AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 | Asus ExpertBook B3 Flip B3402FEA Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs | Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | Dell Inspiron 14 5425 6VPKR AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 | |
|---|---|---|---|---|---|---|
| Heat | -7% | -23% | -35% | -16% | -27% | |
| Maximum Upper Side * | 31.6 | 34.4 -9% | 37.9 -20% | 43.6 -38% | 38.7 -22% | 39.1 -24% |
| Maximum Bottom * | 32.8 | 42 -28% | 44.1 -34% | 55.4 -69% | 38.7 -18% | 41.9 -28% |
| Idle Upper Side * | 24 | 21.6 10% | 27.8 -16% | 28.1 -17% | 26.9 -12% | 31.2 -30% |
| Idle Bottom * | 24.8 | 25.2 -2% | 29.8 -20% | 28.4 -15% | 27.8 -12% | 30.9 -25% |
* ... smaller is better
压力测试

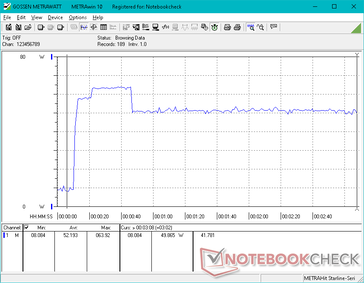

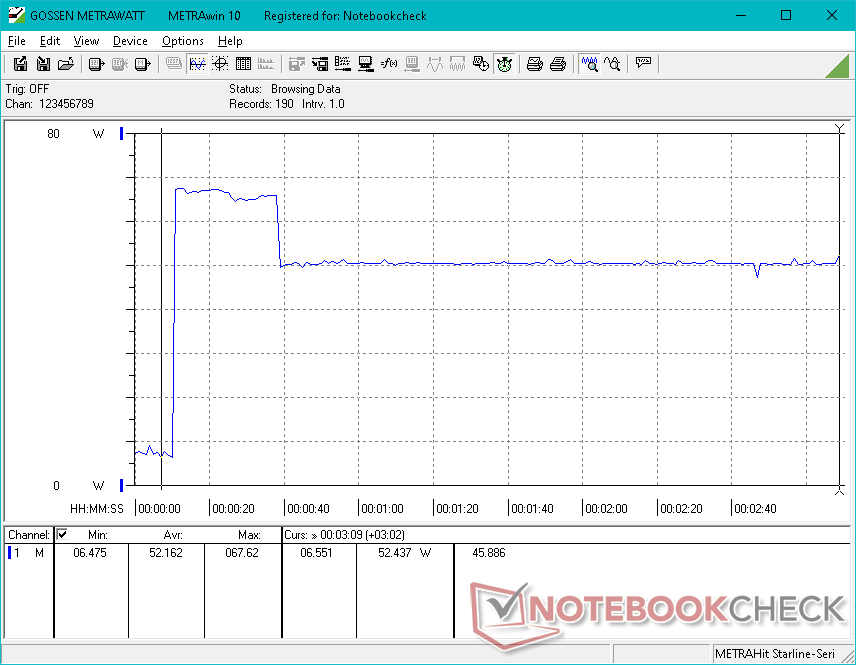

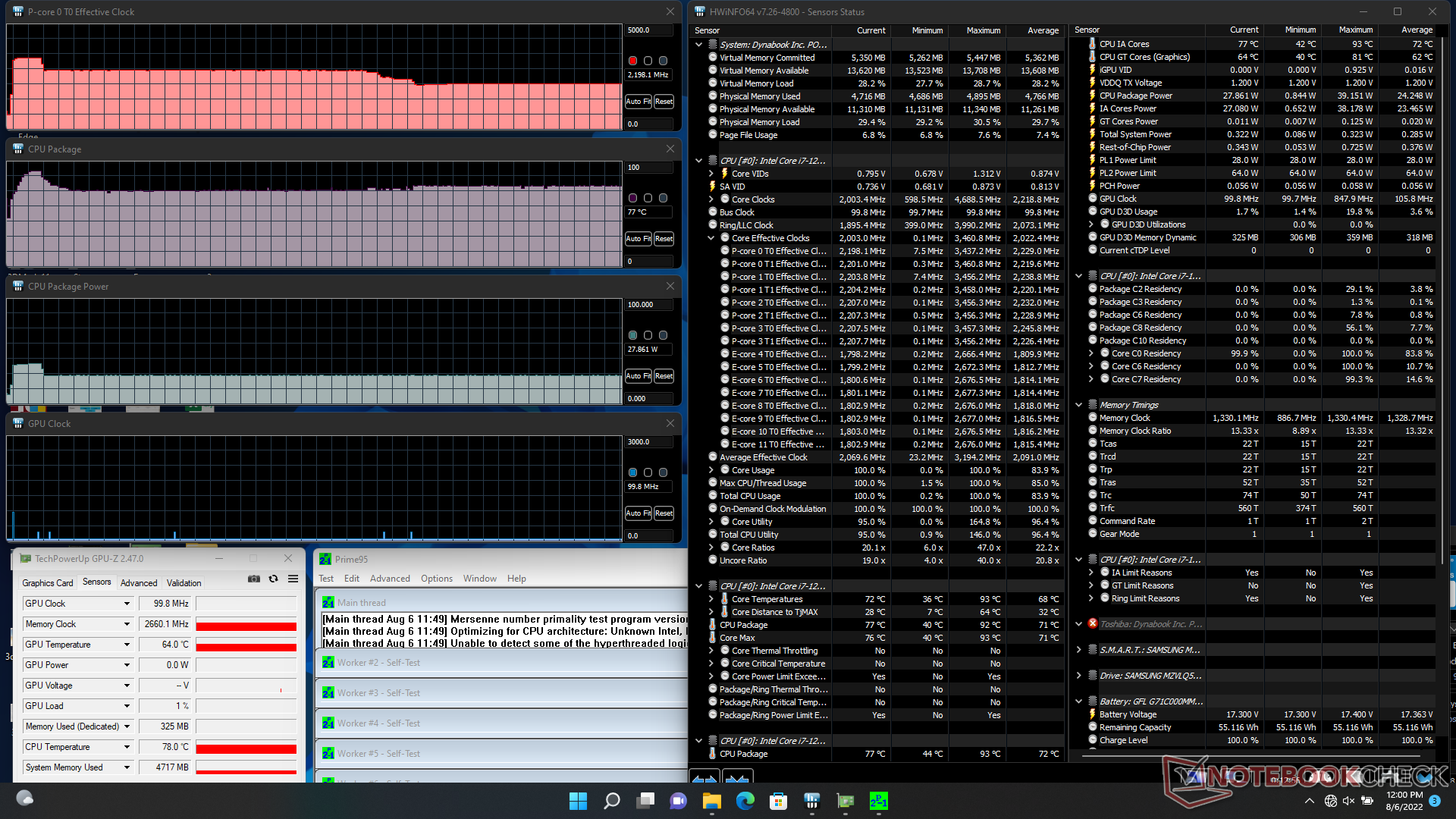

当在Prime95下受压时，CPU会在前20秒左右提升到3.4GHz，主板功耗为39W，直到核心温度达到最高92C。此后，时钟频率会下降到2.9GHz，最后是2.2GHz，主板功耗为28W，以保持77C的较低核心温度。

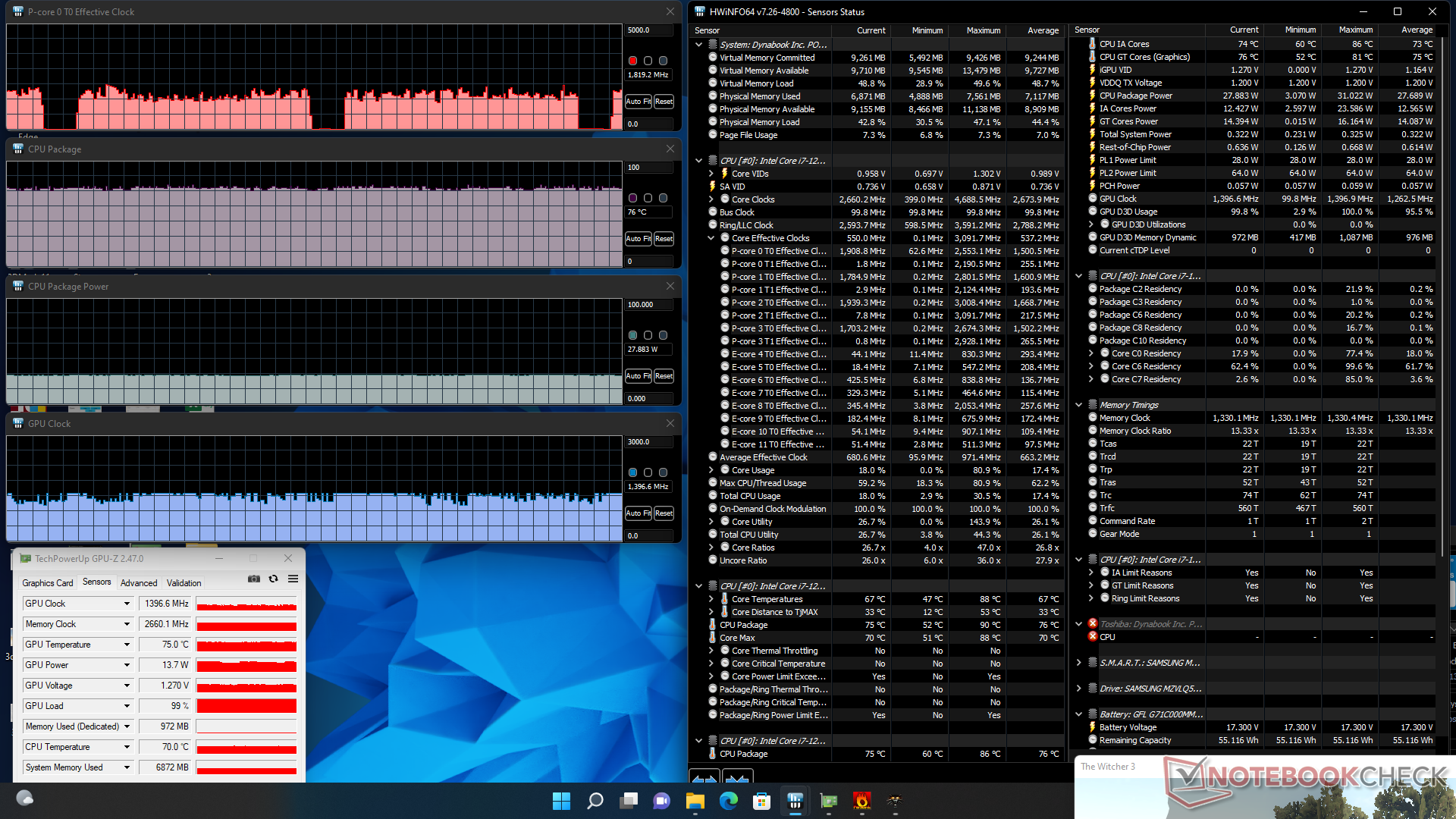

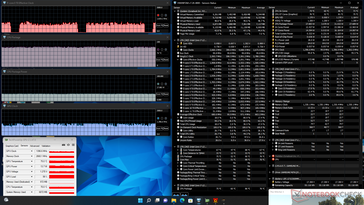

运行时的GPU时钟速率和温度 Witcher 3将分别稳定在1397兆赫和75摄氏度，而在联想Yoga 9 14上则是1147兆赫和65摄氏度。 联想Yoga 9 14配备相同的Core i7-1260P CPU。
如果用电池供电，性能会稍微慢一些。在电池上进行3DMark 11测试，物理和图形分数分别为12266和6029分，而在主电源上则为13963和6136分。
| CPU时钟（GHz） | GPU时钟（MHz） | CPU平均温度（°C） | |

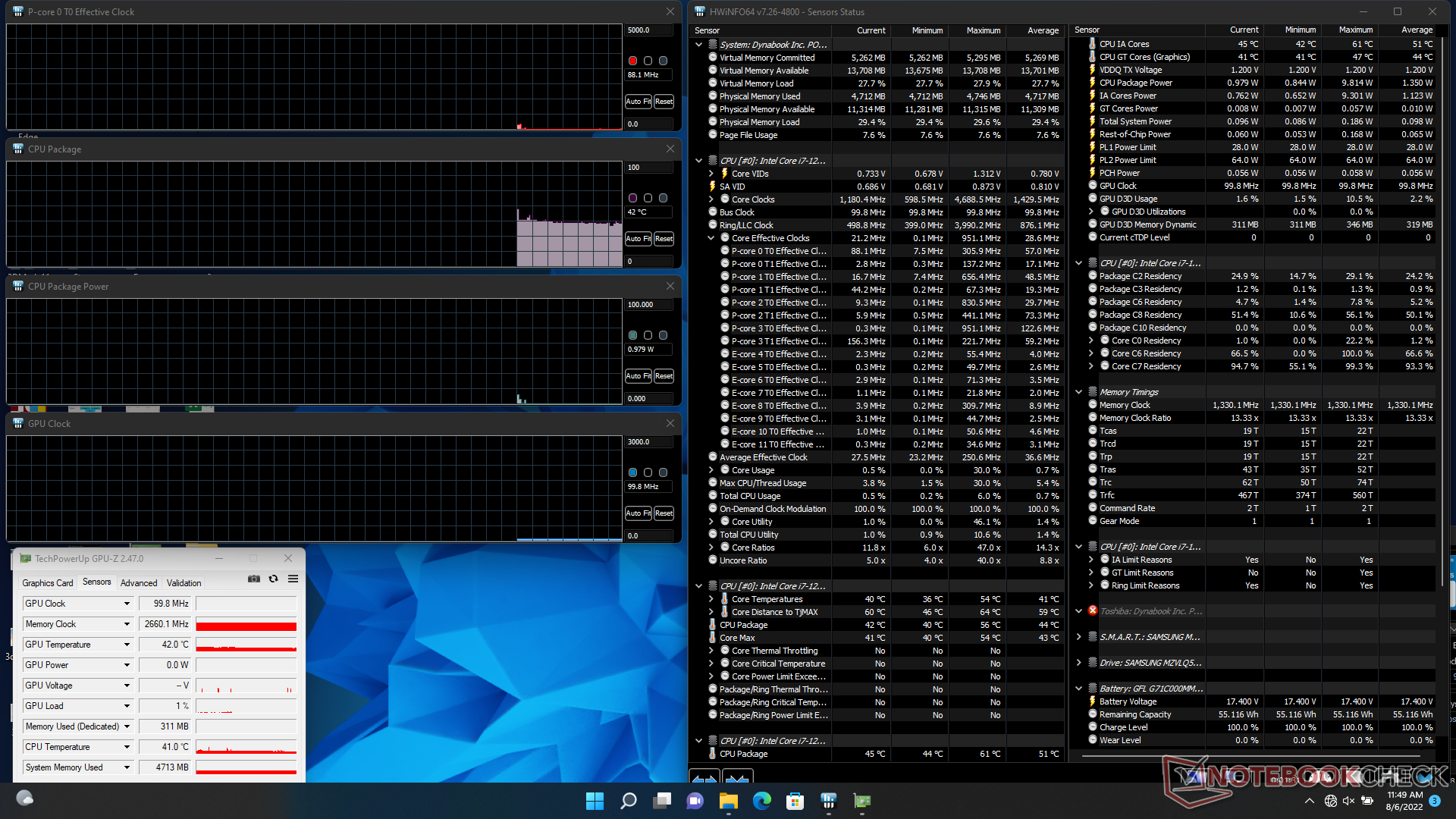

| 系统空闲 | -- | -- | 42 |
| Prime95压力 | 2.2 | -- | 77 |
| Prime95 + FurMark 压力 | 2.1 - 2.3 | 1097 | 73 |
| Witcher 3 应力 | ~1.8 | 1397 | 76 |
发言人

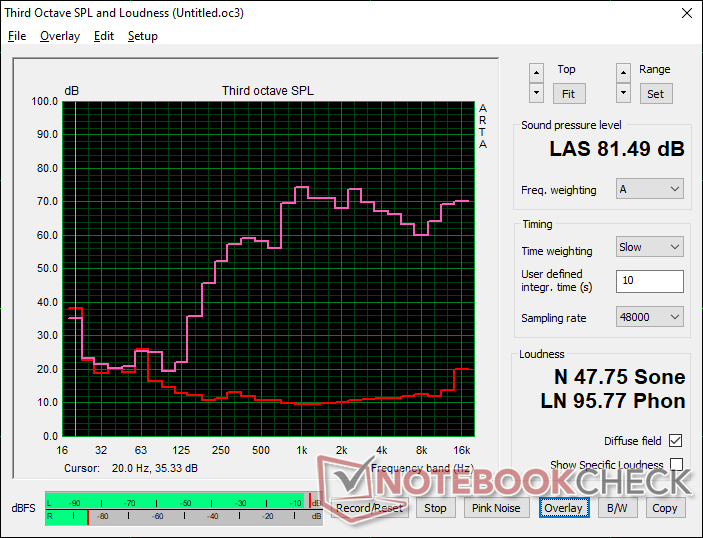

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

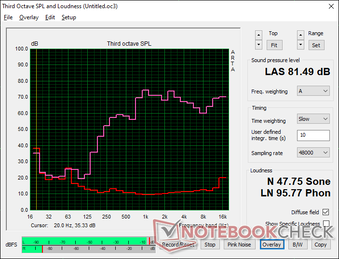

Dynabook Portégé X40-K audio analysis
(±) | speaker loudness is average but good (81.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 25.6% lower than median
(±) | linearity of bass is average (13.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.5% higher than median
(±) | linearity of mids is average (7.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.6% away from median
(+) | highs are linear (6.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.8% difference to median)
Compared to same class
» 44% of all tested devices in this class were better, 10% similar, 46% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 53% of all tested devices were better, 8% similar, 39% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Apple MacBook Pro 16 2021 M1 Pro audio analysis
(+) | speakers can play relatively loud (84.7 dB)
Bass 100 - 315 Hz
(+) | good bass - only 3.8% away from median
(+) | bass is linear (5.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (2.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (4.6% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 100% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 4%, average was 25%, worst was 134%
能源管理
消耗功率
桌面上的空转消耗5瓦至9瓦，取决于亮度水平和电源配置文件设置。游戏需要40瓦至52瓦，而大多数其他超极本在运行旧的第11代酷睿U系列CPU时的功耗为30瓦。Dynabook的功耗较高，是由于其更强大，因此对Core-P CPU的要求更高。

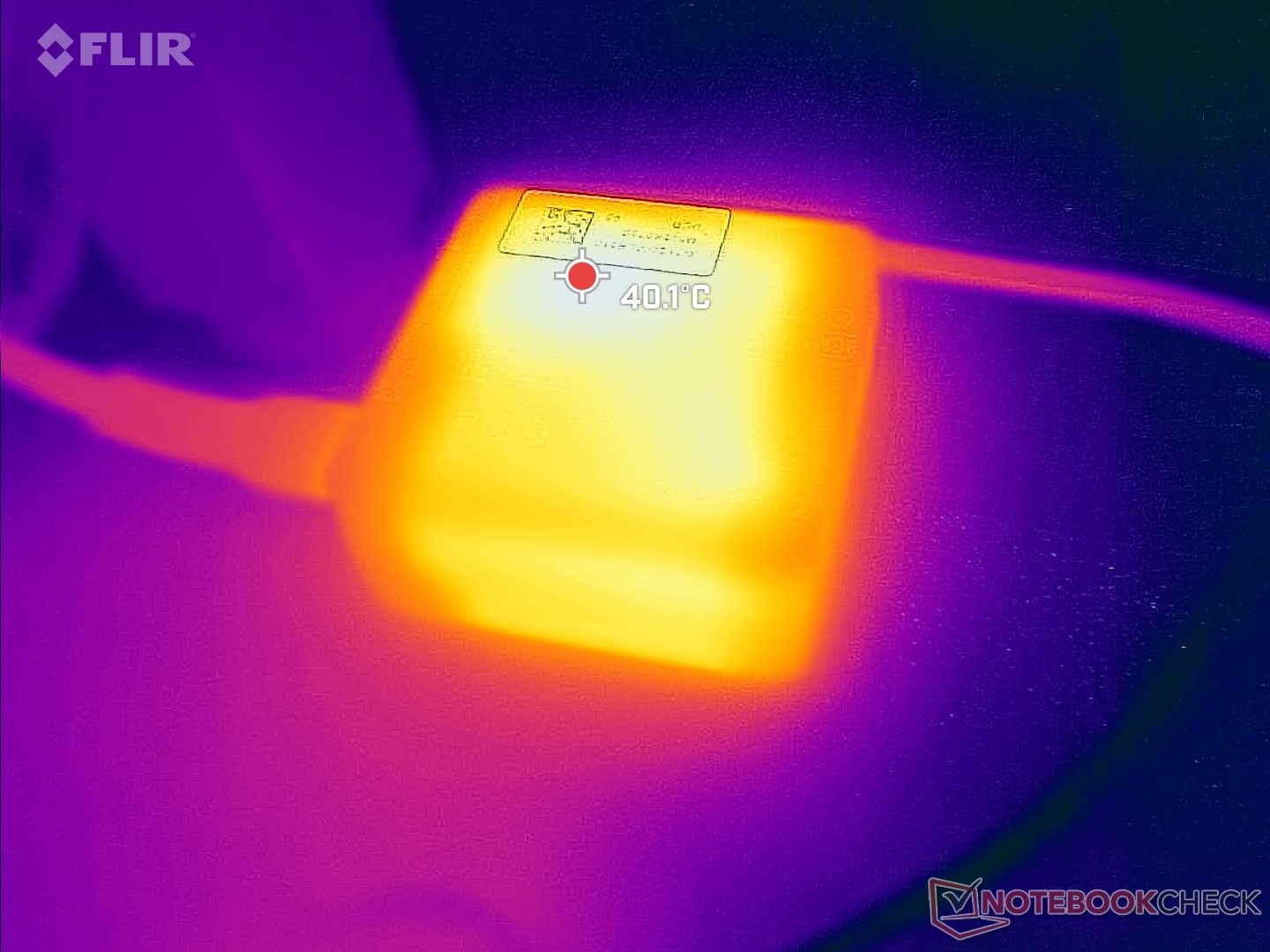

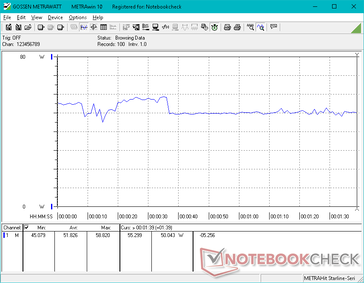

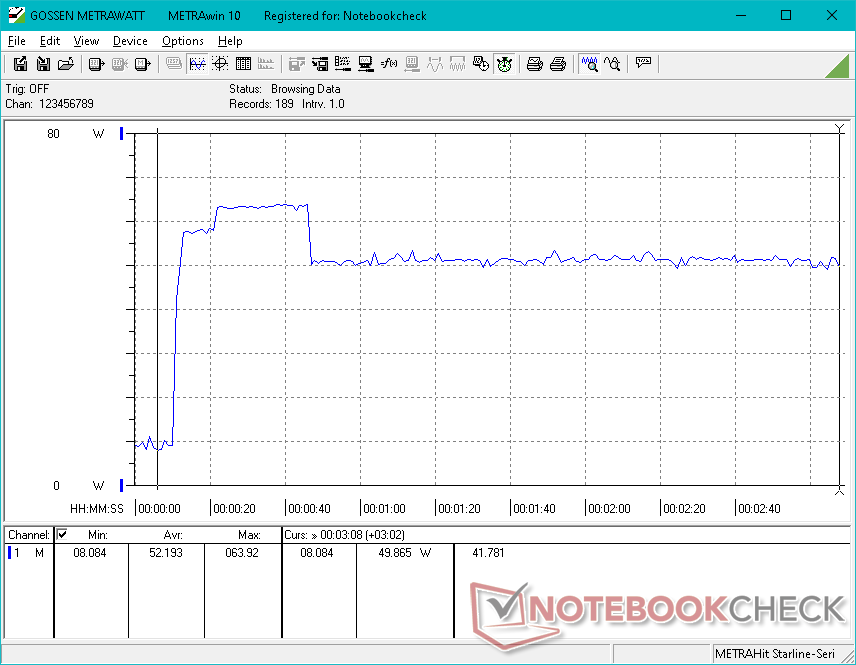

我们能够从小型（约6.2 x 6.2 x 2.7厘米）的65瓦交流适配器中记录到68.7瓦的临时最大功耗。
Power Consumption
| Off / Standby | 0.37 / 0.52 Watt |
| Idle | 5.5 / 6 / 8.5 Watt |
| Load |
51.8 / 68.7 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Dynabook Portégé X40-K i7-1260P, Iris Xe G7 96EUs, Samsung PM991 MZVLQ512HBLU, IPS, 1920x1080, 14" | VAIO FE 14.1 VWNC51429-SL i5-1235U, Iris Xe G7 80EUs, Netac S930E 1TB, IPS, 1920x1080, 14.1" | HP ProBook 445 G8-3Z6Q8ES R5 5600U, Vega 7, SSSTC CL1-8D512-HP, IPS LED, 1920x1080, 14" | Asus ExpertBook B3 Flip B3402FEA i7-1165G7, Iris Xe G7 96EUs, Micron 2210 MTFDHBA512QFD, IPS, 1920x1080, 14" | Acer TravelMate P4 TMP414-51-59MR i5-1135G7, Iris Xe G7 80EUs, SK hynix BC511 HFM256GDJTNI-82A0, IPS, 1920x1080, 14" | Dell Inspiron 14 5425 6VPKR R5 5625U, Vega 7, SK Hynix BC711 512GB HFM512GD3GX013N, IPS, 1920x1200, 14" | |
|---|---|---|---|---|---|---|
| Power Consumption | 23% | 20% | 9% | 23% | 11% | |
| Idle Minimum * | 5.5 | 3.5 36% | 3.6 35% | 4.1 25% | 3.6 35% | 4 27% |
| Idle Average * | 6 | 5.7 5% | 7.5 -25% | 6.9 -15% | 5.6 7% | 6.6 -10% |
| Idle Maximum * | 8.5 | 7.9 7% | 9 -6% | 7.4 13% | 7.2 15% | 9.4 -11% |
| Load Average * | 51.8 | 30.1 42% | 27 48% | 39.8 23% | 29.6 43% | 37 29% |
| Witcher 3 ultra * | 41 | 28.4 31% | 26.9 34% | 39.7 3% | 29.3 29% | 37.1 10% |
| Load Maximum * | 68.7 | 55.8 19% | 46 33% | 66 4% | 62 10% | 53.7 22% |
* ... smaller is better
Power Consumption Witcher 3 / Stresstest

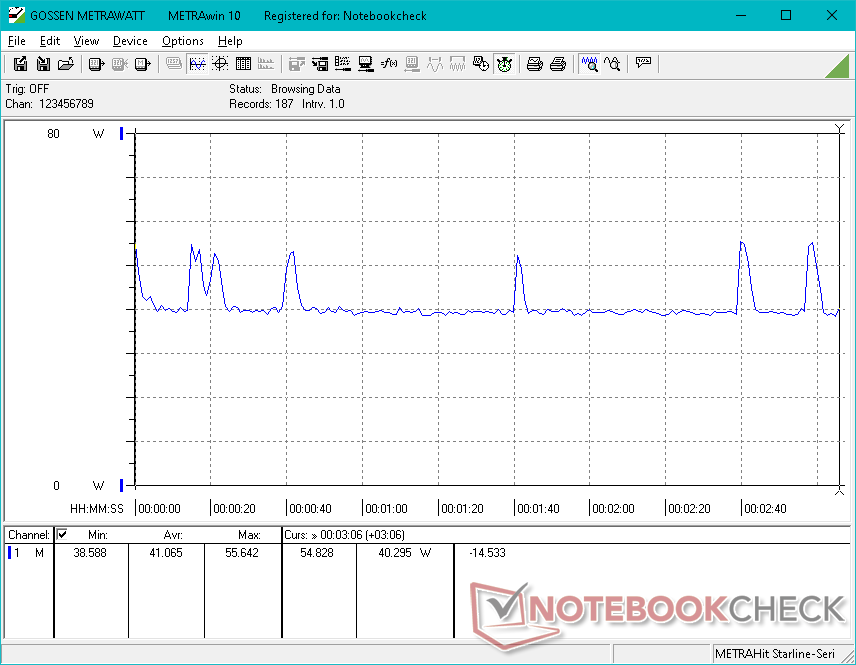

Dynabook Portégé X40-K; Witcher 3 ultra: Ø41 (38.6-55.6)

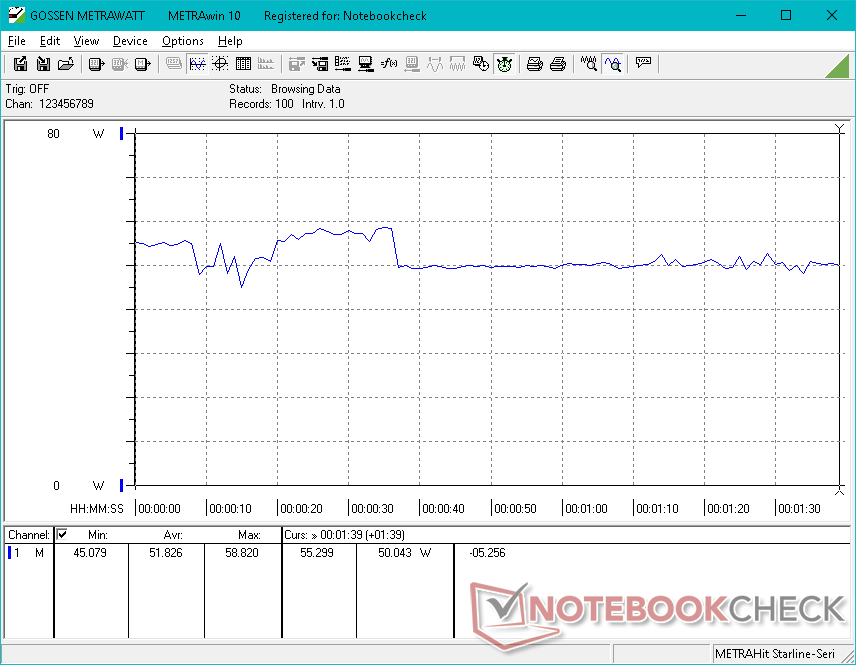

Dynabook Portégé X40-K; 1280x720 Prime95 28.10 and Furmark 1.25: Ø53.4 (49.2-63.9)
Power Consumption external Monitor
Dynabook Portégé X40-K; Prime95 V2810 Stress (external Monitor): Ø53 (47.4-67.6)
Dynabook Portégé X40-K; Cinebench R15 Multi (external Monitor): Ø60.4 (45.5-68)
Dynabook Portégé X40-K; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø46.2 (43.1-61.9)
Dynabook Portégé X40-K; 1920x1080 The Witcher 3 ultra (external Monitor): Ø37.9 (36.8-45)
电池寿命
预计53Wh的电池可提供超过9小时的实际无线网络浏览时间。从空电到满电大约需要2小时。
| Dynabook Portégé X40-K i7-1260P, Iris Xe G7 96EUs, 53 Wh | VAIO FE 14.1 VWNC51429-SL i5-1235U, Iris Xe G7 80EUs, 55 Wh | HP ProBook 445 G8-3Z6Q8ES R5 5600U, Vega 7, 45 Wh | Asus ExpertBook B3 Flip B3402FEA i7-1165G7, Iris Xe G7 96EUs, 50 Wh | Acer TravelMate P4 TMP414-51-59MR i5-1135G7, Iris Xe G7 80EUs, 55.9 Wh | Dell Inspiron 14 5425 6VPKR R5 5625U, Vega 7, 54 Wh | |
|---|---|---|---|---|---|---|
| Battery Runtime | -13% | 9% | -17% | 7% | 39% | |
| WiFi v1.3 | 554 | 483 -13% | 605 9% | 460 -17% | 593 7% | 770 39% |
| Reader / Idle | 789 | |||||
| Load | 128 | 117 |
Pros
+ 3年保修标准
+ 良好的CPU性能
+ 2个雷电4
+ 易于维修
Cons

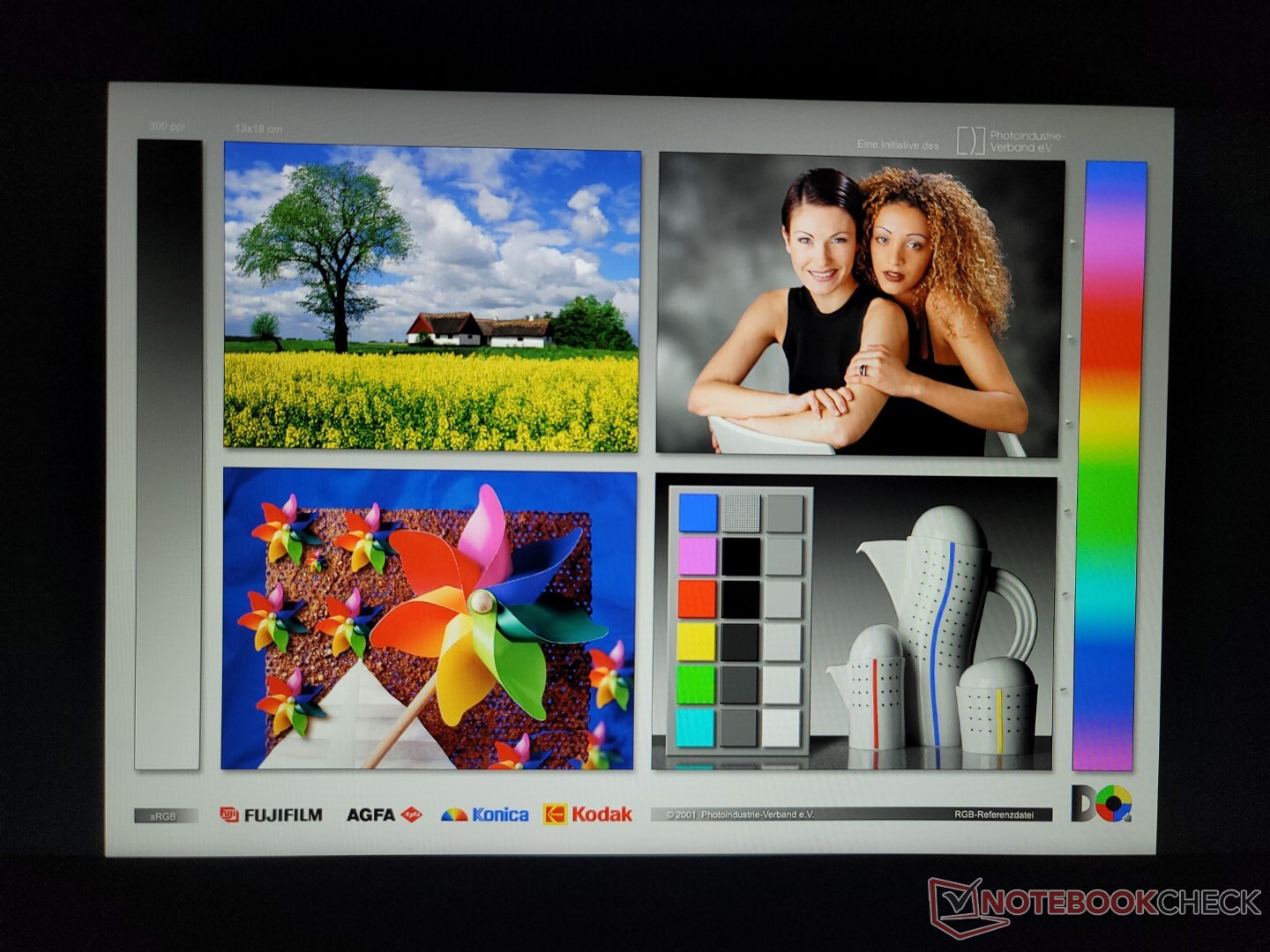

- 显示屏昏暗，色彩和对比度质量不高
- 低分辨率的720p网络摄像头
- 没有广域网选项
- 短暂的Shift键
判决--名义上是高级的，但执行起来就不那么容易了
用Dynabook自己的话说，Portege X40-K是一个 "高端商务计算的新时代"。作为一款高端商务笔记本电脑，将其与其他旗舰产品进行比较是公平的，包括 联想ThinkPad T或 X1系列, 惠普EliteBook或 蜻蜓系列，或 戴尔Latitude 7000或 9000系列.从这个指标来看，Dynabook系统在几个关键领域都有缺陷，因为它的显示屏更暗，颜色明显更差，它的重量几乎没有那么轻，它的720p网络摄像头质量很差，而且它仍然使用桶状AC适配器端口和触摸板指纹识别器，而其他高级商务笔记本电脑已经完全过渡到USB-C充电和支持指纹的电源按钮。后面两个特点尤其让Portege X40-K感到老旧，尽管它搭载了最新一代的英特尔CPU。
Dynabook Portege x40-K将高端CPU包裹在一个中端机箱中，并配有一个过时的显示屏。尽管Dynabook与经济型产品有更多共同之处，但它被作为高端商务笔记本电脑进行销售。
上述许多属性使Portege X40-K完全属于经济型商务笔记本电脑类别，特别是在涉及到显示屏时。对于1400多美元，用户可能要考虑运行旧的第11代英特尔CPU的旗舰ThinkPad、EliteBook或Latitude 。处理器性能可能会慢一些，但与Dynabook相比，在几乎所有其他方面的收益都会很显著。不过，如果你真的看重第12代CPU和基本的3年保修，那么Portege X40-K在这方面可以被看作是一笔好交易。
价格和可用性
Dynabook Portege X40-K还没有在网上广泛销售。官方Dynabook网站在发布时只提供配备第11代CPU的SKU。
Dynabook Portégé X40-K
- 08/11/2022 v7 (old)
Allen Ngo
Office - Weighted Average
Price comparison
