Minisforum AtomMan X7 Ti 与 Intel Core Ultra 9 185H 评测：配备触摸显示屏、摄像头和 OCuLink 的 AI 迷你 PC

Name: Minisforum AtomMan X7 Ti
Brand: Minisforum

完美的全能选手？

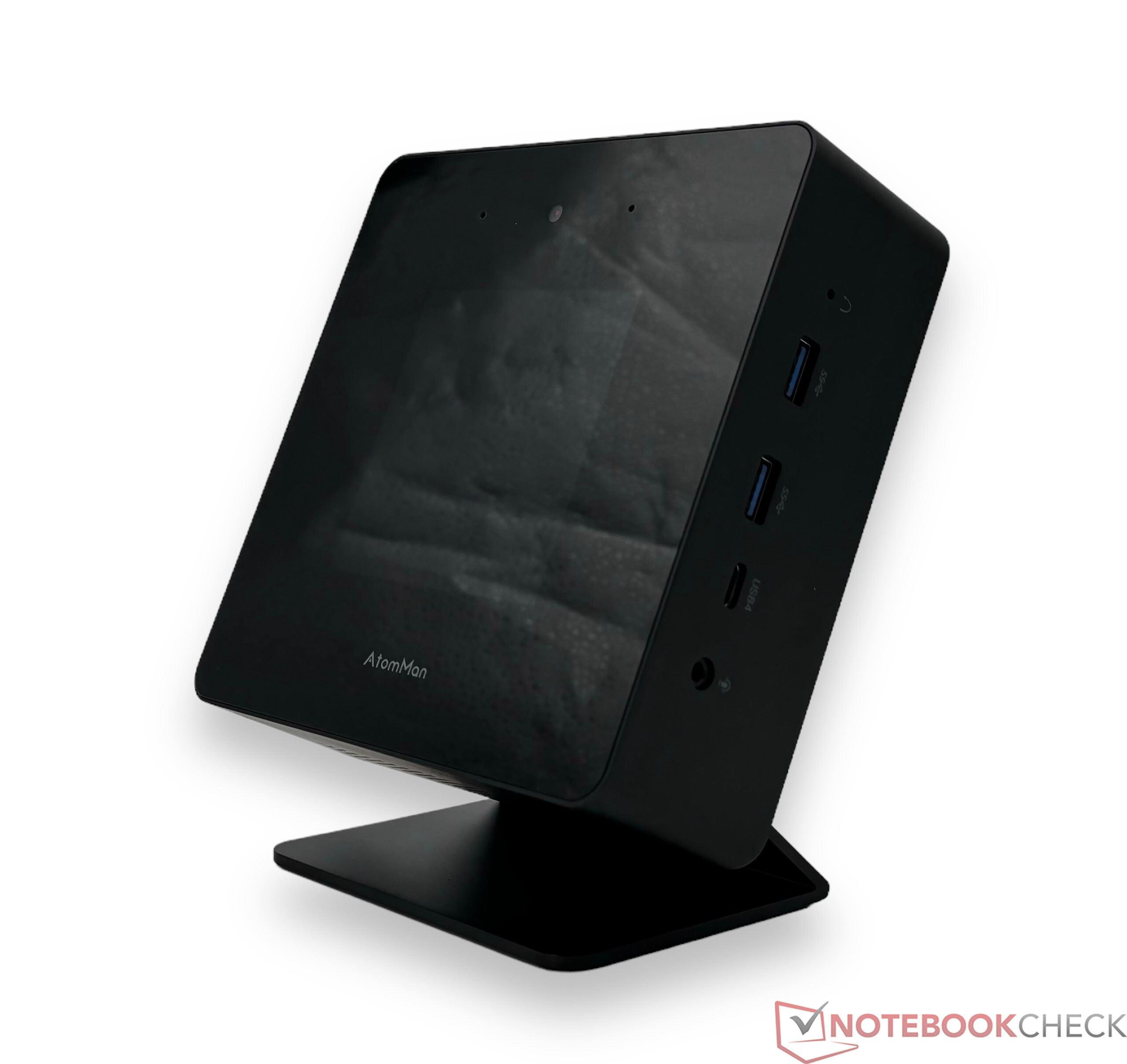

AtomMan 这个名字代表了 Minisforum 的全新高端系列。该系列以 Minisforum AtomMan X7 Ti 为开端，是一款专为高要求任务而设计的小巧、功能强大的 PC。Minisforum 是首家在其配备英特尔酷睿 Ultra 9 185H 的 AI 迷你 PC 中安装 4 英寸触摸显示屏的制造商。我们详细分析了这款来自远东的新型高端迷你 PC 能否满足高性能要求。

Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy), Published 05/24/2024 🇺🇸 🇩🇪 ...

Mini PC Desktop Intel Meteor Lake Arc

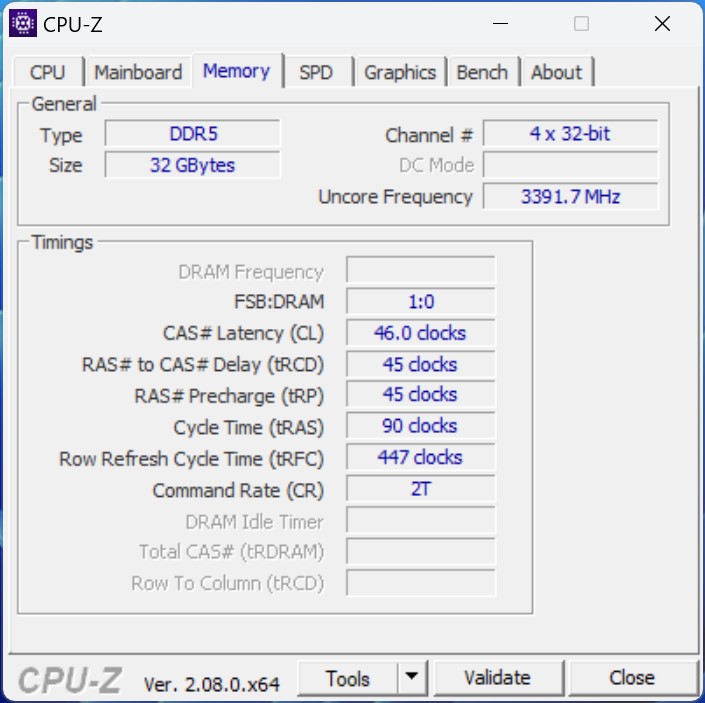

Minisforum AtomMan X7 Ti 结合了英特尔酷睿 Ultra 9 185H与 32 GB DDR5 内存和 1 TB SSD 相结合的时尚机箱。说到机箱，Minisforum 采用了一种新方法，为 AtomMan X7 Ti 配备了一个 4 英寸触摸屏，用于显示最重要的系统参数。此外，还配备了摄像头和大量外围设备连接选项。凭借这一整体概念，Minisforum AtomMan X7 Ti 成为了强有力的竞争者，在实际应用中的适用范围远远超过竞争对手。在我们测试的版本中，这款来自远东的迷你电脑售价 959 欧元，而且还有裸机可供选择。制造商目前的售价为 759 欧元。

现在我们来看看 Minisforum AtomMan X7 Ti 在性能方面与竞争对手的对比情况。我们在下表中列出了对比设备的概况。

Test device courtesy of Minisforum

Download your licensed rating image as PNG / SVG

Minisforum AtomMan X7 Ti

Processor

Intel Core Ultra 9 185H 16 x 3.8 - 5.1 GHz, 65 W PL2 / Short Burst, 65 W PL1 / Sustained, Meteor Lake-H

Graphics adapter

Intel Arc 8-Core iGPU, Core: 2350 MHz, 31.0.101.5445 DCH

Memory

32 GB

, DDR5-5600, max. 96 GB

Mainboard

Intel Alder Lake-P PCH

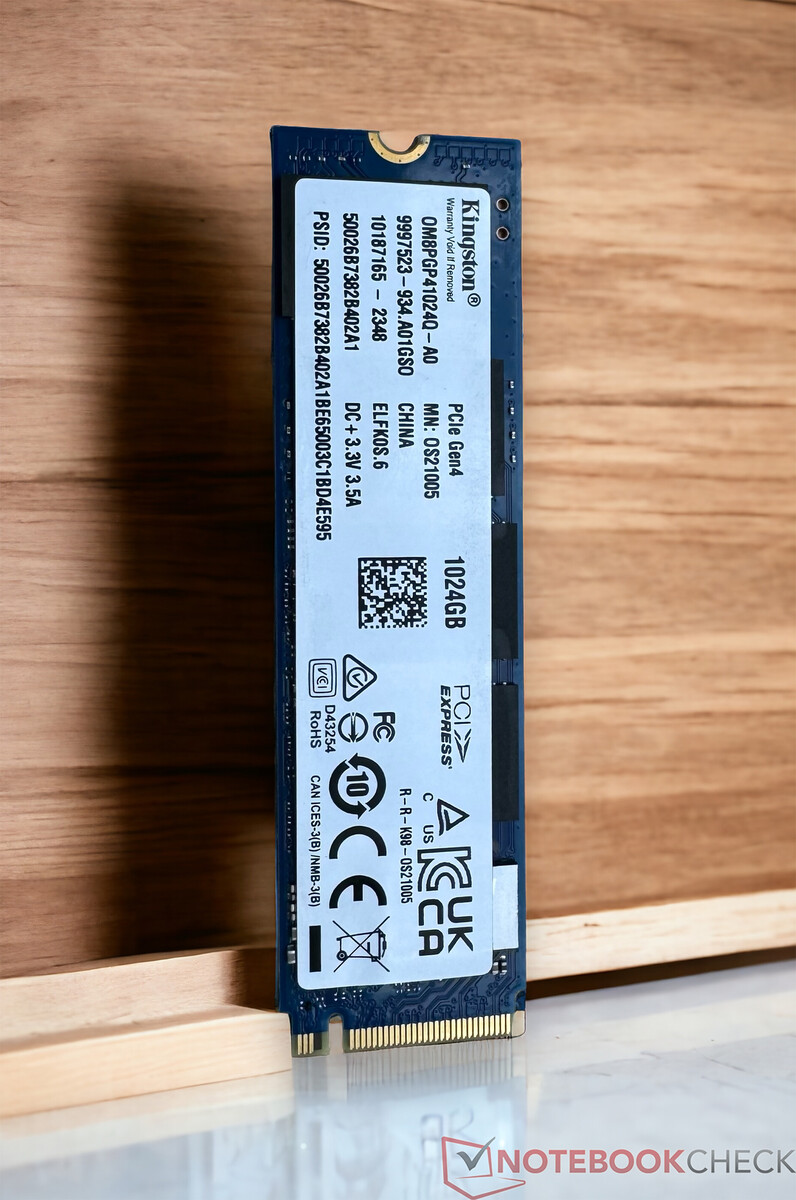

Storage

Kingston OM8PGP41024Q-A0, 1024 GB

, M.2 2280, NVMe, 940 GB free

Soundcard

Intel Alder Lake-P PCH - cAVS (Audio, Voice, Speech)

Connections

1 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, 2 USB 4.0 40 Gbps, 2 Thunderbolt, 1 HDMI, 3 DisplayPort, Audio Connections: 3.5mm Combo Jack , Card Reader: Full size SD Card Slot , 1 Fingerprint Reader, 2nd Realtek 5Gbe Family Controller, OCuLink connector, 4" Touch-Display (480P)

Networking

Realtek PCIe 5Gbe Family Controller (10/100/1000/2500/5000MBit/s), Intel Wi-Fi 7 BE200 320MHz (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz be = Wi-Fi 7), Bluetooth 5.4

Size

height x width x depth (in mm): 48.6 x 145 x 145

Operating System

Microsoft Windows 11 Home

Camera

Webcam: FHD 1080P
Primary Camera: 2.1 MPix Windows Hello Support

Additional features

DC 19V adapter, vertical stand , 24 Months Warranty

Weight

863 g, Power Supply: 282 g

Price

959 Euro

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Memory	Weight	Height
87.5 % v7 ^(old)	05 / 2024	Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core	32768 MB	863 g	48.6 mm
87.3 % v7 ^(old)	12 / 2023	Minisforum EliteMini UM780 XTX R7 7840HS, Radeon 780M	32768 MB	750 g	52.3 mm
83.4 % v7 ^(old)	04 / 2024	Acemagic F2A Ultra 7 155H, Arc 8-Core	32768 MB	768 g	57 mm
84.1 %	04 / 2024	Geekom XT12 Pro i9-12900H, Iris Xe G7 96EUs	32768 MB	545 g	37 mm
82.6 % v7 ^(old)	03 / 2024	Geekom A7 R9 7940HS, Radeon 780M	32768 MB	417 g	38 mm
82.4 % v7 ^(old)	05 / 2024	Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs	32768 MB	615 g	55 mm
82.3 % v7 ^(old)	04 / 2024	Acemagic AM18 R7 7840HS, Radeon 780M	32768 MB	600 g	58 mm

Minisforum AtomMan X7 Ti 详细介绍

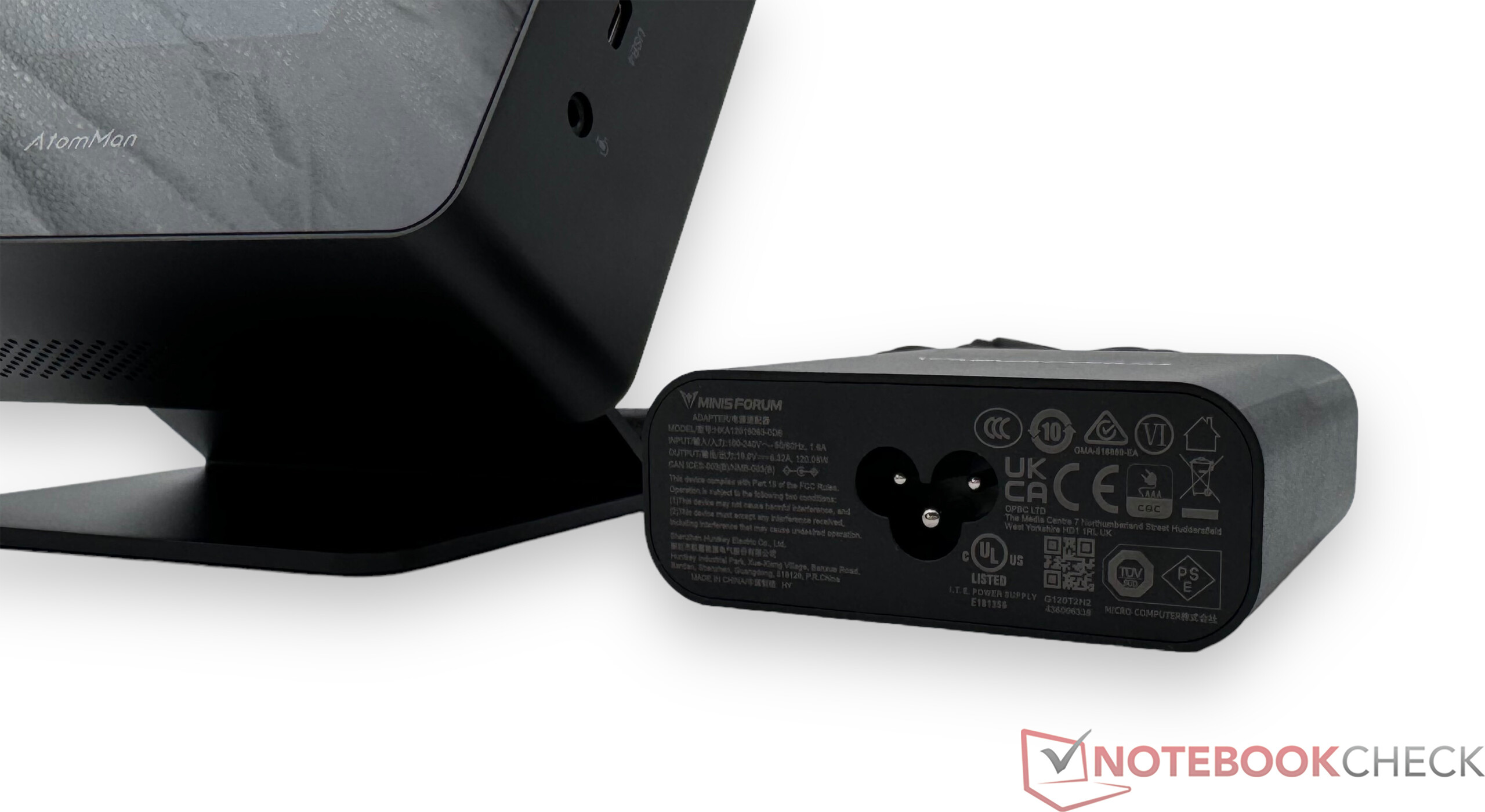

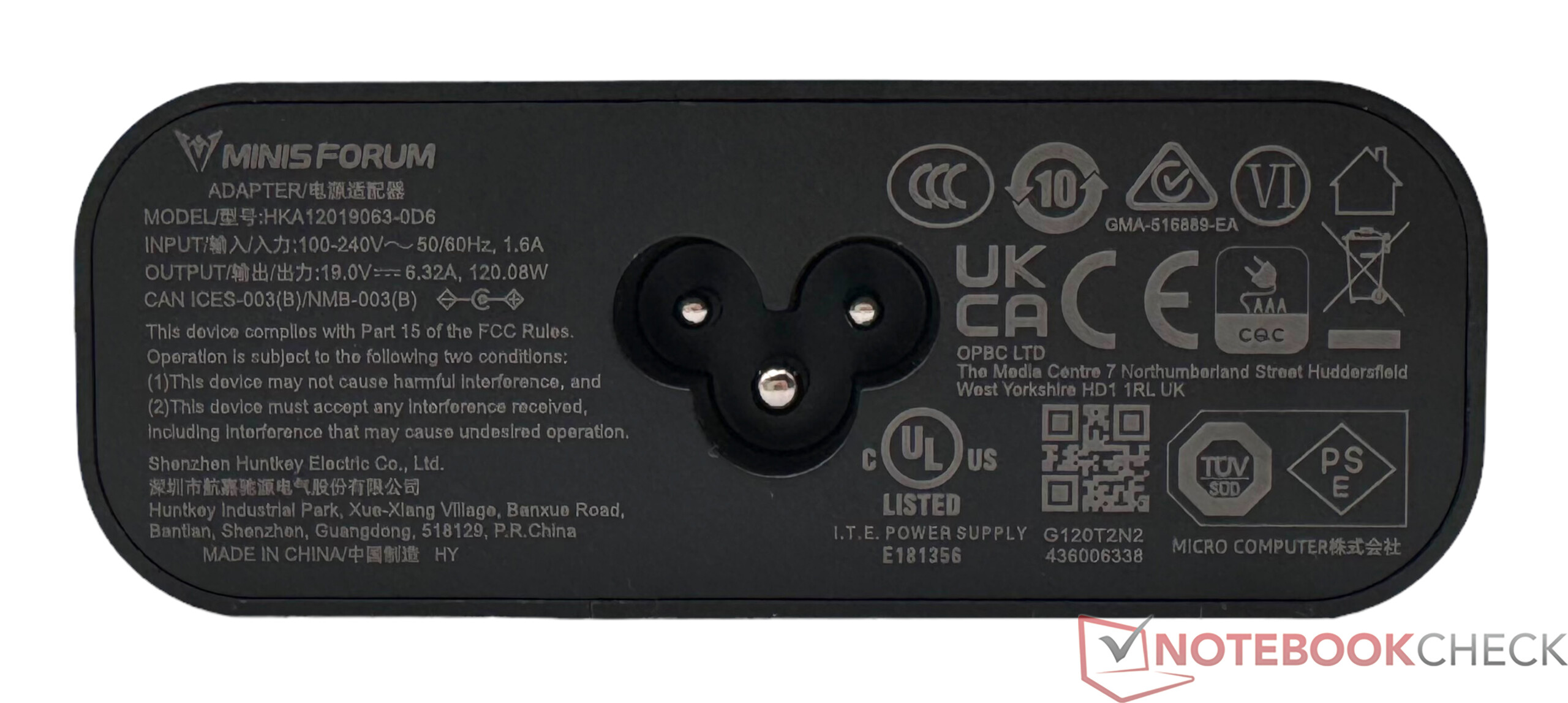

Minisforum AtomMan X7 Ti 配备 120 瓦电源装置（19 V；6.32 A）

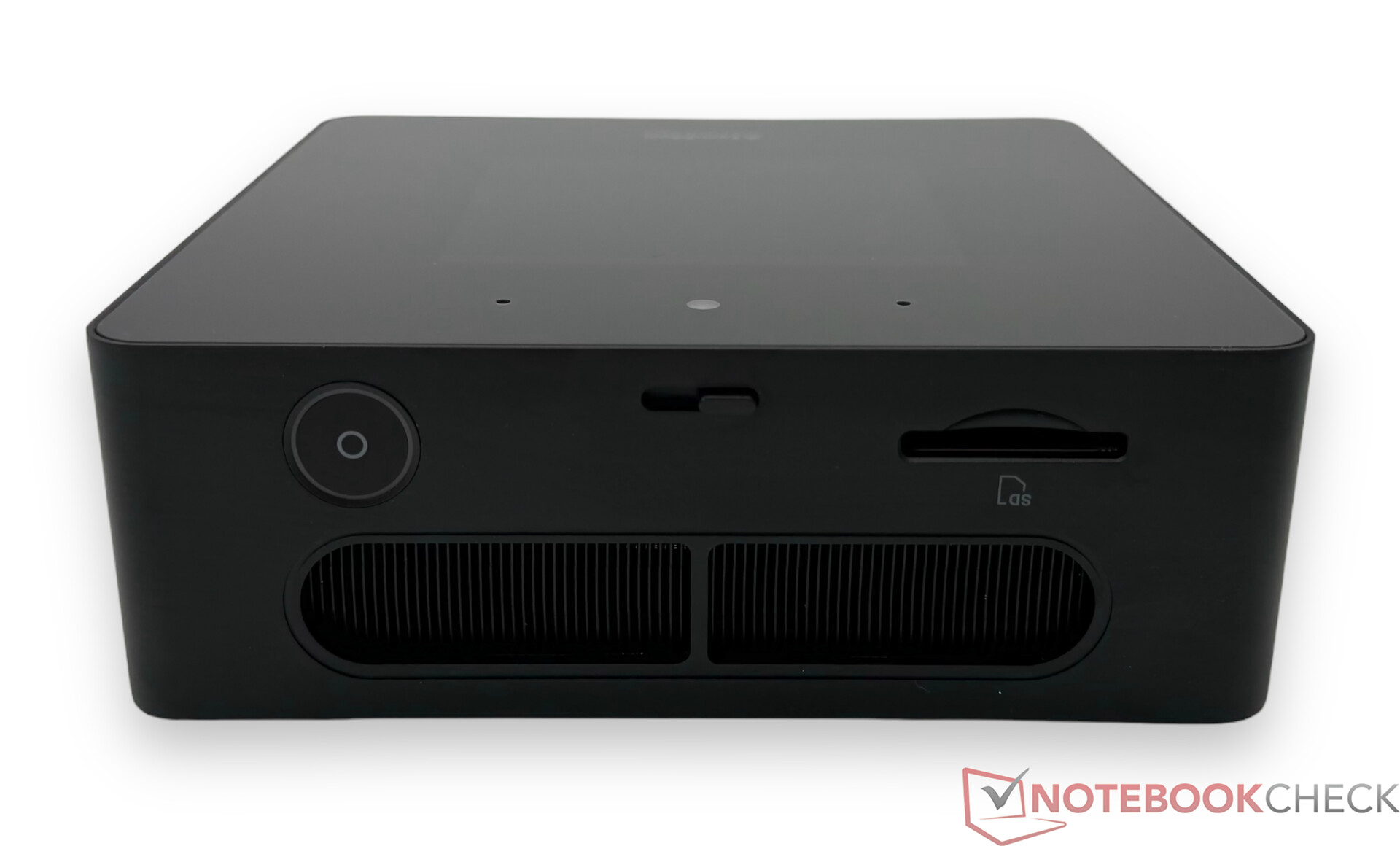

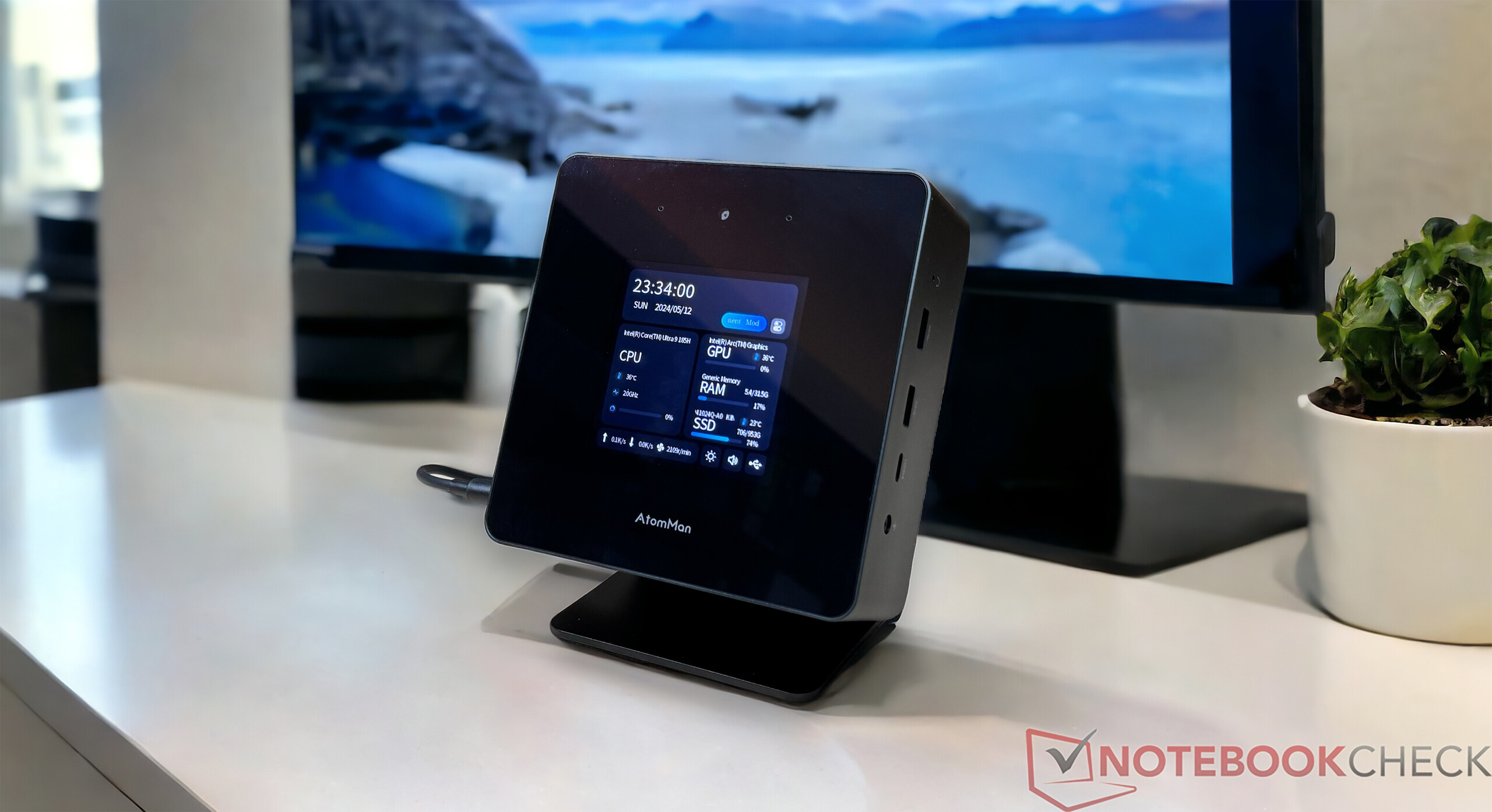

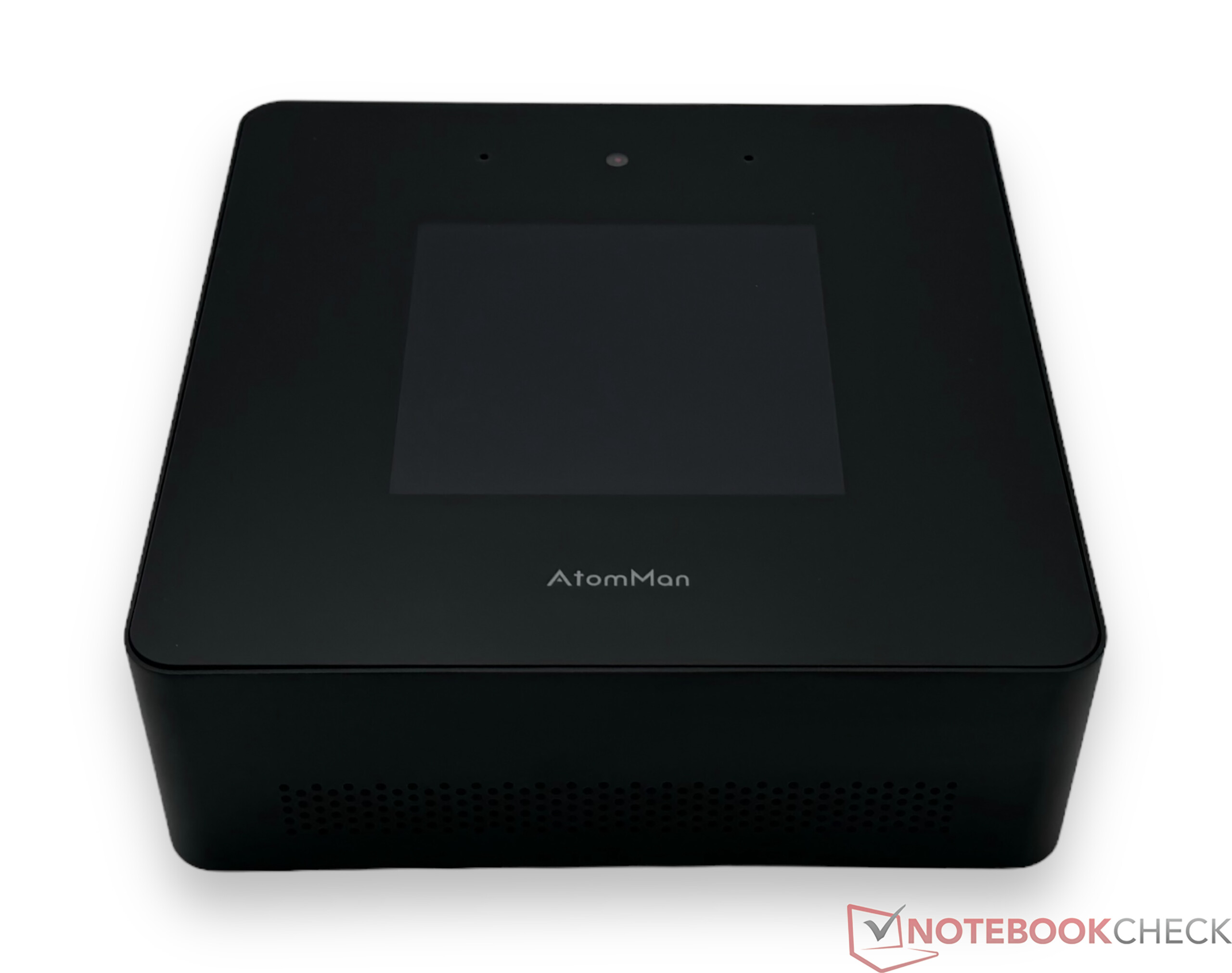

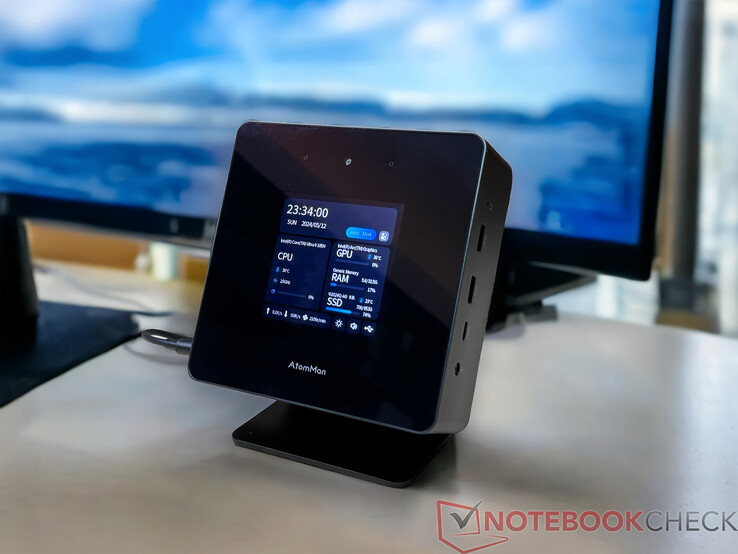

外壳 - 金属外壳和 4 英寸触摸显示屏

乍一看，Minisforum AtomMan X7 Ti 让我们想起了 Minisforum EliteMini UM780 XTX。但仔细一看，两者还是有明显区别的，单从尺寸上就能看出其基础机箱完全不同。Minisforum AtomMan X7 Ti 更大，尺寸与 Acemagic F2A 相当。不过，Minisforum AtomMan X7 Ti 由于采用垂直或略微倾斜的安装方式，占用的桌面空间要小得多。如果要使用内置摄像头，垂直安装是没有办法的。不过，水平操作也是可行的。底座无需工具即可安装，因为设备与底座连接在一起。倾斜角度也可以改变，这在使用内置摄像头时非常重要。不过，如果倾斜角度太平，设备很快就会向后倾倒。

Minisforum 在材料的选择上混合使用了金属和塑料。在底部和正面可以看到后者，正面还有一个 4 英寸的触摸显示屏。这里显示的是最重要的系统参数。还可以选择显示当前时间。不过，设备关闭时不会显示任何内容。这是一个遗憾，因为在关机模式下显示时间肯定是一个有用的选项。Minisforum AtomMan X7 Ti 的做工无可挑剔。

尺寸比较

Acemagic F2A Minisforum AtomMan X7 Ti Acemagic AM18 Minisforum EliteMini UM780 XTX Minisforum Venus Series NAB9 Geekom XT12 Pro Geekom A7 DIN A5 ❌

功能 - 许多连接，几乎没有什么可期待的

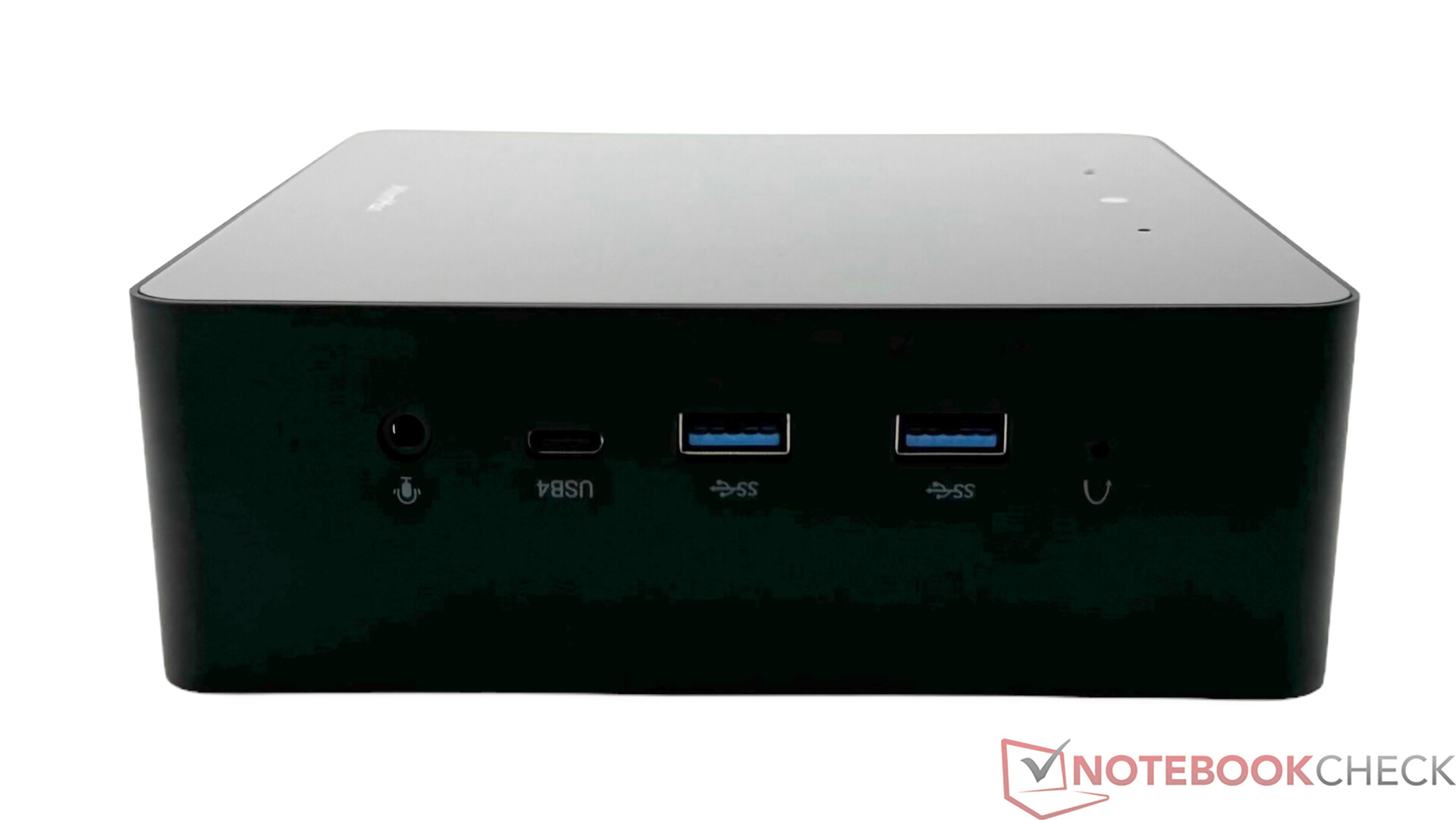

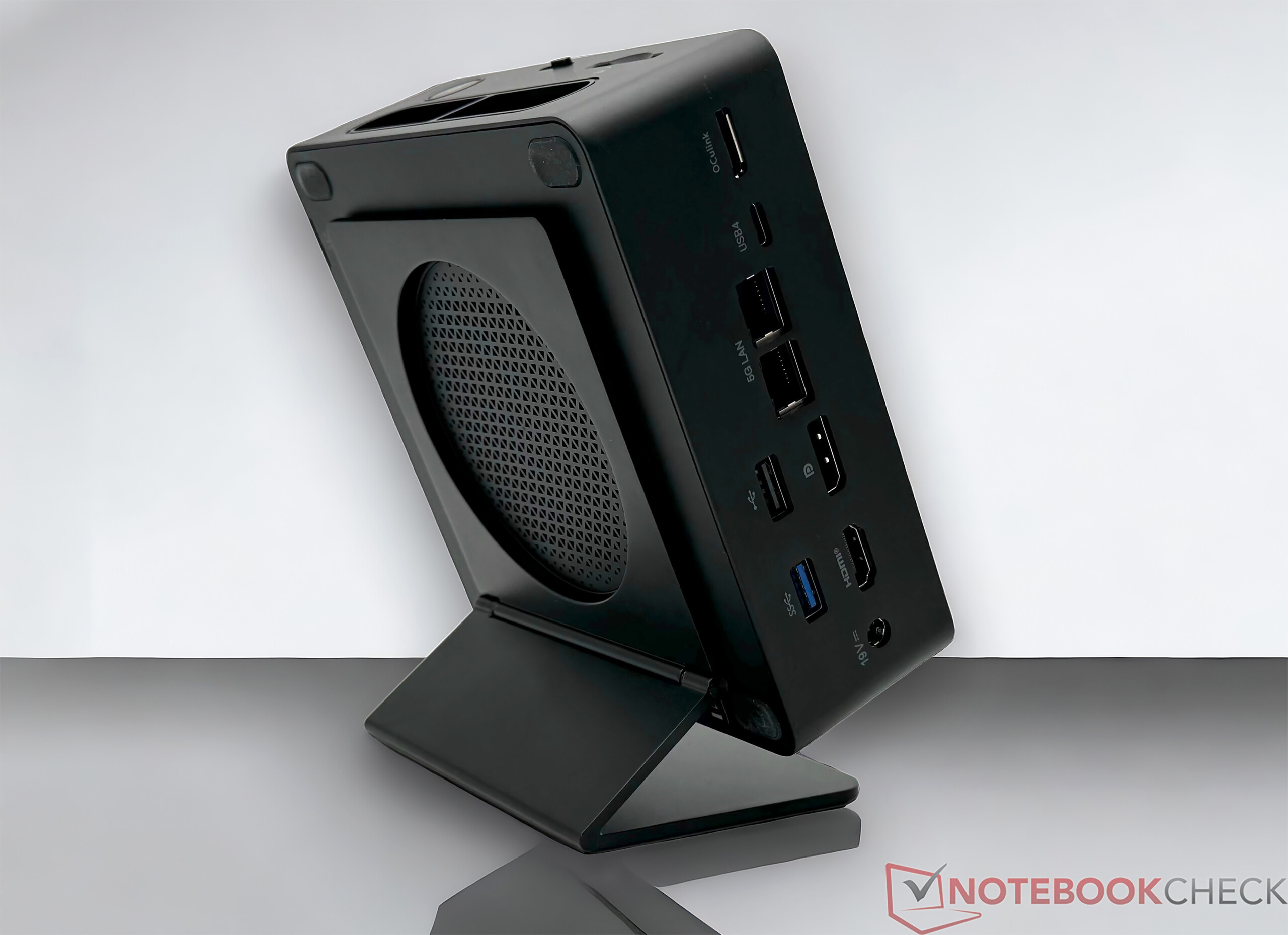

Minisforum AtomMan X7 Ti 拥有大量外部接口。在 USB 端口方面，我们总共发现了六个接口，其中两个提供 USB4 标准。屏幕可以通过 HDMI、DisplayPort 或 USB4 连接，这意味着测试样品可以同时处理多达四个屏幕。作为一项特殊功能，Minisforum 在 AtomMan X7 Ti 上安装了 OCuLink 连接，可直接通过 PCIe 连接到外部显卡。与 USB4 相比，OCuLink 提供了更高的带宽。在接下来的测试中，我们将重点关注这一点，并看看与 eGPU 结合使用时的性能。 GPD G1.我们不想完全不提 SD 读卡器。遗憾的是，它只能提供 USB 2.0 的速度，因此在我们的对比中明显慢于竞争对手。使用面部识别或指纹传感器可以方便地登录操作系统。经过快速、简便的设置后，两种方法均可使用。

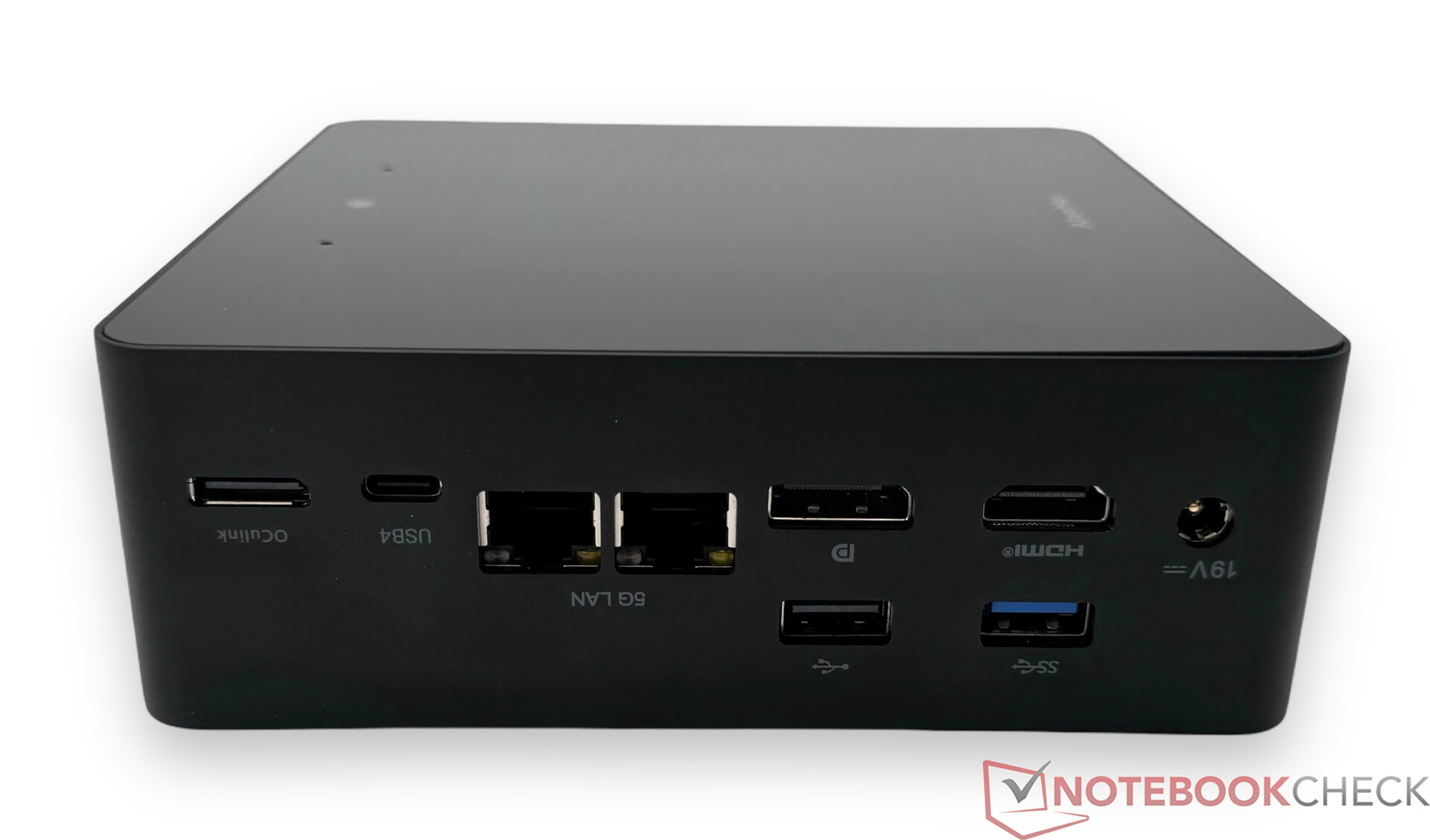

左侧OCulink、USB4、2x RJ45-5G以太网、DisplayPort 2.0、HDMI 2.1、USB 2.0、USB 3.2 Gen1、电源连接器

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Khadas Mind Intel Core i7-1360P (AV Pro SD microSD 128 GB V60)	181.79 MB/s +635%
Geekom A5 AMD Ryzen 7 5800H (AV Pro SD microSD 128 GB V60)	176.8 MB/s +615%
Geekom A7 AMD Ryzen 9 7940HS (AV Pro SD microSD 128 GB V60)	175.19 MB/s +609%
Geekom Mini IT13 Intel Core i9-13900H	154.449 MB/s +525%
Geekom Mini IT12 Intel Core i7-1260P (AV Pro SD microSD 128 GB V60)	129.2 MB/s +423%
Average of class Mini PC (15.1 - 214, n=26, last 2 years)	91.7 MB/s +271%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H (AV Pro SD microSD 128 GB V60)	65 MB/s +163%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H (AV Pro SD microSD 128 GB V60)	24.72 MB/s
maximum AS SSD Seq Read Test (1GB)
Khadas Mind Intel Core i7-1360P (AV Pro SD microSD 128 GB V60)	200.48 MB/s +716%
Geekom A7 AMD Ryzen 9 7940HS (AV Pro SD microSD 128 GB V60)	185.62 MB/s +655%
Geekom A5 AMD Ryzen 7 5800H (AV Pro SD microSD 128 GB V60)	182.5 MB/s +643%
Geekom Mini IT13 Intel Core i9-13900H	180.4 MB/s +634%
Geekom Mini IT12 Intel Core i7-1260P (AV Pro SD microSD 128 GB V60)	176.8 MB/s +620%
Average of class Mini PC (18.2 - 221, n=26, last 2 years)	106.6 MB/s +334%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H (AV Pro SD microSD 128 GB V60)	69.9 MB/s +184%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H (AV Pro SD microSD 128 GB V60)	24.57 MB/s

交流

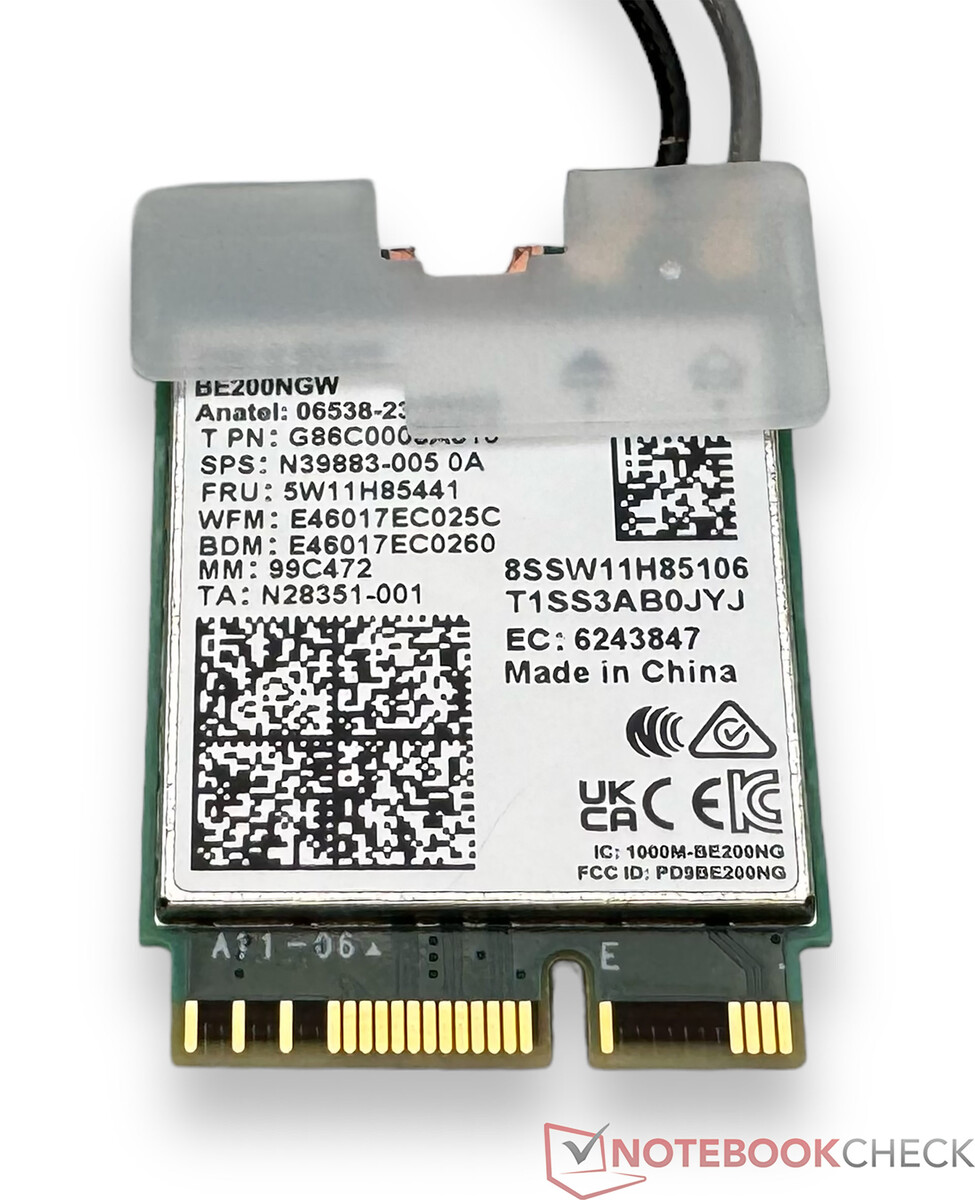

在 Minisforum AtomMan X7 Ti 中，我们看到了与 Acemagic F2A 相同的无线模块。英特尔 Wi-Fi 7 BE200 无线局域网模块可在 2.4 GHz、5 GHz 和 6 GHz 频率范围内工作。它甚至支持最新的 Wi-Fi 标准（Wi-Fi 7）。不过，相比之下，我们的测试样品比 Acemagic 型号的效果要好得多。由于我们使用华硕 ROG Rapture GT-AXE11000 路由器进行 Wi-Fi 测试，因此还无法显示 Wi-Fi 7 的测试结果。一旦我们更新了测试设备，我们将重新进行这项测试并提供测试结果。

Networking
iperf3 receive AXE11000 6GHz
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	1770 (1584^min - 1790^max) MBit/s +1%
Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz	1761 (1734^min - 1774^max) MBit/s
Average Intel Wi-Fi 7 BE200 320MHz (1149 - 1770, n=13)	1526 MBit/s -13%
Average of class Mini PC (684 - 1771, n=53, last 2 years)	1381 MBit/s -22%
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1375 (688^min - 1438^max) MBit/s -22%
Geekom XT12 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1152 (576^min - 1273^max) MBit/s -35%
iperf3 transmit AXE11000 6GHz
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	1615 (767^min - 1670^max) MBit/s +3%
Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz	1562 (1198^min - 1713^max) MBit/s
Average Intel Wi-Fi 7 BE200 320MHz (943 - 1646, n=13)	1383 MBit/s -11%
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1367 (1268^min - 1443^max) MBit/s -12%
Average of class Mini PC (394 - 1800, n=53, last 2 years)	1328 MBit/s -15%
Geekom XT12 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1315 (691^min - 1352^max) MBit/s -16%
iperf3 receive AXE11000
Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz	1599 (802^min - 1683^max) MBit/s
Average Intel Wi-Fi 7 BE200 320MHz (838 - 1701, n=17)	1356 MBit/s -15%
Minisforum EliteMini UM780 XTX Intel Killer Wi-Fi 6E AX1675x (210NGW)	934 (915^min - 943^max) MBit/s -42%
Average of class Mini PC (192.9 - 1796, n=113, last 2 years)	932 MBit/s -42%
Geekom XT12 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	892 (460^min - 921^max) MBit/s -44%
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	858 (827^min - 886^max) MBit/s -46%
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	838 (728^min - 926^max) MBit/s -48%
Minisforum Venus Series NAB9 MediaTek MT7921	503 (371^min - 687^max) MBit/s -69%
Acemagic AM18 Realtek RTL8852BE	455 (221^min - 519^max) MBit/s -72%
iperf3 transmit AXE11000
Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz	1566 (904^min - 1695^max) MBit/s
Average Intel Wi-Fi 7 BE200 320MHz (469 - 1634, n=17)	1183 MBit/s -24%
Average of class Mini PC (184.1 - 1776, n=113, last 2 years)	864 MBit/s -45%
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	831 (755^min - 940^max) MBit/s -47%
Minisforum EliteMini UM780 XTX Intel Killer Wi-Fi 6E AX1675x (210NGW)	729 (668^min - 784^max) MBit/s -53%
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	709 (369^min - 977^max) MBit/s -55%
Acemagic AM18 Realtek RTL8852BE	665 (343^min - 743^max) MBit/s -58%
Geekom XT12 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	589 (295^min - 624^max) MBit/s -62%
Minisforum Venus Series NAB9 MediaTek MT7921	531 (255^min - 725^max) MBit/s -66%

Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1562 (1198-1713)

Acemagic F2A Intel Wi-Fi 7 BE200 320MHz; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1590 (767-1670)

Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1367 (1268-1443)

Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1760 (1734-1774)

Acemagic F2A Intel Wi-Fi 7 BE200 320MHz; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1769 (1584-1790)

Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1352 (688-1438)

Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz; iperf3 receive AXE11000; iperf 3.1.3: Ø1572 (802-1683)

Acemagic F2A Intel Wi-Fi 7 BE200 320MHz; iperf3 receive AXE11000; iperf 3.1.3: Ø838 (728-926)

Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø858 (827-886)

Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz; iperf3 transmit AXE11000; iperf 3.1.3: Ø1566 (904-1695)

Acemagic F2A Intel Wi-Fi 7 BE200 320MHz; iperf3 transmit AXE11000; iperf 3.1.3: Ø695 (369-977)

Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø831 (755-940)

网络摄像头

Minisforum AtomMan X7 Ti 是少数配备摄像头的微型电脑之一。它安装了一个 1080p 网络摄像头，还可以登录系统（Windows Hello）。不过，摄像头的质量并不理想，因为在光线不足的情况下很快就会出现图像噪点。内置摄像头当然可以用作应急解决方案，至于是否要将微型电脑直接放在你面前，那就是个人喜好的问题了。

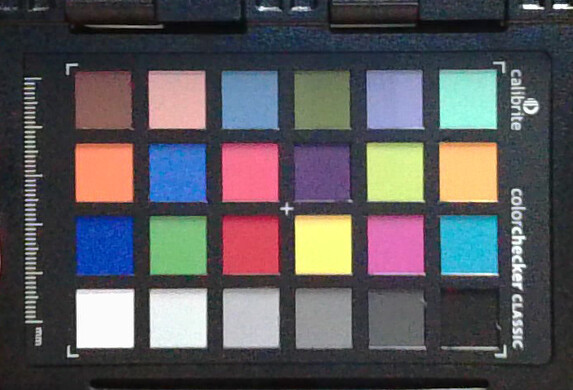

ColorChecker Minisforum AtomMan X7 Ti: 10.35 ∆E min: 0.7 - max: 16.85 ∆E

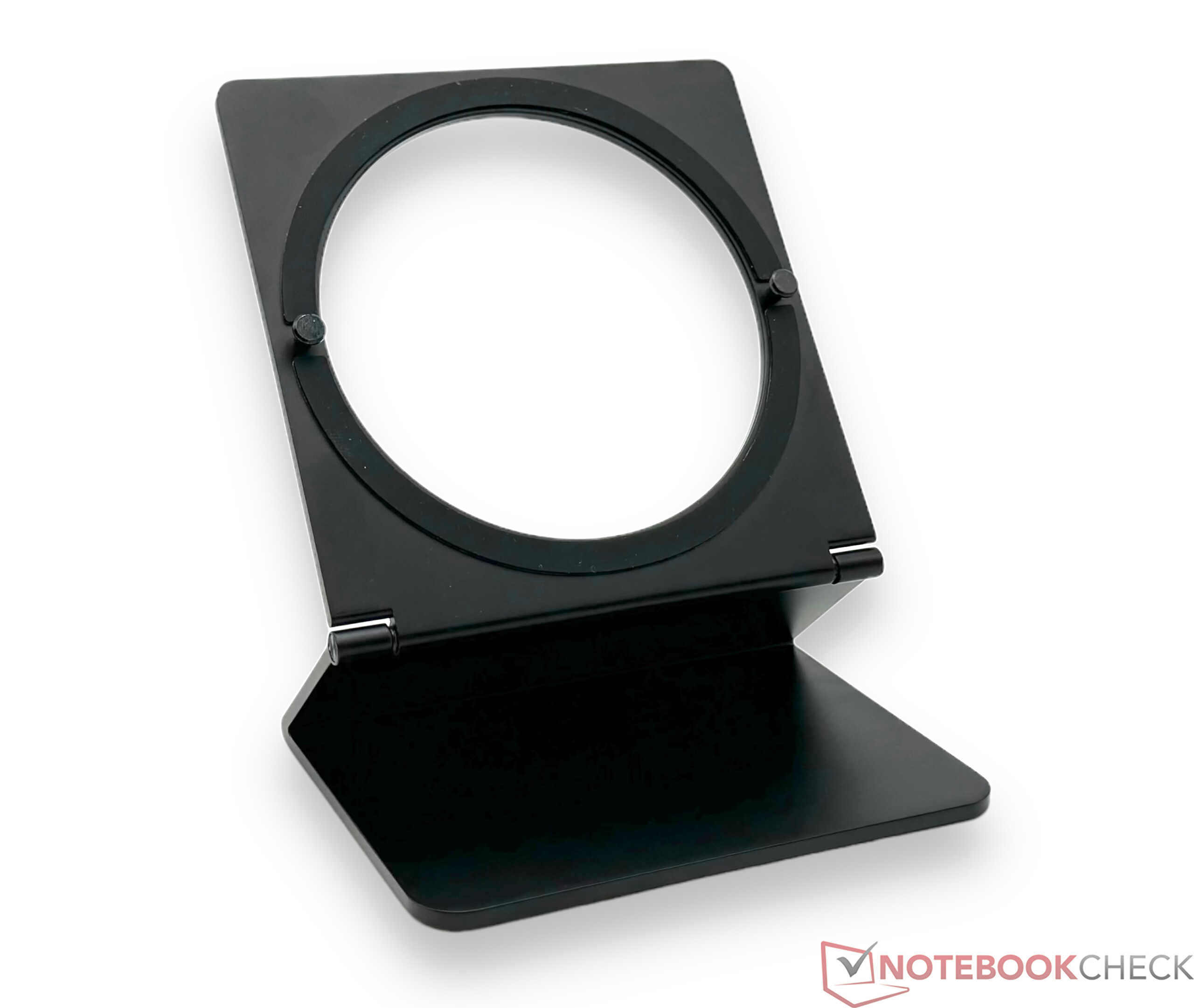

配件

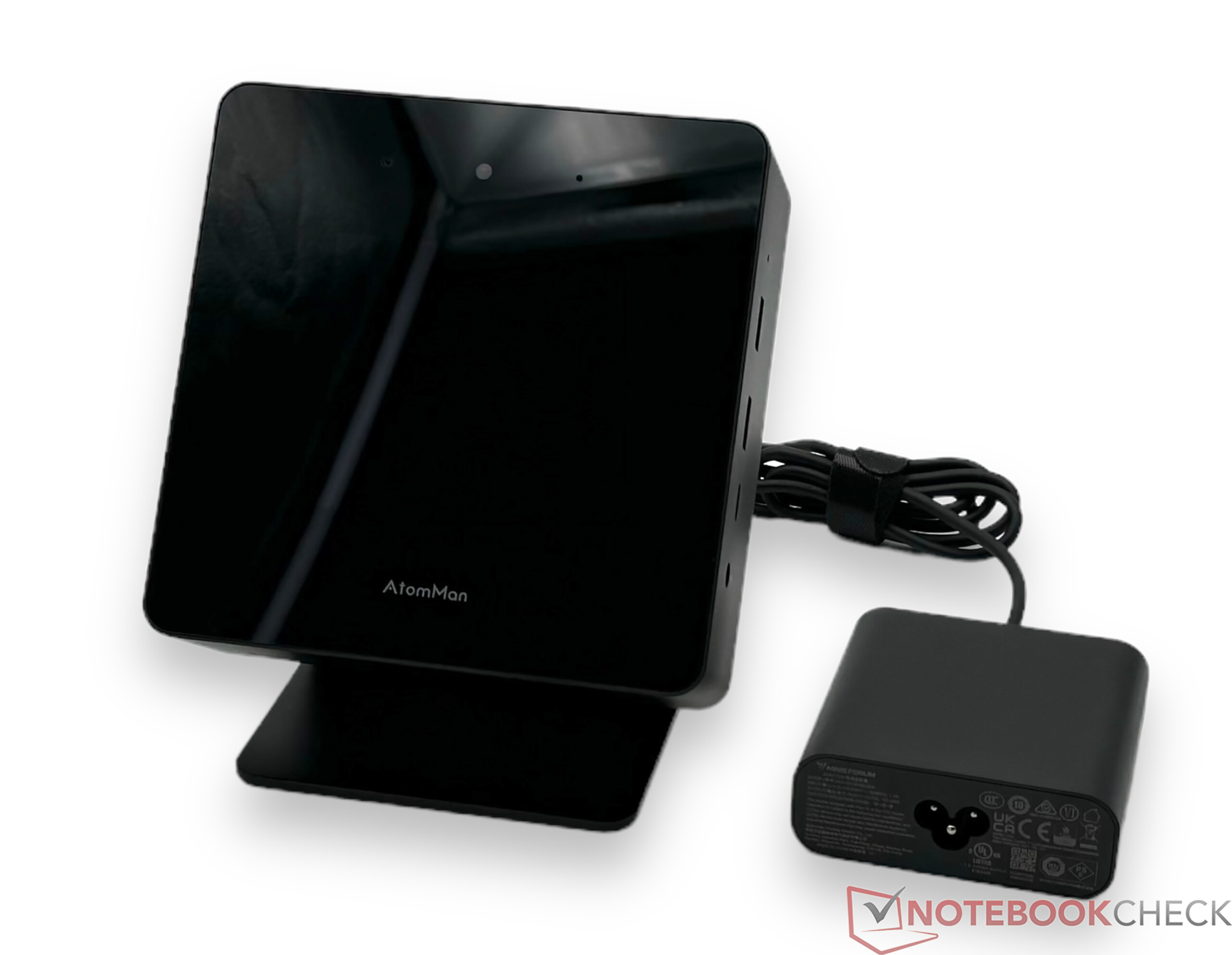

供货范围包括设备、120 瓦电源装置和垂直操作支架。此外还有一根 HDMI 电缆、一本快速入门指南和一根电源线。

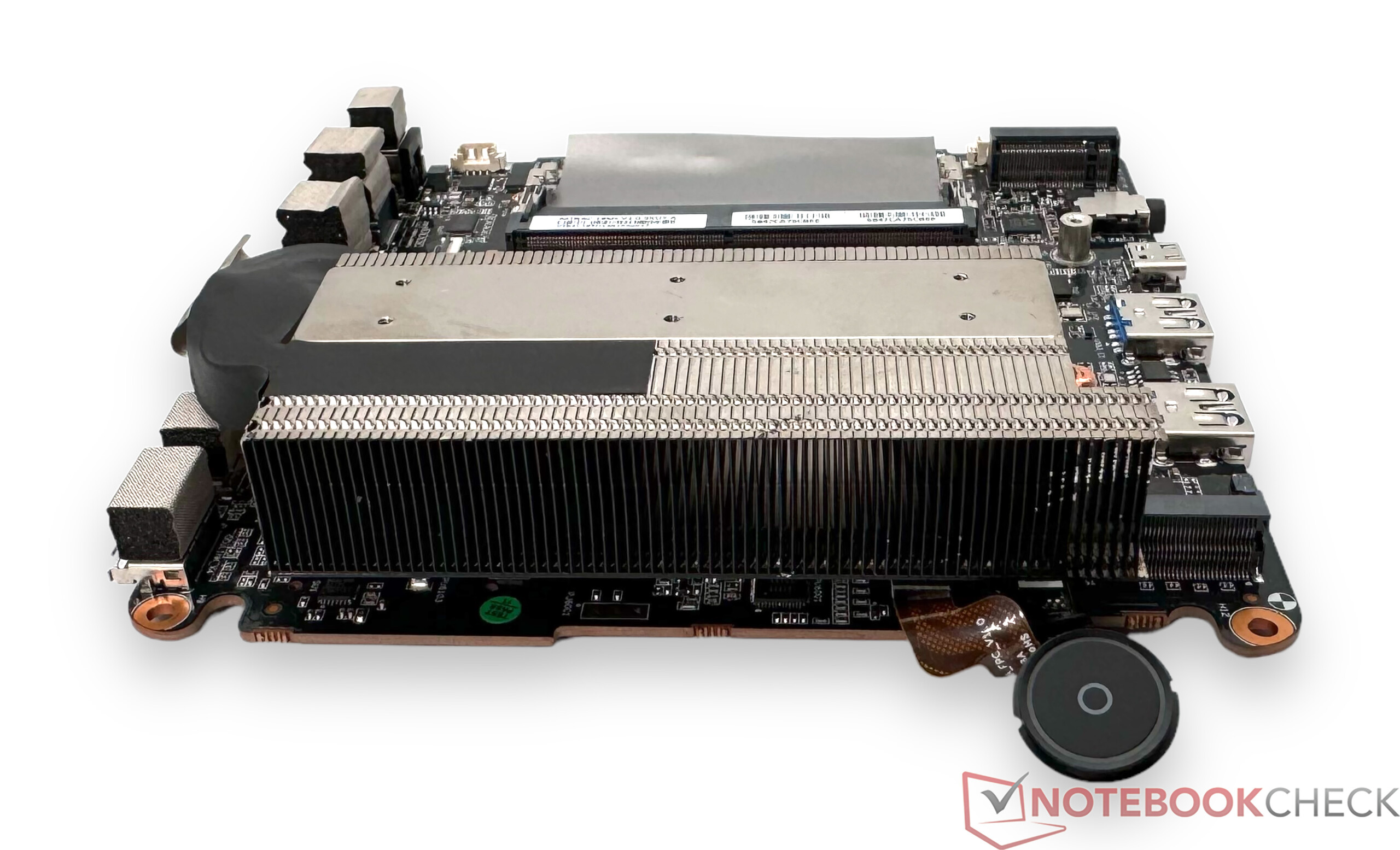

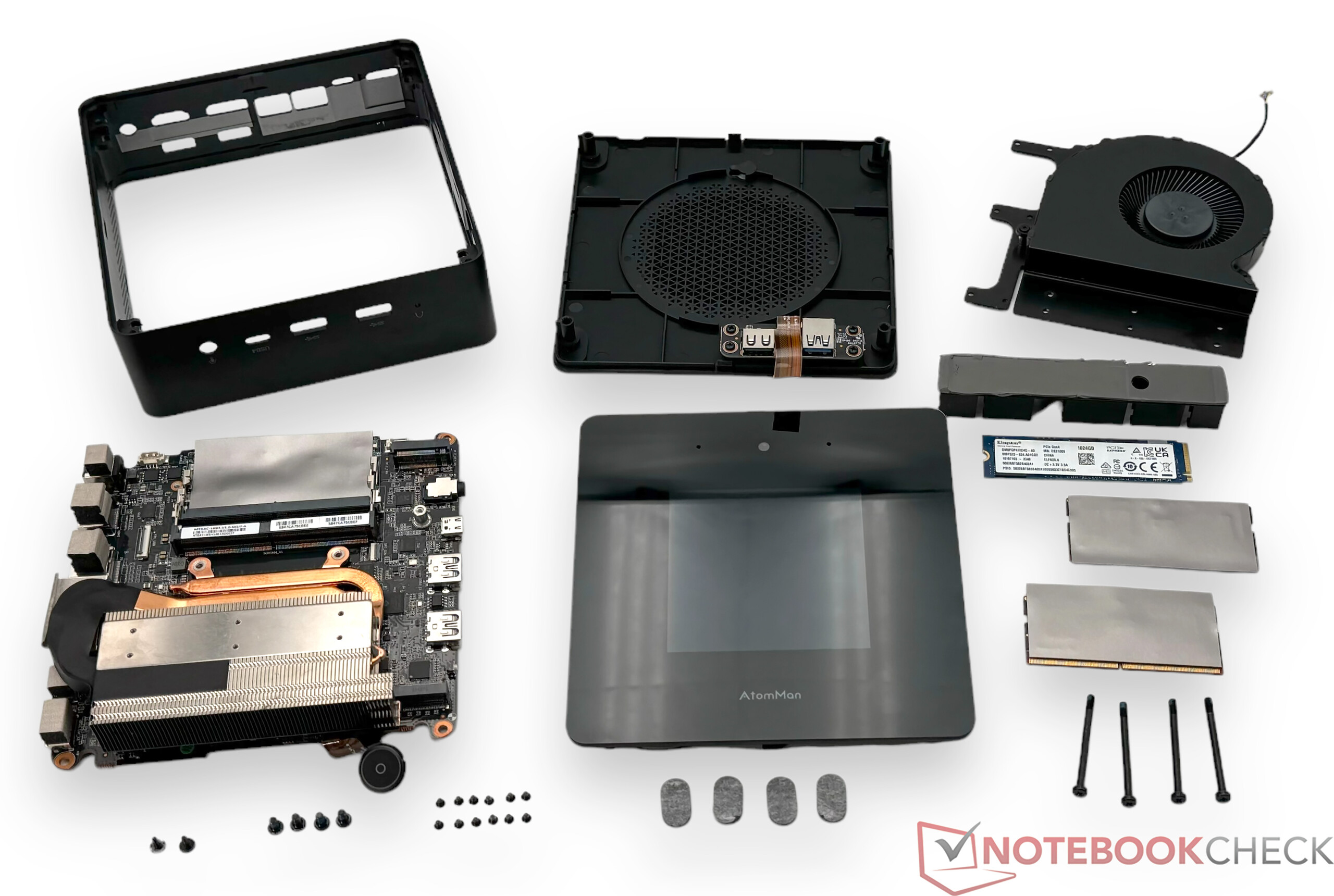

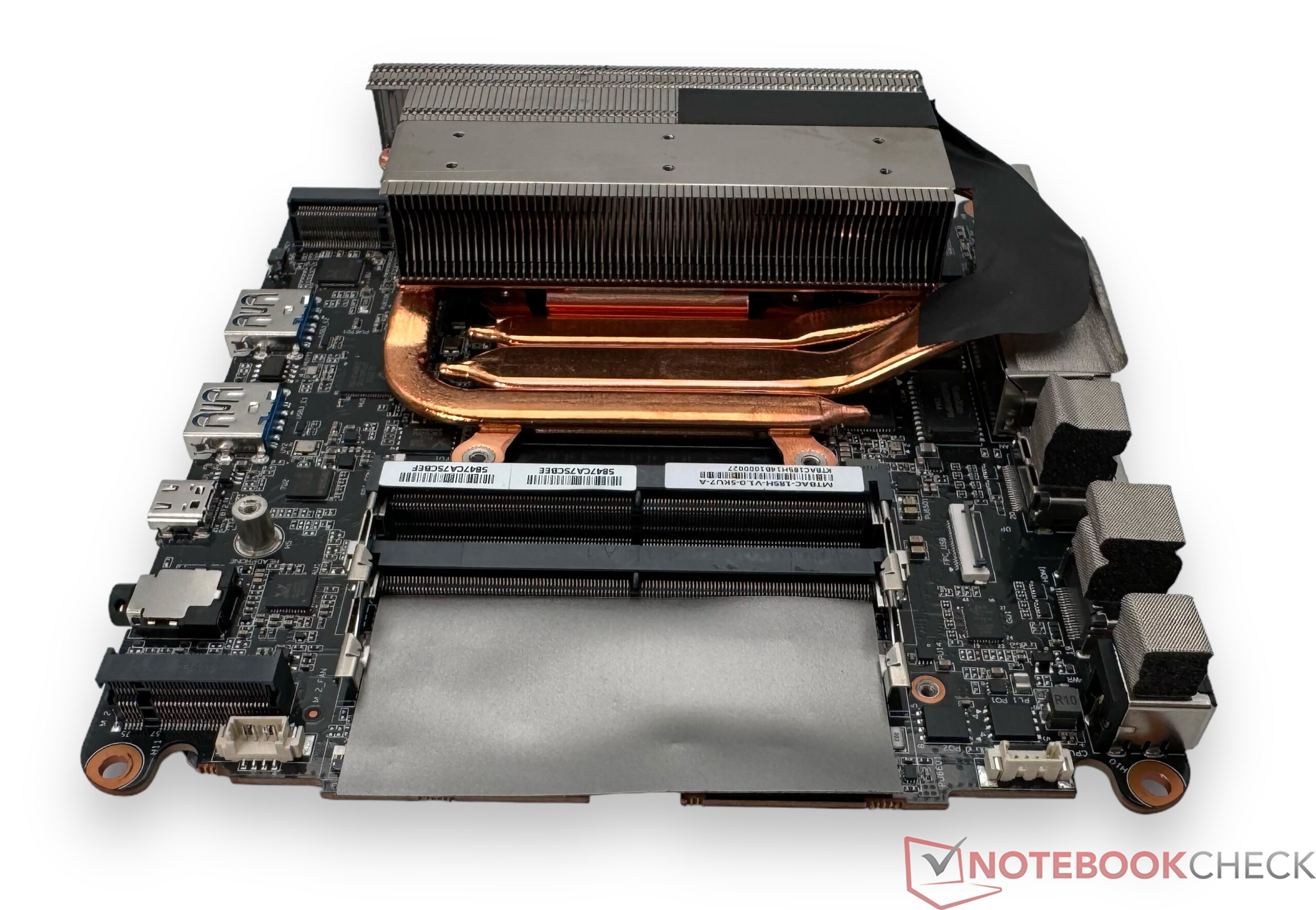

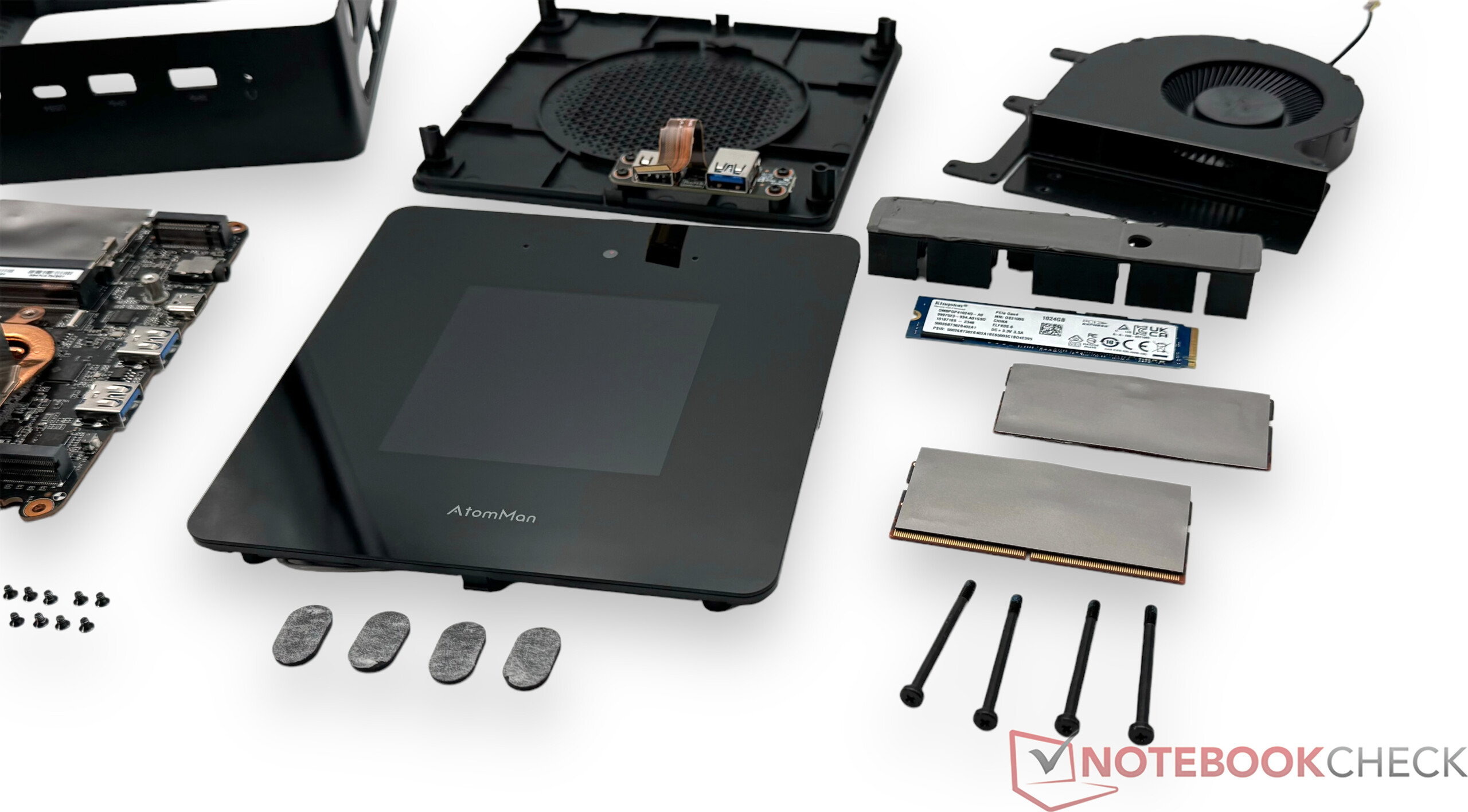

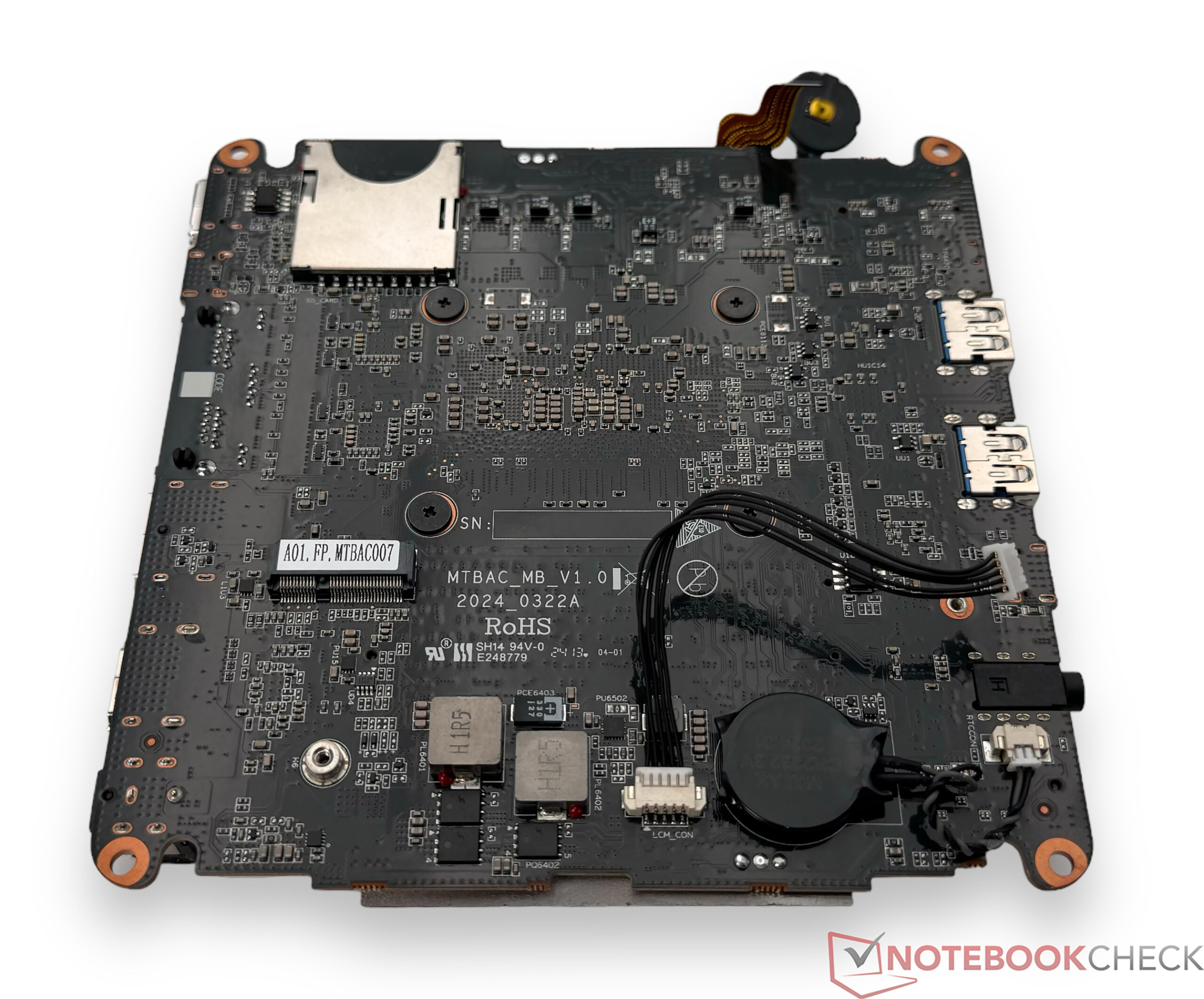

维护

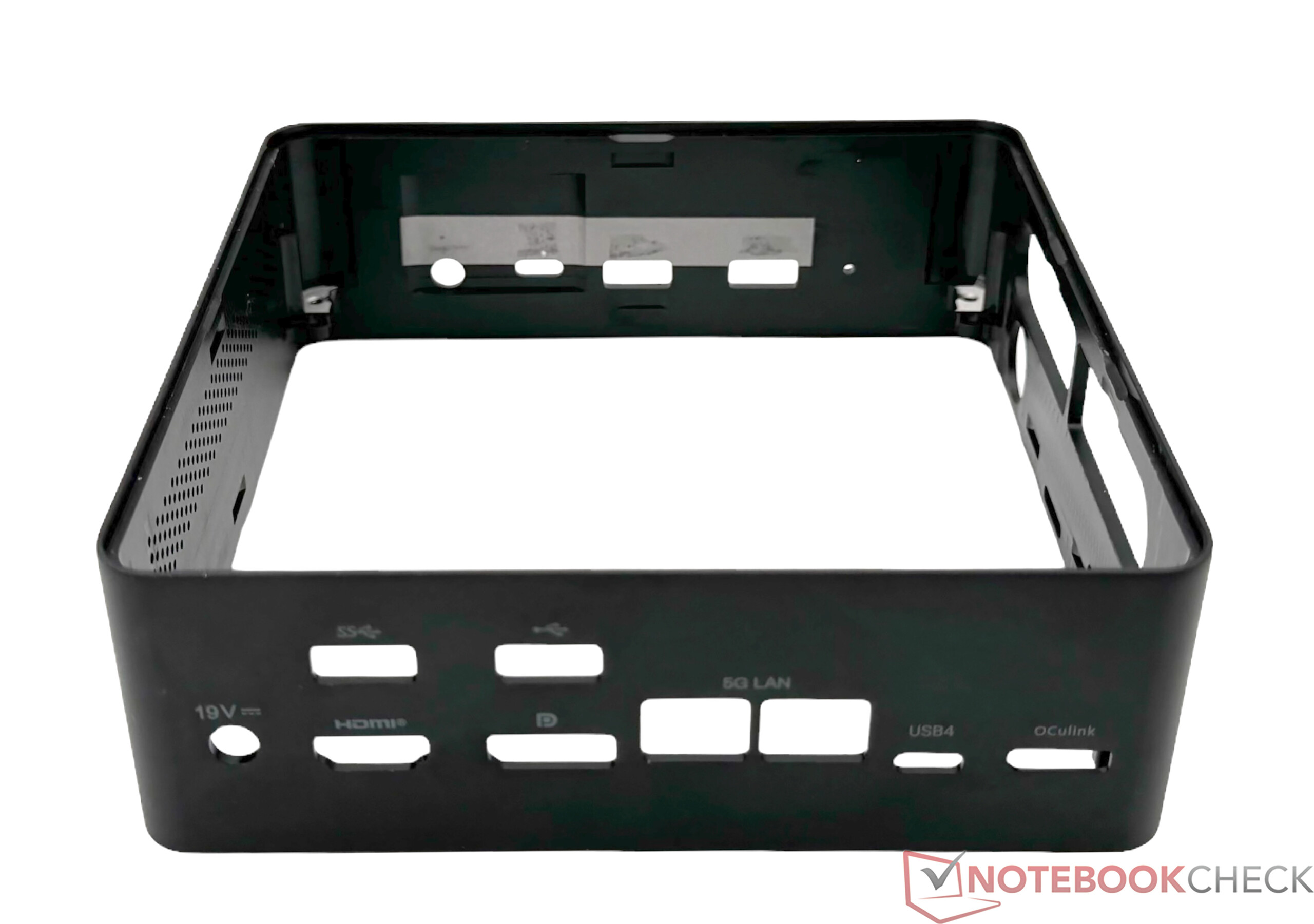

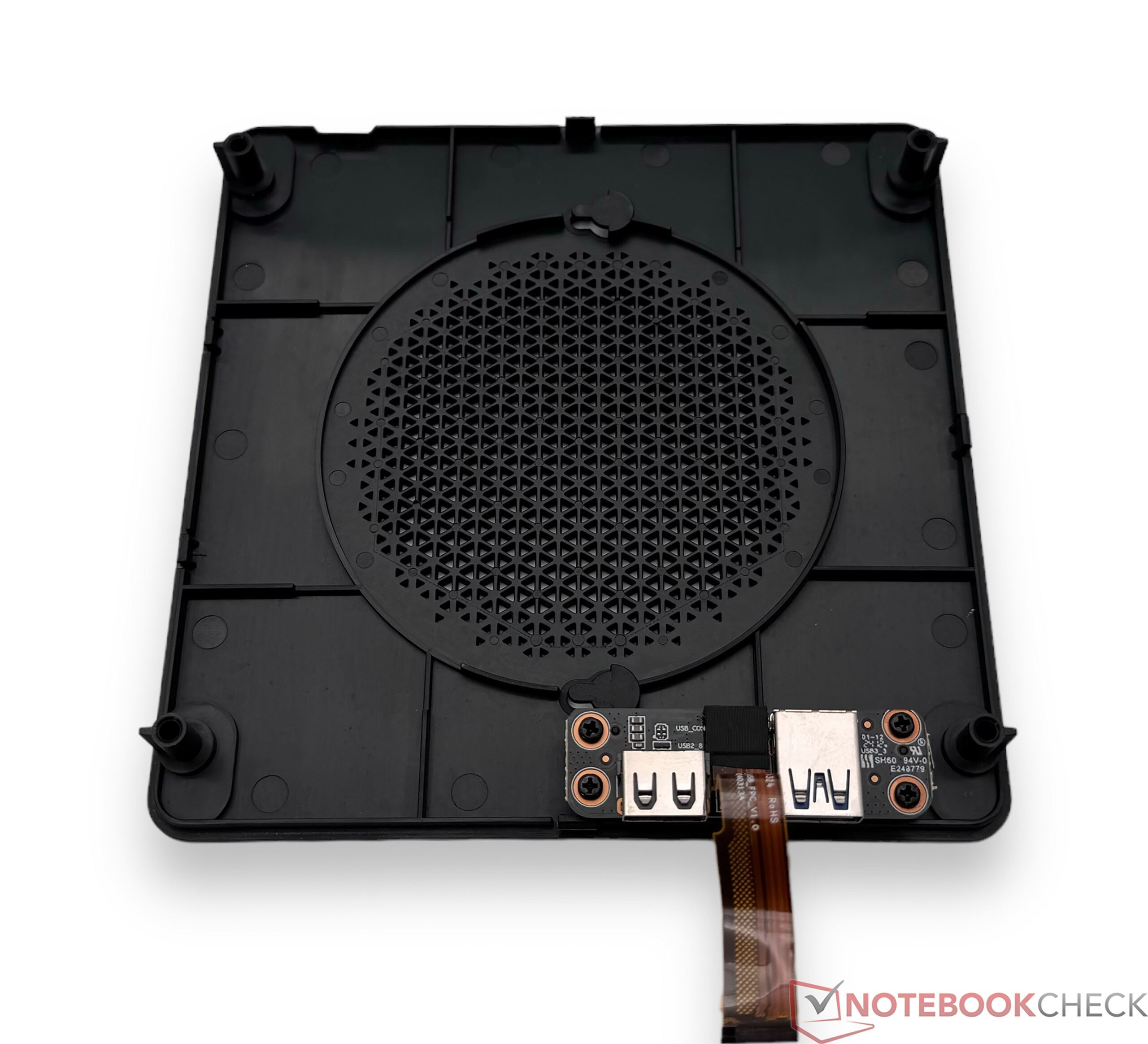

由于 Minisforum 也将 AtomMan X7 Ti 作为裸机系统销售，因此拆卸它以访问内存和固态硬盘是一个复杂的过程。一方面，用于拆卸底板的螺丝位于粘好的橡胶脚垫下，另一方面，盖板下还有其他几颗螺丝。风扇用 12 颗小螺丝固定到位。内存和大容量存储器的插槽只能在拆卸后才能进入。说到大容量存储：AtomMan X7 Ti 只能容纳固态硬盘。在大型散热器下可以安装一个 80 毫米和一个 30 毫米的固态硬盘。如果你还在寻找 Wi-Fi 模块，就必须进一步拆卸设备，因为前者位于主板的另一侧。拆卸一般是可行的，但我们不建议这样做。摄像头模块的连接线很短，屏幕的连接线也很短，这些都是组装过程中让人捏一把汗的地方。

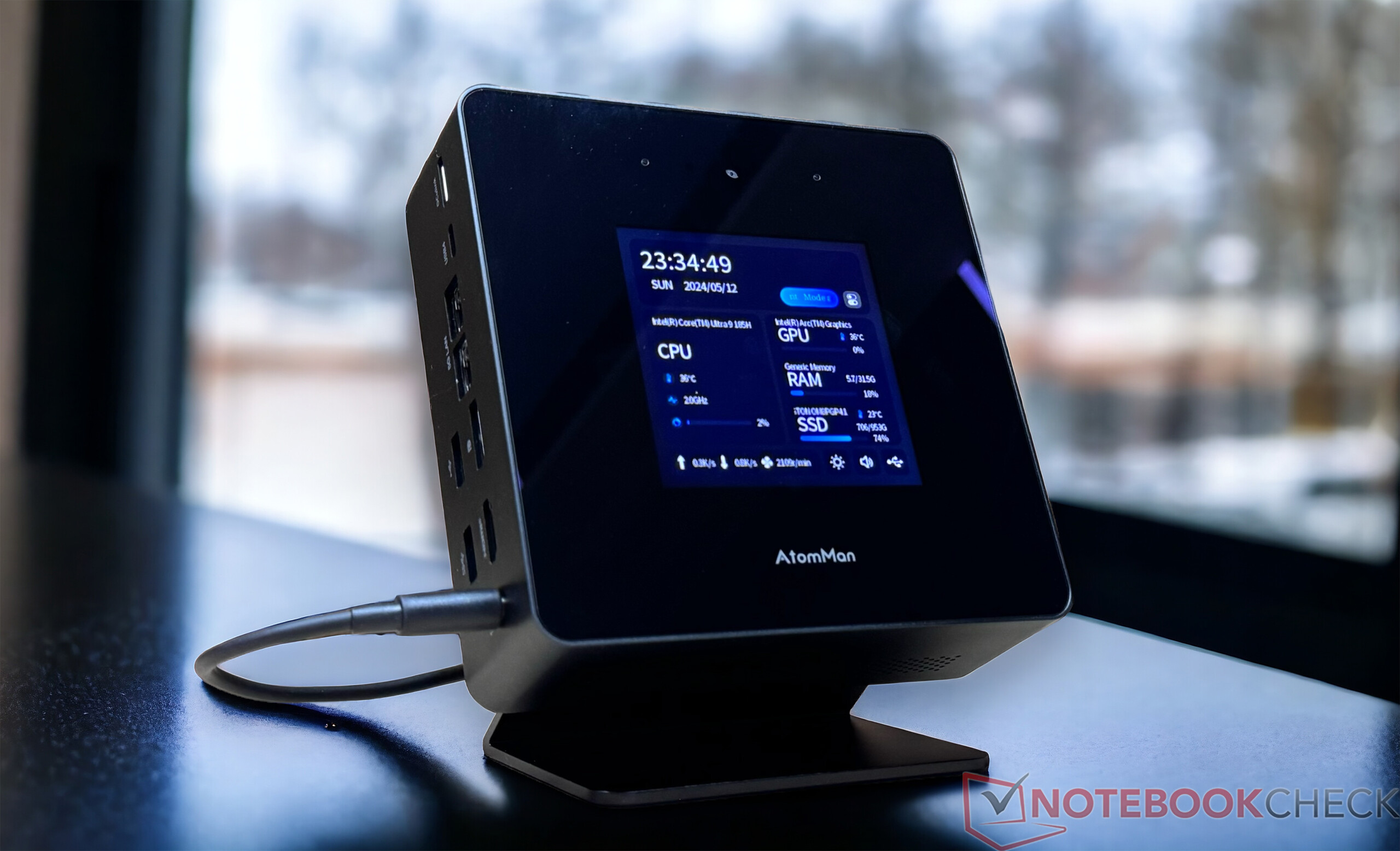

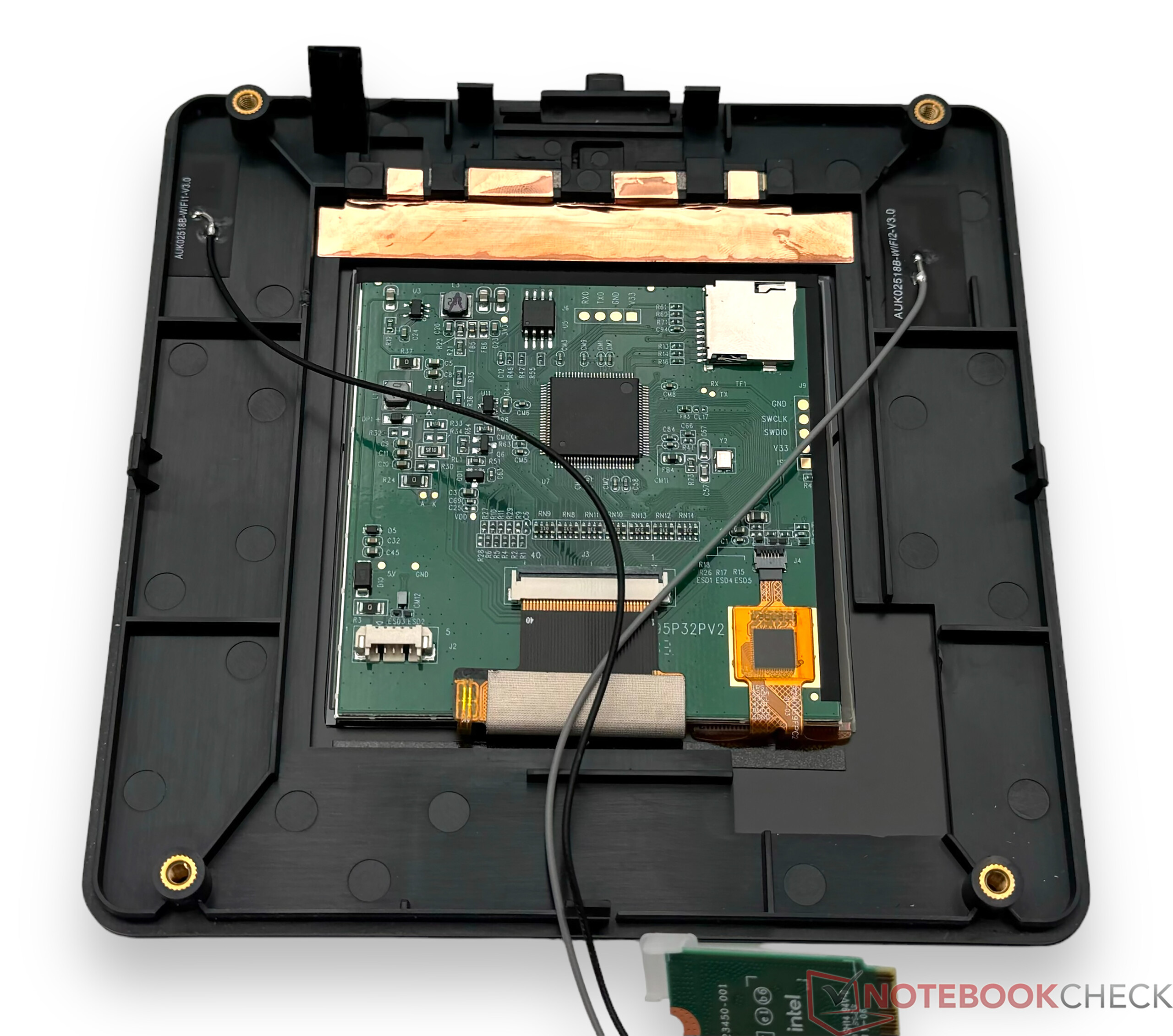

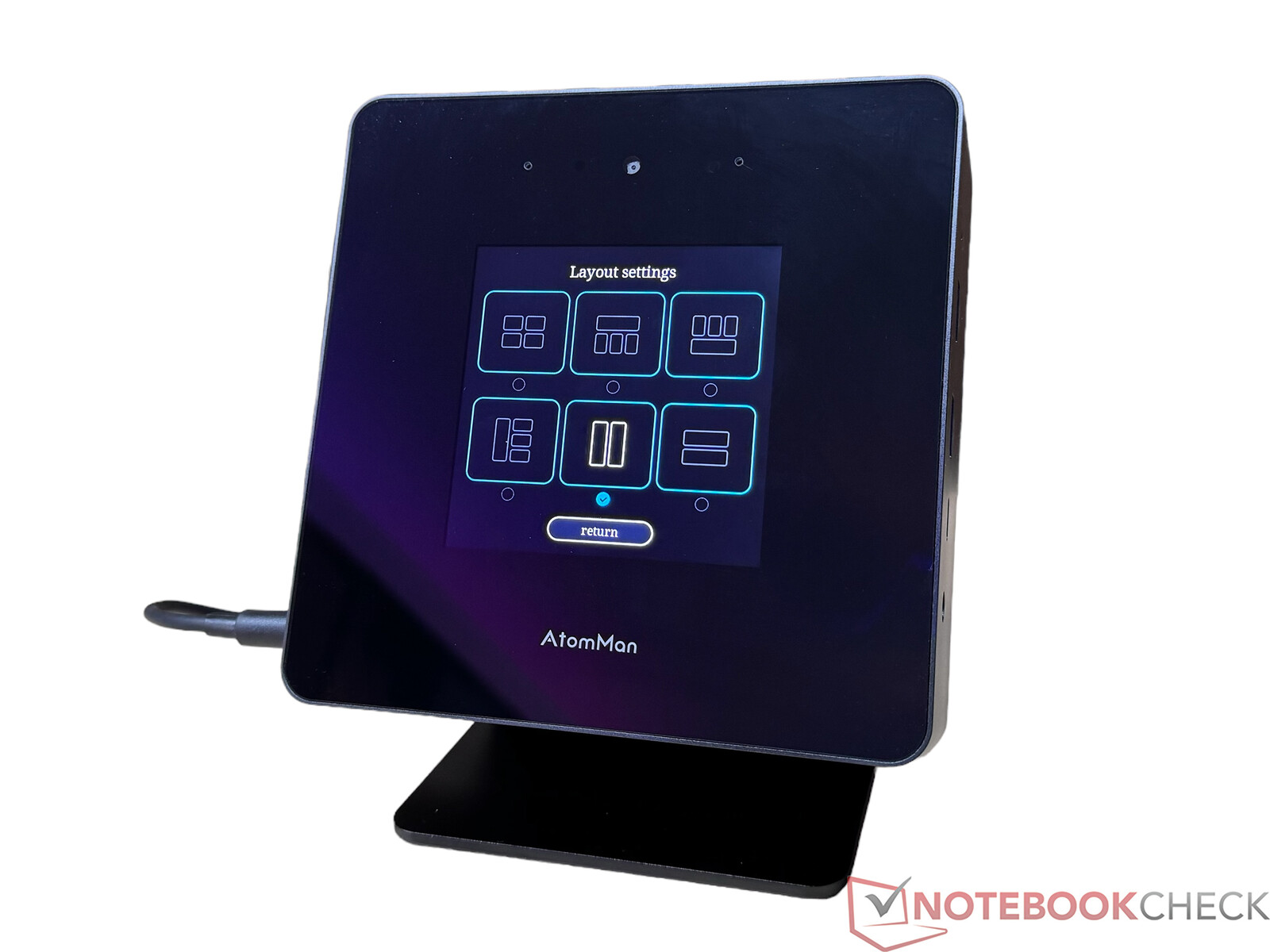

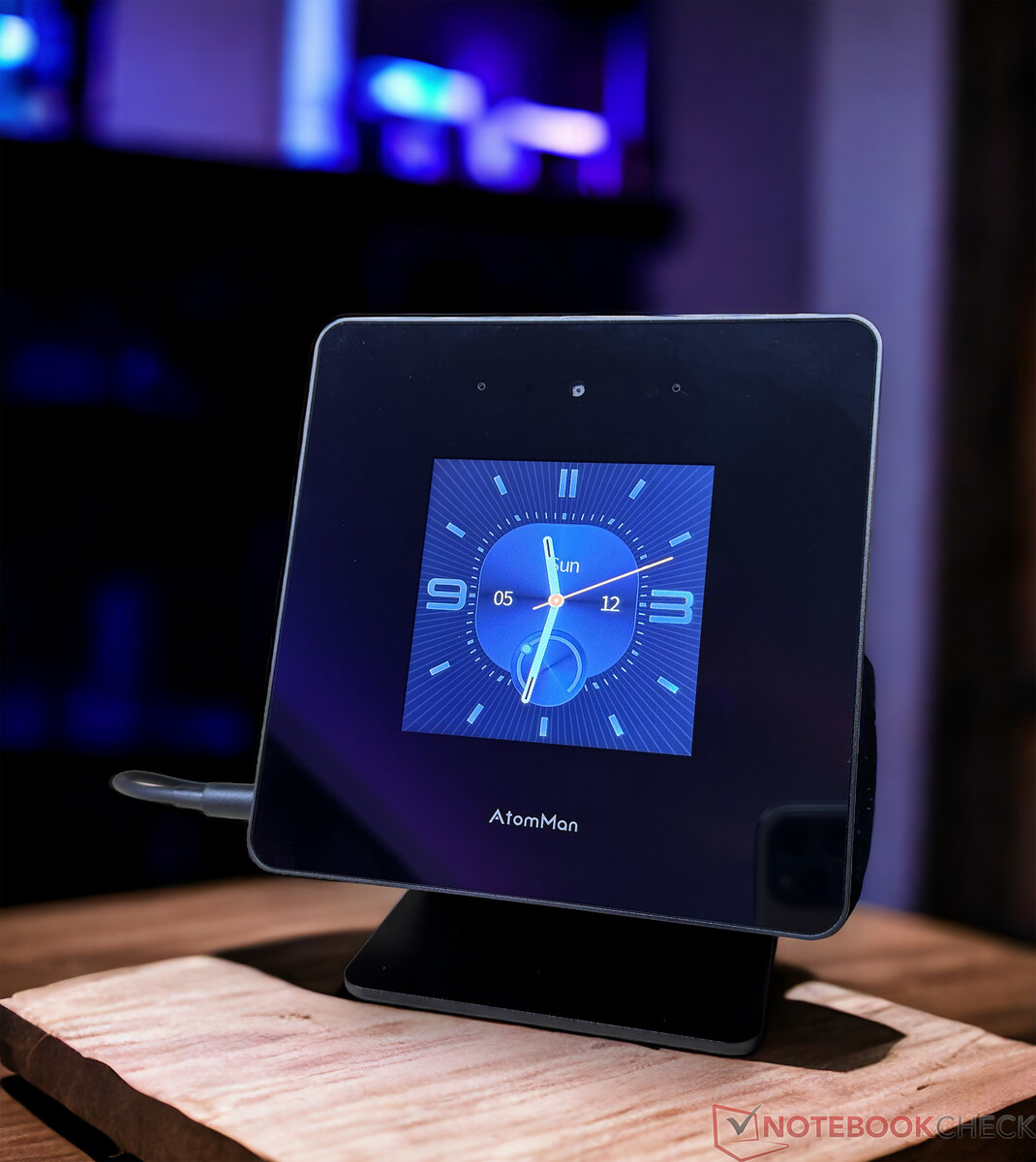

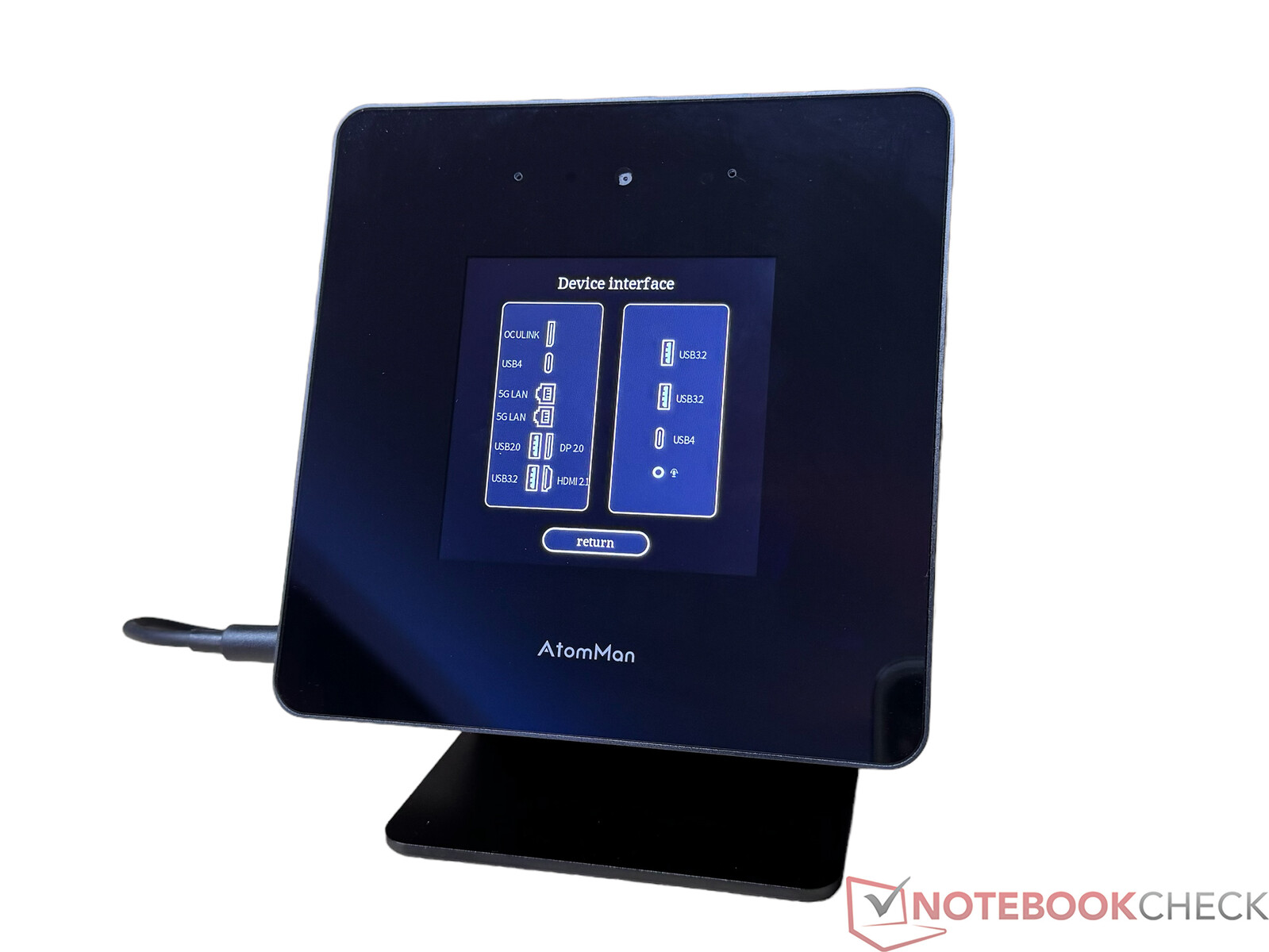

触摸屏

Minisforum 是首家在基于英特尔酷睿 Ultra 9 185H 的 AI 迷你 PC 中安装小型 4 英寸触摸显示屏的制造商。界面可自定义，可用于显示各种系统信息。如果你喜欢简单一点的，还可以显示时钟（有许多不同的设计）。系统性能可通过触摸屏快速调整，无需重新启动。制造商为此存储了三个性能配置文件，它们会影响 SoC 的功率限制。

性能 - 英特尔酷睿 Ultra 9 处理器，16 核 22 线程

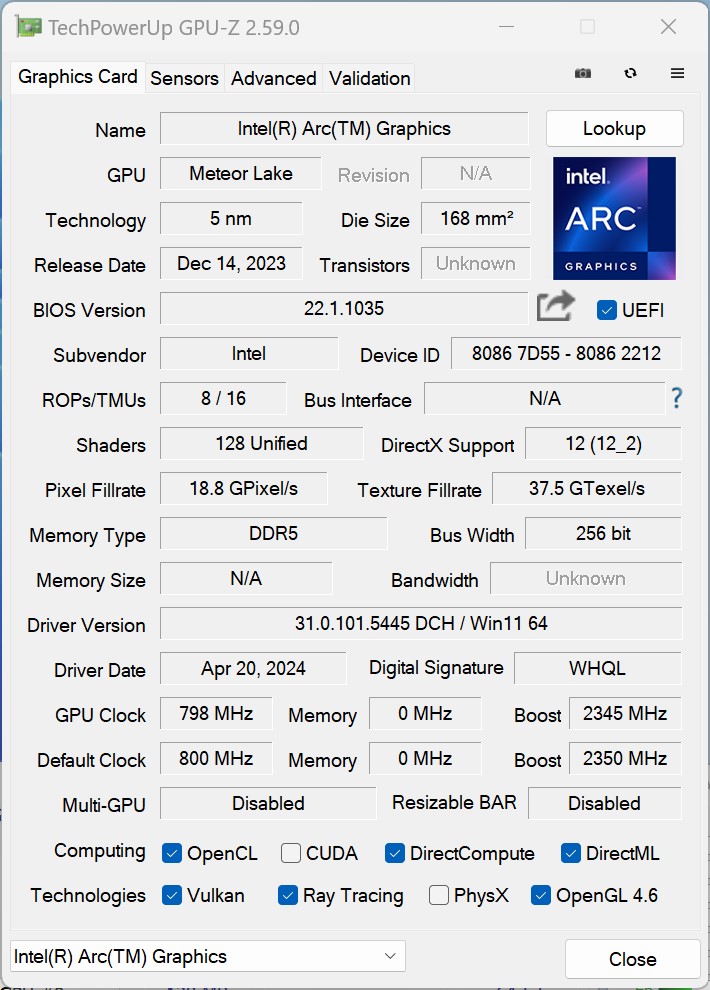

英特尔英特尔酷睿 Ultra 9 185H确保了持续的高速运行。iGPU 也随着 Meteor Lake 系列的推出而焕然一新。基于 Arc 架构，现在的 iGPU 性能明显高于之前系列中过时的 Xe iGPU。因此，Minisforum AtomMan X7 Ti 原则上可用于照片或视频编辑等对性能要求较高的应用。

测试条件

我们使用 "平衡 "功率曲线对该设备进行了所有性能测试。此外，所有相关测试都使用了 "性能 "配置文件。其他配置文件仅用于能量和噪音测量。测试标准.

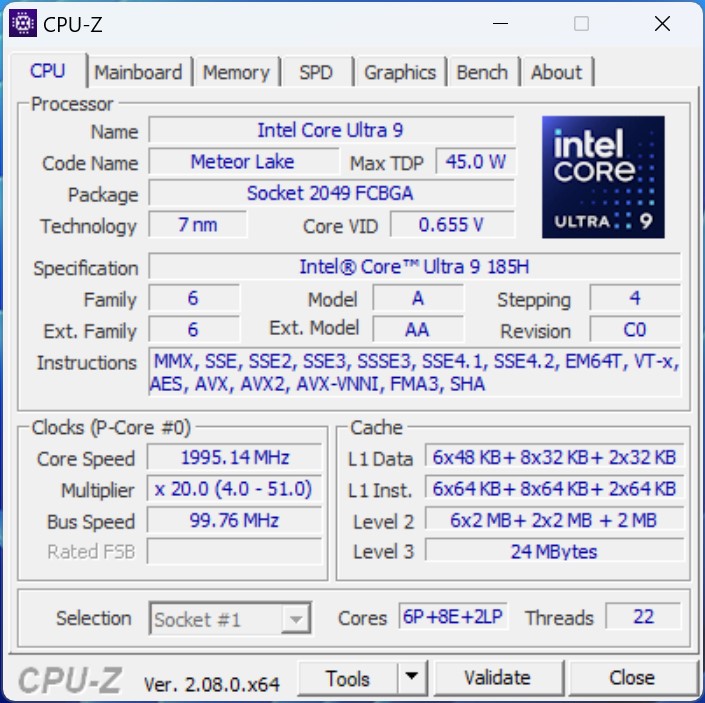

处理器

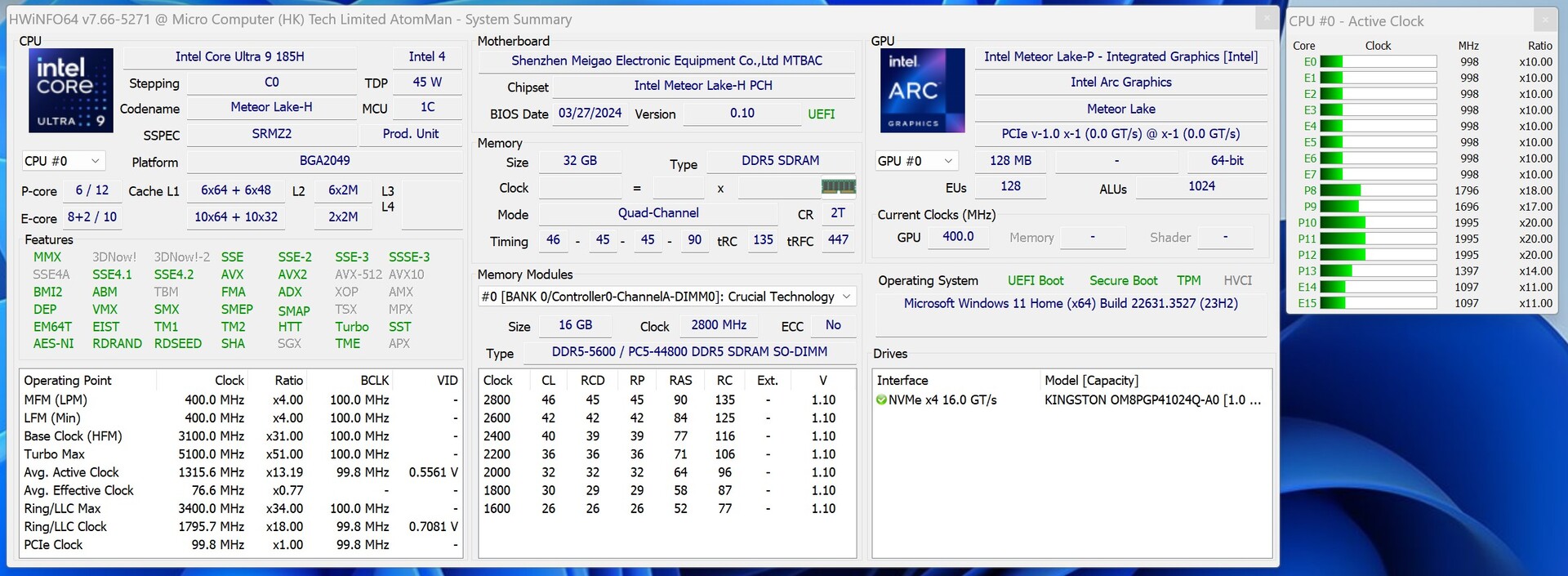

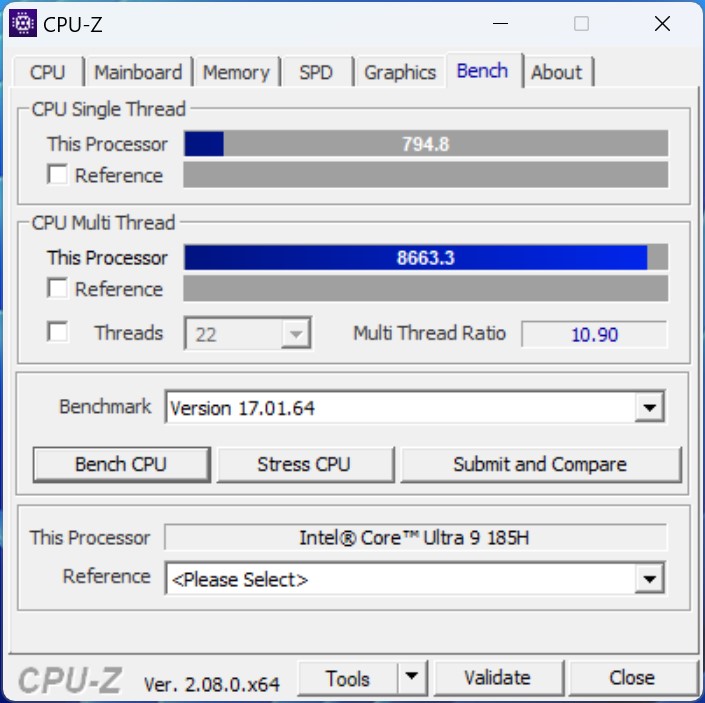

Minisforum AtomMan X7 Ti 配备了英特尔酷睿 Ultra 9 185H.英特尔的最新型号提供 16 个内核和 22 个线程，这使得安装在这里的型号与英特尔酷睿至尊 7 155H相同。在时钟频率方面存在差异，英特尔酷睿至尊 9 185H 的 P 核心频率最高可达 5.1 GHz，而英特尔酷睿至尊 7 155H 的最高频率仅为 4.8 GHz。不过，在功耗限制方面，制造商对性能的影响是巨大的：英特尔酷睿 Ultra 9 185H 的功耗为 65 瓦，明显高于竞争对手。在测试中，Acemagic F2A 的 SoC Acemagic F2A工作时的最大功率为 77 瓦，这意味着无论如何也达不到 90 瓦的目标功率。Minisforum 直接在一定程度上降低了功率，以提供稳定和持续的性能。

尽管有这一小小的限制，但足以让它在对比概述中领先于 Acemagic F2A。不过，采用 AMD Ryzen APU 的竞争对手也是无可奈何。只有在单项测试中，我们的测试样品才能取得领先。在 AIDA64 测试中，所有基于英特尔的设备都略逊于 AMD 设备。不过，Minisforum AtomMan X7 Ti 在英特尔设备中表现最佳。

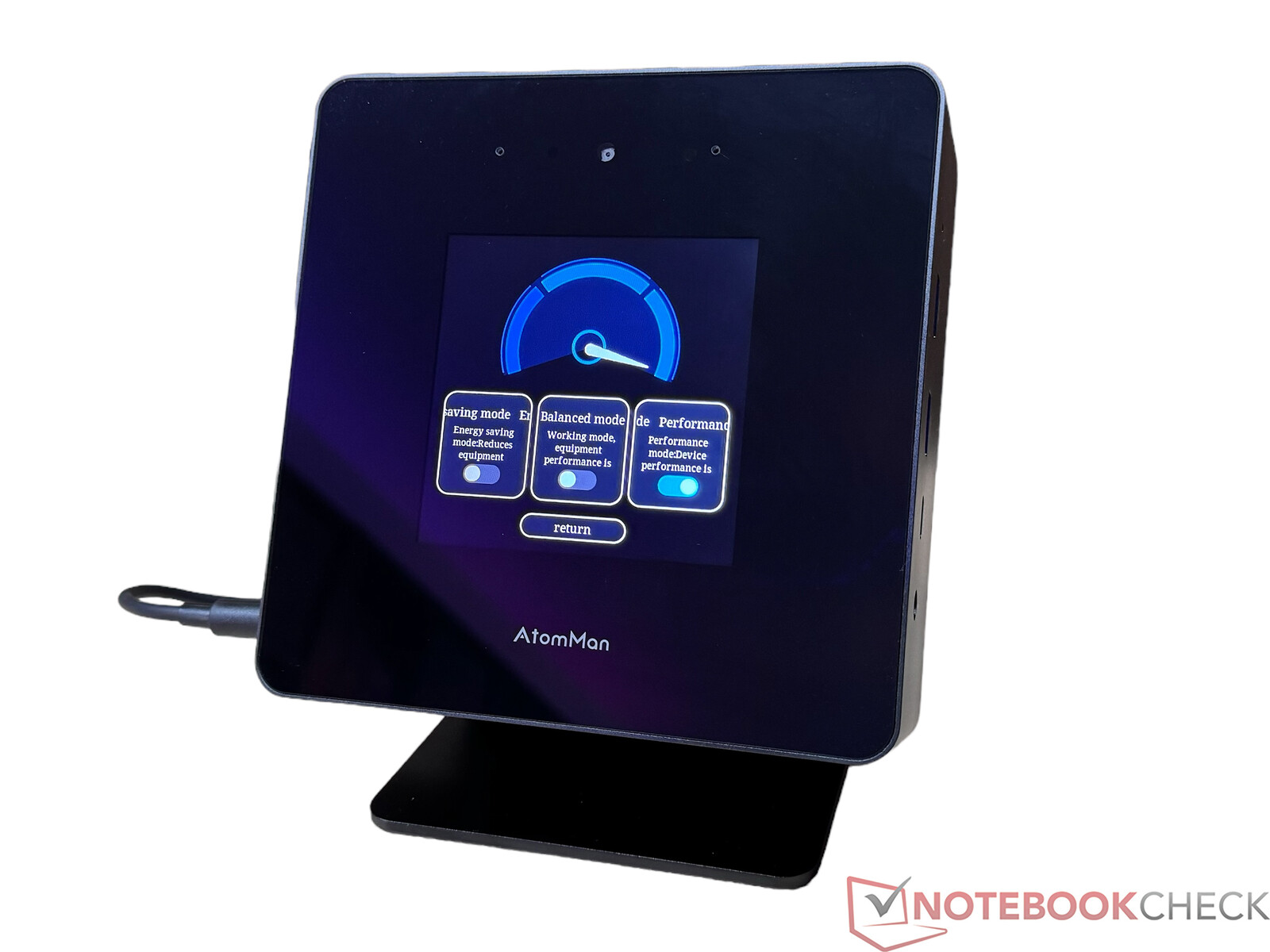

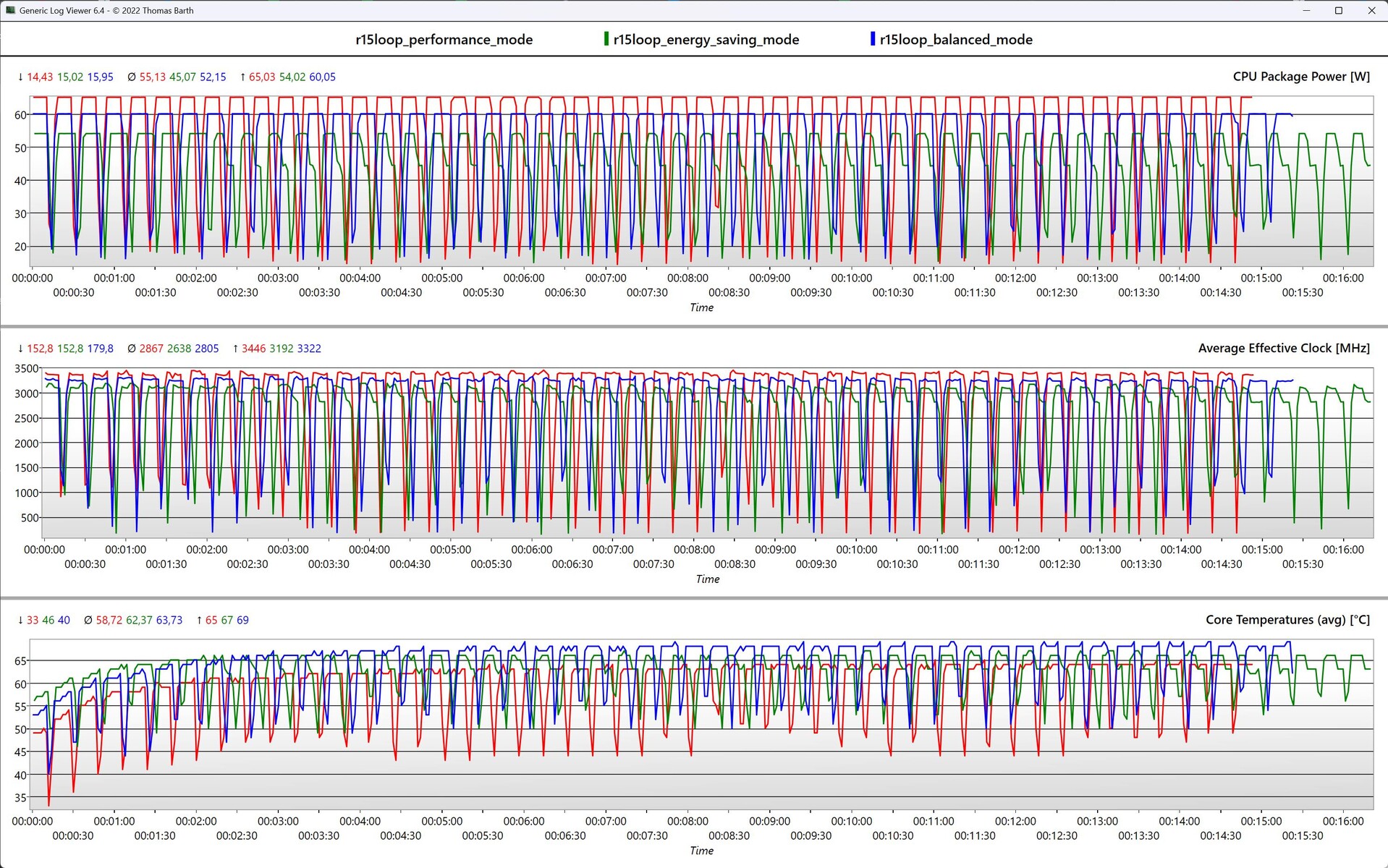

如果你不依赖于英特尔酷睿 Ultra 9 185H 的全部性能，你可以使用预定义的性能配置文件来改变性能。通过 4 英寸触摸屏有三种性能模式可供选择（见表）。不过，在日常使用中，您不会注意到性能上的明显差异。Minisforum AtomMan X7 Ti 即使在节能模式下也能出色地应对日常使用。

有关进一步的比较和基准测试，请参阅我们的CPU 比较表。

	功率限制 1	功率限制 2
节能模式	45 W	54 W
平衡模式	54 W	60 W
性能模式	65 瓦	65 瓦

Performance Rating - Percent
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	58.1 pt
Geekom A7 AMD Ryzen 9 7940HS	58 pt
Acemagic AM18 AMD Ryzen 7 7840HS	57.4 pt
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	57.3 pt
Acemagic F2A Intel Core Ultra 7 155H	55.8 pt
Minisforum Venus Series NAB9 Intel Core i9-12900HK	55.7 pt
Geekom XT12 Pro Intel Core i9-12900H	52.3 pt

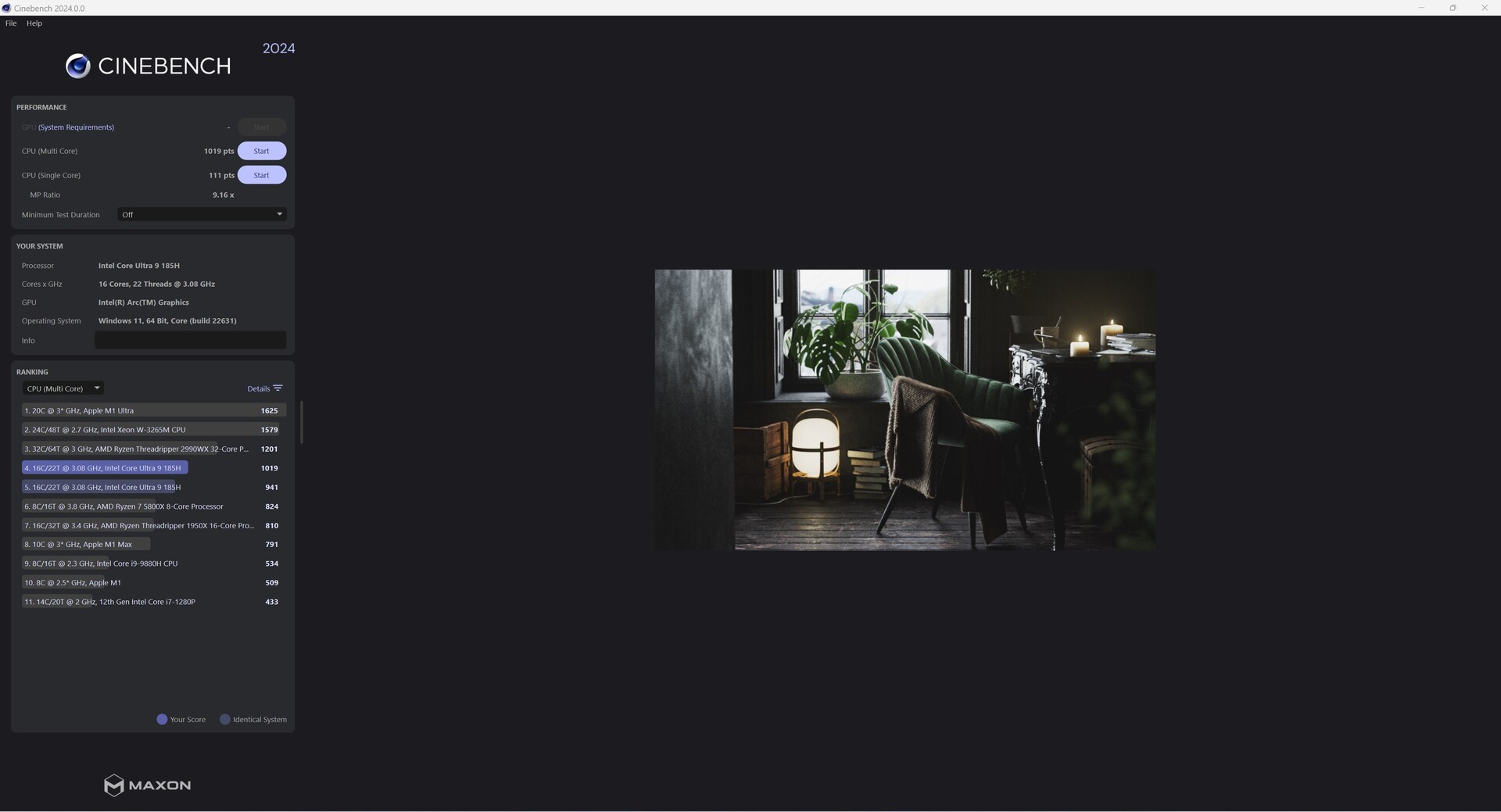

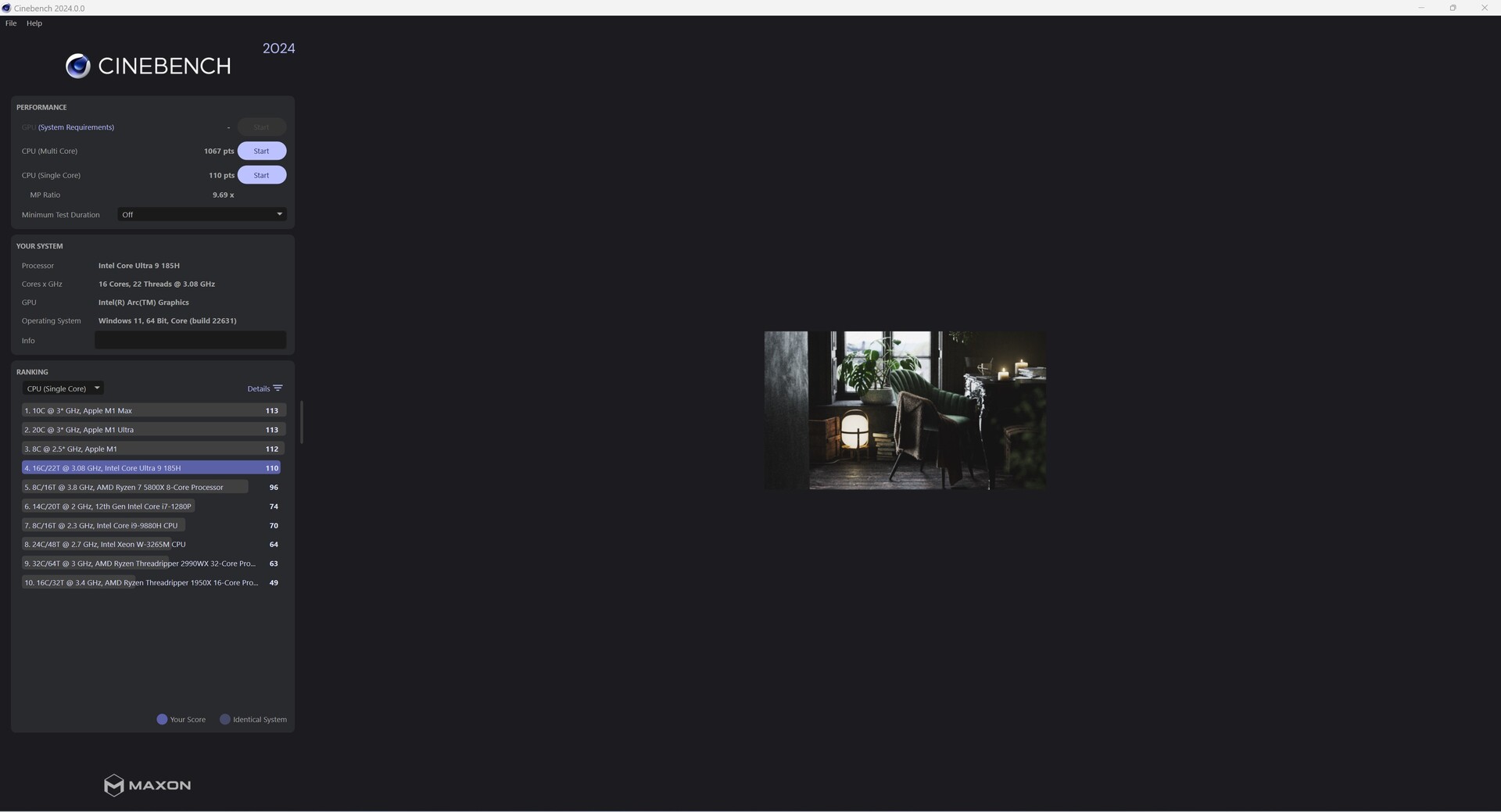

Cinebench 2024
CPU Multi Core
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1067 Points
Acemagic F2A Intel Core Ultra 7 155H	1022 Points -4%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	956 Points -10%
Acemagic AM18 AMD Ryzen 7 7840HS	923 Points -13%
Geekom A7 AMD Ryzen 9 7940HS	922 Points -14%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	746 Points -30%
Geekom XT12 Pro Intel Core i9-12900H	578 Points -46%
CPU Single Core
Minisforum Venus Series NAB9 Intel Core i9-12900HK	114 Points +4%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	110 Points
Geekom A7 AMD Ryzen 9 7940HS	108 Points -2%
Geekom XT12 Pro Intel Core i9-12900H	108 Points -2%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	106 Points -4%
Acemagic F2A Intel Core Ultra 7 155H	106 Points -4%
Acemagic AM18 AMD Ryzen 7 7840HS	104 Points -5%

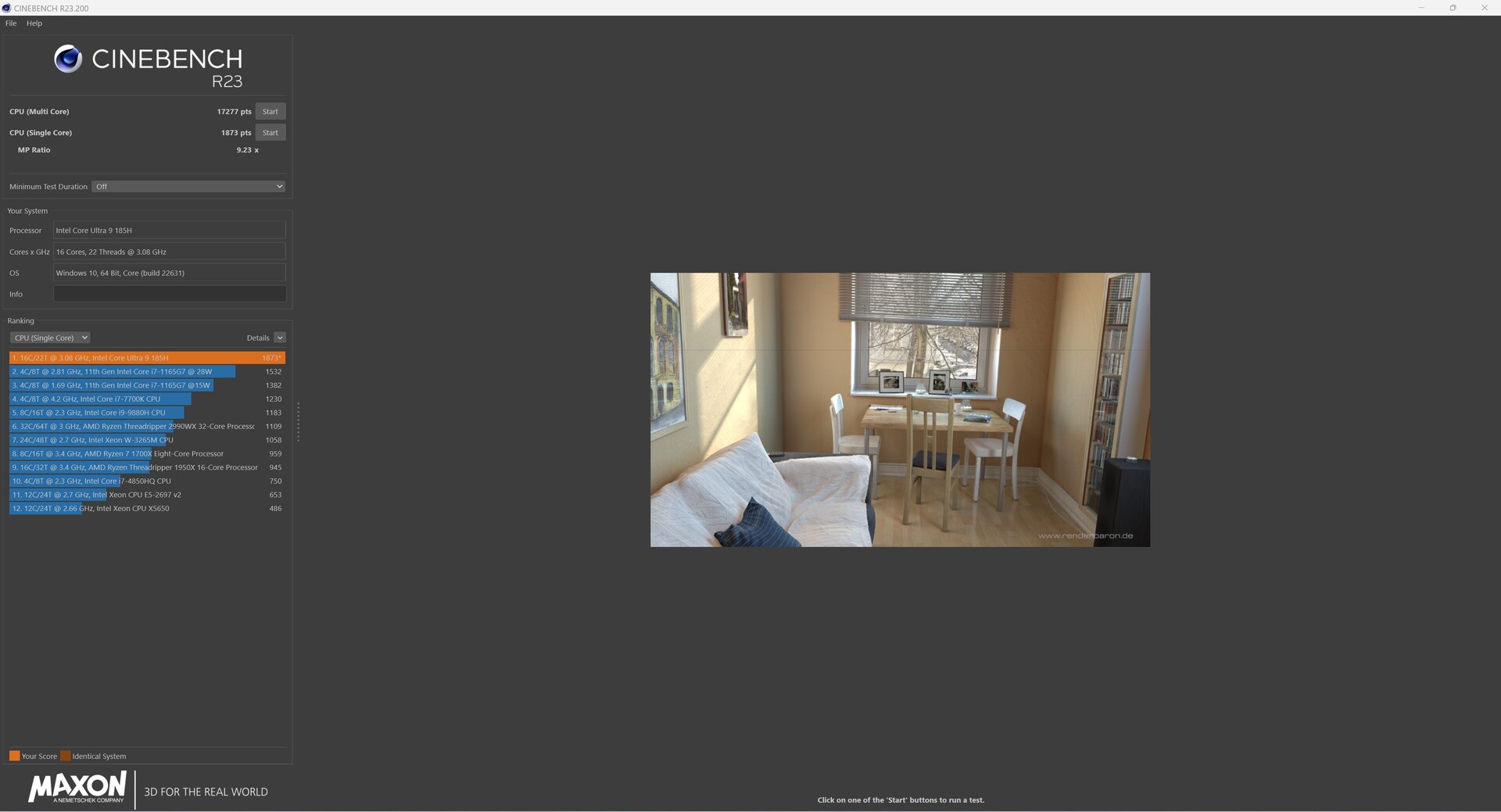

Cinebench R23
Multi Core
Acemagic F2A Intel Core Ultra 7 155H	18497 Points +3%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	18016 Points
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	16706 Points -7%
Acemagic AM18 AMD Ryzen 7 7840HS	15979 Points -11%
Geekom A7 AMD Ryzen 9 7940HS	15556 Points -14%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	14659 Points -19%
Geekom XT12 Pro Intel Core i9-12900H	11036 Points -39%
Single Core
Minisforum Venus Series NAB9 Intel Core i9-12900HK	1901 Points +3%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1851 Points
Geekom XT12 Pro Intel Core i9-12900H	1824 Points -1%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	1779 Points -4%
Acemagic F2A Intel Core Ultra 7 155H	1771 Points -4%
Geekom A7 AMD Ryzen 9 7940HS	1747 Points -6%
Acemagic AM18 AMD Ryzen 7 7840HS	1737 Points -6%

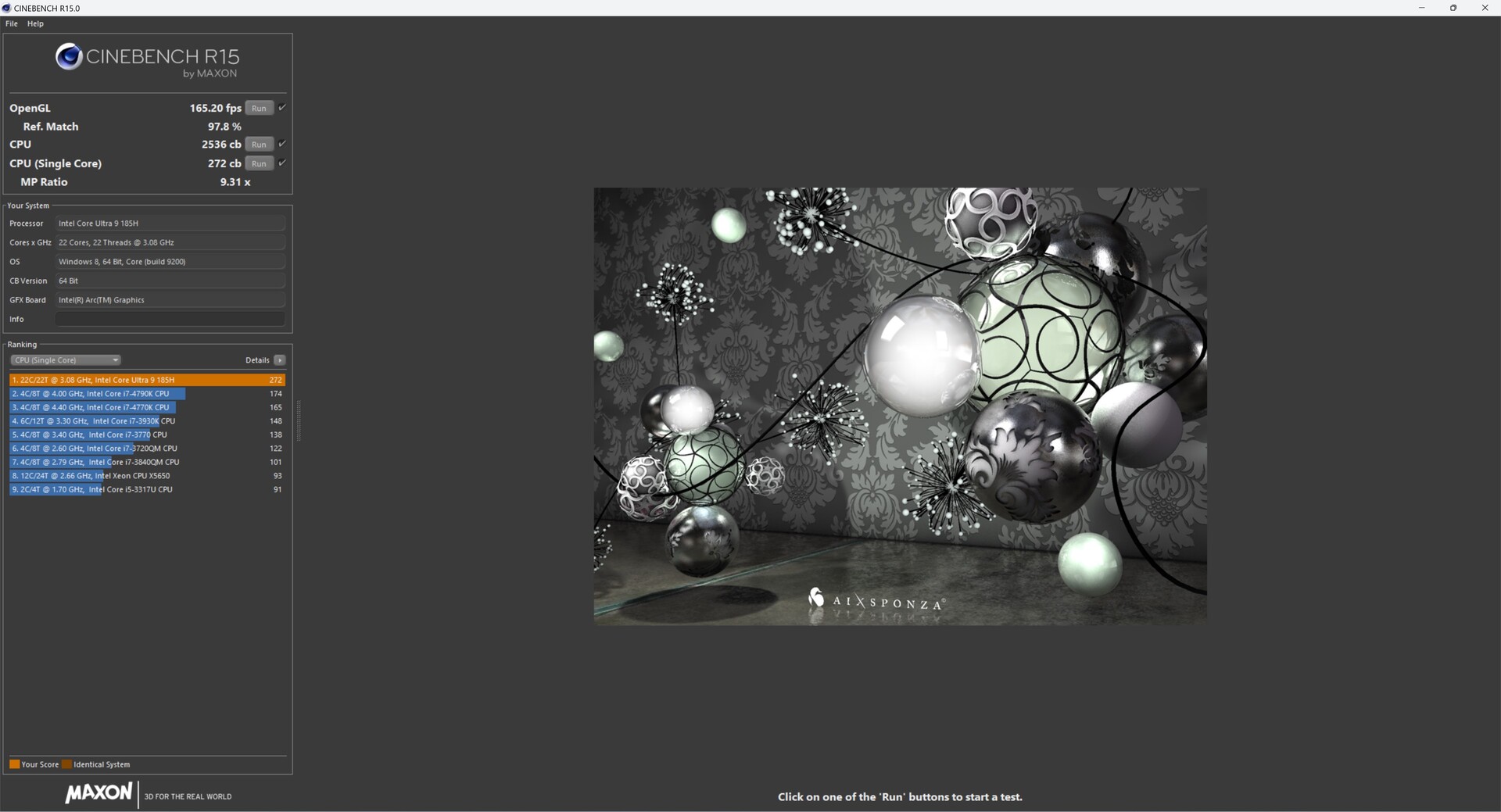

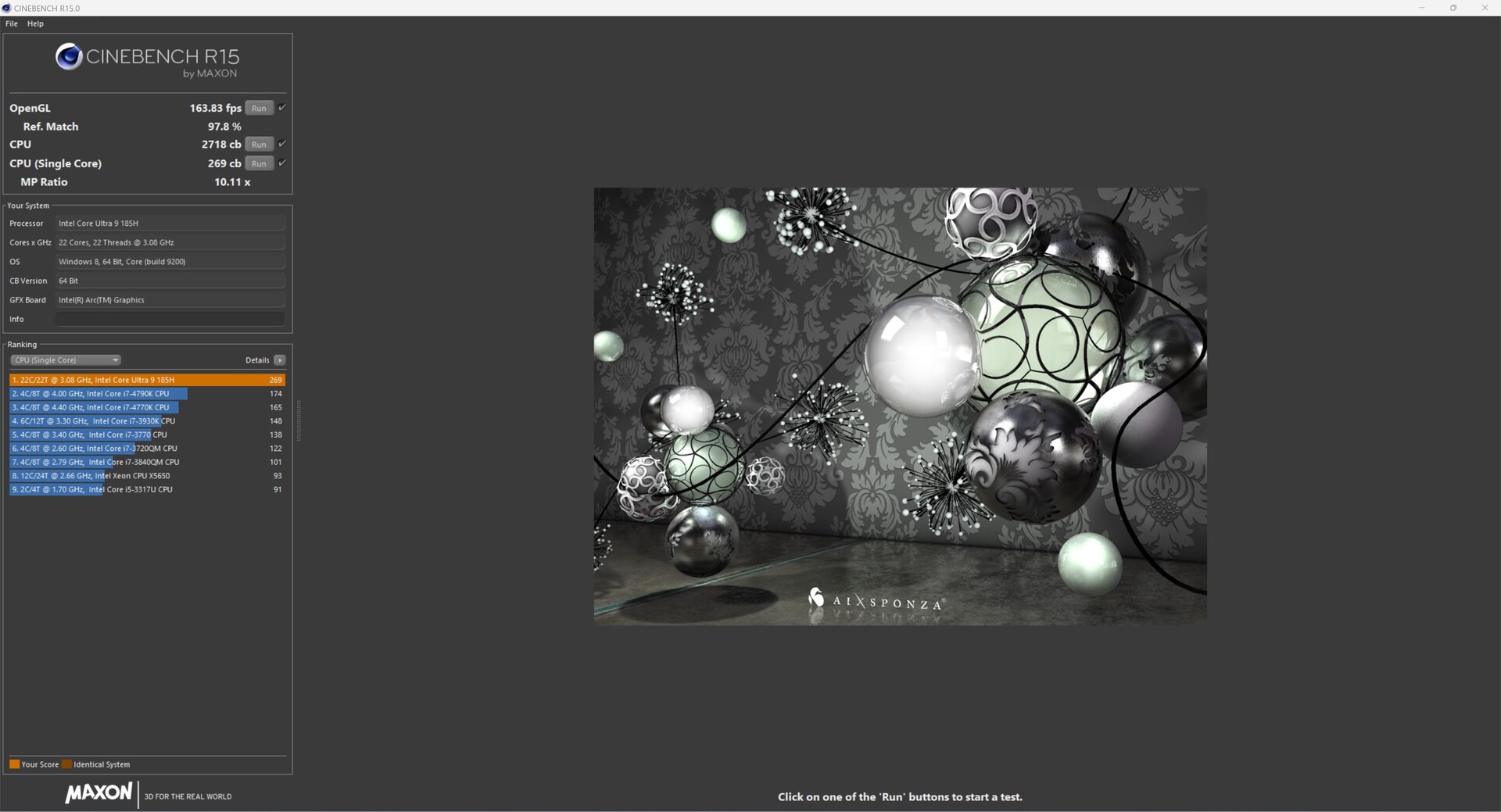

Cinebench R15
CPU Single 64Bit
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	279 Points +4%
Geekom A7 AMD Ryzen 9 7940HS	278 Points +4%
Acemagic AM18 AMD Ryzen 7 7840HS	274 Points +2%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	270 Points +1%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	268 Points
Acemagic F2A Intel Core Ultra 7 155H	258 Points -4%
Geekom XT12 Pro Intel Core i9-12900H	251 Points -6%
CPU Multi 64Bit
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	2746 Points
Acemagic F2A Intel Core Ultra 7 155H	2738 Points 0%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	2608 Points -5%
Acemagic AM18 AMD Ryzen 7 7840HS	2505 Points -9%
Geekom A7 AMD Ryzen 9 7940HS	2470 Points -10%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	2249 Points -18%
Geekom XT12 Pro Intel Core i9-12900H	2121 Points -23%

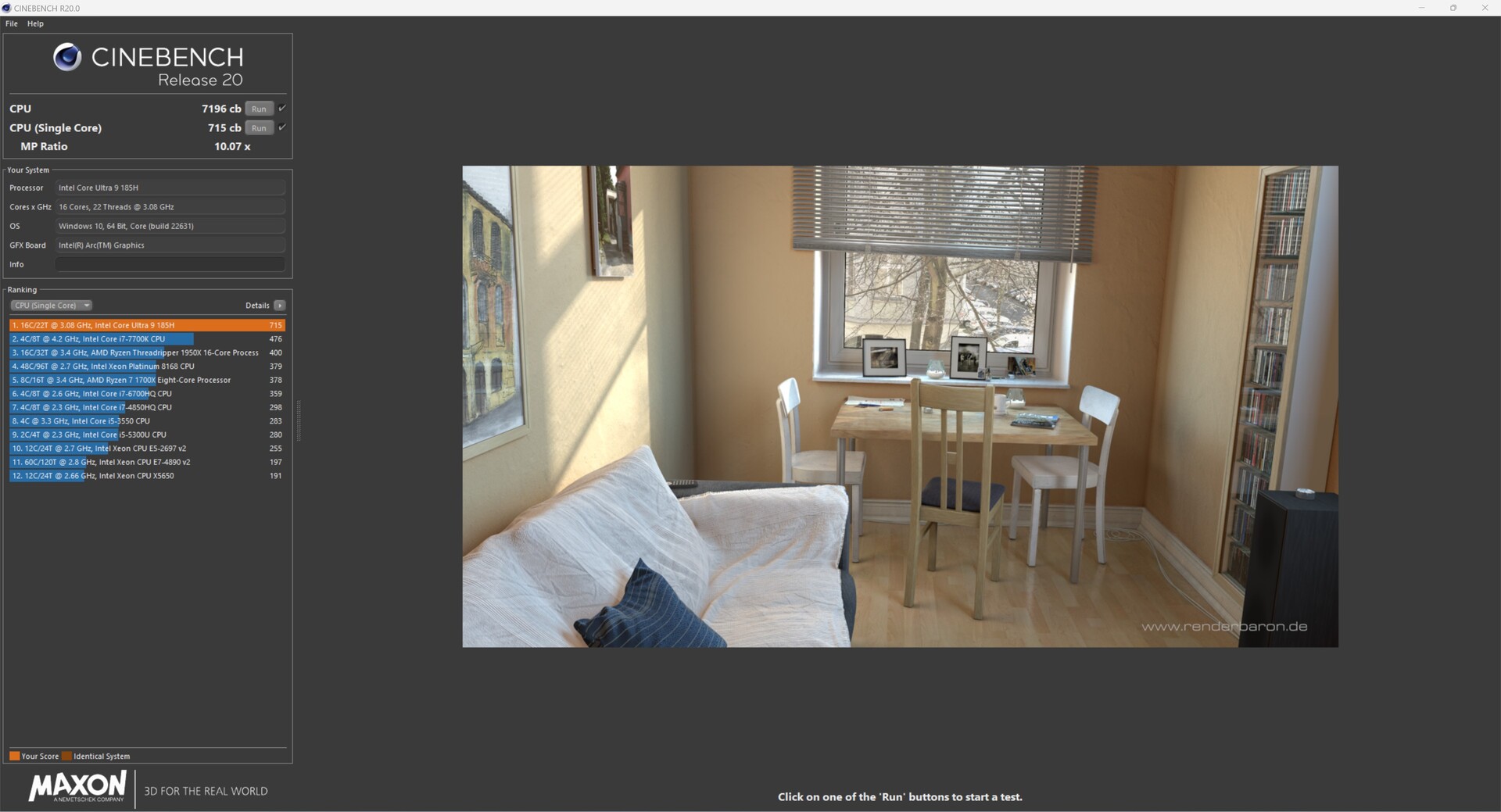

Cinebench R20
CPU (Single Core)
Minisforum Venus Series NAB9 Intel Core i9-12900HK	734 Points +3%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	715 Points
Geekom XT12 Pro Intel Core i9-12900H	701 Points -2%
Geekom A7 AMD Ryzen 9 7940HS	692 Points -3%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	690 Points -3%
Acemagic F2A Intel Core Ultra 7 155H	679 Points -5%
Acemagic AM18 AMD Ryzen 7 7840HS	673 Points -6%
CPU (Multi Core)
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	7196 Points
Acemagic F2A Intel Core Ultra 7 155H	7188 Points 0%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	6509 Points -10%
Geekom A7 AMD Ryzen 9 7940HS	6277 Points -13%
Acemagic AM18 AMD Ryzen 7 7840HS	6250 Points -13%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	5691 Points -21%
Geekom XT12 Pro Intel Core i9-12900H	4294 Points -40%

Cinebench R11.5
CPU Single 64Bit
Geekom A7 AMD Ryzen 9 7940HS	3.34 Points +2%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	3.33 Points +2%
Acemagic AM18 AMD Ryzen 7 7840HS	3.29 Points +1%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	3.27 Points
Minisforum Venus Series NAB9 Intel Core i9-12900HK	3.26 Points 0%
Acemagic F2A Intel Core Ultra 7 155H	3.13 Points -4%
Geekom XT12 Pro Intel Core i9-12900H	2.99 Points -9%
CPU Multi 64Bit
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	33.95 Points
Acemagic F2A Intel Core Ultra 7 155H	33.49 Points -1%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	30.25 Points -11%
Geekom A7 AMD Ryzen 9 7940HS	29.8 Points -12%
Acemagic AM18 AMD Ryzen 7 7840HS	29.7 Points -13%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	27.25 Points -20%
Geekom XT12 Pro Intel Core i9-12900H	21.11 Points -38%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum Venus Series NAB9 Intel Core i9-12900HK	15303 Points +6%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	14374 Points
Geekom A7 AMD Ryzen 9 7940HS	14300 Points -1%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	14177 Points -1%
Acemagic AM18 AMD Ryzen 7 7840HS	14015 Points -2%
Acemagic F2A Intel Core Ultra 7 155H	13938 Points -3%
Geekom XT12 Pro Intel Core i9-12900H	13378 Points -7%
Rendering Multiple CPUs 64Bit
Acemagic F2A Intel Core Ultra 7 155H	95005 Points +7%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	88902 Points
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	87064 Points -2%
Geekom A7 AMD Ryzen 9 7940HS	84721 Points -5%
Acemagic AM18 AMD Ryzen 7 7840HS	83726 Points -6%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	75947 Points -15%
Geekom XT12 Pro Intel Core i9-12900H	69621 Points -22%

Blender - v2.79 BMW27 CPU
Geekom XT12 Pro Intel Core i9-12900H	296 Seconds * -73%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	234 Seconds * -37%
Geekom A7 AMD Ryzen 9 7940HS	202 Seconds * -18%
Acemagic AM18 AMD Ryzen 7 7840HS	202 Seconds * -18%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	192 Seconds * -12%
Acemagic F2A Intel Core Ultra 7 155H	178 Seconds * -4%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	171 Seconds *

wPrime 2.10
32m
Geekom XT12 Pro Intel Core i9-12900H	4.111 s * -26%
Acemagic F2A Intel Core Ultra 7 155H	3.523 s * -8%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	3.454 s * -6%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	3.254 s *
Acemagic AM18 AMD Ryzen 7 7840HS	2.658 s * +18%
Geekom A7 AMD Ryzen 9 7940HS	2.648 s * +19%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	2.626 s * +19%
1024m
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	441.275 s *
Geekom XT12 Pro Intel Core i9-12900H	202.68 s * +54%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	186.394 s * +58%
Acemagic F2A Intel Core Ultra 7 155H	139.617 s * +68%
Geekom A7 AMD Ryzen 9 7940HS	98.222 s * +78%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	72.819 s * +83%
Acemagic AM18 AMD Ryzen 7 7840HS	71.922 s * +84%

X264 HD Benchmark 4.0
Pass 1
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	335.5 (329^min - 340^max) fps
Acemagic F2A Intel Core Ultra 7 155H	325 (323^min - 328^max) fps -3%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	317.5 (292^min - 319^max) fps -5%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	298 (288^min - 300^max) fps -11%
Geekom A7 AMD Ryzen 9 7940HS	292.5 (291^min - 296^max) fps -13%
Acemagic AM18 AMD Ryzen 7 7840HS	281.5 (277^min - 286^max) fps -16%
Geekom XT12 Pro Intel Core i9-12900H	262 (259^min - 282^max) fps -22%
Pass 2
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	158.2 (157.4^min - 158.8^max) fps
Acemagic F2A Intel Core Ultra 7 155H	154.15 (153.8^min - 154.3^max) fps -3%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	149.3 (148.8^min - 149.8^max) fps -6%
Acemagic AM18 AMD Ryzen 7 7840HS	144.1 (143.9^min - 145.6^max) fps -9%
Geekom A7 AMD Ryzen 9 7940HS	140.8 (138.2^min - 144.7^max) fps -11%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	125.05 (112.4^min - 132^max) fps -21%
Geekom XT12 Pro Intel Core i9-12900H	92.2 (91^min - 114.5^max) fps -42%

WinRAR - Result
Minisforum Venus Series NAB9 Intel Core i9-12900HK	8735 KB/s +10%
Geekom XT12 Pro Intel Core i9-12900H	7945 KB/s 0%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	7940 KB/s
Acemagic F2A Intel Core Ultra 7 155H	7723 KB/s -3%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	7699 KB/s -3%
Geekom A7 AMD Ryzen 9 7940HS	7490 KB/s -6%
Acemagic AM18 AMD Ryzen 7 7840HS	6428 KB/s -19%

TrueCrypt
AES Mean 100MB
Geekom A7 AMD Ryzen 9 7940HS	15.1 GB/s +34%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	14.9 GB/s +32%
Acemagic AM18 AMD Ryzen 7 7840HS	14.7 GB/s +30%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	13 GB/s +15%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	11.3 GB/s
Geekom XT12 Pro Intel Core i9-12900H	11.2 GB/s -1%
Acemagic F2A Intel Core Ultra 7 155H	10.6 GB/s -6%
Twofish Mean 100MB
Minisforum Venus Series NAB9 Intel Core i9-12900HK	2.2 GB/s +22%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	2.1 GB/s +17%
Geekom A7 AMD Ryzen 9 7940HS	2.1 GB/s +17%
Acemagic AM18 AMD Ryzen 7 7840HS	2.1 GB/s +17%
Geekom XT12 Pro Intel Core i9-12900H	1.9 GB/s +6%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1.8 GB/s
Acemagic F2A Intel Core Ultra 7 155H	1.7 GB/s -6%
Serpent Mean 100MB
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	1.3 GB/s +18%
Geekom A7 AMD Ryzen 9 7940HS	1.3 GB/s +18%
Acemagic AM18 AMD Ryzen 7 7840HS	1.3 GB/s +18%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	1.2 GB/s +9%
Geekom XT12 Pro Intel Core i9-12900H	1.1 GB/s 0%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1.1 GB/s
Acemagic F2A Intel Core Ultra 7 155H	1 GB/s -9%

Geekbench 5.5
Multi-Core
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	13392 Points
Acemagic F2A Intel Core Ultra 7 155H	12662 Points -5%
Geekom A7 AMD Ryzen 9 7940HS	12261 Points -8%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	12177 Points -9%
Acemagic AM18 AMD Ryzen 7 7840HS	12049 Points -10%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	10378 Points -23%
Geekom XT12 Pro Intel Core i9-12900H	10028 Points -25%
Single-Core
Geekom A7 AMD Ryzen 9 7940HS	2008 Points +8%
Acemagic AM18 AMD Ryzen 7 7840HS	1946 Points +5%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	1943 Points +5%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	1866 Points +1%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1856 Points
Geekom XT12 Pro Intel Core i9-12900H	1790 Points -4%
Acemagic F2A Intel Core Ultra 7 155H	1746 Points -6%

Geekbench 5.0
5.0 Multi-Core
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	13228 Points
Acemagic F2A Intel Core Ultra 7 155H	12438 Points -6%
Geekom A7 AMD Ryzen 9 7940HS	12127 Points -8%
Acemagic AM18 AMD Ryzen 7 7840HS	12019 Points -9%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	11933 Points -10%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	10276 Points -22%
Geekom XT12 Pro Intel Core i9-12900H	9892 Points -25%
5.0 Single-Core
Geekom A7 AMD Ryzen 9 7940HS	1918 Points +5%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	1900 Points +4%
Acemagic AM18 AMD Ryzen 7 7840HS	1870 Points +3%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1821 Points
Minisforum Venus Series NAB9 Intel Core i9-12900HK	1795 Points -1%
Geekom XT12 Pro Intel Core i9-12900H	1710 Points -6%
Acemagic F2A Intel Core Ultra 7 155H	1708 Points -6%

Geekbench 4.4
64 Bit Single-Core Score
Geekom A7 AMD Ryzen 9 7940HS	8253 Points +9%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	8048 Points +6%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	7932 Points +4%
Acemagic AM18 AMD Ryzen 7 7840HS	7924 Points +4%
Geekom XT12 Pro Intel Core i9-12900H	7635 Points 0%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	7602 Points
Acemagic F2A Intel Core Ultra 7 155H	6927 Points -9%
64 Bit Multi-Core Score
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	48743 Points +2%
Geekom A7 AMD Ryzen 9 7940HS	48723 Points +2%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	47960 Points
Acemagic AM18 AMD Ryzen 7 7840HS	47599 Points -1%
Acemagic F2A Intel Core Ultra 7 155H	45250 Points -6%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	39510 Points -18%
Geekom XT12 Pro Intel Core i9-12900H	37359 Points -22%

3DMark 11 - 1280x720 Performance Physics
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	22960 Points +5%
Acemagic AM18 AMD Ryzen 7 7840HS	22786 Points +4%
Geekom A7 AMD Ryzen 9 7940HS	22600 Points +3%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	21875 Points
Acemagic F2A Intel Core Ultra 7 155H	20846 Points -5%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	18553 Points -15%
Geekom XT12 Pro Intel Core i9-12900H	16634 Points -24%

7-Zip 18.03
7z b 4
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	72684 MIPS +1%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	71934 MIPS
Acemagic AM18 AMD Ryzen 7 7840HS	70723 MIPS -2%
Geekom A7 AMD Ryzen 9 7940HS	70707 MIPS -2%
Acemagic F2A Intel Core Ultra 7 155H	66438 MIPS -8%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	55620 MIPS -23%
Geekom XT12 Pro Intel Core i9-12900H	47146 MIPS -34%
7z b 4 -mmt1
Geekom A7 AMD Ryzen 9 7940HS	6744 MIPS +21%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	6563 MIPS +18%
Acemagic AM18 AMD Ryzen 7 7840HS	6545 MIPS +18%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	6136 MIPS +10%
Geekom XT12 Pro Intel Core i9-12900H	5881 MIPS +6%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	5560 MIPS
Acemagic F2A Intel Core Ultra 7 155H	5485 MIPS -1%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	20.9 fps 0%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	20.9 fps
Geekom A7 AMD Ryzen 9 7940HS	20.6 fps -1%
Acemagic AM18 AMD Ryzen 7 7840HS	20.5 fps -2%
Acemagic F2A Intel Core Ultra 7 155H	19.6 fps -6%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	16.2 fps -22%
Geekom XT12 Pro Intel Core i9-12900H	12.3 fps -41%

R Benchmark 2.5 - Overall mean
Acemagic F2A Intel Core Ultra 7 155H	0.4652 sec * -1%
Geekom XT12 Pro Intel Core i9-12900H	0.4632 sec * -0%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	0.4627 sec *
Acemagic AM18 AMD Ryzen 7 7840HS	0.4398 sec * +5%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	0.4391 sec * +5%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	0.4354 sec * +6%
Geekom A7 AMD Ryzen 9 7940HS	0.4351 sec * +6%

LibreOffice - 20 Documents To PDF
Geekom A7 AMD Ryzen 9 7940HS	54.8 s * -11%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	53.9 s * -9%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	49.5 s *
Acemagic AM18 AMD Ryzen 7 7840HS	47.7 s * +4%
Acemagic F2A Intel Core Ultra 7 155H	44.5 s * +10%
Geekom XT12 Pro Intel Core i9-12900H	39.6 s * +20%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	37.2 s * +25%

WebXPRT 3 - Overall
Geekom A7 AMD Ryzen 9 7940HS	333 Points +26%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	324 Points +23%
Acemagic AM18 AMD Ryzen 7 7840HS	320 Points +21%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	301 Points +14%
Geekom XT12 Pro Intel Core i9-12900H	291 Points +10%
Acemagic F2A Intel Core Ultra 7 155H	276 Points +5%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	264 Points

Mozilla Kraken 1.1 - Total
Acemagic F2A Intel Core Ultra 7 155H	535 ms * -1%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	532 ms *
Acemagic AM18 AMD Ryzen 7 7840HS	518 ms * +3%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	517 ms * +3%
Geekom XT12 Pro Intel Core i9-12900H	511 ms * +4%
Geekom A7 AMD Ryzen 9 7940HS	503 ms * +5%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	499 ms * +6%

3DMark
1920x1080 Fire Strike Physics
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	28906 Points +11%
Acemagic AM18 AMD Ryzen 7 7840HS	27120 Points +4%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	26093 Points 0%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	26038 Points
Geekom A7 AMD Ryzen 9 7940HS	25816 Points -1%
Acemagic F2A Intel Core Ultra 7 155H	25043 Points -4%
Geekom XT12 Pro Intel Core i9-12900H	22242 Points -15%
2560x1440 Time Spy CPU
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	11481 Points
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	11159 Points -3%
Acemagic AM18 AMD Ryzen 7 7840HS	10926 Points -5%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	10402 Points -9%
Geekom A7 AMD Ryzen 9 7940HS	10397 Points -9%
Acemagic F2A Intel Core Ultra 7 155H	10014 Points -13%
Geekom XT12 Pro Intel Core i9-12900H	7985 Points -30%

Super Pi mod 1.5 XS 1M - 1M
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	8.774 s * -30%
Geekom XT12 Pro Intel Core i9-12900H	7.454 s * -10%
Geekom A7 AMD Ryzen 9 7940HS	7.442 s * -10%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	7.281 s * -8%
Acemagic F2A Intel Core Ultra 7 155H	7.168 s * -6%
Acemagic AM18 AMD Ryzen 7 7840HS	7.112 s * -5%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	6.751 s *

Super Pi mod 1.5 XS 2M - 2M
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	21.271 s * -43%
Geekom A7 AMD Ryzen 9 7940HS	18.402 s * -24%
Acemagic AM18 AMD Ryzen 7 7840HS	17.697 s * -19%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	16.498 s * -11%
Geekom XT12 Pro Intel Core i9-12900H	16.424 s * -10%
Acemagic F2A Intel Core Ultra 7 155H	16.125 s * -8%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	14.879 s *

Super Pi Mod 1.5 XS 32M - 32M
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	724.411 s * -138%
Acemagic AM18 AMD Ryzen 7 7840HS	655.388 s * -115%
Geekom A7 AMD Ryzen 9 7940HS	529.929 s * -74%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	397.363 s * -31%
Geekom XT12 Pro Intel Core i9-12900H	396.475 s * -30%
Acemagic F2A Intel Core Ultra 7 155H	394.754 s * -30%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	304.446 s *

Geekbench 6.0
Single-Core
Geekom A7 AMD Ryzen 9 7940HS	2603 Points +8%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	2572 Points +7%
Acemagic AM18 AMD Ryzen 7 7840HS	2533 Points +5%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	2494 Points +3%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	2410 Points
Geekom XT12 Pro Intel Core i9-12900H	2325 Points -4%
Acemagic F2A Intel Core Ultra 7 155H	2313 Points -4%
Multi-Core
Geekom A7 AMD Ryzen 9 7940HS	12882 Points +1%
Acemagic AM18 AMD Ryzen 7 7840HS	12742 Points 0%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	12735 Points
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	12727 Points 0%
Acemagic F2A Intel Core Ultra 7 155H	12061 Points -5%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	10342 Points -19%
Geekom XT12 Pro Intel Core i9-12900H	9930 Points -22%

Geekbench 6.3
Single-Core
Geekom A7 AMD Ryzen 9 7940HS	2704 Points +9%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	2670 Points +7%
Acemagic AM18 AMD Ryzen 7 7840HS	2639 Points +6%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	2611 Points +5%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	2492 Points
Geekom XT12 Pro Intel Core i9-12900H	2464 Points -1%
Acemagic F2A Intel Core Ultra 7 155H	2410 Points -3%
Multi-Core
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	13473 Points +1%
Geekom A7 AMD Ryzen 9 7940HS	13470 Points +1%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	13356 Points
Acemagic AM18 AMD Ryzen 7 7840HS	13161 Points -1%
Acemagic F2A Intel Core Ultra 7 155H	12385 Points -7%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	10721 Points -20%
Geekom XT12 Pro Intel Core i9-12900H	10233 Points -23%

* ... smaller is better

Performance Rating
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	97.5 pt
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	94.1 pt
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	93.9 pt
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	80.6 pt
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	76.6 pt
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	59.2 pt
Average of class Mini PC	54.9 pt
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	51.1 pt

AIDA64 / FP32 Ray-Trace
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	26889 KRay/s +55%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	25725 KRay/s +49%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	25359 KRay/s +46%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	17544 KRay/s +1%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	17312 KRay/s
Average of class Mini PC (561 - 51004, n=119, last 2 years)	12449 KRay/s -28%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	12389 KRay/s -28%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	10476 KRay/s -39%

AIDA64 / FPU Julia
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	113684 Points +25%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	108506 Points +19%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	107540 Points +18%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	91112 Points
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	88829 Points -3%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	64350 Points -29%
Average of class Mini PC (3604 - 214250, n=119, last 2 years)	62645 Points -31%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	54166 Points -41%

AIDA64 / CPU SHA3
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	4953 MB/s +14%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	4769 MB/s +10%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	4753 MB/s +9%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	4343 MB/s
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	4246 MB/s -2%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	3028 MB/s -30%
Average of class Mini PC (225 - 9399, n=119, last 2 years)	2760 MB/s -36%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	2504 MB/s -42%

AIDA64 / CPU Queen
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	118174 Points +35%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	117103 Points +34%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	115133 Points +32%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	99851 Points +14%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	89748 Points +3%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	87291 Points
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	82291 Points -6%
Average of class Mini PC (8172 - 184747, n=119, last 2 years)	77998 Points -11%

AIDA64 / FPU SinJulia
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	15145 Points +41%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	14663 Points +36%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	14590 Points +36%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	10759 Points
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	10247 Points -5%
Average of class Mini PC (408 - 29064, n=119, last 2 years)	8538 Points -21%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	8417 Points -22%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	7317 Points -32%

AIDA64 / FPU Mandel
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	60809 Points +36%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	57881 Points +29%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	57402 Points +28%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	45718 Points +2%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	44874 Points
Average of class Mini PC (1958 - 113499, n=119, last 2 years)	32689 Points -27%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	31933 Points -29%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	26850 Points -40%

AIDA64 / CPU AES
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	170745 MB/s +11%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	164414 MB/s +7%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	163604 MB/s +6%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	154066 MB/s
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	144741 MB/s -6%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	112254 MB/s -27%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	95500 MB/s -38%
Average of class Mini PC (3691 - 325960, n=119, last 2 years)	85358 MB/s -45%

AIDA64 / CPU ZLib
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	1233 MB/s
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	1183 MB/s -4%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	1075 MB/s -13%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	1042 MB/s -15%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	1020 MB/s -17%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	870 MB/s -29%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	745 MB/s -40%
Average of class Mini PC (74.8 - 2039, n=119, last 2 years)	714 MB/s -42%

AIDA64 / FP64 Ray-Trace
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	14284 KRay/s +54%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	13617 KRay/s +47%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	13517 KRay/s +46%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	9284 KRay/s 0%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	9270 KRay/s
Average of class Mini PC (308 - 26952, n=119, last 2 years)	6658 KRay/s -28%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	6325 KRay/s -32%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s -38%

AIDA64 / CPU PhotoWorxx
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	45560 MPixel/s
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	40655 MPixel/s -11%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	40570 MPixel/s -11%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	40460 MPixel/s -11%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	33092 MPixel/s -27%
Average of class Mini PC (4408 - 50500, n=119, last 2 years)	27805 MPixel/s -39%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	24903 MPixel/s -45%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	24858 MPixel/s -45%

性能模式下的 Cinebench 结果

平衡模式下的 Cinebench 结果

节能模式下的 Cinebench 结果

Cinebench R10 Rendering Single 32Bit

10300

Cinebench R10 Shading 64Bit

19519 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

88902 Points

Cinebench R10 Rendering Single CPUs 64Bit

14374 Points

Cinebench R10 Shading 32Bit

18495

Cinebench R10 Rendering Multiple CPUs 32Bit

59935

Cinebench R11.5 CPU Single 32Bit

2.81 Points

Cinebench R11.5 CPU Multi 32Bit

29.41 Points

Cinebench R11.5 OpenGL 32Bit

110.25 fps

Cinebench R11.5 CPU Single 64Bit

3.27 Points

Cinebench R11.5 CPU Multi 64Bit

33.95 Points

Cinebench R11.5 OpenGL 64Bit

107.11 fps

Cinebench R15 CPU Single 64Bit

268 Points

Cinebench R15 CPU Multi 64Bit

2746 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

156.92 fps

Cinebench R20 CPU (Single Core)

715 Points

Cinebench R20 CPU (Multi Core)

7196 Points

Cinebench R23 Multi Core

18016 Points

Cinebench R23 Single Core

1851 Points

Cinebench 2024 CPU Single Core

110 Points

Cinebench 2024 CPU Multi Core

1067 Points

Help

... in comparison

Minisforum AtomMan X7 Ti 与 Cinebench R15 多环对比

Cinebench R15 连续循环并没有给 Minisforum AtomMan X7 Ti 带来大问题。在性能模式下，尽管 CPU 温度在负载情况下未达到 70 °C，但测试系统仍能轻松达到 65 瓦的最大功耗。与 Acemagic F2A 相比，我们的测试设备能提供稍好的结果。尽管如此，Minisforum 还是不得不提出这样一个问题：仅 65 瓦的功耗限制是否意味着浪费了部分性能？

Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Intel Core Ultra 9 185H: Ø2784 (2721.64-2831.86)

Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Ryzen 7 7840HS: Ø2605 (2564.1-2649.53)

Acemagic F2A Intel Core Ultra 7 155H, Intel Core Ultra 7 155H: Ø2759 (2690.7-2800.92)

Geekom XT12 Pro Intel Core i9-12900H, Intel Core i9-12900H: Ø1545 (1395.97-2133.22)

Geekom A7 AMD Ryzen 9 7940HS, AMD Ryzen 9 7940HS: Ø2410 (2285.58-2581.81)

Minisforum Venus Series NAB9 Intel Core i9-12900HK, Intel Core i9-12900HK: Ø1981 (1895.47-2262.7)

Acemagic AM18 AMD Ryzen 7 7840HS, AMD Ryzen 7 7840HS: Ø2489 (2476.93-2539.84)

系统性能

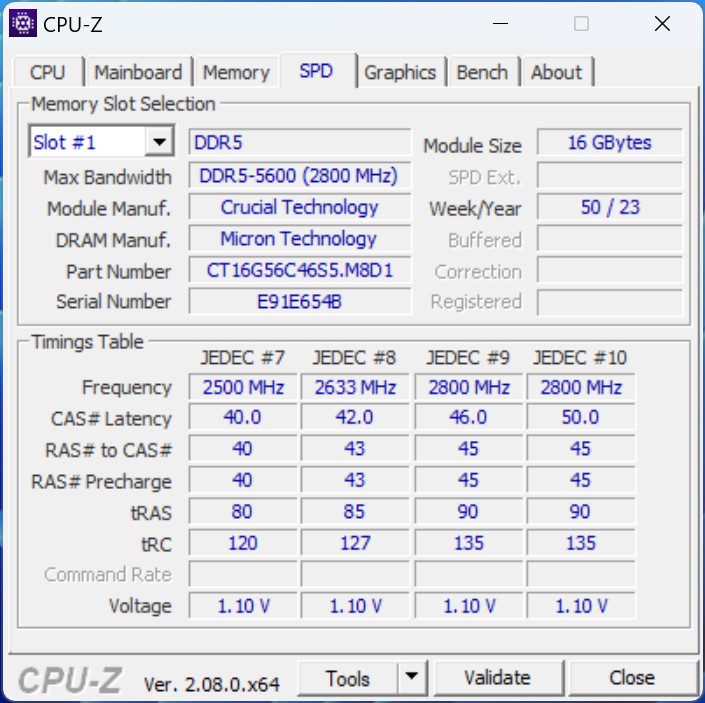

我们的测试样品在系统性能测试中表现相当出色。英特尔酷睿 Ultra 9 185H 与已安装的 DDR5 内存配合使用，性能略高于竞争对手。不过，该系统芯片还可以与速度更快的内存（LPDDR5/x 7,467 MT/s）结合使用。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	7651 Points +2%
Minisforum EliteMini UM780 XTX, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024Q-A0	7526 Points 0%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	7510 Points
Geekom A7, AMD Ryzen 9 7940HS AMD Radeon 780M, Acer N5000	7455 Points -1%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	7120 Points -5%
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	6435 Points -14%
Geekom XT12 Pro, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB	6295 Points -16%

PCMark 10 / Essentials
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	11591 Points +5%
Geekom XT12 Pro, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB	11273 Points +2%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	11125 Points +1%
Geekom A7, AMD Ryzen 9 7940HS AMD Radeon 780M, Acer N5000	11114 Points +1%
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	11097 Points +1%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	11030 Points
Minisforum EliteMini UM780 XTX, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024Q-A0	11011 Points 0%

PCMark 10 / Productivity
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	10970 Points +5%
Minisforum EliteMini UM780 XTX, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024Q-A0	10832 Points +3%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	10484 Points
Geekom A7, AMD Ryzen 9 7940HS AMD Radeon 780M, Acer N5000	10291 Points -2%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	8901 Points -15%
Geekom XT12 Pro, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB	8114 Points -23%
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	7924 Points -24%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	1986 Points +19%
Geekom A7, AMD Ryzen 9 7940HS AMD Radeon 780M, Acer N5000	1861 Points +11%
Geekom XT12 Pro, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB	1860 Points +11%
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1828 Points +9%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1802 Points +8%
Minisforum EliteMini UM780 XTX, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024Q-A0	1761 Points +5%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	1675 Points

CrossMark / Responsiveness
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	2205 Points +60%
Geekom XT12 Pro, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB	1919 Points +39%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1700 Points +23%
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1541 Points +12%
Geekom A7, AMD Ryzen 9 7940HS AMD Radeon 780M, Acer N5000	1540 Points +12%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	1378 Points
Minisforum EliteMini UM780 XTX, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024Q-A0	1361 Points -1%

CrossMark / Creativity
Geekom A7, AMD Ryzen 9 7940HS AMD Radeon 780M, Acer N5000	2072 Points +10%
Minisforum EliteMini UM780 XTX, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024Q-A0	2040 Points +8%
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2030 Points +8%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1929 Points +2%
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	1907 Points +1%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	1883 Points
Geekom XT12 Pro, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB	1870 Points -1%

CrossMark / Productivity
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	1996 Points +26%
Geekom XT12 Pro, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB	1831 Points +15%
Geekom A7, AMD Ryzen 9 7940HS AMD Radeon 780M, Acer N5000	1781 Points +12%
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1743 Points +10%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1717 Points +8%
Minisforum EliteMini UM780 XTX, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024Q-A0	1656 Points +4%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	1589 Points

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	71990 MB/s
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	68299 MB/s -5%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	67161 MB/s -7%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	67039 MB/s -7%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	62397 MB/s -13%
Average of class Mini PC (6481 - 89287, n=119, last 2 years)	47585 MB/s -34%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	45792 MB/s -36%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	44442 MB/s -38%

AIDA64 / Memory Read
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	75449 MB/s
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	64323 MB/s -15%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	61867 MB/s -18%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	61542 MB/s -18%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	61463 MB/s -19%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	48963 MB/s -35%
Average of class Mini PC (6914 - 99171, n=119, last 2 years)	48328 MB/s -36%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	47960 MB/s -36%

AIDA64 / Memory Write
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	86810 MB/s +23%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	86693 MB/s +23%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	86273 MB/s +22%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	70596 MB/s
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	65057 MB/s -8%
Average of class Mini PC (6862 - 98583, n=119, last 2 years)	52056 MB/s -26%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	47201 MB/s -33%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	45952 MB/s -35%

AIDA64 / Memory Latency
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	149 ns * -2%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	146.1 ns *
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	92 ns * +37%
Average of class Mini PC (44.9 - 184.8, n=119, last 2 years)	91.9 ns * +37%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	89 ns * +39%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	87.9 ns * +40%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	79.9 ns * +45%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	74.7 ns * +49%

* ... smaller is better

NPU 性能

在英特尔酷睿至尊 9 185H中包含一个神经处理单元，作为 SoC 的独立部分，它可以特别高效地计算人工智能应用。我们使用 UL Procyon AI Interface 基准程序对其性能进行了更深入的研究。在这里，我们的测试样本无法超越竞争对手，尽管系统中使用了所谓更快的 CPU。测试重复了多次，结果几乎完全相同。

UL Procyon for Windows
Overall Score Integer NPU
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	499 Points +36%
Acer Swift Go 14 SFG14-72 Intel Core Ultra 7 155H, Arc 8-Core	493 Points +34%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	368 Points
Overall Score Integer GPU
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 AMD Ryzen 9 7950X, Arc A770	1500 Points +185%
Acer Predator BiFrost Arc A750 OC AMD Ryzen 9 7950X, Arc A750	1433 Points +172%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	684 Points +30%
Minisforum Neptune Series HN2673 Intel Core i7-12650H, A730M	597 Points +13%
Acer Swift Go 14 SFG14-72 Intel Core Ultra 7 155H, Arc 8-Core	541 Points +3%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	526 Points

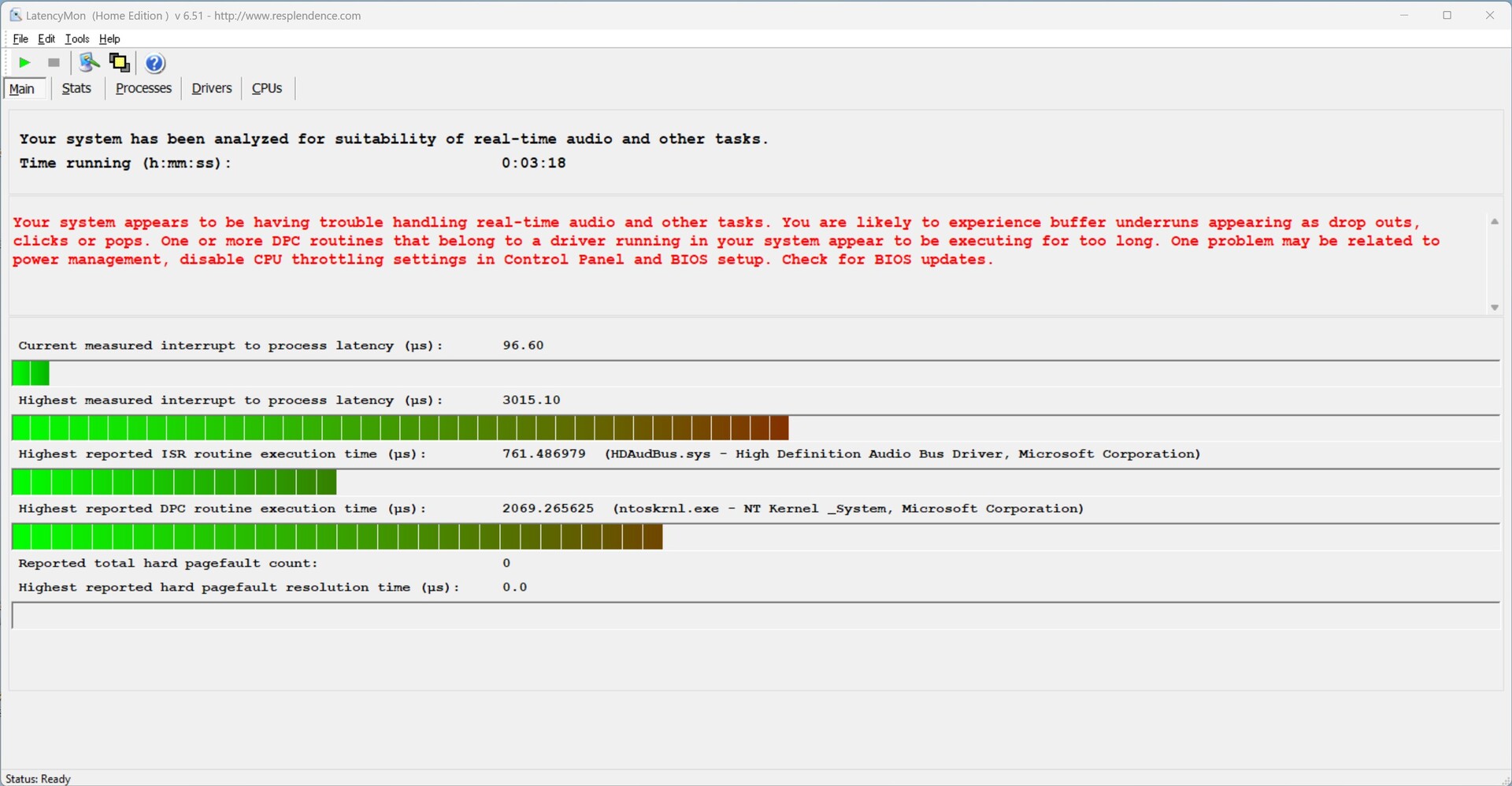

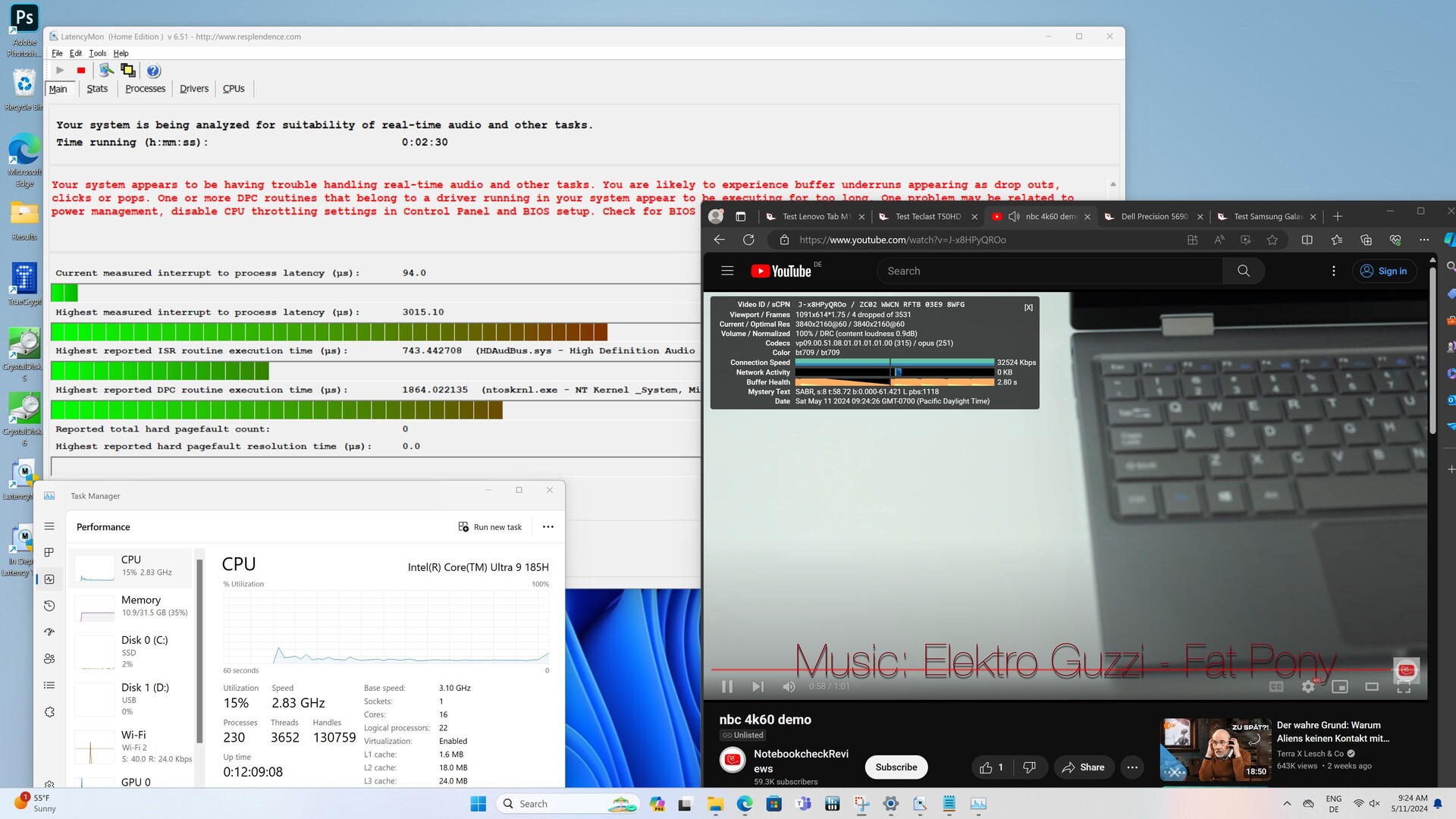

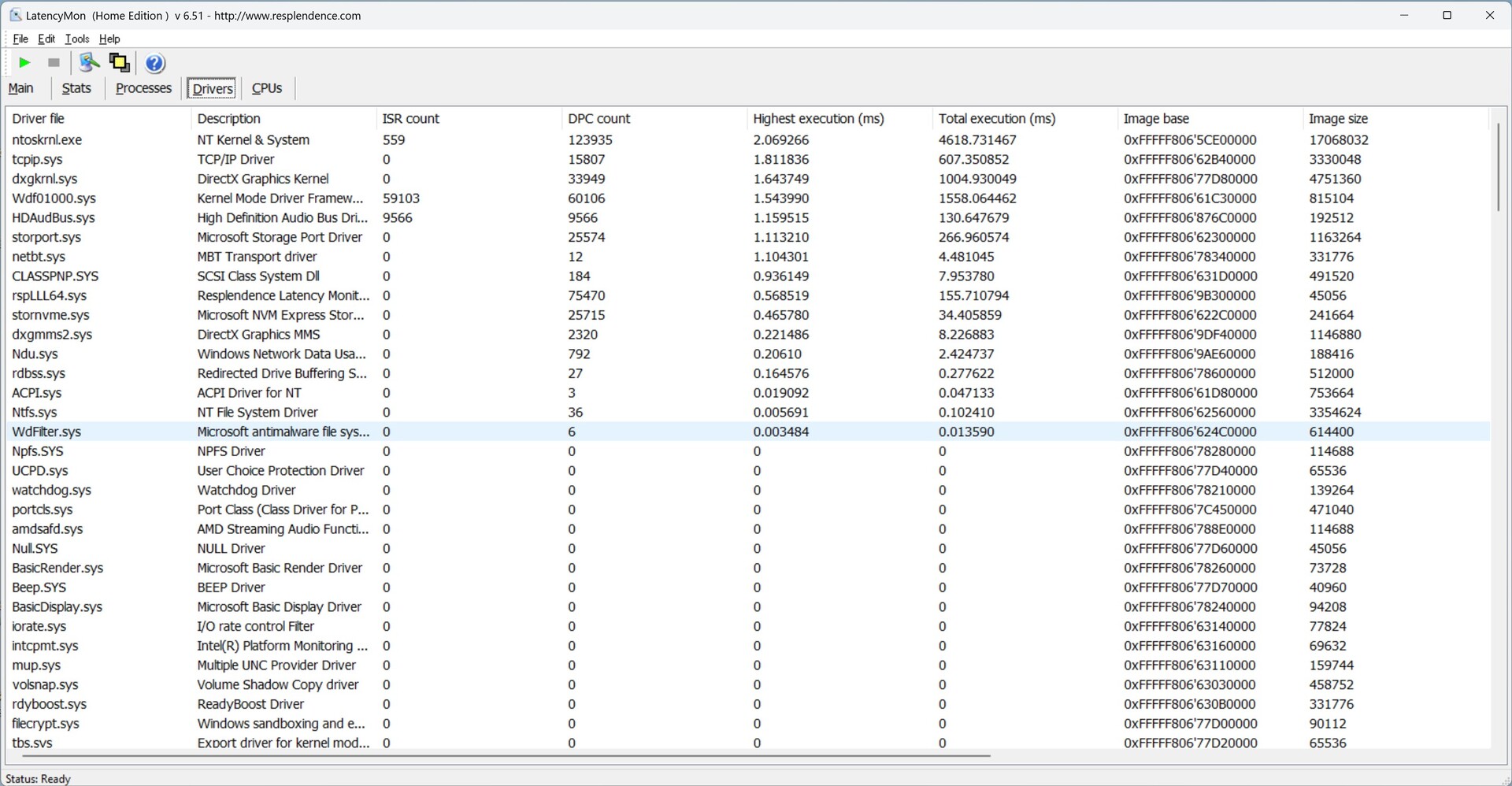

DPC 延迟

Minisforum AtomMan X7 Ti 的延迟并不理想。在 Edge 浏览器中上网时，我们已经看到了延迟的增加，而在播放 4K 测试视频时，延迟又略有增加。不过，这款迷你电脑在播放方面没有任何问题。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	2724 μs * -32%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	2151 μs * -4%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	2069.2 μs *
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	1616.1 μs * +22%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	1178.9 μs * +43%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	1026 μs * +50%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	900 μs * +57%

* ... smaller is better

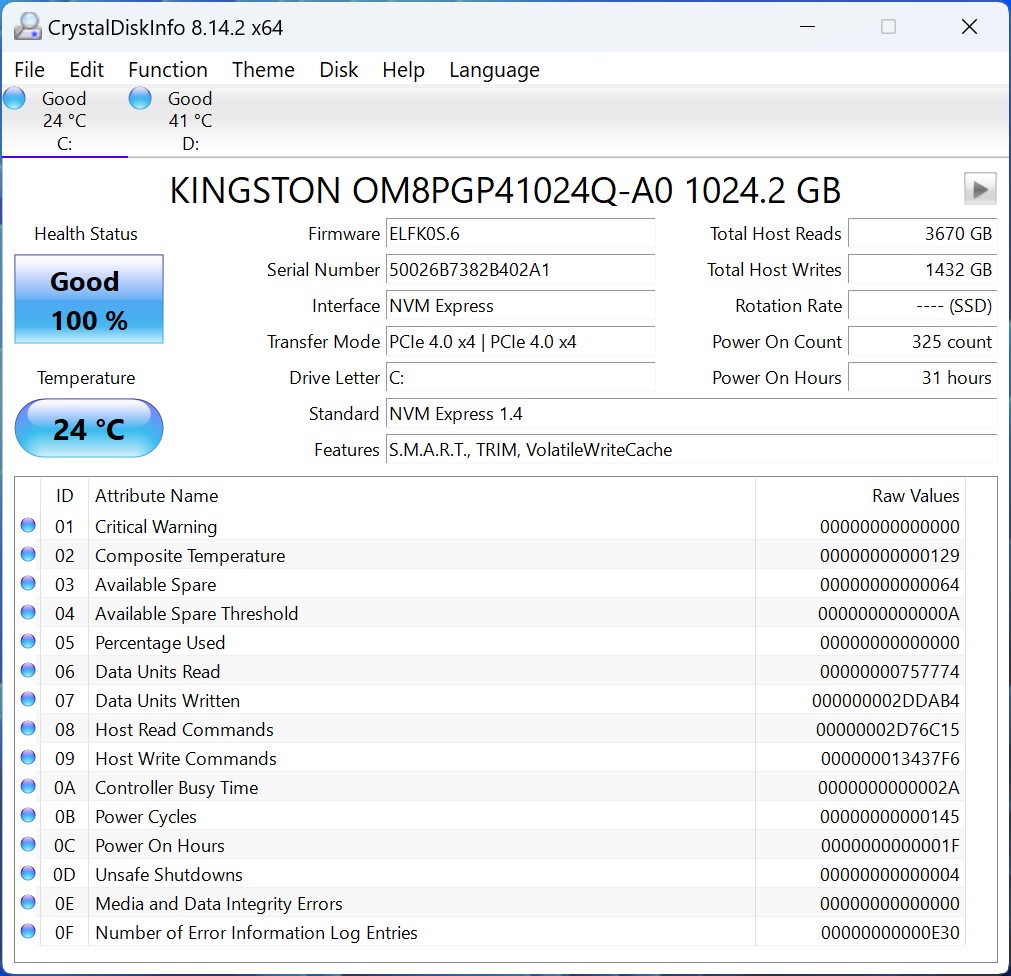

大容量存储器

Minisforum AtomMan X7 Ti 使用的固态硬盘与 Minisforum EliteMini UM780 XTX.金士顿的这款产品使用 M.2-2280 接口，运行速度为 PCIe 4.0x4。这款固态硬盘在测试中表现出色，在日常使用中性能卓越。不过，该型号并非速度最快的产品之一，因此我们的测试设备只能排在中场位置。在散热方面，我们看到了一个出色的解决方案：固态硬盘上有一个大型散热器，同时覆盖了 M.2-2280 和 M.2-2230 插槽。这样就能在持续负载的情况下保持稳定的性能，这是所有竞争对手都无法做到的。Minisforum AtomMan X7 Ti 可配备两个固态硬盘。

有关进一步的比较和基准，请参阅我们的比较表。

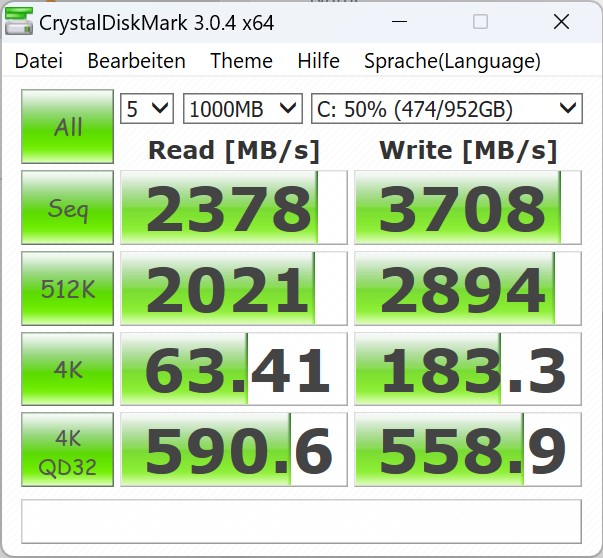

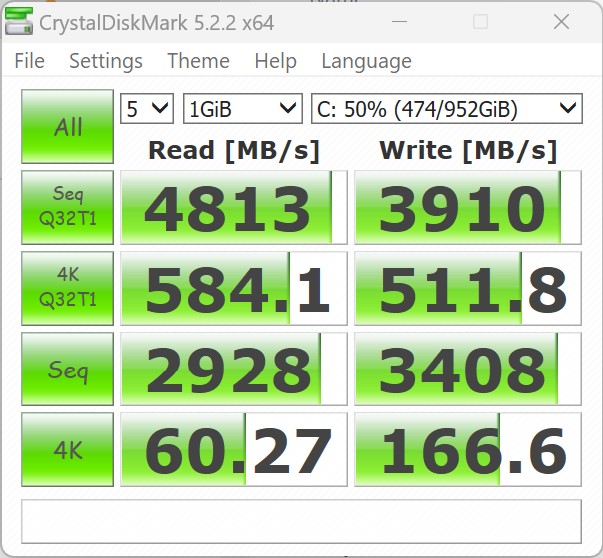

CrystalDiskMark 3.0

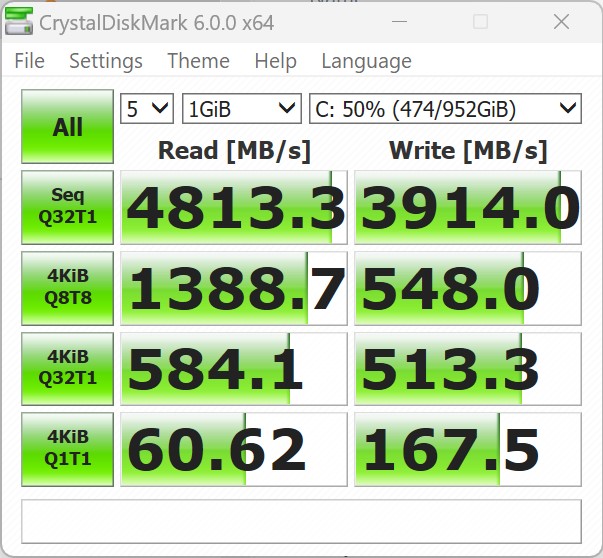

CrystalDiskMark 5.2 / 6

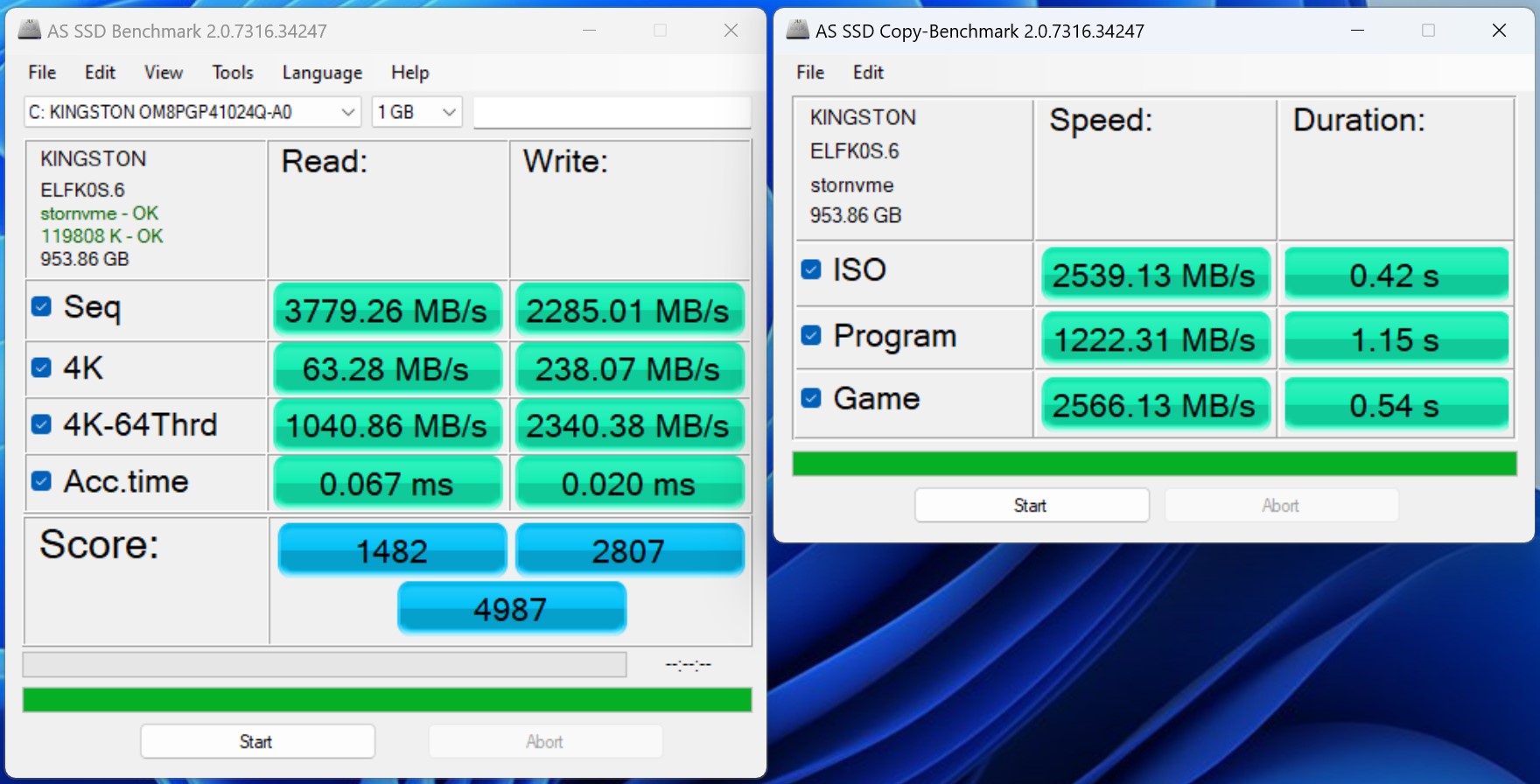

AS SSD

DiskSpd

Kingston OM8PGP41024Q-A0

Sequential Read: 2378 MB/s

Sequential Write: 3708 MB/s

512K Read: 2021 MB/s

512K Write: 2894 MB/s

4K Read: 63.41 MB/s

4K Write: 183.3 MB/s

4K QD32 Read: 590.6 MB/s

4K QD32 Write: 558.9 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	94 pt
Geekom XT12 Pro Lexar SSD NM7A1 1TB	72.6 pt
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	68.9 pt
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	65 pt
Geekom A7 Acer N5000	63.2 pt
Average of class Mini PC	52.6 pt
Acemagic F2A Kingston OM8SEP1024Q-A0	51.2 pt
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	50 pt

DiskSpd
seq read
Geekom A7 Acer N5000	3755 (3733.85^min - 3754.99^max) MB/s +62%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	2896 (2845^min - 2896.04^max) MB/s +25%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	2668 (2648.91^min - 2668.42^max) MB/s +15%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	2315 (2293.84^min - 2315.26^max) MB/s
Average of class Mini PC (233 - 4357, n=119, last 2 years)	2288 MB/s -1%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2279 (2272.33^min - 2279.03^max) MB/s -2%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	2178 (2158.39^min - 2177.68^max) MB/s -6%
Acemagic F2A Kingston OM8SEP1024Q-A0	1674 (1242.56^min - 1673.54^max) MB/s -28%
seq write
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	3866 (206.78^min - 3865.71^max) MB/s +14%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	3736 (3562.44^min - 3735.53^max) MB/s +10%
Geekom A7 Acer N5000	3492 (3398.43^min - 3491.76^max) MB/s +3%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	3386 (3076.94^min - 3385.64^max) MB/s
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2629 (1414.22^min - 2628.56^max) MB/s -22%
Average of class Mini PC (222 - 5595, n=119, last 2 years)	2448 MB/s -28%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	2341 (2252.02^min - 2341.4^max) MB/s -31%
Acemagic F2A Kingston OM8SEP1024Q-A0	1348 (1117.85^min - 1347.87^max) MB/s -60%
seq q8 t1 read
Geekom A7 Acer N5000	4861 (4468.61^min - 4860.57^max) MB/s +4%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	4821 (4521.88^min - 4820.93^max) MB/s +3%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	4780 (4492.97^min - 4780.46^max) MB/s +2%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	4769 (3791.02^min - 4769.24^max) MB/s +2%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	4684 (4089.86^min - 4684.2^max) MB/s 0%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	4676 (4310.07^min - 4675.81^max) MB/s
Average of class Mini PC (236 - 8430, n=119, last 2 years)	3706 MB/s -21%
Acemagic F2A Kingston OM8SEP1024Q-A0	3194 (2810.81^min - 3194.17^max) MB/s -32%
seq q8 t1 write
Geekom A7 Acer N5000	4695 (4470.16^min - 4694.73^max) MB/s +26%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	3910 (3902.59^min - 3909.87^max) MB/s +5%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	3901 (912.47^min - 3901.29^max) MB/s +5%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	3729 (3700.15^min - 3728.95^max) MB/s
Geekom XT12 Pro Lexar SSD NM7A1 1TB	3255 (2485.13^min - 3254.57^max) MB/s -13%
Average of class Mini PC (228 - 6669, n=119, last 2 years)	2743 MB/s -26%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2627 (2402.52^min - 2626.88^max) MB/s -30%
Acemagic F2A Kingston OM8SEP1024Q-A0	2212 (1222.43^min - 2212.27^max) MB/s -41%
4k q1 t1 read
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	80.9 (78.95^min - 80.85^max) MB/s +27%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	64.9 (64.71^min - 64.94^max) MB/s +2%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	64.1 (56.32^min - 64.06^max) MB/s +1%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	63.5 (59.81^min - 63.5^max) MB/s
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	55.6 (53.92^min - 55.58^max) MB/s -12%
Average of class Mini PC (5.67 - 86.6, n=119, last 2 years)	54.7 MB/s -14%
Geekom A7 Acer N5000	52.3 (51.85^min - 52.27^max) MB/s -18%
Acemagic F2A Kingston OM8SEP1024Q-A0	47.3 (47.07^min - 47.31^max) MB/s -26%
4k q1 t1 write
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	422 (409.3^min - 421.98^max) MB/s +129%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	279 (237.61^min - 279.08^max) MB/s +51%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	196.1 (183.94^min - 196.13^max) MB/s +6%
Average of class Mini PC (30.4 - 435, n=119, last 2 years)	194.7 MB/s +6%
Acemagic F2A Kingston OM8SEP1024Q-A0	187.2 (181.54^min - 187.2^max) MB/s +2%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	184.4 (177.6^min - 184.36^max) MB/s
Geekom A7 Acer N5000	165.9 (164.35^min - 165.92^max) MB/s -10%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	151.3 (148.71^min - 151.28^max) MB/s -18%
4k q32 t16 read
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	2967 (2962.7^min - 2967.4^max) MB/s +160%
Acemagic F2A Kingston OM8SEP1024Q-A0	1824 (1239.47^min - 1824.09^max) MB/s +60%
Geekom A7 Acer N5000	1560 (1546.89^min - 1559.94^max) MB/s +36%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	1557 (1529.87^min - 1556.79^max) MB/s +36%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	1452 (1402.67^min - 1451.9^max) MB/s +27%
Average of class Mini PC (26.1 - 4158, n=119, last 2 years)	1360 MB/s +19%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	1143 (1091.01^min - 1142.98^max) MB/s
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	910 (889.36^min - 909.64^max) MB/s -20%
4k q32 t16 write
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	3364 (866.38^min - 3364.31^max) MB/s +577%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1583 (825.5^min - 1583.41^max) MB/s +219%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	1499 (1114.25^min - 1499.4^max) MB/s +202%
Acemagic F2A Kingston OM8SEP1024Q-A0	1434 (1410.26^min - 1433.71^max) MB/s +189%
Average of class Mini PC (30.2 - 4288, n=119, last 2 years)	1287 MB/s +159%
Geekom A7 Acer N5000	595 (582.97^min - 594.71^max) MB/s +20%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	565 (557.67^min - 564.75^max) MB/s +14%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	497 (467.49^min - 497.28^max) MB/s

AS SSD
Score Total
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	7931 Points +59%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	5975 Points +20%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	5863 Points +18%
Geekom A7 Acer N5000	5177 Points +4%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	4987 Points
Acemagic F2A Kingston OM8SEP1024Q-A0	4412 Points -12%
Average of class Mini PC (181.5 - 10021, n=117, last 2 years)	4121 Points -17%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	3435 Points -31%
Score Read
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	2899 Points +96%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	2119 Points +43%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	1738 Points +17%
Geekom A7 Acer N5000	1685 Points +14%
Acemagic F2A Kingston OM8SEP1024Q-A0	1561 Points +5%
Average of class Mini PC (61 - 3741, n=117, last 2 years)	1534 Points +4%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	1482 Points
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1248 Points -16%
Score Write
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	3564 Points +27%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	3294 Points +17%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	2807 Points
Geekom XT12 Pro Lexar SSD NM7A1 1TB	2777 Points -1%
Geekom A7 Acer N5000	2676 Points -5%
Acemagic F2A Kingston OM8SEP1024Q-A0	2082 Points -26%
Average of class Mini PC (88 - 4371, n=117, last 2 years)	1851 Points -34%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1600 Points -43%
Seq Read
Geekom XT12 Pro Lexar SSD NM7A1 1TB	4349.85 MB/s +15%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	4162 MB/s +10%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	3835 MB/s +1%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	3822 MB/s +1%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	3779 MB/s
Geekom A7 Acer N5000	3650 MB/s -3%
Average of class Mini PC (291 - 6620, n=117, last 2 years)	3161 MB/s -16%
Acemagic F2A Kingston OM8SEP1024Q-A0	3010 MB/s -20%
Seq Write
Geekom XT12 Pro Lexar SSD NM7A1 1TB	3936.64 MB/s +72%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	3477 MB/s +52%
Geekom A7 Acer N5000	2611 MB/s +14%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2568 MB/s +12%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	2463 MB/s +8%
Acemagic F2A Kingston OM8SEP1024Q-A0	2369 MB/s +4%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	2285 MB/s
Average of class Mini PC (240 - 5783, n=117, last 2 years)	2212 MB/s -3%
4K Read
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	104.3 MB/s +65%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	80.89 MB/s +28%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	63.3 MB/s
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	61.9 MB/s -2%
Average of class Mini PC (6.08 - 104.3, n=117, last 2 years)	58.9 MB/s -7%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	52.4 MB/s -17%
Geekom A7 Acer N5000	49.7 MB/s -21%
Acemagic F2A Kingston OM8SEP1024Q-A0	41.8 MB/s -34%
4K Write
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	366 MB/s +54%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	316.33 MB/s +33%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	238 MB/s
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	208 MB/s -13%
Acemagic F2A Kingston OM8SEP1024Q-A0	196.9 MB/s -17%
Average of class Mini PC (30.9 - 366, n=117, last 2 years)	175.1 MB/s -26%
Geekom A7 Acer N5000	160 MB/s -33%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	139.4 MB/s -41%
4K-64 Read
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	2379 MB/s +129%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	1602.91 MB/s +54%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	1293 MB/s +24%
Geekom A7 Acer N5000	1270 MB/s +22%
Acemagic F2A Kingston OM8SEP1024Q-A0	1218 MB/s +17%
Average of class Mini PC (23.4 - 3220, n=117, last 2 years)	1159 MB/s +11%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	1041 MB/s
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	812 MB/s -22%
4K-64 Write
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	2850 MB/s +22%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	2840 MB/s +21%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	2340 MB/s
Geekom A7 Acer N5000	2255 MB/s -4%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	2066.57 MB/s -12%
Acemagic F2A Kingston OM8SEP1024Q-A0	1649 MB/s -30%
Average of class Mini PC (32.8 - 3731, n=117, last 2 years)	1455 MB/s -38%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1204 MB/s -49%
Access Time Read
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	0.173 ms * -158%
Geekom A7 Acer N5000	0.138 ms * -106%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	0.127 ms * -90%
Average of class Mini PC (0.022 - 0.489, n=117, last 2 years)	0.09726 ms * -45%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	0.067 ms *
Geekom XT12 Pro Lexar SSD NM7A1 1TB	0.049 ms * +27%
Acemagic F2A Kingston OM8SEP1024Q-A0	0.046 ms * +31%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	0.044 ms * +34%
Access Time Write
Acemagic F2A Kingston OM8SEP1024Q-A0	0.126 ms * -530%
Average of class Mini PC (0.014 - 0.765, n=117, last 2 years)	0.1153 ms * -477%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	0.078 ms * -290%
Geekom A7 Acer N5000	0.072 ms * -260%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	0.059 ms * -195%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	0.031 ms * -55%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	0.022 ms * -10%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	0.02 ms *

* ... smaller is better

Continuous read: DiskSpd Read Loop, Queue Depth 8

Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø4683 (3872.18-4767.25)

Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø4795 (3366.33-4823.24)

Acemagic F2A Kingston OM8SEP1024Q-A0; diskspd 2.0.17 f: Ø1320 (771.89-3141.95)

Geekom XT12 Pro Lexar SSD NM7A1 1TB; diskspd 2.0.17 f: Ø1764 (1425.22-4795.56)

Geekom A7 Acer N5000; diskspd 2.0.17 f: Ø4848 (4561.2-4857.36)

Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0; diskspd 2.0.17 f: Ø4764 (3862.99-4794.3)

Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe; diskspd 2.0.17 f: Ø4663 (3995.26-4684.2)

图形处理器 - Intel Arc 8 核

Minisforum AtomMan X7 Ti 的 iGPU 现在基于英特尔 Arc 架构，性能明显高于配备 96 个 EU 的英特尔 Iris Xe G7。有了英特尔 Arc 8 核 iGPU，迷你电脑的竞争力大大增强，可以与 AMD Radeon 780M.英特尔 iGPU 在 Affinity Photo 2 中表现出色，我们已经在多台测试设备上观察到了这一点。

更多比较和基准测试结果请参阅GPU 比较表。

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Average NVIDIA GeForce RTX 4050 Laptop GPU	100 pt
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	45 pt
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	44.1 pt
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	43.7 pt
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	40.7 pt
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	39.6 pt
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	24.4 pt
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	24.4 pt

3DMark 11 - 1280x720 Performance GPU
Average NVIDIA GeForce RTX 4050 Laptop GPU (13339 - 32642, n=38)	28641 Points +145%
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	13932 Points +19%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	13636 Points +17%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	13347 Points +14%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	12085 Points +3%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	11691 Points
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	6999 Points -40%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	6975 Points -40%

3DMark
2560x1440 Time Spy Graphics
Average NVIDIA GeForce RTX 4050 Laptop GPU (5107 - 9040, n=36)	7812 Points +145%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3205 Points 0%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3193 Points
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	2968 Points -7%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	2912 Points -9%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	2832 Points -11%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1583 Points -50%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1581 Points -50%
1920x1080 Fire Strike Graphics
Average NVIDIA GeForce RTX 4050 Laptop GPU (13591 - 24007, n=36)	21155 Points +178%
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	8391 Points +10%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	8348 Points +10%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	8327 Points +10%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	7710 Points +1%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	7599 Points
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5421 Points -29%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	5407 Points -29%
3840x2160 Fire Strike Ultra Graphics
Average NVIDIA GeForce RTX 4050 Laptop GPU (3229 - 4578, n=9)	4212 Points +144%
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	2260 Points +31%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	2204 Points +28%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	2200 Points +27%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	1814 Points +5%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1726 Points
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1157 Points -33%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1152 Points -33%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1 | Affinity Photo 2

Performance Rating - Percent
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	89.8 pt
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	88.7 pt
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	80.8 pt
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	80.4 pt
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	78.9 pt
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	48.8 pt
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	47.8 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	34.5 fps +16%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	34 fps +14%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	31.6 fps +6%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	29.7 fps
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	26 fps -12%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	22.3 fps -25%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	21.8 fps -27%
Extreme Preset DX11
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	35.5 fps +7%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	35.3 fps +6%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	33.2 fps
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	32.7 fps -2%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	32 fps -4%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	23.2 fps -30%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	22.7 fps -32%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	24 fps +30%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	24 fps +30%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	18.5 fps
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	17.7 fps -4%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	17.1 fps -8%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	13.7 fps -26%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	13.3 fps -28%
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	32.4 fps
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	20.8 fps -36%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	20.8 fps -36%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	18.3 fps -44%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	14.6 fps -55%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	13.9 fps -57%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	12.2 fps -62%

ComputeMark v2.1
1024x600 Normal, Score
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	10102 Points +61%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	9863 Points +57%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	9796 Points +56%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	7480 Points +19%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	6270 Points
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	3390 Points -46%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	3382 Points -46%
1024x600 Normal, Fluid 3DTex
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	479 Points +2%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	471 Points 0%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	469 Points
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	468 Points 0%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	427 Points -9%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	231 Points -51%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	226 Points -52%
1024x600 Normal, Fluid 2DTexArr
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	488 Points +6%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	486 Points +5%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	484 Points +5%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	462 Points
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	422 Points -9%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	246 Points -47%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	239 Points -48%
1024x600 Normal, Mandel Vector
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	2637 Points +63%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2589 Points +60%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	2574 Points +59%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	1961 Points +21%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	1620 Points
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	860 Points -47%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	850 Points -48%
1024x600 Normal, Mandel Scalar
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	2757 Points +116%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2651 Points +108%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	2608 Points +105%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	1594 Points +25%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	1274 Points
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	872 Points -32%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	866 Points -32%
1024x600 Normal, QJuliaRayTrace
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	3752 Points +54%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	3667 Points +50%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	3650 Points +49%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	3076 Points +26%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	2444 Points
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	1201 Points -51%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	1182 Points -52%

Affinity Photo 2 - Combined (Single / Multi GPU)
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	5308 Points
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	4928 Points -7%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	4215 Points -21%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	3830 Points -28%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	1399 Points -74%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	1396 Points -74%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1371 Points -74%

	Minisforum AtomMan X7 Ti, Intel Arc 8-Core iGPU Ultra 9 185H	Minisforum EliteMini UM780 XTX, AMD Radeon 780M R7 7840HS	Acemagic F2A, Intel Arc 8-Core iGPU Ultra 7 155H	Geekom XT12 Pro, Intel Iris Xe Graphics G7 96EUs i9-12900H	Geekom A7, AMD Radeon 780M R9 7940HS	Minisforum Venus Series NAB9, Intel Iris Xe Graphics G7 96EUs i9-12900HK	Acemagic AM18, AMD Radeon 780M R7 7840HS	Average of class Mini PC
SPECviewperf 12		463%	3%	-18%	475%	-16%	487%	282%
1900x1060 3ds Max (3dsmax-05)	49.7	85 71%	49.8 0%	40.1 -19%	84.7 70%	40.2 -19%	83.7 68%	75.4 ?(13.6 - 295, n=63, last 2 years) 52%
1900x1060 Catia (catia-04)	51.3	89.8 75%	48.2 -6%	37.1 -28%	89 73%	35.9 -30%	88.5 73%	64.2 ?(10.9 - 251, n=63, last 2 years) 25%
1900x1060 Creo (creo-01)	22.7	51.1 125%	23.1 2%	26.9 19%	55.4 144%	27.7 22%	56.3 148%	37 ?(4.03 - 117, n=63, last 2 years) 63%
1900x1060 Energy (energy-01)	0.67	20.1 2900%	0.91 36%	0.4 -40%	20.7 2990%	0.4 -40%	21.3 3079%	13.3 ?(0.15 - 80.4, n=57, last 2 years) 1885%
1900x1060 Maya (maya-04)	58	73.4 27%	54.9 -5%	38.3 -34%	69.7 20%	39.8 -31%	71.5 23%	64 ?(11.4 - 226, n=63, last 2 years) 10%
1900x1060 Medical (medical-01)	15.9	61.7 288%	16.9 6%	11.8 -26%	60.5 281%	12.2 -23%	60.5 281%	28.5 ?(2.53 - 136, n=60, last 2 years) 79%
1900x1060 Showcase (showcase-01)	19.9	30.1 51%	18.2 -9%	16.6 -17%	30.3 52%	17.4 -13%	30 51%	35.3 ?(5.71 - 133, n=63, last 2 years) 77%
1900x1060 Solidworks (sw-03)	43	113 163%	42.7 -1%	45.3 5%	116 170%	47.3 10%	116 170%	72.4 ?(20.9 - 243, n=63, last 2 years) 68%
SPECviewperf 13		155%	0%	-10%	145%	-10%	148%	89%
3ds Max (3dsmax-06)	48.5	86.1 78%	46.4 -4%	40.1 -17%	83.9 73%	39.9 -18%	83.1 71%	74.8 ?(13.4 - 294, n=63, last 2 years) 54%
Catia (catia-05)	76.8	132 72%	71.6 -7%	51.3 -33%	130 69%	51.6 -33%	129 68%	91.4 ?(15.6 - 381, n=62, last 2 years) 19%
Creo (creo-02)	29.3	93.6 219%	29.6 1%	41.1 40%	93.4 219%	40.2 37%	92 214%	73 ?(11.6 - 275, n=63, last 2 years) 149%
Energy (energy-02)	5.27	25.8 390%	5.69 8%	4.5 -15%	23.8 352%	4.39 -17%	24.1 357%	17.7 ?(0.92 - 310, n=60, last 2 years) 236%
Maya (maya-05)	62.5	108 73%	59.5 -5%	47.5 -24%	107 71%	48.3 -23%	108 73%	97.5 ?(15.9 - 340, n=63, last 2 years) 56%
Medical (medical-02)	25	79.8 219%	29.7 19%	14.4 -42%	77.6 210%	14.4 -42%	79 216%	37.6 ?(2.28 - 198, n=63, last 2 years) 50%
Showcase (showcase-02)	19.9	30 51%	18.2 -9%	17.3 -13%	25.4 28%	17.3 -13%	29.9 50%	35 ?(5.69 - 133, n=63, last 2 years) 76%
Solidworks (sw-04)	45.6	107 135%	44.8 -2%	57.1 25%	109 139%	57.4 26%	107 135%	76.6 ?(27.4 - 223, n=63, last 2 years) 68%
SPECviewperf 2020		212%	-7%	-27%	205%	-25%	211%	126%
3840x2160 Medical (medical-03)	4.23	12 184%	5.05 19%	3.49 -17%	11.1 162%	3.48 -18%	13 207%	7.74 ?(0.78 - 30.8, n=65, last 2 years) 83%
3840x2160 Energy (energy-03)	6.03	15.4 155%	4.61 -24%	3.05 -49%	14.1 134%	3 -50%	14.2 135%	10.8 ?(0.52 - 47.9, n=65, last 2 years) 79%
3840x2160 Creo (creo-03)	18.5	31.4 70%	17.9 -3%	14.8 -20%	31.4 70%	15.1 -18%	31.2 69%	29.7 ?(7.73 - 97.5, n=65, last 2 years) 61%
3840x2160 CATIA (catia-06)	11.1	24.4 120%	10 -10%	7.78 -30%	24.8 123%	8.08 -27%	24.7 123%	18.3 ?(4.61 - 64.1, n=64, last 2 years) 65%
3840x2160 3ds Max (3dsmax-07)	14.9	21 41%	12.9 -13%	9.69 -35%	20.9 40%	9.78 -34%	20.7 39%	21.8 ?(5.53 - 87.5, n=65, last 2 years) 46%
3840x2160 Siemens NX (snx-04)	6.24	61.5 886%	5.7 -9%	6.29 1%	61.4 884%	6.67 7%	61.1 879%	37.5 ?(2.25 - 224, n=63, last 2 years) 501%
3840x2160 Maya (maya-06)	37.7	47.2 25%	35.4 -6%	23.9 -37%	47 25%	24.4 -35%	46.7 24%	56.4 ?(12.2 - 207, n=65, last 2 years) 50%
Total Average (Program / Settings)		277% / 279%	-1% / -1%	-18% / -18%	275% / 278%	-17% / -17%	282% / 285%	166% / 167%

3DMark 05 Standard		45122 points
3DMark 06 Standard Score		38214 points
3DMark Vantage P Result		38739 points
3DMark 11 Performance		12098 points
3DMark Ice Storm Standard Score		84971 points
3DMark Cloud Gate Standard Score		31530 points
3DMark Fire Strike Score		7052 points
3DMark Fire Strike Extreme Score		3556 points
3DMark Time Spy Score		3580 points
Help

... in comparison

游戏性能

Minisforum AtomMan X7 Ti 的游戏性能不应被高估，因为这款小巧的计算设备并没有被宣传为游戏电脑。不过，有了英特尔 Arc 8 核 iGPU，你可以在屏幕上流畅地运行一些游戏。不过，全面绚丽的细节还是免了吧。 AMD 的 Radeon 780M在我们的测试样本中，其性能比 iGPU 稍高。这只能通过使用外置显卡来弥补，外置显卡可通过 USB4 或 OCuLink 连接。

要详细了解 iGPU 与其他显卡相比的性能，请参阅我们的 GPU 游戏列表.

The Witcher 3
1024x768 Low Graphics & Postprocessing
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	154.6 (12.9^min, 32^P0.1, 98.7^P1) fps +10%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	153.5 (20.1^min, 43.1^P0.1, 107.8^P1) fps +9%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	148.9 (7.41^min, 12.7^P0.1, 96.9^P1) fps +6%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	140.2 (26.9^min, 57.9^P0.1, 101.9^P1) fps
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	126 (36.4^min, 62.1^P0.1, 99.1^P1) fps -10%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	98.1 (22.4^min, 35.3^P0.1, 58.9^P1) fps -30%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	87.7 (4.87^min, 27.9^P0.1, 53^P1) fps -37%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	49.6 (13.7^min, 22.8^P0.1, 39.2^P1) fps +6%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	49.3 (25.6^min, 36.7^P0.1, 40.9^P1) fps +5%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	49.1 (23.1^min, 38.4^P0.1, 40.8^P1) fps +5%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	46.8 (28.7^min, 32.6^P0.1, 37.1^P1) fps
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	44.8 (26.8^min, 32^P0.1, 37.7^P1) fps -4%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	32.2 (15.4^min, 16^P0.1, 18.1^P1) fps -31%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	31.4 (16^min, 16.2^P0.1, 17.4^P1) fps -33%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	101.9 fps +10%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	100.5 fps +8%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	97.3 fps +5%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	93 fps
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	68.5 fps -26%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	57.2 fps -38%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	49.2 fps -47%
1920x1080 High Overall Quality (DX11)
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	33.3 fps +16%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	32.7 fps +14%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	28.7 fps
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	27.7 fps -3%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	25.8 fps -10%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	16.1 fps -44%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	14.9 fps -48%

GTA V
1024x768 Lowest Settings possible
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	167.5 (5.17^min, 125^P1) fps +2%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	165.1 (4.54^min, 100^P1) fps +1%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	164.4 (4.9^min, 111.1^P1) fps 0%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	163.6 (4.63^min, 111.1^P1) fps
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	161 (4.76^min, 100^P1) fps -2%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	120.8 (22.9^min, 83.3^P1) fps -26%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	66.9 (3.09^min, 45.5^P1) fps +62%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	66.7 (4.68^min, 45.5^P1) fps +62%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	66.6 (4.46^min, 37^P1) fps +62%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	41.2 (3.12^min, 30.3^P1) fps
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	31.3 (2.94^min, 22.7^P1) fps -24%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	20.3 (10.5^min, 16.1^P1) fps -51%

Far Cry 5
1280x720 Low Preset AA:T
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	87 (75^min) fps +10%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	86 (76^min) fps +9%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	84 (74^min) fps +6%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	79 (39^min) fps
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	69 (25^min) fps -13%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	50 (45^min) fps -37%
1920x1080 High Preset AA:T
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	47 (42^min) fps +12%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	46 (41^min) fps +10%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	43 (38^min) fps +2%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	42 (34^min) fps
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	37 (30^min) fps -12%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	23 (21^min) fps -45%

Far Cry New Dawn
1280x720 Low Preset
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	75 (58^min) fps +9%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	75 (56^min) fps +9%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	74 (48^min) fps +7%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	69 (2^min) fps
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	65 (11^min) fps -6%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	47 (31^min) fps -32%
1920x1080 High Preset
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	45 (37^min) fps +15%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	44 (35^min) fps +13%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	41 (27^min) fps +5%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	39 (25^min) fps
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	37 (25^min) fps -5%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	24 (18^min) fps -38%

Dota 2 Reborn
1280x720 min (0/3) fastest
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	163.1 (143^min) fps +53%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	161.5 (141.6^min) fps +52%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	155.8 (135.9^min) fps +46%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	119.5 (88.5^min) fps +12%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	106.5 (61^min) fps
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	106.3 (81.7^min) fps 0%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	103.2 (59.8^min) fps -3%
1920x1080 high (2/3)
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	97.45 (86.9^min) fps +23%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	87.6 (75^min) fps +11%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	82.9 (69.1^min) fps +5%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	79 (48.2^min) fps
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	77.3 (52.5^min) fps -2%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	67 (60.7^min) fps -15%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	61.3 (54.1^min) fps -22%

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	151.2 fps +57%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	147.5 fps +53%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	98.6 fps +3%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	96.1 fps
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	83.8 fps -13%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	56.5 fps -41%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	49.3 fps -49%
1920x1080 High Preset (DX12)
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	38.8 fps +30%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	36.7 fps +23%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	29.9 fps 0%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	29.9 fps
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	29.1 fps -3%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	24.1 fps -19%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	14.4 fps -52%

F1 2021
1280x720 Ultra Low Preset
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	225 (178^min, 175^P1) fps +40%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	225 (186^min, 177^P1) fps +40%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	219 (179^min, 177^P1) fps +36%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	161.1 (132^min, 130^P1) fps
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	145.9 (119^min, 118^P1) fps -9%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	102.5 (79^min, 76^P1) fps -36%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	94.8 (70^min, 69^P1) fps -41%
1920x1080 High Preset AA:T AF:16x
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	86.5 (71^min, 62^P1) fps +32%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	84.5 (69^min, 66^P1) fps +29%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	79.5 (50^min, 42^P1) fps +22%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	65.3 (56^min, 52^P1) fps
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	63.2 (55^min, 49^P1) fps -3%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	38.8 (33^min, 31^P1) fps -41%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	36.4 (28^min, 28^P1) fps -44%

F1 22
1280x720 Ultra Low Preset AA:T AF:16x
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	172.5 (140^min, 112^P1) fps +27%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	171.9 (142^min, 114^P1) fps +26%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	163.5 (128^min, 115^P1) fps +20%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	136 (111^min, 98^P1) fps
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	120.8 (99^min, 92^P1) fps -11%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	76 (60^min, 61^P1) fps -44%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	70.2 (55^min, 56^P1) fps -48%
1920x1080 High Preset AA:T AF:16x
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	66.2 (57^min, 52^P1) fps +18%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	65.1 (56^min, 51^P1) fps +16%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	64.8 (54^min, 48^P1) fps +16%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	55.9 (48^min, 46^P1) fps
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	55 (47^min, 45^P1) fps -2%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	30.1 (25^min, 24^P1) fps -46%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	28.7 (24^min, 23^P1) fps -49%

F1 23
1280x720 Ultra Low Preset AA:T
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	155 (118^min, 98^P1) fps +26%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	151.1 (119^min, 105^P1) fps +23%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	137.8 (89^min, 77^P1) fps +12%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	123.1 (103^min, 99^P1) fps
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	113.9 (96^min, 91^P1) fps -7%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	72.7 (58^min, 58^P1) fps -41%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	67.4 (54^min, 54^P1) fps -45%
1920x1080 High Preset AA:T AF:16x
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	60.9 (53^min, 45^P1) fps +28%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	60.8 (37^min, 46^P1) fps +28%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	49.2 (9^min, 30^P1) fps +4%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	47.5 (40^min, 39^P1) fps
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	46.1 (41^min, 37^P1) fps -3%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	27 (23^min, 22^P1) fps -43%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	25.2 (22^min, 21^P1) fps -47%

Metro Exodus
1280x720 Low Quality AF:4x
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	92.5 (56.63^min) fps +47%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	90.7 (53.9^min) fps +44%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	89 (50.32^min) fps +41%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	63.1 (35.58^min) fps
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	52.2 (27.79^min) fps -17%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	39.2 (22.25^min) fps -38%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	35.2 (19.84^min) fps -44%
1920x1080 High Quality AF:16x
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	28.7 (14.33^min) fps +6%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	28.7 (14.3^min) fps +6%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	27.5 (9.23^min) fps +1%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	27.1 (15.7^min) fps
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	25 (14.2^min) fps -8%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	14 (7.73^min) fps -48%

Shadow of the Tomb Raider
1280x720 Lowest Preset
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	131.4 fps +66%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	109.2 fps +38%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	101.2 fps +28%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	96.7 fps +22%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	79.3 fps
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	39.6 fps -50%
1920x1080 High Preset AA:SM
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	49.5 fps +38%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	41.2 fps +15%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	40.3 fps +13%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	35.8 fps
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	32.1 fps -10%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	18.8 fps -47%

Witcher 3 FPS chart

Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core: Ø22.4 (21-24)

Minisforum EliteMini UM780 XTX R7 7840HS, Radeon 780M: Ø29.7 (28-31)

Acemagic F2A Ultra 7 155H, Arc 8-Core: Ø22.8 (21-25)

Geekom XT12 Pro i9-12900H, Iris Xe G7 96EUs: Ø15 (13-16)

Geekom A7 R9 7940HS, Radeon 780M: Ø25.7 (20-33)

Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs: Ø15.6 (15-17)

Acemagic AM18 R7 7840HS, Radeon 780M: Ø28.6 (27-30)

	low	med.	high	ultra
GTA V (2015)	163.6	156.7	41.2	16.2
The Witcher 3 (2015)	140.2	85.1	46.8	24.5
Dota 2 Reborn (2015)	106.5	80.6	79	74.6
Final Fantasy XV Benchmark (2018)	69.1	36.8	26.4
X-Plane 11.11 (2018)	64.9	49.7	40.5
Far Cry 5 (2018)	79	45	42	39
Strange Brigade (2018)	124.9	67.8	57.2	46.7
Shadow of the Tomb Raider (2018)	79.3	38.3	35.8	30.5
Far Cry New Dawn (2019)	69	41	39	36
Metro Exodus (2019)	63.1	37.6	27.1	21.7
Borderlands 3 (2019)	93	41.9	28.7	21.9
F1 2020 (2020)	139.1	76.9	60.5	41.2
F1 2021 (2021)	161.1	83.5	65.3	29.6
God of War (2022)	33.7	31.2	24	17.3
GRID Legends (2022)	73	56.8	44.8	39.2
Tiny Tina's Wonderlands (2022)	54.6	45	29.9	24.4
F1 22 (2022)	84.9	77	55.9	14
F1 23 (2023)	77	70.2	47.5	12.6
Cyberpunk 2077 2.1 Phantom Liberty (2023)	34.3	27.9	24	21.4
Total War Pharaoh (2023)	93.1	70.6	53.6	47
Prince of Persia The Lost Crown (2024)		152.6	111.5	108.6
The First Descendant (2024)	40.7	26.6	20.3	19
Once Human (2024)	35.6	24.2	22.6	20.5
Black Myth: Wukong (2024)	20	16	12	7

Minisforum AtomMan X7 Ti 与 GPD G1 的性能测试

Minisforum 在 AtomMan X7 Ti 上安装了一个 OCuLink 接口和两个 USB4 端口，可与外置显卡配合使用。在测试中，我们将重点放在 OCuLink 连接上，因为它比 USB4 提供了更大的带宽，而这对于外置显卡来说是必不可少的。与 USB4 相比，OCuLink 的性能优势约为 10%。因此，只提供 USB4 的设备略显劣势。不过，当通过 USB4 连接 GPD G1 时，Minisforum AtomMan X7 Ti 的 3D 性能会稍差一些。

如果与配备 AMD Radeon RX 7600M XT 的 GPD G1 结合使用，3D 性能将大幅提升。现代游戏现在可以在 1440p 下流畅运行。

Performance Rating - Percent
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) AMD Ryzen 7 7840HS	97.1 pt
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	97.1 pt
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	88.8 pt
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 7 7735HS	84 pt

3DMark 11 - 1280x720 Performance GPU
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	41824 Points +258%
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) AMD Ryzen 7 7840HS	39342 Points +237%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	34851 Points +198%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 7 7735HS	27060 Points +131%
	11691 Points

3DMark
2560x1440 Time Spy Graphics
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	10204 Points +220%
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) AMD Ryzen 7 7840HS	9936 Points +211%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	9703 Points +204%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 7 7735HS	9555 Points +199%
	3193 Points
1920x1080 Fire Strike Graphics
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) AMD Ryzen 7 7840HS	29638 Points +290%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 7 7735HS	29101 Points +283%
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	29015 Points +282%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	28983 Points +281%
	7599 Points
3840x2160 Fire Strike Ultra Graphics
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	6784 Points +293%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 7 7735HS	6738 Points +290%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	6735 Points +290%
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) AMD Ryzen 7 7840HS	6732 Points +290%
	1726 Points

Unigine Superposition
1280x720 720p Low
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) AMD Ryzen 7 7840HS	24985 Points +147%
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	19596 Points +94%
	10102 Points
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	6929 Points -31%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 7 7735HS	5014 Points -50%
1920x1080 1080p High
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) AMD Ryzen 7 7840HS	12923 Points +287%
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	12194 Points +265%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	7694 Points +130%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 7 7735HS	5621 Points +68%
	3341 Points
1920x1080 1080p Extreme
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) AMD Ryzen 7 7840HS	5833 Points +222%
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	5799 Points +220%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	5388 Points +197%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 7 7735HS	4275 Points +136%
	1812 Points
3840x2160 4k Optimized
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) AMD Ryzen 7 7840HS	7175 Points
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	7049 Points
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	6056 Points
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 7 7735HS	4765 Points
7680x4320 8k Optimized
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) AMD Ryzen 7 7840HS	2783 Points
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	2777 Points
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 7 7735HS	2770 Points
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	2764 Points

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	98.5 fps +432%
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) AMD Ryzen 7 7840HS	98.4 fps +432%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	96.2 fps +420%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 7 7735HS	91.6 fps +395%
	18.5 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	89.9 fps +177%
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) AMD Ryzen 7 7840HS	85.9 fps +165%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	80.5 fps +148%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 7 7735HS	79.1 fps +144%
	32.4 fps

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	132.3 fps +345%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	122.2 fps +311%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 7 7735HS	118.1 fps +298%
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) AMD Ryzen 7 7840HS	85.5 fps +188%
	29.7 fps
Extreme Preset DX11
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) AMD Ryzen 7 7840HS	133.2 fps +301%
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	130.8 fps +294%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	129.9 fps +291%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 7 7735HS	123.2 fps +271%
	33.2 fps

ComputeMark v2.1
1024x600 Normal, Score
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) AMD Ryzen 7 7840HS	21247 Points +239%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 7 7735HS	20386 Points +225%
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	20340 Points +224%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	20154 Points +221%
	6270 Points
1024x600 Normal, Fluid 3DTex
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	1765 Points +276%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	1708 Points +264%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 7 7735HS	1701 Points +263%
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) AMD Ryzen 7 7840HS	1700 Points +262%
	469 Points
1024x600 Normal, Fluid 2DTexArr
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	1797 Points +289%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	1760 Points +281%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 7 7735HS	1748 Points +278%
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) AMD Ryzen 7 7840HS	1744 Points +277%
	462 Points
1024x600 Normal, Mandel Vector
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) AMD Ryzen 7 7840HS	4703 Points +190%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	4457 Points +175%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 7 7735HS	4450 Points +175%
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	4300 Points +165%
	1620 Points
1024x600 Normal, Mandel Scalar
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) AMD Ryzen 7 7840HS	5624 Points +341%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	5418 Points +325%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 7 7735HS	5373 Points +322%
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	5356 Points +320%
	1274 Points
1024x600 Normal, QJuliaRayTrace
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) AMD Ryzen 7 7840HS	7477 Points +206%
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	7122 Points +191%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 7 7735HS	7114 Points +191%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	6811 Points +179%
	2444 Points

	low	med.	high	ultra	QHD	4K
GTA V (2015)	178	173.8	165.1	95.1	69.5	74.9
The Witcher 3 (2015)	419	333	193.7	111.6	77.1	54.5
Dota 2 Reborn (2015)	174.6	154.9	158.8	140.9		99.6
Final Fantasy XV Benchmark (2018)	207	133.1	95.6		69.4	37.3
X-Plane 11.11 (2018)	113.9	94.3	75.1			56.3
Far Cry 5 (2018)	142	125	120	110	98	49
Strange Brigade (2018)	449	260	216	185.6	121.1	65.1
Shadow of the Tomb Raider (2018)	157.1	103.9	103.3	93.3	69.3	39.6
Far Cry New Dawn (2019)	116	103	99	88	85	56
Metro Exodus (2019)	172.2	128	97.1	76.7	59.4	34.7
Borderlands 3 (2019)	120.5	97.8	87.5	78	58.8	31.4
F1 2020 (2020)	347	262	214	146.1	109.9	63.2
F1 2021 (2021)	368	331	262	111.3	74.2	15.6
God of War (2022)	136.6	122.3	96.9	67.9	54.7	34.4
GRID Legends (2022)	159.4	140.5	127.3	109.2	93.3	56.7
Tiny Tina's Wonderlands (2022)	224	178	110.7	88.4	59.3	21.3
F1 22 (2022)	256	250	211	54	31.4
F1 23 (2023)	256	245	198.2	32.7	10.7
Cyberpunk 2077 2.1 Phantom Liberty (2023)	135	106.9	90.3	80.1	49.2	20.3
Assassin's Creed Mirage (2023)	132	118	101	74	54	27
Total War Pharaoh (2023)	284.7	208	128	102.8	72.3	35.4
Avatar Frontiers of Pandora (2023)	56	50	35	29	19
Skull & Bones (2024)	130	111	85	67	49	24

排放 - Minisforum 做出了很好的妥协

噪音排放

Minisforum AtomMan X7 Ti 的噪音排放在空闲模式下非常不明显。但在负载情况下，情况就发生了变化，我们记录到的最大噪音值为 43.5 dB(A)。诚然，在风扇噪音方面，我们经常被 Minisforum 惯坏，从 Minisforum EliteMini UM780 XTX 就可以看出这一点。不过，我们可以接受噪音水平，因为我们离恼人的噪音源还很远。
，我们还查看了使用其他两个性能配置文件时的最大音量。如果在节能模式下运行 Minisforum AtomMan X7 Ti，可以将最大噪音水平降低到 36 dB(A)，尽管我们在平衡模式下的记录略低于 39 dB(A)。

Noise Level

Idle		29.8 / 29.9 / 30 dB(A)
Load		37.3 / 43.5 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 24.1 dB(A)

	Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core	Minisforum EliteMini UM780 XTX R7 7840HS, Radeon 780M	Acemagic F2A Ultra 7 155H, Arc 8-Core	Geekom XT12 Pro i9-12900H, Iris Xe G7 96EUs	Geekom A7 R9 7940HS, Radeon 780M	Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs	Acemagic AM18 R7 7840HS, Radeon 780M
Noise		7%	-2%	-2%	-9%	-4%	-5%
off / environment *	24.1	24.8 -3%	24.9 -3%	25.4 -5%	25.4 -5%	25.4 -5%	24.8 -3%
Idle Minimum *	29.8	28.5 4%	25.4 15%	28 6%	33.3 -12%	27.5 8%	31 -4%
Idle Average *	29.9	28.5 5%	25.7 14%	28.1 6%	33.6 -12%	28 6%	31.2 -4%
Idle Maximum *	30	28.7 4%	25.7 14%	28.5 5%	33.7 -12%	33 -10%	31.4 -5%
Load Average *	37.3	32.4 13%	47.8 -28%	39.6 -6%	43.3 -16%	42.8 -15%	37.1 1%
Witcher 3 ultra *	40.2	32.7 19%	45.23 -13%	47.2 -17%	43.2 -7%	44.5 -11%	37.6 6%
Load Maximum *	43.5	39.6 9%	49 -13%	44.2 -2%	43.3 -0%	44.9 -3%	53.7 -23%

* ... smaller is better

温度

Minisforum AtomMan X7 Ti 从未出现过任何温度问题。机箱本身始终保持低温，只有风扇出风口区域的温度值略有上升，这仅与气流有关。在压力测试中，我们看到英特尔酷睿至尊 9 185H最高温度为 92 °C。不过，处理器的平均温度稳定在 86 °C。值得注意的是，SoC 始终在规定的功率限制（65 瓦）下运行。

Max. Load

Idle


30.3 °C	34 °C	30.7 °C
29.5 °C	36 °C	28.7 °C
28.8 °C	32.8 °C	31.8 °C

Maximum: 36 °C
Average: 31.4 °C


35.2 °C	38 °C	35.4 °C
29.4 °C	24.3 °C	29.2 °C
27.7 °C	25.6 °C	25.5 °C

Maximum: 38 °C
Average: 30 °C

Power Supply (max.) 41.6 °C | Room Temperature 21.9 °C | Fluke t3000FC (calibrated)

(+) The average temperature for the upper side under maximal load is 31.4 °C / 89 F, compared to the average of 32.2 °C / 90 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 36 °C / 97 F, compared to the average of 35.7 °C / 96 F, ranging from 24 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 38 °C / 100 F, compared to the average of 36.2 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 24.1 °C / 75 F, compared to the device average of 32.2 °C / 90 F.

耗电量

总体而言，如果不考虑空闲模式下的结果，Minisforum AtomMan X7 Ti 是经济实惠的。在平均负载情况下，我们记录的功耗为 53.1 瓦，该设备的峰值约为 100 瓦。由于采用了 4 英寸触摸显示屏，闲置模式下的能耗要求略高于某些竞争对手。不过，我们的测试设备在这方面并不完全出乎意料。120 瓦的紧凑型电源装置已在 Minisforum EliteMini UM780 XTX.

根据制造商的说法，电源装置是 Minisforum 只允许英特尔酷睿 Ultra 9 185H 最大功率为 65 瓦的原因。就效率而言，这一步当然是可以理解的。

Power Consumption

Off / Standby	1.8 / 2.5 Watt
Idle	8.2 / 12.1 / 14 Watt
Load	53.1 / 100.4 Watt


Key: min: , med: , max: Metrahit Energy

	Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core	Minisforum EliteMini UM780 XTX R7 7840HS, Radeon 780M	Acemagic F2A Ultra 7 155H, Arc 8-Core	Geekom XT12 Pro i9-12900H, Iris Xe G7 96EUs	Geekom A7 R9 7940HS, Radeon 780M	Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs	Acemagic AM18 R7 7840HS, Radeon 780M	Average Intel Arc 8-Core iGPU	Average of class Mini PC
Power Consumption		-1%	-2%	9%	28%	-24%	-14%	18%	-4%
Idle Minimum *	8.2	8.5 -4%	9.1 -11%	5.7 30%	3.8 54%	12.1 -48%	9.8 -20%	5.41 ?(1.8 - 10.3, n=37) 34%	9.48 ?(1.9 - 45.7, n=119, last 2 years) -16%
Idle Average *	12.1	10.5 13%	10.3 15%	9.5 21%	4.8 60%	13.2 -9%	11.5 5%	8.64 ?(4.2 - 16, n=37) 29%	11.5 ?(1.9 - 47.5, n=117, last 2 years) 5%
Idle Maximum *	14	12.9 8%	14.4 -3%	16.5 -18%	6.5 54%	14.1 -1%	15.3 -9%	12.1 ?(4.5 - 49, n=37) 14%	14.9 ?(2.6 - 57.1, n=119, last 2 years) -6%
Load Average *	53.1	67.2 -27%	54.9 -3%	53.3 -0%	71.9 -35%	82.9 -56%	75.3 -42%	54.2 ?(31.3 - 76.2, n=36) -2%	57.4 ?(11.3 - 170.6, n=119, last 2 years) -8%
Load Maximum *	100.4	97.2 3%	110.4 -10%	87.8 13%	94.7 6%	106.8 -6%	102.8 -2%	85 ?(60 - 144.9, n=37) 15%	97.5 ?(18.1 - 423, n=119, last 2 years) 3%

* ... smaller is better

Power consumption with the external monitor

Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core; Idle 1min (external Monitor): Ø12.2 (10.9-14.1)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Idle 1min (external Monitor): Ø10.4 (9.08-14.4)

Geekom A7 R9 7940HS, Radeon 780M; Idle 1min (external Monitor): Ø4.81 (3.82-6.48)

Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core; 1920x1080 The Witcher 3 ultra (external Monitor): Ø43.8 (42.6-45.7)

Acemagic F2A Ultra 7 155H, Arc 8-Core; 1920x1080 The Witcher 3 ultra (external Monitor): Ø48.4 (45.6-52.4)

Geekom A7 R9 7940HS, Radeon 780M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø73.1 (66.4-82.2)

Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core; 1280x720 Prime95 28.10 and Furmark 1.25: Ø91.8 (87.6-95.4)

Acemagic F2A Ultra 7 155H, Arc 8-Core; 1280x720 Prime95 28.10 and Furmark 1.25: Ø92.2 (78.7-114)

Geekom A7 R9 7940HS, Radeon 780M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø64.2 (55.6-95.8)

Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core; 3DMark06 Return To Proxycon: Ø53.1 (49.6-57.6)

Acemagic F2A Ultra 7 155H, Arc 8-Core; 3DMark06 Return To Proxycon: Ø54.9 (50.2-57)

Geekom A7 R9 7940HS, Radeon 780M; 3DMark06 Return To Proxycon: Ø71.9 (56.1-82.9)

Power consumption with the external monitor

Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core; Prime95 V2810 Stress (external Monitor): Ø98.1 (94.2-100.4)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Prime95 V2810 Stress (external Monitor): Ø99.6 (92-110.4)

Geekom A7 R9 7940HS, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø70 (57.2-94.7)

Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core; Cinebench R15 Multi (external Monitor): Ø88 (87.7-88.3)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Cinebench R15 Multi (external Monitor): Ø103 (99.2-107)

Geekom A7 R9 7940HS, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø73 (64.8-85.1)

Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core; Cinebench R23 Single (external Monitor): Ø33.3 (28.9-63)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Cinebench R23 Single (external Monitor): Ø32.7 (19.4-55.3)

Geekom A7 R9 7940HS, Radeon 780M; Cinebench R23 Single (external Monitor): Ø28.7 (24.1-75.1)

Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core; Cinebench R23 Multi (external Monitor): Ø87.7 (87.3-88.3)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Cinebench R23 Multi (external Monitor): Ø100.7 (97.2-108.6)

Geekom A7 R9 7940HS, Radeon 780M; Cinebench R23 Multi (external Monitor): Ø66.2 (63.5-84.2)

Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø50.3 (47.7-65.3)

Acemagic F2A Ultra 7 155H, Arc 8-Core; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø49.7 (47.3-60.6)

Geekom A7 R9 7940HS, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø72.8 (57.4-85.5)

Pros

+ 坚固的外壳

+ 集成 4 英寸触摸屏

+ 支持快速无线局域网和 Wi-Fi 7

+ 支持 Windows Hello 的网络摄像头

+ 指纹扫描仪

+ 强大的散热装置

+ 英特尔酷睿 Ultra 9 185H，配备快速 iGPU 和 NPU

+ 32GB DDR5 内存（5,600 MT/秒）

+ 低机箱温度

+ 2x USB4、1x OCuLink

+ 网络摄像头快门

Cons

- 慢速 SD 读卡器

- 拆卸复杂

- DPC 延迟高

- 网络摄像头的图像质量

结论 - Core Ultra 9 185H 是一款功能强大的全能型产品

Minisforum AtomMan X7 Ti 评测：由 Minisforum 提供

Minisforum AtomMan X7 Ti 是中国系统制造商推出的首款基于英特尔流星湖处理器的高端机型。配备了英特尔酷睿Ultra 9 185Hб 的迷你 PC 性能出众。不过，制造商将处理器的功耗限制在 65 瓦。就噪音和效率而言，此举是可以理解的，尽管在温度方面仍有一定的改进空间。

Minisforum 采用了新的设计方法，在设备上安装了 4 英寸触摸显示屏。这样做的目的当然值得商榷，因为在日常生活中你可能不会经常玩弄它。能够在三种性能配置文件之间快速轻松地切换可能是最好的选择。我们希望能有一个自己定义处理器性能极限的替代方案。此外，小屏幕上还能显示一些与系统相关的数据。重视这些小细节的人一定会喜欢这款设备。Minisforum 的 AtomMan X7 Ti 再次展示了出色的制造质量。遗憾的是，该设备在维护方面表现不佳。许多螺丝再次被隐藏在胶粘的橡胶脚垫下，不便于用户使用。

Minisforum AtomMan X7 Ti 明显有别于大多数微型电脑。其性能良好，接口选择丰富，是一个很好的卖点。

Minisforum AtomMan X7 Ti 的性能值得期待。在测试中，我们可以确认，在 32 GB 内存和 1 TB 固态硬盘的配合下，它具有良好的工作效率。不过，Minisforum AtomMan X7 Ti 并没有成为无可争议的顶级机型。相比之下，基于 AMD Ryzen APU 的竞争产品不相上下。因此，购买决策的决定性因素可能是连接性。在这一点上，Minisforum AtomMan X7 Ti 以其广泛的接口而胜出。遗憾的是，USB4 仍不是标准配置，而且并不总是提供，这一点可以从 Acemagic F2A 的例子中看出。Minisforum 甚至安装了两个 USB4 接口，迷你 PC 还有一个 OCuLink 端口。这意味着该设备可以作为各种不同应用的基础。

价格和供应情况

在欧盟，可直接从制造商的商店订购 Minisforum AtomMan X7 Ti。.在评测时，您至少需要支付759 欧元（约合 822 美元）购买裸机。(约合 822 美元），但我们的测试设备配有 32 GB 内存和 1 TB SSD，售价为959 欧元（约合 1,039 美元）。(~$1,039).使用代码X7Ti20，还可再节省 20 欧元（约合 22 美元）。

Minisforum AtomMan X7 Ti - 05/15/2024 v7 ^(old)
Sebastian Bade

Chassis

84 / 98 → 86%

Connectivity

73 / 81 → 90%

Weight

77%

Games Performance

78%

Application Performance

97%

Workstation

63%

Temperature

94%

Noise

83%

Camera

31 / 85 → 36%

Average

76%

88%

Mini PC - Weighted Average

Cinebench 2024 CPU Multi Core in comparison
HP Spectre x360 16 RTX 4050 (min) Ultra 7 155H, NVIDIA GeForce RTX 4050 Laptop GPU	28.1
...
Apple MacBook Pro 16 2023 M3 Pro Apple M3 Pro 12-Core, M3 Pro 18-Core GPU	1059
Lenovo IdeaPad Pro 5 16IMH G9 RTX 4050 Ultra 9 185H, NVIDIA GeForce RTX 4050 Laptop GPU	1062
Minisforum BD770i R7 7745HX, Radeon 610M	1062
Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core	1067
Asus ROG NUC 14-90AS0051 Ultra 9 185H, NVIDIA GeForce RTX 4070 Laptop GPU	1096
Asus ProArt PX13 HN7306 Ryzen AI 9 HX 370, NVIDIA GeForce RTX 4070 Laptop GPU	1099
Asus ProArt PX13 HN7306 Ryzen AI 9 HX 370, NVIDIA GeForce RTX 4070 Laptop GPU	1099
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

Minisforum AtomMan X7 Ti 与 Intel Core Ultra 9 185H 评测：配备触摸显示屏、摄像头和 OCuLink 的 AI 迷你 PC

完美的全能选手？

潜在的竞争对手比较

Minisforum AtomMan X7 Ti 详细介绍

外壳 - 金属外壳和 4 英寸触摸显示屏

尺寸比较

功能 - 许多连接，几乎没有什么可期待的

交流

网络摄像头

配件

维护

触摸屏

性能 - 英特尔酷睿 Ultra 9 处理器，16 核 22 线程

测试条件

处理器

性能模式下的 Cinebench 结果

平衡模式下的 Cinebench 结果

节能模式下的 Cinebench 结果

Minisforum AtomMan X7 Ti 与 Cinebench R15 多环对比

系统性能

NPU 性能

DPC 延迟

大容量存储器

Continuous read: DiskSpd Read Loop, Queue Depth 8

图形处理器 - Intel Arc 8 核

游戏性能

Witcher 3 FPS chart

Minisforum AtomMan X7 Ti 与 GPD G1 的性能测试

排放 - Minisforum 做出了很好的妥协

噪音排放

温度

耗电量

Power consumption with the external monitor

Power consumption with the external monitor

Pros

Cons

结论 - Core Ultra 9 185H 是一款功能强大的全能型产品

价格和供应情况

More articles related to this device

Transparency

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
Asus G752VY-RH71 6700HQ, GeForce GTX 980M	12056
Lenovo Lenovo Legion Y720 80VR002XGE i7-7700HQ, GeForce GTX 1060 Mobile	12067
Lenovo ThinkPad X1 Carbon G12 Ultra 7 155H, Arc 8-Core	12071
Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core	12098
Khadas Mind 2 Ultra 7 155H, Arc 8-Core	12109
Razer Blade (2017) i7-7700HQ, GeForce GTX 1060 Mobile	12114
Dell Precision 5550 P91F i7-10875H, Quadro T2000 Max-Q	12119
...
(max) R7 9800X3D, NVIDIA GeForce RTX 4090	77609
