Minisforum EliteMini UM890 Pro 评测：配备 AMD Ryzen 9 和超静音散热技术的强大迷你 PC

Name: Minisforum EliteMini UM890 Pro
Brand: Minisforum

在静音模式下使用 Ryzen 9 的迷你电脑。

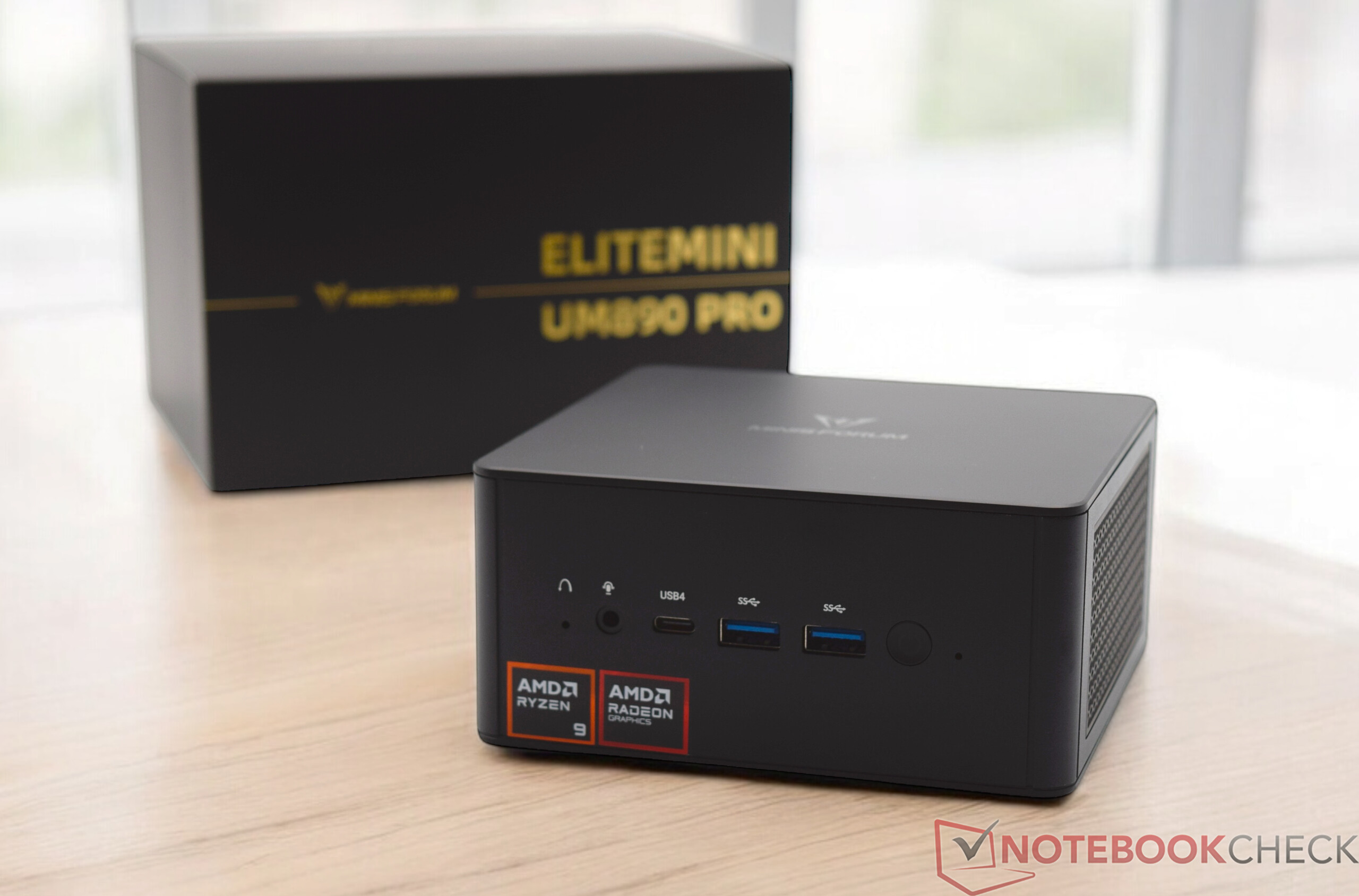

Minisforum 推出了 EliteMini UM890 Pro，这是一款配备 Ryzen 9 8945HS 和 Radeon 780M 的超强迷你 PC。它的性能和连接性尤其令人印象深刻。我们详细分析了这款迷你电脑的其他优势，以及在测试中的表现。
Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy) Published 03/21/2025 🇺🇸 🇩🇪 ...
Mini PC Desktop AMD Ryzen (Zen) Business

评语 - AMD Ryzen 9 8945HS 速度快、散热好

Minisforum EliteMini UM890 Pro 是一款令人印象深刻的紧凑型迷你 PC，配备了强大的 AMD Ryzen 9 8945HS APU 和 Radeon 780M iGPU。它可为办公和多媒体应用以及中等分辨率下的休闲游戏提供稳定的性能。借助 OCuLink，您可以连接外置 GPU 以获得更高的性能。尽管两个 USB4 端口的性能仍然低于我们的预期，在测试中仅达到 20 GBit/s，但它的其他连接性能同样令人印象深刻。最大的亮点之一是电脑的冷却系统，即使在满载情况下也能非常安静地工作。

Test device courtesy of Minisforum

Download your licensed rating image as PNG / SVG

它的功耗很低，与竞争对手大致相同。总的来说，EliteMini UM890 Pro 在小巧的机箱内提供了强大的性能，主要面向那些对系统静音要求较高的用户。

Pros

+ 采用优质材料的坚固机箱

+ AMD Ryzen 9 8945HS (8C/16T)

+ 通过 USB4 和 OCuLink 进行现代连接

+ 可同时为四台显示器供电

+ 强大而安静的散热

+ 主动式固态硬盘和内存冷却

+ 支持高达 96 GB 的 DDR5 内存

+ 无线局域网性能

Cons

- 只能安装一个存储设备（使用 OCuLink 连接时）

- USB4 仅为 20 GBit/s

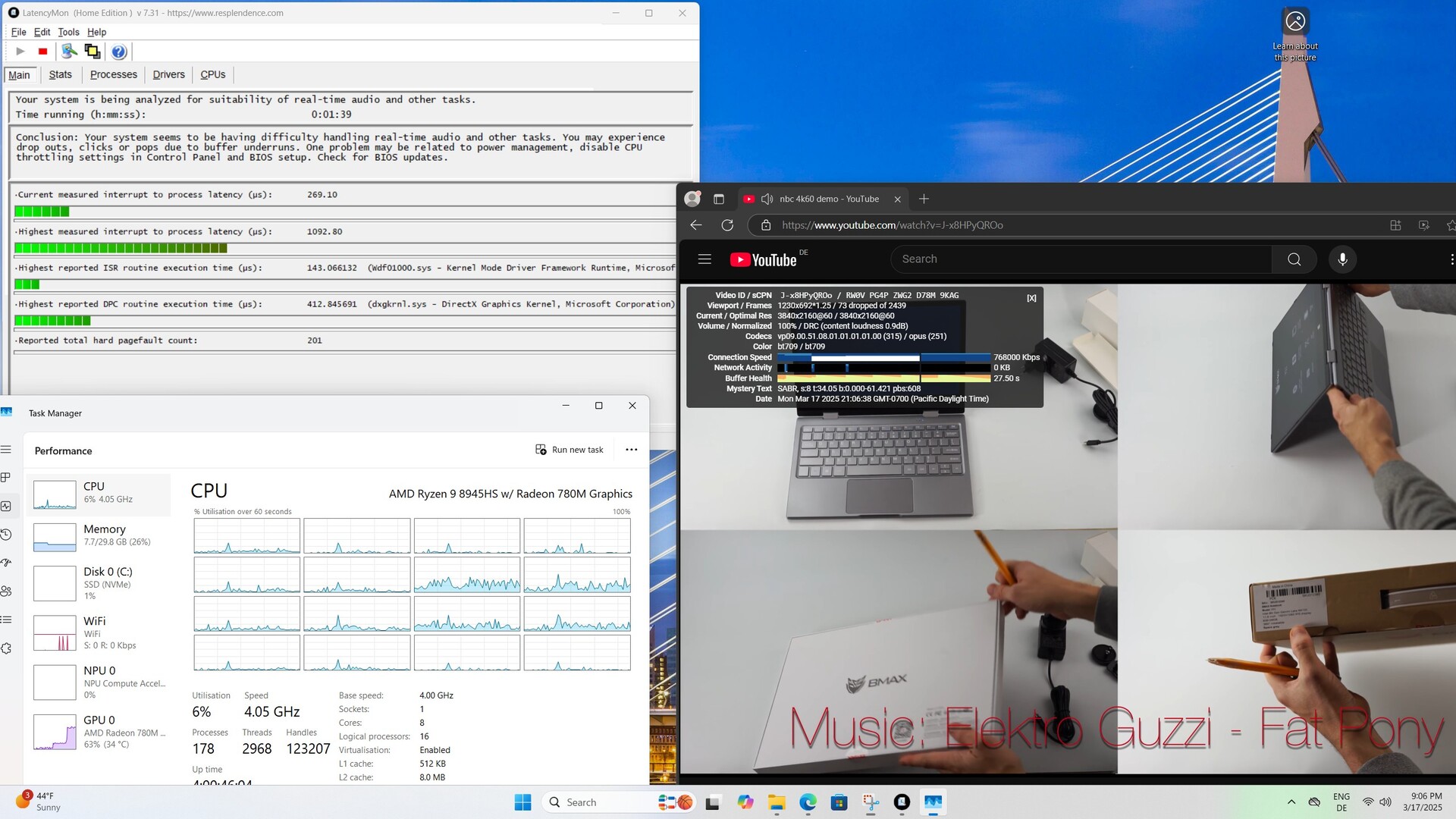

- 播放 4K60 视频时可能出现问题

- BIOS 选项有限

价格和供应情况

目前，Minisforum EliteMini UM890 Pro 可通过亚马逊订购，售价为 729.99 美元。

评语 - AMD Ryzen 9 8945HS 速度快、散热好
规格
外壳和连接
性能 - AMD Ryzen 9 8945HS 可选，最高 70 瓦

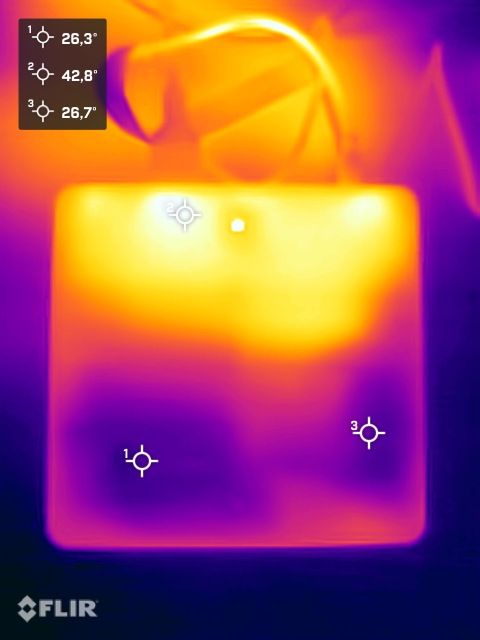

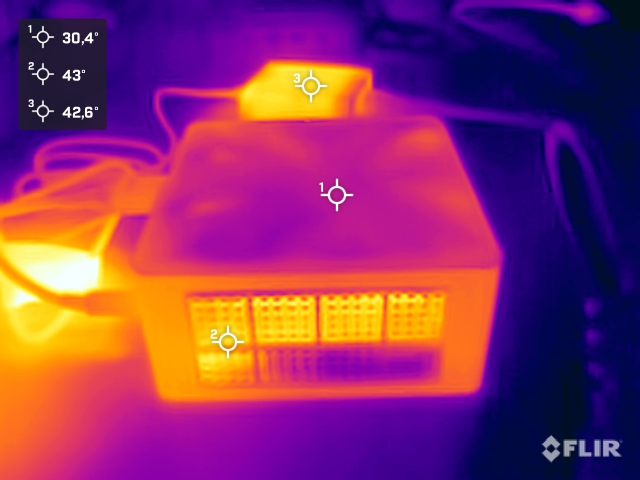

排放 - 性能与体积的完美平衡
电源管理
Notebookcheck 总评分
Possible alternatives compared

Minisforum EliteMini UM890 Pro 采用 AMD Ryzen 9 8945HS，与 Minisforum 的高性能迷你 PC 组合完美契合。从外观上看，EliteMini UM890 Pro 让人想起了 EliteMini UM780 XTX但没有 LED 面板和支架，这是一个明智的决定。现代化的硬件和机箱上的小改动表明，Minisforum 并不像许多其他制造商那样，只是把新硬件装进现有的机箱。

更多 Minisforum 评论：

规格

Minisforum EliteMini UM890 Pro

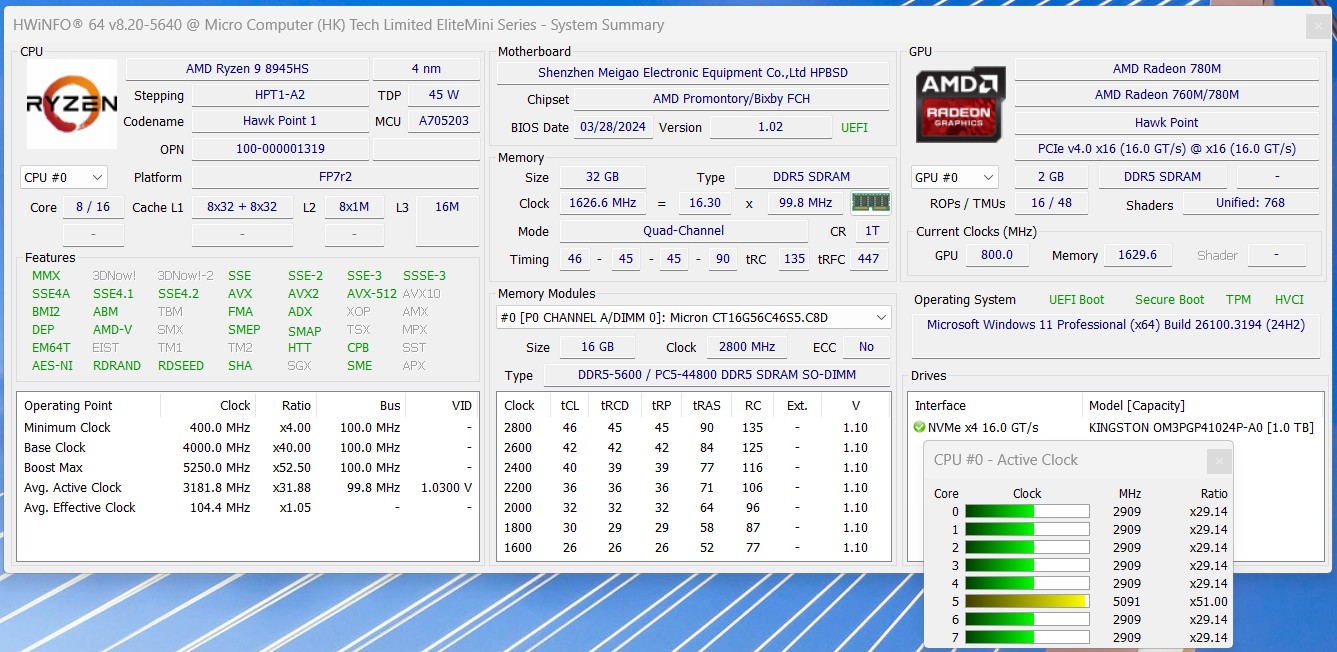

Processor

AMD Ryzen 9 8945HS 8 x 4 - 5.2 GHz, 65 W PL2 / Short Burst, 54 W PL1 / Sustained, Hawk Point-HS (Zen 4)

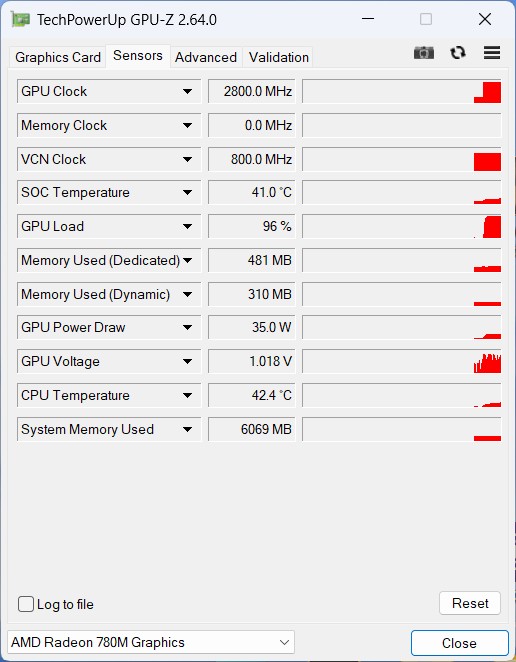

Graphics adapter

AMD Radeon 780M, Adrenalin 25.2.1

Memory

32 GB

, DDR5 5.600 MT/s, 2x SODIMM, max. 96 GB

Mainboard

AMD Promontory/Bixby FCH

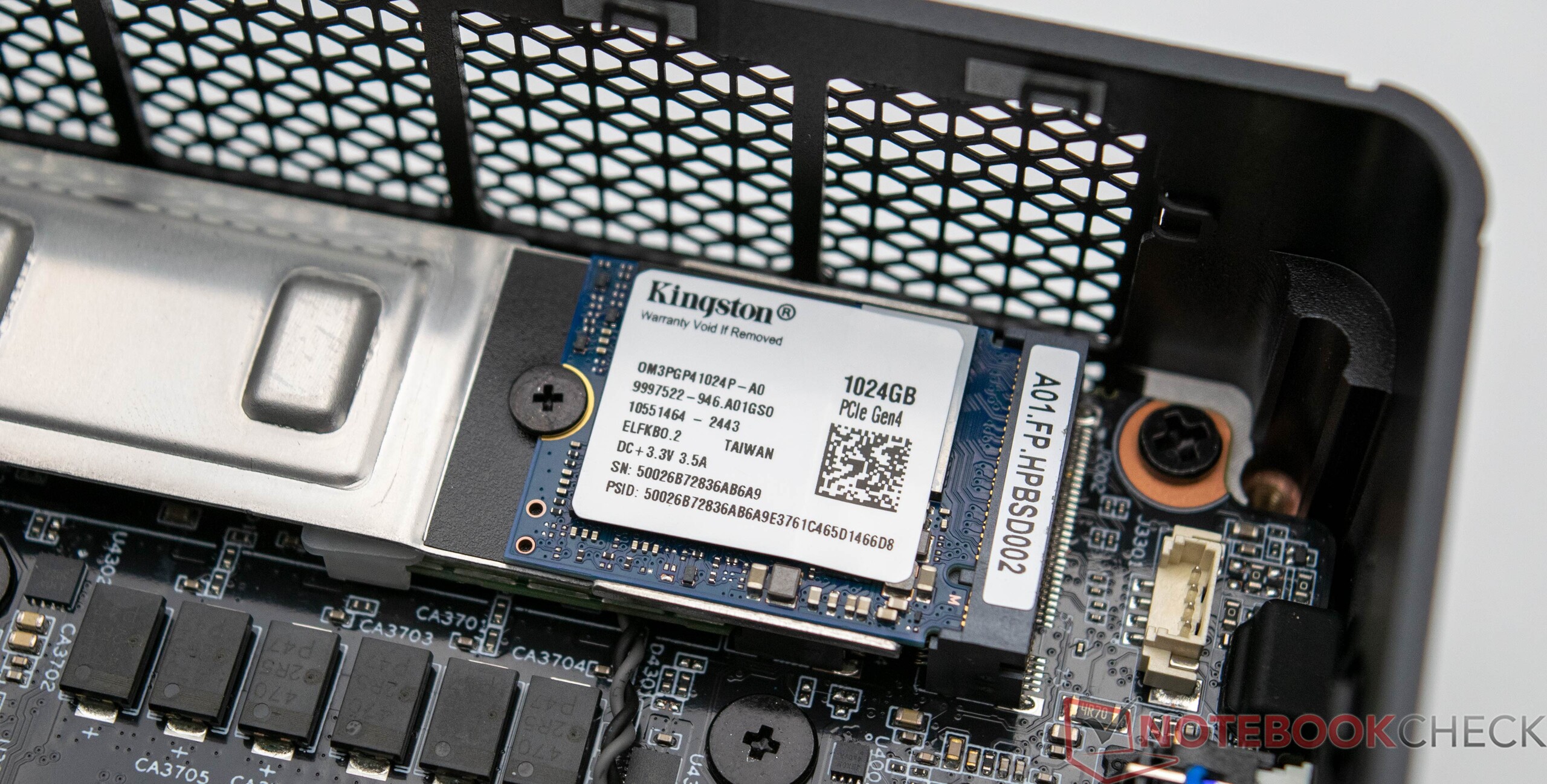

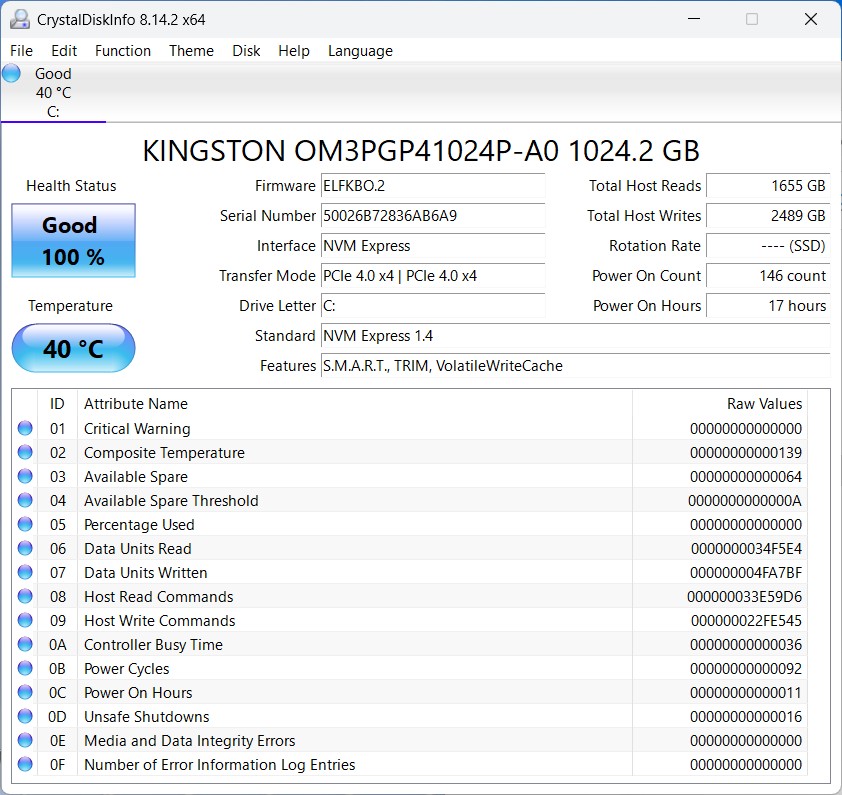

Storage

Kingston OM3PGP41024P-A0, 1024 GB

, M.2-2280, NVMe, 930 GB free

Soundcard

AMD Zen - Audio Processor - HD Audio Controller

Connections

4 USB 3.1 Gen2, 2 USB 4.0 40 Gbps, 2 Thunderbolt, 1 HDMI, 2 DisplayPort, Audio Connections: 3,5mm audio-jack, Realtek RTL8125 2.5GBe Family Ethernet Controller, OCuLink Port (64 Gbps)

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.3

Size

height x width x depth (in mm): 60.6 x 130 x 127

Operating System

Microsoft Windows 11 Pro

Additional features

120W Power-Adapter, OCuLink M.2-Adapter, VESA-Mount

Weight

709 g, Power Supply: 281 g

Price

739 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

外壳和连接

Minisforum EliteMini UM890 Pro 与 UM780 XTX 相似，尤其是在尺寸和材料选择方面。其制造质量无可挑剔，制造商决定不使用 RGB 也是明智之举。

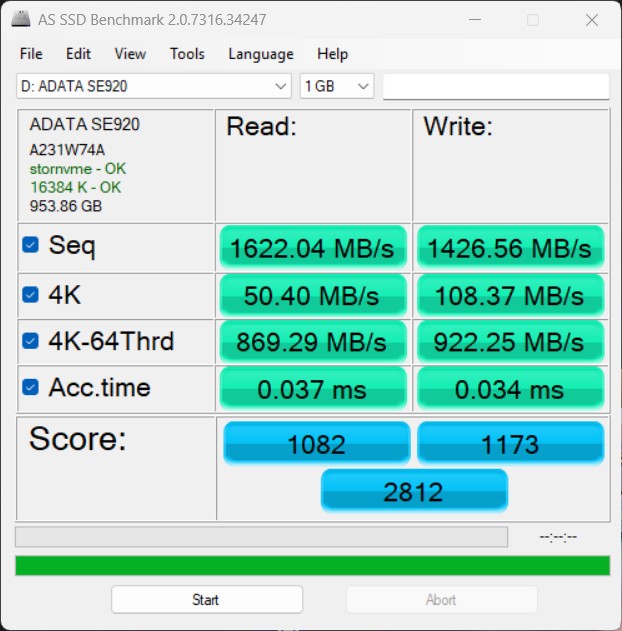

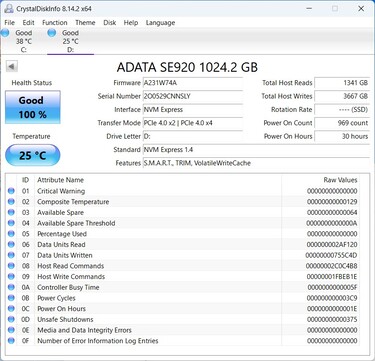

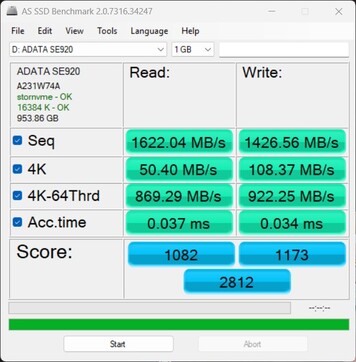

UM780 XTX 有很多连接端口可供选择，包括两个 USB4 端口和 PCIe 4.0 x2，但正如我们使用威刚 SE920 进行测试时发现的那样，这限制了它的数据传输速率。另外，第二个 M.2 插槽可用于 OCuLink 连接外部 GPU。此外，还可直接连接四台显示器和两个 2.5 Gbit/s RJ45 端口，确保快速的网络连接。

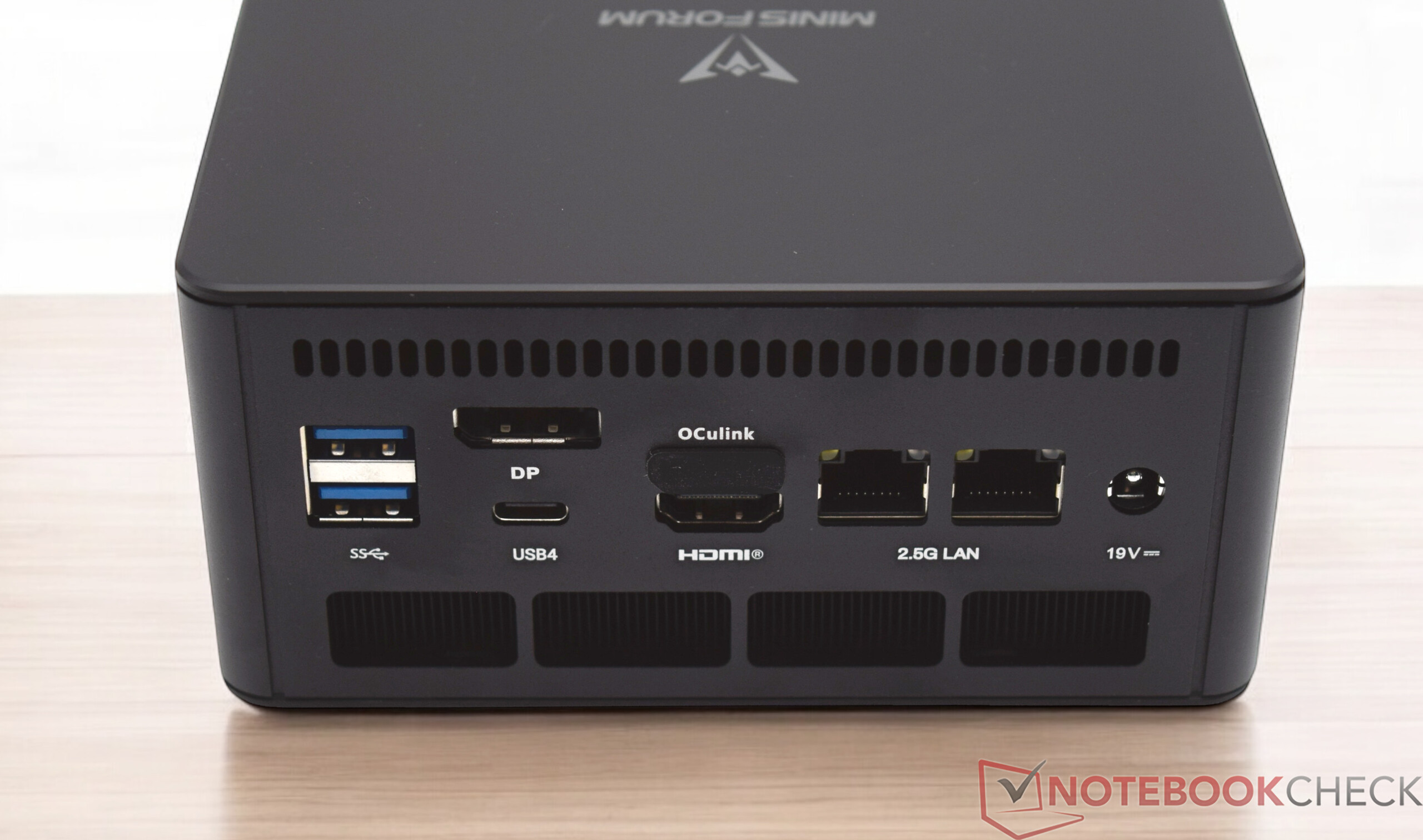

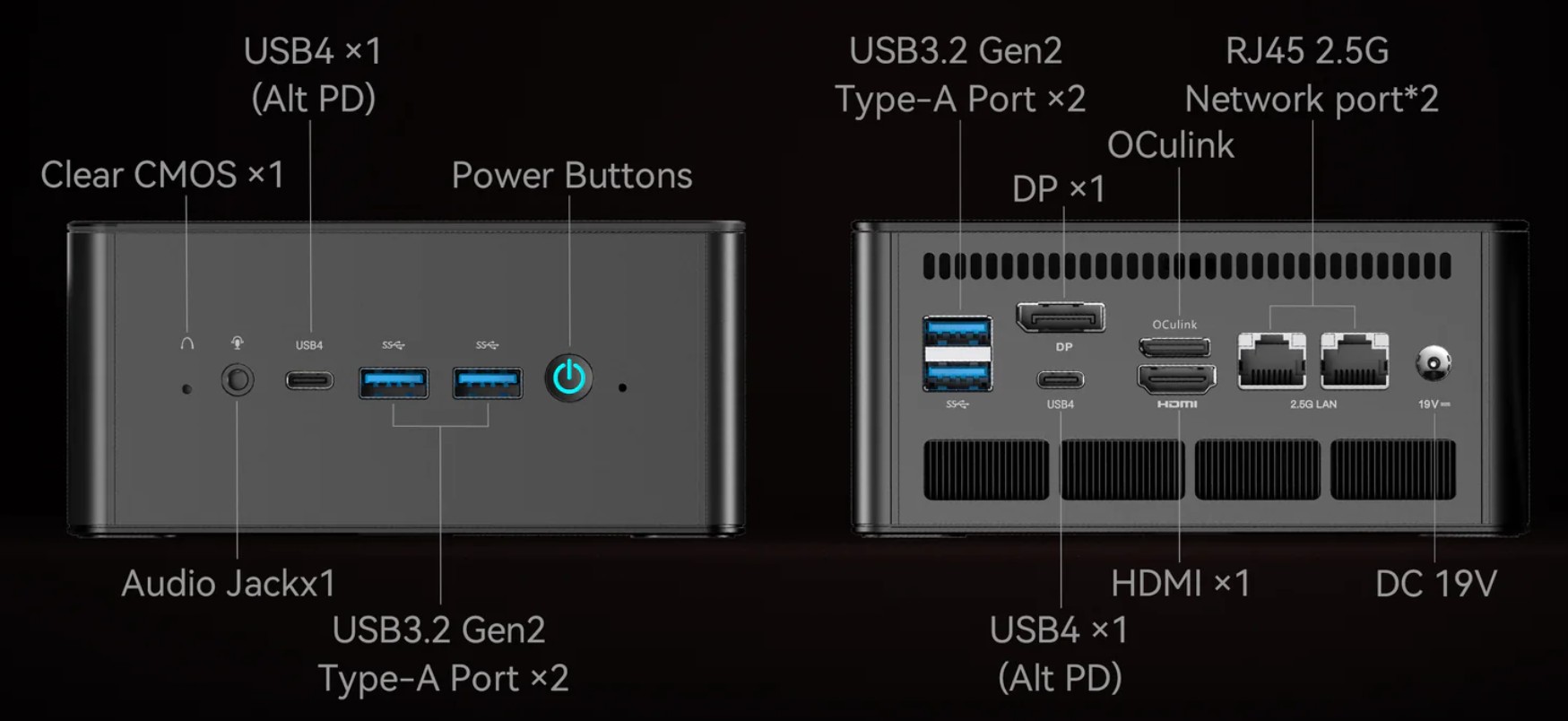

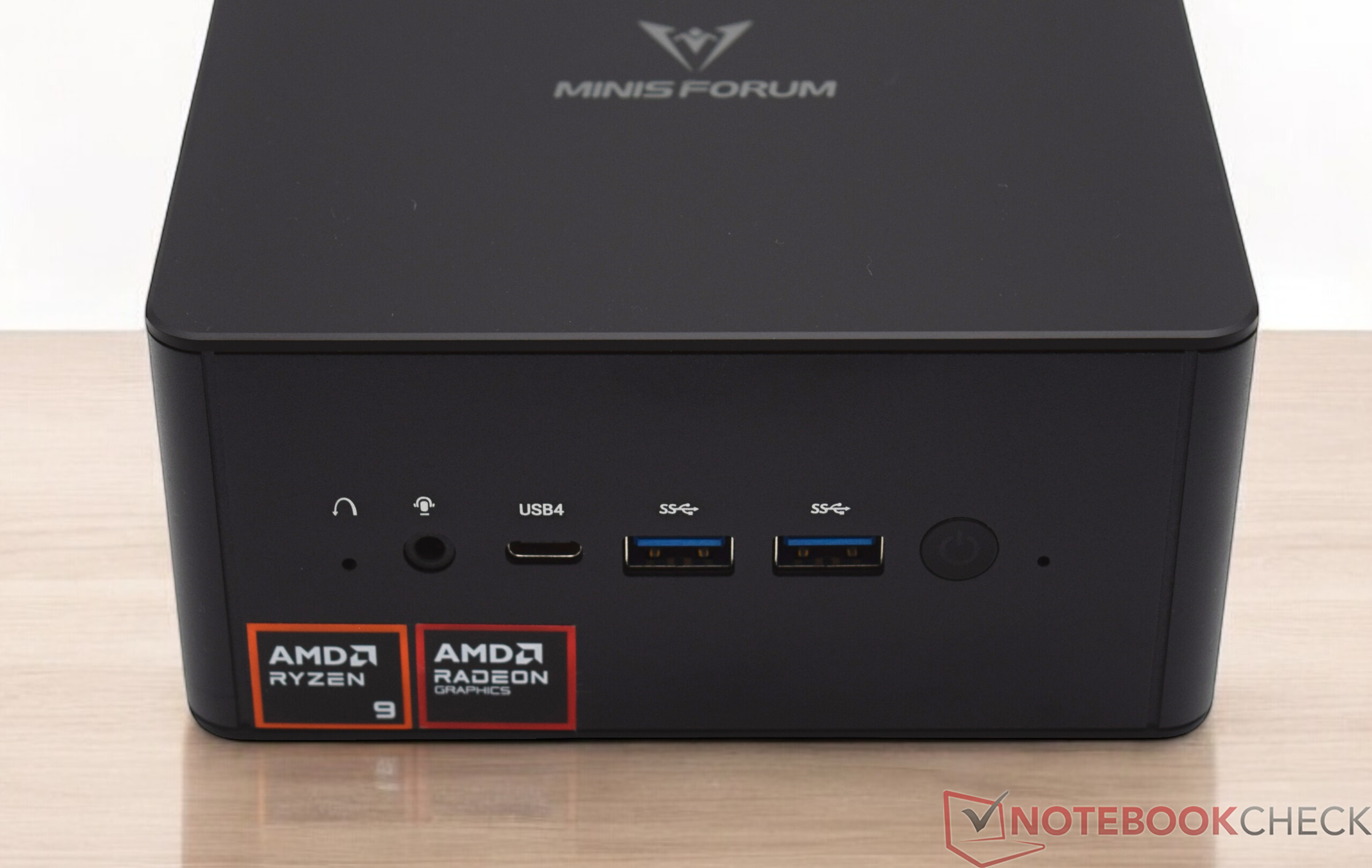

Minisforum EliteMini UM890 Pro 的外部端口（来源：Minisforum）

尺寸比较

Minisforum AI X1 Pro Minisforum EliteMini UM890 Pro Minisforum EliteMini UM780 XTX Geekom GT1 Mega Aoostar GEM10 Geekom AX8 Pro DIN A4 ❌

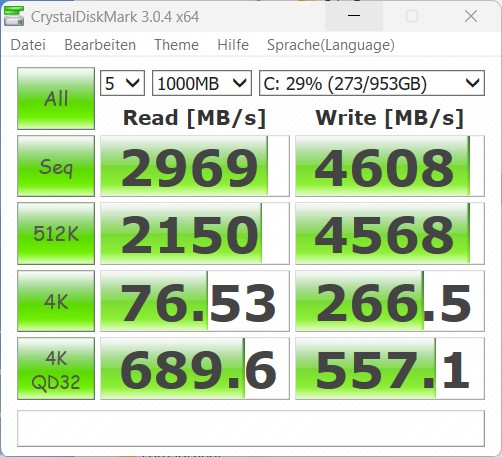

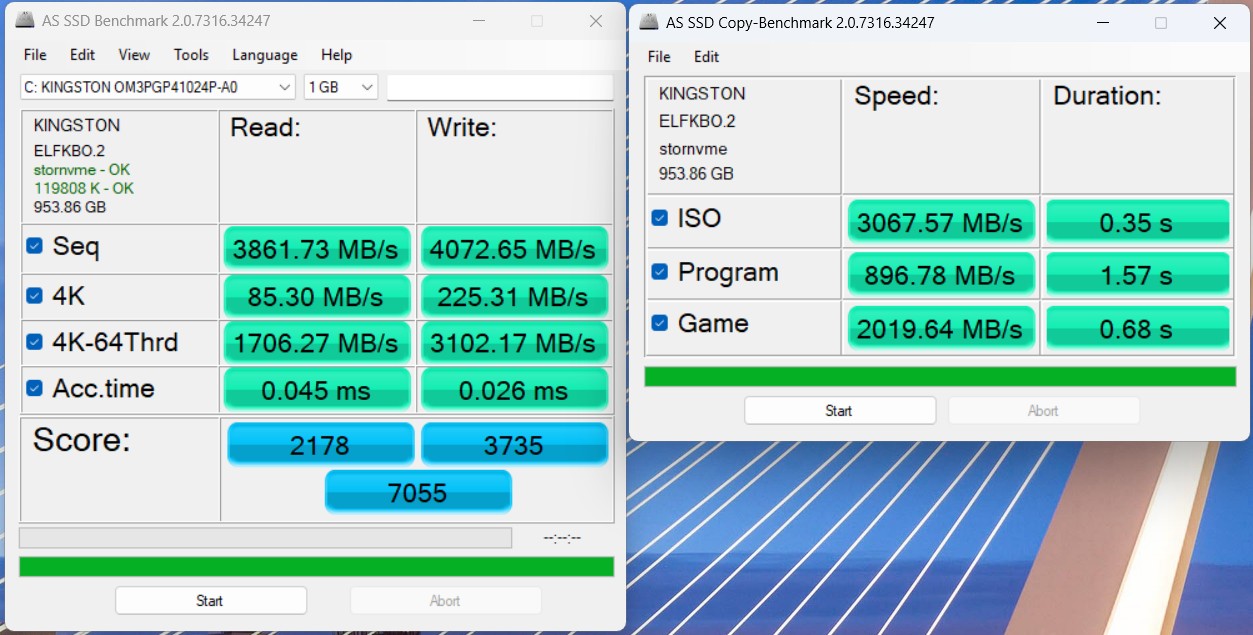

Connectivity - USB 3.x / USB4 / TB - AS SSD Seq Read Test (1GB)
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	3906.41 MB/s
Apple Mac Mini M4 Pro M4 Pro 16-Core GPU, M4 Pro (12 cores), Apple SSD AP2048Z	3809 MB/s
Minisforum MS-A1 Radeon 780M, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0	3245.45 MB/s
Minisforum EliteMini AI370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	3067.24 MB/s
Average of class Mini PC (1611 - 3906, n=10, last 2 years)	2939 MB/s
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	1622.04 MB/s

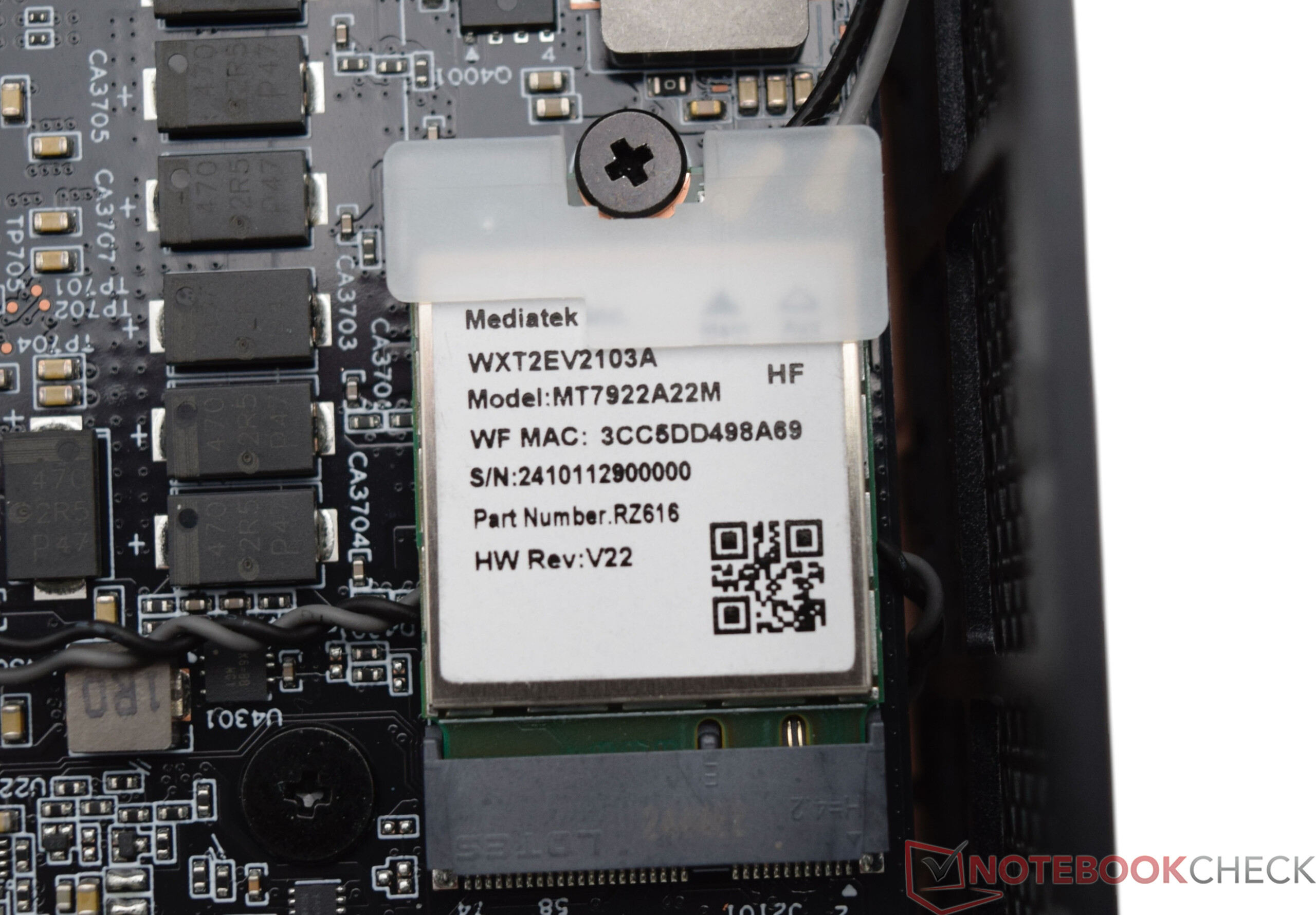

Networking
iperf3 receive AXE11000 6GHz
Minisforum AI X1 Pro Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	1806 (1779^min - 1816^max) MBit/s +3%
Minisforum EliteMini UM890 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1750 (1725^min - 1761^max) MBit/s
Geekom AX8 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1657 (1619^min - 1670^max) MBit/s -5%
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (684 - 1771, n=42)	1450 MBit/s -17%
Average of class Mini PC (684 - 1806, n=56, last 2 years)	1410 MBit/s -19%
Geekom GT1 Mega Intel Wi-Fi 7 BE200 320MHz	1149 (666^min - 1346^max) MBit/s -34%
iperf3 transmit AXE11000 6GHz
Geekom AX8 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1800 (1737^min - 1904^max) MBit/s +19%
Minisforum AI X1 Pro Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	1787 (1743^min - 1853^max) MBit/s +18%
Minisforum EliteMini UM890 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1518 (1353^min - 1599^max) MBit/s
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (394 - 1890, n=41)	1406 MBit/s -7%
Average of class Mini PC (394 - 1800, n=56, last 2 years)	1363 MBit/s -10%
Geekom GT1 Mega Intel Wi-Fi 7 BE200 320MHz	1242 (1110^min - 1348^max) MBit/s -18%
iperf3 receive AXE11000
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (707 - 1775, n=59)	1400 MBit/s +43%
Geekom AX8 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	979 (962^min - 989^max) MBit/s 0%
Minisforum EliteMini UM890 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	977 (954^min - 984^max) MBit/s
Minisforum AI X1 Pro Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	973 (491^min - 984^max) MBit/s 0%
Average of class Mini PC (349 - 1796, n=109, last 2 years)	952 MBit/s -3%
Minisforum EliteMini UM780 XTX Intel Killer Wi-Fi 6E AX1675x (210NGW)	934 (915^min - 943^max) MBit/s -4%
Geekom GT1 Mega Intel Wi-Fi 7 BE200 320MHz	888 (825^min - 926^max) MBit/s -9%
Aoostar GEM10 Intel Wi-Fi 6 AX200	451 (228^min - 466^max) MBit/s -54%
iperf3 transmit AXE11000
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (358 - 1785, n=59)	1293 MBit/s +34%
Minisforum AI X1 Pro Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	967 (917^min - 1020^max) MBit/s 0%
Geekom AX8 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	966 (921^min - 1008^max) MBit/s 0%
Minisforum EliteMini UM890 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	964 (499^min - 1002^max) MBit/s
Average of class Mini PC (272 - 1776, n=109, last 2 years)	882 MBit/s -9%
Geekom GT1 Mega Intel Wi-Fi 7 BE200 320MHz	741 (690^min - 797^max) MBit/s -23%
Minisforum EliteMini UM780 XTX Intel Killer Wi-Fi 6E AX1675x (210NGW)	729 (668^min - 784^max) MBit/s -24%
Aoostar GEM10 Intel Wi-Fi 6 AX200	429 (325^min - 510^max) MBit/s -55%

Minisforum EliteMini UM890 Pro; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1518 (1353-1599)

Minisforum EliteMini UM890 Pro; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1750 (1725-1761)

Minisforum EliteMini UM890 Pro; iperf3 receive AXE11000; iperf 3.1.3: Ø976 (954-984)

Minisforum EliteMini UM890 Pro; iperf3 transmit AXE11000; iperf 3.1.3: Ø947 (499-1002)

配件

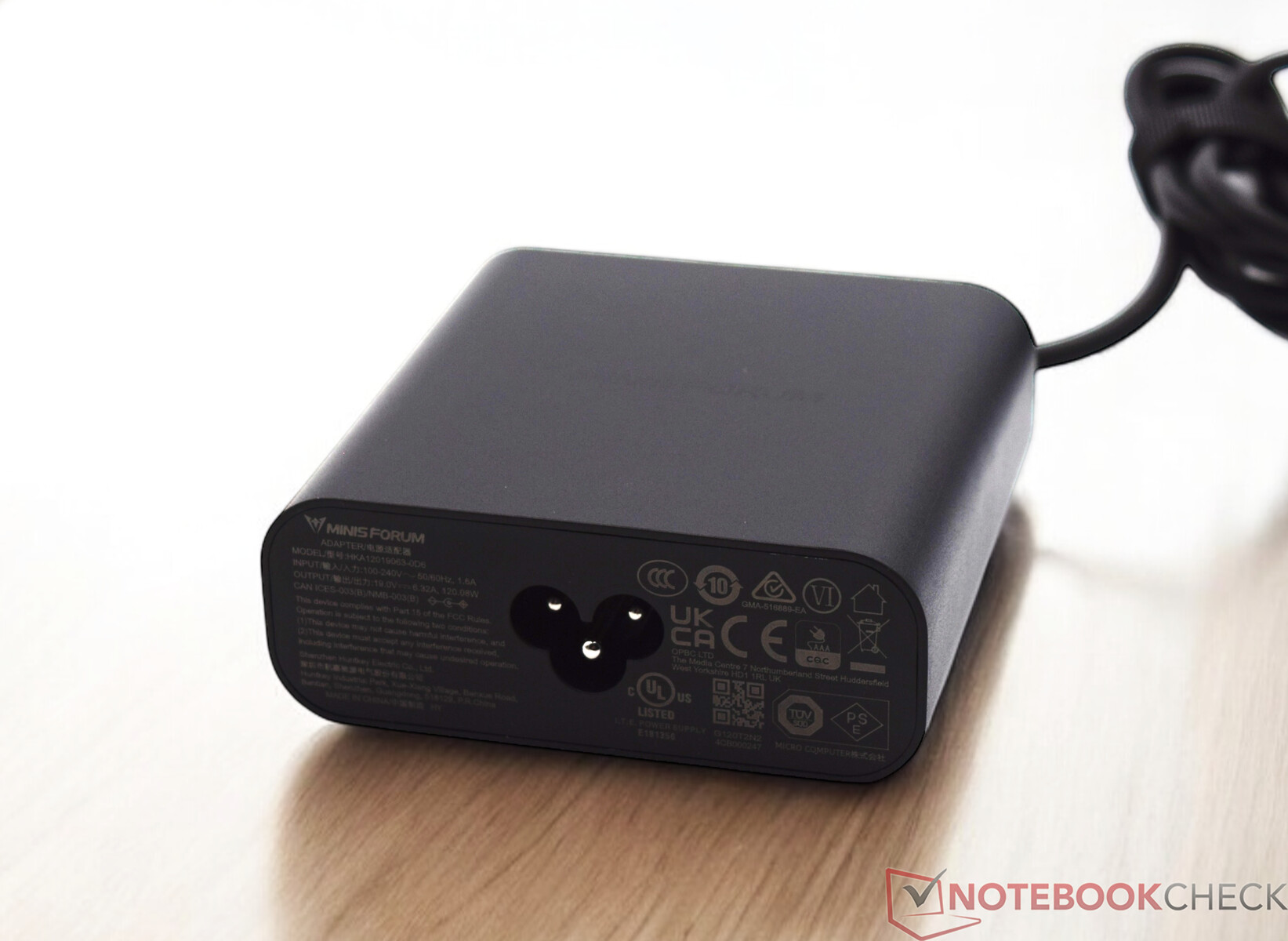

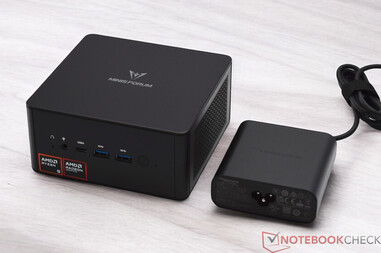

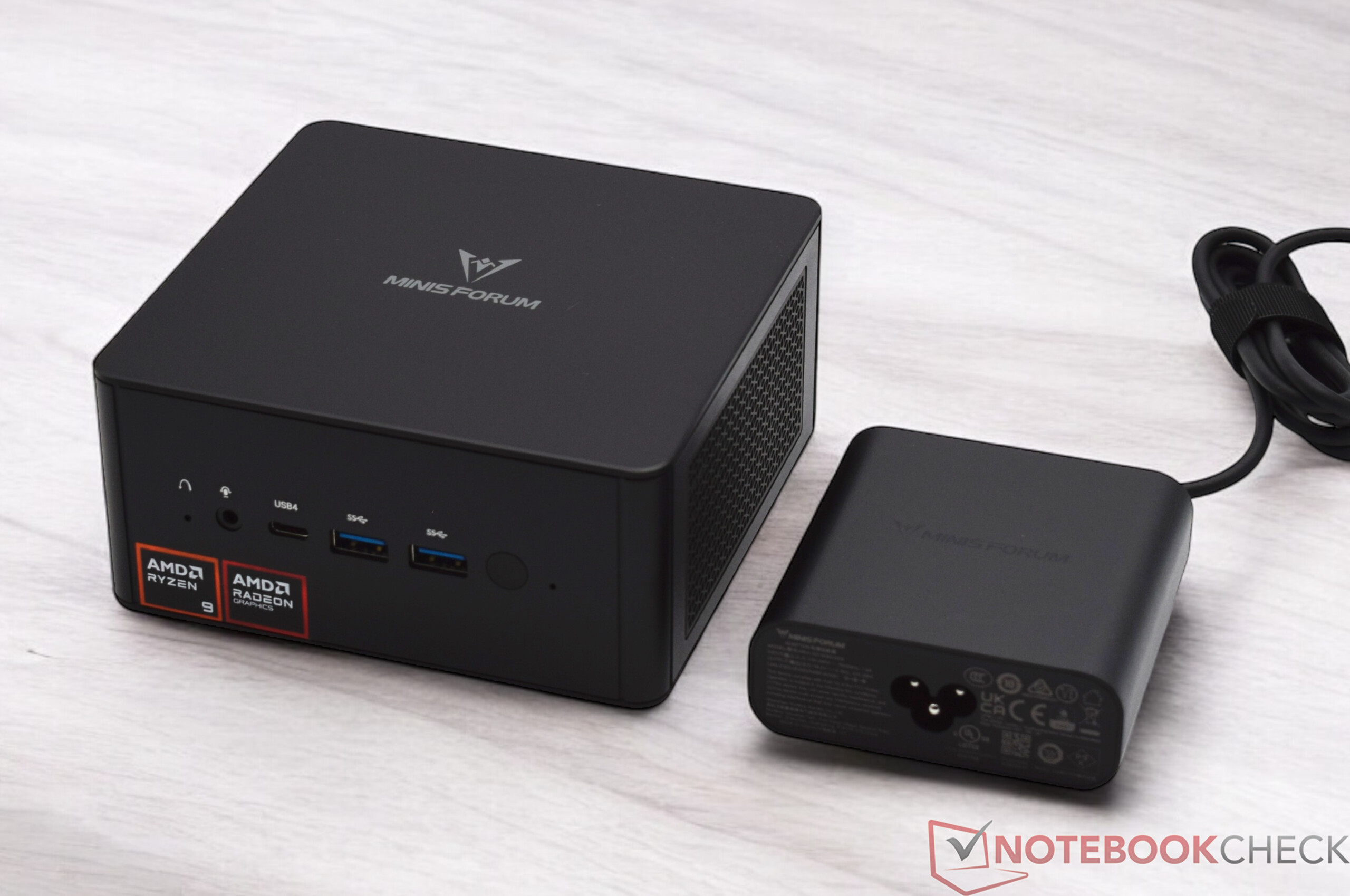

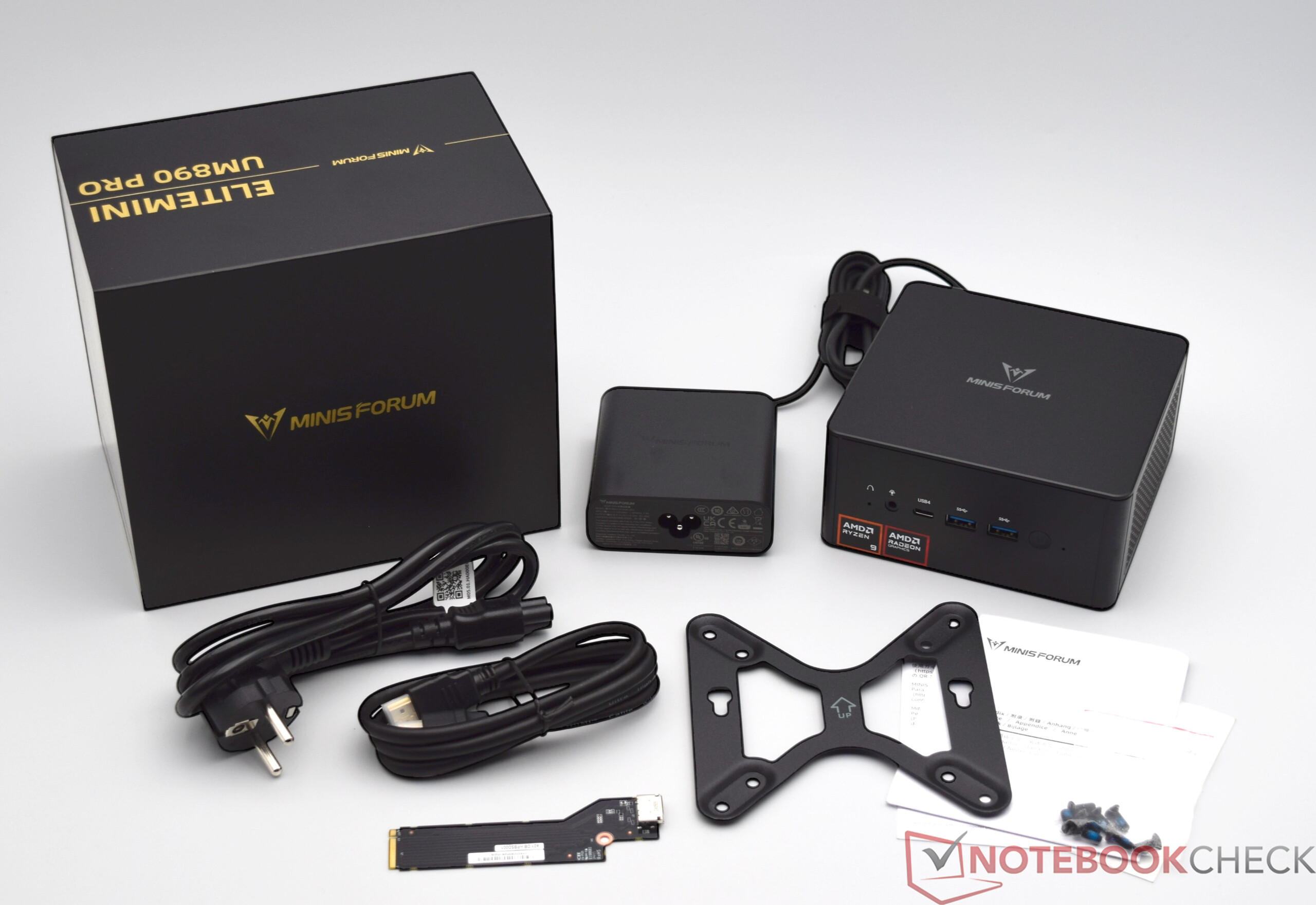

该设备的供货范围包括一个 120 瓦的电源装置、一个带安装材料的 VESA 安装板、一根 HDMI 电缆、一本快速入门指南以及可选择安装的 OCuLink 适配器。

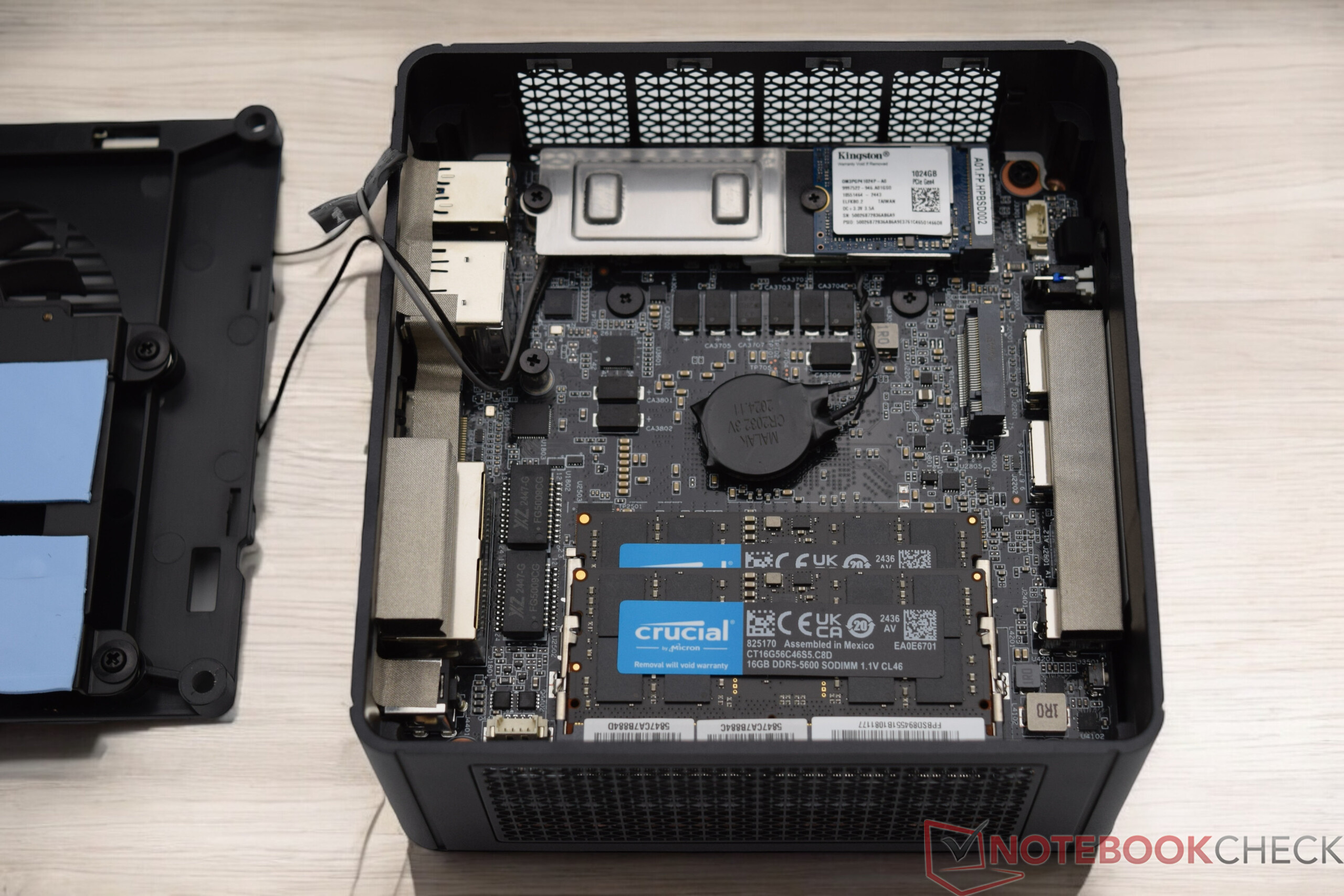

维护

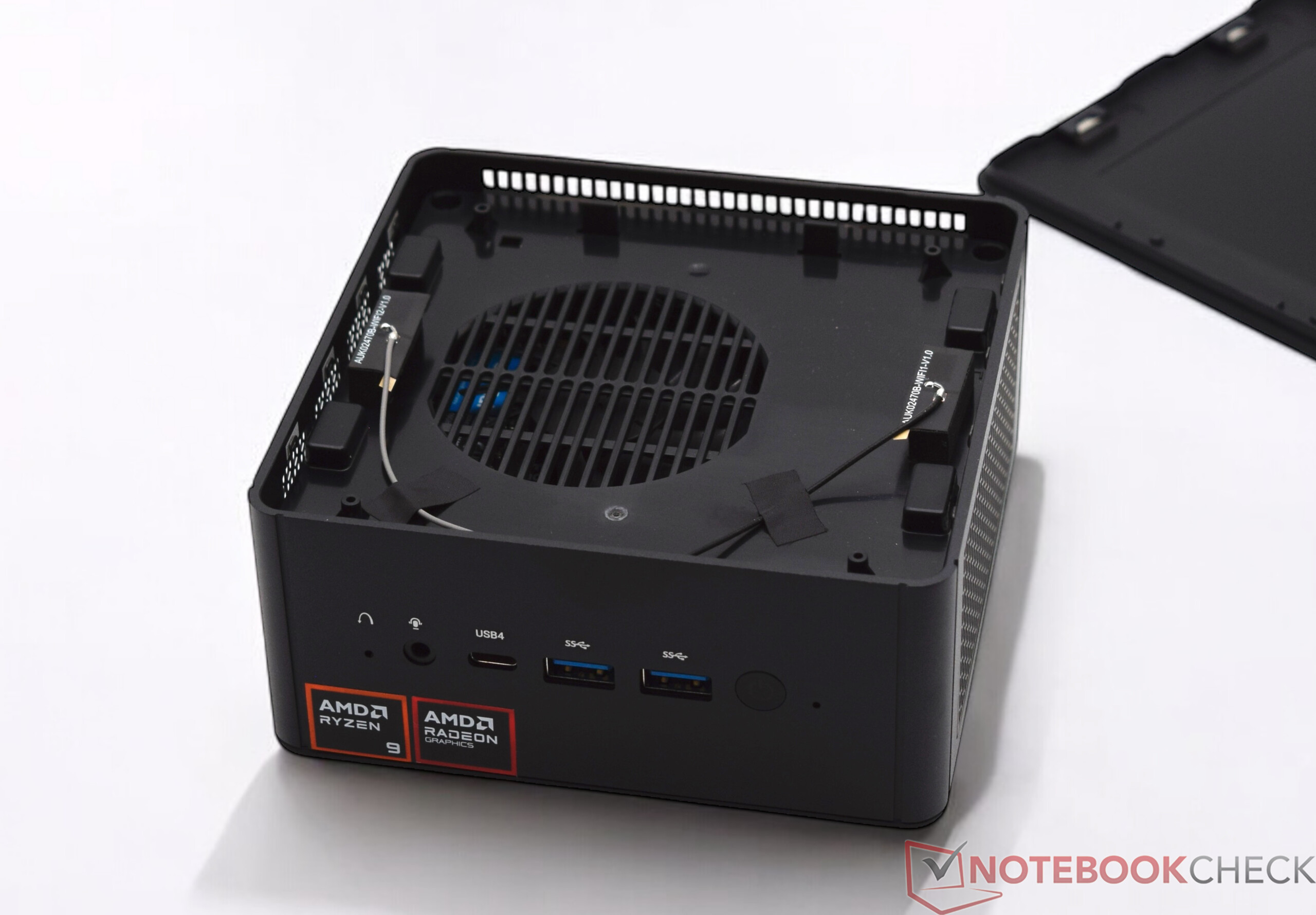

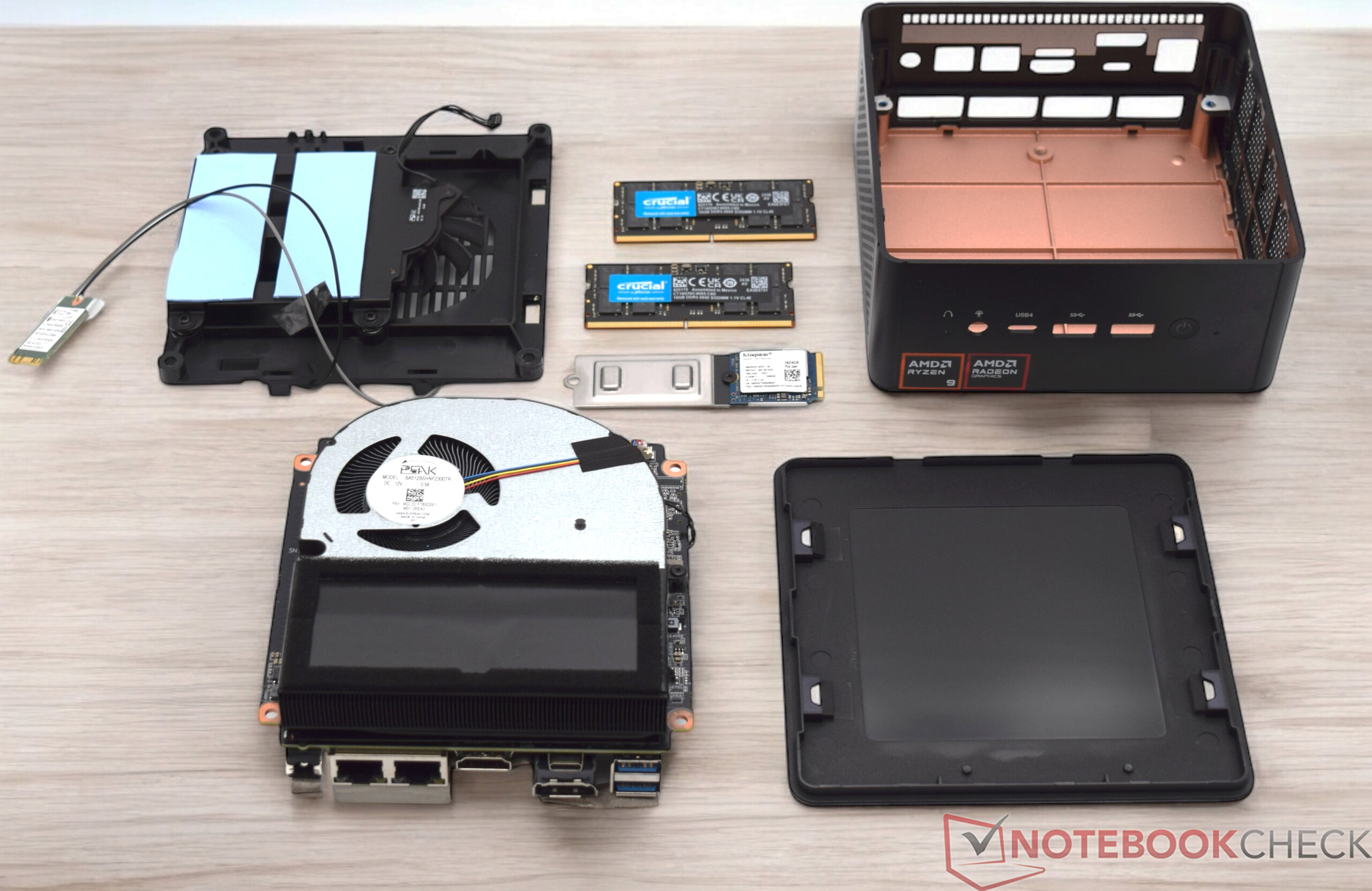

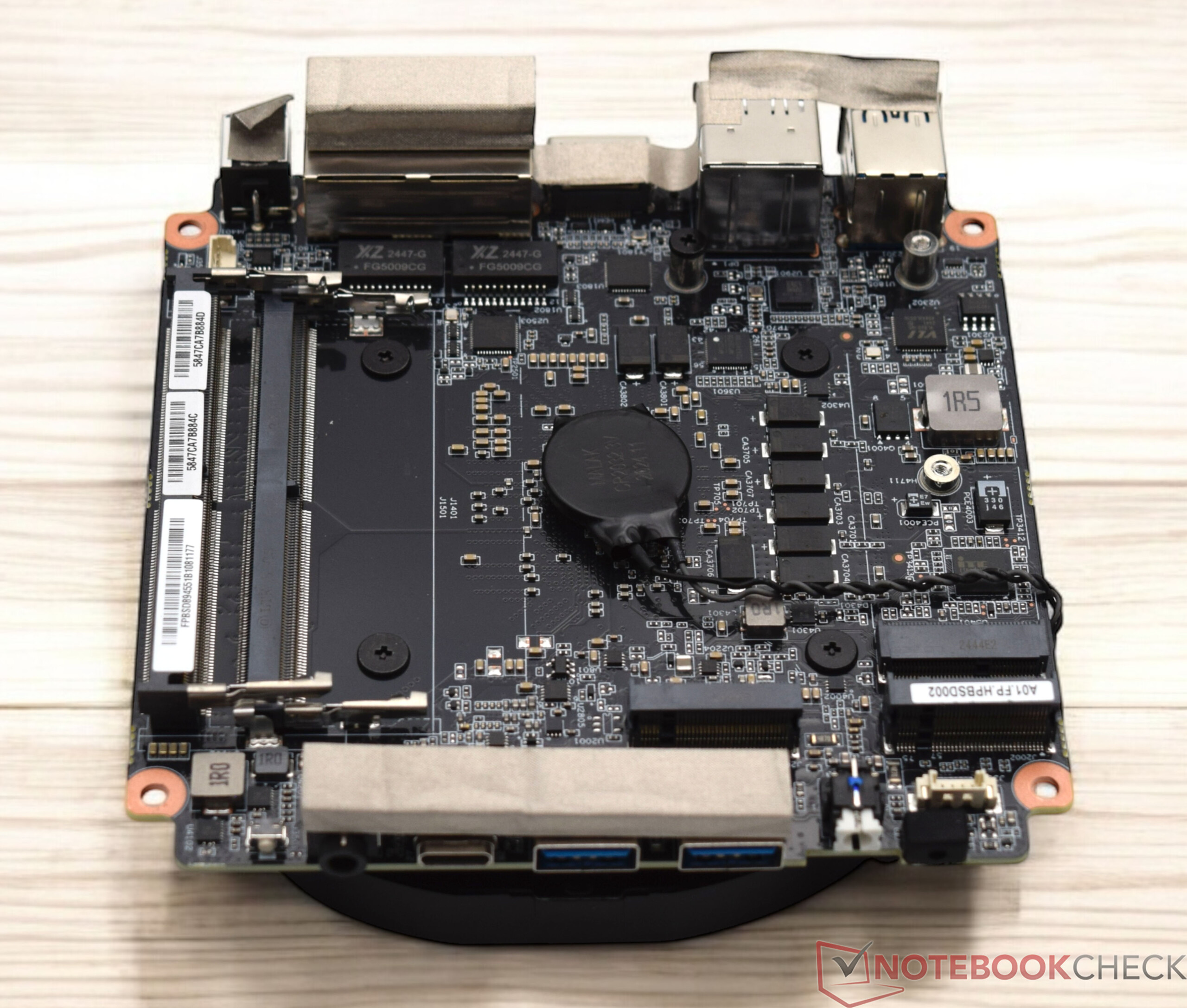

Minisforum EliteMini UM890 Pro 采用磁性盖，易于打开。如果要接触组件，必须取下散热装置，而短电缆则需要谨慎操作。内存和固态硬盘模块易于更换。空闲的 M.2 插槽允许使用 OCuLink 适配器。

可持续性

电脑的小巧包装主要由纸张和纸板组成，还有一些泡沫塑料以增加保护性。制造商没有强调任何特殊的可持续发展措施。配件用塑料袋包装，但这并非完全必要。

性能 - AMD Ryzen 9 8945HS 可选，最高 70 瓦

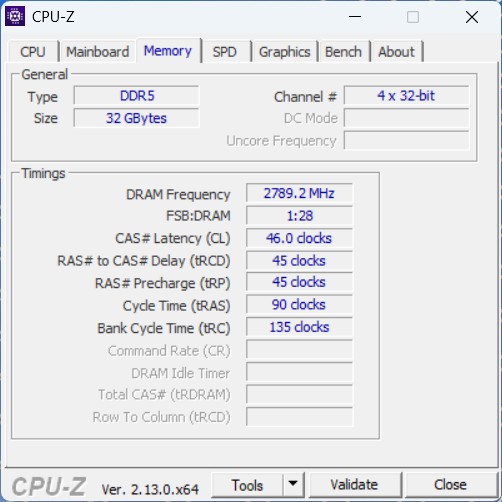

Minisforum EliteMini UM890 Pro 采用了 AMD Ryzen 9 8945HS(8C/16T），配备 32GB DDR5 内存和快速的 1-TB SSD。目前还没有替代产品，但更便宜的 Ryzen 7 8845HS 版本肯定会很有趣。

测试条件

我们在设备交付状态下进行了所有与评估相关的测试，即在平衡模式下预设了功率限制。在性能模式下，Minisforum 可为处理器提供略高的功率，最高可达 70 瓦，具体功率可在 BIOS 中设置。

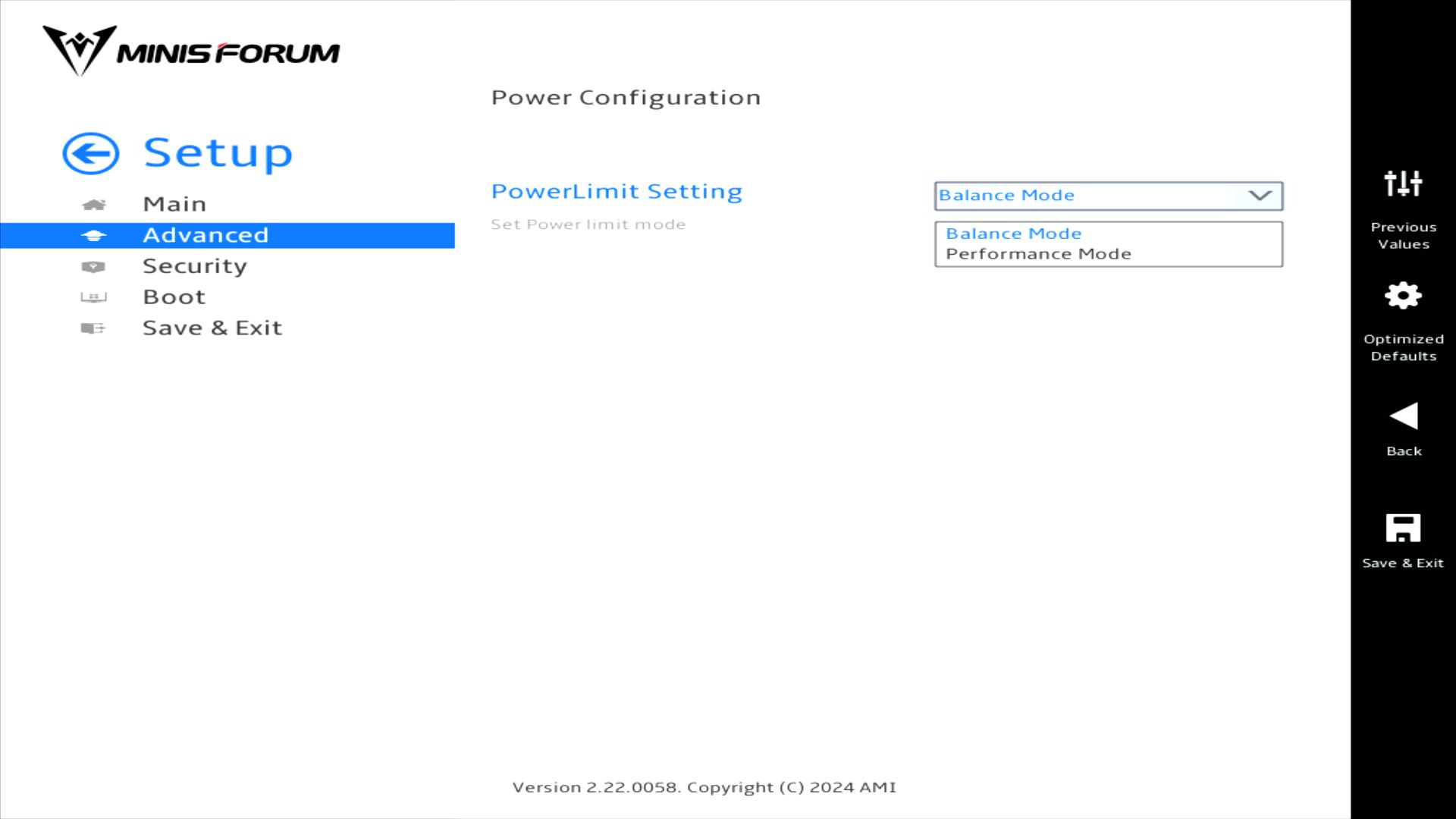

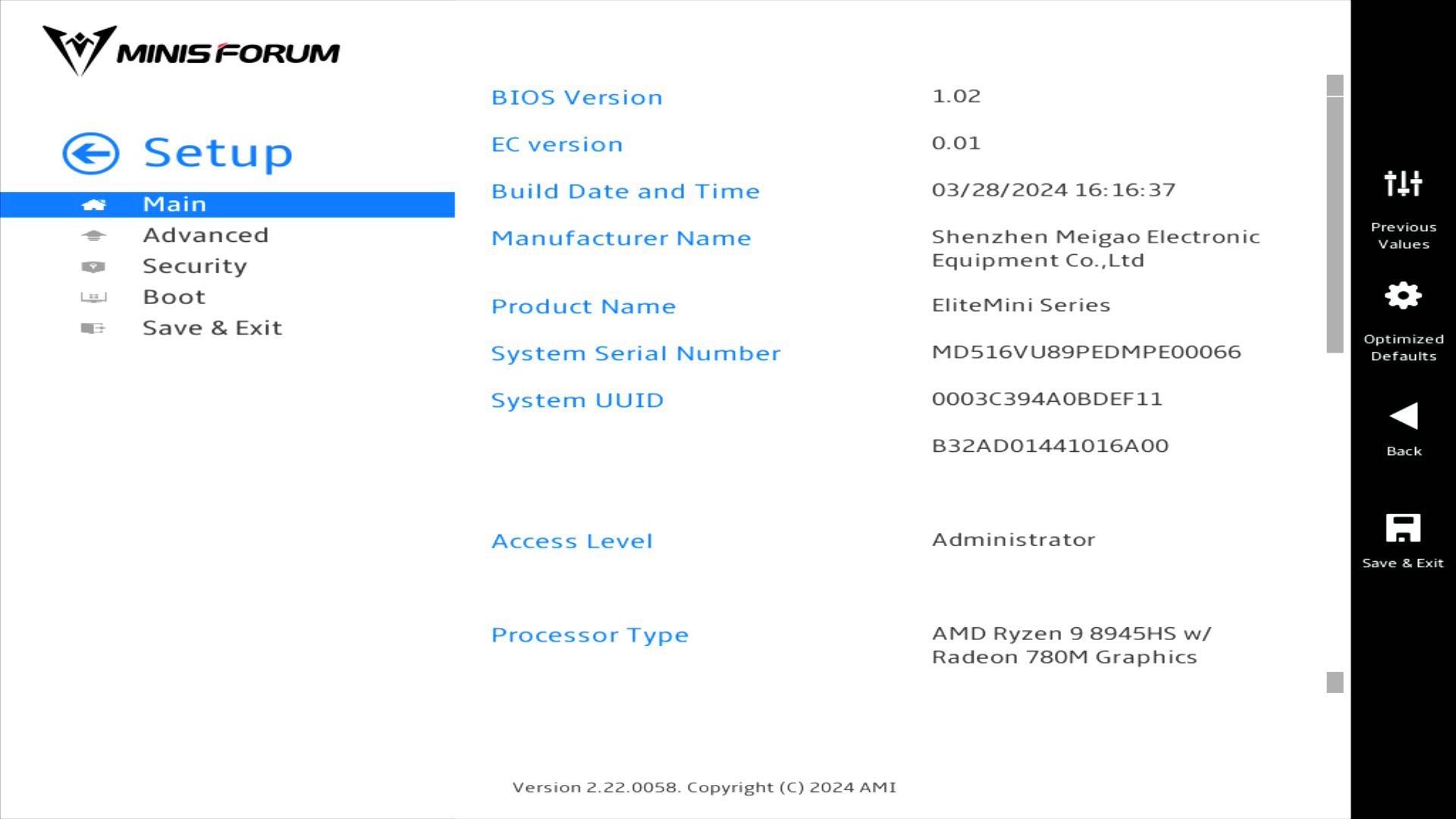

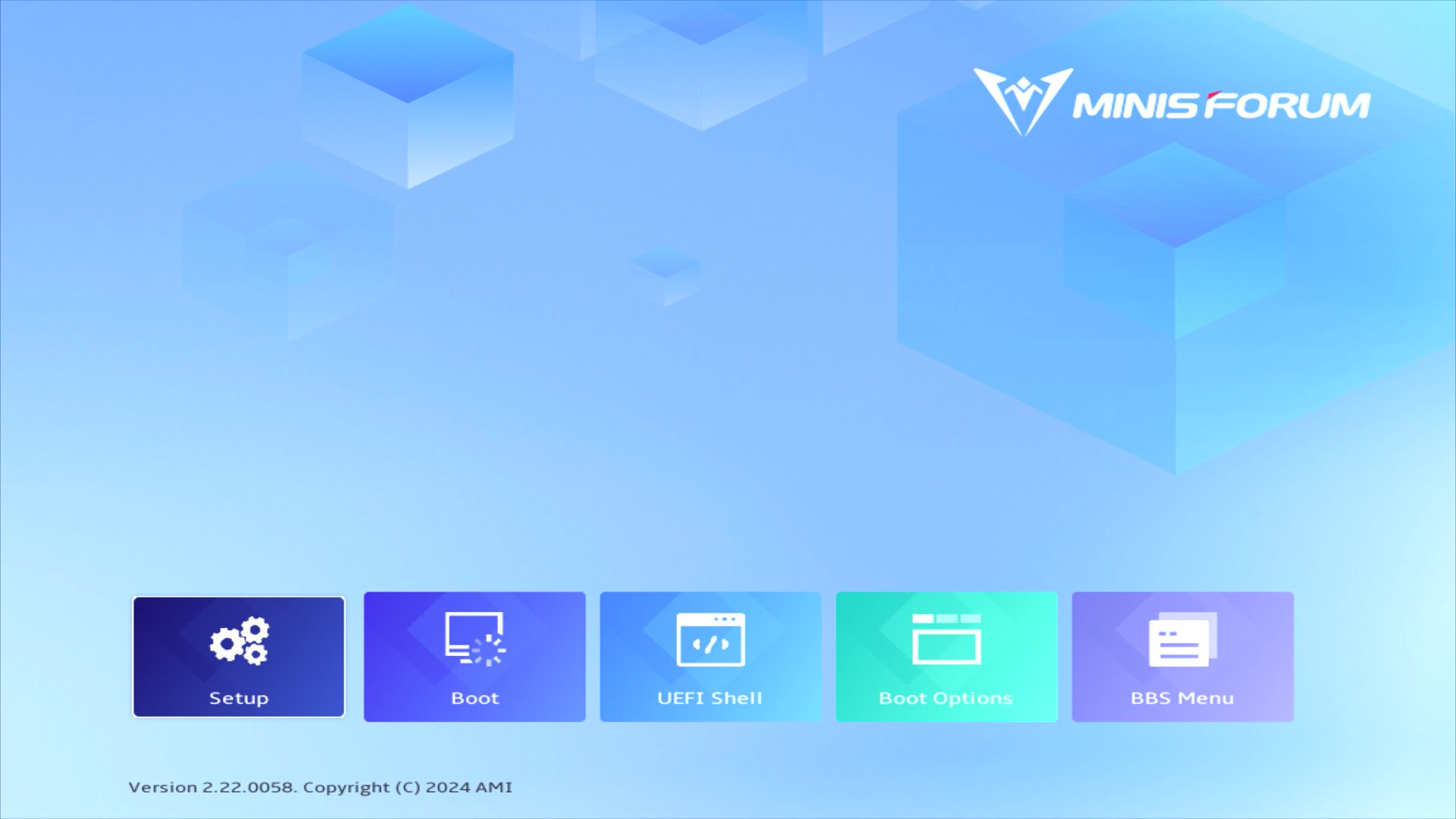

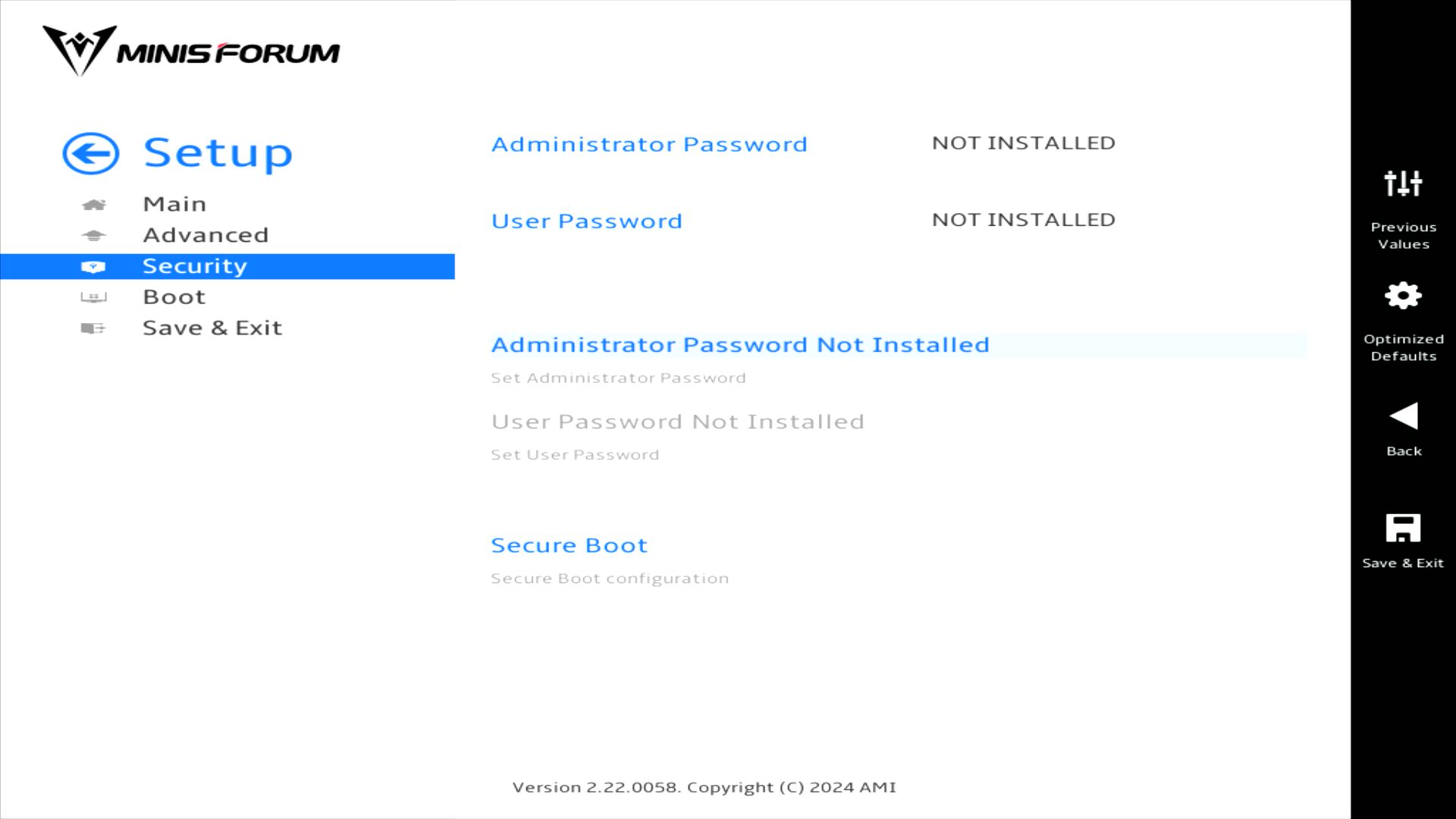

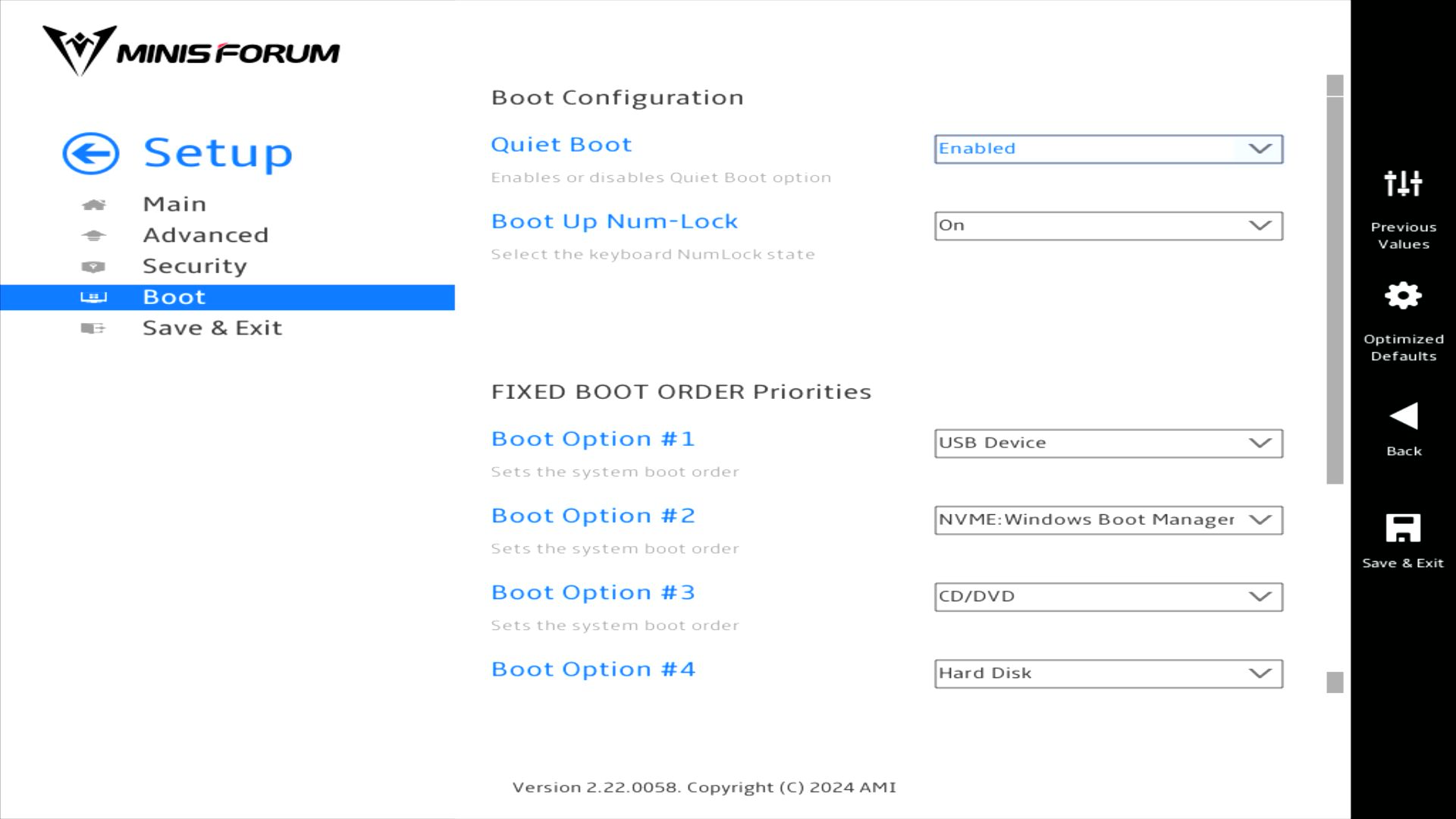

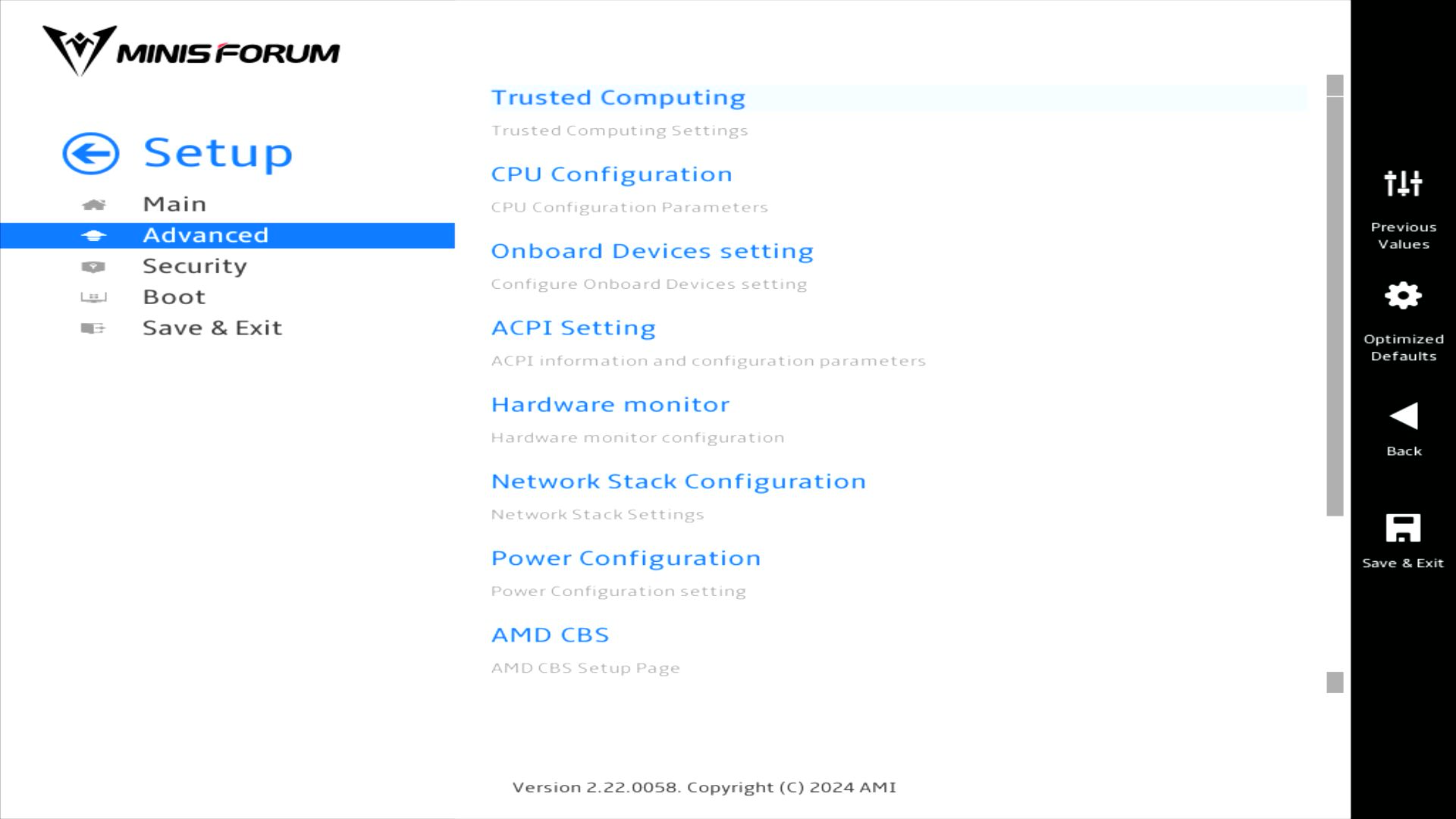

UEFI 选项

处理器

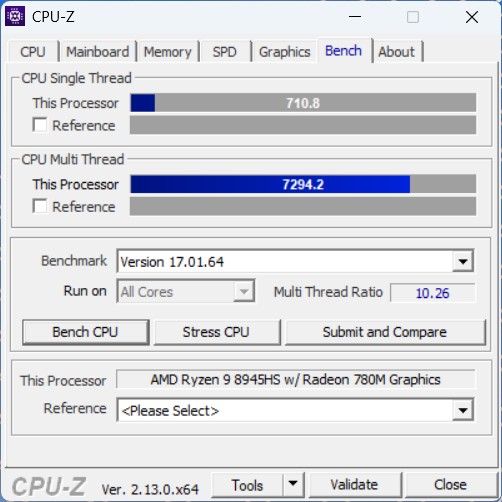

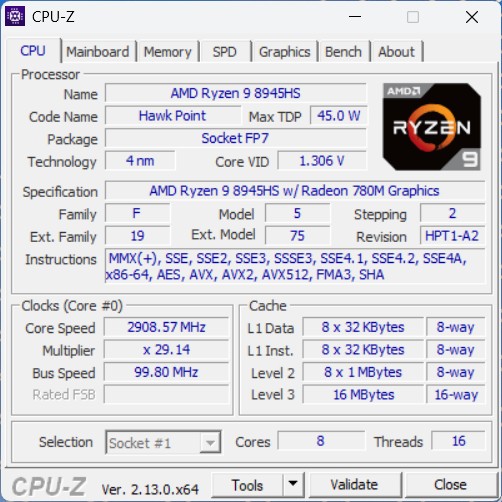

Minisforum EliteMini UM890 Pro 采用了 AMD Ryzen 9 8945HS配备 8 个 Zen4 内核。该 APU 的短时运行功耗为 65 瓦，长期运行功耗为 54 瓦，这在 Cinebench R15 多耐久测试中得到了反映。在多线程基准测试中，它的高功耗表现得尤为明显，而其单核性能几乎没有受益。在排名中，它落后于 Minisforum AI X1 Pro与 Ryzen AI 9 HX 370.

BIOS 中的性能模式将其 TDP 增加到 70 瓦。然而，这大大增加了设备的噪音排放。出厂设置在性能和噪音之间取得了良好的平衡，因此我们不推荐使用性能模式。

电源模式	Cinebench R15 1T	Cinebench R15 nT	Cinebench R20 1T	Cinebench R20 nT	Cinebench R23 1T	Cinebench R23 nT	Cinebench 2024 1T	Cinebench 2024 nT
平衡	284	2,741	704	6,765	1,815	17,131	107	978
性能	286	2,808	708	6,932	1,820	17,700	108	1003

Cinebench 结果（平衡模式）

Performance Rating - Percent
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	62.6 pt
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	57.9 pt
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	57.7 pt
Geekom AX8 Pro AMD Ryzen 9 8945H	57.1 pt
Geekom GT1 Mega Intel Core Ultra 9 185H	56.7 pt
Aoostar GEM10 AMD Ryzen 7 6800H	50.8 pt

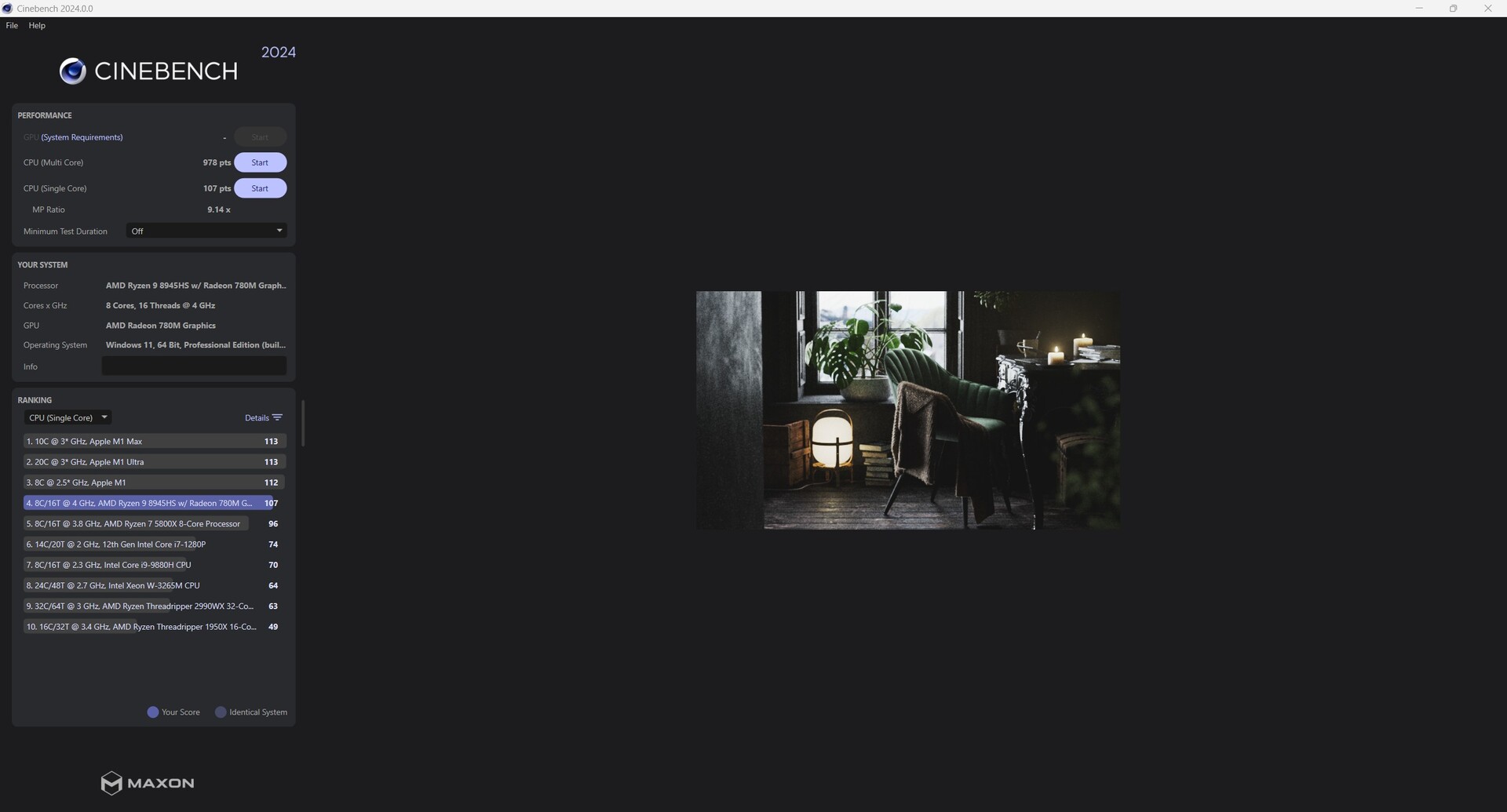

Cinebench 2024
CPU Multi Core
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1267 Points +30%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	978 Points
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	956 Points -2%
Geekom GT1 Mega Intel Core Ultra 9 185H	924 Points -6%
Geekom AX8 Pro AMD Ryzen 9 8945H	852 Points -13%
Aoostar GEM10 AMD Ryzen 7 6800H	709 Points -28%
CPU Single Core
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	121 Points +13%
Geekom AX8 Pro AMD Ryzen 9 8945H	107 Points 0%
Geekom GT1 Mega Intel Core Ultra 9 185H	107 Points 0%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	107 Points
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	106 Points -1%
Aoostar GEM10 AMD Ryzen 7 6800H	88 Points -18%

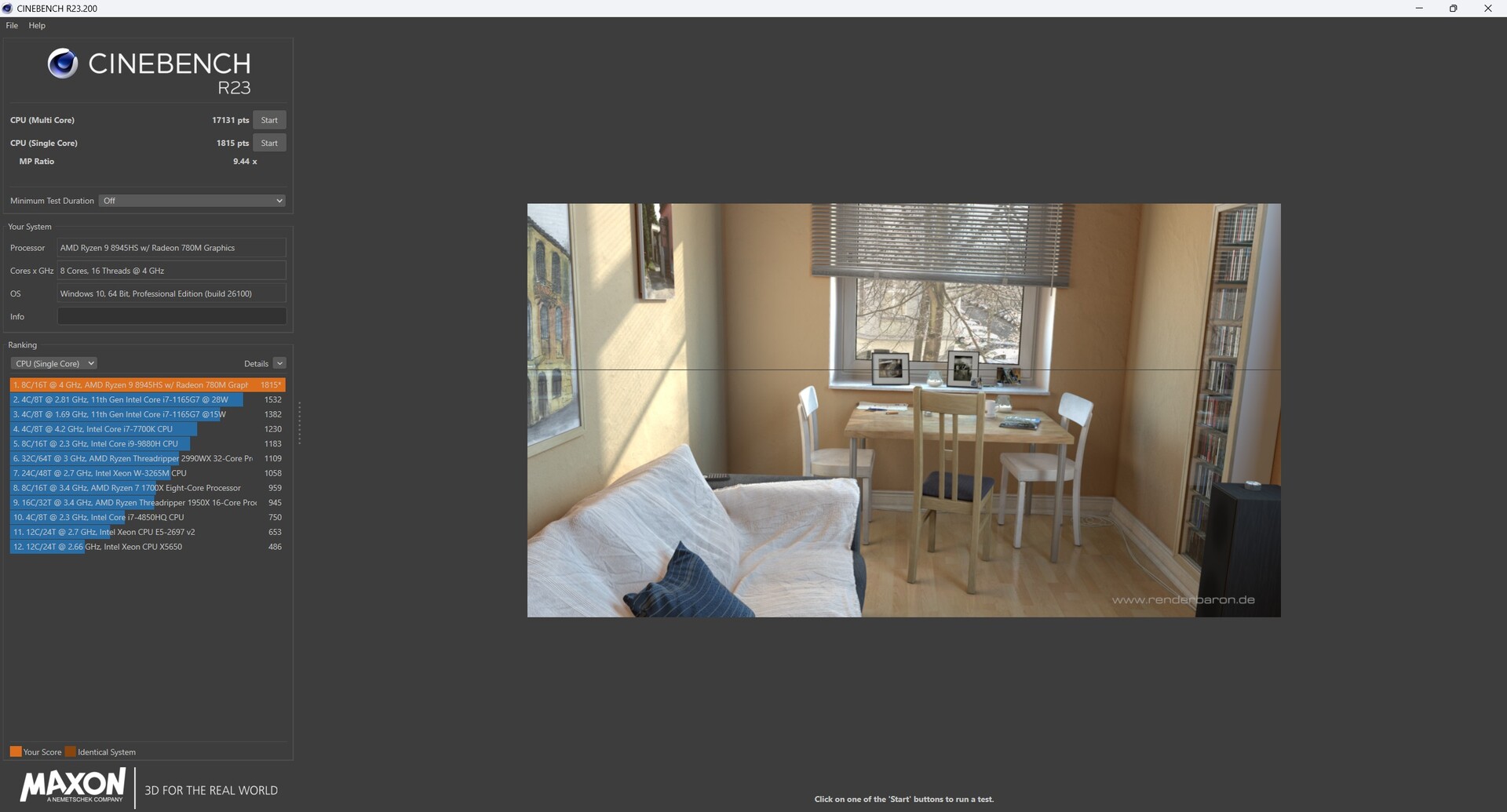

Cinebench R23
Multi Core
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	22836 Points +33%
Geekom GT1 Mega Intel Core Ultra 9 185H	18608 Points +9%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	17131 Points
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	16706 Points -2%
Geekom AX8 Pro AMD Ryzen 9 8945H	15516 Points -9%
Aoostar GEM10 AMD Ryzen 7 6800H	13117 Points -23%
Single Core
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	2040 Points +12%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	1815 Points
Geekom AX8 Pro AMD Ryzen 9 8945H	1808 Points 0%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	1779 Points -2%
Geekom GT1 Mega Intel Core Ultra 9 185H	1774 Points -2%
Aoostar GEM10 AMD Ryzen 7 6800H	1542 Points -15%

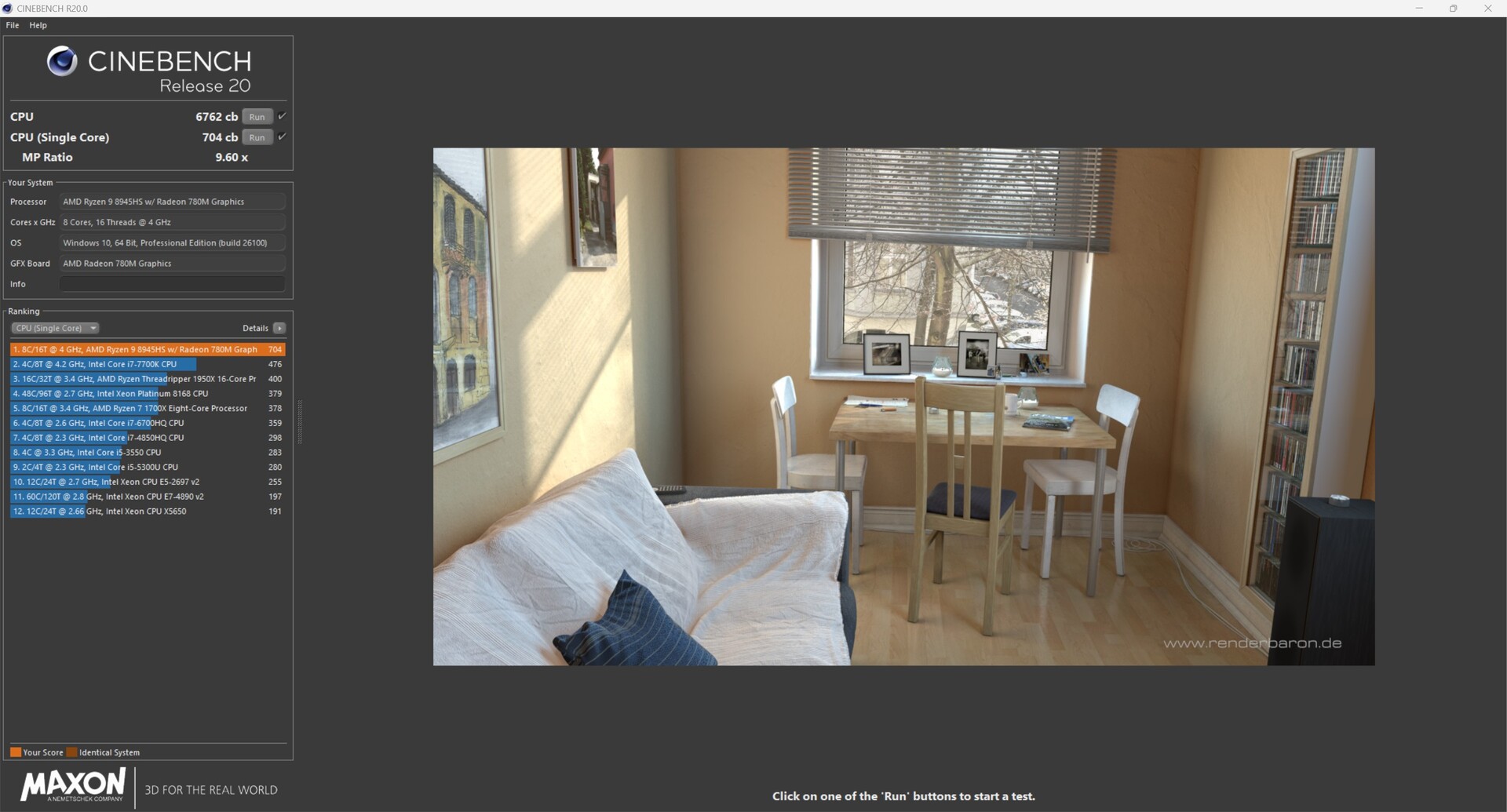

Cinebench R20
CPU (Multi Core)
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	8969 Points +33%
Geekom GT1 Mega Intel Core Ultra 9 185H	7192 Points +6%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	6762 Points
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	6509 Points -4%
Geekom AX8 Pro AMD Ryzen 9 8945H	6153 Points -9%
Aoostar GEM10 AMD Ryzen 7 6800H	5216 Points -23%
CPU (Single Core)
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	798 Points +13%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	704 Points
Geekom AX8 Pro AMD Ryzen 9 8945H	703 Points 0%
Geekom GT1 Mega Intel Core Ultra 9 185H	696 Points -1%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	690 Points -2%
Aoostar GEM10 AMD Ryzen 7 6800H	598 Points -15%

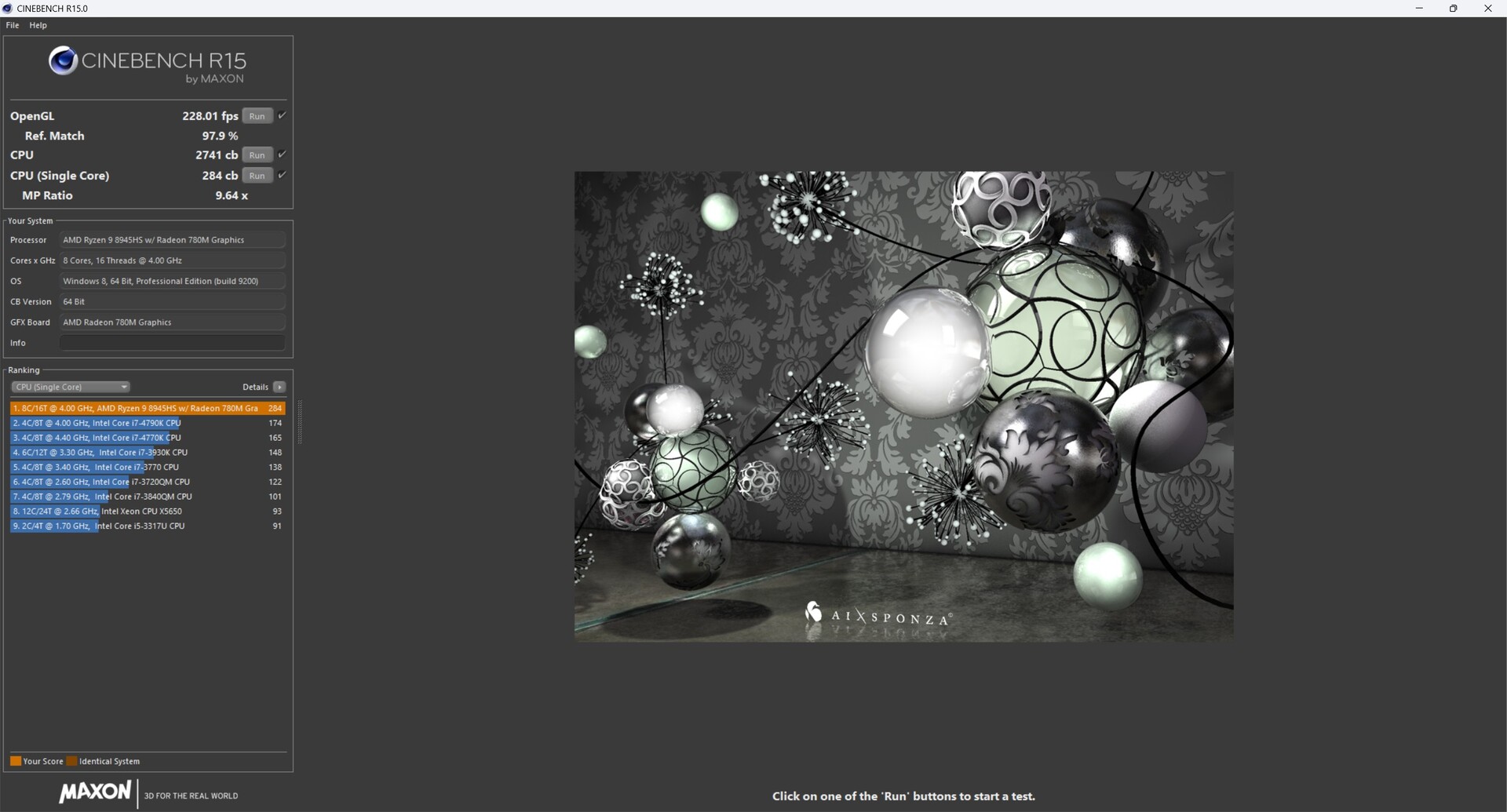

Cinebench R15
CPU Multi 64Bit
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	3478 Points +27%
Geekom GT1 Mega Intel Core Ultra 9 185H	2794 Points +2%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	2741 Points
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	2608 Points -5%
Geekom AX8 Pro AMD Ryzen 9 8945H	2521 Points -8%
Aoostar GEM10 AMD Ryzen 7 6800H	2117 Points -23%
CPU Single 64Bit
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	311 Points +10%
Geekom AX8 Pro AMD Ryzen 9 8945H	284 Points 0%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	284 Points
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	279 Points -2%
Geekom GT1 Mega Intel Core Ultra 9 185H	262 Points -8%
Aoostar GEM10 AMD Ryzen 7 6800H	240 Points -15%

Cinebench R11.5
CPU Multi 64Bit
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	41.17 Points +30%
Geekom GT1 Mega Intel Core Ultra 9 185H	34.34 Points +8%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	31.77 Points
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	30.25 Points -5%
Geekom AX8 Pro AMD Ryzen 9 8945H	29.14 Points -8%
Aoostar GEM10 AMD Ryzen 7 6800H	24.57 Points -23%
CPU Single 64Bit
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	3.69 Points +8%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	3.42 Points
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	3.33 Points -3%
Geekom AX8 Pro AMD Ryzen 9 8945H	3.28 Points -4%
Geekom GT1 Mega Intel Core Ultra 9 185H	3.13 Points -8%
Aoostar GEM10 AMD Ryzen 7 6800H	2.86 Points -16%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	15935 Points +9%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	14593 Points
Geekom AX8 Pro AMD Ryzen 9 8945H	14451 Points -1%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	14177 Points -3%
Geekom GT1 Mega Intel Core Ultra 9 185H	13997 Points -4%
Aoostar GEM10 AMD Ryzen 7 6800H	12142 Points -17%
Rendering Multiple CPUs 64Bit
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	100569 Points +12%
Geekom GT1 Mega Intel Core Ultra 9 185H	91553 Points +2%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	89478 Points
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	87064 Points -3%
Geekom AX8 Pro AMD Ryzen 9 8945H	84253 Points -6%
Aoostar GEM10 AMD Ryzen 7 6800H	70792 Points -21%

Blender
v2.79 BMW27 CPU
Aoostar GEM10 AMD Ryzen 7 6800H	259 Seconds * -37%
Geekom AX8 Pro AMD Ryzen 9 8945H	206 Seconds * -9%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	192 Seconds * -2%
Geekom GT1 Mega Intel Core Ultra 9 185H	191 Seconds * -1%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	189 Seconds *
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	143 Seconds * +24%
v3.3 Classroom CPU
Aoostar GEM10 AMD Ryzen 7 6800H	438 Seconds * -46%
Geekom GT1 Mega Intel Core Ultra 9 185H	332 Seconds * -11%
Geekom AX8 Pro AMD Ryzen 9 8945H	326 Seconds * -9%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	310 Seconds * -3%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	300 Seconds *
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	221 Seconds * +26%
v4.3 Barbershop CPU
Aoostar GEM10 AMD Ryzen 7 6800H	2165 Seconds * -47%
Geekom AX8 Pro AMD Ryzen 9 8945H	1776 Seconds * -21%
Geekom GT1 Mega Intel Core Ultra 9 185H	1691 Seconds * -15%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	1517 Seconds * -3%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	1472 Seconds *
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1151 Seconds * +22%

wPrime 2.10
32m
Aoostar GEM10 AMD Ryzen 7 6800H	3.55 s * -33%
Geekom GT1 Mega Intel Core Ultra 9 185H	3.271 s * -22%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	2.701 s * -1%
Geekom AX8 Pro AMD Ryzen 9 8945H	2.688 s * -1%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	2.672 s *
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	2.626 s * +2%
1024m
Geekom GT1 Mega Intel Core Ultra 9 185H	165.075 s * -73%
Aoostar GEM10 AMD Ryzen 7 6800H	97.298 s * -2%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	95.473 s *
Geekom AX8 Pro AMD Ryzen 9 8945H	74.917 s * +22%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	72.819 s * +24%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	50.536 s * +47%

X264 HD Benchmark 4.0
Pass 1
Geekom GT1 Mega Intel Core Ultra 9 185H	336.5 (329^min - 346^max) fps +13%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	330 (327^min - 331^max) fps +11%
Geekom AX8 Pro AMD Ryzen 9 8945H	300 (299^min - 301^max) fps +1%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	298 (288^min - 300^max) fps 0%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	297 (292^min - 299^max) fps
Aoostar GEM10 AMD Ryzen 7 6800H	251.5 (250^min - 256^max) fps -15%
Pass 2
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	185.1 (184.7^min - 185.4^max) fps +19%
Geekom GT1 Mega Intel Core Ultra 9 185H	161.5 (159.8^min - 163.8^max) fps +4%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	155 (154.8^min - 155.3^max) fps
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	149.3 (148.8^min - 149.8^max) fps -4%
Geekom AX8 Pro AMD Ryzen 9 8945H	141.2 (141^min - 143.9^max) fps -9%
Aoostar GEM10 AMD Ryzen 7 6800H	122.2 (120.3^min - 126.1^max) fps -21%

WinRAR - Result
Geekom GT1 Mega Intel Core Ultra 9 185H	8563 KB/s +17%
Geekom AX8 Pro AMD Ryzen 9 8945H	7744 KB/s +6%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	7699 KB/s +5%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	7332 KB/s
Aoostar GEM10 AMD Ryzen 7 6800H	5890 KB/s -20%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	4759 KB/s -35%

TrueCrypt
AES Mean 100MB
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	15.3 GB/s +5%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	14.9 GB/s +2%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	14.6 GB/s
Geekom AX8 Pro AMD Ryzen 9 8945H	14.5 GB/s -1%
Aoostar GEM10 AMD Ryzen 7 6800H	13.5 GB/s -8%
Geekom GT1 Mega Intel Core Ultra 9 185H	11 GB/s -25%
Twofish Mean 100MB
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	2.6 GB/s +24%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	2.1 GB/s 0%
Geekom AX8 Pro AMD Ryzen 9 8945H	2.1 GB/s 0%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	2.1 GB/s
Geekom GT1 Mega Intel Core Ultra 9 185H	1.9 GB/s -10%
Aoostar GEM10 AMD Ryzen 7 6800H	1.8 GB/s -14%
Serpent Mean 100MB
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1.6 GB/s +23%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	1.3 GB/s 0%
Geekom AX8 Pro AMD Ryzen 9 8945H	1.3 GB/s 0%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	1.3 GB/s
Aoostar GEM10 AMD Ryzen 7 6800H	1.2 GB/s -8%
Geekom GT1 Mega Intel Core Ultra 9 185H	1.1 GB/s -15%

Geekbench 5.5
Multi-Core
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	14859 Points +26%
Geekom GT1 Mega Intel Core Ultra 9 185H	13763 Points +16%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	12177 Points +3%
Geekom AX8 Pro AMD Ryzen 9 8945H	11980 Points +1%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	11820 Points
Aoostar GEM10 AMD Ryzen 7 6800H	8898 Points -25%
Single-Core
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	2076 Points +11%
Geekom AX8 Pro AMD Ryzen 9 8945H	1994 Points +6%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	1943 Points +4%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	1873 Points
Geekom GT1 Mega Intel Core Ultra 9 185H	1852 Points -1%
Aoostar GEM10 AMD Ryzen 7 6800H	1552 Points -17%

Geekbench 5.0
5.0 Multi-Core
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	14828 Points +22%
Geekom GT1 Mega Intel Core Ultra 9 185H	13822 Points +13%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	12184 Points
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	11933 Points -2%
Geekom AX8 Pro AMD Ryzen 9 8945H	11804 Points -3%
Aoostar GEM10 AMD Ryzen 7 6800H	8868 Points -27%
5.0 Single-Core
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1952 Points +6%
Geekom AX8 Pro AMD Ryzen 9 8945H	1907 Points +4%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	1900 Points +3%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	1841 Points
Geekom GT1 Mega Intel Core Ultra 9 185H	1797 Points -2%
Aoostar GEM10 AMD Ryzen 7 6800H	1509 Points -18%

Geekbench 4.4
64 Bit Multi-Core Score
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	57060 Points +23%
Geekom GT1 Mega Intel Core Ultra 9 185H	49924 Points +8%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	48743 Points +5%
Geekom AX8 Pro AMD Ryzen 9 8945H	47917 Points +3%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	46366 Points
Aoostar GEM10 AMD Ryzen 7 6800H	35898 Points -23%
64 Bit Single-Core Score
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	8277 Points +4%
Geekom AX8 Pro AMD Ryzen 9 8945H	8140 Points +3%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	8048 Points +1%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	7933 Points
Geekom GT1 Mega Intel Core Ultra 9 185H	7516 Points -5%
Aoostar GEM10 AMD Ryzen 7 6800H	6341 Points -20%

3DMark 11 - 1280x720 Performance Physics
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	22960 Points +22%
Geekom AX8 Pro AMD Ryzen 9 8945H	22340 Points +19%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	21286 Points +14%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	18750 Points
Geekom GT1 Mega Intel Core Ultra 9 185H	18130 Points -3%
Aoostar GEM10 AMD Ryzen 7 6800H	16034 Points -14%

7-Zip 18.03
7z b 4
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	82854 MIPS +12%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	73742 MIPS
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	72684 MIPS -1%
Geekom GT1 Mega Intel Core Ultra 9 185H	71050 MIPS -4%
Geekom AX8 Pro AMD Ryzen 9 8945H	66557 MIPS -10%
Aoostar GEM10 AMD Ryzen 7 6800H	55067 MIPS -25%
7z b 4 -mmt1
Geekom AX8 Pro AMD Ryzen 9 8945H	6691 MIPS +1%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	6648 MIPS
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	6563 MIPS -1%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	6337 MIPS -5%
Geekom GT1 Mega Intel Core Ultra 9 185H	5657 MIPS -15%
Aoostar GEM10 AMD Ryzen 7 6800H	5521 MIPS -17%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	27.9 fps +28%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	21.8 fps
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	20.9 fps -4%
Geekom AX8 Pro AMD Ryzen 9 8945H	20.6 fps -6%
Geekom GT1 Mega Intel Core Ultra 9 185H	20.2 fps -7%
Aoostar GEM10 AMD Ryzen 7 6800H	14.9 fps -32%

R Benchmark 2.5 - Overall mean
Aoostar GEM10 AMD Ryzen 7 6800H	0.515 sec * -19%
Geekom AX8 Pro AMD Ryzen 9 8945H	0.4576 sec * -6%
Geekom GT1 Mega Intel Core Ultra 9 185H	0.4571 sec * -6%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	0.4354 sec * -1%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	0.431 sec *
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	0.3892 sec * +10%

LibreOffice - 20 Documents To PDF
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	53.9 s * -8%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	52.3 s * -4%
Geekom GT1 Mega Intel Core Ultra 9 185H	52.1 s * -4%
Aoostar GEM10 AMD Ryzen 7 6800H	51.2 s * -2%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	50.1 s *
Geekom AX8 Pro AMD Ryzen 9 8945H	49.8 s * +1%

WebXPRT 3 - Overall
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	336 Points +2%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	329 Points
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	324 Points -2%
Geekom AX8 Pro AMD Ryzen 9 8945H	309 Points -6%
Geekom GT1 Mega Intel Core Ultra 9 185H	286 Points -13%
Aoostar GEM10 AMD Ryzen 7 6800H	275 Points -16%

Mozilla Kraken 1.1 - Total
Aoostar GEM10 AMD Ryzen 7 6800H	591 ms * -14%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	519 ms *
Geekom GT1 Mega Intel Core Ultra 9 185H	518 ms * -0%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	517 ms * -0%
Geekom AX8 Pro AMD Ryzen 9 8945H	506 ms * +3%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	419 ms * +19%

3DMark
1920x1080 Fire Strike Physics
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	28906 Points +7%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	28765 Points +7%
Geekom AX8 Pro AMD Ryzen 9 8945H	27363 Points +2%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	26934 Points
Geekom GT1 Mega Intel Core Ultra 9 185H	24366 Points -10%
Aoostar GEM10 AMD Ryzen 7 6800H	23807 Points -12%
2560x1440 Time Spy CPU
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	11159 Points +2%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	10953 Points
Geekom AX8 Pro AMD Ryzen 9 8945H	10844 Points -1%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	10795 Points -1%
Geekom GT1 Mega Intel Core Ultra 9 185H	9687 Points -12%
Aoostar GEM10 AMD Ryzen 7 6800H	8128 Points -26%

Super Pi mod 1.5 XS 1M - 1M
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	8.774 s * -25%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	8.224 s * -18%
Aoostar GEM10 AMD Ryzen 7 6800H	7.839 s * -12%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	6.993 s *
Geekom AX8 Pro AMD Ryzen 9 8945H	6.962 s * -0%
Geekom GT1 Mega Intel Core Ultra 9 185H	6.762 s * +3%

Super Pi mod 1.5 XS 2M - 2M
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	21.271 s * -23%
Aoostar GEM10 AMD Ryzen 7 6800H	19.101 s * -10%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	17.504 s * -1%
Geekom AX8 Pro AMD Ryzen 9 8945H	17.404 s * -1%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	17.31 s *
Geekom GT1 Mega Intel Core Ultra 9 185H	14.928 s * +14%

Affinity Photo 2 - Combined (Multi CPU)
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1050 Points +27%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	826 Points
Geekom GT1 Mega Intel Core Ultra 9 185H	792 Points -4%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	671 Points -19%
Geekom AX8 Pro AMD Ryzen 9 8945H	603 Points -27%
Aoostar GEM10 AMD Ryzen 7 6800H	513 Points -38%

SPECworkstation 4.0 - CPU Score
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1.28 Points +20%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	1.07 Points 0%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	1.07 Points
Geekom GT1 Mega Intel Core Ultra 9 185H	1.02 Points -5%
Geekom AX8 Pro AMD Ryzen 9 8945H	0.94 Points -12%
Aoostar GEM10 AMD Ryzen 7 6800H	0.76 Points -29%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit

7901

Cinebench R10 Shading 64Bit

20290 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

89478 Points

Cinebench R10 Rendering Single CPUs 64Bit

14593 Points

Cinebench R10 Shading 32Bit

16833

Cinebench R10 Rendering Multiple CPUs 32Bit

50153

Cinebench R11.5 CPU Single 32Bit

2.94 Points

Cinebench R11.5 CPU Multi 32Bit

28.32 Points

Cinebench R11.5 CPU Single 64Bit

3.42 Points

Cinebench R11.5 CPU Multi 64Bit

31.77 Points

Cinebench R15 CPU Single 64Bit

284 Points

Cinebench R15 CPU Multi 64Bit

2741 Points

Cinebench R15 Ref. Match 64Bit

97.9 %

Cinebench R15 OpenGL 64Bit

228.01 fps

Cinebench R20 CPU (Single Core)

704 Points

Cinebench R20 CPU (Multi Core)

6762 Points

Cinebench R23 Multi Core

17131 Points

Cinebench R23 Single Core

1815 Points

Cinebench 2024 CPU Single Core

107 Points

Cinebench 2024 CPU Multi Core

978 Points

Help

... in comparison

Performance Rating
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	91.9 pt
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	82.4 pt
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	79.8 pt
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	78.1 pt
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	63.3 pt
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	57 pt
Average of class Mini PC	50.2 pt

AIDA64 / FP32 Ray-Trace
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	36304 KRay/s +31%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	27793 KRay/s
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	26889 KRay/s -3%
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	24531 KRay/s -12%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	15184 KRay/s -45%
Average of class Mini PC (764 - 51004, n=116, last 2 years)	13871 KRay/s -50%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	13726 KRay/s -51%

AIDA64 / FPU Julia
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	138264 Points +17%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	118156 Points
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	113684 Points -4%
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	106518 Points -10%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	86223 Points -27%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	78346 Points -34%
Average of class Mini PC (4140 - 214250, n=116, last 2 years)	67913 Points -43%

AIDA64 / CPU SHA3
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	5698 MB/s +15%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	4972 MB/s
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	4953 MB/s 0%
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	4684 MB/s -6%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	3753 MB/s -25%
Average of class Mini PC (290 - 9399, n=116, last 2 years)	3008 MB/s -40%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	2953 MB/s -41%

AIDA64 / CPU Queen
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	121347 Points
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	117103 Points -3%
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	114586 Points -6%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	98582 Points -19%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	87574 Points -28%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	86969 Points -28%
Average of class Mini PC (8172 - 184747, n=116, last 2 years)	81641 Points -33%

AIDA64 / FPU SinJulia
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	18988 Points +22%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	15581 Points
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	15145 Points -3%
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	14631 Points -6%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	12159 Points -22%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	10289 Points -34%
Average of class Mini PC (408 - 29064, n=116, last 2 years)	9173 Points -41%

AIDA64 / FPU Mandel
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	74000 Points +17%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	63135 Points
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	60809 Points -4%
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	56505 Points -11%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	47463 Points -25%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	38945 Points -38%
Average of class Mini PC (2088 - 113499, n=116, last 2 years)	35400 Points -44%

AIDA64 / CPU AES
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	170745 MB/s +87%
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	163032 MB/s +78%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	138481 MB/s +51%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	119681 MB/s +31%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	91472 MB/s
Average of class Mini PC (3691 - 325960, n=116, last 2 years)	89368 MB/s -2%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	79852 MB/s -13%

AIDA64 / CPU ZLib
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	1513 MB/s +35%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	1181 MB/s +6%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	1117 MB/s
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	1075 MB/s -4%
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	976 MB/s -13%
Average of class Mini PC (76.7 - 2039, n=116, last 2 years)	776 MB/s -31%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	757 MB/s -32%

AIDA64 / FP64 Ray-Trace
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	19666 KRay/s +32%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	14859 KRay/s
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	14284 KRay/s -4%
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	13609 KRay/s -8%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	7925 KRay/s -47%
Average of class Mini PC (432 - 26952, n=116, last 2 years)	7417 KRay/s -50%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	7279 KRay/s -51%

AIDA64 / CPU PhotoWorxx
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	51727 MPixel/s +28%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	47032 MPixel/s +17%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	40460 MPixel/s 0%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	40354 MPixel/s
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	40114 MPixel/s -1%
Average of class Mini PC (5296 - 51727, n=116, last 2 years)	29586 MPixel/s -27%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	26496 MPixel/s -34%

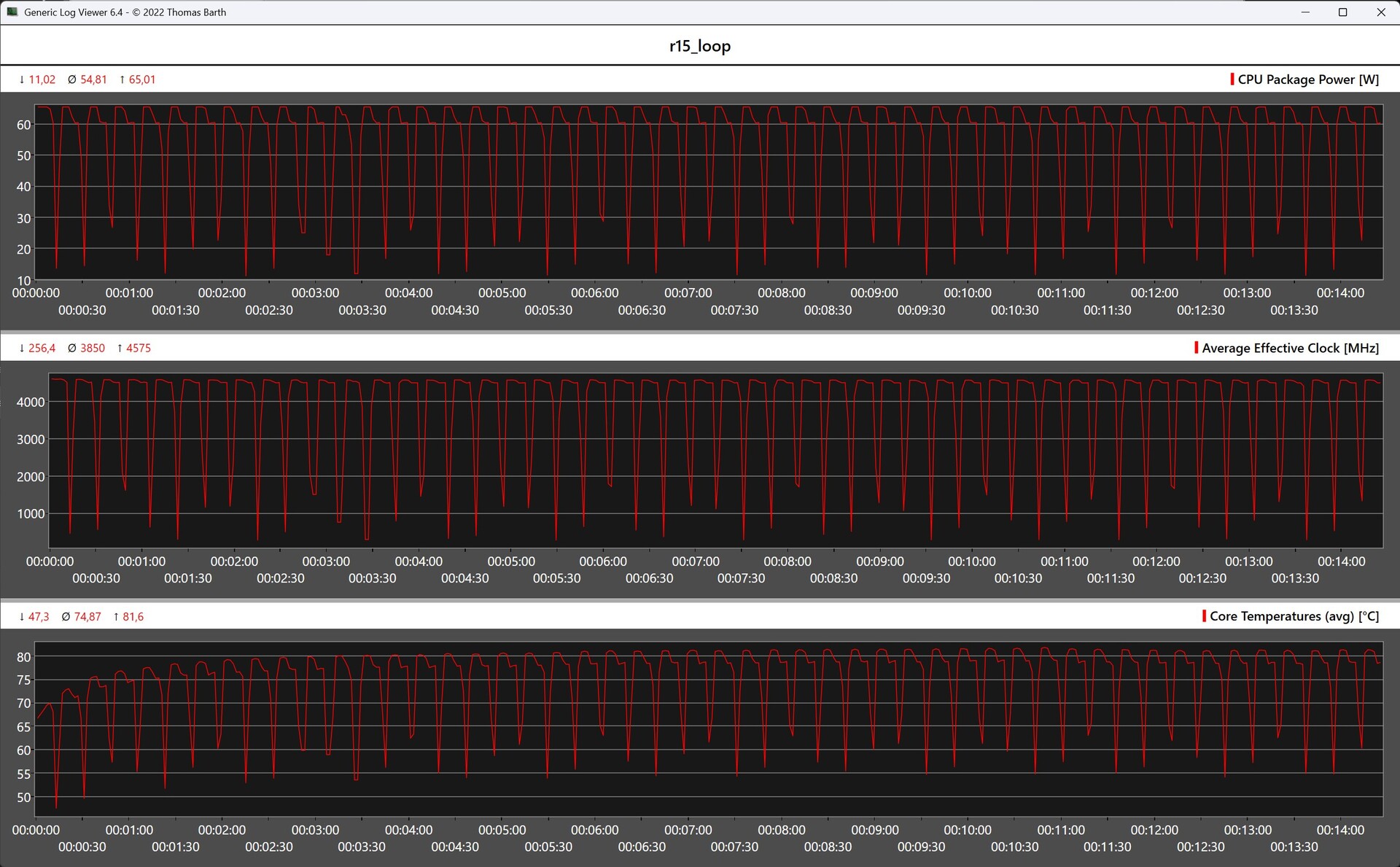

Cinebench R15 多连续测试

Cinebench R15 耐用性测试表明，Minisforum 安装了高效的冷却系统，即使在长时间负载的情况下也能保持 AMD Ryzen 9 8945HS 的性能稳定。处理器的最大峰值功率为 65 瓦，最高温度值为 81.6 °C。

Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, AMD Ryzen 9 8945HS: Ø2711 (2695.6-2739.73)

Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, AMD Ryzen AI 9 HX 370: Ø3424 (3388.97-3493.45)

Geekom GT1 Mega Intel Core Ultra 9 185H, Intel Core Ultra 9 185H: Ø2442 (2286.63-2795.05)

Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Ryzen 9 8945H: Ø2223 (2100.4-2438.43)

Aoostar GEM10 AMD Ryzen 7 6800H, AMD Ryzen 7 6800H: Ø1983 (1919.75-2106.82)

Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Ryzen 7 7840HS: Ø2605 (2564.1-2649.53)

系统性能

Minisforum EliteMini UM890 Pro 的性能足以满足日常使用。得益于快速的 DDR5 内存和 PCIe 固态硬盘，几乎没有明显的延迟。在测试过程中，我们的测试样本与竞争对手相比也表现得相当出色。同时，它最大的缺点是人工智能性能。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	7577 Points +7%
Geekom AX8 Pro, AMD Ryzen 9 8945H AMD Radeon 780M, Acer N7000 2 TB	7553 Points +6%
Minisforum EliteMini UM780 XTX, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024Q-A0	7526 Points +6%
Geekom GT1 Mega, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Crucial P3 Plus CT2000P3PSSD8	7232 Points +2%
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	7099 Points
Aoostar GEM10, AMD Ryzen 7 6800H AMD Radeon 680M, BIWIN CE980Y28900-1TB	6749 Points -5%

PCMark 10 / Essentials
Geekom AX8 Pro, AMD Ryzen 9 8945H AMD Radeon 780M, Acer N7000 2 TB	11227 Points +7%
Minisforum EliteMini UM780 XTX, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024Q-A0	11011 Points +5%
Geekom GT1 Mega, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Crucial P3 Plus CT2000P3PSSD8	10824 Points +4%
Aoostar GEM10, AMD Ryzen 7 6800H AMD Radeon 680M, BIWIN CE980Y28900-1TB	10522 Points +1%
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	10451 Points
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	10438 Points 0%

PCMark 10 / Productivity
Minisforum EliteMini UM780 XTX, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024Q-A0	10832 Points +14%
Geekom AX8 Pro, AMD Ryzen 9 8945H AMD Radeon 780M, Acer N7000 2 TB	10774 Points +13%
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	10422 Points +9%
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	9518 Points
Aoostar GEM10, AMD Ryzen 7 6800H AMD Radeon 680M, BIWIN CE980Y28900-1TB	9367 Points -2%
Geekom GT1 Mega, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Crucial P3 Plus CT2000P3PSSD8	8797 Points -8%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Geekom GT1 Mega, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Crucial P3 Plus CT2000P3PSSD8	1888 Points +2%
Geekom AX8 Pro, AMD Ryzen 9 8945H AMD Radeon 780M, Acer N7000 2 TB	1865 Points +1%
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	1849 Points
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	1771 Points -4%
Minisforum EliteMini UM780 XTX, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024Q-A0	1761 Points -5%
Aoostar GEM10, AMD Ryzen 7 6800H AMD Radeon 680M, BIWIN CE980Y28900-1TB	1648 Points -11%

CrossMark / Responsiveness
Geekom GT1 Mega, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Crucial P3 Plus CT2000P3PSSD8	1864 Points +12%
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	1662 Points
Geekom AX8 Pro, AMD Ryzen 9 8945H AMD Radeon 780M, Acer N7000 2 TB	1583 Points -5%
Aoostar GEM10, AMD Ryzen 7 6800H AMD Radeon 680M, BIWIN CE980Y28900-1TB	1566 Points -6%
Minisforum EliteMini UM780 XTX, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024Q-A0	1361 Points -18%
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	1222 Points -26%

CrossMark / Creativity
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	2211 Points +11%
Geekom AX8 Pro, AMD Ryzen 9 8945H AMD Radeon 780M, Acer N7000 2 TB	2057 Points +3%
Minisforum EliteMini UM780 XTX, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024Q-A0	2040 Points +2%
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	1998 Points
Geekom GT1 Mega, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Crucial P3 Plus CT2000P3PSSD8	1959 Points -2%
Aoostar GEM10, AMD Ryzen 7 6800H AMD Radeon 680M, BIWIN CE980Y28900-1TB	1696 Points -15%

CrossMark / Productivity
Geekom GT1 Mega, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Crucial P3 Plus CT2000P3PSSD8	1827 Points +3%
Geekom AX8 Pro, AMD Ryzen 9 8945H AMD Radeon 780M, Acer N7000 2 TB	1786 Points +1%
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	1773 Points
Minisforum EliteMini UM780 XTX, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024Q-A0	1656 Points -7%
Aoostar GEM10, AMD Ryzen 7 6800H AMD Radeon 680M, BIWIN CE980Y28900-1TB	1629 Points -8%
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	1605 Points -9%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	73624 MB/s +7%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	72702 MB/s +6%
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	68924 MB/s 0%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	68719 MB/s
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	67039 MB/s -2%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	50829 MB/s -26%
Average of class Mini PC (8377 - 89287, n=116, last 2 years)	50025 MB/s -27%

AIDA64 / Memory Read
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	84635 MB/s +38%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	79371 MB/s +29%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	61867 MB/s +1%
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	61624 MB/s 0%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	61475 MB/s
Average of class Mini PC (8974 - 100086, n=116, last 2 years)	50975 MB/s -17%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	43828 MB/s -29%

AIDA64 / Memory Write
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	87827 MB/s +1%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	87356 MB/s
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	87138 MB/s 0%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	86693 MB/s -1%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	72187 MB/s -17%
Average of class Mini PC (8762 - 100538, n=116, last 2 years)	54897 MB/s -37%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	51116 MB/s -41%

AIDA64 / Memory Latency
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	136.7 ns * -50%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	104.1 ns * -14%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	99.8 ns * -9%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	92 ns * -1%
Average of class Mini PC (44.9 - 184.8, n=116, last 2 years)	91.8 ns * -0%
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	91.4 ns * -0%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	91.4 ns *

* ... smaller is better

UL Procyon for Windows / Overall Score Integer NPU
Khadas Mind 2 Intel Core Ultra 7 155H, Arc 8-Core	504 Points
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	501 Points
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	499 Points

UL Procyon for Windows / Overall Score Integer GPU
Khadas Mind 2 Intel Core Ultra 7 155H, Arc 8-Core	687 Points +728%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	684 Points +724%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	547 Points +559%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	83 Points

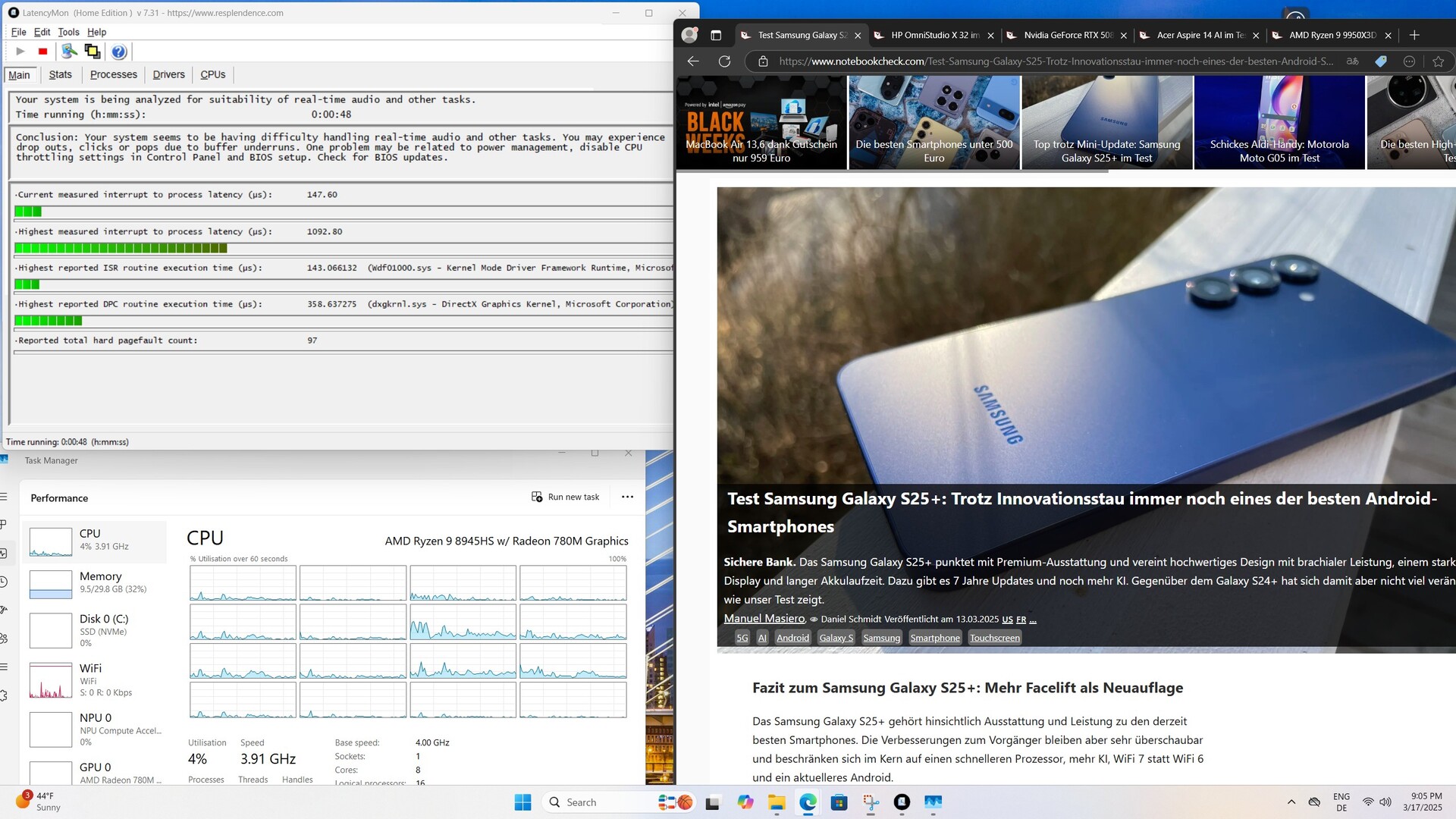

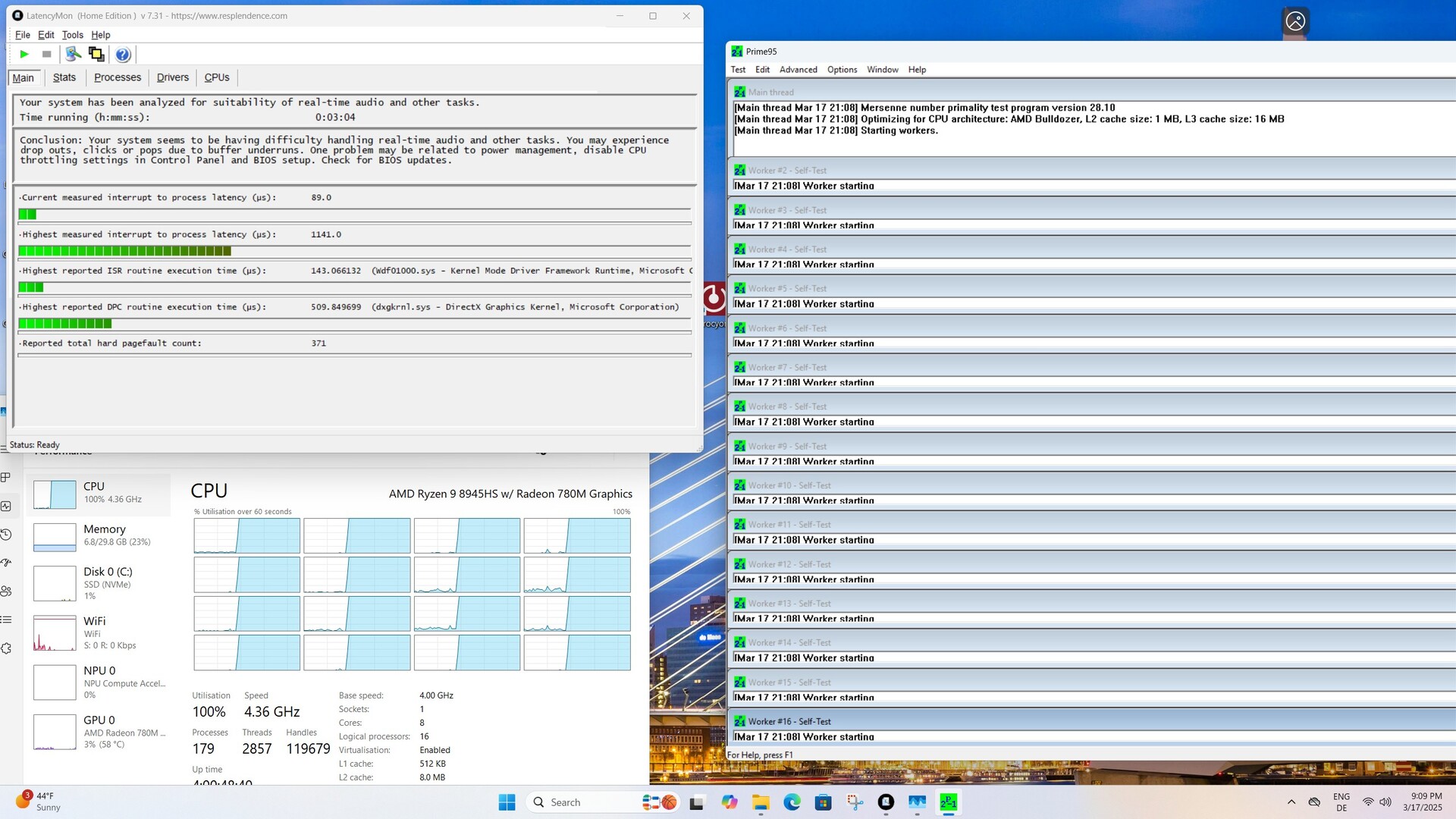

DPC 延迟

Minisforum EliteMini UM890 Pro 的 DPC 延迟仅略有上升，在对比中表现最佳。不过，4K 测试视频中的一些掉帧现象还是无法完全避免。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	12282 μs * -2313%
Geekom AX8 Pro Radeon 780M, R9 8945H, Acer N7000 2 TB	1856 μs * -265%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	1178.9 μs * -132%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	1145.7 μs * -125%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	962.8 μs * -89%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	509 μs *

* ... smaller is better

存储设备

Minisforum 在测试设备中安装了金士顿的 1 TB SSD，采用 PCIe 4.0 x4 连接，传输速率稳定，但并非顶级型号。即便如此，它的性能也足以满足日常使用。主动散热装置可确保性能稳定，并防止在连续负载情况下出现性能下降。这款迷你电脑可容纳两个大容量存储设备，但在使用 OCuLink 适配器时只能使用一个插槽。

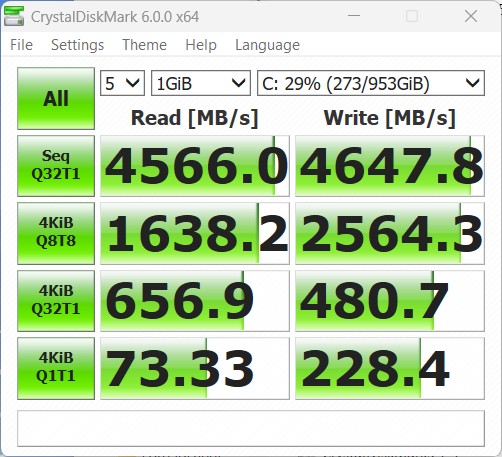

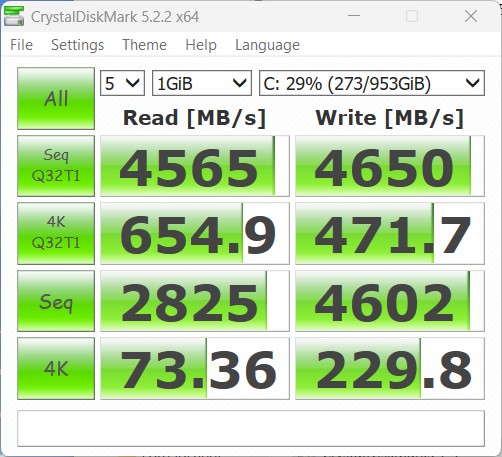

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kingston OM3PGP41024P-A0

Sequential Read: 2969 MB/s

Sequential Write: 4608 MB/s

512K Read: 2150 MB/s

512K Write: 4568 MB/s

4K Read: 76.53 MB/s

4K Write: 266.5 MB/s

4K QD32 Read: 689.6 MB/s

4K QD32 Write: 557.1 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	88.9 pt
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	83 pt
Aoostar GEM10 BIWIN CE980Y28900-1TB	73.8 pt
Geekom AX8 Pro Acer N7000 2 TB	68.8 pt
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	64.4 pt
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	60.7 pt
Average of class Mini PC	50.5 pt

DiskSpd
seq read
Aoostar GEM10 BIWIN CE980Y28900-1TB	4000 (3961.36^min - 3999.66^max) MB/s +43%
Geekom AX8 Pro Acer N7000 2 TB	3921 (3897.31^min - 3920.75^max) MB/s +40%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	2914 (2870.58^min - 2913.74^max) MB/s +4%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	2896 (2845^min - 2896.04^max) MB/s +3%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	2801 (2793.48^min - 2800.96^max) MB/s
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	2734 (2730.27^min - 2734.25^max) MB/s -2%
Average of class Mini PC (277 - 4357, n=116, last 2 years)	2360 MB/s -16%
seq write
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	4556 (4547.39^min - 4555.85^max) MB/s
Aoostar GEM10 BIWIN CE980Y28900-1TB	4553 (4417.86^min - 4552.92^max) MB/s 0%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	3976 (425.08^min - 3975.57^max) MB/s -13%
Geekom AX8 Pro Acer N7000 2 TB	3791 (3695.18^min - 3790.57^max) MB/s -17%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	3736 (3562.44^min - 3735.53^max) MB/s -18%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	3689 (3523.22^min - 3688.64^max) MB/s -19%
Average of class Mini PC (229 - 5595, n=116, last 2 years)	2569 MB/s -44%
seq q8 t1 read
Geekom AX8 Pro Acer N7000 2 TB	7012 (5624.01^min - 7012.25^max) MB/s +53%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	5060 (4781.3^min - 5060.16^max) MB/s +10%
Aoostar GEM10 BIWIN CE980Y28900-1TB	4878 (4476.29^min - 4877.98^max) MB/s +6%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	4821 (4521.88^min - 4820.93^max) MB/s +5%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	4803 (3979.98^min - 4803.15^max) MB/s +5%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	4590 (4094.26^min - 4590.04^max) MB/s
Average of class Mini PC (236 - 8430, n=116, last 2 years)	3872 MB/s -16%
seq q8 t1 write
Geekom AX8 Pro Acer N7000 2 TB	5685 (5389.6^min - 5684.54^max) MB/s +23%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	4631 (4481.46^min - 4630.69^max) MB/s
Aoostar GEM10 BIWIN CE980Y28900-1TB	4505 (4403.81^min - 4505.09^max) MB/s -3%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	3985 (52.74^min - 3985.01^max) MB/s -14%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	3910 (3902.59^min - 3909.87^max) MB/s -16%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	3905 (3865.08^min - 3905.27^max) MB/s -16%
Average of class Mini PC (239 - 6669, n=116, last 2 years)	2875 MB/s -38%
4k q1 t1 read
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	71.4 (70.76^min - 71.35^max) MB/s
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	64.9 (64.71^min - 64.94^max) MB/s -9%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	62.5 (62.22^min - 62.52^max) MB/s -12%
Geekom AX8 Pro Acer N7000 2 TB	62.2 (61.55^min - 62.23^max) MB/s -13%
Aoostar GEM10 BIWIN CE980Y28900-1TB	61.7 (61.26^min - 61.71^max) MB/s -14%
Average of class Mini PC (6.85 - 87.3, n=116, last 2 years)	55.7 MB/s -22%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	55.6 (50.92^min - 55.64^max) MB/s -22%
4k q1 t1 write
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	353 (348.24^min - 353.16^max) MB/s +67%
Aoostar GEM10 BIWIN CE980Y28900-1TB	235 (230.8^min - 235.02^max) MB/s +11%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	212 (210.85^min - 212.37^max) MB/s
Average of class Mini PC (30.4 - 435, n=116, last 2 years)	196.5 MB/s -7%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	196.1 (183.94^min - 196.13^max) MB/s -7%
Geekom AX8 Pro Acer N7000 2 TB	187 (185.73^min - 187.04^max) MB/s -12%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	135.3 (124.1^min - 135.25^max) MB/s -36%
4k q32 t16 read
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	2876 (2861.34^min - 2875.92^max) MB/s +23%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	2330 (2326.23^min - 2330.42^max) MB/s
Aoostar GEM10 BIWIN CE980Y28900-1TB	2004 (2002.37^min - 2004.23^max) MB/s -14%
Geekom AX8 Pro Acer N7000 2 TB	1644 (1568.76^min - 1643.51^max) MB/s -29%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	1557 (1529.87^min - 1556.79^max) MB/s -33%
Average of class Mini PC (26.1 - 4158, n=116, last 2 years)	1431 MB/s -39%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	650 (624.87^min - 649.57^max) MB/s -72%
4k q32 t16 write
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	4088 (4061.99^min - 4088.46^max) MB/s
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	2822 (709.76^min - 2821.52^max) MB/s -31%
Aoostar GEM10 BIWIN CE980Y28900-1TB	2681 (2560.18^min - 2680.76^max) MB/s -34%
Average of class Mini PC (32.6 - 4288, n=116, last 2 years)	1342 MB/s -67%
Geekom AX8 Pro Acer N7000 2 TB	647 (598.22^min - 647.4^max) MB/s -84%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	565 (557.67^min - 564.75^max) MB/s -86%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	323 (291.38^min - 323.31^max) MB/s -92%

AS SSD
Score Total
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	8215 Points +16%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	7055 Points
Aoostar GEM10 BIWIN CE980Y28900-1TB	6147 Points -13%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	5863 Points -17%
Geekom AX8 Pro Acer N7000 2 TB	5512 Points -22%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	5180 Points -27%
Average of class Mini PC (211 - 10021, n=113, last 2 years)	4218 Points -40%
Score Read
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	2779 Points +28%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	2178 Points
Aoostar GEM10 BIWIN CE980Y28900-1TB	2109 Points -3%
Geekom AX8 Pro Acer N7000 2 TB	1793 Points -18%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	1738 Points -20%
Average of class Mini PC (76 - 3741, n=113, last 2 years)	1552 Points -29%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	1127 Points -48%
Score Write
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	3987 Points +7%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	3735 Points
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	3520 Points -6%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	3294 Points -12%
Aoostar GEM10 BIWIN CE980Y28900-1TB	2964 Points -21%
Geekom AX8 Pro Acer N7000 2 TB	2896 Points -22%
Average of class Mini PC (88 - 4371, n=113, last 2 years)	1915 Points -49%
Seq Read
Geekom AX8 Pro Acer N7000 2 TB	4902 MB/s +27%
Aoostar GEM10 BIWIN CE980Y28900-1TB	4264 MB/s +10%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	3927 MB/s +2%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	3862 MB/s
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	3822 MB/s -1%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	3587 MB/s -7%
Average of class Mini PC (291 - 6620, n=113, last 2 years)	3247 MB/s -16%
Seq Write
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	4073 MB/s
Aoostar GEM10 BIWIN CE980Y28900-1TB	3970 MB/s -3%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	3938 MB/s -3%
Geekom AX8 Pro Acer N7000 2 TB	2835 MB/s -30%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	2741 MB/s -33%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	2463 MB/s -40%
Average of class Mini PC (242 - 5783, n=113, last 2 years)	2319 MB/s -43%
4K Read
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	85.3 MB/s
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	83.6 MB/s -2%
Aoostar GEM10 BIWIN CE980Y28900-1TB	68.4 MB/s -20%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	61.9 MB/s -27%
Geekom AX8 Pro Acer N7000 2 TB	59.1 MB/s -31%
Average of class Mini PC (18.2 - 104.3, n=113, last 2 years)	59.1 MB/s -31%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	57.6 MB/s -32%
4K Write
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	314 MB/s +40%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	225 MB/s
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	208 MB/s -8%
Aoostar GEM10 BIWIN CE980Y28900-1TB	196.5 MB/s -13%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	193.2 MB/s -14%
Geekom AX8 Pro Acer N7000 2 TB	181.4 MB/s -19%
Average of class Mini PC (30.9 - 366, n=113, last 2 years)	178 MB/s -21%
4K-64 Read
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	2336 MB/s +37%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	1706 MB/s
Aoostar GEM10 BIWIN CE980Y28900-1TB	1614 MB/s -5%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	1293 MB/s -24%
Geekom AX8 Pro Acer N7000 2 TB	1244 MB/s -27%
Average of class Mini PC (23.4 - 3220, n=113, last 2 years)	1168 MB/s -32%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	677 MB/s -60%
4K-64 Write
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	3279 MB/s +6%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	3102 MB/s
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	3052 MB/s -2%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	2840 MB/s -8%
Geekom AX8 Pro Acer N7000 2 TB	2431 MB/s -22%
Aoostar GEM10 BIWIN CE980Y28900-1TB	2370 MB/s -24%
Average of class Mini PC (32.8 - 3731, n=113, last 2 years)	1505 MB/s -51%
Access Time Read
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	0.127 ms * -182%
Average of class Mini PC (0.025 - 0.489, n=113, last 2 years)	0.09865 ms * -119%
Aoostar GEM10 BIWIN CE980Y28900-1TB	0.098 ms * -118%
Geekom AX8 Pro Acer N7000 2 TB	0.079 ms * -76%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	0.071 ms * -58%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	0.045 ms *
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	0.027 ms * +40%
Access Time Write
Average of class Mini PC (0.014 - 0.765, n=113, last 2 years)	0.1204 ms * -363%
Geekom AX8 Pro Acer N7000 2 TB	0.064 ms * -146%
Aoostar GEM10 BIWIN CE980Y28900-1TB	0.061 ms * -135%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	0.026 ms *
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	0.023 ms * +12%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	0.022 ms * +15%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	0.014 ms * +46%

* ... smaller is better

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0; diskspd 2.0.17 f: Ø4546 (3995.05-4560.99)

Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø4795 (4364.17-4810.03)

Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8 ; diskspd 2.0.17 f: Ø5055 (4738.1-5067.7)

Geekom AX8 Pro Acer N7000 2 TB; diskspd 2.0.17 f: Ø6996 (5972.7-7027.76)

Aoostar GEM10 BIWIN CE980Y28900-1TB; diskspd 2.0.17 f: Ø4833 (4418.07-4847.99)

Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø4795 (3366.33-4823.24)

图形卡和游戏性能

Minisforum EliteMini UM890 Pro 配备了 AMD Ryzen 9 8945HS配备了 Radeon 780M iGPU，在我们的测试中，它在某些情况下明显优于英特尔的图形解决方案，与 Radeon 680M.但是，它无法与专用 GPU（如 RTX 4050 笔记本电脑.相比之下，Minisforum EliteMini UM890 Pro 的性能优于 Geekom AX8 Pro和内部 Minisforum AI X1 Pro.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Average NVIDIA GeForce RTX 4050 Laptop GPU	100 pt
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	44.8 pt
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	43.8 pt
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	41.9 pt
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	40.9 pt
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	40.6 pt
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	36.5 pt

3DMark 11 - 1280x720 Performance GPU
Average NVIDIA GeForce RTX 4050 Laptop GPU (13339 - 32642, n=40)	28555 Points +108%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	14293 Points +4%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	13721 Points
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	13347 Points -3%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	13309 Points -3%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	13281 Points -3%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	11668 Points -15%

3DMark
2560x1440 Time Spy Graphics
Average NVIDIA GeForce RTX 4050 Laptop GPU (5107 - 9040, n=38)	7787 Points +165%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3610 Points +23%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3144 Points +7%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	2934 Points
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	2852 Points -3%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	2832 Points -3%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	2518 Points -14%
1920x1080 Fire Strike Graphics
Average NVIDIA GeForce RTX 4050 Laptop GPU (13591 - 24007, n=38)	21072 Points +149%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	8726 Points +3%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	8647 Points +2%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	8447 Points
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	8348 Points -1%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	8117 Points -4%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	7653 Points -9%

Performance Rating - Percent
Average NVIDIA GeForce RTX 4050 Laptop GPU ^-1!	100 pt
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	43.9 pt
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	43.5 pt
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	42.8 pt
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	41.4 pt
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	39.6 pt
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	35.2 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Average NVIDIA GeForce RTX 4050 Laptop GPU (104.3 - 118.1, n=2)	111.2 fps +234%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	40.1 fps +20%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	37 fps +11%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	36.4 fps +9%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	34.5 fps +4%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	33.3 fps
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	30 fps -10%
Extreme Preset DX11
Average NVIDIA GeForce RTX 4050 Laptop GPU (101.9 - 114.6, n=2)	108.3 fps +190%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	41.1 fps +10%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	37.5 fps 0%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	37.4 fps
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	36.4 fps -3%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	35.5 fps -5%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	34.7 fps -7%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	78.3 fps +208%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	27.7 fps +9%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	25.4 fps
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	24 fps -6%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	23.7 fps -7%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	23.1 fps -9%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	20.1 fps -21%
1920x1080 Extreme HD Preset OpenGL AA:x8
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	75.9 fps +243%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	25.5 fps +15%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	23.6 fps +7%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	22.1 fps
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	21.9 fps -1%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	20.8 fps -6%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	20.6 fps -7%

Unigine Superposition
1280x720 720p Low
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	26742 Points +113%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	12737 Points +1%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	12567 Points
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	12451 Points -1%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	12232 Points -3%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	12023 Points -4%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	11940 Points -5%
1920x1080 1080p High
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	9548 Points +162%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3976 Points +9%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3948 Points +8%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	3648 Points 0%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	3644 Points
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	3559 Points -2%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	3380 Points -7%
1920x1080 1080p Extreme
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	4072 Points +129%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2119 Points +19%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1960 Points +10%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	1800 Points +1%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	1777 Points
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	1649 Points -7%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	1424 Points -20%

ComputeMark v2.1
1024x600 Normal, Score
Average NVIDIA GeForce RTX 4050 Laptop GPU (15719 - 16302, n=2)	16011 Points +56%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	10276 Points
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	10102 Points -2%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	9395 Points -9%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	8595 Points -16%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	7963 Points -23%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	6763 Points -34%
1024x600 Normal, Fluid 3DTex
Average NVIDIA GeForce RTX 4050 Laptop GPU (1319 - 1360, n=2)	1340 Points +180%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	494 Points +3%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	492 Points +3%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	488 Points +2%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	479 Points
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	468 Points -2%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	427 Points -11%
1024x600 Normal, Fluid 2DTexArr
Average NVIDIA GeForce RTX 4050 Laptop GPU (1284 - 1334, n=2)	1309 Points +159%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	507 Points 0%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	505 Points
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	488 Points -3%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	487 Points -4%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	468 Points -7%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	427 Points -15%
1024x600 Normal, Mandel Vector
Average NVIDIA GeForce RTX 4050 Laptop GPU (3358 - 3456, n=2)	3407 Points +27%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	2676 Points
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	2637 Points -1%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2512 Points -6%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	2362 Points -12%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2039 Points -24%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	1900 Points -29%
1024x600 Normal, Mandel Scalar
Average NVIDIA GeForce RTX 4050 Laptop GPU (3343 - 3578, n=2)	3461 Points +24%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	2800 Points
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	2757 Points -2%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2531 Points -10%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	2449 Points -13%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	1812 Points -35%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1701 Points -39%
1024x600 Normal, QJuliaRayTrace
Average NVIDIA GeForce RTX 4050 Laptop GPU (6324 - 6665, n=2)	6495 Points +70%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	3816 Points
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	3752 Points -2%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3351 Points -12%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3244 Points -15%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	2868 Points -25%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	2157 Points -43%

LuxMark v2.0 64Bit
Room GPUs-only
Average NVIDIA GeForce RTX 4050 Laptop GPU (2967 - 3785, n=2)	3376 Samples/s +253%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	1068 Samples/s +12%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	975 Samples/s +2%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	957 Samples/s
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	807 Samples/s -16%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	656 Samples/s -31%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	567 Samples/s -41%
Sala GPUs-only
Average NVIDIA GeForce RTX 4050 Laptop GPU (8036 - 9524, n=2)	8780 Samples/s +398%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2888 Samples/s +64%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	2218 Samples/s +26%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	1763 Samples/s
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1570 Samples/s -11%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	1546 Samples/s -12%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	1288 Samples/s -27%

Affinity Photo 2 - Combined (Single / Multi GPU)
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	6468 Points +298%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2944 Points +81%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	2339 Points +44%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	1831 Points +13%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	1624 Points
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	1399 Points -14%

Performance Rating: Percent
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference

Performance Rating
Average NVIDIA GeForce RTX 4050 Laptop GPU	91.5 pt
Minisforum AI X1 Pro	85.1 pt
Minisforum EliteMini UM890 Pro	77.2 pt
Minisforum EliteMini UM780 XTX	76.8 pt
Geekom AX8 Pro	69.6 pt
Aoostar GEM10	54.7 pt
Geekom GT1 Mega	53.7 pt

SPECworkstation 4.0 / Graphics Score
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	2.9 Points +36%
Minisforum AI X1 Pro	2.21 Points +4%
Minisforum EliteMini UM890 Pro	2.13 Points
Minisforum EliteMini UM780 XTX	2.1 Points -1%
Geekom AX8 Pro	2.03 Points -5%
Aoostar GEM10	1.79 Points -16%
Geekom GT1 Mega	1 Points -53%

SPECworkstation 4.0 / Accelerator Score
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	3.37 Points +50%
Minisforum AI X1 Pro	2.46 Points +10%
Minisforum EliteMini UM780 XTX	2.3 Points +3%
Minisforum EliteMini UM890 Pro	2.24 Points
Geekom AX8 Pro	2.07 Points -8%
Geekom GT1 Mega	1.91 Points -15%
Aoostar GEM10	1.48 Points -34%

SPECworkstation 4.0 / Viewport Graphics
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	2.9 Points +36%
Minisforum AI X1 Pro	2.21 Points +4%
Minisforum EliteMini UM890 Pro	2.13 Points
Minisforum EliteMini UM780 XTX	2.1 Points -1%
Geekom AX8 Pro	2.03 Points -5%
Aoostar GEM10	1.79 Points -16%
Geekom GT1 Mega	0.999 Points -53%

SPECworkstation 4.0 / HandBrake
Minisforum AI X1 Pro	1.77 Points +21%
Minisforum EliteMini UM780 XTX	1.46 Points 0%
Minisforum EliteMini UM890 Pro	1.46 Points
Geekom GT1 Mega	1.4 Points -4%
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	1.28 Points -12%
Geekom AX8 Pro	1.25 Points -14%
Aoostar GEM10	0.972 Points -33%

SPECworkstation 4.0 / ONNX Inference
Minisforum AI X1 Pro	1.71 Points +11%
Minisforum EliteMini UM890 Pro	1.54 Points
Minisforum EliteMini UM780 XTX	1.51 Points -2%
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	1.46 Points -5%
Geekom AX8 Pro	1.3 Points -16%
Geekom GT1 Mega	1.09 Points -29%
Aoostar GEM10	0.873 Points -43%

	Minisforum EliteMini UM890 Pro, AMD Radeon 780M R9 8945HS	Minisforum AI X1 Pro, AMD Radeon 890M Ryzen AI 9 HX 370	Geekom GT1 Mega, Intel Arc 8-Core iGPU Ultra 9 185H	Geekom AX8 Pro, AMD Radeon 780M R9 8945H	Aoostar GEM10, AMD Radeon 680M R7 6800H	Minisforum EliteMini UM780 XTX, AMD Radeon 780M R7 7840HS	Average of class Mini PC
SPECviewperf 2020		0%	-51%	-5%	-15%	-8%	-22%
3840x2160 Medical (medical-03)	13.3	15.2 14%	7.07 -47%	12.8 -4%	10.7 -20%	12 -10%	7.78 ?(0.78 - 30.8, n=64, last 2 years) -42%
3840x2160 Energy (energy-03)	19.7	15.5 -21%	5 -75%	13.3 -32%	10.6 -46%	15.4 -22%	11.1 ?(0.52 - 44, n=64, last 2 years) -44%
3840x2160 Creo (creo-03)	34.9	34.1 -2%	19.8 -43%	35.3 1%	32 -8%	31.4 -10%	30 ?(7.73 - 97.5, n=64, last 2 years) -14%
3840x2160 CATIA (catia-06)	24.2	23.1 -5%	11.7 -52%	25.1 4%	22.8 -6%	24.4 1%	18.1 ?(4.61 - 64.1, n=63, last 2 years) -25%
3840x2160 3ds Max (3dsmax-07)	21.3	21.9 3%	15.5 -27%	21.1 -1%	18.9 -11%	21 -1%	22.1 ?(5.53 - 87.5, n=64, last 2 years) 4%
3840x2160 Siemens NX (snx-04)	67	68.7 3%	5.68 -92%	65.7 -2%	61.4 -8%	61.5 -8%	35.7 ?(2.25 - 224, n=62, last 2 years) -47%
3840x2160 Maya (maya-06)	51.2	55.9 9%	38.8 -24%	49.6 -3%	49.7 -3%	47.2 -8%	56.6 ?(11.8 - 223, n=64, last 2 years) 11%

3DMark 05 Standard		53893 points
3DMark 06 Standard Score		45393 points
3DMark Vantage P Result		44684 points
3DMark 11 Performance		13306 points
3DMark Ice Storm Standard Score		169133 points
3DMark Cloud Gate Standard Score		37562 points
3DMark Fire Strike Score		7812 points
3DMark Fire Strike Extreme Score		4218 points
3DMark Time Spy Score		3295 points
3DMark Steel Nomad Score		510 points
Help

... in comparison

GTA V | Dota 2 Reborn | Cyberpunk 2077 2.2 Phantom Liberty | Baldur's Gate 3 | F1 24

GTA V
1024x768 Lowest Settings possible
Average NVIDIA GeForce RTX 4050 Laptop GPU (163.6 - 186.7, n=15)	181.4 fps
Geekom AX8 Pro Radeon 780M, R9 8945H, Acer N7000 2 TB	169.4 (3.69^min, 125^P1) fps
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	166.2 (4.23^min, 71.4^P1) fps
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	165.2 (3.77^min, 100^P1) fps
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	164.4 (4.9^min, 111.1^P1) fps
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	145.3 (5.31^min, 100^P1) fps
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Average NVIDIA GeForce RTX 4050 Laptop GPU (106 - 177.3, n=28)	157.3 fps
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	71.9 (6.03^min, 47.6^P1) fps
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	66.9 (3.09^min, 45.5^P1) fps
Geekom AX8 Pro Radeon 780M, R9 8945H, Acer N7000 2 TB	65.9 (2.44^min, 41.7^P1) fps
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	53.9 (3.82^min, 38.5^P1) fps
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	43.5 (3.49^min, 32.3^P1) fps

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	167.6 (135.7^min) fps +12%
Average NVIDIA GeForce RTX 4050 Laptop GPU (113.7 - 196.3, n=36)	163.9 fps +9%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	161.5 (141.6^min) fps +8%
Geekom AX8 Pro Radeon 780M, R9 8945H, Acer N7000 2 TB	157.5 (136^min) fps +5%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	149.8 (130.2^min) fps
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	124 (8.9^min) fps -17%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	110.5 (63^min) fps -26%
1920x1080 high (2/3)
Average NVIDIA GeForce RTX 4050 Laptop GPU (79.2 - 191.8, n=37)	141.3 fps +40%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	100.9 (84.1^min) fps
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	97.45 (86.9^min) fps -3%
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	91.6 (79.1^min) fps -9%
Geekom AX8 Pro Radeon 780M, R9 8945H, Acer N7000 2 TB	88 (69.2^min) fps -13%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	87.8 (28.3^min) fps -13%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	81.6 (72.3^min) fps -19%

Cyberpunk 2077 2.2 Phantom Liberty
1920x1080 Low Preset (FSR off)
Average NVIDIA GeForce RTX 4050 Laptop GPU (67.2 - 103.1, n=7)	87 fps +107%
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	48.1 (41.3^min) fps +15%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	45.4 (38.9^min) fps +8%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	42 (36.1^min) fps
Geekom AX8 Pro Radeon 780M, R9 8945H, Acer N7000 2 TB	41.3 (34.5^min) fps -2%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	38 (33.3^min) fps -10%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	34.8 (29.9^min) fps -17%
1920x1080 High Preset (FSR off)
Average NVIDIA GeForce RTX 4050 Laptop GPU (42.4 - 75, n=8)	59.5 fps +125%
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	28.9 (24.5^min) fps +9%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	27.7 (23.6^min) fps +5%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	26.5 (22.1^min) fps
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	26 (22.6^min) fps -2%
Geekom AX8 Pro Radeon 780M, R9 8945H, Acer N7000 2 TB	25.8 (21.7^min) fps -3%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	21.3 (18.4^min) fps -20%

Baldur's Gate 3
1280x720 Low Preset
Average NVIDIA GeForce RTX 4050 Laptop GPU (134.5 - 148.9, n=2)	141.7 fps +127%
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	67.9 (43.2^min, 47.8^P0.1, 55.8^P1) fps +9%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	62.3 (42.8^min, 47.8^P0.1, 54.2^P1) fps
Geekom AX8 Pro Radeon 780M, R9 8945H, Acer N7000 2 TB	60.8 (21.6^min, 28.1^P0.1, 35.6^P1) fps -2%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	57.6 (31.7^min, 33.6^P0.1, 37.9^P1) fps -8%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	48.9 (16.6^min, 29.1^P0.1, 36.8^P1) fps -22%
1920x1080 High Preset
Average NVIDIA GeForce RTX 4050 Laptop GPU (49.8 - 83.5, n=9)	66.1 fps +165%
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	28.8 (15.7^min, 23.2^P0.1, 26.3^P1) fps +16%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	25.4 (13.9^min, 14.3^P0.1, 16.3^P1) fps +2%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	24.9 (21.7^min, 21.8^P0.1, 22.4^P1) fps
Geekom AX8 Pro Radeon 780M, R9 8945H, Acer N7000 2 TB	24.5 (17.7^min, 17.7^P0.1, 19.8^P1) fps -2%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	23.3 (16.6^min, 16.7^P0.1, 18.3^P1) fps -6%

F1 24
1920x1080 Low Preset AA:T AF:16x
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	181.9 fps +120%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	90.9 (75^min, 61^P1) fps +10%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	84.3 (70^min, 66^P1) fps +2%
Geekom AX8 Pro Radeon 780M, R9 8945H, Acer N7000 2 TB	83.4 (28^min, 33^P1) fps +1%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	82.8 (64^min, 48^P1) fps
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	82.4 (57^min, 52^P1) fps 0%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	72.2 (57^min, 50^P1) fps -13%
1920x1080 High Preset AA:T AF:16x
Average NVIDIA GeForce RTX 4050 Laptop GPU (135.2 - 146, n=2)	140.6 fps +172%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	59.9 (49^min, 43^P1) fps +16%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	54.8 (43^min, 45^P1) fps +6%
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	53.4 (40^min, 32^P1) fps +3%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	51.7 (41^min, 33^P1) fps
Geekom AX8 Pro Radeon 780M, R9 8945H, Acer N7000 2 TB	51.3 (23^min, 15^P1) fps -1%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	46 (34^min, 31^P1) fps -11%

FPS diagram - 30 minutes of Cyberpunk 2077 1920 x 1080 Ultra preset (FSR off)

Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M: Ø22.9 (22-23.2)

Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M: Ø23.8 (21.5-24.7)

Geekom GT1 Mega Ultra 9 185H, Arc 8-Core: Ø22.1 (18.6-24)

Geekom AX8 Pro R9 8945H, Radeon 780M: Ø19.2 (17.9-20.3)

Aoostar GEM10 R7 6800H, Radeon 680M: Ø17 (13-17.6)

	low	med.	high	ultra
The Witcher 3 (2015)	143.1	93.5	46.8	29.1
Dota 2 Reborn (2015)	149.8	114.1	100.9	85
Final Fantasy XV Benchmark (2018)	78	39.1	28
X-Plane 11.11 (2018)	60.2	43.7	31.1
Baldur's Gate 3 (2023)	39.2	30.3	24.9	24.6
Cyberpunk 2077 2.2 Phantom Liberty (2023)	42	33.2	26.5	23.5
F1 24 (2024)	82.8	70.7	51.7	10.3

Minisforum EliteMini UM890 Pro 通过 OCuLink 使用 NvidiaGeForce RTX 4090 进行性能检查

Minisforum EliteMini UM890 Pro 可让用户通过 OCuLink 连接外置显卡，从而大幅提高性能。我们测试了这款迷你电脑与 NvidiaGeForce RTX 4090和 Miniforum DEG1 进行了测试。

Performance Rating - Percent
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	99.3 pt
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	96 pt
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	86.6 pt

3DMark 11 - 1280x720 Performance GPU
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	103919 Points +657%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	100303 Points +631%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	64648 Points +371%
	13721 Points

3DMark
2560x1440 Time Spy Graphics
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	33302 Points +1035%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	31852 Points +986%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	28844 Points +883%
	2934 Points
1920x1080 Fire Strike Graphics
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	75788 Points +797%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	73143 Points +766%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	53367 Points +532%
	8447 Points
3840x2160 Fire Strike Ultra Graphics
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	24022 Points +969%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	23434 Points +942%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	21506 Points +857%
	2248 Points

Unigine Superposition
1280x720 720p Low
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	37409 Points +198%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	34512 Points +175%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	33318 Points +165%
	12567 Points
1920x1080 1080p High
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	33491 Points +819%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	32149 Points +782%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	30115 Points +726%
	3644 Points
1920x1080 1080p Extreme
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	21366 Points +1102%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	21164 Points +1091%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	19915 Points +1021%
	1777 Points
3840x2160 4k Optimized
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	30152 Points
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	30138 Points
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	27686 Points
7680x4320 8k Optimized
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	12219 Points
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	12132 Points
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	12056 Points

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	271.1 fps +967%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	211 fps +731%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	208.7 fps +722%
	25.4 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	286.7 fps +1197%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	227 fps +927%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	224.4 fps +915%
	22.1 fps

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	449.2 fps +1249%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	427.2 fps +1183%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	386.5 fps +1061%
	33.3 fps
Extreme Preset DX11
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	454.1 fps +1114%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	413 fps +1004%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	343 fps +817%
	37.4 fps

ComputeMark v2.1
1024x600 Normal, Score
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	90418 Points +780%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	90036 Points +776%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	83349 Points +711%
	10276 Points
1024x600 Normal, Fluid 3DTex
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	10635 Points +2120%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	10559 Points +2104%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	9972 Points +1982%
	479 Points
1024x600 Normal, Fluid 2DTexArr
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	6879 Points +1262%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	6790 Points +1245%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	6566 Points +1200%
	505 Points
1024x600 Normal, Mandel Vector
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	16912 Points +532%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	16899 Points +532%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	15583 Points +482%
	2676 Points
1024x600 Normal, Mandel Scalar
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	22490 Points +703%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	22391 Points +700%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	20574 Points +635%
	2800 Points
1024x600 Normal, QJuliaRayTrace
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	33578 Points +780%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	33320 Points +773%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	30654 Points +703%
	3816 Points

Performance Rating | Cyberpunk 2077 2.2 Phantom Liberty | Baldur's Gate 3 | F1 24

Performance Rating - Percent
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	99.3 pt
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	92.7 pt
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	56.7 pt

Cyberpunk 2077 2.2 Phantom Liberty
1280x720 Low Preset (FSR off)
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	168.9 (135.4^min - 199^max) fps +143%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	138.5 (109.3^min - 170.9^max) fps +99%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	88.9 (67.9^min - 123.3^max) fps +28%
	69.6 (58.9^min - 84.3^max) fps
1920x1080 Medium Preset (FSR off)
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	168 (133.8^min - 195.9^max) fps +406%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	143.1 (113^min - 169.5^max) fps +331%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	87.8 (65.1^min - 123^max) fps +164%
	33.2 (28.9^min - 39.5^max) fps
1920x1080 Ultra Preset (FSR off)
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	146.9 (101.6^min - 181.1^max) fps +525%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	125.3 (85.8^min - 157.1^max) fps +433%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	75 (50.3^min - 110.2^max) fps +219%
	23.5 (19.6^min - 29.8^max) fps

Baldur's Gate 3
1920x1080 Low Preset
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	203 (67.8^min, 99.1^P0.1, 144.4^P1 - 371^max) fps +418%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	189.1 (95.1^min, 108.7^P0.1, 136.8^P1 - 323^max) fps +382%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	187.3 (23^min, 74.9^P0.1, 125.7^P1 - 610^max) fps +378%
	39.2 (30.3^min, 30.6^P0.1, 34^P1 - 45^max) fps
1920x1080 Medium Preset
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	192.4 (76.6^min, 93.4^P0.1, 133.6^P1 - 299^max) fps +535%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	185.4 (6.25^min, 62.7^P0.1, 115.5^P1 - 864^max) fps +512%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	168.3 (71.8^min, 94^P0.1, 117.8^P1 - 266^max) fps +455%
	30.3 (25.7^min, 26.2^P0.1, 27.3^P1 - 34.7^max) fps
1920x1080 Ultra Preset
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	183.9 (67.1^min, 95.8^P0.1, 126.6^P1 - 269^max) fps +648%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	172.2 (46.8^min, 84.2^P0.1, 117.9^P1 - 435^max) fps +600%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	151.8 (67.2^min, 82^P0.1, 101.9^P1 - 254^max) fps +517%
	24.6 (20.8^min, 21.2^P0.1, 22.3^P1 - 27.5^max) fps

F1 24
1920x1080 Low Preset AA:T AF:16x
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	241 (189^min, 148^P1 - 267^max) fps +191%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	236 (187^min, 153^P1 - 258^max) fps +185%
	82.8 (64^min, 48^P1 - 97^max) fps
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	78.1 (43^min, 45^P1 - 98^max) fps -6%
1920x1080 Medium Preset AA:T AF:16x
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	234 (190^min, 143^P1 - 268^max) fps +231%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	226 (196^min, 147^P1 - 259^max) fps +220%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	74.4 (42^min, 44^P1 - 86^max) fps +5%
	70.7 (56^min, 43^P1 - 81^max) fps
1920x1080 High Preset AA:T AF:16x
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	231 (182^min, 147^P1 - 255^max) fps +347%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	229 (178^min, 148^P1 - 253^max) fps +343%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	61.7 (35^min, 37^P1 - 75^max) fps +19%
	51.7 (41^min, 33^P1 - 60^max) fps

	Minisforum EliteMini UM890 Pro, AMD Radeon 780M R9 8945HS	Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) , R9 8945HS	Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) , Ultra 9 185H	Average of class Mini PC
SPECviewperf 2020		446%	314%	-22%
3840x2160 Medical (medical-03)	13.3	43.4 226%	42.1 217%	7.78 ?(0.78 - 30.8, n=64, last 2 years) -42%
3840x2160 Energy (energy-03)	19.7	141 616%	92.8 371%	11.1 ?(0.52 - 44, n=64, last 2 years) -44%
3840x2160 Creo (creo-03)	34.9	120 244%	91.1 161%	30 ?(7.73 - 97.5, n=64, last 2 years) -14%
3840x2160 CATIA (catia-06)	24.2	84.3 248%	77.3 219%	18.1 ?(4.61 - 64.1, n=63, last 2 years) -25%
3840x2160 3ds Max (3dsmax-07)	21.3	208 877%	158 642%	22.1 ?(5.53 - 87.5, n=64, last 2 years) 4%
3840x2160 Siemens NX (snx-04)	67	39.5 -41%	31.9 -52%	35.7 ?(2.25 - 224, n=62, last 2 years) -47%
3840x2160 Maya (maya-06)	51.2	539 953%	378 638%	56.6 ?(11.8 - 223, n=64, last 2 years) 11%

	low	med.	high	ultra	QHD	4K
Final Fantasy XV Benchmark (2018)	221	209	168.5		170.2	144.4
Baldur's Gate 3 (2023)	203	192.4	185.3	183.9	167.6	127.4
Cyberpunk 2077 2.2 Phantom Liberty (2023)	167.3	168	157.1	146.9	135.8	72.3
F1 24 (2024)	236	226	229	114.7	117.4	91.4

排放 - 性能与体积的完美平衡

噪音排放

Minisforum EliteMini UM890 Pro 有一个高效的散热系统，配有两个风扇：顶部的风扇用于固态硬盘和内存，底部的风扇用于处理器。冷却装置保持安静，在我们的测试中，满载时的声压级仅为 34.4 dB(A)。另一方面，迷你电脑在闲置时也并非完全静音。

Noise Level

Idle		27.2 / 27.3 / 27.3 dB(A)
Load		33.6 / 34.4 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 23.7 dB(A)

	Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M	Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M	Geekom GT1 Mega Ultra 9 185H, Arc 8-Core	Geekom AX8 Pro R9 8945H, Radeon 780M	Aoostar GEM10 R7 6800H, Radeon 680M	Minisforum EliteMini UM780 XTX R7 7840HS, Radeon 780M
Noise		-8%	-21%	-17%	-24%	-5%
off / environment *	23.7	23.8 -0%	24.8 -5%	24.9 -5%	24.3 -3%	24.8 -5%
Idle Minimum *	27.2	28 -3%	25.4 7%	24.9 8%	36.5 -34%	28.5 -5%
Idle Average *	27.3	28.1 -3%	27.2 -0%	24.9 9%	36.6 -34%	28.5 -4%
Idle Maximum *	27.3	28.2 -3%	27.5 -1%	24.9 9%	36.6 -34%	28.7 -5%
Load Average *	33.6	38.4 -14%	50.9 -51%	50.1 -49%	41.7 -24%	32.4 4%
Cyberpunk 2077 ultra *	34.4	38.5 -12%	50.8 -48%	50 -45%	40.3 -17%
Load Maximum *	34.4	41.8 -22%	50.9 -48%	50.2 -46%	40.8 -19%	39.6 -15%
Witcher 3 ultra *					40.18	32.7

* ... smaller is better

温度

Minisforum EliteMini UM890 Pro 的塑料表面在负载情况下会明显发热，但并不严重。在我们的测量过程中，处理器的温度曾短暂达到 86 °C，然后稳定在 80 °C以上，从而实现了持续的高性能。处理器的功耗为 54 瓦，即使在连续负载的情况下也符合 AMD 的规格要求。

压力测试中的 Minisforum EliteMini UM890 Pro（上图）

压力测试中的 Minisforum EliteMini UM890 Pro（底部）

压力测试中的 Minisforum EliteMini UM890 Pro（左/上侧视图）

Max. Load

Idle

Cyberpunk


32.2 °C	31.1 °C	33.7 °C
30.4 °C	31.9 °C	32.3 °C
31.2 °C	32.6 °C	32 °C

Maximum: 33.7 °C
Average: 31.9 °C


44 °C	45.9 °C	43.8 °C
32.9 °C	36 °C	30.6 °C
28.1 °C	29.3 °C	29.5 °C

Maximum: 45.9 °C
Average: 35.6 °C

Power Supply (max.) 47.6 °C | Room Temperature 21.9 °C | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


25.4 °C	25.7 °C	26.6 °C
26.1 °C	26.4 °C	27 °C
26.6 °C	27.5 °C	26.9 °C

Maximum: 27.5 °C
Average: 26.5 °C


28.5 °C	28.1 °C	28.1 °C
27.1 °C	27.1 °C	26.5 °C
25.6 °C	26.4 °C	26.2 °C

Maximum: 28.5 °C
Average: 27.1 °C

Power Supply (max.) 36.6 °C | Room Temperature 21.8 °C | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


29.7 °C	30.5 °C	32.5 °C
30.2 °C	31.8 °C	31.7 °C
30.5 °C	32.1 °C	31.6 °C

Maximum: 32.5 °C
Average: 31.2 °C


43.1 °C	42.5 °C	42 °C
32.8 °C	34.4 °C	30 °C
28.2 °C	31.4 °C	31.6 °C

Maximum: 43.1 °C
Average: 35.1 °C

Power Supply (max.) 47 °C | Room Temperature 21.9 °C | Fluke t3000FC (calibrated)

(+) The average temperature for the upper side under maximal load is 31.9 °C / 89 F, compared to the average of 32.3 °C / 90 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 33.7 °C / 93 F, compared to the average of 35.7 °C / 96 F, ranging from 21.6 to 69.5 °C for the class Mini PC.
(-) The bottom heats up to a maximum of 45.9 °C / 115 F, compared to the average of 36.1 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 26.5 °C / 80 F, compared to the device average of 32.3 °C / 90 F.
(+) 3: The average temperature for the upper side is 31.2 °C / 88 F, compared to the average of 32.3 °C / 90 F for the class Mini PC.

电源管理

Minisforum EliteMini UM890 Pro 并不是最省钱的迷你电脑之一，因为它的处理器允许使用大量电能。不过，它的能耗比传统台式电脑低得多。

Minisforum EliteMini UM890，带电源（19 V；6.32 A）

Power Consumption

Off / Standby	1.5 / 2 Watt
Idle	9.8 / 10.5 / 13.6 Watt
Load	67 / 96.2 Watt


Key: min: , med: , max: Metrahit Energy

	Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M	Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M	Geekom GT1 Mega Ultra 9 185H, Arc 8-Core	Geekom AX8 Pro R9 8945H, Radeon 780M	Aoostar GEM10 R7 6800H, Radeon 680M	Minisforum EliteMini UM780 XTX R7 7840HS, Radeon 780M	Average AMD Radeon 780M	Average of class Mini PC
Power Consumption		10%	21%	-20%	16%	3%	23%	-1%
Idle Minimum *	9.8	8.6 12%	4.1 58%	14 -43%	7.3 26%	8.5 13%	6.13 ?(2.7 - 14, n=57) 37%	9.41 ?(1.9 - 45.7, n=119, last 2 years) 4%
Idle Average *	10.5	9.4 10%	6.6 37%	15.9 -51%	8.7 17%	10.5 -0%	8.36 ?(4.7 - 17.6, n=57) 20%	11.5 ?(1.9 - 47.5, n=117, last 2 years) -10%
Idle Maximum *	13.6	10 26%	11.3 17%	19.5 -43%	10.4 24%	12.9 5%	10.6 ?(5.2 - 27, n=57) 22%	14.8 ?(2.6 - 49, n=119, last 2 years) -9%
Load Average *	67	70.2 -5%	65.8 2%	76.4 -14%	67.2 -0%	67.2 -0%	56.9 ?(19.7 - 93.2, n=55) 15%	58.9 ?(11.3 - 170.6, n=119, last 2 years) 12%
Cyberpunk 2077 ultra external monitor *	85.9	70.7 18%	69.4 19%	54.3 37%	58.8 32%
Load Maximum *	96.2	97.7 -2%	104.8 -9%	99.1 -3%	101.6 -6%	97.2 -1%	75.4 ?(34.9 - 111.8, n=56) 22%	99.6 ?(18.1 - 423, n=119, last 2 years) -4%

* ... smaller is better

Efficiency overview

Performance Rating | Power Consumption

Performance Rating - Percent
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	100 pt
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	91.8 pt
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	84.1 pt
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	82 pt

Power Consumption
Cinebench R23 Multi Power Efficiency - external Monitor
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	265 Points per Watt +29%
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	219 Points per Watt +7%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	205 Points per Watt
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	194.8 Points per Watt -5%
Cinebench R23 Single Power Efficiency - external Monitor
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	59 Points per Watt +6%
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	58.3 Points per Watt +5%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	56.7 Points per Watt +2%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	55.5 Points per Watt
Cinebench R15 Multi Efficiency (external Monitor)
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	38.2 Points per Watt +24%
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	35.9 Points per Watt +16%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	30.9 Points per Watt
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	29.2 Points per Watt -6%

Power consumption with external monitor

Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M; Idle 1min (external Monitor): Ø10.6 (9.97-13.6)

Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M; Idle 1min (external Monitor): Ø9.42 (8.78-10)

Geekom GT1 Mega Ultra 9 185H, Arc 8-Core; Idle 1min (external Monitor): Ø6.65 (4.54-11.3)

Geekom AX8 Pro R9 8945H, Radeon 780M; Idle 1min (external Monitor): Ø15.9 (14.3-19.4)

Minisforum EliteMini UM780 XTX R7 7840HS, Radeon 780M; Idle 1min (external Monitor): Ø11.8 (11.1-13)

Minisforum EliteMini UM780 XTX R7 7840HS, Radeon 780M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø75.7 (71-78.2)

Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø91.2 (85.3-96.2)

Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø92.4 (85.7-97.7)

Geekom GT1 Mega Ultra 9 185H, Arc 8-Core; 1280x720 Prime95 28.10 and Furmark 1.25: Ø75.4 (64.2-104.8)

Geekom AX8 Pro R9 8945H, Radeon 780M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø89.4 (87.8-94.6)

Minisforum EliteMini UM780 XTX R7 7840HS, Radeon 780M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø91.7 (89.2-96.9)

Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø85.9 (78.8-89.5)

Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø70.7 (60.4-76.7)

Geekom GT1 Mega Ultra 9 185H, Arc 8-Core; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø69.4 (66.7-76.7)

Geekom AX8 Pro R9 8945H, Radeon 780M; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø54.3 (43.7-67.1)

Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M; 3DMark06 Return To Proxycon: Ø67 (49.9-80.3)

Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M; 3DMark06 Return To Proxycon: Ø70.2 (53.5-76.7)

Geekom GT1 Mega Ultra 9 185H, Arc 8-Core; 3DMark06 Return To Proxycon: Ø65.8 (59-72.8)

Geekom AX8 Pro R9 8945H, Radeon 780M; 3DMark06 Return To Proxycon: Ø76.5 (55.7-96.2)

Minisforum EliteMini UM780 XTX R7 7840HS, Radeon 780M; 3DMark06 Return To Proxycon: Ø67.2 (49.8-78.4)

Power consumption with external monitor

Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø91 (88.2-96.2)

Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M; Prime95 V2810 Stress (external Monitor): Ø90.8 (82.3-101.1)

Geekom GT1 Mega Ultra 9 185H, Arc 8-Core; Prime95 V2810 Stress (external Monitor): Ø75.6 (62.9-104.6)

Geekom AX8 Pro R9 8945H, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø75.9 (72.6-96)

Minisforum EliteMini UM780 XTX R7 7840HS, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø91.7 (89.9-97.2)

Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø88.8 (83.1-90.8)

Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M; Cinebench R15 Multi (external Monitor): Ø91.1 (90.4-91.6)

Geekom GT1 Mega Ultra 9 185H, Arc 8-Core; Cinebench R15 Multi (external Monitor): Ø95.8 (95-96.5)

Geekom AX8 Pro R9 8945H, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø70.3 (63.2-83)

Minisforum EliteMini UM780 XTX R7 7840HS, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø88.8 (84.1-90.6)

Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M; Cinebench R23 Single (external Monitor): Ø32.7 (29.7-46.2)

Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M; Cinebench R23 Single (external Monitor): Ø34.6 (32.8-50)

Geekom GT1 Mega Ultra 9 185H, Arc 8-Core; Cinebench R23 Single (external Monitor): Ø31.3 (15.7-81.3)

Geekom AX8 Pro R9 8945H, Radeon 780M; Cinebench R23 Single (external Monitor): Ø31 (25.6-51.4)

Minisforum EliteMini UM780 XTX R7 7840HS, Radeon 780M; Cinebench R23 Single (external Monitor): Ø33 (24.8-86.2)

Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M; Cinebench R23 Multi (external Monitor): Ø83.6 (80.8-88.7)

Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M; Cinebench R23 Multi (external Monitor): Ø86.3 (81.9-90.8)

Geekom GT1 Mega Ultra 9 185H, Arc 8-Core; Cinebench R23 Multi (external Monitor): Ø95.5 (94-96.6)

Geekom AX8 Pro R9 8945H, Radeon 780M; Cinebench R23 Multi (external Monitor): Ø70.9 (66.8-89.8)

Minisforum EliteMini UM780 XTX R7 7840HS, Radeon 780M; Cinebench R23 Multi (external Monitor): Ø84.3 (81.6-89.9)

Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø72.2 (68.5-92)

Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø69.3 (67.6-71.8)

Geekom GT1 Mega Ultra 9 185H, Arc 8-Core; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø58.2 (56.2-74.2)

Geekom AX8 Pro R9 8945H, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø85.7 (73.1-99.9)

Minisforum EliteMini UM780 XTX R7 7840HS, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø73.5 (66.5-84.1)

Notebookcheck 总评分

Minisforum EliteMini UM890 Pro 拥有强大的性能、高速 DDR5 内存和扩展选项。它的散热工作效率很高，即使在负载情况下也只能听到轻微的声音。尽管功耗较高，但仍低于传统台式电脑。

Back to the verdict

Minisforum EliteMini UM890 Pro - 03/20/2025 v8
Sebastian Bade

Chassis

81 / 98 → 83%

Connectivity

67 / 81 → 82%

Weight

80%

Games Performance

83 / 80 → 100%

Application Performance

85 / 92 → 93%

Workstation

55%

AI Performance

89%

Noise

89%

Average

53%

81%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
0%

Packaging
25%

Power Use
65.6%

Repairability
30%

Software Updates
22.3%

Total Sustainability Score: 23.8%

Possible alternatives compared

Image	Model / Review	Price	Weight	Dimensions
1. 80.7%	Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: 1. $649.99 MINISFORUM UM890 Pro Mini PC... 2. $599.90 MINISFORUM UM890 Pro Mini PC... 3. $36.99 UL Listed 19V AC/DC Adapter ... List Price: 739 EUR	709 g	127 x 130 x 60.6 mm
2. 82.9%	Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370 ⎘ AMD Radeon 890M ⎘ 64 GB Memory, 1024 GB SSD	Amazon: 1. $1,169.90 MINISFORUM Elitemini AI370 M... 2. $935.99 MINISFORUM AI370 Mini PC, AM... 3. $909.90 MINISFORUM UM890 Pro Mini PC...	1.4 kg	195 x 195 x 42.5 mm
3. 78.8%	Geekom GT1 Mega Intel Core Ultra 9 185H ⎘ Intel Arc 8-Core iGPU ⎘ 32 GB Memory, 2048 GB SSD	Amazon: 1. $989.00 GEEKOM GT1 Mega AI Mini PC,1... 2. $979.00 GEEKOM IT1 Mega AI Mini PC,1... 3. $989.99 GEEKOM XT1 Mega AI Mini PC,1... List Price: 1149 EUR	693 g	132 x 135 x 46.9 mm
4. 78.4%	Geekom AX8 Pro AMD Ryzen 9 8945H ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 2048 GB SSD	Amazon: 1. $789.00 GEEKOM AX8 Pro Ai Mini PC,AM... 2. $529.00 GEEKOM AX8 Pro Ai Mini PC,AM... 3. $819.00 GEEKOM Mini PC XT13 Pro, Int... List Price: 999 EUR	548 g	112 x 117 x 37 mm
5. 73.7%	Aoostar GEM10 AMD Ryzen 7 6800H ⎘ AMD Radeon 680M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: 1. $399.99 AOOSTAR GEM10 PRO Mini PC AM... 2. $389.95 AOOSTAR GEM10 PRO Three NVME... 3. $59.99 PowerHOOD 19V AC/DC Adapter ... List Price: 459 US-Dollar	525 g	107 x 107 x 60 mm
6. 87.3% ^{v7 (old)}	Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: 1. $809.90 MINISFORUM UM780 XTX Mini PC... 2. $1,169.90 MINISFORUM Elitemini AI370 M... 3. $599.90 MINISFORUM UM870 Slim Mini P... List Price: 879 EUR	750 g	126 x 130 x 52.3 mm

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Cinebench 2024 CPU Multi Core in comparison
Asus ExpertCenter PN42-BBN200MV (min) N200, UHD Graphics Xe 750 32EUs	91
...
Colorful EVOL X15 AT 23 i7-13700HX, NVIDIA GeForce RTX 4060 Laptop GPU	971
Asus TUF Gaming A17 FA707XI-NS94 R9 7940HS, NVIDIA GeForce RTX 4070 Laptop GPU	972
Lenovo ThinkPad P1 G6 21FV001KUS i7-13800H, NVIDIA GeForce RTX 4080 Laptop GPU	976
Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M	978
Beelink GTI13 Ultra i9-13900HK, Iris Xe G7 96EUs	980
Lenovo Yoga Slim 7X 14Q8X9 SD X Elite X1E-78-100, Adreno X1-85 3.8 TFLOPS	984
Apple MacBook Pro 14 2024 M4 M4 (10 cores), M4 10-Core GPU	986
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

Minisforum EliteMini UM890 Pro 评测：配备 AMD Ryzen 9 和超静音散热技术的强大迷你 PC

在静音模式下使用 Ryzen 9 的迷你电脑。

评语 - AMD Ryzen 9 8945HS 速度快、散热好

Pros

Cons

价格和供应情况

Table of Contents

规格

外壳和连接

尺寸比较

配件

维护

可持续性

性能 - AMD Ryzen 9 8945HS 可选，最高 70 瓦

测试条件

UEFI 选项

处理器

Cinebench 结果（平衡模式）

Cinebench R15 多连续测试

系统性能

DPC 延迟

存储设备

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

图形卡和游戏性能

FPS diagram - 30 minutes of Cyberpunk 2077 1920 x 1080 Ultra preset (FSR off)

Minisforum EliteMini UM890 Pro 通过 OCuLink 使用 NvidiaGeForce RTX 4090 进行性能检查

排放 - 性能与体积的完美平衡

噪音排放

温度

电源管理

Efficiency overview

Power consumption with external monitor

Power consumption with external monitor

Notebookcheck 总评分

Possible alternatives compared

Transparency

More articles related to this device

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
MSI Prestige 16 AI Evo B2HMG Ultra 9 285H, Arc 140T	13286
SCHENKER XMG Evo 14 (M24) R7 8845HS, Radeon 780M	13295
Asus ExpertBook B3 B3404CVF i7-1355U, GeForce RTX 2050 Mobile	13299
Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M	13306
Geekom A8 R9 8945HS, Radeon 780M	13321
Asus GL704GM-DH74 i7-8750H, GeForce GTX 1060 Mobile	13334
Tuxedo Pulse 14 Gen3 R7 7840HS, Radeon 780M	13338
...
NVIDIA GeForce RTX 5090 Founders Edition (max) R7 9800X3D, GeForce RTX 5090	82642
