Minisforum MS-A1 评测：工作站支持各种 AMD CPU 并提供四个固态硬盘空间

Name: Minisforum MS-A1
Brand: Minisforum

没有专用显卡的工作站？

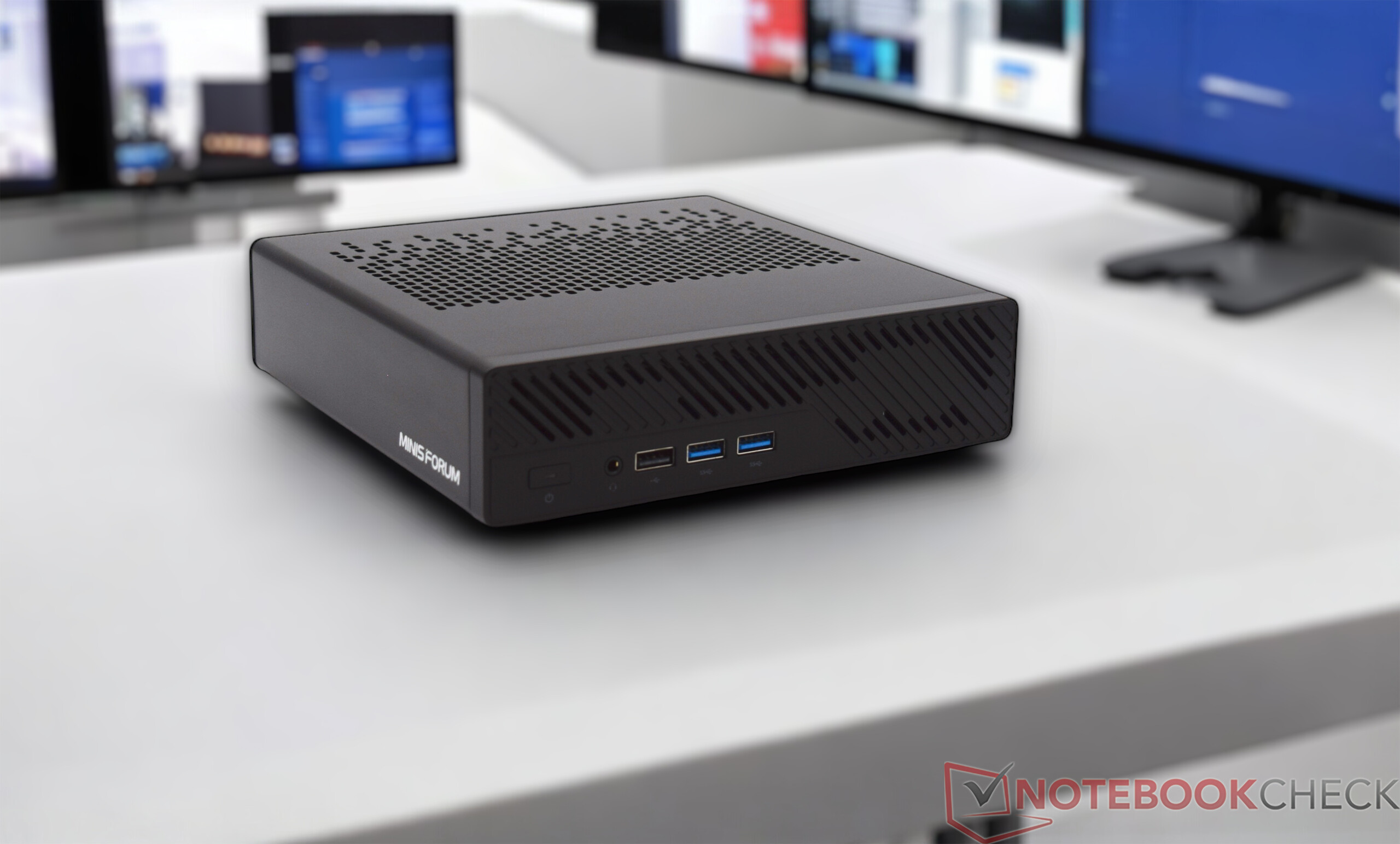

Minisforum MS-A1 是一款迷你 PC，被宣传为紧凑型工作站。我们的测试检验了基于 AMD Ryzen 7 8700G 的 MS-A1 在日常和苛刻任务（如视频编辑和游戏）中的表现。尽管体积小，但它却拥有高性能和多种应用选项，非常适合需要小空间、大功率的用户。
Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy) Published 10/13/2024 🇺🇸 🇩🇪 ...
Mini PC Desktop AMD Workstation Gaming

知名迷你 PC 制造商 Minisforum 推出了 MS-01这不仅仅是一个简单的升级，因为 Minisforum 采用了一种全新的方法，可以选择更换 CPU。它以 AM5 插座为基础，可配备各种 AMD Ryzen CPU。A1 可以从公司自己的商店以裸机的形式订购，也可以预装 AMD Ryzen 7 8700G。后者还包括 32 GB DDR5 内存、1 TB SSD 和 Windows 11 Pro 许可证。预配置的 Minisforum MS-A1 mini PC 售价为 829 欧元，绝对不便宜。裸机型号的价格为 289 欧元，因此，如果你准备自己购买其余组件，它可能是一个很好的选择。

Test device courtesy of Minisforum

Download your licensed rating image as PNG / SVG

Minisforum MS-A1

Processor

AMD Ryzen 7 8700G 8 x 4.2 - 5.1 GHz, 65 W PL2 / Short Burst, 65 W PL1 / Sustained, Phoenix

Graphics adapter

AMD Radeon 780M

Memory

32 GB

, DDR-5600 MT/s

Mainboard

AMD Promontory/Bixby FCH

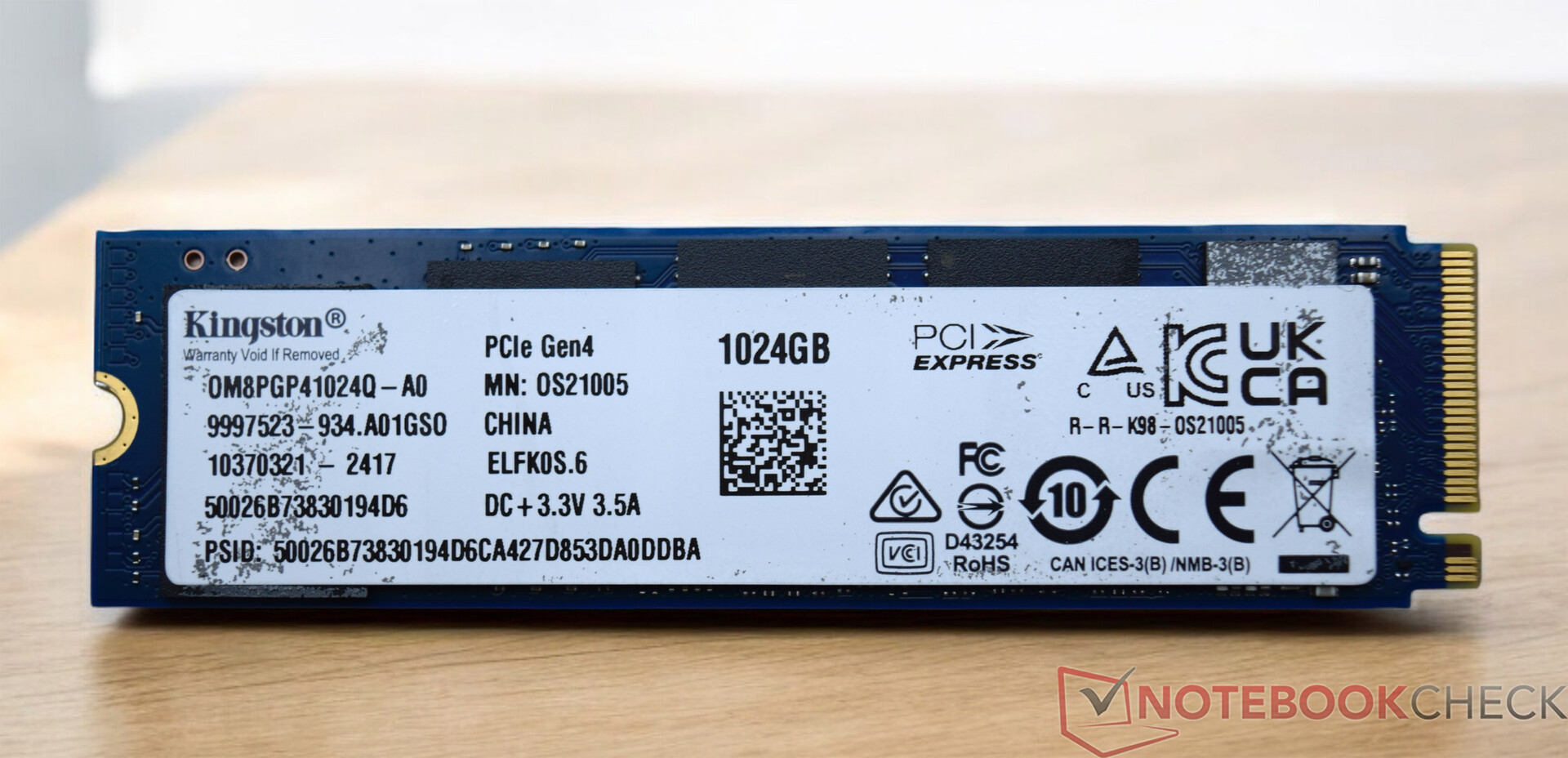

Storage

Kingston OM8PGP41024Q-A0, 1024 GB

, 895 GB free

Soundcard

AMD Zen - Audio Processor - HD Audio Controller

Connections

2 USB 2.0, 3 USB 3.1 Gen2, 1 USB 4.0 40 Gbps, 1 Thunderbolt, 1 HDMI, 2 DisplayPort, 1 Docking Station Port, Audio Connections: 3.5mm Klinke (Combo Jack), Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), OCuLink

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), Intel Wi-Fi 6E AX210 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Size

height x width x depth (in mm): 48 x 189.5 x 186

Operating System

Microsoft Windows 11 Pro

Additional features

240-Watt-Power-Supply, 24 Months Warranty

Weight

1.722 kg, Power Supply: 762 g

Price

829 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Version	Date	Model	Weight	Height
76.7 %	v8	10 / 2024	Minisforum MS-A1 Ryzen 7 8700G, Radeon 780M	1.7 kg	48 mm
78.4 %	v8	08 / 2024	Geekom AX8 Pro R9 8945H, Radeon 780M	548 g	37 mm
75.6 %	v8	09 / 2024	HP Z2 Mini G9-996Q4ET i7-14700K, RTX A2000	3 kg	69 mm
73.6 %	v8	09 / 2024	Lenovo ThinkStation P3 Tiny-30H0006AGE i9-14900, T1000	1.5 kg	37 mm
72.1 %	v8	06 / 2024	Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs	440 g	37 mm
71.1 %	v8	07 / 2024	HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770	1.3 kg	34 mm
81.5 % v7 ^(old)	v7 ^(old)	05 / 2024	Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs	1.5 kg	48 mm

注：我们已经更新了评级系统，第 8 版的结果与第 7 版的结果不具可比性。这里.

Minisforum MS-A1 工作站详细介绍

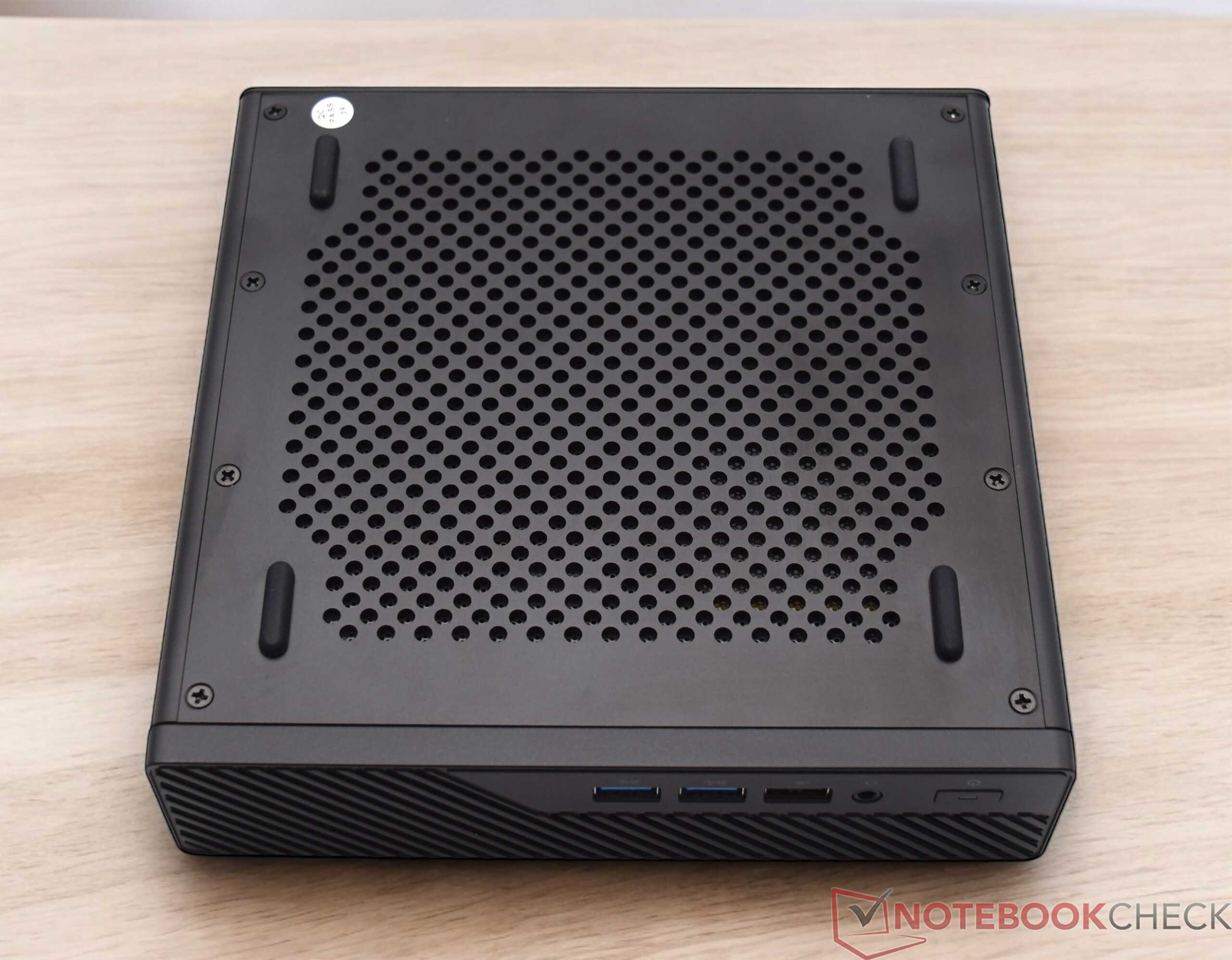

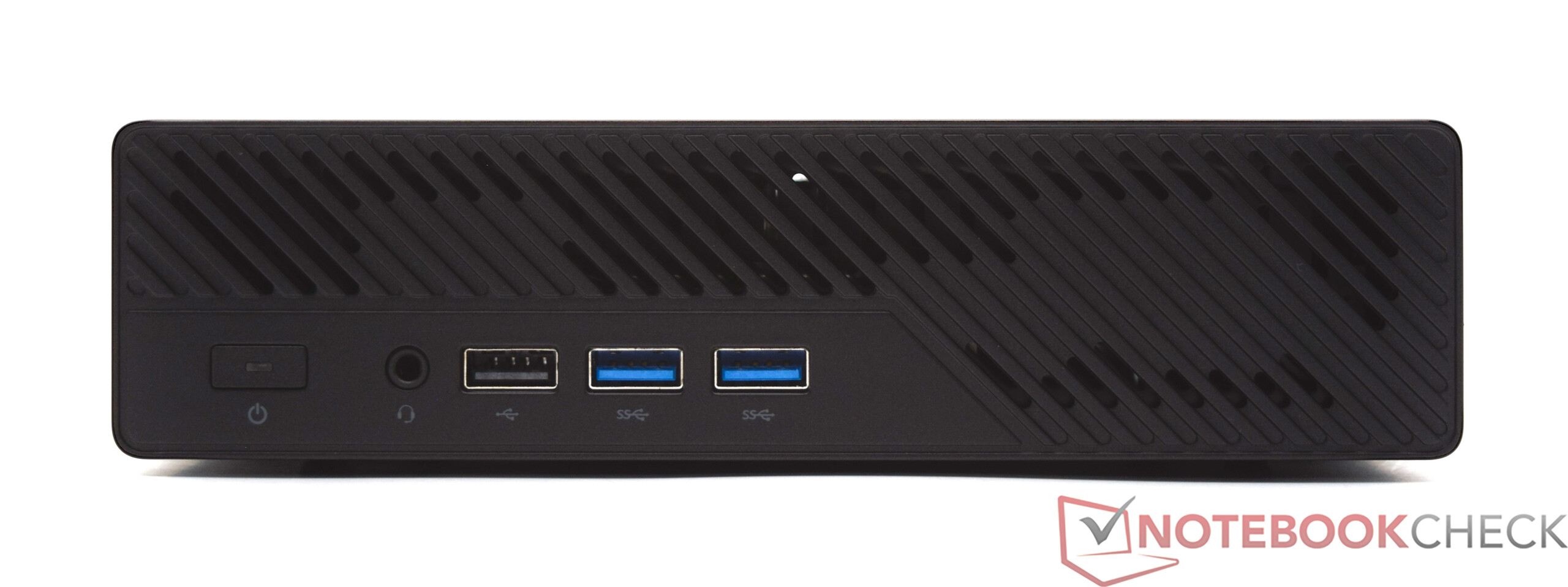

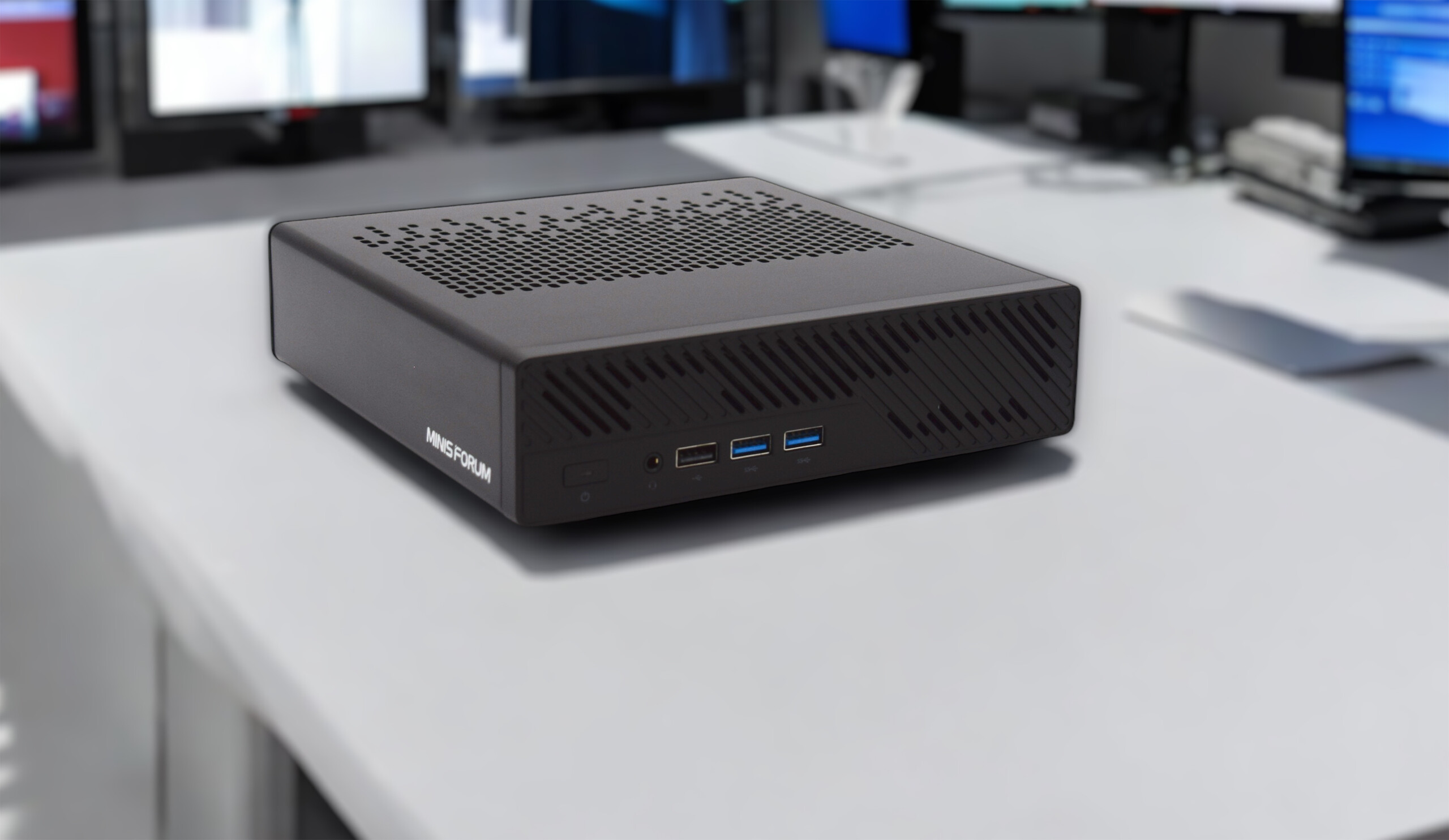

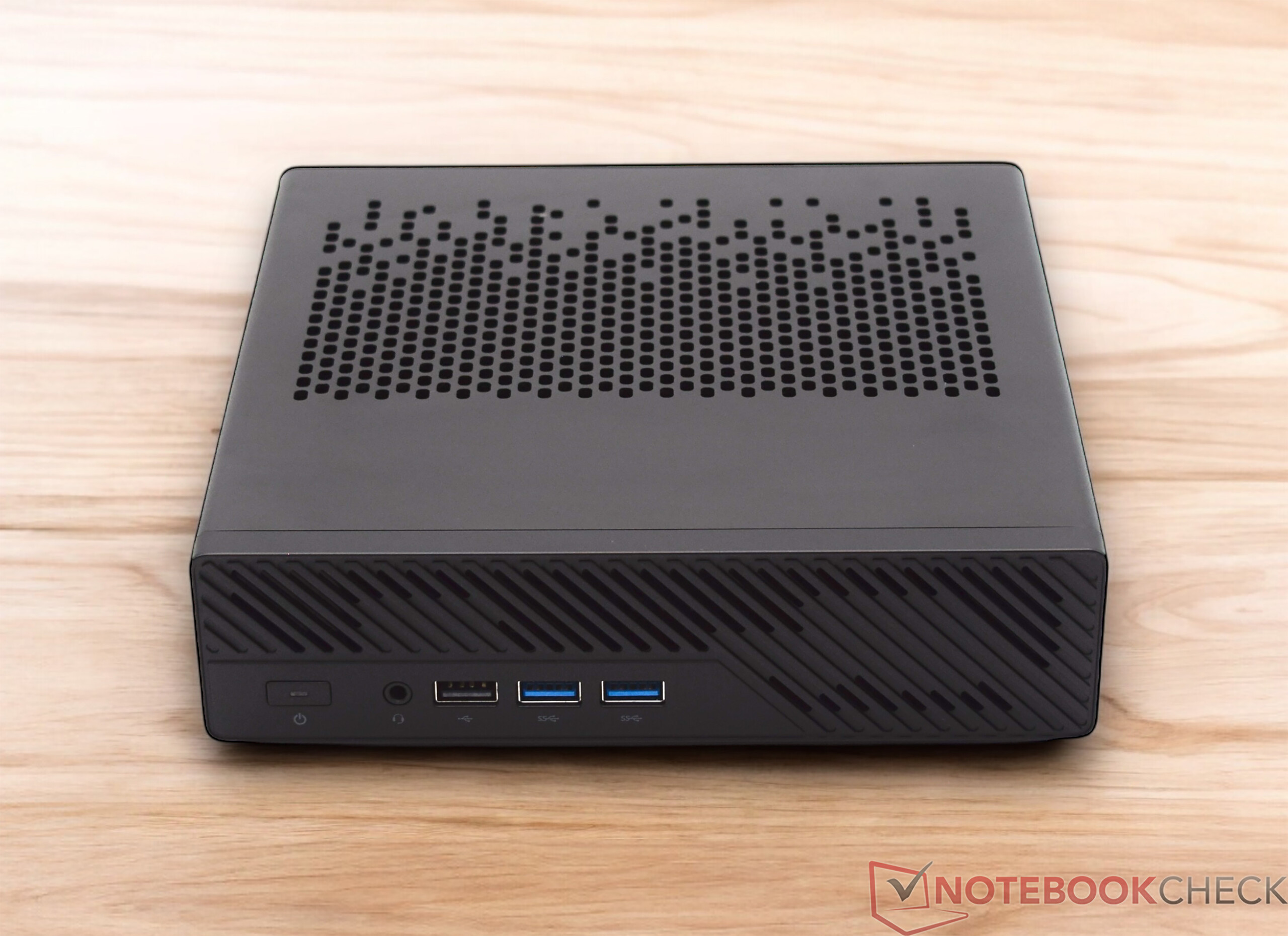

外壳 - 金属和塑料的组合

乍一看，Minisforum 似乎为 MS-A1 使用了与 MS-01 型号相同的外壳。 MS-01 型号.但事实并非如此。当然，两种型号在某些视觉方面是相同的。但是，Minisforum MS-A1 的结构却完全不同。所使用的材料仍然是金属和塑料，不过塑料部件只出现在正面。在内部对决中，Minisforum MS-A1 稍微矮一些。不过，与 Geekom 的超小型设备相比，Mini-PC 所需的空间要稍大一些。惠普和联想的竞争对手同样配备了可互换的 CPU，但尺寸几乎相同。

Minisforum MS-A1 的制造质量几乎无可挑剔。表面具有良好的触感。由于材料的选择，该设备也非常稳定和抗扭转。唯一值得批评的是表面处理，指纹很快就会显现出来。与其他微型电脑相比，Minisforum MS-A1 是本次比较中较重的设备之一，重达 1.7 千克。由于这不是移动设备，这一点可以忽略不计。240 瓦电源重达 762 克，也比大多数竞争对手重。

尺寸比较

HP Z2 Mini G9-996Q4ET Minisforum MS-A1 Minisforum MS-01 Lenovo ThinkStation P3 Tiny-30H0006AGE HP Elite Mini 800 G9-5M9X6EA Geekom AX8 Pro Geekom GT13 Pro DIN A4 ❌

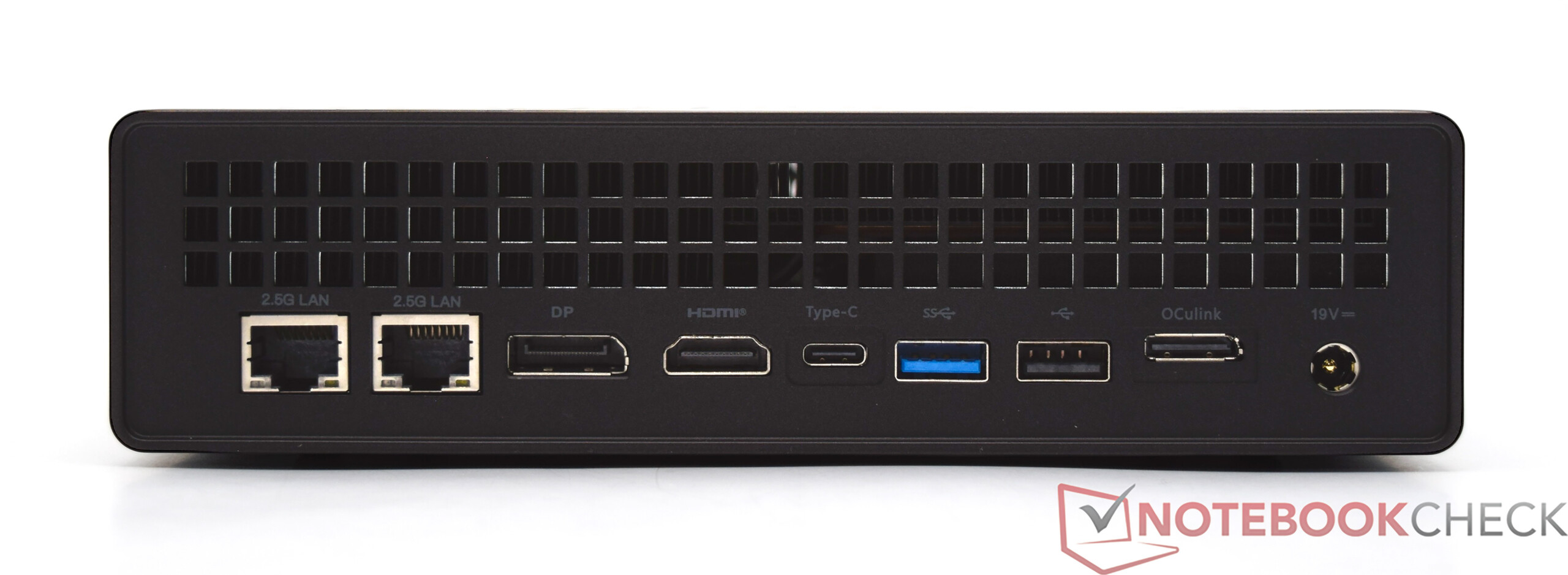

设备

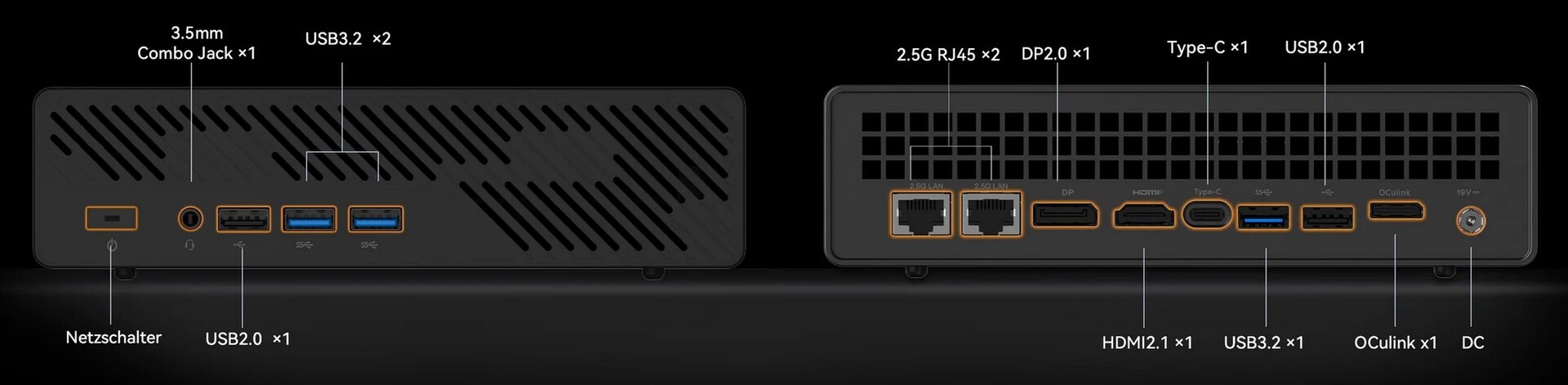

Minisforum MS-A1 的接口数量并没有超过平均水平。尽管如此，其选择仍然令人印象深刻：除了五个 USB Type-A 接口外，Minisforum 还安装了一个 40 GBit/s 的 USB-C 接口和一个 OCuLink 接口。 NvidiaGeForce RTX 4090单独使用。为了连接屏幕，Minisforum MS-A1 配备了一个 HDMI 接口和一个 DisplayPort 接口。USB 4 接口也可用于此目的。这意味着这款微型电脑可同时控制三个屏幕。

交流

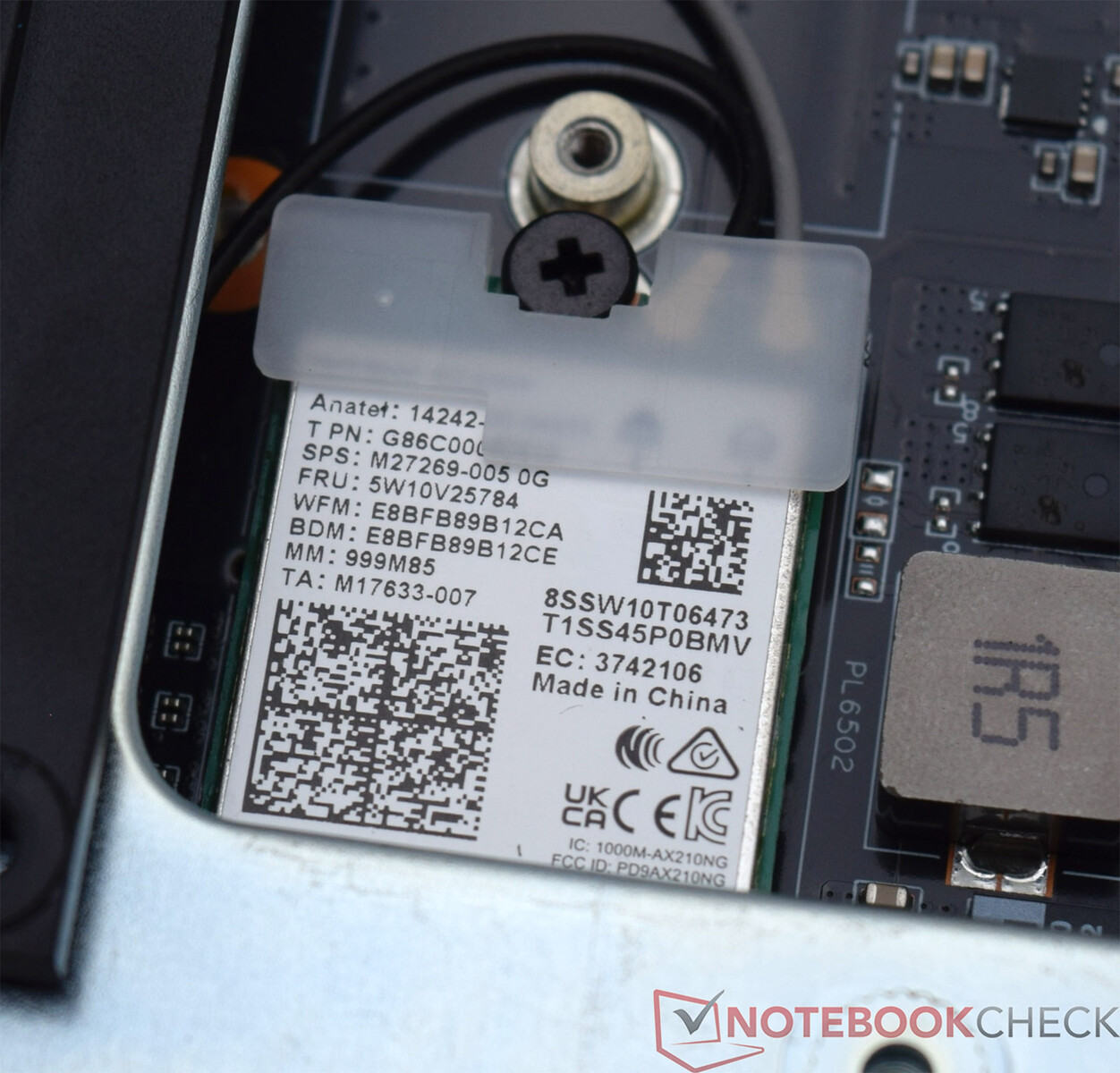

制造商在 MS-A1 中安装了英特尔 Wi-Fi 模块。英特尔 Wi-Fi 6E AX210 无线模块还允许使用更现代、速度更快的 6 GHz 频段。在与华硕 ROG Rapture GT-AXE11000 的测试中，Wi-Fi 模块提供了很高且稳定的数据传输速率。Fi 模块提供了很高且稳定的数据传输速率。如果只有 5 GHz 频段可用，发送和接收数据的速率就会明显下降。不过，与同类产品相比，这足以让 Minisforum MS-A1 傲视群雄。MS-A1 背面有两个 RJ45 插座。这两个插座的最高传输速率为 2.5 GBit/s。这两个端口还可以捆绑使用，从而实现 5 Gbit/s 的传输速率。

Networking
iperf3 receive AXE11000 6GHz
Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1753 (1734^min - 1765^max) MBit/s 0%
Minisforum MS-A1 Intel Wi-Fi 6E AX210	1749 (1702^min - 1767^max) MBit/s
Geekom AX8 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1657 (1619^min - 1670^max) MBit/s -5%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Wi-Fi 6E AX211	1619 (1563^min - 1640^max) MBit/s -7%
HP Elite Mini 800 G9-5M9X6EA Intel Wi-Fi 6E AX211	1594 (806^min - 1645^max) MBit/s -9%
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1583 (1557^min - 1611^max) MBit/s -9%
Average Intel Wi-Fi 6E AX210 (885 - 1827, n=22)	1477 MBit/s -16%
Average of class Mini PC (684 - 1771, n=52, last 2 years)	1385 MBit/s -21%
iperf3 transmit AXE11000 6GHz
Geekom AX8 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1800 (1737^min - 1904^max) MBit/s +13%
Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1775 (877^min - 1883^max) MBit/s +11%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Wi-Fi 6E AX211	1655 (831^min - 1691^max) MBit/s +4%
Minisforum MS-A1 Intel Wi-Fi 6E AX210	1597 (1554^min - 1657^max) MBit/s
HP Elite Mini 800 G9-5M9X6EA Intel Wi-Fi 6E AX211	1507 (1371^min - 1587^max) MBit/s -6%
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1429 (1392^min - 1511^max) MBit/s -11%
Average Intel Wi-Fi 6E AX210 (712 - 1615, n=21)	1341 MBit/s -16%
Average of class Mini PC (394 - 1800, n=52, last 2 years)	1337 MBit/s -16%
iperf3 receive AXE11000
Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1771 (1719^min - 1796^max) MBit/s +88%
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1398 (1261^min - 1453^max) MBit/s +49%
Average Intel Wi-Fi 6E AX210 (715 - 1711, n=24)	1220 MBit/s +30%
Geekom AX8 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	979 (962^min - 989^max) MBit/s +4%
Minisforum MS-A1 Intel Wi-Fi 6E AX210	941 (873^min - 964^max) MBit/s
Average of class Mini PC (192.9 - 1796, n=112, last 2 years)	933 MBit/s -1%
HP Elite Mini 800 G9-5M9X6EA Intel Wi-Fi 6E AX211	819 (779^min - 837^max) MBit/s -13%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Wi-Fi 6E AX211	810 (767^min - 824^max) MBit/s -14%
iperf3 transmit AXE11000
Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1732 (1659^min - 1839^max) MBit/s +103%
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1146 (846^min - 1308^max) MBit/s +34%
Average Intel Wi-Fi 6E AX210 (565 - 1670, n=24)	1107 MBit/s +29%
Geekom AX8 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	966 (921^min - 1008^max) MBit/s +13%
Average of class Mini PC (184.1 - 1776, n=112, last 2 years)	866 MBit/s +1%
Minisforum MS-A1 Intel Wi-Fi 6E AX210	855 (438^min - 894^max) MBit/s
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Wi-Fi 6E AX211	849 (670^min - 906^max) MBit/s -1%
HP Elite Mini 800 G9-5M9X6EA Intel Wi-Fi 6E AX211	695 (364^min - 734^max) MBit/s -19%

Minisforum MS-A1 Intel Wi-Fi 6E AX210; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1597 (1554-1657)

Geekom AX8 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1800 (1737-1904)

Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1429 (1373-1511)

Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1746 (877-1883)

Minisforum MS-A1 Intel Wi-Fi 6E AX210; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1748 (1702-1767)

Geekom AX8 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1656 (1619-1670)

Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1582 (1557-1611)

Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1752 (1734-1765)

Minisforum MS-A1 Intel Wi-Fi 6E AX210; iperf3 receive AXE11000; iperf 3.1.3: Ø941 (873-964)

Geekom AX8 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø978 (962-989)

Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø1397 (1261-1453)

Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø1770 (1719-1796)

Minisforum MS-A1 Intel Wi-Fi 6E AX210; iperf3 transmit AXE11000; iperf 3.1.3: Ø840 (438-894)

Geekom AX8 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø966 (921-1008)

Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø1146 (846-1308)

Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø1732 (1659-1839)

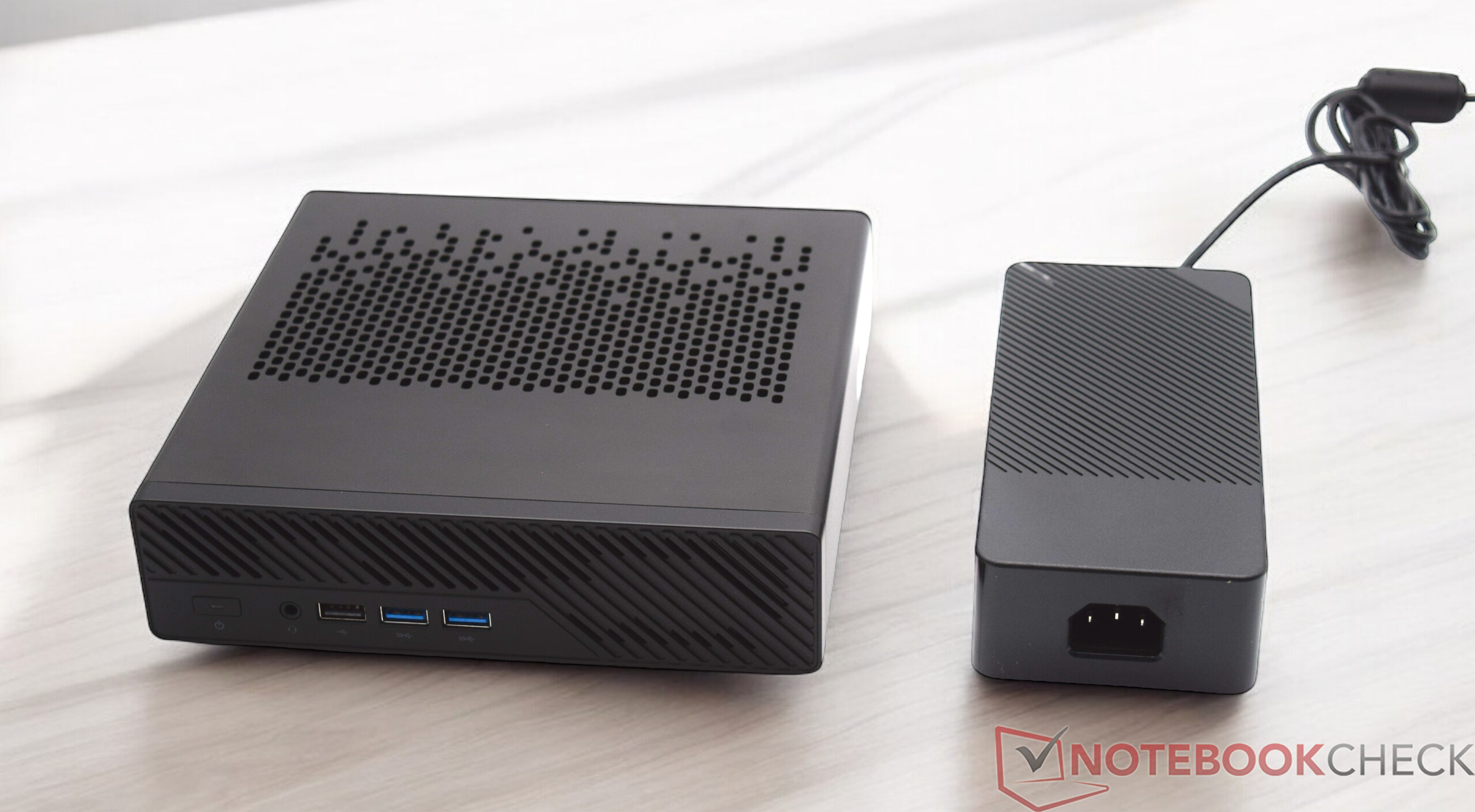

配件

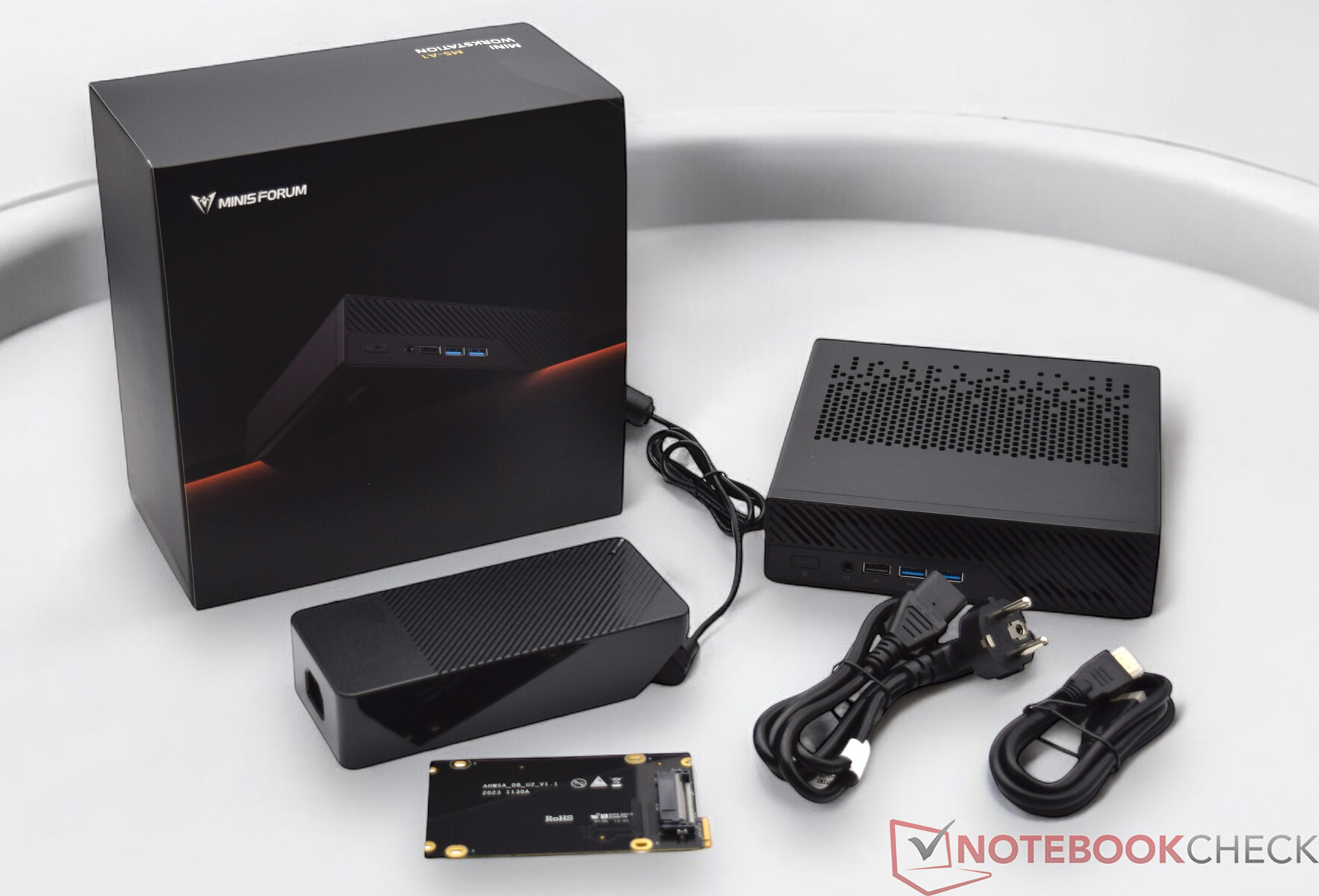

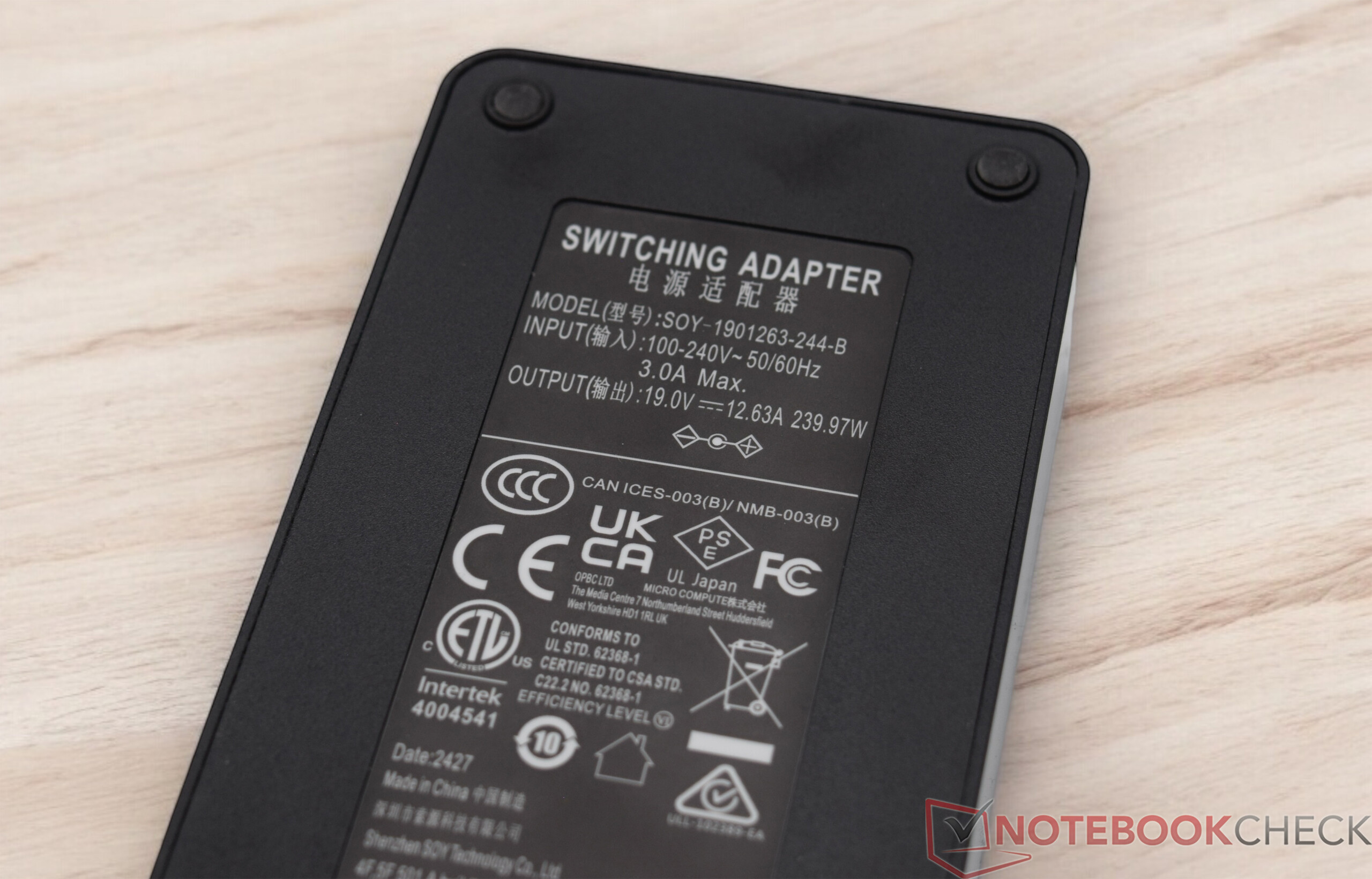

Minisforum MS-A1 的供货范围并不广泛。除了微型电脑本身，还包括相对较大的 240 瓦电源装置和 HDMI 电缆。此外，还包括一个用于安装 U.2 固态硬盘的适配器。

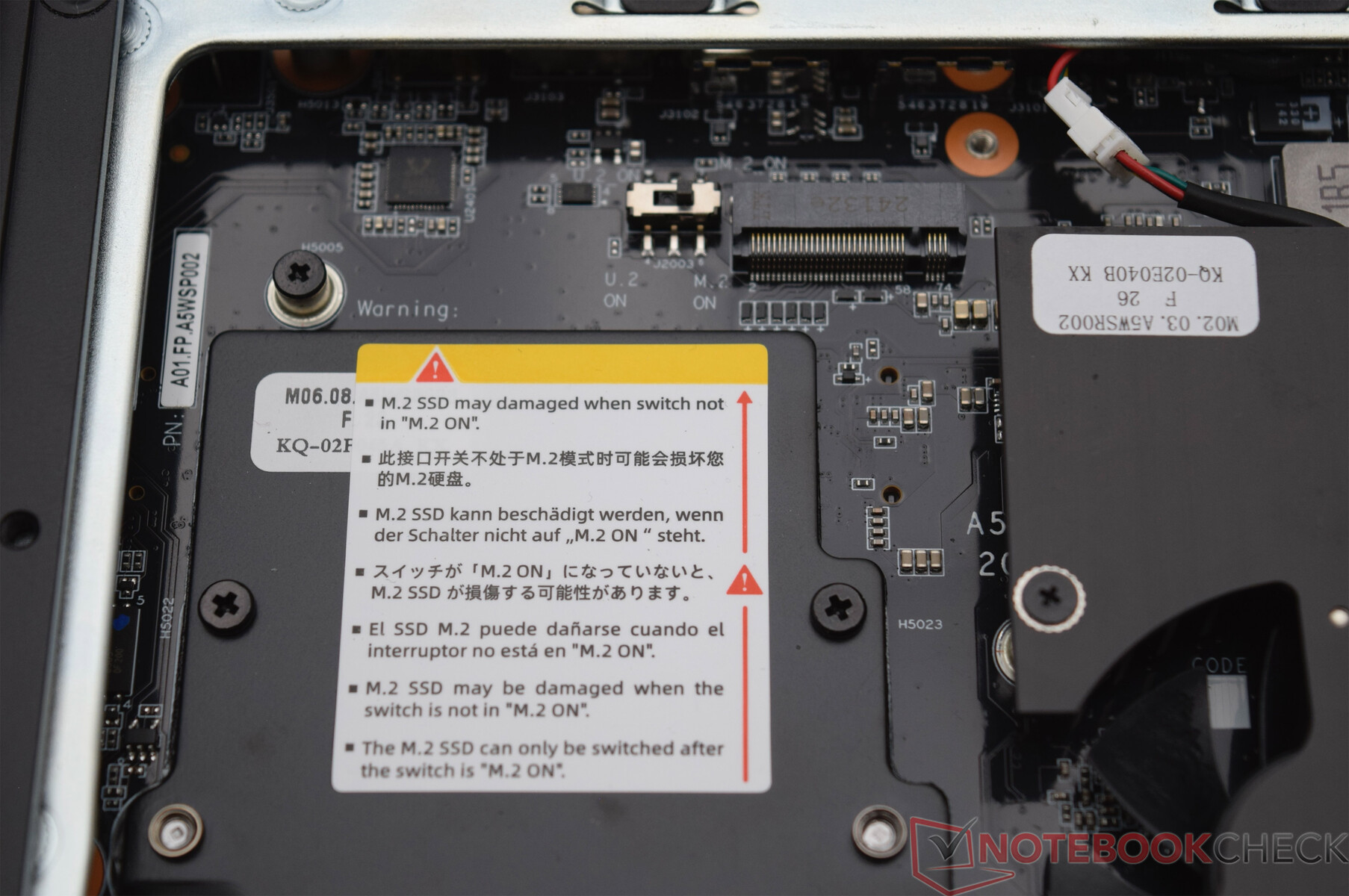

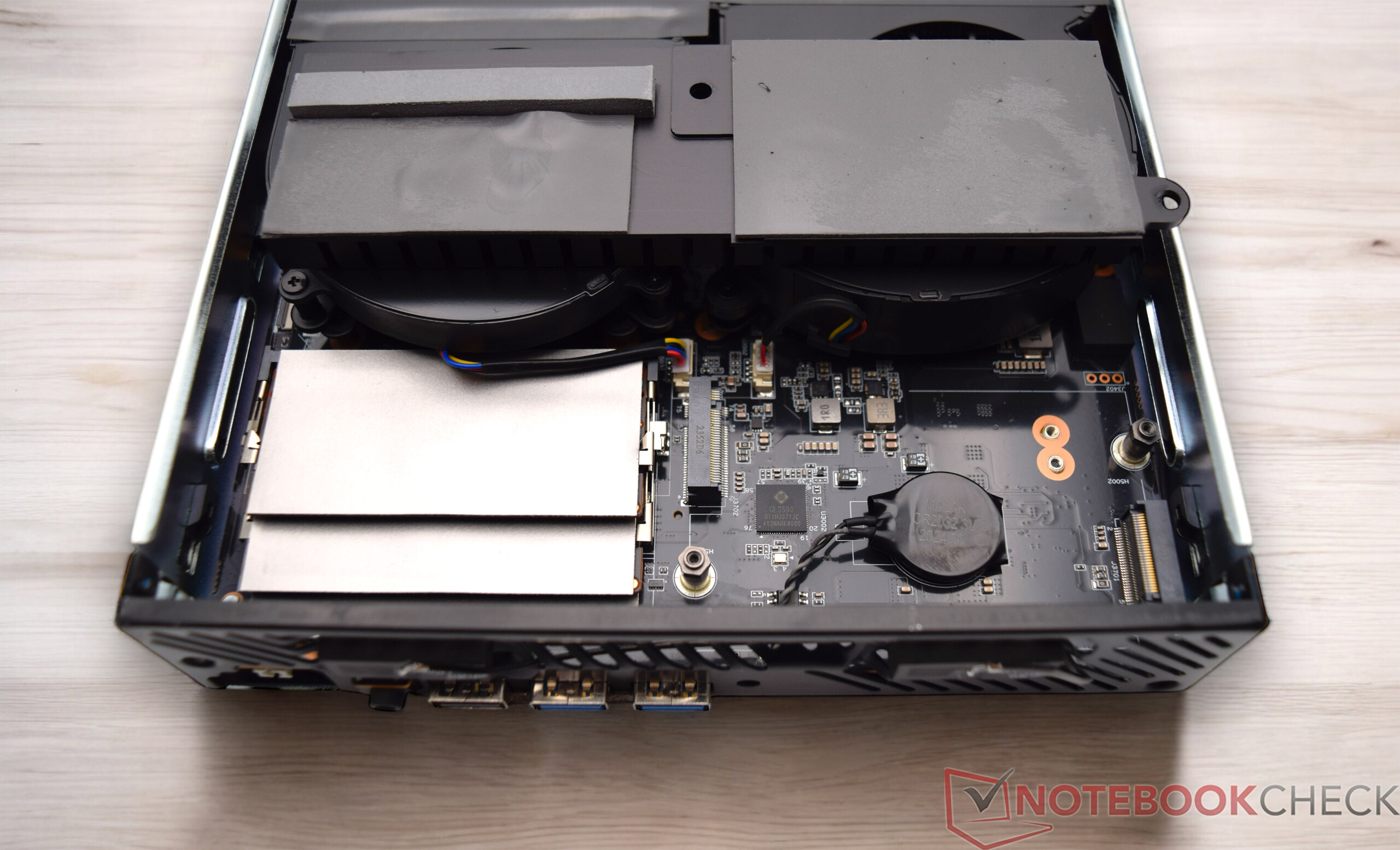

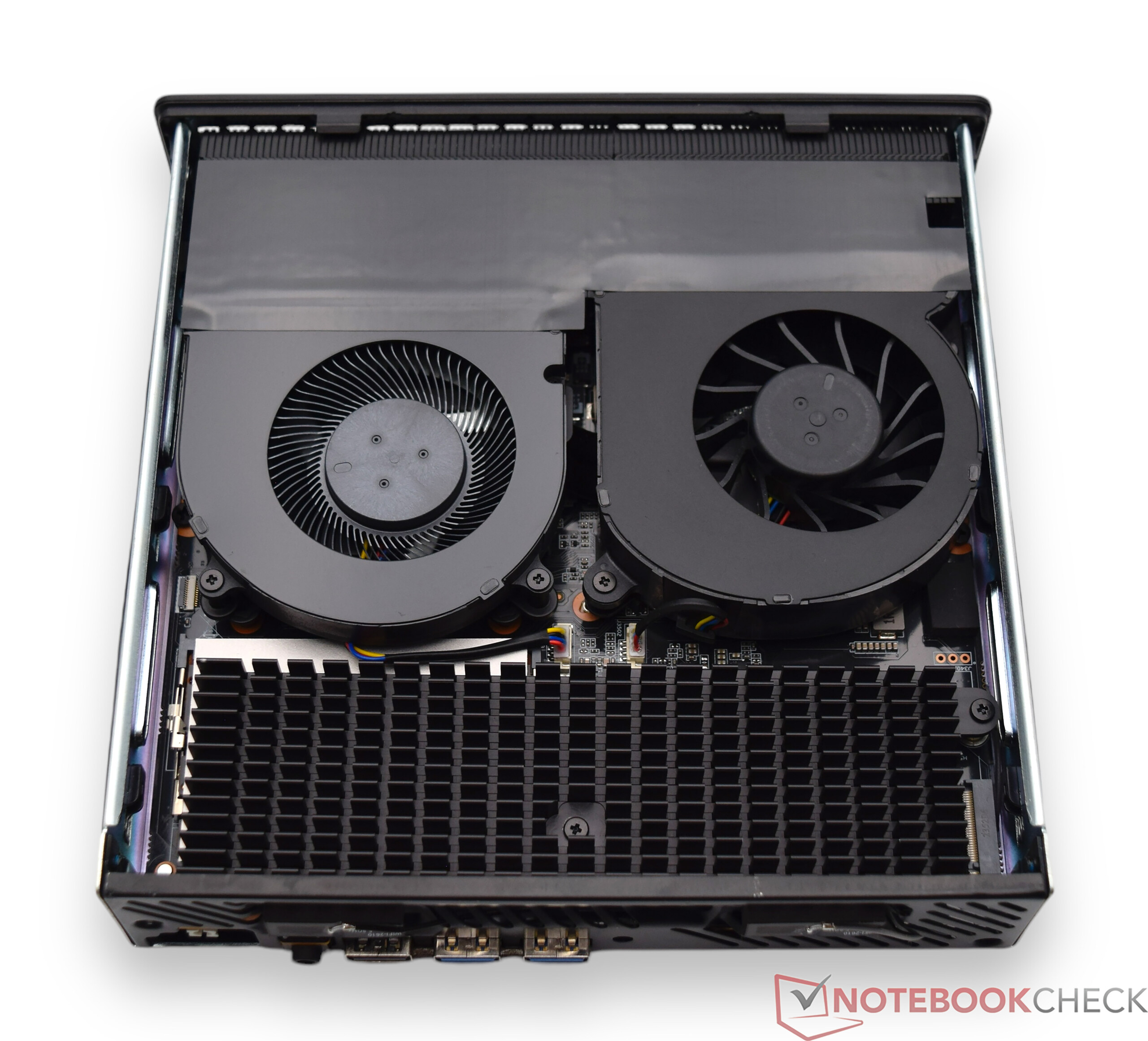

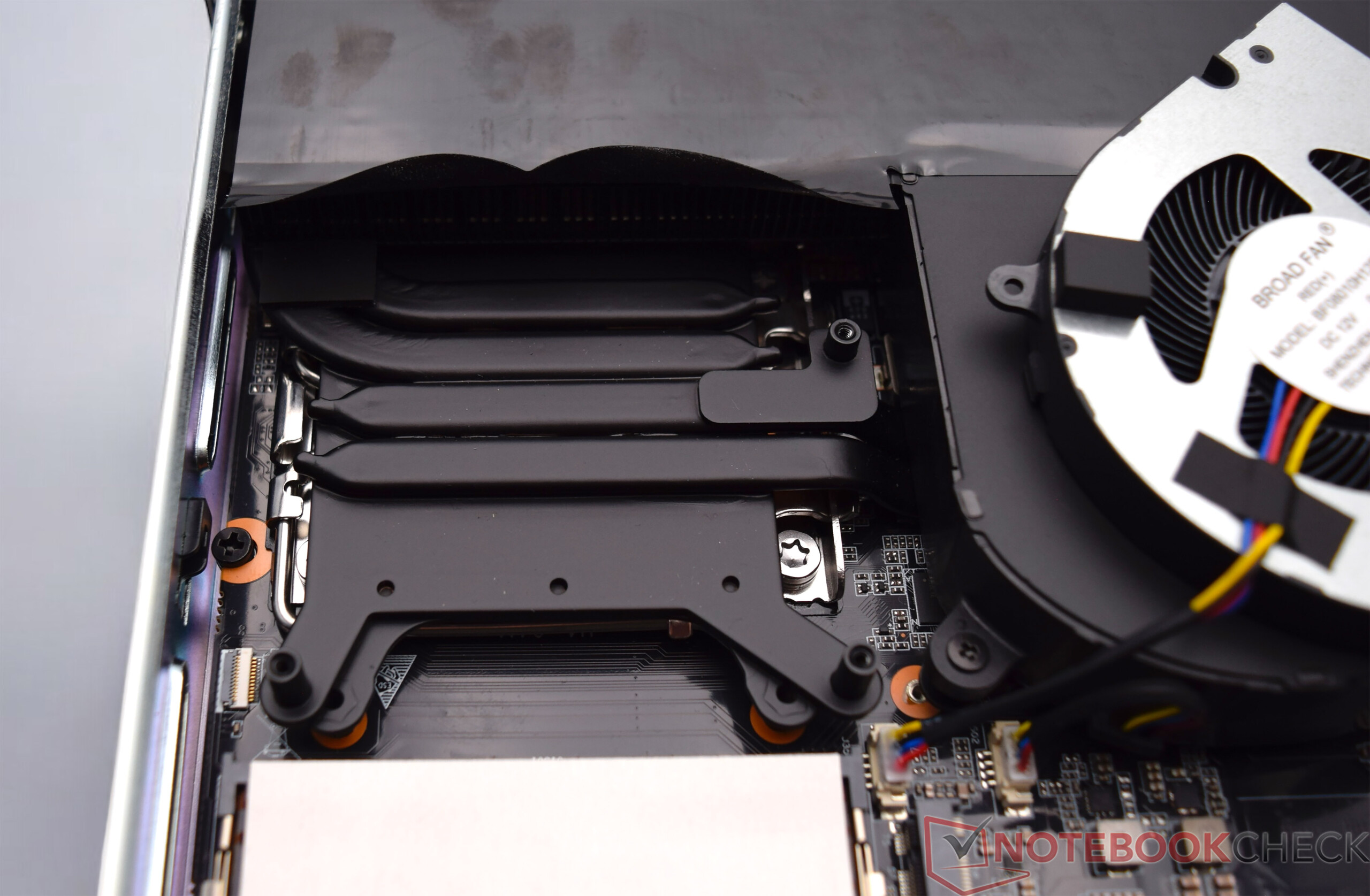

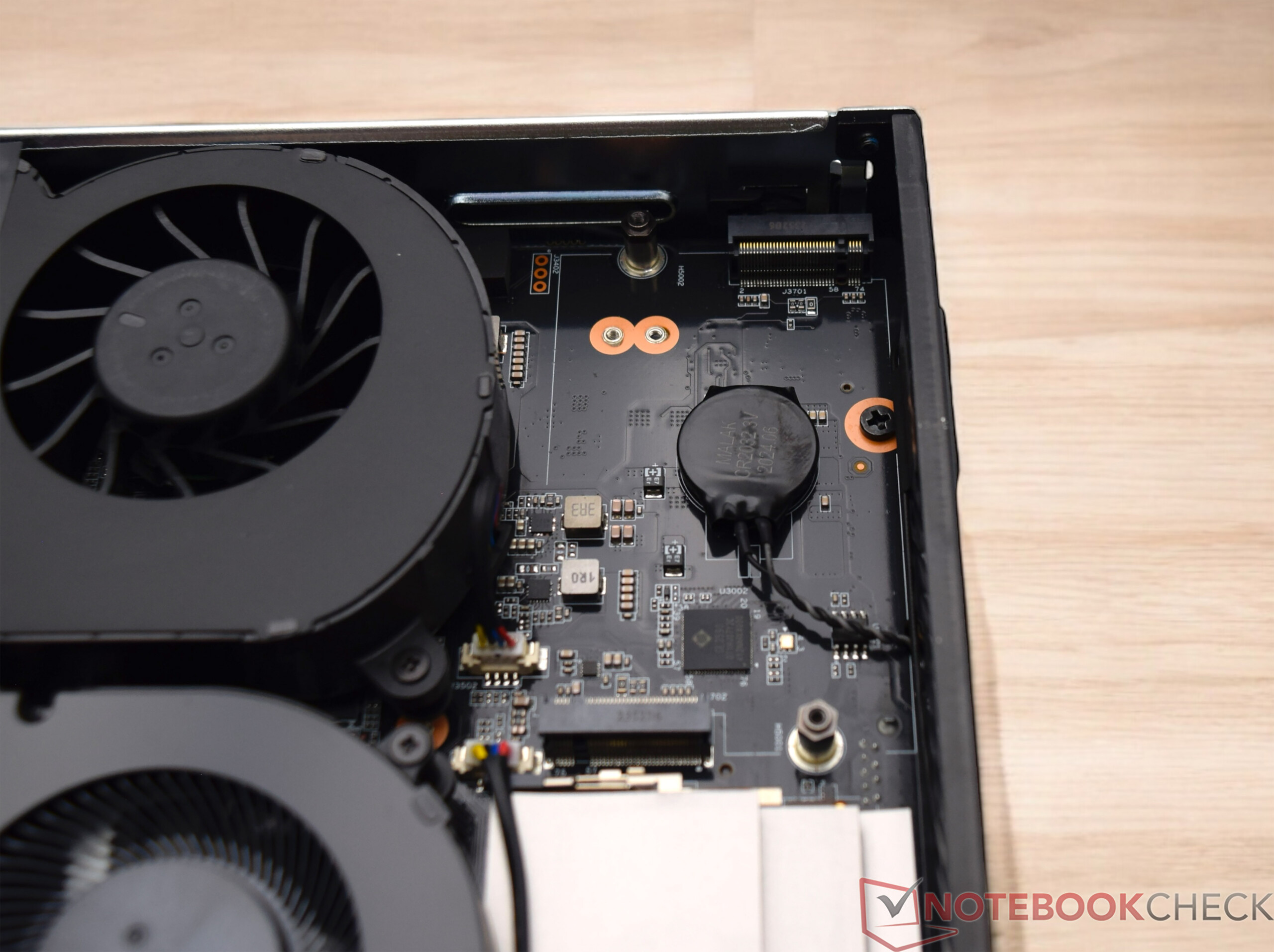

维护

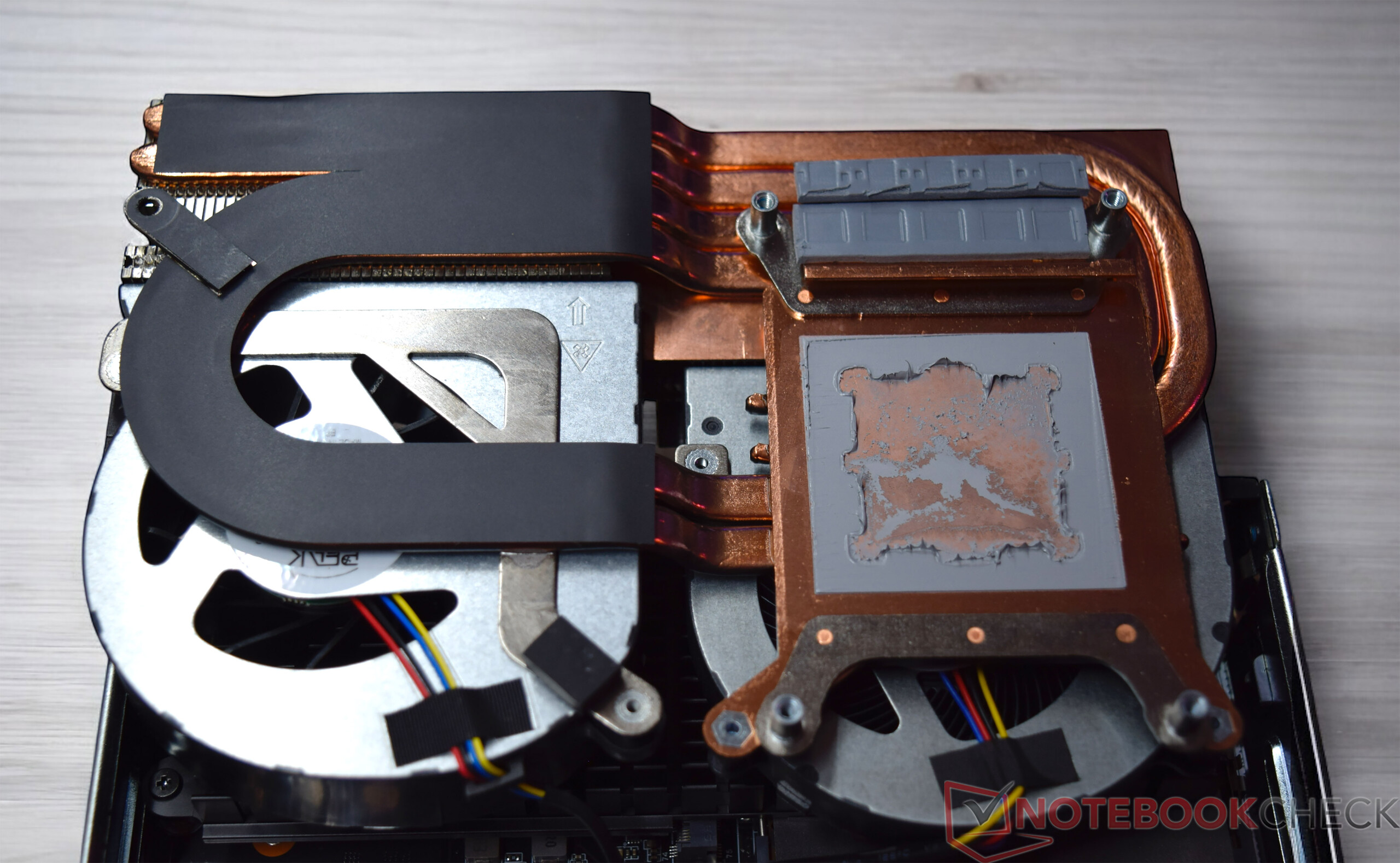

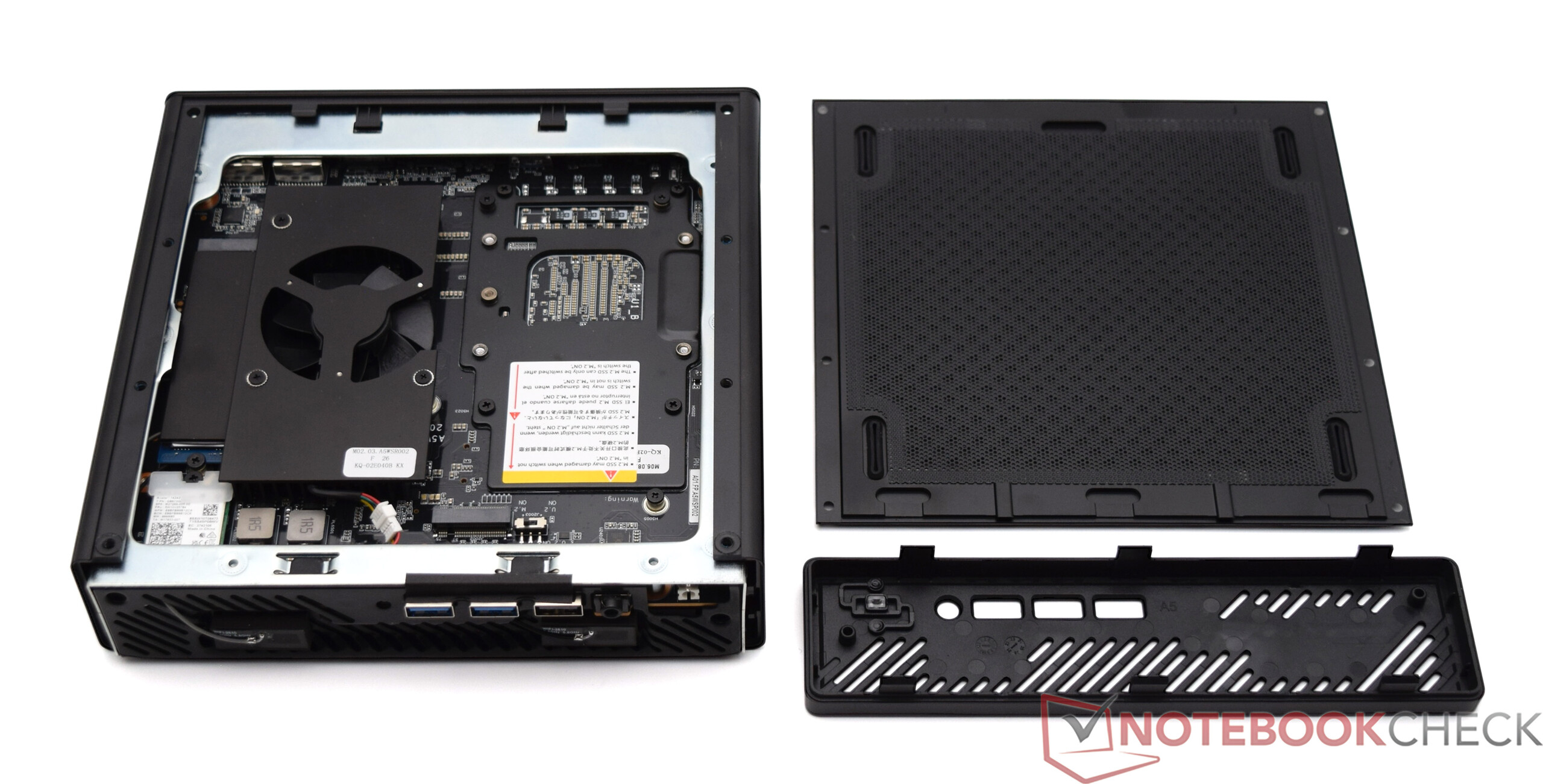

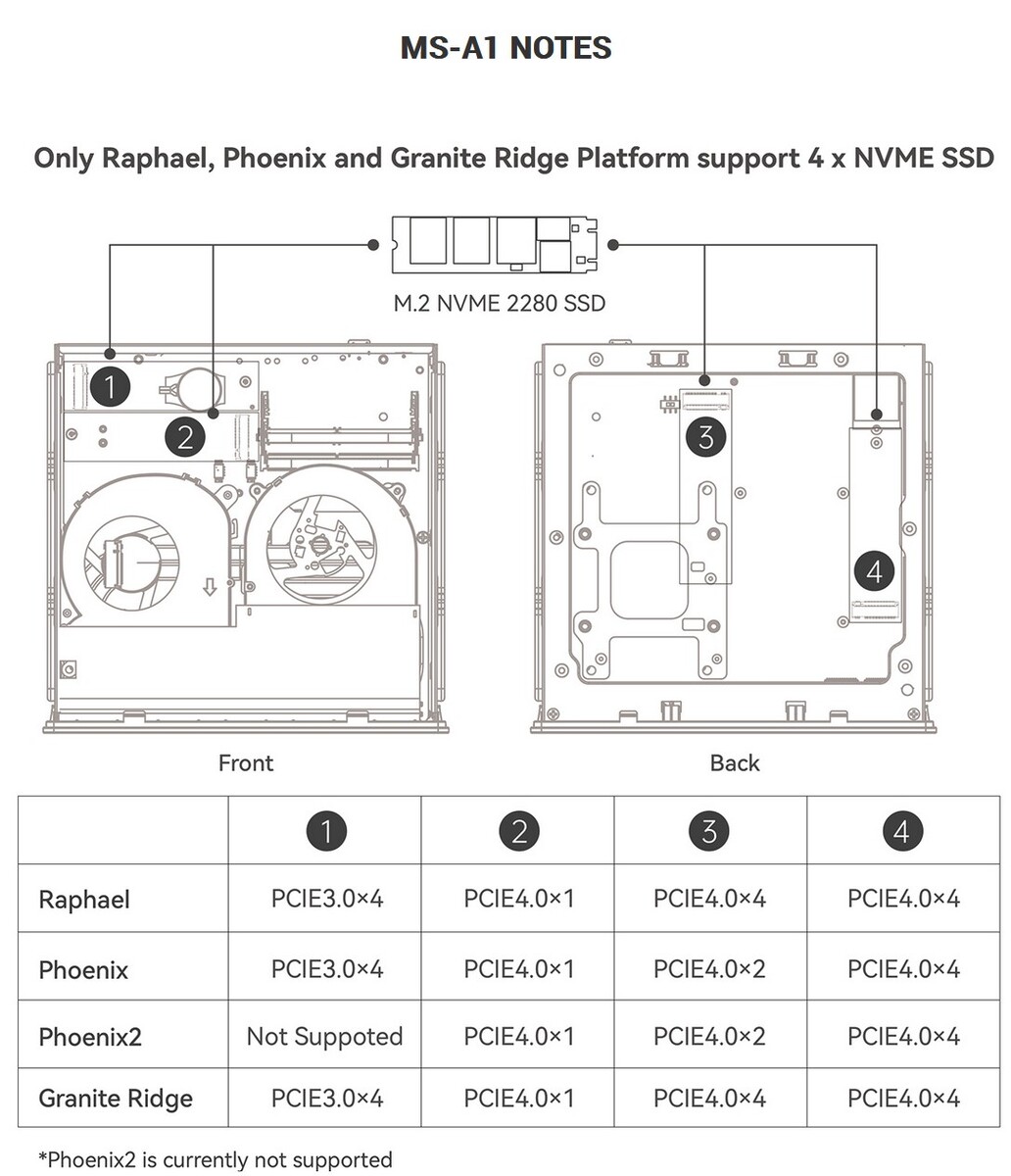

Minisforum MS-A1 通常可以进行维护工作。不过，打开 Minisforum MS-A1 要比 Minisforum MS-01 复杂得多。总共要拧开 8 个螺丝才能打开机箱。此外，还安装了大型散热片，如果要安装内存和固态硬盘，必须先卸下散热片。由于 Minisforum MS-A1 也有裸机可供选择，我们希望能有一个像 Minisforum MS-01 那样更直接的解决方案。不过，CPU、内存和固态硬盘只需稍加努力即可轻松安装。

可持续性

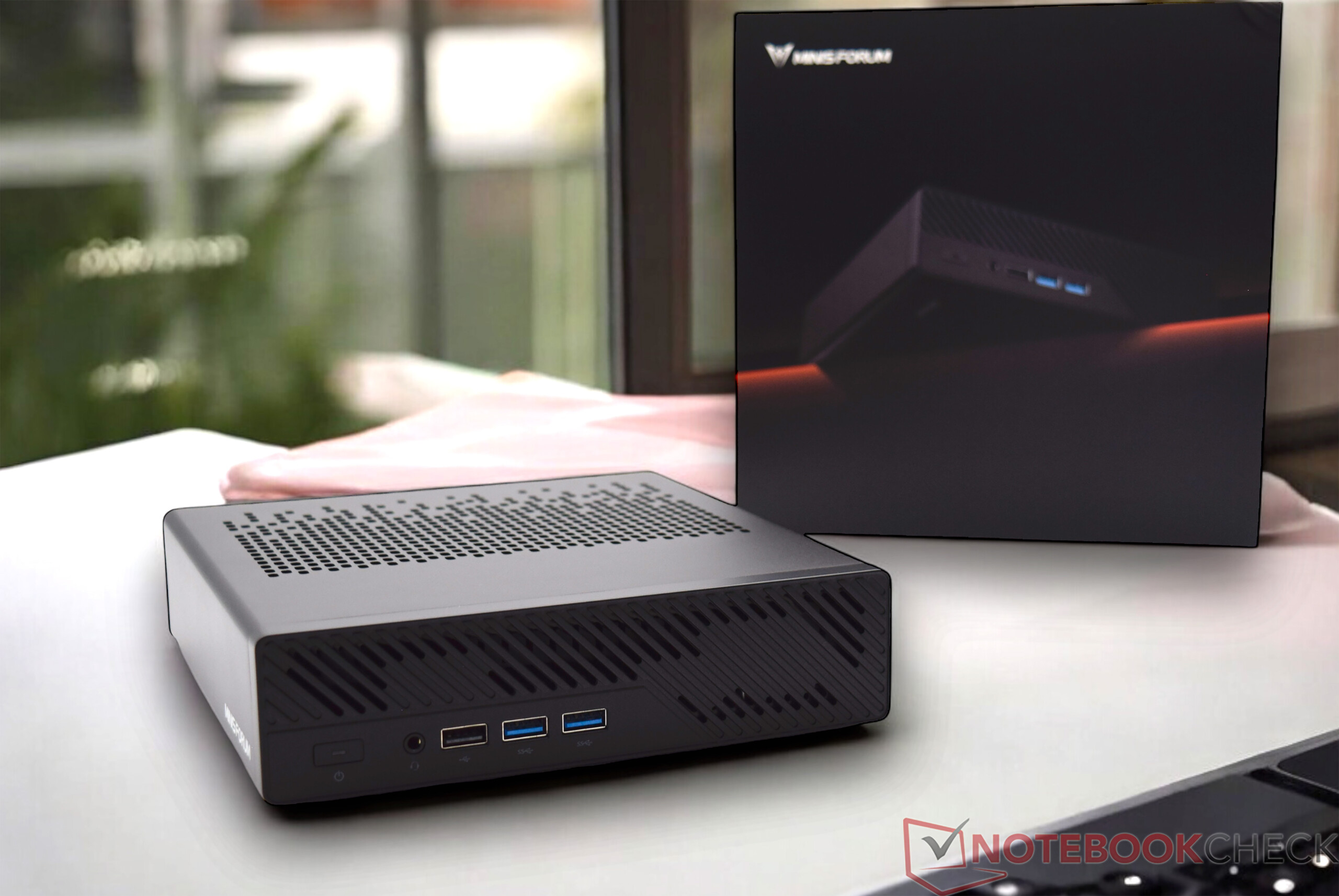

Minisforum MS-A1 包装在一个相当小巧的纸箱中。附件用单独的塑料套包装，我们认为这在可持续性方面有待改进。我们想强调的是模块化设计方法，这使得小修小补成为可能。然而，Minisforum 的 MS-A1 并没有接近惠普 Z2 Mini G9 或联想 ThinkStation P3 Tiny 的模块化设计。此外，在生产和所用材料方面也没有进一步的信息表明其可持续性。

性能 - AMD Ryzen 7 8700G，配备 8 个核心和快速 iGPU

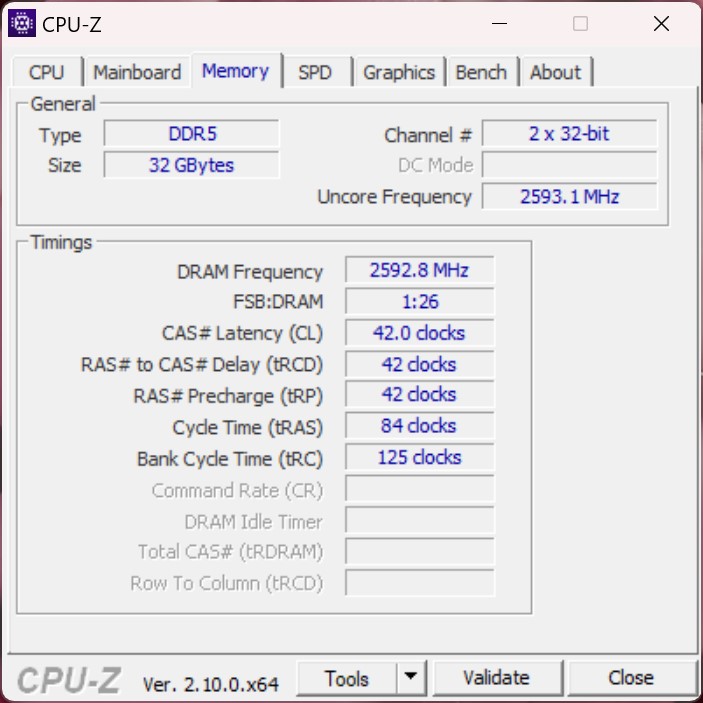

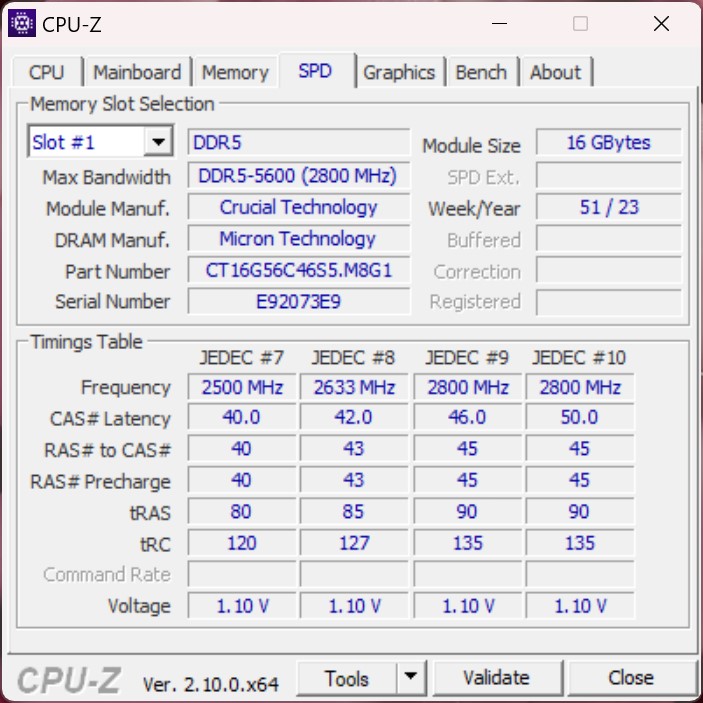

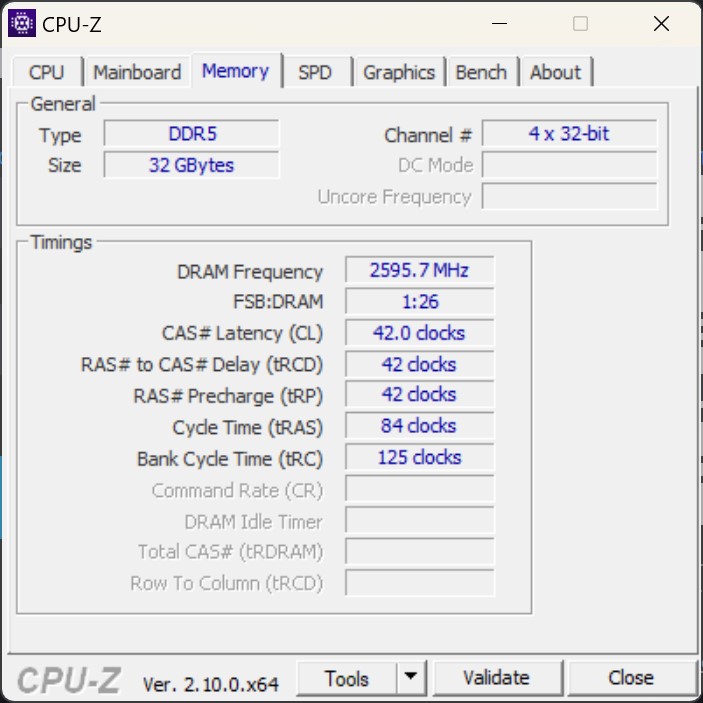

Minisforum MS-A1 可作为裸机购买，我们测试的版本则预装了 AMD Ryzen 7 8700G。该机型配备了 32 GB 内存和 1 TB SSD 固态硬盘，在目前来说装备齐全。该处理器还提供了快速 iGPU，而这种处理器只在移动 SoC 中使用。如果你不需要 3D 性能，也可以为 Minisforum MS-A1 配备其他基于 am5 的处理器。这意味着这款小型迷你 pc 甚至可以与其 16 核处理器组合使用。A1 配备其他基于 am5 的处理器。这意味着这款小型迷你 PC 甚至可以与其 16 核处理器组合使用。

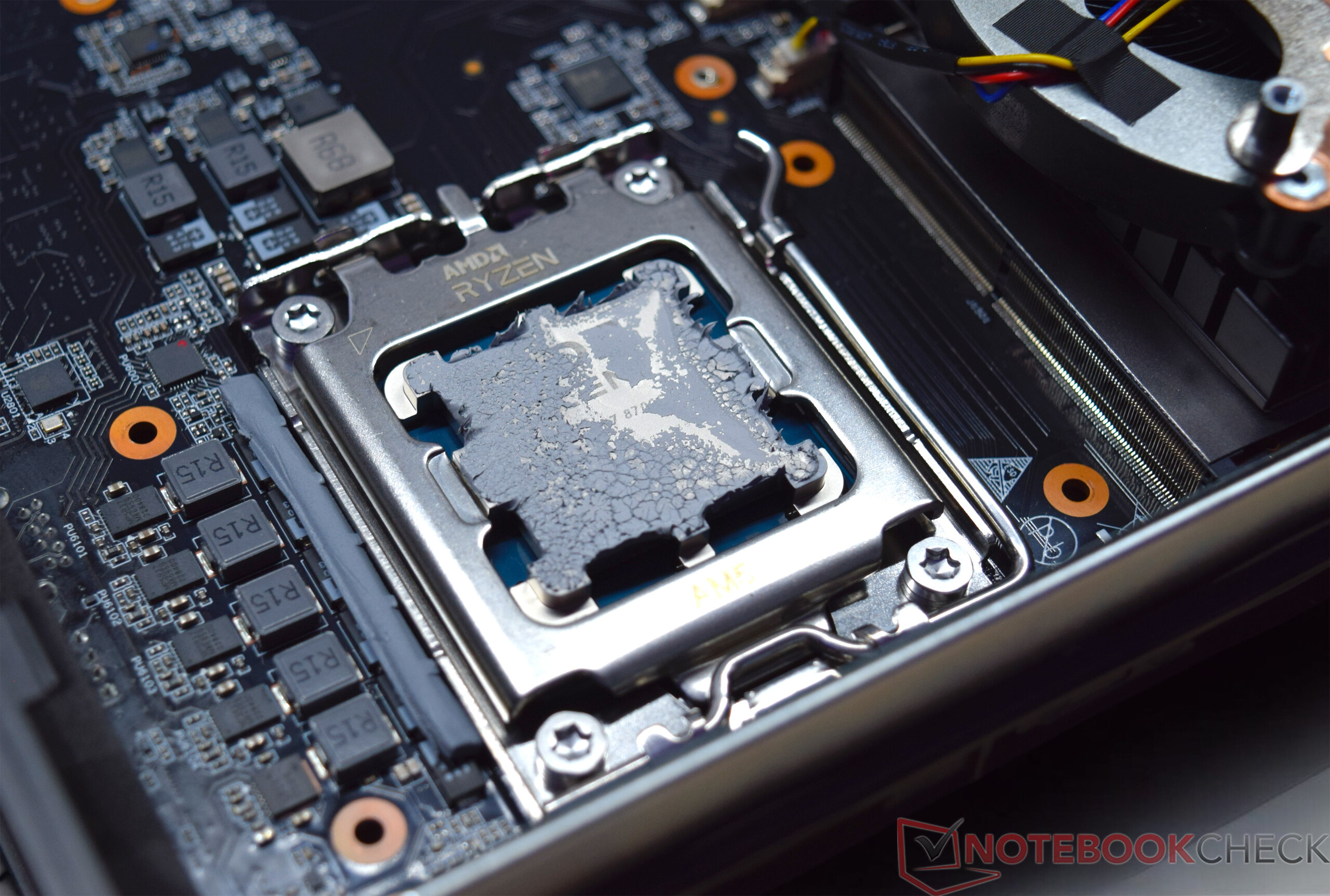

Minisforum MS-A1 还能处理其他处理器

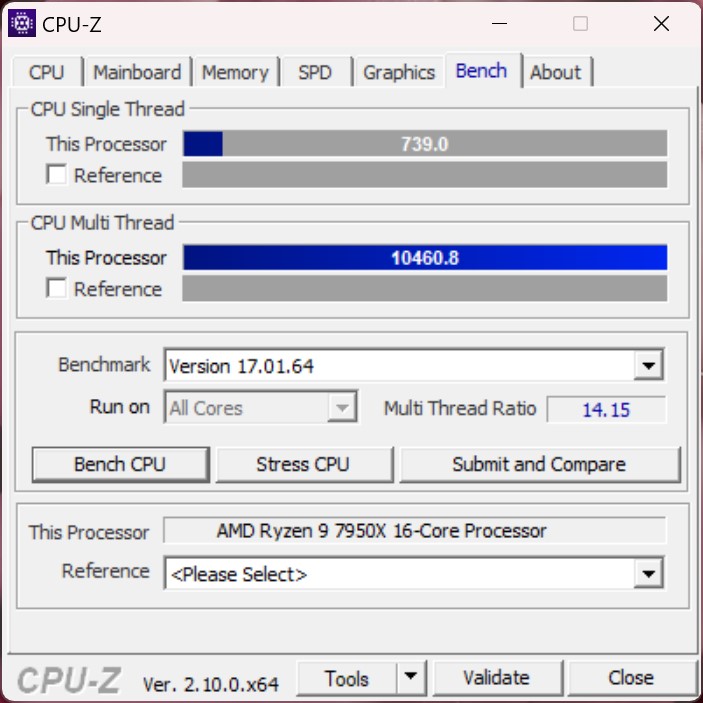

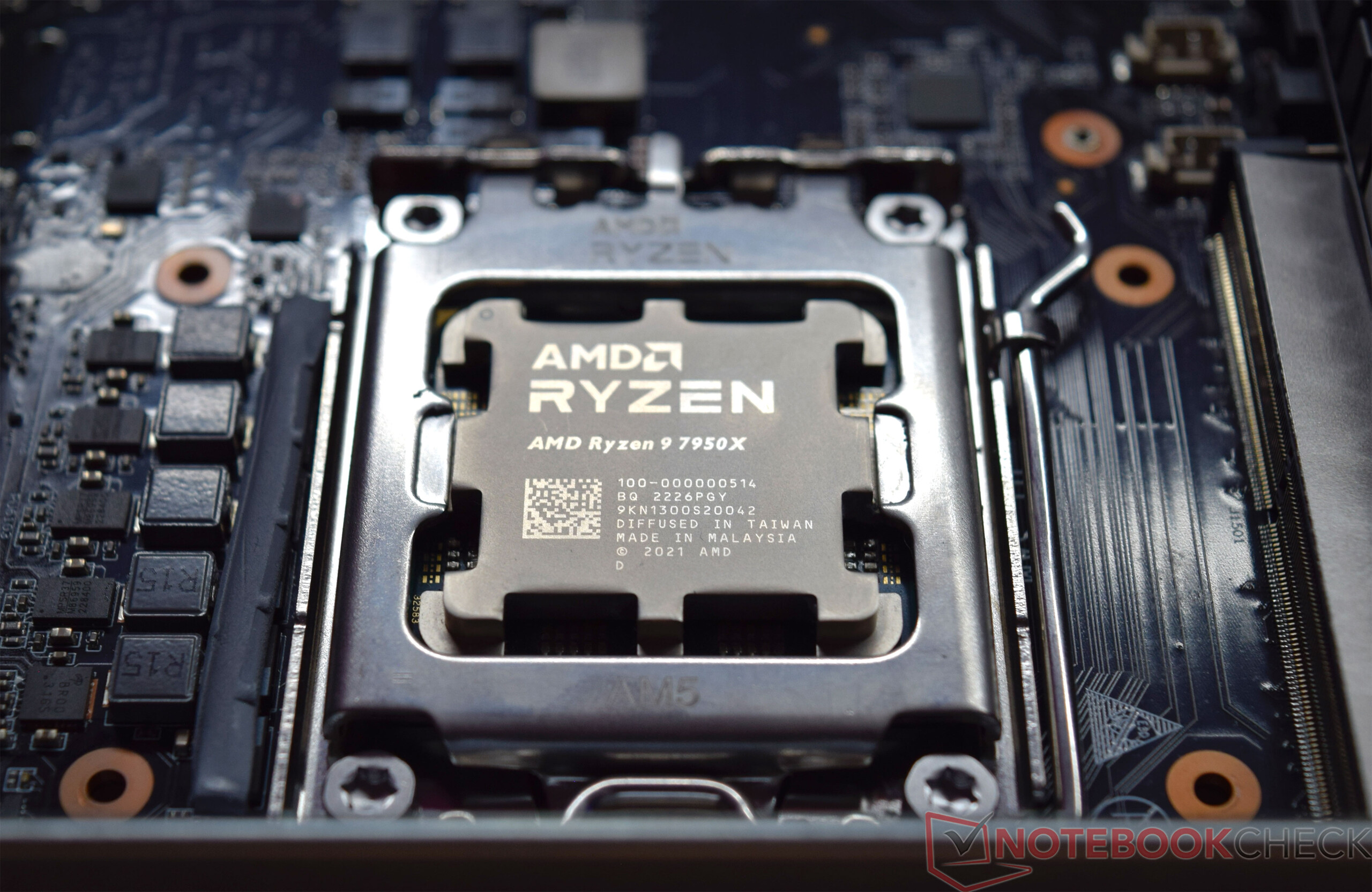

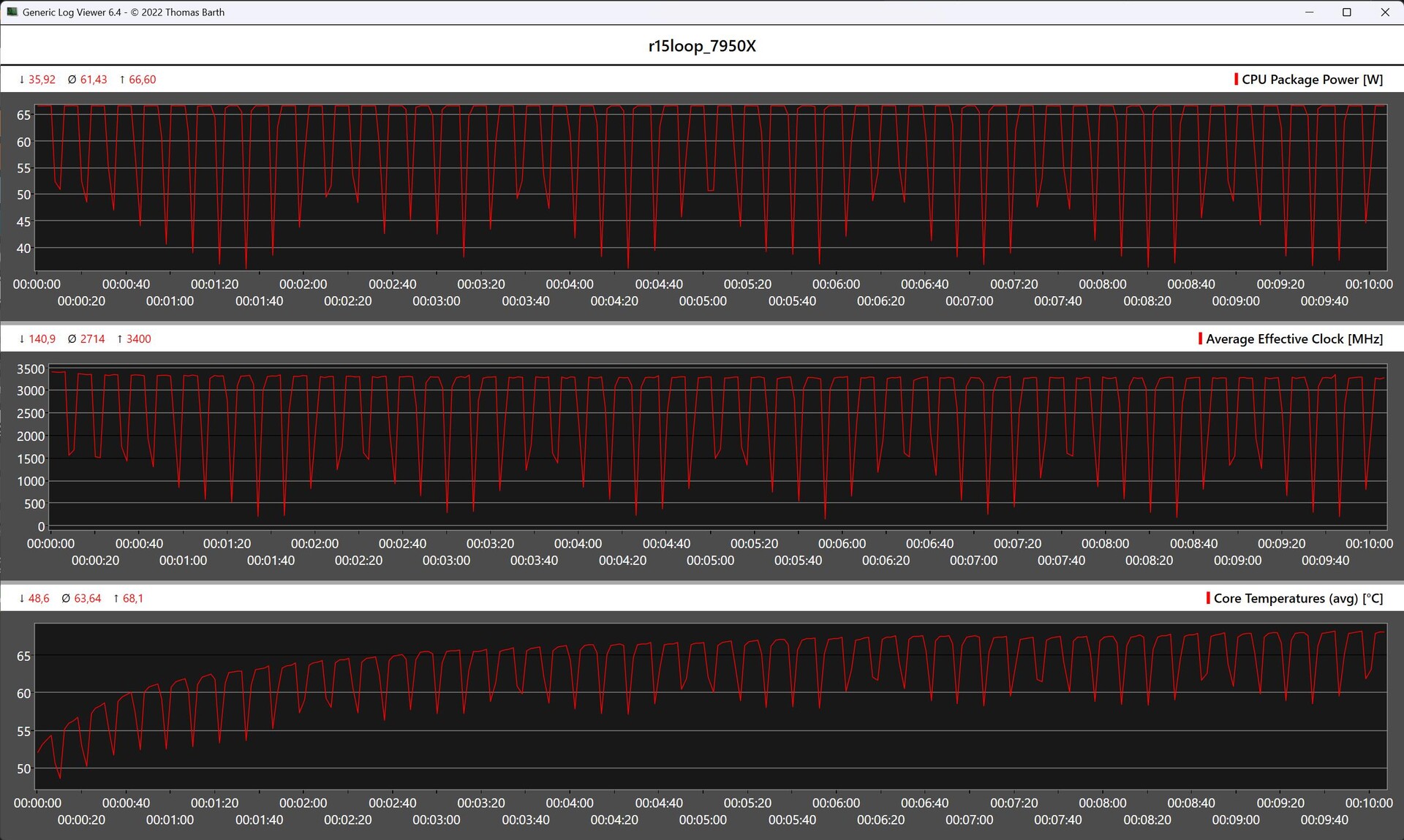

在一些性能测试中，我们将 AMD Ryzen 7 8700G 与 AMD Ryzen 9 7950X.与制造商的说法相反，更换处理器后，tdp 只能在 uefi 中设置为 75 瓦。实际上，带有两个 ccd 的处理器的目标功耗为 100 瓦。尽管如此，我们还是在这种配置下进行了一些比较测试，并将结果纳入比较图中。我们就此联系了制造商。在与Minisforum 协商后，我们将在即将推出的机型中安装经过改进的电压转换器冷却装置。同时，新版 BIOS 也将发布，届时也将支持 Ryzen 9000 系列处理器。

测试条件

在 Minisforum MS-A1 的所有性能测试中，我们使用了 "最高性能 "能耗曲线。根据我们的测试标准，只有在功耗和噪音测量中出现偏差。测试标准.

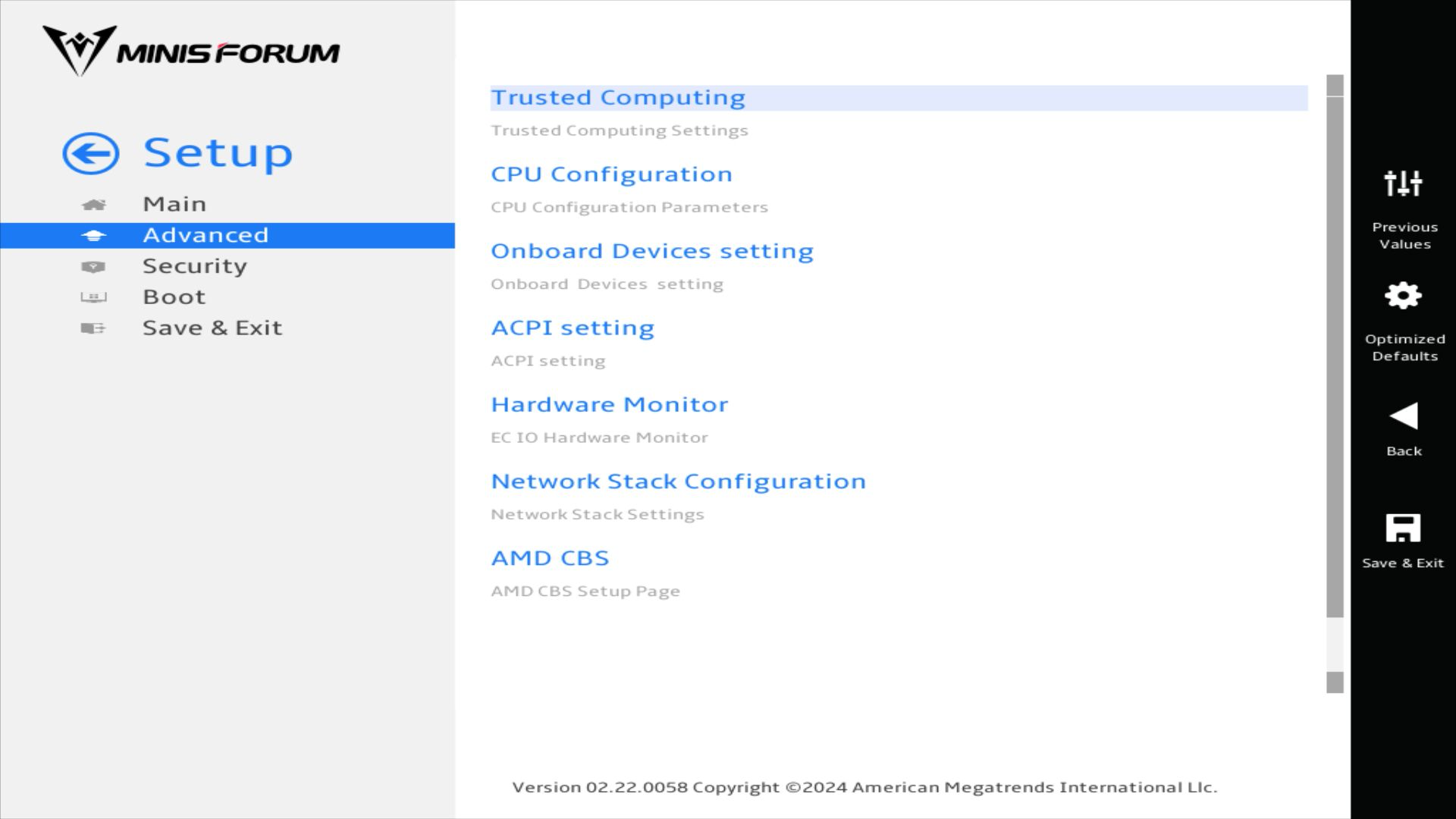

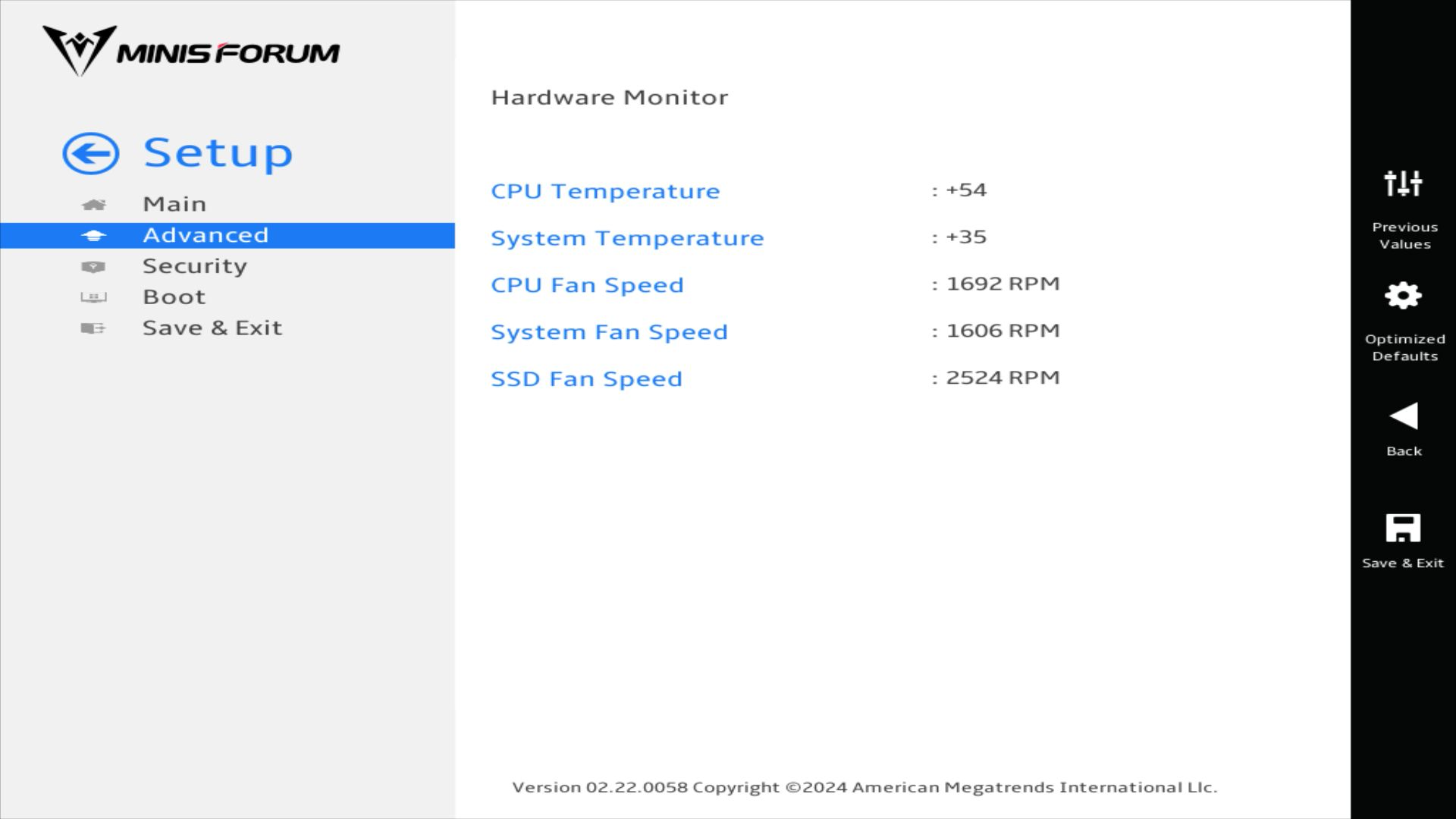

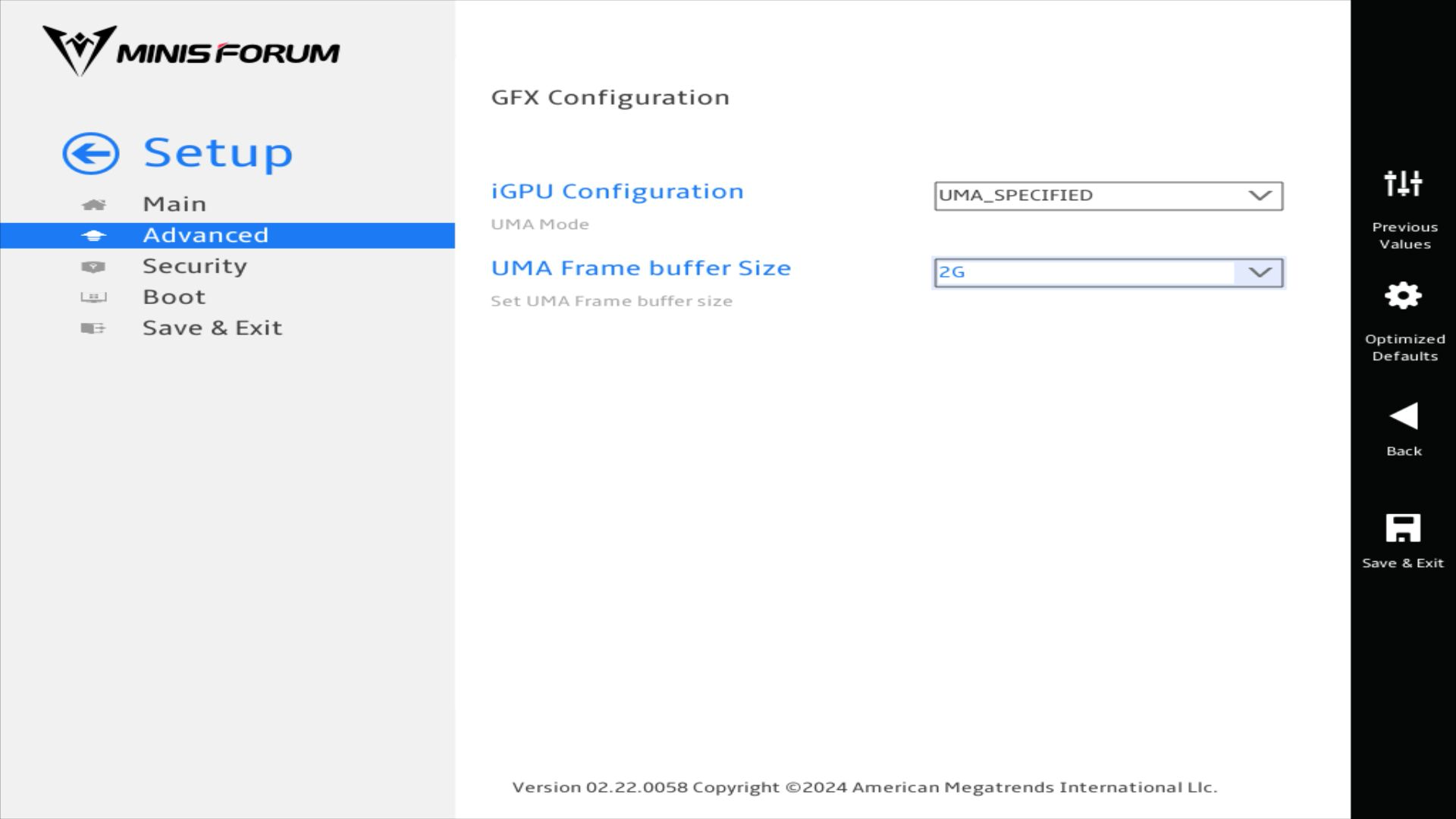

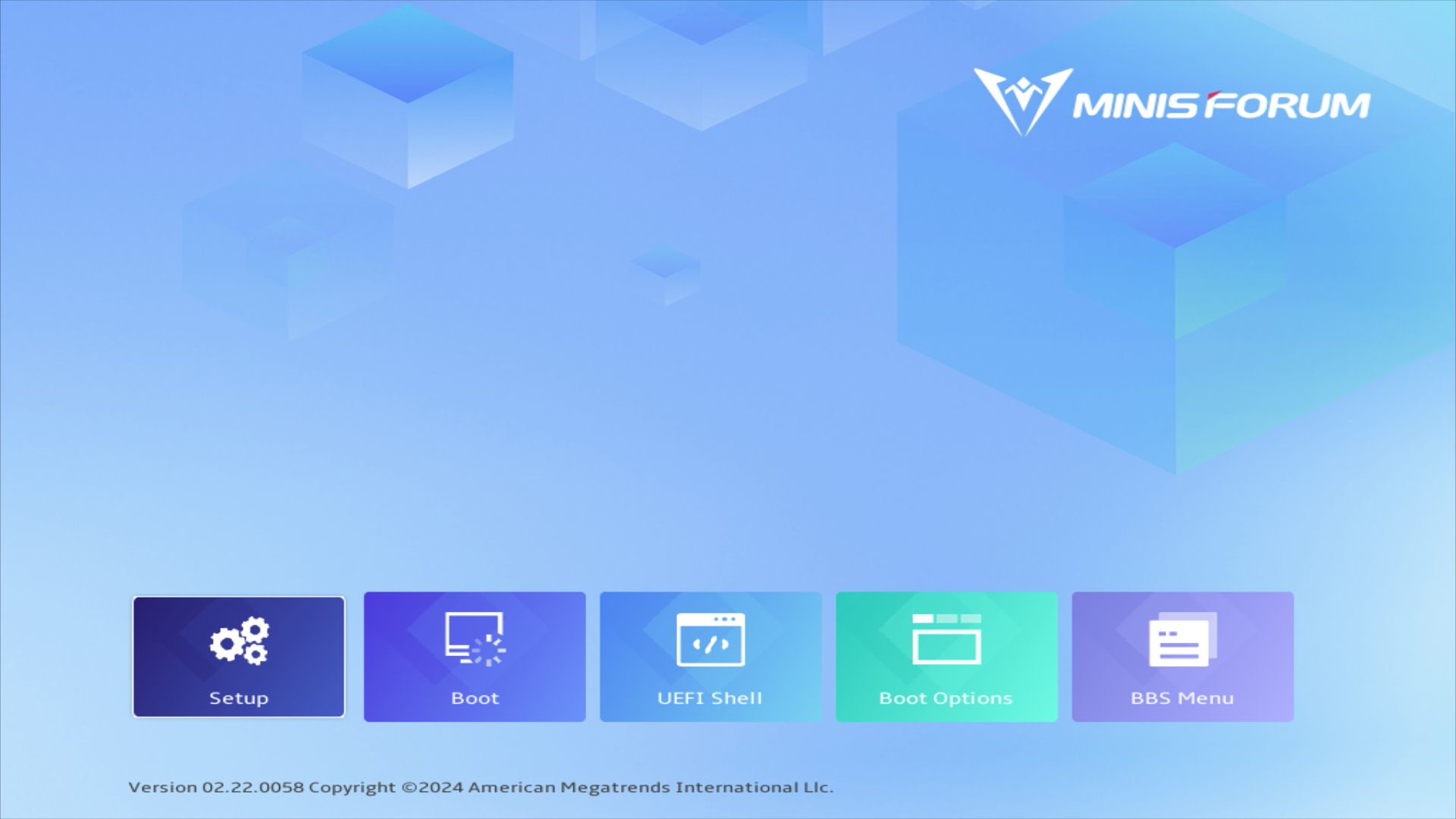

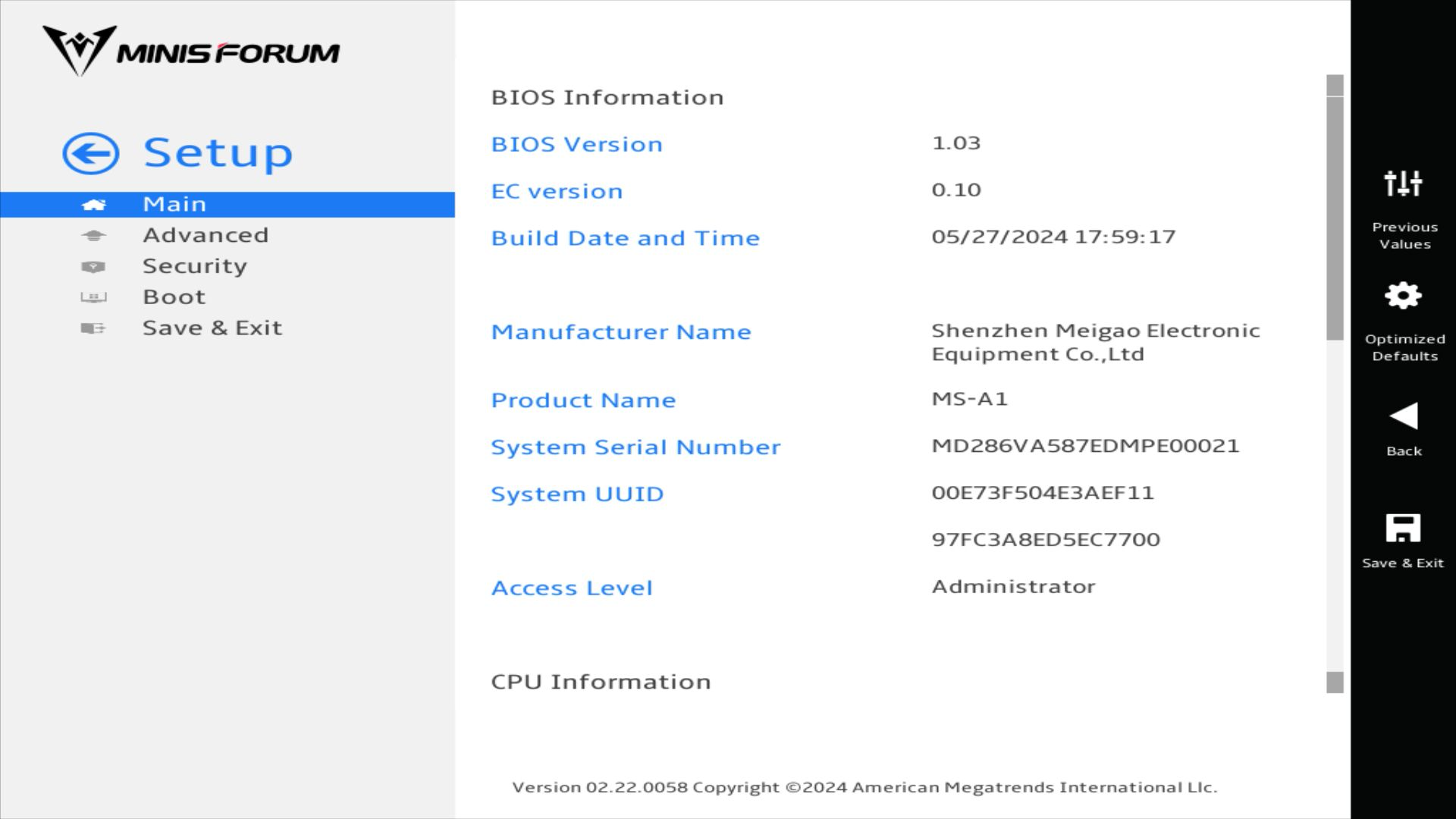

迷你论坛 MS-A1 的 UEFI

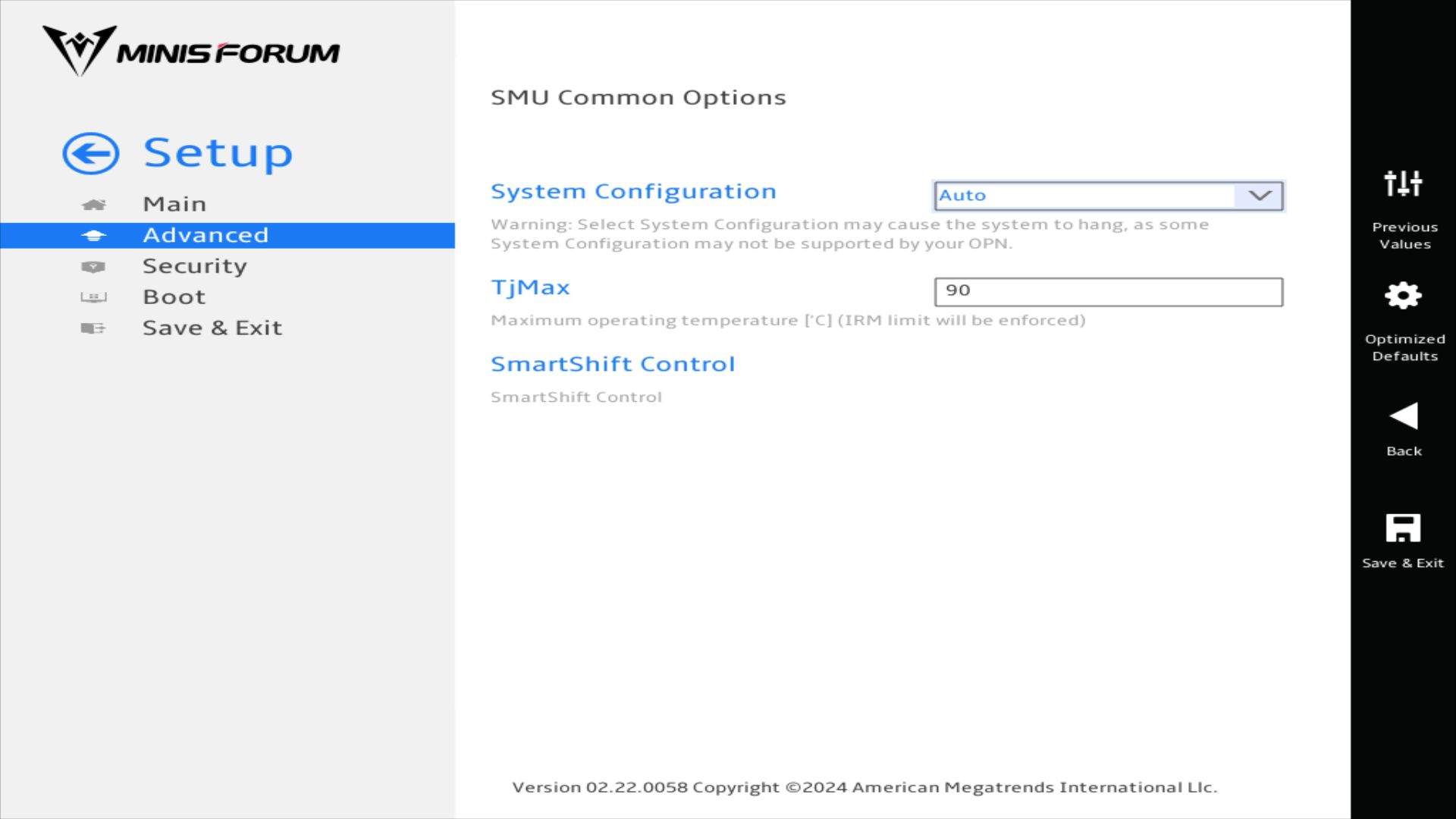

Minisforum MS-A1 的 UEFI 看起来现代而整洁。一些必要的更改，如调整处理器的 TDP 和 CPU 的最高温度非常有用。iGPU 的可用内存也可以调整。不过，在随后的所有测试中，我们都没有在这里进行任何更改，而是让设备保持出厂状态。遗憾的是，没有更广泛的选项，例如停用个别端口。

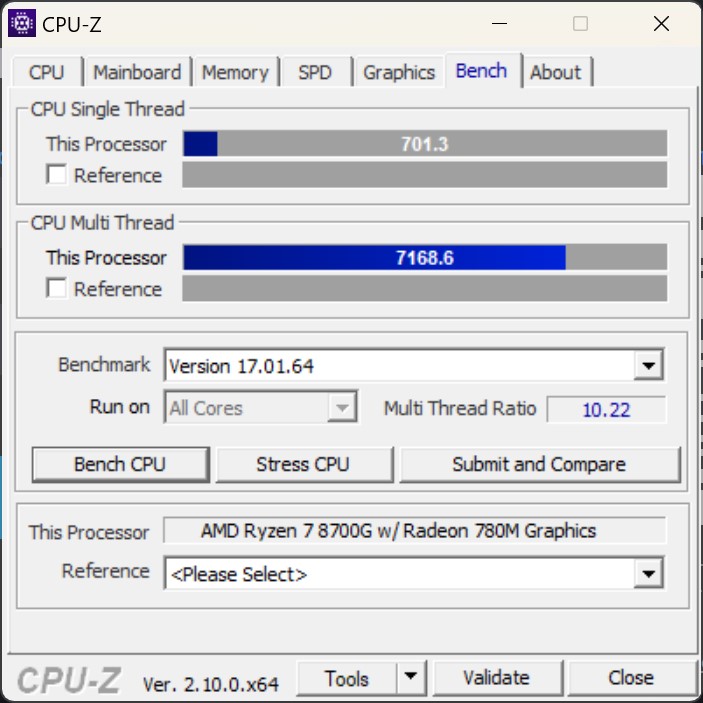

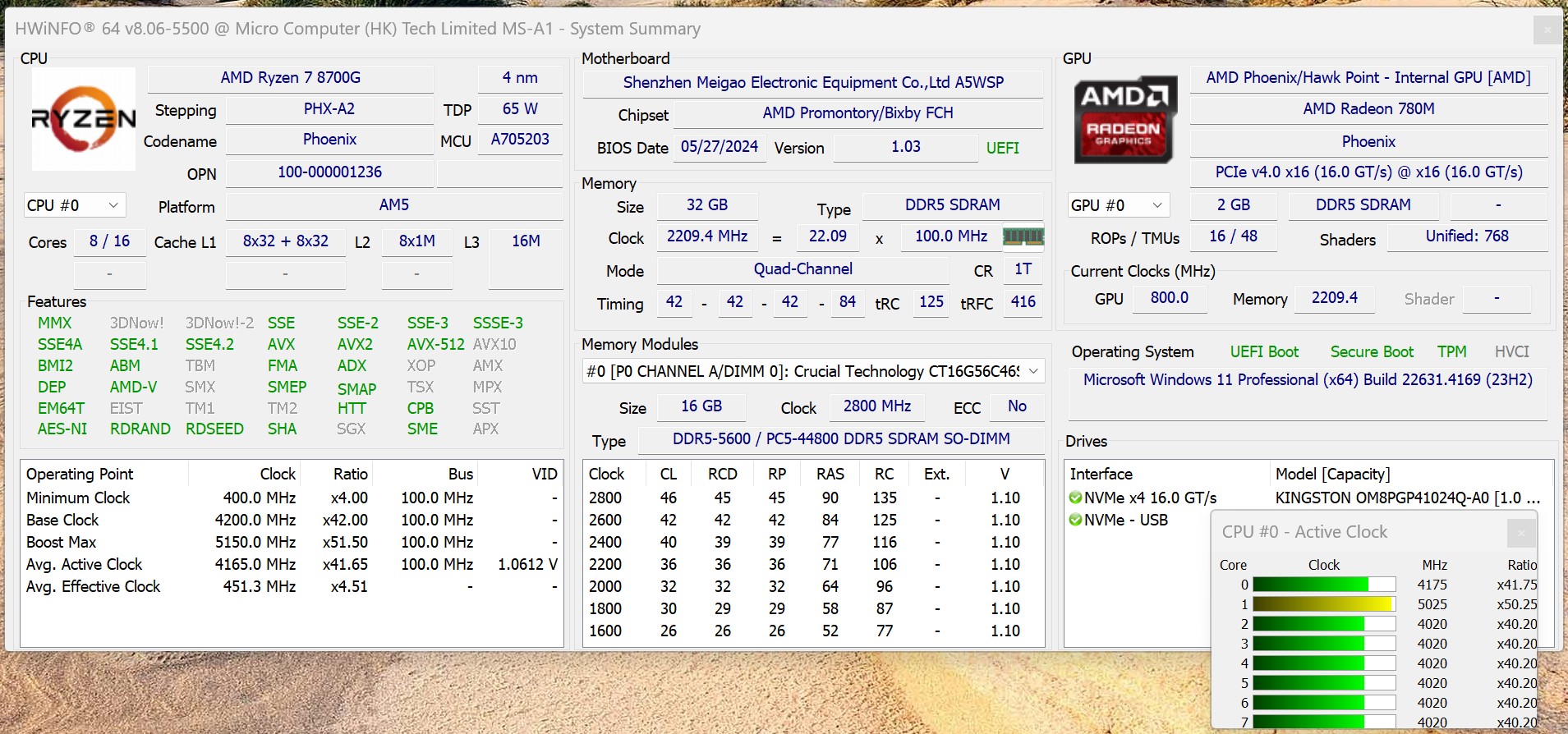

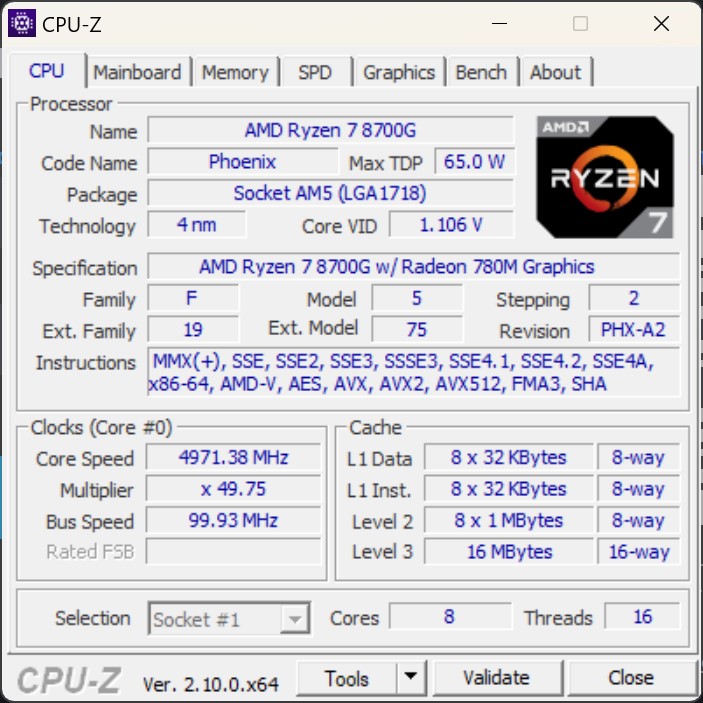

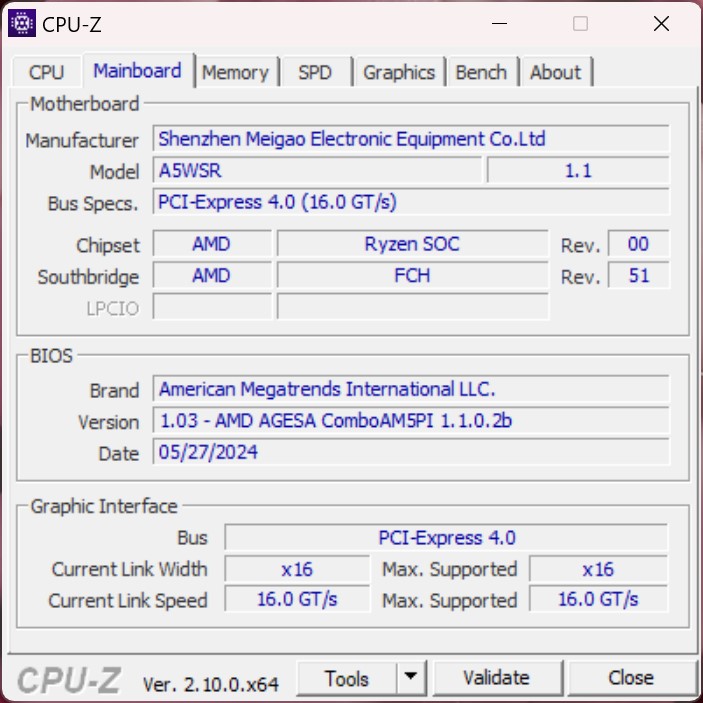

处理器

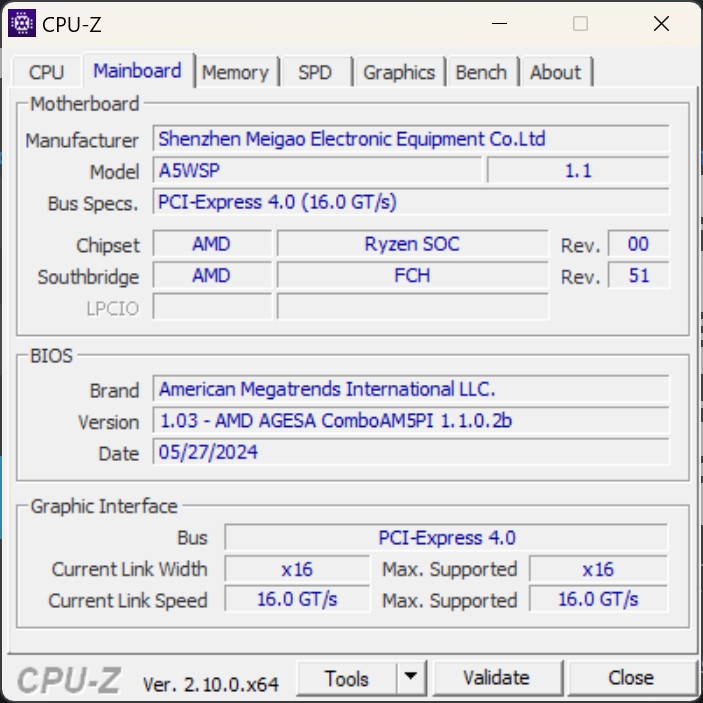

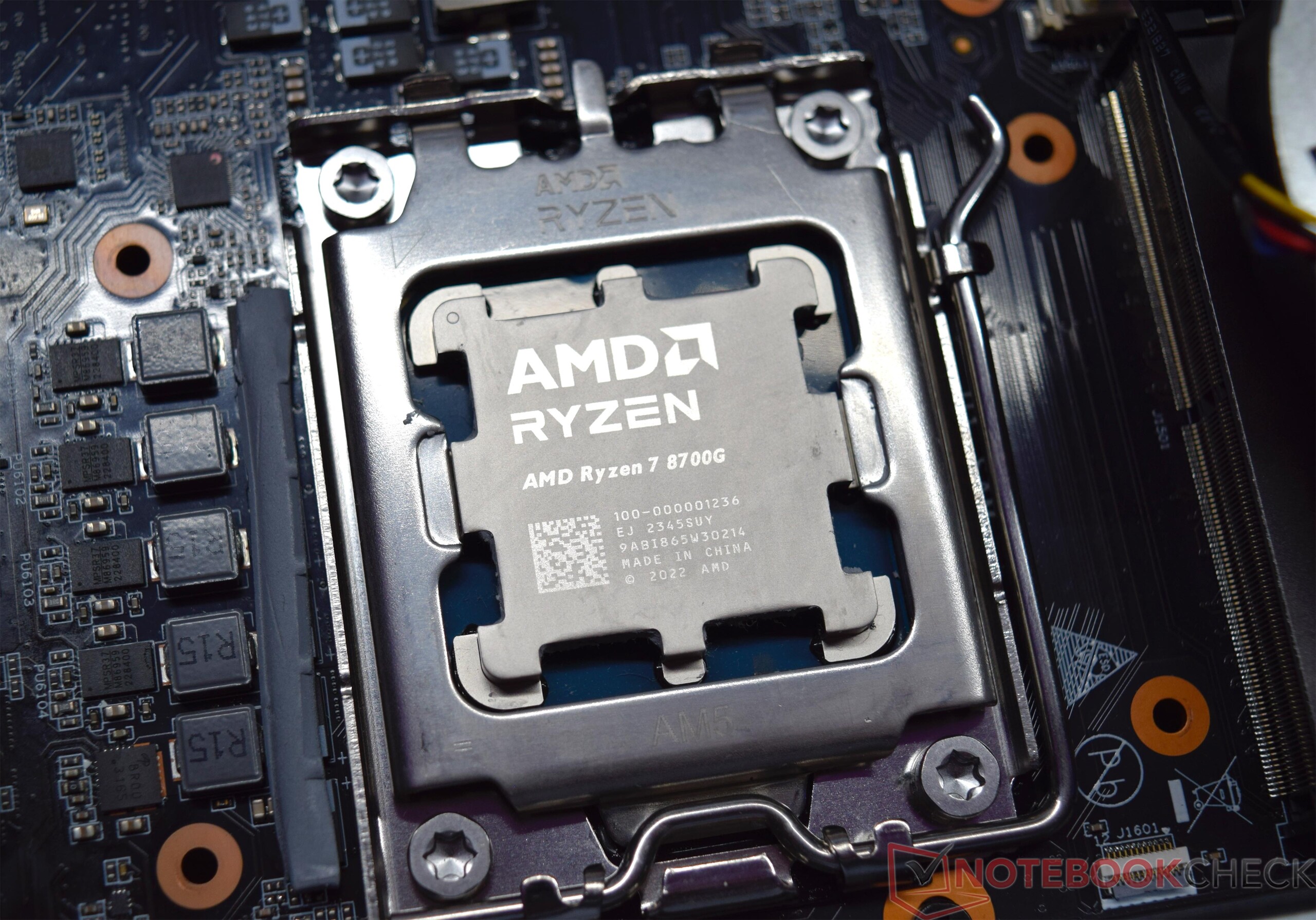

Minisforum MS-A1 的处理器是 AMD Ryzen 7 8700G.作为迷你 PC 的预配置版本，Minisforum 仅安装此型号。也可以安装其他 AM5 处理器。不过，如果同时安装 9000 系列的型号，有时必须更新 BIOS。因此，绕道 AMD Ryzen 7000 或 AMD Ryzen 8600G 或 8700G 是不可避免的，因为 Minisforum MS- A1 不提供闪回选项，无法在没有内存和 cpu 的情况下安装 bi。A1 不提供闪回选项，无法在没有内存和 Cpu 的情况下安装 bios。另一个需要了解的重要信息是，tdp 限制为 100 瓦。反之，这意味着，除其他外，一台 AMD Ryzen 9 7950X只能在性能大幅降低的情况下工作。

现在我们来看看 Minisforum MS-A1 中 AMD Ryzen 7 8700G 的性能。这款处理器本质上是一款移动 SoC，基于 Zen4 架构。该芯片还配备了强大的 AMD Radeon 780M，使 AMD Ryzen 7 8700G 成为拥有最强大 iGPU 的桌面处理器。稍后会有更多介绍。在直接对比中，Minisforum MS-A1 排名第三。惠普 Z2 迷你 G9和和联想 ThinkStation P3 Tiny和联想 ThinkStation P3 Tiny 都采用了速度更快的英特尔处理器。这里还使用了传统的台式机处理器，它们在性能方面明显优于移动处理器。结果显示，AMD Ryzen 7 8700G 与 Geekom AX8 Pro 的 AMD Ryzen 9 8945H 性能相当。

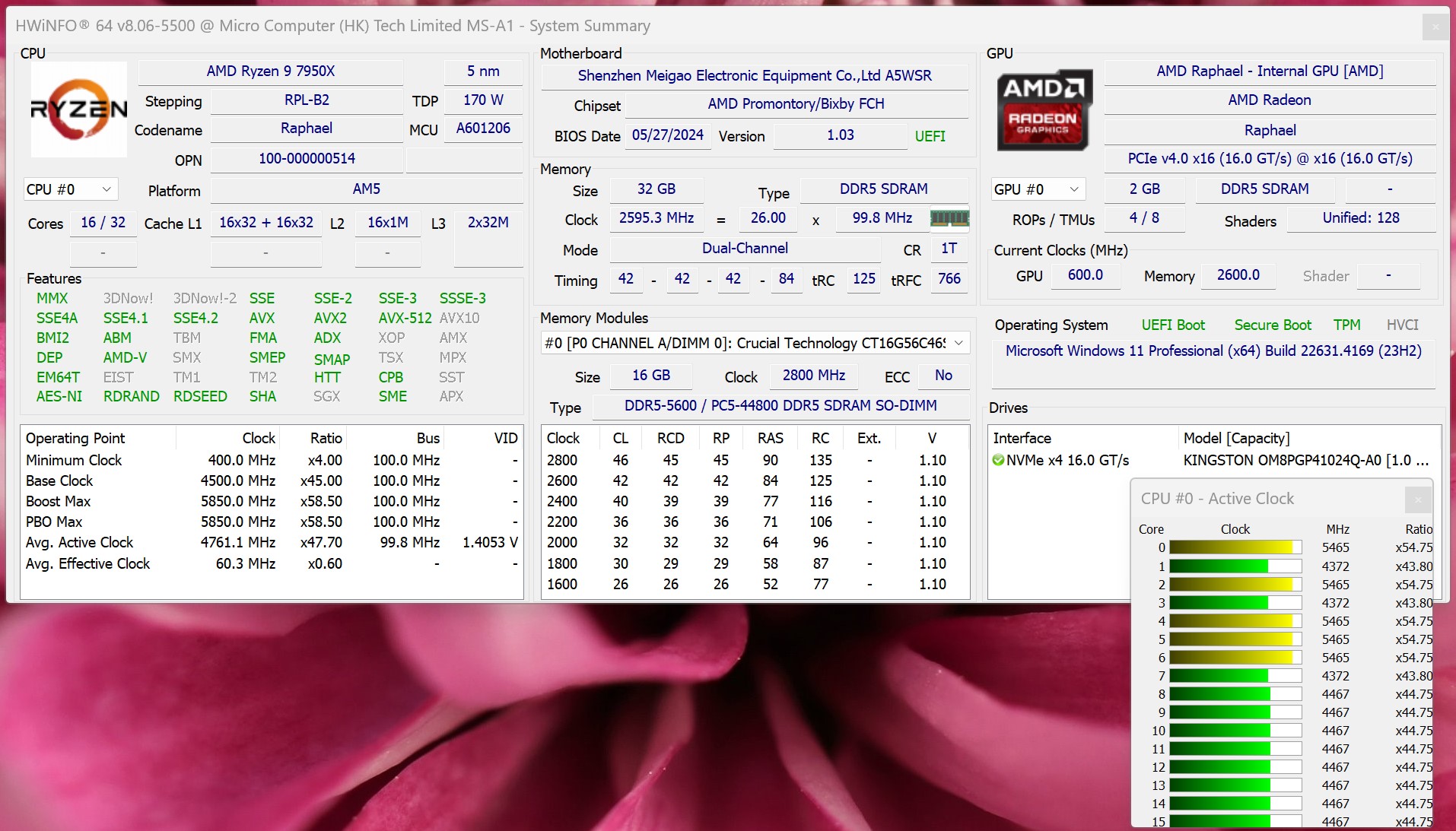

如前所述，我们还将 Minisforum MS-A1 与 AMD Ryzen 9 7950X与 AMD Ryzen 7 8700G 相比，16 核平均性能提高了约 12%。如果只看多核测试，性能可以提高 50% 甚至更多。

有关进一步的比较和基准测试，请参阅我们的 CPU 对比表.

Performance Rating - Percent
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	70 pt
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	69.8 pt
Minisforum MS-A1 AMD Ryzen 9 7950X	65.9 pt
Minisforum MS-A1 AMD Ryzen 7 8700G	58.8 pt
Geekom AX8 Pro AMD Ryzen 9 8945H	57.2 pt
Minisforum MS-01 Intel Core i9-13900H	56.3 pt
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	55.9 pt
Geekom GT13 Pro Intel Core i9-13900H	54.1 pt

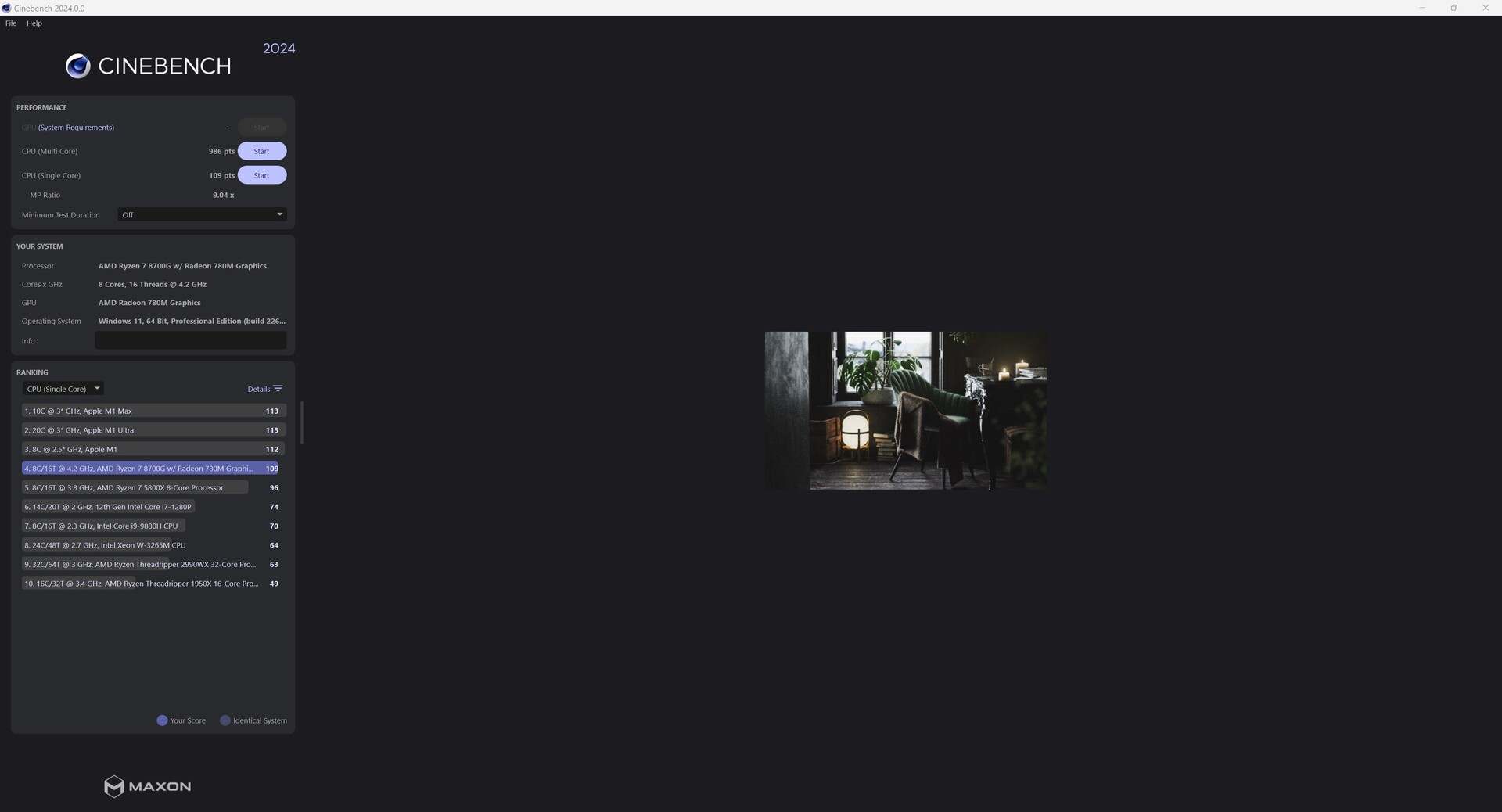

Cinebench 2024
CPU Multi Core
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	1559 Points +58%
Minisforum MS-A1 AMD Ryzen 9 7950X	1514 Points +54%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	1245 Points +26%
Minisforum MS-A1 AMD Ryzen 7 8700G	986 Points
Geekom AX8 Pro AMD Ryzen 9 8945H	852 Points -14%
Minisforum MS-01 Intel Core i9-13900H	818 Points -17%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	799 Points -19%
Geekom GT13 Pro Intel Core i9-13900H	703 Points -29%
CPU Single Core
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	129 Points +18%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	126 Points +16%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	114 Points +5%
Minisforum MS-A1 AMD Ryzen 9 7950X	114 Points +5%
Minisforum MS-A1 AMD Ryzen 7 8700G	109 Points
Geekom AX8 Pro AMD Ryzen 9 8945H	107 Points -2%
Geekom GT13 Pro Intel Core i9-13900H	104 Points -5%
Minisforum MS-01 Intel Core i9-13900H	101 Points -7%

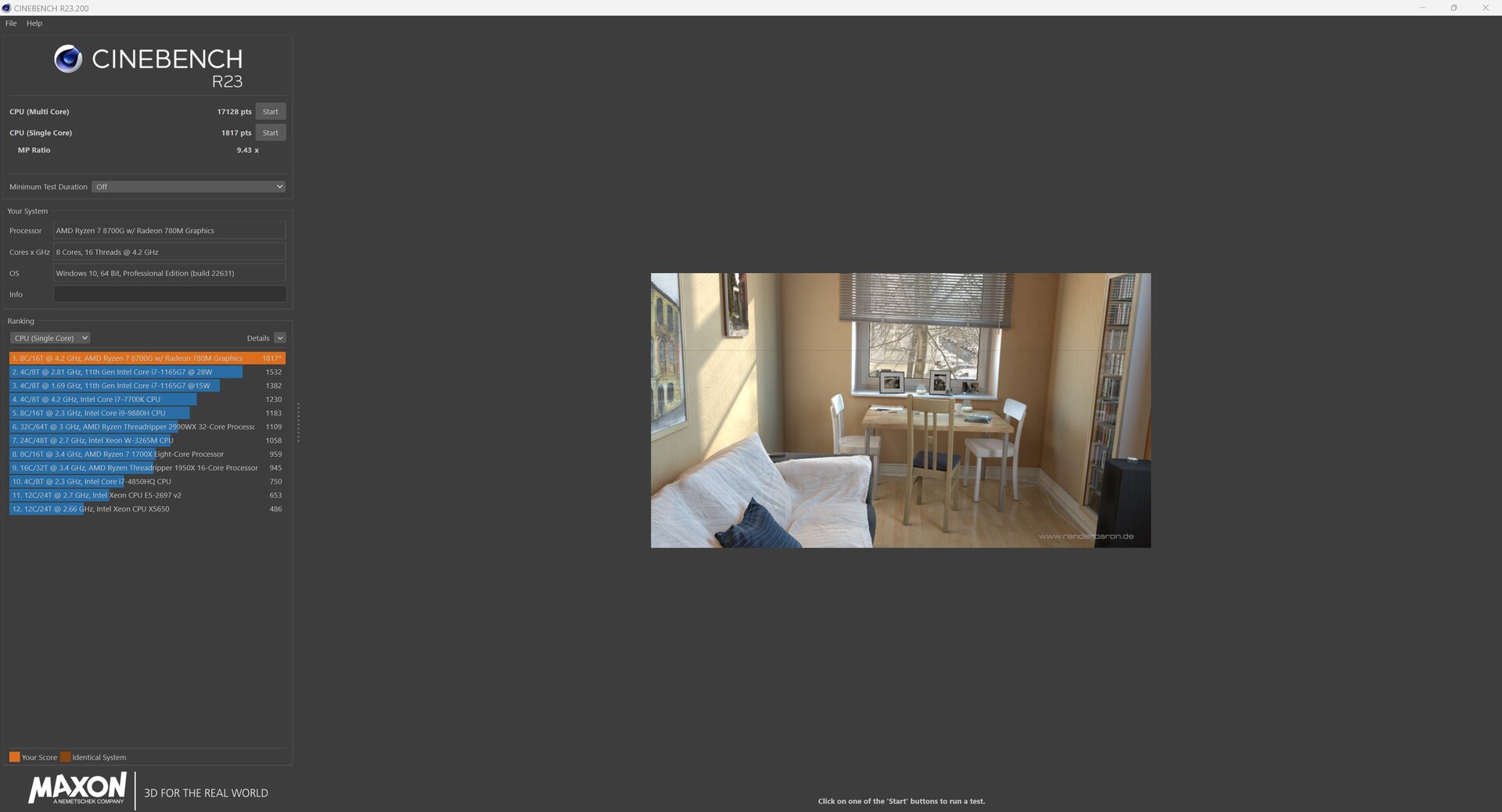

Cinebench R23
Multi Core
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	31070 Points +81%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	30989 Points +81%
Minisforum MS-A1 AMD Ryzen 9 7950X	25832 Points +51%
Minisforum MS-A1 AMD Ryzen 7 8700G	17128 Points
Minisforum MS-01 Intel Core i9-13900H	16209 Points -5%
Geekom AX8 Pro AMD Ryzen 9 8945H	15516 Points -9%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	15012 Points -12%
Geekom GT13 Pro Intel Core i9-13900H	13015 Points -24%
Single Core
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	2212 Points +22%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	2167 Points +19%
Minisforum MS-A1 AMD Ryzen 9 7950X	1927 Points +6%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	1917 Points +6%
Minisforum MS-A1 AMD Ryzen 7 8700G	1817 Points
Geekom AX8 Pro AMD Ryzen 9 8945H	1808 Points 0%
Minisforum MS-01 Intel Core i9-13900H	1806 Points -1%
Geekom GT13 Pro Intel Core i9-13900H	1715 Points -6%

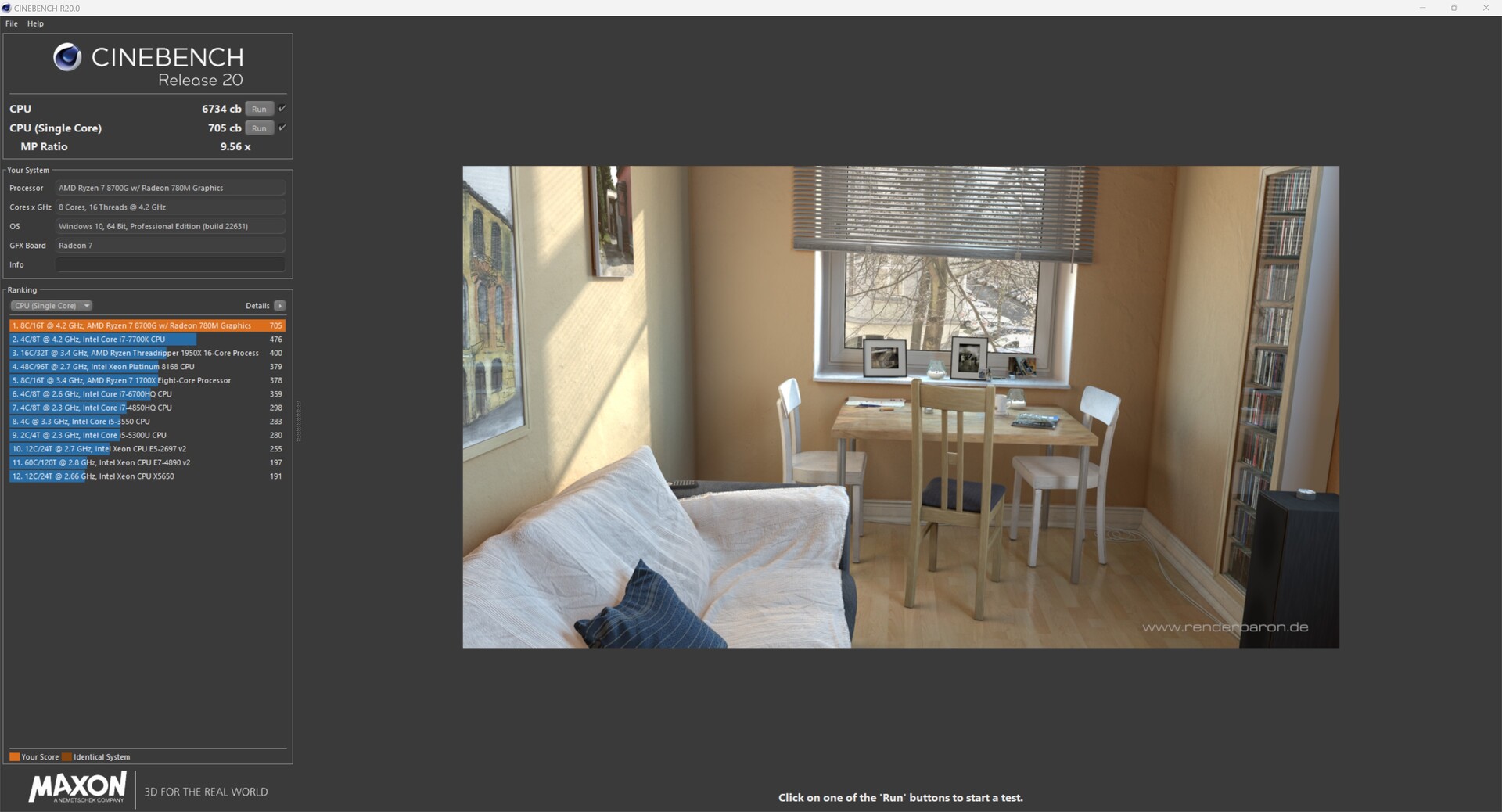

Cinebench R20
CPU (Single Core)
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	846 Points +20%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	840 Points +19%
Minisforum MS-A1 AMD Ryzen 9 7950X	748 Points +6%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	736 Points +4%
Minisforum MS-A1 AMD Ryzen 7 8700G	705 Points
Geekom AX8 Pro AMD Ryzen 9 8945H	703 Points 0%
Minisforum MS-01 Intel Core i9-13900H	699 Points -1%
Geekom GT13 Pro Intel Core i9-13900H	659 Points -7%
CPU (Multi Core)
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	11814 Points +75%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	11291 Points +68%
Minisforum MS-A1 AMD Ryzen 9 7950X	10140 Points +51%
Minisforum MS-A1 AMD Ryzen 7 8700G	6736 Points
Minisforum MS-01 Intel Core i9-13900H	6203 Points -8%
Geekom AX8 Pro AMD Ryzen 9 8945H	6153 Points -9%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	5811 Points -14%
Geekom GT13 Pro Intel Core i9-13900H	5013 Points -26%

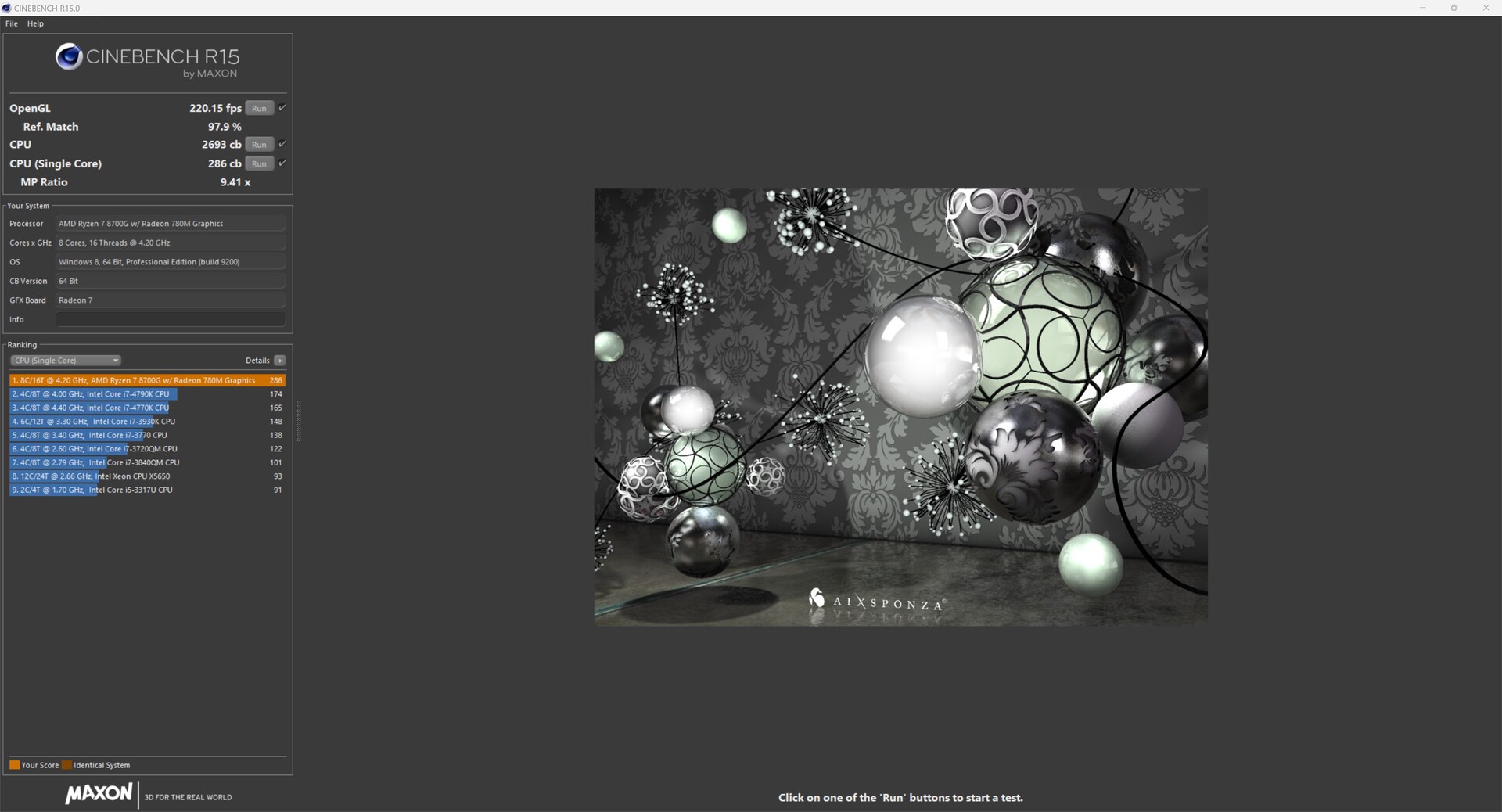

Cinebench R15
CPU Single 64Bit
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	315 Points +10%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	313 Points +9%
Minisforum MS-A1 AMD Ryzen 9 7950X	306 Points +7%
Minisforum MS-A1 AMD Ryzen 7 8700G	286 Points
Geekom AX8 Pro AMD Ryzen 9 8945H	284 Points -1%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	273 Points -5%
Minisforum MS-01 Intel Core i9-13900H	253 Points -12%
Geekom GT13 Pro Intel Core i9-13900H	245 Points -14%
CPU Multi 64Bit
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	4793 Points +78%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	4611 Points +71%
Minisforum MS-A1 AMD Ryzen 9 7950X	4203 Points +56%
Minisforum MS-A1 AMD Ryzen 7 8700G	2693 Points
Geekom AX8 Pro AMD Ryzen 9 8945H	2521 Points -6%
Minisforum MS-01 Intel Core i9-13900H	2459 Points -9%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	2435 Points -10%
Geekom GT13 Pro Intel Core i9-13900H	2260 Points -16%

Cinebench R11.5
CPU Single 64Bit
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	3.8 Points +12%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	3.77 Points +11%
Minisforum MS-A1 AMD Ryzen 9 7950X	3.63 Points +7%
Minisforum MS-A1 AMD Ryzen 7 8700G	3.4 Points
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	3.31 Points -3%
Geekom AX8 Pro AMD Ryzen 9 8945H	3.28 Points -4%
Minisforum MS-01 Intel Core i9-13900H	3 Points -12%
Geekom GT13 Pro Intel Core i9-13900H	2.98 Points -12%
CPU Multi 64Bit
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	56.61 Points +81%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	54.22 Points +74%
Minisforum MS-A1 AMD Ryzen 9 7950X	47.44 Points +52%
Minisforum MS-A1 AMD Ryzen 7 8700G	31.2 Points
Minisforum MS-01 Intel Core i9-13900H	29.65 Points -5%
Geekom AX8 Pro AMD Ryzen 9 8945H	29.14 Points -7%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	28.75 Points -8%
Geekom GT13 Pro Intel Core i9-13900H	27.48 Points -12%

Cinebench R10
Rendering Single CPUs 64Bit
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	17590 Points +20%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	17400 Points +19%
Minisforum MS-A1 AMD Ryzen 9 7950X	15549 Points +6%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	15313 Points +5%
Minisforum MS-A1 AMD Ryzen 7 8700G	14652 Points
Geekom AX8 Pro AMD Ryzen 9 8945H	14451 Points -1%
Geekom GT13 Pro Intel Core i9-13900H	13820 Points -6%
Minisforum MS-01 Intel Core i9-13900H	13752 Points -6%
Rendering Multiple CPUs 64Bit
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	124651 Points +38%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	121768 Points +35%
Minisforum MS-A1 AMD Ryzen 9 7950X	109401 Points +22%
Minisforum MS-A1 AMD Ryzen 7 8700G	90006 Points
Geekom AX8 Pro AMD Ryzen 9 8945H	84253 Points -6%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	82201 Points -9%
Minisforum MS-01 Intel Core i9-13900H	79856 Points -11%
Geekom GT13 Pro Intel Core i9-13900H	79014 Points -12%

Blender - v2.79 BMW27 CPU
Geekom GT13 Pro Intel Core i9-13900H	262 Seconds * -41%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	223 Seconds * -20%
Geekom AX8 Pro AMD Ryzen 9 8945H	206 Seconds * -11%
Minisforum MS-01 Intel Core i9-13900H	201 Seconds * -8%
Minisforum MS-A1 AMD Ryzen 7 8700G	186 Seconds *
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	131 Seconds * +30%
Minisforum MS-A1 AMD Ryzen 9 7950X	118 Seconds * +37%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	109 Seconds * +41%

wPrime 2.10
32m
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	3.705 s * -46%
Geekom GT13 Pro Intel Core i9-13900H	3.518 s * -38%
Minisforum MS-01 Intel Core i9-13900H	3.141 s * -24%
Geekom AX8 Pro AMD Ryzen 9 8945H	2.688 s * -6%
Minisforum MS-A1 AMD Ryzen 7 8700G	2.541 s *
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	2.406 s * +5%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	2.252 s * +11%
Minisforum MS-A1 AMD Ryzen 9 7950X	2.25 s * +11%
1024m
Geekom GT13 Pro Intel Core i9-13900H	412.775 s * -531%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	192.207 s * -194%
Minisforum MS-01 Intel Core i9-13900H	179.496 s * -174%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	85.594 s * -31%
Geekom AX8 Pro AMD Ryzen 9 8945H	74.917 s * -14%
Minisforum MS-A1 AMD Ryzen 7 8700G	65.45 s *
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	50.891 s * +22%
Minisforum MS-A1 AMD Ryzen 9 7950X	43.867 s * +33%

X264 HD Benchmark 4.0
Pass 1
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	393.5 (391^min - 408^max) fps +19%
Minisforum MS-A1 AMD Ryzen 9 7950X	360.5 (355^min - 362^max) fps +9%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	358.5 (352^min - 386^max) fps +8%
Minisforum MS-A1 AMD Ryzen 7 8700G	330.5 (329^min - 334^max) fps
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	318 (249^min - 321^max) fps -4%
Geekom GT13 Pro Intel Core i9-13900H	300.5 (288^min - 319^max) fps -9%
Geekom AX8 Pro AMD Ryzen 9 8945H	300 (299^min - 301^max) fps -9%
Minisforum MS-01 Intel Core i9-13900H	284 (276^min - 298^max) fps -14%
Pass 2
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	225.5 (224^min - 230^max) fps +45%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	222 (213^min - 233^max) fps +43%
Minisforum MS-A1 AMD Ryzen 9 7950X	200 (200^min - 201^max) fps +28%
Minisforum MS-A1 AMD Ryzen 7 8700G	155.75 (155.4^min - 155.9^max) fps
Geekom AX8 Pro AMD Ryzen 9 8945H	141.2 (141^min - 143.9^max) fps -9%
Minisforum MS-01 Intel Core i9-13900H	138.55 (135.5^min - 145.8^max) fps -11%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	138.1 (131.2^min - 138.6^max) fps -11%
Geekom GT13 Pro Intel Core i9-13900H	113.95 (106.5^min - 136.6^max) fps -27%

WinRAR - Result
Minisforum MS-A1 AMD Ryzen 9 7950X	15325 KB/s +78%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	12825 KB/s +49%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	12359 KB/s +44%
Minisforum MS-01 Intel Core i9-13900H	9303 KB/s +8%
Minisforum MS-A1 AMD Ryzen 7 8700G	8593 KB/s
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	7912 KB/s -8%
Geekom AX8 Pro AMD Ryzen 9 8945H	7744 KB/s -10%
Geekom GT13 Pro Intel Core i9-13900H	6800 KB/s -21%

TrueCrypt
AES Mean 100MB
Minisforum MS-A1 AMD Ryzen 9 7950X	22 GB/s +49%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	18.5 GB/s +25%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	18 GB/s +22%
Minisforum MS-01 Intel Core i9-13900H	14.8 GB/s 0%
Minisforum MS-A1 AMD Ryzen 7 8700G	14.8 GB/s
Geekom AX8 Pro AMD Ryzen 9 8945H	14.5 GB/s -2%
Geekom GT13 Pro Intel Core i9-13900H	13.2 GB/s -11%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	12.4 GB/s -16%
Twofish Mean 100MB
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	4.9 GB/s +133%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	4.4 GB/s +110%
Minisforum MS-A1 AMD Ryzen 9 7950X	3.1 GB/s +48%
Minisforum MS-01 Intel Core i9-13900H	2.5 GB/s +19%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	2.5 GB/s +19%
Geekom GT13 Pro Intel Core i9-13900H	2.4 GB/s +14%
Geekom AX8 Pro AMD Ryzen 9 8945H	2.1 GB/s 0%
Minisforum MS-A1 AMD Ryzen 7 8700G	2.1 GB/s
Serpent Mean 100MB
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	2.4 GB/s +71%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	2.2 GB/s +57%
Minisforum MS-A1 AMD Ryzen 9 7950X	2.2 GB/s +57%
Minisforum MS-01 Intel Core i9-13900H	1.4 GB/s 0%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	1.4 GB/s 0%
Minisforum MS-A1 AMD Ryzen 7 8700G	1.4 GB/s
Geekom AX8 Pro AMD Ryzen 9 8945H	1.3 GB/s -7%
Geekom GT13 Pro Intel Core i9-13900H	1.2 GB/s -14%

Geekbench 5.5
Multi-Core
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	19971 Points +58%
Minisforum MS-A1 AMD Ryzen 9 7950X	17785 Points +41%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	17395 Points +38%
Minisforum MS-01 Intel Core i9-13900H	13014 Points +3%
Minisforum MS-A1 AMD Ryzen 7 8700G	12618 Points
Geekom AX8 Pro AMD Ryzen 9 8945H	11980 Points -5%
Geekom GT13 Pro Intel Core i9-13900H	11283 Points -11%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	10543 Points -16%
Single-Core
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	2140 Points +6%
Minisforum MS-A1 AMD Ryzen 9 7950X	2140 Points +6%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	2092 Points +4%
Minisforum MS-A1 AMD Ryzen 7 8700G	2012 Points
Geekom AX8 Pro AMD Ryzen 9 8945H	1994 Points -1%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	1898 Points -6%
Minisforum MS-01 Intel Core i9-13900H	1867 Points -7%
Geekom GT13 Pro Intel Core i9-13900H	1841 Points -8%

Geekbench 5.0
5.0 Multi-Core
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	19766 Points +58%
Minisforum MS-A1 AMD Ryzen 9 7950X	17489 Points +40%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	17218 Points +38%
Minisforum MS-01 Intel Core i9-13900H	12681 Points +1%
Minisforum MS-A1 AMD Ryzen 7 8700G	12500 Points
Geekom AX8 Pro AMD Ryzen 9 8945H	11804 Points -6%
Geekom GT13 Pro Intel Core i9-13900H	11168 Points -11%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	10477 Points -16%
5.0 Single-Core
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	2077 Points +7%
Minisforum MS-A1 AMD Ryzen 9 7950X	2077 Points +7%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	2039 Points +5%
Minisforum MS-A1 AMD Ryzen 7 8700G	1938 Points
Geekom AX8 Pro AMD Ryzen 9 8945H	1907 Points -2%
Minisforum MS-01 Intel Core i9-13900H	1847 Points -5%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	1842 Points -5%
Geekom GT13 Pro Intel Core i9-13900H	1810 Points -7%

Geekbench 4.4
64 Bit Single-Core Score
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	9143 Points +13%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	8874 Points +9%
Minisforum MS-A1 AMD Ryzen 9 7950X	8448 Points +4%
Minisforum MS-01 Intel Core i9-13900H	8190 Points +1%
Geekom AX8 Pro AMD Ryzen 9 8945H	8140 Points 0%
Minisforum MS-A1 AMD Ryzen 7 8700G	8119 Points
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	7873 Points -3%
Geekom GT13 Pro Intel Core i9-13900H	7787 Points -4%
64 Bit Multi-Core Score
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	72062 Points +43%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	67178 Points +34%
Minisforum MS-A1 AMD Ryzen 9 7950X	66320 Points +32%
Minisforum MS-A1 AMD Ryzen 7 8700G	50309 Points
Geekom AX8 Pro AMD Ryzen 9 8945H	47917 Points -5%
Minisforum MS-01 Intel Core i9-13900H	47461 Points -6%
Geekom GT13 Pro Intel Core i9-13900H	41851 Points -17%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	40233 Points -20%

3DMark 11 - 1280x720 Performance Physics
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	28739 Points +23%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	28622 Points +22%
Minisforum MS-A1 AMD Ryzen 9 7950X	23510 Points +1%
Minisforum MS-A1 AMD Ryzen 7 8700G	23378 Points
Geekom AX8 Pro AMD Ryzen 9 8945H	22340 Points -4%
Minisforum MS-01 Intel Core i9-13900H	21786 Points -7%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	18692 Points -20%
Geekom GT13 Pro Intel Core i9-13900H	18383 Points -21%

7-Zip 18.03
7z b 4
Minisforum MS-A1 AMD Ryzen 9 7950X	120716 MIPS +60%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	117224 MIPS +55%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	101652 MIPS +35%
Minisforum MS-A1 AMD Ryzen 7 8700G	75427 MIPS
Geekom AX8 Pro AMD Ryzen 9 8945H	66557 MIPS -12%
Minisforum MS-01 Intel Core i9-13900H	63093 MIPS -16%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	54851 MIPS -27%
Geekom GT13 Pro Intel Core i9-13900H	52479 MIPS -30%
7z b 4 -mmt1
Minisforum MS-A1 AMD Ryzen 9 7950X	7617 MIPS +14%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	7276 MIPS +9%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	7040 MIPS +6%
Geekom AX8 Pro AMD Ryzen 9 8945H	6691 MIPS 0%
Minisforum MS-A1 AMD Ryzen 7 8700G	6665 MIPS
Geekom GT13 Pro Intel Core i9-13900H	6321 MIPS -5%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	6198 MIPS -7%
Minisforum MS-01 Intel Core i9-13900H	5473 MIPS -18%

HWBOT x265 Benchmark v2.2 - 4k Preset
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	32.3 fps +45%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	31.6 fps +42%
Minisforum MS-A1 AMD Ryzen 9 7950X	30.3 fps +36%
Minisforum MS-A1 AMD Ryzen 7 8700G	22.3 fps
Geekom AX8 Pro AMD Ryzen 9 8945H	20.6 fps -8%
Minisforum MS-01 Intel Core i9-13900H	18.7 fps -16%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	16.4 fps -26%
Geekom GT13 Pro Intel Core i9-13900H	14.1 fps -37%

R Benchmark 2.5 - Overall mean
Geekom AX8 Pro AMD Ryzen 9 8945H	0.4576 sec * -7%
Geekom GT13 Pro Intel Core i9-13900H	0.4395 sec * -3%
Minisforum MS-01 Intel Core i9-13900H	0.439 sec * -2%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	0.4356 sec * -2%
Minisforum MS-A1 AMD Ryzen 7 8700G	0.4285 sec *
Minisforum MS-A1 AMD Ryzen 9 7950X	0.3984 sec * +7%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	0.3803 sec * +11%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	0.3788 sec * +12%

LibreOffice - 20 Documents To PDF
Geekom AX8 Pro AMD Ryzen 9 8945H	49.8 s * -9%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	46 s * -1%
Minisforum MS-A1 AMD Ryzen 7 8700G	45.5 s *
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	44.7 s * +2%
Minisforum MS-A1 AMD Ryzen 9 7950X	40.1 s * +12%
Geekom GT13 Pro Intel Core i9-13900H	39.4 s * +13%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	38.2 s * +16%
Minisforum MS-01 Intel Core i9-13900H	35.1 s * +23%

WebXPRT 3 - Overall
Minisforum MS-A1 AMD Ryzen 9 7950X	361 Points +7%
Minisforum MS-A1 AMD Ryzen 7 8700G	336 Points
Minisforum MS-01 Intel Core i9-13900H	317 Points -6%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	315 Points -6%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	311 Points -7%
Geekom AX8 Pro AMD Ryzen 9 8945H	309 Points -8%
Geekom GT13 Pro Intel Core i9-13900H	304 Points -10%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	278 Points -17%

Mozilla Kraken 1.1 - Total
Geekom GT13 Pro Intel Core i9-13900H	517 ms * -6%
Minisforum MS-01 Intel Core i9-13900H	506 ms * -4%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	506 ms * -4%
Geekom AX8 Pro AMD Ryzen 9 8945H	506 ms * -4%
Minisforum MS-A1 AMD Ryzen 7 8700G	486 ms *
Minisforum MS-A1 AMD Ryzen 9 7950X	457 ms * +6%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	440 ms * +9%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	436 ms * +10%

3DMark
1920x1080 Fire Strike Physics
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	42316 Points +45%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	40312 Points +39%
Minisforum MS-A1 AMD Ryzen 9 7950X	29796 Points +2%
Minisforum MS-A1 AMD Ryzen 7 8700G	29099 Points
Geekom AX8 Pro AMD Ryzen 9 8945H	27363 Points -6%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	24708 Points -15%
Minisforum MS-01 Intel Core i9-13900H	24273 Points -17%
Geekom GT13 Pro Intel Core i9-13900H	23626 Points -19%
2560x1440 Time Spy CPU
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	19492 Points +71%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	15951 Points +40%
Minisforum MS-A1 AMD Ryzen 7 8700G	11400 Points
Minisforum MS-01 Intel Core i9-13900H	10995 Points -4%
Geekom AX8 Pro AMD Ryzen 9 8945H	10844 Points -5%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	9657 Points -15%
Geekom GT13 Pro Intel Core i9-13900H	9347 Points -18%
Minisforum MS-A1 AMD Ryzen 9 7950X	8240 Points -28%

Super Pi mod 1.5 XS 1M - 1M
Geekom GT13 Pro Intel Core i9-13900H	7.445 s * -5%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	7.413 s * -5%
Minisforum MS-A1 AMD Ryzen 7 8700G	7.058 s *
Geekom AX8 Pro AMD Ryzen 9 8945H	6.962 s * +1%
Minisforum MS-A1 AMD Ryzen 9 7950X	6.621 s * +6%
Minisforum MS-01 Intel Core i9-13900H	6.156 s * +13%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	5.953 s * +16%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	5.813 s * +18%

Super Pi mod 1.5 XS 2M - 2M
Minisforum MS-A1 AMD Ryzen 7 8700G	17.605 s *
Geekom AX8 Pro AMD Ryzen 9 8945H	17.404 s * +1%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	16.493 s * +6%
Geekom GT13 Pro Intel Core i9-13900H	16.234 s * +8%
Minisforum MS-A1 AMD Ryzen 9 7950X	14.354 s * +18%
Minisforum MS-01 Intel Core i9-13900H	13.784 s * +22%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	12.894 s * +27%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	12.556 s * +29%

Super Pi Mod 1.5 XS 32M - 32M
Minisforum MS-A1 AMD Ryzen 7 8700G	655.147 s *
Geekom AX8 Pro AMD Ryzen 9 8945H	644.49 s * +2%
Geekom GT13 Pro Intel Core i9-13900H	417.103 s * +36%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	396.912 s * +39%
Minisforum MS-01 Intel Core i9-13900H	350.453 s * +47%
Minisforum MS-A1 AMD Ryzen 9 7950X	343.848 s * +48%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	316.148 s * +52%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	303.392 s * +54%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit

7759

Cinebench R10 Shading 64Bit

21136 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

90006 Points

Cinebench R10 Rendering Single CPUs 64Bit

14652 Points

Cinebench R10 Shading 32Bit

17411

Cinebench R10 Rendering Multiple CPUs 32Bit

50560

Cinebench R11.5 CPU Single 32Bit

2.97 Points

Cinebench R11.5 CPU Multi 32Bit

27.87 Points

Cinebench R11.5 CPU Single 64Bit

3.4 Points

Cinebench R11.5 CPU Multi 64Bit

31.2 Points

Cinebench R15 CPU Single 64Bit

286 Points

Cinebench R15 CPU Multi 64Bit

2693 Points

Cinebench R15 Ref. Match 64Bit

97.9 %

Cinebench R15 OpenGL 64Bit

220.15 fps

Cinebench R20 CPU (Single Core)

705 Points

Cinebench R20 CPU (Multi Core)

6736 Points

Cinebench R23 Multi Core

17128 Points

Cinebench R23 Single Core

1817 Points

Cinebench 2024 CPU Single Core

109 Points

Cinebench 2024 CPU Multi Core

986 Points

Help

... in comparison

Performance Rating
Minisforum MS-A1 AMD Ryzen 9 7950X, Radeon Graphics (Ryzen 7000)	97 pt
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K, RTX A2000	71.9 pt
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	66.9 pt
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	62.2 pt
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, T1000	62.2 pt
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	46.6 pt
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	40 pt
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	38.2 pt
Average of class Mini PC	37 pt

AIDA64 / FP32 Ray-Trace
Minisforum MS-A1 AMD Ryzen 9 7950X, Radeon Graphics (Ryzen 7000)	41475 KRay/s +51%
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	27384 KRay/s
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	24531 KRay/s -10%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K, RTX A2000	21959 KRay/s -20%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, T1000	19459 KRay/s -29%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	13616 KRay/s -50%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	13251 KRay/s -52%
Average of class Mini PC (561 - 51004, n=118, last 2 years)	12276 KRay/s -55%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	11735 KRay/s -57%

AIDA64 / FPU Julia
Minisforum MS-A1 AMD Ryzen 9 7950X, Radeon Graphics (Ryzen 7000)	172942 Points +49%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K, RTX A2000	129491 Points +12%
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	116071 Points
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	106518 Points -8%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, T1000	99889 Points -14%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	73742 Points -36%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	68912 Points -41%
Average of class Mini PC (3604 - 214250, n=118, last 2 years)	62123 Points -46%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	59094 Points -49%

AIDA64 / CPU SHA3
Minisforum MS-A1 AMD Ryzen 9 7950X, Radeon Graphics (Ryzen 7000)	8003 MB/s +57%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K, RTX A2000	6047 MB/s +19%
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	5092 MB/s
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, T1000	4742 MB/s -7%
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	4684 MB/s -8%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	3386 MB/s -34%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	3169 MB/s -38%
Average of class Mini PC (225 - 9399, n=118, last 2 years)	2738 MB/s -46%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	2718 MB/s -47%

AIDA64 / CPU Queen
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K, RTX A2000	162855 Points +36%
Minisforum MS-A1 AMD Ryzen 9 7950X, Radeon Graphics (Ryzen 7000)	155448 Points +29%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, T1000	150776 Points +25%
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	120159 Points
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	114586 Points -5%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	98480 Points -18%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	93952 Points -22%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	87544 Points -27%
Average of class Mini PC (8172 - 184747, n=118, last 2 years)	77819 Points -35%

AIDA64 / FPU SinJulia
Minisforum MS-A1 AMD Ryzen 9 7950X, Radeon Graphics (Ryzen 7000)	26138 Points +67%
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	15698 Points
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	14631 Points -7%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K, RTX A2000	14244 Points -9%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, T1000	13460 Points -14%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	9170 Points -42%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	8948 Points -43%
Average of class Mini PC (408 - 29064, n=118, last 2 years)	8454 Points -46%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	8026 Points -49%

AIDA64 / FPU Mandel
Minisforum MS-A1 AMD Ryzen 9 7950X, Radeon Graphics (Ryzen 7000)	91001 Points +46%
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	62263 Points
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K, RTX A2000	62024 Points 0%
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	56505 Points -9%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, T1000	48738 Points -22%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	35318 Points -43%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	34243 Points -45%
Average of class Mini PC (1958 - 113499, n=118, last 2 years)	32406 Points -48%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	29138 Points -53%

AIDA64 / CPU AES
Minisforum MS-A1 AMD Ryzen 9 7950X, Radeon Graphics (Ryzen 7000)	290422 MB/s +65%
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	176002 MB/s
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	163032 MB/s -7%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	123819 MB/s -30%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K, RTX A2000	118199 MB/s -33%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	102677 MB/s -42%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, T1000	96428 MB/s -45%
Average of class Mini PC (3691 - 325960, n=118, last 2 years)	85412 MB/s -51%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	63608 MB/s -64%

AIDA64 / CPU ZLib
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K, RTX A2000	1761 MB/s +61%
Minisforum MS-A1 AMD Ryzen 9 7950X, Radeon Graphics (Ryzen 7000)	1713 MB/s +56%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, T1000	1384 MB/s +26%
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	1097 MB/s
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	1030 MB/s -6%
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	976 MB/s -11%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	951 MB/s -13%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	789 MB/s -28%
Average of class Mini PC (74.8 - 2039, n=118, last 2 years)	709 MB/s -35%

AIDA64 / FP64 Ray-Trace
Minisforum MS-A1 AMD Ryzen 9 7950X, Radeon Graphics (Ryzen 7000)	21613 KRay/s +49%
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	14519 KRay/s
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	13609 KRay/s -6%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K, RTX A2000	11866 KRay/s -18%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, T1000	10616 KRay/s -27%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	7611 KRay/s -48%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	7504 KRay/s -48%
Average of class Mini PC (308 - 26952, n=118, last 2 years)	6564 KRay/s -55%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	6205 KRay/s -57%

AIDA64 / CPU PhotoWorxx
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, T1000	50500 MPixel/s +25%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K, RTX A2000	49256 MPixel/s +22%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	44996 MPixel/s +11%
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	40404 MPixel/s
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	40114 MPixel/s -1%
Minisforum MS-A1 AMD Ryzen 9 7950X, Radeon Graphics (Ryzen 7000)	39094 MPixel/s -3%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	28269 MPixel/s -30%
Average of class Mini PC (4408 - 50500, n=118, last 2 years)	27624 MPixel/s -32%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	20153 MPixel/s -50%

Cinebench R15 多回路

Minisforum MS-A1 在 Cinebench R15 连续循环测试中表现出色。内置散热装置的容量足以让 AMD Ryzen 7 8700G持续负载。尽管处理器的温度仅略低于 80 °C，但在所有 50 次运行中始终达到 65 瓦的功率限制。Minisforum MS-A1 与 AMD Ryzen 9 7950X 的组合也非常完美。不过，处理器的运行功耗仅为 67 瓦，远远低于实际运行功耗。

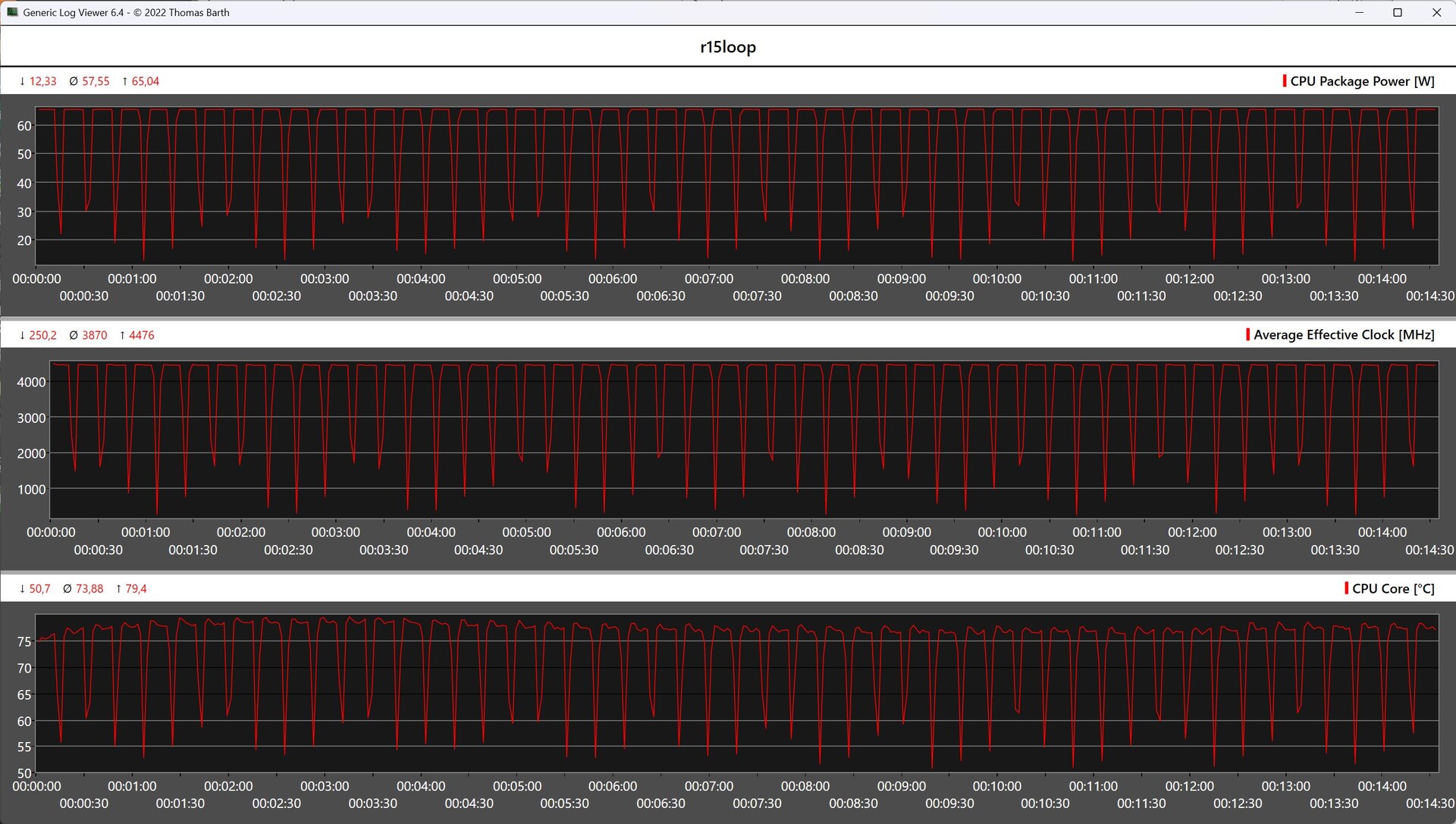

Cinebench R15 循环期间的 CPU 指标（AMD Ryzen 7 8700G）

Cinebench R15 循环期间的 CPU 指标（AMD Ryzen 9 7950X）

Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Ryzen 7 8700G: Ø2666 (2561.48-2691.07)

Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Ryzen 9 8945H: Ø2223 (2100.4-2438.43)

HP Z2 Mini G9-996Q4ET Intel Core i7-14700K, Intel Core i7-14700K: Ø3964 (3602.31-4676.72)

Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, Intel Core i9-14900: Ø3446 (3284.88-4939.49)

Geekom GT13 Pro Intel Core i9-13900H, Intel Core i9-13900H: Ø1776 (1688.48-2326.12)

HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel Core i5-14500: Ø2127 (1940.52-2429.84)

Minisforum MS-01 Intel Core i9-13900H, Intel Core i9-13900H: Ø2354 (2022.76-2582.31)

Minisforum MS-A1 AMD Ryzen 9 7950X, AMD Ryzen 9 7950X: Ø4105 (4047.35-4255.32)

系统性能

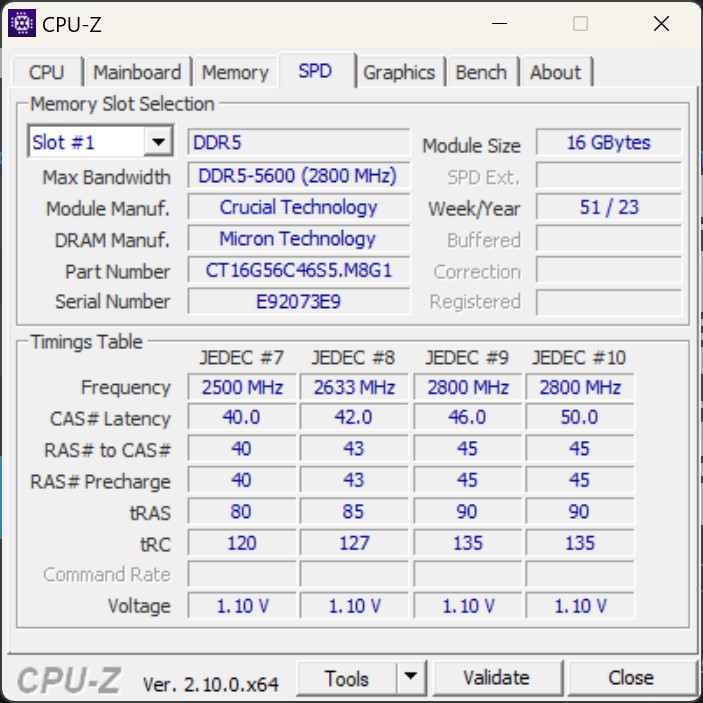

在有关内存性能的 AIDA64 基准测试中，Minisforum MS-A1 不得不承认输给了大多数竞争对手。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Lenovo ThinkStation P3 Tiny-30H0006AGE, Intel Core i9-14900 NVIDIA T1000, Samsung PM9A1a MZVL21T0HDLU	7854 Points +1%
Minisforum MS-A1, AMD Ryzen 7 8700G AMD Radeon 780M, Kingston OM8PGP41024Q-A0	7795 Points
HP Z2 Mini G9-996Q4ET, Intel Core i7-14700K Nvidia RTX A2000, Kioxia XG8 KXG80ZNV1T02	7767 Points 0%
Geekom AX8 Pro, AMD Ryzen 9 8945H AMD Radeon 780M, Acer N7000	7553 Points -3%
Minisforum MS-A1, AMD Ryzen 9 7950X AMD Radeon Graphics (Ryzen 7000),	6921 Points -11%
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	6802 Points -13%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	5944 Points -24%
HP Elite Mini 800 G9-5M9X6EA, Intel Core i5-14500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	5705 Points -27%

PCMark 10 / Essentials
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	12286 Points +7%
Minisforum MS-A1, AMD Ryzen 9 7950X AMD Radeon Graphics (Ryzen 7000),	11790 Points +3%
Lenovo ThinkStation P3 Tiny-30H0006AGE, Intel Core i9-14900 NVIDIA T1000, Samsung PM9A1a MZVL21T0HDLU	11635 Points +2%
Minisforum MS-A1, AMD Ryzen 7 8700G AMD Radeon 780M, Kingston OM8PGP41024Q-A0	11450 Points
Geekom AX8 Pro, AMD Ryzen 9 8945H AMD Radeon 780M, Acer N7000	11227 Points -2%
HP Z2 Mini G9-996Q4ET, Intel Core i7-14700K Nvidia RTX A2000, Kioxia XG8 KXG80ZNV1T02	10389 Points -9%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	10347 Points -10%
HP Elite Mini 800 G9-5M9X6EA, Intel Core i5-14500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	9994 Points -13%

PCMark 10 / Productivity
Minisforum MS-A1, AMD Ryzen 9 7950X AMD Radeon Graphics (Ryzen 7000),	11296 Points +2%
Lenovo ThinkStation P3 Tiny-30H0006AGE, Intel Core i9-14900 NVIDIA T1000, Samsung PM9A1a MZVL21T0HDLU	11249 Points +2%
Minisforum MS-A1, AMD Ryzen 7 8700G AMD Radeon 780M, Kingston OM8PGP41024Q-A0	11045 Points
Geekom AX8 Pro, AMD Ryzen 9 8945H AMD Radeon 780M, Acer N7000	10774 Points -2%
HP Z2 Mini G9-996Q4ET, Intel Core i7-14700K Nvidia RTX A2000, Kioxia XG8 KXG80ZNV1T02	9865 Points -11%
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	8526 Points -23%
HP Elite Mini 800 G9-5M9X6EA, Intel Core i5-14500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	7584 Points -31%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	7319 Points -34%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
HP Z2 Mini G9-996Q4ET, Intel Core i7-14700K Nvidia RTX A2000, Kioxia XG8 KXG80ZNV1T02	2194 Points +15%
Lenovo ThinkStation P3 Tiny-30H0006AGE, Intel Core i9-14900 NVIDIA T1000, Samsung PM9A1a MZVL21T0HDLU	2133 Points +12%
Minisforum MS-A1, AMD Ryzen 9 7950X AMD Radeon Graphics (Ryzen 7000),	2080 Points +9%
Minisforum MS-A1, AMD Ryzen 7 8700G AMD Radeon 780M, Kingston OM8PGP41024Q-A0	1902 Points
Geekom AX8 Pro, AMD Ryzen 9 8945H AMD Radeon 780M, Acer N7000	1865 Points -2%
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	1797 Points -6%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	1766 Points -7%
HP Elite Mini 800 G9-5M9X6EA, Intel Core i5-14500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	1625 Points -15%

CrossMark / Responsiveness
Lenovo ThinkStation P3 Tiny-30H0006AGE, Intel Core i9-14900 NVIDIA T1000, Samsung PM9A1a MZVL21T0HDLU	1827 Points +11%
Minisforum MS-A1, AMD Ryzen 9 7950X AMD Radeon Graphics (Ryzen 7000),	1800 Points +9%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	1790 Points +9%
HP Z2 Mini G9-996Q4ET, Intel Core i7-14700K Nvidia RTX A2000, Kioxia XG8 KXG80ZNV1T02	1753 Points +7%
Minisforum MS-A1, AMD Ryzen 7 8700G AMD Radeon 780M, Kingston OM8PGP41024Q-A0	1646 Points
Geekom AX8 Pro, AMD Ryzen 9 8945H AMD Radeon 780M, Acer N7000	1583 Points -4%
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	1512 Points -8%
HP Elite Mini 800 G9-5M9X6EA, Intel Core i5-14500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	1222 Points -26%

CrossMark / Creativity
HP Z2 Mini G9-996Q4ET, Intel Core i7-14700K Nvidia RTX A2000, Kioxia XG8 KXG80ZNV1T02	2590 Points +24%
Lenovo ThinkStation P3 Tiny-30H0006AGE, Intel Core i9-14900 NVIDIA T1000, Samsung PM9A1a MZVL21T0HDLU	2350 Points +12%
Minisforum MS-A1, AMD Ryzen 9 7950X AMD Radeon Graphics (Ryzen 7000),	2318 Points +11%
Minisforum MS-A1, AMD Ryzen 7 8700G AMD Radeon 780M, Kingston OM8PGP41024Q-A0	2095 Points
Geekom AX8 Pro, AMD Ryzen 9 8945H AMD Radeon 780M, Acer N7000	2057 Points -2%
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	2031 Points -3%
HP Elite Mini 800 G9-5M9X6EA, Intel Core i5-14500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	1837 Points -12%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	1789 Points -15%

CrossMark / Productivity
Lenovo ThinkStation P3 Tiny-30H0006AGE, Intel Core i9-14900 NVIDIA T1000, Samsung PM9A1a MZVL21T0HDLU	2038 Points +12%
HP Z2 Mini G9-996Q4ET, Intel Core i7-14700K Nvidia RTX A2000, Kioxia XG8 KXG80ZNV1T02	2003 Points +11%
Minisforum MS-A1, AMD Ryzen 9 7950X AMD Radeon Graphics (Ryzen 7000),	1958 Points +8%
Minisforum MS-A1, AMD Ryzen 7 8700G AMD Radeon 780M, Kingston OM8PGP41024Q-A0	1812 Points
Geekom AX8 Pro, AMD Ryzen 9 8945H AMD Radeon 780M, Acer N7000	1786 Points -1%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	1736 Points -4%
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	1684 Points -7%
HP Elite Mini 800 G9-5M9X6EA, Intel Core i5-14500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	1580 Points -13%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, T1000	76462 MB/s +18%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K, RTX A2000	76248 MB/s +17%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	69219 MB/s +7%
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	68924 MB/s +6%
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	64990 MB/s
Minisforum MS-A1 AMD Ryzen 9 7950X, Radeon Graphics (Ryzen 7000)	57908 MB/s -11%
Average of class Mini PC (6481 - 89287, n=118, last 2 years)	47240 MB/s -27%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	45721 MB/s -30%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	35000 MB/s -46%

AIDA64 / Memory Read
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K, RTX A2000	83287 MB/s +35%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, T1000	78528 MB/s +28%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	73633 MB/s +20%
Minisforum MS-A1 AMD Ryzen 9 7950X, Radeon Graphics (Ryzen 7000)	62120 MB/s +1%
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	61624 MB/s 0%
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	61504 MB/s
Average of class Mini PC (6914 - 98398, n=118, last 2 years)	47897 MB/s -22%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	45995 MB/s -25%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	36160 MB/s -41%

AIDA64 / Memory Write
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	87138 MB/s +10%
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	79329 MB/s
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K, RTX A2000	76800 MB/s -3%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, T1000	75604 MB/s -5%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	70707 MB/s -11%
Minisforum MS-A1 AMD Ryzen 9 7950X, Radeon Graphics (Ryzen 7000)	66857 MB/s -16%
Average of class Mini PC (6862 - 98583, n=118, last 2 years)	51663 MB/s -35%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	45733 MB/s -42%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	32473 MB/s -59%

AIDA64 / Memory Latency
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K, RTX A2000	94.1 ns * -6%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	93.5 ns * -6%
Average of class Mini PC (44.9 - 184.8, n=118, last 2 years)	91.8 ns * -4%
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	91.4 ns * -3%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, T1000	91 ns * -3%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	89.9 ns * -2%
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	88.5 ns *
Minisforum MS-A1 AMD Ryzen 9 7950X, Radeon Graphics (Ryzen 7000)	80.4 ns * +9%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	75.8 ns * +14%

* ... smaller is better

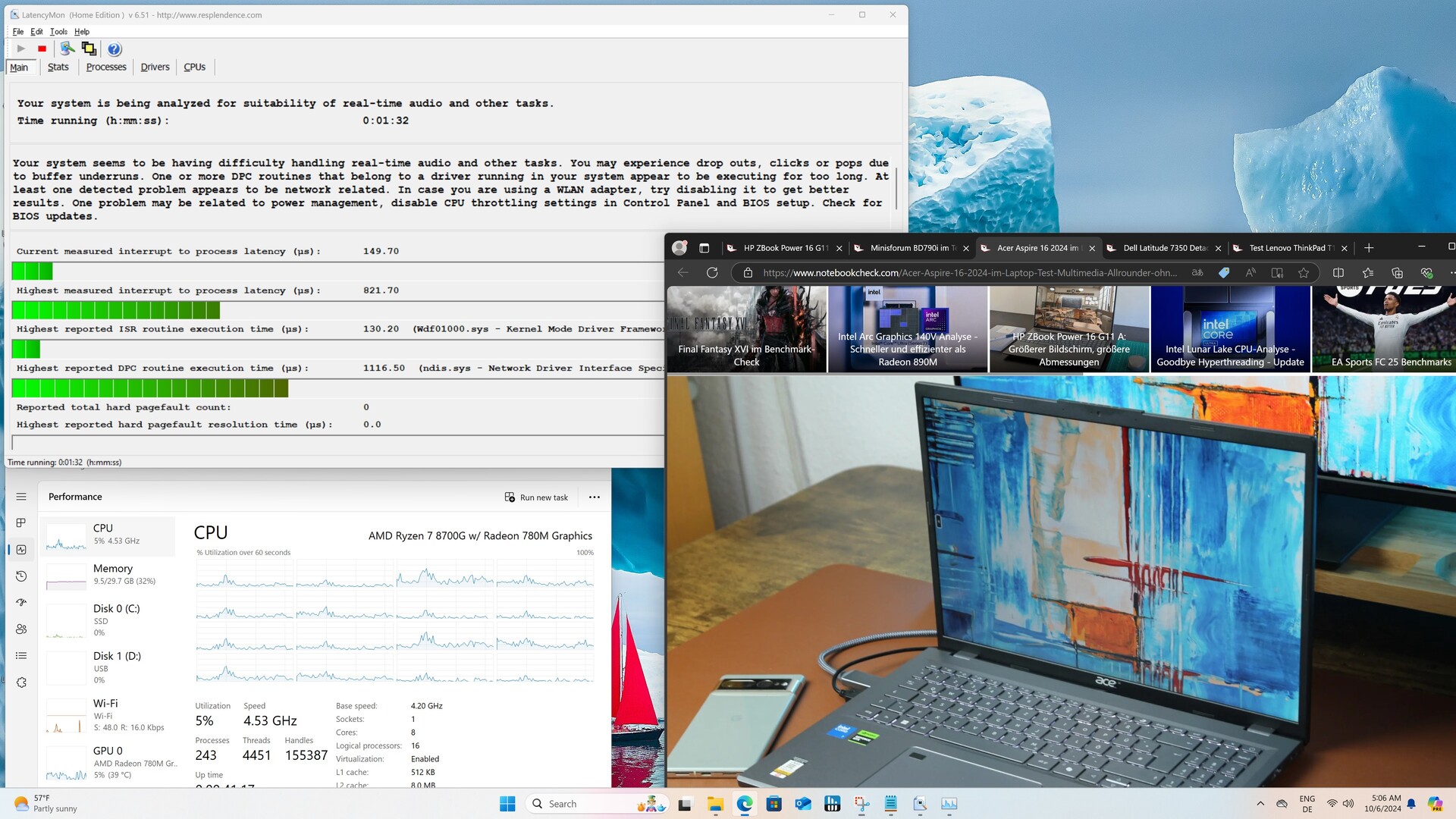

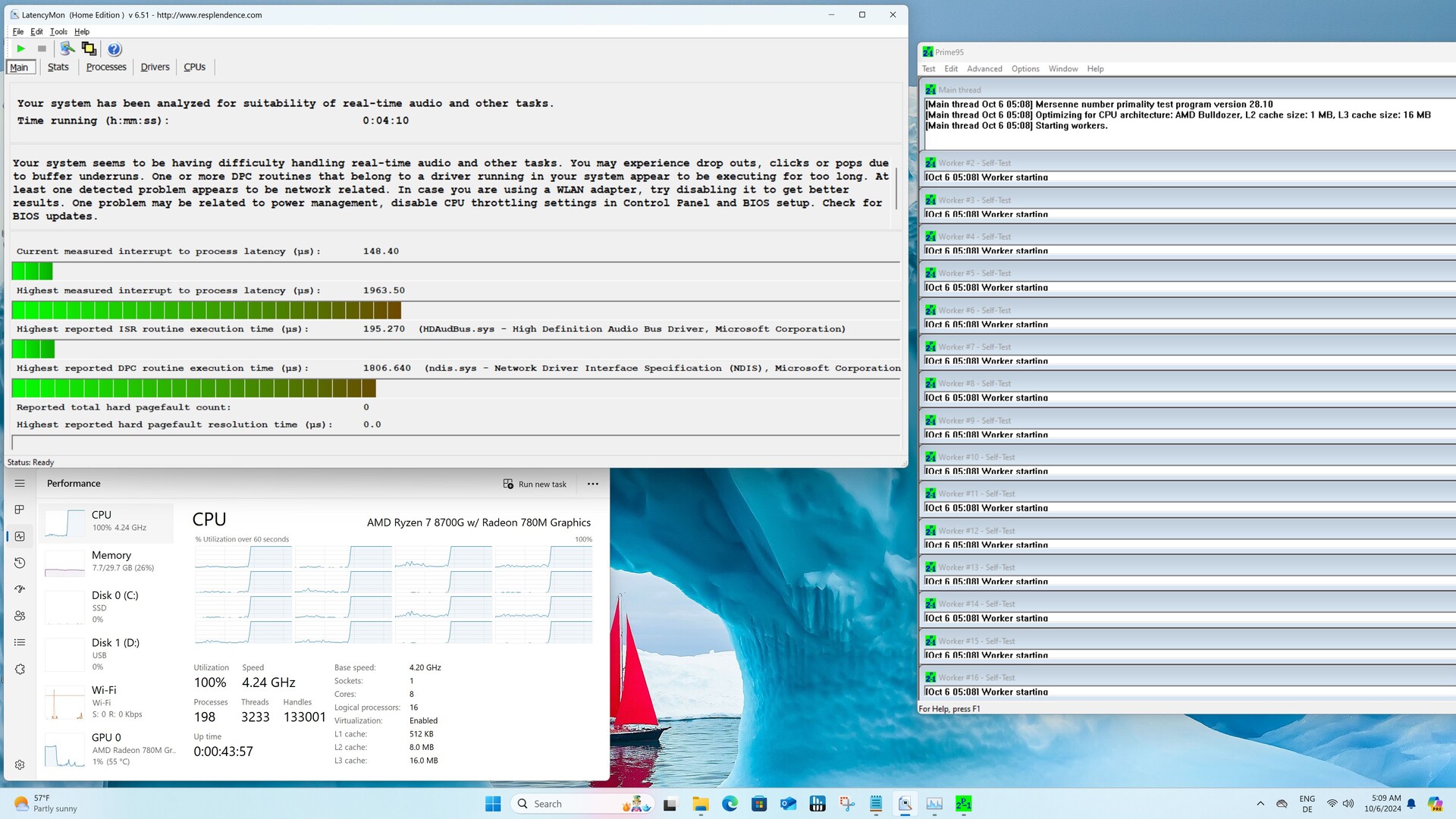

DPC 延迟

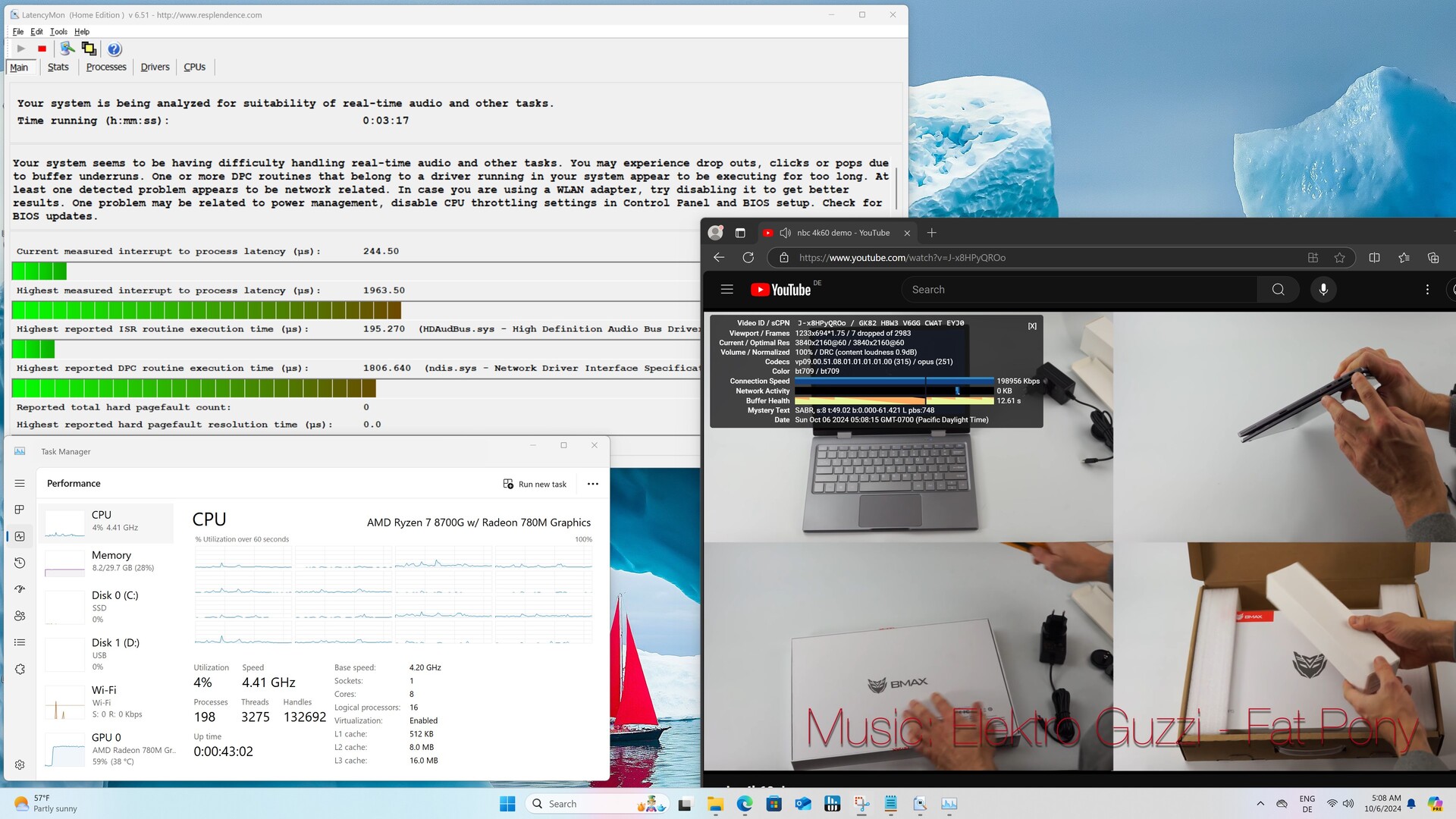

Minisforum MS-A1 距离出色的 DPC 值还很远。只需在 Edge 浏览器中打开几个标签页就会导致数值增加，而在播放 4K 测试视频时，数值又会略有上升。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
HP Z2 Mini G9-996Q4ET RTX A2000, i7-14700K, Kioxia XG8 KXG80ZNV1T02	3535.7 μs * -96%
Geekom AX8 Pro Radeon 780M, R9 8945H, Acer N7000	1856 μs * -3%
Minisforum MS-A1 Radeon 780M, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0	1806 μs *
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	1533.4 μs * +15%
Lenovo ThinkStation P3 Tiny-30H0006AGE T1000, i9-14900, Samsung PM9A1a MZVL21T0HDLU	1509 μs * +16%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	1008.9 μs * +44%
Minisforum MS-01 Iris Xe G7 96EUs, i9-13900H, Kingston OM8PGP41024Q-A0	931 μs * +48%

* ... smaller is better

大容量存储器

使用 Minisforum MS-A1 连接固态硬盘（来源： Minisforum）

Minisforum MS-A1 共可配备四个固态硬盘。所有 M.2 端口均为 PCIe 接口，可安装长度为 80 毫米的 NVMe 固态硬盘。使用随附的适配器，还可以安装使用 SFF U.2 接口的 2.5 英寸固态硬盘。如果没有安装 2.5 英寸固态硬盘，则必须遵守警告提示，以免损坏 M.2 固态硬盘。

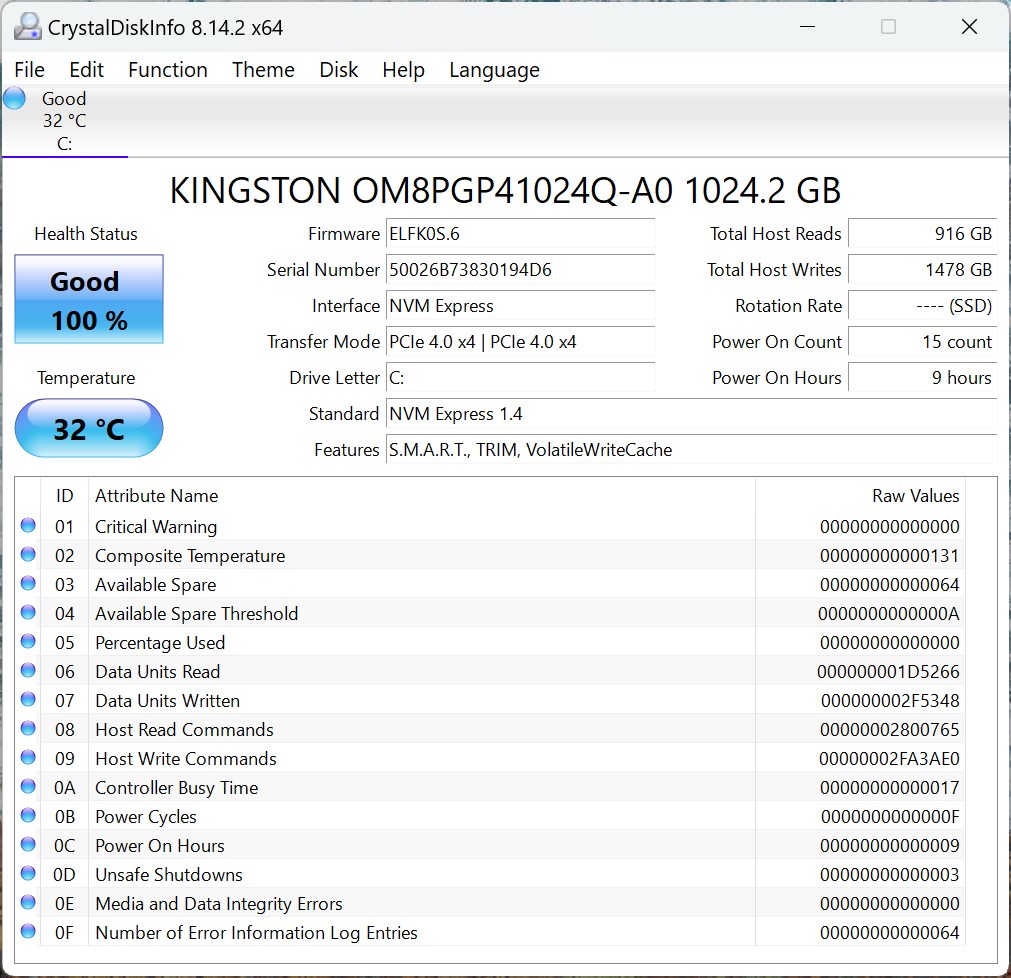

我们的测试样品中包含一块来自金士顿的 1 TB SSD，与竞争对手相比，它的表现非常出色。只有联想 ThinkStation Tiny P3 中的三星 PM9A1a 在整体性能上略胜一筹。M.2 接口可提供 PCIe 4.0 x4 的最佳速度，安装的固态硬盘也充分利用了这一点。因此，即使在负载情况下，传输速率也不会下降。为此，Minisforum 还配备了散热装置。

有关进一步的比较和基准，请参阅我们的比较表.

有关进一步的比较和基准，请参阅我们的比较表 .

由于 Minisforum MS-A1 可配备不同的处理器，因此 SSD 接口的速度也各不相同。

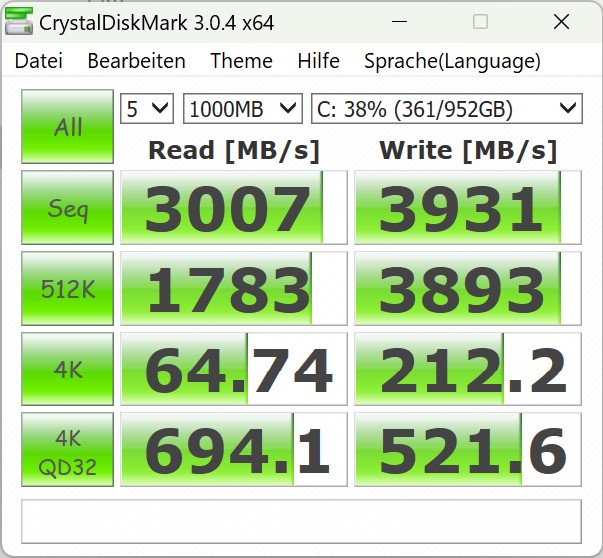

CrystalDiskMark 3.0

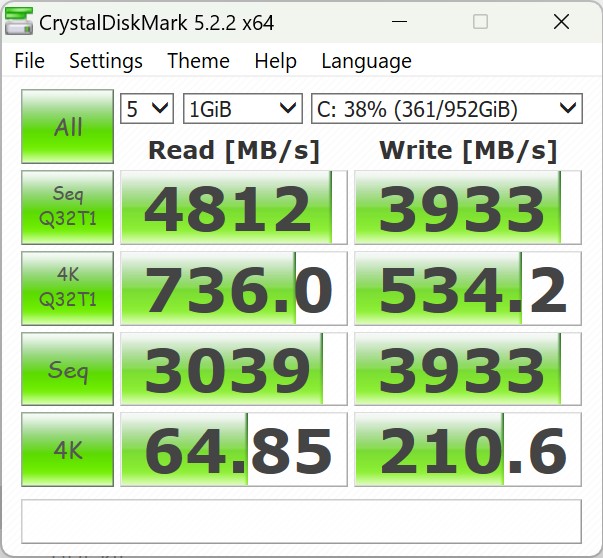

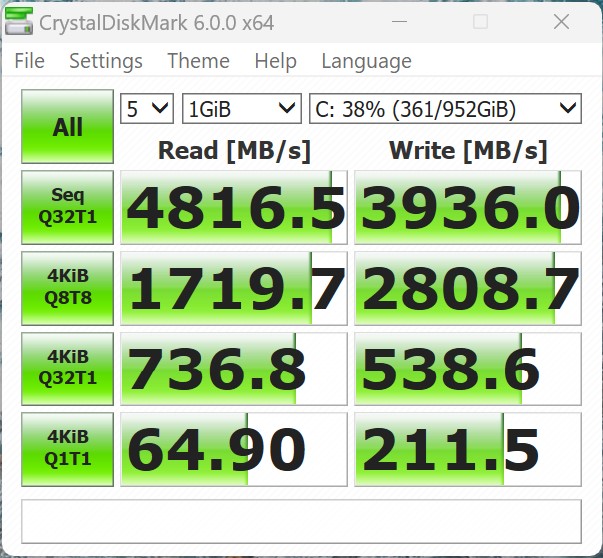

CrystalDiskMark 5.2 / 6

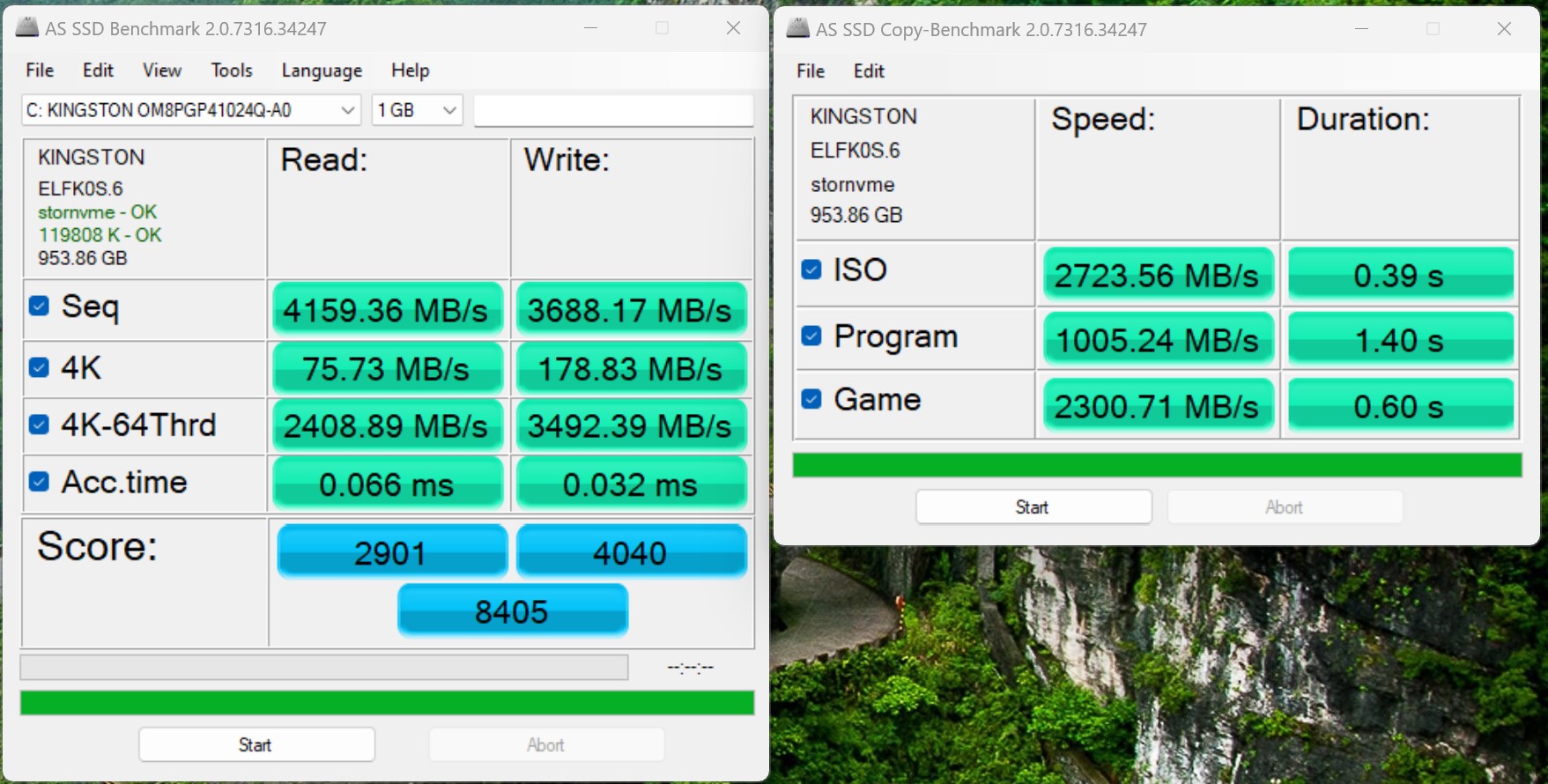

AS SSD

DiskSpd

Kingston OM8PGP41024Q-A0

Sequential Read: 3007 MB/s

Sequential Write: 3931 MB/s

512K Read: 1783 MB/s

512K Write: 3893 MB/s

4K Read: 64.74 MB/s

4K Write: 212.2 MB/s

4K QD32 Read: 694.1 MB/s

4K QD32 Write: 521.6 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Lenovo ThinkStation P3 Tiny-30H0006AGE Samsung PM9A1a MZVL21T0HDLU	86.3 pt
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	78.5 pt
HP Z2 Mini G9-996Q4ET Kioxia XG8 KXG80ZNV1T02	77.5 pt
Geekom GT13 Pro Acer N7000	76.8 pt
Minisforum MS-01 Kingston OM8PGP41024Q-A0	66.7 pt
Geekom AX8 Pro Acer N7000	64.4 pt
Average of class Mini PC	45.8 pt
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	43.4 pt

DiskSpd
seq read
Geekom GT13 Pro Acer N7000	4357 (4314.26^min - 4356.72^max) MB/s +68%
Geekom AX8 Pro Acer N7000	3921 (3897.31^min - 3920.75^max) MB/s +51%
HP Z2 Mini G9-996Q4ET Kioxia XG8 KXG80ZNV1T02	3772 (3673.79^min - 3771.94^max) MB/s +45%
Lenovo ThinkStation P3 Tiny-30H0006AGE Samsung PM9A1a MZVL21T0HDLU	3532 (3426.47^min - 3532.3^max) MB/s +36%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	2960 (2934.76^min - 2959.92^max) MB/s +14%
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	2596 (2580.13^min - 2596.06^max) MB/s
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	2549 (2502.53^min - 2548.88^max) MB/s -2%
Average of class Mini PC (233 - 4357, n=118, last 2 years)	2284 MB/s -12%
seq write
Geekom GT13 Pro Acer N7000	4544 (4380.79^min - 4543.83^max) MB/s +16%
HP Z2 Mini G9-996Q4ET Kioxia XG8 KXG80ZNV1T02	3922 (3632.19^min - 3922.09^max) MB/s 0%
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	3913 (3872.62^min - 3912.8^max) MB/s
Geekom AX8 Pro Acer N7000	3791 (3695.18^min - 3790.57^max) MB/s -3%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	3726 (3634.99^min - 3725.8^max) MB/s -5%
Lenovo ThinkStation P3 Tiny-30H0006AGE Samsung PM9A1a MZVL21T0HDLU	3651 (3638.56^min - 3651.14^max) MB/s -7%
Average of class Mini PC (222 - 5595, n=118, last 2 years)	2438 MB/s -38%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	1887 (1818.3^min - 1887.44^max) MB/s -52%
seq q8 t1 read
Lenovo ThinkStation P3 Tiny-30H0006AGE Samsung PM9A1a MZVL21T0HDLU	7026 (6530.74^min - 7026.09^max) MB/s +46%
Geekom AX8 Pro Acer N7000	7012 (5624.01^min - 7012.25^max) MB/s +46%
Geekom GT13 Pro Acer N7000	7007 (6166.72^min - 7006.62^max) MB/s +45%
HP Z2 Mini G9-996Q4ET Kioxia XG8 KXG80ZNV1T02	6900 (5743.05^min - 6900.26^max) MB/s +43%
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	4819 (3762.53^min - 4819.05^max) MB/s
Minisforum MS-01 Kingston OM8PGP41024Q-A0	4759 (4492.55^min - 4759.49^max) MB/s -1%
Average of class Mini PC (236 - 8430, n=118, last 2 years)	3694 MB/s -23%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	3594 (3087.52^min - 3594.31^max) MB/s -25%
seq q8 t1 write
Geekom AX8 Pro Acer N7000	5685 (5389.6^min - 5684.54^max) MB/s +45%
Geekom GT13 Pro Acer N7000	5261 (5018.9^min - 5261.3^max) MB/s +34%
HP Z2 Mini G9-996Q4ET Kioxia XG8 KXG80ZNV1T02	5144 (4803.32^min - 5143.7^max) MB/s +31%
Lenovo ThinkStation P3 Tiny-30H0006AGE Samsung PM9A1a MZVL21T0HDLU	4960 (4938.77^min - 4960.12^max) MB/s +26%
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	3927 (3923.26^min - 3927.45^max) MB/s
Minisforum MS-01 Kingston OM8PGP41024Q-A0	3757 (3691.41^min - 3756.63^max) MB/s -4%
Average of class Mini PC (228 - 6669, n=118, last 2 years)	2736 MB/s -30%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	2342 (2178.26^min - 2342.1^max) MB/s -40%
4k q1 t1 read
Geekom GT13 Pro Acer N7000	85.3 (82.57^min - 85.32^max) MB/s +35%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	81.1 (80.57^min - 81.14^max) MB/s +28%
Lenovo ThinkStation P3 Tiny-30H0006AGE Samsung PM9A1a MZVL21T0HDLU	68.4 (60.43^min - 68.38^max) MB/s +8%
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	63.3 (62.78^min - 63.25^max) MB/s
Geekom AX8 Pro Acer N7000	62.2 (61.55^min - 62.23^max) MB/s -2%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	60 (47.33^min - 60.02^max) MB/s -5%
Average of class Mini PC (5.67 - 86.6, n=118, last 2 years)	55.1 MB/s -13%
HP Z2 Mini G9-996Q4ET Kioxia XG8 KXG80ZNV1T02	52 (47.96^min - 51.98^max) MB/s -18%
4k q1 t1 write
Minisforum MS-01 Kingston OM8PGP41024Q-A0	435 (271.59^min - 435.46^max) MB/s +111%
Geekom GT13 Pro Acer N7000	327 (306.06^min - 326.78^max) MB/s +59%
Lenovo ThinkStation P3 Tiny-30H0006AGE Samsung PM9A1a MZVL21T0HDLU	244 (241.35^min - 243.53^max) MB/s +18%
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	206 (204.82^min - 206.03^max) MB/s
Average of class Mini PC (30.4 - 435, n=118, last 2 years)	195.6 MB/s -5%
Geekom AX8 Pro Acer N7000	187 (185.73^min - 187.04^max) MB/s -9%
HP Z2 Mini G9-996Q4ET Kioxia XG8 KXG80ZNV1T02	167.5 (164.74^min - 167.45^max) MB/s -19%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	116.4 (112.09^min - 116.37^max) MB/s -43%
4k q32 t16 read
Lenovo ThinkStation P3 Tiny-30H0006AGE Samsung PM9A1a MZVL21T0HDLU	3896 (3828.22^min - 3895.81^max) MB/s +31%
HP Z2 Mini G9-996Q4ET Kioxia XG8 KXG80ZNV1T02	3787 (3763.45^min - 3786.85^max) MB/s +27%
Geekom GT13 Pro Acer N7000	3593 (3380.17^min - 3593.41^max) MB/s +21%
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	2980 (2975.03^min - 2979.83^max) MB/s
Minisforum MS-01 Kingston OM8PGP41024Q-A0	2953 (2944.17^min - 2952.67^max) MB/s -1%
Geekom AX8 Pro Acer N7000	1644 (1568.76^min - 1643.51^max) MB/s -45%
Average of class Mini PC (26.1 - 4158, n=118, last 2 years)	1349 MB/s -55%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	824 (808.12^min - 823.95^max) MB/s -72%
4k q32 t16 write
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	3784 (3750.18^min - 3783.56^max) MB/s
Lenovo ThinkStation P3 Tiny-30H0006AGE Samsung PM9A1a MZVL21T0HDLU	3686 (3572.74^min - 3685.55^max) MB/s -3%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	2734 (939.34^min - 2734.2^max) MB/s -28%
HP Z2 Mini G9-996Q4ET Kioxia XG8 KXG80ZNV1T02	2604 (2368.28^min - 2603.72^max) MB/s -31%
Average of class Mini PC (30.2 - 4288, n=118, last 2 years)	1282 MB/s -66%
Geekom GT13 Pro Acer N7000	762 (700.88^min - 761.76^max) MB/s -80%
Geekom AX8 Pro Acer N7000	647 (598.22^min - 647.4^max) MB/s -83%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	423 (412.36^min - 423.28^max) MB/s -89%

AS SSD
Score Total
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	8405 Points
Lenovo ThinkStation P3 Tiny-30H0006AGE Samsung PM9A1a MZVL21T0HDLU	8056 Points -4%
HP Z2 Mini G9-996Q4ET Kioxia XG8 KXG80ZNV1T02	7827 Points -7%
Geekom GT13 Pro Acer N7000	6798 Points -19%
Geekom AX8 Pro Acer N7000	5512 Points -34%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	4648 Points -45%
Average of class Mini PC (181.5 - 10021, n=116, last 2 years)	4101 Points -51%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	3612 Points -57%
Score Read
HP Z2 Mini G9-996Q4ET Kioxia XG8 KXG80ZNV1T02	3318 Points +14%
Lenovo ThinkStation P3 Tiny-30H0006AGE Samsung PM9A1a MZVL21T0HDLU	3160 Points +9%
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	2901 Points
Geekom GT13 Pro Acer N7000	2866 Points -1%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1831 Points -37%
Geekom AX8 Pro Acer N7000	1793 Points -38%
Average of class Mini PC (61 - 3741, n=116, last 2 years)	1527 Points -47%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	1151 Points -60%
Score Write
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	4040 Points
Lenovo ThinkStation P3 Tiny-30H0006AGE Samsung PM9A1a MZVL21T0HDLU	3356 Points -17%
HP Z2 Mini G9-996Q4ET Kioxia XG8 KXG80ZNV1T02	2962 Points -27%
Geekom AX8 Pro Acer N7000	2896 Points -28%
Geekom GT13 Pro Acer N7000	2516 Points -38%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	1927 Points -52%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1863 Points -54%
Average of class Mini PC (88 - 4371, n=116, last 2 years)	1841 Points -54%
Seq Read
HP Z2 Mini G9-996Q4ET Kioxia XG8 KXG80ZNV1T02	5749.15 MB/s +38%
Lenovo ThinkStation P3 Tiny-30H0006AGE Samsung PM9A1a MZVL21T0HDLU	5536 MB/s +33%
Geekom AX8 Pro Acer N7000	4902 MB/s +18%
Geekom GT13 Pro Acer N7000	4546 MB/s +9%
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	4159 MB/s
Average of class Mini PC (291 - 6620, n=116, last 2 years)	3157 MB/s -24%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	2967 MB/s -29%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1623 MB/s -61%
Seq Write
Lenovo ThinkStation P3 Tiny-30H0006AGE Samsung PM9A1a MZVL21T0HDLU	3985 MB/s +8%
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	3688 MB/s
Geekom GT13 Pro Acer N7000	3374 MB/s -9%
Geekom AX8 Pro Acer N7000	2835 MB/s -23%
HP Z2 Mini G9-996Q4ET Kioxia XG8 KXG80ZNV1T02	2832.11 MB/s -23%
Average of class Mini PC (240 - 5783, n=116, last 2 years)	2202 MB/s -40%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	1582 MB/s -57%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1543 MB/s -58%
4K Read
Minisforum MS-01 Kingston OM8PGP41024Q-A0	86.8 MB/s +15%
Geekom GT13 Pro Acer N7000	83.4 MB/s +10%
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	75.7 MB/s
Lenovo ThinkStation P3 Tiny-30H0006AGE Samsung PM9A1a MZVL21T0HDLU	75.1 MB/s -1%
HP Z2 Mini G9-996Q4ET Kioxia XG8 KXG80ZNV1T02	65.6 MB/s -13%
Geekom AX8 Pro Acer N7000	59.1 MB/s -22%
Average of class Mini PC (6.08 - 104.3, n=116, last 2 years)	58.8 MB/s -22%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	56.3 MB/s -26%
4K Write
Geekom GT13 Pro Acer N7000	296 MB/s +66%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	266 MB/s +49%
HP Z2 Mini G9-996Q4ET Kioxia XG8 KXG80ZNV1T02	224.45 MB/s +26%
Lenovo ThinkStation P3 Tiny-30H0006AGE Samsung PM9A1a MZVL21T0HDLU	203 MB/s +14%
Geekom AX8 Pro Acer N7000	181.4 MB/s +1%
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	178.8 MB/s
Average of class Mini PC (30.9 - 366, n=116, last 2 years)	175.9 MB/s -2%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	122.8 MB/s -31%
4K-64 Read
HP Z2 Mini G9-996Q4ET Kioxia XG8 KXG80ZNV1T02	2677.01 MB/s +11%
Lenovo ThinkStation P3 Tiny-30H0006AGE Samsung PM9A1a MZVL21T0HDLU	2532 MB/s +5%
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	2409 MB/s
Geekom GT13 Pro Acer N7000	2328 MB/s -3%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1581 MB/s -34%
Geekom AX8 Pro Acer N7000	1244 MB/s -48%
Average of class Mini PC (23.4 - 3220, n=116, last 2 years)	1153 MB/s -52%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	798 MB/s -67%
4K-64 Write
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	3492 MB/s
Lenovo ThinkStation P3 Tiny-30H0006AGE Samsung PM9A1a MZVL21T0HDLU	2754 MB/s -21%
HP Z2 Mini G9-996Q4ET Kioxia XG8 KXG80ZNV1T02	2456.03 MB/s -30%
Geekom AX8 Pro Acer N7000	2431 MB/s -30%
Geekom GT13 Pro Acer N7000	1883 MB/s -46%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	1646 MB/s -53%
Average of class Mini PC (32.8 - 3731, n=116, last 2 years)	1444 MB/s -59%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1443 MB/s -59%
Access Time Read
Geekom GT13 Pro Acer N7000	0.127 ms * -92%
HP Z2 Mini G9-996Q4ET Kioxia XG8 KXG80ZNV1T02	0.126 ms * -91%
Average of class Mini PC (0.022 - 0.489, n=116, last 2 years)	0.09752 ms * -48%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	0.088 ms * -33%
Geekom AX8 Pro Acer N7000	0.079 ms * -20%
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	0.066 ms *
Minisforum MS-01 Kingston OM8PGP41024Q-A0	0.055 ms * +17%
Lenovo ThinkStation P3 Tiny-30H0006AGE Samsung PM9A1a MZVL21T0HDLU	0.031 ms * +53%
Access Time Write
Average of class Mini PC (0.014 - 0.765, n=116, last 2 years)	0.116 ms * -263%
Geekom AX8 Pro Acer N7000	0.064 ms * -100%
Geekom GT13 Pro Acer N7000	0.059 ms * -84%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	0.034 ms * -6%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	0.032 ms * -0%
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	0.032 ms *
Lenovo ThinkStation P3 Tiny-30H0006AGE Samsung PM9A1a MZVL21T0HDLU	0.02 ms * +37%
HP Z2 Mini G9-996Q4ET Kioxia XG8 KXG80ZNV1T02	0.018 ms * +44%

* ... smaller is better

Continuous read: DiskSpd Read Loop, Queue Depth 8

Minisforum MS-A1 Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø4811 (4412.62-4821.56)

Geekom AX8 Pro Acer N7000; diskspd 2.0.17 f: Ø6996 (5972.7-7027.76)

HP Z2 Mini G9-996Q4ET Kioxia XG8 KXG80ZNV1T02; diskspd 2.0.17 f: Ø4762 (3354.81-6935.88)

Lenovo ThinkStation P3 Tiny-30H0006AGE Samsung PM9A1a MZVL21T0HDLU; diskspd 2.0.17 f: Ø7023 (6647.97-7055.87)

Geekom GT13 Pro Acer N7000; diskspd 2.0.17 f: Ø5377 (3710.83-7006.62)

HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU; diskspd 2.0.17 f: Ø3514 (2825.49-3591.43)

Minisforum MS-01 Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø3798 (1858.92-4778.57)

图形卡

使用 AMD Radeon 780M和提供了强大的 iGPU，是目前台式机处理器中速度最快的集成图形处理器。提供了强大的 iGPU，是目前台式机处理器中速度最快的集成图形处理器。许多移动处理器都已经安装了这一型号。在性能对比中，我们可以看到其性能可以赶上移动处理器。 Geekom AX8 Pro.与 Nvidia T1000相比联想 ThinkStation P3 Tiny我们测试样本中的 iGPU 也能跟上。只有在渲染测试中才能看出差异，专业图形适配器的运行效果要好得多。

在这里，我们也看看基于 AMD Ryzen 9 7950X的性能。由于 16 核的 iGPU 明显较弱，3D 性能也明显较弱。因此，Minisforum MS-01 跌回了最后一名，只能与惠普精英迷你 800 G9 惠普精英迷你 800 G9.

更多比较和基准测试请参见我们的 GPU 对比表.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
HP Z2 Mini G9-996Q4ET Nvidia RTX A2000, Intel Core i7-14700K	100 pt
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	57.1 pt
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	57 pt
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	56.7 pt
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	38.2 pt
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	35.3 pt
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	16 pt
Minisforum MS-A1 AMD Radeon Graphics (Ryzen 7000), AMD Ryzen 9 7950X	15.2 pt

3DMark 11 - 1280x720 Performance GPU
HP Z2 Mini G9-996Q4ET Nvidia RTX A2000, Intel Core i7-14700K	19978 Points +51%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	13281 Points 0%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	13248 Points
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	11793 Points -11%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	7676 Points -42%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	7424 Points -44%
Minisforum MS-A1 AMD Radeon Graphics (Ryzen 7000), AMD Ryzen 9 7950X	3458 Points -74%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	3428 Points -74%

3DMark
2560x1440 Time Spy Graphics
HP Z2 Mini G9-996Q4ET Nvidia RTX A2000, Intel Core i7-14700K	5675 Points +96%
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	3088 Points +7%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	2890 Points
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	2852 Points -1%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1854 Points -36%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1690 Points -42%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	737 Points -74%
Minisforum MS-A1 AMD Radeon Graphics (Ryzen 7000), AMD Ryzen 9 7950X	705 Points -76%
1920x1080 Fire Strike Graphics
HP Z2 Mini G9-996Q4ET Nvidia RTX A2000, Intel Core i7-14700K	14934 Points +85%
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	8450 Points +5%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	8117 Points +1%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	8061 Points
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	6482 Points -20%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	5812 Points -28%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	2655 Points -67%
Minisforum MS-A1 AMD Radeon Graphics (Ryzen 7000), AMD Ryzen 9 7950X	2388 Points -70%

Unigine Heaven 4.0
Extreme Preset OpenGL
HP Z2 Mini G9-996Q4ET Nvidia RTX A2000, Intel Core i7-14700K	82.8 fps +160%
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	49.2 fps +55%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	31.8 fps
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	31.2 fps -2%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	30 fps -6%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	25.1 fps -21%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	14.2 fps -55%
Minisforum MS-A1 AMD Radeon Graphics (Ryzen 7000), AMD Ryzen 9 7950X	13.5 fps -58%
Extreme Preset DX11
HP Z2 Mini G9-996Q4ET Nvidia RTX A2000, Intel Core i7-14700K	89.4 fps +167%
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	42.1 fps +26%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	36.4 fps +9%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	33.5 fps
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	31.9 fps -5%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	26 fps -22%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	14.6 fps -56%
Minisforum MS-A1 AMD Radeon Graphics (Ryzen 7000), AMD Ryzen 9 7950X	12.3 fps -63%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
HP Z2 Mini G9-996Q4ET Nvidia RTX A2000, Intel Core i7-14700K	72.1 fps +222%
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	42.2 fps +88%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	23.1 fps +3%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	22.4 fps
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	20 fps -11%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	15.1 fps -33%
Minisforum MS-A1 AMD Radeon Graphics (Ryzen 7000), AMD Ryzen 9 7950X	9.9 fps -56%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	9 fps -60%
1920x1080 Extreme HD Preset OpenGL AA:x8
HP Z2 Mini G9-996Q4ET Nvidia RTX A2000, Intel Core i7-14700K	61.6 fps +214%
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	38.1 fps +94%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	21.7 fps +11%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	20.6 fps +5%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	19.6 fps
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	15.7 fps -20%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	10.2 fps -48%
Minisforum MS-A1 AMD Radeon Graphics (Ryzen 7000), AMD Ryzen 9 7950X	9.6 fps -51%

Unigine Superposition
1280x720 720p Low
HP Z2 Mini G9-996Q4ET Nvidia RTX A2000, Intel Core i7-14700K	27275 Points +138%
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	17963 Points +57%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	12232 Points +7%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	11463 Points
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	8223 Points -28%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	6619 Points -42%
Minisforum MS-A1 AMD Radeon Graphics (Ryzen 7000), AMD Ryzen 9 7950X	4623 Points -60%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	4303 Points -62%
1920x1080 1080p High
HP Z2 Mini G9-996Q4ET Nvidia RTX A2000, Intel Core i7-14700K	7362 Points +112%
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	4413 Points +27%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	3559 Points +3%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	3470 Points
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	2744 Points -21%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	2306 Points -34%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	1117 Points -68%
Minisforum MS-A1 AMD Radeon Graphics (Ryzen 7000), AMD Ryzen 9 7950X	981 Points -72%
1920x1080 1080p Extreme
HP Z2 Mini G9-996Q4ET Nvidia RTX A2000, Intel Core i7-14700K	3271 Points +96%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	1671 Points
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	1664 Points 0%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	1649 Points -1%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1251 Points -25%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1124 Points -33%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	497 Points -70%
Minisforum MS-A1 AMD Radeon Graphics (Ryzen 7000), AMD Ryzen 9 7950X	288 Points -83%

ComputeMark v2.1
1024x600 Normal, Score
HP Z2 Mini G9-996Q4ET Nvidia RTX A2000, Intel Core i7-14700K	15520 Points +57%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	9863 Points
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	8595 Points -13%
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	6369 Points -35%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	3877 Points -61%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	3650 Points -63%
Minisforum MS-A1 AMD Radeon Graphics (Ryzen 7000), AMD Ryzen 9 7950X	1616 Points -84%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	1546 Points -84%
1024x600 Normal, Fluid 3DTex
HP Z2 Mini G9-996Q4ET Nvidia RTX A2000, Intel Core i7-14700K	1606 Points +261%
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	842 Points +89%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	488 Points +10%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	445 Points
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	420 Points -6%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	286 Points -36%
Minisforum MS-A1 AMD Radeon Graphics (Ryzen 7000), AMD Ryzen 9 7950X	228 Points -49%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	188 Points -58%
1024x600 Normal, Fluid 2DTexArr
HP Z2 Mini G9-996Q4ET Nvidia RTX A2000, Intel Core i7-14700K	1420 Points +205%
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	806 Points +73%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	465 Points
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	427 Points -8%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	398 Points -14%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	294 Points -37%
Minisforum MS-A1 AMD Radeon Graphics (Ryzen 7000), AMD Ryzen 9 7950X	188 Points -60%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	170 Points -63%
1024x600 Normal, Mandel Vector
HP Z2 Mini G9-996Q4ET Nvidia RTX A2000, Intel Core i7-14700K	3267 Points +25%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	2614 Points
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	2362 Points -10%
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	1410 Points -46%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	918 Points -65%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	873 Points -67%
Minisforum MS-A1 AMD Radeon Graphics (Ryzen 7000), AMD Ryzen 9 7950X	318 Points -88%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	272 Points -90%
1024x600 Normal, Mandel Scalar
HP Z2 Mini G9-996Q4ET Nvidia RTX A2000, Intel Core i7-14700K	3295 Points +21%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	2727 Points
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	2449 Points -10%
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	1183 Points -57%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	888 Points -67%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	883 Points -68%
Minisforum MS-A1 AMD Radeon Graphics (Ryzen 7000), AMD Ryzen 9 7950X	483 Points -82%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	412 Points -85%
1024x600 Normal, QJuliaRayTrace
HP Z2 Mini G9-996Q4ET Nvidia RTX A2000, Intel Core i7-14700K	5932 Points +64%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	3612 Points
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	2868 Points -21%
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	2127 Points -41%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1310 Points -64%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1258 Points -65%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	505 Points -86%
Minisforum MS-A1 AMD Radeon Graphics (Ryzen 7000), AMD Ryzen 9 7950X	398 Points -89%

LuxMark v2.0 64Bit
Room GPUs-only
HP Z2 Mini G9-996Q4ET Nvidia RTX A2000, Intel Core i7-14700K	3120 Samples/s +208%
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	1987 Samples/s +96%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1196 Samples/s +18%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	1068 Samples/s +5%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	1013 Samples/s
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	651 Samples/s -36%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	487 Samples/s -52%
Minisforum MS-A1 AMD Radeon Graphics (Ryzen 7000), AMD Ryzen 9 7950X	257 Samples/s -75%
Sala GPUs-only
HP Z2 Mini G9-996Q4ET Nvidia RTX A2000, Intel Core i7-14700K	6758 Samples/s +207%
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	4129 Samples/s +88%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	3188 Samples/s +45%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	2218 Samples/s +1%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	2199 Samples/s
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	2104 Samples/s -4%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	1226 Samples/s -44%
Minisforum MS-A1 AMD Radeon Graphics (Ryzen 7000), AMD Ryzen 9 7950X	583 Samples/s -73%

Affinity Photo 2 - Combined (Single / Multi GPU)
HP Z2 Mini G9-996Q4ET Nvidia RTX A2000, Intel Core i7-14700K	6305 Points +240%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	4958 Points +168%
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	4735 Points +156%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	4460 Points +141%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	1853 Points
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	1831 Points -1%

	Minisforum MS-A1, AMD Radeon 780M Ryzen 7 8700G	Geekom AX8 Pro, AMD Radeon 780M R9 8945H	HP Z2 Mini G9-996Q4ET, Nvidia RTX A2000 i7-14700K	Lenovo ThinkStation P3 Tiny-30H0006AGE, NVIDIA T1000 i9-14900	Geekom GT13 Pro, Intel Iris Xe Graphics G7 96EUs i9-13900H	HP Elite Mini 800 G9-5M9X6EA, Intel UHD Graphics 770 i5-14500	Minisforum MS-01, Intel Iris Xe Graphics G7 96EUs i9-13900H	Average of class Mini PC
SPECviewperf 2020		1%	109%	10%	-65%	-78%	-58%	-18%
3840x2160 Medical (medical-03)	12.9	12.8 -1%	24.2 88%	13.4 4%	2.69 -79%	1.34 -90%	2.72 -79%	7.59 ?(0.78 - 30.8, n=64, last 2 years) -41%
3840x2160 Energy (energy-03)	21.4	13.3 -38%	15.8 -26%	9.54 -55%	3.17 -85%	1.51 -93%	4.75 -78%	10.5 ?(0.52 - 47.9, n=64, last 2 years) -51%
3840x2160 Creo (creo-03)	30.6	35.3 15%	75.1 145%	43.3 42%	16.3 -47%	9.17 -70%	19.2 -37%	29.6 ?(7.73 - 97.5, n=64, last 2 years) -3%
3840x2160 CATIA (catia-06)	24.2	25.1 4%	38.8 60%	21.9 -10%	8.53 -65%	5.6 -77%	9.99 -59%	18.1 ?(4.61 - 64.1, n=63, last 2 years) -25%
3840x2160 3ds Max (3dsmax-07)	19.9	21.1 6%	49.8 150%	27.4 38%	10.3 -48%	6.69 -66%	11.6 -42%	21.7 ?(5.53 - 87.5, n=64, last 2 years) 9%
3840x2160 Siemens NX (snx-04)	59.4	65.7 11%	159 168%		6.62 -89%	6.24 -89%	6.9 -88%	37.5 ?(2.25 - 224, n=63, last 2 years) -37%
3840x2160 Maya (maya-06)	45.3	49.6 9%	126 178%	62.8 39%	27.3 -40%	16.3 -64%	34.1 -25%	56.3 ?(12.2 - 207, n=64, last 2 years) 24%

3DMark 05 Standard		56703 points
3DMark 06 Standard Score		44432 points
3DMark Vantage P Result		41650 points
3DMark 11 Performance		13118 points
3DMark Ice Storm Standard Score		171146 points
3DMark Cloud Gate Standard Score		38347 points
3DMark Fire Strike Score		7505 points
3DMark Fire Strike Extreme Score		4025 points
3DMark Time Spy Score		3254 points
3DMark Steel Nomad Score		463 points
3DMark Steel Nomad Light Score		2677 points
Help

... in comparison

游戏性能

性能 AMD Radeon 780M的性能在游戏测试中也同样明显。Minisforum MS-A1 凭借更强大的 iGPU 在内部对决中明显胜出。两款配备专用显卡的对比设备性能明显更高。与台式机处理器中安装的其他 iGPU 相比，AMD Radeon 780M 的性能大幅提升。不过，iGPU 在现代游戏中很快就会达到极限。不过，旧版游戏有时也能流畅运行，即使是高细节游戏。

要详细了解 iGPU 与其他显卡相比的性能，请参阅我们的 GPU 游戏列表.

GTA V | Dota 2 Reborn | Cyberpunk 2077 2.1 Phantom Liberty | Baldur's Gate 3 | F1 24

GTA V
1024x768 Lowest Settings possible
HP Z2 Mini G9-996Q4ET RTX A2000, i7-14700K, Kioxia XG8 KXG80ZNV1T02	187.7 (3.68^min, 200^P1) fps +14%
Lenovo ThinkStation P3 Tiny-30H0006AGE T1000, i9-14900, Samsung PM9A1a MZVL21T0HDLU	187.4 (1.697^min, 200^P1) fps +14%
Geekom AX8 Pro Radeon 780M, R9 8945H, Acer N7000	169.4 (3.69^min, 125^P1) fps +3%
Minisforum MS-01 Iris Xe G7 96EUs, i9-13900H, Kingston OM8PGP41024Q-A0	166.4 (7.6^min, 111.1^P1) fps +1%
Minisforum MS-A1 Radeon 780M, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0	164.1 (4.56^min, 100^P1) fps
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	119.7 (7.51^min, 66.7^P1) fps -27%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	102.4 (25.3^min, 71.4^P1) fps -38%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
HP Z2 Mini G9-996Q4ET RTX A2000, i7-14700K, Kioxia XG8 KXG80ZNV1T02	174.1 (2.38^min, 125^P1) fps +181%
Lenovo ThinkStation P3 Tiny-30H0006AGE T1000, i9-14900, Samsung PM9A1a MZVL21T0HDLU	103.5 (6.88^min, 76.9^P1) fps +67%
Geekom AX8 Pro Radeon 780M, R9 8945H, Acer N7000	65.9 (2.44^min, 41.7^P1) fps +6%
Minisforum MS-A1 Radeon 780M, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0	61.9 (2.97^min, 41.7^P1) fps
Minisforum MS-01 Iris Xe G7 96EUs, i9-13900H, Kingston OM8PGP41024Q-A0	31.1 (13.1^min, 23.8^P1) fps -50%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	22 (6.3^min, 16.4^P1) fps -64%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	12.3 (4.52^min, 9.35^P1) fps -80%

Dota 2 Reborn
1280x720 min (0/3) fastest
HP Z2 Mini G9-996Q4ET RTX A2000, i7-14700K, Kioxia XG8 KXG80ZNV1T02	265.4 (230.3^min) fps +61%
Lenovo ThinkStation P3 Tiny-30H0006AGE T1000, i9-14900, Samsung PM9A1a MZVL21T0HDLU	246.2 (207.1^min) fps +49%
Minisforum MS-A1 Radeon 780M, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0	164.8 (145.3^min) fps
Geekom AX8 Pro Radeon 780M, R9 8945H, Acer N7000	157.5 (136^min) fps -4%
Minisforum MS-01 Iris Xe G7 96EUs, i9-13900H, Kingston OM8PGP41024Q-A0	128.6 (80.1^min) fps -22%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	109.8 (85^min) fps -33%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	105.8 (73.2^min) fps -36%
1920x1080 high (2/3)
HP Z2 Mini G9-996Q4ET RTX A2000, i7-14700K, Kioxia XG8 KXG80ZNV1T02	212 (175^min) fps +121%
Lenovo ThinkStation P3 Tiny-30H0006AGE T1000, i9-14900, Samsung PM9A1a MZVL21T0HDLU	150.4 (134.4^min) fps +57%
Minisforum MS-A1 Radeon 780M, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0	95.9 (85.7^min) fps
Geekom AX8 Pro Radeon 780M, R9 8945H, Acer N7000	88 (69.2^min) fps -8%
Minisforum MS-01 Iris Xe G7 96EUs, i9-13900H, Kingston OM8PGP41024Q-A0	80.8 (65.9^min) fps -16%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	65.5 (56.1^min) fps -32%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	43.9 (24.2^min) fps -54%

Cyberpunk 2077 2.1 Phantom Liberty
1920x1080 Low Preset (FSR off)
HP Z2 Mini G9-996Q4ET RTX A2000, i7-14700K, Kioxia XG8 KXG80ZNV1T02	83.9 (70.6^min) fps +105%
Lenovo ThinkStation P3 Tiny-30H0006AGE T1000, i9-14900, Samsung PM9A1a MZVL21T0HDLU	45.1 (36.7^min) fps +10%
Geekom AX8 Pro Radeon 780M, R9 8945H, Acer N7000	41.3 (34.5^min) fps +1%
Minisforum MS-A1 Radeon 780M, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0	41 (35.2^min) fps
Minisforum MS-01 Iris Xe G7 96EUs, i9-13900H, Kingston OM8PGP41024Q-A0	22.5 (17.3^min) fps -45%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	18.2 (14.7^min) fps -56%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	9.13 (7.04^min) fps -78%
1920x1080 High Preset (FSR off)
HP Z2 Mini G9-996Q4ET RTX A2000, i7-14700K, Kioxia XG8 KXG80ZNV1T02	51.8 (44.2^min) fps +94%
Lenovo ThinkStation P3 Tiny-30H0006AGE T1000, i9-14900, Samsung PM9A1a MZVL21T0HDLU	28.3 (23.5^min) fps +6%
Minisforum MS-A1 Radeon 780M, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0	26.7 (22.9^min) fps
Geekom AX8 Pro Radeon 780M, R9 8945H, Acer N7000	25.8 (21.7^min) fps -3%
Minisforum MS-01 Iris Xe G7 96EUs, i9-13900H, Kingston OM8PGP41024Q-A0	15 (12.4^min) fps -44%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	12.8 (10.9^min) fps -52%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	6.09 (5.05^min) fps -77%

Baldur's Gate 3
1280x720 Low Preset
HP Z2 Mini G9-996Q4ET RTX A2000, i7-14700K, Kioxia XG8 KXG80ZNV1T02	118.6 (76.8^min, 86.8^P0.1, 96.8^P1) fps +80%
Lenovo ThinkStation P3 Tiny-30H0006AGE T1000, i9-14900, Samsung PM9A1a MZVL21T0HDLU	75.9 (36.6^min, 56^P0.1, 65.8^P1) fps +15%
Minisforum MS-A1 Radeon 780M, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0	65.9 (33.4^min, 33.9^P0.1, 36.6^P1) fps
Geekom AX8 Pro Radeon 780M, R9 8945H, Acer N7000	60.8 (21.6^min, 28.1^P0.1, 35.6^P1) fps -8%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	26.2 (4.4^min, 7.02^P0.1, 18.4^P1) fps -60%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	16.9 (10.9^min, 11.1^P0.1, 12.8^P1) fps -74%
1920x1080 High Preset
HP Z2 Mini G9-996Q4ET RTX A2000, i7-14700K, Kioxia XG8 KXG80ZNV1T02	50.8 (41.7^min, 41.9^P0.1, 43.8^P1) fps +88%
Lenovo ThinkStation P3 Tiny-30H0006AGE T1000, i9-14900, Samsung PM9A1a MZVL21T0HDLU	30.2 (10.5^min, 12.6^P0.1, 26.4^P1) fps +12%
Minisforum MS-A1 Radeon 780M, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0	27 (14^min, 14.4^P0.1, 22.7^P1) fps
Geekom AX8 Pro Radeon 780M, R9 8945H, Acer N7000	24.5 (17.7^min, 17.7^P0.1, 19.8^P1) fps -9%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	11.7 (3.43^min, 3.51^P0.1, 3.99^P1) fps -57%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	6.88 (5.24^min, 5.26^P0.1, 5.41^P1) fps -75%

F1 24
1920x1080 Low Preset AA:T AF:16x
HP Z2 Mini G9-996Q4ET RTX A2000, i7-14700K, Kioxia XG8 KXG80ZNV1T02	173.3 (145^min, 135^P1) fps +88%
Lenovo ThinkStation P3 Tiny-30H0006AGE T1000, i9-14900, Samsung PM9A1a MZVL21T0HDLU	98.4 (82^min, 79^P1) fps +7%
Minisforum MS-A1 Radeon 780M, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0	92.1 (76^min, 65^P1) fps
Geekom AX8 Pro Radeon 780M, R9 8945H, Acer N7000	83.4 (28^min, 33^P1) fps -9%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	40.4 (34^min, 33^P1) fps -56%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	21.1 (17^min, 17^P1) fps -77%
1920x1080 High Preset AA:T AF:16x
HP Z2 Mini G9-996Q4ET RTX A2000, i7-14700K, Kioxia XG8 KXG80ZNV1T02	104.6 (90^min, 86^P1) fps +84%
Lenovo ThinkStation P3 Tiny-30H0006AGE T1000, i9-14900, Samsung PM9A1a MZVL21T0HDLU	58.8 (49^min, 49^P1) fps +3%
Minisforum MS-A1 Radeon 780M, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0	57 (47^min, 39^P1) fps
Geekom AX8 Pro Radeon 780M, R9 8945H, Acer N7000	51.3 (23^min, 15^P1) fps -10%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	25.6 (22^min, 21^P1) fps -55%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	12.8 (10^min, 10^P1) fps -78%

FPS chart

Minisforum MS-A1 Ryzen 7 8700G, Radeon 780M: Ø22.4 (20.8-22.7)

Geekom AX8 Pro R9 8945H, Radeon 780M: Ø19.2 (17.9-20.3)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs: Ø11.1 (5.97-12.3)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770: Ø5.17 (4.9-5.29)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs: Ø12.5 (11.3-13.6)

	low	med.	high	ultra
GTA V (2015)	164.1	152.6	61.9	24.6
Dota 2 Reborn (2015)	164.8	130.2	95.9	86.5
Final Fantasy XV Benchmark (2018)	75.8	37.4	27.6
X-Plane 11.11 (2018)	69.1	48.9	41.5
Baldur's Gate 3 (2023)	42.5	32.7	27	26
Cyberpunk 2077 2.1 Phantom Liberty (2023)	41	33.4	26.7	23.4
F1 24 (2024)	92.1	78.2	57	13.9

Minisforum MS-A1 使用 NvidiaGeForce RTX 4090 进行性能检查

配备 NvidiaGeForce RTX 4090 的 Minisforum MS-A1 和 Minisforum DEG1 eGPU 底座

Minisforum MS-A1 配备了 OCuLink 接口，可以连接外置显卡，大幅提升 3D 性能。不过，您必须接受带宽限制，因为外置显卡通过 OCuLink 最多只能以 PCIe 4.0 x4 的速度工作。这仍然比 USB 4 连接要好，后者只能在 PCIe 3.0 x4 下工作。与 Minisforum DEG1 eGPU 底座和一个 NvidiaGeForce RTX 4090我们进行了一些测试，以说明使用目前最快的消费级显卡可以提高的性能。

合成测试中的性能对比显示，与外置显卡的组合绝对有潜力赶上传统台式机系统。不过，我们也不能一概而论，因为在游戏测试中，性能差异明显更大。由于 OCuLink 接口的带宽较低，性能差距因游戏和应用程序而异。与完整的 PCIe 4.0 x16 接口相比，NvidiaGeForce RTX 4090 的性能损失约为 30%。这意味着，该团队仍能提供出色的整体性能，这意味着大多数游戏都能在 2160p 的完整细节下玩得很好。

Performance Rating - Percent
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	98.6 pt
Intel Core i5-14600K NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	96.9 pt
Minisforum BD790i, RTX 4090 NVIDIA GeForce RTX 4090, R9 7945HX	92.6 pt
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	88.1 pt

3DMark 11 - 1280x720 Performance GPU
Intel Core i5-14600K NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	110994 Points +738%
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	104516 Points +689%
Minisforum BD790i, RTX 4090 NVIDIA GeForce RTX 4090, R9 7945HX	99614 Points +652%
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	98454 Points +643%
	13248 Points

3DMark
2560x1440 Time Spy Graphics
Intel Core i5-14600K NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	37769 Points +1207%
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	37161 Points +1186%
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	34984 Points +1111%
Minisforum BD790i, RTX 4090 NVIDIA GeForce RTX 4090, R9 7945HX	32488 Points +1024%
	2890 Points
1920x1080 Fire Strike Graphics
Intel Core i5-14600K NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	86031 Points +967%
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	78579 Points +875%
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	76191 Points +845%
Minisforum BD790i, RTX 4090 NVIDIA GeForce RTX 4090, R9 7945HX	72177 Points +795%
	8061 Points
3840x2160 Fire Strike Ultra Graphics
Intel Core i5-14600K NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	25342 Points +1068%
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	24915 Points +1049%
Minisforum BD790i, RTX 4090 NVIDIA GeForce RTX 4090, R9 7945HX	24906 Points +1048%
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	23565 Points +986%
	2169 Points

Unigine Superposition
1280x720 720p Low
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	63603 Points +455%
Intel Core i5-14600K NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	49203 Points +329%
Minisforum BD790i, RTX 4090 NVIDIA GeForce RTX 4090, R9 7945HX	45591 Points +298%
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	35453 Points +209%
	11463 Points
1920x1080 1080p High
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	50230 Points +1348%
Intel Core i5-14600K NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	45162 Points +1201%
Minisforum BD790i, RTX 4090 NVIDIA GeForce RTX 4090, R9 7945HX	41353 Points +1092%
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	32728 Points +843%
	3470 Points
1920x1080 1080p Extreme
Intel Core i5-14600K NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	21954 Points +1214%
Minisforum BD790i, RTX 4090 NVIDIA GeForce RTX 4090, R9 7945HX	21604 Points +1193%
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	21586 Points +1192%
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	20934 Points +1153%
	1671 Points
3840x2160 4k Optimized
Intel Core i5-14600K NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	33700 Points
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	33095 Points
Minisforum BD790i, RTX 4090 NVIDIA GeForce RTX 4090, R9 7945HX	32629 Points
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	30190 Points
7680x4320 8k Optimized
Intel Core i5-14600K NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	12791 Points
Minisforum BD790i, RTX 4090 NVIDIA GeForce RTX 4090, R9 7945HX	12526 Points
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	12498 Points
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	12251 Points

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	324 fps +1346%
Intel Core i5-14600K NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	283.4 fps +1165%
Minisforum BD790i, RTX 4090 NVIDIA GeForce RTX 4090, R9 7945HX	257.5 fps +1050%
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	216.1 fps +865%
	22.4 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	331.8 fps +1593%
Intel Core i5-14600K NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	303.2 fps +1447%
Minisforum BD790i, RTX 4090 NVIDIA GeForce RTX 4090, R9 7945HX	260.9 fps +1231%
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	231.7 fps +1082%
	19.6 fps

Unigine Heaven 4.0
Extreme Preset OpenGL
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	472.4 fps +1386%
Minisforum BD790i, RTX 4090 NVIDIA GeForce RTX 4090, R9 7945HX	458 fps +1340%
Intel Core i5-14600K NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	456.3 fps +1335%
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	441.5 fps +1288%
	31.8 fps
Extreme Preset DX11
Minisforum BD790i, RTX 4090 NVIDIA GeForce RTX 4090, R9 7945HX	476.3 fps +1322%
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	473.9 fps +1315%
Intel Core i5-14600K NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	473 fps +1312%
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	422.3 fps +1161%
	33.5 fps

ComputeMark v2.1
1024x600 Normal, Score
Intel Core i5-14600K NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	92397 Points +837%
Minisforum BD790i, RTX 4090 NVIDIA GeForce RTX 4090, R9 7945HX	92292 Points +836%
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	92222 Points +835%
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	90882 Points +821%
	9863 Points
1024x600 Normal, Fluid 3DTex
Intel Core i5-14600K NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	10797 Points +2326%
Minisforum BD790i, RTX 4090 NVIDIA GeForce RTX 4090, R9 7945HX	10758 Points +2318%
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	10756 Points +2317%
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	10664 Points +2296%
	445 Points
1024x600 Normal, Fluid 2DTexArr
Minisforum BD790i, RTX 4090 NVIDIA GeForce RTX 4090, R9 7945HX	6960 Points +1397%
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	6948 Points +1394%
Intel Core i5-14600K NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	6920 Points +1388%
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	6907 Points +1385%
	465 Points
1024x600 Normal, Mandel Vector
Minisforum BD790i, RTX 4090 NVIDIA GeForce RTX 4090, R9 7945HX	17369 Points +564%
Intel Core i5-14600K NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	17355 Points +564%
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	17307 Points +562%
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	17088 Points +554%
	2614 Points
1024x600 Normal, Mandel Scalar
Intel Core i5-14600K NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	22992 Points +743%
Minisforum BD790i, RTX 4090 NVIDIA GeForce RTX 4090, R9 7945HX	22936 Points +741%
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	22843 Points +738%
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	22633 Points +730%
	2727 Points
1024x600 Normal, QJuliaRayTrace
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	34367 Points +851%
Intel Core i5-14600K NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	34333 Points +851%
Minisforum BD790i, RTX 4090 NVIDIA GeForce RTX 4090, R9 7945HX	34269 Points +849%
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	33589 Points +830%
	3612 Points

Performance Rating | Cyberpunk 2077 2.1 Phantom Liberty | Baldur's Gate 3 | F1 24

Performance Rating - Percent
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	100 pt
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	75.5 pt

Cyberpunk 2077 2.1 Phantom Liberty
1280x720 Low Preset (FSR off)
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	256 (183.7^min - 319^max) fps +270%
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	187.3 (143.6^min - 225^max) fps +171%
	69.1 (58.9^min - 85.8^max) fps
1920x1080 Medium Preset (FSR off)
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	252 (174.7^min - 318^max) fps +654%
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	184.9 (141^min - 225^max) fps +454%
	33.4 (29.1^min - 39.5^max) fps
1920x1080 Ultra Preset (FSR off)
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	204 (126.1^min - 264^max) fps +772%
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	161.8 (107^min - 205^max) fps +591%
	23.4 (19.7^min - 29.4^max) fps

Baldur's Gate 3
1920x1080 Low Preset
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	253 (30.2^min, 76.7^P0.1, 155.7^P1 - 431^max) fps +495%
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	200 (109.4^min, 129.1^P0.1, 154.1^P1 - 278^max) fps +371%
	42.5 (20.1^min, 21.1^P0.1, 35.7^P1 - 125.6^max) fps
1920x1080 Medium Preset
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	231 (52.4^min, 123^P0.1, 150.8^P1 - 382^max) fps +606%
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	194.4 (102.5^min, 120^P0.1, 151.2^P1 - 274^max) fps +494%
	32.7 (16.3^min, 16.7^P0.1, 17.9^P1 - 120.9^max) fps
1920x1080 Ultra Preset
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	212 (16.9^min, 120.1^P0.1, 151.8^P1 - 372^max) fps +715%
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	190.9 (107.5^min, 129.1^P0.1, 148.8^P1 - 259^max) fps +634%
	26 (13.8^min, 14.3^P0.1, 22.5^P1 - 88.8^max) fps

F1 24
1920x1080 Low Preset AA:T AF:16x
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	405 (297^min, 246^P1 - 476^max) fps +340%
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	269 (203^min, 181^P1 - 313^max) fps +192%
	92.1 (76^min, 65^P1 - 110^max) fps
1920x1080 Medium Preset AA:T AF:16x
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	421 (328^min, 262^P1 - 470^max) fps +438%
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	285 (216^min, 190^P1 - 313^max) fps +264%
	78.2 (65^min, 62^P1 - 93^max) fps
1920x1080 High Preset AA:T AF:16x
AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	401 (305^min, 241^P1 - 449^max) fps +604%
Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	267 (203^min, 176^P1 - 297^max) fps +368%
	57 (47^min, 39^P1 - 68^max) fps

	Radeon 780M, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0	Minisforum MS-A1 (Nvidia GeForce RTX 4090 @OCuLink) , Ryzen 7 8700G	Minisforum BD790i, RTX 4090 NVIDIA GeForce RTX 4090, R9 7945HX	AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X	Intel Core i5-14600K NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	Average of class Mini PC
SPECviewperf 2020		470%	474%	504%	481%	-18%
3840x2160 Medical (medical-03)	12.9	43.2 235%	43.5 237%	43.5 237%	40.2 212%	7.59 ?(0.78 - 30.8, n=64, last 2 years) -41%
3840x2160 Energy (energy-03)	21.4	141 559%	95.8 348%	95.6 347%	229 970%	10.5 ?(0.52 - 47.9, n=64, last 2 years) -51%
3840x2160 Creo (creo-03)	30.6	128 318%	116 279%	143 367%	139 354%	29.6 ?(7.73 - 97.5, n=64, last 2 years) -3%
3840x2160 CATIA (catia-06)	24.2	85.2 252%	87.1 260%	94.2 289%	94.3 290%	18.1 ?(4.61 - 64.1, n=63, last 2 years) -25%
3840x2160 3ds Max (3dsmax-07)	19.9	204 925%	227 1041%	231 1061%	235 1081%	21.7 ?(5.53 - 87.5, n=64, last 2 years) 9%
3840x2160 Siemens NX (snx-04)	59.4	40.3 -32%	43.8 -26%	48.1 -19%	46.3 -22%	37.5 ?(2.25 - 224, n=63, last 2 years) -37%
3840x2160 Maya (maya-06)	45.3	512 1030%	580 1180%	609 1244%		56.3 ?(12.2 - 207, n=64, last 2 years) 24%

	low	med.	high	ultra	QHD	4K
GTA V (2015)	185.4	183	175.9	119.7	118.6	174.9
Dota 2 Reborn (2015)	181.2	169.8	165.7	157.4		152.3
Final Fantasy XV Benchmark (2018)	230	225	184.5		183.7	140.8
X-Plane 11.11 (2018)	141.3	124.1	97.2			83.9
Baldur's Gate 3 (2023)	200	194.4	197.5	190.9	191.2	140.2
Cyberpunk 2077 2.1 Phantom Liberty (2023)	188.2	184.9	173.4	161.8	143.9	73.7
F1 24 (2024)	269	285	267	154.4	135.3	76.9

排放 - 良好的冷却和超大的电源装置

噪音排放

位于处理器顶部的冷却装置由热管结构组成，借助两个风扇进行冷却。这在实际使用中效果很好，尽管该装置的声音总是很小。底部还有一个风扇，为固态硬盘冷却器提供新鲜空气。空转时，我们记录到的声压级为 34 dB(A)，与同类产品相比一直较高。在负载情况下，噪音水平最高可达 46.2 dB(A)。至少风扇的噪音不是高频噪音，这使得满负荷运行时的噪音可以承受一些。在平均负载下，噪音水平略有下降，稳定在 41 dB(A)。在相同负载下，与竞争对手相比，这是一个非常好的结果。惠普 Elite Mini 800 G9 的平均负载仅为 30.2 dB(A)，非常安静，表现出色。

Noise Level

Idle		33.9 / 34 / 34 dB(A)
Load		41.1 / 46.2 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 24.8 dB(A)

	Minisforum MS-A1 Ryzen 7 8700G, Radeon 780M	Geekom AX8 Pro R9 8945H, Radeon 780M	HP Z2 Mini G9-996Q4ET i7-14700K, RTX A2000	Lenovo ThinkStation P3 Tiny-30H0006AGE i9-14900, T1000	Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs	HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770	Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs
Noise		5%	-6%	-6%	5%	14%	-4%
off / environment *	24.8	24.9 -0%	24.9 -0%	24.9 -0%	24.3 2%	25.5 -3%	24.4 2%
Idle Minimum *	33.9	24.9 27%	30.8 9%	29.3 14%	27.9 18%	27.7 18%	33.7 1%
Idle Average *	34	24.9 27%	31 9%	29.3 14%	27.9 18%	27.8 18%	33.9 -0%
Idle Maximum *	34	24.9 27%	31.6 7%	29.4 14%	28 18%	27.8 18%	34.7 -2%
Load Average *	41.1	50.1 -22%	51.5 -25%	56 -36%	43.8 -7%	30.2 27%	47.7 -16%
Cyberpunk 2077 ultra *	42.2	50 -18%	50.2 -19%	55.9 -32%	45.4 -8%	39.5 6%
Load Maximum *	46.2	50.2 -9%	55.9 -21%	53.9 -17%	48.5 -5%	39.8 14%	49.1 -6%
Witcher 3 ultra *							48.9

* ... smaller is better

温度

微型论坛 MS-A1 的外壳始终保持低温。即使在负载情况下，我们的温度也没有达到 40°C，这是非常出色的。正如我们在压力测试中看到的，AMD Ryzen 7 8700G 可以提供稳定的性能。BIOS 中的温度上限设定为 90°C。C。在我们的测试中，任何时候都没有达到这个值，这也是连续负载下性能稳定的基础。在 Prime95 的压力测试中，我们看到最高温度为 83 °C。此外，该处理器的运行功耗始终为 65 瓦，与 Minisforum 为 AMD Ryzen 7 8700G 提供的功耗相当。

Max. Load

Idle

Cyberpunk


33.4 °C	32.7 °C	31.9 °C
32.5 °C	29.3 °C	31 °C
32.9 °C	31.6 °C	31.5 °C

Maximum: 33.4 °C
Average: 31.9 °C


34.3 °C	34.9 °C	35.2 °C
33.3 °C	33.6 °C	34.5 °C
33.7 °C	34.5 °C	34.5 °C

Maximum: 35.2 °C
Average: 34.3 °C

Power Supply (max.) 47.7 °C | Room Temperature 21.6 °C | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


28 °C	27.9 °C	28.1 °C
28.1 °C	27.8 °C	28.2 °C
28.3 °C	28.4 °C	28.4 °C

Maximum: 28.4 °C
Average: 28.1 °C


29.1 °C	29.1 °C	28.9 °C
28.8 °C	28.7 °C	28.8 °C
29.2 °C	29.1 °C	28.8 °C

Maximum: 29.2 °C
Average: 28.9 °C

Power Supply (max.) 31.2 °C | Room Temperature 21.9 °C | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


30 °C	29.2 °C	28.7 °C
29 °C	26.8 °C	27.6 °C
28.8 °C	27.9 °C	27.8 °C

Maximum: 30 °C
Average: 28.4 °C


30.8 °C	30.8 °C	31.3 °C
29.3 °C	28.9 °C	29.7 °C
29.2 °C	29.4 °C	29.1 °C

Maximum: 31.3 °C
Average: 29.8 °C

Power Supply (max.) 40.8 °C | Room Temperature 21.9 °C | Fluke t3000FC (calibrated)

(+) The average temperature for the upper side under maximal load is 31.9 °C / 89 F, compared to the average of 32.2 °C / 90 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 33.4 °C / 92 F, compared to the average of 35.7 °C / 96 F, ranging from 24 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 35.2 °C / 95 F, compared to the average of 36.2 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 28.1 °C / 83 F, compared to the device average of 32.2 °C / 90 F.
(+) 3: The average temperature for the upper side is 28.4 °C / 83 F, compared to the average of 32.2 °C / 90 F for the class Mini PC.

耗电量

与迷你论坛 MS-01相比，Minisforum MS-A1 明显更经济。这一点在空闲模式下已经很明显，我们的测试样品仅需 8.8 至 14 瓦。在平均负载情况下，能耗要求攀升至略高于 90 瓦，远高于其他大多数微型 PC。惠普 Z2 Mini G9和联想 ThinkStation P3 Tiny的处理器功耗较高，我们在此不做直接比较。此外，这两款设备都配备了专用显卡，大大增加了负载下的功耗需求。Minisforum MS-A1 的峰值功率仅为 102.1 瓦，这让我们对其电源装置感到惊讶。制造商为 Minisforum MS-A1 配备了 240 瓦的电源装置，这远远达不到它的极限。即使使用更强大的 AMD Ryzen 9 7950X也不会使电源过载，因为根据制造商的规格，带有两个 ccd 的处理器的功耗限制为 100 瓦。

Power Consumption

Off / Standby	1.1 / 1.4 Watt
Idle	8.8 / 12.6 / 14 Watt
Load	93.2 / 105.4 Watt


Key: min: , med: , max: Metrahit Energy

	Minisforum MS-A1 Ryzen 7 8700G, Radeon 780M	Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs	Geekom AX8 Pro R9 8945H, Radeon 780M	Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs	HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770	Lenovo ThinkStation P3 Tiny-30H0006AGE i9-14900, T1000	HP Z2 Mini G9-996Q4ET i7-14700K, RTX A2000	Average AMD Radeon 780M	Average of class Mini PC
Power Consumption		-37%	-9%	11%	10%	-107%	-113%	30%	8%
Idle Minimum *	8.8	14.4 -64%	14 -59%	7.9 10%	6 32%	12.8 -45%	19.6 -123%	6.29 ?(2.7 - 14, n=47) 29%	9.48 ?(1.9 - 45.7, n=119, last 2 years) -8%
Idle Average *	12.6	16.1 -28%	15.9 -26%	10.3 18%	8.9 29%	31.4 -149%	21.3 -69%	8.47 ?(4.7 - 17.6, n=47) 33%	11.5 ?(1.9 - 47.5, n=117, last 2 years) 9%
Idle Maximum *	14	25.5 -82%	19.5 -39%	22.3 -59%	21.5 -54%	31.5 -125%	26.7 -91%	10.9 ?(5.4 - 27, n=47) 22%	14.9 ?(2.6 - 57.1, n=119, last 2 years) -6%
Load Average *	93.2	87.3 6%	76.4 18%	57.44 38%	55.5 40%	159.2 -71%	170.6 -83%	56.4 ?(19.7 - 93.2, n=46) 39%	57.4 ?(11.3 - 170.6, n=119, last 2 years) 38%
Cyberpunk 2077 ultra external monitor *	102.1		54.3 47%	55.9 45%	73.4 28%	156.8 -54%	244 -139%
Load Maximum *	105.4	123.3 -17%	99.1 6%	93.4 11%	122.8 -17%	315 -199%	289 -174%	75.7 ?(34.9 - 111.8, n=47) 28%	97.5 ?(18.1 - 423, n=119, last 2 years) 7%

* ... smaller is better

Efficiency

Performance Rating | Power Consumption

Performance Rating - Percent
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	100 pt
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	86 pt
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	79.9 pt
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	66.3 pt
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	59.9 pt
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, T1000	49.7 pt
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K, RTX A2000	46.9 pt

Power Consumption
Cinebench R23 Multi Power Efficiency - external Monitor
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	219 Points per Watt +23%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	210 Points per Watt +18%
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	177.7 Points per Watt
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	164.2 Points per Watt -8%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	138.4 Points per Watt -22%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, T1000	128.4 Points per Watt -28%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K, RTX A2000	108 Points per Watt -39%
Cinebench R23 Single Power Efficiency - external Monitor
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	58.3 Points per Watt +22%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	54.3 Points per Watt +14%
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	47.8 Points per Watt
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	36.4 Points per Watt -24%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	34.6 Points per Watt -28%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K, RTX A2000	27.2 Points per Watt -43%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, T1000	22.1 Points per Watt -54%
Cinebench R15 Multi Efficiency (external Monitor)
Geekom AX8 Pro AMD Ryzen 9 8945H, Radeon 780M	35.9 Points per Watt +31%
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	27.5 Points per Watt
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	24.8 Points per Watt -10%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	22.1 Points per Watt -20%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	20.5 Points per Watt -25%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, T1000	18.9 Points per Watt -31%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K, RTX A2000	16.1 Points per Watt -41%

Power consumption with the external monitor

Minisforum MS-A1 Ryzen 7 8700G, Radeon 780M; Idle 1min (external Monitor): Ø11.9 (10-14)

Geekom AX8 Pro R9 8945H, Radeon 780M; Idle 1min (external Monitor): Ø15.9 (14.3-19.4)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Idle 1min (external Monitor): Ø17.4 (12.6-22.4)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; Idle 1min (external Monitor): Ø8.89 (4.55-21.5)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; Idle 1min (external Monitor): Ø17.7 (16.8-25.5)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø73.9 (70.9-87.7)

Minisforum MS-A1 Ryzen 7 8700G, Radeon 780M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø104.6 (102.1-105.4)

Geekom AX8 Pro R9 8945H, Radeon 780M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø89.4 (87.8-94.6)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø60.2 (57-86.6)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; 1280x720 Prime95 28.10 and Furmark 1.25: Ø92.4 (86.5-106.1)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø97.8 (96.8-99.3)

Minisforum MS-A1 Ryzen 7 8700G, Radeon 780M; Cyberpunk 2077 FHD ultra no FSR - external Monitor: Ø102.1 (95.2-102.9)

Geekom AX8 Pro R9 8945H, Radeon 780M; Cyberpunk 2077 FHD ultra no FSR - external Monitor: Ø54.3 (43.7-67.1)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Cyberpunk 2077 FHD ultra no FSR - external Monitor: Ø55.9 (54.2-59.2)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; Cyberpunk 2077 FHD ultra no FSR - external Monitor: Ø73.4 (69-87.1)

Minisforum MS-A1 Ryzen 7 8700G, Radeon 780M; 3DMark06 Return To Proxycon: Ø93.2 (78.1-104.5)

Geekom AX8 Pro R9 8945H, Radeon 780M; 3DMark06 Return To Proxycon: Ø76.5 (55.7-96.2)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; 3DMark06 Return To Proxycon: Ø57.4 (53.5-61.5)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; 3DMark06 Return To Proxycon: Ø55.5 (40.1-87.3)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; 3DMark06 Return To Proxycon: Ø87.3 (83.2-92.2)

Power consumption with the external monitor

Minisforum MS-A1 Ryzen 7 8700G, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø103.7 (101.7-104.1)

Geekom AX8 Pro R9 8945H, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø75.9 (72.6-96)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø59.5 (53.5-84.7)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; Prime95 V2810 Stress (external Monitor): Ø95.1 (87.6-114.6)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø98.7 (85.9-123.3)

Minisforum MS-A1 Ryzen 7 8700G, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø98 (96.6-98.9)

Geekom AX8 Pro R9 8945H, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø70.3 (63.2-83)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø91.2 (88.5-93.4)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; Cinebench R15 Multi (external Monitor): Ø118.7 (117.6-120.5)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø111.3 (106.3-117.5)

Minisforum MS-A1 Ryzen 7 8700G, Radeon 780M; Cinebench R23 Single (external Monitor): Ø38 (36.3-60.3)

Geekom AX8 Pro R9 8945H, Radeon 780M; Cinebench R23 Single (external Monitor): Ø31 (25.6-51.4)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Cinebench R23 Single (external Monitor): Ø31.6 (29-59.5)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; Cinebench R23 Single (external Monitor): Ø55.4 (52.3-78.4)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; Cinebench R23 Single (external Monitor): Ø49.6 (44.3-102.7)

Minisforum MS-A1 Ryzen 7 8700G, Radeon 780M; Cinebench R23 Multi (external Monitor): Ø96.4 (95.9-98.4)

Geekom AX8 Pro R9 8945H, Radeon 780M; Cinebench R23 Multi (external Monitor): Ø70.9 (66.8-89.8)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Cinebench R23 Multi (external Monitor): Ø62.1 (50.4-89.7)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; Cinebench R23 Multi (external Monitor): Ø108.5 (87-122.8)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; Cinebench R23 Multi (external Monitor): Ø98.7 (91-111.3)

Minisforum MS-A1 Ryzen 7 8700G, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø102.5 (98.7-104.2)

Geekom AX8 Pro R9 8945H, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø85.7 (73.1-99.9)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø54.6 (51.3-69.7)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø41.4 (37.4-53.8)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø92.1 (88.6-103.5)

Pros

+ 坚固的外壳

+ 持续的低机箱温度

+ AMD Ryzen 7 8700G，配备 Radeon 780M

+ 可更换 CPU（AM5 插座）

+ 可用的 iGPU 性能

+ 快速无线局域网

+ 可安装 4 个固态硬盘

+ OCuLink 接口

+ 强大的 cpu 和 ssd 冷却装置

+ 稳定的 cpu 和 ssd 性能

Cons

- 在负载情况下可听到

- DPC 延迟增加

- 打开机箱繁琐

结论 - 为多种应用奠定坚实基础

Minisforum MS-A1 不仅仅是采用 AMD 平台的 Minisforum MS-01 的翻版。当你看到制造商还提供不含 CPU 的裸机 MS-A1 时，你很快就会明白这一点。由用户自行选择 CPU 当然是 Minisforum MS- A1 的最大优势。A1 的最大优势。AMD 在发布会上已经透露，AM5 处理器将支持数年。不过，Minisforum 今后将如何落实这一点还有待观察。毕竟，如果要支持未来的处理器，新的 BIOS 是必要的。

Minisforum MS-A1 是强大工作站的绝佳基础。

如果您想将 Minisforum MS-A1 的预配置版本与 AMD Ryzen 7 8700G您将获得一个极好的基础，并可选择稍后升级。APU 拥有 8 个内核和 16 个线程，性能足以处理大多数任务。此外还有 32 GB DDR5 内存和 1 TB SSD，这意味着该设备可以直接使用。Minisforum MS-A1 提供了多种外部接口。USB4 和 OCuLink 均可用，极大地扩展了可能性。后者可与 Minisforum DEG1 eGPU 底座完美结合。

将 Minisforum MS-A1 称为工作站是一种大胆的说法，因为从核心来看，这款迷你 PC 与紧凑型 PC（如惠普精英迷你 800 G9）。惠普精英迷你 800 G9为例。如果有合适的配件，Minisforum MS-A1 可以变身为工作站。不过，这需要进一步投资。如果能与出厂的专业图形解决方案结合使用，效果会更好，尽管价格要高得多。800 G9 型号处于同一水平线上。如果你想自己配置 CPU、内存、固态硬盘和操作系统，只需 289 欧元就能买到 Minisforum MS-A1。

总之，我们可以说，Minisforum 的 MS-A1 为市场带来了一款非常有趣的设备。日后可以更换 CPU 的选项是一个正确的方向。连接性，尤其是 OCuLink 连接，是惠普、联想、戴尔或华硕等知名品牌所不具备的。

注：我们最近更新了评级系统，第 8 版的结果与第 7 版的结果不具可比性。更多信息请点击这里这里.

价格和供应情况

Minisforum MS-A1 可在 Minisforum 商店直接购买。该设备目前在我们的测试配置中售价为 829 欧元。在美国，裸机版本也可从亚马逊购买，价格为260 美元。

Minisforum MS-A1 - 10/08/2024 v8
Sebastian Bade

Chassis

79 / 98 → 81%

Connectivity

66 / 81 → 81%

Weight

66%

Games Performance

53 / 80 → 66%

Application Performance

86 / 92 → 94%

Workstation

54%

AI Performance

89%

Temperature

93%

Noise

70%

Average

56%

77%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
0%

Packaging
50%

Power Use
68.7%

Repairability
60%

Software Updates
22.3%

Total Sustainability Score: 33.5%

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Cinebench 2024 CPU Multi Core in comparison
HP Spectre x360 16 RTX 4050 (min) Ultra 7 155H, NVIDIA GeForce RTX 4050 Laptop GPU	28.1
...
Asus TUF Gaming A17 FA707XI-NS94 R9 7940HS, NVIDIA GeForce RTX 4070 Laptop GPU	972
Lenovo ThinkPad P1 G6 21FV001KUS i7-13800H, NVIDIA GeForce RTX 4080 Laptop GPU	976
Lenovo Yoga Slim 7X 14Q8X9 SD X Elite X1E-78-100, Adreno X1-85 3.8 TFLOPS	984
Minisforum MS-A1 Ryzen 7 8700G, Radeon 780M	986
Ryzen 5 9600X, NVIDIA GeForce RTX 4090	986
Razer Blade 14 RZ09-0508 R9 8945HS, NVIDIA GeForce RTX 4070 Laptop GPU	988
Lenovo IdeaPad Pro 5 16IMH G9 Ultra 7 155H, Arc 8-Core	993
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

Minisforum MS-A1 评测：工作站支持各种 AMD CPU 并提供四个固态硬盘空间

没有专用显卡的工作站？

潜在的竞争对手比较

Minisforum MS-A1 工作站详细介绍

外壳 - 金属和塑料的组合

尺寸比较

设备

交流

配件

维护

可持续性

性能 - AMD Ryzen 7 8700G，配备 8 个核心和快速 iGPU

Minisforum MS-A1 还能处理其他处理器

测试条件

迷你论坛 MS-A1 的 UEFI

处理器

Cinebench R15 多回路

系统性能

DPC 延迟

大容量存储器

Continuous read: DiskSpd Read Loop, Queue Depth 8

图形卡

游戏性能

FPS chart

Minisforum MS-A1 使用 NvidiaGeForce RTX 4090 进行性能检查

排放 - 良好的冷却和超大的电源装置

噪音排放

温度

耗电量

Efficiency

Power consumption with the external monitor

Power consumption with the external monitor

Pros

Cons

结论 - 为多种应用奠定坚实基础

价格和供应情况

Transparency

Price comparison

More articles related to this device

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
Acer Swift Go 14 SFG14-72 Ultra 7 155H, Arc 8-Core	13075
SCHENKER VIA 14 Pro (M24) R7 8845HS, Radeon 780M	13077
Geekom GT1 Mega Ultra 9 185H, Arc 8-Core	13104
Minisforum MS-A1 Ryzen 7 8700G, Radeon 780M	13118
Lenovo Yoga Pro 7 14APH G8 R7 7840HS, Radeon 780M	13131
Acer Aspire 16 A16-51GM-77G2 Core 7 150U, GeForce RTX 2050 Mobile	13144
EVGA SC15 i7-7700HQ, GeForce GTX 1060 Mobile	13148
...
(max) R7 9800X3D, NVIDIA GeForce RTX 4090	77609
