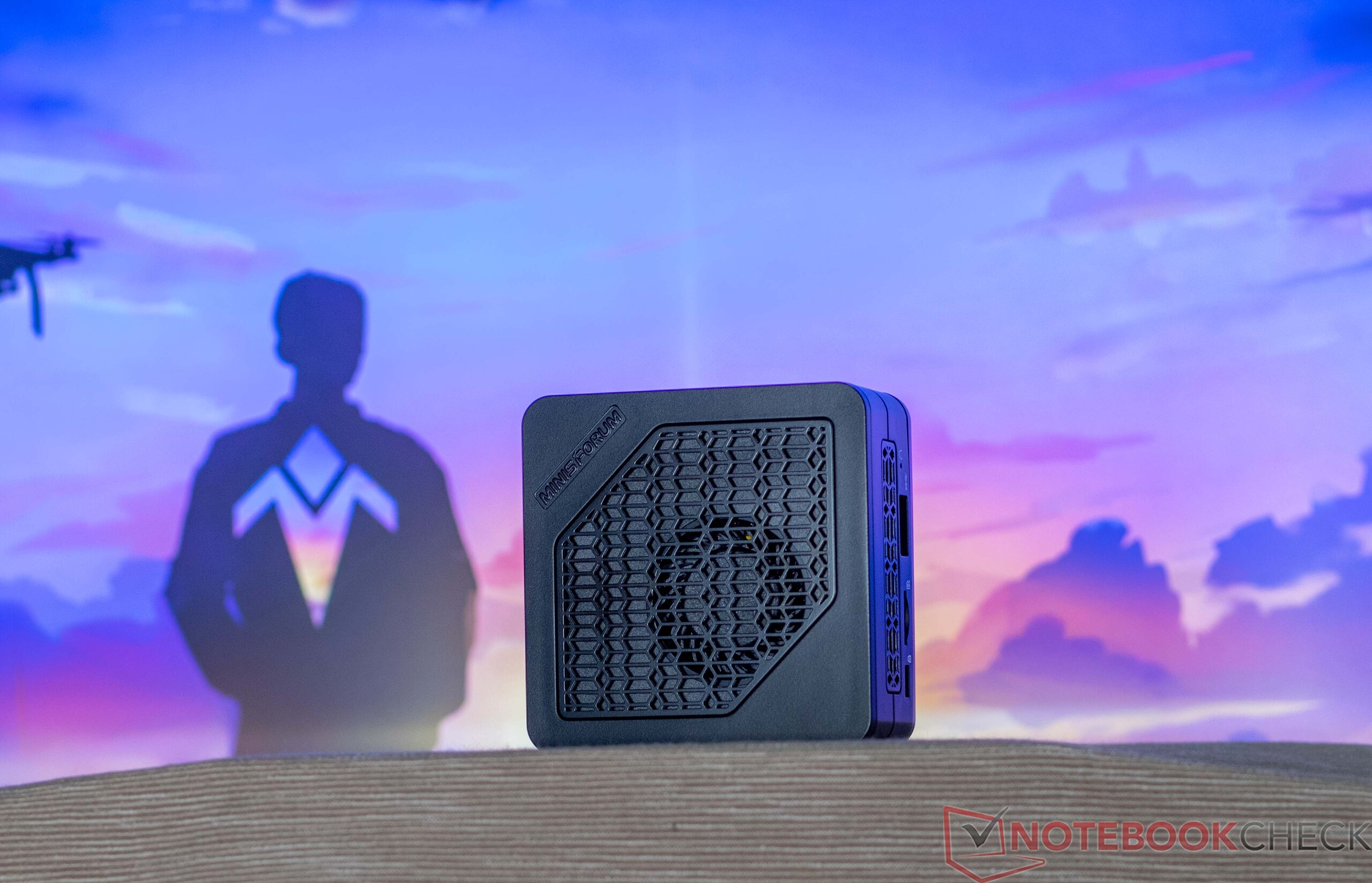

Minisforum Mercury 系列 EM780 评测:配备 AMD Ryzen 7 7840U、32 GB 内存和 1 TB SSD 的超小型迷你 PC
Minisforum 为水星系列 EM780 配备了更新的 SoC,作为 EM680 的升级版。新的 AMD Ryzen 7 7840U同样拥有八个原生内核,但配备了更新的 iGPU。制造商在内存方面也毫不吝啬,为该设备配备了 32 GB LPDDR5 内存,但不可升级。除存储容量外,基本规格始终如一。配备 512 GB 固态硬盘的配置目前在 Minisforum 的网上商店售价 699 欧元(619 美元)。如果多花 30 欧元(729 欧元或 639 美元),你还可以买到配备 1 TB 存储容量的 Mercury 系列 EM780,这也是我们在这里重点介绍的型号。
在这篇评测中,我们将看看与 Minisforum EM680 相比的性能提升。新的 Mercury 系列机型还将与我们之前深入评测过的其他功能强大的迷你 PC 进行正面交锋。对比设备概览见下表。
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名
潜在的竞争对手比较
Rating | Date | Model | Memory | Weight | Height |
---|---|---|---|---|---|
85.1 % v7 (old) | 03 / 2024 | Minisforum Mercury Series EM780 R7 7840U, Radeon 780M | 32768 MB | 238 g | 43 mm |
82.6 % v7 (old) | 03 / 2024 | Geekom A7 R9 7940HS, Radeon 780M | 32768 MB | 417 g | 38 mm |
81.8 % v7 (old) | 06 / 2023 | Minisforum Mercury Series EM680 R7 6800U, Radeon 680M | 16384 MB | 239 g | 43 mm |
81.2 % v7 (old) | 10 / 2023 | Geekom A5 R7 5800H, Vega 8 | 32768 MB | 555 g | 49.2 mm |
79.5 % v7 (old) | 11 / 2023 | Geekom Mini IT12 i5-12450H, UHD Graphics 64EUs | 16384 MB | 572 g | 45.6 mm |
79.5 % v7 (old) | 02 / 2024 | Maxtang MTN-FP750 R7 7735HS, Radeon 680M | 16384 MB | 601 g | 52 mm |
78.4 % v7 (old) | 01 / 2024 | NiPoGi AD08 i7-12650H, UHD Graphics 64EUs | 32768 MB | 878 g | 188.5 mm |
详细了解 Minisforum Mercury 系列 EM780

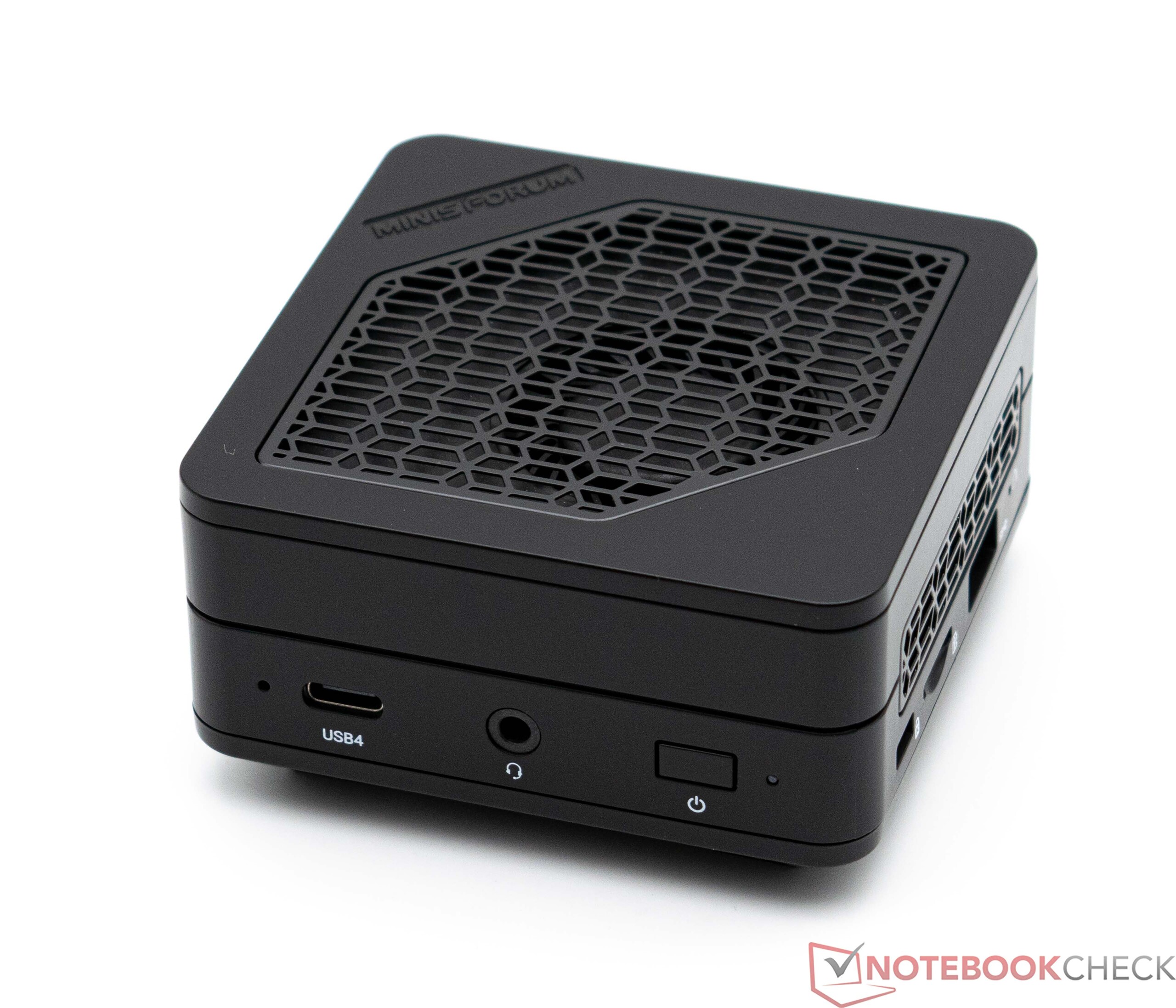

外壳 - 大量塑料,但非常小巧

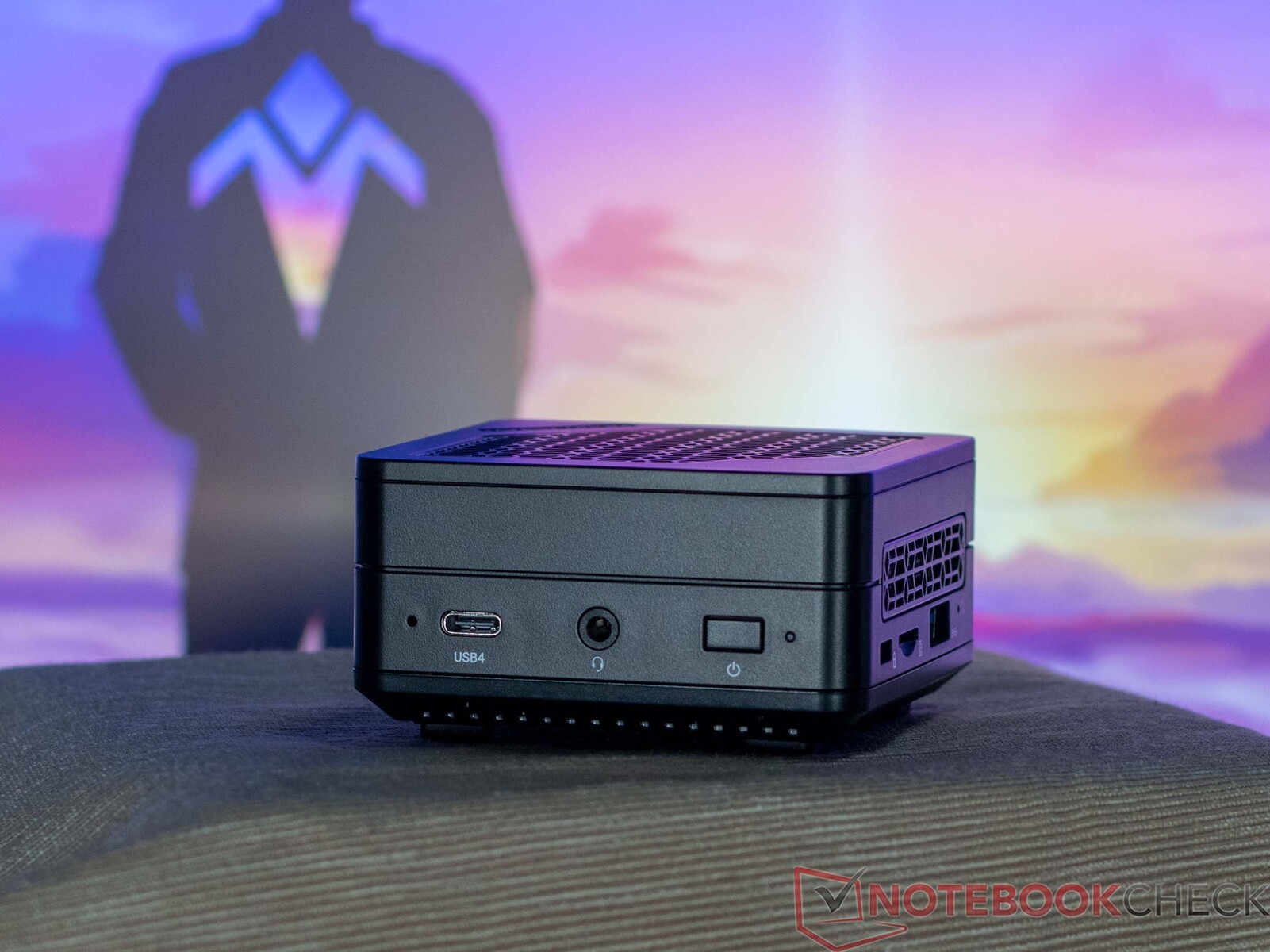

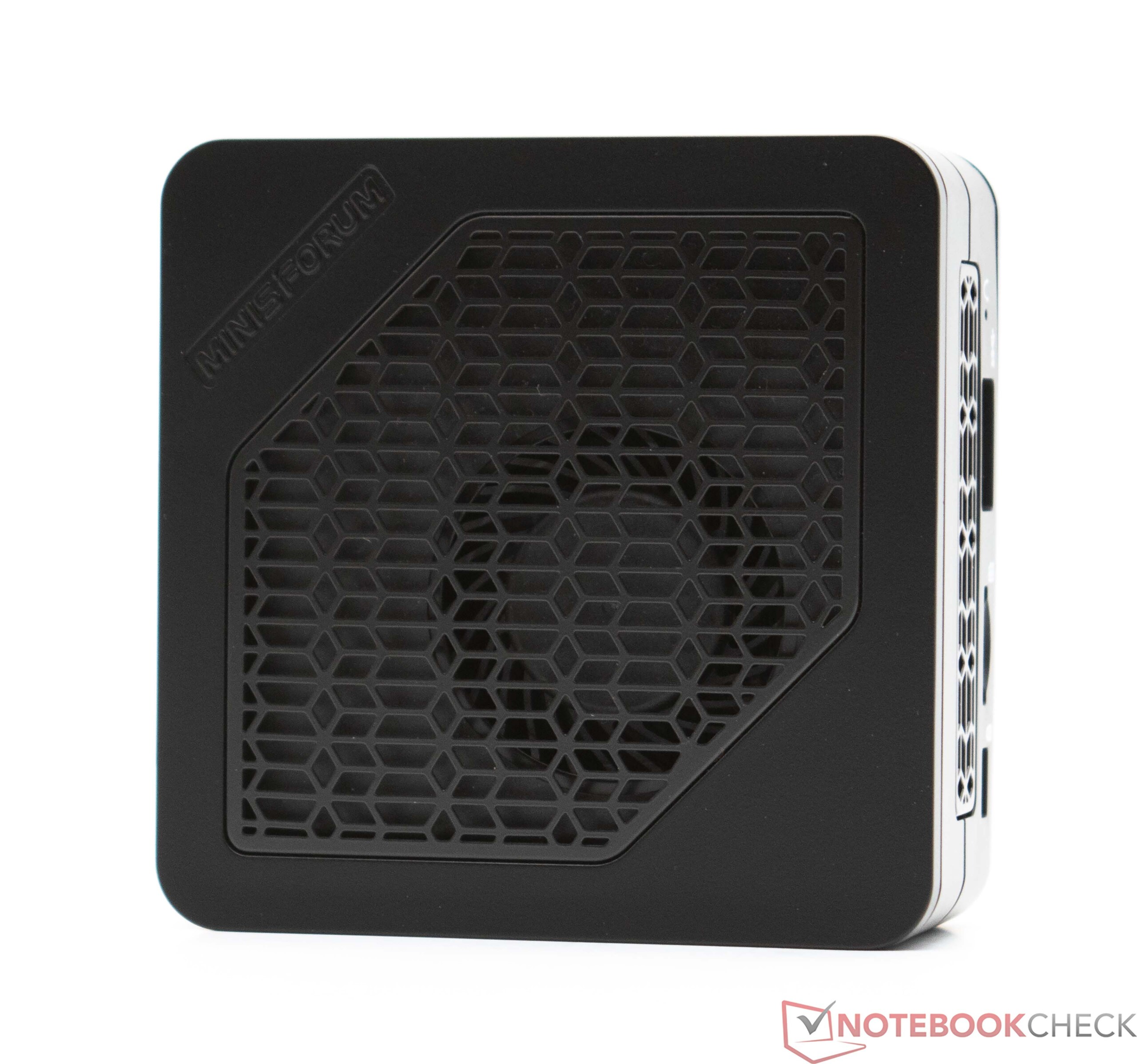

Minisforum Mercury 系列 EM780 采用与 EM680 相同的机箱,这意味着新机型也非常紧凑。Minisforum EM780 的占地面积仅为 80 x 80 毫米(3.15 x 3.15 英寸),占用空间极小。此外,该设备相当纤薄,厚度仅为 43 毫米(1.69 英寸)。在材料方面,Minisforum 主要采用塑料结构。由于设计紧凑,塑料结构非常坚固。只有出风口装有金属网,目的是让内部元件获得充足的新鲜空气。

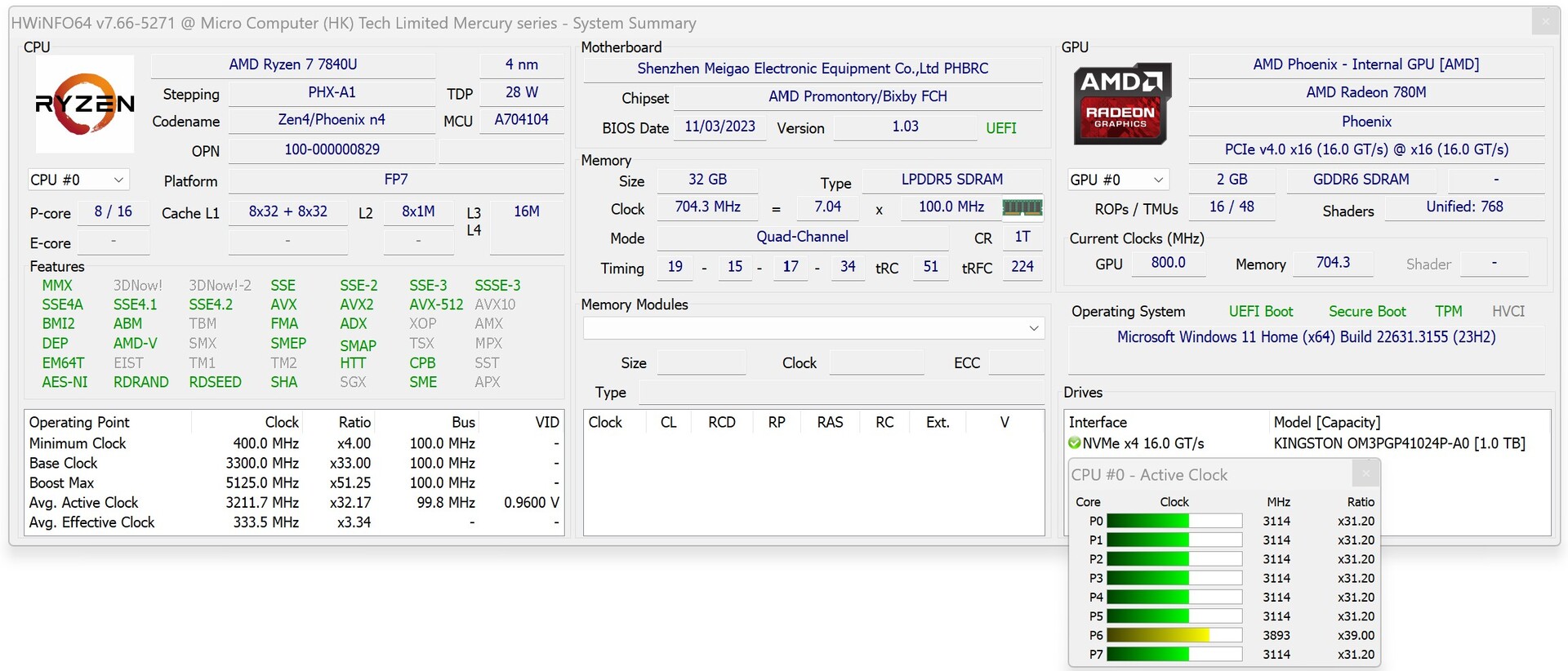

规格

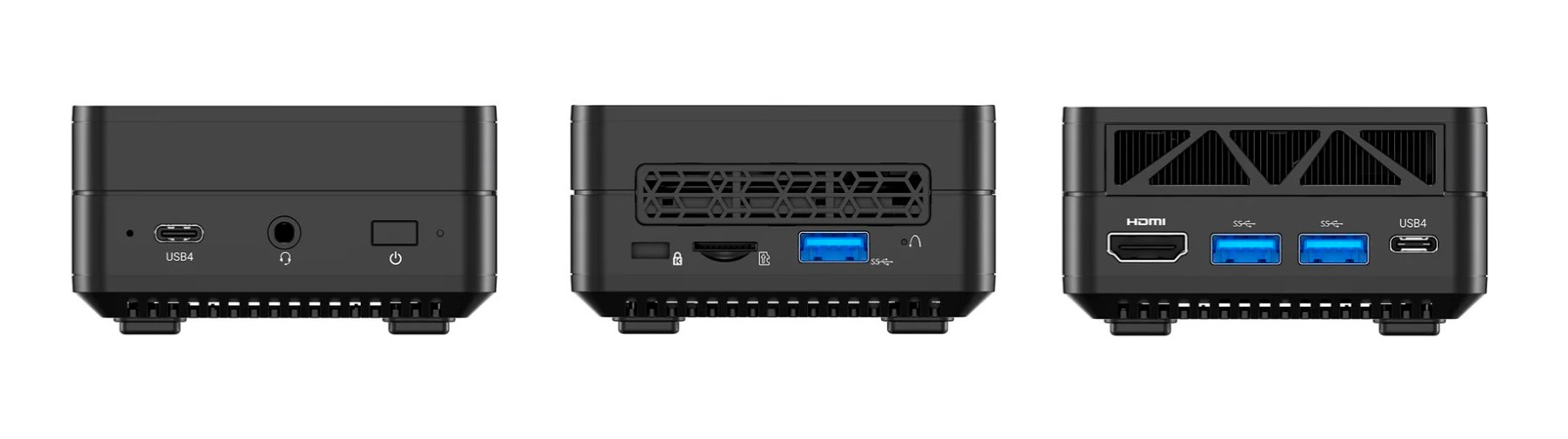

尽管 Minisforum Mercury 系列 EM780 是目前最小的迷你 PC 之一,但它的输入/输出选择却令人印象深刻。虽然你必须忍受一些限制,但重要的东西基本上都有。总共有五个 USB 端口,其中两个提供 USB4 速度。除了两个可以输出视频的 Type-C 端口外,您还可以通过 HDMI 连接另一台显示器。这意味着该设备最多可同时连接三台显示器。但还有一点需要注意:外围设备必须支持 Power Delivery,因为 EM780 是通过 USB-C 端口供电的。
SD 读卡器
SD Card Reader | |
average JPG Copy Test (av. of 3 runs) | |
Geekom A5 (AV Pro SD microSD 128 GB V60) | |
Geekom A7 (AV Pro SD microSD 128 GB V60) | |
Geekom Mini IT12 (AV Pro SD microSD 128 GB V60) | |
Average of class Mini PC (15.1 - 214, n=26, last 2 years) | |
Minisforum Mercury Series EM680 (AV Pro SD microSD 128 GB V60) | |
Minisforum Mercury Series EM780 (AV Pro SD microSD 128 GB V60) | |
maximum AS SSD Seq Read Test (1GB) | |
Geekom A7 (AV Pro SD microSD 128 GB V60) | |
Geekom A5 (AV Pro SD microSD 128 GB V60) | |
Geekom Mini IT12 (AV Pro SD microSD 128 GB V60) | |
Average of class Mini PC (18.2 - 221, n=26, last 2 years) | |
Minisforum Mercury Series EM680 (AV Pro SD microSD 128 GB V60) | |
Minisforum Mercury Series EM780 (AV Pro SD microSD 128 GB V60) |
连接性
在 Mercury 系列 EM780 中,英特尔杀手 Wi-Fi 6E AX1675w 可确保稳定、快速的无线连接。在我们的实际测试中,该 Wi-Fi 模块始终表现出色。尽管如此,当连接到 6 GHz 网络时,它仍无法达到 EM680 中联发科 RZ616 所显示的性能水平。这些结果是在华硕 ROG Rapture GT-AXE11000 参考路由器的帮助下获得的。
配件

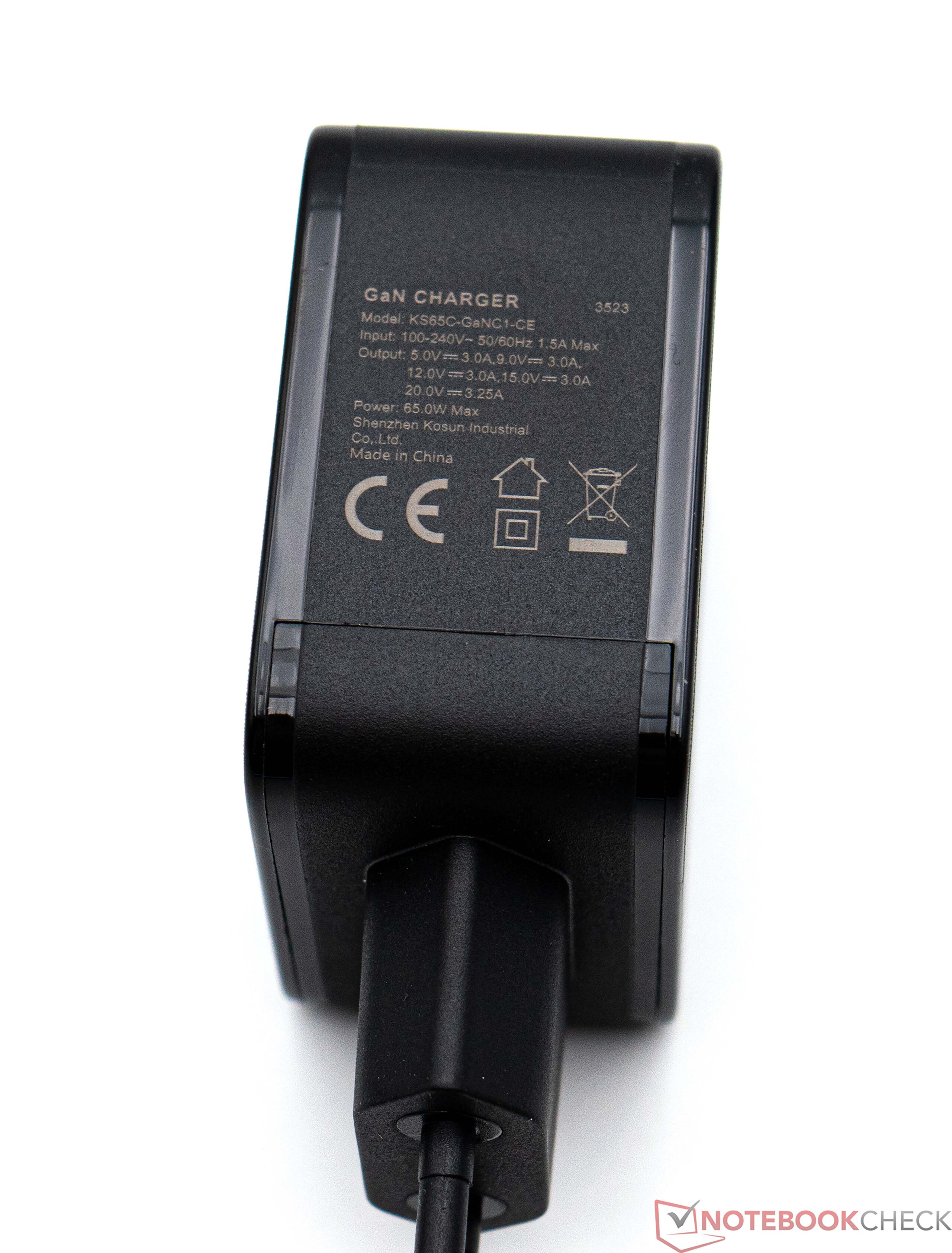

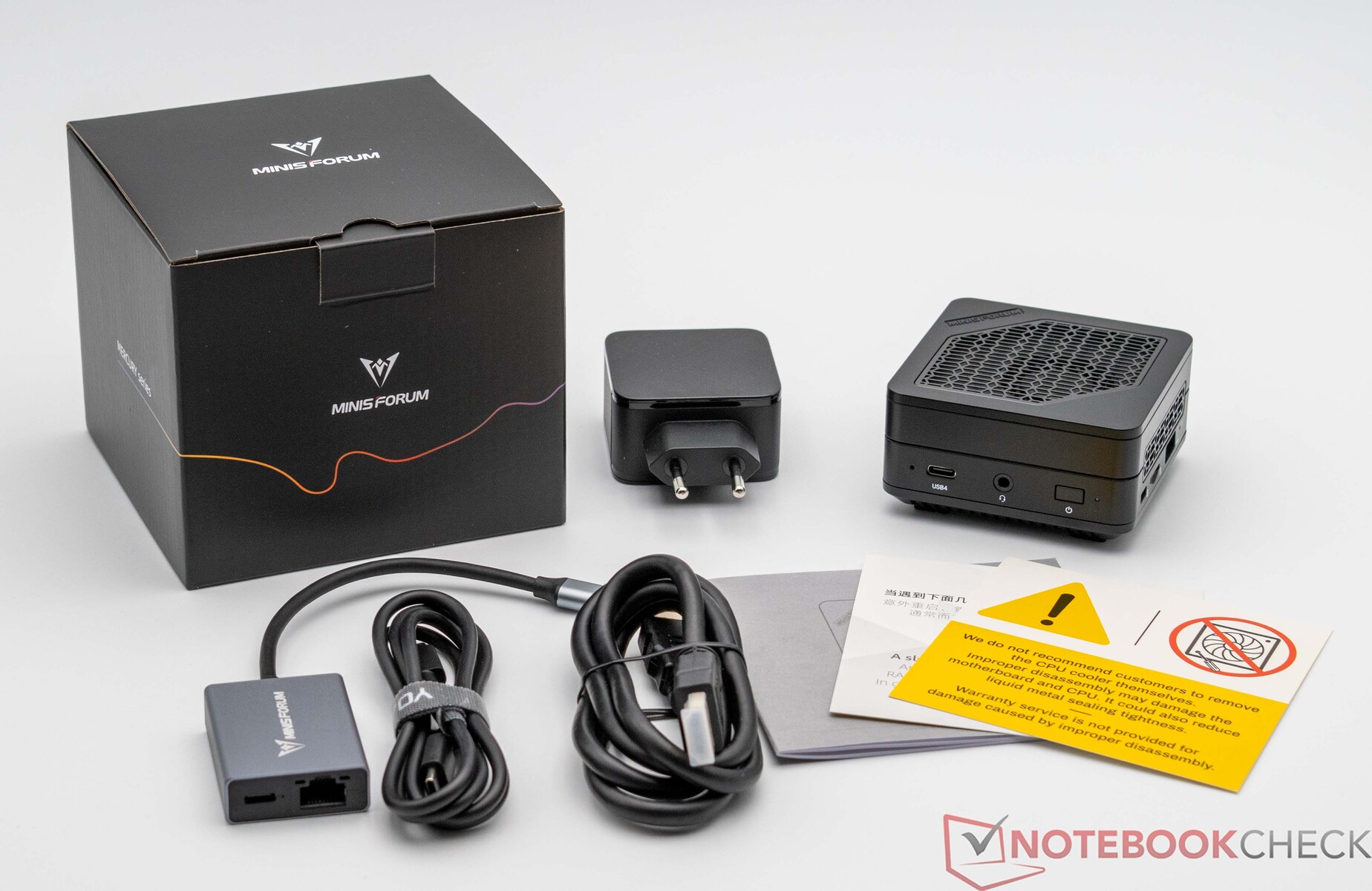

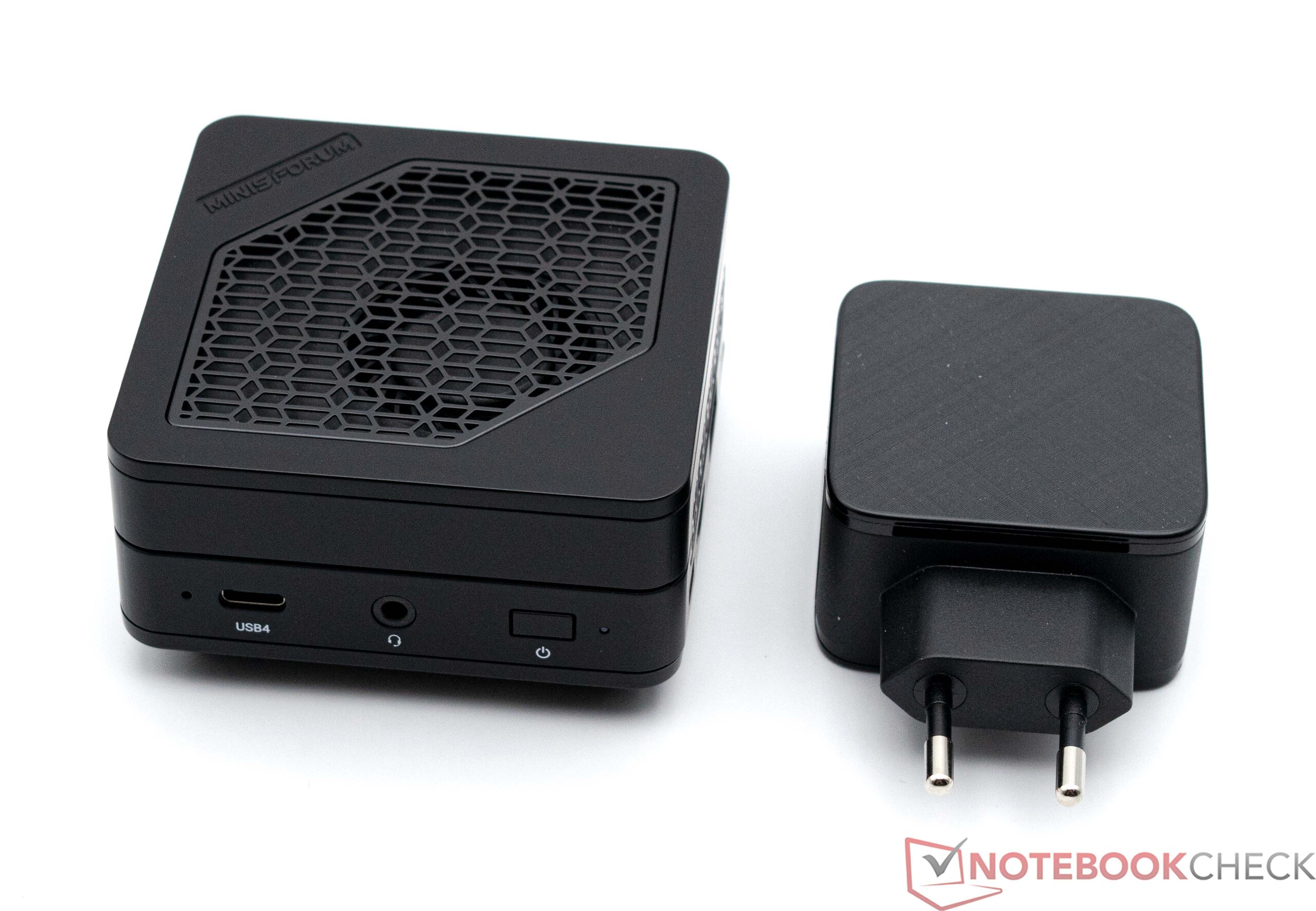

迷你电脑装在一个相对较小的盒子里。除设备本身外,包装盒内还有一个 65 瓦的小型电源适配器和一条 USB-C 连接线。该公司还随附了一个 RJ45 LAN 适配器、一根必备的 HDMI 线缆和一些文档。
维护

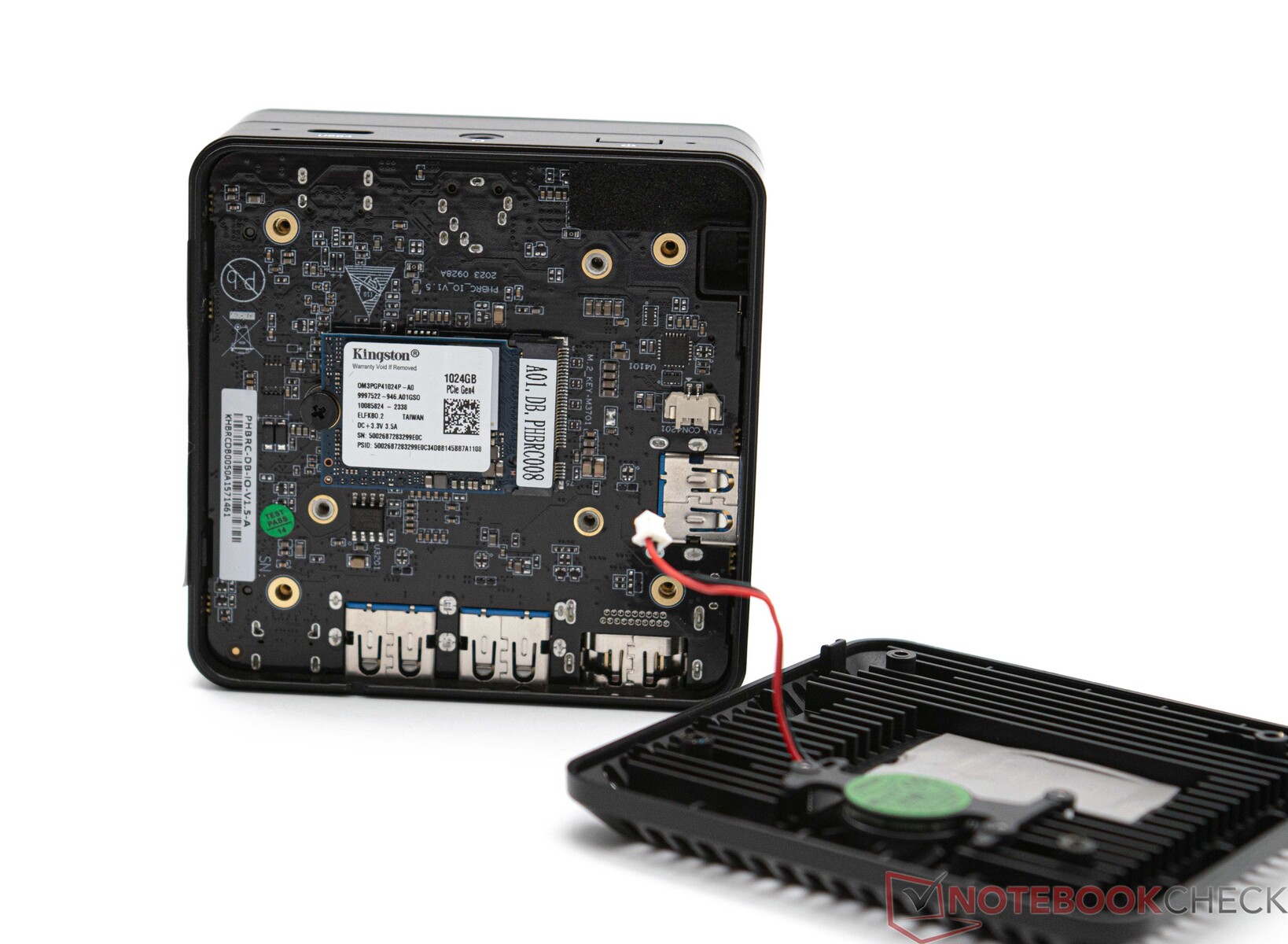

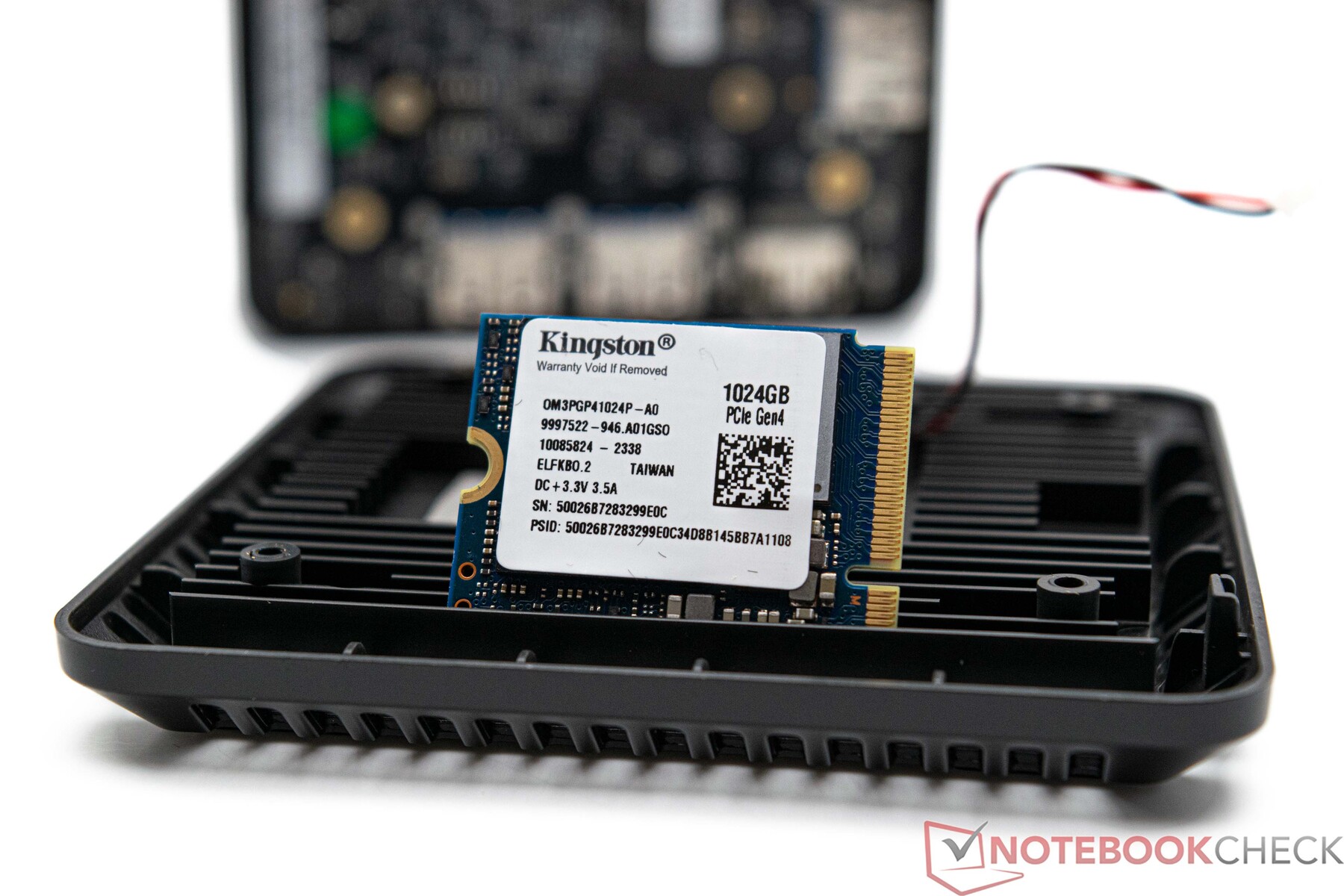

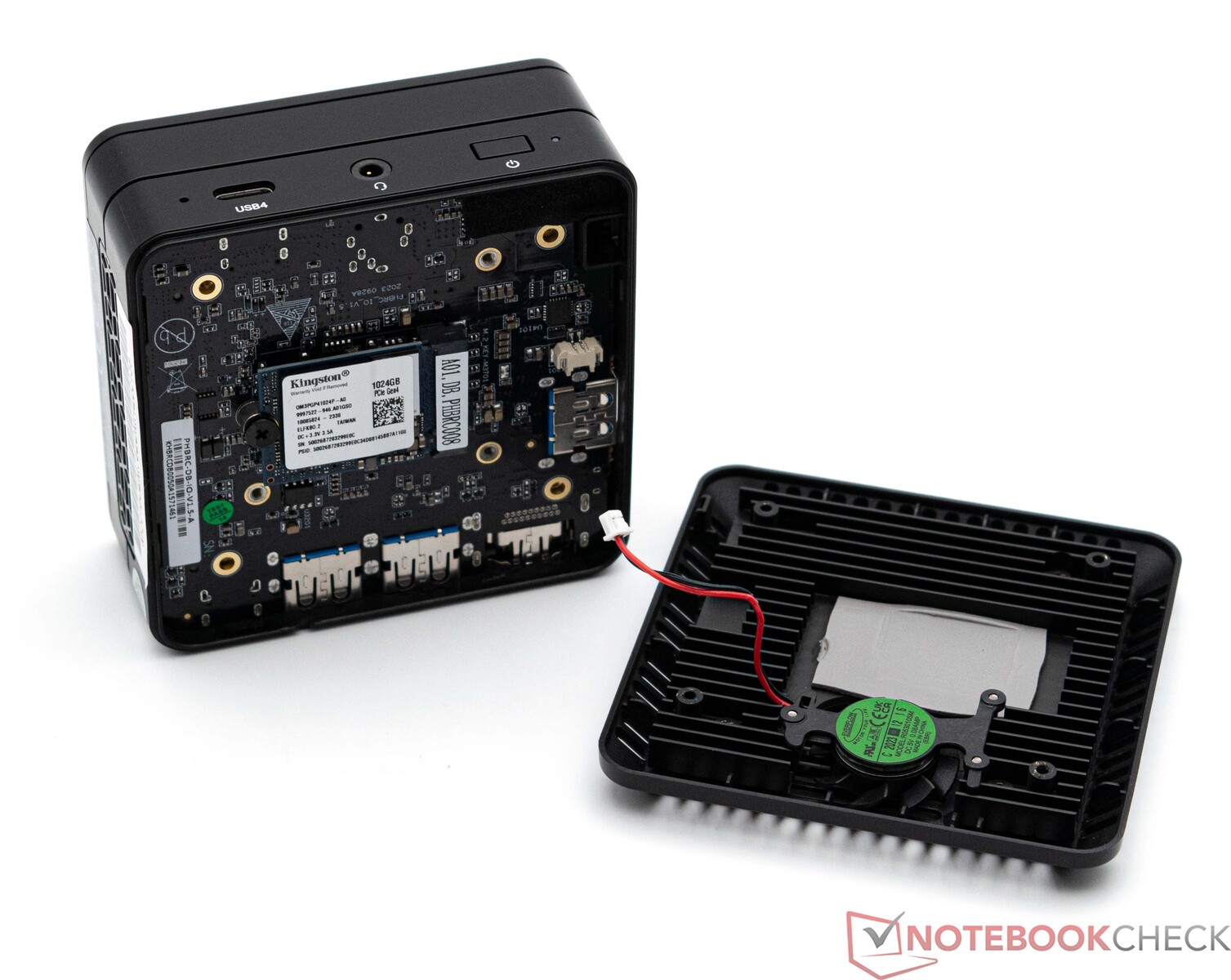

用户可以对 Minisforum Mercury 系列 EM780 进行的维护工作非常有限。如果需要更换下面的固态硬盘,只能比较轻松地拆下底盖。反正迷你 PC 也没有空间安装第二个存储驱动器。不建议进一步拆开设备,更不用说拆卸 CPU 冷却器了。包装盒内还有一张纸条,上面写着液态金属用于热传导。
性能 - AMD Ryzen 7 7840U,8 核 16 线程
Mercury 系列 EM780 的所有型号都配备了 AMD Ryzen 7 7840U.作为 Ryzen 7 6800U的继任者,新的 SoC 可以略高的时钟速度运行,并配备了最新的 Radeon 780MiGPU。从这些规格来看,这款迷你电脑应该能很好地处理要求更高的任务。SoC 的两侧是 32 GB LPDDR5 内存(6400 MT/s)和 1 TB SSD。
测试条件
在涉及该设备的所有性能测试中,我们都选择了 "高性能 "电源模式。唯一的例外是功率使用和噪音水平测量,这些测量是根据我们的测试标准进行的。.

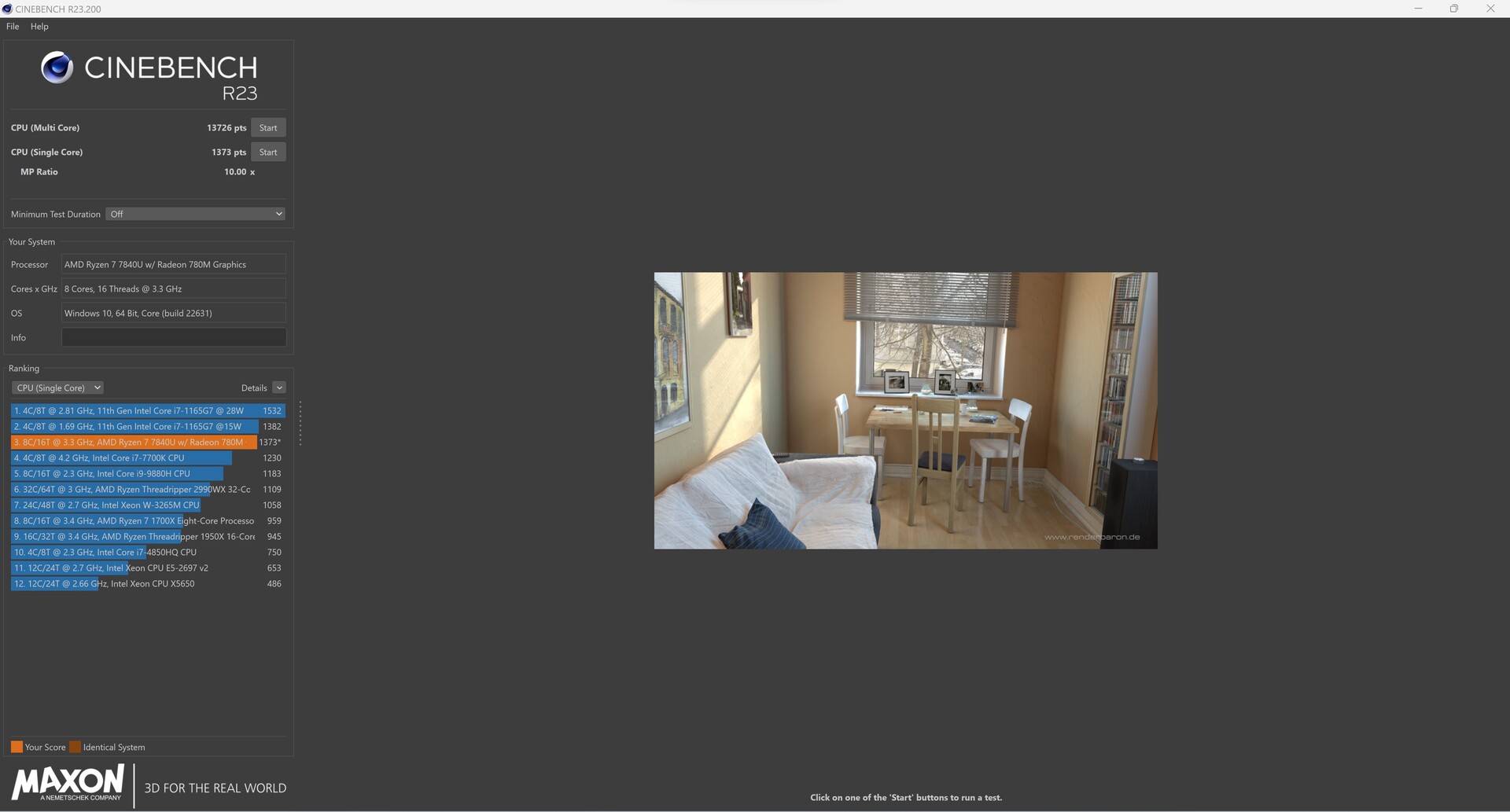

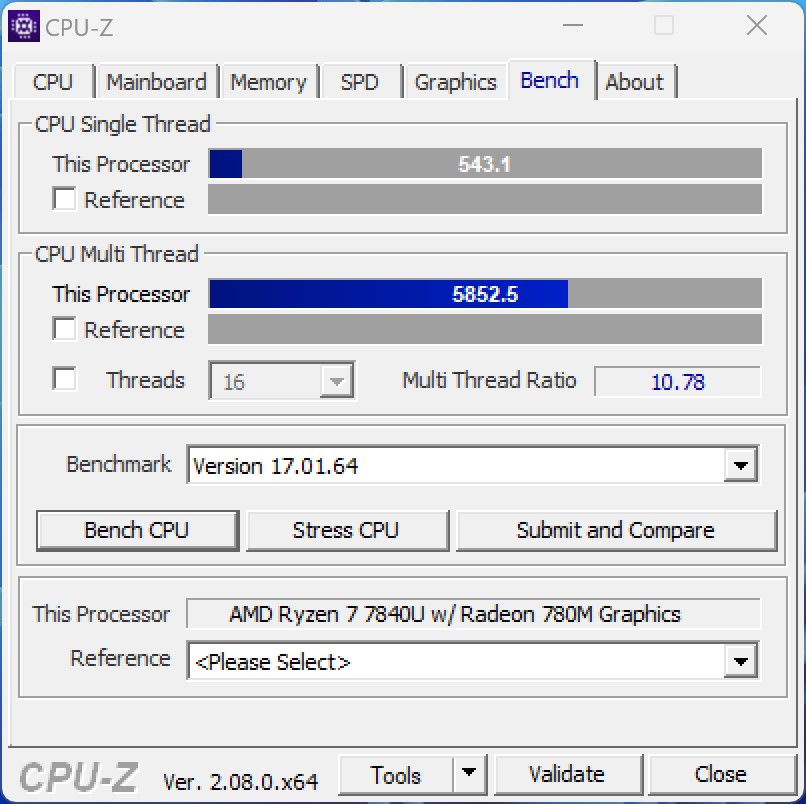

处理器

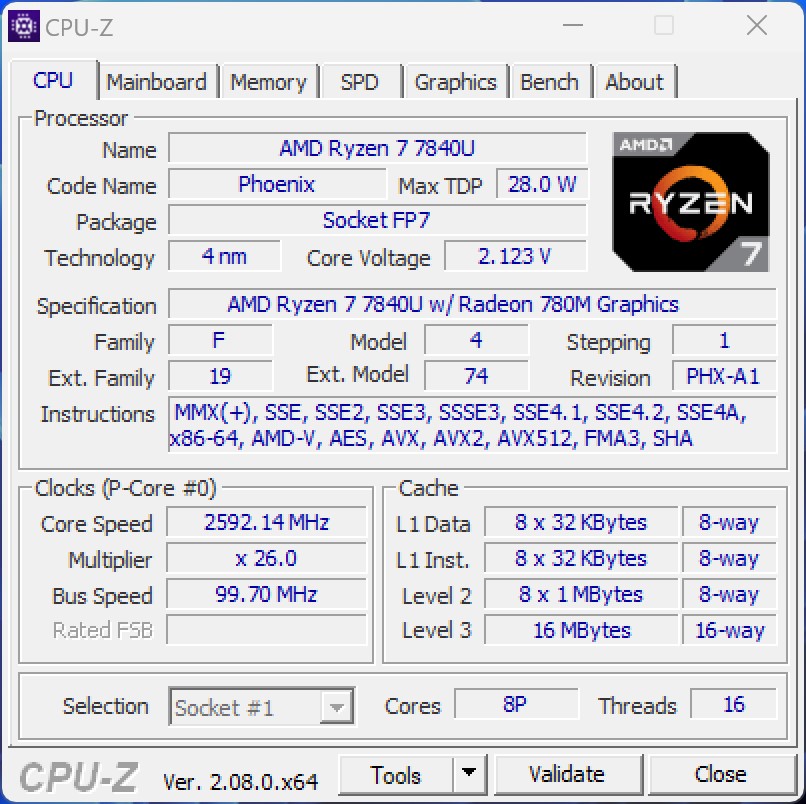

使用 AMD Ryzen 7 7840U,Minisforum Mercury 系列 EM780 获得了一款性能充足的高效 SoC。不过,单核性能相对较低是一个突出问题。但在多线程性能测试中,Zen 4 SoC 可以提供稳定的结果。几乎所有参与对比的设备在平均性能得分方面都不相上下。只有配备 AMD Ryzen 9 7940HS 的 Geekom A7 略微领先于其他设备。
尽管 Mercury 系列 EM780 非常小巧,因此其散热装置也比其他大多数迷你 PC 小得多,但其 CPU 性能仍然非常出色。这一点在 AIDA64 基准测试中得到了明确体现,我们的评测机在该测试中稳居第二。
点击这里查看更多处理器基准测试结果。
Performance Rating - Percent | |
Geekom A7 | |
NiPoGi AD08 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
Minisforum Mercury Series EM780 | |
Geekom Mini IT12 | |
Minisforum Mercury Series EM680 |
Cinebench R10 | |
Rendering Single CPUs 64Bit | |
Geekom A7 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
Minisforum Mercury Series EM680 | |
Maxtang MTN-FP750 | |
Geekom A5 | |
Minisforum Mercury Series EM780 | |
Rendering Multiple CPUs 64Bit | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
Geekom Mini IT12 | |
NiPoGi AD08 | |
Minisforum Mercury Series EM680 |
Blender - v2.79 BMW27 CPU | |
Geekom Mini IT12 | |
NiPoGi AD08 | |
Geekom A5 | |
Minisforum Mercury Series EM680 | |
Maxtang MTN-FP750 | |
Minisforum Mercury Series EM780 | |
Geekom A7 |
WinRAR - Result | |
Geekom A7 | |
NiPoGi AD08 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
Geekom Mini IT12 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 |
Geekbench 4.4 | |
64 Bit Single-Core Score | |
Geekom A7 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
Maxtang MTN-FP750 | |
Geekom A5 | |
Minisforum Mercury Series EM680 | |
Minisforum Mercury Series EM780 | |
64 Bit Multi-Core Score | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Geekom A5 | |
NiPoGi AD08 | |
Minisforum Mercury Series EM680 | |
Geekom Mini IT12 | |
Maxtang MTN-FP750 |
3DMark 11 - 1280x720 Performance Physics | |
Geekom A7 | |
Geekom A5 | |
NiPoGi AD08 | |
Minisforum Mercury Series EM780 | |
Geekom Mini IT12 | |
Minisforum Mercury Series EM680 | |
Maxtang MTN-FP750 |
HWBOT x265 Benchmark v2.2 - 4k Preset | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 | |
Geekom Mini IT12 |
R Benchmark 2.5 - Overall mean | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
Geekom Mini IT12 | |
NiPoGi AD08 | |
Geekom A7 |
LibreOffice - 20 Documents To PDF | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Maxtang MTN-FP750 | |
Geekom A7 | |
Geekom A5 | |
Geekom Mini IT12 | |
NiPoGi AD08 |
WebXPRT 3 - Overall | |
Geekom A7 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
Maxtang MTN-FP750 | |
Geekom A5 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 |
Mozilla Kraken 1.1 - Total | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Minisforum Mercury Series EM780 | |
Maxtang MTN-FP750 | |
Geekom Mini IT12 | |
NiPoGi AD08 | |
Geekom A7 |
3DMark | |
3840x2160 Fire Strike Ultra Physics | |
Geekom A7 | |
Geekom A5 | |
NiPoGi AD08 | |
Maxtang MTN-FP750 | |
Geekom Mini IT12 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
1920x1080 Fire Strike Physics | |
Geekom A7 | |
Geekom A5 | |
NiPoGi AD08 | |
Maxtang MTN-FP750 | |
Geekom Mini IT12 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
2560x1440 Time Spy CPU | |
Geekom A7 | |
Geekom A5 | |
NiPoGi AD08 | |
Minisforum Mercury Series EM780 | |
Maxtang MTN-FP750 | |
Geekom Mini IT12 | |
Minisforum Mercury Series EM680 |
Super Pi mod 1.5 XS 1M - 1M | |
Geekom A5 | |
Minisforum Mercury Series EM780 | |
Maxtang MTN-FP750 | |
Geekom Mini IT12 | |
NiPoGi AD08 | |
Minisforum Mercury Series EM680 | |
Geekom A7 |
Super Pi mod 1.5 XS 2M - 2M | |
Minisforum Mercury Series EM780 | |
Maxtang MTN-FP750 | |
Geekom A5 | |
Minisforum Mercury Series EM680 | |
Geekom Mini IT12 | |
Geekom A7 | |
NiPoGi AD08 |
Super Pi Mod 1.5 XS 32M - 32M | |
Minisforum Mercury Series EM780 | |
Maxtang MTN-FP750 | |
Minisforum Mercury Series EM680 | |
Geekom A7 | |
Geekom A5 | |
Geekom Mini IT12 | |
NiPoGi AD08 |
* ... smaller is better
Performance Rating - Percent | |
Geekom A7 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
Minisforum Mercury Series EM780 | |
Geekom A5 | |
Minisforum Mercury Series EM680 | |
Maxtang MTN-FP750 |
Geekbench 4.4 | |
64 Bit Single-Core Score | |
Geekom A7 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
Maxtang MTN-FP750 | |
Geekom A5 | |
Minisforum Mercury Series EM680 | |
Minisforum Mercury Series EM780 | |
64 Bit Multi-Core Score | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Geekom A5 | |
NiPoGi AD08 | |
Minisforum Mercury Series EM680 | |
Geekom Mini IT12 | |
Maxtang MTN-FP750 |
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
Average of class Mini PC | |
NiPoGi AD08 | |
Geekom Mini IT12 |
AIDA64 / FP32 Ray-Trace | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Maxtang MTN-FP750 | |
Geekom A5 | |
Average of class Mini PC (561 - 51004, n=119, last 2 years) | |
Minisforum Mercury Series EM680 | |
NiPoGi AD08 | |
Geekom Mini IT12 |
AIDA64 / FPU Julia | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Maxtang MTN-FP750 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Average of class Mini PC (3604 - 214250, n=119, last 2 years) | |
NiPoGi AD08 | |
Geekom Mini IT12 |
AIDA64 / CPU SHA3 | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Maxtang MTN-FP750 | |
Average of class Mini PC (225 - 9399, n=119, last 2 years) | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
NiPoGi AD08 | |
Geekom Mini IT12 |
AIDA64 / CPU Queen | |
Geekom A7 | |
Geekom A5 | |
Minisforum Mercury Series EM680 | |
Maxtang MTN-FP750 | |
Minisforum Mercury Series EM780 | |
Average of class Mini PC (8172 - 184747, n=119, last 2 years) | |
NiPoGi AD08 | |
Geekom Mini IT12 |
AIDA64 / FPU SinJulia | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Maxtang MTN-FP750 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Average of class Mini PC (408 - 29064, n=119, last 2 years) | |
NiPoGi AD08 | |
Geekom Mini IT12 |
AIDA64 / FPU Mandel | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Maxtang MTN-FP750 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Average of class Mini PC (1958 - 113499, n=119, last 2 years) | |
NiPoGi AD08 | |
Geekom Mini IT12 |
AIDA64 / CPU AES | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Average of class Mini PC (3691 - 325960, n=119, last 2 years) | |
Geekom Mini IT12 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 |
AIDA64 / CPU ZLib | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Average of class Mini PC (74.8 - 2039, n=119, last 2 years) | |
Geekom A5 | |
NiPoGi AD08 | |
Maxtang MTN-FP750 | |
Minisforum Mercury Series EM680 | |
Geekom Mini IT12 |
AIDA64 / FP64 Ray-Trace | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Maxtang MTN-FP750 | |
Average of class Mini PC (308 - 26952, n=119, last 2 years) | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
NiPoGi AD08 | |
Geekom Mini IT12 |
AIDA64 / CPU PhotoWorxx | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Average of class Mini PC (4408 - 50500, n=119, last 2 years) | |
Minisforum Mercury Series EM680 | |
Geekom Mini IT12 | |
Geekom A5 | |
NiPoGi AD08 | |
Maxtang MTN-FP750 |

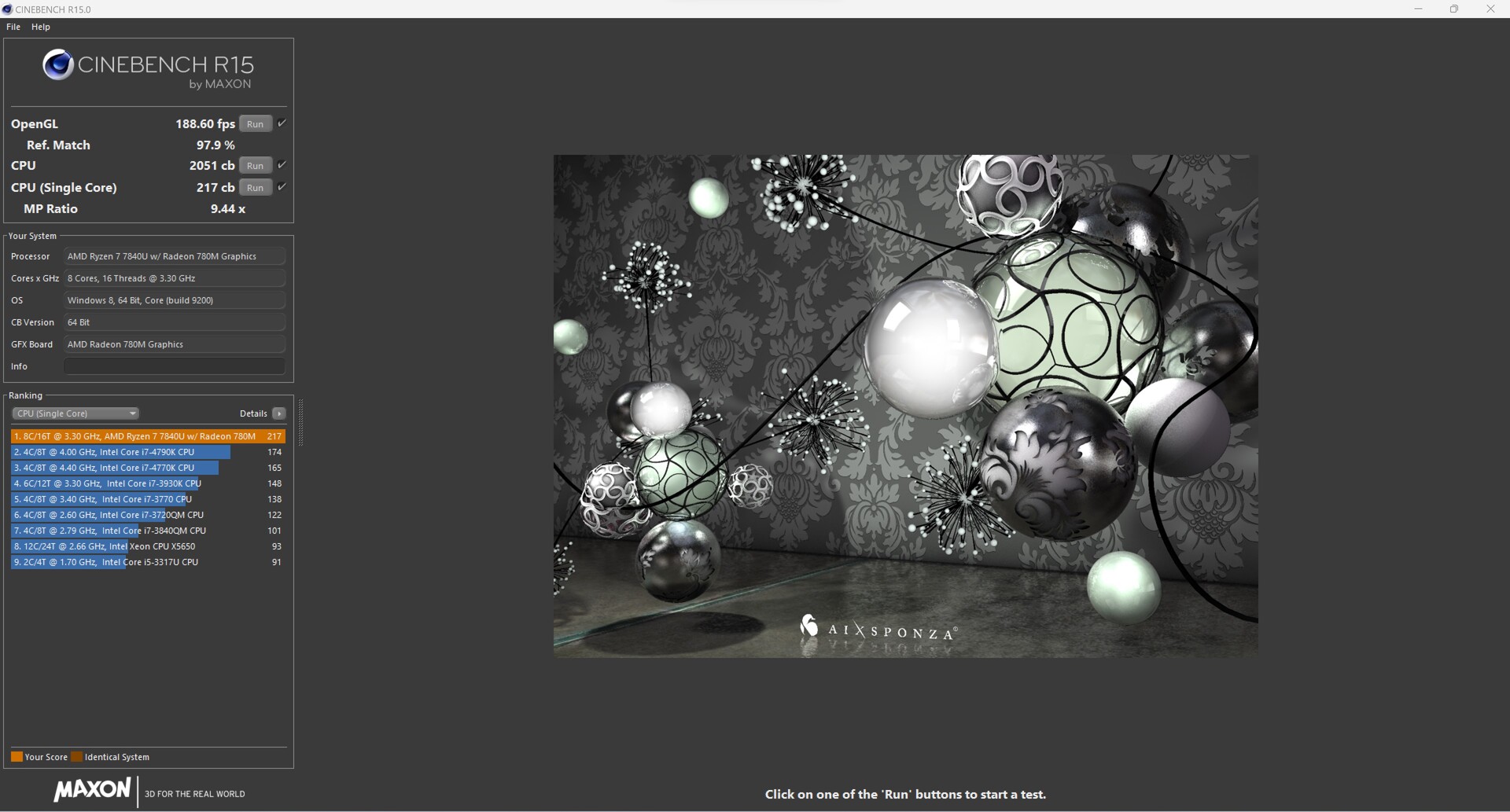

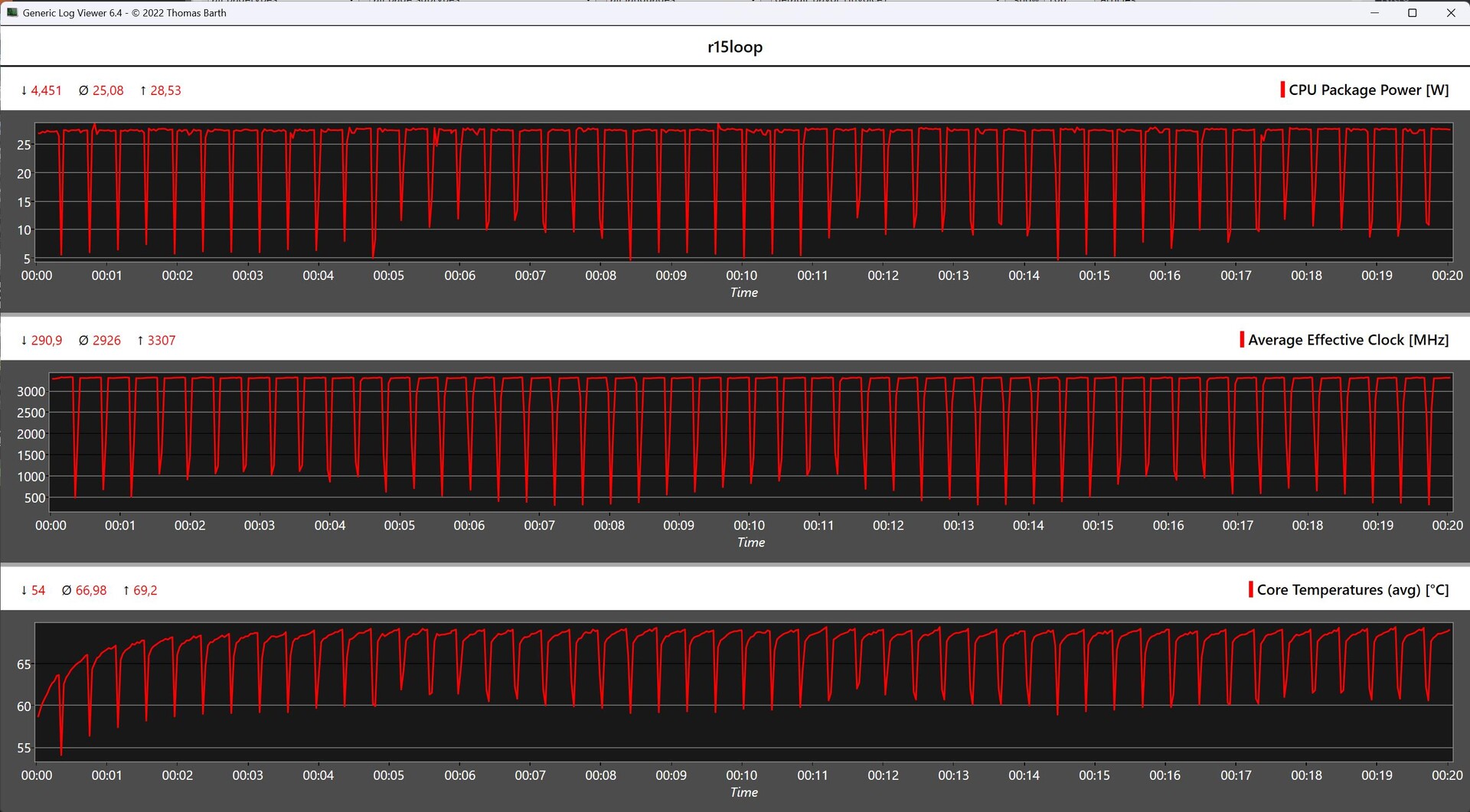

Minisforum Mercury 系列 EM780 在 Cinebench R15 多回路中的表现
循环运行 Cinebench R15 对 Ryzen 7 7840U 的要求很高。因此,我们可以通过它来了解散热装置的工作情况。运行 50 次后获得的结果显示,性能随着时间的推移保持非常稳定。Minisforum Mercury 系列 EM780 的平均得分为 1,896 分,同样在这项测试中获得了亚军。对 CPU 数据的分析表明,SoC 的功耗始终保持在 28 瓦。我们记录到的 CPU 最高温度接近 70°C(158°F),这表明 Minisforum 为 EM780 配备了高效的散热器。
系统性能
Minisforum Mercury 系列 EM780 在日常使用中给人留下了良好的印象。PCMark 10 的测试结果也证明了这一点。不过,在 Crossmark 测试中,我们的评测样品无法赶上竞争对手。为了确保测试没有任何问题,我们重复进行了多次测试,但结果并没有发生重大变化。即便如此 AMD Ryzen 7 7840U在板载内存的配合下仍然取得了出色的成绩。
AIDA64 / Memory Copy | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Average AMD Ryzen 7 7840U (43255 - 70532, n=11) | |
Minisforum Mercury Series EM680 | |
Average of class Mini PC (6481 - 89287, n=119, last 2 years) | |
Geekom Mini IT12 | |
NiPoGi AD08 | |
Geekom A5 | |
Maxtang MTN-FP750 |
AIDA64 / Memory Read | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Average AMD Ryzen 7 7840U (37399 - 61602, n=10) | |
Average of class Mini PC (6914 - 99171, n=119, last 2 years) | |
Geekom Mini IT12 | |
NiPoGi AD08 | |
Geekom A5 | |
Minisforum Mercury Series EM680 | |
Maxtang MTN-FP750 |
AIDA64 / Memory Write | |
Minisforum Mercury Series EM780 | |
Geekom A7 | |
Average AMD Ryzen 7 7840U (49426 - 92289, n=12) | |
Average of class Mini PC (6862 - 98583, n=119, last 2 years) | |
Minisforum Mercury Series EM680 | |
Geekom Mini IT12 | |
Geekom A5 | |
NiPoGi AD08 | |
Maxtang MTN-FP750 |
AIDA64 / Memory Latency | |
Minisforum Mercury Series EM780 | |
Average AMD Ryzen 7 7840U (90 - 137.2, n=11) | |
Minisforum Mercury Series EM680 | |
NiPoGi AD08 | |
Average of class Mini PC (44.9 - 184.8, n=119, last 2 years) | |
Geekom A7 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
Geekom Mini IT12 |
* ... smaller is better

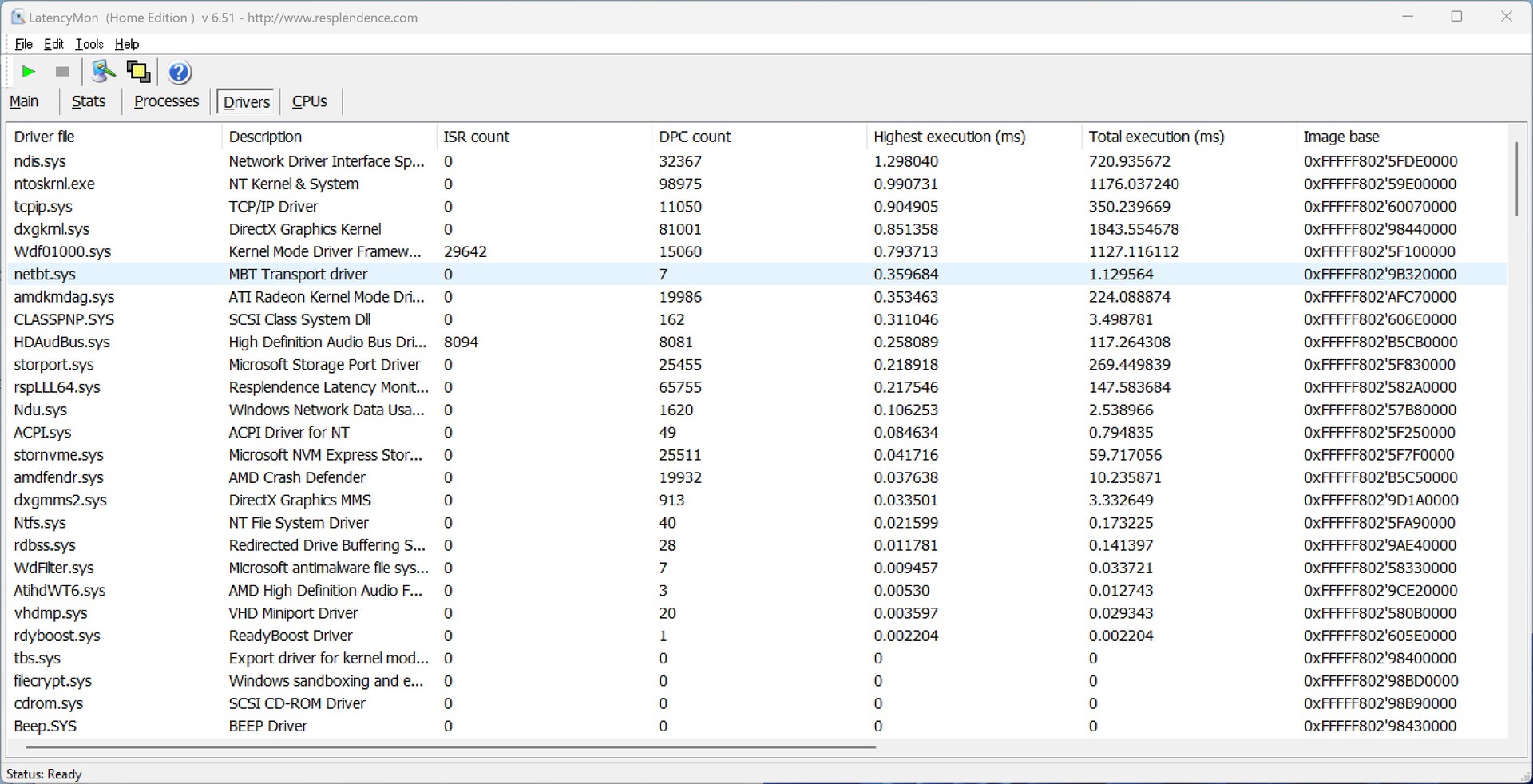

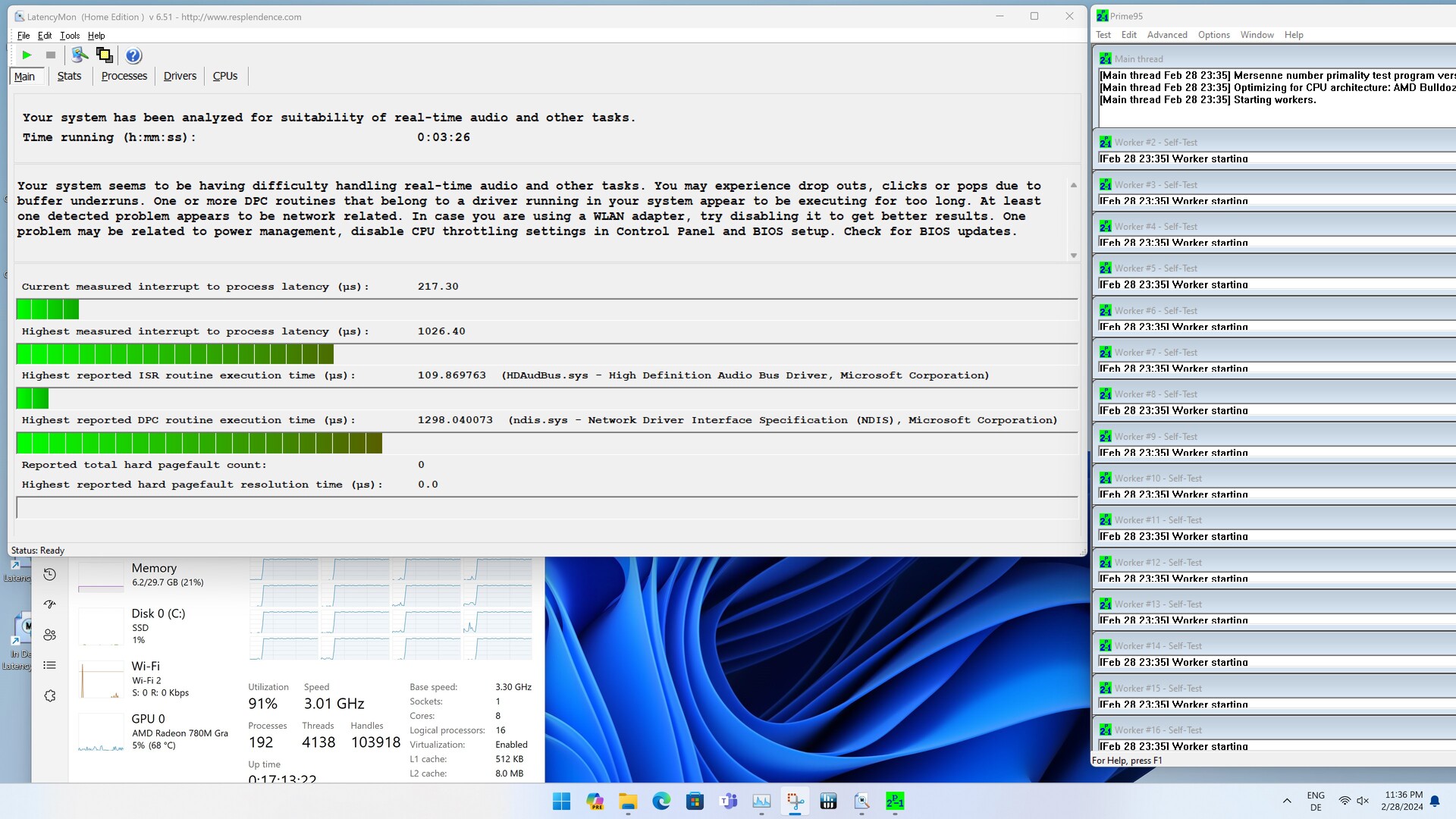

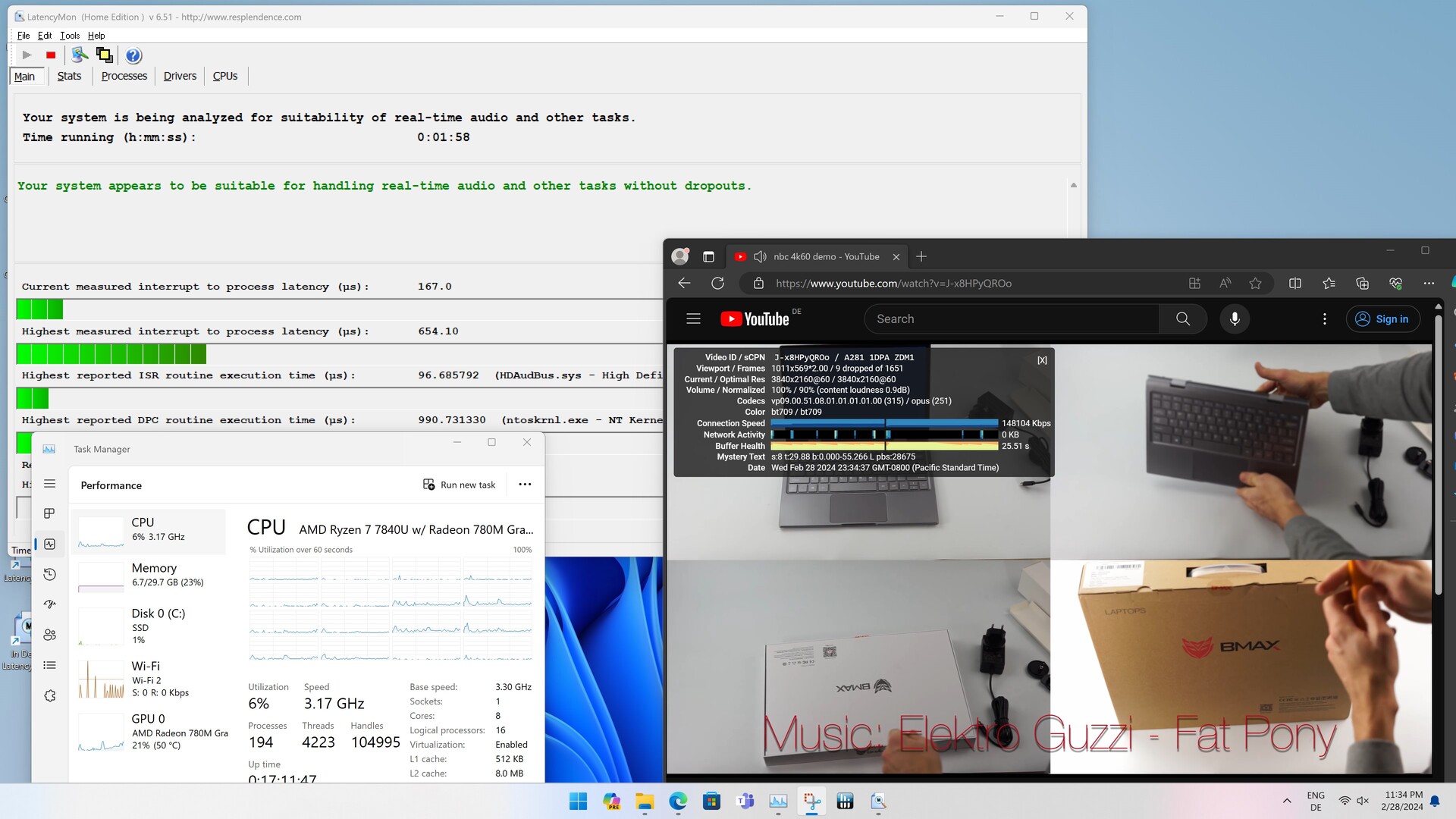

DPC 延迟
在进行基本的网页浏览时,Minisforum Mercury 系列 EM780 完全没有出现延迟增加的问题。评测设备还能轻松播放 4K 测试视频,不过我们也注意到了一些掉帧现象。只有当 Prime95 开始运行时,延迟才会上升。我们认为,EM780 仍然是一款出色的流媒体客户端。
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Minisforum Mercury Series EM680, AMD Ryzen 7 6800U | |
Geekom A7, AMD Ryzen 9 7940HS | |
Geekom Mini IT12, Intel Core i5-12450H | |
Geekom A5, AMD Ryzen 7 5800H | |
Minisforum Mercury Series EM780, AMD Ryzen 7 7840U | |
Maxtang MTN-FP750, AMD Ryzen 7 7735HS | |
NiPoGi AD08, Intel Core i7-12650H |
* ... smaller is better

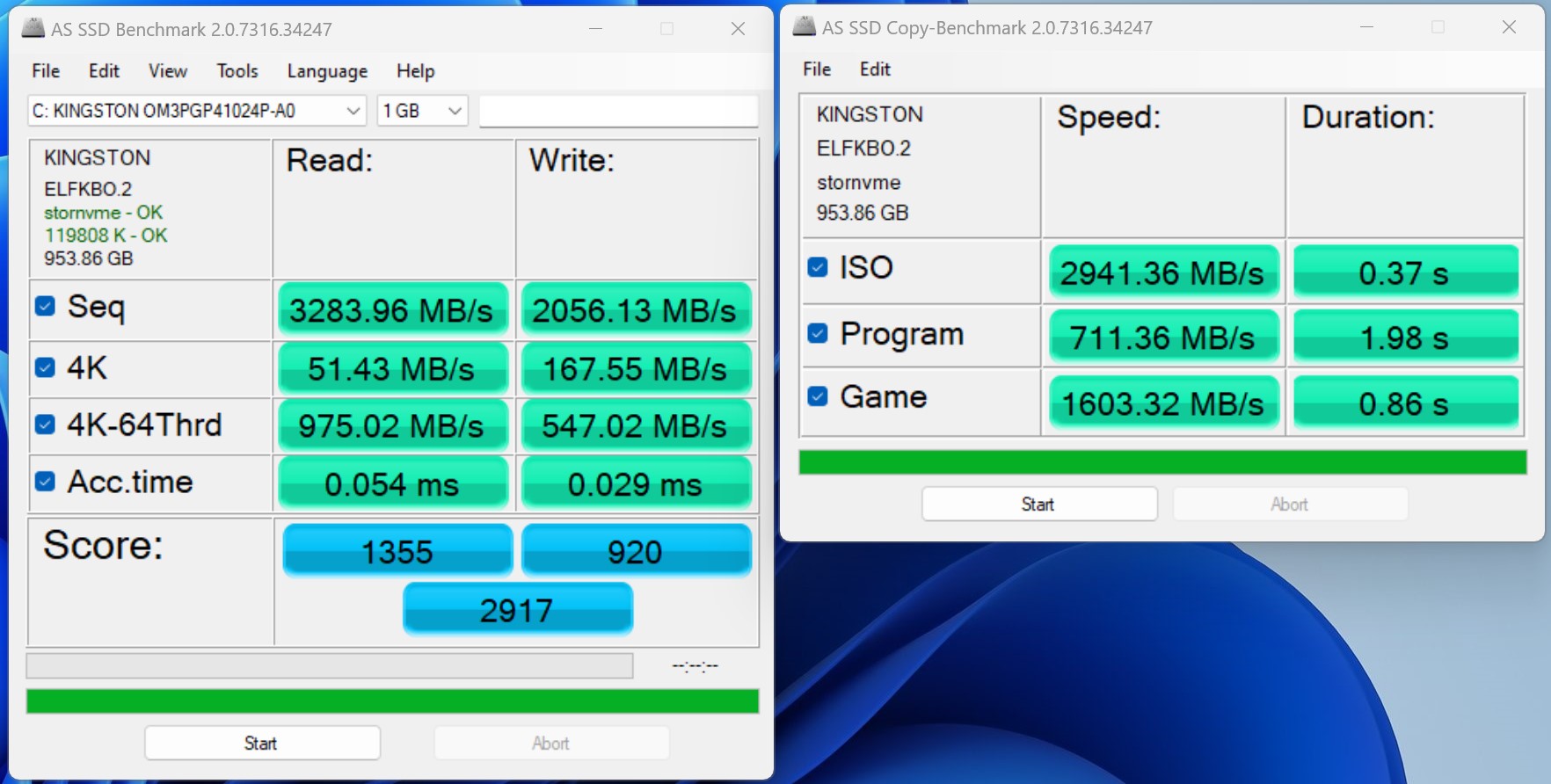

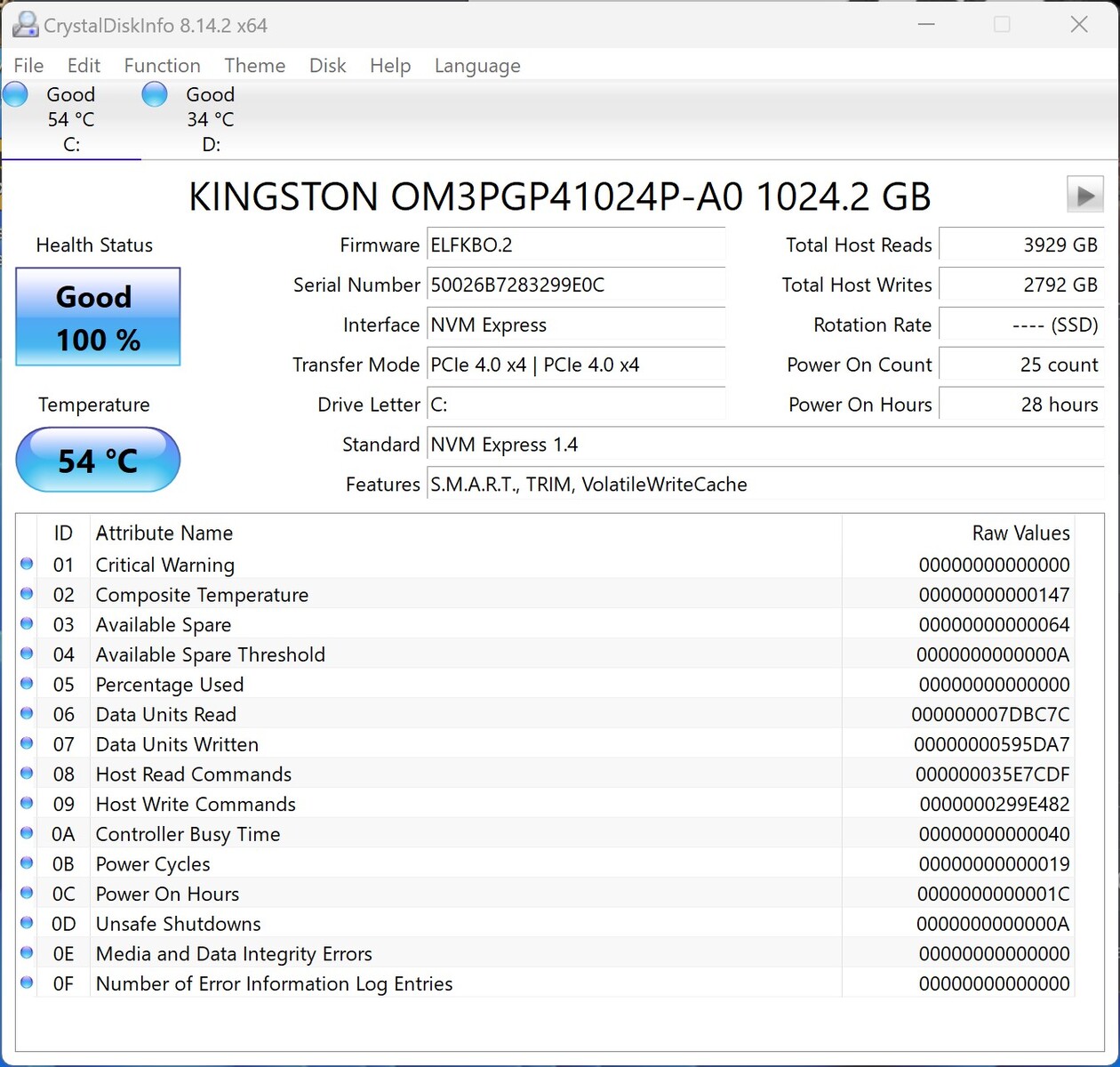

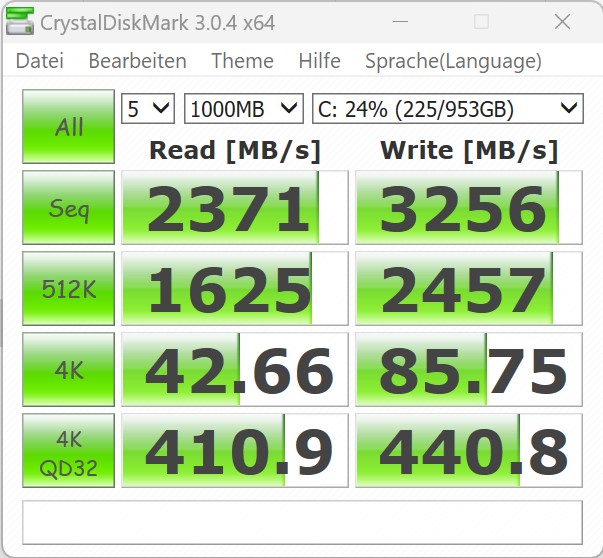

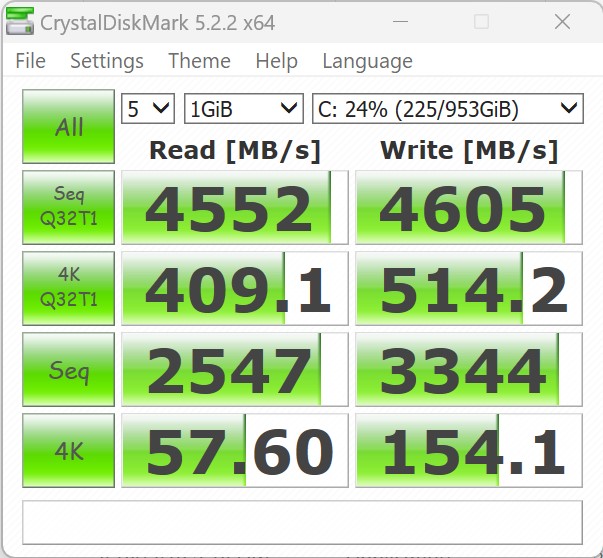

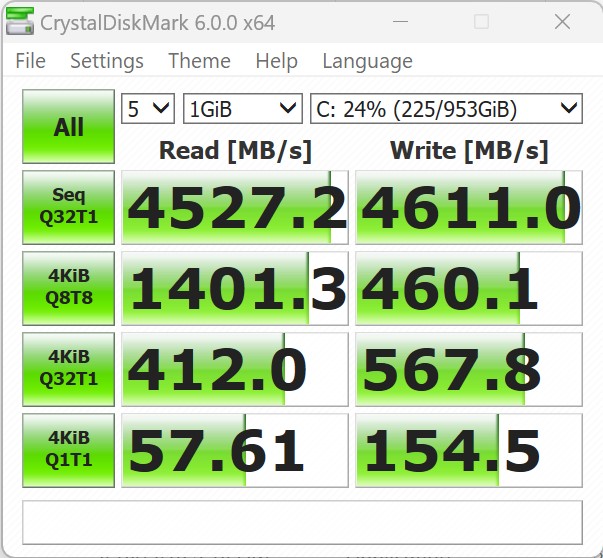

大容量存储器
由于其设计,Mercury 系列 EM780 配备了一个非常小巧的固态硬盘。该存储驱动器由金士顿制造,长度仅为 30 毫米(1.18 英寸),传输速率尚可。至少,存储设备不是永久安装的,可以更换。Minisforum 在设备底部安装了额外的风扇和散热片,以防止固态硬盘过热。这个系统似乎收到了成效,因为在整个压力测试过程中,读取速度保持稳定。与前代产品一样,EM780 只能容纳一个存储驱动器。
您可以参考我们的对比表了解更多信息和基准测试成绩。
Drive Performance Rating - Percent | |
Minisforum Mercury Series EM680 | |
Geekom A7 | |
Geekom A5 | |
Average of class Mini PC | |
Minisforum Mercury Series EM780 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
Maxtang MTN-FP750 |
* ... smaller is better
Sustained load Read: DiskSpd Read Loop, Queue Depth 8

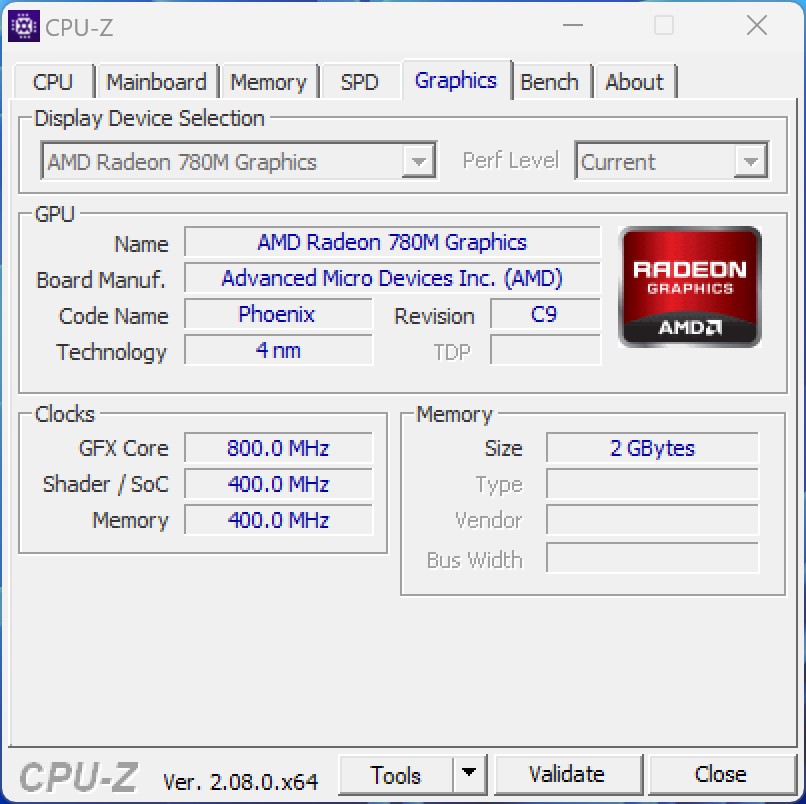

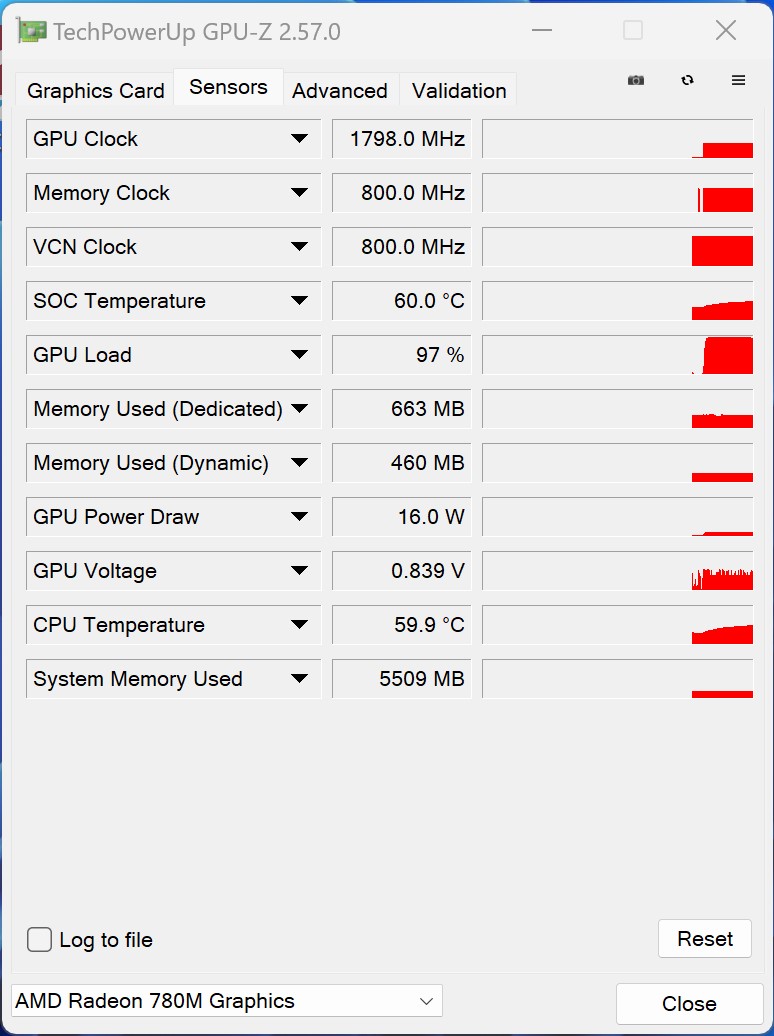

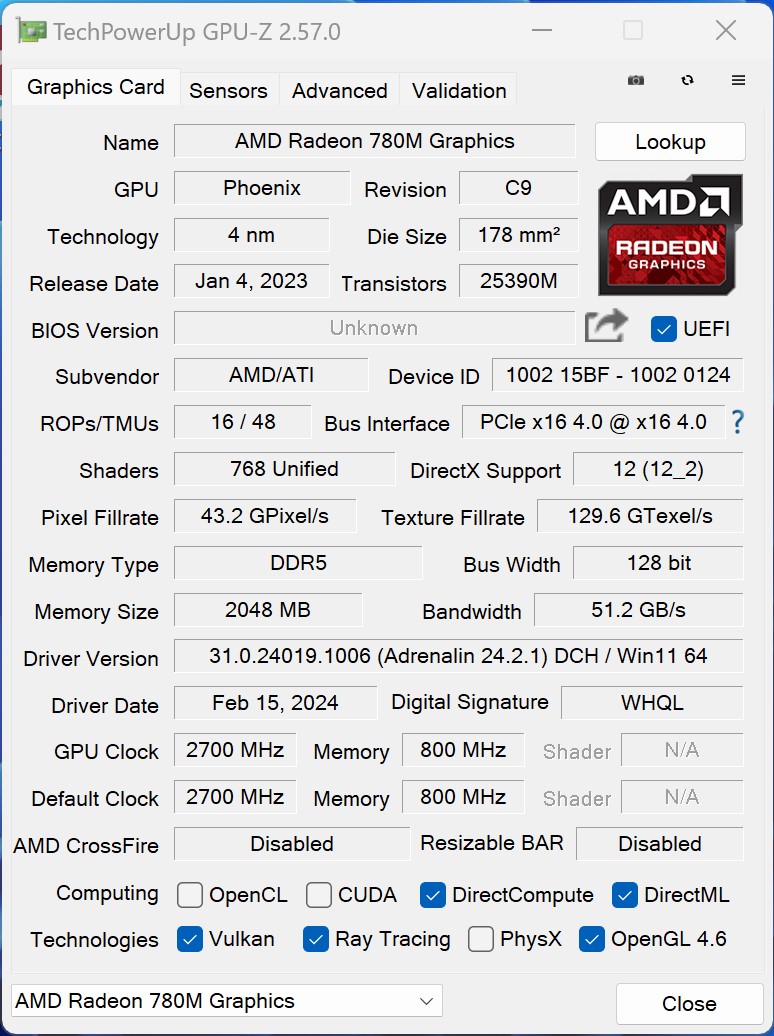

图形卡
通过使用更新的 Zen 4 APU,Minisforum Mercury 系列 EM780 现在拥有比EM680 :AMD Radeon 780M 更强大的 iGPU。较新的型号在排名上高于前代产品,性能全面提升。Geekom A7 采用了相同的 iGPU,但由于功耗较高,显卡的性能要更高一些。尽管如此,两者的差距相对较小,3DMark 性能评级仅相差 16%。
有关 AMD Radeon 780M 和其他 GPU 的更多基准测试结果,请访问
。.3DMark Performance Rating - Percent | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 | |
Geekom Mini IT12 |
3DMark 11 - 1280x720 Performance GPU | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 | |
Geekom Mini IT12 |
3DMark | |
1280x720 Cloud Gate Standard Graphics | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Geekom A5 | |
Minisforum Mercury Series EM680 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
1920x1080 Fire Strike Graphics | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
2560x1440 Time Spy Graphics | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
Fire Strike Extreme Graphics | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Maxtang MTN-FP750 | |
Geekom A5 | |
NiPoGi AD08 | |
Geekom Mini IT12 |
Performance Rating - Percent | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 | |
Geekom Mini IT12 |
Unigine Valley 1.0 | |
1920x1080 Extreme HD DirectX AA:x8 | |
Minisforum Mercury Series EM780 | |
Geekom A7 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
NiPoGi AD08 | |
Maxtang MTN-FP750 | |
Geekom Mini IT12 | |
1920x1080 Extreme HD Preset OpenGL AA:x8 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 | |
Geekom A7 | |
Geekom Mini IT12 |
ComputeMark v2.1 | |
1024x600 Normal, Score | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Maxtang MTN-FP750 | |
Geekom A5 | |
Minisforum Mercury Series EM680 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
1024x600 Normal, Fluid 3DTex | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
1024x600 Normal, Fluid 2DTexArr | |
Minisforum Mercury Series EM780 | |
Geekom A7 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
1024x600 Normal, Mandel Vector | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
Minisforum Mercury Series EM680 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
1024x600 Normal, QJuliaRayTrace | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Maxtang MTN-FP750 | |
Geekom A5 | |
Minisforum Mercury Series EM680 | |
NiPoGi AD08 | |
Geekom Mini IT12 |
Minisforum Mercury Series EM780, AMD Radeon 780M R7 7840U | Geekom A7, AMD Radeon 780M R9 7940HS | Minisforum Mercury Series EM680, AMD Radeon 680M R7 6800U | Geekom A5, AMD Radeon RX Vega 8 (Ryzen 4000/5000) R7 5800H | Geekom Mini IT12, Intel UHD Graphics 64EUs (Alder Lake 12th Gen) i5-12450H | Maxtang MTN-FP750, AMD Radeon 680M R7 7735HS | Average of class Mini PC | |
---|---|---|---|---|---|---|---|
SPECviewperf 12 | 19% | -32% | -34% | -65% | -35% | -9% | |
1900x1060 3ds Max (3dsmax-05) | 75.6 | 84.7 12% | 49.2 -35% | 51.7 -32% | 29.8 -61% | 46.9 -38% | 75.4 ? 0% |
1900x1060 Catia (catia-04) | 69.2 | 89 29% | 49.7 -28% | 44.2 -36% | 22.9 -67% | 51.5 -26% | 64.2 ? -7% |
1900x1060 Creo (creo-01) | 44.3 | 55.4 25% | 31.1 -30% | 36.3 -18% | 17.7 -60% | 33.2 -25% | 37 ? -16% |
1900x1060 Maya (maya-04) | 63.8 | 69.7 9% | 37.9 -41% | 40.3 -37% | 22.8 -64% | 45.2 -29% | 64 ? 0% |
1900x1060 Medical (medical-01) | 46 | 60.5 32% | 22 -52% | 18.2 -60% | 5.07 -89% | 17.9 -61% | 28.5 ? -38% |
1900x1060 Showcase (showcase-01) | 29.1 | 30.3 4% | 29 0% | 21.7 -25% | 13.2 -55% | 17.5 -40% | 35.3 ? 21% |
1900x1060 Solidworks (sw-03) | 96.5 | 116 20% | 58.6 -39% | 68.3 -29% | 38.9 -60% | 72.1 -25% | 72.4 ? -25% |
SPECviewperf 13 | 18% | -31% | -35% | -69% | -36% | -6% | |
3ds Max (3dsmax-06) | 75.9 | 83.9 11% | 49.9 -34% | 51.6 -32% | 29.6 -61% | 48.3 -36% | 74.8 ? -1% |
Catia (catia-05) | 101 | 130 29% | 75.3 -25% | 62.1 -39% | 32.7 -68% | 73.9 -27% | 91.4 ? -10% |
Creo (creo-02) | 82.2 | 93.4 14% | 61.4 -25% | 50.6 -38% | 26.5 -68% | 44.9 -45% | 73 ? -11% |
Energy (energy-02) | 18.4 | 23.8 29% | 10.1 -45% | 10.6 -42% | 0.94 -95% | 11.4 -38% | 17.7 ? -4% |
Maya (maya-05) | 94.6 | 107 13% | 71.8 -24% | 56.5 -40% | 32.2 -66% | 58.3 -38% | 97.5 ? 3% |
Medical (medical-02) | 56.3 | 77.6 38% | 20.5 -64% | 31 -45% | 4.49 -92% | 32.8 -42% | 37.6 ? -33% |
Showcase (showcase-02) | 29 | 25.4 -12% | 28.9 0% | 21.5 -26% | 13.1 -55% | 17.4 -40% | 35 ? 21% |
Solidworks (sw-04) | 89.7 | 109 22% | 63.1 -30% | 72.4 -19% | 47.2 -47% | 72.9 -19% | 76.6 ? -15% |
SPECviewperf 2020 | 14% | -33% | -40% | -78% | -42% | -3% | |
3840x2160 Medical (medical-03) | 8.2 | 11.1 35% | 3.73 -55% | 4.82 -41% | 0.78 -90% | 4.72 -42% | 7.74 ? -6% |
3840x2160 Energy (energy-03) | 15.4 | 14.1 -8% | 4.93 -68% | 5.33 -65% | 0.52 -97% | 6.6 -57% | 10.8 ? -30% |
3840x2160 Creo (creo-03) | 27.1 | 31.4 16% | 20.2 -25% | 19.1 -30% | 9.17 -66% | 17.5 -35% | 29.7 ? 10% |
3840x2160 CATIA (catia-06) | 20.7 | 24.8 20% | 15.8 -24% | 13.1 -37% | 5.24 -75% | 13.1 -37% | 18.3 ? -12% |
3840x2160 3ds Max (3dsmax-07) | 18.6 | 20.9 12% | 10.8 -42% | 11.3 -39% | 6.95 -63% | 9.26 -50% | 21.8 ? 17% |
3840x2160 Siemens NX (snx-04) | 55.4 | 61.4 11% | 50.4 -9% | 38 -31% | 5.89 -89% | 33 -40% | 37.5 ? -32% |
3840x2160 Maya (maya-06) | 42.2 | 47 11% | 39.1 -7% | 25.8 -39% | 15.3 -64% | 29.5 -30% | 56.4 ? 34% |
Total Average (Program / Settings) | 17% /
17% | -32% /
-32% | -36% /
-36% | -71% /
-71% | -38% /
-37% | -6% /
-6% |
3DMark 05 Standard | 42324 points | |
3DMark 06 Standard Score | 37928 points | |
3DMark Vantage P Result | 37433 points | |
3DMark 11 Performance | 11319 points | |
3DMark Ice Storm Standard Score | 147099 points | |
3DMark Cloud Gate Standard Score | 31112 points | |
3DMark Fire Strike Score | 6718 points | |
3DMark Fire Strike Extreme Score | 3556 points | |
3DMark Time Spy Score | 2916 points | |
Help |
游戏性能
性能卓越的 AMD Radeon 780M在测试的游戏中继续保持。iGPU 的性能明显高于 Radeon 680M.使用简陋的 iGPU 可玩的游戏数量大幅增加。不过,你必须忍受较低的细节水平。目前,只有专用显卡才能提供比 780M 更好的 3D 性能。钛 Minisforum 海王星系列 HX99G如果你想要一台带 dGPU 的微型电脑,它值得你一试。另外,Mercury 系列 EM780 还可以连接外置显卡。我们将在下一节单独介绍。
您可以访问我们的GPU 游戏性能列表了解 iGPU 与其他显卡的性能比较。
The Witcher 3 | |
1024x768 Low Graphics & Postprocessing | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Geekom A5 | |
NiPoGi AD08 | |
Maxtang MTN-FP750 | |
Minisforum Mercury Series EM680 | |
Geekom Mini IT12 | |
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
NiPoGi AD08 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
Geekom Mini IT12 |
Borderlands 3 | |
1280x720 Very Low Overall Quality (DX11) | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 | |
Minisforum Mercury Series EM680 | |
Geekom Mini IT12 | |
1920x1080 High Overall Quality (DX11) | |
Minisforum Mercury Series EM780 | |
Geekom A7 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 | |
Geekom Mini IT12 |
GTA V | |
1024x768 Lowest Settings possible | |
Geekom A7 | |
Geekom A5 | |
Minisforum Mercury Series EM780 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
Maxtang MTN-FP750 | |
Minisforum Mercury Series EM680 | |
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Geekom A5 | |
Minisforum Mercury Series EM680 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 | |
Geekom Mini IT12 |
Witcher 3 FPS chart
low | med. | high | ultra | |
---|---|---|---|---|
GTA V (2015) | 126.3 | 117 | 59.2 | 24.6 |
The Witcher 3 (2015) | 140.3 | 96.6 | 45.5 | 28.5 |
Dota 2 Reborn (2015) | 112.4 | 96.1 | 80.5 | 71 |
Final Fantasy XV Benchmark (2018) | 68.6 | 34.4 | 25.7 | |
X-Plane 11.11 (2018) | 54 | 40.2 | 33.8 | |
Far Cry 5 (2018) | 73 | 46 | 42 | 40 |
Strange Brigade (2018) | 147.5 | 61 | 51.9 | 44 |
Shadow of the Tomb Raider (2018) | 88 | 40.3 | 36.2 | 31.5 |
Far Cry New Dawn (2019) | 64 | 44 | 41 | 38 |
Metro Exodus (2019) | 76.6 | 34.3 | 25.3 | 20.8 |
Borderlands 3 (2019) | 75.7 | 43.7 | 28.4 | 22.2 |
F1 2020 (2020) | 178.1 | 87.8 | 68.7 | 46 |
F1 2021 (2021) | 196.8 | 100.1 | 77 | 30 |
Far Cry 6 (2021) | 77.1 | 47.2 | 39.1 | 34.3 |
God of War (2022) | 39.2 | 31.7 | 25.6 | 18.1 |
GRID Legends (2022) | 73.5 | 92.5 | 55.3 | 42.4 |
Tiny Tina's Wonderlands (2022) | 62.7 | 45.6 | 29.8 | 23.8 |
F1 22 (2022) | 88.3 | 77.3 | 56.7 | 14.3 |
F1 23 (2023) | 82 | 72.7 | 51.8 | 11.3 |
Cyberpunk 2077 2.1 Phantom Liberty (2023) | 38.5 | 29.9 | 23.6 | 20.5 |
Total War Pharaoh (2023) | 81.9 | 61.8 | 36.2 | 29 |
Avatar Frontiers of Pandora (2023) | 19 | 17 | 14 | 11 |
使用 Minisforum Mercury 系列 EM780 测试两款 eGPU 的性能
由于 Minisforum 为 Mercury 系列 EM780 配备了 USB4 端口,因此这款手掌大小的电脑还可以与外置显卡一起使用。我们了解了微型电脑与 GPD G1和 Razer Core X 以及 英伟达GeForce RTX 3060 Ti.虽然 AMD Radeon 780M虽然 AMD Radeon 780M 已经提供了足够的性能,但插入 eGPU 仍能明显提升 3D 性能。有时甚至还可以在 1440p 下玩现代游戏。尽管如此,USB4 接口的技术限制还是必须面对的。这是因为外置显卡最多只能以 PCIe 3.0 x4 与迷你电脑通信。OCuLink 接口是 USB4 的替代接口,但目前仅在少数设备上使用。通过 OCuLink 连接 GPD G1 可提高约 10% 的性能。拥有原生 OCuLink 端口的少数微型电脑之一是 Minisforum EliteMini UM780 XTX.
配备 Razer Core X 和 NvidiaGeForce RTX 3060 Ti 的 Minisforum Mercury 系列 EM780
Performance Rating - Percent | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) |
3DMark 11 - 1280x720 Performance GPU | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE) | |
3DMark | |
2560x1440 Time Spy Graphics | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1920x1080 Fire Strike Graphics | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE) | |
3840x2160 Fire Strike Ultra Graphics | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE) | |
Unigine Superposition | |
1280x720 720p Low | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1920x1080 1080p High | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1920x1080 1080p Extreme | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
3840x2160 4k Optimized | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
7680x4320 8k Optimized | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE) | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) |
Unigine Valley 1.0 | |
1920x1080 Extreme HD DirectX AA:x8 | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1920x1080 Extreme HD Preset OpenGL AA:x8 | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Unigine Heaven 4.0 | |
Extreme Preset OpenGL | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Extreme Preset DX11 | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
ComputeMark v2.1 | |
1024x600 Normal, Score | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, Fluid 3DTex | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, Fluid 2DTexArr | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, Mandel Vector | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, Mandel Scalar | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, QJuliaRayTrace | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
low | med. | high | ultra | QHD | 4K | |
---|---|---|---|---|---|---|
Dota 2 Reborn (2015) | 136.4 | 123 | 118.4 | 109.8 | 95.9 | |
Final Fantasy XV Benchmark (2018) | 165.3 | 128.8 | 92.7 | 72.6 | 45.4 | |
X-Plane 11.11 (2018) | 105.3 | 88.4 | 70.4 | 60.6 | ||
Far Cry 5 (2018) | 126 | 109 | 105 | 99 | 89 | 56 |
Strange Brigade (2018) | 169.4 | 132.5 | 129.6 | 121.8 | 117.6 | 79.7 |
Far Cry New Dawn (2019) | 105 | 94 | 91 | 81 | 78 | 57 |
Metro Exodus (2019) | 115.7 | 77.3 | 59.6 | 44.9 | 40.1 | 30.7 |
Borderlands 3 (2019) | 106.8 | 97.8 | 87.1 | 75.8 | 61.3 | 37.4 |
F1 2020 (2020) | 174.1 | 98.1 | 101.3 | 83.4 | 73.3 | 53 |
F1 2021 (2021) | 114.3 | 87.2 | 57 | 44.1 | 41.2 | 34.3 |
Far Cry 6 (2021) | 63.1 | 54 | 44.8 | 37.9 | 37.3 | |
God of War (2022) | 99.7 | 88.6 | 74.6 | 58.2 | 50.5 | 38.5 |
GRID Legends (2022) | 101.2 | 81.5 | 67.5 | 57.4 | 53.3 | 44.4 |
Tiny Tina's Wonderlands (2022) | 155.6 | 125.8 | 90.7 | 75 | 58.2 | 33.8 |
F1 22 (2022) | 48.9 | 43.3 | 34.4 | 22.6 | 22 | 17.7 |
F1 23 (2023) | 54.3 | 54.3 | 43.2 | 28.1 | 26.1 | 12.4 |
Cyberpunk 2077 2.1 Phantom Liberty (2023) | 75.7 | 71.2 | 63.1 | 57 | 40.9 | 21.4 |
Total War Pharaoh (2023) | 240.1 | 144.6 | 89.1 | 67.4 | 55.7 | 36.6 |
Avatar Frontiers of Pandora (2023) | 60 | 58 | 52 | 42 | 31 | 10 |
Minisforum Mercury Series EM780 mit GPD G1 (AMD Radeon RX 7600M XT)
Performance Rating - Percent | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) |
3DMark 11 - 1280x720 Performance GPU | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
3DMark | |
2560x1440 Time Spy Graphics | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
1920x1080 Fire Strike Graphics | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
3840x2160 Fire Strike Ultra Graphics | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
Unigine Superposition | |
1920x1080 1080p High | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
1920x1080 1080p Extreme | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
3840x2160 4k Optimized | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
7680x4320 8k Optimized | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) |
Unigine Valley 1.0 | |
1920x1080 Extreme HD DirectX AA:x8 | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
1920x1080 Extreme HD Preset OpenGL AA:x8 | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
Unigine Heaven 4.0 | |
Extreme Preset OpenGL | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Extreme Preset DX11 | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
ComputeMark v2.1 | |
1024x600 Normal, Score | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
1024x600 Normal, Fluid 3DTex | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
1024x600 Normal, Fluid 2DTexArr | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
1024x600 Normal, Mandel Vector | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
1024x600 Normal, Mandel Scalar | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
1024x600 Normal, QJuliaRayTrace | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
low | med. | high | ultra | QHD | 4K | |
---|---|---|---|---|---|---|
GTA V (2015) | 140.4 | 133.6 | 105.5 | 68.3 | 56.2 | 65 |
The Witcher 3 (2015) | 124.5 | 75.8 | 67.5 | 66 | 64.8 | 48.7 |
Far Cry 5 (2018) | 85 | 73 | 69 | 61 | 61 | 48 |
Strange Brigade (2018) | 157.8 | 131.9 | 123.5 | 116.9 | 95.9 | 56.9 |
Shadow of the Tomb Raider (2018) | 119.7 | 100.8 | 98.7 | 83.9 | 59.6 | 23.3 |
Far Cry New Dawn (2019) | 81 | 61 | 52 | 46 | 47 | 44 |
Metro Exodus (2019) | 56.1 | 36.4 | 37.5 | 32.2 | 30.5 | 16.8 |
Borderlands 3 (2019) | 77 | 66.3 | 61.4 | 57.3 | 53.4 | 30.5 |
F1 2020 (2020) | 226 | 164.1 | 100.3 | 140.1 | 82.9 | 53.2 |
F1 2021 (2021) | 208 | 165.7 | 105.7 | 72.2 | 52.5 | 23.5 |
Far Cry 6 (2021) | 71.6 | 63.7 | 55.1 | 45.4 | 43.2 | 0.978 |
GRID Legends (2022) | 82.1 | 68.5 | 55.8 | 51.2 | 48 | 39.3 |
Tiny Tina's Wonderlands (2022) | 127 | 117.2 | 78.6 | 65.6 | 47.3 | 26.3 |
F1 22 (2022) | 90.8 | 87.1 | 70.2 | 34.8 | 24.8 | |
F1 23 (2023) | 122.5 | 116.8 | 99.5 | 23.8 | 11.3 | |
Cyberpunk 2077 2.1 Phantom Liberty (2023) | 76.9 | 67.1 | 58.3 | 53.4 | 37.4 | 13.6 |
Total War Pharaoh (2023) | 192 | 98.4 | 71.1 | 61 | 53.7 | 30.6 |
Avatar Frontiers of Pandora (2023) | 44 | 41 | 36 | 17 | 11 | 6.6 |
排放 - AMD Ryzen 7 7840U 始终处于受控状态
噪音排放
尽管 Minisforum Mercury 系列 EM780 在极其紧凑的机箱中装入了大量功率,但我们测量到的噪音水平始终很高。我们的评测设备在空闲时噪音略高于 30 dB(A)。在普通负载下,噪音水平上升到大约 32 dB(A),在压力测试中达到 38 dB(A)。不过值得注意的是,底部的风扇并没有影响我们的测量结果。噪音的主要来源是 CPU 风扇,它从顶部吸入新鲜空气。
Noise Level
Idle |
| 30.1 / 30.3 / 30.4 dB(A) |
Load |
| 32.2 / 37.9 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 25.1 dB(A) |
Minisforum Mercury Series EM780 R7 7840U, Radeon 780M | Geekom A7 R9 7940HS, Radeon 780M | Minisforum Mercury Series EM680 R7 6800U, Radeon 680M | Geekom A5 R7 5800H, Vega 8 | Geekom Mini IT12 i5-12450H, UHD Graphics 64EUs | Maxtang MTN-FP750 R7 7735HS, Radeon 680M | NiPoGi AD08 Nipogi AD08 (Performance), i7-12650H, UHD Graphics 64EUs | |
---|---|---|---|---|---|---|---|
Noise | -14% | 0% | -9% | -14% | -2% | -15% | |
off / environment * | 25.1 | 25.4 -1% | 29.7 -18% | 25 -0% | 24.8 1% | 25 -0% | 25 -0% |
Idle Minimum * | 30.1 | 33.3 -11% | 30.8 -2% | 28.2 6% | 36.5 -21% | 25.3 16% | 31.1 -3% |
Idle Average * | 30.3 | 33.6 -11% | 30.8 -2% | 28.2 7% | 36.5 -20% | 25.3 17% | 31.2 -3% |
Idle Maximum * | 30.4 | 33.7 -11% | 31 -2% | 28.2 7% | 36.5 -20% | 25.4 16% | 31.3 -3% |
Load Average * | 32.2 | 43.3 -34% | 31.2 3% | 47.8 -48% | 36.6 -14% | 45.1 -40% | 51.7 -61% |
Witcher 3 ultra * | 36.8 | 43.2 -17% | 32.2 12% | 36.6 1% | |||
Load Maximum * | 37.9 | 43.3 -14% | 33.6 11% | 47.4 -25% | 47.5 -25% | 45.3 -20% | 45.8 -21% |
* ... smaller is better
温度

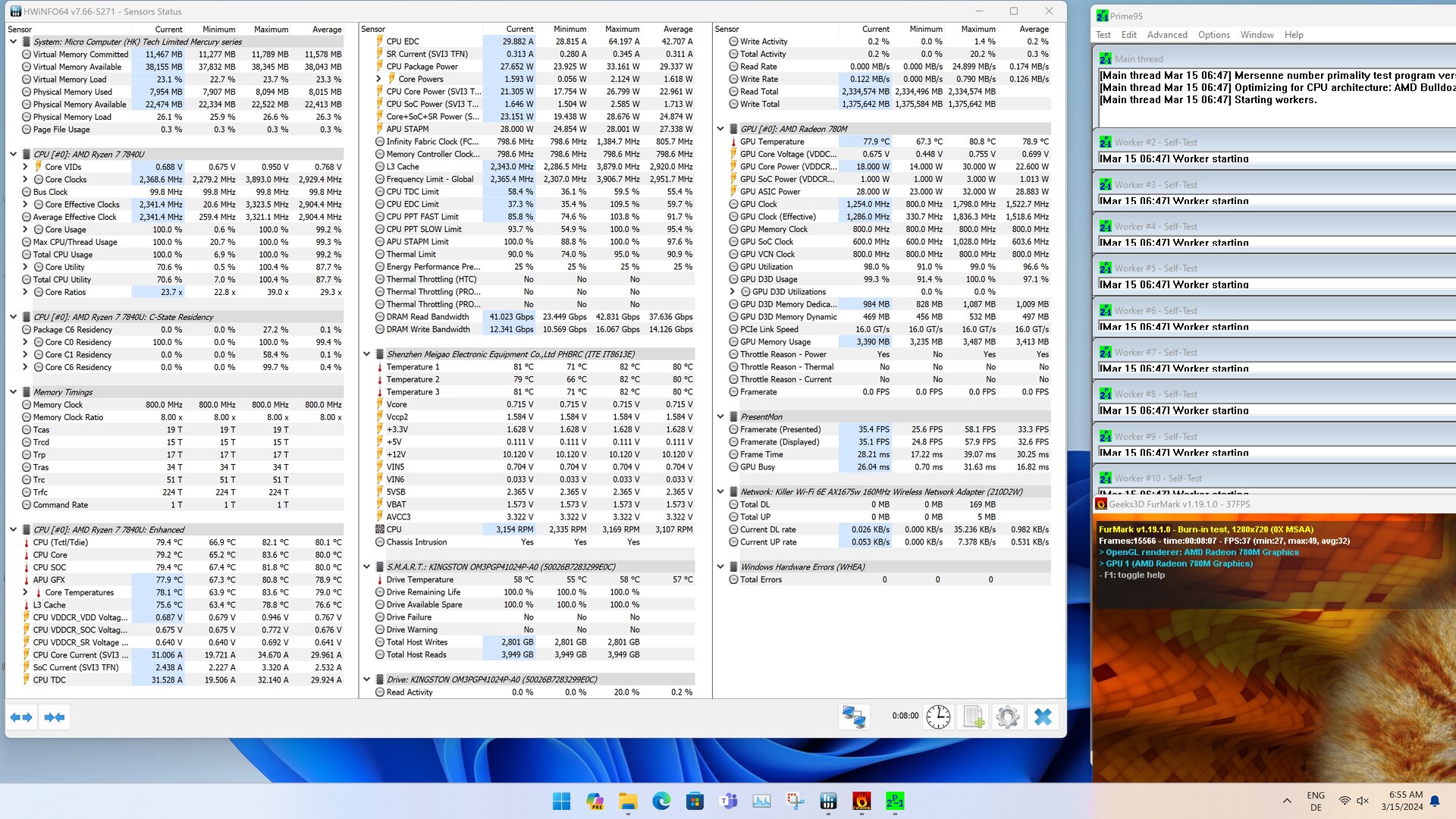

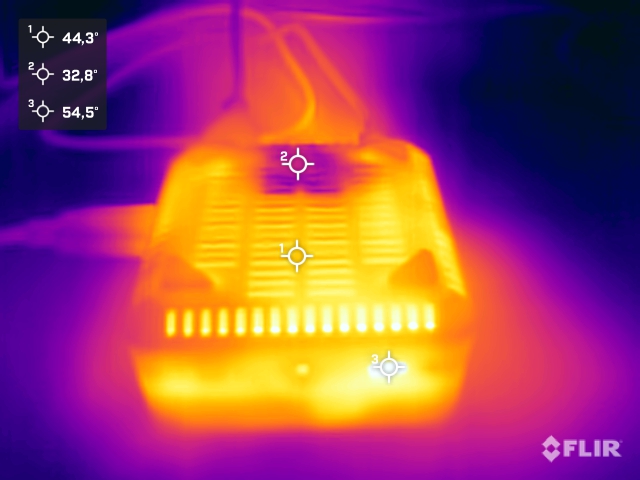

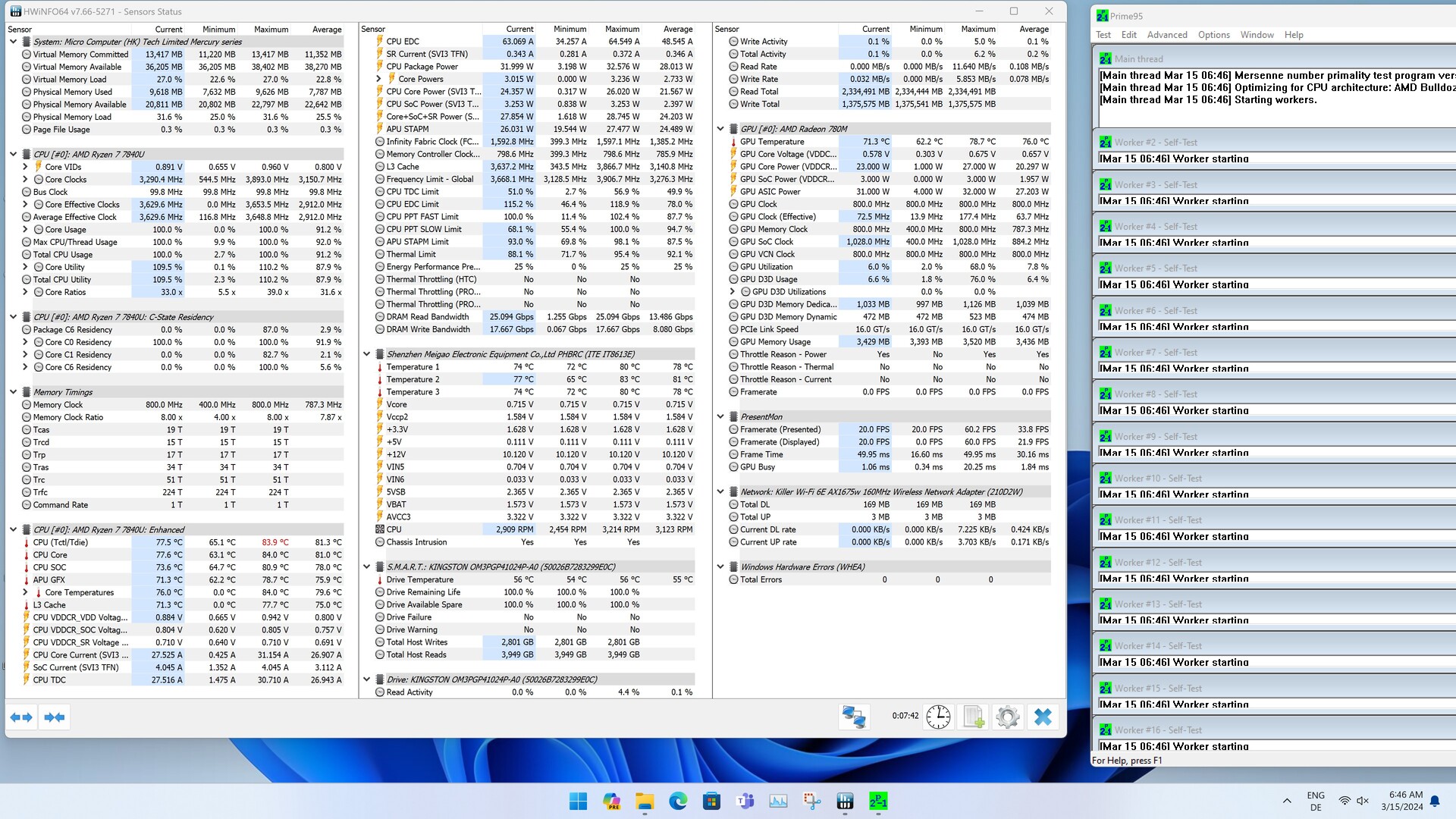

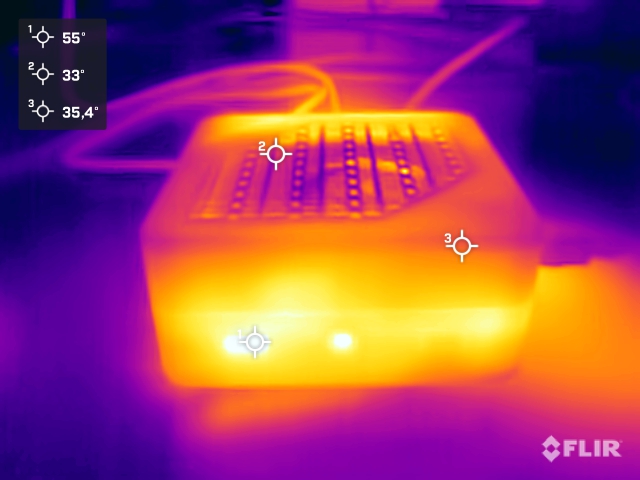

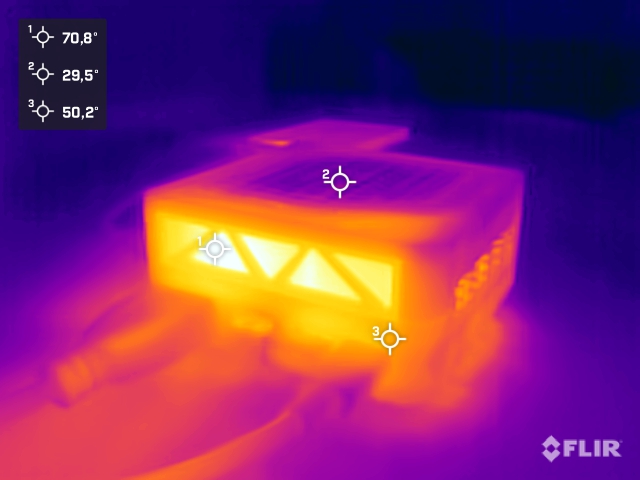

在机箱温度方面,我们没有看到任何极端值。由于固态硬盘和散热器的存在,底部温度略高于顶部。在压力测试中,处理器本身的温度高达 83.9°C(183.0°F)。Minisforum 为处理器设置了散热限制,但考虑到 SoC 可以在 28 瓦(TDP)的条件下连续运行,这并不是一个问题。
(+) The maximum temperature on the upper side is 38.5 °C / 101 F, compared to the average of 35.7 °C / 96 F, ranging from 24 to 69.5 °C for the class Mini PC.
(±) The bottom heats up to a maximum of 40.4 °C / 105 F, compared to the average of 36.2 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 30.3 °C / 87 F, compared to the device average of 32.2 °C / 90 F.
耗电量
Minisforum Mercury 系列 EM780 是一款非常节俭的微型电脑。但与 EM680 相比,其功耗在某些情况下明显增加。尽管如此,我们的评测设备的平均耗电量为 31.7 瓦,在我们的对比中仍然是耗电最少的设备之一。附带的适配器可通过 USB4 为设备提供高达 65 瓦的功率。另外,您也可以通过支持 Power Delivery 的显示器为 Minisforum EM780 供电。
Minisforum Mercury Series EM780 R7 7840U, Radeon 780M | Geekom A7 R9 7940HS, Radeon 780M | Minisforum Mercury Series EM680 R7 6800U, Radeon 680M | Geekom A5 R7 5800H, Vega 8 | Geekom Mini IT12 i5-12450H, UHD Graphics 64EUs | Maxtang MTN-FP750 R7 7735HS, Radeon 680M | NiPoGi AD08 i7-12650H, UHD Graphics 64EUs | Average AMD Radeon 780M | Average of class Mini PC | |
---|---|---|---|---|---|---|---|---|---|
Power Consumption | -7% | 30% | -14% | -3% | 1% | -88% | -8% | -36% | |
Idle Minimum * | 10.2 | 3.8 63% | 7 31% | 6.9 32% | 5.5 46% | 7 31% | 14.2 -39% | 6.2 ? 39% | 9.48 ? 7% |
Idle Average * | 10.9 | 4.8 56% | 7.2 34% | 7.9 28% | 8.5 22% | 8.1 26% | 15.1 -39% | 8.44 ? 23% | 11.5 ? -6% |
Idle Maximum * | 12.2 | 6.5 47% | 7.2 41% | 8.9 27% | 11.3 7% | 8.4 31% | 28.7 -135% | 10.8 ? 11% | 14.9 ? -22% |
Load Average * | 31.7 | 71.9 -127% | 20 37% | 60.8 -92% | 42.3 -33% | 54.2 -71% | 76.9 -143% | 56.3 ? -78% | 57.4 ? -81% |
Load Maximum * | 55 | 94.7 -72% | 52.1 5% | 89.7 -63% | 86.5 -57% | 61.4 -12% | 100.2 -82% | 75.3 ? -37% | 97.5 ? -77% |
* ... smaller is better
Power consumption with external monitor
Pros
Cons
结论 - AMD Ryzen 7 7840U 性能卓越

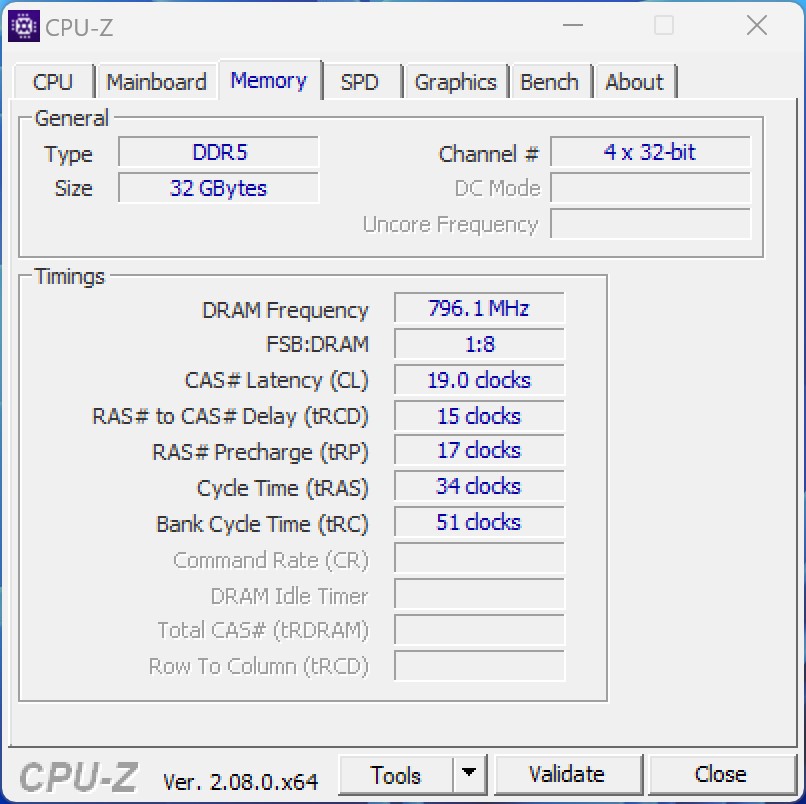

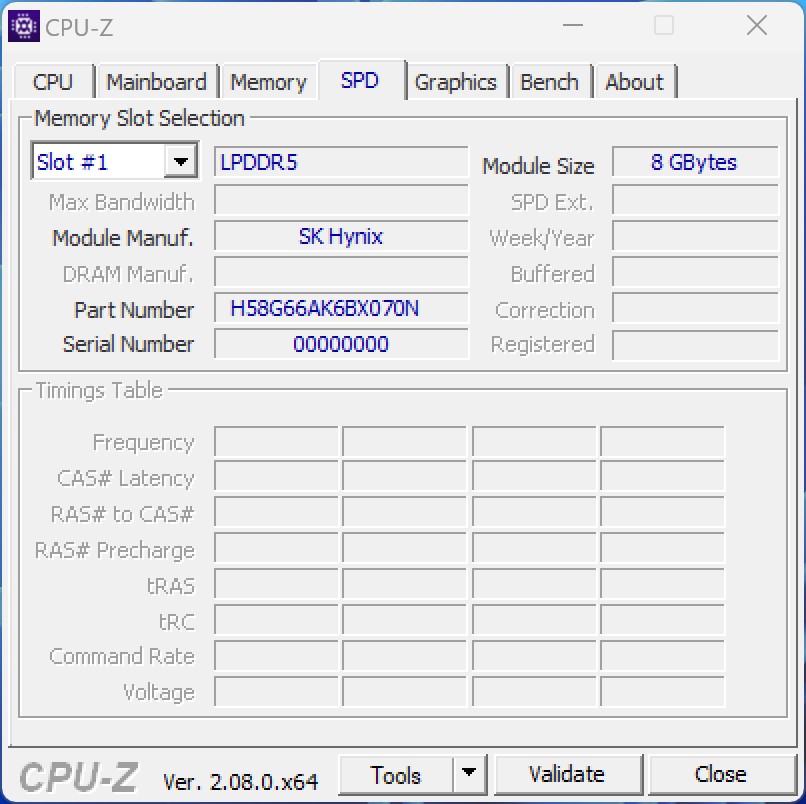

Minisforum Mercury 系列 EM780 是一款非常小巧的 PC,几乎在所有方面都表现出色。这款迷你电脑配备了现代八核处理器,即 AMD Ryzen 7 7840U.同时,该 SoC 还拥有一个相当强大的 iGPU,能够在低功耗的情况下实现出色的性能。Minisforum EM780 占地面积仅为 80 x 80 毫米(3.15 x 3.15 英寸),却拥有强大的性能。此外,32 GB DDR5 内存也能很好地满足您的需求。遗憾的是,内存既不可扩展也不可更换,这也是此类小型 PC 的缺点之一。另一方面,EM780 可以升级大容量存储器。存储驱动器的容量为 1 TB,相对较大。尽管机身主要由塑料制成,但该设备的装配和做工无可挑剔。微型电脑的触感依然很好,材料的选择也不会影响设备的坚固性。
令人印象深刻的 Minisforum Mercury 系列 EM780 在非常小的体积内提供了出色的性能,而且没有牺牲最先进的 I/O 端口(如 USB4)。
我们非常喜欢它的冷却系统。它能有效去除 AMD Ryzen 7 7840U 的热量。即使在满载的情况下,性能也没有任何下降。固态硬盘也是如此,它配备了独立的散热装置。整体噪音水平相当不错,这意味着电脑运行时不会听到任何恼人的背景噪音。Minisforum 通过提供一个可以通过 USB4 插入的适配器,解决了缺少以太网端口的问题。EM780 迷你 PC 的售价为 729 欧元(639 美元)。这绝不便宜,但您将获得该性能类别中最紧凑的迷你 PC 之一。

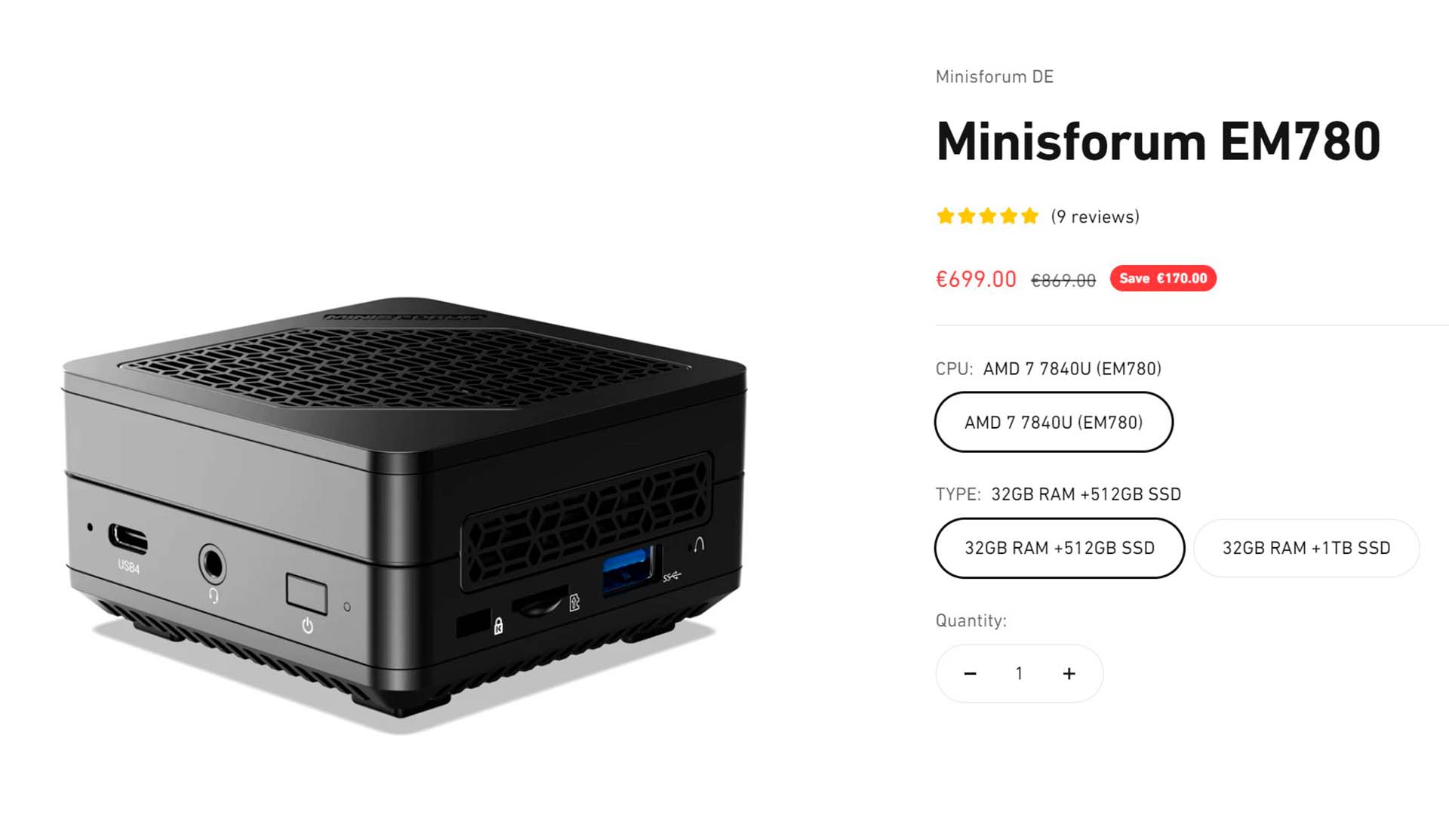

价格和供应情况
Minisforum Mercury Series EM780
- 03/16/2024 v7 (old)
Sebastian Bade
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
