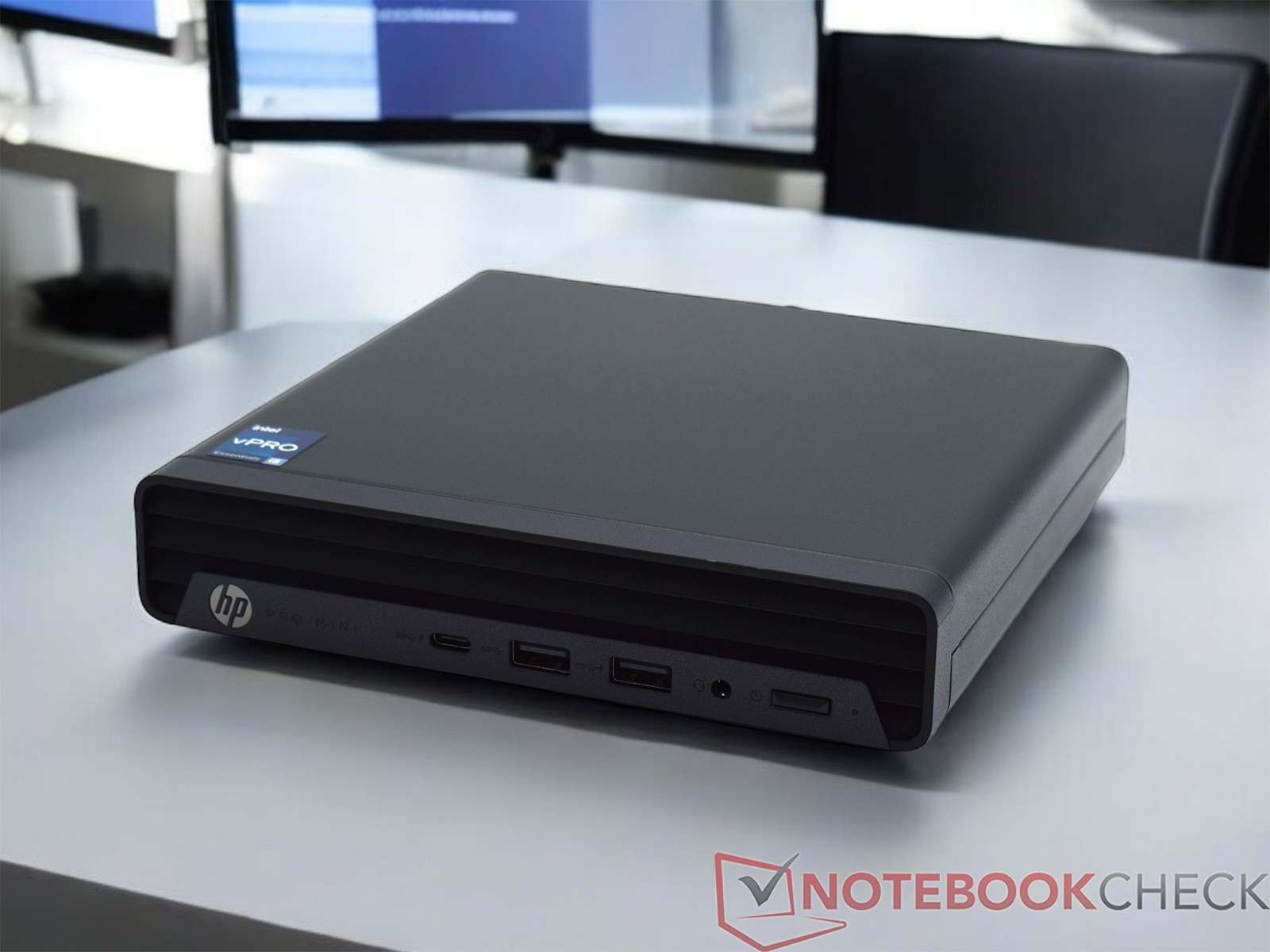

惠普 Pro Mini 400 G9 迷你电脑评测：紧凑型工作站因英特尔酷睿 i5-14500T 的出色性能而令人印象深刻

Name: HP Pro Mini 400 G9-937U0EA
Brand: HP

只是一个工具！ 惠普的 Pro Mini 400 G9 系列产品是一款可处理各种任务的小型工作站。模块化设计实现了多种不同的基本配置。在本测试中，我们将对基于英特尔酷睿 i5-14500T 的惠普 Pro Mini 400 G9 进行测试，评估其日常性能，并仔细研究其效率。

Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy), Published 07/31/2024 🇺🇸 🇩🇪 ...

Mini PC Desktop Intel Raptor Lake Business

与惠普 Elite Mini 800 G9 系列在模块化设计方面具有相同的优势，惠普 Pro Mini 400 G9 机型的价格更具吸引力。在本次测试中，我们将重点关注惠普 Pro Mini 400 G9，它搭载了英特尔酷睿 i5-14500T.制造商为测试配置收取 870 欧元，配备 16 GB DDR4 内存和 512 GB SSD。在价格方面，与配备 13500T CPU 的 HP Pro Mini 400 G9 相比没有任何变化。

作为一款适合日常使用的紧凑型办公设备，惠普 Pro Mini 400 G9 必须与我们最近测试过的其他迷你 PC 展开竞争。我们将对配备英特尔酷睿 i5-14500 处理器的 HP Elite Mini 800 G9 的对决进行详细分析。我们在下表中列出了所有对比设备。

Test device courtesy of HP Store Deutschland

Download your licensed rating image as PNG / SVG

HP Pro Mini 400 G9-937U0EA

Processor

Intel Core i5-14500T 14 x 1.7 - 4.8 GHz, Raptor Lake

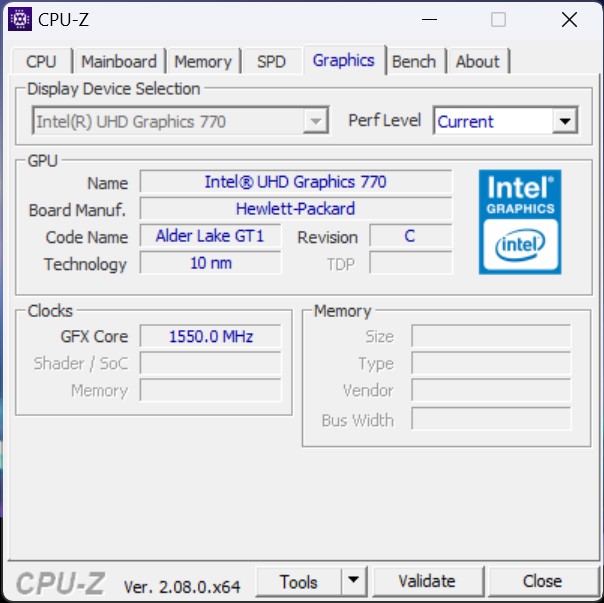

Graphics adapter

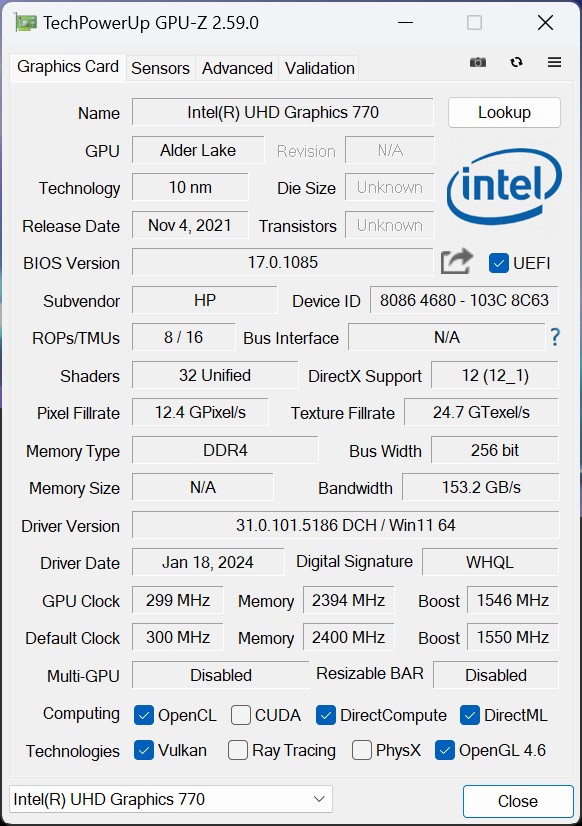

Intel UHD Graphics 770, Core: 1550 MHz, 31.0.101.5534 DCH

Memory

16 GB

, DDR4-3200, Single-Channel

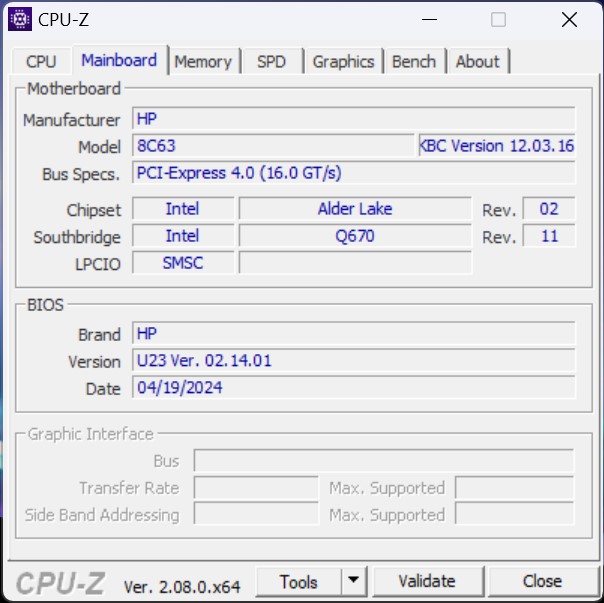

Mainboard

Intel Q670

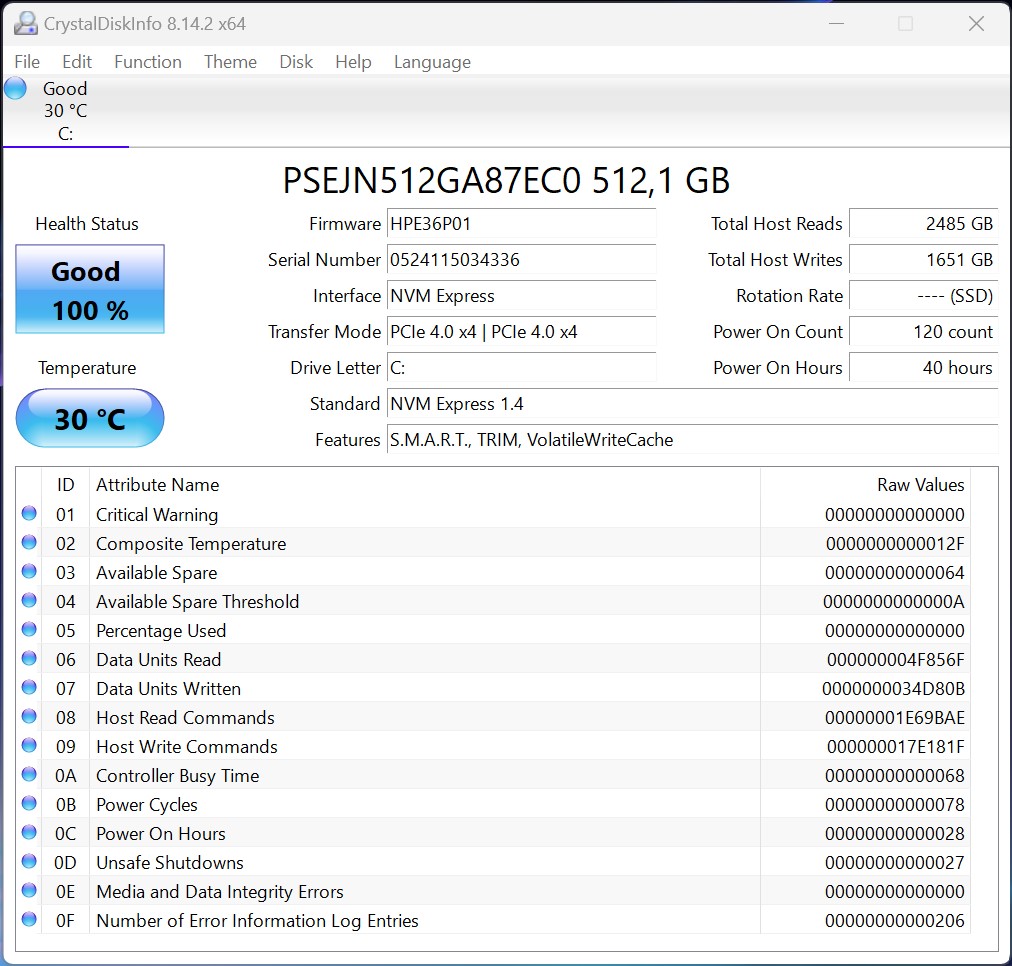

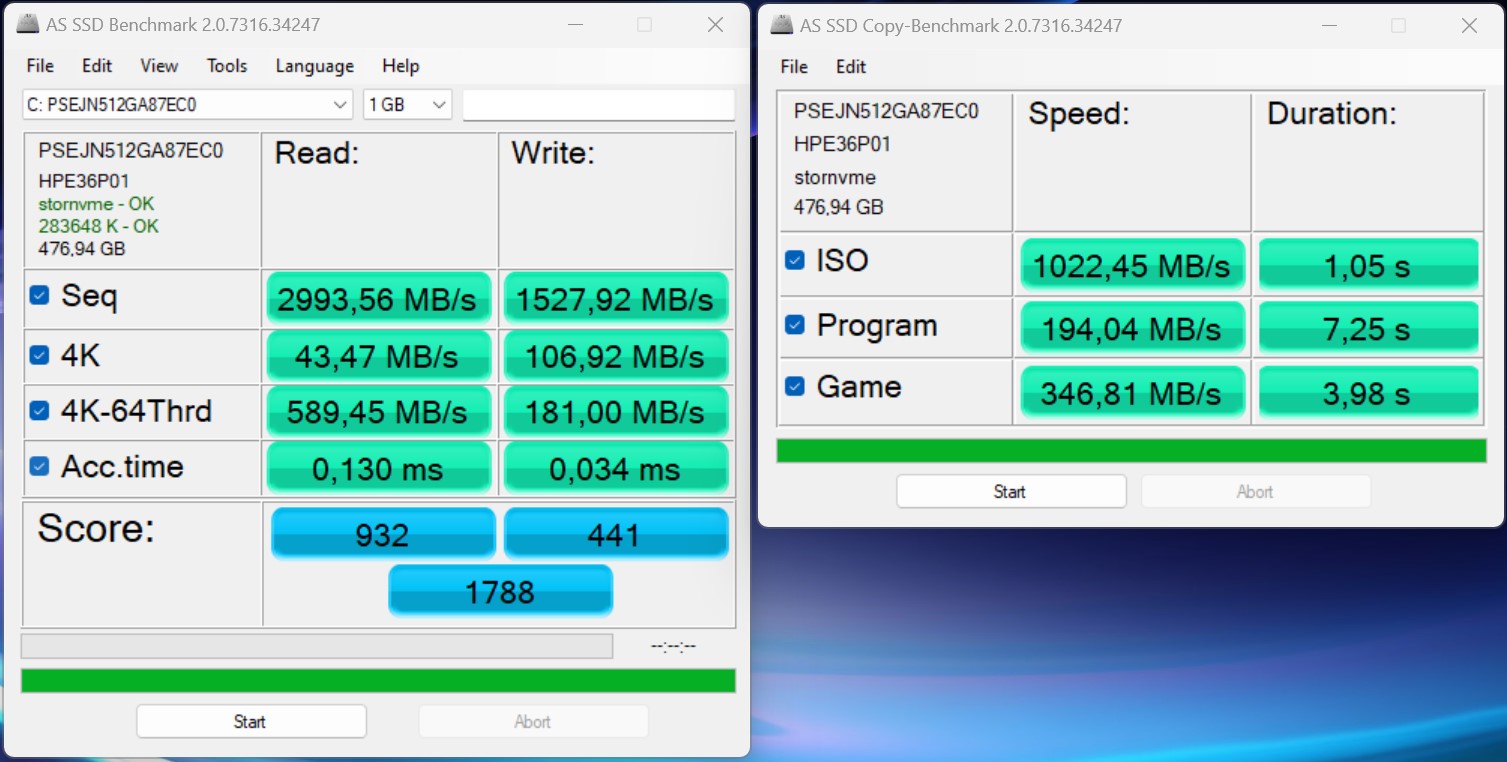

Storage

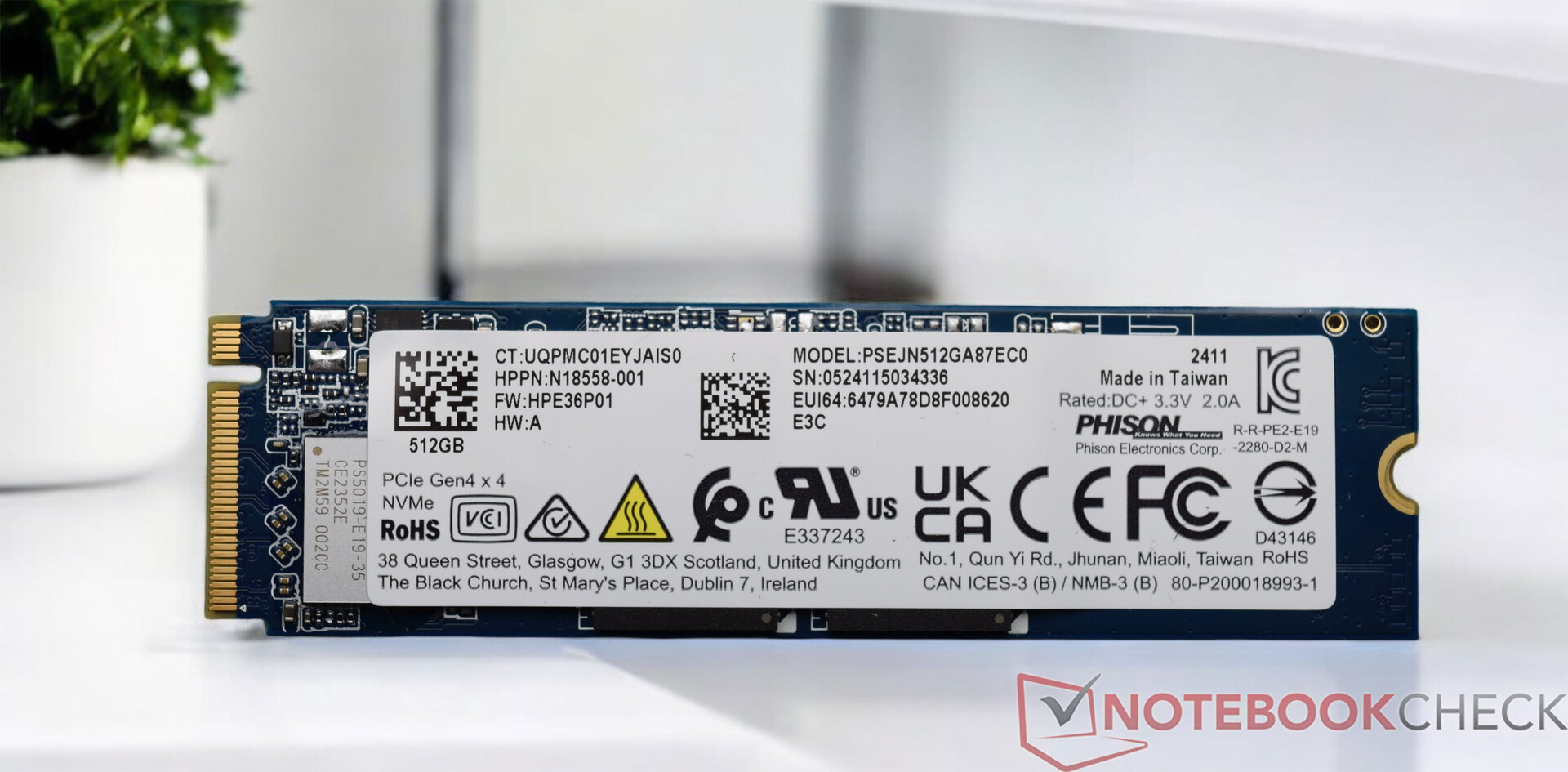

HP PSEJN512GA87EC0, 512 GB

, 419 GB free

Soundcard

Intel Alder Lake-S PCH - cAVS (Audio, Voice, Speech)

Connections

2 USB 2.0, 5 USB 3.1 Gen2, 2 USB 3.2 Gen 2x2 20Gbps, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3,5mm Klinke

Networking

Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Wi-Fi 6E AX211 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.3

Size

height x width x depth (in mm): 34 x 177 x 175

Operating System

Microsoft Windows 11 Pro

Additional features

Keyboard: 90 Watt Power Adapter, HP 125 Keyboard, HP 125 Mouse, HP Wolf Security, 12 Months Warranty

Weight

1.225 kg, Power Supply: 242 g

Price

870 Euro

Links

HP homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Version	Date	Model	Weight	Height
70.8 %	v8	07/2024	HP Pro Mini 400 G9-937U0EA i5-14500T, UHD Graphics 770	1.2 kg	34 mm
70.2 %	v8	06/2024	HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770	1.2 kg	34 mm
71.1 %	v8	07/2024	HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770	1.3 kg	34 mm
72.1 %	v8	06/2024	Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs	440 g	37 mm
81.5 %	v7 ^(old)	05/2024	Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs	1.5 kg	48 mm
83.4 %	v7 ^(old)	04/2024	Acemagic F2A Ultra 7 155H, Arc 8-Core	768 g	57 mm

注：我们已经更新了评级系统，第 8 版的结果与第 7 版的结果不具可比性。这里.

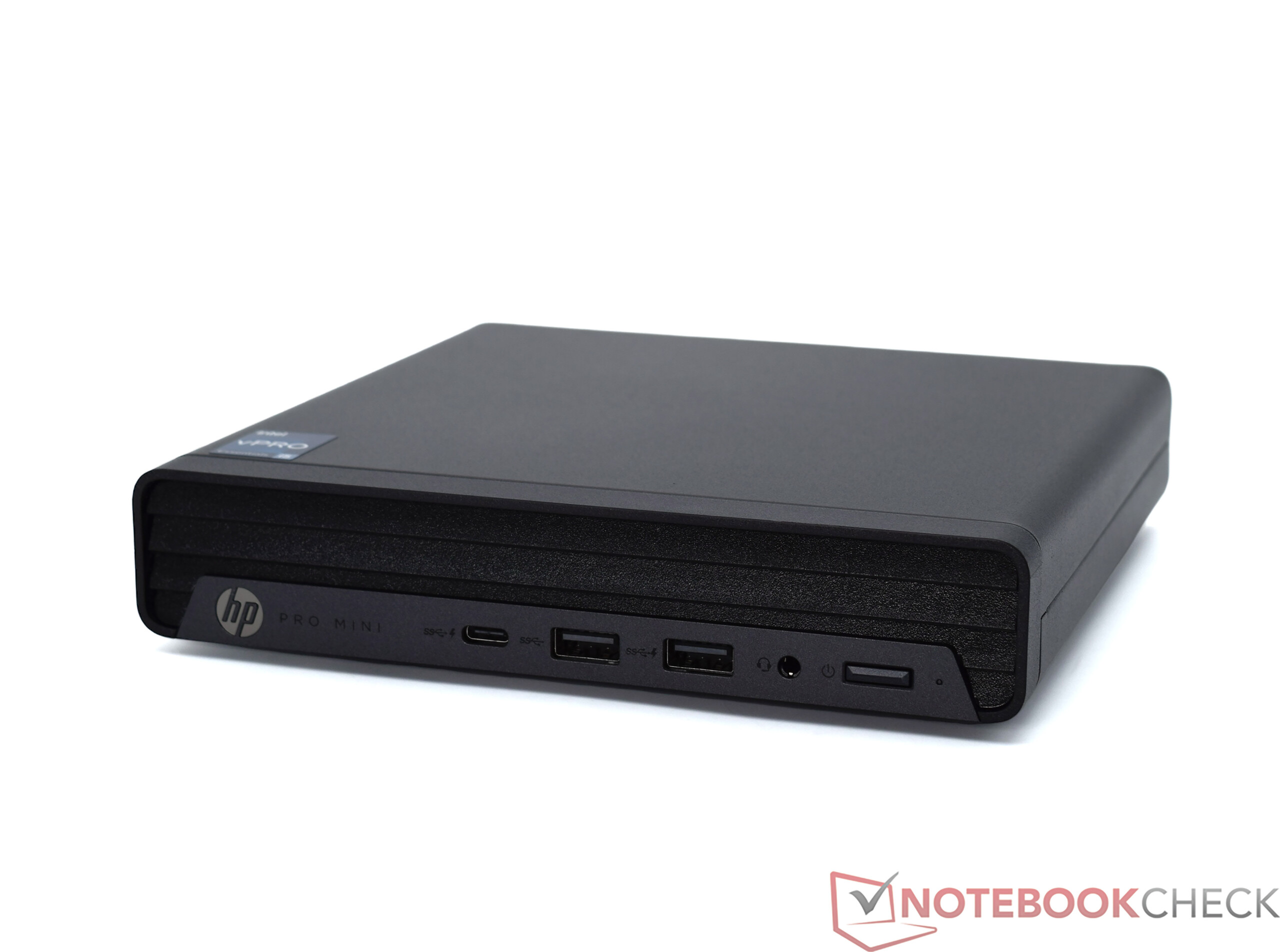

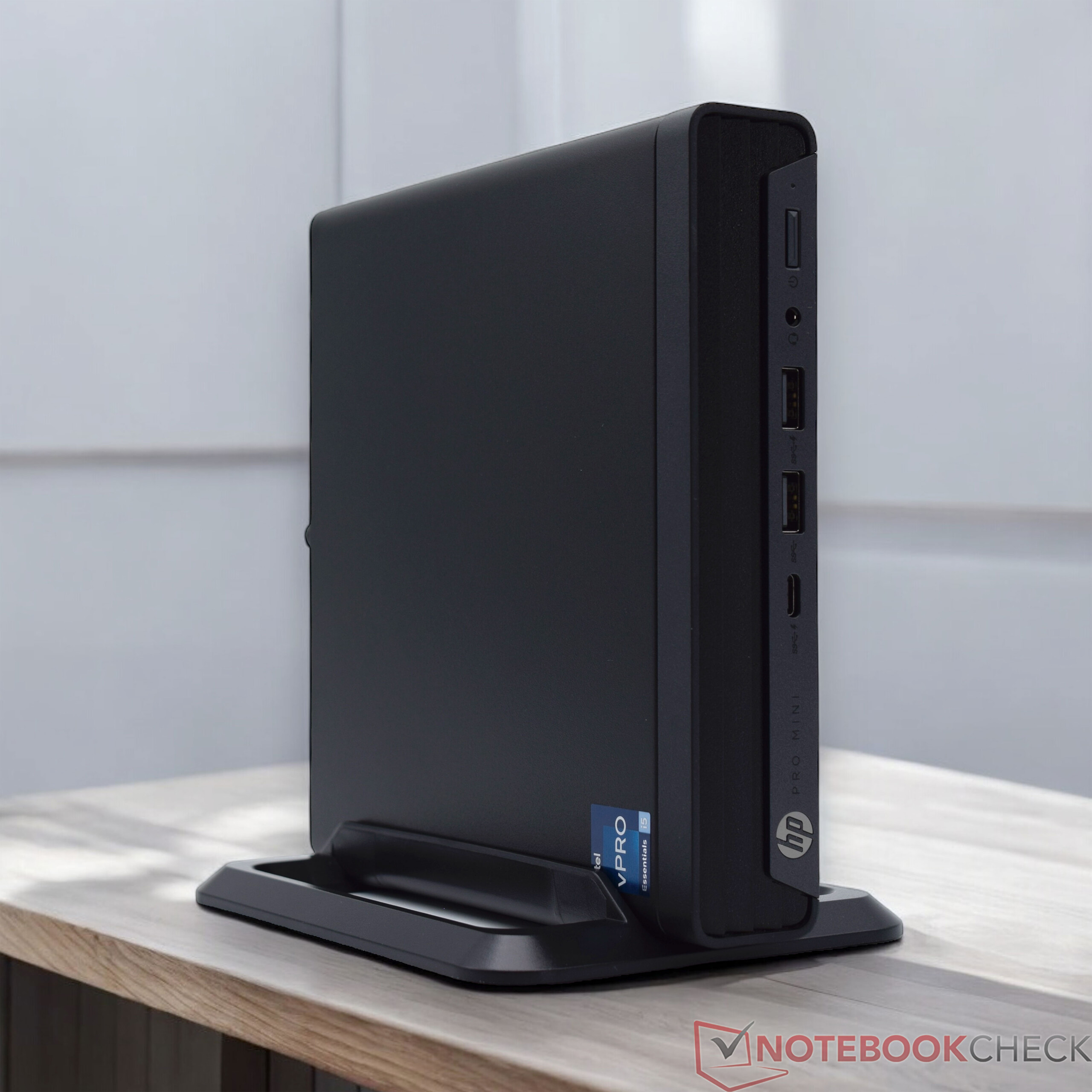

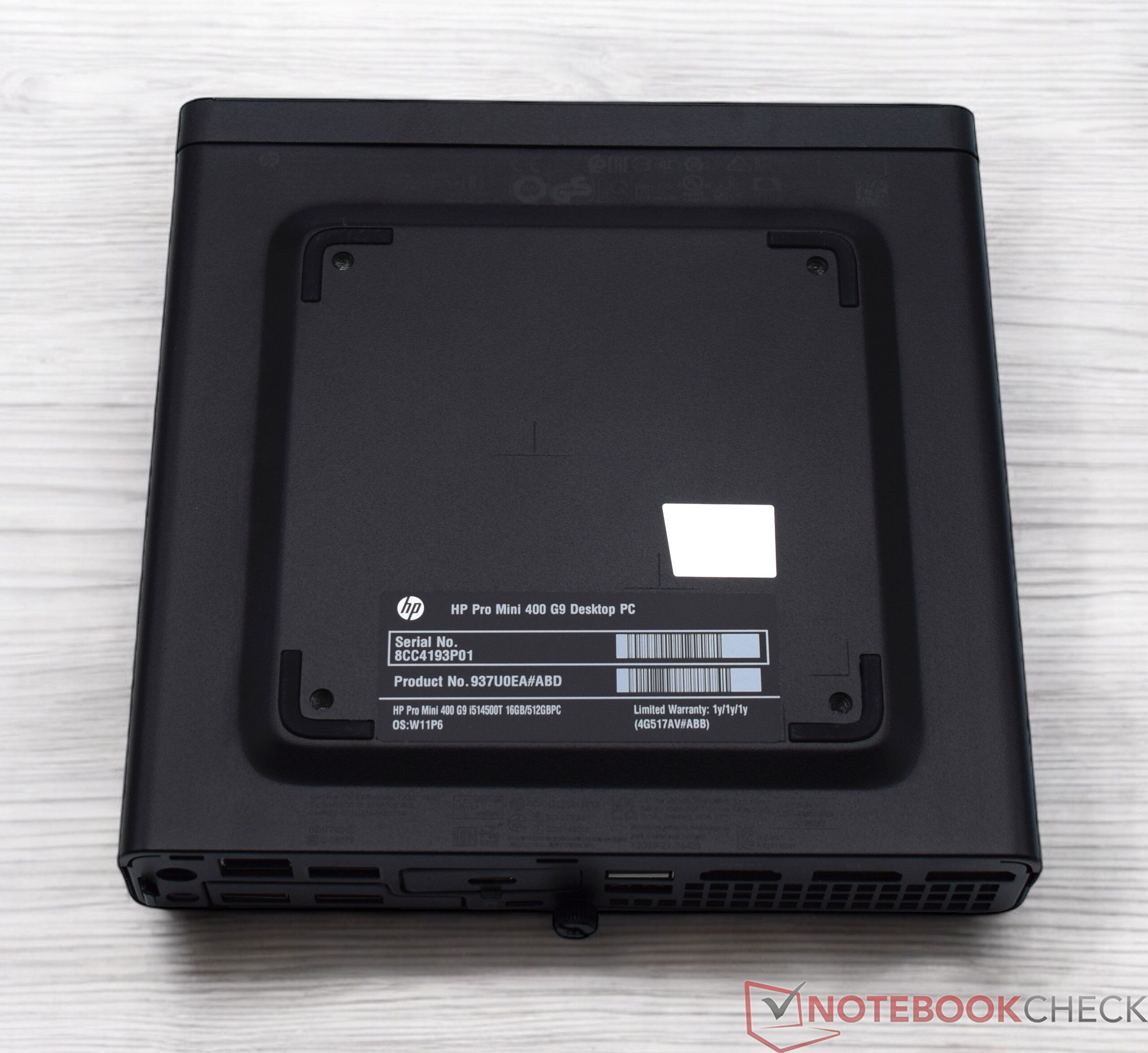

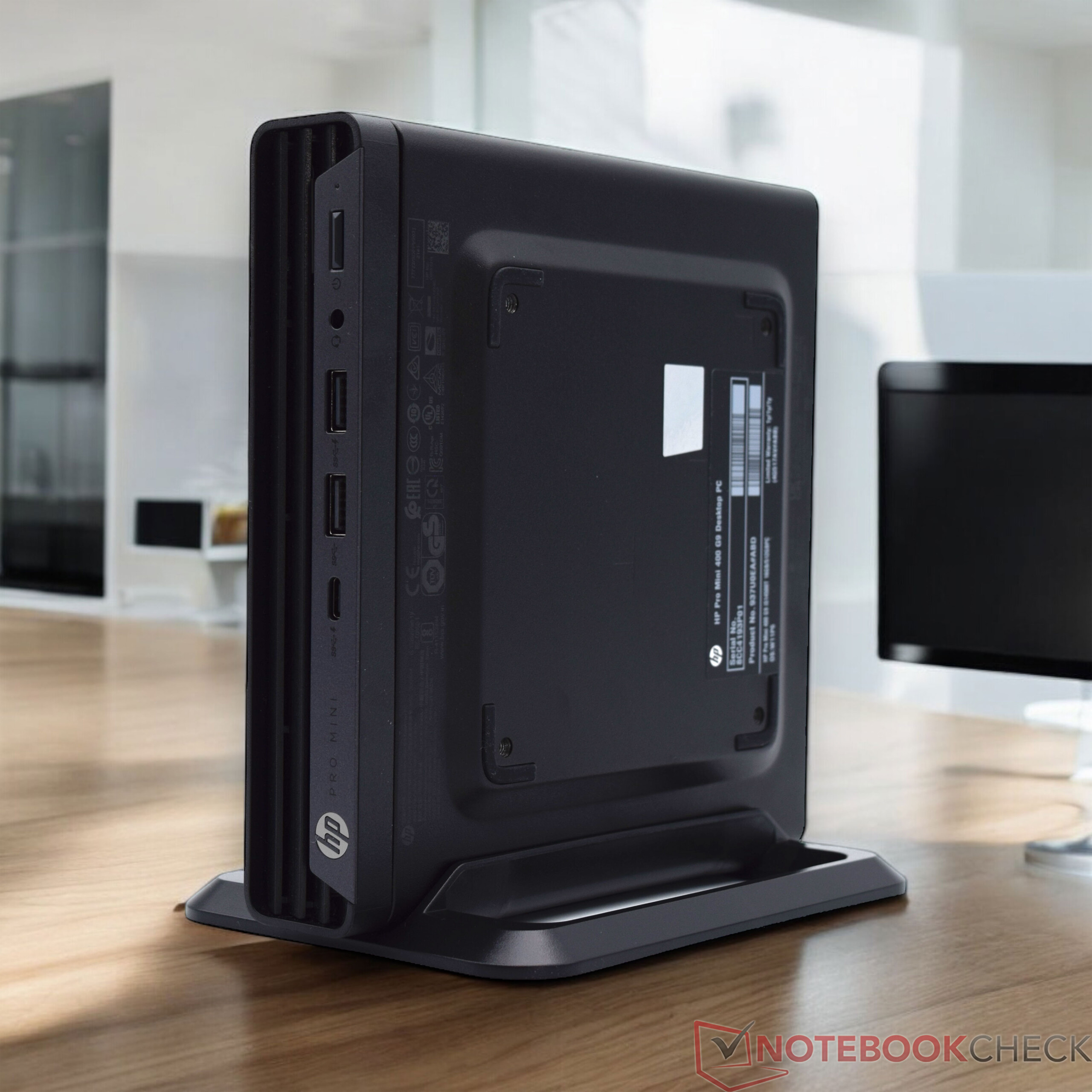

外壳 - 大量金属和模块化设计

从外观上看，HP Pro Mini 400 G9 与 HP Elite Mini 800 G9 型号非常相似。只有正面的名称显示了各自的型号，而且安装了不同的外壳盖。HP Elite Mini 800 G9 上使用的穿孔盖现在完全封闭。因此，进入机身内部的灰尘减少了，但通风效果也略有下降--关于这对日常使用中噪音水平的影响，稍后将详细介绍。模块化设计非常出色，在可持续发展方面也很有优势。毕竟，各种部件都可以更换，小修小补也是可能的。做工无可挑剔，这意味着惠普 Pro Mini 400 G9 在这一点上赢得了我们的一致好评。

尺寸比较

Minisforum MS-01 HP Pro Mini 400 G9-937U0EA HP Pro Mini 400 G9-936M3EA HP Elite Mini 800 G9-5M9X6EA Acemagic F2A Geekom GT13 Pro DIN A4 ❌

设备 - 仅在数量上占优

惠普 Pro Mini 400 G9 上有很多外部接口。不过，仔细观察后很快就会发现，只有大量的接口才令人信服。这里没有现代的 USB4 端口，甚至没有 OCuLink 连接。图像输出可通过 DisplayPort 或 HDMI 接口实现。通过组合，最多可同时使用三个屏幕。

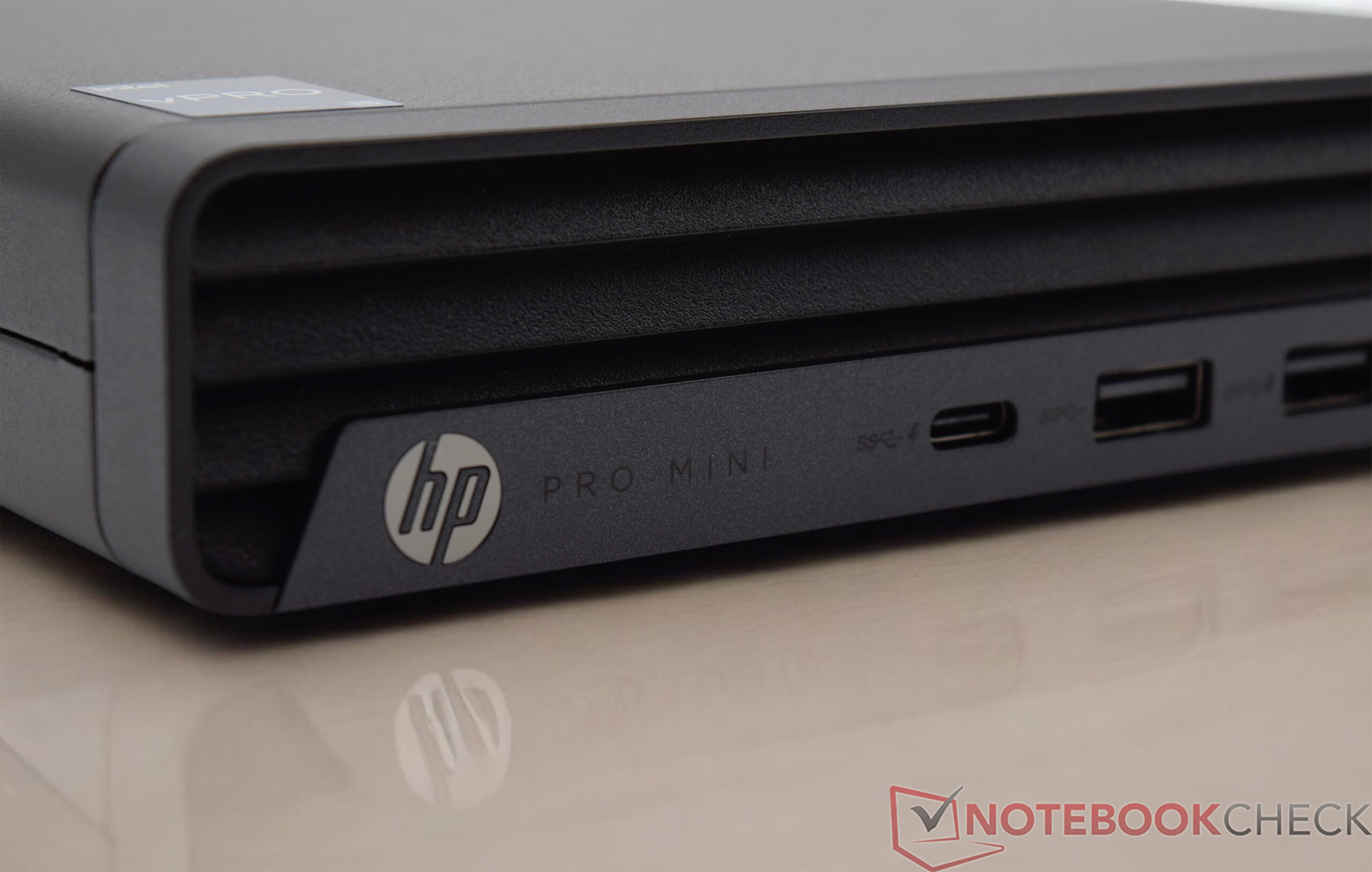

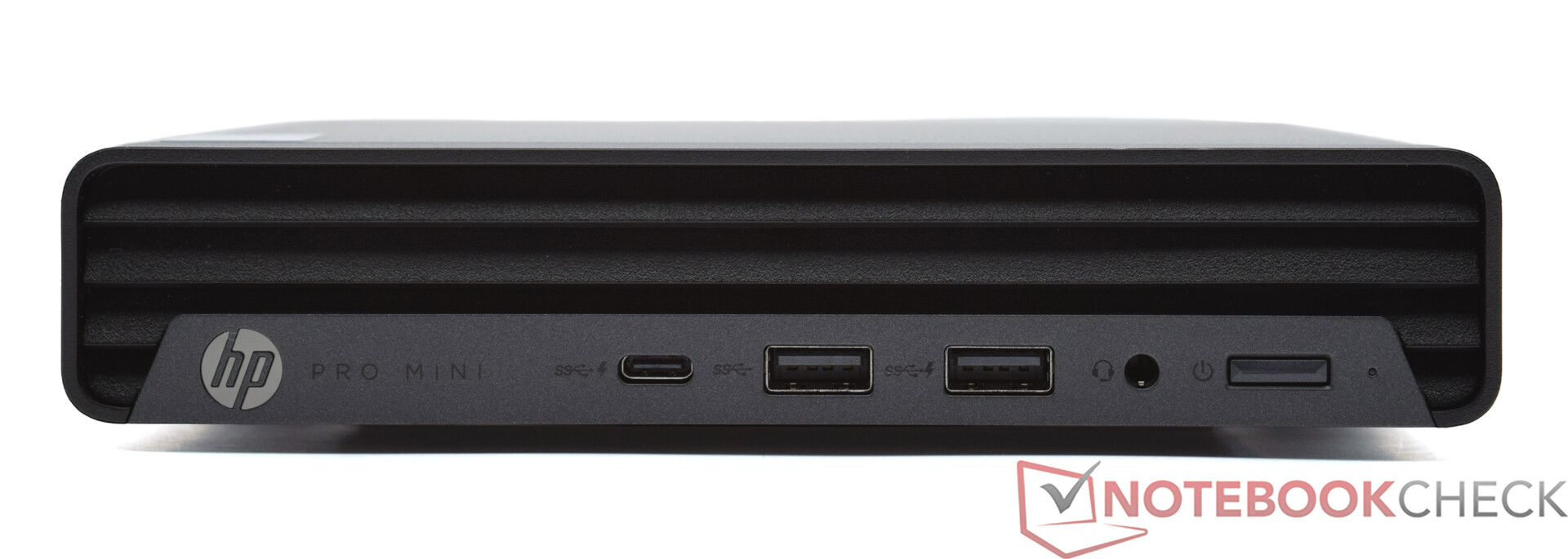

前置USB Type-C 20 Gbit/s、2x USB Type-A 10 Gbit/s、3.5 mm 音频

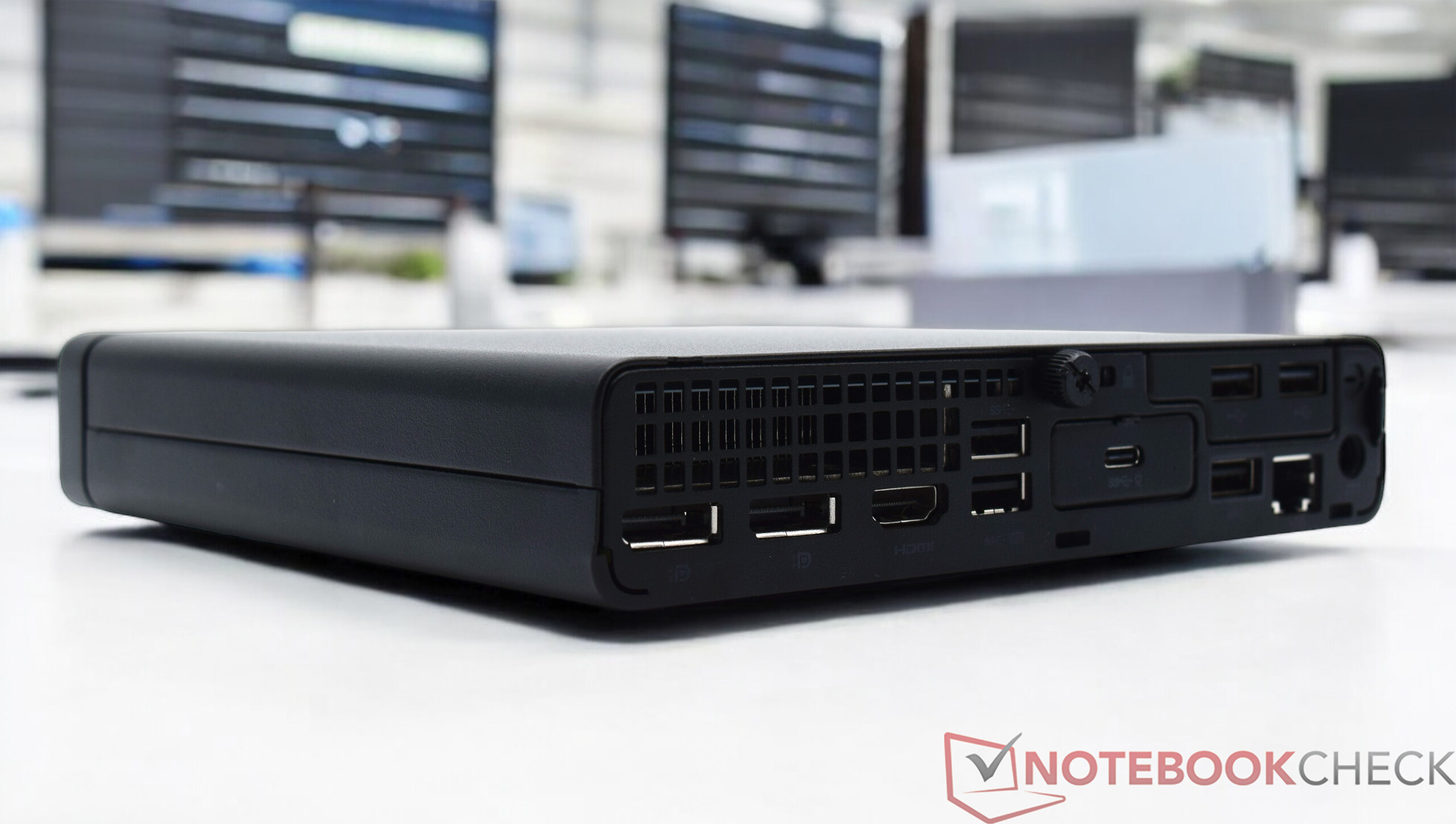

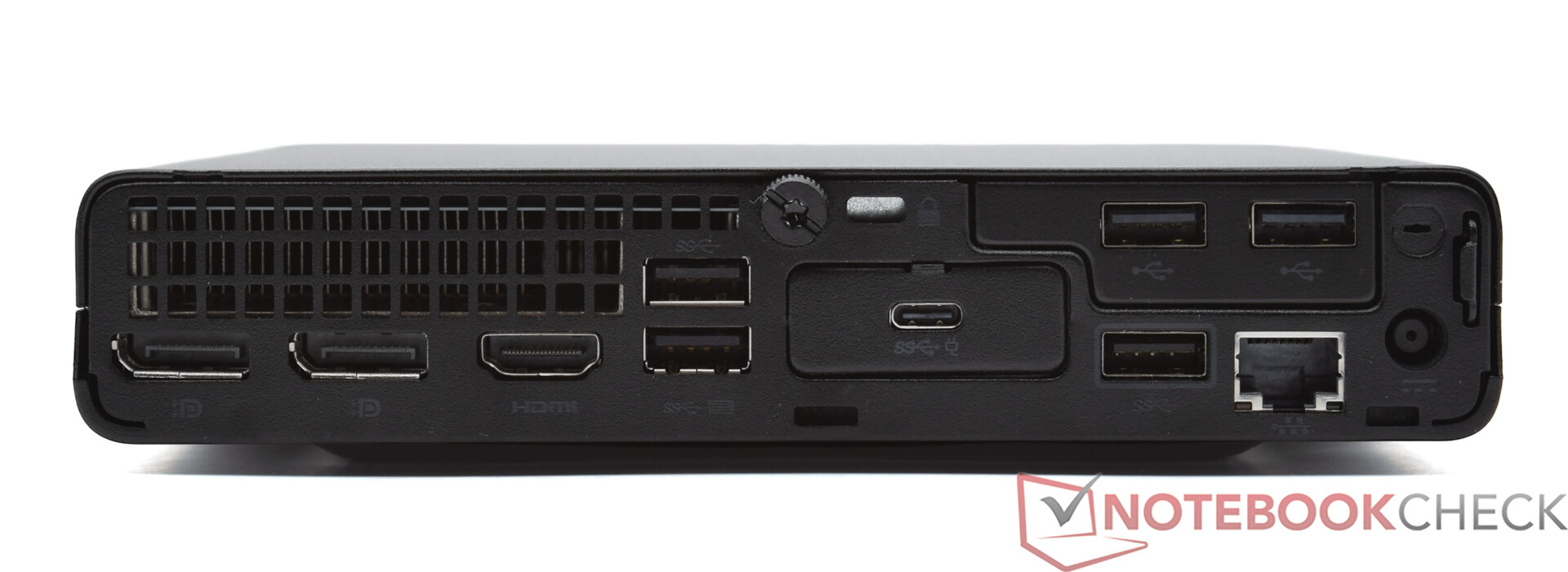

后部：2x DisplayPort 1.4、HDMI 2.1、3x USB Type-A 10 Gbit/s、2x USB Type-A 2.0、USB Type-C 10 Gbit/s、RJ45 GBit-LAN、电源接口

交流

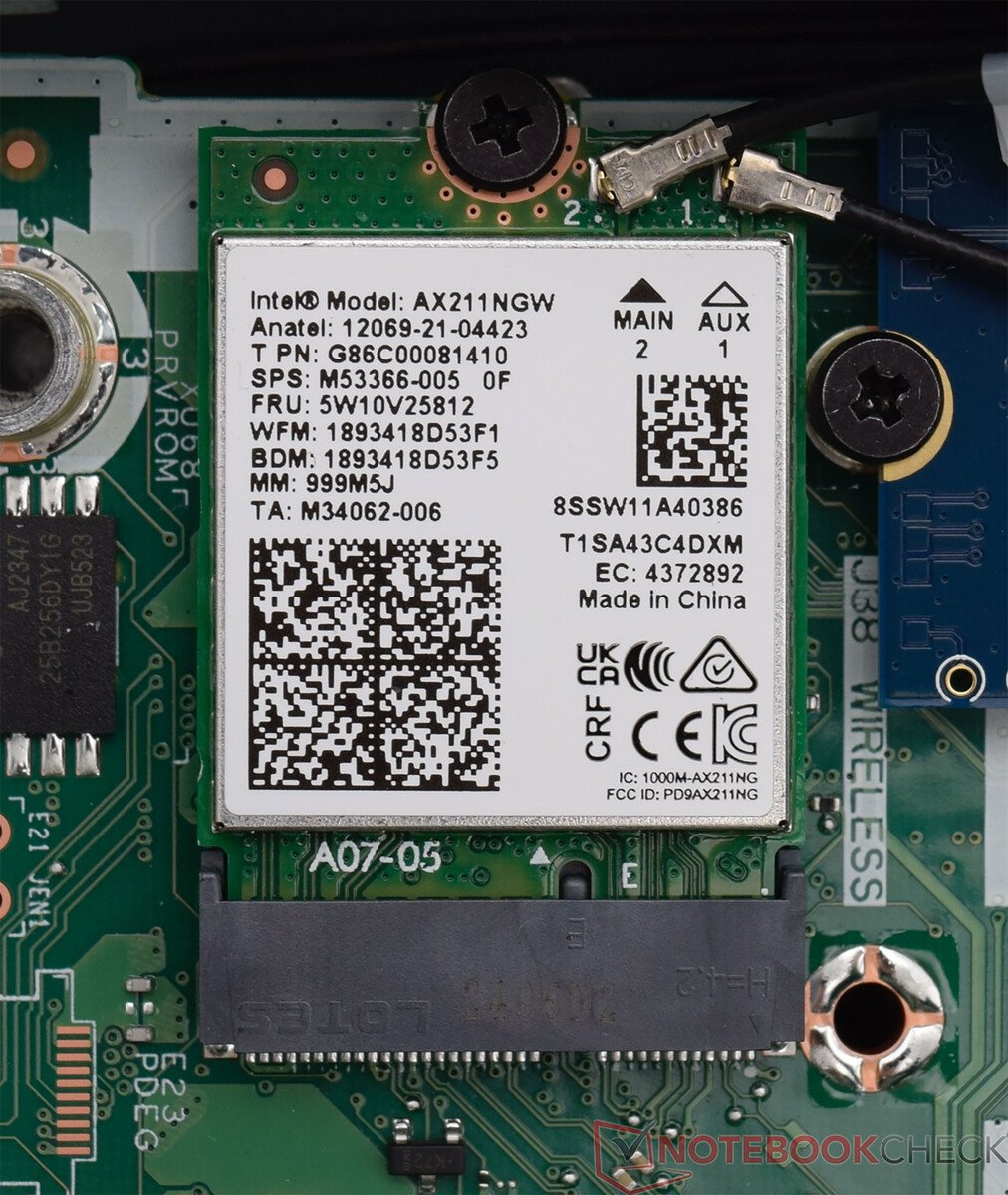

HP Pro Mini 400 G9 安装了英特尔 Wi-Fi 6E AX211 无线模块。在我们的测试样本中，Wi-Fi 模块的性能与对比概览中的其他两款惠普设备类似。不过，Minisforum MS-01 的性能始终更好。Wi-Fi 模块可在 5 和 6 GHz 频段工作。本次测试使用的是华硕 ROG Rapture GT-AXE11000。也可以使用有线网络连接。不过，惠普只在这里安装了一个 RJ45 插座，最多只能以 Gbit 的速度工作。

Networking
iperf3 receive AXE11000 6GHz
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	1770 (1584^min - 1790^max) MBit/s +11%
Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1753 (1734^min - 1765^max) MBit/s +10%
HP Pro Mini 400 G9-936M3EA Intel Wi-Fi 6E AX211	1701 (1684^min - 1720^max) MBit/s +7%
HP Elite Mini 800 G9-5M9X6EA Intel Wi-Fi 6E AX211	1594 (806^min - 1645^max) MBit/s 0%
HP Pro Mini 400 G9-937U0EA Intel Wi-Fi 6E AX211	1594 (1493^min - 1624^max) MBit/s
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1583 (1557^min - 1611^max) MBit/s -1%
Average Intel Wi-Fi 6E AX211 (700 - 1857, n=197)	1488 MBit/s -7%
Average of class Mini PC (684 - 1771, n=54, last 2 years)	1355 MBit/s -15%
iperf3 transmit AXE11000 6GHz
Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1775 (877^min - 1883^max) MBit/s +18%
HP Pro Mini 400 G9-936M3EA Intel Wi-Fi 6E AX211	1675 (843^min - 1716^max) MBit/s +11%
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	1615 (767^min - 1670^max) MBit/s +7%
HP Pro Mini 400 G9-937U0EA Intel Wi-Fi 6E AX211	1509 (1480^min - 1544^max) MBit/s
HP Elite Mini 800 G9-5M9X6EA Intel Wi-Fi 6E AX211	1507 (1371^min - 1587^max) MBit/s 0%
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1429 (1392^min - 1511^max) MBit/s -5%
Average Intel Wi-Fi 6E AX211 (632 - 1851, n=198)	1369 MBit/s -9%
Average of class Mini PC (394 - 1800, n=55, last 2 years)	1290 MBit/s -15%
iperf3 receive AXE11000
Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1771 (1719^min - 1796^max) MBit/s +85%
HP Pro Mini 400 G9-936M3EA Intel Wi-Fi 6E AX211	1582 (1507^min - 1632^max) MBit/s +65%
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1398 (1261^min - 1453^max) MBit/s +46%
Average Intel Wi-Fi 6E AX211 (582 - 1890, n=224)	1387 MBit/s +45%
HP Pro Mini 400 G9-937U0EA Intel Wi-Fi 6E AX211	958 (942^min - 967^max) MBit/s
Average of class Mini PC (192.9 - 1796, n=108, last 2 years)	933 MBit/s -3%
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	838 (728^min - 926^max) MBit/s -13%
HP Elite Mini 800 G9-5M9X6EA Intel Wi-Fi 6E AX211	819 (779^min - 837^max) MBit/s -15%
iperf3 transmit AXE11000
Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1732 (1659^min - 1839^max) MBit/s +95%
HP Pro Mini 400 G9-936M3EA Intel Wi-Fi 6E AX211	1345 (722^min - 1469^max) MBit/s +51%
Average Intel Wi-Fi 6E AX211 (464 - 1861, n=224)	1243 MBit/s +40%
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1146 (846^min - 1308^max) MBit/s +29%
HP Pro Mini 400 G9-937U0EA Intel Wi-Fi 6E AX211	890 (841^min - 915^max) MBit/s
Average of class Mini PC (184.1 - 1776, n=108, last 2 years)	860 MBit/s -3%
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	709 (369^min - 977^max) MBit/s -20%
HP Elite Mini 800 G9-5M9X6EA Intel Wi-Fi 6E AX211	695 (364^min - 734^max) MBit/s -22%

HP Pro Mini 400 G9-937U0EA Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1509 (1480-1544)

Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1746 (877-1883)

HP Pro Mini 400 G9-937U0EA Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1594 (1493-1624)

Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1752 (1734-1765)

HP Pro Mini 400 G9-937U0EA Intel Wi-Fi 6E AX211; iperf3 receive AXE11000; iperf 3.1.3: Ø957 (942-967)

Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø1770 (1719-1796)

HP Pro Mini 400 G9-937U0EA Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000; iperf 3.1.3: Ø890 (841-915)

Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø1732 (1659-1839)

配件

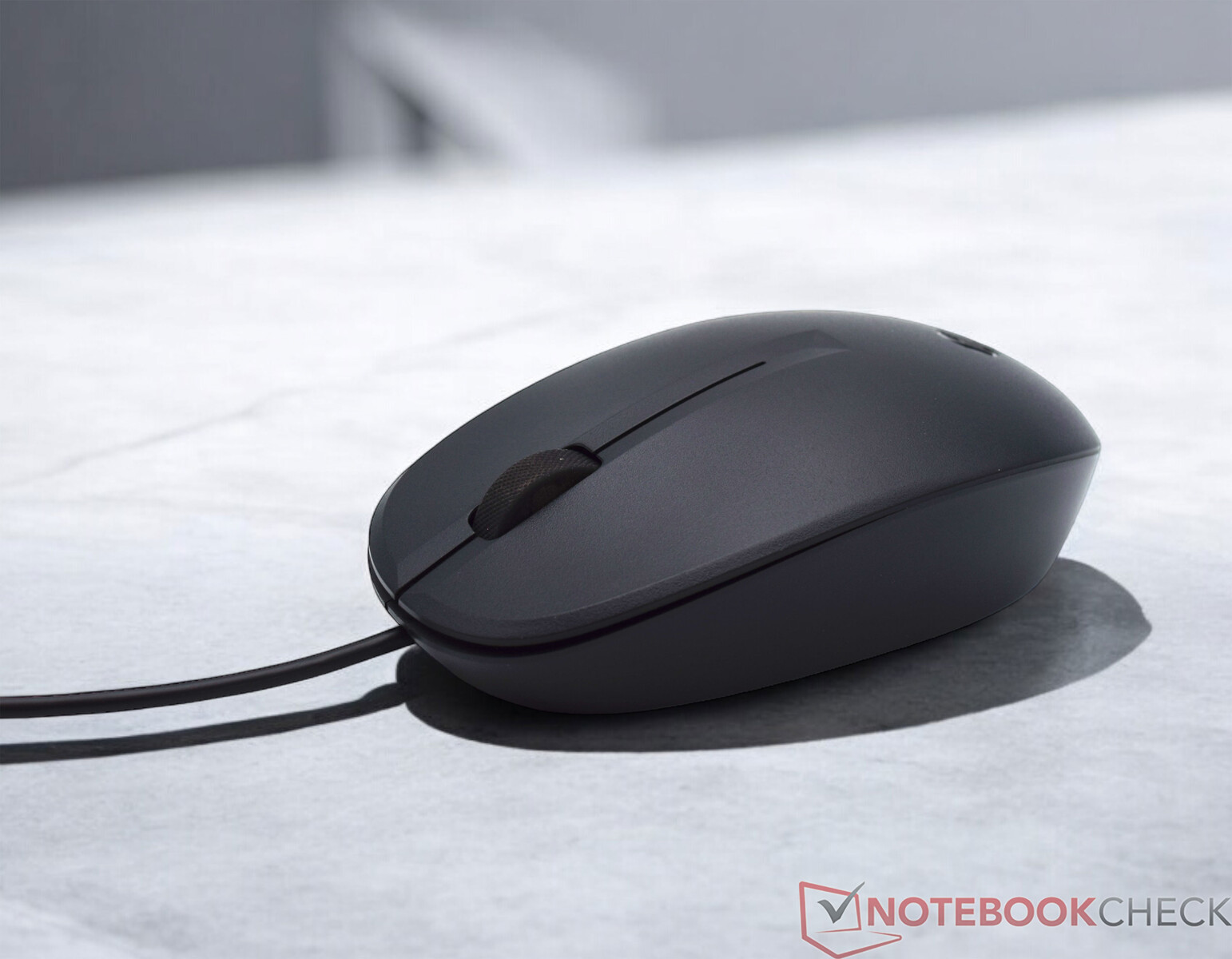

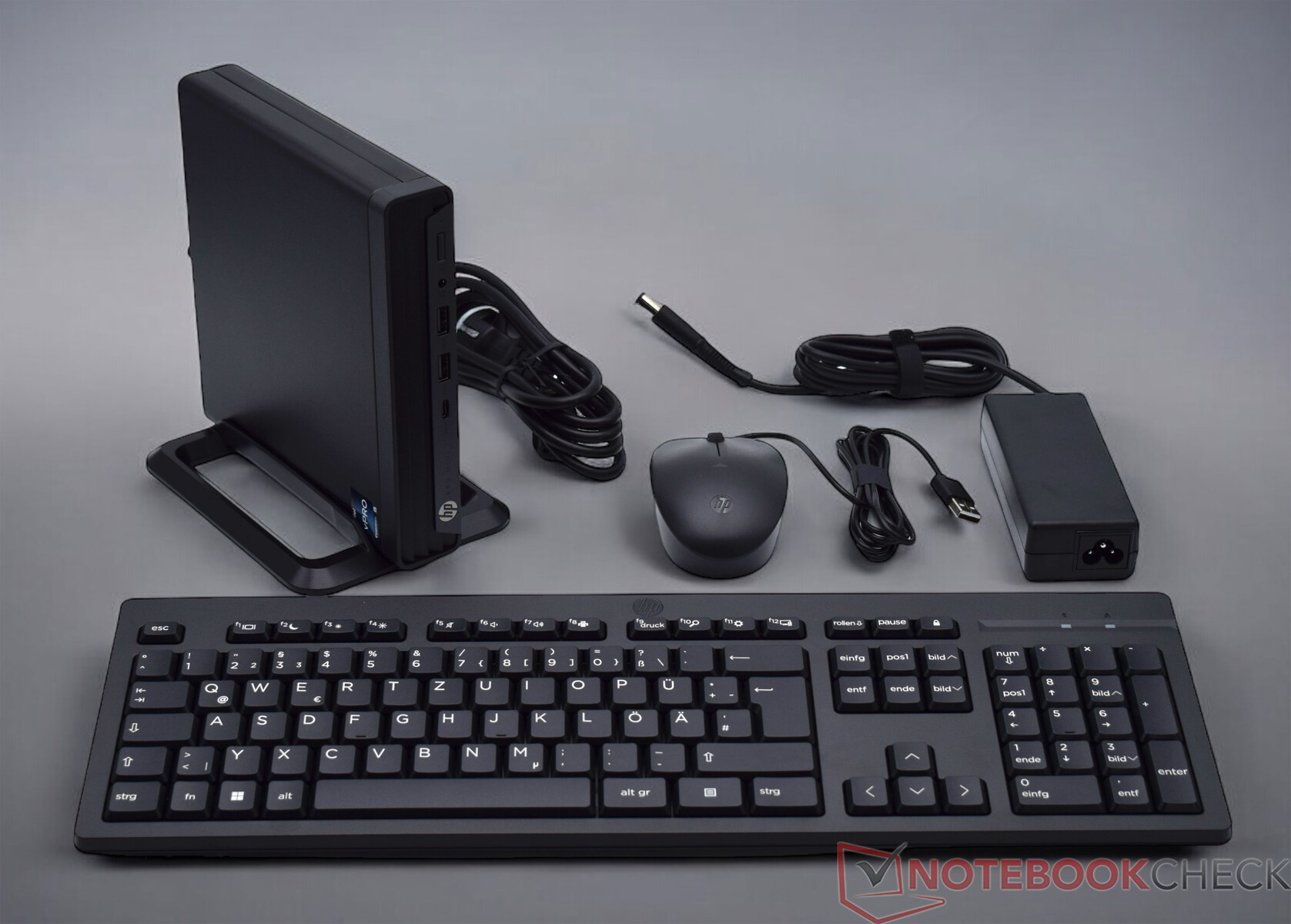

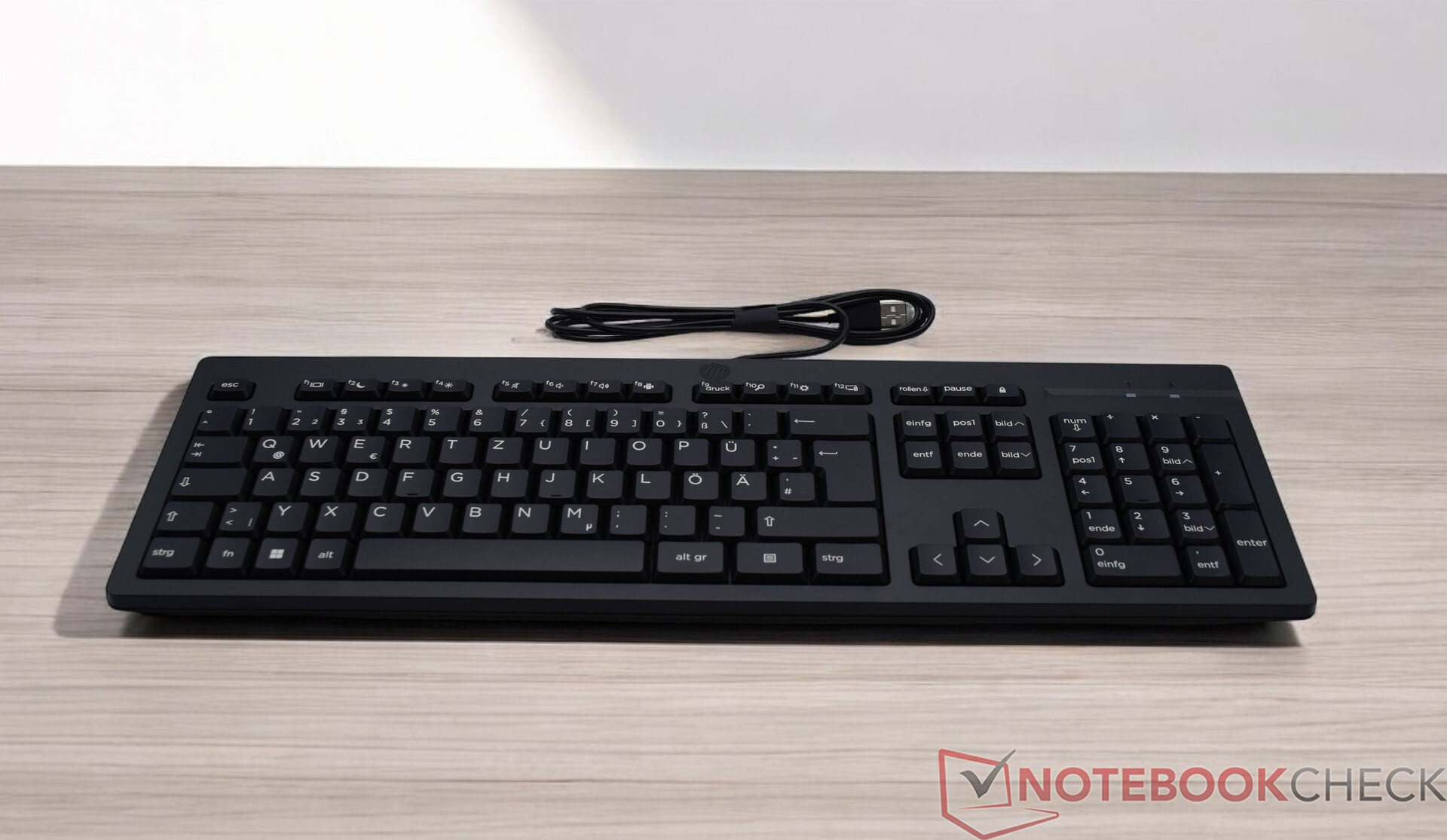

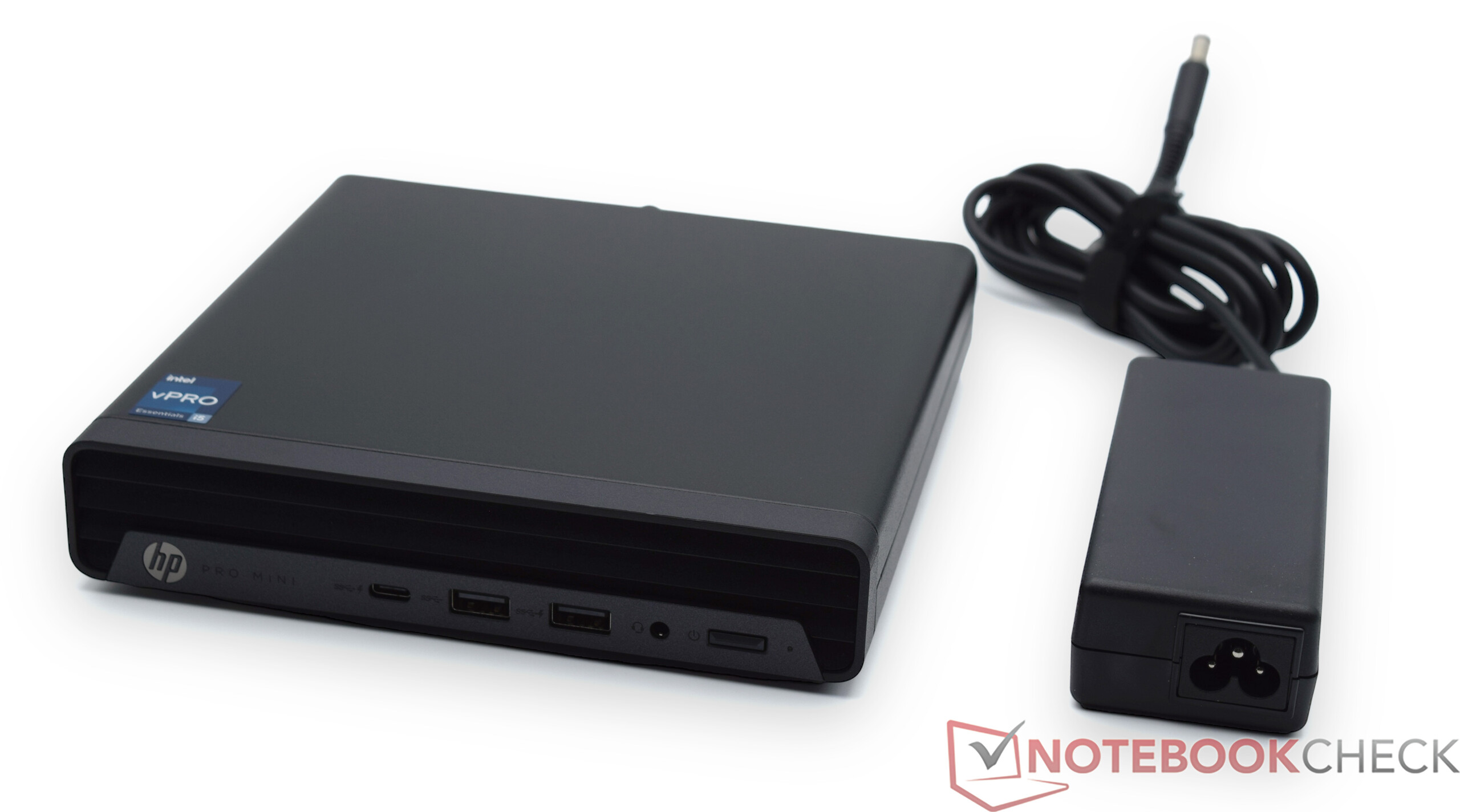

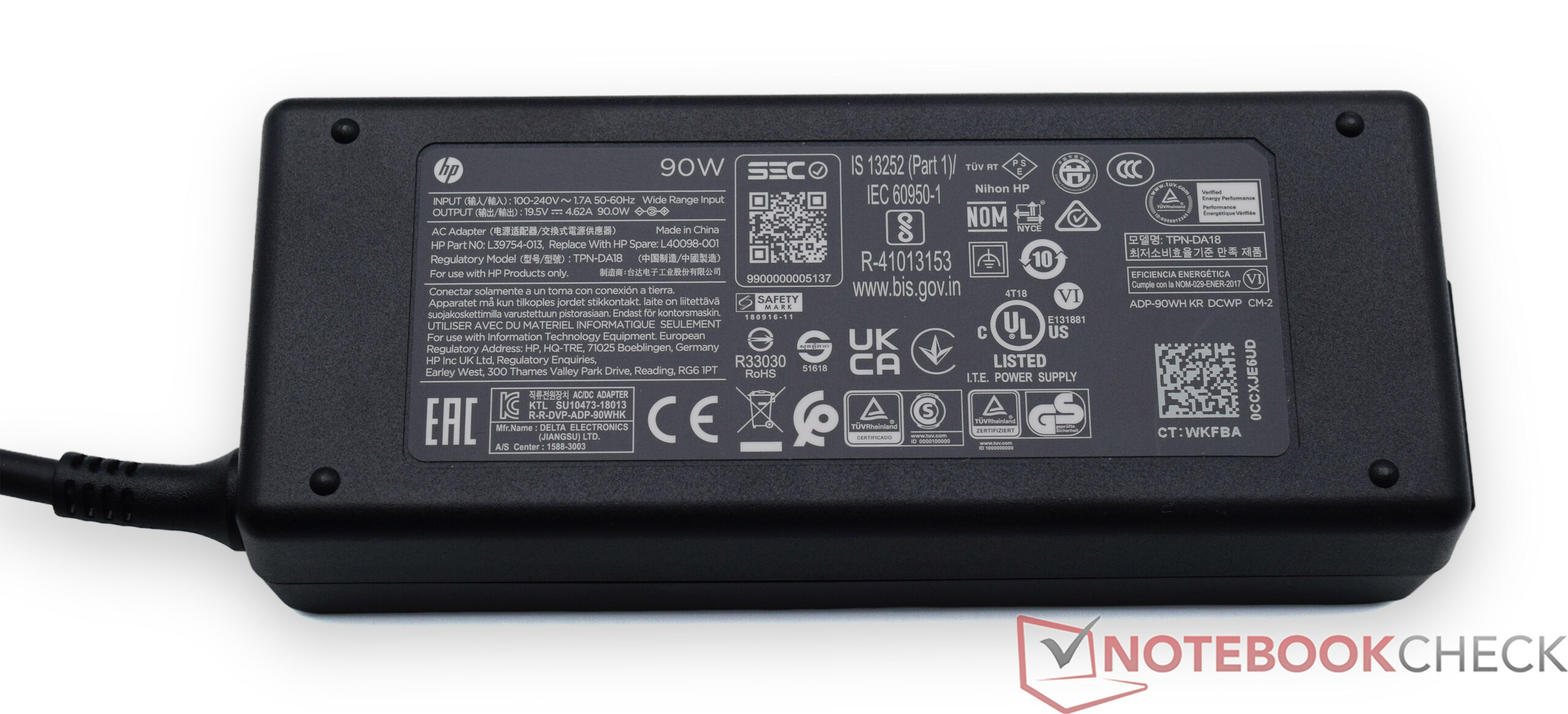

除了设备和外部电源装置外，惠普 Pro Mini 400 G9 还配备了少量基本设备。惠普为该设备配备了一个简单的有线键盘和鼠标。

维护

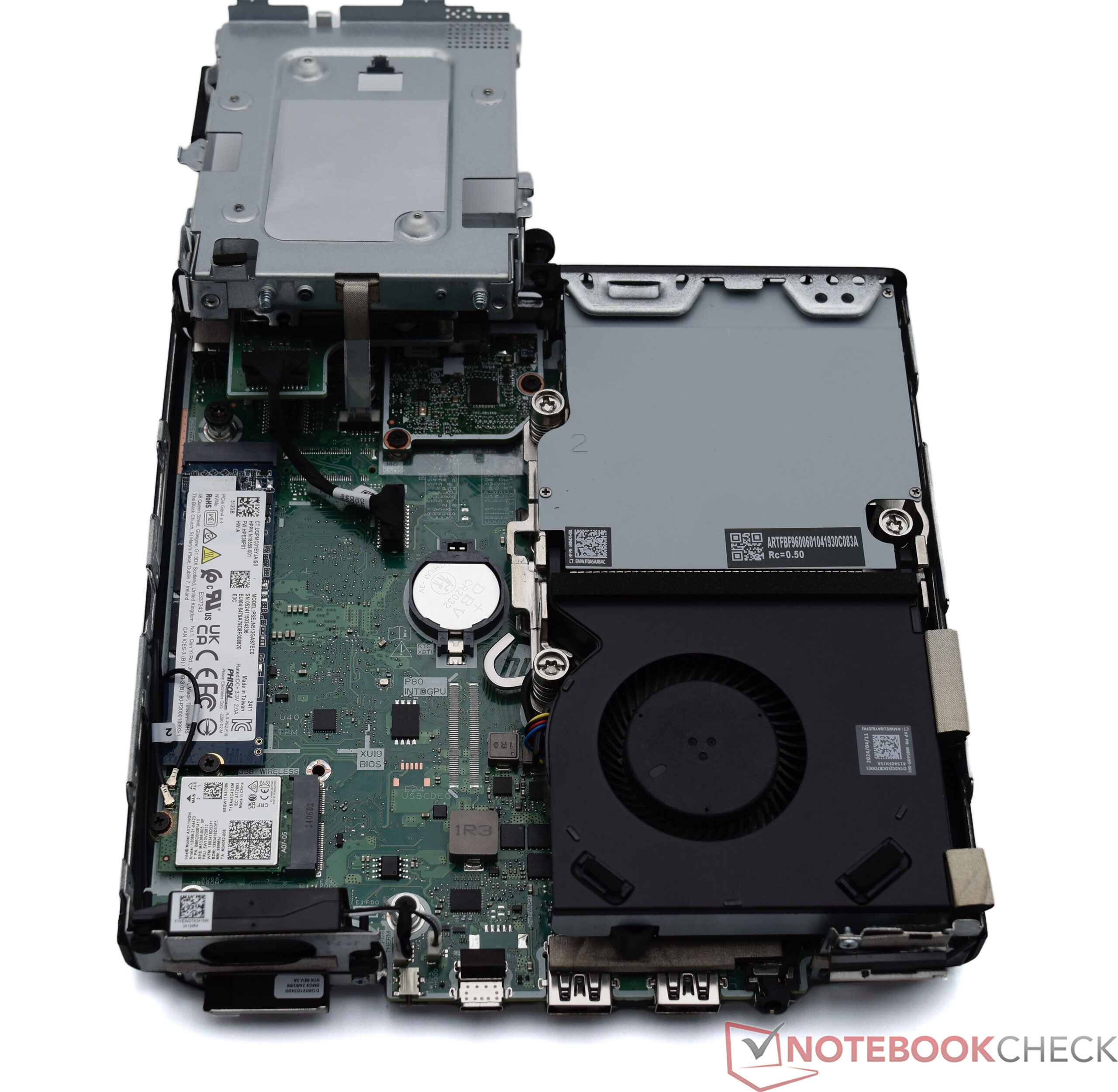

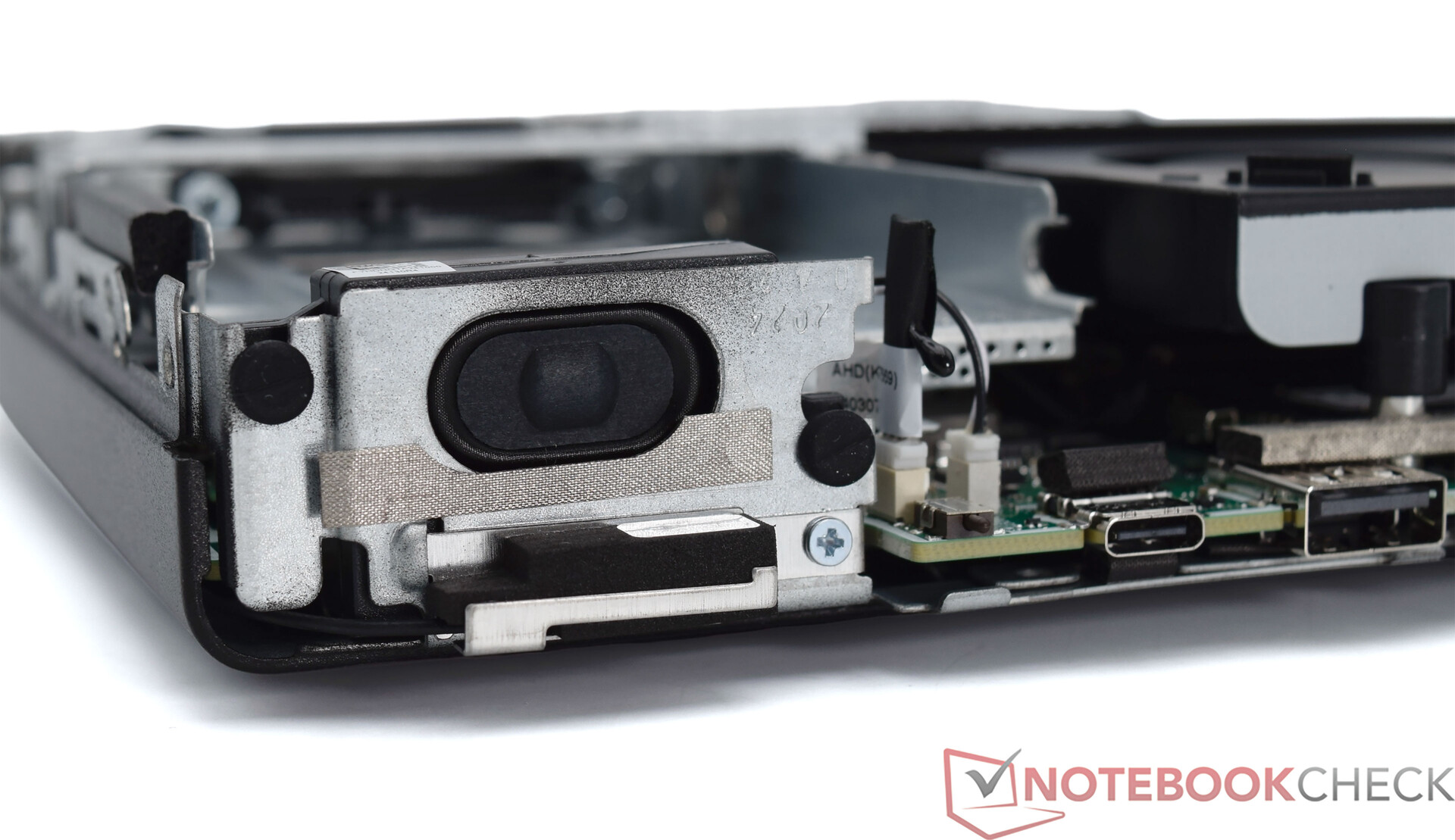

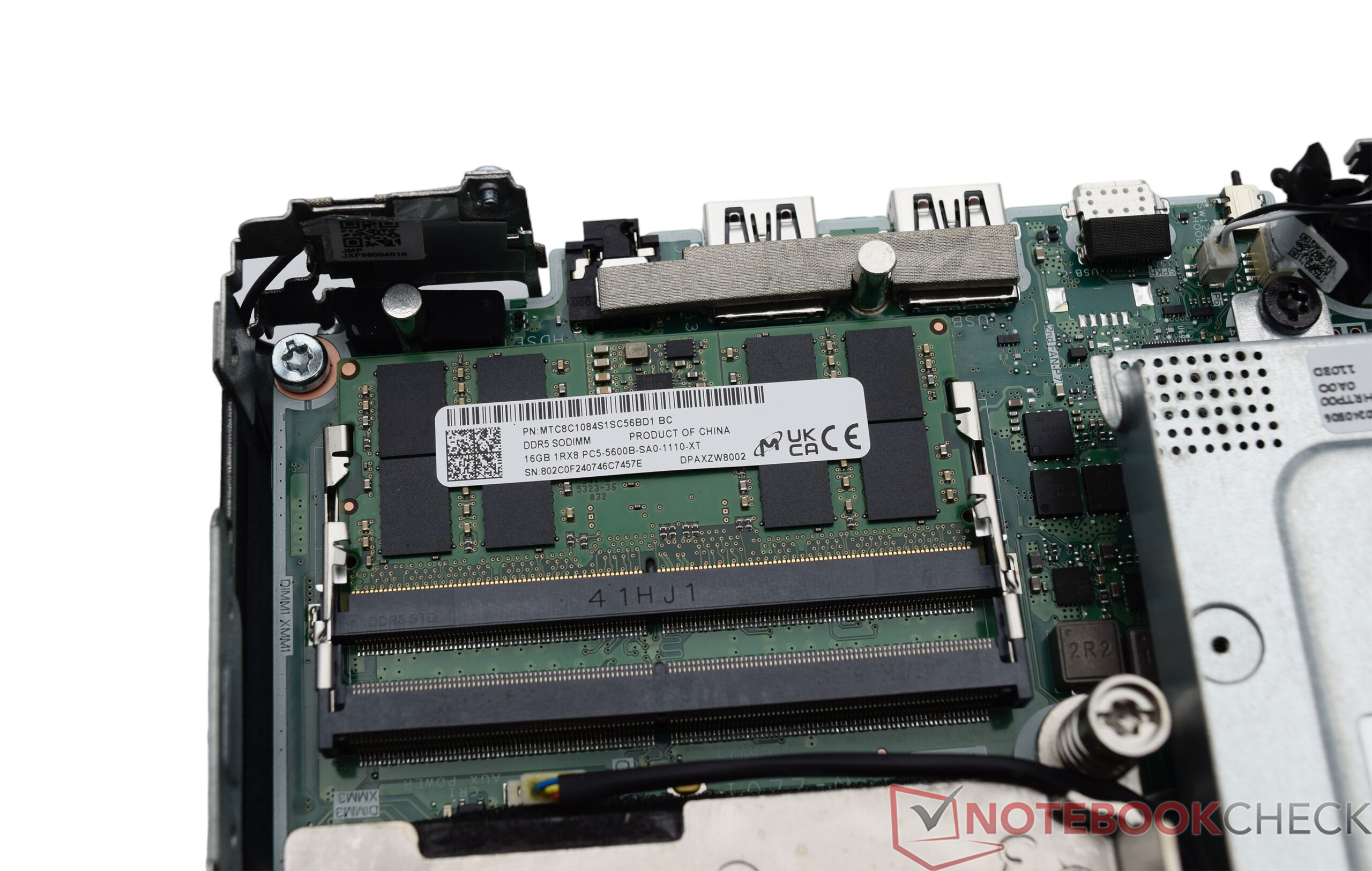

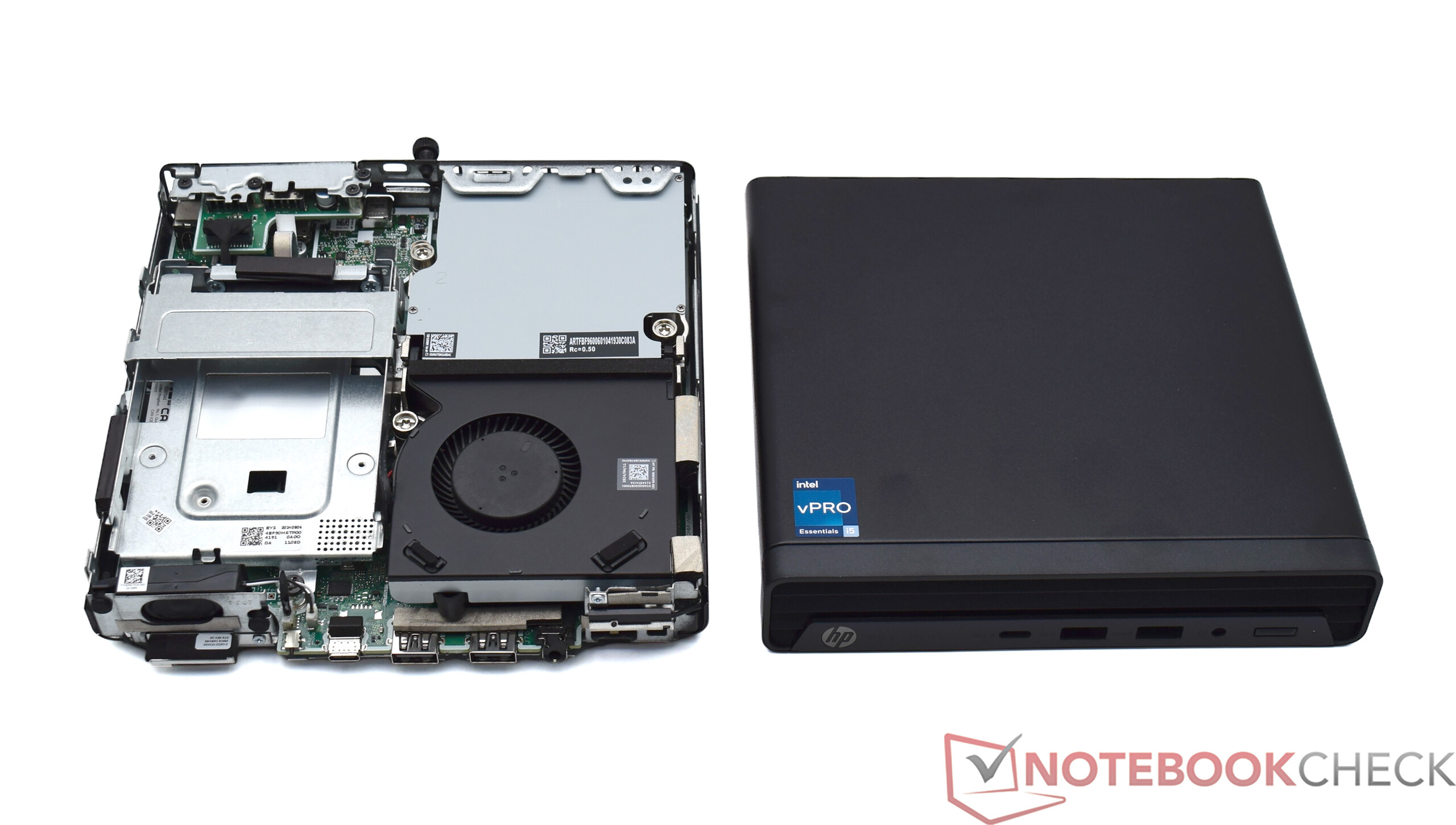

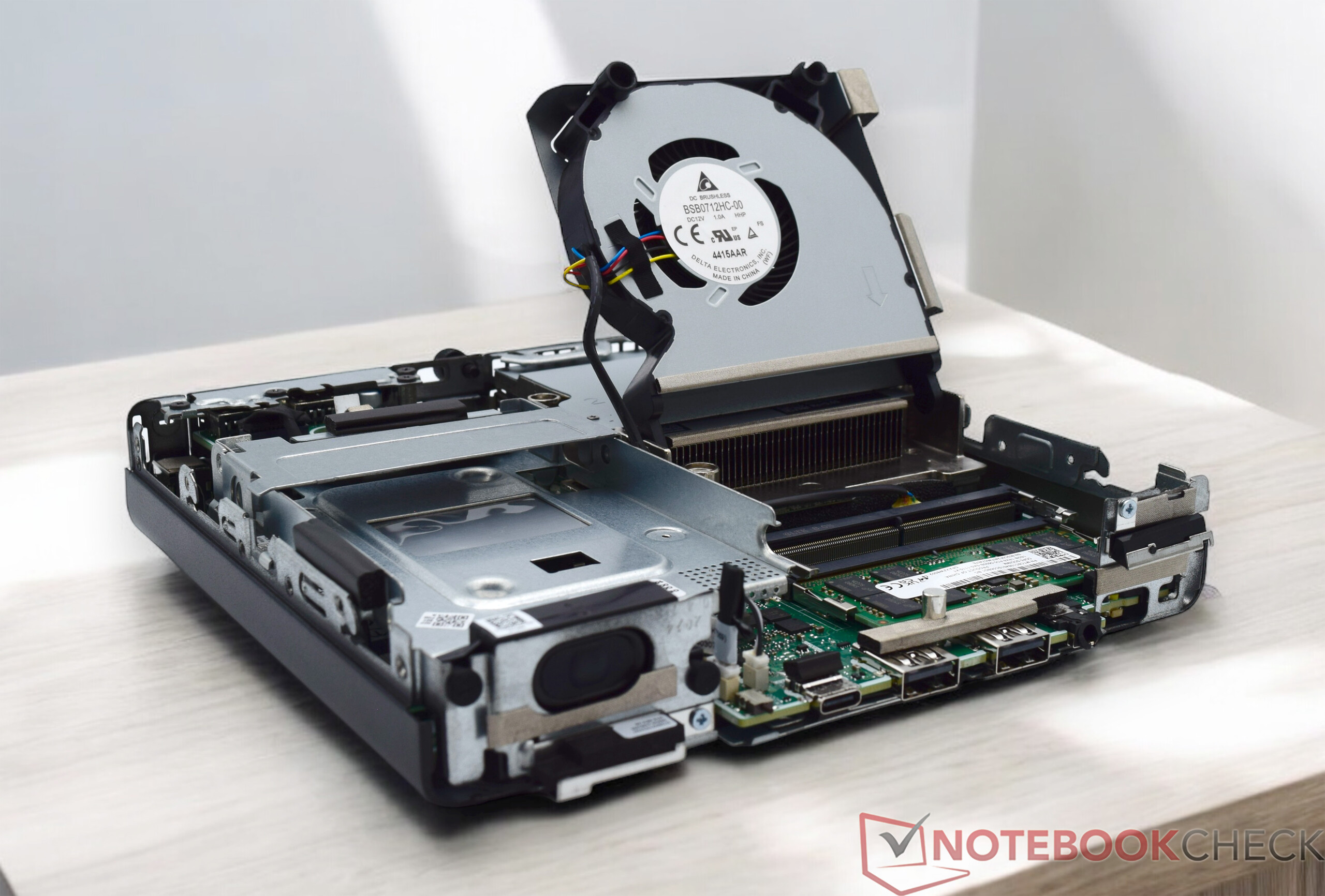

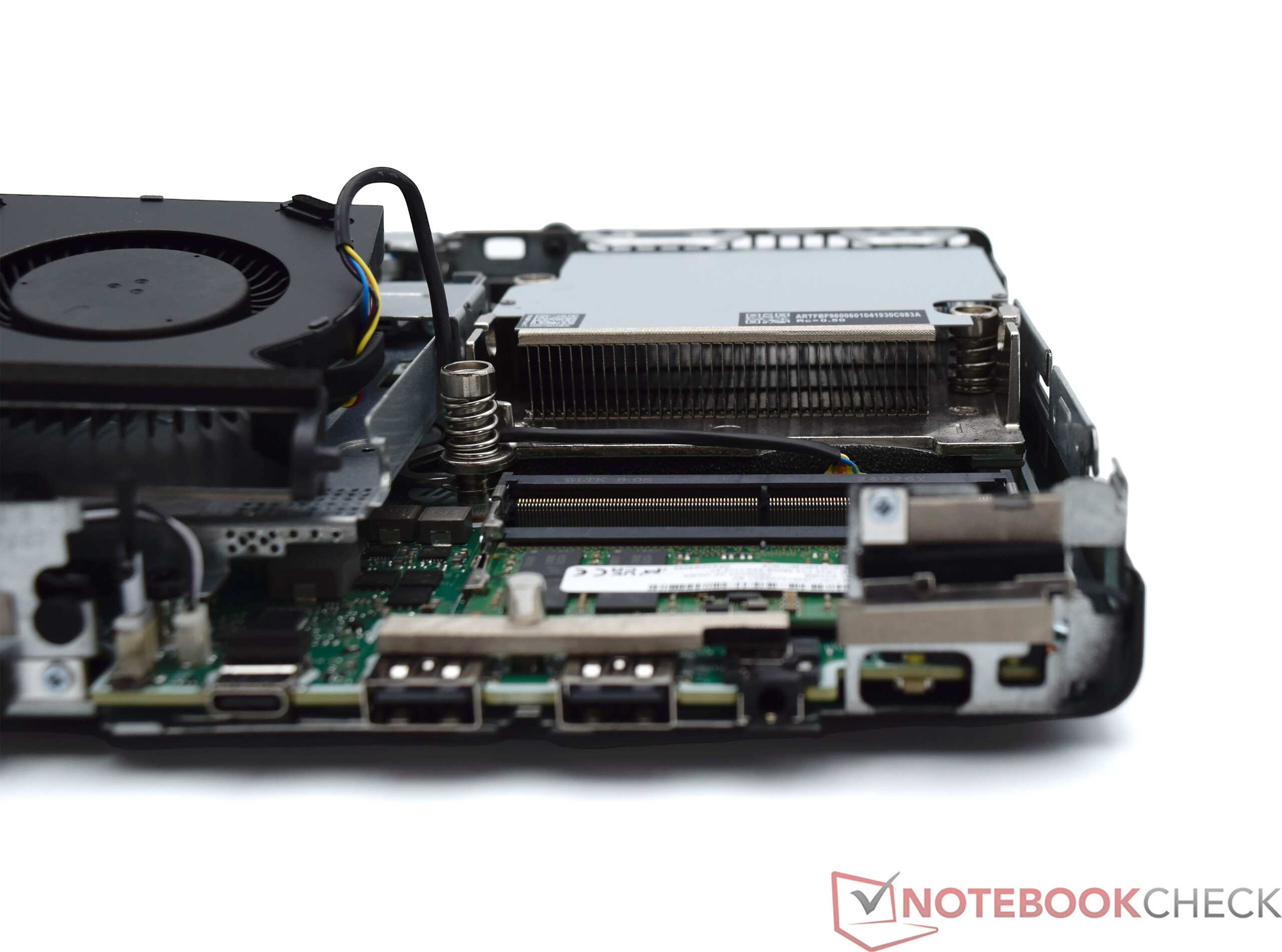

惠普 Pro Mini 400 G9 只能与内存和固态硬盘组合使用。该设备可以非常容易地打开，甚至无需工具。机箱盖仅在背面用滚花螺丝固定。拧松螺丝后，盖子可以向后滑动并取下。RAM 位于 CPU 风扇的正下方，也无需工具即可取下。要访问固态硬盘或 WLAN 模块，则需要使用螺丝刀。不过，由于采用了模块化设计，这些组件都很容易接近。设备的清洁工作也可以快速完成。与 HP Elite Mini 800 G9 一样，HP Pro Mini 400 G9 的 CPU 也可以在必要时拆卸和更换。

可持续性

惠普 Pro Mini 400 G9 电脑装在一个简单的纸箱中交付。由于装有附件，外包装略大。单个附件用单独的塑料套包装，在可持续性方面还有待改进。模块化设计允许进行小型维修，这一点也值得强调。各种备件可直接从惠普公司购买。正如制造商应我们的要求所告知的那样，生产设备时使用的是所谓的海洋塑料，否则这些塑料就会流入海洋。生产商还采用了创新的回收原材料，如使用过的食用油、渔网和咖啡渣。此外，它还获得了 "蓝色天使"、"EPEAT "和 "TCO "等外部合作伙伴的各种认证。

性能 - 英特尔酷睿 i5-14500T，14 个内核，20 个线程

HP Pro Mini 400 G9 是一款纯粹的工作电脑，配备了英特尔酷睿 i5-14500T经济而强大的处理器。不过，与英特尔酷睿 i5-13500T 处理器相比，性能仅有小幅提升。这款迷你 PC 的最大弱点是 3D 性能，因为台式机处理器的 iGPU 不如大多数竞争对手的移动处理器的 iGPU。

测试条件

我们使用 "惠普优化 "能源配置文件对惠普 Pro Mini 400 G9 进行所有性能测试。惠普公司本身不提供任何定制系统性能的其他选项。处理器的功率限制可通过 XTU（Intel Extreme Tuning Utility）工具进行调整。不过，我们不建议提高该值，因为功耗会过高，而电源装置并非为此而设计。

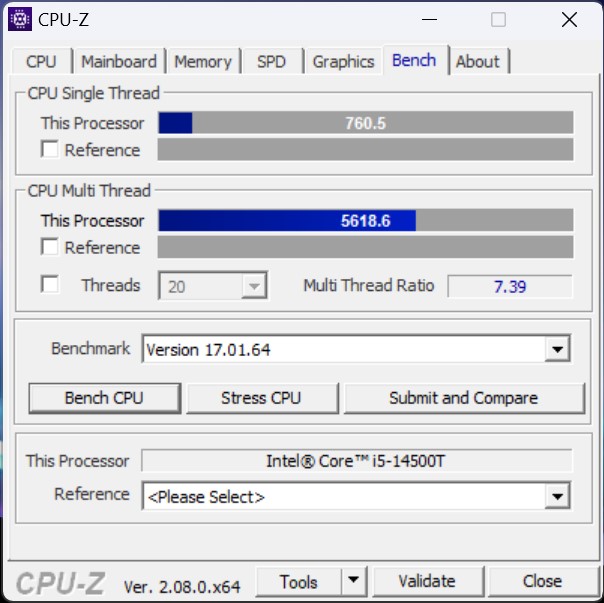

处理器

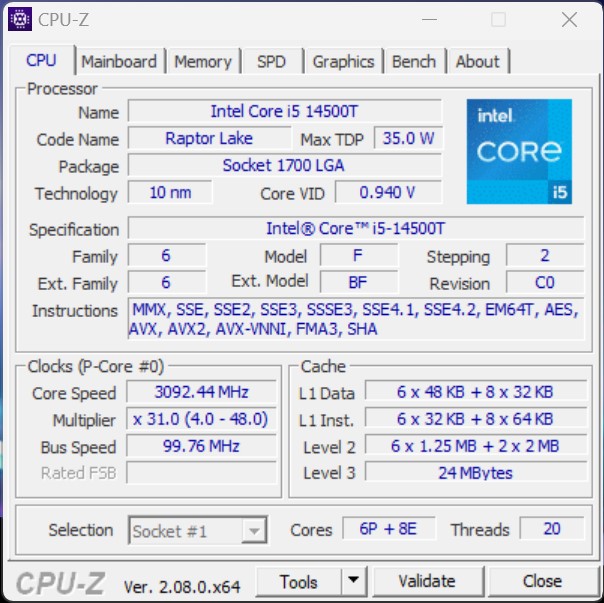

正如我们多次提到的，已安装的英特尔酷睿 i5-14500T是猛禽湖系列中的一款传统台式机处理器。该处理器拥有 6 个 P 核心和 8 个 E 核心，提供的计算单元数量与英特尔酷睿 i5-13500T一样多。我们已经对该机型进行了详细测试，现在可以比较一下英特尔酷睿 i5-14500T 在性能上的确切提升。简而言之，这两种型号的性能几乎完全相同，在性能评级中，较新的处理器仅有 4 个百分点的微弱性能优势。

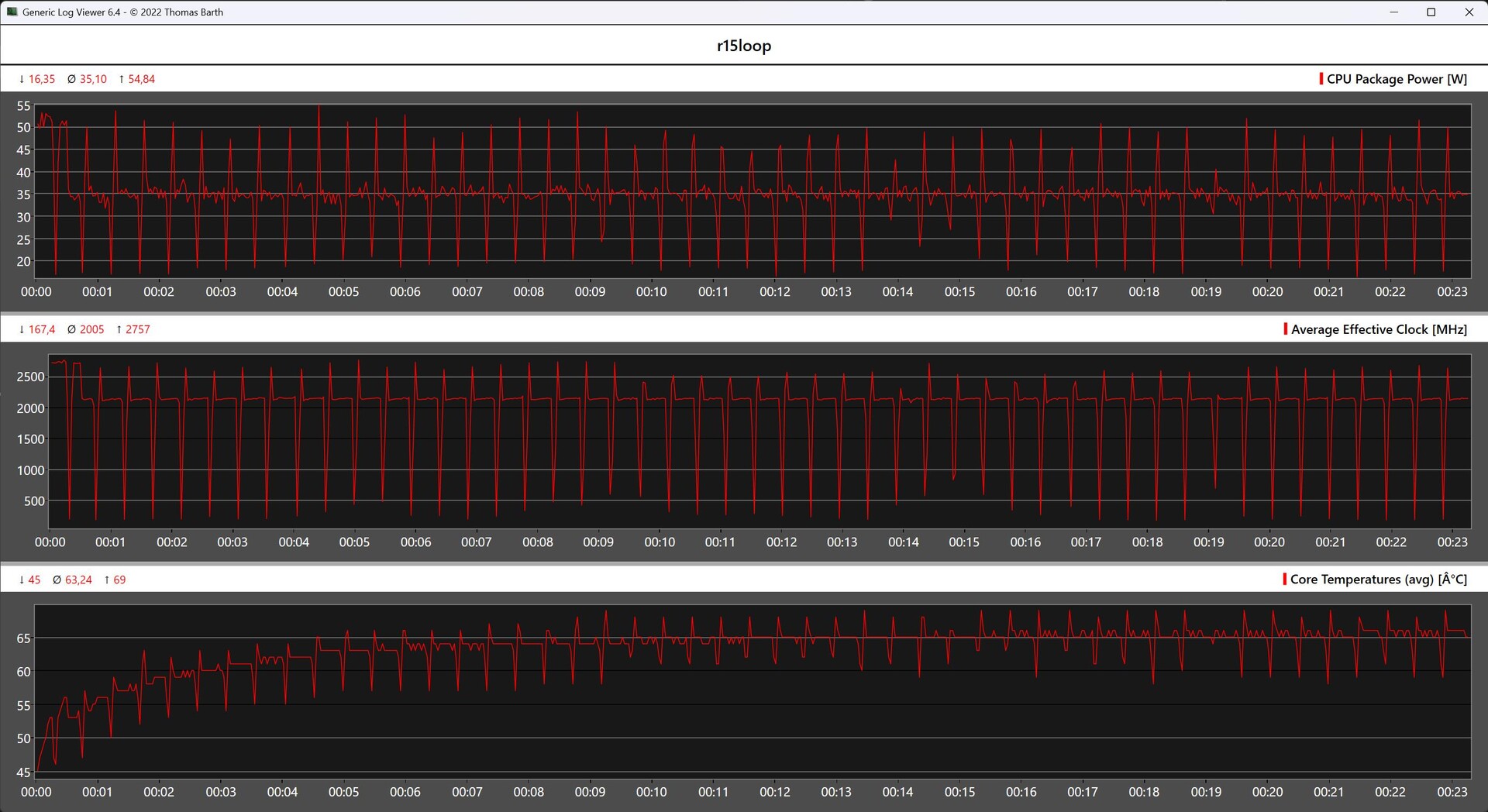

从处理器名称后缀 "T "可以看出，这两款处理器都是特别经济的机型。英特尔将 35 瓦定义为此处安装的处理器的性能极限，不过如果条件合适，在 Turbo 模式下最高可达到 92 瓦。不过，由于散热装置较小，惠普将处理器的最大功耗限制在 74 瓦。不过，在测试中也没有达到这个值。在这一点上，我们已经可以看出端倪。除了 HP Pro Mini 400 G9基于英特尔酷睿 i5-13500T 处理器外，所有其他竞争对手的性能都高于我们的测试样品。与迷你论坛 MS-01的差距仅为 8 个百分点。

有关进一步的比较和基准测试，请参阅我们的 CPU 对比表.

Performance Rating - Percent
Minisforum MS-01 Intel Core i9-13900H	57.4 pt
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	57 pt
Acemagic F2A Intel Core Ultra 7 155H	56.7 pt
Geekom GT13 Pro Intel Core i9-13900H	55.2 pt
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	52.7 pt
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	50.7 pt

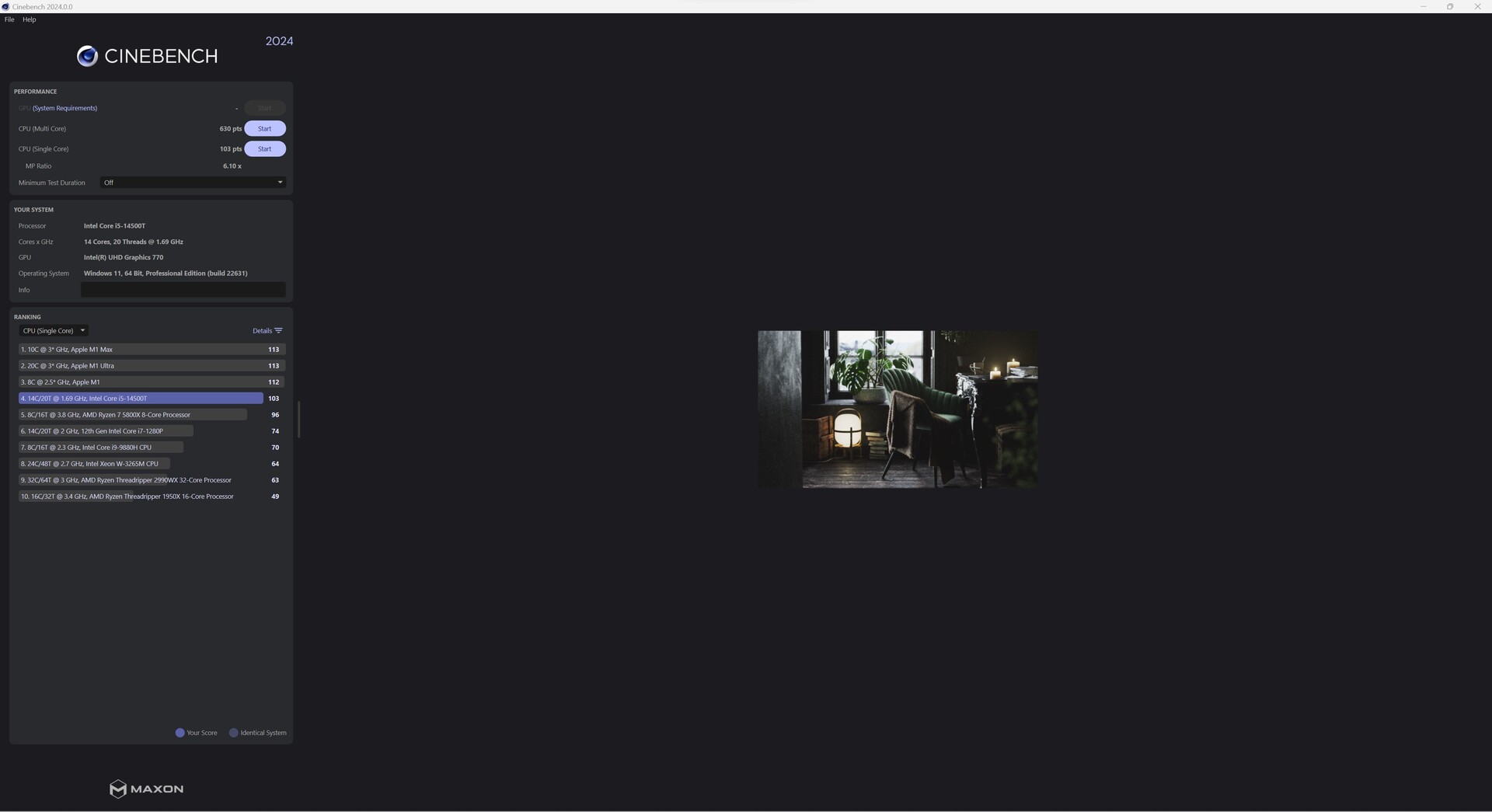

Cinebench 2024
CPU Multi Core
Acemagic F2A Intel Core Ultra 7 155H	1022 Points +62%
Minisforum MS-01 Intel Core i9-13900H	818 Points +30%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	799 Points +27%
Geekom GT13 Pro Intel Core i9-13900H	703 Points +12%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	630 Points
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	577 Points -8%
CPU Single Core
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	114 Points +11%
Acemagic F2A Intel Core Ultra 7 155H	106 Points +3%
Geekom GT13 Pro Intel Core i9-13900H	104 Points +1%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	104 Points +1%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	103 Points
Minisforum MS-01 Intel Core i9-13900H	101 Points -2%

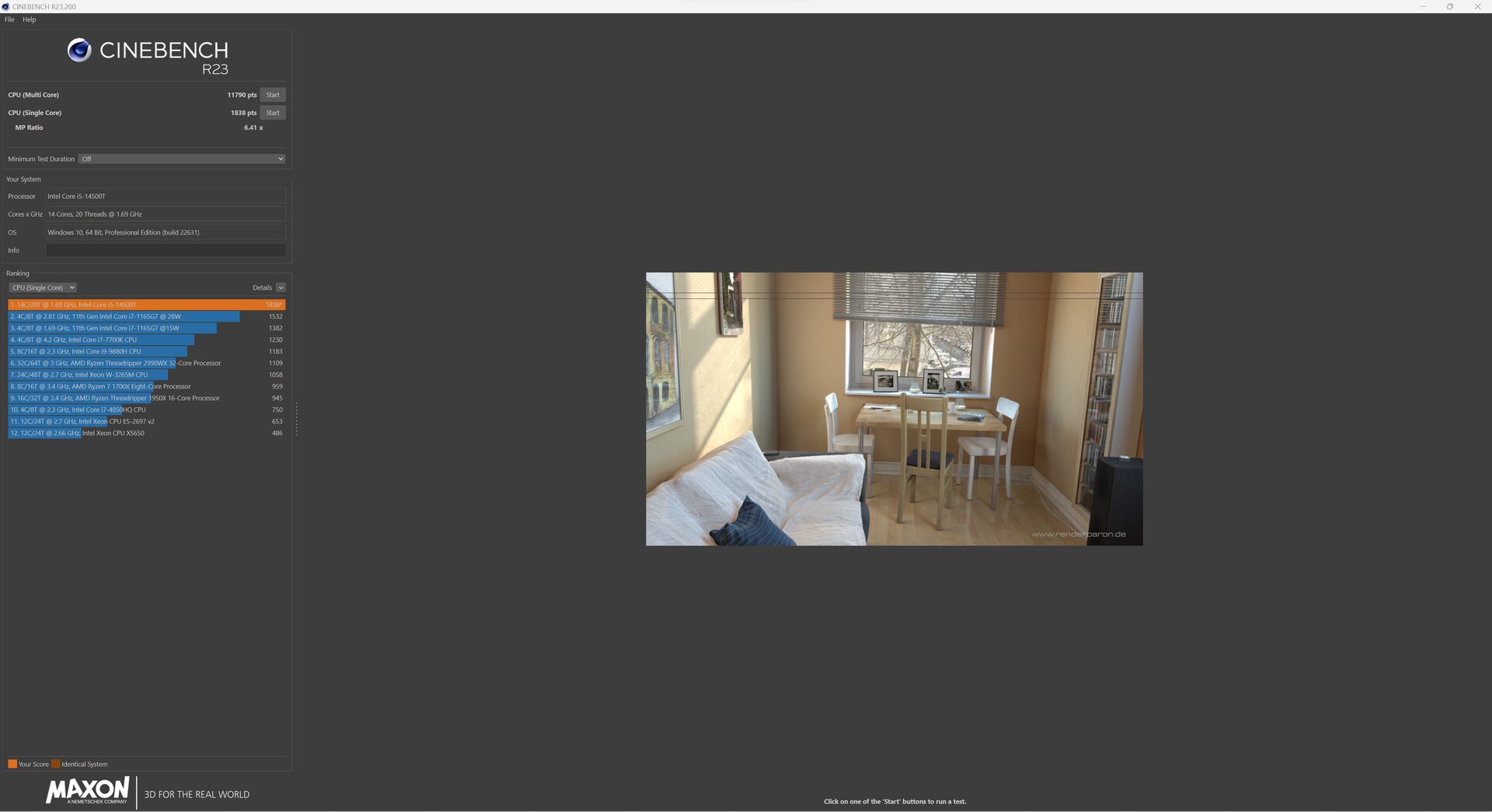

Cinebench R23
Multi Core
Acemagic F2A Intel Core Ultra 7 155H	18497 Points +57%
Minisforum MS-01 Intel Core i9-13900H	16209 Points +37%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	15012 Points +27%
Geekom GT13 Pro Intel Core i9-13900H	13015 Points +10%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	11790 Points
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	11028 Points -6%
Single Core
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	1917 Points +4%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	1838 Points
Minisforum MS-01 Intel Core i9-13900H	1806 Points -2%
Acemagic F2A Intel Core Ultra 7 155H	1771 Points -4%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	1754 Points -5%
Geekom GT13 Pro Intel Core i9-13900H	1715 Points -7%

Cinebench R15
CPU Single 64Bit
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	273 Points +8%
Acemagic F2A Intel Core Ultra 7 155H	258 Points +2%
Minisforum MS-01 Intel Core i9-13900H	253 Points 0%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	252 Points
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	247 Points -2%
Geekom GT13 Pro Intel Core i9-13900H	245 Points -3%
CPU Multi 64Bit
Acemagic F2A Intel Core Ultra 7 155H	2738 Points +35%
Minisforum MS-01 Intel Core i9-13900H	2459 Points +22%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	2435 Points +20%
Geekom GT13 Pro Intel Core i9-13900H	2260 Points +12%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	2022 Points
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	1945 Points -4%

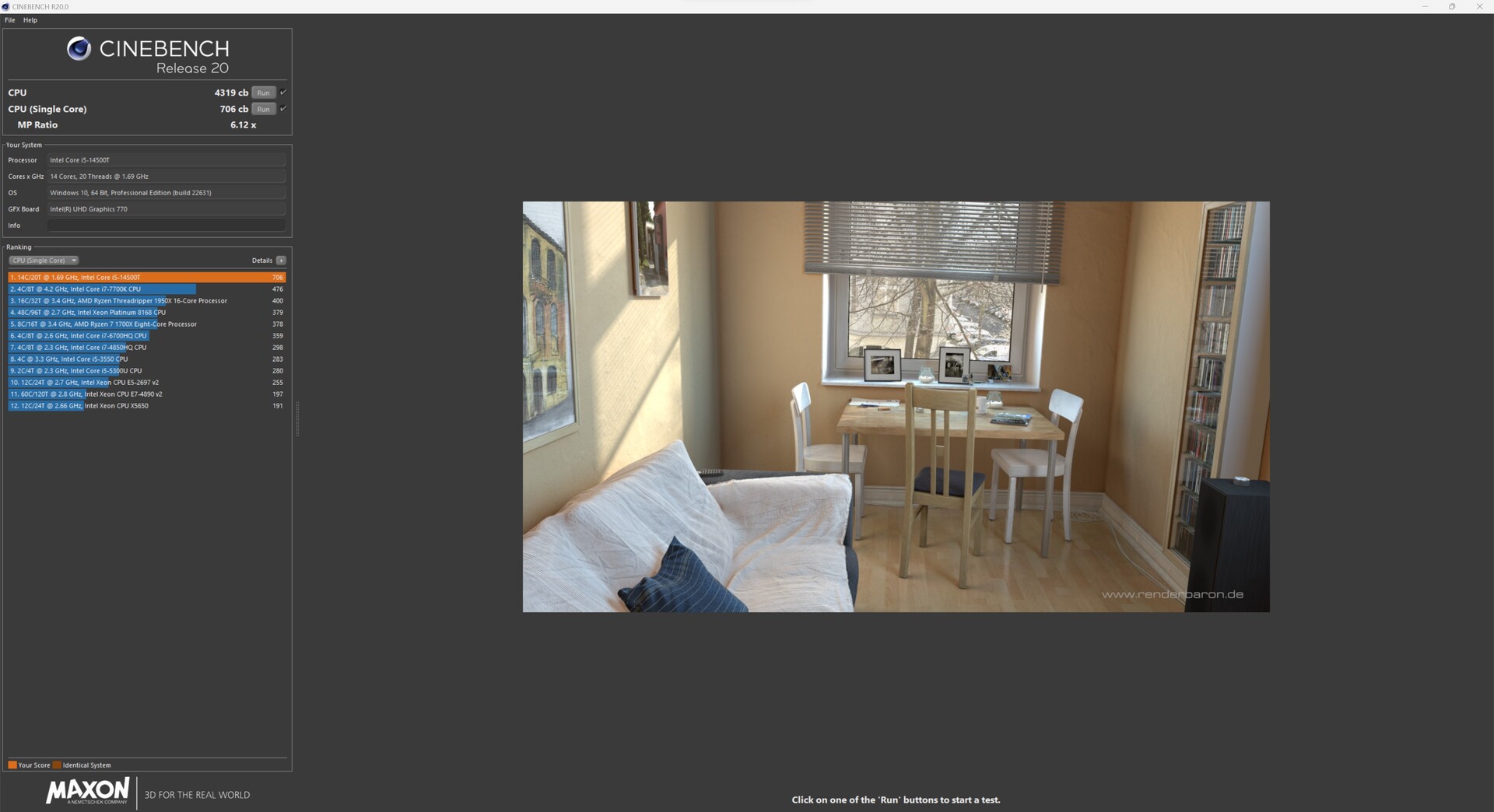

Cinebench R20
CPU (Single Core)
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	736 Points +4%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	706 Points
Minisforum MS-01 Intel Core i9-13900H	699 Points -1%
Acemagic F2A Intel Core Ultra 7 155H	679 Points -4%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	669 Points -5%
Geekom GT13 Pro Intel Core i9-13900H	659 Points -7%
CPU (Multi Core)
Acemagic F2A Intel Core Ultra 7 155H	7188 Points +66%
Minisforum MS-01 Intel Core i9-13900H	6203 Points +44%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	5811 Points +35%
Geekom GT13 Pro Intel Core i9-13900H	5013 Points +16%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	4319 Points
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	4246 Points -2%

Cinebench R11.5
CPU Single 64Bit
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	3.31 Points +4%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	3.18 Points
Acemagic F2A Intel Core Ultra 7 155H	3.13 Points -2%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	3.05 Points -4%
Minisforum MS-01 Intel Core i9-13900H	3 Points -6%
Geekom GT13 Pro Intel Core i9-13900H	2.98 Points -6%
CPU Multi 64Bit
Acemagic F2A Intel Core Ultra 7 155H	33.49 Points +55%
Minisforum MS-01 Intel Core i9-13900H	29.65 Points +37%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	28.75 Points +33%
Geekom GT13 Pro Intel Core i9-13900H	27.48 Points +27%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	21.64 Points
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	21.33 Points -1%

Cinebench R10
Rendering Single CPUs 64Bit
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	15313 Points +6%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	14402 Points
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	14147 Points -2%
Acemagic F2A Intel Core Ultra 7 155H	13938 Points -3%
Geekom GT13 Pro Intel Core i9-13900H	13820 Points -4%
Minisforum MS-01 Intel Core i9-13900H	13752 Points -5%
Rendering Multiple CPUs 64Bit
Acemagic F2A Intel Core Ultra 7 155H	95005 Points +50%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	82201 Points +30%
Minisforum MS-01 Intel Core i9-13900H	79856 Points +26%
Geekom GT13 Pro Intel Core i9-13900H	79014 Points +25%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	63443 Points
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	62808 Points -1%

Blender - v2.79 BMW27 CPU
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	291 Seconds * -1%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	288 Seconds *
Geekom GT13 Pro Intel Core i9-13900H	262 Seconds * +9%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	223 Seconds * +23%
Minisforum MS-01 Intel Core i9-13900H	201 Seconds * +30%
Acemagic F2A Intel Core Ultra 7 155H	178 Seconds * +38%

wPrime 2.10
32m
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	4.831 s * -1%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	4.792 s *
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	3.705 s * +23%
Acemagic F2A Intel Core Ultra 7 155H	3.523 s * +26%
Geekom GT13 Pro Intel Core i9-13900H	3.518 s * +27%
Minisforum MS-01 Intel Core i9-13900H	3.141 s * +34%
1024m
Geekom GT13 Pro Intel Core i9-13900H	412.775 s * -87%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	221.29 s *
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	192.207 s * +13%
Minisforum MS-01 Intel Core i9-13900H	179.496 s * +19%
Acemagic F2A Intel Core Ultra 7 155H	139.617 s * +37%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	133.316 s * +40%

X264 HD Benchmark 4.0
Pass 1
Acemagic F2A Intel Core Ultra 7 155H	325 (323^min - 328^max) fps +23%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	318 (249^min - 321^max) fps +20%
Geekom GT13 Pro Intel Core i9-13900H	300.5 (288^min - 319^max) fps +14%
Minisforum MS-01 Intel Core i9-13900H	284 (276^min - 298^max) fps +7%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	264.5 (253^min - 268^max) fps
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	259.5 (248^min - 260^max) fps -2%
Pass 2
Acemagic F2A Intel Core Ultra 7 155H	154.15 (153.8^min - 154.3^max) fps +43%
Minisforum MS-01 Intel Core i9-13900H	138.55 (135.5^min - 145.8^max) fps +28%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	138.1 (131.2^min - 138.6^max) fps +28%
Geekom GT13 Pro Intel Core i9-13900H	113.95 (106.5^min - 136.6^max) fps +5%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	108.05 (91.8^min - 109.8^max) fps
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	100.45 (88.2^min - 107^max) fps -7%

WinRAR - Result
Minisforum MS-01 Intel Core i9-13900H	9303 KB/s +36%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	7912 KB/s +16%
Acemagic F2A Intel Core Ultra 7 155H	7723 KB/s +13%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	6846 KB/s
Geekom GT13 Pro Intel Core i9-13900H	6800 KB/s -1%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	6683 KB/s -2%

TrueCrypt
AES Mean 100MB
Minisforum MS-01 Intel Core i9-13900H	14.8 GB/s +51%
Geekom GT13 Pro Intel Core i9-13900H	13.2 GB/s +35%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	12.4 GB/s +27%
Acemagic F2A Intel Core Ultra 7 155H	10.6 GB/s +8%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	9.8 GB/s
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	8.2 GB/s -16%
Twofish Mean 100MB
Minisforum MS-01 Intel Core i9-13900H	2.5 GB/s +32%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	2.5 GB/s +32%
Geekom GT13 Pro Intel Core i9-13900H	2.4 GB/s +26%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	1.9 GB/s
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	1.8 GB/s -5%
Acemagic F2A Intel Core Ultra 7 155H	1.7 GB/s -11%
Serpent Mean 100MB
Minisforum MS-01 Intel Core i9-13900H	1.4 GB/s +38%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	1.4 GB/s +38%
Geekom GT13 Pro Intel Core i9-13900H	1.2 GB/s +19%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	1.012 GB/s
Acemagic F2A Intel Core Ultra 7 155H	1 GB/s -1%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	1 GB/s -1%

Geekbench 5.5
Multi-Core
Minisforum MS-01 Intel Core i9-13900H	13014 Points +43%
Acemagic F2A Intel Core Ultra 7 155H	12662 Points +39%
Geekom GT13 Pro Intel Core i9-13900H	11283 Points +24%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	10543 Points +16%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	9122 Points
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	7377 Points -19%
Single-Core
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	1898 Points +3%
Minisforum MS-01 Intel Core i9-13900H	1867 Points +2%
Geekom GT13 Pro Intel Core i9-13900H	1841 Points 0%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	1838 Points
Acemagic F2A Intel Core Ultra 7 155H	1746 Points -5%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	1716 Points -7%

Geekbench 5.0
5.0 Multi-Core
Minisforum MS-01 Intel Core i9-13900H	12681 Points +41%
Acemagic F2A Intel Core Ultra 7 155H	12438 Points +38%
Geekom GT13 Pro Intel Core i9-13900H	11168 Points +24%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	10477 Points +17%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	8987 Points
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	7316 Points -19%
5.0 Single-Core
Minisforum MS-01 Intel Core i9-13900H	1847 Points +4%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	1842 Points +3%
Geekom GT13 Pro Intel Core i9-13900H	1810 Points +2%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	1782 Points
Acemagic F2A Intel Core Ultra 7 155H	1708 Points -4%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	1685 Points -5%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum MS-01 Intel Core i9-13900H	8190 Points +8%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	7873 Points +3%
Geekom GT13 Pro Intel Core i9-13900H	7787 Points +2%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	7611 Points
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	7069 Points -7%
Acemagic F2A Intel Core Ultra 7 155H	6927 Points -9%
64 Bit Multi-Core Score
Minisforum MS-01 Intel Core i9-13900H	47461 Points +43%
Acemagic F2A Intel Core Ultra 7 155H	45250 Points +37%
Geekom GT13 Pro Intel Core i9-13900H	41851 Points +26%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	40233 Points +21%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	33122 Points
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	29164 Points -12%

3DMark 11 - 1280x720 Performance Physics
Minisforum MS-01 Intel Core i9-13900H	21786 Points +42%
Acemagic F2A Intel Core Ultra 7 155H	20846 Points +36%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	18692 Points +22%
Geekom GT13 Pro Intel Core i9-13900H	18383 Points +20%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	15309 Points
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	12162 Points -21%

7-Zip 18.03
7z b 4
Acemagic F2A Intel Core Ultra 7 155H	66438 MIPS +45%
Minisforum MS-01 Intel Core i9-13900H	63093 MIPS +38%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	54851 MIPS +20%
Geekom GT13 Pro Intel Core i9-13900H	52479 MIPS +15%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	45820 MIPS
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	40034 MIPS -13%
7z b 4 -mmt1
Geekom GT13 Pro Intel Core i9-13900H	6321 MIPS +6%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	6198 MIPS +4%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	5980 MIPS
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	5840 MIPS -2%
Acemagic F2A Intel Core Ultra 7 155H	5485 MIPS -8%
Minisforum MS-01 Intel Core i9-13900H	5473 MIPS -8%

HWBOT x265 Benchmark v2.2 - 4k Preset
Acemagic F2A Intel Core Ultra 7 155H	19.6 fps +54%
Minisforum MS-01 Intel Core i9-13900H	18.7 fps +47%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	16.4 fps +29%
Geekom GT13 Pro Intel Core i9-13900H	14.1 fps +11%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	12.7 fps
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	12.1 fps -5%

R Benchmark 2.5 - Overall mean
Acemagic F2A Intel Core Ultra 7 155H	0.4652 sec * -4%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	0.4571 sec * -3%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	0.4457 sec *
Geekom GT13 Pro Intel Core i9-13900H	0.4395 sec * +1%
Minisforum MS-01 Intel Core i9-13900H	0.439 sec * +2%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	0.4356 sec * +2%

LibreOffice - 20 Documents To PDF
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	51.5 s * -6%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	48.4 s *
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	46 s * +5%
Acemagic F2A Intel Core Ultra 7 155H	44.5 s * +8%
Geekom GT13 Pro Intel Core i9-13900H	39.4 s * +19%
Minisforum MS-01 Intel Core i9-13900H	35.1 s * +27%

WebXPRT 3 - Overall
Minisforum MS-01 Intel Core i9-13900H	317 Points +21%
Geekom GT13 Pro Intel Core i9-13900H	304 Points +16%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	278 Points +6%
Acemagic F2A Intel Core Ultra 7 155H	276 Points +5%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	262 Points
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	254 Points -3%

Mozilla Kraken 1.1 - Total
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	562 ms * -1%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	554 ms *
Acemagic F2A Intel Core Ultra 7 155H	535 ms * +3%
Geekom GT13 Pro Intel Core i9-13900H	517 ms * +7%
Minisforum MS-01 Intel Core i9-13900H	506 ms * +9%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	506 ms * +9%

3DMark
1920x1080 Fire Strike Physics
Acemagic F2A Intel Core Ultra 7 155H	25043 Points +23%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	24708 Points +21%
Minisforum MS-01 Intel Core i9-13900H	24273 Points +19%
Geekom GT13 Pro Intel Core i9-13900H	23626 Points +16%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	20354 Points
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	18673 Points -8%
2560x1440 Time Spy CPU
Minisforum MS-01 Intel Core i9-13900H	10995 Points +29%
Acemagic F2A Intel Core Ultra 7 155H	10014 Points +18%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	9657 Points +14%
Geekom GT13 Pro Intel Core i9-13900H	9347 Points +10%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	8496 Points
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	6210 Points -27%

Super Pi mod 1.5 XS 1M - 1M
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	7.988 s * -3%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	7.731 s *
Geekom GT13 Pro Intel Core i9-13900H	7.445 s * +4%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	7.413 s * +4%
Acemagic F2A Intel Core Ultra 7 155H	7.168 s * +7%
Minisforum MS-01 Intel Core i9-13900H	6.156 s * +20%

Super Pi mod 1.5 XS 2M - 2M
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	17.883 s * -5%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	17.104 s *
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	16.493 s * +4%
Geekom GT13 Pro Intel Core i9-13900H	16.234 s * +5%
Acemagic F2A Intel Core Ultra 7 155H	16.125 s * +6%
Minisforum MS-01 Intel Core i9-13900H	13.784 s * +19%

Super Pi Mod 1.5 XS 32M - 32M
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	430.085 s * -5%
Geekom GT13 Pro Intel Core i9-13900H	417.103 s * -2%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	408.82 s *
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	396.912 s * +3%
Acemagic F2A Intel Core Ultra 7 155H	394.754 s * +3%
Minisforum MS-01 Intel Core i9-13900H	350.453 s * +14%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit

9014

Cinebench R10 Shading 64Bit

14175 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

63443 Points

Cinebench R10 Rendering Single CPUs 64Bit

14402 Points

Cinebench R10 Shading 32Bit

14708

Cinebench R10 Rendering Multiple CPUs 32Bit

39798

Cinebench R11.5 CPU Multi 32Bit

19.03 Points

Cinebench R11.5 OpenGL 32Bit

86.92 fps

Cinebench R11.5 CPU Single 64Bit

3.18 Points

Cinebench R11.5 CPU Multi 64Bit

21.64 Points

Cinebench R11.5 OpenGL 64Bit

88.25 fps

Cinebench R11.5 CPU Single 32Bit

2.8 Points

Cinebench R15 CPU Single 64Bit

252 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

84.71 fps

Cinebench R15 CPU Multi 64Bit

2022 Points

Help

... in comparison

Performance Rating
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	96.5 pt
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	84.2 pt
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	74.9 pt
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	70.2 pt
Average of class Mini PC	66 pt
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, UHD Graphics 770	59.9 pt
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	57.6 pt

AIDA64 / FP32 Ray-Trace
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	17544 KRay/s +68%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	13616 KRay/s +31%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	13251 KRay/s +27%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	11735 KRay/s +12%
Average of class Mini PC (561 - 51004, n=121, last 2 years)	11617 KRay/s +11%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	10647 KRay/s +2%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, UHD Graphics 770	10432 KRay/s

AIDA64 / FPU Julia
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	88829 Points +63%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	73742 Points +36%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	68912 Points +27%
Average of class Mini PC (3604 - 214250, n=121, last 2 years)	59588 Points +10%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	59094 Points +9%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, UHD Graphics 770	54417 Points
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	53421 Points -2%

AIDA64 / CPU SHA3
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	4246 MB/s +71%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	3386 MB/s +36%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	3169 MB/s +27%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	2718 MB/s +9%
Average of class Mini PC (225 - 9399, n=121, last 2 years)	2617 MB/s +5%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, UHD Graphics 770	2489 MB/s
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	2477 MB/s 0%

AIDA64 / CPU Queen
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	98480 Points +28%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	93952 Points +22%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	89748 Points +17%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	87544 Points +14%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, UHD Graphics 770	76970 Points
Average of class Mini PC (8172 - 184747, n=121, last 2 years)	76050 Points -1%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	73543 Points -4%

AIDA64 / FPU SinJulia
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	10247 Points +43%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	9170 Points +28%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	8948 Points +25%
Average of class Mini PC (408 - 29064, n=121, last 2 years)	8128 Points +14%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	8026 Points +12%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	7185 Points 0%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, UHD Graphics 770	7151 Points

AIDA64 / FPU Mandel
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	45718 Points +72%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	35318 Points +33%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	34243 Points +29%
Average of class Mini PC (1958 - 113499, n=121, last 2 years)	31212 Points +18%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	29138 Points +10%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, UHD Graphics 770	26507 Points
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	26296 Points -1%

AIDA64 / CPU AES
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	144741 MB/s +178%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	123819 MB/s +138%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	102677 MB/s +97%
Average of class Mini PC (3691 - 325960, n=121, last 2 years)	83023 MB/s +60%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	63608 MB/s +22%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	53864 MB/s +4%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, UHD Graphics 770	51998 MB/s

AIDA64 / CPU ZLib
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	1183 MB/s +40%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	1030 MB/s +22%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	951 MB/s +13%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, UHD Graphics 770	843 MB/s
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	816 MB/s -3%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	789 MB/s -6%
Average of class Mini PC (74.8 - 2039, n=121, last 2 years)	673 MB/s -20%

AIDA64 / FP64 Ray-Trace
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	9284 KRay/s +62%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	7611 KRay/s +33%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	7504 KRay/s +31%
Average of class Mini PC (308 - 26952, n=121, last 2 years)	6213 KRay/s +8%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	6205 KRay/s +8%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, UHD Graphics 770	5737 KRay/s
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	5654 KRay/s -1%

AIDA64 / CPU PhotoWorxx
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	44996 MPixel/s +125%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	33092 MPixel/s +66%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	28269 MPixel/s +41%
Average of class Mini PC (4408 - 50500, n=121, last 2 years)	26668 MPixel/s +33%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	20153 MPixel/s +1%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, UHD Graphics 770	19982 MPixel/s
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	12160 MPixel/s -39%

Cinebench R15 多循环

Cinebench R15 连续循环显示英特尔酷睿 i5-14500T在第一次运行后性能有所下降。从第四次运行开始，性能趋于稳定，与英特尔酷睿 i5-13500T 处于同一水平。英特尔酷睿 i5-13500T.

HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel Core i5-14500T: Ø1609 (1488.26-1984.91)

HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, Intel Core i5-13500T: Ø1581 (1456.72-1948.56)

HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel Core i5-14500: Ø2127 (1940.52-2429.84)

Geekom GT13 Pro Intel Core i9-13900H, Intel Core i9-13900H: Ø1776 (1688.48-2326.12)

Minisforum MS-01 Intel Core i9-13900H, Intel Core i9-13900H: Ø2354 (2022.76-2582.31)

Acemagic F2A Intel Core Ultra 7 155H, Intel Core Ultra 7 155H: Ø2759 (2690.7-2800.92)

系统性能

在系统性能基准测试中，惠普 Pro Mini 400 G9 的表现也略逊于来自远东的竞争对手。我们的测试样本仅在内部对决中获胜。惠普 Pro Mini 400 G9 配备了英特尔酷睿 i5-14500T，但由于使用了 DDR4 内存，因此没有取得更好的成绩。此外，由于只安装了一个内存模块，这也限制了带宽，因为第二个模块将允许使用双通道。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	7120 Points +33%
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	6802 Points +27%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	5944 Points +11%
HP Elite Mini 800 G9-5M9X6EA, Intel Core i5-14500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	5705 Points +7%
HP Pro Mini 400 G9-937U0EA, Intel Core i5-14500T Intel UHD Graphics 770, HP PSEJN512GA87EC0	5337 Points
HP Pro Mini 400 G9-936M3EA, Intel Core i5-13500T Intel UHD Graphics 770, HP PSEJN512GA87EC0	5114 Points -4%

PCMark 10 / Essentials
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	12286 Points +27%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	11125 Points +15%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	10347 Points +7%
HP Elite Mini 800 G9-5M9X6EA, Intel Core i5-14500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	9994 Points +3%
HP Pro Mini 400 G9-937U0EA, Intel Core i5-14500T Intel UHD Graphics 770, HP PSEJN512GA87EC0	9665 Points
HP Pro Mini 400 G9-936M3EA, Intel Core i5-13500T Intel UHD Graphics 770, HP PSEJN512GA87EC0	9034 Points -7%

PCMark 10 / Productivity
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	8901 Points +24%
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	8526 Points +18%
HP Elite Mini 800 G9-5M9X6EA, Intel Core i5-14500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	7584 Points +5%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	7319 Points +2%
HP Pro Mini 400 G9-937U0EA, Intel Core i5-14500T Intel UHD Graphics 770, HP PSEJN512GA87EC0	7204 Points
HP Pro Mini 400 G9-936M3EA, Intel Core i5-13500T Intel UHD Graphics 770, HP PSEJN512GA87EC0	7077 Points -2%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1802 Points +21%
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	1797 Points +20%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	1766 Points +18%
HP Elite Mini 800 G9-5M9X6EA, Intel Core i5-14500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	1625 Points +9%
HP Pro Mini 400 G9-937U0EA, Intel Core i5-14500T Intel UHD Graphics 770, HP PSEJN512GA87EC0	1493 Points
HP Pro Mini 400 G9-936M3EA, Intel Core i5-13500T Intel UHD Graphics 770, HP PSEJN512GA87EC0	1324 Points -11%

CrossMark / Responsiveness
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	1790 Points +58%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1700 Points +50%
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	1512 Points +34%
HP Elite Mini 800 G9-5M9X6EA, Intel Core i5-14500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	1222 Points +8%
HP Pro Mini 400 G9-937U0EA, Intel Core i5-14500T Intel UHD Graphics 770, HP PSEJN512GA87EC0	1132 Points
HP Pro Mini 400 G9-936M3EA, Intel Core i5-13500T Intel UHD Graphics 770, HP PSEJN512GA87EC0	943 Points -17%

CrossMark / Creativity
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	2031 Points +22%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1929 Points +16%
HP Elite Mini 800 G9-5M9X6EA, Intel Core i5-14500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	1837 Points +11%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	1789 Points +8%
HP Pro Mini 400 G9-937U0EA, Intel Core i5-14500T Intel UHD Graphics 770, HP PSEJN512GA87EC0	1660 Points
HP Pro Mini 400 G9-936M3EA, Intel Core i5-13500T Intel UHD Graphics 770, HP PSEJN512GA87EC0	1475 Points -11%

CrossMark / Productivity
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	1736 Points +18%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1717 Points +17%
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	1684 Points +14%
HP Elite Mini 800 G9-5M9X6EA, Intel Core i5-14500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	1580 Points +7%
HP Pro Mini 400 G9-937U0EA, Intel Core i5-14500T Intel UHD Graphics 770, HP PSEJN512GA87EC0	1472 Points
HP Pro Mini 400 G9-936M3EA, Intel Core i5-13500T Intel UHD Graphics 770, HP PSEJN512GA87EC0	1331 Points -10%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	69219 MB/s +102%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	62397 MB/s +82%
Average of class Mini PC (6481 - 76462, n=121, last 2 years)	45817 MB/s +33%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	45721 MB/s +33%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	35000 MB/s +2%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, UHD Graphics 770	34338 MB/s
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	26142 MB/s -24%

AIDA64 / Memory Read
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	73633 MB/s +104%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	64323 MB/s +78%
Average of class Mini PC (6914 - 83287, n=121, last 2 years)	46245 MB/s +28%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	45995 MB/s +27%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, UHD Graphics 770	36168 MB/s
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	36160 MB/s 0%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	24685 MB/s -32%

AIDA64 / Memory Write
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	70707 MB/s +118%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	65057 MB/s +100%
Average of class Mini PC (6862 - 89318, n=121, last 2 years)	49957 MB/s +54%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	45733 MB/s +41%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, UHD Graphics 770	32482 MB/s
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	32473 MB/s 0%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	22813 MB/s -30%

AIDA64 / Memory Latency
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	149 ns * -61%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	93.5 ns * -1%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, UHD Graphics 770	92.7 ns *
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	89.9 ns * +3%
Average of class Mini PC (44.9 - 184.8, n=121, last 2 years)	89.9 ns * +3%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	81.3 ns * +12%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	75.8 ns * +18%

* ... smaller is better

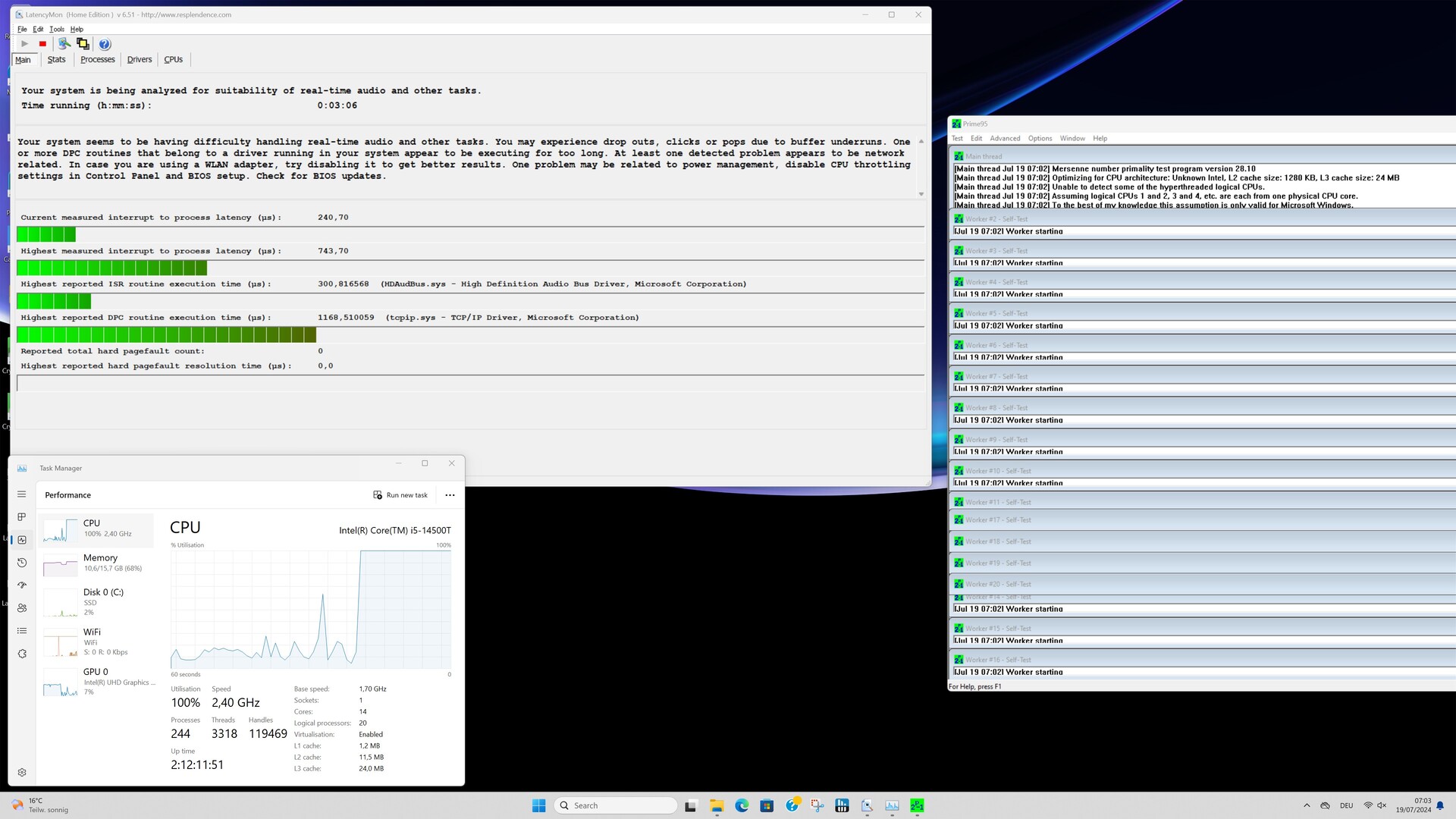

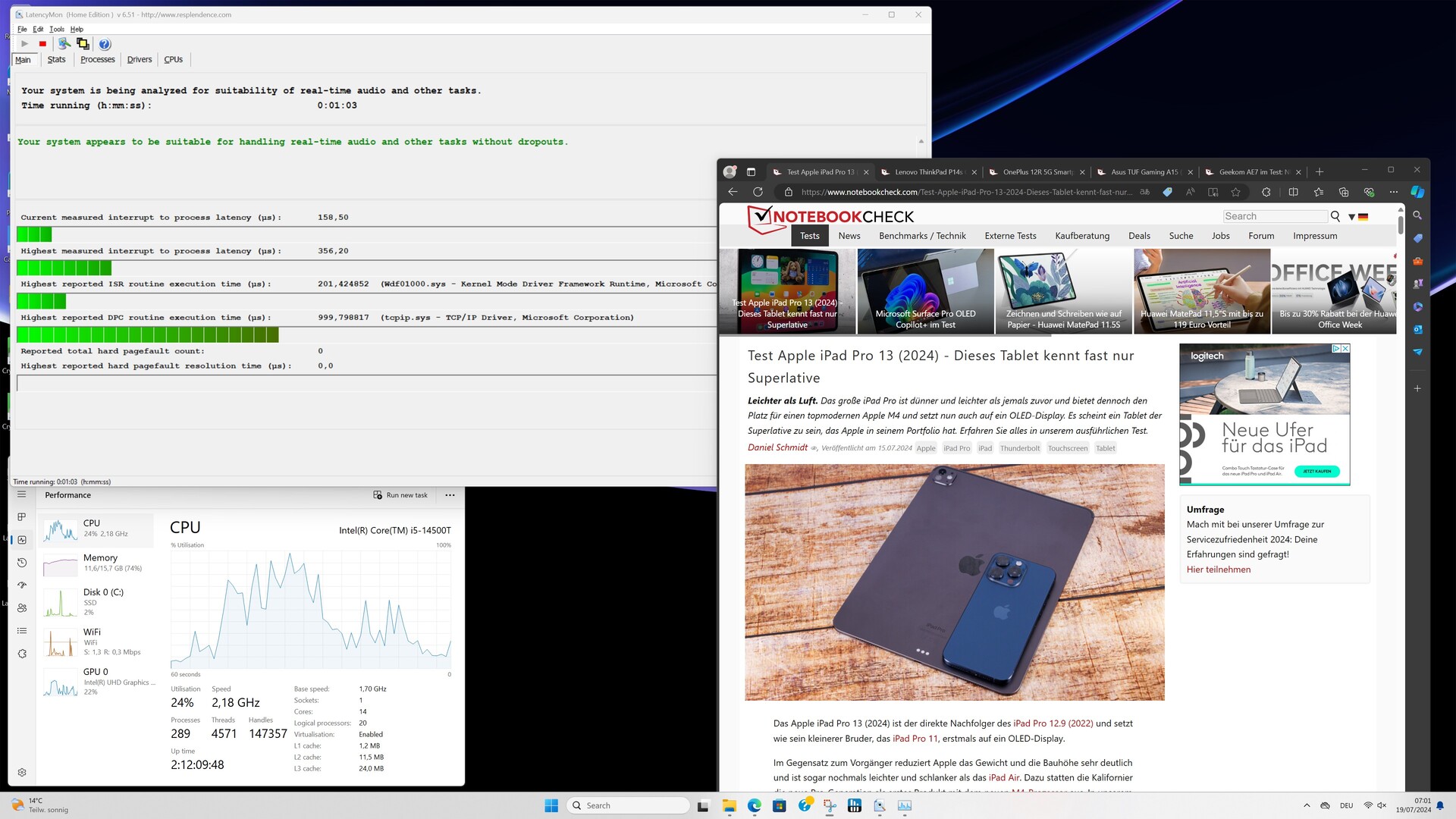

DPC 延迟

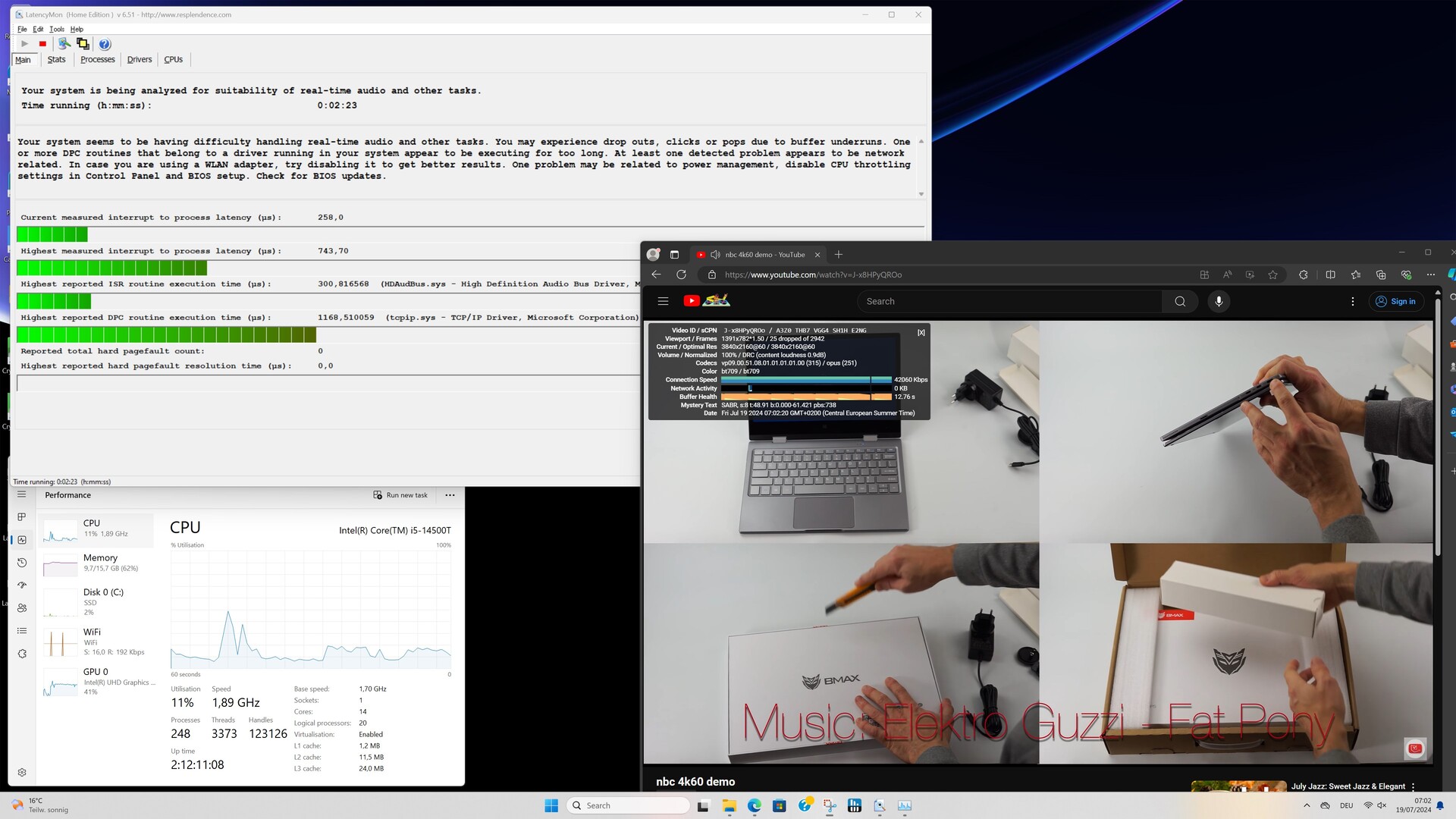

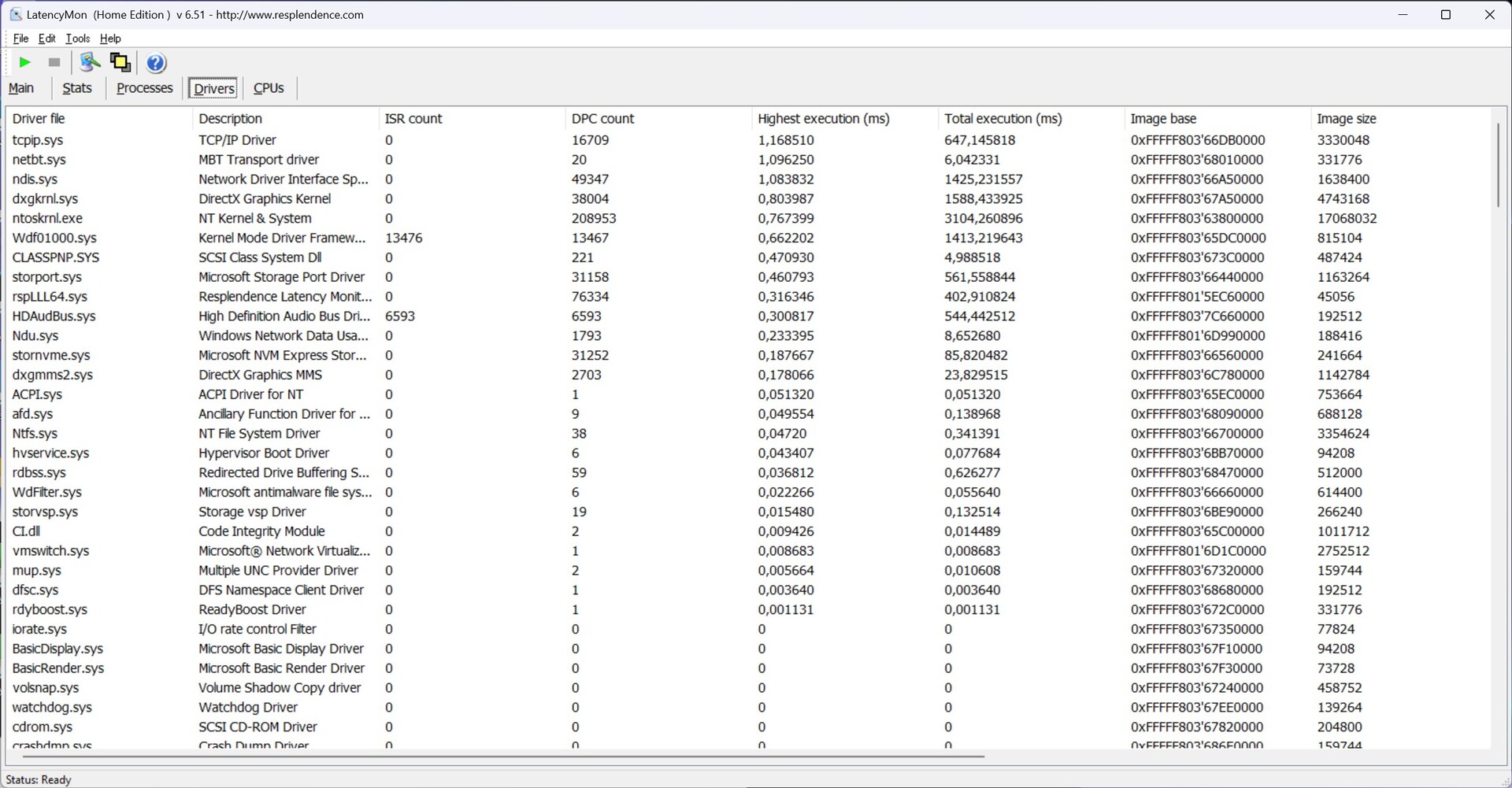

在 HP Pro Mini 400 G9 上，我们没有看到任何令人担忧的 DPC 延迟。在 Edge 浏览器中打开多个标签页时，延迟略有增加，但尚未显示警告。只有在 4K 播放时才会出现这种情况。使用 Prime95 进行的压力测试没有进一步增加延迟。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	2724 μs * -133%
HP Pro Mini 400 G9-936M3EA UHD Graphics 770, i5-13500T, HP PSEJN512GA87EC0	1808.6 μs * -55%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	1533.4 μs * -31%
HP Pro Mini 400 G9-937U0EA UHD Graphics 770, i5-14500T, HP PSEJN512GA87EC0	1168.5 μs *
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	1008.9 μs * +14%
Minisforum MS-01 Iris Xe G7 96EUs, i9-13900H, Kingston OM8PGP41024Q-A0	931 μs * +20%

* ... smaller is better

大容量存储器

惠普 Pro Mini 400 G9 使用的是 512 GB 存储空间的固态硬盘。内部机型通过 PCIe 4.0 x4 连接，但这并没有反映在测试结果中。我们的测试样本明显逊色于竞争对手。它们都配备了速度更快的固态硬盘。尽管如此，固态硬盘仍能胜任日常任务。在测试期间，我们在大容量存储方面没有遇到任何问题。

制造商没有在惠普 Pro Mini 400 G9 中使用主动散热装置，这在测试中没有产生负面影响。在耐用性测试中，所安装的机型实现了完美的连续读取率，只有一个小例外。我们的测试样品总共可以配备两个大容量存储设备。除了已经占用的 M.2 插槽外，还有一个空闲的 2.5 英寸插槽。

有关进一步的比较和基准测试，请参阅我们的比较表.

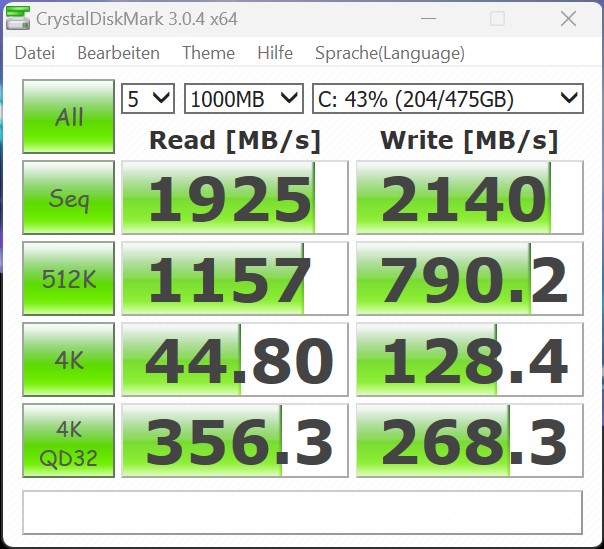

CrystalDiskMark 3.0

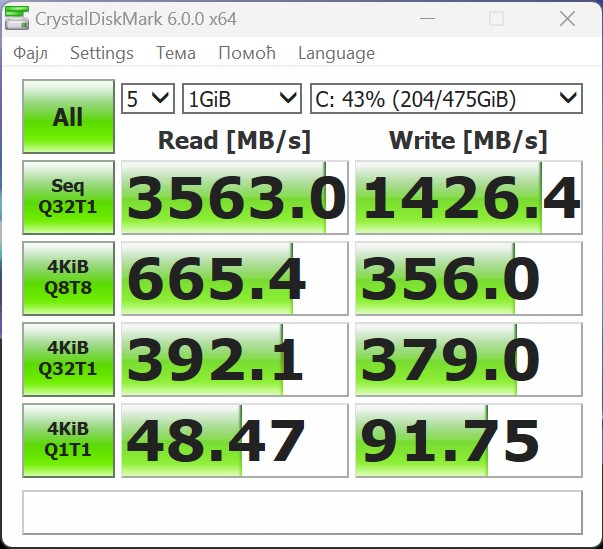

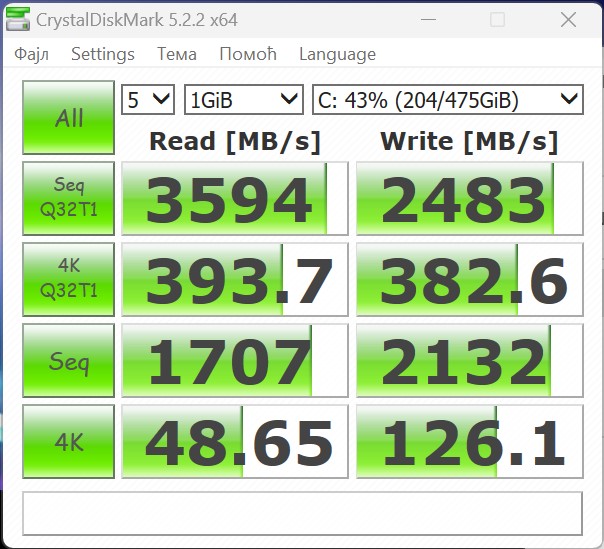

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

HP PSEJN512GA87EC0

Sequential Read: 1925 MB/s

Sequential Write: 2140 MB/s

512K Read: 1157 MB/s

512K Write: 790.2 MB/s

4K Read: 44.8 MB/s

4K Write: 128.4 MB/s

4K QD32 Read: 356.3 MB/s

4K QD32 Write: 268.3 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Geekom GT13 Pro Acer N7000	87.3 pt
Minisforum MS-01 Kingston OM8PGP41024Q-A0	74.8 pt
Acemagic F2A Kingston OM8SEP1024Q-A0	53.5 pt
Average of class Mini PC	51.1 pt
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	50.1 pt
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	42.7 pt
HP Pro Mini 400 G9-937U0EA HP PSEJN512GA87EC0	35.2 pt

DiskSpd
seq read
Geekom GT13 Pro Acer N7000	4357 (4314.26^min - 4356.72^max) MB/s +168%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	2960 (2934.76^min - 2959.92^max) MB/s +82%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	2549 (2502.53^min - 2548.88^max) MB/s +57%
Average of class Mini PC (233 - 4357, n=120, last 2 years)	2199 MB/s +35%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	2087 (1529.79^min - 2087.32^max) MB/s +28%
Acemagic F2A Kingston OM8SEP1024Q-A0	1674 (1242.56^min - 1673.54^max) MB/s +3%
HP Pro Mini 400 G9-937U0EA HP PSEJN512GA87EC0	1627 (1613.34^min - 1626.55^max) MB/s
seq write
Geekom GT13 Pro Acer N7000	4544 (4380.79^min - 4543.83^max) MB/s +114%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	3726 (3634.99^min - 3725.8^max) MB/s +76%
Average of class Mini PC (222 - 5595, n=120, last 2 years)	2309 MB/s +9%
HP Pro Mini 400 G9-937U0EA HP PSEJN512GA87EC0	2121 (2031.17^min - 2120.59^max) MB/s
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	2023 (1352.03^min - 2023.06^max) MB/s -5%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	1887 (1818.3^min - 1887.44^max) MB/s -11%
Acemagic F2A Kingston OM8SEP1024Q-A0	1348 (1117.85^min - 1347.87^max) MB/s -36%
seq q8 t1 read
Geekom GT13 Pro Acer N7000	7007 (6166.72^min - 7006.62^max) MB/s +139%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	4759 (4492.55^min - 4759.49^max) MB/s +63%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	3594 (3087.52^min - 3594.31^max) MB/s +23%
Average of class Mini PC (236 - 8430, n=120, last 2 years)	3524 MB/s +20%
Acemagic F2A Kingston OM8SEP1024Q-A0	3194 (2810.81^min - 3194.17^max) MB/s +9%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	3114 (2662.04^min - 3114.48^max) MB/s +6%
HP Pro Mini 400 G9-937U0EA HP PSEJN512GA87EC0	2928 (1130.16^min - 2928.03^max) MB/s
seq q8 t1 write
Geekom GT13 Pro Acer N7000	5261 (5018.9^min - 5261.3^max) MB/s +112%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	3757 (3691.41^min - 3756.63^max) MB/s +52%
Average of class Mini PC (228 - 6669, n=120, last 2 years)	2587 MB/s +4%
HP Pro Mini 400 G9-937U0EA HP PSEJN512GA87EC0	2476 (1394.88^min - 2476.11^max) MB/s
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	2368 (2352.68^min - 2367.98^max) MB/s -4%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	2342 (2178.26^min - 2342.1^max) MB/s -5%
Acemagic F2A Kingston OM8SEP1024Q-A0	2212 (1222.43^min - 2212.27^max) MB/s -11%
4k q1 t1 read
Geekom GT13 Pro Acer N7000	85.3 (82.57^min - 85.32^max) MB/s +102%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	81.1 (80.57^min - 81.14^max) MB/s +92%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	60 (47.33^min - 60.02^max) MB/s +42%
Average of class Mini PC (5.67 - 86.6, n=120, last 2 years)	53.6 MB/s +27%
Acemagic F2A Kingston OM8SEP1024Q-A0	47.3 (47.07^min - 47.31^max) MB/s +12%
HP Pro Mini 400 G9-937U0EA HP PSEJN512GA87EC0	42.2 (41.74^min - 42.22^max) MB/s
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	35.2 (30.96^min - 35.21^max) MB/s -17%
4k q1 t1 write
Minisforum MS-01 Kingston OM8PGP41024Q-A0	435 (271.59^min - 435.46^max) MB/s +242%
Geekom GT13 Pro Acer N7000	327 (306.06^min - 326.78^max) MB/s +157%
Average of class Mini PC (22 - 435, n=120, last 2 years)	189.9 MB/s +49%
Acemagic F2A Kingston OM8SEP1024Q-A0	187.2 (181.54^min - 187.2^max) MB/s +47%
HP Pro Mini 400 G9-937U0EA HP PSEJN512GA87EC0	127.2 (120.54^min - 127.19^max) MB/s
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	124 (117.3^min - 123.97^max) MB/s -3%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	116.4 (112.09^min - 116.37^max) MB/s -8%
4k q32 t16 read
Geekom GT13 Pro Acer N7000	3593 (3380.17^min - 3593.41^max) MB/s +462%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	2953 (2944.17^min - 2952.67^max) MB/s +362%
Acemagic F2A Kingston OM8SEP1024Q-A0	1824 (1239.47^min - 1824.09^max) MB/s +185%
Average of class Mini PC (26.1 - 4158, n=120, last 2 years)	1256 MB/s +97%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	824 (808.12^min - 823.95^max) MB/s +29%
HP Pro Mini 400 G9-937U0EA HP PSEJN512GA87EC0	639 (617.78^min - 639.31^max) MB/s
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	438 (425.68^min - 437.71^max) MB/s -31%
4k q32 t16 write
Minisforum MS-01 Kingston OM8PGP41024Q-A0	2734 (939.34^min - 2734.2^max) MB/s +672%
Acemagic F2A Kingston OM8SEP1024Q-A0	1434 (1410.26^min - 1433.71^max) MB/s +305%
Average of class Mini PC (30.2 - 4288, n=120, last 2 years)	1201 MB/s +239%
Geekom GT13 Pro Acer N7000	762 (700.88^min - 761.76^max) MB/s +115%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	423 (412.36^min - 423.28^max) MB/s +19%
HP Pro Mini 400 G9-937U0EA HP PSEJN512GA87EC0	354 (189.38^min - 354.46^max) MB/s
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	342 (308.97^min - 341.55^max) MB/s -3%

AS SSD
Score Total
Geekom GT13 Pro Acer N7000	6798 Points +280%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	4648 Points +160%
Acemagic F2A Kingston OM8SEP1024Q-A0	4412 Points +147%
Average of class Mini PC (151.3 - 10021, n=118, last 2 years)	3898 Points +118%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	3612 Points +102%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	3229 Points +81%
HP Pro Mini 400 G9-937U0EA HP PSEJN512GA87EC0	1788 Points
Score Read
Geekom GT13 Pro Acer N7000	2866 Points +208%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1831 Points +96%
Acemagic F2A Kingston OM8SEP1024Q-A0	1561 Points +67%
Average of class Mini PC (61 - 3741, n=118, last 2 years)	1454 Points +56%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	1151 Points +23%
HP Pro Mini 400 G9-937U0EA HP PSEJN512GA87EC0	932 Points
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	916 Points -2%
Score Write
Geekom GT13 Pro Acer N7000	2516 Points +471%
Acemagic F2A Kingston OM8SEP1024Q-A0	2082 Points +372%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	1927 Points +337%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	1898 Points +330%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1863 Points +322%
Average of class Mini PC (88 - 4371, n=118, last 2 years)	1751 Points +297%
HP Pro Mini 400 G9-937U0EA HP PSEJN512GA87EC0	441 Points
Seq Read
Geekom GT13 Pro Acer N7000	4546 MB/s +52%
Average of class Mini PC (291 - 6620, n=118, last 2 years)	3037 MB/s +1%
Acemagic F2A Kingston OM8SEP1024Q-A0	3010 MB/s +1%
HP Pro Mini 400 G9-937U0EA HP PSEJN512GA87EC0	2993 MB/s
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	2967 MB/s -1%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	2886 MB/s -4%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1623 MB/s -46%
Seq Write
Geekom GT13 Pro Acer N7000	3374 MB/s +121%
Acemagic F2A Kingston OM8SEP1024Q-A0	2369 MB/s +55%
Average of class Mini PC (240 - 5783, n=118, last 2 years)	2097 MB/s +37%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	1592 MB/s +4%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	1582 MB/s +4%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1543 MB/s +1%
HP Pro Mini 400 G9-937U0EA HP PSEJN512GA87EC0	1527 MB/s
4K Read
Minisforum MS-01 Kingston OM8PGP41024Q-A0	86.8 MB/s +100%
Geekom GT13 Pro Acer N7000	83.4 MB/s +92%
Average of class Mini PC (6.08 - 104.3, n=118, last 2 years)	57.5 MB/s +32%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	56.3 MB/s +29%
HP Pro Mini 400 G9-937U0EA HP PSEJN512GA87EC0	43.5 MB/s
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	42.5 MB/s -2%
Acemagic F2A Kingston OM8SEP1024Q-A0	41.8 MB/s -4%
4K Write
Geekom GT13 Pro Acer N7000	296 MB/s +177%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	266 MB/s +149%
Acemagic F2A Kingston OM8SEP1024Q-A0	196.9 MB/s +84%
Average of class Mini PC (30.9 - 366, n=118, last 2 years)	173 MB/s +62%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	122.8 MB/s +15%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	117 MB/s +9%
HP Pro Mini 400 G9-937U0EA HP PSEJN512GA87EC0	106.9 MB/s
4K-64 Read
Geekom GT13 Pro Acer N7000	2328 MB/s +295%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1581 MB/s +168%
Acemagic F2A Kingston OM8SEP1024Q-A0	1218 MB/s +107%
Average of class Mini PC (23.4 - 3220, n=118, last 2 years)	1093 MB/s +86%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	798 MB/s +35%
HP Pro Mini 400 G9-937U0EA HP PSEJN512GA87EC0	589 MB/s
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	585 MB/s -1%
4K-64 Write
Geekom GT13 Pro Acer N7000	1883 MB/s +940%
Acemagic F2A Kingston OM8SEP1024Q-A0	1649 MB/s +811%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	1646 MB/s +809%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	1621 MB/s +796%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1443 MB/s +697%
Average of class Mini PC (32.8 - 3731, n=118, last 2 years)	1368 MB/s +656%
HP Pro Mini 400 G9-937U0EA HP PSEJN512GA87EC0	181 MB/s
Access Time Read
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	0.137 ms * -5%
HP Pro Mini 400 G9-937U0EA HP PSEJN512GA87EC0	0.13 ms *
Geekom GT13 Pro Acer N7000	0.127 ms * +2%
Average of class Mini PC (0.022 - 0.489, n=118, last 2 years)	0.1022 ms * +21%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	0.088 ms * +32%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	0.055 ms * +58%
Acemagic F2A Kingston OM8SEP1024Q-A0	0.046 ms * +65%
Access Time Write
Acemagic F2A Kingston OM8SEP1024Q-A0	0.126 ms * -271%
Average of class Mini PC (0.016 - 0.765, n=118, last 2 years)	0.1145 ms * -237%
Geekom GT13 Pro Acer N7000	0.059 ms * -74%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	0.037 ms * -9%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	0.034 ms * -0%
HP Pro Mini 400 G9-937U0EA HP PSEJN512GA87EC0	0.034 ms *
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	0.032 ms * +6%

* ... smaller is better

Continuous read: DiskSpd Read Loop, Queue Depth 8

HP Pro Mini 400 G9-937U0EA HP PSEJN512GA87EC0; diskspd 2.0.17 f: Ø2952 (2622.07-2995.57)

HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0; diskspd 2.0.17 f: Ø2970 (966.37-3122.61)

HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU; diskspd 2.0.17 f: Ø3514 (2825.49-3591.43)

Geekom GT13 Pro Acer N7000; diskspd 2.0.17 f: Ø5377 (3710.83-7006.62)

Minisforum MS-01 Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø3798 (1858.92-4778.57)

Acemagic F2A Kingston OM8SEP1024Q-A0; diskspd 2.0.17 f: Ø1320 (771.89-3141.95)

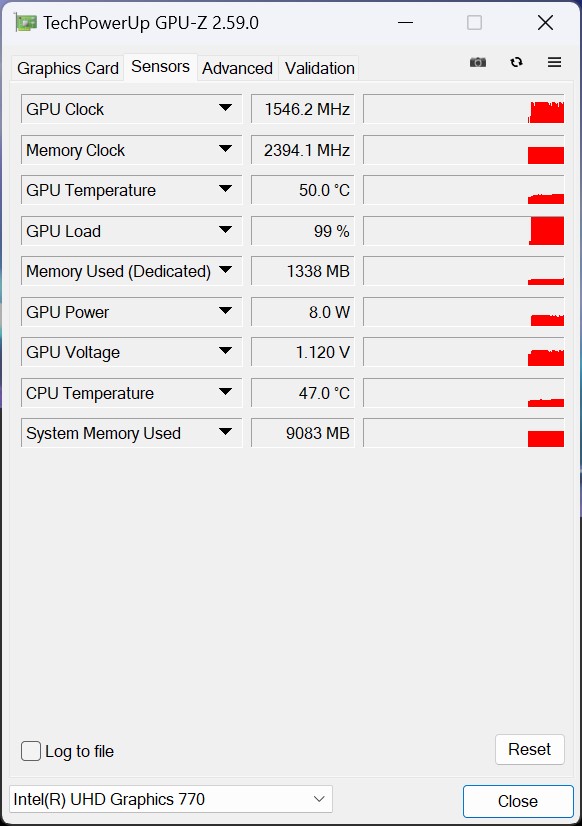

图形卡

惠普 Pro Mini 400 G9 没有专用显卡，这意味着只有 iGPU 的英特尔酷睿 i5-14500T可用于图像输出。现在已经过时的英特尔UHD Graphics 770 只能提供 32 个 EU，这就是为什么图形单元在与其他大多数基于移动处理器的 Mini PC 相比时毫无胜算的原因。

有关进一步的比较和基准测试，请参阅我们的图形处理器比较表.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	100 pt
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	68.5 pt
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	63.2 pt
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	28.6 pt
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	28.5 pt
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	26.2 pt

3DMark 11 - 1280x720 Performance GPU
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	12085 Points +253%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	7676 Points +124%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	7424 Points +117%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	3428 Points 0%
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	3422 Points
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	3268 Points -5%

3DMark
2560x1440 Time Spy Graphics
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3205 Points +338%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1854 Points +154%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1690 Points +131%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	737 Points +1%
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	731 Points
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	666 Points -9%
1920x1080 Fire Strike Graphics
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	7710 Points +190%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	6482 Points +144%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	5812 Points +119%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	2655 Points 0%
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	2655 Points
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	2363 Points -11%

Unigine Heaven 4.0
Extreme Preset OpenGL
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	31.6 fps +123%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	31.2 fps +120%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	25.1 fps +77%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	14.2 fps 0%
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	14.2 fps
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	10.8 fps -24%
Extreme Preset DX11
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	32.7 fps +130%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	31.9 fps +125%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	26 fps +83%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	14.6 fps +3%
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	14.2 fps
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	10.9 fps -23%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	20 fps +130%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	17.1 fps +97%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	15.1 fps +74%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	9 fps +3%
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	8.7 fps
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	6.8 fps -22%
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	21.7 fps +124%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	18.3 fps +89%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	15.7 fps +62%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	10.2 fps +5%
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	9.7 fps
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	7.1 fps -27%

Unigine Superposition
1280x720 720p Low
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	10491 Points +149%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	8223 Points +95%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	6619 Points +57%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	4303 Points +2%
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	4209 Points
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	3111 Points -26%
1920x1080 1080p High
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3391 Points +211%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	2744 Points +152%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	2306 Points +112%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	1117 Points +3%
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	1089 Points
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	909 Points -17%
1920x1080 1080p Extreme
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	1920 Points +290%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1251 Points +154%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1124 Points +128%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	497 Points +1%
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	492 Points
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	439 Points -11%

ComputeMark v2.1
1024x600 Normal, Score
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	7480 Points
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	3877 Points
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	3650 Points
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	1546 Points
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	1432 Points
1024x600 Normal, Fluid 3DTex
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	427 Points
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	420 Points
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	286 Points
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	188 Points
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	131 Points
1024x600 Normal, Fluid 2DTexArr
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	422 Points
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	398 Points
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	294 Points
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	170 Points
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	126 Points
1024x600 Normal, Mandel Vector
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	1961 Points
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	918 Points
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	873 Points
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	272 Points
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	268 Points
1024x600 Normal, Mandel Scalar
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	1594 Points
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	888 Points
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	883 Points
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	412 Points
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	408 Points
1024x600 Normal, QJuliaRayTrace
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3076 Points
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1310 Points
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1258 Points
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	505 Points
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	499 Points

LuxMark v2.0 64Bit
Room GPUs-only
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1196 Samples/s +231%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	651 Samples/s +80%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	549 Samples/s +52%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	487 Samples/s +35%
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	361 Samples/s
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	356 Samples/s -1%
Sala GPUs-only
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	3188 Samples/s +159%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	2319 Samples/s +88%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	2104 Samples/s +71%
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	1232 Samples/s
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	1226 Samples/s 0%
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	1086 Samples/s -12%

Affinity Photo 2 - Combined (Single / Multi GPU)
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	4928 Points +111%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	4460 Points +91%
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	2337 Points
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	2044 Points -13%

	HP Pro Mini 400 G9-937U0EA, Intel UHD Graphics 770 i5-14500T	HP Pro Mini 400 G9-936M3EA, Intel UHD Graphics 770 i5-13500T	HP Elite Mini 800 G9-5M9X6EA, Intel UHD Graphics 770 i5-14500	Geekom GT13 Pro, Intel Iris Xe Graphics G7 96EUs i9-13900H	Minisforum MS-01, Intel Iris Xe Graphics G7 96EUs i9-13900H	Acemagic F2A, Intel Arc 8-Core iGPU Ultra 7 155H	Average of class Mini PC
SPECviewperf 2020		-18%	3%	70%	103%	126%	393%
3840x2160 Medical (medical-03)	1.35	1.32 -2%	1.34 -1%	2.69 99%	2.72 101%	5.05 274%	7.72 ?(0.78 - 30.8, n=61, last 2 years) 472%
3840x2160 Energy (energy-03)	1.51	0.76 -50%	1.51 0%	3.17 110%	4.75 215%	4.61 205%	11.2 ?(0.52 - 47.9, n=61, last 2 years) 642%
3840x2160 Creo (creo-03)	9.11	7.73 -15%	9.17 1%	16.3 79%	19.2 111%	17.9 96%	30.9 ?(7.73 - 97.5, n=61, last 2 years) 239%
3840x2160 CATIA (catia-06)	5.41	4.61 -15%	5.6 4%	8.53 58%	9.99 85%	10 85%	19 ?(4.61 - 64.1, n=60, last 2 years) 251%
3840x2160 3ds Max (3dsmax-07)	6.59	5.53 -16%	6.69 2%	10.3 56%	11.6 76%	12.9 96%	22.3 ?(5.53 - 87.5, n=61, last 2 years) 238%
3840x2160 Siemens NX (snx-04)	5.65	5.4 -4%	6.24 10%	6.62 17%	6.9 22%	5.7 1%	41.8 ?(2.25 - 226, n=60, last 2 years) 640%
3840x2160 Maya (maya-06)	15.9	12.2 -23%	16.3 3%	27.3 72%	34.1 114%	35.4 123%	58.9 ?(12.2 - 207, n=61, last 2 years) 270%

3DMark 05 Standard		30039 points
3DMark 06 Standard Score		21770 points
3DMark Vantage P Result		14514 points
3DMark 11 Performance		3920 points
3DMark Ice Storm Standard Score		85277 points
3DMark Cloud Gate Standard Score		16343 points
3DMark Fire Strike Score		2477 points
3DMark Fire Strike Extreme Score		1163 points
3DMark Time Spy Score		847 points
Help

... in comparison

游戏性能

英特尔UHD Graphics 770 的低性能绝对不足以在现代游戏中实现足够的帧速率。iGPU 只能满足最简单的休闲游戏或浏览器游戏的要求。最新的 iGPU（如 AMD Radeon 780M或英特尔 Arc 8.例如 Geekom A8和 Minisforum AtomMan X7 Ti配备了这些设备。

GTA V | Dota 2 Reborn | Cyberpunk 2077 2.1 Phantom Liberty | Baldur's Gate 3 | F1 24

GTA V
1024x768 Lowest Settings possible
Minisforum MS-01 Iris Xe G7 96EUs, i9-13900H, Kingston OM8PGP41024Q-A0	166.4 (7.6^min, 111.1^P1) fps +75%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	161 (4.76^min, 100^P1) fps +69%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	119.7 (7.51^min, 66.7^P1) fps +26%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	102.4 (25.3^min, 71.4^P1) fps +8%
HP Pro Mini 400 G9-937U0EA UHD Graphics 770, i5-14500T, HP PSEJN512GA87EC0	95 (19.9^min, 62.5^P1) fps
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	31.3 (2.94^min, 22.7^P1) fps +161%
Minisforum MS-01 Iris Xe G7 96EUs, i9-13900H, Kingston OM8PGP41024Q-A0	31.1 (13.1^min, 23.8^P1) fps +159%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	22 (6.3^min, 16.4^P1) fps +83%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	12.3 (4.52^min, 9.35^P1) fps +3%
HP Pro Mini 400 G9-937U0EA UHD Graphics 770, i5-14500T, HP PSEJN512GA87EC0	12 (4.17^min, 9.17^P1) fps

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum MS-01 Iris Xe G7 96EUs, i9-13900H, Kingston OM8PGP41024Q-A0	128.6 (80.1^min) fps +26%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	109.8 (85^min) fps +7%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	105.8 (73.2^min) fps +3%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	103.2 (59.8^min) fps +1%
HP Pro Mini 400 G9-937U0EA UHD Graphics 770, i5-14500T, HP PSEJN512GA87EC0	102.4 (80.7^min) fps
1920x1080 high (2/3)
Minisforum MS-01 Iris Xe G7 96EUs, i9-13900H, Kingston OM8PGP41024Q-A0	80.8 (65.9^min) fps +113%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	77.3 (52.5^min) fps +103%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	65.5 (56.1^min) fps +72%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	43.9 (24.2^min) fps +16%
HP Pro Mini 400 G9-937U0EA UHD Graphics 770, i5-14500T, HP PSEJN512GA87EC0	38 (35.3^min) fps

Cyberpunk 2077 2.1 Phantom Liberty
1920x1080 Low Preset (FSR off)
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	29.5 (24.1^min) fps +234%
Minisforum MS-01 Iris Xe G7 96EUs, i9-13900H, Kingston OM8PGP41024Q-A0	22.5 (17.3^min) fps +155%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	18.2 (14.7^min) fps +106%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	9.13 (7.04^min) fps +4%
HP Pro Mini 400 G9-937U0EA UHD Graphics 770, i5-14500T, HP PSEJN512GA87EC0	8.82 (6.82^min) fps
HP Pro Mini 400 G9-936M3EA UHD Graphics 770, i5-13500T, HP PSEJN512GA87EC0	7.95 (6.36^min) fps -10%
1920x1080 High Preset (FSR off)
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	20.4 (13.8^min) fps +248%
Minisforum MS-01 Iris Xe G7 96EUs, i9-13900H, Kingston OM8PGP41024Q-A0	15 (12.4^min) fps +156%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	12.8 (10.9^min) fps +118%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	6.09 (5.05^min) fps +4%
HP Pro Mini 400 G9-937U0EA UHD Graphics 770, i5-14500T, HP PSEJN512GA87EC0	5.86 (4.84^min) fps
HP Pro Mini 400 G9-936M3EA UHD Graphics 770, i5-13500T, HP PSEJN512GA87EC0	5.3 (4.45^min) fps -10%

Baldur's Gate 3
1280x720 Low Preset
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	26.2 (4.4^min, 7.02^P0.1, 18.4^P1) fps +82%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	16.9 (10.9^min, 11.1^P0.1, 12.8^P1) fps +17%
HP Pro Mini 400 G9-937U0EA UHD Graphics 770, i5-14500T, HP PSEJN512GA87EC0	14.4 (8.68^min, 9.6^P0.1, 11.1^P1) fps
HP Pro Mini 400 G9-936M3EA UHD Graphics 770, i5-13500T, HP PSEJN512GA87EC0	13.1 (4.4^min, 4.43^P0.1, 5.99^P1) fps -9%
1920x1080 High Preset
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	11.7 (3.43^min, 3.51^P0.1, 3.99^P1) fps +91%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	6.88 (5.24^min, 5.26^P0.1, 5.41^P1) fps +12%
HP Pro Mini 400 G9-937U0EA UHD Graphics 770, i5-14500T, HP PSEJN512GA87EC0	6.12 (4.49^min, 4.52^P0.1, 4.8^P1) fps

F1 24
1920x1080 Low Preset AA:T AF:16x
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	40.4 (34^min, 33^P1) fps +104%
HP Pro Mini 400 G9-936M3EA UHD Graphics 770, i5-13500T, HP PSEJN512GA87EC0	21.2 (17^min, 18^P1) fps +7%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	21.1 (17^min, 17^P1) fps +7%
HP Pro Mini 400 G9-937U0EA UHD Graphics 770, i5-14500T, HP PSEJN512GA87EC0	19.8 (17^min, 15^P1) fps
1920x1080 High Preset AA:T AF:16x
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	25.6 (22^min, 21^P1) fps +110%
HP Pro Mini 400 G9-936M3EA UHD Graphics 770, i5-13500T, HP PSEJN512GA87EC0	12.9 (11^min, 11^P1) fps +6%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	12.8 (10^min, 10^P1) fps +5%
HP Pro Mini 400 G9-937U0EA UHD Graphics 770, i5-14500T, HP PSEJN512GA87EC0	12.2 (10^min, 9^P1) fps

FPS chart

HP Pro Mini 400 G9-937U0EA i5-14500T, UHD Graphics 770: Ø4.96 (4.5-5.06)

HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770: Ø4.48 (3.4-4.61)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770: Ø5.17 (4.9-5.29)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs: Ø11.1 (5.97-12.3)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs: Ø12.5 (11.3-13.6)

	low	med.	high	ultra
GTA V (2015)	95	84.7	12
Dota 2 Reborn (2015)	102.4	74.4	38	35.4
Final Fantasy XV Benchmark (2018)	24.2	12.9	9.17
X-Plane 11.11 (2018)	28.5	21.7	18.8
Baldur's Gate 3 (2023)	8.87	6.97	6.12
Cyberpunk 2077 2.1 Phantom Liberty (2023)	8.82	6.75	5.86	5.03
F1 24 (2024)	19.8	17	12.2

排放 - 英特尔酷睿 i5-14500T 散热良好、噪音低

噪音排放

尽管 HP Pro Mini 400 G9 的通风能力有限，但其冷却系统却非常安静。设备在无负载的情况下几乎听不到声音，尽管风扇在任何时候都不会停止。在压力测试中，我们只测得 37.2 dB(A)，这是相比之下最好的结果。来自 Geekom、Minisforum 和 Acemagic 的设备在负载情况下噪音要小得多。

惠普 Pro Mini 400 G9 采用紧凑的金属外壳，通风口极少。基于处理器的经济性，这一决定是可以理解的，尽管与惠普 Elite Mini 800 G9 相比噪音略高。

Noise Level

Idle		26.9 / 26.9 / 26.9 dB(A)
Load		32.5 / 37.2 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 24.8 dB(A)

	HP Pro Mini 400 G9-937U0EA i5-14500T, UHD Graphics 770	HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770	HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770	Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs	Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs	Acemagic F2A Ultra 7 155H, Arc 8-Core
Noise		-2%	-3%	-14%	-26%	-11%
off / environment *	24.8	24.7 -0%	25.5 -3%	24.3 2%	24.4 2%	24.9 -0%
Idle Minimum *	26.9	27.6 -3%	27.7 -3%	27.9 -4%	33.7 -25%	25.4 6%
Idle Average *	26.9	27.7 -3%	27.8 -3%	27.9 -4%	33.9 -26%	25.7 4%
Idle Maximum *	26.9	27.7 -3%	27.8 -3%	28 -4%	34.7 -29%	25.7 4%
Load Average *	32.5	33.6 -3%	30.2 7%	43.8 -35%	47.7 -47%	47.8 -47%
Cyberpunk 2077 ultra *	37.2	36.2 3%	39.5 -6%	45.4 -22%
Load Maximum *	37.2	38.2 -3%	39.8 -7%	48.5 -30%	49.1 -32%	49 -32%
Witcher 3 ultra *					48.9	45.23

* ... smaller is better

温度

HP Pro Mini 400 G9 的金属外壳仅有轻微发热。不过，发热区域是可以测量和察觉到的。处理器本身没有达到临界温度，这表明惠普降低了英特尔酷睿 i5-14500T 处理器的功耗。英特尔酷睿 i5-14500T的功耗。在压力测试中，我们可以看到 35 瓦的功耗在整个测试期间都能轻松保持。

Max. Load

Idle


27.3 °C	31.1 °C	35.7 °C
27.1 °C	30.6 °C	33.6 °C
24.3 °C	24.4 °C	27.1 °C

Maximum: 35.7 °C
Average: 29 °C


39.6 °C	38.9 °C	30.3 °C
39.5 °C	39 °C	32.4 °C
32.6 °C	30.8 °C	29.4 °C

Maximum: 39.6 °C
Average: 34.7 °C

Power Supply (max.) 41.5 °C | Room Temperature 21 °C | Fluke t3000FC (calibrated)

(+) The average temperature for the upper side under maximal load is 29 °C / 84 F, compared to the average of 31.9 °C / 89 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 35.7 °C / 96 F, compared to the average of 35.6 °C / 96 F, ranging from 24 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 39.6 °C / 103 F, compared to the average of 36.1 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 27.2 °C / 81 F, compared to the device average of 31.9 °C / 89 F.

发言人

惠普 Pro Mini 400 G9 电脑的正面配备了一个小型扬声器。扬声器当然足以满足日常使用，例如听音乐。不过，单声道扬声器不能取代外置音响系统。

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

HP Pro Mini 400 G9-937U0EA audio analysis

(+) | speakers can play relatively loud (83 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 33.6% lower than median
(+) | bass is linear (6.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 8.7% higher than median
(±) | linearity of mids is average (11.6% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 6.9% higher than median
(±) | linearity of highs is average (8.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (29.1% difference to median)
Compared to same class
» 60% of all tested devices in this class were better, 20% similar, 20% worse
» The best had a delta of 16%, average was 25%, worst was 38%
Compared to all devices tested
» 85% of all tested devices were better, 3% similar, 12% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Minisforum Mars Series MC560 audio analysis

(-) | not very loud speakers (62.3 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 22.8% lower than median
(+) | bass is linear (5.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 6.5% lower than median
(-) | mids are not linear (20.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.1% away from median
(+) | highs are linear (4.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (38.4% difference to median)
Compared to same class
» 90% of all tested devices in this class were better, 10% similar, 0% worse
» The best had a delta of 16%, average was 25%, worst was 38%
Compared to all devices tested
» 94% of all tested devices were better, 1% similar, 6% worse
» The best had a delta of 4%, average was 25%, worst was 134%

耗电量

小型 PC 的最大优势当然是功耗低。我们的测试样本在这方面表现出色。在所有测试中，我们都看到了相对较低的能耗值。与配备英特尔酷睿 i5-13500T 的相同设备相比，我们看到英特尔酷睿 i5-14500T 的能耗值略有提高。在效率方面，我们的测试样品无法与所有基于移动处理器的微型电脑相媲美。只有 Minisforum MS-01 能与之匹敌，尽管与冠军的差距不是很大，只有 14%。

Power Consumption

Off / Standby	0.93 / 1.4 Watt
Idle	4.9 / 8 / 13.3 Watt
Load	44.6 / 81.3 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	HP Pro Mini 400 G9-937U0EA i5-14500T, UHD Graphics 770	HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770	HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770	Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs	Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs	Acemagic F2A Ultra 7 155H, Arc 8-Core	Average Intel UHD Graphics 770	Average of class Mini PC
Power Consumption		-9%	-37%	-36%	-107%	-36%	-17%	-40%
Idle Minimum *	4.9	6.3 -29%	6 -22%	7.9 -61%	14.4 -194%	9.1 -86%	4.88 ?(3.5 - 6.3, n=5) -0%	9.72 ?(1.9 - 46.5, n=116, last 2 years) -98%
Idle Average *	8	8.6 -8%	8.9 -11%	10.3 -29%	16.1 -101%	10.3 -29%	8.12 ?(7.2 - 8.9, n=5) -2%	11.7 ?(1.9 - 63, n=115, last 2 years) -46%
Idle Maximum *	13.3	12.9 3%	21.5 -62%	22.3 -68%	25.5 -92%	14.4 -8%	13.9 ?(8.7 - 21.5, n=5) -5%	15.1 ?(2.6 - 68.9, n=116, last 2 years) -14%
Load Average *	44.6	45.3 -2%	55.5 -24%	57.44 -29%	87.3 -96%	54.9 -23%	53.5 ?(44.6 - 69.5, n=5) -20%	55.8 ?(11.3 - 170.6, n=116, last 2 years) -25%
Cyberpunk 2077 ultra external monitor *	49	57.1 -17%	73.4 -50%	55.9 -14%
Load Maximum *	81.3	84 -3%	122.8 -51%	93.4 -15%	123.3 -52%	110.4 -36%	128.2 ?(81.3 - 231, n=5) -58%	93.4 ?(18.1 - 296, n=116, last 2 years) -15%

* ... smaller is better

Efficiency

Performance Rating | Power Consumption

Performance Rating - Percent
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	97.7 pt
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	95.8 pt
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, UHD Graphics 770	85.7 pt
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	80.1 pt
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	76.1 pt
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	68.9 pt

Power Consumption
Cinebench R23 Multi Power Efficiency - external Monitor
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	210 Points per Watt +13%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, UHD Graphics 770	186 Points per Watt
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	183.7 Points per Watt -1%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	179.6 Points per Watt -3%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	164.2 Points per Watt -12%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	138.4 Points per Watt -26%
Cinebench R23 Single Power Efficiency - external Monitor
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	54.3 Points per Watt +36%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	54.2 Points per Watt +36%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, UHD Graphics 770	39.8 Points per Watt
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	39.4 Points per Watt -1%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	36.4 Points per Watt -9%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	34.6 Points per Watt -13%
Cinebench R15 Multi Efficiency (external Monitor)
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	26.6 Points per Watt +5%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, UHD Graphics 770	25.3 Points per Watt
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	24.8 Points per Watt -2%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	22.1 Points per Watt -13%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	21.9 Points per Watt -13%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	20.5 Points per Watt -19%

Power consumption with the external monitor

HP Pro Mini 400 G9-937U0EA i5-14500T, UHD Graphics 770; Idle 1min (external Monitor): Ø8.04 (6.14-13.3)

HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770; Idle 1min (external Monitor): Ø8.6 (7.59-13)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; Idle 1min (external Monitor): Ø8.89 (4.55-21.5)

HP Pro Mini 400 G9-937U0EA i5-14500T, UHD Graphics 770; 1280x720 Prime95 28.10 and Furmark 1.25: Ø57.9 (54.6-68.1)

HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770; 1280x720 Prime95 28.10 and Furmark 1.25: Ø55.3 (51.3-63.7)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; 1280x720 Prime95 28.10 and Furmark 1.25: Ø92.4 (86.5-106.1)

HP Pro Mini 400 G9-937U0EA i5-14500T, UHD Graphics 770; Cyberpunk 2077 FHD ultra no FSR - external Monitor: Ø49 (47.4-53.5)

HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770; Cyberpunk 2077 FHD ultra no FSR - external Monitor: Ø57.1 (54.8-73.1)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; Cyberpunk 2077 FHD ultra no FSR - external Monitor: Ø73.4 (69-87.1)

HP Pro Mini 400 G9-937U0EA i5-14500T, UHD Graphics 770; 3DMark06 Return To Proxycon: Ø44.6 (35.6-53.7)

HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770; 3DMark06 Return To Proxycon: Ø45.3 (40.4-61.9)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; 3DMark06 Return To Proxycon: Ø55.5 (40.1-87.3)

Power consumption with the external monitor

HP Pro Mini 400 G9-937U0EA i5-14500T, UHD Graphics 770; Prime95 V2810 Stress (external Monitor): Ø59.1 (53.5-69.9)

HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770; Prime95 V2810 Stress (external Monitor): Ø55.6 (54.2-60.7)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; Prime95 V2810 Stress (external Monitor): Ø95.1 (87.6-114.6)

HP Pro Mini 400 G9-937U0EA i5-14500T, UHD Graphics 770; Cinebench R15 Multi (external Monitor): Ø79.8 (77.4-81.3)

HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770; Cinebench R15 Multi (external Monitor): Ø79.3 (77.7-81.2)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; Cinebench R15 Multi (external Monitor): Ø118.7 (117.6-120.5)

HP Pro Mini 400 G9-937U0EA i5-14500T, UHD Graphics 770; Cinebench R23 Single (external Monitor): Ø46.2 (42.4-60.8)

HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770; Cinebench R23 Single (external Monitor): Ø44.5 (39.1-53.1)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; Cinebench R23 Single (external Monitor): Ø55.4 (52.3-78.4)

HP Pro Mini 400 G9-937U0EA i5-14500T, UHD Graphics 770; Cinebench R23 Multi (external Monitor): Ø63.4 (50.7-75.6)

HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770; Cinebench R23 Multi (external Monitor): Ø61.4 (53.7-84)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; Cinebench R23 Multi (external Monitor): Ø108.5 (87-122.8)

HP Pro Mini 400 G9-937U0EA i5-14500T, UHD Graphics 770; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø39.3 (37.3-49.7)

HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø40.6 (38.9-55.5)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø41.4 (37.4-53.8)

Pros

+ 坚固简洁的金属外壳

+ 模块化设计

+ 免工具开启

+ 可更换英特尔酷睿 i5-14500T

+ 可安装两个固态硬盘

+ 快速无线局域网

+ 低噪音

+ 小扬声器

+ 附带鼠标和键盘

+ 高能效台式机 CPU

Cons

- 3D 性能非常弱

- 没有 USB4、Thunderbolt 或 OCuLink

- 保修期只有 12 个月

结论：高效的英特尔酷睿 i5-14500T 性能卓越

配备英特尔酷睿 i5-14500T 的惠普 Pro Mini 400 G9 评测 - 由惠普德国公司提供

HP Pro Mini 400 G9 是一款纯粹的工作设备，配备了英特尔酷睿 i5-14500T提供了坚如磐石的性能。在与其他制造商机型的对决中，我们的测试样品可以与英特尔酷睿 i5-13500T略胜一筹。不过，性能并没有明显提升。与充斥国内市场的迷你 PC 相比，最大的不同在于模块化设计。这种方式值得欢迎，因为小型维护工作或维修可以独立进行。

惠普 Pro Mini 400 G9 配备了英特尔酷睿 i5-14500T 处理器，其良好的工作效率给人留下了深刻印象。遗憾的是，该产品的接口无法与最先进的迷你电脑相提并论。

我们基于英特尔酷睿 i5-14500T 的测试样本在性能上输给了来自远东的竞争对手，尽管在日常使用中几乎看不出差距。与 DDR4 内存的组合肯定是原因之一，就像处理器的功耗降低一样。不过，由于设计紧凑，不可能实现更多。此外，效率也会大大降低。凭借英特尔酷睿 i5-14500T 的开箱即用性能，惠普找到了一个很好的中间点，打造出了一款经济实惠而又功能强大的迷你电脑。连接功能值得批评，因为它只是在数字上给人留下了深刻印象。遗憾的是，它没有 USB4 或 OCuLink 等现代端口。这是一个遗憾，因为这将使更多的应用场景成为可能。

惠普在自己的商店里售价为 853 欧元，比惠普 Elite Mini 800 G9 便宜很多，但在性能方面却没有明显的优势。就效率而言，HP Pro Mini 400 G9 显然是最佳选择，尽管它的 CPU 性能略低。

注：我们最近更新了评级系统，第 8 版的结果与第 7 版的结果不具可比性。更多信息请点击这里.

价格和供应情况

惠普 Pro Mini 400 G9 可直接从制造商处购买。亚马逊也列出了这款配备英特尔酷睿 i3-13100T 的迷你电脑，售价约为 600 美元。

HP Pro Mini 400 G9-937U0EA - 2024-07-27 07/27/2024 v8
Sebastian Bade

Chassis

85 / 98 → 87%

Connectivity

61 / 81 → 75%

Weight

72%

Games Performance

14 / 80 → 17%

Application Performance

77 / 92 → 84%

Workstation

13%

AI Performance

58%

Temperature

93%

Noise

88%

Average

56%

71%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
50%

Packaging
75%

Power Use
71.8%

Repairability
68%

Software Updates
22.3%

Total Sustainability Score: 47.9%

Transparency

The present review sample was made available to the author as a loan by the manufacturer or a shop for the purposes of review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.

Price comparison

Editor of the original article: Ninh Ngoc Duy - Editorial Assistant - 433347 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 惠普 Pro Mini 400 G9 迷你电脑评测：紧凑型工作站因英特尔酷睿 i5-14500T 的出色性能而令人印象深刻

Sebastian Bade, 2024-07-31 (Update: 2024-07-31)

Cinebench R15 CPU Multi 64 Bit in comparison
Lenovo B50-30 (min) N2815, HD Graphics (Bay Trail)	49
...
Asus Vivobook Pro 16X-M7600QE R9 5900HX, GeForce RTX 3050 Ti Laptop GPU	2019
HP Dragonfly Pro 2023 R7 7736U, Radeon 680M	2019
MSI GT76 Titan DT 9SG i9-9900K, GeForce RTX 2080 Mobile	2022
HP Pro Mini 400 G9-937U0EA i5-14500T, UHD Graphics 770	2022
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti) i7-11800H, GeForce RTX 3050 Ti Laptop GPU	2023
Minisforum V3 R7 8840U, Radeon 780M	2024
Intel Beast Canyon NUC i9-11900KB, NVIDIA GeForce RTX 3060	2027
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	15842

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
Lenovo ThinkPad T495s-20QKS01E00 R7 PRO 3700U, Vega 10	3883
Asus Zenbook 14 UX433FN-A6023T i7-8565U, GeForce MX150	3886
Dell Latitude 14 5420-D2G5W i5-1135G7, Iris Xe G7 80EUs	3915
HP Pro Mini 400 G9-937U0EA i5-14500T, UHD Graphics 770	3920
Apple MacBook Pro Retina 15 inch 2015-05 4870HQ, Radeon R9 M370X	3942
HP Elite Mini 800 G9-5M9T9EA i5-13500, UHD Graphics 770	3954
HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770	3960
...
(max) R7 7800X3D, NVIDIA GeForce RTX 4090	72163
