Geekom A8 评测：高级 0.5 升迷你 PC，配备 AMD Ryzen 9 8945HS、32 GB DDR5 内存和 2 TB 固态硬盘

Name: Geekom A8
Brand: Geekom

紧凑型动力室

Geekom A 系列将卓越的性能与极其紧凑的外形结合在一起。制造商已经通过 Geekom A7 证明了这一理念的可行性。Geekom A8 基于 AMD Ryzen 9 8945HS，听起来很有前途，但它应该能提供更强的性能。我们仔细观察了这款新旗舰，并根据多项基准测试分析了其性能。

Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy), Published 05/31/2024 🇺🇸 🇩🇪 ...

Mini PC Desktop AMD Radeon Thunderbolt Zen 4

微型 PC 的功能越来越强大，在日常性能方面丝毫不逊色于传统台式 PC。小型 PC 在效率方面也有很高的表现，从而推动了微型 PC 的使用。Geekom A8 基于 Geekom A7其优雅的设计给人留下了深刻的视觉印象。这款品质极高、功能强大的微型电脑的最高配置是基于 AMD Ryzen 9 8945HS32 GB DDR5 内存和 2 TB SSD。如果您想购买 Geekom A8，目前需要支付约 950 欧元。基本配置的价格略低，为 799 欧元。不过，在实际使用中，性能应该与顶级机型相差不大，因为 AMD Ryzen 7 8845HS完全相同，也有 8 个内核和 16 个线程。

Geekom A8 必须与 Geekom A7 竞争。尽管如此，我们还是要看看它与其他 Mini-PC 制造商的性能对比，他们的产品组合中也有非常强大的设备。我们在下表中列出了对比设备的概况。

Test device courtesy of Geekom

Download your licensed rating image as PNG / SVG

Geekom A8

Processor

AMD Ryzen 9 8945HS 8 x 4 - 5.2 GHz, Hawk Point-HS (Zen 4)

Graphics adapter

AMD Radeon 780M, Core: 2800 MHz, Adrenalin 24.5.1

Memory

32 GB

, DDR5-5600 MT/s

Mainboard

AMD Promontory/Bixby FCH

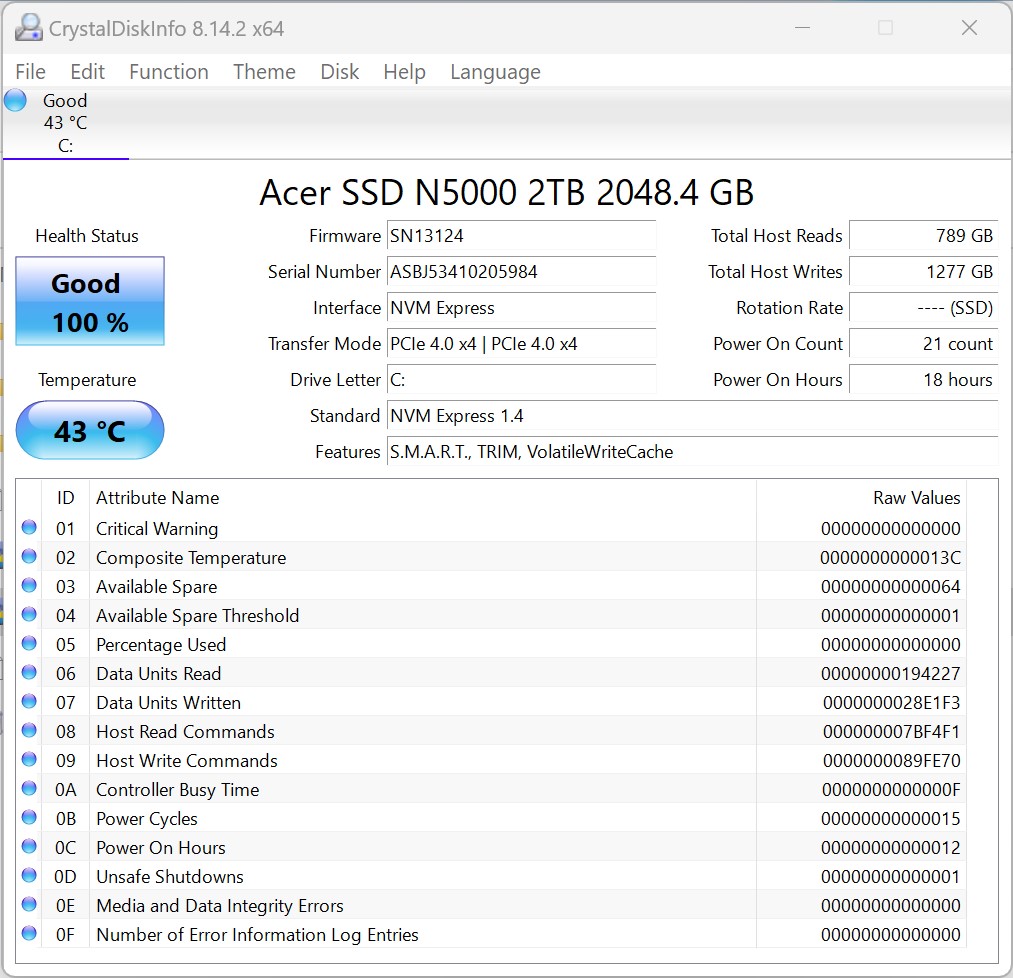

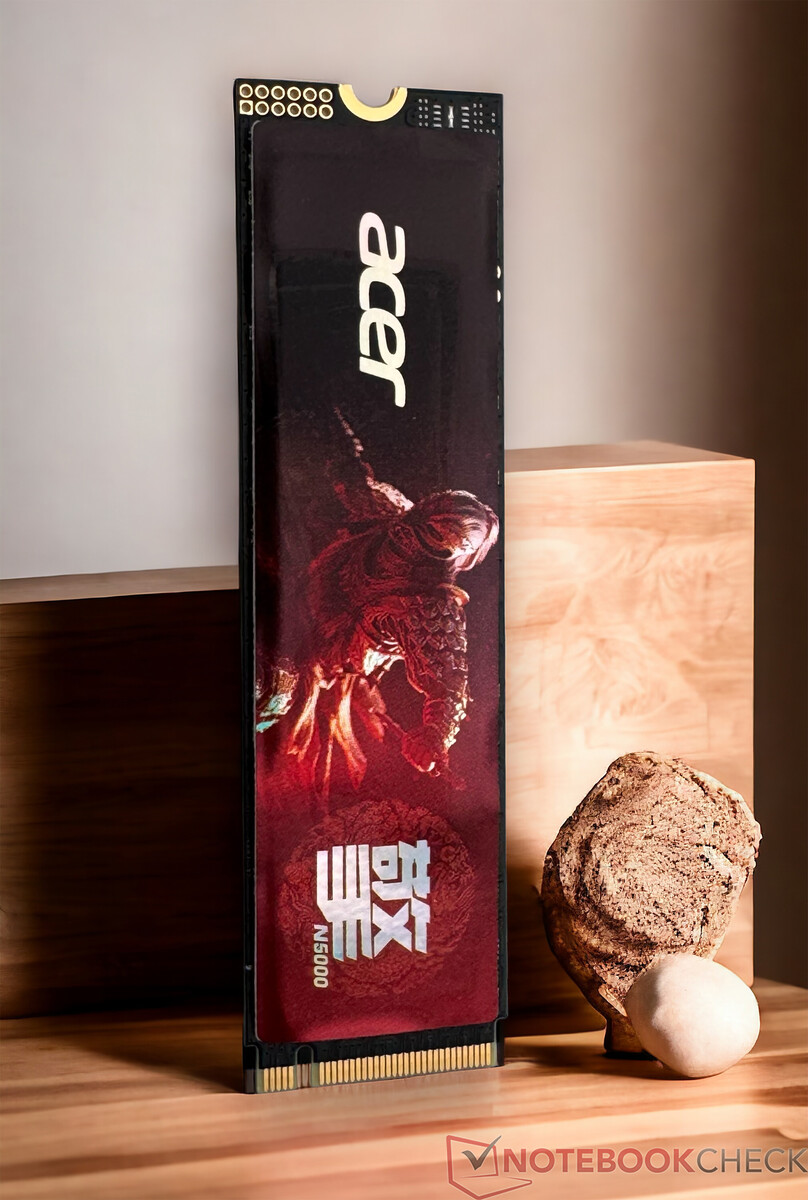

Storage

Acer N5000, 2048 GB

, M.2-2280, NVMe, 1800 GB free

Soundcard

AMD Zen - Audio Processor - HD Audio Controller

Connections

1 USB 2.0, 3 USB 3.1 Gen2, 1 USB 4.0 40 Gbps, 1 Thunderbolt, 2 HDMI, 2 DisplayPort, Audio Connections: 3.5mm Klinke, Card Reader: SD-Card (Full-Size)

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Size

height x width x depth (in mm): 38 x 112 x 112

Operating System

Microsoft Windows 11 Pro

Additional features

120-Watt-Power-Adapter, 36 Months Warranty

Weight

432 g, Power Supply: 255 g

Price

949 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Memory	Weight	Height
84.9 % v7 ^(old)	05 / 2024	Geekom A8 R9 8945HS, Radeon 780M	32768 MB	432 g	38 mm
87.5 % v7 ^(old)	05 / 2024	Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core	32768 MB	863 g	48.6 mm
83.4 % v7 ^(old)	04 / 2024	Acemagic F2A Ultra 7 155H, Arc 8-Core	32768 MB	768 g	57 mm
84.1 %	04 / 2024	Geekom XT12 Pro i9-12900H, Iris Xe G7 96EUs	32768 MB	545 g	37 mm
82.6 % v7 ^(old)	03 / 2024	Geekom A7 R9 7940HS, Radeon 780M	32768 MB	417 g	38 mm
82.4 % v7 ^(old)	05 / 2024	Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs	32768 MB	615 g	55 mm
82.3 % v7 ^(old)	04 / 2024	Acemagic AM18 R7 7840HS, Radeon 780M	32768 MB	600 g	58 mm

Geekom A8 详细信息

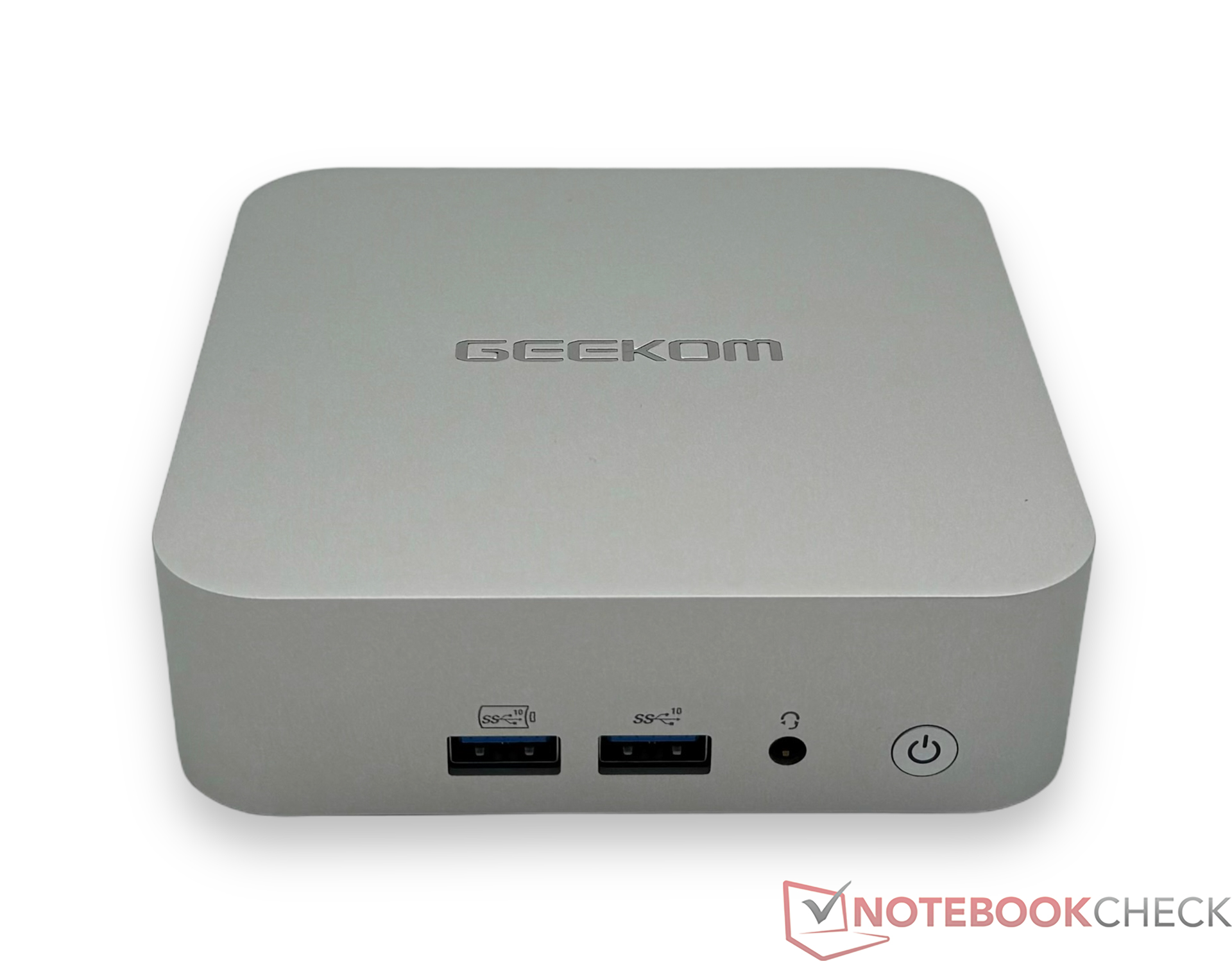

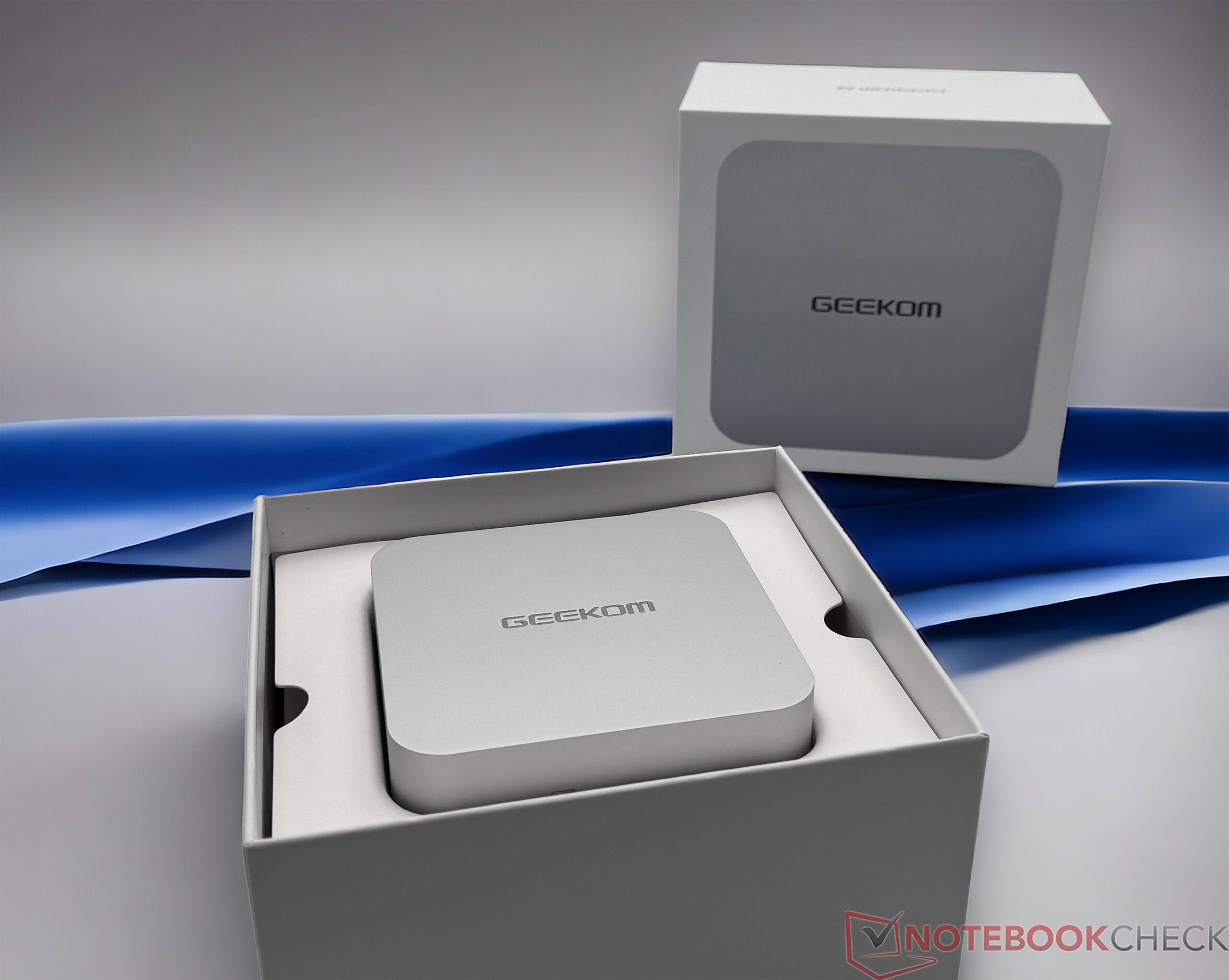

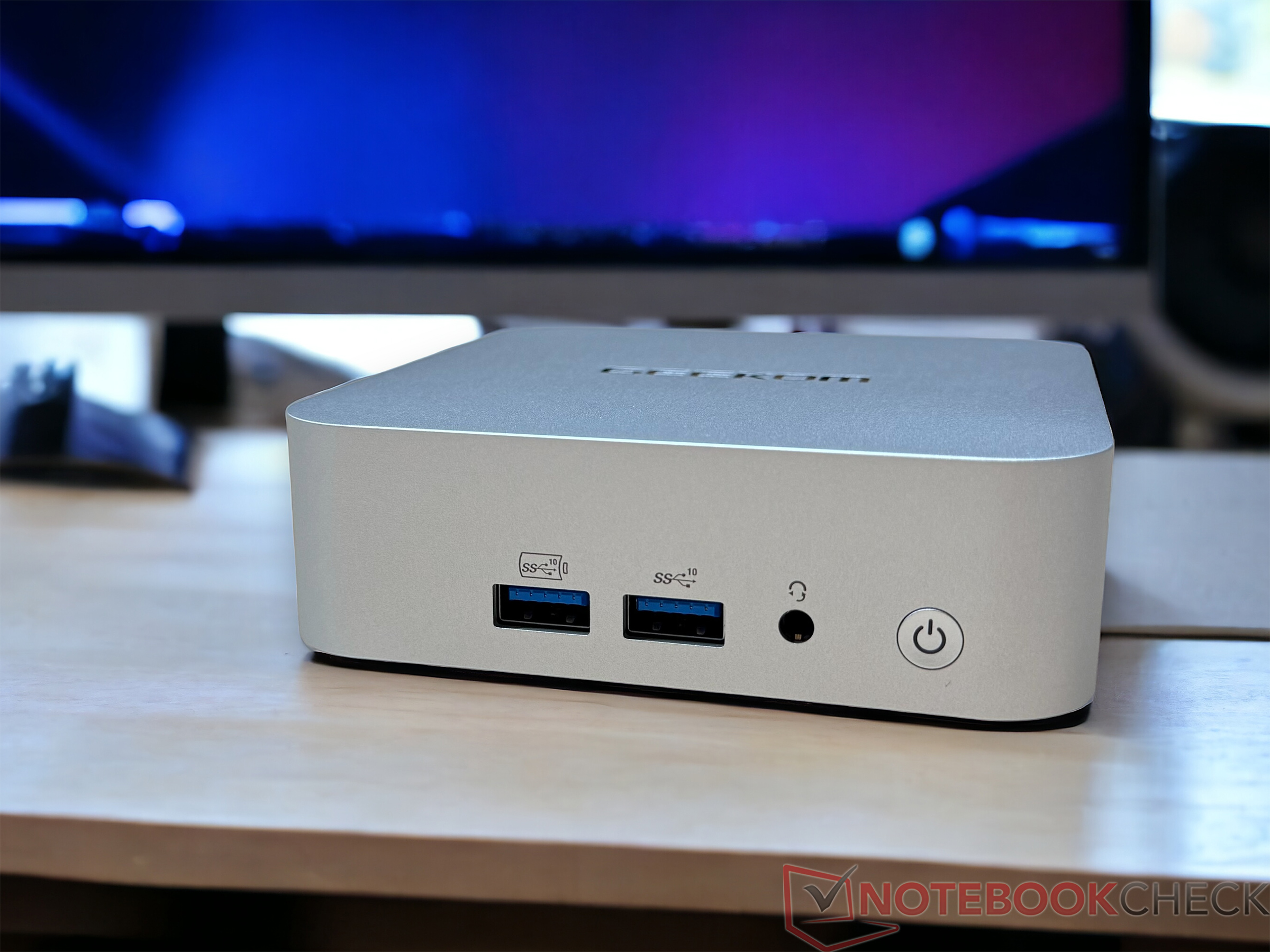

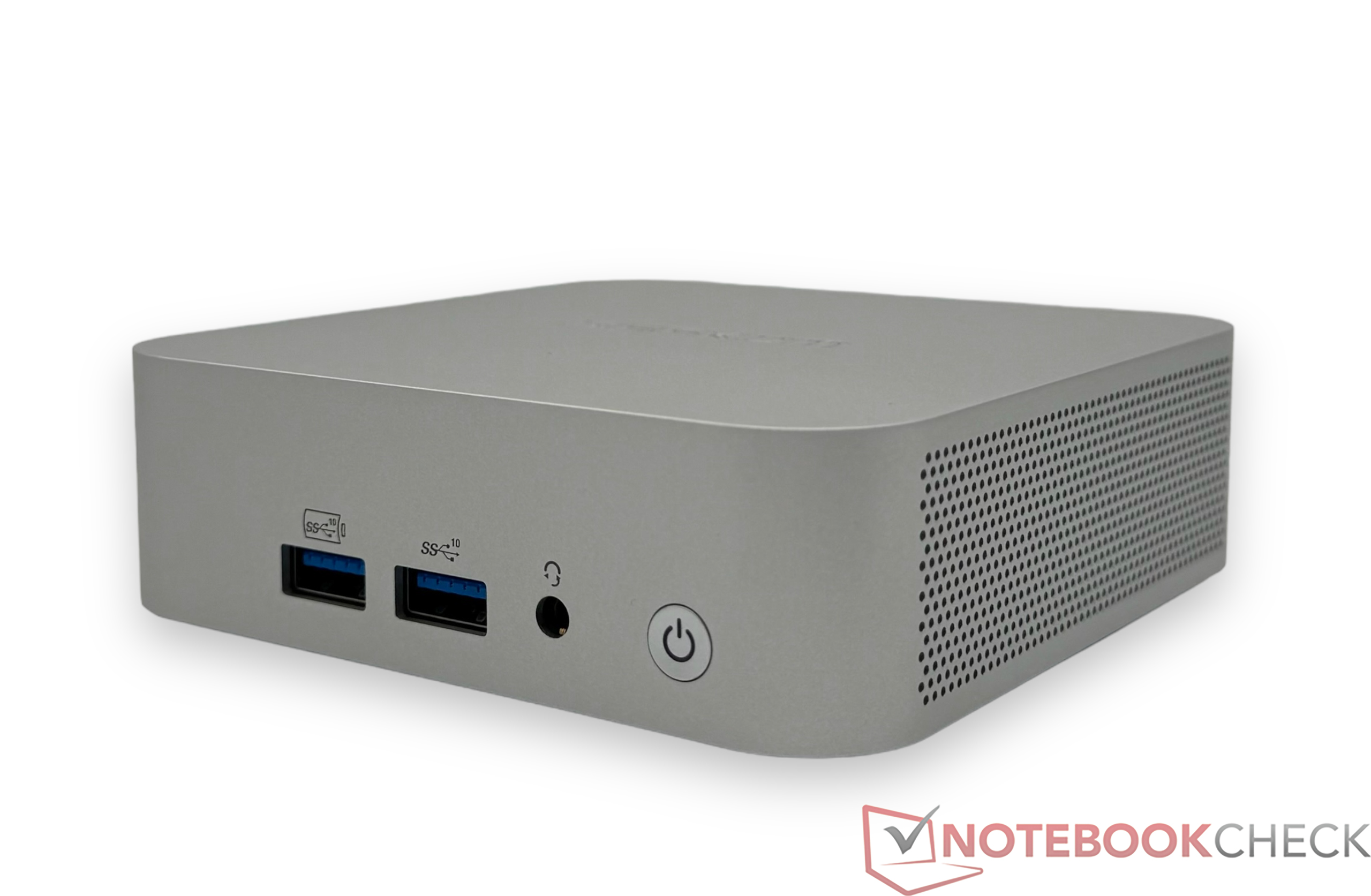

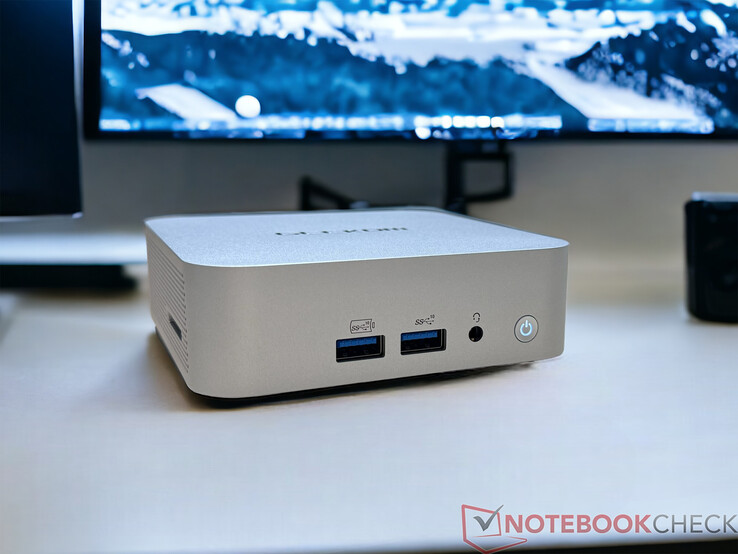

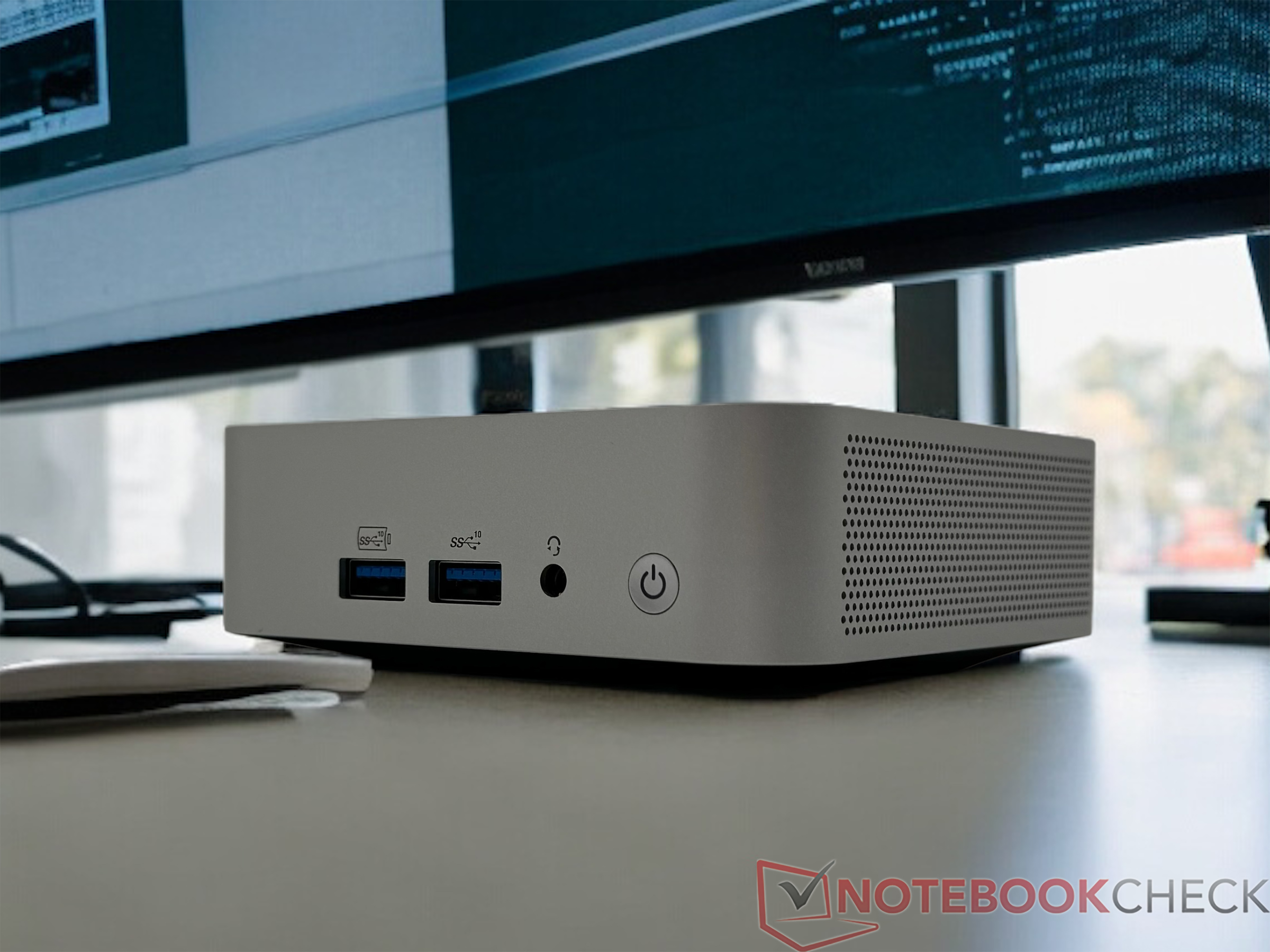

外壳 - 坚固的 0.5 升铝制外壳

Geekom A8 采用与 Geekom A7采用了与 Geekom A7 相同的外壳，外观和质感都非常出色。外壳完全由铝合金制成，具有极高的稳定性，优雅的设计极具现代感。Geekom A8 和 Geekom A7 的体积约为 0.5 升，是最小巧的设备之一，同时还具有强大的计算能力。相比之下，Geekom A8 在桌面上占用的空间更小，而且重量仅为 400 多克，非常轻巧。

尺寸比较

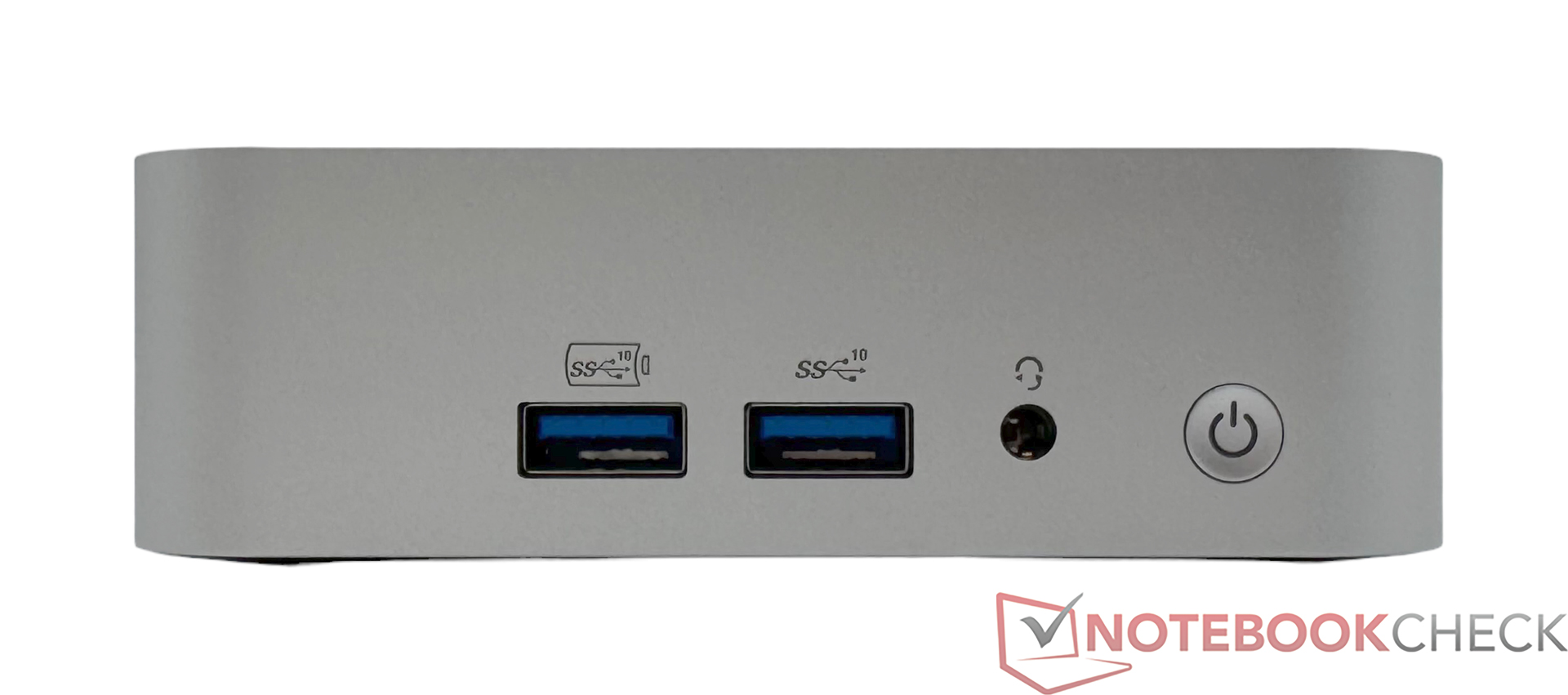

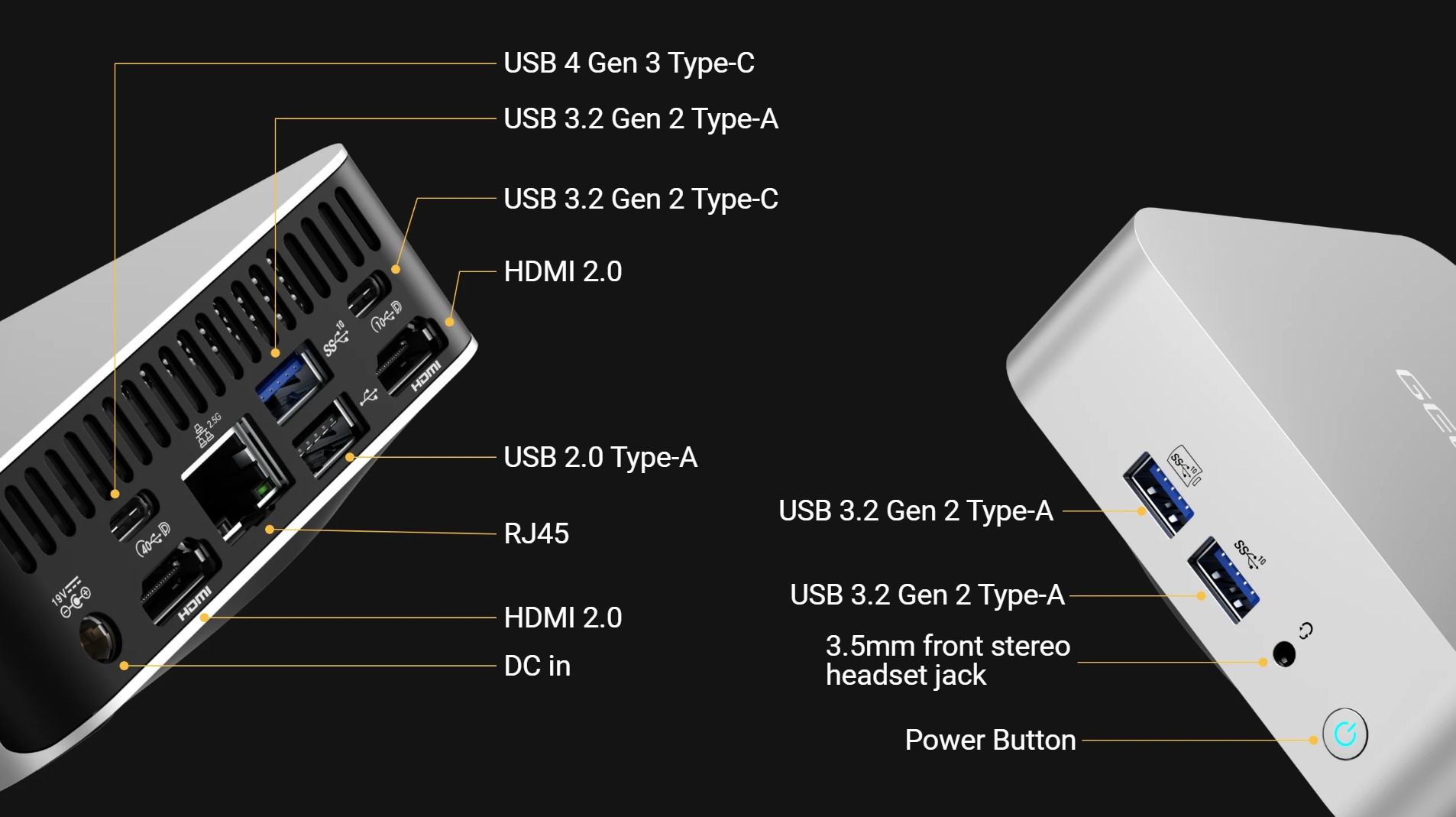

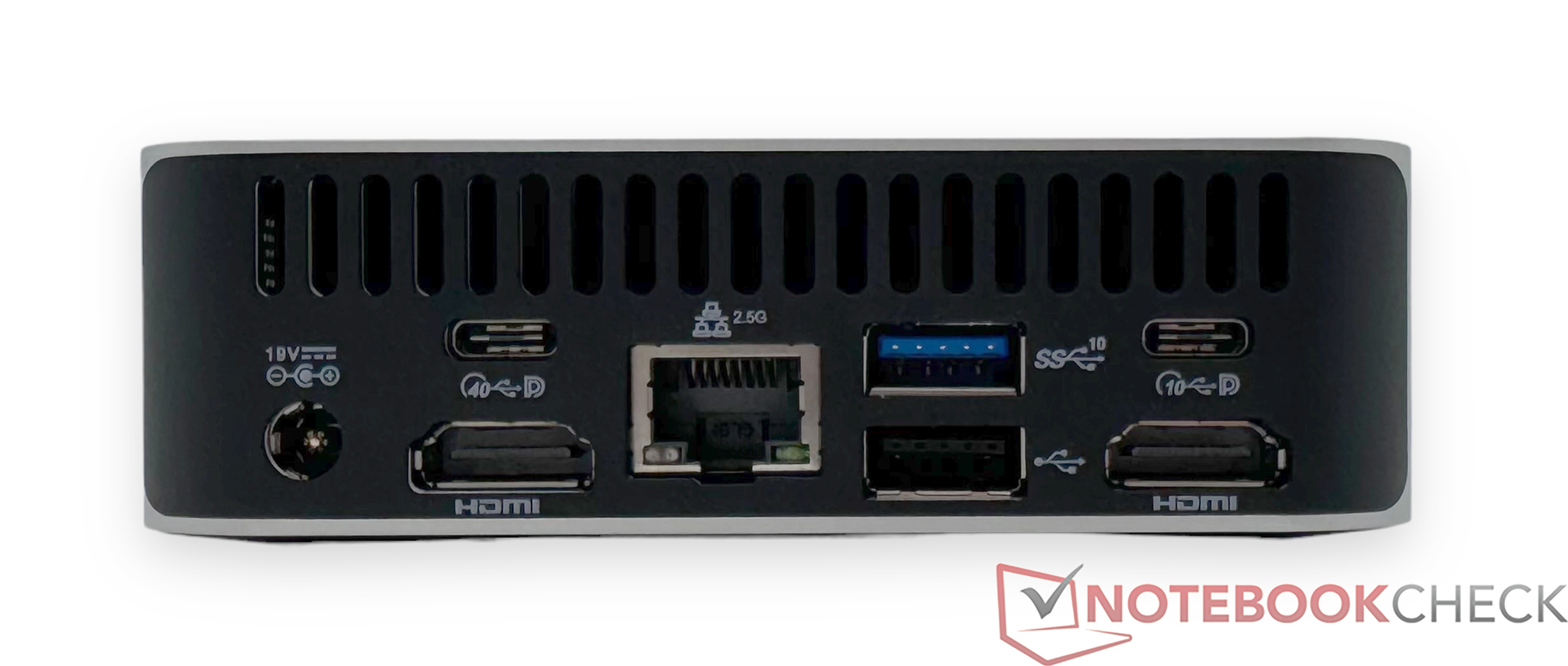

功能 - 包括 USB4 在内的多种连接

虽然 Geekom A8 极为小巧，但制造商为这款迷你电脑提供了多种连接选项。四个 USB Type-A 接口已经足够，在数量上，Geekom 与大众保持一致。Geekom A8 最先进的接口是 USB4，它可以极大地扩展应用的可能性。在测试中，我们将看看与外置显卡配合使用时的表现。屏幕可以直接通过 HDMI 接口连接，不过两个 USB-C 接口也可用于图像输出。总共可以同时操作四个屏幕。另一个积极的功能是位于左侧的快速 SD 读卡器。

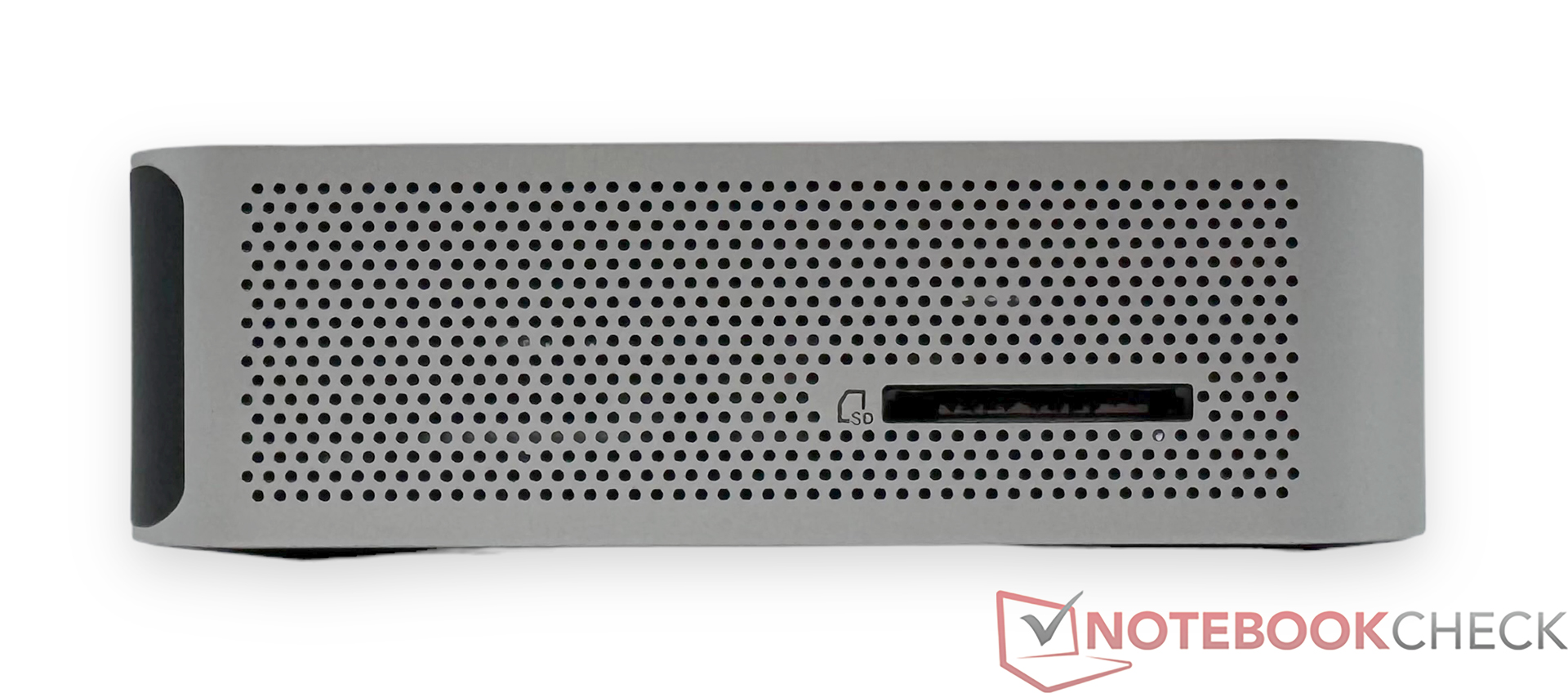

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Khadas Mind Intel Core i7-1360P (AV Pro SD microSD 128 GB V60)	181.79 MB/s +4%
Geekom A5 AMD Ryzen 7 5800H (AV Pro SD microSD 128 GB V60)	176.8 MB/s +1%
Geekom A7 AMD Ryzen 9 7940HS (AV Pro SD microSD 128 GB V60)	175.19 MB/s 0%
Geekom A8 AMD Ryzen 9 8945HS (AV Pro SD microSD 128 GB V60)	174.57 MB/s
Geekom Mini IT13 Intel Core i9-13900H	154.449 MB/s -12%
Geekom Mini IT12 Intel Core i7-1260P (AV Pro SD microSD 128 GB V60)	129.2 MB/s -26%
Average of class Mini PC (15.1 - 214, n=26, last 2 years)	91.7 MB/s -47%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H (AV Pro SD microSD 128 GB V60)	65 MB/s -63%
maximum AS SSD Seq Read Test (1GB)
Khadas Mind Intel Core i7-1360P (AV Pro SD microSD 128 GB V60)	200.48 MB/s +10%
Geekom A7 AMD Ryzen 9 7940HS (AV Pro SD microSD 128 GB V60)	185.62 MB/s +2%
Geekom A8 AMD Ryzen 9 8945HS (AV Pro SD microSD 128 GB V60)	182.85 MB/s
Geekom A5 AMD Ryzen 7 5800H (AV Pro SD microSD 128 GB V60)	182.5 MB/s 0%
Geekom Mini IT13 Intel Core i9-13900H	180.4 MB/s -1%
Geekom Mini IT12 Intel Core i7-1260P (AV Pro SD microSD 128 GB V60)	176.8 MB/s -3%
Average of class Mini PC (18.2 - 221, n=26, last 2 years)	106.6 MB/s -42%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H (AV Pro SD microSD 128 GB V60)	69.9 MB/s -62%

交流

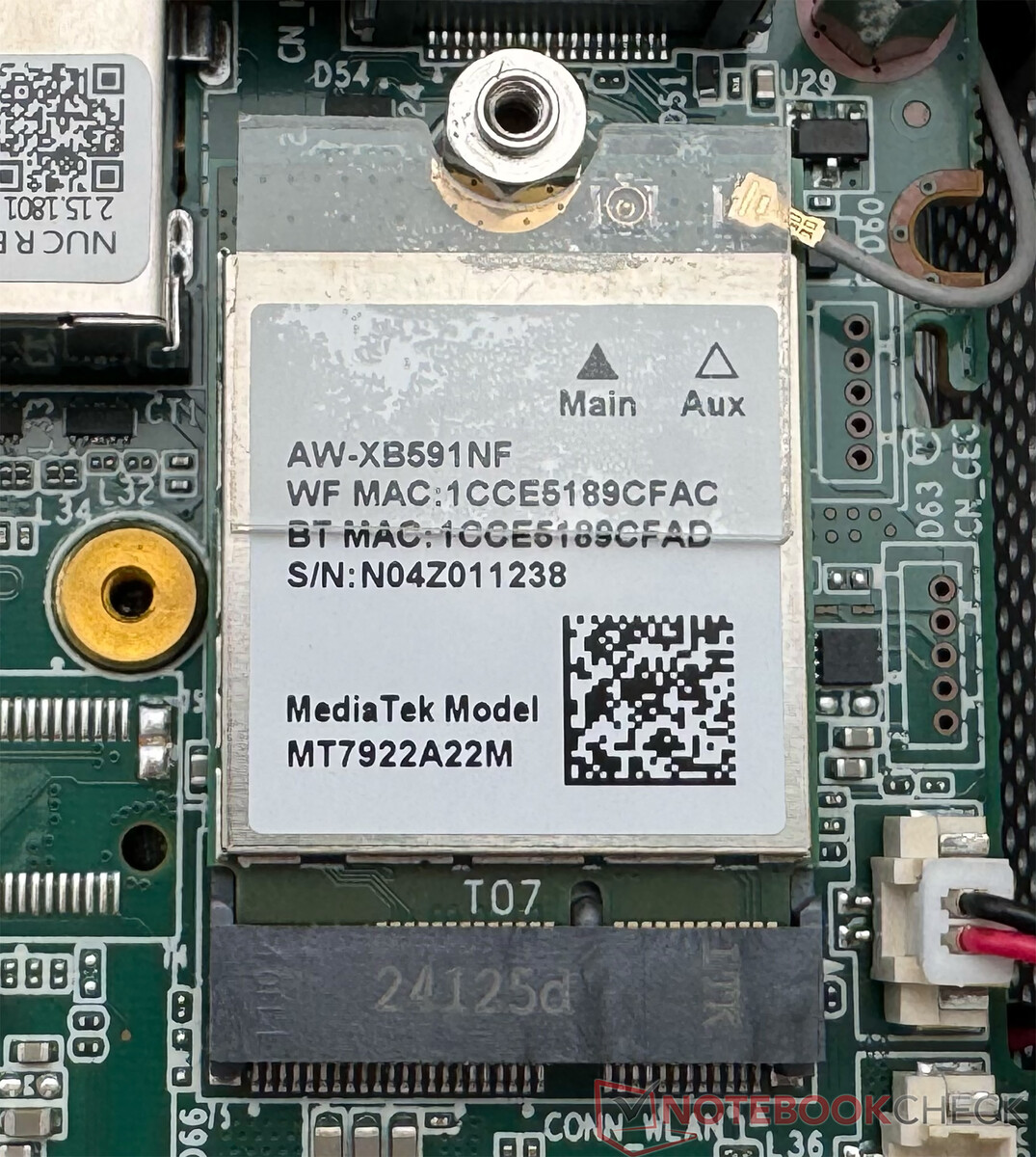

Geekom A8 安装了联发科技 Wi-Fi 6E MT7922 无线局域网模块。在我们的测量中，其性能表现良好，非常适合日常使用。与同类产品相比，我们的测试样品仅在某些方面胜出一筹。无线模块可处理 2.4 GHz、5 GHz 和 6 GHz 频率范围。性能测试使用的是华硕 ROG Rapture GT-AXE11000 路由器。Geekom A8 还安装了一个 RJ45 插座，可用作替代网络连接。传输速率最高可达 2.5 GBit/s。

Networking
iperf3 receive AXE11000 6GHz
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	1770 (1584^min - 1790^max) MBit/s +21%
Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz	1761 (1734^min - 1774^max) MBit/s +21%
Geekom A8 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1458 (1382^min - 1500^max) MBit/s
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (684 - 1771, n=38)	1440 MBit/s -1%
Average of class Mini PC (684 - 1771, n=52, last 2 years)	1385 MBit/s -5%
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1375 (688^min - 1438^max) MBit/s -6%
Geekom XT12 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1152 (576^min - 1273^max) MBit/s -21%
iperf3 transmit AXE11000 6GHz
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	1615 (767^min - 1670^max) MBit/s +19%
Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz	1562 (1198^min - 1713^max) MBit/s +15%
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (394 - 1800, n=37)	1407 MBit/s +4%
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1367 (1268^min - 1443^max) MBit/s +1%
Geekom A8 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1356 (669^min - 1390^max) MBit/s
Average of class Mini PC (394 - 1800, n=52, last 2 years)	1337 MBit/s -1%
Geekom XT12 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1315 (691^min - 1352^max) MBit/s -3%
iperf3 receive AXE11000
Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz	1599 (802^min - 1683^max) MBit/s +45%
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (707 - 1775, n=54)	1407 MBit/s +28%
Geekom A8 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1101 (606^min - 1257^max) MBit/s
Average of class Mini PC (192.9 - 1796, n=112, last 2 years)	933 MBit/s -15%
Geekom XT12 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	892 (460^min - 921^max) MBit/s -19%
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	858 (827^min - 886^max) MBit/s -22%
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	838 (728^min - 926^max) MBit/s -24%
Minisforum Venus Series NAB9 MediaTek MT7921	503 (371^min - 687^max) MBit/s -54%
Acemagic AM18 Realtek RTL8852BE	455 (221^min - 519^max) MBit/s -59%
iperf3 transmit AXE11000
Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz	1566 (904^min - 1695^max) MBit/s +42%
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (358 - 1785, n=54)	1288 MBit/s +17%
Geekom A8 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1105 (489^min - 1222^max) MBit/s
Average of class Mini PC (184.1 - 1776, n=112, last 2 years)	866 MBit/s -22%
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	831 (755^min - 940^max) MBit/s -25%
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	709 (369^min - 977^max) MBit/s -36%
Acemagic AM18 Realtek RTL8852BE	665 (343^min - 743^max) MBit/s -40%
Geekom XT12 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	589 (295^min - 624^max) MBit/s -47%
Minisforum Venus Series NAB9 MediaTek MT7921	531 (255^min - 725^max) MBit/s -52%

Geekom A8 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1334 (669-1390)

Minisforum Venus Series UM790 Pro Intel Killer Wi-Fi 6E AX1675x (210NGW); iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1106 (177-1337)

Geekom A8 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1458 (1382-1500)

Minisforum Venus Series UM790 Pro Intel Killer Wi-Fi 6E AX1675x (210NGW); iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1012 (571-1177)

Geekom A8 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø1080 (606-1257)

Minisforum Venus Series UM790 Pro Intel Killer Wi-Fi 6E AX1675x (210NGW); iperf3 receive AXE11000; iperf 3.1.3: Ø762 (347-841)

Geekom A8 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø1088 (489-1222)

Minisforum Venus Series UM790 Pro Intel Killer Wi-Fi 6E AX1675x (210NGW); iperf3 transmit AXE11000; iperf 3.1.3: Ø768 (738-792)

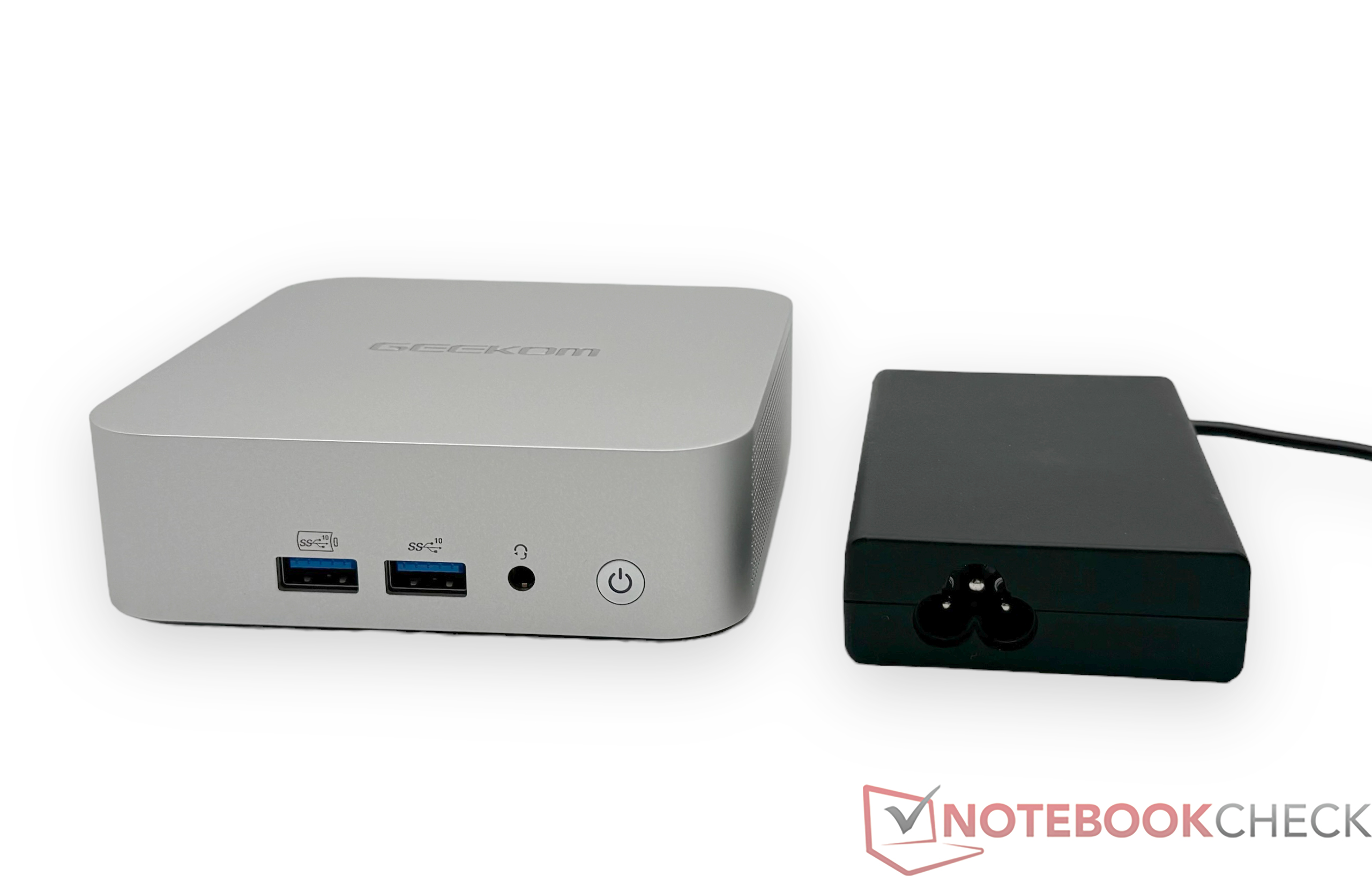

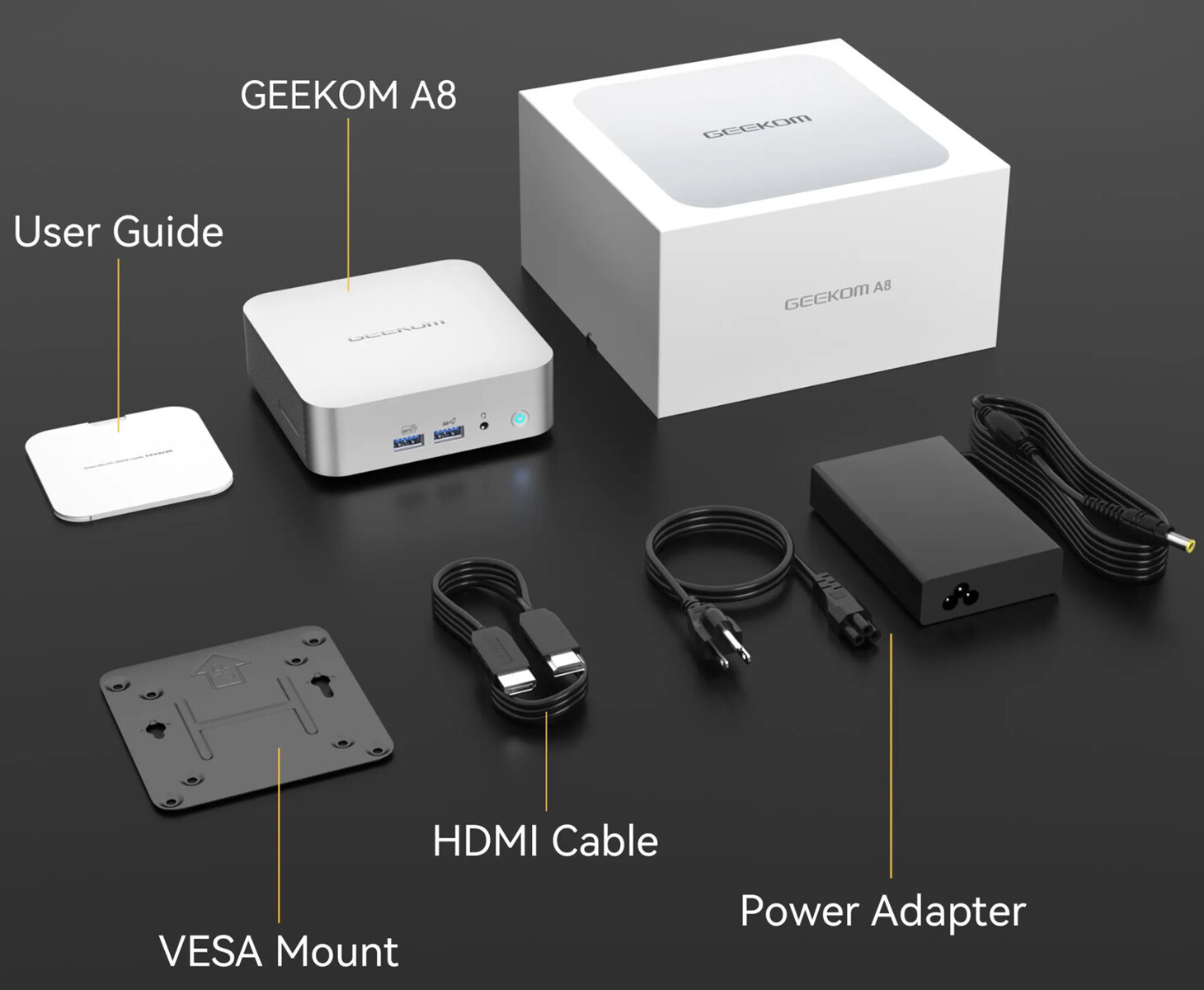

配件

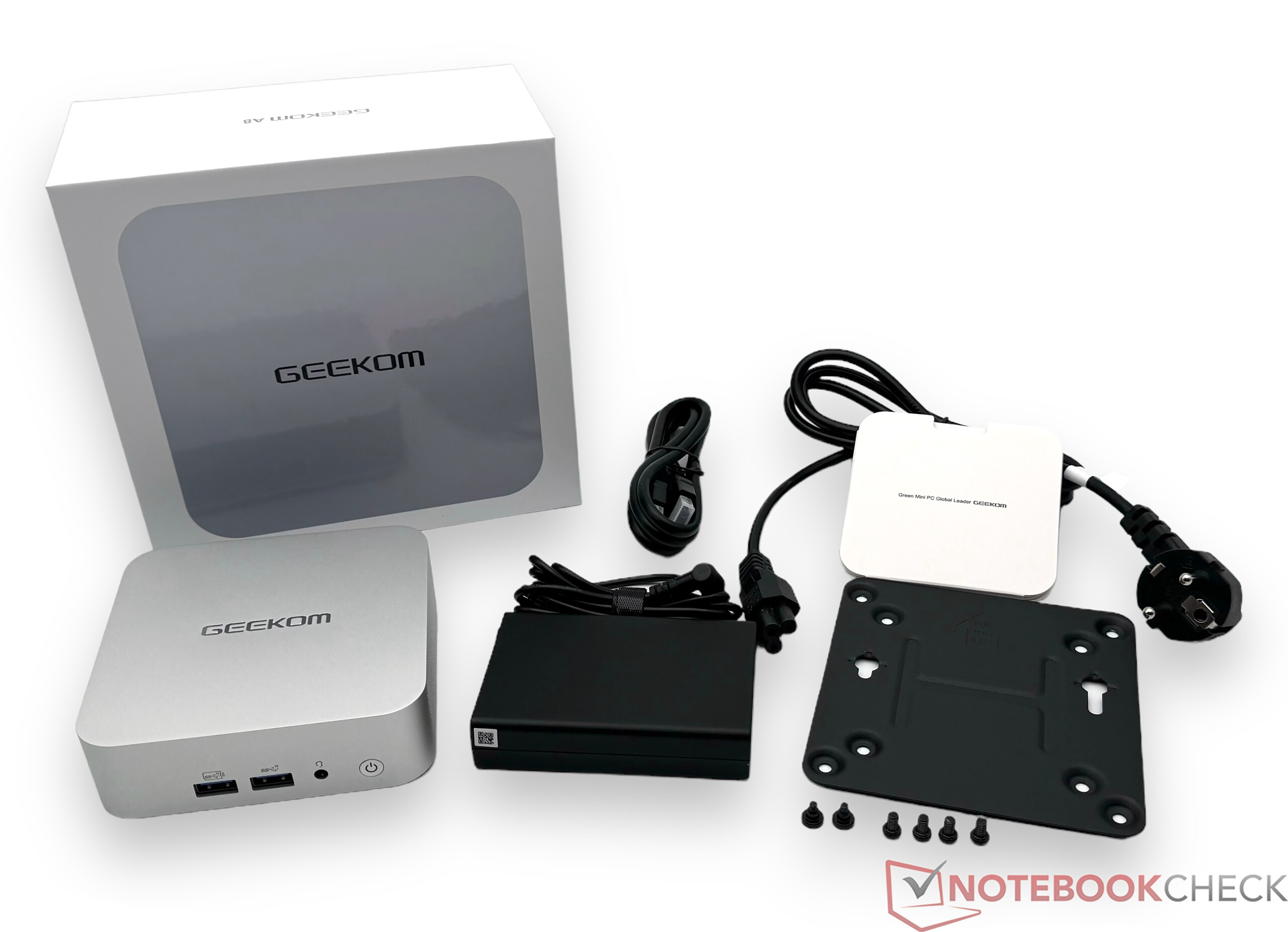

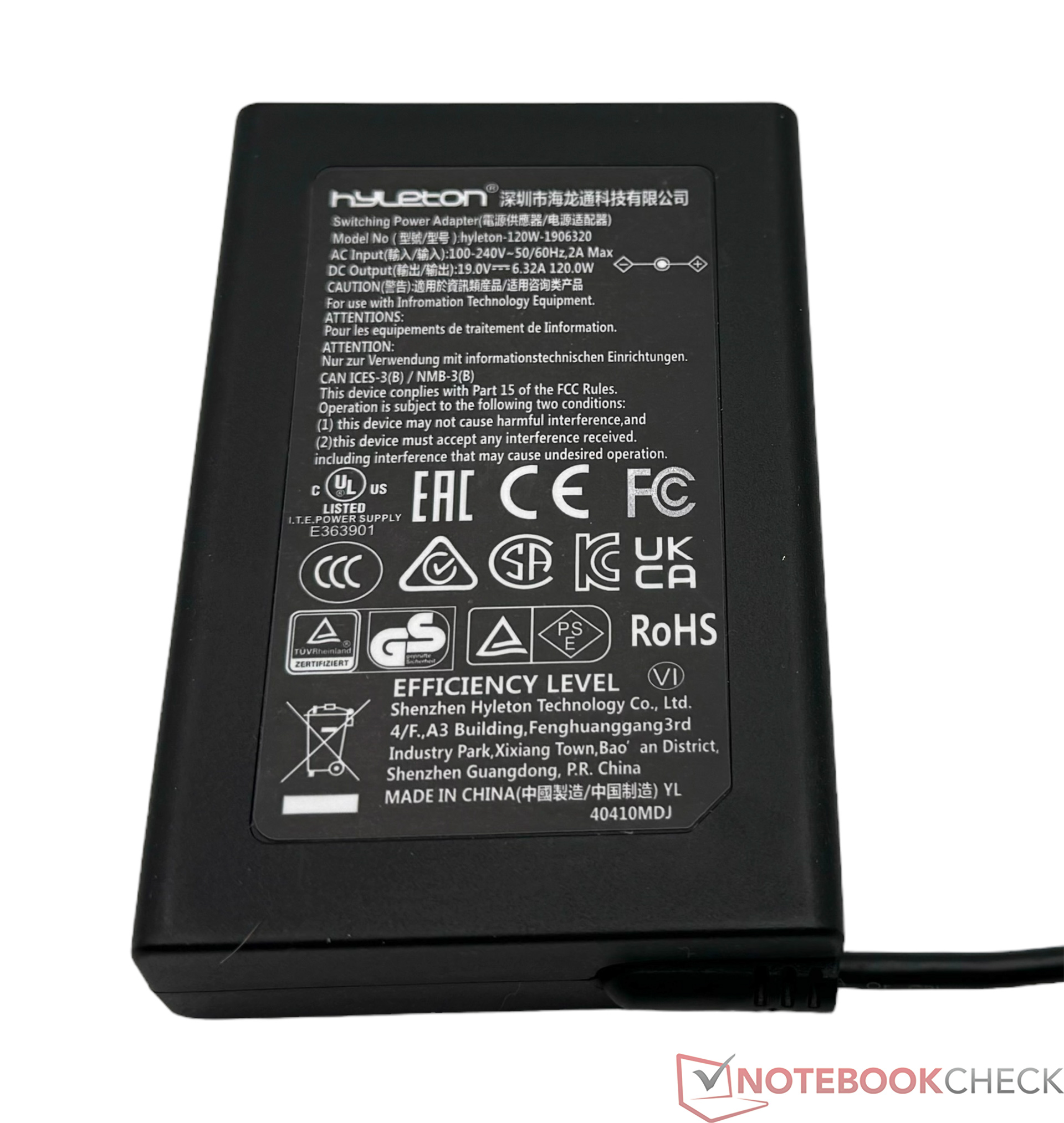

交货范围包括 Geekom A8 和 120 瓦电源装置。包装盒内还包括一根 HDMI 电缆和一个 VESA 安装板。

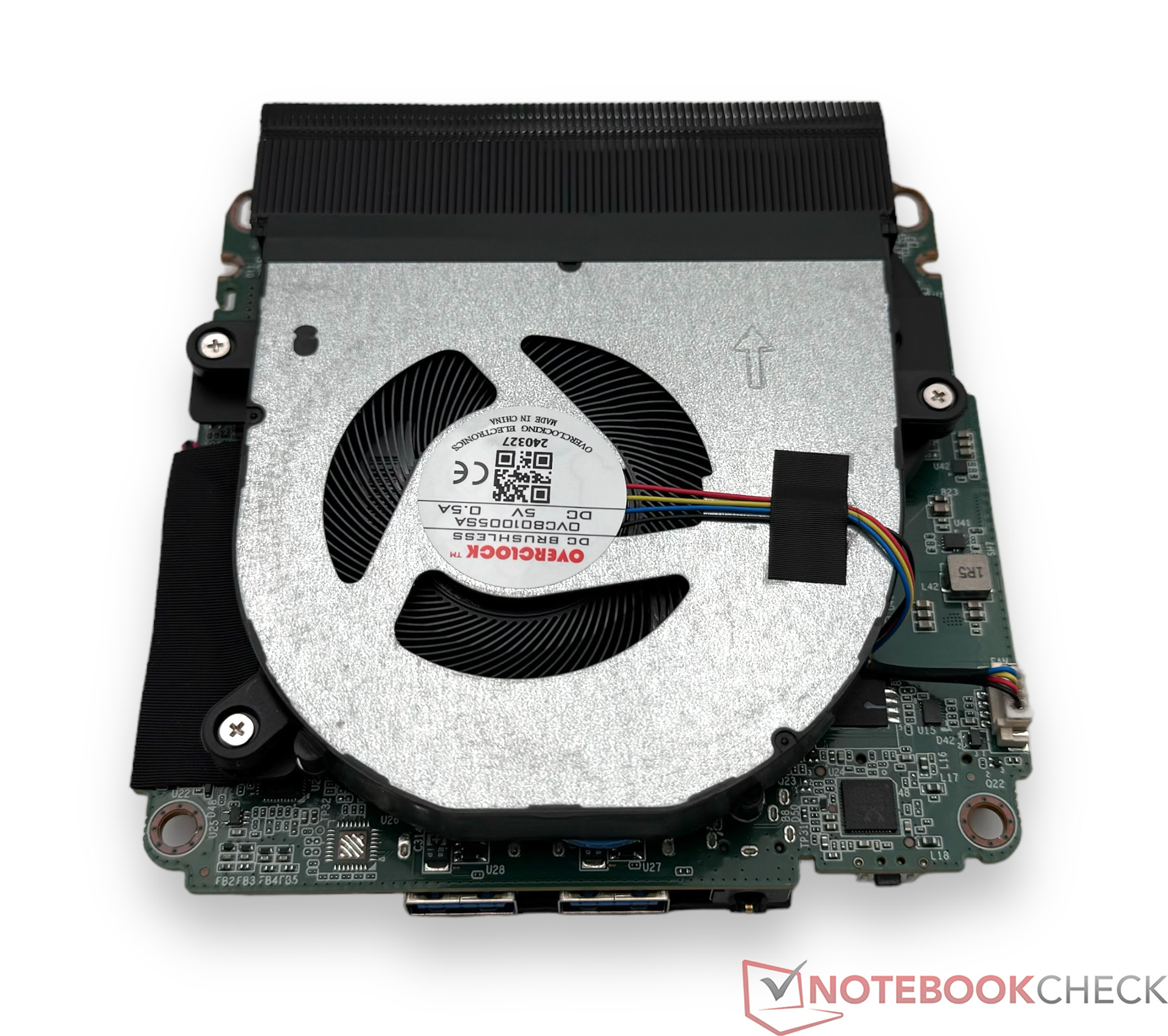

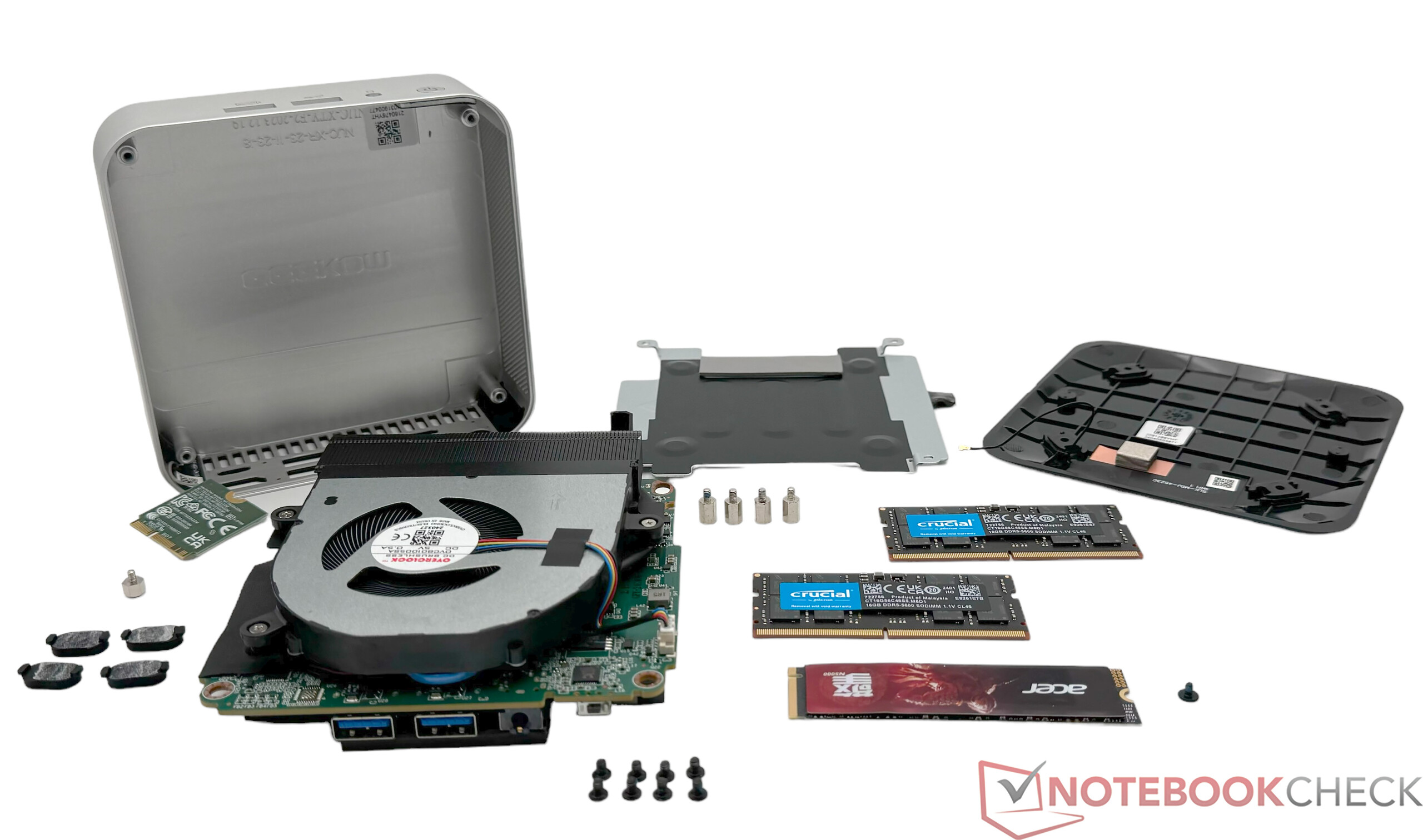

维护

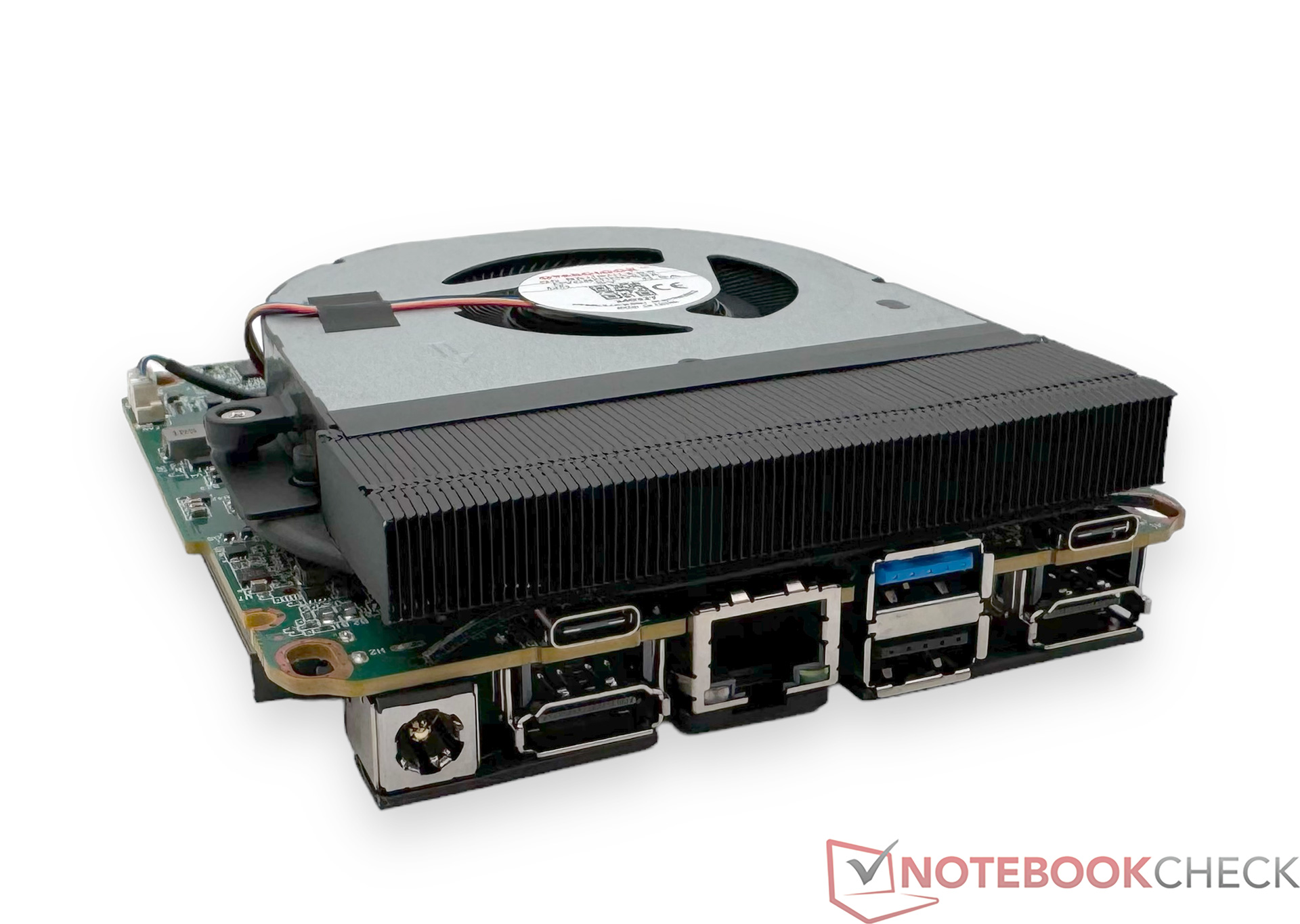

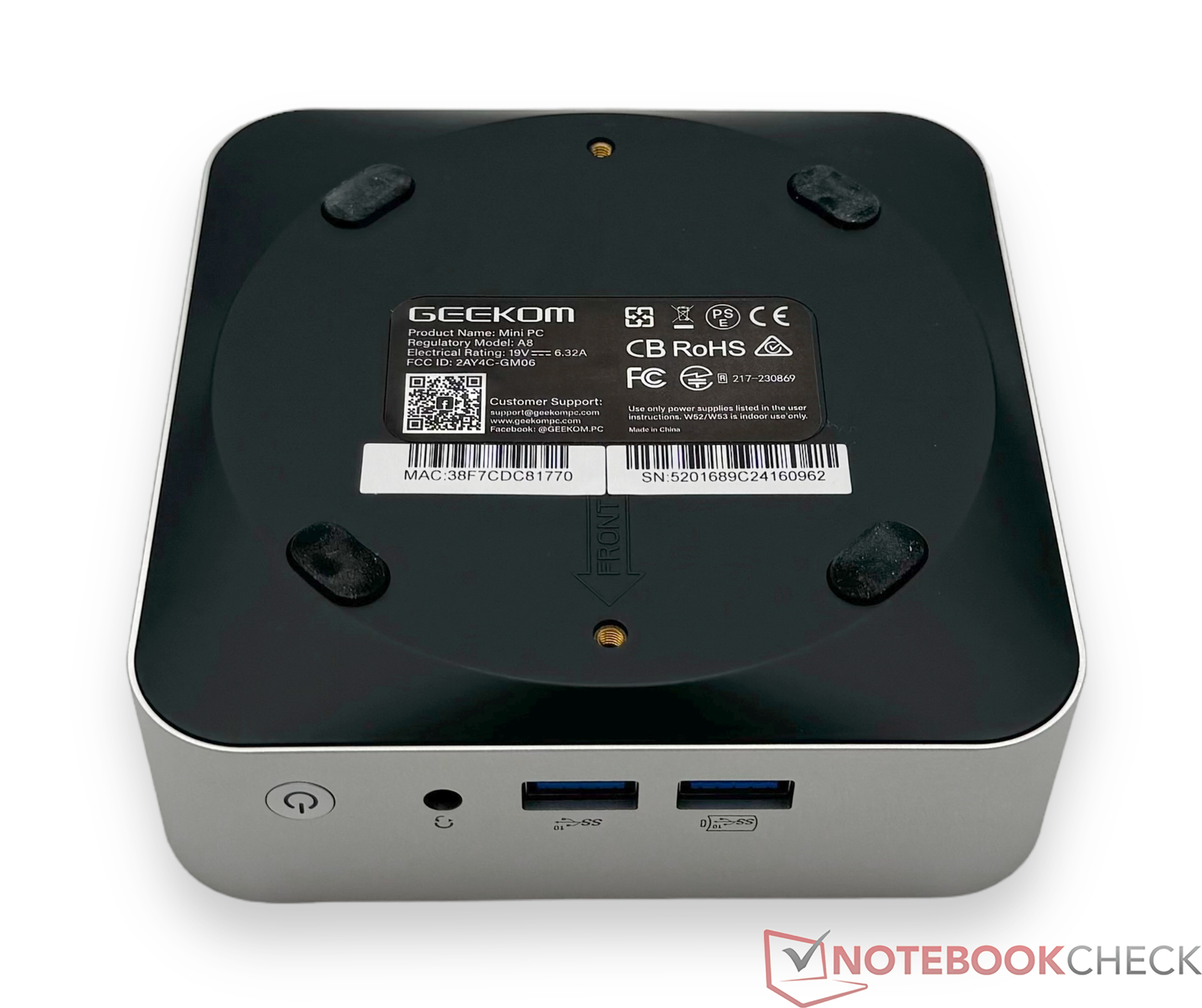

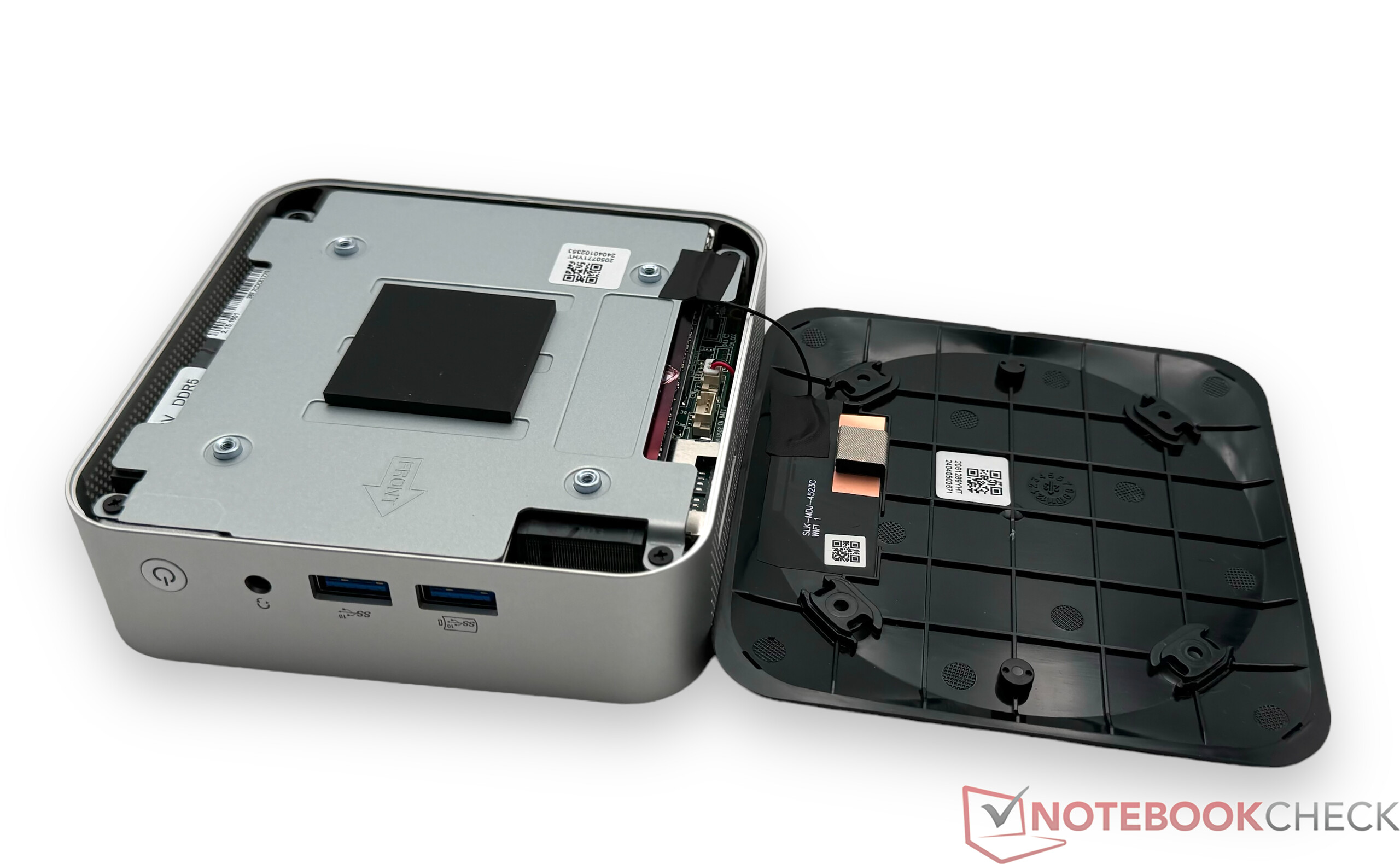

Geekom 出售的 A8 都是预配置的，这意味着你不一定要拆卸设备。不过，必要时可以拆下并更换内存和固态硬盘。要拆开设备，首先需要取下底部粘好的橡胶脚垫。下面有四颗固定螺钉，用于拆卸底板。这里要小心，因为 WLAN 天线电缆的活动空间不大，可能会损坏。底板下面还有一块金属板，如果要访问固态硬盘或内存，也需要取下这块金属板。WLAN 模块也可以更换，并非永久安装。CPU 风扇位于电路板的另一侧，如果不完全拆卸就无法触及。只要稍加操作，就可以从外壳中取出整个装置（电路板和冷却装置）。

性能 - AMD Ryzen 9 8945HS，8 核 16 线程

餈 AMD Ryzen 9 8945HS确保了 Geekom A8 的出色运行速度。从技术上讲，该 SoC 基于 Zen4 架构，拥有 8 个内核和 16 个线程。如果你想购买更便宜的配置，Geekom A8 可以配备 AMD Ryzen 7 8845HS时钟频率略低。

测试条件

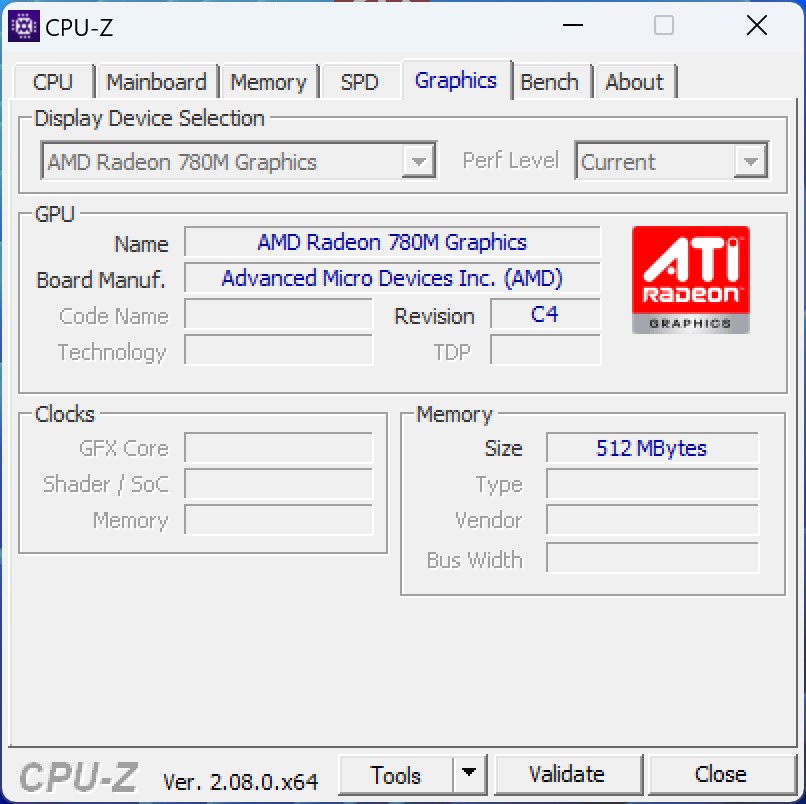

我们使用平衡电源计划进行了所有性能测试。在 BIOS 中没有更改 SoC 的性能和内存分配（512 MB），而是根据制造商的设置保持原样。BIOS 本身不提供任何更改选项。

处理器

AMD Ryzen 9 8945HS 或 AMD Ryzen 7 8845HS（来源：Geekom）

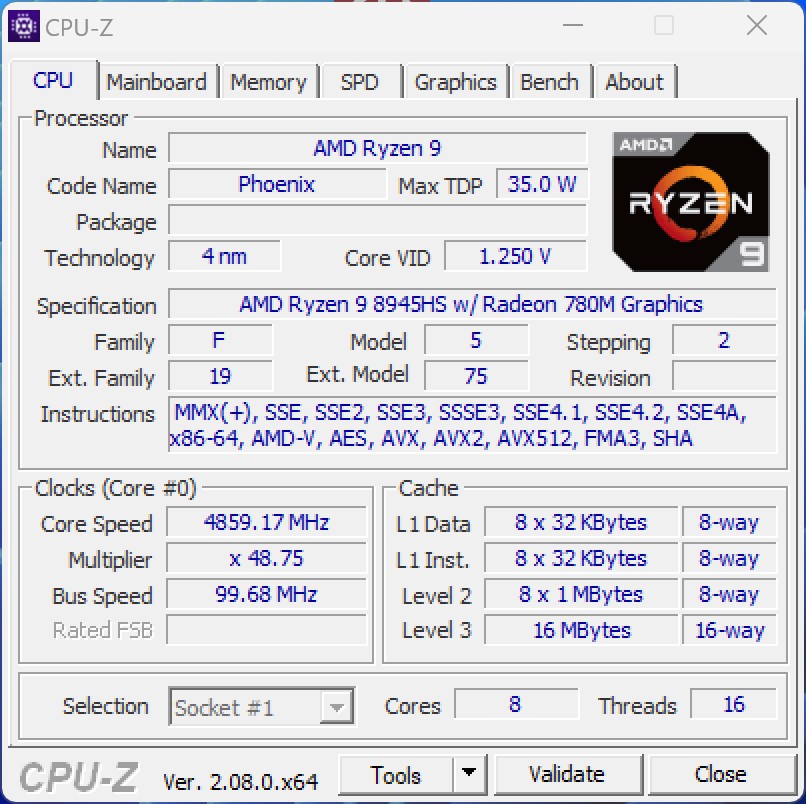

我们的测试样品配备了 AMD Ryzen 9 8945HS.它属于鹰点系列，仍然基于 Zen4 架构。与 7000 系列相比变化不大，这意味着 Geekom A8 在性能方面与 Geekom A7 没有特别大的区别。与最近推出的 Minisforum AtomMan X7 Ti的对决中，Geekom A8 只在某些地方胜出，但在实际使用中，你不会发现明显的差异。

有关进一步的比较和基准测试，请参阅我们的 CPU 对比表.

Performance Rating - Percent
Geekom A8 AMD Ryzen 9 8945HS	58.2 pt
Geekom A7 AMD Ryzen 9 7940HS	57.3 pt
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	56.9 pt
Acemagic AM18 AMD Ryzen 7 7840HS	56.9 pt
Acemagic F2A Intel Core Ultra 7 155H	55.6 pt
Minisforum Venus Series NAB9 Intel Core i9-12900HK	55.5 pt
Geekom XT12 Pro Intel Core i9-12900H	52.1 pt

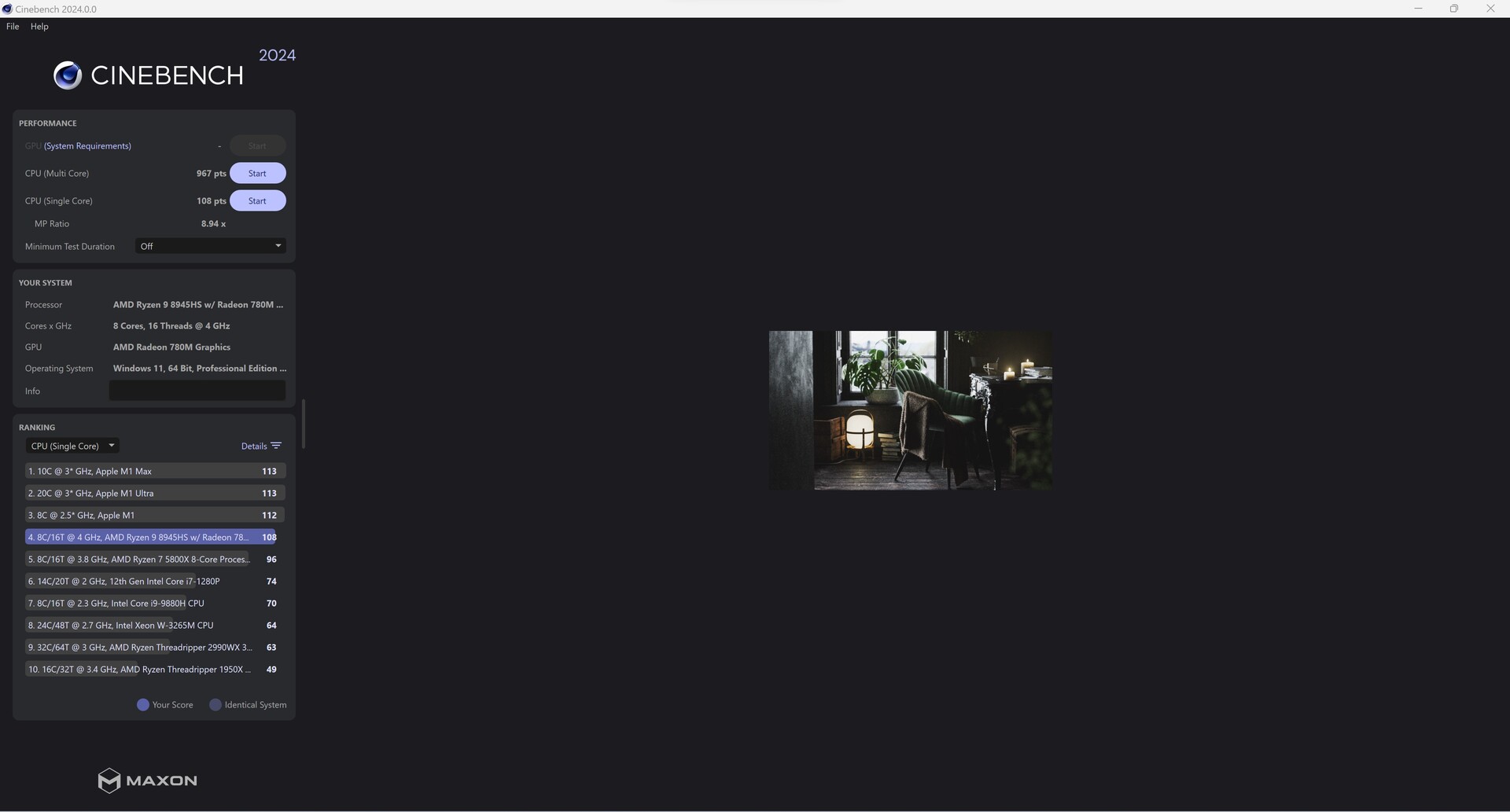

Cinebench 2024
CPU Multi Core
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1067 Points +10%
Acemagic F2A Intel Core Ultra 7 155H	1022 Points +6%
Geekom A8 AMD Ryzen 9 8945HS	967 Points
Acemagic AM18 AMD Ryzen 7 7840HS	923 Points -5%
Geekom A7 AMD Ryzen 9 7940HS	922 Points -5%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	746 Points -23%
Geekom XT12 Pro Intel Core i9-12900H	578 Points -40%
CPU Single Core
Minisforum Venus Series NAB9 Intel Core i9-12900HK	114 Points +6%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	110 Points +2%
Geekom A7 AMD Ryzen 9 7940HS	108 Points 0%
Geekom XT12 Pro Intel Core i9-12900H	108 Points 0%
Geekom A8 AMD Ryzen 9 8945HS	108 Points
Acemagic F2A Intel Core Ultra 7 155H	106 Points -2%
Acemagic AM18 AMD Ryzen 7 7840HS	104 Points -4%

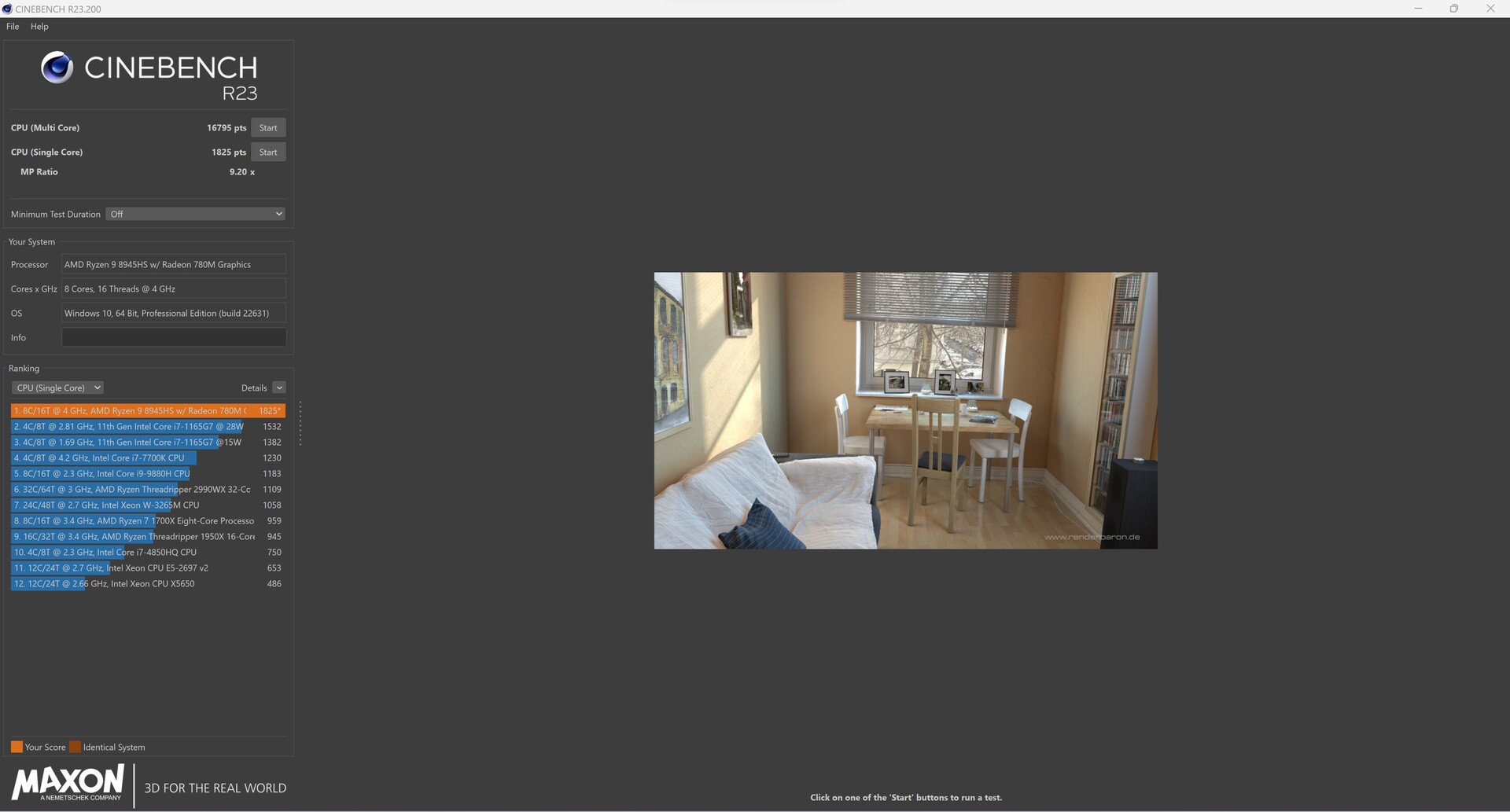

Cinebench R23
Multi Core
Acemagic F2A Intel Core Ultra 7 155H	18497 Points +10%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	18016 Points +7%
Geekom A8 AMD Ryzen 9 8945HS	16795 Points
Acemagic AM18 AMD Ryzen 7 7840HS	15979 Points -5%
Geekom A7 AMD Ryzen 9 7940HS	15556 Points -7%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	14659 Points -13%
Geekom XT12 Pro Intel Core i9-12900H	11036 Points -34%
Single Core
Minisforum Venus Series NAB9 Intel Core i9-12900HK	1901 Points +4%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1851 Points +1%
Geekom A8 AMD Ryzen 9 8945HS	1825 Points
Geekom XT12 Pro Intel Core i9-12900H	1824 Points 0%
Acemagic F2A Intel Core Ultra 7 155H	1771 Points -3%
Geekom A7 AMD Ryzen 9 7940HS	1747 Points -4%
Acemagic AM18 AMD Ryzen 7 7840HS	1737 Points -5%

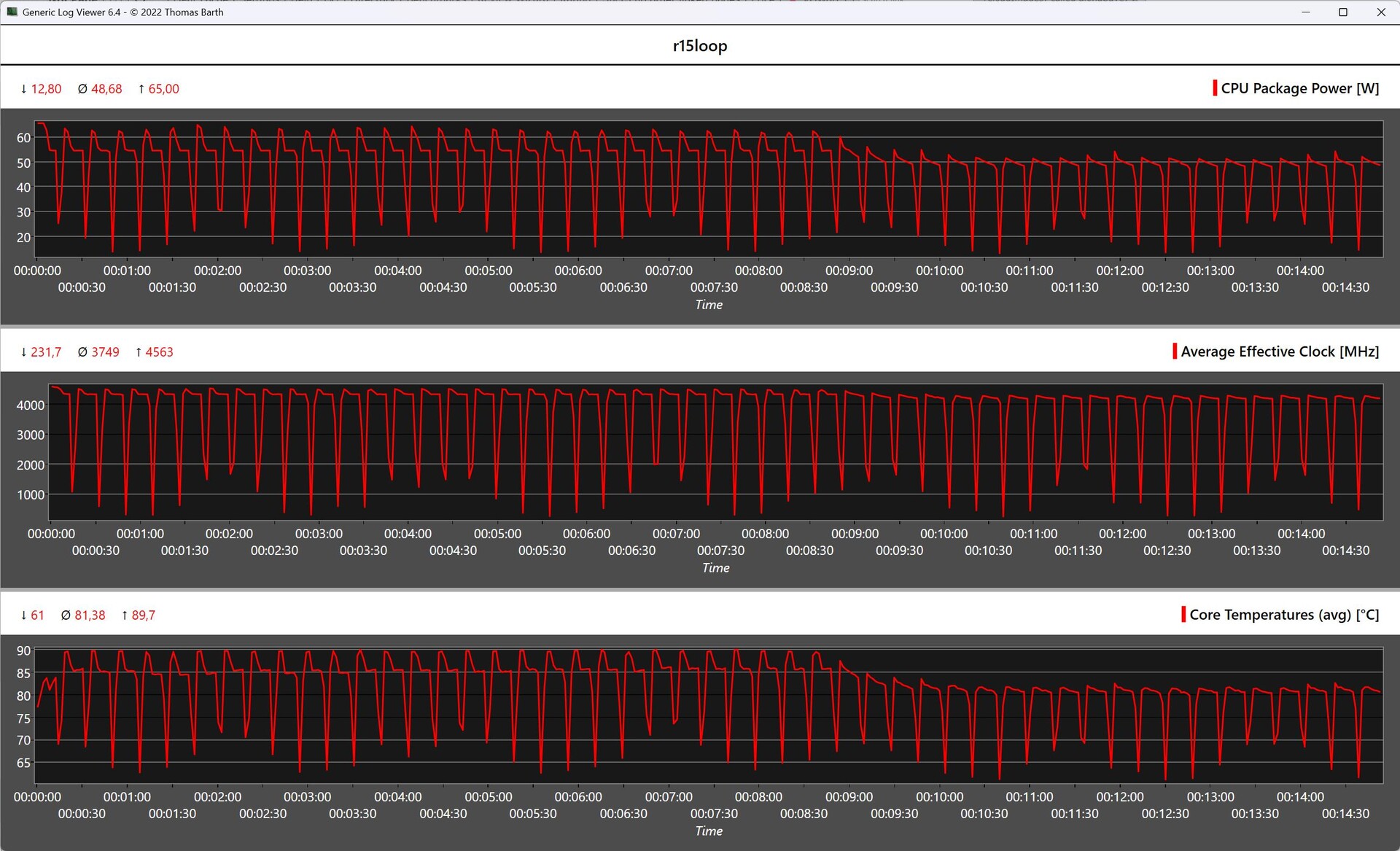

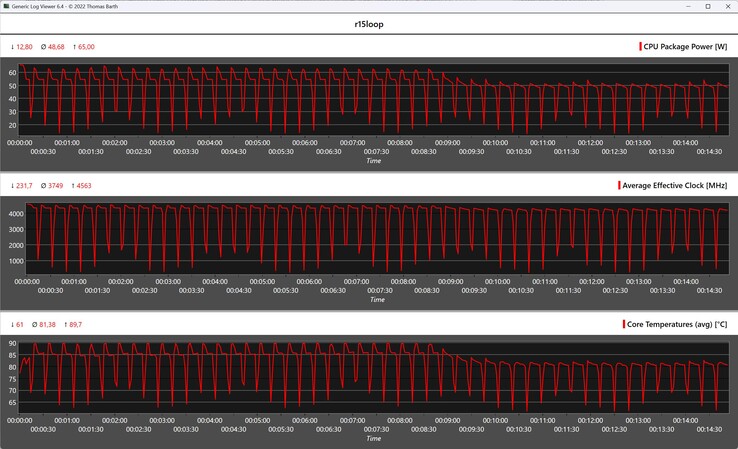

Cinebench R15
CPU Single 64Bit
Geekom A8 AMD Ryzen 9 8945HS	287 Points
Geekom A7 AMD Ryzen 9 7940HS	278 Points -3%
Acemagic AM18 AMD Ryzen 7 7840HS	274 Points -5%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	270 Points -6%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	268 Points -7%
Acemagic F2A Intel Core Ultra 7 155H	258 Points -10%
Geekom XT12 Pro Intel Core i9-12900H	251 Points -13%
CPU Multi 64Bit
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	2746 Points +4%
Acemagic F2A Intel Core Ultra 7 155H	2738 Points +4%
Geekom A8 AMD Ryzen 9 8945HS	2640 Points
Acemagic AM18 AMD Ryzen 7 7840HS	2505 Points -5%
Geekom A7 AMD Ryzen 9 7940HS	2470 Points -6%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	2249 Points -15%
Geekom XT12 Pro Intel Core i9-12900H	2121 Points -20%

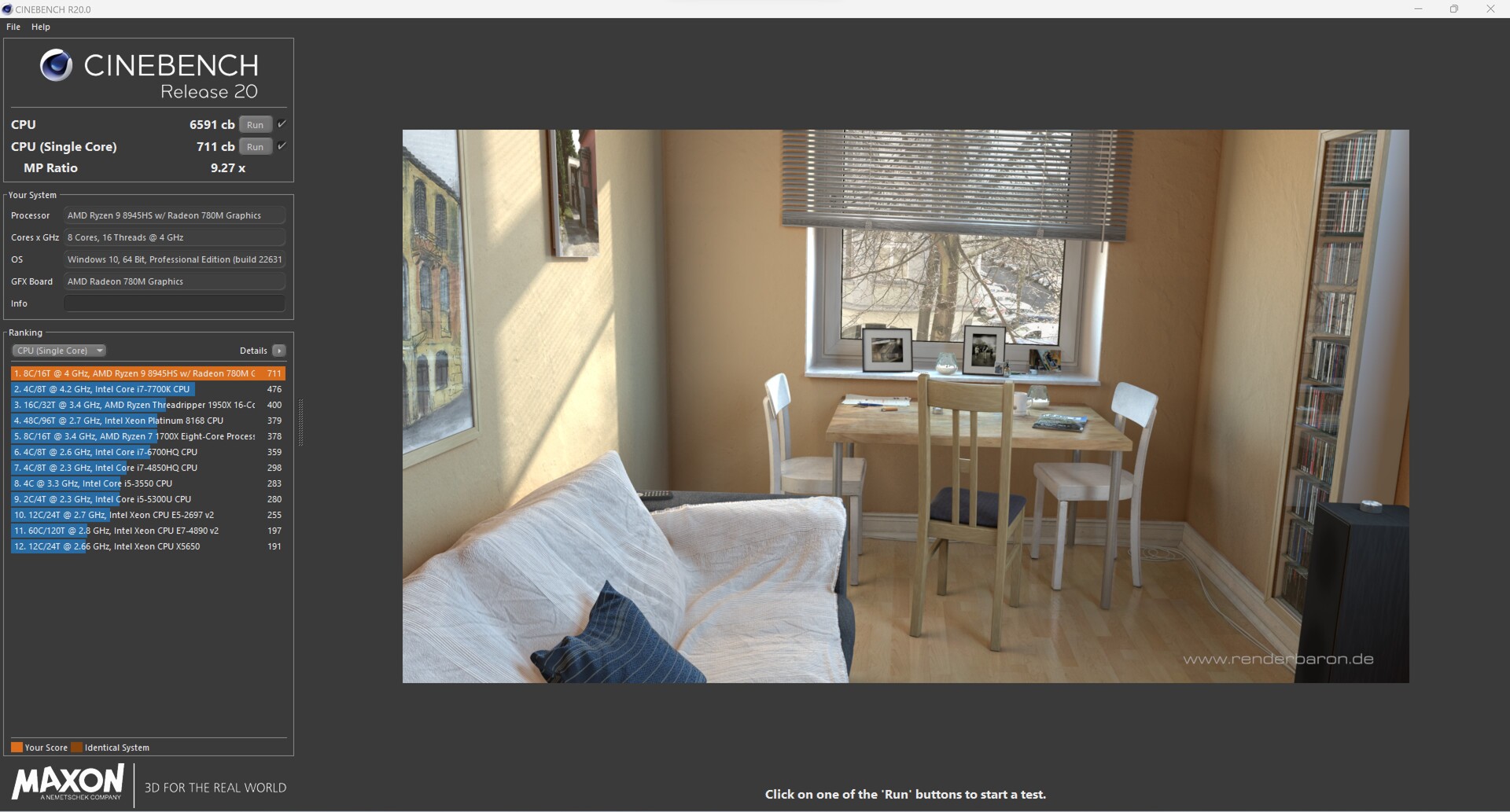

Cinebench R20
CPU (Single Core)
Minisforum Venus Series NAB9 Intel Core i9-12900HK	734 Points +3%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	715 Points +1%
Geekom A8 AMD Ryzen 9 8945HS	711 Points
Geekom XT12 Pro Intel Core i9-12900H	701 Points -1%
Geekom A7 AMD Ryzen 9 7940HS	692 Points -3%
Acemagic F2A Intel Core Ultra 7 155H	679 Points -5%
Acemagic AM18 AMD Ryzen 7 7840HS	673 Points -5%
CPU (Multi Core)
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	7196 Points +9%
Acemagic F2A Intel Core Ultra 7 155H	7188 Points +9%
Geekom A8 AMD Ryzen 9 8945HS	6591 Points
Geekom A7 AMD Ryzen 9 7940HS	6277 Points -5%
Acemagic AM18 AMD Ryzen 7 7840HS	6250 Points -5%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	5691 Points -14%
Geekom XT12 Pro Intel Core i9-12900H	4294 Points -35%

Cinebench R11.5
CPU Single 64Bit
Geekom A8 AMD Ryzen 9 8945HS	3.45 Points
Geekom A7 AMD Ryzen 9 7940HS	3.34 Points -3%
Acemagic AM18 AMD Ryzen 7 7840HS	3.29 Points -5%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	3.27 Points -5%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	3.26 Points -6%
Acemagic F2A Intel Core Ultra 7 155H	3.13 Points -9%
Geekom XT12 Pro Intel Core i9-12900H	2.99 Points -13%
CPU Multi 64Bit
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	33.95 Points +8%
Acemagic F2A Intel Core Ultra 7 155H	33.49 Points +7%
Geekom A8 AMD Ryzen 9 8945HS	31.31 Points
Geekom A7 AMD Ryzen 9 7940HS	29.8 Points -5%
Acemagic AM18 AMD Ryzen 7 7840HS	29.7 Points -5%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	27.25 Points -13%
Geekom XT12 Pro Intel Core i9-12900H	21.11 Points -33%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum Venus Series NAB9 Intel Core i9-12900HK	15303 Points +5%
Geekom A8 AMD Ryzen 9 8945HS	14561 Points
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	14374 Points -1%
Geekom A7 AMD Ryzen 9 7940HS	14300 Points -2%
Acemagic AM18 AMD Ryzen 7 7840HS	14015 Points -4%
Acemagic F2A Intel Core Ultra 7 155H	13938 Points -4%
Geekom XT12 Pro Intel Core i9-12900H	13378 Points -8%
Rendering Multiple CPUs 64Bit
Acemagic F2A Intel Core Ultra 7 155H	95005 Points +5%
Geekom A8 AMD Ryzen 9 8945HS	90144 Points
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	88902 Points -1%
Geekom A7 AMD Ryzen 9 7940HS	84721 Points -6%
Acemagic AM18 AMD Ryzen 7 7840HS	83726 Points -7%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	75947 Points -16%
Geekom XT12 Pro Intel Core i9-12900H	69621 Points -23%

Blender - v2.79 BMW27 CPU
Geekom XT12 Pro Intel Core i9-12900H	296 Seconds * -51%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	234 Seconds * -19%
Geekom A7 AMD Ryzen 9 7940HS	202 Seconds * -3%
Acemagic AM18 AMD Ryzen 7 7840HS	202 Seconds * -3%
Geekom A8 AMD Ryzen 9 8945HS	196 Seconds *
Acemagic F2A Intel Core Ultra 7 155H	178 Seconds * +9%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	171 Seconds * +13%

wPrime 2.10
32m
Geekom XT12 Pro Intel Core i9-12900H	4.111 s * -60%
Acemagic F2A Intel Core Ultra 7 155H	3.523 s * -37%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	3.454 s * -35%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	3.254 s * -27%
Acemagic AM18 AMD Ryzen 7 7840HS	2.658 s * -4%
Geekom A7 AMD Ryzen 9 7940HS	2.648 s * -3%
Geekom A8 AMD Ryzen 9 8945HS	2.563 s *
1024m
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	441.275 s * -550%
Geekom XT12 Pro Intel Core i9-12900H	202.68 s * -198%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	186.394 s * -174%
Acemagic F2A Intel Core Ultra 7 155H	139.617 s * -106%
Geekom A7 AMD Ryzen 9 7940HS	98.222 s * -45%
Acemagic AM18 AMD Ryzen 7 7840HS	71.922 s * -6%
Geekom A8 AMD Ryzen 9 8945HS	67.933 s *

X264 HD Benchmark 4.0
Pass 1
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	335.5 (329^min - 340^max) fps +13%
Acemagic F2A Intel Core Ultra 7 155H	325 (323^min - 328^max) fps +9%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	317.5 (292^min - 319^max) fps +7%
Geekom A8 AMD Ryzen 9 8945HS	298 (297^min - 305^max) fps
Geekom A7 AMD Ryzen 9 7940HS	292.5 (291^min - 296^max) fps -2%
Acemagic AM18 AMD Ryzen 7 7840HS	281.5 (277^min - 286^max) fps -6%
Geekom XT12 Pro Intel Core i9-12900H	262 (259^min - 282^max) fps -12%
Pass 2
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	158.2 (157.4^min - 158.8^max) fps +5%
Acemagic F2A Intel Core Ultra 7 155H	154.15 (153.8^min - 154.3^max) fps +2%
Geekom A8 AMD Ryzen 9 8945HS	150.65 (150.4^min - 154.2^max) fps
Acemagic AM18 AMD Ryzen 7 7840HS	144.1 (143.9^min - 145.6^max) fps -4%
Geekom A7 AMD Ryzen 9 7940HS	140.8 (138.2^min - 144.7^max) fps -7%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	125.05 (112.4^min - 132^max) fps -17%
Geekom XT12 Pro Intel Core i9-12900H	92.2 (91^min - 114.5^max) fps -39%

WinRAR - Result
Minisforum Venus Series NAB9 Intel Core i9-12900HK	8735 KB/s +11%
Geekom XT12 Pro Intel Core i9-12900H	7945 KB/s +1%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	7940 KB/s +1%
Geekom A8 AMD Ryzen 9 8945HS	7843 KB/s
Acemagic F2A Intel Core Ultra 7 155H	7723 KB/s -2%
Geekom A7 AMD Ryzen 9 7940HS	7490 KB/s -5%
Acemagic AM18 AMD Ryzen 7 7840HS	6428 KB/s -18%

TrueCrypt
AES Mean 100MB
Geekom A8 AMD Ryzen 9 8945HS	15.4 GB/s
Geekom A7 AMD Ryzen 9 7940HS	15.1 GB/s -2%
Acemagic AM18 AMD Ryzen 7 7840HS	14.7 GB/s -5%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	13 GB/s -16%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	11.3 GB/s -27%
Geekom XT12 Pro Intel Core i9-12900H	11.2 GB/s -27%
Acemagic F2A Intel Core Ultra 7 155H	10.6 GB/s -31%
Twofish Mean 100MB
Minisforum Venus Series NAB9 Intel Core i9-12900HK	2.2 GB/s +10%
Geekom A7 AMD Ryzen 9 7940HS	2.1 GB/s +5%
Acemagic AM18 AMD Ryzen 7 7840HS	2.1 GB/s +5%
Geekom A8 AMD Ryzen 9 8945HS	2 GB/s
Geekom XT12 Pro Intel Core i9-12900H	1.9 GB/s -5%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1.8 GB/s -10%
Acemagic F2A Intel Core Ultra 7 155H	1.7 GB/s -15%
Serpent Mean 100MB
Geekom A8 AMD Ryzen 9 8945HS	1.4 GB/s
Geekom A7 AMD Ryzen 9 7940HS	1.3 GB/s -7%
Acemagic AM18 AMD Ryzen 7 7840HS	1.3 GB/s -7%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	1.2 GB/s -14%
Geekom XT12 Pro Intel Core i9-12900H	1.1 GB/s -21%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1.1 GB/s -21%
Acemagic F2A Intel Core Ultra 7 155H	1 GB/s -29%

Geekbench 5.5
Multi-Core
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	13392 Points +7%
Acemagic F2A Intel Core Ultra 7 155H	12662 Points +1%
Geekom A8 AMD Ryzen 9 8945HS	12481 Points
Geekom A7 AMD Ryzen 9 7940HS	12261 Points -2%
Acemagic AM18 AMD Ryzen 7 7840HS	12049 Points -3%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	10378 Points -17%
Geekom XT12 Pro Intel Core i9-12900H	10028 Points -20%
Single-Core
Geekom A7 AMD Ryzen 9 7940HS	2008 Points +1%
Geekom A8 AMD Ryzen 9 8945HS	1996 Points
Acemagic AM18 AMD Ryzen 7 7840HS	1946 Points -3%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	1866 Points -7%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1856 Points -7%
Geekom XT12 Pro Intel Core i9-12900H	1790 Points -10%
Acemagic F2A Intel Core Ultra 7 155H	1746 Points -13%

Geekbench 5.0
5.0 Multi-Core
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	13228 Points +7%
Acemagic F2A Intel Core Ultra 7 155H	12438 Points 0%
Geekom A8 AMD Ryzen 9 8945HS	12386 Points
Geekom A7 AMD Ryzen 9 7940HS	12127 Points -2%
Acemagic AM18 AMD Ryzen 7 7840HS	12019 Points -3%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	10276 Points -17%
Geekom XT12 Pro Intel Core i9-12900H	9892 Points -20%
5.0 Single-Core
Geekom A7 AMD Ryzen 9 7940HS	1918 Points +1%
Geekom A8 AMD Ryzen 9 8945HS	1906 Points
Acemagic AM18 AMD Ryzen 7 7840HS	1870 Points -2%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1821 Points -4%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	1795 Points -6%
Geekom XT12 Pro Intel Core i9-12900H	1710 Points -10%
Acemagic F2A Intel Core Ultra 7 155H	1708 Points -10%

Geekbench 4.4
64 Bit Single-Core Score
Geekom A7 AMD Ryzen 9 7940HS	8253 Points +1%
Geekom A8 AMD Ryzen 9 8945HS	8178 Points
Minisforum Venus Series NAB9 Intel Core i9-12900HK	7932 Points -3%
Acemagic AM18 AMD Ryzen 7 7840HS	7924 Points -3%
Geekom XT12 Pro Intel Core i9-12900H	7635 Points -7%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	7602 Points -7%
Acemagic F2A Intel Core Ultra 7 155H	6927 Points -15%
64 Bit Multi-Core Score
Geekom A8 AMD Ryzen 9 8945HS	49269 Points
Geekom A7 AMD Ryzen 9 7940HS	48723 Points -1%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	47960 Points -3%
Acemagic AM18 AMD Ryzen 7 7840HS	47599 Points -3%
Acemagic F2A Intel Core Ultra 7 155H	45250 Points -8%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	39510 Points -20%
Geekom XT12 Pro Intel Core i9-12900H	37359 Points -24%

3DMark 11 - 1280x720 Performance Physics
Geekom A8 AMD Ryzen 9 8945HS	22978 Points
Acemagic AM18 AMD Ryzen 7 7840HS	22786 Points -1%
Geekom A7 AMD Ryzen 9 7940HS	22600 Points -2%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	21875 Points -5%
Acemagic F2A Intel Core Ultra 7 155H	20846 Points -9%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	18553 Points -19%
Geekom XT12 Pro Intel Core i9-12900H	16634 Points -28%

7-Zip 18.03
7z b 4
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	71934 MIPS 0%
Geekom A8 AMD Ryzen 9 8945HS	71874 MIPS
Acemagic AM18 AMD Ryzen 7 7840HS	70723 MIPS -2%
Geekom A7 AMD Ryzen 9 7940HS	70707 MIPS -2%
Acemagic F2A Intel Core Ultra 7 155H	66438 MIPS -8%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	55620 MIPS -23%
Geekom XT12 Pro Intel Core i9-12900H	47146 MIPS -34%
7z b 4 -mmt1
Geekom A7 AMD Ryzen 9 7940HS	6744 MIPS +1%
Geekom A8 AMD Ryzen 9 8945HS	6668 MIPS
Acemagic AM18 AMD Ryzen 7 7840HS	6545 MIPS -2%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	6136 MIPS -8%
Geekom XT12 Pro Intel Core i9-12900H	5881 MIPS -12%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	5560 MIPS -17%
Acemagic F2A Intel Core Ultra 7 155H	5485 MIPS -18%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	20.9 fps 0%
Geekom A8 AMD Ryzen 9 8945HS	20.9 fps
Geekom A7 AMD Ryzen 9 7940HS	20.6 fps -1%
Acemagic AM18 AMD Ryzen 7 7840HS	20.5 fps -2%
Acemagic F2A Intel Core Ultra 7 155H	19.6 fps -6%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	16.2 fps -22%
Geekom XT12 Pro Intel Core i9-12900H	12.3 fps -41%

R Benchmark 2.5 - Overall mean
Acemagic F2A Intel Core Ultra 7 155H	0.4652 sec * -7%
Geekom XT12 Pro Intel Core i9-12900H	0.4632 sec * -7%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	0.4627 sec * -6%
Acemagic AM18 AMD Ryzen 7 7840HS	0.4398 sec * -1%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	0.4391 sec * -1%
Geekom A7 AMD Ryzen 9 7940HS	0.4351 sec * -0%
Geekom A8 AMD Ryzen 9 8945HS	0.4346 sec *

LibreOffice - 20 Documents To PDF
Geekom A7 AMD Ryzen 9 7940HS	54.8 s * -10%
Geekom A8 AMD Ryzen 9 8945HS	49.9 s *
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	49.5 s * +1%
Acemagic AM18 AMD Ryzen 7 7840HS	47.7 s * +4%
Acemagic F2A Intel Core Ultra 7 155H	44.5 s * +11%
Geekom XT12 Pro Intel Core i9-12900H	39.6 s * +21%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	37.2 s * +25%

WebXPRT 3 - Overall
Geekom A7 AMD Ryzen 9 7940HS	333 Points +5%
Acemagic AM18 AMD Ryzen 7 7840HS	320 Points +1%
Geekom A8 AMD Ryzen 9 8945HS	316 Points
Minisforum Venus Series NAB9 Intel Core i9-12900HK	301 Points -5%
Geekom XT12 Pro Intel Core i9-12900H	291 Points -8%
Acemagic F2A Intel Core Ultra 7 155H	276 Points -13%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	264 Points -16%

Mozilla Kraken 1.1 - Total
Acemagic F2A Intel Core Ultra 7 155H	535 ms * -6%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	532 ms * -5%
Acemagic AM18 AMD Ryzen 7 7840HS	518 ms * -3%
Geekom XT12 Pro Intel Core i9-12900H	511 ms * -1%
Geekom A8 AMD Ryzen 9 8945HS	505 ms *
Geekom A7 AMD Ryzen 9 7940HS	503 ms * -0%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	499 ms * +1%

3DMark
1920x1080 Fire Strike Physics
Geekom A8 AMD Ryzen 9 8945HS	27732 Points
Acemagic AM18 AMD Ryzen 7 7840HS	27120 Points -2%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	26093 Points -6%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	26038 Points -6%
Geekom A7 AMD Ryzen 9 7940HS	25816 Points -7%
Acemagic F2A Intel Core Ultra 7 155H	25043 Points -10%
Geekom XT12 Pro Intel Core i9-12900H	22242 Points -20%
2560x1440 Time Spy CPU
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	11481 Points +2%
Geekom A8 AMD Ryzen 9 8945HS	11298 Points
Acemagic AM18 AMD Ryzen 7 7840HS	10926 Points -3%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	10402 Points -8%
Geekom A7 AMD Ryzen 9 7940HS	10397 Points -8%
Acemagic F2A Intel Core Ultra 7 155H	10014 Points -11%
Geekom XT12 Pro Intel Core i9-12900H	7985 Points -29%

Super Pi mod 1.5 XS 1M - 1M
Geekom XT12 Pro Intel Core i9-12900H	7.454 s * -6%
Geekom A7 AMD Ryzen 9 7940HS	7.442 s * -6%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	7.281 s * -3%
Acemagic F2A Intel Core Ultra 7 155H	7.168 s * -2%
Acemagic AM18 AMD Ryzen 7 7840HS	7.112 s * -1%
Geekom A8 AMD Ryzen 9 8945HS	7.045 s *
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	6.751 s * +4%

Super Pi mod 1.5 XS 2M - 2M
Geekom A7 AMD Ryzen 9 7940HS	18.402 s * -5%
Acemagic AM18 AMD Ryzen 7 7840HS	17.697 s * -1%
Geekom A8 AMD Ryzen 9 8945HS	17.549 s *
Minisforum Venus Series NAB9 Intel Core i9-12900HK	16.498 s * +6%
Geekom XT12 Pro Intel Core i9-12900H	16.424 s * +6%
Acemagic F2A Intel Core Ultra 7 155H	16.125 s * +8%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	14.879 s * +15%

Super Pi Mod 1.5 XS 32M - 32M
Acemagic AM18 AMD Ryzen 7 7840HS	655.388 s * -5%
Geekom A8 AMD Ryzen 9 8945HS	624.748 s *
Geekom A7 AMD Ryzen 9 7940HS	529.929 s * +15%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	397.363 s * +36%
Geekom XT12 Pro Intel Core i9-12900H	396.475 s * +37%
Acemagic F2A Intel Core Ultra 7 155H	394.754 s * +37%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	304.446 s * +51%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit

7748

Cinebench R10 Shading 64Bit

21082 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

90144 Points

Cinebench R10 Rendering Single CPUs 64Bit

14561 Points

Cinebench R10 Shading 32Bit

17730

Cinebench R10 Rendering Multiple CPUs 32Bit

49325

Cinebench R11.5 CPU Single 32Bit

2.98 Points

Cinebench R11.5 CPU Multi 32Bit

27.66 Points

Cinebench R11.5 CPU Single 64Bit

3.45 Points

Cinebench R11.5 CPU Multi 64Bit

31.31 Points

Cinebench R15 CPU Single 64Bit

287 Points

Cinebench R15 CPU Multi 64Bit

2640 Points

Cinebench R15 Ref. Match 64Bit

97.9 %

Cinebench R15 OpenGL 64Bit

231.81 fps

Cinebench R20 CPU (Single Core)

711 Points

Cinebench R20 CPU (Multi Core)

6591 Points

Cinebench R23 Multi Core

16795 Points

Cinebench R23 Single Core

1825 Points

Cinebench 2024 CPU Single Core

108 Points

Cinebench 2024 CPU Multi Core

967 Points

Help

... in comparison

Performance Rating
Geekom A8 AMD Ryzen 9 8945HS, Radeon 780M	97.2 pt
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	94.3 pt
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	94 pt
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	80.7 pt
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	76.7 pt
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	59.2 pt
Average of class Mini PC	54.5 pt
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	51.1 pt

AIDA64 / FP32 Ray-Trace
Geekom A8 AMD Ryzen 9 8945HS, Radeon 780M	26846 KRay/s
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	25725 KRay/s -4%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	25359 KRay/s -6%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	17544 KRay/s -35%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	17312 KRay/s -36%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	12389 KRay/s -54%
Average of class Mini PC (561 - 51004, n=118, last 2 years)	12276 KRay/s -54%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	10476 KRay/s -61%

AIDA64 / FPU Julia
Geekom A8 AMD Ryzen 9 8945HS, Radeon 780M	113406 Points
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	108506 Points -4%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	107540 Points -5%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	91112 Points -20%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	88829 Points -22%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	64350 Points -43%
Average of class Mini PC (3604 - 214250, n=118, last 2 years)	62123 Points -45%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	54166 Points -52%

AIDA64 / CPU SHA3
Geekom A8 AMD Ryzen 9 8945HS, Radeon 780M	4952 MB/s
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	4769 MB/s -4%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	4753 MB/s -4%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	4343 MB/s -12%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	4246 MB/s -14%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	3028 MB/s -39%
Average of class Mini PC (225 - 9399, n=118, last 2 years)	2738 MB/s -45%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	2504 MB/s -49%

AIDA64 / CPU Queen
Geekom A8 AMD Ryzen 9 8945HS, Radeon 780M	119802 Points
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	118174 Points -1%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	115133 Points -4%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	99851 Points -17%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	89748 Points -25%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	87291 Points -27%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	82291 Points -31%
Average of class Mini PC (8172 - 184747, n=118, last 2 years)	77819 Points -35%

AIDA64 / FPU SinJulia
Geekom A8 AMD Ryzen 9 8945HS, Radeon 780M	15026 Points
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	14663 Points -2%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	14590 Points -3%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	10759 Points -28%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	10247 Points -32%
Average of class Mini PC (408 - 29064, n=118, last 2 years)	8454 Points -44%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	8417 Points -44%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	7317 Points -51%

AIDA64 / FPU Mandel
Geekom A8 AMD Ryzen 9 8945HS, Radeon 780M	60482 Points
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	57881 Points -4%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	57402 Points -5%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	45718 Points -24%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	44874 Points -26%
Average of class Mini PC (1958 - 113499, n=118, last 2 years)	32406 Points -46%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	31933 Points -47%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	26850 Points -56%

AIDA64 / CPU AES
Geekom A8 AMD Ryzen 9 8945HS, Radeon 780M	169431 MB/s
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	164414 MB/s -3%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	163604 MB/s -3%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	154066 MB/s -9%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	144741 MB/s -15%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	112254 MB/s -34%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	95500 MB/s -44%
Average of class Mini PC (3691 - 325960, n=118, last 2 years)	85412 MB/s -50%

AIDA64 / CPU ZLib
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	1233 MB/s +20%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	1183 MB/s +15%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	1042 MB/s +1%
Geekom A8 AMD Ryzen 9 8945HS, Radeon 780M	1029 MB/s
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	1020 MB/s -1%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	870 MB/s -15%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	745 MB/s -28%
Average of class Mini PC (74.8 - 2039, n=118, last 2 years)	709 MB/s -31%

AIDA64 / FP64 Ray-Trace
Geekom A8 AMD Ryzen 9 8945HS, Radeon 780M	14240 KRay/s
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	13617 KRay/s -4%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	13517 KRay/s -5%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	9284 KRay/s -35%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	9270 KRay/s -35%
Average of class Mini PC (308 - 26952, n=118, last 2 years)	6564 KRay/s -54%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	6325 KRay/s -56%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s -59%

AIDA64 / CPU PhotoWorxx
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	45560 MPixel/s +13%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	40655 MPixel/s 0%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	40570 MPixel/s 0%
Geekom A8 AMD Ryzen 9 8945HS, Radeon 780M	40475 MPixel/s
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	33092 MPixel/s -18%
Average of class Mini PC (4408 - 50500, n=118, last 2 years)	27624 MPixel/s -32%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	24903 MPixel/s -38%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	24858 MPixel/s -39%

Cinebench R15 多回路

Cinebench R15 耐久性循环测试是我们的第一个耐久性测试，目的是了解散热系统与强大的 AMD Ryzen 9 8945HS 的配合情况。开始时，我们看到处理器的性能相当稳定，但在后半段略有下降。在短期内，SoC 的可用功率高达 65 瓦，但在较长的负载情况下，功率仅略低于 50 瓦。Geekom A8 处理器的温度极限被定义为 90 °C。在性能比较中，这足以让我们的微型电脑获得第三名。只有 Minisforum AtomMan X7 Ti和 Acemagic F2A在这项测试中表现更好。

Geekom A8 AMD Ryzen 9 8945HS, AMD Ryzen 9 8945HS: Ø2605 (2529.88-2677.73)

Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Intel Core Ultra 9 185H: Ø2784 (2721.64-2831.86)

Acemagic F2A Intel Core Ultra 7 155H, Intel Core Ultra 7 155H: Ø2759 (2690.7-2800.92)

Geekom XT12 Pro Intel Core i9-12900H, Intel Core i9-12900H: Ø1545 (1395.97-2133.22)

Geekom A7 AMD Ryzen 9 7940HS, AMD Ryzen 9 7940HS: Ø2410 (2285.58-2581.81)

Minisforum Venus Series NAB9 Intel Core i9-12900HK, Intel Core i9-12900HK: Ø1981 (1895.47-2262.7)

Acemagic AM18 AMD Ryzen 7 7840HS, AMD Ryzen 7 7840HS: Ø2489 (2476.93-2539.84)

系统性能

Geekom A8 的系统性能非常出色。不过，这同样适用于已完成测试的其他测试设备。在日常使用中几乎不会有明显的差异。不过，差异是可以衡量的，即使在最高级别中仅有几个百分点的差异。在 Geekom A7在所有测试中都能轻松胜出。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Geekom A8, AMD Ryzen 9 8945HS AMD Radeon 780M, Acer N5000	7705 Points
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	7651 Points -1%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	7510 Points -3%
Geekom A7, AMD Ryzen 9 7940HS AMD Radeon 780M, Acer N5000	7455 Points -3%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	7120 Points -8%
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	6435 Points -16%
Geekom XT12 Pro, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB	6295 Points -18%

PCMark 10 / Essentials
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	11591 Points +2%
Geekom A8, AMD Ryzen 9 8945HS AMD Radeon 780M, Acer N5000	11333 Points
Geekom XT12 Pro, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB	11273 Points -1%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	11125 Points -2%
Geekom A7, AMD Ryzen 9 7940HS AMD Radeon 780M, Acer N5000	11114 Points -2%
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	11097 Points -2%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	11030 Points -3%

PCMark 10 / Productivity
Geekom A8, AMD Ryzen 9 8945HS AMD Radeon 780M, Acer N5000	11082 Points
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	10970 Points -1%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	10484 Points -5%
Geekom A7, AMD Ryzen 9 7940HS AMD Radeon 780M, Acer N5000	10291 Points -7%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	8901 Points -20%
Geekom XT12 Pro, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB	8114 Points -27%
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	7924 Points -28%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	1986 Points +6%
Geekom A8, AMD Ryzen 9 8945HS AMD Radeon 780M, Acer N5000	1866 Points
Geekom A7, AMD Ryzen 9 7940HS AMD Radeon 780M, Acer N5000	1861 Points 0%
Geekom XT12 Pro, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB	1860 Points 0%
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1828 Points -2%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1802 Points -3%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	1675 Points -10%

CrossMark / Responsiveness
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	2205 Points +48%
Geekom XT12 Pro, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB	1919 Points +28%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1700 Points +14%
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1541 Points +3%
Geekom A7, AMD Ryzen 9 7940HS AMD Radeon 780M, Acer N5000	1540 Points +3%
Geekom A8, AMD Ryzen 9 8945HS AMD Radeon 780M, Acer N5000	1494 Points
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	1378 Points -8%

CrossMark / Creativity
Geekom A8, AMD Ryzen 9 8945HS AMD Radeon 780M, Acer N5000	2127 Points
Geekom A7, AMD Ryzen 9 7940HS AMD Radeon 780M, Acer N5000	2072 Points -3%
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2030 Points -5%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1929 Points -9%
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	1907 Points -10%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	1883 Points -11%
Geekom XT12 Pro, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB	1870 Points -12%

CrossMark / Productivity
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	1996 Points +13%
Geekom XT12 Pro, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB	1831 Points +4%
Geekom A7, AMD Ryzen 9 7940HS AMD Radeon 780M, Acer N5000	1781 Points +1%
Geekom A8, AMD Ryzen 9 8945HS AMD Radeon 780M, Acer N5000	1764 Points
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1743 Points -1%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1717 Points -3%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	1589 Points -10%

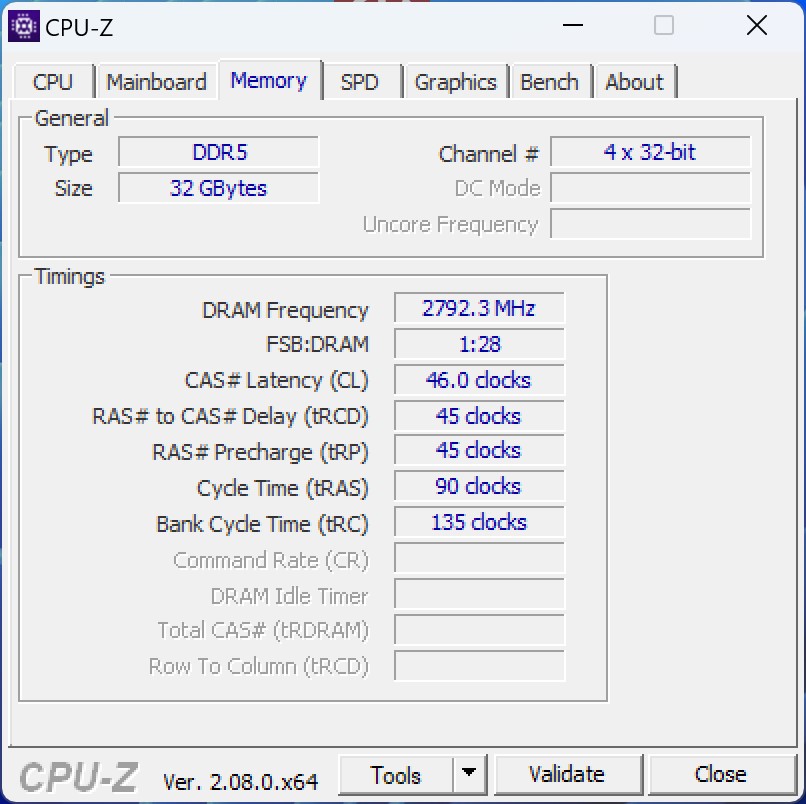

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	71990 MB/s +5%
Geekom A8 AMD Ryzen 9 8945HS, Radeon 780M	68603 MB/s
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	68299 MB/s 0%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	67161 MB/s -2%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	62397 MB/s -9%
Average of class Mini PC (6481 - 89287, n=118, last 2 years)	47240 MB/s -31%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	45792 MB/s -33%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	44442 MB/s -35%

AIDA64 / Memory Read
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	75449 MB/s +22%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	64323 MB/s +4%
Geekom A8 AMD Ryzen 9 8945HS, Radeon 780M	61710 MB/s
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	61542 MB/s 0%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	61463 MB/s 0%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	48963 MB/s -21%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	47960 MB/s -22%
Average of class Mini PC (6914 - 98398, n=118, last 2 years)	47897 MB/s -22%

AIDA64 / Memory Write
Geekom A8 AMD Ryzen 9 8945HS, Radeon 780M	86974 MB/s
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	86810 MB/s 0%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	86273 MB/s -1%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	70596 MB/s -19%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	65057 MB/s -25%
Average of class Mini PC (6862 - 98583, n=118, last 2 years)	51663 MB/s -41%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	47201 MB/s -46%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	45952 MB/s -47%

AIDA64 / Memory Latency
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	149 ns * -63%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	146.1 ns * -60%
Average of class Mini PC (44.9 - 184.8, n=118, last 2 years)	91.8 ns * -1%
Geekom A8 AMD Ryzen 9 8945HS, Radeon 780M	91.2 ns *
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	89 ns * +2%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	87.9 ns * +4%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	79.9 ns * +12%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	74.7 ns * +18%

* ... smaller is better

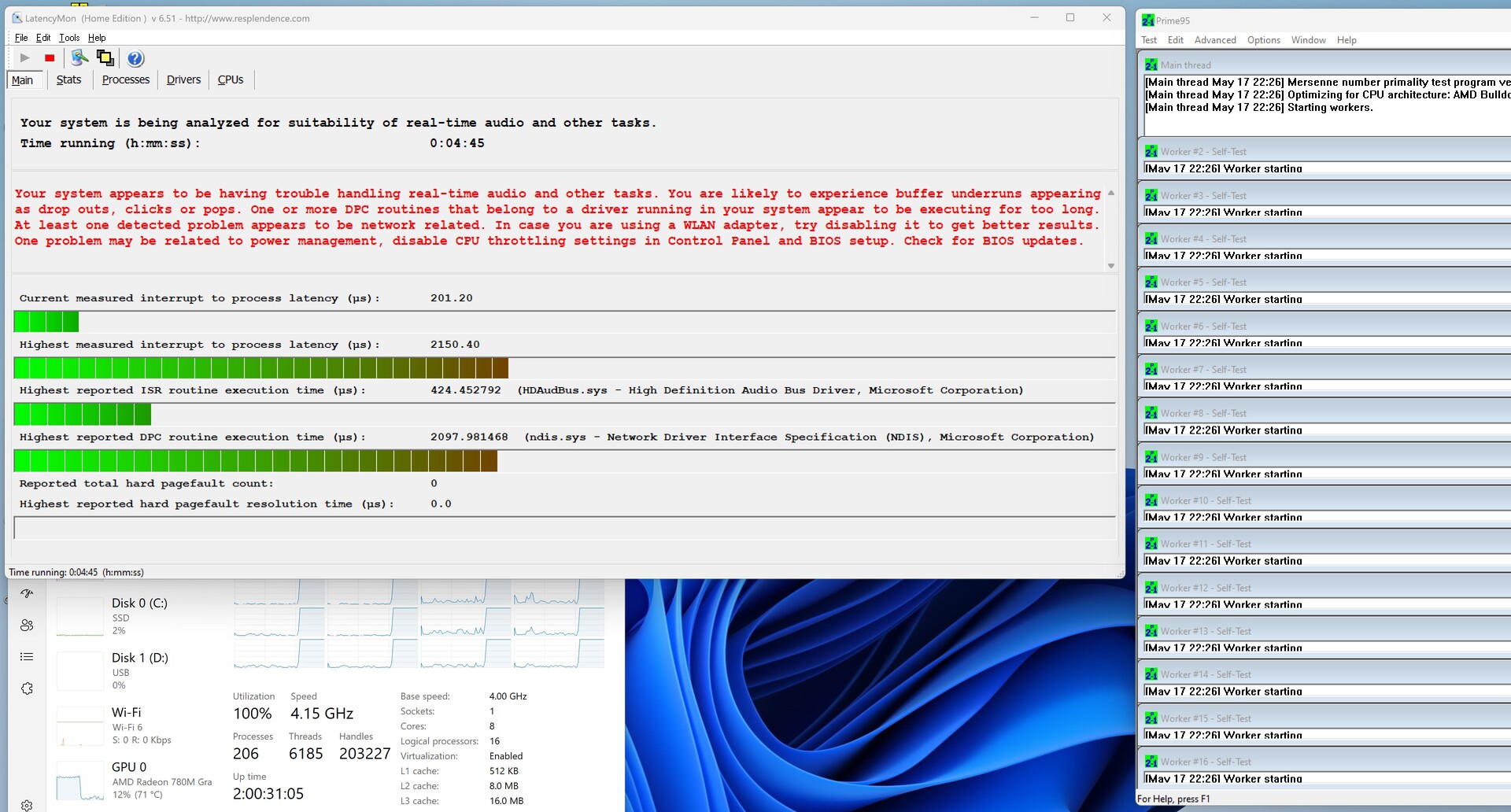

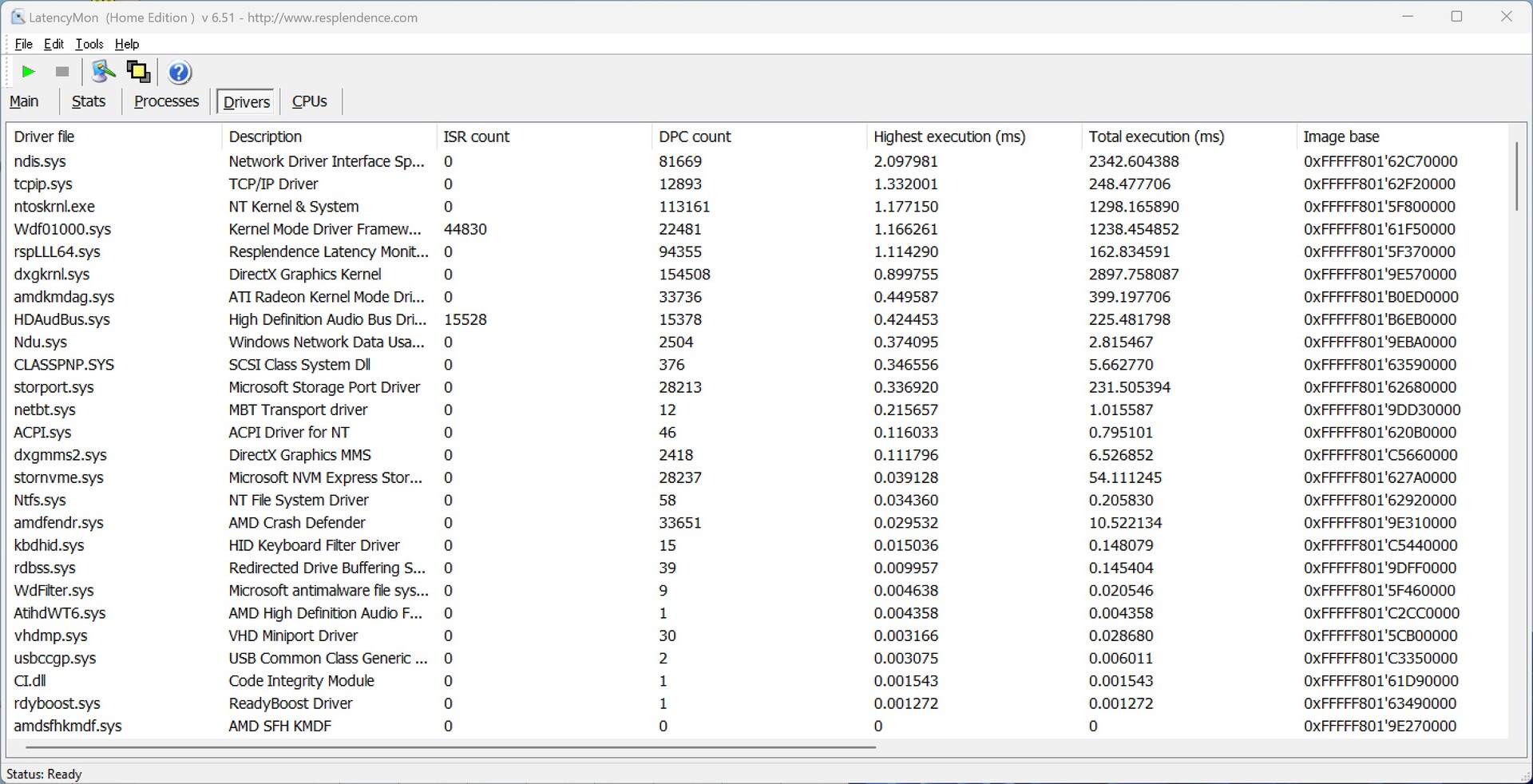

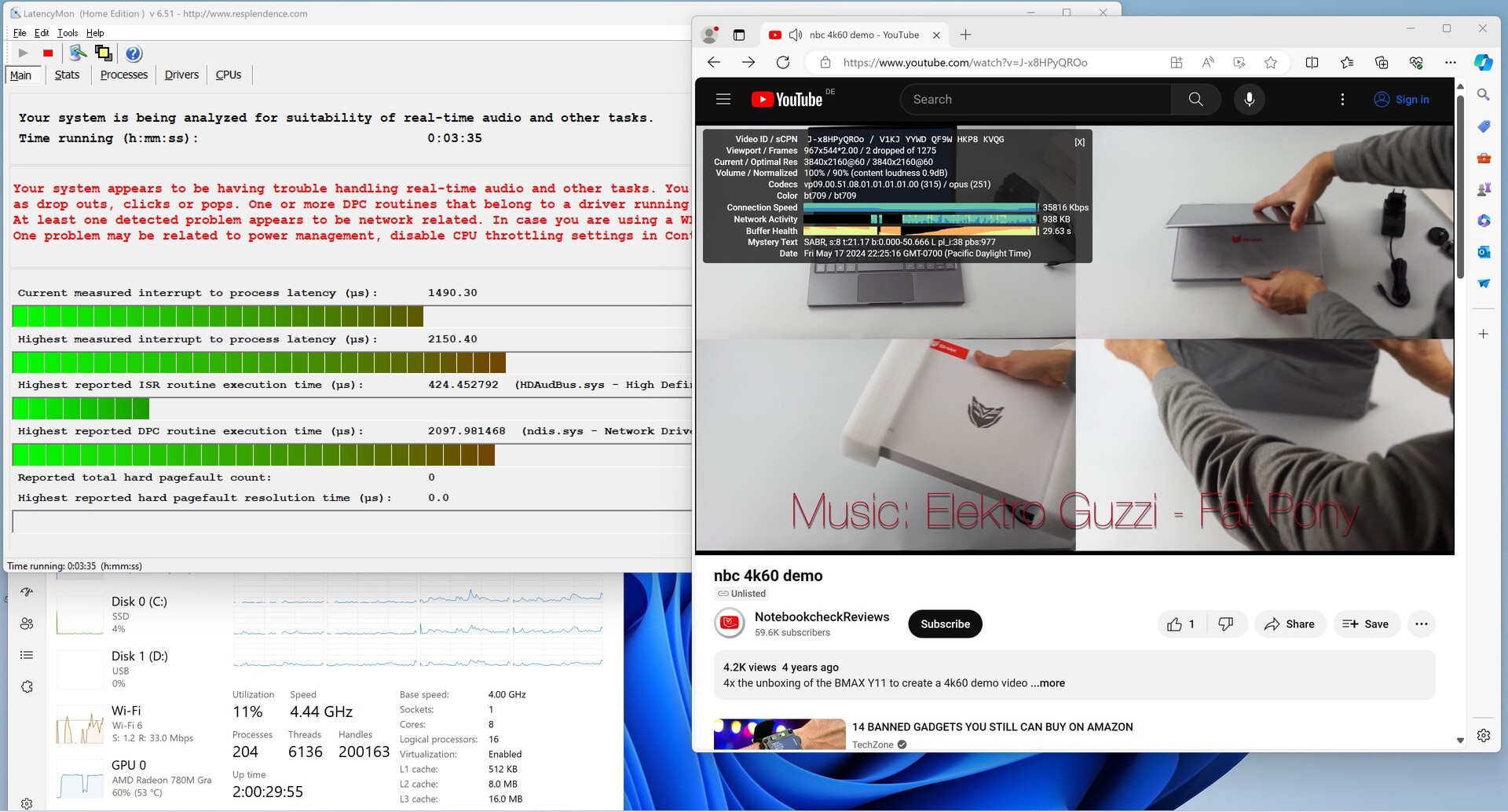

DPC 延迟

Geekom A8 在延迟方面表现不佳，即使使用 Edge 浏览器上网也会导致延迟值增加。开始播放 4K 测试视频后不久，延迟进一步增加。不过，Geekom A8 在播放高分辨率视频时没有任何问题。iGPU 的使用率明显较高，达到 60%。Geekom A7 的 iGPU Geekom A7的 iGPU 使用率仅为 30%。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	2724 μs * -30%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	2151 μs * -3%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	2097.9 μs *
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	2069.2 μs * +1%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	1616.1 μs * +23%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	1026 μs * +51%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	900 μs * +57%

* ... smaller is better

大容量存储器

Geekom A8 采用了我们已经在 Geekom A7 上测试过的相同型号。 Geekom A7.宏碁的型号性能稳定。宏碁 N5000 并不是速度最快的固态硬盘之一，但这款大容量存储设备在日常使用中表现出色。考虑到其紧凑的设计，N5000 没有出现任何散热问题。制造商还为该机型配备了 2 TB 的存储空间。这是一件好事，因为该设备无法安装额外的数据载体。

有关更多比较和基准，请参阅我们的比较表.

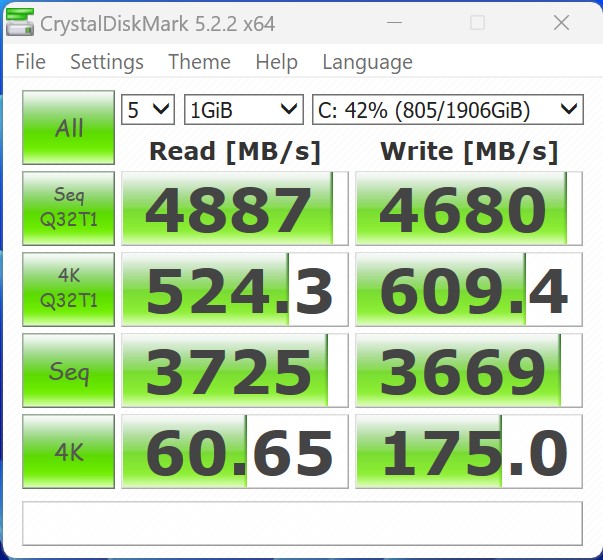

CrystalDiskMark 3.0

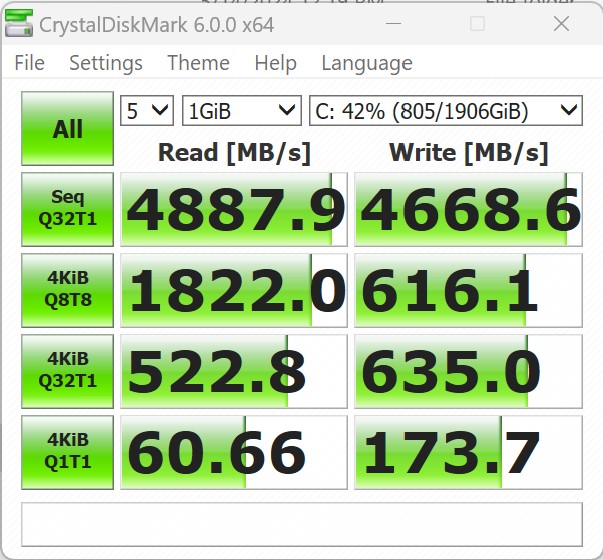

CrystalDiskMark 5.2 / 6

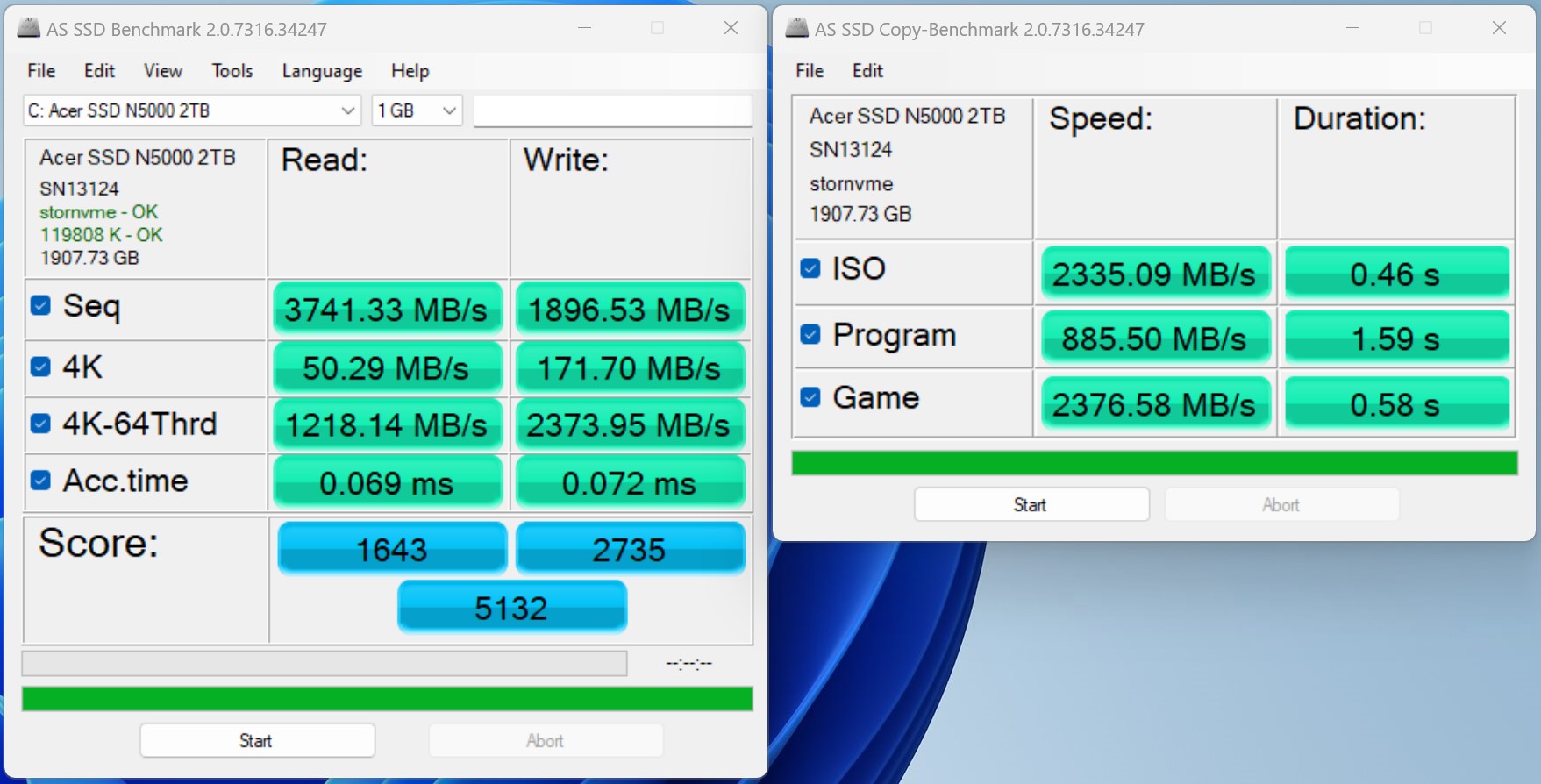

AS SSD

DiskSpd

Acer N5000

Sequential Read: 3796 MB/s

Sequential Write: 3592 MB/s

512K Read: 2074 MB/s

512K Write: 2565 MB/s

4K Read: 50.54 MB/s

4K Write: 138.7 MB/s

4K QD32 Read: 543.2 MB/s

4K QD32 Write: 610.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	94 pt
Geekom XT12 Pro Lexar SSD NM7A1 1TB	72.6 pt
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	65 pt
Geekom A7 Acer N5000	63.2 pt
Geekom A8 Acer N5000	62.9 pt
Average of class Mini PC	52.4 pt
Acemagic F2A Kingston OM8SEP1024Q-A0	51.2 pt
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	50 pt

DiskSpd
seq read
Geekom A7 Acer N5000	3755 (3733.85^min - 3754.99^max) MB/s +21%
Geekom A8 Acer N5000	3114 (3080.09^min - 3114.48^max) MB/s
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	2668 (2648.91^min - 2668.42^max) MB/s -14%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	2315 (2293.84^min - 2315.26^max) MB/s -26%
Average of class Mini PC (233 - 4357, n=118, last 2 years)	2284 MB/s -27%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2279 (2272.33^min - 2279.03^max) MB/s -27%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	2178 (2158.39^min - 2177.68^max) MB/s -30%
Acemagic F2A Kingston OM8SEP1024Q-A0	1674 (1242.56^min - 1673.54^max) MB/s -46%
seq write
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	3866 (206.78^min - 3865.71^max) MB/s +18%
Geekom A7 Acer N5000	3492 (3398.43^min - 3491.76^max) MB/s +7%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	3386 (3076.94^min - 3385.64^max) MB/s +4%
Geekom A8 Acer N5000	3271 (3235.73^min - 3270.93^max) MB/s
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2629 (1414.22^min - 2628.56^max) MB/s -20%
Average of class Mini PC (222 - 5595, n=118, last 2 years)	2438 MB/s -25%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	2341 (2252.02^min - 2341.4^max) MB/s -28%
Acemagic F2A Kingston OM8SEP1024Q-A0	1348 (1117.85^min - 1347.87^max) MB/s -59%
seq q8 t1 read
Geekom A7 Acer N5000	4861 (4468.61^min - 4860.57^max) MB/s +1%
Geekom A8 Acer N5000	4800 (4387.45^min - 4800.17^max) MB/s
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	4780 (4492.97^min - 4780.46^max) MB/s 0%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	4769 (3791.02^min - 4769.24^max) MB/s -1%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	4684 (4089.86^min - 4684.2^max) MB/s -2%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	4676 (4310.07^min - 4675.81^max) MB/s -3%
Average of class Mini PC (236 - 8430, n=118, last 2 years)	3694 MB/s -23%
Acemagic F2A Kingston OM8SEP1024Q-A0	3194 (2810.81^min - 3194.17^max) MB/s -33%
seq q8 t1 write
Geekom A7 Acer N5000	4695 (4470.16^min - 4694.73^max) MB/s +15%
Geekom A8 Acer N5000	4081 (3987.52^min - 4081.49^max) MB/s
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	3901 (912.47^min - 3901.29^max) MB/s -4%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	3729 (3700.15^min - 3728.95^max) MB/s -9%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	3255 (2485.13^min - 3254.57^max) MB/s -20%
Average of class Mini PC (228 - 6669, n=118, last 2 years)	2736 MB/s -33%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2627 (2402.52^min - 2626.88^max) MB/s -36%
Acemagic F2A Kingston OM8SEP1024Q-A0	2212 (1222.43^min - 2212.27^max) MB/s -46%
4k q1 t1 read
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	80.9 (78.95^min - 80.85^max) MB/s +49%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	64.1 (56.32^min - 64.06^max) MB/s +18%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	63.5 (59.81^min - 63.5^max) MB/s +17%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	55.6 (53.92^min - 55.58^max) MB/s +2%
Average of class Mini PC (5.67 - 86.6, n=118, last 2 years)	55.1 MB/s +1%
Geekom A8 Acer N5000	54.4 (52.17^min - 54.39^max) MB/s
Geekom A7 Acer N5000	52.3 (51.85^min - 52.27^max) MB/s -4%
Acemagic F2A Kingston OM8SEP1024Q-A0	47.3 (47.07^min - 47.31^max) MB/s -13%
4k q1 t1 write
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	422 (409.3^min - 421.98^max) MB/s +149%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	279 (237.61^min - 279.08^max) MB/s +65%
Average of class Mini PC (30.4 - 435, n=118, last 2 years)	195.6 MB/s +16%
Acemagic F2A Kingston OM8SEP1024Q-A0	187.2 (181.54^min - 187.2^max) MB/s +11%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	184.4 (177.6^min - 184.36^max) MB/s +9%
Geekom A8 Acer N5000	169.3 (157.77^min - 169.29^max) MB/s
Geekom A7 Acer N5000	165.9 (164.35^min - 165.92^max) MB/s -2%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	151.3 (148.71^min - 151.28^max) MB/s -11%
4k q32 t16 read
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	2967 (2962.7^min - 2967.4^max) MB/s +90%
Acemagic F2A Kingston OM8SEP1024Q-A0	1824 (1239.47^min - 1824.09^max) MB/s +17%
Geekom A7 Acer N5000	1560 (1546.89^min - 1559.94^max) MB/s 0%
Geekom A8 Acer N5000	1558 (1523.21^min - 1557.75^max) MB/s
Geekom XT12 Pro Lexar SSD NM7A1 1TB	1452 (1402.67^min - 1451.9^max) MB/s -7%
Average of class Mini PC (26.1 - 4158, n=118, last 2 years)	1349 MB/s -13%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	1143 (1091.01^min - 1142.98^max) MB/s -27%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	910 (889.36^min - 909.64^max) MB/s -42%
4k q32 t16 write
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	3364 (866.38^min - 3364.31^max) MB/s +461%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1583 (825.5^min - 1583.41^max) MB/s +164%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	1499 (1114.25^min - 1499.4^max) MB/s +150%
Acemagic F2A Kingston OM8SEP1024Q-A0	1434 (1410.26^min - 1433.71^max) MB/s +139%
Average of class Mini PC (30.2 - 4288, n=118, last 2 years)	1282 MB/s +114%
Geekom A8 Acer N5000	600 (492.7^min - 600.03^max) MB/s
Geekom A7 Acer N5000	595 (582.97^min - 594.71^max) MB/s -1%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	497 (467.49^min - 497.28^max) MB/s -17%

AS SSD
Score Total
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	7931 Points +55%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	5975 Points +16%
Geekom A7 Acer N5000	5177 Points +1%
Geekom A8 Acer N5000	5132 Points
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	4987 Points -3%
Acemagic F2A Kingston OM8SEP1024Q-A0	4412 Points -14%
Average of class Mini PC (181.5 - 10021, n=116, last 2 years)	4101 Points -20%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	3435 Points -33%
Score Read
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	2899 Points +76%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	2119 Points +29%
Geekom A7 Acer N5000	1685 Points +3%
Geekom A8 Acer N5000	1643 Points
Acemagic F2A Kingston OM8SEP1024Q-A0	1561 Points -5%
Average of class Mini PC (61 - 3741, n=116, last 2 years)	1527 Points -7%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	1482 Points -10%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1248 Points -24%
Score Write
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	3564 Points +30%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	2807 Points +3%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	2777 Points +2%
Geekom A8 Acer N5000	2735 Points
Geekom A7 Acer N5000	2676 Points -2%
Acemagic F2A Kingston OM8SEP1024Q-A0	2082 Points -24%
Average of class Mini PC (88 - 4371, n=116, last 2 years)	1841 Points -33%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1600 Points -41%
Seq Read
Geekom XT12 Pro Lexar SSD NM7A1 1TB	4349.85 MB/s +16%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	4162 MB/s +11%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	3835 MB/s +3%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	3779 MB/s +1%
Geekom A8 Acer N5000	3741 MB/s
Geekom A7 Acer N5000	3650 MB/s -2%
Average of class Mini PC (291 - 6620, n=116, last 2 years)	3157 MB/s -16%
Acemagic F2A Kingston OM8SEP1024Q-A0	3010 MB/s -20%
Seq Write
Geekom XT12 Pro Lexar SSD NM7A1 1TB	3936.64 MB/s +108%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	3477 MB/s +83%
Geekom A7 Acer N5000	2611 MB/s +38%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2568 MB/s +35%
Acemagic F2A Kingston OM8SEP1024Q-A0	2369 MB/s +25%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	2285 MB/s +20%
Average of class Mini PC (240 - 5783, n=116, last 2 years)	2202 MB/s +16%
Geekom A8 Acer N5000	1897 MB/s
4K Read
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	104.3 MB/s +107%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	80.89 MB/s +61%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	63.3 MB/s +26%
Average of class Mini PC (6.08 - 104.3, n=116, last 2 years)	58.8 MB/s +17%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	52.4 MB/s +4%
Geekom A8 Acer N5000	50.3 MB/s
Geekom A7 Acer N5000	49.7 MB/s -1%
Acemagic F2A Kingston OM8SEP1024Q-A0	41.8 MB/s -17%
4K Write
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	366 MB/s +113%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	316.33 MB/s +84%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	238 MB/s +39%
Acemagic F2A Kingston OM8SEP1024Q-A0	196.9 MB/s +15%
Average of class Mini PC (30.9 - 366, n=116, last 2 years)	175.9 MB/s +2%
Geekom A8 Acer N5000	171.7 MB/s
Geekom A7 Acer N5000	160 MB/s -7%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	139.4 MB/s -19%
4K-64 Read
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	2379 MB/s +95%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	1602.91 MB/s +32%
Geekom A7 Acer N5000	1270 MB/s +4%
Acemagic F2A Kingston OM8SEP1024Q-A0	1218 MB/s 0%
Geekom A8 Acer N5000	1218 MB/s
Average of class Mini PC (23.4 - 3220, n=116, last 2 years)	1153 MB/s -5%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	1041 MB/s -15%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	812 MB/s -33%
4K-64 Write
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	2850 MB/s +20%
Geekom A8 Acer N5000	2374 MB/s
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	2340 MB/s -1%
Geekom A7 Acer N5000	2255 MB/s -5%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	2066.57 MB/s -13%
Acemagic F2A Kingston OM8SEP1024Q-A0	1649 MB/s -31%
Average of class Mini PC (32.8 - 3731, n=116, last 2 years)	1444 MB/s -39%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1204 MB/s -49%
Access Time Read
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	0.173 ms * -151%
Geekom A7 Acer N5000	0.138 ms * -100%
Average of class Mini PC (0.022 - 0.489, n=116, last 2 years)	0.09752 ms * -41%
Geekom A8 Acer N5000	0.069 ms *
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	0.067 ms * +3%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	0.049 ms * +29%
Acemagic F2A Kingston OM8SEP1024Q-A0	0.046 ms * +33%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	0.044 ms * +36%
Access Time Write
Acemagic F2A Kingston OM8SEP1024Q-A0	0.126 ms * -75%
Average of class Mini PC (0.014 - 0.765, n=116, last 2 years)	0.116 ms * -61%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	0.078 ms * -8%
Geekom A7 Acer N5000	0.072 ms * -0%
Geekom A8 Acer N5000	0.072 ms *
Geekom XT12 Pro Lexar SSD NM7A1 1TB	0.059 ms * +18%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	0.031 ms * +57%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	0.02 ms * +72%

* ... smaller is better

Continuous read: DiskSpd Read Loop, Queue Depth 8

Geekom A8 Acer N5000; diskspd 2.0.17 f: Ø4786 (4324.07-4802.27)

Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø4683 (3872.18-4767.25)

Acemagic F2A Kingston OM8SEP1024Q-A0; diskspd 2.0.17 f: Ø1320 (771.89-3141.95)

Geekom XT12 Pro Lexar SSD NM7A1 1TB; diskspd 2.0.17 f: Ø1764 (1425.22-4795.56)

Geekom A7 Acer N5000; diskspd 2.0.17 f: Ø4848 (4561.2-4857.36)

Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0; diskspd 2.0.17 f: Ø4764 (3862.99-4794.3)

Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe; diskspd 2.0.17 f: Ø4663 (3995.26-4684.2)

图形卡

迚ケ谿オ譎る俣 AMD Radeon 780M可以在多个竞争对手中找到。作为 AMD Ryzen 9 8945HSGeekom A8 也采用了这种现代图形处理器。在交付状态下，iGPU 仅保留 512 MB 内存。虽然不多，但可以通过 UEFI 进行调整。在相同配置下 Geekom A7的性能与较新的 A8 相当。在性能对比中，我们还可以看到 AMD 的 Radeon 780M 可以赶上英特尔 Arc 8

进一步的比较和基准测试可参见我们的图形处理器比较表.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	97.5 pt
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	96 pt
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	95.7 pt
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	92.9 pt
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	91.4 pt
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	54.7 pt
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	54.7 pt

3DMark 11 - 1280x720 Performance GPU
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	13932 Points +3%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	13636 Points +1%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	13533 Points
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	12085 Points -11%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	11691 Points -14%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	6999 Points -48%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	6975 Points -48%

3DMark
2560x1440 Time Spy Graphics
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3205 Points +10%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3193 Points +10%
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	2968 Points +2%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	2912 Points 0%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	2901 Points
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1583 Points -45%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1581 Points -46%
1920x1080 Fire Strike Graphics
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	8391 Points 0%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	8354 Points
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	8327 Points 0%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	7710 Points -8%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	7599 Points -9%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5421 Points -35%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	5407 Points -35%

Unigine Heaven 4.0
Extreme Preset OpenGL
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	34 fps +25%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	31.6 fps +16%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	29.7 fps +9%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	27.3 fps
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	26 fps -5%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	22.3 fps -18%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	21.8 fps -20%
Extreme Preset DX11
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	35.3 fps +8%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	33.2 fps +1%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	32.8 fps
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	32.7 fps 0%
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	32 fps -2%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	23.2 fps -29%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	22.7 fps -31%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	24 fps +26%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	19.1 fps
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	18.5 fps -3%
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	17.7 fps -7%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	17.1 fps -10%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	13.7 fps -28%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	13.3 fps -30%
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	32.4 fps +113%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	20.8 fps +37%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	18.3 fps +20%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	15.2 fps
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	14.6 fps -4%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	13.9 fps -9%
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	12.2 fps -20%

Unigine Superposition
1280x720 720p Low
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	11903 Points +11%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	10702 Points
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	10491 Points -2%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	10102 Points -6%
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	9725 Points -9%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	6129 Points -43%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5950 Points -44%
1920x1080 1080p High
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	3631 Points +7%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3391 Points 0%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	3387 Points
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3341 Points -1%
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	3129 Points -8%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	2113 Points -38%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	2035 Points -40%
1920x1080 1080p Extreme
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	1920 Points +21%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1812 Points +14%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	1777 Points +12%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	1585 Points
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	1577 Points -1%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1060 Points -33%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1042 Points -34%

ComputeMark v2.1
1024x600 Normal, Score
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	9863 Points +11%
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	9796 Points +10%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	8909 Points
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	7480 Points -16%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	6270 Points -30%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	3390 Points -62%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	3382 Points -62%
1024x600 Normal, Fluid 3DTex
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	492 Points
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	479 Points -3%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	471 Points -4%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	469 Points -5%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	427 Points -13%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	231 Points -53%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	226 Points -54%
1024x600 Normal, Fluid 2DTexArr
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	492 Points
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	486 Points -1%
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	484 Points -2%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	462 Points -6%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	422 Points -14%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	246 Points -50%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	239 Points -51%
1024x600 Normal, Mandel Vector
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	2589 Points +10%
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	2574 Points +9%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	2356 Points
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	1961 Points -17%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1620 Points -31%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	860 Points -63%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	850 Points -64%
1024x600 Normal, Mandel Scalar
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	2651 Points +13%
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	2608 Points +11%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	2345 Points
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	1594 Points -32%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1274 Points -46%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	872 Points -63%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	866 Points -63%
1024x600 Normal, QJuliaRayTrace
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	3667 Points +14%
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	3650 Points +13%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	3225 Points
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3076 Points -5%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2444 Points -24%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1201 Points -63%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1182 Points -63%

LuxMark v2.0 64Bit
Room GPUs-only
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	1173 Samples/s
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	817 Samples/s -30%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	808 Samples/s -31%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	640 Samples/s -45%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	577 Samples/s -51%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	549 Samples/s -53%
Sala GPUs-only
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2732 Samples/s +176%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	2349 Samples/s +137%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	2319 Samples/s +134%
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	1522 Samples/s +54%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	1512 Samples/s +53%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	991 Samples/s

Affinity Photo 2 - Combined (Single / Multi GPU)
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	5308 Points +251%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	4928 Points +226%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	4215 Points +179%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	3830 Points +153%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	1512 Points
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	1396 Points -8%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	1371 Points -9%

	Geekom A8, AMD Radeon 780M R9 8945HS	Minisforum AtomMan X7 Ti, Intel Arc 8-Core iGPU Ultra 9 185H	Acemagic F2A, Intel Arc 8-Core iGPU Ultra 7 155H	Geekom XT12 Pro, Intel Iris Xe Graphics G7 96EUs i9-12900H	Geekom A7, AMD Radeon 780M R9 7940HS	Minisforum Venus Series NAB9, Intel Iris Xe Graphics G7 96EUs i9-12900HK	Acemagic AM18, AMD Radeon 780M R7 7840HS	Average of class Mini PC
SPECviewperf 12		-51%	-53%	-60%	7%	-59%	7%	-19%
1900x1060 3ds Max (3dsmax-05)	87.4	49.7 -43%	49.8 -43%	40.1 -54%	84.7 -3%	40.2 -54%	83.7 -4%	75.4 ?(13.6 - 295, n=63, last 2 years) -14%
1900x1060 Catia (catia-04)	86.4	51.3 -41%	48.2 -44%	37.1 -57%	89 3%	35.9 -58%	88.5 2%	64.2 ?(10.9 - 251, n=63, last 2 years) -26%
1900x1060 Creo (creo-01)	55.1	22.7 -59%	23.1 -58%	26.9 -51%	55.4 1%	27.7 -50%	56.3 2%	37 ?(4.03 - 117, n=63, last 2 years) -33%
1900x1060 Energy (energy-01)	19	0.67 -96%	0.91 -95%	0.4 -98%	20.7 9%	0.4 -98%	21.3 12%	13.3 ?(0.15 - 80.4, n=57, last 2 years) -30%
1900x1060 Maya (maya-04)	75	58 -23%	54.9 -27%	38.3 -49%	69.7 -7%	39.8 -47%	71.5 -5%	64 ?(11.4 - 226, n=63, last 2 years) -15%
1900x1060 Medical (medical-01)	47.7	15.9 -67%	16.9 -65%	11.8 -75%	60.5 27%	12.2 -74%	60.5 27%	28.5 ?(2.53 - 136, n=60, last 2 years) -40%
1900x1060 Showcase (showcase-01)	25.8	19.9 -23%	18.2 -29%	16.6 -36%	30.3 17%	17.4 -33%	30 16%	35.3 ?(5.71 - 133, n=63, last 2 years) 37%
1900x1060 Solidworks (sw-03)	106	43 -59%	42.7 -60%	45.3 -57%	116 9%	47.3 -55%	116 9%	72.4 ?(20.9 - 243, n=63, last 2 years) -32%
SPECviewperf 13		-50%	-51%	-56%	5%	-57%	7%	-14%
3ds Max (3dsmax-06)	85.8	48.5 -43%	46.4 -46%	40.1 -53%	83.9 -2%	39.9 -53%	83.1 -3%	74.8 ?(13.4 - 294, n=63, last 2 years) -13%
Catia (catia-05)	126	76.8 -39%	71.6 -43%	51.3 -59%	130 3%	51.6 -59%	129 2%	91.4 ?(15.6 - 381, n=62, last 2 years) -27%
Creo (creo-02)	92.8	29.3 -68%	29.6 -68%	41.1 -56%	93.4 1%	40.2 -57%	92 -1%	73 ?(11.6 - 275, n=63, last 2 years) -21%
Energy (energy-02)	22.6	5.27 -77%	5.69 -75%	4.5 -80%	23.8 5%	4.39 -81%	24.1 7%	17.7 ?(0.92 - 310, n=60, last 2 years) -22%
Maya (maya-05)	103	62.5 -39%	59.5 -42%	47.5 -54%	107 4%	48.3 -53%	108 5%	97.5 ?(15.9 - 340, n=63, last 2 years) -5%
Medical (medical-02)	69.2	25 -64%	29.7 -57%	14.4 -79%	77.6 12%	14.4 -79%	79 14%	37.6 ?(2.28 - 198, n=63, last 2 years) -46%
Showcase (showcase-02)	24.2	19.9 -18%	18.2 -25%	17.3 -29%	25.4 5%	17.3 -29%	29.9 24%	35 ?(5.69 - 133, n=63, last 2 years) 45%
Solidworks (sw-04)	97.3	45.6 -53%	44.8 -54%	57.1 -41%	109 12%	57.4 -41%	107 10%	76.6 ?(27.4 - 223, n=63, last 2 years) -21%
SPECviewperf 2020		-56%	-58%	-69%	-11%	-68%	-9%	-24%
3840x2160 Medical (medical-03)	10.9	4.23 -61%	5.05 -54%	3.49 -68%	11.1 2%	3.48 -68%	13 19%	7.59 ?(0.78 - 30.8, n=64, last 2 years) -30%
3840x2160 Energy (energy-03)	31	6.03 -81%	4.61 -85%	3.05 -90%	14.1 -55%	3 -90%	14.2 -54%	10.5 ?(0.52 - 47.9, n=64, last 2 years) -66%
3840x2160 Creo (creo-03)	35.6	18.5 -48%	17.9 -50%	14.8 -58%	31.4 -12%	15.1 -58%	31.2 -12%	29.6 ?(7.73 - 97.5, n=64, last 2 years) -17%
3840x2160 CATIA (catia-06)	24.6	11.1 -55%	10 -59%	7.78 -68%	24.8 1%	8.08 -67%	24.7 0%	18.1 ?(4.61 - 64.1, n=63, last 2 years) -26%
3840x2160 3ds Max (3dsmax-07)	21	14.9 -29%	12.9 -39%	9.69 -54%	20.9 0%	9.78 -53%	20.7 -1%	21.7 ?(5.53 - 87.5, n=64, last 2 years) 3%
3840x2160 Siemens NX (snx-04)	65.9	6.24 -91%	5.7 -91%	6.29 -90%	61.4 -7%	6.67 -90%	61.1 -7%	37.5 ?(2.25 - 224, n=63, last 2 years) -43%
3840x2160 Maya (maya-06)	50.1	37.7 -25%	35.4 -29%	23.9 -52%	47 -6%	24.4 -51%	46.7 -7%	56.3 ?(12.2 - 207, n=64, last 2 years) 12%
Total Average (Program / Settings)		-52% / -52%	-54% / -54%	-62% / -61%	0% / 1%	-61% / -61%	2% / 2%	-19% / -19%

3DMark 05 Standard		55721 points
3DMark 06 Score 1366x768		45913 points
3DMark Vantage P Result		41775 points
3DMark 11 Performance		13321 points
3DMark Ice Storm Standard Score		168113 points
3DMark Cloud Gate Standard Score		37487 points
3DMark Fire Strike Score		7670 points
3DMark Fire Strike Extreme Score		4072 points
3DMark Time Spy Score		3264 points
Help

... in comparison

游戏性能

迚ケ谿オ譎る俣 AMD Radeon 780M虽然只是一款 iGPU，但它具有良好的 3D 性能，可以玩一些游戏。为了达到足够的帧速率，必须接受细节水平方面的一些限制。游戏性能在很大程度上取决于相关游戏，不能一概而论。

要详细了解 iGPU 与其他显卡相比的性能，请参阅我们的 GPU 游戏列表.

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	153.5 (20.1^min, 43.1^P0.1, 107.8^P1) fps 0%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	153.5 (7.45^min, 37.4^P0.1, 101.7^P1) fps
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	135.1 fps -12%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	130.7 fps -15%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	107.7 fps -30%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	102 fps -34%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	86.9 fps -43%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	85.9 fps -44%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	49.1 (23.1^min, 38.4^P0.1, 40.8^P1) fps +6%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	46.2 (14.1^min, 14.7^P0.1, 16^P1) fps
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	43.3 fps -6%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	42.6 fps -8%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	39.3 fps -15%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	33.5 fps -27%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	32.3 fps -30%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	28.9 fps -37%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	102.5 fps
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	97.3 fps -5%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	90.4 fps -12%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	86.6 fps -16%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	66.4 fps -35%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	54.5 fps -47%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	51.8 fps -49%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	50.7 fps -51%
1920x1080 High Overall Quality (DX11)
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	33.3 fps +20%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	29 fps +4%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	27.8 fps
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	26.2 fps -6%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	17.7 fps -36%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	16.1 fps -42%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	15.3 fps -45%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	14.8 fps -47%

GTA V
1024x768 Lowest Settings possible
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	166.9 (5.05^min, 125^P1) fps
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	164.4 (4.9^min, 111.1^P1) fps -1%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	157.8 (4.54^min, 111.1^P1) fps -5%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	155.4 (6.68^min, 111.1^P1) fps -7%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	125.5 (11.9^min, 83.3^P1) fps -25%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	124.5 (12.7^min, 76.9^P1) fps -25%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	119.3 (25.1^min, 76.9^P1) fps -29%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	112.7 (9.9^min, 71.4^P1) fps -32%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	66.9 (3.09^min, 45.5^P1) fps +3%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	64.7 (4.56^min, 31.3^P1) fps
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	59.7 (4.52^min, 40^P1) fps -8%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	52.2 (11.6^min, 26.3^P1) fps -19%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	49.2 (13.3^min, 33.3^P1) fps -24%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	23.6 (10.9^min, 18.2^P1) fps -64%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	20.9 (10.5^min, 16.7^P1) fps -68%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	18.6 (8^min, 14.3^P1) fps -71%

Far Cry 5
1280x720 Low Preset AA:T
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	88 (77^min) fps
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	87 (75^min) fps -1%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	80 (69^min) fps -9%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	73 (65^min) fps -17%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	68 (58^min) fps -23%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	54 (44^min) fps -39%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	50 (41^min) fps -43%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	45 (40^min) fps -49%
1920x1080 High Preset AA:T
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	47 (42^min) fps +12%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	42 (33^min) fps
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	41 (36^min) fps -2%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	40 (35^min) fps -5%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	38 (32^min) fps -10%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	27 (25^min) fps -36%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	26 (23^min) fps -38%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (22^min) fps -40%

Far Cry New Dawn
1280x720 Low Preset
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	76 (58^min) fps
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	75 (58^min) fps -1%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	70 (50^min) fps -8%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	64 (49^min) fps -16%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	58 (46^min) fps -24%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	52 (36^min) fps -32%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	49 (32^min) fps -36%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	46 (28^min) fps -39%
1920x1080 High Preset
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	45 (37^min) fps +2%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	44 (37^min) fps
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	40 (32^min) fps -9%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	39 (31^min) fps -11%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	36 (29^min) fps -18%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	28 (21^min) fps -36%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	27 (20^min) fps -39%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (19^min) fps -43%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	161.5 (141.6^min) fps +1%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	159.7 (142.1^min) fps
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	150.2 (132.8^min) fps -6%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	136.8 (122.1^min) fps -14%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	113.8 (8.3^min) fps -29%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	110.5 (93.1^min) fps -31%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	108.1 (86.6^min) fps -32%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	104.2 (79.7^min) fps -35%
1920x1080 high (2/3)
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	97.45 (86.9^min) fps +10%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	89.9 (78.3^min) fps +2%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	88.3 (74.1^min) fps
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	85.3 (74.5^min) fps -3%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	69.6 (59.3^min) fps -21%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	67.6 (58.9^min) fps -23%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	61.7 (51.7^min) fps -30%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	60.9 (55.7^min) fps -31%

F1 2020
1280x720 Ultra Low Preset
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	201 (180^min) fps +2%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	197.3 (171^min) fps
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	174.3 (162^min) fps -12%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	152.2 (142^min) fps -23%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	82.1 (73^min) fps -58%
1920x1080 High Preset AA:T AF:16x
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	79.3 (67^min) fps +4%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	76.4 (67^min) fps
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	67.2 (54^min) fps -12%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	66.4 (56^min) fps -13%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	33.5 (28^min) fps -56%

GRID Legends
1280x720 Low Preset
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	150.6 (52.6^min) fps +7%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	141.6 (6.33^min) fps 0%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	141.4 (2.69^min) fps
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	129.9 (53.8^min) fps -8%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	105.4 (1.237^min) fps -25%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	64.1 (26.8^min) fps -55%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	53.5 (25.6^min) fps -62%
1920x1080 High Preset
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	68.8 (34.8^min) fps +22%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	61 (4.49^min) fps +8%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	56.4 (21.6^min) fps
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	51.9 (10^min) fps -8%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	48.2 (2.63^min) fps -15%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	27.1 (19.2^min) fps -52%

Shadow of the Tomb Raider
1280x720 Lowest Preset
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	109.2 fps +66%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	94.1 fps +43%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	92.7 fps +41%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	85.7 fps +30%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	65.9 fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	51.4 fps -22%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	45.5 fps -31%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	43.7 fps -34%
1920x1080 High Preset AA:SM
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	41.2 fps +76%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	36.3 fps +55%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	35.2 fps +50%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	25.2 fps +8%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	23.4 fps 0%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	23.4 fps
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	22.5 fps -4%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	19.3 fps -18%

Witcher 3 FPS chart

Geekom A8 R9 8945HS, Radeon 780M: Ø23.3 (20-28)

Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core: Ø22.4 (21-24)

Acemagic F2A Ultra 7 155H, Arc 8-Core: Ø22.8 (21-25)

Geekom XT12 Pro i9-12900H, Iris Xe G7 96EUs: Ø15 (13-16)

Geekom A7 R9 7940HS, Radeon 780M: Ø25.7 (20-33)

Acemagic AM18 R7 7840HS, Radeon 780M: Ø28.6 (27-30)

	low	med.	high	ultra
GTA V (2015)	166.9	159	64.7	24.9
The Witcher 3 (2015)	153.5	88.3	46.2	32.4
Dota 2 Reborn (2015)	159.7	122.9	88.3	82.25
Final Fantasy XV Benchmark (2018)	54.4	25.1	19.5
X-Plane 11.11 (2018)	66.3	47.8	39.9
Far Cry 5 (2018)	88	49	42	41
Strange Brigade (2018)	74.1	66.9	56.9	49.2
Shadow of the Tomb Raider (2018)	65.9	26.5	23.4	22.4
Far Cry New Dawn (2019)	76	46	44	41
Metro Exodus (2019)	89.2	37.4	28.9	24.1
Borderlands 3 (2019)	102.5	42.8	27.8	24.3
F1 2020 (2020)	197.3	96.9	76.4	53.2
F1 2021 (2021)	216	104.9	80.9	34.9
God of War (2022)	24.7	19.5	15.2	11.3
GRID Legends (2022)	103.4	74.6	56.4	42
Tiny Tina's Wonderlands (2022)	62	42.5	32.7	29.8
F1 22 (2022)	94.8	85.4	62.6
F1 23 (2023)	76	65.8	48.2
Cyberpunk 2077 2.1 Phantom Liberty (2023)	44	33.7	22.4	20.4
Prince of Persia The Lost Crown (2024)		179.9	137.7	127.1

配备两个 eGPU 的 Geekom A8 性能测试

Geekom A8 提供了一个 USB4 端口，这使我们可以结合外置显卡对这款迷你电脑进行测试。我们结合 GPD G1、Razer Core X 和 NvidiaGeForce RTX 3060 Ti 对该设备进行了测试。与 Geekom A8 的 iGPU 相比，这两种图形解决方案的性能都有明显提升。与其他设备相比，性能的提升处于类似水平。GPD G1 与之差距不大，结合 OCuLink 接口后，性能可提高约 10%。在 Minisforum AtomMan X7 Ti配备了这样的接口，可作为对比概述中的参考机型。

配备 NvidiaGeForce RTX 3060 Ti 的 Razer Core X

Geekom A8 和 GPD G1（AMD Radeon RX 7600M XT）

Performance Rating - Percent
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	99.7 pt
Geekom A8 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 8945HS	90.7 pt
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	90.6 pt
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Radeon RX 7600M XT, AMD Ryzen 7 7735HS	85.8 pt

3DMark 11 - 1280x720 Performance GPU
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	41824 Points +209%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	34851 Points +158%
Geekom A8 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 8945HS	33843 Points +150%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Radeon RX 7600M XT, AMD Ryzen 7 7735HS	27060 Points +100%
	13533 Points

3DMark
2560x1440 Time Spy Graphics
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	10204 Points +252%
Geekom A8 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 8945HS	9734 Points +236%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	9703 Points +234%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Radeon RX 7600M XT, AMD Ryzen 7 7735HS	9555 Points +229%
	2901 Points
1920x1080 Fire Strike Graphics
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Radeon RX 7600M XT, AMD Ryzen 7 7735HS	29101 Points +248%
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	29015 Points +247%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	28983 Points +247%
Geekom A8 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 8945HS	28653 Points +243%
	8354 Points
3840x2160 Fire Strike Ultra Graphics
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	6784 Points +211%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Radeon RX 7600M XT, AMD Ryzen 7 7735HS	6738 Points +209%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	6735 Points +208%
Geekom A8 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 8945HS	6704 Points +207%
	2184 Points
2560x1440 Speed Way Score
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	1919 Points
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	1857 Points
Geekom A8 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 8945HS	1854 Points
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Radeon RX 7600M XT, AMD Ryzen 7 7735HS	1837 Points
Night Raid Graphics Score
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	116677 Points
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	100948 Points
Geekom A8 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 8945HS	100529 Points
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Radeon RX 7600M XT, AMD Ryzen 7 7735HS	93268 Points

Unigine Superposition
1280x720 720p Low
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	19596 Points +83%
	10702 Points
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	6929 Points -35%
Geekom A8 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 8945HS	6849 Points -36%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Radeon RX 7600M XT, AMD Ryzen 7 7735HS	5014 Points -53%
1920x1080 1080p High
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	12194 Points +260%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	7694 Points +127%
Geekom A8 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 8945HS	7660 Points +126%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Radeon RX 7600M XT, AMD Ryzen 7 7735HS	5621 Points +66%
	3387 Points
1920x1080 1080p Extreme
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	5799 Points +266%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	5388 Points +240%
Geekom A8 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 8945HS	5328 Points +236%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Radeon RX 7600M XT, AMD Ryzen 7 7735HS	4275 Points +170%
	1585 Points
3840x2160 4k Optimized
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	7049 Points
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	6056 Points
Geekom A8 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 8945HS	6043 Points
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Radeon RX 7600M XT, AMD Ryzen 7 7735HS	4765 Points
7680x4320 8k Optimized
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	2777 Points
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Radeon RX 7600M XT, AMD Ryzen 7 7735HS	2770 Points
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	2764 Points
Geekom A8 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 8945HS	2764 Points

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	98.5 fps +416%
Geekom A8 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 8945HS	96.5 fps +405%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	96.2 fps +404%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Radeon RX 7600M XT, AMD Ryzen 7 7735HS	91.6 fps +380%
	19.1 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	89.9 fps +491%
Geekom A8 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 8945HS	81 fps +433%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	80.5 fps +430%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Radeon RX 7600M XT, AMD Ryzen 7 7735HS	79.1 fps +420%
	15.2 fps

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	132.3 fps +385%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	122.2 fps +348%
Geekom A8 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 8945HS	121.7 fps +346%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Radeon RX 7600M XT, AMD Ryzen 7 7735HS	118.1 fps +333%
	27.3 fps
Extreme Preset DX11
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	130.8 fps +299%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	129.9 fps +296%
Geekom A8 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 8945HS	129.7 fps +295%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Radeon RX 7600M XT, AMD Ryzen 7 7735HS	123.2 fps +276%
	32.8 fps

ComputeMark v2.1
1024x600 Normal, Score
Geekom A8 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 8945HS	20490 Points +130%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Radeon RX 7600M XT, AMD Ryzen 7 7735HS	20386 Points +129%
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	20340 Points +128%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	20154 Points +126%
	8909 Points
1024x600 Normal, Fluid 3DTex
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	1765 Points +259%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	1708 Points +247%
Geekom A8 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 8945HS	1703 Points +246%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Radeon RX 7600M XT, AMD Ryzen 7 7735HS	1701 Points +246%
	492 Points
1024x600 Normal, Fluid 2DTexArr
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	1797 Points +265%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	1760 Points +258%
Geekom A8 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 8945HS	1754 Points +257%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Radeon RX 7600M XT, AMD Ryzen 7 7735HS	1748 Points +255%
	492 Points
1024x600 Normal, Mandel Vector
Geekom A8 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 8945HS	4512 Points +92%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	4457 Points +89%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Radeon RX 7600M XT, AMD Ryzen 7 7735HS	4450 Points +89%
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	4300 Points +83%
	2356 Points
1024x600 Normal, Mandel Scalar
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	5418 Points +131%
Geekom A8 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 8945HS	5375 Points +129%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Radeon RX 7600M XT, AMD Ryzen 7 7735HS	5373 Points +129%
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	5356 Points +128%
	2345 Points
1024x600 Normal, QJuliaRayTrace
Geekom A8 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 8945HS	7145 Points +122%
Minisforum AtomMan X7 Ti (GPD G1 Radeon RX 7600M XT @OCuLink) Intel Core Ultra 9 185H	7122 Points +121%
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) AMD Radeon RX 7600M XT, AMD Ryzen 7 7735HS	7114 Points +121%
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) AMD Ryzen 9 7940HS	6811 Points +111%
	3225 Points

	low	med.	high	ultra	QHD	4K
GTA V (2015)	176.8	171.4	146.1	83	62.7	70.5
The Witcher 3 (2015)	171.8	121.5	123.5	101	72.9	53.8
Dota 2 Reborn (2015)	93.2	70.6	67.6	55.3		53.7
Final Fantasy XV Benchmark (2018)	204	129.9	84.9		64.8	36.1
X-Plane 11.11 (2018)	69.9	49.9	37.5			29.4
Far Cry 5 (2018)	115	95	93	85	80	51
Strange Brigade (2018)	237	179.1	166.7	152	109	61.3
Shadow of the Tomb Raider (2018)	174.4	127.9	121.4	102.7	64.3	27.8
Far Cry New Dawn (2019)	108	78	74	65	63	53
Metro Exodus (2019)	76	46.3	48	41.6	38.9	20
Borderlands 3 (2019)	104.7	93.1	84.6	75.3	59.4	31.9
F1 2020 (2020)	290	193	162.6	113.4	90.6	56.5
F1 2021 (2021)	278	225	151.2	86	64.3	33.4
Far Cry 6 (2021)	97.9	85.6	74.3	58.7	56.7
God of War (2022)	76.5	75.9	74.3	66.1	53	34.1
GRID Legends (2022)	108.1	87.1	68.3	61.2	56.5	44.5
Tiny Tina's Wonderlands (2022)	171.7	129.1	88.7	72.8	50.6	27.8
F1 22 (2022)	121.7	115.9	90.1	42.2	29.3
F1 23 (2023)	127.6	139.3	114.6	31.7	15.8
Cyberpunk 2077 2.1 Phantom Liberty (2023)	89.2	75.8	65.4	59.7	40.3	18.7
Assassin's Creed Mirage (2023)	79	72	66	53	42	27
Total War Pharaoh (2023)	278.3	158.7	107.2	83.5	60.3	32.5
Avatar Frontiers of Pandora (2023)	38	34	20	19	12
Skull & Bones (2024)	84	76	62	50	39	24

Geekom A8 和 Razer Core X（NvidiaGeForce RTX 3060 Ti）

Performance Rating - Percent
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	99.6 pt
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	99.3 pt
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	97.4 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	95.7 pt
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	95 pt

3DMark 11 - 1280x720 Performance GPU
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	34990 Points +159%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	34666 Points +156%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	33282 Points +146%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32915 Points +143%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32835 Points +143%
	13533 Points

3DMark
2560x1440 Time Spy Graphics
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	11210 Points +286%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	11182 Points +285%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	11012 Points +280%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10777 Points +271%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10743 Points +270%
	2901 Points
1920x1080 Fire Strike Graphics
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	25894 Points +210%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	25462 Points +205%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	25163 Points +201%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24905 Points +198%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24657 Points +195%
	8354 Points
3840x2160 Fire Strike Ultra Graphics
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	7114 Points +226%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	7076 Points +224%
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	7061 Points +223%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	7044 Points +223%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6977 Points +219%
	2184 Points
2560x1440 Speed Way Score
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	2868 Points
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	2859 Points
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	2806 Points
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2761 Points
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2756 Points
Night Raid Graphics Score
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	112660 Points
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	110651 Points
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	102443 Points
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	100574 Points
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	97348 Points

Unigine Superposition
1280x720 720p Low
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	34424 Points +222%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	33894 Points +217%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	28935 Points +170%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	27744 Points +159%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	27313 Points +155%
	10702 Points
1920x1080 1080p High
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	15076 Points +345%
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	14964 Points +342%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	14936 Points +341%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	14751 Points +336%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	14660 Points +333%
	3387 Points
1920x1080 1080p Extreme
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	7146 Points +351%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	7055 Points +345%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	7036 Points +344%
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	7024 Points +343%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6971 Points +340%
	1585 Points
3840x2160 4k Optimized
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	9335 Points
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	9205 Points
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	9193 Points
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	9173 Points
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	9039 Points
7680x4320 8k Optimized
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	4061 Points
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	4050 Points
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	4013 Points
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	3995 Points
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	3966 Points

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	141.6 fps +641%
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	141.5 fps +641%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	139.8 fps +632%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	131.7 fps +590%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	131.4 fps +588%
	19.1 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	137.5 fps +805%
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	137 fps +801%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	125.7 fps +727%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	122.2 fps +704%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	121.1 fps +697%
	15.2 fps

Unigine Heaven 4.0
Extreme Preset OpenGL
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	174.9 fps +541%
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	174.4 fps +539%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	169 fps +519%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	167.3 fps +513%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	163.2 fps +498%
	27.3 fps
Extreme Preset DX11
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	164.9 fps +403%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	163.2 fps +398%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	161.9 fps +394%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	154.3 fps +370%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	152.4 fps +365%
	32.8 fps

ComputeMark v2.1
1024x600 Normal, Score
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	27998 Points +214%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	27929 Points +213%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	27929 Points +213%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	27847 Points +213%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	27460 Points +208%
	8909 Points
1024x600 Normal, Fluid 3DTex
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	2697 Points +448%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2691 Points +447%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	2689 Points +447%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	2687 Points +446%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2667 Points +442%
	492 Points
1024x600 Normal, Fluid 2DTexArr
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2622 Points +433%
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	2622 Points +433%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	2622 Points +433%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	2621 Points +433%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2598 Points +428%
	492 Points
1024x600 Normal, Mandel Vector
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	5776 Points +145%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	5742 Points +144%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	5738 Points +144%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	5689 Points +141%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	5606 Points +138%
	2356 Points
1024x600 Normal, Mandel Scalar
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	6325 Points +170%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	6317 Points +169%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6306 Points +169%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	6283 Points +168%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6202 Points +164%
	2345 Points
1024x600 Normal, QJuliaRayTrace
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	10594 Points +228%
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	10578 Points +228%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	10564 Points +228%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10539 Points +227%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10388 Points +222%
	3225 Points

	low	med.	high	ultra	QHD	4K
GTA V (2015)	184.6	180	171.6	107.6	94.5	101.8
The Witcher 3 (2015)	256	174.9	130.4	65.6	57.2	68
Dota 2 Reborn (2015)	176.7	160.6	153.2	142		112.5
Final Fantasy XV Benchmark (2018)	216	146.3	100.1		79	48.3
X-Plane 11.11 (2018)	140.5	124.3	95			80.6
Far Cry 5 (2018)	159	137	131	122	100	59
Strange Brigade (2018)	236	187.1	177.7	166	133.7	84.6
Shadow of the Tomb Raider (2018)	154.5	121.1	118.1	112.1	91	46.6
Far Cry New Dawn (2019)	134	117	112	101	92	60
Metro Exodus (2019)	138	89.5	67.7	51.2	44.9	33.4
Borderlands 3 (2019)	139.6	124.1	103.2	85	65.5	38.7
F1 2020 (2020)	231	140.8	139	110.1	94.1	61.4
F1 2021 (2021)	162	126.8	80.8	60.6	54.3	46.5
Far Cry 6 (2021)	82.7	70.9	59.9	51.9	50.1
God of War (2022)	113.1	99.9	83.8	62.9	56.9	40.4
GRID Legends (2022)	126	97.5	81.6	69.3	63	50.5
Tiny Tina's Wonderlands (2022)	177.6	140.4	100.7	81.8	62	36.3
F1 22 (2022)	71.7	65	50.8	32.2	30.5
F1 23 (2023)	80.3	80.5	63	40	34.4	15.2
Baldur's Gate 3 (2023)	110.1	90.4	78.2	78.3	60.7	37
Cyberpunk 2077 2.1 Phantom Liberty (2023)	96.6	81.2	71.5	63.5	44.4	22.3
Assassin's Creed Mirage (2023)	89	82	79	61	53	33
Total War Pharaoh (2023)	302.4	176.2	104.3	79	63.2	39.3
Avatar Frontiers of Pandora (2023)	68	64	55	42	30	11
Skull & Bones (2024)	84	78	69	53	47	31
F1 24 (2024)	88.1	84.5	69.8	46.1	35.3	15.5

排放量

噪音排放

Geekom A8 是一款极其紧凑的微型电脑，这意味着设备中只能容纳一个很小的散热装置。在无负载的情况下，该设备几乎是静音运行，几乎听不到任何声音。不过，在负载情况下，情况就会发生变化。也就是说，我们没有看到平均负载和最大负载之间有太大的差别，这意味着即使在低负载情况下，Geekom A8 也能很快发出声音。在峰值时，我们测得的声压级略高于 49 dB(A)。只有 Acemagic F2A在我们的测试中达到了类似的高值，而 Geekom A7在负载情况下要安静得多。

Noise Level

Idle		24.5 / 24.7 / 24.7 dB(A)
Load		48.5 / 49.2 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 24.4 dB(A)

	Geekom A8 R9 8945HS, Radeon 780M	Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core	Acemagic F2A Ultra 7 155H, Arc 8-Core	Geekom XT12 Pro i9-12900H, Iris Xe G7 96EUs	Geekom A7 R9 7940HS, Radeon 780M	Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs	Acemagic AM18 R7 7840HS, Radeon 780M
Noise		-2%	-1%	-3%	-12%	-5%	-7%
off / environment *	24.4	24.1 1%	24.9 -2%	25.4 -4%	25.4 -4%	25.4 -4%	24.8 -2%
Idle Minimum *	24.5	29.8 -22%	25.4 -4%	28 -14%	33.3 -36%	27.5 -12%	31 -27%
Idle Average *	24.7	29.9 -21%	25.7 -4%	28.1 -14%	33.6 -36%	28 -13%	31.2 -26%
Idle Maximum *	24.7	30 -21%	25.7 -4%	28.5 -15%	33.7 -36%	33 -34%	31.4 -27%
Load Average *	48.5	37.3 23%	47.8 1%	39.6 18%	43.3 11%	42.8 12%	37.1 24%
Witcher 3 ultra *	47	40.2 14%	45.23 4%	47.2 -0%	43.2 8%	44.5 5%	37.6 20%
Load Maximum *	49.2	43.5 12%	49 -0%	44.2 10%	43.3 12%	44.9 9%	53.7 -9%

* ... smaller is better

温度

Geekom A8 的铝制外壳在空转时会明显发热。不过，这并不是问题，即使在负载情况下温度也只是微升。表面温度有时甚至会下降，这表明风扇在空闲时几乎不工作，因此设备本身会积聚更多的热量。

在压力测试中，AMD Ryzen 9 8945HS 的发热温度高达 85.5 °C。这并不是一个临界值，尤其是它只出现了很短的时间。在较长时间内，CPU 的温度稳定在 77 °C以下。SoC 的功耗为 35 瓦，符合制造商的规格要求。

Max. Load

Idle


39.2 °C	41.9 °C	41.5 °C
35.6 °C	38.6 °C	36.3 °C
33.4 °C	34.9 °C	34.5 °C

Maximum: 41.9 °C
Average: 37.3 °C


37 °C	36.8 °C	36.2 °C
32 °C	39.9 °C	33.2 °C
35.1 °C	34.2 °C	31.9 °C

Maximum: 39.9 °C
Average: 35.1 °C

Power Supply (max.) 47 °C | Room Temperature 22.7 °C | Fluke t3000FC (calibrated)

(±) The average temperature for the upper side under maximal load is 37.3 °C / 99 F, compared to the average of 32.2 °C / 90 F for the devices in the class Mini PC.
(±) The maximum temperature on the upper side is 41.9 °C / 107 F, compared to the average of 35.7 °C / 96 F, ranging from 24 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 39.9 °C / 104 F, compared to the average of 36.2 °C / 97 F
(-) In idle usage, the average temperature for the upper side is 38.6 °C / 101 F, compared to the device average of 32.2 °C / 90 F.

耗电量

能源需求和由此产生的效率是 Geekom A8 的优势。我们已经在 Geekom A7 上看到了这一趋势。两款机型在这方面非常接近。特别是在空闲模式下，Geekom 的功耗很低。在平均负载下，我们测试设备的功耗为 71 瓦。Geekom A8 仅在短时间内达到 93.2 瓦的峰值。电源由一个 120 瓦的小型电源装置提供。

Power Consumption

Off / Standby	1.4 / 2.7 Watt
Idle	3.2 / 4.9 / 6.8 Watt
Load	71.3 / 93.2 Watt


Key: min: , med: , max: Metrahit Energy

	Geekom A8 R9 8945HS, Radeon 780M	Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core	Acemagic F2A Ultra 7 155H, Arc 8-Core	Geekom XT12 Pro i9-12900H, Iris Xe G7 96EUs	Geekom A7 R9 7940HS, Radeon 780M	Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs	Acemagic AM18 R7 7840HS, Radeon 780M	Average AMD Radeon 780M	Average of class Mini PC
Power Consumption		-78%	-80%	-57%	-3%	-117%	-96%	-38%	-87%
Idle Minimum *	3.2	8.2 -156%	9.1 -184%	5.7 -78%	3.8 -19%	12.1 -278%	9.8 -206%	6.29 ?(2.7 - 14, n=47) -97%	9.48 ?(1.9 - 45.7, n=119, last 2 years) -196%
Idle Average *	4.9	12.1 -147%	10.3 -110%	9.5 -94%	4.8 2%	13.2 -169%	11.5 -135%	8.47 ?(4.7 - 17.6, n=47) -73%	11.5 ?(1.9 - 47.5, n=117, last 2 years) -135%
Idle Maximum *	6.8	14 -106%	14.4 -112%	16.5 -143%	6.5 4%	14.1 -107%	15.3 -125%	10.9 ?(5.4 - 27, n=47) -60%	14.9 ?(2.6 - 57.1, n=119, last 2 years) -119%
Load Average *	71.3	53.1 26%	54.9 23%	53.3 25%	71.9 -1%	82.9 -16%	75.3 -6%	56.4 ?(19.7 - 93.2, n=46) 21%	57.4 ?(11.3 - 170.6, n=119, last 2 years) 19%
Load Maximum *	93.2	100.4 -8%	110.4 -18%	87.8 6%	94.7 -2%	106.8 -15%	102.8 -10%	75.7 ?(34.9 - 111.8, n=47) 19%	97.5 ?(18.1 - 423, n=119, last 2 years) -5%

* ... smaller is better

Power consumption with the external monitor

Geekom A8 R9 8945HS, Radeon 780M; Idle 1min (external Monitor): Ø4.93 (3.89-6.83)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Idle 1min (external Monitor): Ø10.4 (9.08-14.4)

Geekom A7 R9 7940HS, Radeon 780M; Idle 1min (external Monitor): Ø4.81 (3.82-6.48)

Geekom A8 R9 8945HS, Radeon 780M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø67.5 (54.1-87.8)

Acemagic F2A Ultra 7 155H, Arc 8-Core; 1920x1080 The Witcher 3 ultra (external Monitor): Ø48.4 (45.6-52.4)

Geekom A7 R9 7940HS, Radeon 780M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø73.1 (66.4-82.2)

Geekom A8 R9 8945HS, Radeon 780M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø69.9 (55.2-93.2)

Acemagic F2A Ultra 7 155H, Arc 8-Core; 1280x720 Prime95 28.10 and Furmark 1.25: Ø92.2 (78.7-114)

Geekom A7 R9 7940HS, Radeon 780M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø64.2 (55.6-95.8)

Geekom A8 R9 8945HS, Radeon 780M; 3DMark06 Return To Proxycon: Ø71.3 (62.5-83.3)

Acemagic F2A Ultra 7 155H, Arc 8-Core; 3DMark06 Return To Proxycon: Ø54.9 (50.2-57)

Geekom A7 R9 7940HS, Radeon 780M; 3DMark06 Return To Proxycon: Ø71.9 (56.1-82.9)

Power consumption with the external monitor

Geekom A8 R9 8945HS, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø72.5 (69.7-93.2)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Prime95 V2810 Stress (external Monitor): Ø99.6 (92-110.4)

Geekom A7 R9 7940HS, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø70 (57.2-94.7)

Geekom A8 R9 8945HS, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø73.7 (64.4-85.7)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Cinebench R15 Multi (external Monitor): Ø103 (99.2-107)

Geekom A7 R9 7940HS, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø73 (64.8-85.1)

Geekom A8 R9 8945HS, Radeon 780M; Cinebench R23 Single (external Monitor): Ø29.6 (24.6-64.4)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Cinebench R23 Single (external Monitor): Ø32.7 (19.4-55.3)

Geekom A7 R9 7940HS, Radeon 780M; Cinebench R23 Single (external Monitor): Ø28.7 (24.1-75.1)

Geekom A8 R9 8945HS, Radeon 780M; Cinebench R23 Multi (external Monitor): Ø66.8 (64.3-85.9)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Cinebench R23 Multi (external Monitor): Ø100.7 (97.2-108.6)

Geekom A7 R9 7940HS, Radeon 780M; Cinebench R23 Multi (external Monitor): Ø66.2 (63.5-84.2)

Geekom A8 R9 8945HS, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø71.9 (63.7-91)

Acemagic F2A Ultra 7 155H, Arc 8-Core; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø49.7 (47.3-60.6)

Geekom A7 R9 7940HS, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø72.8 (57.4-85.5)

Pros

+ 极其紧凑坚固的 0.5 升外壳

+ 高品质的材料选择

+ AMD Ryzen 9 8945HS，8 核 16 线程

+ 现代而强大的 iGPU，采用 RDNA3 架构

+ 高速内存（DDR5-5600 MT/s）

+ 多种连接选项，包括 USB4

+ 最多可同时使用四个屏幕

+ 功耗相对较低

+ 固态硬盘容量大，存储空间达 2 TB

+ 支持 UHS 的 SD 读卡器

+ 36 个月保修

Cons

- 冷却装置在极限状态下快速工作

- 负载时声音清晰

- 胶合橡胶脚垫

- 高 DPC 延迟

结论 - 0.5 升的小巧机箱却能提供强劲动力

Geekom A8 是一款极其小巧的电脑--体积仅为 0.5 升，但性能却非常出色。配置 AMD Ryzen 9 8945HS可以持续显示出很高的工作速度。32 GB DDR5 内存和 2 TB SDD 硬盘为您提供了充足的配置。不过，由于设计紧凑，SoC 只能以最低的功耗运行。尽管如此，Geekom 还是能轻松胜任日常工作。在与 Geekom A7 的直接比较中，A8 稍逊一筹。

Geekom A8 采用了与 Geekom A7 相同的设计。做工精良的外壳不仅在视觉上极具质感，而且手感也令人信服。如果说有什么不足的话，那就是拆卸过程值得批评。不过，由于 Geekom 始终销售预配置的 A8，这一点可以忽略不计。作为 Ryzen 9 型号的替代品，Geekom A8 还可以订购 Ryzen 7 8845HS（799 欧元）。这样可以省下一些钱，虽然性能应该不会明显下降。不过，在固态硬盘配置方面，你必须做出选择，因为 Geekom 只提供配备 1 TB 固态硬盘的 Ryzen 7 型号。

Geekom A8 是一款性能出色的时尚迷你 PC。加上出色的做工和高品质的选材，Geekom A8 堪称高端迷你 PC。

在外部接口的选择上，Geekom A8 也无可挑剔。这款小型计算设备提供了多种连接选择，USB4 是最先进的接口，可以扩展应用范围。如果快速 iGPU（又名 AMD Radeon 780M）的性能还不够，Geekom A8 还可以通过外接显卡变身为强大的游戏电脑。

在设计方面，Geekom A8 和 Geekom A7 是我们迄今为止测试过的最漂亮的迷你 PC 之一。不过，紧凑的设计也带来了一些问题和限制。例如，外部接口在机身后部非常靠近。负载情况下的噪音水平是另一个值得批评的地方。我们希望看到制造商能提供稍好的散热装置。

价格和供应情况

Geekom A8 目前的售价为 949 欧元（1030 美元），我们评测的版本为 949 欧元（1030 美元）。用户可以直接从上订购这款迷你电脑。.此外，还可以通过亚马逊订购 Geekom A8。

Geekom A8 - 05/24/2024 v7 ^(old)
Sebastian Bade

Chassis

87 / 98 → 89%

Connectivity

62 / 81 → 77%

Weight

84%

Games Performance

76%

Application Performance

97%

Workstation

79%

Temperature

86%

Noise

81%

Average

82%

85%

Mini PC - Weighted Average

Cinebench 2024 CPU Multi Core in comparison
HP Spectre x360 16 RTX 4050 (min) Ultra 7 155H, NVIDIA GeForce RTX 4050 Laptop GPU	28.1
...
Asus Vivobook S 15 OLED Snapdragon SD X Elite X1E-78-100, Adreno X1-85 3.8 TFLOPS	956
Minisforum Venus Series UM790 Pro R9 7940HS, Radeon 780M	959
Asus TUF Gaming A15 FA507UV R9 8945H, NVIDIA GeForce RTX 4060 Laptop GPU	960
Geekom A8 R9 8945HS, Radeon 780M	967
Colorful EVOL X15 AT 23 i7-13700HX, NVIDIA GeForce RTX 4060 Laptop GPU	971
Asus TUF Gaming A17 FA707XI-NS94 R9 7940HS, NVIDIA GeForce RTX 4070 Laptop GPU	972
Lenovo ThinkPad P1 G6 21FV001KUS i7-13800H, NVIDIA GeForce RTX 4080 Laptop GPU	976
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

Geekom A8 评测：高级 0.5 升迷你 PC，配备 AMD Ryzen 9 8945HS、32 GB DDR5 内存和 2 TB 固态硬盘

紧凑型动力室

潜在的竞争对手比较

Geekom A8 详细信息

外壳 - 坚固的 0.5 升铝制外壳

尺寸比较

功能 - 包括 USB4 在内的多种连接

交流

配件

维护

性能 - AMD Ryzen 9 8945HS，8 核 16 线程

测试条件

处理器

Cinebench R15 多回路

系统性能

DPC 延迟

大容量存储器

Continuous read: DiskSpd Read Loop, Queue Depth 8

图形卡

游戏性能

Witcher 3 FPS chart

配备两个 eGPU 的 Geekom A8 性能测试

Geekom A8 和 GPD G1（AMD Radeon RX 7600M XT）

Geekom A8 和 Razer Core X（NvidiaGeForce RTX 3060 Ti）

排放量

噪音排放

温度

耗电量

Power consumption with the external monitor

Power consumption with the external monitor

Pros

Cons

结论 - 0.5 升的小巧机箱却能提供强劲动力

价格和供应情况

More articles related to this device

Transparency

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
Aoostar GEM12 R7 8845HS, Radeon 780M	13249
SCHENKER XMG Evo 14 (M24) R7 8845HS, Radeon 780M	13295
Asus ExpertBook B3 B3404CVF i7-1355U, GeForce RTX 2050 Mobile	13299
Geekom A8 R9 8945HS, Radeon 780M	13321
Asus GL704GM-DH74 i7-8750H, GeForce GTX 1060 Mobile	13334
Tuxedo Pulse 14 Gen3 R7 7840HS, Radeon 780M	13338
Asus ROG Ally X Z1 Extreme, Radeon 780M	13368
...
(max) R7 9800X3D, NVIDIA GeForce RTX 4090	77609
