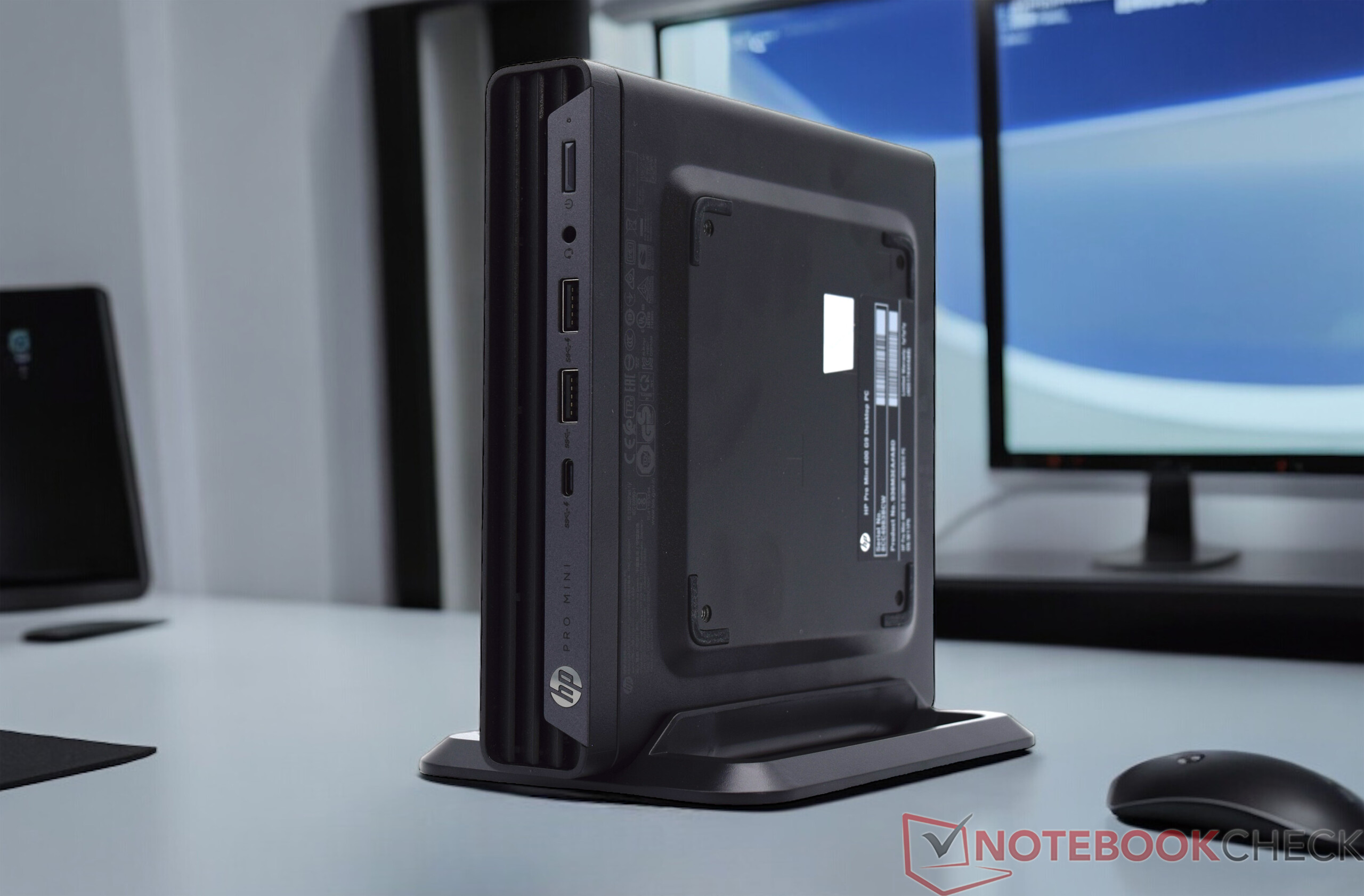

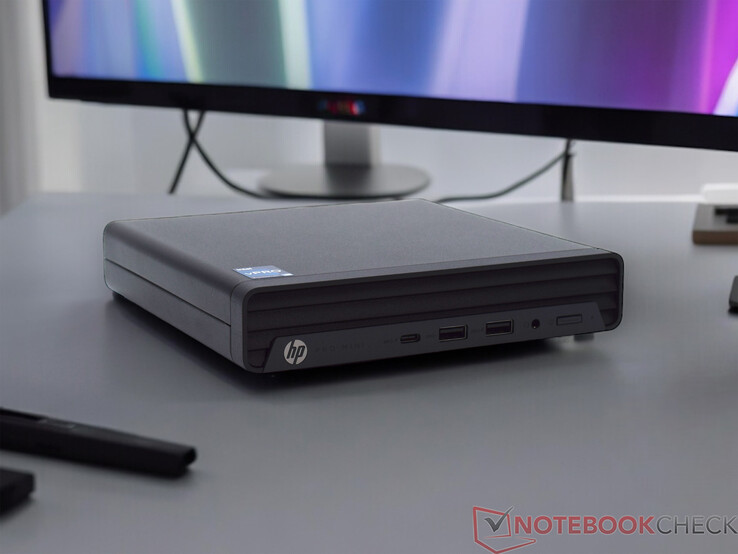

惠普 Pro Mini 400 G9 迷你 PC 评测：采用英特尔酷睿 i5-13500T 和模块化设计的 NUC PC 性能卓越

Name: HP Pro Mini 400 G9-936M3EA
Brand: HP

这是一个明智的决定！

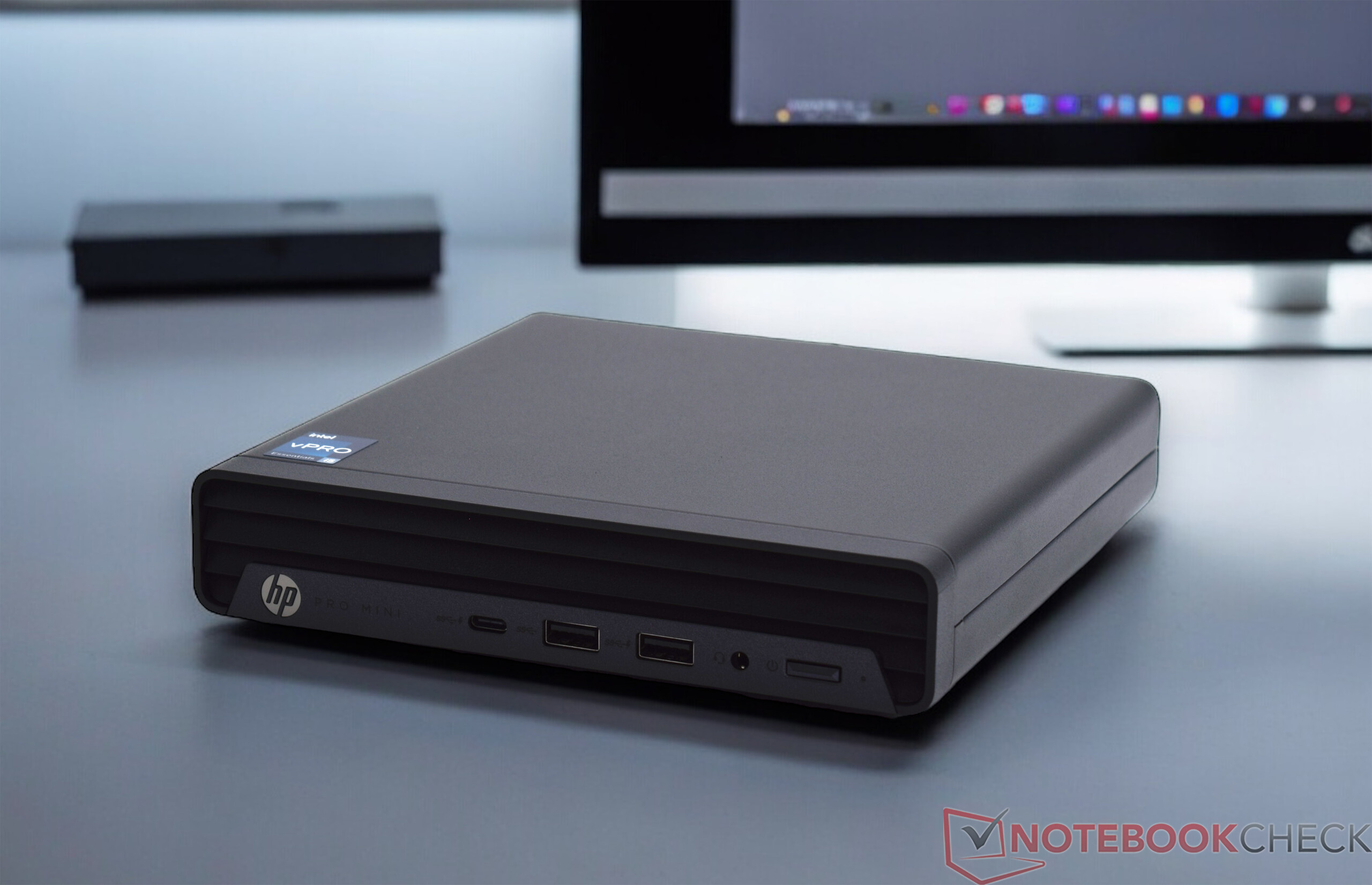

惠普推出 Pro Mini 400 G9，作为 Elite Mini 800 G9 的廉价替代品。制造商依然坚持模块化设计，并采用特殊的节能型处理器。我们对这款基于英特尔酷睿 i5-13500T 处理器的迷你电脑进行了日常性能和效率评估。

Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy), Published 06/28/2024 🇺🇸 🇩🇪 ...

Desktop Mini PC Intel Raptor Lake

知名制造商惠普销售各种迷你电脑，适合各种预算。惠普 Pro Mini 400 G9 型号的起价不到 400 欧元，而最贵的设备也在合理范围内，不到 1000 欧元。所有设备都有一个共同点：只使用基于 LGA-1700 插座的 T 型处理器。在本次测试中，我们将看到配备以下处理器的 HP Pro Mini 400 G9 英特尔酷睿 i5-13500T这是一款传统、经济、低功耗的台式机处理器。我们将在测试中看到惠普是否能成功地与基于移动处理器的各种迷你 PC 相抗衡。测试样品的工作内存为 16 GB RAM，大容量存储空间为 512 GB SSD。该设备可直接从制造商的网上商店购买，售价为 870 欧元。随附 Windows 11 专业版许可证以及键盘和鼠标。

作为一款紧凑型办公设备，惠普 Pro Mini 400 G9 必须与功能强大的迷你 PC 竞争。我们来看看它与惠普精英迷你 800 G9的对决。英特尔酷睿 i5-13500通过我们的测试课程。我们已将所有比较设备编入下表。

Test device courtesy of HP Store Deutschland

Download your licensed rating image as PNG / SVG

HP Pro Mini 400 G9-936M3EA

Processor

Intel Core i5-13500T 14 x 1.6 - 4.6 GHz, 74 W PL2 / Short Burst, 35 W PL1 / Sustained, Raptor Lake

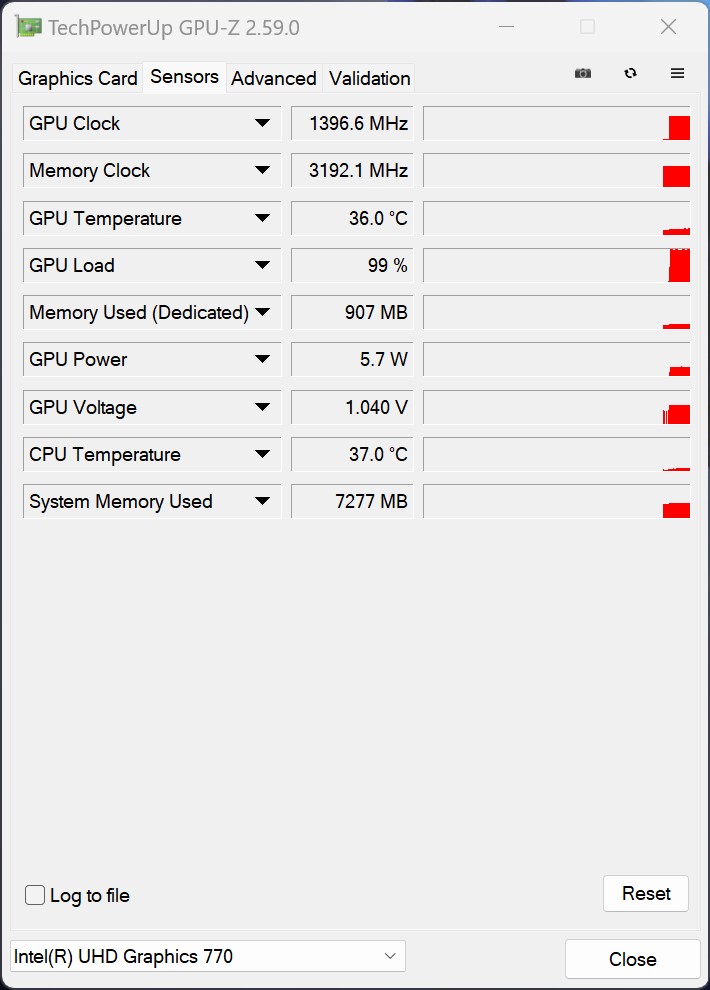

Graphics adapter

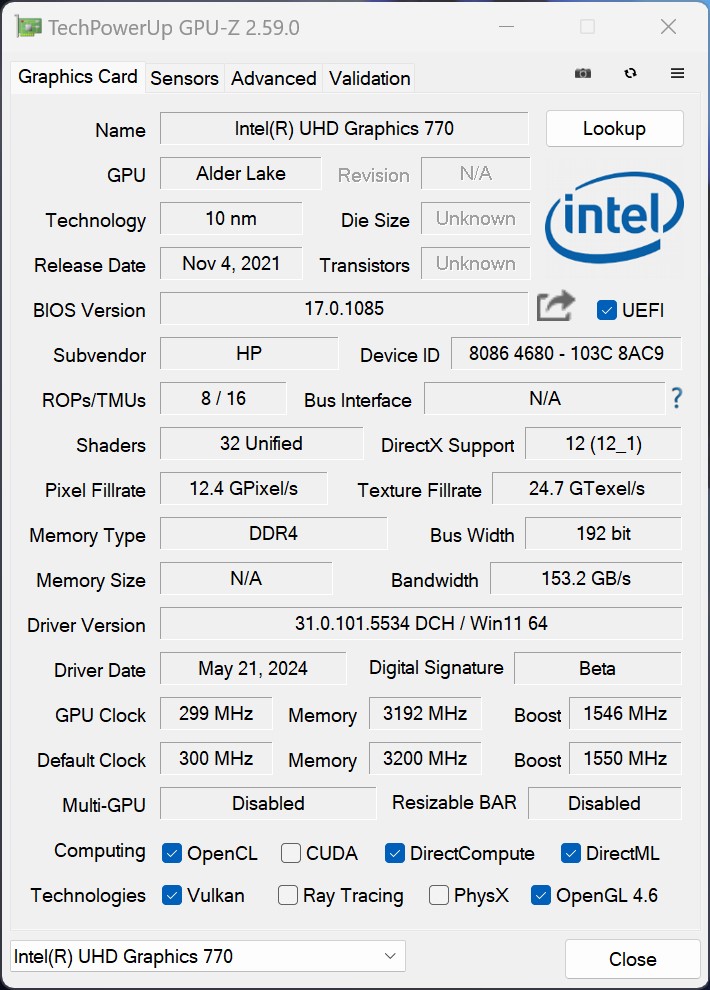

Intel UHD Graphics 770, Core: 1550 MHz, 31.0.101.5534 DCH

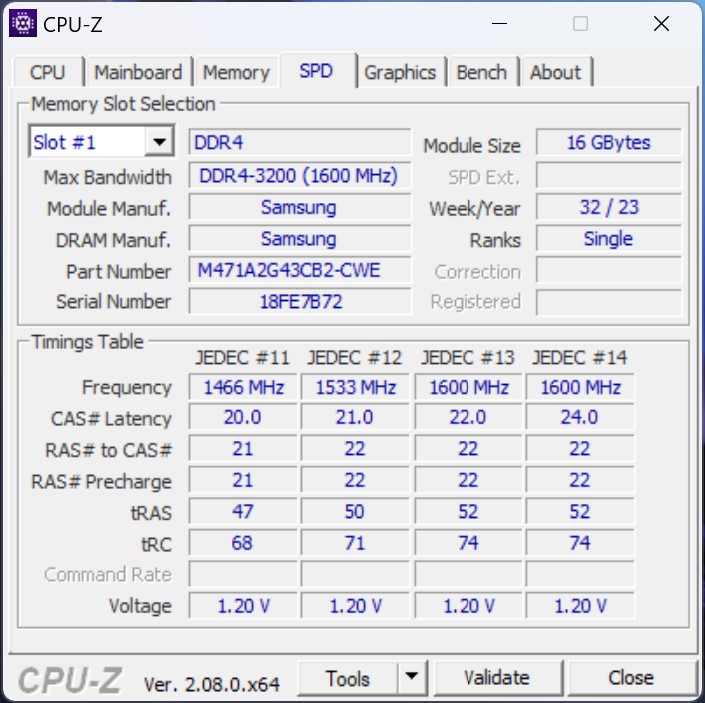

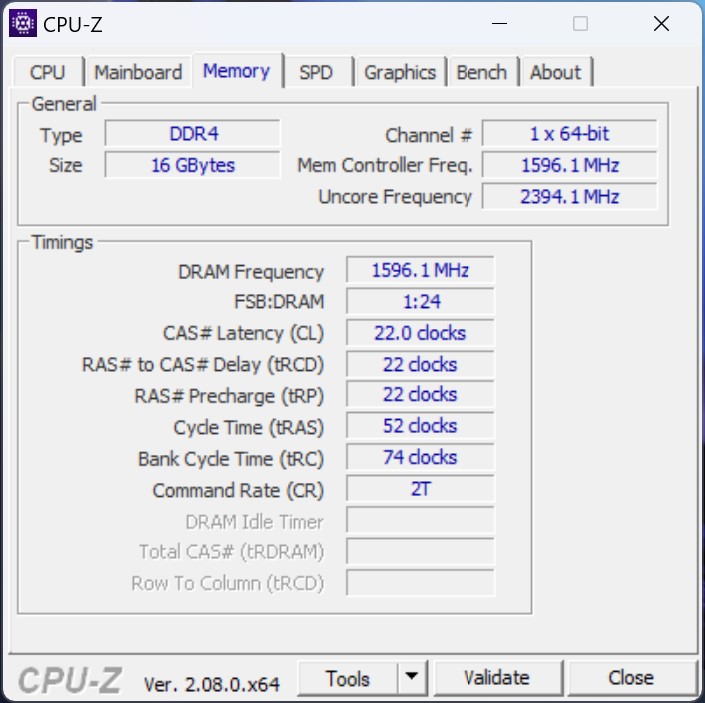

Memory

16 GB

, DDR4-3200, Single-Channel

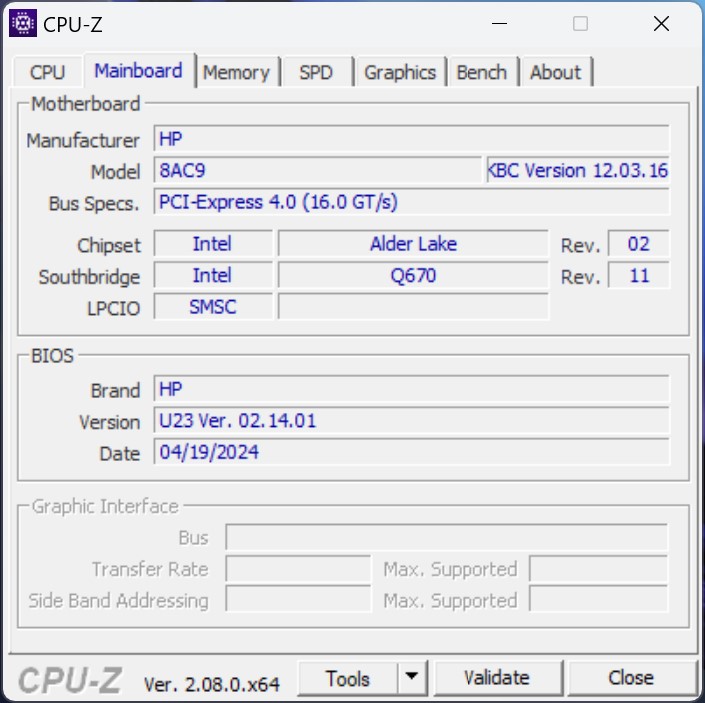

Mainboard

Intel Q670

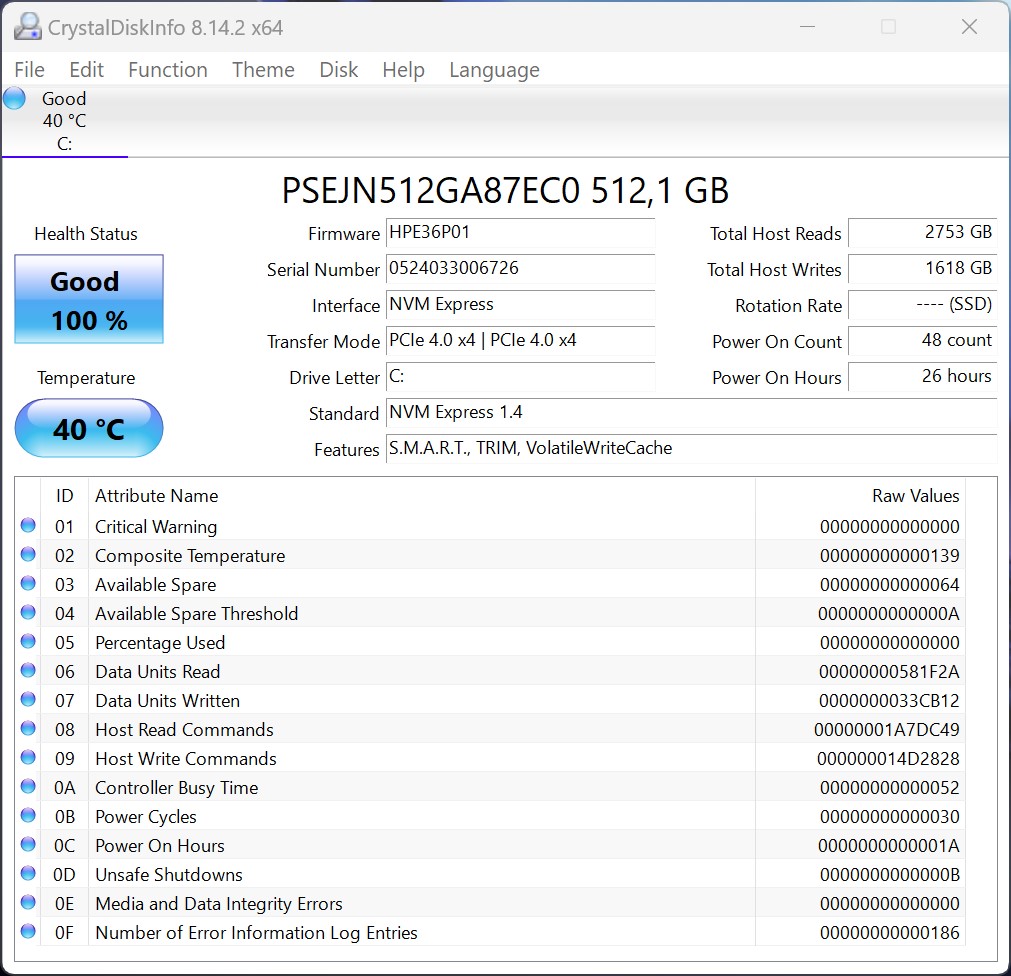

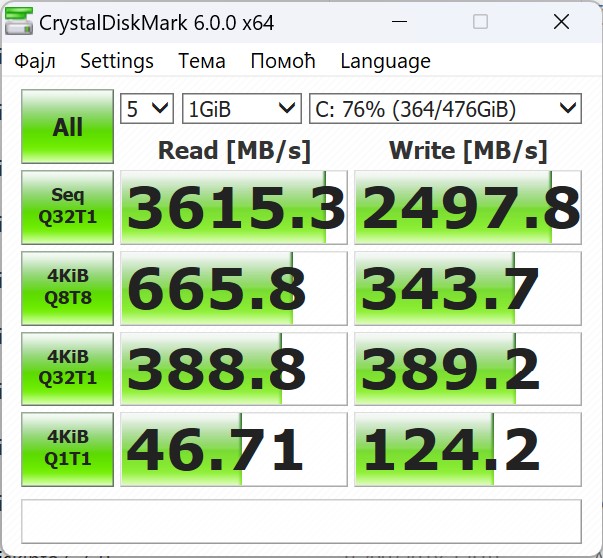

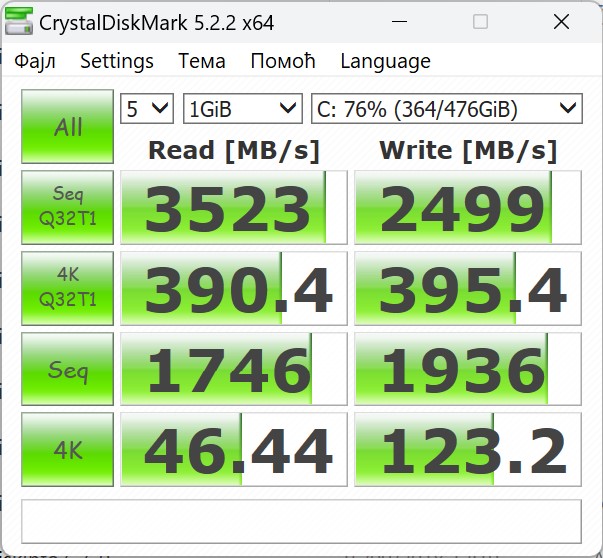

Storage

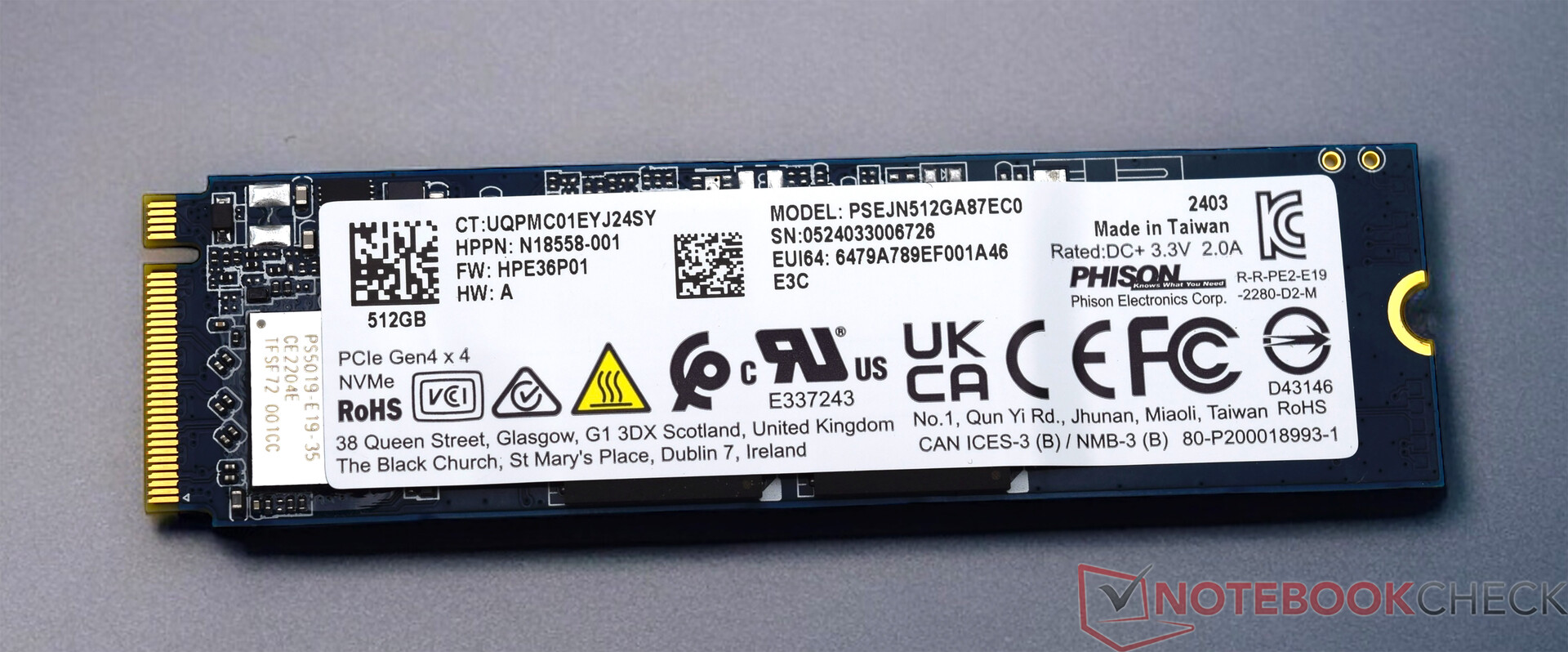

HP PSEJN512GA87EC0, 512 GB

, 400 GB free

Soundcard

Intel Alder Lake-S PCH - cAVS (Audio, Voice, Speech)

Connections

2 USB 2.0, 5 USB 3.1 Gen2, 2 USB 3.2 Gen 2x2 20Gbps, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3,5mm Klinke

Networking

Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Wi-Fi 6E AX211 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.3

Size

height x width x depth (in mm): 34 x 177 x 175

Operating System

Microsoft Windows 11 Pro

Additional features

Speakers: Mono, 90 Watt Power Adapter, HP 125 Keyboard, HP 125 Mouse, HP Wolf Security, 12 Months Warranty

Weight

1.225 kg, Power Supply: 278 g

Price

870 Euro

Links

HP homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Date	Version	Model	Memory	Weight	Height	Price
06 / 2024	v8	HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770	16384 MB	1.2 kg	34 mm	870 Euro
06 / 2024	v8	HP Elite Mini 800 G9-5M9T9EA i5-13500, UHD Graphics 770	16384 MB	1.3 kg	34 mm	1085 Euro
06 / 2024	v8	Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs	32768 MB	440 g	37 mm	930 EUR
05 / 2024	v7 ^(old)	Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs	32768 MB	615 g	55 mm	709 EUR
05 / 2024	v7 ^(old)	Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs	32768 MB	1.5 kg	48 mm	979 EUR
04 / 2024	v7 ^(old)	Acemagic F2A Ultra 7 155H, Arc 8-Core	32768 MB	768 g	57 mm	1199 EUR
08 / 2023	v7 ^(old)	Khadas Mind i7-1360P, Iris Xe G7 96EUs	32768 MB	438 g	20 mm	799 Euro

注：我们更新了评级系统，第 8 版的结果与第 7 版的结果不具可比性。这里可在此处查阅。

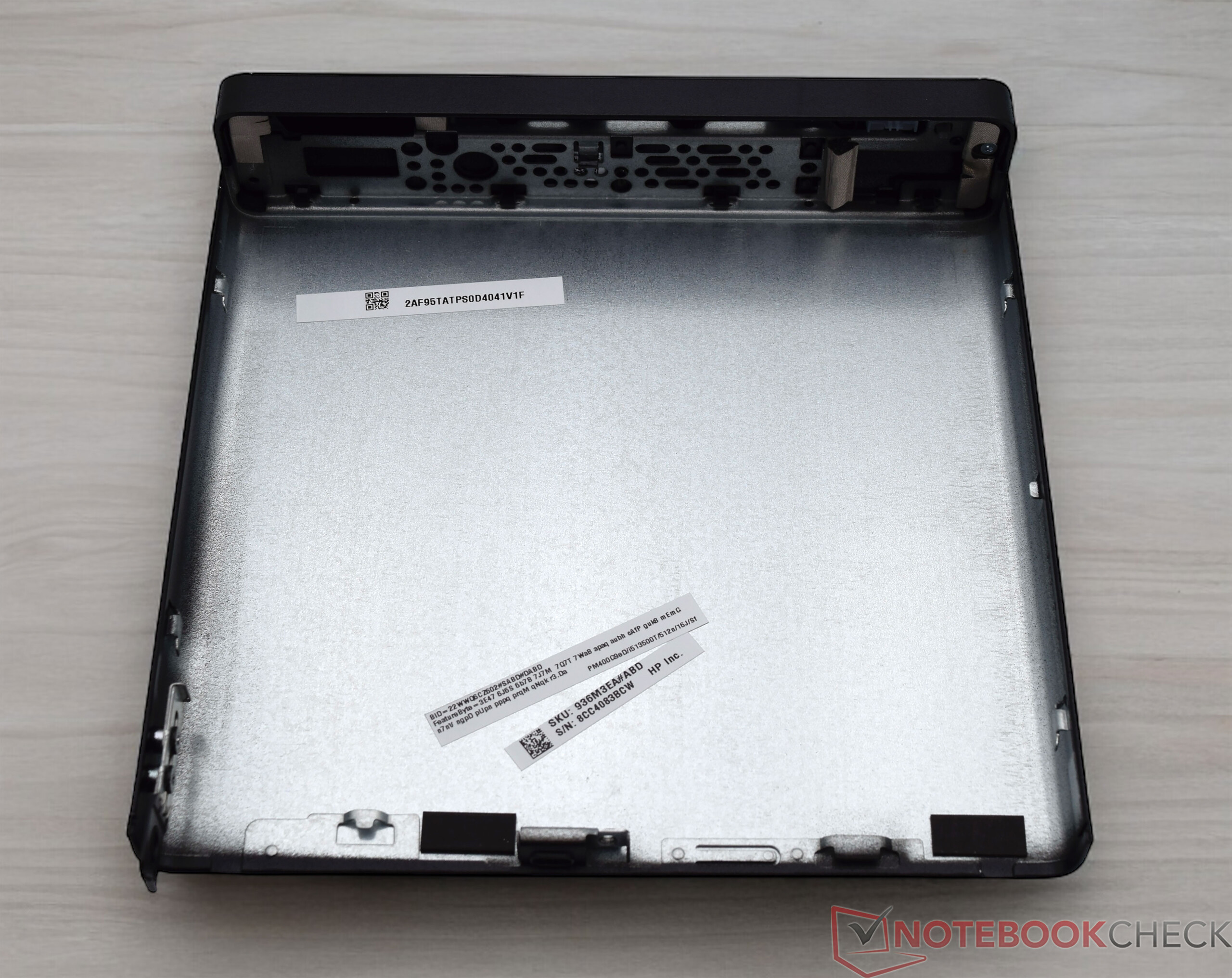

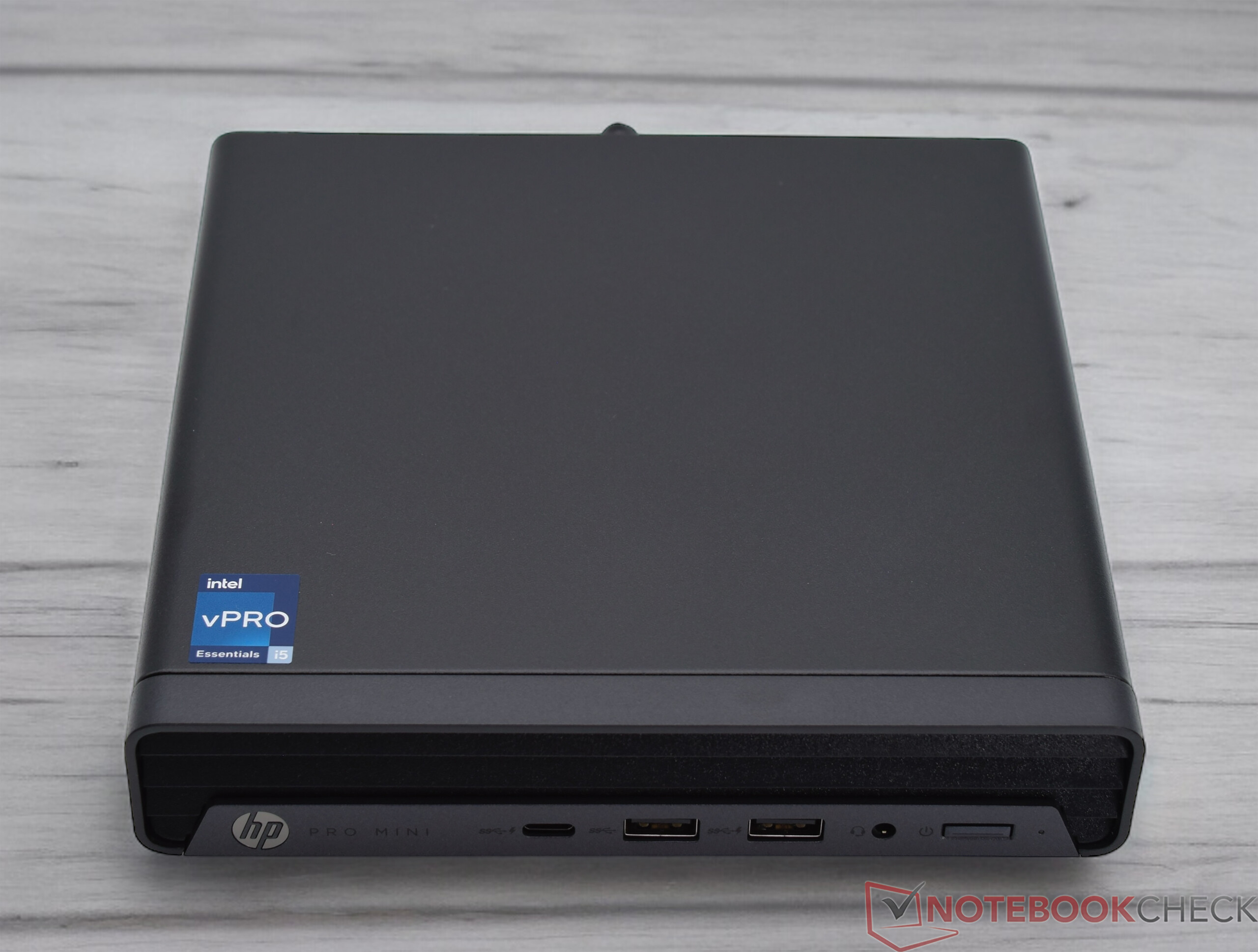

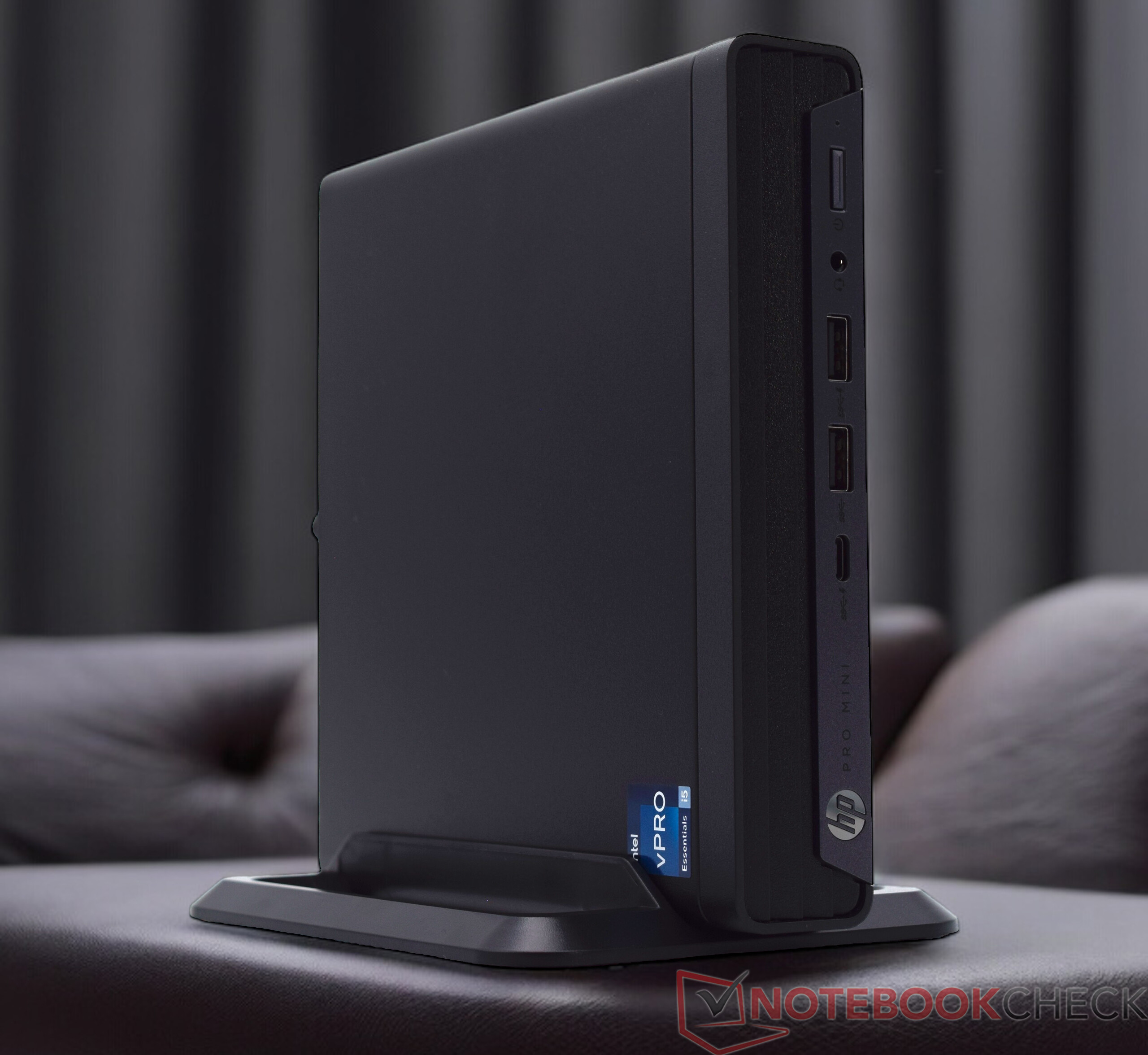

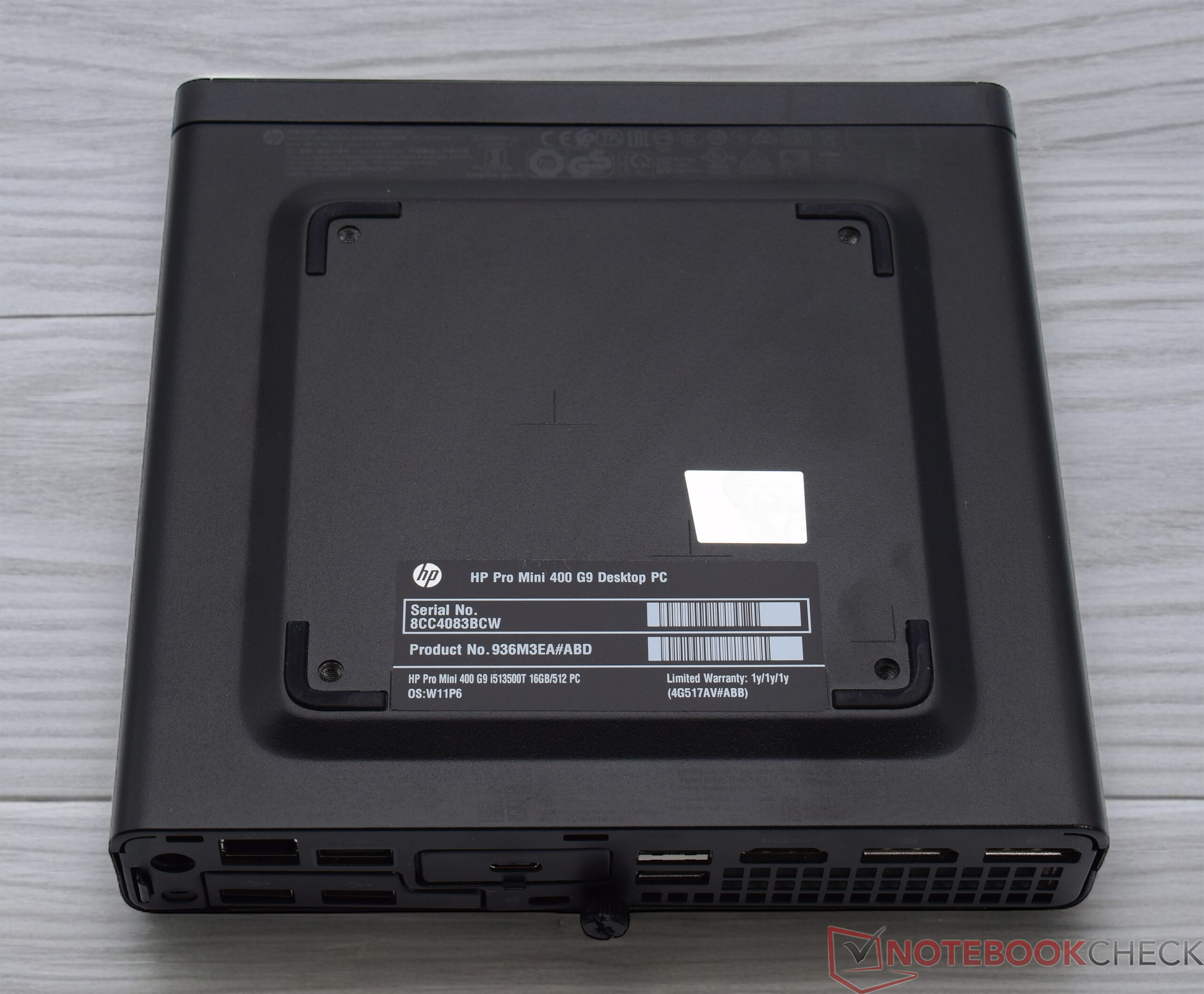

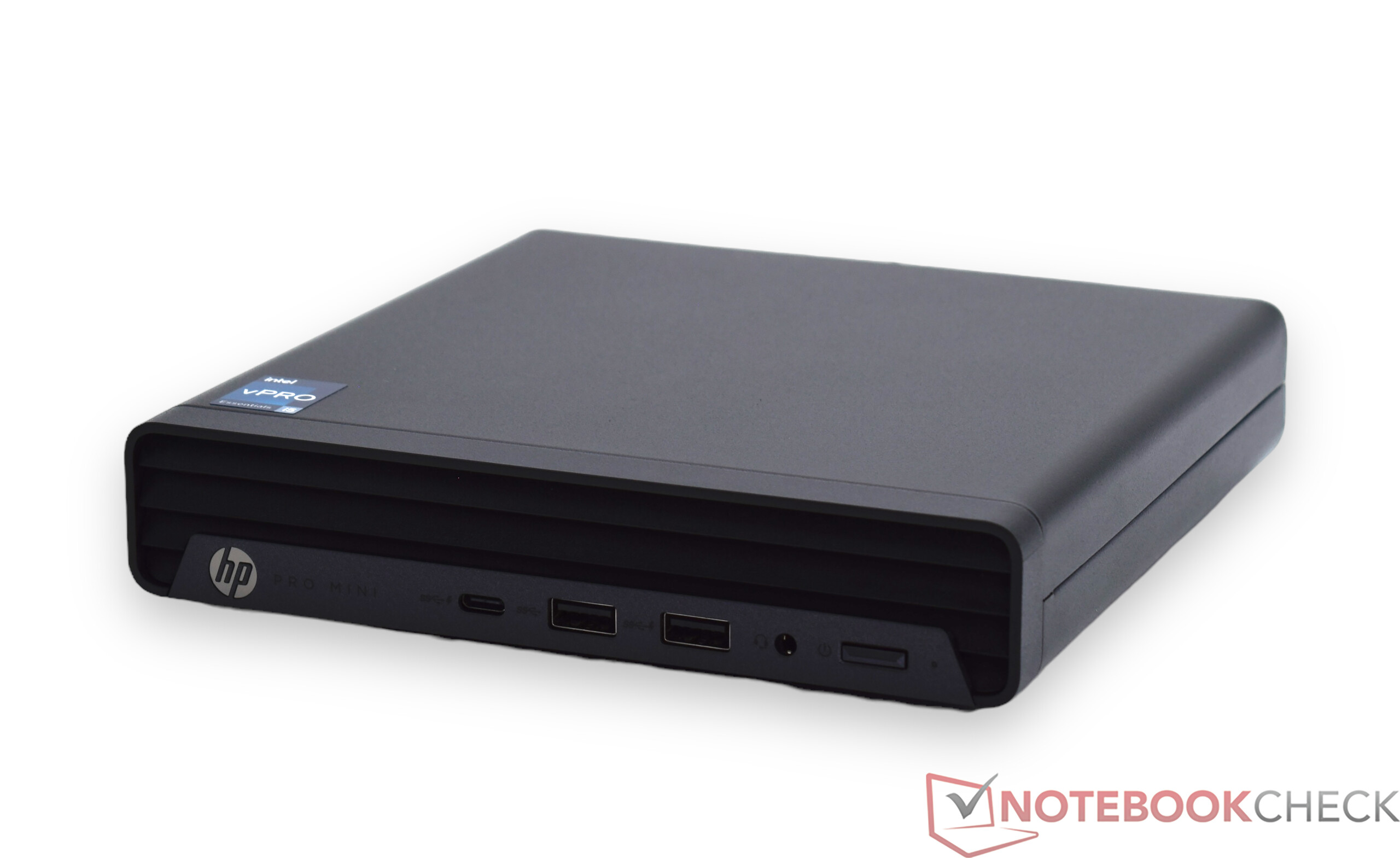

机箱 - 坚固的金属机箱，模块化设计

惠普 Pro Mini 400 G9 在外观上与惠普精英迷你 800 G9非常相似。不过，仔细观察就会发现明显的不同。全金属外壳的顶部现在完全封闭，没有任何通风口。我们稍后将看看这对性能和温度的影响程度。这种设计当然也有一个优点，那就是灰尘和污垢不会轻易进入系统。正面安装了一块塑料面板，与整体外观完美契合。惠普 Pro Mini 400 G9 的做工质量很高，无可挑剔。值得强调的是模块化设计，它可以快速拆卸某些组件并自行进行小修。

尺寸比较

Minisforum MS-01 HP Pro Mini 400 G9-936M3EA HP Elite Mini 800 G9-5M9T9EA Acemagic F2A Minisforum Venus Series NAB9 Khadas Mind Geekom GT13 Pro DIN A4 ❌

设备

乍一看，它在连接性方面提供了很多功能。不过，你千万不要被这一点所迷惑，因为 USB4 或 OCuLink 等现代接口必须省去。不过，就连接性而言，惠普 Pro Mini 400 G9 明显优于大多数其他迷你电脑。屏幕可以通过 HDMI 或 DisplayPort 连接。

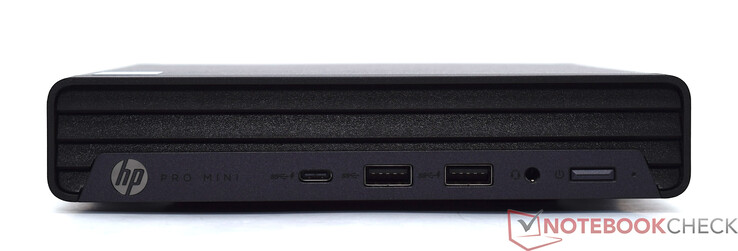

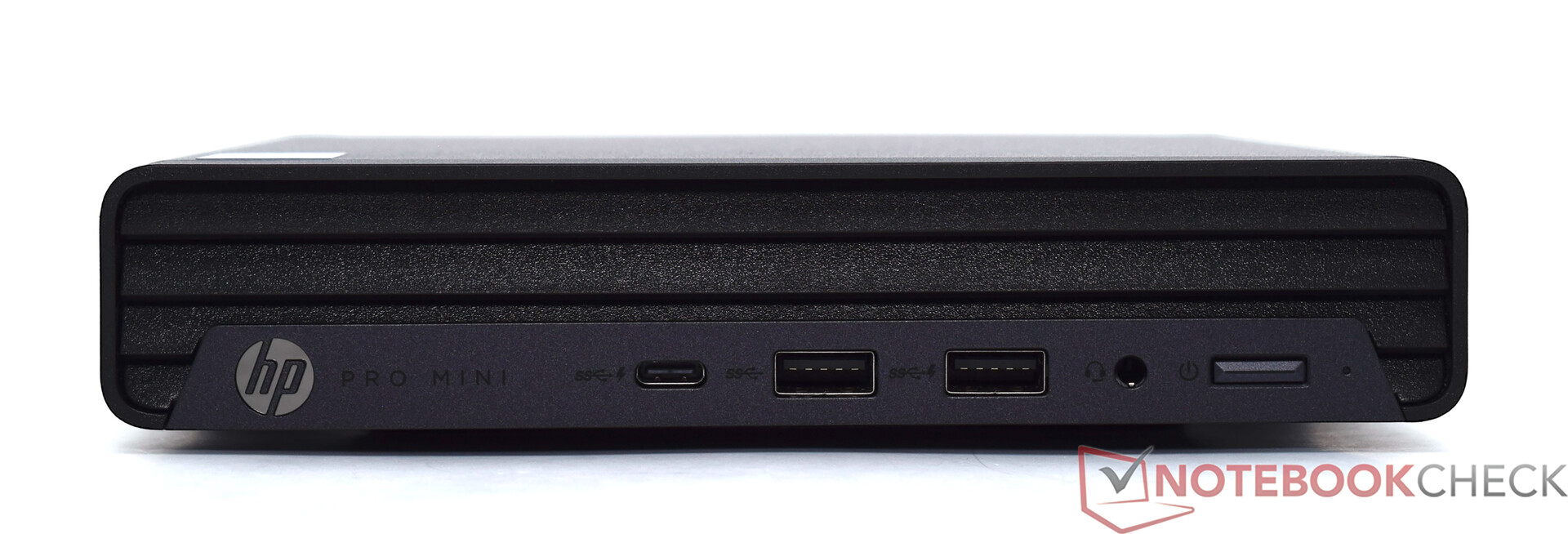

前置USB Type-C 20 Gbit/s、2x USB Type-A 10 Gbit/s、3.5 mm 音频

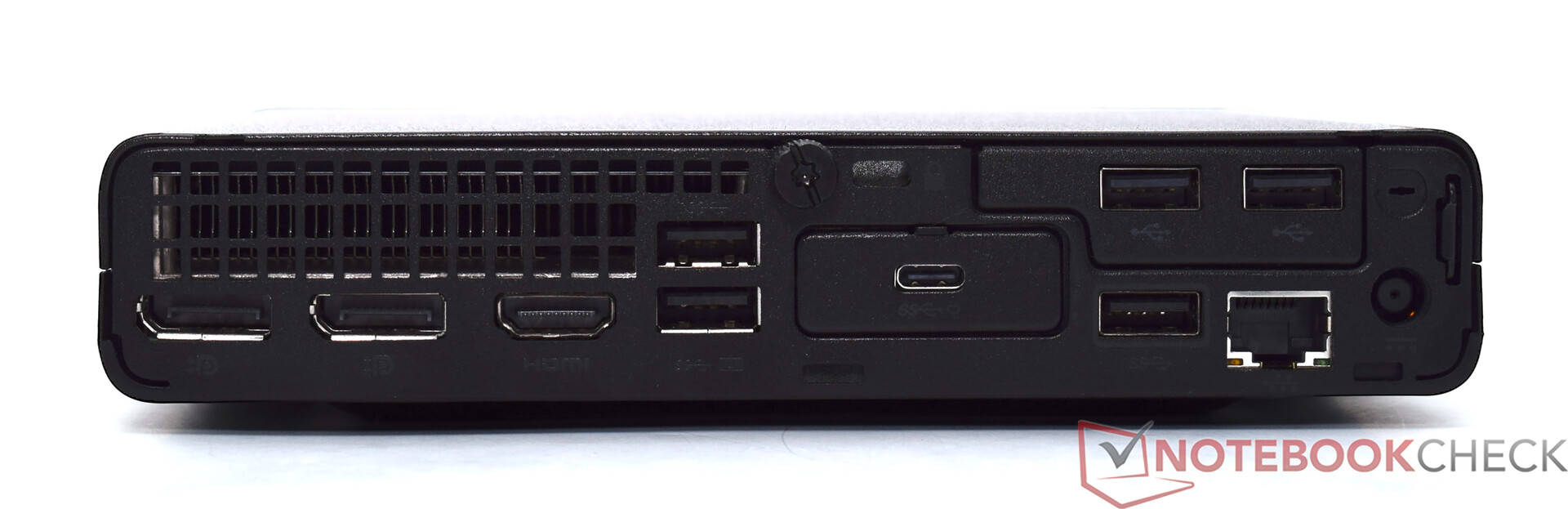

后部：2x DisplayPort 1.4、HDMI 2.1、3x USB Type-A 10 Gbit/s、2x USB Type-A 2.0、USB Type-C 10 Gbit/s、RJ45 GBit-LAN、电源连接器

交流

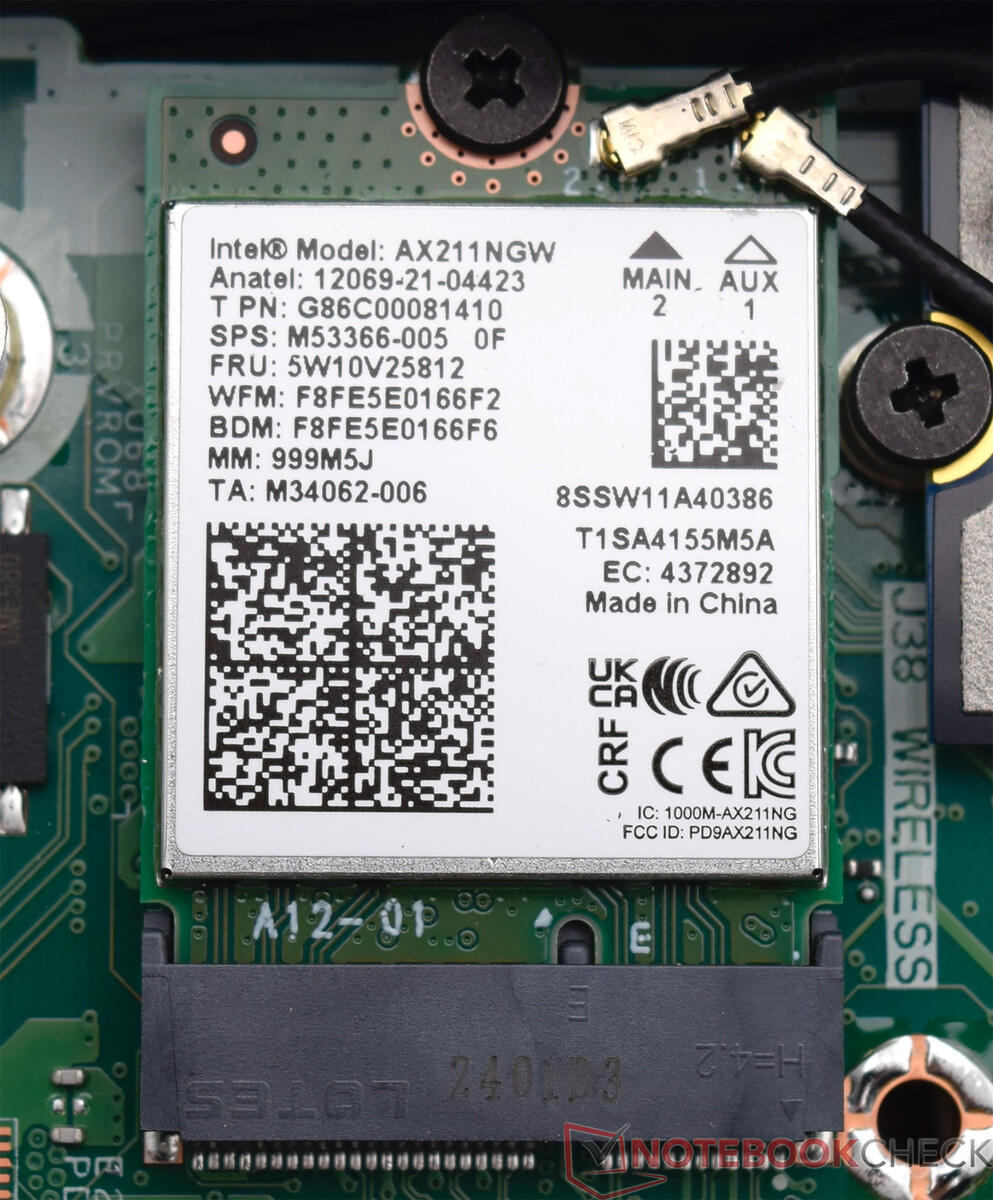

惠普 Pro Mini 400 G9 与 HP Elite Mini 800 G9都安装了英特尔 Wi-Fi 6E-AX211 无线模块。不过，在我们的测试样本中，Wi-Fi 模块的性能略胜一筹，因此惠普 Pro Mini 400 G9 排名第二。只有 Minisforum MS-01 能够持续提供稍好的结果。无线局域网模块可在 5 和 6 GHz 频段工作。我们使用华硕 ROG Rapture GT-AXE11000 进行了此项测试。也可以使用有线网络连接。不过，惠普只在这里安装了一个 RJ45 插座，速度最多只能达到 GBit。

Networking
iperf3 receive AXE11000 6GHz
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	1770 (1584^min - 1790^max) MBit/s +4%
Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1753 (1734^min - 1765^max) MBit/s +3%
HP Pro Mini 400 G9-936M3EA Intel Wi-Fi 6E AX211	1701 (1684^min - 1720^max) MBit/s
HP Elite Mini 800 G9-5M9T9EA Intel Wi-Fi 6E AX211	1665 (1635^min - 1684^max) MBit/s -2%
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1583 (1557^min - 1611^max) MBit/s -7%
Average Intel Wi-Fi 6E AX211 (700 - 1857, n=211)	1493 MBit/s -12%
Khadas Mind Intel Wi-Fi 6E AX211	1445 (1342^min - 1468^max) MBit/s -15%
Average of class Mini PC (684 - 1771, n=53, last 2 years)	1381 MBit/s -19%
iperf3 transmit AXE11000 6GHz
Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1775 (877^min - 1883^max) MBit/s +6%
HP Pro Mini 400 G9-936M3EA Intel Wi-Fi 6E AX211	1675 (843^min - 1716^max) MBit/s
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	1615 (767^min - 1670^max) MBit/s -4%
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1429 (1392^min - 1511^max) MBit/s -15%
HP Elite Mini 800 G9-5M9T9EA Intel Wi-Fi 6E AX211	1404 (1338^min - 1435^max) MBit/s -16%
Average Intel Wi-Fi 6E AX211 (632 - 1851, n=212)	1372 MBit/s -18%
Khadas Mind Intel Wi-Fi 6E AX211	1348 (1293^min - 1402^max) MBit/s -20%
Average of class Mini PC (394 - 1800, n=53, last 2 years)	1328 MBit/s -21%
iperf3 receive AXE11000
Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1771 (1719^min - 1796^max) MBit/s +12%
HP Pro Mini 400 G9-936M3EA Intel Wi-Fi 6E AX211	1582 (1507^min - 1632^max) MBit/s
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1398 (1261^min - 1453^max) MBit/s -12%
Average Intel Wi-Fi 6E AX211 (582 - 1890, n=238)	1379 MBit/s -13%
Khadas Mind Intel Wi-Fi 6E AX211	1059 (937^min - 1173^max) MBit/s -33%
Average of class Mini PC (192.9 - 1796, n=113, last 2 years)	932 MBit/s -41%
HP Elite Mini 800 G9-5M9T9EA Intel Wi-Fi 6E AX211	927 (910^min - 944^max) MBit/s -41%
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	838 (728^min - 926^max) MBit/s -47%
Minisforum Venus Series NAB9 MediaTek MT7921	503 (371^min - 687^max) MBit/s -68%
iperf3 transmit AXE11000
Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1732 (1659^min - 1839^max) MBit/s +29%
HP Pro Mini 400 G9-936M3EA Intel Wi-Fi 6E AX211	1345 (722^min - 1469^max) MBit/s
Average Intel Wi-Fi 6E AX211 (464 - 1921, n=238)	1233 MBit/s -8%
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1146 (846^min - 1308^max) MBit/s -15%
Khadas Mind Intel Wi-Fi 6E AX211	1108 (703^min - 1199^max) MBit/s -18%
HP Elite Mini 800 G9-5M9T9EA Intel Wi-Fi 6E AX211	936 (891^min - 986^max) MBit/s -30%
Average of class Mini PC (184.1 - 1776, n=113, last 2 years)	864 MBit/s -36%
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	709 (369^min - 977^max) MBit/s -47%
Minisforum Venus Series NAB9 MediaTek MT7921	531 (255^min - 725^max) MBit/s -61%

HP Pro Mini 400 G9-936M3EA Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1647 (843-1716)

Khadas Mind Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1348 (1293-1402)

HP Pro Mini 400 G9-936M3EA Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1700 (1684-1720)

Khadas Mind Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1445 (1342-1468)

HP Pro Mini 400 G9-936M3EA Intel Wi-Fi 6E AX211; iperf3 receive AXE11000; iperf 3.1.3: Ø1581 (1507-1632)

Khadas Mind Intel Wi-Fi 6E AX211; iperf3 receive AXE11000; iperf 3.1.3: Ø1059 (937-1173)

HP Pro Mini 400 G9-936M3EA Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000; iperf 3.1.3: Ø1322 (722-1469)

Khadas Mind Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000; iperf 3.1.3: Ø1108 (703-1199)

配件

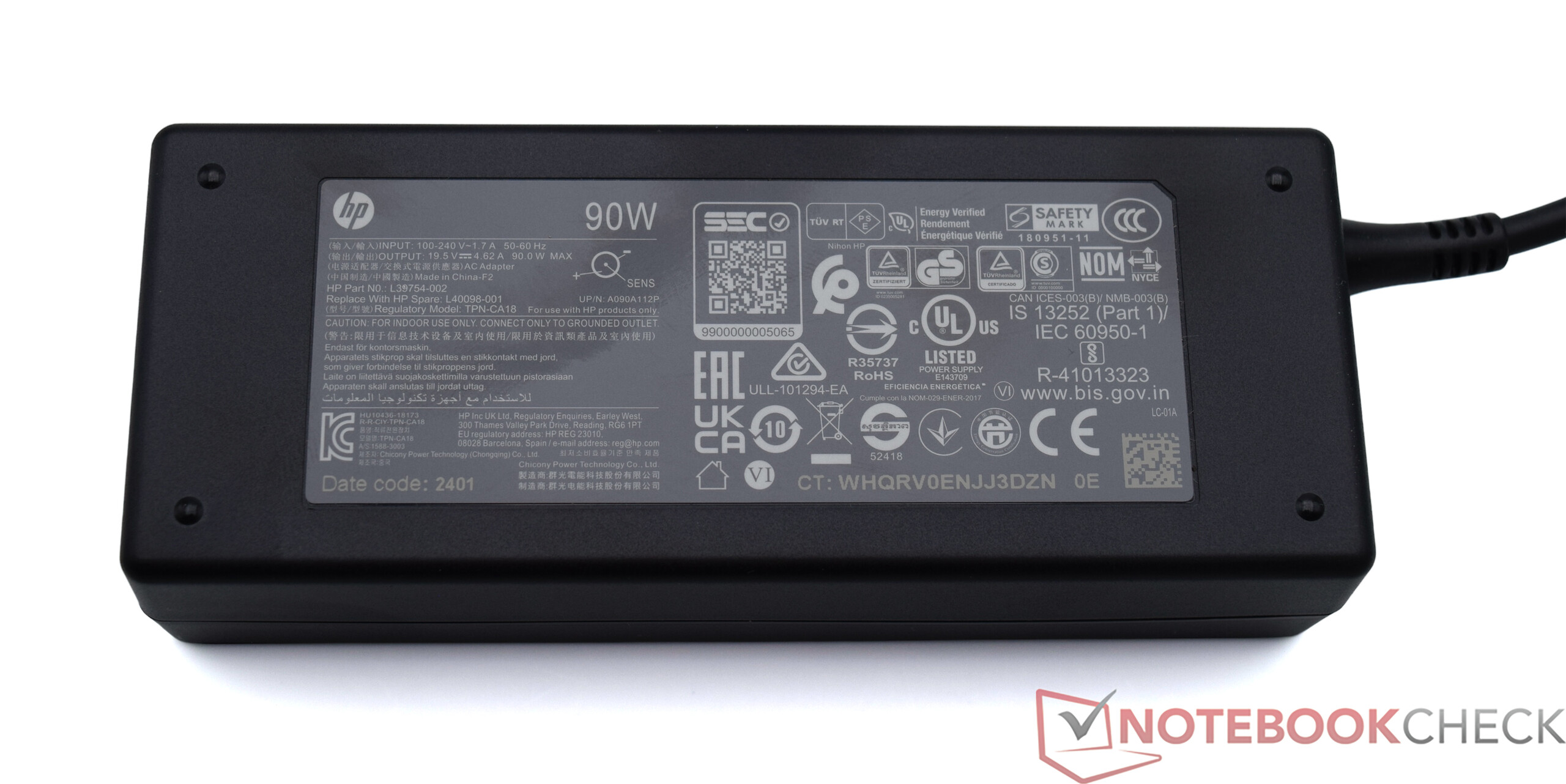

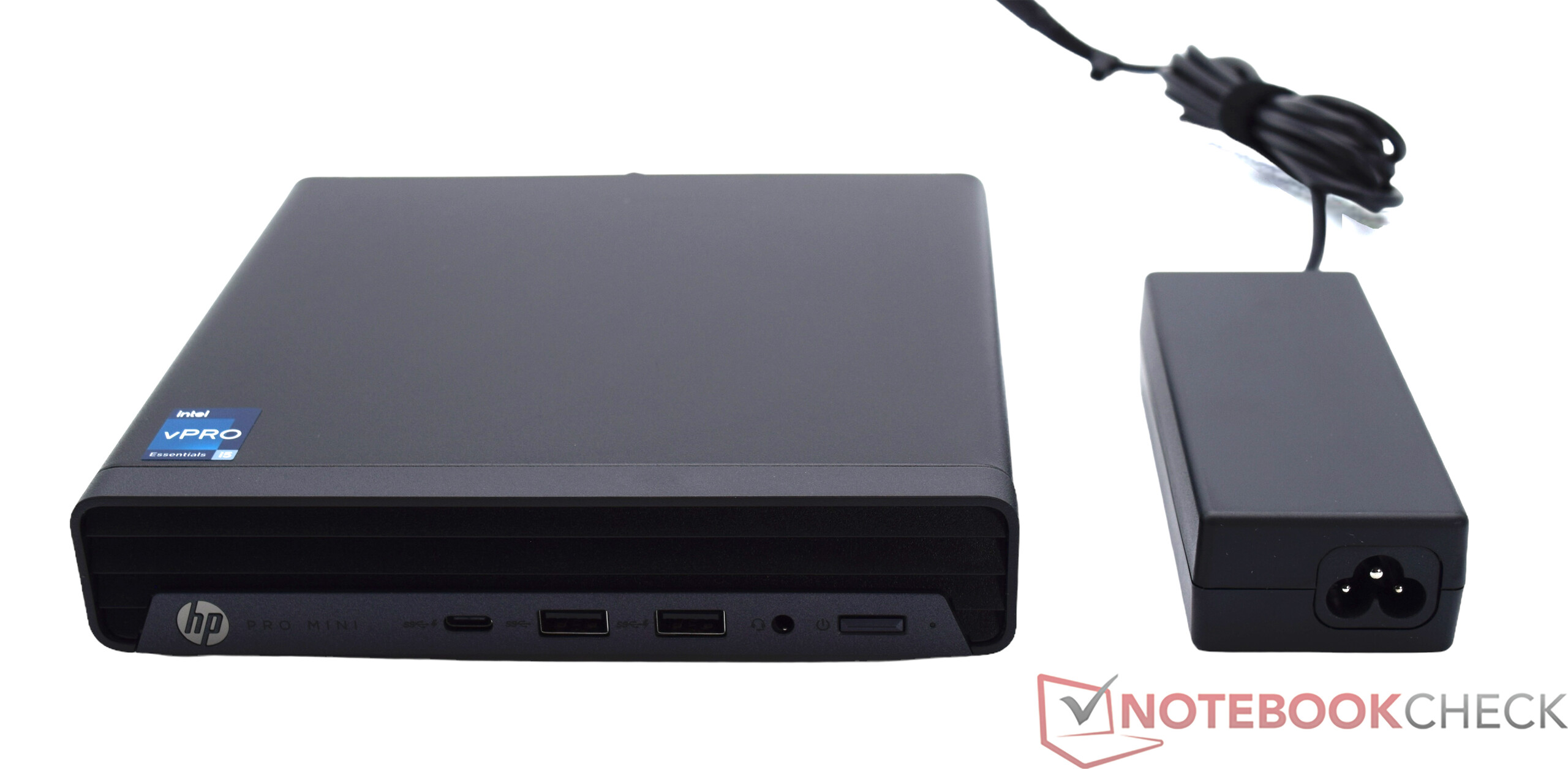

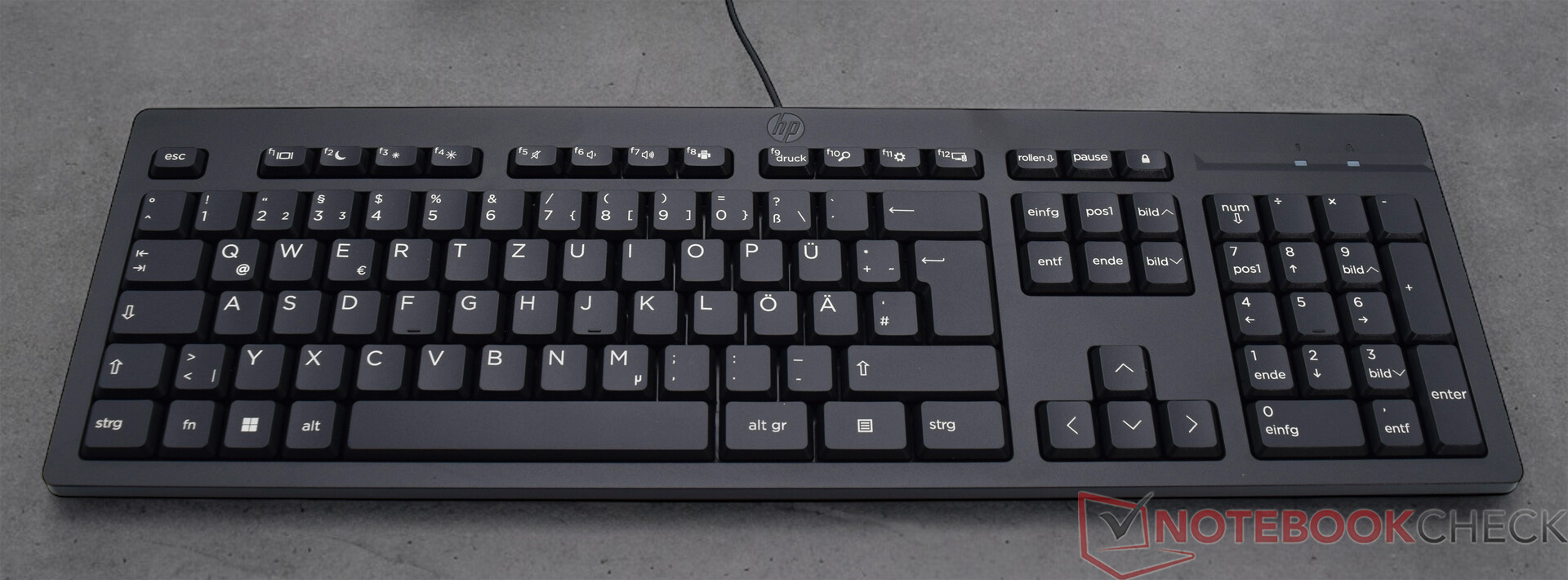

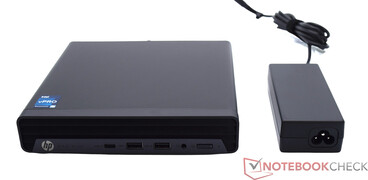

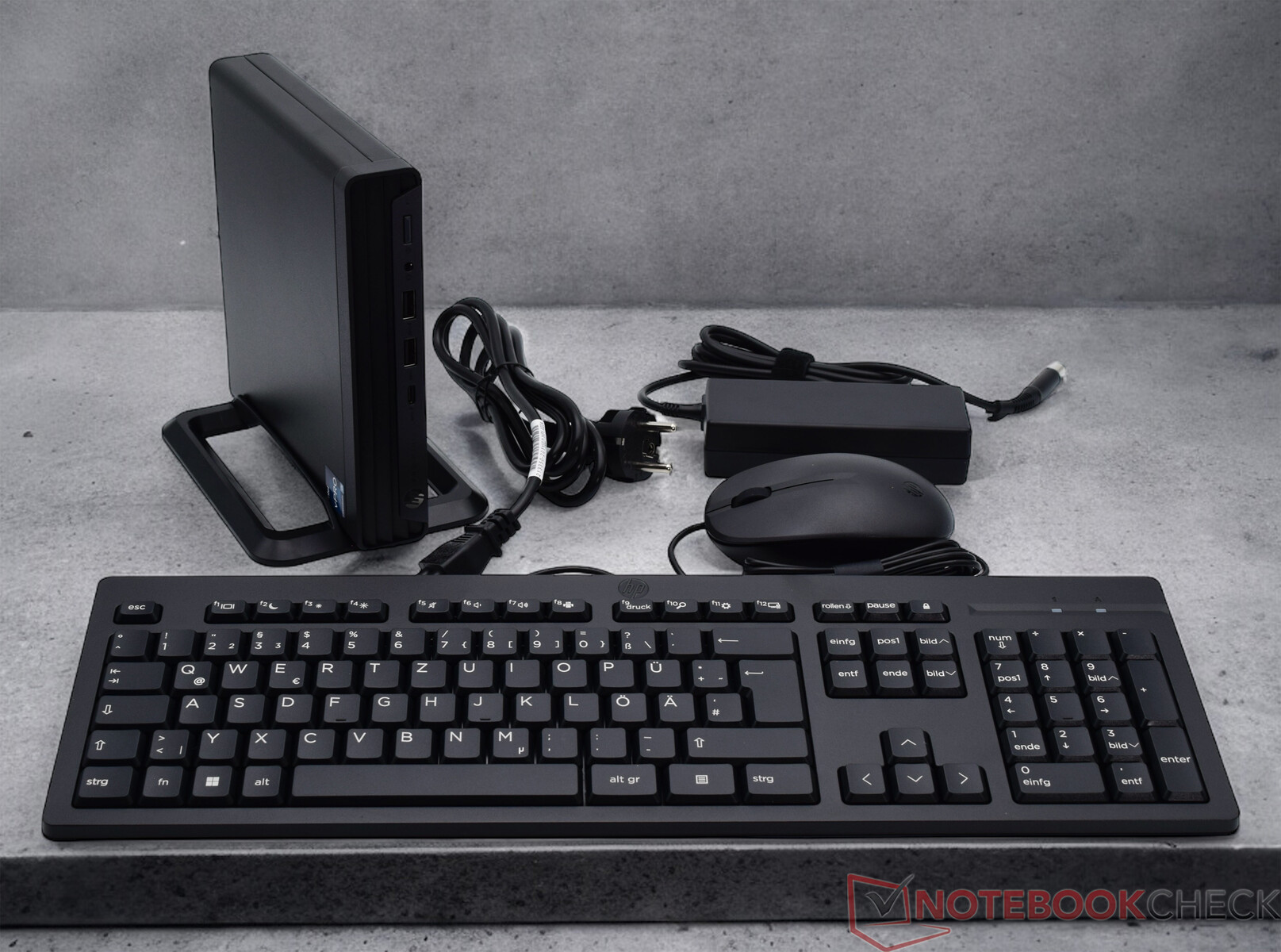

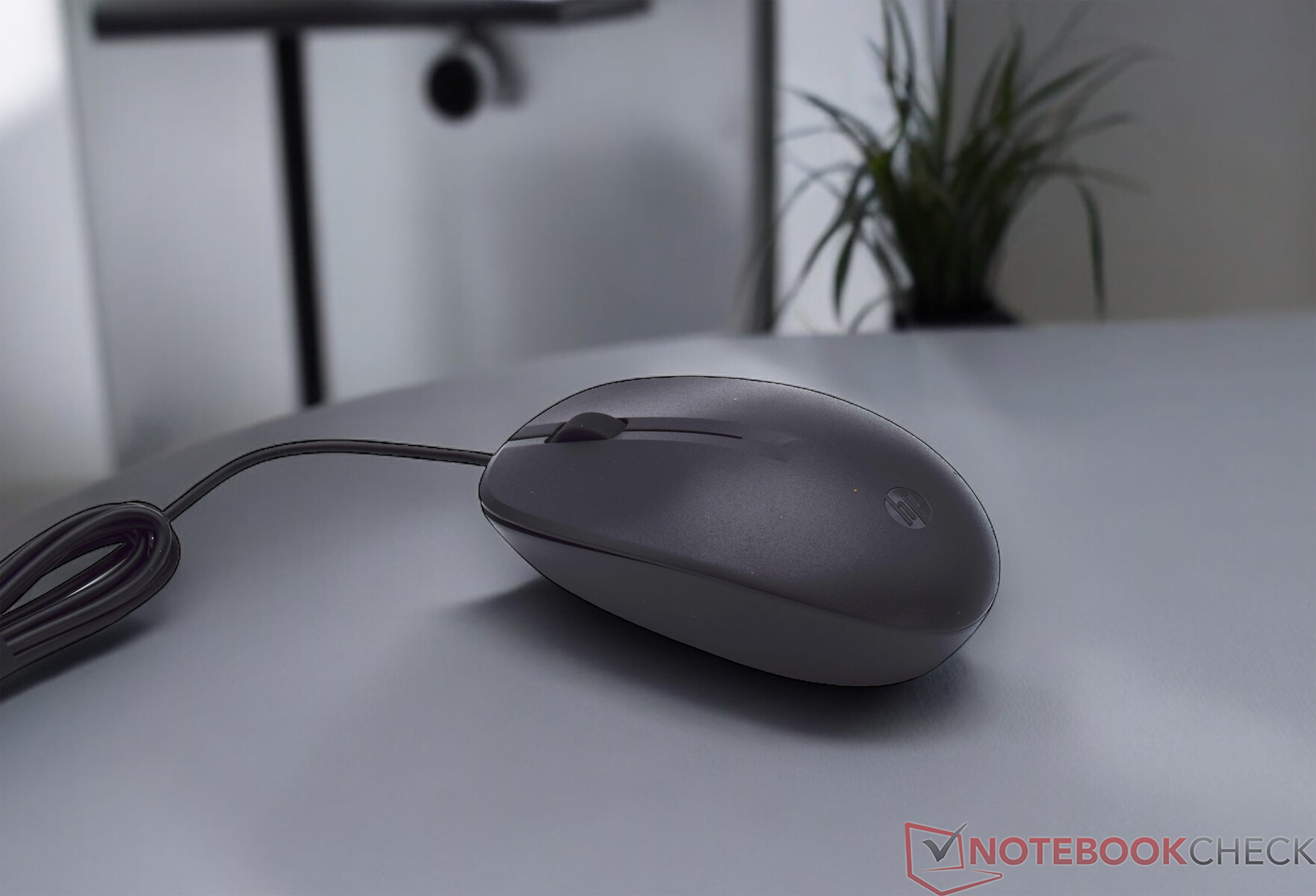

惠普 Pro Mini 400 G9 附带了少量基本设备。除了带有外置电源装置的设备外，包装盒内还有一个键盘和一个鼠标。这些都是简单的有线输入设备。

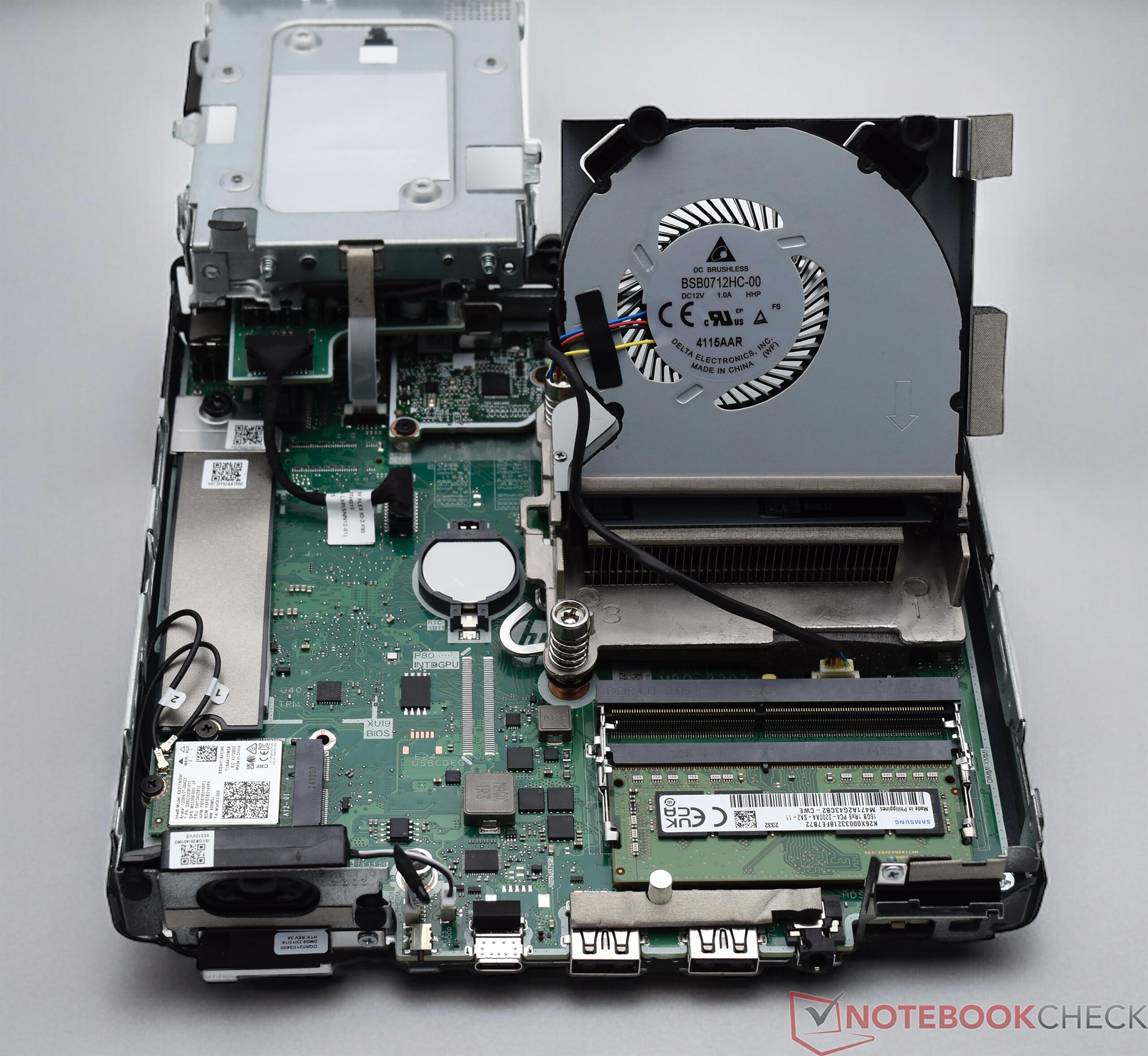

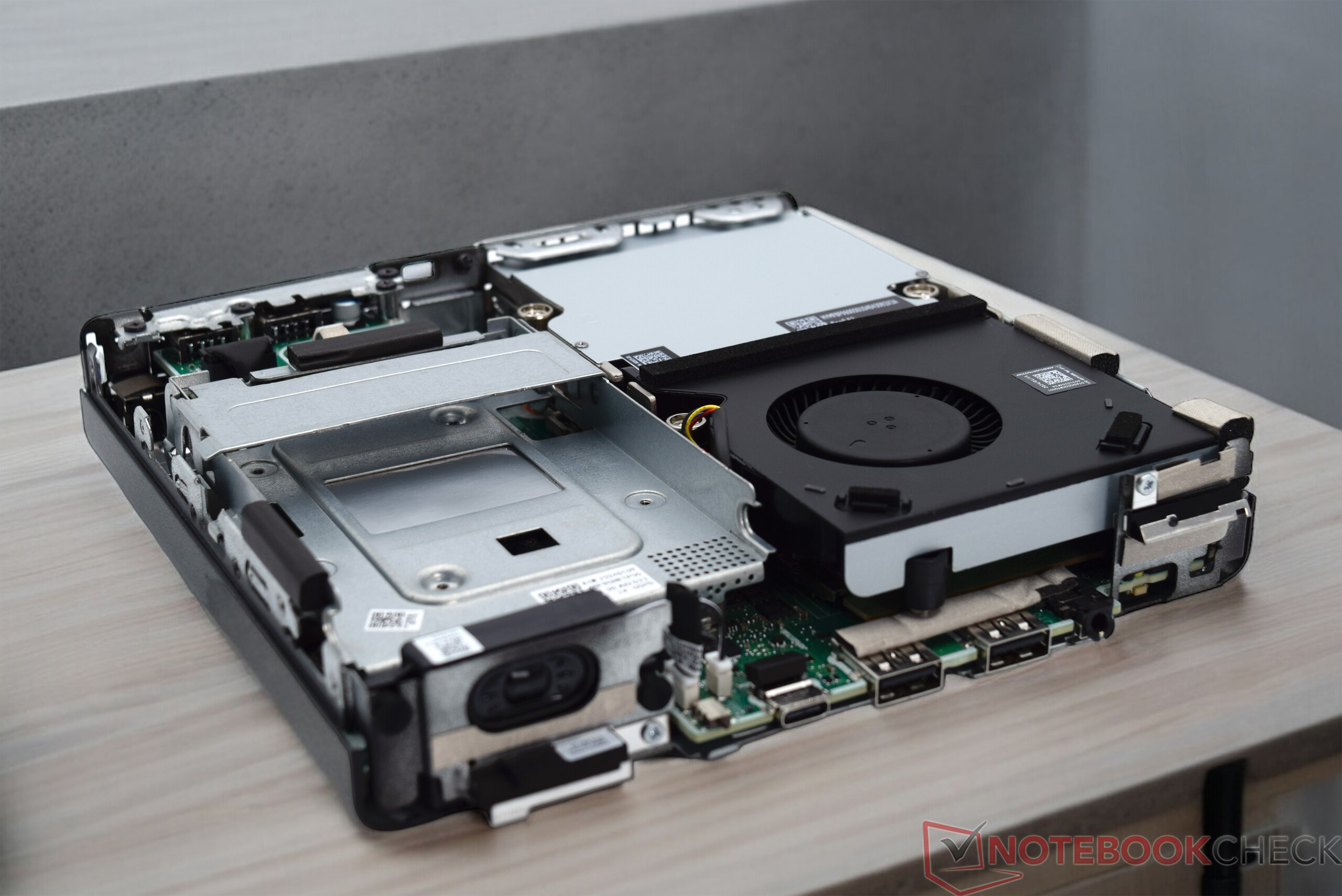

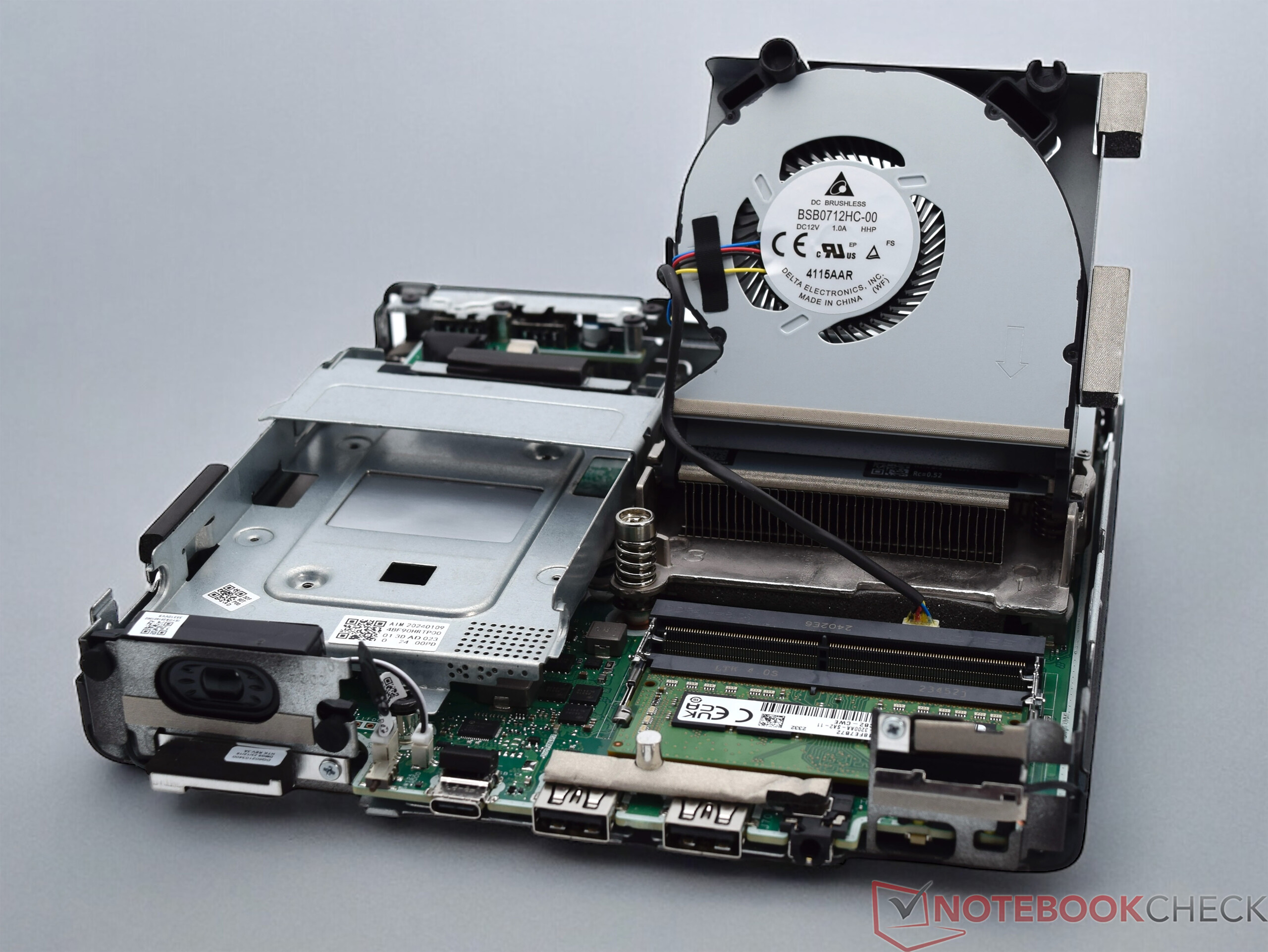

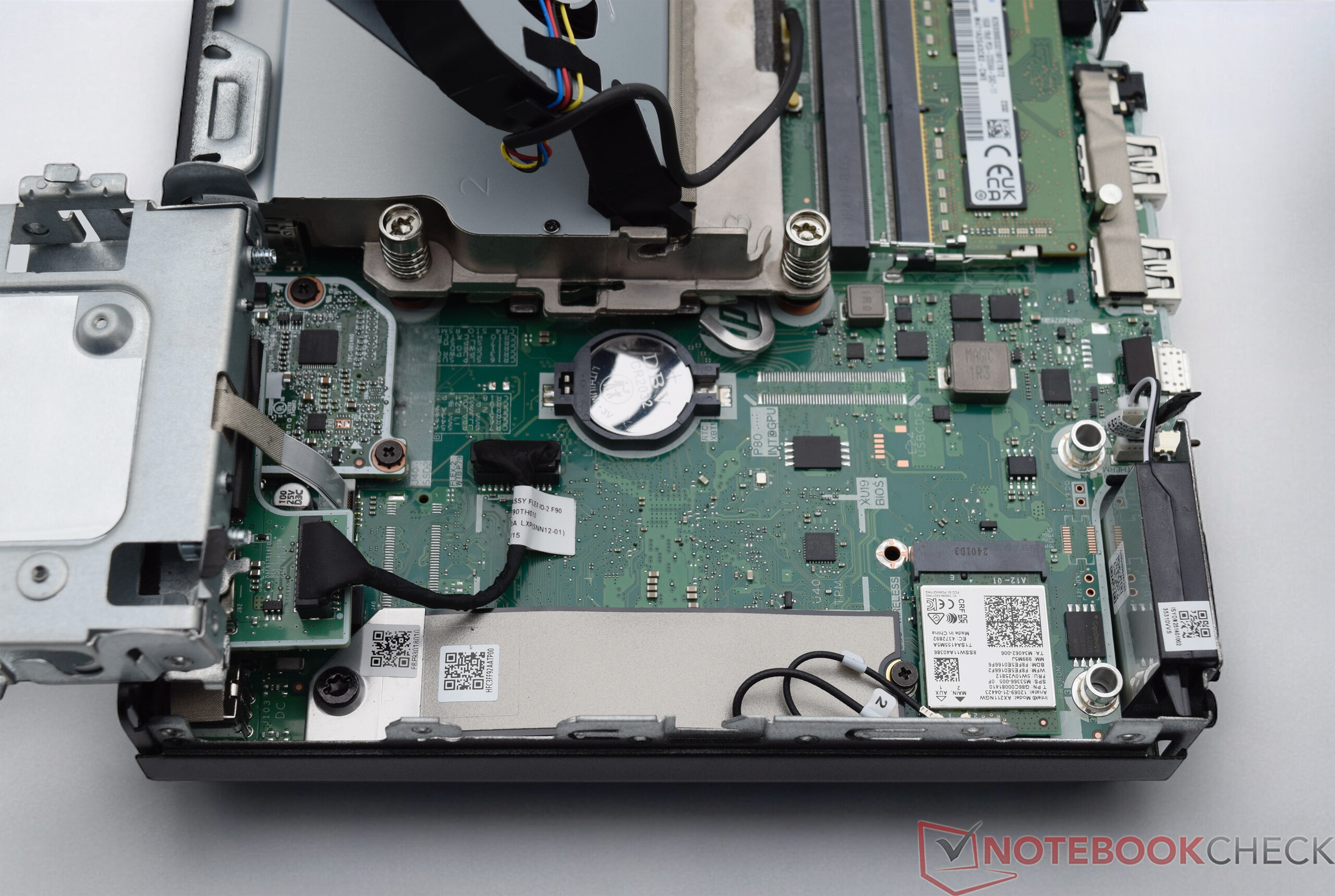

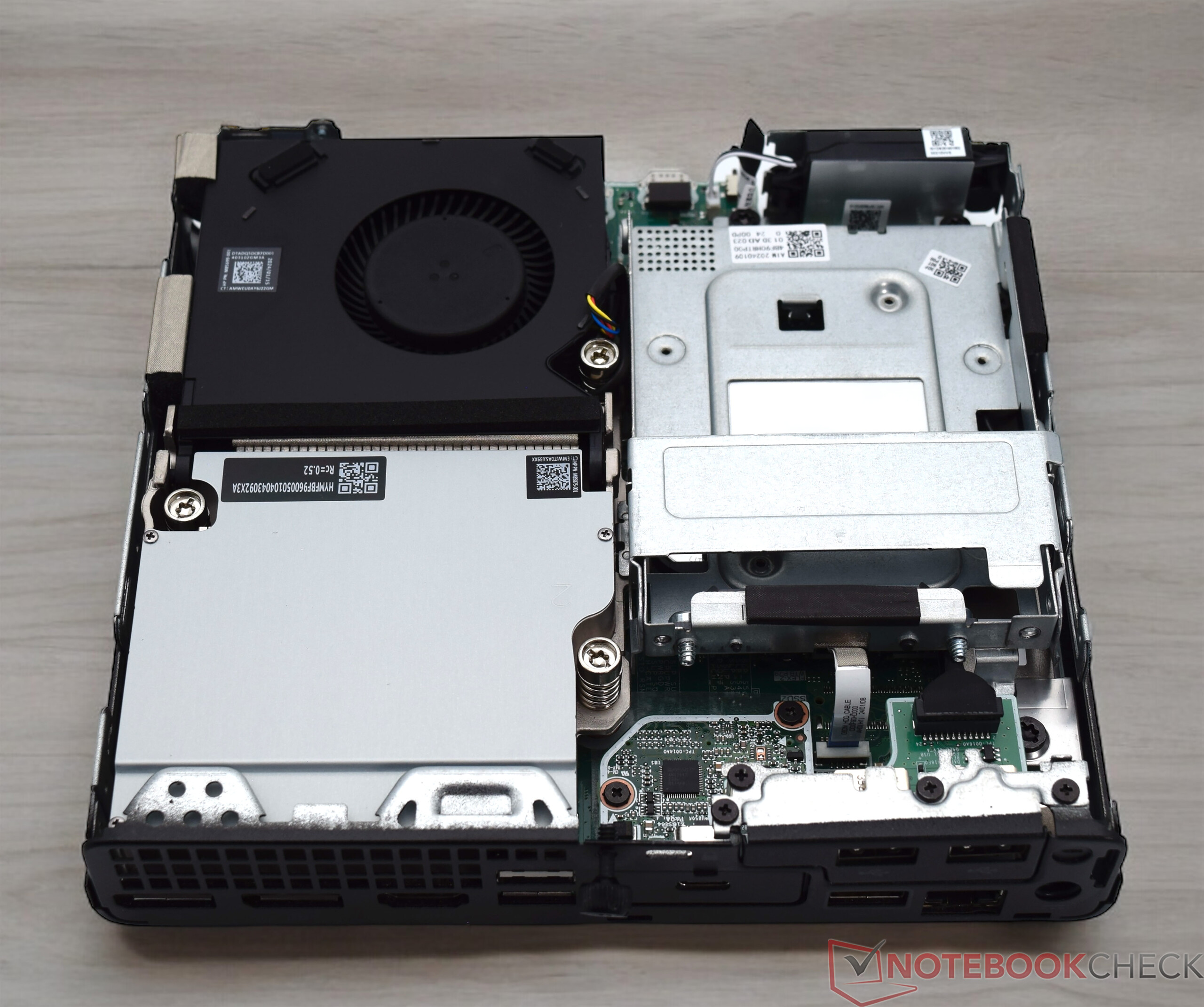

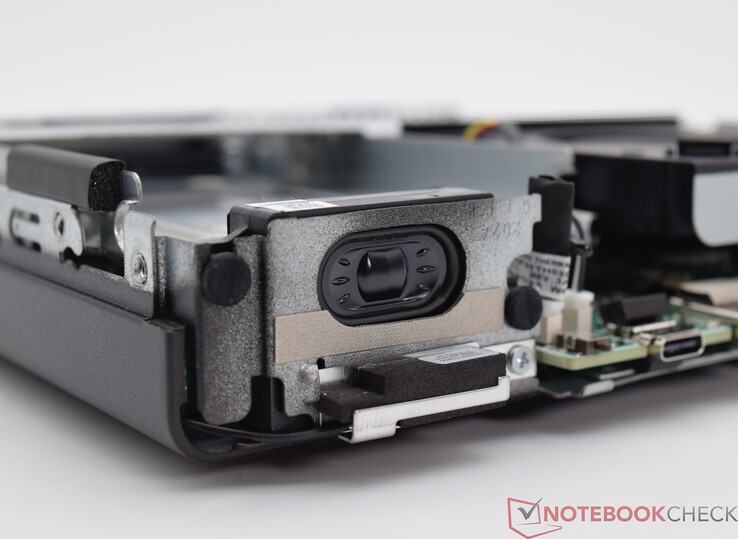

维护

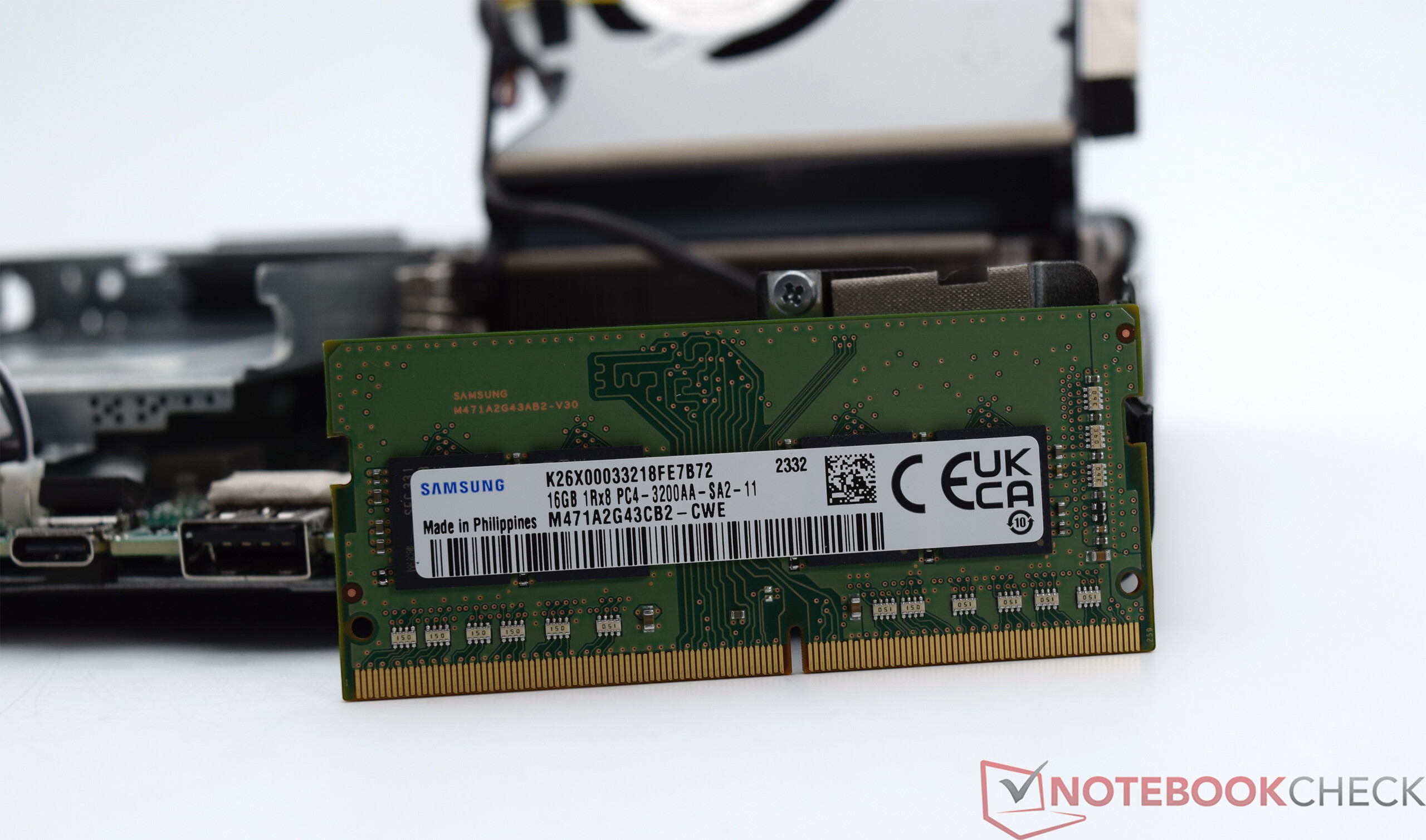

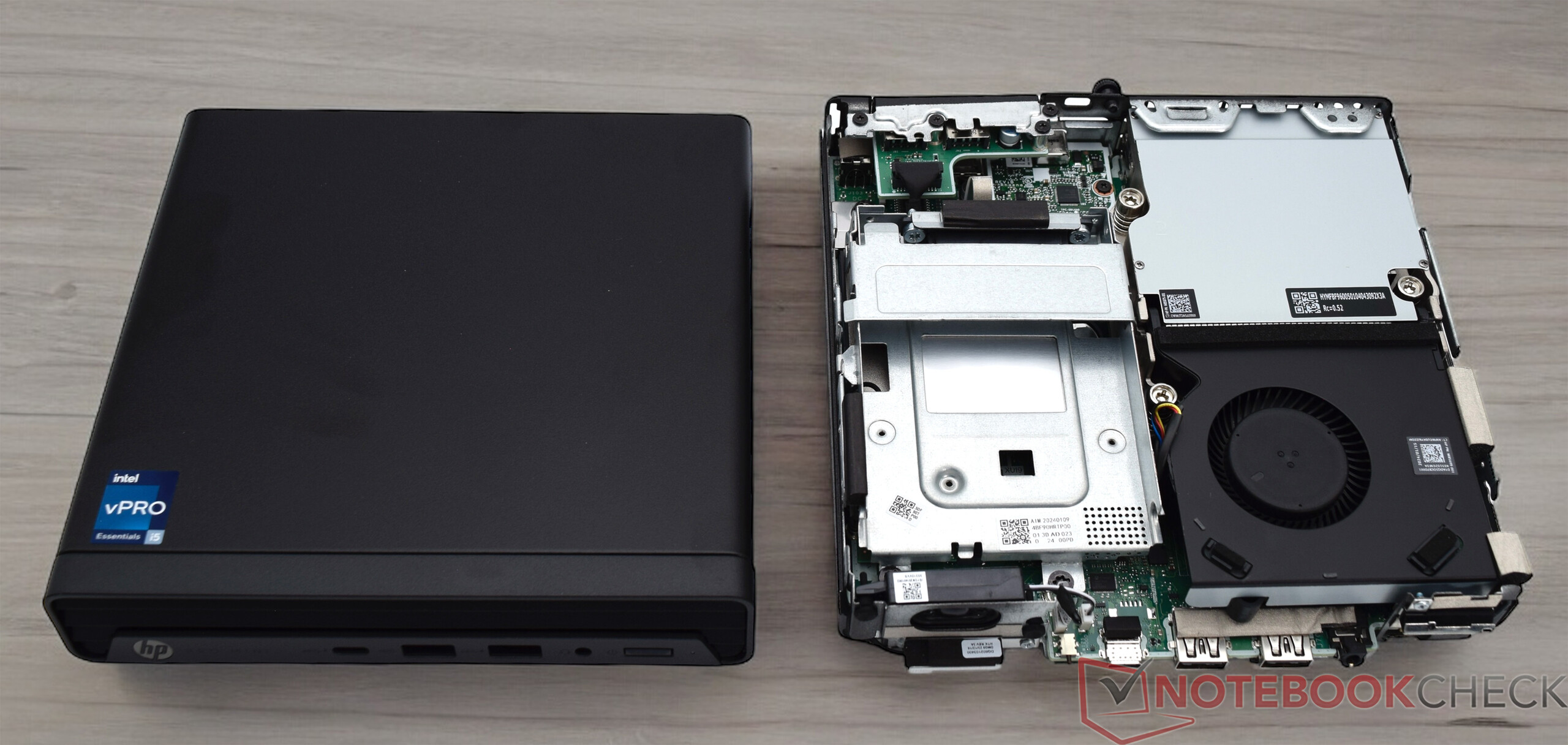

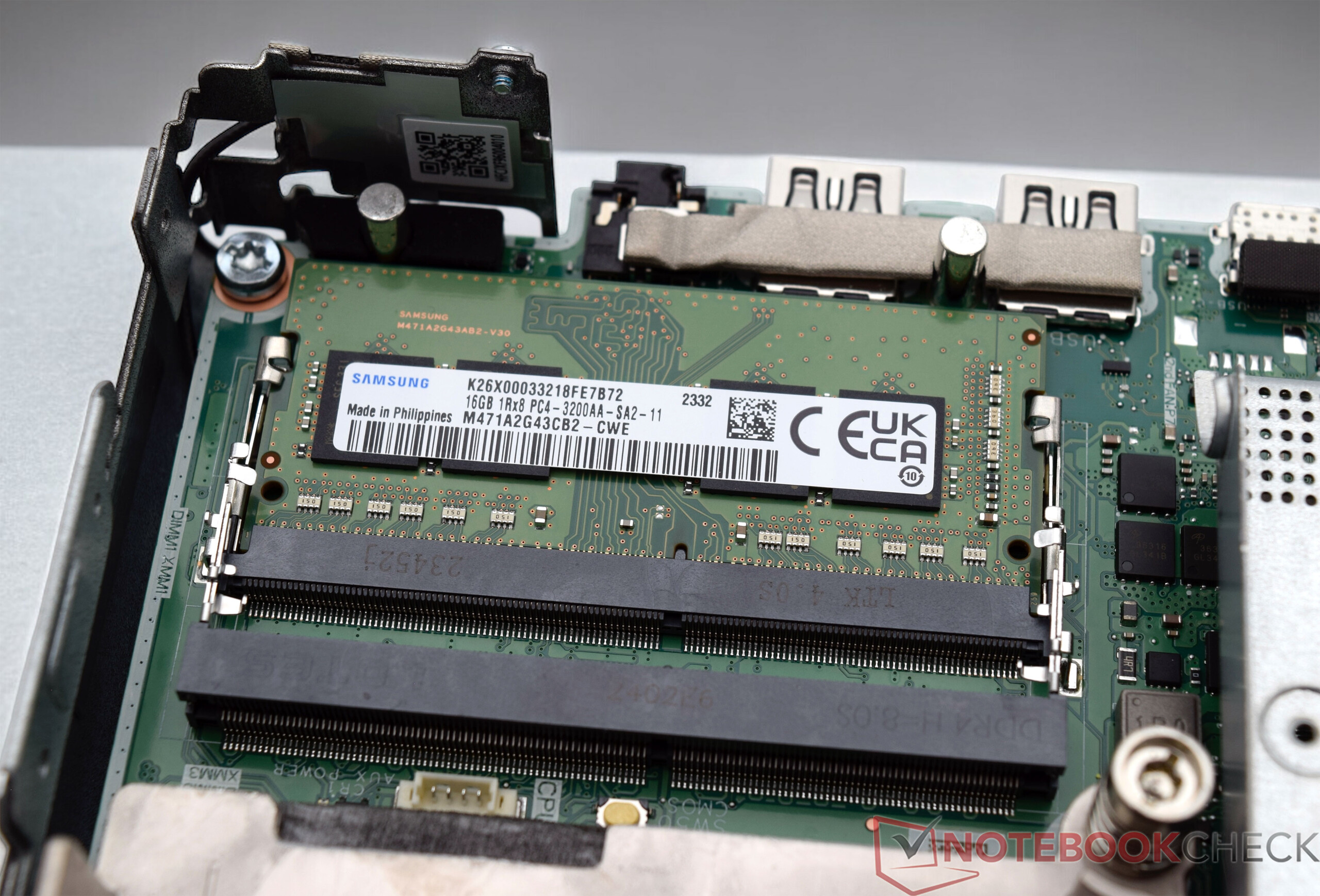

HP Pro Mini 400 G9 在销售时始终附带内存和大容量存储设备。因此，首次启动时不必像裸机那样拆卸设备来安装缺失的组件。微型电脑可以轻松打开，甚至无需工具。机箱盖仅由一颗滚花小螺丝固定。拧松螺丝后，可将机箱盖稍稍向后推，然后向上取下。内存位于 CPU 风扇正下方，只需向上翻转即可。要访问大容量存储器，必须使用工具，因为 2.5 英寸托架必须取下。但在 HP Pro Mini 400 G9 中，只能更换 M.2 内存。无法安装第二个 M.2 SSD。如果你想使用第二个大容量存储设备，就必须使用 2.5 英寸机型。

模块化设计还使设备和 CPU 风扇的清洁变得更加容易。值得一提的是，Pro Mini 400 G9 的 CPU 可以拆卸，因为它采用了英特尔酷睿 i5-13500T是传统的台式机 CPU，安装在 LGA1700 插座上。

可持续性

惠普将 Pro Mini 400 G9 和随附配件装在一个简单的纸箱中。个别部件，如设备本身和电源装置，则分别装在不同的塑料套中，为了可持续发展，这样的包装当然是可以节省的。模块化设计允许小修，值得称赞。惠普的备件商店提供多种备件。固态硬盘、内存和 CPU 不是专有部件，也可以从第三方供应商处购买。正如制造商告诉我们的那样，这些设备的生产使用了所谓的海洋塑料，否则这些塑料就会流入海洋。生产商还使用创新的回收原材料，如用过的食用油、渔网和咖啡渣。此外，它还获得了 "蓝色天使"、"EPEAT "和 "TCO "等外部合作伙伴的各种认证。

性能 - 经济型酷睿 i5-13500T，14 个内核和 20 个线程

惠普 Pro Mini 400 G9 是一款紧凑型办公电脑。惠普采用英特尔酷睿 i5-13500T 处理器，这是一款经济型处理器，但由于其物理计算单元数量较多，因此具有良好的多核性能。不过，最大的弱点可能是 3D 性能，因为台式机处理器的 iGPU 不如大多数移动处理器的 iGPU。

测试条件

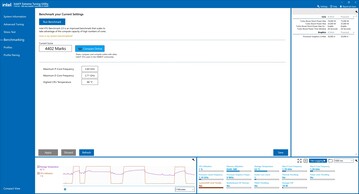

我们使用 "惠普优化 "能源配置文件对惠普 Pro Mini 400 G9 进行所有性能测试。惠普公司本身并不提供定制系统性能的其他选项。处理器的功率限制可通过 XTU（Intel Extreme Tuning Utility）工具进行调整。不过，我们不建议提高该值。这是因为功耗过高，而电源装置并非为此而设计。

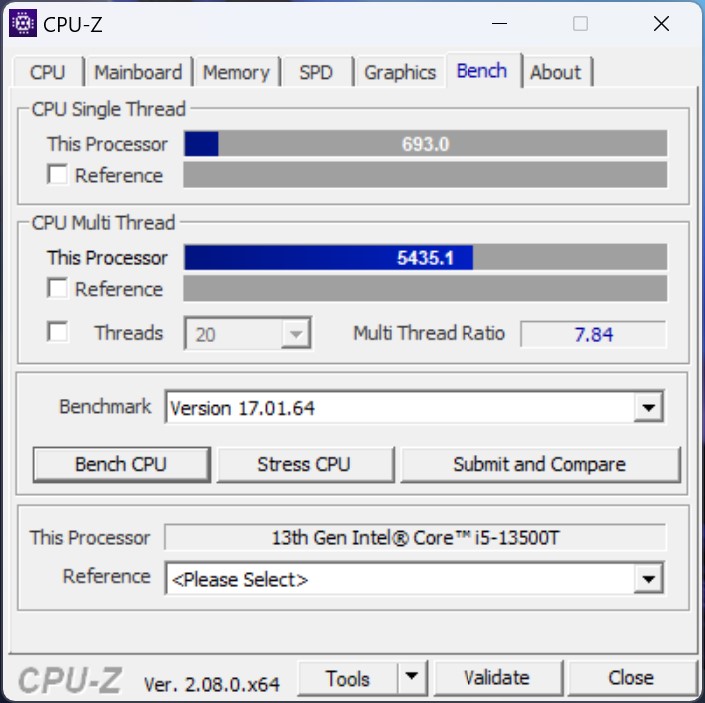

处理器

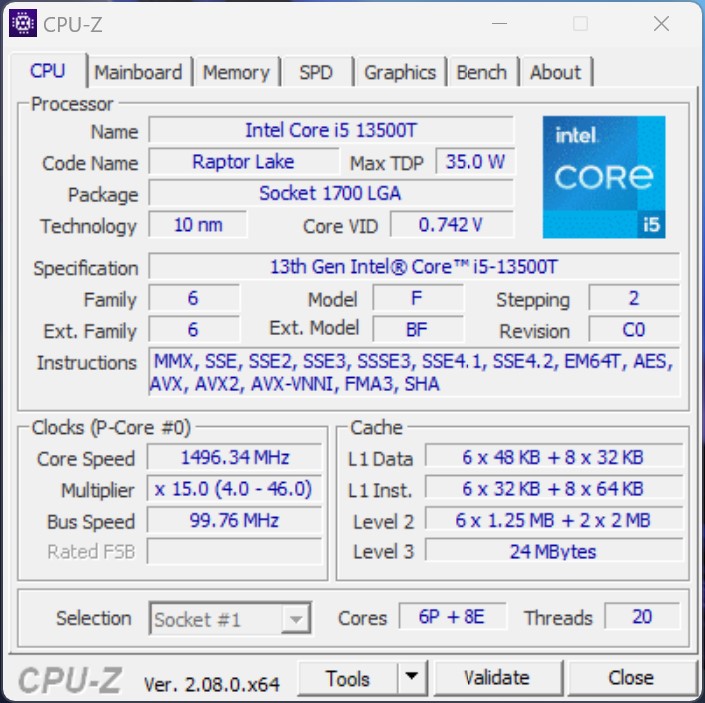

英特尔英特尔酷睿 i5-13500T是一款传统的台式机处理器，属于猛禽湖系列。该处理器拥有 6 个 P 核心和 8 个 E 核心，可同时处理 20 个线程。与传统的迷你 PC 不同，惠普 Pro Mini 400 G9 的处理器不是永久焊接的。缩写 "T "表明所安装的 CPU 是一种特别经济的型号，专门设计用于紧凑型系统。考虑到这一点，选择英特尔酷睿 i5-13500T 处理器与小机箱相结合是正确的决定。英特尔规定，这里安装的处理器在连续负载下的功率限制为 35 瓦，但在涡轮增压模式下可能高达 92 瓦。不过，惠普削减了最大值，将极限值设定为 74 瓦。不过，英特尔酷睿 i5-13500T 在测试过程中并没有达到这个值。其实大可不必，因为这款处理器的性能很好，与惠普精英迷你 800 G9б相比，它配备了英特尔酷睿 i5-13500б相比，我们的测试样本在平均性能比对中仅损失了 9 个百分点。

所有对手都提供了更高的性能，这一点不容否认，结果也不会说谎。尽管如此，我们也不能低估 HP Pro Mini 400 G9 的性能，它能确保良好的功耗效率。

有关进一步的比较和基准测试，请参阅我们的 CPU 对比表.

Performance Rating - Percent
Minisforum MS-01 Intel Core i9-13900H	55.2 pt
Acemagic F2A Intel Core Ultra 7 155H	54.5 pt
Minisforum Venus Series NAB9 Intel Core i9-12900HK	54.4 pt
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	53.4 pt
Geekom GT13 Pro Intel Core i9-13900H	53 pt
Khadas Mind Intel Core i7-1360P	50.6 pt
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	48.5 pt

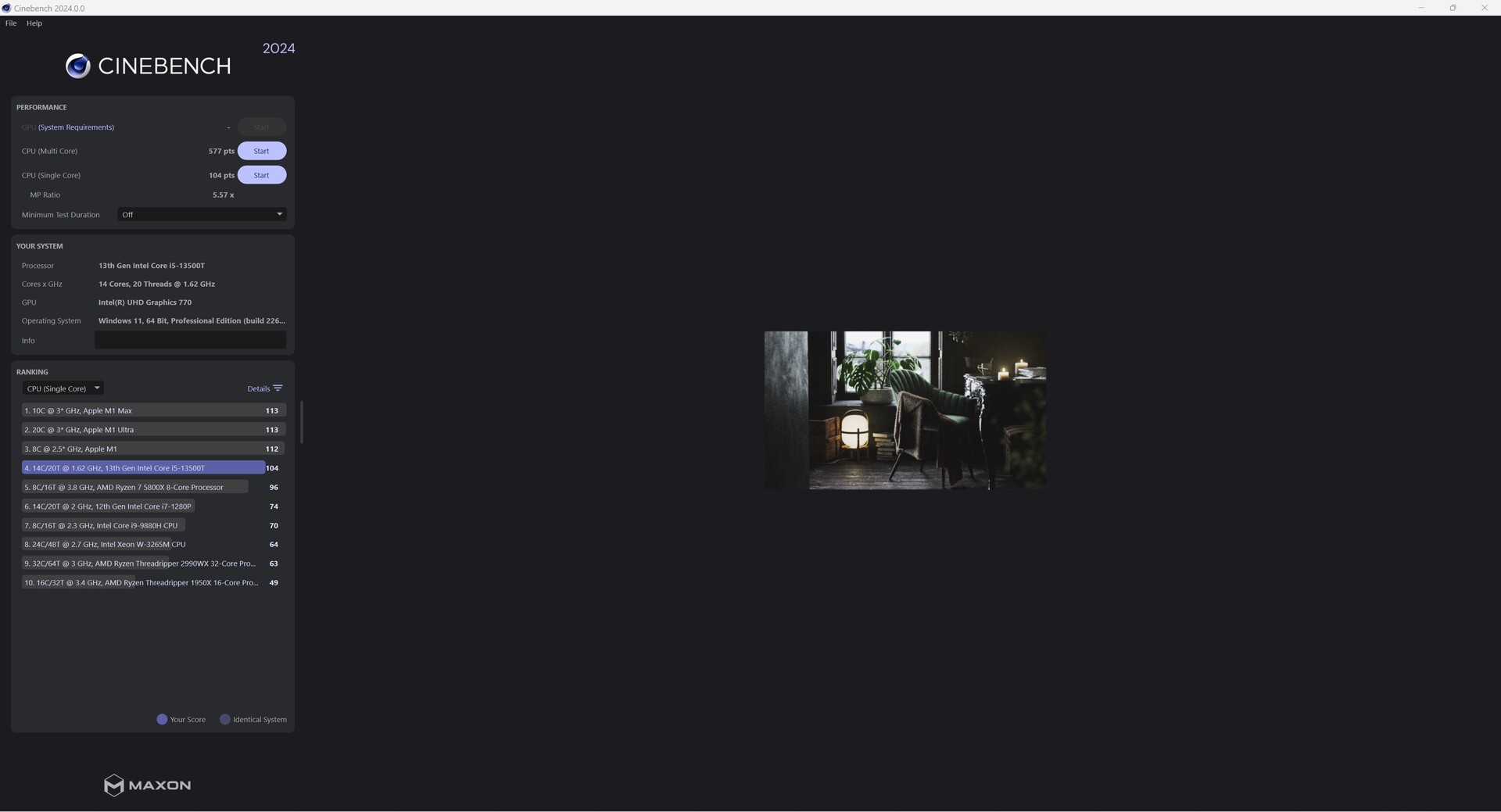

Cinebench 2024
CPU Multi Core
Acemagic F2A Intel Core Ultra 7 155H	1022 Points +77%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	822 Points +42%
Minisforum MS-01 Intel Core i9-13900H	818 Points +42%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	746 Points +29%
Geekom GT13 Pro Intel Core i9-13900H	703 Points +22%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	577 Points
Khadas Mind Intel Core i7-1360P	560 Points -3%
CPU Single Core
Minisforum Venus Series NAB9 Intel Core i9-12900HK	114 Points +10%
Khadas Mind Intel Core i7-1360P	113 Points +9%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	107 Points +3%
Acemagic F2A Intel Core Ultra 7 155H	106 Points +2%
Geekom GT13 Pro Intel Core i9-13900H	104 Points 0%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	104 Points
Minisforum MS-01 Intel Core i9-13900H	101 Points -3%

Cinebench R23
Multi Core
Acemagic F2A Intel Core Ultra 7 155H	18497 Points +68%
Minisforum MS-01 Intel Core i9-13900H	16209 Points +47%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	14659 Points +33%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	14573 Points +32%
Geekom GT13 Pro Intel Core i9-13900H	13015 Points +18%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	11028 Points
Khadas Mind Intel Core i7-1360P	9859 Points -11%
Single Core
Minisforum Venus Series NAB9 Intel Core i9-12900HK	1901 Points +8%
Khadas Mind Intel Core i7-1360P	1877 Points +7%
Minisforum MS-01 Intel Core i9-13900H	1806 Points +3%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	1780 Points +1%
Acemagic F2A Intel Core Ultra 7 155H	1771 Points +1%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	1754 Points
Geekom GT13 Pro Intel Core i9-13900H	1715 Points -2%

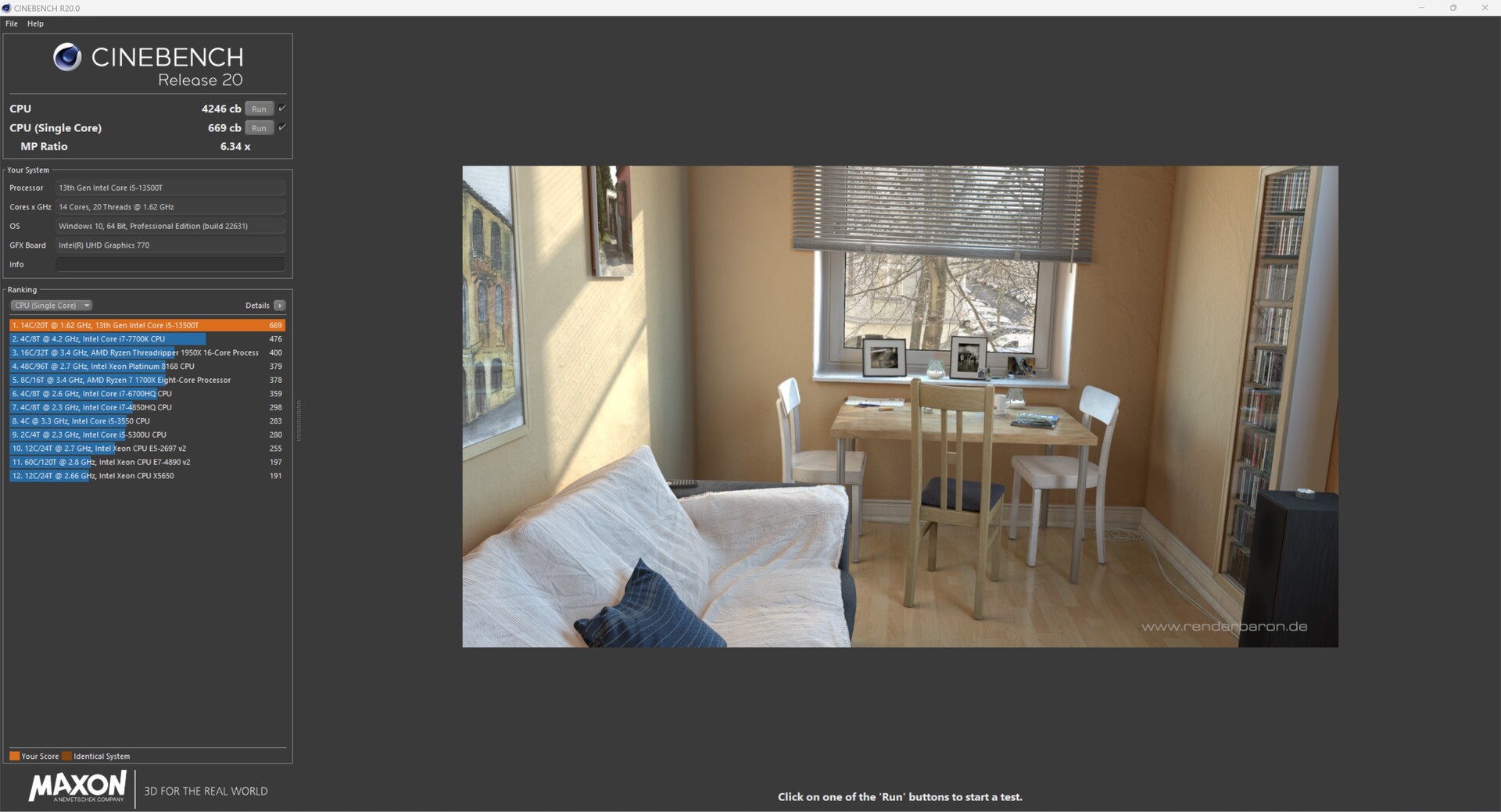

Cinebench R20
CPU (Single Core)
Minisforum Venus Series NAB9 Intel Core i9-12900HK	734 Points +10%
Khadas Mind Intel Core i7-1360P	724 Points +8%
Minisforum MS-01 Intel Core i9-13900H	699 Points +4%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	685 Points +2%
Acemagic F2A Intel Core Ultra 7 155H	679 Points +1%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	669 Points
Geekom GT13 Pro Intel Core i9-13900H	659 Points -1%
CPU (Multi Core)
Acemagic F2A Intel Core Ultra 7 155H	7188 Points +69%
Minisforum MS-01 Intel Core i9-13900H	6203 Points +46%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	5691 Points +34%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	5633 Points +33%
Geekom GT13 Pro Intel Core i9-13900H	5013 Points +18%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	4246 Points
Khadas Mind Intel Core i7-1360P	3820 Points -10%

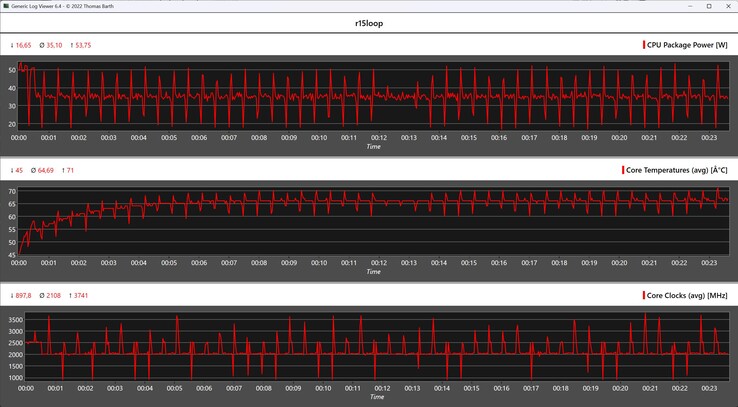

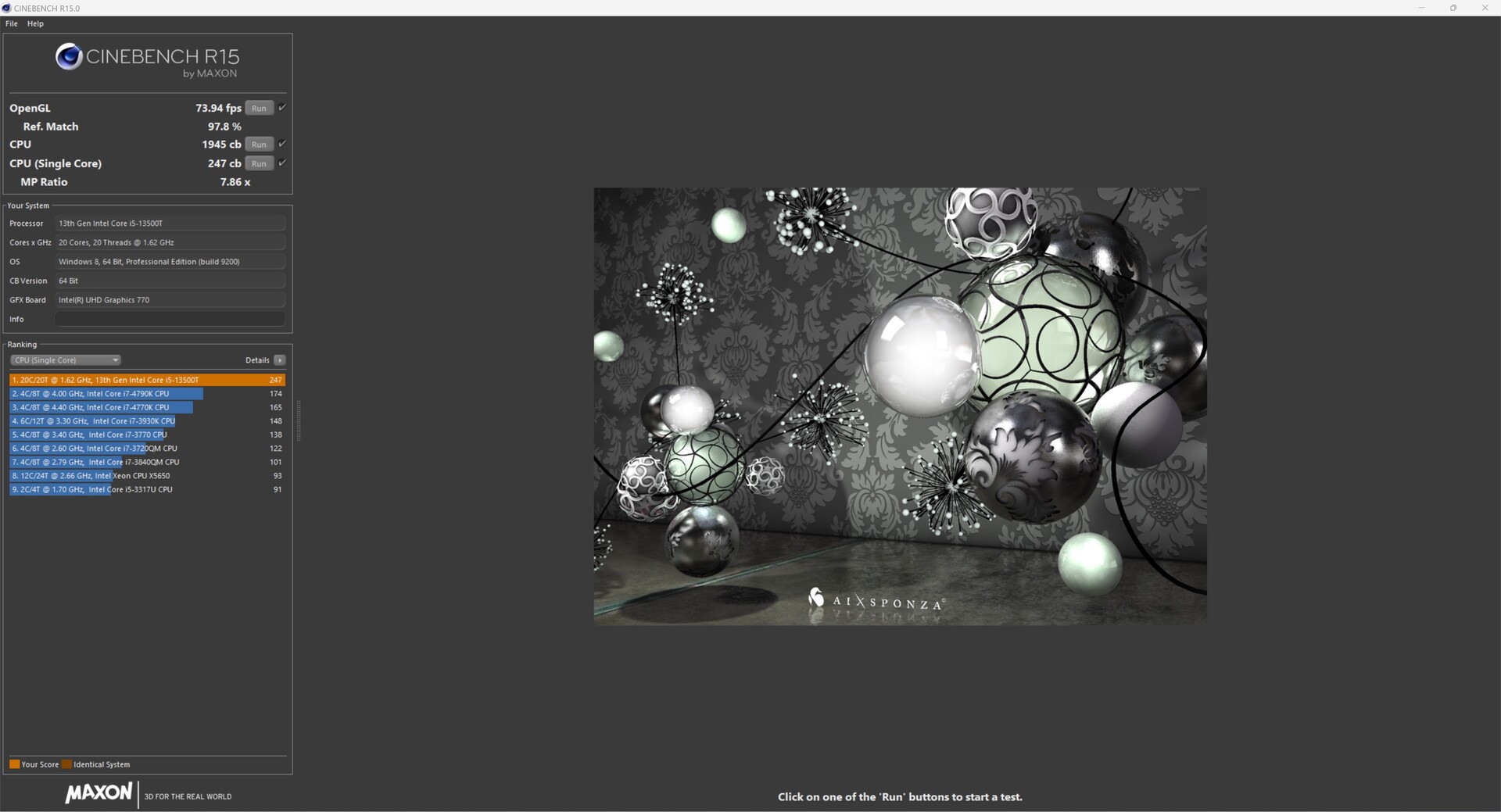

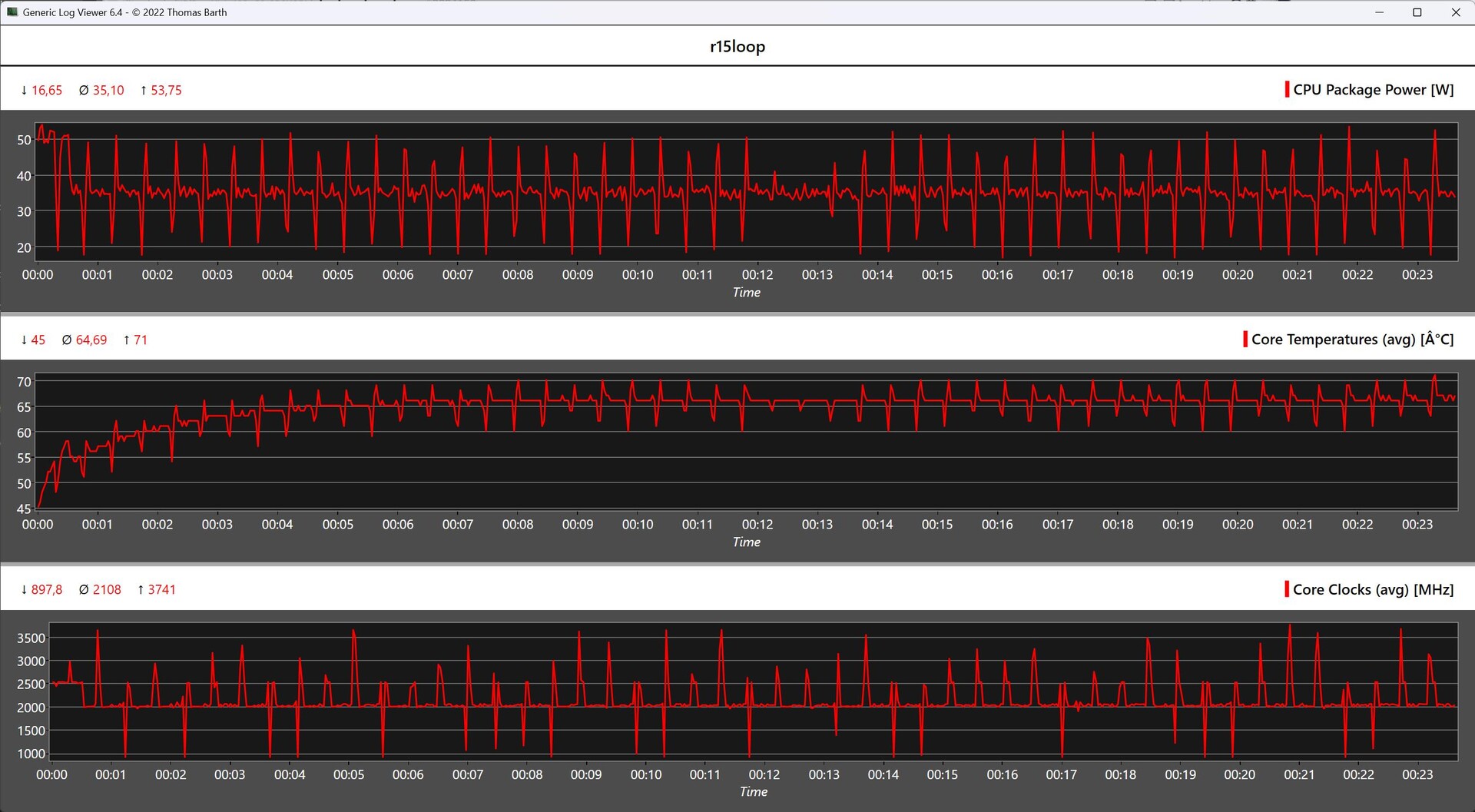

Cinebench R15
CPU Single 64Bit
Khadas Mind Intel Core i7-1360P	270 Points +9%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	270 Points +9%
Acemagic F2A Intel Core Ultra 7 155H	258 Points +4%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	256 Points +4%
Minisforum MS-01 Intel Core i9-13900H	253 Points +2%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	247 Points
Geekom GT13 Pro Intel Core i9-13900H	245 Points -1%
CPU Multi 64Bit
Acemagic F2A Intel Core Ultra 7 155H	2738 Points +41%
Minisforum MS-01 Intel Core i9-13900H	2459 Points +26%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	2405 Points +24%
Geekom GT13 Pro Intel Core i9-13900H	2260 Points +16%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	2249 Points +16%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	1945 Points
Khadas Mind Intel Core i7-1360P	1642 Points -16%

Cinebench R11.5
CPU Single 64Bit
Khadas Mind Intel Core i7-1360P	3.27 Points +7%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	3.26 Points +7%
Acemagic F2A Intel Core Ultra 7 155H	3.13 Points +3%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	3.11 Points +2%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	3.05 Points
Minisforum MS-01 Intel Core i9-13900H	3 Points -2%
Geekom GT13 Pro Intel Core i9-13900H	2.98 Points -2%
CPU Multi 64Bit
Acemagic F2A Intel Core Ultra 7 155H	33.49 Points +57%
Minisforum MS-01 Intel Core i9-13900H	29.65 Points +39%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	28.43 Points +33%
Geekom GT13 Pro Intel Core i9-13900H	27.48 Points +29%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	27.25 Points +28%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	21.33 Points
Khadas Mind Intel Core i7-1360P	19.54 Points -8%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum Venus Series NAB9 Intel Core i9-12900HK	15303 Points +8%
Khadas Mind Intel Core i7-1360P	15227 Points +8%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	14282 Points +1%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	14147 Points
Acemagic F2A Intel Core Ultra 7 155H	13938 Points -1%
Geekom GT13 Pro Intel Core i9-13900H	13820 Points -2%
Minisforum MS-01 Intel Core i9-13900H	13752 Points -3%
Rendering Multiple CPUs 64Bit
Acemagic F2A Intel Core Ultra 7 155H	95005 Points +51%
Minisforum MS-01 Intel Core i9-13900H	79856 Points +27%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	79625 Points +27%
Geekom GT13 Pro Intel Core i9-13900H	79014 Points +26%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	75947 Points +21%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	62808 Points
Khadas Mind Intel Core i7-1360P	61639 Points -2%

Blender - v2.79 BMW27 CPU
Khadas Mind Intel Core i7-1360P	324 Seconds * -11%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	291 Seconds *
Geekom GT13 Pro Intel Core i9-13900H	262 Seconds * +10%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	234 Seconds * +20%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	223 Seconds * +23%
Minisforum MS-01 Intel Core i9-13900H	201 Seconds * +31%
Acemagic F2A Intel Core Ultra 7 155H	178 Seconds * +39%

wPrime 2.10
32m
Khadas Mind Intel Core i7-1360P	4.957 s * -3%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	4.831 s *
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	4.02 s * +17%
Acemagic F2A Intel Core Ultra 7 155H	3.523 s * +27%
Geekom GT13 Pro Intel Core i9-13900H	3.518 s * +27%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	3.454 s * +29%
Minisforum MS-01 Intel Core i9-13900H	3.141 s * +35%
1024m
Geekom GT13 Pro Intel Core i9-13900H	412.775 s * -210%
Khadas Mind Intel Core i7-1360P	240.083 s * -80%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	186.394 s * -40%
Minisforum MS-01 Intel Core i9-13900H	179.496 s * -35%
Acemagic F2A Intel Core Ultra 7 155H	139.617 s * -5%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	133.316 s *
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	100.707 s * +24%

X264 HD Benchmark 4.0
Pass 1
Acemagic F2A Intel Core Ultra 7 155H	325 (323^min - 328^max) fps +25%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	317.5 (292^min - 319^max) fps +22%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	306 (302^min - 312^max) fps +18%
Geekom GT13 Pro Intel Core i9-13900H	300.5 (288^min - 319^max) fps +16%
Minisforum MS-01 Intel Core i9-13900H	284 (276^min - 298^max) fps +9%
Khadas Mind Intel Core i7-1360P	273 (264^min - 275^max) fps +5%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	259.5 (248^min - 260^max) fps
Pass 2
Acemagic F2A Intel Core Ultra 7 155H	154.15 (153.8^min - 154.3^max) fps +53%
Minisforum MS-01 Intel Core i9-13900H	138.55 (135.5^min - 145.8^max) fps +38%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	134.55 (130.4^min - 135.2^max) fps +34%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	125.05 (112.4^min - 132^max) fps +24%
Geekom GT13 Pro Intel Core i9-13900H	113.95 (106.5^min - 136.6^max) fps +13%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	100.45 (88.2^min - 107^max) fps
Khadas Mind Intel Core i7-1360P	94.7 (87.4^min - 101.7^max) fps -6%

WinRAR - Result
Minisforum MS-01 Intel Core i9-13900H	9303 KB/s +39%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	8735 KB/s +31%
Acemagic F2A Intel Core Ultra 7 155H	7723 KB/s +16%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	7704 KB/s +15%
Geekom GT13 Pro Intel Core i9-13900H	6800 KB/s +2%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	6683 KB/s
Khadas Mind Intel Core i7-1360P	6079 KB/s -9%

TrueCrypt
AES Mean 100MB
Minisforum MS-01 Intel Core i9-13900H	14.8 GB/s +80%
Geekom GT13 Pro Intel Core i9-13900H	13.2 GB/s +61%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	13 GB/s +59%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	12 GB/s +46%
Acemagic F2A Intel Core Ultra 7 155H	10.6 GB/s +29%
Khadas Mind Intel Core i7-1360P	9.5 GB/s +16%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	8.2 GB/s
Twofish Mean 100MB
Minisforum MS-01 Intel Core i9-13900H	2.5 GB/s +39%
Geekom GT13 Pro Intel Core i9-13900H	2.4 GB/s +33%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	2.3 GB/s +28%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	2.2 GB/s +22%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	1.8 GB/s
Khadas Mind Intel Core i7-1360P	1.7 GB/s -6%
Acemagic F2A Intel Core Ultra 7 155H	1.7 GB/s -6%
Serpent Mean 100MB
Minisforum MS-01 Intel Core i9-13900H	1.4 GB/s +40%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	1.3 GB/s +30%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	1.2 GB/s +20%
Geekom GT13 Pro Intel Core i9-13900H	1.2 GB/s +20%
Acemagic F2A Intel Core Ultra 7 155H	1 GB/s 0%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	1 GB/s
Khadas Mind Intel Core i7-1360P	0.935 GB/s -6%

Geekbench 5.5
Multi-Core
Minisforum MS-01 Intel Core i9-13900H	13014 Points +76%
Acemagic F2A Intel Core Ultra 7 155H	12662 Points +72%
Geekom GT13 Pro Intel Core i9-13900H	11283 Points +53%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	10378 Points +41%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	10322 Points +40%
Khadas Mind Intel Core i7-1360P	9159 Points +24%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	7377 Points
Single-Core
Minisforum MS-01 Intel Core i9-13900H	1867 Points +9%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	1866 Points +9%
Geekom GT13 Pro Intel Core i9-13900H	1841 Points +7%
Khadas Mind Intel Core i7-1360P	1824 Points +6%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	1805 Points +5%
Acemagic F2A Intel Core Ultra 7 155H	1746 Points +2%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	1716 Points

Geekbench 5.0
5.0 Multi-Core
Minisforum MS-01 Intel Core i9-13900H	12681 Points +73%
Acemagic F2A Intel Core Ultra 7 155H	12438 Points +70%
Geekom GT13 Pro Intel Core i9-13900H	11168 Points +53%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	10276 Points +40%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	10213 Points +40%
Khadas Mind Intel Core i7-1360P	9000 Points +23%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	7316 Points
5.0 Single-Core
Minisforum MS-01 Intel Core i9-13900H	1847 Points +10%
Khadas Mind Intel Core i7-1360P	1826 Points +8%
Geekom GT13 Pro Intel Core i9-13900H	1810 Points +7%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	1795 Points +7%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	1749 Points +4%
Acemagic F2A Intel Core Ultra 7 155H	1708 Points +1%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	1685 Points

Geekbench 4.4
64 Bit Single-Core Score
Minisforum MS-01 Intel Core i9-13900H	8190 Points +16%
Khadas Mind Intel Core i7-1360P	8084 Points +14%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	7932 Points +12%
Geekom GT13 Pro Intel Core i9-13900H	7787 Points +10%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	7379 Points +4%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	7069 Points
Acemagic F2A Intel Core Ultra 7 155H	6927 Points -2%
64 Bit Multi-Core Score
Minisforum MS-01 Intel Core i9-13900H	47461 Points +63%
Acemagic F2A Intel Core Ultra 7 155H	45250 Points +55%
Geekom GT13 Pro Intel Core i9-13900H	41851 Points +44%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	39510 Points +35%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	39094 Points +34%
Khadas Mind Intel Core i7-1360P	33052 Points +13%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	29164 Points

3DMark 11 - 1280x720 Performance Physics
Minisforum MS-01 Intel Core i9-13900H	21786 Points +79%
Acemagic F2A Intel Core Ultra 7 155H	20846 Points +71%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	18553 Points +53%
Geekom GT13 Pro Intel Core i9-13900H	18383 Points +51%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	18026 Points +48%
Khadas Mind Intel Core i7-1360P	15245 Points +25%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	12162 Points

7-Zip 18.03
7z b 4
Acemagic F2A Intel Core Ultra 7 155H	66438 MIPS +66%
Minisforum MS-01 Intel Core i9-13900H	63093 MIPS +58%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	55620 MIPS +39%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	55528 MIPS +39%
Geekom GT13 Pro Intel Core i9-13900H	52479 MIPS +31%
Khadas Mind Intel Core i7-1360P	43201 MIPS +8%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	40034 MIPS
7z b 4 -mmt1
Geekom GT13 Pro Intel Core i9-13900H	6321 MIPS +8%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	6136 MIPS +5%
Khadas Mind Intel Core i7-1360P	5904 MIPS +1%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	5887 MIPS +1%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	5840 MIPS
Acemagic F2A Intel Core Ultra 7 155H	5485 MIPS -6%
Minisforum MS-01 Intel Core i9-13900H	5473 MIPS -6%

HWBOT x265 Benchmark v2.2 - 4k Preset
Acemagic F2A Intel Core Ultra 7 155H	19.6 fps +62%
Minisforum MS-01 Intel Core i9-13900H	18.7 fps +55%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	16.3 fps +35%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	16.2 fps +34%
Geekom GT13 Pro Intel Core i9-13900H	14.1 fps +17%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	12.1 fps
Khadas Mind Intel Core i7-1360P	11.4 fps -6%

R Benchmark 2.5 - Overall mean
Acemagic F2A Intel Core Ultra 7 155H	0.4652 sec * -2%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	0.4571 sec *
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	0.4469 sec * +2%
Khadas Mind Intel Core i7-1360P	0.4463 sec * +2%
Geekom GT13 Pro Intel Core i9-13900H	0.4395 sec * +4%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	0.4391 sec * +4%
Minisforum MS-01 Intel Core i9-13900H	0.439 sec * +4%

LibreOffice - 20 Documents To PDF
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	52.5 s * -2%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	51.5 s *
Acemagic F2A Intel Core Ultra 7 155H	44.5 s * +14%
Khadas Mind Intel Core i7-1360P	40.9 s * +21%
Geekom GT13 Pro Intel Core i9-13900H	39.4 s * +23%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	37.2 s * +28%
Minisforum MS-01 Intel Core i9-13900H	35.1 s * +32%

WebXPRT 3 - Overall
Minisforum MS-01 Intel Core i9-13900H	317 Points +25%
Khadas Mind Intel Core i7-1360P	316 Points +24%
Geekom GT13 Pro Intel Core i9-13900H	304 Points +20%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	301 Points +19%
Acemagic F2A Intel Core Ultra 7 155H	276 Points +9%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	266 Points +5%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	254 Points

Mozilla Kraken 1.1 - Total
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	562 ms *
Acemagic F2A Intel Core Ultra 7 155H	535 ms * +5%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	519 ms * +8%
Geekom GT13 Pro Intel Core i9-13900H	517 ms * +8%
Minisforum MS-01 Intel Core i9-13900H	506 ms * +10%
Khadas Mind Intel Core i7-1360P	502 ms * +11%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	499 ms * +11%

3DMark
1920x1080 Fire Strike Physics
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	26263 Points +41%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	26093 Points +40%
Acemagic F2A Intel Core Ultra 7 155H	25043 Points +34%
Minisforum MS-01 Intel Core i9-13900H	24273 Points +30%
Geekom GT13 Pro Intel Core i9-13900H	23626 Points +27%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	18673 Points
Khadas Mind Intel Core i7-1360P	18564 Points -1%
2560x1440 Time Spy CPU
Minisforum MS-01 Intel Core i9-13900H	10995 Points +77%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	10402 Points +68%
Acemagic F2A Intel Core Ultra 7 155H	10014 Points +61%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	9655 Points +55%
Geekom GT13 Pro Intel Core i9-13900H	9347 Points +51%
Khadas Mind Intel Core i7-1360P	7942 Points +28%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	6210 Points

Super Pi mod 1.5 XS 1M - 1M
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	7.988 s *
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	7.752 s * +3%
Geekom GT13 Pro Intel Core i9-13900H	7.445 s * +7%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	7.281 s * +9%
Acemagic F2A Intel Core Ultra 7 155H	7.168 s * +10%
Khadas Mind Intel Core i7-1360P	6.784 s * +15%
Minisforum MS-01 Intel Core i9-13900H	6.156 s * +23%

Super Pi mod 1.5 XS 2M - 2M
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T	17.883 s *
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	17.176 s * +4%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	16.498 s * +8%
Geekom GT13 Pro Intel Core i9-13900H	16.234 s * +9%
Acemagic F2A Intel Core Ultra 7 155H	16.125 s * +10%
Khadas Mind Intel Core i7-1360P	14.771 s * +17%
Minisforum MS-01 Intel Core i9-13900H	13.784 s * +23%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit

8693

Cinebench R10 Shading 64Bit

15033 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

62808 Points

Cinebench R10 Rendering Single CPUs 64Bit

14147 Points

Cinebench R10 Shading 32Bit

14423

Cinebench R10 Rendering Multiple CPUs 32Bit

40528

Cinebench R11.5 CPU Single 32Bit

2.69 Points

Cinebench R11.5 CPU Multi 32Bit

18.33 Points

Cinebench R11.5 OpenGL 32Bit

80.92 fps

Cinebench R11.5 CPU Single 64Bit

3.05 Points

Cinebench R11.5 CPU Multi 64Bit

21.33 Points

Cinebench R11.5 OpenGL 64Bit

77.93 fps

Cinebench R15 CPU Single 64Bit

247 Points

Cinebench R15 CPU Multi 64Bit

1945 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

77.94 fps

Cinebench R20 CPU (Single Core)

669 Points

Cinebench R20 CPU (Multi Core)

4246 Points

Cinebench R23 Multi Core

11028 Points

Cinebench R23 Single Core

1754 Points

Cinebench 2024 CPU Single Core

104 Points

Cinebench 2024 CPU Multi Core

577 Points

Help

... in comparison

Performance Rating
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	96.3 pt
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	84.1 pt
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	75.5 pt
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	74.1 pt
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	70.1 pt
Average of class Mini PC	69.2 pt
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	59.9 pt
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	57.5 pt

AIDA64 / FP32 Ray-Trace
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	17544 KRay/s +65%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	14105 KRay/s +32%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	13251 KRay/s +24%
Average of class Mini PC (561 - 51004, n=119, last 2 years)	12449 KRay/s +17%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	12389 KRay/s +16%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	11735 KRay/s +10%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	10647 KRay/s
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	9567 KRay/s -10%

AIDA64 / FPU Julia
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	88829 Points +66%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	73742 Points +38%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	70708 Points +32%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	64350 Points +20%
Average of class Mini PC (3604 - 214250, n=119, last 2 years)	62645 Points +17%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	59094 Points +11%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	53421 Points
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	47763 Points -11%

AIDA64 / CPU SHA3
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	4246 MB/s +71%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	3386 MB/s +37%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	3234 MB/s +31%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	3028 MB/s +22%
Average of class Mini PC (225 - 9399, n=119, last 2 years)	2760 MB/s +11%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	2718 MB/s +10%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	2477 MB/s
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	2430 MB/s -2%

AIDA64 / CPU Queen
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	99851 Points +36%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	93952 Points +28%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	93077 Points +27%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	89748 Points +22%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	87544 Points +19%
Average of class Mini PC (8172 - 184747, n=119, last 2 years)	77998 Points +6%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	73543 Points
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	65324 Points -11%

AIDA64 / FPU SinJulia
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	10247 Points +43%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	9170 Points +28%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	8977 Points +25%
Average of class Mini PC (408 - 29064, n=119, last 2 years)	8538 Points +19%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	8417 Points +17%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	8026 Points +12%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	7185 Points
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	5734 Points -20%

AIDA64 / FPU Mandel
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	45718 Points +74%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	35318 Points +34%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	35080 Points +33%
Average of class Mini PC (1958 - 113499, n=119, last 2 years)	32689 Points +24%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	31933 Points +21%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	29138 Points +11%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	26296 Points
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	22832 Points -13%

AIDA64 / CPU AES
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	144741 MB/s +169%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	123819 MB/s +130%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	112254 MB/s +108%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	102677 MB/s +91%
Average of class Mini PC (3691 - 325960, n=119, last 2 years)	85358 MB/s +58%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	80041 MB/s +49%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	67775 MB/s +26%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	53864 MB/s

AIDA64 / CPU ZLib
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	1183 MB/s +45%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	1044 MB/s +28%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	951 MB/s +17%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	870 MB/s +7%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	816 MB/s
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	789 MB/s -3%
Average of class Mini PC (74.8 - 2039, n=119, last 2 years)	714 MB/s -12%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	671 MB/s -18%

AIDA64 / FP64 Ray-Trace
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	9284 KRay/s +64%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	7611 KRay/s +35%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	7582 KRay/s +34%
Average of class Mini PC (308 - 26952, n=119, last 2 years)	6658 KRay/s +18%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	6325 KRay/s +12%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	6205 KRay/s +10%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	5654 KRay/s
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	4975 KRay/s -12%

AIDA64 / CPU PhotoWorxx
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	44996 MPixel/s +270%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	43544 MPixel/s +258%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	33092 MPixel/s +172%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	28269 MPixel/s +132%
Average of class Mini PC (4408 - 50500, n=119, last 2 years)	27805 MPixel/s +129%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	24903 MPixel/s +105%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	20189 MPixel/s +66%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	12160 MPixel/s

Cinebench R15 多回路

通过 Cinebench R15 连续循环测试，我们可以清楚地看到英特尔酷睿 i5-13500T 在第一次运行后就失去了性能。Turbo 的使用率越来越低，直到第 6 次运行后性能才趋于稳定。在连续负载下，英特尔酷睿 i5-13500T 的性能超过了英特尔酷睿 i7-1360P 的性能。卡达的心灵以微弱优势胜出。

HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, Intel Core i5-13500T: Ø1581 (1456.72-1948.56)

HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, Intel Core i5-13500: Ø2153 (1959.73-2450.98)

Geekom GT13 Pro Intel Core i9-13900H, Intel Core i9-13900H: Ø1776 (1688.48-2326.12)

Minisforum Venus Series NAB9 Intel Core i9-12900HK, Intel Core i9-12900HK: Ø1981 (1895.47-2262.7)

Minisforum MS-01 Intel Core i9-13900H, Intel Core i9-13900H: Ø2354 (2022.76-2582.31)

Acemagic F2A Intel Core Ultra 7 155H, Intel Core Ultra 7 155H: Ø2759 (2690.7-2800.92)

Khadas Mind Intel Core i7-1360P, Intel Core i7-1360P: Ø1443 (1386.82-1627.54)

系统性能

在系统性能的基准测试结果中，惠普 Pro Mini 400 G9 的表现不如竞争对手。使用 DDR4 内存（也只能在单通道模式下工作）无疑是造成这一结果的原因之一。这一点在 AIDA64 基准测试中尤为明显。不过，惠普 Elite Mini 800 G9 的性能并没有明显提高。不过，我们测试系统的主观性能还是不错的，没有出现明显的延迟现象。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	7120 Points +39%
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	6802 Points +33%
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	6435 Points +26%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	5944 Points +16%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	5937 Points +16%
HP Elite Mini 800 G9-5M9T9EA, Intel Core i5-13500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	5388 Points +5%
HP Pro Mini 400 G9-936M3EA, Intel Core i5-13500T Intel UHD Graphics 770, HP PSEJN512GA87EC0	5114 Points

PCMark 10 / Essentials
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	12286 Points +36%
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	11591 Points +28%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	11125 Points +23%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	10761 Points +19%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	10347 Points +15%
HP Elite Mini 800 G9-5M9T9EA, Intel Core i5-13500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	9262 Points +3%
HP Pro Mini 400 G9-936M3EA, Intel Core i5-13500T Intel UHD Graphics 770, HP PSEJN512GA87EC0	9034 Points

PCMark 10 / Productivity
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	8901 Points +26%
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	8526 Points +20%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	8161 Points +15%
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	7924 Points +12%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	7319 Points +3%
HP Elite Mini 800 G9-5M9T9EA, Intel Core i5-13500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	7130 Points +1%
HP Pro Mini 400 G9-936M3EA, Intel Core i5-13500T Intel UHD Graphics 770, HP PSEJN512GA87EC0	7077 Points

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	1986 Points +50%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1802 Points +36%
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	1797 Points +36%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	1766 Points +33%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	1564 Points +18%
HP Elite Mini 800 G9-5M9T9EA, Intel Core i5-13500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	1549 Points +17%
HP Pro Mini 400 G9-936M3EA, Intel Core i5-13500T Intel UHD Graphics 770, HP PSEJN512GA87EC0	1324 Points

CrossMark / Responsiveness
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	2205 Points +134%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	1790 Points +90%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1700 Points +80%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	1528 Points +62%
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	1512 Points +60%
HP Elite Mini 800 G9-5M9T9EA, Intel Core i5-13500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	1153 Points +22%
HP Pro Mini 400 G9-936M3EA, Intel Core i5-13500T Intel UHD Graphics 770, HP PSEJN512GA87EC0	943 Points

CrossMark / Creativity
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	2031 Points +38%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1929 Points +31%
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	1907 Points +29%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	1789 Points +21%
HP Elite Mini 800 G9-5M9T9EA, Intel Core i5-13500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	1768 Points +20%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	1600 Points +8%
HP Pro Mini 400 G9-936M3EA, Intel Core i5-13500T Intel UHD Graphics 770, HP PSEJN512GA87EC0	1475 Points

CrossMark / Productivity
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	1996 Points +50%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	1736 Points +30%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1717 Points +29%
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	1684 Points +27%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	1541 Points +16%
HP Elite Mini 800 G9-5M9T9EA, Intel Core i5-13500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	1498 Points +13%
HP Pro Mini 400 G9-936M3EA, Intel Core i5-13500T Intel UHD Graphics 770, HP PSEJN512GA87EC0	1331 Points

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	69219 MB/s +165%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	65299 MB/s +150%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	62397 MB/s +139%
Average of class Mini PC (6481 - 89287, n=119, last 2 years)	47585 MB/s +82%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	45721 MB/s +75%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	44442 MB/s +70%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	34824 MB/s +33%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	26142 MB/s

AIDA64 / Memory Read
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	73633 MB/s +198%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	64323 MB/s +161%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	60668 MB/s +146%
Average of class Mini PC (6914 - 99171, n=119, last 2 years)	48328 MB/s +96%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	47960 MB/s +94%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	45995 MB/s +86%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	35746 MB/s +45%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	24685 MB/s

AIDA64 / Memory Write
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	74777 MB/s +228%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	70707 MB/s +210%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	65057 MB/s +185%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	53817 MB/s +136%
Average of class Mini PC (6862 - 98583, n=119, last 2 years)	52056 MB/s +128%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	45952 MB/s +101%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	45733 MB/s +100%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	22813 MB/s

AIDA64 / Memory Latency
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	149 ns * -83%
Average of class Mini PC (44.9 - 184.8, n=119, last 2 years)	91.9 ns * -13%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	91.7 ns * -13%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	90.5 ns * -11%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	89.9 ns * -11%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	81.3 ns *
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	79.9 ns * +2%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	75.8 ns * +7%

* ... smaller is better

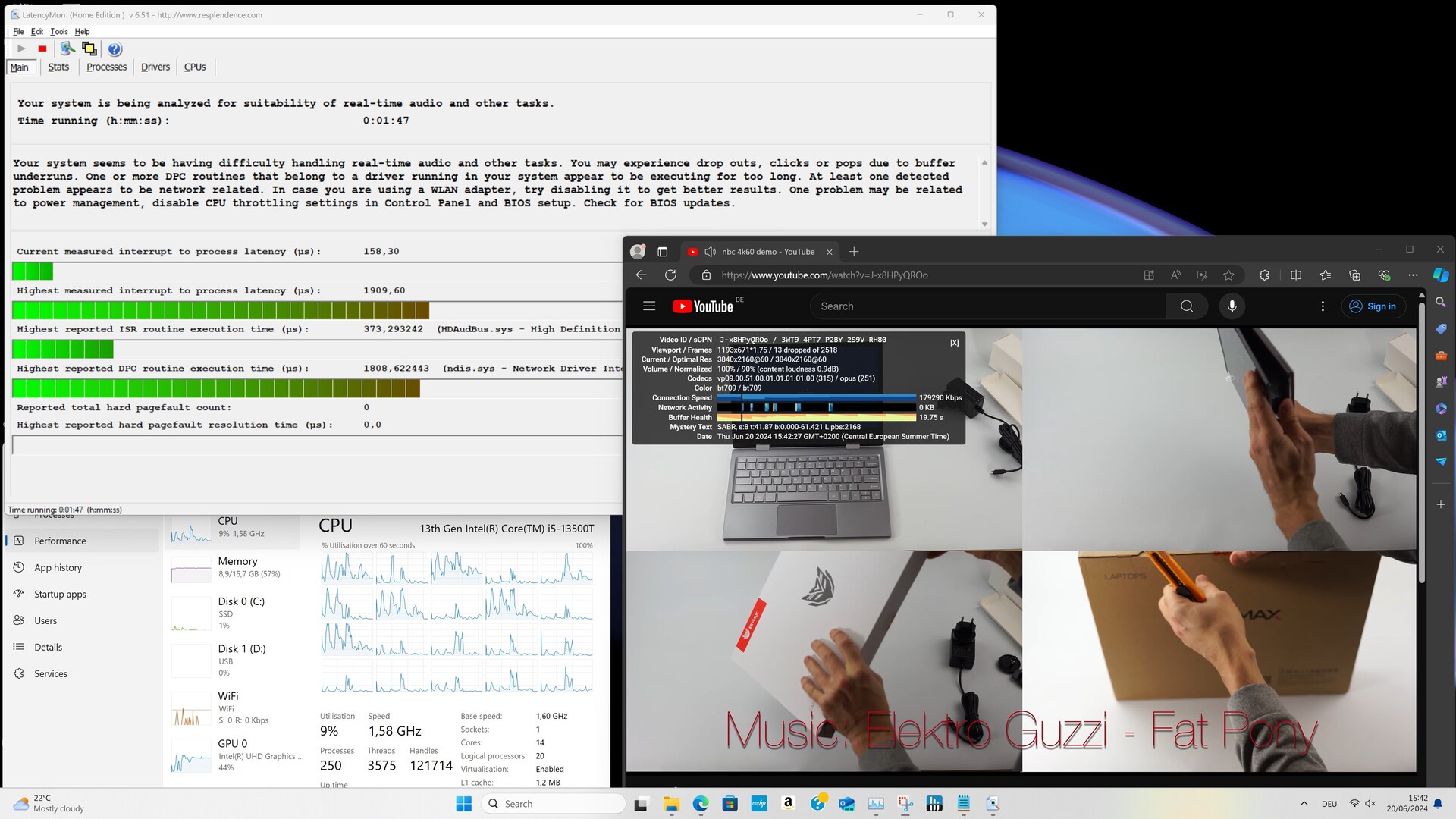

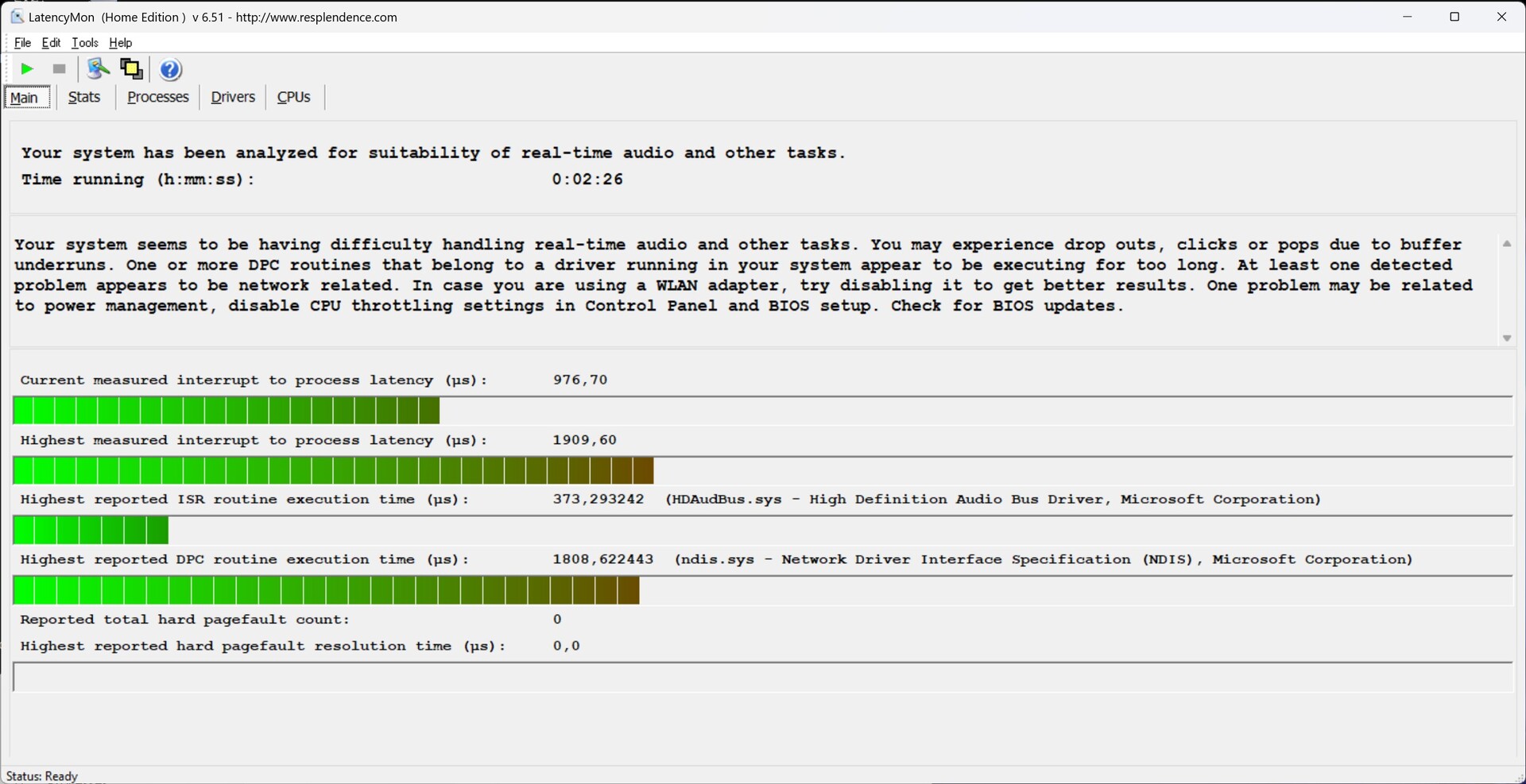

DPC 延迟

惠普 Pro Mini 400 G9 的延迟在不断增加。在 Edge 浏览器中打开多个标签页时，延迟值已经增加，并达到最大值。播放 4K 测试视频或简短的压力测试不会使延迟进一步恶化。不过，在播放 4K 视频时仍会出现一些丢帧现象。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	2724 μs * -51%
HP Pro Mini 400 G9-936M3EA UHD Graphics 770, i5-13500T, HP PSEJN512GA87EC0	1808.6 μs *
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	1533.4 μs * +15%
HP Elite Mini 800 G9-5M9T9EA UHD Graphics 770, i5-13500, Samsung PM9B1 512GB MZVL4512HBLU	1124 μs * +38%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	1026 μs * +43%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	962 μs * +47%
Minisforum MS-01 Iris Xe G7 96EUs, i9-13900H, Kingston OM8PGP41024Q-A0	931 μs * +49%

* ... smaller is better

大容量存储器

惠普 Pro Mini 400 G9 安装了 512 GB 存储空间的固态硬盘。该型号直接来自惠普，通过 PCIe 4.0 x 4 连接。尽管连接速度很快，但固态硬盘在与竞争对手的竞争中并不占优势。尽管如此，该固态硬盘仍能胜任日常任务。在测试阶段，我们在安装测试程序时没有遇到任何问题。惠普 Pro Mini 400 G9 没有使用主动散热装置。在负载情况下，我们注意到性能有明显下降，不过这种情况只在一段时间后出现。与惠普 Elite Mini 800 G9 不同，惠普 Pro Mini 400 G9 只能安装一个 M.2 固态硬盘。同时，2.5 英寸托架可容纳第二个大容量存储设备。

有关进一步的比较和基准测试，请参阅我们的比较表.

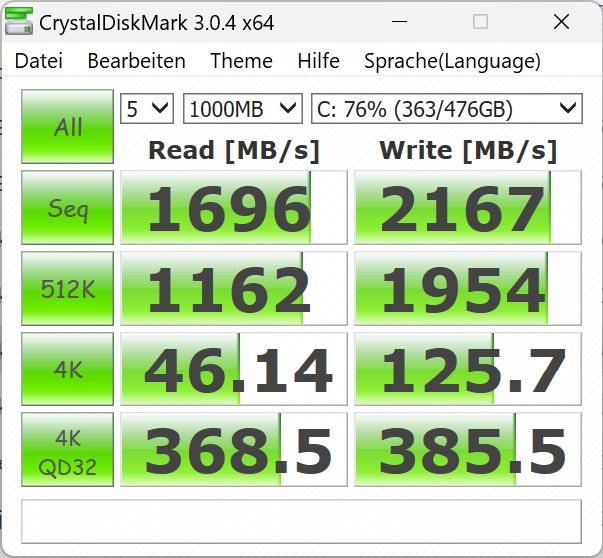

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

HP PSEJN512GA87EC0

Sequential Read: 1696 MB/s

Sequential Write: 2167 MB/s

512K Read: 1162 MB/s

512K Write: 1954 MB/s

4K Read: 46.14 MB/s

4K Write: 125.7 MB/s

4K QD32 Read: 368.5 MB/s

4K QD32 Write: 385.5 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	88.4 pt
Geekom GT13 Pro Acer N7000	79.9 pt
Khadas Mind WD PC SN740 SDDPTQD-1T00	78.2 pt
Minisforum MS-01 Kingston OM8PGP41024Q-A0	68.4 pt
Average of class Mini PC	48.2 pt
Acemagic F2A Kingston OM8SEP1024Q-A0	47.7 pt
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	41 pt
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	38.2 pt

DiskSpd
seq read
Geekom GT13 Pro Acer N7000	4357 (4314.26^min - 4356.72^max) MB/s +109%
Khadas Mind WD PC SN740 SDDPTQD-1T00	3628 (3596.13^min - 3627.65^max) MB/s +74%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	2960 (2934.76^min - 2959.92^max) MB/s +42%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	2668 (2648.91^min - 2668.42^max) MB/s +28%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	2519 (2472.21^min - 2519.1^max) MB/s +21%
Average of class Mini PC (233 - 4357, n=119, last 2 years)	2288 MB/s +10%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	2087 (1529.79^min - 2087.32^max) MB/s
Acemagic F2A Kingston OM8SEP1024Q-A0	1674 (1242.56^min - 1673.54^max) MB/s -20%
seq write
Geekom GT13 Pro Acer N7000	4544 (4380.79^min - 4543.83^max) MB/s +125%
Khadas Mind WD PC SN740 SDDPTQD-1T00	4121 (3696.6^min - 4120.84^max) MB/s +104%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	3866 (206.78^min - 3865.71^max) MB/s +91%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	3726 (3634.99^min - 3725.8^max) MB/s +84%
Average of class Mini PC (222 - 5595, n=119, last 2 years)	2448 MB/s +21%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	2023 (1352.03^min - 2023.06^max) MB/s
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	1821 (1747^min - 1820.96^max) MB/s -10%
Acemagic F2A Kingston OM8SEP1024Q-A0	1348 (1117.85^min - 1347.87^max) MB/s -33%
seq q8 t1 read
Geekom GT13 Pro Acer N7000	7007 (6166.72^min - 7006.62^max) MB/s +125%
Khadas Mind WD PC SN740 SDDPTQD-1T00	5168 (4831.21^min - 5167.59^max) MB/s +66%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	4780 (4492.97^min - 4780.46^max) MB/s +54%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	4759 (4492.55^min - 4759.49^max) MB/s +53%
Average of class Mini PC (236 - 8430, n=119, last 2 years)	3706 MB/s +19%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	3549 (3126.4^min - 3549.4^max) MB/s +14%
Acemagic F2A Kingston OM8SEP1024Q-A0	3194 (2810.81^min - 3194.17^max) MB/s +3%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	3114 (2662.04^min - 3114.48^max) MB/s
seq q8 t1 write
Geekom GT13 Pro Acer N7000	5261 (5018.9^min - 5261.3^max) MB/s +122%
Khadas Mind WD PC SN740 SDDPTQD-1T00	4212 (3767.95^min - 4212.34^max) MB/s +78%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	3901 (912.47^min - 3901.29^max) MB/s +65%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	3757 (3691.41^min - 3756.63^max) MB/s +59%
Average of class Mini PC (228 - 6669, n=119, last 2 years)	2743 MB/s +16%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	2368 (2352.68^min - 2367.98^max) MB/s
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	2236 (2193.18^min - 2236.33^max) MB/s -6%
Acemagic F2A Kingston OM8SEP1024Q-A0	2212 (1222.43^min - 2212.27^max) MB/s -7%
4k q1 t1 read
Geekom GT13 Pro Acer N7000	85.3 (82.57^min - 85.32^max) MB/s +142%
Khadas Mind WD PC SN740 SDDPTQD-1T00	83.7 (81.47^min - 83.67^max) MB/s +138%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	81.1 (80.57^min - 81.14^max) MB/s +130%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	80.9 (78.95^min - 80.85^max) MB/s +130%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	60.7 (58.39^min - 60.66^max) MB/s +72%
Average of class Mini PC (5.67 - 86.6, n=119, last 2 years)	54.7 MB/s +55%
Acemagic F2A Kingston OM8SEP1024Q-A0	47.3 (47.07^min - 47.31^max) MB/s +34%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	35.2 (30.96^min - 35.21^max) MB/s
4k q1 t1 write
Minisforum MS-01 Kingston OM8PGP41024Q-A0	435 (271.59^min - 435.46^max) MB/s +251%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	422 (409.3^min - 421.98^max) MB/s +240%
Geekom GT13 Pro Acer N7000	327 (306.06^min - 326.78^max) MB/s +164%
Khadas Mind WD PC SN740 SDDPTQD-1T00	301 (296.91^min - 301.44^max) MB/s +143%
Average of class Mini PC (30.4 - 435, n=119, last 2 years)	194.7 MB/s +57%
Acemagic F2A Kingston OM8SEP1024Q-A0	187.2 (181.54^min - 187.2^max) MB/s +51%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	124 (117.3^min - 123.97^max) MB/s
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	111.9 (109.46^min - 111.85^max) MB/s -10%
4k q32 t16 read
Geekom GT13 Pro Acer N7000	3593 (3380.17^min - 3593.41^max) MB/s +720%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	2967 (2962.7^min - 2967.4^max) MB/s +577%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	2953 (2944.17^min - 2952.67^max) MB/s +574%
Khadas Mind WD PC SN740 SDDPTQD-1T00	2300 (2238.78^min - 2299.5^max) MB/s +425%
Acemagic F2A Kingston OM8SEP1024Q-A0	1824 (1239.47^min - 1824.09^max) MB/s +316%
Average of class Mini PC (26.1 - 4158, n=119, last 2 years)	1360 MB/s +211%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	813 (801.88^min - 812.84^max) MB/s +86%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	438 (425.68^min - 437.71^max) MB/s
4k q32 t16 write
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	3364 (866.38^min - 3364.31^max) MB/s +884%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	2734 (939.34^min - 2734.2^max) MB/s +699%
Khadas Mind WD PC SN740 SDDPTQD-1T00	2441 (2189.1^min - 2441.28^max) MB/s +614%
Acemagic F2A Kingston OM8SEP1024Q-A0	1434 (1410.26^min - 1433.71^max) MB/s +319%
Average of class Mini PC (30.2 - 4288, n=119, last 2 years)	1287 MB/s +276%
Geekom GT13 Pro Acer N7000	762 (700.88^min - 761.76^max) MB/s +123%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	416 (404.01^min - 415.72^max) MB/s +22%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	342 (308.97^min - 341.55^max) MB/s

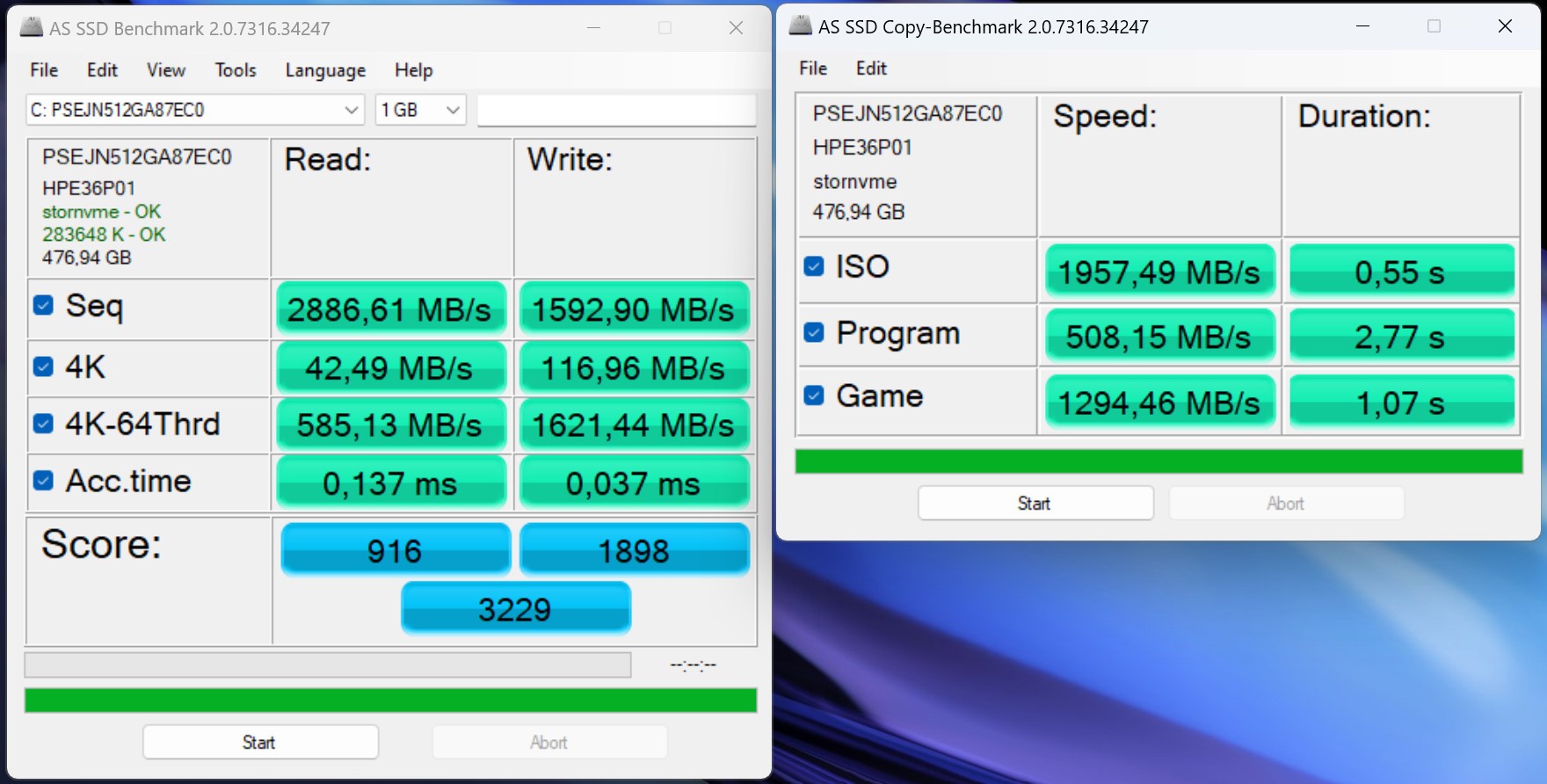

AS SSD
Score Total
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	7931 Points +146%
Geekom GT13 Pro Acer N7000	6798 Points +111%
Khadas Mind WD PC SN740 SDDPTQD-1T00	6460 Points +100%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	4648 Points +44%
Acemagic F2A Kingston OM8SEP1024Q-A0	4412 Points +37%
Average of class Mini PC (181.5 - 10021, n=117, last 2 years)	4121 Points +28%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	3229 Points
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	3146 Points -3%
Score Read
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	2899 Points +216%
Geekom GT13 Pro Acer N7000	2866 Points +213%
Khadas Mind WD PC SN740 SDDPTQD-1T00	2658 Points +190%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1831 Points +100%
Acemagic F2A Kingston OM8SEP1024Q-A0	1561 Points +70%
Average of class Mini PC (61 - 3741, n=117, last 2 years)	1534 Points +67%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	1129 Points +23%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	916 Points
Score Write
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	3564 Points +88%
Geekom GT13 Pro Acer N7000	2516 Points +33%
Khadas Mind WD PC SN740 SDDPTQD-1T00	2447 Points +29%
Acemagic F2A Kingston OM8SEP1024Q-A0	2082 Points +10%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	1898 Points
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1863 Points -2%
Average of class Mini PC (88 - 4371, n=117, last 2 years)	1851 Points -2%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	1501 Points -21%
Seq Read
Geekom GT13 Pro Acer N7000	4546 MB/s +58%
Khadas Mind WD PC SN740 SDDPTQD-1T00	4496 MB/s +56%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	4162 MB/s +44%
Average of class Mini PC (291 - 6620, n=117, last 2 years)	3161 MB/s +10%
Acemagic F2A Kingston OM8SEP1024Q-A0	3010 MB/s +4%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	2897 MB/s 0%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	2886 MB/s
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1623 MB/s -44%
Seq Write
Khadas Mind WD PC SN740 SDDPTQD-1T00	4258 MB/s +167%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	3477 MB/s +118%
Geekom GT13 Pro Acer N7000	3374 MB/s +112%
Acemagic F2A Kingston OM8SEP1024Q-A0	2369 MB/s +49%
Average of class Mini PC (240 - 5783, n=117, last 2 years)	2212 MB/s +39%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	1592 MB/s
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1543 MB/s -3%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	1361 MB/s -15%
4K Read
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	104.3 MB/s +145%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	86.8 MB/s +104%
Geekom GT13 Pro Acer N7000	83.4 MB/s +96%
Khadas Mind WD PC SN740 SDDPTQD-1T00	76.3 MB/s +80%
Average of class Mini PC (6.08 - 104.3, n=117, last 2 years)	58.9 MB/s +39%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	56.1 MB/s +32%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	42.5 MB/s
Acemagic F2A Kingston OM8SEP1024Q-A0	41.8 MB/s -2%
4K Write
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	366 MB/s +213%
Geekom GT13 Pro Acer N7000	296 MB/s +153%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	266 MB/s +127%
Khadas Mind WD PC SN740 SDDPTQD-1T00	258 MB/s +121%
Acemagic F2A Kingston OM8SEP1024Q-A0	196.9 MB/s +68%
Average of class Mini PC (30.9 - 366, n=117, last 2 years)	175.1 MB/s +50%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	120 MB/s +3%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	117 MB/s
4K-64 Read
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	2379 MB/s +307%
Geekom GT13 Pro Acer N7000	2328 MB/s +298%
Khadas Mind WD PC SN740 SDDPTQD-1T00	2132 MB/s +264%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1581 MB/s +170%
Acemagic F2A Kingston OM8SEP1024Q-A0	1218 MB/s +108%
Average of class Mini PC (23.4 - 3220, n=117, last 2 years)	1159 MB/s +98%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	783 MB/s +34%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	585 MB/s
4K-64 Write
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	2850 MB/s +76%
Geekom GT13 Pro Acer N7000	1883 MB/s +16%
Khadas Mind WD PC SN740 SDDPTQD-1T00	1763 MB/s +9%
Acemagic F2A Kingston OM8SEP1024Q-A0	1649 MB/s +2%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	1621 MB/s
Average of class Mini PC (32.8 - 3731, n=117, last 2 years)	1455 MB/s -10%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1443 MB/s -11%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	1245 MB/s -23%
Access Time Read
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	0.137 ms *
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	0.128 ms * +7%
Geekom GT13 Pro Acer N7000	0.127 ms * +7%
Average of class Mini PC (0.022 - 0.489, n=117, last 2 years)	0.09726 ms * +29%
Khadas Mind WD PC SN740 SDDPTQD-1T00	0.094 ms * +31%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	0.055 ms * +60%
Acemagic F2A Kingston OM8SEP1024Q-A0	0.046 ms * +66%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	0.044 ms * +68%
Access Time Write
Acemagic F2A Kingston OM8SEP1024Q-A0	0.126 ms * -241%
Average of class Mini PC (0.014 - 0.765, n=117, last 2 years)	0.1153 ms * -212%
Geekom GT13 Pro Acer N7000	0.059 ms * -59%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	0.038 ms * -3%
HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0	0.037 ms *
Minisforum MS-01 Kingston OM8PGP41024Q-A0	0.034 ms * +8%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	0.031 ms * +16%
Khadas Mind WD PC SN740 SDDPTQD-1T00	0.016 ms * +57%

* ... smaller is better

Continuous read: DiskSpd Read Loop, Queue Depth 8

HP Pro Mini 400 G9-936M3EA HP PSEJN512GA87EC0; diskspd 2.0.17 f: Ø2970 (966.37-3122.61)

HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU; diskspd 2.0.17 f: Ø3409 (3038.35-3569.55)

Geekom GT13 Pro Acer N7000; diskspd 2.0.17 f: Ø5377 (3710.83-7006.62)

Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0; diskspd 2.0.17 f: Ø4764 (3862.99-4794.3)

Minisforum MS-01 Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø3798 (1858.92-4778.57)

Acemagic F2A Kingston OM8SEP1024Q-A0; diskspd 2.0.17 f: Ø1320 (771.89-3141.95)

Khadas Mind WD PC SN740 SDDPTQD-1T00: Ø5222 (4952.01-5235.75)

图形

作为图形适配器，惠普 Pro Mini 400 G9 只有一个薄弱的 iGPU。作为英特尔酷睿 i5-13500T作为英特尔酷睿 i5-13500T 的一部分，该 iGPU 被称为英特尔UHD Graphics 770，仅提供 32 个 EU，这意味着该图形单元与大多数其他迷你 PC 相比毫无胜算。惠普惠普精英迷你 800 G9也采用了相同的 iGPU，但在测试中明显落败。我们的测试样本速度更慢，这可能要归咎于较弱的处理器和较慢的内存。

更多比较和基准测试可参见我们的 GPU 对比表.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Average Intel Arc 8-Core iGPU	99.7 pt
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	97.4 pt
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	66.3 pt
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	61.2 pt
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	57.8 pt
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	57.3 pt
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	27.7 pt
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	25.4 pt

3DMark 11 - 1280x720 Performance GPU
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	12085 Points +270%
Average Intel Arc 8-Core iGPU (8064 - 13716, n=35)	11984 Points +267%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	7676 Points +135%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	7424 Points +127%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	6999 Points +114%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	6722 Points +106%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	3428 Points +5%
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	3268 Points

3DMark
2560x1440 Time Spy Graphics
Average Intel Arc 8-Core iGPU (2018 - 3770, n=42)	3231 Points +385%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3205 Points +381%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1854 Points +178%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1690 Points +154%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1680 Points +152%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1583 Points +138%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	739 Points +11%
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	666 Points
1920x1080 Fire Strike Graphics
Average Intel Arc 8-Core iGPU (5568 - 9692, n=39)	8302 Points +251%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	7710 Points +226%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	6482 Points +174%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	5812 Points +146%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5461 Points +131%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	5407 Points +129%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	2643 Points +12%
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	2363 Points

Unigine Heaven 4.0
Extreme Preset OpenGL
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	31.6 fps +193%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	31.2 fps +189%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	25.2 fps +133%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	25.1 fps +132%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	22.3 fps +106%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	14.4 fps +33%
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	10.8 fps
Extreme Preset DX11
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	32.7 fps +200%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	31.9 fps +193%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	26 fps +139%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	25.6 fps +135%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	23.2 fps +113%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	14.4 fps +32%
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	10.9 fps

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	20 fps +194%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	17.2 fps +153%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	17.1 fps +151%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	15.1 fps +122%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	13.7 fps +101%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	8.9 fps +31%
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	6.8 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	21.7 fps +206%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	20.4 fps +187%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	18.3 fps +158%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	15.7 fps +121%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	14.6 fps +106%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	9.9 fps +39%
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	7.1 fps

Unigine Superposition
1280x720 720p Low
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	10491 Points +237%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	8223 Points +164%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	6619 Points +113%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	6265 Points +101%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	6129 Points +97%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	4251 Points +37%
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	3111 Points
1920x1080 1080p High
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3391 Points +273%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	2744 Points +202%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	2306 Points +154%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	2279 Points +151%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	2113 Points +132%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	1112 Points +22%
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	909 Points
1920x1080 1080p Extreme
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	1920 Points +337%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1251 Points +185%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1124 Points +156%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1101 Points +151%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1060 Points +141%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	492 Points +12%
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	439 Points

ComputeMark v2.1
1024x600 Normal, Score
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	7480 Points +422%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	3877 Points +171%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	3650 Points +155%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	3605 Points +152%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	3382 Points +136%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	1540 Points +8%
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	1432 Points
1024x600 Normal, Fluid 3DTex
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	427 Points +226%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	420 Points +221%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	385 Points +194%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	286 Points +118%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	226 Points +73%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	186 Points +42%
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	131 Points
1024x600 Normal, Fluid 2DTexArr
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	422 Points +235%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	398 Points +216%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	354 Points +181%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	294 Points +133%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	239 Points +90%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	171 Points +36%
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	126 Points
1024x600 Normal, Mandel Vector
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	1961 Points +632%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	918 Points +243%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	873 Points +226%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	850 Points +217%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	830 Points +210%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	272 Points +1%
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	268 Points
1024x600 Normal, Mandel Scalar
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	1594 Points +291%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	888 Points +118%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	883 Points +116%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	866 Points +112%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	864 Points +112%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	412 Points +1%
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	408 Points
1024x600 Normal, QJuliaRayTrace
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3076 Points +516%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1310 Points +163%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1258 Points +152%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1201 Points +141%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1174 Points +135%
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	499 Points
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	498 Points 0%

LuxMark v2.0 64Bit
Room GPUs-only
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1196 Samples/s +236%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	651 Samples/s +83%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	577 Samples/s +62%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	549 Samples/s +54%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	487 Samples/s +37%
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	356 Samples/s
Sala GPUs-only
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	3188 Samples/s +194%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	2349 Samples/s +116%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	2319 Samples/s +114%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	2104 Samples/s +94%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	1246 Samples/s +15%
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	1086 Samples/s

Affinity Photo 2 - Combined (Single / Multi GPU)
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	4958 Points +143%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	4928 Points +141%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	4460 Points +118%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	4215 Points +106%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	3724 Points +82%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	2471 Points +21%
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	2044 Points

DaVinci Resolve PugetBench - GPU Effects 0.93
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	17 Points +240%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	17 Points +240%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	12 Points +140%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	7 Points +40%
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	5 Points

Photoshop PugetBench - GPU Score
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	98 Points +106%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	95.7 Points +101%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	94.5 Points +99%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	88.4 Points +86%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	62.7 Points +32%
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	47.6 Points

Premiere Pro PugetBench - GPU 0.9
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	16.8 Points +300%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	9.6 Points +129%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	8.3 Points +98%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	8.2 Points +95%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	8.1 Points +93%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7.2 Points +71%
HP Pro Mini 400 G9-936M3EA Intel UHD Graphics 770, Intel Core i5-13500T	4.2 Points

	HP Pro Mini 400 G9-936M3EA, Intel UHD Graphics 770 i5-13500T	HP Elite Mini 800 G9-5M9T9EA, Intel UHD Graphics 770 i5-13500	Minisforum MS-01, Intel Iris Xe Graphics G7 96EUs i9-13900H	Geekom GT13 Pro, Intel Iris Xe Graphics G7 96EUs i9-13900H	Minisforum Venus Series NAB9, Intel Iris Xe Graphics G7 96EUs i9-12900HK	Acemagic F2A, Intel Arc 8-Core iGPU Ultra 7 155H	Khadas Mind, Intel Iris Xe Graphics G7 96EUs i7-1360P	Average of class Mini PC
SPECviewperf 12		15%	129%	95%	88%	149%	80%	1027%
1900x1060 3ds Max (3dsmax-05)	24.7	29.8 21%	46.7 89%	41.4 68%	40.2 63%	49.8 102%	37.8 53%	75.4 ?(13.6 - 295, n=63, last 2 years) 205%
1900x1060 Catia (catia-04)	20.8	23.4 13%	41.7 100%	38.6 86%	35.9 73%	48.2 132%	39.4 89%	64.2 ?(10.9 - 251, n=63, last 2 years) 209%
1900x1060 Creo (creo-01)	15.4	16.7 8%	30 95%	28.2 83%	27.7 80%	23.1 50%	7.37 -52%	37 ?(4.03 - 117, n=63, last 2 years) 140%
1900x1060 Energy (energy-01)	0.2	0.19 -5%	0.5 150%	0.41 105%	0.4 100%	0.91 355%	0.46 130%	13.3 ?(0.15 - 80.4, n=57, last 2 years) 6550%
1900x1060 Maya (maya-04)	19.7	25.1 27%	51.9 163%	42.4 115%	39.8 102%	54.9 179%	41.3 110%	64 ?(11.4 - 226, n=63, last 2 years) 225%
1900x1060 Medical (medical-01)	4.98	5.18 4%	14.5 191%	12.2 145%	12.2 145%	16.9 239%	12 141%	28.5 ?(2.53 - 136, n=60, last 2 years) 472%
1900x1060 Showcase (showcase-01)	8.53	11.5 35%	24.8 191%	19.1 124%	17.4 104%	18.2 113%	21.2 149%	35.3 ?(5.71 - 133, n=63, last 2 years) 314%
1900x1060 Solidworks (sw-03)	35.6	41.1 15%	53.1 49%	46.6 31%	47.3 33%	42.7 20%	41.6 17%	72.4 ?(20.9 - 243, n=63, last 2 years) 103%
SPECviewperf 13		16%	135%	114%	101%	157%	109%	383%
3ds Max (3dsmax-06)	24.3	29.7 22%	46.5 91%	41.2 70%	39.9 64%	46.4 91%	39 60%	74.8 ?(13.4 - 294, n=63, last 2 years) 208%
Catia (catia-05)	30.5	33.8 11%	58.9 93%	54.7 79%	51.6 69%	71.6 135%	57.1 87%	91.4 ?(15.6 - 381, n=62, last 2 years) 200%
Creo (creo-02)	22.5	24.6 9%	46.2 105%	42.7 90%	40.2 79%	29.6 32%	37.5 67%	73 ?(11.6 - 275, n=63, last 2 years) 224%
Energy (energy-02)	1.36	1.4 3%	4.72 247%	4.62 240%	4.39 223%	5.69 318%	4.34 219%	17.7 ?(0.92 - 310, n=60, last 2 years) 1201%
Maya (maya-05)	27.4	34.6 26%	58.4 113%	51.6 88%	48.3 76%	59.5 117%	46.3 69%	97.5 ?(15.9 - 340, n=63, last 2 years) 256%
Medical (medical-02)	5.46	5.57 2%	15.8 189%	15.6 186%	14.4 164%	29.7 444%	16 193%	37.6 ?(2.28 - 198, n=63, last 2 years) 589%
Showcase (showcase-02)	8.53	11.6 36%	25 193%	19.1 124%	17.3 103%	18.2 113%	21.4 151%	35 ?(5.69 - 133, n=63, last 2 years) 310%
Solidworks (sw-04)	43.3	49.7 15%	63.7 47%	58.3 35%	57.4 33%	44.8 3%	53.7 24%	76.6 ?(27.4 - 223, n=63, last 2 years) 77%
SPECviewperf 2020		15%	173%	121%	119%	195%	118%	520%
3840x2160 Medical (medical-03)	1.32	1.34 2%	2.72 106%	2.69 104%	3.48 164%	5.05 283%	2.67 102%	7.74 ?(0.78 - 30.8, n=65, last 2 years) 486%
3840x2160 Energy (energy-03)	0.76	0.76 0%	4.75 525%	3.17 317%	3 295%	4.61 507%	2.97 291%	10.8 ?(0.52 - 47.9, n=65, last 2 years) 1321%
3840x2160 Creo (creo-03)	7.73	9.08 17%	19.2 148%	16.3 111%	15.1 95%	17.9 132%	16.9 119%	29.7 ?(7.73 - 97.5, n=65, last 2 years) 284%
3840x2160 CATIA (catia-06)	4.61	5.56 21%	9.99 117%	8.53 85%	8.08 75%	10 117%	8.82 91%	18.3 ?(4.61 - 64.1, n=64, last 2 years) 297%
3840x2160 3ds Max (3dsmax-07)	5.53	6.66 20%	11.6 110%	10.3 86%	9.78 77%	12.9 133%	10.1 83%	21.8 ?(5.53 - 87.5, n=65, last 2 years) 294%
3840x2160 Siemens NX (snx-04)	5.4	5.98 11%	6.9 28%	6.62 23%	6.67 24%	5.7 6%	6.01 11%	37.5 ?(2.25 - 224, n=63, last 2 years) 594%
3840x2160 Maya (maya-06)	12.2	16.1 32%	34.1 180%	27.3 124%	24.4 100%	35.4 190%	27.8 128%	56.4 ?(12.2 - 207, n=65, last 2 years) 362%
Total Average (Program / Settings)		15% / 15%	146% / 144%	110% / 110%	103% / 102%	167% / 166%	102% / 101%	643% / 649%

3DMark 05 Standard		27996 points
3DMark 06 Standard Score		20029 points
3DMark Vantage P Result		12664 points
3DMark 11 Performance		3665 points
3DMark Ice Storm Standard Score		79087 points
3DMark Cloud Gate Standard Score		14271 points
3DMark Fire Strike Score		2163 points
3DMark Fire Strike Extreme Score		994 points
3DMark Time Spy Score		768 points
3DMark Steel Nomad Score		63 points
3DMark Steel Nomad Light Score		485 points
Help

... in comparison

游戏性能

我们已经从英特尔UHD Graphics 770 的合成基准测试结果中看到，3D 性能绝对不足以在现代游戏中获得足够的帧速率。iGPU 只能处理最简单的休闲游戏或浏览器游戏。使用最新的 iGPU（如 AMD Radeon 780M或英特尔 Arc 8.在这一点上，我们参考 Geekom A8和 Minisforum AtomMan X7 Ti配备了这些设备。

FPS chart

HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770: Ø4.48 (3.4-4.61)

HP Elite Mini 800 G9-5M9T9EA i5-13500, UHD Graphics 770: Ø5.16 (4.95-5.27)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs: Ø11.1 (5.97-12.3)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs: Ø12.5 (11.3-13.6)

	low	med.	high	ultra
The Witcher 3 (2015)	41.8
Final Fantasy XV Benchmark (2018)	21.3	11.3	8
Strange Brigade (2018)		18.6	15.2	14.6
Baldur's Gate 3 (2023)	8.2
Cyberpunk 2077 2.1 Phantom Liberty (2023)	7.95	6.1	5.3
F1 24 (2024)	21.2	18.1	12.9

排放 - Intel Core i5-13500T 易于控制

噪音排放

惠普 Pro Mini 400 G9 采用紧凑的金属外壳，通风口很少。基于处理器的经济性，这一决定是可以理解的，尽管与惠普 Elite Mini 800 G9 相比，噪音水平略高。在压力测试中，我们只测得了 38.2 dB(A)，这是相比之下最好的结果。惠普 Pro Mini 400 G9 在空闲模式下几乎听不到噪音。不过，CPU 风扇总是要工作的。

Noise Level

Idle		27.6 / 27.7 / 27.7 dB(A)
Load		33.6 / 38.2 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 24.7 dB(A)

	HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770	HP Elite Mini 800 G9-5M9T9EA i5-13500, UHD Graphics 770	Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs	Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs	Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs	Acemagic F2A Ultra 7 155H, Arc 8-Core	Khadas Mind i7-1360P, Iris Xe G7 96EUs
Noise		1%	-23%	-12%	-11%	-8%	-24%
off / environment *	24.7	24.4 1%	24.4 1%	24.3 2%	25.4 -3%	24.9 -1%	25.2 -2%
Idle Minimum *	27.6	28.1 -2%	33.7 -22%	27.9 -1%	27.5 -0%	25.4 8%	34.4 -25%
Idle Average *	27.7	28.1 -1%	33.9 -22%	27.9 -1%	28 -1%	25.7 7%	34.4 -24%
Idle Maximum *	27.7	28.2 -2%	34.7 -25%	28 -1%	33 -19%	25.7 7%	34.5 -25%
Load Average *	33.6	29.8 11%	47.7 -42%	43.8 -30%	42.8 -27%	47.8 -42%	44.7 -33%
Cyberpunk 2077 ultra *	36.2	33.9 6%		45.4 -25%
Load Maximum *	38.2	40.7 -7%	49.1 -29%	48.5 -27%	44.9 -18%	49 -28%	50.4 -32%
Witcher 3 ultra *			48.9		44.5	45.23	49

* ... smaller is better

温度

惠普 Pro Mini 400 G9 采用坚固的金属外壳，在负载情况下不会明显发热。虽然顶部没有像 HP Elite Mini 800 G9 那样的额外通风口，但在最高 38.4 °C的温度下，外壳仍然保持相对凉爽。 HP Elite Mini 800 G9.由于采用了经济的英特尔酷睿 i5-13500T因此，这种设计是合理的。在压力测试中，我们测得处理器的最高温度仅为 70 °C。我们还看到，35 瓦的功耗可以在较长时间内轻松保持。

Max. Load

Idle


25 °C	29.5 °C	33.7 °C
26.3 °C	31.1 °C	33 °C
24.4 °C	25.3 °C	28.1 °C

Maximum: 33.7 °C
Average: 28.5 °C


38.4 °C	35.9 °C	29 °C
36.2 °C	37.9 °C	31.2 °C
33.1 °C	31.9 °C	30.3 °C

Maximum: 38.4 °C
Average: 33.8 °C

Power Supply (max.) 32 °C | Room Temperature 21.5 °C | Fluke t3000FC (calibrated)

(+) The average temperature for the upper side under maximal load is 28.5 °C / 83 F, compared to the average of 32.2 °C / 90 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 33.7 °C / 93 F, compared to the average of 35.7 °C / 96 F, ranging from 24 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 38.4 °C / 101 F, compared to the average of 36.2 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 23 °C / 73 F, compared to the device average of 32.2 °C / 90 F.

发言人

与大多数微型电脑不同，惠普在 Pro Mini 400 G9 的正面安装了一个小型扬声器。显然，这并不能取代外置音响系统。不过，这个小扬声器在日常生活中还是可以很好地用于聆听安静的音乐等。

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

HP Pro Mini 400 G9-936M3EA audio analysis

(+) | speakers can play relatively loud (82.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 28.8% lower than median
(±) | linearity of bass is average (8% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 7.5% lower than median
(+) | mids are linear (5.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.8% away from median
(+) | highs are linear (6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (23.5% difference to median)
Compared to same class
» 50% of all tested devices in this class were better, 14% similar, 36% worse
» The best had a delta of 14%, average was 25%, worst was 40%
Compared to all devices tested
» 67% of all tested devices were better, 7% similar, 26% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Minisforum Mars Series MC560 audio analysis

(-) | not very loud speakers (62.3 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 22.8% lower than median
(+) | bass is linear (5.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 6.5% lower than median
(-) | mids are not linear (20.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.1% away from median
(+) | highs are linear (4.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (38.4% difference to median)
Compared to same class
» 86% of all tested devices in this class were better, 7% similar, 7% worse
» The best had a delta of 14%, average was 25%, worst was 40%
Compared to all devices tested
» 94% of all tested devices were better, 1% similar, 5% worse
» The best had a delta of 4%, average was 25%, worst was 134%

能源管理

我们赞成使用经济型台式机处理器。就效率而言，我们的测试设备要好得多，甚至可以超过微型论坛 MS-01甚至可以超过它。在无负载的情况下，我们的测试设备非常经济，功率为 6.3 至 12.9 瓦，丝毫不逊于采用笔记本电脑技术的微型电脑。在平均负载下，我们的测量设备仅显示略高于 45 瓦的功率，明显低于大多数竞争对手。在峰值时，我们短暂地看到 84 瓦，这对电源装置来说并不是很大的挑战。它的最大输出功率为 90 瓦。

Power Consumption

Off / Standby	0.9 / 1.1 Watt
Idle	6.3 / 8.6 / 12.9 Watt
Load	45.3 / 84 Watt


Key: min: , med: , max: Metrahit Energy

	HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770	HP Elite Mini 800 G9-5M9T9EA i5-13500, UHD Graphics 770	Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs	Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs	Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs	Acemagic F2A Ultra 7 155H, Arc 8-Core	Khadas Mind i7-1360P, Iris Xe G7 96EUs	Average Intel UHD Graphics 770	Average of class Mini PC
Power Consumption		-7%	-26%	-53%	-91%	-26%	-4%	-10%	-29%
Idle Minimum *	6.3	3.5 44%	7.9 -25%	12.1 -92%	14.4 -129%	9.1 -44%	7.8 -24%	4.88 ?(3.5 - 6.3, n=5) 23%	9.48 ?(1.9 - 45.7, n=119, last 2 years) -50%
Idle Average *	8.6	7.9 8%	10.3 -20%	13.2 -53%	16.1 -87%	10.3 -20%	10.9 -27%	8.12 ?(7.2 - 8.9, n=5) 6%	11.5 ?(1.9 - 47.5, n=117, last 2 years) -34%
Idle Maximum *	12.9	13.2 -2%	22.3 -73%	14.1 -9%	25.5 -98%	14.4 -12%	11.8 9%	13.9 ?(8.7 - 21.5, n=5) -8%	14.9 ?(2.6 - 57.1, n=119, last 2 years) -16%
Load Average *	45.3	52.7 -16%	57.44 -27%	82.9 -83%	87.3 -93%	54.9 -21%	39.2 13%	53.5 ?(44.6 - 69.5, n=5) -18%	57.4 ?(11.3 - 170.6, n=119, last 2 years) -27%
Cyberpunk 2077 ultra external monitor *	57.1	73.8 -29%	55.9 2%
Load Maximum *	84	122.2 -45%	93.4 -11%	106.8 -27%	123.3 -47%	110.4 -31%	76.4 9%	128.2 ?(81.3 - 231, n=5) -53%	97.5 ?(18.1 - 423, n=119, last 2 years) -16%

* ... smaller is better

Efficiency

Performance Rating | Power Consumption

Performance Rating - Percent
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	97.7 pt
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	95.8 pt
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	80.1 pt
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	76.1 pt
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	73.9 pt
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	68.2 pt

Power Consumption
Cinebench R23 Multi Power Efficiency - external Monitor
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	210 Points per Watt +17%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	183.7 Points per Watt +2%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	179.6 Points per Watt
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	164.2 Points per Watt -9%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	148.1 Points per Watt -18%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	130.5 Points per Watt -27%
Cinebench R23 Single Power Efficiency - external Monitor
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	54.3 Points per Watt +38%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	54.2 Points per Watt +38%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	39.4 Points per Watt
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	36.8 Points per Watt -7%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	36.4 Points per Watt -8%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	34.9 Points per Watt -11%
Cinebench R15 Multi Efficiency (external Monitor)
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	26.6 Points per Watt +21%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	24.8 Points per Watt +13%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	23.1 Points per Watt +5%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	22.1 Points per Watt +1%
HP Pro Mini 400 G9-936M3EA Intel Core i5-13500T, UHD Graphics 770	21.9 Points per Watt
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	19.9 Points per Watt -9%

Power consumption with external monitor

HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770; Idle 1min (external Monitor): Ø8.6 (7.59-13)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Idle 1min (external Monitor): Ø17.4 (12.6-22.4)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; Idle 1min (external Monitor): Ø17.7 (16.8-25.5)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Idle 1min (external Monitor): Ø10.4 (9.08-14.4)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø73.9 (70.9-87.7)

Acemagic F2A Ultra 7 155H, Arc 8-Core; 1920x1080 The Witcher 3 ultra (external Monitor): Ø48.4 (45.6-52.4)

HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770; 1280x720 Prime95 28.10 and Furmark 1.25: Ø55.3 (51.3-63.7)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø60.2 (57-86.6)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø97.8 (96.8-99.3)

Acemagic F2A Ultra 7 155H, Arc 8-Core; 1280x720 Prime95 28.10 and Furmark 1.25: Ø92.2 (78.7-114)

HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770; Cyberpunk 2077 FHD ultra no FSR - external Monitor: Ø57.1 (54.8-73.1)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Cyberpunk 2077 FHD ultra no FSR - external Monitor: Ø55.9 (54.2-59.2)

HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770; 3DMark06 Return To Proxycon: Ø45.3 (40.4-61.9)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; 3DMark06 Return To Proxycon: Ø57.4 (53.5-61.5)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; 3DMark06 Return To Proxycon: Ø87.3 (83.2-92.2)

Acemagic F2A Ultra 7 155H, Arc 8-Core; 3DMark06 Return To Proxycon: Ø54.9 (50.2-57)

Power consumption with external monitor

HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770; Prime95 V2810 Stress (external Monitor): Ø55.6 (54.2-60.7)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø59.5 (53.5-84.7)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø98.7 (85.9-123.3)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Prime95 V2810 Stress (external Monitor): Ø99.6 (92-110.4)

HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770; Cinebench R15 Multi (external Monitor): Ø79.3 (77.7-81.2)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø91.2 (88.5-93.4)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø111.3 (106.3-117.5)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Cinebench R15 Multi (external Monitor): Ø103 (99.2-107)

HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770; Cinebench R23 Single (external Monitor): Ø44.5 (39.1-53.1)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Cinebench R23 Single (external Monitor): Ø31.6 (29-59.5)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; Cinebench R23 Single (external Monitor): Ø49.6 (44.3-102.7)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Cinebench R23 Single (external Monitor): Ø32.7 (19.4-55.3)

HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770; Cinebench R23 Multi (external Monitor): Ø61.4 (53.7-84)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Cinebench R23 Multi (external Monitor): Ø62.1 (50.4-89.7)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; Cinebench R23 Multi (external Monitor): Ø98.7 (91-111.3)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Cinebench R23 Multi (external Monitor): Ø100.7 (97.2-108.6)

HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø40.6 (38.9-55.5)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø54.6 (51.3-69.7)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø92.1 (88.6-103.5)

Acemagic F2A Ultra 7 155H, Arc 8-Core; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø49.7 (47.3-60.6)

Pros

+ 坚固简洁的金属外壳

+ 模块化设计

+ 免工具开启

+ 插槽式英特尔酷睿 i5-13500T

+ 可安装两个固态硬盘

+ 快速无线局域网

+ 安静高效的冷却装置

+ 小型扬声器

+ 附带鼠标和键盘

+ 高效台式机 CPU

Cons

- 3D 性能非常低

- 没有 USB4 或 OCuLink

- 保修期只有 12 个月

- DPC 延迟有点高

结论：英特尔酷睿 i5-13500T 效能出色

测试中的 HP Pro Mini 400 G9（配备英特尔酷睿 i5-13500T）--由德国惠普公司提供

HP Pro Mini 400 G9 是一款小巧的 PC，可与英特尔酷睿 i5-13500T并实现良好的效率。处理器是传统的台式机处理器，必要时也可以拆卸和更换。这显然使惠普的这款紧凑型 PC 有别于大量传统的迷你 PC。此外，整个系统采用模块化设计，可以轻松拆卸。目前充斥市场的大多数传统迷你 PC 也不具备这种功能。我们非常欢迎这种做法，因为它允许最终用户自己进行小型维护工作。

惠普 Pro Mini 400 G9 采用英特尔酷睿 i5-13500T 处理器，具有良好的效率和多种外部连接选项，给人留下了深刻印象。遗憾的是，它没有 USB4 或 OCuLink 等现代端口。

在性能方面，我们基于英特尔酷睿 i5-13500T 处理器的测试样本配置良好，尽管来自远东的竞争对手通常在这方面更胜一筹。不过，惠普 Pro Mini 400 G9 完全适合日常使用。DDR4 的使用可能会受到批评，尤其是该处理器还支持速度更快的 DDR5 标准。不过，与惠普 Elite Mini 800 G9 相比并无明显差异。遗憾的是，惠普只在我们的测试设备中安装了一个 SO-DIMM 模块，这进一步限制了内存带宽。最好还是安装两个模块。

虽然惠普 Pro Mini 400 G9 与惠普 Elite Mini 800 G9 非常相似，但两者之间存在显著差异，这也影响了大容量存储设备的数量。Pro Mini 400 G9 只能容纳两个大容量存储设备，这对于大多数用户来说还是足够的。在外部接口的选择上，我们看到了一个更为重要的方面。在数量上，惠普也明显优于其他竞争对手。尽管如此，我们还是对缺少 Thunderbolt 接口提出了批评。对于系统制造商来说，安装 OCuLink 连接也很容易。遗憾的是，惠普也没有提供。就令人唏嘘的图形性能而言，这不失为一种明智的做法，可以通过外置图形解决方案将设备扩展为一款真正能胜任各种任务的设备。

惠普在自己的商店里收费 865 欧元，这比惠普精英迷你 800 G9 便宜很多，但后者的性能并没有明显提高。在效率方面，惠普 Pro Mini 400 G9 是明确的选择，即使它的 CPU 性能略低。

注：我们最近更新了评级系统，第 8 版的结果与第 7 版的结果不具可比性。更多信息请点击这里可在此处查阅。

价格和供应情况

HP Pro Mini 400 G9 可直接从制造商处购买。值得比较一下价格，因为不同的网上商店提供的相同设备价格要低得多。HP Pro Mini 400 G9 可以通过普通零售商订购，例如亚马逊。

HP Pro Mini 400 G9-936M3EA - 06/24/2024 v8
Sebastian Bade

Chassis

85 / 98 → 87%

Connectivity

61 / 81 → 76%

Weight

72%

Games Performance

12 / 80 → 15%

Application Performance

74 / 92 → 81%

Workstation

12%

AI Performance

58%

Temperature

95%

Noise

85%

Audio

71%

Average

57%

70%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
50%

Packaging
75%

Power Use
72.7%

Repairability
68%

Software Updates
22.3%

Total Sustainability Score: 48%

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Price comparison

Editor of the original article: Ninh Ngoc Duy - Editorial Assistant - 459232 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 惠普 Pro Mini 400 G9 迷你 PC 评测：采用英特尔酷睿 i5-13500T 和模块化设计的 NUC PC 性能卓越

Sebastian Bade, 2024-06-28 (Update: 2024-06-28)

Cinebench 2024 CPU Multi Core in comparison
HP Spectre x360 16 RTX 4050 (min) Ultra 7 155H, NVIDIA GeForce RTX 4050 Laptop GPU	28.1
...
Acemagic Tank03 i9-12900H, GeForce RTX 3080 Laptop GPU	564
Samsung Galaxy Book4 Pro 360 Ultra 5 125H, Arc 7-Core	564
Apple MacBook Air 13 M3 10C GPU M3, M3 10-Core GPU	576
HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770	577
Geekom XT12 Pro i9-12900H, Iris Xe G7 96EUs	578
Dell XPS 13 9350 Core Ultra 7 256V, Arc 140V	582
Apple MacBook Air 15 M3 M3, M3 10-Core GPU	598
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
Huawei MateBook 13 2020 AMD R5 3500U, Vega 8	3619
Durabook R8 Tablet i5-1230U, Iris Xe G7 80EUs	3624
Acemagic AD15 i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	3632
HP Pro Mini 400 G9-936M3EA i5-13500T, UHD Graphics 770	3665
Lenovo ThinkPad T495-20NKS01Y00 R5 PRO 3500U, Vega 8	3670
Lenovo IdeaPad Y500 3630QM, GeForce GT 650M SLI	3676
Huawei MateBook D 14 W00D-53010GXL R5 2500U, Vega 8	3682
...
(max) R7 9800X3D, NVIDIA GeForce RTX 4090	77609
