联想 ThinkPad E16 Gen 2 AMD 笔记本电脑评测：在正确的地方偷工减料（大部分情况下

Name: Lenovo ThinkPad E16 Gen 2 21M5002VGE
Brand: Lenovo

性能良好。现在，第二版毫不起眼的 ThinkPad E16 具有不错的图形处理性能。除此以外，一切看起来都像一台高端 ThinkPad，而且正如你所期望的那样，是更昂贵的系列--只是做了一些关键性的削减。
Mario Petzold, 👁 Benjamin Herzig (translated by DeepL / Ninh Duy) Published 10/12/2024 🇺🇸 🇩🇪 ...
AMD Zen 4 Laptop / Notebook ThinkPad

E "并不代表 "Entry-level（入门级）"，而是代表 "Edge（边缘）"，这正是对最新版 ThinkPad E16 设计的最好诠释。然而，它不起眼的外壳（和规格）却蕴藏着强大的处理器，搭配 AMD Radeon 660M，它甚至可以完成一些图形要求较高的任务。

我们的评测机型是该款笔记本电脑最基本的配置之一，我们推荐它既可用于专业用途，也可用于私人用途。生产力比视觉设计更重要，但归根结底，它是一台 ThinkPad。

这同样适用于典型的竞争对手，它们大多由联想自己生产。例如，性能稍好的 ThinkPad L16 或造型另类的 ThinkBook 16 G6.

Test device courtesy of campuspoint.de

Download your licensed rating image as PNG / SVG

ThinkPad E16 Gen 2 AMD

Processor

AMD Ryzen 5 7535HS 6 x 3.3 - 4.6 GHz, 35 W PL2 / Short Burst, 30 W PL1 / Sustained, Rembrandt R

Graphics adapter

AMD Radeon 660M, Core: 1900 MHz, 30 W TDP

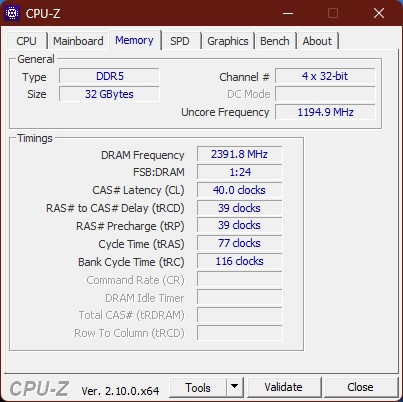

Memory

32 GB

, DDR5-4800, 2x SO-DIMM, 2x 16 GB, dual-channel

Display

16.00 inch 16:10, 1920 x 1200 pixel 142 PPI, MNG007QS1-3, IPS, glossy: no, 60 Hz

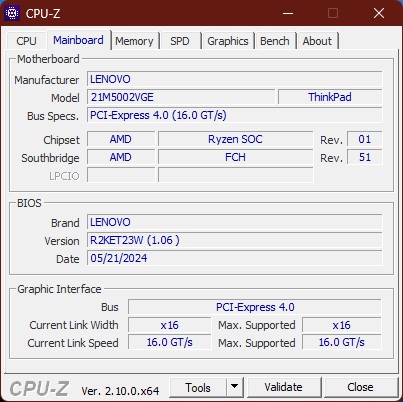

Mainboard

AMD Promontory/Bixby FCH

Storage

Samsung PM9C1a MZAL81T0HDLB, 1024 GB

, 1 TB, 6.000 MB/s

Soundcard

AMD Zen - Audio Processor - HD Audio Controller

Connections

2 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, 0 USB 3.2 Gen 2x2 20Gbps, 0 USB 4.0 40 Gbps, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: Headset, 1 Fingerprint Reader

Networking

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), RealTek Semiconductor RTL8852CE WiFi 6E PCI-E NIC (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 5.3

Size

height x width x depth (in mm): 21.3 x 356 x 248

Battery

57 Wh Lithium-Ion

Operating System

Microsoft Windows 11 Pro

Camera

Webcam: FHD 1080p
Primary Camera: 2.1 MPix FHD 1080p RGB with a mechical webcam shutter

Additional features

Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, Lenovo Vantage, 12 Months Warranty

Weight

1.916 kg, Power Supply: 355 g

Price

935 Euro

Links

Lenovo homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Version	Date	Model	Weight	Height	Size	Resolution
83.8 %	v8	10 / 2024	Lenovo ThinkPad E16 Gen 2 21M5002VGE R5 7535HS, Radeon 660M	1.9 kg	21.3 mm	16.00"	1920x1200
84.8 %	v8		Lenovo ThinkPad L16 Gen 1 21L70010GE R7 PRO 7735U, Radeon 680M	1.9 kg	25.2 mm	16.00"	1920x1200
86.6 %	v8	07 / 2024	Lenovo ThinkPad T14s Gen 5 21LS001PGE Ultra 5 125U, Graphics 4-Core	1.3 kg	19.3 mm	14.00"	1920x1200
87.5 % v7 ^(old)	v7 ^(old)	06 / 2023	Acer Swift Edge SFE16-42-R1GM R7 7735U, Radeon 680M	1.2 kg	13.95 mm	16.00"	3840x2400
85.9 % v7 ^(old)	v7 ^(old)	01 / 2024	Acer TravelMate P4 TMP414-53-58XQ i5-1335U, Iris Xe G7 80EUs	1.5 kg	22 mm	14.00"	1920x1200
85.7 % v7 ^(old)	v7 ^(old)	11 / 2023	Lenovo ThinkBook 16 G6 ABP R5 7530U, Vega 7	1.8 kg	17.5 mm	16.00"	1920x1200
85.5 % v7 ^(old)	v7 ^(old)	11 / 2023	Lenovo ThinkPad E16 G1 Core i5-1335U i5-1335U, Iris Xe G7 80EUs	1.8 kg	19.85 mm	16.00"	1920x1200

注：我们最近更新了评级系统，第 8 版的结果与第 7 版的结果不具可比性。更多信息此处.

机箱 - 铝质部件使 ThinkPad 更加坚固耐用

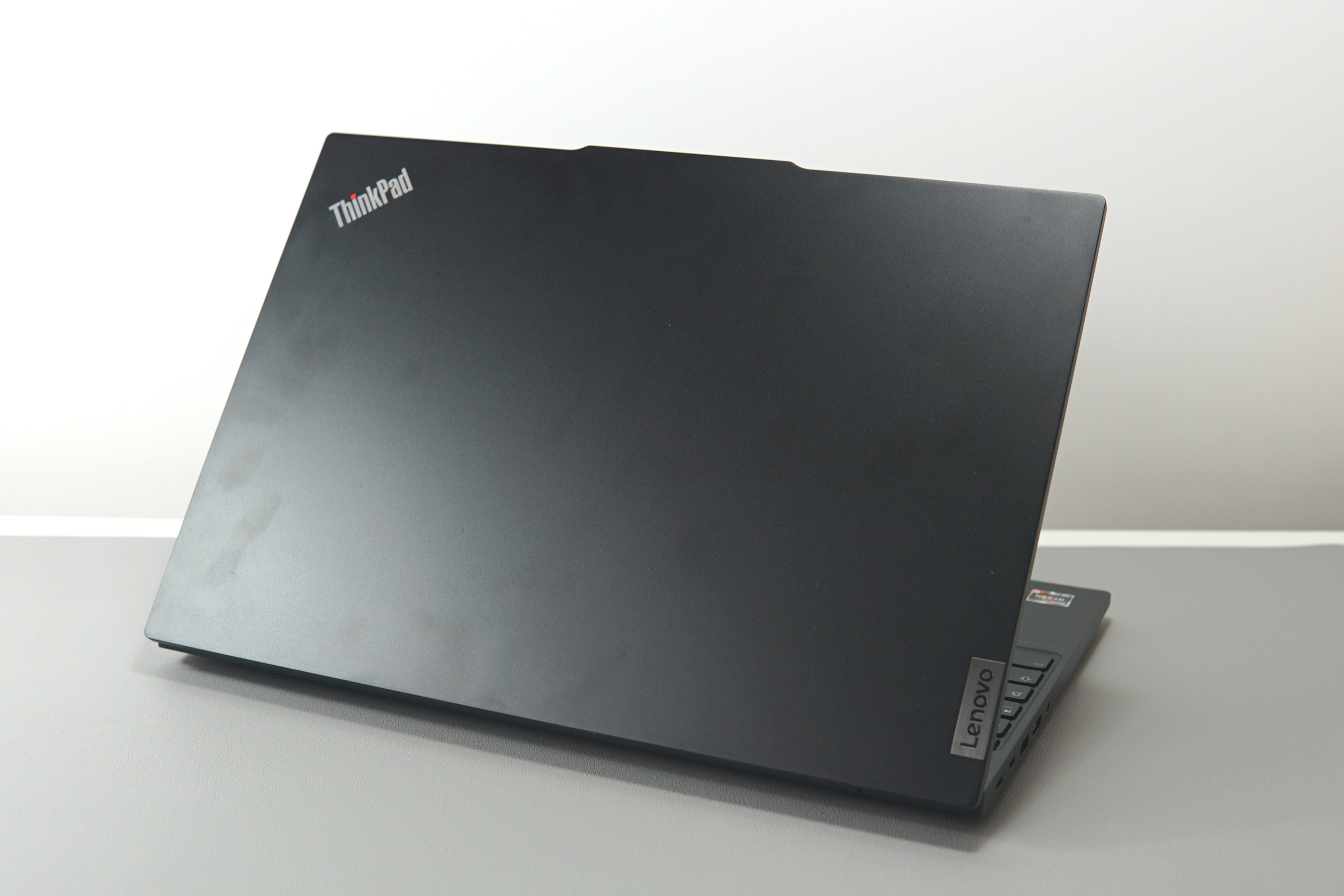

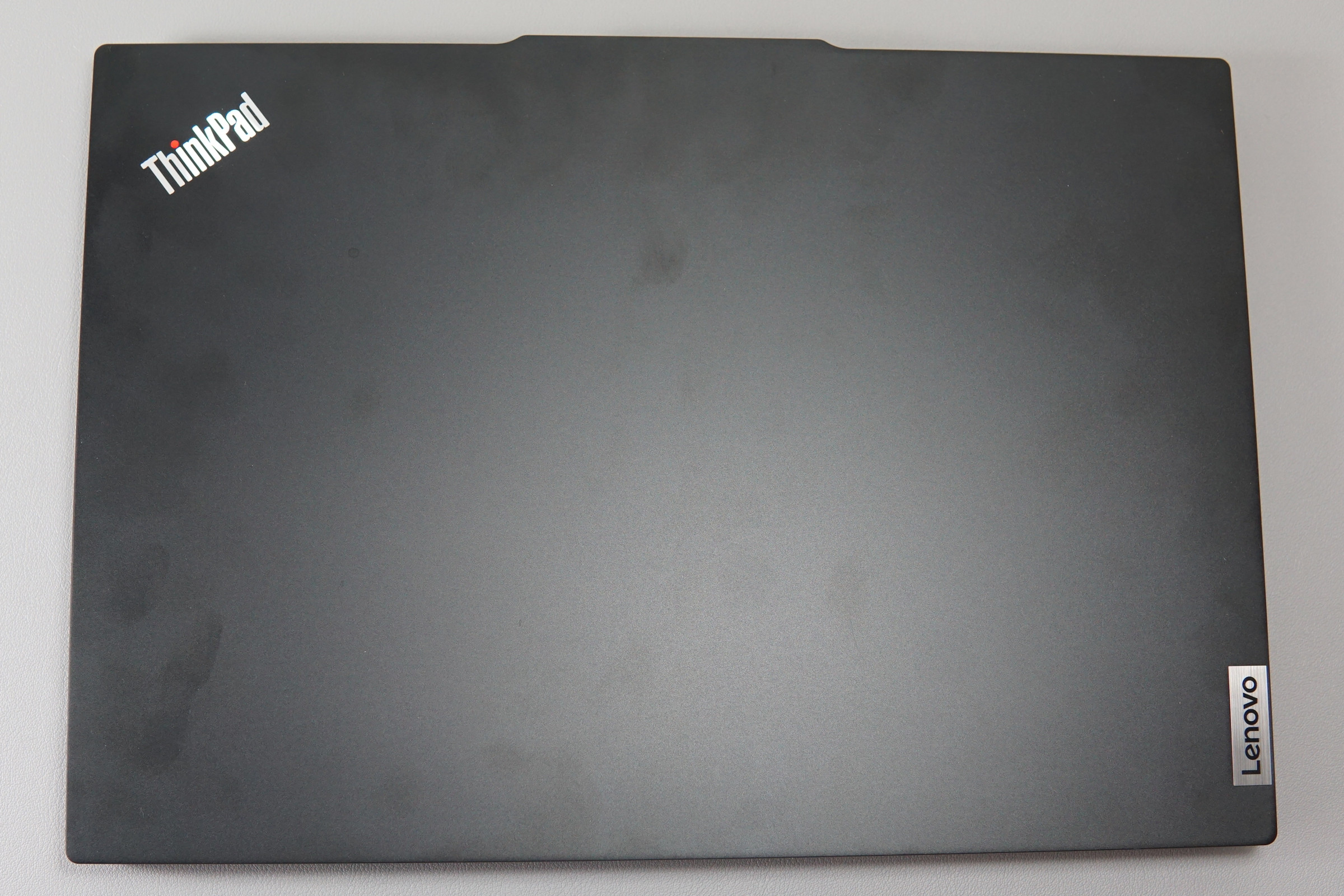

ThinkPad E16 Gen 2 的塑料和铝合金混合材质给人坚固而优雅的印象。这款笔记本电脑看起来比实际的 21 毫米还要纤薄。此外，它几乎不可能扭曲或弯曲，这一点在显示屏上尤为明显，特别是如果你有一台塑料边框的机型作为对比的话。唯一令人讨厌的是，该设备非常容易留下指纹，而这些指纹也很难从其粗糙的表面去除。

尽管采用了 16 英寸显示屏，但这款笔记本电脑却相对小巧，84% 的屏占比就很好地体现了这一点。这还没有考虑到显示屏顶部边缘用于放置网络摄像头和双阵列麦克风的额外空间。

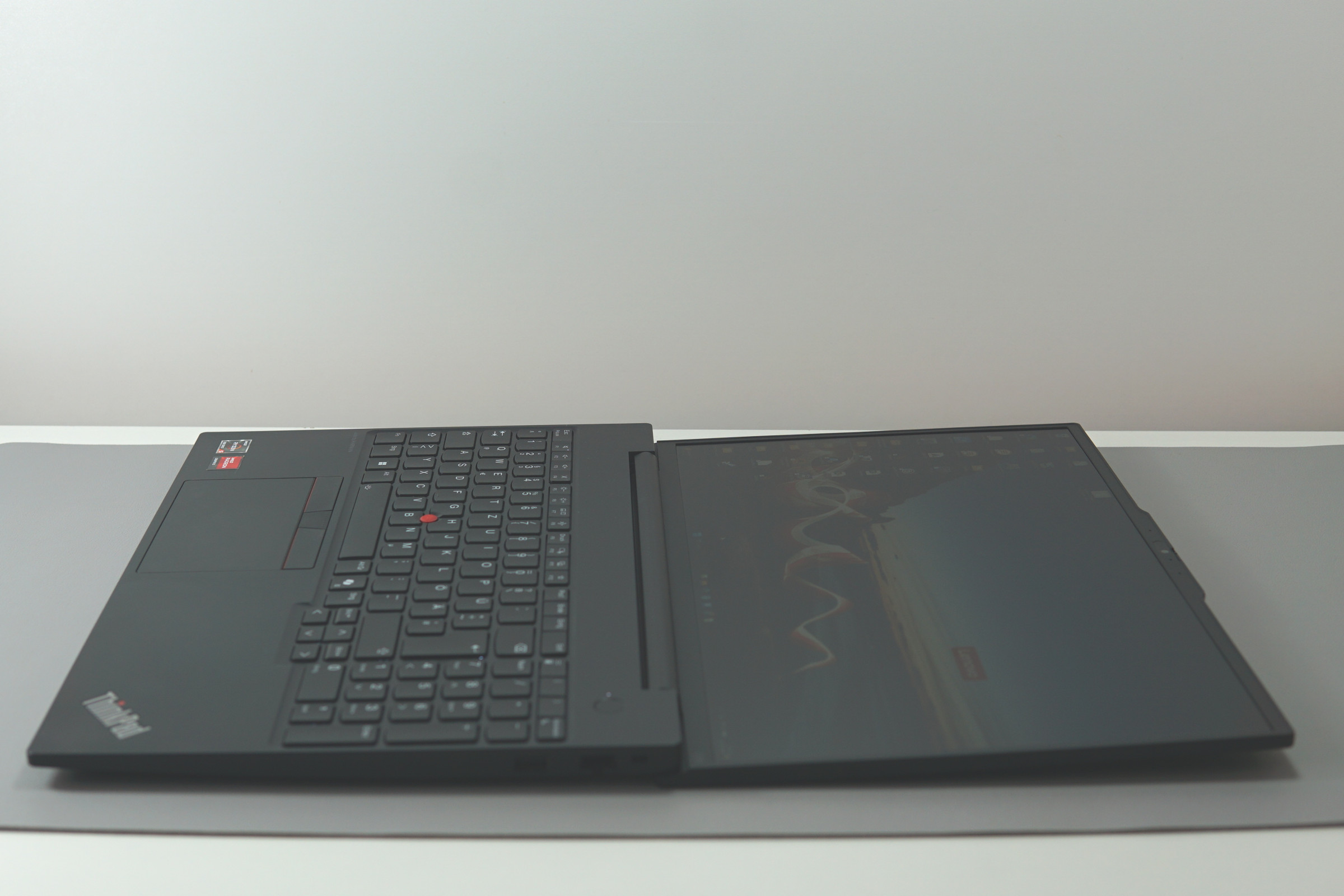

紧绷的显示屏铰链使单手打开设备成为一项挑战，但另一方面，在最大打开角度为 180 度时，铰链能非常稳固地固定显示屏。无论从哪个角度打开，都不会出现严重的晃动。

在重量方面，E16 无法与注重移动性的机型相提并论。尽管功能较少，但这款笔记本电脑的重量却达到了 1.9 千克，对于一款 16 英寸的设备来说，这还是可以接受的。与更昂贵的机器相比，该机型缺少碳纤维和镁等轻质材料。

尺寸比较

Lenovo ThinkPad L16 Gen 1 21L70010GE Lenovo ThinkPad E16 Gen 2 21M5002VGE Lenovo ThinkPad E16 G1 Core i5-1335U Lenovo ThinkBook 16 G6 ABP Acer Swift Edge SFE16-42-R1GM Lenovo ThinkPad T14s Gen 5 21LS001PGE DIN A4 ❌

功能 - E16 要求妥协

端口速度不是特别快。一个 USB-A 端口和一个 USB-C 端口都只能达到旧的 USB 3.0 最高标准 5 Gbit/s。另外两个端口至少能提供两倍的传输速度，对于外置固态硬盘来说已经足够。LAN 端口提供预期的 1 Gbit/s 带宽。目前，你只能在游戏笔记本电脑中找到 2.5 Gbit/s。

端口位置考虑周全。后部的 USB-C 端口（您将自动使用它来供电）是速度较慢的版本。左侧和右侧各有一个 USB-A 端口。相比之下，没有卡槽、智能卡槽或 SIM 卡槽。

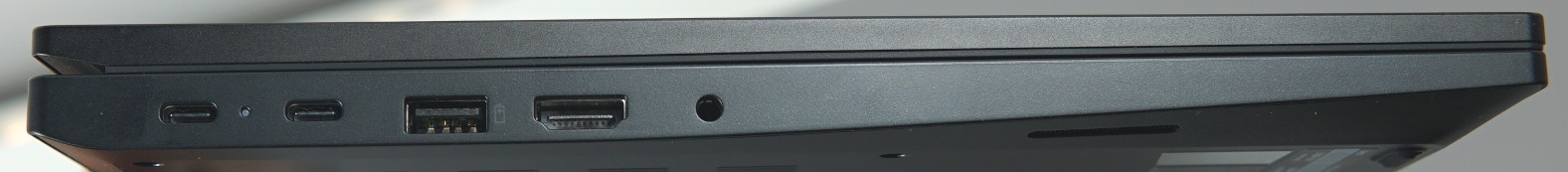

左侧端口USB-C（5 Gbit/s、PD、DP）、USB-C（10 Gbit/s、PD、DP）、USB-A（10 Gbit/s）、HDMI、耳机

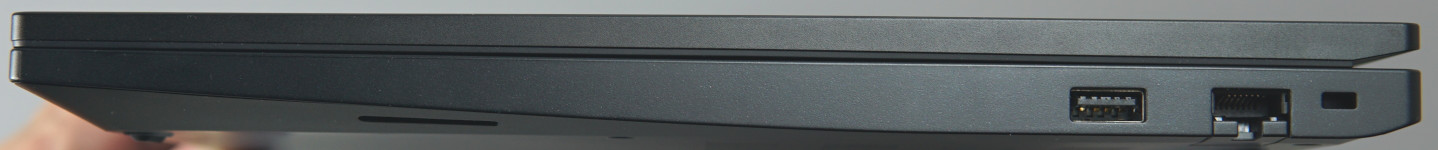

右侧端口USB-A (5 Gbit/s)、千兆 LAN、Kensington 锁

交流

通过 Wi-Fi 模块，我们测得了稳定、典型的办公级传输速度，有时甚至略高。至少在距离路由器较近的地方，这意味着可以轻松超越 1 Gbit/s 的网线。

有了 WiFi 6E，无线速度达到了相当高的水平。此外，将频率提高到 6 千兆赫后，在有许多不同网络的地区也能实现更稳定的连接。

E16 Gen 2 的所有型号都没有移动通信选项。

Networking
iperf3 transmit AXE11000
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Wi-Fi 6E AX211	1583 (1400^min - 1713^max) MBit/s +18%
Lenovo ThinkPad L16 Gen 1 21L70010GE Qualcomm WCN685x	1538 (796^min - 1619^max) MBit/s +15%
Average RealTek Semiconductor RTL8852CE WiFi 6E PCI-E NIC (860 - 1793, n=4)	1385 MBit/s +4%
Lenovo ThinkPad E16 Gen 2 21M5002VGE RealTek Semiconductor RTL8852CE WiFi 6E PCI-E NIC	1338 (1111^min - 1458^max) MBit/s
Average of class Office (47.8 - 1793, n=91, last 2 years)	1133 MBit/s -15%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Wi-Fi 6 AX201	1085 (816^min - 1189^max) MBit/s -19%
Lenovo ThinkBook 16 G6 ABP MediaTek MT7921	980 (931^min, 932.45^P1 - 1022^max) MBit/s -27%
Acer Swift Edge SFE16-42-R1GM MediaTek RZ616	593 (557^min - 633^max) MBit/s -56%
iperf3 receive AXE11000
Lenovo ThinkPad L16 Gen 1 21L70010GE Qualcomm WCN685x	1775 (1732^min - 1794^max) MBit/s +1%
Lenovo ThinkPad E16 Gen 2 21M5002VGE RealTek Semiconductor RTL8852CE WiFi 6E PCI-E NIC	1749 (1687^min - 1767^max) MBit/s
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Wi-Fi 6E AX211	1695 (1651^min - 1732^max) MBit/s -3%
Average RealTek Semiconductor RTL8852CE WiFi 6E PCI-E NIC (796 - 1749, n=4)	1409 MBit/s -19%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Wi-Fi 6 AX201	1290 (921^min - 1420^max) MBit/s -26%
Average of class Office (104.2 - 1775, n=92, last 2 years)	1275 MBit/s -27%
Acer Swift Edge SFE16-42-R1GM MediaTek RZ616	959 (945^min - 979^max) MBit/s -45%
Lenovo ThinkBook 16 G6 ABP MediaTek MT7921	954 (916^min, 923.83^P1 - 969^max) MBit/s -45%
iperf3 transmit AXE11000 6GHz
Lenovo ThinkPad L16 Gen 1 21L70010GE Qualcomm WCN685x	1545 (1285^min - 1739^max) MBit/s +21%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Wi-Fi 6E AX211	1489 (616^min - 1683^max) MBit/s +16%
Average of class Office (713 - 1961, n=49, last 2 years)	1402 MBit/s +10%
Acer Swift Edge SFE16-42-R1GM MediaTek RZ616	1396 (1063^min - 1537^max) MBit/s +9%
Lenovo ThinkPad E16 Gen 2 21M5002VGE RealTek Semiconductor RTL8852CE WiFi 6E PCI-E NIC	1279 (932^min - 1441^max) MBit/s
Average RealTek Semiconductor RTL8852CE WiFi 6E PCI-E NIC (694 - 1689, n=3)	1221 MBit/s -5%
iperf3 receive AXE11000 6GHz
Lenovo ThinkPad L16 Gen 1 21L70010GE Qualcomm WCN685x	1775 (1631^min - 1807^max) MBit/s +3%
Lenovo ThinkPad E16 Gen 2 21M5002VGE RealTek Semiconductor RTL8852CE WiFi 6E PCI-E NIC	1727 (1647^min - 1754^max) MBit/s
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Wi-Fi 6E AX211	1693 (1618^min - 1745^max) MBit/s -2%
Acer Swift Edge SFE16-42-R1GM MediaTek RZ616	1623 (1612^min - 1634^max) MBit/s -6%
Average of class Office (915 - 1790, n=49, last 2 years)	1528 MBit/s -12%
Average RealTek Semiconductor RTL8852CE WiFi 6E PCI-E NIC (824 - 1727, n=3)	1411 MBit/s -18%

Lenovo ThinkPad E16 Gen 2 21M5002VGE RealTek Semiconductor RTL8852CE WiFi 6E PCI-E NIC; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1279 (932-1441)

Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1462 (616-1683)

Acer Swift Edge SFE16-42-R1GM MediaTek RZ616; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1396 (1063-1537)

Lenovo ThinkPad E16 Gen 2 21M5002VGE RealTek Semiconductor RTL8852CE WiFi 6E PCI-E NIC; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1727 (1647-1754)

Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1692 (1618-1745)

Acer Swift Edge SFE16-42-R1GM MediaTek RZ616; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1623 (1612-1634)

Lenovo ThinkPad E16 Gen 2 21M5002VGE RealTek Semiconductor RTL8852CE WiFi 6E PCI-E NIC; iperf3 transmit AXE11000; iperf 3.1.3: Ø1338 (1111-1458)

Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000; iperf 3.1.3: Ø1583 (1400-1713)

Acer Swift Edge SFE16-42-R1GM MediaTek RZ616; iperf3 transmit AXE11000; iperf 3.1.3: Ø593 (557-633)

Lenovo ThinkPad E16 Gen 2 21M5002VGE RealTek Semiconductor RTL8852CE WiFi 6E PCI-E NIC; iperf3 receive AXE11000; iperf 3.1.3: Ø1748 (1687-1767)

Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Wi-Fi 6E AX211; iperf3 receive AXE11000; iperf 3.1.3: Ø1694 (1651-1732)

Acer Swift Edge SFE16-42-R1GM MediaTek RZ616; iperf3 receive AXE11000; iperf 3.1.3: Ø959 (945-979)

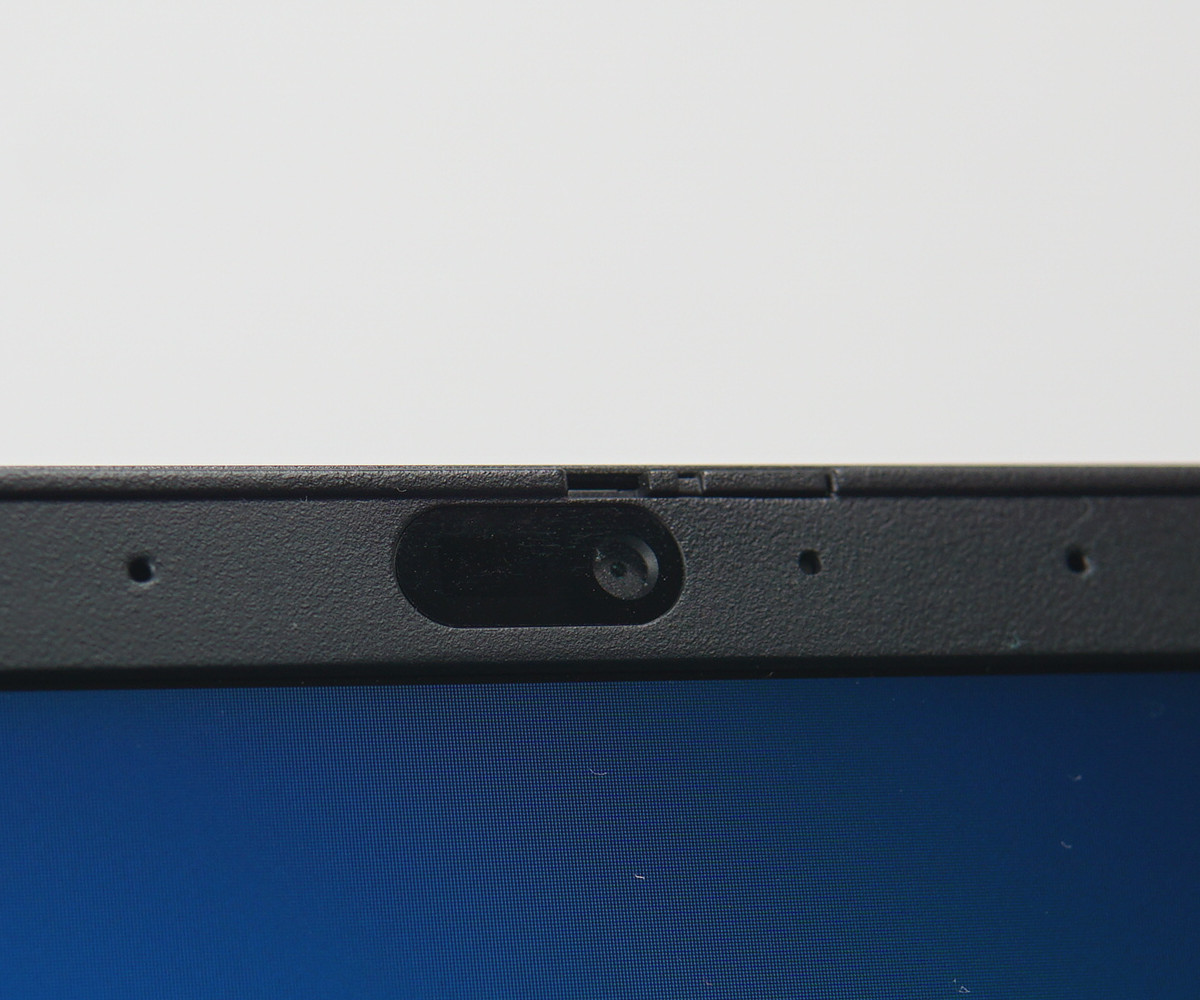

网络摄像头

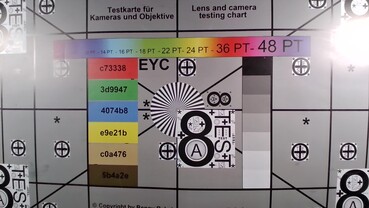

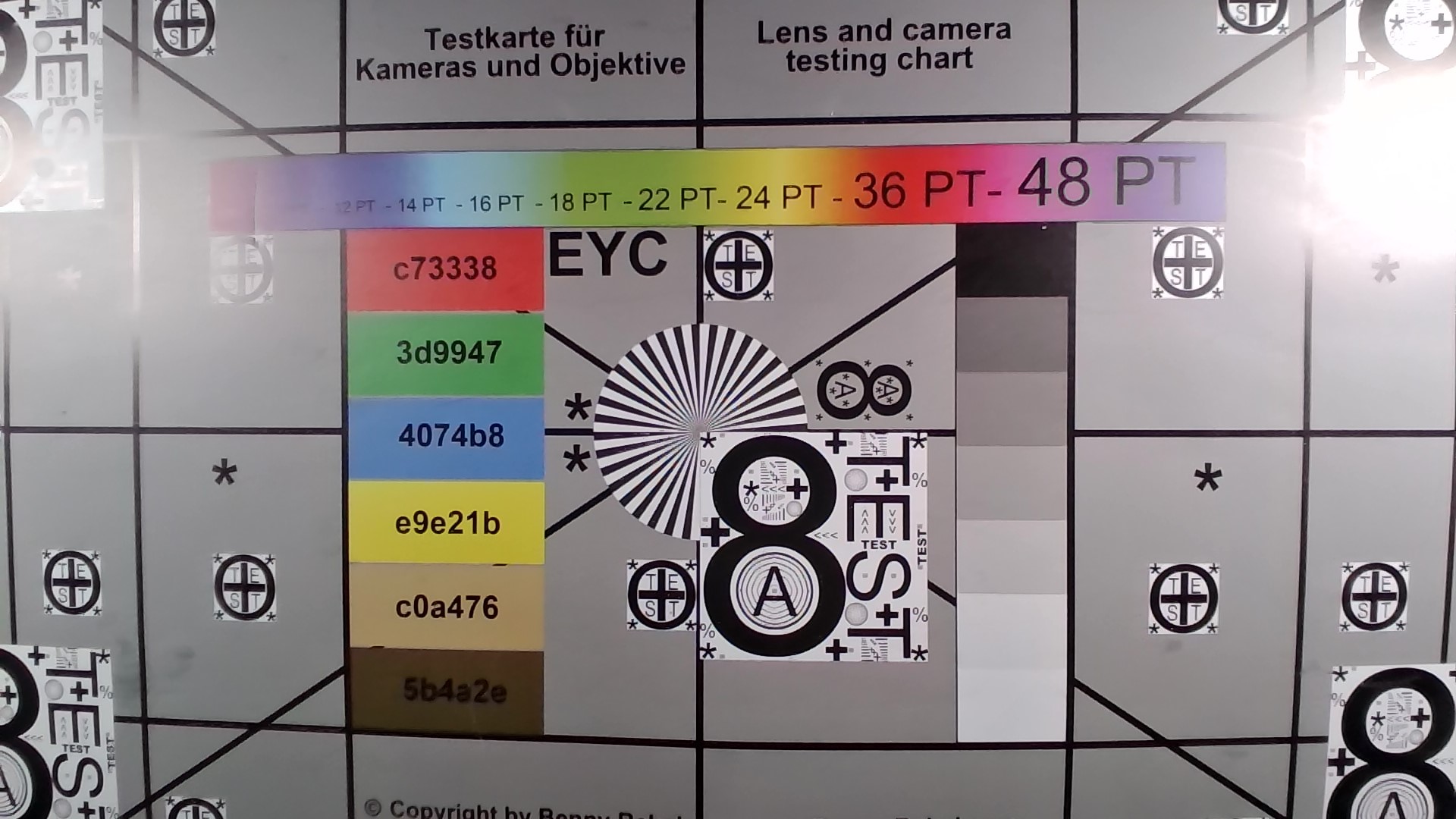

全高清摄像头完全符合其设计要求：即使在光线不足的情况下，它也能再现足够明亮和细腻的图像。在走廊上行走或关闭室内灯光时，系统也能应对光线的突然变化，只需不到一秒钟的时间就能轻松辨认人脸。同时，这种行为也解释了我们测试捕捉到的令人震惊的色彩偏差。即使是简单的网络摄像头在这方面也往往做得更好。但是，由于这里的一切都以视频通话的良好照明为目标，因此总体图像质量受到了影响。

在这种情况下，麦克风就不那么令人信服了：声音听起来很自然，从不同方向传来的音量也相当一致。但是，在距离稍远的地方，录音质量下降得太快，我们不喜欢。这正是双阵列麦克风所擅长的。

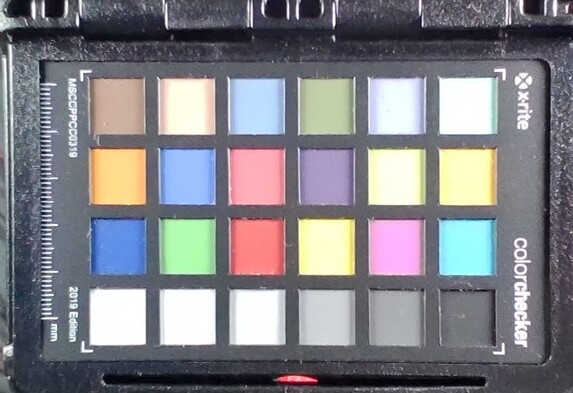

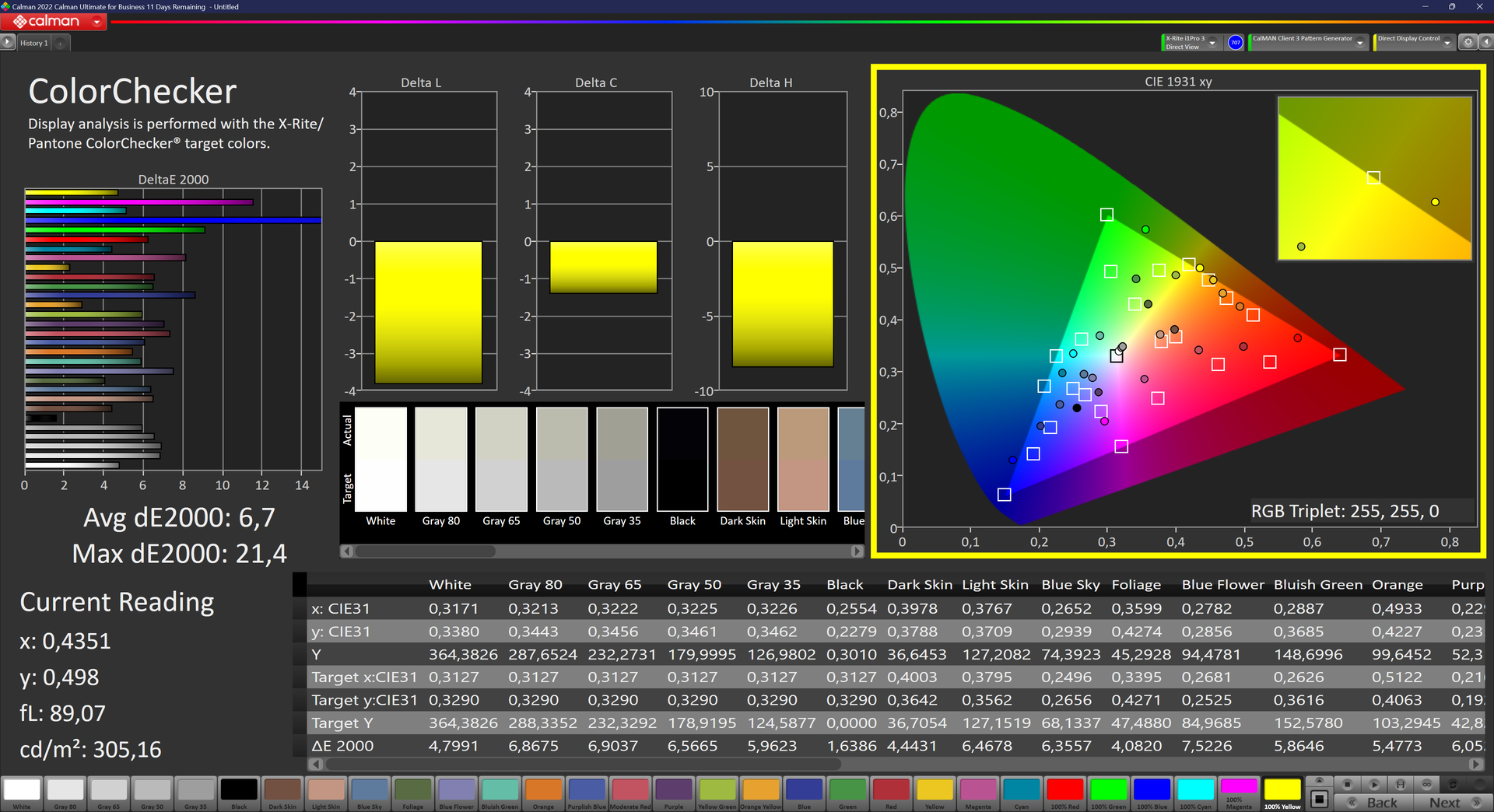

ColorChecker Lenovo ThinkPad E16 Gen 2 21M5002VGE: 27.18 ∆E min: 2.33 - max: 36.25 ∆E

安全

ThinkPad E16 Gen 2 拥有两项基本安全功能。除了设备侧面内置的 Kensington 锁外，电源按钮上还有一个指纹传感器。作为额外的可选项，你还可以选择一个红外摄像头，用于人脸识别。

维护

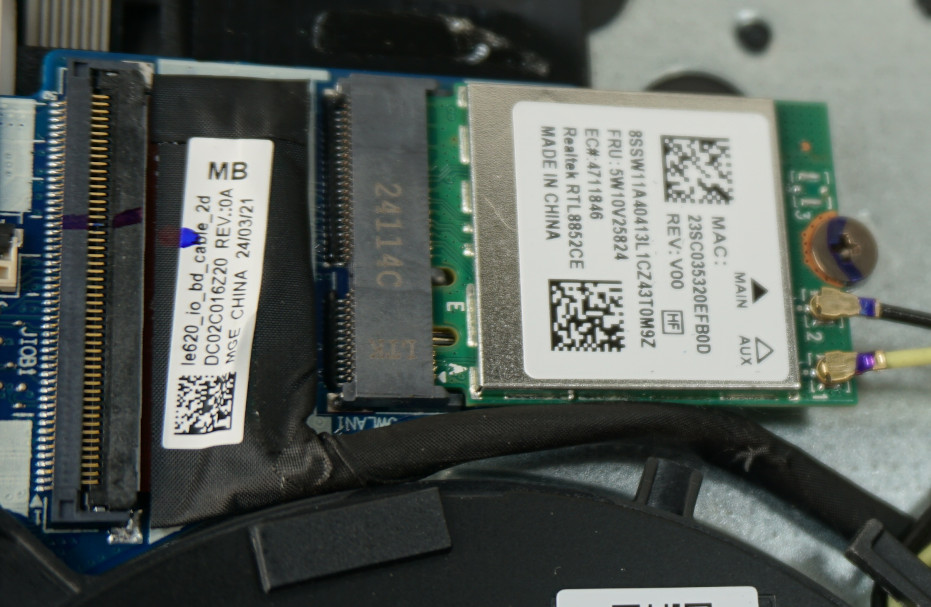

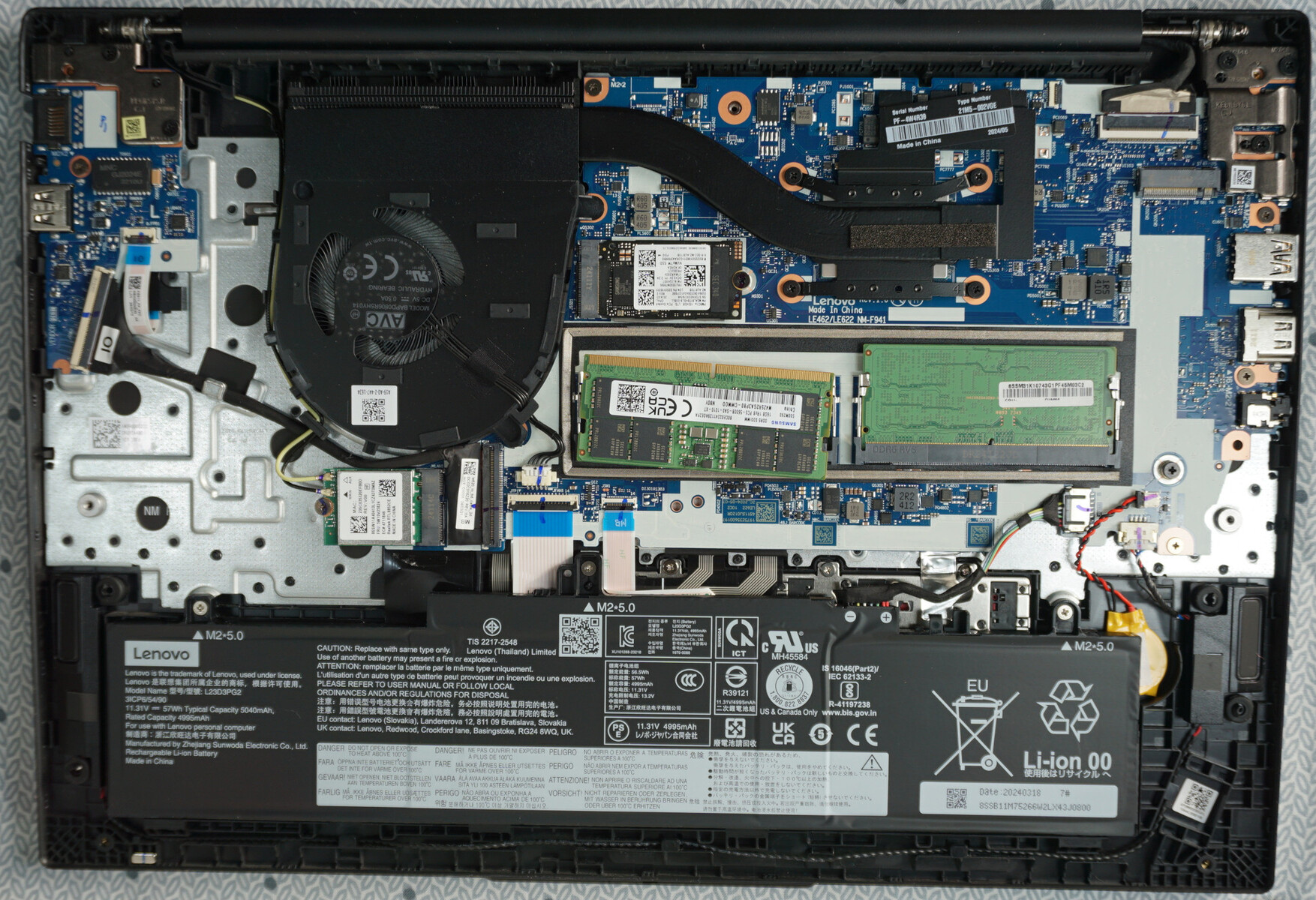

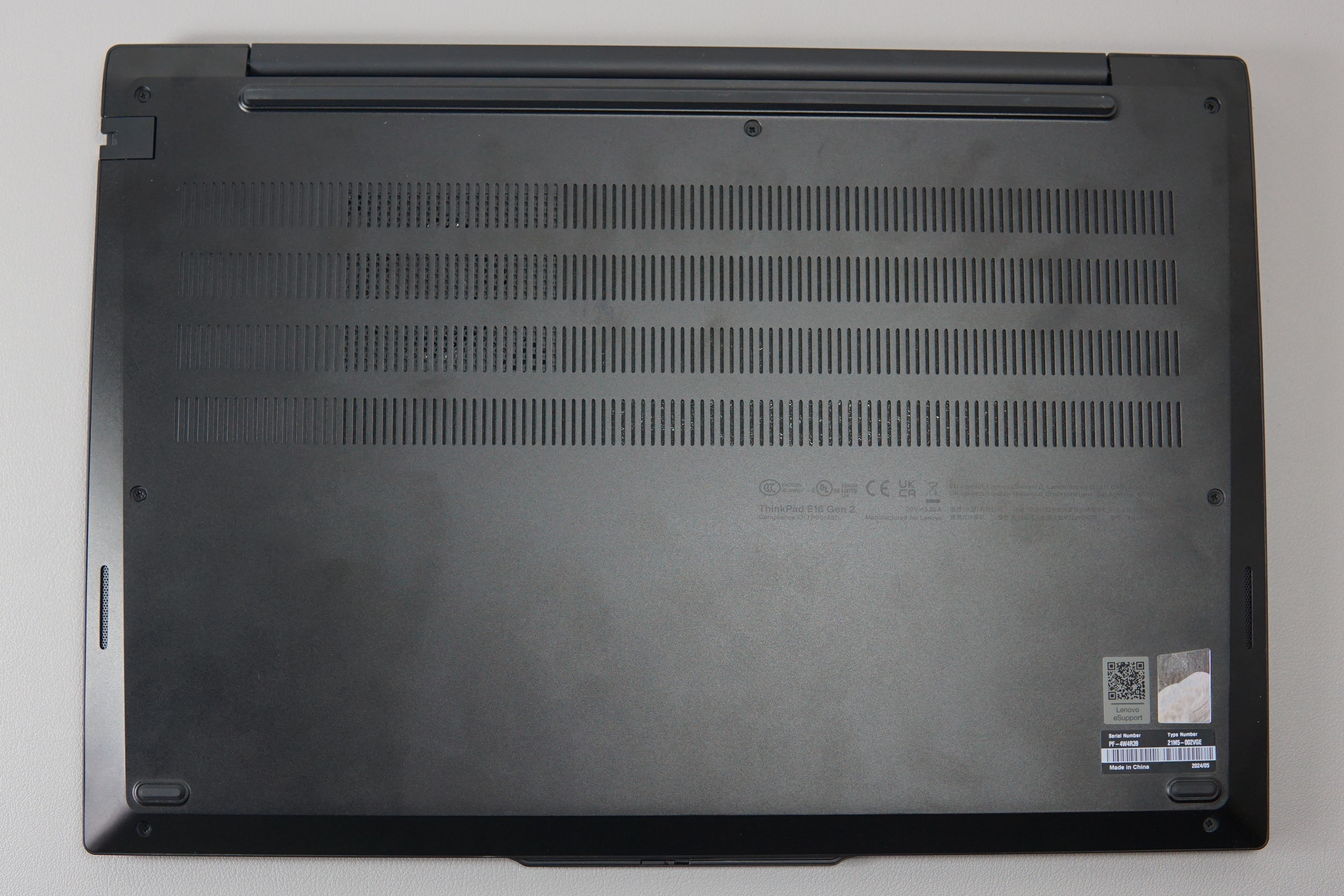

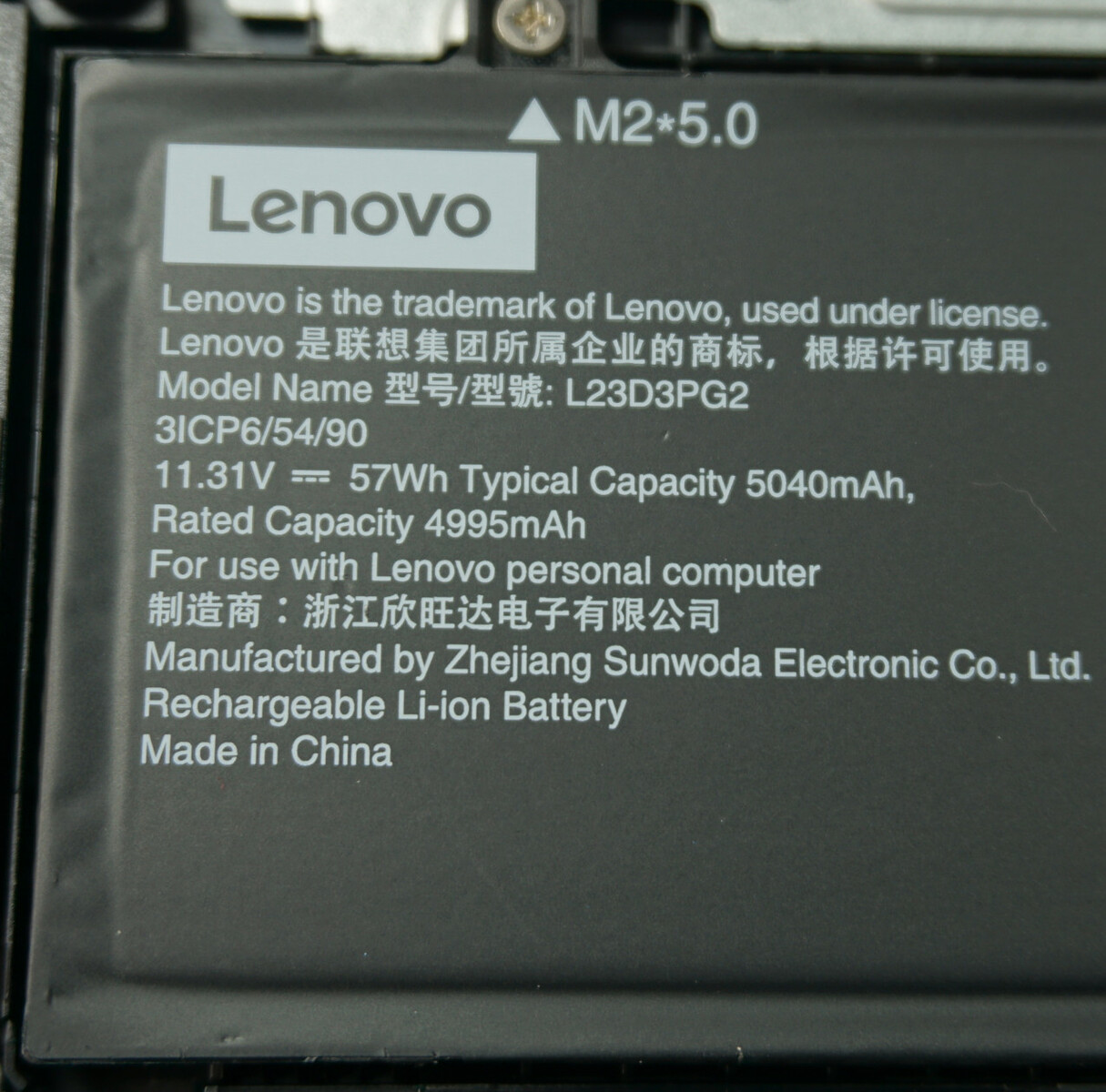

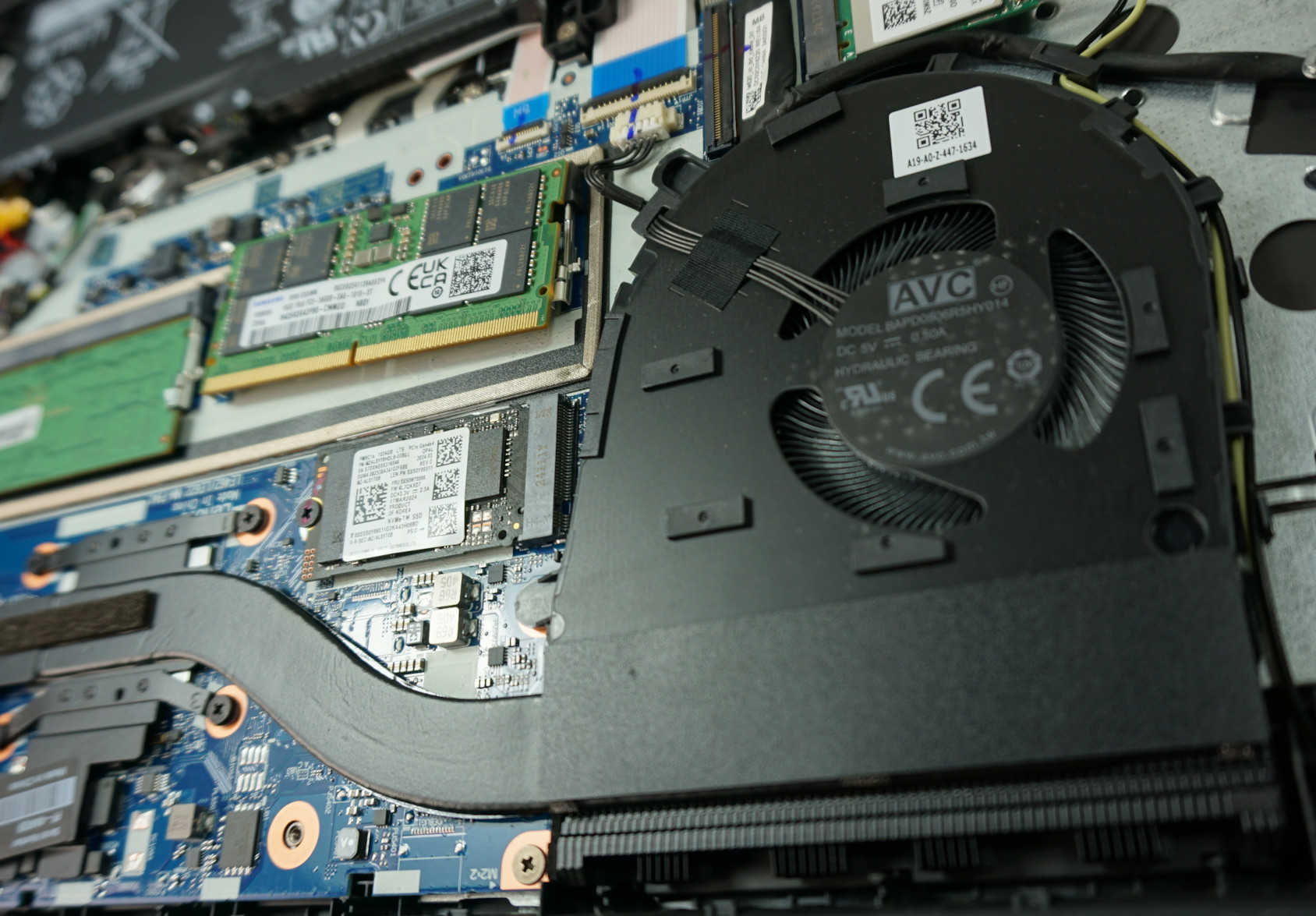

幸运的是，所有重要部件都可以更换或升级。卸下七颗十字螺丝后，就可以轻松拆卸内存、固态硬盘和 Wi-Fi 模块以及电池（再次拧紧）。不过，你也不必担心会弄坏固定底板的一个或多个塑料夹子。

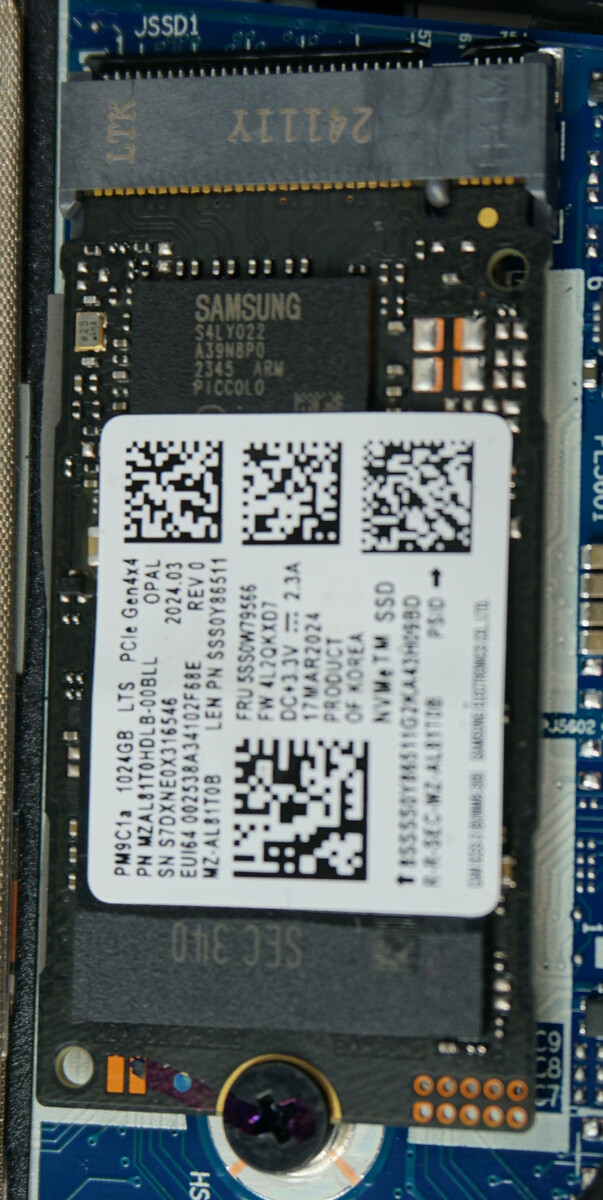

此外，还有一个空闲的插槽，可以安装额外的固态硬盘。与已安装的（仅）42 毫米长的固态硬盘不同，它可以容纳更常见的 80 毫米长的固态硬盘。因此，扩展存储空间是一项简单易行的任务。

可持续性

联想正在通过使其笔记本电脑更具可持续性来显示其雄心壮志。包装不使用任何塑料，完全由再生纸组成。电源主要由回收塑料制成。ThinkPad 本身还包含由回收塑料制成的其他小部件。

据说，生产过程中产生的二氧化碳排放量相当于 146 千克二氧化碳。这比前一代产品 ThinkPad E16 Gen 1 减少了近 20%。

保修

联想一般为 ThinkPad E16 Gen 2 提供 1 年保修。如需额外收费，保修期可延长至包括现场服务。也可以延长至 5 年。

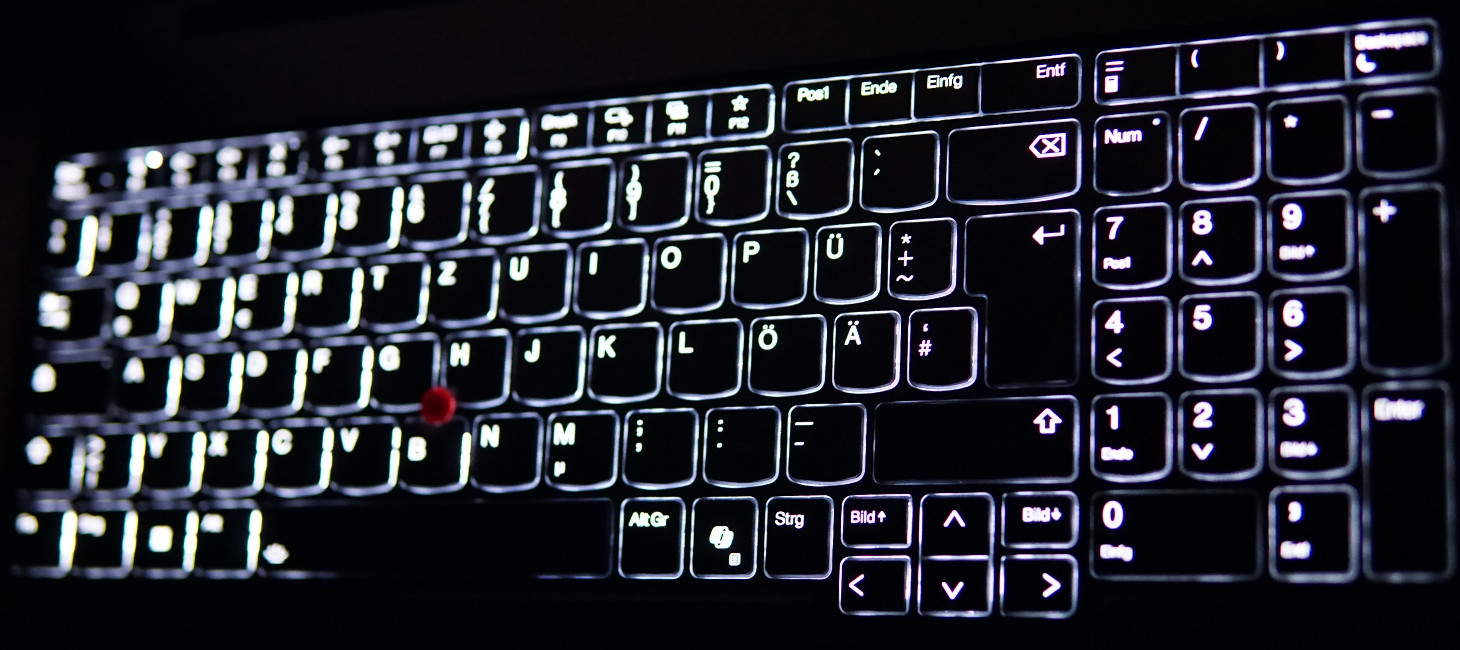

输入设备 - 与 ThinkPad 不相称

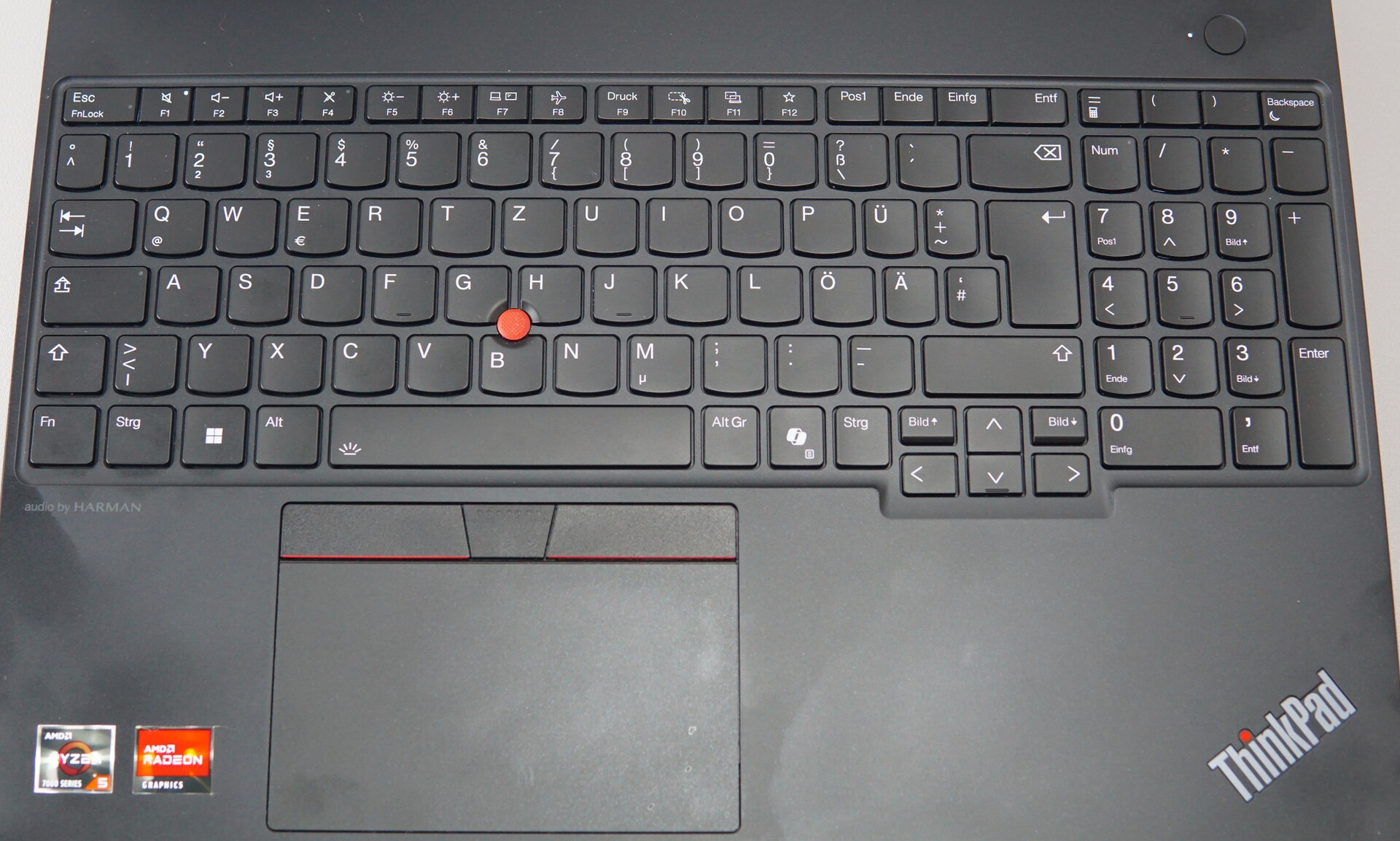

键盘、TrackPoint 和触摸板都是小弱点，但这只是在以其他同类 ThinkPad 为基准时才会出现的问题。一般来说，打字是一种快速而愉悦的体验，但与更高级的 ThinkPad 系列中的可更换键盘相比，你应该期望打字速度更快一些。在直接比较中，按键压力似乎稍硬，产生的噪音也稍大。

TrackPoint 按钮似乎有点容易移动，而且缺乏一个明显、实在的压力点。相比之下，触摸板则可以精确使用。隐藏式按键可以快速、干净利落地按下。不过，触摸板表面对灰尘很敏感，因此比玻璃表面更难清洁。

显示屏 - 办公任务简单高效

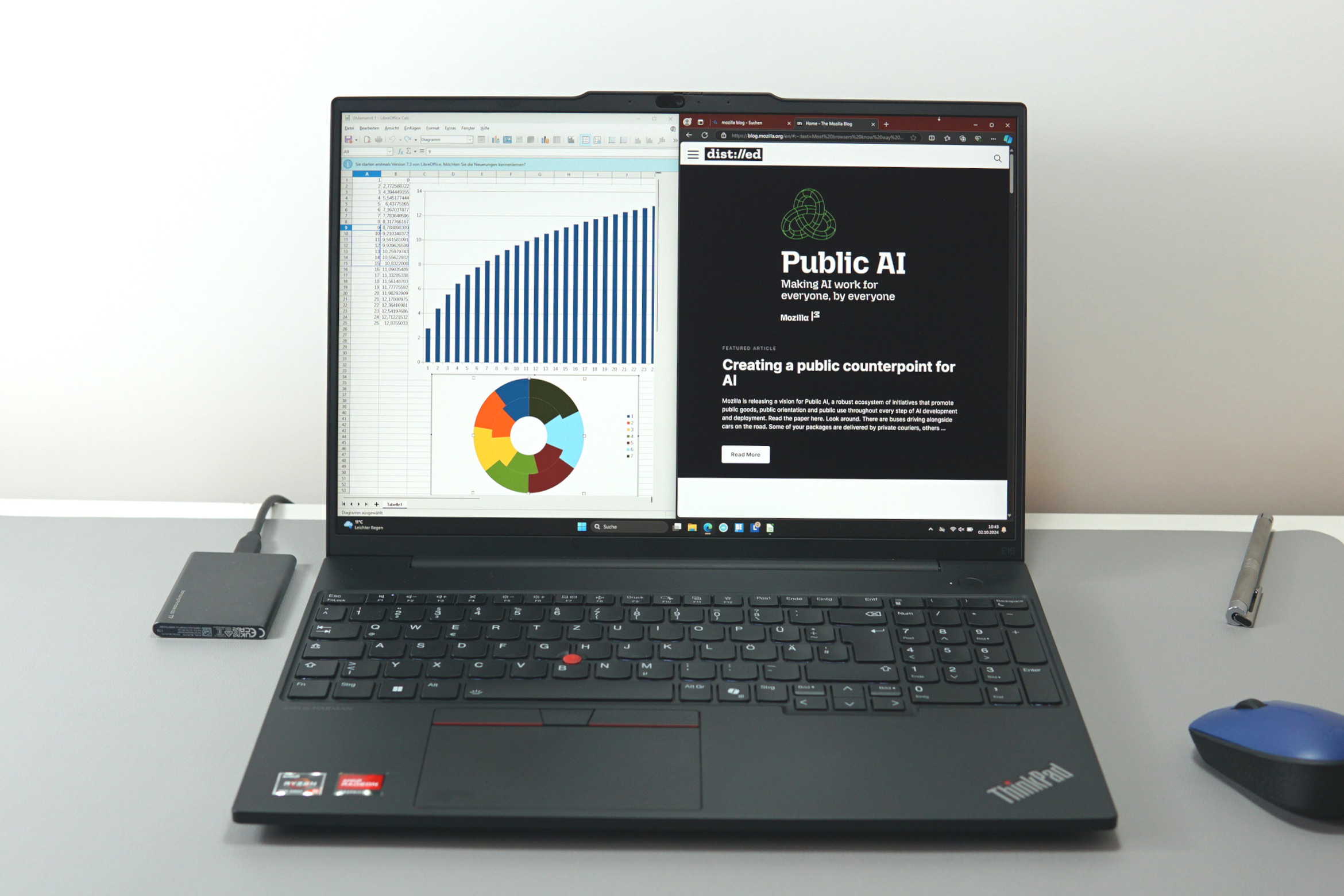

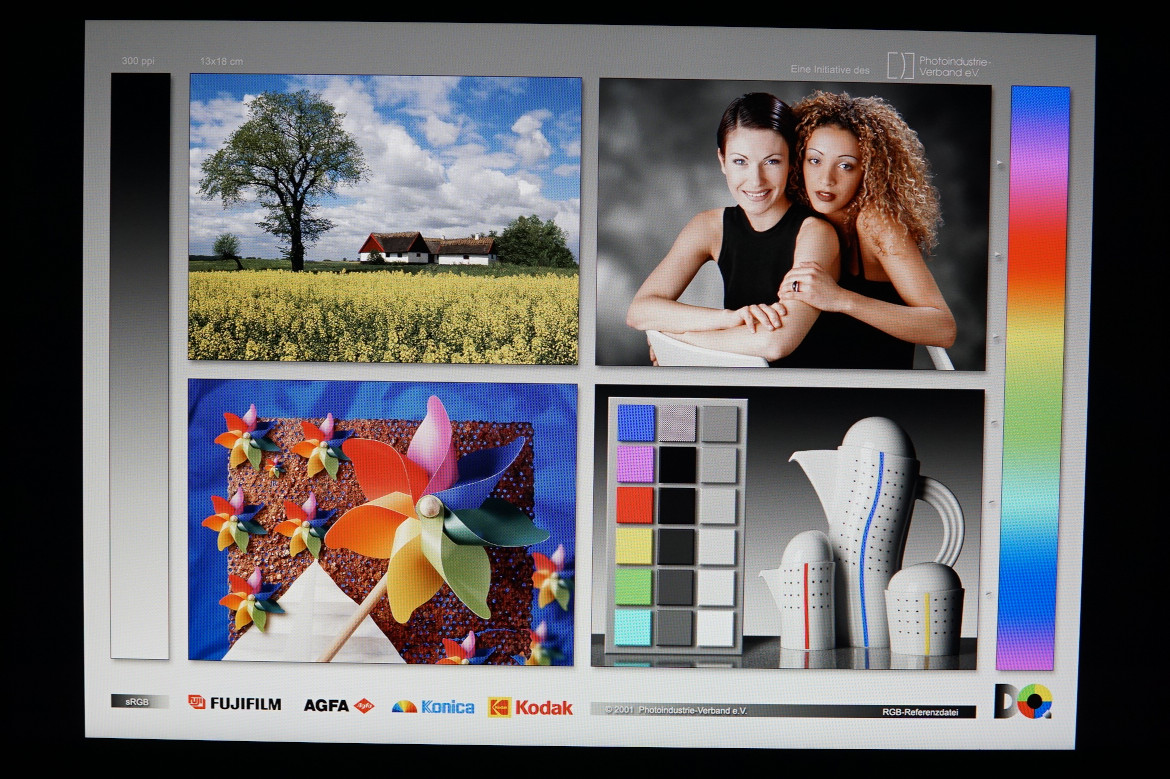

ThinkPad E16 Gen 2 的屏幕旨在用作工作专用面板。因此，16:10 的格式比例不仅能显示更大的图像区域，还能更好地显示办公程序或浏览器，非常适合。分辨率略高于全高清，这意味着文字显示清晰，不会出现细节过小的情况。此外，对比度更高，亮度略高于平均水平，黑阶也不错。因此，在亮度较高的环境中也能清晰显示内容，文字和细节几乎总是非常清晰。

相比之下，该显示器并不适合图形要求较高的任务。即使经过校准，也会出现明显的色彩偏差，图像总是显得有些灰暗和苍白。对于私人照片收藏以及电影和游戏来说，这可能已经足够了。但是，如果你想编辑和优化图形和图像，那么这款显示器就完全不行了。

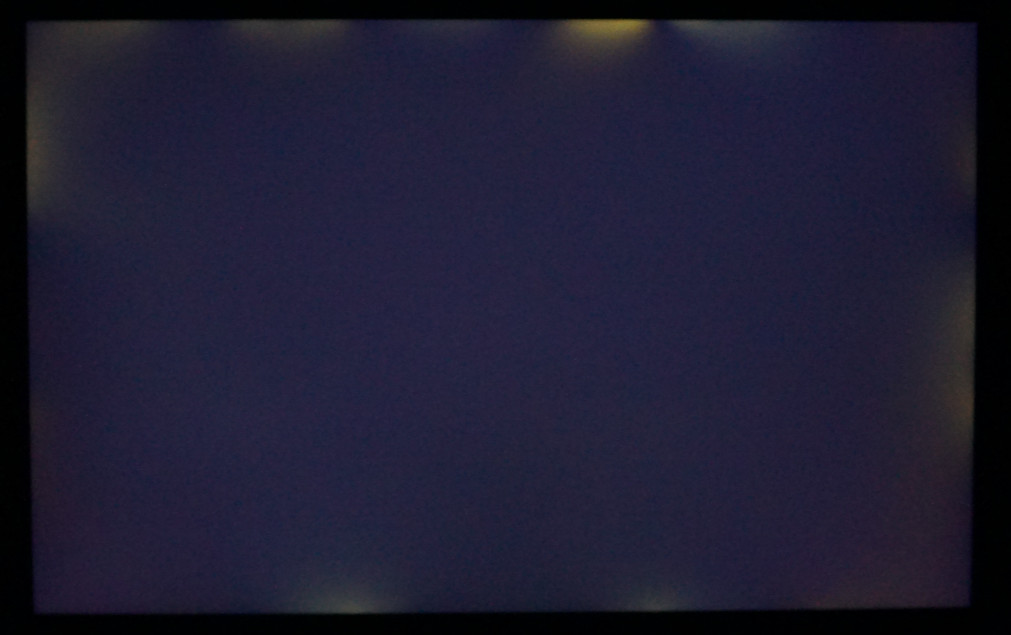

此外，背光还会出现明显的出血现象。在右边的照片中，不需要增强任何功能就能看到边缘不规则的亮区，而在显示暗色电影场景或黑色图像边框时，这些亮区仍然部分可见。边缘的轻微压力表明面板没有得到最佳使用。因此，在我们评测设备以外的其他设备上，背光出血现象可能会有所不同，希望不会那么明显。

总的来说，在显示文字、图像和图形方面，这款产品所采用的基本技术是没有问题的。对于大多数任务来说，它根本不需要做得更多。不过，如果需要更多的功能，还可以选择 WQXGA 分辨率（2,560 x 1,600 像素）的 IPS 面板，具有完整的 sRGB 色彩空间，亮度为每平方米 400 烛光。


332 cd/m²	337 cd/m²	346 cd/m²
348 cd/m²	364 cd/m²	344 cd/m²
347 cd/m²	337 cd/m²	340 cd/m²

Distribution of brightness

MNG007QS1-3 tested with X-Rite i1Pro 3

Maximum: 364 cd/m² (Nits) Average: 343.9 cd/m² Minimum: 4.1 cd/m²
Brightness Distribution: 91 %
Center on Battery: 364 cd/m²
Contrast: 1456:1 (Black: 0.25 cd/m²)
ΔE Color 6.7 | 0.5-29.43 Ø4.93, calibrated: 5.3

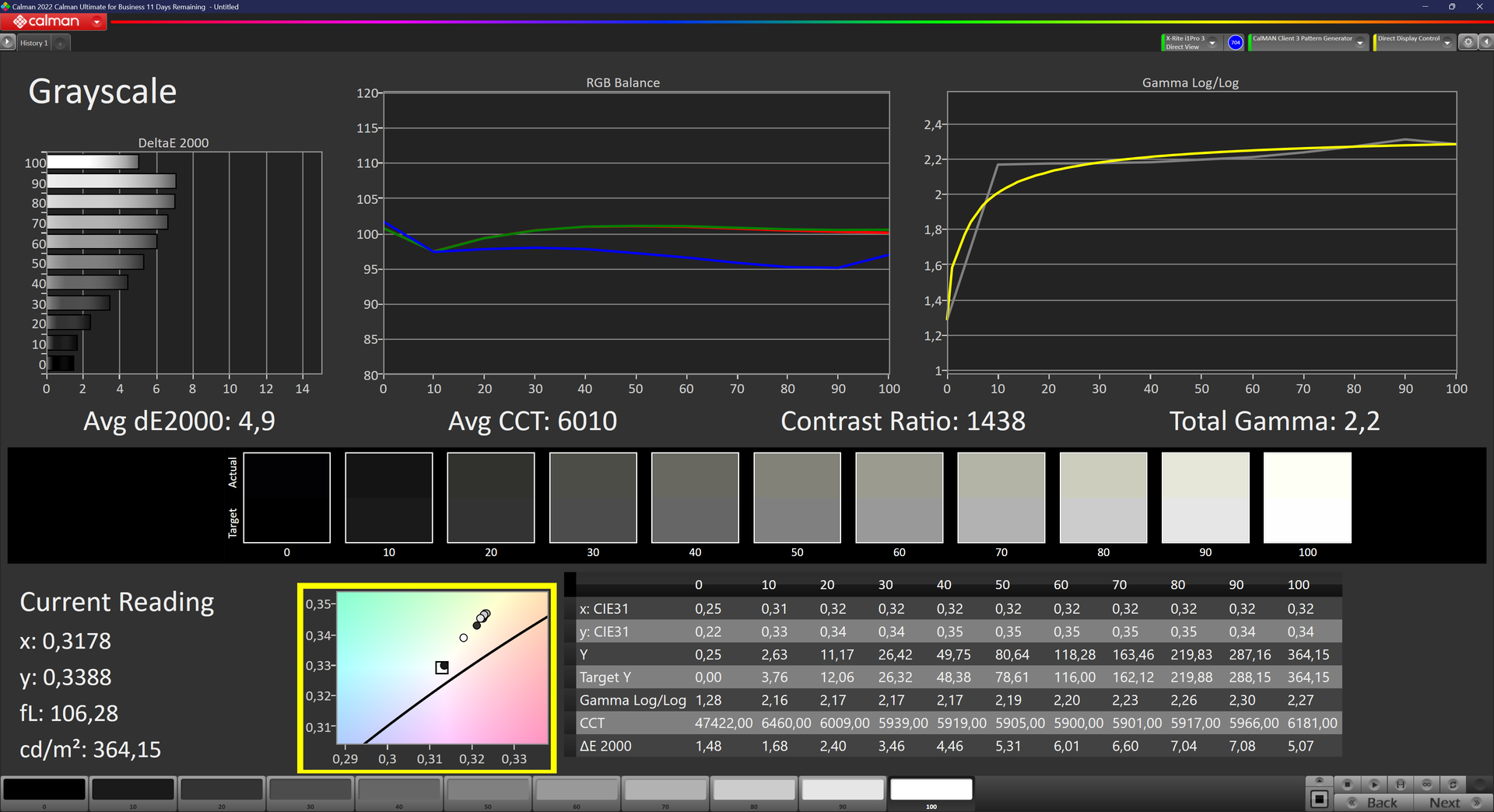

ΔE Greyscale 4.9 | 0.5-98 Ø5.2

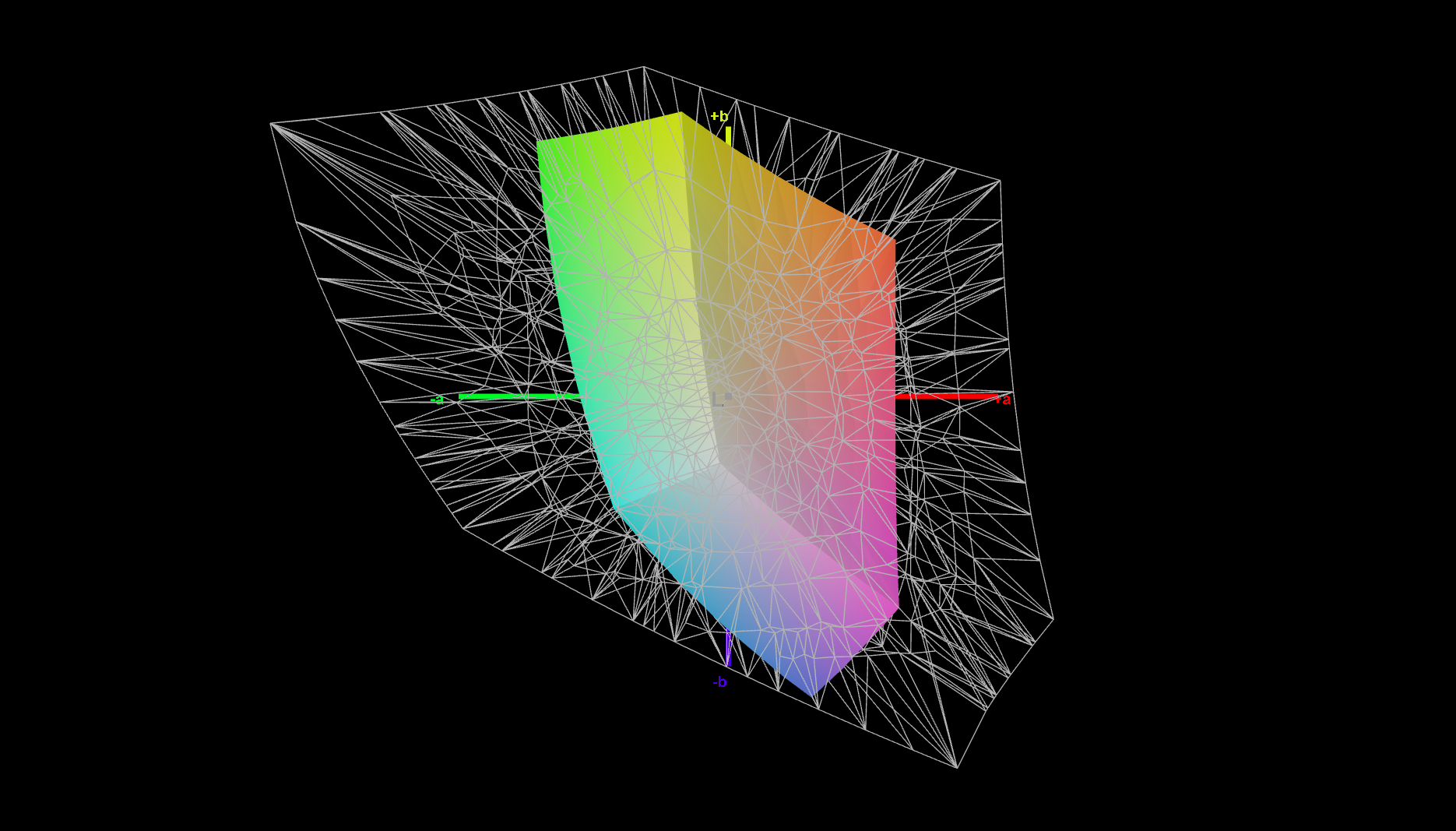

40.7% AdobeRGB 1998 (Argyll 2.2.0 3D)
58.2% sRGB (Argyll 2.2.0 3D)

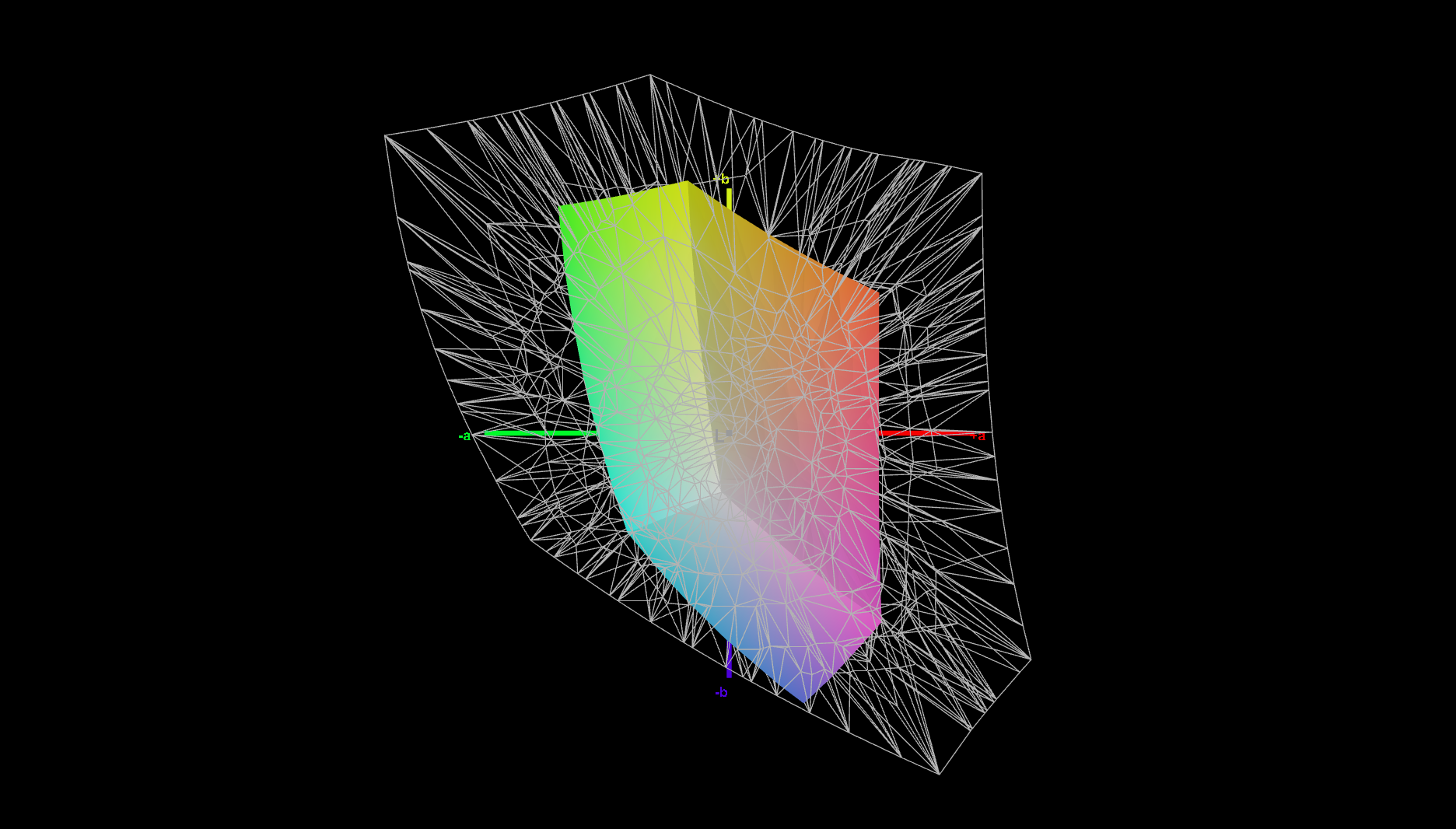

39.4% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.2

Download ICC File (X-Rite i1Pro 3)

	Lenovo ThinkPad E16 Gen 2 21M5002VGE MNG007QS1-3, IPS, 1920x1200, 16", 60 Hz	Lenovo ThinkPad L16 Gen 1 21L70010GE MNG007QS1-3, IPS, 1920x1200, 16", 60 Hz	Lenovo ThinkPad T14s Gen 5 21LS001PGE MNE007JA1-2, IPS LED, 1920x1200, 14", 60 Hz	Lenovo ThinkPad E16 G1 Core i5-1335U R160NW41 R2, IPS, 1920x1200, 16", 60 Hz	Lenovo ThinkBook 16 G6 ABP LEN160WUXGA, IPS, 1920x1200, 16", 60 Hz	Acer Swift Edge SFE16-42-R1GM Samsung SDC4168, OLED, 3840x2400, 16", 60 Hz
Display		0%	71%	7%	3%	121%
Display P3 Coverage	39.4	39.5 0%	67.8 72%	42 7%	40.4 3%	99.7 153%
sRGB Coverage	58.2	58.7 1%	99.2 70%	62.6 8%	59.8 3%	100 72%
AdobeRGB 1998 Coverage	40.7	40.8 0%	70 72%	43.3 6%	42 3%	97.2 139%
Response Times		3%	-57%	-81%	-41%	87%
Response Time Grey 50% / Grey 80% *	23.7 ?(11, 12.7)	24.6 ?(11.7, 12.9) -4%	35.3 ?(17.1, 18.2) -49%	46.4 ?(19.5, 26.9) -96%	32.8 ?(15.8, 17) -38%	2 ?(1, 1) 92%
Response Time Black / White *	16.6 ?(8.7, 7.9)	15 ?(7.4, 7.6) 10%	27.4 ?(14.5, 12.9) -65%	27.6 ?(12.9, 14.7) -66%	23.9 ?(14.2, 9.7) -44%	3 ?(2, 1) 82%
PWM Frequency						239 ?(50)
Screen		4%	40%	11%	-1%	39%
Brightness middle	364	334 -8%	406 12%	318.6 -12%	310 -15%	369 1%
Brightness	344	322 -6%	402 17%	302 -12%	290 -16%	371 8%
Brightness Distribution	91	89 -2%	93 2%	91 0%	86 -5%	97 7%
Black Level *	0.25	0.3 -20%	0.22 12%	0.29 -16%	0.22 12%
Contrast	1456	1113 -24%	1845 27%	1099 -25%	1409 -3%
Colorchecker dE 2000 *	6.7	5.4 19%	2 70%	3.73 44%	6.2 7%	2.3 66%
Colorchecker dE 2000 max. *	21.4	19.6 8%	5.1 76%	16.51 23%	24.7 -15%	4.37 80%
Colorchecker dE 2000 calibrated *	5.3	4.9 8%	0.6 89%	2.03 62%	5.3 -0%	2.87 46%
Greyscale dE 2000 *	4.9	2 59%	2.4 51%	3.2 35%	3.8 22%	1.83 63%
Gamma	2.2 ^100%	2.15 ^102%	2.12 ^104%	2.28 ^96%	2.22 ^99%	2.39 ^92%
CCT	6010 ^108%	6283 ^103%	6244 ^104%	6780 ^96%	6011 ^108%	6392 ^102%
Total Average (Program / Settings)		2% / 3%	18% / 33%	-21% / -3%	-13% / -6%	82% / 67%

* ... smaller is better

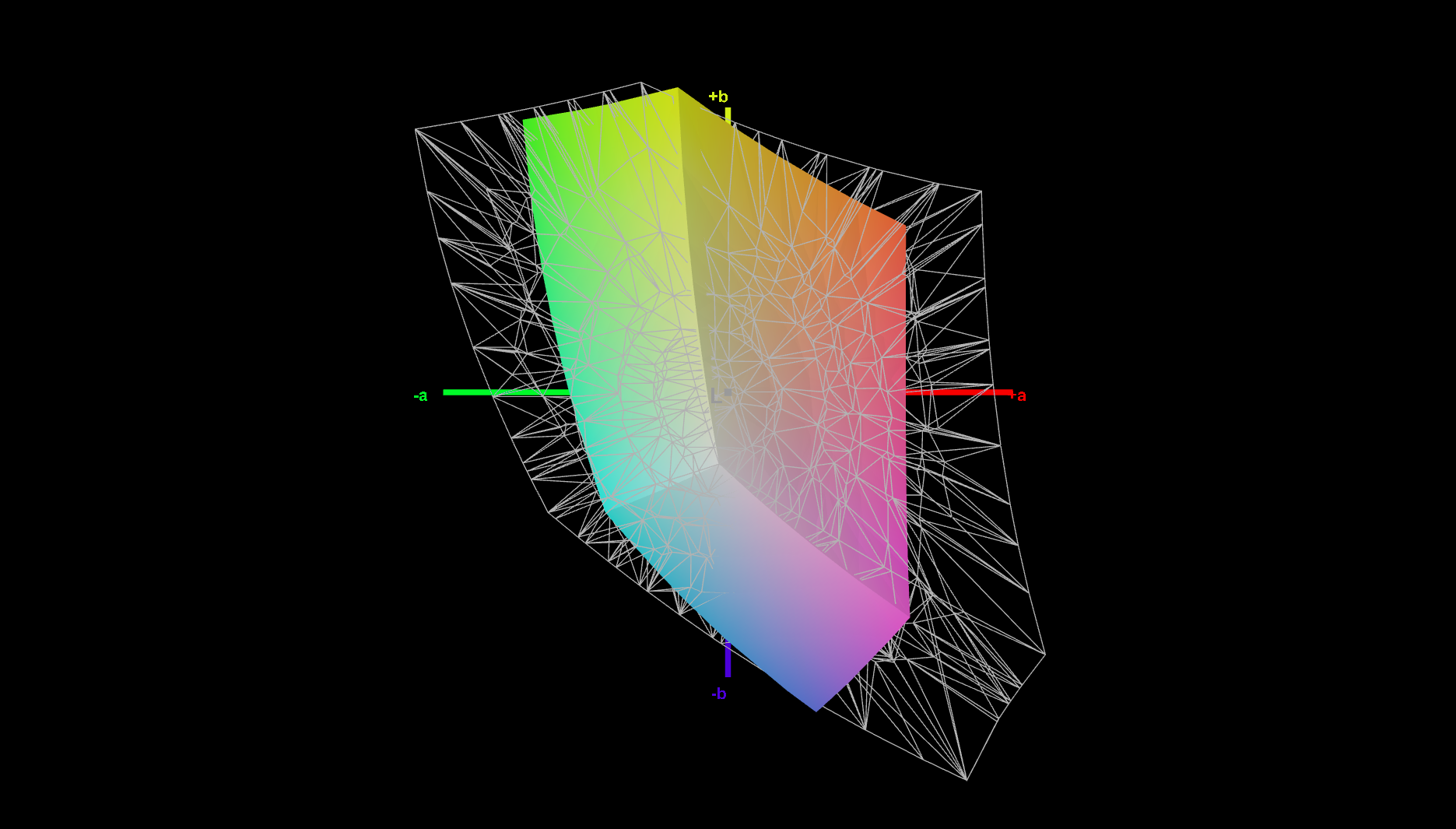

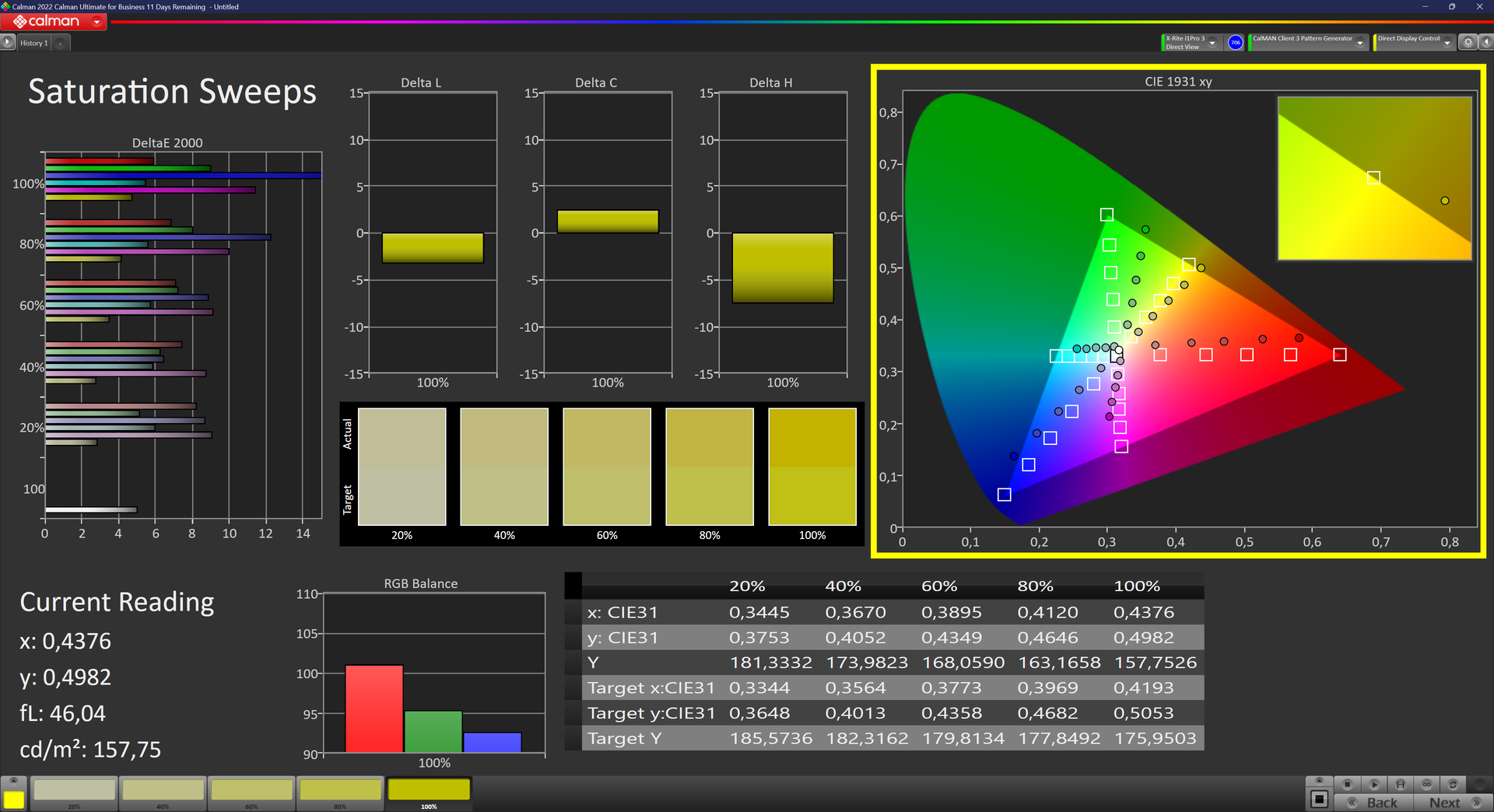

对于办公笔记本电脑来说，能覆盖近 60% 的 sRGB 色彩空间就差不多可以接受了。在上网、研究或创建简单图形等方面，有限的色彩空间并不是特别重要。

但即使是一张有轻微色彩渐变的照片，如蓝色的天空，也能显示出在更好的显示器上几乎看不到或更不明显的渐变。

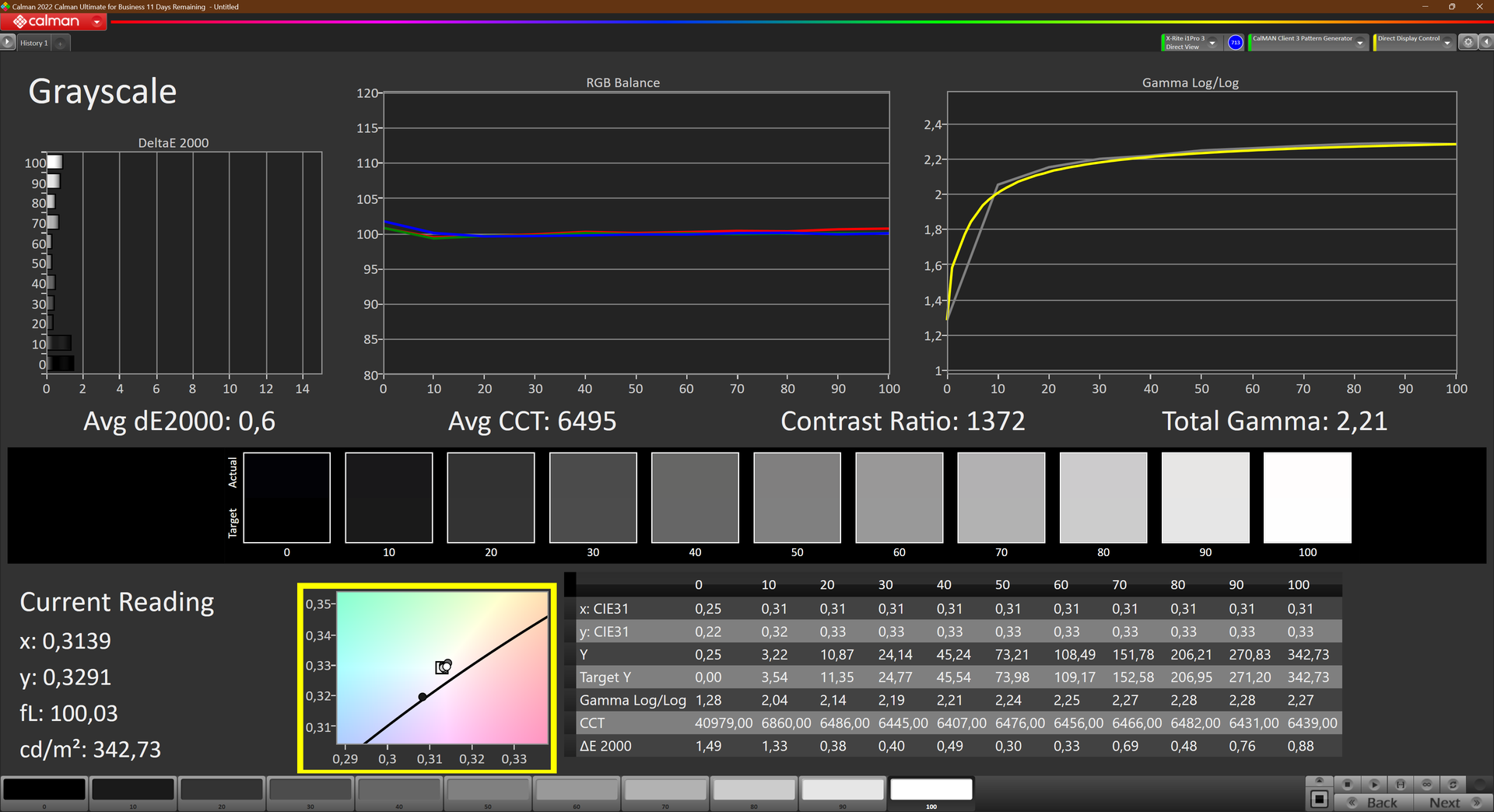

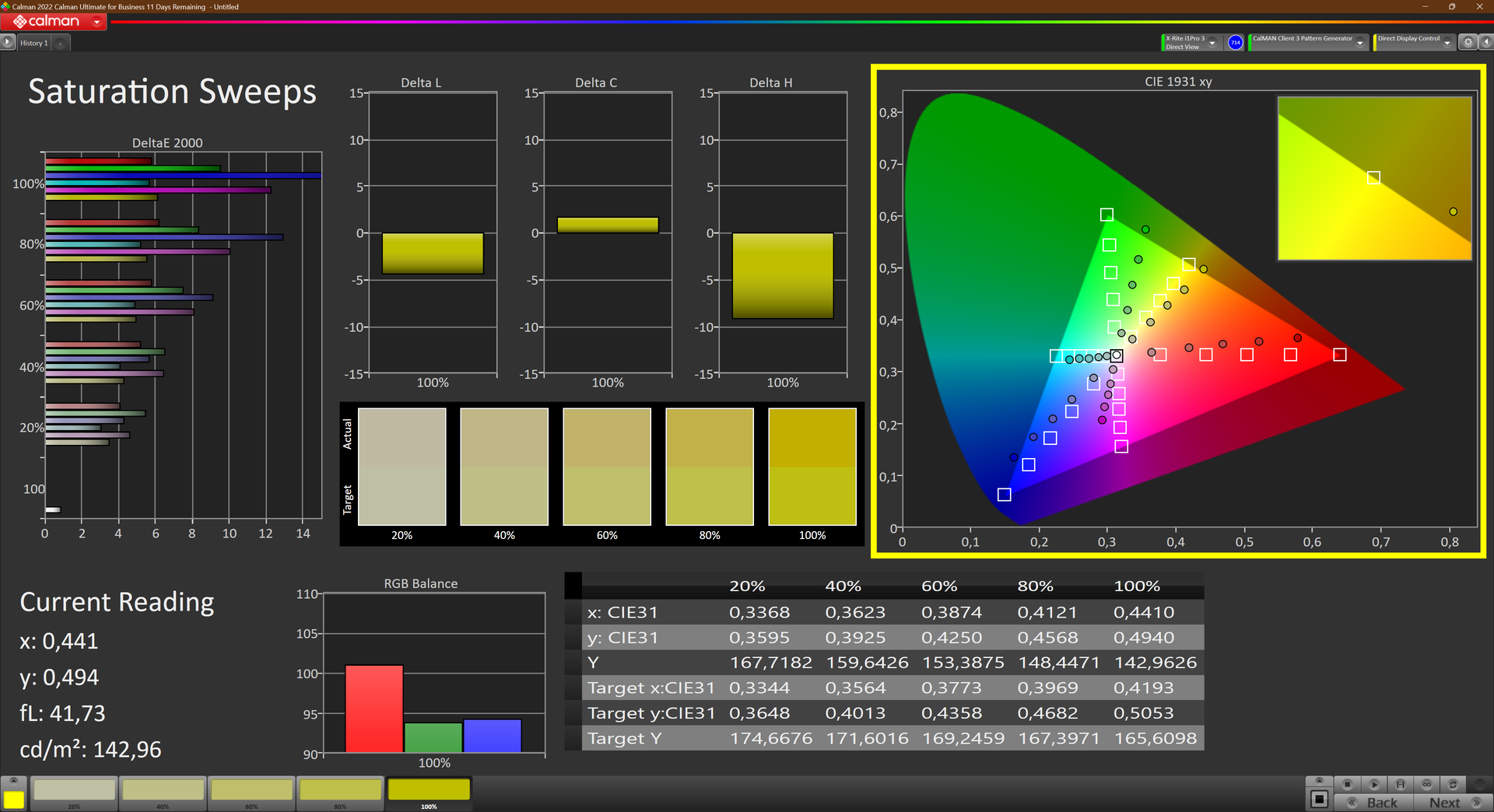

色彩准确度测试令人失望。基本上，训练有素的眼睛可以检测到整个色谱的偏差，尤其是蓝色和紫色。校准并没有带来任何改善。这不能仅仅归因于色彩空间的整体有限，因为 ThinkPad E16 1 代的前代产品（同样采用了非常简单的显示屏）产生了可以接受的结果。

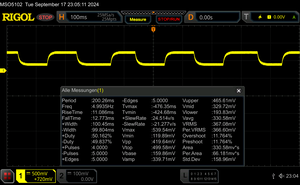

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

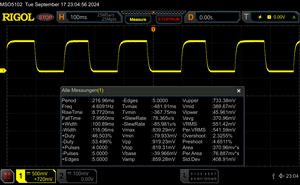

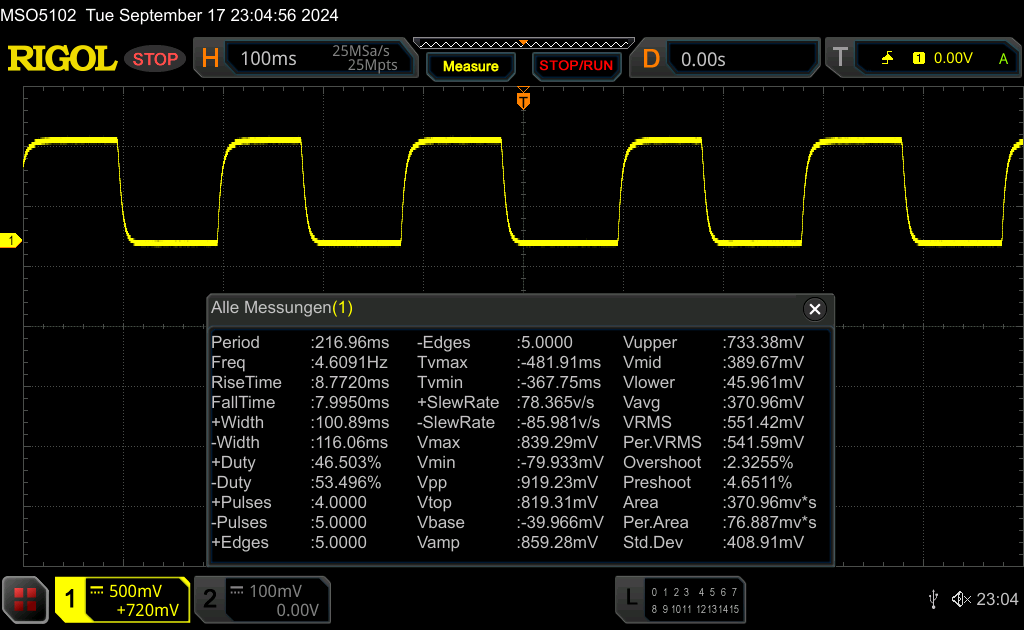

↔ Response Time Black to White
16.6 ms ... rise ↗ and fall ↘ combined	↗ 8.7 ms rise
16.6 ms ... rise ↗ and fall ↘ combined	↘ 7.9 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 34 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21 ms).

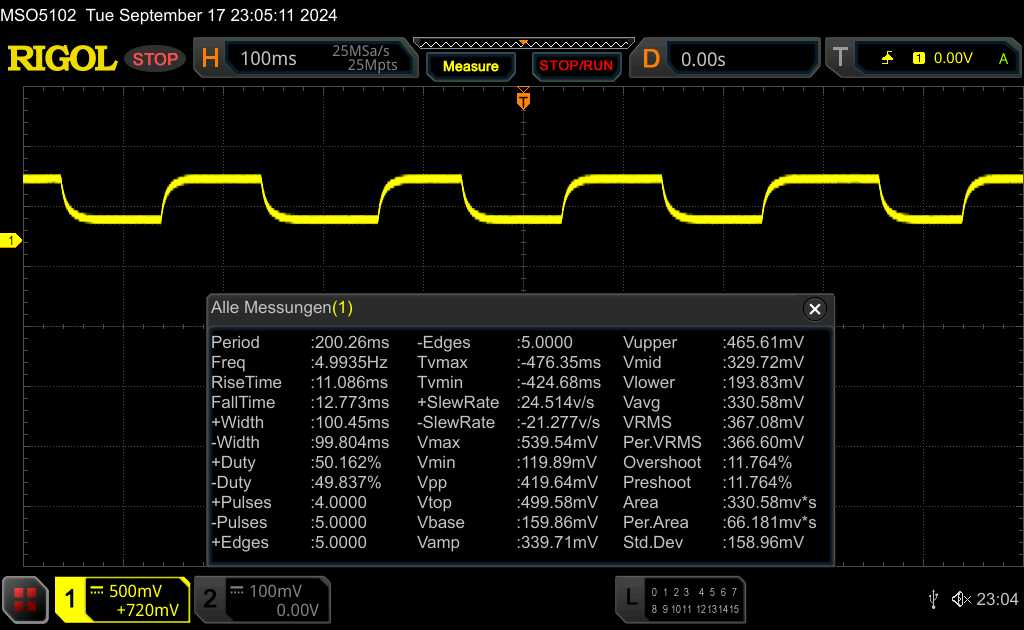

↔ Response Time 50% Grey to 80% Grey
23.7 ms ... rise ↗ and fall ↘ combined	↗ 11 ms rise
23.7 ms ... rise ↗ and fall ↘ combined	↘ 12.7 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 30 % of all devices are better. This means that the measured response time is better than the average of all tested devices (33 ms).

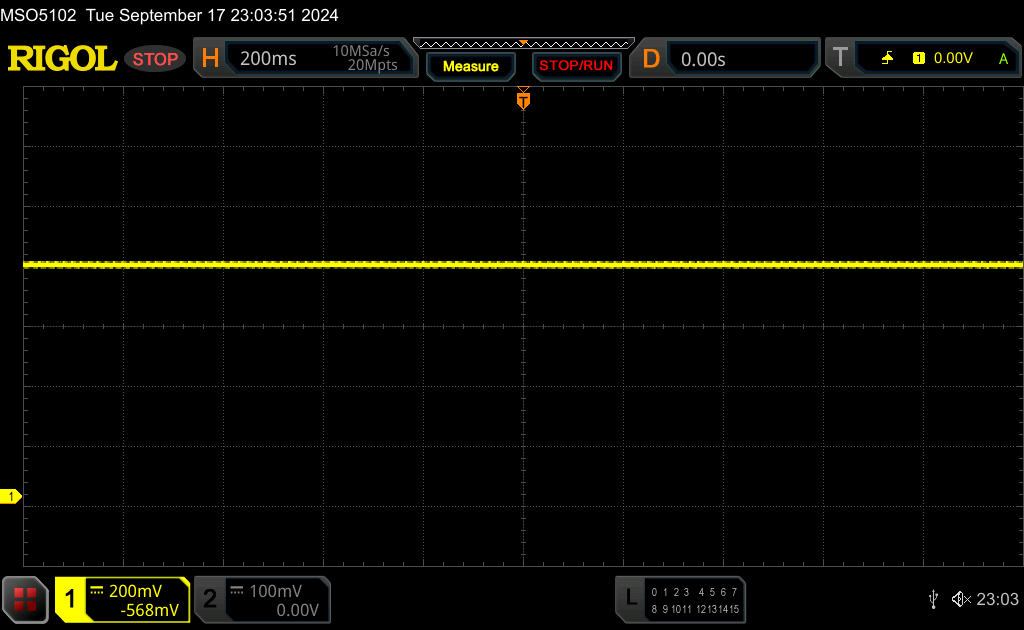

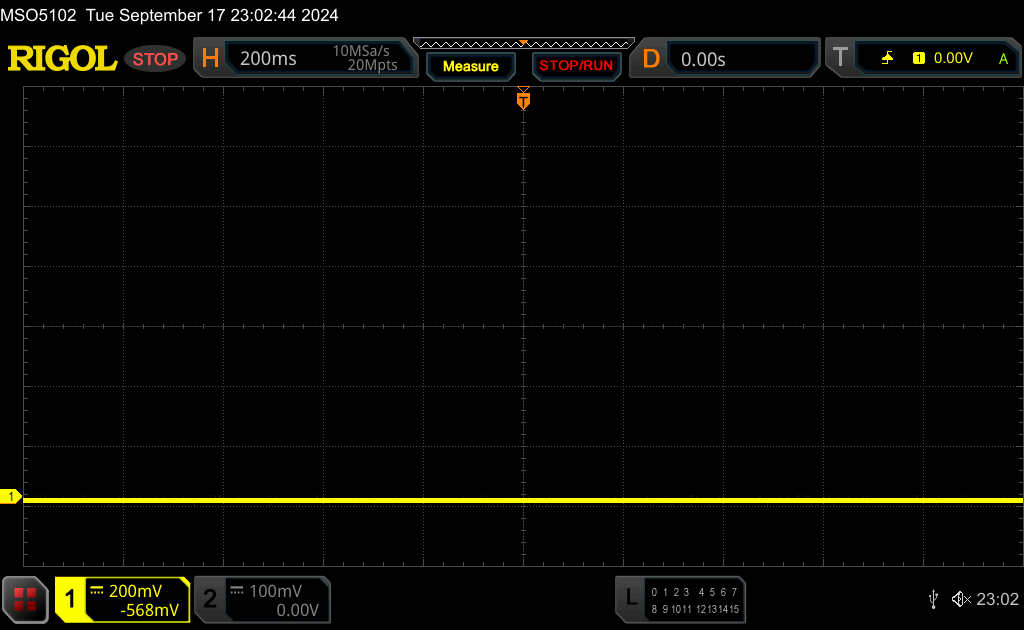

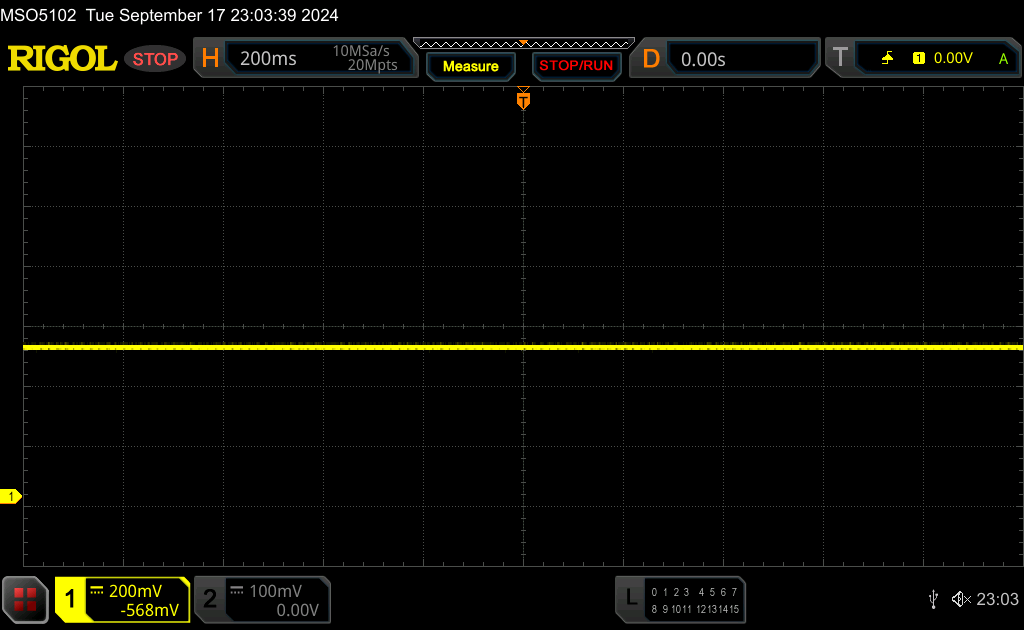

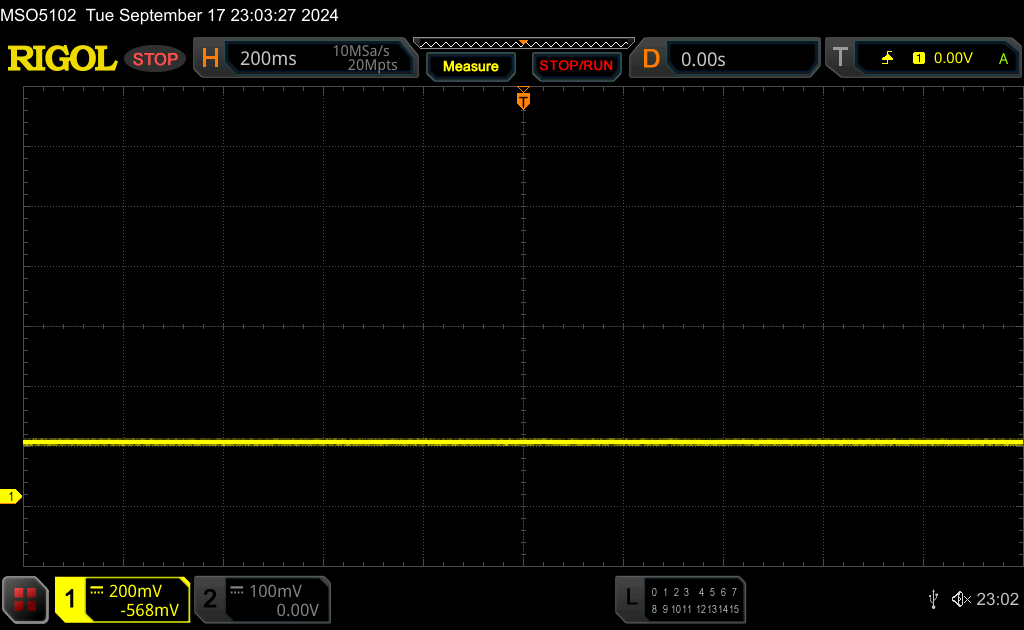

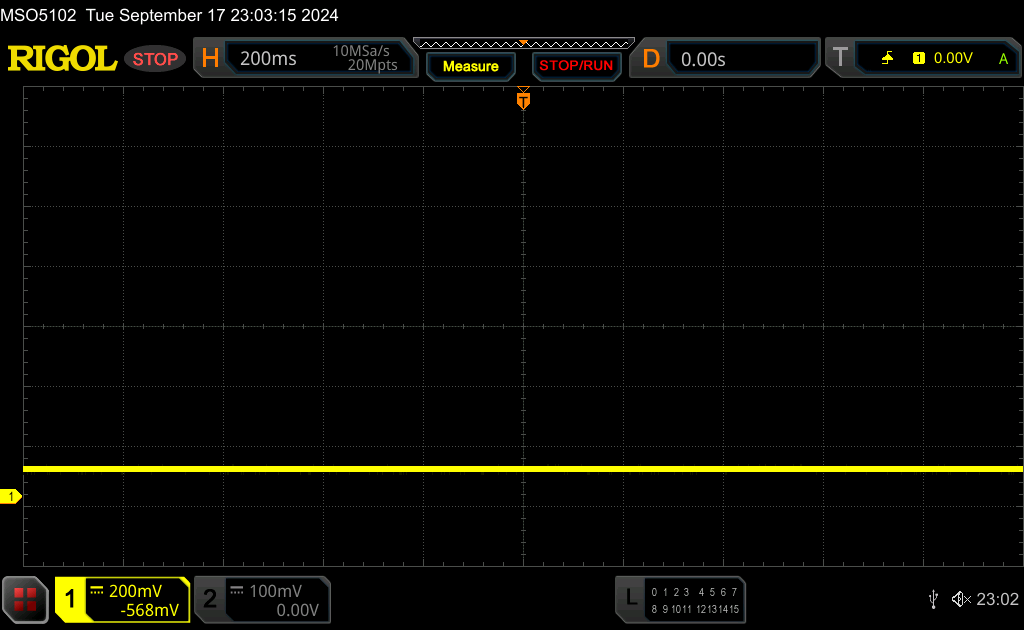

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8799 (minimum: 5 - maximum: 343500) Hz was measured.

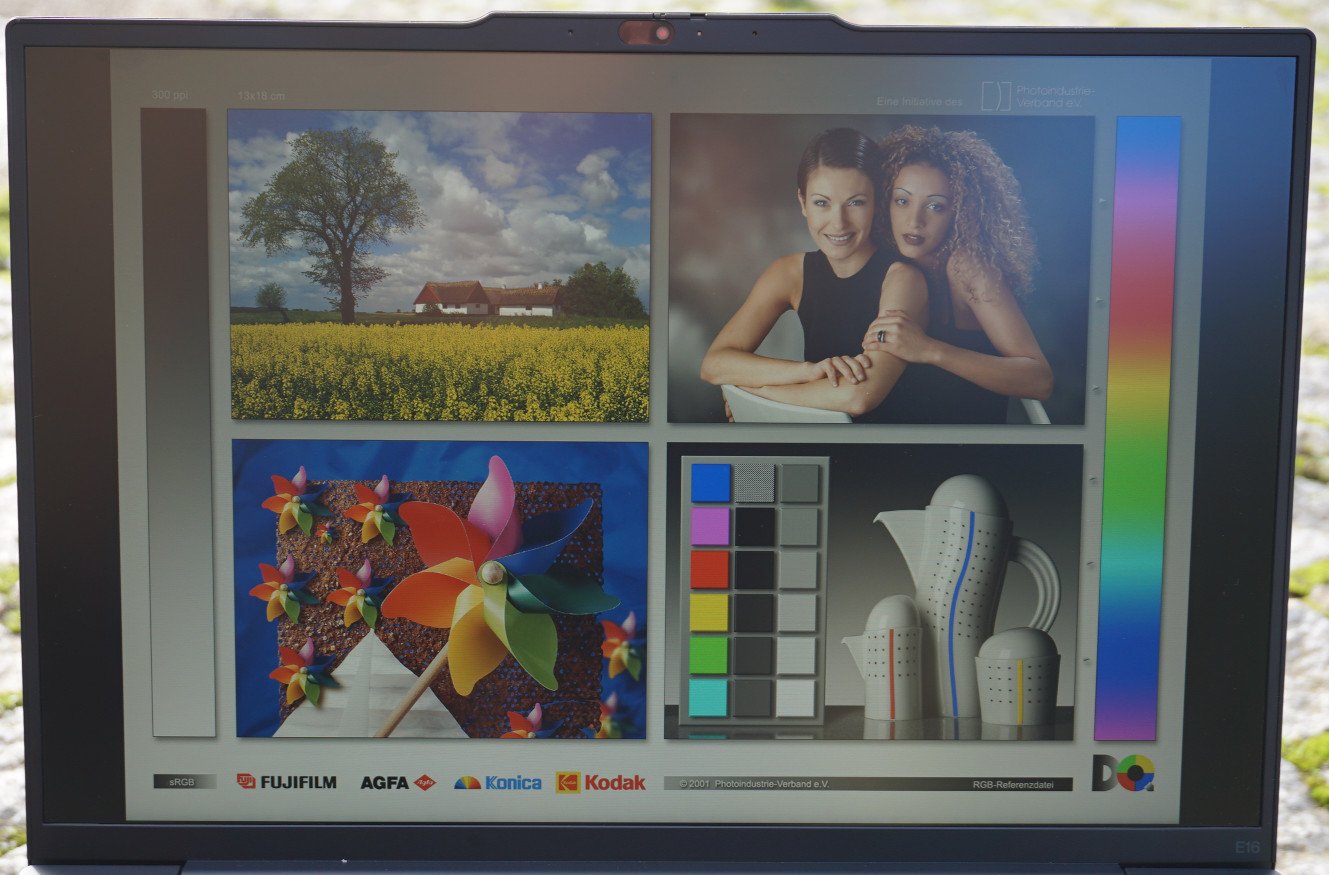

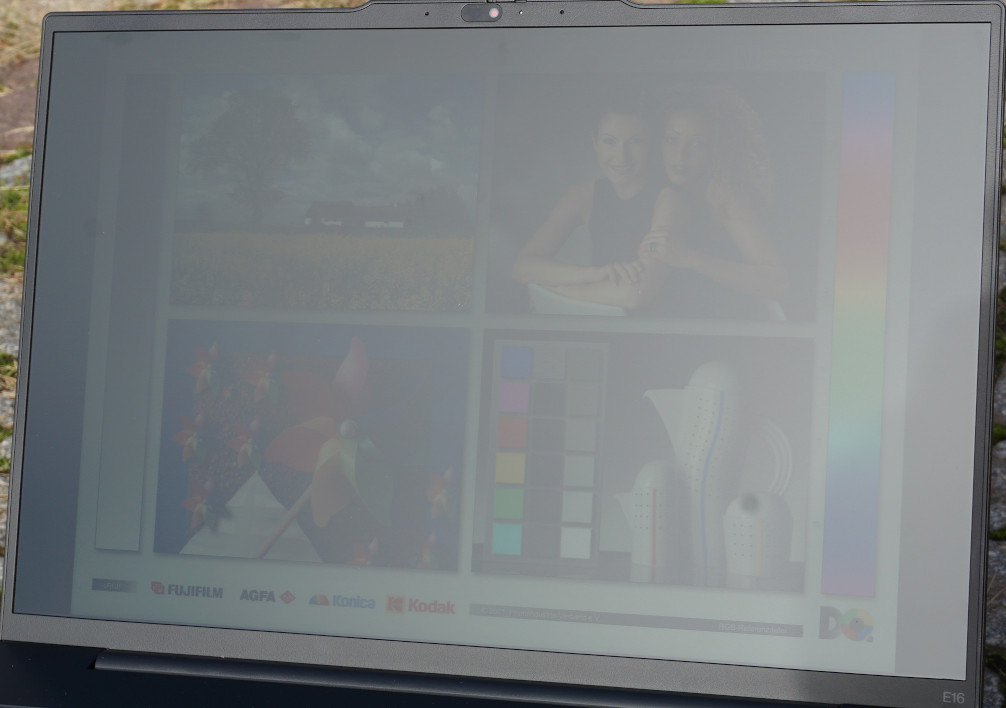

在户外，应避免阳光直射。在阴天时，由于对比度良好，文字仍然非常清晰。如果将笔记本电脑朝向阳光，则可以在户外正常工作。

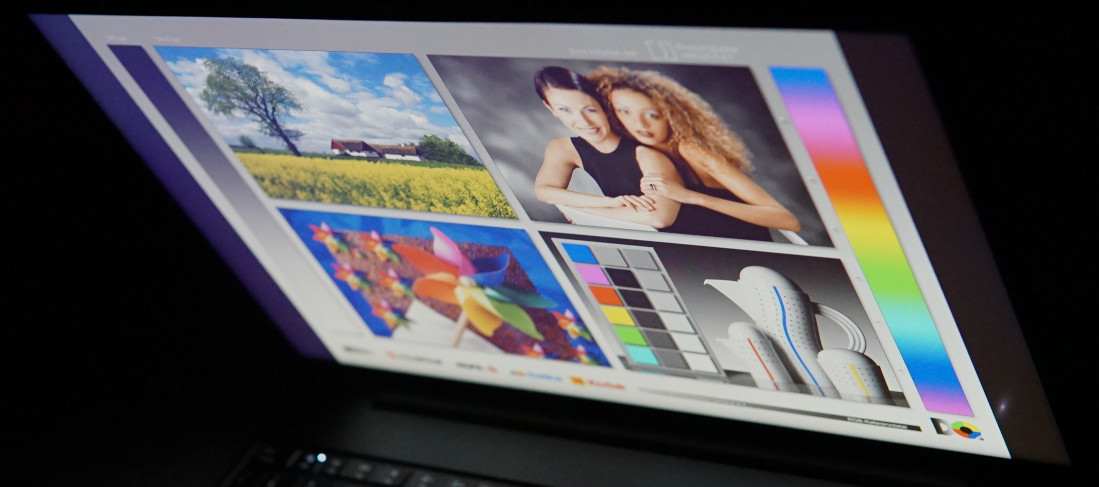

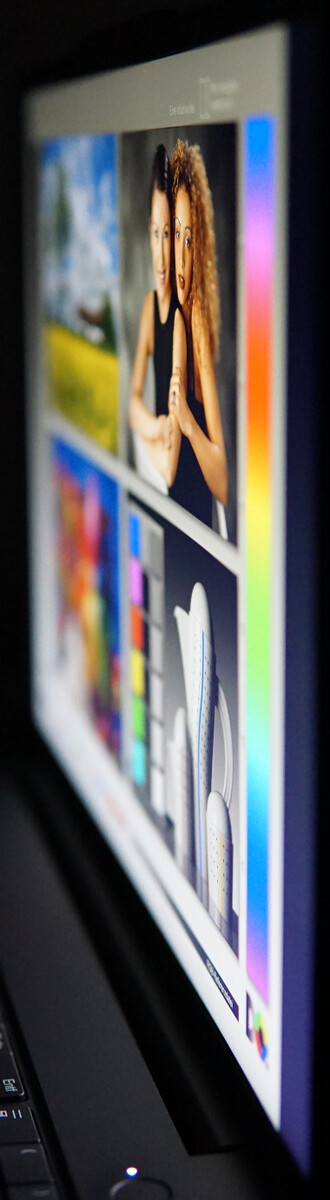

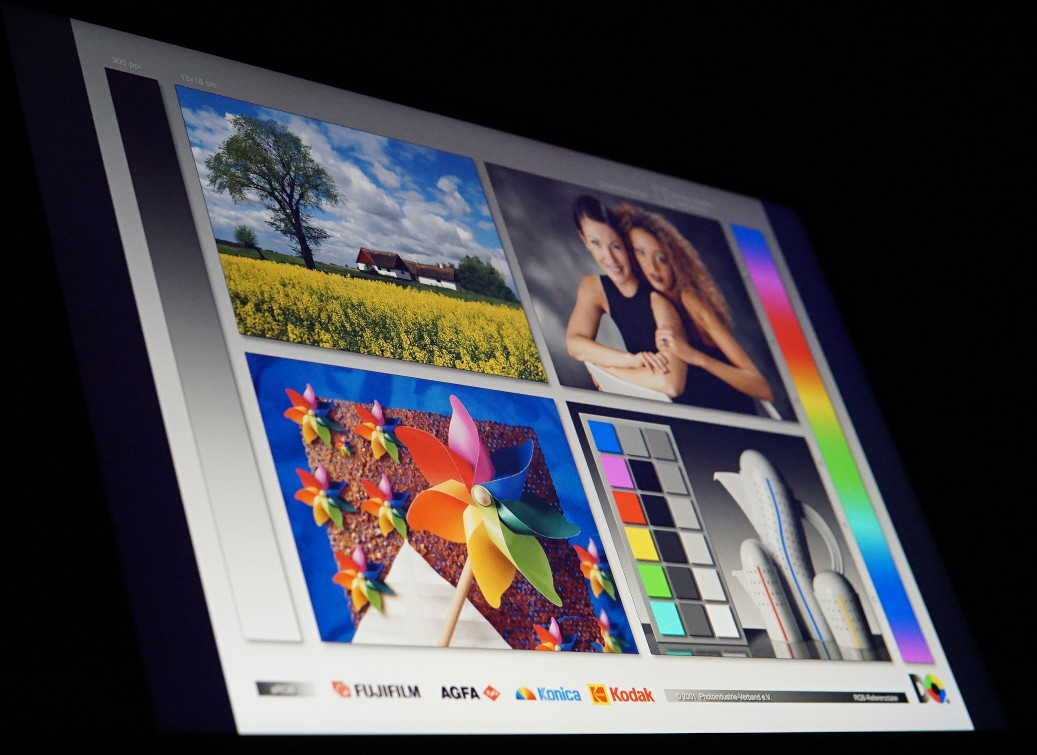

无论视角如何，都没有观察到色彩变化，这也是 IPS 面板的预期效果。不过，当视角大于 30 度时，亮度会降低。

性能 - E16 Gen 2 的高效性令人印象深刻

所提供的七款处理器至少都能提供不错到出色的性能。从性能稍弱的 AMD Ryzen 5 7535U到我们评测的 AMD Ryzen 5 7535HS一直到速度稍快的英特尔酷睿至尊 5 125U或英特尔酷睿至尊 5 125H以及性能更高的英特尔酷睿至尊 7 155H以及 AMD Ryzen 7 7735U或 AMD Ryzen 7 7735HS.

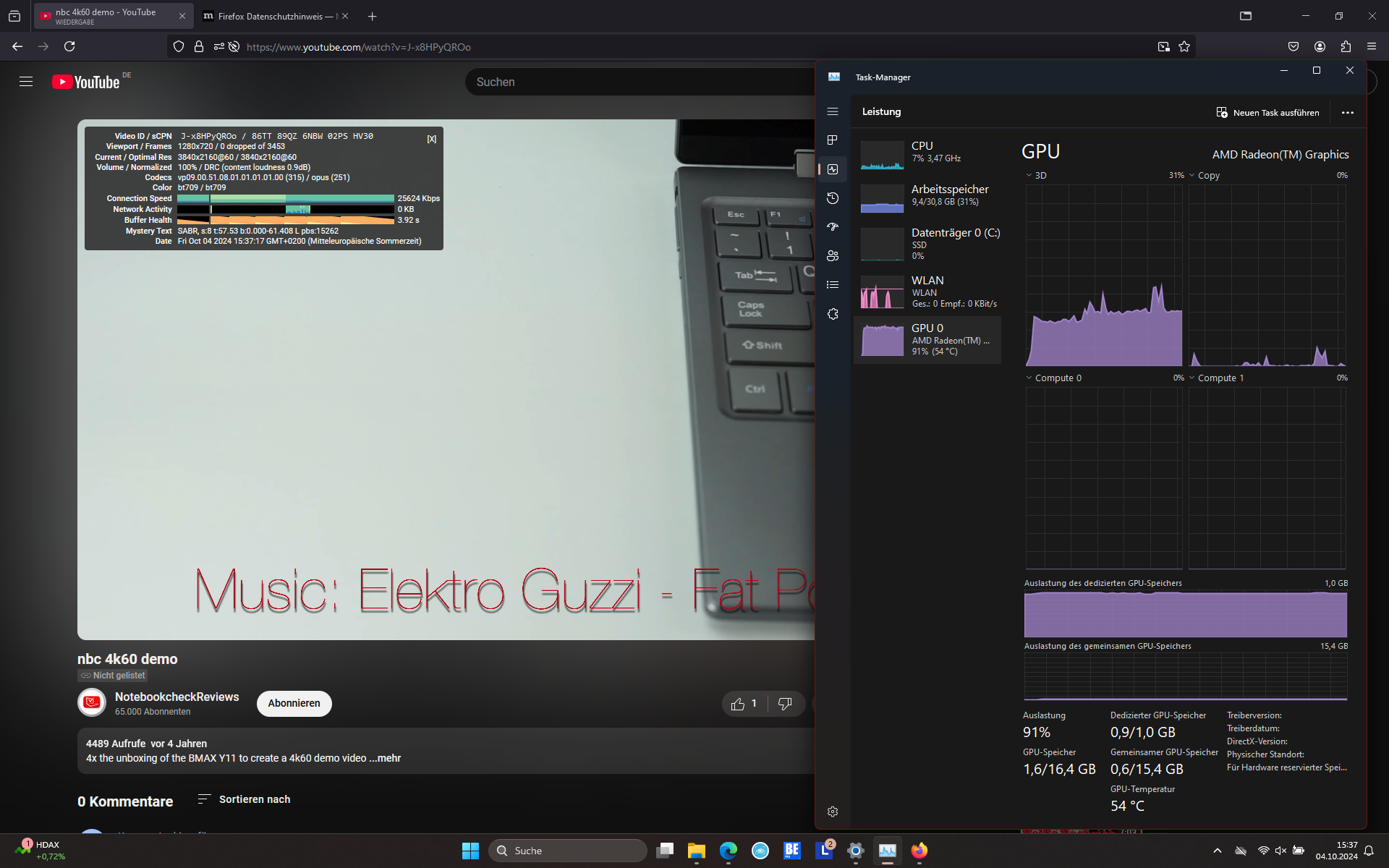

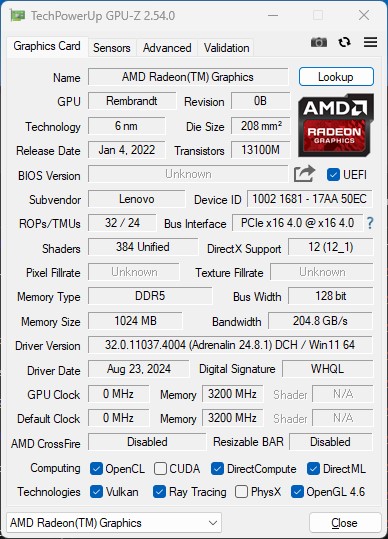

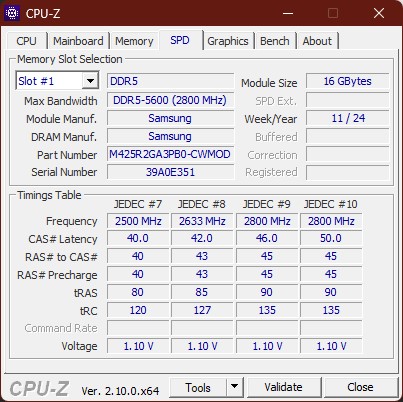

您不能选择专用图形芯片。不过，AMD 和英特尔的大型 CPU 可以通过 iGPU 处理一些图形要求较高的任务。内存可自行升级，有 8、16 或 32 GB DDR5-4800 规格。最大可扩展至 64 GB。

测试条件

与往常一样，ThinkPad 没有任何特殊的性能设置。通过 Windows 性能设置，您可以从 3 种模式中选择一种来调节 CPU 的供电。

最佳性能：PL1 30 W| PL2 35 W
平衡：PL1 20 W| PL2 25 W
最佳节能/电池功率：pl1 10 w| pl2 10 w

我们的测试默认使用 "最佳性能 "设置。

处理器

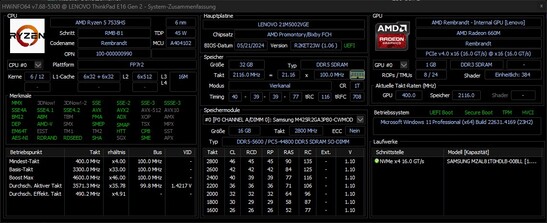

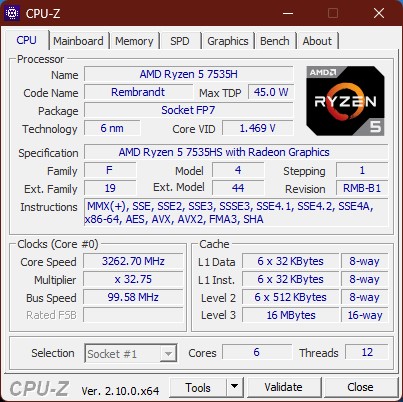

餈 AMD Ryzen 5 7535HS是一款可靠的中端处理器，负责执行 ThinkPad E16 Gen 2 的计算任务。该处理器的性能与英特尔酷睿 i5-1335U.它拥有六个相同的 Zen-3+ 内核和十二个线程，最高主频可达 4.55GHz。

CPU 的设计功耗一般为 30 瓦，联想允许它达到 35 瓦的峰值，然后再达到 30 瓦。相比之下，诸如联想 ThinkBook 16 G6或 ThinkPad E16 G1的 CPU 最大功耗分别为 41 瓦和 51 瓦。这也是 Ryzen 5 性能略低于平均水平的主要原因。英特尔英特尔酷睿至尊 5 125U只能偶尔在单核应用中胜出。

相比之下，我们评测的 E16 在连续测试中提供了迄今为止最稳定的计算性能，因为它的散热量要小得多，这意味着所需的节流更少。更多基准测试和比较可参阅我们的 CPU 基准列表.

Cinebench R15 Multi Continuous Test

Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS: Ø1406 (1361.47-1456.93)

Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U: Ø1555 (1518.55-1752.08)

Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U: Ø1306 (1133.14-1635.79)

Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U: Ø1321 (1284.69-1527)

Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U: Ø1519 (1483.51-1598.53)

Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U: Ø1474 (1397.92-1679.68)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.2: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U	78.2 pt
Lenovo ThinkPad E16 G1 Core i5-1335U ^-2! Intel Core i5-1335U	78 pt
Average AMD Ryzen 5 7535HS	77.4 pt
Acer Swift Edge SFE16-42-R1GM ^-2! AMD Ryzen 7 7735U	77.3 pt
Lenovo ThinkPad L16 Gen 1 21L70010GE ^-1! AMD Ryzen 7 PRO 7735U	76.3 pt
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U	74.2 pt
Average of class Office	72.5 pt
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS	71 pt

Cinebench R23 / Multi Core
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U	10131 Points +18%
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U	10085 Points +17%
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U	9825 Points +14%
Average AMD Ryzen 5 7535HS (8613 - 10900, n=2)	9757 Points +13%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U	9347 Points +9%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U	9157 (5866.85^min - 9157.36^max) Points +6%
Average of class Office (1577 - 15743, n=100, last 2 years)	8953 Points +4%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS	8613 Points

Cinebench R23 / Single Core
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U	1714 Points +19%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U	1553 Points +7%
Average of class Office (618 - 1995, n=100, last 2 years)	1525 Points +6%
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U	1490 Points +3%
Average AMD Ryzen 5 7535HS (1445 - 1488, n=2)	1467 Points +2%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U	1463 Points +1%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS	1445 Points
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U	1345 Points -7%

Cinebench R20 / CPU (Multi Core)
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U	3900 Points +17%
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U	3895 Points +17%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U	3849 Points +15%
Average AMD Ryzen 5 7535HS (3333 - 4224, n=2)	3779 Points +13%
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U	3663 Points +10%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U	3655 Points +10%
Average of class Office (590 - 5980, n=100, last 2 years)	3441 Points +3%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS	3333 Points

Cinebench R20 / CPU (Single Core)
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U	663 Points +18%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U	600 Points +7%
Average of class Office (229 - 764, n=100, last 2 years)	587 Points +5%
Average AMD Ryzen 5 7535HS (560 - 581, n=2)	571 Points +2%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U	570 Points +2%
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U	566 Points +1%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS	560 Points
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U	524 Points -6%

Cinebench R15 / CPU Multi 64Bit
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U	1752 (1518.55^min - 1752.08^max) Points +20%
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U	1698 Points +17%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U	1636 (1133.14^min - 1635.79^max) Points +12%
Average AMD Ryzen 5 7535HS (1457 - 1757, n=2)	1607 Points +10%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U	1599 (1483.51^min - 1598.53^max) Points +10%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U	1527 (602.98^min - 1527^max) Points +5%
Average of class Office (242 - 2642, n=101, last 2 years)	1511 Points +4%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS	1457 (1361.47^min - 1456.93^max) Points

Cinebench R15 / CPU Single 64Bit
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U	238 Points +3%
Average AMD Ryzen 5 7535HS (232 - 241, n=2)	237 Points +2%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U	236 Points +2%
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U	234 Points +1%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U	234 Points +1%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS	232 Points
Average of class Office (98 - 284, n=100, last 2 years)	225 Points -3%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U	224 Points -3%

Blender / v2.79 BMW27 CPU
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS	467 Seconds *
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U	455 Seconds * +3%
Average of class Office (208 - 2248, n=102, last 2 years)	451 Seconds * +3%
Average AMD Ryzen 5 7535HS (286 - 467, n=2)	377 Seconds * +19%
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U	354 Seconds * +24%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U	350 Seconds * +25%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U	349 Seconds * +25%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U	330 Seconds * +29%
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U	308 Seconds * +34%

7-Zip 18.03 / 7z b 4
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U	54103 MIPS +32%
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U	48972 MIPS +19%
Average AMD Ryzen 5 7535HS (40996 - 48646, n=2)	44821 MIPS +9%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U	42364 MIPS +3%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS	40996 MIPS
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U	40168 MIPS -2%
Average of class Office (7212 - 62349, n=102, last 2 years)	37708 MIPS -8%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U	32972 MIPS -20%

7-Zip 18.03 / 7z b 4 -mmt1
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U	5579 MIPS +7%
Average AMD Ryzen 5 7535HS (5206 - 5670, n=2)	5438 MIPS +4%
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U	5388 MIPS +3%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U	5352 MIPS +3%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS	5206 MIPS
Average of class Office (2769 - 6687, n=102, last 2 years)	5179 MIPS -1%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U	5171 MIPS -1%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U	4544 MIPS -13%

Geekbench 6.2 / Multi-Core
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U	9377 Points +16%
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U	8840 Points +9%
Average of class Office (662 - 14767, n=57, last 2 years)	8605 Points +6%
Average AMD Ryzen 5 7535HS (8094 - 8960, n=2)	8527 Points +5%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS	8094 Points
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U	7691 Points -5%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U	6901 Points -15%

Geekbench 6.2 / Single-Core
Average of class Office (457 - 2769, n=56, last 2 years)	2176 Points +9%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U	2139 Points +8%
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U	2040 Points +3%
Average AMD Ryzen 5 7535HS (1988 - 2056, n=2)	2022 Points +2%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS	1988 Points
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U	1969 Points -1%

Geekbench 5.5 / Multi-Core
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U	8581 Points +19%
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U	8203 Points +14%
Average AMD Ryzen 5 7535HS (7189 - 7852, n=2)	7521 Points +5%
Average of class Office (1018 - 11980, n=101, last 2 years)	7285 Points +1%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U	7194 Points 0%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS	7189 Points
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U	6517 Points -9%

Geekbench 5.5 / Single-Core
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U	1674 Points +13%
Average of class Office (510 - 1989, n=102, last 2 years)	1538 Points +4%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U	1531 Points +3%
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U	1522 Points +3%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U	1498 Points +1%
Average AMD Ryzen 5 7535HS (1481 - 1502, n=2)	1492 Points +1%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS	1481 Points
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U	1453 Points -2%

HWBOT x265 Benchmark v2.2 / 4k Preset
Average AMD Ryzen 5 7535HS (11.3 - 14.2, n=2)	12.8 fps +13%
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U	12.5 fps +11%
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U	11.9 fps +5%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U	11.6 fps +3%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U	11.5 fps +2%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS	11.3 fps
Average of class Office (1.55 - 17.4, n=100, last 2 years)	10.1 fps -11%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U	9.79 fps -13%

LibreOffice / 20 Documents To PDF
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U	61.9 s * -9%
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U	59.7 s * -5%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS	57 s *
Average of class Office (31.3 - 129.6, n=100, last 2 years)	54.8 s * +4%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U	54.5 s * +4%
Average AMD Ryzen 5 7535HS (46.2 - 57, n=2)	51.6 s * +9%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U	50.5 s * +11%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U	49.5 s * +13%

R Benchmark 2.5 / Overall mean
Average of class Office (0.4244 - 1.192, n=99, last 2 years)	0.561 sec * -1%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS	0.557 sec *
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U	0.552 sec * +1%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U	0.549 sec * +1%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U	0.531 sec * +5%
Average AMD Ryzen 5 7535HS (0.503 - 0.557, n=2)	0.53 sec * +5%
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U	0.51 sec * +8%

* ... smaller is better

Cinebench R15 Ref. Match 64Bit

97.9 %

Cinebench R15 CPU Multi 64Bit

1457 Points

Cinebench R15 OpenGL 64Bit

130.5 fps

Cinebench R15 CPU Single 64Bit

232 Points

Help

... in comparison

Performance Rating
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, Radeon 680M	93.1 pt
Average AMD Ryzen 5 7535HS	87 pt
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U, Radeon 680M	86.8 pt
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U, Vega 7	77.9 pt
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, Radeon 660M	74.1 pt
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U, Graphics 4-Core	72.4 pt
Average of class Office	69.2 pt
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U, Iris Xe G7 80EUs	62.7 pt

AIDA64 / FP32 Ray-Trace
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U, Radeon 680M	11345 KRay/s +18%
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, Radeon 680M	11307 KRay/s +18%
Average AMD Ryzen 5 7535HS (9617 - 12945, n=2)	11281 KRay/s +17%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U, Vega 7	10970 KRay/s +14%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, Radeon 660M	9617 KRay/s
Average of class Office (763 - 24250, n=101, last 2 years)	9036 KRay/s -6%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U, Graphics 4-Core	8874 KRay/s -8%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U, Iris Xe G7 80EUs	7732 KRay/s -20%

AIDA64 / FPU Julia
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, Radeon 680M	79809 Points +28%
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U, Radeon 680M	72779 Points +17%
Average AMD Ryzen 5 7535HS (62262 - 79252, n=2)	70757 Points +14%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U, Vega 7	68384 Points +10%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, Radeon 660M	62262 Points
Average of class Office (4113 - 102228, n=101, last 2 years)	47206 Points -24%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U, Graphics 4-Core	45246 Points -27%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U, Iris Xe G7 80EUs	43636 Points -30%

AIDA64 / CPU SHA3
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, Radeon 680M	2732 MB/s +31%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U, Graphics 4-Core	2599 MB/s +24%
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U, Radeon 680M	2413 MB/s +15%
Average AMD Ryzen 5 7535HS (2092 - 2679, n=2)	2386 MB/s +14%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U, Vega 7	2323 MB/s +11%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U, Iris Xe G7 80EUs	2278 MB/s +9%
Average of class Office (287 - 4442, n=101, last 2 years)	2124 MB/s +2%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, Radeon 660M	2092 MB/s

AIDA64 / CPU Queen
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, Radeon 680M	95683 Points +30%
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U, Radeon 680M	89333 Points +21%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U, Vega 7	78105 Points +6%
Average AMD Ryzen 5 7535HS (73607 - 82540, n=2)	78074 Points +6%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, Radeon 660M	73607 Points
Average of class Office (8185 - 113016, n=101, last 2 years)	69133 Points -6%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U, Iris Xe G7 80EUs	60333 Points -18%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U, Graphics 4-Core	47517 Points -35%

AIDA64 / FPU SinJulia
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, Radeon 680M	11304 Points +27%
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U, Radeon 680M	11073 Points +25%
Average AMD Ryzen 5 7535HS (8888 - 9786, n=2)	9337 Points +5%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U, Vega 7	9237 Points +4%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, Radeon 660M	8888 Points
Average of class Office (404 - 14288, n=101, last 2 years)	6769 Points -24%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U, Graphics 4-Core	5456 Points -39%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U, Iris Xe G7 80EUs	4999 Points -44%

AIDA64 / FPU Mandel
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, Radeon 680M	42995 Points +26%
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U, Radeon 680M	40173 Points +18%
Average AMD Ryzen 5 7535HS (34054 - 43495, n=2)	38775 Points +14%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U, Vega 7	37624 Points +10%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, Radeon 660M	34054 Points
Average of class Office (2075 - 54365, n=101, last 2 years)	24650 Points -28%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U, Graphics 4-Core	22335 Points -34%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U, Iris Xe G7 80EUs	20553 Points -40%

AIDA64 / CPU AES
Average AMD Ryzen 5 7535HS (35651 - 105083, n=2)	70367 MB/s +97%
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, Radeon 680M	53756 MB/s +51%
Average of class Office (5426 - 147611, n=101, last 2 years)	49580 MB/s +39%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U, Graphics 4-Core	47452 MB/s +33%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U, Iris Xe G7 80EUs	42960 MB/s +21%
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U, Radeon 680M	42537 MB/s +19%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U, Vega 7	38532 MB/s +8%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, Radeon 660M	35651 MB/s

AIDA64 / CPU ZLib
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U, Graphics 4-Core	747 MB/s +36%
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, Radeon 680M	729 MB/s +32%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U, Iris Xe G7 80EUs	676 MB/s +23%
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U, Radeon 680M	655 MB/s +19%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U, Vega 7	612 MB/s +11%
Average AMD Ryzen 5 7535HS (551 - 665, n=2)	608 MB/s +10%
Average of class Office (78 - 1018, n=101, last 2 years)	583 MB/s +6%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, Radeon 660M	551 MB/s

AIDA64 / FP64 Ray-Trace
Average AMD Ryzen 5 7535HS (5170 - 6899, n=2)	6035 KRay/s +17%
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U, Radeon 680M	6000 KRay/s +16%
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, Radeon 680M	5959 KRay/s +15%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U, Vega 7	5738 KRay/s +11%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, Radeon 660M	5170 KRay/s
Average of class Office (432 - 12755, n=101, last 2 years)	4792 KRay/s -7%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U, Graphics 4-Core	4619 KRay/s -11%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U, Iris Xe G7 80EUs	4150 KRay/s -20%

AIDA64 / CPU PhotoWorxx
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U, Graphics 4-Core	47875 MPixel/s +77%
Average AMD Ryzen 5 7535HS (27096 - 28865, n=2)	27981 MPixel/s +3%
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, Radeon 680M	27825 MPixel/s +3%
Average of class Office (4814 - 54971, n=101, last 2 years)	27573 MPixel/s +2%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, Radeon 660M	27096 MPixel/s
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U, Radeon 680M	27003 MPixel/s 0%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U, Iris Xe G7 80EUs	21875 MPixel/s -19%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U, Vega 7	14054 MPixel/s -48%

系统性能

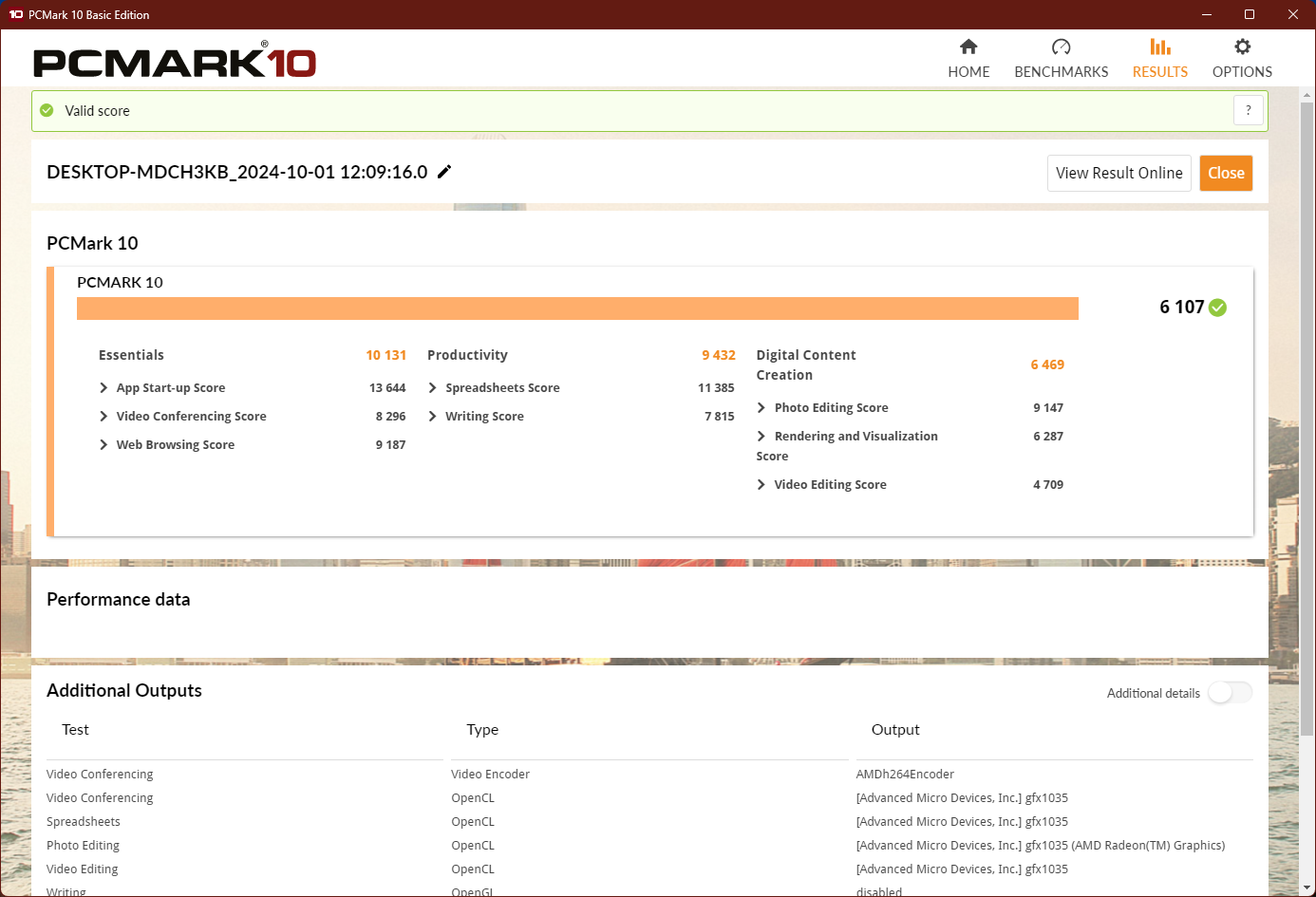

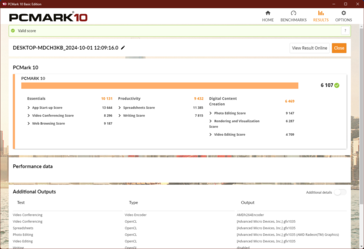

从 PCMark 10 测试中可以看出，短暂的性能峰值并不一定会提高系统性能。在这方面，ThinkPad E16 Gen 2 稳居中游，比我们最近评测的办公笔记本电脑的平均性能高出 10%。

虽然启动程序或安装进程的速度不如更高端的 CPU（如 AMD Ryzen 7 7840U或英特尔酷睿至尊 7 155H等高端 CPU 那样快，但也没有明显的延迟。即使在并行运行多个程序的情况下，也能始终快速流畅地操作设备。

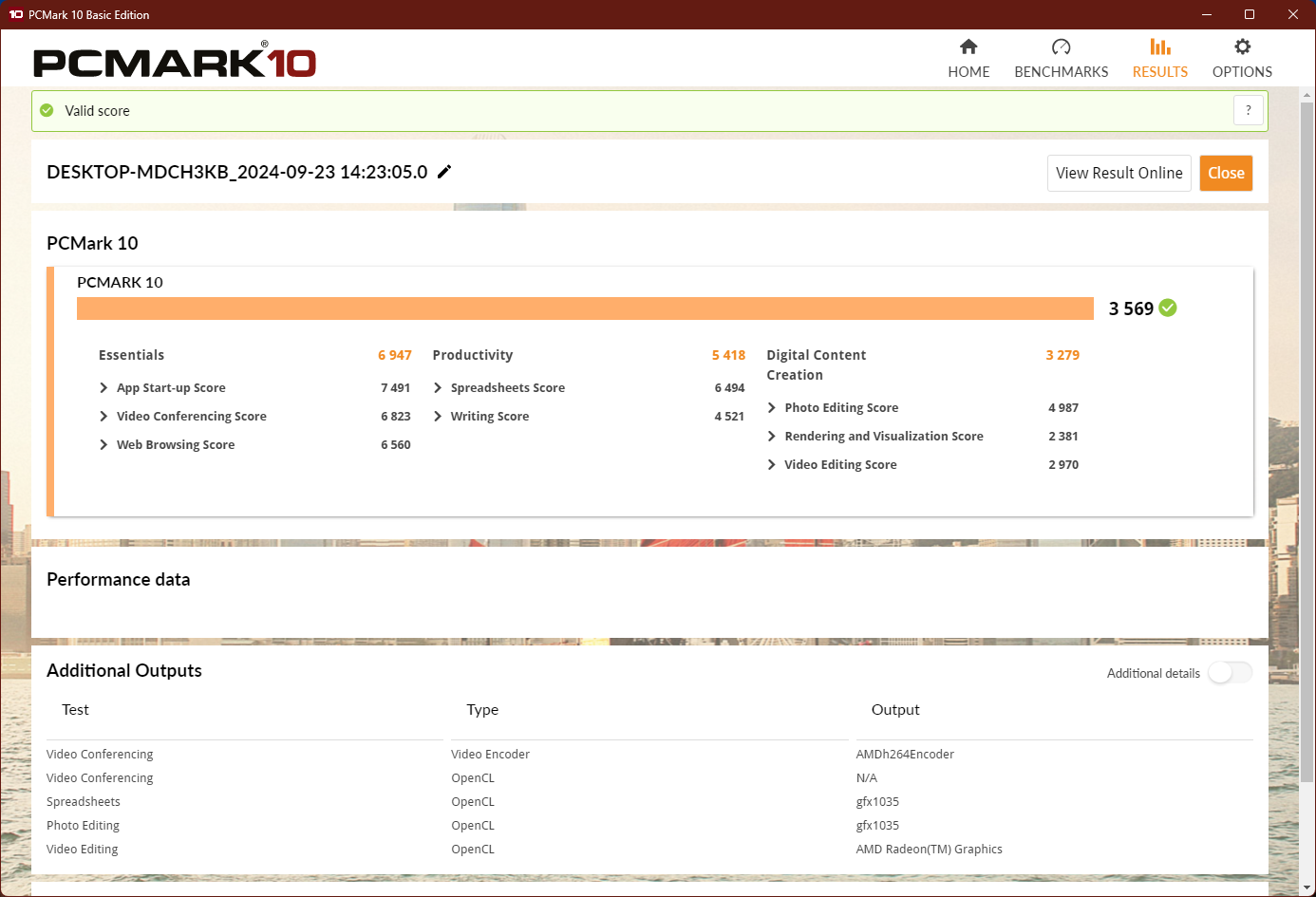

在电池模式下，性能，尤其是 CPU 性能会明显下降。在执行要求较高的任务时，性能下降非常明显。不过，在冲浪或流媒体播放时，差异应该很小。

PCMark 10 / Score
Lenovo ThinkPad L16 Gen 1 21L70010GE Radeon 680M, R7 PRO 7735U, SK Hynix HFS001TEJ9X164N	6342 Points +6%
Acer Swift Edge SFE16-42-R1GM Radeon 680M, R7 7735U, Micron 3400 1TB MTFDKBA1T0TFH	6147 Points +2%
Lenovo ThinkBook 16 G6 ABP Vega 7, R5 7530U, SK hynix HFS512GEJ9X125N	6063 Points +1%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Radeon 660M, R5 7535HS, Samsung PM9C1a MZAL81T0HDLB	6011 Points
Average AMD Ryzen 5 7535HS, AMD Radeon 660M ()	6011 Points 0%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Graphics 4-Core, Ultra 5 125U, WD PC SN740 SDDQNQD-512G-1014	5780 Points -4%
Average of class Office (2463 - 7157, n=92, last 2 years)	5548 Points -8%
Lenovo ThinkPad E16 G1 Core i5-1335U Iris Xe G7 80EUs, i5-1335U	5371 Points -11%

PCMark 10 / Essentials
Lenovo ThinkBook 16 G6 ABP Vega 7, R5 7530U, SK hynix HFS512GEJ9X125N	10627 Points +4%
Lenovo ThinkPad L16 Gen 1 21L70010GE Radeon 680M, R7 PRO 7735U, SK Hynix HFS001TEJ9X164N	10395 Points +2%
Lenovo ThinkPad E16 G1 Core i5-1335U Iris Xe G7 80EUs, i5-1335U	10237 Points 0%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Radeon 660M, R5 7535HS, Samsung PM9C1a MZAL81T0HDLB	10210 Points
Average AMD Ryzen 5 7535HS, AMD Radeon 660M ()	10210 Points 0%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Graphics 4-Core, Ultra 5 125U, WD PC SN740 SDDQNQD-512G-1014	10046 Points -2%
Average of class Office (5575 - 20841, n=92, last 2 years)	10013 Points -2%
Acer Swift Edge SFE16-42-R1GM Radeon 680M, R7 7735U, Micron 3400 1TB MTFDKBA1T0TFH	9287 Points -9%

PCMark 10 / Productivity
Lenovo ThinkBook 16 G6 ABP Vega 7, R5 7530U, SK hynix HFS512GEJ9X125N	9342 Points +4%
Acer Swift Edge SFE16-42-R1GM Radeon 680M, R7 7735U, Micron 3400 1TB MTFDKBA1T0TFH	9159 Points +2%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Radeon 660M, R5 7535HS, Samsung PM9C1a MZAL81T0HDLB	9022 Points
Average AMD Ryzen 5 7535HS, AMD Radeon 660M ()	9022 Points 0%
Lenovo ThinkPad L16 Gen 1 21L70010GE Radeon 680M, R7 PRO 7735U, SK Hynix HFS001TEJ9X164N	8921 Points -1%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Graphics 4-Core, Ultra 5 125U, WD PC SN740 SDDQNQD-512G-1014	7861 Points -13%
Average of class Office (3041 - 10198, n=92, last 2 years)	7642 Points -15%
Lenovo ThinkPad E16 G1 Core i5-1335U Iris Xe G7 80EUs, i5-1335U	6665 Points -26%

PCMark 10 / Digital Content Creation
Lenovo ThinkPad L16 Gen 1 21L70010GE Radeon 680M, R7 PRO 7735U, SK Hynix HFS001TEJ9X164N	7467 Points +17%
Acer Swift Edge SFE16-42-R1GM Radeon 680M, R7 7735U, Micron 3400 1TB MTFDKBA1T0TFH	7412 Points +16%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Graphics 4-Core, Ultra 5 125U, WD PC SN740 SDDQNQD-512G-1014	6637 Points +4%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Radeon 660M, R5 7535HS, Samsung PM9C1a MZAL81T0HDLB	6400 Points
Average AMD Ryzen 5 7535HS, AMD Radeon 660M ()	6400 Points 0%
Average of class Office (1912 - 9773, n=92, last 2 years)	6209 Points -3%
Lenovo ThinkPad E16 G1 Core i5-1335U Iris Xe G7 80EUs, i5-1335U	6164 Points -4%
Lenovo ThinkBook 16 G6 ABP Vega 7, R5 7530U, SK hynix HFS512GEJ9X125N	6093 Points -5%

CrossMark / Overall
Lenovo ThinkPad T14s Gen 5 21LS001PGE Graphics 4-Core, Ultra 5 125U, WD PC SN740 SDDQNQD-512G-1014	1413 Points +6%
Lenovo ThinkPad E16 G1 Core i5-1335U Iris Xe G7 80EUs, i5-1335U	1381 Points +4%
Average of class Office (348 - 1891, n=92, last 2 years)	1375 Points +4%
Lenovo ThinkPad L16 Gen 1 21L70010GE Radeon 680M, R7 PRO 7735U, SK Hynix HFS001TEJ9X164N	1347 Points +1%
Acer Swift Edge SFE16-42-R1GM Radeon 680M, R7 7735U, Micron 3400 1TB MTFDKBA1T0TFH	1339 Points +1%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Radeon 660M, R5 7535HS, Samsung PM9C1a MZAL81T0HDLB	1328 Points
Average AMD Ryzen 5 7535HS, AMD Radeon 660M ()	1328 Points 0%
Lenovo ThinkBook 16 G6 ABP Vega 7, R5 7530U, SK hynix HFS512GEJ9X125N	1316 Points -1%

CrossMark / Productivity
Lenovo ThinkPad E16 G1 Core i5-1335U Iris Xe G7 80EUs, i5-1335U	1381 Points +4%
Average of class Office (393 - 1870, n=92, last 2 years)	1379 Points +4%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Graphics 4-Core, Ultra 5 125U, WD PC SN740 SDDQNQD-512G-1014	1371 Points +3%
Lenovo ThinkBook 16 G6 ABP Vega 7, R5 7530U, SK hynix HFS512GEJ9X125N	1357 Points +2%
Lenovo ThinkPad L16 Gen 1 21L70010GE Radeon 680M, R7 PRO 7735U, SK Hynix HFS001TEJ9X164N	1333 Points +1%
Acer Swift Edge SFE16-42-R1GM Radeon 680M, R7 7735U, Micron 3400 1TB MTFDKBA1T0TFH	1328 Points 0%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Radeon 660M, R5 7535HS, Samsung PM9C1a MZAL81T0HDLB	1325 Points
Average AMD Ryzen 5 7535HS, AMD Radeon 660M ()	1325 Points 0%

CrossMark / Creativity
Lenovo ThinkPad T14s Gen 5 21LS001PGE Graphics 4-Core, Ultra 5 125U, WD PC SN740 SDDQNQD-512G-1014	1532 Points +7%
Lenovo ThinkPad L16 Gen 1 21L70010GE Radeon 680M, R7 PRO 7735U, SK Hynix HFS001TEJ9X164N	1474 Points +3%
Lenovo ThinkPad E16 G1 Core i5-1335U Iris Xe G7 80EUs, i5-1335U	1450 Points +1%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Radeon 660M, R5 7535HS, Samsung PM9C1a MZAL81T0HDLB	1434 Points
Average AMD Ryzen 5 7535HS, AMD Radeon 660M ()	1434 Points 0%
Average of class Office (340 - 1982, n=92, last 2 years)	1425 Points -1%
Acer Swift Edge SFE16-42-R1GM Radeon 680M, R7 7735U, Micron 3400 1TB MTFDKBA1T0TFH	1409 Points -2%
Lenovo ThinkBook 16 G6 ABP Vega 7, R5 7530U, SK hynix HFS512GEJ9X125N	1361 Points -5%

CrossMark / Responsiveness
Average of class Office (258 - 2017, n=92, last 2 years)	1239 Points +17%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Graphics 4-Core, Ultra 5 125U, WD PC SN740 SDDQNQD-512G-1014	1213 Points +15%
Lenovo ThinkPad E16 G1 Core i5-1335U Iris Xe G7 80EUs, i5-1335U	1195 Points +13%
Acer Swift Edge SFE16-42-R1GM Radeon 680M, R7 7735U, Micron 3400 1TB MTFDKBA1T0TFH	1175 Points +11%
Lenovo ThinkBook 16 G6 ABP Vega 7, R5 7530U, SK hynix HFS512GEJ9X125N	1083 Points +2%
Lenovo ThinkPad L16 Gen 1 21L70010GE Radeon 680M, R7 PRO 7735U, SK Hynix HFS001TEJ9X164N	1060 Points 0%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Radeon 660M, R5 7535HS, Samsung PM9C1a MZAL81T0HDLB	1058 Points
Average AMD Ryzen 5 7535HS, AMD Radeon 660M ()	1058 Points 0%

WebXPRT 3 / Overall
Lenovo ThinkBook 16 G6 ABP Vega 7, R5 7530U, SK hynix HFS512GEJ9X125N	261 Points +12%
Average of class Office (121 - 455, n=90, last 2 years)	254 Points +9%
Lenovo ThinkPad L16 Gen 1 21L70010GE Radeon 680M, R7 PRO 7735U, SK Hynix HFS001TEJ9X164N	248 Points +6%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Graphics 4-Core, Ultra 5 125U, WD PC SN740 SDDQNQD-512G-1014	242 Points +3%
Acer Swift Edge SFE16-42-R1GM Radeon 680M, R7 7735U, Micron 3400 1TB MTFDKBA1T0TFH	240 Points +3%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Radeon 660M, R5 7535HS, Samsung PM9C1a MZAL81T0HDLB	234 Points
Average AMD Ryzen 5 7535HS, AMD Radeon 660M ()	234 Points 0%

WebXPRT 4 / Overall
Lenovo ThinkPad T14s Gen 5 21LS001PGE Graphics 4-Core, Ultra 5 125U, WD PC SN740 SDDQNQD-512G-1014	228 Points +12%
Lenovo ThinkBook 16 G6 ABP Vega 7, R5 7530U, SK hynix HFS512GEJ9X125N	213 Points +5%
Average of class Office (80 - 328, n=90, last 2 years)	213 Points +5%
Lenovo ThinkPad L16 Gen 1 21L70010GE Radeon 680M, R7 PRO 7735U, SK Hynix HFS001TEJ9X164N	206 Points +1%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Radeon 660M, R5 7535HS, Samsung PM9C1a MZAL81T0HDLB	203 Points
Average AMD Ryzen 5 7535HS, AMD Radeon 660M ()	203 Points 0%
Acer Swift Edge SFE16-42-R1GM Radeon 680M, R7 7735U, Micron 3400 1TB MTFDKBA1T0TFH	189.4 Points -7%

Mozilla Kraken 1.1 / Total
Lenovo ThinkPad E16 G1 Core i5-1335U Iris Xe G7 80EUs, i5-1335U	1914 ms * -193%
Average of class Office (404 - 1966, n=97, last 2 years)	693 ms * -6%
Lenovo ThinkPad L16 Gen 1 21L70010GE Radeon 680M, R7 PRO 7735U, SK Hynix HFS001TEJ9X164N	654 ms * -0%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Radeon 660M, R5 7535HS, Samsung PM9C1a MZAL81T0HDLB	653 ms *
Average AMD Ryzen 5 7535HS, AMD Radeon 660M ()	653 ms * -0%
Lenovo ThinkBook 16 G6 ABP Vega 7, R5 7530U, SK hynix HFS512GEJ9X125N	621 ms * +5%
Acer Swift Edge SFE16-42-R1GM Radeon 680M, R7 7735U, Micron 3400 1TB MTFDKBA1T0TFH	609 ms * +7%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Graphics 4-Core, Ultra 5 125U, WD PC SN740 SDDQNQD-512G-1014	587 ms * +10%

* ... smaller is better

PCMark 10 Score		6011 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U, Graphics 4-Core	81687 MB/s +66%
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U, Radeon 680M	51522 MB/s +5%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, Radeon 660M	49119 MB/s
Average AMD Ryzen 5 7535HS (48529 - 49119, n=2)	48824 MB/s -1%
Average of class Office (7158 - 108783, n=102, last 2 years)	46978 MB/s -4%
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, Radeon 680M	46949 MB/s -4%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U, Iris Xe G7 80EUs	36786 MB/s -25%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U, Vega 7	33054 MB/s -33%

AIDA64 / Memory Read
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U, Graphics 4-Core	60354 MB/s +50%
Average of class Office (7325 - 112436, n=102, last 2 years)	46952 MB/s +17%
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, Radeon 680M	46088 MB/s +15%
Average AMD Ryzen 5 7535HS (40191 - 50259, n=2)	45225 MB/s +13%
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U, Radeon 680M	44876 MB/s +12%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, Radeon 660M	40191 MB/s
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U, Iris Xe G7 80EUs	38496 MB/s -4%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U, Vega 7	37973 MB/s -6%

AIDA64 / Memory Write
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, Radeon 680M	66010 MB/s +29%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U, Graphics 4-Core	62036 MB/s +21%
Average AMD Ryzen 5 7535HS (51316 - 54982, n=2)	53149 MB/s +4%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, Radeon 660M	51316 MB/s
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U, Radeon 680M	51095 MB/s 0%
Average of class Office (7579 - 117935, n=102, last 2 years)	51093 MB/s 0%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U, Iris Xe G7 80EUs	42689 MB/s -17%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U, Vega 7	30166 MB/s -41%

AIDA64 / Memory Latency
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U, Graphics 4-Core	139 ns * -34%
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, Radeon 680M	106.5 ns * -3%
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U, Radeon 680M	103.7 ns * -0%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, Radeon 660M	103.4 ns *
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U, Vega 7	97.5 ns * +6%
Average of class Office (8.3 - 185.2, n=102, last 2 years)	96.5 ns * +7%
Average AMD Ryzen 5 7535HS (87.7 - 103.4, n=2)	95.6 ns * +8%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U, Iris Xe G7 80EUs	89.5 ns * +13%

* ... smaller is better

DPC 延迟

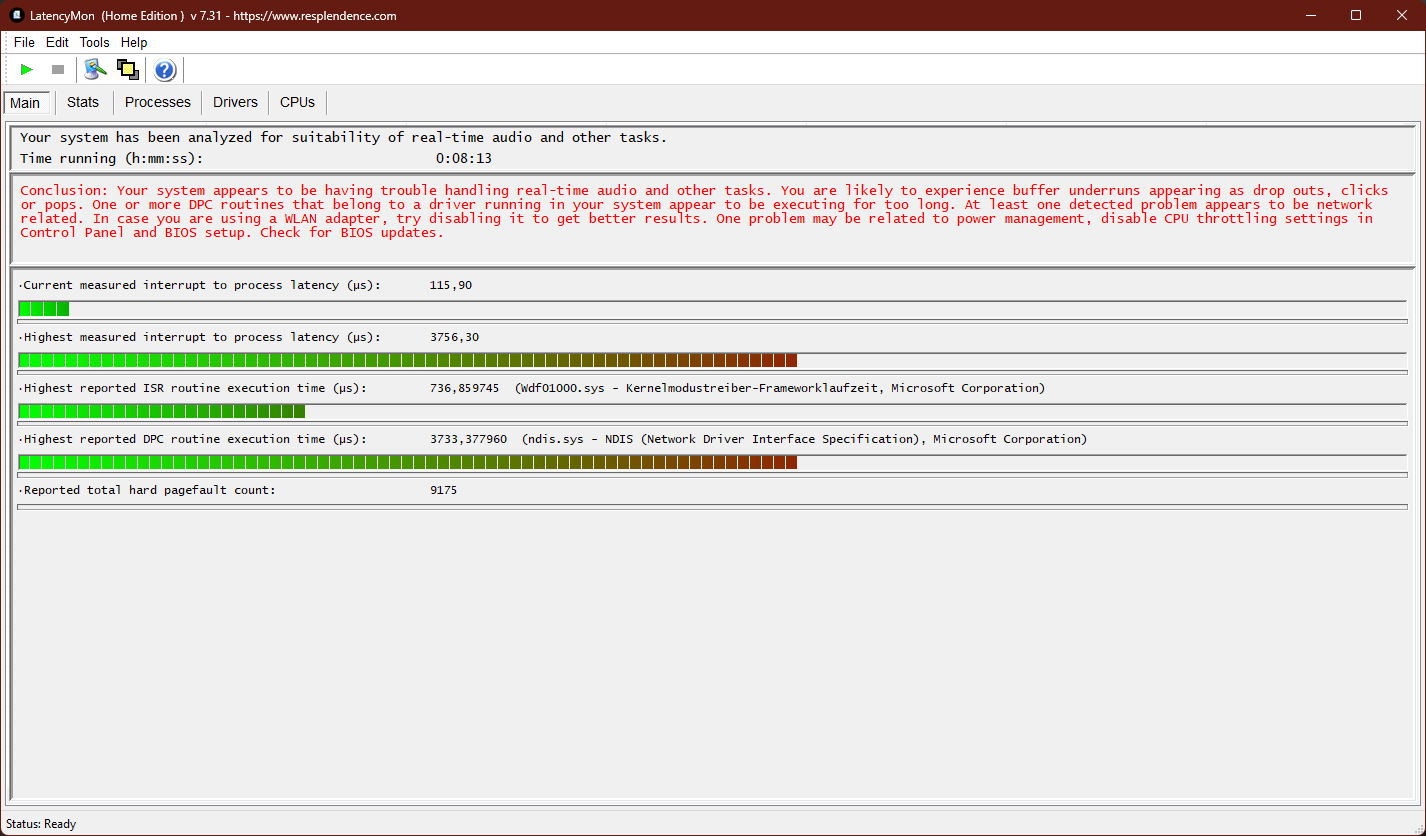

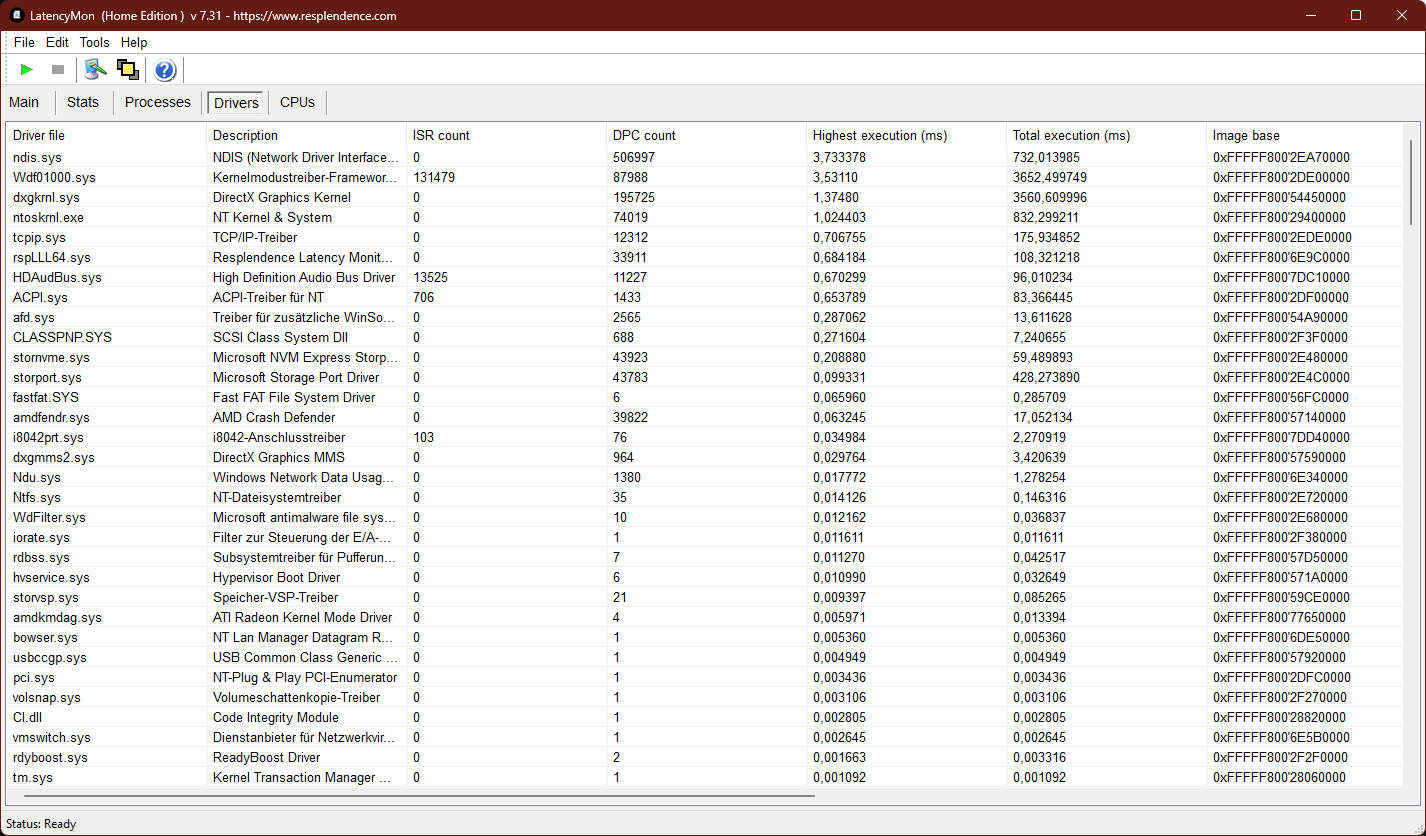

在 LatencyMon 测试中，出现了许多毫秒级的卡顿，这主要是由网络驱动程序造成的。这在正常运行时几乎看不出来，但在执行实时音频编辑等任务时就不可能没有中断。

在 YouTube 上播放 4K 视频流时，没有出现跳帧现象，这是一个非常好的结果。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo ThinkPad E16 Gen 2 21M5002VGE Radeon 660M, R5 7535HS, Samsung PM9C1a MZAL81T0HDLB	3756 μs *
Acer Swift Edge SFE16-42-R1GM Radeon 680M, R7 7735U, Micron 3400 1TB MTFDKBA1T0TFH	3151.3 μs * +16%
Lenovo ThinkBook 16 G6 ABP Vega 7, R5 7530U, SK hynix HFS512GEJ9X125N	1098.8 μs * +71%
Lenovo ThinkPad E16 G1 Core i5-1335U Iris Xe G7 80EUs, i5-1335U	808.5 μs * +78%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Graphics 4-Core, Ultra 5 125U, WD PC SN740 SDDQNQD-512G-1014	738.4 μs * +80%
Lenovo ThinkPad L16 Gen 1 21L70010GE Radeon 680M, R7 PRO 7735U, SK Hynix HFS001TEJ9X164N	514 μs * +86%

* ... smaller is better

大容量存储器

三星的固态硬盘只有 42 毫米长，当然不会打破任何速度记录，但它也成功地避免了任何严重的失误。在连续读取时，它的速度仅为 5,700 MB/s，甚至还能将一些竞争对手甩在身后。

即使在以并行工作步骤读取较小的文件时，也能达到很好的效果，例如在启动设备时就很明显。

AS SSD

DiskSpd

Samsung PM9C1a MZAL81T0HDLB

Sequential Read: 4537MB/s

Sequential Write: 2791MB/s

4K Read: 57.6MB/s

4K Write: 157.8MB/s

4K-64 Read: 556MB/s

4K-64 Write: 1378MB/s

Access Time Read: 0.109ms

Access Time Write: 0.034ms

Score Read: 1067Points

Score Write: 1785Points

Score Total: 3328Points

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Acer Swift Edge SFE16-42-R1GM Micron 3400 1TB MTFDKBA1T0TFH	90.1 pt
Lenovo ThinkBook 16 G6 ABP SK hynix HFS512GEJ9X125N	68.4 pt
Average Samsung PM9C1a MZAL81T0HDLB	68 pt
Average of class Office	64.6 pt
Lenovo ThinkPad E16 Gen 2 21M5002VGE Samsung PM9C1a MZAL81T0HDLB	63.3 pt
Lenovo ThinkPad E16 G1 Core i5-1335U	63 pt
Lenovo ThinkPad T14s Gen 5 21LS001PGE WD PC SN740 SDDQNQD-512G-1014	60.5 pt
Lenovo ThinkPad L16 Gen 1 21L70010GE SK Hynix HFS001TEJ9X164N	50.1 pt

DiskSpd
seq read
Acer Swift Edge SFE16-42-R1GM Micron 3400 1TB MTFDKBA1T0TFH	3374 (3313.29^min - 3374.32^max) MB/s +10%
Lenovo ThinkPad E16 G1 Core i5-1335U	3284 (3217.87^min - 3283.93^max) MB/s +7%
Lenovo ThinkPad T14s Gen 5 21LS001PGE WD PC SN740 SDDQNQD-512G-1014	3248 (3234.23^min - 3248.07^max) MB/s +6%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Samsung PM9C1a MZAL81T0HDLB	3075 (2882.22^min - 3074.78^max) MB/s
Average Samsung PM9C1a MZAL81T0HDLB (2608 - 3434, n=7)	3059 MB/s -1%
Average of class Office (121 - 4554, n=95, last 2 years)	2592 MB/s -16%
Lenovo ThinkPad L16 Gen 1 21L70010GE SK Hynix HFS001TEJ9X164N	2435 (217.46^min - 2434.54^max) MB/s -21%
Lenovo ThinkBook 16 G6 ABP SK hynix HFS512GEJ9X125N	2228 (2224.82^min - 2227.96^max) MB/s -28%
seq write
Acer Swift Edge SFE16-42-R1GM Micron 3400 1TB MTFDKBA1T0TFH	4348 (4055.33^min - 4347.61^max) MB/s +37%
Lenovo ThinkPad E16 G1 Core i5-1335U	3179 (2686.32^min - 3178.59^max) MB/s 0%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Samsung PM9C1a MZAL81T0HDLB	3169 (1504.63^min - 3169.22^max) MB/s
Average Samsung PM9C1a MZAL81T0HDLB (2700 - 3445, n=7)	3015 MB/s -5%
Average of class Office (43 - 5842, n=95, last 2 years)	2501 MB/s -21%
Lenovo ThinkBook 16 G6 ABP SK hynix HFS512GEJ9X125N	2476 (2458.19^min - 2475.77^max) MB/s -22%
Lenovo ThinkPad L16 Gen 1 21L70010GE SK Hynix HFS001TEJ9X164N	2443 (2277.72^min - 2443.39^max) MB/s -23%
Lenovo ThinkPad T14s Gen 5 21LS001PGE WD PC SN740 SDDQNQD-512G-1014	2431 (2279.24^min - 2431.44^max) MB/s -23%
seq q8 t1 read
Acer Swift Edge SFE16-42-R1GM Micron 3400 1TB MTFDKBA1T0TFH	6721 (5782.87^min - 6720.74^max) MB/s +9%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Samsung PM9C1a MZAL81T0HDLB	6155 (5390.52^min - 6155.14^max) MB/s
Average Samsung PM9C1a MZAL81T0HDLB (4845 - 6176, n=7)	5535 MB/s -10%
Lenovo ThinkPad T14s Gen 5 21LS001PGE WD PC SN740 SDDQNQD-512G-1014	5080 (4629.91^min - 5080.35^max) MB/s -17%
Lenovo ThinkPad E16 G1 Core i5-1335U	5075 (4200.81^min - 5075.19^max) MB/s -18%
Lenovo ThinkPad L16 Gen 1 21L70010GE SK Hynix HFS001TEJ9X164N	5005 (4095.73^min - 5004.91^max) MB/s -19%
Average of class Office (124.2 - 7120, n=95, last 2 years)	4258 MB/s -31%
Lenovo ThinkBook 16 G6 ABP SK hynix HFS512GEJ9X125N	3050 (2776.53^min - 3049.68^max) MB/s -50%
seq q8 t1 write
Acer Swift Edge SFE16-42-R1GM Micron 3400 1TB MTFDKBA1T0TFH	4904 (4491.05^min - 4904.19^max) MB/s +6%
Lenovo ThinkPad L16 Gen 1 21L70010GE SK Hynix HFS001TEJ9X164N	4665 (4639.53^min - 4664.9^max) MB/s +1%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Samsung PM9C1a MZAL81T0HDLB	4613 (4493.15^min - 4612.69^max) MB/s
Average Samsung PM9C1a MZAL81T0HDLB (3448 - 4617, n=7)	4187 MB/s -9%
Lenovo ThinkPad E16 G1 Core i5-1335U	3715 (3312.03^min - 3715.01^max) MB/s -19%
Lenovo ThinkPad T14s Gen 5 21LS001PGE WD PC SN740 SDDQNQD-512G-1014	3610 (3157.47^min - 3610.25^max) MB/s -22%
Average of class Office (46.7 - 6791, n=95, last 2 years)	3284 MB/s -29%
Lenovo ThinkBook 16 G6 ABP SK hynix HFS512GEJ9X125N	3076 (3014.92^min - 3075.82^max) MB/s -33%
4k q1 t1 read
Lenovo ThinkPad E16 G1 Core i5-1335U	71.4 (70.51^min - 71.44^max) MB/s +33%
Average Samsung PM9C1a MZAL81T0HDLB (46.5 - 83.6, n=7)	60.6 MB/s +13%
Lenovo ThinkPad T14s Gen 5 21LS001PGE WD PC SN740 SDDQNQD-512G-1014	57.4 (56.95^min - 57.36^max) MB/s +7%
Average of class Office (5.55 - 89.9, n=95, last 2 years)	57.3 MB/s +7%
Acer Swift Edge SFE16-42-R1GM Micron 3400 1TB MTFDKBA1T0TFH	56.3 (55.84^min - 56.34^max) MB/s +5%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Samsung PM9C1a MZAL81T0HDLB	53.8 (53.55^min - 53.78^max) MB/s
Lenovo ThinkBook 16 G6 ABP SK hynix HFS512GEJ9X125N	46.2 (45.88^min - 46.23^max) MB/s -14%
Lenovo ThinkPad L16 Gen 1 21L70010GE SK Hynix HFS001TEJ9X164N	6.27 (3.2^min - 6.27^max) MB/s -88%
4k q1 t1 write
Average of class Office (1.23 - 429, n=95, last 2 years)	161 MB/s +36%
Acer Swift Edge SFE16-42-R1GM Micron 3400 1TB MTFDKBA1T0TFH	146.8 (145.16^min - 146.79^max) MB/s +24%
Lenovo ThinkPad E16 G1 Core i5-1335U	138.9 (135.32^min - 138.87^max) MB/s +17%
Lenovo ThinkBook 16 G6 ABP SK hynix HFS512GEJ9X125N	126.1 (123.87^min - 126.08^max) MB/s +6%
Average Samsung PM9C1a MZAL81T0HDLB (69.4 - 165.9, n=7)	122.3 MB/s +3%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Samsung PM9C1a MZAL81T0HDLB	118.5 (94.84^min - 118.51^max) MB/s
Lenovo ThinkPad T14s Gen 5 21LS001PGE WD PC SN740 SDDQNQD-512G-1014	114.6 (106^min - 114.56^max) MB/s -3%
Lenovo ThinkPad L16 Gen 1 21L70010GE SK Hynix HFS001TEJ9X164N	22.6 (9.43^min - 22.6^max) MB/s -81%
4k q32 t16 read
Acer Swift Edge SFE16-42-R1GM Micron 3400 1TB MTFDKBA1T0TFH	2846 (2777.7^min - 2846.27^max) MB/s +409%
Lenovo ThinkBook 16 G6 ABP SK hynix HFS512GEJ9X125N	2815 (2808.82^min - 2815.46^max) MB/s +404%
Average of class Office (7.49 - 4425, n=95, last 2 years)	1231 MB/s +120%
Average Samsung PM9C1a MZAL81T0HDLB (387 - 997, n=7)	771 MB/s +38%
Lenovo ThinkPad E16 G1 Core i5-1335U	732 (677.87^min - 731.86^max) MB/s +31%
Lenovo ThinkPad T14s Gen 5 21LS001PGE WD PC SN740 SDDQNQD-512G-1014	658 (647.03^min - 657.76^max) MB/s +18%
Lenovo ThinkPad L16 Gen 1 21L70010GE SK Hynix HFS001TEJ9X164N	598 (574.02^min - 597.64^max) MB/s +7%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Samsung PM9C1a MZAL81T0HDLB	559 (514.74^min - 558.63^max) MB/s
4k q32 t16 write
Lenovo ThinkBook 16 G6 ABP SK hynix HFS512GEJ9X125N	2403 (2358.97^min - 2402.5^max) MB/s +793%
Acer Swift Edge SFE16-42-R1GM Micron 3400 1TB MTFDKBA1T0TFH	2387 (2253.97^min - 2387.46^max) MB/s +787%
Average of class Office (1.5 - 3254, n=95, last 2 years)	915 MB/s +240%
Average Samsung PM9C1a MZAL81T0HDLB (230 - 613, n=7)	423 MB/s +57%
Lenovo ThinkPad E16 G1 Core i5-1335U	386 (360.62^min - 385.6^max) MB/s +43%
Lenovo ThinkPad T14s Gen 5 21LS001PGE WD PC SN740 SDDQNQD-512G-1014	337 (330.89^min - 336.53^max) MB/s +25%
Lenovo ThinkPad L16 Gen 1 21L70010GE SK Hynix HFS001TEJ9X164N	324 (277.99^min - 324.47^max) MB/s +20%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Samsung PM9C1a MZAL81T0HDLB	269 (237.76^min - 268.69^max) MB/s

AS SSD
Score Total
Acer Swift Edge SFE16-42-R1GM Micron 3400 1TB MTFDKBA1T0TFH	6512 Points +96%
Lenovo ThinkBook 16 G6 ABP SK hynix HFS512GEJ9X125N	5355 Points +61%
Average of class Office (704 - 9204, n=92, last 2 years)	4122 Points +24%
Average Samsung PM9C1a MZAL81T0HDLB (3328 - 4794, n=7)	3882 Points +17%
Lenovo ThinkPad T14s Gen 5 21LS001PGE WD PC SN740 SDDQNQD-512G-1014	3645 Points +10%
Lenovo ThinkPad L16 Gen 1 21L70010GE SK Hynix HFS001TEJ9X164N	3617 Points +9%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Samsung PM9C1a MZAL81T0HDLB	3328 Points
Lenovo ThinkPad E16 G1 Core i5-1335U	3309 Points -1%
Score Read
Acer Swift Edge SFE16-42-R1GM Micron 3400 1TB MTFDKBA1T0TFH	2536 Points +138%
Lenovo ThinkBook 16 G6 ABP SK hynix HFS512GEJ9X125N	2353 Points +121%
Average of class Office (252 - 3364, n=92, last 2 years)	1445 Points +35%
Lenovo ThinkPad E16 G1 Core i5-1335U	1184 Points +11%
Lenovo ThinkPad L16 Gen 1 21L70010GE SK Hynix HFS001TEJ9X164N	1117 Points +5%
Lenovo ThinkPad T14s Gen 5 21LS001PGE WD PC SN740 SDDQNQD-512G-1014	1102 Points +3%
Average Samsung PM9C1a MZAL81T0HDLB (887 - 1351, n=7)	1074 Points +1%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Samsung PM9C1a MZAL81T0HDLB	1067 Points
Score Write
Acer Swift Edge SFE16-42-R1GM Micron 3400 1TB MTFDKBA1T0TFH	2752 Points +54%
Average Samsung PM9C1a MZAL81T0HDLB (1785 - 2825, n=7)	2318 Points +30%
Lenovo ThinkPad T14s Gen 5 21LS001PGE WD PC SN740 SDDQNQD-512G-1014	2062 Points +16%
Lenovo ThinkPad L16 Gen 1 21L70010GE SK Hynix HFS001TEJ9X164N	1985 Points +11%
Average of class Office (247 - 4111, n=92, last 2 years)	1982 Points +11%
Lenovo ThinkBook 16 G6 ABP SK hynix HFS512GEJ9X125N	1810 Points +1%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Samsung PM9C1a MZAL81T0HDLB	1785 Points
Lenovo ThinkPad E16 G1 Core i5-1335U	1604 Points -10%
Seq Read
Acer Swift Edge SFE16-42-R1GM Micron 3400 1TB MTFDKBA1T0TFH	5020 MB/s +11%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Samsung PM9C1a MZAL81T0HDLB	4537 MB/s
Average Samsung PM9C1a MZAL81T0HDLB (2678 - 4728, n=7)	4180 MB/s -8%
Lenovo ThinkPad E16 G1 Core i5-1335U	3962.08 MB/s -13%
Lenovo ThinkPad T14s Gen 5 21LS001PGE WD PC SN740 SDDQNQD-512G-1014	3857 MB/s -15%
Lenovo ThinkPad L16 Gen 1 21L70010GE SK Hynix HFS001TEJ9X164N	3734 MB/s -18%
Average of class Office (508 - 5796, n=92, last 2 years)	3400 MB/s -25%
Lenovo ThinkBook 16 G6 ABP SK hynix HFS512GEJ9X125N	2864 MB/s -37%
Seq Write
Acer Swift Edge SFE16-42-R1GM Micron 3400 1TB MTFDKBA1T0TFH	3630 MB/s +30%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Samsung PM9C1a MZAL81T0HDLB	2791 MB/s
Lenovo ThinkBook 16 G6 ABP SK hynix HFS512GEJ9X125N	2751 MB/s -1%
Average Samsung PM9C1a MZAL81T0HDLB (1873 - 2934, n=7)	2617 MB/s -6%
Lenovo ThinkPad L16 Gen 1 21L70010GE SK Hynix HFS001TEJ9X164N	2442 MB/s -13%
Average of class Office (294 - 5880, n=92, last 2 years)	2291 MB/s -18%
Lenovo ThinkPad E16 G1 Core i5-1335U	1915.27 MB/s -31%
Lenovo ThinkPad T14s Gen 5 21LS001PGE WD PC SN740 SDDQNQD-512G-1014	1890 MB/s -32%
4K Read
Average Samsung PM9C1a MZAL81T0HDLB (56.9 - 75.5, n=7)	63.1 MB/s +10%
Lenovo ThinkPad E16 G1 Core i5-1335U	60.93 MB/s +6%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Samsung PM9C1a MZAL81T0HDLB	57.6 MB/s
Average of class Office (18 - 91.1, n=92, last 2 years)	57.5 MB/s 0%
Lenovo ThinkPad T14s Gen 5 21LS001PGE WD PC SN740 SDDQNQD-512G-1014	57.3 MB/s -1%
Acer Swift Edge SFE16-42-R1GM Micron 3400 1TB MTFDKBA1T0TFH	51.3 MB/s -11%
Lenovo ThinkPad L16 Gen 1 21L70010GE SK Hynix HFS001TEJ9X164N	43.8 MB/s -24%
Lenovo ThinkBook 16 G6 ABP SK hynix HFS512GEJ9X125N	42.4 MB/s -26%
4K Write
Lenovo ThinkPad E16 G1 Core i5-1335U	195.18 MB/s +24%
Average Samsung PM9C1a MZAL81T0HDLB (149 - 228, n=7)	183.5 MB/s +16%
Average of class Office (28.2 - 350, n=92, last 2 years)	163.6 MB/s +4%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Samsung PM9C1a MZAL81T0HDLB	157.8 MB/s
Lenovo ThinkPad T14s Gen 5 21LS001PGE WD PC SN740 SDDQNQD-512G-1014	148.5 MB/s -6%
Lenovo ThinkPad L16 Gen 1 21L70010GE SK Hynix HFS001TEJ9X164N	122.7 MB/s -22%
Acer Swift Edge SFE16-42-R1GM Micron 3400 1TB MTFDKBA1T0TFH	118.5 MB/s -25%
Lenovo ThinkBook 16 G6 ABP SK hynix HFS512GEJ9X125N	109.2 MB/s -31%
4K-64 Read
Lenovo ThinkBook 16 G6 ABP SK hynix HFS512GEJ9X125N	2025 MB/s +264%
Acer Swift Edge SFE16-42-R1GM Micron 3400 1TB MTFDKBA1T0TFH	1983 MB/s +257%
Average of class Office (182.3 - 2713, n=92, last 2 years)	1047 MB/s +88%
Lenovo ThinkPad E16 G1 Core i5-1335U	727.3 MB/s +31%
Lenovo ThinkPad L16 Gen 1 21L70010GE SK Hynix HFS001TEJ9X164N	700 MB/s +26%
Lenovo ThinkPad T14s Gen 5 21LS001PGE WD PC SN740 SDDQNQD-512G-1014	659 MB/s +19%
Average Samsung PM9C1a MZAL81T0HDLB (350 - 815, n=7)	593 MB/s +7%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Samsung PM9C1a MZAL81T0HDLB	556 MB/s
4K-64 Write
Acer Swift Edge SFE16-42-R1GM Micron 3400 1TB MTFDKBA1T0TFH	2271 MB/s +65%
Average Samsung PM9C1a MZAL81T0HDLB (1378 - 2365, n=7)	1877 MB/s +36%
Lenovo ThinkPad T14s Gen 5 21LS001PGE WD PC SN740 SDDQNQD-512G-1014	1724 MB/s +25%
Lenovo ThinkPad L16 Gen 1 21L70010GE SK Hynix HFS001TEJ9X164N	1618 MB/s +17%
Average of class Office (183.4 - 3394, n=92, last 2 years)	1589 MB/s +15%
Lenovo ThinkBook 16 G6 ABP SK hynix HFS512GEJ9X125N	1425 MB/s +3%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Samsung PM9C1a MZAL81T0HDLB	1378 MB/s
Lenovo ThinkPad E16 G1 Core i5-1335U	1217.52 MB/s -12%
Access Time Read
Lenovo ThinkPad T14s Gen 5 21LS001PGE WD PC SN740 SDDQNQD-512G-1014	0.126 ms * -16%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Samsung PM9C1a MZAL81T0HDLB	0.109 ms *
Lenovo ThinkPad E16 G1 Core i5-1335U	0.089 ms * +18%
Acer Swift Edge SFE16-42-R1GM Micron 3400 1TB MTFDKBA1T0TFH	0.088 ms * +19%
Lenovo ThinkPad L16 Gen 1 21L70010GE SK Hynix HFS001TEJ9X164N	0.085 ms * +22%
Average of class Office (0.022 - 0.302, n=92, last 2 years)	0.07957 ms * +27%
Average Samsung PM9C1a MZAL81T0HDLB (0.025 - 0.12, n=7)	0.07157 ms * +34%
Lenovo ThinkBook 16 G6 ABP SK hynix HFS512GEJ9X125N	0.041 ms * +62%
Access Time Write
Lenovo ThinkBook 16 G6 ABP SK hynix HFS512GEJ9X125N	0.128 ms * -276%
Lenovo ThinkPad L16 Gen 1 21L70010GE SK Hynix HFS001TEJ9X164N	0.113 ms * -232%
Lenovo ThinkPad E16 G1 Core i5-1335U	0.071 ms * -109%
Average of class Office (0.017 - 0.625, n=92, last 2 years)	0.07032 ms * -107%
Average Samsung PM9C1a MZAL81T0HDLB (0.018 - 0.074, n=7)	0.03986 ms * -17%
Acer Swift Edge SFE16-42-R1GM Micron 3400 1TB MTFDKBA1T0TFH	0.035 ms * -3%
Lenovo ThinkPad E16 Gen 2 21M5002VGE Samsung PM9C1a MZAL81T0HDLB	0.034 ms *
Lenovo ThinkPad T14s Gen 5 21LS001PGE WD PC SN740 SDDQNQD-512G-1014	0.025 ms * +26%

* ... smaller is better

Continuous Performance Read: DiskSpd Read Loop, Queue Depth 8

Lenovo ThinkPad E16 Gen 2 21M5002VGE Samsung PM9C1a MZAL81T0HDLB; diskspd 2.0.17 f: Ø5607 (3158.08-5683.87)

Lenovo ThinkPad T14s Gen 5 21LS001PGE WD PC SN740 SDDQNQD-512G-1014; diskspd 2.0.17 f: Ø4423 (2949.64-5090.84)

Lenovo ThinkPad E16 G1 Core i5-1335U : Ø5056 (4332.44-5075.11)

图形卡

与前一款处理器最大的不同是 AMD Ryzen 5 7530U的最大区别在于集成图形芯片。在 AMD Ryzen 5 7535HS的 Radeon RX Vega 7被一个 Radeon 660M取代。与采用旧版芯片的同类笔记本电脑相比，我们发现其性能通常提高了 40% 至 50%。与英特尔不再更新的 iGPU，即 Iris Xe 80EUs的差距同样很大。

如果对图形要求过高，即使是 Radeon 660M 也会明显吃不消，但进行一些照片和视频编辑以及使用旧版 3D 应用程序还是可以的。

有关各种图形芯片的基准测试、数据和游戏测试，请参阅我们的 GPU 基准列表.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Acer Swift Edge SFE16-42-R1GM AMD Radeon 680M, AMD Ryzen 7 7735U	100 pt
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Radeon 680M, AMD Ryzen 7 PRO 7735U	88.9 pt
Lenovo ThinkPad T14s Gen 5 21LS001PGE ^-2! Intel Graphics 4-Cores iGPU (Arc), Intel Core Ultra 5 125U	82.5 pt
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Radeon 660M, AMD Ryzen 5 7535HS	72.3 pt
Average AMD Radeon 660M	66.1 pt
Average of class Office	65.4 pt
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U	52.5 pt
Lenovo ThinkBook 16 G6 ABP ^-1! AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	52.3 pt

3DMark 11 - 1280x720 Performance GPU
Acer Swift Edge SFE16-42-R1GM AMD Radeon 680M, AMD Ryzen 7 7735U	9702 Points +38%
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Radeon 680M, AMD Ryzen 7 PRO 7735U	9611 Points +37%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Radeon 660M, AMD Ryzen 5 7535HS	7024 Points
Average of class Office (1468 - 13132, n=93, last 2 years)	6580 Points -6%
Average AMD Radeon 660M (4636 - 7184, n=9)	6332 Points -10%
Lenovo ThinkBook 16 G6 ABP AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	5517 Points -21%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U	5160 Points -27%

3DMark
1280x720 Cloud Gate Standard Graphics
Acer Swift Edge SFE16-42-R1GM AMD Radeon 680M, AMD Ryzen 7 7735U	43943 Points +33%
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Radeon 680M, AMD Ryzen 7 PRO 7735U	37020 Points +12%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Radeon 660M, AMD Ryzen 5 7535HS	33036 Points
Average AMD Radeon 660M (21857 - 33949, n=8)	30318 Points -8%
Average of class Office (5681 - 58068, n=71, last 2 years)	26117 Points -21%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U	23328 Points -29%
1920x1080 Fire Strike Graphics
Acer Swift Edge SFE16-42-R1GM AMD Radeon 680M, AMD Ryzen 7 7735U	6777 Points +39%
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Radeon 680M, AMD Ryzen 7 PRO 7735U	6105 Points +25%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Graphics 4-Cores iGPU (Arc), Intel Core Ultra 5 125U	5281 Points +8%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Radeon 660M, AMD Ryzen 5 7535HS	4881 Points
Average of class Office (712 - 9228, n=95, last 2 years)	4635 Points -5%
Average AMD Radeon 660M (3447 - 4993, n=9)	4521 Points -7%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U	3596 Points -26%
Lenovo ThinkBook 16 G6 ABP AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	3437 Points -30%
2560x1440 Time Spy Graphics
Acer Swift Edge SFE16-42-R1GM AMD Radeon 680M, AMD Ryzen 7 7735U	2276 Points +44%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Graphics 4-Cores iGPU (Arc), Intel Core Ultra 5 125U	1980 Points +25%
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Radeon 680M, AMD Ryzen 7 PRO 7735U	1874 Points +18%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Radeon 660M, AMD Ryzen 5 7535HS	1585 Points
Average of class Office (242 - 3401, n=95, last 2 years)	1497 Points -6%
Average AMD Radeon 660M (1016 - 1588, n=9)	1442 Points -9%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U	1150 Points -27%
Lenovo ThinkBook 16 G6 ABP AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	1123 Points -29%

3DMark 11 Performance		7442 points
3DMark Cloud Gate Standard Score		23824 points
3DMark Fire Strike Score		4497 points
3DMark Time Spy Score		1782 points
Help

... in comparison

Blender
v3.3 Classroom HIP/AMD
Lenovo ThinkBook 16 G6 ABP AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	710 Seconds * -62%
Average of class Office (298 - 1215, n=19, last 2 years)	703 Seconds * -61%
Average AMD Radeon 660M (438 - 755, n=7)	561 Seconds * -28%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Radeon 660M, AMD Ryzen 5 7535HS	438 Seconds *
Acer Swift Edge SFE16-42-R1GM AMD Radeon 680M, AMD Ryzen 7 7735U	347 Seconds * +21%
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Radeon 680M, AMD Ryzen 7 PRO 7735U	298 Seconds * +32%
v3.3 Classroom CPU
Average of class Office (343 - 3964, n=98, last 2 years)	828 Seconds * -3%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Radeon 660M, AMD Ryzen 5 7535HS	802 Seconds *
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Graphics 4-Cores iGPU (Arc), Intel Core Ultra 5 125U	689 Seconds * +14%
Average AMD Radeon 660M (323 - 968, n=9)	662 Seconds * +17%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U	658 Seconds * +18%
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Radeon 680M, AMD Ryzen 7 PRO 7735U	609 Seconds * +24%
Lenovo ThinkBook 16 G6 ABP AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	583 Seconds * +27%
Acer Swift Edge SFE16-42-R1GM AMD Radeon 680M, AMD Ryzen 7 7735U	540 Seconds * +33%

* ... smaller is better

游戏性能

ThinkPad E16 Gen 2 绝对不是为游戏而设计的。只要图形设置过高，帧速率就会迅速降至 20fps 以下。作为工作之余的消遣，iGPU 偶尔还能应付一下游戏，尽管不会对图形处理器提出很高的要求。即使是目前要求并不高的《F1 2024》，在最低设置下也能玩得有模有样。

Performance Rating - Percent
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, AMD Radeon 680M	98.2 pt
Acer Swift Edge SFE16-42-R1GM ^-1! AMD Ryzen 7 7735U, AMD Radeon 680M	96.7 pt
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, AMD Radeon 660M	89.2 pt
Average of class Office	79.8 pt
Lenovo ThinkPad T14s Gen 5 21LS001PGE ^-1! Intel Core Ultra 5 125U, Intel Graphics 4-Cores iGPU (Arc)	79.7 pt
Lenovo ThinkBook 16 G6 ABP ^-1! AMD Ryzen 5 7530U, AMD Radeon RX Vega 7	65.2 pt
Lenovo ThinkPad E16 G1 Core i5-1335U ^-1! Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs	54.8 pt

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, AMD Radeon 680M	20 (1.649^min, 13.2^P1) fps +6%
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U, AMD Radeon 680M	19.4 (3.62^min, 14.1^P1) fps +3%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, AMD Radeon 660M	18.9 (2.23^min, 12.3^P1) fps
Average of class Office (3.35 - 47.8, n=81, last 2 years)	12.3 fps -35%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U, AMD Radeon RX Vega 7	11.3 (1.654^min, 7.94^P1) fps -40%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U, Intel Graphics 4-Cores iGPU (Arc)	8.87 (1.867^min, 6.33^P1) fps -53%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs	5.41 (2.92^min, 3.36^P1) fps -71%

Final Fantasy XV Benchmark - 1920x1080 High Quality
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, AMD Radeon 680M	20.4 fps +19%
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U, AMD Radeon 680M	19.3 fps +12%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U, Intel Graphics 4-Cores iGPU (Arc)	17.3 fps +1%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, AMD Radeon 660M	17.2 fps
Average of class Office (2.03 - 35.7, n=92, last 2 years)	15.3 fps -11%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs	12.1 fps -30%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U, AMD Radeon RX Vega 7	11.9 fps -31%

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U, AMD Radeon 680M	36.4 (6.6^min, 8.1^P1) fps +26%
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, AMD Radeon 680M	35.6 (18.8^min, 20.9^P1) fps +23%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, AMD Radeon 660M	29 (22.6^min, 23.6^P1) fps
Average of class Office (9.6 - 56.5, n=79, last 2 years)	26.3 fps -9%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U, AMD Radeon RX Vega 7	20.6 (7.3^min, 9.63^P1) fps -29%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs	18.3 (5^min, 5^P1) fps -37%

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U, AMD Radeon 680M	61 (52.3^min) fps +13%
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, AMD Radeon 680M	59.9 (51.6^min) fps +11%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U, Intel Graphics 4-Cores iGPU (Arc)	56.6 (31.1^min) fps +5%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, AMD Radeon 660M	53.9 (47.5^min) fps
Average of class Office (8.4 - 121.2, n=103, last 2 years)	49.7 fps -8%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U, AMD Radeon RX Vega 7	45.8 (42.7^min) fps -15%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs	45 (41.1^min) fps -17%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, AMD Radeon 680M	32.9 fps +7%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, AMD Radeon 660M	30.8 fps
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U, AMD Radeon 680M	30.2 fps -2%
Average of class Office (8.88 - 92.6, n=101, last 2 years)	29.2 fps -5%
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U, AMD Radeon RX Vega 7	26.2 fps -15%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U, Intel Graphics 4-Cores iGPU (Arc)	25.4 fps -18%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs	21 fps -32%

Cyberpunk 2077 2.1 Phantom Liberty - 1920x1080 Ultra Preset (FSR off)
Average of class Office (2.3 - 23, n=17, last 2 years)	11.8 fps +5%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U, Intel Graphics 4-Cores iGPU (Arc)	11.7 (10.1^min) fps +4%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, AMD Radeon 660M	11.2 (9.6^min) fps
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, AMD Radeon 680M	11 (8.92^min) fps -2%

F1 24 | Far Cry 5 | Baldur's Gate 3

F1 24
1920x1080 High Preset AA:T AF:16x
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, AMD Radeon 680M	33.5 (26^min, 20^P1) fps +31%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, AMD Radeon 660M	25.6 (21^min, 18^P1) fps
Average of class Office (16.7 - 33.5, n=4, last 2 years)	23.9 fps -7%
Average AMD Radeon 660M (19.8 - 25.6, n=2)	22.7 fps -11%
1920x1080 Ultra High Preset AA:T AF:16x
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, AMD Radeon 680M	7.41 (4^min, 4^P1) fps +32%
Average of class Office (5.6 - 7.41, n=2, last 2 years)	6.51 fps +16%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, AMD Radeon 660M	5.6 (3^min, 3^P1) fps
Average AMD Radeon 660M ()	5.6 fps 0%

Far Cry 5
1920x1080 High Preset AA:T
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U, AMD Radeon 680M	31 (10^min) fps +35%
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, AMD Radeon 680M	31 (28^min) fps +35%
Average AMD Radeon 660M (16 - 30, n=6)	25 fps +9%
Average of class Office (9 - 40, n=42, last 2 years)	23.9 fps +4%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, AMD Radeon 660M	23 (11^min) fps
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U, AMD Radeon RX Vega 7	19 fps -17%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs	18 (16^min) fps -22%
1920x1080 Ultra Preset AA:T
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, AMD Radeon 680M	29 (26^min) fps +32%
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U, AMD Radeon 680M	28 (17^min) fps +27%
Average AMD Radeon 660M (16 - 27, n=5)	23.2 fps +5%
Average of class Office (8 - 38, n=41, last 2 years)	22.8 fps +4%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, AMD Radeon 660M	22 (20^min) fps
Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U, AMD Radeon RX Vega 7	18 fps -18%
Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs	17 (15^min) fps -23%

Baldur's Gate 3
1920x1080 High Preset
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, AMD Radeon 680M	20 (15^P0.1, 17^P1) fps +54%
Average of class Office (8.17 - 30, n=13, last 2 years)	16 fps +23%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, AMD Radeon 660M	13 (9^P0.1, 11^P1) fps
Average AMD Radeon 660M (10.3 - 13.3, n=3)	12.2 fps -6%
Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U, Intel Graphics 4-Cores iGPU (Arc)	10.6 (8.91^min, 8.98^P0.1, 9.12^P1) fps -18%
1920x1080 Ultra Preset
Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, AMD Radeon 680M	19 (14^P0.1, 16^P1) fps +58%
Average of class Office (7.96 - 28, n=11, last 2 years)	16 fps +33%
Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, AMD Radeon 660M	12 (5^P0.1, 9^P1) fps
Average AMD Radeon 660M (9.97 - 12.6, n=3)	11.5 fps -4%

在最高图形设置下对《赛博朋克 2077》进行的连续测试中，没有出现任何延迟迹象，这意味着 E16 可以提供持续稳定的性能。显卡 Radeon 680M和英特尔弧形 4 核心和英特尔 Arc 4 Core，可在基本型 ThinkPad 的其他型号中找到。 AMD Ryzen 7 7735HS或英特尔酷睿 5 125U这两款产品的性能都略胜一筹。

Cyberpunk 2077 ultra FPS diagram

Lenovo ThinkPad E16 Gen 2 21M5002VGE R5 7535HS, Radeon 660M: Ø7.03 (6.65-7.19)

Lenovo ThinkPad L16 Gen 1 21L70010GE R7 PRO 7735U, Radeon 680M: Ø10 (7.19-11.3)

Lenovo ThinkPad T14s Gen 5 21LS001PGE Ultra 5 125U, Graphics 4-Core: Ø10.2 (9.58-10.6)

	low	med.	high	ultra
GTA V (2015)	128.9	116.1	40.5	18.9
Dota 2 Reborn (2015)	121.1	94.4	63.1	53.9
Final Fantasy XV Benchmark (2018)	44.9	23.7	17.2
X-Plane 11.11 (2018)	48.2	35.6	30.8
Far Cry 5 (2018)	55	26	23	22
Strange Brigade (2018)	117.4	43.3	35	29
Baldur's Gate 3 (2023)	22	14	13	12
Cyberpunk 2077 2.1 Phantom Liberty (2023)	22.9	17.4	13.2	11.2
F1 24 (2024)	42.2	35.5	25.6	5.6

废气排放 - 多为静音商务笔记本电脑

噪音排放

测试过程中的显著特点也反映在我们的标准噪音测量中。ThinkPad E16 G2 非常安静，即使在满载情况下也是如此。你可以很容易地听到风扇的声音，但只是在背景音中，并不十分恼人。如果选择峰值性能略有降低的平衡模式，风扇会变得更加安静。在最弱模式下，笔记本电脑一般会保持完全静音。

作为对比：公认速度更快的 ThinkPad L16 Gen 1 在嘈杂模式下的噪音正好是它的两倍。

Noise Level

Idle		24.6 / 24.6 / 24.6 dB(A)
Load		28.2 / 36.3 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 24.6 dB(A)

	Lenovo ThinkPad E16 Gen 2 21M5002VGE Radeon 660M, R5 7535HS, Samsung PM9C1a MZAL81T0HDLB	Lenovo ThinkPad L16 Gen 1 21L70010GE Radeon 680M, R7 PRO 7735U, SK Hynix HFS001TEJ9X164N	Lenovo ThinkPad T14s Gen 5 21LS001PGE Graphics 4-Core, Ultra 5 125U, WD PC SN740 SDDQNQD-512G-1014	Lenovo ThinkPad E16 G1 Core i5-1335U Iris Xe G7 80EUs, i5-1335U	Lenovo ThinkBook 16 G6 ABP Vega 7, R5 7530U, SK hynix HFS512GEJ9X125N	Acer Swift Edge SFE16-42-R1GM Radeon 680M, R7 7735U, Micron 3400 1TB MTFDKBA1T0TFH
Noise		-10%	-4%	-4%	-3%	-18%
off / environment *	24.6	25.2 -2%	24.4 1%	24.6 -0%	24.3 1%	25.7 -4%
Idle Minimum *	24.6	25.2 -2%	24.4 1%	24.6 -0%	24.3 1%	25.7 -4%
Idle Average *	24.6	25.2 -2%	24.4 1%	24.6 -0%	24.3 1%	27 -10%
Idle Maximum *	24.6	25.2 -2%	24.4 1%	24.6 -0%	24.3 1%	29.3 -19%
Load Average *	28.2	38.3 -36%	32.6 -16%	32.7 -16%	29.7 -5%	42.3 -50%
Cyberpunk 2077 ultra *	36.3	41.5 -14%	39.9 -10%
Load Maximum *	36.3	41.8 -15%	39.5 -9%	39.2 -8%	41.4 -14%	42.7 -18%
Witcher 3 ultra *				34.7	32.1

* ... smaller is better

温度

与产生噪音的情况类似，机箱温度也保持适中，这对于一款体积并不紧凑的商务笔记本电脑来说是意想不到的。即使在最苛刻的条件下，我们在直接位于 CPU 上部的键盘区域测得的最高温度也达到了 43 °C。

相比之下，掌托则保持凉爽。在执行简单任务时，温度仅比室温高几度。

Max. Load

Idle

Cyberpunk


33 °C	42.6 °C	29.4 °C
32.8 °C	38 °C	26.5 °C
23.7 °C	24.2 °C	22.3 °C

Maximum: 42.6 °C
Average: 30.3 °C


29.8 °C	43.3 °C	37 °C
25.7 °C	32.3 °C	35.1 °C
24 °C	27.5 °C	28.8 °C

Maximum: 43.3 °C
Average: 31.5 °C

Power Supply (max.) 37.1 °C | Room Temperature 19.3 °C | Fluke 62 Max+

Max. Load

Idle

Cyberpunk


23.1 °C	24.1 °C	22.9 °C
22 °C	23.1 °C	22.2 °C
20.5 °C	20.7 °C	21 °C

Maximum: 24.1 °C
Average: 22.2 °C


22.6 °C	24.9 °C	23 °C
22.4 °C	24.2 °C	22.3 °C
21.6 °C	21.8 °C	21.6 °C

Maximum: 24.9 °C
Average: 22.7 °C

Power Supply (max.) 25.9 °C | Room Temperature 18.8 °C | Fluke 62 Max+

Max. Load

Idle

Cyberpunk


32.1 °C	38.8 °C	27.6 °C
31.6 °C	37 °C	25.3 °C
23 °C	23.1 °C	22.2 °C

Maximum: 38.8 °C
Average: 29 °C


29.7 °C	39.8 °C	35.3 °C
24.6 °C	34.2 °C	31.8 °C
23 °C	25.9 °C	25.8 °C

Maximum: 39.8 °C
Average: 30 °C

Power Supply (max.) 35.1 °C | Room Temperature 20.1 °C | Fluke 62 Max+

(+) The average temperature for the upper side under maximal load is 30.3 °C / 87 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 42.6 °C / 109 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 43.3 °C / 110 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 22.2 °C / 72 F, compared to the device average of 29.5 °C / 85 F.
(+) 3: The average temperature for the upper side is 29 °C / 84 F, compared to the average of 29.5 °C / 85 F for the class Office.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 24.2 °C / 75.6 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (+3.5 °C / 6.3 F).

	Lenovo ThinkPad E16 Gen 2 21M5002VGE AMD Ryzen 5 7535HS, AMD Radeon 660M	Lenovo ThinkPad L16 Gen 1 21L70010GE AMD Ryzen 7 PRO 7735U, AMD Radeon 680M	Lenovo ThinkPad T14s Gen 5 21LS001PGE Intel Core Ultra 5 125U, Intel Graphics 4-Cores iGPU (Arc)	Lenovo ThinkPad E16 G1 Core i5-1335U Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs	Lenovo ThinkBook 16 G6 ABP AMD Ryzen 5 7530U, AMD Radeon RX Vega 7	Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U, AMD Radeon 680M
Heat		-5%	1%	-11%	-19%	-22%
Maximum Upper Side *	42.6	38.6 9%	40.2 6%	44 -3%	40.8 4%	49.4 -16%
Maximum Bottom *	43.3	45.7 -6%	39 10%	50.4 -16%	50.5 -17%	44.7 -3%
Idle Upper Side *	24.1	25.6 -6%	26 -8%	27.2 -13%	29.3 -22%	34 -41%
Idle Bottom *	24.9	28.8 -16%	25.8 -4%	27.8 -12%	35.2 -41%	31.6 -27%

* ... smaller is better

压力测试

对 CPU 和 GPU 的持续高负荷运行并没有让 ThinkPad E16 Gen 2 感到无动于衷，但使用 HWiNFO 记录的最高 82 °C 的传感器值要比 100 °C 的临界值低得多。

同时，处理器的供电功率为允许的 30 瓦。我们无法检测到任何节流现象，即使在时钟频率较高的情况下也是如此。

发言人

对于笔记本电脑来说，小型立体声扬声器的表现还是不错的。高音，尤其是声音，听起来不错，甚至很有力量，复杂或混合的声音也能很好地再现。哈曼公司旗下拥有从 JBL 到 Bower & Wilkins 等众多音响品牌，从哈曼公司购买扬声器似乎是个不错的决定。

另一方面，低音特别弱，因此几乎感觉不到。考虑到内置驱动器的尺寸，这当然不足为奇。

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Lenovo ThinkPad E16 Gen 2 21M5002VGE audio analysis

(±) | speaker loudness is average but good (77 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 18.2% lower than median
(±) | linearity of bass is average (13.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.8% away from median
(±) | linearity of mids is average (7.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.2% away from median
(+) | highs are linear (5.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.5% difference to median)
Compared to same class
» 23% of all tested devices in this class were better, 6% similar, 71% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 30% of all tested devices were better, 8% similar, 62% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook Pro 16 2021 M1 Pro audio analysis

(+) | speakers can play relatively loud (84.7 dB)
Bass 100 - 315 Hz
(+) | good bass - only 3.8% away from median
(+) | bass is linear (5.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (2.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (4.6% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 100% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 4%, average was 25%, worst was 134%

能源管理 - E16 证明了自己的经济性

耗电量

与英特尔 Raptor Lake 处理器相比，AMD Ryzen CPU 在能效方面更胜一筹，但 Meteor Lake 系列芯片却不再如此。ThinkPad E16 的平均功耗为 7 瓦，在最佳情况下为 4 瓦，这些数据都很强劲，但例如联想 ThinkPad T14s的英特尔酷睿 5 125U则要经济得多三分之一。

相比之下，在负载情况下，最大功耗限制就会显现出来。我们甚至没有测出 50 瓦的绝对峰值。总而言之，E16 是一个经济实惠的选择。

Power Consumption

Off / Standby	0.4 / 0.8 Watt
Idle	3.6 / 7.1 / 8.4 Watt
Load	39 / 47.5 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Lenovo ThinkPad E16 Gen 2 21M5002VGE R5 7535HS, Radeon 660M, Samsung PM9C1a MZAL81T0HDLB, IPS, 1920x1200, 16"	Lenovo ThinkPad L16 Gen 1 21L70010GE R7 PRO 7735U, Radeon 680M, SK Hynix HFS001TEJ9X164N, IPS, 1920x1200, 16"	Lenovo ThinkPad T14s Gen 5 21LS001PGE Ultra 5 125U, Graphics 4-Core, WD PC SN740 SDDQNQD-512G-1014, IPS LED, 1920x1200, 14"	Lenovo ThinkPad E16 G1 Core i5-1335U i5-1335U, Iris Xe G7 80EUs, , IPS, 1920x1200, 16"	Lenovo ThinkBook 16 G6 ABP R5 7530U, Vega 7, SK hynix HFS512GEJ9X125N, IPS, 1920x1200, 16"	Acer Swift Edge SFE16-42-R1GM R7 7735U, Radeon 680M, Micron 3400 1TB MTFDKBA1T0TFH, OLED, 3840x2400, 16"	Average AMD Radeon 660M	Average of class Office
Power Consumption		-19%	4%	-21%	-10%	-40%	-15%	-14%
Idle Minimum *	3.6	4.6 -28%	2.3 36%	4.9 -36%	3.7 -3%	8.6 -139%	4.41 ?(2.4 - 8, n=9) -23%	4.5 ?(2.2 - 13.8, n=94, last 2 years) -25%
Idle Average *	7.1	8.2 -15%	5.1 28%	8.3 -17%	7.1 -0%	7.7 -8%	6.74 ?(4.6 - 8.7, n=9) 5%	7.42 ?(3.8 - 14.9, n=94, last 2 years) -5%
Idle Maximum *	8.4	8.9 -6%	6.7 20%	8.6 -2%	7.7 8%	9.3 -11%	8.29 ?(5.1 - 13, n=9) 1%	9.09 ?(4.89 - 18.6, n=94, last 2 years) -8%
Load Average *	39	45.8 -17%	37.5 4%	42.9 -10%	43.9 -13%	47.9 -23%	46 ?(24.4 - 61.5, n=9) -18%	42.1 ?(8.7 - 77.9, n=91, last 2 years) -8%
Cyberpunk 2077 ultra external monitor *	35.6	41.4 -16%	41.4 -16%
Cyberpunk 2077 ultra *	36.6	42.4 -16%	37.8 -3%
Load Maximum *	47.5	65.5 -38%	68.4 -44%	67 -41%	66.6 -40%	56 -18%	65.7 ?(47.5 - 88, n=9) -38%	60 ?(11.1 - 106.5, n=94, last 2 years) -26%
Witcher 3 ultra *				44.9	40.8	46.3

* ... smaller is better

Power consumption Cyberpunk / stress test

Lenovo ThinkPad E16 Gen 2 21M5002VGE R5 7535HS, Radeon 660M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø40.3 (39.8-47.5)

Lenovo ThinkPad E16 G1 Core i5-1335U i5-1335U, Iris Xe G7 80EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø55.8 (52.3-66.9)

Lenovo ThinkPad E16 Gen 2 21M5002VGE R5 7535HS, Radeon 660M; Idle 150cd/m2: Ø6.57 (5.98-8.14)

Lenovo ThinkPad E16 G1 Core i5-1335U i5-1335U, Iris Xe G7 80EUs; Idle 150cd/m2: Ø6.08 (5.78-7.24)

Lenovo ThinkPad E16 Gen 2 21M5002VGE R5 7535HS, Radeon 660M; Cyberpunk 2077 FHD ultra no FSR 150cd: Ø36.6 (35.6-37.2)

Power consumption with an external monitor

Lenovo ThinkPad E16 Gen 2 21M5002VGE R5 7535HS, Radeon 660M; Prime95 V2810 Stress (external Monitor): Ø37 (36.5-43.8)

Lenovo ThinkPad E16 G1 Core i5-1335U i5-1335U, Iris Xe G7 80EUs; Prime95 V2810 Stress (external Monitor): Ø56.7 (49.6-66.9)

Lenovo ThinkPad E16 G1 Core i5-1335U i5-1335U, Iris Xe G7 80EUs; Cinebench R15 Multi (external Monitor): Ø62.8 (55.4-66.8)

Lenovo ThinkPad E16 Gen 2 21M5002VGE R5 7535HS, Radeon 660M; Cinebench R23 Multi (external Monitor): Ø33.8 (33.3-42.1)

Lenovo ThinkPad E16 Gen 2 21M5002VGE R5 7535HS, Radeon 660M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø37.4 (36.6-43.5)

Lenovo ThinkPad E16 G1 Core i5-1335U i5-1335U, Iris Xe G7 80EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø32.5 (31.1-41)

Lenovo ThinkPad E16 Gen 2 21M5002VGE R5 7535HS, Radeon 660M; Idle 1min (external Monitor): Ø6.39 (5.51-7.74)

Lenovo ThinkPad E16 G1 Core i5-1335U i5-1335U, Iris Xe G7 80EUs; Idle 1min (external Monitor): Ø4.95 (4.6-6.05)

Lenovo ThinkPad E16 Gen 2 21M5002VGE R5 7535HS, Radeon 660M; Cyberpunk 2077 FHD ultra no FSR - external Monitor: Ø35.6 (35.1-36.3)

电池寿命

ThinkPad 57 瓦时的电池续航时间可圈可点。在中等亮度的上网冲浪测试中，电池的续航时间远远超过了 8 小时。这与基本办公任务所需的时间相差无几。

在飞行模式下播放视频时，该系统的表现更加出色。对于如此大容量的电池来说，12 小时是个不错的数字。在满负荷状态下，我们仍然测得将近 3 个小时，这与任务管理器显示电池模式下处理器利用率限制在 50% 以下有关。

Battery Runtime

WiFi Websurfing (Edge 129)		8h 55min
WiFi Websurfing max. Brightness (Edge129)		7h 36min
Big Buck Bunny H.264 1080p		12h 08min
Load (maximum brightness)		2h 39min

	Lenovo ThinkPad E16 Gen 2 21M5002VGE R5 7535HS, Radeon 660M, 57 Wh	Lenovo ThinkPad L16 Gen 1 21L70010GE R7 PRO 7735U, Radeon 680M, 57 Wh	Lenovo ThinkPad T14s Gen 5 21LS001PGE Ultra 5 125U, Graphics 4-Core, 58 Wh	Lenovo ThinkPad E16 G1 Core i5-1335U i5-1335U, Iris Xe G7 80EUs, 47 Wh	Lenovo ThinkBook 16 G6 ABP R5 7530U, Vega 7, 45 Wh	Acer Swift Edge SFE16-42-R1GM R7 7735U, Radeon 680M, 54 Wh	Average of class Office
Battery Runtime		9%	4%	-41%	5%	-30%	-6%
H.264	728	656 -10%			696 -4%	518 -29%	703 ?(348 - 1112, n=33, last 2 years) -3%
WiFi v1.3	535	674 26%	712 33%	314 -41%	605 13%	437 -18%	599 ?(300 - 1349, n=95, last 2 years) 12%
Load	159	178 12%	117 -26%			89 -44%	117.6 ?(56 - 218, n=56, last 2 years) -26%
Reader / Idle						653	1300 ?(527 - 2296, n=16, last 2 years)

Pros

+ 静音风扇

+ 实用的系统性能

+ 坚固的金属外壳

+ 电池寿命长

+ 几乎不发热

+ 易于维护

+ 免费固态硬盘插槽

Cons

- 显示效果差

- 键盘简单（对于 ThinkPad 而言）

- 无 USB4

结论 - 工作主力而非高级笔记本电脑

在 ThinkPad E16 Gen 2 上，联想将其成功的商务笔记本电脑简化到了最基本的要求。计算性能、电池续航时间以及散热系统和电源的平衡性都达到了很好的水平。相比之下，ThinkPad E16 Gen 2 在常规规格上进行了删减，而外壳则给人一种熟悉的高级感。

我们对评测机型的 Ryzen 5 以及系统性能和电池续航时间印象深刻。此外，集成图形芯片至少可以用于执行更复杂的任务，但劣质显示屏在处理数码照片时已显示出其局限性。

这是一款适合安静工作的快速、高效系统，但在显示屏和键盘方面有所妥协。

尺寸也有两面性：显示屏上的图像自然会更大，而设备内部的许多组件也可以很容易地更换和扩展。散热也从所提供的空间中受益匪浅。虽然 16 英寸设备的尺寸并不特别便于移动，也无法快速装入任何包中。

不过，作为商务级的入门机型，一些妥协是可以允许的，而且其强大的性能和电池续航能力可能会特别受到那些同时也在寻找坚固耐用的日常伴侣的学生们的欢迎。如果把工作用电脑的功能缩减到最基本的程度，E16 就是这样一款设备--对于个人和专业用途的混合使用来说，它无疑是非常有趣的。

E16 的其他 CPU 变体尤其具有竞争性。同样昂贵的英特尔酷睿至尊 5 125U 不仅效率更高，而且图形处理能力也更强。而价格高出 100 美元的联想 ThinkPad L16 在键盘和规格方面的妥协要少一些。

价格和供应情况

目前在亚马逊上可以买到配备 Ryzen 5 7535U、32 GB 内存和 512 GB 固态硬盘的联想 ThinkPad E16 Gen 2 变体，价格约为 729 美元。

注：我们最近更新了评级系统，第 8 版的结果与第 7 版的结果不具可比性。更多信息此处.

Lenovo ThinkPad E16 Gen 2 21M5002VGE - 2024-10-08 10/08/2024 v8
Mario Petzold

Chassis

87 / 98 → 89%

Keyboard

87%

Pointing Device

88%

Connectivity

63 / 80 → 79%

Weight

64 / 20-75 → 80%

Battery

81%

Display

77%

Games Performance

35 / 75 → 46%

Application Performance

77 / 92 → 84%

Temperature

92%

Noise

91%

Audio

82%

Camera

37 / 75 → 49%

Average

74%

84%

Office - Weighted Average

CO2 Emissions
71.8%

Materials
50%

Packaging
100%

Power Use
81.2%

Repairability
57%

Software Updates
80%

Total Sustainability Score: 73.3%

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Price comparison

Editor of the original article: Andrew Dickson - Translator - 108 articles published on Notebookcheck since 2022

Translator: Ninh Ngoc Duy - Editorial Assistant - 443602 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 联想 ThinkPad E16 Gen 2 AMD 笔记本电脑评测：在正确的地方偷工减料（大部分情况下

Mario Petzold, 2024-10-12 (Update: 2024-10-12)

Cinebench R15 CPU Multi 64 Bit in comparison
Lenovo B50-30 (min) N2815, HD Graphics (Bay Trail)	49
...
Acer Aspire 5 Spin 14 i5-1335U, Iris Xe G7 80EUs	1441
Lenovo IdeaPad 3 15ABA7 R5 5625U, Vega 7	1447
LG Gram Style 14Z90RS-G.AD7AG i7-1360P, Iris Xe G7 96EUs	1455
Lenovo ThinkPad E16 Gen 2 21M5002VGE R5 7535HS, Radeon 660M	1457
Lenovo Yoga 9 14IAP7 82LU0001US i7-1260P, Iris Xe G7 96EUs	1461
Lenovo IdeaPad Slim 5 16IRU9 Core 7 150U, Iris Xe G7 96EUs	1462
One Netbook XPlayer 2 R7 6800U, Radeon 680M	1463
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	15842

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
Asus ROG Strix GL553VD-DS71 i7-7700HQ, GeForce GTX 1050 Mobile	7423
Beelink GTR5 R9 5900HX, Vega 8	7425
Acer Swift 3 SF316-51 i7-11370H, Iris Xe G7 96EUs	7431
Lenovo ThinkPad E16 Gen 2 21M5002VGE R5 7535HS, Radeon 660M	7442
Morefine S500+ R9 5900HX, Vega 8	7449
MSI WE72 7RJ i7-7700HQ, Quadro M2200	7453
HP Pavilion 15 Power 1GK62AV i7-7700HQ, GeForce GTX 1050 Mobile	7467
...
(max) R7 7800X3D, NVIDIA GeForce RTX 4090	72163
