联想 ThinkPad P14s G4 英特尔笔记本电脑评测：小型 OLED 工作站，无续航能力
全新 配备英特尔酷睿 Ultra 处理器的联想 ThinkPad P14s Gen 5联想改变了很多：最小的 P ThinkPad 首次拥有了自己的设计。这带来了有趣的功能、更大的屏幕和更大容量的电池，但同时也带来了更大的屏幕和更高的重量。此外，OLED 屏幕等一些选项也消失了。
另一方面，联想 ThinkPad P14s Gen 4 仍以 ThinkPad T14 为基础，因此更加轻巧和移动。在我们的评测中，我们将看看这款老机型，以及在继任者已经上市的情况下，它是否还能引起人们的兴趣。
潜在的竞争对手比较
Rating | Version | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|---|
| 81 % | v8 | 07 / 2024 | Lenovo ThinkPad P14s G4 21HF0017GE i7-1370P, RTX A500 Laptop GPU | 1.5 kg | 22.7 mm | 14.00" | 2880x1800 | |
| 87.8 % v7 (old) | v7 (old) | 01 / 2024 | Lenovo ThinkPad P14s G4 21K5000LGE R7 PRO 7840U, Radeon 780M | 1.3 kg | 21.8 mm | 14.00" | 1920x1200 | |
| 87.4 % v7 (old) | v7 (old) | 10 / 2023 | HP ZBook Firefly 14 G10 A R5 PRO 7640HS, Radeon 760M | 1.5 kg | 20 mm | 14.00" | 1920x1200 | |
| 89.3 % v7 (old) | v7 (old) | 04 / 2024 | Dell Precision 5000 5490 Ultra 9 185H, NVIDIA RTX 3000 Ada Generation Laptop GPU | 1.6 kg | 18.95 mm | 14.00" | 2560x1600 |
注：我们最近更新了评级系统，第 8 版的结果与第 7 版的结果不具可比性。更多信息 此处.

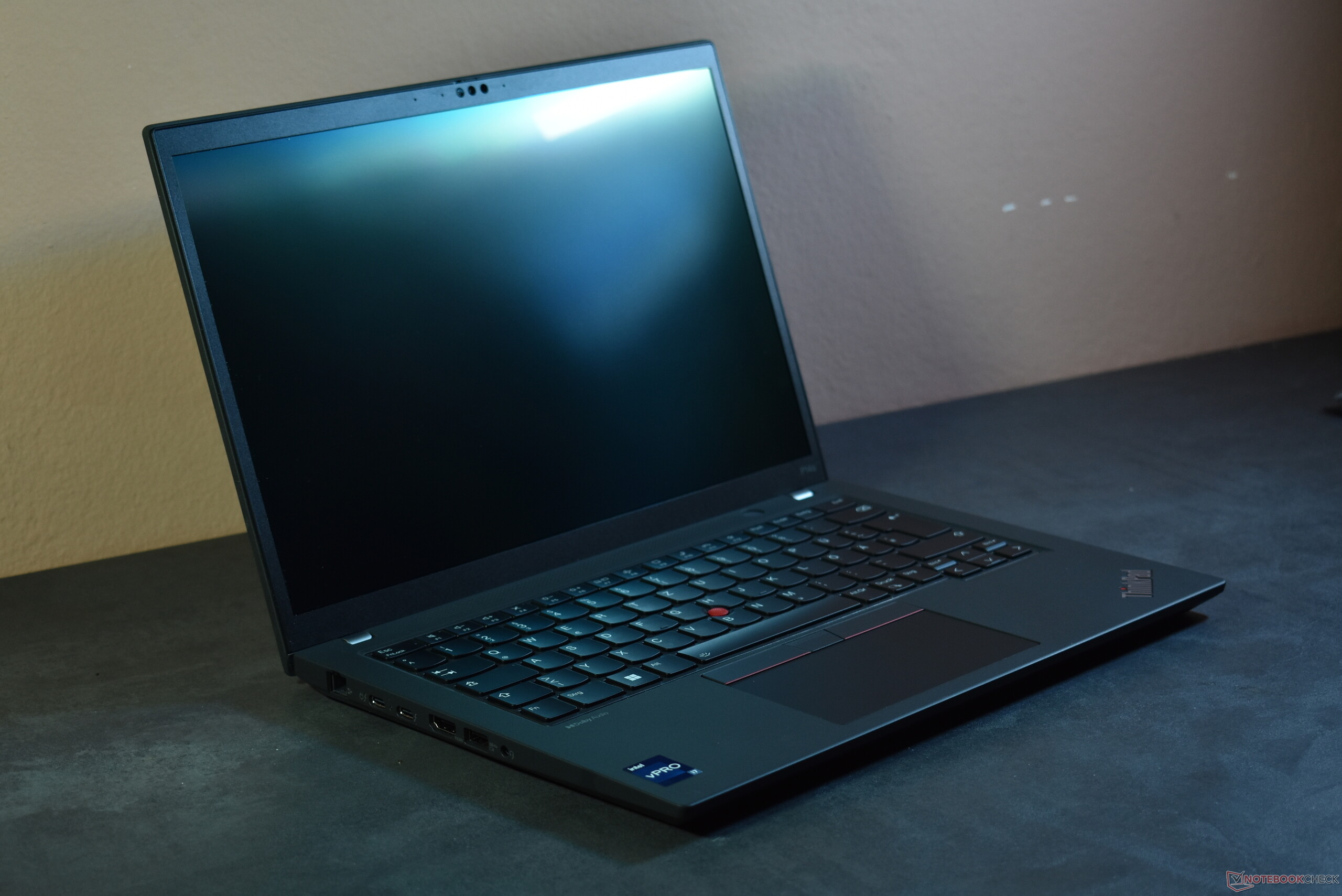

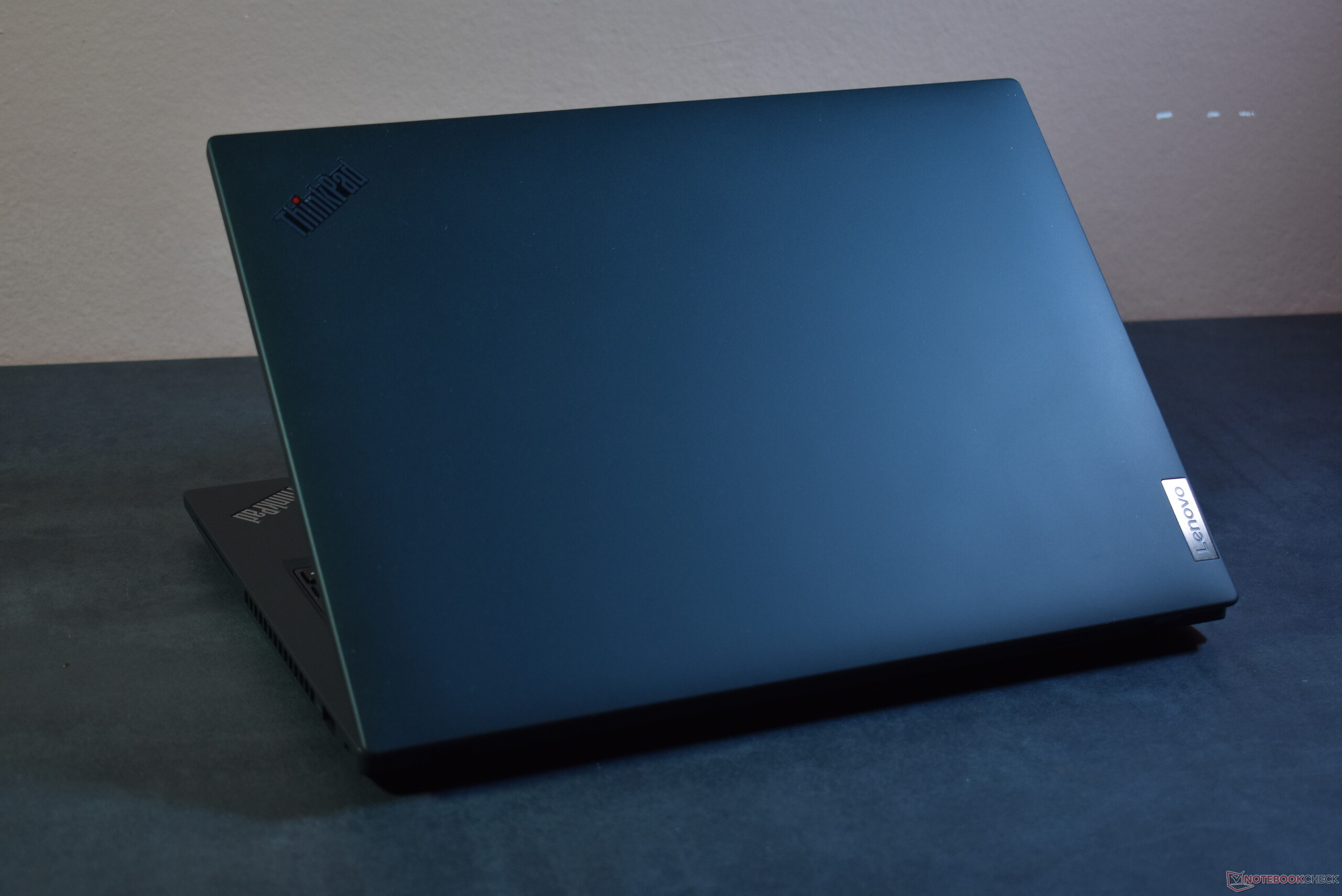

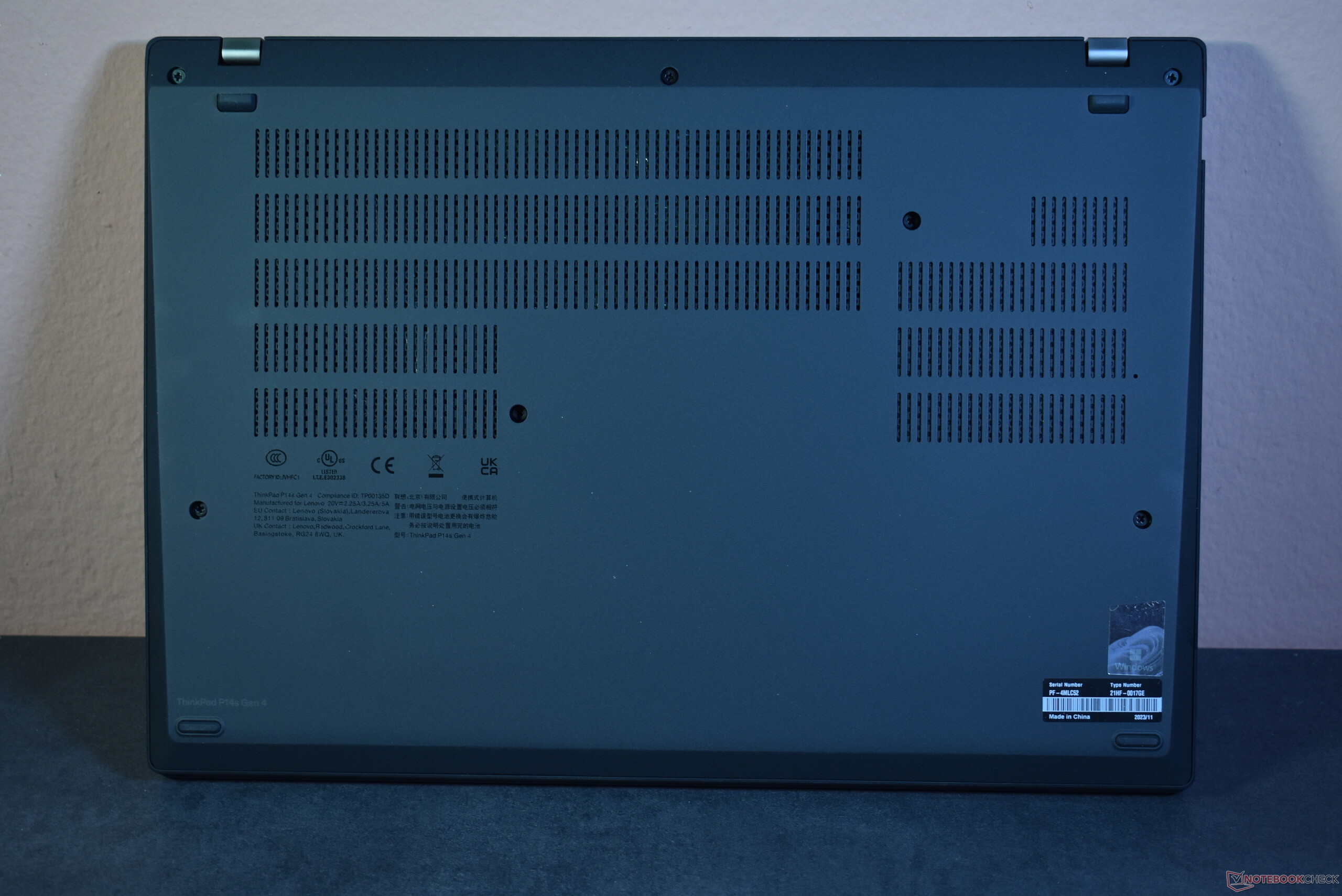

设计T14 机箱，铝质底盖
联想 ThinkPad P14s Gen 4 Intel 仍基于 联想 ThinkPad T14 Gen 3的基础上，于 2022 年推向市场。当年重新设计的一部分是 16:10 的宽高比和全新的深灰色机身--这与回归纯黑设计的新款 ThinkPad 形成了鲜明对比。深黑色喷漆看起来没有那么高档，但却不易沾染灰尘和油脂。一个新的设计特点是网络摄像头的反向凹槽。如果你不喜欢这种新的设计特征，ThinkPad P14s Gen 4 等旧机型可能是个不错的选择，因为它仍然没有网络摄像头凸起。
虽然 ThinkPad P14s G4 看起来像 ThinkPad T14 G4，但它们并不相同。ThinkPad P14s G4 英特尔版的底盖是铝制的，而 T 版则使用了强化塑料。这里底座的稳定性更好，几乎无法扭曲。掌托几乎没有弯曲，键盘也是如此--下面的镁合金框架起到了帮助作用。由于没有金属加固，屏幕盖的柔韧性稍差，但仍然相当坚固。
两个小型金属下拉铰链可实现 180 度的开启角度。无法单手打开。
联想 ThinkPad P14s G4 Intel 并不是一款轻薄的笔记本电脑--联想称机身厚度为 17.9 毫米，但我们测量的厚度为 22.7 毫米。重量为 1.45 千克，这意味着我们的评测设备比全新的联想 ThinkPad P14s 5 代英特尔轻约 150 克。与第五代产品相比，P14s G5 的宽度也有所减小，但尽管 14.5 英寸的显示屏更大，其深度却并不深。这要归功于更小的屏幕边框。

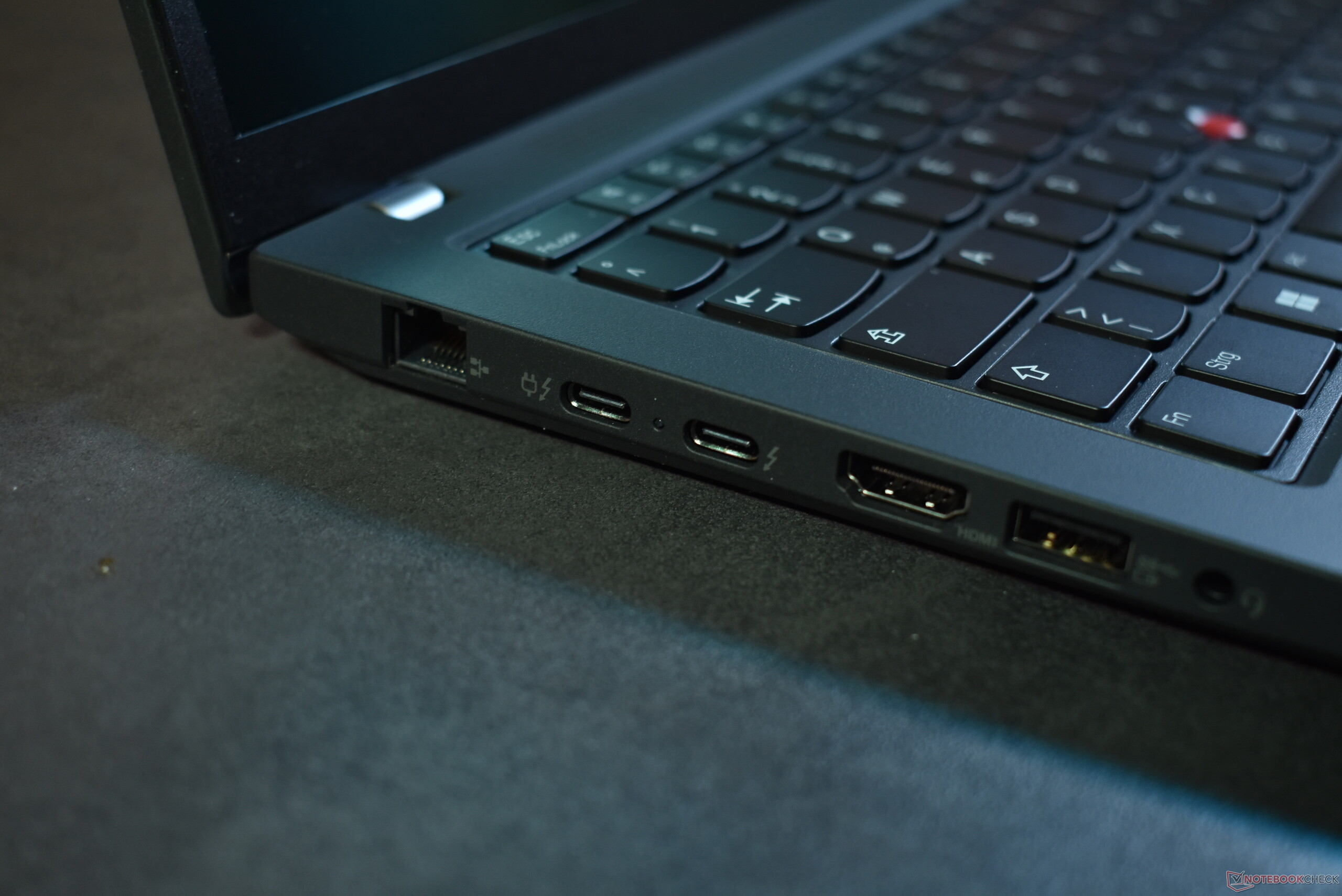

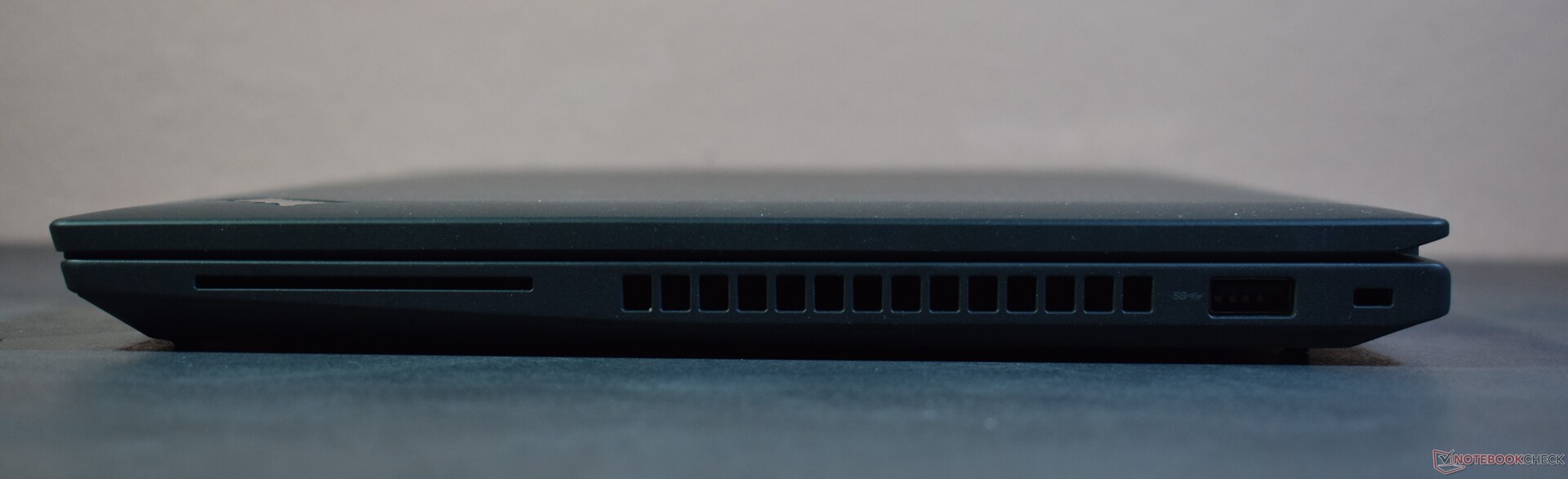

连接性：小型工作站，可选配无线局域网

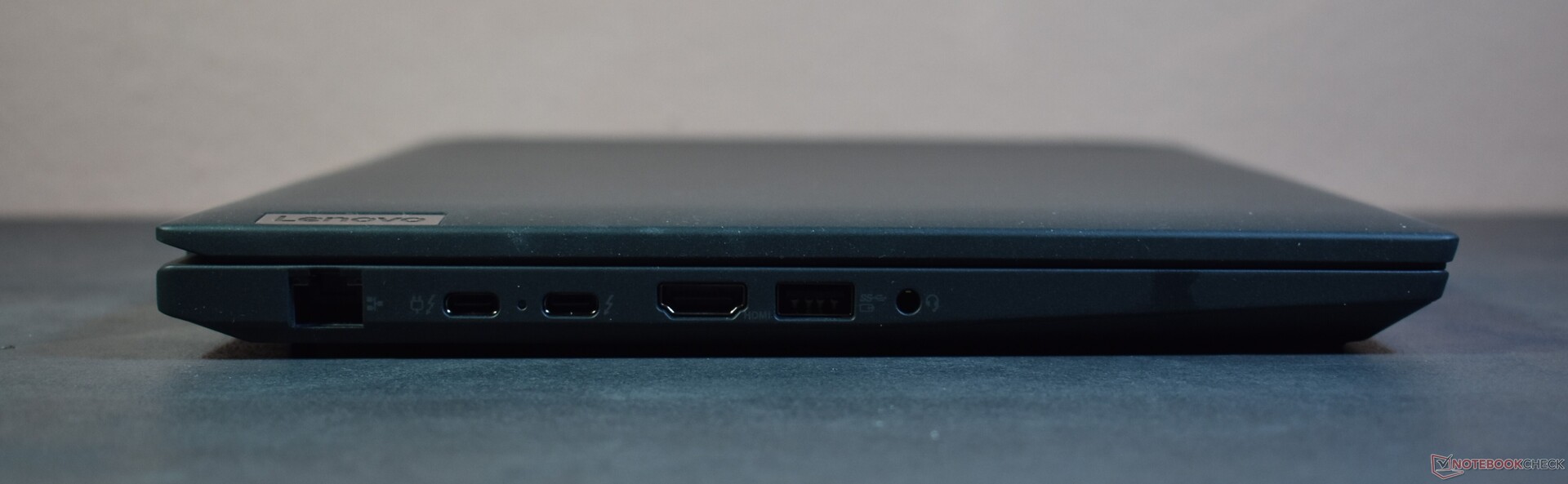

与 ThinkPad P14s Gen 5 Intel 相比，在连接选项方面没有太大区别。这里的 RJ45 以太网端口没有挡板，而在 P14s G5 Intel 上则有。与 戴尔Precision 5490相比，惠普 P14s G5 擅长传统端口（2 个 USB-A、HDMI、RJ45）的选择，而戴尔则仅有 USB-C 端口。惠普的 ZBook Firefly 14 G10在这方面更合适，但惠普不包括 RJ45。这些 14 英寸工作站都没有全尺寸 SD 卡插槽，不过戴尔至少有一个 microSD 插槽。
交流
联想为 ThinkPad P14s Gen 4 配备了英特尔 AX211。与 P14s G4 AMD 的高通解决方案相比，英特尔版本的传输速率更高、更稳定。
虽然没有集成 WWAN，但可以升级 LTE。必要的天线已经就位。较新的联想 ThinkPad P14s Gen 5 Intel 完全省略了这一功能。

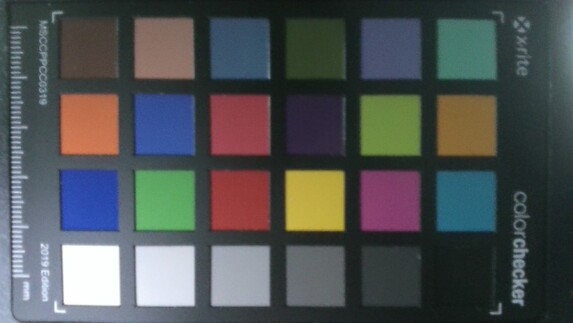

网络摄像头

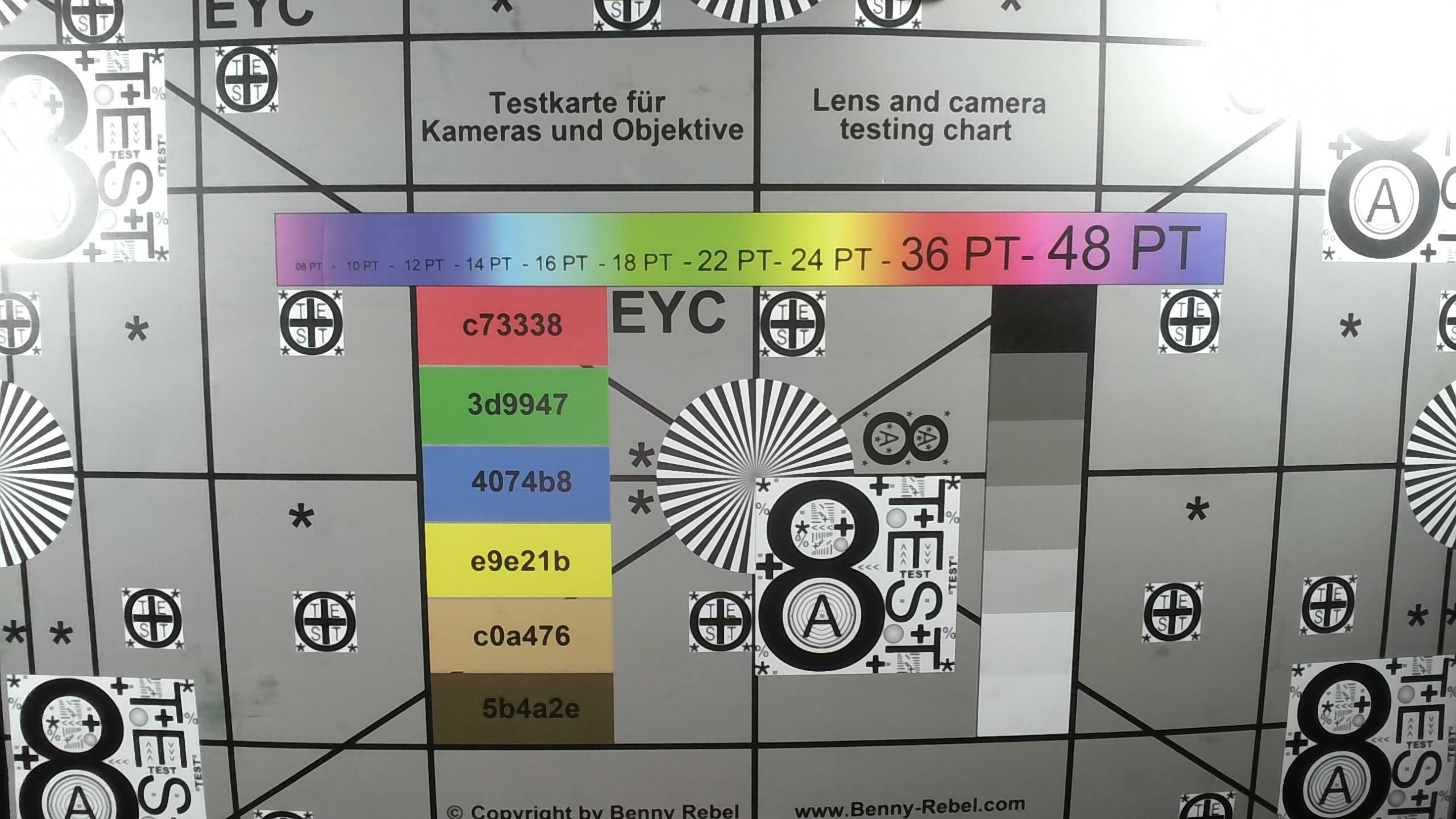

网络摄像头的分辨率为 500 万像素。在光线条件较好的情况下，照片可用于视频会议。当然，现代智能手机可以提供比联想 ThinkPad P14s G4 Intel 好得多的照片。
安全
移动工作站属于商务笔记本电脑的范畴。对于联想 ThinkPad P14s Gen 4 Intel 来说，安全功能的选择范围很广。其中包括 Kensington 锁插槽、专用 TPM 芯片、智能卡读卡器、指纹识别器和红外网络摄像头，以便使用 Windows Hello 快速登录。此外，ThinkPad 笔记本电脑还配备了物理网络摄像头快门，以提高私密性。
配件
作为包装盒中唯一的配件，联想随 ThinkPad P14s Gen 4 Intel 提供了一个 100 W USB-C 充电器。

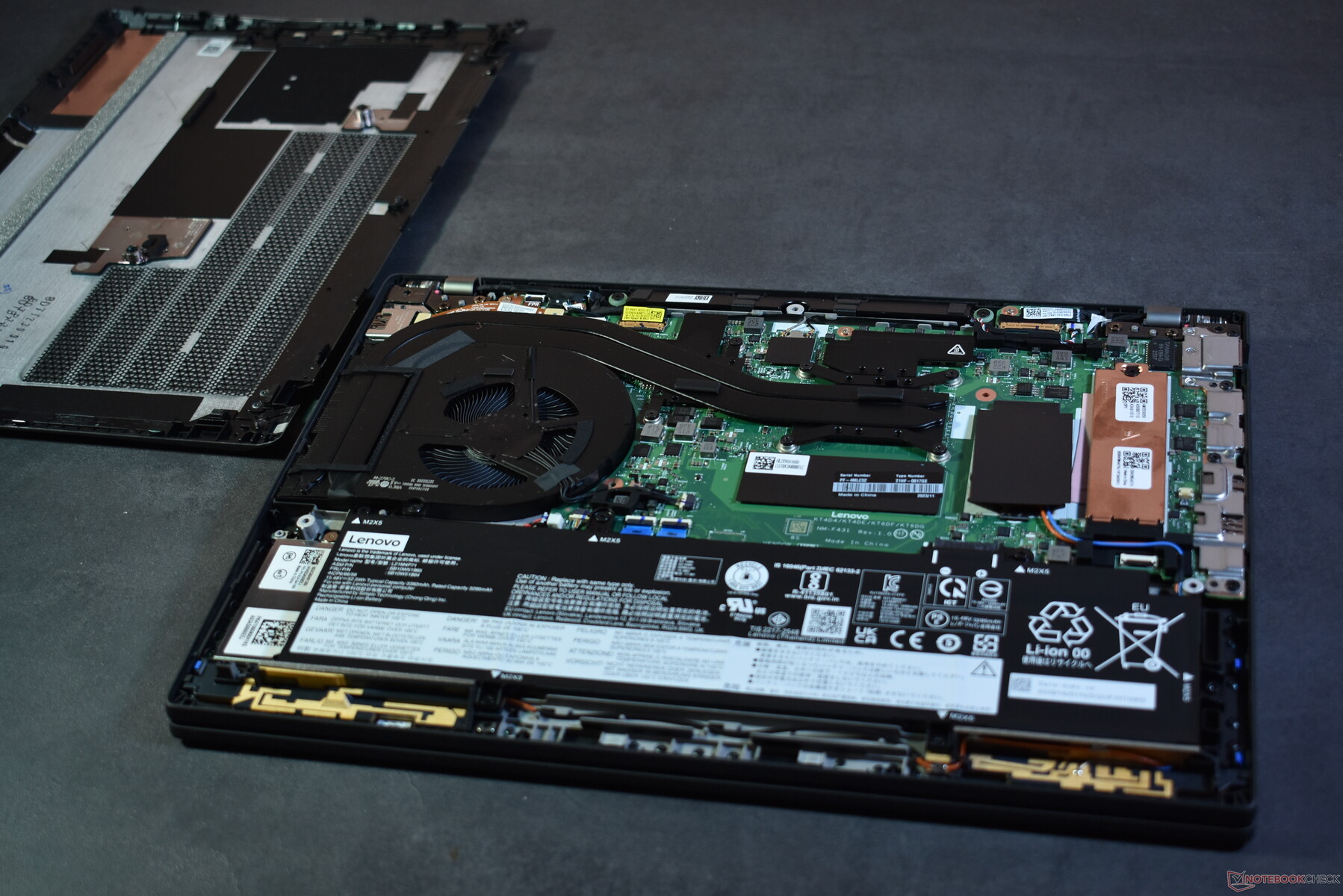

维护

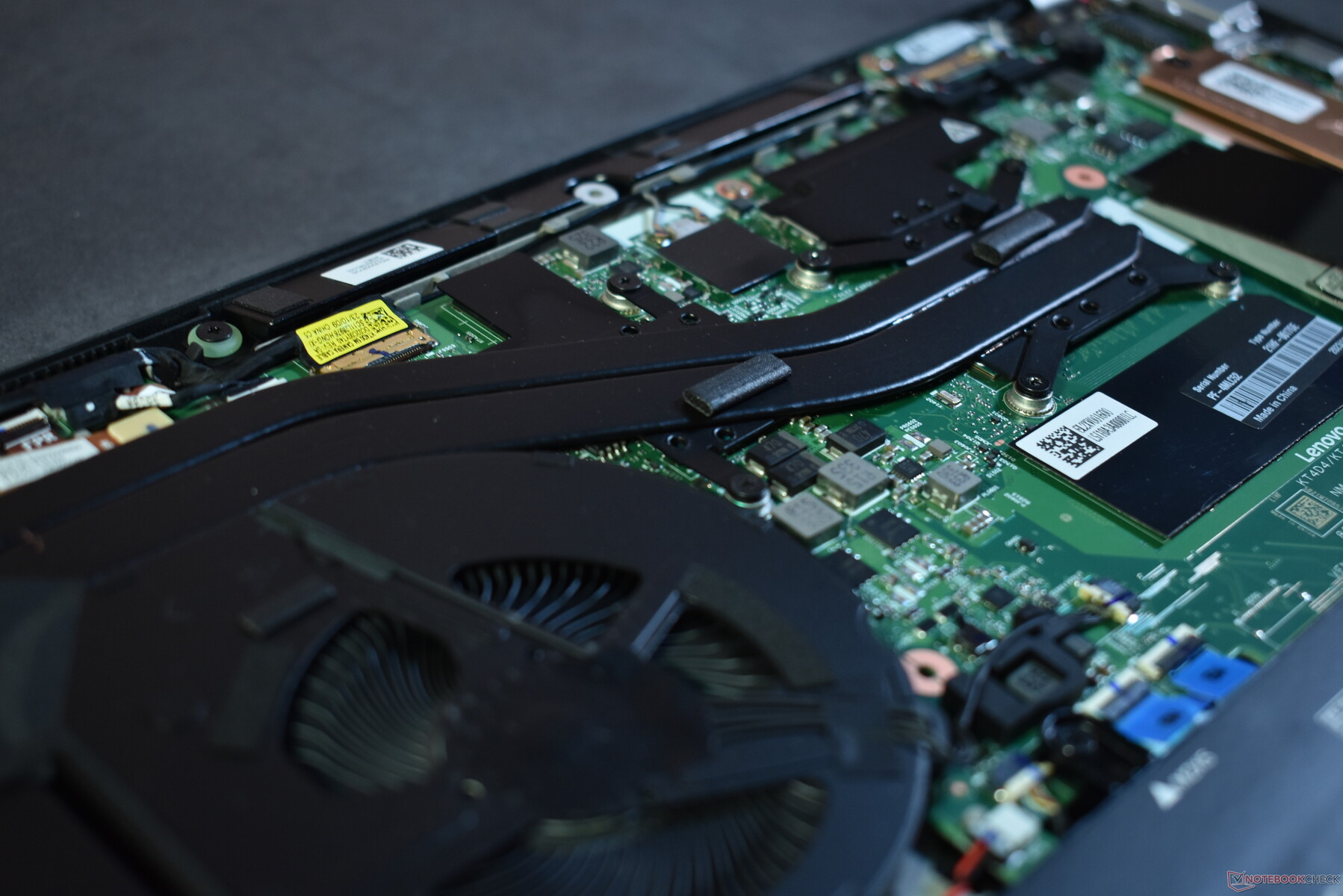

与联想 ThinkPad T14 G4 不同的是，这里的内存是完全焊接下来的。相比之下，英特尔新款 ThinkPad P14s Gen 5 提供了可升级内存。对于 P14s G4 来说，至少 M.2 2280 固态硬盘是模块化的，但遗憾的是只有一个插槽--尤其是对于工作站来说，第二个固态硬盘将是一笔巨大的财富。Wi-Fi 模块也是焊接的，不过有一个开放的 M.2 2242 插槽可用于 WWAN 模块。此外，旋入式电池可以轻松更换，冷却系统也可以轻松清洁。所有这些组件都可以通过底盖接触到，底盖由 7 颗螺丝和背面的几个夹子固定。

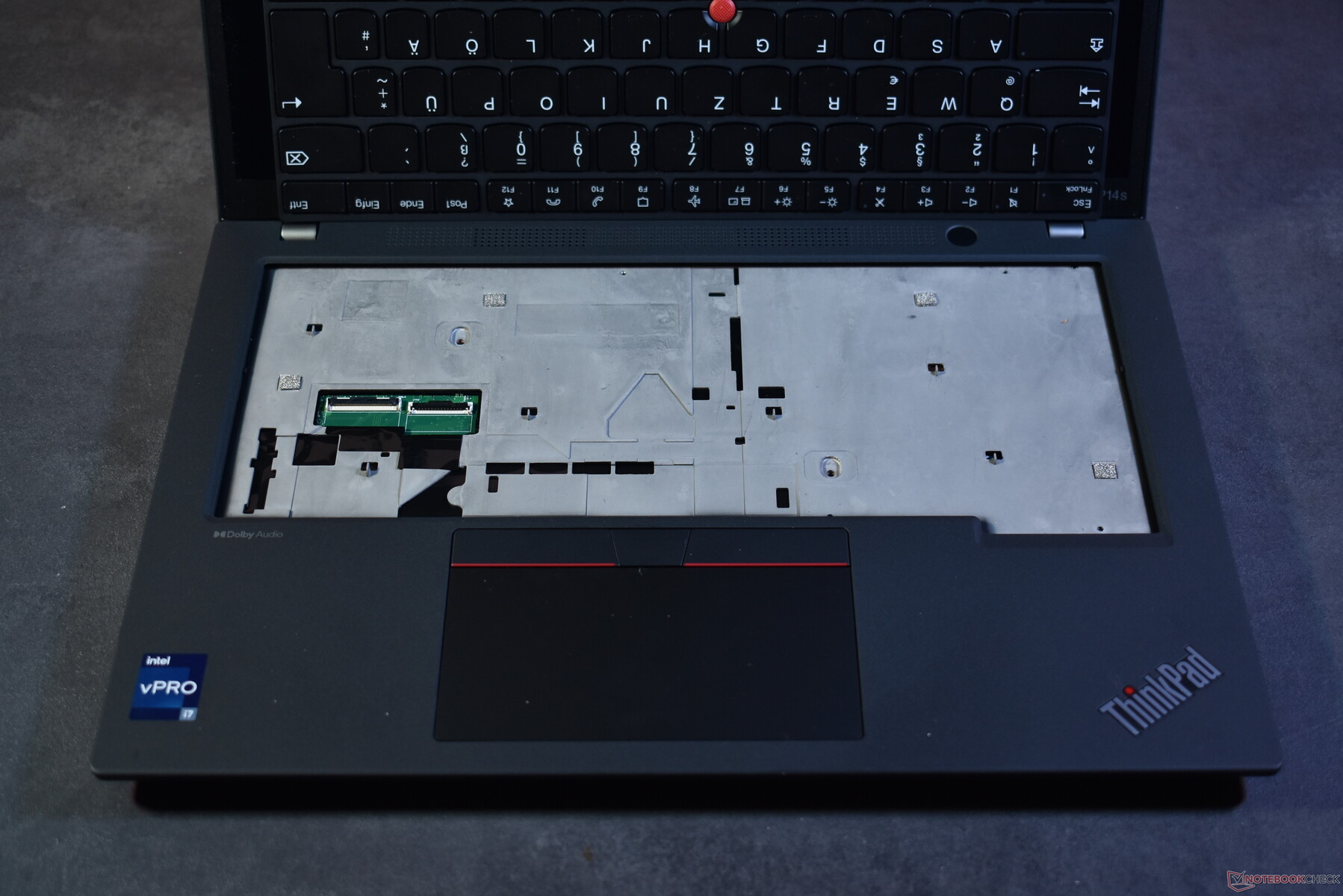

非常好的一点是，只需拧松两颗螺丝就可以更换键盘--英特尔新款 P14s G5 已经没有这项功能了。
可持续性
联想越来越多地将可持续发展作为市场营销的论据。ThinkPad P14s Gen 4 英特尔版的一些部件是用回收塑料制成的。此外，包装也采用了可堆肥材料。像往常一样，联想为其 ThinkPad 发布了维修手册《硬件维护手册》（Hardware Maintenance Manual），而且还有视频教程。通过 support.lenoov.com，可以方便地订购零部件。在 compliance.lenovo.com 网站上，还列出了生产过程中产生的二氧化碳污染。
保修
联想为 ThinkPad P14s Gen 4 提供三年保修服务。第一年内，包括现场保修在内的高级支持服务有效。之后，它将变为标准的带入保修，这意味着设备必须送修。如果支付额外费用，服务期限可延长至五年，并可增加更长的电池保修期或现场服务等附加服务。由于这是一种商业模式，因此保修在国际范围内都有效，但这里始终只适用于带入服务。

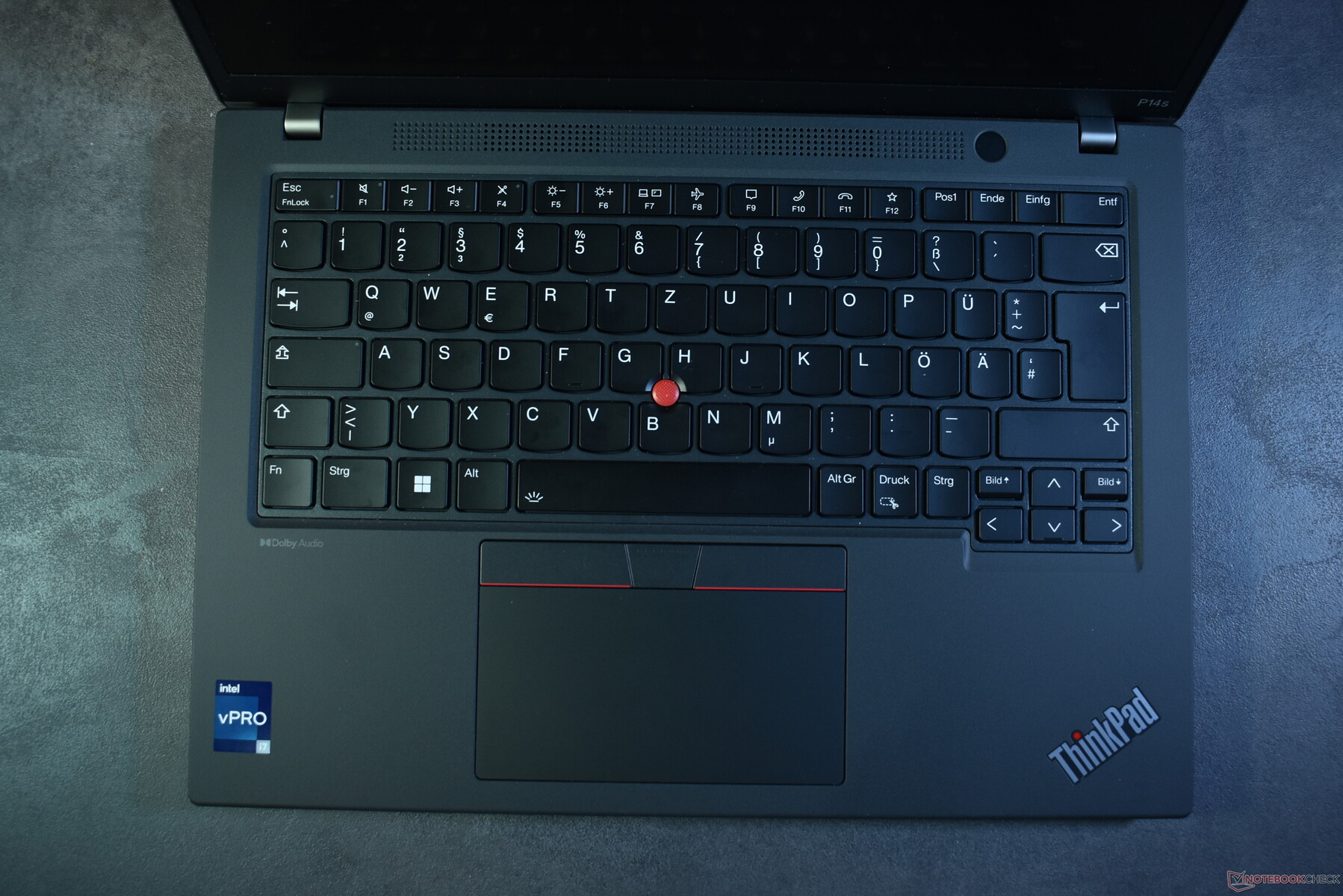

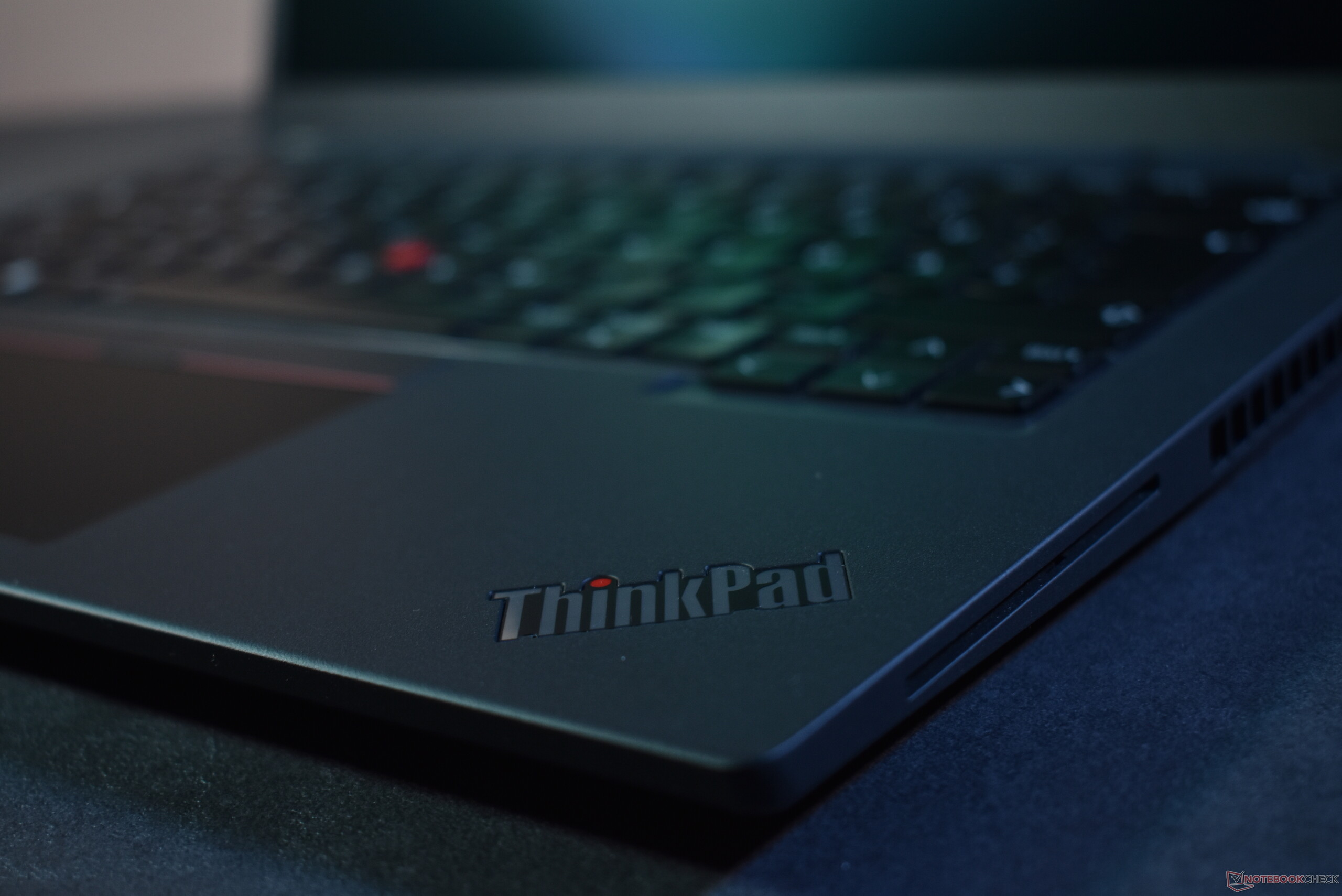

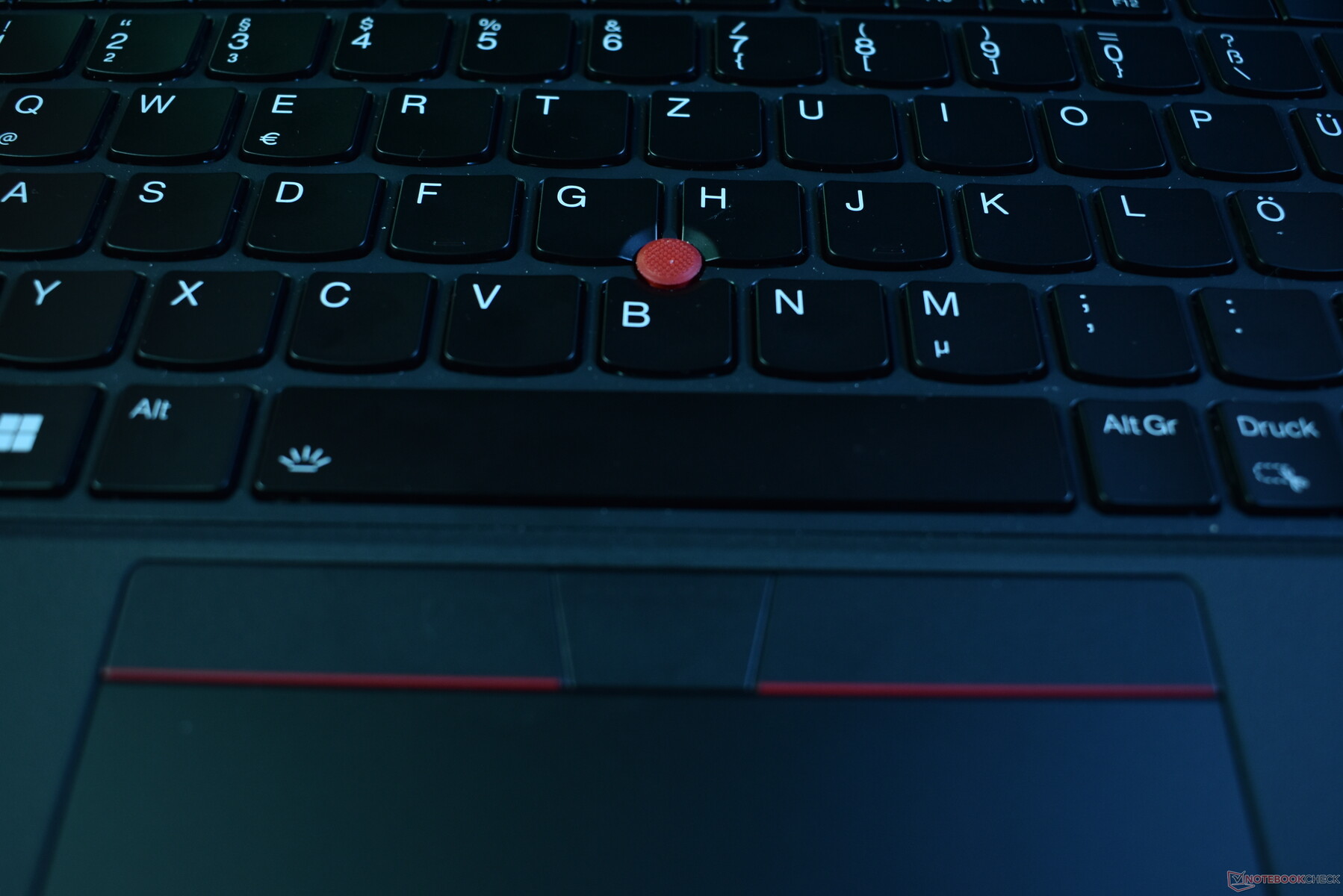

输入设备：已知的高品质 ThinkPad 键盘

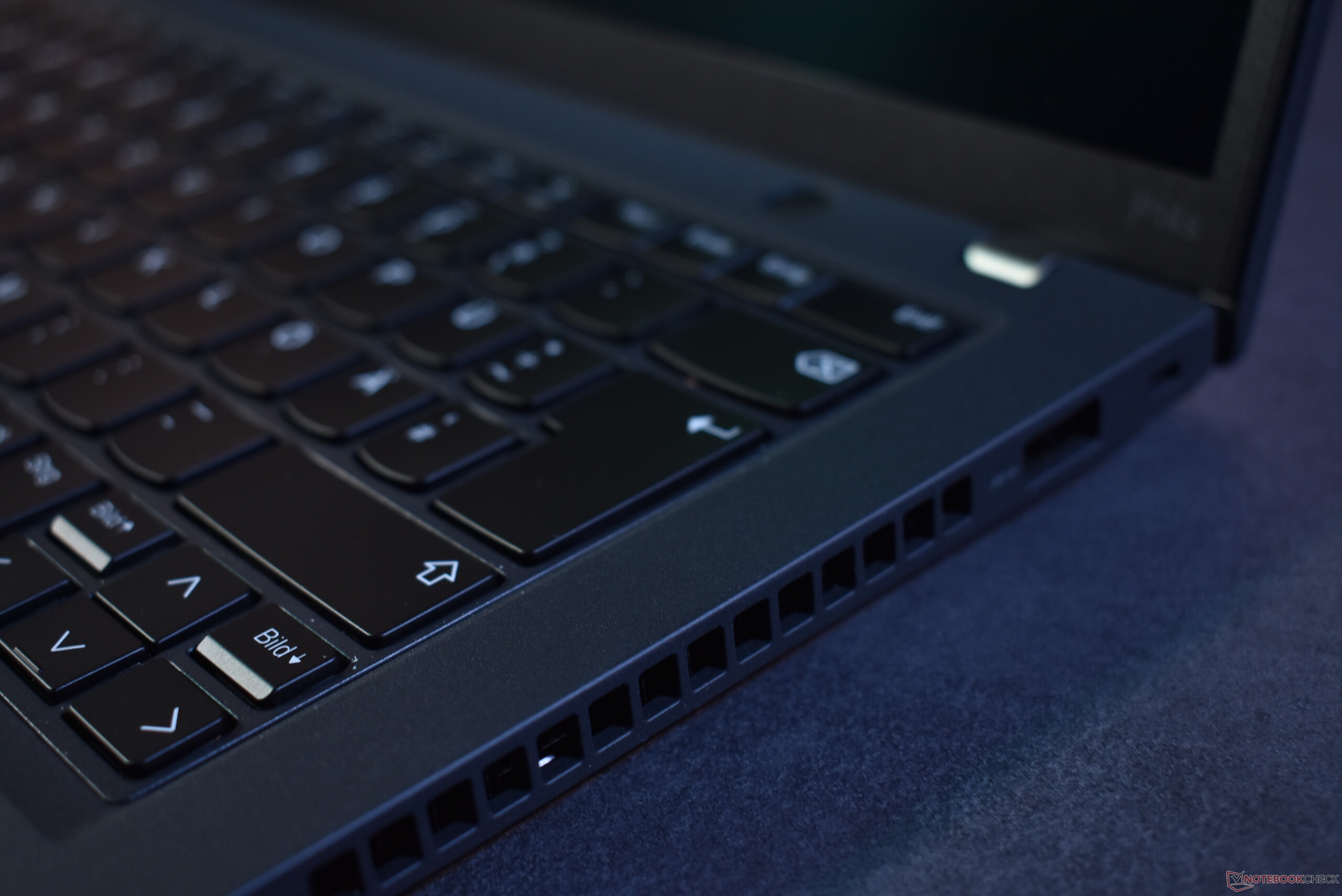

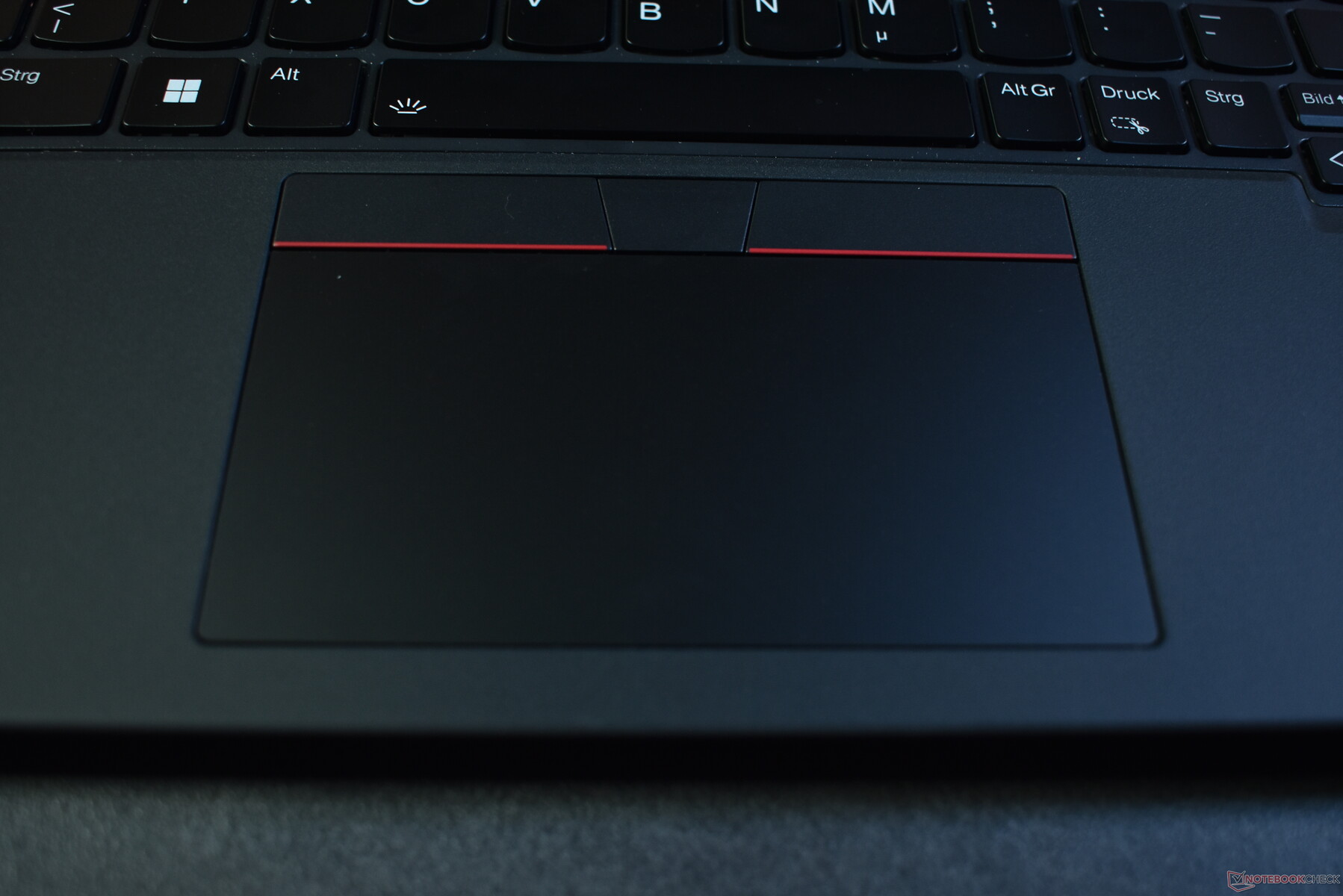

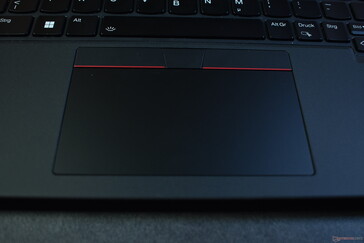

联想 ThinkPad P14s Gen 4 英特尔版的输入设备与其他 2022 和 2023 款 ThinkPad 基本相同。联想在舒适的背光键盘（两级）（1.5 毫米行程，略微凹陷的 Chiclet 键，布局合理）下面放置了一块经典的机械点击板（11.5 x 6 厘米）。它由塑料制成，因此质量不如一些同类玻璃触控板，但在可用性方面，我们没有什么可抱怨的。另外，红色的 ThinkPad TrackPoint 配有三个专用按键，中间的按键用于滚动。在这种情况下，由 ELAN 生产的 TrackPoint 可以完美地实现鼠标指向功能，是触摸板的绝佳替代品。
值得注意的是，FN 键仍然是这款 ThinkPad 键盘上最靠左的键，这也是迄今为止 ThinkPad 的典型特征。在新款 2024 ThinkPad 上，联想将 Ctrl 键和 FN 键进行了调换。如果一个人习惯于这种特殊的排列方式，那么这对 P14s G4 来说可能是个利好消息。

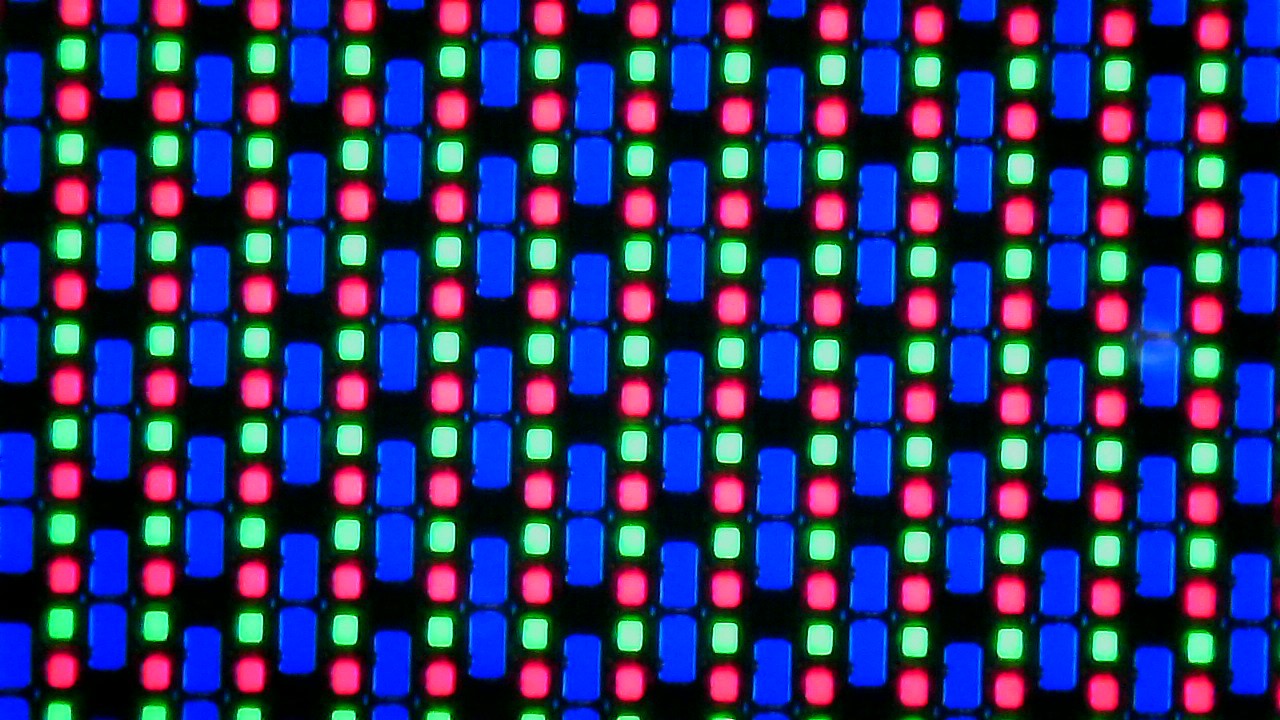

显示屏：高质量 OLED 面板，也可采用 PWM 技术
与联想 ThinkPad P14s Gen 5 Intel 采用更大的 14.5 英寸格式不同，PC 制造商仍然为 ThinkPad P14s Gen 4 Intel 使用更常见的 14 英寸尺寸。提供以下 16:10 显示器：
- WUXGA (1,920 x 1,200), IPS, 300 cd/m², 45 % NTSC, 雾面
- WUXGA（1,920 x 1,200），IPS，300 cd/m²，45 % NTSC，哑光，触摸屏
- WUXGA（1,920 x 1,200），IPS，400 cd/m²，100 % sRGB，亚光，低功耗
- WUXGA (1,920 x 1,200), IPS, 500 cd/m², 100 % sRGB, 雾面, 隐私保护
- 2.2K（2,240 x 1,400），IPS，300 cd/m²，100 % sRGB，哑光
- 2.8K（2,880 x 1,800），OLED，400 cd/m²，100 % DCI-P3，半哑光/半光，杜比视界 HDR
竞争对手使用的都是 IPS 屏幕，在响应时间和对比度方面无法与联想 ThinkPad P14s Gen 4 Intel 的 OLED 屏幕相比。AMD P14s G4 和惠普 ZBook Firefly 14 G10 都使用了分辨率较低的 WUXGA 液晶屏，而戴尔Precision 5490 则采用了 WQXGA（2,560 x 1,600）显示屏--在屏幕亮度方面，这种 IPS 面板（485 cd/m²）是唯一能击败 ThinkPad 有机屏幕（432 cd/m²）的屏幕。

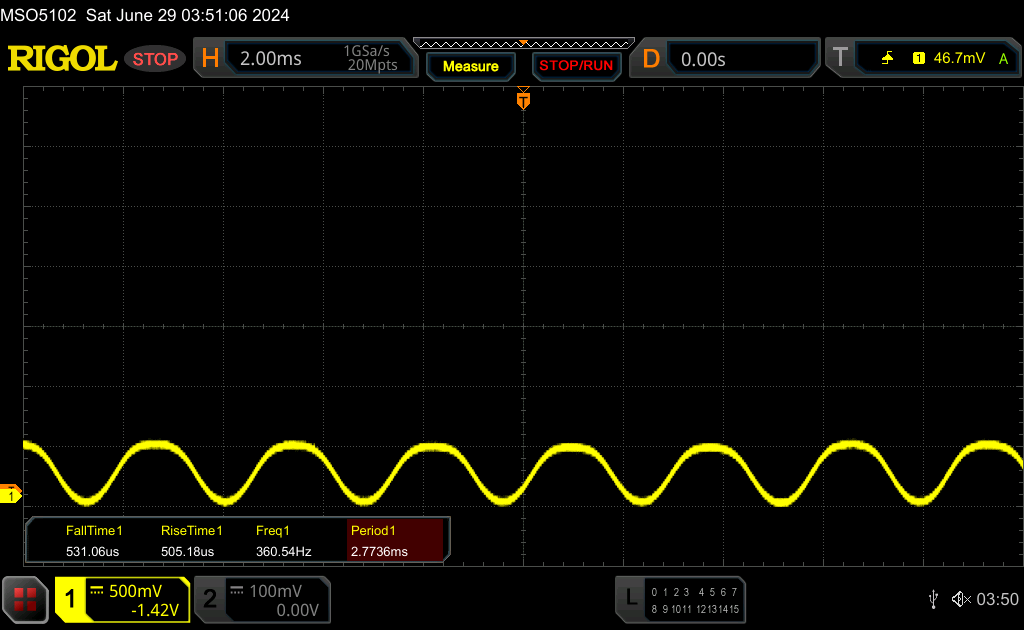

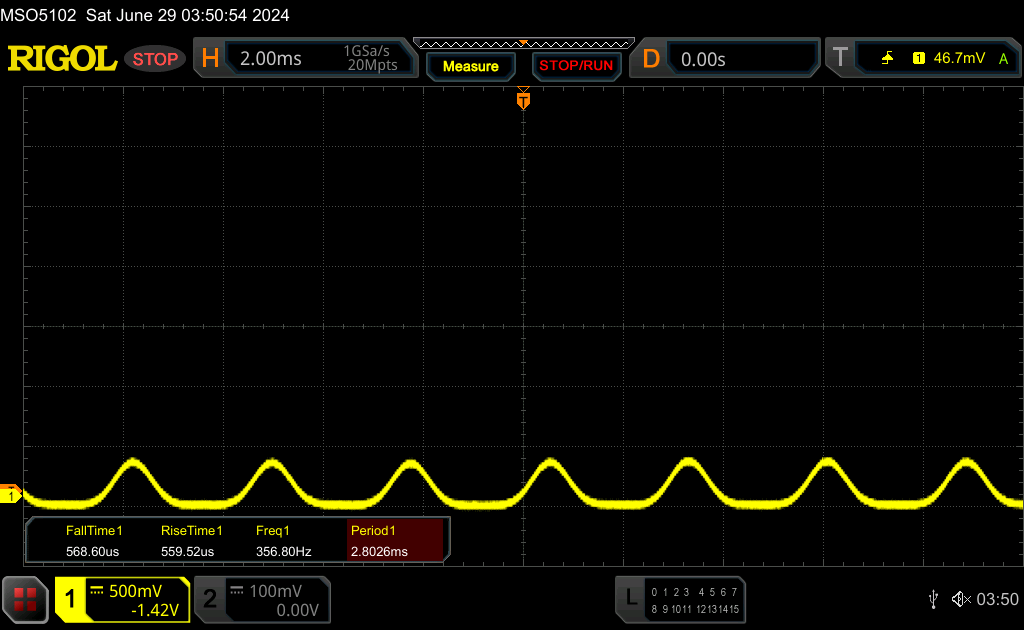

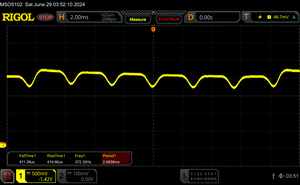

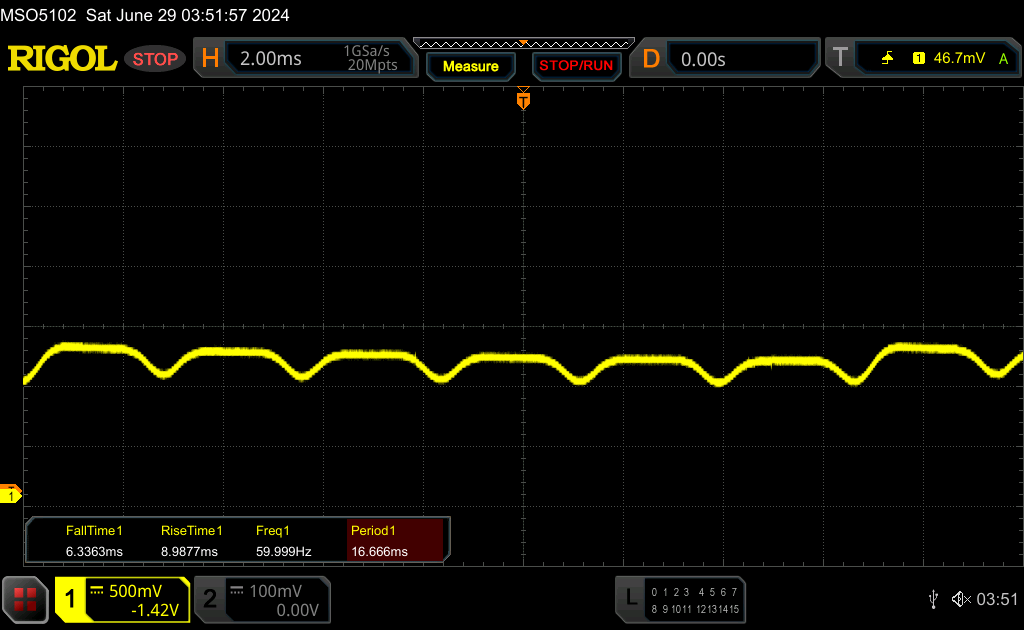

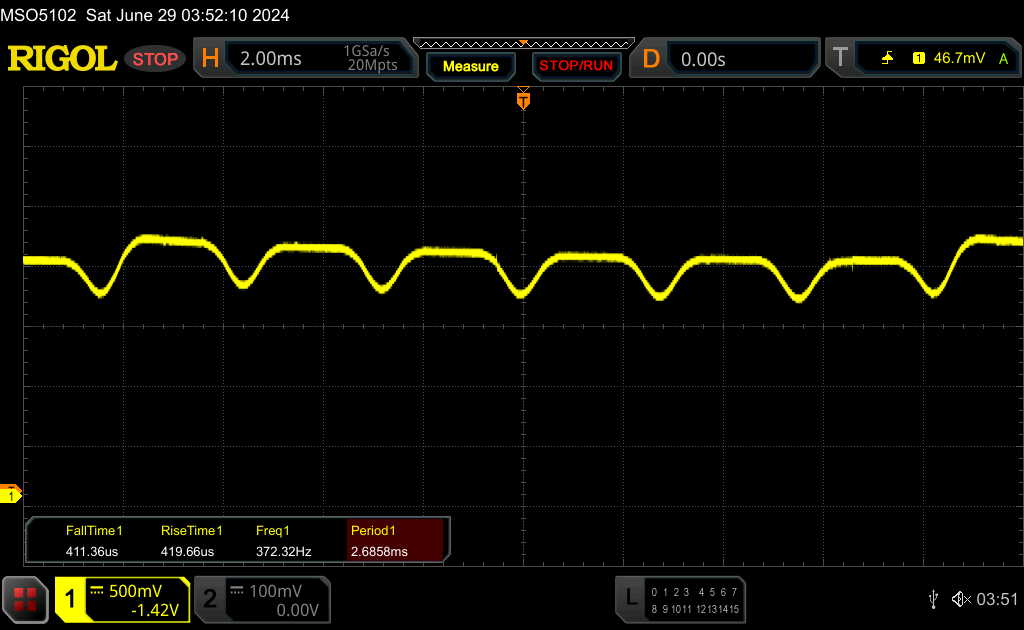

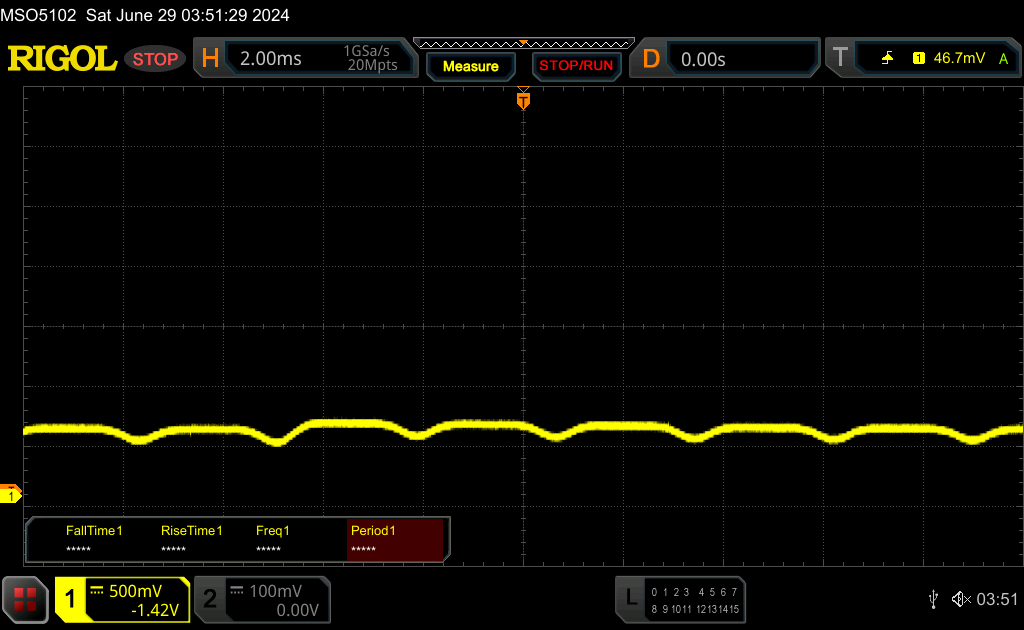

OLED 屏幕的典型特点是使用脉宽调制（PWM）来调光。360 Hz 的频率并不算极低，但有时仍会出现问题。
Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM detected | 360 Hz Amplitude: 25 % | ≤ 100 % brightness setting |  |
The display backlight flickers at 360 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 100 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 360 Hz is relatively high, so most users sensitive to PWM should not notice any flickering. However, there are reports that some users are still sensitive to PWM at 500 Hz and above, so be aware. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured. | |||
| |||||||||||||||||||||||||
Brightness Distribution: 98 %
Center on Battery: 432 cd/m²
Contrast: ∞:1 (Black: 0 cd/m²)
ΔE Color 4.8 | 0.5-29.43 Ø4.92, calibrated: 4.9
ΔE Greyscale 2.3 | 0.5-98 Ø5.2
97% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
99.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.23
| Lenovo ThinkPad P14s G4 21HF0017GE ATNA40YK15-0, OLED, 2880x1800, 14" | Lenovo ThinkPad P14s G4 21K5000LGE Lenovo MNE007JA1-1, IPS, 1920x1200, 14" | HP ZBook Firefly 14 G10 A CMN1435, IPS, 1920x1200, 14" | Dell Precision 5000 5490 AU Optronics B140QAN, IPS, 2560x1600, 14" | |
|---|---|---|---|---|
| Display | -19% | -20% | -13% | |
| Display P3 Coverage | 99.9 | 69.4 -31% | 68.7 -31% | 79.7 -20% |
| sRGB Coverage | 100 | 99.9 0% | 98.2 -2% | 100 0% |
| AdobeRGB 1998 Coverage | 97 | 71.4 -26% | 70.8 -27% | 79.5 -18% |
| Response Times | -1363% | -1409% | -1529% | |
| Response Time Grey 50% / Grey 80% * | 3 ? | 45.9 ? -1430% | 56.2 ? -1773% | 52.3 ? -1643% |
| Response Time Black / White * | 2.2 ? | 30.7 ? -1295% | 25.2 ? -1045% | 33.3 ? -1414% |
| PWM Frequency | 360 ? | |||
| Screen | 22% | 20% | 30% | |
| Brightness middle | 432 | 414 -4% | 397 -8% | 485.1 12% |
| Brightness | 432 | 392 -9% | 367 -15% | 471 9% |
| Brightness Distribution | 98 | 89 -9% | 86 -12% | 90 -8% |
| Black Level * | 0.26 | 0.25 | 0.38 | |
| Colorchecker dE 2000 * | 4.8 | 1.9 60% | 2.35 51% | 2.15 55% |
| Colorchecker dE 2000 max. * | 9.2 | 3.6 61% | 4.68 49% | 5.39 41% |
| Colorchecker dE 2000 calibrated * | 4.9 | 0.8 84% | 1.15 77% | 0.67 86% |
| Greyscale dE 2000 * | 2.3 | 2.9 -26% | 2.4 -4% | 2 13% |
| Gamma | 2.23 99% | 2.26 97% | 2.067 106% | 2.3 96% |
| CCT | 6391 102% | 6227 104% | 6409 101% | 6826 95% |
| Contrast | 1592 | 1588 | 1277 | |
| Total Average (Program / Settings) | -453% /
-219% | -470% /
-228% | -504% /
-241% |
* ... smaller is better

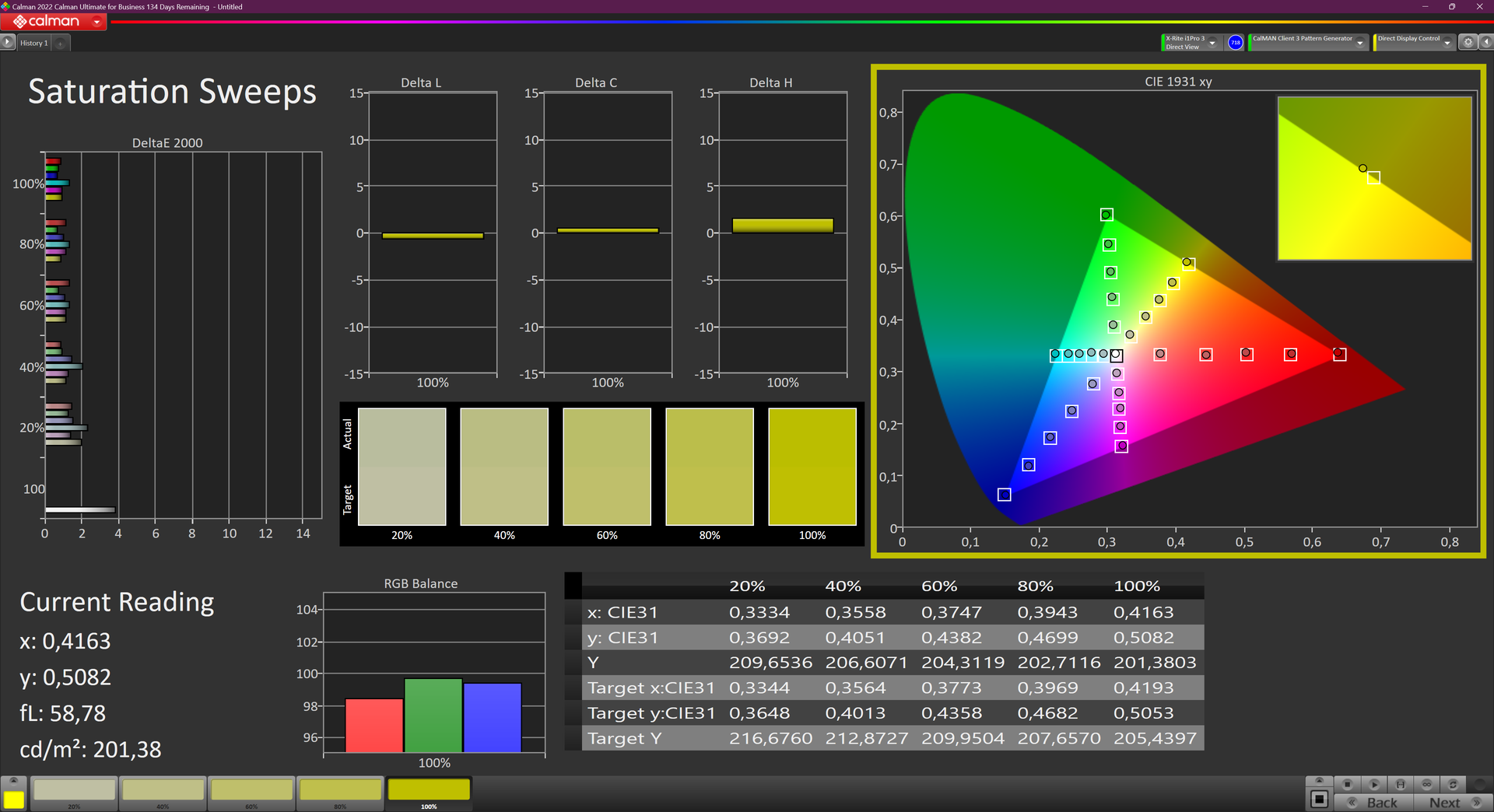

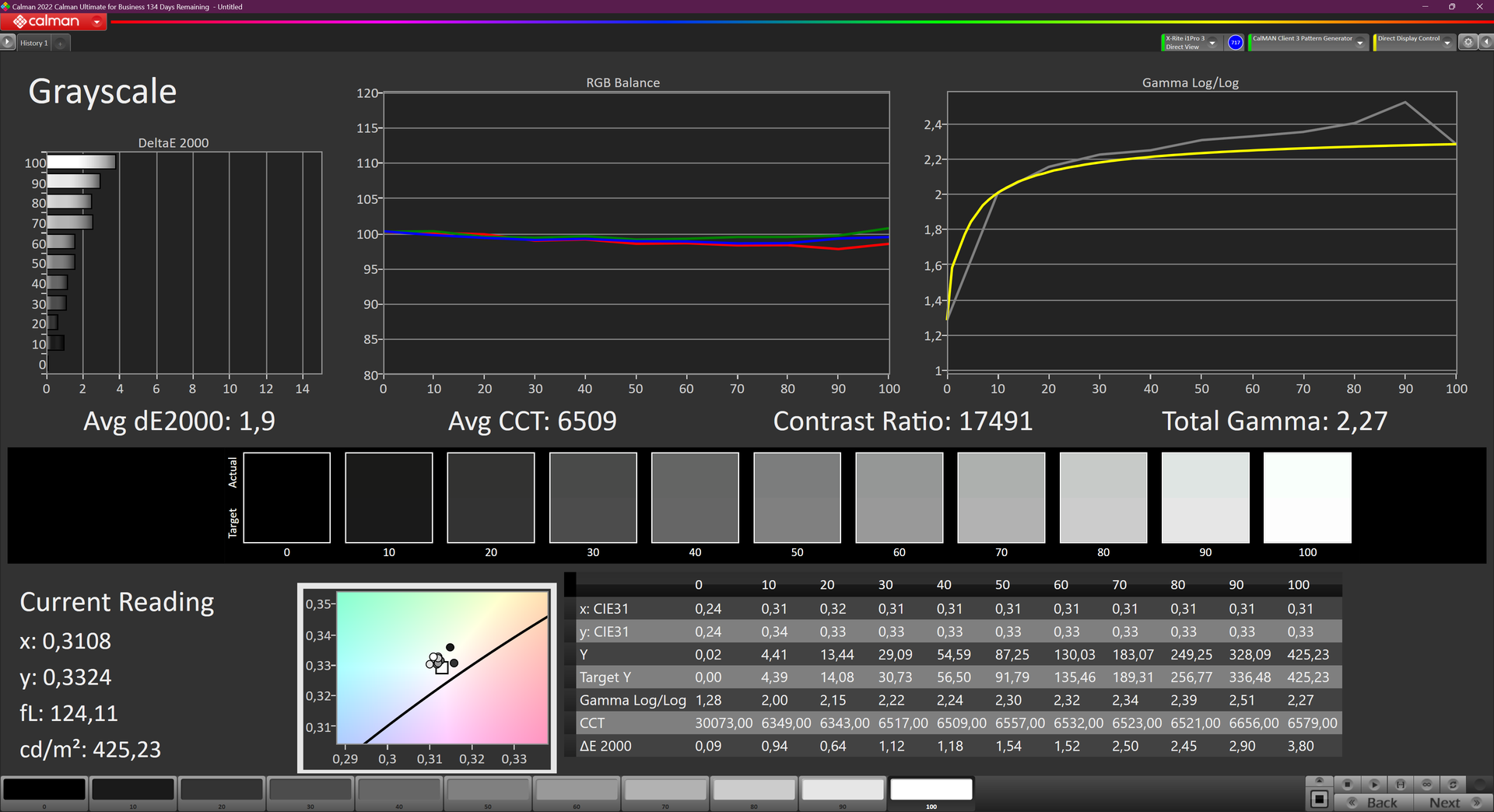

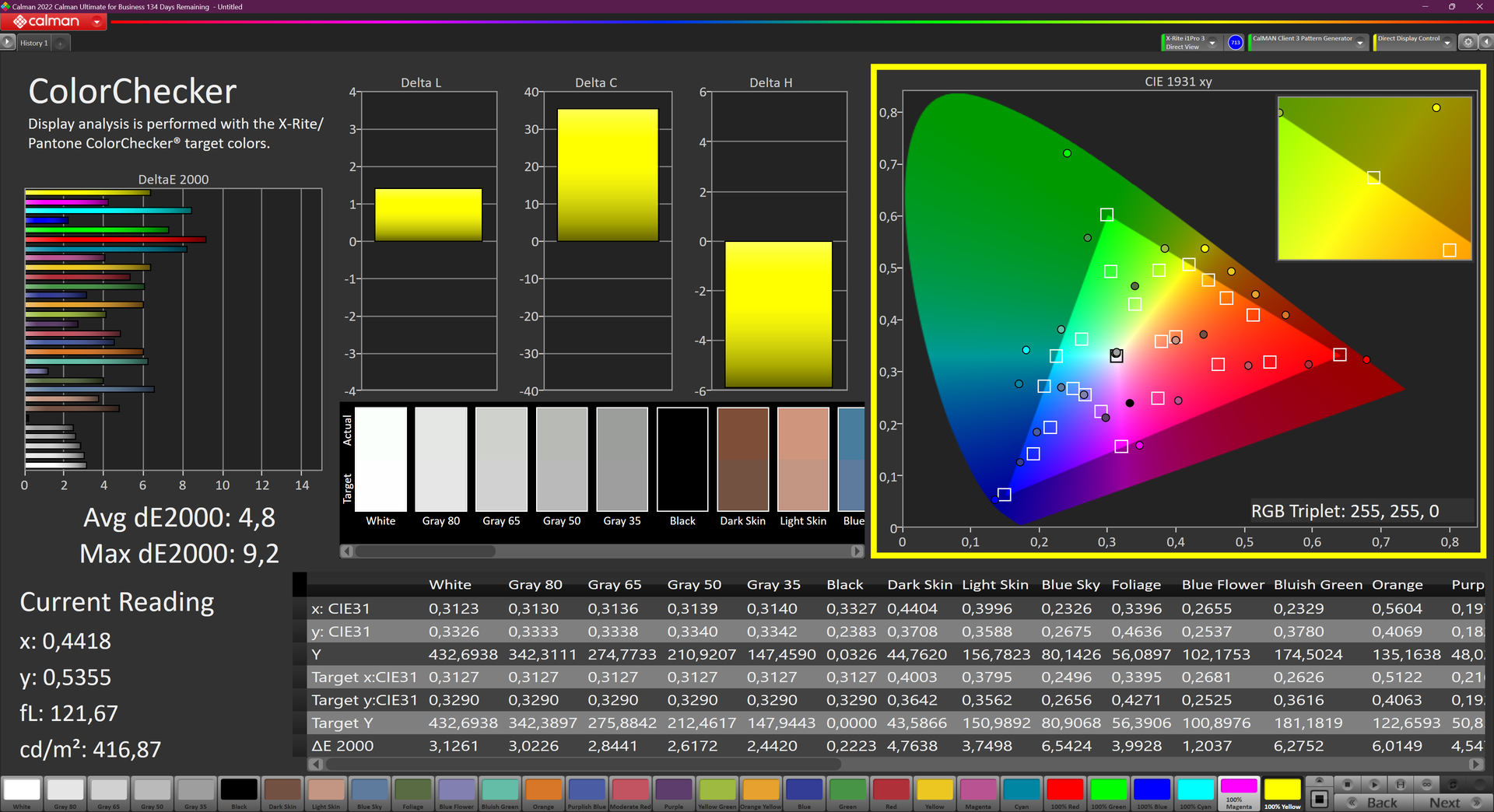

显示屏出厂时已校准，使用 X-Rite i1Pro 3 和 iProfiler 进行校准也没有任何改进。预装了多种色彩配置文件，可根据色域进行选择。除了默认配置文件外，我们还测量了 sRGB 和 P3 配置文件。联想的校准效果不错，Colorchecker 的 deltaE 值分别为 1.2 和 1.4，足够低，表明色彩准确度很高。

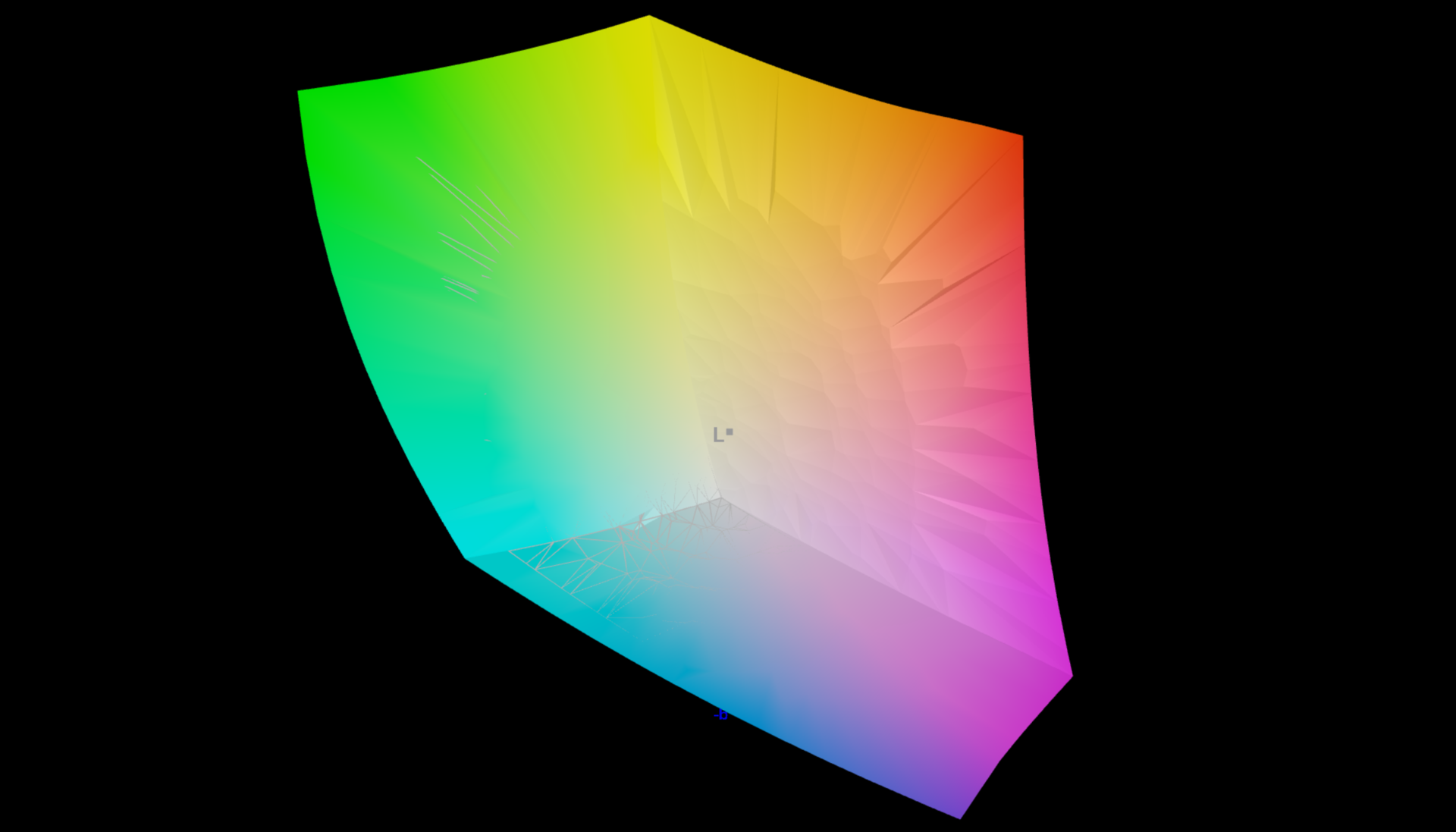

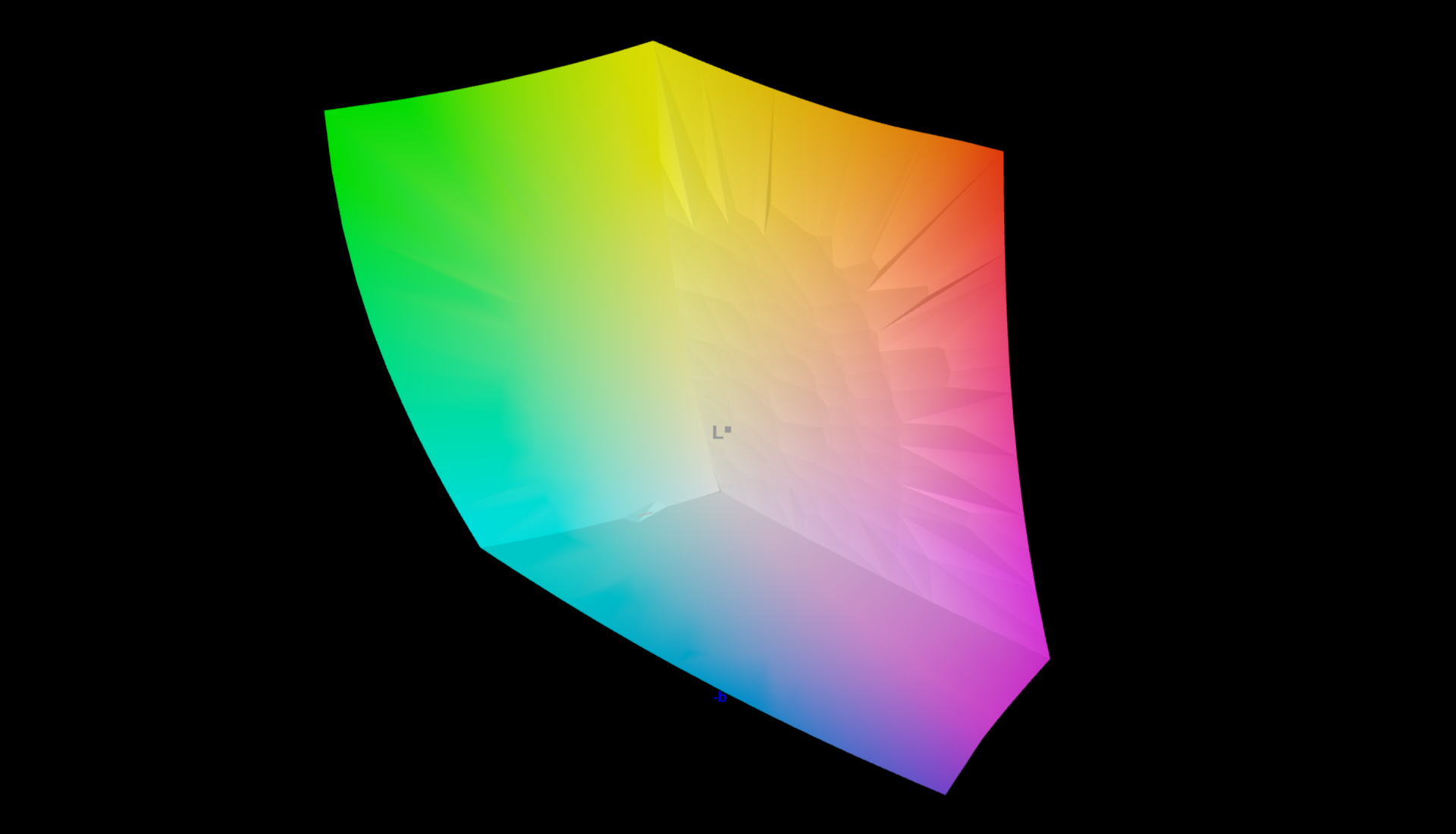

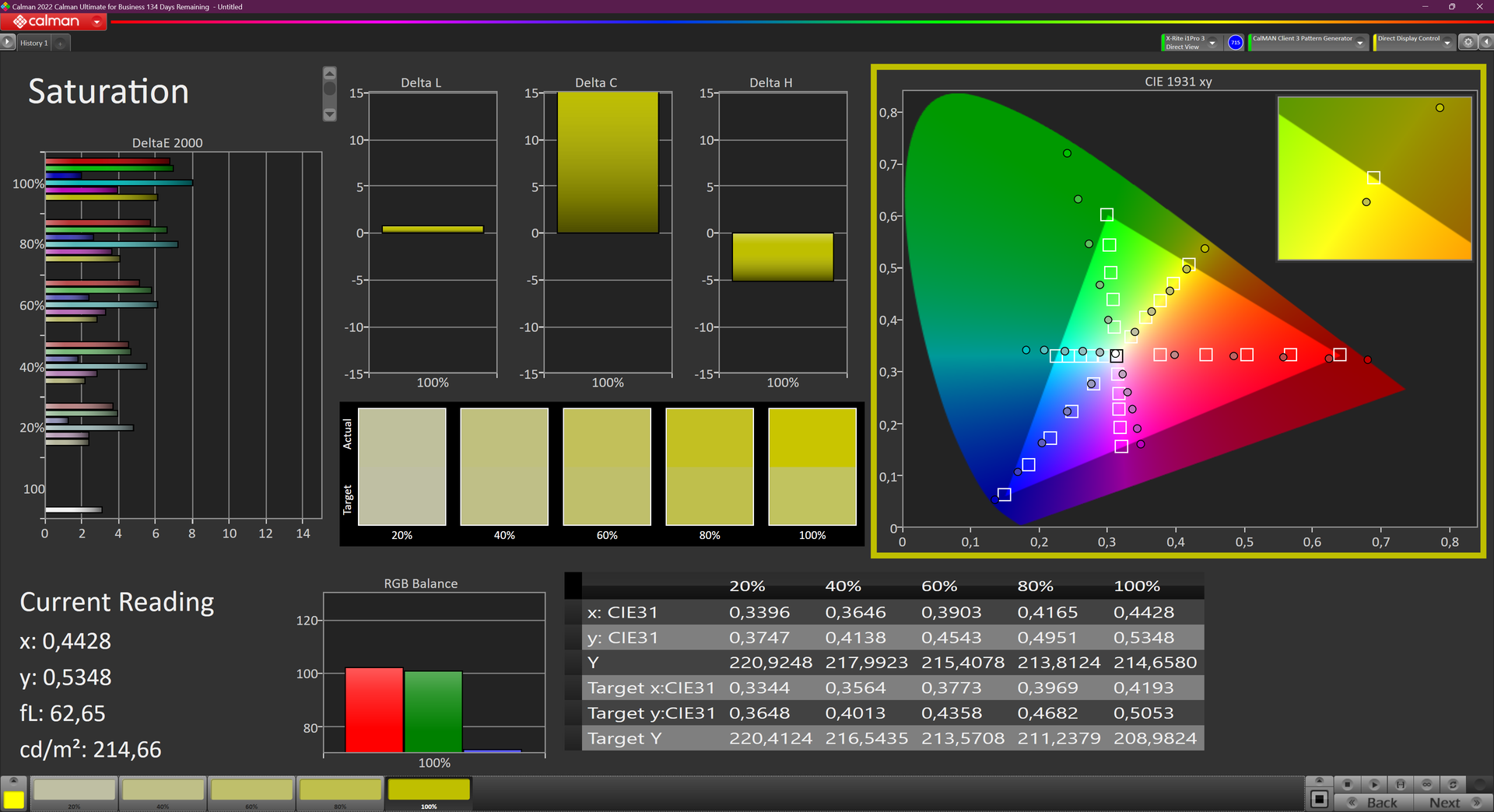

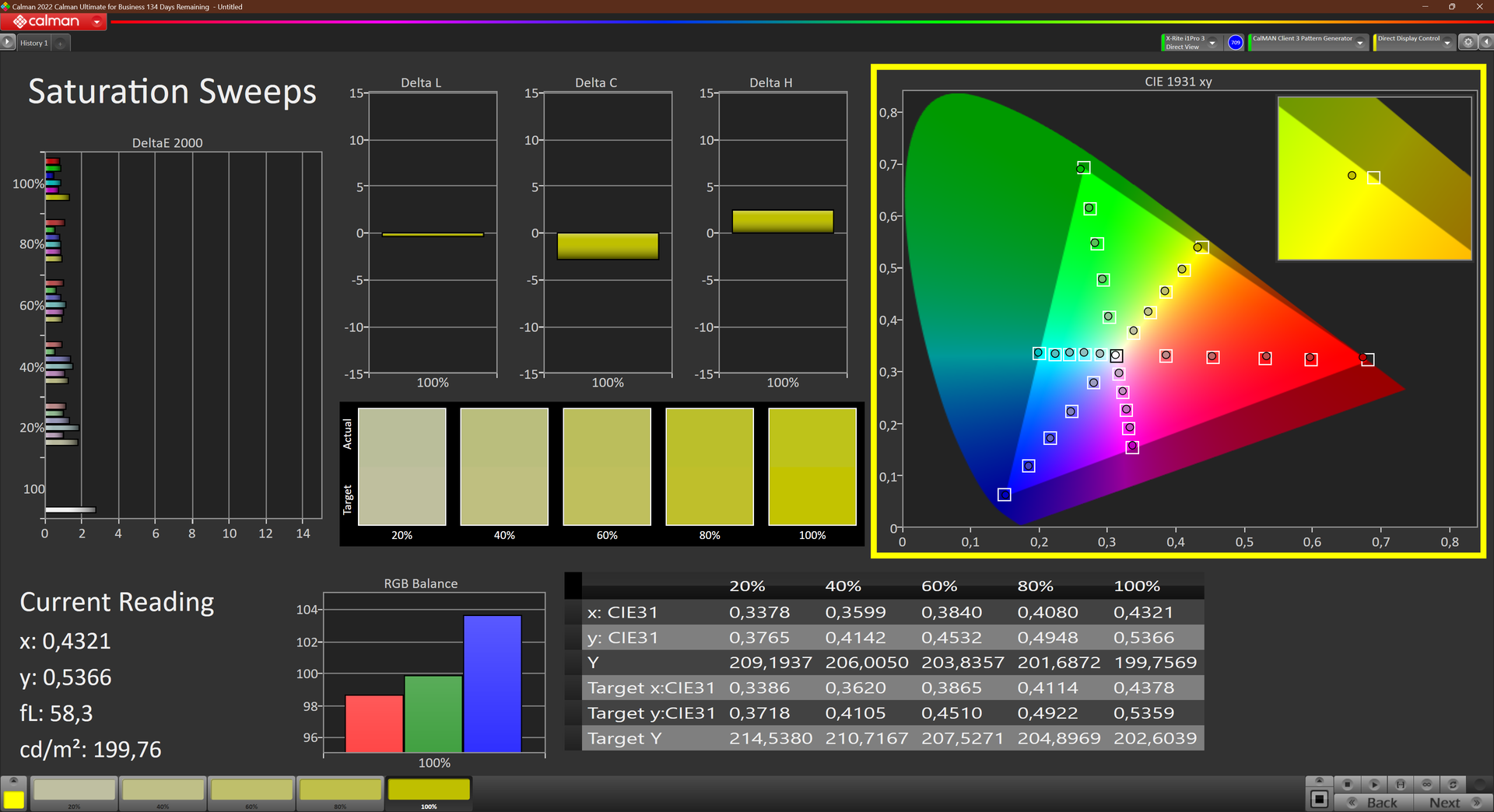

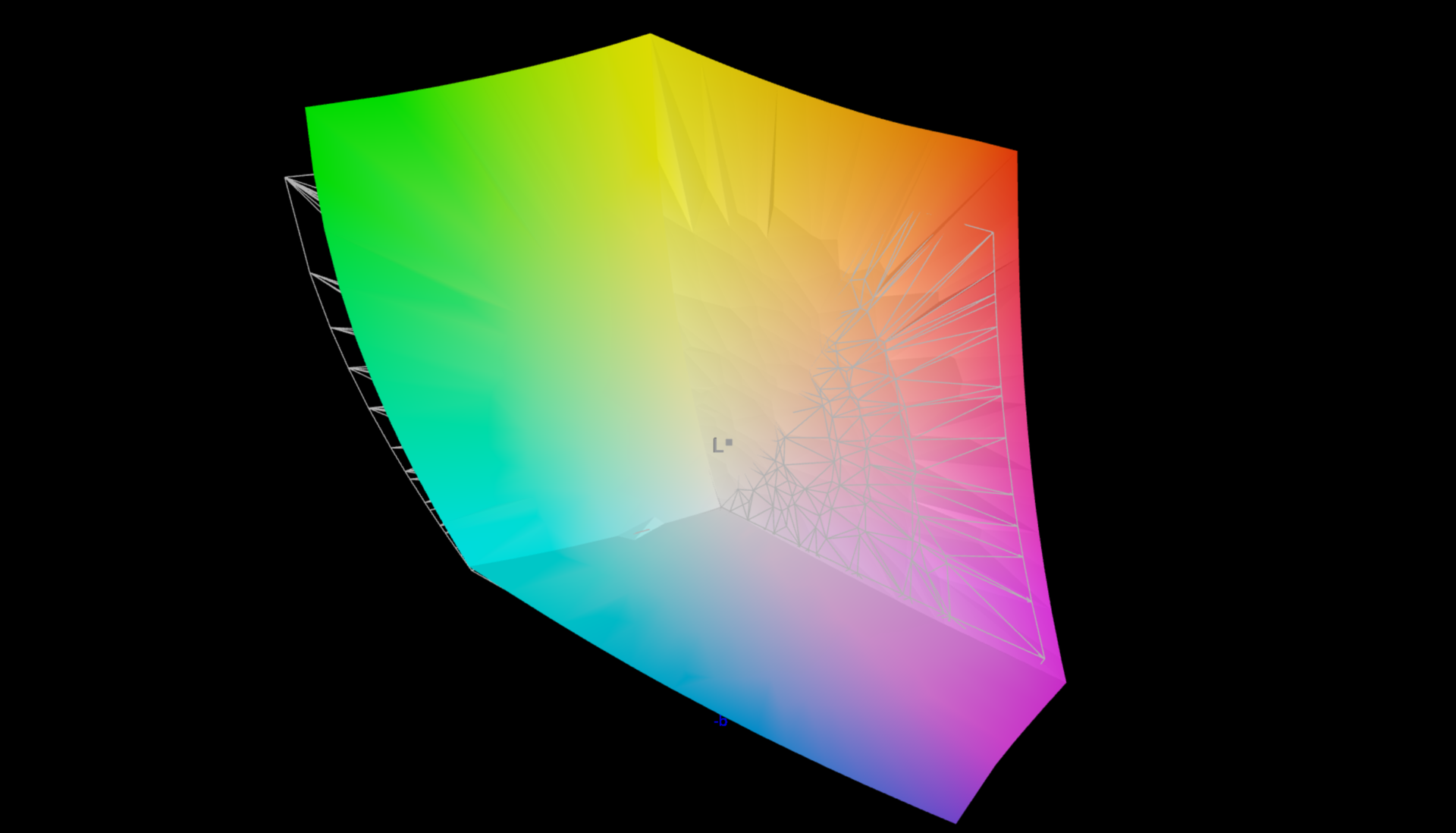

联想 ThinkPad P14s Gen 4 Intel 的 OLED 面板覆盖了 sRGB 和 P3 色域。甚至 AdobeRGB 色域也基本覆盖。这块屏幕非常适合处理色彩。

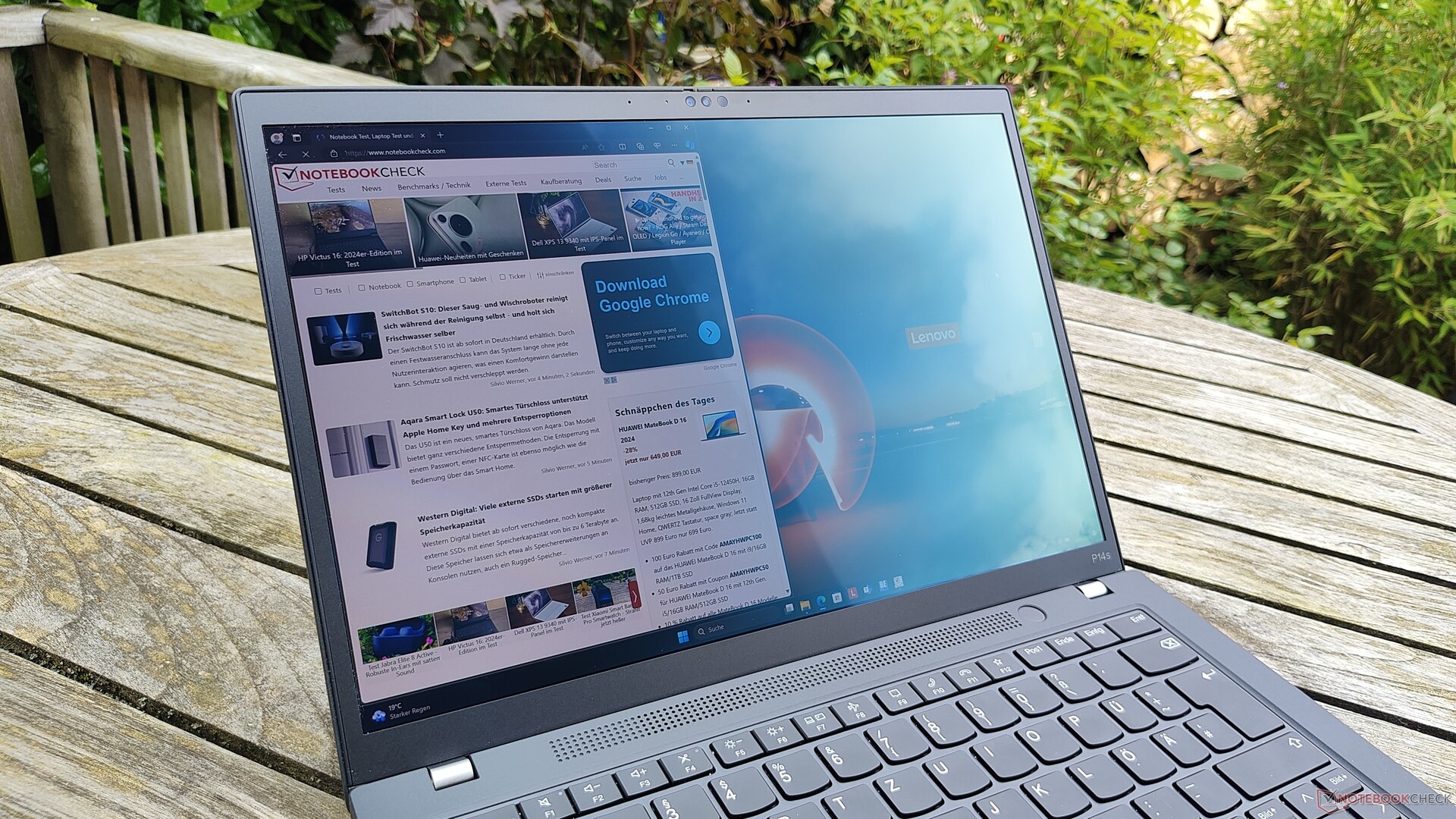

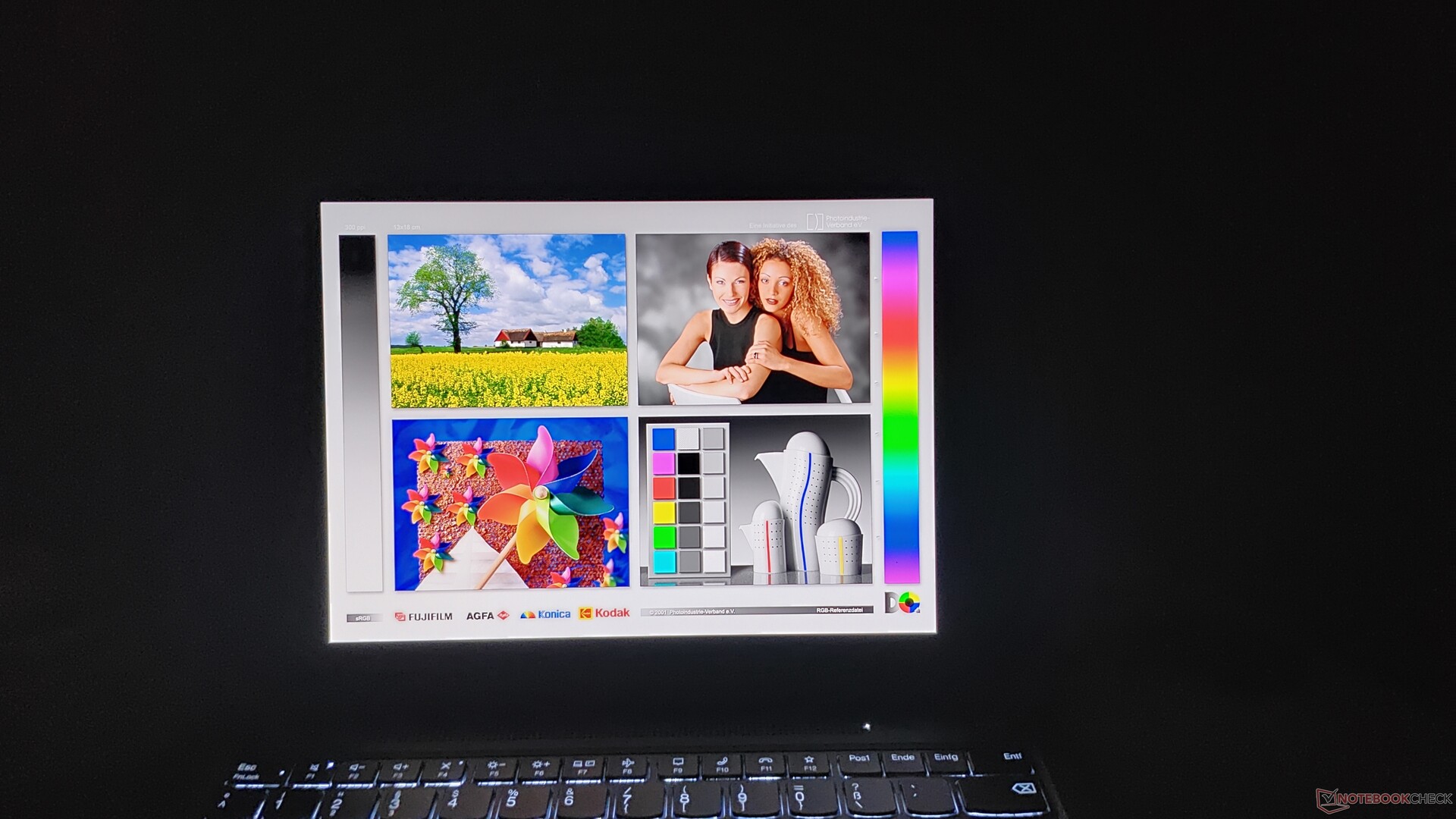

由于显示屏是半亚光/半磨砂的，因此会有一些反光，但会有所减少。由于 OLED 面板具有相当高的亮度和良好的对比度，联想 ThinkPad P14s G4 Intel 仍适合在户外使用。

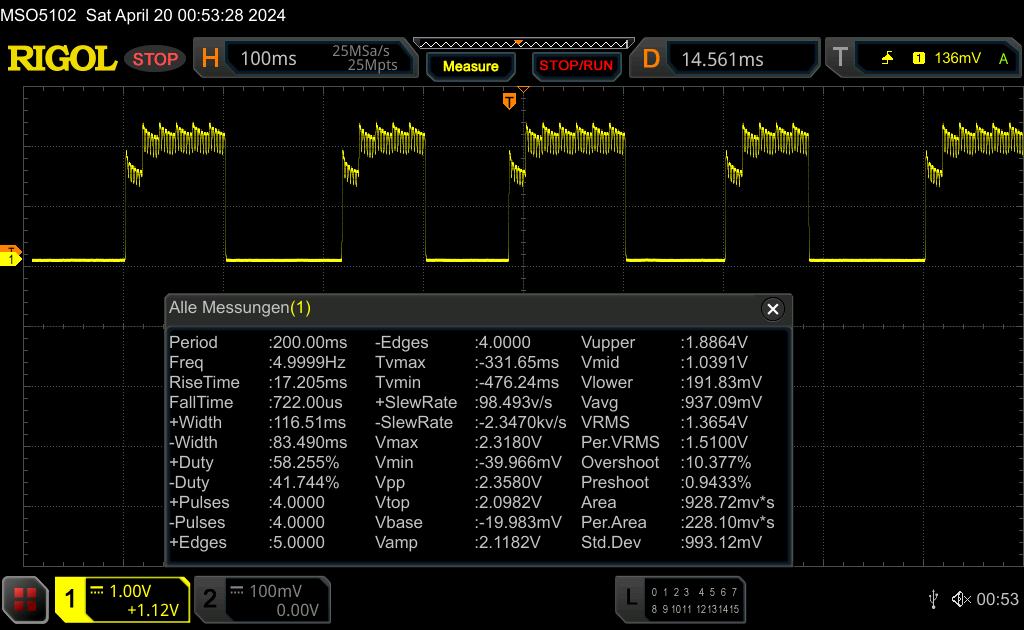

Display Response Times
| ↔ Response Time Black to White | ||
|---|---|---|
| 2.2 ms ... rise ↗ and fall ↘ combined | ↗ 1.1 ms rise |  |
| ↘ 1.1 ms fall | ||
| The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 8 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21 ms). | ||

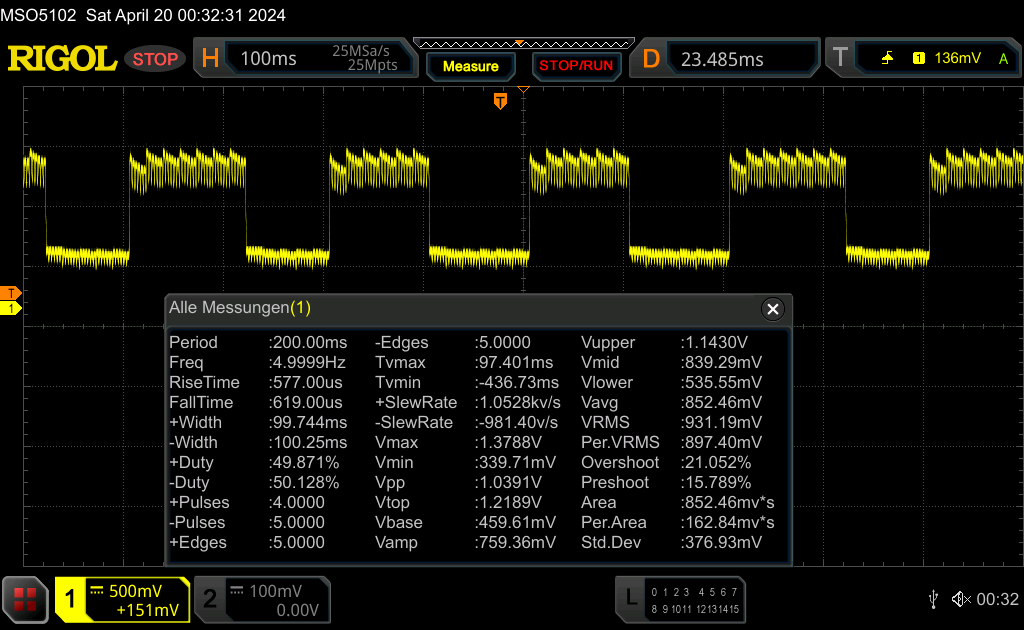

| ↔ Response Time 50% Grey to 80% Grey | ||
| 3 ms ... rise ↗ and fall ↘ combined | ↗ 1.5 ms rise |  |
| ↘ 1.5 ms fall | ||
| The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 9 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.9 ms). | ||

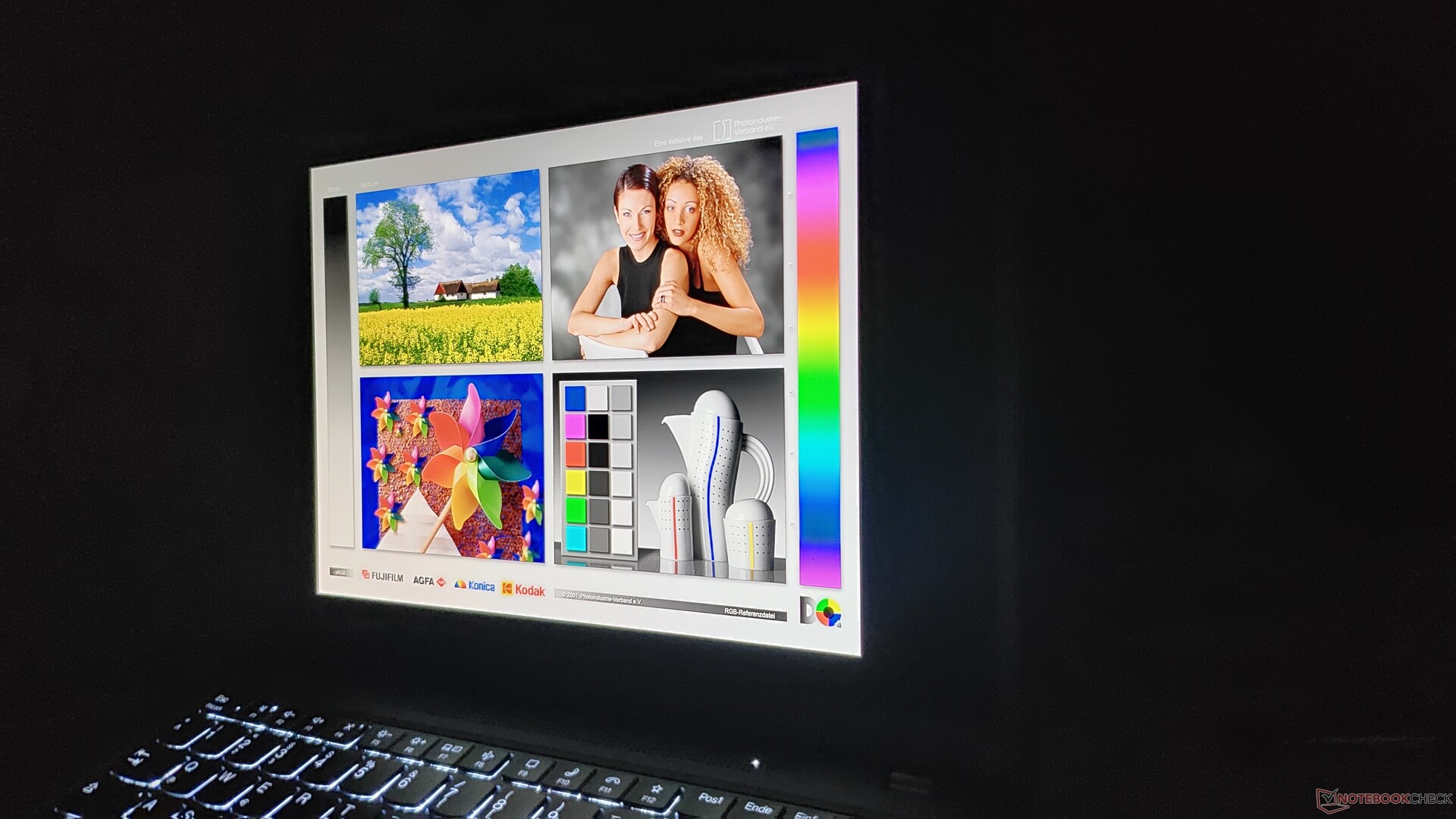

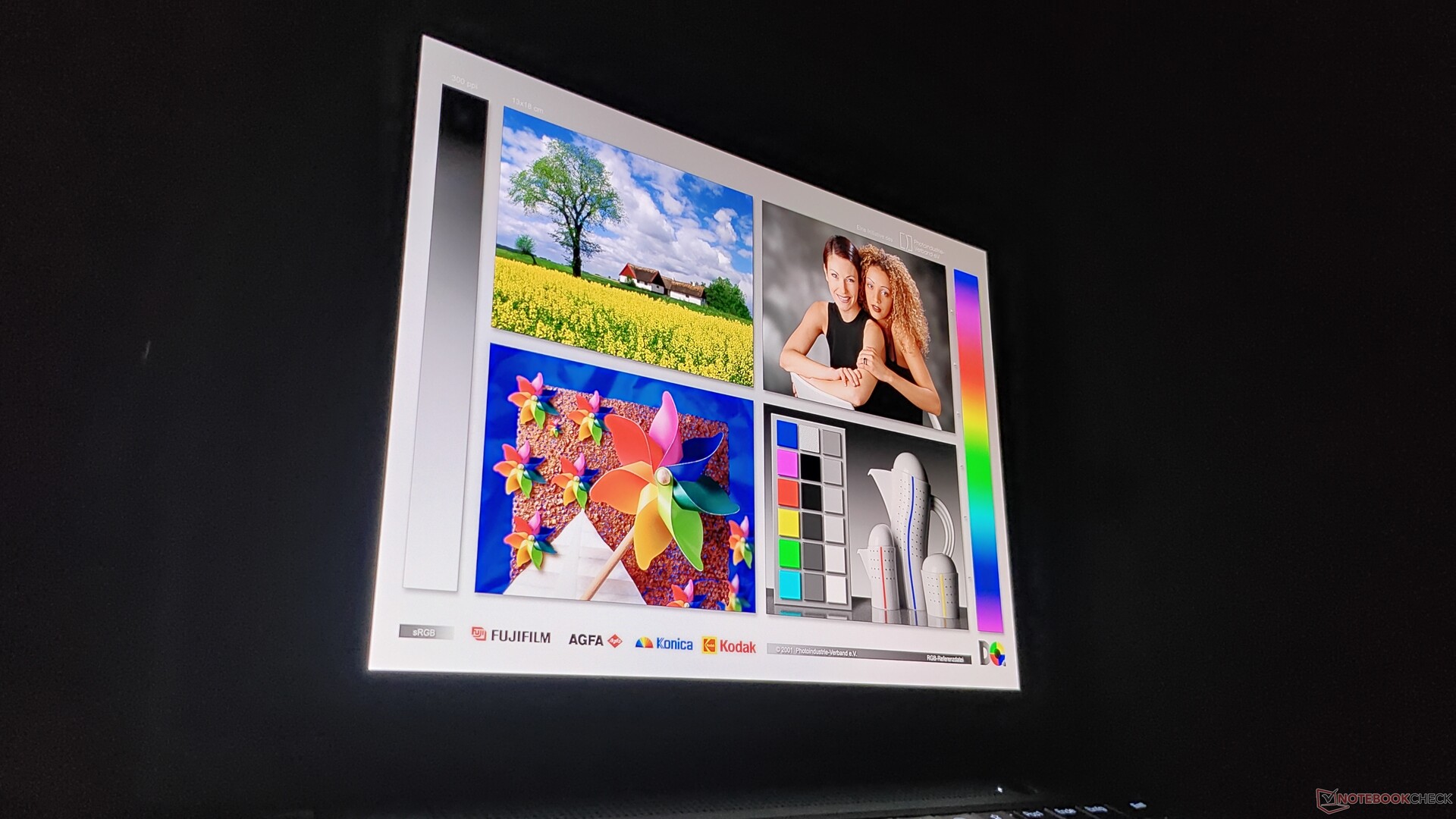

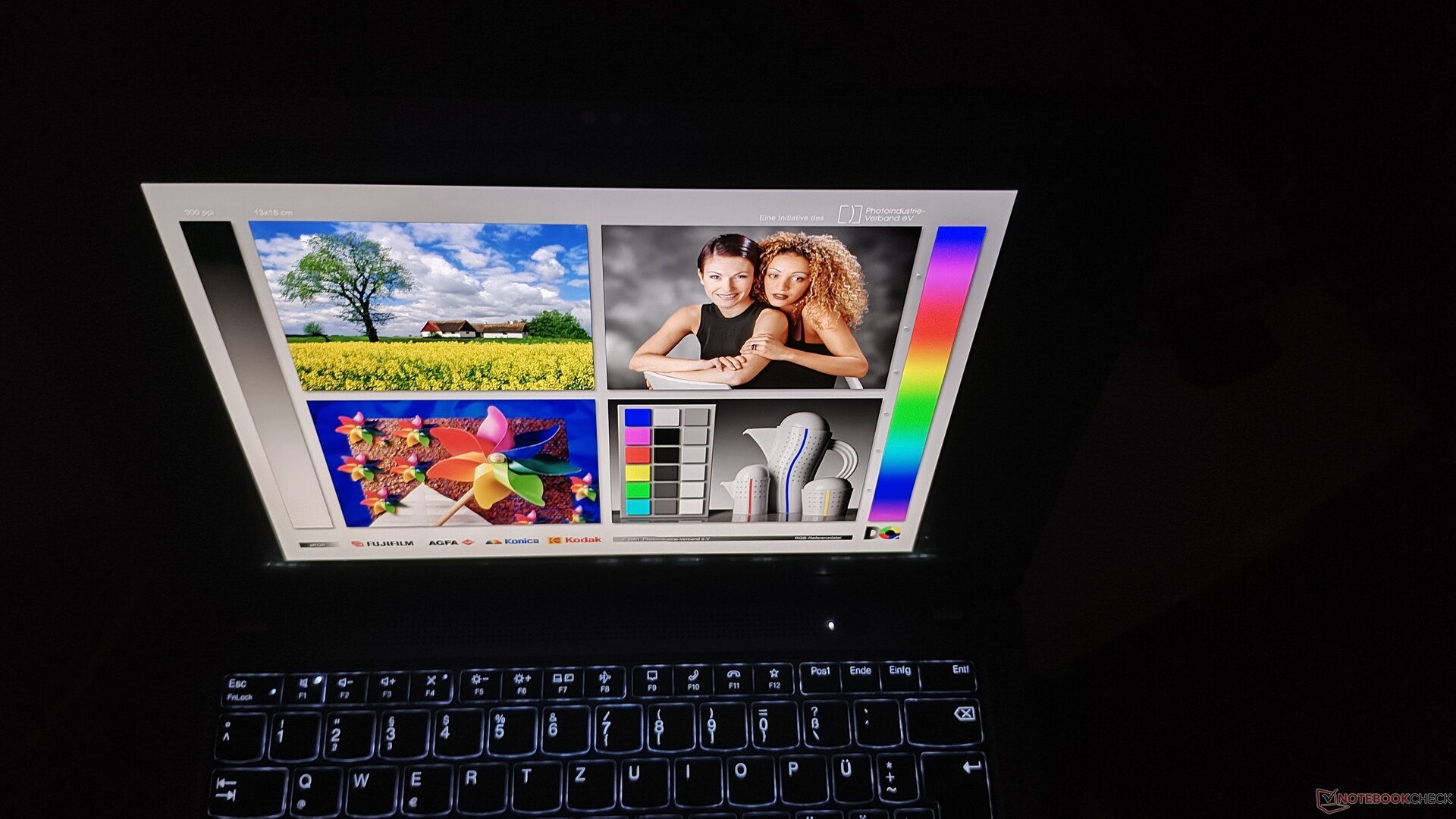

这款 OLED 面板的可视角度稳定性非常好，我们对此毫无怨言。

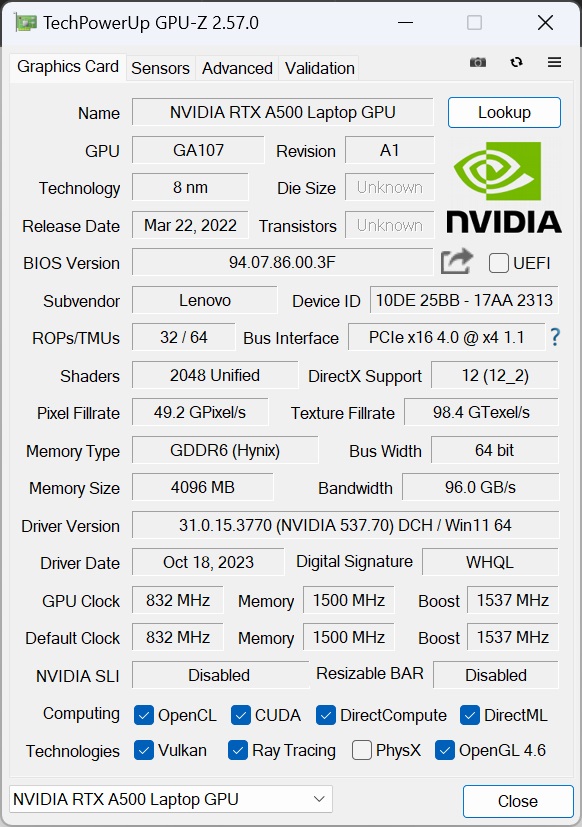

性能猛禽湖与 Nvidia RTX A500 的结合

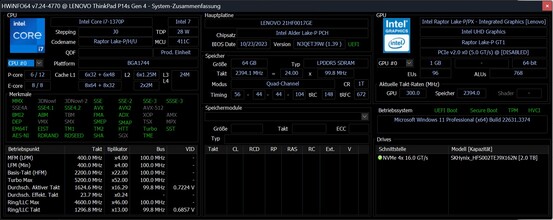

联想销售的 ThinkPad P14s Gen 4 英特尔版仅配备猛禽湖一代的 P28 CPU，其中包括 英特尔酷睿 i5-1340P, i5-1350P, i7-1360P和 i7-1370P作为可选项。Iris Xe 和 Nvidia RTX A500组成 GPU 选择。

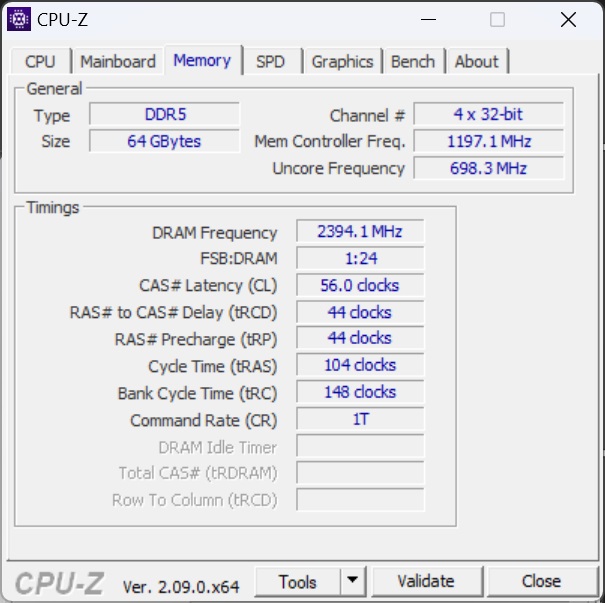

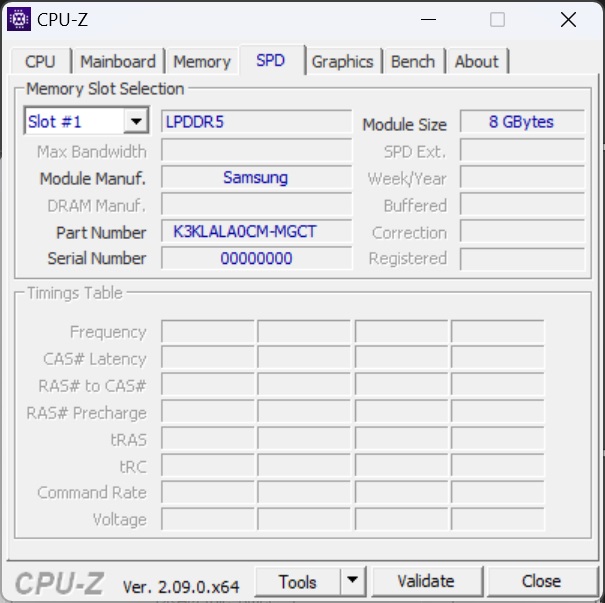

GPU 的选择会影响内存，因为 dGPU 机型采用焊接内存，板载 16、32 和 64 GB LPDDR5X-7500。纯 iGPU 机型板载单个 16 GB DDR5-5600 模块，外加一个开放式 SO-DIMM，最大可容纳 48 GB。在大容量存储方面，联想采用了单块 M.2 2280 SSD，容量高达 2 TB。
测试条件
Windows 设置中有三种不同的性能模式，它们会影响处理器的功率限制（功率限制 1 = 负载下的性能，功率限制 2 = 短期性能）：
- 最佳能效：PL1 22 W / PL 2 22 W
- 平衡：PL1 25 W / PL2 65 W
- 最佳性能：PL1 32.5 W / PL2 65 W
处理器

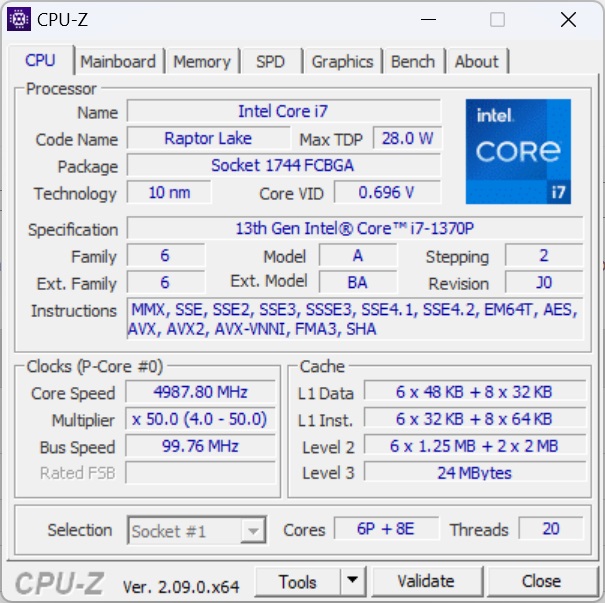

英特尔 英特尔酷睿 i7-1370P是 P28 系列中最强大的 Raptor Lake 芯片。作为唯一一款拥有 14 个内核的 Raptor Lake P CPU，它有 6 个大 P 内核（1.9 至 5.2 GHz）和 8 个 E 内核（1.4 至 3.9 GHz）。为便于与其他 CPU 进行比较，我们的 CPU 基准列表是一个很好的工具。
尽管与 ZBook Firefly 14 G10 和 ThinkPad P14s G4 AMD 中的 AMD 芯片相比，ThinkPad P14s G4 Intel 处理器拥有更多的内核，但在性能比较中，ThinkPad P14s G4 Intel 输给了 ZBook Firefly 14 G10 和 ThinkPad P14s G4 AMD。不过Raptor Lake 芯片在提升性能方面可以击败它们，但即使在这里，拥有更好散热系统的戴尔Precision 5490 也胜出一筹。总的来说，ThinkPad P14s G4 英特尔版的性能不差，但也不出色。
在 CB23 模式下，ThinkPad 的跑分达到了 14000 分，而在电池模式下仅为 10000 分。降低了 28.5%。
Cinebench R15 Multi Loop
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| CPU Performance Rating | |
| Average of class Workstation | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average Intel Core i7-1370P | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| HP ZBook Firefly 14 G10 A | |
| Cinebench R23 / Multi Core | |
| Average of class Workstation (11026 - 27338, n=28, last 2 years) | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| Average Intel Core i7-1370P (12778 - 14741, n=3) | |
| HP ZBook Firefly 14 G10 A | |
| Cinebench R23 / Single Core | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average Intel Core i7-1370P (1750 - 1995, n=3) | |
| Average of class Workstation (1465 - 2178, n=28, last 2 years) | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| HP ZBook Firefly 14 G10 A | |
| Cinebench R20 / CPU (Multi Core) | |
| Average of class Workstation (2990 - 10276, n=29, last 2 years) | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| Average Intel Core i7-1370P (5079 - 5651, n=3) | |
| HP ZBook Firefly 14 G10 A | |
| Cinebench R20 / CPU (Single Core) | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average Intel Core i7-1370P (675 - 764, n=3) | |
| Average of class Workstation (564 - 827, n=29, last 2 years) | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| HP ZBook Firefly 14 G10 A | |
| Cinebench R15 / CPU Multi 64Bit | |
| Dell Precision 5000 5490 | |
| Average of class Workstation (1863 - 4363, n=28, last 2 years) | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average Intel Core i7-1370P (2052 - 2492, n=3) | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| HP ZBook Firefly 14 G10 A | |
| Cinebench R15 / CPU Single 64Bit | |
| Average Intel Core i7-1370P (258 - 284, n=3) | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| Average of class Workstation (166.2 - 301, n=28, last 2 years) | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Dell Precision 5000 5490 | |
| HP ZBook Firefly 14 G10 A | |
| Blender / v2.79 BMW27 CPU | |
| Average Intel Core i7-1370P (246 - 389, n=3) | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| Dell Precision 5000 5490 | |
| Average of class Workstation (121 - 295, n=28, last 2 years) | |
| 7-Zip 18.03 / 7z b 4 | |
| Average of class Workstation (47244 - 109204, n=28, last 2 years) | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average Intel Core i7-1370P (48229 - 55049, n=3) | |
| HP ZBook Firefly 14 G10 A | |
| 7-Zip 18.03 / 7z b 4 -mmt1 | |
| Average Intel Core i7-1370P (6140 - 6687, n=3) | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average of class Workstation (4981 - 6960, n=28, last 2 years) | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| Dell Precision 5000 5490 | |
| Geekbench 6.3 / Multi-Core | |
| Dell Precision 5000 5490 | |
| Average of class Workstation (10200 - 16482, n=20, last 2 years) | |
| Average Intel Core i7-1370P (12497 - 12891, n=2) | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| HP ZBook Firefly 14 G10 A | |
| Geekbench 6.3 / Single-Core | |
| Average Intel Core i7-1370P (2639 - 2644, n=2) | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average of class Workstation (2352 - 2949, n=20, last 2 years) | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| Dell Precision 5000 5490 | |
| HP ZBook Firefly 14 G10 A | |
| Geekbench 5.5 / Multi-Core | |
| Average of class Workstation (8050 - 19316, n=28, last 2 years) | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average Intel Core i7-1370P (10184 - 11832, n=4) | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| HP ZBook Firefly 14 G10 A | |
| Geekbench 5.5 / Single-Core | |
| Average of class Workstation (1474 - 2095, n=28, last 2 years) | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average Intel Core i7-1370P (1655 - 1974, n=4) | |
| Dell Precision 5000 5490 | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| HWBOT x265 Benchmark v2.2 / 4k Preset | |
| Average of class Workstation (12.7 - 27.1, n=28, last 2 years) | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| HP ZBook Firefly 14 G10 A | |
| Average Intel Core i7-1370P (9.65 - 15.5, n=3) | |
| LibreOffice / 20 Documents To PDF | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| Average of class Workstation (36.5 - 95.2, n=28, last 2 years) | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Dell Precision 5000 5490 | |
| Average Intel Core i7-1370P (39.6 - 45.2, n=3) | |
| R Benchmark 2.5 / Overall mean | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| Dell Precision 5000 5490 | |
| Average of class Workstation (0.3825 - 0.54, n=28, last 2 years) | |
| Average Intel Core i7-1370P (0.4244 - 0.4649, n=3) | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| Average of class Workstation | |
| Dell Precision 5000 5490 | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average Intel Core i7-1370P | |
| AIDA64 / FP32 Ray-Trace | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| HP ZBook Firefly 14 G10 A | |
| Average of class Workstation (10658 - 25776, n=28, last 2 years) | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average Intel Core i7-1370P (5618 - 11995, n=3) | |
| AIDA64 / FPU Julia | |
| Average of class Workstation (56664 - 113270, n=28, last 2 years) | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| HP ZBook Firefly 14 G10 A | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average Intel Core i7-1370P (31165 - 60283, n=3) | |
| AIDA64 / CPU SHA3 | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| Average of class Workstation (2598 - 5598, n=28, last 2 years) | |
| Dell Precision 5000 5490 | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average Intel Core i7-1370P (1439 - 2799, n=3) | |
| AIDA64 / CPU Queen | |
| Average of class Workstation (84022 - 144411, n=28, last 2 years) | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| Average Intel Core i7-1370P (100027 - 104796, n=3) | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Dell Precision 5000 5490 | |
| HP ZBook Firefly 14 G10 A | |
| AIDA64 / FPU SinJulia | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| Average of class Workstation (7906 - 14742, n=28, last 2 years) | |
| HP ZBook Firefly 14 G10 A | |
| Dell Precision 5000 5490 | |
| Average Intel Core i7-1370P (7906 - 8733, n=3) | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| AIDA64 / FPU Mandel | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| Average of class Workstation (27301 - 58181, n=28, last 2 years) | |
| HP ZBook Firefly 14 G10 A | |
| Dell Precision 5000 5490 | |
| Average Intel Core i7-1370P (28284 - 32966, n=3) | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| AIDA64 / CPU AES | |
| Average of class Workstation (45568 - 128243, n=28, last 2 years) | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| Average Intel Core i7-1370P (32334 - 107331, n=3) | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| AIDA64 / CPU ZLib | |
| Average of class Workstation (713 - 1691, n=28, last 2 years) | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| HP ZBook Firefly 14 G10 A | |
| Average Intel Core i7-1370P (406 - 818, n=3) | |
| AIDA64 / FP64 Ray-Trace | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| HP ZBook Firefly 14 G10 A | |
| Average of class Workstation (5580 - 13800, n=28, last 2 years) | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average Intel Core i7-1370P (2964 - 6372, n=3) | |
| AIDA64 / CPU PhotoWorxx | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average of class Workstation (18157 - 51647, n=28, last 2 years) | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| Average Intel Core i7-1370P (27048 - 39240, n=3) | |
系统性能
在系统性能基准测试中，联想 ThinkPad P14s Gen 4 英特尔版击败了其 AMD 竞争对手，但落后于 戴尔Precision 5490.在日常使用中，联想工作站运行平稳。
CrossMark: Overall | Productivity | Creativity | Responsiveness
WebXPRT 3: Overall
WebXPRT 4: Overall
Mozilla Kraken 1.1: Total
| PCMark 10 / Score | |
| Dell Precision 5000 5490 | |
| Average of class Workstation (5953 - 8587, n=28, last 2 years) | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average Intel Core i7-1370P, NVIDIA RTX A500 Laptop GPU () | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| HP ZBook Firefly 14 G10 A | |
| PCMark 10 / Essentials | |
| Dell Precision 5000 5490 | |
| Average of class Workstation (9151 - 12197, n=28, last 2 years) | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average Intel Core i7-1370P, NVIDIA RTX A500 Laptop GPU () | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| HP ZBook Firefly 14 G10 A | |
| PCMark 10 / Productivity | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average Intel Core i7-1370P, NVIDIA RTX A500 Laptop GPU () | |
| Average of class Workstation (7846 - 10820, n=28, last 2 years) | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| HP ZBook Firefly 14 G10 A | |
| Dell Precision 5000 5490 | |
| PCMark 10 / Digital Content Creation | |
| Dell Precision 5000 5490 | |
| Average of class Workstation (7417 - 15093, n=28, last 2 years) | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average Intel Core i7-1370P, NVIDIA RTX A500 Laptop GPU () | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| HP ZBook Firefly 14 G10 A | |
| CrossMark / Overall | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average Intel Core i7-1370P, NVIDIA RTX A500 Laptop GPU () | |
| Average of class Workstation (1154 - 2037, n=26, last 2 years) | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| CrossMark / Productivity | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average Intel Core i7-1370P, NVIDIA RTX A500 Laptop GPU () | |
| Average of class Workstation (1188 - 1902, n=26, last 2 years) | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| CrossMark / Creativity | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average Intel Core i7-1370P, NVIDIA RTX A500 Laptop GPU () | |
| Dell Precision 5000 5490 | |
| Average of class Workstation (1180 - 2311, n=26, last 2 years) | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| CrossMark / Responsiveness | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average Intel Core i7-1370P, NVIDIA RTX A500 Laptop GPU () | |
| Average of class Workstation (990 - 1805, n=26, last 2 years) | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| WebXPRT 3 / Overall | |
| Average of class Workstation (218 - 415, n=29, last 2 years) | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average Intel Core i7-1370P, NVIDIA RTX A500 Laptop GPU () | |
| Dell Precision 5000 5490 | |
| HP ZBook Firefly 14 G10 A | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| WebXPRT 4 / Overall | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Dell Precision 5000 5490 | |
| Average of class Workstation (166.7 - 338, n=25, last 2 years) | |
| Average Intel Core i7-1370P, NVIDIA RTX A500 Laptop GPU (199.4 - 270, n=2) | |
| Mozilla Kraken 1.1 / Total | |
| HP ZBook Firefly 14 G10 A | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| Dell Precision 5000 5490 | |
| Average of class Workstation (447 - 612, n=29, last 2 years) | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average Intel Core i7-1370P, NVIDIA RTX A500 Laptop GPU () | |
* ... smaller is better
| PCMark 10 Score | 7009 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| Average of class Workstation (30324 - 95718, n=28, last 2 years) | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average Intel Core i7-1370P (46184 - 69471, n=3) | |
| AIDA64 / Memory Read | |
| Dell Precision 5000 5490 | |
| HP ZBook Firefly 14 G10 A | |
| Average of class Workstation (30787 - 86584, n=28, last 2 years) | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average Intel Core i7-1370P (50228 - 66704, n=3) | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| AIDA64 / Memory Write | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average Intel Core i7-1370P (47356 - 85119, n=3) | |
| Average of class Workstation (32728 - 93871, n=28, last 2 years) | |
| AIDA64 / Memory Latency | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| Average of class Workstation (83.4 - 140.8, n=28, last 2 years) | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Average Intel Core i7-1370P (72.5 - 94.6, n=3) | |
* ... smaller is better

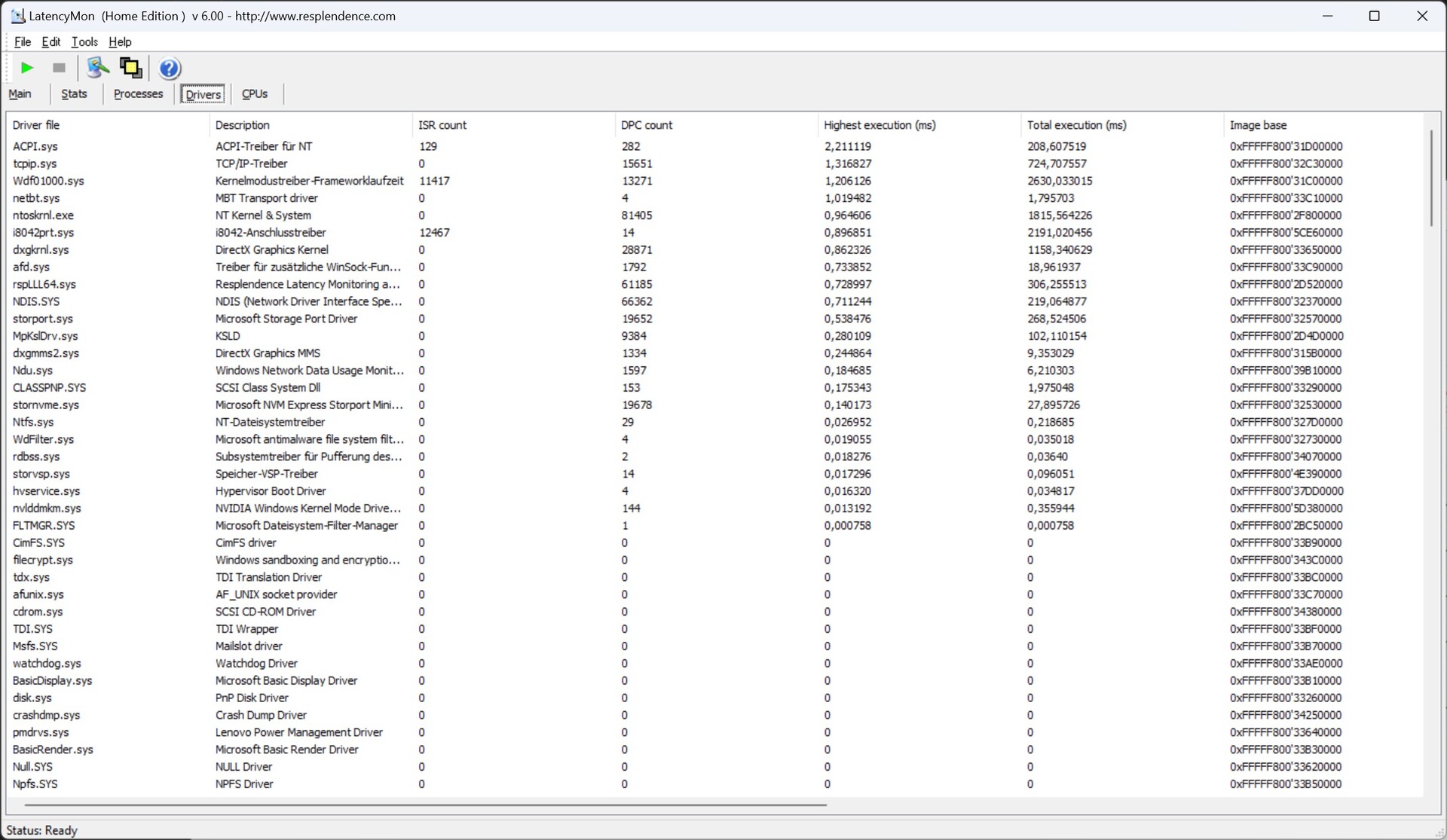

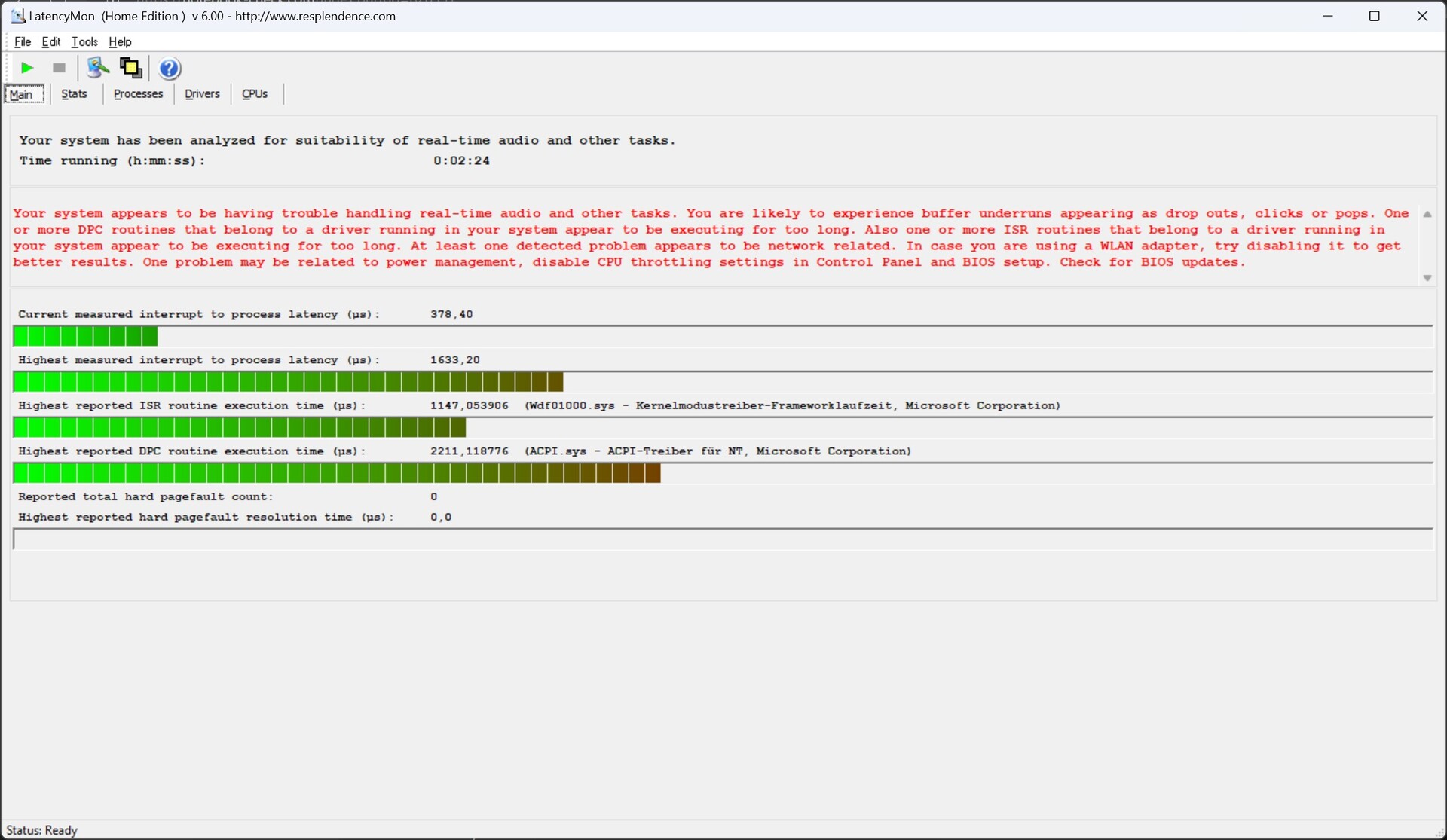

DPC 延迟
所有 14 英寸工作站都存在 DPC 延迟问题，联想 ThinkPad P14s Gen 4 Intel 也不例外。通过驱动程序更新，联想可以解决这个主要影响音频软件的问题。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| HP ZBook Firefly 14 G10 A | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
* ... smaller is better
存储

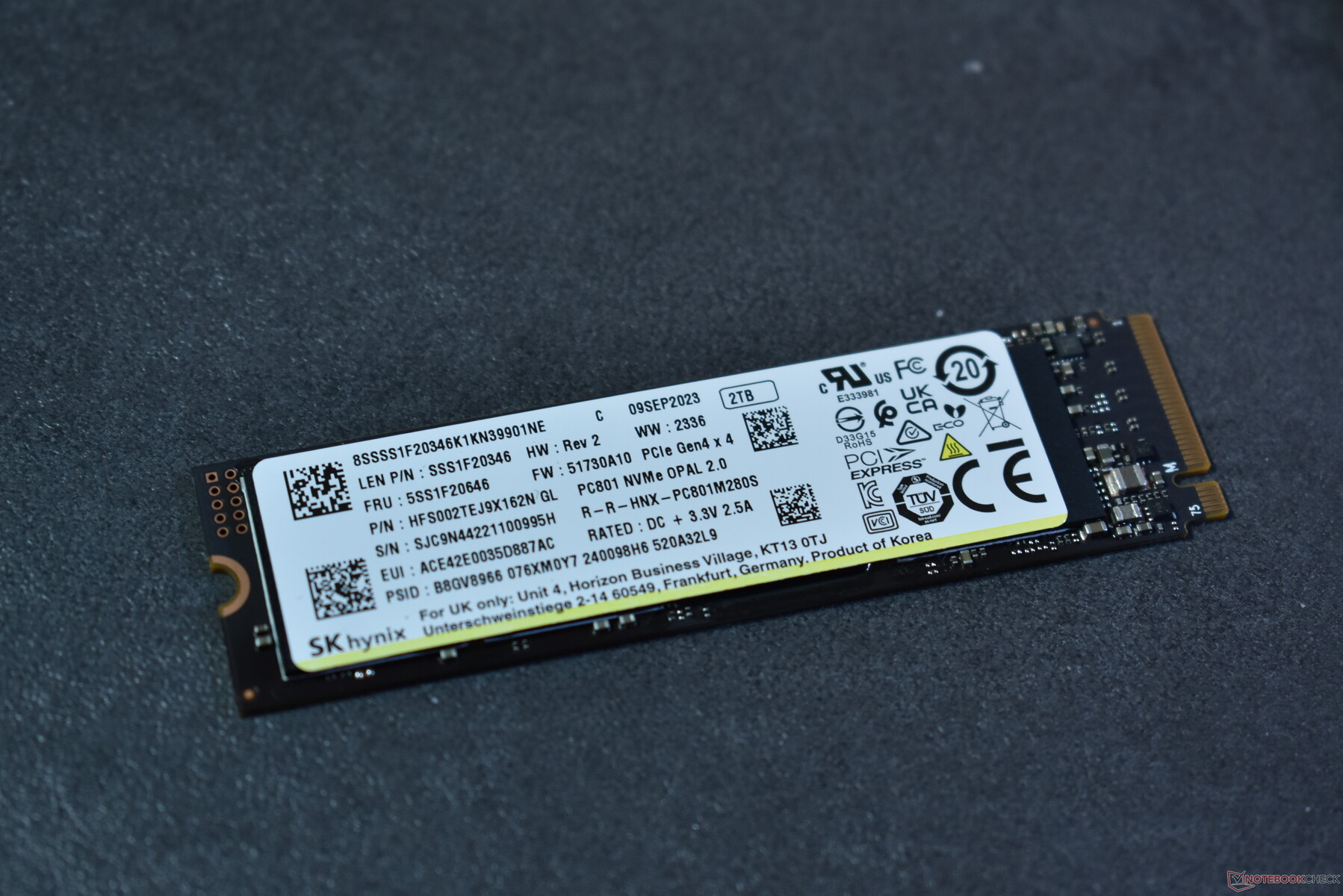

联想 ThinkPad P14s Gen 4 Intel 的大容量存储器由 SK Hynix 制造。它的容量为 2 TB，这是联想为 ThinkPad 笔记本电脑提供的最大容量。在对比中，这款闪存的速度是最快的。它通过 NVMe PCIe 4.0 连接。
* ... smaller is better
Sustained performance read: DiskSpd Read Loop, Queue Depth 8

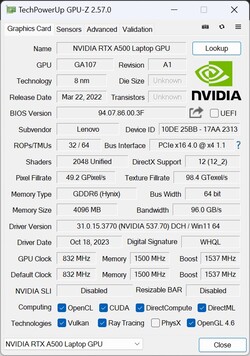

图形卡
撠 Nvidia RTX A500是面向专业用户的入门级安培解决方案。它是 NvidiaGeForce RTX 3050也是 ThinkPad P14 的首款 RTX GPU。这款专用 GPU 的 TDP 值仅为 30 W，内存容量为 4 GB GDDR6，性能非常弱。 英伟达 RTX 500 Ada取代。
在 3DMark 基准测试中，联想 ThinkPad P14s G4 Intel 明显输给了配备RTX 3000 Ada 的戴尔Precision 5490 ，这在意料之中。更有趣的是与 AMD 两款工作站的比较：虽然惠普ZBook Firefly 14 G10 的AMD Radeon 760M 大约慢了 20%，但与联想 ThinkPad P14s Gen 4 AMD 的Radeon 780M 性能相当。但是，在工作站测试 SPECviewperf 中，情况发生了变化，dGPU 在这里占据了优势。
| SPECviewperf Performance Rating - Percent | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| SPECviewperf 2020 | |
| 1920x1080 Siemens NX (snx-04) | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| 1920x1080 Medical (medical-03) | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| 1920x1080 Maya (maya-06) | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| 1920x1080 Energy (energy-03) | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| 1920x1080 Creo (creo-03) | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| 1920x1080 CATIA (catia-06) | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| 1920x1080 3ds Max (3dsmax-07) | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| 3DMark 06 Standard Score | 40862 points | |
| 3DMark Vantage P Result | 40923 points | |
| 3DMark 11 Performance | 11213 points | |
| 3DMark Ice Storm Standard Score | 84552 points | |
| 3DMark Cloud Gate Standard Score | 27001 points | |
| 3DMark Fire Strike Score | 6899 points | |
| 3DMark Time Spy Score | 3127 points | |
Help | ||
* ... smaller is better
游戏性能
下班后可以玩玩游戏，因为 RTX A500 的性能足以应对一些现代游戏。4K 游戏是不可能的，在一些较新的游戏中，"高 "设置是这款 GPU 所能处理的最大值。
| Performance Rating - Percent | |
| Average of class Workstation | |
| Dell Precision 5000 5490 -1! | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| HP ZBook Firefly 14 G10 A | |
| The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
| Dell Precision 5000 5490 | |
| Average of class Workstation (23.3 - 156.5, n=24, last 2 years) | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| HP ZBook Firefly 14 G10 A | |
| GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
| Average of class Workstation (18.3 - 126.7, n=25, last 2 years) | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| HP ZBook Firefly 14 G10 A | |
| Final Fantasy XV Benchmark - 1920x1080 High Quality | |
| Average of class Workstation (21.2 - 174.6, n=29, last 2 years) | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| HP ZBook Firefly 14 G10 A | |
| Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
| Average of class Workstation (34.1 - 360, n=26, last 2 years) | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| HP ZBook Firefly 14 G10 A | |
| Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
| Average of class Workstation (57.8 - 178.4, n=29, last 2 years) | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| HP ZBook Firefly 14 G10 A | |
| X-Plane 11.11 - 1920x1080 high (fps_test=3) | |
| Average of class Workstation (27.7 - 139.7, n=30, last 2 years) | |
| Dell Precision 5000 5490 | |
| Lenovo ThinkPad P14s G4 21HF0017GE | |
| Lenovo ThinkPad P14s G4 21K5000LGE | |
| HP ZBook Firefly 14 G10 A | |
Cyberpunk FPS diagram
| low | med. | high | ultra | QHD | 4K | |
|---|---|---|---|---|---|---|
| GTA V (2015) | 173.3 | 161.7 | 89.7 | 42.9 | 29.8 | |
| The Witcher 3 (2015) | 174.5 | 104.1 | 56.8 | 31.1 | ||
| Dota 2 Reborn (2015) | 157.7 | 131.1 | 111.9 | 104.8 | ||
| Final Fantasy XV Benchmark (2018) | 90.4 | 45.8 | 32.9 | 23.3 | ||
| X-Plane 11.11 (2018) | 117.7 | 89.2 | 73.9 | |||
| Far Cry 5 (2018) | 83 | 57 | 50 | 44 | ||
| Strange Brigade (2018) | 183.5 | 76.5 | 61.9 | 53.6 | 39.2 | |
| Hogwarts Legacy (2023) | 23 | 19.6 | 10.6 | 5.43 | ||
| F1 23 (2023) | 57 | 56.3 | 43.1 | 10.9 | 6.63 | |
| Baldur's Gate 3 (2023) | 39.2 | 30.8 | 26.2 | 25.8 | 17.8 | |
| Cyberpunk 2077 2.1 Phantom Liberty (2023) | 43.3 | 32.1 | 25.1 | 20.4 | 10.4 | 4.29 |
| Enshrouded (2024) | 24.4 | 18.7 | 14.3 | 8.28 | ||
| Helldivers 2 (2024) | 19.5 | 12.8 | 12 | 10.9 | ||
| Last Epoch (2024) | 76.7 | 58.2 | 49.3 | 33.3 | ||
| Alone in the Dark (2024) | 80.1 | 68.6 | 58.6 | 43.8 | ||
| Dragon's Dogma 2 (2024) | 23.6 | 14.5 | ||||
| Ghost of Tsushima (2024) | 34.6 | 27.5 | 19.1 | 14.1 | ||
| F1 24 (2024) | 82.4 | 71.9 | 32.9 | 11.7 |
排放：ThinkPad P14s 发热
噪音
作为一款相当紧凑的机型，联想 ThinkPad P14s G4 Intel 的散热系统相当有限。只有一个风扇负责控制 CPU 和 GPU 的温度。即使在空转时，风扇有时也会启动，但声音很小。在负载情况下，无论是平均负载（配置文件：平衡）还是压力测试（配置文件：最高性能），ThinkPad 的噪音水平始终超过 40 dB(a)。噪音 HP ZBook Firefly 14 G10具有类似的噪音水平，而 AMD 版本的 ThinkPad P14s 第 4 代运行更安静。只有 戴尔Precision 5490的噪音更大，因为其 GPU 性能更强。
我们没有发现任何线圈啸叫。
Noise Level
| Idle |
| 24.6 / 24.6 / 25.9 dB(A) |
| Load |
| 41.3 / 46.2 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 24.6 dB(A) | ||
| Lenovo ThinkPad P14s G4 21HF0017GE RTX A500 Laptop GPU, i7-1370P, SK Hynix HFS002TEJ9X162N | Lenovo ThinkPad P14s G4 21K5000LGE Radeon 780M, R7 PRO 7840U, SK hynix PC801 HFS512GEJ9X162N | HP ZBook Firefly 14 G10 A Radeon 760M, R5 PRO 7640HS, Samsung PM9B1 512GB MZVL4512HBLU | Dell Precision 5000 5490 NVIDIA RTX 3000 Ada Generation Laptop GPU, Ultra 9 185H, Kioxia XG8 KXG80ZNV1T02 | |
|---|---|---|---|---|
| Noise | 13% | -3% | 1% | |
| off / environment * | 24.6 | 22.4 9% | 25 -2% | 22.8 7% |
| Idle Minimum * | 24.6 | 22.4 9% | 25 -2% | 23.8 3% |
| Idle Average * | 24.6 | 22.4 9% | 26 -6% | 23.8 3% |
| Idle Maximum * | 25.9 | 22.4 14% | 27 -4% | 24.7 5% |
| Load Average * | 41.3 | 31.3 24% | 45 -9% | 38.9 6% |
| Witcher 3 ultra * | 46 | 39.5 14% | 45 2% | 49.9 -8% |
| Cyberpunk 2077 ultra * | 44.2 | |||
| Load Maximum * | 46.2 | 39.2 15% | 46 -0% | 51.4 -11% |
* ... smaller is better
热量
紧凑的设计、坚固的部件、只有一个风扇：这样的组合让联想 ThinkPad P14s Gen 4 Intel 成为了一款发热的笔记本电脑。ThinkPad 笔记本电脑的右上角温度很高，风扇出风口上方的温度高达 55 摄氏度/132 华氏度。掌托的温度也高达 32 摄氏度/90 华氏度。

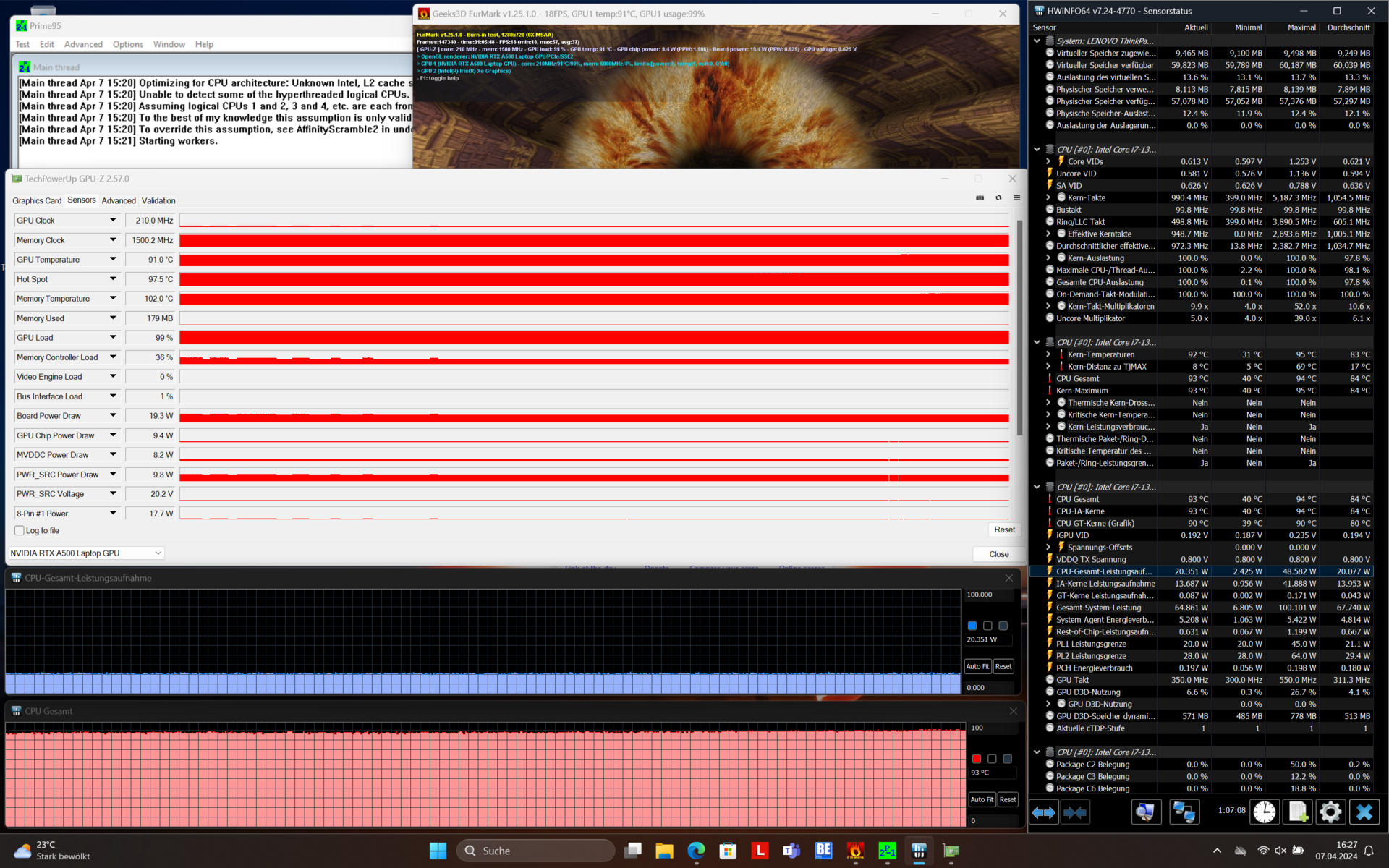

在压力测试中，散热系统的局限性显而易见。CPU 和 GPU 的总功耗仅为 40 W，两个组件的功耗均为 20 W。
(-) The maximum temperature on the upper side is 55.3 °C / 132 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 48.7 °C / 120 F, compared to the average of 41.2 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 28.3 °C / 83 F, compared to the device average of 32 °C / 90 F.
(-) Playing The Witcher 3, the average temperature for the upper side is 40.1 °C / 104 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (33.1 °C / 91.6 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 27.9 °C / 82.2 F (-5.2 °C / -9.4 F).
| Lenovo ThinkPad P14s G4 21HF0017GE Intel Core i7-1370P, NVIDIA RTX A500 Laptop GPU | Lenovo ThinkPad P14s G4 21K5000LGE AMD Ryzen 7 PRO 7840U, AMD Radeon 780M | HP ZBook Firefly 14 G10 A AMD Ryzen 5 PRO 7640HS, AMD Radeon 760M | Dell Precision 5000 5490 Intel Core Ultra 9 185H, NVIDIA RTX 3000 Ada Generation Laptop GPU | |
|---|---|---|---|---|
| Heat | 13% | 9% | 10% | |
| Maximum Upper Side * | 55.3 | 41.1 26% | 50 10% | 43.2 22% |
| Maximum Bottom * | 48.7 | 48.2 1% | 51 -5% | 38.4 21% |
| Idle Upper Side * | 31 | 26.5 15% | 25 19% | 31.6 -2% |
| Idle Bottom * | 29.9 | 26.9 10% | 27 10% | 30.6 -2% |
* ... smaller is better
发言人
音量和底座--联想 ThinkPad P14s Gen 4 英特尔版都有所欠缺。惠普 ZBook 和戴尔Precision 的扬声器都更好。
Lenovo ThinkPad P14s G4 21HF0017GE audio analysis
(±) | speaker loudness is average but good (78.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 27% lower than median
(±) | linearity of bass is average (12.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.5% away from median
(+) | mids are linear (4.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.3% away from median
(+) | highs are linear (6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.2% difference to median)
Compared to same class
» 72% of all tested devices in this class were better, 7% similar, 20% worse
» The best had a delta of 7%, average was 18%, worst was 35%
Compared to all devices tested
» 55% of all tested devices were better, 7% similar, 38% worse
» The best had a delta of 4%, average was 25%, worst was 134%
HP ZBook Firefly 14 G10 A audio analysis
(±) | speaker loudness is average but good (78 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12% lower than median
(±) | linearity of bass is average (12.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.7% away from median
(+) | mids are linear (5.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.2% away from median
(+) | highs are linear (5.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14.2% difference to median)
Compared to same class
» 26% of all tested devices in this class were better, 3% similar, 71% worse
» The best had a delta of 7%, average was 18%, worst was 35%
Compared to all devices tested
» 15% of all tested devices were better, 4% similar, 82% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Dell Precision 5000 5490 audio analysis
(+) | speakers can play relatively loud (87.8 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 10.9% lower than median
(±) | linearity of bass is average (7.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.7% away from median
(+) | mids are linear (3.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.4% away from median
(+) | highs are linear (3.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.2% difference to median)
Compared to same class
» 3% of all tested devices in this class were better, 2% similar, 94% worse
» The best had a delta of 7%, average was 18%, worst was 35%
Compared to all devices tested
» 3% of all tested devices were better, 1% similar, 97% worse
» The best had a delta of 4%, average was 25%, worst was 134%
能源管理：OLED 会快速耗尽电池
耗电量
空闲时，联想 ThinkPad P14s Gen 4 的耗电量比 AMD 工作站要大得多。只有 戴尔Precision 5490能耗更高。
100 瓦充电器可满足 98.3 瓦的最大耗电量。
| Off / Standby | 0.3 / 0.7 Watt |
| Idle | 6.3 / 7 / 8.1 Watt |
| Load |
84.6 / 98.3 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Lenovo ThinkPad P14s G4 21HF0017GE i7-1370P, RTX A500 Laptop GPU, SK Hynix HFS002TEJ9X162N, OLED, 2880x1800, 14" | Lenovo ThinkPad P14s G4 21K5000LGE R7 PRO 7840U, Radeon 780M, SK hynix PC801 HFS512GEJ9X162N, IPS, 1920x1200, 14" | HP ZBook Firefly 14 G10 A R5 PRO 7640HS, Radeon 760M, Samsung PM9B1 512GB MZVL4512HBLU, IPS, 1920x1200, 14" | Dell Precision 5000 5490 Ultra 9 185H, NVIDIA RTX 3000 Ada Generation Laptop GPU, Kioxia XG8 KXG80ZNV1T02, IPS, 2560x1600, 14" | Average NVIDIA RTX A500 Laptop GPU | Average of class Workstation | |
|---|---|---|---|---|---|---|
| Power Consumption | 34% | 27% | -63% | -13% | -75% | |
| Idle Minimum * | 6.3 | 2.9 54% | 3 52% | 11.1 -76% | 6.45 ? -2% | 9.05 ? -44% |
| Idle Average * | 7 | 5.1 27% | 4 43% | 14.8 -111% | 9.85 ? -41% | 14 ? -100% |
| Idle Maximum * | 8.1 | 5.6 31% | 8 1% | 16.5 -104% | 10.7 ? -32% | 19.9 ? -146% |
| Load Average * | 84.6 | 51.2 39% | 56 34% | 70.1 17% | 75.8 ? 10% | 95.2 ? -13% |
| Witcher 3 ultra * | 56.5 | 49.9 12% | 58.2 -3% | 93.1 -65% | ||
| Load Maximum * | 98.3 | 60.2 39% | 66 33% | 137.5 -40% | 96.6 ? 2% | 166.7 ? -70% |
* ... smaller is better
Energieaufnahme Witcher 3 / Stresstest
Power consumption with external monitor
电池寿命

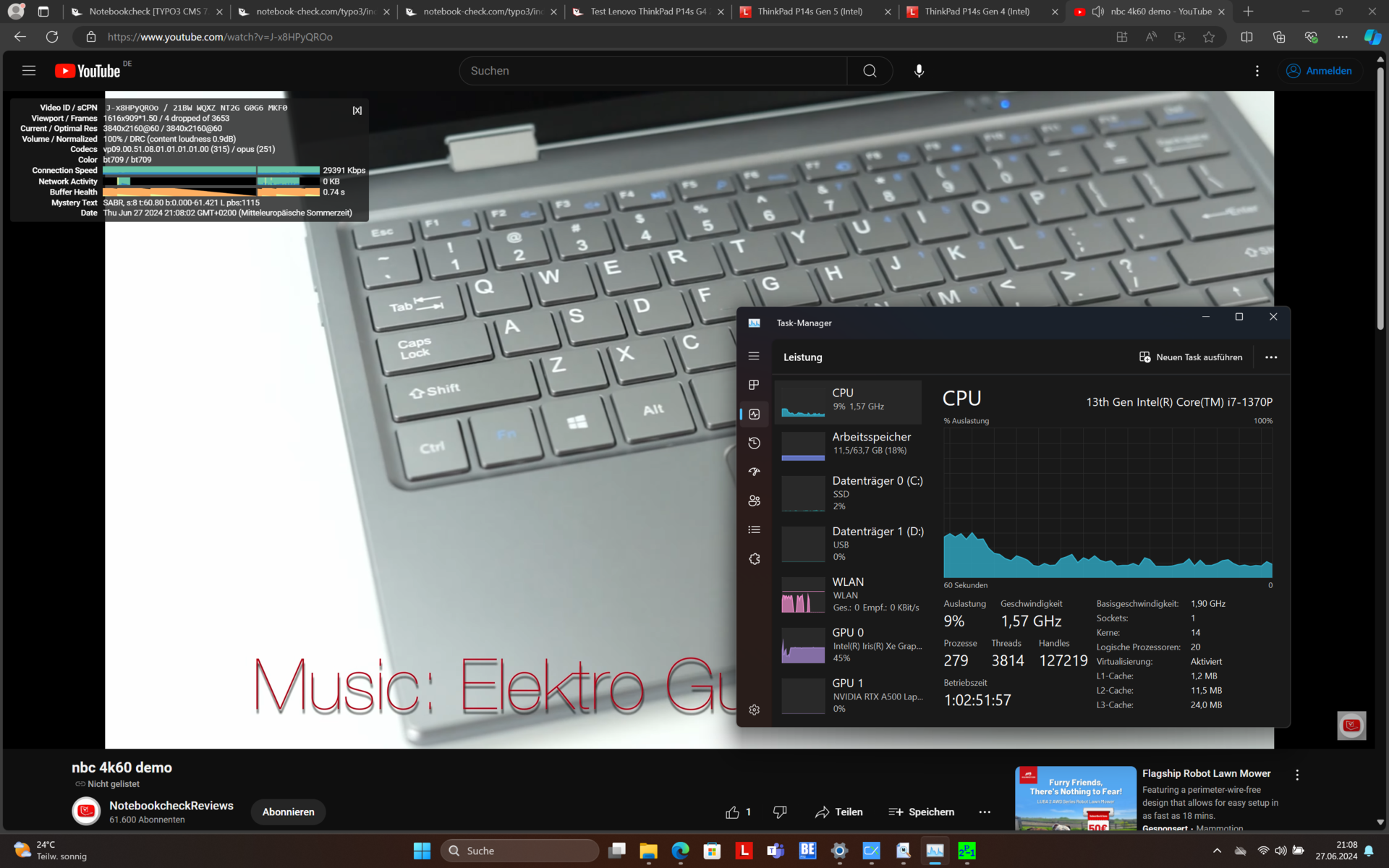

如果把 14 核 CPU、专用 GPU 和 OLED 屏幕放在一起，52.5 Wh 的电池续航时间并不长。在 Wi-Fi 测试中，我们只用了 6 个小时，成绩不佳。在浏览器中强制开启黑暗模式后，电池续航时间可以延长，但与其他设备相比，效果仍然很弱。
| Lenovo ThinkPad P14s G4 21HF0017GE i7-1370P, RTX A500 Laptop GPU, 52.5 Wh | Lenovo ThinkPad P14s G4 21K5000LGE R7 PRO 7840U, Radeon 780M, 52 Wh | HP ZBook Firefly 14 G10 A R5 PRO 7640HS, Radeon 760M, 51 Wh | Dell Precision 5000 5490 Ultra 9 185H, NVIDIA RTX 3000 Ada Generation Laptop GPU, 72 Wh | Average of class Workstation | |
|---|---|---|---|---|---|
| Battery Runtime | 47% | 113% | 79% | 39% | |
| WiFi v1.3 | 367 | 685 87% | 782 113% | 658 79% | 513 ? 40% |
| Load | 59 | 63 7% | 80.9 ? 37% |
Pros
Cons
结论：ThinkPad 工作站有一些明显的弱点
由于联想对 2024 年的 ThinkPad（如英特尔 P14s 5 代）进行了大幅改动，2023 年的联想 ThinkPad P14s 4 代英特尔变体即使在 2024 年也是一个有趣的选择。它是一款紧凑型移动工作站，优势明显，但也有一些明显的弱点。
ThinkPad 笔记本电脑的优点：在坚固的设计中提供非常舒适的输入设备，它还拥有许多端口和安全选项，甚至可以进行 WWAN 升级。用户可更换键盘也是一个非常不错的功能，这在当今也是非常罕见的。同时，评测版本的联想 ThinkPad P14s Gen 4 配备了高质量的 OLED 屏幕，非常适合对色彩有较高要求的用户。它出厂前已校准，唯一的弱点是 PWM 和刷新率仅限 60 Hz。ThinkPad 配备了 NvidiaGeForce RTX A500，与纯 iGPU 机型相比，无论是在 CUDA 兼容性还是在游戏或 CAD 基准 SPECviewperf 等方面的更高性能方面，ThinkPad 仍具有优势。
在 CPU 方面，这款紧凑型工作站开始陷入困境。性能还不错，但也不足以击败竞争对手。P28 芯片的副作用是功耗超过 60 W：机箱会变得非常热，而且单风扇也不安静--Nvidia GPU 在这方面也帮不了 ThinkPad。很明显，P14s G4 在负载情况下对两个组件的散热都力不从心，尤其是 dGPU 在压力测试中会出现节流。另一个弱点：ThinkPad 的电池续航能力很差，OLED 屏幕也是原因之一。低于平均水平的扬声器和电池模式下的节流是另外两个问题。
有了 WWAN 和 OLED，ThinkPad P14s G4 英特尔版拥有了有趣的功能，而这些功能在其后续产品中并不存在。不过，电池续航时间和散热系统方面的弱点也不言而喻。
ThinkPad P14s Gen 5 Intel 的后续机型已经上市--凭借更强大的散热系统、更新、更高效的组件以及更大的电池，新机型似乎纠正了 ThinkPad P14s Gen 4 Intel 存在的许多问题。我们计划对更新机型进行评测。
另一方面，一些选项，如 WWAN 和 OLED 屏幕以及用户可更换键盘在 P14s G5 上消失了。除了巨型 ThinkPad P16 之外，联想 ThinkPad P14s G4 Intel 是联想最后一款将所有这些功能与 Nvidia GPU 结合在一起的 ThinkPad 工作站。惠普 惠普 ZBook 萤火虫 14 G10采用了更高效的 AMD 芯片，但缺少一些用户需要的 Nvidia GPU。戴尔 戴尔Precision 5490拥有更强大的 RTX GPU，但缺少任何传统端口。
价格和性能
ThinkPad P14s Gen 4 Intel 在德国经销商 Campuspoint 的起价为 1,645 欧元。亚马逊网站提供的 ThinkPad P14s Gen 4 Intel 配置售价为 1,451 美元。
Lenovo ThinkPad P14s G4 21HF0017GE
- 06/28/2024 v8
Benjamin Herzig
Total Sustainability Score: Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
Price comparison
