AcePC Wizbox AI mini PC 评测：英特尔流星湖迷你电脑

Name: AcePC Wizbox AI
Brand: AcePC

猛禽湖上空收获颇丰

AcePC 的 Wizbox AI 是首批通过 Notebookcheck 测试的采用英特尔最新流星湖移动处理器的迷你 PC 之一。我们收到的版本配备了英特尔酷睿至尊 7 155H CPU（带 8 核 Arc iGPU）、32 GB DDR5-4800 内存和 512 GB PCIe 4.0 NVMe 固态硬盘存储。

Bogdan Solca, 👁 Bogdan Solca (translated by DeepL / Ninh Duy), Published 04/01/2024 🇺🇸 🇸🇪 ...

Arc Intel Meteor Lake Mini PC Review Snippet Wi-Fi 7

AcePC Electronics LLC 于 2017 年在美国特拉华州多佛市成立，是一家集产品设计、研发、生产、销售、服务于一体的综合性企业。AcePC 分公司位于中国，组装了多款面向全球的迷你 PC。该公司的最新产品系列是 Wizbox AI，采用英特尔最新的酷睿超处理器。今年，这些搭载流星湖处理器的机型将与搭载 AMD 凤凰和鹰点APU 的迷你 PC 争夺性能桂冠。

Test device courtesy of www.acepcs.com

Download your licensed rating image as PNG / SVG

F1M

Processor

Intel Core Ultra 7 155H 16 x 3.8 - 4.8 GHz, Meteor Lake-H

Graphics adapter

Intel Arc 8-Core iGPU, 31.0.101.5008

Memory

32 GB

, DDR5-4800

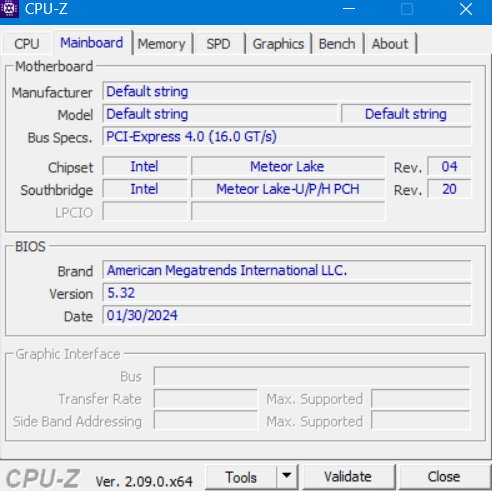

Mainboard

Intel Meteor Lake-U/P/H PCH

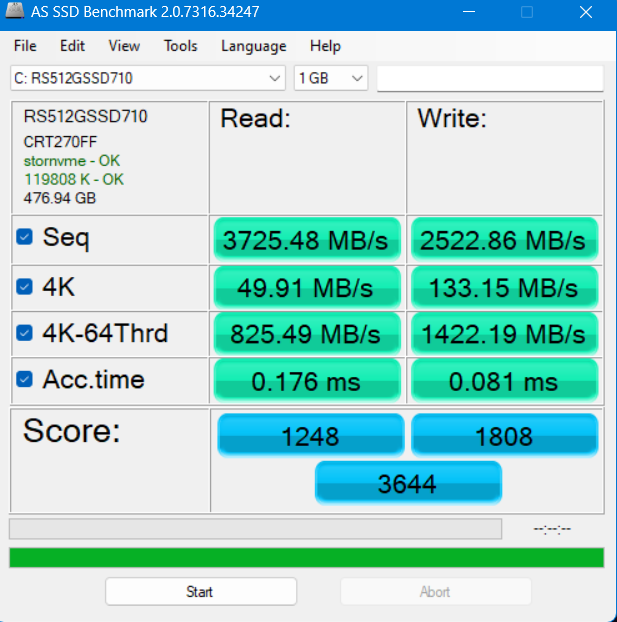

Storage

Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe, 512 GB

, 400 GB free

Soundcard

Intel Meteor Lake-U/P/H PCH - cAVS (Audio, Voice, Speech)

Connections

4 USB 3.0 / 3.1 Gen1, 2 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 1

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), Intel Wi-Fi 7 BE200 320MHz (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz be = Wi-Fi 7), Bluetooth 5.4

Size

height x width x depth (in mm): 55.55 x 147 x 147

Operating System

Microsoft Windows 11 Pro

Additional features

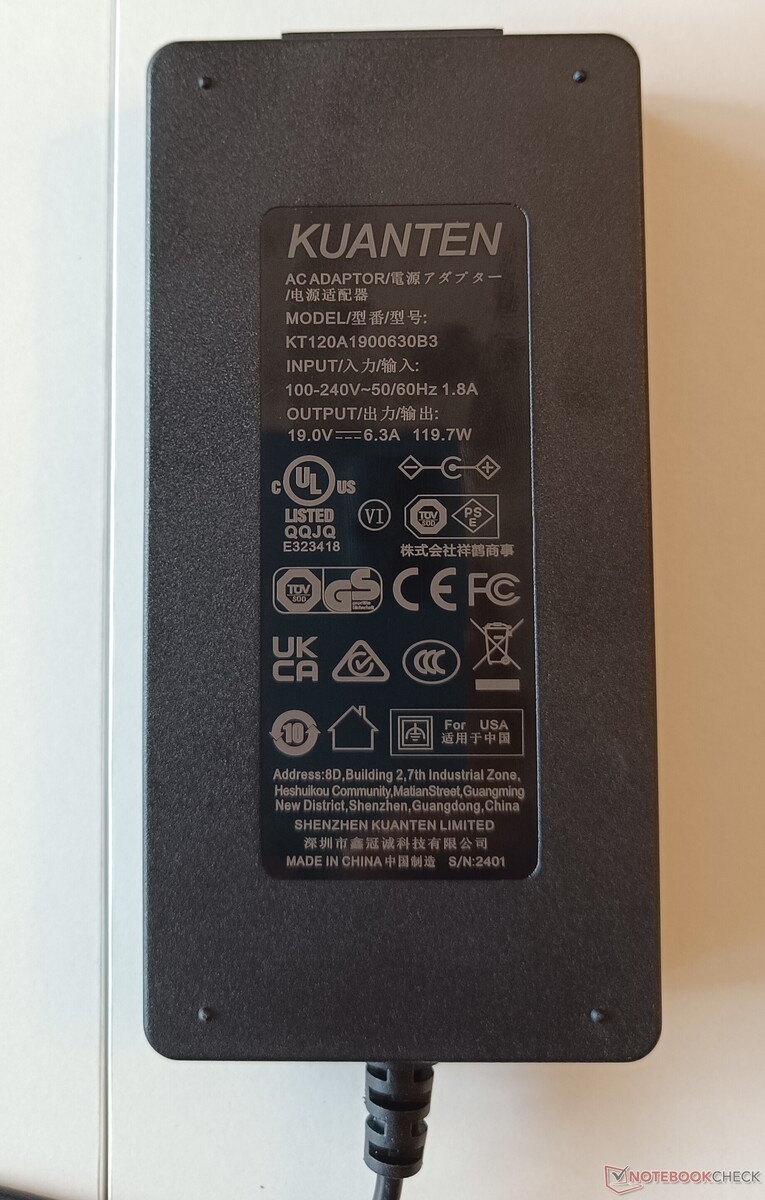

120 W power supply unit, 24 Months Warranty, VESA mount

Weight

840 g, Power Supply: 500 g

Price

1096.72 Euro

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height	Resolution
85.2 % v7 ^(old)	04 / 2024	AcePC Wizbox AI Ultra 7 155H, Arc 8-Core	840 g	55.55 mm	x
87.3 % v7 ^(old)	12 / 2023	Minisforum EliteMini UM780 XTX R7 7840HS, Radeon 780M	750 g	52.3 mm	x
83.1 % v7 ^(old)	08 / 2023	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs	558 g	37 mm	x
81 % v7 ^(old)	09 / 2023	Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs	1.8 kg	39 mm	x
81.9 % v7 ^(old)	02 / 2024	Aoostar GOD77 R7 7735HS, Radeon 680M	603 g	58 mm	x

案例

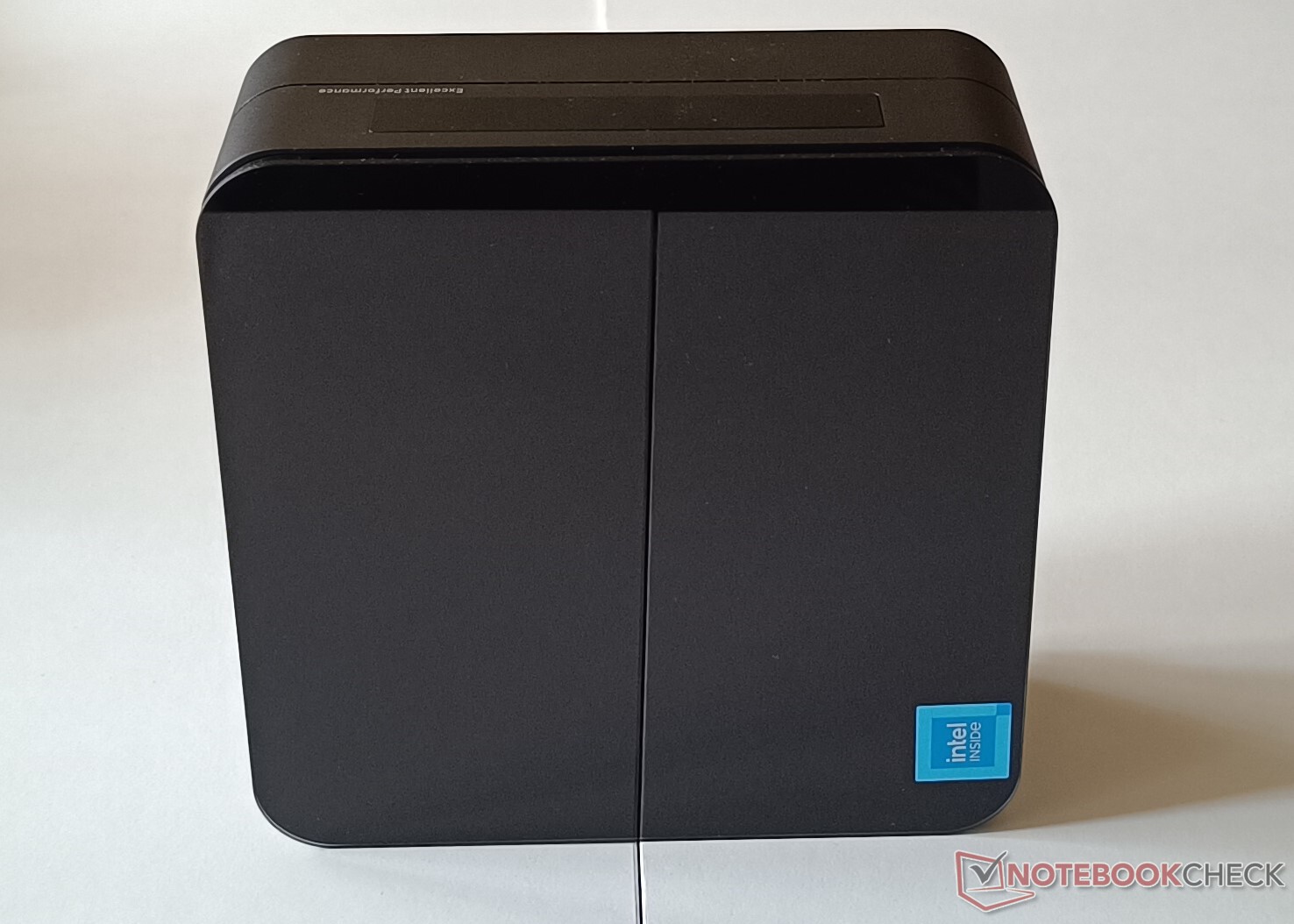

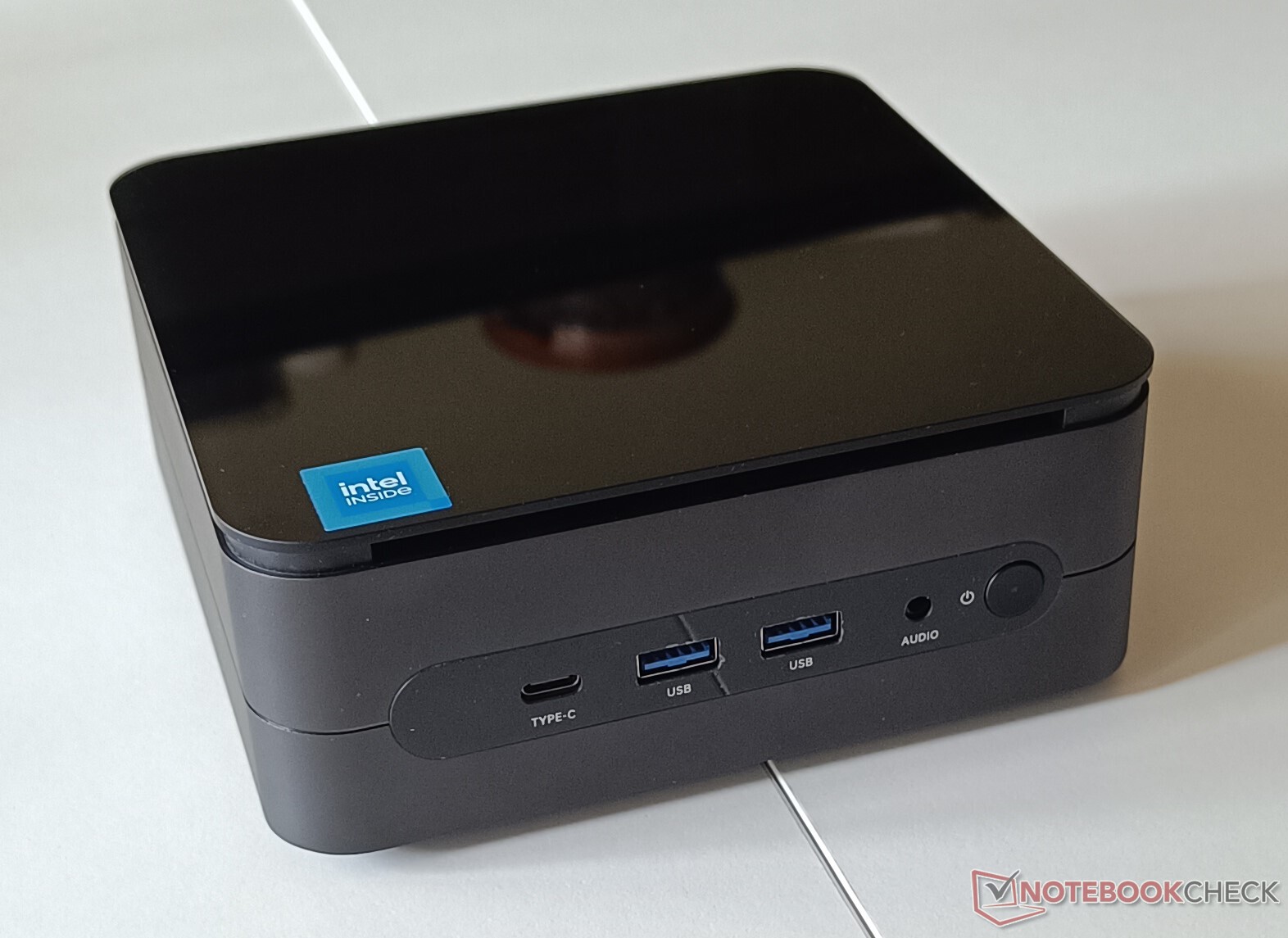

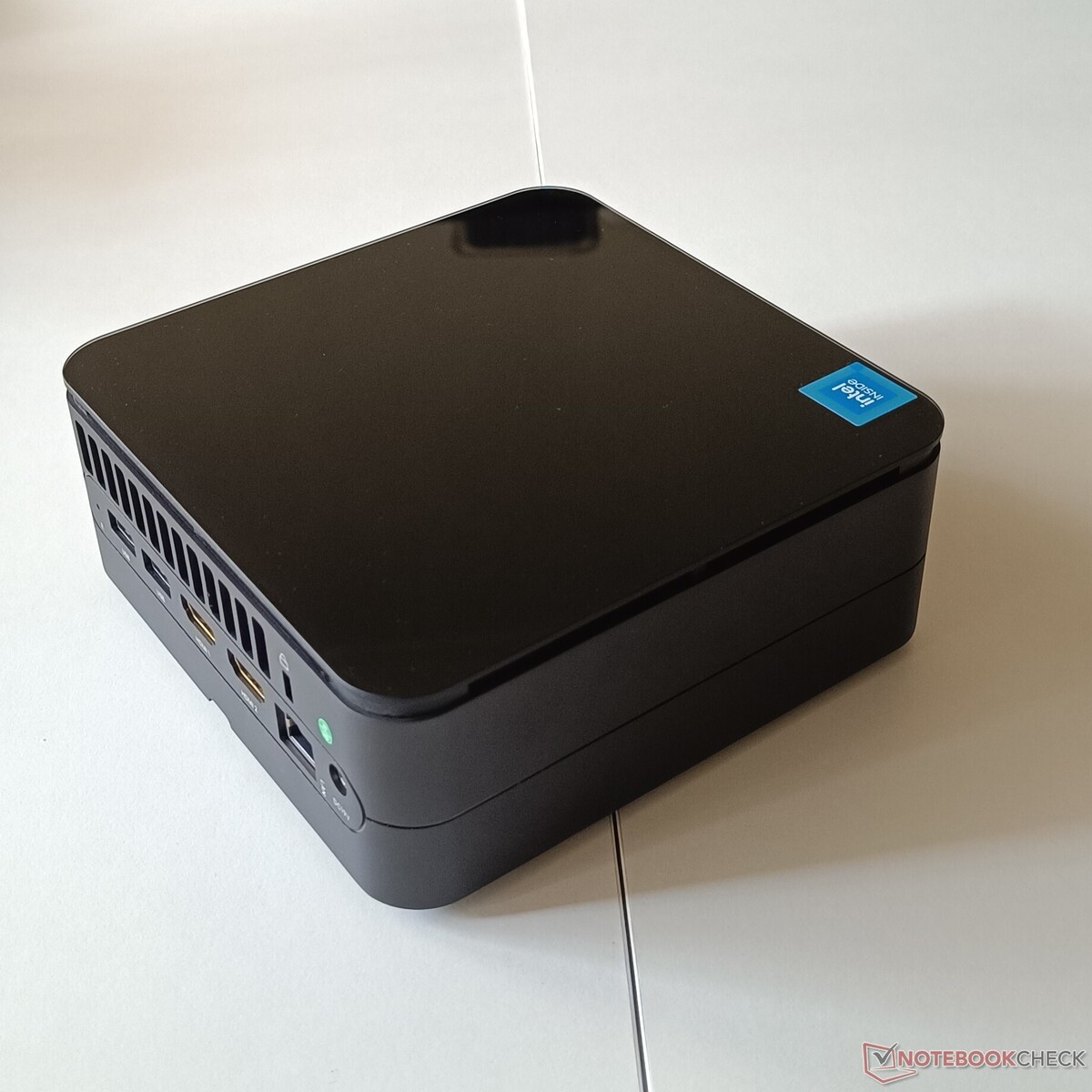

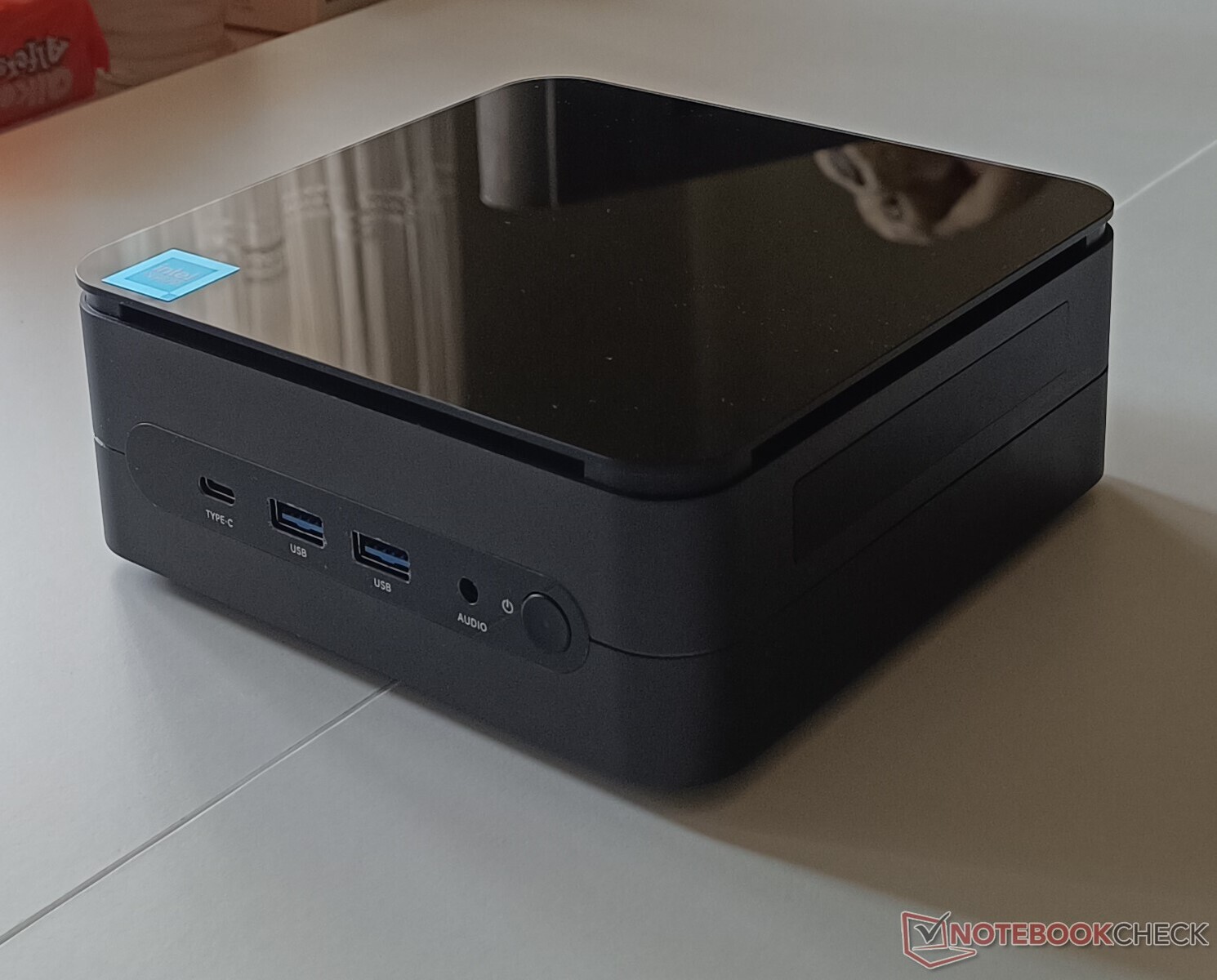

与其他具有类似性能的微型电脑相比，AcePC Wizbox AI 的机箱相对更大更重，尺寸为 147 x 147 x 55.55 毫米（5.79 x 5.79 x 2.19 英寸）。设计简洁明了，金属机箱夹在坚固的塑料顶盖和底盖之间，AcePC 仅提供黑色款式，用户可选择哑光或闪亮顶盖。不包括附带的 120 瓦电源装置，这款微型 PC 重 840 克（1.85 磅）。

尺寸比较

Lenovo IdeaCentre Mini 01IRH8 AcePC Wizbox AI Aoostar GOD77 Minisforum EliteMini UM780 XTX Intel NUC 13 Pro Desk Edition Kit DIN A4 ❌

连接性

鉴于该机型尺寸较大，价格较高，我们本以为会有更多的端口可供选择。前面板上有一个 USB-C 3.2 10 Gbps 接口、两个 USB-A 3.2 5 Gbps 端口和音频插孔。后侧还有两个 USB-A 3.2 5 Gbps 端口、两个 HDMI 2.1 视频输出口、一个 2.5 GbE 插孔和标准的 Kensington 锁。该机型没有雷电 4端口似乎是 Meteor Lake 设备的最低要求。我们曾见过更小的迷你 PC，如 Minisforum EliteMini UM780 XTX配备双 2.5 GbE 接口、双 USB4接口以及包括 DP 和 OCulink 在内的更多样化的视频输出选择，而价格却更低，因此 AcePC 在这方面肯定还有改进的余地。

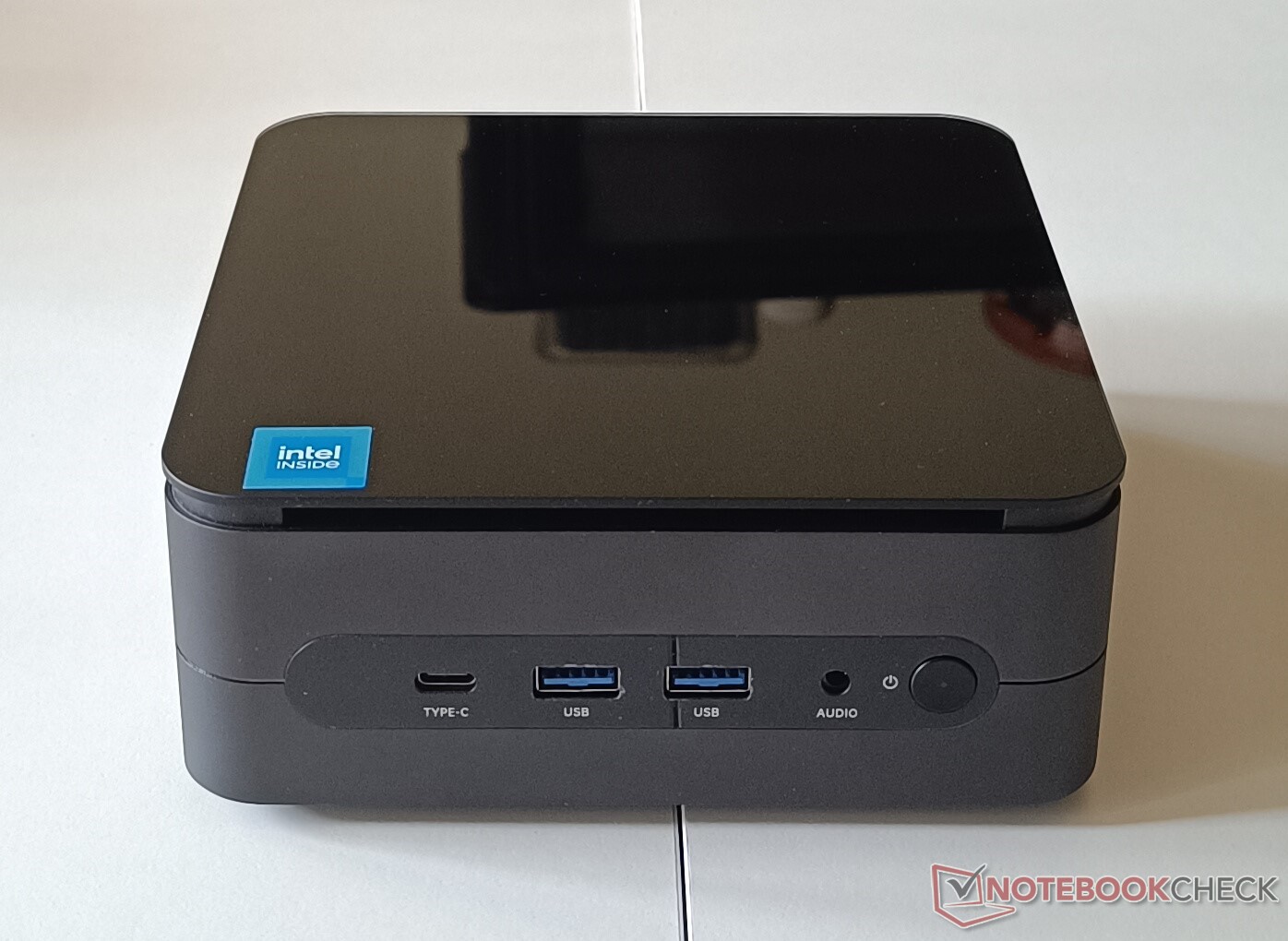

正面USB-C 3.2 Gen 2、2x USB-A 3.2 Gen 1、音频插孔、电源按钮

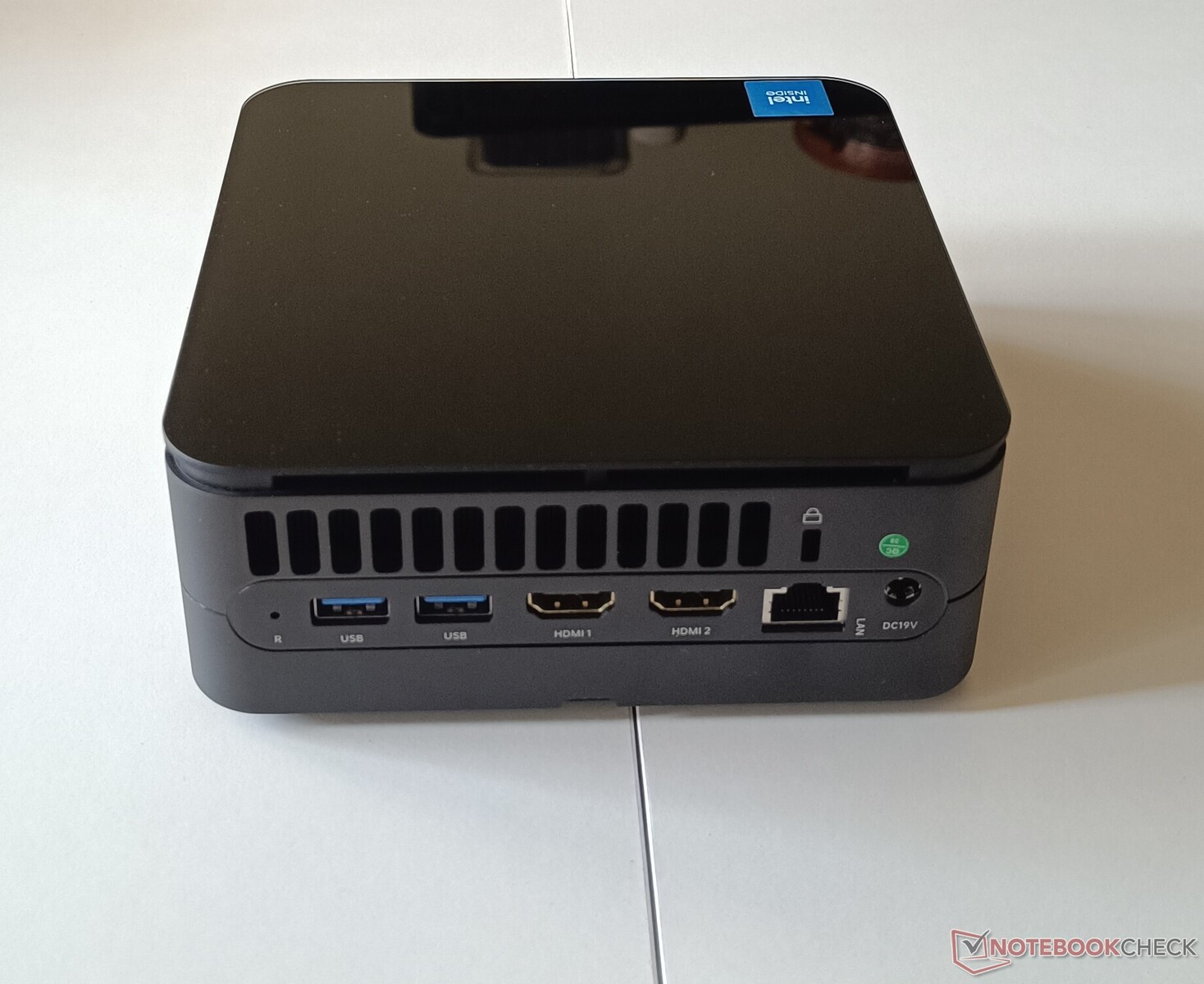

后部：2 个 USB-A 3.2 Gen 1、2 个 HDMI 2.1、2.5 GbE 插孔、Kensington 锁、电源端口

交流

在有线通信方面，AcePC 配备了一块 Realtek RTL8125 网卡，能够达到 2.5 Gbps 的以太网传输速度，这是目前该价位产品的标准。在无线方面，AcePC 通过去年第三季度推出的英特尔 Wi-Fi 7 BE200 卡提供了 Wi-Fi 7 + 蓝牙 5.4 解决方案，给人留下了深刻印象。Wizbox Ai mini PC 是首批采用这种高速无线解决方案的产品之一。英特尔 Wi-Fi 7 BE200 兼容高达 320 MHz 的 TX/RX 流，支持 2.4/5/6 GHz 频段，传输速度高达 5.8 Gbps。遗憾的是，Windows 11 还不支持 Wi-Fi 7，因此我们只能测试 Wi-Fi 6E 的速度。

与Minisforum UM780 XTX 相比，AcePC Wizbox AI 在 6E 5 GHz 频段上的传输速度稍好，但比英特尔 NUC 13 Pro 慢 40%。不过，在 6 GHz 频段上，AcePC Wizbox AI 比 NUC 13 Pro 领先约 10%。

Networking
iperf3 transmit AXE11000
Aoostar GOD77 Intel Wi-Fi 6 AX200	1413 (696^min - 1494^max) MBit/s +58%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1301 (514^min - 1422^max) MBit/s +46%
Average Intel Wi-Fi 7 BE200 320MHz (469 - 1642, n=20)	1192 MBit/s +34%
AcePC Wizbox AI Intel Wi-Fi 7 BE200 320MHz	892 (728^min - 980^max) MBit/s
Average of class Mini PC (184.1 - 1776, n=113, last 2 years)	874 MBit/s -2%
Lenovo IdeaCentre Mini 01IRH8 Realtek RTL8852BE	803 (713^min - 847^max) MBit/s -10%
Minisforum EliteMini UM780 XTX Intel Killer Wi-Fi 6E AX1675x (210NGW)	729 (668^min - 784^max) MBit/s -18%
iperf3 receive AXE11000
Aoostar GOD77 Intel Wi-Fi 6 AX200	1404 (1258^min - 1446^max) MBit/s +46%
Average Intel Wi-Fi 7 BE200 320MHz (838 - 1701, n=20)	1358 MBit/s +41%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1117 (884^min - 1368^max) MBit/s +16%
AcePC Wizbox AI Intel Wi-Fi 7 BE200 320MHz	963 (950^min - 971^max) MBit/s
Average of class Mini PC (320 - 1796, n=113, last 2 years)	945 MBit/s -2%
Minisforum EliteMini UM780 XTX Intel Killer Wi-Fi 6E AX1675x (210NGW)	934 (915^min - 943^max) MBit/s -3%
Lenovo IdeaCentre Mini 01IRH8 Realtek RTL8852BE	801 (656^min - 887^max) MBit/s -17%
iperf3 transmit AXE11000 6GHz
AcePC Wizbox AI Intel Wi-Fi 7 BE200 320MHz	1646 (1280^min - 1762^max) MBit/s
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1511 (1451^min - 1552^max) MBit/s -8%
Average Intel Wi-Fi 7 BE200 320MHz (943 - 1653, n=15)	1390 MBit/s -16%
Average of class Mini PC (394 - 1800, n=55, last 2 years)	1330 MBit/s -19%
iperf3 receive AXE11000 6GHz
AcePC Wizbox AI Intel Wi-Fi 7 BE200 320MHz	1634 (750^min - 1729^max) MBit/s
Average Intel Wi-Fi 7 BE200 320MHz (1149 - 1770, n=15)	1537 MBit/s -6%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1448 (1357^min - 1490^max) MBit/s -11%
Average of class Mini PC (684 - 1771, n=55, last 2 years)	1380 MBit/s -16%

AcePC Wizbox AI Intel Wi-Fi 7 BE200 320MHz; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1646 (1280-1762)

Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1511 (1451-1552)

AcePC Wizbox AI Intel Wi-Fi 7 BE200 320MHz; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1609 (750-1729)

Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1448 (1357-1490)

AcePC Wizbox AI Intel Wi-Fi 7 BE200 320MHz; iperf3 transmit AXE11000; iperf 3.1.3: Ø892 (728-980)

Minisforum EliteMini UM780 XTX Intel Killer Wi-Fi 6E AX1675x (210NGW); iperf3 transmit AXE11000; iperf 3.1.3: Ø729 (668-784)

Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000; iperf 3.1.3: Ø1284 (514-1422)

Lenovo IdeaCentre Mini 01IRH8 Realtek RTL8852BE; iperf3 transmit AXE11000; iperf 3.1.3: Ø803 (713-847)

Aoostar GOD77 Intel Wi-Fi 6 AX200; iperf3 transmit AXE11000; iperf 3.1.3: Ø1390 (696-1494)

AcePC Wizbox AI Intel Wi-Fi 7 BE200 320MHz; iperf3 receive AXE11000; iperf 3.1.3: Ø962 (950-971)

Minisforum EliteMini UM780 XTX Intel Killer Wi-Fi 6E AX1675x (210NGW); iperf3 receive AXE11000; iperf 3.1.3: Ø934 (915-943)

Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211; iperf3 receive AXE11000; iperf 3.1.3: Ø1117 (884-1368)

Lenovo IdeaCentre Mini 01IRH8 Realtek RTL8852BE; iperf3 receive AXE11000; iperf 3.1.3: Ø801 (656-887)

Aoostar GOD77 Intel Wi-Fi 6 AX200; iperf3 receive AXE11000; iperf 3.1.3: Ø1404 (1258-1446)

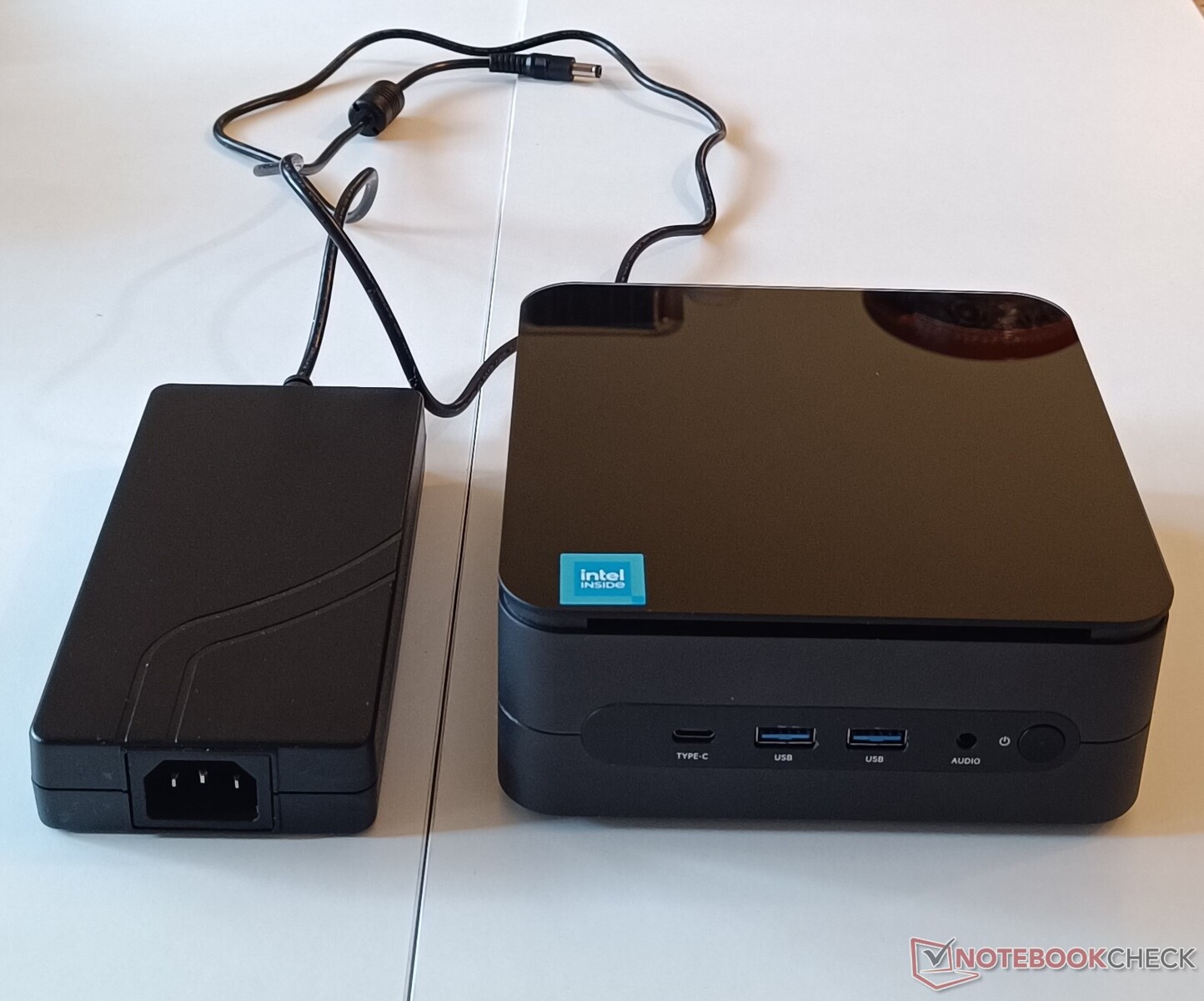

配件

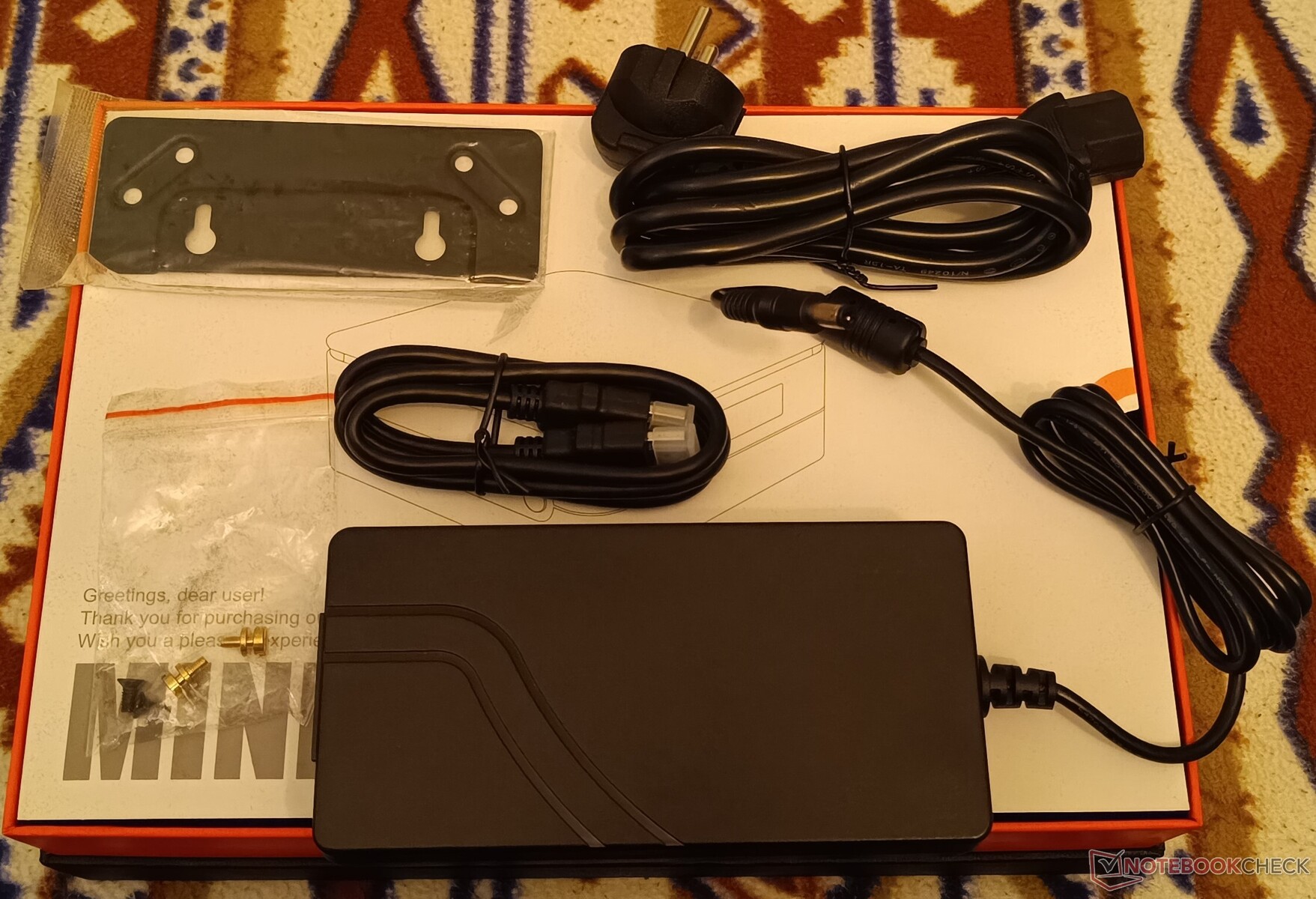

除了电源装置的电源线外，AcePC 还随迷你 PC 装置提供了一些其他配件，如 USB-A 至 USB-A 连接线和带螺丝的 VESA 支架，可将装置安装在墙上或显示器后面。

维护

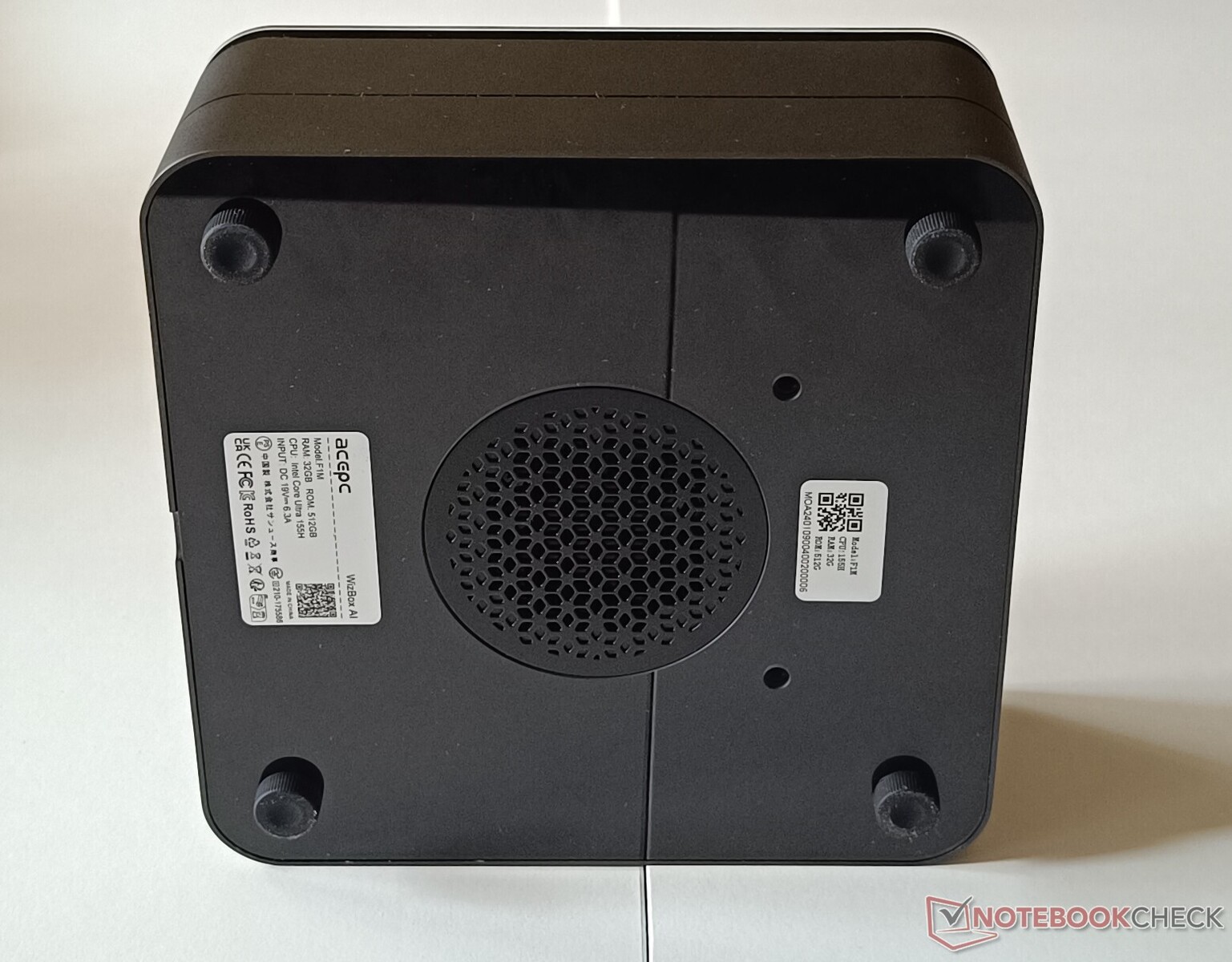

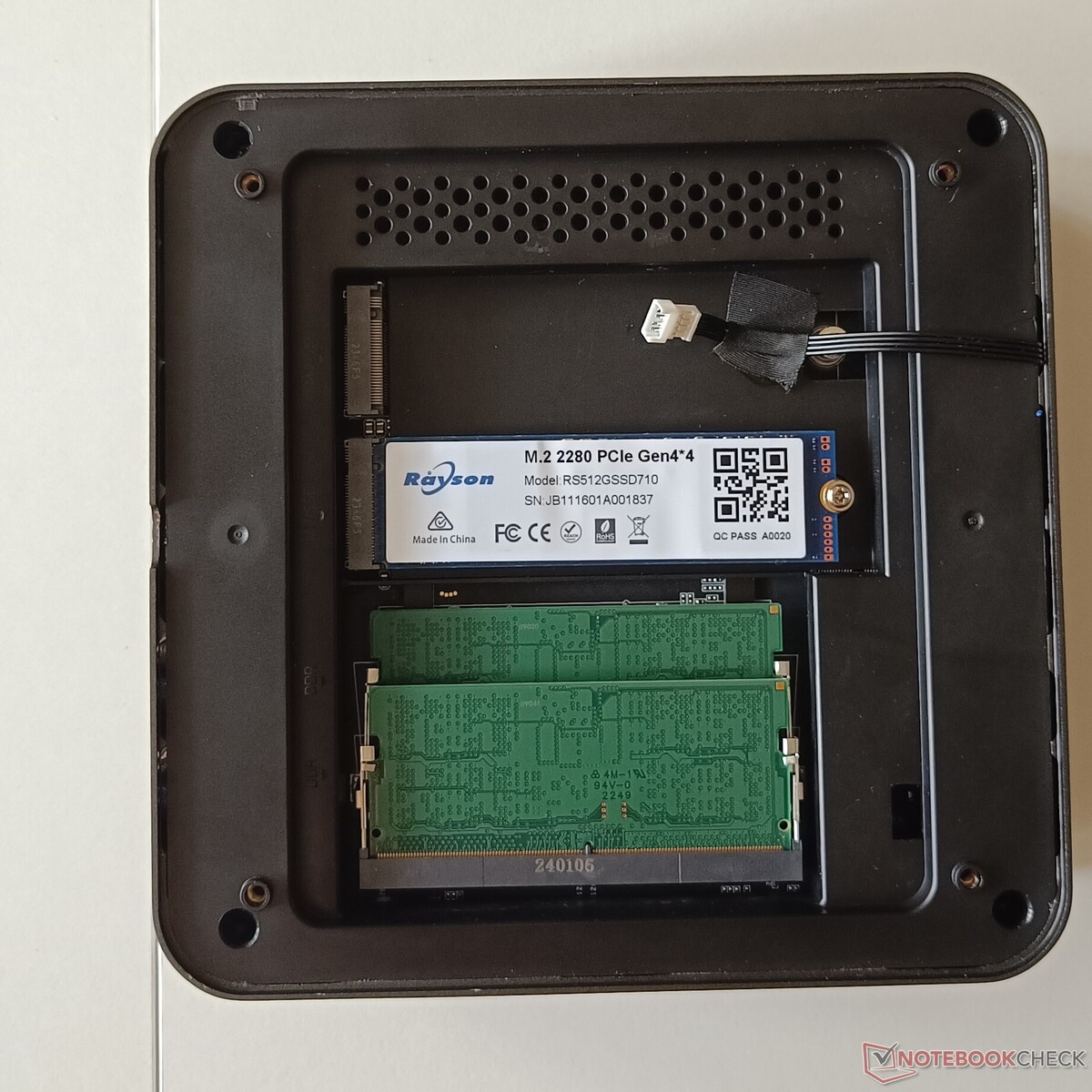

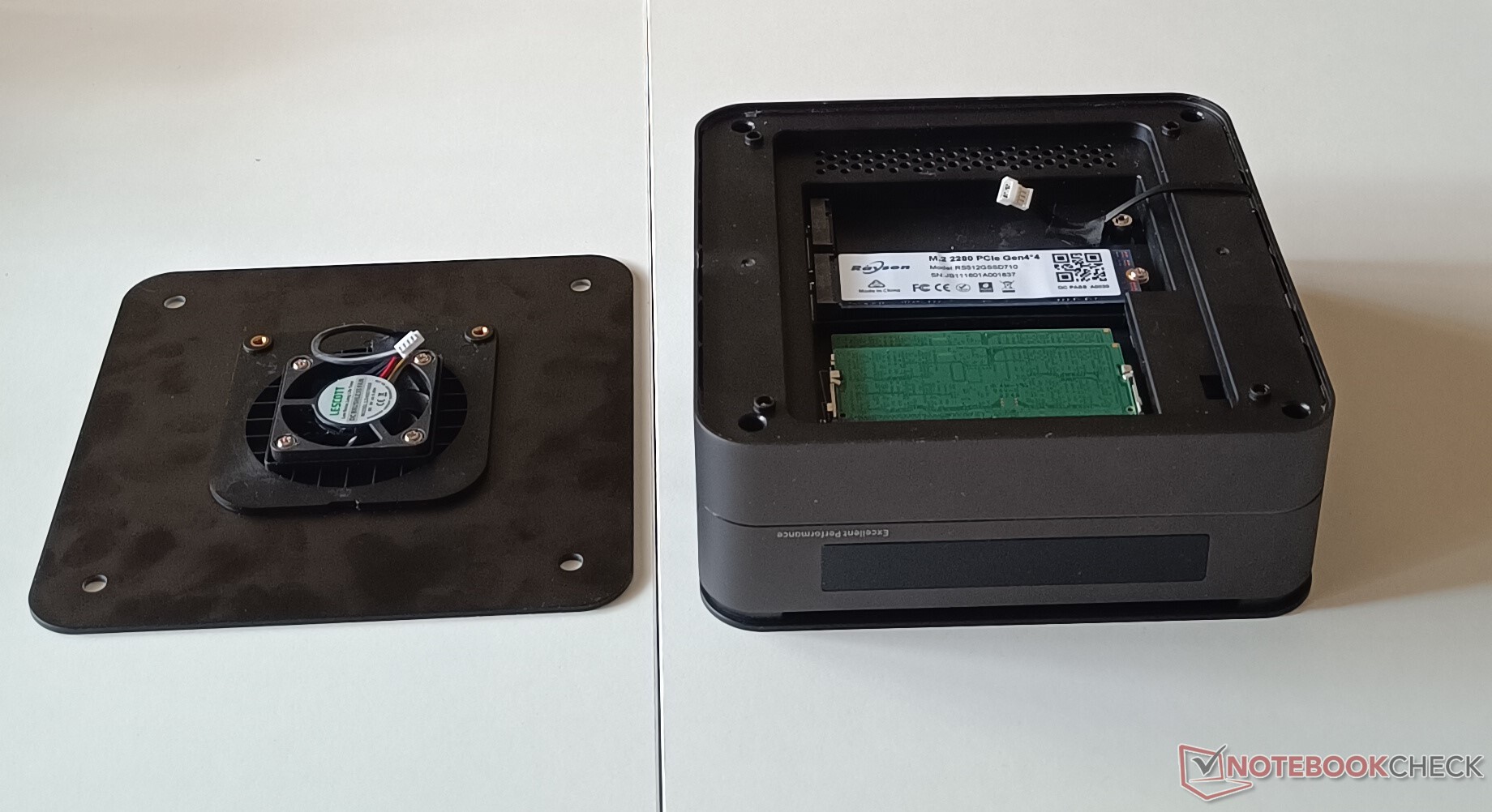

拧开橡胶脚垫，底盖就能轻松取下，它还配有一个风扇，用于冷却固态硬盘和内存模块。我们的评测机配备了一个 M.2 2280 固态硬盘，但还有另一个 M.2 插槽，最大容量可达 4 TB。内存容量最高可扩展至 96 GB，这要归功于随机附带的对新型 48 GB DDR5 模块的支持。遗憾的是，顶盖无法取下，无法访问 CPU 冷却器。

保修

该机型享有 24 个月的全球保修服务，AcePC 还允许不满意的客户在 30 天内退货并获得全额退款。

性能

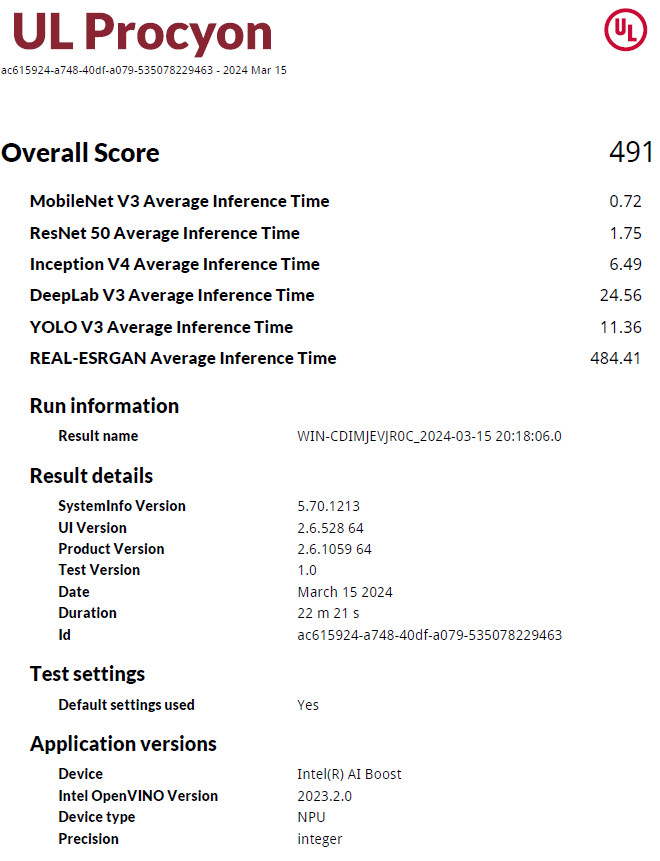

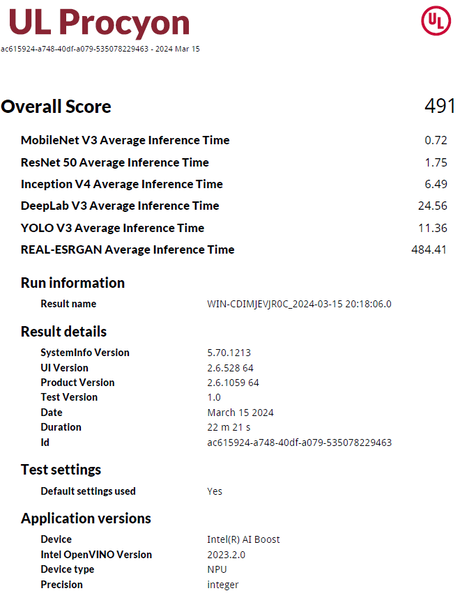

AcePC 提供 Core Ultra 5 125H和酷睿至尊 7 155H处理器。由于这两款处理器是英特尔首款集成了用于人工智能任务的 NPU 和更强大的 iGPU 的处理器，因此与 AMD 的 Phoenix 型号进行比较似乎是合适的。AcePC 评测设备所使用的酷睿至尊 7 155H 是其产品系列中的中端型号，因此测试结果与 AMD 的 Ryzen 7 7840HS.为了了解与上一代英特尔 Raptor Lake 相比有哪些改进，本次对比还包括了一款搭载了 i7-1360P处理器的迷你 PC。此外，我们还增加了一款采用 Ryzen 7 7735HS作为降级选项，而另一款酷睿 i7-13700H作为更高 TDP 的选择。与流星湖处理器相辅相成的是 32 GB 金士顿 DDR5-4800 内存和 512 GB PCIe 4.0 NVMe 固态硬盘。

测试条件

这台迷你 PC 只采用了 "平衡 "电源方案，在整个测试过程中使用，没有修改功率限制和 TDP。没有添加任何节能方案。默认 TDP 为 28 W，但在最大负载情况下（压力测试或要求更高的游戏/内容创建套件），PL1 功率可能达到 65 W，而 PL2 功率可能高达 90 W。

处理器

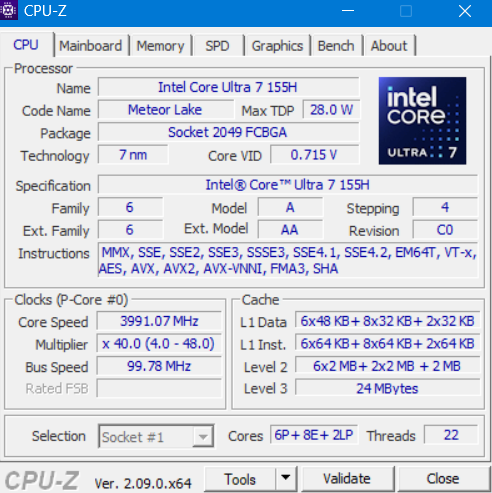

作为英特尔流星湖处理器堆栈中的中高端解决方案，酷睿至尊 7 155H 处理器结合了 6 个性能内核、8 个效率内核和另外 2 个运行频率最高为 3.8 GHz 的低功耗内核，最高可提升至 4.8 Ghz。只有性能内核具有超线程功能，因此线程总数为 22 个。SoC 还包括一个 8 核 iGPU，基于 Arc Alchemist架构的 8 核 iGPU，主频高达 2.3 GHz，外加一个主频为 1.4 GHz 的 AI Boost NPU。

通过分析酷睿至睿 7 155H 处理器的 CPU 合成基准测试结果，我们发现与之前 TDP 相近的 Raptor Lake 处理器相比，其多核性能有了相当大的提升，但单核性能的提升并不明显。例如，在 Cinebench R20 中，i7-1360P 战胜了 Meteor Lake 甚至 AMD 的 R7 7840HS。事实上，在所有的单核测试中，Meteor Lake 都没能击败 Raptor Lake。而 AMD 的 Phoenix 则在大多数多核测试中获胜，并显示出不错的单核性能。

Cinebench R15 Multi Loop

AcePC Wizbox AI Intel Core Ultra 7 155H: Ø2303 (2192.5-2638.35)

Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS: Ø2605 (2564.1-2649.53)

Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P: Ø1753 (1686.77-2083.33)

Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H: Ø1926 (1862.02-2240.14)

Aoostar GOD77 AMD Ryzen 7 7735HS: Ø2035 (2000.9-2103.82)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	85.7 pt
AcePC Wizbox AI Intel Core Ultra 7 155H	79.4 pt
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	78.9 pt
Average Intel Core Ultra 7 155H	76.8 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	73.4 pt
Aoostar GOD77 AMD Ryzen 7 7735HS	69.3 pt
Average of class Mini PC	61.9 pt

Cinebench R23 / Multi Core
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	16706 Points +2%
AcePC Wizbox AI Intel Core Ultra 7 155H	16352 Points
Average Intel Core Ultra 7 155H (9769 - 19007, n=48)	14932 Points -9%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	14465 (9293.64^min - 14465.4^max) Points -12%
Aoostar GOD77 AMD Ryzen 7 7735HS	13034 Points -20%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	12155 Points -26%
Average of class Mini PC (860 - 31070, n=123, last 2 years)	11778 Points -28%

Cinebench R23 / Single Core
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1898 Points +5%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1878 Points +4%
AcePC Wizbox AI Intel Core Ultra 7 155H	1801 Points
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	1779 Points -1%
Average Intel Core Ultra 7 155H (1496 - 1815, n=48)	1725 Points -4%
Average of class Mini PC (392 - 2269, n=121, last 2 years)	1558 Points -13%
Aoostar GOD77 AMD Ryzen 7 7735HS	1557 Points -14%

Cinebench R20 / CPU (Multi Core)
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	6509 Points +8%
AcePC Wizbox AI Intel Core Ultra 7 155H	6033 Points
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	5800 Points -4%
Average Intel Core Ultra 7 155H (3798 - 7409, n=46)	5794 Points -4%
Aoostar GOD77 AMD Ryzen 7 7735HS	5078 Points -16%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	4687 Points -22%
Average of class Mini PC (346 - 12210, n=121, last 2 years)	4524 Points -25%

Cinebench R20 / CPU (Single Core)
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	723 Points +6%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	721 Points +6%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	690 Points +1%
AcePC Wizbox AI Intel Core Ultra 7 155H	681 Points
Average Intel Core Ultra 7 155H (601 - 696, n=46)	664 Points -2%
Aoostar GOD77 AMD Ryzen 7 7735HS	599 Points -12%
Average of class Mini PC (155 - 846, n=121, last 2 years)	597 Points -12%

Cinebench R15 / CPU Multi 64Bit
AcePC Wizbox AI Intel Core Ultra 7 155H	2638 (2192.5^min - 2638.35^max) Points
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	2608 Points -1%
Average Intel Core Ultra 7 155H (1932 - 2880, n=52)	2446 Points -7%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	2240 (1862.02^min - 2240.14^max) Points -15%
Aoostar GOD77 AMD Ryzen 7 7735HS	2077 Points -21%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1990 Points -25%
Average of class Mini PC (148 - 4998, n=122, last 2 years)	1868 Points -29%

Cinebench R15 / CPU Single 64Bit
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	279 Points +11%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	267 Points +6%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	260 Points +4%
AcePC Wizbox AI Intel Core Ultra 7 155H	251 Points
Average Intel Core Ultra 7 155H (99.6 - 268, n=48)	249 Points -1%
Aoostar GOD77 AMD Ryzen 7 7735HS	248 Points -1%
Average of class Mini PC (68 - 315, n=122, last 2 years)	235 Points -6%

Blender / v2.79 BMW27 CPU
Average of class Mini PC (99 - 3860, n=120, last 2 years)	462 Seconds * -125%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	268 Seconds * -31%
Aoostar GOD77 AMD Ryzen 7 7735HS	246 Seconds * -20%
Average Intel Core Ultra 7 155H (175 - 381, n=44)	233 Seconds * -14%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	216 Seconds * -5%
AcePC Wizbox AI Intel Core Ultra 7 155H	205 Seconds *
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	192 Seconds * +6%

7-Zip 18.03 / 7z b 4
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	72684 MIPS +17%
AcePC Wizbox AI Intel Core Ultra 7 155H	62334 MIPS
Average Intel Core Ultra 7 155H (41739 - 70254, n=46)	59045 MIPS -5%
Aoostar GOD77 AMD Ryzen 7 7735HS	58770 MIPS -6%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	54733 MIPS -12%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	51340 MIPS -18%
Average of class Mini PC (31447 - 131378, n=118, last 2 years)	48106 MIPS -23%

7-Zip 18.03 / 7z b 4 -mmt1
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	6563 MIPS +23%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	6014 MIPS +13%
Aoostar GOD77 AMD Ryzen 7 7735HS	5849 MIPS +9%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	5840 MIPS +9%
Average of class Mini PC (2369 - 7609, n=119, last 2 years)	5464 MIPS +2%
Average Intel Core Ultra 7 155H (4795 - 5621, n=46)	5345 MIPS 0%
AcePC Wizbox AI Intel Core Ultra 7 155H	5344 MIPS

Geekbench 6.3 / Multi-Core
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	13473 Points +7%
AcePC Wizbox AI Intel Core Ultra 7 155H	12539 Points
Average Intel Core Ultra 7 155H (7732 - 13656, n=51)	12280 Points -2%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	10997 Points -12%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	10362 Points -17%
Average of class Mini PC (1660 - 18504, n=99, last 2 years)	10028 Points -20%
Aoostar GOD77 AMD Ryzen 7 7735HS	9970 Points -20%

Geekbench 6.3 / Single-Core
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	2670 Points +11%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	2600 Points +8%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	2575 Points +7%
AcePC Wizbox AI Intel Core Ultra 7 155H	2415 Points
Average Intel Core Ultra 7 155H (1901 - 2473, n=48)	2376 Points -2%
Average of class Mini PC (762 - 3838, n=99, last 2 years)	2271 Points -6%
Aoostar GOD77 AMD Ryzen 7 7735HS	2077 Points -14%

Geekbench 5.5 / Multi-Core
AcePC Wizbox AI Intel Core Ultra 7 155H	12248 Points
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	12177 Points -1%
Average Intel Core Ultra 7 155H (10017 - 13556, n=48)	12022 Points -2%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	10361 Points -15%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	10269 Points -16%
Aoostar GOD77 AMD Ryzen 7 7735HS	9363 Points -24%
Average of class Mini PC (1225 - 19971, n=120, last 2 years)	8964 Points -27%

Geekbench 5.5 / Single-Core
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	1943 Points +13%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1842 Points +7%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1832 Points +7%
Average Intel Core Ultra 7 155H (1462 - 1824, n=48)	1752 Points +2%
AcePC Wizbox AI Intel Core Ultra 7 155H	1720 Points
Average of class Mini PC (453 - 2181, n=120, last 2 years)	1601 Points -7%
Aoostar GOD77 AMD Ryzen 7 7735HS	1589 Points -8%

HWBOT x265 Benchmark v2.2 / 4k Preset
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	20.9 fps +14%
AcePC Wizbox AI Intel Core Ultra 7 155H	18.3 fps
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	17.6 fps -4%
Average Intel Core Ultra 7 155H (9.93 - 21.2, n=46)	16.4 fps -10%
Aoostar GOD77 AMD Ryzen 7 7735HS	15.7 fps -14%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	13.9 fps -24%
Average of class Mini PC (0.95 - 34.6, n=119, last 2 years)	13.7 fps -25%

LibreOffice / 20 Documents To PDF
Average of class Mini PC (33.1 - 168.4, n=119, last 2 years)	55.2 s * -4%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	53.9 s * -2%
AcePC Wizbox AI Intel Core Ultra 7 155H	53 s *
Aoostar GOD77 AMD Ryzen 7 7735HS	51.2 s * +3%
Average Intel Core Ultra 7 155H (37.5 - 79.2, n=45)	48.8 s * +8%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	46.9 s * +12%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	37.6 s * +29%

R Benchmark 2.5 / Overall mean
Average of class Mini PC (0.3788 - 1.565, n=119, last 2 years)	0.562 sec * -17%
Aoostar GOD77 AMD Ryzen 7 7735HS	0.503 sec * -5%
Average Intel Core Ultra 7 155H (0.4457 - 0.53, n=45)	0.4825 sec * -0%
AcePC Wizbox AI Intel Core Ultra 7 155H	0.4801 sec *
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	0.4512 sec * +6%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	0.45 sec * +6%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	0.4354 sec * +9%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

2638 Points

Cinebench R15 OpenGL 64Bit

151.7 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

251 Points

Cinebench R20 CPU (Multi Core)

6033 Points

Cinebench R20 CPU (Single Core)

681 Points

Cinebench R23 Single Core

1801 Points

Cinebench R23 Multi Core

16352 Points

Help

... in comparison

Performance Rating
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	98.3 pt
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	73.5 pt
Aoostar GOD77 AMD Ryzen 7 7735HS, Radeon 680M	71 pt
Average Intel Core Ultra 7 155H	64.3 pt
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	59 pt
Average of class Mini PC	57.2 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	51.9 pt

AIDA64 / FP32 Ray-Trace
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	26889 KRay/s +71%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	15761 KRay/s
Aoostar GOD77 AMD Ryzen 7 7735HS, Radeon 680M	14543 KRay/s -8%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	13281 KRay/s -16%
Average Intel Core Ultra 7 155H (6670 - 18470, n=46)	13107 KRay/s -17%
Average of class Mini PC (646 - 51004, n=119, last 2 years)	12878 KRay/s -18%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	11188 KRay/s -29%

AIDA64 / FPU Julia
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	113684 Points +34%
Aoostar GOD77 AMD Ryzen 7 7735HS, Radeon 680M	91522 Points +8%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	84610 Points
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	69808 Points -17%
Average Intel Core Ultra 7 155H (40905 - 93181, n=46)	69549 Points -18%
Average of class Mini PC (3857 - 214250, n=119, last 2 years)	64921 Points -23%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	56942 Points -33%

AIDA64 / CPU SHA3
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	4953 MB/s +19%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	4171 MB/s
Average Intel Core Ultra 7 155H (1940 - 4436, n=46)	3249 MB/s -22%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	3190 MB/s -24%
Aoostar GOD77 AMD Ryzen 7 7735HS, Radeon 680M	3164 MB/s -24%
Average of class Mini PC (260 - 9399, n=119, last 2 years)	2856 MB/s -32%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	2669 MB/s -36%

AIDA64 / CPU Queen
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	117103 Points +34%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	101624 Points +16%
Aoostar GOD77 AMD Ryzen 7 7735HS, Radeon 680M	99824 Points +14%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	87712 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	86881 Points -1%
Average Intel Core Ultra 7 155H (64698 - 94181, n=46)	83603 Points -5%
Average of class Mini PC (8172 - 184747, n=119, last 2 years)	80187 Points -9%

AIDA64 / FPU SinJulia
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	15145 Points +49%
Aoostar GOD77 AMD Ryzen 7 7735HS, Radeon 680M	12593 Points +24%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	10134 Points
Average Intel Core Ultra 7 155H (5639 - 10647, n=46)	9130 Points -10%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	8851 Points -13%
Average of class Mini PC (408 - 29064, n=119, last 2 years)	8812 Points -13%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	7246 Points -28%

AIDA64 / FPU Mandel
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	60809 Points +50%
Aoostar GOD77 AMD Ryzen 7 7735HS, Radeon 680M	50619 Points +25%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	40440 Points
Average of class Mini PC (1987 - 113499, n=119, last 2 years)	33863 Points -16%
Average Intel Core Ultra 7 155H (18236 - 47685, n=46)	33785 Points -16%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	32781 Points -19%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	28019 Points -31%

AIDA64 / CPU AES
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	170745 MB/s +23%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	138938 MB/s
Aoostar GOD77 AMD Ryzen 7 7735HS, Radeon 680M	127864 MB/s -8%
Average of class Mini PC (3691 - 325960, n=119, last 2 years)	88382 MB/s -36%
Average Intel Core Ultra 7 155H (45713 - 152179, n=46)	78103 MB/s -44%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	65953 MB/s -53%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	53328 MB/s -62%

AIDA64 / CPU ZLib
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	1117 MB/s
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	1075 MB/s -4%
Average Intel Core Ultra 7 155H (557 - 1250, n=46)	962 MB/s -14%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	956 MB/s -14%
Aoostar GOD77 AMD Ryzen 7 7735HS, Radeon 680M	801 MB/s -28%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	775 MB/s -31%
Average of class Mini PC (74.9 - 2039, n=119, last 2 years)	740 MB/s -34%

AIDA64 / FP64 Ray-Trace
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	14284 KRay/s +73%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	8240 KRay/s
Aoostar GOD77 AMD Ryzen 7 7735HS, Radeon 680M	7741 KRay/s -6%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	7090 KRay/s -14%
Average of class Mini PC (350 - 26952, n=119, last 2 years)	6881 KRay/s -16%
Average Intel Core Ultra 7 155H (3569 - 9802, n=46)	6853 KRay/s -17%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	5957 KRay/s -28%

AIDA64 / CPU PhotoWorxx
Average Intel Core Ultra 7 155H (32719 - 54223, n=46)	46590 MPixel/s +42%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	40460 MPixel/s +24%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	32719 MPixel/s
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	29263 MPixel/s -11%
Average of class Mini PC (4408 - 50500, n=119, last 2 years)	28301 MPixel/s -14%
Aoostar GOD77 AMD Ryzen 7 7735HS, Radeon 680M	27727 MPixel/s -15%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	19552 MPixel/s -40%

系统性能

在 Meteor Lake 芯片上，办公和网络应用程序运行良好，与之前的 Raptor Lake 芯片相比，整体性能当然更好，但仍略逊于 AMD Phoenix APU。酷睿至尊 7 155H 在 PCMark 10 数字内容创建和 CrossMark 响应测试中获得了最高分，但在网站脚本处理方面却落后于 Phoenix 和 Raptor Lake。

PCMark 10 / Score
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	7526 Points +3%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	7297 Points
Aoostar GOD77 Radeon 680M, R7 7735HS, Gofatoo 512GB	6900 Points -5%
Average Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU (5159 - 7529, n=32)	6732 Points -8%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	6247 Points -14%
Average of class Mini PC (1461 - 8930, n=118, last 2 years)	5971 Points -18%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5882 Points -19%

PCMark 10 / Essentials
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	11401 Points +5%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11035 Points +2%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	11011 Points +1%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	10858 Points
Aoostar GOD77 Radeon 680M, R7 7735HS, Gofatoo 512GB	10835 Points 0%
Average Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU (8580 - 11289, n=32)	10563 Points -3%
Average of class Mini PC (3998 - 12286, n=118, last 2 years)	9932 Points -9%

PCMark 10 / Productivity
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	10832 Points +10%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	9836 Points
Aoostar GOD77 Radeon 680M, R7 7735HS, Gofatoo 512GB	9429 Points -4%
Average Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU (7822 - 10591, n=32)	8749 Points -11%
Average of class Mini PC (2697 - 11342, n=118, last 2 years)	8150 Points -17%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	7691 Points -22%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6576 Points -33%

PCMark 10 / Digital Content Creation
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	9875 Points
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	9698 Points -2%
Average Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU (4985 - 10709, n=32)	9011 Points -9%
Aoostar GOD77 Radeon 680M, R7 7735HS, Gofatoo 512GB	8726 Points -12%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7612 Points -23%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	7547 Points -24%
Average of class Mini PC (786 - 15858, n=118, last 2 years)	7379 Points -25%

CrossMark / Overall
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	1761 Points +5%
Aoostar GOD77 Radeon 680M, R7 7735HS, Gofatoo 512GB	1727 Points +3%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	1723 Points +3%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1678 Points
Average Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU (1366 - 1903, n=32)	1655 Points -1%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1596 Points -5%
Average of class Mini PC (340 - 2244, n=120, last 2 years)	1507 Points -10%

CrossMark / Productivity
Aoostar GOD77 Radeon 680M, R7 7735HS, Gofatoo 512GB	1725 Points +8%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	1677 Points +5%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	1656 Points +4%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1600 Points
Average Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU (1291 - 1798, n=31)	1581 Points -1%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1537 Points -4%
Average of class Mini PC (412 - 2158, n=120, last 2 years)	1485 Points -7%

CrossMark / Creativity
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	2040 Points +9%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	1872 Points 0%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1869 Points
Average Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU (1519 - 1929, n=31)	1817 Points -3%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1769 Points -5%
Aoostar GOD77 Radeon 680M, R7 7735HS, Gofatoo 512GB	1754 Points -6%
Average of class Mini PC (282 - 2590, n=120, last 2 years)	1587 Points -15%

CrossMark / Responsiveness
Aoostar GOD77 Radeon 680M, R7 7735HS, Gofatoo 512GB	1653 Points +18%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	1456 Points +4%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1400 Points
Average Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU (939 - 1802, n=31)	1396 Points 0%
Average of class Mini PC (333 - 2205, n=120, last 2 years)	1368 Points -2%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	1361 Points -3%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1311 Points -6%

WebXPRT 3 / Overall
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	324 Points +20%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	301 Points +12%
Aoostar GOD77 Radeon 680M, R7 7735HS, Gofatoo 512GB	300 Points +12%
Average Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU (252 - 299, n=32)	276 Points +3%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	269 Points
Average of class Mini PC (90.2 - 478, n=119, last 2 years)	269 Points 0%

Mozilla Kraken 1.1 / Total
Average of class Mini PC (262 - 2291, n=122, last 2 years)	668 ms * -23%
Aoostar GOD77 Radeon 680M, R7 7735HS, Gofatoo 512GB	580 ms * -7%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	544 ms *
Average Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU (517 - 614, n=33)	541 ms * +1%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	517 ms * +5%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	496 ms * +9%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	495 ms * +9%

* ... smaller is better

PCMark 10 Score		7297 points
Help

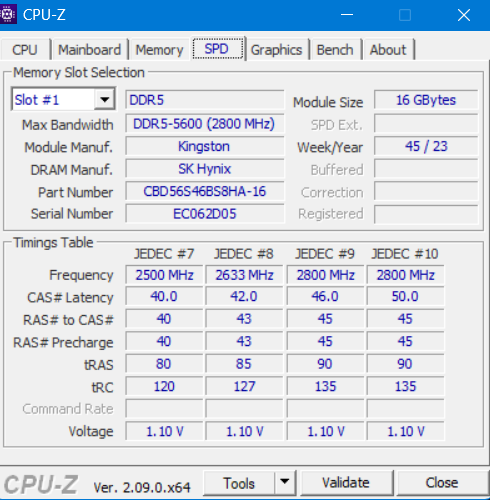

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average Intel Core Ultra 7 155H (62397 - 96791, n=46)	83126 MB/s +30%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	67039 MB/s +5%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	63807 MB/s
Average of class Mini PC (6481 - 89287, n=119, last 2 years)	48357 MB/s -24%
Aoostar GOD77 AMD Ryzen 7 7735HS, Radeon 680M	48160 MB/s -25%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44299 MB/s -31%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	40018 MB/s -37%

AIDA64 / Memory Read
Average Intel Core Ultra 7 155H (60544 - 90647, n=46)	80035 MB/s +32%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	61867 MB/s +2%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	60544 MB/s
Aoostar GOD77 AMD Ryzen 7 7735HS, Radeon 680M	49761 MB/s -18%
Average of class Mini PC (6914 - 99171, n=119, last 2 years)	49177 MB/s -19%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44751 MB/s -26%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	44583 MB/s -26%

AIDA64 / Memory Write
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	86693 MB/s +34%
Average Intel Core Ultra 7 155H (58692 - 93451, n=46)	72600 MB/s +12%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	64852 MB/s
Aoostar GOD77 AMD Ryzen 7 7735HS, Radeon 680M	54944 MB/s -15%
Average of class Mini PC (6862 - 98583, n=119, last 2 years)	52856 MB/s -18%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	45887 MB/s -29%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	42710 MB/s -34%

AIDA64 / Memory Latency
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	154.6 ns *
Average Intel Core Ultra 7 155H (116.2 - 233, n=46)	143.6 ns * +7%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	96.2 ns * +38%
Average of class Mini PC (44.9 - 184.8, n=119, last 2 years)	92.1 ns * +40%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	92 ns * +40%
Aoostar GOD77 AMD Ryzen 7 7735HS, Radeon 680M	87.4 ns * +43%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	82.4 ns * +47%

* ... smaller is better

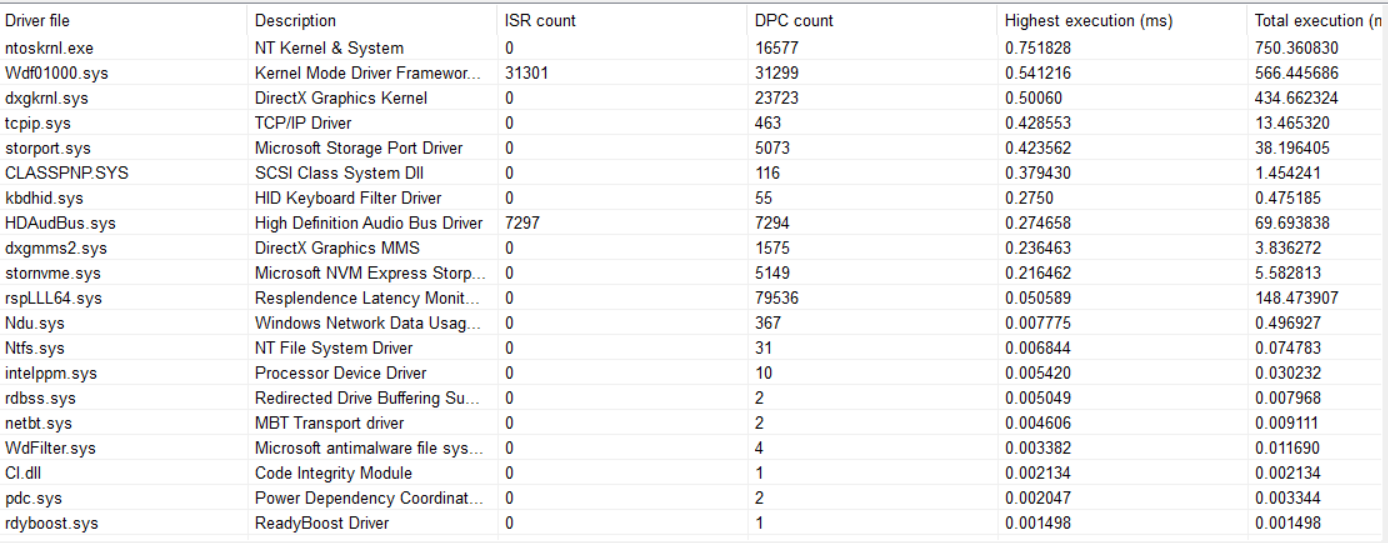

DPC 延迟

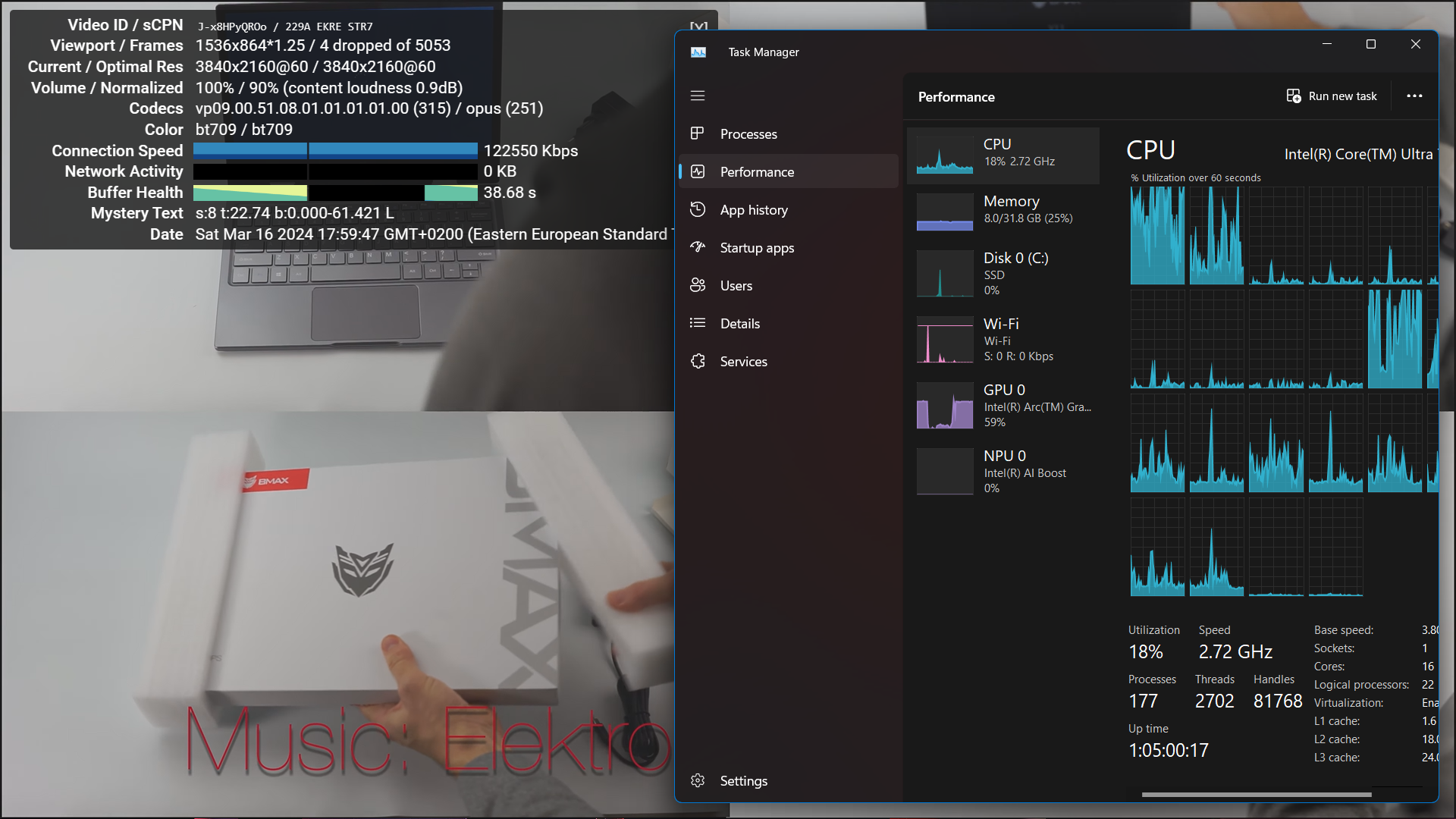

英特尔酷睿至尊 7 155H 的延迟值是迄今为止所有迷你 PC 中最低的。与 AMD 的 Phoenix APU 相比，4K YouTube 视频的丢帧更少，但 Raptor Lake i7-1360P 以 0 丢帧取胜。

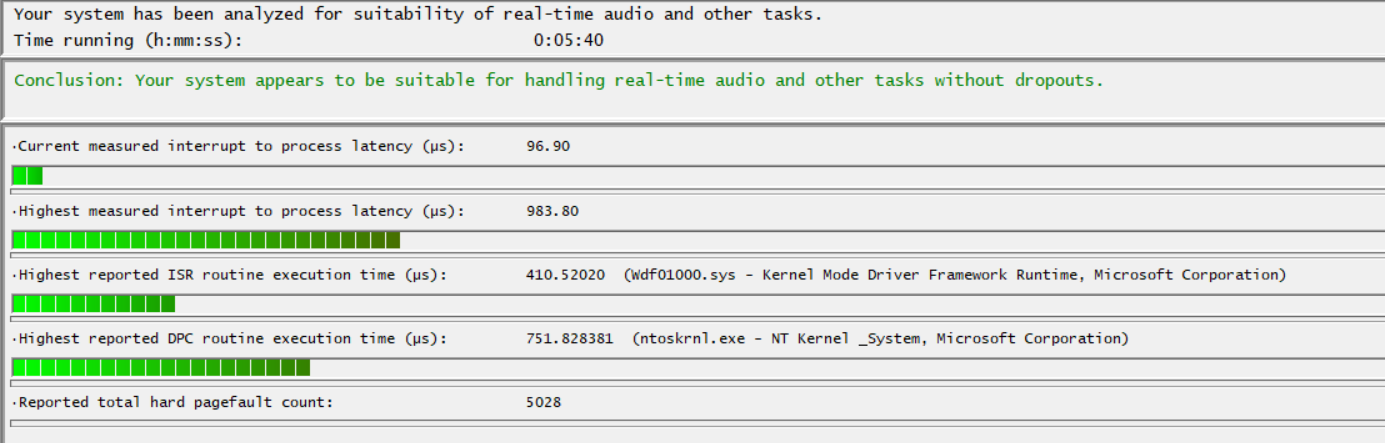

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	2372.9 μs * -141%
Aoostar GOD77 Radeon 680M, R7 7735HS, Gofatoo 512GB	1329 μs * -35%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	1178.9 μs * -20%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1068.7 μs * -9%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	983.89 μs *

* ... smaller is better

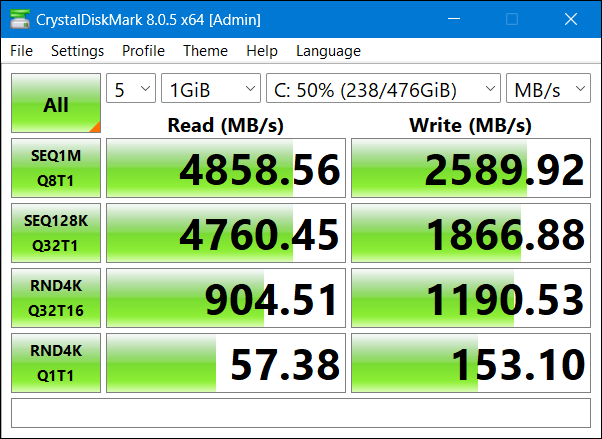

存储设备

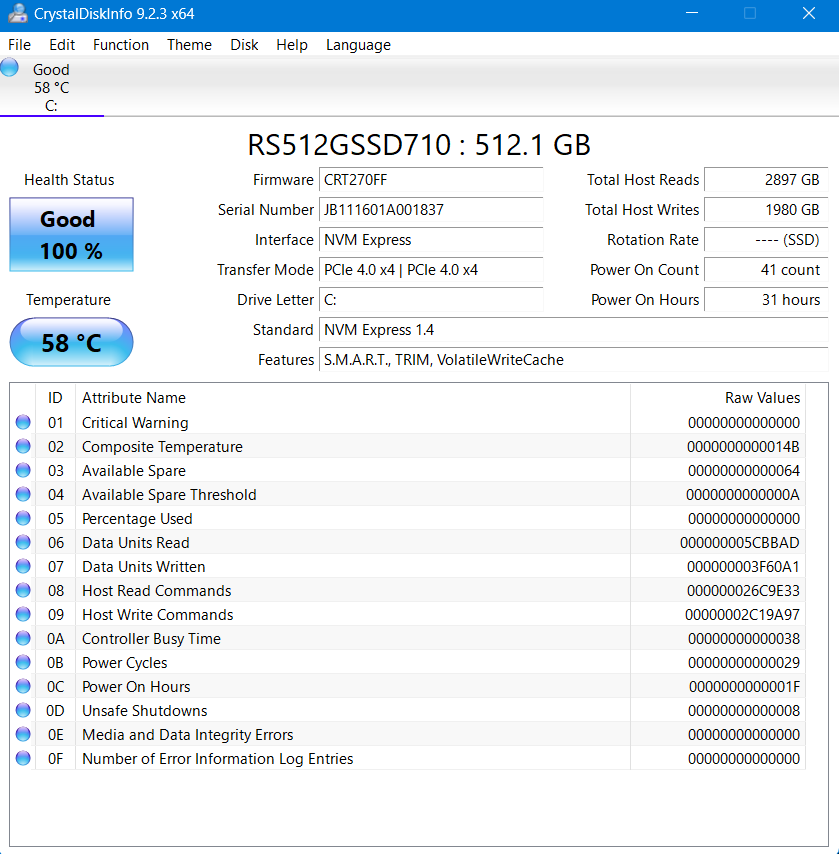

这是我们第一次接触雷松 NVMe 固态硬盘，看起来其性能与通常的解决方案并不相称。与金士顿和三星等知名品牌相比，Rayson 512 GB PCIe 4.0 NVMe SSD 的平均速度要慢 30% 以上。在 DiskSpd 读取循环中记录到了一个更严重的差异，雷松固态硬盘仅在 5 次运行中保持了相当的速度，然后速度降低了 50%以上。造成这种结果的原因很可能是 PCIe 4.0 控制器的热节流。HWInfo 报告称，在 DiskSpd 压力测试中，一个固态硬盘传感器记录到的最高温度为 91°C。尽管迷你 PC 底部为固态硬盘和内存 DIMM 配备了专用风扇，但测试期间风扇转速仅为 20%-30%。固态硬盘至少需要一个散热垫。

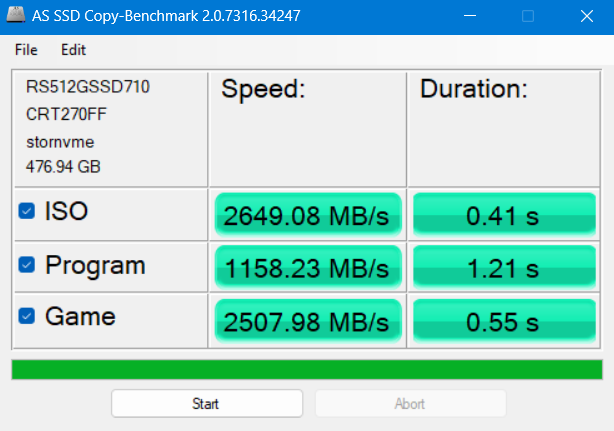

AS SSD

DiskSpd

Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe

Sequential Read: 3756MB/s

Sequential Write: 2494MB/s

4K Read: 50.6MB/s

4K Write: 136.6MB/s

4K-64 Read: 825MB/s

4K-64 Write: 1280MB/s

Access Time Read: 0.179ms

Access Time Write: 0.084ms

Score Read: 1251Points

Score Write: 1666Points

Score Total: 3505Points

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	83.9 pt
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	82 pt
Aoostar GOD77 Gofatoo 512GB	72.7 pt
Average of class Mini PC	68.4 pt
Average Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	61.6 pt
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	61.2 pt
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	59.9 pt

DiskSpd
seq read
Aoostar GOD77 Gofatoo 512GB	4163 (4020.17^min - 4162.7^max) MB/s +91%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3337 (3301.03^min - 3337.16^max) MB/s +53%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	2896 (2845^min - 2896.04^max) MB/s +33%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	2625 (2562.3^min - 2625.21^max) MB/s +20%
Average of class Mini PC (277 - 4357, n=119, last 2 years)	2333 MB/s +7%
Average Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe (2185 - 2279, n=2)	2232 MB/s +2%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2185 (2022.91^min - 2184.81^max) MB/s
seq write
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	3736 (3562.44^min - 3735.53^max) MB/s +84%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3356 (3181.73^min - 3356.49^max) MB/s +65%
Aoostar GOD77 Gofatoo 512GB	2554 (740.07^min - 2554.33^max) MB/s +26%
Average of class Mini PC (229 - 5595, n=119, last 2 years)	2509 MB/s +24%
Average Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe (2029 - 2629, n=2)	2329 MB/s +15%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2029 (1562.36^min - 2029.13^max) MB/s
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1773 (1718.7^min - 1773.12^max) MB/s -13%
seq q8 t1 read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5438 (4937.74^min - 5438.31^max) MB/s +12%
Aoostar GOD77 Gofatoo 512GB	4941 (4487.23^min - 4940.89^max) MB/s +2%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	4835 (4317.37^min - 4834.75^max) MB/s
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	4821 (4521.88^min - 4820.93^max) MB/s 0%
Average Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe (4684 - 4835, n=2)	4760 MB/s -2%
Average of class Mini PC (236 - 8430, n=119, last 2 years)	3790 MB/s -22%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	3582 (3101.69^min - 3581.9^max) MB/s -26%
seq q8 t1 write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4955 (4929.56^min - 4955.41^max) MB/s +94%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	3910 (3902.59^min - 3909.87^max) MB/s +53%
Average of class Mini PC (239 - 6669, n=119, last 2 years)	2810 MB/s +10%
Average Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe (2548 - 2627, n=2)	2588 MB/s +2%
Aoostar GOD77 Gofatoo 512GB	2548 (2520.98^min - 2548.19^max) MB/s 0%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2548 (1848.43^min - 2547.98^max) MB/s
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	2291 (2242.9^min - 2291.17^max) MB/s -10%
4k q1 t1 read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	84.5 (83.02^min - 84.54^max) MB/s +54%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	80.5 (74.84^min - 80.54^max) MB/s +47%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	64.9 (64.71^min - 64.94^max) MB/s +18%
Average of class Mini PC (6.85 - 86.6, n=119, last 2 years)	55.3 MB/s +1%
Average Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe (54.8 - 55.6, n=2)	55.2 MB/s +1%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	54.8 (54.1^min - 54.82^max) MB/s
Aoostar GOD77 Gofatoo 512GB	46.5 (46.09^min - 46.53^max) MB/s -15%
4k q1 t1 write
Aoostar GOD77 Gofatoo 512GB	235 (223.23^min - 235.12^max) MB/s +45%
Average of class Mini PC (30.4 - 435, n=119, last 2 years)	196.9 MB/s +21%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	196.1 (183.94^min - 196.13^max) MB/s +21%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	162.6 (156.04^min - 162.59^max) MB/s
Average Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe (151.3 - 162.6, n=2)	157 MB/s -3%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	144.6 (143.6^min - 144.57^max) MB/s -11%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	140.4 (133.49^min - 140.42^max) MB/s -14%
4k q32 t16 read
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	1557 (1529.87^min - 1556.79^max) MB/s +72%
Average of class Mini PC (26.1 - 4158, n=119, last 2 years)	1411 MB/s +56%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	945 (935.84^min - 944.53^max) MB/s +5%
Average Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe (904 - 910, n=2)	907 MB/s 0%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	904 (899.18^min - 903.79^max) MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	808 (792.58^min - 807.51^max) MB/s -11%
Aoostar GOD77 Gofatoo 512GB	591 (555.94^min - 591.28^max) MB/s -35%
4k q32 t16 write
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1697 (1681.85^min - 1696.69^max) MB/s
Average Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe (1583 - 1697, n=2)	1640 MB/s -3%
Average of class Mini PC (32.6 - 4288, n=119, last 2 years)	1332 MB/s -22%
Aoostar GOD77 Gofatoo 512GB	644 (624.55^min - 644.29^max) MB/s -62%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	565 (557.67^min - 564.75^max) MB/s -67%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	505 (469.38^min - 505.2^max) MB/s -70%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	454 (443.2^min - 453.53^max) MB/s -73%

AS SSD
Score Total
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	5863 Points +67%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5249 Points +50%
Aoostar GOD77 Gofatoo 512GB	4482 Points +28%
Average of class Mini PC (211 - 10021, n=117, last 2 years)	4244 Points +21%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	3692 Points +5%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	3505 Points
Average Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe (3435 - 3505, n=2)	3470 Points -1%
Score Read
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	1738 Points +39%
Average of class Mini PC (76 - 3741, n=117, last 2 years)	1578 Points +26%
Aoostar GOD77 Gofatoo 512GB	1443 Points +15%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	1320 Points +6%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1257 Points 0%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1251 Points
Average Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe (1248 - 1251, n=2)	1250 Points 0%
Score Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3326 Points +100%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	3294 Points +98%
Aoostar GOD77 Gofatoo 512GB	2381 Points +43%
Average of class Mini PC (88 - 4371, n=117, last 2 years)	1902 Points +14%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1852 Points +11%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1666 Points
Average Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe (1600 - 1666, n=2)	1633 Points -2%
Seq Read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4536 MB/s +21%
Aoostar GOD77 Gofatoo 512GB	4341 MB/s +16%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	3822 MB/s +2%
Average Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe (3756 - 3835, n=2)	3796 MB/s +1%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	3756 MB/s
Average of class Mini PC (291 - 6620, n=117, last 2 years)	3231 MB/s -14%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	3048.92 MB/s -19%
Seq Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2698 MB/s +8%
Average Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe (2494 - 2568, n=2)	2531 MB/s +1%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2494 MB/s
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	2463 MB/s -1%
Aoostar GOD77 Gofatoo 512GB	2325 MB/s -7%
Average of class Mini PC (242 - 5783, n=117, last 2 years)	2292 MB/s -8%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1430.07 MB/s -43%
4K Read
Aoostar GOD77 Gofatoo 512GB	75.9 MB/s +50%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	72 MB/s +42%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	70.4 MB/s +39%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	61.9 MB/s +22%
Average of class Mini PC (21.4 - 104.3, n=117, last 2 years)	59.7 MB/s +18%
Average Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe (50.6 - 52.4, n=2)	51.5 MB/s +2%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	50.6 MB/s
4K Write
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	208 MB/s +52%
Aoostar GOD77 Gofatoo 512GB	205 MB/s +50%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	179.91 MB/s +32%
Average of class Mini PC (30.9 - 366, n=117, last 2 years)	177.5 MB/s +30%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	166.8 MB/s +22%
Average Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe (136.6 - 139.4, n=2)	138 MB/s +1%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	136.6 MB/s
4K-64 Read
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	1293 MB/s +57%
Average of class Mini PC (23.4 - 3220, n=117, last 2 years)	1195 MB/s +45%
Aoostar GOD77 Gofatoo 512GB	933 MB/s +13%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	882.05 MB/s +7%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	825 MB/s
Average Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe (812 - 825, n=2)	819 MB/s -1%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	794 MB/s -4%
4K-64 Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2889 MB/s +126%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	2840 MB/s +122%
Aoostar GOD77 Gofatoo 512GB	1944 MB/s +52%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1529.03 MB/s +19%
Average of class Mini PC (32.8 - 3731, n=117, last 2 years)	1495 MB/s +17%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1280 MB/s
Average Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe (1204 - 1280, n=2)	1242 MB/s -3%
Access Time Read
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	0.179 ms *
Average Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe (0.173 - 0.179, n=2)	0.176 ms * +2%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	0.127 ms * +29%
Aoostar GOD77 Gofatoo 512GB	0.107 ms * +40%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	0.099 ms * +45%
Average of class Mini PC (0.022 - 0.489, n=117, last 2 years)	0.09579 ms * +46%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.06 ms * +66%
Access Time Write
Average of class Mini PC (0.014 - 0.765, n=117, last 2 years)	0.1133 ms * -35%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	0.097 ms * -15%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	0.084 ms *
Average Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe (0.078 - 0.084, n=2)	0.081 ms * +4%
Aoostar GOD77 Gofatoo 512GB	0.058 ms * +31%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.024 ms * +71%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	0.022 ms * +74%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe; diskspd 2.0.17 f: Ø2224 (1940.81-4829.32)

Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø4795 (3366.33-4823.24)

Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ: Ø5462 (4797.39-5479.86)

Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU: Ø3596 (3147.41-3611.18)

Aoostar GOD77 Gofatoo 512GB; diskspd 2.0.17 f: Ø3226 (2314.19-4824.92)

图形处理器性能

8 核 Arc iGPU基于英特尔 Xe LPG 架构，拥有 128 个 Xe 向量引擎、8 个光线追踪单元、8 个采样器和 4 个像素后端。iGPU 在台积电 N5 节点上制造，核心提升速度可达 2.3 GHz。

从 3DMark 和 3DMark 11 合成测试结果来看，酷睿至尊 7 155H 中集成的英特尔 8 核 Xe GPU 的速度几乎与 Radeon 780M上的 AMD Ryzen 7 7840HS.在大多数测试中，英特尔 iGPU 都略微落后于 AMD iGPU，只有Time Spy 一项测试比 Radeon 780M 快 16%。与 Raptor Lake 相比 Iris Xe相比，新的流星湖 8 核 iGPU 的平均性能提高了 50%。

3DMark Performance Rating | 3DMark | 3DMark 11

3DMark Performance Rating - Percent
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	96.6 pt
AcePC Wizbox AI Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	92.1 pt
Average Intel Arc 8-Core iGPU	91.6 pt
Average of class Mini PC	80.2 pt
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	76 pt
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	64.2 pt
Lenovo IdeaCentre Mini 01IRH8 ^-1! Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	58.3 pt

3DMark
2560x1440 Time Spy Graphics
AcePC Wizbox AI Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3271 Points
Average Intel Arc 8-Core iGPU (2018 - 3770, n=42)	3231 Points -1%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	2832 Points -13%
Average of class Mini PC (179 - 13961, n=115, last 2 years)	2749 Points -16%
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	2290 Points -30%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1672 Points -49%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	1508 Points -54%
Fire Strike Extreme Graphics
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	4100 Points +11%
Average Intel Arc 8-Core iGPU (3558 - 4114, n=7)	3801 Points +2%
AcePC Wizbox AI Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3710 Points
Average of class Mini PC (296 - 14532, n=90, last 2 years)	3623 Points -2%
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	3284 Points -11%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	2415 Points -35%

3DMark 11
1280x720 Performance Combined
Average Intel Arc 8-Core iGPU (4273 - 10455, n=35)	8362 Points +10%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	7757 Points +2%
AcePC Wizbox AI Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	7635 Points
Average of class Mini PC (475 - 24307, n=119, last 2 years)	6911 Points -9%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	6582 Points -14%
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	6444 Points -16%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	5533 Points -28%
1280x720 Performance Physics
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	22960 Points +13%
AcePC Wizbox AI Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	20315 Points
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	18679 Points -8%
Average Intel Arc 8-Core iGPU (6531 - 22681, n=35)	17789 Points -12%
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	17552 Points -14%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	16481 Points -19%
Average of class Mini PC (2348 - 28739, n=119, last 2 years)	15743 Points -23%
1280x720 Performance GPU
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	13347 Points +10%
AcePC Wizbox AI Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	12105 Points
Average Intel Arc 8-Core iGPU (8064 - 13716, n=35)	11984 Points -1%
Average of class Mini PC (574 - 47892, n=119, last 2 years)	10793 Points -11%
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	10092 Points -17%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7321 Points -40%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	6914 Points -43%
1280x720 Performance
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	13224 Points +9%
AcePC Wizbox AI Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	12135 Points
Average Intel Arc 8-Core iGPU (7756 - 13943, n=35)	11999 Points -1%
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	10164 Points -16%
Average of class Mini PC (632 - 37012, n=119, last 2 years)	10158 Points -16%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7957 Points -34%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	7371 Points -39%

3DMark 11 Performance		12135 points
3DMark Cloud Gate Standard Score		30680 points
3DMark Fire Strike Extreme Score		3670 points
3DMark Time Spy Score		3634 points
Help

... in comparison

Blender
v3.3 Classroom HIP/AMD
Average of class Mini PC (4 - 926, n=22, last 2 years)	399 Seconds *
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	321 Seconds *
v3.3 Classroom CPU
Average of class Mini PC (160 - 7856, n=117, last 2 years)	826 Seconds * -127%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	477 Seconds * -31%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	441 Seconds * -21%
Average Intel Arc 8-Core iGPU (294 - 692, n=38)	430 Seconds * -18%
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	416 Seconds * -14%
AcePC Wizbox AI Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	364 Seconds *
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	310 Seconds * +15%
v3.3 Classroom oneAPI/Intel
AcePC Wizbox AI Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	255 Seconds *
Average of class Mini PC (212 - 308, n=7, last 2 years)	243 Seconds * +5%
Average Intel Arc 8-Core iGPU (208 - 261, n=13)	228 Seconds * +11%

* ... smaller is better

游戏性能

虽然在合成测试中，Arc iGPU 紧随 AMD Radeon 780M 之后，有时甚至超过 AMD Radeon 780M，但在游戏测试中情况就不同了。Arc 系列包括英特尔近二十年来的首款独立 GPU，尽管在快速改进驱动程序方面做出了巨大努力，但仍不可避免地存在一些兼容性问题。因此，当我们分析游戏性能时，在合成测试中落后于 AMD iGPU 的几个百分点就会明显增加。

总体而言，英特尔 Arc iGPU 比 Radeon 780M 慢 35%，比上一代 Iris Xe 96EU 快 20%。在 X-Plane 11.11 等要求较高的游戏中，Arc iGPU 只慢 2-3%，但在《GTA V》中激活最大抗锯齿时，英特尔机型比 Radeon 780M 慢 2 倍多，而在Witcher 3 中则慢 52%。这种减速通常是由于 OEM 强加的 TGP 限制造成的，而且在很大程度上取决于内存的速度。

此外，由于没有 Thunderbolt 或 OCulink 端口，这款微型 PC 只能用于 iGPU 的情况，无法使用 dGPU 解决方案。AcePC 面向未来的努力在这里几乎不存在。

Performance Rating - Percent
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Radeon 780M	98.3 pt
Average of class Mini PC	90.9 pt
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	83.4 pt
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	72.7 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	58.5 pt
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	47.8 pt

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Radeon 780M	31.6 (15.4^min, 16.9^P0.1, 19.1^P1) fps +52%
Average of class Mini PC (5.15 - 126.2, n=75, last 2 years)	27 fps +30%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	22.7 (14.2^min, 14.3^P0.1, 14.6^P1) fps +9%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	20.8 (18^min, 19^P1) fps
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.9 fps -19%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	12.4 (11^min) fps -40%

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Average of class Mini PC (2.73 - 124.7, n=89, last 2 years)	26.2 fps +113%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Radeon 780M	26.1 (3.93^min, 18.5^P1) fps +112%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	20.4 (4.1^min, 14.7^P1) fps +66%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	12.3 (3.05^min, 8.77^P1) fps
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	8.8 (4.66^min, 7.35^P1) fps -28%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	6.8 (3.29^min, 3.76^P1) fps -45%

Final Fantasy XV Benchmark - 1920x1080 High Quality
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Radeon 780M	28.7 fps +32%
Average of class Mini PC (2.25 - 138.7, n=107, last 2 years)	27 fps +24%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	23 fps +6%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	21.8 fps
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	17.4 fps -20%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	14.6 fps -33%

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Average of class Mini PC (9.7 - 245, n=88, last 2 years)	50.6 fps +23%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Radeon 780M	48.7 (24.3^min, 30.5^P1) fps +19%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	41 (6.8^min, 14.4^P1) fps
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	39.1 (19^min, 24.6^P1) fps -5%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26.1 (5.3^min, 8.13^P1) fps -36%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	22.9 (5^min, 5.96^P1) fps -44%

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Radeon 780M	91.2 (78.8^min) fps +34%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	84.9 (77.4^min) fps +24%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	68.3 (45.5^min) fps
Average of class Mini PC (5.2 - 191.2, n=116, last 2 years)	64.7 fps -5%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	60.5 (52.3^min) fps -11%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	52 (47.1^min) fps -24%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	41.6 fps +9%
Average of class Mini PC (3.37 - 147.9, n=105, last 2 years)	39.5 fps +3%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Radeon 780M	39.2 fps +3%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	38.2 fps
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	35.4 fps -7%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	28.5 fps -25%

The Witcher 3 | Cyberpunk 2077 2.1 Phantom Liberty

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Radeon 780M	31.6 (15.4^min, 16.9^P0.1, 19.1^P1) fps +52%
Average of class Mini PC (5.15 - 126.2, n=75, last 2 years)	27 fps +30%
Average Intel Arc 8-Core iGPU (14.5 - 43.1, n=31)	23.7 fps +14%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	22.7 (14.2^min, 14.3^P0.1, 14.6^P1) fps +9%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	20.8 (18^min, 19^P1) fps
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.9 fps -19%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	12.4 (11^min) fps -40%

Cyberpunk 2077 2.1 Phantom Liberty
1920x1080 Medium Preset (FSR off)
Average of class Mini PC (4.66 - 133.9, n=51, last 2 years)	40.3 fps +69%
Average Intel Arc 8-Core iGPU (9.42 - 31.4, n=30)	25.7 fps +8%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	23.8 (18.8^min) fps
1920x1080 High Preset (FSR off)
Average of class Mini PC (4.02 - 115.3, n=50, last 2 years)	32.6 fps +83%
Average Intel Arc 8-Core iGPU (7.3 - 27.6, n=32)	21.7 fps +22%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	17.8 (11.8^min) fps

Witcher 3 图形显示，8 核英特尔 Arc iGPU 在测试中段出现了明显的帧数下降，但总体速度仍低于上一代的 Radeon 680M和 Radeon 780M 都要慢，这是因为使用了较慢的 DDR5-4800 内存。

Witcher 3 FPS Chart

AcePC Wizbox AI Ultra 7 155H, Arc 8-Core: Ø20.8 (18-23)

Minisforum EliteMini UM780 XTX R7 7840HS, Radeon 780M: Ø29.7 (28-31)

Aoostar GOD77 R7 7735HS, Radeon 680M: Ø24.7 (23-27)

	low	med.	high	ultra
GTA V (2015)		90.4	32.2	12.3
The Witcher 3 (2015)				20.8
Dota 2 Reborn (2015)	102.5	92.6	72.3	68.3
Final Fantasy XV Benchmark (2018)	52.8	33.5	21.8
X-Plane 11.11 (2018)	61.5	46.9	38.2
Strange Brigade (2018)	131.8	57	50.4	41
Cyberpunk 2077 2.1 Phantom Liberty (2023)		23.8	17.8

NPU 性能

由于这是我们首次测试配备 NPU 的英特尔酷睿 Ultra 处理器的迷你 PC，而且 UL Procyon 套件还不支持 AMD Phoenix 和 Hawk Point NPU，因此我们目前无法提供更具洞察力的结果比较。

排放量

系统噪音

空闲时，AcePC Wizbox AI 完全静音，直到 CPU 温度开始轻微升高，底部风扇进入频繁启动和停止的循环时，才会发出恼人的响声，这可能会影响敏感人群。抛开这个问题不谈，事实证明，与 UM780 XTX 和 NUC 13 Pro 相比，AcePC Wizbox AI 是最安静的机型。AcePC 机型的平均负载和最大负载噪音结果几乎相同，因为在达到一定的核心温度阈值后，风扇会升至最大。

Noise Level

Idle		23.54 / 24.9 / 24.9 dB(A)
Load		35.78 / 37.57 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 23.54 dB(A)

	AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	Aoostar GOD77 Radeon 680M, R7 7735HS, Gofatoo 512GB
Noise		-9%	-14%	-11%	-22%
off / environment *	23.54	24.8 -5%	25.2 -7%	23.4 1%	25 -6%
Idle Minimum *	23.54	28.5 -21%	28.1 -19%	30.4 -29%	30.7 -30%
Idle Average *	24.9	28.5 -14%	28.2 -13%	30.4 -22%	31.7 -27%
Idle Maximum *	24.9	28.7 -15%	28.3 -14%	30.4 -22%	31.8 -28%
Load Average *	35.78	32.4 9%	42 -17%	30.7 14%	36.4 -2%
Load Maximum *	37.57	39.6 -5%	42.1 -12%	41 -9%	52.4 -39%
Witcher 3 ultra *		32.7		33.9	35.5

* ... smaller is better

温度

AcePC 为 Wizbox AI mini PC 配备了一个冷却系统，包括一个位于按钮处的较小风扇，用于为内存和固态硬盘抽取冷空气，以及一个较大的散热片（带有 2 根热管）和一个较大的风扇，用于冷却顶部的处理器。当然，顶盖下方的温度更高。在空闲状态下，顶盖热点温度略高于⁴⁰摄氏度，而在中等负载状态下，温度达到 41.⁴摄氏度，压力测试时温度高达 62.² ^摄氏度。此外，CPU 封装温度在空闲时为⁵⁰摄氏度，在中等负载时为⁶²摄氏度。

Max. Load

Idle


33.8 °C	32.8 °C	36 °C
33.1 °C	32.2 °C	27.9 °C
29.8 °C	29.1 °C	29.8 °C

Maximum: 36 °C
Average: 31.6 °C


40.3 °C	37.2 °C	38.4 °C
40.2 °C	30.8 °C	36.6 °C
36.8 °C	35.5 °C	36.1 °C

Maximum: 40.3 °C
Average: 36.9 °C

Power Supply (max.) 48.3 °C | Room Temperature 26.5 °C | Fluke t3000FC (calibrated), Fluke 62 Mini

(+) The average temperature for the upper side under maximal load is 31.6 °C / 89 F, compared to the average of 32.3 °C / 90 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 36 °C / 97 F, compared to the average of 35.8 °C / 96 F, ranging from 24 to 69.5 °C for the class Mini PC.
(±) The bottom heats up to a maximum of 40.3 °C / 105 F, compared to the average of 36.1 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 30.6 °C / 87 F, compared to the device average of 32.3 °C / 90 F.

	AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Radeon 780M	Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M
Heat		9%	-9%
Maximum Upper Side *	36	35.5 1%	39.5 -10%
Maximum Bottom *	40.3	37.1 8%	47.9 -19%
Idle Upper Side *	32.2	30.5 5%	33.3 -3%
Idle Bottom *	35.5	28.2 21%	37.4 -5%

* ... smaller is better

压力测试

在一小时的 prime95 + Furmark 压力测试中，酷睿至尊 7 155H SoC 的 CPU 部分受到节流的影响，但没有 GPU 部分那么大。核心温度在 80 至 87 摄氏度之间波动，测试开始时的波动更为明显。CPU 封装功耗也有类似表现，在前 5 分钟达到 66.76 W，但在测试结束时稳定在 56 W 左右。CPU 时钟在 2.5 和 2.9 GHz 之间的变化更为明显。

相比之下，iGPU 方面受节流的影响似乎更大。这一点从大量的核心频率峰值和 GT 核心功耗中可以明显看出，GT 核心功耗在开始时飙升至 18 W，随后数次降至 5 W 附近，导致每当功耗达到谷底时，Furmark 帧数在 20 帧左右，而每当功耗达到峰值时，Furmark 帧数则接近 40 帧。

能源管理

耗电量

尽管 AcePC 宣传自己比 Raptor Lake 更省电，但其实施的 Meteor Lake 平台似乎在空闲时功耗比 Raptor Lake 高 8%，在平均负载时功耗比 Raptor Lake 高 15%。我们还注意到空闲时的功率峰值在 29 到 49 W 之间。不过，最大负载功耗比其他竞争对手至少低 7%。在这种情况下，R7 7735HS 处理器的功耗最高，在平均负载情况下功耗最多可增加 47%。AcePC 提供的 120W PSU 可以轻松处理 91W 的最大负载。

Power Consumption

Off / Standby	0.74 / 2 Watt
Idle	7.23 / 10 / 49 Watt
Load	53 / 91 Watt


Key: min: , med: , max: Metrahit Energy

	AcePC Wizbox AI Ultra 7 155H, Arc 8-Core, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe, , x,	Minisforum EliteMini UM780 XTX R7 7840HS, Radeon 780M, Kingston OM8PGP41024Q-A0, , x,	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x,	Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs, Samsung PM9B1 512GB MZVL4512HBLU, , x,	Aoostar GOD77 R7 7735HS, Radeon 680M, Gofatoo 512GB, , x,	Average Intel Arc 8-Core iGPU	Average of class Mini PC
Power Consumption		3%	19%	16%	4%	24%	-1%
Idle Minimum *	7.23	8.5 -18%	7 3%	6.7 7%	7.9 -9%	5.41 ?(1.8 - 10.3, n=37) 25%	9.69 ?(1.9 - 45.7, n=121, last 2 years) -34%
Idle Average *	10	10.5 -5%	9.2 8%	6.7 33%	9.5 5%	8.64 ?(4.2 - 16, n=37) 14%	11.9 ?(1.9 - 47.5, n=119, last 2 years) -19%
Idle Maximum *	49	12.9 74%	11.8 76%	7.1 86%	12.2 75%	12.1 ?(4.5 - 49, n=37) 75%	15.2 ?(2.6 - 57.1, n=121, last 2 years) 69%
Load Average *	53	67.2 -27%	45 15%	68.5 -29%	77.7 -47%	54.2 ?(31.3 - 76.2, n=36) -2%	59 ?(11.3 - 170.6, n=121, last 2 years) -11%
Load Maximum *	91	97.2 -7%	97.2 -7%	104.3 -15%	93.4 -3%	85 ?(60 - 144.9, n=37) 7%	100.5 ?(18.1 - 423, n=121, last 2 years) -10%
Witcher 3 ultra *				58.3

* ... smaller is better

Pros

+ 英特尔酷睿至尊 7 155H SoC，16 核 22 线程

+ 8 核英特尔 Arc iGPU

+ 用于人工智能工作负载的 NPU

+ Wi-Fi 7 + BT 5.4

+ 低噪音冷却解决方案和主动式固态硬盘/内存冷却

+ 最大 96 GB DDR5 内存容量

+ 双固态硬盘 M.2 插槽

+ 紧凑型 120 瓦 PSU

Cons

- 提供固态硬盘性能

- 空闲时冷却系统在超过一定温度时发出的嘎嘎声较低

- 即使在空闲状态，机箱温度也高于平均水平

- 端口选择不佳，没有 Thunderbolt 4 接口

- 价格

判决

从整体上看，Meteor Lake 首次在迷你 PC 上亮相，与采用类似技术的上一代 Raptor Lake 处理器相比实现了稳健的进化。AcePC Wizbox AI 上的酷睿至尊 7 155H 机型凭借其快速混合 CPU 集群与 8 核 Arc iGPU 以及 NPU 的组合，全面展示了显著的性能提升。在极少数情况下，它甚至击败了集成 Radeon 780M GPU 的 AMD Ryzen 7 7840HS，但在大多数情况下，它都落后于 Team Red 的机型。

AcePC Wizbox AI 还配备了英特尔 BE200 Wi-Fi 7 + 蓝牙 5.4 网卡，这通常在高端笔记本电脑上才有。虽然我们无法测试新无线标准的全部性能，但 Wizbox AI 的 6 GHz Wi-Fi 6E 性能在同类产品中名列前茅。该机型的制造质量和设计都不错，但系统比基于 AMD 技术的竞争对手更大、更重，这实际上对该机型有利，因为它配备了更大的 CPU 冷却器，在满载情况下肯定比大多数同类解决方案更安静。该机型的另一个优势是最大 96 GB 内存容量和用于 NVMe SSD 存储的双 M.2 插槽。内存 DIMM 和固态硬盘可从底部轻松访问，尽管机箱设计不允许轻松访问 CPU 冷却器。DPC 延迟也比我们从竞争对手那里看到的任何产品都要好。

AcePC 的英特尔酷睿至强 7 155H Meteor Lake 实现值得称赞，与上一代 Raptor Lake 型号相比，性能大幅提升。用于 AI 工作负载的全新 NPU 和对 Wi-Fi 7 + BT 5.4 的支持也是 Wizbox AI mini PC 上面向未来的出色补充。

至于缺点，我们注意到端口选择相对单一。当竞争对手提供双 LAN 插口、USB4 或 Thunderbolt 4 连接器甚至 OCulink 端口时，AcePC Wizbox AI mini PC 只配备了最快的 10 Gbps USB-C 端口和一个 2.5 GbE 插口。此外，提供的固态硬盘来自一家名不见经传的公司，性能欠佳，而提供的 DDR5 DIMM 固态硬盘速度本可以更快，但用户可以轻松升级。尽管散热性能良好，但机箱即使在空闲状态下也会变得较热。令人惊讶的是，与上一代 Raptor Lake-P 机型相比，AcePC 的 Meteor Lake-H 平台仅在最大负载时表现出更高的效率，而在中等负载或闲置状态下则表现平平。在目前没有任何促销活动的情况下，价格也是一个令人担忧的问题，因为搭载 AMD 处理器的 Minisforum 竞争对手的价格至少要低两倍。

价格和供应情况

该机型可直接从 AcePC 网站购买，价格为 1199.99 美元。.

AcePC Wizbox AI - 03/31/2024 v7 ^(old)
Bogdan Solca

Chassis

81 / 98 → 82%

Connectivity

61 / 81 → 76%

Weight

78%

Games Performance

75%

Application Performance

96%

Temperature

92%

Noise

89%

Average

82%

85%

Mini PC - Weighted Average

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
