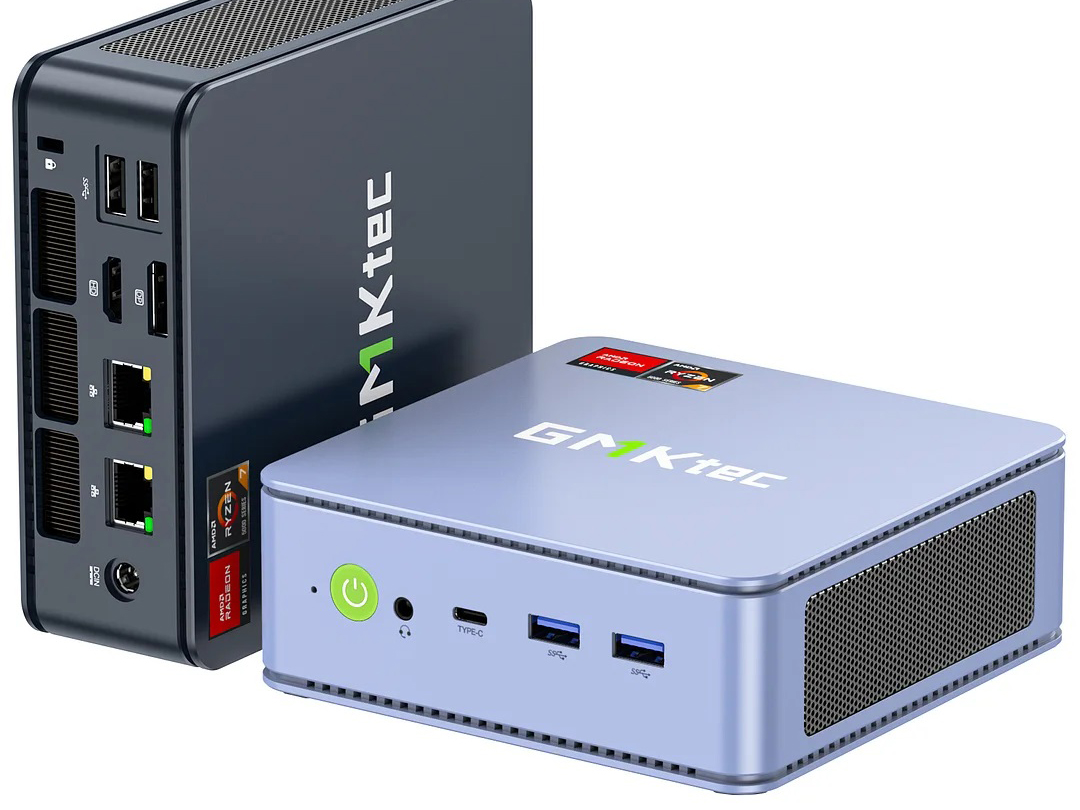

Name: GMK NucBox M5
Brand: GMK

与价格昂贵的 NucBox K 系列相比，NucBox M5 是 GMK 最新推出的入门级迷你 PC。为了降低成本，它采用了较旧的处理器。

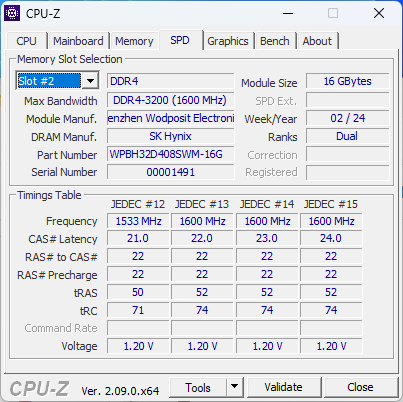

我们的测试机配置了 Zen 2 Ryzen 7 5700U CPU、32 GB DDR4-3200 内存和 1 TB 存储空间，售价约为 470 美元。此外，还提供不带内存或存储空间的裸机 SKU，起价为 320 美元，但所有其他选项均配备相同的处理器。

NucBox M4 的替代产品包括其他廉价迷你电脑，如 Beelink SER5, BMax B7 Power或 Maxtang MTN-FP750.

更多 GMKtec 评论：

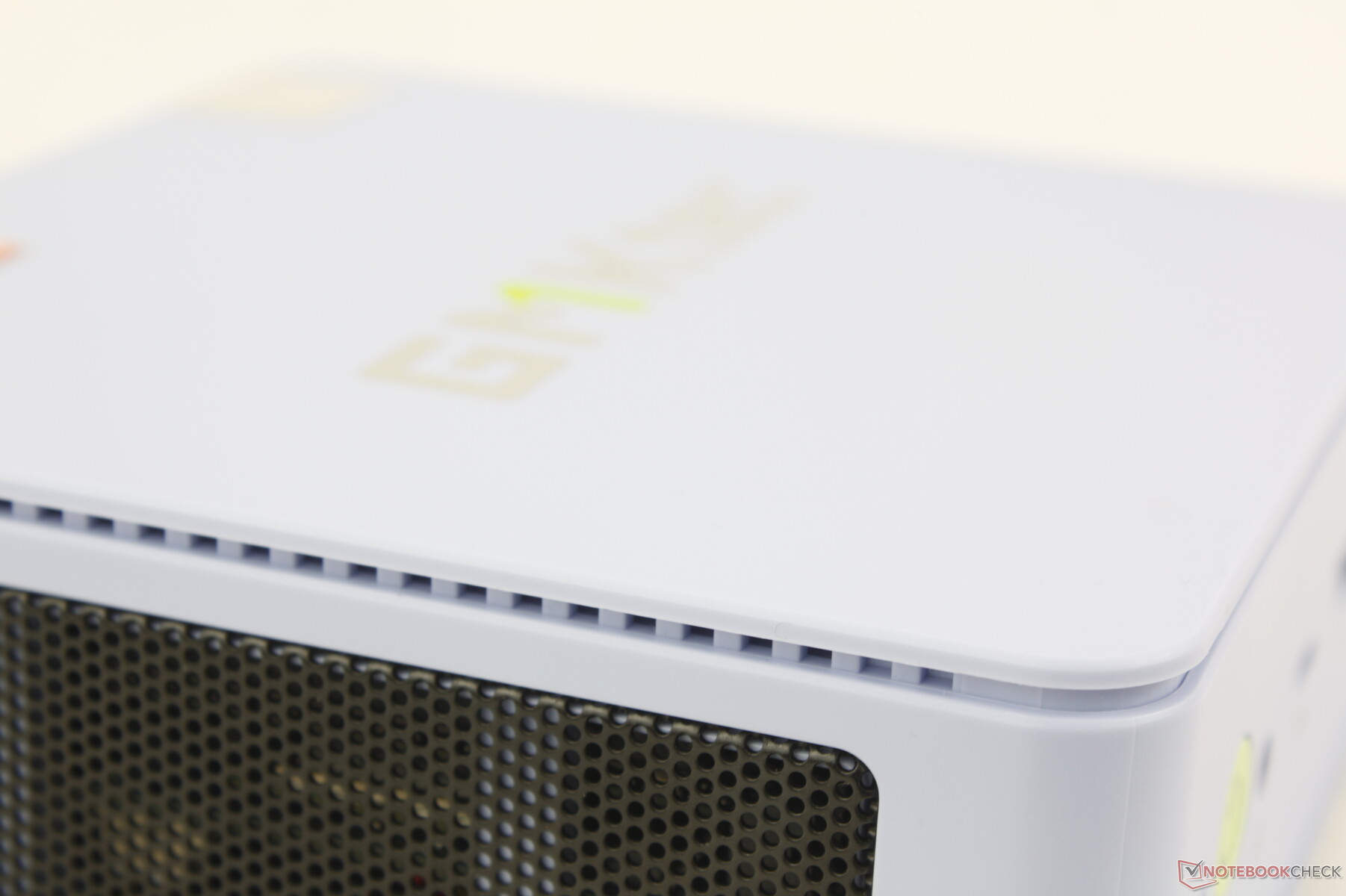

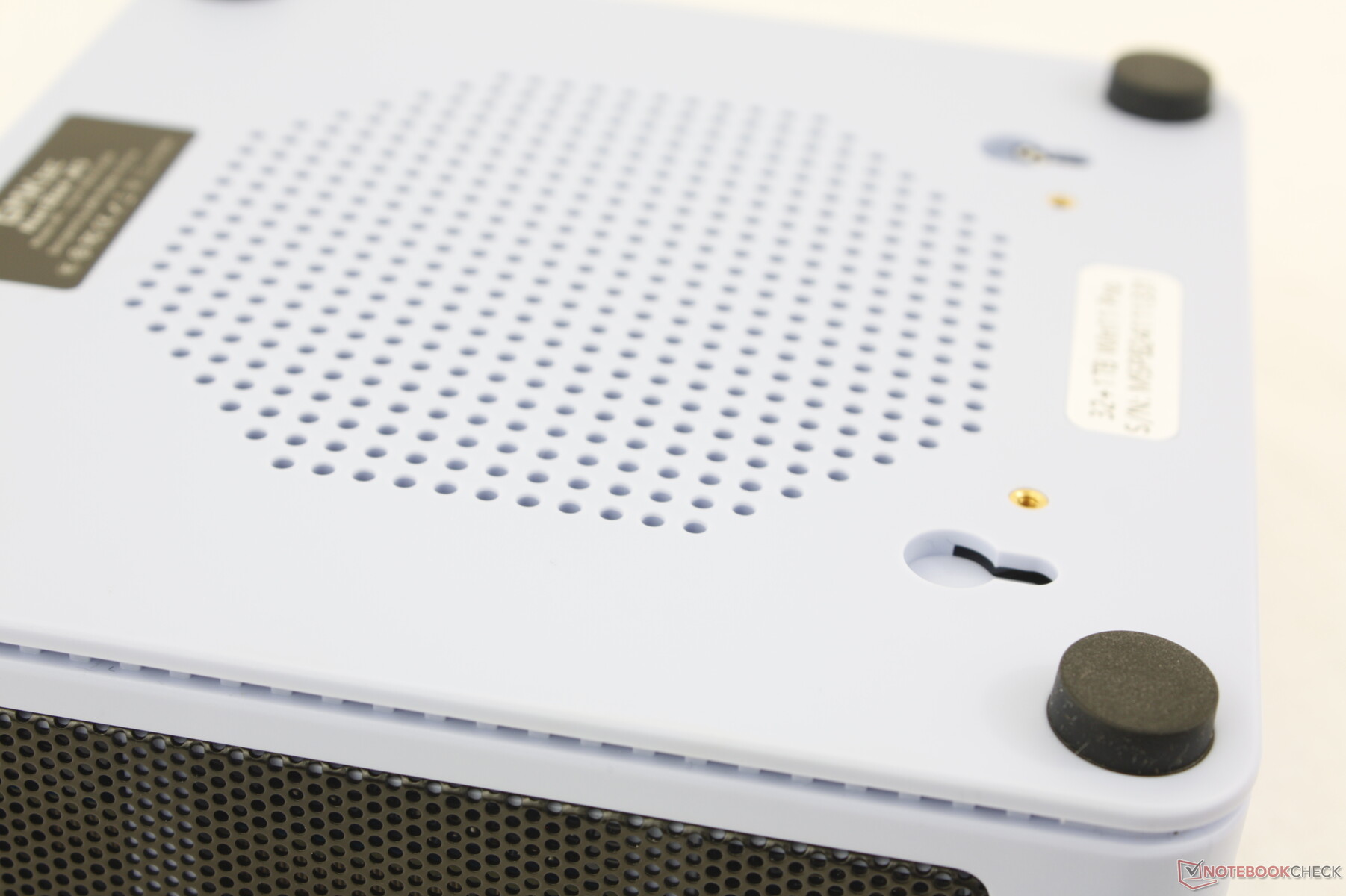

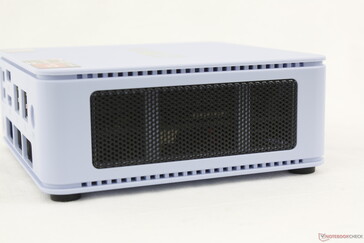

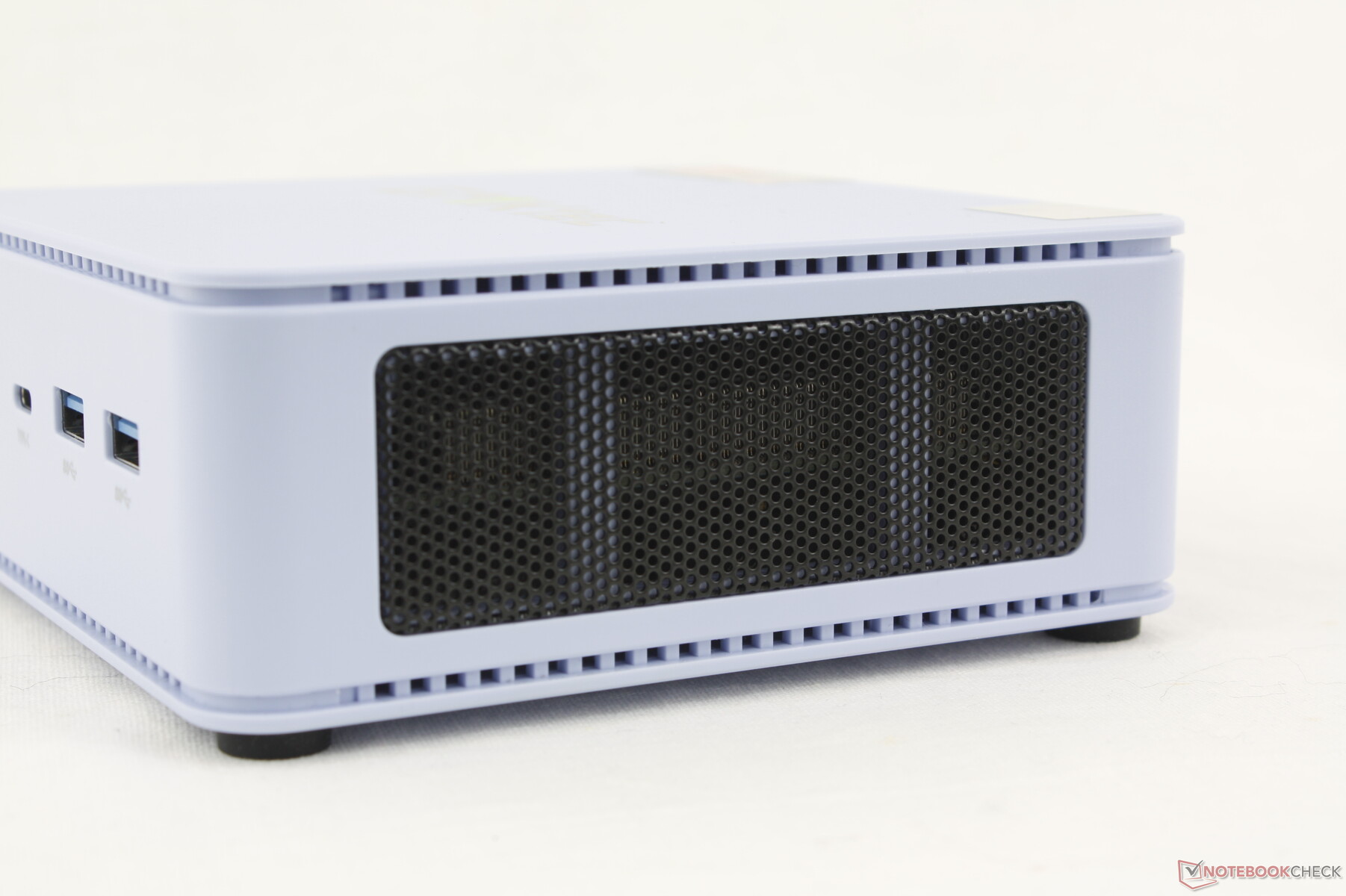

案例 - 更新设计，改善通风

机箱的外观与 NucBox K6.不过，NucBox M5 的机箱侧面是塑料而不是金属，这可能是为了降低成本。

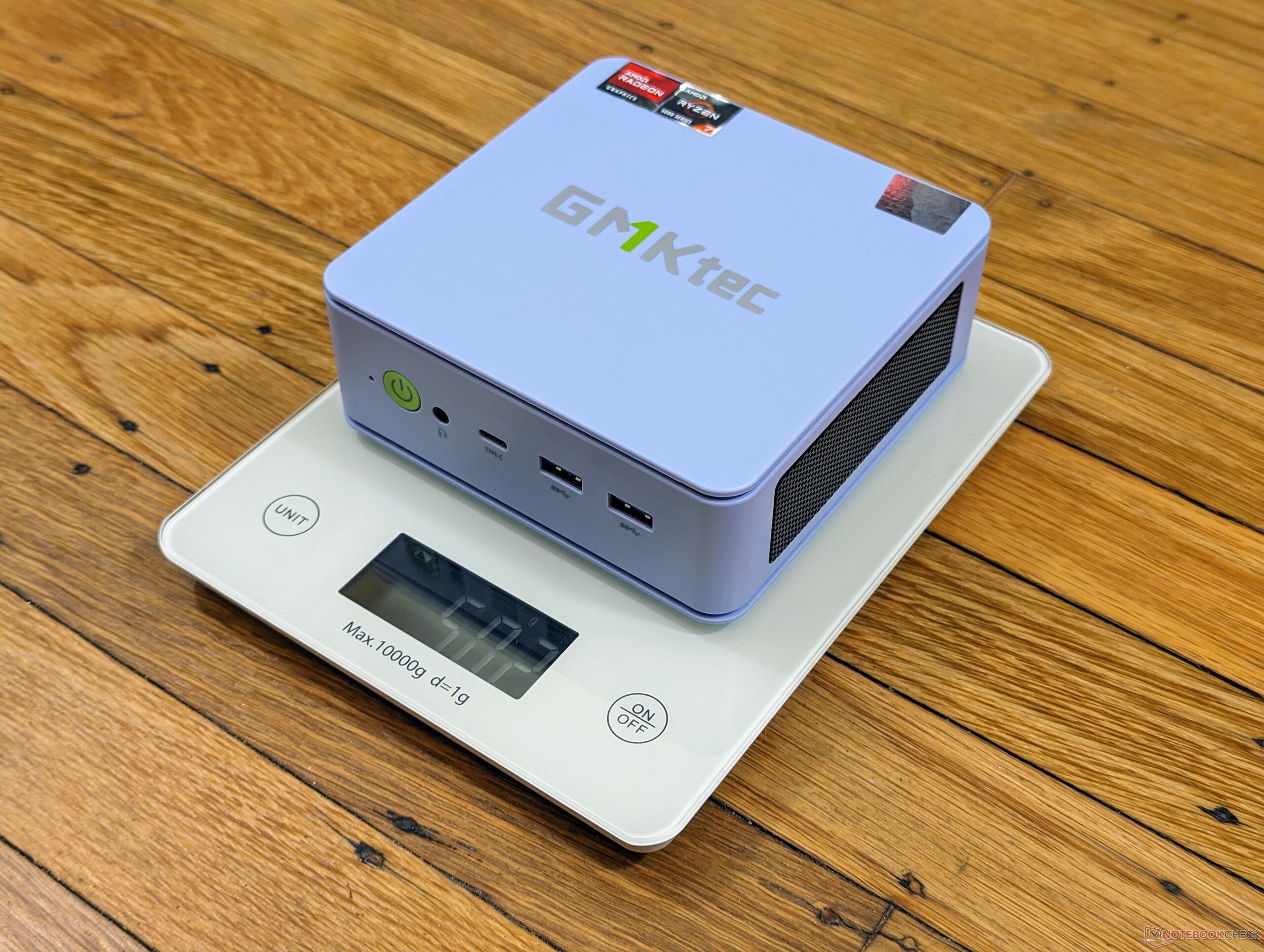

与老式的金属机箱相比 M4设计相比，M5 的体积明显更小，重量几乎只有后者的一半。

尺寸比较

连接性

端口选项与 NucBox K6 相同，但有两个关键的降级。单个 USB-C 端口现在不支持 USB4 和 Thunderbolt，而后部的一个 USB-A 端口现在是 2.0 而不是 3.2。

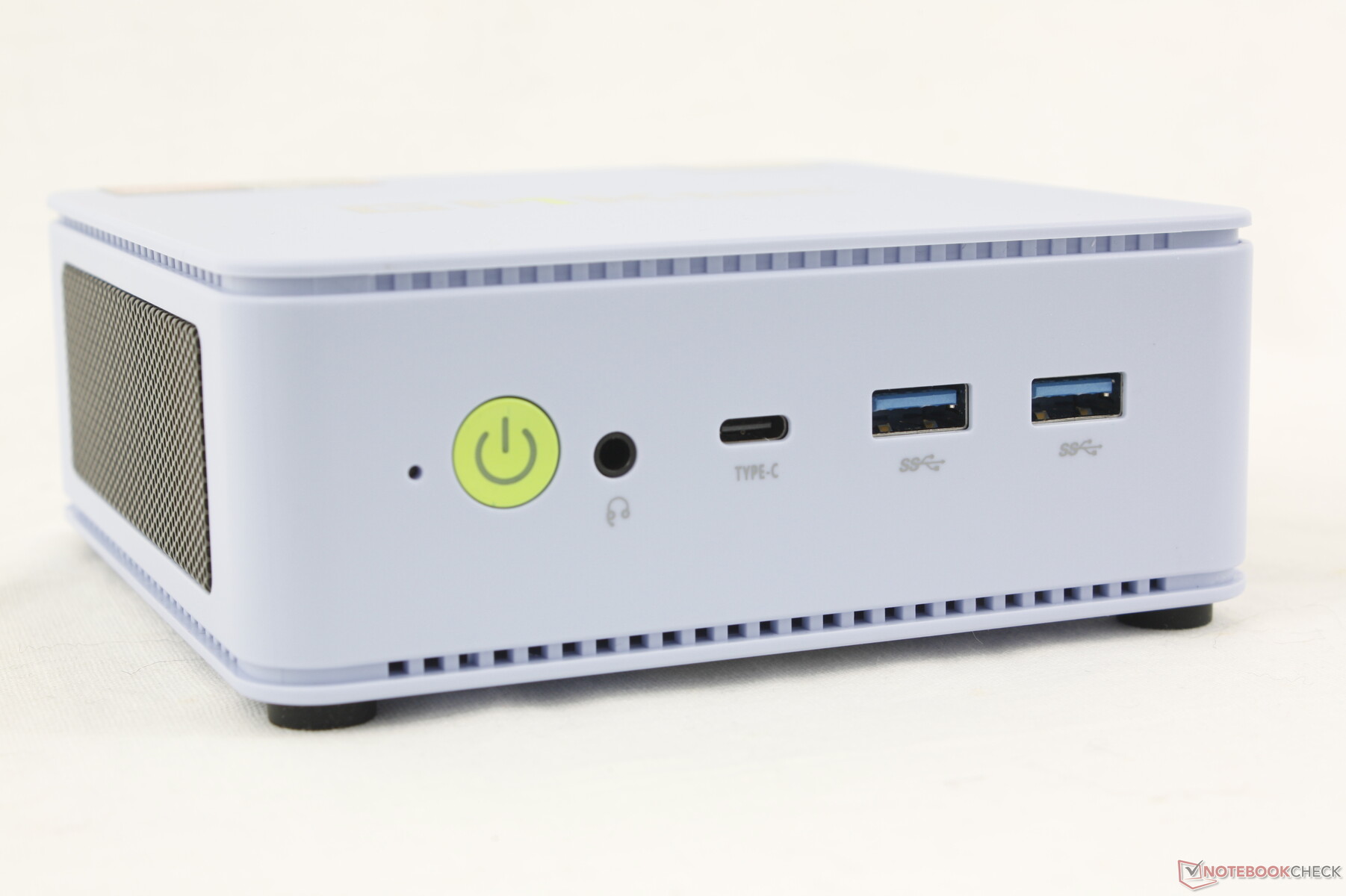

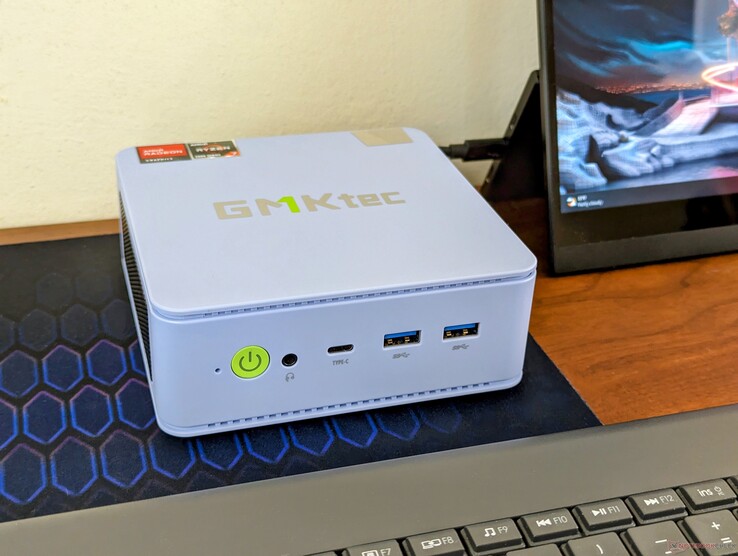

前部电源按钮、3.5 毫米耳机、USB-C 4.0 w/ Power Delivery + DisplayPort、2 个 USB-A 3.2 Gen.

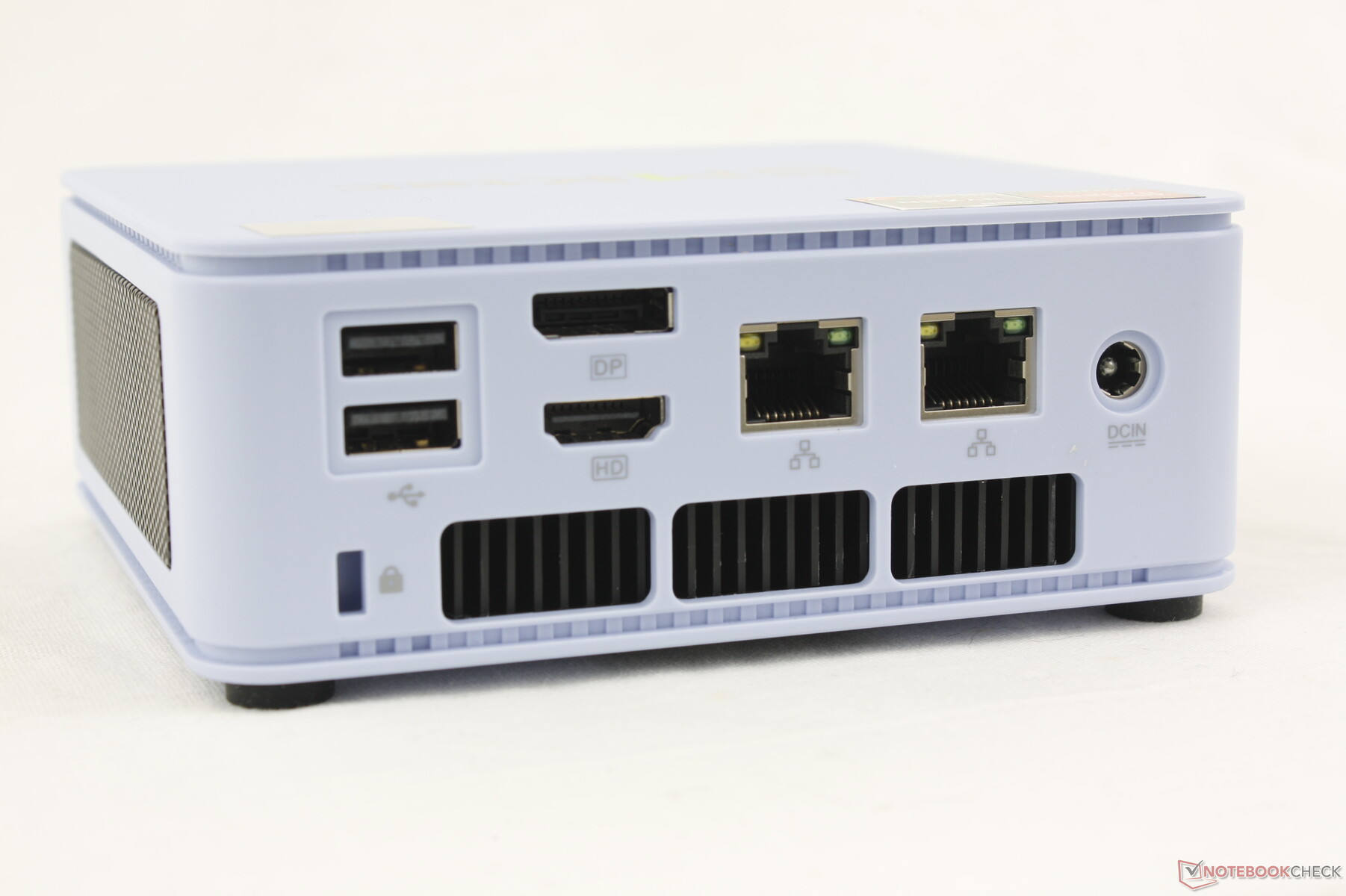

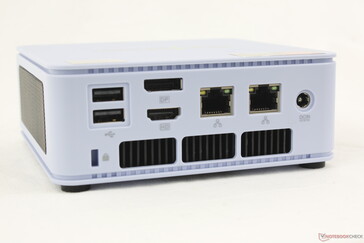

后部：2 个 USB-A 2.0、DisplayPort (4K60)、HDMI 2.0 (4K60)、2 个 RJ-45 (2.5Gbps)、Ac 适配器、Kensington 锁

交流

Networking
iperf3 transmit AXE11000
GMK NucBox M5 MediaTek RZ616	1335 (782^min - 1633^max) MBit/s
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1301 (514^min - 1422^max) MBit/s -3%
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	831 (755^min - 940^max) MBit/s -38%
GMK NucBox M4 Realtek RTL8852BE	717 (651^min - 749^max) MBit/s -46%
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	709 (369^min - 977^max) MBit/s -47%
GMK NucBox K6 MediaTek RZ616	634 (574^min - 685^max) MBit/s -53%
iperf3 receive AXE11000
GMK NucBox M5 MediaTek RZ616	1264 (1077^min - 1480^max) MBit/s
GMK NucBox K6 MediaTek RZ616	1222 (1074^min - 1368^max) MBit/s -3%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1117 (884^min - 1368^max) MBit/s -12%
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	858 (827^min - 886^max) MBit/s -32%
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	838 (728^min - 926^max) MBit/s -34%
GMK NucBox M4 Realtek RTL8852BE	745 (694^min - 805^max) MBit/s -41%
iperf3 transmit AXE11000 6GHz
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	1615 (767^min - 1670^max) MBit/s +12%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1511 (1451^min - 1552^max) MBit/s +5%
GMK NucBox M5 MediaTek RZ616	1437 (695^min - 1546^max) MBit/s
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1367 (1268^min - 1443^max) MBit/s -5%
GMK NucBox K6 MediaTek RZ616	432 (212^min - 471^max) MBit/s -70%
iperf3 receive AXE11000 6GHz
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	1770 (1584^min - 1790^max) MBit/s +31%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1448 (1357^min - 1490^max) MBit/s +7%
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1375 (688^min - 1438^max) MBit/s +2%
GMK NucBox M5 MediaTek RZ616	1347 (1315^min - 1439^max) MBit/s
GMK NucBox K6 MediaTek RZ616	984 (937^min - 1048^max) MBit/s -27%

GMK NucBox M5; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1415 (695-1546)

GMK NucBox M5; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1347 (1315-1439)

维护

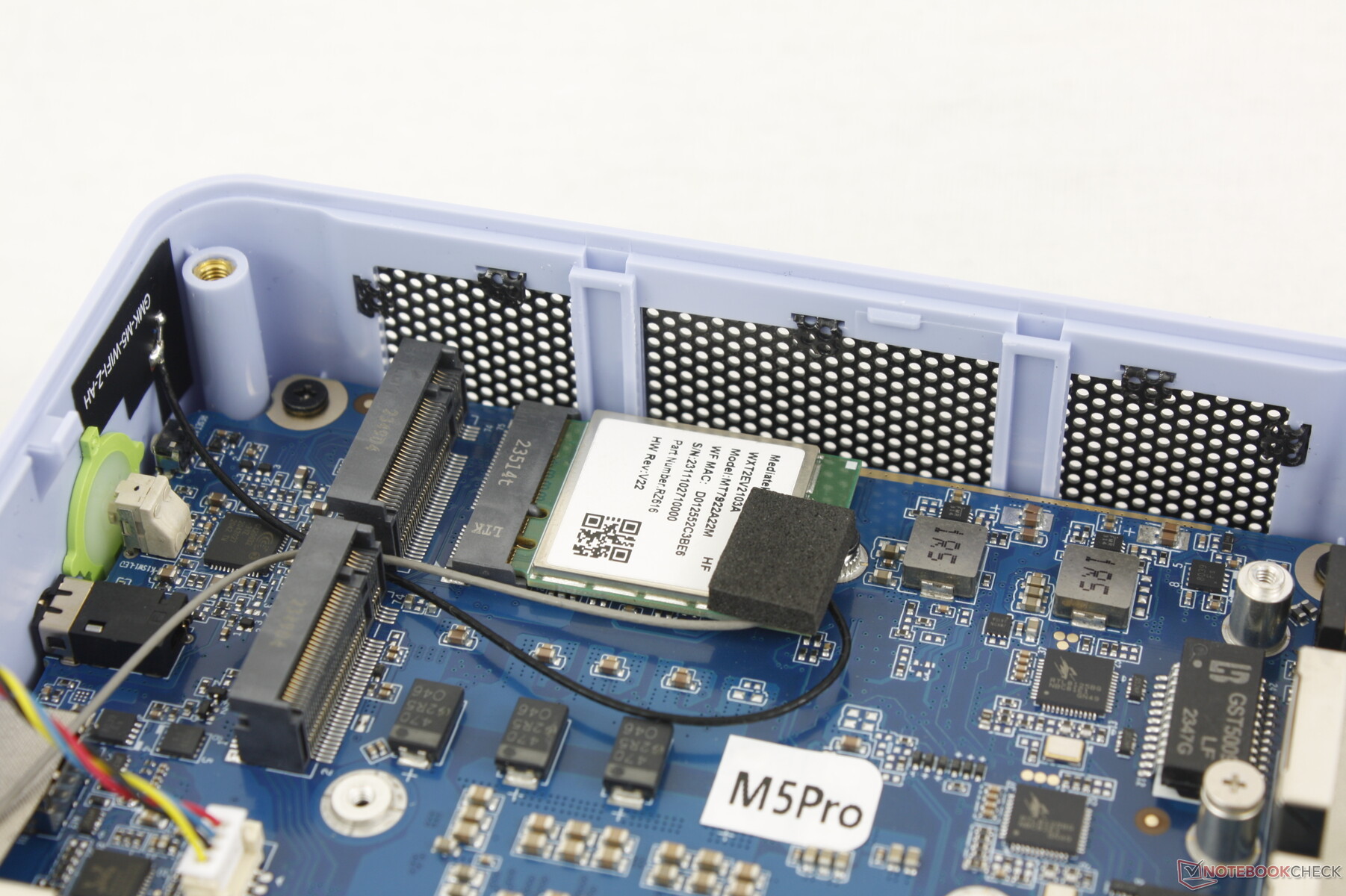

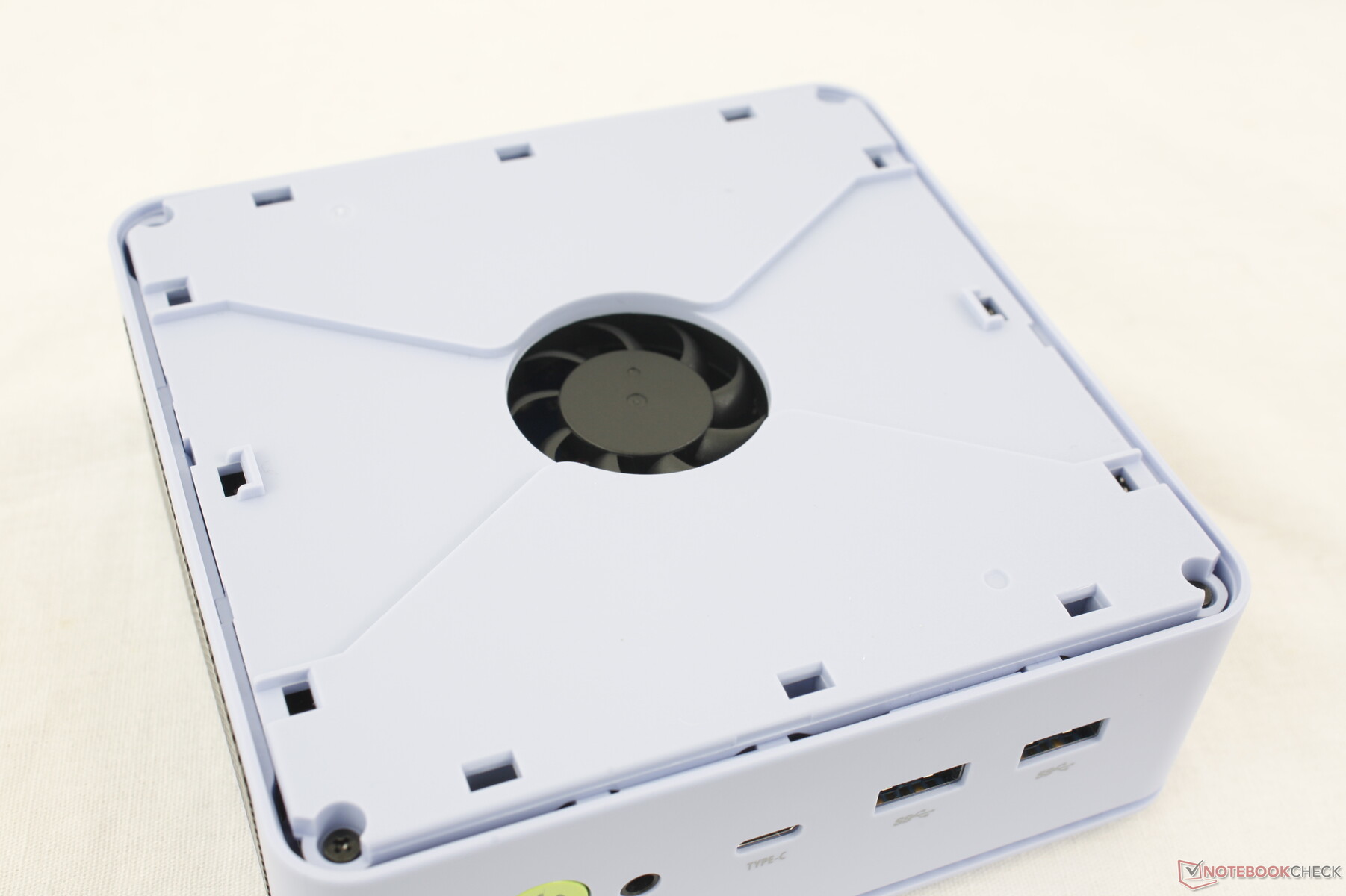

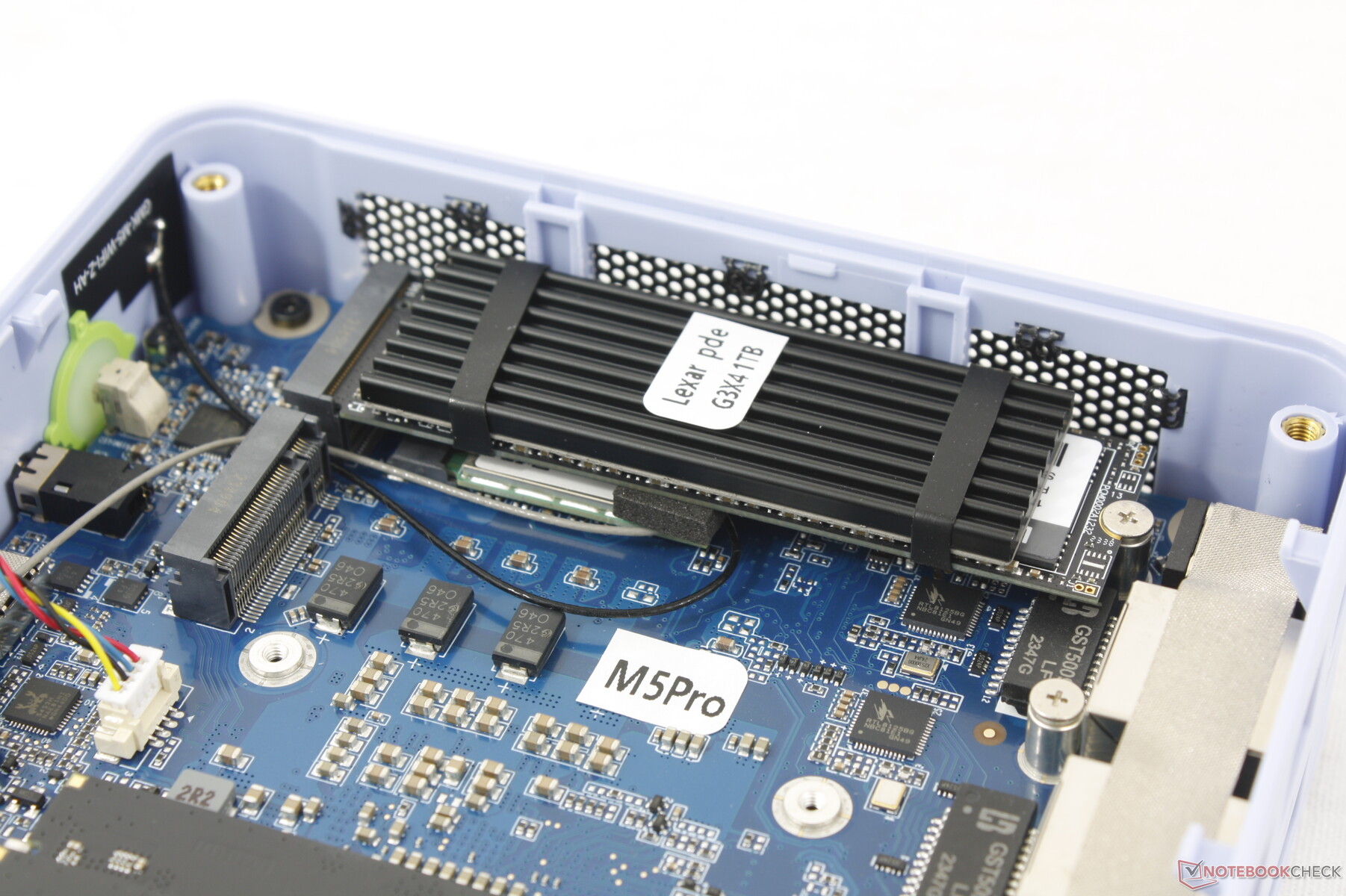

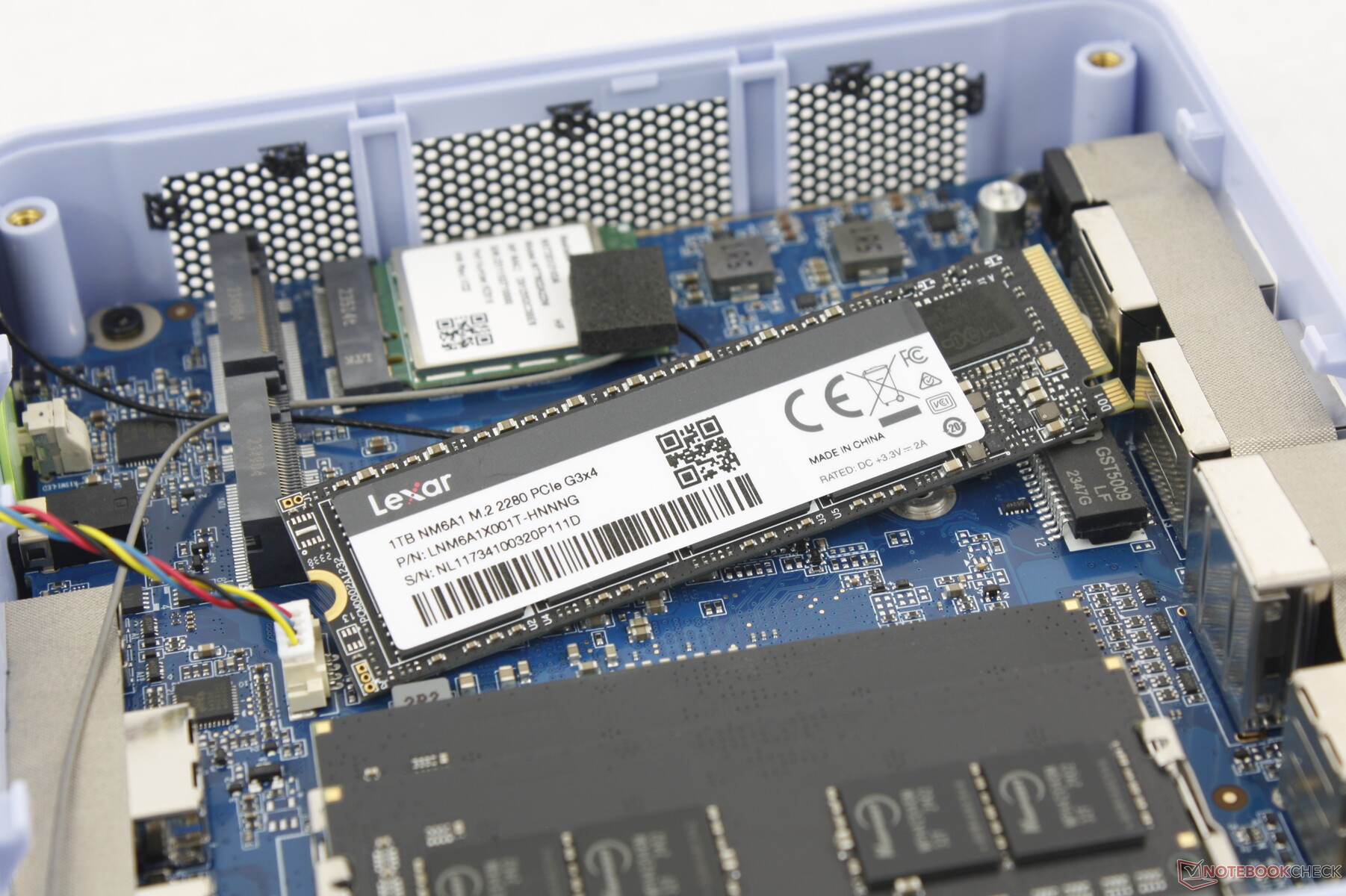

顶盖弹开后，可以看到下面的风扇盖和四颗十字螺丝，方便用户访问两个 DDR4 SODIMM 插槽、2 个 M.2 2280 SSD 插槽和 WLAN 模块。与此同时，由于底盖不可拆卸，因此主板的另一侧更难接近。

配件和保修

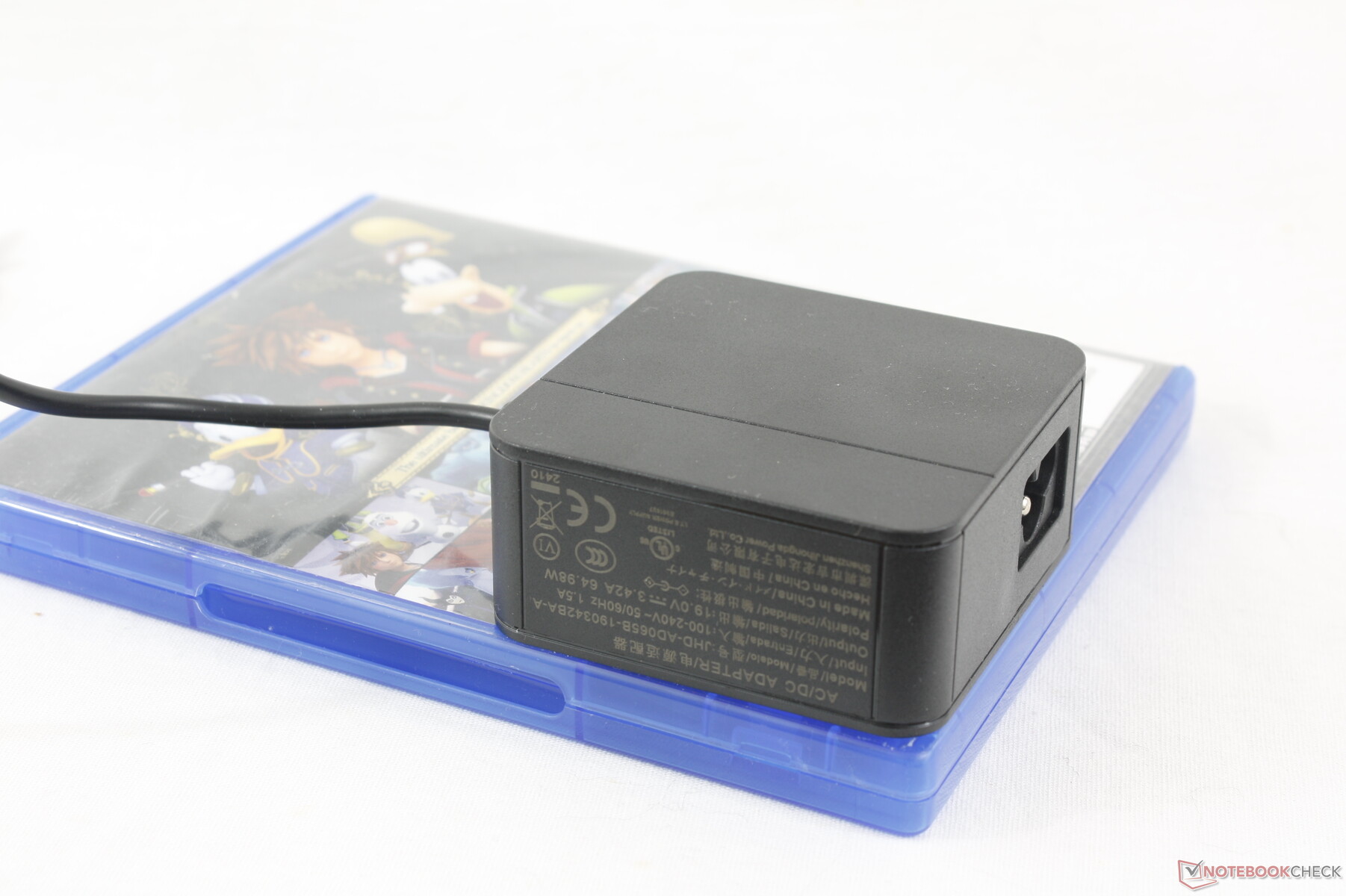

零售包装盒包括一根 HDMI 线缆和一个可拆卸的 VESA 安装支架，以及交流适配器和相关文件。如果在美国购买，制造商提供标准的一年有限保修服务。

性能 - 2024 年，禅宗 2 不值一提

测试条件

在运行以下基准测试之前，我们将 Windows 设置为性能模式。系统不带任何臃肿软件或制造商特定的应用程序，带来纯净的 Windows 体验。

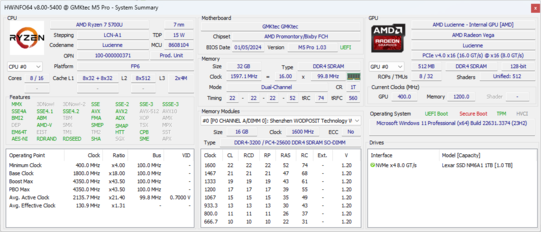

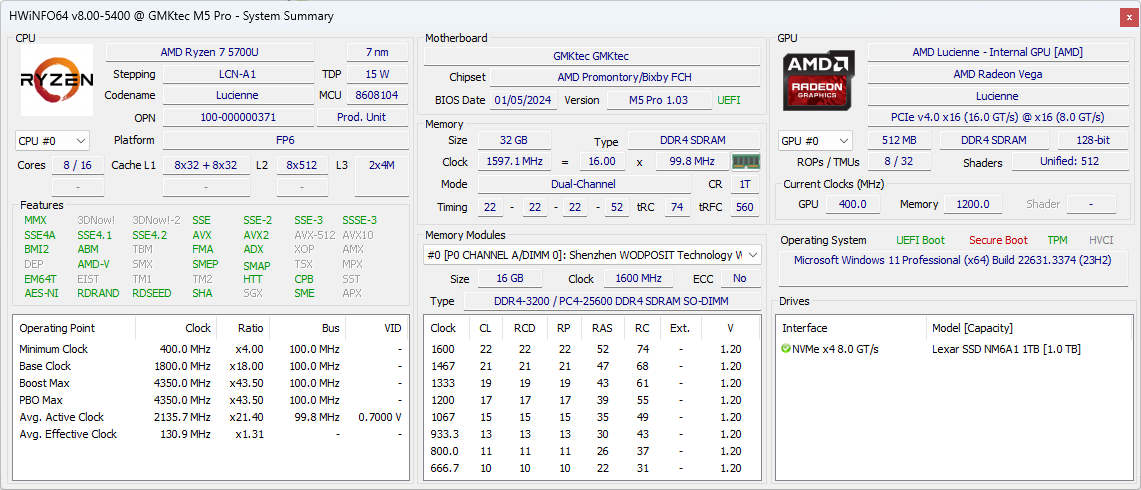

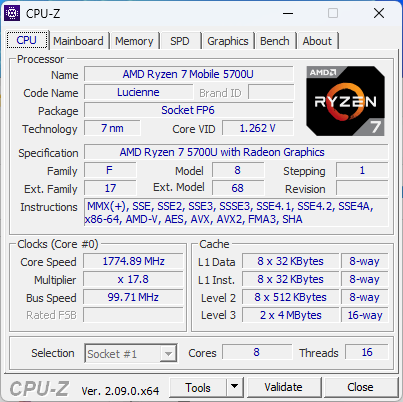

处理器

CPU 性能低于预期。我们的 Ryzen 7 5700U的运行速度要比我们数据库中配备相同处理器的普通笔记本电脑慢 20% 到 25%。虽然它仍能与任何移动赛扬、奔腾或 Atom 解决方案并驾齐驱，但原始性能还是有点令人失望，因为我们知道 Ryzen 7 5700U 的性能远不止于此。

整体性能与第 11 代英特尔酷睿 i7-1165G7不相上下。 NUC11 系列.

Cinebench R15 Multi Loop

GMK NucBox M5 AMD Ryzen 7 5700U: Ø1108 (1041.59-1129.53)

GMK NucBox M4 Intel Core i9-11900H: Ø1747 (1710.13-1769.75)

GMK NucBox K6 AMD Ryzen 7 7840HS: Ø2520 (2510.2-2537.27)

Acemagic F2A Intel Core Ultra 7 155H: Ø2759 (2690.7-2800.92)

Geekom A7 AMD Ryzen 9 7940HS: Ø2410 (2285.58-2581.81)

Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P: Ø1753 (1686.77-2083.33)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
GMK NucBox K6 AMD Ryzen 7 7840HS	92.4 pt
Geekom A7 AMD Ryzen 9 7940HS	92.2 pt
Acemagic F2A Intel Core Ultra 7 155H	90.8 pt
Intel NUC X15 LAPAC71H Intel Core i7-12700H	88.9 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	81.6 pt
GMK NucBox K2 AMD Ryzen 7 7735HS	76.4 pt
GMK NucBox M4 Intel Core i9-11900H	75.5 pt
Acer TravelMate P4 TMP416-51-55KN ^-2! Intel Core i5-1240P	72.6 pt
Average AMD Ryzen 7 5700U	58.8 pt
GMK NucBox M5 AMD Ryzen 7 5700U	55.9 pt
Intel NUC11ATKPE, N6005 ^-2! Intel Pentium Silver N6005	29.2 pt
Intel NUC11ATKC2, N4505 ^-2! Intel Celeron N4505	19.6 pt
GMK NucBox 3 ^-2! Intel Celeron J4125	12.1 pt

Cinebench R23 / Multi Core
Acemagic F2A Intel Core Ultra 7 155H	18497 Points +178%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	16338 Points +146%
GMK NucBox K6 AMD Ryzen 7 7840HS	15947 (9378.75^min - 15947.3^max) Points +140%
Geekom A7 AMD Ryzen 9 7940HS	15556 Points +134%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	12155 Points +83%
GMK NucBox K2 AMD Ryzen 7 7735HS	11584 (11082.5^min - 11584.2^max) Points +74%
GMK NucBox M4 Intel Core i9-11900H	11135 (10740.5^min - 11134.5^max) Points +67%
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	10615 Points +60%
Average AMD Ryzen 7 5700U (6649 - 10139, n=18)	8670 Points +30%
GMK NucBox M5 AMD Ryzen 7 5700U	6649 (6519.7^min - 6648.75^max) Points
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	2475 Points -63%
GMK NucBox 3 Intel Celeron J4125	1186 (1172.17^min - 1186.25^max) Points -82%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	1114 Points -83%

Cinebench R23 / Single Core
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1878 Points +48%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	1789 Points +41%
Acemagic F2A Intel Core Ultra 7 155H	1771 Points +40%
GMK NucBox K6 AMD Ryzen 7 7840HS	1770 Points +40%
Geekom A7 AMD Ryzen 9 7940HS	1747 Points +38%
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	1656 Points +31%
GMK NucBox M4 Intel Core i9-11900H	1605 Points +27%
GMK NucBox K2 AMD Ryzen 7 7735HS	1499 Points +18%
GMK NucBox M5 AMD Ryzen 7 5700U	1267 Points
Average AMD Ryzen 7 5700U (1177 - 1268, n=18)	1254 Points -1%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	694 Points -45%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	592 Points -53%
GMK NucBox 3 Intel Celeron J4125	438 Points -65%

Cinebench R20 / CPU (Multi Core)
Acemagic F2A Intel Core Ultra 7 155H	7188 Points +179%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	6338 Points +146%
Geekom A7 AMD Ryzen 9 7940HS	6277 Points +143%
GMK NucBox K6 AMD Ryzen 7 7840HS	6250 Points +142%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	4687 Points +82%
GMK NucBox K2 AMD Ryzen 7 7735HS	4533 Points +76%
GMK NucBox M4 Intel Core i9-11900H	4324 Points +68%
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	4054 Points +57%
Average AMD Ryzen 7 5700U (2309 - 3877, n=19)	3284 Points +27%
GMK NucBox M5 AMD Ryzen 7 5700U	2580 Points
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	948 Points -63%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	431 Points -83%
GMK NucBox 3 Intel Celeron J4125	430 Points -83%

Cinebench R20 / CPU (Single Core)
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	723 Points +46%
Geekom A7 AMD Ryzen 9 7940HS	692 Points +40%
GMK NucBox K6 AMD Ryzen 7 7840HS	688 Points +39%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	687 Points +39%
Acemagic F2A Intel Core Ultra 7 155H	679 Points +37%
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	636 Points +28%
GMK NucBox M4 Intel Core i9-11900H	615 Points +24%
GMK NucBox K2 AMD Ryzen 7 7735HS	591 Points +19%
GMK NucBox M5 AMD Ryzen 7 5700U	495 Points
Average AMD Ryzen 7 5700U (478 - 495, n=19)	490 Points -1%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	262 Points -47%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	224 Points -55%
GMK NucBox 3 Intel Celeron J4125	170 Points -66%

Cinebench R15 / CPU Multi 64Bit
Acemagic F2A Intel Core Ultra 7 155H	2738 Points +142%
GMK NucBox K6 AMD Ryzen 7 7840HS	2537 (2510.2^min - 2537.27^max) Points +125%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	2506 Points +122%
Geekom A7 AMD Ryzen 9 7940HS	2470 Points +119%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1990 Points +76%
GMK NucBox K2 AMD Ryzen 7 7735HS	1972 (1875.64^min - 1972^max) Points +75%
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	1938 Points +72%
GMK NucBox M4 Intel Core i9-11900H	1770 (1710.13^min - 1769.75^max) Points +57%
Average AMD Ryzen 7 5700U (1130 - 1691, n=18)	1469 Points +30%
GMK NucBox M5 AMD Ryzen 7 5700U	1130 (1041.59^min - 1129.53^max) Points
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	428 Points -62%
GMK NucBox 3 Intel Celeron J4125	207 (171.15^min - 207.16^max) Points -82%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	191 Points -83%

Cinebench R15 / CPU Single 64Bit
GMK NucBox K6 AMD Ryzen 7 7840HS	280 Points +49%
Geekom A7 AMD Ryzen 9 7940HS	278 Points +48%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	267 Points +42%
Acemagic F2A Intel Core Ultra 7 155H	258 Points +37%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	257 Points +37%
GMK NucBox K2 AMD Ryzen 7 7735HS	244 Points +30%
GMK NucBox M4 Intel Core i9-11900H	243 Points +29%
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	236 Points +25%
GMK NucBox M5 AMD Ryzen 7 5700U	188.1 Points
Average AMD Ryzen 7 5700U (184 - 190, n=17)	187.5 Points 0%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	121 Points -36%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	104 Points -45%
GMK NucBox 3 Intel Celeron J4125	63.1 Points -66%

Blender / v2.79 BMW27 CPU
GMK NucBox 3 Intel Celeron J4125	3032 Seconds * -610%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	2953 Seconds * -592%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	1354 Seconds * -217%
GMK NucBox M5 AMD Ryzen 7 5700U	427 Seconds *
Average AMD Ryzen 7 5700U (292 - 427, n=18)	349 Seconds * +18%
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	309 Seconds * +28%
GMK NucBox M4 Intel Core i9-11900H	270 Seconds * +37%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	268 Seconds * +37%
GMK NucBox K2 AMD Ryzen 7 7735HS	259 Seconds * +39%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	235 Seconds * +45%
Geekom A7 AMD Ryzen 9 7940HS	202 Seconds * +53%
GMK NucBox K6 AMD Ryzen 7 7840HS	199 Seconds * +53%
Acemagic F2A Intel Core Ultra 7 155H	178 Seconds * +58%

7-Zip 18.03 / 7z b 4
GMK NucBox K6 AMD Ryzen 7 7840HS	70782 MIPS +107%
Geekom A7 AMD Ryzen 9 7940HS	70707 MIPS +107%
Acemagic F2A Intel Core Ultra 7 155H	66438 MIPS +94%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	61768 MIPS +81%
GMK NucBox K2 AMD Ryzen 7 7735HS	57785 MIPS +69%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	51340 MIPS +50%
GMK NucBox M4 Intel Core i9-11900H	49486 MIPS +45%
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	42160 MIPS +23%
Average AMD Ryzen 7 5700U (32529 - 47501, n=18)	40346 MIPS +18%
GMK NucBox M5 AMD Ryzen 7 5700U	34172 MIPS
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	12851 MIPS -62%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	5871 MIPS -83%
GMK NucBox 3 Intel Celeron J4125	5694 MIPS -83%

7-Zip 18.03 / 7z b 4 -mmt1
Geekom A7 AMD Ryzen 9 7940HS	6744 MIPS +47%
GMK NucBox K6 AMD Ryzen 7 7840HS	6676 MIPS +45%
GMK NucBox M4 Intel Core i9-11900H	6018 MIPS +31%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	5878 MIPS +28%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	5840 MIPS +27%
GMK NucBox K2 AMD Ryzen 7 7735HS	5790 MIPS +26%
Acemagic F2A Intel Core Ultra 7 155H	5485 MIPS +19%
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	5320 MIPS +16%
GMK NucBox M5 AMD Ryzen 7 5700U	4599 MIPS
Average AMD Ryzen 7 5700U (4476 - 4620, n=18)	4564 MIPS -1%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	3425 MIPS -26%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	2971 MIPS -35%
GMK NucBox 3 Intel Celeron J4125	2237 MIPS -51%

Geekbench 6.3 / Multi-Core
Geekom A7 AMD Ryzen 9 7940HS	13470 Points +115%
GMK NucBox K6 AMD Ryzen 7 7840HS	13184 Points +111%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	13118 Points +110%
Acemagic F2A Intel Core Ultra 7 155H	12385 Points +98%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	10997 Points +76%
GMK NucBox K2 AMD Ryzen 7 7735HS	10241 Points +64%
GMK NucBox M4 Intel Core i9-11900H	9401 Points +50%
GMK NucBox M5 AMD Ryzen 7 5700U	6260 Points
Average AMD Ryzen 7 5700U (5643 - 6260, n=3)	5901 Points -6%

Geekbench 6.3 / Single-Core
Geekom A7 AMD Ryzen 9 7940HS	2704 Points +66%
GMK NucBox K6 AMD Ryzen 7 7840HS	2687 Points +65%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	2575 Points +58%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	2486 Points +53%
Acemagic F2A Intel Core Ultra 7 155H	2410 Points +48%
GMK NucBox M4 Intel Core i9-11900H	2355 Points +45%
GMK NucBox K2 AMD Ryzen 7 7735HS	2098 Points +29%
GMK NucBox M5 AMD Ryzen 7 5700U	1625 Points
Average AMD Ryzen 7 5700U (1573 - 1625, n=3)	1599 Points -2%

Geekbench 5.5 / Multi-Core
Intel NUC X15 LAPAC71H Intel Core i7-12700H	12929 Points +131%
Acemagic F2A Intel Core Ultra 7 155H	12662 Points +126%
Geekom A7 AMD Ryzen 9 7940HS	12261 Points +119%
GMK NucBox K6 AMD Ryzen 7 7840HS	11769 Points +110%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	10269 Points +84%
GMK NucBox K2 AMD Ryzen 7 7735HS	9436 Points +69%
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	9284 Points +66%
GMK NucBox M4 Intel Core i9-11900H	8829 Points +58%
Average AMD Ryzen 7 5700U (4254 - 7635, n=17)	6176 Points +10%
GMK NucBox M5 AMD Ryzen 7 5700U	5593 Points
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	2402 Points -57%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	1225 Points -78%
GMK NucBox 3 Intel Celeron J4125	1198 Points -79%

Geekbench 5.5 / Single-Core
Geekom A7 AMD Ryzen 9 7940HS	2008 Points +67%
GMK NucBox K6 AMD Ryzen 7 7840HS	1986 Points +65%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1832 Points +52%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	1756 Points +46%
Acemagic F2A Intel Core Ultra 7 155H	1746 Points +45%
GMK NucBox M4 Intel Core i9-11900H	1692 Points +41%
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	1624 Points +35%
GMK NucBox K2 AMD Ryzen 7 7735HS	1564 Points +30%
GMK NucBox M5 AMD Ryzen 7 5700U	1203 Points
Average AMD Ryzen 7 5700U (1105 - 1205, n=17)	1184 Points -2%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	738 Points -39%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	647 Points -46%
GMK NucBox 3 Intel Celeron J4125	462 Points -62%

HWBOT x265 Benchmark v2.2 / 4k Preset
Geekom A7 AMD Ryzen 9 7940HS	20.6 fps +144%
GMK NucBox K6 AMD Ryzen 7 7840HS	20.5 fps +143%
Acemagic F2A Intel Core Ultra 7 155H	19.6 fps +132%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	16.9 fps +100%
GMK NucBox K2 AMD Ryzen 7 7735HS	15.1 fps +79%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	13.9 fps +65%
GMK NucBox M4 Intel Core i9-11900H	13.6 fps +61%
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	12 fps +42%
Average AMD Ryzen 7 5700U (6.97 - 12.1, n=18)	9.68 fps +15%
GMK NucBox M5 AMD Ryzen 7 5700U	8.44 fps
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	2.34 fps -72%
GMK NucBox 3 Intel Celeron J4125	1.26 fps -85%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	1.16 fps -86%

LibreOffice / 20 Documents To PDF
GMK NucBox 3 Intel Celeron J4125	159 s * -174%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	111.7 s * -93%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	105.1 s * -81%
Average AMD Ryzen 7 5700U (52.4 - 68.5, n=18)	60.5 s * -4%
GMK NucBox M5 AMD Ryzen 7 5700U	58 s *
Geekom A7 AMD Ryzen 9 7940HS	54.8 s * +6%
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	52.6 s * +9%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	46.9 s * +19%
GMK NucBox K2 AMD Ryzen 7 7735HS	46 s * +21%
Acemagic F2A Intel Core Ultra 7 155H	44.5 s * +23%
GMK NucBox K6 AMD Ryzen 7 7840HS	44.1 s * +24%
GMK NucBox M4 Intel Core i9-11900H	42.3 s * +27%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	37 s * +36%

R Benchmark 2.5 / Overall mean
GMK NucBox 3 Intel Celeron J4125	1.525 sec * -161%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	1.224 sec * -110%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	1.073 sec * -84%
Average AMD Ryzen 7 5700U (0.567 - 0.641, n=18)	0.592 sec * -1%
GMK NucBox M5 AMD Ryzen 7 5700U	0.584 sec *
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	0.52 sec * +11%
GMK NucBox M4 Intel Core i9-11900H	0.52 sec * +11%
GMK NucBox K2 AMD Ryzen 7 7735HS	0.4924 sec * +16%
Acemagic F2A Intel Core Ultra 7 155H	0.4652 sec * +20%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	0.4618 sec * +21%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	0.45 sec * +23%
Geekom A7 AMD Ryzen 9 7940HS	0.4351 sec * +25%
GMK NucBox K6 AMD Ryzen 7 7840HS	0.4343 sec * +26%

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... smaller is better

Performance Rating
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	98.4 pt
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	98.2 pt
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	80.3 pt
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	63.9 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	53.8 pt
Average AMD Ryzen 7 5700U	51.7 pt
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	43.3 pt

AIDA64 / FP32 Ray-Trace
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	25360 KRay/s +245%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	25359 KRay/s +245%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	17544 KRay/s +139%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	13945 KRay/s +90%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	11188 KRay/s +52%
Average AMD Ryzen 7 5700U (5798 - 12346, n=18)	10262 KRay/s +40%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	7345 KRay/s

AIDA64 / FPU Julia
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	107805 Points +135%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	107540 Points +134%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	88829 Points +93%
Average AMD Ryzen 7 5700U (45926 - 69580, n=18)	58967 Points +28%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	56942 Points +24%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	56662 Points +23%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	45926 Points

AIDA64 / CPU SHA3
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	4763 MB/s +217%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	4753 MB/s +216%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	4246 MB/s +183%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	3883 MB/s +158%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	2669 MB/s +78%
Average AMD Ryzen 7 5700U (1103 - 2231, n=18)	1883 MB/s +25%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	1503 MB/s

AIDA64 / CPU Queen
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	118174 Points +72%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	111803 Points +62%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	89748 Points +30%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	89081 Points +29%
Average AMD Ryzen 7 5700U (57016 - 99178, n=18)	88954 Points +29%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	86881 Points +26%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	68805 Points

AIDA64 / FPU SinJulia
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	14721 Points +47%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	14663 Points +47%
Average AMD Ryzen 7 5700U (6837 - 14169, n=18)	12106 Points +21%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	10247 Points +3%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	9992 Points
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	9355 Points -6%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	7246 Points -27%

AIDA64 / FPU Mandel
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	57534 Points +139%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	57402 Points +139%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	45718 Points +90%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	35044 Points +46%
Average AMD Ryzen 7 5700U (24053 - 36523, n=18)	30768 Points +28%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	28019 Points +16%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	24053 Points

AIDA64 / CPU AES
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	164414 MB/s +256%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	164041 MB/s +255%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	144741 MB/s +213%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	121537 MB/s +163%
Average AMD Ryzen 7 5700U (34176 - 64646, n=18)	55658 MB/s +20%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	53328 MB/s +15%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	46218 MB/s

AIDA64 / CPU ZLib
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	1183 MB/s +131%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	1031 MB/s +101%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	1020 MB/s +99%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	775 MB/s +51%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	738 MB/s +44%
Average AMD Ryzen 7 5700U (513 - 776, n=18)	654 MB/s +27%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	513 MB/s

AIDA64 / FP64 Ray-Trace
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	13642 KRay/s +251%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	13517 KRay/s +247%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	9284 KRay/s +139%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	7587 KRay/s +95%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	5957 KRay/s +53%
Average AMD Ryzen 7 5700U (3247 - 6784, n=18)	5571 KRay/s +43%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	3892 KRay/s

AIDA64 / CPU PhotoWorxx
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	40760 MPixel/s +63%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	40570 MPixel/s +62%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	33092 MPixel/s +32%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	29263 MPixel/s +17%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	25066 MPixel/s
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	23829 MPixel/s -5%
Average AMD Ryzen 7 5700U (6903 - 25066, n=18)	17001 MPixel/s -32%

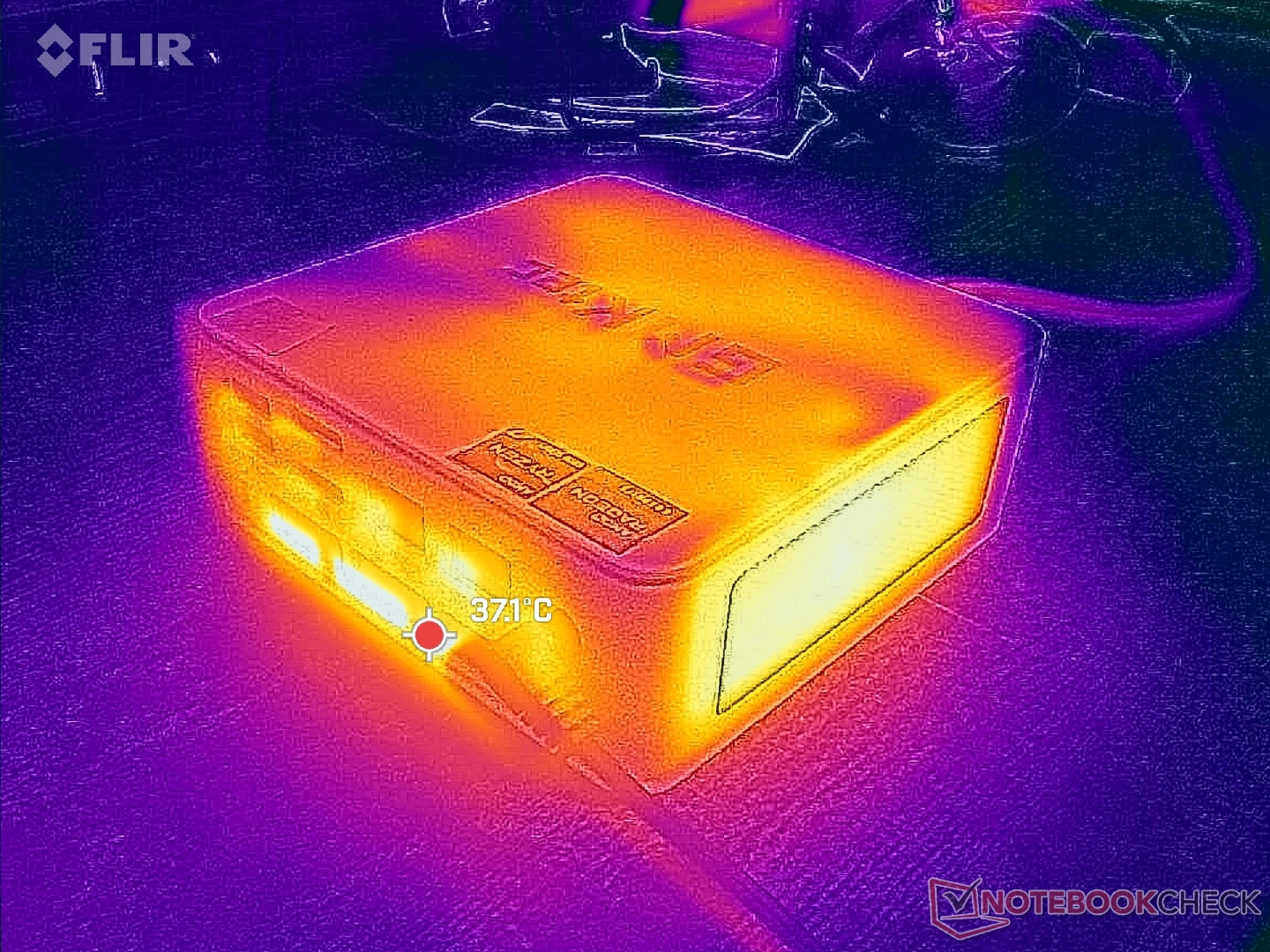

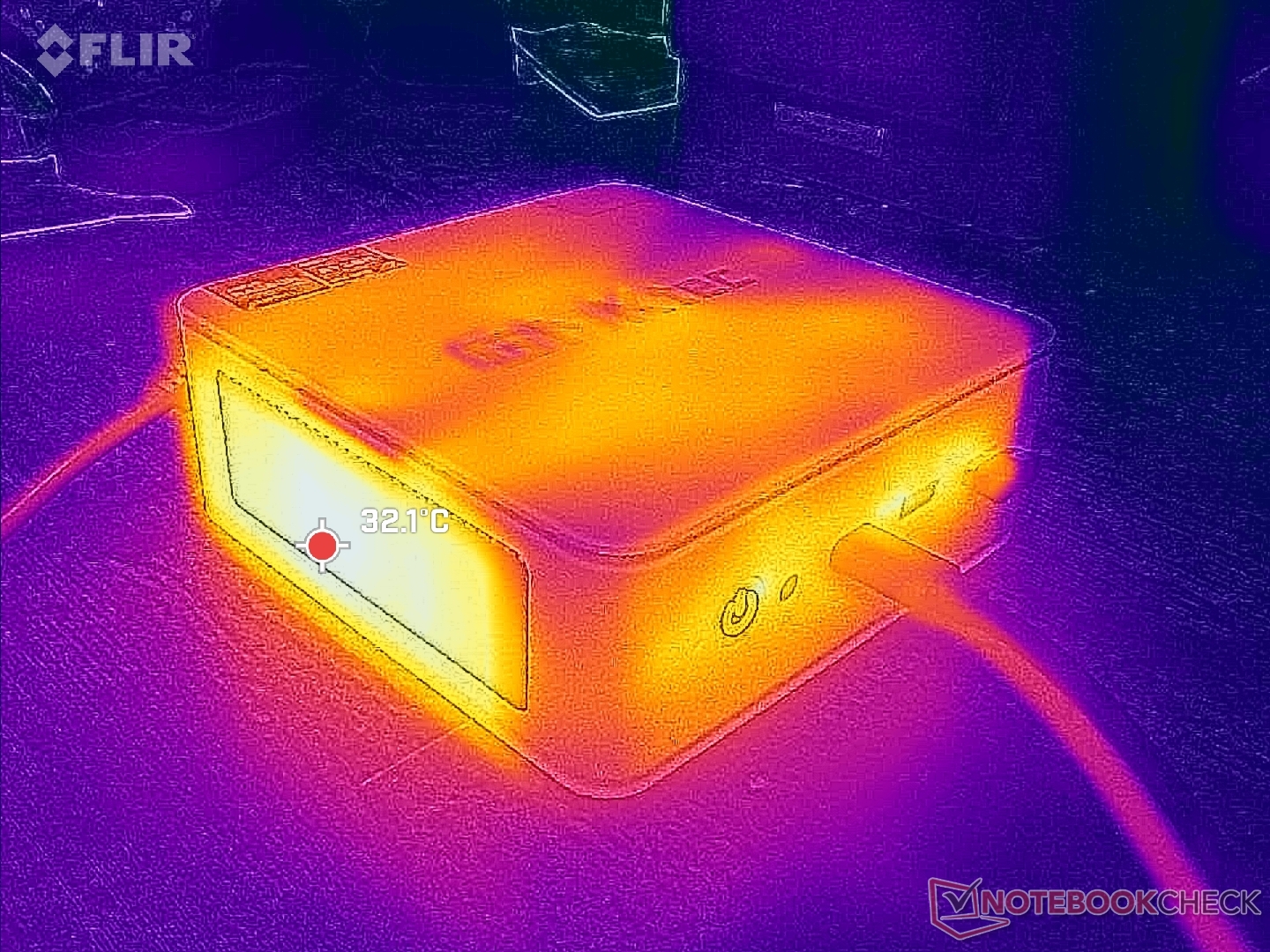

压力测试

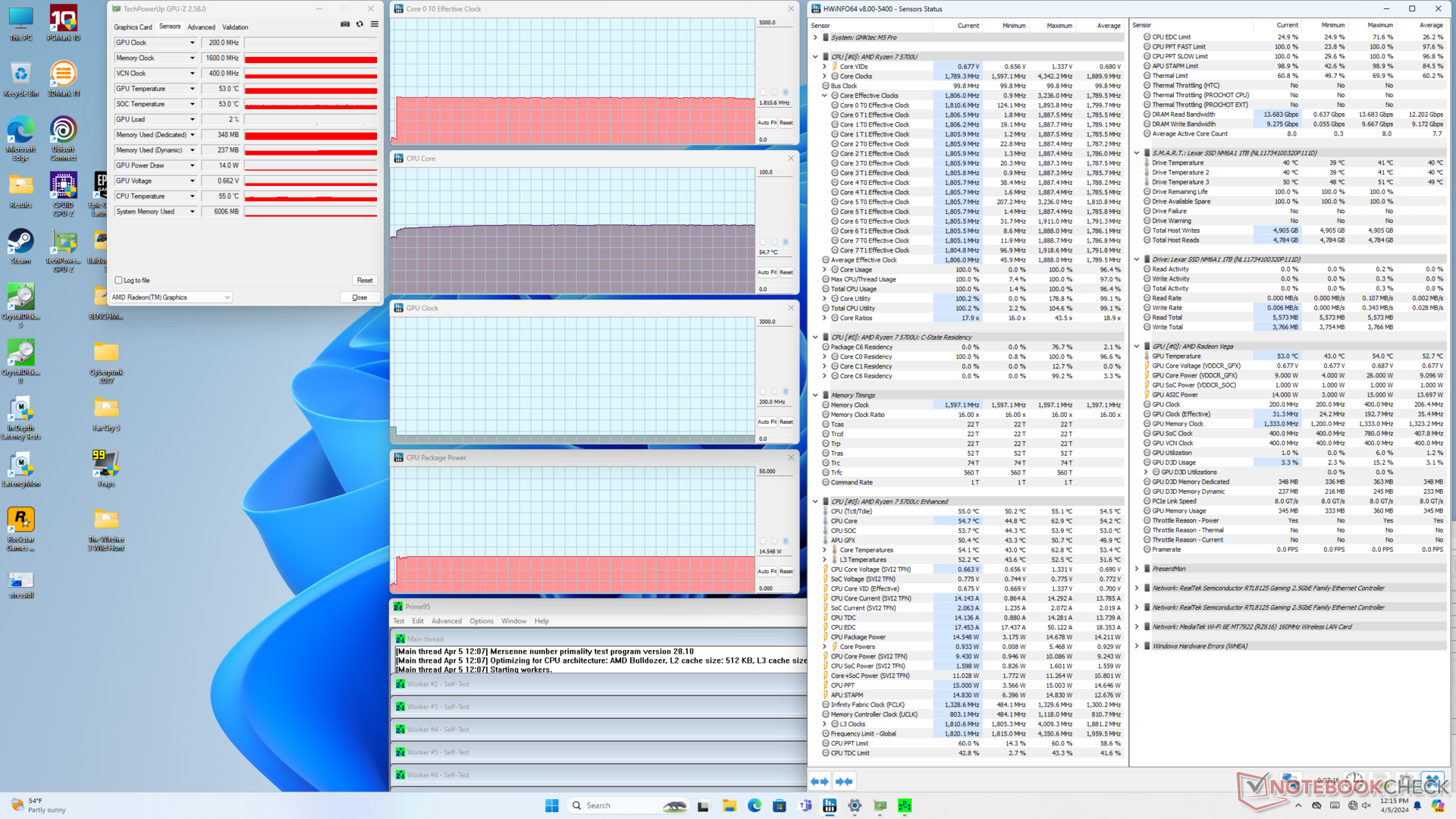

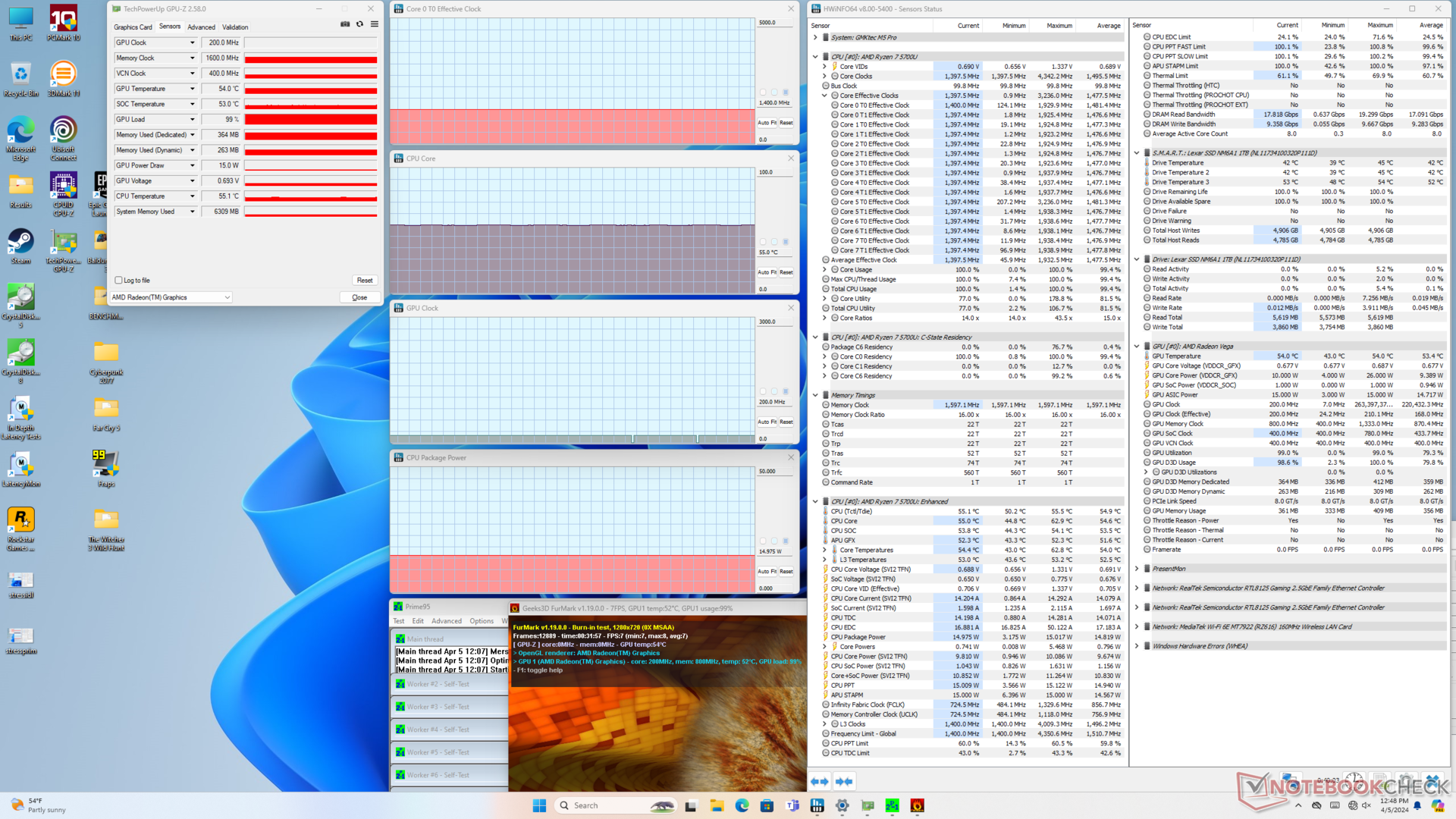

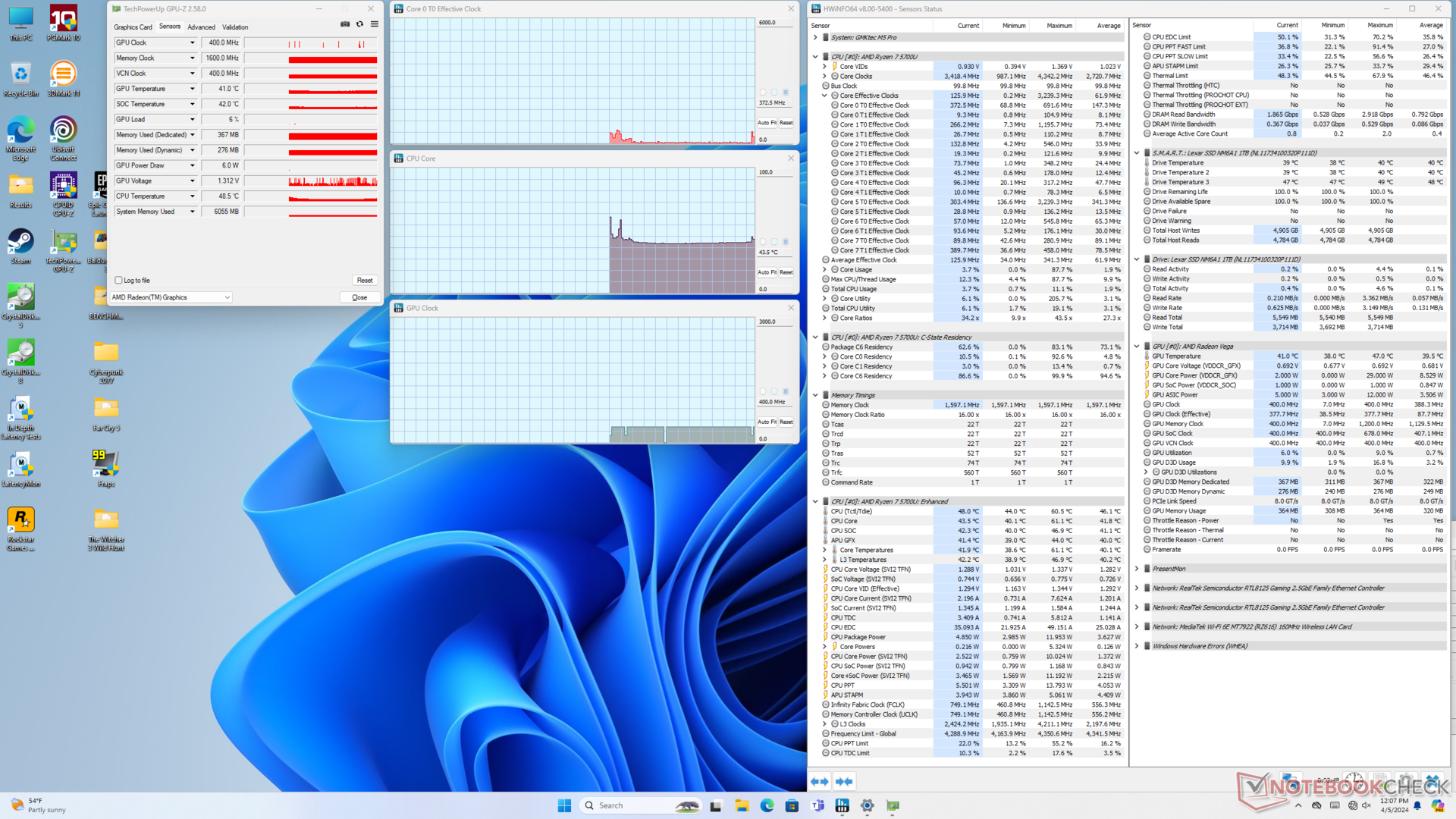

当运行 Prime95 对 CPU 施加压力时，时钟频率和电路板功耗将分别飙升至 1.9 GHz 和 15 W。我们相信处理器能够承受高达 28 W 的更高功率，尤其是在压力下核心温度仅为 55 C，但在 NucBox M5 上，即使仔细检查了 BIOS 设置或 Windows 电源配置文件，封装功率似乎也被限制在 15 W。15 W 的低上限也解释了上文处理器部分提到的性能低于预期的原因。

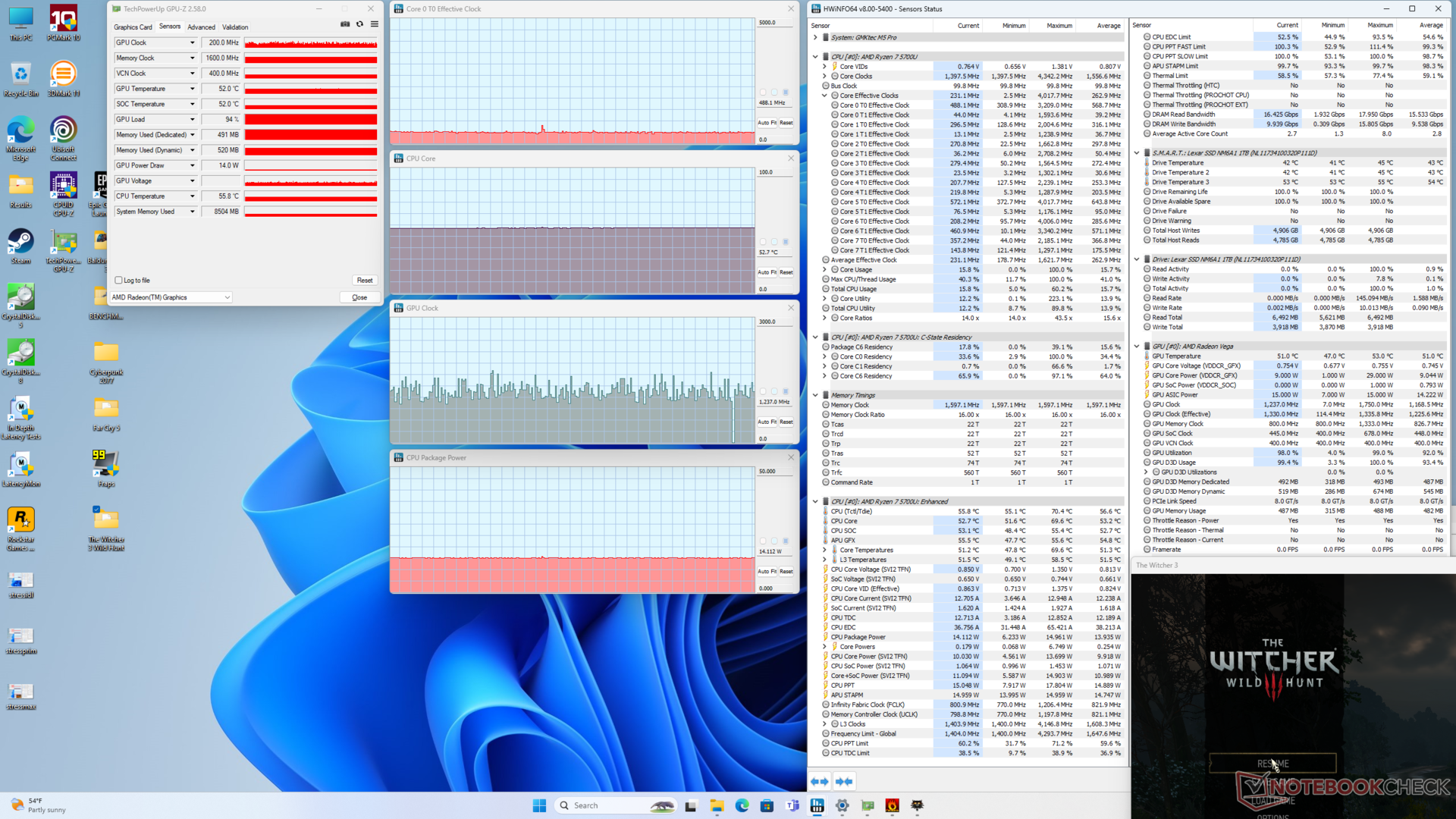

运行时，核心温度仅稳定在 55 摄氏度。 Witcher 3而速度更快的 Beelink SER6 Pro.

系统性能

PCMark 结果落后于当前许多使用最新一代处理器的微型 PC，如 GMK NucBox K6 或英特尔 NUC 13 Pro.由于集成 GPU 速度较慢，数字内容创建子测试得分尤其低。

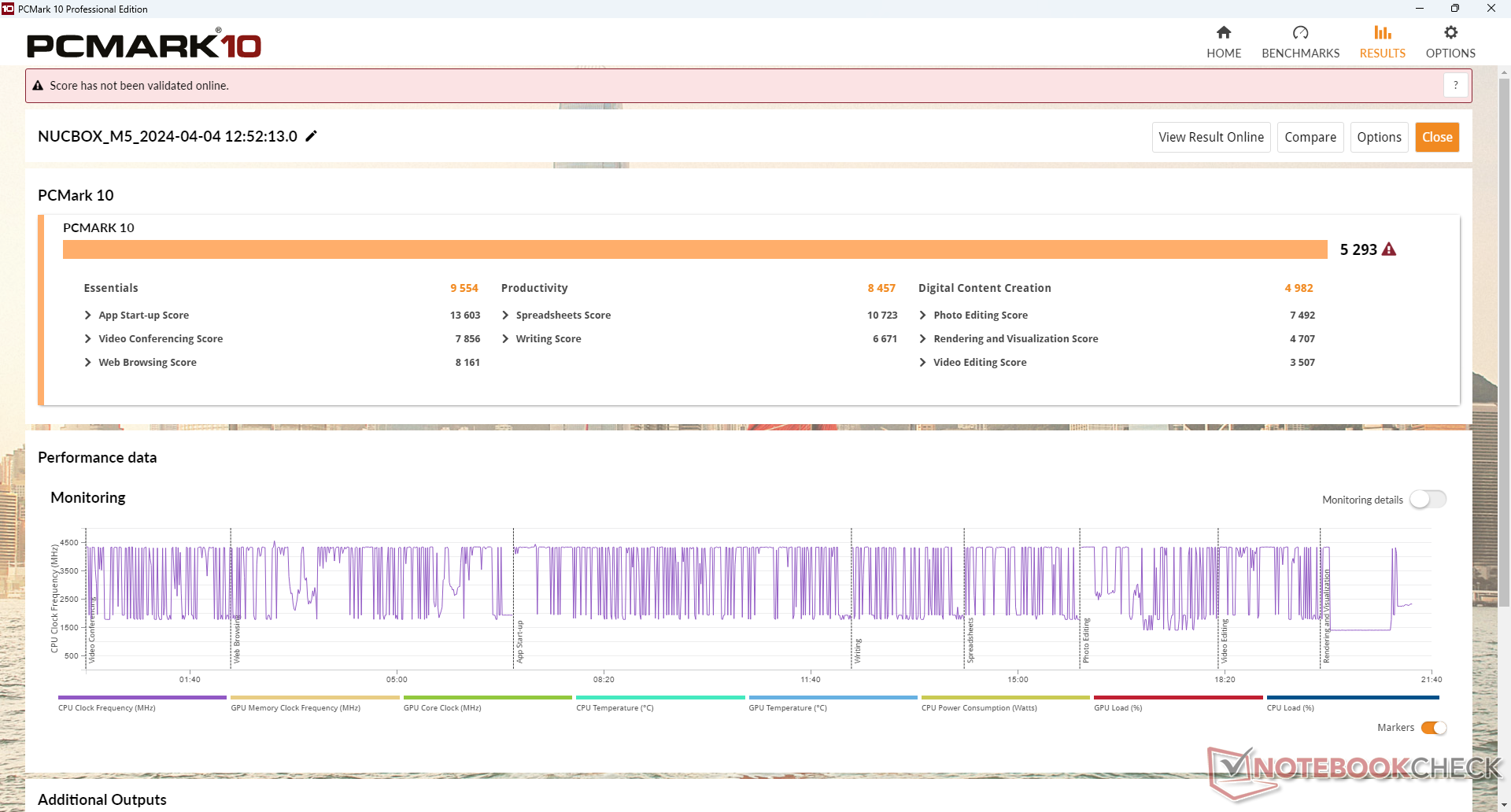

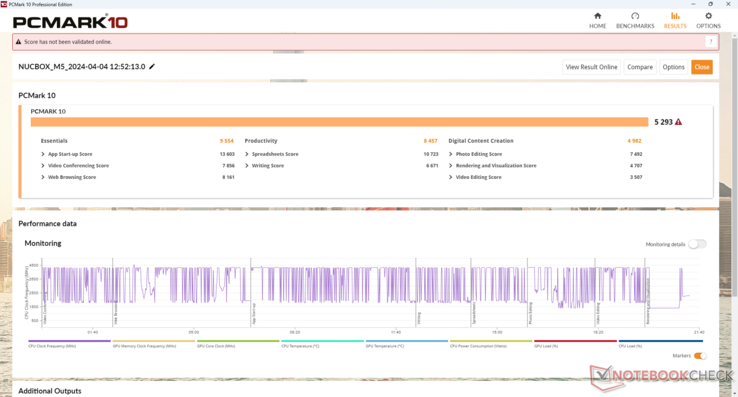

PCMark 10 / Score
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	7529 Points +42%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	7455 Points +41%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	7120 Points +35%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5882 Points +11%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	5307 Points 0%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	5293 Points
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (4775 - 5518, n=13)	5236 Points -1%

PCMark 10 / Essentials
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	11214 Points +17%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	11125 Points +16%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	11114 Points +16%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11035 Points +16%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	10464 Points +10%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	9554 Points
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (8347 - 10091, n=13)	9173 Points -4%

PCMark 10 / Productivity
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	10591 Points +25%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	10291 Points +22%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	8901 Points +5%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	8457 Points
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (7001 - 8457, n=13)	7849 Points -7%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	7118 Points -16%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6576 Points -22%

PCMark 10 / Digital Content Creation
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	9893 Points +99%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	9831 Points +97%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	9752 Points +96%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7612 Points +53%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	5445 Points +9%
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (4583 - 5964, n=13)	5424 Points +9%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	4982 Points

CrossMark / Overall
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1873 Points +72%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	1861 Points +71%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	1802 Points +66%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	1632 Points +50%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1596 Points +47%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	1087 Points
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (976 - 1183, n=6)	1081 Points -1%

CrossMark / Productivity
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1816 Points +60%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	1781 Points +57%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	1717 Points +52%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	1633 Points +44%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1537 Points +36%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	1133 Points
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1048 - 1191, n=6)	1125 Points -1%

CrossMark / Creativity
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	2072 Points +99%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1994 Points +91%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	1929 Points +85%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1769 Points +70%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	1675 Points +61%
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (941 - 1197, n=6)	1057 Points +1%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	1042 Points

CrossMark / Responsiveness
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1706 Points +56%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	1700 Points +56%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	1540 Points +41%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	1511 Points +38%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1311 Points +20%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	1091 Points
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (872 - 1159, n=6)	1029 Points -6%

WebXPRT 3 / Overall
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	333 Points +56%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	328 Points +53%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	301 Points +41%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	286 Points +34%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	276 Points +29%
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (202 - 222, n=12)	215 Points 0%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	214 Points

WebXPRT 4 / Overall
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	268 Points +69%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	266 Points +68%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	265 Points +67%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	252 Points +59%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	227 Points +43%
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (158.5 - 225, n=3)	184.6 Points +16%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	158.5 Points

Mozilla Kraken 1.1 / Total
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	802 ms *
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (791 - 818, n=13)	801 ms * -0%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	608 ms * +24%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	535 ms * +33%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	534 ms * +33%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	503 ms * +37%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	496 ms * +38%

* ... smaller is better

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	69281 MB/s +77%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	67161 MB/s +72%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	62397 MB/s +59%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44299 MB/s +13%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	44216 MB/s +13%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	39126 MB/s
Average AMD Ryzen 7 5700U (15867 - 39326, n=18)	33557 MB/s -14%

AIDA64 / Memory Read
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	64323 MB/s +37%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	61708 MB/s +32%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	61542 MB/s +31%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	50614 MB/s +8%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	46813 MB/s
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44751 MB/s -4%
Average AMD Ryzen 7 5700U (17632 - 47190, n=18)	40581 MB/s -13%

AIDA64 / Memory Write
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	86810 MB/s +85%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	86528 MB/s +84%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	65057 MB/s +38%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	47048 MB/s
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	46629 MB/s -1%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	45887 MB/s -2%
Average AMD Ryzen 7 5700U (11554 - 47048, n=18)	36896 MB/s -22%

AIDA64 / Memory Latency
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	149 ns * -49%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	100.1 ns *
Average AMD Ryzen 7 5700U (84.9 - 113, n=18)	98.7 ns * +1%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	96.2 ns * +4%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	89 ns * +11%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	88.1 ns * +12%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	71.2 ns * +29%

* ... smaller is better

DPC 延迟

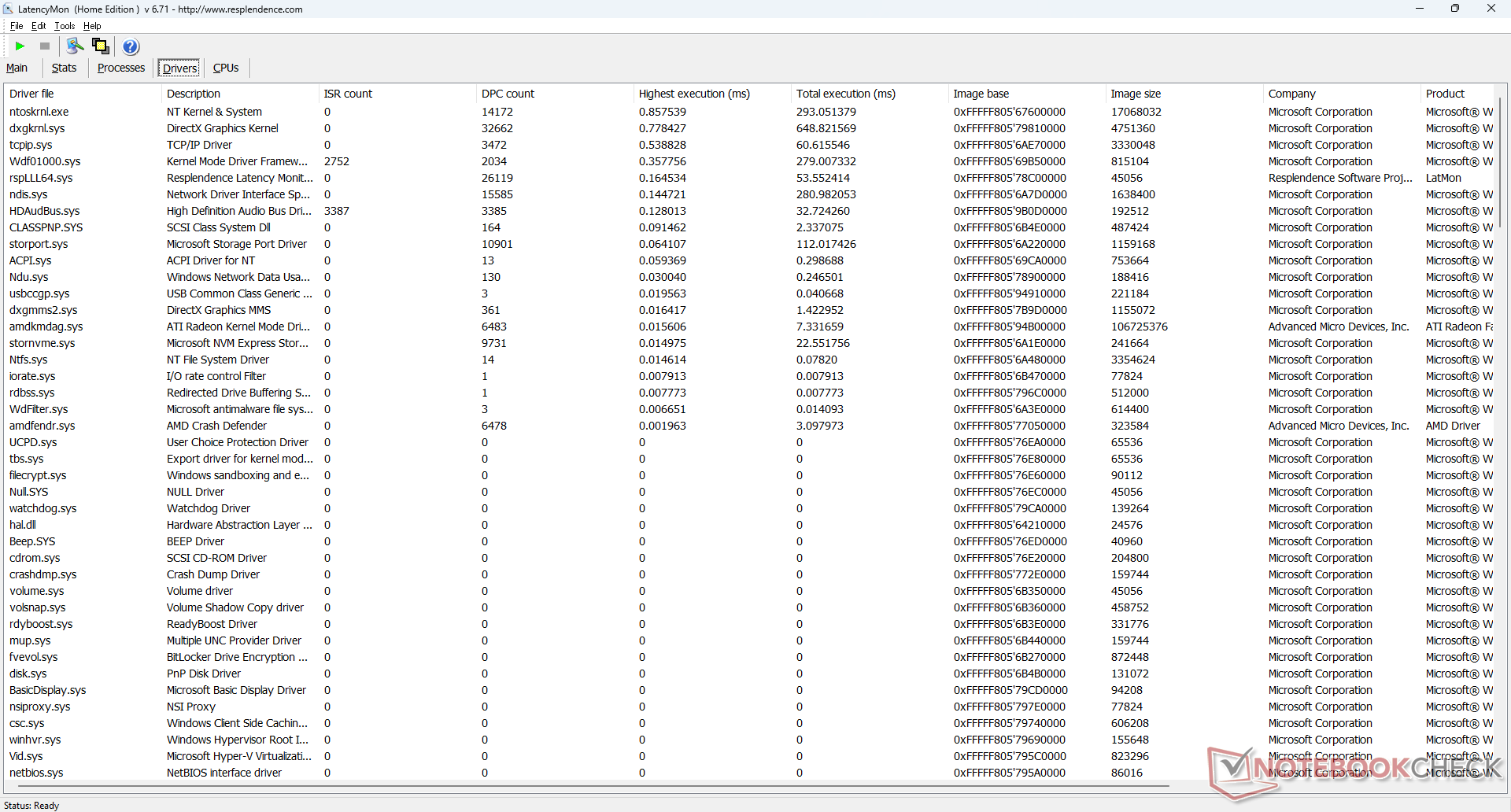

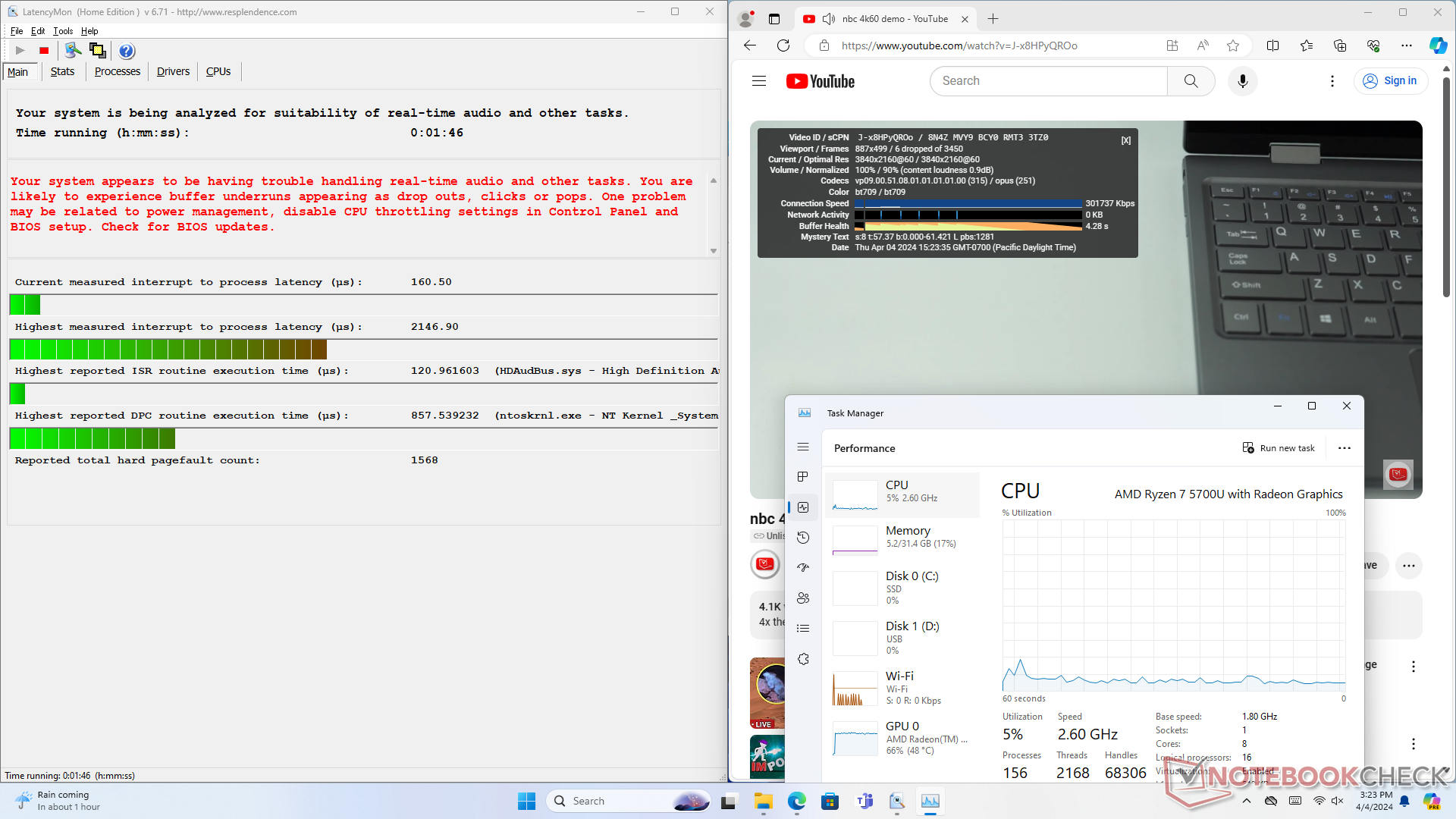

在打开我们主页的多个浏览器标签时，LatencyMon 显示了轻微的 DPC 问题。60 FPS 的 4K 视频回放也不尽如人意，在一分钟的时间内记录到 6 次丢帧。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	10561.5 μs * -392%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	2724 μs * -27%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	2146.9 μs *
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	1616.1 μs * +25%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1068.7 μs * +50%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	231.8 μs * +89%

* ... smaller is better

存储设备

与 NucBox M4 一样，M5 也配备了一个 Lexar PCIe4 x4 NVMe 固态硬盘可实现高达 3600 MB/s 的稳定传输速率。顺序写入速度也相当不错，达到 3100 MB/s，是较好的中端 PCIe4 固态硬盘之一。

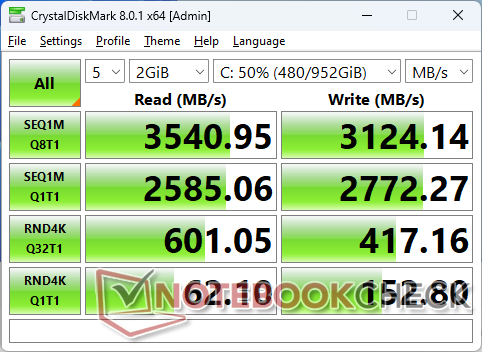

CrystalDiskMark 5.2 / 6

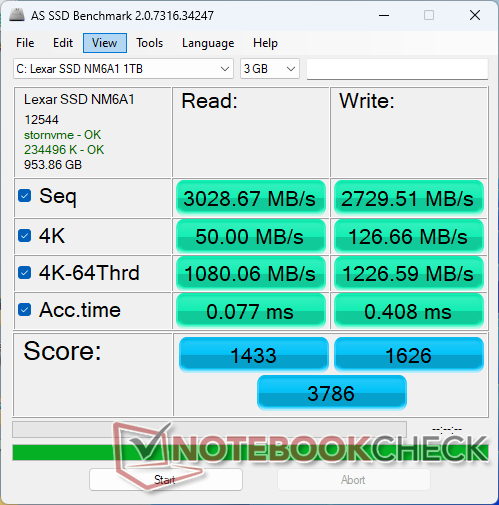

AS SSD

DiskSpd

Lexar 1024GB LNM6A1X001T-HNNNG

CDM 5/6 Read Seq Q32T1: 3542 MB/s

CDM 5/6 Write Seq Q32T1: 3133 MB/s

CDM 5/6 Read 4K Q32T1: 592.8 MB/s

CDM 5/6 Write 4K Q32T1: 408.6 MB/s

CDM 5 Read Seq: 2587 MB/s

CDM 5 Write Seq: 2776 MB/s

CDM 5/6 Read 4K: 62 MB/s

CDM 5/6 Write 4K: 152.3 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
GMK NucBox K6 MasonSemi 1TB MC7000	91.2 pt
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	68.5 pt
Geekom A7 Acer N5000	61.9 pt
Acemagic F2A Kingston OM8SEP1024Q-A0	55.2 pt
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	52.3 pt
GMK NucBox M4 Lexar NM620 512GB	39.5 pt

DiskSpd
seq read
Geekom A7 Acer N5000	3755 (3733.85^min - 3754.99^max) MB/s +47%
GMK NucBox K6 MasonSemi 1TB MC7000	3703 (3243.89^min - 3702.94^max) MB/s +45%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3337 (3301.03^min - 3337.16^max) MB/s +30%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	2560 (2546.51^min - 2560.12^max) MB/s
GMK NucBox M4 Lexar NM620 512GB	1746 (842.64^min - 1745.67^max) MB/s -32%
Acemagic F2A Kingston OM8SEP1024Q-A0	1674 (1242.56^min - 1673.54^max) MB/s -35%
seq write
GMK NucBox K6 MasonSemi 1TB MC7000	5595 (1443.73^min - 5595.13^max) MB/s +103%
Geekom A7 Acer N5000	3492 (3398.43^min - 3491.76^max) MB/s +27%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3356 (3181.73^min - 3356.49^max) MB/s +22%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	2752 (2706.58^min - 2751.67^max) MB/s
GMK NucBox M4 Lexar NM620 512GB	2513 (274.86^min - 2513.02^max) MB/s -9%
Acemagic F2A Kingston OM8SEP1024Q-A0	1348 (1117.85^min - 1347.87^max) MB/s -51%
seq q8 t1 read
GMK NucBox K6 MasonSemi 1TB MC7000	7069 (6459.52^min - 7068.99^max) MB/s +100%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5438 (4937.74^min - 5438.31^max) MB/s +54%
Geekom A7 Acer N5000	4861 (4468.61^min - 4860.57^max) MB/s +37%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	3536 (3096.86^min - 3536.22^max) MB/s
GMK NucBox M4 Lexar NM620 512GB	3422 (3023.08^min - 3421.92^max) MB/s -3%
Acemagic F2A Kingston OM8SEP1024Q-A0	3194 (2810.81^min - 3194.17^max) MB/s -10%
seq q8 t1 write
GMK NucBox K6 MasonSemi 1TB MC7000	6669 (1251.16^min - 6668.61^max) MB/s +113%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4955 (4929.56^min - 4955.41^max) MB/s +59%
Geekom A7 Acer N5000	4695 (4470.16^min - 4694.73^max) MB/s +50%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	3126 (3077.57^min - 3126.22^max) MB/s
GMK NucBox M4 Lexar NM620 512GB	2858 (295.24^min - 2857.74^max) MB/s -9%
Acemagic F2A Kingston OM8SEP1024Q-A0	2212 (1222.43^min - 2212.27^max) MB/s -29%
4k q1 t1 read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	84.5 (83.02^min - 84.54^max) MB/s +35%
GMK NucBox K6 MasonSemi 1TB MC7000	71 (70.41^min - 71.02^max) MB/s +13%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	62.7 (54.67^min - 62.69^max) MB/s
Geekom A7 Acer N5000	52.3 (51.85^min - 52.27^max) MB/s -17%
Acemagic F2A Kingston OM8SEP1024Q-A0	47.3 (47.07^min - 47.31^max) MB/s -25%
GMK NucBox M4 Lexar NM620 512GB	44 (35.86^min - 44.02^max) MB/s -30%
4k q1 t1 write
GMK NucBox K6 MasonSemi 1TB MC7000	239 (237.67^min - 239.17^max) MB/s +36%
Acemagic F2A Kingston OM8SEP1024Q-A0	187.2 (181.54^min - 187.2^max) MB/s +7%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	175.4 (153.43^min - 175.39^max) MB/s
Geekom A7 Acer N5000	165.9 (164.35^min - 165.92^max) MB/s -5%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	144.6 (143.6^min - 144.57^max) MB/s -18%
GMK NucBox M4 Lexar NM620 512GB	115.9 (99.18^min - 115.92^max) MB/s -34%
4k q32 t16 read
GMK NucBox K6 MasonSemi 1TB MC7000	2463 (2040.37^min - 2463.15^max) MB/s +6%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	2315 (2310.04^min - 2315.42^max) MB/s
Acemagic F2A Kingston OM8SEP1024Q-A0	1824 (1239.47^min - 1824.09^max) MB/s -21%
GMK NucBox M4 Lexar NM620 512GB	1565 (506.92^min - 1565.24^max) MB/s -32%
Geekom A7 Acer N5000	1560 (1546.89^min - 1559.94^max) MB/s -33%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	808 (792.58^min - 807.51^max) MB/s -65%
4k q32 t16 write
GMK NucBox K6 MasonSemi 1TB MC7000	3983 (3232.63^min - 3982.67^max) MB/s +185%
Acemagic F2A Kingston OM8SEP1024Q-A0	1434 (1410.26^min - 1433.71^max) MB/s +2%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	1400 (948.76^min - 1400.43^max) MB/s
Geekom A7 Acer N5000	595 (582.97^min - 594.71^max) MB/s -57%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	454 (443.2^min - 453.53^max) MB/s -68%
GMK NucBox M4 Lexar NM620 512GB	139.6 (45.28^min - 139.63^max) MB/s -90%

AS SSD
Score Total
GMK NucBox K6 MasonSemi 1TB MC7000	7918 Points +109%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5249 Points +39%
Geekom A7 Acer N5000	5177 Points +37%
Acemagic F2A Kingston OM8SEP1024Q-A0	4412 Points +17%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	3786 Points
GMK NucBox M4 Lexar NM620 512GB	3154 Points -17%
Score Read
GMK NucBox K6 MasonSemi 1TB MC7000	3258 Points +127%
Geekom A7 Acer N5000	1685 Points +18%
Acemagic F2A Kingston OM8SEP1024Q-A0	1561 Points +9%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	1433 Points
GMK NucBox M4 Lexar NM620 512GB	1423 Points -1%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	1320 Points -8%
Score Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3326 Points +105%
GMK NucBox K6 MasonSemi 1TB MC7000	3000 Points +85%
Geekom A7 Acer N5000	2676 Points +65%
Acemagic F2A Kingston OM8SEP1024Q-A0	2082 Points +28%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	1626 Points
GMK NucBox M4 Lexar NM620 512GB	1102 Points -32%
Seq Read
GMK NucBox K6 MasonSemi 1TB MC7000	5825.09 MB/s +92%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4536 MB/s +50%
Geekom A7 Acer N5000	3650 MB/s +21%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	3028.67 MB/s
Acemagic F2A Kingston OM8SEP1024Q-A0	3010 MB/s -1%
GMK NucBox M4 Lexar NM620 512GB	2774.25 MB/s -8%
Seq Write
GMK NucBox K6 MasonSemi 1TB MC7000	5783.3 MB/s +112%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	2729.51 MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2698 MB/s -1%
Geekom A7 Acer N5000	2611 MB/s -4%
Acemagic F2A Kingston OM8SEP1024Q-A0	2369 MB/s -13%
GMK NucBox M4 Lexar NM620 512GB	606.01 MB/s -78%
4K Read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	72 MB/s +44%
GMK NucBox K6 MasonSemi 1TB MC7000	65.5 MB/s +31%
GMK NucBox M4 Lexar NM620 512GB	50.83 MB/s +2%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	50 MB/s
Geekom A7 Acer N5000	49.7 MB/s -1%
Acemagic F2A Kingston OM8SEP1024Q-A0	41.8 MB/s -16%
4K Write
Acemagic F2A Kingston OM8SEP1024Q-A0	196.9 MB/s +55%
GMK NucBox K6 MasonSemi 1TB MC7000	190.06 MB/s +50%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	166.8 MB/s +32%
Geekom A7 Acer N5000	160 MB/s +26%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	126.66 MB/s
GMK NucBox M4 Lexar NM620 512GB	108.33 MB/s -14%
4K-64 Read
GMK NucBox K6 MasonSemi 1TB MC7000	2610.4 MB/s +142%
Geekom A7 Acer N5000	1270 MB/s +18%
Acemagic F2A Kingston OM8SEP1024Q-A0	1218 MB/s +13%
GMK NucBox M4 Lexar NM620 512GB	1094.96 MB/s +1%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	1080.06 MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	794 MB/s -26%
4K-64 Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2889 MB/s +136%
Geekom A7 Acer N5000	2255 MB/s +84%
GMK NucBox K6 MasonSemi 1TB MC7000	2231.47 MB/s +82%
Acemagic F2A Kingston OM8SEP1024Q-A0	1649 MB/s +34%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	1226.59 MB/s
GMK NucBox M4 Lexar NM620 512GB	932.87 MB/s -24%
Access Time Read
Geekom A7 Acer N5000	0.138 ms * -79%
GMK NucBox M4 Lexar NM620 512GB	0.103 ms * -34%
GMK NucBox K6 MasonSemi 1TB MC7000	0.079 ms * -3%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	0.077 ms *
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.06 ms * +22%
Acemagic F2A Kingston OM8SEP1024Q-A0	0.046 ms * +40%
Access Time Write
GMK NucBox M4 Lexar NM620 512GB	0.409 ms * -0%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	0.408 ms *
GMK NucBox K6 MasonSemi 1TB MC7000	0.196 ms * +52%
Acemagic F2A Kingston OM8SEP1024Q-A0	0.126 ms * +69%
Geekom A7 Acer N5000	0.072 ms * +82%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.024 ms * +94%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GMK NucBox M5; diskspd 2.0.17 f: Ø3533 (3333.68-3543.77)

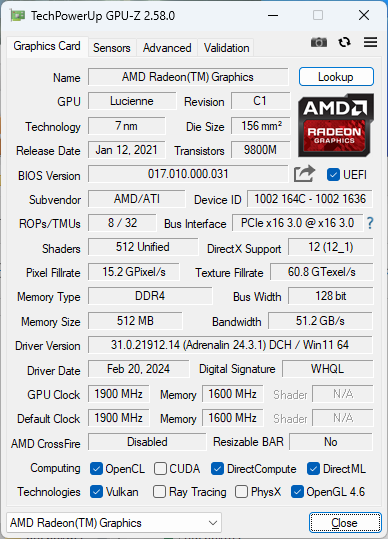

图形处理器性能 - 过时的 Radeon RX Vega 8

集成的 Radeon RX Vega 8早于 Radeon 680M和 780M 目前在中端或更高端的迷你 PC 和笔记本电脑中占据主导地位。它的速度比 Radeon 680M 明显慢了约 50%至 60%，更符合 Iris Xe Graphics G7 96EUs第 11 代英特尔 CPU 上的 Iris Xe Graphics G7 96EUs。Radeon RX Vega 8 无法在本地以合理的帧速率运行大多数游戏。

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	97.5 pt
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	95.5 pt
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	92.9 pt
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	80.4 pt
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	57.2 pt
Intel NUC 12 Pro Kit NUC12WSBi5 ^-1! Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	45.4 pt
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	41.4 pt
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.8 pt
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	39.5 pt
GMK NucBox M4 ^-1! Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H	26.2 pt
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	14 pt
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	6.5 pt
GMK NucBox 3 Intel UHD Graphics 600, Intel Celeron J4125	3.8 pt

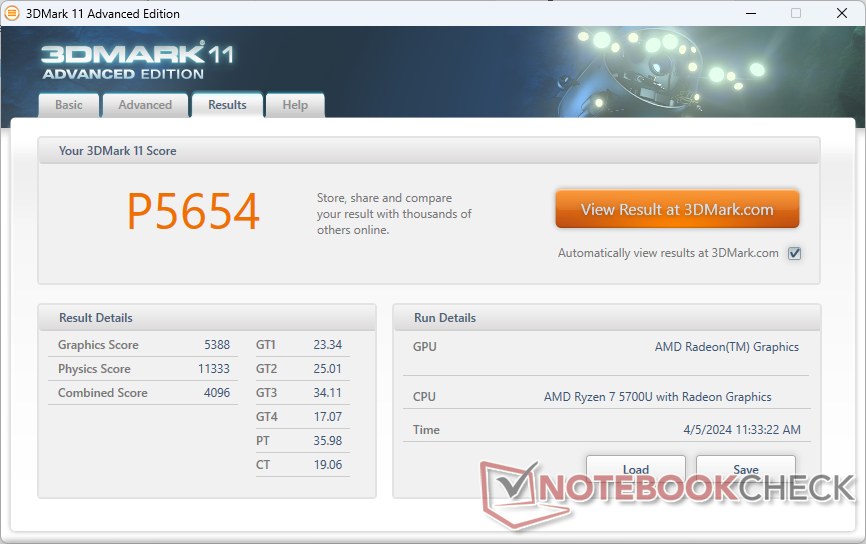

3DMark 11 - 1280x720 Performance GPU
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	13932 Points +159%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	13716 Points +155%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	12085 Points +124%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	10439 Points +94%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7321 Points +36%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	6027 Points +12%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (3459 - 7591, n=54)	5910 Points +10%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	5631 Points +5%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	5388 Points
GMK NucBox M4 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H	3122 Points -42%
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	1872 Points -65%
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	854 Points -84%
GMK NucBox 3 Intel UHD Graphics 600, Intel Celeron J4125	508 Points -91%

3DMark

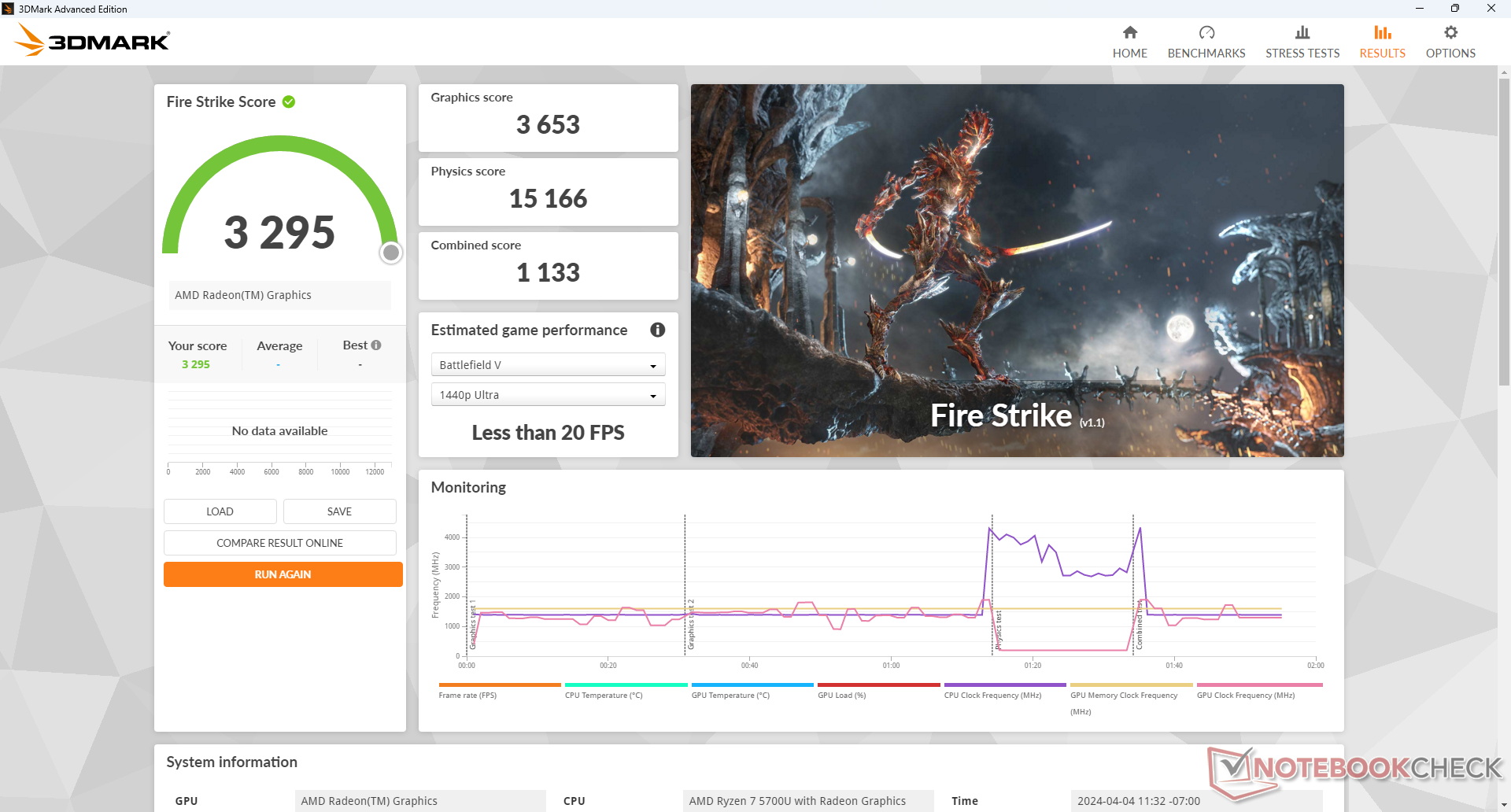

1920x1080 Fire Strike Graphics
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	8391 Points +130%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	8164 Points +123%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	7710 Points +111%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	7570 Points +107%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5616 Points +54%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	4227 Points +16%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	3724 Points +2%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1694 - 5041, n=54)	3676 Points +1%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	3653 Points
GMK NucBox M4 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H	2517 Points -31%
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	1351 Points -63%
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	653 Points -82%
GMK NucBox 3 Intel UHD Graphics 600, Intel Celeron J4125	378 Points -90%

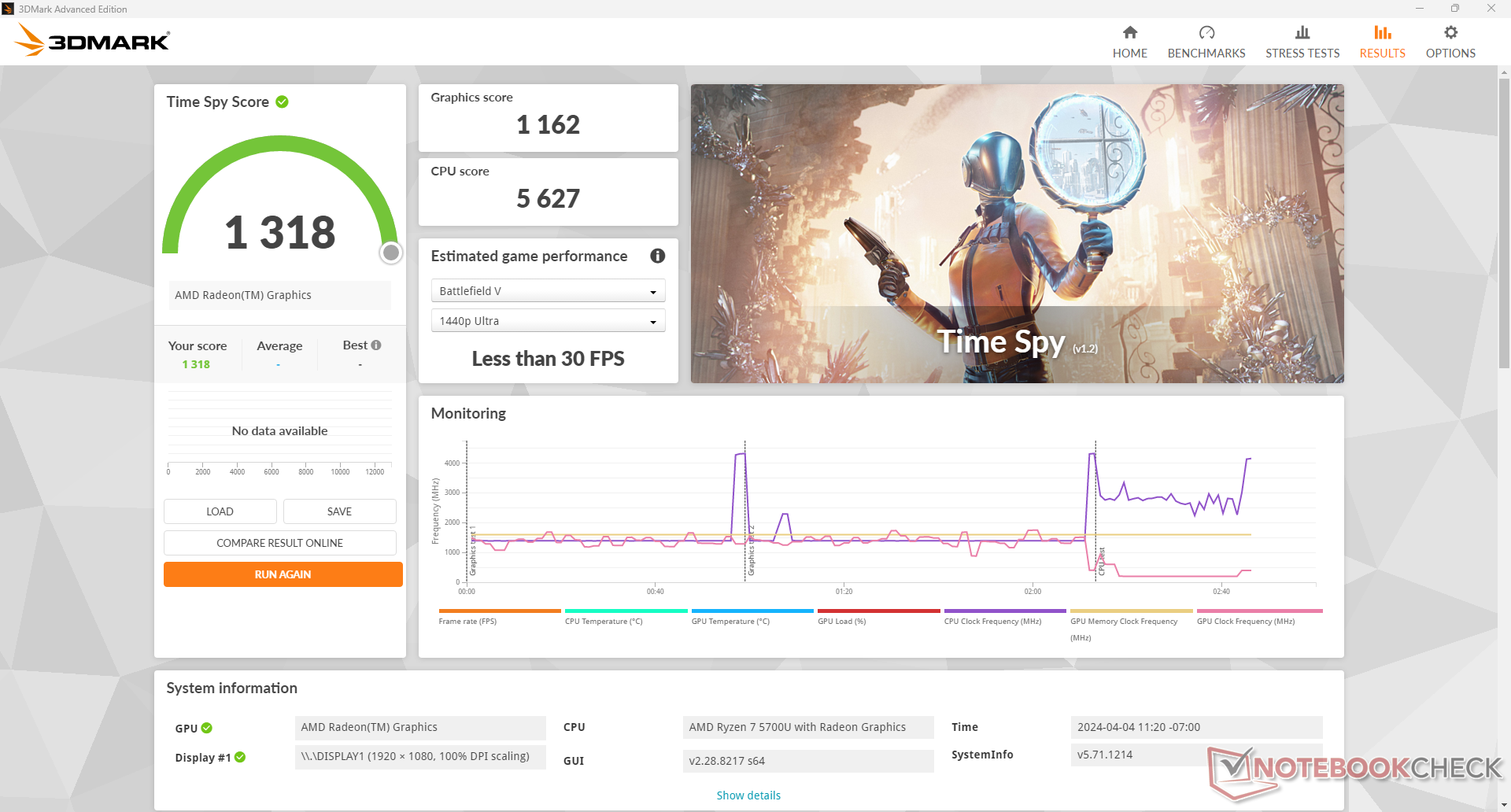

2560x1440 Time Spy Graphics
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3205 Points +176%
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	2968 Points +155%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	2906 Points +150%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	2436 Points +110%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1672 Points +44%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1168 Points +1%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	1162 Points
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (540 - 1557, n=54)	1156 Points -1%
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	402 Points -65%
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	179 Points -85%
GMK NucBox 3 Intel UHD Graphics 600, Intel Celeron J4125	102 Points -91%

3DMark Performance Rating | 3DMark 11 | 3DMark

Blender
v3.3 Classroom HIP/AMD
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (477 - 1133, n=12)	702 Seconds *
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	270 Seconds *
v3.3 Classroom CPU
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	5764 Seconds * -660%
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	2464 Seconds * -225%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	758 Seconds *
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	590 Seconds * +22%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (463 - 758, n=18)	542 Seconds * +28%
GMK NucBox M4 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H	479 Seconds * +37%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	477 Seconds * +37%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	438 Seconds * +42%
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	331 Seconds * +56%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	327 Seconds * +57%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	301 Seconds * +60%

* ... smaller is better

Performance Rating - Percent
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	98.5 pt
Geekom A7 ^-1! AMD Ryzen 9 7940HS, AMD Radeon 780M	94.5 pt
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	83.2 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	64.2 pt
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	49.9 pt
GMK NucBox M4 ^-1! Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	38.4 pt

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	32.5 fps +137%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.8 (27^min) fps +125%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	24.6 (12^min, 16.1^P0.1, 21.8^P1) fps +80%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.9 fps +23%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.7 (12^min) fps
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	8.2 (7^min) fps -40%

Final Fantasy XV Benchmark - 1920x1080 High Quality
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.3 fps +124%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	25 fps +91%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	24.4 fps +86%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	17.4 fps +33%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.1 fps

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	48.8 (11.1^min, 31.1^P1) fps +115%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	43.8 (23.2^min, 25.6^P1) fps +93%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26.1 (5.3^min, 8.13^P1) fps +15%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.7 (11.3^min, 12.5^P1) fps
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	16.4 (5^min, 5^P1) fps -28%

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	87.4 (16.1^min) fps +84%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	81 (67.5^min) fps +70%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	71.1 (52^min) fps +49%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	60.5 (52.3^min) fps +27%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	47.6 (40.4^min) fps
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	32.8 (29.4^min) fps -31%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	40.7 fps +62%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	39.7 fps +58%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	35.4 fps +41%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	35 fps +39%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	25.1 fps
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	23.3 fps -7%

Far Cry 5
1280x720 Low Preset AA:T
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	86 (76^min) fps +105%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	86 (75^min) fps +105%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	69 (62^min) fps +64%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	69 (25^min) fps +64%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (22 - 71, n=31)	46 fps +10%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45 (40^min) fps +7%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42 (36^min) fps
1920x1080 Medium Preset AA:T
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	49 (44^min) fps +145%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	47 (41^min) fps +135%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	41 (36^min) fps +105%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	40 (36^min) fps +100%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	29 (27^min) fps +45%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (13 - 34, n=31)	22.2 fps +11%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	20 (17^min) fps
1920x1080 High Preset AA:T
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	45 (41^min) fps +137%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	43 (38^min) fps +126%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	38 (33^min) fps +100%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	37 (30^min) fps +95%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	27 (25^min) fps +42%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (12 - 31, n=30)	20.5 fps +8%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	19 (16^min) fps
1920x1080 Ultra Preset AA:T
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	43 (38^min) fps +153%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	41 (36^min) fps +141%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	36 (31^min) fps +112%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	35 (31^min) fps +106%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26 (23^min) fps +53%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (12 - 29, n=27)	19.3 fps +14%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	17 (15^min) fps

Strange Brigade
1280x720 lowest AF:1
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	377 (71^min, 314^P1) fps +372%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	167.7 (34.3^min, 142.9^P1) fps +110%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	147.3 (85.9^min, 124^P1) fps +85%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	147.3 (40.8^min, 112.7^P1) fps +85%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	99 (21.7^min, 36.5^P1) fps +24%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	79.8 (20.7^min, 69.9^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (43 - 117, n=50)	78.6 fps -2%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	56.5 (13.2^min, 17.2^P1) fps -29%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	32 (7.4^min, 8.56^P1) fps -60%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	16.2 (5^min, 7.31^P1) fps -80%
1920x1080 medium AA:medium AF:4
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	167.8 (133.4^min, 145.9^P1) fps +418%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	67.9 (43.7^min, 58.3^P1) fps +110%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	61.9 (7.4^min, 53.4^P1) fps +91%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	56 (46.4^min, 49.2^P1) fps +73%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	39.4 (14.1^min, 23^P1) fps +22%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	32.4 (15.3^min, 28.3^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (16.9 - 45.3, n=49)	30.9 fps -5%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	22.4 (6.3^min, 10.3^P1) fps -31%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	12.1 (5^min, 5.25^P1) fps -63%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	6.5 (5^min, 5^P1) fps -80%
1920x1080 high AA:high AF:8
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	140 (101.9^min, 110.3^P1) fps +422%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	57.9 (7^min, 45^P1) fps +116%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	53.3 (25.6^min, 41.4^P1) fps +99%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	45.9 (25.6^min, 35.7^P1) fps +71%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32 (8.4^min, 15.8^P1) fps +19%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	26.8 (14.8^min, 19.1^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (14.6 - 37.7, n=49)	26 fps -3%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	17.2 (5^min, 5.39^P1) fps -36%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	10.2 (5^min, 5^P1) fps -62%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	6.5 (5^min, 5^P1) fps -76%
1920x1080 ultra AA:ultra AF:16
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	116.6 (15.9^min, 93.3^P1) fps +414%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	48.8 (11.1^min, 31.1^P1) fps +115%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	43.8 (23.2^min, 25.6^P1) fps +93%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	42.5 (15.8^min, 22.3^P1) fps +87%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26.1 (5.3^min, 8.13^P1) fps +15%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.7 (11.3^min, 12.5^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (12.8 - 32.1, n=47)	22.2 fps -2%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	16.4 (5^min, 5^P1) fps -28%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	13.3 (5^min, 5^P1) fps -41%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	267.3 (209^min) fps +295%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	155.1 (145^min) fps +129%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	154.6 (12.9^min, 32^P0.1, 98.7^P1) fps +129%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	126 (36.4^min, 62.1^P0.1, 99.1^P1) fps +86%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	121.6 (89^min) fps +80%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	102 fps +51%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	67.6 (60^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (27.2 - 89, n=47)	65.9 fps -3%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	49.7 (44^min) fps -26%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	42 fps -38%
1366x768 Medium Graphics & Postprocessing
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	190.3 (175^min) fps +339%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	99.3 (25.6^min, 43.8^P0.1, 72.1^P1) fps +129%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	99 (72^min) fps +129%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	78 (43.6^min, 56.8^P0.1, 64^P1) fps +80%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	75.9 (71^min) fps +75%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	43.3 (38^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (19.6 - 55.2, n=35)	40.8 fps -6%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	31 fps -28%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	29.8 (18^min) fps -31%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	106.9 (95^min) fps +386%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	50.9 (45^min) fps +131%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	49.6 (13.7^min, 22.8^P0.1, 39.2^P1) fps +125%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	44.8 (26.8^min, 32^P0.1, 37.7^P1) fps +104%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	37.9 (35^min) fps +72%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	33.5 fps +52%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (20^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (8.7 - 26.8, n=46)	20.6 fps -6%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	16.7 (14^min) fps -24%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	15 fps -32%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	39.8 (36^min) fps +191%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	32.5 fps +137%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.8 (27^min) fps +125%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	24.6 (12^min, 16.1^P0.1, 21.8^P1) fps +80%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	22.7 (20^min) fps +66%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.9 fps +23%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.7 (12^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (7.07 - 17.6, n=49)	13.7 fps 0%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	8.2 (7^min) fps -40%

Dota 2 Reborn
1280x720 min (0/3) fastest
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	161.2 (11.9^min) fps +62%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	155.8 (135.9^min) fps +56%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	141.2 (122.4^min) fps +42%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	113.8 (8.3^min) fps +14%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	112.3 (96.7^min) fps +13%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (67.9 - 152, n=57)	108.1 fps +8%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	103.2 (59.8^min) fps +4%
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	102.2 (45.3^min) fps +3%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	99.7 (85.3^min) fps
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	79.8 (67.5^min) fps -20%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	36.2 (29.6^min) fps -64%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	35.9 (33.6^min) fps -64%
GMK NucBox 3 Intel Celeron J4125, Intel UHD Graphics 600	34.3 (29.9^min) fps -66%
1366x768 med (1/3)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	124.8 (104.5^min) fps +55%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	120.6 (96.2^min) fps +50%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	113.5 (96.1^min) fps +41%
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	101.6 (54.1^min) fps +26%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	86.4 (68.3^min) fps +7%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (49.9 - 122.3, n=57)	86.1 fps +7%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	82.95 (57.1^min) fps +3%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.6 (61.8^min) fps
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	70.1 (61.4^min) fps -13%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	35.7 (33.9^min) fps -56%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	27.8 (20.4^min) fps -66%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	26.9 (19.4^min) fps -67%
GMK NucBox 3 Intel Celeron J4125, Intel UHD Graphics 600	14.2 (9.9^min) fps -82%
1920x1080 high (2/3)
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	96.8 (50.8^min) fps +92%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	96.8 (17.4^min) fps +92%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	87.6 (75^min) fps +73%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	84.2 (74.4^min) fps +67%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	77.3 (52.5^min) fps +53%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	67.6 (58.9^min) fps +34%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (25.5 - 76.7, n=57)	51.8 fps +3%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	50.5 (43.1^min) fps
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	36.1 (33^min) fps -29%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	34.6 (33^min) fps -31%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	19.5 (15.3^min) fps -61%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	11.8 (7.4^min) fps -77%
GMK NucBox 3 Intel Celeron J4125, Intel UHD Graphics 600	6.8 (5.2^min) fps -87%
1920x1080 ultra (3/3) best looking
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	91.9 (53.5^min) fps +93%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	87.4 (16.1^min) fps +84%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	81 (67.5^min) fps +70%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	73.7 (65.4^min) fps +55%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	71.1 (52^min) fps +49%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	60.5 (52.3^min) fps +27%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (23.3 - 72, n=57)	48.6 fps +2%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	47.6 (40.4^min) fps
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	34 (32.3^min) fps -29%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	32.8 (29.4^min) fps -31%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	18.3 (14^min) fps -62%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	10.9 (7.7^min) fps -77%
GMK NucBox 3 Intel Celeron J4125, Intel UHD Graphics 600	6.3 (4.4^min) fps -87%

X-Plane 11.11
1280x720 low (fps_test=1)
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	70.7 fps +75%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	67.6 fps +67%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	66.7 fps +65%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	65.9 fps +63%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	63.1 fps +56%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	54.6 fps +35%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (26.9 - 64.9, n=57)	44.3 fps +10%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.4 fps
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	38.8 fps -4%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	23.4 fps -42%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	13.2 fps -67%
GMK NucBox 3 Intel Celeron J4125, Intel UHD Graphics 600	7.67 fps -81%
1920x1080 med (fps_test=2)
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	55.8 fps +104%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	52.8 fps +93%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	48.2 fps +77%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	47.3 fps +73%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	42 fps +54%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	41 fps +50%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (21.1 - 49.6, n=57)	34.6 fps +27%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27.3 fps
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	26.3 fps -4%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	15.9 fps -42%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	9.18 fps -66%
GMK NucBox 3 Intel Celeron J4125, Intel UHD Graphics 600	4.75 fps -83%
1920x1080 high (fps_test=3)
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	47.6 fps +90%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	42.4 fps +69%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	40.7 fps +62%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	39.7 fps +58%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	35.4 fps +41%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	35 fps +39%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (19.1 - 43.1, n=57)	30.5 fps +22%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	25.1 fps
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	23.3 fps -7%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	14.6 fps -42%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	8.58 fps -66%
GMK NucBox 3 Intel Celeron J4125, Intel UHD Graphics 600	4.5 fps -82%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	98.5 fps +180%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	80.8 fps +130%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	70.3 fps +100%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	63.4 fps +80%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	63.3 fps +80%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45.6 fps +30%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	38.3 fps +9%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (21.9 - 50.1, n=52)	35.4 fps +1%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	35.2 fps
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	23 fps -35%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	14.3 fps -59%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	6.94 fps -80%
GMK NucBox 3 Intel Celeron J4125, Intel UHD Graphics 600	4.13 fps -88%
1920x1080 Standard Quality
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	67.9 fps +277%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	39.3 fps +118%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	34.8 fps +93%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	33.4 fps +86%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	33 fps +83%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24.3 fps +35%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	19.6 fps +9%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	18 fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (11.7 - 25, n=47)	17.9 fps -1%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	6.71 fps -63%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	3.19 fps -82%
1920x1080 High Quality
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	41.1 fps +214%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.3 fps +124%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	25 fps +91%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	24.8 fps +89%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	24.4 fps +86%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	17.4 fps +33%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.1 fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (7.71 - 17.7, n=46)	12.4 fps -5%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	4.61 fps -65%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	2.25 fps -83%

Cyberpunk 2077 2.1 Phantom Liberty
1280x720 Low Preset (FSR off)
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	102 (52.1^min) fps +318%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	77.4 (28.7^min) fps +217%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	44.3 (36.6^min) fps +82%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (24.4 - 28.6, n=2)	26.5 fps +9%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24.4 (12.7^min) fps
1920x1080 Low Preset (FSR off)
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	71.6 (52.5^min) fps +419%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	46.3 (32.3^min) fps +236%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	29.5 (24.1^min) fps +114%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.8 (6.57^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (11 - 16.7, n=3)	13.8 fps 0%
1920x1080 Medium Preset (FSR off)
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	57 (46^min) fps +423%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	35.2 (10.9^min) fps +223%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	24.8 (19.6^min) fps +128%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (10.9 - 12.1, n=2)	11.5 fps +6%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10.9 (8.08^min) fps
1920x1080 High Preset (FSR off)
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	50 (37.8^min) fps +445%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	27.7 (9.25^min) fps +202%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	20.4 (13.8^min) fps +122%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	9.17 (6.25^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (5.71 - 9.87, n=3)	8.25 fps -10%
1920x1080 Ultra Preset (FSR off)
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	47.7 (38.3^min) fps
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	24.5 (9.31^min) fps
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	18.4 (12.7^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) ()	8.23 fps

F1 22
1280x720 Ultra Low Preset AA:T AF:16x
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	171.9 (142^min, 114^P1) fps +167%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	170 (137^min, 113^P1) fps +164%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	147.3 (118^min, 96^P1) fps +128%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	120.8 (99^min, 92^P1) fps +87%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	80.1 (65^min, 63^P1) fps +24%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (47 - 89.3, n=7)	68.1 fps +6%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	64.5 (55^min, 54^P1) fps
1920x1080 Low Preset AA:T AF:16x
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	99.8 (12^min, 70^P1) fps +180%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	96.9 (70^min, 53^P1) fps +171%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	82.6 (71^min, 57^P1) fps +131%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	76.3 (64^min, 64^P1) fps +114%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	47.6 (39^min, 39^P1) fps +33%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (25.2 - 48.8, n=11)	36.5 fps +2%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	35.7 (31^min, 27^P1) fps
1920x1080 Medium Preset AA:T AF:16x
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	88.4 (62^min, 63^P1) fps +174%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	85.9 (67^min, 59^P1) fps +166%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	74.1 (61^min, 47^P1) fps +129%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	70.8 (60^min, 59^P1) fps +119%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	43.4 (36^min, 36^P1) fps +34%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	32.3 (28^min, 25^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (22.5 - 42.4, n=12)	32.3 fps 0%
1920x1080 High Preset AA:T AF:16x
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	66.7 (53^min, 36^P1) fps +180%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	65.1 (56^min, 51^P1) fps +174%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	55 (47^min, 45^P1) fps +131%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	54.7 (47^min, 37^P1) fps +130%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31.7 (27^min, 26^P1) fps +33%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	23.8 (20^min, 18^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (18 - 31.2, n=10)	23.6 fps -1%
1920x1080 Ultra High Preset AA:T AF:16x
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24 (20^min, 20^P1) fps +43%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (12.6 - 22.5, n=7)	18.6 fps +11%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	18.5 (13^min, 12^P1) fps +10%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	18.4 (12^min, 12^P1) fps +10%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	16.8 (13^min, 13^P1) fps
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	14.9 (11^min, 11^P1) fps -11%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	13.9 (9^min, 9^P1) fps -17%

Baldur's Gate 3
1920x1080 Low Preset
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	74.6 (49.5^min, 52.1^P0.1, 56.7^P1) fps +425%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	40.5 fps +185%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.2 fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (13.8 - 14.2, n=2)	14 fps -1%
1920x1080 Medium Preset
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	63 (38.7^min, 42.2^P0.1, 49.2^P1) fps
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	33.7 fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) ()	13.3 fps
1920x1080 High Preset
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	55.1 (41.8^min, 42^P0.1, 44^P1) fps
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	28.1 fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) ()	9.41 fps

GTA V
1024x768 Lowest Settings possible
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	177.4 (4.17^min, 142.9^P1) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	167.5 (5.17^min, 125^P1) fps
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	163.4 (2.4^min, 100^P1) fps
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	161 (4.76^min, 100^P1) fps
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	152.3 (5.63^min, 100^P1) fps
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	124.5 (12.7^min, 76.9^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (53.6 - 160, n=47)	100.4 fps
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	26.8 (3.73^min, 14.7^P1) fps
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	25.1 (0.1815^min, 4.85^P1) fps
1920x1080 Lowest Settings possible
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	176.8 (4.35^min, 125^P1) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	127.1 (21.2^min, 90.9^P1) fps
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	124.7 (11.8^min, 83.3^P1) fps
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	119.5 (8.05^min, 83.3^P1) fps
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	112.4 (25^min, 76.9^P1) fps
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	87.6 (30.9^min, 58.8^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (30.5 - 101, n=32)	64.2 fps
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	23.6 (8.61^min, 14.7^P1) fps
1366x768 Normal/Off AF:4x
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	170.6 (15.2^min, 111.1^P1) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	157.4 (5.24^min, 100^P1) fps
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	153.8 (4.97^min, 90.9^P1) fps
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	148 (4.8^min, 83.3^P1) fps
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	139.1 (7.31^min, 90.9^P1) fps
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	101.9 (27.6^min, 62.5^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (34 - 148, n=42)	87.7 fps
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	26.1 (8.65^min, 15.4^P1) fps
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	25 (1.613^min, 15.2^P1) fps
1920x1080 Normal/Off AF:4x
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	168.4 (5.87^min, 100^P1) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	131.5 (6.41^min, 90.9^P1) fps
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	128.7 (21.5^min, 76.9^P1) fps
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	113.3 (11.4^min, 71.4^P1) fps
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	111 (50.9^min, 76.9^P1) fps
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	74.8 (27^min, 47.6^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (31.7 - 104, n=32)	65.5 fps
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	23.2 (6.94^min, 14.1^P1) fps
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	94.3 (4.05^min, 55.6^P1) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	66.6 (4.46^min, 37^P1) fps
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	65.7 (3.85^min, 40^P1) fps
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	51.9 (5.75^min, 35.7^P1) fps
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	31.3 (2.94^min, 22.7^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (13.8 - 40.6, n=44)	26.1 fps
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	20.9 (10.5^min, 16.7^P1) fps
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	10.8 (3.78^min, 7.94^P1) fps
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	5.59 (0.65^min, 3.32^P1) fps
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	40.1 (4.48^min, 27^P1) fps
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	26 (2.62^min, 17.5^P1) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	25.7 (4.34^min, 14.1^P1) fps
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	24 (5.07^min, 15.9^P1) fps
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	12.7 (2.71^min, 9.35^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (6 - 18.2, n=41)	11.1 fps
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	8.8 (4.66^min, 7.35^P1) fps

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	139 fps +155%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	114.6 fps +110%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	98.6 fps +81%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	83.8 fps +54%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (54.5 - 82.2, n=7)	66.4 fps +22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	57.7 fps +6%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	54.5 fps
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	14.5 fps -73%
1920x1080 Low Preset (DX12)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	74.6 fps +173%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	61 fps +123%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	50.4 fps +85%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	48.8 fps +79%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (25.4 - 38.4, n=7)	32.6 fps +19%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32.3 fps +18%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27.3 fps
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	5.43 fps -80%
1920x1080 Medium Preset (DX12)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	52.2 fps +143%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	45.1 fps +110%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	40.6 fps +89%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	36.2 fps +68%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.4 fps +18%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (18.7 - 29.1, n=7)	24.4 fps +13%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21.5 fps
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	6.63 fps -69%
1920x1080 High Preset (DX12)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	36.6 fps +165%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	31.2 fps +126%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	29.9 fps +117%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	29.1 fps +111%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	15.9 fps +15%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (11.5 - 18.6, n=7)	15.4 fps +12%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.8 fps
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	4.25 fps -69%
1920x1080 Badass Preset (DX12)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.5 fps +186%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	26.5 fps +157%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	24.4 fps +137%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	24.1 fps +134%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	13.5 fps +31%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (8.19 - 15, n=7)	11.3 fps +10%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10.3 fps

Witcher 3 FPS Chart

GMK NucBox M5: Ø60.7 (40-63)

	low	med.	high	ultra
The Witcher 3 (2015)	67.6	43.3	22	13.7
Dota 2 Reborn (2015)	99.7	80.6	50.5	47.6
Final Fantasy XV Benchmark (2018)	35.2	18	13.1
X-Plane 11.11 (2018)	40.4	27.3	25.1
Far Cry 5 (2018)	42	20	19	17
Strange Brigade (2018)	79.8	32.4	26.8	22.7
Tiny Tina's Wonderlands (2022)	27.3	21.5	13.8	10.3
F1 22 (2022)	35.7	32.3	23.8	16.8
Baldur's Gate 3 (2023)	14.2
Cyberpunk 2077 2.1 Phantom Liberty (2023)	13.8	10.9	9.17

排放量

系统噪音

无论屏幕负载或配置文件设置如何，风扇噪音始终保持在 33.8 分贝（A）的最低水平。在客厅等 HTPC 环境中，可以听到安静的呼呼声，但不会大到让人分心。

值得庆幸的是，风扇转速范围相当窄，因此最大和最小风扇噪音之间的差异相对较小。例如，与 NucBox K6 或 Acemagic F2A 超过 48 dB(A) 的噪音相比，我们能记录到的最大噪音仅为 37 dB(A)。 Acemagic F2A.

风扇噪音曲线（白色：背景，红色：系统空闲，蓝色：3DMark 06，橙色：3DMark 06，绿色：3DMark 06，橙色：3DMark 06Witcher 3绿色Prime95+FurMark 压力）

Noise Level

Idle		33.8 / 33.8 / 33.8 dB(A)
Load		36.5 / 36.9 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 23.4 dB(A)

温度

由于机箱四周通风良好，表面温度不成问题。该系统使用了两个风扇，与 NucBox K6 很相似，尽管考虑到低功耗的酷睿 U 系列 CPU，一个风扇可能就足够了。

能源管理

耗电量

运行 Witcher 3典型的高负载情况下，功耗约为 35 W，略低于 NucBox K6 需求的一半。节省的电量足以让 NucBox M5 比其他大多数迷你电脑更高效，这也与较低的最大风扇噪音和 TDP 上限有关。然而，CPU 和 GPU 性能却因此受到影响。

与 NucBox K6 附带的 130 瓦适配器相比，该机型配备的 65 瓦交流适配器要小得多（约 6.8 x 6.8 x 3.2 厘米）。支持第三方 USB-C AC 适配器。

(编者注：本月晚些时候，当我们的 Metrahit Energy 万用表维修完毕后，我们将更新本节内容。不便之处，敬请谅解。）

Power Consumption

Off / Standby	0.59 / 1.3 Watt
Idle	5.9 / 6.2 / 6.4 Watt
Load	28.2 / 29.5 Watt


Key: min: , med: , max: Metrahit Energy

	GMK NucBox M5 R7 5700U, Vega 8, Lexar 1024GB LNM6A1X001T-HNNNG, , x,	GMK NucBox M4 i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H), Lexar NM620 512GB, , x,	GMK NucBox K6 R7 7840HS, Radeon 780M, MasonSemi 1TB MC7000, , x,	Acemagic F2A Ultra 7 155H, Arc 8-Core, Kingston OM8SEP1024Q-A0, , x,	Geekom A7 R9 7940HS, Radeon 780M, Acer N5000, , x,	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x,
Power Consumption		-153%	-96%	-123%	-64%	-88%
Idle Minimum *	5.9	15.2 -158%	6.7 -14%	9.1 -54%	3.8 36%	7 -19%
Idle Average *	6.2	17.2 -177%	7 -13%	10.3 -66%	4.8 23%	9.2 -48%
Idle Maximum *	6.4	17.4 -172%	7.6 -19%	14.4 -125%	6.5 -2%	11.8 -84%
Load Average *	28.2	40 -42%	74.3 -163%	54.9 -95%	71.9 -155%	45 -60%
Witcher 3 ultra *	27.5	50.6 -84%	75 -173%
Load Maximum *	29.5	112.8 -282%	85.7 -191%	110.4 -274%	94.7 -221%	97.2 -229%

* ... smaller is better

Power Consumption Witcher 3 / Stresstest

GMK NucBox M5 R7 5700U, Vega 8; Witcher 3 ultra: Ø27.5 (26.7-28.1)

Beelink SER5 R5 5560U, Vega 6; Witcher 3 ultra: Ø28.8 (28.3-30.6)

GMK NucBox M5 R7 5700U, Vega 8; 1280x720 Prime95 28.10 and Furmark 1.25: Ø27.7 (27.4-29.5)

Beelink SER5 R5 5560U, Vega 6; 1280x720 Prime95 28.10 and Furmark 1.25: Ø39 (38.6-40.4)

Power Consumption external Monitor

GMK NucBox M5 R7 5700U, Vega 8; Prime95 V2810 Stress (external Monitor): Ø27.6 (27.3-28)

Beelink SER5 R5 5560U, Vega 6; Prime95 V2810 Stress (external Monitor): Ø39.5 (39-39.9)

GMK NucBox M5 R7 5700U, Vega 8; Cinebench R15 Multi (external Monitor): Ø25.6 (25-25.9)

Beelink SER5 R5 5560U, Vega 6; Cinebench R15 Multi (external Monitor): Ø35.2 (34.9-35.4)

GMK NucBox M5 R7 5700U, Vega 8; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø30.1 (29.6-30.5)

Beelink SER5 R5 5560U, Vega 6; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø31.2 (30.5-32)

GMK NucBox M5 R7 5700U, Vega 8; 1920x1080 The Witcher 3 ultra (external Monitor): Ø27.5 (26.7-28.1)

Beelink SER5 R5 5560U, Vega 6; 1920x1080 The Witcher 3 ultra (external Monitor): Ø28.8 (28.3-30.6)

GMK NucBox M5 R7 5700U, Vega 8; Idle 1min (external Monitor): Ø6.26 (6.02-7.71)

Beelink SER5 R5 5560U, Vega 6; Idle 1min (external Monitor): Ø4.46 (4.19-5.88)

结论：有更好的选择

NucBox M5 目前的售价为 300 至 380 美元（含内存和存储空间）。与此同时 NucBox K6的 CPU 和 GPU 性能是 M5 的 2 倍至 2.5 倍，但体积和重量却没有增加。毋庸置疑，既然 GMktec 已经提供了客观上更好的替代品，而且价格也没贵多少，我们就很难再推荐 NucBox M5 了。即使在 GMK 之外，还有 Beelink SER6的价格也低于 500 美元，而且性能比 NucBox M5 快得多。

NucBox M5 不一定是个糟糕的系统，但在同样低于 500 美元的价格范围内，还有很多速度更快的迷你电脑可供选择。

NucBox M5 有一些突出特点，包括双 2.5 Gbps RJ-45 端口、双风扇和固态硬盘散热片，这些在经济型迷你电脑中都比较少见。尽管如此，糟糕的性价比还是掩盖了该机型可能具有的任何优势。

价格和供应情况

GMKtec NucBox M5 目前的裸机售价为 320 美元，如果配置 32 GB 内存和 1 TB 存储空间，则售价高达 470 美元。

另外，亚马逊上有一款配置 16GB 内存和 512GB 存储空间的产品，售价低于 300 美元。

GMK NucBox M5 - 04/10/2024 v7 ^(old)
Allen Ngo

Chassis

82 / 98 → 84%

Connectivity

60 / 81 → 73%

Weight

83%

Games Performance

63%

Application Performance

92%

Noise

80%

Average

77%

79%

Mini PC - Weighted Average

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Rating	Date	Model	Weight	Height	Resolution
78.9 % v7 ^(old)	04 / 2024	GMK NucBox M5 R7 5700U, Vega 8	505 g	48 mm	x
81.1 % v7 ^(old)	12 / 2023	GMK NucBox M4 i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	951 g	37 mm	x
83.6 % v7 ^(old)	04 / 2024	GMK NucBox K6 R7 7840HS, Radeon 780M	514 g	47 mm	x
83.4 % v7 ^(old)	04 / 2024	Acemagic F2A Ultra 7 155H, Arc 8-Core	768 g	57 mm	x
82.6 % v7 ^(old)	03 / 2024	Geekom A7 R9 7940HS, Radeon 780M	417 g	38 mm	x
83.1 % v7 ^(old)	08 / 2023	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs	558 g	37 mm	x

	CPU 时钟 (GHz)	GPU 时钟 (MHz)	CPU 平均温度 (°C)
系统闲置	--	--	43
Prime95 压力	1.8	--	55
Prime95 + FurMark 压力	1.4	200	55
Witcher 3 压力	~0.5	~1237	53

GMK NucBox M5 迷你电脑评测：AMD Zen 2 已显老态

经济实惠，但已过时。

潜在的竞争对手比较

案例 - 更新设计，改善通风

尺寸比较

连接性

交流

维护

配件和保修

性能 - 2024 年，禅宗 2 不值一提

测试条件

处理器

Cinebench R15 Multi Loop

压力测试

系统性能

DPC 延迟

存储设备

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

图形处理器性能 - 过时的 Radeon RX Vega 8

Witcher 3 FPS Chart

排放量

系统噪音

温度

能源管理

耗电量

Power Consumption Witcher 3 / Stresstest

Power Consumption external Monitor

Pros

Cons

结论：有更好的选择

价格和供应情况

More articles related to this device

Transparency

Price comparison

3DMark 11 Performance		5654 points
3DMark Cloud Gate Standard Score		19551 points
3DMark Fire Strike Score		3295 points
3DMark Time Spy Score		1318 points
Help

	GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
Noise		12%	-9%	-3%	-9%	2%
off / environment *	23.4	22.7 3%	23.2 1%	24.9 -6%	25.4 -9%	25.2 -8%
Idle Minimum *	33.8	24.4 28%	31.3 7%	25.4 25%	33.3 1%	28.1 17%
Idle Average *	33.8	24.4 28%	31.3 7%	25.7 24%	33.6 1%	28.2 17%
Idle Maximum *	33.8	28 17%	33.4 1%	25.7 24%	33.7 -0%	28.3 16%
Load Average *	36.5	28 23%	47.5 -30%	47.8 -31%	43.3 -19%	42 -15%
Witcher 3 ultra *	36.8	33.7 8%	43.6 -18%	45.23 -23%	43.2 -17%
Load Maximum *	36.9	44.6 -21%	47.7 -29%	49 -33%	43.3 -17%	42.1 -14%
