Name: GMK NucBox K6
Brand: GMK

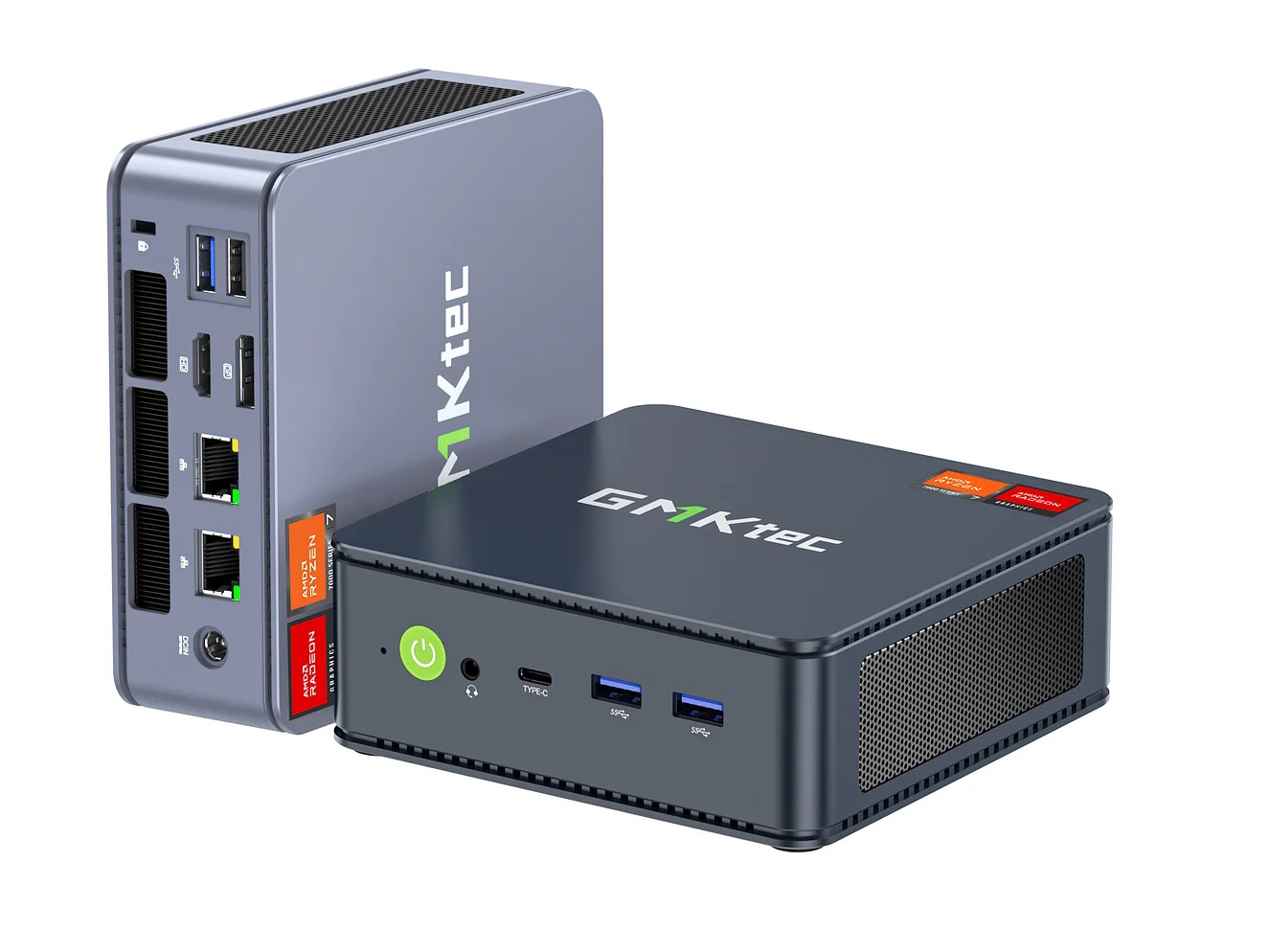

GMK NucBox K6 是该公司最新推出的迷你电脑之一，专为家庭多媒体和流媒体应用而设计。它的直接竞争对手是英特尔 NUC 和 Beelink 迷你电脑，价格在 500 美元左右。

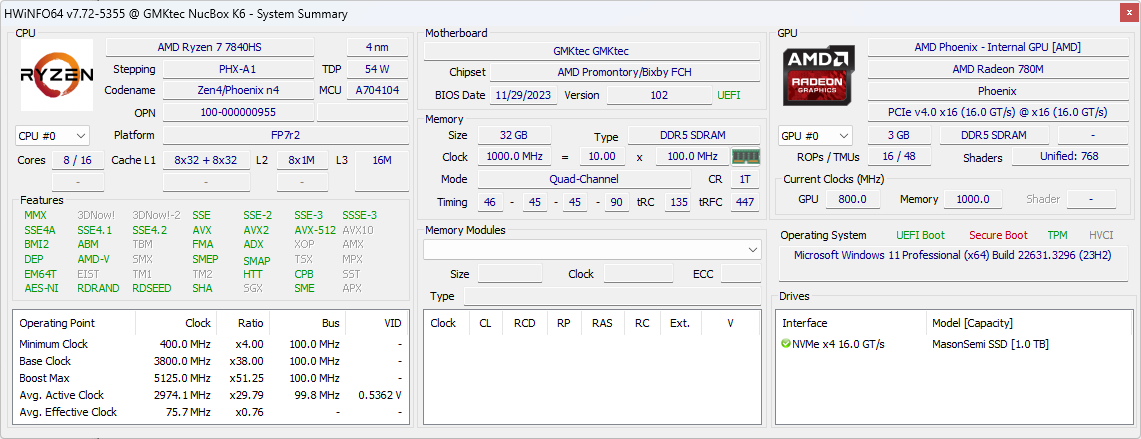

目前的所有配置都配备了 AMD Ryzen 7 7840HSZen 4 CPU，集成 Radeon 780M 图形处理器。如果配置 32 GB 内存、1 TB 存储空间和预装 Windows 11 Pro，裸机 SKU 的价格从 400 美元到 730 美元不等。NucBox K6 的替代产品包括英特尔 NUC 13 Pro, Beelink SER5或 Geekom A7.

更多 GMKtec 评论：

案例

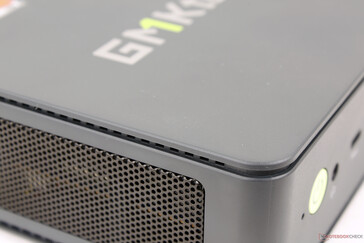

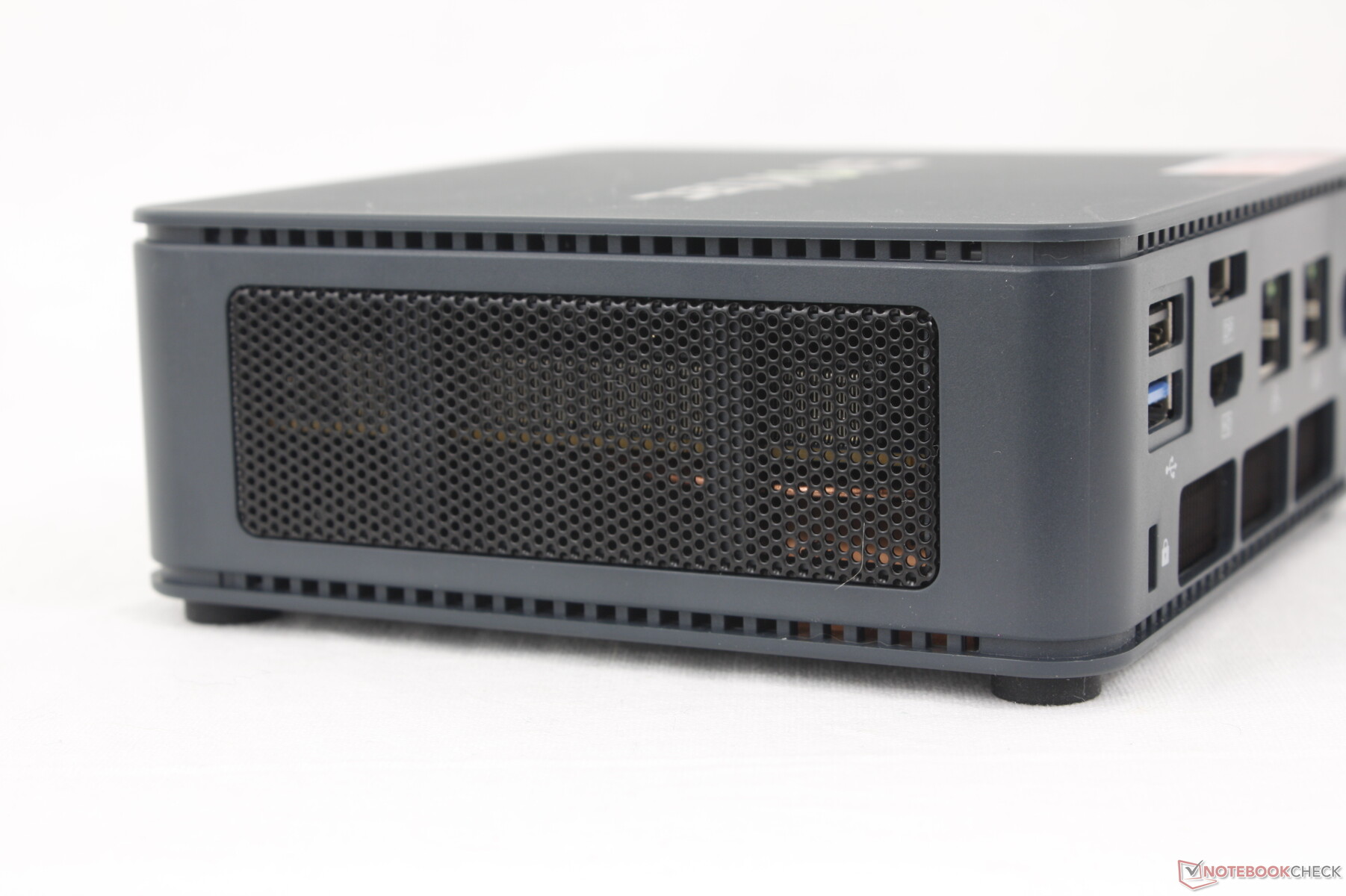

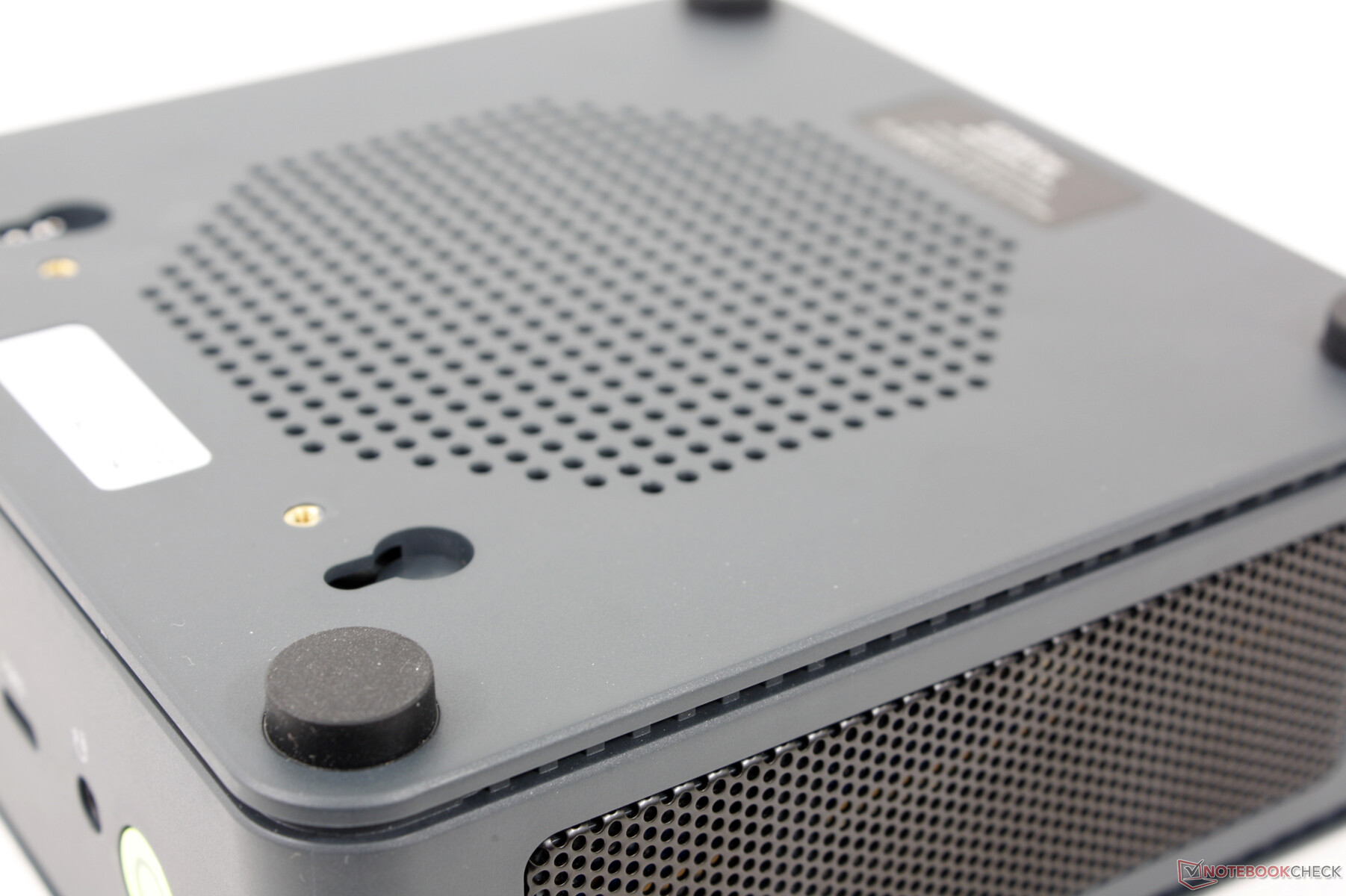

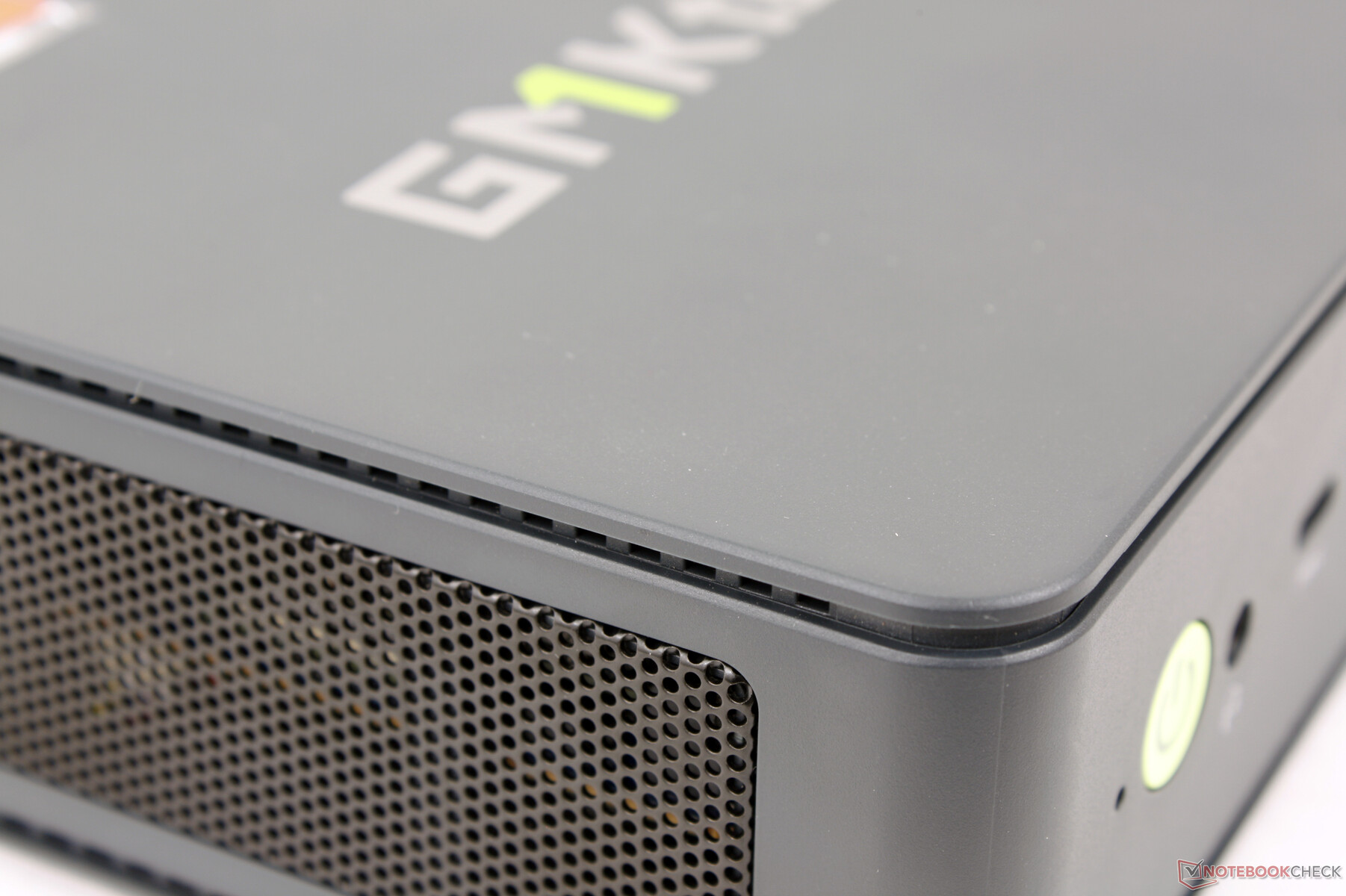

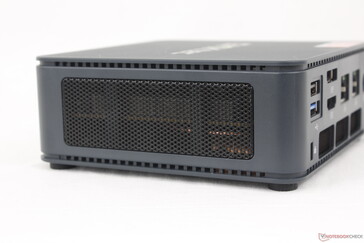

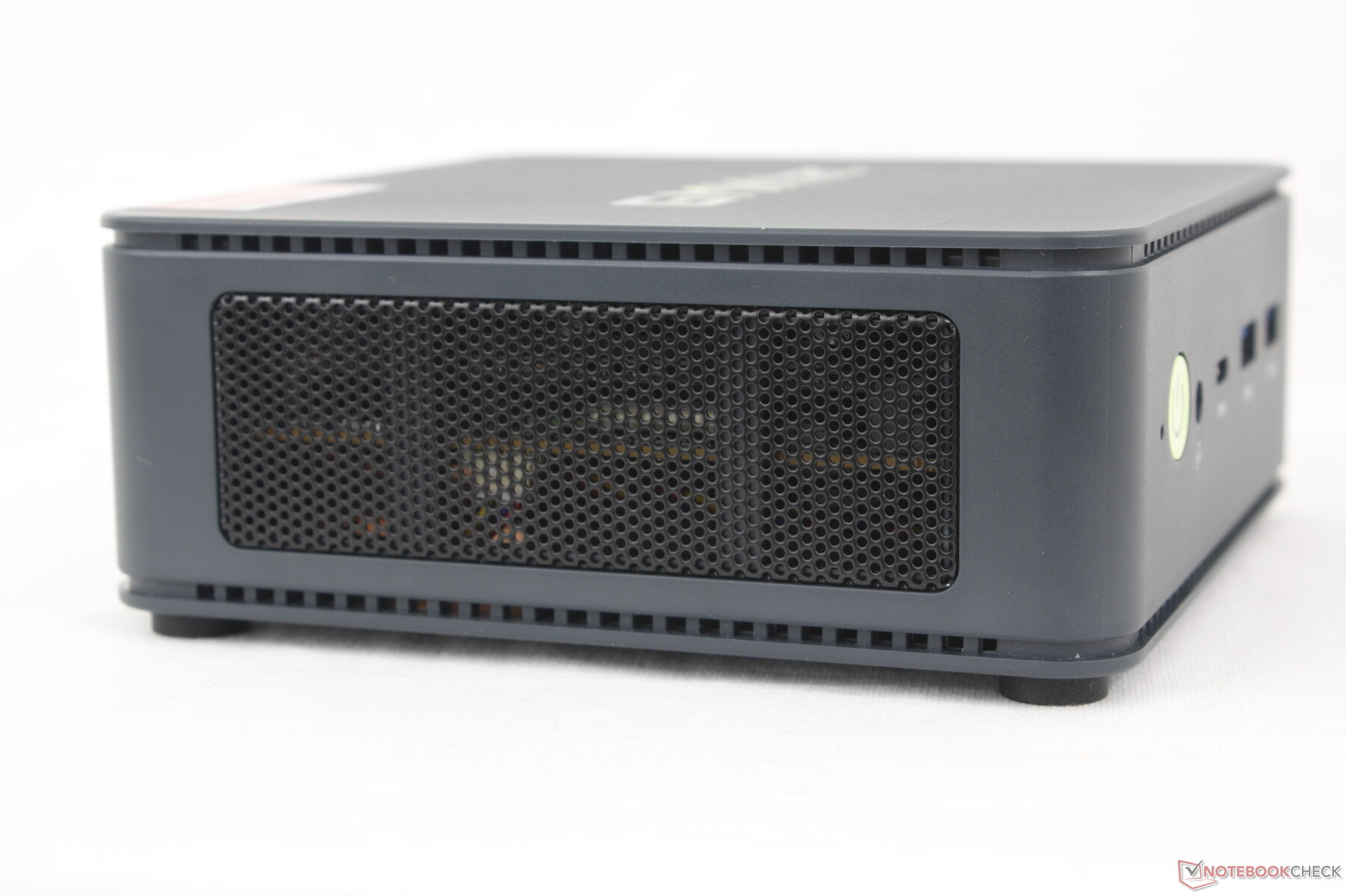

机身顶部和底部由塑料制成，侧面或表面则为金属，这与上一代机型非常相似。不过，如下图所示，今年的新设计是在机身两侧设置了通风缝隙。这种做法使顶部无孔，在不减少气流或散热的情况下更加美观。

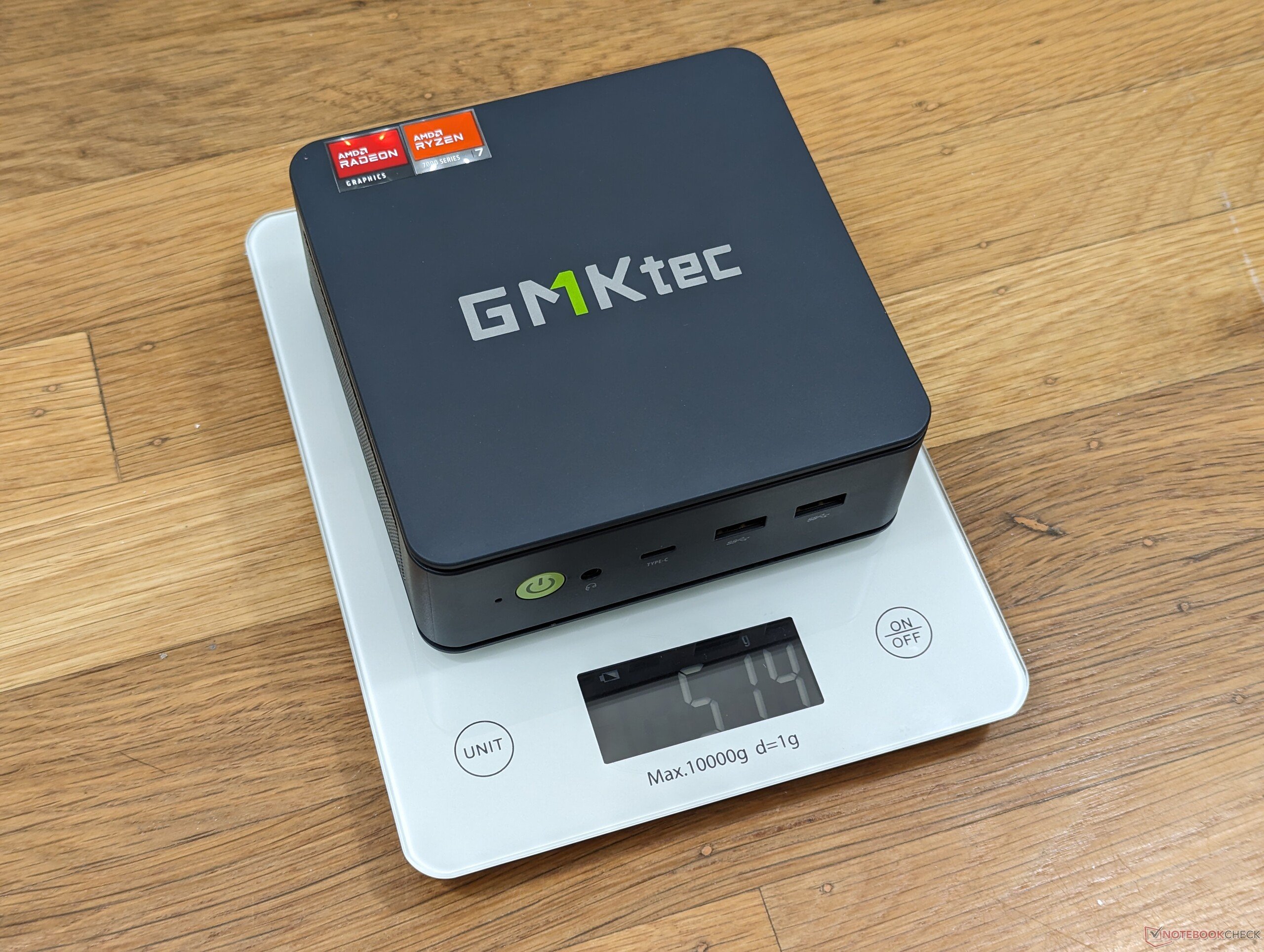

整体尺寸和重量分别比英特尔 NUC 13 Pro.与英特尔 NUC 相比，更薄的机箱使用了更少的金属，这使得 NucBox K6 更容易受到损坏。不过，这并不是一个真正的问题，因为我们并没有看到很多买家把迷你 PC 当作旅行笔记本电脑来不当处理。

尺寸比较

连接性

端口选项有好有坏，取决于用户的偏好。例如，与英特尔 NUC 13 Pro 相比，GMK 包含更多 RJ-45 端口和一个全尺寸 DisplayPort。另一方面，它只有一个 USB-C 端口，而英特尔机型则集成了两个。

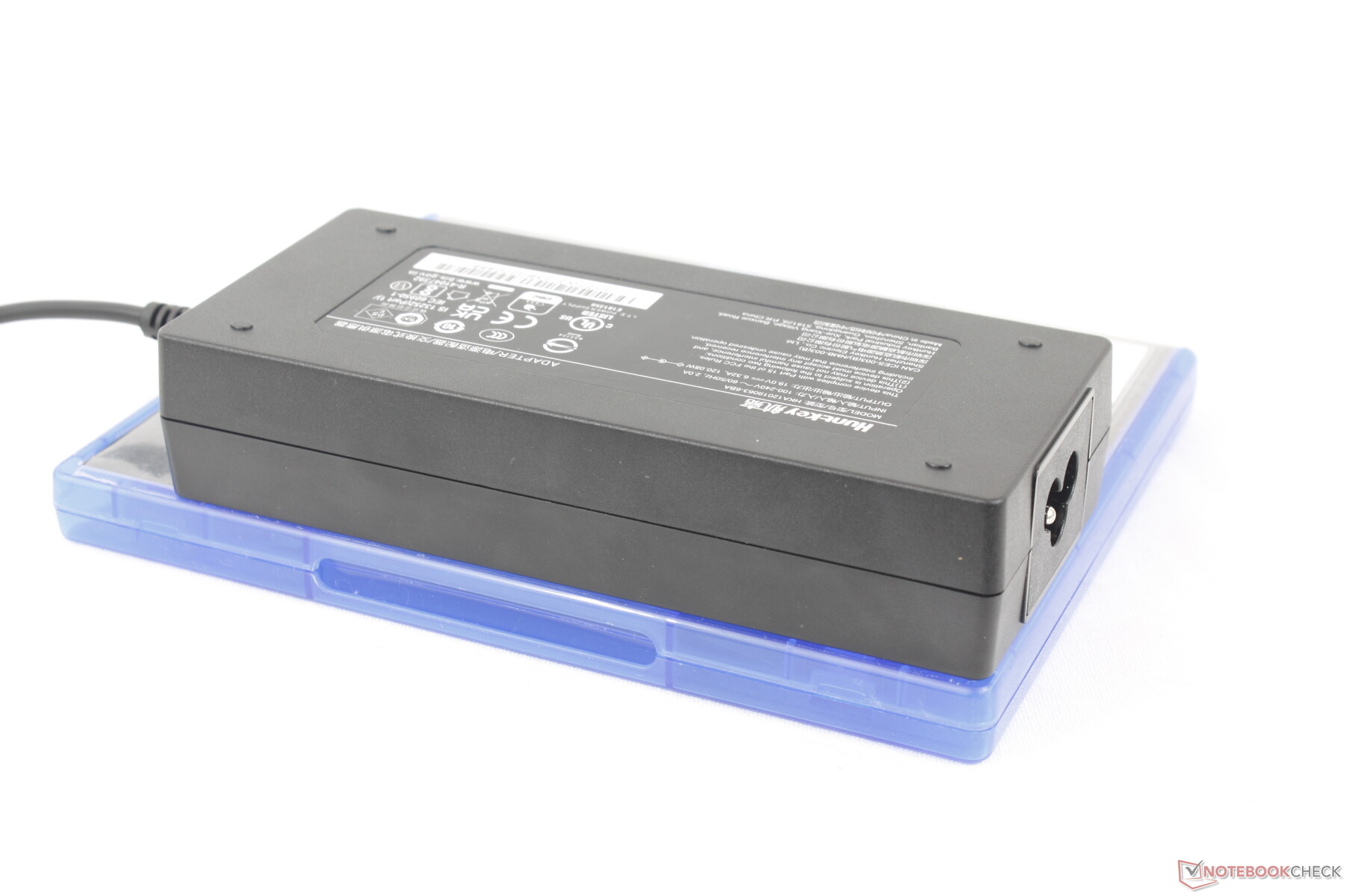

USB-C 4 端口支持 Thunderbolt 设备。还可以使用第三方 USB-C 交流适配器为迷你 PC 供电，而不是依赖专有的桶式适配器；我们从联想购买的 135 W USB-C 交流适配器可以顺利工作。

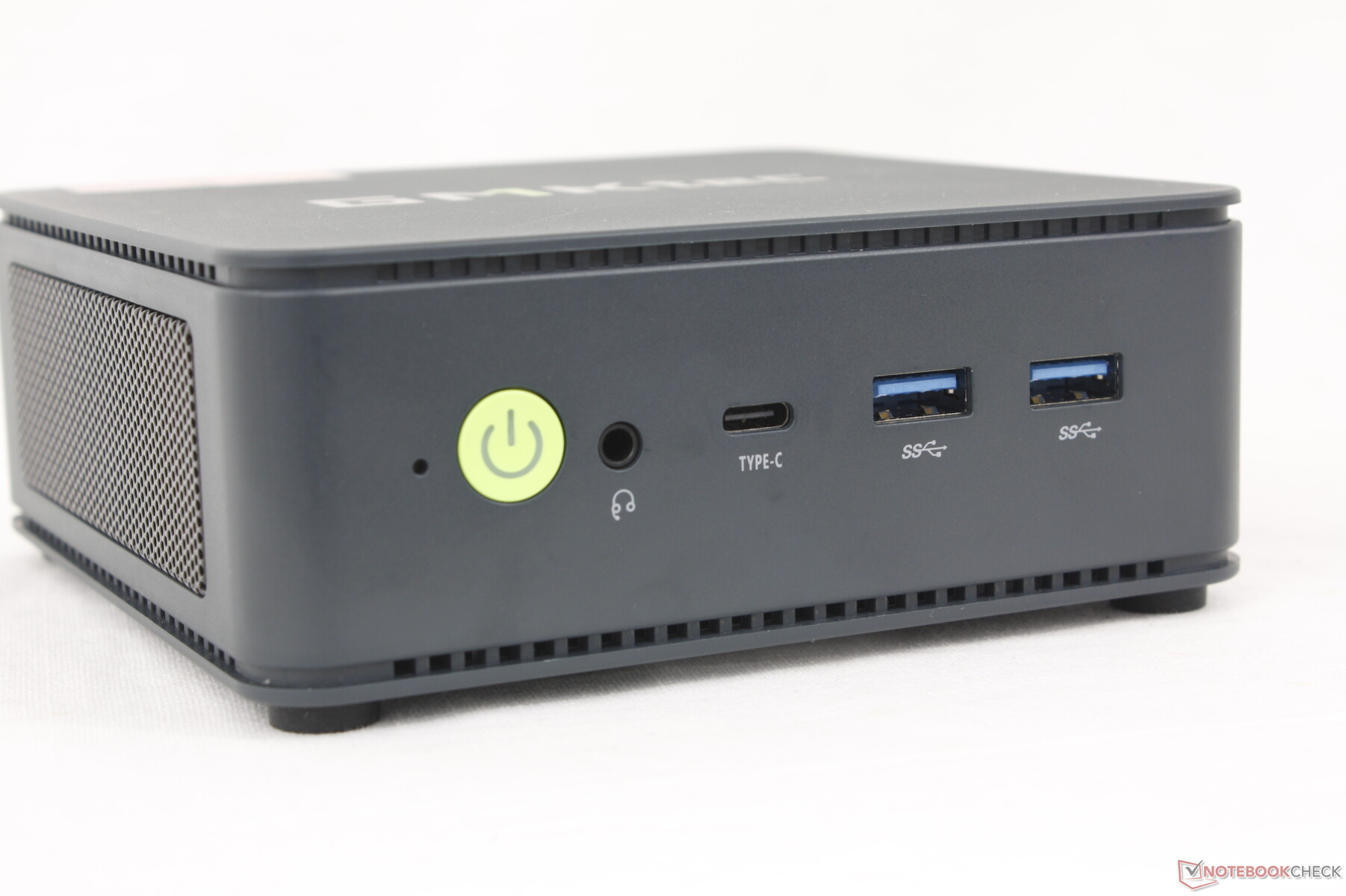

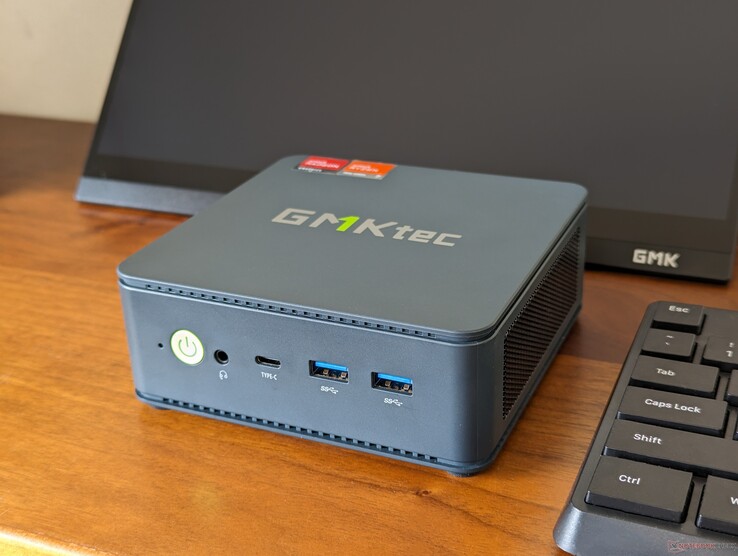

前部电源按钮、3.5 毫米耳机、USB-C 4.0 w/ Power Delivery + DisplayPort、2 个 USB-A 3.2 Gen.

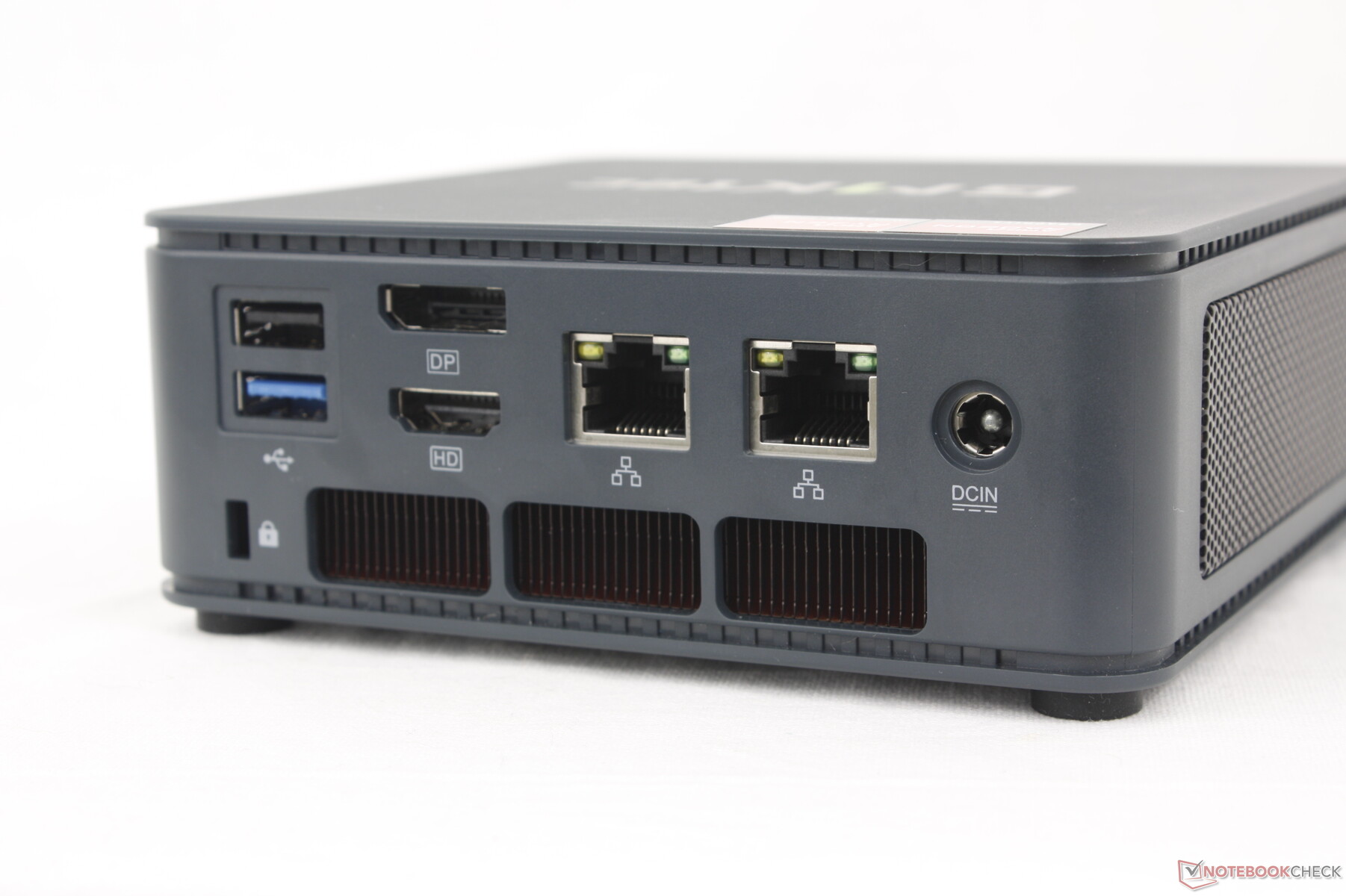

后部USB-A 2.0、USB-A 3.2 Gen.1、DisplayPort (4K60)、HDMI 2.0 (4K60)、2x RJ-45 (2.5Gbps)、Ac 适配器、Kensington 锁

交流

这款仅采用 AMD 技术的机型配备了联发科 RZ616，而不是通常的英特尔 AX 解决方案，用于 Wi-Fi 6E 和蓝牙 5.3 连接。虽然传输速率较慢，但性能稳定可靠。

Networking
iperf3 transmit AXE11000
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1301 (514^min - 1422^max) MBit/s +105%
Beelink SER5 Intel Wi-Fi 6 AX200	1278 (649^min - 1345^max) MBit/s +102%
GMK NucBox K3 Pro Intel Wi-Fi 6 AX201	1171 (923^min - 1342^max) MBit/s +85%
AcePC Wizbox AI Intel Wi-Fi 7 BE200 320MHz	892 (728^min - 980^max) MBit/s +41%
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	831 (755^min - 940^max) MBit/s +31%
GMK NucBox K6 MediaTek RZ616	634 (574^min - 685^max) MBit/s
iperf3 receive AXE11000
Beelink SER5 Intel Wi-Fi 6 AX200	1411 (1230^min - 1580^max) MBit/s +15%
GMK NucBox K3 Pro Intel Wi-Fi 6 AX201	1297 (1164^min - 1393^max) MBit/s +6%
GMK NucBox K6 MediaTek RZ616	1222 (1074^min - 1368^max) MBit/s
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1117 (884^min - 1368^max) MBit/s -9%
AcePC Wizbox AI Intel Wi-Fi 7 BE200 320MHz	963 (950^min - 971^max) MBit/s -21%
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	858 (827^min - 886^max) MBit/s -30%
iperf3 transmit AXE11000 6GHz
AcePC Wizbox AI Intel Wi-Fi 7 BE200 320MHz	1646 (1280^min - 1762^max) MBit/s +281%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1511 (1451^min - 1552^max) MBit/s +250%
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1367 (1268^min - 1443^max) MBit/s +216%
GMK NucBox K6 MediaTek RZ616	432 (212^min - 471^max) MBit/s
iperf3 receive AXE11000 6GHz
AcePC Wizbox AI Intel Wi-Fi 7 BE200 320MHz	1634 (750^min - 1729^max) MBit/s +66%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1448 (1357^min - 1490^max) MBit/s +47%
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1375 (688^min - 1438^max) MBit/s +40%
GMK NucBox K6 MediaTek RZ616	984 (937^min - 1048^max) MBit/s

GMK NucBox K6; iperf3 transmit AXE11000; iperf 3.1.3: Ø633 (574-685)

GMK NucBox K6; iperf3 receive AXE11000; iperf 3.1.3: Ø1221 (1074-1368)

维护

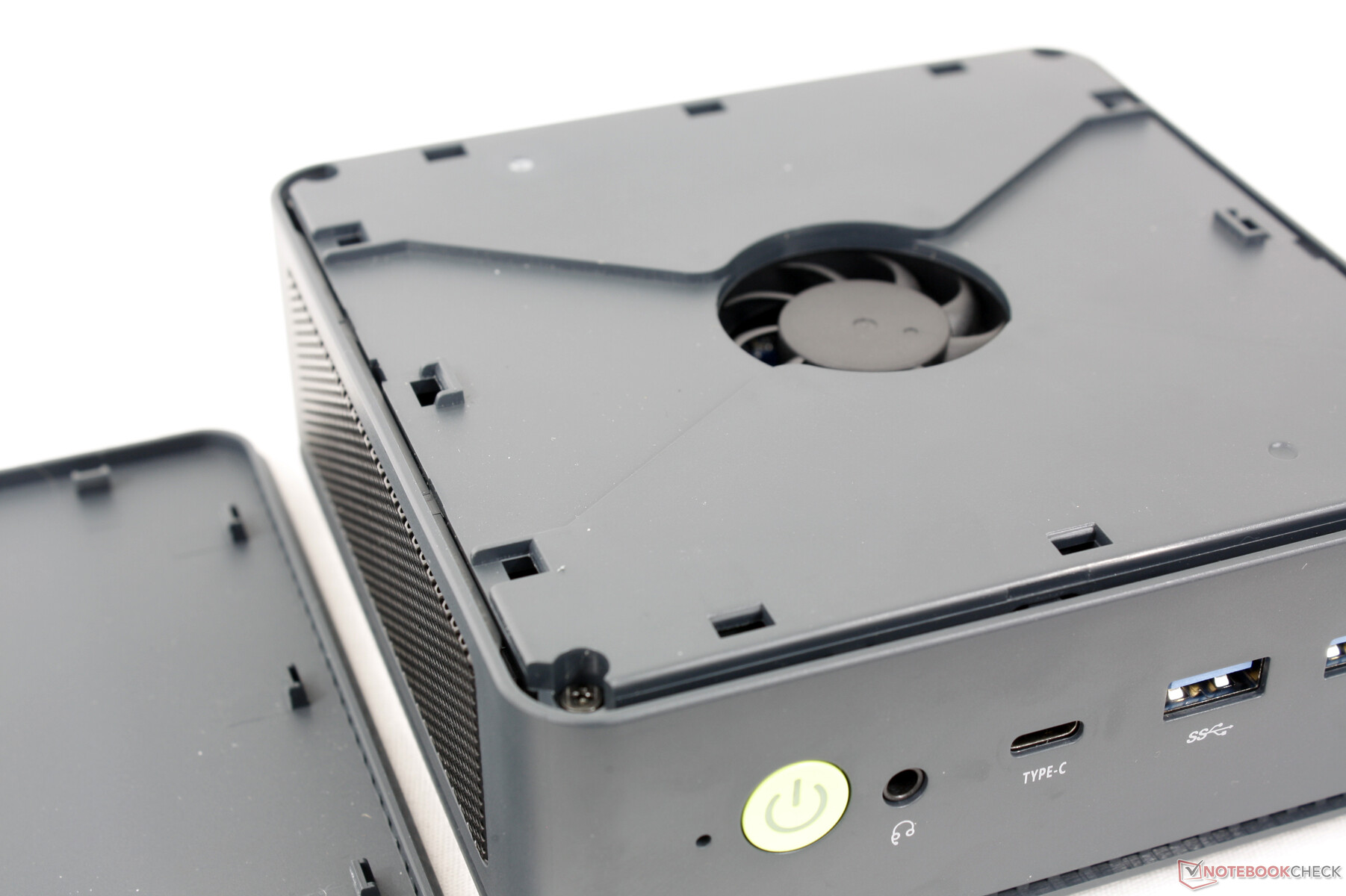

与其他大多数微型电脑不同的是，可从顶部而非底部接触到可升级的组件。虽然外盖无需任何工具即可拆卸，但下方的风扇盖仍需要螺丝刀。

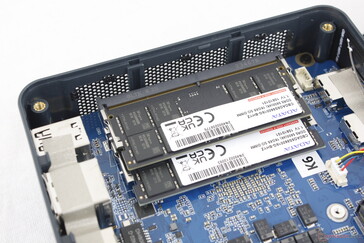

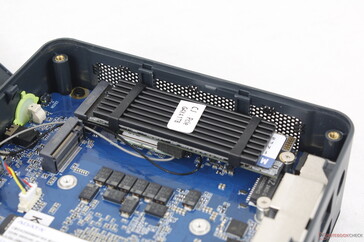

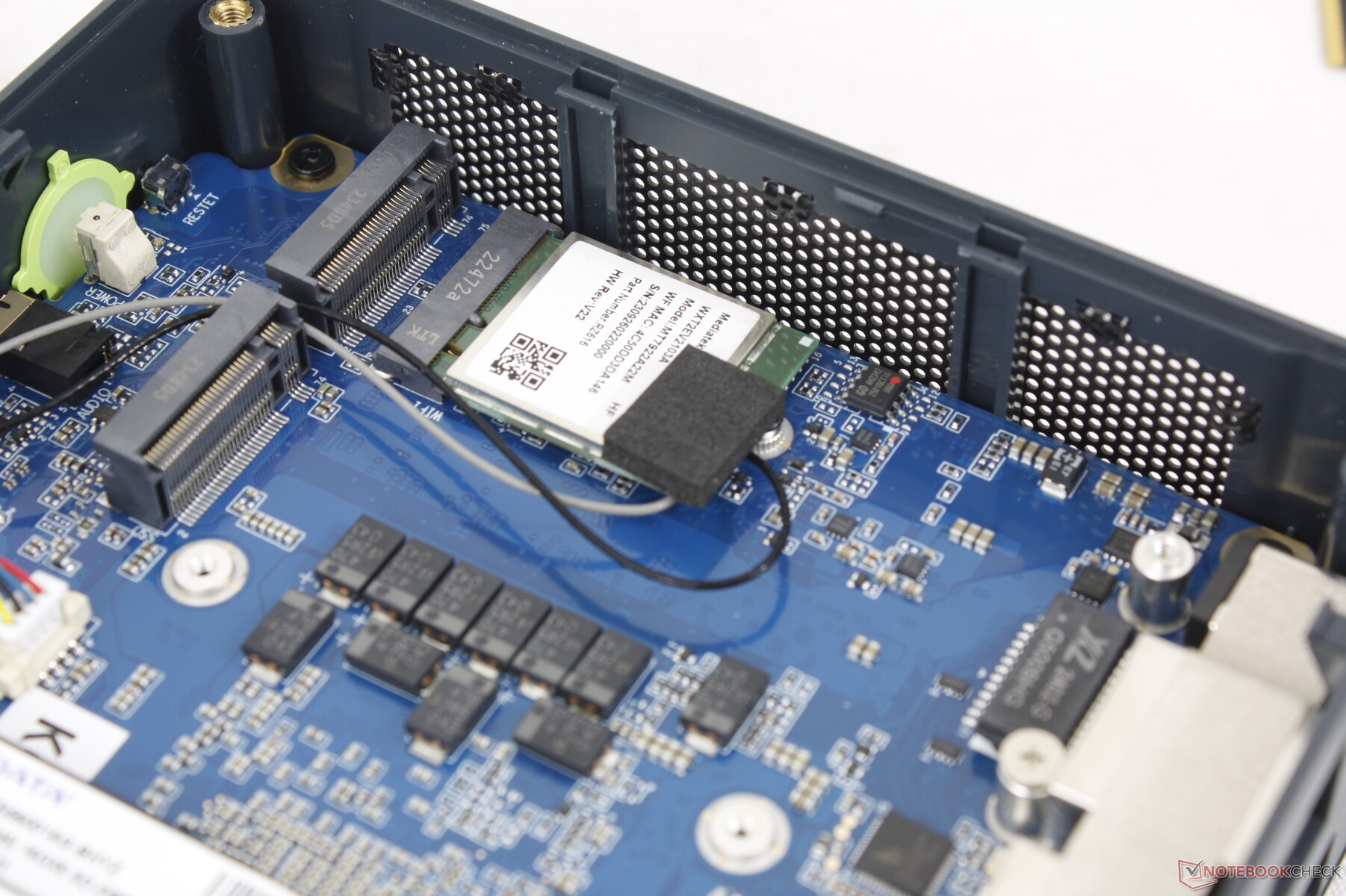

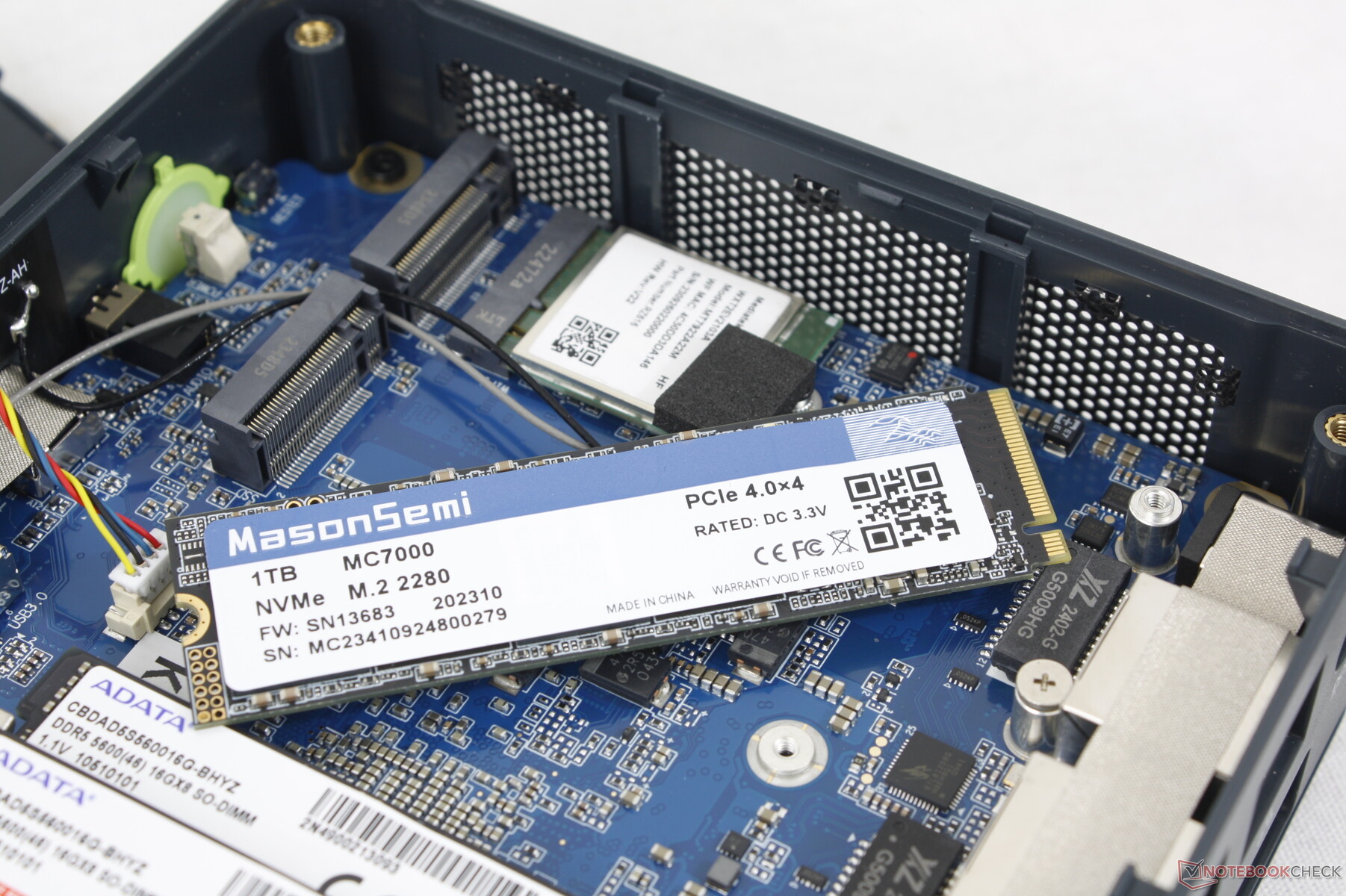

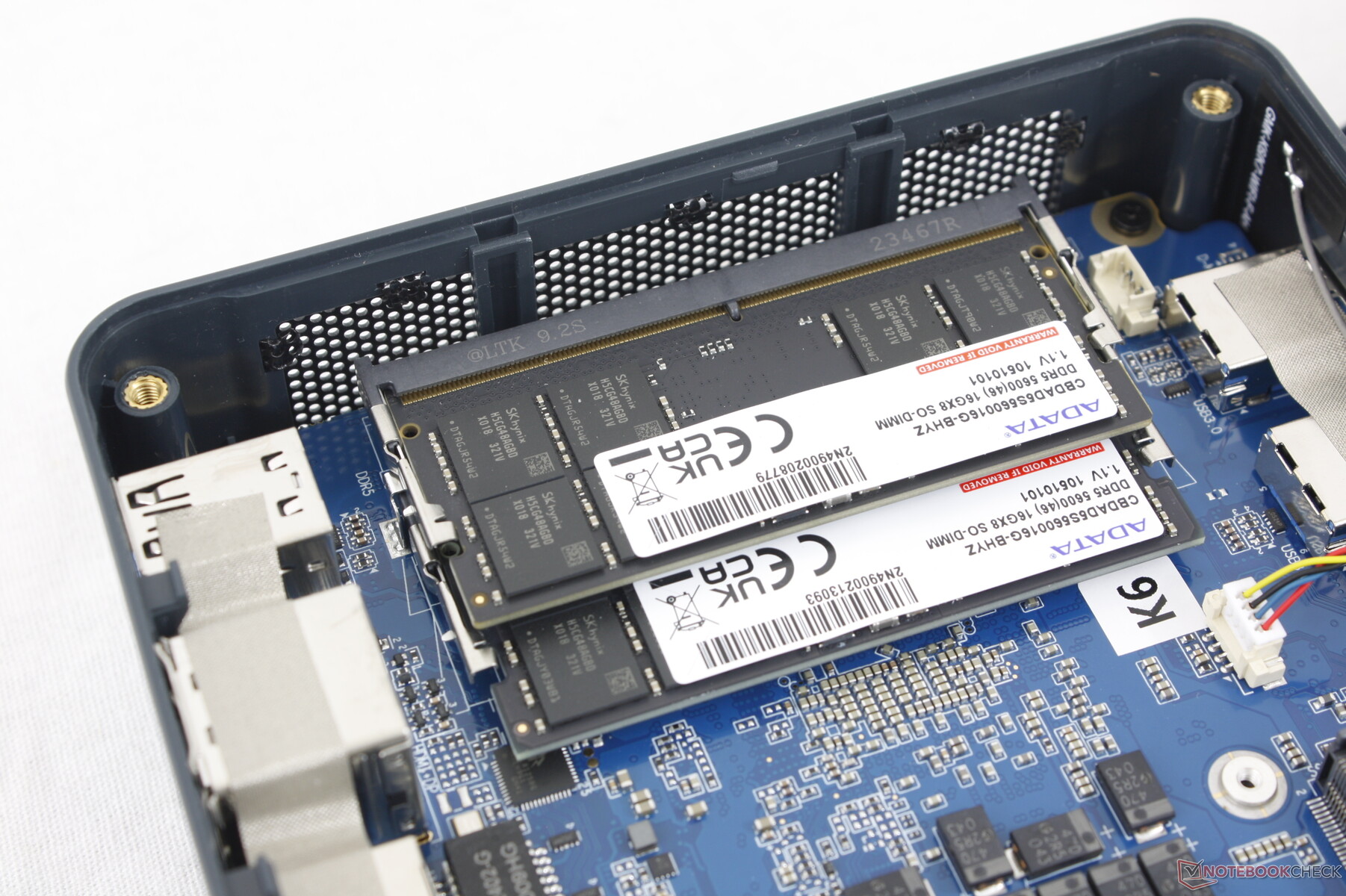

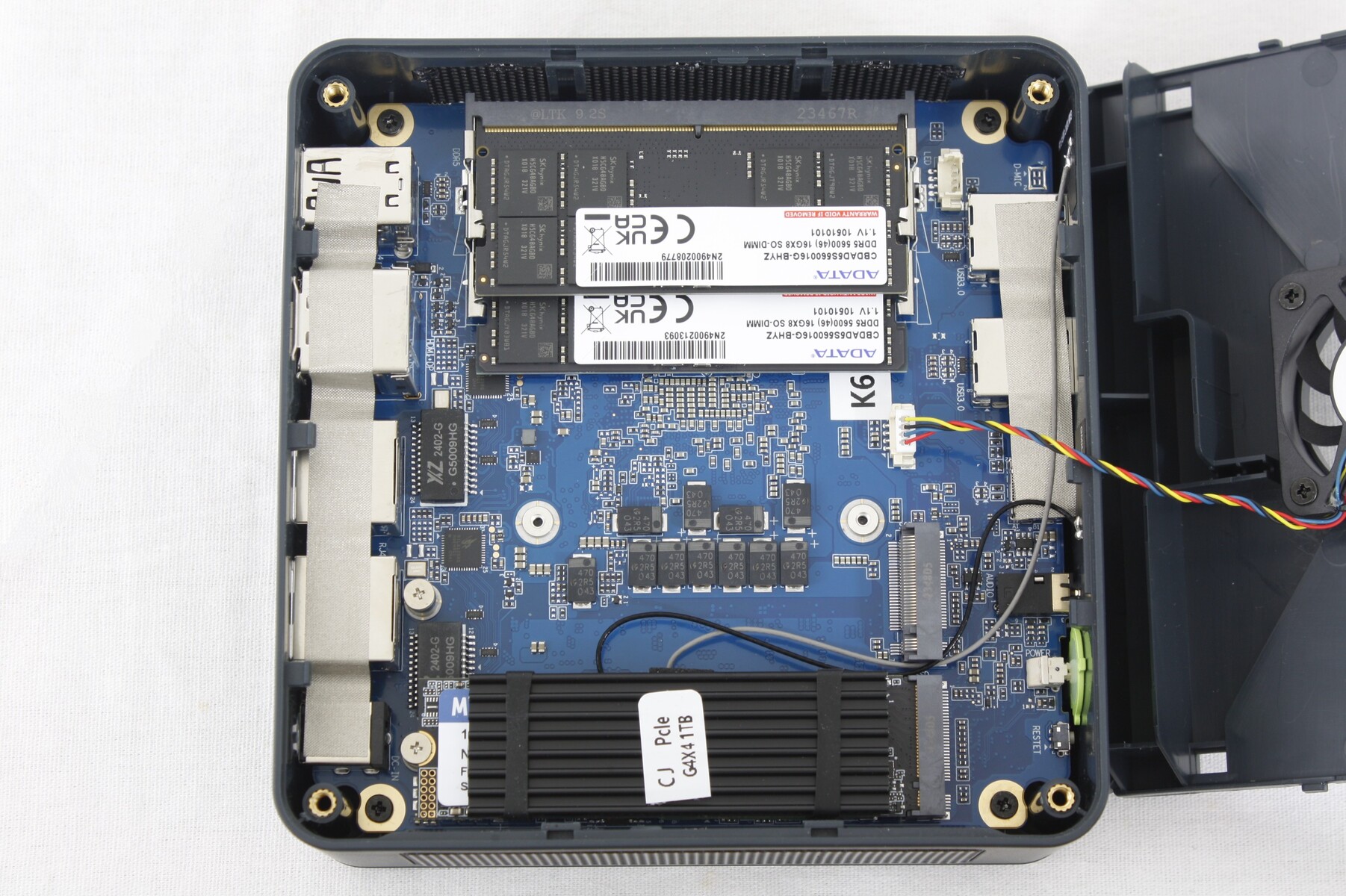

如下图所示，用户可以直接访问两个 SODIMM 内存插槽、WLAN 模块和两个 M.2 PCIe4 x4 2280 SSD 插槽。不支持 2.5 英寸 SATA III。访问冷却解决方案、处理器和辅助风扇需要翻转主板。

配件和保修

零售包装盒包括一根 HDMI 电缆和带螺丝的可拆卸 VESA 支架。如果在美国购买，制造商提供标准的一年有限保修服务。

性能 - AMD Zen 4 依然非常强大

测试条件

在运行以下基准测试之前，我们将 Windows 设置为性能模式。没有预装任何应用程序，以获得纯净的 Windows 用户体验。

处理器

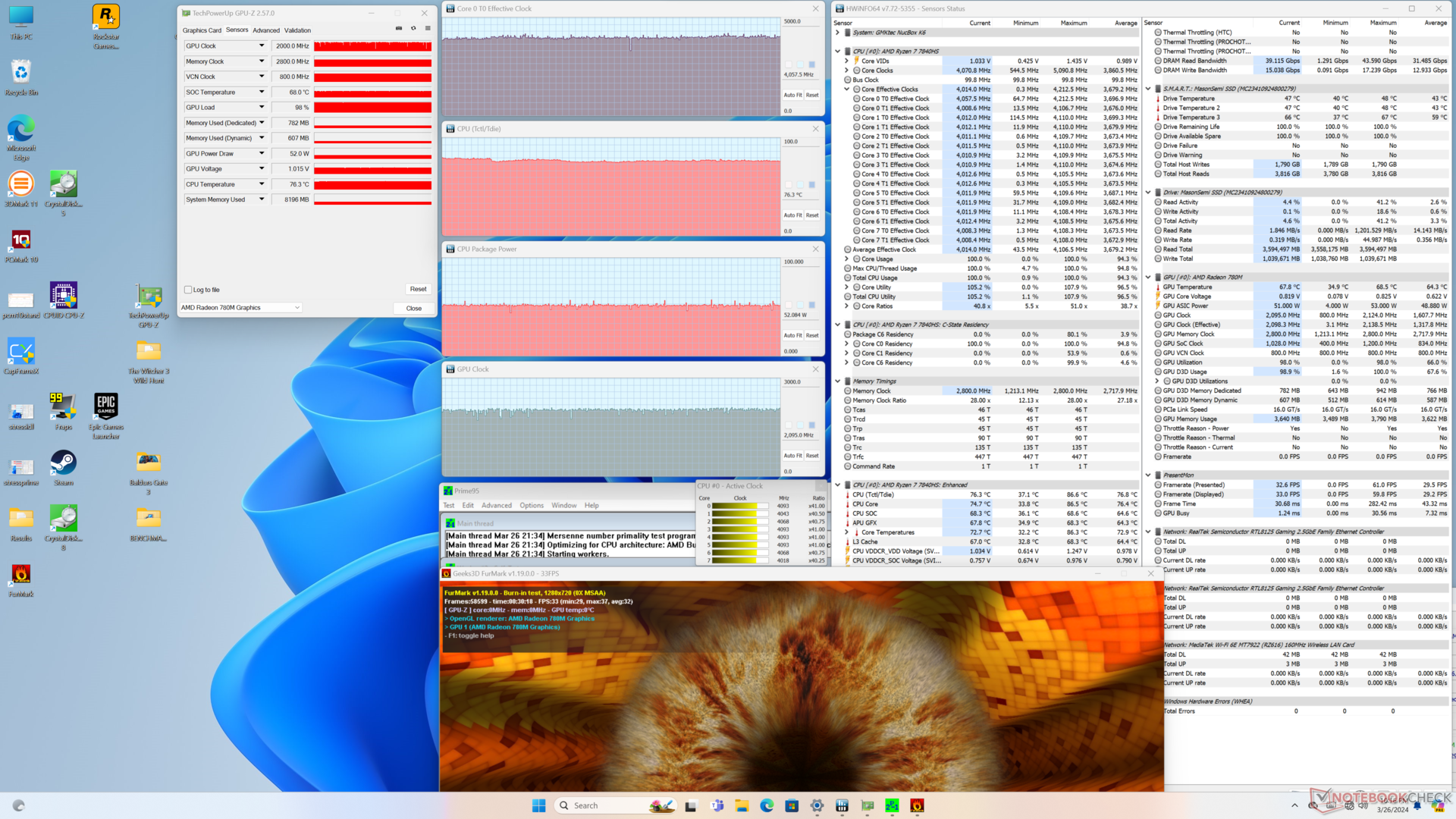

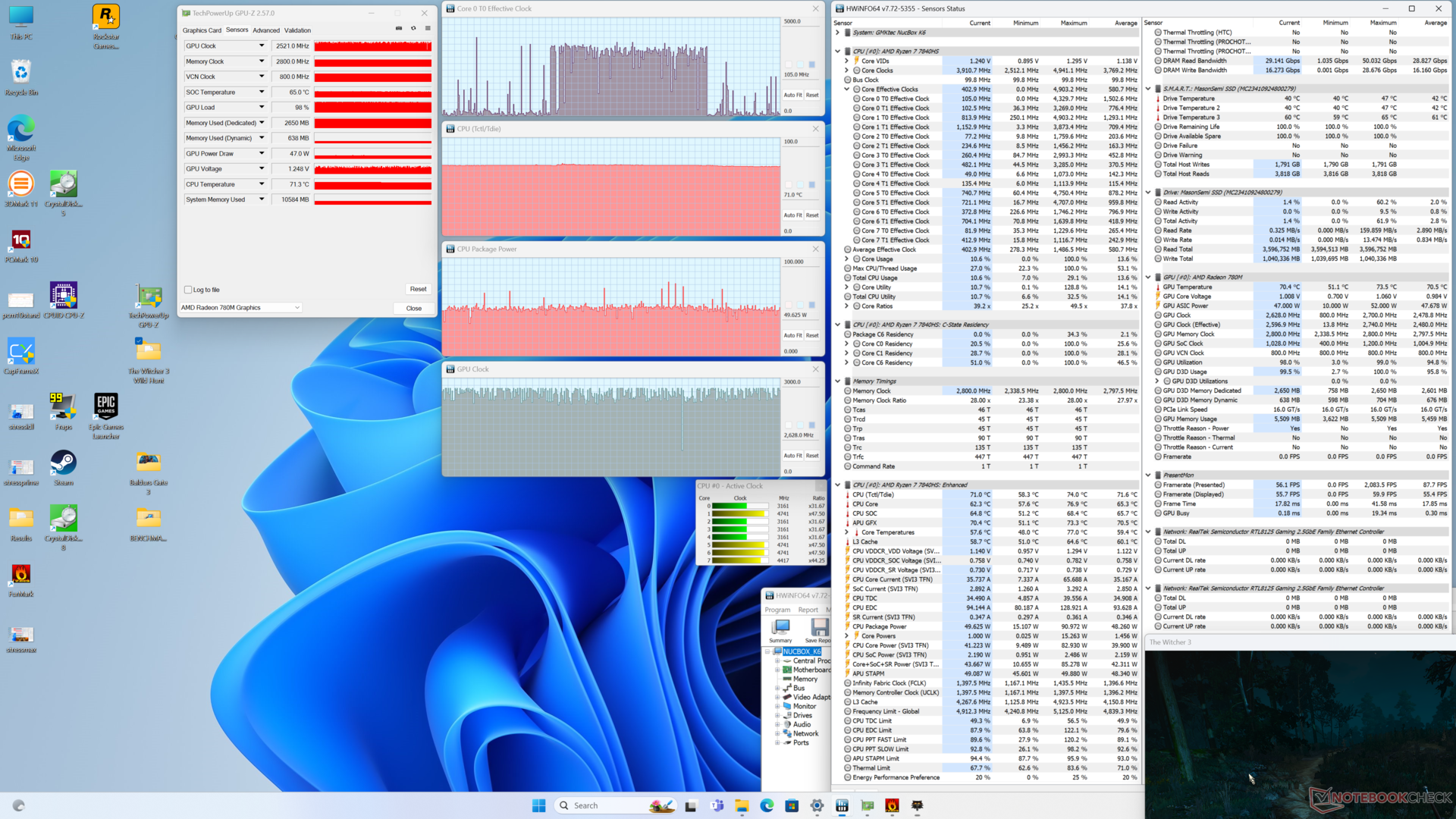

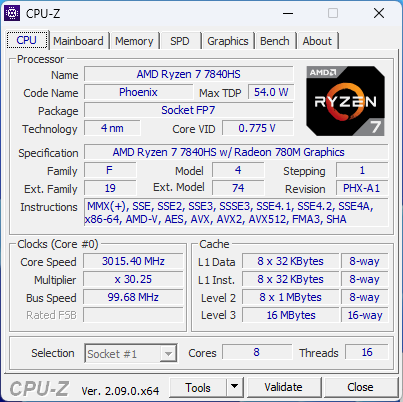

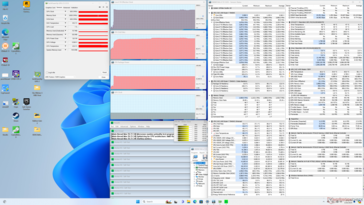

......（英文 Ryzen 7 7840HS运行良好，即使在压力测试中也不会出现严重的节流问题。它仍然是 NUC 迷你 PC 最快的 CPU 之一。整体性能与价格更高的 Ryzen 9 7940HS和竞争对手酷睿 i7-13700H中的联想 IdeaCentre Mini.

Cinebench R15 Multi Loop

GMK NucBox K6 AMD Ryzen 7 7840HS: Ø2520 (2510.2-2537.27)

GMK NucBox K3 Pro Intel Core i7-12650H: Ø1420 (1391.69-1691.83)

Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P: Ø1753 (1686.77-2083.33)

Beelink SER5 AMD Ryzen 5 5560U: Ø1274 (1263.74-1280.29)

AcePC Wizbox AI Intel Core Ultra 7 155H: Ø2303 (2192.5-2638.35)

Geekom A7 AMD Ryzen 9 7940HS: Ø2410 (2285.58-2581.81)

Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R23 / Multi Core
Average AMD Ryzen 7 7840HS (15515 - 17214, n=17)	16414 Points +3%
AcePC Wizbox AI Intel Core Ultra 7 155H	16352 Points +3%
GMK NucBox K6 AMD Ryzen 7 7840HS	15947 (9378.75^min - 15947.3^max) Points
Geekom A7 AMD Ryzen 9 7940HS	15556 Points -2%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	14465 (9293.64^min - 14465.4^max) Points -9%
Geekom Mini IT13 Intel Core i9-13900H	13846 (12336.6^min - 13845.9^max) Points -13%
Geekom Mini IT13 Intel Core i9-13900H	13817 (12209.7^min - 13817.2^max) Points -13%
Geekom Mini IT13 Intel Core i9-13900H	13811 Points -13%
Aoostar GOD77 AMD Ryzen 7 7735HS	13034 Points -18%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	12155 Points -24%
Beelink GTR6 AMD Ryzen 9 6900HX	11862 (11361.7^min - 11862.4^max) Points -26%
Beelink SER6 Pro AMD Ryzen 7 6800H	11481 (10813.7^min - 11481.3^max) Points -28%
GMK NucBox M4 Intel Core i9-11900H	11135 (10740.5^min - 11134.5^max) Points -30%
GMK NucBox K3 Pro Intel Core i7-12650H	10691 (9260.68^min - 10691.5^max) Points -33%
Beelink SER5 AMD Ryzen 5 5560U	7667 (7546.82^min - 7667.18^max) Points -52%
GMK NucBox M3 Intel Core i5-12450H	7662 (7500.47^min - 7661.93^max) Points -52%
Acemagic Tank03 Intel Core i9-12900H	7359 Points -54%

Cinebench R23 / Single Core
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1898 Points +7%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1878 Points +6%
AcePC Wizbox AI Intel Core Ultra 7 155H	1801 Points +2%
GMK NucBox K3 Pro Intel Core i7-12650H	1792 Points +1%
GMK NucBox K6 AMD Ryzen 7 7840HS	1770 Points
Average AMD Ryzen 7 7840HS (1718 - 1812, n=17)	1768 Points 0%
Geekom A7 AMD Ryzen 9 7940HS	1747 Points -1%
Geekom Mini IT13 Intel Core i9-13900H	1737 Points -2%
GMK NucBox M3 Intel Core i5-12450H	1688 Points -5%
Acemagic Tank03 Intel Core i9-12900H	1634 Points -8%
Beelink GTR6 AMD Ryzen 9 6900HX	1608 Points -9%
GMK NucBox M4 Intel Core i9-11900H	1605 Points -9%
Aoostar GOD77 AMD Ryzen 7 7735HS	1557 Points -12%
Beelink SER6 Pro AMD Ryzen 7 6800H	1506 Points -15%
Beelink SER5 AMD Ryzen 5 5560U	1260 Points -29%

Cinebench R20 / CPU (Multi Core)
Average AMD Ryzen 7 7840HS (6061 - 6744, n=17)	6414 Points +3%
Geekom A7 AMD Ryzen 9 7940HS	6277 Points 0%
GMK NucBox K6 AMD Ryzen 7 7840HS	6250 Points
AcePC Wizbox AI Intel Core Ultra 7 155H	6033 Points -3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	5800 Points -7%
Geekom Mini IT13 Intel Core i9-13900H	5308 Points -15%
Aoostar GOD77 AMD Ryzen 7 7735HS	5078 Points -19%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	4687 Points -25%
Beelink GTR6 AMD Ryzen 9 6900HX	4619 Points -26%
Beelink SER6 Pro AMD Ryzen 7 6800H	4460 Points -29%
GMK NucBox M4 Intel Core i9-11900H	4324 Points -31%
GMK NucBox K3 Pro Intel Core i7-12650H	4058 Points -35%
Beelink SER5 AMD Ryzen 5 5560U	3019 Points -52%
GMK NucBox M3 Intel Core i5-12450H	2952 Points -53%
Acemagic Tank03 Intel Core i9-12900H	2681 Points -57%

Cinebench R20 / CPU (Single Core)
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	723 Points +5%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	721 Points +5%
Geekom A7 AMD Ryzen 9 7940HS	692 Points +1%
GMK NucBox K3 Pro Intel Core i7-12650H	691 Points 0%
GMK NucBox K6 AMD Ryzen 7 7840HS	688 Points
Average AMD Ryzen 7 7840HS (661 - 705, n=17)	686 Points 0%
AcePC Wizbox AI Intel Core Ultra 7 155H	681 Points -1%
Geekom Mini IT13 Intel Core i9-13900H	664 Points -3%
GMK NucBox M3 Intel Core i5-12450H	646 Points -6%
Beelink GTR6 AMD Ryzen 9 6900HX	631 Points -8%
Acemagic Tank03 Intel Core i9-12900H	624 Points -9%
GMK NucBox M4 Intel Core i9-11900H	615 Points -11%
Aoostar GOD77 AMD Ryzen 7 7735HS	599 Points -13%
Beelink SER6 Pro AMD Ryzen 7 6800H	584 Points -15%
Beelink SER5 AMD Ryzen 5 5560U	498 Points -28%

Cinebench R15 / CPU Multi 64Bit
AcePC Wizbox AI Intel Core Ultra 7 155H	2638 (2192.5^min - 2638.35^max) Points +4%
Average AMD Ryzen 7 7840HS (2473 - 2729, n=17)	2598 Points +2%
GMK NucBox K6 AMD Ryzen 7 7840HS	2537 (2510.2^min - 2537.27^max) Points
Geekom Mini IT13 Intel Core i9-13900H	2531 Points 0%
Geekom Mini IT13 Intel Core i9-13900H	2061 (1694.13^min - 2060.69^max) Points -19%
Geekom A7 AMD Ryzen 9 7940HS	2470 Points -3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	2240 (1862.02^min - 2240.14^max) Points -12%
Aoostar GOD77 AMD Ryzen 7 7735HS	2077 Points -18%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1990 Points -22%
Beelink GTR6 AMD Ryzen 9 6900HX	1969 (1894.3^min - 1968.5^max) Points -22%
Beelink SER6 Pro AMD Ryzen 7 6800H	1931 (1821.83^min - 1930.5^max) Points -24%
GMK NucBox M4 Intel Core i9-11900H	1770 (1710.13^min - 1769.75^max) Points -30%
GMK NucBox K3 Pro Intel Core i7-12650H	1692 (1391.69^min - 1691.83^max) Points -33%
Acemagic Tank03 Intel Core i9-12900H	1395 Points -45%
Beelink SER5 AMD Ryzen 5 5560U	1280 (1263.74^min - 1280.29^max) Points -50%
GMK NucBox M3 Intel Core i5-12450H	1150 (1101.32^min - 1149.92^max) Points -55%

Cinebench R15 / CPU Single 64Bit
GMK NucBox K6 AMD Ryzen 7 7840HS	280 Points
Geekom A7 AMD Ryzen 9 7940HS	278 Points -1%
Average AMD Ryzen 7 7840HS (270 - 286, n=17)	278 Points -1%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	267 Points -5%
Beelink GTR6 AMD Ryzen 9 6900HX	260 Points -7%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	260 Points -7%
GMK NucBox K3 Pro Intel Core i7-12650H	256 Points -9%
AcePC Wizbox AI Intel Core Ultra 7 155H	251 Points -10%
Geekom Mini IT13 Intel Core i9-13900H	248 Points -11%
Geekom Mini IT13 Intel Core i9-13900H	247 Points -12%
Aoostar GOD77 AMD Ryzen 7 7735HS	248 Points -11%
GMK NucBox M4 Intel Core i9-11900H	243 Points -13%
Beelink SER6 Pro AMD Ryzen 7 6800H	242 Points -14%
GMK NucBox M3 Intel Core i5-12450H	238 Points -15%
Acemagic Tank03 Intel Core i9-12900H	235 Points -16%
Beelink SER5 AMD Ryzen 5 5560U	202 Points -28%

Blender / v2.79 BMW27 CPU
Acemagic Tank03 Intel Core i9-12900H	451 Seconds * -127%
GMK NucBox M3 Intel Core i5-12450H	429 Seconds * -116%
Beelink SER5 AMD Ryzen 5 5560U	392 Seconds * -97%
GMK NucBox K3 Pro Intel Core i7-12650H	330 Seconds * -66%
GMK NucBox M4 Intel Core i9-11900H	270 Seconds * -36%
Beelink SER6 Pro AMD Ryzen 7 6800H	268 Seconds * -35%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	268 Seconds * -35%
Geekom Mini IT13 Intel Core i9-13900H	268 Seconds * -35%
Beelink GTR6 AMD Ryzen 9 6900HX	257 Seconds * -29%
Aoostar GOD77 AMD Ryzen 7 7735HS	246 Seconds * -24%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	216 Seconds * -9%
AcePC Wizbox AI Intel Core Ultra 7 155H	205 Seconds * -3%
Geekom A7 AMD Ryzen 9 7940HS	202 Seconds * -2%
GMK NucBox K6 AMD Ryzen 7 7840HS	199 Seconds *
Average AMD Ryzen 7 7840HS (185 - 229, n=18)	198.6 Seconds * -0%

7-Zip 18.03 / 7z b 4
GMK NucBox K6 AMD Ryzen 7 7840HS	70782 MIPS
Geekom A7 AMD Ryzen 9 7940HS	70707 MIPS 0%
Average AMD Ryzen 7 7840HS (59538 - 73035, n=18)	69127 MIPS -2%
AcePC Wizbox AI Intel Core Ultra 7 155H	62334 MIPS -12%
Aoostar GOD77 AMD Ryzen 7 7735HS	58770 MIPS -17%
Beelink GTR6 AMD Ryzen 9 6900HX	57261 MIPS -19%
Beelink SER6 Pro AMD Ryzen 7 6800H	55963 MIPS -21%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	54733 MIPS -23%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	51340 MIPS -27%
GMK NucBox M4 Intel Core i9-11900H	49486 MIPS -30%
Geekom Mini IT13 Intel Core i9-13900H	45045 MIPS -36%
GMK NucBox K3 Pro Intel Core i7-12650H	43031 MIPS -39%
Beelink SER5 AMD Ryzen 5 5560U	38281 MIPS -46%
Acemagic Tank03 Intel Core i9-12900H	34684 MIPS -51%
GMK NucBox M3 Intel Core i5-12450H	31119 MIPS -56%

7-Zip 18.03 / 7z b 4 -mmt1
Geekom A7 AMD Ryzen 9 7940HS	6744 MIPS +1%
GMK NucBox K6 AMD Ryzen 7 7840HS	6676 MIPS
Average AMD Ryzen 7 7840HS (6049 - 6754, n=18)	6561 MIPS -2%
GMK NucBox M4 Intel Core i9-11900H	6018 MIPS -10%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	6014 MIPS -10%
Beelink GTR6 AMD Ryzen 9 6900HX	6005 MIPS -10%
Aoostar GOD77 AMD Ryzen 7 7735HS	5849 MIPS -12%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	5840 MIPS -13%
GMK NucBox K3 Pro Intel Core i7-12650H	5772 MIPS -14%
Beelink SER6 Pro AMD Ryzen 7 6800H	5768 MIPS -14%
Acemagic Tank03 Intel Core i9-12900H	5567 MIPS -17%
GMK NucBox M3 Intel Core i5-12450H	5356 MIPS -20%
Geekom Mini IT13 Intel Core i9-13900H	5355 MIPS -20%
AcePC Wizbox AI Intel Core Ultra 7 155H	5344 MIPS -20%
Beelink SER5 AMD Ryzen 5 5560U	4740 MIPS -29%

Geekbench 6.3 / Multi-Core
Geekom A7 AMD Ryzen 9 7940HS	13470 Points +2%
GMK NucBox K6 AMD Ryzen 7 7840HS	13184 Points
Average AMD Ryzen 7 7840HS (12111 - 13538, n=18)	13025 Points -1%
AcePC Wizbox AI Intel Core Ultra 7 155H	12539 Points -5%
GMK NucBox K3 Pro Intel Core i7-12650H	11014 Points -16%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	10997 Points -17%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	10362 Points -21%
Aoostar GOD77 AMD Ryzen 7 7735HS	9970 Points -24%
GMK NucBox M4 Intel Core i9-11900H	9401 Points -29%
Acemagic Tank03 Intel Core i9-12900H	9278 Points -30%
GMK NucBox M3 Intel Core i5-12450H	8123 Points -38%
Beelink SER5 AMD Ryzen 5 5560U	6723 Points -49%

Geekbench 6.3 / Single-Core
Geekom A7 AMD Ryzen 9 7940HS	2704 Points +1%
GMK NucBox K6 AMD Ryzen 7 7840HS	2687 Points
Average AMD Ryzen 7 7840HS (2585 - 2721, n=18)	2662 Points -1%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	2600 Points -3%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	2575 Points -4%
GMK NucBox K3 Pro Intel Core i7-12650H	2466 Points -8%
AcePC Wizbox AI Intel Core Ultra 7 155H	2415 Points -10%
GMK NucBox M4 Intel Core i9-11900H	2355 Points -12%
GMK NucBox M3 Intel Core i5-12450H	2293 Points -15%
Acemagic Tank03 Intel Core i9-12900H	2263 Points -16%
Aoostar GOD77 AMD Ryzen 7 7735HS	2077 Points -23%
Beelink SER5 AMD Ryzen 5 5560U	1765 Points -34%

Geekbench 5.5 / Multi-Core
Geekom A7 AMD Ryzen 9 7940HS	12261 Points +4%
AcePC Wizbox AI Intel Core Ultra 7 155H	12248 Points +4%
GMK NucBox K6 AMD Ryzen 7 7840HS	11769 Points
Average AMD Ryzen 7 7840HS (8446 - 12339, n=20)	11674 Points -1%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	10361 Points -12%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	10269 Points -13%
GMK NucBox K3 Pro Intel Core i7-12650H	9810 Points -17%
Aoostar GOD77 AMD Ryzen 7 7735HS	9363 Points -20%
Beelink GTR6 AMD Ryzen 9 6900HX	9350 Points -21%
Beelink SER6 Pro AMD Ryzen 7 6800H	9218 Points -22%
Geekom Mini IT13 Intel Core i9-13900H	9094 Points -23%
GMK NucBox M4 Intel Core i9-11900H	8829 Points -25%
Acemagic Tank03 Intel Core i9-12900H	8529 Points -28%
GMK NucBox M3 Intel Core i5-12450H	6990 Points -41%
Beelink SER5 AMD Ryzen 5 5560U	5955 Points -49%

Geekbench 5.5 / Single-Core
Geekom A7 AMD Ryzen 9 7940HS	2008 Points +1%
GMK NucBox K6 AMD Ryzen 7 7840HS	1986 Points
Average AMD Ryzen 7 7840HS (1837 - 2017, n=20)	1966 Points -1%
Geekom Mini IT13 Intel Core i9-13900H	1846 Points -7%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1842 Points -7%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1832 Points -8%
GMK NucBox K3 Pro Intel Core i7-12650H	1790 Points -10%
AcePC Wizbox AI Intel Core Ultra 7 155H	1720 Points -13%
GMK NucBox M4 Intel Core i9-11900H	1692 Points -15%
Acemagic Tank03 Intel Core i9-12900H	1664 Points -16%
Beelink GTR6 AMD Ryzen 9 6900HX	1652 Points -17%
GMK NucBox M3 Intel Core i5-12450H	1639 Points -17%
Aoostar GOD77 AMD Ryzen 7 7735HS	1589 Points -20%
Beelink SER6 Pro AMD Ryzen 7 6800H	1554 Points -22%
Beelink SER5 AMD Ryzen 5 5560U	1318 Points -34%

HWBOT x265 Benchmark v2.2 / 4k Preset
Geekom A7 AMD Ryzen 9 7940HS	20.6 fps 0%
GMK NucBox K6 AMD Ryzen 7 7840HS	20.5 fps
Average AMD Ryzen 7 7840HS (11.7 - 21.8, n=18)	19.8 fps -3%
AcePC Wizbox AI Intel Core Ultra 7 155H	18.3 fps -11%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	17.6 fps -14%
Aoostar GOD77 AMD Ryzen 7 7735HS	15.7 fps -23%
Beelink GTR6 AMD Ryzen 9 6900HX	15.4 fps -25%
Beelink SER6 Pro AMD Ryzen 7 6800H	15 fps -27%
Geekom Mini IT13 Intel Core i9-13900H	14.9 fps -27%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	13.9 fps -32%
GMK NucBox M4 Intel Core i9-11900H	13.6 fps -34%
GMK NucBox K3 Pro Intel Core i7-12650H	12.3 fps -40%
Beelink SER5 AMD Ryzen 5 5560U	10 fps -51%
GMK NucBox M3 Intel Core i5-12450H	8.78 fps -57%
Acemagic Tank03 Intel Core i9-12900H	8.05 fps -61%

LibreOffice / 20 Documents To PDF
Beelink SER5 AMD Ryzen 5 5560U	57.1 s * -29%
Geekom A7 AMD Ryzen 9 7940HS	54.8 s * -24%
AcePC Wizbox AI Intel Core Ultra 7 155H	53 s * -20%
Aoostar GOD77 AMD Ryzen 7 7735HS	51.2 s * -16%
Beelink SER6 Pro AMD Ryzen 7 6800H	48.8 s * -11%
Average AMD Ryzen 7 7840HS (38.3 - 68.3, n=18)	48.6 s * -10%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	46.9 s * -6%
Beelink GTR6 AMD Ryzen 9 6900HX	46 s * -4%
GMK NucBox K6 AMD Ryzen 7 7840HS	44.1 s *
GMK NucBox M4 Intel Core i9-11900H	42.3 s * +4%
GMK NucBox M3 Intel Core i5-12450H	41.1 s * +7%
GMK NucBox K3 Pro Intel Core i7-12650H	40 s * +9%
Acemagic Tank03 Intel Core i9-12900H	39 s * +12%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	37.6 s * +15%
Geekom Mini IT13 Intel Core i9-13900H	36.8 s * +17%

R Benchmark 2.5 / Overall mean
Beelink SER5 AMD Ryzen 5 5560U	0.584 sec * -34%
GMK NucBox M4 Intel Core i9-11900H	0.52 sec * -20%
Aoostar GOD77 AMD Ryzen 7 7735HS	0.503 sec * -16%
Beelink SER6 Pro AMD Ryzen 7 6800H	0.4989 sec * -15%
GMK NucBox M3 Intel Core i5-12450H	0.4949 sec * -14%
Acemagic Tank03 Intel Core i9-12900H	0.4934 sec * -14%
AcePC Wizbox AI Intel Core Ultra 7 155H	0.4801 sec * -11%
Geekom Mini IT13 Intel Core i9-13900H	0.4792 sec * -10%
GMK NucBox K3 Pro Intel Core i7-12650H	0.4701 sec * -8%
Beelink GTR6 AMD Ryzen 9 6900HX	0.4627 sec * -7%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	0.4512 sec * -4%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	0.45 sec * -4%
Average AMD Ryzen 7 7840HS (0.4184 - 0.4739, n=18)	0.4394 sec * -1%
Geekom A7 AMD Ryzen 9 7940HS	0.4351 sec * -0%
GMK NucBox K6 AMD Ryzen 7 7840HS	0.4343 sec *

Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... smaller is better

Performance Rating
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	96 pt
Average AMD Ryzen 7 7840HS	95.9 pt
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	95.8 pt
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	74.6 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	52.6 pt
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	51.2 pt
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	45.6 pt

AIDA64 / FP32 Ray-Trace
Average AMD Ryzen 7 7840HS (24712 - 28921, n=19)	26587 KRay/s +5%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	25360 KRay/s
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	25359 KRay/s 0%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	15761 KRay/s -38%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	11188 KRay/s -56%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	9406 KRay/s -63%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	8895 KRay/s -65%

AIDA64 / FPU Julia
Average AMD Ryzen 7 7840HS (103755 - 123167, n=19)	113567 Points +5%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	107805 Points
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	107540 Points 0%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	84610 Points -22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	56942 Points -47%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	56914 Points -47%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	48790 Points -55%

AIDA64 / CPU SHA3
Average AMD Ryzen 7 7840HS (4293 - 5155, n=19)	4797 MB/s +1%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	4763 MB/s
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	4753 MB/s 0%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	4171 MB/s -12%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	2669 MB/s -44%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	2094 MB/s -56%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	1943 MB/s -59%

AIDA64 / CPU Queen
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	118174 Points +6%
Average AMD Ryzen 7 7840HS (105028 - 125820, n=19)	116128 Points +4%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	111803 Points
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	87712 Points -22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	86881 Points -22%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	78091 Points -30%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	67352 Points -40%

AIDA64 / FPU SinJulia
Average AMD Ryzen 7 7840HS (13857 - 15525, n=19)	14941 Points +1%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	14721 Points
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	14663 Points 0%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	10134 Points -31%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	8505 Points -42%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	7246 Points -51%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	6561 Points -55%

AIDA64 / FPU Mandel
Average AMD Ryzen 7 7840HS (55540 - 65812, n=19)	60589 Points +5%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	57534 Points
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	57402 Points 0%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	40440 Points -30%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	31339 Points -46%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	28019 Points -51%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	23640 Points -59%

AIDA64 / CPU AES
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	164414 MB/s 0%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	164041 MB/s
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	138938 MB/s -15%
Average AMD Ryzen 7 7840HS (67389 - 177158, n=19)	132175 MB/s -19%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	82548 MB/s -50%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	78948 MB/s -52%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	53328 MB/s -67%

AIDA64 / CPU ZLib
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	1117 MB/s +8%
Average AMD Ryzen 7 7840HS (949 - 1123, n=19)	1065 MB/s +3%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	1031 MB/s
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	1020 MB/s -1%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	775 MB/s -25%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	601 MB/s -42%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	509 MB/s -51%

AIDA64 / FP64 Ray-Trace
Average AMD Ryzen 7 7840HS (13100 - 15599, n=19)	14270 KRay/s +5%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	13642 KRay/s
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	13517 KRay/s -1%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	8240 KRay/s -40%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	5957 KRay/s -56%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	5237 KRay/s -62%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	4540 KRay/s -67%

AIDA64 / CPU PhotoWorxx
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	44164 MPixel/s +8%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	40760 MPixel/s
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	40570 MPixel/s 0%
Average AMD Ryzen 7 7840HS (17615 - 41516, n=19)	37735 MPixel/s -7%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	32719 MPixel/s -20%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	29263 MPixel/s -28%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	17917 MPixel/s -56%

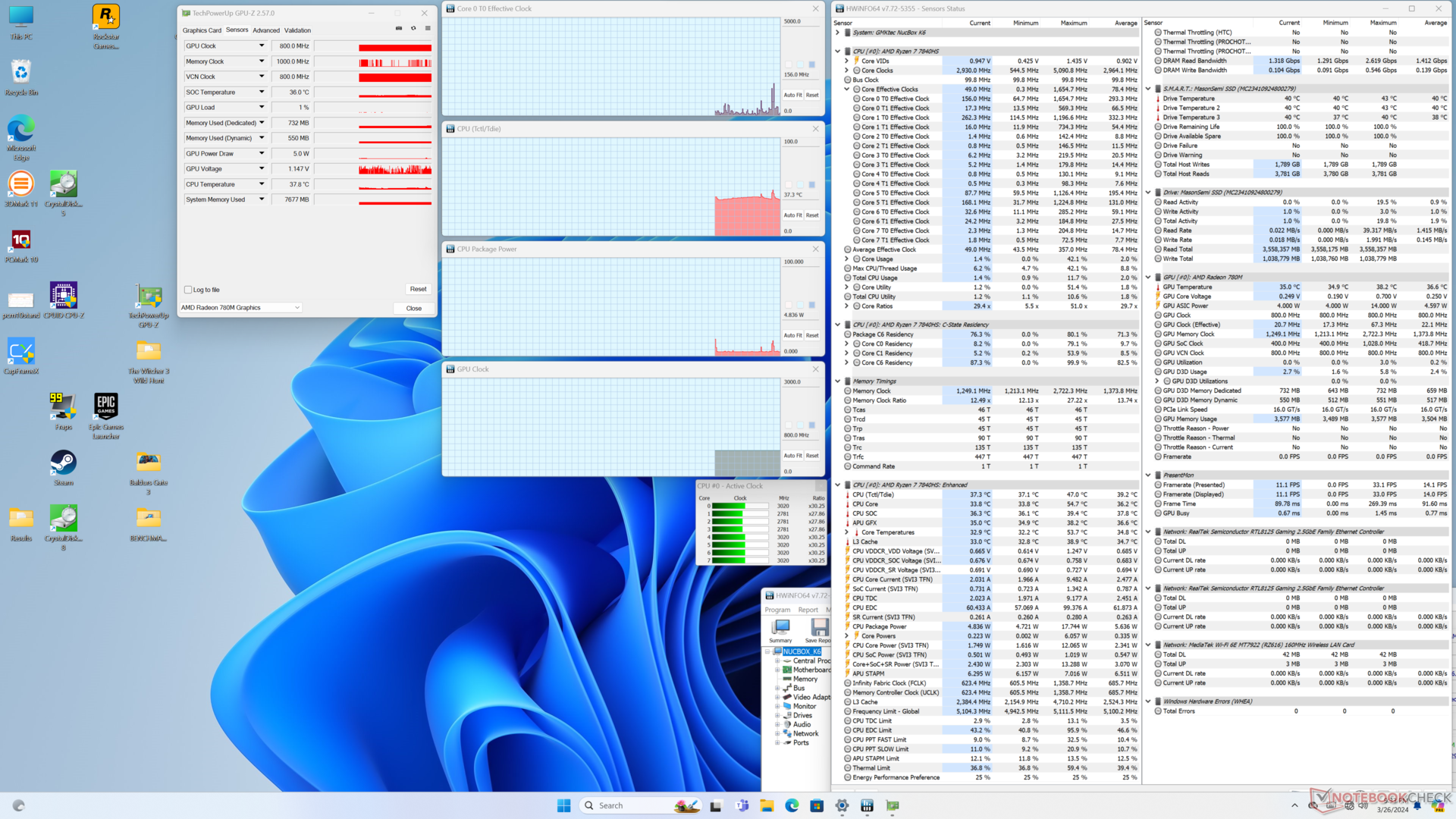

压力测试

在运行 Prime95 压力测试时，CPU 会在几秒钟内提升到 4 GHz 和 54 W，然后略微下降到 3.8 GHz 和 52 W。 Beelink SER5.

系统性能

PCMark 结果与 Geekom A7尽管 Geekom 配备了更昂贵的 Ryzen 9 7940HS。至于英特尔，配备 Meteor Lake-H CPU 的迷你 PC（如 AcePC）与我们的 GMK 最接近。

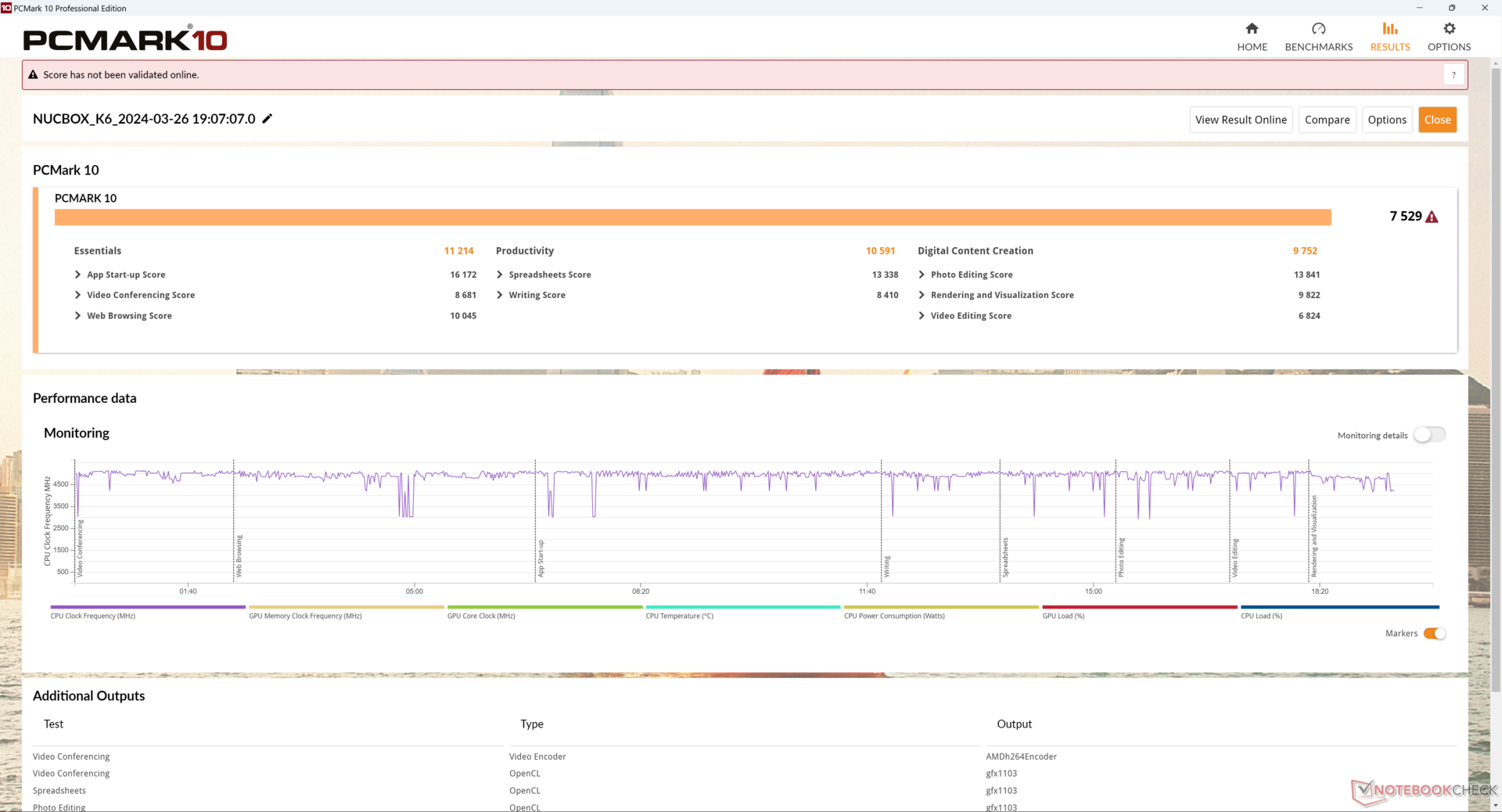

PCMark 10 / Score
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	7529 Points
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	7455 Points -1%
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (7039 - 7651, n=8)	7381 Points -2%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	7297 Points -3%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5882 Points -22%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	5855 Points -22%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	5453 Points -28%

PCMark 10 / Essentials
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	11214 Points
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	11114 Points -1%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11035 Points -2%
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (10519 - 11214, n=8)	11024 Points -2%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	10858 Points -3%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	10797 Points -4%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	9440 Points -16%

PCMark 10 / Productivity
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	10591 Points
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (9075 - 10970, n=8)	10327 Points -2%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	10291 Points -3%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	9836 Points -7%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	8901 Points -16%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	7803 Points -26%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6576 Points -38%

PCMark 10 / Digital Content Creation
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	9875 Points +1%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	9831 Points +1%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	9752 Points
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (9052 - 9987, n=8)	9600 Points -2%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7612 Points -22%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	6468 Points -34%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	5238 Points -46%

CrossMark / Overall
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1873 Points
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	1861 Points -1%
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (1566 - 1891, n=8)	1756 Points -6%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1678 Points -10%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1596 Points -15%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1573 Points -16%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1196 Points -36%

CrossMark / Productivity
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1816 Points
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	1781 Points -2%
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (1535 - 1823, n=8)	1690 Points -7%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1600 Points -12%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1537 Points -15%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1503 Points -17%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1259 Points -31%

CrossMark / Creativity
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	2072 Points +4%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1994 Points
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (1556 - 2040, n=8)	1915 Points -4%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1869 Points -6%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1769 Points -11%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1753 Points -12%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1153 Points -42%

CrossMark / Responsiveness
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1706 Points
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	1540 Points -10%
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (1293 - 1749, n=8)	1528 Points -10%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1400 Points -18%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1311 Points -23%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1301 Points -24%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1144 Points -33%

WebXPRT 3 / Overall
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	333 Points +2%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	328 Points
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (297 - 339, n=8)	323 Points -2%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	301 Points -8%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	301 Points -8%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	269 Points -18%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	250 Points -24%

WebXPRT 4 / Overall
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	268 Points +1%
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (248 - 319, n=7)	268 Points +1%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	266 Points
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	265 Points 0%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	192.4 Points -28%

Mozilla Kraken 1.1 / Total
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	702 ms * -31%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	544 ms * -2%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	534 ms *
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	522 ms * +2%
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (485 - 544, n=8)	519 ms * +3%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	503 ms * +6%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	496 ms * +7%

* ... smaller is better

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	69735 MB/s +1%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	69281 MB/s
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	67161 MB/s -3%
Average AMD Ryzen 7 7840HS (30937 - 72158, n=19)	66323 MB/s -4%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	63807 MB/s -8%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44299 MB/s -36%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	38690 MB/s -44%

AIDA64 / Memory Read
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	67412 MB/s +9%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	61708 MB/s
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	61542 MB/s 0%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	60544 MB/s -2%
Average AMD Ryzen 7 7840HS (30497 - 62147, n=19)	58070 MB/s -6%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44751 MB/s -27%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	39794 MB/s -36%

AIDA64 / Memory Write
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	86810 MB/s 0%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	86528 MB/s
Average AMD Ryzen 7 7840HS (34590 - 93323, n=19)	84045 MB/s -3%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	64852 MB/s -25%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	59361 MB/s -31%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	45887 MB/s -47%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	41162 MB/s -52%

AIDA64 / Memory Latency
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	154.6 ns * -75%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	97.2 ns * -10%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	96.2 ns * -9%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	93.1 ns * -6%
Average AMD Ryzen 7 7840HS (85.1 - 112, n=19)	92.4 ns * -5%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	89 ns * -1%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	88.1 ns *

* ... smaller is better

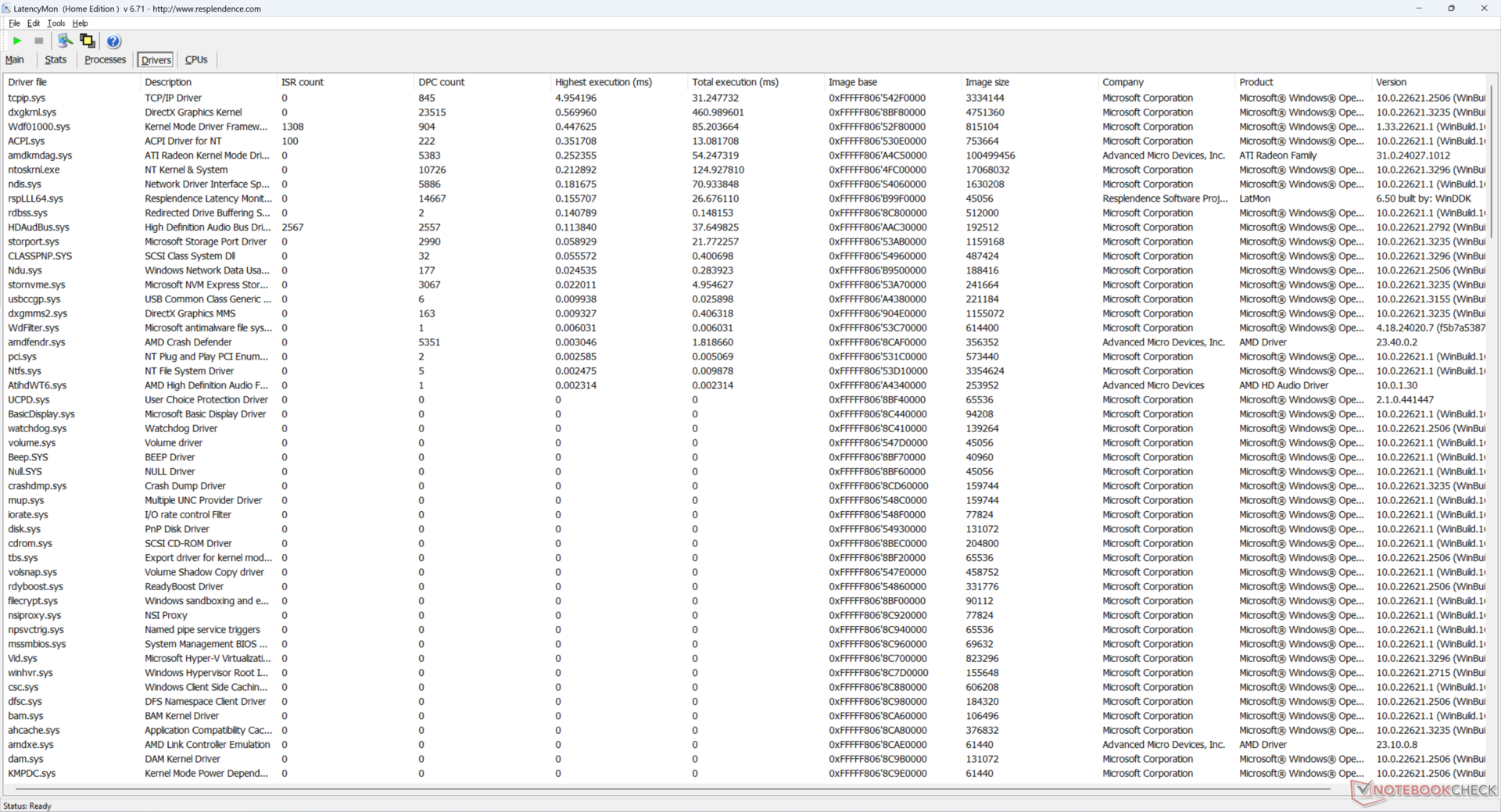

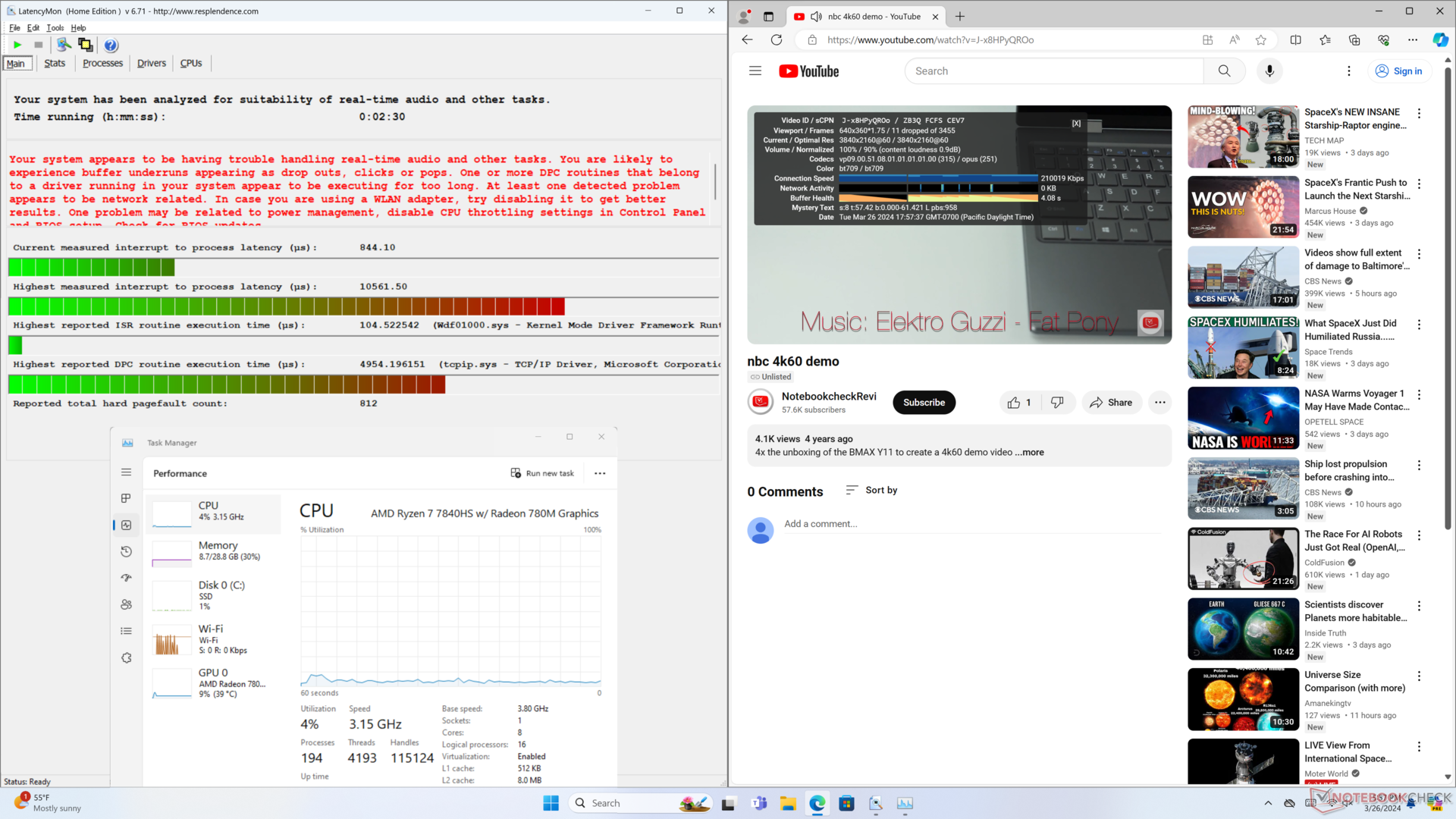

DPC 延迟

遗憾的是，该系统存在 DPC 延迟问题，影响了视频播放。长达一分钟的 4K60 视频本应为零，却出现了 11 次丢帧。因此，在播放视频时可能会出现一些轻微的卡顿。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	10561.5 μs *
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	1616.1 μs * +85%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1415.8 μs * +87%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1068.7 μs * +90%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	983.89 μs * +91%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	364.6 μs * +97%

* ... smaller is better

存储设备

GMK mini PC 通常采用知名度较低的固态硬盘品牌，以降低成本。美盛MC7000 MasonSemi MC7000可能不是一个家喻户晓的品牌，但其性能却非常出色，可与流行的三星 PM9A1 系列相媲美。读取速率可维持在 7000 MB/s 左右，接近 PCIe4 x4 硬盘的上限。

请注意，尽管系统最多可支持两个硬盘，但只包含一个散热器。

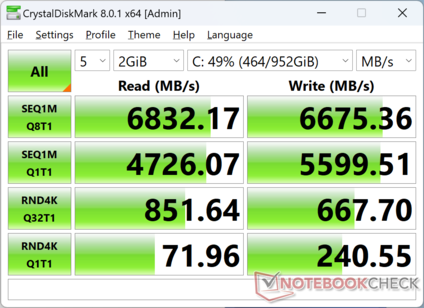

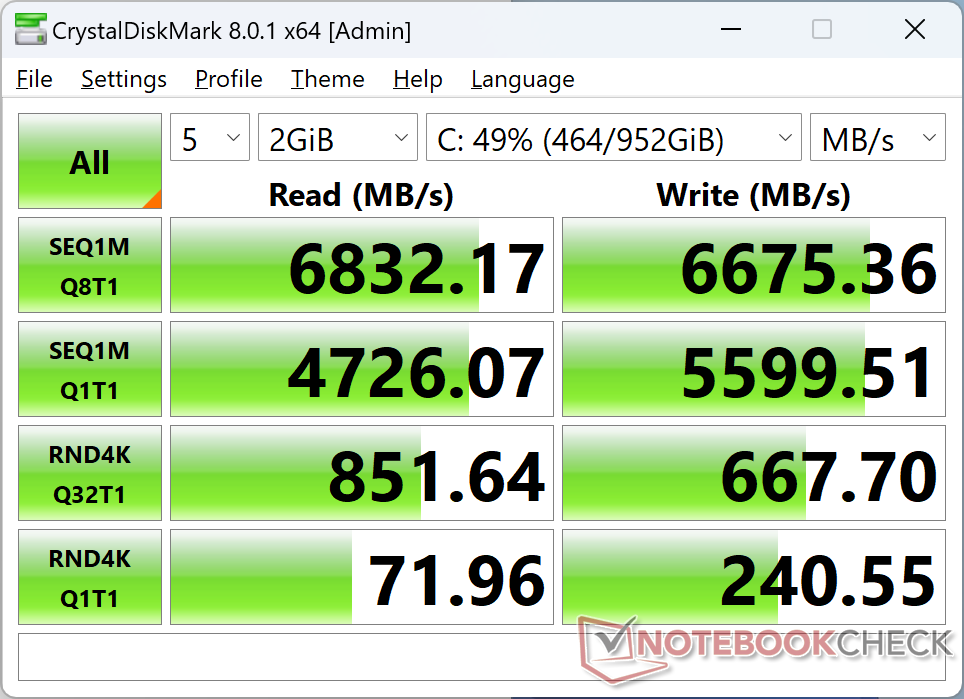

CrystalDiskMark 5.2 / 6

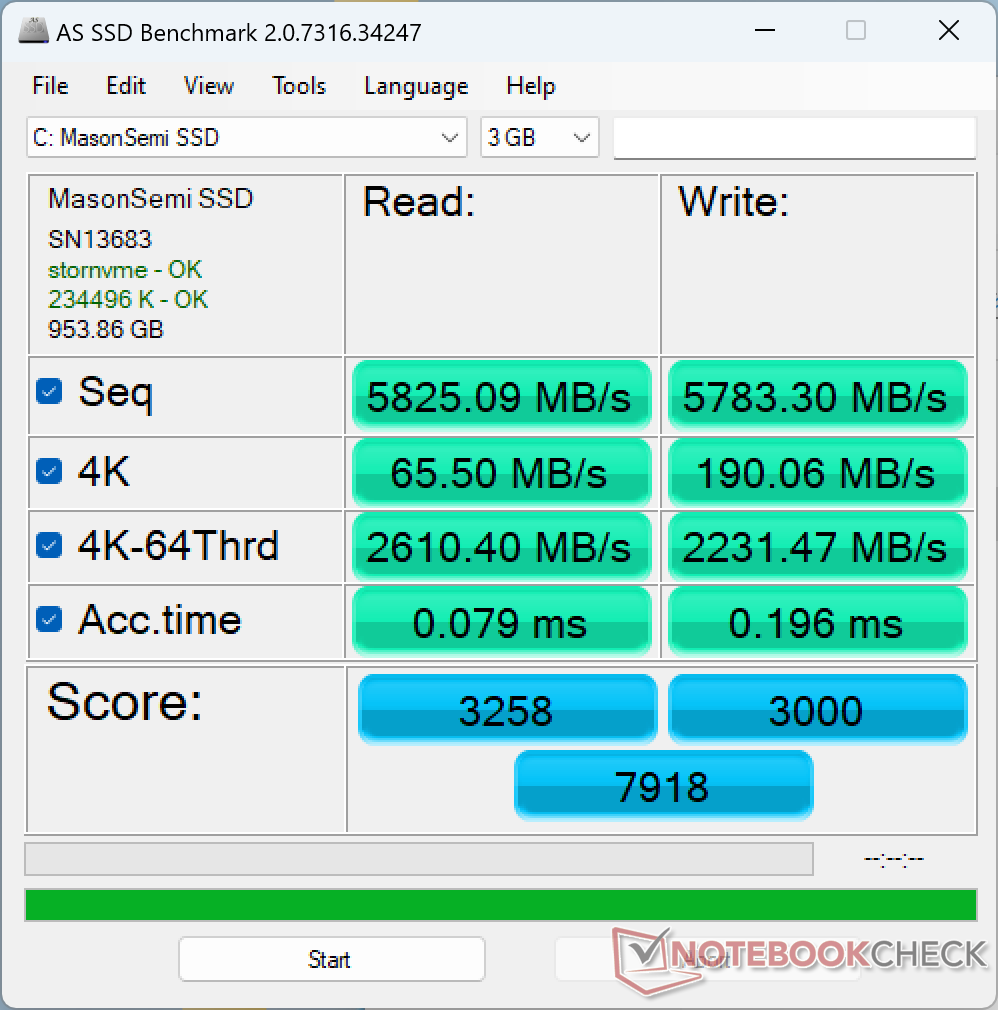

AS SSD

DiskSpd

MasonSemi 1TB MC7000

CDM 5/6 Read Seq Q32T1: 7049 MB/s

CDM 5/6 Write Seq Q32T1: 6666 MB/s

CDM 5/6 Read 4K Q32T1: 854.6 MB/s

CDM 5/6 Write 4K Q32T1: 669.6 MB/s

CDM 5 Read Seq: 4765 MB/s

CDM 5 Write Seq: 5615 MB/s

CDM 5/6 Read 4K: 74.23 MB/s

CDM 5/6 Write 4K: 236.1 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
GMK NucBox K6 MasonSemi 1TB MC7000	90.8 pt
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	68.6 pt
Geekom A7 Acer N5000	62.4 pt
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	61.4 pt
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	49.4 pt
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	45 pt

DiskSpd
seq read
Geekom A7 Acer N5000	3755 (3733.85^min - 3754.99^max) MB/s +1%
GMK NucBox K6 MasonSemi 1TB MC7000	3703 (3243.89^min - 3702.94^max) MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3337 (3301.03^min - 3337.16^max) MB/s -10%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2615 (2607.21^min - 2614.94^max) MB/s -29%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2185 (2022.91^min - 2184.81^max) MB/s -41%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2003 (1792.88^min - 2003.18^max) MB/s -46%
seq write
GMK NucBox K6 MasonSemi 1TB MC7000	5595 (1443.73^min - 5595.13^max) MB/s
Geekom A7 Acer N5000	3492 (3398.43^min - 3491.76^max) MB/s -38%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3356 (3181.73^min - 3356.49^max) MB/s -40%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2878 (2868.83^min - 2877.62^max) MB/s -49%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2029 (1562.36^min - 2029.13^max) MB/s -64%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1919 (1852.07^min - 1919.04^max) MB/s -66%
seq q8 t1 read
GMK NucBox K6 MasonSemi 1TB MC7000	7069 (6459.52^min - 7068.99^max) MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5438 (4937.74^min - 5438.31^max) MB/s -23%
Geekom A7 Acer N5000	4861 (4468.61^min - 4860.57^max) MB/s -31%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	4835 (4317.37^min - 4834.75^max) MB/s -32%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3673 (3327.76^min - 3673.17^max) MB/s -48%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	3481 (3104.12^min - 3480.68^max) MB/s -51%
seq q8 t1 write
GMK NucBox K6 MasonSemi 1TB MC7000	6669 (1251.16^min - 6668.61^max) MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4955 (4929.56^min - 4955.41^max) MB/s -26%
Geekom A7 Acer N5000	4695 (4470.16^min - 4694.73^max) MB/s -30%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3220 (3120.61^min - 3219.7^max) MB/s -52%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2548 (1848.43^min - 2547.98^max) MB/s -62%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2408 (2336.17^min - 2407.96^max) MB/s -64%
4k q1 t1 read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	84.5 (83.02^min - 84.54^max) MB/s +19%
GMK NucBox K6 MasonSemi 1TB MC7000	71 (70.41^min - 71.02^max) MB/s
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	54.8 (54.1^min - 54.82^max) MB/s -23%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	52.5 (52.31^min - 52.46^max) MB/s -26%
Geekom A7 Acer N5000	52.3 (51.85^min - 52.27^max) MB/s -26%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	50.3 (48.8^min - 50.32^max) MB/s -29%
4k q1 t1 write
GMK NucBox K6 MasonSemi 1TB MC7000	239 (237.67^min - 239.17^max) MB/s
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	173.4 (172.45^min - 173.36^max) MB/s -27%
Geekom A7 Acer N5000	165.9 (164.35^min - 165.92^max) MB/s -31%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	163.5 (154.58^min - 163.51^max) MB/s -32%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	162.6 (156.04^min - 162.59^max) MB/s -32%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	144.6 (143.6^min - 144.57^max) MB/s -39%
4k q32 t16 read
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2781 (2776.44^min - 2781.48^max) MB/s +13%
GMK NucBox K6 MasonSemi 1TB MC7000	2463 (2040.37^min - 2463.15^max) MB/s
Geekom A7 Acer N5000	1560 (1546.89^min - 1559.94^max) MB/s -37%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1132 (1079.47^min - 1132.07^max) MB/s -54%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	904 (899.18^min - 903.79^max) MB/s -63%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	808 (792.58^min - 807.51^max) MB/s -67%
4k q32 t16 write
GMK NucBox K6 MasonSemi 1TB MC7000	3983 (3232.63^min - 3982.67^max) MB/s
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2218 (2164.78^min - 2217.8^max) MB/s -44%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1697 (1681.85^min - 1696.69^max) MB/s -57%
Geekom A7 Acer N5000	595 (582.97^min - 594.71^max) MB/s -85%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	535 (489.88^min - 535.49^max) MB/s -87%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	454 (443.2^min - 453.53^max) MB/s -89%

AS SSD
Score Total
GMK NucBox K6 MasonSemi 1TB MC7000	7918 Points
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5249 Points -34%
Geekom A7 Acer N5000	5177 Points -35%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	4696 Points -41%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	3505 Points -56%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	3294 Points -58%
Score Read
GMK NucBox K6 MasonSemi 1TB MC7000	3258 Points
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1701 Points -48%
Geekom A7 Acer N5000	1685 Points -48%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1367 Points -58%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	1320 Points -59%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1251 Points -62%
Score Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3326 Points +11%
GMK NucBox K6 MasonSemi 1TB MC7000	3000 Points
Geekom A7 Acer N5000	2676 Points -11%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2136 Points -29%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1666 Points -44%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1282 Points -57%
Seq Read
GMK NucBox K6 MasonSemi 1TB MC7000	5825.09 MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4536 MB/s -22%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	3756 MB/s -36%
Geekom A7 Acer N5000	3650 MB/s -37%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3157.87 MB/s -46%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2968.96 MB/s -49%
Seq Write
GMK NucBox K6 MasonSemi 1TB MC7000	5783.3 MB/s
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2830.61 MB/s -51%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2698 MB/s -53%
Geekom A7 Acer N5000	2611 MB/s -55%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2494 MB/s -57%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1698.68 MB/s -71%
4K Read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	72 MB/s +10%
GMK NucBox K6 MasonSemi 1TB MC7000	65.5 MB/s
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	51.31 MB/s -22%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	50.6 MB/s -23%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	49.71 MB/s -24%
Geekom A7 Acer N5000	49.7 MB/s -24%
4K Write
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	205.98 MB/s +8%
GMK NucBox K6 MasonSemi 1TB MC7000	190.06 MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	166.8 MB/s -12%
Geekom A7 Acer N5000	160 MB/s -16%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	143.94 MB/s -24%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	136.6 MB/s -28%
4K-64 Read
GMK NucBox K6 MasonSemi 1TB MC7000	2610.4 MB/s
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1335.88 MB/s -49%
Geekom A7 Acer N5000	1270 MB/s -51%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1018.3 MB/s -61%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	825 MB/s -68%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	794 MB/s -70%
4K-64 Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2889 MB/s +29%
Geekom A7 Acer N5000	2255 MB/s +1%
GMK NucBox K6 MasonSemi 1TB MC7000	2231.47 MB/s
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1708.89 MB/s -23%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1280 MB/s -43%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	906.2 MB/s -59%
Access Time Read
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	0.179 ms * -127%
Geekom A7 Acer N5000	0.138 ms * -75%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	0.094 ms * -19%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	0.079 ms * -0%
GMK NucBox K6 MasonSemi 1TB MC7000	0.079 ms *
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.06 ms * +24%
Access Time Write
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	0.367 ms * -87%
GMK NucBox K6 MasonSemi 1TB MC7000	0.196 ms *
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	0.084 ms * +57%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	0.077 ms * +61%
Geekom A7 Acer N5000	0.072 ms * +63%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.024 ms * +88%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GMK NucBox K6; diskspd 2.0.17 f: Ø7035 (6458.68-7055.24)

图形处理器性能--足以满足大多数游戏的需求

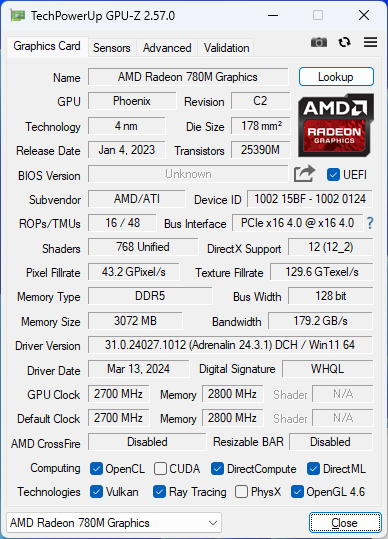

Radeon 780M Radeon 780M事实证明，Radeon 780M 是一款强大的集成图形处理器，它在迷你 PC 上的运行速度甚至比笔记本电脑还快，因为较厚的外形尺寸通常允许更高的功率密度。在这种情况下，NucBox K6 的 iGPU 运行速度比我们数据库中配备相同图形选项的普通笔记本电脑快 10%。在《小小蒂娜的仙境》或《F1 22 》等游戏中，性能优势甚至会更大，我们可以观察到高达 20% 的差距。从 UHD Graphics或 Iris Xe的用户应该会看到明显的提升。

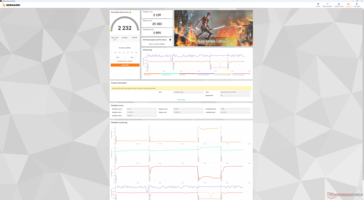

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	100 pt
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	97.9 pt
Average AMD Radeon 780M	91.1 pt
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	81.7 pt
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	80.8 pt
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	77.8 pt
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	58.3 pt
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	58.1 pt
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	52.4 pt
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	45.6 pt
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	34 pt
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	31.2 pt

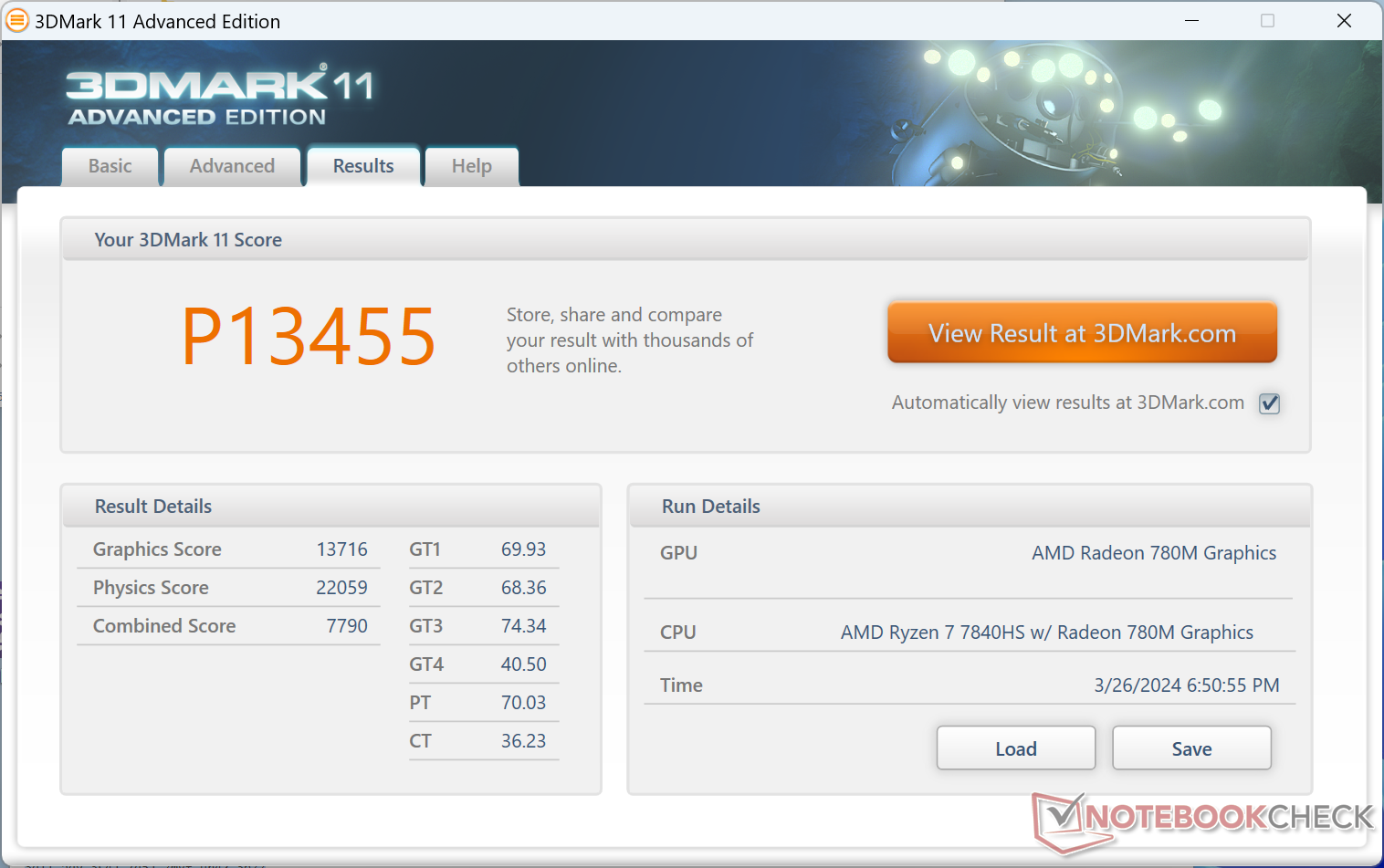

3DMark 11 - 1280x720 Performance GPU
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	13932 Points +2%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	13716 Points
Average AMD Radeon 780M (7868 - 14249, n=54)	12467 Points -9%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	10807 Points -21%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	10566 Points -23%
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	10092 Points -26%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7321 Points -47%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	7147 Points -48%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	6914 Points -50%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5566 Points -59%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	4439 Points -68%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	3906 Points -72%

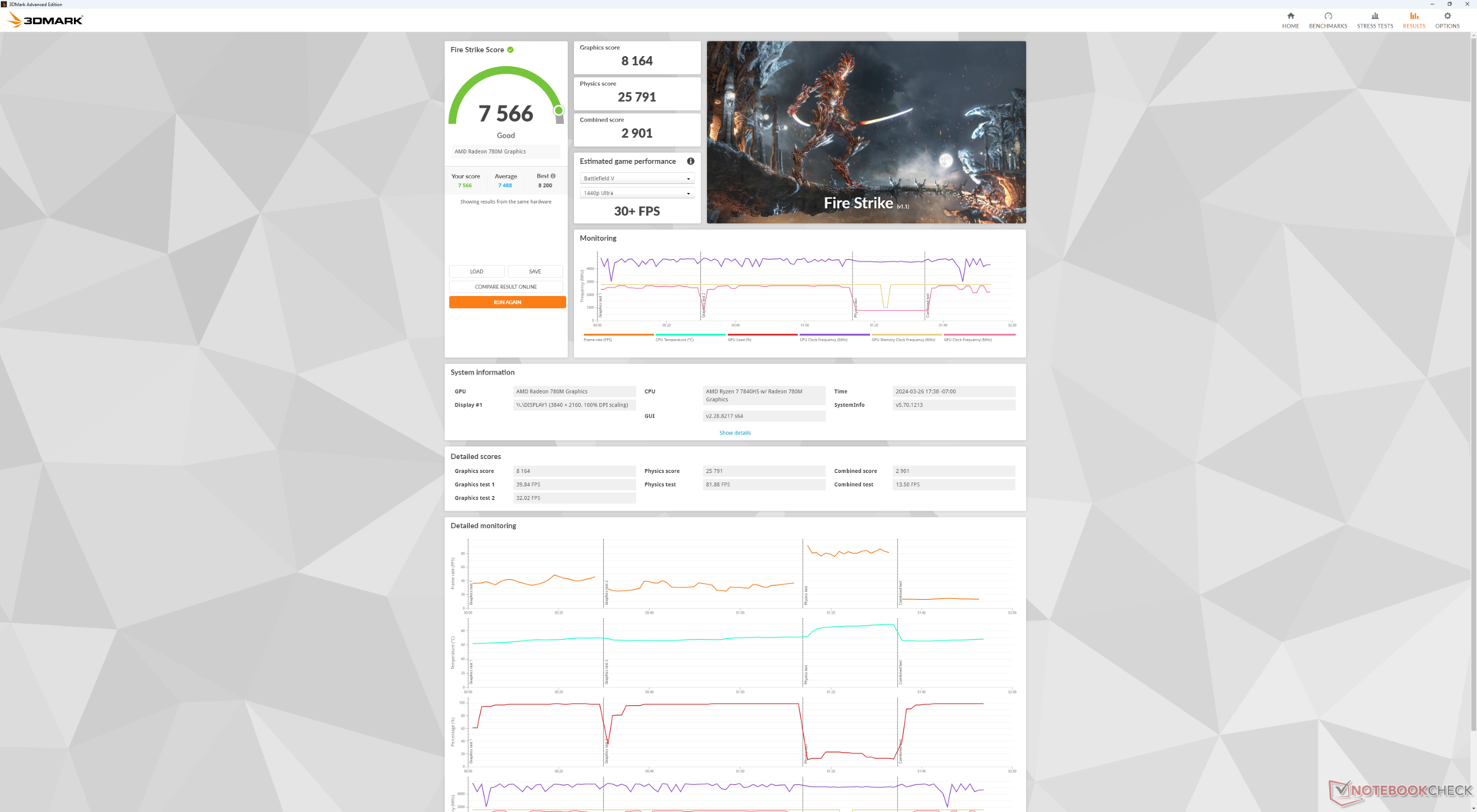

3DMark
1920x1080 Fire Strike Graphics
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	8391 Points +3%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	8164 Points
Average AMD Radeon 780M (4550 - 8816, n=56)	7746 Points -5%
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	7064 Points -13%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	7026 Points -14%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	6962 Points -15%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	5637 Points -31%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5616 Points -31%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	4808 Points -41%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4567 Points -44%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	3131 Points -62%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	3056 Points -63%

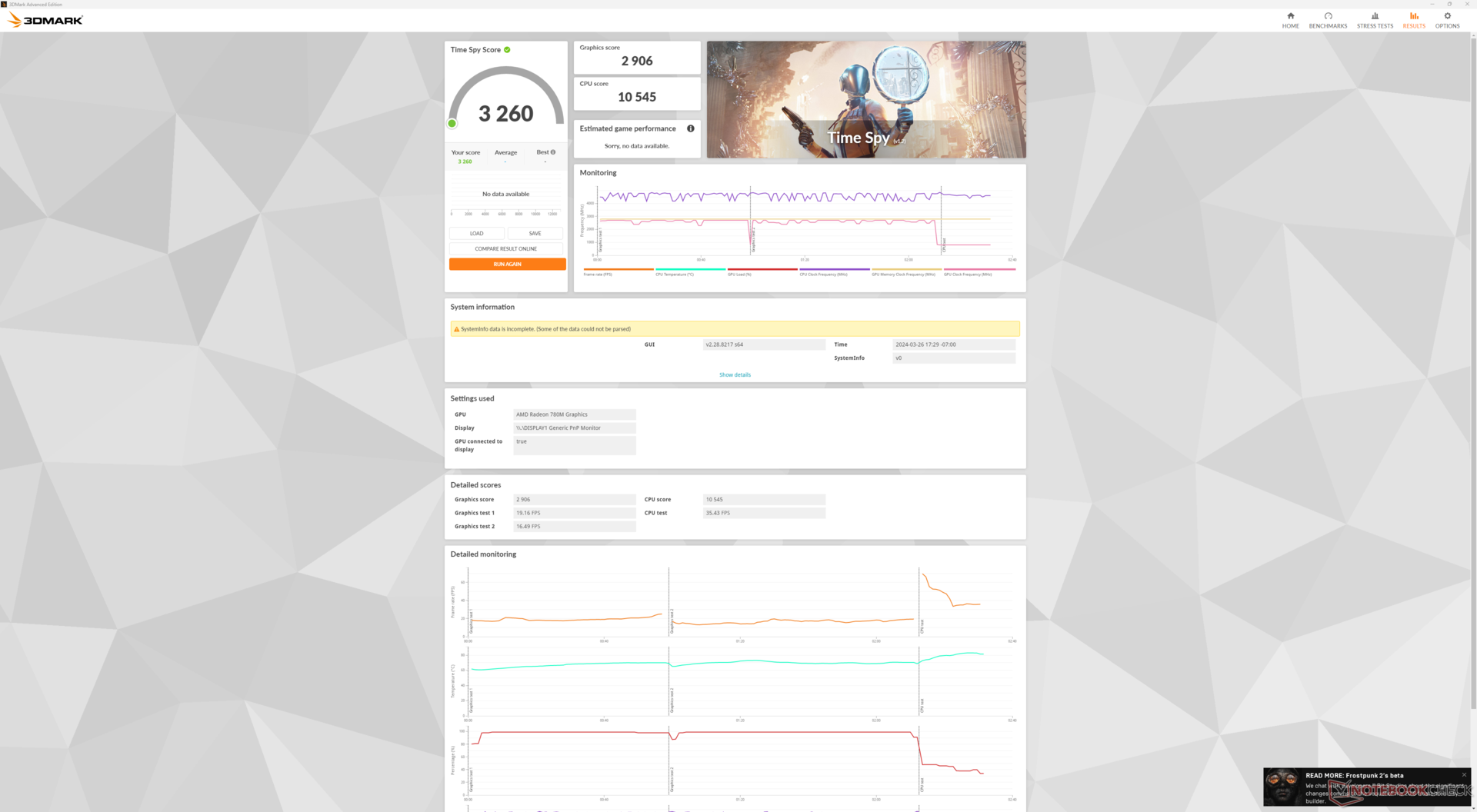

2560x1440 Time Spy Graphics
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	2968 Points +2%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	2906 Points
Average AMD Radeon 780M (1496 - 3196, n=56)	2717 Points -7%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	2452 Points -16%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	2437 Points -16%
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	2290 Points -21%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1681 Points -42%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1672 Points -42%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	1508 Points -48%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1288 Points -56%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	996 Points -66%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	873 Points -70%
2560x1440 Time Spy Score
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	3324 Points +2%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	3260 Points
Average AMD Radeon 780M (1707 - 3517, n=56)	3029 Points -7%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	2751 Points -16%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	2735 Points -16%
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	2578 Points -21%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1910 Points -41%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1903 Points -42%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	1724 Points -47%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1478 Points -55%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	1135 Points -65%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	1001 Points -69%

Blender
v3.3 Classroom HIP/AMD
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	675 Seconds *
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	356 Seconds *
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	321 Seconds *
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	318 Seconds *
v3.3 Classroom CPU
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	741 Seconds * -127%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	677 Seconds * -107%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	570 Seconds * -74%
GMK NucBox M4 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H	479 Seconds * -46%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	477 Seconds * -46%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	453 Seconds * -39%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	441 Seconds * -35%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	436 Seconds * -33%
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	416 Seconds * -27%
Average AMD Radeon 780M (300 - 664, n=52)	375 Seconds * -15%
AcePC Wizbox AI Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	364 Seconds * -11%
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	331 Seconds * -1%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	327 Seconds *
v3.3 Classroom oneAPI/Intel
AcePC Wizbox AI Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	255 Seconds *

* ... smaller is better

Performance Rating - Percent
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	100 pt
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	74.6 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	60 pt
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	45.9 pt

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.8 (27^min) fps
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	20.8 (18^min, 19^P1) fps -32%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.9 fps -45%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.8 (11^min) fps -62%

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	26 (2.62^min, 17.5^P1) fps
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	12.3 (3.05^min, 8.77^P1) fps -53%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.2 (6.84^min, 7.58^P1) fps -57%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	8.8 (4.66^min, 7.35^P1) fps -66%

Final Fantasy XV Benchmark - 1920x1080 High Quality
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.3 fps
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	21.8 fps -26%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	17.4 fps -41%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.5 fps -61%

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	48.8 (11.1^min, 31.1^P1) fps
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	41 (6.8^min, 14.4^P1) fps -16%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26.1 (5.3^min, 8.13^P1) fps -47%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	20.5 (12.2^min, 14.6^P1) fps -58%

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	87.4 (16.1^min) fps
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	68.3 (45.5^min) fps -22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	60.5 (52.3^min) fps -31%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	45.4 (42.4^min) fps -48%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	39.7 fps
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	38.2 fps -4%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	35.4 fps -11%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.2 fps -39%

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	139 fps
Average AMD Radeon 780M (62.6 - 151.2, n=23)	116.7 fps -16%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	100.6 fps -28%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	98.6 fps -29%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	57.7 fps -58%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	54.3 fps -61%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	54 fps -61%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	30.6 fps -78%
1920x1080 Low Preset (DX12)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	74.6 fps
Average AMD Radeon 780M (34.3 - 77.7, n=23)	61.7 fps -17%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	54.7 fps -27%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	48.8 fps -35%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32.3 fps -57%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	27.5 fps -63%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	25.6 fps -66%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	17.1 fps -77%
1920x1080 Medium Preset (DX12)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	52.2 fps
Average AMD Radeon 780M (28.4 - 55.9, n=23)	45.1 fps -14%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	40.5 fps -22%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	36.2 fps -31%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.4 fps -51%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20.9 fps -60%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	19.5 fps -63%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	13.3 fps -75%
1920x1080 High Preset (DX12)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	36.6 fps
Average AMD Radeon 780M (18.6 - 38.8, n=23)	31.3 fps -14%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	29.9 fps -18%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	28.2 fps -23%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	15.9 fps -57%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	13.5 fps -63%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	12.1 fps -67%
1920x1080 Badass Preset (DX12)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.5 fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	26.5 fps -10%
Average AMD Radeon 780M (16.5 - 31.3, n=23)	25.7 fps -13%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	22.6 fps -23%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	13.5 fps -54%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	10.6 fps -64%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	8.9 fps -70%

F1 22
1280x720 Ultra Low Preset AA:T AF:16x
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	171.9 (142^min, 114^P1) fps +1%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	170 (137^min, 113^P1) fps
Average AMD Radeon 780M (85.4 - 186.7, n=27)	143.5 fps -16%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	128.6 (111^min, 94^P1) fps -24%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	80.1 (65^min, 63^P1) fps -53%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	71.6 (59^min, 58^P1) fps -58%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	61.5 (52^min, 51^P1) fps -64%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	51.7 (41^min, 40^P1) fps -70%
1920x1080 Low Preset AA:T AF:16x
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	99.8 (12^min, 70^P1) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	96.9 (70^min, 53^P1) fps -3%
Average AMD Radeon 780M (47 - 109.9, n=33)	84.8 fps -15%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	77.1 (64^min, 61^P1) fps -23%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	47.6 (39^min, 39^P1) fps -52%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	39.2 (32^min, 31^P1) fps -61%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	32.4 (28^min, 26^P1) fps -68%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	27.9 (23^min, 19^P1) fps -72%
1920x1080 Medium Preset AA:T AF:16x
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	88.4 (62^min, 63^P1) fps +3%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	85.9 (67^min, 59^P1) fps
Average AMD Radeon 780M (41.5 - 95, n=33)	75 fps -13%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	66.9 (56^min, 51^P1) fps -22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	43.4 (36^min, 36^P1) fps -49%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	36.7 (30^min, 30^P1) fps -57%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	28.6 (25^min, 24^P1) fps -67%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	24.8 (21^min, 17^P1) fps -71%
1920x1080 High Preset AA:T AF:16x
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	66.7 (53^min, 36^P1) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	65.1 (56^min, 51^P1) fps -2%
Average AMD Radeon 780M (31.7 - 70.6, n=33)	55.9 fps -16%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	50.1 (40^min, 39^P1) fps -25%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31.7 (27^min, 26^P1) fps -52%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	27 (22^min, 22^P1) fps -60%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	21.6 (18^min, 18^P1) fps -68%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	17.5 (14^min, 12^P1) fps -74%
1920x1080 Ultra High Preset AA:T AF:16x
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24 (20^min, 20^P1) fps +30%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20.7 (17^min, 17^P1) fps +13%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	18.5 (13^min, 12^P1) fps +1%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	18.4 (12^min, 12^P1) fps
Average AMD Radeon 780M (9.92 - 19.2, n=25)	15.4 fps -16%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	15.3 (13^min, 13^P1) fps -17%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	13.5 (11^min, 11^P1) fps -27%

The Witcher 3
1024x768 Low Graphics & Postprocessing
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	155.1 (145^min) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	154.6 (12.9^min, 32^P0.1, 98.7^P1) fps 0%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	139.2 (119^min) fps -10%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	138.1 (116^min) fps -11%
Average AMD Radeon 780M (74 - 163.3, n=37)	136.9 fps -12%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	119.3 (5.54^min, 30^P0.1, 77.7^P1) fps -23%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	102 fps -34%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	85.8 (61^min) fps -45%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	85.3 (69^min) fps -45%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	61.1 (39^min) fps -61%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	58.8 (52^min) fps -62%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	49.7 (44^min) fps -68%
1366x768 Medium Graphics & Postprocessing
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	99.3 (25.6^min, 43.8^P0.1, 72.1^P1) fps 0%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	99 (72^min) fps
Average AMD Radeon 780M (47.7 - 103.8, n=21)	89.6 fps -9%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	85.1 (80^min) fps -14%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	84 (77^min) fps -15%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	76.6 (20.1^min, 52.2^P0.1, 62.8^P1) fps -23%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	56 (53^min) fps -43%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	54.3 (52^min) fps -45%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	39 (36^min) fps -61%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	38.6 (36^min) fps -61%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	29.8 (18^min) fps -70%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	50.9 (45^min) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	49.6 (13.7^min, 22.8^P0.1, 39.2^P1) fps -3%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	46 (41^min) fps -10%
Average AMD Radeon 780M (21.3 - 52.2, n=45)	44.2 fps -13%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	43.3 (36^min) fps -15%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	36.3 (14.7^min, 17.9^P0.1, 30.9^P1) fps -29%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	33.5 fps -34%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	30.1 (28^min) fps -41%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	26.8 (26^min) fps -47%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	20.1 (17^min) fps -61%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	18.8 (17^min) fps -63%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	16.7 (14^min) fps -67%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	32.5 fps +6%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.8 (27^min) fps
Average AMD Radeon 780M (14.3 - 36, n=47)	28 fps -9%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	27.1 (24^min) fps -12%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	27 (25^min) fps -12%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	22.7 (14.2^min, 14.3^P0.1, 14.6^P1) fps -26%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	20.8 (18^min, 19^P1) fps -32%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.9 fps -45%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	13.8 (12^min) fps -55%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	12.4 (11^min) fps -60%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.8 (11^min) fps -62%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	9.5 (8^min) fps -69%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	8.2 (7^min) fps -73%

Far Cry 5
1280x720 Low Preset AA:T
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	86 (76^min) fps 0%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	86 (75^min) fps
Average AMD Radeon 780M (42 - 89, n=42)	71.9 fps -16%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	67 (57^min) fps -22%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	46 (41^min) fps -47%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45 (40^min) fps -48%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	45 (41^min) fps -48%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	34 (20^min) fps -60%
1920x1080 Medium Preset AA:T
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	49 (44^min) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	47 (41^min) fps -4%
Average AMD Radeon 780M (22 - 54, n=44)	42.3 fps -14%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	39 (35^min) fps -20%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	29 (27^min) fps -41%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	22 (20^min) fps -55%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	21 (18^min) fps -57%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	17 (15^min) fps -65%
1920x1080 High Preset AA:T
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	45 (41^min) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	43 (38^min) fps -4%
Average AMD Radeon 780M (21 - 49, n=44)	39 fps -13%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	35 (31^min) fps -22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	27 (25^min) fps -40%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	21 (19^min) fps -53%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	19 (17^min) fps -58%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	16 (14^min) fps -64%
1920x1080 Ultra Preset AA:T
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	43 (38^min) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	41 (36^min) fps -5%
Average AMD Radeon 780M (21 - 47, n=44)	37 fps -14%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	34 (30^min) fps -21%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26 (23^min) fps -40%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20 (18^min) fps -53%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	18 (16^min) fps -58%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	15 (13^min) fps -65%

GTA V
1024x768 Lowest Settings possible
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	167.5 (5.17^min, 125^P1) fps +3%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	163.4 (2.4^min, 100^P1) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	152.6 (4.69^min, 100^P1) fps -7%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	152.3 (4.42^min, 100^P1) fps -7%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	147.3 (5.71^min, 100^P1) fps -10%
Average AMD Radeon 780M (91.6 - 169.4, n=48)	145.1 fps -11%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	124.5 (12.7^min, 76.9^P1) fps -24%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	111.2 (8.07^min, 76.9^P1) fps -32%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	106.7 (12.9^min, 71.4^P1) fps -35%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	103.8 (6.31^min, 71.4^P1) fps -36%
1920x1080 Lowest Settings possible
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	127.1 (21.2^min, 90.9^P1) fps +2%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	124.7 (11.8^min, 83.3^P1) fps
Average AMD Radeon 780M (60.9 - 130.2, n=32)	113.5 fps -9%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	112 (30.2^min, 71.4^P1) fps -10%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	111.4 (35^min, 71.4^P1) fps -11%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	109.8 (9.31^min, 71.4^P1) fps -12%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	87.6 (30.9^min, 58.8^P1) fps -30%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	64.6 (20.6^min, 45.5^P1) fps -48%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	64 (8.04^min, 45.5^P1) fps -49%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	61.2 (24.1^min, 45.5^P1) fps -51%
1366x768 Normal/Off AF:4x
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	157.4 (5.24^min, 100^P1) fps +2%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	153.8 (4.97^min, 90.9^P1) fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	139.7 (5.95^min, 90.9^P1) fps -9%
Average AMD Radeon 780M (91.2 - 159, n=39)	138.5 fps -10%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	138 (28^min, 90.9^P1) fps -10%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	134.5 (8.19^min, 90.9^P1) fps -13%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	101.9 (27.6^min, 62.5^P1) fps -34%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	97.5 (36.1^min, 62.5^P1) fps -37%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	90.7 (31.1^min, 55.6^P1) fps -41%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	90.4 (9.41^min, 62.5^P1) fps -41%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	84 (16.1^min, 55.6^P1) fps -45%
1920x1080 Normal/Off AF:4x
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	131.5 (6.41^min, 90.9^P1) fps +2%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	128.7 (21.5^min, 76.9^P1) fps
Average AMD Radeon 780M (64.9 - 133.5, n=31)	114.4 fps -11%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	111.3 (22.1^min, 71.4^P1) fps -14%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	110.4 (6.6^min, 71.4^P1) fps -14%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	109.6 (8.03^min, 71.4^P1) fps -15%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	90.4 (9.41^min, 62.5^P1) fps -30%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	74.8 (27^min, 47.6^P1) fps -42%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	64.1 (29.4^min, 45.5^P1) fps -50%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	61.7 (28^min, 45.5^P1) fps -52%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	57.5 (17.4^min, 38.5^P1) fps -55%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	66.6 (4.46^min, 37^P1) fps +1%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	65.7 (3.85^min, 40^P1) fps
Average AMD Radeon 780M (32.5 - 68.6, n=49)	60.1 fps -9%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	51.9 (14.3^min, 37^P1) fps -21%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	51.8 (9.91^min, 35.7^P1) fps -21%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	48.7 (9.22^min, 34.5^P1) fps -26%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	32.2 (6.83^min, 23.3^P1) fps -51%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.6 (11.1^min, 17.9^P1) fps -63%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	20.9 (10.5^min, 16.7^P1) fps -68%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	15.9 (6.66^min, 12.5^P1) fps -76%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	15 (10^min, 11.4^P1) fps -77%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	26 (2.62^min, 17.5^P1) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	25.7 (4.34^min, 14.1^P1) fps -1%
Average AMD Radeon 780M (12.2 - 27.7, n=49)	24.6 fps -5%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	23.7 (7.88^min, 16.4^P1) fps -9%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	23.7 (9.52^min, 16.4^P1) fps -9%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	20.4 (4.1^min, 14.7^P1) fps -22%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	12.3 (3.05^min, 8.77^P1) fps -53%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.2 (6.84^min, 7.58^P1) fps -57%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	8.8 (4.66^min, 7.35^P1) fps -66%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	6.8 (3.29^min, 3.76^P1) fps -74%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	6.32 (3.91^min, 4.98^P1) fps -76%

X-Plane 11.11
1280x720 low (fps_test=1)
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	67.6 fps +3%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	66.4 fps +1%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	65.9 fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	64.8 fps -2%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	62.7 fps -5%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	61.5 fps -7%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	53.4 fps -19%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	54.6 fps -17%
Average AMD Radeon 780M (39 - 69.6, n=58)	53.2 fps -19%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	50.5 fps -23%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	43.4 fps -34%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	41.3 fps -37%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	38.8 fps -41%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	38 fps -42%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	36.3 fps -45%
1920x1080 med (fps_test=2)
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	52.9 fps +12%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	52.6 fps +11%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	49.8 fps +5%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	48.2 fps +2%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	47.3 fps
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	46.9 fps -1%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	41.3 fps -13%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	41 fps -13%
Average AMD Radeon 780M (26.2 - 48.9, n=58)	38.9 fps -18%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	36.1 fps -24%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	33.1 fps -30%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	32.9 fps -30%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	27.4 fps -42%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	26.3 fps -44%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	23.8 fps -50%
1920x1080 high (fps_test=3)
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	43 fps +8%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	41.8 fps +5%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	41.6 fps +5%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	40.7 fps +3%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	39.7 fps
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	38.2 fps -4%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	35.4 fps -11%
Average AMD Radeon 780M (24.5 - 41.5, n=57)	32.7 fps -18%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	31.4 fps -21%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	28.5 fps -28%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	26 fps -35%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.2 fps -39%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	23.3 fps -41%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	22 fps -45%

Baldur's Gate 3
1920x1080 Low Preset
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	40.5 fps
Average AMD Radeon 780M (20.2 - 43.9, n=22)	36.5 fps -10%
1920x1080 Medium Preset
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	33.7 fps
Average AMD Radeon 780M (15.7 - 36.8, n=24)	29.3 fps -13%
1920x1080 High Preset
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	28.1 fps
Average AMD Radeon 780M (13.8 - 29.9, n=24)	24.4 fps -13%
1920x1080 Ultra Preset
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	27 fps
Average AMD Radeon 780M (13.4 - 29.2, n=23)	23.6 fps -13%

Cyberpunk 2077 2.1 Phantom Liberty
1280x720 Low Preset (FSR off)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	77.4 (28.7^min) fps
Average AMD Radeon 780M (53.6 - 80.6, n=21)	66.5 fps -14%
1920x1080 Low Preset (FSR off)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	46.3 (32.3^min) fps
Average AMD Radeon 780M (32.5 - 52.1, n=39)	40.3 fps -13%
1920x1080 Medium Preset (FSR off)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	35.2 (10.9^min) fps
Average AMD Radeon 780M (16.3 - 37.5, n=34)	30.9 fps -12%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	23.8 (18.8^min) fps -32%
1920x1080 High Preset (FSR off)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	27.7 (9.25^min) fps
Average AMD Radeon 780M (13.8 - 29.6, n=35)	24.7 fps -11%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	17.8 (11.8^min) fps -36%
1920x1080 Ultra Preset (FSR off)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	24.5 (9.31^min) fps
Average AMD Radeon 780M (11.5 - 26.3, n=30)	21.3 fps -13%

Final Fantasy XV Benchmark
1280x720 Lite Quality
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	80.8 fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	70.3 fps -13%
Average AMD Radeon 780M (27.8 - 84.5, n=54)	69.7 fps -14%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	68.5 fps -15%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	68.1 fps -16%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	62.1 fps -23%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	52.8 fps -35%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	46.1 fps -43%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45.6 fps -44%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	39.6 fps -51%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	37.4 fps -54%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	32.2 fps -60%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	28.5 fps -65%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	23 fps -72%
1920x1080 Standard Quality
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	39.3 fps
Average AMD Radeon 780M (21 - 40.9, n=54)	35.2 fps -10%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	34.9 fps -11%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	34.7 fps -12%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	33.5 fps -15%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	33.4 fps -15%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	32.8 fps -17%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	24.7 fps -37%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24.3 fps -38%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	21.9 fps -44%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20 fps -49%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	16.1 fps -59%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	14.8 fps -62%
1920x1080 High Quality
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.3 fps
Average AMD Radeon 780M (15.9 - 30.8, n=55)	26.3 fps -10%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	25 fps -15%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	24.6 fps -16%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	24.5 fps -16%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	23 fps -22%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	21.8 fps -26%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	17.7 fps -40%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	17.4 fps -41%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	15.2 fps -48%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	14.6 fps -50%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.5 fps -61%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	10.6 fps -64%

Strange Brigade
1280x720 lowest AF:1
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	167.7 (34.3^min, 142.9^P1) fps
Average AMD Radeon 780M (74.1 - 175.9, n=48)	149.5 fps -11%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	142.4 (86.5^min, 118^P1) fps -15%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	141.9 (78.6^min, 116.6^P1) fps -15%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	137.5 (81.3^min, 118.1^P1) fps -18%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	131.8 (15.2^min, 64.5^P1) fps -21%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	99 (21.7^min, 36.5^P1) fps -41%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	89.2 (21.3^min, 32.1^P1) fps -47%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	78.9 (56.9^min, 66.5^P1) fps -53%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	64.4 (13.2^min, 19^P1) fps -62%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	56.5 (13.2^min, 17.2^P1) fps -66%
1920x1080 medium AA:medium AF:4
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	67.9 (43.7^min, 58.3^P1) fps
Average AMD Radeon 780M (31.7 - 70.9, n=49)	62.5 fps -8%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	57.8 (43.1^min, 50.8^P1) fps -15%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	57.4 (43.4^min, 51^P1) fps -15%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	57 (8.9^min, 48.8^P1) fps -16%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	54.2 (43.3^min, 47.6^P1) fps -20%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	39.4 (14.1^min, 23^P1) fps -42%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	34.7 (12.5^min, 20^P1) fps -49%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	30.3 (25.6^min, 27.4^P1) fps -55%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	25.6 (7.1^min, 12.5^P1) fps -62%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	22.4 (6.3^min, 10.3^P1) fps -67%
1920x1080 high AA:high AF:8
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	57.9 (7^min, 45^P1) fps
Average AMD Radeon 780M (27.3 - 60.6, n=49)	52.7 fps -9%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	50.4 (24.4^min, 40.8^P1) fps -13%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	48.6 (34.2^min, 38.3^P1) fps -16%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	48.5 (35.1^min, 38.2^P1) fps -16%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	45 (34.5^min, 35.8^P1) fps -22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32 (8.4^min, 15.8^P1) fps -45%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	29.2 (9^min, 13.5^P1) fps -50%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.6 (19.8^min, 20.3^P1) fps -58%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	20 (5^min, 6.58^P1) fps -65%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	17.2 (5^min, 5.39^P1) fps -70%
1920x1080 ultra AA:ultra AF:16
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	48.8 (11.1^min, 31.1^P1) fps
Average AMD Radeon 780M (23.5 - 52.1, n=50)	45 fps -8%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	41.9 (32.6^min, 33.4^P1) fps -14%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	41.6 (26.5^min, 33^P1) fps -15%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	41 (6.8^min, 14.4^P1) fps -16%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	39.1 (19^min, 24.6^P1) fps -20%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26.1 (5.3^min, 8.13^P1) fps -47%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	22.9 (5^min, 5.96^P1) fps -53%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	20.5 (12.2^min, 14.6^P1) fps -58%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	17.7 (5^min, 5^P1) fps -64%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	16.4 (5^min, 5^P1) fps -66%

Dota 2 Reborn
1280x720 min (0/3) fastest
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	161.2 (11.9^min) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	155.8 (135.9^min) fps -3%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	143.3 (123.8^min) fps -11%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	141.9 (121.4^min) fps -12%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	140.9 (120.9^min) fps -13%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	133.8 (103.8^min) fps -17%
Average AMD Radeon 780M (34.7 - 164.8, n=56)	132.5 fps -18%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	119.5 (88.3^min) fps -26%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	113.8 (8.3^min) fps -29%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	112.3 (96.7^min) fps -30%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	110.7 (97.6^min) fps -31%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	110.5 (89^min) fps -31%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	102.5 (56.5^min) fps -36%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	37 (34.9^min) fps -77%
1366x768 med (1/3)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	124.8 (104.5^min) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	120.6 (96.2^min) fps -3%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	115.1 (100.7^min) fps -8%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	113.4 (94^min) fps -9%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	112.7 (95^min) fps -10%
Average AMD Radeon 780M (33.6 - 130.2, n=56)	106.8 fps -14%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	93.4 (69.8^min) fps -25%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	92.6 (61.2^min) fps -26%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	90.8 (71^min) fps -27%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	87.3 (72.8^min) fps -30%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	86.4 (68.3^min) fps -31%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	82.8 (69^min) fps -34%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	70.1 (61.4^min) fps -44%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	36.2 (33.9^min) fps -71%
1920x1080 high (2/3)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	96.8 (17.4^min) fps
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	89.1 (81.8^min) fps -8%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	87.6 (75^min) fps -10%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	83.9 (73.4^min) fps -13%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	80.9 (71.6^min) fps -16%
Average AMD Radeon 780M (31.6 - 98.8, n=56)	79.1 fps -18%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	72.3 (46.1^min) fps -25%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	67.6 (58.9^min) fps -30%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	67.6 (60.7^min) fps -30%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	62.7 (57.3^min) fps -35%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	56.9 (52.4^min) fps -41%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	48.7 (44.8^min) fps -50%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	36.1 (33^min) fps -63%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	35.4 (33.8^min) fps -63%
1920x1080 ultra (3/3) best looking
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	87.4 (16.1^min) fps
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	84.9 (77.4^min) fps -3%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	81 (67.5^min) fps -7%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	73.1 (64^min) fps -16%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	71.4 (62.3^min) fps -18%
Average AMD Radeon 780M (30.8 - 91.2, n=56)	71.4 fps -18%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	68.3 (45.5^min) fps -22%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	61.2 (55.2^min) fps -30%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	60.5 (52.3^min) fps -31%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	57.5 (52.3^min) fps -34%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	52 (47.1^min) fps -41%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	45.4 (42.4^min) fps -48%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	34.7 (32.5^min) fps -60%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	32.8 (29.4^min) fps -62%

Witcher 3 FPS Chart

GMK NucBox K6 R7 7840HS, Radeon 780M: Ø30.8 (28-34)

	low	med.	high	ultra
GTA V (2015)	163.4	153.8	65.7	26
The Witcher 3 (2015)	155.1	99	50.9	30.8
Dota 2 Reborn (2015)	161.2	124.8	96.8	87.4
Final Fantasy XV Benchmark (2018)	80.8	39.3	29.3
X-Plane 11.11 (2018)	65.9	47.3	39.7
Far Cry 5 (2018)	86	49	45	43
Strange Brigade (2018)	167.7	67.9	57.9	48.8
Tiny Tina's Wonderlands (2022)	74.6	52.2	36.6	29.5
F1 22 (2022)	99.8	85.9	66.7	18.4
Baldur's Gate 3 (2023)	40.5	33.7	28.1	27
Cyberpunk 2077 2.1 Phantom Liberty (2023)	46.3	35.2	27.7	24.5

排放--不怕大声喧哗

系统噪音

在 23.2 dB(A) 的静音背景下，风扇噪音始终保持在 31.3 dB(A)，这使得 NucBox K6 的噪音自动超过了大多数使用 U 系列 CPU 的笔记本电脑。不过，请记住，与笔记本电脑相比，用户通常坐在离迷你 PC 较远的地方，因此噪音水平总体上可能不那么明显。如果进行视频流或网页浏览，系统的噪音会略微增大，达到 33.4 dB(A)，但值得庆幸的是，任何转速变化都很稳定，没有突然的峰值。

运行要求更高的负载（如游戏）时，风扇噪音在 44 到 48 dB（A）之间，会更加明显，几乎与一些游戏笔记本电脑（如微星隐形 GS66.有趣的是，风扇噪音的范围和表现几乎与我们在 Geekom A7.

风扇噪音曲线（白色：背景，红色：系统空闲，蓝色：3DMark 06，橙色：3DMark 06，绿色：3DMark 06，橙色：3DMark 06Witcher 3绿色Prime95+FurMark 压力）

Noise Level

Idle		31.3 / 31.3 / 33.4 dB(A)
Load		47.5 / 47.7 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 23.2 dB(A)

温度

新鲜空气从底部和顶部边缘的周边进入，而废气则从后部排出。这种设计使设备更适合水平或垂直放置，而不会阻碍气流。

当长时间运行高负荷时，交流适配器的温度可达 42 摄氏度以上。

能源管理

耗电量

该系统在玩游戏时的功耗约为 73 瓦，对于仅集成显卡的迷你 PC 来说相对较高。以速度较慢的 NUC 13 Pro 为例，在类似条件下仅需 45 W。高耗电量与我们上文关于 NucBox K6 更高功率包络线的发现一致。

当 CPU 使用率达到 100%时，我们可以记录到中等尺寸（约 14.9 x 6.3 x 3 厘米）的 130 瓦交流适配器的最大功耗约为 88 瓦。这些电力开销可用于外置 USB-C 设备（如固态硬盘）。

(编者注：当我们的 Metrahit Energy 万用表维修完成后，我们将更新本节内容。不便之处，敬请谅解。）

Power Consumption

Off / Standby	1.3 / 1.6 Watt
Idle	6.7 / 7 / 7.6 Watt
Load	74.3 / 85.7 Watt


Key: min: , med: , max: Metrahit Energy

	GMK NucBox K6 R7 7840HS, Radeon 780M, MasonSemi 1TB MC7000, , x,	GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs, Lexar NM610 Pro NM610P001T-HNNNG, , x,	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x,	Beelink SER5 R5 5560U, Vega 6, Crucial P3 Plus CT1000P3PSSD8, , x,	AcePC Wizbox AI Ultra 7 155H, Arc 8-Core, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe, , x,	Geekom A7 R9 7940HS, Radeon 780M, Acer N5000, , x,
Power Consumption		-15%	-13%	45%	-115%	16%
Idle Minimum *	6.7	7.1 -6%	7 -4%	4.4 34%	7.23 -8%	3.8 43%
Idle Average *	7	10.1 -44%	9.2 -31%	5 29%	10 -43%	4.8 31%
Idle Maximum *	7.6	18.6 -145%	11.8 -55%	5.3 30%	49 -545%	6.5 14%
Load Average *	74.3	45.3 39%	45 39%	29.8 60%	53 29%	71.9 3%
Witcher 3 ultra *	75	55.2 26%		28.8 62%
Load Maximum *	85.7	52.9 38%	97.2 -13%	40.4 53%	91 -6%	94.7 -11%

* ... smaller is better

Power Consumption Witcher 3 / Stresstest

GMK NucBox K6 R7 7840HS, Radeon 780M; Witcher 3 ultra: Ø75 (73.2-77.7)

GMK NucBox K2 R7 7735HS, Radeon 680M; Witcher 3 ultra: Ø62.2 (60.2-65.2)

GMK NucBox K6 R7 7840HS, Radeon 780M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø83.9 (81.8-85.7)

GMK NucBox K2 R7 7735HS, Radeon 680M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø64.2 (62.8-72.8)

Power Consumption external Monitor

GMK NucBox K6 R7 7840HS, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø83.6 (58.9-86.5)

GMK NucBox K2 R7 7735HS, Radeon 680M; Prime95 V2810 Stress (external Monitor): Ø63 (62.1-72.5)

GMK NucBox K6 R7 7840HS, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø79.3 (78.4-79.9)

GMK NucBox K2 R7 7735HS, Radeon 680M; Cinebench R15 Multi (external Monitor): Ø60.7 (57.3-67.4)

GMK NucBox K6 R7 7840HS, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø81.2 (72.9-86.1)

GMK NucBox K2 R7 7735HS, Radeon 680M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø63.2 (61.9-71)

GMK NucBox K6 R7 7840HS, Radeon 780M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø75 (73.2-77.7)

GMK NucBox K2 R7 7735HS, Radeon 680M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø62.2 (60.2-65.2)

GMK NucBox K6 R7 7840HS, Radeon 780M; Idle 1min (external Monitor): Ø7.54 (6.74-8.75)

结论 - 功能强大且价格相对低廉

NucBox K6 是我们测试过的 GMK 最引人注目的迷你 PC 之一。它符合多个关键标准，包括 500 美元的实惠价格、强劲的 CPU 和 iGPU 性能、可升级的内存和存储空间以及小巧的 NUC 外形。它的性能在同类产品中尤其令人印象深刻，因为像英特尔 NUC 13 Pro或 Geekom A7等替代品速度更慢、价格更贵，甚至两者兼而有之。

GMK NucBox K6 性能强劲，价格诱人，缺点也不多，因此很容易被推荐用于 HTPC 和 1080p 休闲游戏。

只有几个小缺点。例如，如果您有很多配件或显示器需要连接，那么单个 USB-C 端口可能会让您感觉受到限制。我们还希望看到类似联想 IdeaCentre 的免工具维修功能。联想 IdeaCentre Mini或某些英特尔 NUC 相似。DPC 延迟问题也应得到解决，以获得更流畅的视频播放体验。最后，改用 USB-C 交流适配器将使迷你 PC 更便于旅行，并提高与现有 USB-C 适配器的兼容性。

价格和供应情况

GMKtec NucBox K6 现已发货，裸机套件起价 400 美元，配备 16 GB 内存、1 TB SSD 和 Windows 11 Pro 的套件起价 500 美元。裸机和 32 GB SKU 的优惠券代码 "K6-0-NBC "和 "K6-2T-NBC "可分别在结账时使用。

此外，亚马逊也在销售NucBox K6。

GMK NucBox K6 - 04/03/2024 v7 ^(old)
Allen Ngo

Chassis

84 / 98 → 85%

Connectivity

62 / 81 → 77%

Weight

83%

Games Performance

81%

Application Performance

98%

Noise

71%

Average

80%

84%

Mini PC - Weighted Average

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Rating	Date	Model	Weight	Height	Resolution
83.6 % v7 ^(old)	04 / 2024	GMK NucBox K6 R7 7840HS, Radeon 780M	514 g	47 mm	x
82.8 % v7 ^(old)	10 / 2023	GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs	396 g	43.2 mm	x
83.1 % v7 ^(old)	08 / 2023	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs	558 g	37 mm	x
82.1 % v7 ^(old)	11 / 2023	Beelink SER5 R5 5560U, Vega 6	439 g	42 mm	x
85.2 % v7 ^(old)	04 / 2024	AcePC Wizbox AI Ultra 7 155H, Arc 8-Core	840 g	55.55 mm	x
82.6 % v7 ^(old)	03 / 2024	Geekom A7 R9 7940HS, Radeon 780M	417 g	38 mm	x

	CPU 时钟 (GHz)	GPU 时钟 (MHz)	CPU 平均温度 (°C)
系统闲置	--	--	37
Prime95 压力	3.9	800	84
Prime95 + FurMark Stress	4.1	2000	76
Witcher 3 压力	~0.4	2200 - 2700	71

GMK NucBox K6 迷你电脑评测：与最新英特尔酷睿 Ultra 笔记本电脑一样强大

与 AMD Zen 4 完美匹配。

潜在的竞争对手比较

案例

尺寸比较

连接性

交流

维护

配件和保修

性能 - AMD Zen 4 依然非常强大

测试条件

处理器

Cinebench R15 Multi Loop

压力测试

系统性能

DPC 延迟

存储设备

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

图形处理器性能--足以满足大多数游戏的需求

Witcher 3 FPS Chart

排放--不怕大声喧哗

系统噪音

温度

能源管理

耗电量

Power Consumption Witcher 3 / Stresstest

Power Consumption external Monitor

Pros

Cons

结论 - 功能强大且价格相对低廉

价格和供应情况

More articles related to this device

Transparency

Price comparison

3DMark 11 Performance		13455 points
3DMark Fire Strike Score		7566 points
3DMark Time Spy Score		3260 points
Help

	GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	Geekom A7 Radeon 780M, R9 7940HS, Acer N5000
Noise		15%	8%	26%	19%	-1%
off / environment *	23.2	23.1 -0%	25.2 -9%	23.7 -2%	23.54 -1%	25.4 -9%
Idle Minimum *	31.3	25 20%	28.1 10%	23.9 24%	23.54 25%	33.3 -6%
Idle Average *	31.3	25.5 19%	28.2 10%	23.9 24%	24.9 20%	33.6 -7%
Idle Maximum *	33.4	25.5 24%	28.3 15%	23.9 28%	24.9 25%	33.7 -1%
Load Average *	47.5	39.9 16%	42 12%	28 41%	35.78 25%	43.3 9%
Witcher 3 ultra *	43.6	39.9 8%		27.6 37%		43.2 1%
Load Maximum *	47.7	39.9 16%	42.1 12%	32.8 31%	37.57 21%	43.3 9%
