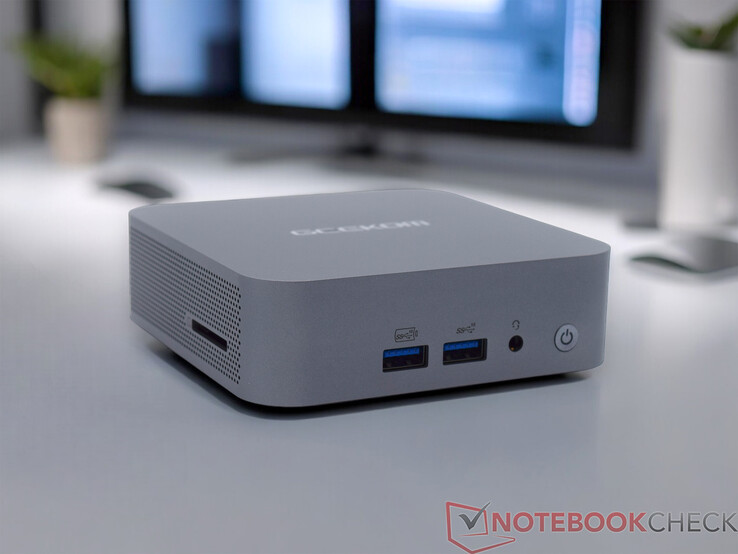

Geekom GT13 Pro 迷你 PC 评测 - 配备英特尔酷睿 i9-13900H、32 GB DDR4 内存和 2 TB 固态硬盘的时尚 NUC 替代品

Name: Geekom GT13 Pro
Brand: Geekom

极简迷你电脑

Geekom 的 GT13 Pro 继承了现有型号系列的时尚设计。英特尔酷睿 i9-13900H 带来了很多惊喜，但在这篇详细的评测中，我们将近距离观察这颗高端 SoC 在 0.5 升的小机箱中表现如何。这款迷你电脑配备了 32 GB 内存和 2 TB 固态硬盘，装备精良，两个 USB4 端口的连接也体现了这一点。

Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy), Published 06/23/2024 🇺🇸 🇩🇪 ...

Mini PC Desktop Intel Raptor Lake Thunderbolt

随着 Geekom GT13 Pro 的推出，该制造商在其产品组合中拥有了一款基于英特尔处理器的功能非常强大的迷你 PC。遗憾的是，Geekom 只使用 Raptor Lake H 处理器，尽管英特尔最近推出了更新的 Meteor Lake 芯片。最佳配置为英特尔酷睿 i9-13900H搭配 32 GB 内存和 2 TB 固态硬盘。在价格方面，你必须掏腰包，因为最终账单为 930 欧元。基于英特尔酷睿 i7-13620H 处理器的 Geekom GT13 Pro 仅售 721 欧元。英特尔酷睿 i7-13620H则便宜得多。虽然大容量存储空间只有 1 TB 的一半，但 32 GB 内存与便宜的机型拥有相同的工作内存。

让我们来仔细看看 Geekom GT13 Pro 与其他高性能迷你 PC 相比的优势。由于价格原因，大家对它的期望值已经非常高了。我们在下表中汇总了本次评测中与 Geekom 配套的对比设备。

Test device courtesy of Geekom

Download your licensed rating image as PNG / SVG

Geekom GT13 Pro

Processor

Intel Core i9-13900H 14 x 1.9 - 5.4 GHz, 64 W PL2 / Short Burst, 35 W PL1 / Sustained, Raptor Lake-H

Graphics adapter

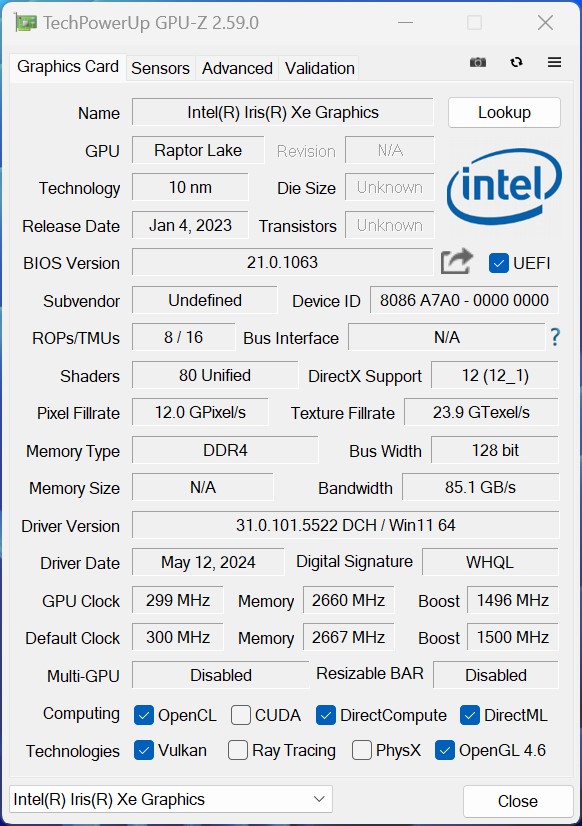

Intel Iris Xe Graphics G7 96EUs, Core: 1500 MHz, 31.0.101.5522 DCH

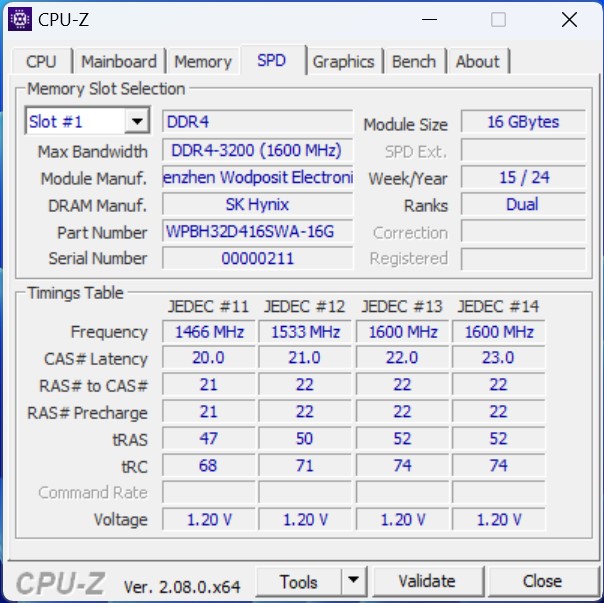

Memory

32 GB

, DDR4-3200, 2 von 2 belegt, max. 64 GB

Mainboard

Intel Alder Lake-P PCH

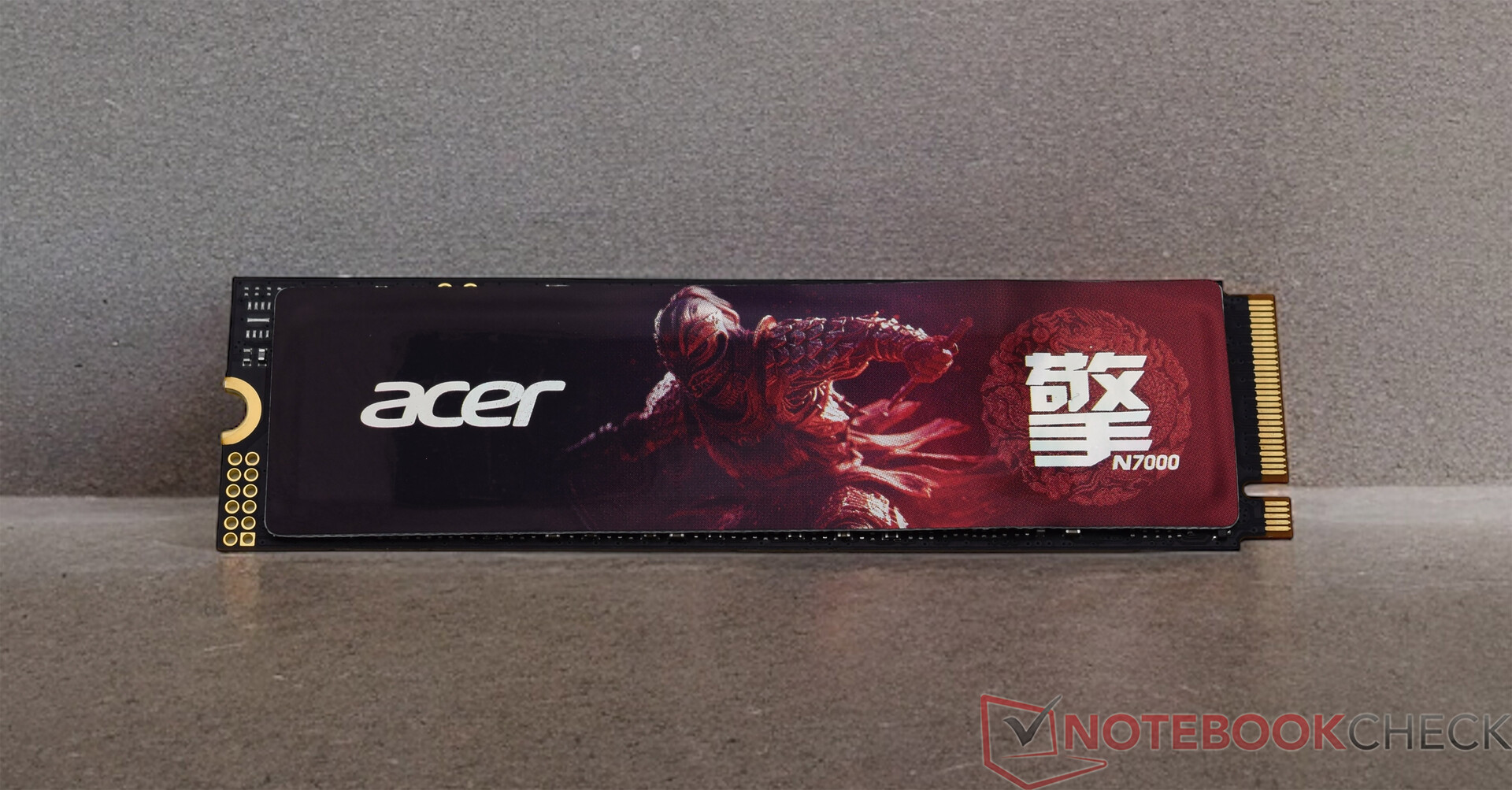

Storage

Acer N7000, 2048 GB

, 1800 GB free

Soundcard

Intel Raptor Lake-P/U/H PCH - cAVS

Connections

1 USB 2.0, 3 USB 3.1 Gen2, 2 USB 4.0 40 Gbps, 2 Thunderbolt, USB-C Power Delivery (PD), 2 HDMI, 2 DisplayPort, 1 Docking Station Port, Audio Connections: 3.5mm Klinke, Card Reader: SD-Card (Full-Size)

Networking

Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Size

height x width x depth (in mm): 37 x 112.4 x 112.4

Operating System

Microsoft Windows 11 Pro

Additional features

120-Watt-Power-Adapter, 36 Months Warranty

Weight

440 g, Power Supply: 249 g

Price

930 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Date	Version	Model	Memory	Weight	Height	Price
06 / 2024	v8	Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs	32768 MB	440 g	37 mm	930 EUR
06 / 2024	v8	Aoostar GEM12 R7 8845HS, Radeon 780M	32768 MB	653 g	60 mm	649 US-Dollar
05 / 2024	v7 ^(old)	Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core	32768 MB	863 g	48.6 mm	959 Euro
05 / 2024	v7 ^(old)	Geekom A8 R9 8945HS, Radeon 780M	32768 MB	432 g	38 mm	949 EUR
04 / 2024	v8	Geekom XT12 Pro i9-12900H, Iris Xe G7 96EUs	32768 MB	545 g	37 mm	899 EUR
04 / 2024	v7 ^(old)	Acemagic F2A Ultra 7 155H, Arc 8-Core	32768 MB	768 g	57 mm	1199 EUR
12 / 2023	v7 ^(old)	Minisforum EliteMini UM780 XTX R7 7840HS, Radeon 780M	32768 MB	750 g	52.3 mm	879 EUR
08 / 2023	v7 ^(old)	Khadas Mind i7-1360P, Iris Xe G7 96EUs	32768 MB	438 g	20 mm	799 Euro

注：我们已经更新了评级系统，第 8 版的结果与第 7 版的结果不具可比性。这里.

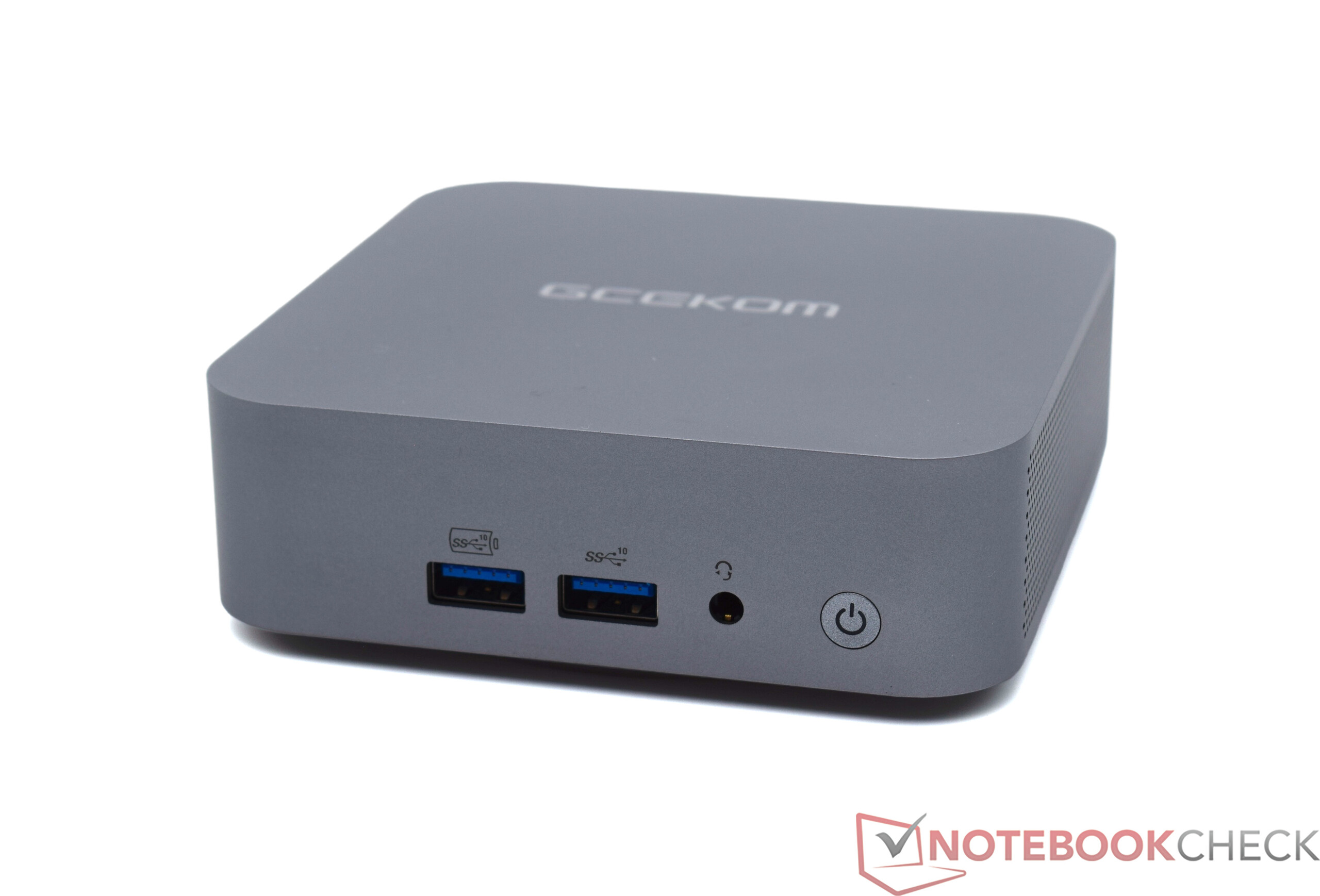

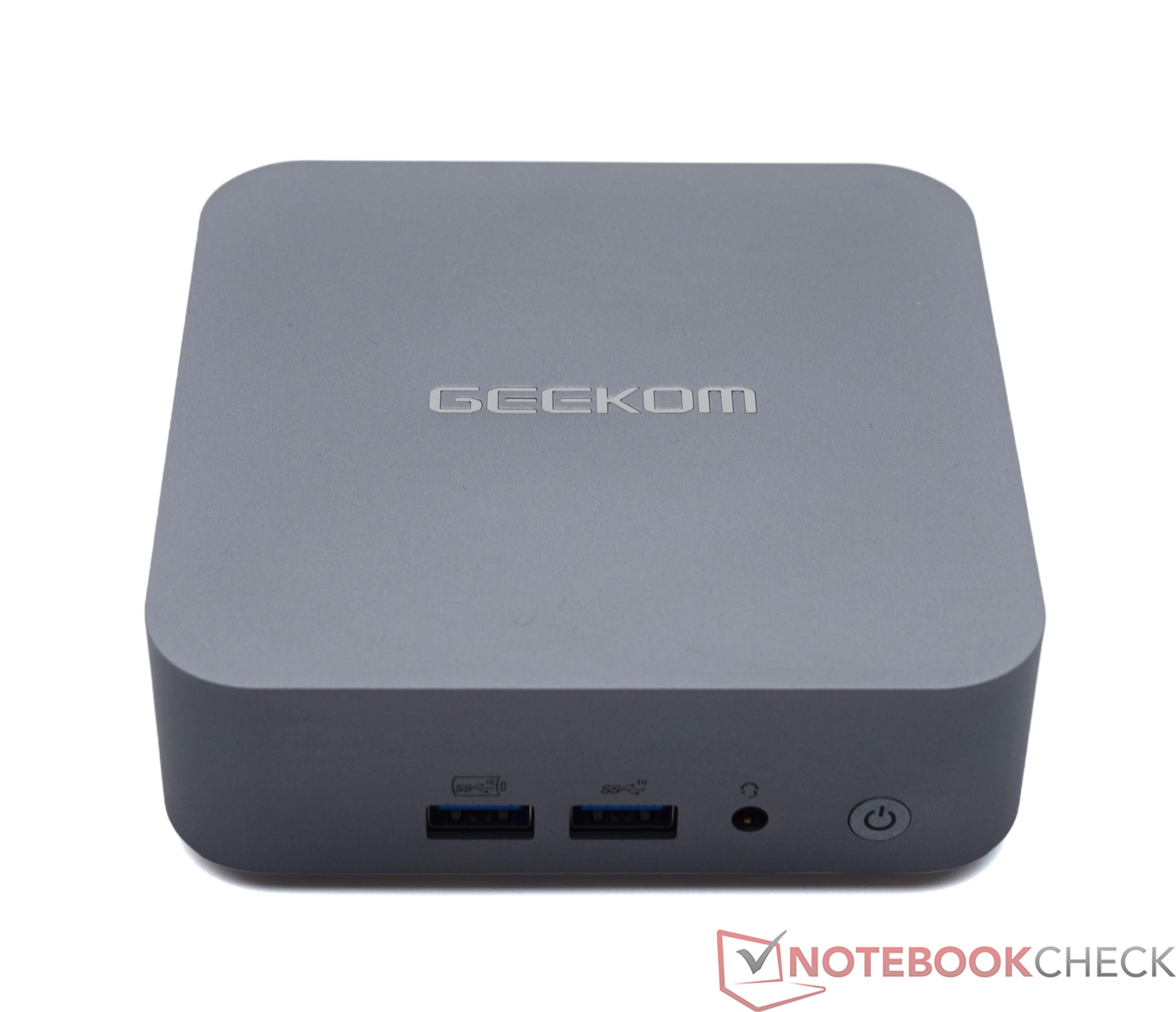

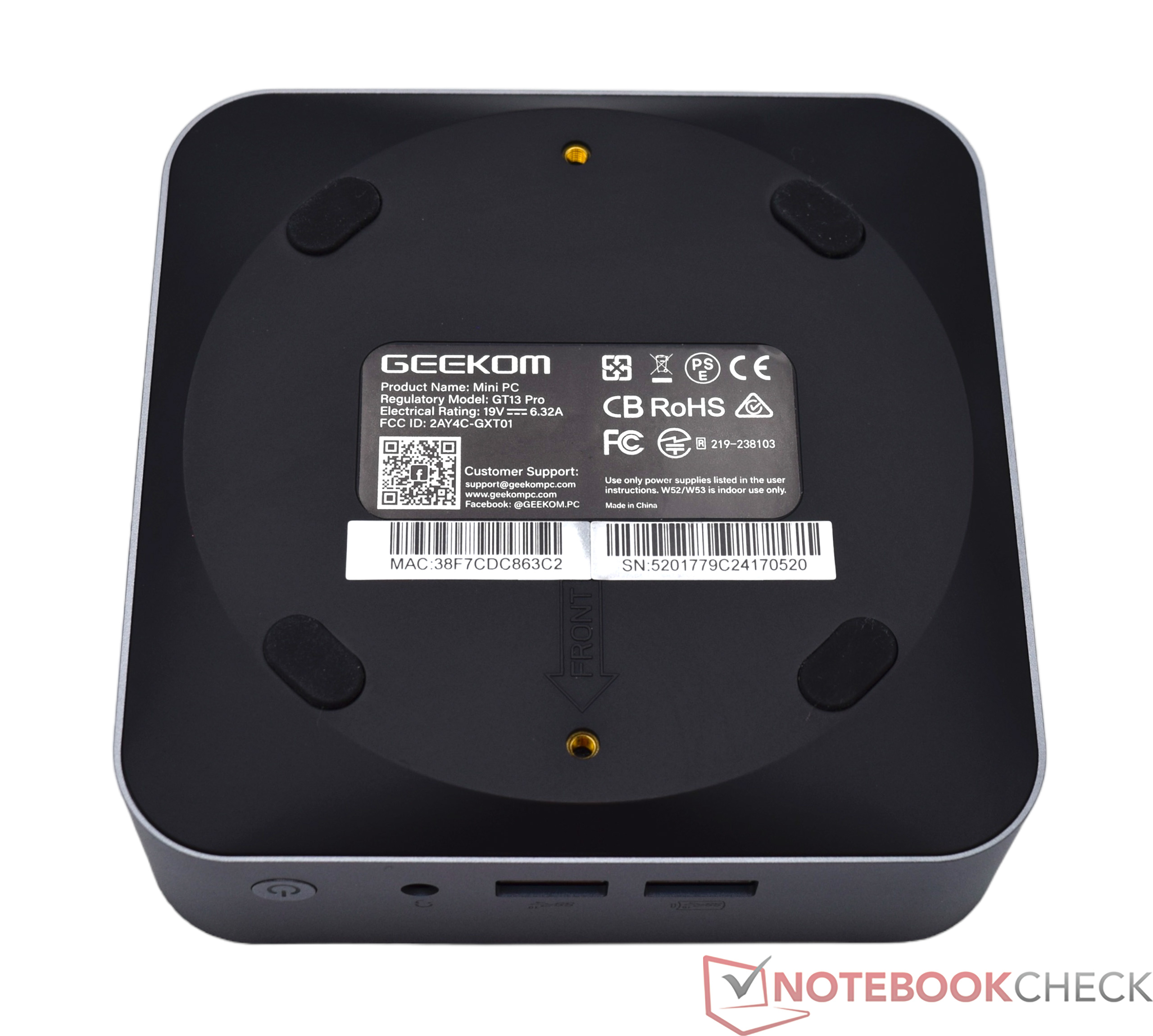

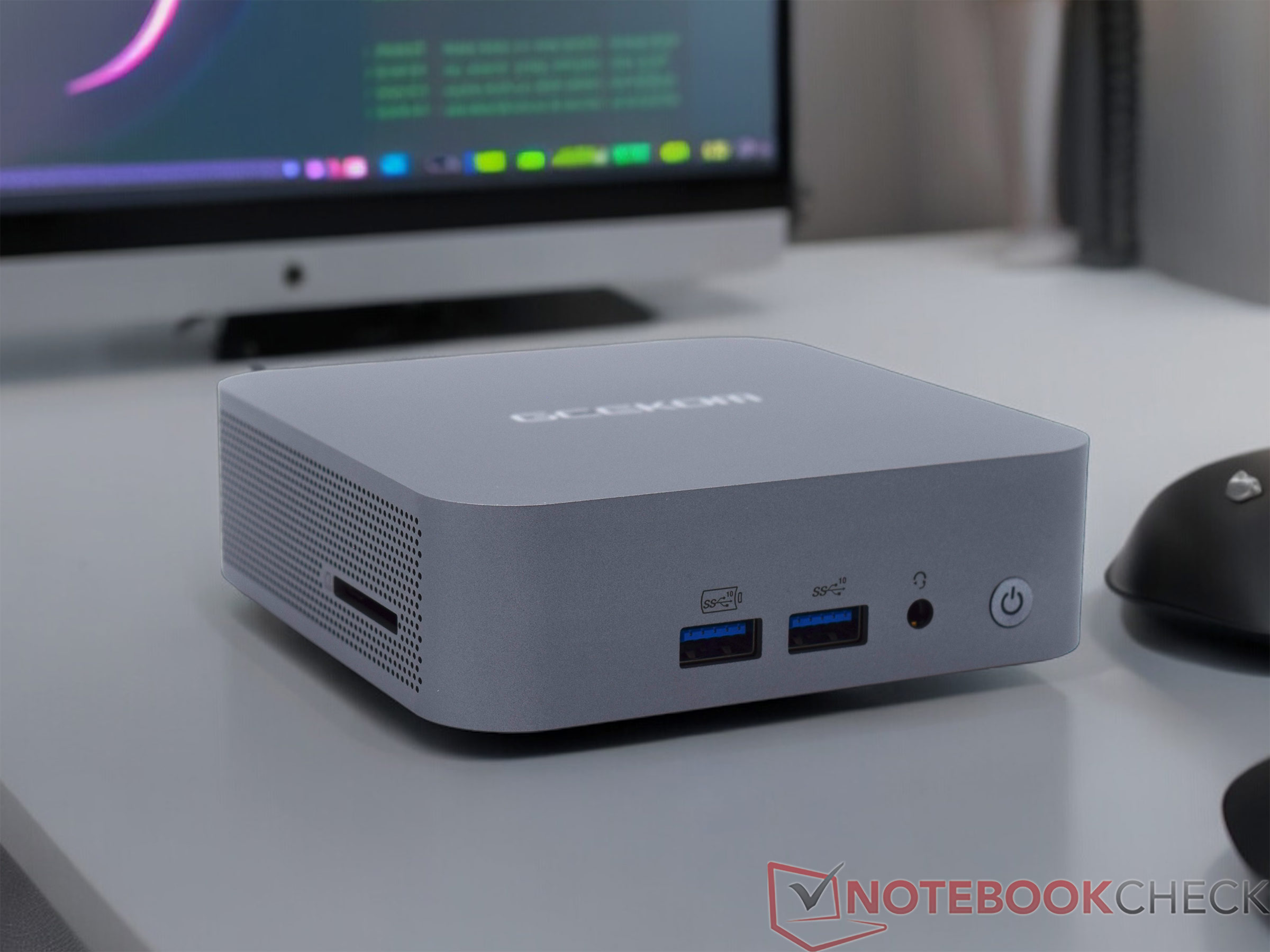

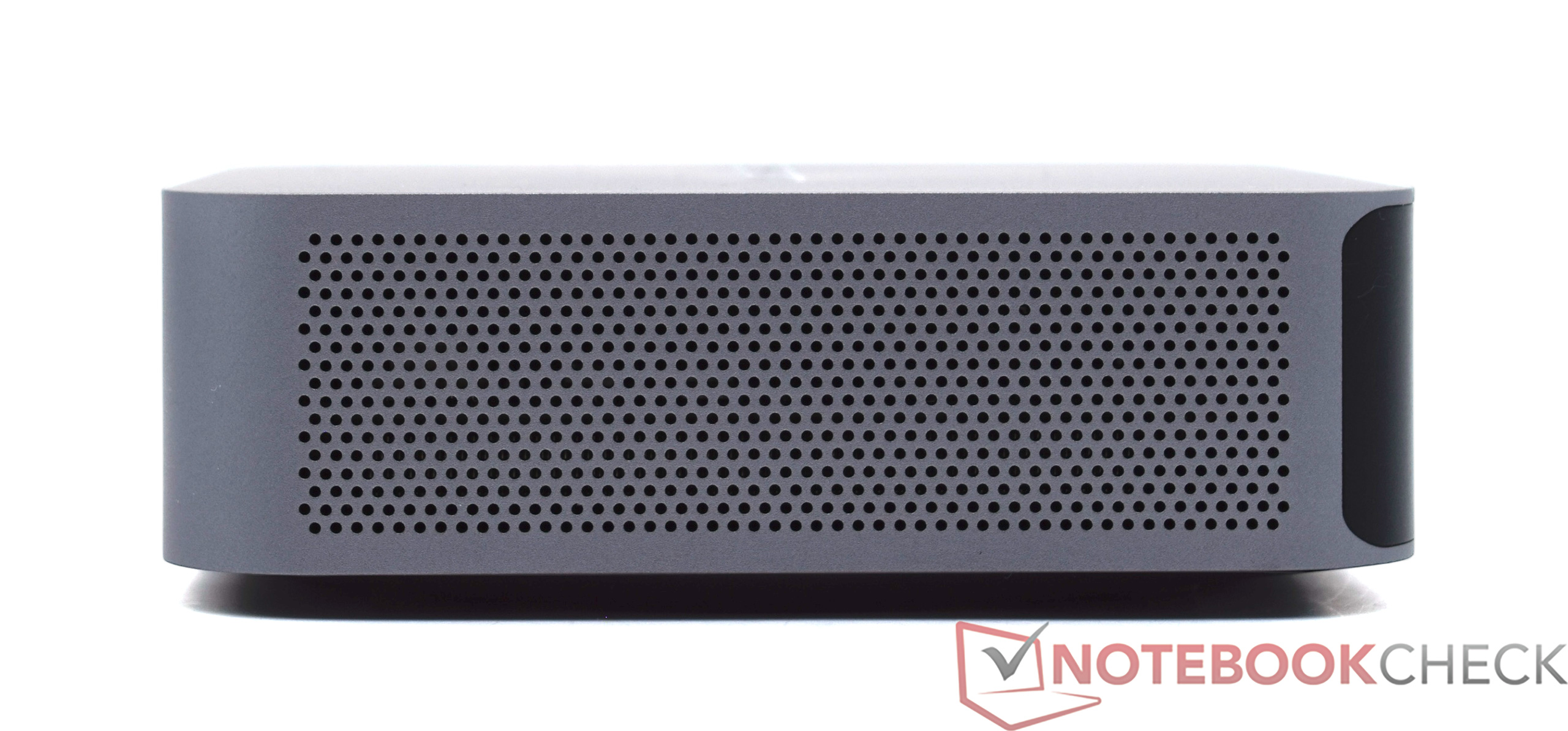

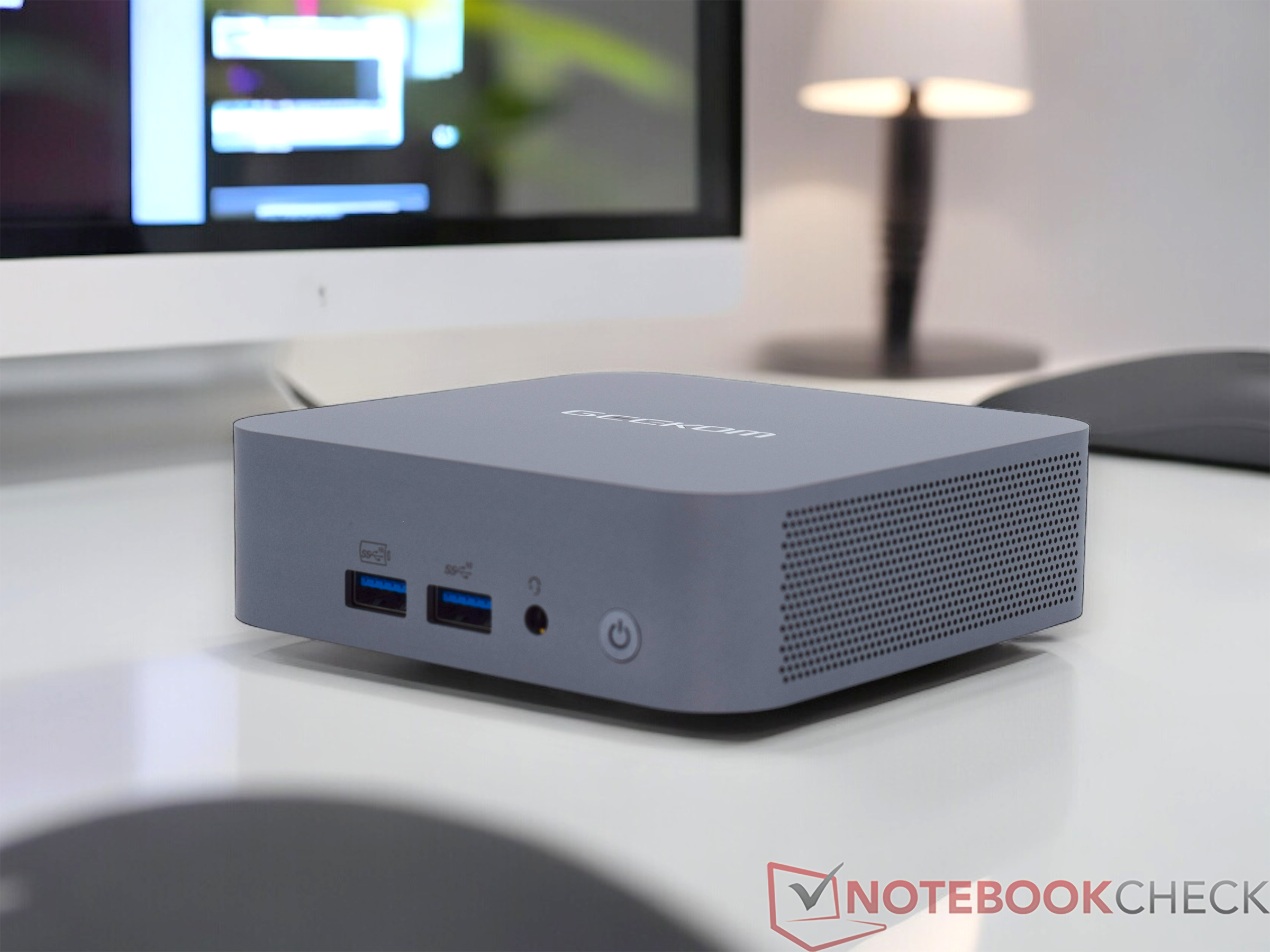

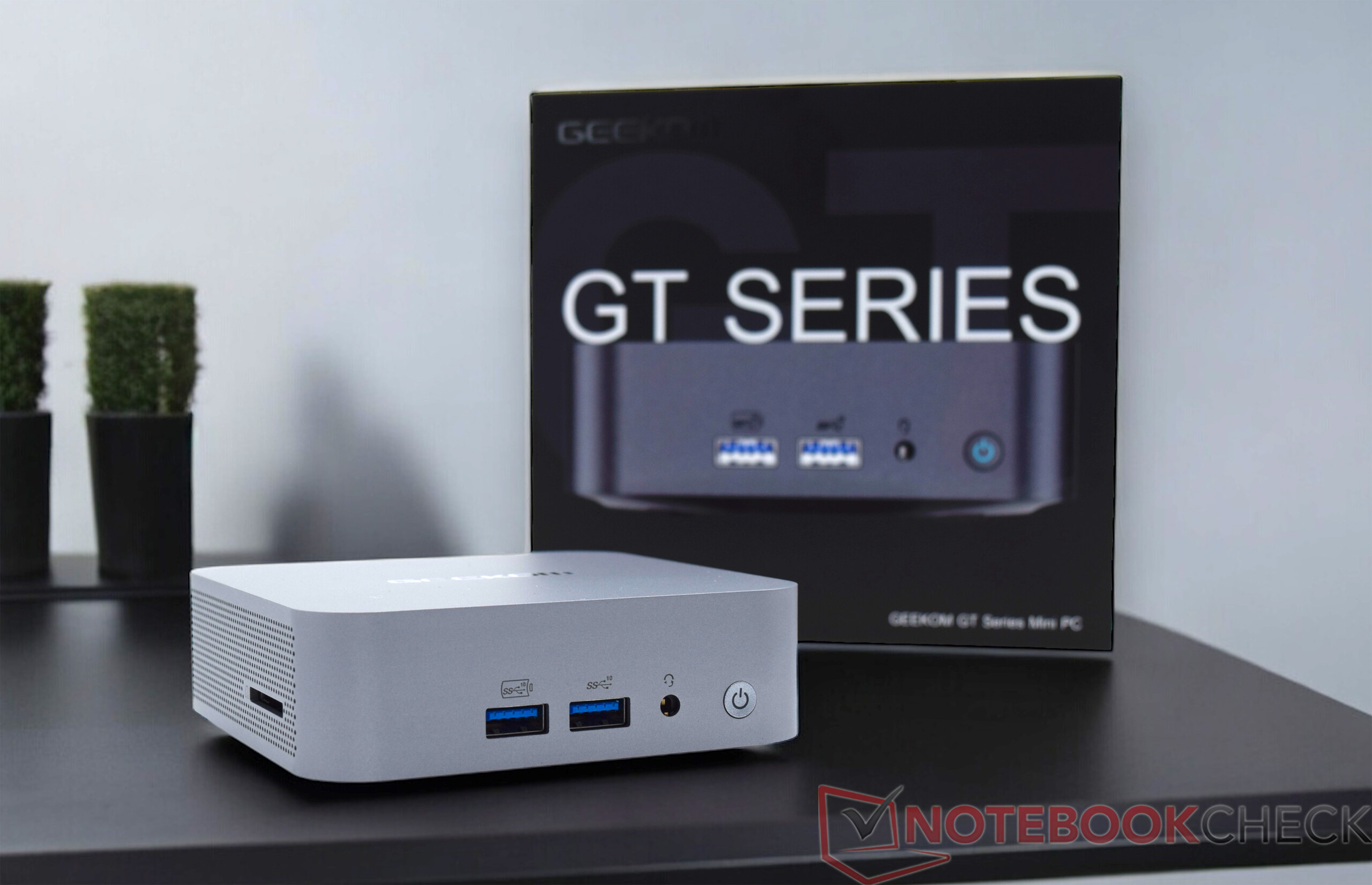

外壳 - 0.5 升铝制外壳，颜色各异

看过我们对 Geekom A7或 Geekom A8Geekom GT13 Pro 有许多相似之处。是的，这两款设备在外观上很相似。Geekom GT13 Pro 只是在配色上与众不同。与两款银色设备形成鲜明对比的是，抄袭英特尔变体的外壳为深灰色。Geekom 自己称这种颜色为玄武岩灰。主观而言，我们更喜欢这种设计。归根结底，Geekom GT13 Pro 的优缺点都是一样的。出色的做工和选材无疑是支持 Geekom 设备的论据。此外，这款迷你电脑的设计也非常紧凑，但这并不一定是内置散热装置的优势所在。我们的测试样品仅重 440 克，是最轻的设备之一。电源装置重 249 克。

尺寸比较

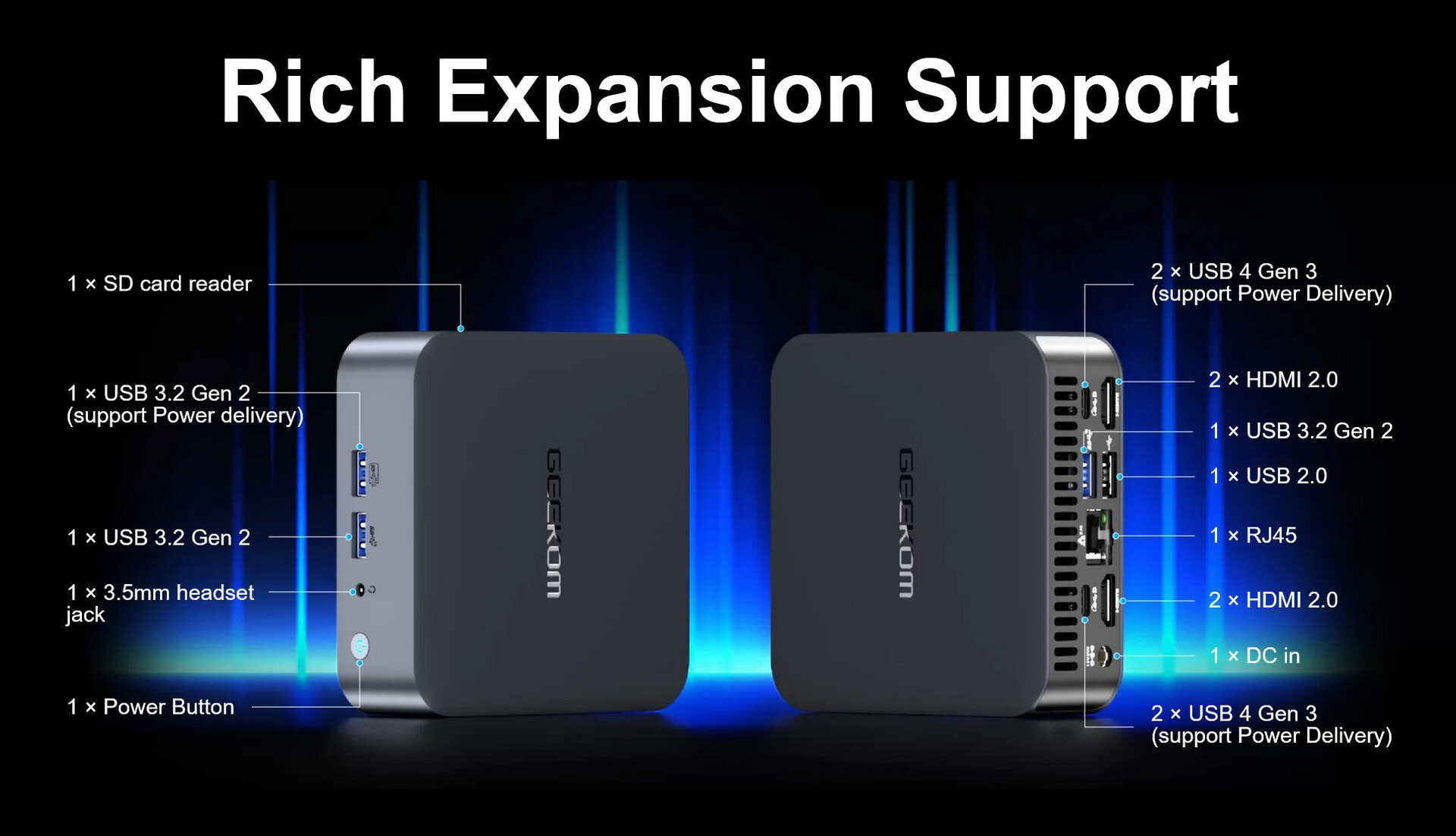

设备 - 选择丰富，包括 2x USB4

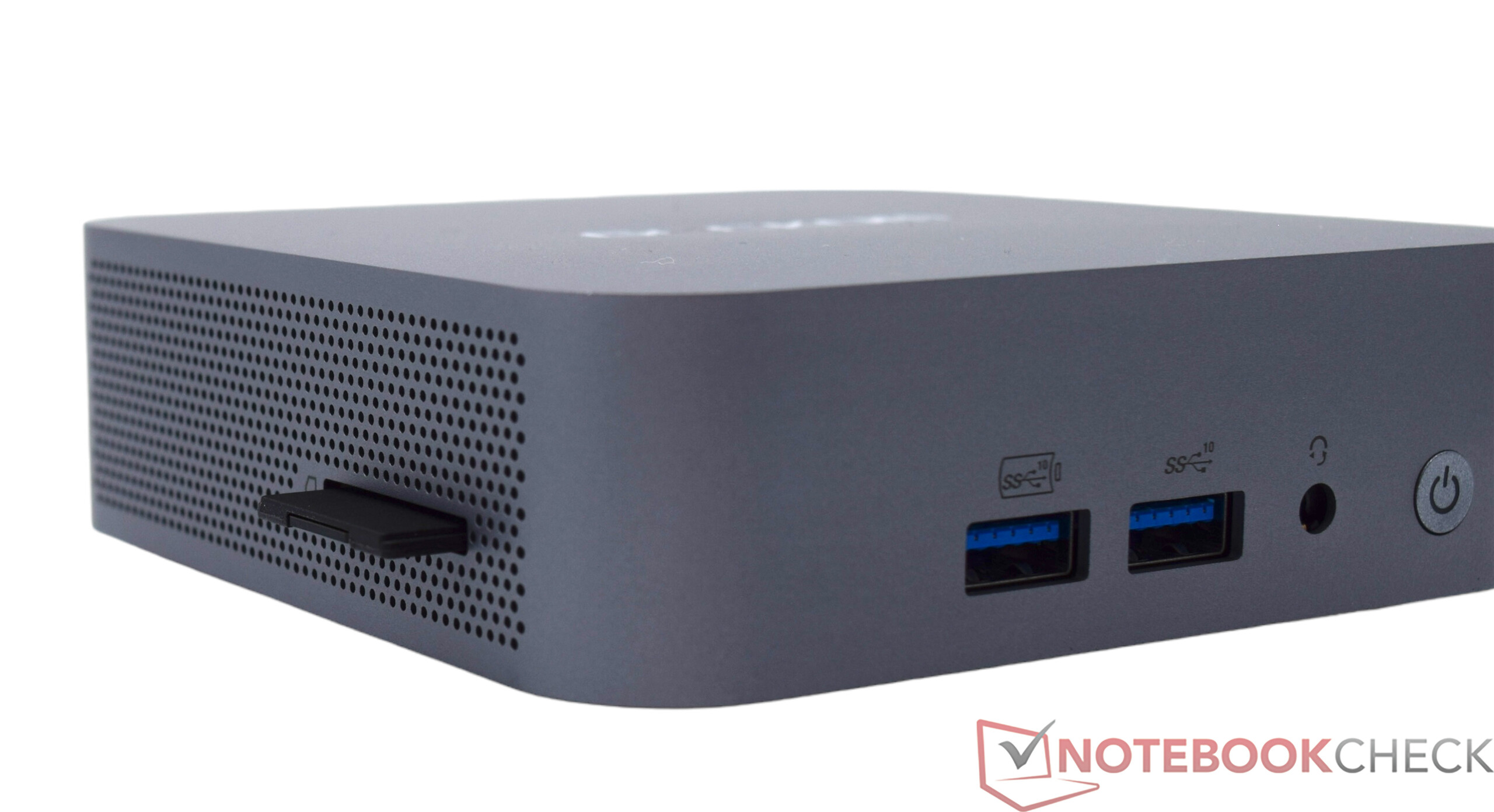

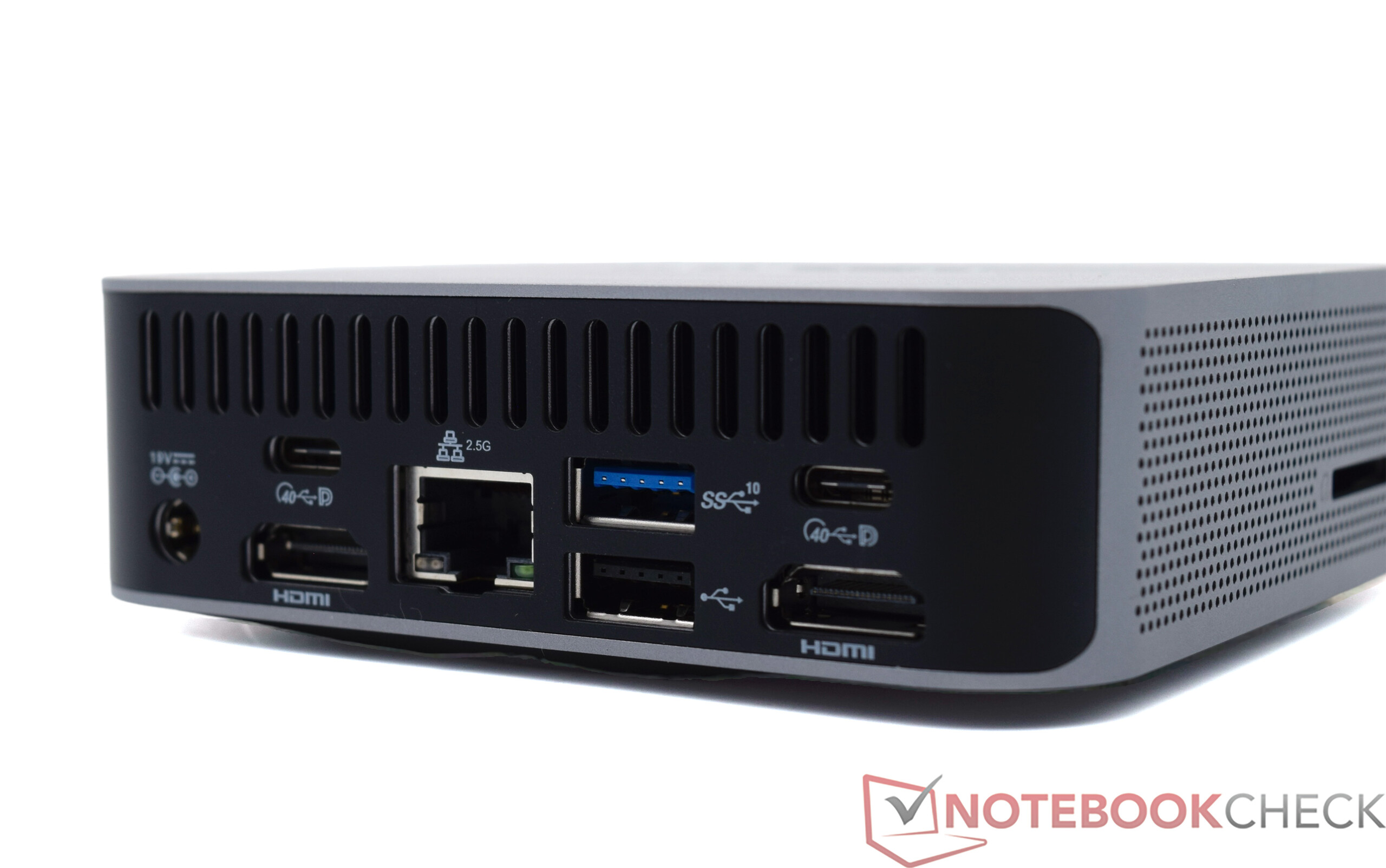

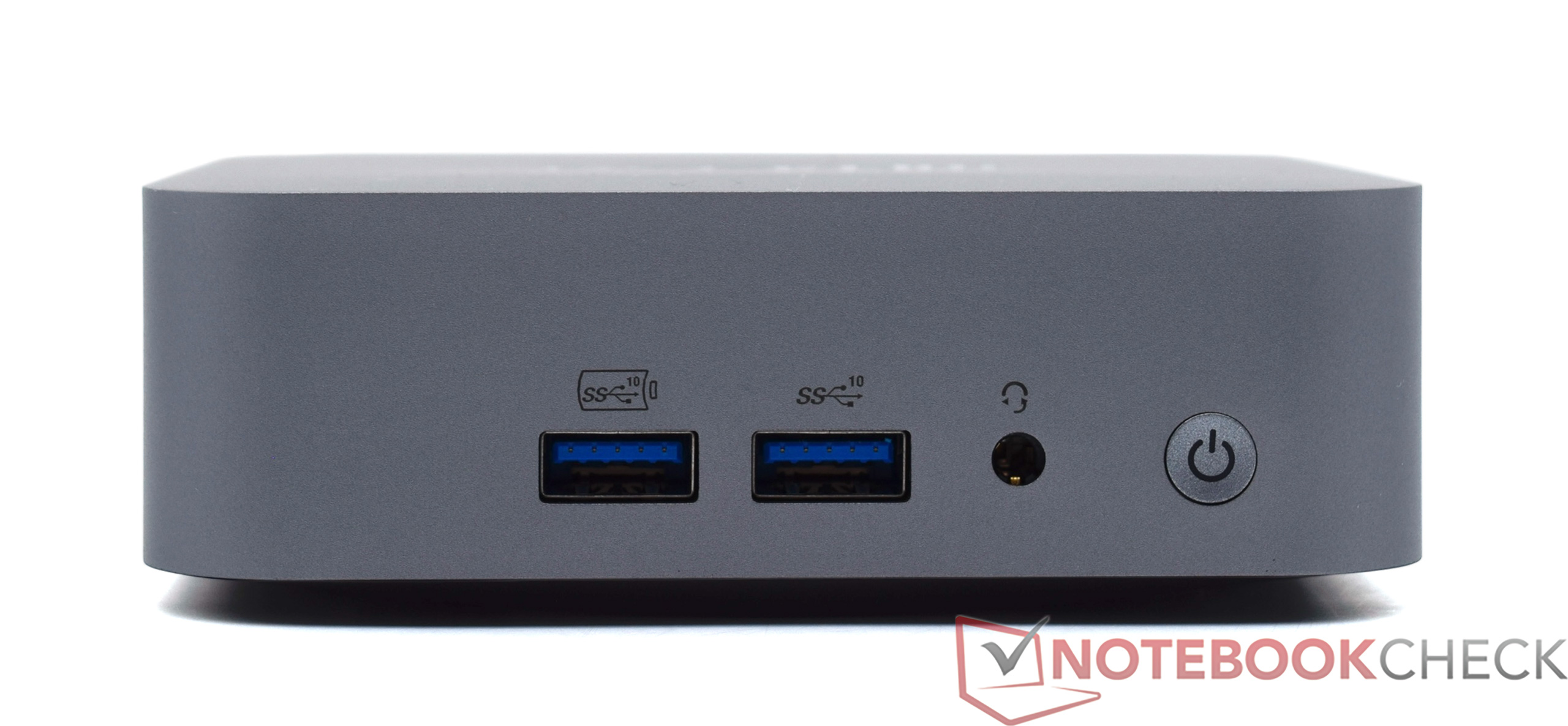

我们已经多次看到，尽管 Geekom 的设计非常小巧，但却提供了许多连接选项。Geekom GT13 Pro 也不例外，提供了许多外部连接选项。四个 USB-A 端口的数量已经足够，尤其是还有两个 USB4 的现代接口，可以极大地扩展迷你 PC 的应用范围。我们还要再看看外置显卡的性能。Geekom GT13 Pro 最多可同时处理四台 4K 显示器。还可以控制一台 8K 显示器。位于左侧的快速 SD 读卡器不容忽视，应予以肯定。

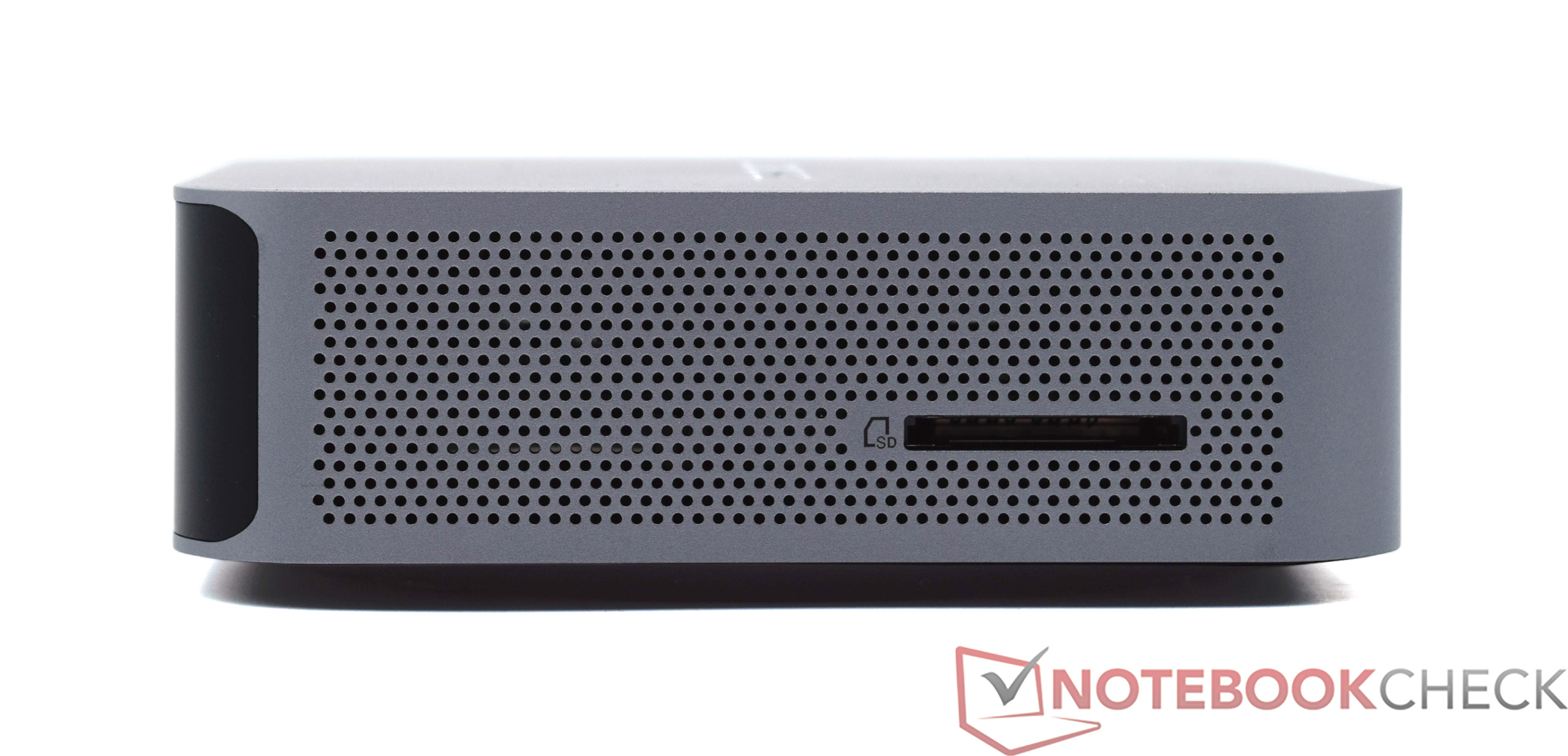

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Khadas Mind Intel Core i7-1360P (AV Pro SD microSD 128 GB V60)	181.79 MB/s +5%
Geekom A5 AMD Ryzen 7 5800H (AV Pro SD microSD 128 GB V60)	176.8 MB/s +2%
Geekom A8 AMD Ryzen 9 8945HS (AV Pro SD microSD 128 GB V60)	174.57 MB/s +1%
Geekom GT13 Pro Intel Core i9-13900H (AV Pro SD microSD 128 GB V60)	172.63 MB/s
Geekom Mini IT13 Intel Core i9-13900H	154.449 MB/s -11%
Geekom Mini IT12 Intel Core i7-1260P (AV Pro SD microSD 128 GB V60)	129.2 MB/s -25%
Average of class Mini PC (15.1 - 214, n=26, last 2 years)	97.7 MB/s -43%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H (AV Pro SD microSD 128 GB V60)	65 MB/s -62%
maximum AS SSD Seq Read Test (1GB)
Khadas Mind Intel Core i7-1360P (AV Pro SD microSD 128 GB V60)	200.48 MB/s +12%
Geekom A8 AMD Ryzen 9 8945HS (AV Pro SD microSD 128 GB V60)	182.85 MB/s +2%
Geekom A5 AMD Ryzen 7 5800H (AV Pro SD microSD 128 GB V60)	182.5 MB/s +2%
Geekom Mini IT13 Intel Core i9-13900H	180.4 MB/s 0%
Geekom GT13 Pro Intel Core i9-13900H (AV Pro SD microSD 128 GB V60)	179.64 MB/s
Geekom Mini IT12 Intel Core i7-1260P (AV Pro SD microSD 128 GB V60)	176.8 MB/s -2%
Average of class Mini PC (18.2 - 221, n=26, last 2 years)	112.4 MB/s -37%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H (AV Pro SD microSD 128 GB V60)	69.9 MB/s -61%

交流

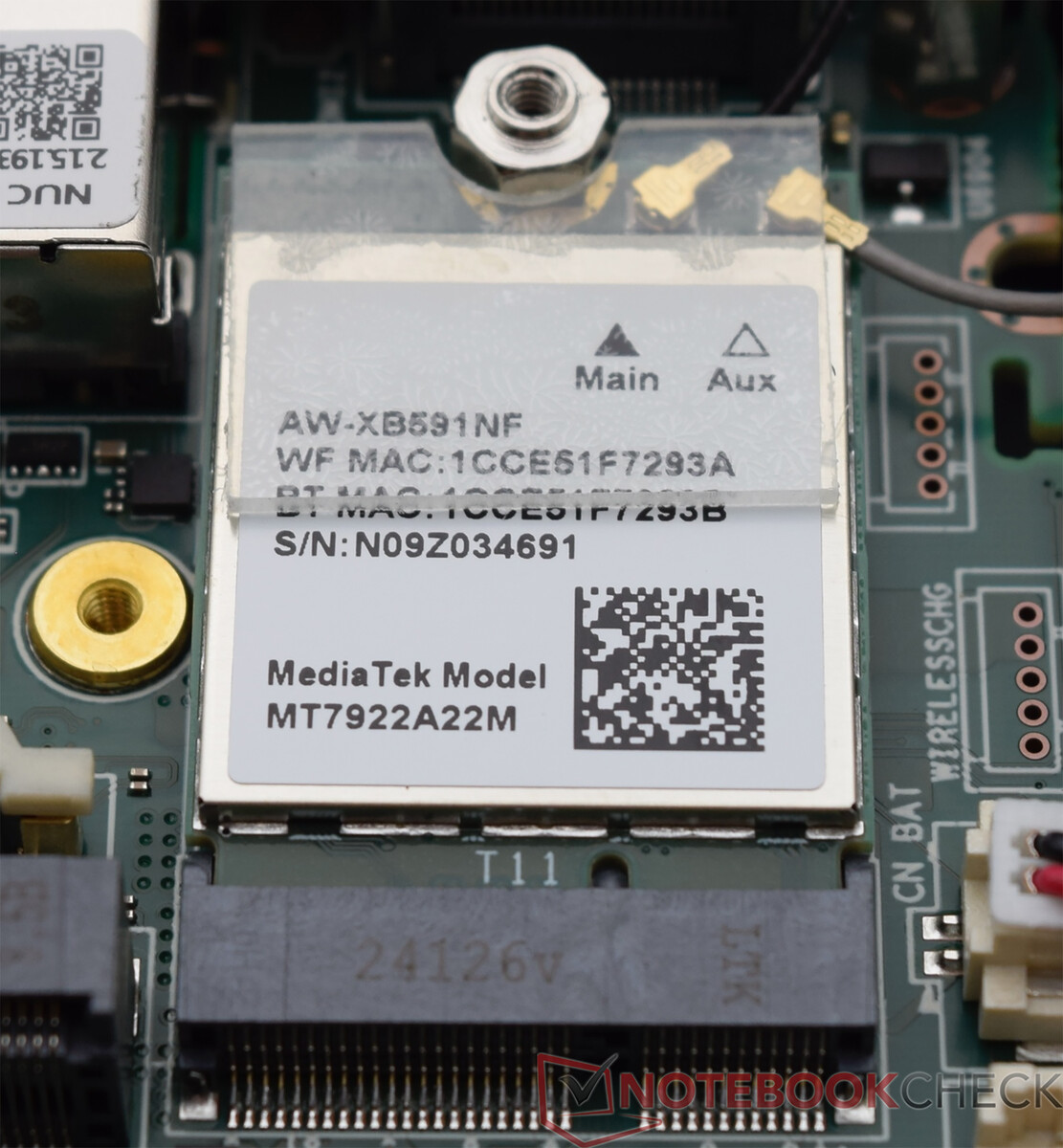

在 Geekom GT13 Pro 中，我们看到了同样的无线电模块，它也用于 Geekom A8.联发科 Wi-Fi 6E MT7922 WLAN 模块可在 2.4 GHz、5 GHz 和 6 GHz 频率范围内工作。我们的测量仅限于 5 和 6 GHz 频段。我们只记录了与华硕 ROG Rapture GT-AXE11000 测试路由器在性能上的细微差别。遗憾的是，Geekom 没有提供现代 Wi-Fi 模块。这两个 Acemagic F2A以及 Minisforum AtomMan X7 Ti都能使用英特尔 Wi-Fi 7 BE200 提供略好的效果。Geekom GT13 Pro 还有一个 RJ45 插座。数据传输速率最高可达 2.5 GBit/s。

Networking
iperf3 receive AXE11000 6GHz
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	1770 (1584^min - 1790^max) MBit/s +12%
Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz	1761 (1734^min - 1774^max) MBit/s +11%
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1583 (1557^min - 1611^max) MBit/s
Geekom A8 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1458 (1382^min - 1500^max) MBit/s -8%
Khadas Mind Intel Wi-Fi 6E AX211	1445 (1342^min - 1468^max) MBit/s -9%
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (684 - 1771, n=39)	1433 MBit/s -9%
Average of class Mini PC (684 - 1771, n=55, last 2 years)	1380 MBit/s -13%
Geekom XT12 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1152 (576^min - 1273^max) MBit/s -27%
iperf3 transmit AXE11000 6GHz
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	1615 (767^min - 1670^max) MBit/s +13%
Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz	1562 (1198^min - 1713^max) MBit/s +9%
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1429 (1392^min - 1511^max) MBit/s
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (394 - 1800, n=38)	1399 MBit/s -2%
Geekom A8 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1356 (669^min - 1390^max) MBit/s -5%
Khadas Mind Intel Wi-Fi 6E AX211	1348 (1293^min - 1402^max) MBit/s -6%
Average of class Mini PC (394 - 1800, n=55, last 2 years)	1330 MBit/s -7%
Geekom XT12 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1315 (691^min - 1352^max) MBit/s -8%
iperf3 receive AXE11000
Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz	1599 (802^min - 1683^max) MBit/s +14%
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1398 (1261^min - 1453^max) MBit/s
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (707 - 1775, n=55)	1397 MBit/s 0%
Geekom A8 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1101 (606^min - 1257^max) MBit/s -21%
Khadas Mind Intel Wi-Fi 6E AX211	1059 (937^min - 1173^max) MBit/s -24%
Average of class Mini PC (320 - 1796, n=113, last 2 years)	945 MBit/s -32%
Minisforum EliteMini UM780 XTX Intel Killer Wi-Fi 6E AX1675x (210NGW)	934 (915^min - 943^max) MBit/s -33%
Geekom XT12 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	892 (460^min - 921^max) MBit/s -36%
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	838 (728^min - 926^max) MBit/s -40%
Aoostar GEM12 Intel Wi-Fi 6 AX200	740 (676^min - 758^max) MBit/s -47%
iperf3 transmit AXE11000
Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz	1566 (904^min - 1695^max) MBit/s +37%
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (358 - 1785, n=55)	1279 MBit/s +12%
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1146 (846^min - 1308^max) MBit/s
Khadas Mind Intel Wi-Fi 6E AX211	1108 (703^min - 1199^max) MBit/s -3%
Geekom A8 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1105 (489^min - 1222^max) MBit/s -4%
Average of class Mini PC (184.1 - 1776, n=113, last 2 years)	874 MBit/s -24%
Aoostar GEM12 Intel Wi-Fi 6 AX200	736 (369^min - 756^max) MBit/s -36%
Minisforum EliteMini UM780 XTX Intel Killer Wi-Fi 6E AX1675x (210NGW)	729 (668^min - 784^max) MBit/s -36%
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	709 (369^min - 977^max) MBit/s -38%
Geekom XT12 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	589 (295^min - 624^max) MBit/s -49%

Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1429 (1373-1511)

Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1562 (1198-1713)

Acemagic F2A Intel Wi-Fi 7 BE200 320MHz; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1590 (767-1670)

Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1582 (1557-1611)

Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1760 (1734-1774)

Acemagic F2A Intel Wi-Fi 7 BE200 320MHz; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1769 (1584-1790)

Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø1397 (1261-1453)

Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz; iperf3 receive AXE11000; iperf 3.1.3: Ø1572 (802-1683)

Acemagic F2A Intel Wi-Fi 7 BE200 320MHz; iperf3 receive AXE11000; iperf 3.1.3: Ø838 (728-926)

Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø1146 (846-1308)

Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz; iperf3 transmit AXE11000; iperf 3.1.3: Ø1566 (904-1695)

Acemagic F2A Intel Wi-Fi 7 BE200 320MHz; iperf3 transmit AXE11000; iperf 3.1.3: Ø695 (369-977)

配件

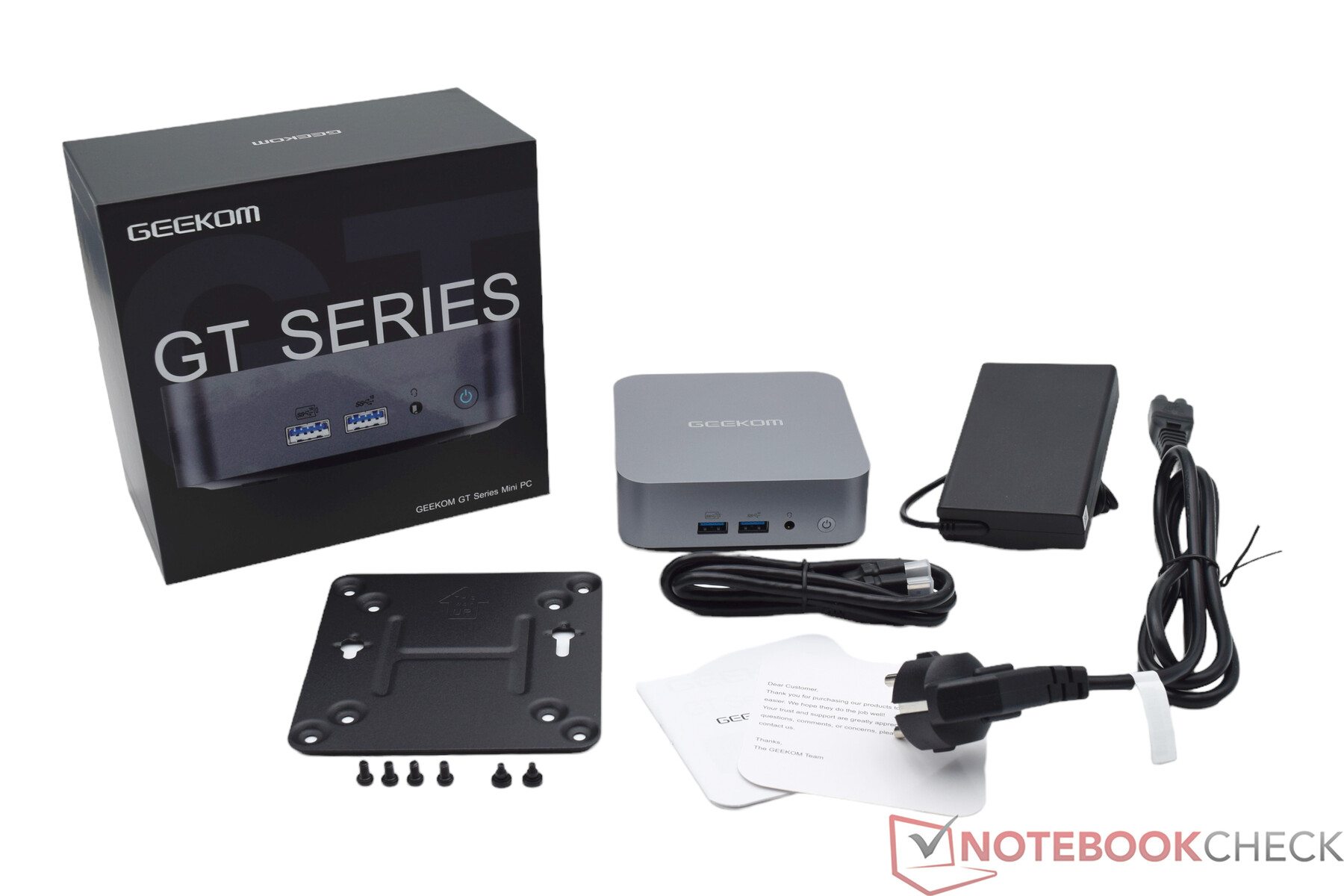

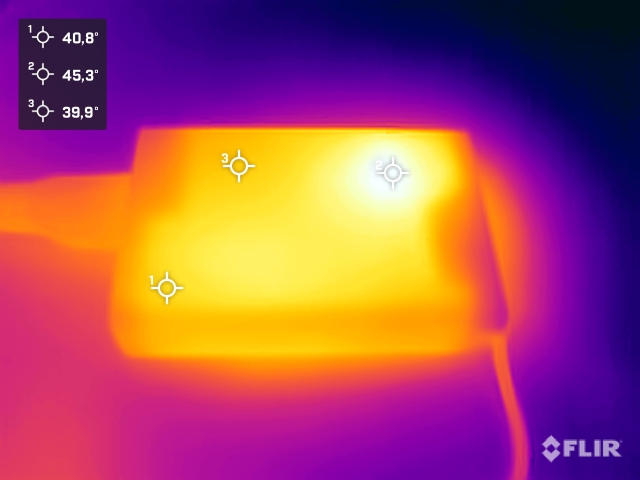

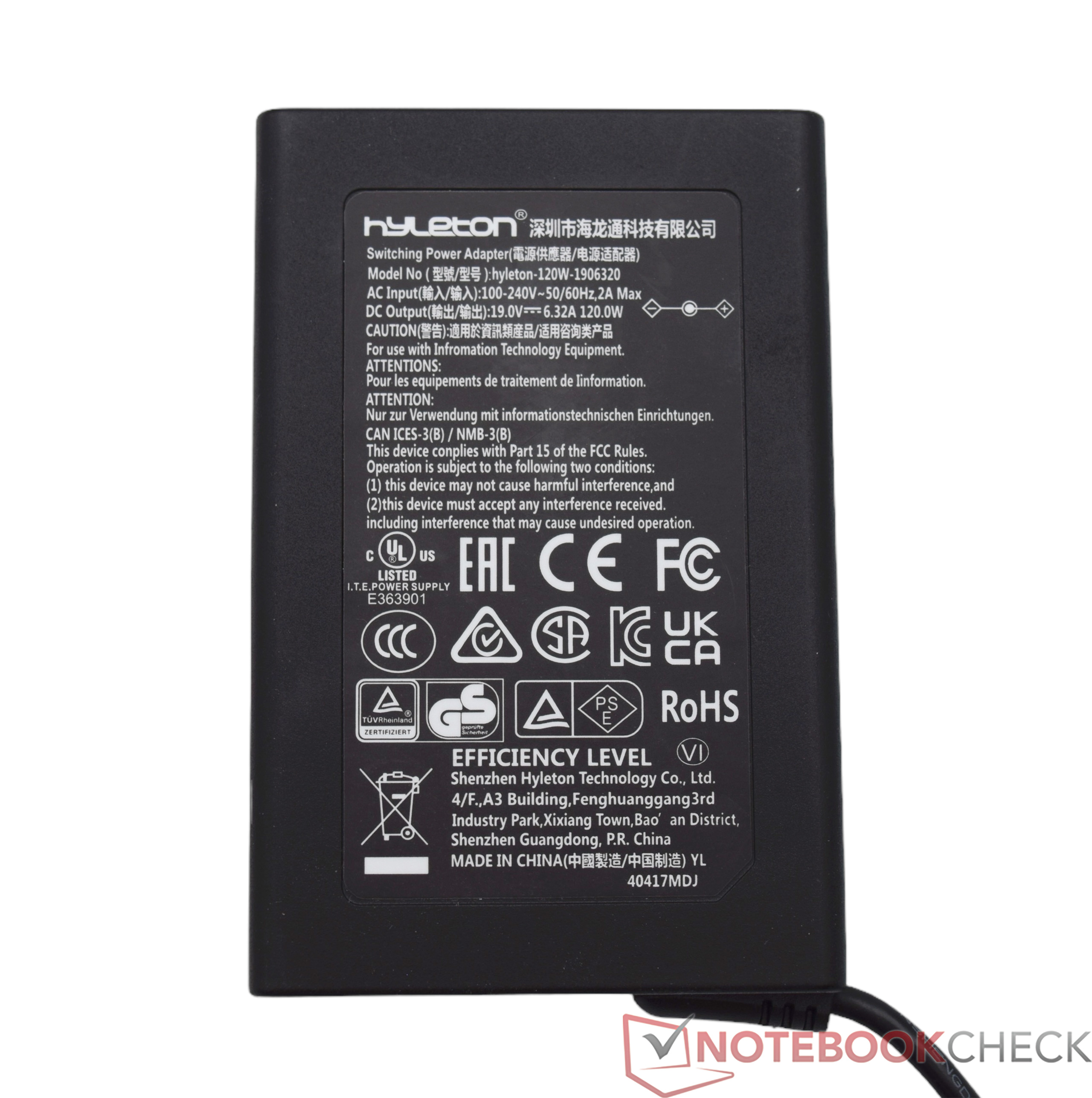

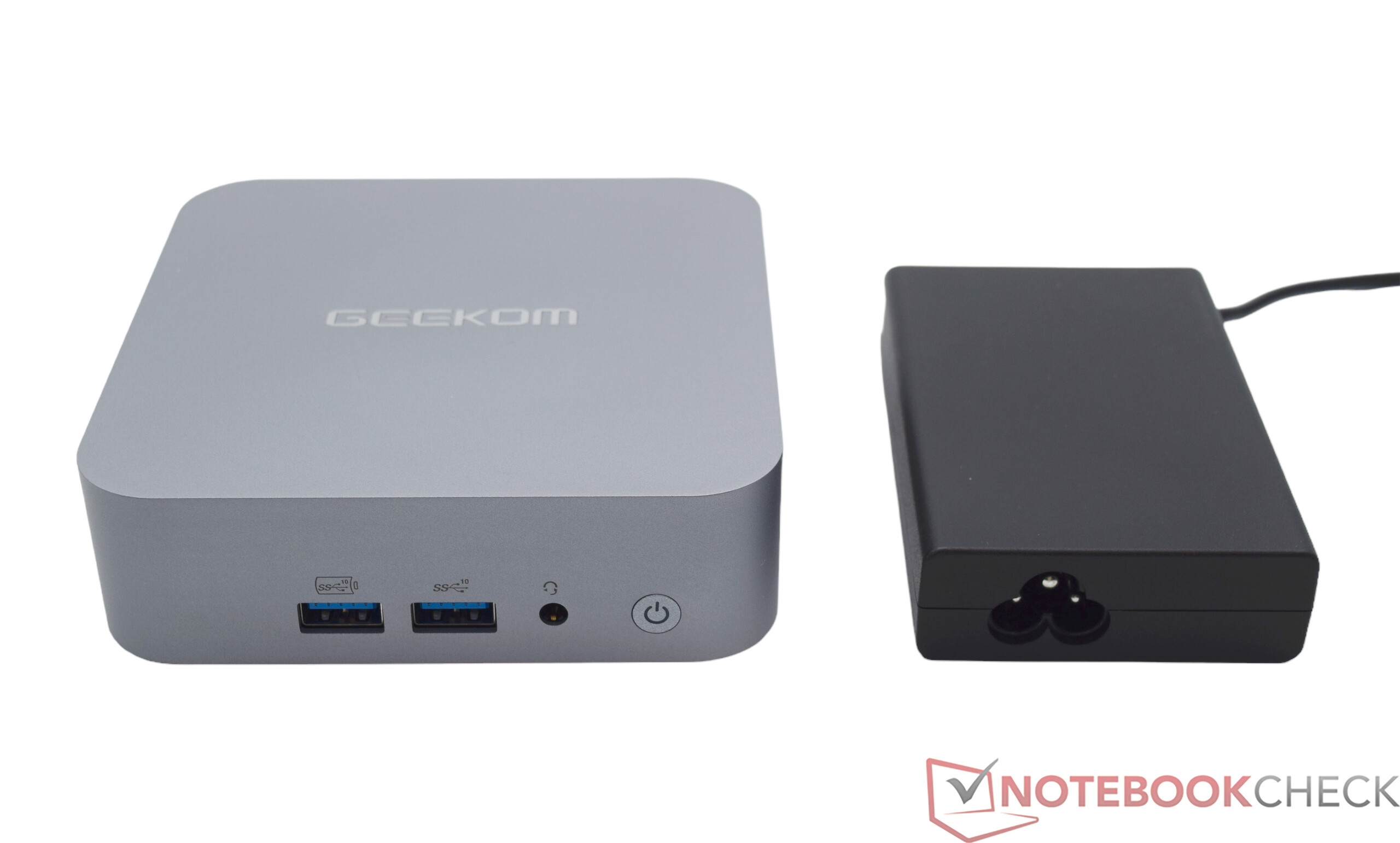

Geekom GT13 Pro 附带一个 120 瓦的电源装置。包装盒内还有一根 HDMI 线和一块 VESA 安装板。制造商还附带了一本小的用户手册，其中介绍了连接选项以及内存和固态硬盘的安装方法等。Geekom 用一个小纸箱交付产品。由于 HDMI 连接线和 VESA 安装板是分开包装的，因此仍可尽量减少塑料的用量。

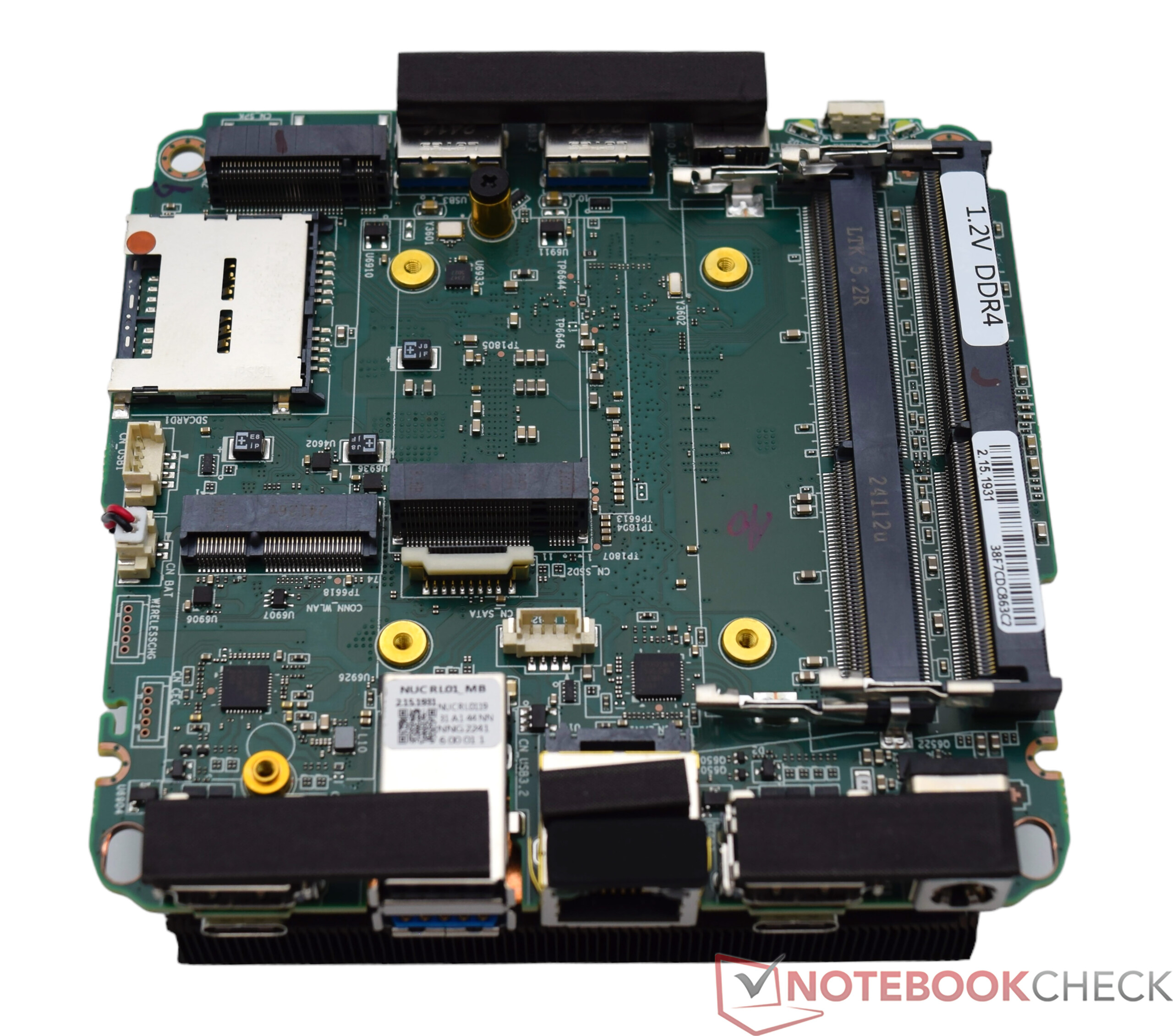

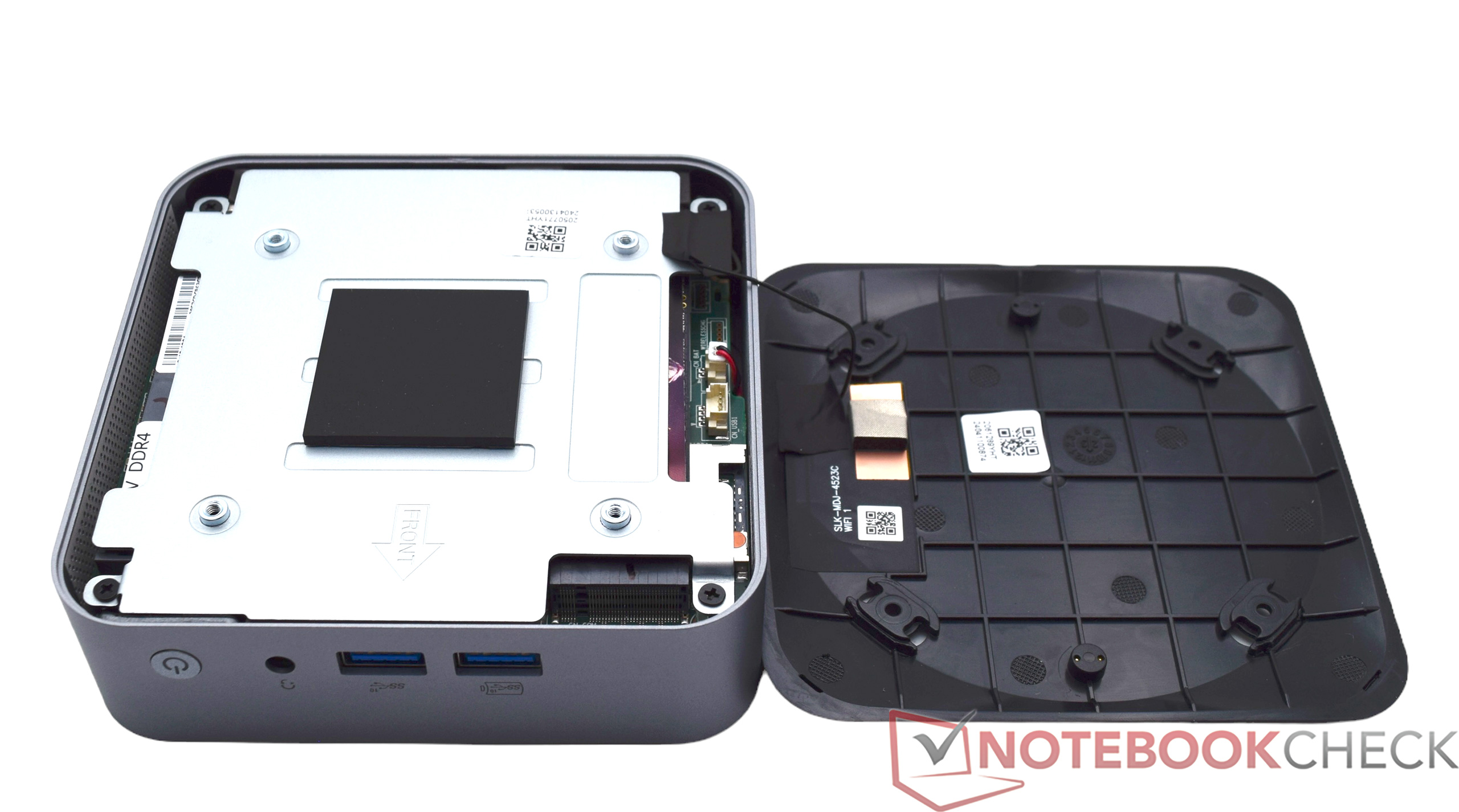

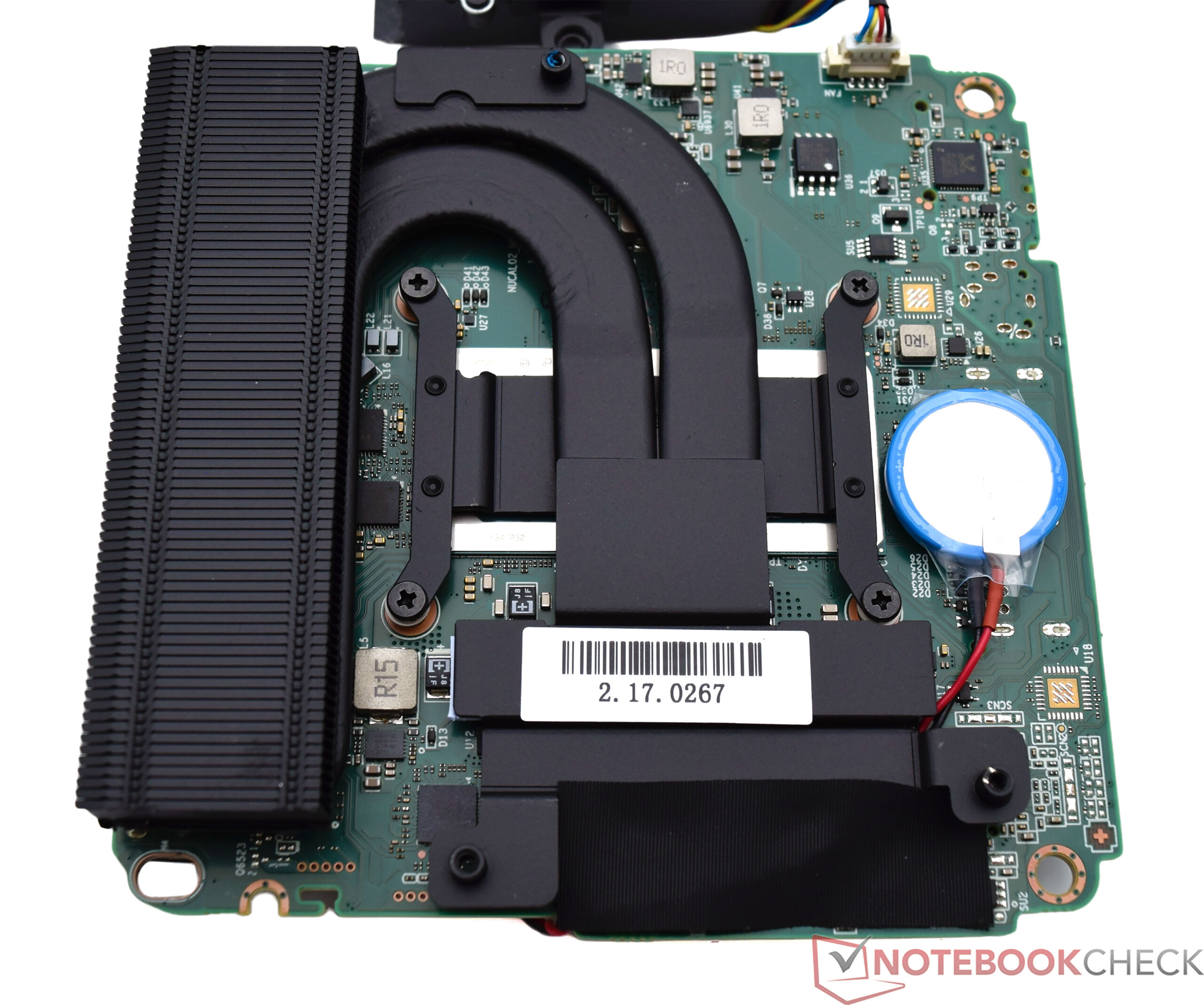

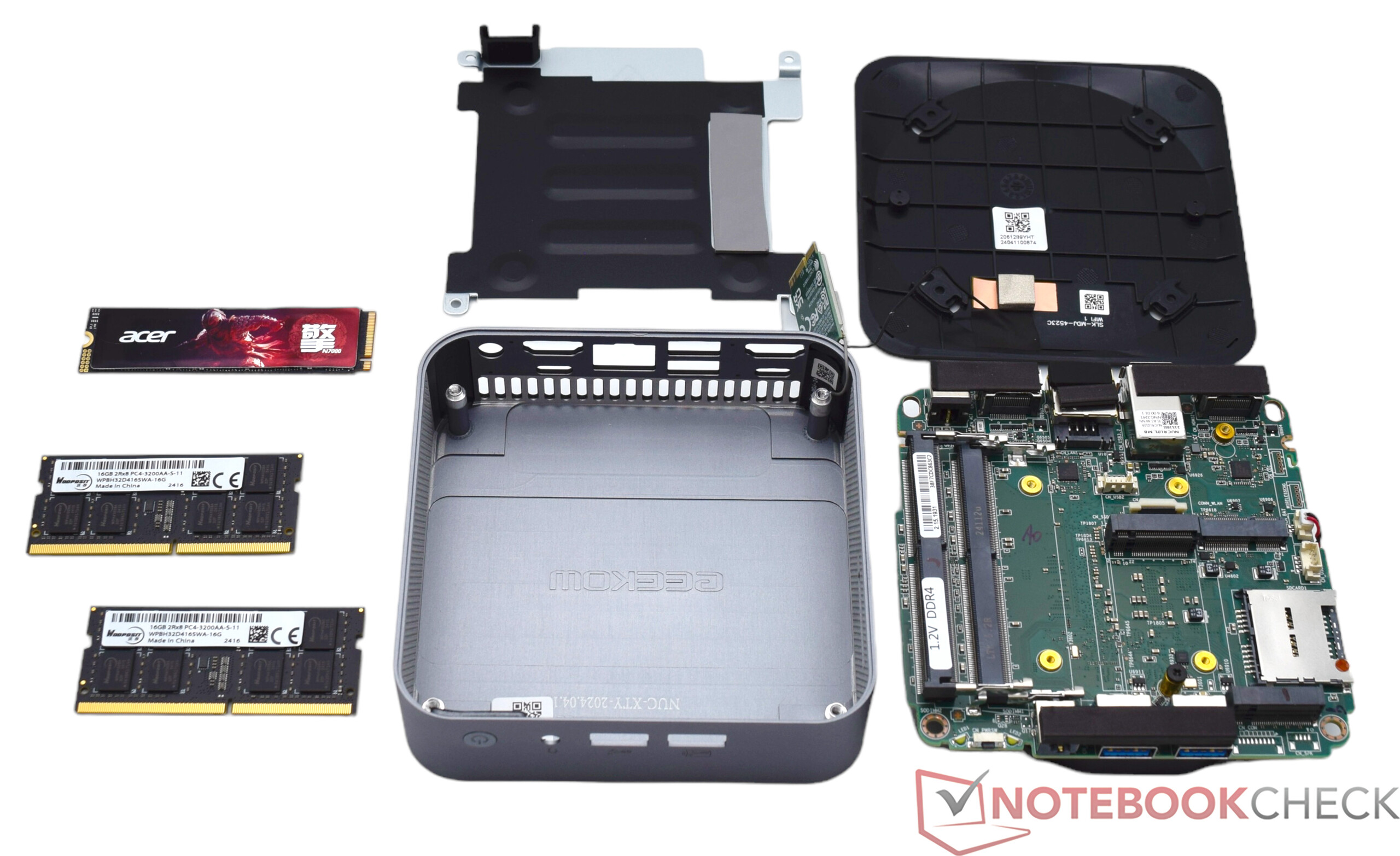

维护

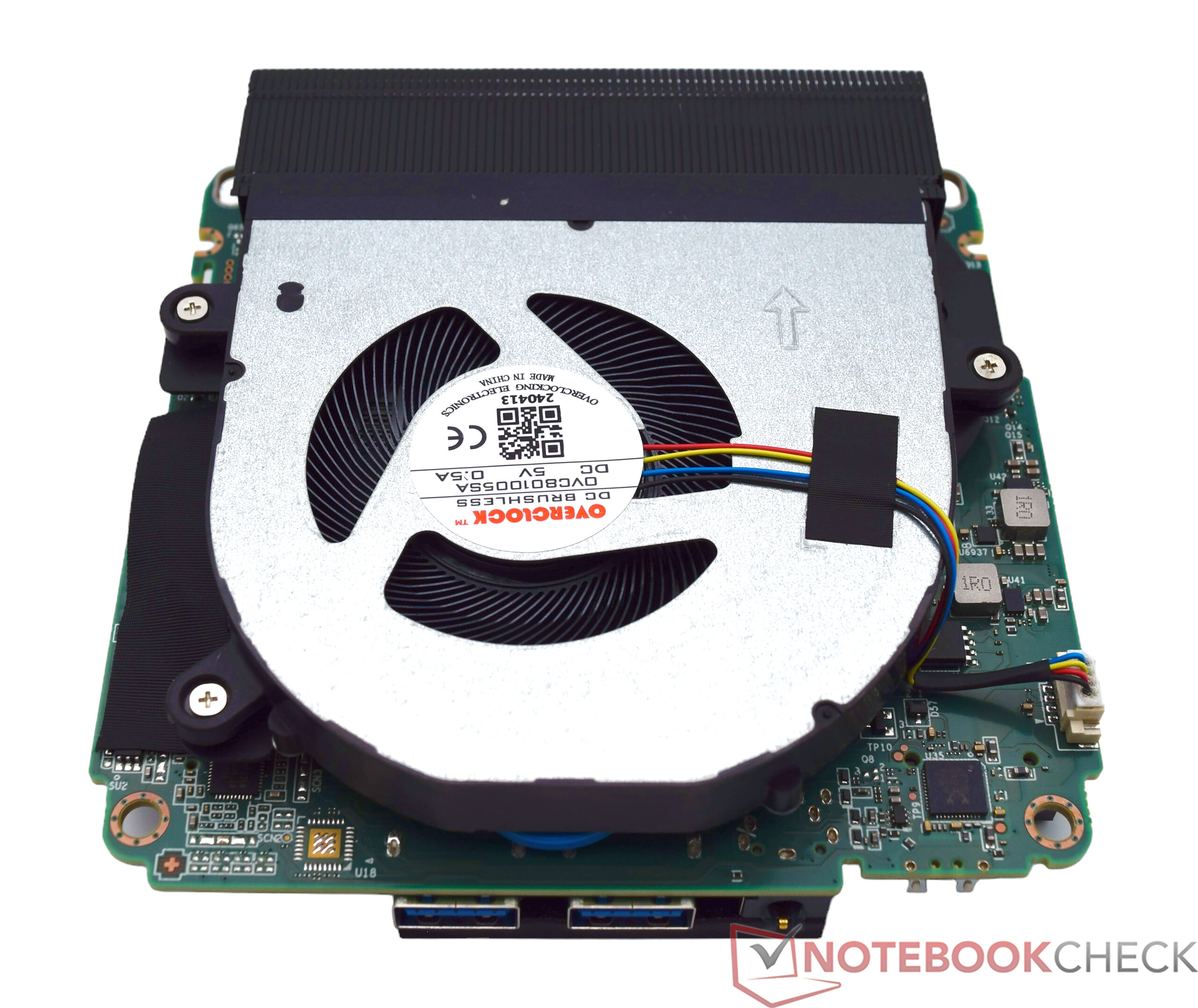

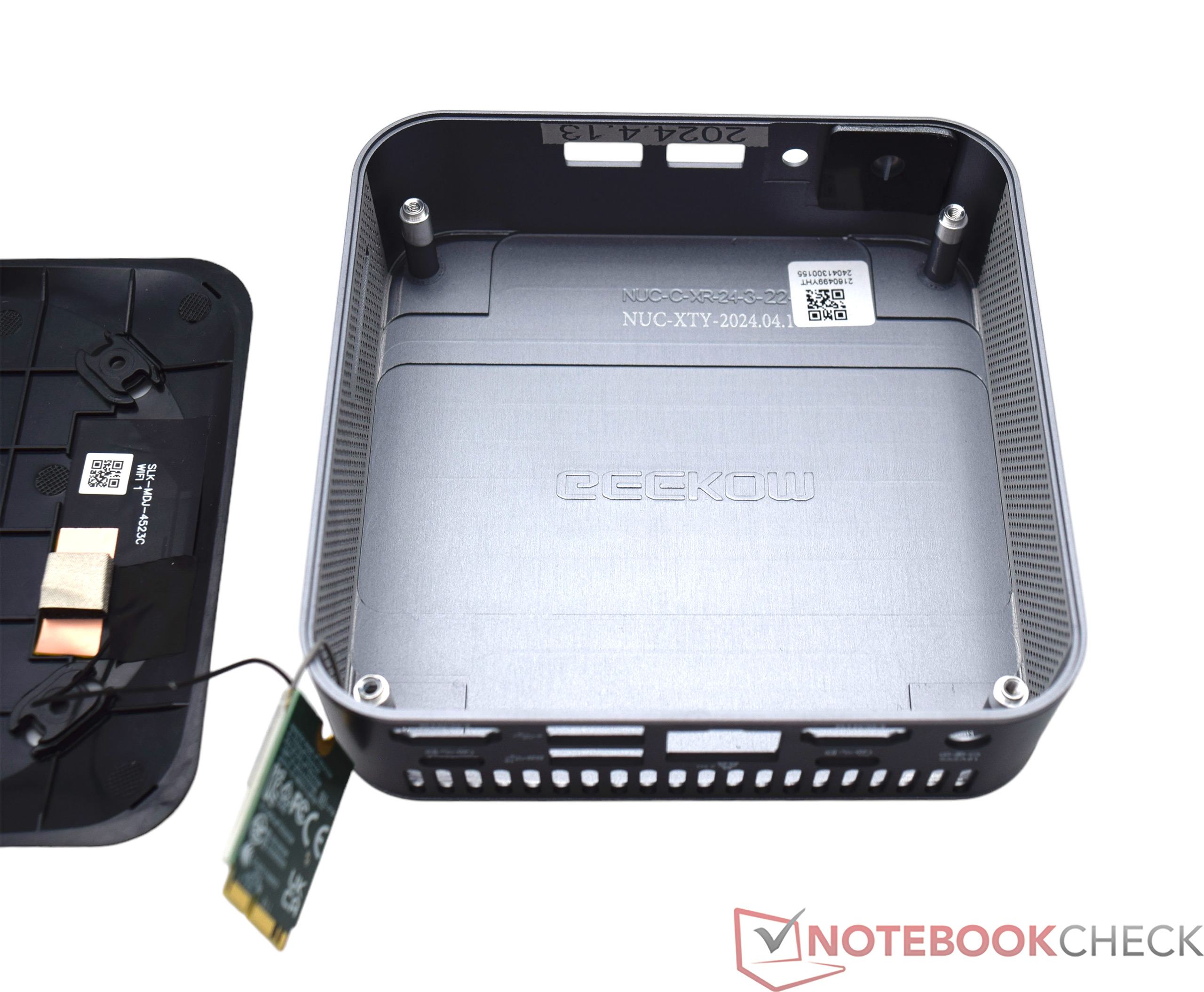

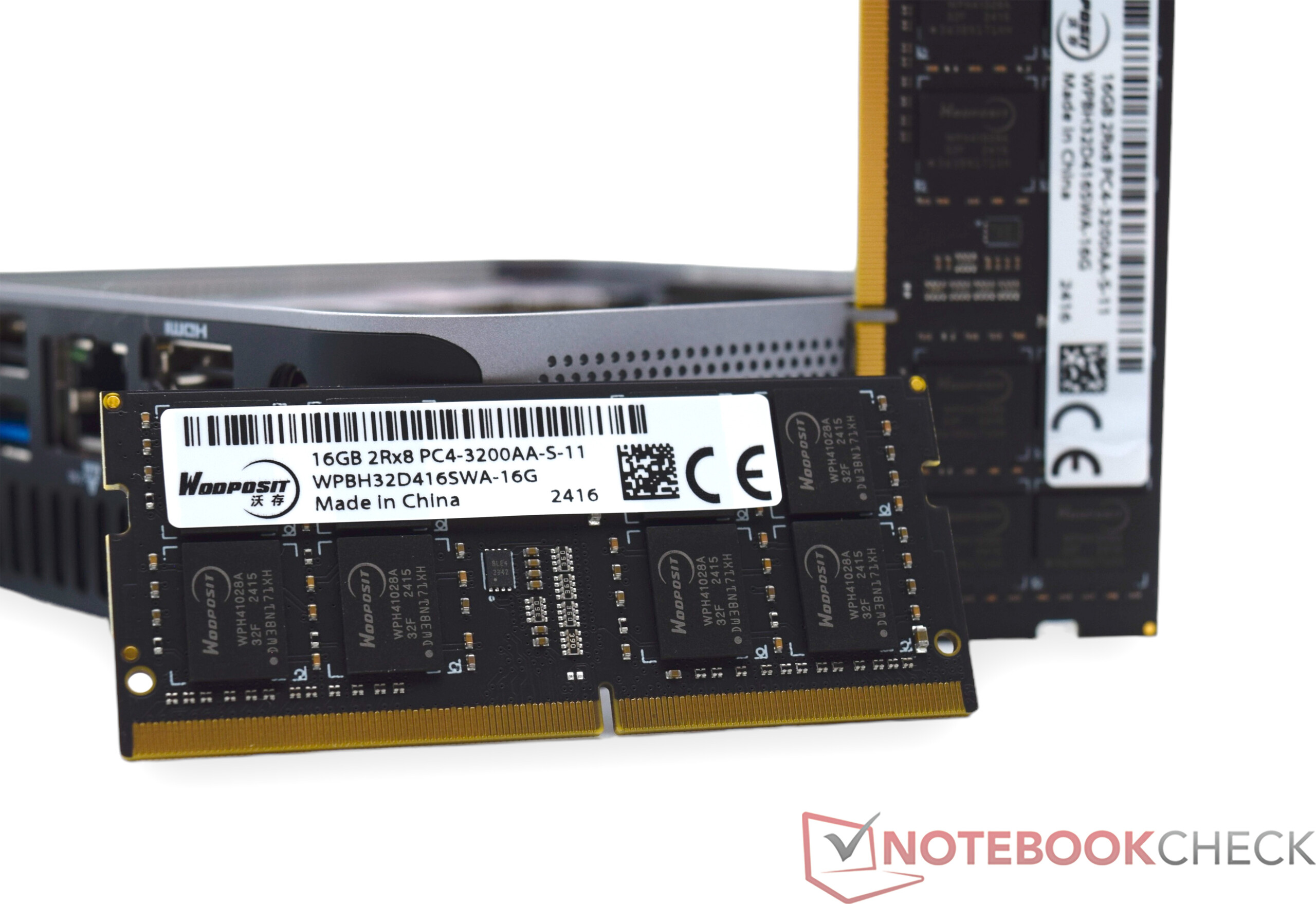

Geekom GT13 Pro 始终与内存和固态硬盘一起销售。这意味着不必像裸机那样，必须打开设备才能安装缺少的硬件组件。如果还需要进入内部，可以从底部打开 Geekom GT13 Pro。胶粘的橡胶脚垫下隐藏着四颗螺丝，用于固定塑料盖。这里要小心，以免损坏 WLAN 天线线缆。塑料盖下还有一块金属板，如果要访问固态硬盘或内存，也需要将其取下。WLAN 模块也可以更换。要访问冷却装置（制造商宣传为 IceBlast 1.5），必须将电路板从外壳中完全拆下，这在实际操作中并非难事。

性能 - 英特尔 Raptor Lake 处理器，多达 14 个内核

Geekom GT13 Pro 有两个版本。顶级型号配备英特尔酷睿 i9-13900H配备 14 个核心，可确保良好的多线程性能。如果你想让钱包轻松一点，也可以购买时尚的迷你电脑，配备英特尔酷睿 i7-13620H.这款处理器拥有 10 个内核和 16 个线程，也能很好地满足日常使用需求。32 GB DDR4 内存始终随附其中，因此可作为处理内存消耗量大的任务的坚实基础。

测试条件

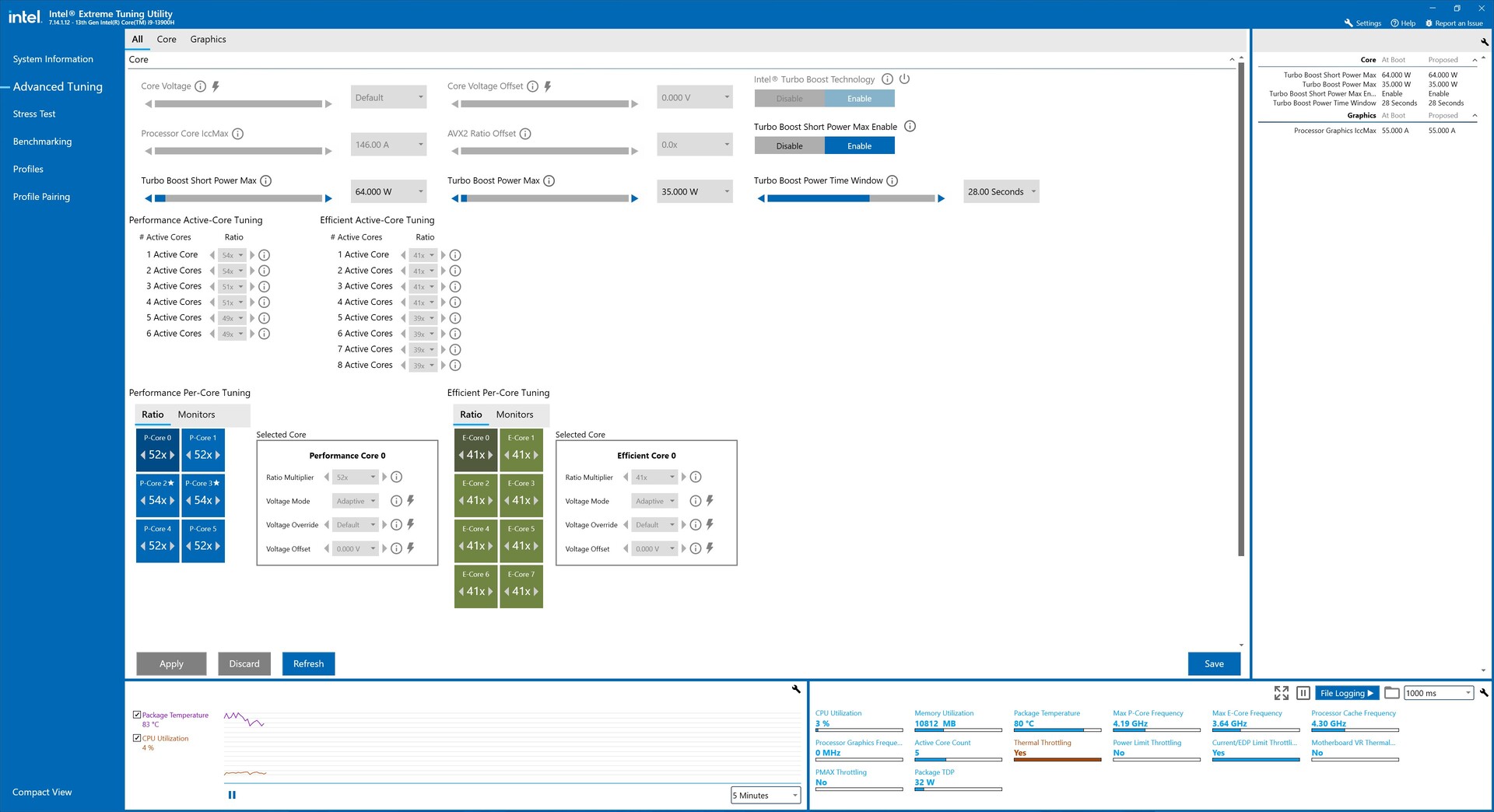

在 Geekom GT13 Pro 的所有性能测试中，我们都使用了 "最高性能 "电源方案。根据我们的测试标准，只有在功耗和噪音测量中出现偏差。测试标准.英特尔酷睿 i9-13900H 的制造商功率限制定义为 64 瓦（PL2）和 35 瓦（PL1）。

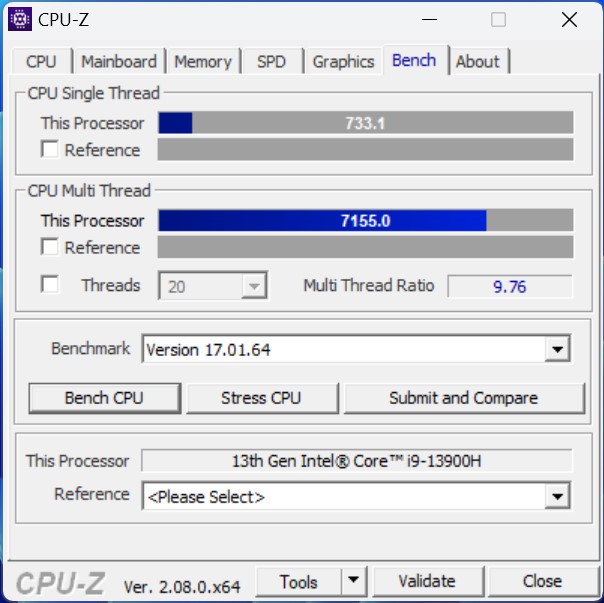

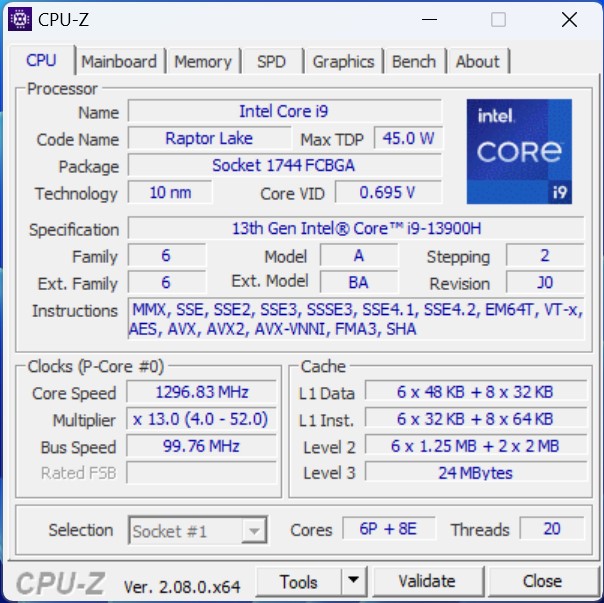

处理器

顶级的 Geekom GT13 Pro 配备了英特尔酷睿 i9-13900H.不过，在性能评级中，我们可以看到我们的测试样品只能排在中场位置。由于散热能力较低，再加上极其紧凑的设计，SoC 在连续负载下的最低 TDP 只有 35 瓦。在多线程基准测试中，英特尔酷睿 i9-13900H 的性能有时会比我们迄今为止记录的这款处理器的平均性能低 20% 至 30%。

有关进一步的比较和基准测试，请参阅我们的 CPU 对比表.

Performance Rating - Percent
Geekom A8 AMD Ryzen 9 8945HS	58.2 pt
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	57.6 pt
Aoostar GEM12 AMD Ryzen 7 8845HS	57 pt
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	56.9 pt
Average Intel Core i9-13900H	56.3 pt
Acemagic F2A Intel Core Ultra 7 155H	55.6 pt
Geekom GT13 Pro Intel Core i9-13900H	54.1 pt
Geekom XT12 Pro Intel Core i9-12900H	52.1 pt
Khadas Mind Intel Core i7-1360P	51.7 pt

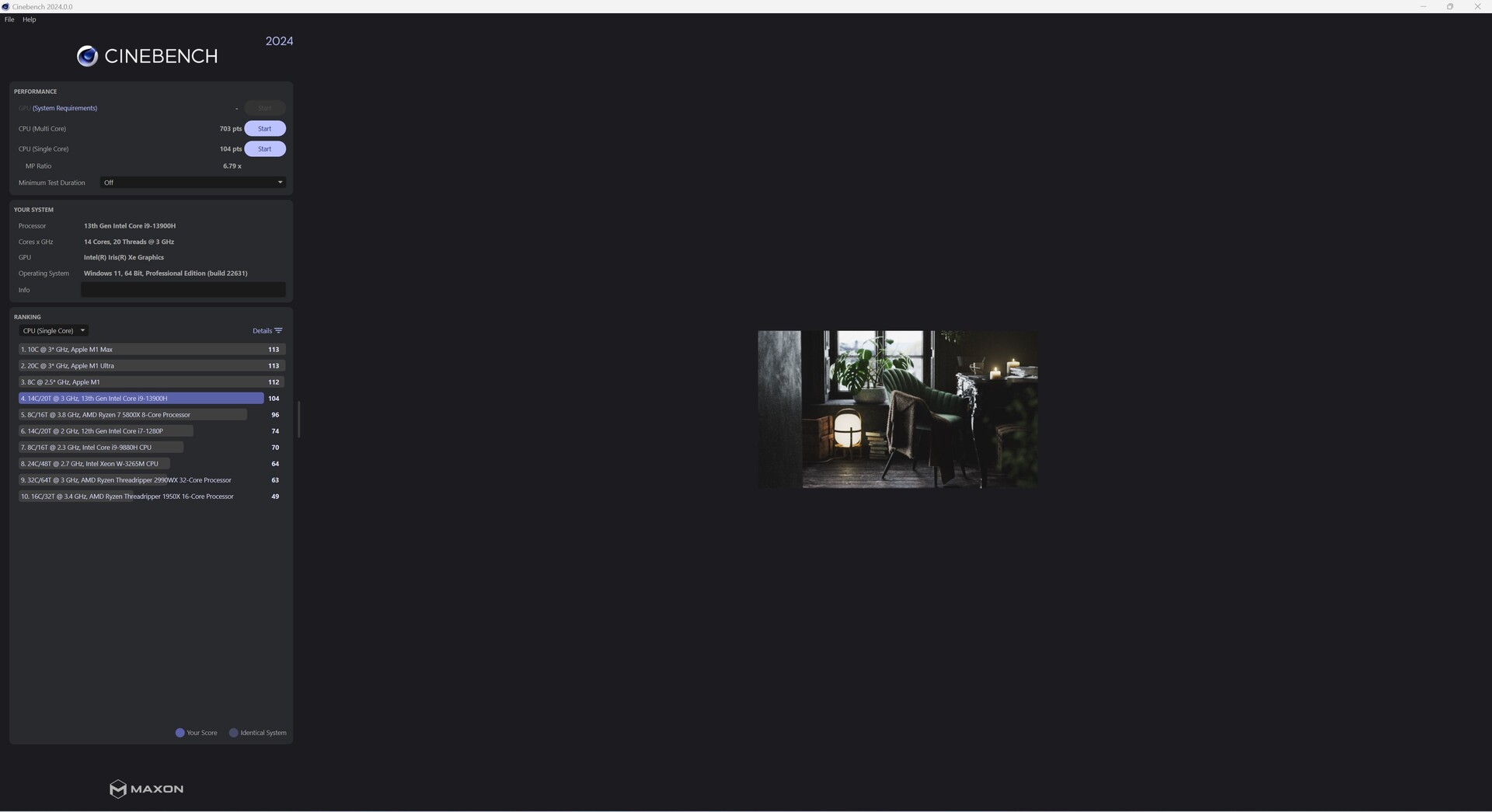

Cinebench 2024
CPU Multi Core
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1067 Points +52%
Acemagic F2A Intel Core Ultra 7 155H	1022 Points +45%
Geekom A8 AMD Ryzen 9 8945HS	967 Points +38%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	956 Points +36%
Aoostar GEM12 AMD Ryzen 7 8845HS	933 Points +33%
Average Intel Core i9-13900H (680 - 818, n=3)	734 Points +4%
Geekom GT13 Pro Intel Core i9-13900H	703 Points
Geekom XT12 Pro Intel Core i9-12900H	578 Points -18%
Khadas Mind Intel Core i7-1360P	560 Points -20%
CPU Single Core
Khadas Mind Intel Core i7-1360P	113 Points +9%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	110 Points +6%
Geekom XT12 Pro Intel Core i9-12900H	108 Points +4%
Geekom A8 AMD Ryzen 9 8945HS	108 Points +4%
Aoostar GEM12 AMD Ryzen 7 8845HS	107 Points +3%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	106 Points +2%
Acemagic F2A Intel Core Ultra 7 155H	106 Points +2%
Geekom GT13 Pro Intel Core i9-13900H	104 Points
Average Intel Core i9-13900H (101 - 104, n=3)	102.7 Points -1%

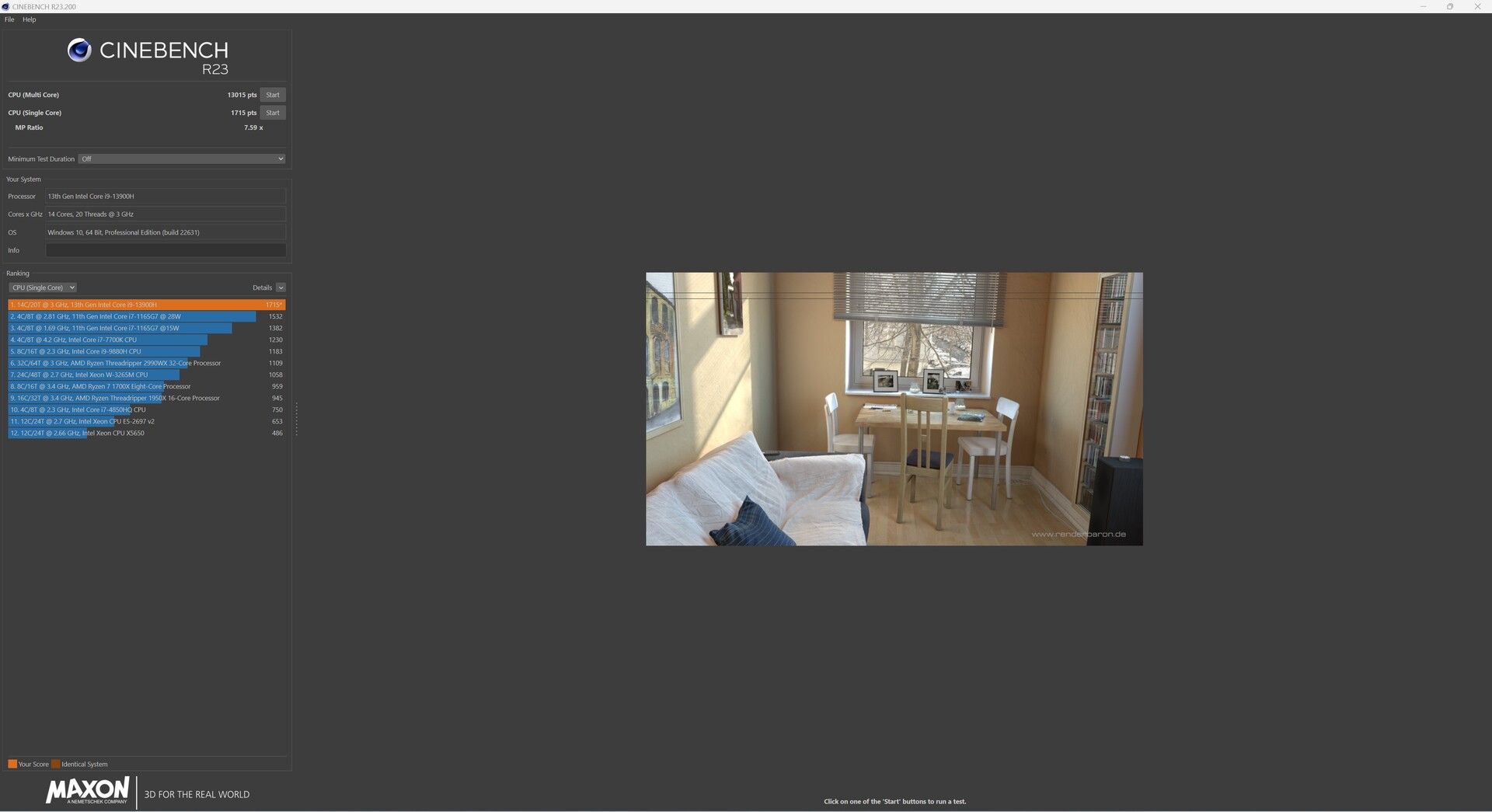

Cinebench R23
Multi Core
Acemagic F2A Intel Core Ultra 7 155H	18497 Points +42%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	18016 Points +38%
Average Intel Core i9-13900H (11997 - 20385, n=28)	16813 Points +29%
Geekom A8 AMD Ryzen 9 8945HS	16795 Points +29%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	16706 Points +28%
Aoostar GEM12 AMD Ryzen 7 8845HS	16130 Points +24%
Geekom GT13 Pro Intel Core i9-13900H	13015 Points
Geekom XT12 Pro Intel Core i9-12900H	11036 Points -15%
Khadas Mind Intel Core i7-1360P	9859 Points -24%
Single Core
Average Intel Core i9-13900H (1297 - 2054, n=26)	1887 Points +10%
Khadas Mind Intel Core i7-1360P	1877 Points +9%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1851 Points +8%
Geekom A8 AMD Ryzen 9 8945HS	1825 Points +6%
Geekom XT12 Pro Intel Core i9-12900H	1824 Points +6%
Aoostar GEM12 AMD Ryzen 7 8845HS	1783 Points +4%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	1779 Points +4%
Acemagic F2A Intel Core Ultra 7 155H	1771 Points +3%
Geekom GT13 Pro Intel Core i9-13900H	1715 Points

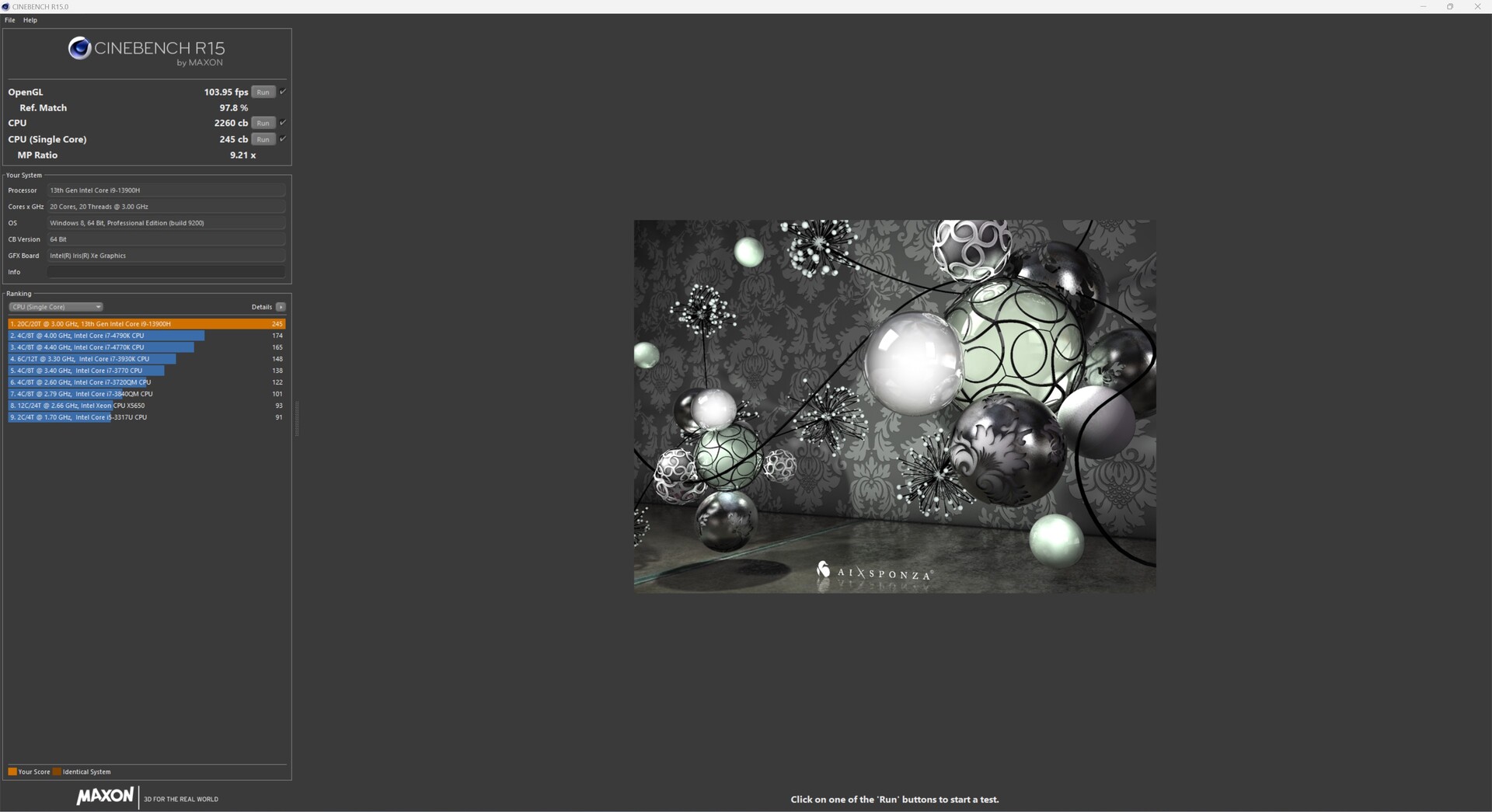

Cinebench R15
CPU Single 64Bit
Geekom A8 AMD Ryzen 9 8945HS	287 Points +17%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	279 Points +14%
Aoostar GEM12 AMD Ryzen 7 8845HS	279 Points +14%
Khadas Mind Intel Core i7-1360P	270 Points +10%
Average Intel Core i9-13900H (211 - 297, n=26)	269 Points +10%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	268 Points +9%
Acemagic F2A Intel Core Ultra 7 155H	258 Points +5%
Geekom XT12 Pro Intel Core i9-12900H	251 Points +2%
Geekom GT13 Pro Intel Core i9-13900H	245 Points
CPU Multi 64Bit
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	2746 Points +22%
Acemagic F2A Intel Core Ultra 7 155H	2738 Points +21%
Average Intel Core i9-13900H (2061 - 3100, n=26)	2676 Points +18%
Geekom A8 AMD Ryzen 9 8945HS	2640 Points +17%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	2608 Points +15%
Aoostar GEM12 AMD Ryzen 7 8845HS	2537 Points +12%
Geekom GT13 Pro Intel Core i9-13900H	2260 Points
Geekom XT12 Pro Intel Core i9-12900H	2121 Points -6%
Khadas Mind Intel Core i7-1360P	1642 Points -27%

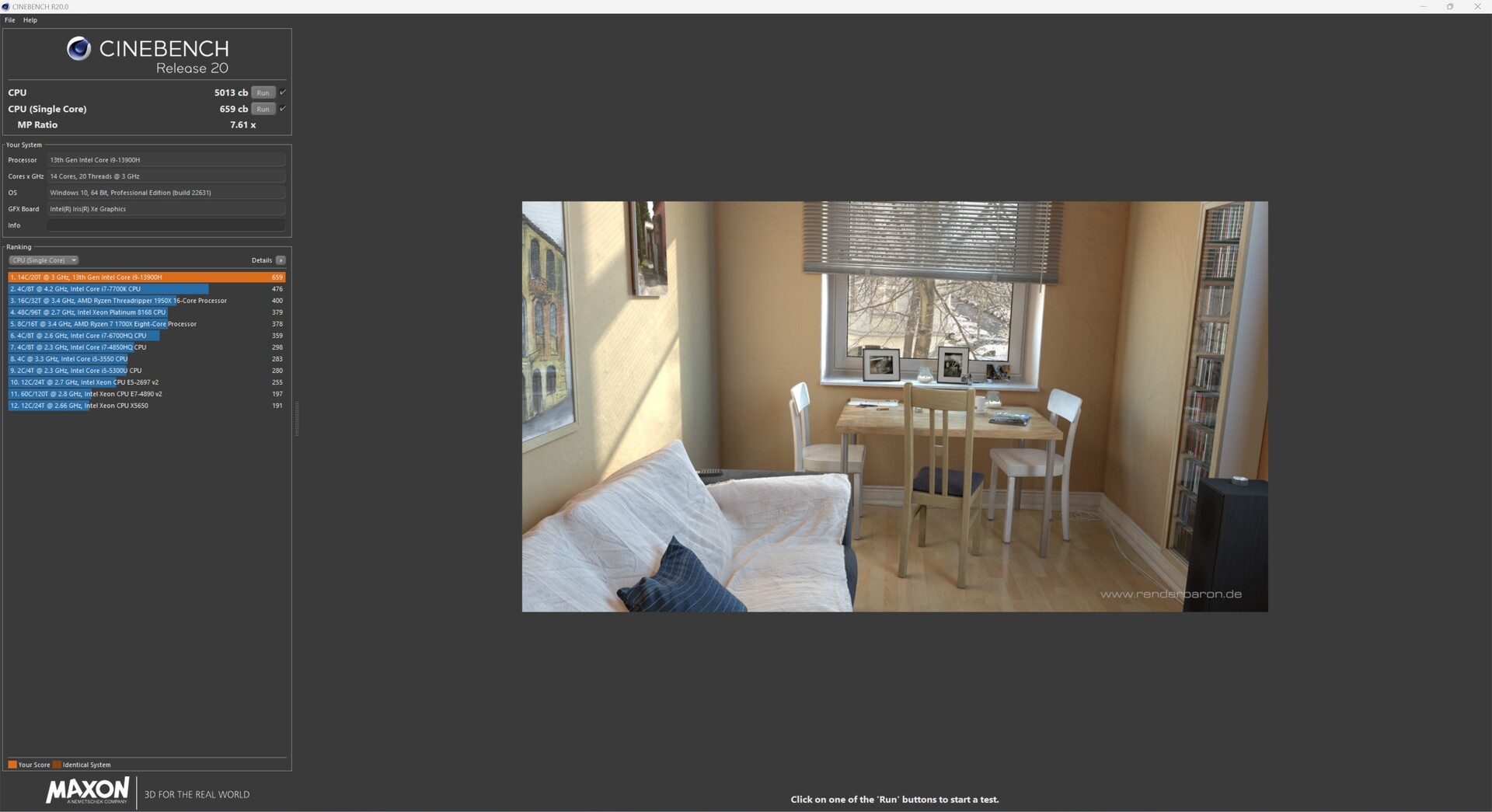

Cinebench R20
CPU (Single Core)
Khadas Mind Intel Core i7-1360P	724 Points +10%
Average Intel Core i9-13900H (428 - 792, n=25)	720 Points +9%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	715 Points +8%
Geekom A8 AMD Ryzen 9 8945HS	711 Points +8%
Geekom XT12 Pro Intel Core i9-12900H	701 Points +6%
Aoostar GEM12 AMD Ryzen 7 8845HS	691 Points +5%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	690 Points +5%
Acemagic F2A Intel Core Ultra 7 155H	679 Points +3%
Geekom GT13 Pro Intel Core i9-13900H	659 Points
CPU (Multi Core)
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	7196 Points +44%
Acemagic F2A Intel Core Ultra 7 155H	7188 Points +43%
Geekom A8 AMD Ryzen 9 8945HS	6591 Points +31%
Average Intel Core i9-13900H (4935 - 7716, n=25)	6533 Points +30%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	6509 Points +30%
Aoostar GEM12 AMD Ryzen 7 8845HS	6346 Points +27%
Geekom GT13 Pro Intel Core i9-13900H	5013 Points
Geekom XT12 Pro Intel Core i9-12900H	4294 Points -14%
Khadas Mind Intel Core i7-1360P	3820 Points -24%

Cinebench R11.5
CPU Single 64Bit
Geekom A8 AMD Ryzen 9 8945HS	3.45 Points +16%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	3.33 Points +12%
Aoostar GEM12 AMD Ryzen 7 8845HS	3.32 Points +11%
Khadas Mind Intel Core i7-1360P	3.27 Points +10%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	3.27 Points +10%
Acemagic F2A Intel Core Ultra 7 155H	3.13 Points +5%
Geekom XT12 Pro Intel Core i9-12900H	2.99 Points 0%
Geekom GT13 Pro Intel Core i9-13900H	2.98 Points
Average Intel Core i9-13900H (2.93 - 3, n=3)	2.97 Points 0%
CPU Multi 64Bit
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	33.95 Points +24%
Acemagic F2A Intel Core Ultra 7 155H	33.49 Points +22%
Geekom A8 AMD Ryzen 9 8945HS	31.31 Points +14%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	30.25 Points +10%
Aoostar GEM12 AMD Ryzen 7 8845HS	29.76 Points +8%
Average Intel Core i9-13900H (27.5 - 29.7, n=3)	28.5 Points +4%
Geekom GT13 Pro Intel Core i9-13900H	27.48 Points
Geekom XT12 Pro Intel Core i9-12900H	21.11 Points -23%
Khadas Mind Intel Core i7-1360P	19.54 Points -29%

Cinebench R10
Rendering Single CPUs 64Bit
Khadas Mind Intel Core i7-1360P	15227 Points +10%
Geekom A8 AMD Ryzen 9 8945HS	14561 Points +5%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	14374 Points +4%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	14177 Points +3%
Aoostar GEM12 AMD Ryzen 7 8845HS	14163 Points +2%
Acemagic F2A Intel Core Ultra 7 155H	13938 Points +1%
Geekom GT13 Pro Intel Core i9-13900H	13820 Points
Average Intel Core i9-13900H (13515 - 13820, n=3)	13696 Points -1%
Geekom XT12 Pro Intel Core i9-12900H	13378 Points -3%
Rendering Multiple CPUs 64Bit
Acemagic F2A Intel Core Ultra 7 155H	95005 Points +20%
Geekom A8 AMD Ryzen 9 8945HS	90144 Points +14%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	88902 Points +13%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	87064 Points +10%
Aoostar GEM12 AMD Ryzen 7 8845HS	85872 Points +9%
Geekom GT13 Pro Intel Core i9-13900H	79014 Points
Average Intel Core i9-13900H (76558 - 79856, n=3)	78476 Points -1%
Geekom XT12 Pro Intel Core i9-12900H	69621 Points -12%
Khadas Mind Intel Core i7-1360P	61639 Points -22%

Blender - v2.79 BMW27 CPU
Khadas Mind Intel Core i7-1360P	324 Seconds * -24%
Geekom XT12 Pro Intel Core i9-12900H	296 Seconds * -13%
Geekom GT13 Pro Intel Core i9-13900H	262 Seconds *
Average Intel Core i9-13900H (166 - 268, n=24)	205 Seconds * +22%
Aoostar GEM12 AMD Ryzen 7 8845HS	197 Seconds * +25%
Geekom A8 AMD Ryzen 9 8945HS	196 Seconds * +25%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	192 Seconds * +27%
Acemagic F2A Intel Core Ultra 7 155H	178 Seconds * +32%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	171 Seconds * +35%

wPrime 2.10
32m
Khadas Mind Intel Core i7-1360P	4.957 s * -41%
Geekom XT12 Pro Intel Core i9-12900H	4.111 s * -17%
Acemagic F2A Intel Core Ultra 7 155H	3.523 s * -0%
Geekom GT13 Pro Intel Core i9-13900H	3.518 s *
Average Intel Core i9-13900H (3.14 - 3.52, n=3)	3.39 s * +4%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	3.254 s * +8%
Aoostar GEM12 AMD Ryzen 7 8845HS	2.703 s * +23%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	2.626 s * +25%
Geekom A8 AMD Ryzen 9 8945HS	2.563 s * +27%
1024m
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	441.275 s * -7%
Geekom GT13 Pro Intel Core i9-13900H	412.775 s *
Average Intel Core i9-13900H (179.5 - 429, n=3)	341 s * +17%
Khadas Mind Intel Core i7-1360P	240.083 s * +42%
Geekom XT12 Pro Intel Core i9-12900H	202.68 s * +51%
Acemagic F2A Intel Core Ultra 7 155H	139.617 s * +66%
Aoostar GEM12 AMD Ryzen 7 8845HS	98.896 s * +76%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	72.819 s * +82%
Geekom A8 AMD Ryzen 9 8945HS	67.933 s * +84%

X264 HD Benchmark 4.0
Pass 1
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	335.5 (329^min - 340^max) fps +12%
Acemagic F2A Intel Core Ultra 7 155H	325 (323^min - 328^max) fps +8%
Geekom GT13 Pro Intel Core i9-13900H	300.5 (288^min - 319^max) fps
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	298 (288^min - 300^max) fps -1%
Geekom A8 AMD Ryzen 9 8945HS	298 (297^min - 305^max) fps -1%
Average Intel Core i9-13900H (284 - 301, n=3)	294 fps -2%
Aoostar GEM12 AMD Ryzen 7 8845HS	289 (286^min - 292^max) fps -4%
Khadas Mind Intel Core i7-1360P	273 (264^min - 275^max) fps -9%
Geekom XT12 Pro Intel Core i9-12900H	262 (259^min - 282^max) fps -13%
Pass 2
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	158.2 (157.4^min - 158.8^max) fps +39%
Acemagic F2A Intel Core Ultra 7 155H	154.15 (153.8^min - 154.3^max) fps +35%
Geekom A8 AMD Ryzen 9 8945HS	150.65 (150.4^min - 154.2^max) fps +32%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	149.3 (148.8^min - 149.8^max) fps +31%
Aoostar GEM12 AMD Ryzen 7 8845HS	143.7 (143^min - 145.2^max) fps +26%
Average Intel Core i9-13900H (110.2 - 138.6, n=3)	120.9 fps +6%
Geekom GT13 Pro Intel Core i9-13900H	113.95 (106.5^min - 136.6^max) fps
Khadas Mind Intel Core i7-1360P	94.7 (87.4^min - 101.7^max) fps -17%
Geekom XT12 Pro Intel Core i9-12900H	92.2 (91^min - 114.5^max) fps -19%

WinRAR - Result
Geekom XT12 Pro Intel Core i9-12900H	7945 KB/s +17%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	7940 KB/s +17%
Geekom A8 AMD Ryzen 9 8945HS	7843 KB/s +15%
Acemagic F2A Intel Core Ultra 7 155H	7723 KB/s +14%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	7699 KB/s +13%
Average Intel Core i9-13900H (6365 - 9303, n=3)	7489 KB/s +10%
Aoostar GEM12 AMD Ryzen 7 8845HS	7327 KB/s +8%
Geekom GT13 Pro Intel Core i9-13900H	6800 KB/s
Khadas Mind Intel Core i7-1360P	6079 KB/s -11%

TrueCrypt
AES Mean 100MB
Geekom A8 AMD Ryzen 9 8945HS	15.4 GB/s +17%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	14.9 GB/s +13%
Aoostar GEM12 AMD Ryzen 7 8845HS	14.4 GB/s +9%
Average Intel Core i9-13900H (13.2 - 14.8, n=3)	13.8 GB/s +5%
Geekom GT13 Pro Intel Core i9-13900H	13.2 GB/s
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	11.3 GB/s -14%
Geekom XT12 Pro Intel Core i9-12900H	11.2 GB/s -15%
Acemagic F2A Intel Core Ultra 7 155H	10.6 GB/s -20%
Khadas Mind Intel Core i7-1360P	9.5 GB/s -28%
Twofish Mean 100MB
Geekom GT13 Pro Intel Core i9-13900H	2.4 GB/s
Average Intel Core i9-13900H (2.3 - 2.5, n=3)	2.4 GB/s 0%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	2.1 GB/s -12%
Geekom A8 AMD Ryzen 9 8945HS	2 GB/s -17%
Aoostar GEM12 AMD Ryzen 7 8845HS	2 GB/s -17%
Geekom XT12 Pro Intel Core i9-12900H	1.9 GB/s -21%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1.8 GB/s -25%
Khadas Mind Intel Core i7-1360P	1.7 GB/s -29%
Acemagic F2A Intel Core Ultra 7 155H	1.7 GB/s -29%
Serpent Mean 100MB
Geekom A8 AMD Ryzen 9 8945HS	1.4 GB/s +17%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	1.3 GB/s +8%
Aoostar GEM12 AMD Ryzen 7 8845HS	1.3 GB/s +8%
Average Intel Core i9-13900H (1.2 - 1.4, n=3)	1.3 GB/s +8%
Geekom GT13 Pro Intel Core i9-13900H	1.2 GB/s
Geekom XT12 Pro Intel Core i9-12900H	1.1 GB/s -8%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1.1 GB/s -8%
Acemagic F2A Intel Core Ultra 7 155H	1 GB/s -17%
Khadas Mind Intel Core i7-1360P	0.935 GB/s -22%

Geekbench 5.5
Multi-Core
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	13392 Points +19%
Acemagic F2A Intel Core Ultra 7 155H	12662 Points +12%
Average Intel Core i9-13900H (9094 - 15410, n=26)	12649 Points +12%
Geekom A8 AMD Ryzen 9 8945HS	12481 Points +11%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	12177 Points +8%
Aoostar GEM12 AMD Ryzen 7 8845HS	12143 Points +8%
Geekom GT13 Pro Intel Core i9-13900H	11283 Points
Geekom XT12 Pro Intel Core i9-12900H	10028 Points -11%
Khadas Mind Intel Core i7-1360P	9159 Points -19%
Single-Core
Geekom A8 AMD Ryzen 9 8945HS	1996 Points +8%
Aoostar GEM12 AMD Ryzen 7 8845HS	1958 Points +6%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	1943 Points +6%
Average Intel Core i9-13900H (1140 - 2043, n=26)	1895 Points +3%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1856 Points +1%
Geekom GT13 Pro Intel Core i9-13900H	1841 Points
Khadas Mind Intel Core i7-1360P	1824 Points -1%
Geekom XT12 Pro Intel Core i9-12900H	1790 Points -3%
Acemagic F2A Intel Core Ultra 7 155H	1746 Points -5%

Geekbench 5.0
5.0 Multi-Core
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	13228 Points +18%
Acemagic F2A Intel Core Ultra 7 155H	12438 Points +11%
Geekom A8 AMD Ryzen 9 8945HS	12386 Points +11%
Average Intel Core i9-13900H (11168 - 14172, n=8)	12381 Points +11%
Aoostar GEM12 AMD Ryzen 7 8845HS	12086 Points +8%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	11933 Points +7%
Geekom GT13 Pro Intel Core i9-13900H	11168 Points
Geekom XT12 Pro Intel Core i9-12900H	9892 Points -11%
Khadas Mind Intel Core i7-1360P	9000 Points -19%
5.0 Single-Core
Geekom A8 AMD Ryzen 9 8945HS	1906 Points +5%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	1900 Points +5%
Aoostar GEM12 AMD Ryzen 7 8845HS	1900 Points +5%
Khadas Mind Intel Core i7-1360P	1826 Points +1%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1821 Points +1%
Geekom GT13 Pro Intel Core i9-13900H	1810 Points
Average Intel Core i9-13900H (1654 - 1958, n=8)	1801 Points 0%
Geekom XT12 Pro Intel Core i9-12900H	1710 Points -6%
Acemagic F2A Intel Core Ultra 7 155H	1708 Points -6%

Geekbench 4.4
64 Bit Single-Core Score
Geekom A8 AMD Ryzen 9 8945HS	8178 Points +5%
Khadas Mind Intel Core i7-1360P	8084 Points +4%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	8048 Points +3%
Aoostar GEM12 AMD Ryzen 7 8845HS	8034 Points +3%
Average Intel Core i9-13900H (7253 - 8498, n=9)	7955 Points +2%
Geekom GT13 Pro Intel Core i9-13900H	7787 Points
Geekom XT12 Pro Intel Core i9-12900H	7635 Points -2%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	7602 Points -2%
Acemagic F2A Intel Core Ultra 7 155H	6927 Points -11%
64 Bit Multi-Core Score
Geekom A8 AMD Ryzen 9 8945HS	49269 Points +18%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	48743 Points +16%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	47960 Points +15%
Aoostar GEM12 AMD Ryzen 7 8845HS	47777 Points +14%
Average Intel Core i9-13900H (41851 - 54848, n=9)	47143 Points +13%
Acemagic F2A Intel Core Ultra 7 155H	45250 Points +8%
Geekom GT13 Pro Intel Core i9-13900H	41851 Points
Geekom XT12 Pro Intel Core i9-12900H	37359 Points -11%
Khadas Mind Intel Core i7-1360P	33052 Points -21%

3DMark 11 - 1280x720 Performance Physics
Geekom A8 AMD Ryzen 9 8945HS	22978 Points +25%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	22960 Points +25%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	21875 Points +19%
Average Intel Core i9-13900H (15540 - 25420, n=29)	21781 Points +18%
Aoostar GEM12 AMD Ryzen 7 8845HS	21762 Points +18%
Acemagic F2A Intel Core Ultra 7 155H	20846 Points +13%
Geekom GT13 Pro Intel Core i9-13900H	18383 Points
Geekom XT12 Pro Intel Core i9-12900H	16634 Points -10%
Khadas Mind Intel Core i7-1360P	15245 Points -17%

7-Zip 18.03
7z b 4
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	72684 MIPS +39%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	71934 MIPS +37%
Geekom A8 AMD Ryzen 9 8945HS	71874 MIPS +37%
Aoostar GEM12 AMD Ryzen 7 8845HS	70733 MIPS +35%
Acemagic F2A Intel Core Ultra 7 155H	66438 MIPS +27%
Average Intel Core i9-13900H (45045 - 79032, n=25)	66435 MIPS +27%
Geekom GT13 Pro Intel Core i9-13900H	52479 MIPS
Geekom XT12 Pro Intel Core i9-12900H	47146 MIPS -10%
Khadas Mind Intel Core i7-1360P	43201 MIPS -18%
7z b 4 -mmt1
Geekom A8 AMD Ryzen 9 8945HS	6668 MIPS +5%
Aoostar GEM12 AMD Ryzen 7 8845HS	6644 MIPS +5%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	6563 MIPS +4%
Geekom GT13 Pro Intel Core i9-13900H	6321 MIPS
Average Intel Core i9-13900H (3665 - 6600, n=25)	6054 MIPS -4%
Khadas Mind Intel Core i7-1360P	5904 MIPS -7%
Geekom XT12 Pro Intel Core i9-12900H	5881 MIPS -7%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	5560 MIPS -12%
Acemagic F2A Intel Core Ultra 7 155H	5485 MIPS -13%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	20.9 fps +48%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	20.9 fps +48%
Geekom A8 AMD Ryzen 9 8945HS	20.9 fps +48%
Aoostar GEM12 AMD Ryzen 7 8845HS	20.5 fps +45%
Acemagic F2A Intel Core Ultra 7 155H	19.6 fps +39%
Average Intel Core i9-13900H (14.1 - 22.3, n=25)	18.5 fps +31%
Geekom GT13 Pro Intel Core i9-13900H	14.1 fps
Geekom XT12 Pro Intel Core i9-12900H	12.3 fps -13%
Khadas Mind Intel Core i7-1360P	11.4 fps -19%

R Benchmark 2.5 - Overall mean
Acemagic F2A Intel Core Ultra 7 155H	0.4652 sec * -6%
Geekom XT12 Pro Intel Core i9-12900H	0.4632 sec * -5%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	0.4627 sec * -5%
Average Intel Core i9-13900H (0.4052 - 0.723, n=25)	0.4493 sec * -2%
Khadas Mind Intel Core i7-1360P	0.4463 sec * -2%
Geekom GT13 Pro Intel Core i9-13900H	0.4395 sec *
Aoostar GEM12 AMD Ryzen 7 8845HS	0.4392 sec * -0%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	0.4354 sec * +1%
Geekom A8 AMD Ryzen 9 8945HS	0.4346 sec * +1%

LibreOffice - 20 Documents To PDF
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	53.9 s * -37%
Geekom A8 AMD Ryzen 9 8945HS	49.9 s * -27%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	49.5 s * -26%
Average Intel Core i9-13900H (34.4 - 82.8, n=25)	47.6 s * -21%
Aoostar GEM12 AMD Ryzen 7 8845HS	47.5 s * -21%
Acemagic F2A Intel Core Ultra 7 155H	44.5 s * -13%
Khadas Mind Intel Core i7-1360P	40.9 s * -4%
Geekom XT12 Pro Intel Core i9-12900H	39.6 s * -1%
Geekom GT13 Pro Intel Core i9-13900H	39.4 s *

WebXPRT 3 - Overall
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	324 Points +7%
Khadas Mind Intel Core i7-1360P	316 Points +4%
Geekom A8 AMD Ryzen 9 8945HS	316 Points +4%
Geekom GT13 Pro Intel Core i9-13900H	304 Points
Average Intel Core i9-13900H (171.4 - 340, n=20)	302 Points -1%
Aoostar GEM12 AMD Ryzen 7 8845HS	300 Points -1%
Geekom XT12 Pro Intel Core i9-12900H	291 Points -4%
Acemagic F2A Intel Core Ultra 7 155H	276 Points -9%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	264 Points -13%

Mozilla Kraken 1.1 - Total
Acemagic F2A Intel Core Ultra 7 155H	535 ms * -3%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	532 ms * -3%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	517 ms * -0%
Aoostar GEM12 AMD Ryzen 7 8845HS	517 ms * -0%
Geekom GT13 Pro Intel Core i9-13900H	517 ms *
Geekom XT12 Pro Intel Core i9-12900H	511 ms * +1%
Average Intel Core i9-13900H (456 - 828, n=24)	507 ms * +2%
Geekom A8 AMD Ryzen 9 8945HS	505 ms * +2%
Khadas Mind Intel Core i7-1360P	502 ms * +3%

3DMark
1920x1080 Fire Strike Physics
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	28906 Points +22%
Geekom A8 AMD Ryzen 9 8945HS	27732 Points +17%
Average Intel Core i9-13900H (17733 - 32664, n=30)	26658 Points +13%
Aoostar GEM12 AMD Ryzen 7 8845HS	26194 Points +11%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	26038 Points +10%
Acemagic F2A Intel Core Ultra 7 155H	25043 Points +6%
Geekom GT13 Pro Intel Core i9-13900H	23626 Points
Geekom XT12 Pro Intel Core i9-12900H	22242 Points -6%
Khadas Mind Intel Core i7-1360P	18564 Points -21%
2560x1440 Time Spy CPU
Average Intel Core i9-13900H (7863 - 13726, n=29)	11535 Points +23%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	11481 Points +23%
Geekom A8 AMD Ryzen 9 8945HS	11298 Points +21%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	11159 Points +19%
Aoostar GEM12 AMD Ryzen 7 8845HS	10824 Points +16%
Acemagic F2A Intel Core Ultra 7 155H	10014 Points +7%
Geekom GT13 Pro Intel Core i9-13900H	9347 Points
Geekom XT12 Pro Intel Core i9-12900H	7985 Points -15%
Khadas Mind Intel Core i7-1360P	7942 Points -15%

Super Pi mod 1.5 XS 1M - 1M
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	8.774 s * -18%
Geekom XT12 Pro Intel Core i9-12900H	7.454 s * -0%
Geekom GT13 Pro Intel Core i9-13900H	7.445 s *
Aoostar GEM12 AMD Ryzen 7 8845HS	7.331 s * +2%
Acemagic F2A Intel Core Ultra 7 155H	7.168 s * +4%
Geekom A8 AMD Ryzen 9 8945HS	7.045 s * +5%
Average Intel Core i9-13900H (6.16 - 7.51, n=3)	7.04 s * +5%
Khadas Mind Intel Core i7-1360P	6.784 s * +9%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	6.751 s * +9%

Super Pi mod 1.5 XS 2M - 2M
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	21.271 s * -31%
Aoostar GEM12 AMD Ryzen 7 8845HS	18.138 s * -12%
Geekom A8 AMD Ryzen 9 8945HS	17.549 s * -8%
Geekom XT12 Pro Intel Core i9-12900H	16.424 s * -1%
Geekom GT13 Pro Intel Core i9-13900H	16.234 s *
Acemagic F2A Intel Core Ultra 7 155H	16.125 s * +1%
Average Intel Core i9-13900H (13.8 - 16.4, n=3)	15.5 s * +5%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	14.879 s * +8%
Khadas Mind Intel Core i7-1360P	14.771 s * +9%

Super Pi Mod 1.5 XS 32M - 32M
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	724.411 s * -74%
Aoostar GEM12 AMD Ryzen 7 8845HS	665.289 s * -60%
Geekom A8 AMD Ryzen 9 8945HS	624.748 s * -50%
Geekom GT13 Pro Intel Core i9-13900H	417.103 s *
Average Intel Core i9-13900H (350 - 425, n=3)	397 s * +5%
Geekom XT12 Pro Intel Core i9-12900H	396.475 s * +5%
Acemagic F2A Intel Core Ultra 7 155H	394.754 s * +5%
Khadas Mind Intel Core i7-1360P	384.074 s * +8%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	304.446 s * +27%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit

9550

Cinebench R10 Shading 64Bit

15509 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

79014 Points

Cinebench R10 Rendering Single CPUs 64Bit

13820 Points

Cinebench R10 Shading 32Bit

14766

Cinebench R10 Rendering Multiple CPUs 32Bit

53438

Cinebench R11.5 CPU Single 32Bit

2.66 Points

Cinebench R11.5 CPU Multi 32Bit

24.38 Points

Cinebench R11.5 OpenGL 32Bit

96.79 fps

Cinebench R11.5 CPU Single 64Bit

2.98 Points

Cinebench R11.5 CPU Multi 64Bit

27.48 Points

Cinebench R11.5 OpenGL 64Bit

98.43 fps

Cinebench R15 CPU Single 64Bit

245 Points

Cinebench R15 CPU Multi 64Bit

2260 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

103.95 fps

Cinebench R20 CPU (Single Core)

659 Points

Cinebench R20 CPU (Multi Core)

5013 Points

Cinebench R23 Multi Core

13015 Points

Cinebench R23 Single Core

1715 Points

Cinebench 2024 CPU Single Core

104 Points

Cinebench 2024 CPU Multi Core

703 Points

Help

... in comparison

Performance Rating
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	98 pt
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	92.2 pt
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	68.8 pt
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	68.6 pt
Average of class Mini PC	57.1 pt
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	56.6 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	51.9 pt
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	49.6 pt
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	42.3 pt

AIDA64 / FP32 Ray-Trace
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	26889 KRay/s +129%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	26146 KRay/s +123%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	14418 KRay/s +23%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	14406 KRay/s +23%
Average of class Mini PC (646 - 51004, n=119, last 2 years)	12878 KRay/s +10%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	11735 KRay/s
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	11188 KRay/s -5%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	9567 KRay/s -18%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	7933 KRay/s -32%

AIDA64 / FPU Julia
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	116269 Points +97%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	113684 Points +92%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	91475 Points +55%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	89540 Points +52%
Average of class Mini PC (3857 - 214250, n=119, last 2 years)	64921 Points +10%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	59094 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	56942 Points -4%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	47763 Points -19%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	40251 Points -32%

AIDA64 / CPU SHA3
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	4953 MB/s +82%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	4890 MB/s +80%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	3117 MB/s +15%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	3065 MB/s +13%
Average of class Mini PC (260 - 9399, n=119, last 2 years)	2856 MB/s +5%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	2718 MB/s
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	2669 MB/s -2%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	2430 MB/s -11%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	2006 MB/s -26%

AIDA64 / CPU Queen
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	119569 Points +27%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	117103 Points +25%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	99180 Points +6%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	93952 Points
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	93870 Points 0%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	86881 Points -8%
Average of class Mini PC (8172 - 184747, n=119, last 2 years)	80187 Points -15%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	73765 Points -21%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	65324 Points -30%

AIDA64 / FPU SinJulia
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	15312 Points +91%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	15145 Points +89%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	12642 Points +58%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	11771 Points +47%
Average of class Mini PC (408 - 29064, n=119, last 2 years)	8812 Points +10%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	8026 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	7246 Points -10%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	5734 Points -29%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	5567 Points -31%

AIDA64 / FPU Mandel
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	62219 Points +114%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	60809 Points +109%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	50025 Points +72%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	49558 Points +70%
Average of class Mini PC (1987 - 113499, n=119, last 2 years)	33863 Points +16%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	29138 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	28019 Points -4%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	22832 Points -22%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	19857 Points -32%

AIDA64 / CPU AES
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	170745 MB/s +66%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	124515 MB/s +21%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	119363 MB/s +16%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	102677 MB/s
Average of class Mini PC (3691 - 325960, n=119, last 2 years)	88382 MB/s -14%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	86346 MB/s -16%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	80041 MB/s -22%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	74716 MB/s -27%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	53328 MB/s -48%

AIDA64 / CPU ZLib
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	1114 MB/s +41%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	1075 MB/s +36%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	789 MB/s
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	775 MB/s -2%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	754 MB/s -4%
Average of class Mini PC (74.9 - 2039, n=119, last 2 years)	740 MB/s -6%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	671 MB/s -15%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	578 MB/s -27%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	575 MB/s -27%

AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	14472 KRay/s +133%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	14284 KRay/s +130%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	7680 KRay/s +24%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7551 KRay/s +22%
Average of class Mini PC (350 - 26952, n=119, last 2 years)	6881 KRay/s +11%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	6205 KRay/s
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	5957 KRay/s -4%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	4975 KRay/s -20%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	4156 KRay/s -33%

AIDA64 / CPU PhotoWorxx
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	43544 MPixel/s +54%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	40460 MPixel/s +43%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	32647 MPixel/s +15%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	30049 MPixel/s +6%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	30038 MPixel/s +6%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	29263 MPixel/s +4%
Average of class Mini PC (4408 - 50500, n=119, last 2 years)	28301 MPixel/s 0%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	28269 MPixel/s
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	28118 MPixel/s -1%

Cinebench R15 多回路

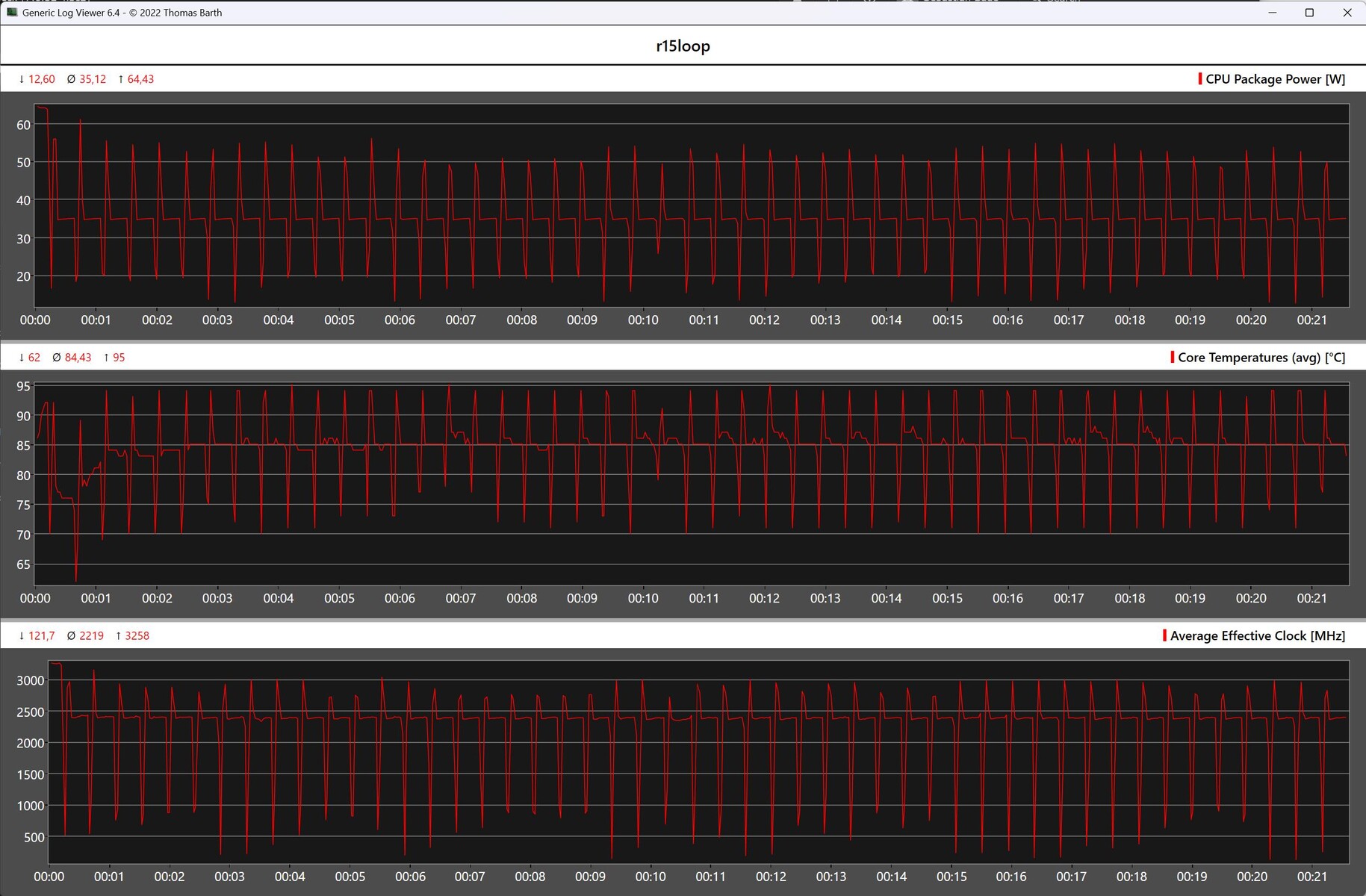

Cinebench R15 连续循环测试结果表明，开始运行时可以取得明显更好的效果。在第一次运行中，英特尔英特尔酷睿 i9-13900H的 PL2 值（64 瓦）保持的时间要稍长一些。不过，除少数例外情况外，SoC 随后在最大 35 瓦的情况下也能提供稳定的性能。

Geekom GT13 Pro Intel Core i9-13900H, Intel Core i9-13900H: Ø1776 (1688.48-2326.12)

Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Ryzen 7 7840HS: Ø2605 (2564.1-2649.53)

Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Ryzen 9 7940HS: Ø2646 (2612.16-2667.2)

Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1878 (1825.15-2068.58)

Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Core i7-1360P: Ø1753 (1686.77-2083.33)

Geekom Mini IT12 Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)

ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2050 (2014.91-2082.68)

Khadas Mind Intel Core i7-1360P, Intel Core i7-1360P: Ø1443 (1386.82-1627.54)

系统性能

总体而言，Geekom GT13 Pro 在系统测试中表现不错。不过，测试系统在与竞争对手的竞争中很难占得上风。造成这一结果的原因很可能是性能上的损失，其中有一部分是自找的。不过，在日常任务中的表现还是不错的。宽敞的工作内存和快速的大容量存储使系统主观上表现良好。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Geekom A8, AMD Ryzen 9 8945HS AMD Radeon 780M, Acer N5000	7705 Points +30%
Minisforum EliteMini UM780 XTX, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024Q-A0	7526 Points +27%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	7510 Points +26%
Aoostar GEM12, AMD Ryzen 7 8845HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	7431 Points +25%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	7120 Points +20%
Geekom XT12 Pro, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB	6295 Points +6%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	5944 Points
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	5937 Points 0%

PCMark 10 / Essentials
Geekom A8, AMD Ryzen 9 8945HS AMD Radeon 780M, Acer N5000	11333 Points +10%
Geekom XT12 Pro, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB	11273 Points +9%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	11125 Points +8%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	11030 Points +7%
Minisforum EliteMini UM780 XTX, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024Q-A0	11011 Points +6%
Aoostar GEM12, AMD Ryzen 7 8845HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	10822 Points +5%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	10761 Points +4%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	10347 Points

PCMark 10 / Productivity
Geekom A8, AMD Ryzen 9 8945HS AMD Radeon 780M, Acer N5000	11082 Points +51%
Minisforum EliteMini UM780 XTX, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024Q-A0	10832 Points +48%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	10484 Points +43%
Aoostar GEM12, AMD Ryzen 7 8845HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	10482 Points +43%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	8901 Points +22%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	8161 Points +12%
Geekom XT12 Pro, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB	8114 Points +11%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	7319 Points

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Aoostar GEM12, AMD Ryzen 7 8845HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	1939 Points +10%
Geekom A8, AMD Ryzen 9 8945HS AMD Radeon 780M, Acer N5000	1866 Points +6%
Geekom XT12 Pro, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB	1860 Points +5%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1802 Points +2%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	1766 Points
Minisforum EliteMini UM780 XTX, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024Q-A0	1761 Points 0%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	1675 Points -5%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	1564 Points -11%

CrossMark / Responsiveness
Geekom XT12 Pro, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB	1919 Points +7%
Aoostar GEM12, AMD Ryzen 7 8845HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	1849 Points +3%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	1790 Points
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1700 Points -5%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	1528 Points -15%
Geekom A8, AMD Ryzen 9 8945HS AMD Radeon 780M, Acer N5000	1494 Points -17%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	1378 Points -23%
Minisforum EliteMini UM780 XTX, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024Q-A0	1361 Points -24%

CrossMark / Creativity
Geekom A8, AMD Ryzen 9 8945HS AMD Radeon 780M, Acer N5000	2127 Points +19%
Minisforum EliteMini UM780 XTX, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024Q-A0	2040 Points +14%
Aoostar GEM12, AMD Ryzen 7 8845HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	2040 Points +14%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1929 Points +8%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	1883 Points +5%
Geekom XT12 Pro, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB	1870 Points +5%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	1789 Points
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	1600 Points -11%

CrossMark / Productivity
Aoostar GEM12, AMD Ryzen 7 8845HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	1872 Points +8%
Geekom XT12 Pro, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB	1831 Points +5%
Geekom A8, AMD Ryzen 9 8945HS AMD Radeon 780M, Acer N5000	1764 Points +2%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	1736 Points
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1717 Points -1%
Minisforum EliteMini UM780 XTX, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024Q-A0	1656 Points -5%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	1589 Points -8%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	1541 Points -11%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	71990 MB/s +57%
Geekom A8 AMD Ryzen 9 8945HS, Radeon 780M	68603 MB/s +50%
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	67777 MB/s +48%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	67039 MB/s +47%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	65299 MB/s +43%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	62397 MB/s +36%
Average of class Mini PC (6481 - 89287, n=119, last 2 years)	48357 MB/s +6%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	45792 MB/s 0%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	45721 MB/s

AIDA64 / Memory Read
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	75449 MB/s +64%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	64323 MB/s +40%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	61867 MB/s +35%
Geekom A8 AMD Ryzen 9 8945HS, Radeon 780M	61710 MB/s +34%
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	61006 MB/s +33%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	60668 MB/s +32%
Average of class Mini PC (6914 - 99171, n=119, last 2 years)	49177 MB/s +7%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	48963 MB/s +6%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	45995 MB/s

AIDA64 / Memory Write
Geekom A8 AMD Ryzen 9 8945HS, Radeon 780M	86974 MB/s +90%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	86693 MB/s +90%
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	86677 MB/s +90%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	74777 MB/s +64%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	70596 MB/s +54%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	65057 MB/s +42%
Average of class Mini PC (6862 - 98583, n=119, last 2 years)	52856 MB/s +16%
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	47201 MB/s +3%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	45733 MB/s

AIDA64 / Memory Latency
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	149 ns * -97%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	146.1 ns * -93%
Average of class Mini PC (44.9 - 184.8, n=119, last 2 years)	92.1 ns * -22%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	92 ns * -21%
Geekom A8 AMD Ryzen 9 8945HS, Radeon 780M	91.2 ns * -20%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	90.5 ns * -19%
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	88.6 ns * -17%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	75.8 ns *
Geekom XT12 Pro Intel Core i9-12900H, Iris Xe G7 96EUs	74.7 ns * +1%

* ... smaller is better

DPC 延迟

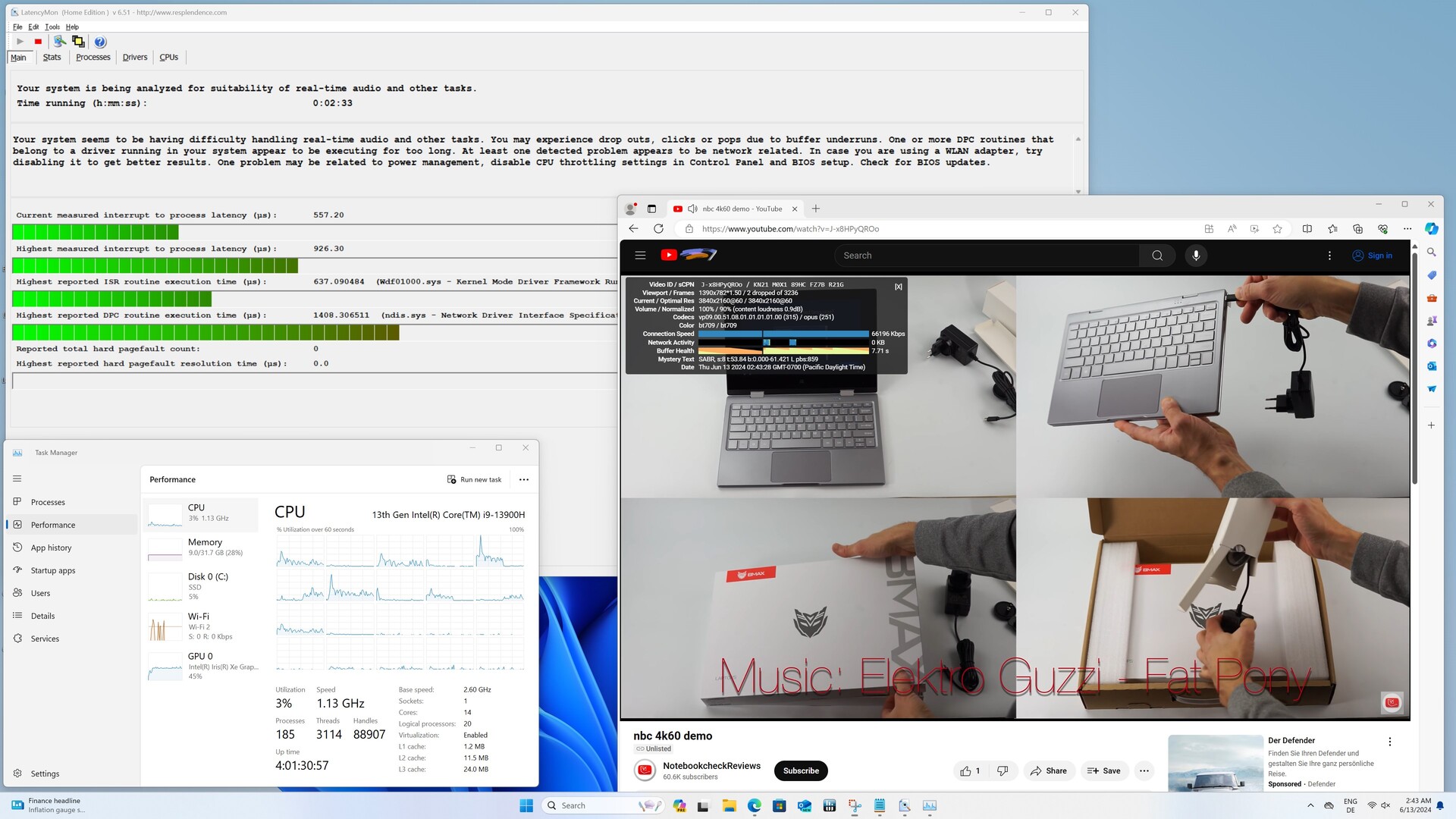

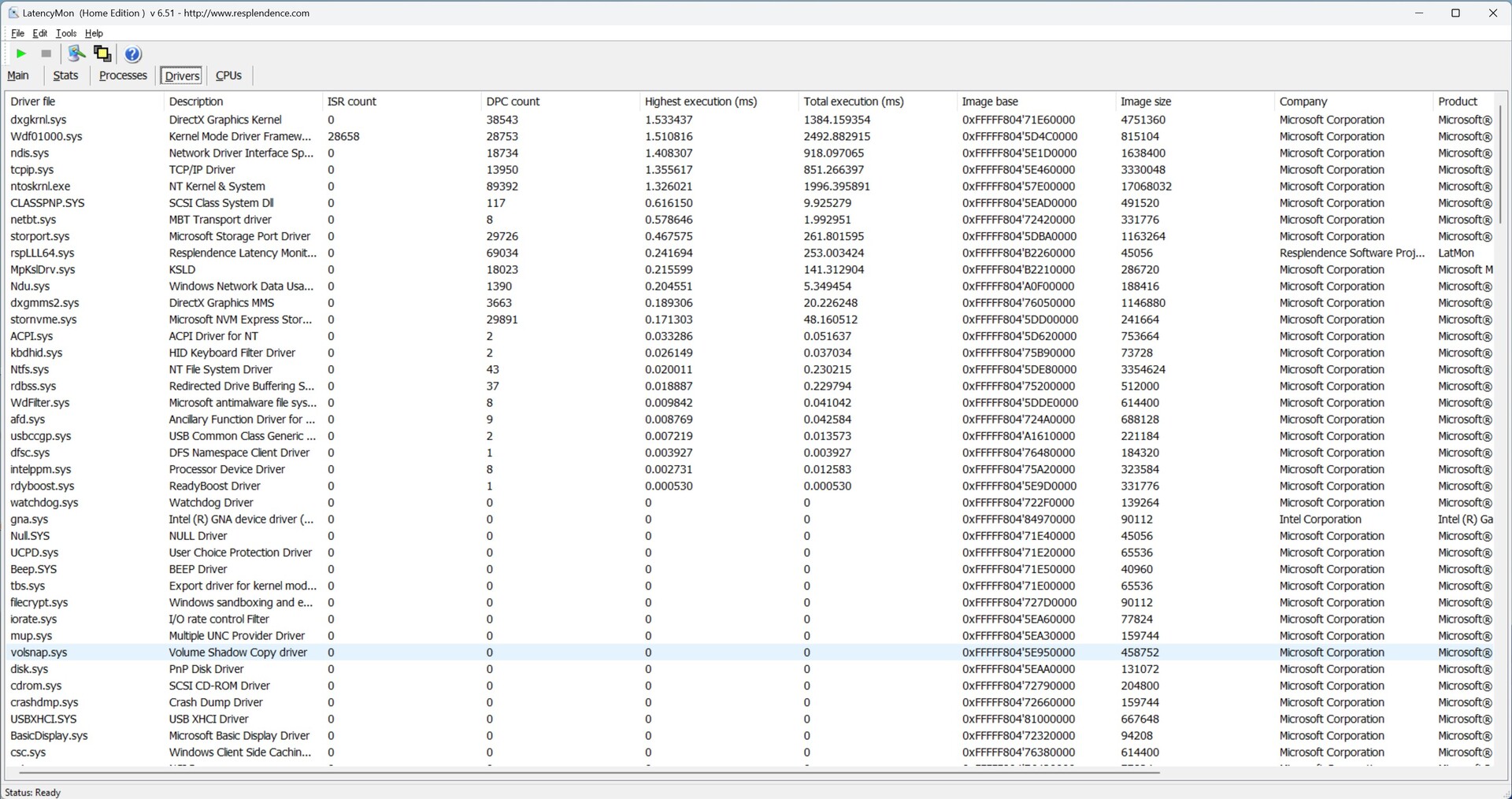

遗憾的是，Geekom GT13 Pro 并没有达到最佳的 DPC 延迟。我们已经记录了上网时延迟增加的情况，在播放 4K 测试视频时，延迟又略有增加。只有两帧掉帧是正常的，绝不会降低作为流媒体客户端的质量。同时，iGPU 的负载约为 45%。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	2724 μs * -78%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	2151 μs * -40%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	2097.9 μs * -37%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	2069.2 μs * -35%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	1533.4 μs *
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	1178.9 μs * +23%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	1001.9 μs * +35%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	962 μs * +37%

* ... smaller is better

大容量存储器

Geekom GT13 Pro 拥有 2 TB 的存储空间，配置出色，可为许多应用程序提供充足的存储空间。它安装了宏碁的固态硬盘，在性能方面令人印象深刻。记录的结果足以让它落后于傲星 GEM12位居第二。不过，固态硬盘在连续负载情况下难以保持高性能。虽然制造商为固态硬盘安装了被动散热装置，但这终究不足以保持性能稳定。与初始值相比，读取率下降了近 50%。不过，从连续性能图中可以看出，这并非完全失败。宏碁 N7000 的读取速度略低于 4000 MB/s，仍然快于其他微型电脑的大容量存储设备。Geekom GT13 Pro 共可安装两个固态硬盘。不过需要注意的是，第二个 M.2 插槽仅支持长度为 42 毫米的 SATA 固态硬盘。

有关进一步的比较和基准测试，请参阅我们的比较表.

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Acer N7000

Sequential Read: 4580 MB/s

Sequential Write: 4435 MB/s

512K Read: 2185 MB/s

512K Write: 3457 MB/s

4K Read: 71.73 MB/s

4K Write: 333.5 MB/s

4K QD32 Read: 1047 MB/s

4K QD32 Write: 779.3 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	89 pt
Geekom GT13 Pro Acer N7000	77 pt
Khadas Mind WD PC SN740 SDDPTQD-1T00	75.4 pt
Geekom XT12 Pro Lexar SSD NM7A1 1TB	65.8 pt
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	60.1 pt
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	58.1 pt
Geekom A8 Acer N5000	55.2 pt
Average of class Mini PC	47.6 pt
Acemagic F2A Kingston OM8SEP1024Q-A0	45.7 pt

DiskSpd
seq read
Geekom GT13 Pro Acer N7000	4357 (4314.26^min - 4356.72^max) MB/s
Khadas Mind WD PC SN740 SDDPTQD-1T00	3628 (3596.13^min - 3627.65^max) MB/s -17%
Geekom A8 Acer N5000	3114 (3080.09^min - 3114.48^max) MB/s -29%
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	3108 (3065.99^min - 3107.56^max) MB/s -29%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	2896 (2845^min - 2896.04^max) MB/s -34%
Average of class Mini PC (277 - 4357, n=119, last 2 years)	2333 MB/s -46%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	2315 (2293.84^min - 2315.26^max) MB/s -47%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	2178 (2158.39^min - 2177.68^max) MB/s -50%
Acemagic F2A Kingston OM8SEP1024Q-A0	1674 (1242.56^min - 1673.54^max) MB/s -62%
seq write
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	4619 (4584.79^min - 4619.39^max) MB/s +2%
Geekom GT13 Pro Acer N7000	4544 (4380.79^min - 4543.83^max) MB/s
Khadas Mind WD PC SN740 SDDPTQD-1T00	4121 (3696.6^min - 4120.84^max) MB/s -9%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	3736 (3562.44^min - 3735.53^max) MB/s -18%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	3386 (3076.94^min - 3385.64^max) MB/s -25%
Geekom A8 Acer N5000	3271 (3235.73^min - 3270.93^max) MB/s -28%
Average of class Mini PC (229 - 5595, n=119, last 2 years)	2509 MB/s -45%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	2341 (2252.02^min - 2341.4^max) MB/s -48%
Acemagic F2A Kingston OM8SEP1024Q-A0	1348 (1117.85^min - 1347.87^max) MB/s -70%
seq q8 t1 read
Geekom GT13 Pro Acer N7000	7007 (6166.72^min - 7006.62^max) MB/s
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	5213 (4500.71^min - 5212.95^max) MB/s -26%
Khadas Mind WD PC SN740 SDDPTQD-1T00	5168 (4831.21^min - 5167.59^max) MB/s -26%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	4821 (4521.88^min - 4820.93^max) MB/s -31%
Geekom A8 Acer N5000	4800 (4387.45^min - 4800.17^max) MB/s -31%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	4769 (3791.02^min - 4769.24^max) MB/s -32%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	4676 (4310.07^min - 4675.81^max) MB/s -33%
Average of class Mini PC (236 - 8430, n=119, last 2 years)	3790 MB/s -46%
Acemagic F2A Kingston OM8SEP1024Q-A0	3194 (2810.81^min - 3194.17^max) MB/s -54%
seq q8 t1 write
Geekom GT13 Pro Acer N7000	5261 (5018.9^min - 5261.3^max) MB/s
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	4754 (4738.27^min - 4754.03^max) MB/s -10%
Khadas Mind WD PC SN740 SDDPTQD-1T00	4212 (3767.95^min - 4212.34^max) MB/s -20%
Geekom A8 Acer N5000	4081 (3987.52^min - 4081.49^max) MB/s -22%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	3910 (3902.59^min - 3909.87^max) MB/s -26%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	3729 (3700.15^min - 3728.95^max) MB/s -29%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	3255 (2485.13^min - 3254.57^max) MB/s -38%
Average of class Mini PC (239 - 6669, n=119, last 2 years)	2810 MB/s -47%
Acemagic F2A Kingston OM8SEP1024Q-A0	2212 (1222.43^min - 2212.27^max) MB/s -58%
4k q1 t1 read
Geekom GT13 Pro Acer N7000	85.3 (82.57^min - 85.32^max) MB/s
Khadas Mind WD PC SN740 SDDPTQD-1T00	83.7 (81.47^min - 83.67^max) MB/s -2%
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	78.7 (78.09^min - 78.69^max) MB/s -8%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	64.9 (64.71^min - 64.94^max) MB/s -24%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	64.1 (56.32^min - 64.06^max) MB/s -25%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	63.5 (59.81^min - 63.5^max) MB/s -26%
Average of class Mini PC (6.85 - 86.6, n=119, last 2 years)	55.3 MB/s -35%
Geekom A8 Acer N5000	54.4 (52.17^min - 54.39^max) MB/s -36%
Acemagic F2A Kingston OM8SEP1024Q-A0	47.3 (47.07^min - 47.31^max) MB/s -45%
4k q1 t1 write
Geekom GT13 Pro Acer N7000	327 (306.06^min - 326.78^max) MB/s
Khadas Mind WD PC SN740 SDDPTQD-1T00	301 (296.91^min - 301.44^max) MB/s -8%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	279 (237.61^min - 279.08^max) MB/s -15%
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	274 (271.38^min - 273.89^max) MB/s -16%
Average of class Mini PC (30.4 - 435, n=119, last 2 years)	196.9 MB/s -40%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	196.1 (183.94^min - 196.13^max) MB/s -40%
Acemagic F2A Kingston OM8SEP1024Q-A0	187.2 (181.54^min - 187.2^max) MB/s -43%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	184.4 (177.6^min - 184.36^max) MB/s -44%
Geekom A8 Acer N5000	169.3 (157.77^min - 169.29^max) MB/s -48%
4k q32 t16 read
Geekom GT13 Pro Acer N7000	3593 (3380.17^min - 3593.41^max) MB/s
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	3197 (3174.44^min - 3196.85^max) MB/s -11%
Khadas Mind WD PC SN740 SDDPTQD-1T00	2300 (2238.78^min - 2299.5^max) MB/s -36%
Acemagic F2A Kingston OM8SEP1024Q-A0	1824 (1239.47^min - 1824.09^max) MB/s -49%
Geekom A8 Acer N5000	1558 (1523.21^min - 1557.75^max) MB/s -57%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	1557 (1529.87^min - 1556.79^max) MB/s -57%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	1452 (1402.67^min - 1451.9^max) MB/s -60%
Average of class Mini PC (26.1 - 4158, n=119, last 2 years)	1411 MB/s -61%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	1143 (1091.01^min - 1142.98^max) MB/s -68%
4k q32 t16 write
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	3639 (3534.46^min - 3639.09^max) MB/s +378%
Khadas Mind WD PC SN740 SDDPTQD-1T00	2441 (2189.1^min - 2441.28^max) MB/s +220%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	1499 (1114.25^min - 1499.4^max) MB/s +97%
Acemagic F2A Kingston OM8SEP1024Q-A0	1434 (1410.26^min - 1433.71^max) MB/s +88%
Average of class Mini PC (32.6 - 4288, n=119, last 2 years)	1332 MB/s +75%
Geekom GT13 Pro Acer N7000	762 (700.88^min - 761.76^max) MB/s
Geekom A8 Acer N5000	600 (492.7^min - 600.03^max) MB/s -21%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	565 (557.67^min - 564.75^max) MB/s -26%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	497 (467.49^min - 497.28^max) MB/s -35%

AS SSD
Score Total
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	10021 Points +47%
Geekom GT13 Pro Acer N7000	6798 Points
Khadas Mind WD PC SN740 SDDPTQD-1T00	6460 Points -5%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	5975 Points -12%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	5863 Points -14%
Geekom A8 Acer N5000	5132 Points -25%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	4987 Points -27%
Acemagic F2A Kingston OM8SEP1024Q-A0	4412 Points -35%
Average of class Mini PC (211 - 10021, n=117, last 2 years)	4244 Points -38%
Score Read
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	3741 Points +31%
Geekom GT13 Pro Acer N7000	2866 Points
Khadas Mind WD PC SN740 SDDPTQD-1T00	2658 Points -7%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	2119 Points -26%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	1738 Points -39%
Geekom A8 Acer N5000	1643 Points -43%
Average of class Mini PC (76 - 3741, n=117, last 2 years)	1578 Points -45%
Acemagic F2A Kingston OM8SEP1024Q-A0	1561 Points -46%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	1482 Points -48%
Score Write
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	4371 Points +74%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	3294 Points +31%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	2807 Points +12%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	2777 Points +10%
Geekom A8 Acer N5000	2735 Points +9%
Geekom GT13 Pro Acer N7000	2516 Points
Khadas Mind WD PC SN740 SDDPTQD-1T00	2447 Points -3%
Acemagic F2A Kingston OM8SEP1024Q-A0	2082 Points -17%
Average of class Mini PC (88 - 4371, n=117, last 2 years)	1902 Points -24%
Seq Read
Geekom GT13 Pro Acer N7000	4546 MB/s
Khadas Mind WD PC SN740 SDDPTQD-1T00	4496 MB/s -1%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	4349.85 MB/s -4%
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	4317 MB/s -5%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	3822 MB/s -16%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	3779 MB/s -17%
Geekom A8 Acer N5000	3741 MB/s -18%
Average of class Mini PC (291 - 6620, n=117, last 2 years)	3231 MB/s -29%
Acemagic F2A Kingston OM8SEP1024Q-A0	3010 MB/s -34%
Seq Write
Khadas Mind WD PC SN740 SDDPTQD-1T00	4258 MB/s +26%
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	4188 MB/s +24%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	3936.64 MB/s +17%
Geekom GT13 Pro Acer N7000	3374 MB/s
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	2463 MB/s -27%
Acemagic F2A Kingston OM8SEP1024Q-A0	2369 MB/s -30%
Average of class Mini PC (242 - 5783, n=117, last 2 years)	2292 MB/s -32%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	2285 MB/s -32%
Geekom A8 Acer N5000	1897 MB/s -44%
4K Read
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	89.3 MB/s +7%
Geekom GT13 Pro Acer N7000	83.4 MB/s
Geekom XT12 Pro Lexar SSD NM7A1 1TB	80.89 MB/s -3%
Khadas Mind WD PC SN740 SDDPTQD-1T00	76.3 MB/s -9%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	63.3 MB/s -24%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	61.9 MB/s -26%
Average of class Mini PC (21.4 - 104.3, n=117, last 2 years)	59.7 MB/s -28%
Geekom A8 Acer N5000	50.3 MB/s -40%
Acemagic F2A Kingston OM8SEP1024Q-A0	41.8 MB/s -50%
4K Write
Geekom XT12 Pro Lexar SSD NM7A1 1TB	316.33 MB/s +7%
Geekom GT13 Pro Acer N7000	296 MB/s
Khadas Mind WD PC SN740 SDDPTQD-1T00	258 MB/s -13%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	238 MB/s -20%
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	221 MB/s -25%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	208 MB/s -30%
Acemagic F2A Kingston OM8SEP1024Q-A0	196.9 MB/s -33%
Average of class Mini PC (30.9 - 366, n=117, last 2 years)	177.5 MB/s -40%
Geekom A8 Acer N5000	171.7 MB/s -42%
4K-64 Read
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	3220 MB/s +38%
Geekom GT13 Pro Acer N7000	2328 MB/s
Khadas Mind WD PC SN740 SDDPTQD-1T00	2132 MB/s -8%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	1602.91 MB/s -31%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	1293 MB/s -44%
Acemagic F2A Kingston OM8SEP1024Q-A0	1218 MB/s -48%
Geekom A8 Acer N5000	1218 MB/s -48%
Average of class Mini PC (23.4 - 3220, n=117, last 2 years)	1195 MB/s -49%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	1041 MB/s -55%
4K-64 Write
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	3731 MB/s +98%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	2840 MB/s +51%
Geekom A8 Acer N5000	2374 MB/s +26%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	2340 MB/s +24%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	2066.57 MB/s +10%
Geekom GT13 Pro Acer N7000	1883 MB/s
Khadas Mind WD PC SN740 SDDPTQD-1T00	1763 MB/s -6%
Acemagic F2A Kingston OM8SEP1024Q-A0	1649 MB/s -12%
Average of class Mini PC (32.8 - 3731, n=117, last 2 years)	1495 MB/s -21%
Access Time Read
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	0.127 ms * -0%
Geekom GT13 Pro Acer N7000	0.127 ms *
Average of class Mini PC (0.022 - 0.489, n=117, last 2 years)	0.09579 ms * +25%
Khadas Mind WD PC SN740 SDDPTQD-1T00	0.094 ms * +26%
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	0.076 ms * +40%
Geekom A8 Acer N5000	0.069 ms * +46%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	0.067 ms * +47%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	0.049 ms * +61%
Acemagic F2A Kingston OM8SEP1024Q-A0	0.046 ms * +64%
Access Time Write
Acemagic F2A Kingston OM8SEP1024Q-A0	0.126 ms * -114%
Average of class Mini PC (0.014 - 0.765, n=117, last 2 years)	0.1133 ms * -92%
Geekom A8 Acer N5000	0.072 ms * -22%
Geekom XT12 Pro Lexar SSD NM7A1 1TB	0.059 ms * -0%
Geekom GT13 Pro Acer N7000	0.059 ms *
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	0.022 ms * +63%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	0.02 ms * +66%
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	0.017 ms * +71%
Khadas Mind WD PC SN740 SDDPTQD-1T00	0.016 ms * +73%

* ... smaller is better

Continuous read: DiskSpd Read Loop, Queue Depth 8

Geekom GT13 Pro Acer N7000; diskspd 2.0.17 f: Ø5377 (3710.83-7006.62)

Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8; diskspd 2.0.17 f: Ø5121 (4152.57-5218.34)

Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø4683 (3872.18-4767.25)

Geekom A8 Acer N5000; diskspd 2.0.17 f: Ø4786 (4324.07-4802.27)

Geekom XT12 Pro Lexar SSD NM7A1 1TB; diskspd 2.0.17 f: Ø1764 (1425.22-4795.56)

Acemagic F2A Kingston OM8SEP1024Q-A0; diskspd 2.0.17 f: Ø1320 (771.89-3141.95)

Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø4795 (3366.33-4823.24)

Khadas Mind WD PC SN740 SDDPTQD-1T00: Ø5222 (4952.01-5235.75)

图形卡

处理器的选择对 3D 性能有重大影响。Geekom 选择了英特尔酷睿 i9-13900H的 iGPU 只有英特尔 Iris Xe 图形处理器 G7.不过，在最高配置级别中使用了 96 个 EU 的图形适配器。然而，英特尔 Iris Xe Graphics G7 已无法跟上 Meteor Lake 机型更新的 iGPU。我们几乎可以看到两个级别的排名。所有配备英特尔 Iris Xe 图形处理器 G7 的设备都排在第三位。这些设备的性能几乎完全相同。所有其他可与更先进、更强大的 iGPU（英特尔 Arc 8 图形处理器）竞争的设备都是如此。英特尔 Arc 8和 AMD Radeon 780)相抗衡的其他设备都能明显脱颖而出。

有关进一步的比较和基准测试，请参阅我们的 GPU 对照表.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	96.8 pt
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	95.6 pt
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	94.6 pt
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	93.9 pt
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	92.3 pt
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	59.1 pt
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	55.8 pt
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	55.3 pt

3DMark 11 - 1280x720 Performance GPU
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	13533 Points +82%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	13410 Points +81%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	13347 Points +80%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	12085 Points +63%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	11691 Points +57%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	7424 Points
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	6975 Points -6%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	6722 Points -9%

3DMark
2560x1440 Time Spy Graphics
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3205 Points +90%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3193 Points +89%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	2901 Points +72%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	2846 Points +68%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	2832 Points +68%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1690 Points
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1680 Points -1%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1581 Points -6%
1920x1080 Fire Strike Graphics
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	8354 Points +44%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	8348 Points +44%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	8007 Points +38%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	7710 Points +33%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	7599 Points +31%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	5812 Points
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5461 Points -6%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5421 Points -7%

Unigine Heaven 4.0
Extreme Preset OpenGL
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	34.6 fps +38%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	34.5 fps +37%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	31.6 fps +26%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	29.7 fps +18%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	27.3 fps +9%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	25.2 fps 0%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	25.1 fps
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	21.8 fps -13%
Extreme Preset DX11
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	36.3 fps +40%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	35.5 fps +37%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	33.2 fps +28%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	32.8 fps +26%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	32.7 fps +26%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	26 fps
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	25.6 fps -2%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	22.7 fps -13%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	24.5 fps +62%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	24 fps +59%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	19.1 fps +26%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	18.5 fps +23%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	17.2 fps +14%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	17.1 fps +13%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	15.1 fps
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	13.3 fps -12%
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	32.4 fps +106%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	21 fps +34%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	20.8 fps +32%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	20.4 fps +30%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	18.3 fps +17%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	15.7 fps
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	15.2 fps -3%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	13.9 fps -11%

Unigine Superposition
1280x720 720p Low
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	12174 Points +84%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	12023 Points +82%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	10702 Points +62%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	10491 Points +58%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	10102 Points +53%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	6619 Points
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	6265 Points -5%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5950 Points -10%
1920x1080 1080p High
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	3648 Points +58%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	3592 Points +56%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3391 Points +47%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	3387 Points +47%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3341 Points +45%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	2306 Points
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	2279 Points -1%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	2035 Points -12%
1920x1080 1080p Extreme
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	1920 Points +71%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1812 Points +61%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	1800 Points +60%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	1737 Points +55%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	1585 Points +41%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1124 Points
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1101 Points -2%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1042 Points -7%

ComputeMark v2.1
1024x600 Normal, Score
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	10102 Points +177%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	9494 Points +160%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	8909 Points +144%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	7480 Points +105%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	6270 Points +72%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	3650 Points
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	3605 Points -1%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	3390 Points -7%
1024x600 Normal, Fluid 3DTex
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	492 Points +72%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	483 Points +69%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	469 Points +64%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	468 Points +64%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	427 Points +49%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	385 Points +35%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	286 Points
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	231 Points -19%
1024x600 Normal, Fluid 2DTexArr
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	492 Points +67%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	488 Points +66%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	481 Points +64%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	462 Points +57%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	422 Points +44%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	354 Points +20%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	294 Points
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	246 Points -16%
1024x600 Normal, Mandel Vector
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	2637 Points +202%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	2477 Points +184%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	2356 Points +170%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	1961 Points +125%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1620 Points +86%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	873 Points
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	860 Points -1%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	830 Points -5%
1024x600 Normal, Mandel Scalar
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	2757 Points +210%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	2519 Points +184%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	2345 Points +164%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	1594 Points +80%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1274 Points +43%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	888 Points
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	872 Points -2%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	864 Points -3%
1024x600 Normal, QJuliaRayTrace
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	3752 Points +186%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	3535 Points +170%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	3225 Points +146%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3076 Points +135%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2444 Points +87%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1310 Points
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1182 Points -10%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1174 Points -10%

LuxMark v2.0 64Bit
Room GPUs-only
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	1173 Samples/s +80%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	807 Samples/s +24%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	801 Samples/s +23%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	651 Samples/s
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	640 Samples/s -2%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	549 Samples/s -16%
Sala GPUs-only
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2732 Samples/s +30%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	2319 Samples/s +10%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	2104 Samples/s
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	1546 Samples/s -27%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	1496 Samples/s -29%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	991 Samples/s -53%

Affinity Photo 2 - Combined (Single / Multi GPU)
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	5308 Points +19%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	4928 Points +10%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	4460 Points
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	3830 Points -14%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	3724 Points -17%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	1709 Points -62%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	1512 Points -66%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	1399 Points -69%

Photoshop PugetBench - GPU Score
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	114.5 Points +30%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	103.4 Points +17%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	98 Points +11%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	92.3 Points +4%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	88.4 Points
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	79.4 Points -10%

Premiere Pro PugetBench - GPU 0.9
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	16.8 Points +107%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	11.4 Points +41%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	11.2 Points +38%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	8.1 Points
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	7.6 Points -6%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7.2 Points -11%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	6.8 Points -16%

DaVinci Resolve PugetBench - GPU Effects 0.93
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	20 Points +67%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	18 Points +50%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	17 Points +42%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	12 Points
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	11 Points -8%

	Geekom GT13 Pro, Intel Iris Xe Graphics G7 96EUs i9-13900H	Geekom XT12 Pro, Intel Iris Xe Graphics G7 96EUs i9-12900H	Khadas Mind, Intel Iris Xe Graphics G7 96EUs i7-1360P	Aoostar GEM12, AMD Radeon 780M R7 8845HS	Minisforum AtomMan X7 Ti, Intel Arc 8-Core iGPU Ultra 9 185H	Geekom A8, AMD Radeon 780M R9 8945HS	Acemagic F2A, Intel Arc 8-Core iGPU Ultra 7 155H	Minisforum EliteMini UM780 XTX, AMD Radeon 780M R7 7840HS	Average of class Mini PC
SPECviewperf 12		-5%	-9%	662%	20%	674%	26%	725%	456%
1900x1060 3ds Max (3dsmax-05)	41.4	40.1 -3%	37.8 -9%	85.7 107%	49.7 20%	87.4 111%	49.8 20%	85 105%	75.4 ?(13.6 - 295, n=63, last 2 years) 82%
1900x1060 Catia (catia-04)	38.6	37.1 -4%	39.4 2%	86.6 124%	51.3 33%	86.4 124%	48.2 25%	89.8 133%	64.2 ?(10.9 - 251, n=63, last 2 years) 66%
1900x1060 Creo (creo-01)	28.2	26.9 -5%	7.37 -74%	53.3 89%	22.7 -20%	55.1 95%	23.1 -18%	51.1 81%	37 ?(4.03 - 117, n=63, last 2 years) 31%
1900x1060 Energy (energy-01)	0.41	0.4 -2%	0.46 12%	18.4 4388%	0.67 63%	19 4534%	0.91 122%	20.1 4802%	13.3 ?(0.15 - 80.4, n=57, last 2 years) 3144%
1900x1060 Maya (maya-04)	42.4	38.3 -10%	41.3 -3%	67.3 59%	58 37%	75 77%	54.9 29%	73.4 73%	64 ?(11.4 - 226, n=63, last 2 years) 51%
1900x1060 Medical (medical-01)	12.2	11.8 -3%	12 -2%	51.4 321%	15.9 30%	47.7 291%	16.9 39%	61.7 406%	28.5 ?(2.53 - 136, n=60, last 2 years) 134%
1900x1060 Showcase (showcase-01)	19.1	16.6 -13%	21.2 11%	30.3 59%	19.9 4%	25.8 35%	18.2 -5%	30.1 58%	35.3 ?(5.71 - 133, n=63, last 2 years) 85%
1900x1060 Solidworks (sw-03)	46.6	45.3 -3%	41.6 -11%	114 145%	43 -8%	106 127%	42.7 -8%	113 142%	72.4 ?(20.9 - 243, n=63, last 2 years) 55%
SPECviewperf 13		-5%	-3%	165%	13%	160%	14%	186%	106%
3ds Max (3dsmax-06)	41.2	40.1 -3%	39 -5%	82.4 100%	48.5 18%	85.8 108%	46.4 13%	86.1 109%	74.8 ?(13.4 - 294, n=63, last 2 years) 82%
Catia (catia-05)	54.7	51.3 -6%	57.1 4%	124 127%	76.8 40%	126 130%	71.6 31%	132 141%	91.4 ?(15.6 - 381, n=62, last 2 years) 67%
Creo (creo-02)	42.7	41.1 -4%	37.5 -12%	90.7 112%	29.3 -31%	92.8 117%	29.6 -31%	93.6 119%	73 ?(11.6 - 275, n=63, last 2 years) 71%
Energy (energy-02)	4.62	4.5 -3%	4.34 -6%	22.2 381%	5.27 14%	22.6 389%	5.69 23%	25.8 458%	17.7 ?(0.92 - 310, n=60, last 2 years) 283%
Maya (maya-05)	51.6	47.5 -8%	46.3 -10%	109 111%	62.5 21%	103 100%	59.5 15%	108 109%	97.5 ?(15.9 - 340, n=63, last 2 years) 89%
Medical (medical-02)	15.6	14.4 -8%	16 3%	70.5 352%	25 60%	69.2 344%	29.7 90%	79.8 412%	37.6 ?(2.28 - 198, n=63, last 2 years) 141%
Showcase (showcase-02)	19.1	17.3 -9%	21.4 12%	29.9 57%	19.9 4%	24.2 27%	18.2 -5%	30 57%	35 ?(5.69 - 133, n=63, last 2 years) 83%
Solidworks (sw-04)	58.3	57.1 -2%	53.7 -8%	104 78%	45.6 -22%	97.3 67%	44.8 -23%	107 84%	76.6 ?(27.4 - 223, n=63, last 2 years) 31%
SPECviewperf 2020		-2%	-1%	309%	38%	367%	29%	288%	193%
3840x2160 Medical (medical-03)	2.69	3.49 30%	2.67 -1%	11.2 316%	4.23 57%	10.9 305%	5.05 88%	12 346%	7.85 ?(0.78 - 30.8, n=66, last 2 years) 192%
3840x2160 Energy (energy-03)	3.17	3.05 -4%	2.97 -6%	19.9 528%	6.03 90%	31 878%	4.61 45%	15.4 386%	11.3 ?(0.52 - 47.9, n=66, last 2 years) 256%
3840x2160 Creo (creo-03)	16.3	14.8 -9%	16.9 4%	33.4 105%	18.5 13%	35.6 118%	17.9 10%	31.4 93%	30.7 ?(7.73 - 97.5, n=66, last 2 years) 88%
3840x2160 CATIA (catia-06)	8.53	7.78 -9%	8.82 3%	23.2 172%	11.1 30%	24.6 188%	10 17%	24.4 186%	18.6 ?(4.61 - 64.1, n=65, last 2 years) 118%
3840x2160 3ds Max (3dsmax-07)	10.3	9.69 -6%	10.1 -2%	20.4 98%	14.9 45%	21 104%	12.9 25%	21 104%	22.5 ?(5.53 - 87.5, n=66, last 2 years) 118%
3840x2160 Siemens NX (snx-04)	6.62	6.29 -5%	6.01 -9%	64.1 868%	6.24 -6%	65.9 895%	5.7 -14%	61.5 829%	37.2 ?(2.25 - 224, n=64, last 2 years) 462%
3840x2160 Maya (maya-06)	27.3	23.9 -12%	27.8 2%	47.7 75%	37.7 38%	50.1 84%	35.4 30%	47.2 73%	58.9 ?(12.2 - 223, n=66, last 2 years) 116%
Total Average (Program / Settings)		-4% / -4%	-4% / -5%	379% / 381%	24% / 23%	400% / 402%	23% / 23%	400% / 405%	252% / 254%

3DMark 05 Standard		43190 points
3DMark 06 Standard Score		33774 points
3DMark Vantage P Result		28241 points
3DMark 11 Performance		8027 points
3DMark Ice Storm Standard Score		147975 points
3DMark Cloud Gate Standard Score		27505 points
3DMark Fire Strike Score		5420 points
3DMark Fire Strike Extreme Score		2573 points
3DMark Time Spy Score		1926 points
3DMark Steel Nomad Score		186 points
3DMark Steel Nomad Light Score		1283 points
Help

... in comparison

游戏性能

许多现代游戏都让英特尔 Iris Xe iGPU 吃不消。不过，我们可以看到，如果牺牲一些游戏的细节，在某些游戏中仍然可以达到可玩的帧率。不过，我们无法证明 Geekom GT13 Pro 在这种配置下适合游戏。使用 Geekom A8或 Aoostar GEM12.此外，您还可以选择 Minisforum AtomMan X7 Ti它采用英特尔的 Meteor Lake SoC，拥有更强大的 iGPU。

Cyberpunk 2077 2.1 Phantom Liberty
1920x1080 Low Preset (FSR off)
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	44 (37.6^min) fps +142%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	42.4 (35.7^min) fps +133%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	34.3 (29.1^min) fps +88%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	29.5 (24.1^min) fps +62%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	18.2 (14.7^min) fps
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	16.4 (13.6^min) fps -10%
1920x1080 High Preset (FSR off)
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	26.3 (22.2^min) fps +105%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	24 (20.6^min) fps +88%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	22.4 (15.6^min) fps +75%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	20.4 (13.8^min) fps +59%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	12.8 (10.9^min) fps
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	11.5 (10^min) fps -10%

Baldur's Gate 3
1920x1080 Low Preset
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	38.6 (26.3^min, 27.1^P0.1, 29.9^P1) fps +114%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	18 (5.95^min, 5.96^P0.1, 6.91^P1) fps
1920x1080 High Preset
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	24.7 (16.6^min, 17.1^P0.1, 19.4^P1) fps +111%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	11.7 (3.43^min, 3.51^P0.1, 3.99^P1) fps

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	102.5 fps +88%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	100.3 fps +84%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	97.3 fps +79%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	93 fps +71%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	68.5 fps +26%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	54.4 fps
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	50.7 fps -7%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	49.2 fps -10%
1920x1080 High Overall Quality (DX11)
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	33.3 fps +99%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	31.7 fps +90%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	28.7 fps +72%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	27.8 fps +66%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	27.7 fps +66%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	16.7 fps
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	15.3 fps -8%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	14.9 fps -11%

GTA V
1024x768 Lowest Settings possible
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	166.9 (5.05^min, 125^P1) fps +39%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	165.1 (4.83^min, 125^P1) fps +38%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	164.4 (4.9^min, 111.1^P1) fps +37%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	163.6 (4.63^min, 111.1^P1) fps +37%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	161 (4.76^min, 100^P1) fps +35%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	119.7 (7.51^min, 66.7^P1) fps
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	112.7 (9.9^min, 71.4^P1) fps -6%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	66.9 (3.09^min, 45.5^P1) fps +204%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	65.3 (4.57^min, 45.5^P1) fps +197%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	64.7 (4.56^min, 31.3^P1) fps +194%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	41.2 (3.12^min, 30.3^P1) fps +87%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	31.3 (2.94^min, 22.7^P1) fps +42%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	23.6 (10.9^min, 18.2^P1) fps +7%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	22 (6.3^min, 16.4^P1) fps

Far Cry 5
1280x720 Low Preset AA:T
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	88 (77^min) fps +52%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	87 (75^min) fps +50%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	84 (73^min) fps +45%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	79 (39^min) fps +36%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	69 (25^min) fps +19%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	58 (52^min) fps
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	54 (44^min) fps -7%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	50 (45^min) fps -14%
1920x1080 High Preset AA:T
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	47 (42^min) fps +68%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	45 (39^min) fps +61%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	42 (34^min) fps +50%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	42 (33^min) fps +50%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	37 (30^min) fps +32%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	28 (20^min) fps
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	26 (23^min) fps -7%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	23 (21^min) fps -18%

Far Cry New Dawn
1280x720 Low Preset
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	76 (58^min) fps +46%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	75 (58^min) fps +44%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	72 (54^min) fps +38%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	69 (2^min) fps +33%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	65 (11^min) fps +25%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	52 (39^min) fps
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	49 (32^min) fps -6%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	47 (31^min) fps -10%
1920x1080 High Preset
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	45 (37^min) fps +55%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	44 (37^min) fps +52%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	41 (32^min) fps +41%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	39 (25^min) fps +34%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	37 (25^min) fps +28%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	29 (23^min) fps
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	27 (20^min) fps -7%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	24 (18^min) fps -17%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	161.5 (141.6^min) fps +47%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	159.7 (142.1^min) fps +45%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	152.7 (134.2^min) fps +39%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	109.8 (85^min) fps
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	106.5 (61^min) fps -3%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	106.3 (81.7^min) fps -3%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	104.2 (79.7^min) fps -5%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	103.2 (59.8^min) fps -6%
1920x1080 high (2/3)
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	97.45 (86.9^min) fps +49%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	88.3 (74.1^min) fps +35%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	86.6 (72.2^min) fps +32%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	79 (48.2^min) fps +21%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	77.3 (52.5^min) fps +18%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	65.5 (56.1^min) fps
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	61.7 (51.7^min) fps -6%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	61.3 (54.1^min) fps -6%

F1 2020
1280x720 Ultra Low Preset
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	201 (180^min) fps +114%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	197.3 (171^min) fps +110%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	184.7 (163^min) fps +97%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	139.1 (126^min) fps +48%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	93.8 (83^min) fps
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	84.5 (74^min) fps -10%
1920x1080 High Preset AA:T AF:16x
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	79.3 (67^min) fps +105%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	76.4 (67^min) fps +97%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	73.6 (62^min) fps +90%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	60.5 (51^min) fps +56%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	38.7 (32^min) fps
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	34.2 (29^min) fps -12%

GRID Legends
1280x720 Low Preset
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	150.6 (52.6^min) fps +115%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	141.4 (2.69^min) fps +102%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	136.2 (6.48^min) fps +95%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	86.6 (7.26^min) fps +24%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	80 (35^min) fps +14%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	69.9 (30^min) fps
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	53.5 (25.6^min) fps -23%
1920x1080 High Preset
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	68.8 (34.8^min) fps +123%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	62.3 (30.5^min) fps +102%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	56.4 (21.6^min) fps +83%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	44.8 (29.3^min) fps +45%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	41.7 (24^min) fps +35%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	30.8 (20.2^min) fps
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	27.1 (19.2^min) fps -12%

Shadow of the Tomb Raider
1280x720 Lowest Preset
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	131.4 fps +130%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	109.2 fps +91%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	103.8 fps +82%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	79.3 fps +39%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	65.9 fps +15%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	57.1 fps
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	43.7 fps -23%
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	39.6 fps -31%
1920x1080 High Preset AA:SM
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	49.5 fps +137%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	41.2 fps +97%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	39.5 fps +89%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	35.8 fps +71%
Geekom A8 Radeon 780M, R9 8945HS, Acer N5000	23.4 fps +12%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	22.5 fps +8%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	20.9 fps
Geekom XT12 Pro Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB	18.8 fps -10%

FPS chart

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs: Ø11.1 (5.97-12.3)

Aoostar GEM12 R7 8845HS, Radeon 780M: Ø21.7 (20.1-23.3)

	low	med.	high	ultra
GTA V (2015)	119.7	97.4	22	9.07
Dota 2 Reborn (2015)	109.8	80.2	65.5	58.6
Final Fantasy XV Benchmark (2018)	45.1	25.3	18.2
Far Cry 5 (2018)	58	30	28	27
Strange Brigade (2018)	98.7	42.5	33.8	26.9
Shadow of the Tomb Raider (2018)	57.1	22.2	20.9	18
Far Cry New Dawn (2019)	52	31	29	27
Metro Exodus (2019)	38.5	19.1	14.2	11.2
Total War: Three Kingdoms (2019)	100.3	39.6	30.2	22.2
Borderlands 3 (2019)	54.4	26.5	16.7	12.7
F1 2020 (2020)	93.8	49.1	38.7	24.9
F1 2021 (2021)	105.6	52.2	39.9	29.4
GRID Legends (2022)	58.8	40.2	30.8	27.9
Tiny Tina's Wonderlands (2022)	34	26.4	16.7	13.2
F1 22 (2022)	46.3	43.1	31.2	24.9
F1 23 (2023)	43.2	39.4	28	21.9
Baldur's Gate 3 (2023)	18	14	11.7	11.2
Cyberpunk 2077 2.1 Phantom Liberty (2023)	18.2	14.7	12.8	11.5
Total War Pharaoh (2023)	68.9	48.8	34.8	30.9
Prince of Persia The Lost Crown (2024)		132.8	93.4	87.8
F1 24 (2024)	40.4	35.4	25.6	20.4

Geekom GT13 Pro 与 Razer Core X 的性能测试

配备 NvidiaGeForce RTX 3060 Ti 的 Razer Core X

Geekom GT13 Pro 可以通过 USB4 连接外置显卡。我们仔细观察了 Razer Core X 和 NvidiaGeForce RTX 3060 Ti 的性能。不出所料，3D 性能大幅提升。有了这样的组合，这款迷你电脑就能胜任各种任务，既适合游戏，也适合视频编辑。仅通过 USB4 连接的 NvidiaGeForce RTX 3060 Ti 的性能赶不上传统台式电脑。与外部显卡通信的可用带宽仅为 PCIe x4 3.0 速度。

配备 Razer Core X 和 NvidiaGeForce RTX 3060 Ti 的 Geekom GT13 Pro

Performance Rating - Percent
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	99.2 pt
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	98 pt
Geekom XT12 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-12900H	95.4 pt

3DMark 11 - 1280x720 Performance GPU
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	34666 Points +367%
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	33219 Points +347%
Geekom XT12 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-12900H	32654 Points +340%
	7424 Points

3DMark
2560x1440 Time Spy Graphics
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	11182 Points +562%
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	11085 Points +556%
Geekom XT12 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-12900H	11062 Points +555%
	1690 Points
1920x1080 Fire Strike Graphics
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	25468 Points +338%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	25462 Points +338%
Geekom XT12 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-12900H	24796 Points +327%
	5812 Points
3840x2160 Fire Strike Ultra Graphics
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	7139 Points +471%
Geekom XT12 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-12900H	7047 Points +463%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	7044 Points +463%
	1251 Points

Unigine Superposition
1280x720 720p Low
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	34168 Points +416%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	33894 Points +412%
Geekom XT12 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-12900H	31903 Points +382%
	6619 Points
1920x1080 1080p High
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	15240 Points +561%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	15076 Points +554%
Geekom XT12 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-12900H	14853 Points +544%
	2306 Points
1920x1080 1080p Extreme
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	7193 Points +540%
Geekom XT12 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-12900H	7089 Points +531%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	7055 Points +528%
	1124 Points
3840x2160 4k Optimized
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	9419 Points
Geekom XT12 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-12900H	9240 Points
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	9205 Points
7680x4320 8k Optimized
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	4079 Points
Geekom XT12 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-12900H	4042 Points
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	4013 Points

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Geekom XT12 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-12900H	144.5 fps +857%
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	143.9 fps +853%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	141.6 fps +838%
	15.1 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	138.6 fps +783%
Geekom XT12 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-12900H	138.2 fps +780%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	137.5 fps +776%
	15.7 fps

Unigine Heaven 4.0
Extreme Preset OpenGL
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	174.9 fps +597%
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	173.6 fps +592%
Geekom XT12 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-12900H	172.1 fps +586%
	25.1 fps
Extreme Preset DX11
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	163.6 fps +529%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	163.2 fps +528%
Geekom XT12 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-12900H	162.5 fps +525%
	26 fps

ComputeMark v2.1
1024x600 Normal, Score
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	28156 Points +671%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	27929 Points +665%
Geekom XT12 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-12900H	25975 Points +612%
	3650 Points
1024x600 Normal, Fluid 3DTex
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	2719 Points +851%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	2687 Points +840%
Geekom XT12 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-12900H	2527 Points +784%
	286 Points
1024x600 Normal, Fluid 2DTexArr
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	2663 Points +806%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	2622 Points +792%
Geekom XT12 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-12900H	2463 Points +738%
	294 Points
1024x600 Normal, Mandel Vector
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	5769 Points +561%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	5742 Points +558%
Geekom XT12 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-12900H	5342 Points +512%
	873 Points
1024x600 Normal, Mandel Scalar
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	6335 Points +613%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	6283 Points +608%
Geekom XT12 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-12900H	5881 Points +562%
	888 Points
1024x600 Normal, QJuliaRayTrace
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	10671 Points +715%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	10594 Points +709%
Geekom XT12 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-12900H	9762 Points +645%
	1310 Points

DaVinci Resolve PugetBench - GPU Effects 0.93
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	72 Points +500%
Geekom XT12 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-12900H	69 Points +475%
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	69 Points +475%
	12 Points

Photoshop PugetBench - GPU Score
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	100.6 Points +14%
Geekom XT12 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-12900H	93.7 Points +6%
	88.4 Points
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	81.6 Points -8%

Premiere Pro PugetBench - GPU 0.9
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	55.8 Points +589%
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	48 Points +493%
Geekom XT12 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-12900H	45.6 Points +463%
	8.1 Points

	low	med.	high	ultra	QHD	4K DLSS	4K
GTA V (2015)	182.1	178	170.7	103.6	91.6		103.8
Dota 2 Reborn (2015)	180.5	157.2	146.6	133.3			108.6
Final Fantasy XV Benchmark (2018)	188	142.7	98.6		78		48.3
X-Plane 11.11 (2018)	151.3	135	106.6				95.4
Far Cry 5 (2018)	160	138	132	121	99		58
Strange Brigade (2018)	214	160.5	156.8	152.9	130.2		84.5
Shadow of the Tomb Raider (2018)	118.5	101	100.8	98.5	85.9		49.6
Far Cry New Dawn (2019)	138	119	115	104	93		60
Metro Exodus (2019)	144.8	91.6	69.6	52.5	45.8		33.7
Total War: Three Kingdoms (2019)	300.4	145.6	95	70.1	49.3		26.7
Borderlands 3 (2019)	155.8	132.4	104.8	84.6	64.6		38.3
F1 2020 (2020)	207	127.8	128.9	105.5	90.6		61.4
F1 2021 (2021)	143.5	110.1	69.1	51.7	48.1		41.4
Far Cry 6 (2021)	78	65	53.9	46.9	45.8
GRID Legends (2022)	119.2	99.7	84	70.9	64.7		51
Tiny Tina's Wonderlands (2022)	178.2	138.7	100.2	81.4	61.7		36.1
F1 22 (2022)	61.4	56.1	43.2	27.6	26.2		19.6
F1 23 (2023)	67.9	66.2	54.6	33.3	31.9		10.3
Baldur's Gate 3 (2023)	113.4	90.8	78.9	79	61.4	54.7	36.9
Cyberpunk 2077 2.1 Phantom Liberty (2023)	85.3	80.4	71.3	63.9	44.9		22.1
Assassin's Creed Mirage (2023)	88	82	77	63	59		56
Avatar Frontiers of Pandora (2023)	53	49	43	30	23		9.7
Skull & Bones (2024)	83	77	64	54	45		31
F1 24 (2024)	77.3	72.8	61.3	42	36.5	28.9	19.6

	Geekom GT13 Pro, Intel Iris Xe Graphics G7 96EUs i9-13900H	Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE), i9-13900H	Geekom A8 (Nvidia GeForce RTX 3060 Ti FE), R9 8945HS	Minisforum MS-01 (Nvidia GeForce RTX 3060 Ti FE), i9-13900H	Geekom XT12 Pro (Nvidia GeForce RTX 3060 Ti FE), i9-12900H
SPECviewperf 12		679%	674%	687%	630%
1900x1060 3ds Max (3dsmax-05)	41.4	147 255%	146 253%	147 255%	124 200%
1900x1060 Catia (catia-04)	38.6	116 201%	112 190%	116 201%	95.2 147%
1900x1060 Creo (creo-01)	28.2	62.9 123%	62.9 123%	64.2 128%	53.5 90%
1900x1060 Energy (energy-01)	0.41	13.4 3168%	13.3 3144%	13.4 3168%	13.4 3168%
1900x1060 Maya (maya-04)	42.4	228 438%	235 454%	235 454%	182 329%
1900x1060 Medical (medical-01)	12.2	73.4 502%	74.8 513%	76.4 526%	74.4 510%
1900x1060 Showcase (showcase-01)	19.1	149 680%	141 638%	149 680%	123 544%
1900x1060 Solidworks (sw-03)	46.6	77.2 66%	81.6 75%	84.6 82%	71.7 54%
SPECviewperf 13		386%	374%	385%	311%
3ds Max (3dsmax-06)	41.2	147 257%	145 252%	147 257%	124 201%
Catia (catia-05)	54.7	164 200%	163 198%	163 198%	135 147%
Creo (creo-02)	42.7	232 443%	231 441%	231 441%	194 354%
Energy (energy-02)	4.62	25.9 461%	25.9 461%	25.9 461%	24 419%
Maya (maya-05)	51.6	363 603%	351 580%	361 600%	298 478%
Medical (medical-02)	15.6	65.2 318%	64.1 311%	64.9 316%	56.7 263%
Showcase (showcase-02)	19.1	151 691%	141 638%	150 685%	125 554%
Solidworks (sw-04)	58.3	127 118%	125 114%	129 121%	102 75%
SPECviewperf 2020		390%	518%	436%	327%
3840x2160 Medical (medical-03)	2.69	10.8 301%	10.8 301%	10.8 301%	11.8 339%
3840x2160 Energy (energy-03)	3.17	21 562%	50.3 1487%	31.1 881%	18.9 496%
3840x2160 Creo (creo-03)	16.3	76.4 369%	76.6 370%	76.8 371%	62.7 285%
3840x2160 CATIA (catia-06)	8.53	40.1 370%	38.8 355%	39.7 365%	32.8 285%
3840x2160 3ds Max (3dsmax-07)	10.3	47.3 359%	45.9 346%	47.6 362%	40 288%
3840x2160 Siemens NX (snx-04)	6.62	16.5 149%	16.6 151%	16.6 151%	15.2 130%
3840x2160 Maya (maya-06)	27.3	196 618%	195 614%	197 622%	155 468%
Total Average (Program / Settings)		485% / 489%	522% / 522%	503% / 505%	423% / 427%

排放 - IceBlast 1.5 很快达到极限

噪音排放

在散热方面，Geekom GT13 Pro 的设计非常有限。不过，这款迷你电脑在空载时仍然非常安静，尽管在负载情况下可以清晰地听到小风扇的声音。在测试中，我们测得的最大声压级为 48.5 dB(A)。只要达到 PL2 值，GT13 Pro 就能在短时间内达到这一噪音水平。在长时间负载的情况下，SoC 会以 PL1 的极限值工作，这意味着音量会在 39 dB(A) 左右趋于平稳。如果没有永久负载，例如我们用 Prime95 模拟的情况，风扇会非常紧张地工作。在我们的测试样本中，平均负载下的声压级在 38 到 44 dB(A) 之间波动。

Noise Level

Idle		27.9 / 27.9 / 28 dB(A)
Load		43.8 / 48.5 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 24.3 dB(A)

	Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs	Aoostar GEM12 R7 8845HS, Radeon 780M	Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core	Geekom A8 R9 8945HS, Radeon 780M	Geekom XT12 Pro i9-12900H, Iris Xe G7 96EUs	Acemagic F2A Ultra 7 155H, Arc 8-Core	Minisforum EliteMini UM780 XTX R7 7840HS, Radeon 780M	Khadas Mind i7-1360P, Iris Xe G7 96EUs
Noise		9%	1%	4%	2%	2%	6%	-13%
off / environment *	24.3	24.3 -0%	24.1 1%	24.4 -0%	25.4 -5%	24.9 -2%	24.8 -2%	25.2 -4%
Idle Minimum *	27.9	27.5 1%	29.8 -7%	24.5 12%	28 -0%	25.4 9%	28.5 -2%	34.4 -23%
Idle Average *	27.9	27.6 1%	29.9 -7%	24.7 11%	28.1 -1%	25.7 8%	28.5 -2%	34.4 -23%
Idle Maximum *	28	27.6 1%	30 -7%	24.7 12%	28.5 -2%	25.7 8%	28.7 -3%	34.5 -23%
Load Average *	43.8	36 18%	37.3 15%	48.5 -11%	39.6 10%	47.8 -9%	32.4 26%	44.7 -2%
Cyberpunk 2077 ultra *	45.4	35.4 22%
Load Maximum *	48.5	38.2 21%	43.5 10%	49.2 -1%	44.2 9%	49 -1%	39.6 18%	50.4 -4%
Witcher 3 ultra *		35.4	40.2	47	47.2	45.23	32.7	49

* ... smaller is better

温度

Geekom GT13 Pro 的外壳在空载和负载情况下都会明显发热。在负载情况下，表面温度略有上升。不过，并没有达到 50 °C。我们记录到英特尔酷睿 i9-13900H 的温度相对较高，这是因为紧凑型散热装置的通风效果较差。在 100 °C时，SoC 达到了英特尔自己在规格书中规定的最高值。需要注意的是，达到 100 ℃ 的时间很短。当 PL1 以 35 瓦的最大功率运行时，CPU 温度会略有下降。英特尔酷睿 i9-13900H 的平均温度约为 90 °C。

Max. Load

Idle


47.9 °C	46.8 °C	48.2 °C
39.3 °C	41.7 °C	38.5 °C
37.7 °C	38.4 °C	38.1 °C

Maximum: 48.2 °C
Average: 41.8 °C


42.4 °C	42.4 °C	39.8 °C
38.1 °C	45.7 °C	34.7 °C
39.8 °C	35.9 °C	32.4 °C

Maximum: 45.7 °C
Average: 39 °C

Power Supply (max.) 40.6 °C | Room Temperature 21.3 °C | Fluke t3000FC (calibrated)

(-) The average temperature for the upper side under maximal load is 41.8 °C / 107 F, compared to the average of 32.3 °C / 90 F for the devices in the class Mini PC.
(-) The maximum temperature on the upper side is 48.2 °C / 119 F, compared to the average of 35.8 °C / 96 F, ranging from 24 to 69.5 °C for the class Mini PC.
(-) The bottom heats up to a maximum of 45.7 °C / 114 F, compared to the average of 36.1 °C / 97 F
(-) In idle usage, the average temperature for the upper side is 38.2 °C / 101 F, compared to the device average of 32.3 °C / 90 F.

能源管理

与传统台式电脑相比，迷你电脑一般比较经济，所需的能源也少得多。不过，微型 PC 之间在能耗方面也存在差异。与竞争对手相比，Geekom GT13 Pro 在空闲模式下的能耗为 7.9 瓦至 22.3 瓦，并不特别经济。在平均负载下，我们的测试设备需要 57 瓦，而 120 瓦的电源装置在峰值时需要提供 93.4 瓦。

Power Consumption

Off / Standby	1.6 / 1.9 Watt
Idle	7.9 / 10.3 / 22.3 Watt
Load	57.44 / 93.4 Watt


Key: min: , med: , max: Metrahit Energy

	Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs	Aoostar GEM12 R7 8845HS, Radeon 780M	Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core	Geekom A8 R9 8945HS, Radeon 780M	Geekom XT12 Pro i9-12900H, Iris Xe G7 96EUs	Acemagic F2A Ultra 7 155H, Arc 8-Core	Minisforum EliteMini UM780 XTX R7 7840HS, Radeon 780M	Khadas Mind i7-1360P, Iris Xe G7 96EUs	Average Intel Iris Xe Graphics G7 96EUs	Average of class Mini PC
Power Consumption		-7%	3%	31%	15%	1%	2%	18%	30%	-4%
Idle Minimum *	7.9	8.2 -4%	8.2 -4%	3.2 59%	5.7 28%	9.1 -15%	8.5 -8%	7.8 1%	5.34 ?(2.2 - 46.5, n=193) 32%	9.69 ?(1.9 - 45.7, n=121, last 2 years) -23%
Idle Average *	10.3	10 3%	12.1 -17%	4.9 52%	9.5 8%	10.3 -0%	10.5 -2%	10.9 -6%	8.55 ?(3.8 - 63, n=193) 17%	11.9 ?(1.9 - 47.5, n=119, last 2 years) -16%
Idle Maximum *	22.3	14.6 35%	14 37%	6.8 70%	16.5 26%	14.4 35%	12.9 42%	11.8 47%	10.8 ?(5.8 - 68.9, n=193) 52%	15.2 ?(2.6 - 57.1, n=121, last 2 years) 32%
Load Average *	57.44	73.9 -29%	53.1 8%	71.3 -24%	53.3 7%	54.9 4%	67.2 -17%	39.2 32%	45.3 ?(12.5 - 87.3, n=193) 21%	59 ?(11.3 - 170.6, n=121, last 2 years) -3%
Cyberpunk 2077 ultra external monitor *	55.9	79.9 -43%
Load Maximum *	93.4	95.3 -2%	100.4 -7%	93.2 -0%	87.8 6%	110.4 -18%	97.2 -4%	76.4 18%	67.5 ?(30.1 - 123.3, n=193) 28%	100.5 ?(18.1 - 423, n=121, last 2 years) -8%

* ... smaller is better

Efficiency overview

Power Consumption: Cinebench R15 Multi Efficiency (external Monitor) | Cinebench R23 Single Power Efficiency - external Monitor | Cinebench R23 Multi Power Efficiency - external Monitor

Power Consumption / Cinebench R15 Multi Efficiency (external Monitor)
Geekom A8	35.8 Points per Watt +44%
Minisforum AtomMan X7 Ti	31.2 Points per Watt +26%
Acemagic F2A	26.6 Points per Watt +7%
Geekom GT13 Pro	24.8 Points per Watt
Geekom XT12 Pro	24.7 Points per Watt 0%

Power Consumption / Cinebench R23 Single Power Efficiency - external Monitor
Geekom A8	61.7 Points per Watt +14%
Minisforum AtomMan X7 Ti	55.6 Points per Watt +2%
Geekom GT13 Pro	54.3 Points per Watt
Acemagic F2A	54.2 Points per Watt 0%
Geekom XT12 Pro	37.1 Points per Watt -32%

Power Consumption / Cinebench R23 Multi Power Efficiency - external Monitor
Geekom A8	251 Points per Watt +20%
Geekom GT13 Pro	210 Points per Watt
Minisforum AtomMan X7 Ti	205 Points per Watt -2%
Acemagic F2A	183.7 Points per Watt -13%
Geekom XT12 Pro	182.7 (48.6^min, 48.7^P1 - 81.3^max) Points per Watt -13%

Power consumtion with external monitor

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Idle 1min (external Monitor): Ø17.4 (12.6-22.4)

Aoostar GEM12 R7 8845HS, Radeon 780M; Idle 1min (external Monitor): Ø10 (9.28-14.3)

Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core; Idle 1min (external Monitor): Ø12.2 (10.9-14.1)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Idle 1min (external Monitor): Ø10.4 (9.08-14.4)

Aoostar GEM12 R7 8845HS, Radeon 780M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø79.6 (76-85.2)

Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core; 1920x1080 The Witcher 3 ultra (external Monitor): Ø43.8 (42.6-45.7)

Acemagic F2A Ultra 7 155H, Arc 8-Core; 1920x1080 The Witcher 3 ultra (external Monitor): Ø48.4 (45.6-52.4)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø60.2 (57-86.6)

Aoostar GEM12 R7 8845HS, Radeon 780M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø84.4 (83.6-85.1)

Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core; 1280x720 Prime95 28.10 and Furmark 1.25: Ø91.8 (87.6-95.4)

Acemagic F2A Ultra 7 155H, Arc 8-Core; 1280x720 Prime95 28.10 and Furmark 1.25: Ø92.2 (78.7-114)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø55.9 (54.2-59.2)

Aoostar GEM12 R7 8845HS, Radeon 780M; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø79.9 (75.5-83.5)

Power consumtion with external monitor

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø59.5 (53.5-84.7)

Aoostar GEM12 R7 8845HS, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø83.6 (80.7-95.3)

Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core; Prime95 V2810 Stress (external Monitor): Ø98.1 (94.2-100.4)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Prime95 V2810 Stress (external Monitor): Ø99.6 (92-110.4)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø91.2 (88.5-93.4)

Aoostar GEM12 R7 8845HS, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø82.1 (74.2-89.2)

Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core; Cinebench R15 Multi (external Monitor): Ø88 (87.7-88.3)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Cinebench R15 Multi (external Monitor): Ø103 (99.2-107)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Cinebench R23 Single (external Monitor): Ø31.6 (29-59.5)

Aoostar GEM12 R7 8845HS, Radeon 780M; Cinebench R23 Single (external Monitor): Ø34 (31.1-57.1)

Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core; Cinebench R23 Single (external Monitor): Ø33.3 (28.9-63)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Cinebench R23 Single (external Monitor): Ø32.7 (19.4-55.3)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Cinebench R23 Multi (external Monitor): Ø62.1 (50.4-89.7)

Aoostar GEM12 R7 8845HS, Radeon 780M; Cinebench R23 Multi (external Monitor): Ø75.3 (72.3-87.5)

Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core; Cinebench R23 Multi (external Monitor): Ø87.7 (87.3-88.3)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Cinebench R23 Multi (external Monitor): Ø100.7 (97.2-108.6)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø54.6 (51.3-69.7)

Aoostar GEM12 R7 8845HS, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø83.1 (79.2-88.5)

Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø50.3 (47.7-65.3)

Acemagic F2A Ultra 7 155H, Arc 8-Core; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø49.7 (47.3-60.6)

Pros

+ 极其紧凑坚固的 0.5 升外壳

+ 高质量的材料选择

+ 快速无线局域网

+ 2x USB4

+ 最多可同时使用四个屏幕

+ 功耗相对较低

+ 固态硬盘容量大，存储空间达 2 TB

+ 支持 UHS 的 SD 读卡器

+ 36 个月保修

Cons

- 冷却装置在极限状态下快速工作

- 负载时声音清晰

- 处理器的 Turbo 利用率低

- 相对昂贵

结论 - 外观漂亮，性能一般，价格昂贵

制造商将一款时尚、小巧的 PC 命名为 Geekom GT13 Pro。英特尔酷睿 i9-13900H 是一款功能强大的 SoC，并非基于当前的 Meteor Lake 架构。原则上，如果不一定产生连续负载，该处理器也能提供足够的性能。由于设计小巧，英特尔酷睿 i9-13900H 只能以极低的功耗运行。

Geekom GT13 Pro 是一款时尚、功能强大的微型电脑，其强大的功能给人留下了深刻印象。遗憾的是，Geekom GT13 Pro 的价格与性能并不匹配。

从外观上看，Geekom GT13 Pro 的时尚设计给人留下了深刻印象。外观并不是全新的，因为 Geekom A7 和 Geekom A8 已经采用了相同的外壳。在色彩方面，Geekom GT13 Pro 采用了不同的方法，使其有别于 AMD 的同类产品。连接性是 Geekom GT13 Pro 的优势之一，甚至比上述内部竞争对手略胜一筹。两个 USB4 端口很不错，如果需要连接许多外部设备，它们在实际使用中会有所作为。Geekom GT13 Pro 完美通过了外接显卡的测试，尽管其竞争对手在这方面也不落下风。Geekom 不应忽视提供 OCuLink 接口的可能性，以免与某些对手失之交臂。只要没有 Thunderbolt 5，OCuLink 接口目前就是操作外置显卡的更好选择。

紧凑的设计很时尚，选用的材料也很优质。然而，Geekom 不得不问自己，在一个非常小的空间内容纳非常强大的组件，这个概念是否正确。机箱提供的气流有限，很难冷却处理器。最终，这意味着 Geekom GT13 Pro 在负载情况下会有明显的噪音。Minisforum 和 Aoostar 用它们的设备证明，即使是功能强大的组件也能更安静地冷却。

最后，我们还得再看看价格：测试时，Geekom GT13 Pro 的配置价格为 930 欧元。这意味着 GT13 Pro 确实不便宜，可能很难与竞争对手竞争，因为有些竞争对手的价格要便宜得多。

价格和供应情况

Geekom GT13 Pro 的测试配置可在Geekom或亚马逊订购。这里的价格是 930 欧元。目前使用以下代码可享受 5% 的折扣：Geekom 商店："NBCGT13"，亚马逊："NBCGT130612"。

Geekom GT13 Pro - 06/21/2024 v8
Sebastian Bade

Chassis

87 / 98 → 89%

Connectivity

71 / 81 → 88%

Weight

84%

Games Performance

27 / 80 → 34%

Application Performance

80 / 92 → 87%

Workstation

24%

AI Performance

80%

Temperature

81%

Noise

75%

Average

53%

72%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
0%

Packaging
50%

Power Use
62.7%

Repairability
50%

Software Updates
39%

Total Sustainability Score: 33.6%

Cinebench 2024 CPU Multi Core in comparison
HP Spectre x360 16 RTX 4050 (min) Ultra 7 155H, NVIDIA GeForce RTX 4050 Laptop GPU	28.1
...
Geekom XT13 Pro i9-13900H, Iris Xe G7 96EUs	680
Lenovo LOQ 15IRH8 Core i7 i7-13620H, NVIDIA GeForce RTX 4050 Laptop GPU	691
Lenovo ThinkPad X1 Carbon G12 Ultra 7 155H, Arc 8-Core	698
Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs	703
Acer Swift Go 14 AI SD X Plus X1P-42-100, Adreno X1-45 1.7 TFLOPS	704
Minisforum Venus Series NPB5 i5-13500H, Iris Xe G7 80EUs	706
Lenovo ThinkPad T14s Gen 6 21M2S00G00 Ryzen AI 7 PRO 360, Radeon 880M	708
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

Geekom GT13 Pro 迷你 PC 评测 - 配备英特尔酷睿 i9-13900H、32 GB DDR4 内存和 2 TB 固态硬盘的时尚 NUC 替代品

极简迷你电脑

潜在的竞争对手比较

外壳 - 0.5 升铝制外壳，颜色各异

尺寸比较

设备 - 选择丰富，包括 2x USB4

交流

配件

维护

性能 - 英特尔 Raptor Lake 处理器，多达 14 个内核

测试条件

处理器

Cinebench R15 多回路

系统性能

DPC 延迟

大容量存储器

Continuous read: DiskSpd Read Loop, Queue Depth 8

图形卡

游戏性能

FPS chart

Geekom GT13 Pro 与 Razer Core X 的性能测试

配备 Razer Core X 和 NvidiaGeForce RTX 3060 Ti 的 Geekom GT13 Pro

排放 - IceBlast 1.5 很快达到极限

噪音排放

温度

能源管理

Efficiency overview

Power consumtion with external monitor

Power consumtion with external monitor

Pros

Cons

结论 - 外观漂亮，性能一般，价格昂贵

价格和供应情况

More articles related to this device

Transparency

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs	7957
MSI GL62M 7RD-077 i7-7700HQ, GeForce GTX 1050 Mobile	7980
Geekom XT13 Pro i9-13900H, Iris Xe G7 96EUs	8024
Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs	8027
R7 5700G, Vega 8	8050
Asus VivoBook S15 K5504 i9-13900H, Iris Xe G7 96EUs	8095
Huawei MateBook D 16 2024 i9-13900H, Iris Xe G7 96EUs	8141
...
(max) R7 9800X3D, NVIDIA GeForce RTX 4090	77609
