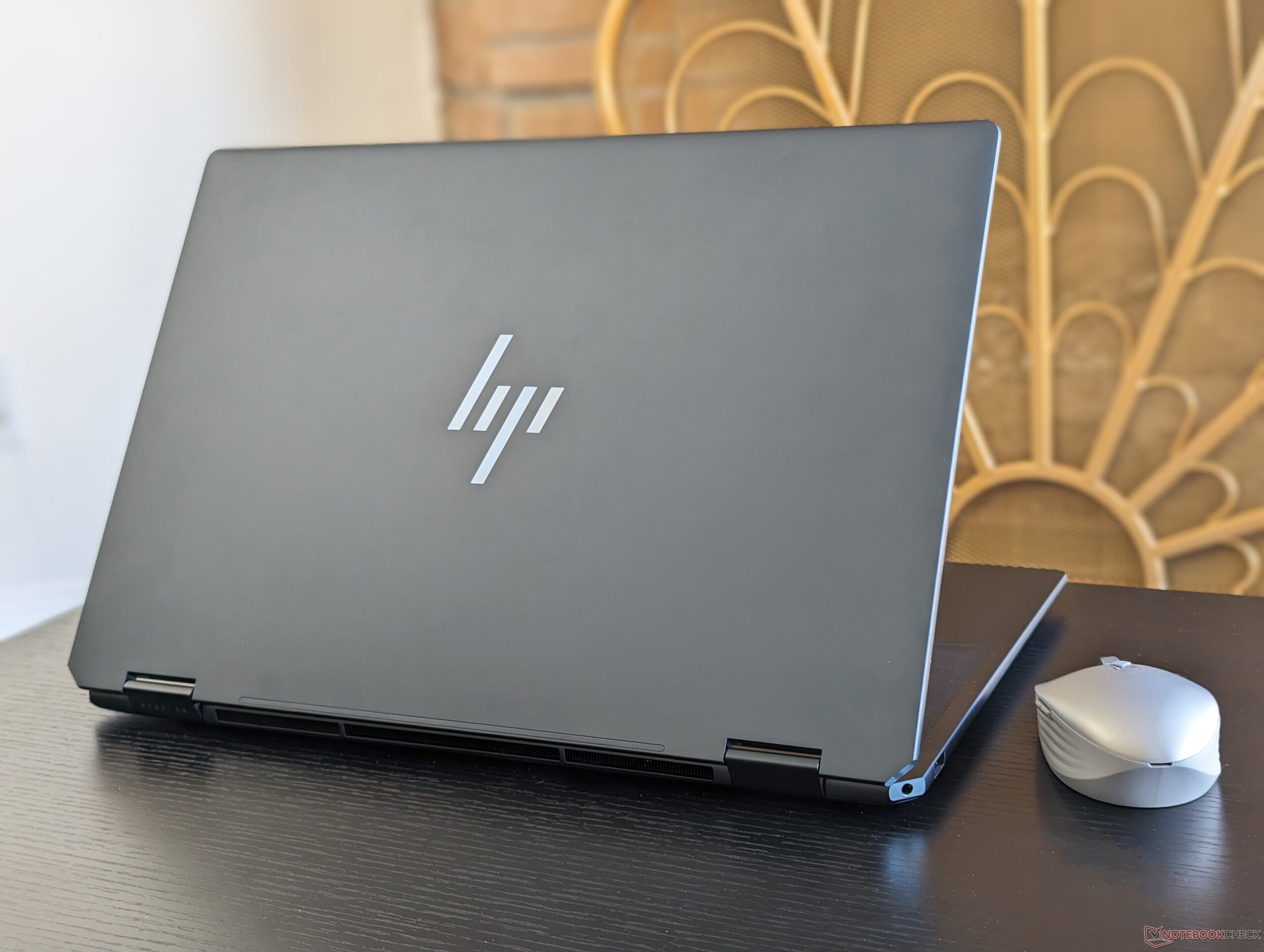

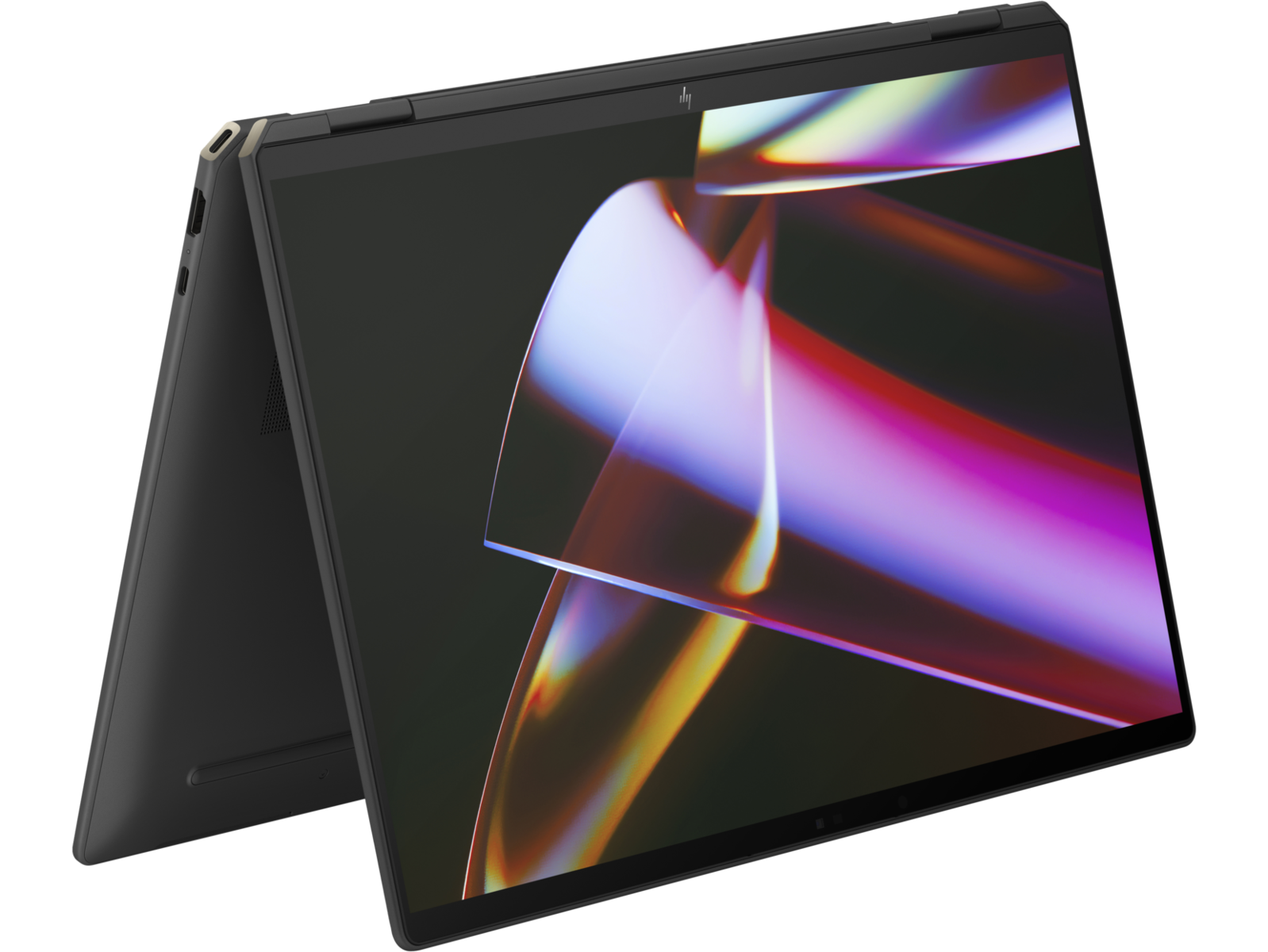

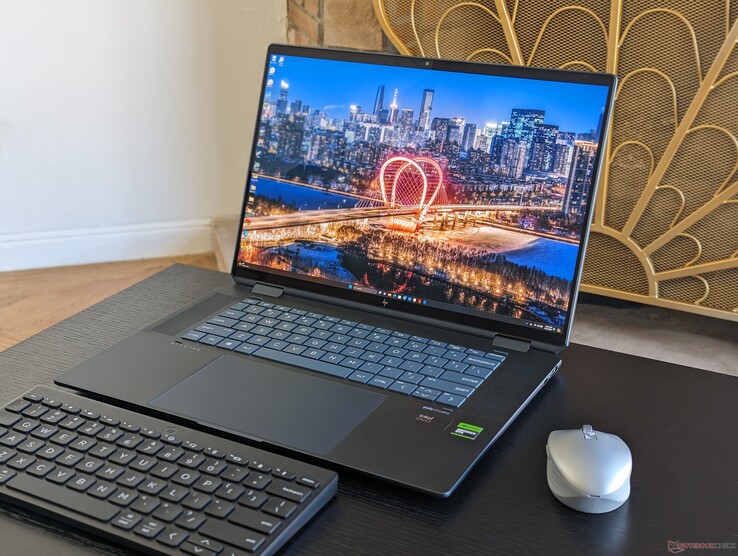

惠普 Spectre x360 16 可折叠电脑评测:现在配备 55 WGeForce RTX 4050 显卡
在最近评测了新款 Spectre x360 16 的 iGPU 版本之后,我们现在准备来看看同款机型的GeForce RTX 配置。两种配置的笔记本电脑在其他方面基本保持一致,因此我们建议您查看我们的 iGPU SKU 的现有评测来了解这款可转换笔记本电脑的更多物理特性。

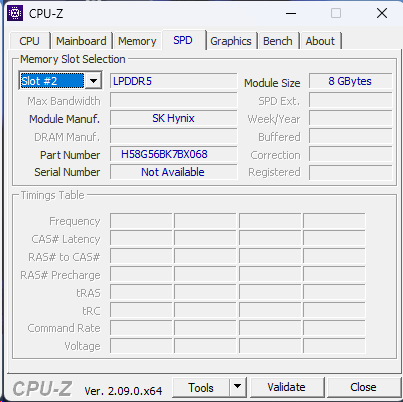

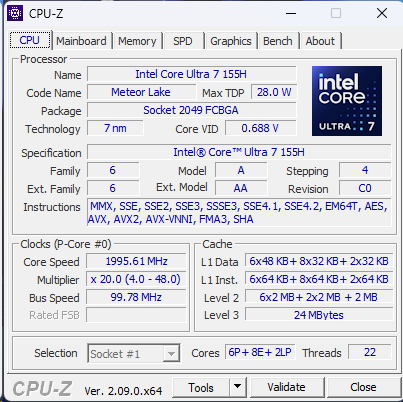

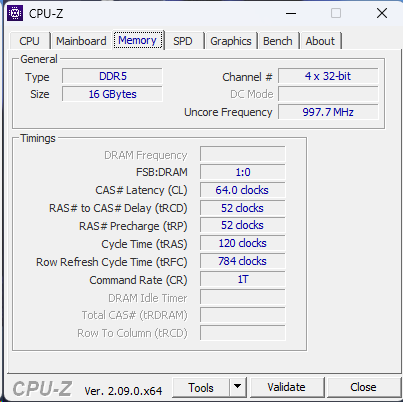

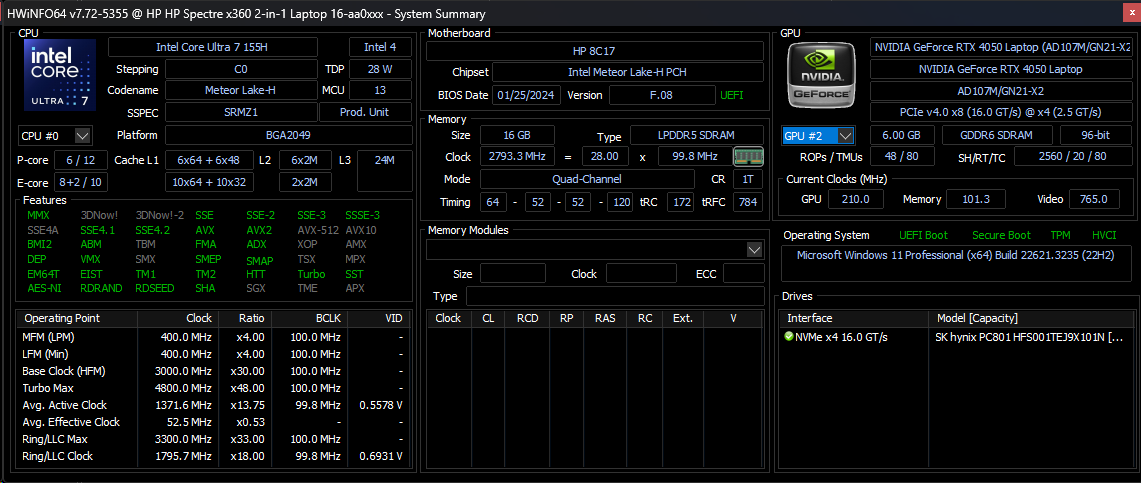

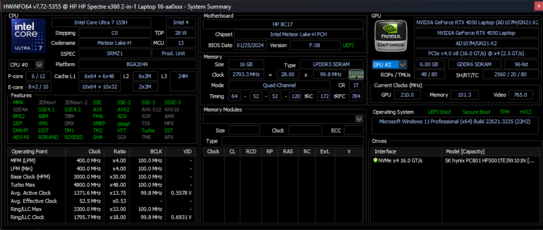

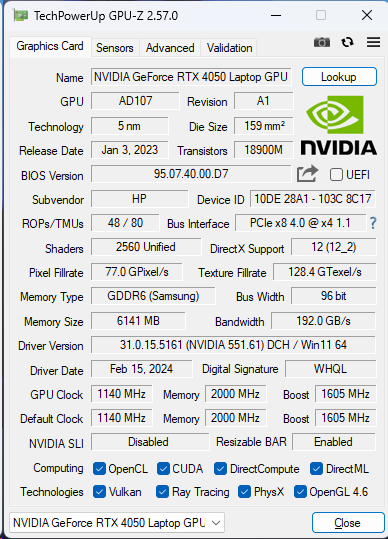

我们的评测机配置了第一代酷睿至尊 7 155H CPU、55 WGeForce RTX 4050 GPU、16 GB 焊接内存和 1800p OLED 触摸屏,零售价约为 1600 美元。其他 SKU 可能包括双倍内存或 1600p 120 Hz IPS 触摸屏,但都采用相同的 Core Ultra 7 CPU 和 RTX 4050 GPU。
更多惠普评论:
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
---|---|---|---|---|---|---|---|
91.1 % v7 (old) | 03 / 2024 | HP Spectre x360 16 RTX 4050 Ultra 7 155H, NVIDIA GeForce RTX 4050 Laptop GPU | 2 kg | 19.8 mm | 16.00" | 2880x1800 | |
91.4 % v7 (old) | 02 / 2024 | HP Spectre x360 16-aa0074ng Ultra 7 155H, Arc 8-Core | 1.9 kg | 19.8 mm | 16.00" | 2880x1800 | |
87.3 % v7 (old) | 01 / 2023 | HP Spectre x360 2-in-1 16-f1075ng i7-12700H, Iris Xe G7 96EUs | 2 kg | 19.9 mm | 16.00" | 3072x1920 | |
90 % v7 (old) | 03 / 2024 | Honor MagicBook Pro 16 2024 Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU | 1.9 kg | 17.9 mm | 16.00" | 3072x1920 | |
88.1 % v7 (old) | 12 / 2023 | MSI Prestige 16 B1MG-001US Ultra 7 155H, Arc 8-Core | 1.6 kg | 19.1 mm | 16.00" | 2560x1600 | |
85.8 % v7 (old) | 11 / 2023 | LG Gram 2in1 16 16T90R - G.AA78G i7-1360P, Iris Xe G7 96EUs | 1.5 kg | 17.2 mm | 16.00" | 2560x1600 |
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名
案例
dGPU 配置比 iGPU 略重约 100 克。
交流

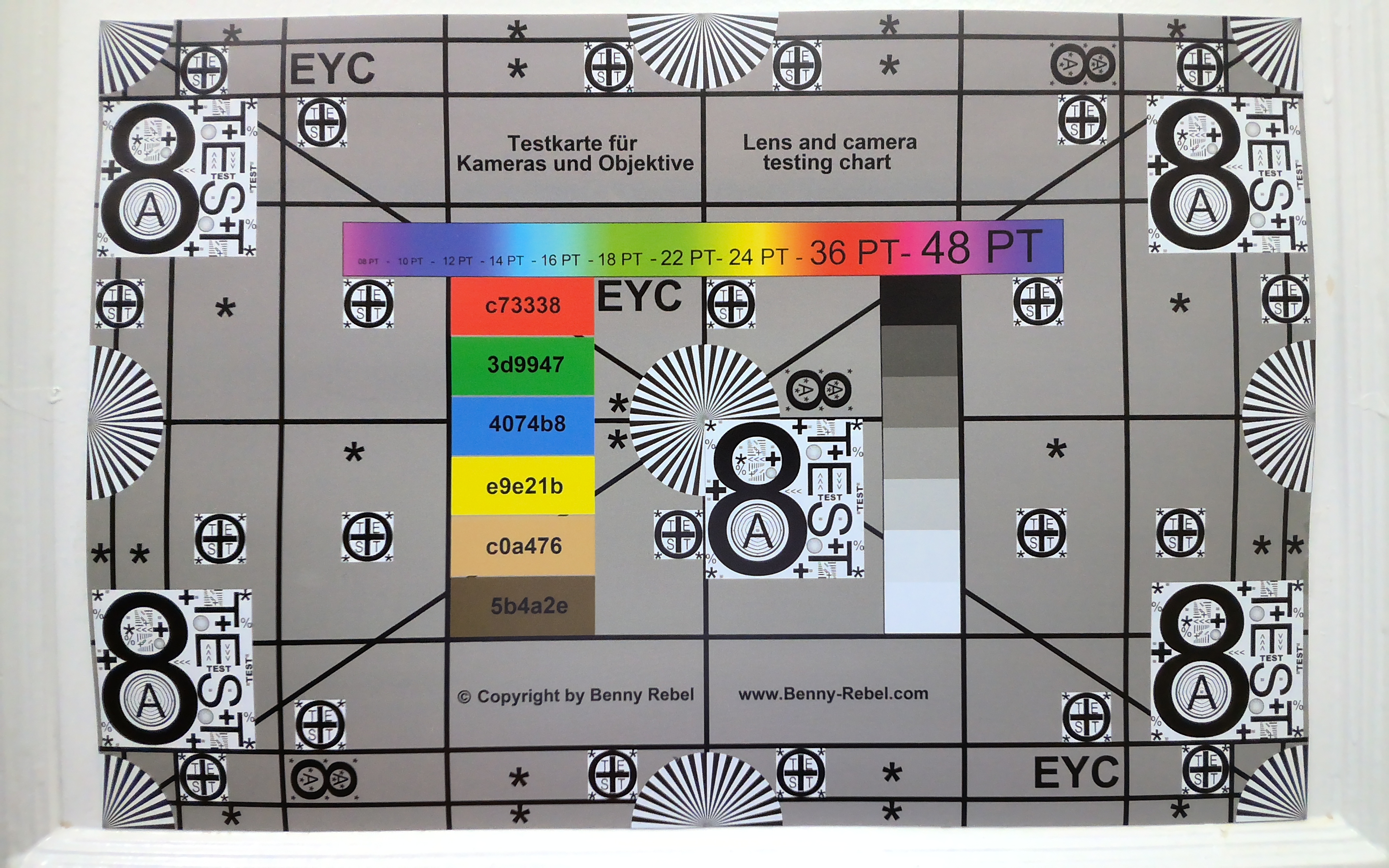

网络摄像头
维护

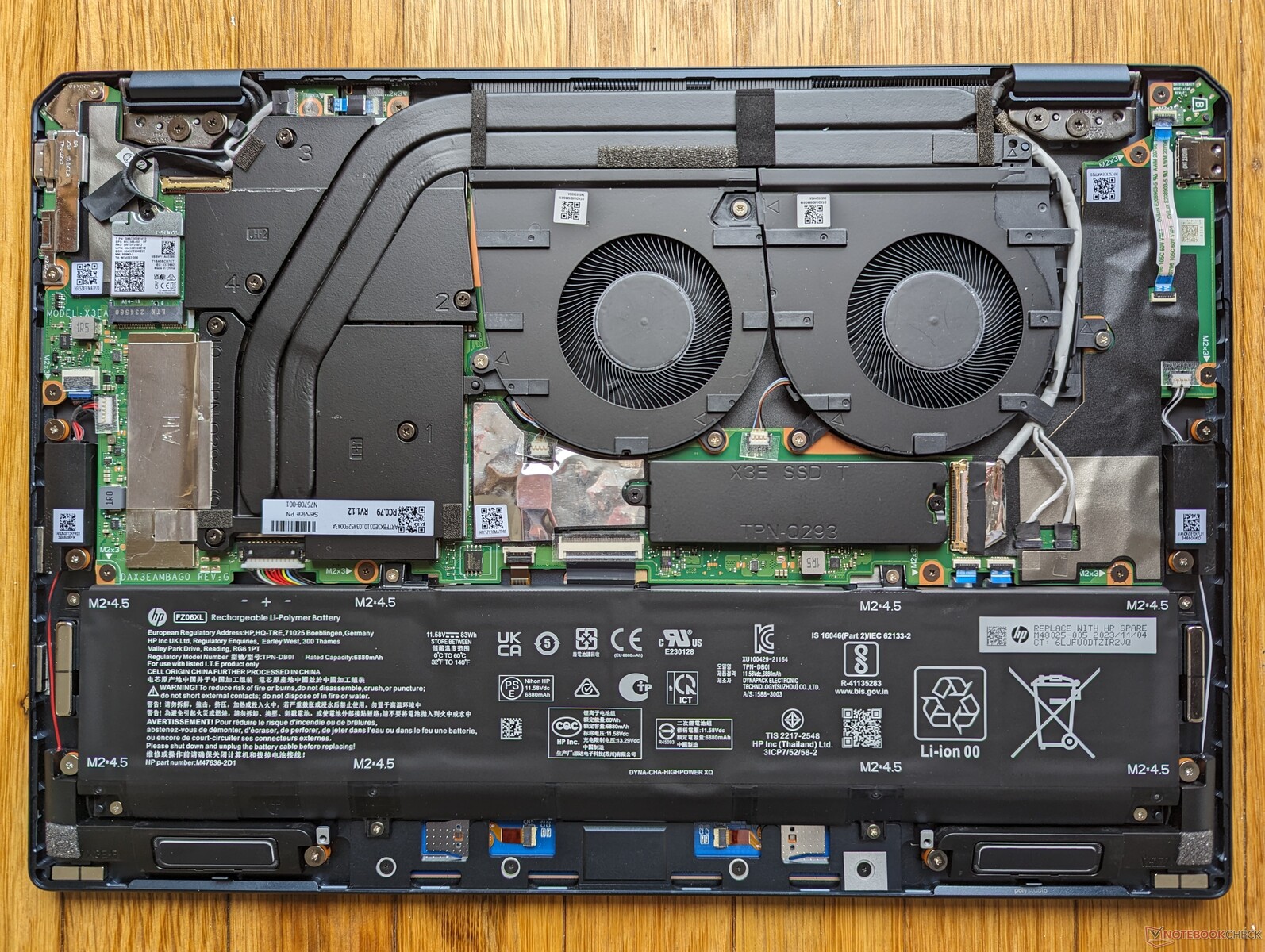

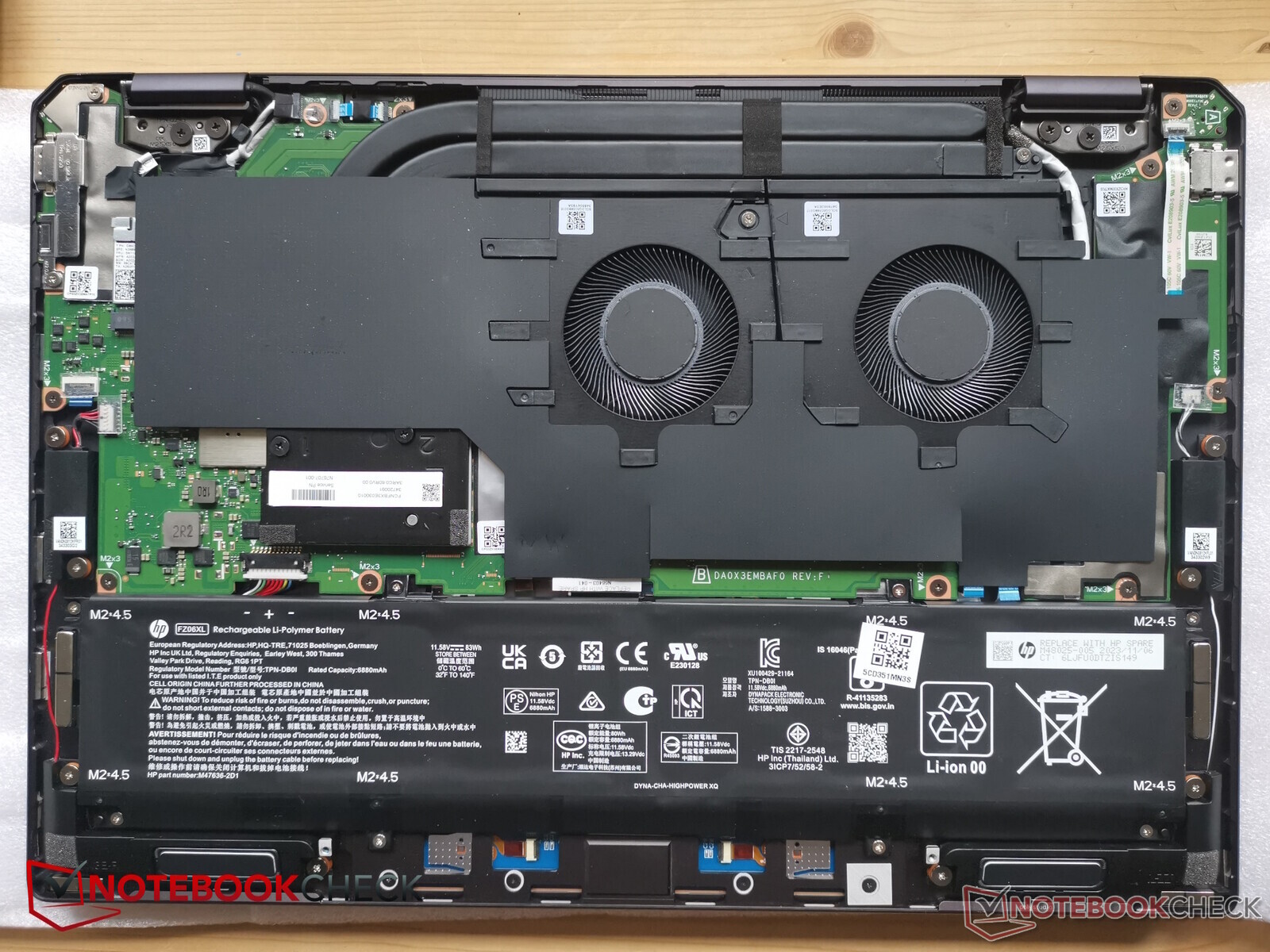

如下图所示,与 iGPU 版本相比,dGPU 配置包括更长的铜热管,因此重量略重。除此之外,主板几乎完全相同。

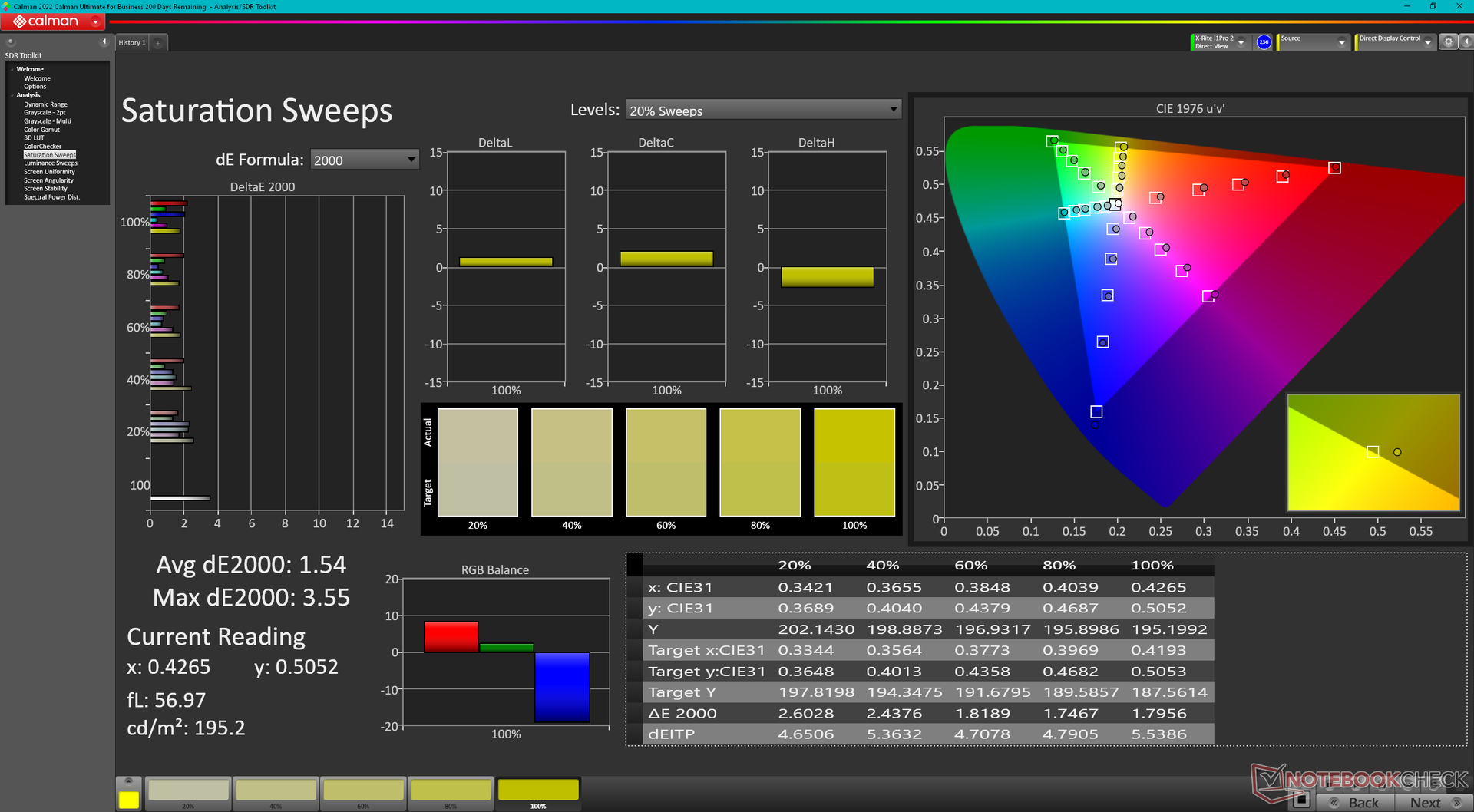

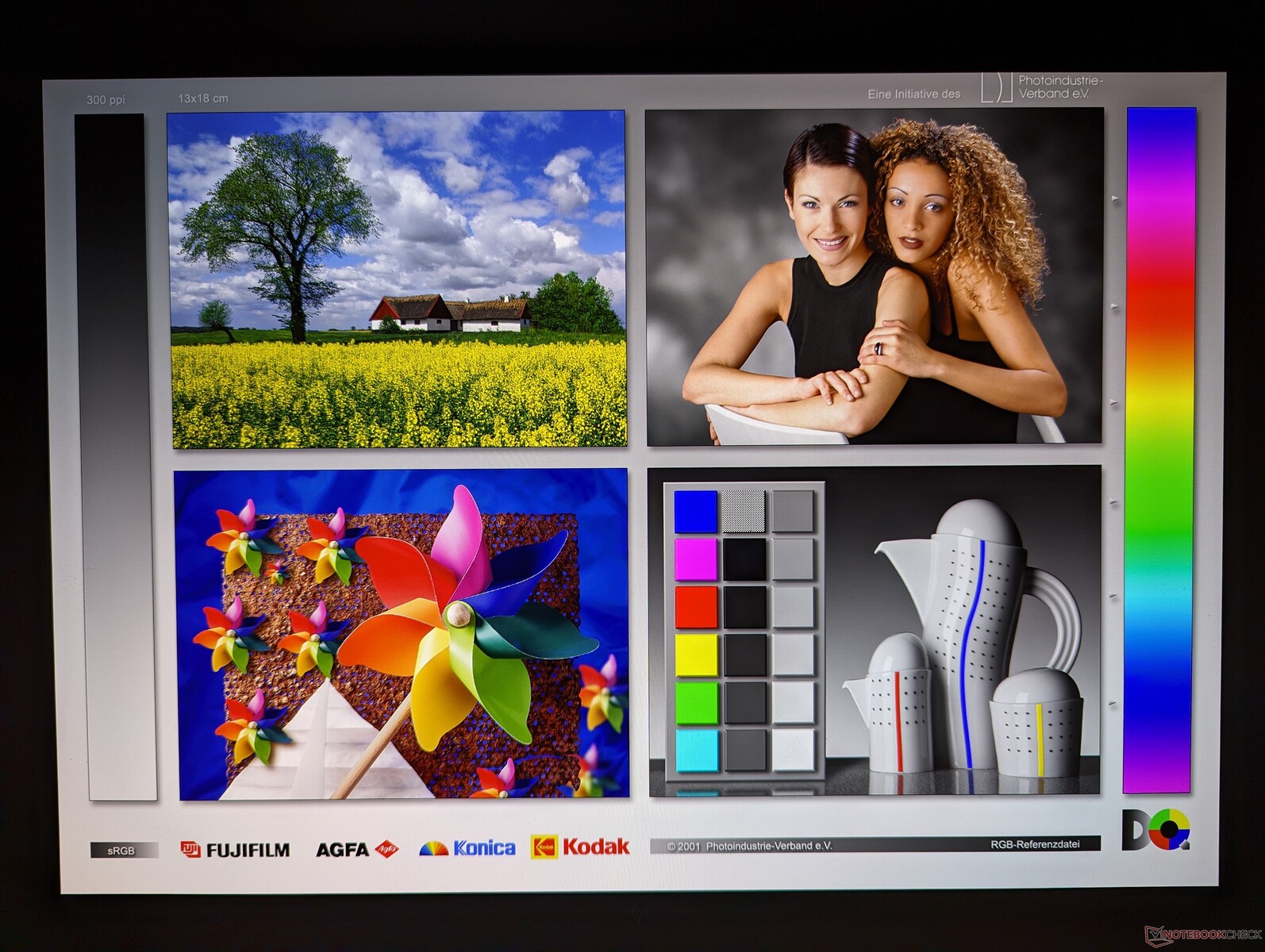

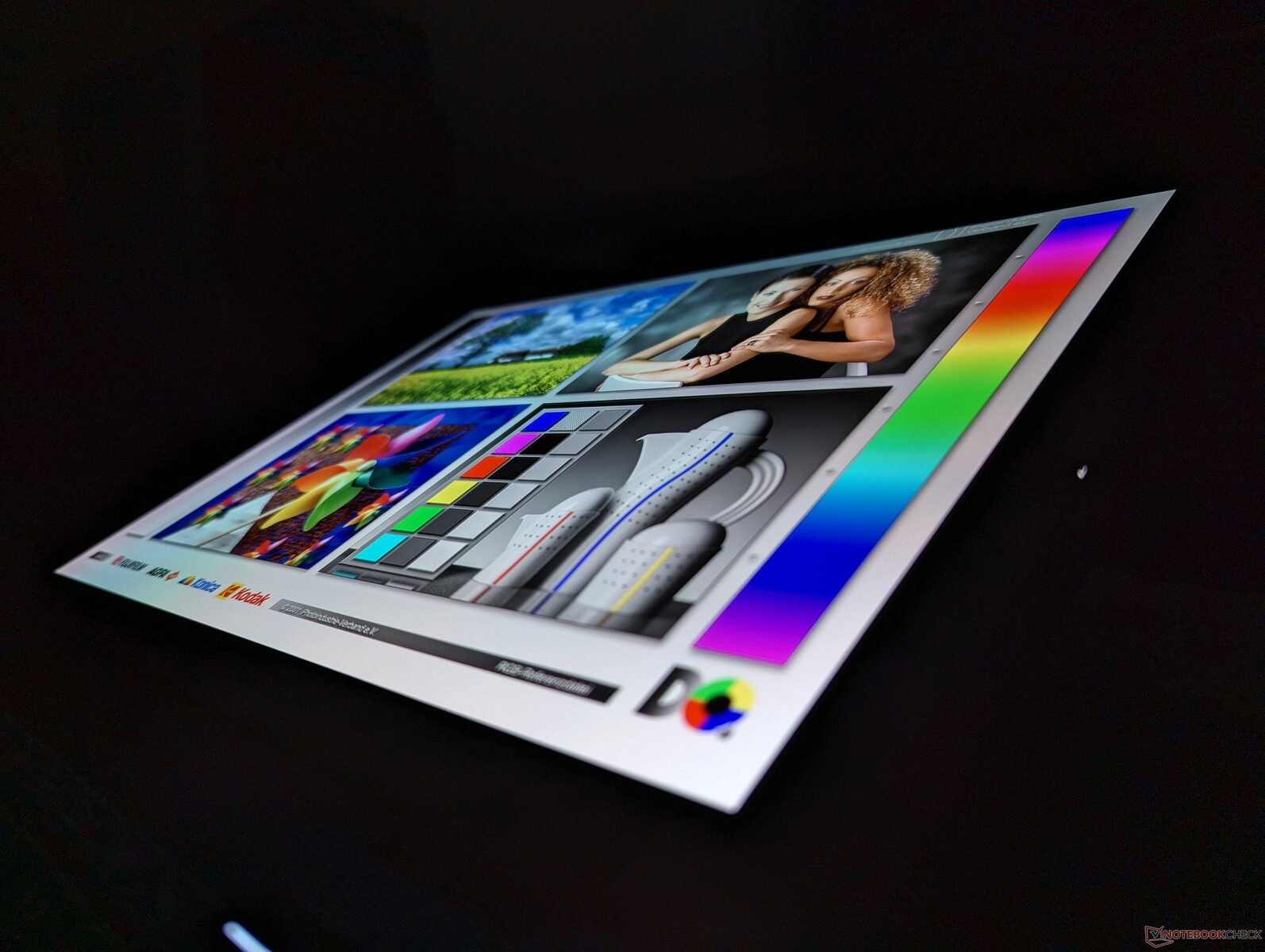

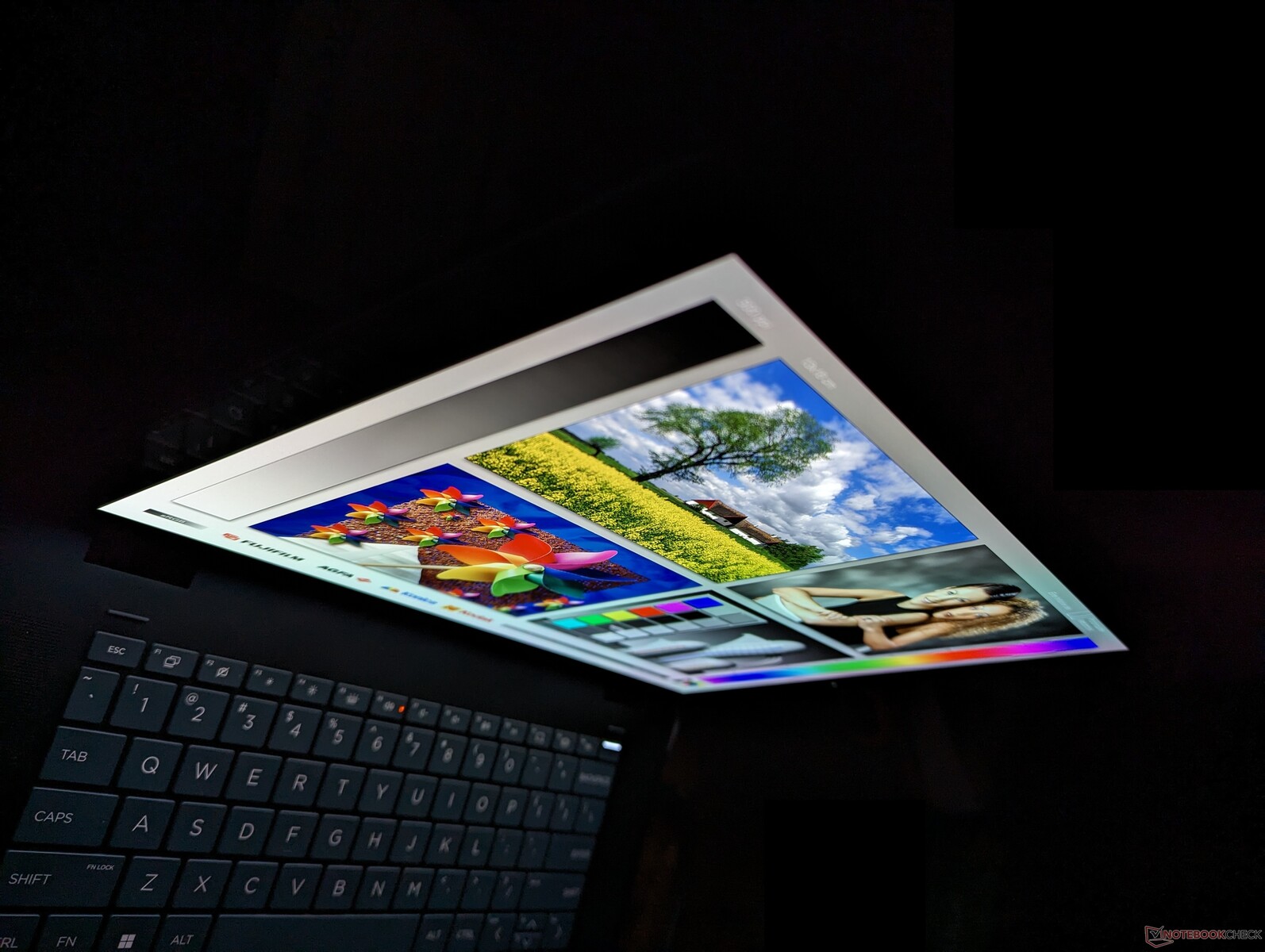

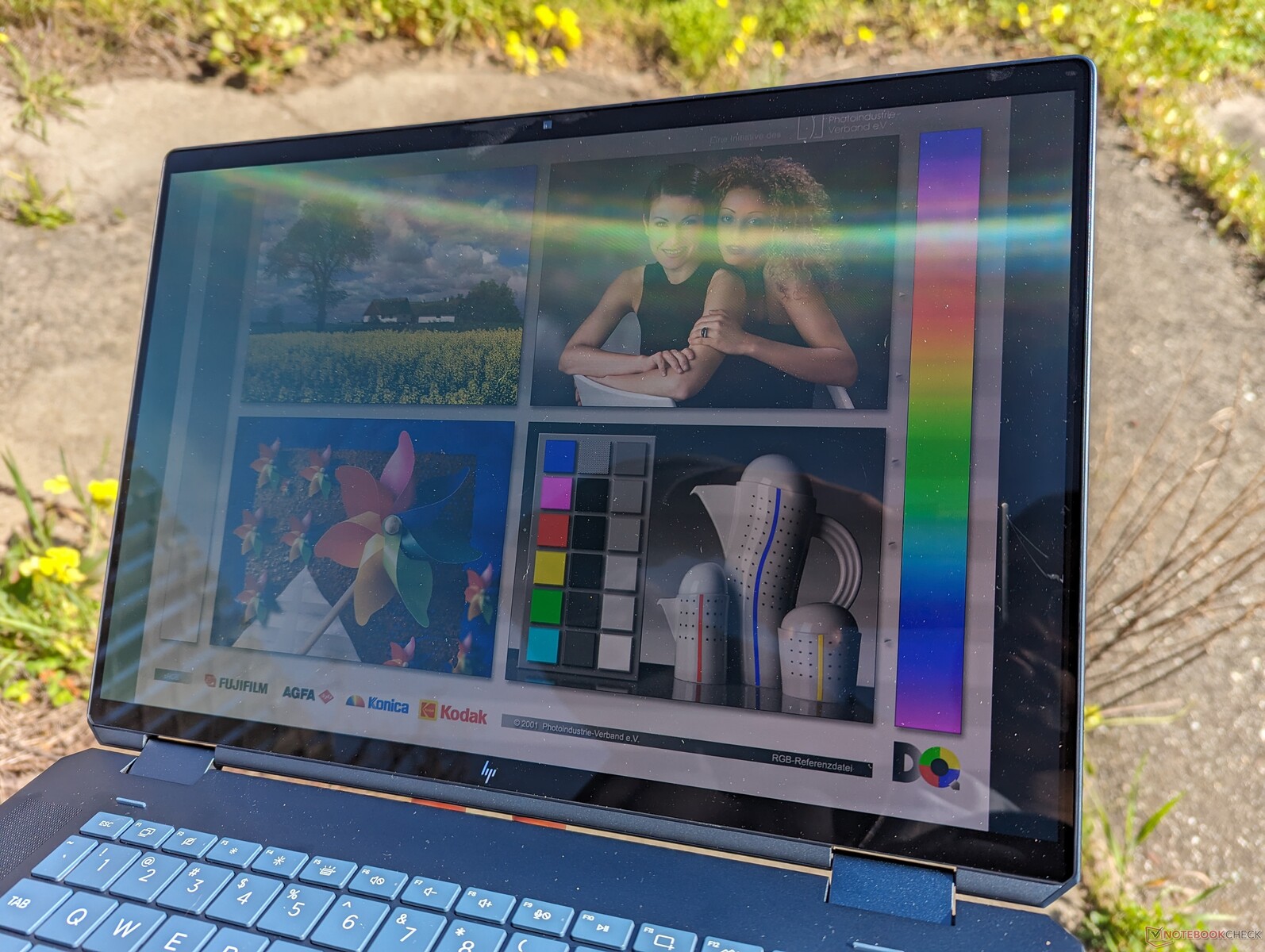

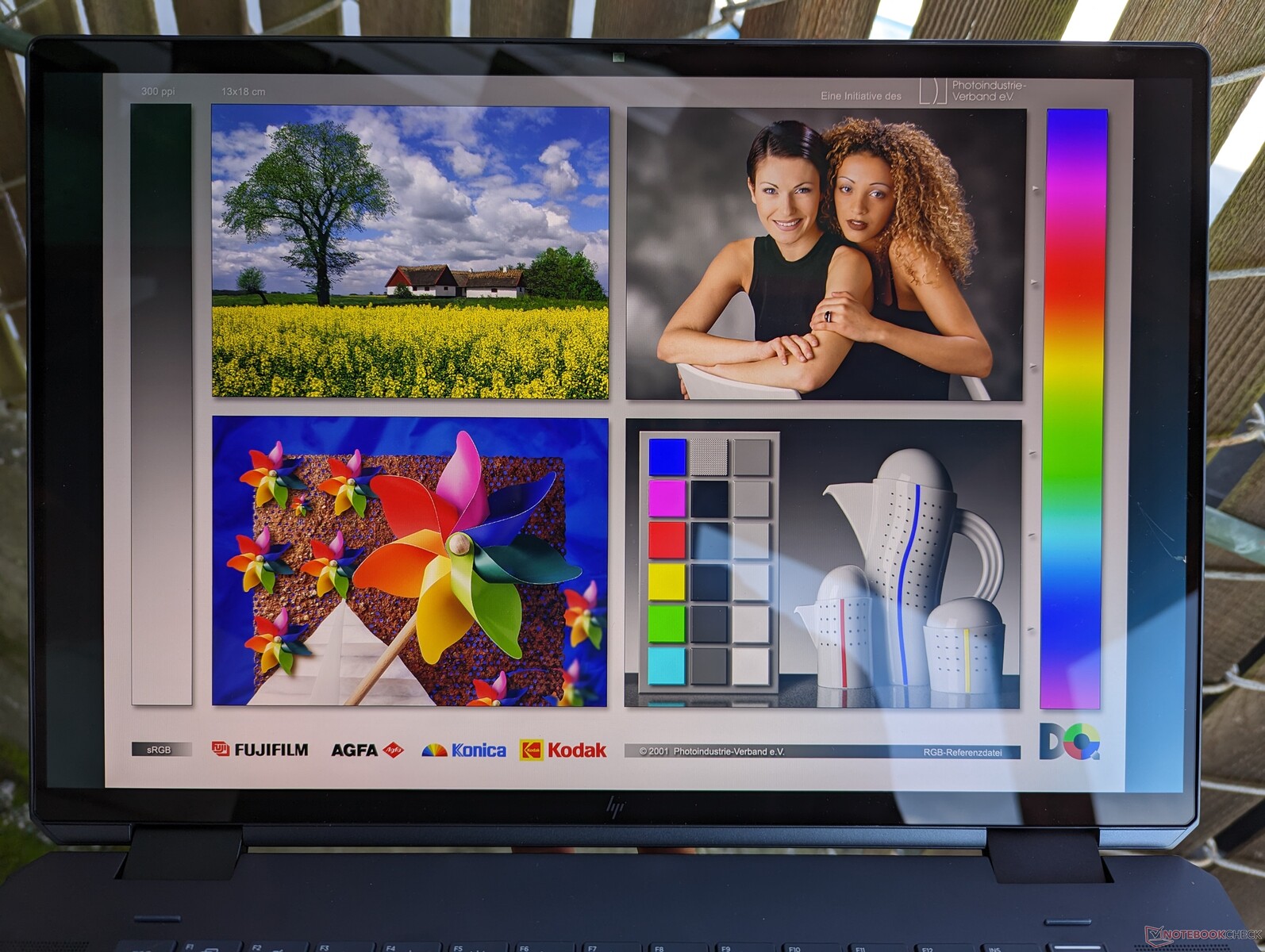

显示屏
|
Brightness Distribution: 99 %
Center on Battery: 385.2 cd/m²
Contrast: ∞:1 (Black: 0 cd/m²)
ΔE Color 1.73 | 0.5-29.43 Ø4.92

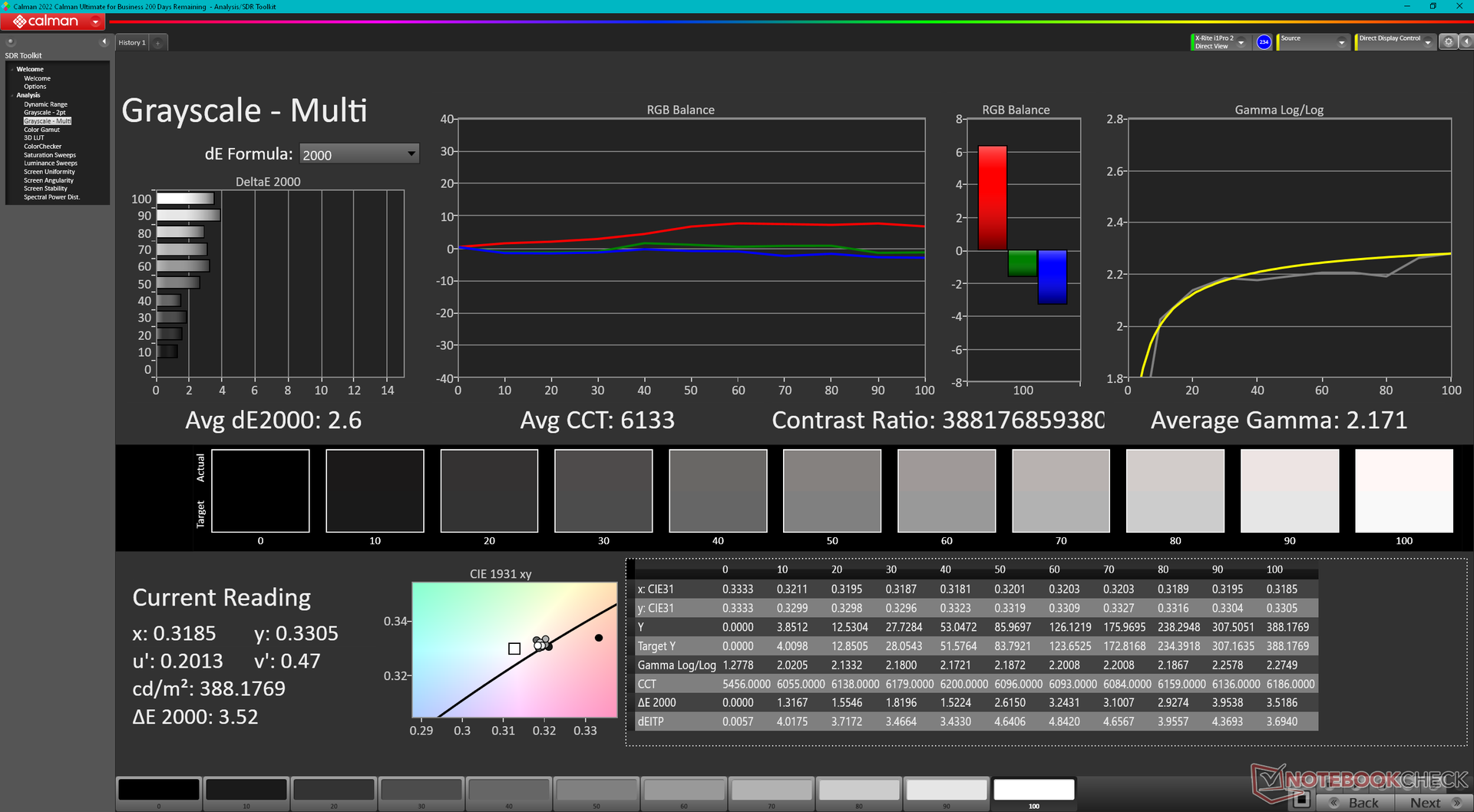

ΔE Greyscale 2.6 | 0.5-98 Ø5.2

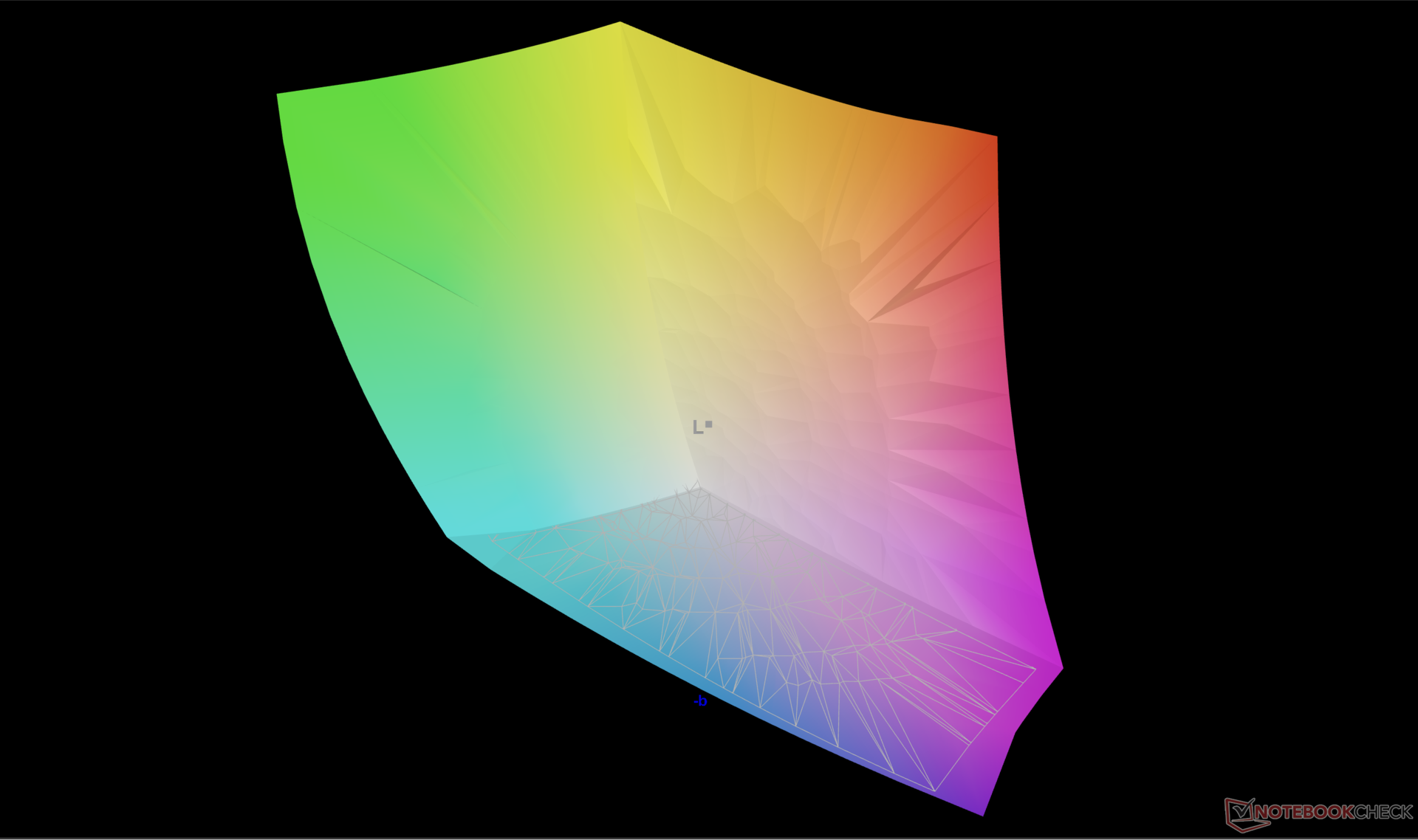

96.7% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
99.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.17
HP Spectre x360 16 RTX 4050 Samsung SDC41A6, OLED, 2880x1800, 16" | HP Spectre x360 16-aa0074ng Samsung SDC41A6, OLED, 2880x1800, 16" | HP Spectre x360 2-in-1 16-f1075ng AU Optronics AUO50A3, IPS, 3072x1920, 16" | Honor MagicBook Pro 16 2024 TL160MDMP01, IPS, 3072x1920, 16" | MSI Prestige 16 B1MG-001US AU Optronics B160QAN03.R, IPS, 2560x1600, 16" | LG Gram 2in1 16 16T90R - G.AA78G LP160WQ1-SPB2, IPS, 2560x1600, 16" | |
---|---|---|---|---|---|---|
Display | -1% | -15% | -3% | -5% | -5% | |
Display P3 Coverage | 99.6 | 98.9 -1% | 75.6 -24% | 98.8 -1% | 96.7 -3% | 96.5 -3% |
sRGB Coverage | 100 | 99.9 0% | 100.2 0% | 100 0% | 99.8 0% | 99.9 0% |
AdobeRGB 1998 Coverage | 96.7 | 94.4 -2% | 77.2 -20% | 89.1 -8% | 84.6 -13% | 84.6 -13% |
Response Times | -6% | -4862% | -630% | -5038% | -3606% | |
Response Time Grey 50% / Grey 80% * | 0.78 ? | 0.8 ? -3% | 52 ? -6567% | 6.3 ? -708% | 49.4 ? -6233% | 38.4 ? -4823% |
Response Time Black / White * | 0.86 ? | 1 ? -16% | 28 ? -3156% | 5.6 ? -551% | 33.9 ? -3842% | 21.4 ? -2388% |
PWM Frequency | 480 ? | 480 0% | ||||
Screen | -7% | -102% | 13% | -88% | -58% | |
Brightness middle | 385.2 | 424 10% | 425 10% | 551 43% | 473.6 23% | 329 -15% |
Brightness | 387 | 425 10% | 406 5% | 524 35% | 456 18% | 310 -20% |
Brightness Distribution | 99 | 99 0% | 78 -21% | 91 -8% | 87 -12% | 88 -11% |
Black Level * | 0.24 | 0.52 | 0.19 | 0.39 | ||

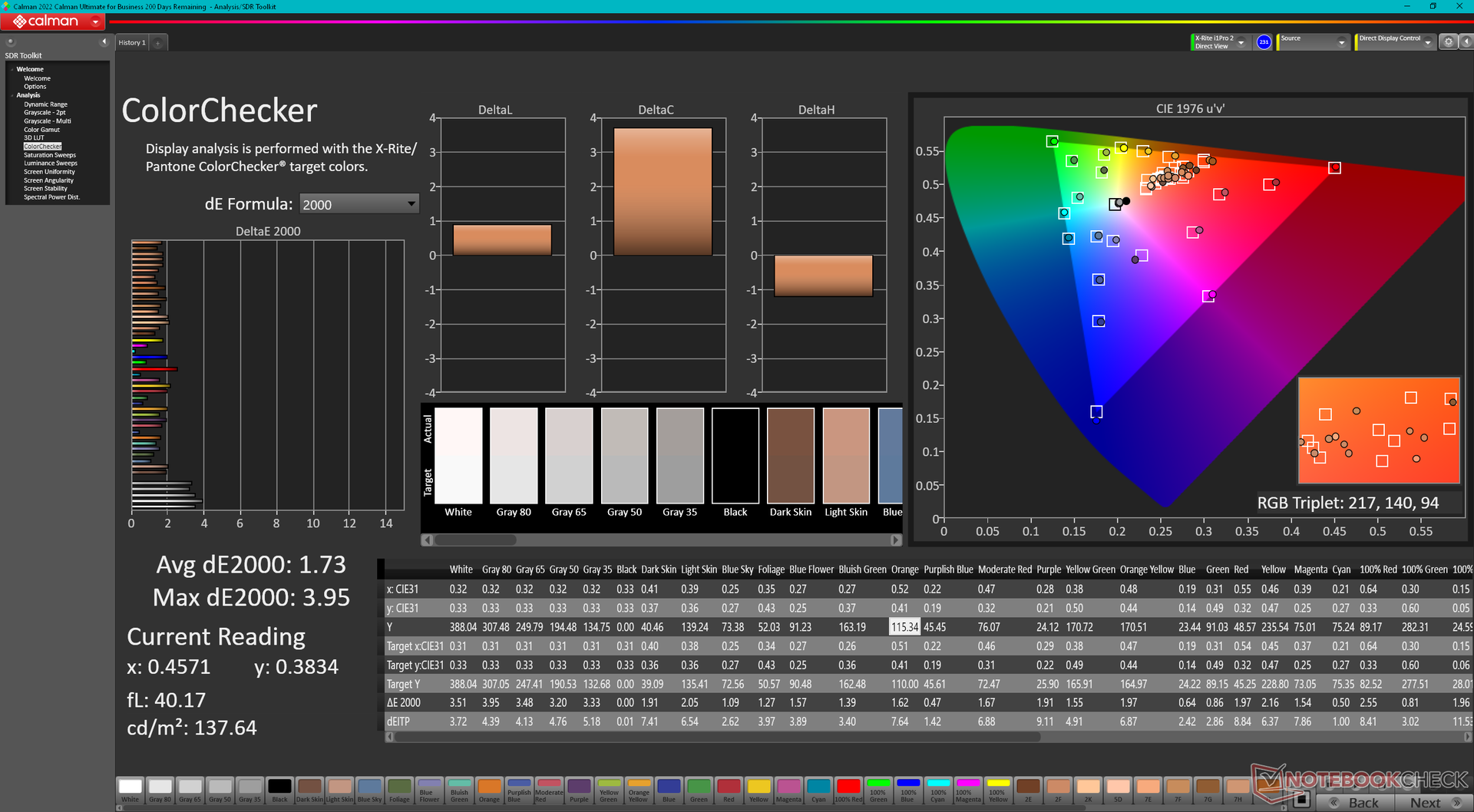

Colorchecker dE 2000 * | 1.73 | 2.37 -37% | 5.8 -235% | 1.7 2% | 5.9 -241% | 3.52 -103% |
Colorchecker dE 2000 max. * | 3.95 | 4.97 -26% | 11.03 -179% | 4.1 -4% | 9.37 -137% | 6.96 -76% |
Greyscale dE 2000 * | 2.6 | 2.55 2% | 7.57 -191% | 2.4 8% | 7.3 -181% | 5.75 -121% |
Gamma | 2.17 101% | 2.49 88% | 6600 0% | 2.2 100% | 1.9 116% | 2.137 103% |
CCT | 6133 106% | 6548 99% | 6842 95% | 7260 90% | 7584 86% | |
Colorchecker dE 2000 calibrated * | 2.26 | 4.16 | 1 | 0.89 | 1.15 | |
Contrast | 1771 | 1060 | 2493 | 844 | ||
Total Average (Program / Settings) | -5% /
-5% | -1660% /
-943% | -207% /
-108% | -1710% /
-966% | -1223% /
-688% |
* ... smaller is better
Display Response Times

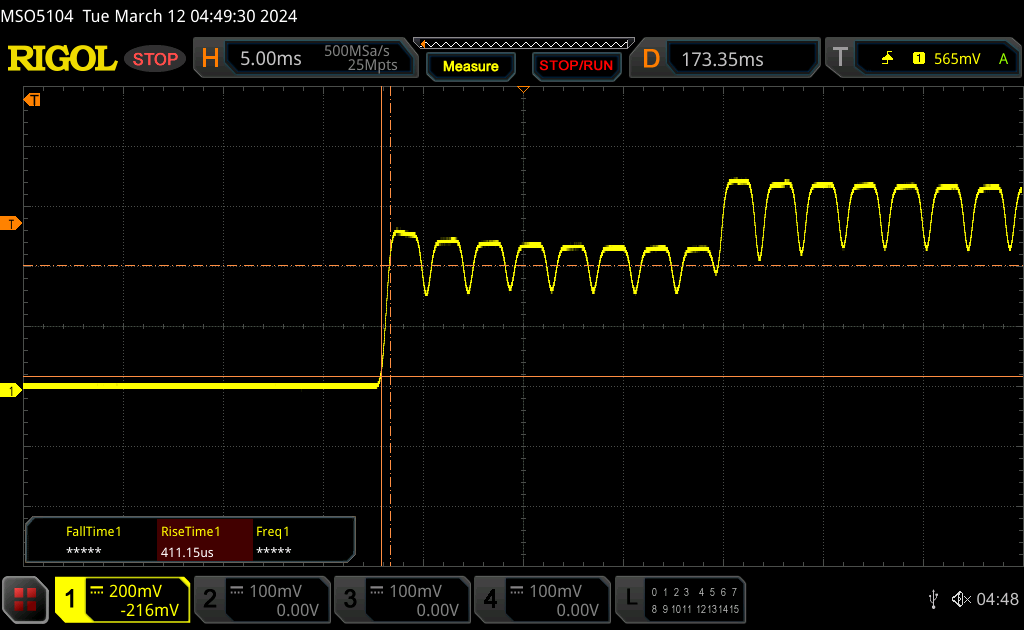

↔ Response Time Black to White | ||
---|---|---|
0.86 ms ... rise ↗ and fall ↘ combined | ↗ 0.4 ms rise | |
↘ 0.46 ms fall | ||
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 1 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21 ms). | ||
↔ Response Time 50% Grey to 80% Grey | ||
0.78 ms ... rise ↗ and fall ↘ combined | ↗ 0.44 ms rise | |
↘ 0.34 ms fall | ||
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 1 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.9 ms). |

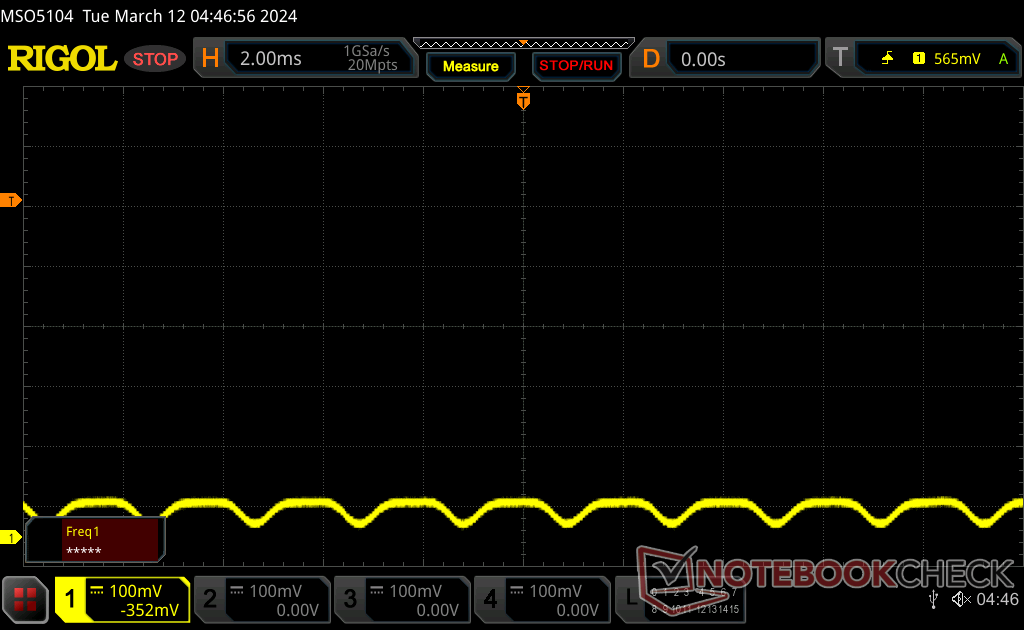

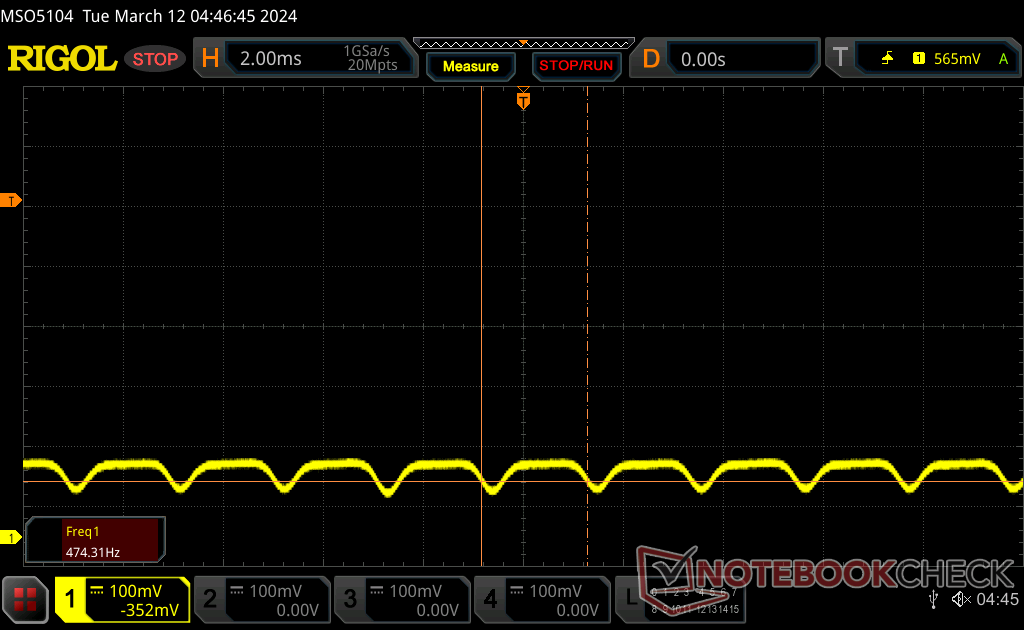

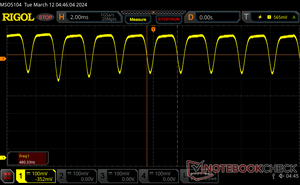

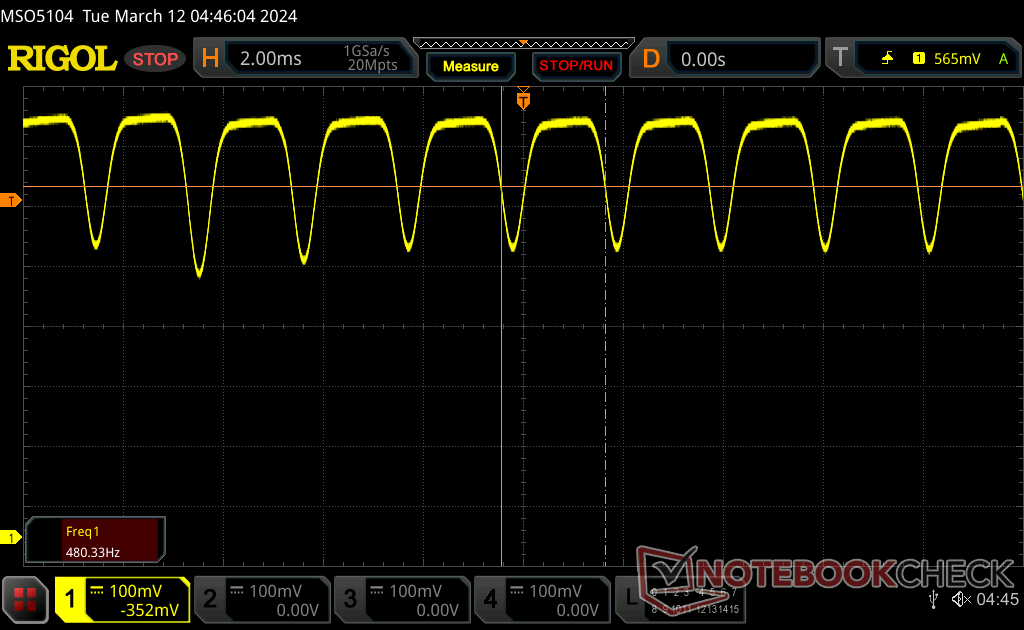

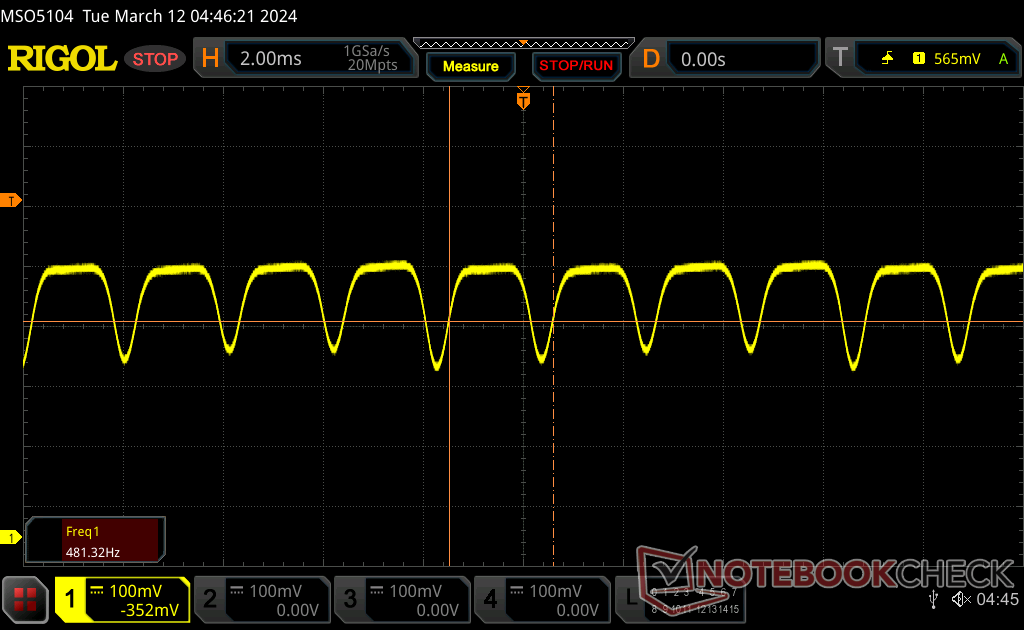

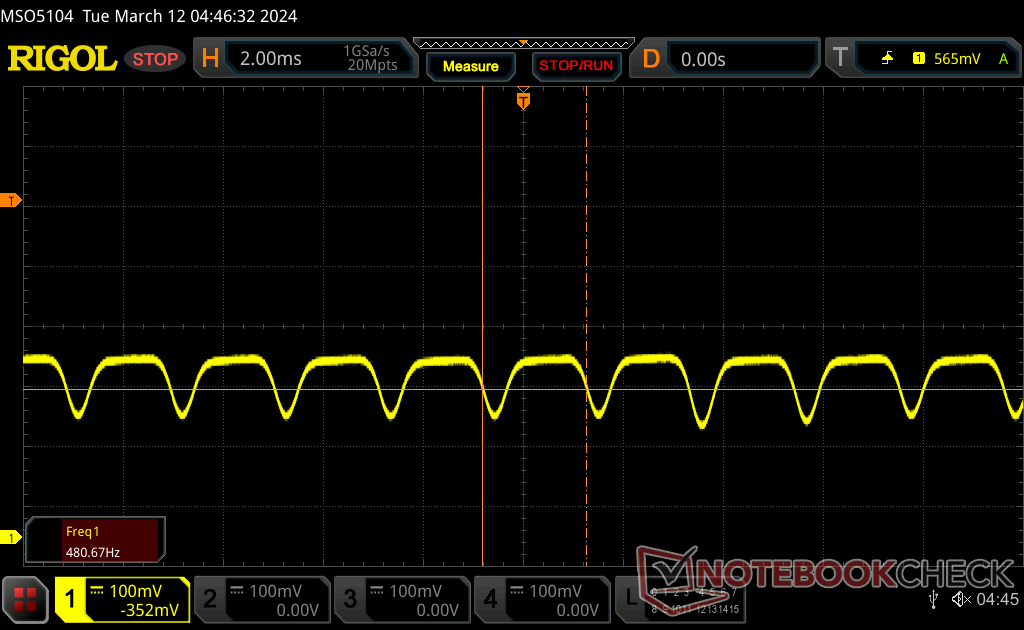

Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM detected | 480 Hz | ≤ 100 % brightness setting | |
The display backlight flickers at 480 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 100 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 480 Hz is relatively high, so most users sensitive to PWM should not notice any flickering. However, there are reports that some users are still sensitive to PWM at 500 Hz and above, so be aware. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured. |
性能
测试条件

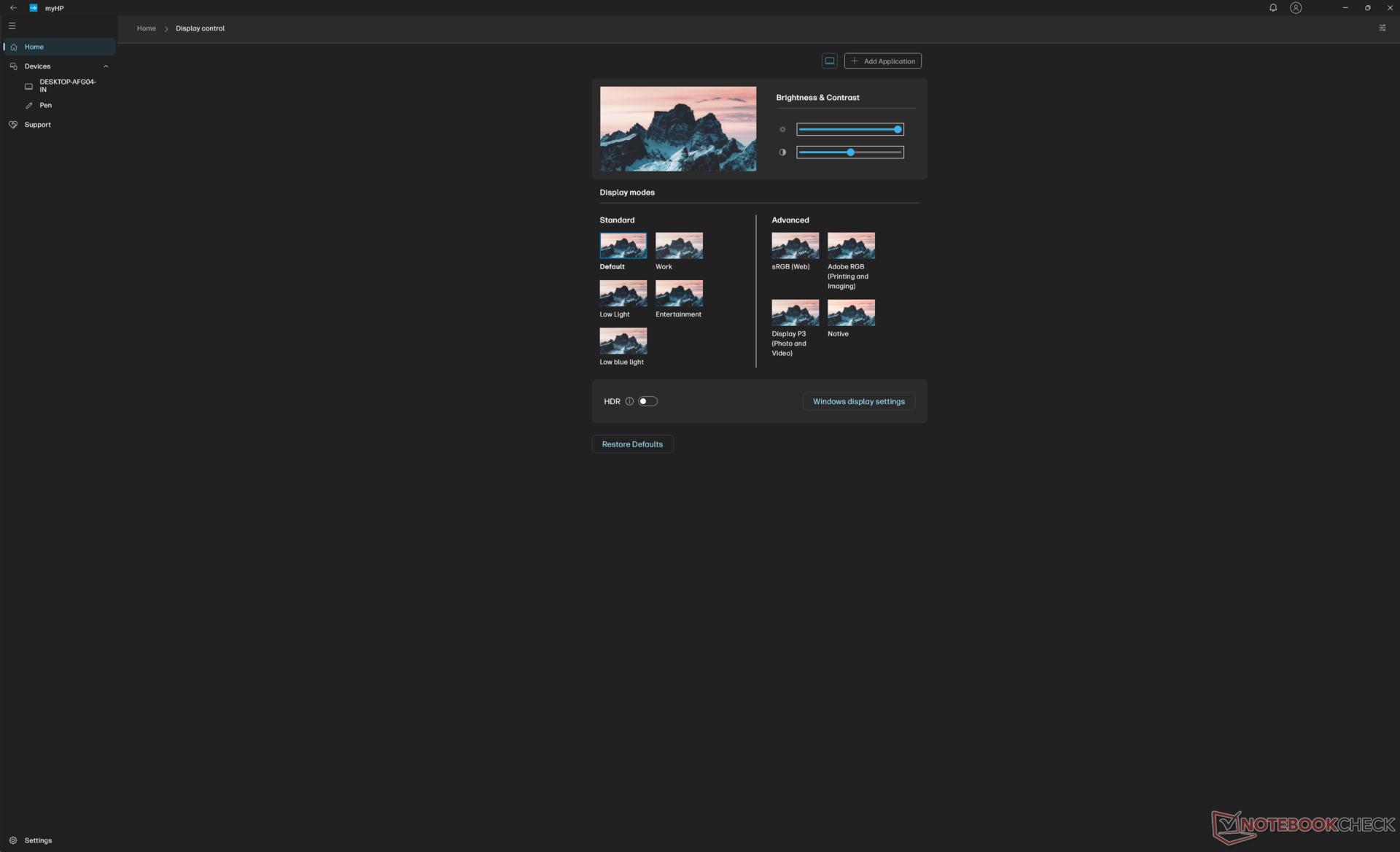

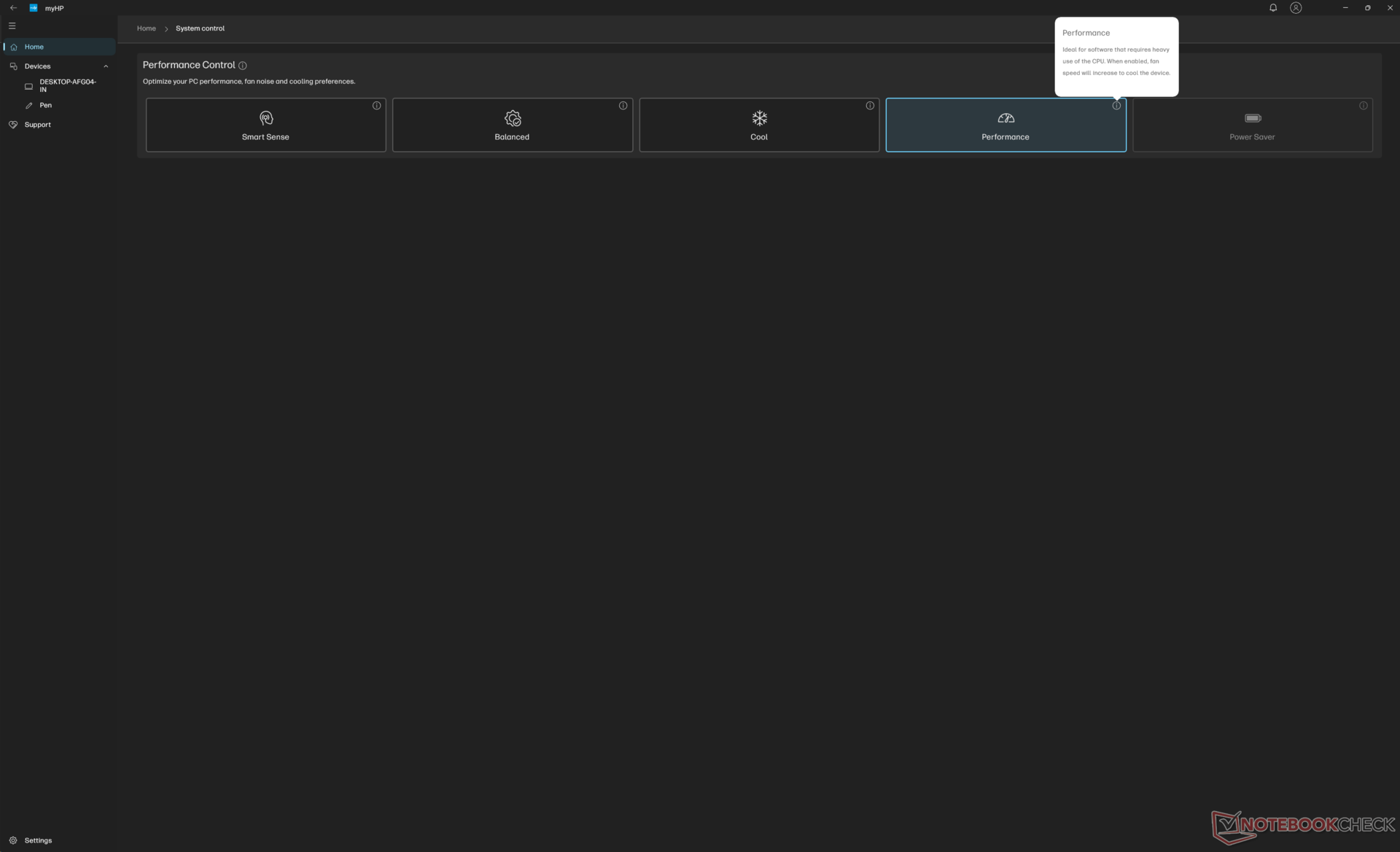

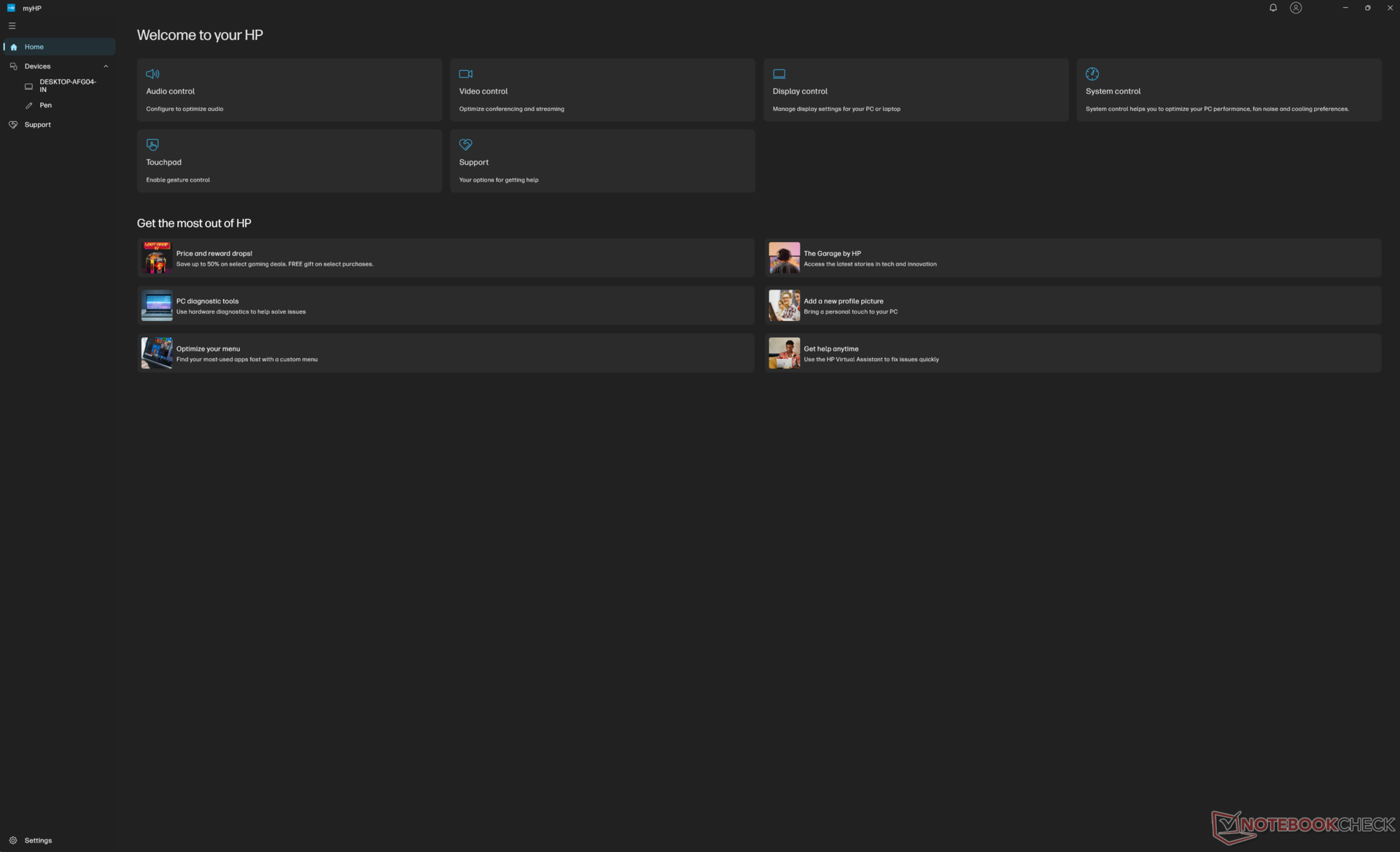

在运行以下基准测试之前,我们将 Windows 和 MyHP 设置为各自的性能模式。系统上同时安装了 MyHP 和 Omen Gaming Hub,但与可用性和电源配置文件相关的大多数重要功能都与 MyHP 有关。
处理器
酷睿至尊 7 155H 酷睿至尊 7 155H在我们的 dGPU 配置中,CPU 的得分低于在我们的 iGPU 配置中相同 CPU 的得分。两个系统之间的差距可能高达 20%,即使经过多次重新测试,成绩也不会提高。事实上,当仔细观察每种配置的 CPU 板功耗水平时,我们的 dGPU 设备中的 CPU 功耗低至 28 W,而我们的 iGPU 设备中的相同 CPU 功耗则稳定在 40 W 的较高水平。
惠普表示,它已经意识到 CPU "在某些工作负载下会不正确地节流",并正在进行软件更新以解决这一问题。一旦更新上线,我们将在此添加新的结果。
Cinebench R15 Multi Loop
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
Honor MagicBook Pro 16 2024 | |
MSI Prestige 16 B1MG-001US | |
HP Spectre x360 16 RTX 4050 | |
Average Intel Core Ultra 7 155H | |
HP Spectre x360 16-aa0074ng | |
HP Spectre x360 2-in-1 16-f1075ng | |
LG Gram 2in1 16 16T90R - G.AA78G |
AIDA64 / FP32 Ray-Trace | |
Honor MagicBook Pro 16 2024 | |
MSI Prestige 16 B1MG-001US | |
HP Spectre x360 16 RTX 4050 | |
Average Intel Core Ultra 7 155H (6670 - 18470, n=45) | |
HP Spectre x360 16-aa0074ng | |
HP Spectre x360 2-in-1 16-f1075ng | |
LG Gram 2in1 16 16T90R - G.AA78G | |
LG Gram 2in1 16 16T90R - G.AA78G |
AIDA64 / FPU Julia | |
Honor MagicBook Pro 16 2024 | |
MSI Prestige 16 B1MG-001US | |
HP Spectre x360 16 RTX 4050 | |
Average Intel Core Ultra 7 155H (40905 - 93181, n=45) | |
HP Spectre x360 16-aa0074ng | |
HP Spectre x360 2-in-1 16-f1075ng | |
LG Gram 2in1 16 16T90R - G.AA78G |
AIDA64 / CPU SHA3 | |
Honor MagicBook Pro 16 2024 | |
MSI Prestige 16 B1MG-001US | |
HP Spectre x360 16 RTX 4050 | |
Average Intel Core Ultra 7 155H (1940 - 4436, n=45) | |
HP Spectre x360 16-aa0074ng | |
HP Spectre x360 2-in-1 16-f1075ng | |
LG Gram 2in1 16 16T90R - G.AA78G |
AIDA64 / CPU Queen | |
MSI Prestige 16 B1MG-001US | |
HP Spectre x360 2-in-1 16-f1075ng | |
HP Spectre x360 16-aa0074ng | |
Honor MagicBook Pro 16 2024 | |
Average Intel Core Ultra 7 155H (64698 - 94181, n=45) | |
LG Gram 2in1 16 16T90R - G.AA78G | |
HP Spectre x360 16 RTX 4050 |
AIDA64 / FPU SinJulia | |
Honor MagicBook Pro 16 2024 | |
MSI Prestige 16 B1MG-001US | |
HP Spectre x360 16 RTX 4050 | |
HP Spectre x360 16-aa0074ng | |
Average Intel Core Ultra 7 155H (5639 - 10647, n=45) | |
HP Spectre x360 2-in-1 16-f1075ng | |
LG Gram 2in1 16 16T90R - G.AA78G |
AIDA64 / FPU Mandel | |
Honor MagicBook Pro 16 2024 | |
MSI Prestige 16 B1MG-001US | |
HP Spectre x360 16 RTX 4050 | |
Average Intel Core Ultra 7 155H (18236 - 47685, n=45) | |
HP Spectre x360 16-aa0074ng | |
HP Spectre x360 2-in-1 16-f1075ng | |
LG Gram 2in1 16 16T90R - G.AA78G |
AIDA64 / CPU AES | |
Honor MagicBook Pro 16 2024 | |
HP Spectre x360 2-in-1 16-f1075ng | |
LG Gram 2in1 16 16T90R - G.AA78G | |
Average Intel Core Ultra 7 155H (45713 - 152179, n=45) | |
MSI Prestige 16 B1MG-001US | |
HP Spectre x360 16 RTX 4050 | |
HP Spectre x360 16-aa0074ng |
AIDA64 / CPU ZLib | |
Honor MagicBook Pro 16 2024 | |
MSI Prestige 16 B1MG-001US | |
HP Spectre x360 16 RTX 4050 | |
Average Intel Core Ultra 7 155H (557 - 1250, n=45) | |
HP Spectre x360 16-aa0074ng | |
HP Spectre x360 2-in-1 16-f1075ng | |
LG Gram 2in1 16 16T90R - G.AA78G |
AIDA64 / FP64 Ray-Trace | |
Honor MagicBook Pro 16 2024 | |
MSI Prestige 16 B1MG-001US | |
HP Spectre x360 16 RTX 4050 | |
Average Intel Core Ultra 7 155H (3569 - 9802, n=45) | |
HP Spectre x360 16-aa0074ng | |
HP Spectre x360 2-in-1 16-f1075ng | |
LG Gram 2in1 16 16T90R - G.AA78G |
AIDA64 / CPU PhotoWorxx | |
HP Spectre x360 16-aa0074ng | |
HP Spectre x360 16 RTX 4050 | |
Average Intel Core Ultra 7 155H (32719 - 54223, n=45) | |
MSI Prestige 16 B1MG-001US | |
Honor MagicBook Pro 16 2024 | |
LG Gram 2in1 16 16T90R - G.AA78G | |
HP Spectre x360 2-in-1 16-f1075ng |

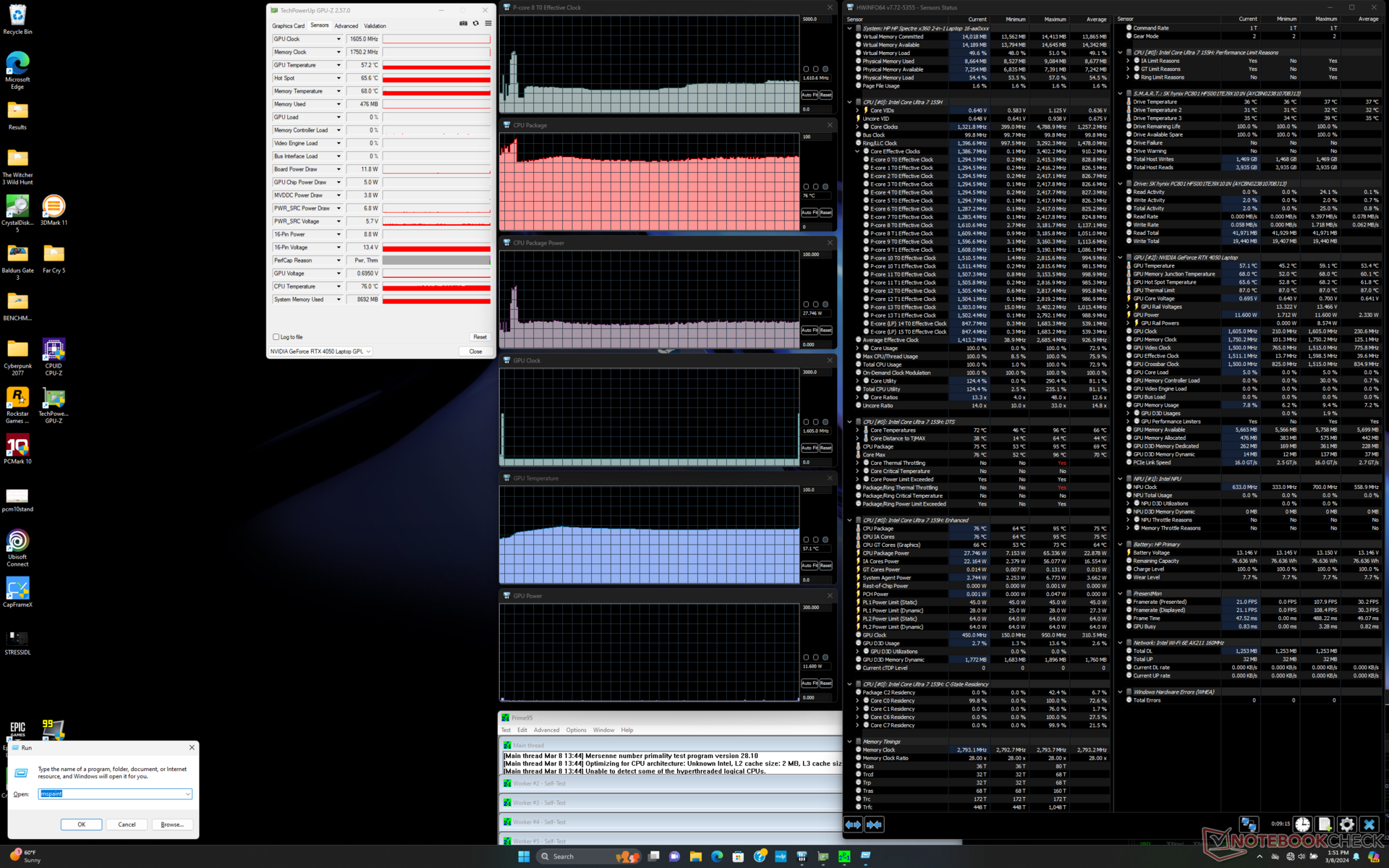

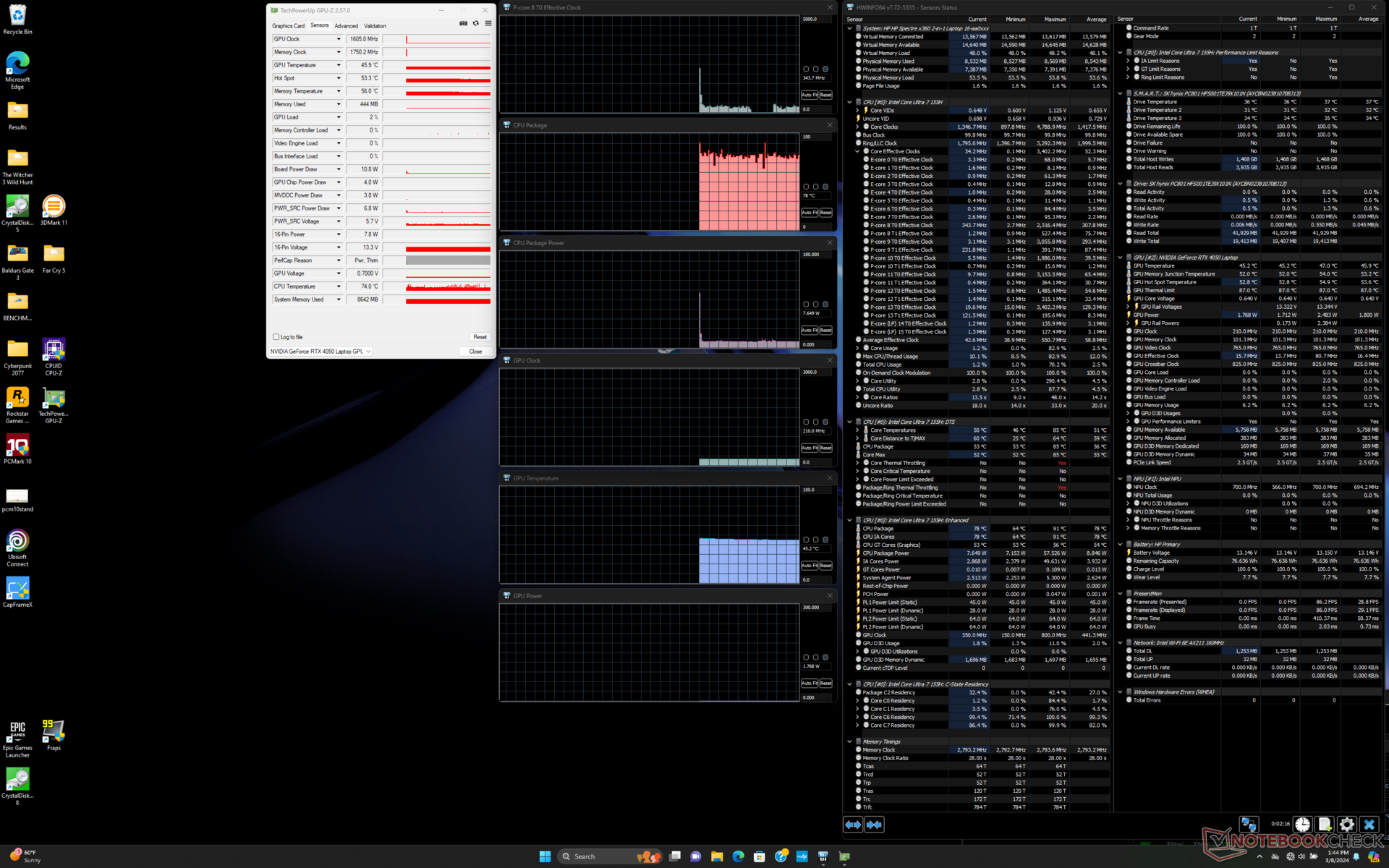

压力测试

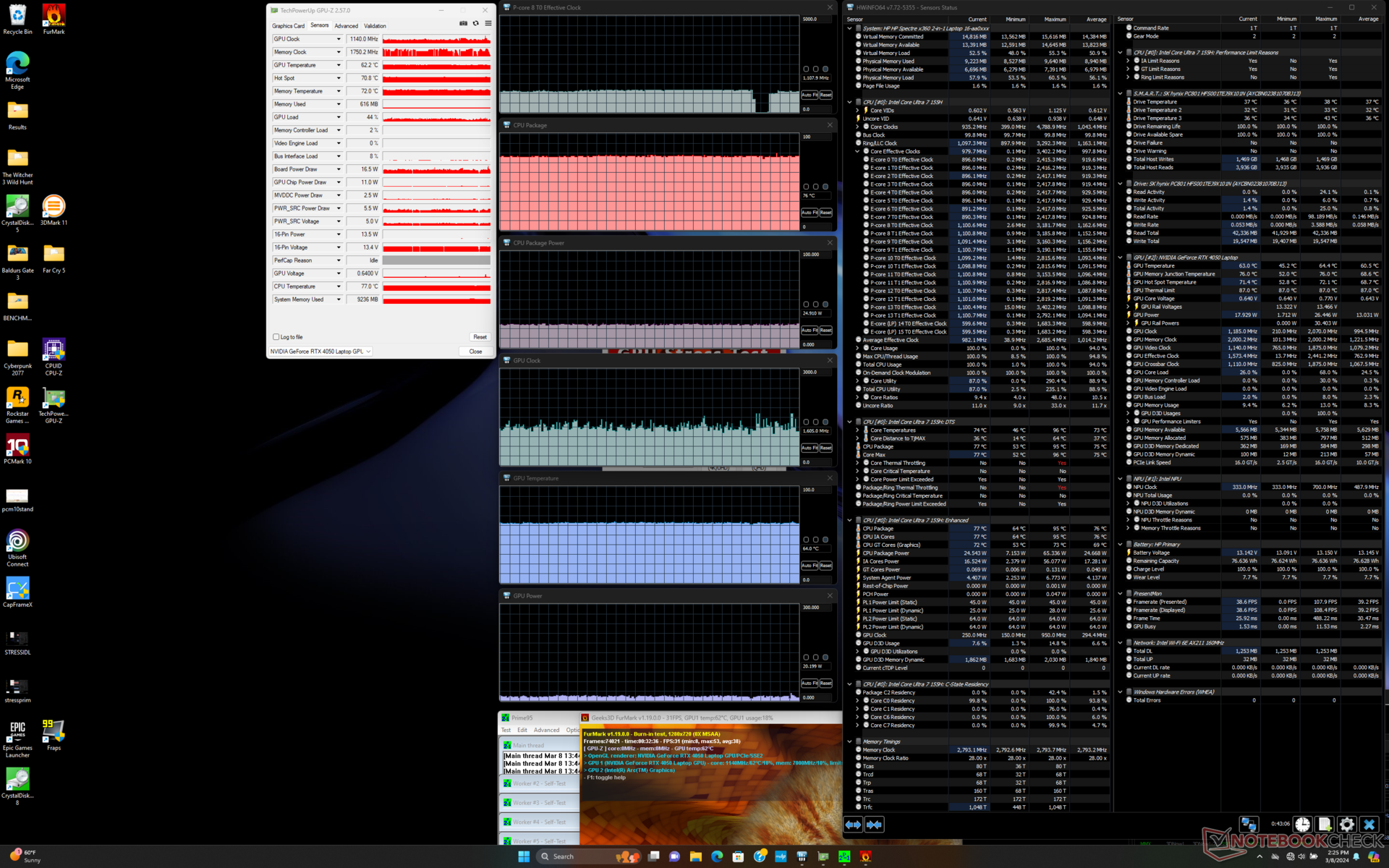

在启动 Prime95 压力时,CPU 时钟频率和主板功耗分别达到 3.2 GHz 和 65 W,几秒钟后分别降至 1.4 GHz 和 28 W,性能相对急剧下降。当 Turbo Boost 频率达到 3.2 GHz 时,核心温度将高达 95 C,因此有必要降低时钟频率以控制温度。

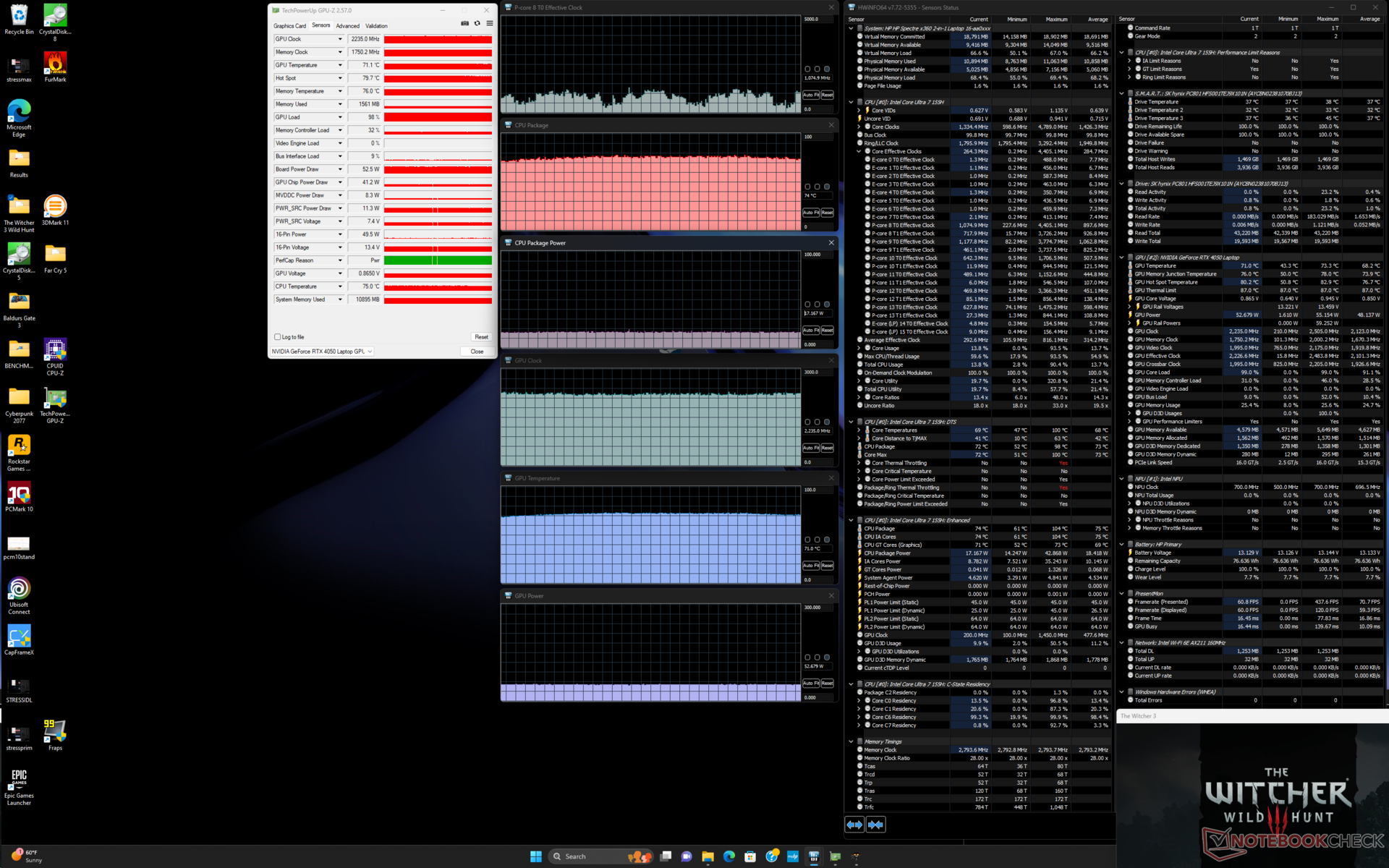

平衡模式和性能模式的图形性能有所不同。例如,在平衡模式下运行时,GPU 时钟频率和电路板功耗 Witcher 3分别稳定在 1920 MHz 和 39 W,而在性能模式下为 2235 MHz 和 53 W。如下表所示,性能模式下的核心温度也更高。
CPU 时钟 (GHz) | GPU 时钟 (MHz) | CPU 平均温度 (°C) | GPU 平均温度(°C) | |
系统闲置 | -- | -- | 53 | 45 |
Prime95 压力 | ~1.5 | -- | 75 | 57 |
Prime95 + FurMark 压力 | ~1.1 | ~1140 | 77 | 64 |
Witcher 3 压力(平衡模式) | ~1.1 | 1920 | 66 | 62 |
Witcher 3 压力(性能模式) | ~1.1 | 2235 | 72 | 71 |
系统性能

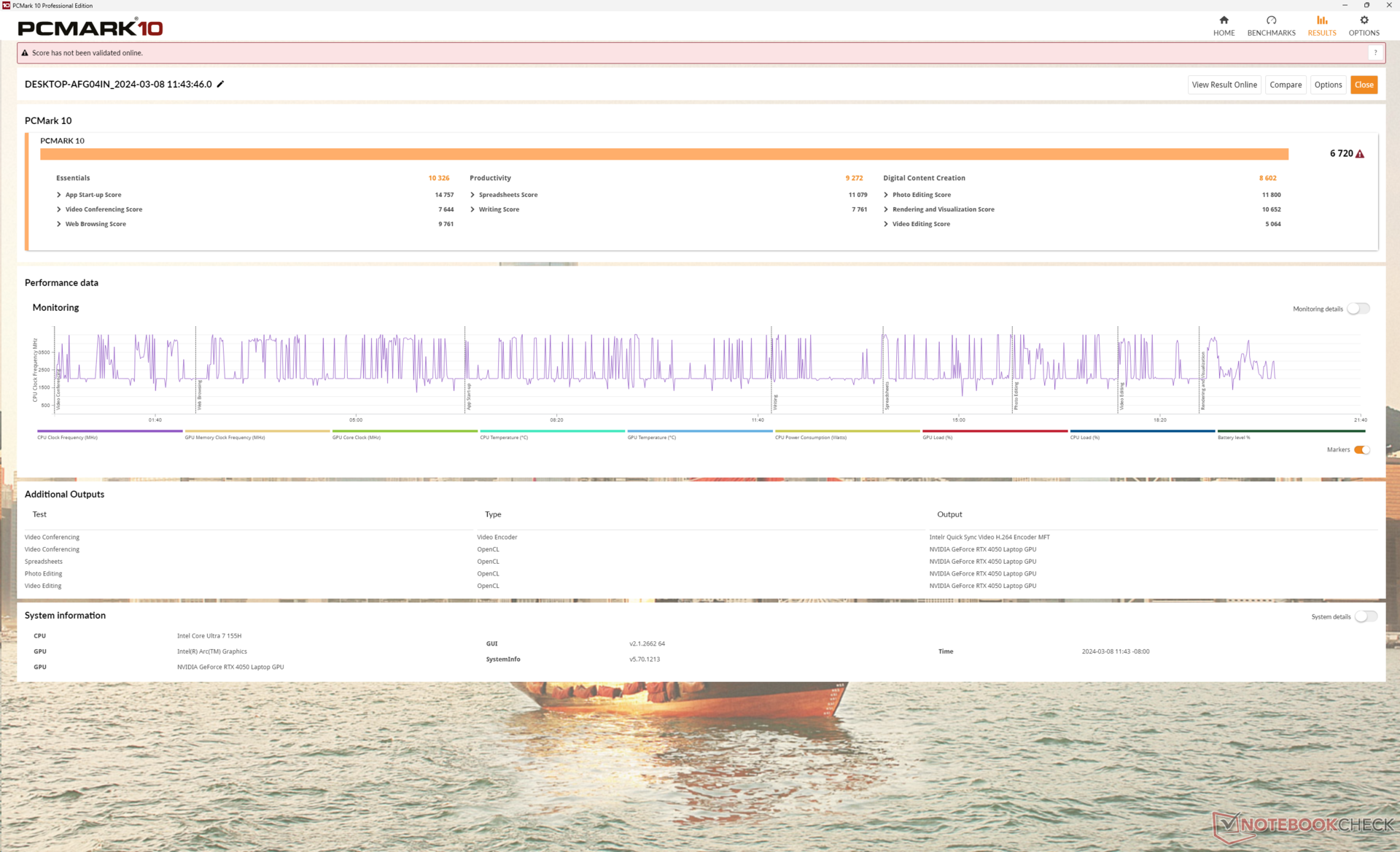

PCMark 10 分数与同型号的 iGPU 配置相当,尽管我们的 dGPU 版本要快得多。不过,对于采用 Optimus 1.0 图形处理器的系统(如我们的 Spectre x360 16 系列)来说,PCMark 从来就不是一个准确的 GPU 基准测试工具。
CrossMark: Overall | Productivity | Creativity | Responsiveness
WebXPRT 3: Overall
WebXPRT 4: Overall
Mozilla Kraken 1.1: Total
PCMark 10 / Score | |
MSI Prestige 16 B1MG-001US | |
HP Spectre x360 16-aa0074ng | |
Honor MagicBook Pro 16 2024 | |
Average Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4050 Laptop GPU (6537 - 6973, n=3) | |
HP Spectre x360 16 RTX 4050 | |
HP Spectre x360 2-in-1 16-f1075ng | |
LG Gram 2in1 16 16T90R - G.AA78G |
PCMark 10 / Essentials | |
LG Gram 2in1 16 16T90R - G.AA78G | |
MSI Prestige 16 B1MG-001US | |
HP Spectre x360 2-in-1 16-f1075ng | |
HP Spectre x360 16-aa0074ng | |
HP Spectre x360 16 RTX 4050 | |
Average Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4050 Laptop GPU (10044 - 10446, n=3) | |
Honor MagicBook Pro 16 2024 |
PCMark 10 / Productivity | |
HP Spectre x360 16 RTX 4050 | |
Average Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4050 Laptop GPU (8769 - 9272, n=3) | |
HP Spectre x360 16-aa0074ng | |
MSI Prestige 16 B1MG-001US | |
Honor MagicBook Pro 16 2024 | |
HP Spectre x360 2-in-1 16-f1075ng | |
LG Gram 2in1 16 16T90R - G.AA78G |
PCMark 10 / Digital Content Creation | |
Honor MagicBook Pro 16 2024 | |
MSI Prestige 16 B1MG-001US | |
HP Spectre x360 16-aa0074ng | |
Average Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4050 Laptop GPU (8602 - 9624, n=3) | |
HP Spectre x360 16 RTX 4050 | |
HP Spectre x360 2-in-1 16-f1075ng | |
LG Gram 2in1 16 16T90R - G.AA78G |
CrossMark / Overall | |
MSI Prestige 16 B1MG-001US | |
Honor MagicBook Pro 16 2024 | |
HP Spectre x360 16-aa0074ng | |
HP Spectre x360 2-in-1 16-f1075ng | |
Average Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4050 Laptop GPU (1574 - 1740, n=3) | |
HP Spectre x360 16 RTX 4050 | |
LG Gram 2in1 16 16T90R - G.AA78G |
CrossMark / Productivity | |
HP Spectre x360 2-in-1 16-f1075ng | |
MSI Prestige 16 B1MG-001US | |
Honor MagicBook Pro 16 2024 | |
HP Spectre x360 16-aa0074ng | |
Average Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4050 Laptop GPU (1496 - 1659, n=3) | |
LG Gram 2in1 16 16T90R - G.AA78G | |
HP Spectre x360 16 RTX 4050 |
CrossMark / Creativity | |
MSI Prestige 16 B1MG-001US | |
HP Spectre x360 16-aa0074ng | |
Average Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4050 Laptop GPU (1831 - 1930, n=3) | |
HP Spectre x360 16 RTX 4050 | |
Honor MagicBook Pro 16 2024 | |
HP Spectre x360 2-in-1 16-f1075ng | |
LG Gram 2in1 16 16T90R - G.AA78G |
CrossMark / Responsiveness | |
HP Spectre x360 2-in-1 16-f1075ng | |
Honor MagicBook Pro 16 2024 | |
MSI Prestige 16 B1MG-001US | |
LG Gram 2in1 16 16T90R - G.AA78G | |
HP Spectre x360 16-aa0074ng | |
Average Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4050 Laptop GPU (1167 - 1467, n=3) | |
HP Spectre x360 16 RTX 4050 |
WebXPRT 3 / Overall | |
MSI Prestige 16 B1MG-001US | |
Honor MagicBook Pro 16 2024 | |
Average Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4050 Laptop GPU (278 - 281, n=3) | |
HP Spectre x360 16 RTX 4050 | |
HP Spectre x360 16-aa0074ng | |
HP Spectre x360 2-in-1 16-f1075ng | |
LG Gram 2in1 16 16T90R - G.AA78G |
WebXPRT 4 / Overall | |
MSI Prestige 16 B1MG-001US | |
HP Spectre x360 16-aa0074ng | |
Honor MagicBook Pro 16 2024 | |
Average Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4050 Laptop GPU (255 - 258, n=3) | |
HP Spectre x360 16 RTX 4050 | |
HP Spectre x360 2-in-1 16-f1075ng |
Mozilla Kraken 1.1 / Total | |
LG Gram 2in1 16 16T90R - G.AA78G | |
HP Spectre x360 16 RTX 4050 | |
MSI Prestige 16 B1MG-001US | |
HP Spectre x360 2-in-1 16-f1075ng | |
Honor MagicBook Pro 16 2024 | |
HP Spectre x360 16-aa0074ng | |
Average Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4050 Laptop GPU (416 - 537, n=3) |
* ... smaller is better
PCMark 10 Score | 6720 points | |
Help |
AIDA64 / Memory Copy | |
HP Spectre x360 16-aa0074ng | |
HP Spectre x360 16 RTX 4050 | |
Honor MagicBook Pro 16 2024 | |
Average Intel Core Ultra 7 155H (62397 - 96791, n=45) | |
MSI Prestige 16 B1MG-001US | |
LG Gram 2in1 16 16T90R - G.AA78G | |
HP Spectre x360 2-in-1 16-f1075ng |
AIDA64 / Memory Read | |
HP Spectre x360 16 RTX 4050 | |
HP Spectre x360 16-aa0074ng | |
Average Intel Core Ultra 7 155H (60544 - 90647, n=45) | |
Honor MagicBook Pro 16 2024 | |
MSI Prestige 16 B1MG-001US | |
LG Gram 2in1 16 16T90R - G.AA78G | |
HP Spectre x360 2-in-1 16-f1075ng |
AIDA64 / Memory Write | |
HP Spectre x360 16 RTX 4050 | |
LG Gram 2in1 16 16T90R - G.AA78G | |
MSI Prestige 16 B1MG-001US | |
Honor MagicBook Pro 16 2024 | |
HP Spectre x360 16-aa0074ng | |
Average Intel Core Ultra 7 155H (58692 - 93451, n=45) | |
HP Spectre x360 2-in-1 16-f1075ng |
AIDA64 / Memory Latency | |
Average Intel Core Ultra 7 155H (120.2 - 233, n=45) | |
Honor MagicBook Pro 16 2024 | |
HP Spectre x360 16-aa0074ng | |
HP Spectre x360 16 RTX 4050 | |
MSI Prestige 16 B1MG-001US | |
LG Gram 2in1 16 16T90R - G.AA78G | |
HP Spectre x360 2-in-1 16-f1075ng |
* ... smaller is better
DPC 延迟

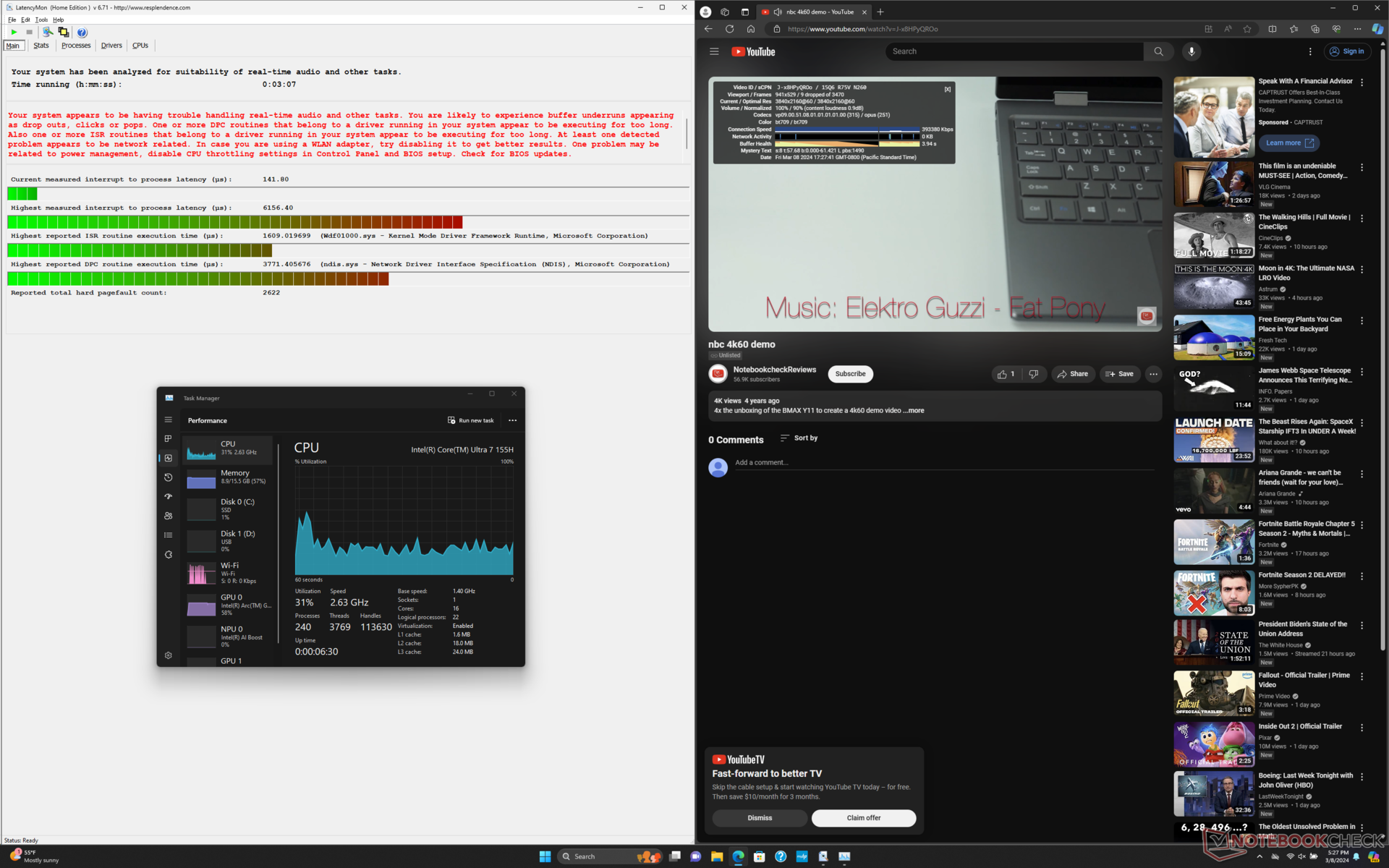

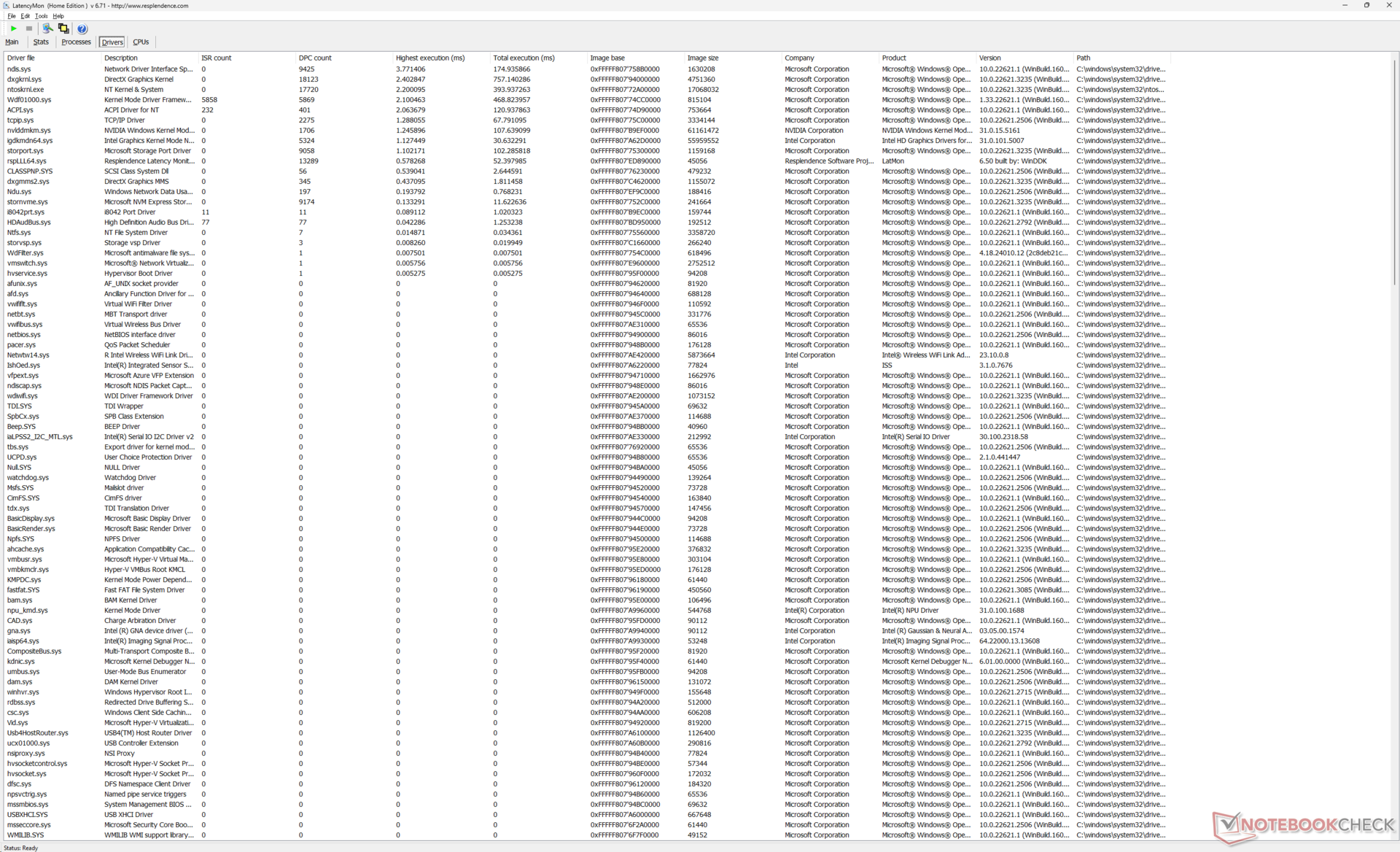

在长达一分钟的 4K60 视频测试中,LatencyMon 发现了 DPC 问题和丢帧问题。我们的 iGPU 评测设备在同一测试中也出现了丢帧现象,这表明两种配置都存在潜在的潜在问题。
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
LG Gram 2in1 16 16T90R - G.AA78G | |
HP Spectre x360 16 RTX 4050 | |
Honor MagicBook Pro 16 2024 | |
HP Spectre x360 2-in-1 16-f1075ng | |
HP Spectre x360 16-aa0074ng | |
MSI Prestige 16 B1MG-001US |
* ... smaller is better
存储设备

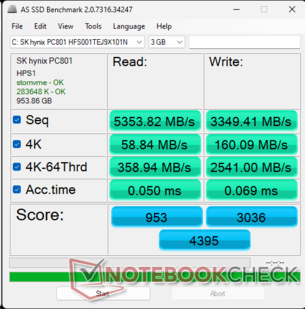

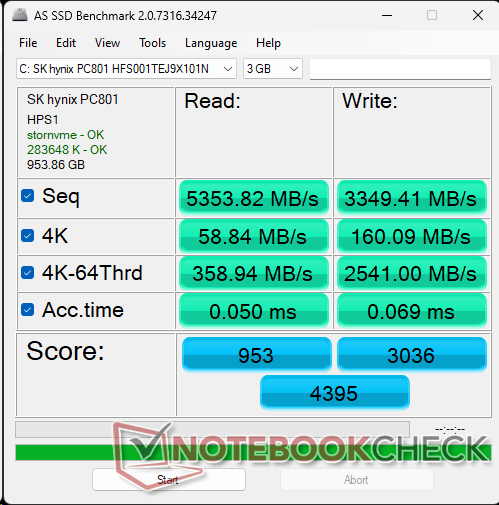

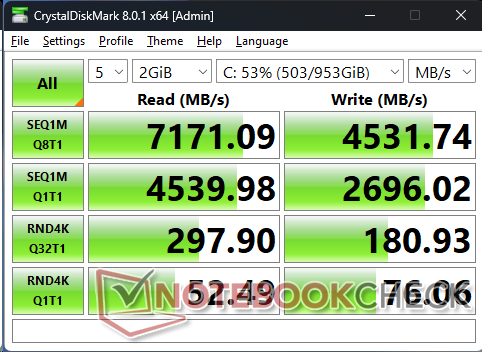

我们的特定测试装置配备了 SK Hynix PC801而不是 Kioxia XG8。不过,在循环运行 DiskSpd 时,传输速率非常出色,没有出现明显的节流问题。
* ... smaller is better
Disk Throttling: DiskSpd Read Loop, Queue Depth 8
图形处理器性能

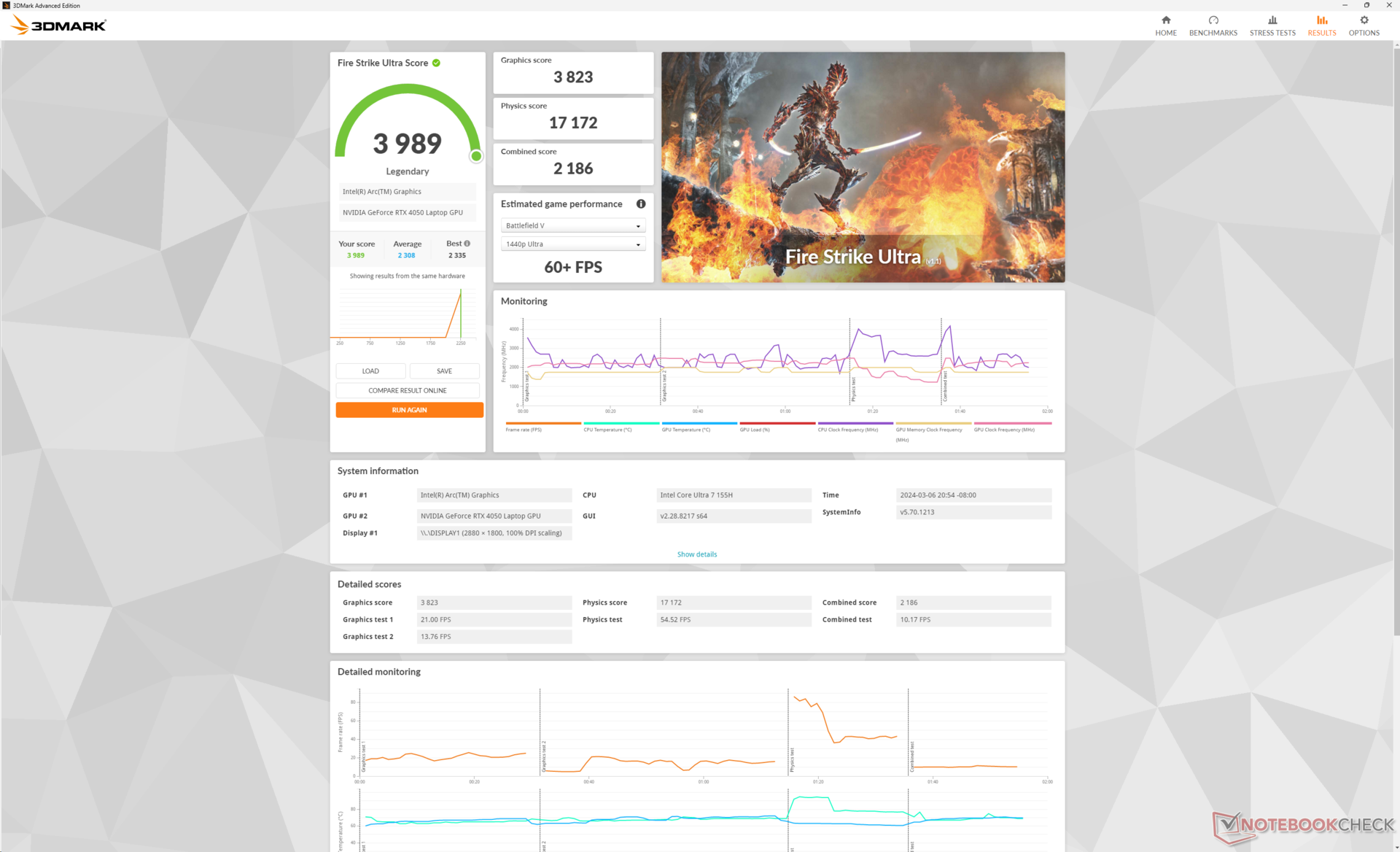

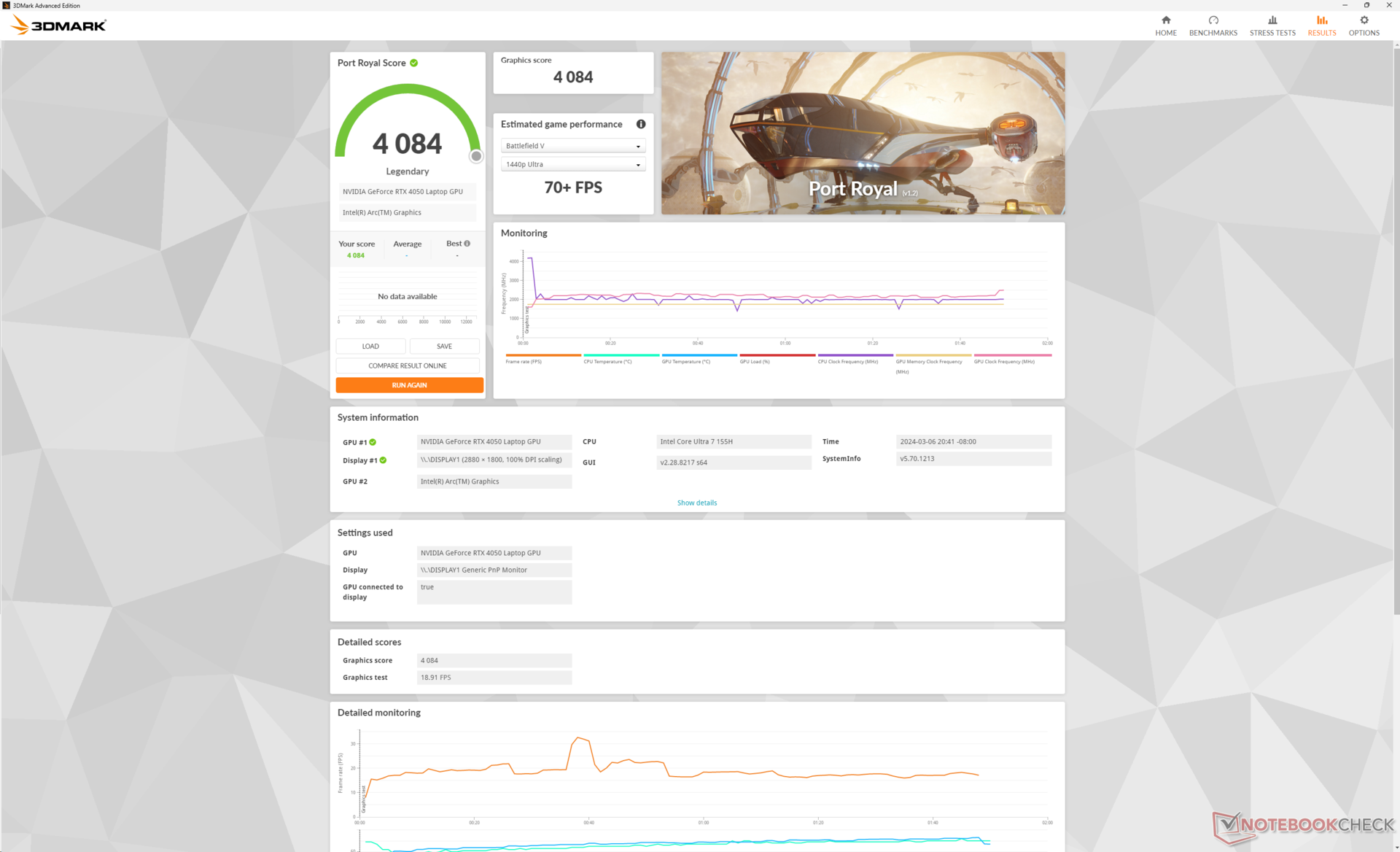

不用说,与集成的 Arc 8 配置相比,GeForce RTX 4050 的性能大幅提升。3DMark 分数大约提高了 2 倍,而 CUDA 加速则使 Blender 的渲染速度提高了近 10 倍。
不过,从采用相同 RTX 4050 GPU 的其他笔记本电脑的角度来看,Spectre x360 16 的表现并不理想。55 W 的 TGP 目标值低于竞争对手的笔记本电脑,如Acer Predator Helios Neo 16 或Victus 15 ,后者的目标值分别为 130 W 和 75 W。因此,3DMark 分数比我们数据库中采用相同GeForce RTX 4050 GPU 的普通笔记本电脑要慢 10%到 15%。
电源配置文件 | 图形分数 | 物理得分 | 综合得分 |
性能模式 | 17908 | 17248 | 7364 |
均衡模式 | 15565 (-13%) | 18672 (+8%) | 5277 (-28%) |
电池电量 | 14156 (-21%) | 21326 (+24%) | 5985 (-19%) |

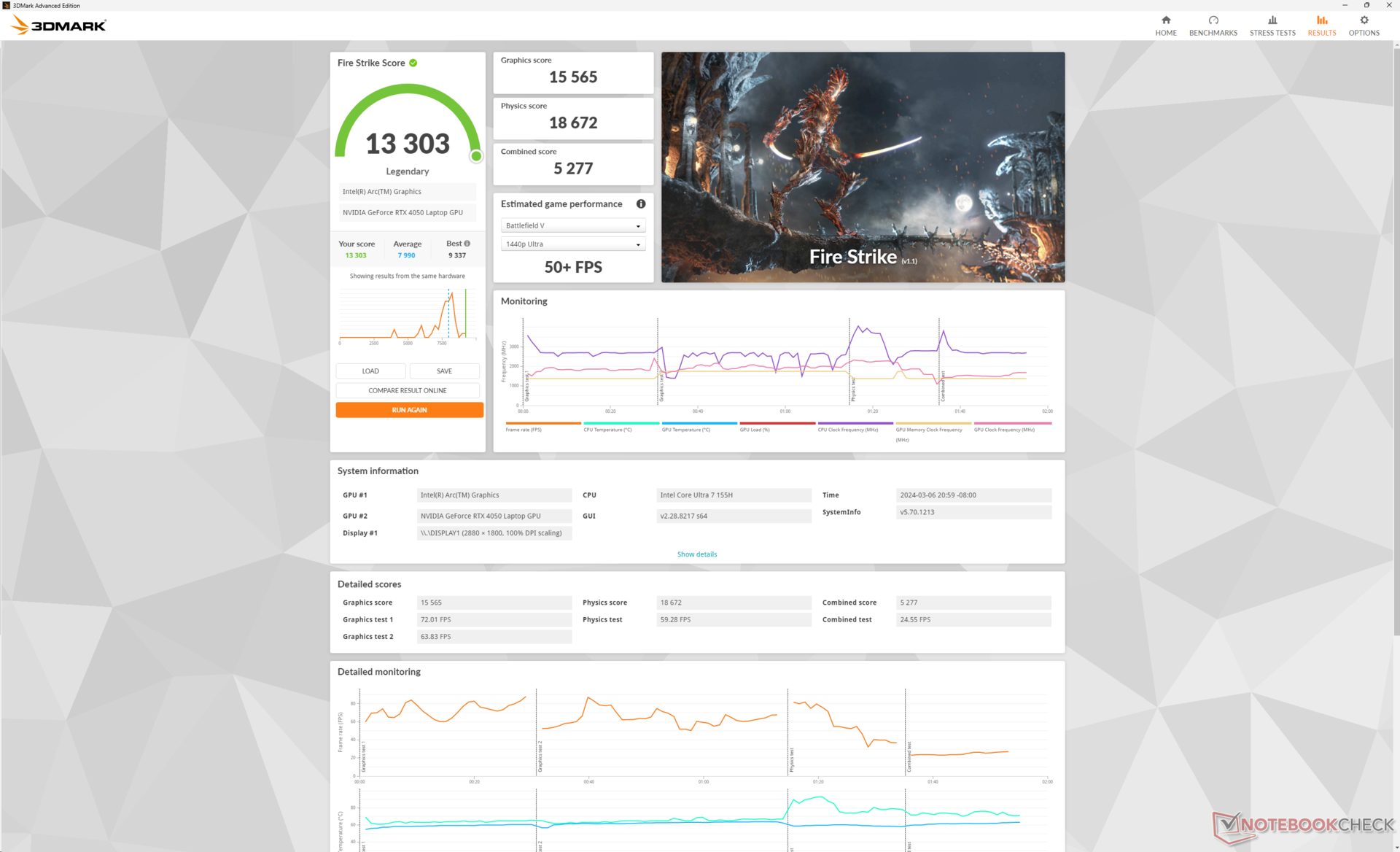

Fire Strike 如上表所示,结果并不一致。在平衡模式和电池模式下,CPU 得分会增加,而 GPU 得分则相反,即使在冷启动状态下经过多次重新测试也是如此。惠普也意识到了这个问题,并表示正在进行修复。

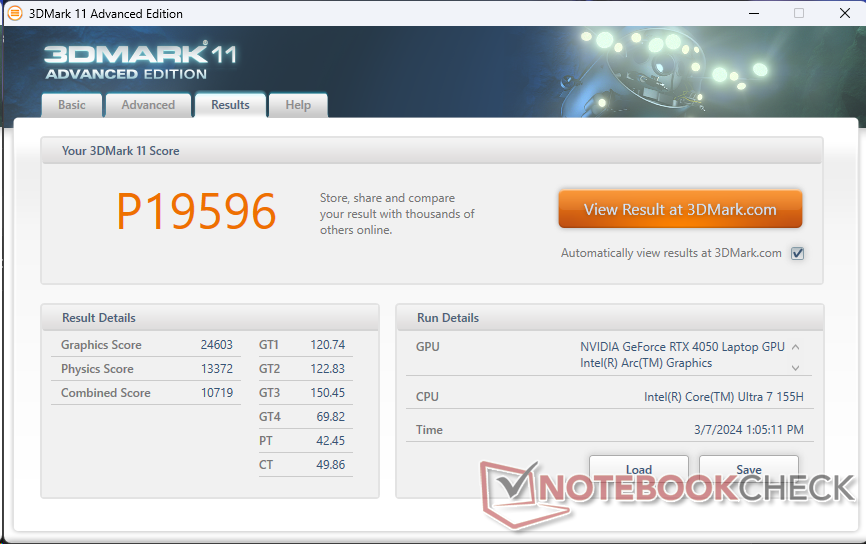

3DMark 11 Performance | 19596 points | |
3DMark Fire Strike Score | 15586 points | |

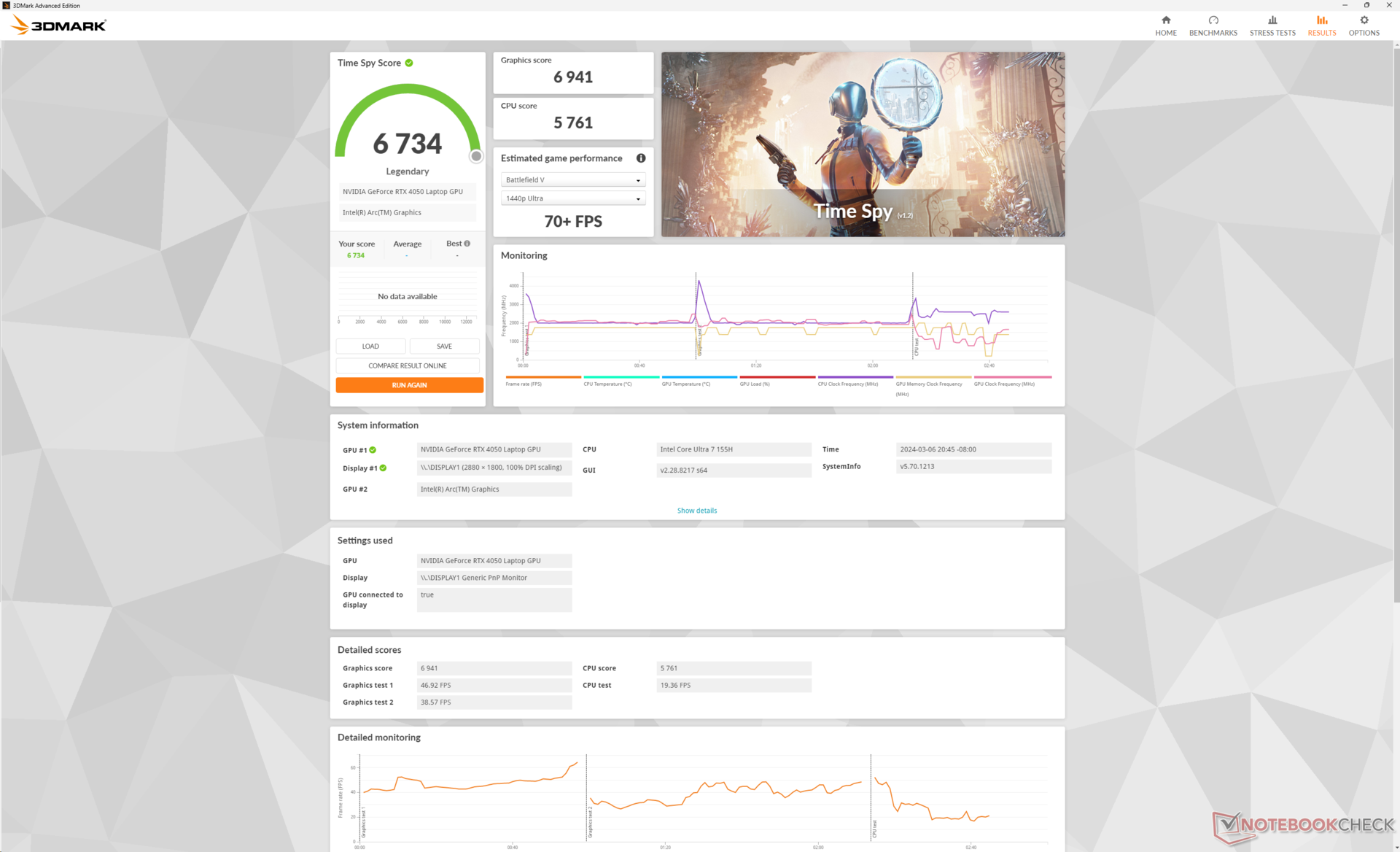

3DMark Time Spy Score | 6734 points | |
Help |
* ... smaller is better
游戏性能
GeForce RTX 4050 尽管是一款入门级 RTX GPU,但其游戏性能非常强大。像《赛博朋克 2077》这样的高要求游戏,在进行任何 DLSS 增强之前,在 1080p 超高设置下运行良好。不过,在更高分辨率下,情况会变得不稳定,这时建议降低设置以保持帧率。在原生 1800p OLED 显示屏上玩游戏时,画面非常清晰,但要做好调整大部分图形效果的准备。
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
Honor MagicBook Pro 16 2024 | |
HP Spectre x360 16 RTX 4050 | |
MSI Prestige 16 B1MG-001US | |
HP Spectre x360 16-aa0074ng | |
LG Gram 2in1 16 16T90R - G.AA78G | |
HP Spectre x360 2-in-1 16-f1075ng |
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
Honor MagicBook Pro 16 2024 | |
HP Spectre x360 16 RTX 4050 | |
HP Spectre x360 16-aa0074ng | |
LG Gram 2in1 16 16T90R - G.AA78G | |
HP Spectre x360 2-in-1 16-f1075ng |
Final Fantasy XV Benchmark - 1920x1080 High Quality | |
Honor MagicBook Pro 16 2024 | |
HP Spectre x360 16 RTX 4050 | |
MSI Prestige 16 B1MG-001US | |
HP Spectre x360 16-aa0074ng | |
LG Gram 2in1 16 16T90R - G.AA78G | |
HP Spectre x360 2-in-1 16-f1075ng |
Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
Honor MagicBook Pro 16 2024 | |
HP Spectre x360 16 RTX 4050 | |
HP Spectre x360 16-aa0074ng | |
MSI Prestige 16 B1MG-001US | |
LG Gram 2in1 16 16T90R - G.AA78G | |
HP Spectre x360 2-in-1 16-f1075ng |
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
Honor MagicBook Pro 16 2024 | |
HP Spectre x360 16 RTX 4050 | |
MSI Prestige 16 B1MG-001US | |
HP Spectre x360 16-aa0074ng | |
LG Gram 2in1 16 16T90R - G.AA78G | |
HP Spectre x360 2-in-1 16-f1075ng |
X-Plane 11.11 - 1920x1080 high (fps_test=3) | |
Honor MagicBook Pro 16 2024 | |
HP Spectre x360 16 RTX 4050 | |
HP Spectre x360 2-in-1 16-f1075ng | |
LG Gram 2in1 16 16T90R - G.AA78G | |
MSI Prestige 16 B1MG-001US | |
HP Spectre x360 16-aa0074ng |
Tiny Tina's Wonderlands | |
1920x1080 Medium Preset (DX12) | |
Average NVIDIA GeForce RTX 4050 Laptop GPU (93.4 - 149.2, n=6) | |
HP Spectre x360 16 RTX 4050 | |
Lenovo ThinkPad E16 G1 Core i5-1335U | |
1920x1080 High Preset (DX12) | |
Average NVIDIA GeForce RTX 4050 Laptop GPU (63.3 - 99.5, n=6) | |
HP Spectre x360 16 RTX 4050 | |
Lenovo ThinkPad E16 G1 Core i5-1335U | |
1920x1080 Badass Preset (DX12) | |
Average NVIDIA GeForce RTX 4050 Laptop GPU (49.8 - 77.3, n=6) | |
HP Spectre x360 16 RTX 4050 | |
Lenovo ThinkPad E16 G1 Core i5-1335U | |
2560x1440 Badass Preset (DX12) | |
Average NVIDIA GeForce RTX 4050 Laptop GPU (33.6 - 49.5, n=4) | |
HP Spectre x360 16 RTX 4050 |
Baldur's Gate 3 | |
1920x1080 Medium Preset | |
Average NVIDIA GeForce RTX 4050 Laptop GPU (56 - 91.9, n=7) | |
HP Spectre x360 16 RTX 4050 | |
1920x1080 High Preset | |
Average NVIDIA GeForce RTX 4050 Laptop GPU (49.8 - 83.5, n=7) | |
HP Spectre x360 16 RTX 4050 | |
1920x1080 Ultra Preset | |
Average NVIDIA GeForce RTX 4050 Laptop GPU (48.3 - 81.3, n=7) | |
HP Spectre x360 16 RTX 4050 | |
2560x1440 Ultra Preset | |
Average NVIDIA GeForce RTX 4050 Laptop GPU (32.4 - 55, n=5) | |
HP Spectre x360 16 RTX 4050 |
Witcher 3 FPS Chart
low | med. | high | ultra | QHD | |
---|---|---|---|---|---|
GTA V (2015) | 171.3 | 162.2 | 135.3 | 76.7 | 57.3 |
The Witcher 3 (2015) | 299 | 209.6 | 120.1 | 62.7 | |
Dota 2 Reborn (2015) | 142 | 124.2 | 119.6 | 106.4 | |
Final Fantasy XV Benchmark (2018) | 132.7 | 94.5 | 68.6 | 49.6 | |
X-Plane 11.11 (2018) | 100.6 | 86.7 | 69.7 | ||
Far Cry 5 (2018) | 97 | 93 | 95 | 87 | 64 |
Strange Brigade (2018) | 299 | 171.1 | 137.4 | 121.3 | 81.2 |
Tiny Tina's Wonderlands (2022) | 135.1 | 113.4 | 75.4 | 59.1 | 40.4 |
F1 22 (2022) | 159.4 | 146.6 | 124.6 | 42 | 26.9 |
Baldur's Gate 3 (2023) | 84.9 | 71.4 | 64 | 63.1 | 42.5 |
Cyberpunk 2077 2.1 Phantom Liberty (2023) | 79.3 | 63.3 | 53.5 | 46 | 27.5 |
排放 - 最安静的 16 英寸敞篷车之一

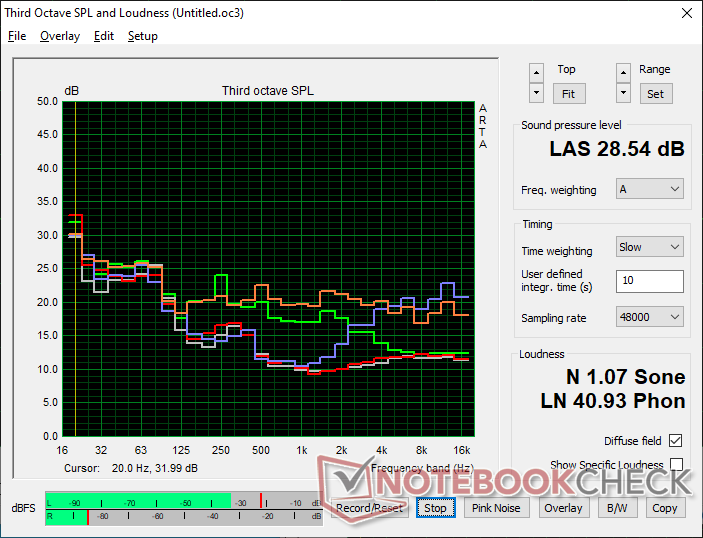

系统噪音
风扇噪音仅略高于 iGPU 配置,而 iGPU 配置本来就非常安静。在性能模式下进行游戏时,我们只能记录到最大 32 分贝(A)的噪音,而 iGPU 版本为 29 分贝(A),去年的 Spectre x360 1660 则为 39 分贝(A)。 去年的 Spectre x360 16设计
Noise Level
Idle |
| 23.6 / 23.6 / 23.6 dB(A) |
Load |
| 29.2 / 32.1 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 23.3 dB(A) |
HP Spectre x360 16 RTX 4050 NVIDIA GeForce RTX 4050 Laptop GPU, Ultra 7 155H, SK hynix PC801 HFS001TEJ9X101N | HP Spectre x360 16-aa0074ng Arc 8-Core, Ultra 7 155H, Kioxia XG8 KXG80ZNV1T02 | HP Spectre x360 2-in-1 16-f1075ng Iris Xe G7 96EUs, i7-12700H, SK Hynix PC711 1TB HFS001TDE9X073N | Honor MagicBook Pro 16 2024 NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, WD PC SN740 SDDPNQD-1T00 | MSI Prestige 16 B1MG-001US Arc 8-Core, Ultra 7 155H, Samsung PM9A1 MZVL22T0HBLB | LG Gram 2in1 16 16T90R - G.AA78G Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL21T0HCLR | |
---|---|---|---|---|---|---|
Noise | 8% | -21% | -13% | -24% | -12% | |
off / environment * | 23.3 | 23 1% | 26 -12% | 24 -3% | 24.5 -5% | 25.1 -8% |
Idle Minimum * | 23.6 | 23 3% | 26 -10% | 24 -2% | 24.5 -4% | 25.1 -6% |
Idle Average * | 23.6 | 23 3% | 26 -10% | 24 -2% | 26.3 -11% | 25.1 -6% |
Idle Maximum * | 23.6 | 23 3% | 26 -10% | 27.2 -15% | 26.3 -11% | 26.1 -11% |
Load Average * | 29.2 | 23 21% | 42.9 -47% | 29 1% | 36.5 -25% | 31.4 -8% |
Witcher 3 ultra * | 32.1 | 27 16% | 42.9 -34% | 42.1 -31% | 46.3 -44% | 41.1 -28% |
Load Maximum * | 32.1 | 28.62 11% | 39.1 -22% | 45 -40% | 52.9 -65% | 36.6 -14% |
* ... smaller is better
温度

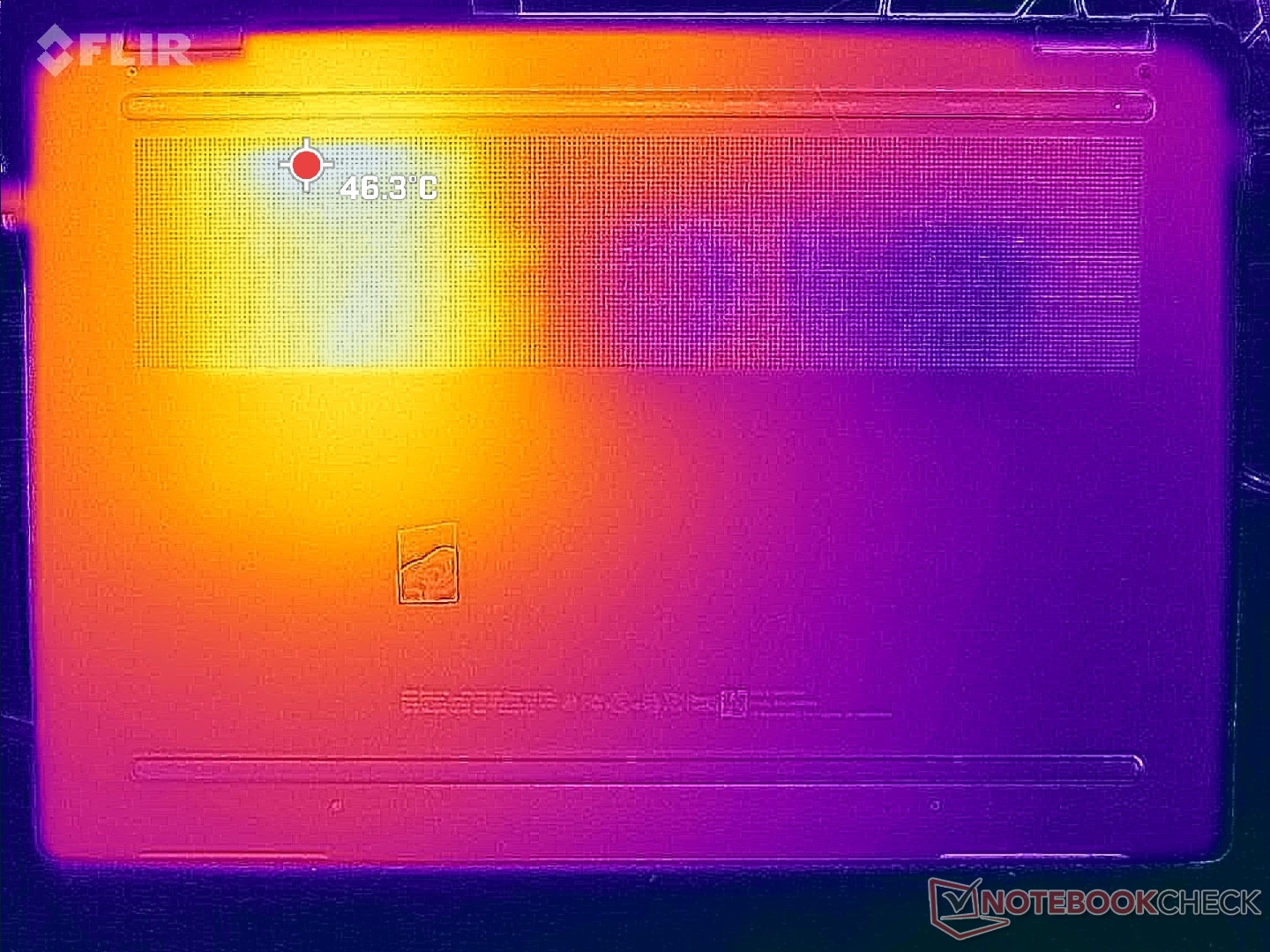

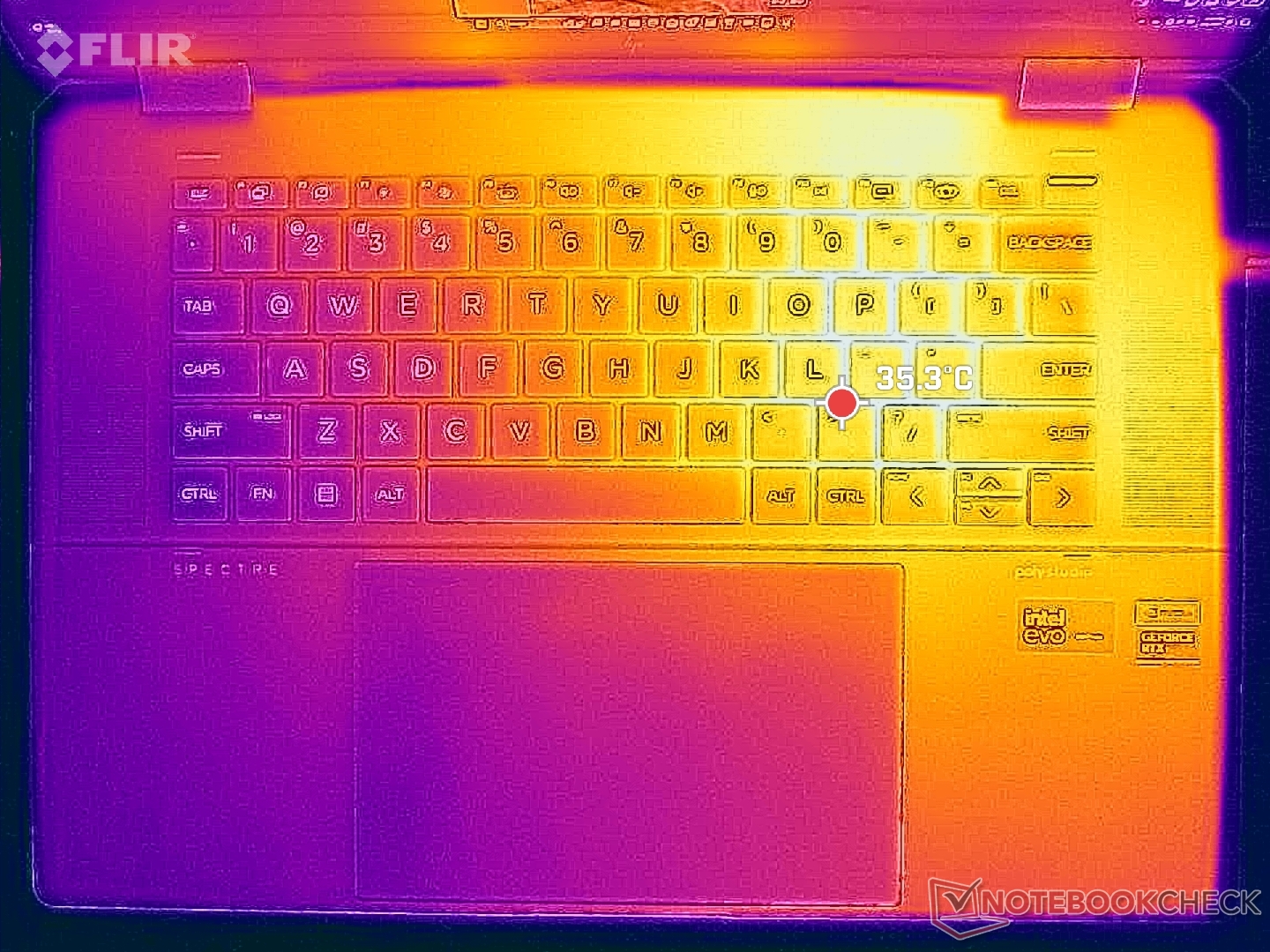

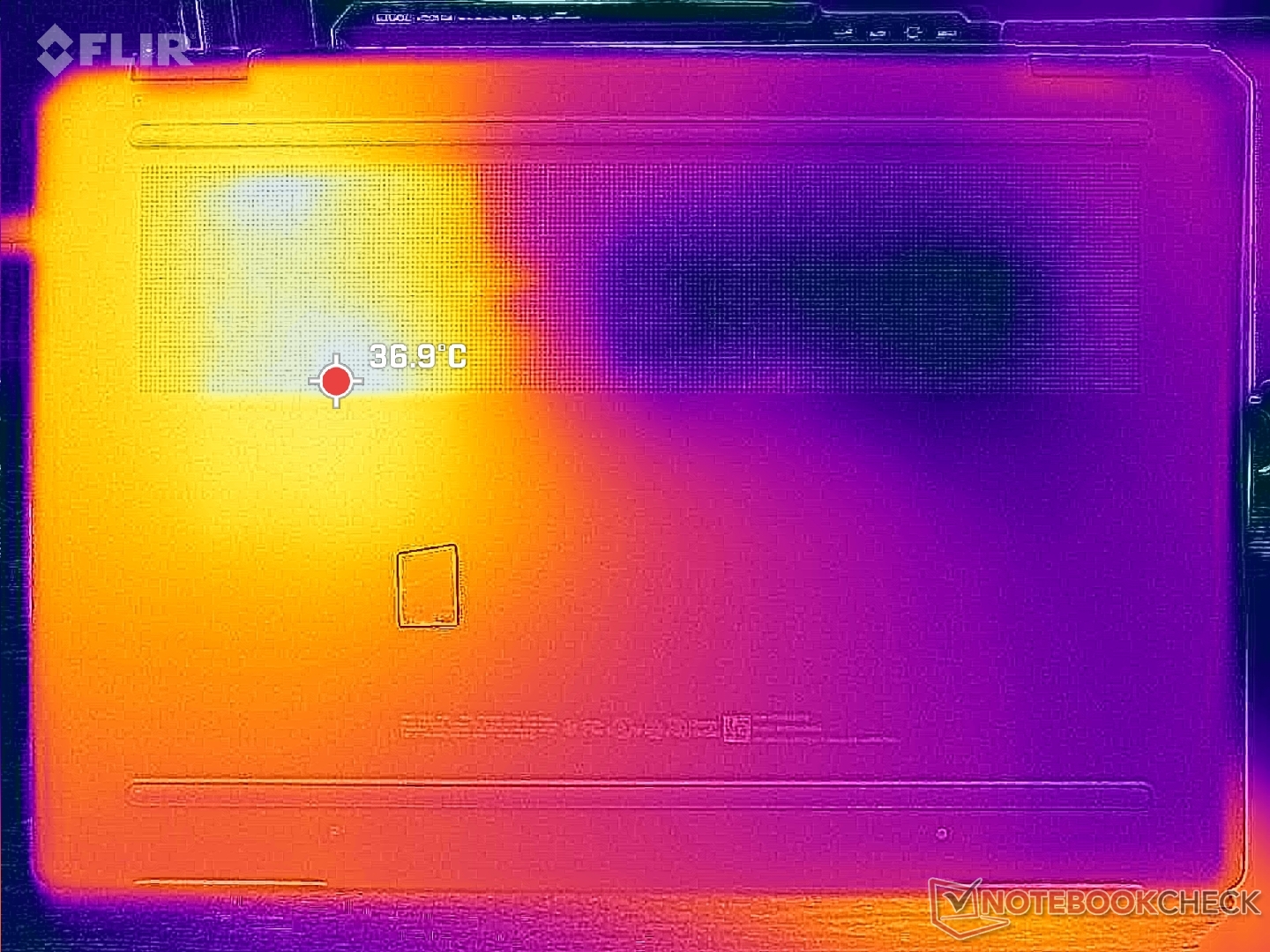

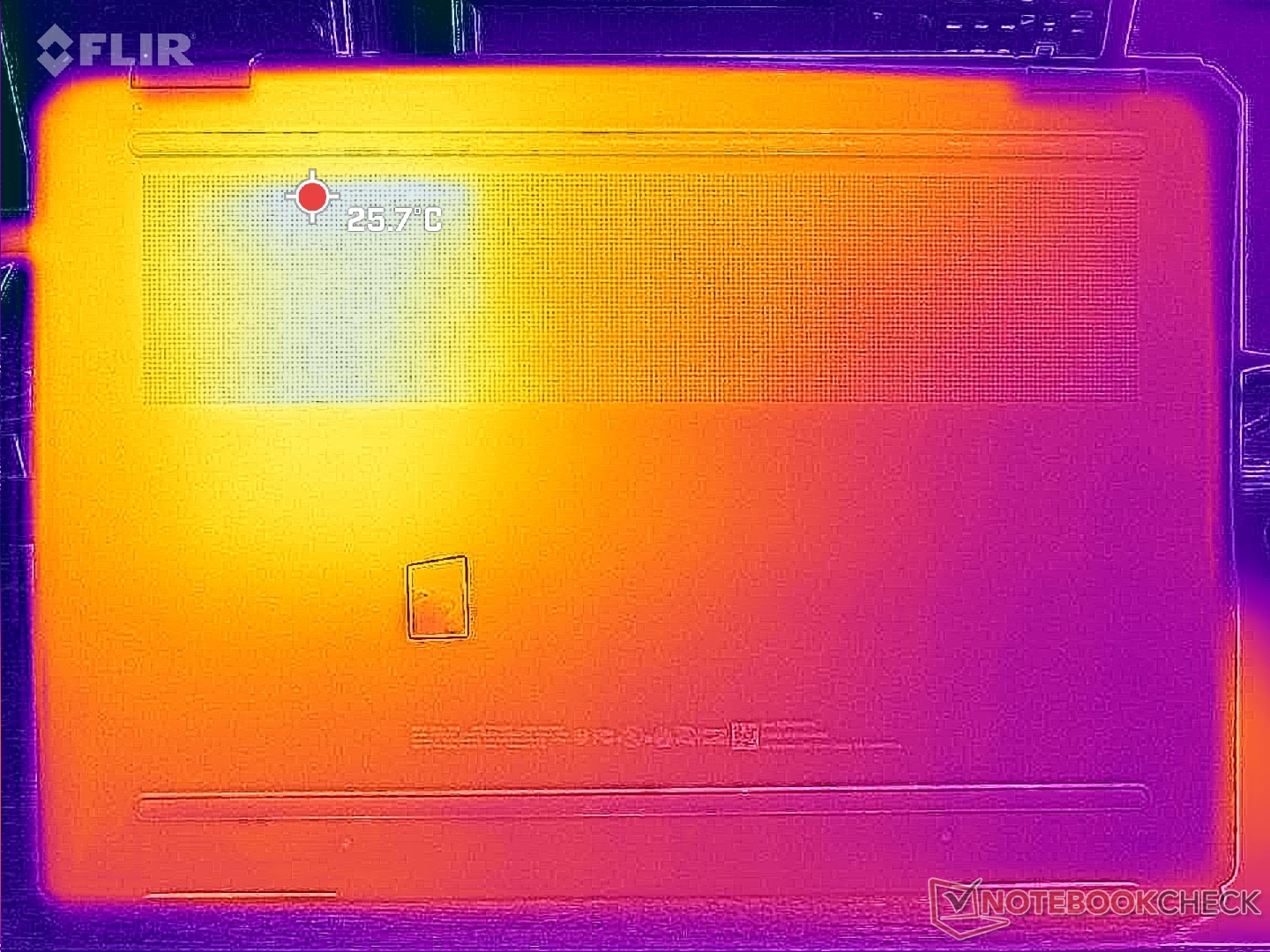

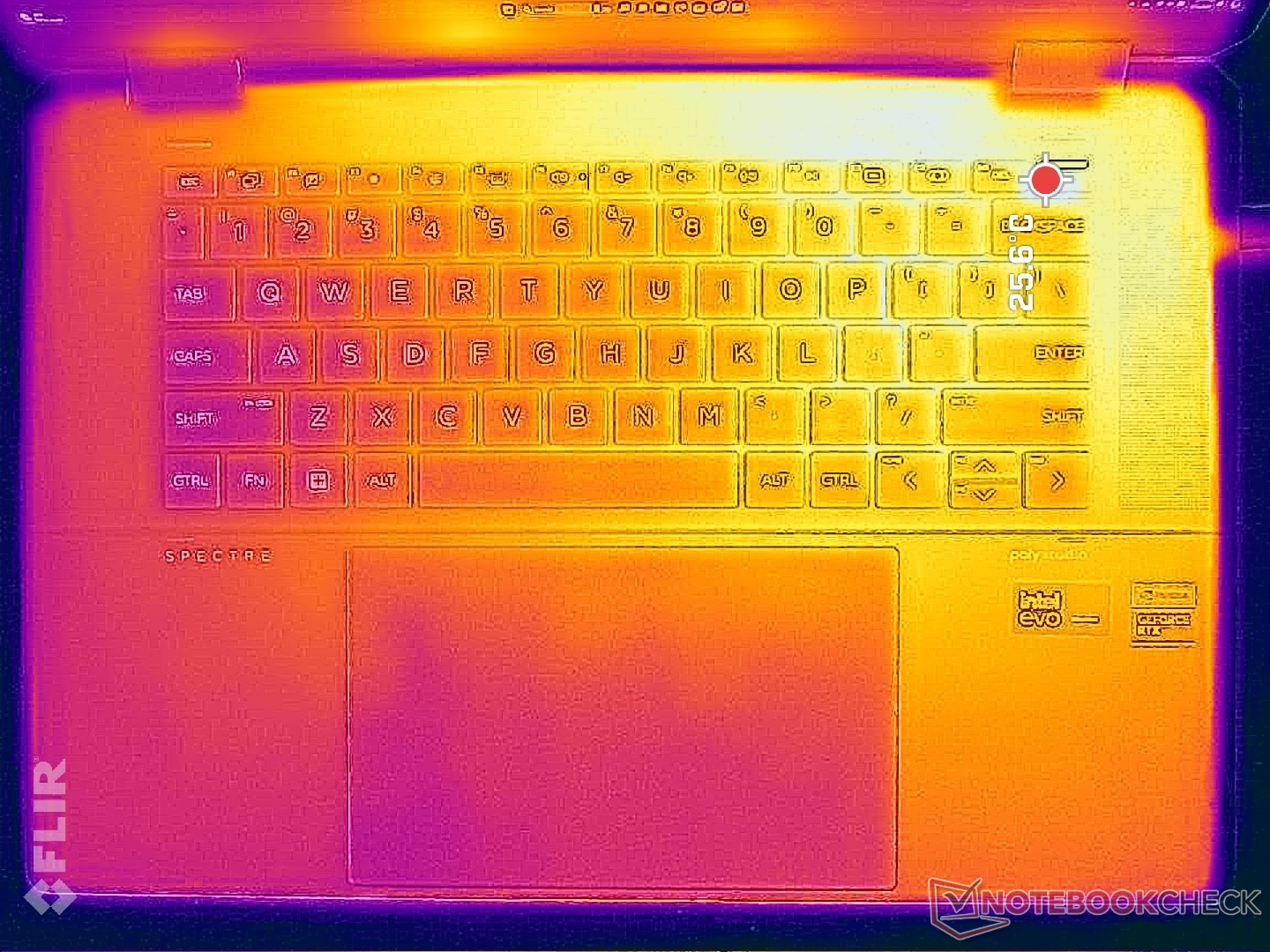

正如下面的温度图所示,由于散热解决方案的设计,笔记本电脑右半部分的表面温度要比左半部分高得多。我们的 dGPU 版本的热点温度要高于 iGPU 版本。 Witcher 3分别高达 40 摄氏度和 46 摄氏度,而 iGPU 版本仅为 35 摄氏度和 40 摄氏度。
(+) The maximum temperature on the upper side is 39.6 °C / 103 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(+) The bottom heats up to a maximum of 39.2 °C / 103 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.1 °C / 79 F, compared to the device average of 30.3 °C / 87 F.
(+) Playing The Witcher 3, the average temperature for the upper side is 31.6 °C / 89 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32.2 °C / 90 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-4.1 °C / -7.4 F).
HP Spectre x360 16 RTX 4050 Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4050 Laptop GPU | HP Spectre x360 16-aa0074ng Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU | HP Spectre x360 2-in-1 16-f1075ng Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs | Honor MagicBook Pro 16 2024 Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU | MSI Prestige 16 B1MG-001US Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU | LG Gram 2in1 16 16T90R - G.AA78G Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs | |
---|---|---|---|---|---|---|
Heat | -1% | 8% | 9% | -1% | -24% | |
Maximum Upper Side * | 39.6 | 37 7% | 37.4 6% | 39.7 -0% | 48.8 -23% | 55 -39% |
Maximum Bottom * | 39.2 | 44 -12% | 39.1 -0% | 42.9 -9% | 47.6 -21% | 55.4 -41% |
Idle Upper Side * | 29 | 31 -7% | 27.1 7% | 23.7 18% | 24.2 17% | 34.9 -20% |
Idle Bottom * | 31.6 | 29 8% | 26.3 17% | 23.5 26% | 23.6 25% | 30 5% |
* ... smaller is better
发言人

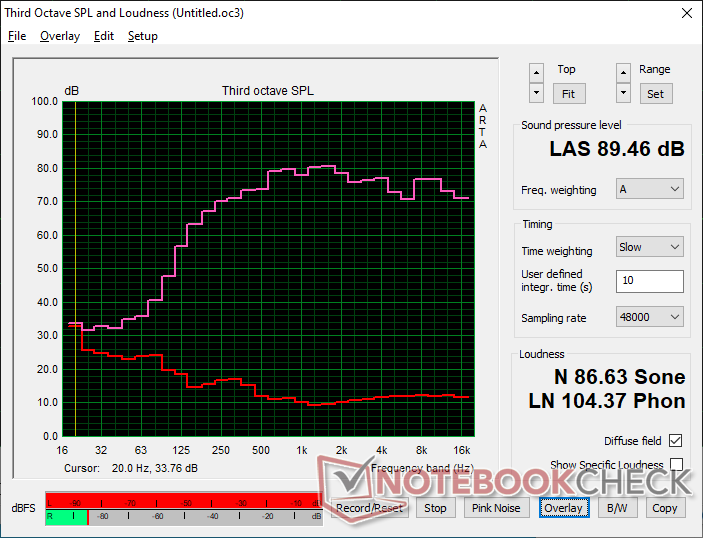

HP Spectre x360 16 RTX 4050 audio analysis
(+) | speakers can play relatively loud (89.5 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.2% lower than median
(±) | linearity of bass is average (7.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.2% away from median
(+) | mids are linear (3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.6% away from median
(+) | highs are linear (3.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.2% difference to median)
Compared to same class
» 4% of all tested devices in this class were better, 1% similar, 95% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 3% of all tested devices were better, 1% similar, 97% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Apple MacBook Pro 16 2021 M1 Pro audio analysis
(+) | speakers can play relatively loud (84.7 dB)
Bass 100 - 315 Hz
(+) | good bass - only 3.8% away from median
(+) | bass is linear (5.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (2.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (4.6% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 100% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 4%, average was 25%, worst was 134%
能源管理
耗电量
运行 Witcher 3性能模式下的功耗约为 93 瓦,几乎是 iGPU 配置的 2 倍。使用 Nvidia GPU 的帧速率要快 2 到 3 倍,因此从每瓦特性能的角度来看,较高的功耗需求还是值得的。
在平衡模式而非性能模式下重复上述测试,功耗将降至 75 W。如果你想让系统发挥最大效能,请务必通过 MyHP 启用性能模式。
当 CPU 和 GPU 的使用率均为 100% 时,我们可以记录到中小型(约 13.8 x 6.5 x 2.9 厘米)140 W USB-C 交流适配器的临时最大功耗为 121 W。充电速度不会受到明显影响,因为如上所述,性能节流很快就会启动,将功耗降至 70 W 左右。请注意,iGPU 配置配备的是一个较小的 100 W USB-C 适配器。
(编者注:当我们的 Metrahit Energy 万用表维修完成后,我们将更新本节内容。不便之处,敬请谅解。)
Off / Standby | 0.29 / 2.7 Watt |
Idle | 5.8 / 12.3 / 33.9 Watt |
Load |
83.3 / 120.8 Watt |
Key:
min: ,
med: ,
max: Metrahit Energy |
HP Spectre x360 16 RTX 4050 Ultra 7 155H, NVIDIA GeForce RTX 4050 Laptop GPU, SK hynix PC801 HFS001TEJ9X101N, OLED, 2880x1800, 16" | HP Spectre x360 16-aa0074ng Ultra 7 155H, Arc 8-Core, Kioxia XG8 KXG80ZNV1T02, OLED, 2880x1800, 16" | HP Spectre x360 2-in-1 16-f1075ng i7-12700H, Iris Xe G7 96EUs, SK Hynix PC711 1TB HFS001TDE9X073N, IPS, 3072x1920, 16" | Honor MagicBook Pro 16 2024 Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU, WD PC SN740 SDDPNQD-1T00, IPS, 3072x1920, 16" | MSI Prestige 16 B1MG-001US Ultra 7 155H, Arc 8-Core, Samsung PM9A1 MZVL22T0HBLB, IPS, 2560x1600, 16" | LG Gram 2in1 16 16T90R - G.AA78G i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL21T0HCLR, IPS, 2560x1600, 16" | |
---|---|---|---|---|---|---|
Power Consumption | 48% | 26% | -10% | 33% | 39% | |
Idle Minimum * | 5.8 | 4.1 29% | 9 -55% | 5.2 10% | 3 48% | 5.5 5% |
Idle Average * | 12.3 | 4.5 63% | 11.1 10% | 14.4 -17% | 9.5 23% | 7.2 41% |
Idle Maximum * | 33.9 | 5.9 83% | 16.4 52% | 15.4 55% | 12 65% | 12.9 62% |
Load Average * | 83.3 | 51.2 39% | 38.3 54% | 105.4 -27% | 68.3 18% | 55 34% |
Witcher 3 ultra * | 89.1 | 47.6 47% | 34.4 61% | 107.6 -21% | 59.8 33% | 47 47% |
Load Maximum * | 120.8 | 90.4 25% | 82.5 32% | 195.2 -62% | 104.8 13% | 63.6 47% |
* ... smaller is better
Power Consumption Witcher 3 / Stresstest
Power Consumption external Monitor
电池寿命
电池续航时间比 iGPU 配置的短是意料之中的,但差异之小令人吃惊。在平衡配置下,我们的实际浏览时间为 11 小时,比 iGPU 设备少了约一个小时。选择 IPS 配置可能会延长运行时间。
HP Spectre x360 16 RTX 4050 Ultra 7 155H, NVIDIA GeForce RTX 4050 Laptop GPU, 83 Wh | HP Spectre x360 16-aa0074ng Ultra 7 155H, Arc 8-Core, 83 Wh | HP Spectre x360 2-in-1 16-f1075ng i7-12700H, Iris Xe G7 96EUs, 83 Wh | Honor MagicBook Pro 16 2024 Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU, 75 Wh | MSI Prestige 16 B1MG-001US Ultra 7 155H, Arc 8-Core, 99.9 Wh | LG Gram 2in1 16 16T90R - G.AA78G i7-1360P, Iris Xe G7 96EUs, 80 Wh | |
---|---|---|---|---|---|---|
Battery Runtime | 9% | -5% | 11% | 67% | 8% | |
WiFi v1.3 | 660 | 717 9% | 630 -5% | 734 11% | 1100 67% | 716 8% |
H.264 | 862 | 671 | 784 | |||
Load | 139 | 95 | 58 | 166 | 121 | |
Reader / Idle | 1233 | 1506 |
Pros
Cons
结论 - 功能多样,但性能略有下降
惠普 Spectre x360 16 是市场上最安静、最便携的 16 英寸可折叠笔记本电脑之一,配备GeForce RTX 4050 独立显卡。该系统专为移动电源用户设计,他们还可以利用二合一外形和 OLED 触摸屏的深 P3 色彩。从这个角度来看,这款机型是成功的。
由于设计轻薄,因此必须在性能上做出妥协。特别是,55 W RTX 4050 GPU 的速度明显低于大多数配备相同显卡的笔记本电脑。当然,就尺寸而言,Spectre x360 16 的速度仍然很快,但由于其 TGP 目标值较低,GeForce GPU 的性能肯定处于较低水平。如果用户希望最大限度地提高性能,或觉得二合一外形不实用,不妨考虑一下 微星威望 16或 Honor MagicBook Pro 16它们可以配置比惠普更高端的 RTX 显卡,同时保留了类似的轻薄设计理念。
Spectre x360 16 是一款高端且做工精良的 16 英寸可折叠电脑。性能总体上非常出色,但如果你愿意放弃二合一设计,肯定还有更快的替代品。
我们还必须提到,在撰写本文时,dGPU 配置的 CPU 性能低于预期。惠普表示正在进行热修复,我们将在修复上线后更新 CPU 部分。除此之外,GPU 的性能似乎正常。
价格和供应情况
惠普现已出货Spectre x360 16 2 合 1 机型,配备GeForce RTX 4050 显卡,IPS 触摸屏起价 1440 美元,OLED 触摸屏起价 1600 美元。
HP Spectre x360 16 RTX 4050
- 03/13/2024 v7 (old)
Allen Ngo
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
