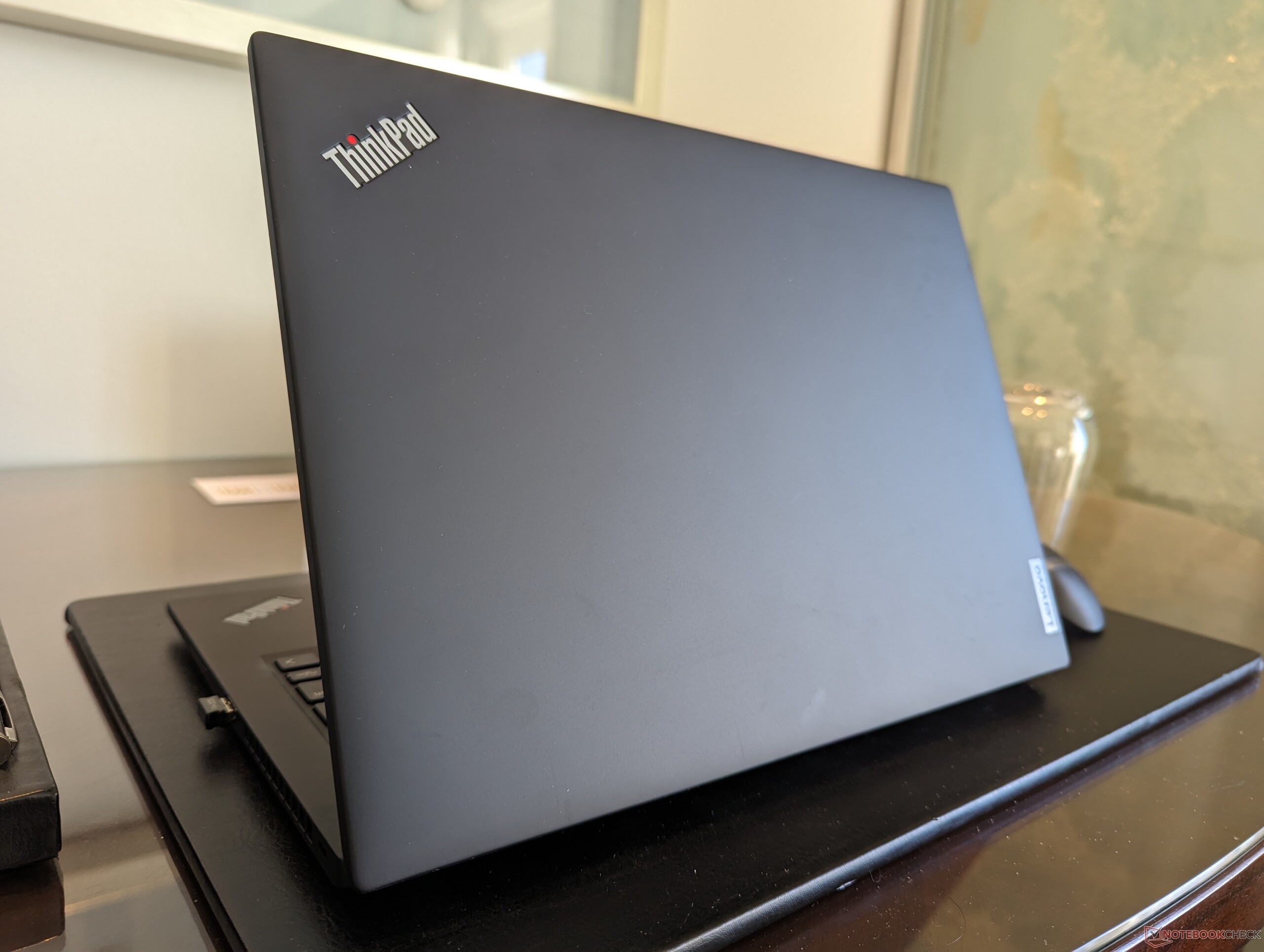

联想 ThinkPad T14s G4 酷睿 i7 笔记本电脑评测:与 AMD Ryzen 7 的艰苦较量
久负盛名的 ThinkPad T14s 系列今年又回来了,其 SKU 种类繁多,包括英特尔、AMD、IPS 和 OLED 等多种选择。我们已经评测过 AMD和 OLED系统,因此现在是检验英特尔 IPS 配置的最佳时机,看看它的比较结果如何。

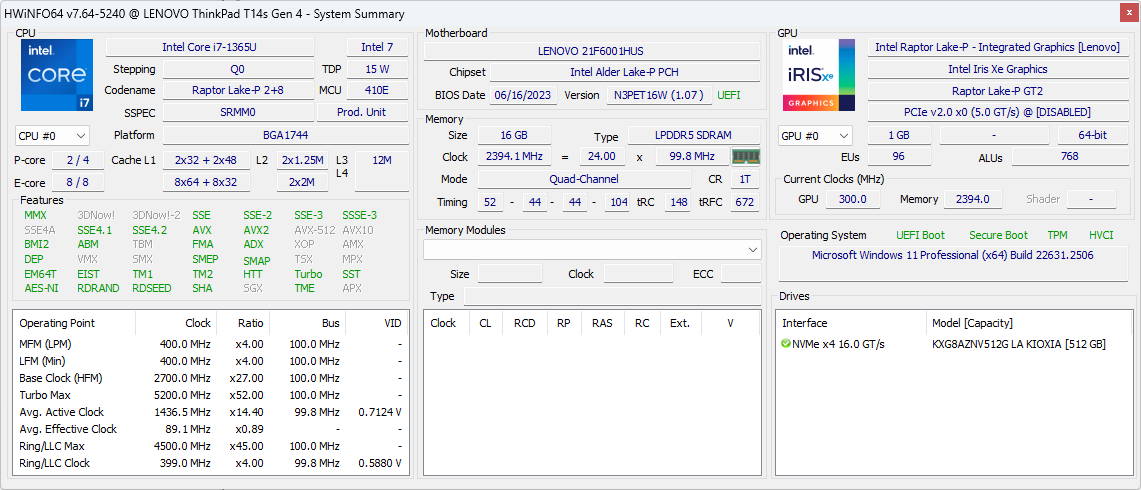

我们的测试机配备了酷睿 i7-1365U vPro 和 1200p IPS 显示屏,售价约为 1400 美元。这是较实惠的配置之一,因为它不包括一些奢侈品,如广域网、智能卡和 500 万像素网络摄像头。
ThinkPad T14s 与其他 14 英寸商务笔记本竞争,如戴尔Latitude 7440,惠普 EliteBook 845 G10或 华硕 ExpertBook B9.
更多联想评论:
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
---|---|---|---|---|---|---|---|
88.9 % v7 (old) | 11 / 2023 | Lenovo ThinkPad T14s G4 i7-1365U i7-1365U, Iris Xe G7 96EUs | 1.4 kg | 16.9 mm | 14.00" | 1920x1200 | |
90.4 % v7 (old) | 11 / 2023 | Lenovo ThinkPad T14s G4-21F8002TGE R7 7840U, Radeon 780M | 1.4 kg | 16.9 mm | 14.00" | 1920x1200 | |
88.5 % v7 (old) | 09 / 2023 | Lenovo ThinkPad T14 G4 21HD0043GE i5-1335U, Iris Xe G7 80EUs | 1.4 kg | 17.9 mm | 14.00" | 1920x1200 | |
90.5 % v7 (old) | 09 / 2023 | HP EliteBook 845 G10 5Z4X0ES R7 7840U, Radeon 780M | 1.5 kg | 17.9 mm | 14.00" | 1920x1200 | |
90.3 % v7 (old) | 07 / 2023 | Dell Latitude 7440 i5-1345U, Iris Xe G7 80EUs | 1.2 kg | 17.95 mm | 14.00" | 2560x1600 | |
91.5 % v7 (old) | 11 / 2023 | Asus ExpertBook B9 B9403CVA-KM0153X i7-1355U, Iris Xe G7 96EUs | 1 kg | 17.6 mm | 14.00" | 2880x1800 |
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名
案例
要区分英特尔配置和 AMD 配置,除了它们的贴纸徽标外,还有一个简单的方法,那就是寻找 USB-C 端口旁边的 Thunderbolt 图标。除此之外,英特尔和 AMD 配置的机箱设计相同,没有其他视觉差异。
交流
与 Wi-Fi 6E(6 GHz)网络配对时,无线局域网性能稳定而出色。如下图所示,Wi-Fi 6(5 GHz)的性能稍显不稳定,但它仍然是可靠和完全可用的。
网络摄像头

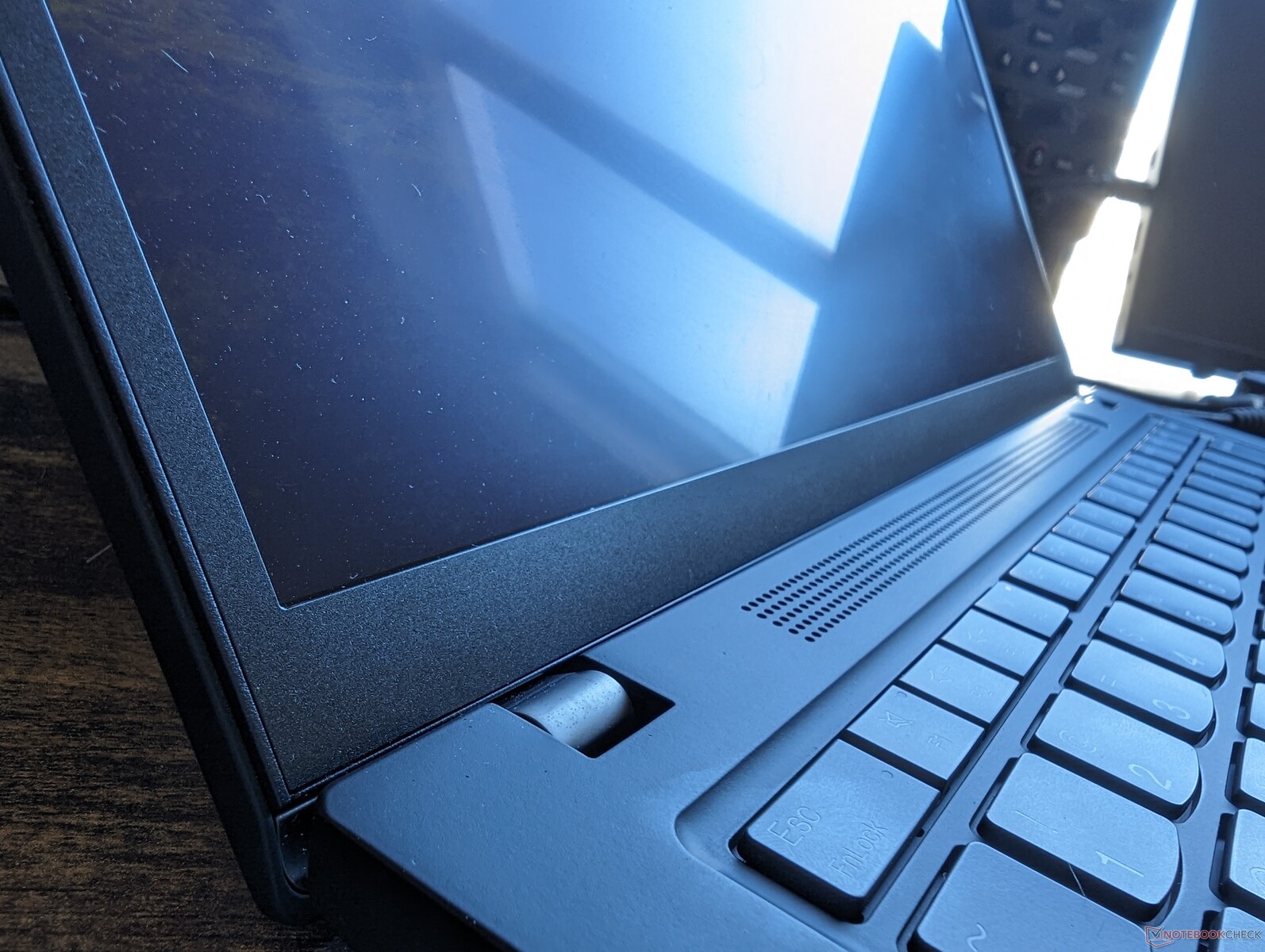

我们的测试机配置的是 200 万像素网络摄像头,而不是 AMD 设备上的 500 万像素。红外摄像头是可选配置,而隐私滑块则是标配。

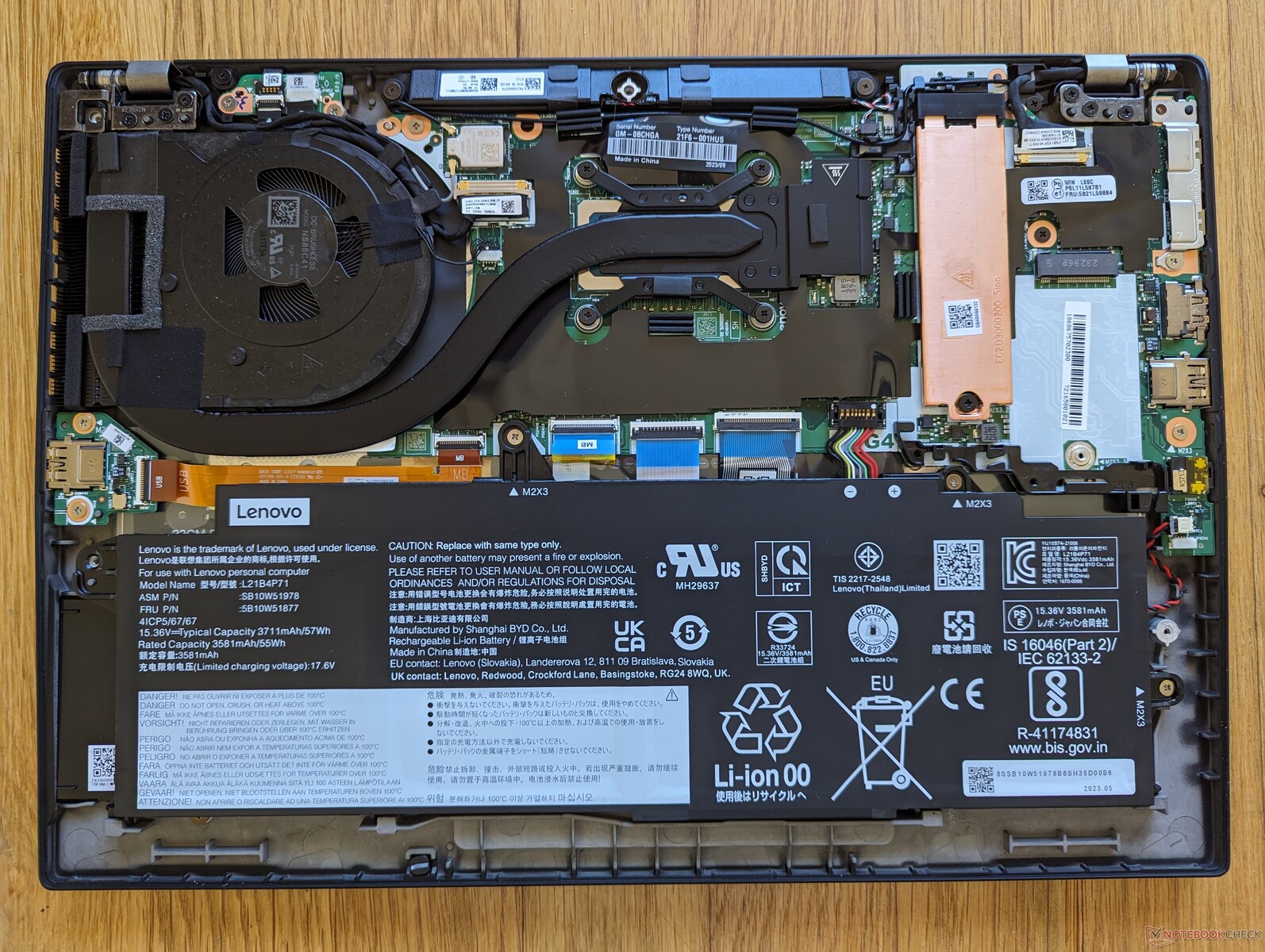

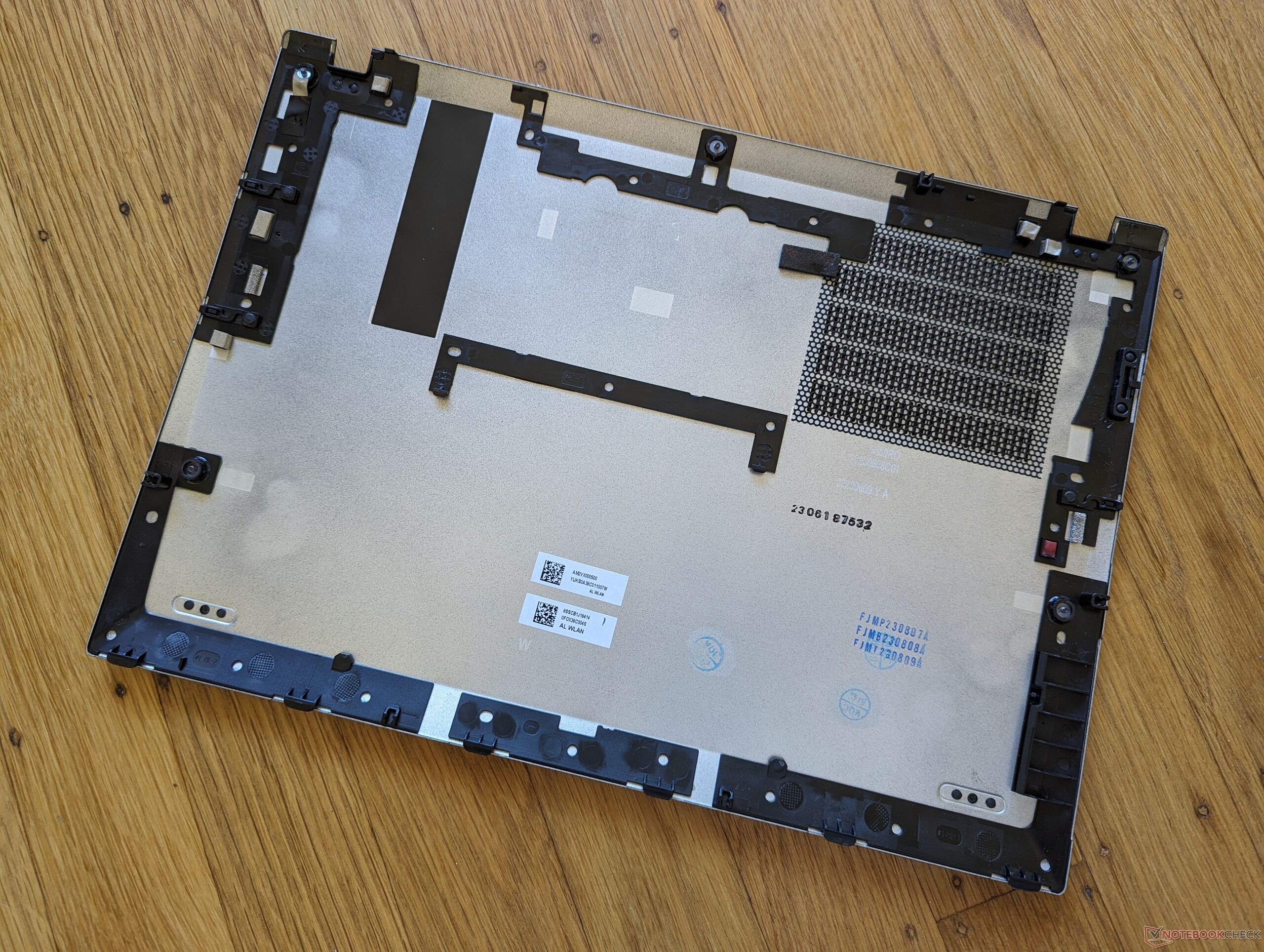

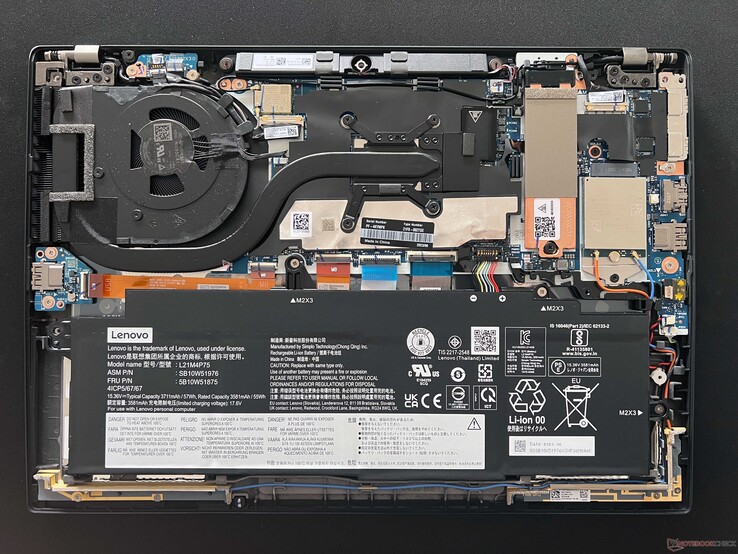

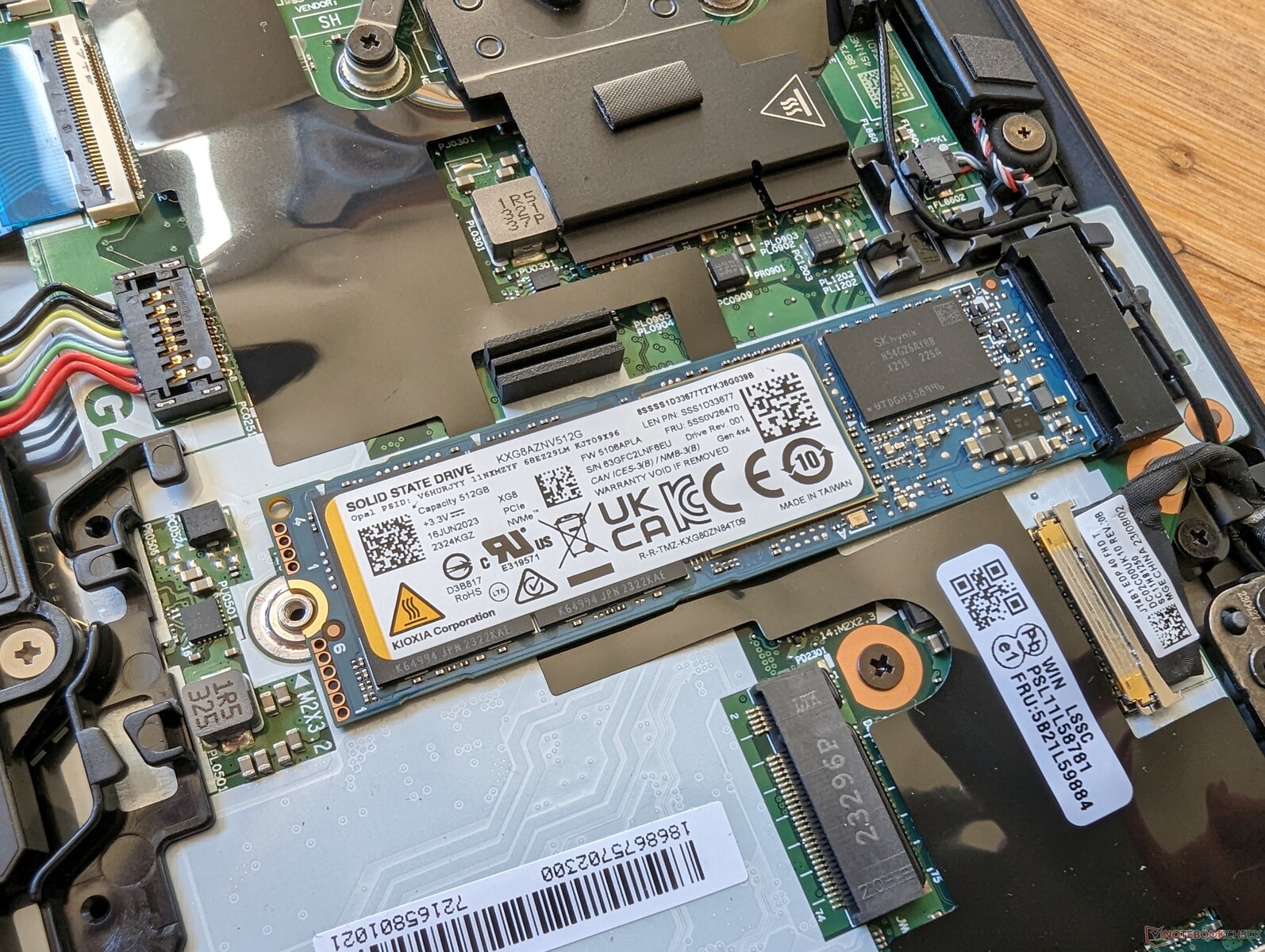

维护

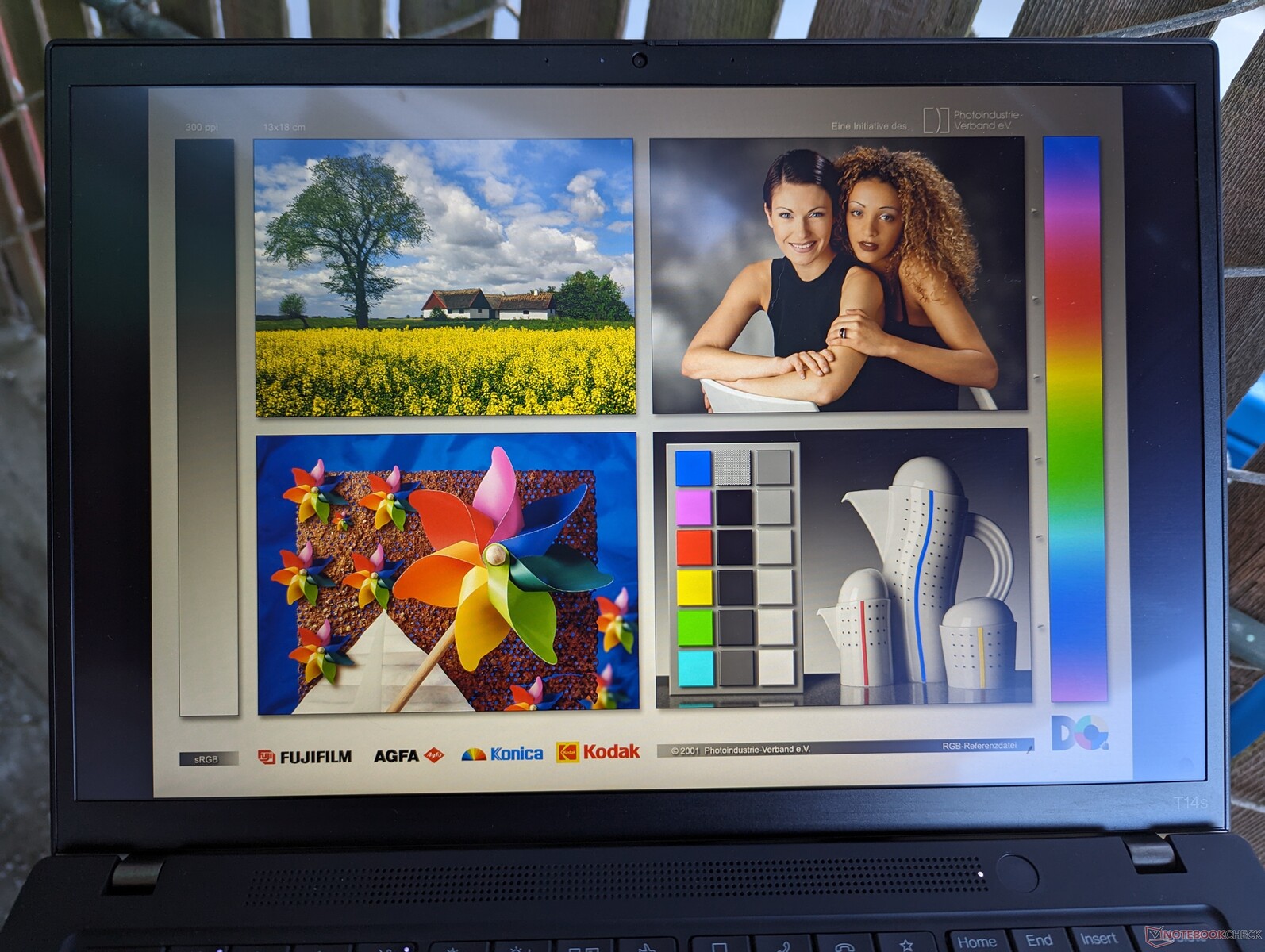

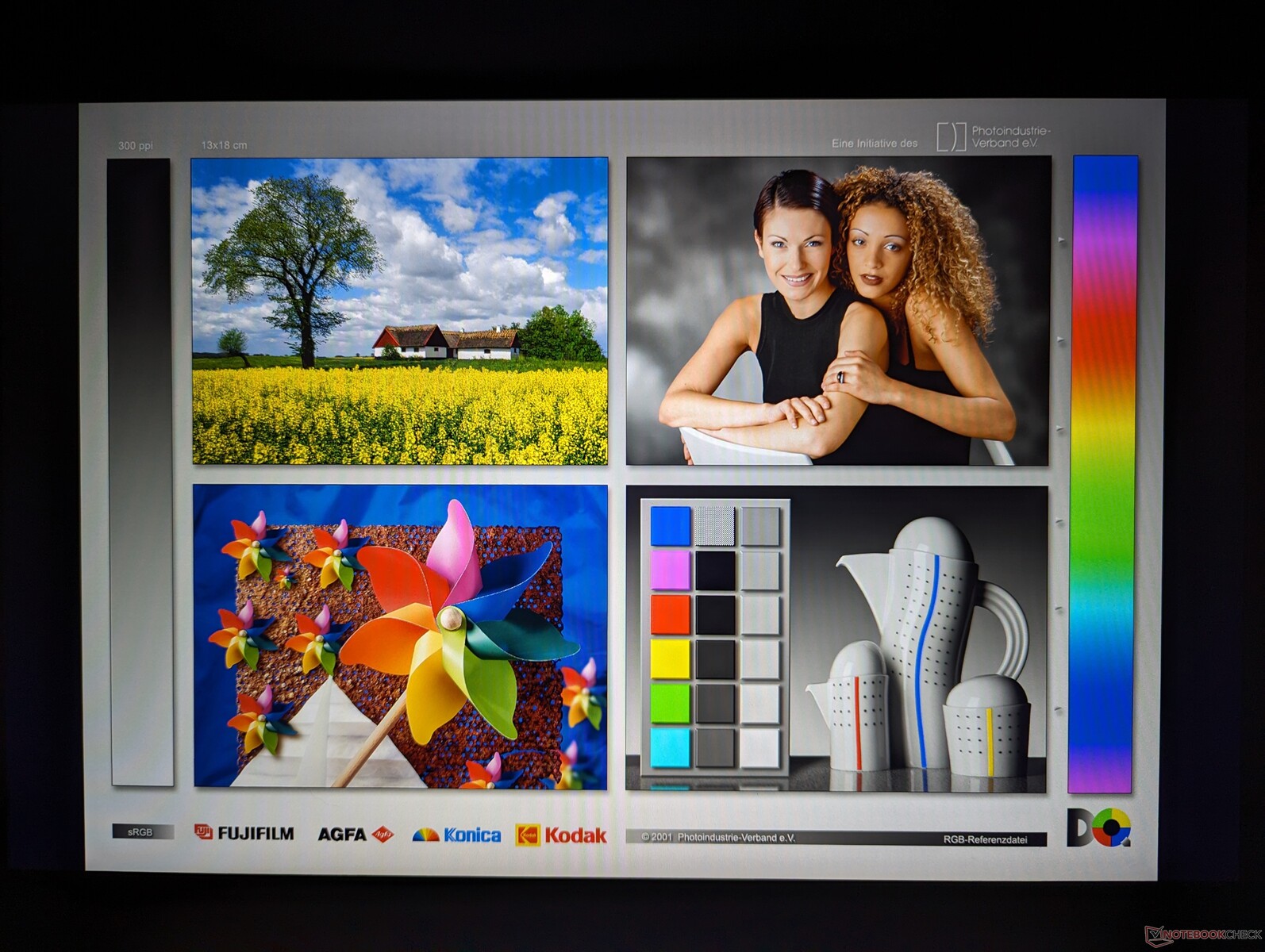

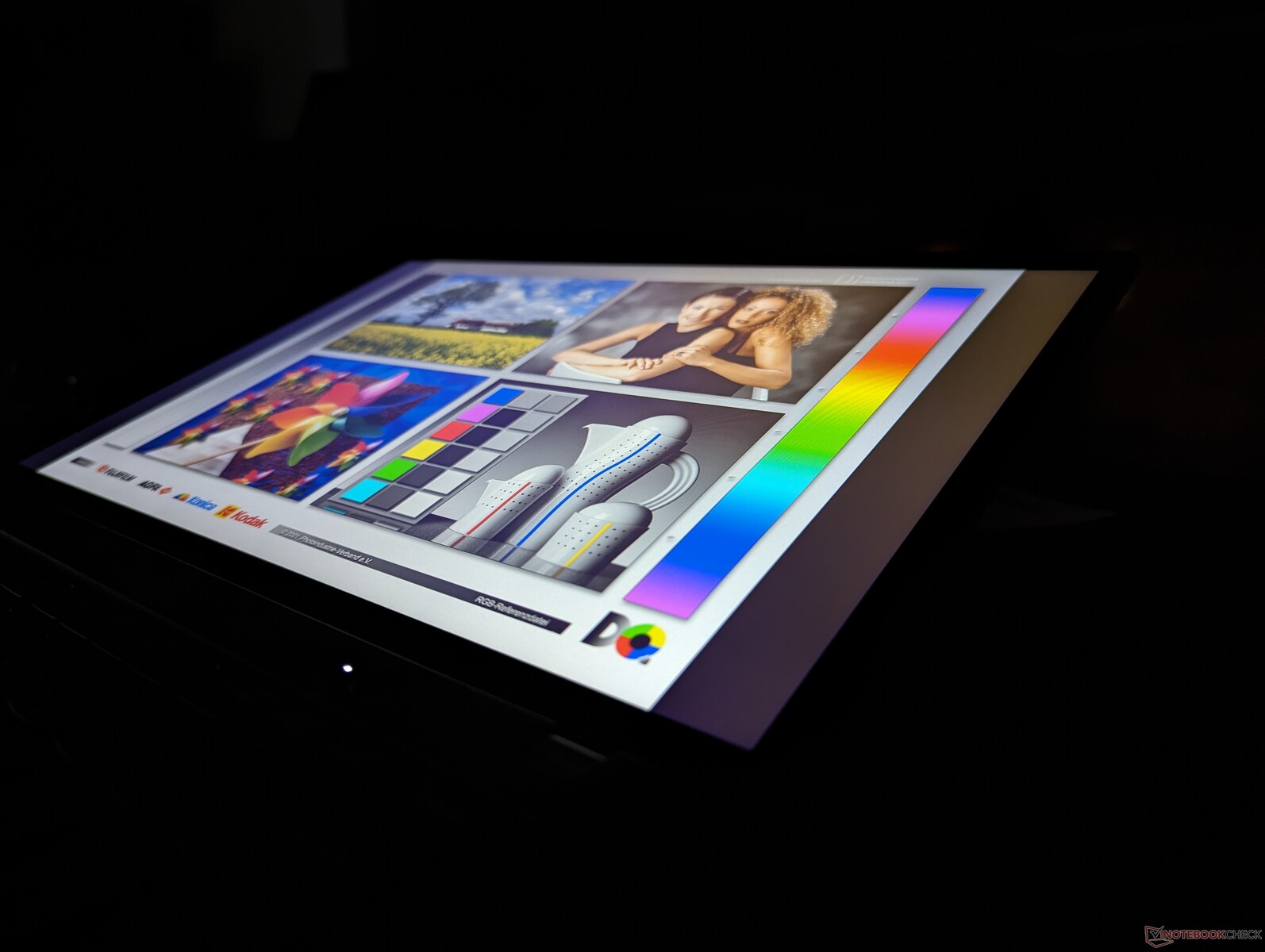

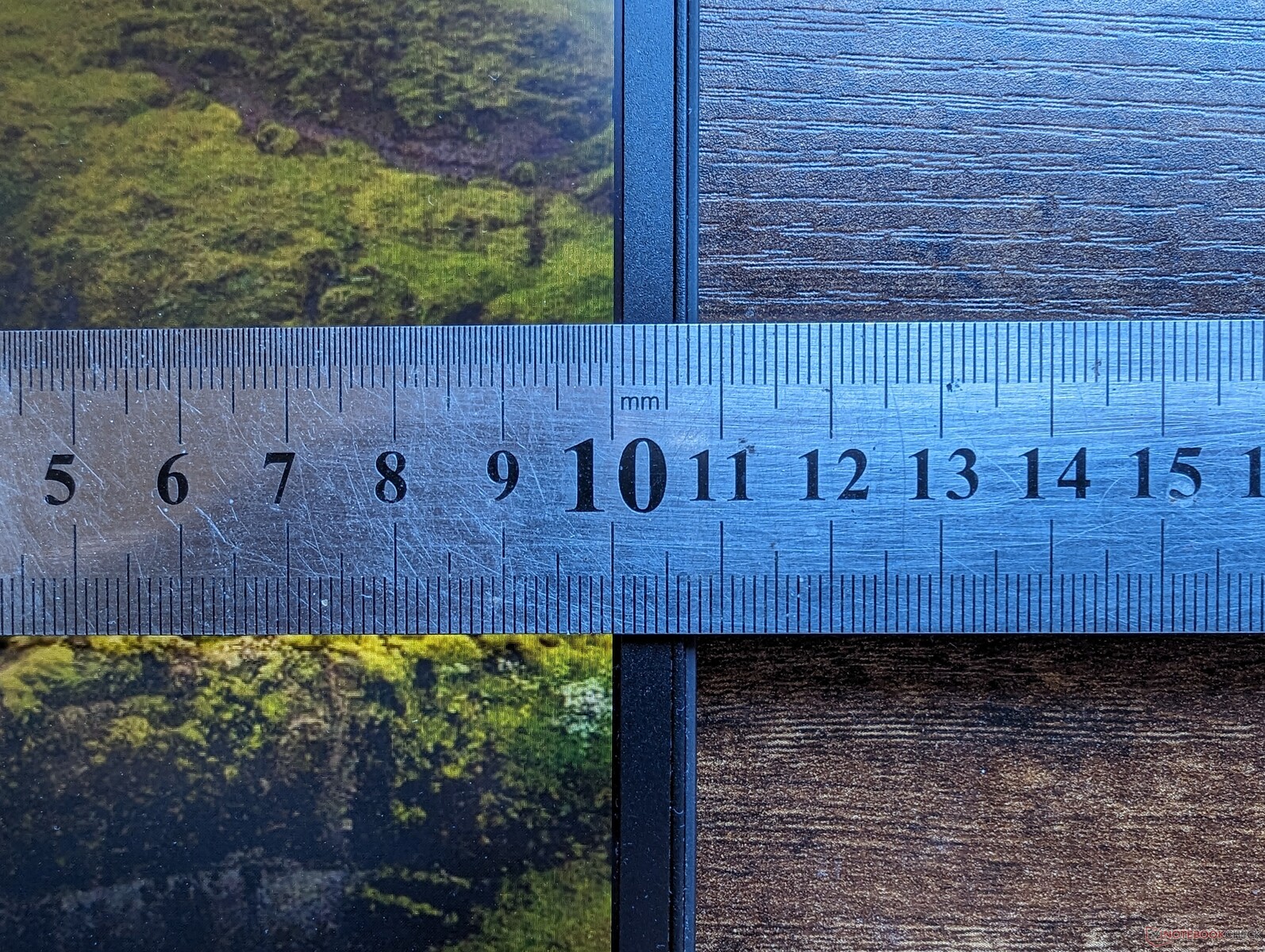

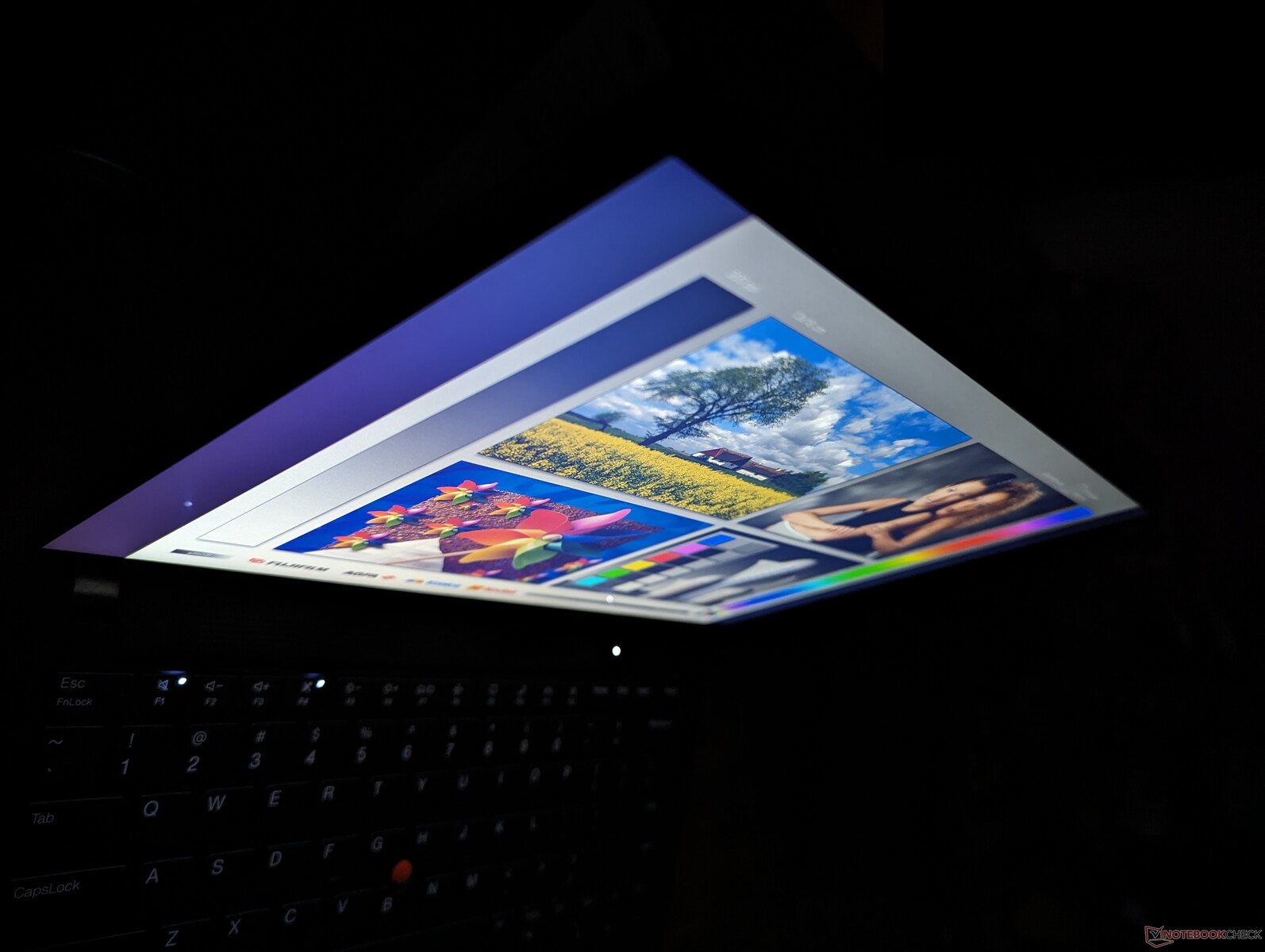

显示屏
总共有以下六种(!)显示屏可供选择。我们的测试设备配置的是粗体字显示屏,它是最便宜的选择之一。
- 1920 x 1200,IPS,300 尼特,触摸屏,哑光,~60% sRGB
- 1920 x 1200,IPS,300 尼特,哑光,~60% sRGB
- 2240 x 1400,IPS,300 尼特,哑光, ~60% sRGB
- 1920 x 1200,IPS,400 尼特,哑光,100% sRGB
- 2800 x 1800,OLED,400 尼特(500 尼特 HDR),亮面,100% DCI-P3
- 1920 x 1200,IPS,500 尼特,触摸屏,哑光,100% sRGB
正如我们下面的测量结果所示,与高端面板相比,选择低端面板会明显牺牲色彩和亮度。我们建议至少选择第四种具有完整 sRGB 覆盖范围的面板,尤其是在进行图形编辑和改善户外可见度时。
没有高于 60 Hz 的显示屏可供选择,这是一个遗憾,因为与之竞争的 14 英寸子笔记本,如华硕专家本 B9拥有 90 Hz OLED 面板。
|

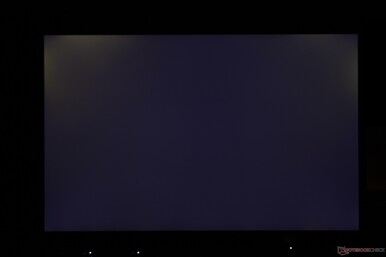

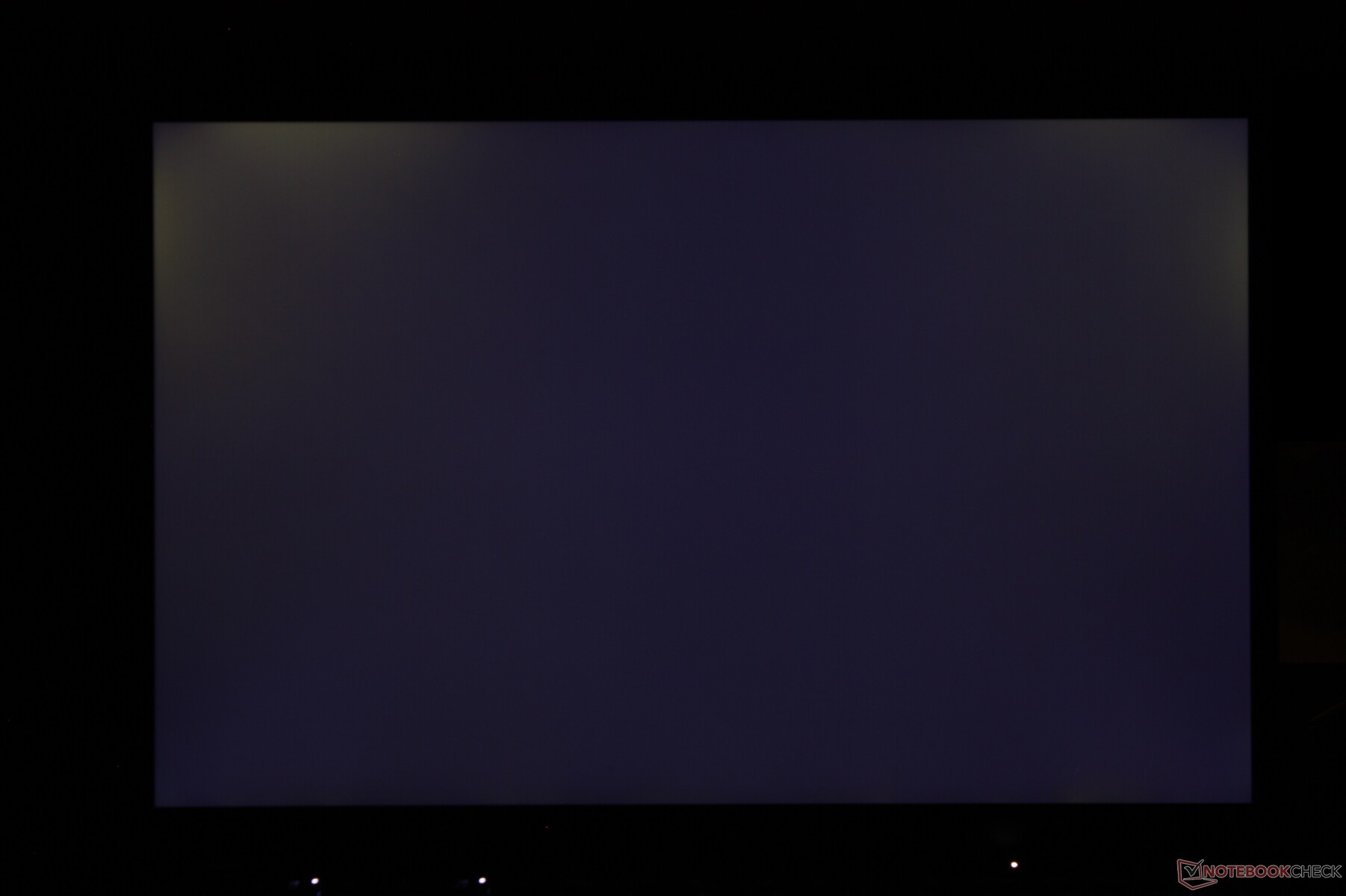

Brightness Distribution: 85 %
Center on Battery: 322.5 cd/m²
Contrast: 733:1 (Black: 0.44 cd/m²)
ΔE Color 3.72 | 0.5-29.43 Ø4.91, calibrated: 1.9
ΔE Greyscale 4 | 0.5-98 Ø5.2

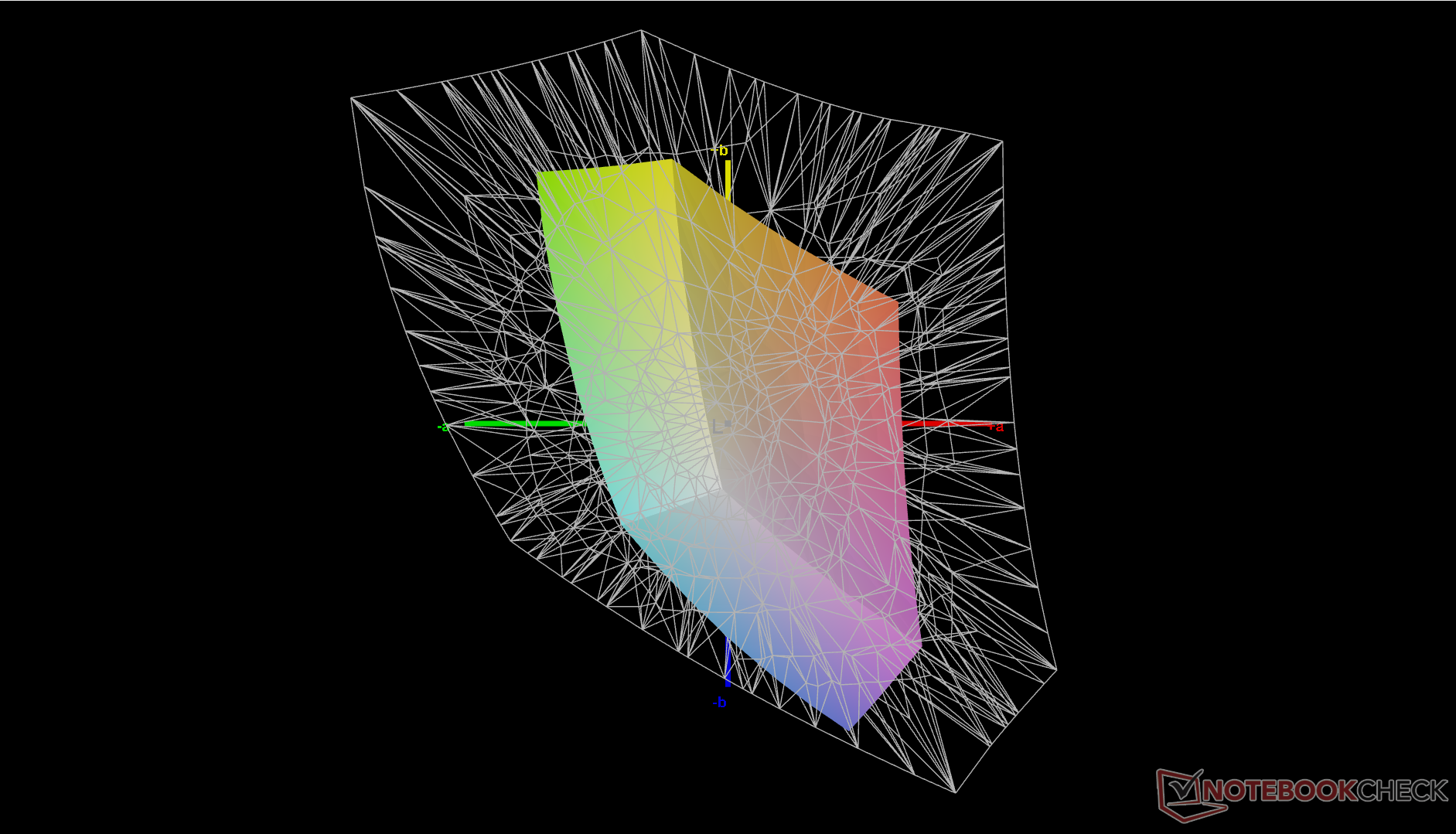

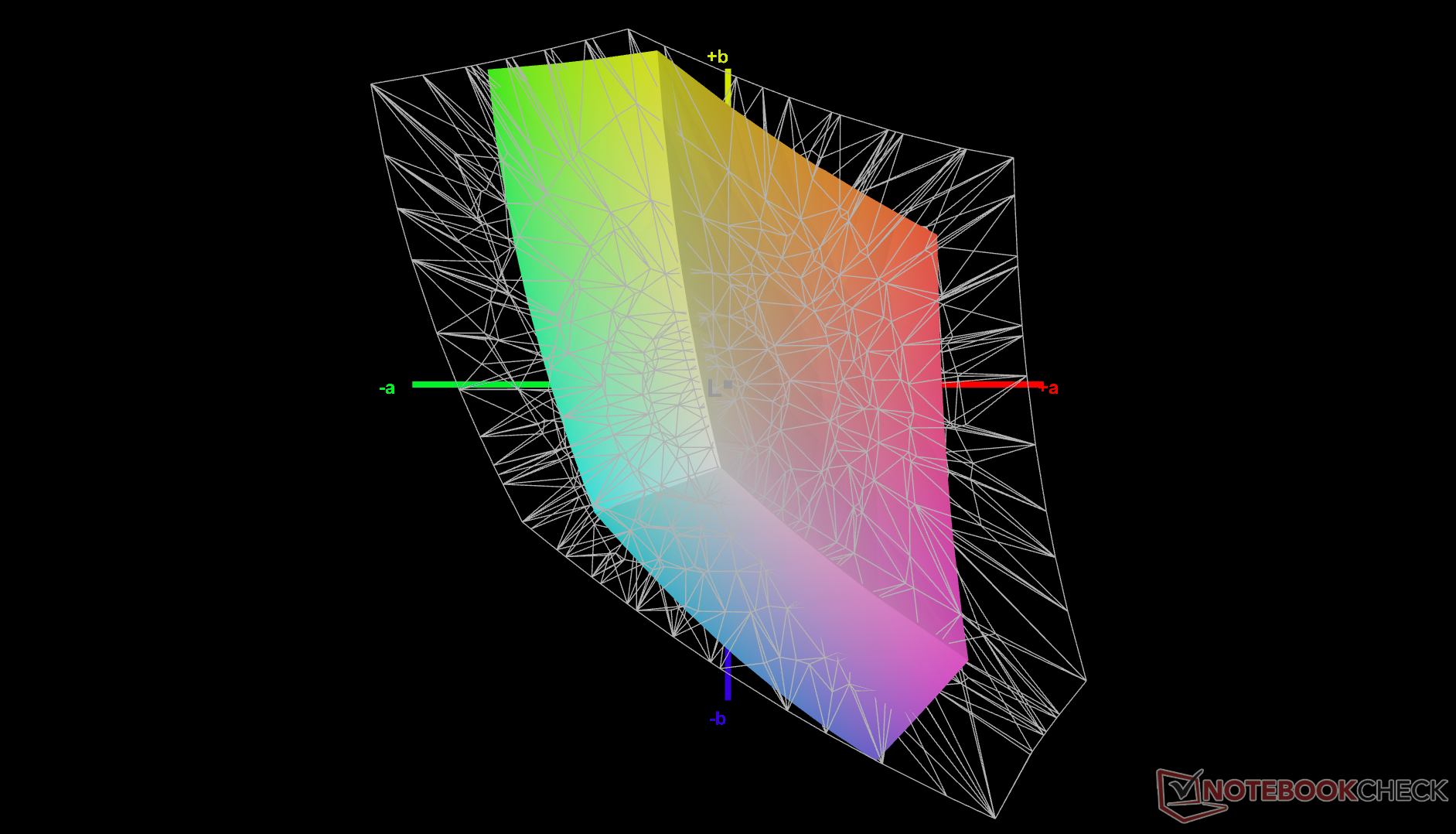

41.2% AdobeRGB 1998 (Argyll 2.2.0 3D)

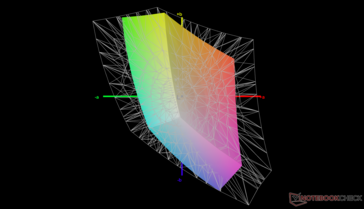

59.7% sRGB (Argyll 2.2.0 3D)
39.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.29
Lenovo ThinkPad T14s G4 i7-1365U B140UAK01.2, IPS, 1920x1200, 14" | Lenovo ThinkPad T14s G4-21F8002TGE LP140WU1-SPB2, IPS, 1920x1200, 14" | Lenovo ThinkPad T14 G4 21HD0043GE B140UAN02.1, IPS-AHVA LTPS wLED, 1920x1200, 14" | HP EliteBook 845 G10 5Z4X0ES CMN1435, IPS, 1920x1200, 14" | Dell Latitude 7440 AU Optronics B140QAX, IPS, 2560x1600, 14" | Asus ExpertBook B9 B9403CVA-KM0153X ATNA40YK07-1 SDC4171, OLED, 2880x1800, 14" | |
---|---|---|---|---|---|---|
Display | 68% | 80% | 74% | 80% | 115% | |
Display P3 Coverage | 39.9 | 68.3 71% | 74.8 87% | 70.6 77% | 75.4 89% | 99.9 150% |
sRGB Coverage | 59.7 | 96.5 62% | 98.9 66% | 100 68% | 99.9 67% | 100 68% |
AdobeRGB 1998 Coverage | 41.2 | 70.6 71% | 76.7 86% | 72.4 76% | 76.2 85% | 93.6 127% |
Response Times | -54% | -90% | -88% | -98% | 90% | |
Response Time Grey 50% / Grey 80% * | 27.7 ? | 41.6 ? -50% | 48.3 ? -74% | 59.7 ? -116% | 56 ? -102% | 2 ? 93% |
Response Time Black / White * | 15.9 ? | 25.1 ? -58% | 32.6 ? -105% | 25.5 ? -60% | 30.8 ? -94% | 2 ? 87% |
PWM Frequency | 360 ? | |||||
Screen | 48% | 21% | 46% | 36% | 160% | |
Brightness middle | 322.5 | 455 41% | 376 17% | 409 27% | 517.3 60% | 389.9 21% |
Brightness | 296 | 453 53% | 369 25% | 391 32% | 488 65% | 390 32% |
Brightness Distribution | 85 | 90 6% | 86 1% | 92 8% | 88 4% | 99 16% |
Black Level * | 0.44 | 0.24 45% | 0.23 48% | 0.27 39% | 0.34 23% | 0.0497 89% |
Contrast | 733 | 1896 159% | 1635 123% | 1515 107% | 1521 108% | 7845 970% |
Colorchecker dE 2000 * | 3.72 | 2.8 25% | 4.3 -16% | 2.3 38% | 3.3 11% | 2.22 40% |
Colorchecker dE 2000 max. * | 14.68 | 4.2 71% | 9.9 33% | 4.4 70% | 7.81 47% | 3.75 74% |
Colorchecker dE 2000 calibrated * | 1.9 | 1.2 37% | 1.6 16% | 0.9 53% | 1.02 46% | |
Greyscale dE 2000 * | 4 | 4.3 -8% | 6.4 -60% | 2.4 40% | 5.6 -40% | 2.4 40% |
Gamma | 2.29 96% | 2.11 104% | 2.24 98% | 2.06 107% | 2.37 93% | 2.187 101% |
CCT | 6064 107% | 7268 89% | 6019 108% | 6293 103% | 6804 96% | 6426 101% |
Total Average (Program / Settings) | 21% /
38% | 4% /
18% | 11% /
33% | 6% /
26% | 122% /
139% |
* ... smaller is better

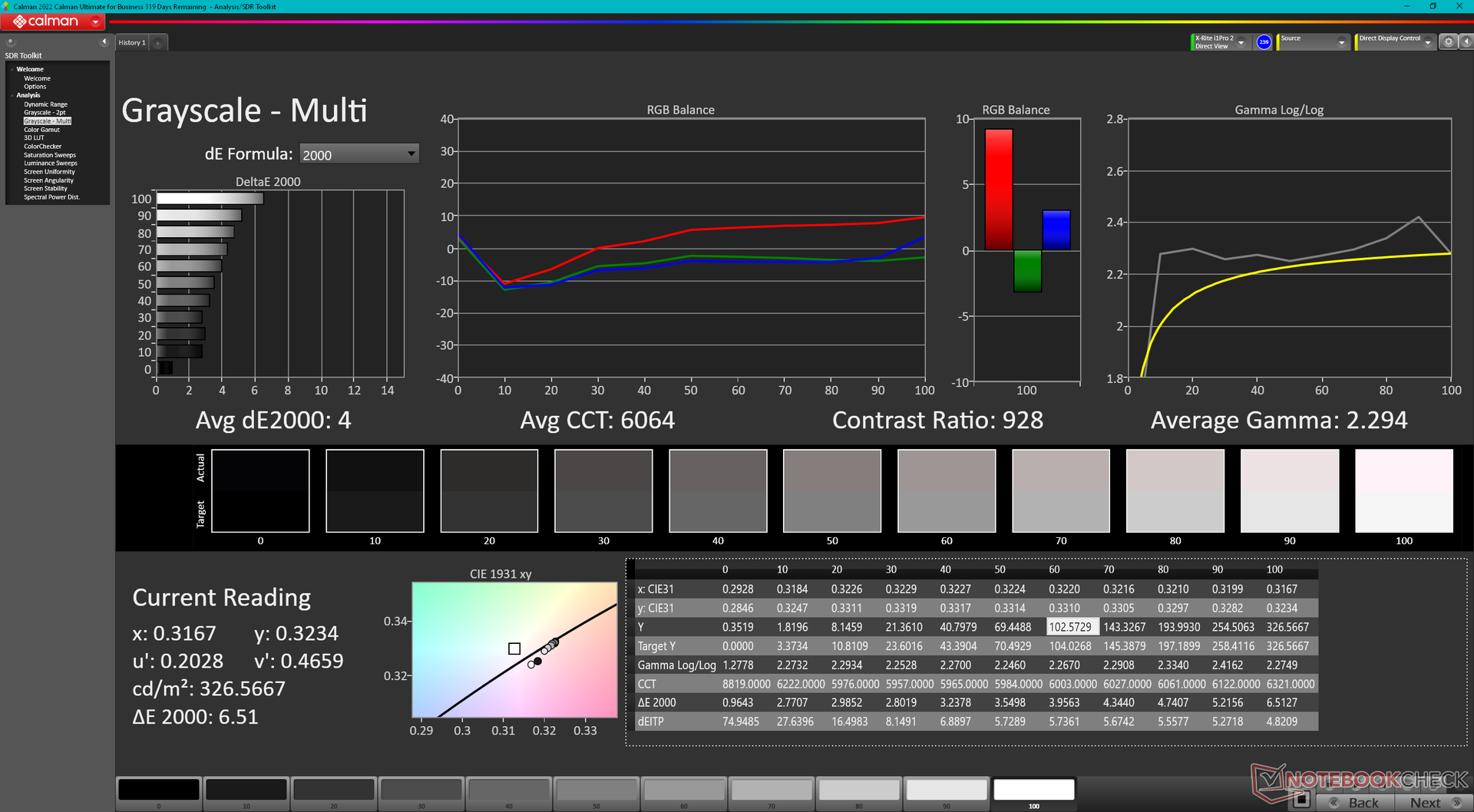

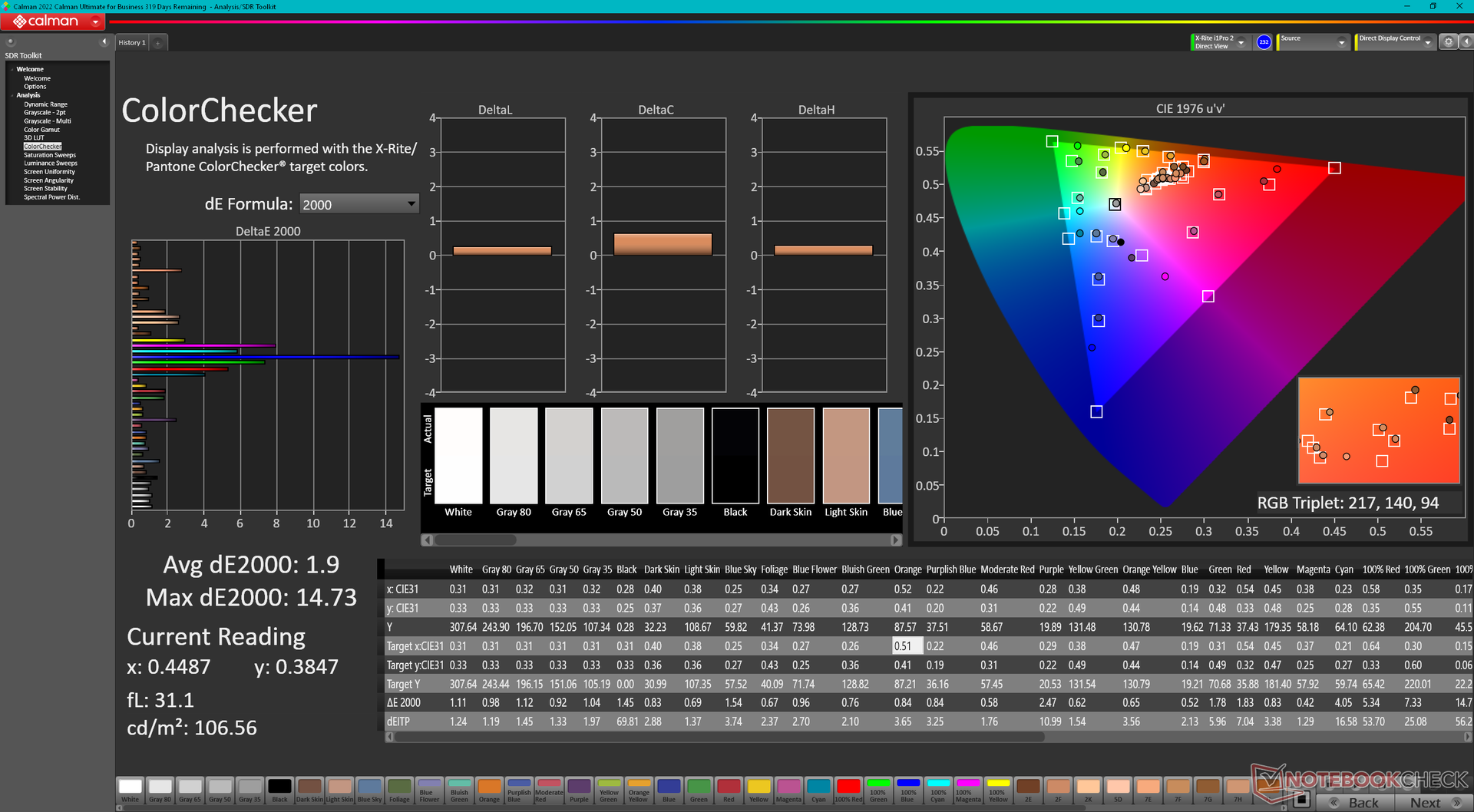

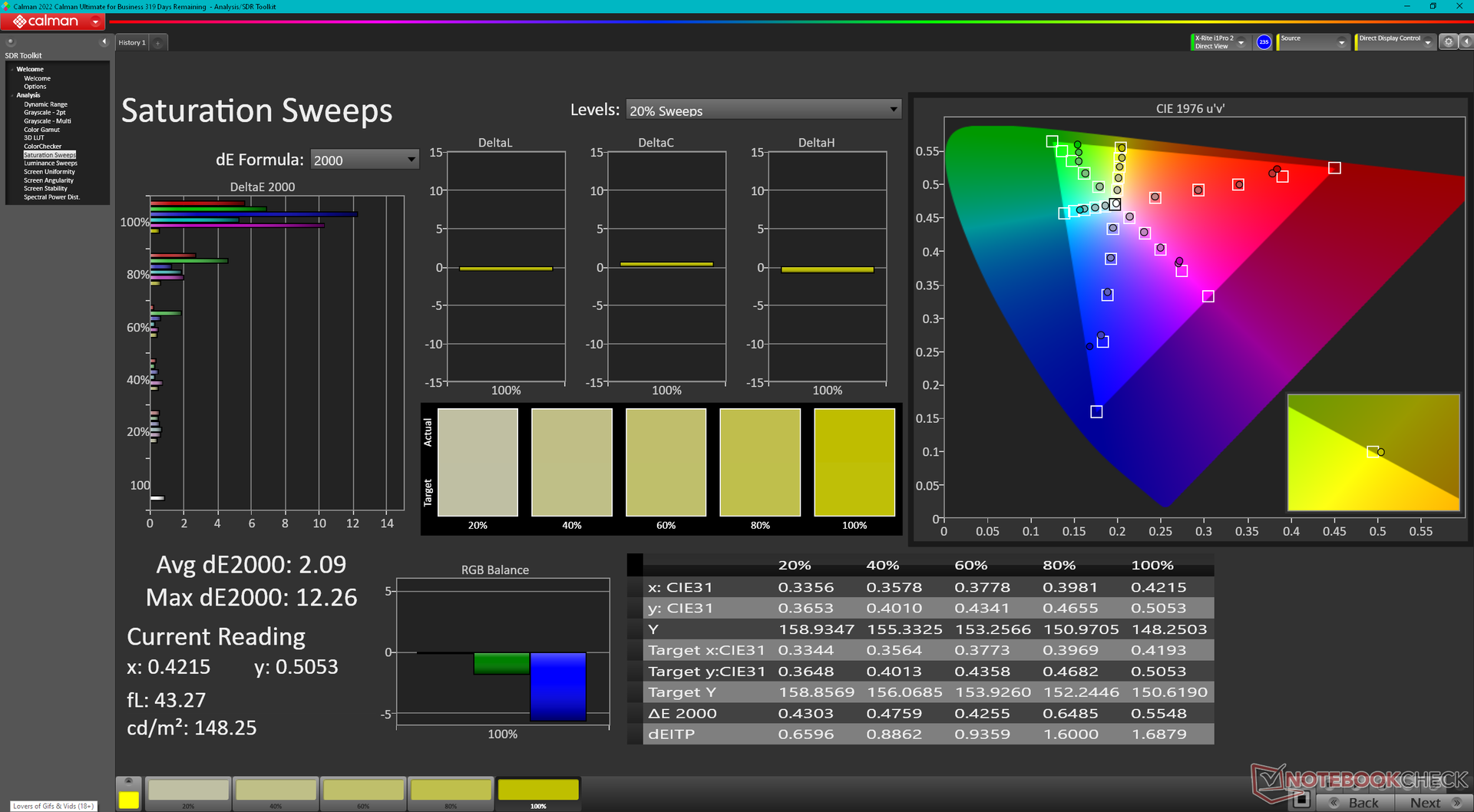

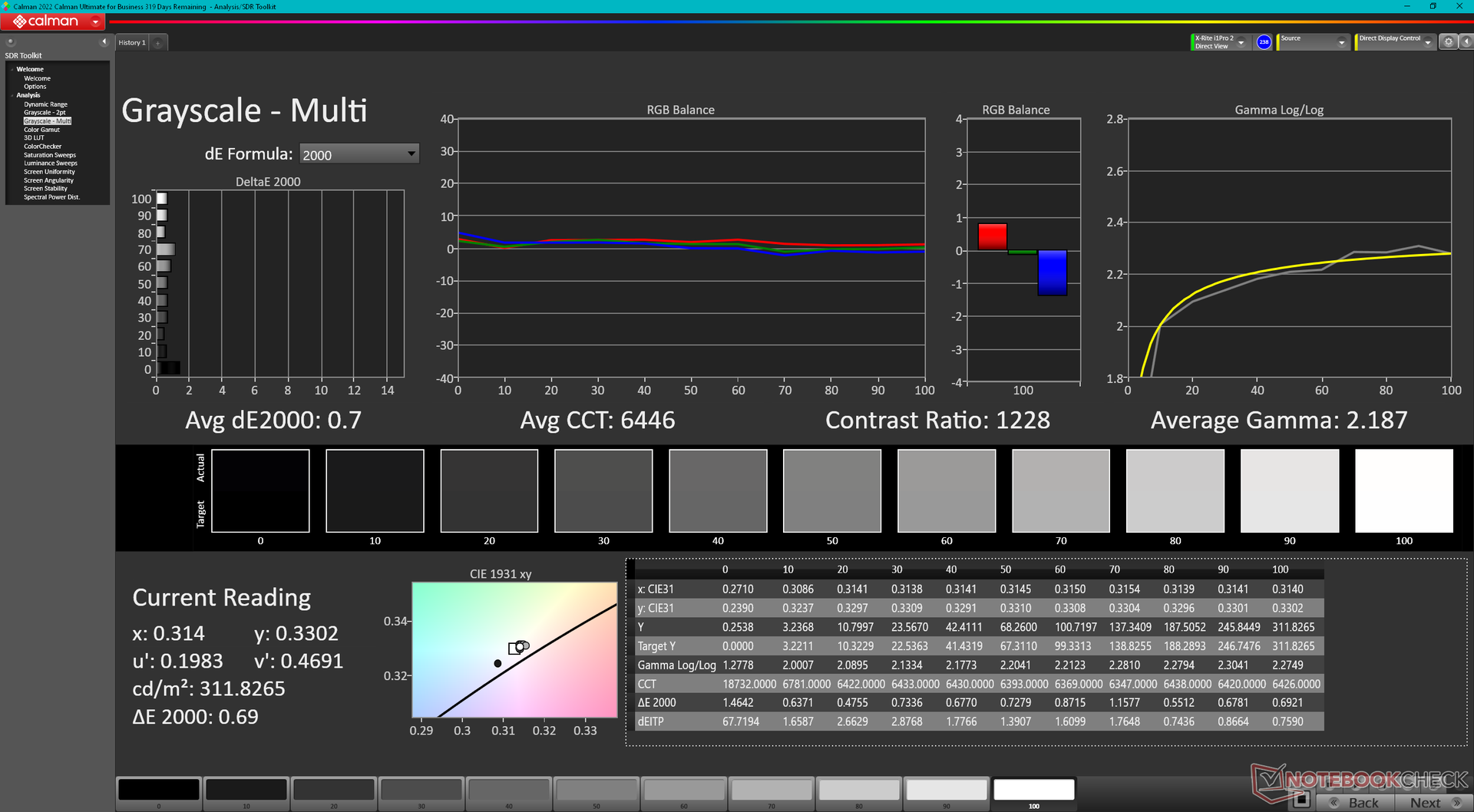

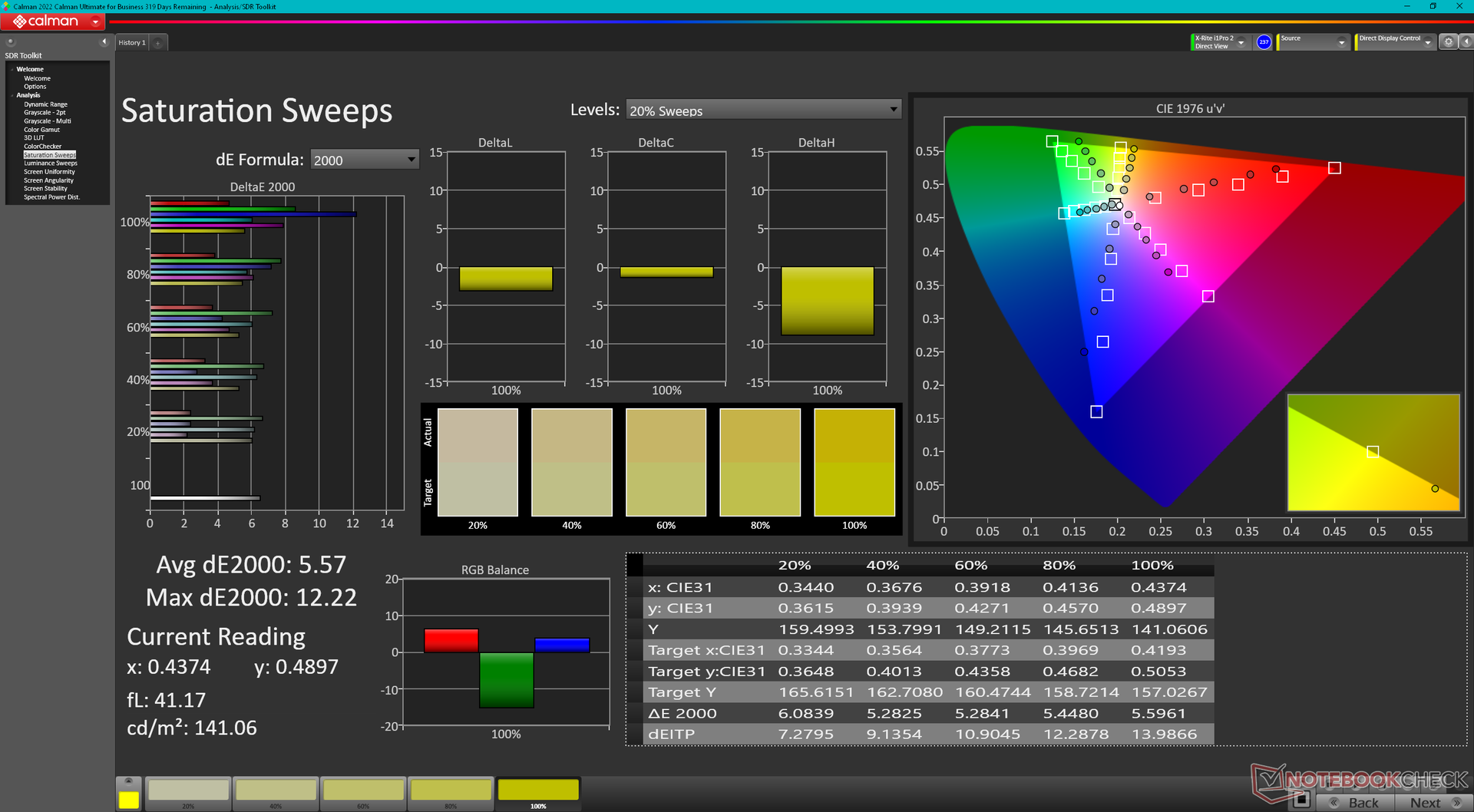

该显示器未经校准,其平均灰度和色彩 deltaE 值分别为 4 和 3.72。正如我们下面的 CalMAN 屏幕截图所示,通过自行校准可以解决色温过高的问题,从而获得更准确的灰度和色彩。即便如此,由于上述色彩覆盖面较窄的原因,在饱和度较高的情况下,显示器仍然会变得更加不准确。

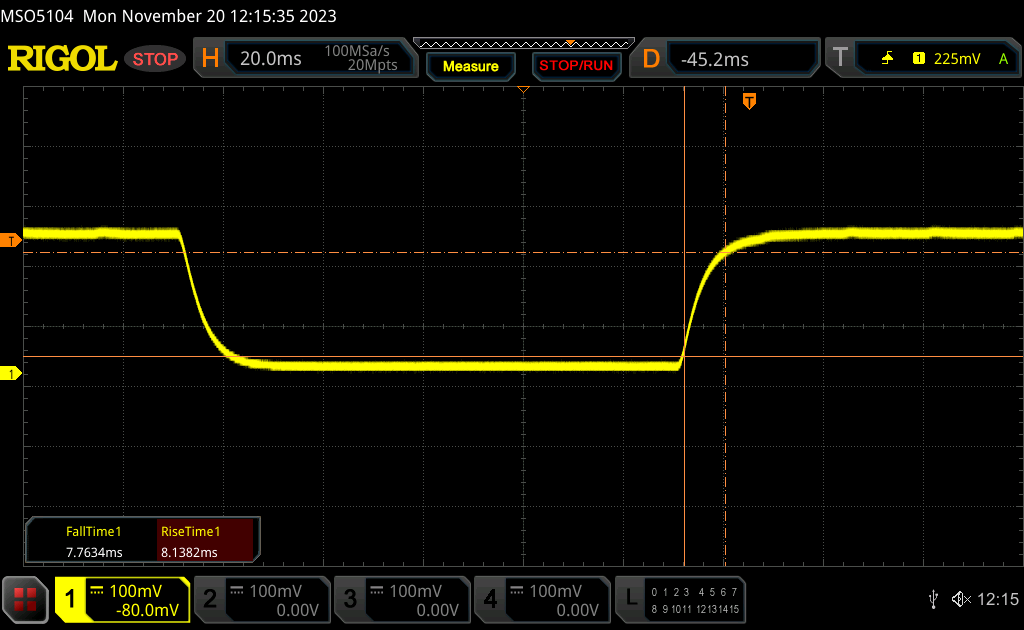

Display Response Times
↔ Response Time Black to White | ||
---|---|---|
15.9 ms ... rise ↗ and fall ↘ combined | ↗ 8.1 ms rise | |
↘ 7.8 ms fall | ||
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 33 % of all devices are better. This means that the measured response time is better than the average of all tested devices (20.9 ms). | ||

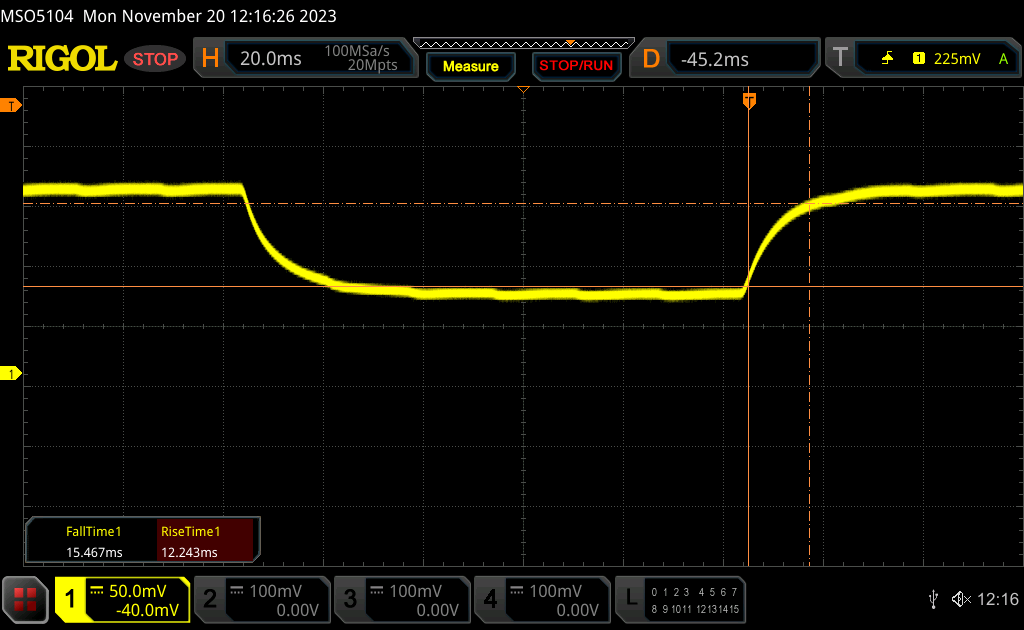

↔ Response Time 50% Grey to 80% Grey | ||
27.7 ms ... rise ↗ and fall ↘ combined | ↗ 12.2 ms rise | |
↘ 15.5 ms fall | ||
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 34 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.8 ms). |

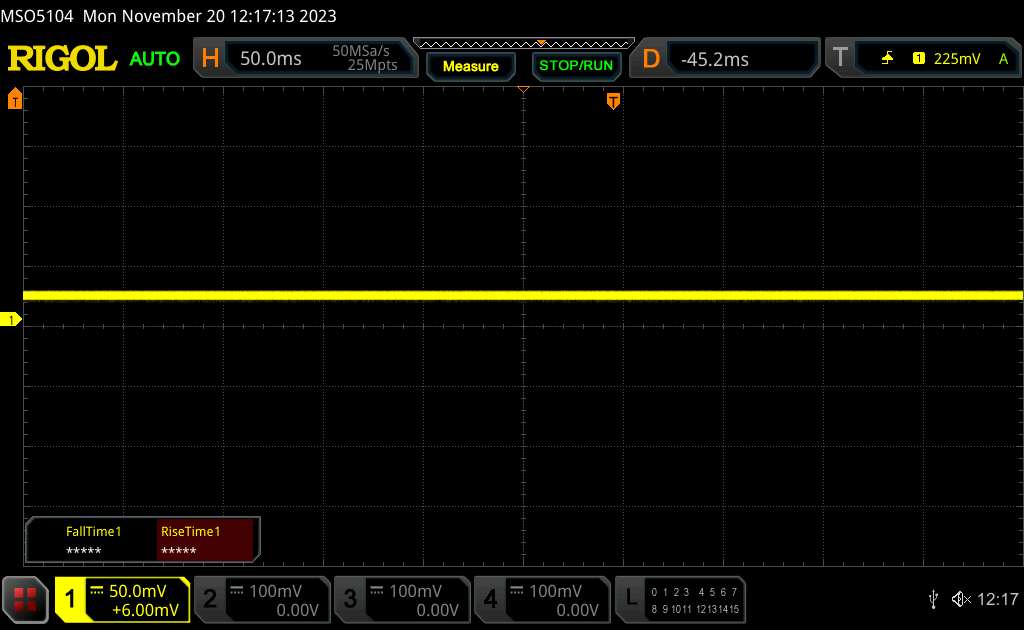

Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM not detected | |||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured. |
性能
测试条件

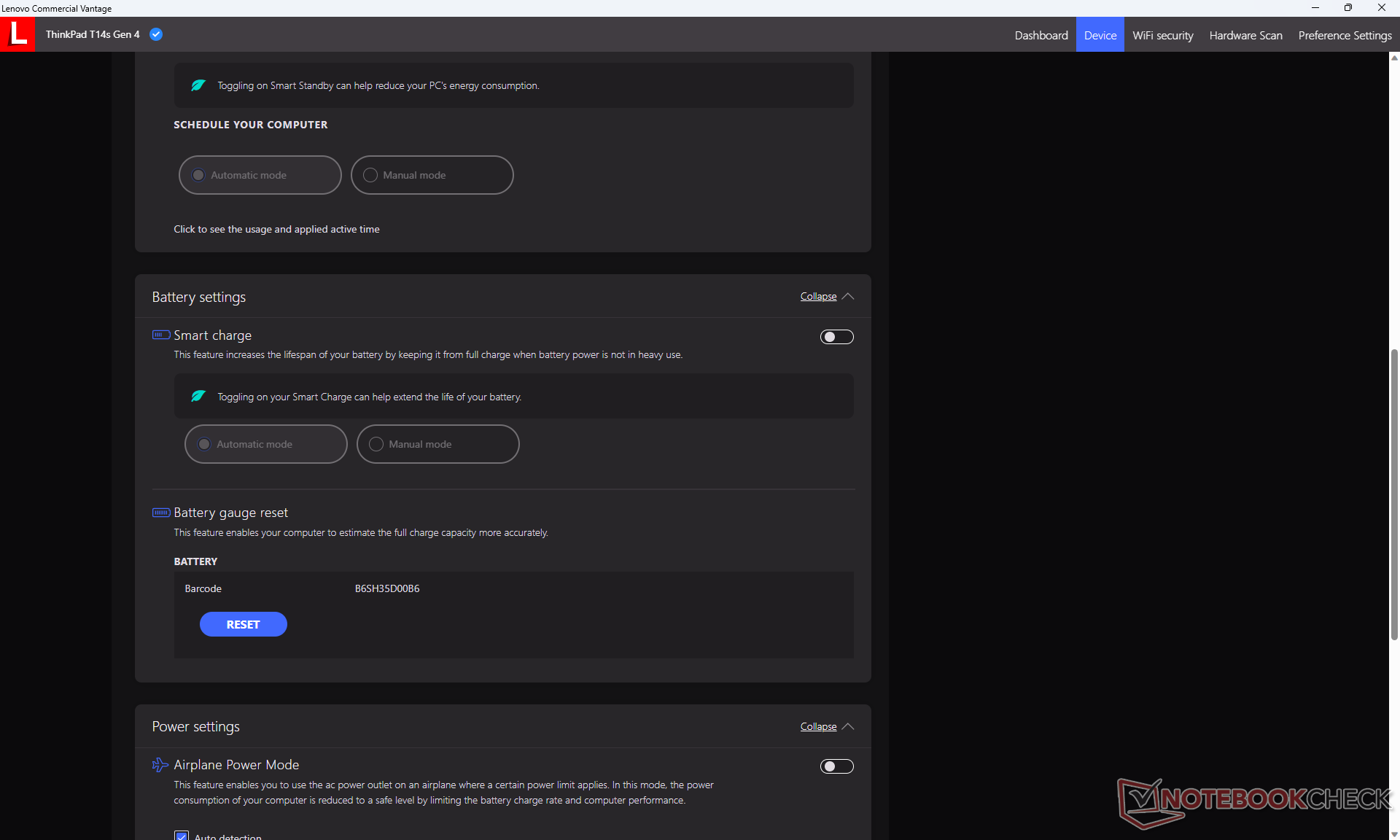

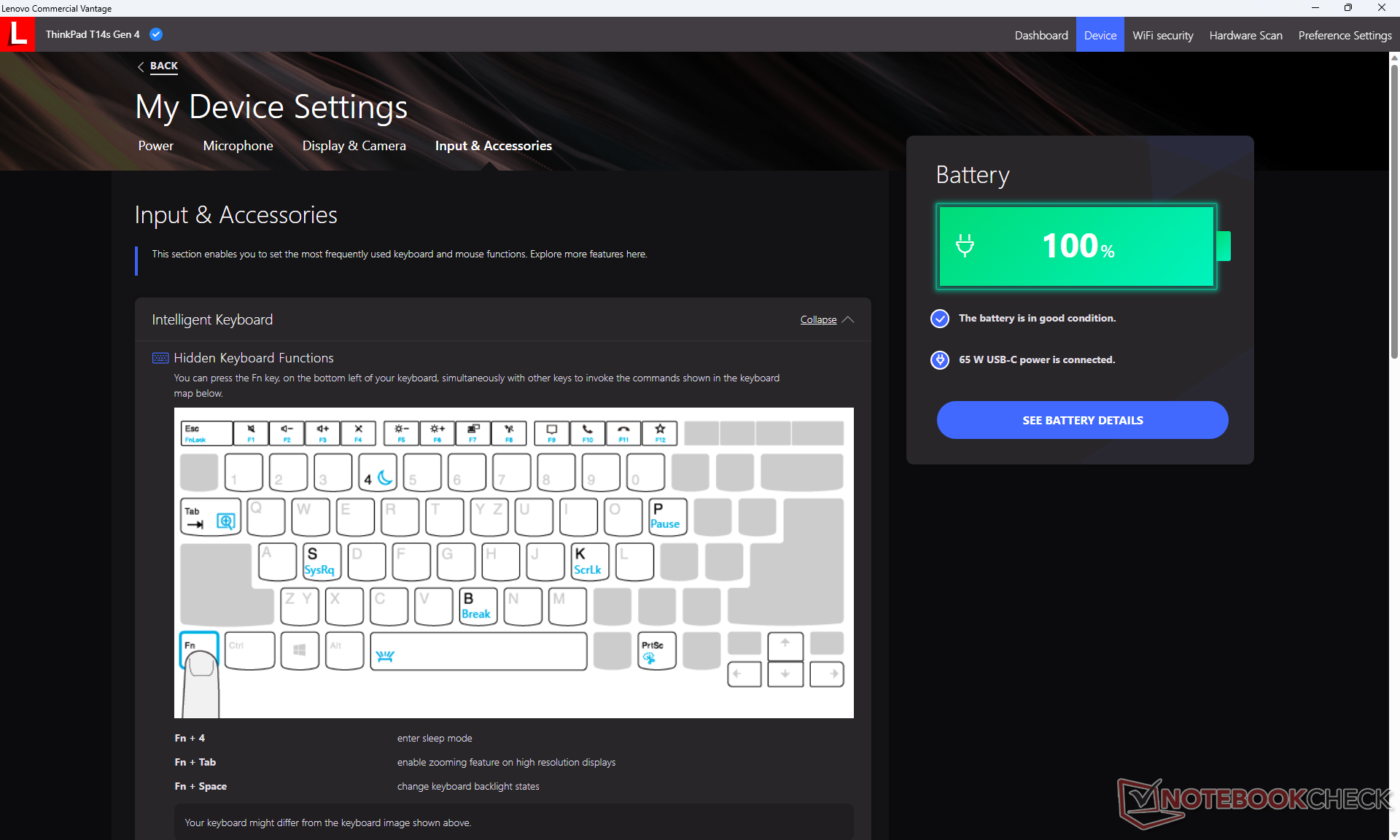

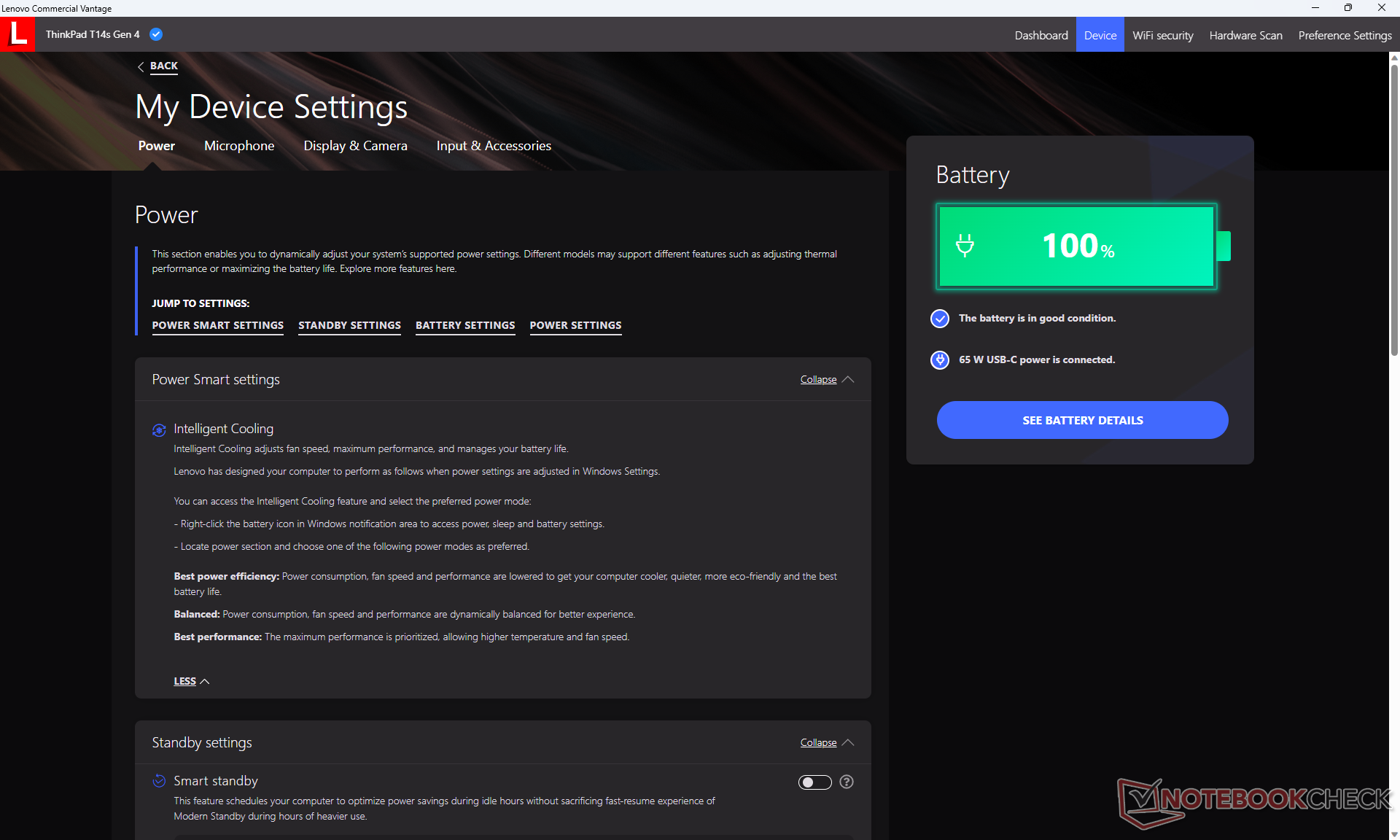

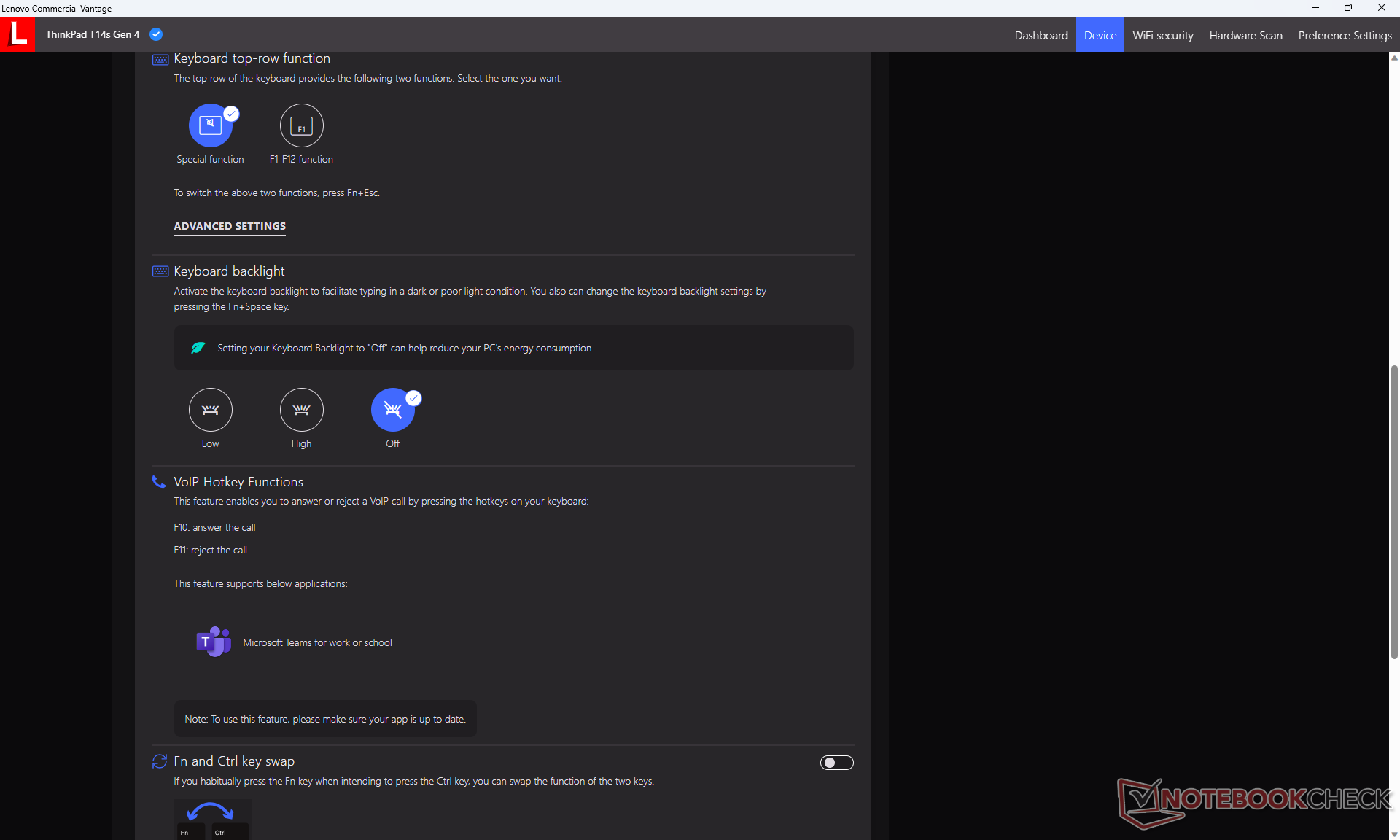

在运行下面的基准测试之前,我们将 Windows 设置为性能模式。联想 Vantage 没有自己的电源配置文件集,以减少混淆。

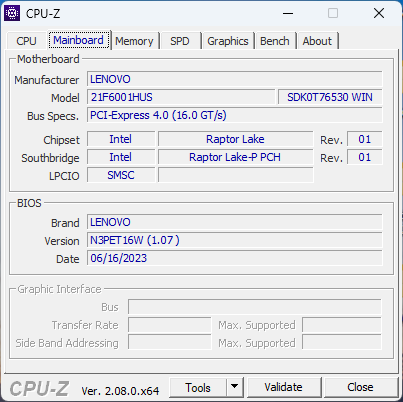

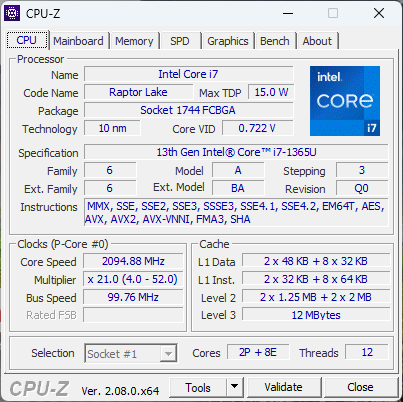

处理器
酷睿 i7-1365U 酷睿 i7-1365U的单线程性能仅比 酷睿 i5-1335U.除此之外,这两款处理器的多线程性能几乎相同。您必须考虑 AMD Zen 4 配置才能获得更高的性能。

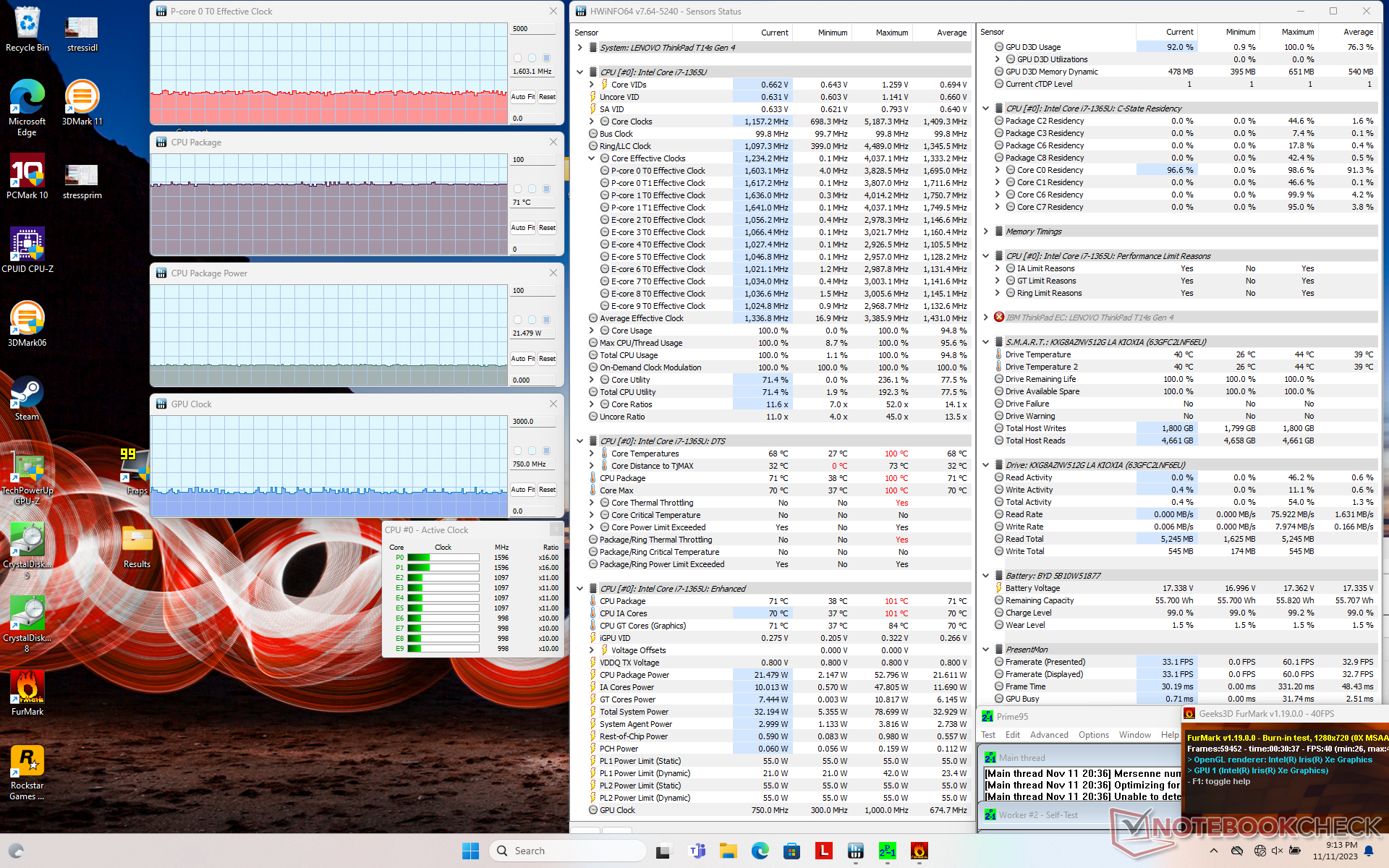

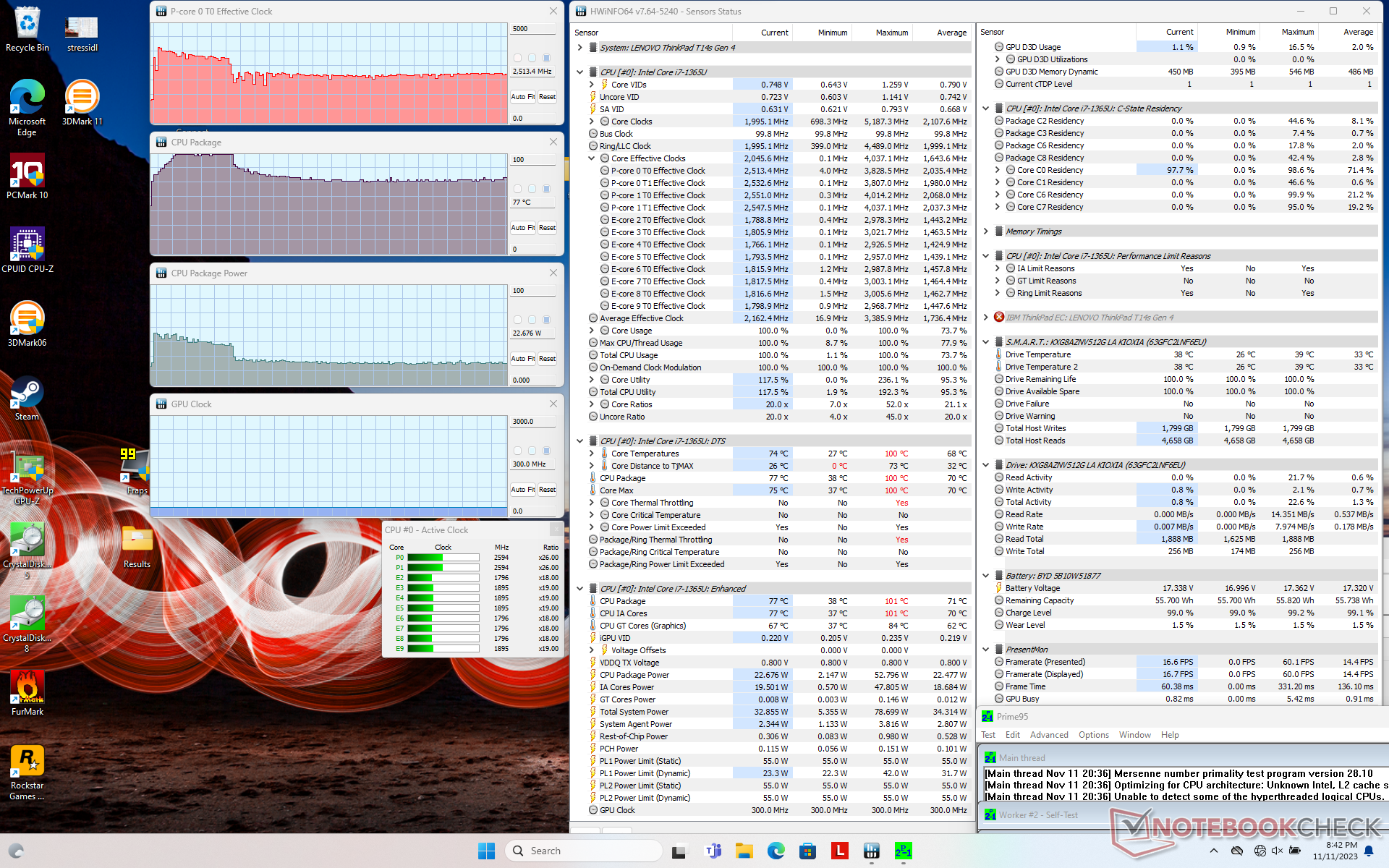

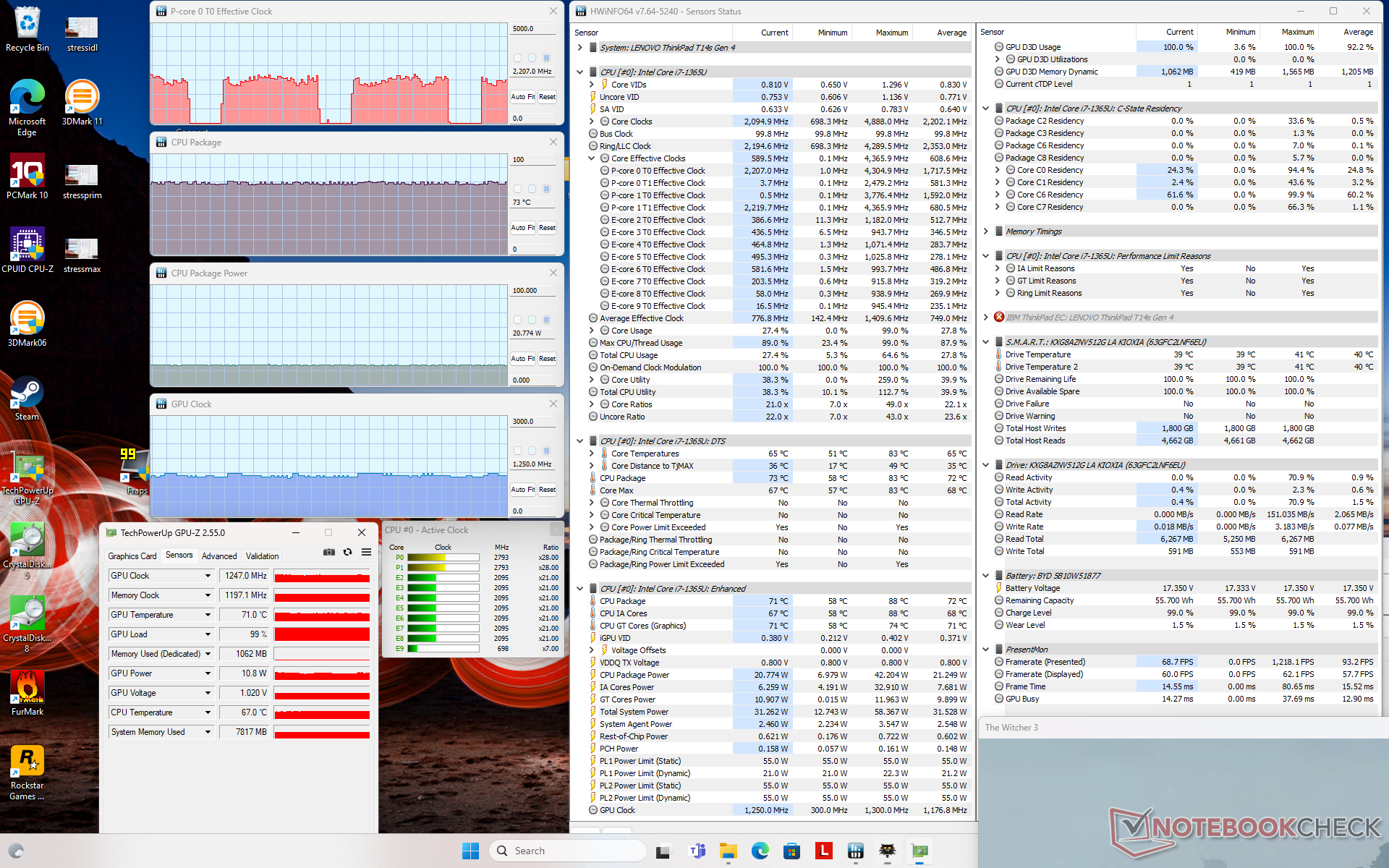

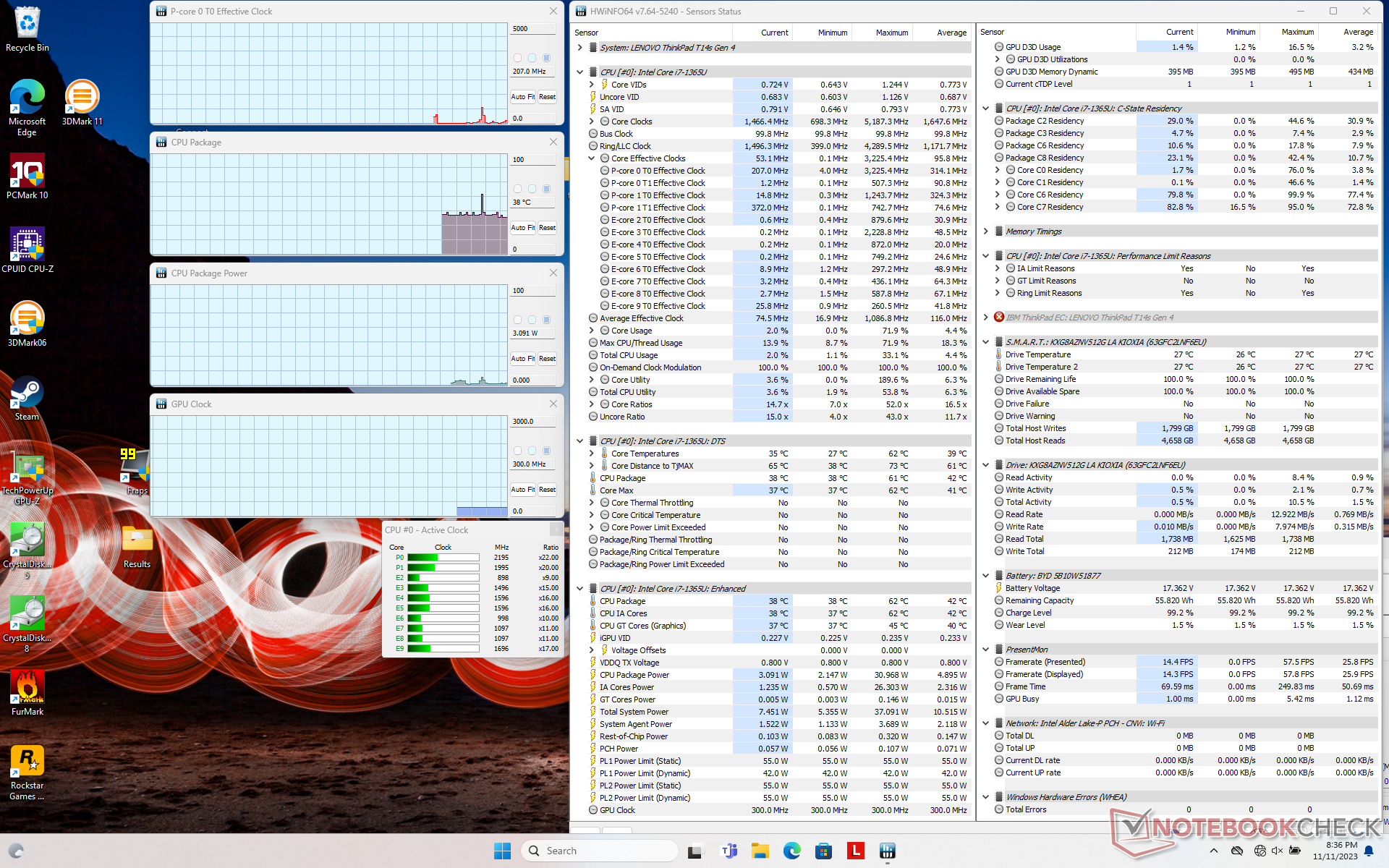

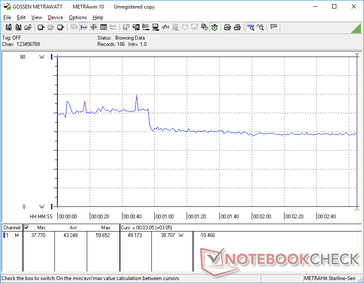

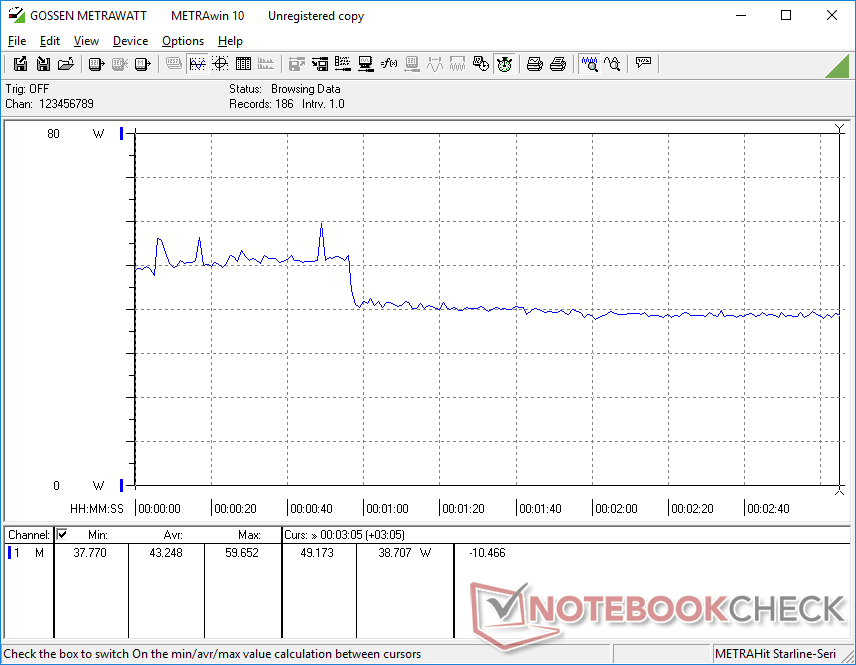

性能的可持续性只能算一般。例如,在循环运行 CineBench R15 xT 时,多线程性能会随着时间的推移下降约 20%,这表明 Turbo Boost 速度正在减慢。
Cinebench R15 Multi Loop
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
HP EliteBook 845 G10 5Z4X0ES | |
Dell Latitude 7440 | |
Average Intel Core i7-1365U | |
Lenovo ThinkPad T14s G4 i7-1365U | |
Asus ExpertBook B9 B9403CVA-KM0153X | |
Lenovo ThinkPad T14 G4 21HD0043GE |
AIDA64 / FP32 Ray-Trace | |
HP EliteBook 845 G10 5Z4X0ES | |
Dell Latitude 7440 | |
Average Intel Core i7-1365U (6720 - 8270, n=4) | |
Lenovo ThinkPad T14s G4 i7-1365U | |
Asus ExpertBook B9 B9403CVA-KM0153X | |
Lenovo ThinkPad T14 G4 21HD0043GE |
AIDA64 / FPU Julia | |
HP EliteBook 845 G10 5Z4X0ES | |
Dell Latitude 7440 | |
Average Intel Core i7-1365U (33777 - 41487, n=4) | |
Lenovo ThinkPad T14s G4 i7-1365U | |
Asus ExpertBook B9 B9403CVA-KM0153X | |
Lenovo ThinkPad T14 G4 21HD0043GE |
AIDA64 / CPU SHA3 | |
HP EliteBook 845 G10 5Z4X0ES | |
Dell Latitude 7440 | |
Average Intel Core i7-1365U (1754 - 2216, n=4) | |
Lenovo ThinkPad T14s G4 i7-1365U | |
Asus ExpertBook B9 B9403CVA-KM0153X | |
Lenovo ThinkPad T14 G4 21HD0043GE |
AIDA64 / CPU Queen | |
HP EliteBook 845 G10 5Z4X0ES | |
Average Intel Core i7-1365U (67557 - 69991, n=4) | |
Lenovo ThinkPad T14s G4 i7-1365U | |
Dell Latitude 7440 | |
Lenovo ThinkPad T14 G4 21HD0043GE | |
Asus ExpertBook B9 B9403CVA-KM0153X |
AIDA64 / FPU SinJulia | |
HP EliteBook 845 G10 5Z4X0ES | |
Dell Latitude 7440 | |
Average Intel Core i7-1365U (4589 - 5145, n=4) | |
Lenovo ThinkPad T14s G4 i7-1365U | |
Asus ExpertBook B9 B9403CVA-KM0153X | |
Lenovo ThinkPad T14 G4 21HD0043GE |
AIDA64 / FPU Mandel | |
HP EliteBook 845 G10 5Z4X0ES | |
Dell Latitude 7440 | |
Average Intel Core i7-1365U (16808 - 20668, n=4) | |
Lenovo ThinkPad T14s G4 i7-1365U | |
Asus ExpertBook B9 B9403CVA-KM0153X | |
Lenovo ThinkPad T14 G4 21HD0043GE |
AIDA64 / CPU AES | |
HP EliteBook 845 G10 5Z4X0ES | |
Dell Latitude 7440 | |
Lenovo ThinkPad T14s G4 i7-1365U | |
Average Intel Core i7-1365U (34968 - 41413, n=4) | |
Lenovo ThinkPad T14 G4 21HD0043GE | |
Asus ExpertBook B9 B9403CVA-KM0153X |
AIDA64 / CPU ZLib | |
HP EliteBook 845 G10 5Z4X0ES | |
Dell Latitude 7440 | |
Average Intel Core i7-1365U (519 - 650, n=4) | |
Lenovo ThinkPad T14s G4 i7-1365U | |
Lenovo ThinkPad T14 G4 21HD0043GE | |
Asus ExpertBook B9 B9403CVA-KM0153X |
AIDA64 / FP64 Ray-Trace | |
HP EliteBook 845 G10 5Z4X0ES | |
Dell Latitude 7440 | |
Average Intel Core i7-1365U (3513 - 4367, n=4) | |
Lenovo ThinkPad T14s G4 i7-1365U | |
Asus ExpertBook B9 B9403CVA-KM0153X | |
Lenovo ThinkPad T14 G4 21HD0043GE |
AIDA64 / CPU PhotoWorxx | |
Average Intel Core i7-1365U (37846 - 43780, n=4) | |
Dell Latitude 7440 | |
Lenovo ThinkPad T14s G4 i7-1365U | |
Asus ExpertBook B9 B9403CVA-KM0153X | |
HP EliteBook 845 G10 5Z4X0ES | |
Lenovo ThinkPad T14 G4 21HD0043GE |
系统性能
由于英特尔机型的 CPU 多线程性能和集成 GPU 性能较慢,PCMark 生产力和数字内容创建子测试结果远远落后于基于 AMD 的 ThinkPad T14s G4。
CrossMark: Overall | Productivity | Creativity | Responsiveness
PCMark 10 / Score | |
HP EliteBook 845 G10 5Z4X0ES | |
Lenovo ThinkPad T14s G4-21F8002TGE | |
Lenovo ThinkPad T14s G4 i7-1365U | |
Average Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs (5690 - 5980, n=4) | |
Asus ExpertBook B9 B9403CVA-KM0153X | |
Dell Latitude 7440 | |
Lenovo ThinkPad T14 G4 21HD0043GE |
PCMark 10 / Essentials | |
Lenovo ThinkPad T14s G4 i7-1365U | |
Average Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs (10635 - 11827, n=4) | |
Asus ExpertBook B9 B9403CVA-KM0153X | |
Dell Latitude 7440 | |
HP EliteBook 845 G10 5Z4X0ES | |
Lenovo ThinkPad T14 G4 21HD0043GE | |
Lenovo ThinkPad T14s G4-21F8002TGE |
PCMark 10 / Productivity | |
HP EliteBook 845 G10 5Z4X0ES | |
Lenovo ThinkPad T14s G4-21F8002TGE | |
Lenovo ThinkPad T14s G4 i7-1365U | |
Asus ExpertBook B9 B9403CVA-KM0153X | |
Average Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs (7206 - 7708, n=4) | |
Lenovo ThinkPad T14 G4 21HD0043GE | |
Dell Latitude 7440 |
PCMark 10 / Digital Content Creation | |
HP EliteBook 845 G10 5Z4X0ES | |
Lenovo ThinkPad T14s G4-21F8002TGE | |
Lenovo ThinkPad T14s G4 i7-1365U | |
Average Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs (6392 - 6735, n=4) | |
Dell Latitude 7440 | |
Lenovo ThinkPad T14 G4 21HD0043GE | |
Asus ExpertBook B9 B9403CVA-KM0153X |
CrossMark / Overall | |
Average Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs (1605 - 1675, n=4) | |
Lenovo ThinkPad T14s G4 i7-1365U | |
Asus ExpertBook B9 B9403CVA-KM0153X | |
Lenovo ThinkPad T14s G4-21F8002TGE | |
HP EliteBook 845 G10 5Z4X0ES | |
Lenovo ThinkPad T14 G4 21HD0043GE |
CrossMark / Productivity | |
Average Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs (1582 - 1650, n=4) | |
Lenovo ThinkPad T14s G4 i7-1365U | |
Asus ExpertBook B9 B9403CVA-KM0153X | |
Lenovo ThinkPad T14s G4-21F8002TGE | |
HP EliteBook 845 G10 5Z4X0ES | |
Lenovo ThinkPad T14 G4 21HD0043GE |
CrossMark / Creativity | |
Average Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs (1713 - 1797, n=4) | |
Lenovo ThinkPad T14s G4 i7-1365U | |
HP EliteBook 845 G10 5Z4X0ES | |
Lenovo ThinkPad T14s G4-21F8002TGE | |
Asus ExpertBook B9 B9403CVA-KM0153X | |
Lenovo ThinkPad T14 G4 21HD0043GE |
CrossMark / Responsiveness | |
Average Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs (1373 - 1427, n=4) | |
Lenovo ThinkPad T14s G4 i7-1365U | |
Asus ExpertBook B9 B9403CVA-KM0153X | |
HP EliteBook 845 G10 5Z4X0ES | |
Lenovo ThinkPad T14s G4-21F8002TGE | |
Lenovo ThinkPad T14 G4 21HD0043GE |

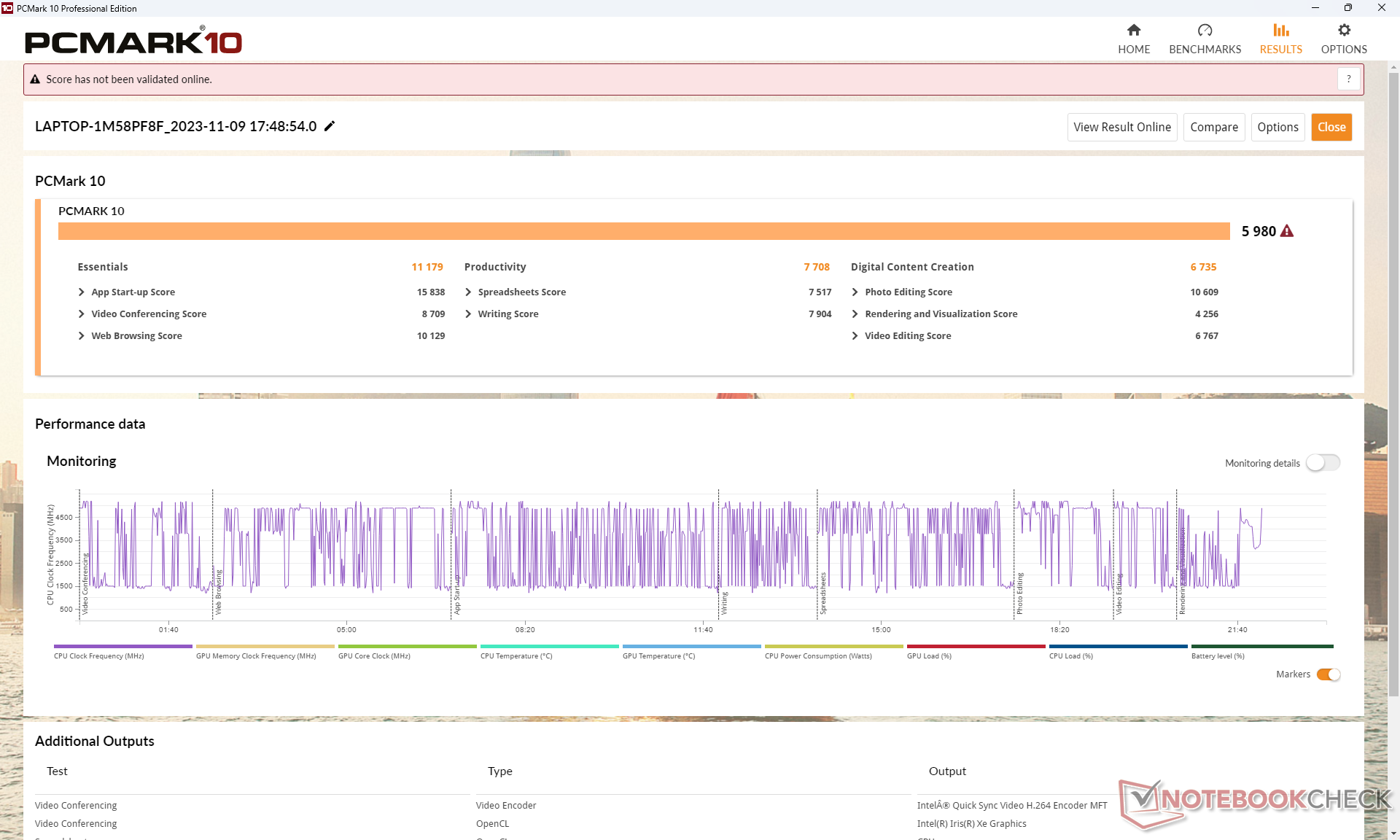

PCMark 10 Score | 5980 points | |
Help |
AIDA64 / Memory Copy | |
Lenovo ThinkPad T14s G4-21F8002TGE | |
Average Intel Core i7-1365U (57654 - 69736, n=4) | |
HP EliteBook 845 G10 5Z4X0ES | |
Asus ExpertBook B9 B9403CVA-KM0153X | |
Dell Latitude 7440 | |
Lenovo ThinkPad T14s G4 i7-1365U | |
Lenovo ThinkPad T14 G4 21HD0043GE |
AIDA64 / Memory Read | |
HP EliteBook 845 G10 5Z4X0ES | |
Average Intel Core i7-1365U (49203 - 54068, n=4) | |
Dell Latitude 7440 | |
Lenovo ThinkPad T14s G4 i7-1365U | |
Asus ExpertBook B9 B9403CVA-KM0153X | |
Lenovo ThinkPad T14s G4-21F8002TGE | |
Lenovo ThinkPad T14 G4 21HD0043GE |
AIDA64 / Memory Write | |
Lenovo ThinkPad T14s G4-21F8002TGE | |
HP EliteBook 845 G10 5Z4X0ES | |
Average Intel Core i7-1365U (70434 - 85570, n=4) | |
Asus ExpertBook B9 B9403CVA-KM0153X | |
Lenovo ThinkPad T14s G4 i7-1365U | |
Dell Latitude 7440 | |
Lenovo ThinkPad T14 G4 21HD0043GE |
AIDA64 / Memory Latency | |
Lenovo ThinkPad T14s G4-21F8002TGE | |
Lenovo ThinkPad T14s G4 i7-1365U | |
Dell Latitude 7440 | |
Asus ExpertBook B9 B9403CVA-KM0153X | |
Average Intel Core i7-1365U (90.2 - 102.2, n=4) | |
HP EliteBook 845 G10 5Z4X0ES | |
Lenovo ThinkPad T14 G4 21HD0043GE |
* ... smaller is better
DPC 延迟

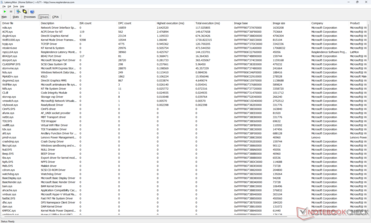

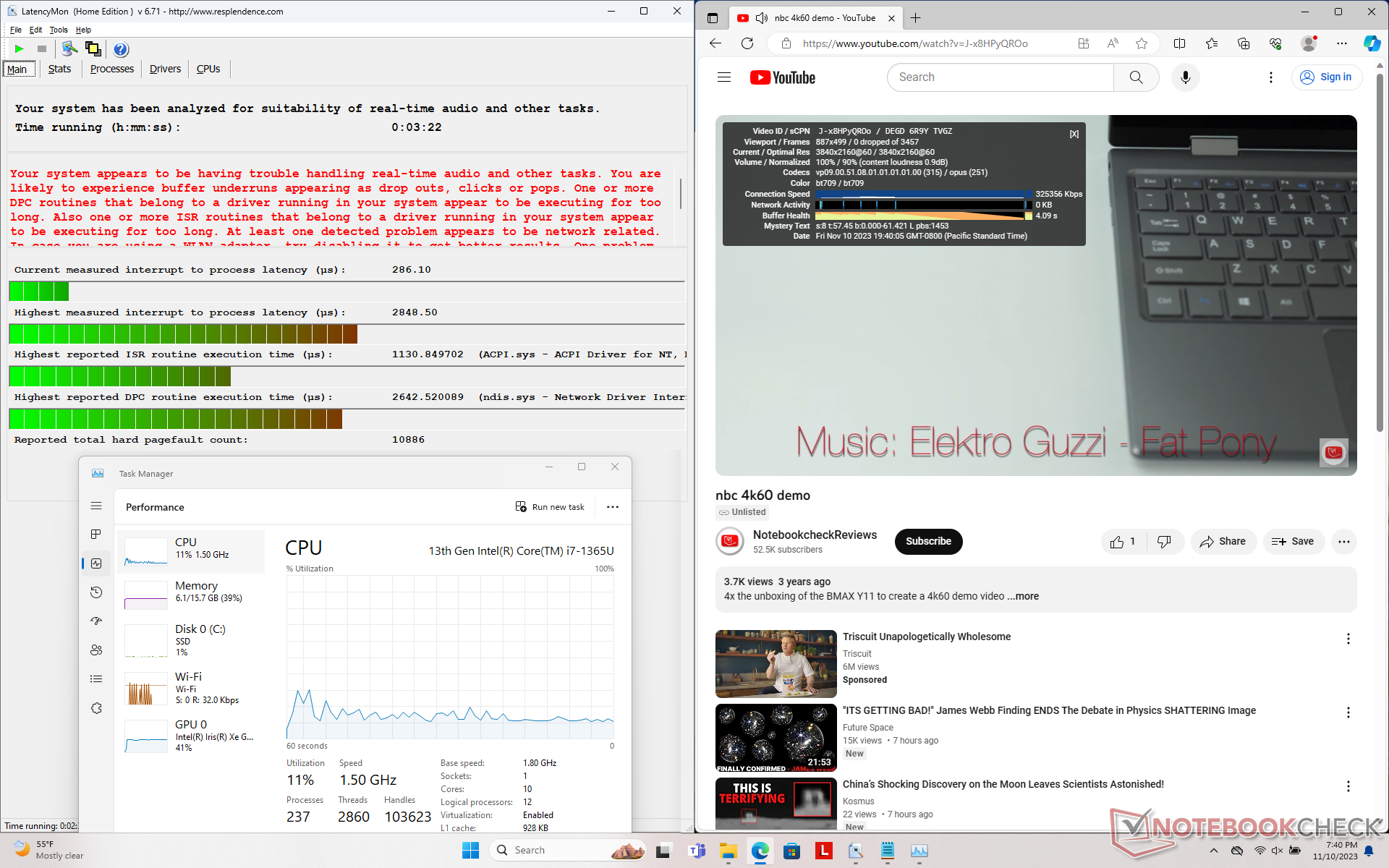

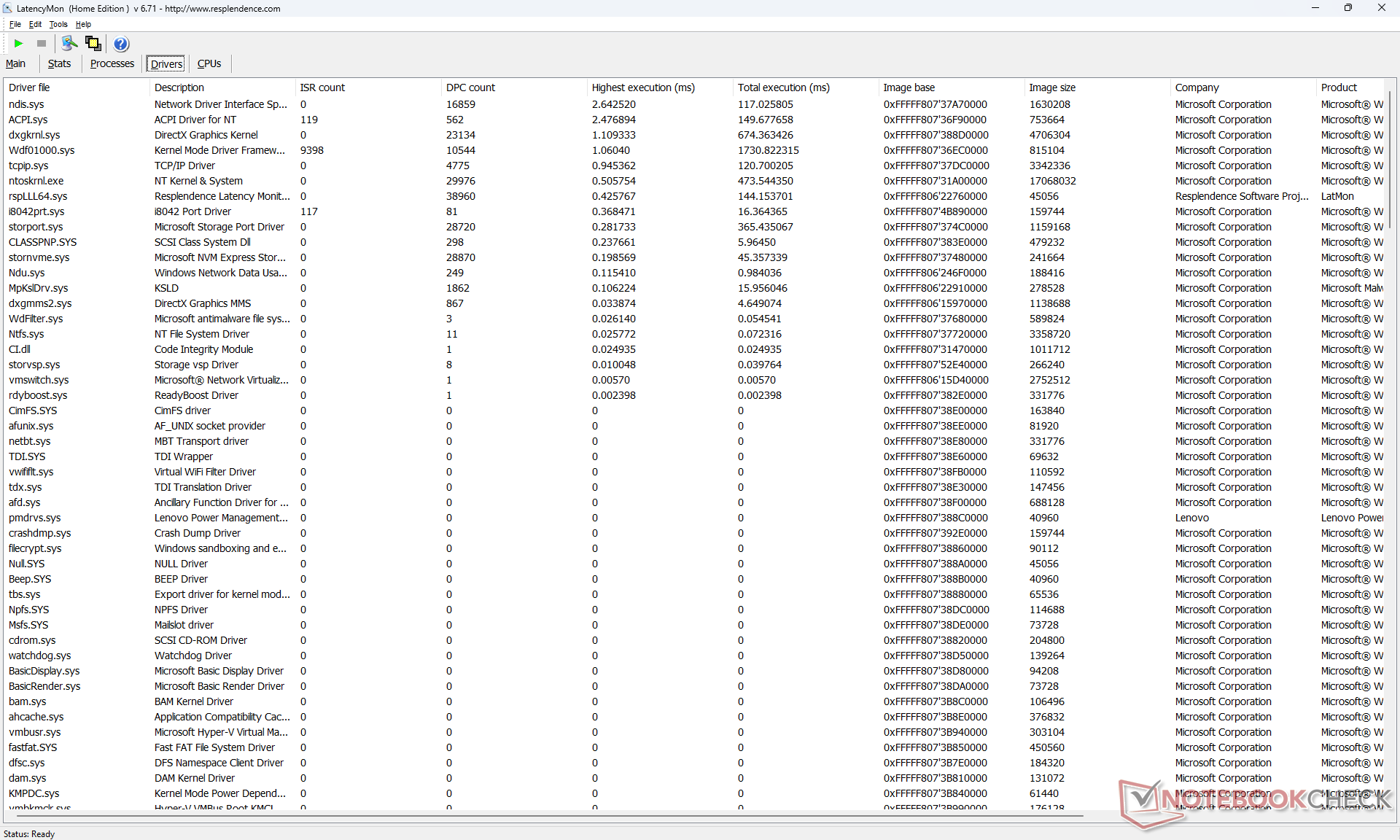

在打开我们主页的多个浏览器标签页时,LatencyMon 显示了 DPC 问题。在其他方面,以 60 FPS 播放 4K 视频也非常完美,没有掉帧记录。
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Lenovo ThinkPad T14s G4 i7-1365U | |
Lenovo ThinkPad T14 G4 21HD0043GE | |
Dell Latitude 7440 | |
Asus ExpertBook B9 B9403CVA-KM0153X | |
HP EliteBook 845 G10 5Z4X0ES | |
Lenovo ThinkPad T14s G4-21F8002TGE |
* ... smaller is better
存储设备

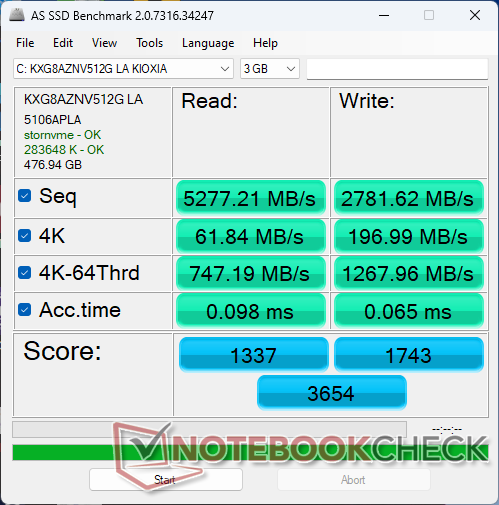

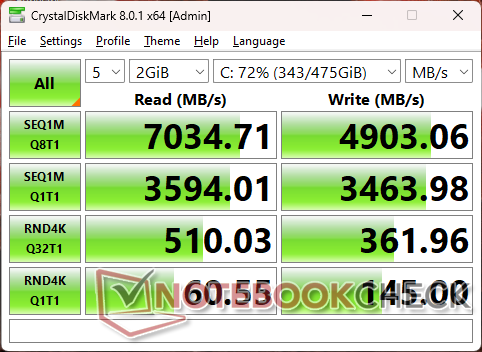

我们的测试设备包括 512 GB Kioxia XG8 KXG8AZNV512G承诺的连续读写速度分别高达 7000 MB/s 和 5000 MB/s。我们设备中的硬盘确实可以达到 7000 MB/s,但如下文 DiskSpd 循环结果所示,这一速度只能持续一两分钟,然后就开始下降到 5000 MB/s 的范围。相比之下,ThinkPad T14s G4 AMD 版中的三星 PM9A1a 在较长时间内保持最高速度不成问题。我们怀疑 Kioxia 控制器达到温度上限的速度比 Samsung 快。
* ... smaller is better
Disk Throttling: DiskSpd Read Loop, Queue Depth 8

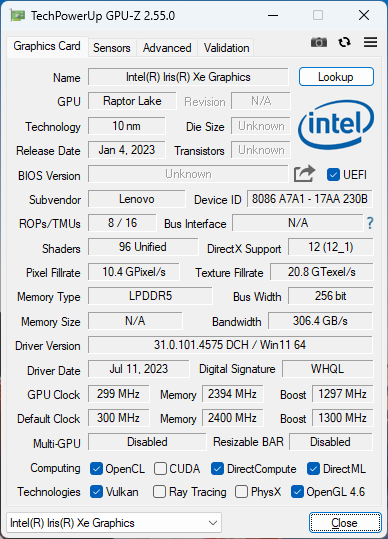

图形处理器性能
鸢尾花 Iris Xe 96 EUs该升级了,因为它已经落后于 AMD 近期推出的替代产品。Radeon 780MRadeon 780MAMD 版 ThinkPad 14s G4 中的 Radeon 780M 可将性能提高 40% 至 60%,这绝不是微不足道的。降级到酷睿 i5-1335U 配置和 Iris Xe 80 EUs而不是 Iris Xe 96 EU,图形性能将受到 25% 至 30% 的影响。

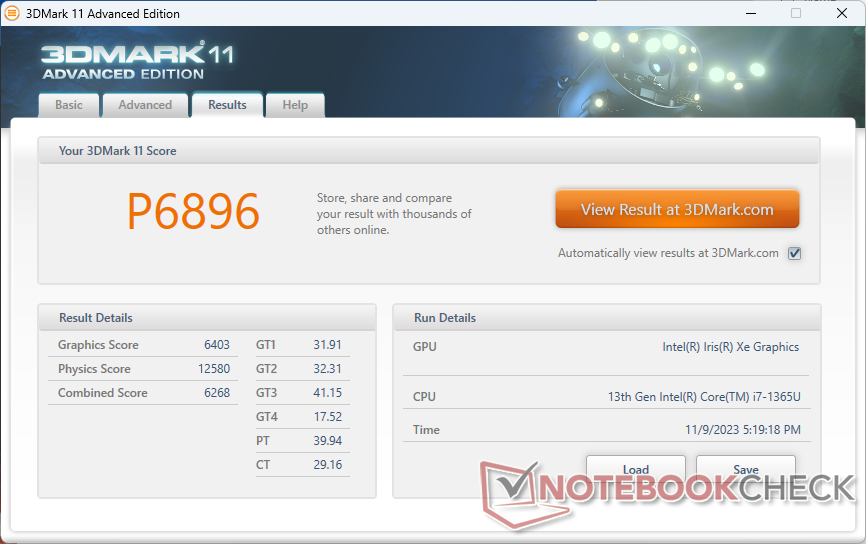

有趣的是,如下表 3DMark 11 结果所示,电池供电、平衡模式和性能模式下的整体性能基本相同。
电源配置文件 | 物理分数 | 图形得分 | 综合得分 |
电池电量 | 13557 | 6293 | 6359 |
平衡 | 12255 | 6424 | 6148 |
绩效 | 12580 | 6403 | 6268 |
3DMark 11 Performance | 6896 points | |

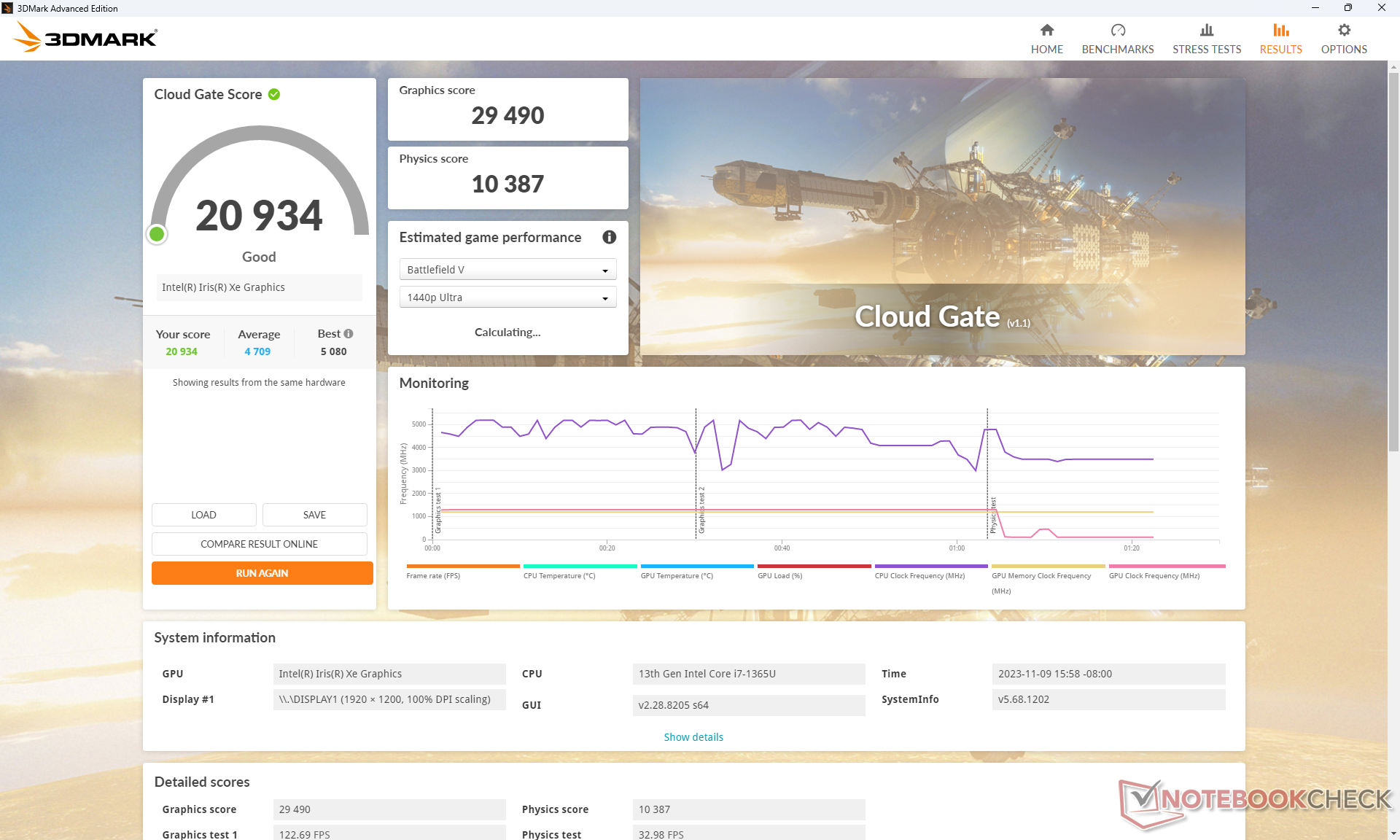

3DMark Cloud Gate Standard Score | 20934 points | |

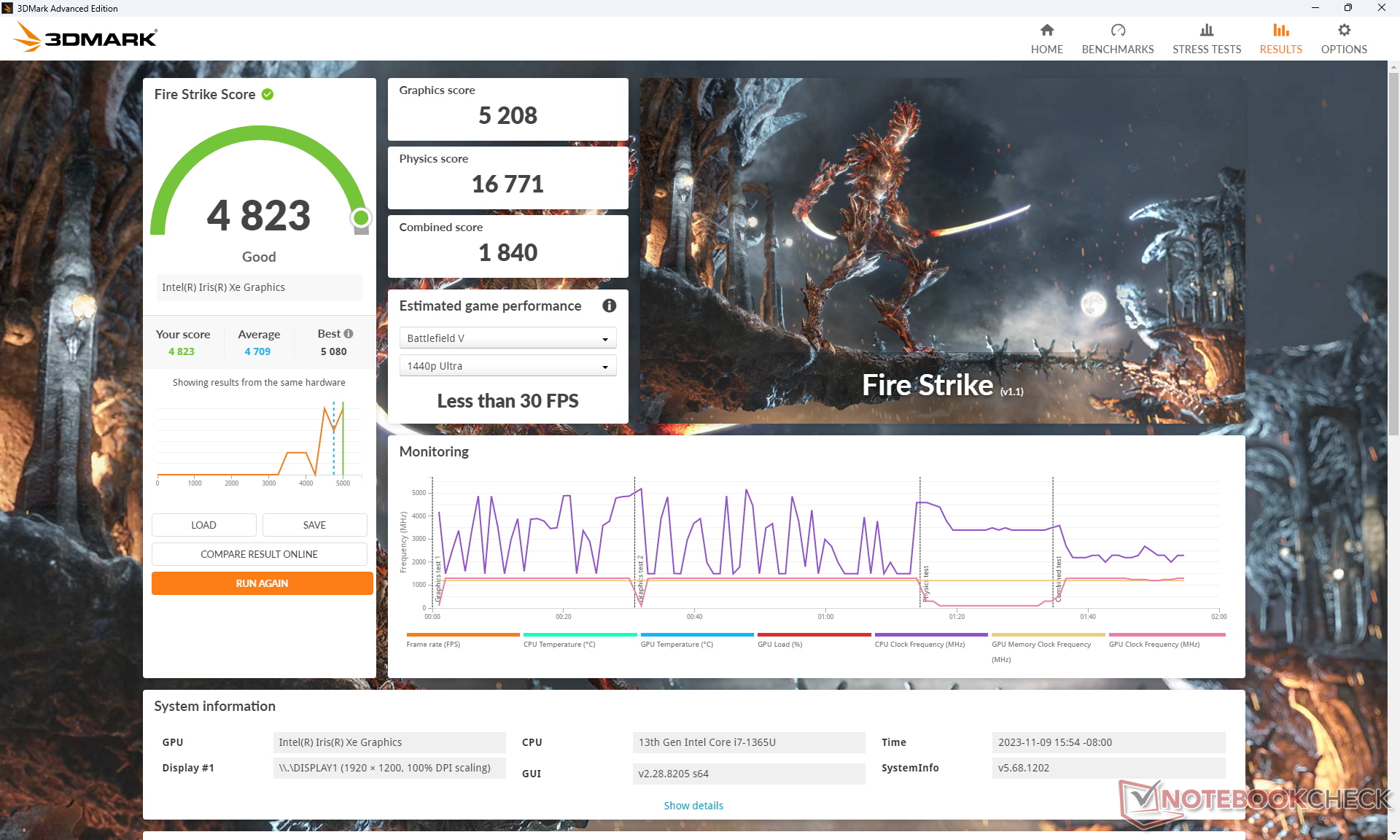

3DMark Fire Strike Score | 4823 points | |

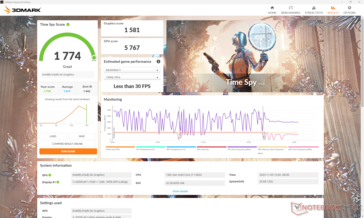

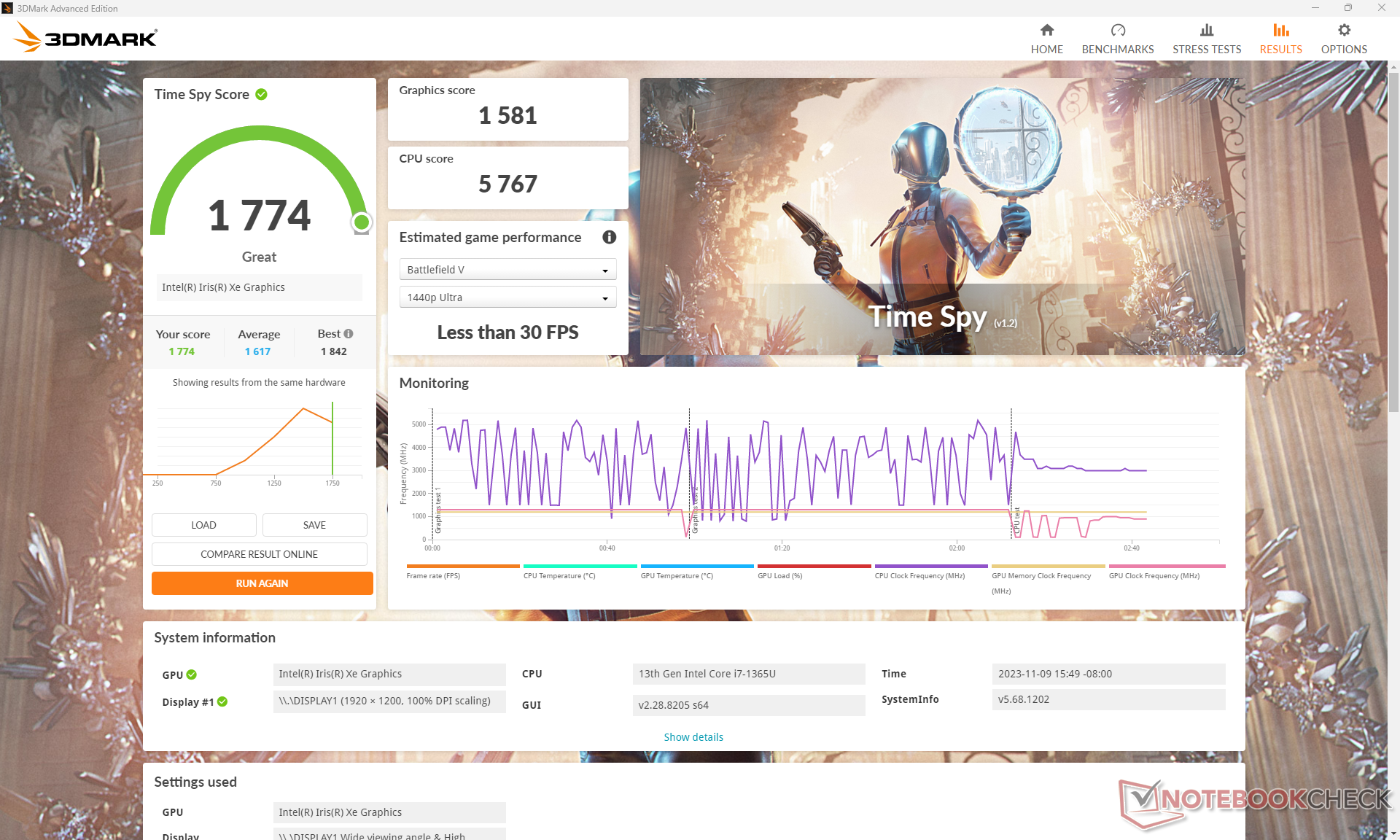

3DMark Time Spy Score | 1774 points | |
Help |
* ... smaller is better
Cyberpunk 2077 1.6 | |
1280x720 Low Preset | |
HP Dragonfly Pro 2023 | |
Dell Latitude 7440 | |
Average Intel Iris Xe Graphics G7 96EUs (20.6 - 44.7, n=17) | |
Lenovo ThinkPad T14s G4 i7-1365U | |
1920x1080 Low Preset | |
HP Dragonfly Pro 2023 | |
Average Intel Iris Xe Graphics G7 96EUs (13 - 25.9, n=42) | |
Dell Latitude 7440 | |
Lenovo ThinkPad T14s G4 i7-1365U |
Tiny Tina's Wonderlands | |
1280x720 Lowest Preset (DX12) | |
Average Intel Iris Xe Graphics G7 96EUs (25.9 - 67.3, n=31) | |
Lenovo ThinkPad T14s G4 i7-1365U | |
1920x1080 Low Preset (DX12) | |
Average Intel Iris Xe Graphics G7 96EUs (22.3 - 53, n=31) | |
Lenovo ThinkPad T14s G4 i7-1365U | |
Dell Latitude 7440 |
开 Witcher 3显示性能稳定,只有一次帧速率会暂时下降到个位数。幸运的是,这种不一致性无法重复出现。
Witcher 3 FPS Chart
low | med. | high | ultra | |
---|---|---|---|---|
GTA V (2015) | 103.3 | 89.6 | 10.1 | |
The Witcher 3 (2015) | 85.5 | 55.7 | 30.2 | 14.7 |
Dota 2 Reborn (2015) | 101.6 | 77.7 | 61.6 | 54.2 |
Final Fantasy XV Benchmark (2018) | 42.8 | 23.9 | 17.1 | |
X-Plane 11.11 (2018) | 47.2 | 36.4 | 31.7 | |
Far Cry 5 (2018) | 48 | 29 | 27 | 25 |
Strange Brigade (2018) | 89.3 | 38.2 | 30.8 | 24.7 |
Cyberpunk 2077 1.6 (2022) | 17.8 | |||
Tiny Tina's Wonderlands (2022) | 27.1 | |||
F1 22 (2022) | 46 | 41.3 | 30.4 | 22.9 |
排放量
系统噪音
风扇噪音,或者更确切地说,没有风扇噪音,是 ThinkPad T14s G4 的一大优点。尤其是当负载要求较高时,我们的英特尔设备运行时比 AMD 配置略微安静。换句话说,在需要更高转速之前,内部风扇可以保持更长时间的安静。

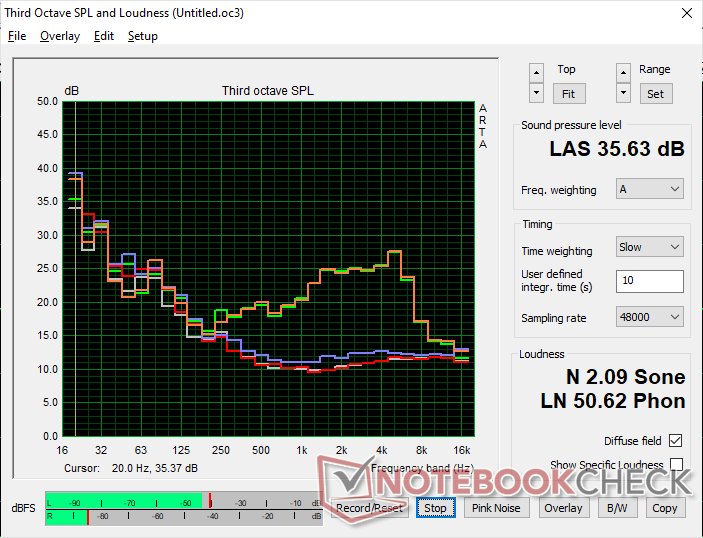

Noise Level
Idle |
| 23.2 / 23.2 / 23.6 dB(A) |
Load |
| 24.3 / 35.7 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 23.2 dB(A) |
Lenovo ThinkPad T14s G4 i7-1365U Iris Xe G7 96EUs, i7-1365U | Lenovo ThinkPad T14s G4-21F8002TGE Radeon 780M, R7 7840U, Samsung PM9A1a MZVL21T0HDLU | Lenovo ThinkPad T14 G4 21HD0043GE Iris Xe G7 80EUs, i5-1335U, Kioxia BG5 KBG5AZNV512G | HP EliteBook 845 G10 5Z4X0ES Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G | Dell Latitude 7440 Iris Xe G7 80EUs, i5-1345U, Samsung MZ9L4512HBLU-00BMV | Asus ExpertBook B9 B9403CVA-KM0153X Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR | |
---|---|---|---|---|---|---|
Noise | -9% | -4% | 3% | 1% | -15% | |
off / environment * | 23.2 | 24.6 -6% | 23 1% | 22.9 1% | 22.8 2% | 24.9 -7% |
Idle Minimum * | 23.2 | 24.6 -6% | 23 1% | 22.9 1% | 22.8 2% | 24.9 -7% |
Idle Average * | 23.2 | 24.6 -6% | 23 1% | 22.9 1% | 22.8 2% | 24.9 -7% |
Idle Maximum * | 23.6 | 26 -10% | 24.9 -6% | 22.9 3% | 22.8 3% | 24.9 -6% |
Load Average * | 24.3 | 29.8 -23% | 26.1 -7% | 24.3 -0% | 26.3 -8% | 33 -36% |
Witcher 3 ultra * | 35.7 | 36.1 -1% | 38.4 -8% | 32.4 9% | 30 16% | |
Load Maximum * | 35.7 | 39.2 -10% | 38.5 -8% | 33.9 5% | 38.3 -7% | 45 -26% |
* ... smaller is better
温度

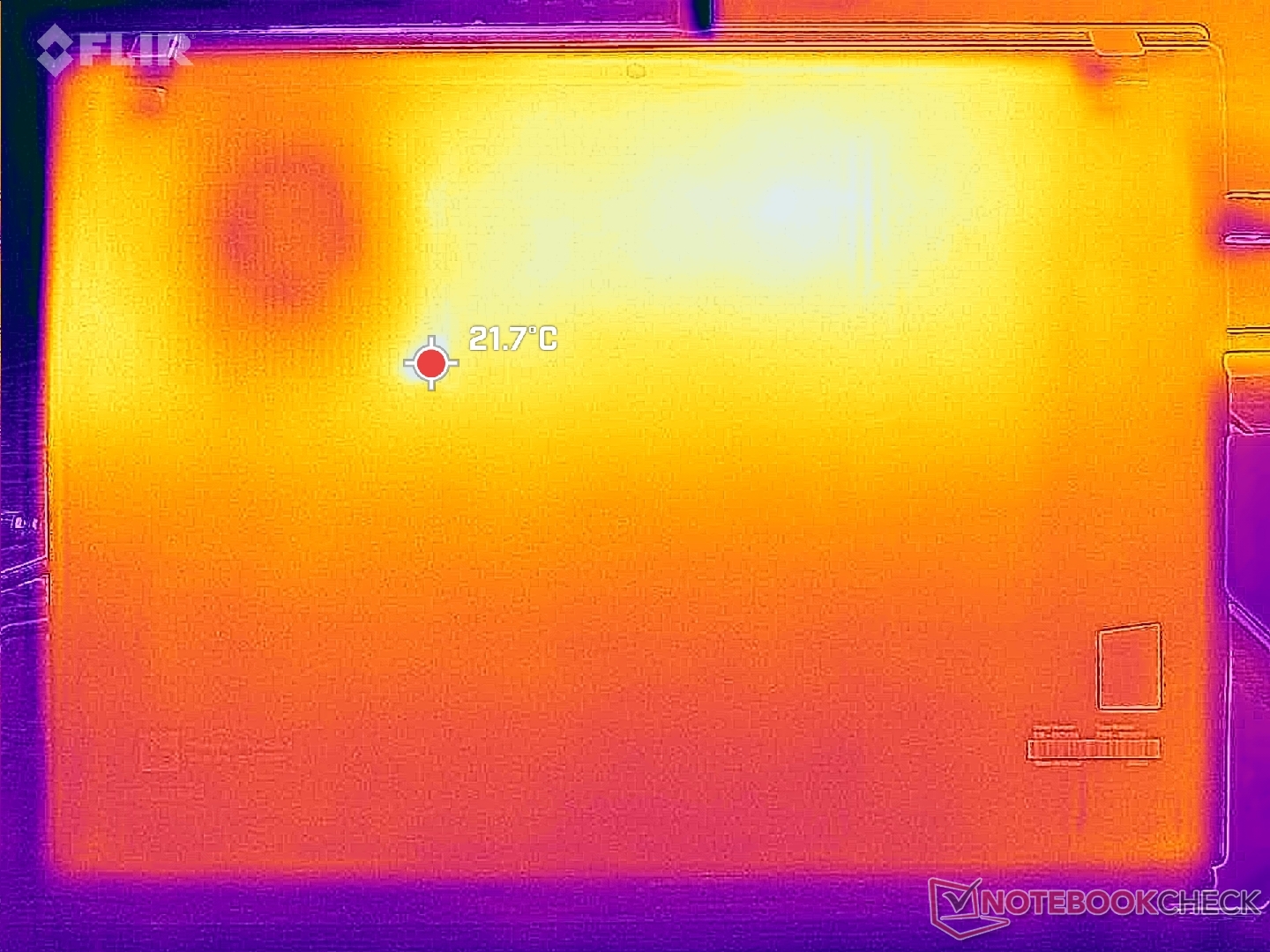

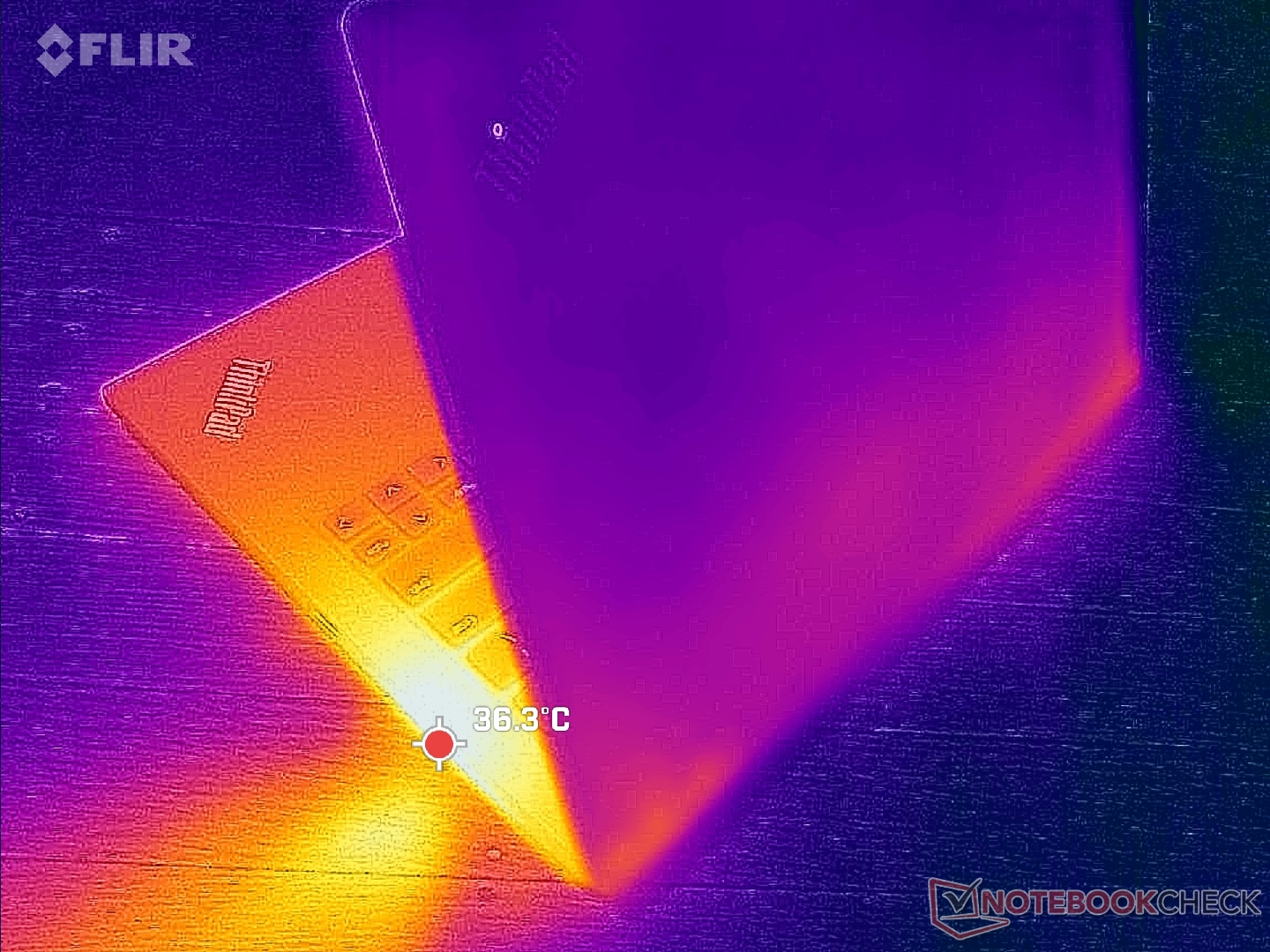

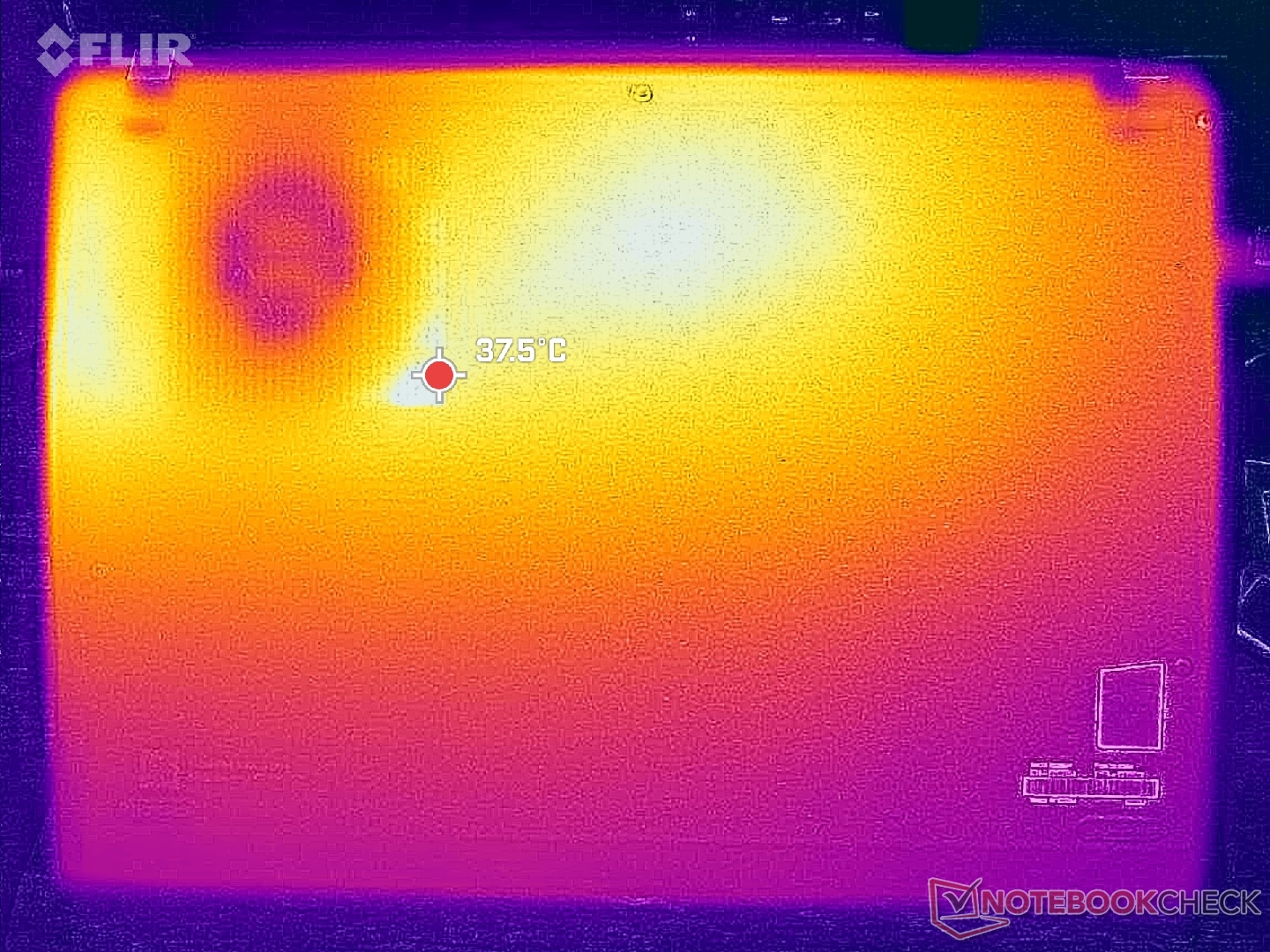

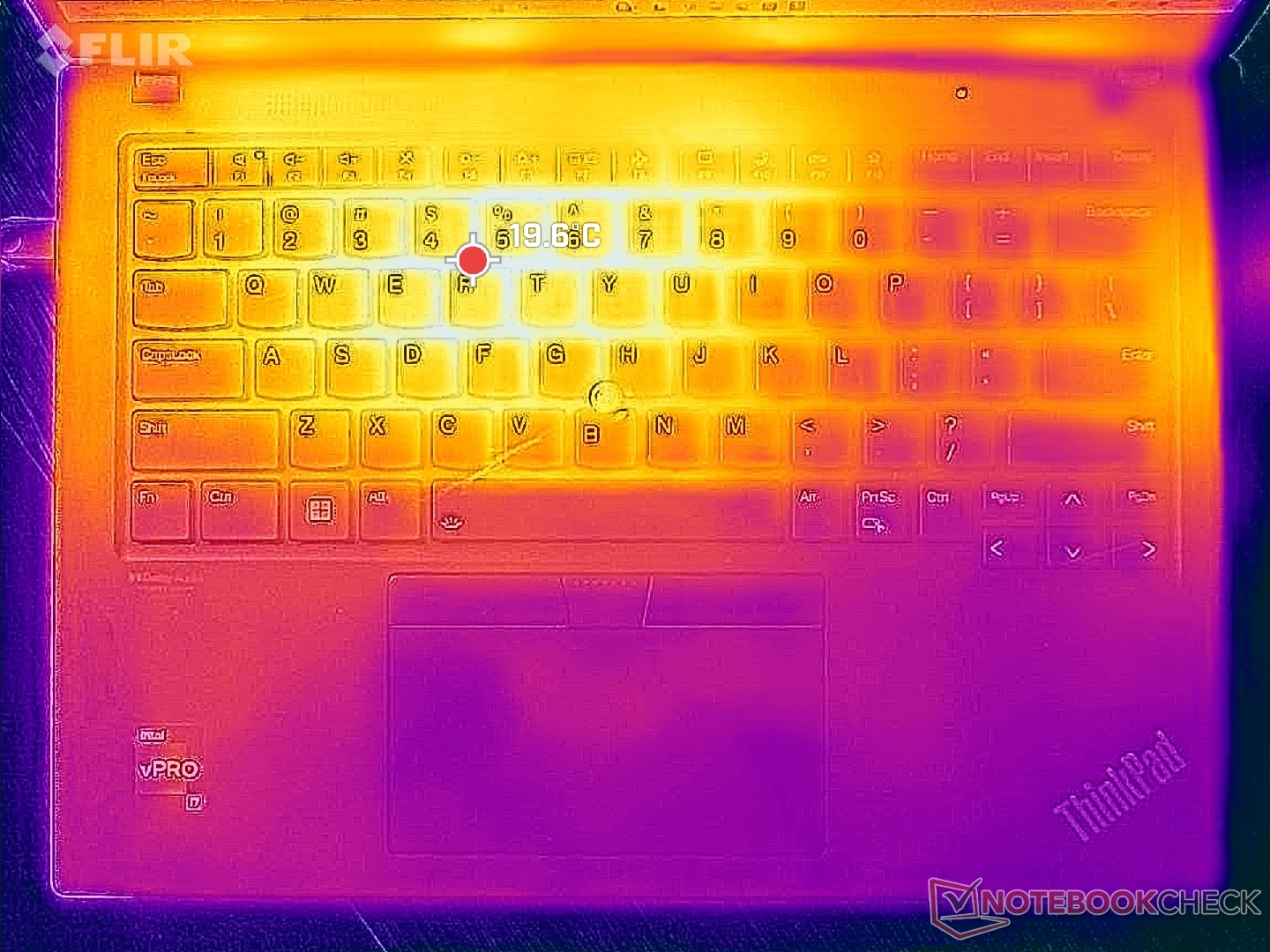

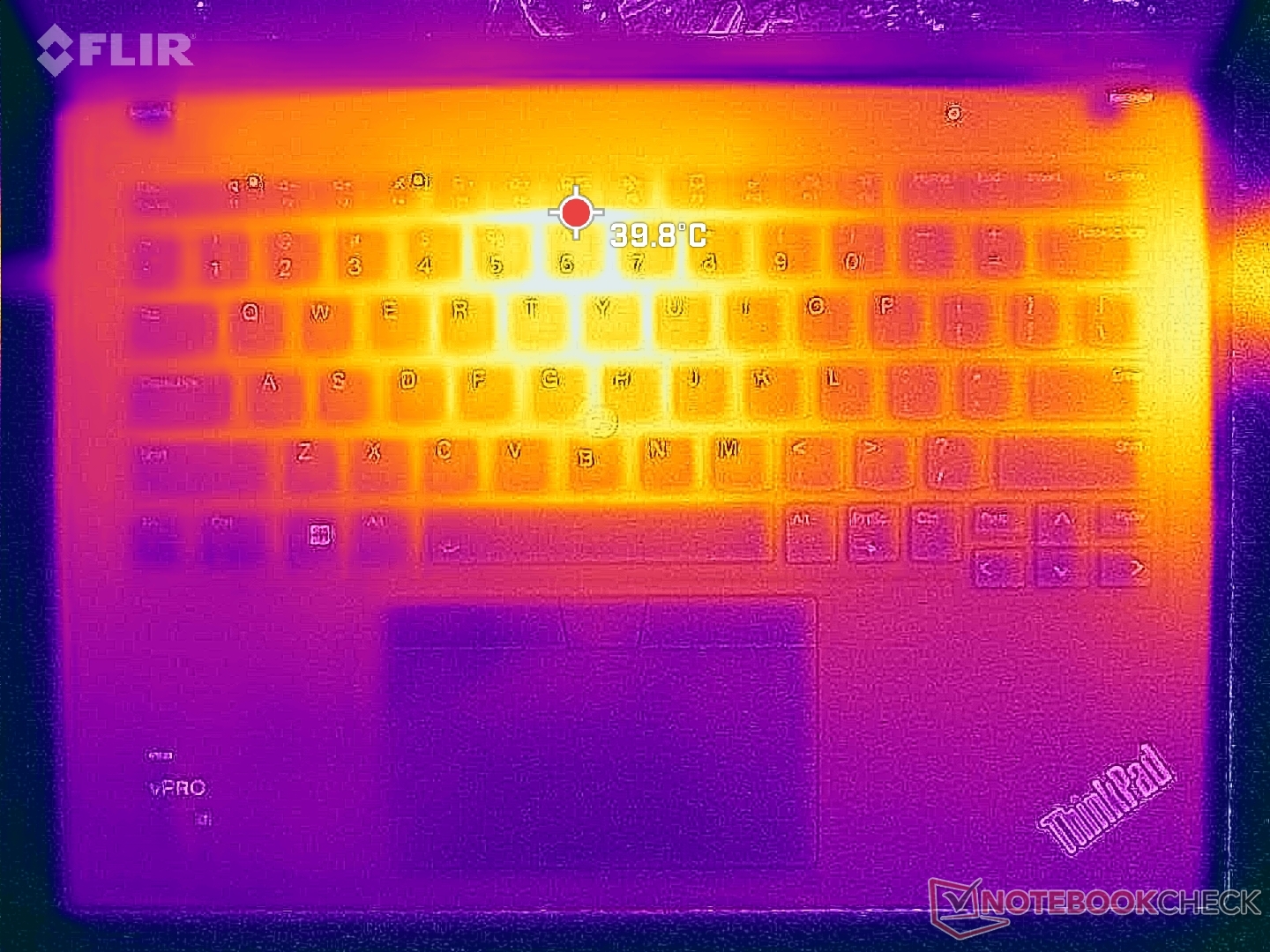

在运行苛刻负载时,顶部和底部(C 盖和 D 盖)的表面温度最高可达 40 摄氏度,与我们在 AMD 版本上记录的情况类似。发热点位于远离掌托和许多常用键盘按键的背面。
(+) The maximum temperature on the upper side is 39.8 °C / 104 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 35.2 °C / 95 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 23.6 °C / 74 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26.2 °C / 79.2 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (+1.4 °C / 2.5 F).
Lenovo ThinkPad T14s G4 i7-1365U Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs | Lenovo ThinkPad T14s G4-21F8002TGE AMD Ryzen 7 7840U, AMD Radeon 780M | Lenovo ThinkPad T14 G4 21HD0043GE Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs | HP EliteBook 845 G10 5Z4X0ES AMD Ryzen 7 7840U, AMD Radeon 780M | Dell Latitude 7440 Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs | Asus ExpertBook B9 B9403CVA-KM0153X Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs | |
---|---|---|---|---|---|---|
Heat | -1% | -12% | -18% | -10% | -39% | |
Maximum Upper Side * | 39.8 | 42.1 -6% | 41.5 -4% | 45.4 -14% | 39 2% | 48.8 -23% |
Maximum Bottom * | 35.2 | 39.7 -13% | 43 -22% | 50.6 -44% | 40.6 -15% | 56.5 -61% |
Idle Upper Side * | 25.6 | 23 10% | 27.8 -9% | 26.8 -5% | 28 -9% | 33.3 -30% |
Idle Bottom * | 24.4 | 22.8 7% | 27.8 -14% | 26.8 -10% | 28.8 -18% | 35 -43% |
* ... smaller is better
压力测试
在启动 Prime95 压力测试时,CPU 会升至 3.8 GHz、53 W 和 100 C。不过,大约 10 秒钟后,CPU 会降至 2.5 GHz 和 23 W,以保持 77 C 的核心温度。这种短暂的 Turbo Boost 潜能在搭载 U 系列处理器的超极本中很常见,与我们上述的 CineBench R15 xT 结果一致。
运行时的核心温度 Witcher 3时的核心温度稳定在 73 摄氏度,而最近的 Pavilion Plus 14的温度为 77 摄氏度。
CPU 时钟 (GHz) | GPU 时钟 (MHz) | CPU 平均温度 (°C) | |
系统闲置 | -- | -- | 38 |
Prime95 压力 | 2.5 | -- | 77 |
Prime95 + FurMark 压力 | 1.6 | 71 | 750 |
Witcher 3 压力 | ~2.2 | 1250 | 73 |
发言人

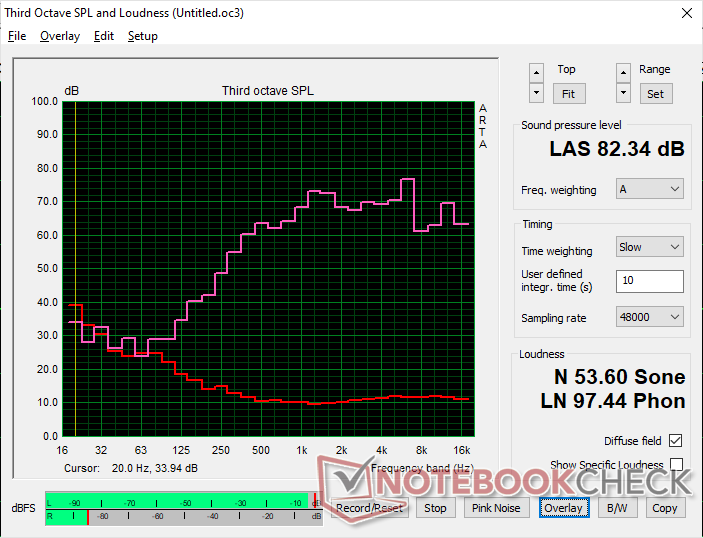

Lenovo ThinkPad T14s G4 i7-1365U audio analysis
(+) | speakers can play relatively loud (82.3 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 21.9% lower than median
(±) | linearity of bass is average (8.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.2% away from median
(+) | mids are linear (6.2% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.6% higher than median
(±) | linearity of highs is average (7.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.4% difference to median)
Compared to same class
» 29% of all tested devices in this class were better, 7% similar, 65% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 37% of all tested devices were better, 8% similar, 55% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Apple MacBook Pro 16 2021 M1 Pro audio analysis
(+) | speakers can play relatively loud (84.7 dB)
Bass 100 - 315 Hz
(+) | good bass - only 3.8% away from median
(+) | bass is linear (5.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (2.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (4.6% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 100% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 4%, average was 25%, worst was 134%
能源管理
耗电量
我们的英特尔系统在台式机上空转时比 AMD 系统略高几瓦。将这种情况延长几个小时,微小的差异就会增加,下一节的电池寿命结果就是例证。

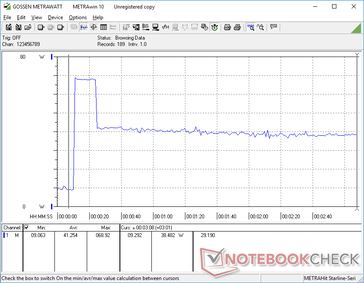

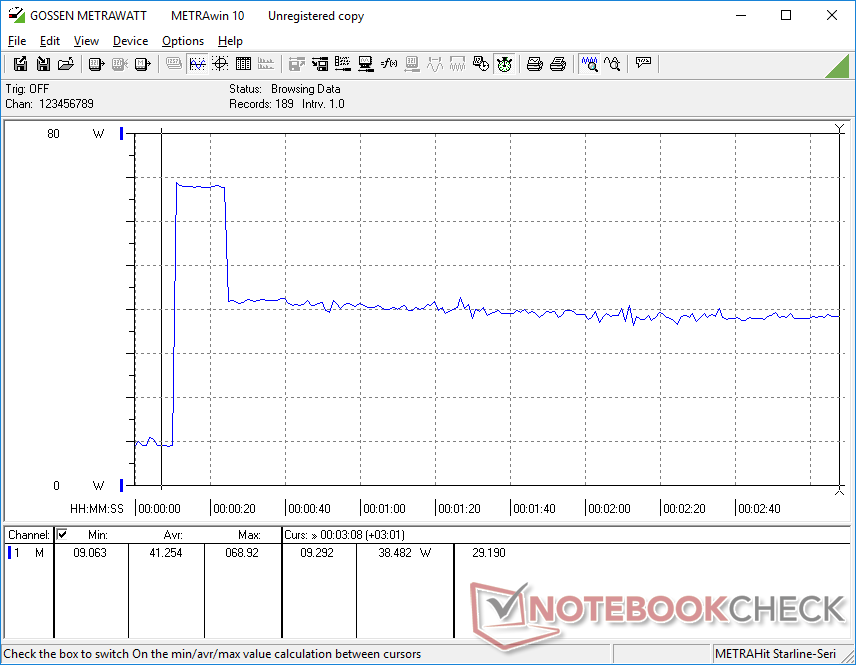

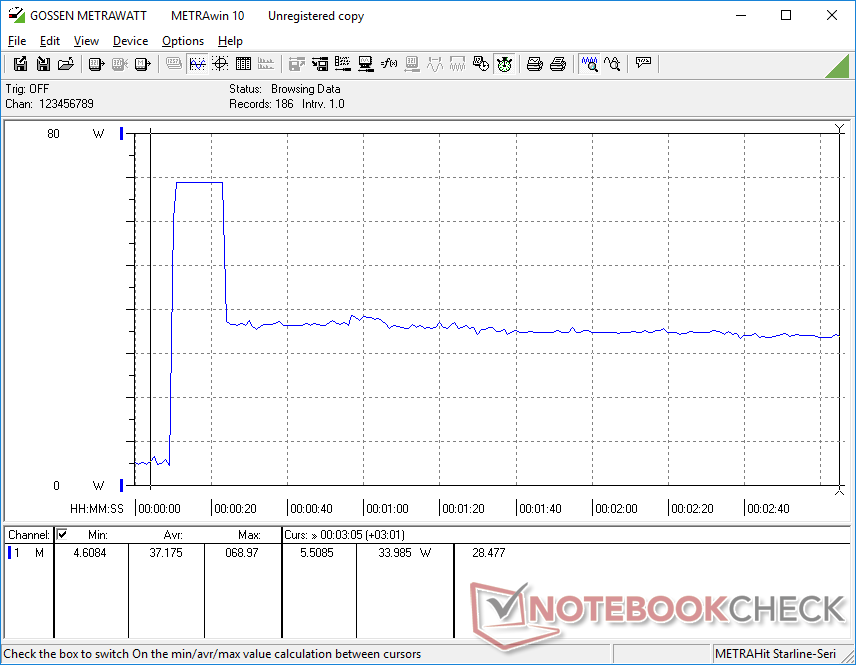

由于酷睿系列的 Turbo Boost 潜能普遍较高,因此在启动 CPU 密集型任务时,英特尔设备的功耗要比 AMD 设备高得多。不过,功率峰值只会持续几秒钟,然后英特尔和 AMD 机型的功耗就会趋于正常,如下图所示。
每瓦性能显然对 AMD 有利。运行 Witcher 3或 Prime95,在考虑节流因素后,两款机型的要求大致相同,但 AMD Ryzen 7 配置的多线程 CPU 性能和图形性能明显快于英特尔酷睿 i7 配置。
Off / Standby | 0.2 / 0.42 Watt |
Idle | 3.1 / 6.5 / 7.9 Watt |
Load |
40 / 69 Watt |
Key:
min: ,
med: ,
max: Metrahit Energy |
Lenovo ThinkPad T14s G4 i7-1365U i7-1365U, Iris Xe G7 96EUs, , IPS, 1920x1200, 14" | Lenovo ThinkPad T14s G4-21F8002TGE R7 7840U, Radeon 780M, Samsung PM9A1a MZVL21T0HDLU, IPS, 1920x1200, 14" | Lenovo ThinkPad T14 G4 21HD0043GE i5-1335U, Iris Xe G7 80EUs, Kioxia BG5 KBG5AZNV512G, IPS-AHVA LTPS wLED, 1920x1200, 14" | HP EliteBook 845 G10 5Z4X0ES R7 7840U, Radeon 780M, WD PC SN740 512GB SDDPNQD-512G, IPS, 1920x1200, 14" | Dell Latitude 7440 i5-1345U, Iris Xe G7 80EUs, Samsung MZ9L4512HBLU-00BMV, IPS, 2560x1600, 14" | Asus ExpertBook B9 B9403CVA-KM0153X i7-1355U, Iris Xe G7 96EUs, Samsung PM9A1 MZVL21T0HCLR, OLED, 2880x1800, 14" | |
---|---|---|---|---|---|---|
Power Consumption | 17% | 20% | 16% | -11% | -45% | |
Idle Minimum * | 3.1 | 2.7 13% | 2.4 23% | 3.2 -3% | 4.5 -45% | 4.9 -58% |
Idle Average * | 6.5 | 5.2 20% | 4.5 31% | 5.1 22% | 6.5 -0% | 12.5 -92% |
Idle Maximum * | 7.9 | 5.6 29% | 5.6 29% | 5.4 32% | 7.3 8% | 16.8 -113% |
Load Average * | 40 | 40.1 -0% | 29.5 26% | 39.1 2% | 52.5 -31% | 43.8 -10% |
Witcher 3 ultra * | 43.2 | 40.2 7% | 40.8 6% | 39.8 8% | 46.2 -7% | 41.2 5% |
Load Maximum * | 69 | 48.3 30% | 67.2 3% | 46.6 32% | 63 9% | 68.1 1% |
* ... smaller is better

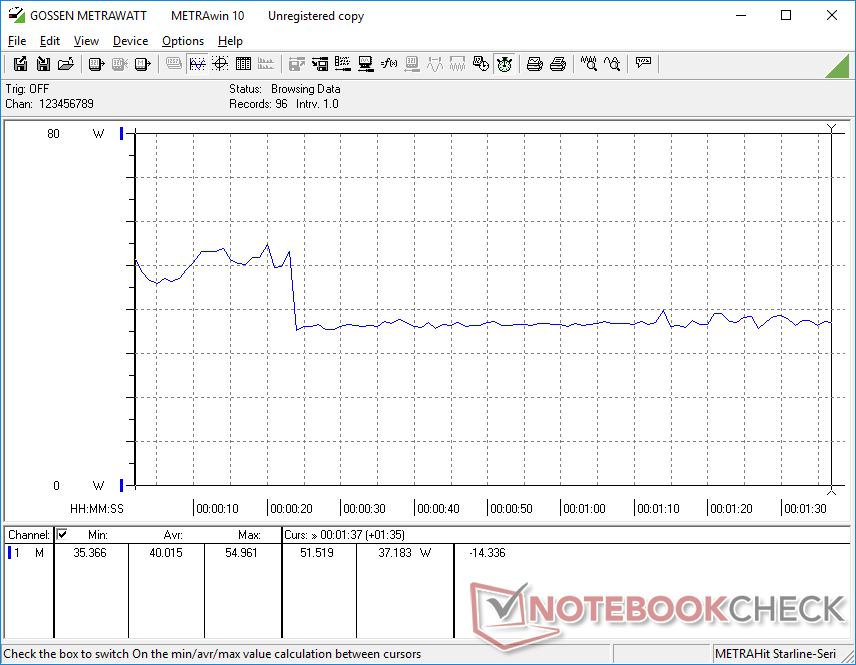

Power Consumption Witcher 3 / Stresstest
Power Consumption external Monitor
电池寿命
尽管电池容量相同,但 WLAN 运行时间明显比 AMD 型号短几个小时。我们可以记录近 8 小时的实际浏览时间,而 AMD 版则超过 13 小时。 惠普 EliteBook 845 G10或 Latitude 7440.
Lenovo ThinkPad T14s G4 i7-1365U i7-1365U, Iris Xe G7 96EUs, 57 Wh | Lenovo ThinkPad T14s G4-21F8002TGE R7 7840U, Radeon 780M, 57 Wh | Lenovo ThinkPad T14 G4 21HD0043GE i5-1335U, Iris Xe G7 80EUs, 52.5 Wh | HP EliteBook 845 G10 5Z4X0ES R7 7840U, Radeon 780M, 51 Wh | Dell Latitude 7440 i5-1345U, Iris Xe G7 80EUs, 57 Wh | Asus ExpertBook B9 B9403CVA-KM0153X i7-1355U, Iris Xe G7 96EUs, 63 Wh | |
---|---|---|---|---|---|---|
Battery Runtime | 67% | 40% | 64% | 64% | 29% | |
WiFi v1.3 | 476 | 793 67% | 666 40% | 779 64% | 781 64% | 614 29% |
H.264 | 988 | 760 | 606 | |||
Load | 99 | 94 | 81 | 164 | 135 | |
Reader / Idle | 1427 |
Pros
Cons
结论 - AMD 的激烈竞争
酷睿 i7 vPro ThinkPad T14s G4 是目前最快的英特尔配置,但仍然比便宜的 Ryzen 7 Pro 配置在多线程 CPU 性能和图形性能方面都要慢一些。不仅如此,尽管整体性能较慢,但电池续航时间实际上比 AMD 方案更短。仅凭这些缺点,我们更倾向于推荐 AMD Ryzen 7 配置,它的售价为 1200 美元,比我们的酷睿 i7 评测配置(配备相同的 16 GB 内存、512 GB 固态硬盘和 1200p IPS 触摸屏)低 200 美元。
无论如何,酷睿 i7 ThinkPad T14s G4 并不可怕。相反,英特尔 U 系列处理器在性能上要逊色于 AMD Zen 4 处理器,尤其是 Ryzen 7 7840U。
英特尔 U 系列处理器支持 Thunderbolt 技术,而 AMD U 系列处理器则配备了 USB4 接口,可支持大多数 Thunderbolt 设备,如 eGPU 和显示器。因此,对于绝大多数用户来说,选择英特尔而不是 AMD 的好处微乎其微。用户可以选择 Ryzen 7 设备,然后配置 WAN 或智能卡等其他辅助选件,这样可以省钱或获得更多实惠。
价格和供应情况
目前,联想已经推出了多种配置的ThinkPad T14,英特尔配置的起价为1110美元,AMD配置的起价为920美元。我们的英特尔酷睿 i7 配置售价约为 1400 美元。
Lenovo ThinkPad T14s G4 i7-1365U
- 11/22/2023 v7 (old)
Allen Ngo
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
