Name: GMK EVO-X1
Brand: GMK

结论 - 采用可堆叠外形的现代 AMD Zen 5

虽然新款 EVO-X1 给人的第一印象非常好，但稍加挖掘或使用就会发现一些瑕疵。负载情况下风扇的噪音、RGB LED 灯的问题以及关闭或睡眠模式时电源状态的错误都表明，该机型本可以在发布前进行更多的微调。

抛开这些恼人的问题或缺陷不谈，EVO-X1 仍然是一款极具吸引力且功能强大的迷你 PC，适用于家庭、办公室或专业用途。它的主要卖点是集成了 Oculink 端口，这意味着买家需要利用这一功能才能真正发挥该机型的最大功效。否则，其他迷你电脑如 Beelink SER9等其他迷你电脑也配备了类似的 AMD Zen 5 处理器，但内存可拆卸，价格略低。

Pros

+ 与尺寸相当的快速 CPU 和 GPU 性能

+ 小巧独特的紧凑型设计

+ 维修相对容易

+ 支持 Oculink

+ 快速 RAM

Cons

- 不支持 Wi-Fi 6E 或 Wi-Fi 7

- 睡眠模式下的电源状态问题

- 没有集成的 SD 读卡器

- 内存不可升级

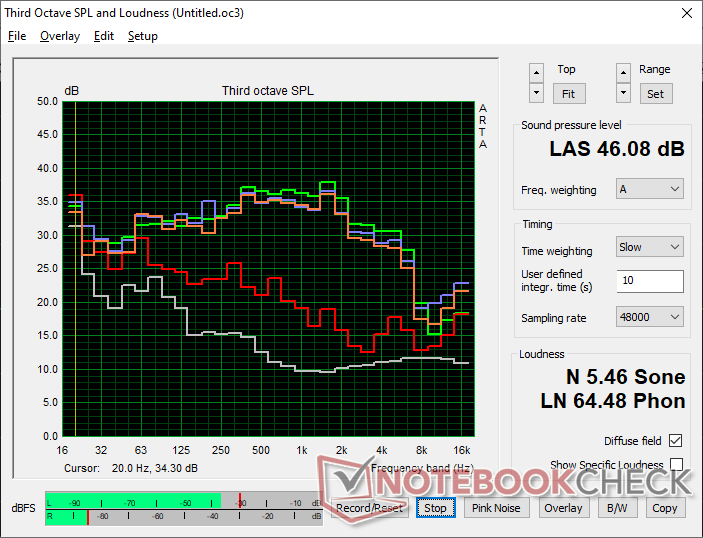

- 风扇可以更安静

$1,099.99

GMKtec AI Mini PC AMD Ryzen AI 9 HX-370 Serie(5.1GHz) Mini Gaming Computers, 32GB LPDDR5X 1TB PCIe 4.0 SSD, Support Windows 11 Pro, Triple Screen 8K Display, WiFi 6 & USB4/Oculink Interface/EVO-X1

EVO-X1 是 GMKtec 推出的最新一代迷你 PC。它采用了全新的机箱设计、RGB LED 和 Oculink 支持，与传统的 NucBox 系列有所不同。

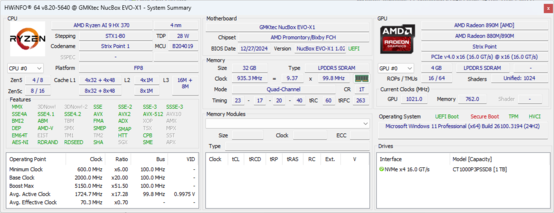

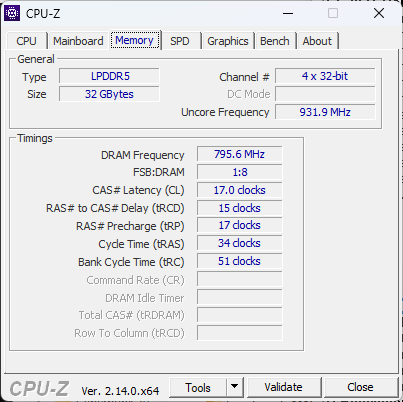

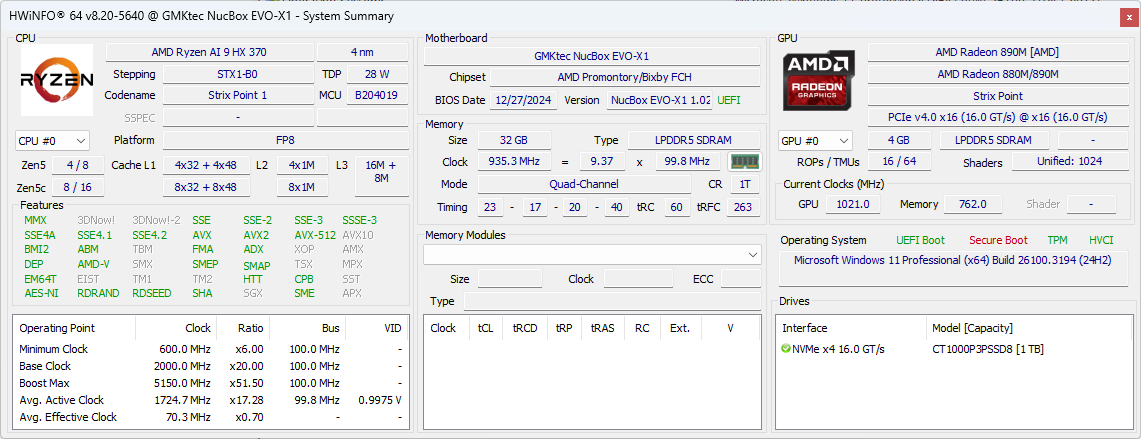

我们的测试机配备了 Ryzen AI 9 HX 370、集成 Radeon 890M 显卡、32 GB LPDDR5-7500 焊接内存和 1 TB NVMe SSD，售价约为 920 美元。其他 SKU 可能会配备更大的固态硬盘，但目前所有选项的 CPU 和内存都是固定的。

EVO-X1 的替代产品包括其他高性能迷你 PC，如 Beelink SER9, 华硕 NUC 14 Pro+或 BOSGAME M2.

更多 GMK 评论：

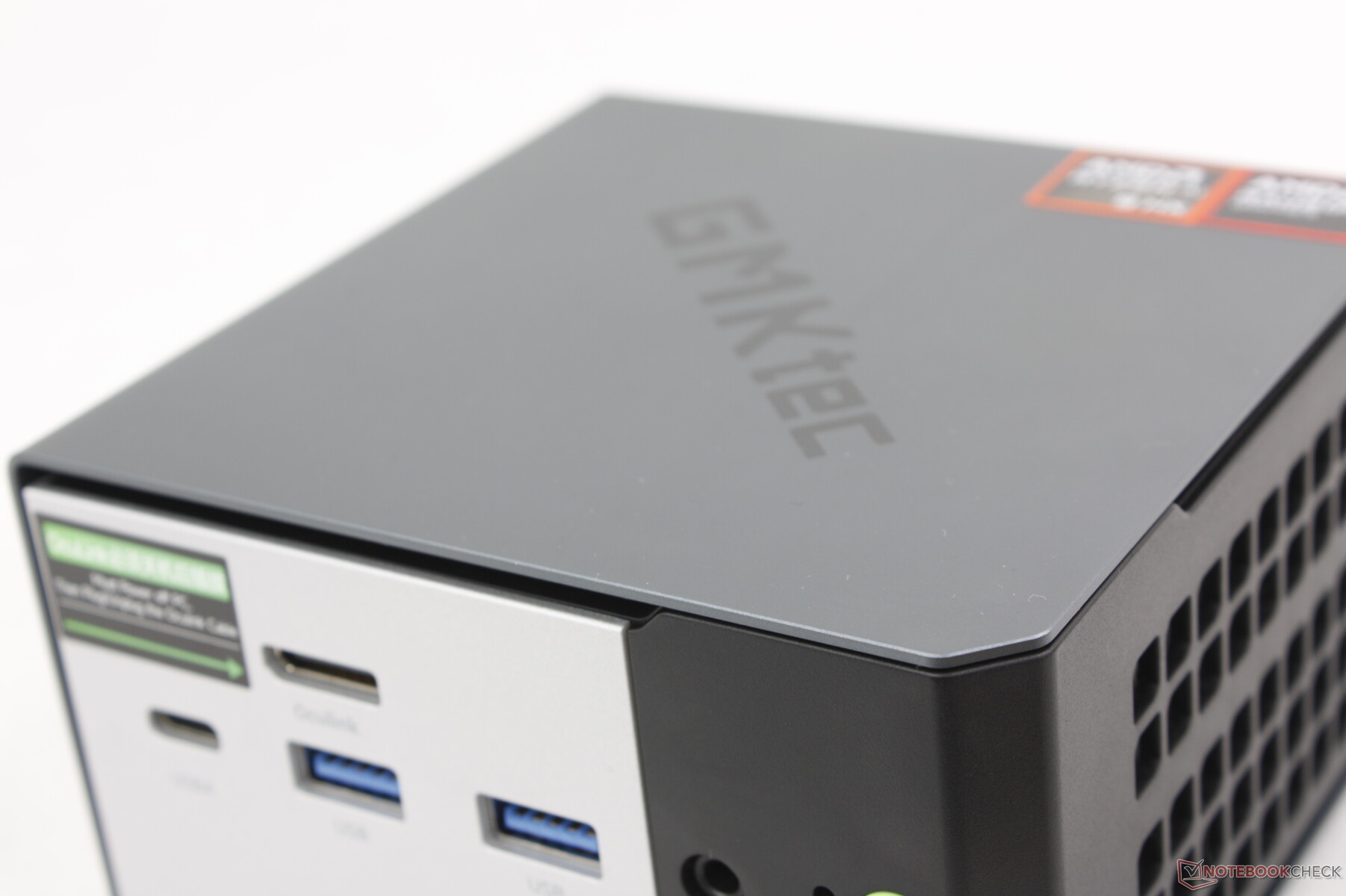

案例

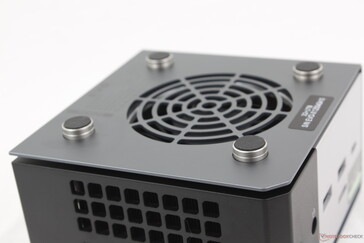

新的机箱设计有助于从视觉上将 EVO-X1 与竞争对手区分开来。与主要采用塑料材质的 NucBox 系列相比，EVO-X1 锐利的方形外观和金属外壳给人更专业的感觉。尺寸和重量也比预期的更小更轻，部分原因是采用了焊接内存。

不过，RGB LED 灯却让人喜忧参半，因为它们与原本专业的外观相冲突。我们也找不到可以切换 LED 的 BIOS 设置或应用程序。甚至在关闭电源或睡眠模式下，LED 灯仍然亮着。

尺寸比较

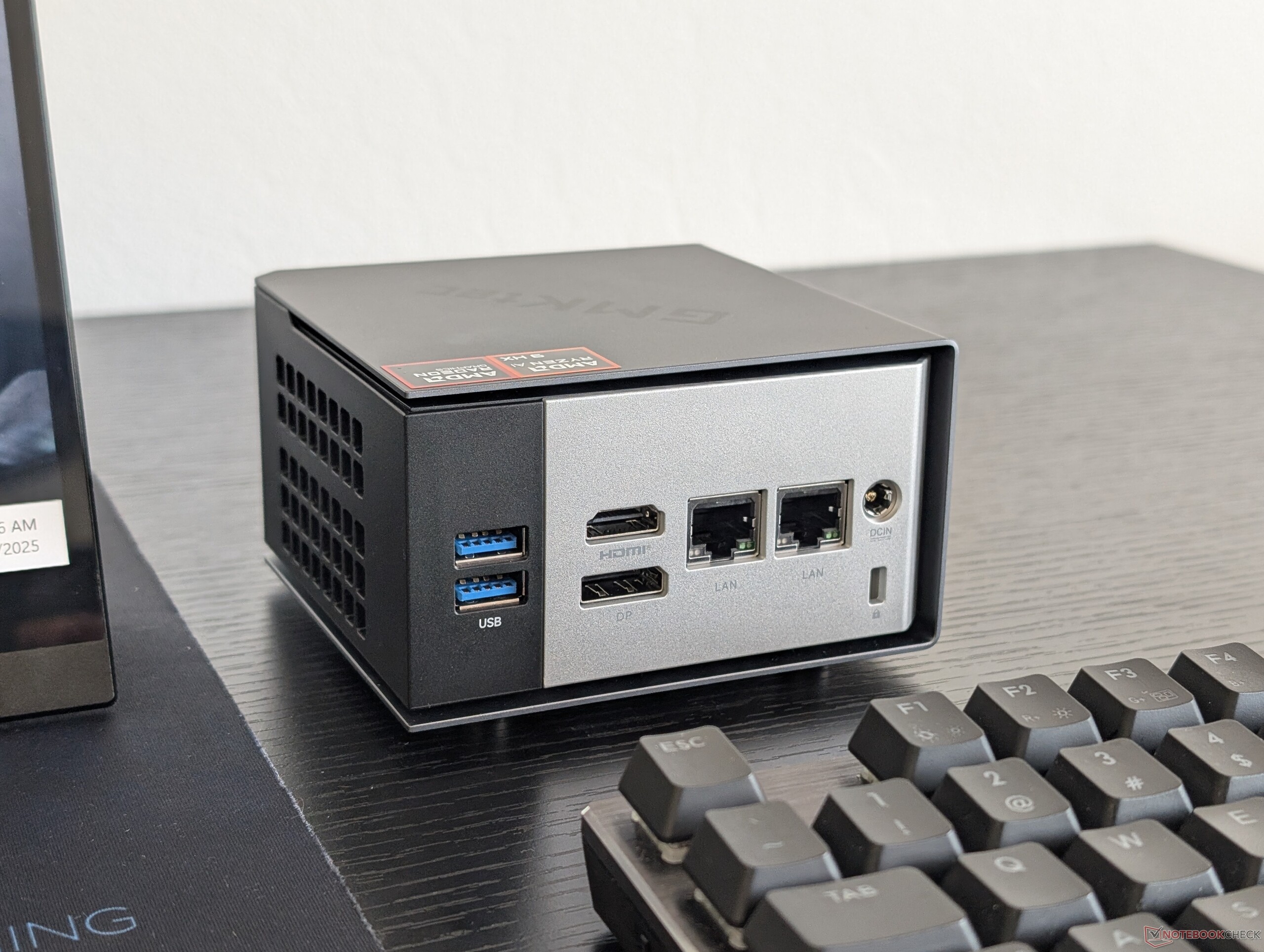

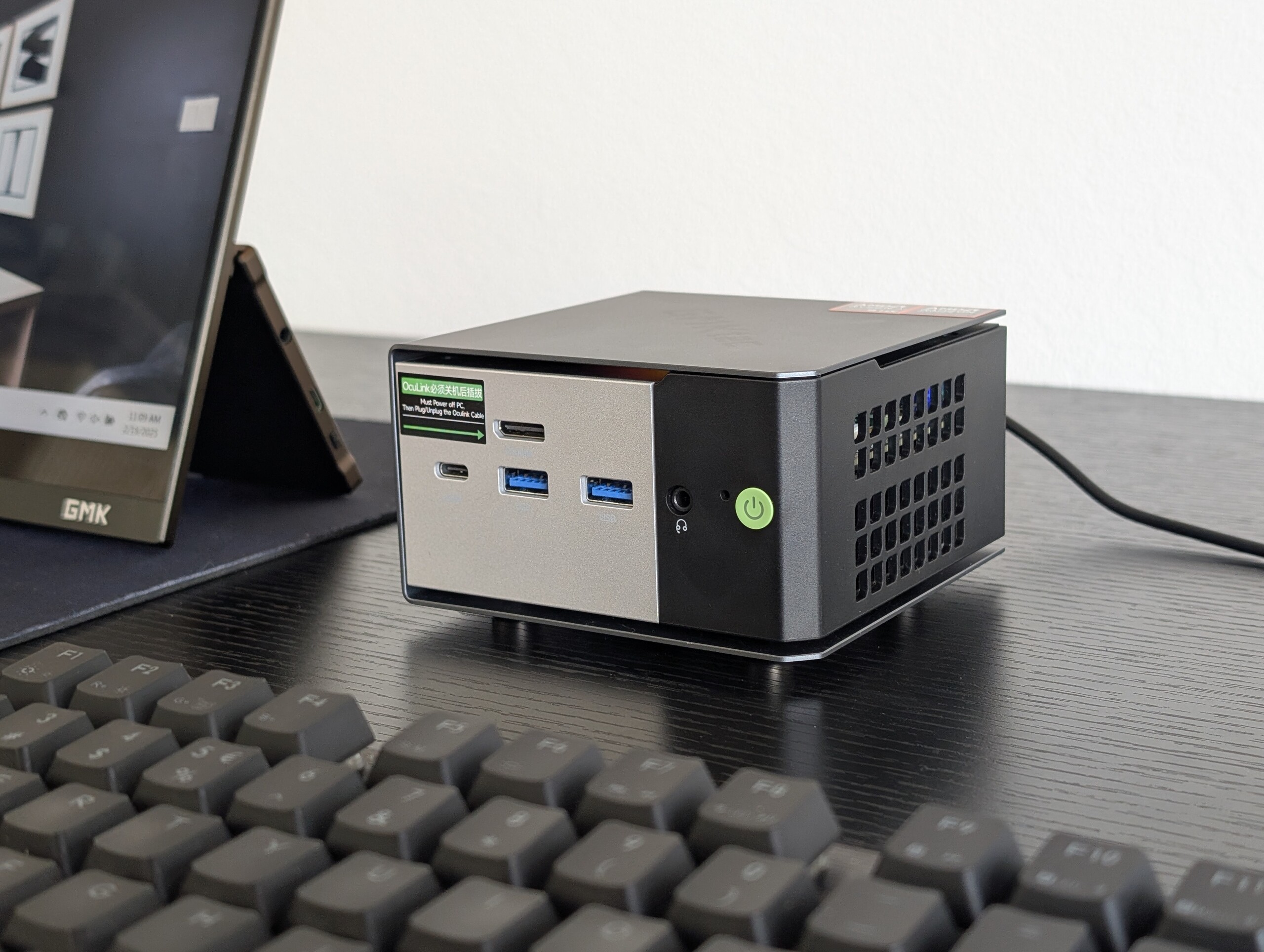

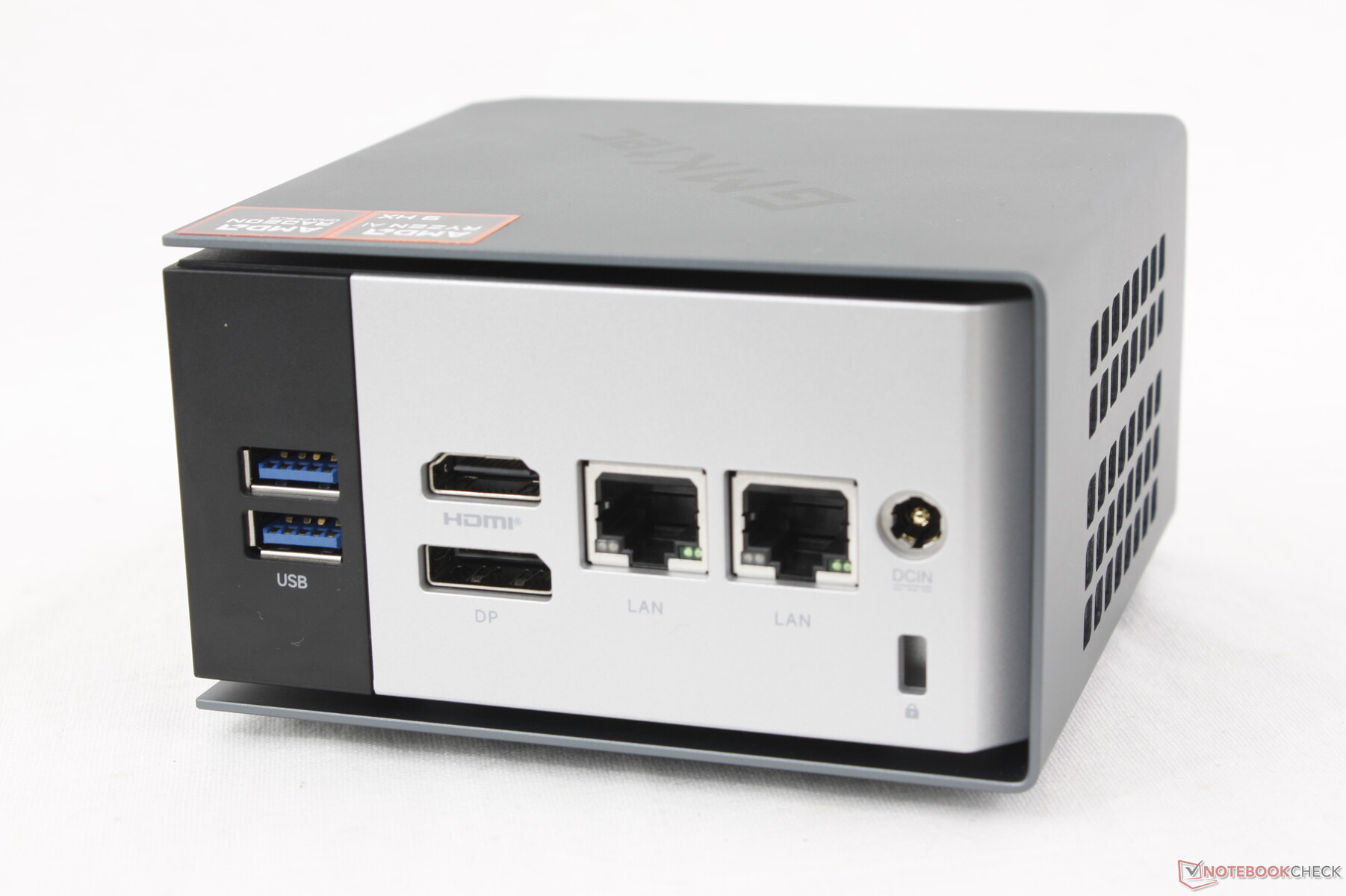

连接性

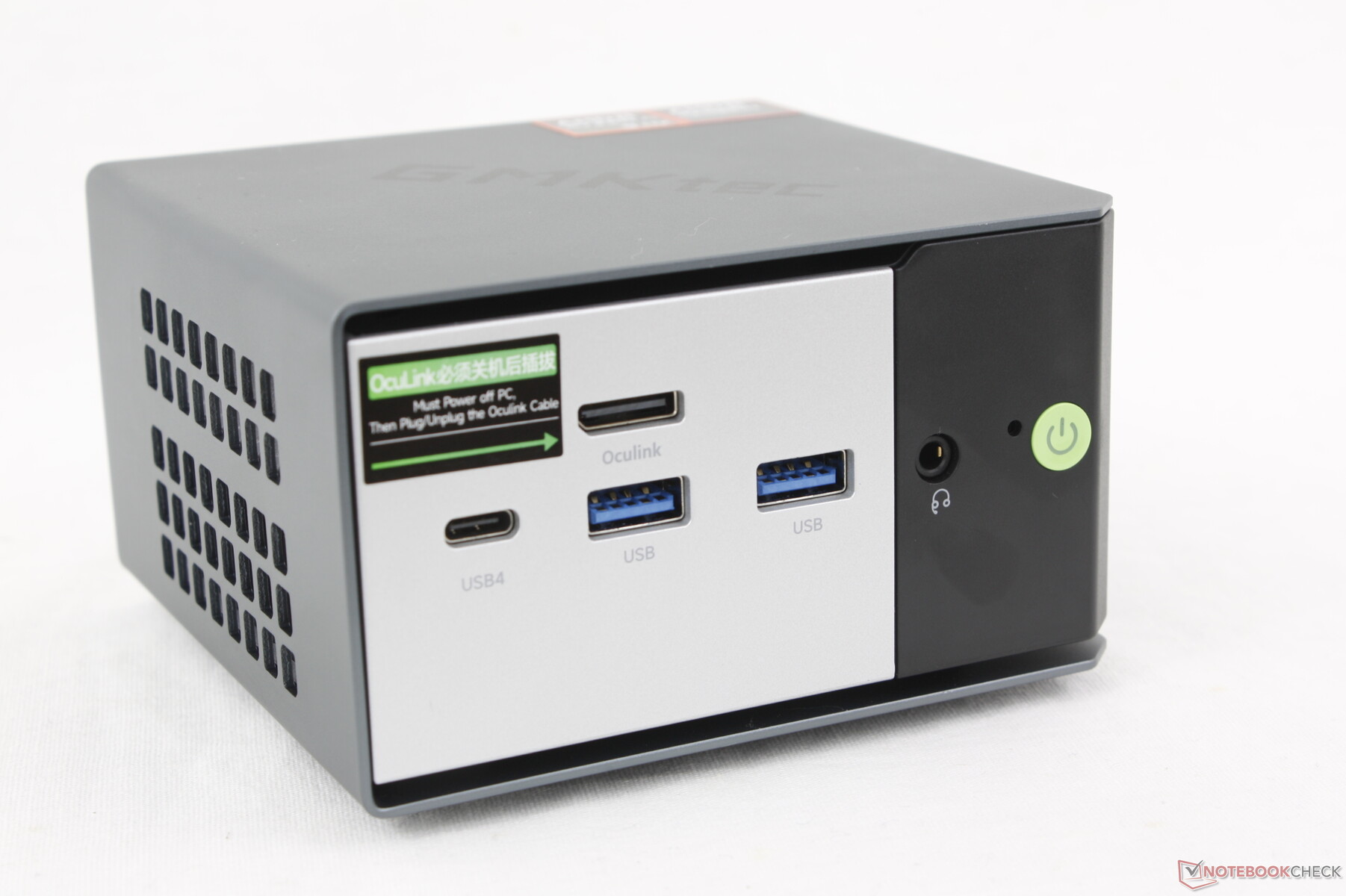

EVO-X1 最显著的特点是其 Oculink 端口。与 USB4 不同，Oculink 支持带宽更高的 eGPU，并可为特定应用提供直接 PCIe 连接。该系统兼容最近发布的 GMK AD-GP1 Oculink eGPU。

前部USB-C 4.0 w/ DisplayPort + Power Delivery、2 个 USB-A 3.2 Gen. 2（10 Gbps）、Oculink、3.5 毫米耳机、电源按钮

交流

标配的英特尔 AX200 支持 Wi-Fi 6 和蓝牙 5.2。该机型不支持 Wi-Fi 6E 或 Wi-Fi 7，考虑到相对较高的价格，这有点令人失望。

Networking
iperf3 transmit AXE11000
GMK NucBox M7 Pro	1147 (1025^min - 1206^max) MBit/s +19%
BOSGAME M2 Intel Wi-Fi 6E AX210	1048 (916^min - 1169^max) MBit/s +9%
GMK EVO-X1 Intel Wi-Fi 6 AX200	962 (613^min - 1320^max) MBit/s
GMK NucBox K9 Intel Wi-Fi 6 AX201	823 (607^min - 901^max) MBit/s -14%
Asus NUC 14 Pro+ Intel Wi-Fi 6E AX211	707 (666^min - 737^max) MBit/s -27%
Beelink SER9 Intel Wi-Fi 6 AX200	609 (334^min - 677^max) MBit/s -37%
iperf3 receive AXE11000
GMK NucBox M7 Pro	1267 (1019^min - 1377^max) MBit/s +20%
GMK EVO-X1 Intel Wi-Fi 6 AX200	1057 (911^min - 1173^max) MBit/s
BOSGAME M2 Intel Wi-Fi 6E AX210	1048 (830^min - 1181^max) MBit/s -1%
Asus NUC 14 Pro+ Intel Wi-Fi 6E AX211	951 (926^min - 965^max) MBit/s -10%
Beelink SER9 Intel Wi-Fi 6 AX200	814 (717^min - 861^max) MBit/s -23%
GMK NucBox K9 Intel Wi-Fi 6 AX201	764 (635^min - 829^max) MBit/s -28%
iperf3 transmit AXE11000 6GHz
Asus NUC 14 Pro+ Intel Wi-Fi 6E AX211	1223 (1160^min - 1303^max) MBit/s
BOSGAME M2 Intel Wi-Fi 6E AX210	1008 (959^min - 1072^max) MBit/s
iperf3 receive AXE11000 6GHz
Asus NUC 14 Pro+ Intel Wi-Fi 6E AX211	1446 (1321^min - 1486^max) MBit/s
BOSGAME M2 Intel Wi-Fi 6E AX210	729 (652^min - 857^max) MBit/s

GMK EVO-X1; iperf3 transmit AXE11000; iperf 3.1.3: Ø1155 (613-1320)

GMK EVO-X1; iperf3 receive AXE11000; iperf 3.1.3: Ø1057 (911-1173)

维护

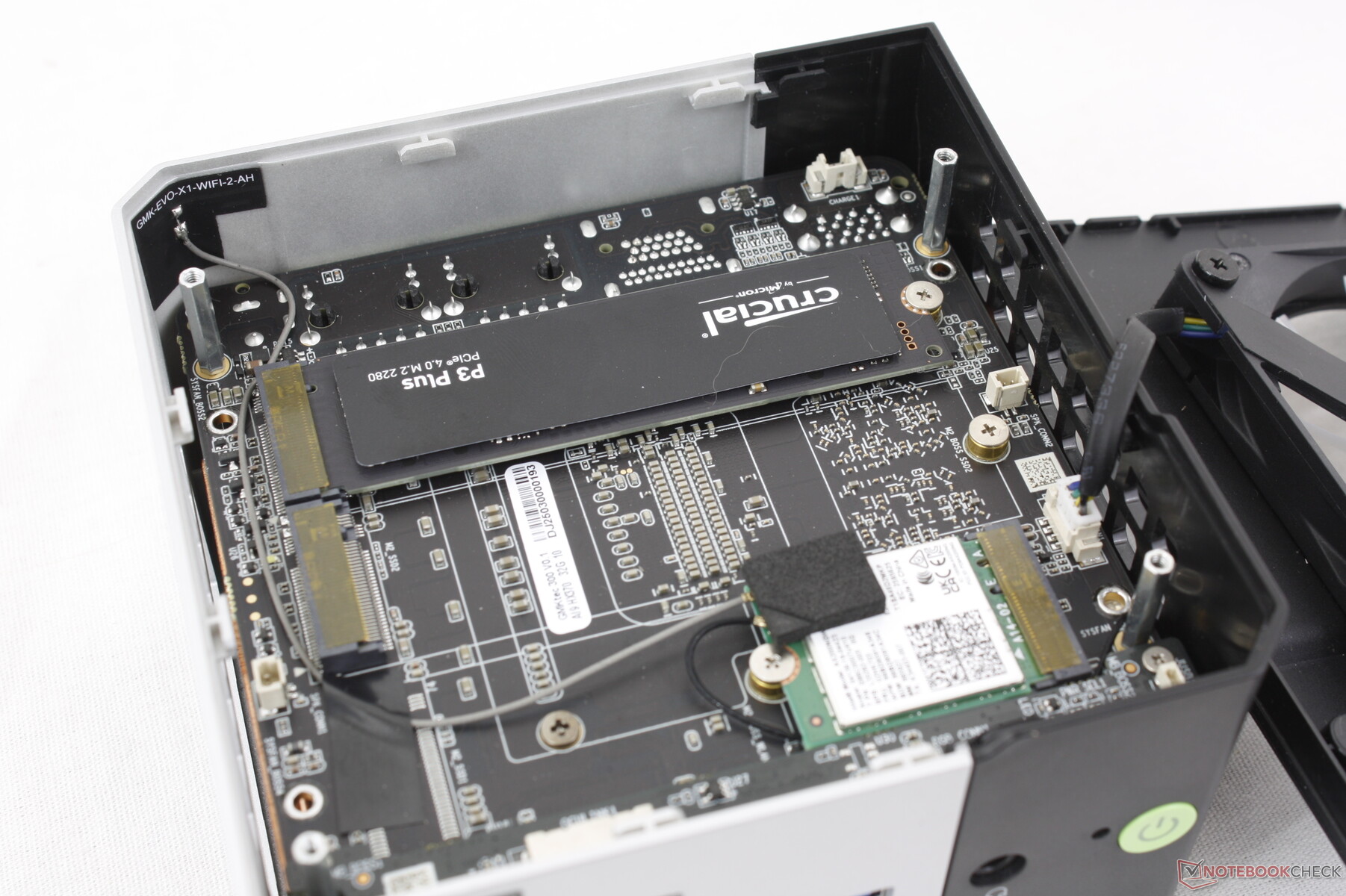

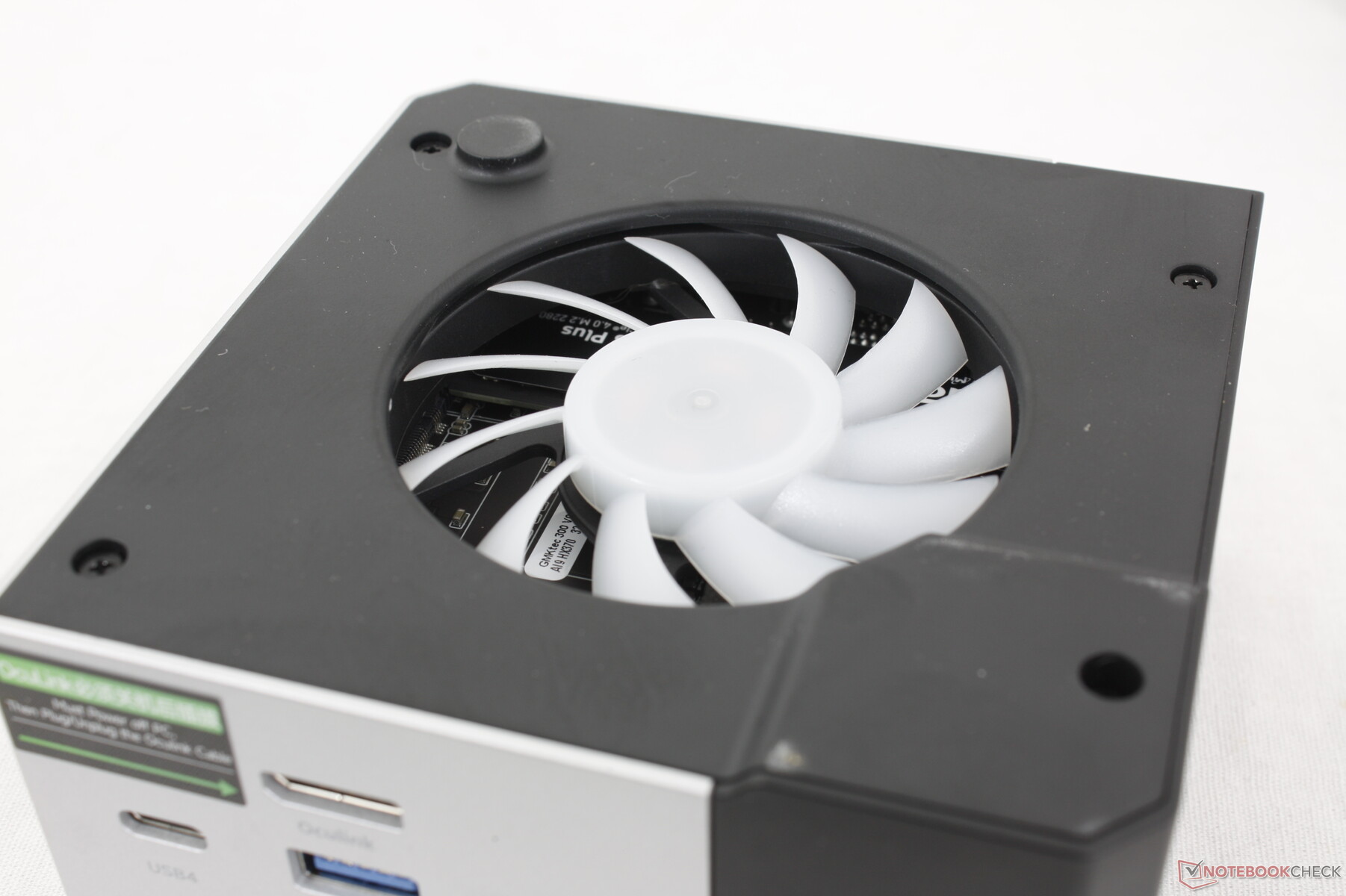

维修与其他大多数微型电脑略有不同。首先，必须通过底部的四颗手动螺丝卸下 C 形金属盖。接下来，需要用十字螺丝刀取下白色风扇，如下图所示，即可看到可升级组件。

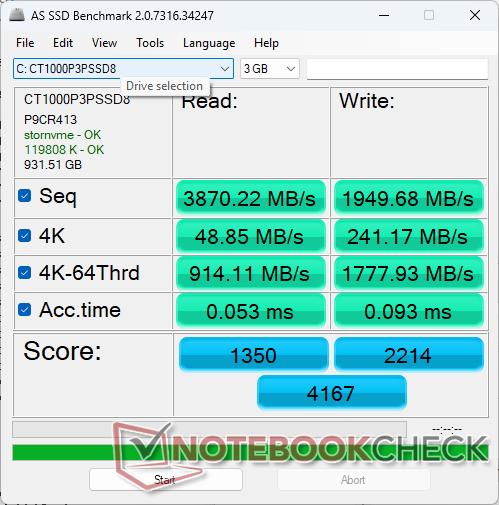

系统最多支持两个 M.2 PCIe4 x4 NVMe 固态硬盘，但不支持可升级内存。WLAN 模块可拆卸

可持续性

GMK 没有介绍在生产过程中采取的任何可持续发展措施。包装本身主要是纸板，有一些泡沫保护。

配件和保修

零售包装盒包括一个可拆卸的 VESA 支架和一个垂直支架。后者略微升高，以便于空气流通。

性能

测试条件

在运行以下基准测试之前，我们将 Windows 设置为性能模式。

处理器

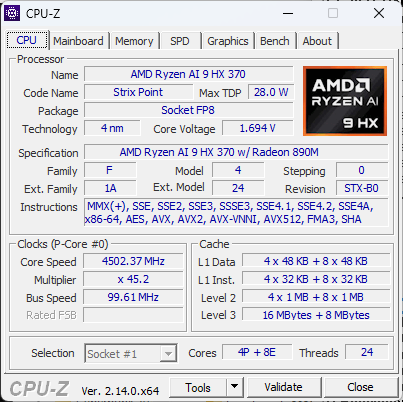

产品 Ryzen AI 9 HX 370 是 AMD 最快的 AI HX 系列处理器之一，击败了竞争对手 Core Ultra 9 185H15% 的优势。处理器酷睿 i9-14900HX甚至更快，但它没有集成 NPU。与即将推出的 Ryzen 7 8845HS的同比跃升也在 20% 至 25% 左右。

Cinebench R15 Multi Loop

GMK EVO-X1 AMD Ryzen AI 9 HX 370: Ø3051 (2997.38-3072.2)

GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H: Ø2139 (2119.65-2152.85)

GMK NucBox K9 Intel Core Ultra 5 125H: Ø1902 (1827.4-1965.8)

Beelink SER9 AMD Ryzen AI 9 HX 370: Ø3253 (3218.02-3282.46)

Asus NUC 14 Pro+ Intel Core Ultra 9 185H: Ø2588 (2519.69-2910.57)

BOSGAME M2 AMD Ryzen 9 7940HS: Ø2493 (2069.54-2584.65)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Lenovo ThinkCentre Neo Ultra Intel Core i7-14700	86.3 pt
Minisforum AtomMan G7 Ti Intel Core i9-14900HX	85.4 pt
Average AMD Ryzen AI 9 HX 370	75.7 pt
GMK EVO-X1 AMD Ryzen AI 9 HX 370	74.2 pt
Beelink SER8 AMD Ryzen 7 8845HS	68.6 pt
GMK NucBox K6 AMD Ryzen 7 7840HS	67.6 pt
BOSGAME M2 AMD Ryzen 9 7940HS	67.5 pt
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	66.5 pt
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	66.3 pt
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	57.2 pt
GMK NucBox K9 ^-1! Intel Core Ultra 5 125H	56 pt
GMK NucBox K3 Pro Intel Core i7-12650H	54.1 pt
Beelink SER6 Pro ^-2! AMD Ryzen 7 6800H	50.2 pt
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H	47.5 pt

Cinebench R23 / Multi Core
Lenovo ThinkCentre Neo Ultra Intel Core i7-14700	28398 (19650.3^min - 28397.7^max) Points +37%
Minisforum AtomMan G7 Ti Intel Core i9-14900HX	26432 Points +28%
GMK EVO-X1 AMD Ryzen AI 9 HX 370	20660 (20396.6^min - 20660^max) Points
Average AMD Ryzen AI 9 HX 370 (10435 - 23786, n=20)	20130 Points -3%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	17615 Points -15%
Beelink SER8 AMD Ryzen 7 8845HS	16661 (16363.9^min - 16661^max) Points -19%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	16270 (15738.9^min - 16269.6^max) Points -21%
BOSGAME M2 AMD Ryzen 9 7940HS	16148 (15722.4^min - 16148.2^max) Points -22%
GMK NucBox K6 AMD Ryzen 7 7840HS	15947 (9378.75^min - 15947.3^max) Points -23%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	13501 (13281^min - 13501.3^max) Points -35%
GMK NucBox K9 Intel Core Ultra 5 125H	12989 (12625.3^min - 12989.4^max) Points -37%
Beelink SER6 Pro AMD Ryzen 7 6800H	11481 (10813.7^min - 11481.3^max) Points -44%
GMK NucBox K3 Pro Intel Core i7-12650H	10691 (9260.68^min - 10691.5^max) Points -48%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H	9851 Points -52%

Cinebench R23 / Single Core
Lenovo ThinkCentre Neo Ultra Intel Core i7-14700	2080 Points +3%
Minisforum AtomMan G7 Ti Intel Core i9-14900HX	2036 Points 0%
GMK EVO-X1 AMD Ryzen AI 9 HX 370	2027 Points
Average AMD Ryzen AI 9 HX 370 (1953 - 2049, n=13)	2014 Points -1%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	1930 Points -5%
GMK NucBox K3 Pro Intel Core i7-12650H	1792 Points -12%
Beelink SER8 AMD Ryzen 7 8845HS	1783 Points -12%
GMK NucBox K6 AMD Ryzen 7 7840HS	1770 Points -13%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	1764 Points -13%
BOSGAME M2 AMD Ryzen 9 7940HS	1754 Points -13%
GMK NucBox K9 Intel Core Ultra 5 125H	1735 Points -14%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H	1673 Points -17%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	1615 Points -20%
Beelink SER6 Pro AMD Ryzen 7 6800H	1506 Points -26%

Cinebench R20 / CPU (Multi Core)
Lenovo ThinkCentre Neo Ultra Intel Core i7-14700	10501 Points +30%
Minisforum AtomMan G7 Ti Intel Core i9-14900HX	10032 Points +24%
Average AMD Ryzen AI 9 HX 370 (6449 - 9246, n=12)	8371 Points +4%
GMK EVO-X1 AMD Ryzen AI 9 HX 370	8062 Points
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	6997 Points -13%
Beelink SER8 AMD Ryzen 7 8845HS	6431 Points -20%
BOSGAME M2 AMD Ryzen 9 7940HS	6293 Points -22%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	6267 Points -22%
GMK NucBox K6 AMD Ryzen 7 7840HS	6250 Points -22%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	5256 Points -35%
GMK NucBox K9 Intel Core Ultra 5 125H	4948 Points -39%
Beelink SER6 Pro AMD Ryzen 7 6800H	4460 Points -45%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H	4211 Points -48%
GMK NucBox K3 Pro Intel Core i7-12650H	4058 Points -50%

Cinebench R20 / CPU (Single Core)
Lenovo ThinkCentre Neo Ultra Intel Core i7-14700	798 Points +1%
GMK EVO-X1 AMD Ryzen AI 9 HX 370	793 Points
Average AMD Ryzen AI 9 HX 370 (772 - 804, n=12)	790 Points 0%
Minisforum AtomMan G7 Ti Intel Core i9-14900HX	782 Points -1%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	707 Points -11%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	702 Points -11%
Beelink SER8 AMD Ryzen 7 8845HS	698 Points -12%
GMK NucBox K3 Pro Intel Core i7-12650H	691 Points -13%
GMK NucBox K6 AMD Ryzen 7 7840HS	688 Points -13%
BOSGAME M2 AMD Ryzen 9 7940HS	679 Points -14%
GMK NucBox K9 Intel Core Ultra 5 125H	664 Points -16%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H	641 Points -19%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	629 Points -21%
Beelink SER6 Pro AMD Ryzen 7 6800H	584 Points -26%

Cinebench R15 / CPU Multi 64Bit
Minisforum AtomMan G7 Ti Intel Core i9-14900HX	4090 Points +33%
Lenovo ThinkCentre Neo Ultra Intel Core i7-14700	4061 (2729.26^min - 4061.33^max) Points +32%
Average AMD Ryzen AI 9 HX 370 (2498 - 3498, n=12)	3218 Points +5%
GMK EVO-X1 AMD Ryzen AI 9 HX 370	3072 (2997.38^min - 3072.2^max) Points
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	2863 Points -7%
Beelink SER8 AMD Ryzen 7 8845HS	2627 (2586.82^min - 2626.57^max) Points -14%
BOSGAME M2 AMD Ryzen 9 7940HS	2585 (2069.54^min - 2584.65^max) Points -16%
GMK NucBox K6 AMD Ryzen 7 7840HS	2537 (2510.2^min - 2537.27^max) Points -17%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	2414 (2262.06^min - 2414.15^max) Points -21%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	2153 (2119.65^min - 2152.85^max) Points -30%
GMK NucBox K9 Intel Core Ultra 5 125H	1966 (1827.4^min - 1965.8^max) Points -36%
Beelink SER6 Pro AMD Ryzen 7 6800H	1931 (1821.83^min - 1930.5^max) Points -37%
GMK NucBox K3 Pro Intel Core i7-12650H	1692 (1391.69^min - 1691.83^max) Points -45%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H	1671 Points -46%

Cinebench R15 / CPU Single 64Bit
GMK EVO-X1 AMD Ryzen AI 9 HX 370	307 Points
Average AMD Ryzen AI 9 HX 370 (298 - 315, n=12)	306 Points 0%
Lenovo ThinkCentre Neo Ultra Intel Core i7-14700	299 Points -3%
Minisforum AtomMan G7 Ti Intel Core i9-14900HX	289 Points -6%
Beelink SER8 AMD Ryzen 7 8845HS	283 Points -8%
GMK NucBox K6 AMD Ryzen 7 7840HS	280 Points -9%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	273 Points -11%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	262 Points -15%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	260 Points -15%
BOSGAME M2 AMD Ryzen 9 7940HS	258 Points -16%
GMK NucBox K3 Pro Intel Core i7-12650H	256 Points -17%
GMK NucBox K9 Intel Core Ultra 5 125H	251 Points -18%
Beelink SER6 Pro AMD Ryzen 7 6800H	242 Points -21%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H	237 Points -23%

Blender / v2.79 BMW27 CPU
GMK NucBox K3 Pro Intel Core i7-12650H	330 Seconds * -112%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H	310 Seconds * -99%
Beelink SER6 Pro AMD Ryzen 7 6800H	268 Seconds * -72%
GMK NucBox K9 Intel Core Ultra 5 125H	248 Seconds * -59%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	232 Seconds * -49%
GMK NucBox K6 AMD Ryzen 7 7840HS	199 Seconds * -28%
BOSGAME M2 AMD Ryzen 9 7940HS	197 Seconds * -26%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	195 Seconds * -25%
Beelink SER8 AMD Ryzen 7 8845HS	191 Seconds * -22%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	184 Seconds * -18%
Average AMD Ryzen AI 9 HX 370 (140 - 192, n=12)	156.3 Seconds * -0%
GMK EVO-X1 AMD Ryzen AI 9 HX 370	156 Seconds *
Minisforum AtomMan G7 Ti Intel Core i9-14900HX	127 Seconds * +19%
Lenovo ThinkCentre Neo Ultra Intel Core i7-14700	123 Seconds * +21%

7-Zip 18.03 / 7z b 4
Minisforum AtomMan G7 Ti Intel Core i9-14900HX	105209 MIPS +38%
Lenovo ThinkCentre Neo Ultra Intel Core i7-14700	102982 MIPS +35%
Average AMD Ryzen AI 9 HX 370 (66618 - 83572, n=12)	78355 MIPS +3%
GMK EVO-X1 AMD Ryzen AI 9 HX 370	76051 MIPS
Beelink SER8 AMD Ryzen 7 8845HS	70937 MIPS -7%
GMK NucBox K6 AMD Ryzen 7 7840HS	70782 MIPS -7%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	69720 MIPS -8%
BOSGAME M2 AMD Ryzen 9 7940HS	69688 MIPS -8%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	65594 MIPS -14%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	61152 MIPS -20%
Beelink SER6 Pro AMD Ryzen 7 6800H	55963 MIPS -26%
GMK NucBox K3 Pro Intel Core i7-12650H	43031 MIPS -43%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H	36636 MIPS -52%

7-Zip 18.03 / 7z b 4 -mmt1
Minisforum AtomMan G7 Ti Intel Core i9-14900HX	7117 MIPS +18%
Lenovo ThinkCentre Neo Ultra Intel Core i7-14700	6845 MIPS +13%
Beelink SER8 AMD Ryzen 7 8845HS	6714 MIPS +11%
GMK NucBox K6 AMD Ryzen 7 7840HS	6676 MIPS +11%
BOSGAME M2 AMD Ryzen 9 7940HS	6310 MIPS +4%
Average AMD Ryzen AI 9 HX 370 (6041 - 6337, n=12)	6145 MIPS +2%
GMK EVO-X1 AMD Ryzen AI 9 HX 370	6041 MIPS
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	5970 MIPS -1%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	5774 MIPS -4%
GMK NucBox K3 Pro Intel Core i7-12650H	5772 MIPS -4%
Beelink SER6 Pro AMD Ryzen 7 6800H	5768 MIPS -5%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	5713 MIPS -5%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H	5203 MIPS -14%
GMK NucBox K9 Intel Core Ultra 5 125H	5004 MIPS -17%

Geekbench 6.3 / Multi-Core
Minisforum AtomMan G7 Ti Intel Core i9-14900HX	17197 Points +36%
Average AMD Ryzen AI 9 HX 370 (12640 - 15381, n=13)	14502 Points +15%
Lenovo ThinkCentre Neo Ultra Intel Core i7-14700	14072 Points +11%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	13848 Points +10%
Beelink SER8 AMD Ryzen 7 8845HS	13362 Points +6%
BOSGAME M2 AMD Ryzen 9 7940HS	13345 Points +6%
GMK NucBox K6 AMD Ryzen 7 7840HS	13184 Points +4%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	12649 Points 0%
GMK EVO-X1 AMD Ryzen AI 9 HX 370	12640 Points
GMK NucBox K9 Intel Core Ultra 5 125H	11087 Points -12%
GMK NucBox K3 Pro Intel Core i7-12650H	11014 Points -13%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	10439 Points -17%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H	7216 Points -43%

Geekbench 6.3 / Single-Core
GMK EVO-X1 AMD Ryzen AI 9 HX 370	2919 Points
Minisforum AtomMan G7 Ti Intel Core i9-14900HX	2883 Points -1%
Lenovo ThinkCentre Neo Ultra Intel Core i7-14700	2876 Points -1%
Average AMD Ryzen AI 9 HX 370 (2780 - 2919, n=13)	2863 Points -2%
BOSGAME M2 AMD Ryzen 9 7940HS	2722 Points -7%
Beelink SER8 AMD Ryzen 7 8845HS	2694 Points -8%
GMK NucBox K6 AMD Ryzen 7 7840HS	2687 Points -8%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	2652 Points -9%
GMK NucBox K3 Pro Intel Core i7-12650H	2466 Points -16%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	2465 Points -16%
GMK NucBox K9 Intel Core Ultra 5 125H	2297 Points -21%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H	2254 Points -23%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	2217 Points -24%

Geekbench 5.5 / Multi-Core
Minisforum AtomMan G7 Ti Intel Core i9-14900HX	16907 Points +36%
Lenovo ThinkCentre Neo Ultra Intel Core i7-14700	15052 Points +21%
Average AMD Ryzen AI 9 HX 370 (11975 - 15012, n=12)	13965 Points +12%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	13566 Points +9%
GMK EVO-X1 AMD Ryzen AI 9 HX 370	12420 Points
BOSGAME M2 AMD Ryzen 9 7940HS	12244 Points -1%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	12237 Points -1%
Beelink SER8 AMD Ryzen 7 8845HS	12196 Points -2%
GMK NucBox K6 AMD Ryzen 7 7840HS	11769 Points -5%
GMK NucBox K9 Intel Core Ultra 5 125H	10025 Points -19%
GMK NucBox K3 Pro Intel Core i7-12650H	9810 Points -21%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	9596 Points -23%
Beelink SER6 Pro AMD Ryzen 7 6800H	9218 Points -26%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H	6895 Points -44%

Geekbench 5.5 / Single-Core
Minisforum AtomMan G7 Ti Intel Core i9-14900HX	2181 Points +3%
GMK EVO-X1 AMD Ryzen AI 9 HX 370	2118 Points
Average AMD Ryzen AI 9 HX 370 (1957 - 2134, n=12)	2065 Points -3%
Lenovo ThinkCentre Neo Ultra Intel Core i7-14700	2057 Points -3%
Beelink SER8 AMD Ryzen 7 8845HS	2004 Points -5%
BOSGAME M2 AMD Ryzen 9 7940HS	1993 Points -6%
GMK NucBox K6 AMD Ryzen 7 7840HS	1986 Points -6%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	1897 Points -10%
GMK NucBox K3 Pro Intel Core i7-12650H	1790 Points -15%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	1743 Points -18%
GMK NucBox K9 Intel Core Ultra 5 125H	1668 Points -21%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	1641 Points -23%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H	1606 Points -24%
Beelink SER6 Pro AMD Ryzen 7 6800H	1554 Points -27%

HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo ThinkCentre Neo Ultra Intel Core i7-14700	27.4 fps +10%
Minisforum AtomMan G7 Ti Intel Core i9-14900HX	25.1 fps 0%
GMK EVO-X1 AMD Ryzen AI 9 HX 370	25 fps
Average AMD Ryzen AI 9 HX 370 (20.3 - 27.9, n=12)	24.7 fps -1%
BOSGAME M2 AMD Ryzen 9 7940HS	21.2 fps -15%
Beelink SER8 AMD Ryzen 7 8845HS	21.1 fps -16%
GMK NucBox K6 AMD Ryzen 7 7840HS	20.5 fps -18%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	19.7 fps -21%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	17.8 fps -29%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	16.5 fps -34%
Beelink SER6 Pro AMD Ryzen 7 6800H	15 fps -40%
GMK NucBox K9 Intel Core Ultra 5 125H	13.8 fps -45%
GMK NucBox K3 Pro Intel Core i7-12650H	12.3 fps -51%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H	11.9 fps -52%

LibreOffice / 20 Documents To PDF
GMK EVO-X1 AMD Ryzen AI 9 HX 370	54.8 s *
Average AMD Ryzen AI 9 HX 370 (49.1 - 66.6, n=12)	53.9 s * +2%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	51.8 s * +5%
Beelink SER6 Pro AMD Ryzen 7 6800H	48.8 s * +11%
Minisforum AtomMan G7 Ti Intel Core i9-14900HX	48.1 s * +12%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	47.5 s * +13%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H	46.5 s * +15%
Beelink SER8 AMD Ryzen 7 8845HS	46.1 s * +16%
GMK NucBox K6 AMD Ryzen 7 7840HS	44.1 s * +20%
GMK NucBox K9 Intel Core Ultra 5 125H	44 s * +20%
BOSGAME M2 AMD Ryzen 9 7940HS	42.7 s * +22%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	40.5 s * +26%
GMK NucBox K3 Pro Intel Core i7-12650H	40 s * +27%
Lenovo ThinkCentre Neo Ultra Intel Core i7-14700	33.1 s * +40%

R Benchmark 2.5 / Overall mean
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H	0.522 sec * -27%
Beelink SER6 Pro AMD Ryzen 7 6800H	0.4989 sec * -21%
GMK NucBox K9 Intel Core Ultra 5 125H	0.4898 sec * -19%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H	0.4715 sec * -15%
GMK NucBox K3 Pro Intel Core i7-12650H	0.4701 sec * -14%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	0.4504 sec * -10%
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H	0.4447 sec * -8%
GMK NucBox K6 AMD Ryzen 7 7840HS	0.4343 sec * -6%
Beelink SER8 AMD Ryzen 7 8845HS	0.4336 sec * -5%
BOSGAME M2 AMD Ryzen 9 7940HS	0.4293 sec * -4%
Average AMD Ryzen AI 9 HX 370 (0.3892 - 0.4257, n=12)	0.4115 sec * -0%
GMK EVO-X1 AMD Ryzen AI 9 HX 370	0.411 sec *
Minisforum AtomMan G7 Ti Intel Core i9-14900HX	0.3984 sec * +3%
Lenovo ThinkCentre Neo Ultra Intel Core i7-14700	0.3935 sec * +4%

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... smaller is better

Performance Rating
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	93 pt
Average AMD Ryzen AI 9 HX 370	89.4 pt
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	85 pt
GMK EVO-X1 AMD Ryzen AI 9 HX 370, Radeon 890M	83.3 pt
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	63.6 pt
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Arc 8-Core	62.6 pt
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	52 pt

AIDA64 / FP32 Ray-Trace
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	34743 KRay/s +9%
Average AMD Ryzen AI 9 HX 370 (24673 - 37654, n=11)	33417 KRay/s +5%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, Radeon 890M	31831 KRay/s
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	26520 KRay/s -17%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Arc 8-Core	15589 KRay/s -51%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	15374 KRay/s -52%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	10755 KRay/s -66%

AIDA64 / FPU Julia
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	132394 Points +7%
Average AMD Ryzen AI 9 HX 370 (95655 - 147937, n=12)	129678 Points +5%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, Radeon 890M	123834 Points
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	113423 Points -8%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	95131 Points -23%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Arc 8-Core	80501 Points -35%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	58422 Points -53%

AIDA64 / CPU SHA3
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	5656 MB/s +7%
Average AMD Ryzen AI 9 HX 370 (4421 - 5843, n=12)	5432 MB/s +3%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, Radeon 890M	5273 MB/s
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	4975 MB/s -6%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Arc 8-Core	3909 MB/s -26%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	3297 MB/s -37%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	2922 MB/s -45%

AIDA64 / CPU Queen
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	119475 Points +185%
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	99023 Points +136%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	97443 Points +132%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Arc 8-Core	94503 Points +125%
Average AMD Ryzen AI 9 HX 370 (41991 - 99088, n=12)	87956 Points +109%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	78797 Points +88%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, Radeon 890M	41991 Points

AIDA64 / FPU SinJulia
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	18959 Points +3%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, Radeon 890M	18487 Points
Average AMD Ryzen AI 9 HX 370 (16445 - 19021, n=12)	18415 Points 0%
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	15211 Points -18%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	12639 Points -32%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Arc 8-Core	10406 Points -44%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	7780 Points -58%

AIDA64 / FPU Mandel
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	70450 Points +7%
Average AMD Ryzen AI 9 HX 370 (50357 - 79251, n=11)	68231 Points +4%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, Radeon 890M	65772 Points
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	60518 Points -8%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	53002 Points -19%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Arc 8-Core	39506 Points -40%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	27972 Points -57%

AIDA64 / CPU AES
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	171350 MB/s +131%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	131458 MB/s +78%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	108402 MB/s +46%
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	81324 MB/s +10%
Average AMD Ryzen AI 9 HX 370 (68042 - 81929, n=12)	77858 MB/s +5%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Arc 8-Core	75293 MB/s +2%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, Radeon 890M	74042 MB/s

AIDA64 / CPU ZLib
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	1444 MB/s +8%
Average AMD Ryzen AI 9 HX 370 (1077 - 1530, n=12)	1396 MB/s +5%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, Radeon 890M	1332 MB/s
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Arc 8-Core	1155 MB/s -13%
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	1057 MB/s -21%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	844 MB/s -37%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	819 MB/s -39%

AIDA64 / FP64 Ray-Trace
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	18694 KRay/s +7%
Average AMD Ryzen AI 9 HX 370 (13665 - 20608, n=12)	18209 KRay/s +4%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, Radeon 890M	17458 KRay/s
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	14133 KRay/s -19%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Arc 8-Core	8272 KRay/s -53%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	8111 KRay/s -54%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	5657 KRay/s -68%

AIDA64 / CPU PhotoWorxx
GMK EVO-X1 AMD Ryzen AI 9 HX 370, Radeon 890M	48893 MPixel/s
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	48813 MPixel/s 0%
Average AMD Ryzen AI 9 HX 370 (36752 - 51727, n=12)	47391 MPixel/s -3%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	46296 MPixel/s -5%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Arc 8-Core	45293 MPixel/s -7%
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	41567 MPixel/s -15%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	29899 MPixel/s -39%

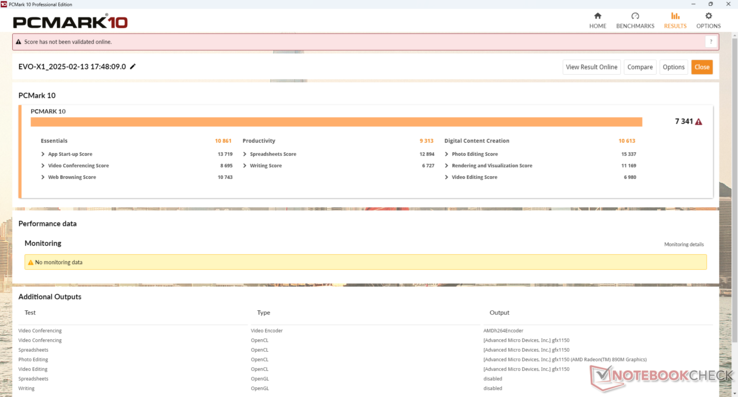

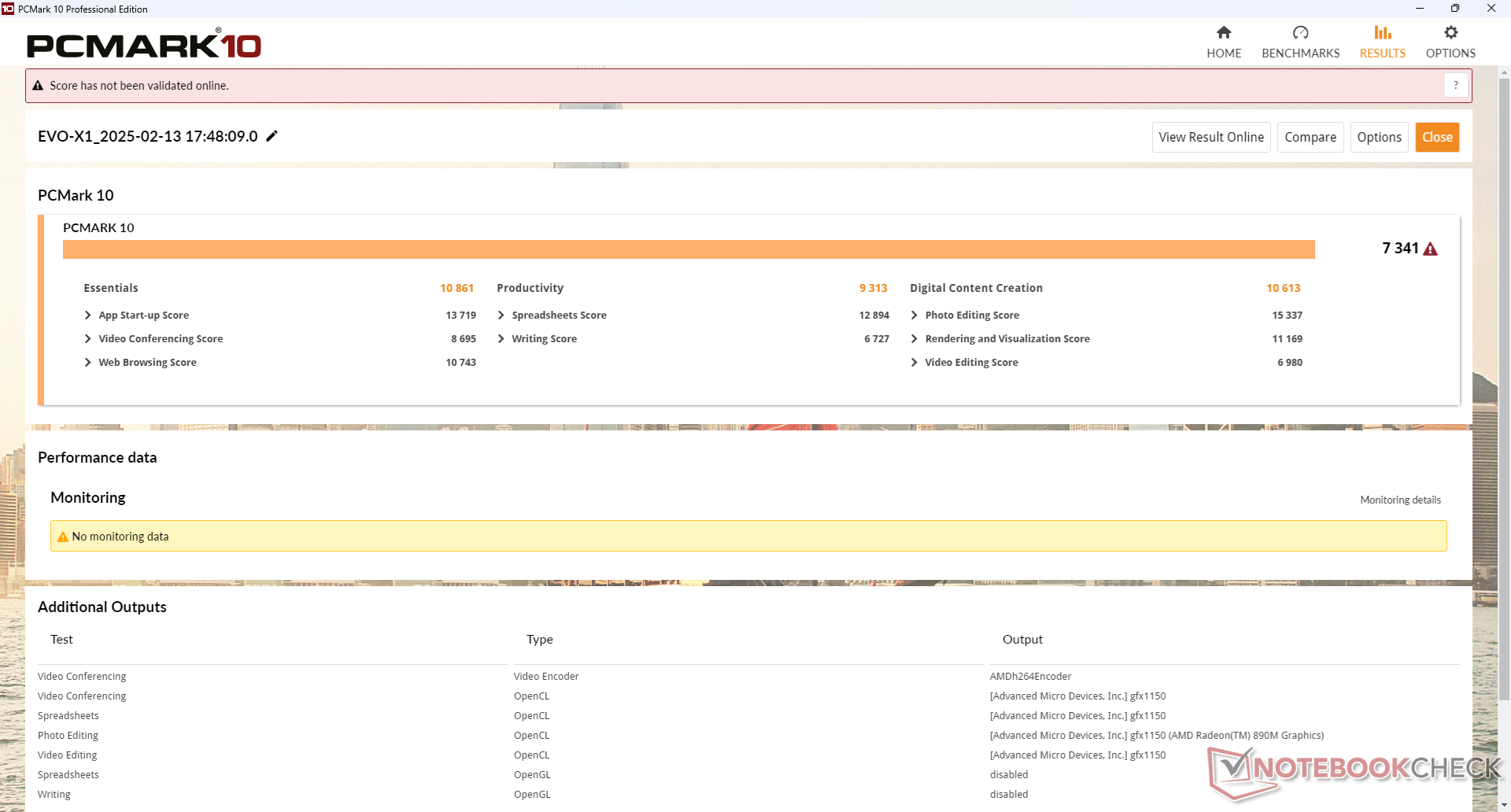

系统性能

PCMark 结果与其他 Ryzen 9 或酷睿 Ultra H 微型电脑相当，包括 NucBox K9.最大的区别在于内存性能，因为集成的 LPDDR5 内存通常比大多数其他迷你 PC 上的可拆卸内存模块更快。

PCMark 10 / Score
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	7613 Points +4%
Average AMD Ryzen AI 9 HX 370, AMD Radeon 890M (7173 - 7646, n=7)	7473 Points +2%
BOSGAME M2 Radeon 780M, R9 7940HS	7377 Points 0%
GMK EVO-X1 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	7341 Points
Asus NUC 14 Pro+ Arc 8-Core, Ultra 9 185H, Samsung PM9A1a MZVL21T0HDLU	7103 Points -3%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	6679 Points -9%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	6463 Points -12%

PCMark 10 / Essentials
BOSGAME M2 Radeon 780M, R9 7940HS	11061 Points +2%
GMK EVO-X1 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	10861 Points
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	10697 Points -2%
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	10684 Points -2%
Average AMD Ryzen AI 9 HX 370, AMD Radeon 890M (9751 - 11262, n=7)	10656 Points -2%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	10458 Points -4%
Asus NUC 14 Pro+ Arc 8-Core, Ultra 9 185H, Samsung PM9A1a MZVL21T0HDLU	10135 Points -7%

PCMark 10 / Productivity
Average AMD Ryzen AI 9 HX 370, AMD Radeon 890M (9319 - 10615, n=7)	9991 Points +7%
BOSGAME M2 Radeon 780M, R9 7940HS	9919 Points +6%
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	9812 Points +5%
GMK EVO-X1 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	9319 Points
Asus NUC 14 Pro+ Arc 8-Core, Ultra 9 185H, Samsung PM9A1a MZVL21T0HDLU	9058 Points -3%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	8752 Points -6%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	7659 Points -18%

PCMark 10 / Digital Content Creation
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	11422 Points +8%
Average AMD Ryzen AI 9 HX 370, AMD Radeon 890M (9828 - 11422, n=7)	10664 Points 0%
GMK EVO-X1 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	10613 Points
Asus NUC 14 Pro+ Arc 8-Core, Ultra 9 185H, Samsung PM9A1a MZVL21T0HDLU	10593 Points 0%
BOSGAME M2 Radeon 780M, R9 7940HS	9929 Points -6%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	8940 Points -16%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	8834 Points -17%

CrossMark / Overall
BOSGAME M2 Radeon 780M, R9 7940HS	1762 Points +5%
Average AMD Ryzen AI 9 HX 370, AMD Radeon 890M (1686 - 1847, n=6)	1756 Points +4%
Asus NUC 14 Pro+ Arc 8-Core, Ultra 9 185H, Samsung PM9A1a MZVL21T0HDLU	1713 Points +2%
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	1692 Points 0%
GMK EVO-X1 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	1686 Points
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1633 Points -3%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	1448 Points -14%

CrossMark / Productivity
BOSGAME M2 Radeon 780M, R9 7940HS	1672 Points +3%
Average AMD Ryzen AI 9 HX 370, AMD Radeon 890M (1588 - 1719, n=6)	1631 Points +1%
GMK EVO-X1 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	1620 Points
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1594 Points -2%
Asus NUC 14 Pro+ Arc 8-Core, Ultra 9 185H, Samsung PM9A1a MZVL21T0HDLU	1591 Points -2%
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	1588 Points -2%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	1381 Points -15%

CrossMark / Creativity
Average AMD Ryzen AI 9 HX 370, AMD Radeon 890M (1817 - 2211, n=6)	2020 Points +11%
Asus NUC 14 Pro+ Arc 8-Core, Ultra 9 185H, Samsung PM9A1a MZVL21T0HDLU	1984 Points +9%
BOSGAME M2 Radeon 780M, R9 7940HS	1934 Points +6%
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	1868 Points +3%
GMK EVO-X1 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	1817 Points
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1714 Points -6%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	1702 Points -6%

CrossMark / Responsiveness
BOSGAME M2 Radeon 780M, R9 7940HS	1562 Points +3%
GMK EVO-X1 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	1521 Points
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1520 Points 0%
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	1520 Points 0%
Average AMD Ryzen AI 9 HX 370, AMD Radeon 890M (1222 - 1610, n=6)	1450 Points -5%
Asus NUC 14 Pro+ Arc 8-Core, Ultra 9 185H, Samsung PM9A1a MZVL21T0HDLU	1378 Points -9%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	1030 Points -32%

WebXPRT 3 / Overall
BOSGAME M2 Radeon 780M, R9 7940HS	342 Points +3%
GMK EVO-X1 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	332 Points
Average AMD Ryzen AI 9 HX 370, AMD Radeon 890M (267 - 336, n=6)	311 Points -6%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	304 Points -8%
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	286 Points -14%
Asus NUC 14 Pro+ Arc 8-Core, Ultra 9 185H, Samsung PM9A1a MZVL21T0HDLU	268 Points -19%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	262 Points -21%

WebXPRT 4 / Overall
BOSGAME M2 Radeon 780M, R9 7940HS	274 Points +3%
GMK EVO-X1 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	265 Points
Average AMD Ryzen AI 9 HX 370, AMD Radeon 890M (225 - 269, n=7)	254 Points -4%
Asus NUC 14 Pro+ Arc 8-Core, Ultra 9 185H, Samsung PM9A1a MZVL21T0HDLU	248 Points -6%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	237 Points -11%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	231 Points -13%
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	231 Points -13%

Mozilla Kraken 1.1 / Total
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	570 ms * -34%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	566 ms * -33%
Asus NUC 14 Pro+ Arc 8-Core, Ultra 9 185H, Samsung PM9A1a MZVL21T0HDLU	528 ms * -24%
BOSGAME M2 Radeon 780M, R9 7940HS	503 ms * -18%
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	445 ms * -5%
Average AMD Ryzen AI 9 HX 370, AMD Radeon 890M (419 - 503, n=8)	441 ms * -4%
GMK EVO-X1 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	425 ms *

* ... smaller is better

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	89287 MB/s +1%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, Radeon 890M	88690 MB/s
Average AMD Ryzen AI 9 HX 370 (72702 - 92030, n=12)	88236 MB/s -1%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Arc 8-Core	69929 MB/s -21%
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	69770 MB/s -21%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	67482 MB/s -24%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	51181 MB/s -42%

AIDA64 / Memory Read
GMK EVO-X1 AMD Ryzen AI 9 HX 370, Radeon 890M	100086 MB/s
Average AMD Ryzen AI 9 HX 370 (84635 - 100903, n=12)	98588 MB/s -1%
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	98398 MB/s -2%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Arc 8-Core	76074 MB/s -24%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	70520 MB/s -30%
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	61614 MB/s -38%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	51788 MB/s -48%

AIDA64 / Memory Write
GMK EVO-X1 AMD Ryzen AI 9 HX 370, Radeon 890M	100538 MB/s
Average AMD Ryzen AI 9 HX 370 (87827 - 108954, n=12)	99745 MB/s -1%
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	98583 MB/s -2%
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	87234 MB/s -13%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Arc 8-Core	72287 MB/s -28%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	71218 MB/s -29%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	55227 MB/s -45%

AIDA64 / Memory Latency
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	140.2 ns * -29%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Arc 8-Core	121.4 ns * -12%
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	115.2 ns * -6%
Average AMD Ryzen AI 9 HX 370 (99.8 - 119.4, n=12)	111.6 ns * -3%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, Radeon 890M	108.8 ns *
BOSGAME M2 AMD Ryzen 9 7940HS, Radeon 780M	96.5 ns * +11%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, Radeon 680M	84.4 ns * +22%

* ... smaller is better

DPC 延迟

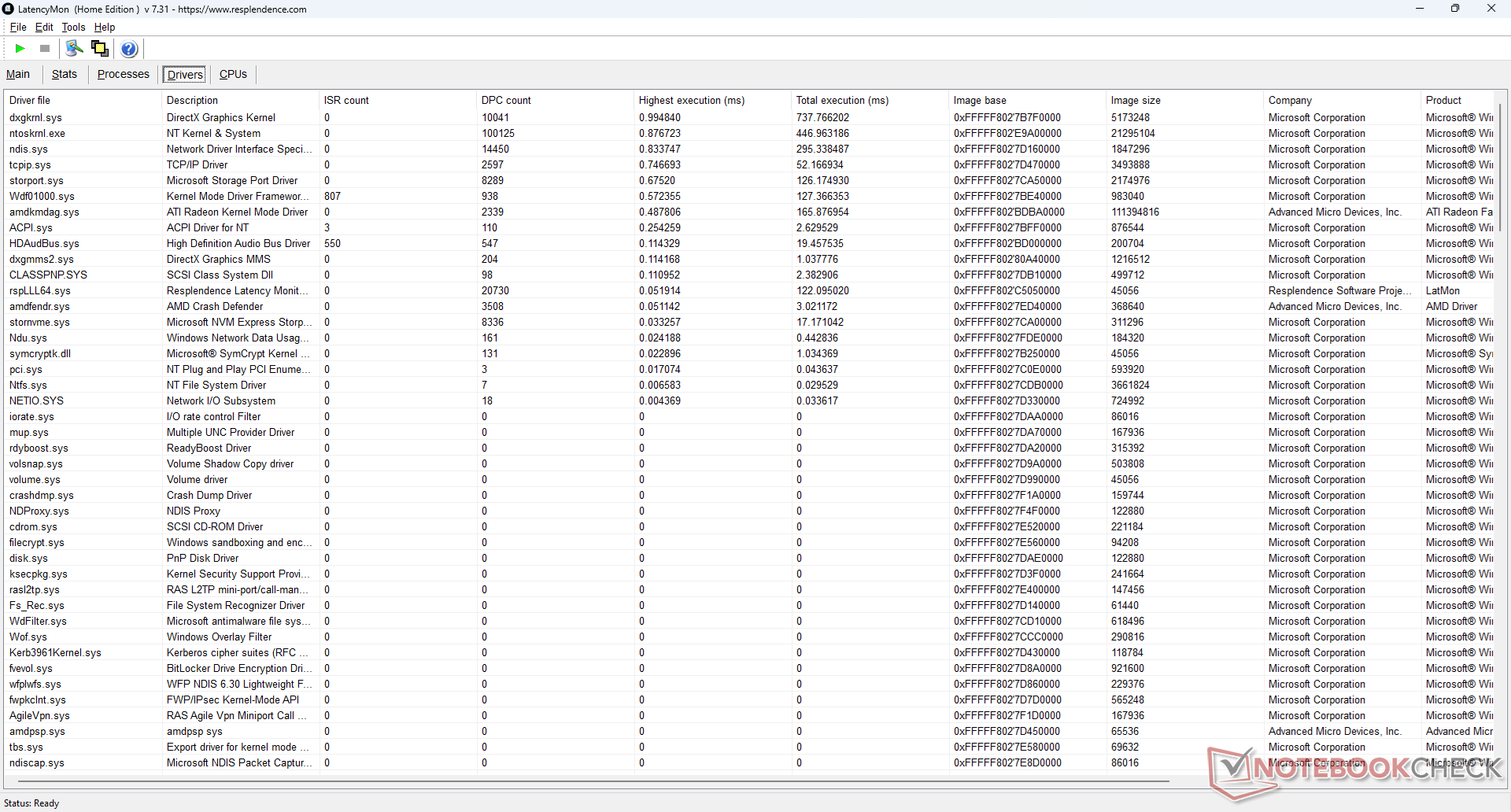

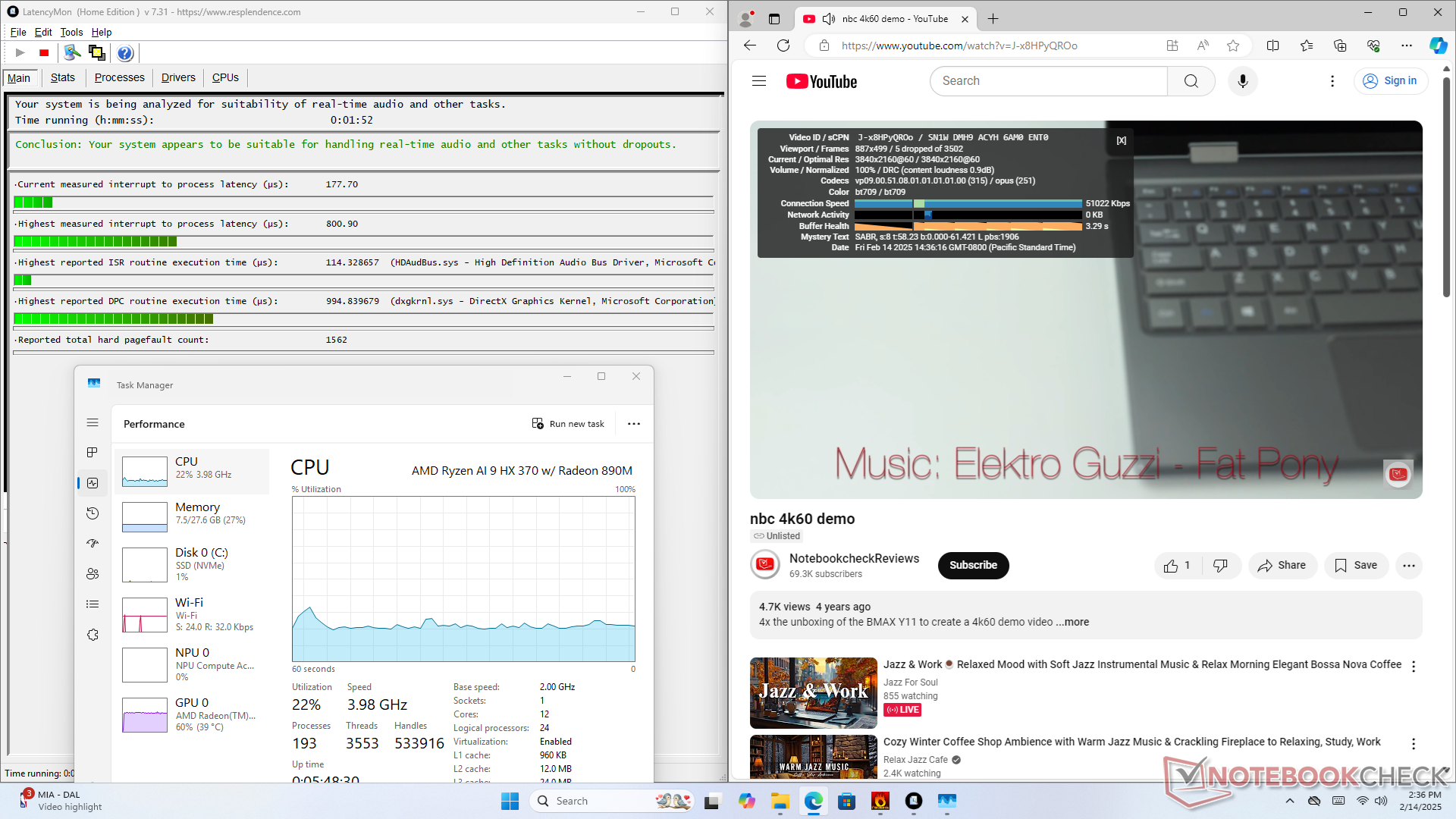

LatencyMon 仅在打开我们主页的多个浏览器标签时显示出轻微的 DPC 问题。遗憾的是，4K60 视频回放并不完美，在 60 秒的时间内记录了 5 次丢帧。对于大多数用户来说，这还不足以引起注意，但理想情况下应该是零。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	29083.3 μs * -3531%
GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	13915.3 μs * -1637%
Asus NUC 14 Pro+ Arc 8-Core, Ultra 9 185H, Samsung PM9A1a MZVL21T0HDLU	1831 μs * -129%
BOSGAME M2 Radeon 780M, R9 7940HS	843 μs * -5%
GMK EVO-X1 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	800.9 μs *

* ... smaller is better

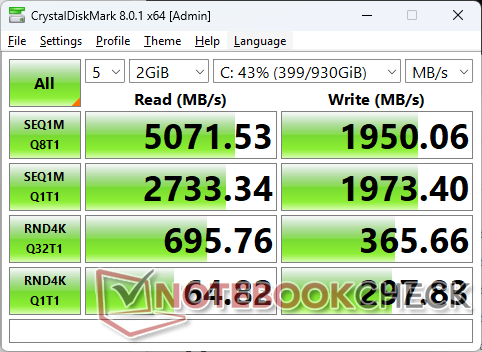

存储设备

我们的设备与 Crucial P3 Plus CT1000P3PSSD8与 Beelink SER9 上的相同，后者是 GMK NucBox M7 Pro 上 Zettastone CP200 的升级版。传输速率稳定在每秒约 4800 MB，而 Zettastone 为每秒约 3500 MB。

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Crucial P3 Plus CT1000P3PSSD8

CDM 5/6 Read Seq Q32T1: 5659 MB/s

CDM 5/6 Write Seq Q32T1: 1982 MB/s

CDM 5/6 Read 4K Q32T1: 598.5 MB/s

CDM 5/6 Write 4K Q32T1: 377.9 MB/s

CDM 5 Read Seq: 2123 MB/s

CDM 5 Write Seq: 2584 MB/s

CDM 5/6 Read 4K: 51.26 MB/s

CDM 5/6 Write 4K: 293.6 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
GMK NucBox K9 MasonSemi 1TB MC7000	86.8 pt
Asus NUC 14 Pro+ Samsung PM9A1a MZVL21T0HDLU	67.7 pt
BOSGAME M2	63.5 pt
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	62.5 pt
GMK EVO-X1 Crucial P3 Plus CT1000P3PSSD8	57.3 pt
GMK NucBox M7 Pro	51.6 pt

DiskSpd
seq read
GMK NucBox K9 MasonSemi 1TB MC7000	3783 (3597.81^min - 3782.84^max) MB/s +78%
Asus NUC 14 Pro+ Samsung PM9A1a MZVL21T0HDLU	3463 (3381.92^min - 3463.03^max) MB/s +63%
GMK NucBox M7 Pro	2601 (2578.12^min - 2600.64^max) MB/s +22%
BOSGAME M2	2496 (2483.24^min - 2495.57^max) MB/s +17%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	2257 (2254.02^min - 2257.37^max) MB/s +6%
GMK EVO-X1 Crucial P3 Plus CT1000P3PSSD8	2127 (2116.24^min - 2127.2^max) MB/s
seq write
GMK NucBox K9 MasonSemi 1TB MC7000	5556 (1352.45^min - 5556.19^max) MB/s +178%
BOSGAME M2	3151 (2303.72^min - 3150.76^max) MB/s +57%
Asus NUC 14 Pro+ Samsung PM9A1a MZVL21T0HDLU	2979 (2849.65^min - 2979.21^max) MB/s +49%
GMK NucBox M7 Pro	2810 (2768.58^min - 2810.02^max) MB/s +40%
GMK EVO-X1 Crucial P3 Plus CT1000P3PSSD8	2002 (508.14^min - 2001.92^max) MB/s
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	1873 (688.38^min - 1873.41^max) MB/s -6%
seq q8 t1 read
GMK NucBox K9 MasonSemi 1TB MC7000	7066 (6607.49^min - 7066.35^max) MB/s +52%
Asus NUC 14 Pro+ Samsung PM9A1a MZVL21T0HDLU	6962 (5614.59^min - 6961.5^max) MB/s +50%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	4658 (3456.11^min - 4657.77^max) MB/s +1%
GMK EVO-X1 Crucial P3 Plus CT1000P3PSSD8	4634 (3709.78^min - 4633.62^max) MB/s
BOSGAME M2	4071 (3372.85^min - 4070.78^max) MB/s -12%
GMK NucBox M7 Pro	3500 (3155.37^min - 3500.44^max) MB/s -24%
seq q8 t1 write
GMK NucBox K9 MasonSemi 1TB MC7000	6647 (1260.59^min - 6647.13^max) MB/s +208%
Asus NUC 14 Pro+ Samsung PM9A1a MZVL21T0HDLU	4971 (4934.6^min - 4970.75^max) MB/s +130%
BOSGAME M2	3164 (3161.46^min - 3163.55^max) MB/s +47%
GMK NucBox M7 Pro	3154 (3135.87^min - 3154.12^max) MB/s +46%
GMK EVO-X1 Crucial P3 Plus CT1000P3PSSD8	2157 (1027.6^min - 2156.71^max) MB/s
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	2047 (794.1^min - 2047.34^max) MB/s -5%
4k q1 t1 read
GMK NucBox K9 MasonSemi 1TB MC7000	79.5 (78.92^min - 79.5^max) MB/s +58%
Asus NUC 14 Pro+ Samsung PM9A1a MZVL21T0HDLU	65.8 (64.95^min - 65.84^max) MB/s +31%
GMK NucBox M7 Pro	65 (61.11^min - 64.99^max) MB/s +29%
BOSGAME M2	62.7 (61.92^min - 62.74^max) MB/s +24%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	53.7 (52.17^min - 53.71^max) MB/s +7%
GMK EVO-X1 Crucial P3 Plus CT1000P3PSSD8	50.4 (49.34^min - 50.36^max) MB/s
4k q1 t1 write
GMK EVO-X1 Crucial P3 Plus CT1000P3PSSD8	257 (224.82^min - 257.36^max) MB/s
BOSGAME M2	254 (91.72^min - 253.66^max) MB/s -1%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	236 (212.83^min - 235.59^max) MB/s -8%
GMK NucBox K9 MasonSemi 1TB MC7000	205 (173.87^min - 205.2^max) MB/s -20%
GMK NucBox M7 Pro	178 (177.2^min - 178.04^max) MB/s -31%
Asus NUC 14 Pro+ Samsung PM9A1a MZVL21T0HDLU	119.6 (116.09^min - 119.59^max) MB/s -53%
4k q32 t16 read
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	3162 (3155.7^min - 3161.51^max) MB/s +354%
GMK NucBox K9 MasonSemi 1TB MC7000	2243 (1941.91^min - 2243.48^max) MB/s +222%
GMK NucBox M7 Pro	1942 (1937.92^min - 1941.71^max) MB/s +179%
Asus NUC 14 Pro+ Samsung PM9A1a MZVL21T0HDLU	873 (810.06^min - 872.85^max) MB/s +25%
BOSGAME M2	784 (747.62^min - 783.51^max) MB/s +13%
GMK EVO-X1 Crucial P3 Plus CT1000P3PSSD8	696 (694.31^min - 696.03^max) MB/s
4k q32 t16 write
GMK NucBox K9 MasonSemi 1TB MC7000	3232 (3002.64^min - 3232.41^max) MB/s +82%
BOSGAME M2	3032 (2937.1^min - 3032.48^max) MB/s +71%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	1782 (864.63^min - 1781.78^max) MB/s +1%
GMK EVO-X1 Crucial P3 Plus CT1000P3PSSD8	1771 (405.45^min - 1770.96^max) MB/s
GMK NucBox M7 Pro	1434 (1109.55^min - 1433.62^max) MB/s -19%
Asus NUC 14 Pro+ Samsung PM9A1a MZVL21T0HDLU	349 (343.71^min - 348.99^max) MB/s -80%

AS SSD
Score Total
GMK NucBox K9 MasonSemi 1TB MC7000	7509 Points +80%
Asus NUC 14 Pro+ Samsung PM9A1a MZVL21T0HDLU	5414 Points +30%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	4872 Points +17%
BOSGAME M2	4816 Points +16%
GMK EVO-X1 Crucial P3 Plus CT1000P3PSSD8	4167 Points
GMK NucBox M7 Pro	3732 Points -10%
Score Read
GMK NucBox K9 MasonSemi 1TB MC7000	3258 Points +141%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	1511 Points +12%
Asus NUC 14 Pro+ Samsung PM9A1a MZVL21T0HDLU	1395 Points +3%
GMK NucBox M7 Pro	1388 Points +3%
GMK EVO-X1 Crucial P3 Plus CT1000P3PSSD8	1350 Points
BOSGAME M2	1142 Points -15%
Score Write
Asus NUC 14 Pro+ Samsung PM9A1a MZVL21T0HDLU	3401 Points +54%
BOSGAME M2	3104 Points +40%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	2688 Points +21%
GMK NucBox K9 MasonSemi 1TB MC7000	2593 Points +17%
GMK EVO-X1 Crucial P3 Plus CT1000P3PSSD8	2214 Points
GMK NucBox M7 Pro	1629 Points -26%
Seq Read
GMK NucBox K9 MasonSemi 1TB MC7000	5766.47 MB/s +49%
Asus NUC 14 Pro+ Samsung PM9A1a MZVL21T0HDLU	5266 MB/s +36%
GMK EVO-X1 Crucial P3 Plus CT1000P3PSSD8	3870.22 MB/s
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	3789.22 MB/s -2%
BOSGAME M2	3358.16 MB/s -13%
GMK NucBox M7 Pro	3027.6 MB/s -22%
Seq Write
GMK NucBox K9 MasonSemi 1TB MC7000	5653.88 MB/s +190%
Asus NUC 14 Pro+ Samsung PM9A1a MZVL21T0HDLU	3006 MB/s +54%
GMK NucBox M7 Pro	2851.13 MB/s +46%
BOSGAME M2	2751.6 MB/s +41%
GMK EVO-X1 Crucial P3 Plus CT1000P3PSSD8	1949.68 MB/s
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	1679.72 MB/s -14%
4K Read
GMK NucBox K9 MasonSemi 1TB MC7000	67.66 MB/s +39%
Asus NUC 14 Pro+ Samsung PM9A1a MZVL21T0HDLU	66.9 MB/s +37%
BOSGAME M2	60.04 MB/s +23%
GMK NucBox M7 Pro	59.12 MB/s +21%
GMK EVO-X1 Crucial P3 Plus CT1000P3PSSD8	48.85 MB/s
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	46.12 MB/s -6%
4K Write
GMK EVO-X1 Crucial P3 Plus CT1000P3PSSD8	241.17 MB/s
BOSGAME M2	221.74 MB/s -8%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	219.64 MB/s -9%
GMK NucBox M7 Pro	149.72 MB/s -38%
GMK NucBox K9 MasonSemi 1TB MC7000	148.58 MB/s -38%
Asus NUC 14 Pro+ Samsung PM9A1a MZVL21T0HDLU	146.2 MB/s -39%
4K-64 Read
GMK NucBox K9 MasonSemi 1TB MC7000	2614.06 MB/s +186%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	1086.32 MB/s +19%
GMK NucBox M7 Pro	1026.38 MB/s +12%
GMK EVO-X1 Crucial P3 Plus CT1000P3PSSD8	914.11 MB/s
Asus NUC 14 Pro+ Samsung PM9A1a MZVL21T0HDLU	801 MB/s -12%
BOSGAME M2	745.77 MB/s -18%
4K-64 Write
Asus NUC 14 Pro+ Samsung PM9A1a MZVL21T0HDLU	2955 MB/s +66%
BOSGAME M2	2606.88 MB/s +47%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	2300.17 MB/s +29%
GMK NucBox K9 MasonSemi 1TB MC7000	1879.53 MB/s +6%
GMK EVO-X1 Crucial P3 Plus CT1000P3PSSD8	1777.93 MB/s
GMK NucBox M7 Pro	1193.68 MB/s -33%
Access Time Read
BOSGAME M2	0.101 ms * -91%
GMK NucBox M7 Pro	0.066 ms * -25%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	0.061 ms * -15%
GMK NucBox K9 MasonSemi 1TB MC7000	0.06 ms * -13%
GMK EVO-X1 Crucial P3 Plus CT1000P3PSSD8	0.053 ms *
Asus NUC 14 Pro+ Samsung PM9A1a MZVL21T0HDLU	0.044 ms * +17%
Access Time Write
GMK NucBox M7 Pro	0.44 ms * -373%
GMK NucBox K9 MasonSemi 1TB MC7000	0.195 ms * -110%
GMK EVO-X1 Crucial P3 Plus CT1000P3PSSD8	0.093 ms *
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	0.092 ms * +1%
BOSGAME M2	0.052 ms * +44%
Asus NUC 14 Pro+ Samsung PM9A1a MZVL21T0HDLU	0.027 ms * +71%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GMK EVO-X1 Crucial P3 Plus CT1000P3PSSD8; diskspd 2.0.17 f: Ø4756 (3964.71-4803.91)

GMK NucBox M7 Pro ; diskspd 2.0.17 f: Ø3531 (3250.59-3546.32)

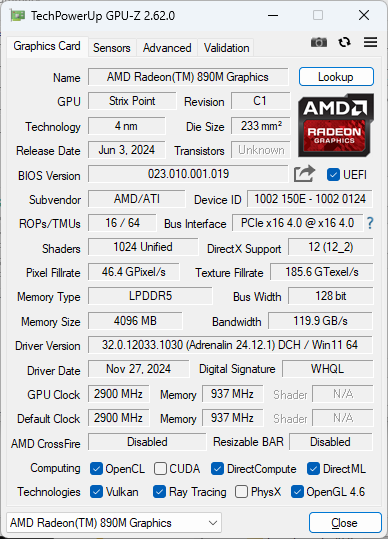

图形处理器性能

Radeon 890M Radeon 890M 大约比即将推出的 Radeon 780M 快 10%至 15%，或比去年的竞争对手Arc 8.最新的英特尔弧形显卡 140V可以与 AMD 解决方案并驾齐驱，但这种 GPU 仍相对较新，在迷你 PC 上还不常见。

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Beelink GTI12 Ultra EX Docking Station NVIDIA GeForce RTX 3070, Intel Core i9-12900H	100 pt
Minisforum AtomMan G7 Ti NVIDIA GeForce RTX 4070 Laptop GPU, Intel Core i9-14900HX	92.1 pt
GMK EVO-X1 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	29.1 pt
Lenovo Yoga Slim 9 14ILL10 Intel Arc Graphics 140V, Intel Core Ultra 7 258V	28.9 pt
Average AMD Radeon 890M	28 pt
Asus NUC 14 Pro+ Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	26.3 pt
BOSGAME M2 AMD Radeon 780M, AMD Ryzen 9 7940HS	26.1 pt
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	24.6 pt
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	24.3 pt
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	22 pt
GMK NucBox M7 Pro AMD Radeon 680M, AMD Ryzen 9 PRO 6950H	21.4 pt
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	20.2 pt
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	11.3 pt
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel UHD Graphics Xe G4 48EUs, Intel Core i5-13420H	7.1 pt

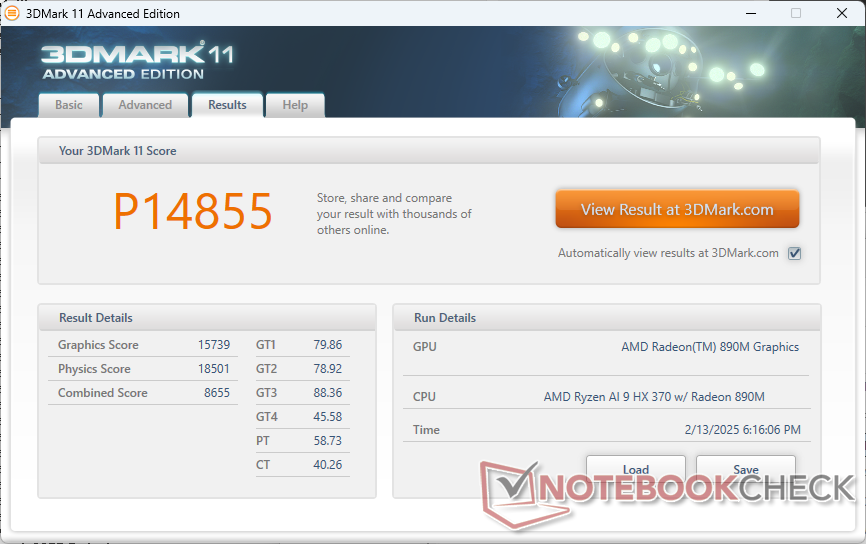

3DMark 11 - 1280x720 Performance GPU
Beelink GTI12 Ultra EX Docking Station NVIDIA GeForce RTX 3070, Intel Core i9-12900H	47892 Points +204%
Minisforum AtomMan G7 Ti NVIDIA GeForce RTX 4070 Laptop GPU, Intel Core i9-14900HX	44053 Points +180%
GMK EVO-X1 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	15739 Points
Average AMD Radeon 890M (13267 - 16800, n=10)	15357 Points -2%
BOSGAME M2 AMD Radeon 780M, AMD Ryzen 9 7940HS	14274 Points -9%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	13716 Points -13%
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	13673 Points -13%
Asus NUC 14 Pro+ Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	13163 Points -16%
GMK NucBox M7 Pro AMD Radeon 680M, AMD Ryzen 9 PRO 6950H	11755 Points -25%
Lenovo Yoga Slim 9 14ILL10 Intel Arc Graphics 140V, Intel Core Ultra 7 258V	11506 Points -27%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	10807 Points -31%
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	10737 Points -32%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5566 Points -65%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel UHD Graphics Xe G4 48EUs, Intel Core i5-13420H	4065 Points -74%

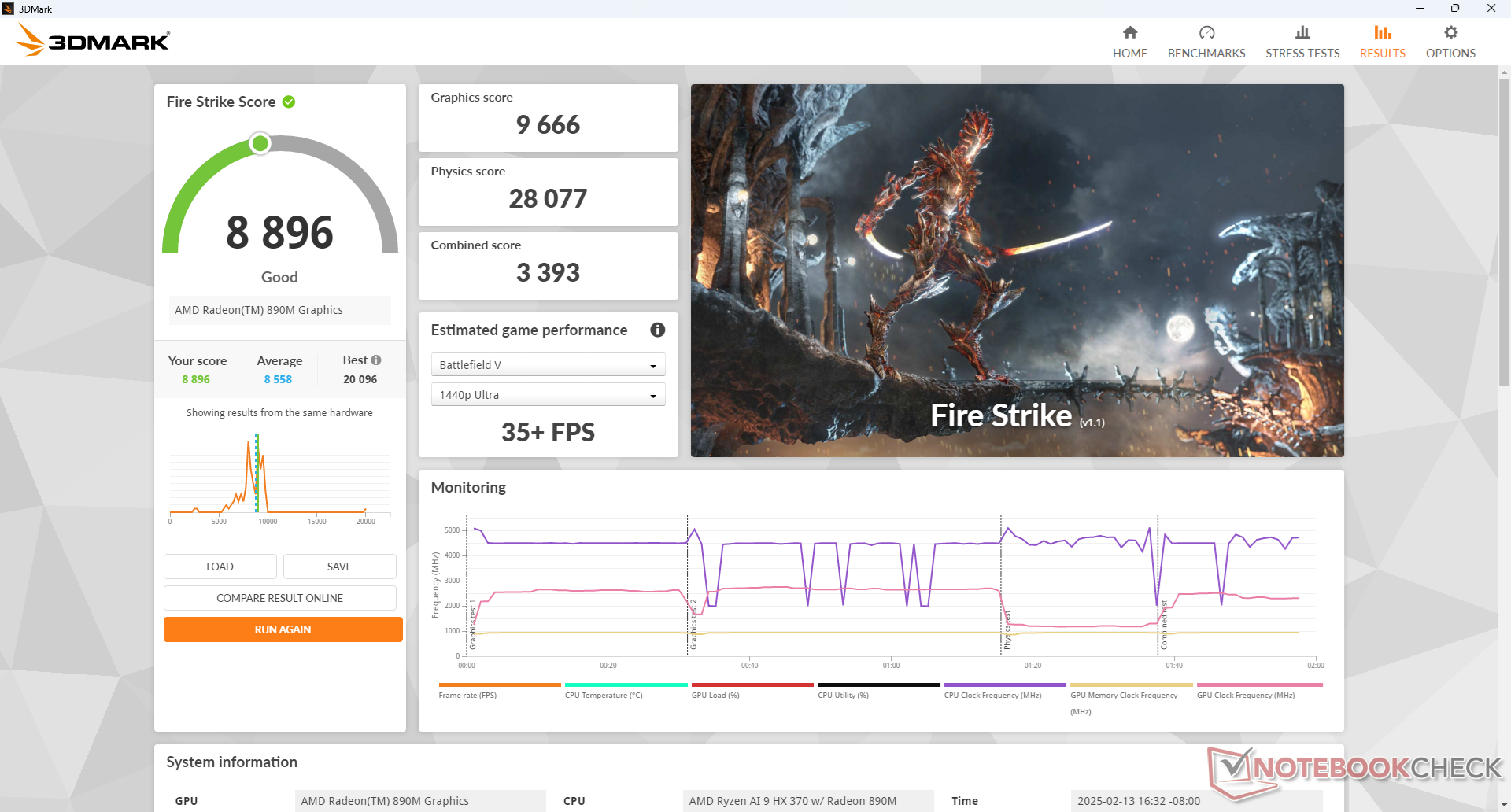

3DMark
1920x1080 Fire Strike Graphics
Beelink GTI12 Ultra EX Docking Station NVIDIA GeForce RTX 3070, Intel Core i9-12900H	34047 Points +252%
Minisforum AtomMan G7 Ti NVIDIA GeForce RTX 4070 Laptop GPU, Intel Core i9-14900HX	30766 Points +218%
Lenovo Yoga Slim 9 14ILL10 Intel Arc Graphics 140V, Intel Core Ultra 7 258V	10006 Points +4%
GMK EVO-X1 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	9666 Points
Average AMD Radeon 890M (8188 - 10037, n=10)	9186 Points -5%
BOSGAME M2 AMD Radeon 780M, AMD Ryzen 9 7940HS	8904 Points -8%
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	8572 Points -11%
Asus NUC 14 Pro+ Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	8396 Points -13%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	8164 Points -16%
GMK NucBox M7 Pro AMD Radeon 680M, AMD Ryzen 9 PRO 6950H	7706 Points -20%
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	7325 Points -24%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	7026 Points -27%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4567 Points -53%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel UHD Graphics Xe G4 48EUs, Intel Core i5-13420H	2589 Points -73%
2560x1440 Time Spy Graphics
Beelink GTI12 Ultra EX Docking Station NVIDIA GeForce RTX 3070, Intel Core i9-12900H	13961 Points +284%
Minisforum AtomMan G7 Ti NVIDIA GeForce RTX 4070 Laptop GPU, Intel Core i9-14900HX	12698 Points +249%
Lenovo Yoga Slim 9 14ILL10 Intel Arc Graphics 140V, Intel Core Ultra 7 258V	4150 Points +14%
GMK EVO-X1 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3634 Points
Average AMD Radeon 890M (3144 - 3676, n=11)	3487 Points -4%
Asus NUC 14 Pro+ Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3476 Points -4%
BOSGAME M2 AMD Radeon 780M, AMD Ryzen 9 7940HS	3167 Points -13%
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	2917 Points -20%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	2906 Points -20%
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	2881 Points -21%
GMK NucBox M7 Pro AMD Radeon 680M, AMD Ryzen 9 PRO 6950H	2500 Points -31%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	2452 Points -33%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1288 Points -65%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel UHD Graphics Xe G4 48EUs, Intel Core i5-13420H	802 Points -78%

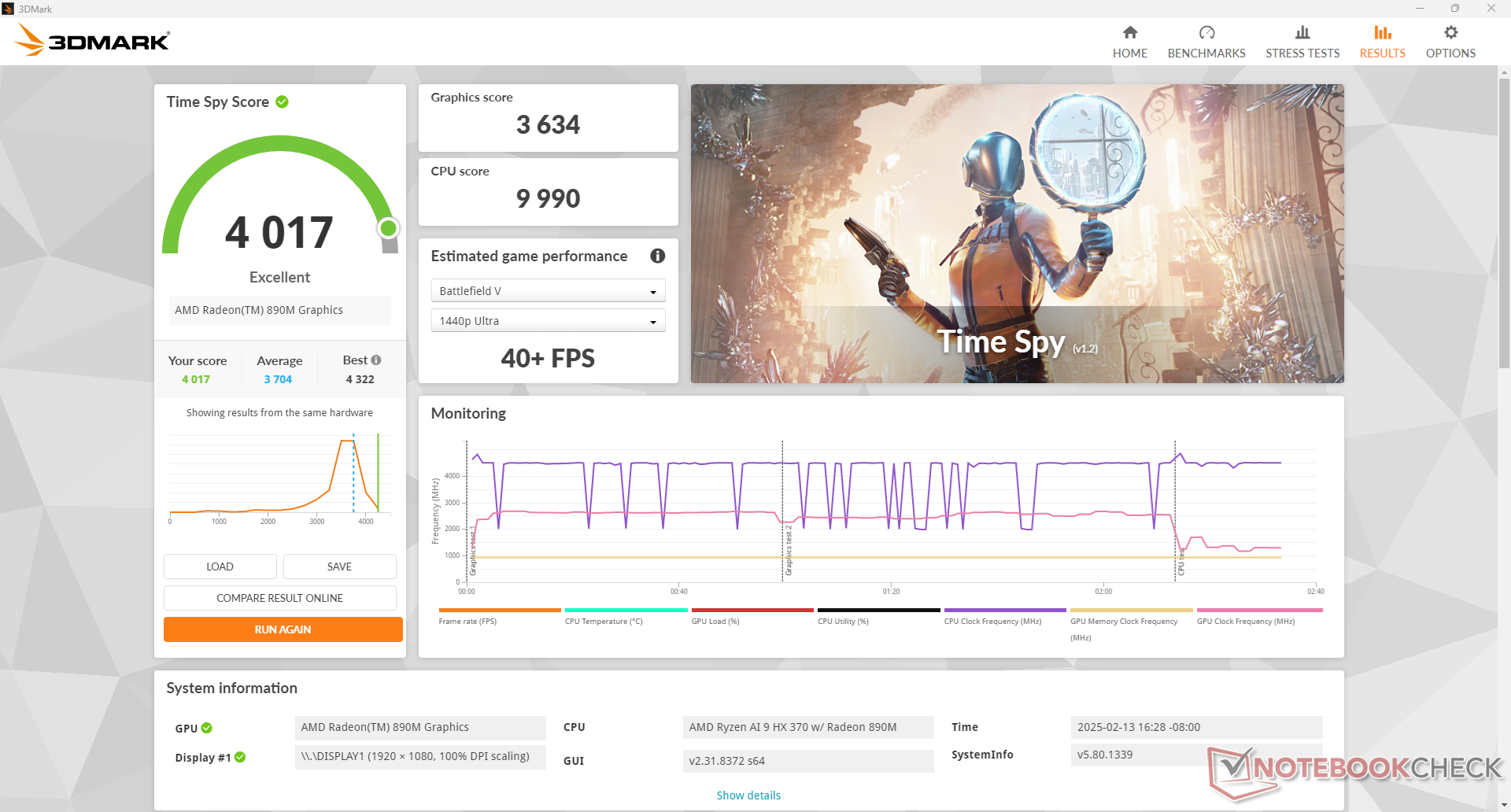

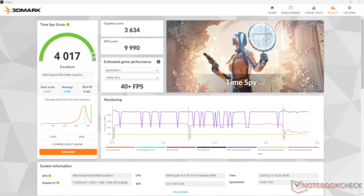

2560x1440 Time Spy Score
Beelink GTI12 Ultra EX Docking Station NVIDIA GeForce RTX 3070, Intel Core i9-12900H	13722 Points +242%
Minisforum AtomMan G7 Ti NVIDIA GeForce RTX 4070 Laptop GPU, Intel Core i9-14900HX	13063 Points +225%
Lenovo Yoga Slim 9 14ILL10 Intel Arc Graphics 140V, Intel Core Ultra 7 258V	4470 Points +11%
GMK EVO-X1 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	4017 Points
Asus NUC 14 Pro+ Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3881 Points -3%
Average AMD Radeon 890M (3518 - 4073, n=10)	3854 Points -4%
BOSGAME M2 AMD Radeon 780M, AMD Ryzen 9 7940HS	3541 Points -12%
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	3274 Points -18%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	3260 Points -19%
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	3200 Points -20%
GMK NucBox M7 Pro AMD Radeon 680M, AMD Ryzen 9 PRO 6950H	2805 Points -30%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	2751 Points -32%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1478 Points -63%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel UHD Graphics Xe G4 48EUs, Intel Core i5-13420H	919 Points -77%

3DMark Performance Rating | 3DMark 11 | 3DMark

Blender
v3.3 Classroom HIP/AMD
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	318 Seconds *
v3.3 Classroom OPTIX/RTX
Lenovo ThinkCentre Neo Ultra NVIDIA GeForce RTX 4060, Intel Core i7-14700	24 Seconds *
v3.3 Classroom CUDA
Lenovo ThinkCentre Neo Ultra NVIDIA GeForce RTX 4060, Intel Core i7-14700	40 Seconds *
v3.3 Classroom CPU
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	570 Seconds * -136%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	453 Seconds * -87%
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	435 Seconds * -80%
GMK NucBox M7 Pro AMD Radeon 680M, AMD Ryzen 9 PRO 6950H	392 Seconds * -62%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	327 Seconds * -35%
Asus NUC 14 Pro+ Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	326 Seconds * -35%
BOSGAME M2 AMD Radeon 780M, AMD Ryzen 9 7940HS	314 Seconds * -30%
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	310 Seconds * -28%
Average AMD Radeon 890M (221 - 306, n=9)	254 Seconds * -5%
GMK EVO-X1 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	242 Seconds *
Lenovo ThinkCentre Neo Ultra NVIDIA GeForce RTX 4060, Intel Core i7-14700	214 Seconds * +12%
v3.3 Classroom oneAPI/Intel
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	308 Seconds *
Asus NUC 14 Pro+ Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	215 Seconds *

* ... smaller is better

游戏性能

Radeon 890M 是市场上速度最快的游戏集成解决方案之一。只要将大部分设置调低到低或中低，它就足以在 1080p 下运行《赛博朋克 2077 》等要求苛刻的游戏。

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	289.9 fps +80%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	161.5 fps
Average AMD Radeon 890M (139.5 - 172.1, n=5)	158.3 fps -2%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	139 fps -14%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	136.6 fps -15%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	127.9 fps -21%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	104.6 fps -35%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	89 fps -45%
1920x1080 Low Preset (DX12)
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	268.9 fps +216%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	85.2 fps
Average AMD Radeon 890M (80 - 88.3, n=5)	85 fps 0%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	76.9 fps -10%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	74.6 fps -12%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	72.8 fps -15%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	65.6 fps -23%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	50.7 fps -40%
1920x1080 Medium Preset (DX12)
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	216.7 fps +247%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	62.4 fps
Average AMD Radeon 890M (53.8 - 62.4, n=5)	60.3 fps -3%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	55.9 fps -10%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	52.8 fps -15%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	52.2 fps -16%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	47.7 fps -24%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	39.4 fps -37%
1920x1080 High Preset (DX12)
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	154.9 fps +274%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	41.4 fps
Average AMD Radeon 890M (35.9 - 41.8, n=5)	40 fps -3%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	37.8 fps -9%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	36.8 fps -11%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	36.6 fps -12%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	32.3 fps -22%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	26.8 fps -35%
1920x1080 Badass Preset (DX12)
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	122.6 fps +272%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	33 fps
Average AMD Radeon 890M (28.1 - 34.1, n=5)	31.9 fps -3%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	30.3 fps -8%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	29.6 fps -10%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.5 fps -11%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	26.1 fps -21%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	22.4 fps -32%

Cyberpunk 2077 2.2 Phantom Liberty
1280x720 Low Preset (FSR off)
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	150 (124^min) fps +95%
Average AMD Radeon 890M (72.5 - 85.1, n=7)	79.5 fps +3%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	77.9 (64.8^min) fps +1%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	77.4 (28.7^min) fps 0%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	77.1 (63.8^min, 55.8^P1) fps
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	72.6 (60.1^min) fps -6%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	62.3 (52.4^min) fps -19%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	48.5 (39.4^min) fps -37%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	46.4 (37.7^min) fps -40%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs	17.4 (13.5^min) fps -77%
1920x1080 Low Preset (FSR off)
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	148.5 (124^min) fps +202%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	49.2 (41.4^min, 38.7^P1) fps
Average AMD Radeon 890M (40 - 52.5, n=12)	47.8 fps -3%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	46.3 (32.3^min) fps -6%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	46.3 (39.5^min) fps -6%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	43.8 (37.3^min) fps -11%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	37.3 (31.9^min) fps -24%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	34.7 (30.4^min) fps -29%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	30.9 (24.8^min) fps -37%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs	10 (7.95^min) fps -80%
1920x1080 Medium Preset (FSR off)
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	133.9 (113.8^min) fps +251%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	38.2 (32.9^min, 31.3^P1) fps
Average AMD Radeon 890M (31.3 - 40.9, n=12)	37.5 fps -2%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	36.3 (31.7^min) fps -5%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	35.2 (10.9^min) fps -8%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	34.5 (29.8^min) fps -10%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	28.9 (25.6^min) fps -24%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	28.7 (24.7^min) fps -25%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	25.2 (19.2^min) fps -34%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs	7.82 (6.56^min) fps -80%
1920x1080 High Preset (FSR off)
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	115.3 (97.2^min) fps +302%
Average AMD Radeon 890M (25.4 - 32.3, n=12)	29.5 fps +3%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	29.2 (25.2^min) fps +2%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	28.7 (22.6^min, 14.6^P1) fps
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	27.7 (9.25^min) fps -3%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	27.1 (22.6^min) fps -6%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	24.1 (21.1^min) fps -16%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	22.6 (19.3^min) fps -21%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	21.3 (14.6^min) fps -26%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs	6.38 (5.41^min) fps -78%
1920x1080 Ultra Preset (FSR off)
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	102.2 (84.9^min) fps +307%
Average AMD Radeon 890M (23.1 - 28.4, n=12)	25.9 fps +3%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	25.8 (21.9^min) fps +3%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	25.1 (19.5^min, 13.6^P1) fps
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	24.5 (9.31^min) fps -2%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	23.4 (19^min) fps -7%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	22 (18.9^min) fps -12%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	19.3 (16^min) fps -23%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	18.8 (10.9^min) fps -25%

X-Plane 11.11
1280x720 low (fps_test=1)
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	118.2 fps +43%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	82.6 fps
Average AMD Radeon 890M (65.1 - 91.1, n=11)	78.1 fps -5%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	66.4 fps -20%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	66.3 fps -20%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	66.1 fps -20%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	65.9 fps -20%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	65.9 fps -20%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	65.5 fps -21%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	57 fps -31%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	41.3 fps -50%
1920x1080 med (fps_test=2)
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	106.1 fps +70%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	62.4 fps
Average AMD Radeon 890M (54.4 - 69.9, n=11)	61.5 fps -1%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	52.9 fps -15%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	52.9 fps -15%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	49.8 fps -20%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	49.1 fps -21%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	47.8 fps -23%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	47.3 fps -24%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	44.8 fps -28%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	33.1 fps -47%
1920x1080 high (fps_test=3)
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	89.5 fps +94%
Average AMD Radeon 890M (42.2 - 53.3, n=11)	47.6 fps +3%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	46.2 fps
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	44.5 fps -4%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	43 fps -7%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	42.2 fps -9%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	41.4 fps -10%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	39.7 fps -14%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	39.6 fps -14%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	37.3 fps -19%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	26 fps -44%

Strange Brigade
1280x720 lowest AF:1
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	459 (204^min, 332^P1) fps +140%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	191.3 (88^min, 156.8^P1) fps
Average AMD Radeon 890M (165.1 - 199.8, n=10)	185.7 fps -3%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	175.1 (40.4^min, 151.6^P1) fps -8%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	173.7 (119.2^min, 145.2^P1) fps -9%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	167.7 (34.3^min, 142.9^P1) fps -12%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	148.6 (45.8^min, 118.4^P1) fps -22%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	142.4 (103.7^min, 121.7^P1) fps -26%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	141.9 (78.6^min, 116.6^P1) fps -26%
1920x1080 medium AA:medium AF:4
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	339 (212^min, 278^P1) fps +321%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	80.6 (63.3^min, 69.2^P1) fps
Average AMD Radeon 890M (71.1 - 82, n=10)	77.1 fps -4%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	70.4 (17.6^min, 61.6^P1) fps -13%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	68.9 (55.3^min, 59.1^P1) fps -15%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	67.9 (43.7^min, 58.3^P1) fps -16%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	63.9 (33.2^min, 54.3^P1) fps -21%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	57.8 (43.1^min, 50.8^P1) fps -28%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	57.4 (49.6^min, 51.6^P1) fps -29%
1920x1080 high AA:high AF:8
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	280 (147.8^min, 207^P1) fps +308%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	68.6 (49.2^min, 53^P1) fps
Average AMD Radeon 890M (59.7 - 69.8, n=10)	65.2 fps -5%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	59.7 (25.1^min, 46.7^P1) fps -13%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	58.7 (43.2^min, 45.6^P1) fps -14%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	57.9 (7^min, 45^P1) fps -16%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	53.5 (28.6^min, 42^P1) fps -22%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	48.7 (32.8^min, 38.7^P1) fps -29%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	48.6 (34.2^min, 38.3^P1) fps -29%
1920x1080 ultra AA:ultra AF:16
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	245 (132.6^min, 183^P1) fps +320%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	58.4 (39^min, 45.2^P1) fps
Average AMD Radeon 890M (49.8 - 59.7, n=10)	55.4 fps -5%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	51.2 (27.3^min, 41.1^P1) fps -12%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	50.8 (24.5^min, 33.9^P1) fps -13%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	48.8 (11.1^min, 31.1^P1) fps -16%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	43.5 (8.2^min, 17.8^P1) fps -26%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	42 (31.2^min, 33.7^P1) fps -28%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	41.9 (32.6^min, 33.4^P1) fps -28%

F1 22
1280x720 Ultra Low Preset AA:T AF:16x
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	329 (264^min, 206^P1) fps +87%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	179.5 (147^min, 122^P1) fps +2%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	176.1 (149^min, 112^P1) fps
Average AMD Radeon 890M (164.3 - 186.8, n=5)	175.8 fps 0%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	170 (137^min, 113^P1) fps -3%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	145.7 (108^min, 89^P1) fps -17%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	144.7 (122^min, 92^P1) fps -18%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	130.2 (112^min, 96^P1) fps -26%
1920x1080 Low Preset AA:T AF:16x
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	282 (220^min, 163^P1) fps +165%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	107.3 (94^min, 79^P1) fps +1%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	106.3 (83^min, 62^P1) fps
Average AMD Radeon 890M (81 - 111.2, n=8)	104.3 fps -2%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	99.8 (12^min, 70^P1) fps -6%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	99 (86^min, 76^P1) fps -7%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	82.4 (65^min, 59^P1) fps -22%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	79.4 (63^min, 66^P1) fps -25%
1920x1080 Medium Preset AA:T AF:16x
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	277 (219^min, 165^P1) fps +188%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	96.1 (81^min, 62^P1) fps
Average AMD Radeon 890M (76.8 - 102.9, n=8)	95.8 fps 0%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	93.3 (79^min, 72^P1) fps -3%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	85.9 (67^min, 59^P1) fps -11%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	85.9 (73^min, 68^P1) fps -11%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	75.1 (63^min, 53^P1) fps -22%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	71.9 (61^min, 59^P1) fps -25%
1920x1080 High Preset AA:T AF:16x
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	264 (208^min, 155^P1) fps +263%
Average AMD Radeon 890M (64.2 - 78.1, n=8)	73.4 fps +1%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	72.7 (55^min, 43^P1) fps
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	69.1 (60^min, 58^P1) fps -5%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	66.7 (53^min, 36^P1) fps -8%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	65.6 (54^min, 52^P1) fps -10%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	56.2 (46^min, 40^P1) fps -23%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	52.9 (46^min, 45^P1) fps -27%
1920x1080 Ultra High Preset AA:T AF:16x
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	91.8 (78^min, 72^P1) fps +366%
Average AMD Radeon 890M (16.7 - 22, n=8)	20.2 fps +3%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	19.7 (15^min, 14^P1) fps
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	19.3 (14^min, 14^P1) fps -2%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	18.4 (12^min, 12^P1) fps -7%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	17.9 (13^min, 13^P1) fps -9%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	14.7 (10^min, 10^P1) fps -25%

GTA V
1024x768 Lowest Settings possible
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	184.3 (2.47^min, 125^P1) fps +24%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	166.6 (5.68^min, 111.1^P1) fps +12%
Average AMD Radeon 890M (149.1 - 174.3, n=11)	163.9 fps +10%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	163.4 (2.4^min, 100^P1) fps +10%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	162.9 (3.78^min, 111.1^P1) fps +9%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	152.3 (4.42^min, 100^P1) fps +2%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	149.1 (4.61^min, 83.3^P1) fps
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	143.6 (5.11^min, 83.3^P1) fps -4%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	141.6 (4.93^min, 100^P1) fps -5%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs	65.1 (16.6^min, 45.5^P1) fps -56%
1920x1080 Lowest Settings possible
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	184.2 (1.559^min, 125^P1) fps +33%
Average AMD Radeon 890M (137 - 150.9, n=7)	143.7 fps +4%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	138.6 (4.53^min, 90.9^P1) fps
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	129 (21.4^min, 83.3^P1) fps -7%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	124.8 (38.5^min, 83.3^P1) fps -10%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	124.7 (11.8^min, 83.3^P1) fps -10%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	118.7 (7.47^min, 83.3^P1) fps -14%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	111.4 (35^min, 71.4^P1) fps -20%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	110.4 (9.4^min, 71.4^P1) fps -20%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs	39.6 (13.9^min, 27^P1) fps -71%
1366x768 Normal/Off AF:4x
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	178.9 (3.52^min, 111.1^P1) fps +23%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	155.8 (5.63^min, 100^P1) fps +7%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	154.1 (4.46^min, 100^P1) fps +6%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	153.8 (4.97^min, 90.9^P1) fps +5%
Average AMD Radeon 890M (129.6 - 161.5, n=10)	152.7 fps +5%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	145.9 (4.07^min, 90.9^P1) fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	139.7 (5.95^min, 90.9^P1) fps -4%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	137.1 (7.4^min, 83.3^P1) fps -6%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	125.5 (15.3^min, 76.9^P1) fps -14%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs	58.9 (19.1^min, 38.5^P1) fps -60%
1920x1080 Normal/Off AF:4x
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	179.2 (2.85^min, 111.1^P1) fps +34%
Average AMD Radeon 890M (127.8 - 146.1, n=7)	139.6 fps +4%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	134.2 (4.07^min, 83.3^P1) fps
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	133.2 (8.14^min, 83.3^P1) fps -1%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	128.7 (21.5^min, 76.9^P1) fps -4%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	112.9 (17.1^min, 76.9^P1) fps -16%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	112.3 (21.5^min, 71.4^P1) fps -16%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	110.4 (6.6^min, 71.4^P1) fps -18%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	95.2 (10.5^min, 66.7^P1) fps -29%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs	35.3 (6.04^min, 23.3^P1) fps -74%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	176.5 (3.17^min, 111.1^P1) fps +124%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	78.8 (6.79^min, 52.6^P1) fps
Average AMD Radeon 890M (68.4 - 80.2, n=11)	76.8 fps -3%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	69.4 (11.3^min, 47.6^P1) fps -12%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	65.7 (3.85^min, 40^P1) fps -17%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	53.2 (4.77^min, 35.7^P1) fps -32%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	51.9 (14.3^min, 37^P1) fps -34%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	40.6 (3.3^min, 30.3^P1) fps -48%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	33.6 (6.68^min, 22.7^P1) fps -57%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs	9.37 (4.95^min, 7.35^P1) fps -88%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	111.3 (4.01^min, 71.4^P1) fps +245%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	32.3 (4.62^min, 22.7^P1) fps
Average AMD Radeon 890M (30.3 - 33.2, n=11)	31.8 fps -2%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	28.5 (6.6^min, 19.6^P1) fps -12%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	26 (2.62^min, 17.5^P1) fps -20%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	23.9 (2.34^min, 15.6^P1) fps -26%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	23.7 (9.52^min, 16.4^P1) fps -27%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	15.8 (3.06^min, 12^P1) fps -51%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	12.7 (2.89^min, 8.93^P1) fps -61%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	209 fps +135%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	88.8 fps
Average AMD Radeon 890M (75.5 - 94.6, n=10)	85 fps -4%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	83.8 fps -6%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	80.8 fps -9%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	79.7 fps -10%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	75.3 fps -15%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	68.1 fps -23%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	67.6 fps -24%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	59.6 fps -33%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	39.6 fps -55%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs	23.9 fps -73%
1920x1080 Standard Quality
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	184.8 fps +305%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	45.6 fps
Average AMD Radeon 890M (37 - 48.4, n=10)	44.2 fps -3%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	41.5 fps -9%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	40.2 fps -12%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	40.2 fps -12%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	39.3 fps -14%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	35.6 fps -22%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	34.7 fps -24%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	33.3 fps -27%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	21.9 fps -52%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs	12.7 fps -72%
1920x1080 High Quality
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	138.7 fps +329%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	32.3 fps
Average AMD Radeon 890M (26.6 - 34.4, n=10)	31.7 fps -2%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	30.1 fps -7%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	29.4 fps -9%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.3 fps -9%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	28.6 fps -11%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	24.6 fps -24%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	24.5 fps -24%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	22.3 fps -31%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	15.2 fps -53%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs	9.06 fps -72%

Dota 2 Reborn
1280x720 min (0/3) fastest
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	175.9 (154.5^min) fps +23%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	161.2 (11.9^min) fps +13%
Average AMD Radeon 890M (132.3 - 175.6, n=12)	159.2 fps +12%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	155.8 (134.9^min) fps +9%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	151.9 (101.9^min) fps +6%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	146.2 (124.5^min) fps +2%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	143.3 (123.8^min) fps 0%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	142.7 (107.7^min) fps
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	119.5 (88.3^min) fps -16%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs	105.7 (57^min) fps -26%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	104.7 (61.7^min) fps -27%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	97.7 (67.3^min) fps -32%
1366x768 med (1/3)
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	162 (141.7^min) fps +44%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	130.1 (91.5^min) fps +15%
Average AMD Radeon 890M (112.7 - 135.7, n=12)	127.6 fps +13%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	124.8 (104.5^min) fps +11%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	122.7 (101.9^min) fps +9%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	114.4 (96.3^min) fps +2%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	113.4 (94^min) fps +1%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	112.7 (96.2^min) fps
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	93.4 (69.8^min) fps -17%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	83.1 (60.5^min) fps -26%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	78 (58.5^min) fps -31%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs	46.4 (37.1^min) fps -59%
1920x1080 high (2/3)
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	158.5 (138.8^min) fps +70%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	98.8 (80.5^min) fps +6%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	98.4 (87.5^min) fps +5%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	96.8 (17.4^min) fps +4%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	93.4 (82.2^min) fps
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	85.1 (74.5^min) fps -9%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	83.9 (73.4^min) fps -10%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	75.6 (48.6^min) fps -19%
Average AMD Radeon 890M (34.8 - 100, n=12)	63.3 fps -32%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	62.7 (57.3^min) fps -33%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	54.8 (35.3^min) fps -41%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs	40.2 (26.5^min) fps -57%
1920x1080 ultra (3/3) best looking
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	149.3 (128.8^min) fps +79%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	90.4 (71.8^min) fps +9%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	88.1 (78.3^min) fps +6%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	87.4 (16.1^min) fps +5%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	83.3 (74^min) fps
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	76 (33.1^min) fps -9%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	75.6 (67.2^min) fps -9%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	73.3 (48.5^min) fps -12%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	73.1 (64^min) fps -12%
Average AMD Radeon 890M (32.4 - 89.8, n=12)	58 fps -30%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	57.5 (52.3^min) fps -31%
Lenovo IdeaCentre Mini 01IRH8-90W20081GF Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs	37.1 (24.3^min) fps -55%

Baldur's Gate 3
1280x720 Low Preset
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	199.9 fps +237%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	65.8 fps +11%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	63.4 fps +7%
Average AMD Radeon 890M (55.2 - 73.4, n=7)	62.8 fps +6%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	59.4 fps
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	56.4 (29^min, 30.5^P0.1, 37.9^P1) fps -5%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	50.8 fps -14%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	50.1 fps -16%
1920x1080 Low Preset
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	174.5 fps +323%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	44.1 fps +7%
Average AMD Radeon 890M (35 - 48.5, n=12)	42.6 fps +3%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	41.6 fps +1%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	41.3 fps
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	40.5 fps -2%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	38.6 fps -7%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	37.9 (22.7^min, 23.2^P0.1, 26.9^P1) fps -8%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	33.7 fps -18%
1920x1080 Medium Preset
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	152.6 fps +348%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	36.5 fps +7%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	34.8 fps +2%
Average AMD Radeon 890M (29.1 - 37.9, n=12)	34.4 fps +1%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	34.1 fps
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	33.7 fps -1%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	32 fps -6%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	29.7 (17.5^min, 18.4^P0.1, 19.7^P1) fps -13%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	27.9 fps -18%
1920x1080 High Preset
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	137.1 fps +379%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	30.6 fps +7%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	28.9 fps +1%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	28.6 fps
Average AMD Radeon 890M (24.1 - 31.2, n=12)	28.6 fps 0%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	28.1 fps -2%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	26 fps -9%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	25.2 (14.5^min, 14.6^P0.1, 16.2^P1) fps -12%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	24.2 fps -15%
1920x1080 Ultra Preset
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	132.9 fps +368%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	29.6 fps +4%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	28.4 fps
Average AMD Radeon 890M (24 - 31.1, n=11)	28.3 fps 0%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	28 fps -1%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	27 fps -5%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	25.3 fps -11%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	24.4 (8.14^min, 11.8^P0.1, 15.7^P1) fps -14%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	23.1 fps -19%

Far Cry 5
1280x720 Low Preset AA:T
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	170 (105^min) fps +85%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	92 (77^min) fps
Average AMD Radeon 890M (75 - 101, n=9)	92 fps 0%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	89 (77^min) fps -3%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	88 (77^min) fps -4%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	86 (75^min) fps -7%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	75 (66^min) fps -18%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	71 (63^min) fps -23%
1920x1080 Medium Preset AA:T
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	154 (109^min) fps +170%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	57 (51^min) fps
Average AMD Radeon 890M (42 - 60, n=9)	55.1 fps -3%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	53 (48^min) fps -7%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	51 (45^min) fps -11%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	49 (44^min) fps -14%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	45 (40^min) fps -21%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	40 (37^min) fps -30%
1920x1080 High Preset AA:T
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	148 (117^min) fps +179%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	53 (47^min) fps
Average AMD Radeon 890M (39 - 55, n=9)	51 fps -4%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	49 (43^min) fps -8%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	47 (42^min) fps -11%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	45 (41^min) fps -15%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	41 (37^min) fps -23%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	37 (34^min) fps -30%
1920x1080 Ultra Preset AA:T
Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H, NVIDIA GeForce RTX 3070	142 (106^min) fps +184%
GMK EVO-X1 AMD Ryzen AI 9 HX 370, AMD Radeon 890M	50 (44^min) fps
Average AMD Radeon 890M (33 - 52, n=9)	47 fps -6%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	46 (41^min) fps -8%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	45 (40^min) fps -10%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	43 (38^min) fps -14%
GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H, AMD Radeon 680M	39 (35^min) fps -22%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	35 (32^min) fps -30%

Cyberpunk 2077 ultra FPS Chart

GMK EVO-X1 Ryzen AI 9 HX 370, Radeon 890M: Ø24.2 (21.8-25.9)

	low	med.	high	ultra
GTA V (2015)	149.1	145.9	78.8	32.3
Dota 2 Reborn (2015)	142.7	112.7	93.4	83.3
Final Fantasy XV Benchmark (2018)	88.8	45.6	32.3
X-Plane 11.11 (2018)	82.6	62.4	46.2
Far Cry 5 (2018)	92	57	53	50
Strange Brigade (2018)	191.3	80.6	68.6	58.4
Tiny Tina's Wonderlands (2022)	85.2	62.4	41.4	33
F1 22 (2022)	106.3	96.1	72.7	19.7
Baldur's Gate 3 (2023)	41.3	34.1	28.6	28.4
Cyberpunk 2077 2.2 Phantom Liberty (2023)	49.2	38.2	28.7	25.1

排放量

系统噪音

风扇噪音可以说是该机型最薄弱的环节。风扇不仅始终处于活动状态，而且即使设置为平衡模式，也很容易出现脉冲和转速上升。例如，在运行3DMark 06 时，风扇噪音在第一个基准测试场景进行到一半时就会增加到近 45 dB(A)，明显高于许多其他微型 PC。在玩游戏时，噪音也会达到同样的水平。

风扇噪音曲线（白色：背景，红色：系统空闲，蓝色：3DMark 06，橙色：赛博朋克 2077》压力，绿色：Prime95+FurMark 压力）

Noise Level

Idle		27.8 / 30.3 / 30.4 dB(A)
Load		44.6 / 46.1 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 23.3 dB(A)

温度

与市场上绝大多数微型电脑不同，排气管从机箱两侧而非后部排出。因此，不建议在没有附带的垂直支架的情况下将设备侧放以获得最佳气流。新鲜空气仍从机箱顶部边缘的缝隙进入。

压力测试

在启动 Prime95 压力时，CPU 的主频将稳定在 2.9 GHz，温度为 67 C，功耗为 54 W，而 Beelink SER9 的主频为 3.3 GHz，温度为 71 C，功耗为 54 W。 Beelink SER9相比，配备相同 Ryzen AI 9 HX 处理器的 Beelink SER9 的主频为 3.3 GHz、温度为 71 C、功耗为 54 W。我们的 GMK 在播放《赛博朋克 2077》 时也同样会略微降温和减速。无论屏幕负载如何，核心温度都会保持在 70 C 以下。

能源管理

耗电量

平均功耗略低于搭载 Zen 4 的 Beelink SER8略低，同时 CPU 和 GPU 性能更快，提高了每瓦性能。遗憾的是，如上所述，GMK 在关机或进入睡眠模式时存在电源状态问题，这一点在我们的读数中非常明显，功耗水平在 3 瓦到 13 瓦之间，而理想状态下应该是 2 瓦或更低。

启动 Prime95 应力时，功耗会飙升至 85 W，然后迅速下降并稳定在 75 W

Power Consumption

Off / Standby	3.7 / 12.6 Watt
Idle	5.4 / 5.8 / 5.8 Watt
Load	72.1 / 76.1 Watt


Key: min: , med: , max: Metrahit Energy

	GMK EVO-X1 Ryzen AI 9 HX 370, Radeon 890M, Crucial P3 Plus CT1000P3PSSD8, , x,	GMK NucBox M7 Pro R9 PRO 6950H, Radeon 680M, , , x,	GMK NucBox K9 Ultra 5 125H, Arc 7-Core, MasonSemi 1TB MC7000, , x,	Beelink SER9 Ryzen AI 9 HX 370, Radeon 890M, Crucial P3 Plus CT1000P3PSSD8, , x,	Asus NUC 14 Pro+ Ultra 9 185H, Arc 8-Core, Samsung PM9A1a MZVL21T0HDLU, , x,	BOSGAME M2 R9 7940HS, Radeon 780M, , , x,
Power Consumption		-92%	-39%	-4%	-36%	-21%
Idle Minimum *	5.4	14.6 -170%	10.9 -102%	5.7 -6%	4.2 22%	6.4 -19%
Idle Average *	5.8	15 -159%	11 -90%	5.9 -2%	7.2 -24%	7.3 -26%
Idle Maximum *	5.8	16 -176%	11.4 -97%	6 -3%	13 -124%	7.5 -29%
Load Average *	72.1	80.4 -12%	52.8 27%	68.7 5%	68.5 5%	75 -4%
Cyberpunk 2077 ultra external monitor *	72.5	86.2 -19%	57.1 21%	78.2 -8%	74.1 -2%	83 -14%
Load Maximum *	76.1	89.5 -18%	72.2 5%	82 -8%	144.9 -90%	99.9 -31%

* ... smaller is better

Power Consumption Cyberpunk / Stress Test

GMK EVO-X1 Ryzen AI 9 HX 370, Radeon 890M: Ø75.9 (74.5-76.3)

Beelink SER8 R7 8845HS, Radeon 780M: Ø84 (81.5-85)

Power Consumption external Monitor

GMK EVO-X1 Ryzen AI 9 HX 370, Radeon 890M; Prime95 V2810 Stress (external Monitor): Ø74.9 (74.4-84.4)

Beelink SER8 R7 8845HS, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø84.2 (83.5-85.2)

GMK EVO-X1 Ryzen AI 9 HX 370, Radeon 890M; Cinebench R15 Multi (external Monitor): Ø70.1 (49.8-71.8)

Beelink SER8 R7 8845HS, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø75.9 (75.2-76.8)

GMK EVO-X1 Ryzen AI 9 HX 370, Radeon 890M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø65.3 (62.6-74.6)

Beelink SER8 R7 8845HS, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø80.3 (75.3-82.8)

GMK EVO-X1 Ryzen AI 9 HX 370, Radeon 890M; Idle 1min (external Monitor): Ø5.36 (4.94-8.44)

Beelink SER8 R7 8845HS, Radeon 780M; Idle 1min (external Monitor): Ø7.13 (6.52-9.55)

GMK EVO-X1 Ryzen AI 9 HX 370, Radeon 890M; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø72.5 (71.1-74.2)

笔记本检查评级

Back to the verdict

GMK EVO-X1 - 02/18/2025 v8
Allen Ngo

Chassis

82 / 98 → 84%

Connectivity

62 / 81 → 76%

Weight

82%

Games Performance

55 / 80 → 68%

Application Performance

66 / 92 → 71%

AI Performance

90%

Temperature

86%

Noise

74%

Average

52%

72%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
0%

Packaging
50%

Power Use
42.5%

Repairability
40%

Software Updates
22.3%

Total Sustainability Score: 25.8%

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Image	Model / Review	Price	Weight	Height	Display
1. 72%	GMK EVO-X1 AMD Ryzen AI 9 HX 370 ⎘ AMD Radeon 890M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: $1,099.99 List Price: 900 USD	595 g	63.2 mm	x
2. 66.1%	GMK NucBox M7 Pro AMD Ryzen 9 PRO 6950H ⎘ AMD Radeon 680M ⎘ 32 GB Memory	Amazon: $459.98 List Price: 440 USD	621 g	58.4 mm	x
3. 67.3%	GMK NucBox K9 Intel Core Ultra 5 125H ⎘ Intel Arc 7-Core iGPU ⎘ 32 GB Memory, 1024 GB SSD	Amazon: $599.96 List Price: 560 USD	528 g	47 mm	x
4. 77.1%	Beelink SER9 AMD Ryzen AI 9 HX 370 ⎘ AMD Radeon 890M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: $999.00 List Price: 1000 USD	814 g	44.7 mm	x
5. 75.3%	Asus NUC 14 Pro+ Intel Core Ultra 9 185H ⎘ Intel Arc 8-Core iGPU ⎘ 32 GB Memory, 1024 GB SSD	Amazon: 1. $909.00 ASUS NUC 14 Pro AI Mini Pc, ... 2. $593.66 ASUS NUC 14 Pro Slim Barebon... 3. $1,669.99 ASUS NUC 14 Pro+ NUC14RVSU9 ... List Price: 1250 EUR	622 g	41 mm	x
6. 79%	BOSGAME M2 AMD Ryzen 9 7940HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory	Amazon: $699.00 List Price: 600 USD	819 g	51 mm	x

Cinebench 2024 CPU Multi Core in comparison
Asus ExpertCenter PN42-BBN200MV (min) N200, UHD Graphics Xe 750 32EUs	91
...
Minisforum EliteMini AI370 Ryzen AI 9 HX 370, Radeon 890M	1135
Razer Blade 16 Early 2023 i9-13950HX, NVIDIA GeForce RTX 4080 Laptop GPU	1138
Razer Blade 16 Early 2023 i9-13950HX, NVIDIA GeForce RTX 4080 Laptop GPU	1138
GMK EVO-X1 Ryzen AI 9 HX 370, Radeon 890M	1139
HP OmniBook Ultra 14 Ryzen AI 9 HX 375, Radeon 890M	1162
Asus TUF Gaming A14 FA401WV-WB94 Ryzen AI 9 HX 370, NVIDIA GeForce RTX 4060 Laptop GPU	1165
Dell G16, i7-13650HX, RTX 4060 i7-13650HX, NVIDIA GeForce RTX 4060 Laptop GPU	1176
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

GMKtec EVO-X1 mini PC 评测：采用 Oculink 和 Ryzen AI 9 的全新盒式设计

体积小、速度快、声音大。

结论 - 采用可堆叠外形的现代 AMD Zen 5

Pros

Cons

价格和供应情况

可能的替代品比较

Table of Contents

规格

案例

尺寸比较

连接性

交流

维护

可持续性

配件和保修

性能

测试条件

处理器

Cinebench R15 Multi Loop

系统性能

DPC 延迟

存储设备

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

图形处理器性能

游戏性能

Cyberpunk 2077 ultra FPS Chart

排放量

系统噪音

温度

压力测试

能源管理

耗电量

Power Consumption Cyberpunk / Stress Test

Power Consumption external Monitor

笔记本检查评级

Transparency

3DMark 11 Performance		14855 points
3DMark Cloud Gate Standard Score		39149 points
3DMark Fire Strike Score		8896 points
3DMark Time Spy Score		4017 points
Help

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
MSI Summit A16 AI Plus A3HMTG Ryzen AI 9 365, Radeon 880M	14646
MSI Prestige A16 AI+ A3HMG-036 Ryzen AI 9 365, Radeon 880M	14703
HP OmniBook Ultra 14 Ryzen AI 9 HX 375, Radeon 890M	14816
GMK EVO-X1 Ryzen AI 9 HX 370, Radeon 890M	14855
Lenovo Yoga Pro 7 14ASP G9 Ryzen AI 9 365, Radeon 880M	14856
Asus ROG Flow Z13 GZ301ZE i9-12900H, GeForce RTX 3050 Ti Laptop GPU	14864
MSI Bravo 15 B5DD-010US R5 5600H, Radeon RX 5500M	14867
...
(max) R7 9800X3D, GeForce RTX 5090	82642

	GMK EVO-X1 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	GMK NucBox M7 Pro Radeon 680M, R9 PRO 6950H	GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	Asus NUC 14 Pro+ Arc 8-Core, Ultra 9 185H, Samsung PM9A1a MZVL21T0HDLU	BOSGAME M2 Radeon 780M, R9 7940HS
Noise		-4%	-4%	15%	-1%	-1%
off / environment *	23.3	23 1%	23 1%	23.2 -0%	24.6 -6%	23 1%
Idle Minimum *	27.8	35.9 -29%	29.8 -7%	26.6 4%	24.7 11%	31.5 -13%
Idle Average *	30.3	36.7 -21%	35.7 -18%	26.8 12%	29.6 2%	32.3 -7%
Idle Maximum *	30.4	36.7 -21%	35.7 -17%	26.8 12%	29.8 2%	34.9 -15%
Load Average *	44.6	38.4 14%	41.9 6%	33.4 25%	45.7 -2%	39 13%
Cyberpunk 2077 ultra *	44.2	38.7 12%	43.8 1%	34.6 22%	47.7 -8%	40.3 9%
Load Maximum *	46.1	39.8 14%	44 5%	33.8 27%	47.4 -3%	42.5 8%

	CPU 平均时钟 (GHz)	GPU 时钟 (MHz)	CPU 平均温度 (°C)
系统闲置	--	--	26
Prime95 压力	2.9	--	67
Prime95 + FurMark Stress	2.3	1583	68
赛博朋克 2077》压力	0.8	2249	65
